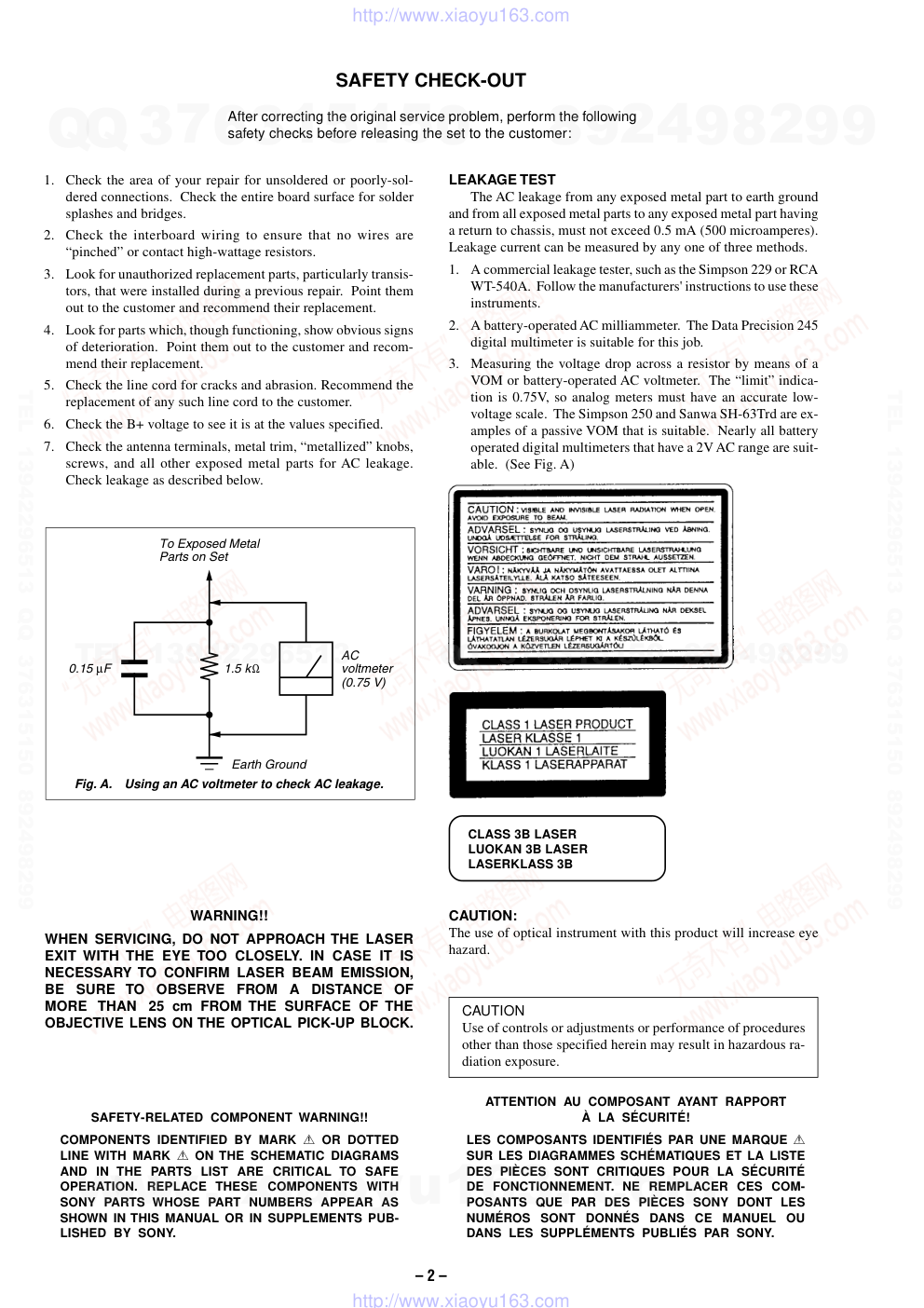

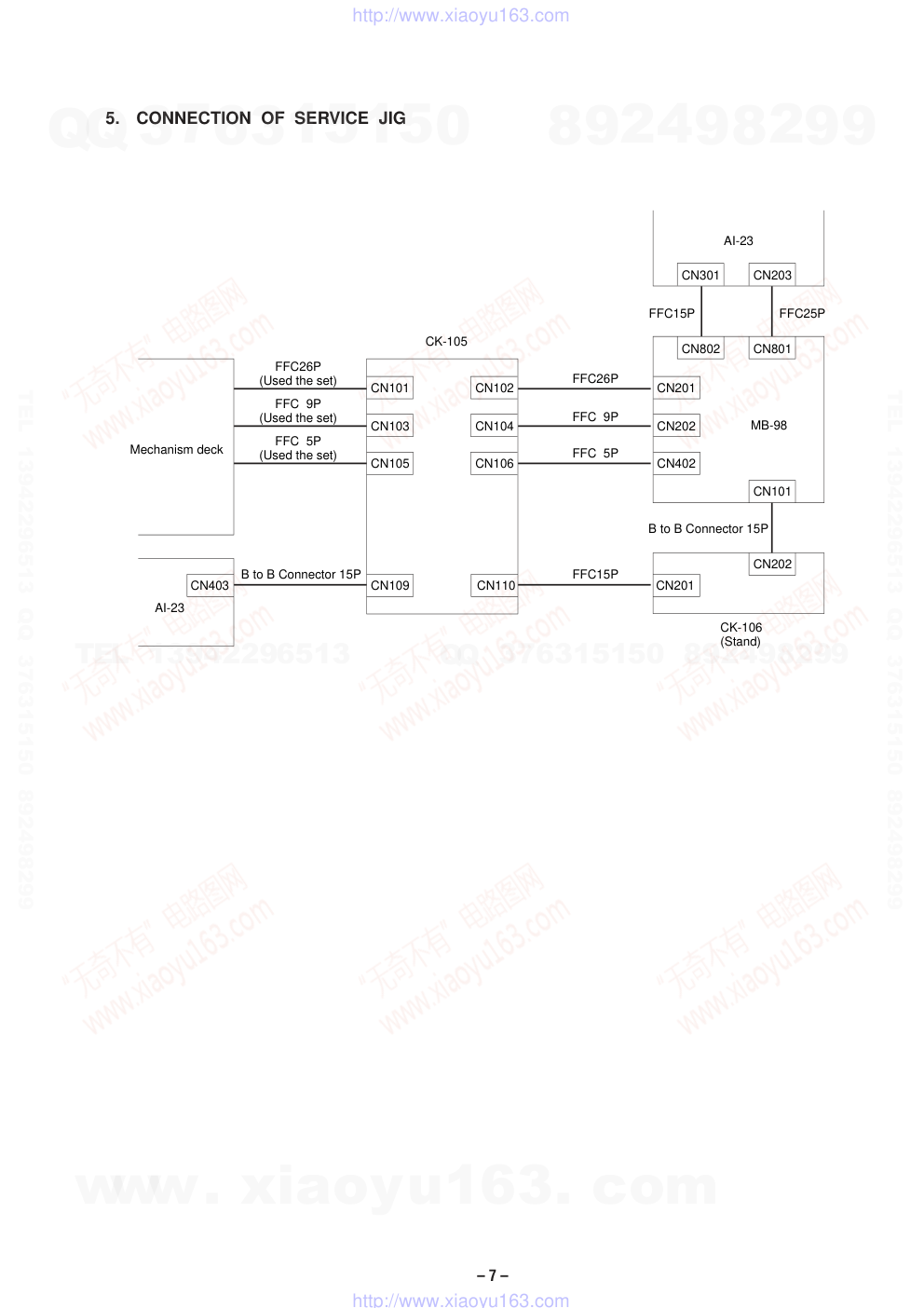

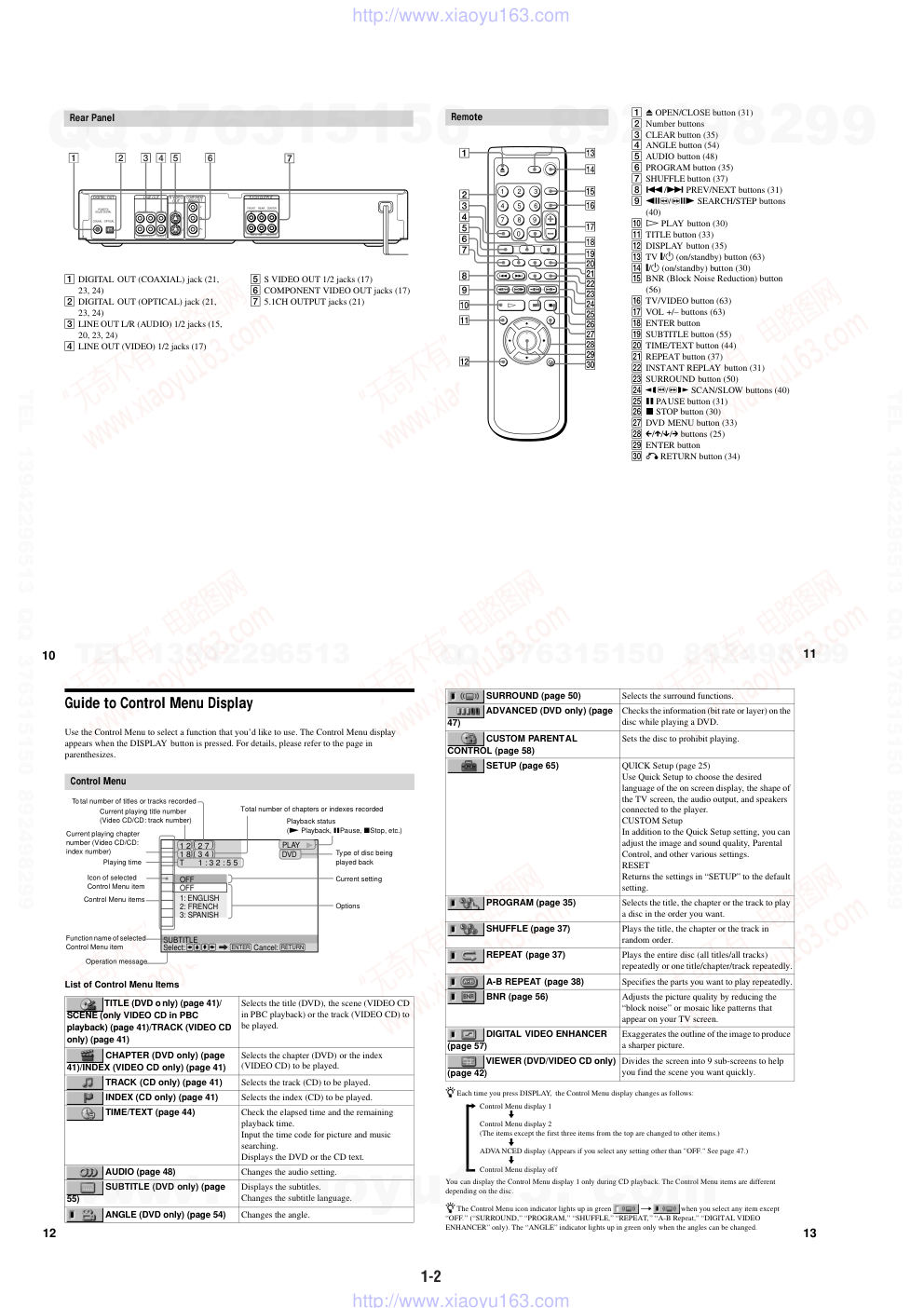

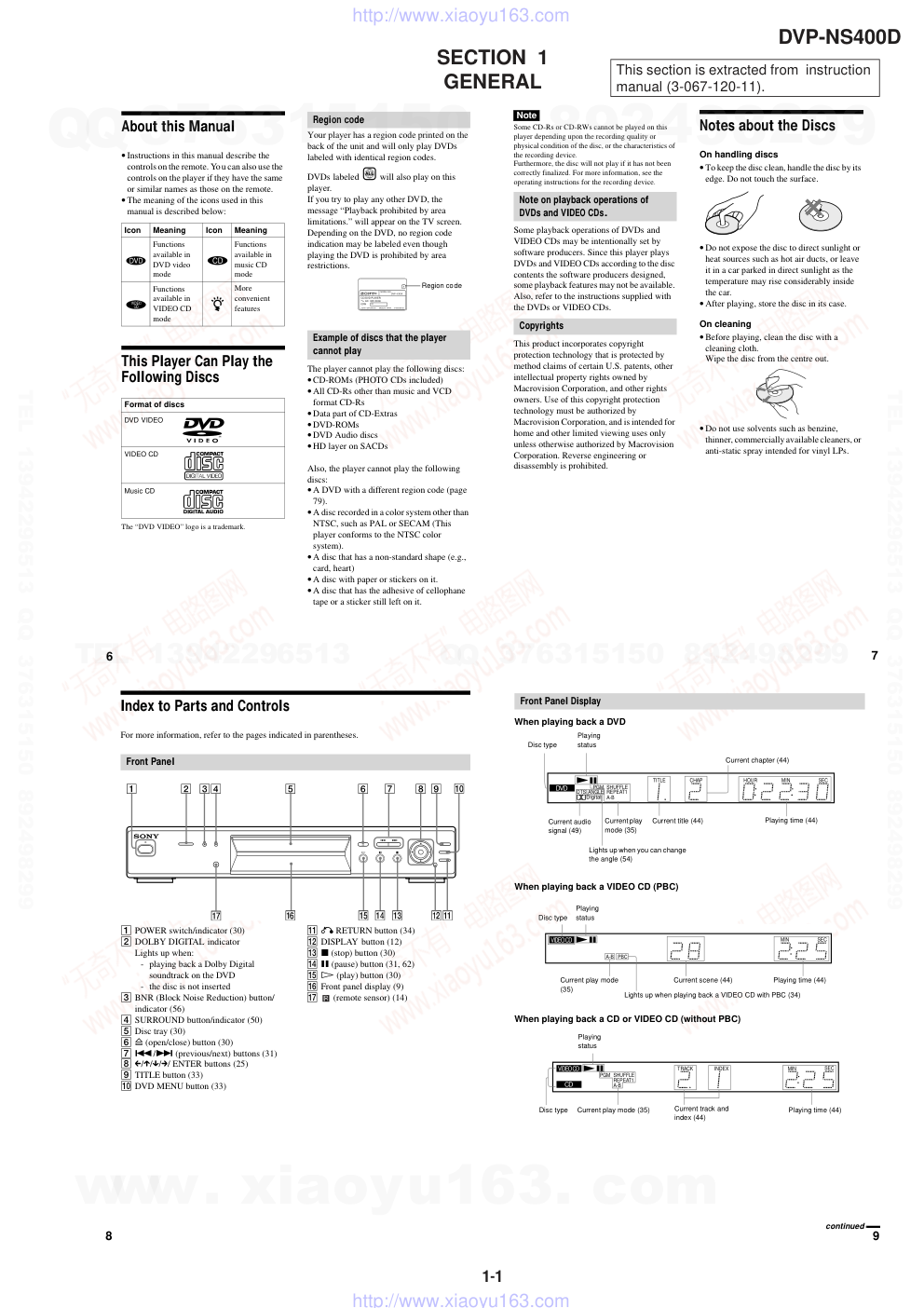

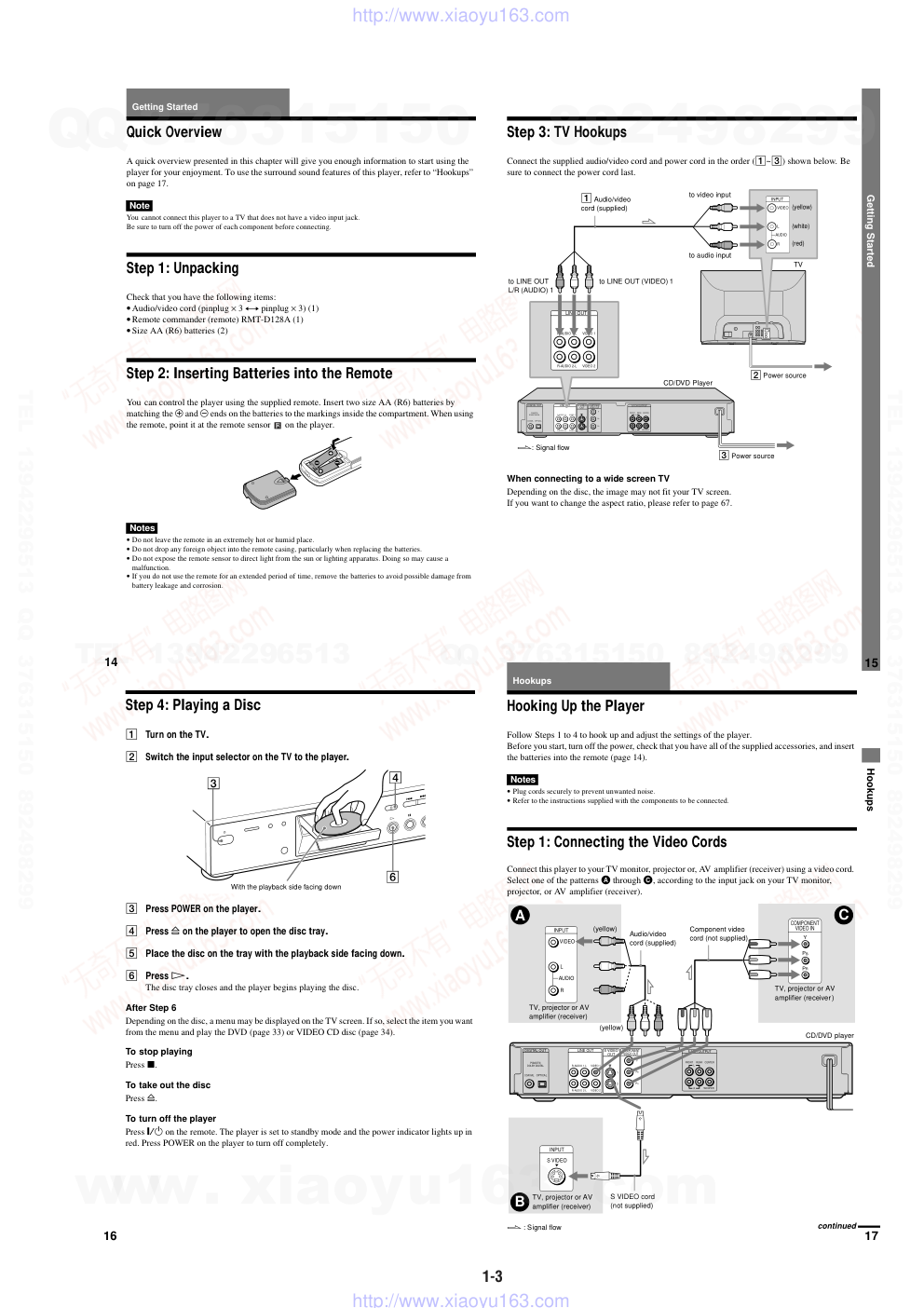

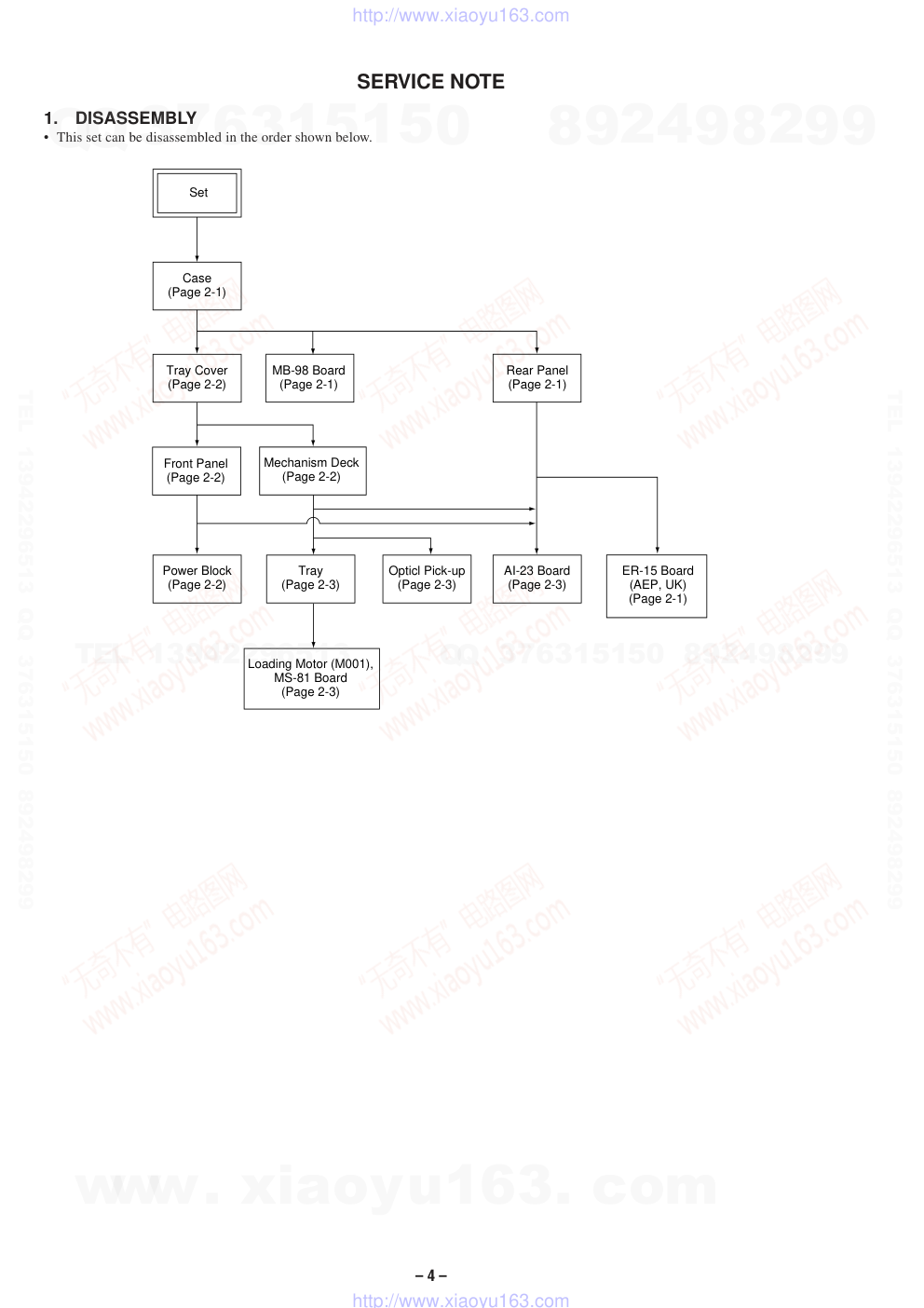

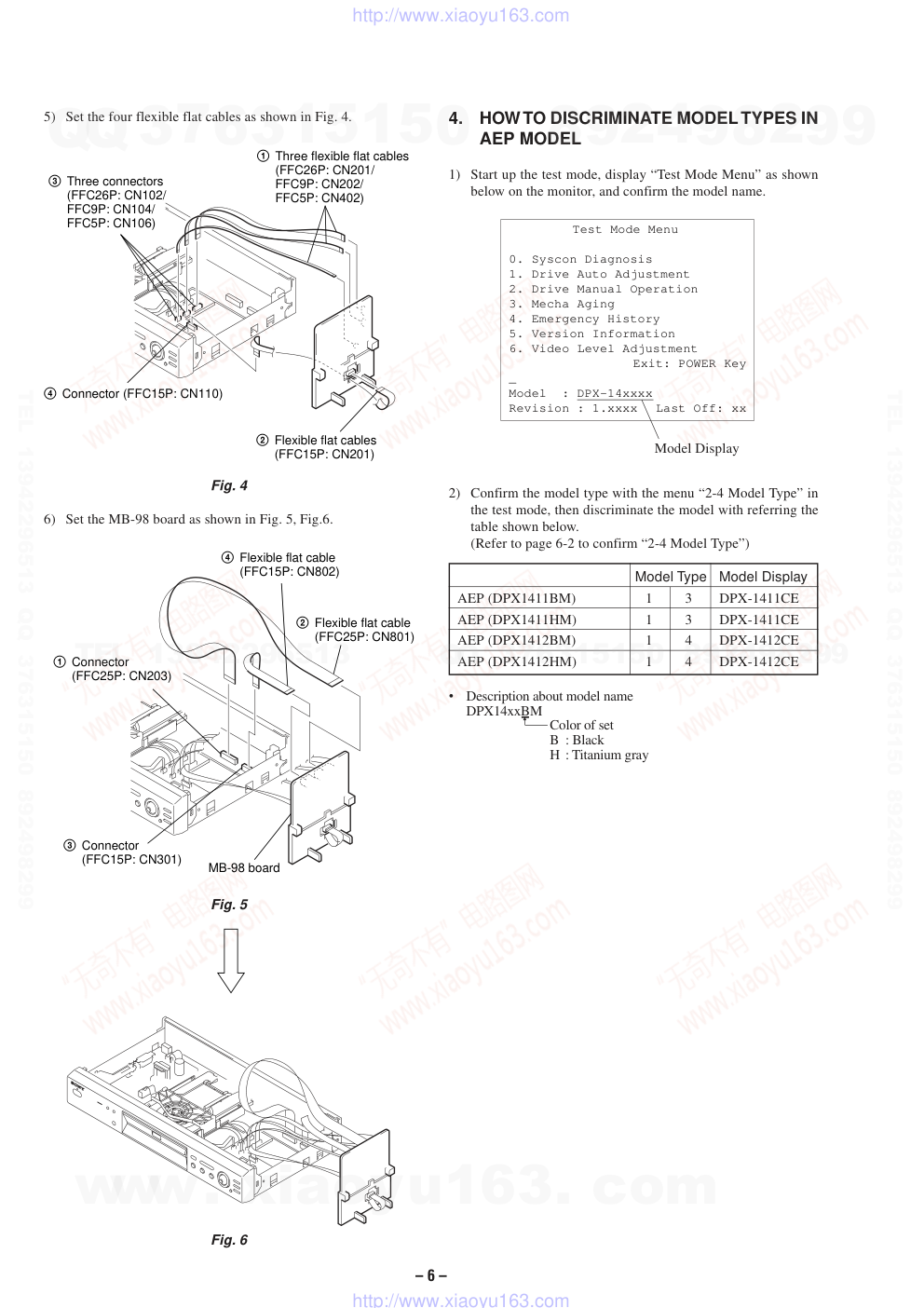

SERVICE MANUAL US Model Canadian Model AEP Model UK Model E Model Brazil Model Argentina Model Mexico Model CD/DVD PLAYER DVP-NS400D RMT-D128A/D128P SPECIFICATIONS • Audio/video cord (pinplug × 3 y pinplug × 3) (1) • Remote commander (remote) RMT-D128A (1) (US, CND, E, MX, AR, BR) RMT-D128P (1) (AEP, UK) • Size AA • Abbreviation AR : Argentina BR : Brazilian CND : Canadian MX : Mexican (R6) batteries (2) System Laser Semiconductor laser Signal format system NT PAL (AEP, UK) SC Audio characteristics Frequency response DVD (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB) DVD (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB) CD: 2 Hz to 20 kHz (±0.5 dB) Signal-to-noise ratio (S/N ratio) 115 dB (LINE OUT L/R (AUDIO) jacks only) Harmonic distortion 0.003 % Dynamic range DVD: 103 dB CD: 99 dB Wow and flutter Less than detected value (± 0.001% W PEAK) Outputs Jack name Jack type Maximum output level Load impedance LINE OUT L/R (AUDIO) Phono jack 2 Vrms (at 50 kilohms) Over 10 kilohms DIGITAL OUT (OPTICAL) Optical output jack -18 dBm Wave length: 660 nm DIGITAL OUT (COAXIAL) Phono jack 0.5 VP-P 75 ohms terminated LINE OUT (VIDEO) Phono jack 1.0 VP-P 75 ohms, sync negative S VIDEO OUT 4-pin mini DIN Luminance signal: 1.0 VP-P Color signal: 0 0.3 (PAL) (NTSC) .286 VP-P VP-P 75 ohms, sync negative 75 ohms terminated COMPONENT VIDE (US, CND, E, MX, AR, BR) O OUT(Y, PB, PR) Phono jack Y: 1.0 VP-P PB, PR: 0.7 VP-P 75 ohms, sync negative 75 ohms 5.1CH OUTPUT Phono jack 2 Vrms (at 50 kilohms) Over 10 kilohms General Power requirements 120 V AC, 60 Hz (US, CND, MX) 110 to 240 V AC, 50/60 Hz (E, BR) 220 to 240 V AC, 50/60 Hz (AEP, UK, AR) Power consumption 13 W (US, CND, E, MX, AR, BR) 14 W (AEP, UK) Dimensions (approx.) 430 × 74 × 256 mm (17 × 3 × 101/8 in.) (w/h/d) incl. projecting parts Mass (approx.) 2.7 kg (5lb) Operating temperature 5 °C to 35 °C (41 °F to 95 °F) Operating humidity 25 % to 80 % Supplied accessories Specifications and design are subject to change without notice. Photo: Black type www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION: The use of optical instrument with this product will increase eye hazard. Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers' instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indica- tion is 0.75V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suit- able. (See Fig. A) 1. Check the area of your repair for unsoldered or poorly-sol- dered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recom- mend their replacement. 5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the customer. 6. Check the B+ voltage to see it is at the values specified. 7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: CLASS 3B LASER LUOKAN 3B LASER LASERKLASS 3B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS Section Title Page Section Title Page Service Note ............................................................................ 4 1. GENERAL Getting Started .............................................................. 1-3 Hookups ........................................................................ 1-3 Playing Discs ................................................................. 1-7 Searching for a Scene................................................... 1-9 Viewing Information About the Disc .............................. 1-10 Sound Adjustments ....................................................... 1-11 Enjoying Movies ............................................................ 1-13 Using Various Additional Functions .............................. 1-14 Settings and Adjustments ............................................. 1-15 Additional Information ................................................... 1-18 2. DISASSEMBLY 2-1. Case Removal ............................................................... 2-1 2-2. MB-98 Board Removal .................................................. 2-1 2-3. Rear Panel Removal (Except AEP, UK) ........................ 2-1 2-4. Rear Panel, ER-15 Board Removal (AEP, UK) ............. 2-1 2-5. Tray Cover Removal ...................................................... 2-2 2-6. Front Panel Removal ..................................................... 2-2 2-7. Power Block Removal ................................................... 2-2 2-8. Mechanism Deck Removal............................................ 2-2 2-9. AI-23 Board Removal .................................................... 2-3 2-10. Tray Removal ................................................................. 2-3 2-11. Loading Motor (M001), MS-81 Board Removal ............ 2-3 2-12. Optical Pick-up Removal ............................................... 2-3 2-13. Internal Views ................................................................ 2-4 2-14. Circuit Boards Location ................................................. 2-5 3. BLOCK DIAGRAMS 3-1. Overall Block Diagram................................................... 3-1 3-2. RF/Servo Block Diagram ............................................... 3-3 3-3. Signal Processor Block Diagram .................................. 3-5 3-4. System Control Block Diagram ..................................... 3-7 3-5. Video Block Diagram ..................................................... 3-9 3-6. Audio Block Diagram ..................................................... 3-11 3-7. Interface Control Block Diagram ................................... 3-13 3-8. Power 1 Block Diagram ................................................. 3-15 3-9. Power 2 Block Diagram ................................................. 3-17 3-10. Power 3 Block Diagram ................................................. 3-19 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. Frame Schematic Diagram............................................ 4-3 4-2. Printed Wiring Boards and Schematic Diagrams ......... 4-5 MS-81 (LOADING) Printed Wiring Board and Schematic Diagram ....................................................... 4-5 MB-98 Printed Wiring Board ......................................... 4-7 MB-98 (RF AMP, SERVO) Schematic Diagram ............ 4-11 MB-98 (ARP, SERVO DSP) Schematic Diagram .......... 4-13 MB-98 (AV DECODER) Schematic Diagram ................ 4-15 MB-98 (BNR) Schematic Diagram ................................ 4-17 MB-98 (DRIVE) Schematic Diagram ............................ 4-19 MB-98 (SYSTEM CONTROL) Schematic Diagram ....................................................... 4-21 MB-98 (CLOCK GENERATOR) Schematic Diagram ....................................................... 4-23 MB-98 (AUDIO DSP) Schematic Diagram .................... 4-25 MB-98 (D/A CONVERTER) Schematic Diagram .......... 4-27 AI-23 Printed Wiring Board ........................................... 4-29 AI-23 (VIDEO BUFFER) Schematic Diagram ............... 4-31 AI-23 (AUDIO AMP) Schematic Diagram ..................... 4-33 AI-23 (5.1CH AUDIO AMP) Schematic Diagram .......... 4-35 AI-23 (IF CON) Schematic Diagram ............................. 4-37 ER-15 Printed Wiring Board (AEP, UK) ........................ 4-39 ER-15 (EURO AV) Schematic Diagram (AEP, UK)....... 4-41 HS13S0E Printed Wiring Board (AEP, UK, AR) ........... 4-43 HS13S0E Schematic Diagram (AEP, UK, AR) ............. 4-45 HS13S0F Printed Wiring Board (E, BR) ....................... 4-47 HS13S0F Schematic Diagram (E, BR) ......................... 4-49 HS13S0U Printed Wiring Board (US, CND, MX) .......... 4-51 HS13S0U Schematic Diagram (US, CND, MX) ............ 4-53 TOP-244U Printed Wiring Board (US, CND) ................ 4-55 TOP-244U Schematic Diagram (US, CND) .................. 4-57 5. IC PIN FUNCTION DESCRIPTION 5-1. System Control Pin Function (MB-98 Board IC103) .................................................... 5-1 6. TEST MODE 6-1. General Description ...................................................... 6-1 6-2. Starting Test Mode ........................................................ 6-1 6-3. Syscon Diagnosis .......................................................... 6-1 6-4. Drive Auto Adjustment .................................................. 6-5 6-5. Drive Manual Operation ................................................ 6-7 6-6. Mecha Aging ................................................................. 6-10 6-7. Emergency History ........................................................ 6-10 6-8. Version Information ....................................................... 6-11 6-9. Video Level Adjustment ................................................ 6-11 6-10. IF Con Self Diagnostic Function ................................... 6-11 6-11. Troubleshooting ............................................................. 6-18 7. ELECTRICAL ADJUSTMENT 7-1. Power Supply Check ..................................................... 7-1 1. HS13S0E/HS13S0F/HS13S0U/TOP-244U Boards...... 7-1 7-2. Adjustment of Video System ......................................... 7-2 1. Video Level Adjustment ................................................ 7-2 2. Checking S Video Output S-Y ....................................... 7-2 3. Checking S Video Output S-C....................................... 7-2 4. Checking Component Video Output Y .......................... 7-2 5. Checking Component Video Output B-Y ...................... 7-3 6. Checking Component Video Output R-Y ...................... 7-3 7. Checking RGB Output R ............................................... 7-3 8. Checking RGB Output G ............................................... 7-3 9. Checking RGB Output B ............................................... 7-4 7-3. Adjustment Related Parts Arrangement ....................... 7-6 8. REPAIR PARTS LIST 8-1. Exploded Views ............................................................. 8-1 8-1-1. Case Assembly ........................................................ 8-1 8-1-2. Chassis Assembly .................................................... 8-3 8-1-3. Mechanism Deck Assembly ..................................... 8-5 8-2. Electrical Parts List ....................................................... 8-6 • Abbreviation AR : Argentina BR : Brazilian CND : Canadian MX : Mexican www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SERVICE NOTE 1. DISASSEMBLY • This set can be disassembled in the order shown below. Set Case (Page 2-1) Tray Cover (Page 2-2) Front Panel (Page 2-2) MB-98 Board (Page 2-1) ER-15 Board (AEP, UK) (Page 2-1) Tray (Page 2-3) Loading Motor (M001), MS-81 Board (Page 2-3) Opticl Pick-up (Page 2-3) AI-23 Board (Page 2-3) Power Block (Page 2-2) Mechanism Deck (Page 2-2) Rear Panel (Page 2-1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 1) Remove the case from the set. (Refer to 2-1) 2) Remove the MB-98 board. (Refer to 2-1) 3) Set the stand (with CK-106 board) as shown in Fig. 2. Fig. 2 4) Set the Jig A board as shown in Fig. 3. Fig. 3 2. DISC REMOVAL PROCEDURE (at POWER OFF) 1) Insert a tapering driver into the aperture of the unit bottom, and move the lever of chuck cam in the direction of the arrow A. (See Fig. 1) 2) Draw out the tray in the direction of the arrow B, and remove a disc. (See Fig. 1) Fig. 1 3. HOW TO SERVICE MB-98 BOARD • Jig (J-6090-107-A) Extension cable Tray Lever of chuck cam Aperture B A CK-105 board Stand (with CK-106 Board) Nine flexible flat cables FFC 5P (EXCEPT DVP-NC600), FFC 9P, FFC 15P, FFC26P, FFC 9P (DVP-NS500P/NS700P), FFC 15P (DVP-NS400D), FFC 25P (EXCEPT DVP-NS300 J model), FFC 29P (DVP-NS300 J model) 1 MB-98 board 2 Stand (with CK-106 board) 3 Connector (CN101) 4 Two screws (B3) 4 Connector (CN109) 1 CK-105 board 3 Claw 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 5) Set the four flexible flat cables as shown in Fig. 4. Fig. 4 6) Set the MB-98 board as shown in Fig. 5, Fig.6. Fig. 5 Fig. 6 4 Connector (FFC15P: CN110) 2 Flexible flat cables (FFC15P: CN201) 3 Three connectors (FFC26P: CN102/ FFC9P: CN104/ FFC5P: CN106) 1 Three flexible flat cables (FFC26P: CN201/ FFC9P: CN202/ FFC5P: CN402) 1 Connector (FFC25P: CN203) 3 Connector (FFC15P: CN301) 2 Flexible flat cable (FFC25P: CN801) 4 Flexible flat cable (FFC15P: CN802) MB-98 board 4. HOW TO DISCRIMINATE MODEL TYPES IN AEP MODEL 1) Start up the test mode, display “Test Mode Menu” as shown below on the monitor, and confirm the model name. 2) Confirm the model type with the menu “2-4 Model Type” in the test mode, then discriminate the model with referring the table shown below. (Refer to page 6-2 to confirm “2-4 Model Type”) Model Type Model Display AEP (DPX1411BM) 1 3 DPX-1411CE AEP (DPX1411HM) 1 3 DPX-1411CE AEP (DPX1412BM) 1 4 DPX-1412CE AEP (DPX1412HM) 1 4 DPX-1412CE • Description about model name DPX14xxBM Color of set B : Black H : Titanium gray Model Display Test Mode Menu 0. Syscon Diagnosis 1. Drive Auto Adjustment 2. Drive Manual Operation 3. Mecha Aging 4. Emergency History 5. Version Information 6. Video Level Adjustment Exit: POWER Key _ Model : DPX-14xxxx Revision : 1.xxxx Last Off: xx www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – 5. CONNECTION OF SERVICE JIG CK-105 Mechanism deck AI-23 MB-98 AI-23 CK-106 (Stand) B to B Connector 15P B to B Connector 15P FFC26P (Used the set) FFC 9P (Used the set) FFC 5P (Used the set) FFC26P FFC 9P FFC 5P FFC15P FFC15P FFC25P CN101 CN102 CN103 CN104 CN105 CN106 CN201 CN202 CN402 CN109 CN403 CN110 CN201 CN202 CN101 CN801 CN203 CN802 CN301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 SECTION 1 GENERAL This section is extracted from instruction manual (3-067-120-11). DVP-NS400D 6 About this Manual • Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote. • The meaning of the icons used in this manual is described below: This Player Can Play the Following Discs The “DVD VIDEO” logo is a trademark. Your player has a region code printed on the back of the unit and will only play DVDs labeled with identical region codes. DVDs labeled will also play on this player. If you try to play any other DVD, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions. The player cannot play the following discs: • CD-ROMs (PHOTO CDs included) • All CD-Rs other than music and VCD format CD-Rs • Data part of CD-Extras • DVD-ROMs • DVD Audio discs • HD layer on SACDs Also, the player cannot play the following discs: • A DVD with a different region code (page 79). • A disc recorded in a color system other than NTSC, such as PAL or SECAM (This player conforms to the NTSC color system). • A disc that has a non-standard shape (e.g., card, heart) • A disc with paper or stickers on it. • A disc that has the adhesive of cellophane tape or a sticker still left on it. Icon Meaning Icon Meaning Functions available in DVD video mode Functions available in music CD mode Functions available in VIDEO CD mode z More convenient features Format of discs DVD VIDEO VIDEO CD Music CD Region code Example of discs that the player cannot play ALL MODEL NO. DVP–XXXX CD/DVD PLAYER AC 00V 00Hz 00W NO. SONY CORPORATION MADE IN JAPAN 0-000-000-00 X Region code 7 Note Some CD-Rs or CD-RWs cannot be played on this player depending upon the recording quality or physical condition of the disc, or the characteristics of the recording device. Furthermore, the disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device. Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents, other intellectual property rights owned by Macrovision Corporation, and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Notes about the Discs On handling discs • To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case. On cleaning • Before playing, clean the disc with a cleaning cloth. Wipe the disc from the centre out. • Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs. Note on playback operations of DVDs and VIDEO CDs. Copyrights 8 Index to Parts and Controls For more information, refer to the pages indicated in parentheses. A POWER switch/indicator (30) 2 DOLBY DIGITAL indicator Lights up when: - playing back a Dolby Digital soundtrack on the DVD - the disc is not inserted 3 BNR (Block Noise Reduction) button/ indicator (56) 4 SURROUND button/indicator (50) 5 Disc tray (30) 6 A (open/close) button (30) 7 ./> (previous/next) buttons (31) 8 C/X/x/c/ ENTER buttons (25) 9 TITLE button (33) q; DVD MENU button (33) qa O RETURN button (34) qs DISPLAY button (12) qd x (stop) button (30) qf X (pause) button (31, 62) qg H (play) button (30) qh Front panel display (9) qj (remote sensor) (14) Front Panel 9 When playing back a DVD When playing back a VIDEO CD (PBC) When playing back a CD or VIDEO CD (without PBC) Front Panel Display DVD PGM SHUFFLE TITLE CHAP HOUR MIN SEC DTS ANGLE REPEAT1 A-B Digital Playing time (44) Disc type Playing status Current chapter (44) Current audio signal (49) Lights up when you can change the angle (54) Current play mode (35) Current title (44) VIDEO CD CD PBC MIN SEC A-B Playing status Current play mode (35) Disc type Current scene (44) Playing time (44) Lights up when playing back a VIDEO CD with PBC (34) VIDEO CD CD PGM SHUFFLE TRACK INDEX MIN SEC REPEAT1 A-B Playing time (44) Disc type Playing status Current track and index (44) Current play mode (35) continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 10 1 DIGITAL OUT (COAXIAL) jack (21, 23, 24) 2 DIGITAL OUT (OPTICAL) jack (21, 23, 24) 3 LINE OUT L/R (AUDIO) 1/2 jacks (15, 20, 23, 24) 4 LINE OUT (VIDEO) 1/2 jacks (17) 5 S VIDEO OUT 1/2 jacks (17) 6 COMPONENT VIDEO OUT jacks (17) 7 5.1CH OUTPUT jacks (21) Rear Panel LINE OUT PCM/DTS/ DOLBY DIGITAL S VIDEO OUT COMPONENT VIDEO OUT COAXIAL OPTICAL R-AUDIO 1-L VIDEO 1 Y PB PR R-AUDIO 2-L VIDEO 2 DIGITAL OUT 5.1CH OUTPUT WOOFER L R FRONT REAR CENTER 1 2 11 A Z OPEN/CLOSE button (31) B Number buttons C CLEAR button (35) D ANGLE button (54) 5 AUDIO button (48) 6 PROGRAM button (35) 7 SHUFFLE button (37) H ./> PREV/NEXT buttons (31) I c / C SEARCH/STEP buttons (40) J H PLAY button (30) K TITLE button (33) L DISPLAY button (35) M TV [/1 (on/standby) button (63) N [/1 (on/standby) button (30) O BNR (Block Noise Reduction) button (56) P TV/VIDEO button (63) Q VOL +/– buttons (63) R ENTER button S SUBTITLE button (55) T TIME/TEXT button (44) U REPEAT button (37) V INSTANT REPLAY button (31) W SURROUND button (50) X / y SCAN/SLOW buttons (40) Y X PAUSE button (31) Z x STOP button (30) wj DVD MENU button (33) wk C/X/x/c buttons (25) wl ENTER button e; O RETURN button (34) Remote 1 2 3 4 5 6 7 8 0 9 y 12 Guide to Control Menu Display Use the Control Menu to select a function that you’d like to use. The Control Menu display appears when the DISPLAY button is pressed. For details, please refer to the page in parenthesizes. List of Control Menu Items Control Menu OFF 1: ENGLISH 2: FRENCH 3: SPANISH OFF 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD Select: Cancel: SUBTITLE ENTER RETURN PLAY Current playing chapter number (Video CD/CD: index number) Playing time Total number of chapters or indexes recorded Current playing title number (Video CD/CD: track number) Options Current setting Total number of titles or tracks recorded Playback status (N Playback, XPause, xStop, etc.) Function name of selected Control Menu item Operation message Icon of selected Control Menu item Control Menu items Type of disc being played back TITLE (DVD only) (page 41)/ SCENE (only VIDEO CD in PBC playback) (page 41)/TRACK (VIDEO CD only) (page 41) Selects the title (DVD), the scene (VIDEO CD in PBC playback) or the track (VIDEO CD) to be played. CHAPTER (DVD only) (page 41)/INDEX (VIDEO CD only) (page 41) Selects the chapter (DVD) or the index (VIDEO CD) to be played. TRACK (CD only) (page 41) Selects the track (CD) to be played. INDEX (CD only) (page 41) Selects the index (CD) to be played. TIME/TEXT (page 44) Check the elapsed time and the remaining playback time. Input the time code for picture and music searching. Displays the DVD or the CD text. AUDIO (page 48) Changes the audio setting. SUBTITLE (DVD only) (page 55) Displays the subtitles. Changes the subtitle language. ANGLE (DVD only) (page 54) Changes the angle. 13 z Each time you press DISPLAY, the Control Menu display changes as follows: You can display the Control Menu display 1 only during CD playback. The Control Menu items are different depending on the disc. z The Control Menu icon indicator lights up in green when you select any item except “OFF.” (“SURROUND,” “PROGRAM,” “SHUFFLE,” “REPEAT,” “A-B Repeat,” “DIGITAL VIDEO ENHANCER” only). The “ANGLE” indicator lights up in green only when the angles can be changed. SURROUND (page 50) Selects the surround functions. ADVANCED (DVD only) (page 47) Checks the information (bit rate or layer) on the disc while playing a DVD. CUSTOM PARENTAL CONTROL (page 58) Sets the disc to prohibit playing. SETUP (page 65) QUICK Setup (page 25) Use Quick Setup to choose the desired language of the on screen display, the shape of the TV screen, the audio output, and speakers connected to the player. CUSTOM Setup In addition to the Quick Setup setting, you can adjust the image and sound quality, Parental Control, and other various settings. RESET Returns the settings in “SETUP” to the default setting. PROGRAM (page 35) Selects the title, the chapter or the track to play a disc in the order you want. SHUFFLE (page 37) Plays the title, the chapter or the track in random order. REPEAT (page 37) Plays the entire disc (all titles/all tracks) repeatedly or one title/chapter/track repeatedly. A-B REPEAT (page 38) Specifies the parts you want to play repeatedly. BNR (page 56) Adjusts the picture quality by reducing the “block noise” or mosaic like patterns that appear on your TV screen. DIGITAL VIDEO ENHANCER (page 57) Exaggerates the outline of the image to produce a sharper picture. VIEWER (DVD/VIDEO CD only) (page 42) Divides the screen into 9 sub-screens to help you find the scene you want quickly. Control Menu display 1 m Control Menu display 2 (The items except the first three items from the top are changed to other items.) m ADVA NCED display (Appears if you select any setting other than "OFF." See page 47.) m Control Menu display off , t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 14 Getting Started Quick Overview A quick overview presented in this chapter will give you enough information to start using the player for your enjoyment. To use the surround sound features of this player, refer to “Hookups” on page 17. Note You cannot connect this player to a TV that does not have a video input jack. Be sure to turn off the power of each component before connecting. Step 1: Unpacking Check that you have the following items: • Audio/video cord (pinplug × 3 y pinplug × 3) (1) • Remote commander (remote) RMT-D128A (1) • Size AA (R6) batteries (2) Step 2: Inserting Batteries into the Remote You can control the player using the supplied remote. Insert two size AA (R6) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player. Notes • Do not leave the remote in an extremely hot or humid place. • Do not drop any foreign object into the remote casing, particularly when replacing the batteries. • Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction. • If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion. 15 Getting Started Step 3: TV Hookups Connect the supplied audio/video cord and power cord in the order (1~3) shown below. Be sure to connect the power cord last. When connecting to a wide screen TV Depending on the disc, the image may not fit your TV screen. If you want to change the aspect ratio, please refer to page 67. PCM/DTS/ DOLBY DIGITAL S VIDEO OUT COMPONENT VIDEO OUT COAXIAL OPTICAL R-AUDIO 1-L VIDEO 1 Y PB PR R-AUDIO 2-L VIDEO 2 DIGITAL OUT LINE OUT 5.1CH OUTPUT WOOFER L R FRONT REAR CENTER 1 2 R-AUDIO 1-L VIDEO 1 R-AUDIO 2-L VIDEO 2 LINE OUT VIDEO AUDIO INPUT L R (yellow) (white) (red) 3 Power source CD/DVD Player TV 2 Power source l: Signal flow to video input to LINE OUT L/R (AUDIO) 1 1 Audio/video cord (supplied) to audio input to LINE OUT (VIDEO) 1 16 Step 4: Playing a Disc 1 Turn on the TV. 2 Switch the input selector on the TV to the player. 3 Press POWER on the player. 4 Press A on the player to open the disc tray. 5 Place the disc on the tray with the playback side facing down. 6 Press H. The disc tray closes and the player begins playing the disc. After Step 6 Depending on the disc, a menu may be displayed on the TV screen. If so, select the item you want from the menu and play the DVD (page 33) or VIDEO CD disc (page 34). To stop playing Press x. To take out the disc Press A. To turn off the player Press ^/1 on the remote. The player is set to standby mode and the power indicator lights up in red. Press POWER on the player to turn off completely. With the playback side facing down Hookups 17 Hookups Hooking Up the Player Follow Steps 1 to 4 to hook up and adjust the settings of the player. Before you start, turn off the power, check that you have all of the supplied accessories, and insert the batteries into the remote (page 14). Notes • Plug cords securely to prevent unwanted noise. • Refer to the instructions supplied with the components to be connected. Step 1: Connecting the Video Cords Connect this player to your TV monitor, projector or, AV amplifier (receiver) using a video cord. Select one of the patterns A through C, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). INPUT S VIDEO B PCM/DTS/ DOLBY DIGITAL S VIDEO OUT COMPONENT VIDEO OUT COAXIAL OPTICAL R-AUDIO 1-L VIDEO 1 Y PB PR R-AUDIO 2-L VIDEO 2 DIGITAL OUT LINE OUT PR PB Y COMPONENT VIDEO IN C AUDIO INPUT L R A 5.1CH OUTPUT WOOFER L R FRONT REAR CENTER 1 2 VIDEO CD/DVD player TV, projector or AV amplifier (receiver) l : Signal flow Audio/video cord (supplied) (yellow) (yellow) Component video cord (not supplied) S VIDEO cord (not supplied) TV, projector or AV amplifier (receiver) TV, projector or AV amplifier (receiver) continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 18 Connect the yellow plug of the audio/video cord (supplied) to the yellow (video) jacks. You will enjoy standard quality images. Use the red and white plugs to connect to the audio input jacks (page 20). Connect the S VIDEO cord (not supplied). You will enjoy standard quality images. Connect the component via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images. Note Do not connect the player to a VCR so that the signals of the player are passed to the TV via the VCR. If you do so, you may not receive a clear image on the TV screen. A If you are connecting to a video input jack B If you are connecting to an S VIDEO input jack C If you are connecting to a monitor, projector or, AV amplifier (receiver) having component video input jacks (Y, PB, PR) Yellow (Video) White (L) Red (R) Ye llow (Video) White (L) Red (R) VCR CD/DVD player TV Connect directly Hookups 19 Step 2: Connecting the Audio Cords Refer to the chart below to select the connection that best suits your system. The surround effects you will enjoy depend on the connections and components you use. Select one of the following connections, through . * Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights reserved. ** “DTS” is a registered trademark of Digital Theater Systems, Inc. Select a connection Connection Components to be connected (page 20) • TV (stereo) (page 21) • AV amplifier (receiver) having 5.1ch input jacks • 4 speakers (front L and R, rear L and R) • 6 speakers (front L and R, center, rear L and R, subwoofer) (page 21) • AV amplifier (receiver) having a Dolby* Digital or DTS** decoder and a digital input jack • 6 speakers (front L and R, center, rear L and R, subwoofer) (page 23) • Stereo amplifier (receiver) (having L and R audio input jacks only, or having a digital input jack) • 2 speakers (front L and R) (page 23) • MD deck/DAT deck (page 24) • AV amplifier (receiver) with a Dolby Surround (Pro Logic) decoder (having L and R audio input jacks only, or having a digital input jack) • 3 speakers (front L and R, and rear (monaural)) • 6 speakers (front L and R, center, rear L and R, subwoofer) A D A B B C C D continued 20 This connection will use your TV speakers for sound. xRecommended surround sound effects for this connection. •TVS DYNAMIC (page 50) •TVS WIDE (page 50) The yellow plug is used for video signals (page 17). Connecting to your TV A PCM/DTS/ DOLBY DIGITAL S VIDEO OUT COMPONENT VIDEO OUT COAXIAL OPTICAL R-AUDIO 1-L VIDEO 1 Y PB PR R-AUDIO 2-L VIDEO 2 DIGITAL OUT LINE OUT R-AUDIO 1-L VIDEO 1 R-AUDIO 2-L VIDEO 2 LINE OUT 5.1CH OUTPUT WOOFER L R FRONT REAR CENTER 1 2 A TV l : Signal flow (white) Audio/video cord (supplied) to audio input (yellow) (white) (red) (yellow) (red) CD/DVD player Hookups 21 If your AV amplifier (receiver) has 5.1 channel inputs, use . If you want to use the Dolby Digital or DTS decorder function on your AV amplifier (receiver), connect to its digital jack using . With the following connections, you can enjoy a more realistic audio presence in the comfort of your own home. : Connecting to the 5.1ch input jacks You can enjoy 5.1ch surround sound using the internal Dolby Digital decoder of this player. You can also enjoy Dolby Surround (Pro Logic) sounds, or surround sounds using various SURROUND modes (page 50). xRecommended surround sound effects for this connection. When 6 speakers are connected. •Dolby Digital (5.1ch) (page 79) (Set “SURROUND” to “OFF.”) : Connecting to the digital input jack This connection will allow you to use the Dolby Digital or DTS decoder function of your AV amplifier (receiver). You are not able to enjoy the SURROUND sound effects of the player. xRecommended surround sound effects using this connection with your amplifier (receiver). •Dolby Digital (5.1ch) (page 79) •DTS (5.1ch) (page 79) Note After you have completed the connection, be sure to set “DOLBY DIGITAL” to “DOLBY DIGITAL” (page 27). If your AV amplifier (receiver) has a DTS decoder, set “DTS” to “ON” (page 27). Otherwise, no sound or a loud noise will come from the speakers. Connecting to an AV amplifier (having 5.1ch input jacks or a digital input jack) and 4 to 6 speakers B B-1 B-2 B-1 B-2 continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 22 z To enhance the surround sound effects: •Use high-performance speakers. •Use front, rear, and center speakers having the same size and performance. •Place a subwoofer between the right and left front speakers. •Refer to the operating instructions of the AV receiver (amplifier) for correct speaker setting location. 5.1CH OUTPUT WOOFER L R PCM/DTS/ DOLBY DIGITAL S VIDEO OUT COMPONENT VIDEO OUT COAXIAL OPTICAL R-AUDIO 1-L VIDEO 1 Y PB PR R-AUDIO 2-L VIDEO 2 DIGITAL OUT LINE OUT 1 2 FRONT REAR CENTER PCM/DTS/ DOLBY DIGITAL COAXIAL DIGITAL OUT B-2 B-1 OPTICAL 5.1CH OUTPUT WOOFER L FRONT REAR CENTER R Rear (L) AV amplifier (receiver) having 5.1ch inputs or/and a decoder Subwoofer Center Stereo audio cord (not supplied) Coaxial digital cord (not supplied) Monoural audio cord (not supplied) [Speakers] CD/DVD player [Speakers] Front (L) Optical digital cord (not supplied) Remove jack cap before connecting to coaxial or optical digital input to audio input l: Signal flow Rear (R) Front (R) or or Hookups 23 This connection will use your 2 front speakers connected to your stereo amplifier (receiver) for sound. If the stereo amplifier (receiver) has audio input jacks L and R only, use . If the amplifier (receiver) has a digital input jack, use . When connecting to an MD deck or a DAT deck, use . In this case, you can also connect the player directly to the MD deck or DAT deck with using your stereo amplifier (receiver). xRecommended surround sound effects for the connection only. •TVS STANDARD (page 50) z In connection , you can use the supplied audio/video cord instead of using a separate audio cord. z To realize better surround sound effects, make sure that your listening position is in between your speakers. Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to an MD deck or DAT deck C C-1 C-2 C-2 C-1 C-1 PCM/DTS/ DOLBY DIGITAL S VIDEO OUT COMPONENT VIDEO OUT COAXIAL OPTICAL R-AUDIO 1-L VIDEO 1 Y PB PR R-AUDIO 2-L VIDEO 2 DIGITAL OUT LINE OUT PCM/DTS/ DOLBY DIGITAL COAXIAL OPTICAL DIGITAL OUT C-2 5.1CH OUTPUT WOOFER L R FRONT REAR CENTER 1 2 C-1 VIDEO 1 R-AUDIO 2-L VIDEO 2 LINE OUT R-AUDIO 1-L l: Signal flow CD/DVD player or Stereo amplifier (receiver) MD deck/DAT deck Front (L) Front (R) [Speakers] (white) (red) (white) (red) Coaxial digital cord (not supplied) Stereo audio cord (not supplied) to audio input or Optical digital cord (not supplied) Remove jack cap before connecting to coaxial or optical digital input continued 24 This connection will allow you to enjoy the surround effects of the Pro Logic decoder on your amplifier (receiver). If you have an AV amplifier (receiver) equipped with a Dolby Digital or DTS decoder, refer to page 21. You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi- channel audio (Dolby Digital) discs. Pro Logic uses a minimum of 3 speakers (front L and R, and rear (monaural)). The surround effects are enhanced if 6 speakers (front L and R, center, rear L and R, and subwoofer) are used. If your amplifier (receiver) has L and R audio input jacks only, use . If your amplifier (receiver) has a digital input jack, use . xRecommended surround sound effects using this connection with your amplifier (receiver). •Dolby Surround (Pro Logic) (page 79) z For correct speaker setting location, please refer to the operating instructions of the amplifier (receiver). ∗When connecting 6 speakers, replace the monaural rear speaker with a center speaker, 2 rear speakers and a subwoofer. Connecting to an AV amplifier (receiver) having a Dolby Surround (Pro Logic) decoder and 3 to 6 speakers D D-1 D-2 LINE OUT PCM/DTS/ DOLBY DIGITAL S VIDEO OUT COMPONENT VIDEO OUT COAXIAL OPTICAL R-AUDIO 1-L VIDEO 1 Y PB PR R-AUDIO 2-L VIDEO 2 DIGITAL OUT PCM/DTS/ DOLBY DIGITAL COAXIAL OPTICAL DIGITAL OUT D-2 D-1 VIDEO 1 R-AUDIO 2-L VIDEO 2 LINE OUT R-AUDIO 1-L 5.1CH OUTPUT WOOFER L R FRONT REAR CENTER 1 2 CD/DVD player or Front (R) Front (L) Rear (R) Subwoofer l: Signal flow Rear (L) Dolby Surround amplifier (receiver) Rear* (mono) Stereo audio cord (not supplied) [Speakers] Coaxial digital cord (not supplied) (white) (red) to audio input or Optical digital cord (not supplied) Remove jack cap before connecting Center to coaxial or optical digital input [Speakers] (white) (red) Hookups 25 Step 3: Connecting the Power Cord Plug the player and TV power cords into an AC outlet. Do not connect the power cord of your player to the “switched” power socket of an amplifier (receiver). When you turn off the power of your amplifier (receiver) the menu setting for the player such as Playback Memory may be lost. Step 4: Quick Setup Follow the steps below to make the minimum number of base adjustments use the player. To skip an adjustment, press >. To return to the previous adjustment, press .. 1 Turn on the TV. 2 Switch the input selector on the TV to the player. 3 Press POWER on the player and press [/1 on the remote. “Press [ENTER] to run QUICK SETUP” appears at the bottom of the screen. If this message does not appear, select “QUICK” under “SETUP” in the Control Menu to run Quick Setup (page 65). 4 Press ENTER without inserting a disc. The Setup Display for selecting the language used in the on-screen display appears. 1 2 3 4 5 6 7 8 0 9 ./> X/x POWER ./> X/x ENTER ENTER [/1 LANGUAGE SETUP OSD: DVD MENU: AUDIO: SUBTITLE: FRENCH ENGLISH ENGLISH SPANISH PORTUGUESE continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 26 5 Press X/x to select a language. The player uses the language selected here to display the DVD menu and subtitle as well. 6 Press ENTER. The Setup Display for selecting the aspect ratio of the TV to be connected appears. 7 Press X/x to select the item. 8 Press ENTER. The Setup Display for selecting the type of jack used to connect your amplifier (receiver) appears. 9 Press X/x to select the item, then press ENTER. • When “NO” or “LINE OUTPUT L/R (AUDIO)” is selected, Quick Setup is finished and connections are complete. • When “DIGITAL OUTPUT” is selected, the Setup Display for “DOLBY DIGITAL” appears. • When “5.1CH OUTPUT” is selected, the Setup Display for “SPEAKER SETUP” appears. TV Type You select Page 4:3 standard TV 4:3 LETTER BOX or 4:3 PAN SCAN 67 A wide-screen TV or 4:3 standard TV with a wide-screen mode 16:9 67 SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 4:3 LETTER BOX 4:3 PAN SCAN 4:3 LETTER BOX Is this player connected to an amplifier (receiver)? Select the type of jack you are using. LINE OUTPUT L/R(AUDIO) DIGITAL OUTPUT 5.1CH OUTPUT YES NO Hookups 27 1 Press X/x to select the item. Choose the item that matches the audio connection you selected in page 21 to 24 ( through ). 2 Press ENTER. DTS is selected. 3 Press X/x to select the item. Choose the item that matches the audio connection you selected in page 21 to 24 ( through ). 4 Press ENTER. Quick Setup is finished. All connections and setup operations are complete. When DIGITAL OUTPUT is selected Audio Cord Connection Type You select Page D-PCM 71 DOLBY DIGITAL (only if the amplifier (receiver) has a Dolby Digital decoder) 71 Audio Cord Connection Type You select Page OFF 71 ON (only if the amplifier (receiver) has a DTS decode r) 71 B D DOLBY DIGITAL AUDIO SETUP AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT: DOLBY DIGITAL: OFF STANDARD DOLBY SURROUND CENTER SPEAKER EQ: FLAT ON D-PCM 48kHz/96kHz PCM: DTS: D-PCM C-2 D-2 B-2 AUDIO SETUP AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT: DOLBY DIGITAL: OFF STANDARD DOLBY SURROUND CENTER SPEAKER EQ: FLAT ON D-PCM 48kHz/96kHz PCM: DTS: OFF OFF ON B D C-2 D-2 B-2 continued 28 1 Press X/x to select the size of the center speaker. If no center speaker is connected, select “NONE.” Refer to page 72 for each selection item. 2 Press ENTER. The Setup Display for selecting the size of the rear speaker appears. 3 Press X/x to select the size. If no rear speaker is connected, select “NONE.” “SIDE” and “REAR” refer to the speakers’ position relative to your listening position. Refer to page 72 for each selection item. 4 Press ENTER. The Setup Display for selecting whether or not you have connected a subwoofer appears. 5 Press X/x to select the item. 6 Press ENTER. Quick Setup is finished. All connections and setup operations are complete. When 5.1 CH OUTPUT is selected SPEAKER SETUP SIZE: DISTANCE: BALANCE: LEVEL: OFF TEST TONE: FRONT: CENTER: SMALL LARGE NONE LARGE REAR: SUBWOOFER: NONE SPEAKER SETUP SIZE: DISTANCE: BALANCE: LEVEL: OFF TEST TONE: FRONT: CENTER: LARGE REAR: SUBWOOFER: To set, press , then . ENTER NONE LARGE(REAR) NONE LARGE SPEAKER SETUP SIZE: DISTANCE: BALANCE: LEVEL: OFF TEST TONE: FRONT: CENTER: LARGE REAR: SUBWOOFER: To set, press , then . To quit press ENTER SETUP DISPLAY NONE NONE YES LARGE(REAR) LARGE Hookups 29 Note You can directly start Quick Setup only when you run it for the first time. To run Quick Setup a second time, select “QUICK” under “SETUP” in the Control Menu (page 65). To enjoy the surround sound effects of this player or your amplifier (receiver), the following items must be set as described below for the audio connection you selected in page 21 to 24 ( through ). Each of these are the default settings and do not need to be adjusted when you first connect the player. Refer to page 65 for using the Setup Display. Audio Connection (page 21 to 24) No additional settings are needed. • If the sound distorts even when the volume is turned down, set “AUDIO ATT” to “ON” (page 70). • If “ENHANCED” or “SOFT” is selected in “CENTER SPEAKER EQ,” it makes the spoken track sound clear (page 70). • Set “48kHz/96kHz PCM” to “96kHz/24bit,” only if you connect the amplifier (receiver) that conforms to the 96 kHz sampling frequency (page 71). • If the sound distorts even when the volume is turned down, set “AUDIO ATT” to “ON” (page 70). Enjoying the surround sound effects Item You select Page DISTANCE BALANCE LEVEL Set according to the connected speakers 72 Item You select Page DOWNMIX DOLBY SURROUND 70 DIGITAL OUT ON 70 Item You select Page DOWNMIX DOLBY SURROUND 70 B D A B-1 B-2 C-2 D-2 C-1 D-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 30 Playing Discs Playing Discs Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with your disc. 1 Turn on your TV. 2 Switch the input selector on the TV to the player. When using an amplifier (receiver) Turn on the amplifier (receiver) and select the appropriate channel. 3 Press POWER on the player. The player enters standby mode and the power indicator lights up in red. 4 Press A on the player, and place a disc on the disc tray. The player automatically turns on and the power indicator lights up in green. 5 Press H. The disc tray closes, and the player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). After following Step 5 Depending on the disc, a menu may appear on the TV screen. You can play the disc interactively by following the instructions on the menu. DVD (page 33), VIDEO CD (page 34). To turn on the player Press POWER on the player. The player enters standby mode and the power indicator lights up in red. Press [/1 on the remote. The player turns on and the power indicator lights up in green. In standby mode, the player also turns on by pressing A on the player or by pressing H. To turn off the player Press [/1 on the remote. The player enters standby mode and the power indicator lights up in red. To turn off the player completely, press POWER on the player. While playing a disc, do not turn off the player by pressing POWER. Doing so may cancel the menu settings. When you turn off the player, first press x to stop playback and then press [/1 on the remote. POWER A H 1 2 3 4 5 6 7 8 0 9 Power indicator [/1 H x AUDIO x With the playback side facing down Playing Discs 31 Notes on playing DTS sound tracks on a CD • When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel decoder system must be connected to the digital jacks of the player. • Set the sound to “STEREO” using the AUDIO button when you play DTS sound tracks on a CD (page 48). • Do not play DTS sound tracks without first connecting the player to an audio component having a built-in DTS decoder. The player outputs the DTS signal via the DIGITAL OUT (OPTICAL and COAXIAL) jacks even if “DTS” in “AUDIO SETUP” is set to “OFF” in the Setup Display (page 71), and may affect your ears or cause your speakers to be damaged. Notes on playing DVDs with a DTS sound track • DTS audio signals are output only through the DIGITAL OUT (OPTICAL and COAXIAL) jack. • If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to “ON” in “AUDIO SETUP” (page 71). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged. • When you play a DVD with DTS sound tracks, set “DTS” to “ON” in “AUDIO SETUP” (page 71). z The Instant Replay function is useful when you want to review a scene or dialog that you missed. Note You may not be able to use the Instant Replay function with some scenes. Additional operations To Operation Stop Press x Pause Press X Resume play after pause Press X or H Go to the next chapter, track or scene in continuous play mode Press > Go back to the preceding chapter, track or scene in continuous play mode Press . Stop play and remove the disc Press Z Replay the last viewed scene (DVD only) Press INSTANT REPLAY 1 2 3 4 5 6 7 8 0 9 H ./> Z X x INSTANT REPLAY 32 Resuming Playback from the Point Where You Stopped the Disc (Resume Play) When you stop the disc, the player remembers the point where you pressed x and RESUME appears on the front panel display. As long as you do not open the disc tray, Resume Play works even if the player enters standby mode by pressing [/1. 1 While playing a disc, press x to stop playback. RESUME appears on the front panel display and you can restart the disc from the point where you stopped the disc. If RESUME does not appear, Resume Play is not available. 2 Press H. The player starts playback from the point where you stopped the disc in Step 1. z To play from the beginning of the disc, press x twice, then press H. Notes • Depending on where you stopped the disc, the player may not resume playback from exactly the same point. • The point where you stopped playing is cleared when: you turn the power off by pressing POWER on the player. you change the play mode. you change the settings on the Setup Display. x H Playing Discs 33 Using the DVD’s Menu Some discs have a “title menu” or a “DVD menu”. On some DVDs, this may simply be called a “menu” or “title.” A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the title menu. 1 Press TITLE. The title menu appears on the TV screen. The contents of the menu vary from disc to disc. 2 Press C/X/x/c or the number buttons to select the title you want to play. 3 Press ENTER. The player starts playing the selected title. z You can also display the title menu by pressing TITLE on the player. Some DVDs allow you to select the disc contents using a menu. When you play these DVDs, you can select items such as the language for the subtitles and the language for the sound using the DVD menu. 1 Press DVD MENU. The DVD menu appears on the TV screen. . The contents of the menu vary from disc to disc. 2 Press C/X/x/c or the number buttons to select the item you want to change. 3 To change other items, repeat Step 2. 4 Press ENTER. z You can also display the DVD menu by pressing DVD MENU on the player. Using the title menu 1 2 3 4 5 6 7 8 0 9 TITLE ENTER C/X/x/c Number buttons Using the DVD menu DVD MENU ENTER C/X/x/c 1 2 3 4 5 6 7 8 0 9 Number buttons www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 34 Playing VIDEO CDs with PBC Functions (PBC Playback) With PBC (Playback Control) functions, you can enjoy simple interactive operations, search functions, and other such operations. PBC playback allows you to play VIDEO CDs interactively by following the menu on the TV screen. 1 Start playing a VIDEO CD with PBC functions. The menu for your selection appears. 2 Select the item number you want by pressing X/x or the number buttons. 3 Press ENTER. 4 Follow the instructions in the menu for interactive operations. Refer to the instructions supplied with the disc, as the operating procedure may differ according to the VIDEO CD. To go back to the menu Press O RETURN. z To play without using PBC, press ./> or the number buttons while the player is stopped to select a track, then press H or ENTER. Play without PBC appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H. Note Depending on the VIDEO CD, Press ENTER in Step 3 may appear as Press SELECT in the instructions supplied with the disc. In this case, press H. 1 2 3 4 5 6 7 8 0 9 ./> H ORETURN X/x x ENTER Number buttons Playing Discs 35 Various Play Mode Functions (Program Play, Shuffle Play, Repeat Play, A-B Repeat Play) You can set the following play modes: • Program Play (page 35) • Shuffle Play (page 37) • Repeat Play (page 37) • A- B Repeat Play (page 38) Notes • The play mode is cancelled when: you open the disc tray. the player enters standby mode by pressing [/1 on the remote. you turn the power off by pressing POWER on the player. • If you are playing a VIDEO CD with PBC, you must first cancel PBC playback before you can set a play mode (except when you want to set A-B repeat for moving pictures). You can play the contents of a disc in the order you want by arranging the order of the titles, chapters or tracks on the disc to create your own program. You can program up to 99 titles, chapters, and tracks. 1 Press DISPLAY twice (When playing a CD, press once). The Control Menu appears. 2 Press X/x to select (PROGRAM), then press ENTER. The options for PROGRAM appear. 3 Press X/x to select “SET t”, then press ENTER. The display for programming appears. 4 Press c. The cursor moves to the title or track (in this case, 01 ). Creating your own program (Program Play) 1 2 3 4 5 6 7 8 0 9 H X/x/c DISPLAY PROGRAM CLEAR ENTER Number buttons SHUFFLE REPEAT OFF OFF SET ON 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD PLAY PROGRAM 1. TITLE ALL CLEAR 2. TITLE — — 3. TITLE — — 4. TITLE — — 5. TITLE — — 6. TITLE — — 7. TITLE — — T — — 01 02 03 04 05 TRACK is displayed when you play a VIDEO CD or a CD. Titles or Tracks recorded on a disc PROGRAM 1. TITLE — — ALL CLEAR 2. TITLE — — 3. TITLE — — 4. TITLE — — 5. TITLE — — 6. TITLE — — 7. TITLE — — T C ALL 01 02 03 04 05 06 — — 01 02 03 04 05 Chapters recorded on a disc continued 36 5 Select the title, chapter, or track you want to program. xWhen playing a DVD For example, select chapter 03 of title 02 . Press X/x or the number buttons to select 02 under T, then press ENTER. Next, press X/x or the number buttons to select 03 under C, then press ENTER. xWhen playing a VIDEO CD or CD For example, select track 02 . Press X/x or the number buttons to select 02 under T, then press ENTER. 6 To program other titles, chapters, or tracks, repeat Steps 4 to 5. The programmed titles, chapters, and tracks are displayed in the selected order. 7 Press H to start Program Play. Program Play begins. When the program ends, you can restart the same program again by pressing H. To return to normal play Press CLEAR, or select OFF in Step 3. To play the same program again, select ON in Step 3 and press H. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. To change the program 1 In Step 4, select the program number of the title, chapter, or track you want to change using X/x or the number buttons, and press c. 2 Follow Step 5 for new programming. To cancel the programmed order To cancel all the titles, chapters, or tracks in the programmed order, press X, and select ALL CLEAR in Step 4. To cancel the selected program, select the program using X/x in Step 4, then press CLEAR, or select -- in Step 5, then press ENTER. z You can do Repeat Play or Shuffle Play of the programmed titles, chapters, or tracks. Press REPEAT or SHUFFLE, or set REPEAT or SHUFFLE to on in the Control Menu display during Program Play. z You can select PROGRAM directly by pressing PROGRAM. Note The number of titles, chapters, or tracks displayed are the same number of titles, chapters, or tracks recorded on a disc. PROGRAM 1. TITLE — — ALL CLEAR 2. TITLE — — 3. TITLE — — 4. TITLE — — 5. TITLE — — 6. TITLE — — 7. TITLE — — C ALL 03 04 05 06 T — — 01 02 03 04 05 02 01 T — — 01 02 03 04 05 PROGRAM 1. TITLE 0 2 — 0 3 ALL CLEAR 2. TITLE 3. TITLE — — 4. TITLE — — 5. TITLE — — 6. TITLE — — 7. TITLE — — Selected title and chapter PROGRAM 1. TRACK 0 2 ALL CLEAR 2. TRACK 3. TRACK — — 4. TRACK — — 5. TRACK — — 6. TRACK — — 7. TRACK — — 0:15:30 — — 01 02 03 04 05 T Selected track Total time of the programmed tracks Playing Discs 37 You can have the player “shuffle” titles, chapters, or tracks and play them in a random order. Subsequent “shuffling” may produce a different playing order. 1 Press DISPLAY twice during playback (When playing a CD, press once). The Control Menu appears. 2 Press X/x to select (SHUFFLE), then press ENTER. The options for SHUFFLE appear. 3 Press X/x to select the item. xWhen playing a DVD (and when Program Play is set to OFF) • TITLE: shuffle titles and plays them in a random order. • CHAPTER: shuffle chapters and plays them in a random order. xWhen playing a VIDEO CD or CD (Program Play is set to OFF) • TRACK: shuffle tracks and plays them in a random order. xWhen playing a VIDEO CD, CD or DVD (Program Play is set to ON) • ON: shuffle titles or tracks selected in Program Play and plays them in a random order. 4 Press ENTER. To return to normal play Press CLEAR, or select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. z You can set Shuffle Play while the player is stopped. After selecting the SHUFFLE option, press H. Shuffle Play starts. z You can select SHUFFLE directly by pressing SHUFFLE. Note Up to 200 chapters in a disc can be played in random order when “CHAPTER” is selected. You can play all of the titles or tracks on a disc or a single title, chapter or track repeatedly. You can use a combination of Shuffle or Program Play modes. Playing in random order (Shuffle Play) 7 8 0 9 DISPLAY H X/x ENTER SHUFFLE CLEAR 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 OFF CHAPTER TITLE DVD PLAY OFF Playing repeatedly (Repeat Play) 4 5 6 7 8 0 9 H ENTER X/x DISPLAY REPEAT CLEAR continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 38 1 Press DISPLAY twice during playback (when playing a CD, press once). The Control Menu appears. 2 Select REPEAT using X/x, then press ENTER. The options for REPEAT appear. 3 Press X/x to select the item. xWhen playing a DVD (Program Play and Shuffle Play are set to OFF) • DISC: repeats all of the titles. • TITLE: repeats the current title on a disc. • CHAPTER: repeats the current chapter. xWhen playing a VIDEO CD or CD (Program Play and Shuffle Play are set to OFF) • DISC: repeats all of the tracks on a disc. • TRACK: repeats the current track. xWhen Program Play or Shuffle Play is on • ON: repeats Program Play or Shuffle Play. 4 Press ENTER. To return to normal play Press CLEAR, or select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. z You can set Repeat Play while the player stopped. After selecting the “REPEAT” option, press H. Repeat Play starts. z You can select REPEAT directly by pressing REPEAT. You can play a specific portion of a title, chapter or track repeatedly. (This function is useful when you want to memorize lyrics, etc.) 1 Press DISPLAY twice during playback (when playing CD, press once). The Control Menu appears. 2 Press X/x to select (A-B REPEAT), then press ENTER. The options for A-B REPEAT appear. 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 CHAPTER DISC OFF TITLE OFF DVD PLAY Repeating a specific portion (A-B Repeat Play) 4 5 6 7 8 0 9 ENTER X/x DISPLAY CLEAR SET OFF OFF 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD PLAY Playing Discs 39 3 Press / to select “SET t”, then press ENTER. The A-B REPEAT setting display appears. 4 During playback, when you find the starting point (point A) of the portion to be played repeatedly, press ENTER. The starting point (point A) is set. 5 When you reach the ending point (point B), press ENTER again. The set points are displayed and the player starts repeating this specific portion. “A-B” appears on the front panel display during A-B Repeat Play. To return to normal play Press CLEAR, or select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. Notes • You can set A-B Repeat Play for only one specific section. • When you set A-B Repeat Play, the settings for Shuffle Play, Repeat Play, and Program Play are cancelled. Set point A with . A-B REPEAT ENTER A: 18 – 1 : 32 : 55 CHAPTER TIME Set point B with . ENTER A-B REPEAT 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 34 : 30 DVD A: 18 – 1 : 32 : 55 B: 18 – 1 : 34 : 30 CHAPTER TIME ON PLAY X x 40 Searching for a Scene Searching for a Particular Point on a Disc (Search, Scan, Slow-motion play, Freeze Frame) You can locate a particular point on a disc quickly by monitoring the picture or playing back slowly. Note Depending on the DVD/VIDEO CD, you may not be able to do some of the operations described. While a disc is playing, keep pressing C to locate a point in playback direction at the FF1M* speed or keep pressing c to locate a point in opposite direction at the FR1m* speed. When you find the point you want, release the button to return to normal playback speed. ∗ The FF1M/FR1m playback speed is the same as the scan speed described below. Press or y while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press or y during scan the playback speed changes. Three speeds are available. With each press the indication changes as follows: Playback direction Opposite direction The x2B/x2b playback speed is about twice the normal speed. The FF2M/FR2m playback speed is faster than FF1M/FR1m. You can use this function only for DVDs or VIDEO CDs. Press or y when the player is in the pause mode. To return to the normal speed, press H. Each time you press or y during Slow-motion play the playback speed changes. Two speeds are available. With each press the indication changes as follows: Playback direction SLOW 2y y SLOW 1y Opposite direction (DVD only) SLOW 2 y SLOW 1 The SLOW2y/SLOW2 playback speed is slower than SLOW1y/SLOW1 . You can use this function only for DVDs or VIDEO CDs. When the player is in the pause mode, press C to go to the next frame. Press c to go to the precding frame (DVD only). To return to normal playback, press H. Locating a point quickly (Search) Locating a point quickly by playing a disc in fast forward or fast reverse (Scan) 1 2 3 4 5 6 7 8 0 9 / y y H c / C y y Watching frame by frame (Slow- motion play) Playing one frame at a time x2B (DVD/CD only) t FF1M t FF2M x2b (DVD only) t FR1m t FR2m y y y y y y Searching for a Scene 41 continued Searching for a Title/ Chapter/Track/Index/ Scene You can search a DVD disc by title or chapter, and you can search a VIDEO CD or CD by track, index, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. Or, you can search for a scene using the time code. (TIME SEARCH) 1 Press DISPLAY. The Control Menu appears. 2 Press X/x to select the search method. xWhen playing a DVD (TITLE), (CHAPTER), or (TIME/ TEXT) Select TIME/ TEXT for TIME SEARCH (See below). xWhen playing a VIDEO CD (TRACK) or (INDEX) xWhen playing a VIDEO CD with PBC Playback (SCENE) xWhen playing a CD (TRACK) or (INDEX) Example: when you select (CHAPTER) “** (**)” is selected (** refers to a number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes or scenes. 3 Press ENTER. “** (**)” changes to “-- (**)”. 4 Press X/x or the number buttons to select the title, chapter, track, index, or scene number you want to search. If you make a mistake Cancel the number by pressing CLEAR, then select another number. 5 Press ENTER. The player starts playback from the selected number. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. 1 2 3 4 5 6 7 8 0 9 X/x DISPLAY ENTER CLEAR Number buttons 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD PLAY Selected row 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD – – ( 3 4 ) PLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10 42 To search for a scene using the time code (TIME SEARCH) (DVD only) 1 In Step 2, select (TIME/ TEXT). “T **:**:**” (playing time of the current title) is selected. 2 Press ENTER. “T **:**:**” changes to “T --:--:--.” 3 Input the time code using the number buttons, then press ENTER. For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.” z You can display the first scene of titles, chapters or tracks recorded on the disc on a screen divided into 9 scenes. You can start playback directly by selecting one of the scenes. For details, see page 42. Note The title, chapter or track number displayed is the same number recorded on the disc. Searching by Using the Scenes (VIEWER) You can divide the screen into 9 sub-screens and find the desired scene quickly. 1 Press DISPLAY twice during playback. The Control Menu appears. 2 Press X/x to select (VIEWER), then press ENTER. The options for VIEWER appear. 3 Press X/x to select the item. Refer to the explanations given for each items in the following sections. • STROBE PLAYBACK • TITLE VIEWER (for DVD only) • CHAPTER VIEWER (for DVD only) • TRACK VIEWER (for VIDEO CD only) • ANGLE VIEWER (for DVD only) ENTER C/X/x/c O RETURN DISPLAY X 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD STROBE PLAYBACK ANGLE VIEWER CHAPTER VIEWER TITLE VIEWER STROBE PLAYBACK PLAY Searching for a Scene 43 4 Press ENTER. To return to the normal play Press O RETURN. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. Notes • Depending on the disc, you may not be able to select all functions. • The sound is muted when using this function. You can display 9 consecutive moving pictures on the screen. When you press X, the moving pictures pause. Select “STROBE PLAYBACK ” in Step 3, then press ENTER in Step 4. You can divide the screen into 9 subscreens and display the first scene of titles, chapters or tracks. You can also play back from the selected title, chapter or track. Select the item you want in Step 3, then press ENTER in Step 4. xWhen playing a DVD Select “TITLE VIEWER” or “CHAPTER VIEWER”. xWhen playing a VIDEO CD Select “TRACK VIEWER”. The initial scenes of titles, chapters or tracks appear. To start playback from the selected scene Select the scene using C/X/x/c and press ENTER. The playback starts from the selected scene. z If there are more than 9 titles, chapters or tracks, V is displayed at the right bottom. To display the additional titles, chapters or tracks, select the right bottom scene (the position 9) and press x. To return to the previous scene, select the left top scene (the position 1) and press X. If various angles (multi-angles) for a scene are recorded on the DVD, you can display all of the angles recorded on the disc on the same screen, and start playback in continuous mode at the chosen angle. The angles are displayed on a screen divided in 9 sections. Select “ANGLE VIEWER” in Step 3, then press ENTER in Step 4. To return to the normal play Press O RETURN. Dividing a track into 9 sections (STROBE PLAYBACK) Scanning the title, chapter or track Displaying different angles simultaneously 1 4 7 2 5 8 3 6 9 44 Viewing Information About the Disc Viewing the Playing Time and Remaining Time on the Front Panel Display You can check information about the disc, such as the remaining time, total number of titles of a DVD, or tracks of a CD or VIDEO CD, using the front panel display (page 9). Press TIME/TEXT. Each time you press TIME/TEXT while playing the disc, the display changes as shown in the following chart. When playing a DVD When playing a VIDEO CD (without PBC functions) or CD z When playing VIDEO CDs with PBC functions, the scene number and the playing time are displayed. 0 TIME/TEXT CHAP HOUR MIN SEC TITLE CHAP HOUR MIN SEC TITLE CHAP HOUR MIN SEC CHAP HOUR MIN SEC Playing time and number of the current title Remaining time of the current title Playing time and number of the current chapter Remaining time of the current chapter Text TRACK INDEX MIN SEC MIN SEC MIN SEC TRACK INDEX MIN SEC Playing time and current track number Remaining time of the current track Remaining time of the disc Text Playing time of the disc Viewing Information About the Disc 45 z The playing time and remaining time of the current chapter, title, track, scene, or disc will also appear on your TV screen. See the following section “Checking the Playing Time and Remaining Time” for instructions on how to read this information. Note Depending on the type of disc being played and the playing mode, the above mentioned disc information may not be displayed. Checking the Playing Time and Remaining Time You can check the playing time and remaining time of the current title, chapter, or track, and the total playing time or remaining time of the disc. Also, you can check the DVD/CD text recorded on the disc. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press TIME/TEXT repeatedly to change the time information. The display and the kinds of time that you can change depend on the disc you are playing. 0 TIME/TEXT DISPLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD PLAY Disc Type Time information continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-11 46 xWhen playing a DVD • T **:**:** Playing time of the current title • T–**:**:** Remaining time of the current title • C **:**:** Playing time of the current chapter • C–**:**:** Remaining time of the current chapter xWhen playing a VIDEO CD (with PBC functions) • **:** Playing time of the current scene xWhen playing a VIDEO CD (without PBC functions) or CD • T **:** Playing time of the current track • T–**:** Remaining time of the current track • D **:** Playing time of the current disc • D–**:* Remaining time of the current disc To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. Checking the DVD/CD text Press TIME/TEXT repeatedly in Step 3 to display the text recorded on the DVD/CD. The DVD/CD text appears only when the text is recorded in the disc. You can not change the text. z If the DVD/CD text does not fit on a single line, you can see the entire text by watching it scroll across the front display. z You can select the time and text by pressing TIME/TEXT. Notes • Only letters of the alphabet can be displayed. • This player can only display the first level of DVD/ CD text, such as the disc name or title. TIME/TEXT BRAHMS SYMPHONY NO – 4 DVD/CD text Viewing Information About the Disc 47 Checking the Play Information (ADVANCED) You can check information such as the bit rate or the disc layer that is being played. While playing a disc, an approximate bit rate of the playback picture is always displayed as Mbps (Mega bit per second) and the audio as kbps (kilo bit per second). 1 Press DISPLAY during playback. The Control Menu is displayed. 2 Press X/x to select (ADVANCED), then press ENTER. The options for ADVANCED appear. 3 Press X/x to select items. For each item, please refer to “Displays of each item.” • BIT RATE: displays the bit rate. • LAYER: displays the layer and the pick-up point. 4 Press ENTER. To close the ADVANCED window Select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. By pressing DISPLAY repeatedly, you can display either “BIT RATE” or “LAYER,” whichever was selected in “ADVANCED. ” BIT RATE Bit rate refers to the amount of video/audio data per second in a disc. The higher the bit rate, the larger the amount of data. When the bit rate level is high, there is a large amount of data. However, this does not always mean that you can get higher quality pictures or sounds. LAYER Indicates the approximate point where the disc is playing. If it is a dual-layer DVD, the player indicates which layer is being read (“Layer 0” or “Layer 1”). For details on the layers, see page 79 (DVD). ENTER X/x DISPLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 BIT RATE DVD BIT RATE 0 5 10 kbps Mbps 384 PLAY OFF LAYER BIT RATE Displays of each item BIT RATE 0 5 10 kbps Mbps 384 Audio Video Appears when the DVD has dual layers 48 Sound Adjustments Changing the Sound If the DVD is recorded with multilingual tracks, you can select the language you want while playing the DVD. If the DVD is recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can select the audio format you want while playing the DVD. With stereo CDs or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. (In this case, the sound loses its stereo effect.) For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can select the left channel and hear the instruments from both speakers. 1 Press DISPLAY during playback. The Control Menu is displayed. 2 Press X/x to select (AUDIO), then ENTER. The options for AUDIO appear. 3 Press X/x to select the desired audio signal. xWhen playing a DVD Depending on the DVD, the choice of language varies. When 4 digits are displayed, they represent the language code. Refer to the language code list on page 82 to see which language the code represents. When the same language is displayed two or more times, the DVD is recorded in multiple audio formats. xWhen playing a VIDEO CD or CD The default setting is underlined. • STEREO: The standard stereo sound • 1/L: The sound of the left channel (monaural) • 2/R: The sound of the right channel (monaural) 4 Press ENTER. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. z You can select AUDIO directly by pressing AUDIO. Each time you press the button, the item changes. During playing back a DVD, the sound may change automatically. Note For discs not in multiple audio format, you cannot change the sound. 1 2 3 4 5 6 7 8 0 9 ENTER X/x AUDIO DISPLAY DVD 2: ENGLISH 3: FRENCH 1: ENGLISH 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 L R C DOLBY DIGITAL 3/2.1 PROGRAM FORMAT LFE LS RS 1: ENGLISH PLAY Sound Adjustments 49 When you select “AUDIO,” the channels being played are displayed on the screen. For example, in Dolby Digital format, multiple signals ranging from monaural to 5.1 channel signals can be recorded on a DVD. Depending on the DVD, the number of the recorded channels may differ. *“PCM,” “DTS,” “DOLBY DIGITAL” is displayed. In case of “DOLBY DIGITAL,” the channels in the playing track are displayed by numbers as follows: For Dolby Digital 5.1 ch: **The letters in the program format display mean the following sound component: L: Front (left) R : Front (right) C : Center LS : Rear (left) RS : Rear (right) S : Rear (monaural): The rear component of the Dolby Surround processed signal or the Dolby Digital signal. LFE :LFE (Low Frequency Effect) The display examples are as follows: • PCM (stereo) • Dolby Surround • Dolby Digital 5.1ch When an LFE signal component is output, “LFE” is enclosed in a solid line. When an LFE signal component is not output, “LFE” is enclosed in a broken line. • DTS “LFE” is always enclosed in a solid line regardless of the LFE signal component being output. Notes • When the signal contains rear signal components such as LS, RS or S, the Surround effect is enhanced (page 50). • If “DTS” is set to “OFF” in “AUDIO SETUP (page 71),” the DTS track selection option will not appear on the screen even if the disc contains DTS tracks. Displaying the audio information of the disc DVD 1: ENGLISH 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 L R C DOLBY DIGITAL 3/2.1 PROGRAM FORMAT LFE LS RS PLAY Current audio format* Current playing program format** DOLBY DIGITAL 3 / 2 . 1 LFE (Low Frequency Effect) component 1 Rear component 2 Front component 2 + Center component 1 PCM 48kHz 24bit PROGRAM FORMAT DOLBY SURROUND DOLBY DIGITAL 2/0 L R C S PROGRAM FORMAT L R C DOLBY DIGITAL 3/2.1 PROGRAM FORMAT LFE LS RS L R C DTS 3/2.1 PROGRAM FORMAT LFE LS RS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-12 50 SURROUND Mode Settings You can enjoy surround sounds while playing discs including Dolby Digital DVDs, even if you have only 2 or 4 speakers. Select surround mode that best suits your speaker setup. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (SURROUND), then press ENTER. The options for SURROUND appear. 3 Press X/x to select one of the SURROUND sounds. Refer to the following explanations given for each item. For 2 speaker setups •TVS DYNAMIC •TVS WIDE •TVS NIGHT •TVS STANDARD For 4 (or more) speaker setups (If you select “NONE” in the setting of “REAR” in “SPEAKER SETUP”(page 72), you cannot select these modes.) •NORMAL SURROUND •ENHANCED SURROUND •VIRTUAL REAR SHIFT •VIRTUAL MULTI REAR •VIRTUAL MULTI DIMENSION 4 Press ENTER. To cancel the setting Select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. When you connect only 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. Select one of the following modes: ENTER X/x DISPLAY SURROUND TVS DYNAMIC OFF TVS WIDE OFF 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD PLAY For 2 speaker setups Sound Adjustments 51 If the player is set up to output the signal from the DIGITAL OUT (OPTICAL or COAXIAL) jack, the surround effect will be heard only when you set “DOLBY DIGITAL” to “D-PCM” in “AUDIO SETUP.” (page 71) TVS (TV Virtual Surround) DYNAMIC Uses sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). The sound imaging effect is distinct and clearly reproduces each aural element of the audio track. This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. TVS (TV Virtual Surround) WIDE Uses sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. The virtual speakers are reproduced as shown in the illustration below. This gives the sound an expanded effect that fills the area surrounding the listener. This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. TVS (TV Virtual Surround) NIGHT The large sounds, such as explosions, are compressed, but the quieter sounds are unaffected. This feature is useful when you don’t want to disturb other people but still want to hear the dialog and enjoy the surround sound effects of TVS WIDE. TVS (TV Virtual Surround) STANDARD Uses sound imaging to create virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers. The virtual speakers are reproduced as shown in the illustration below. Use this setting when you want to use TVS with 2 separete speakers and retain the sound quality. You can enjoy the following surround effects by using the 2 front speakers and 2 rear speakers. Connect the player to the receiver with the connection (page 21). You can experience Dolby Surround (Pro Logic) sounds or Digital Cinema Sound (DCS). DCS uses sound imaging to shift the sound of the rear speakers away from the actual speaker position or create entire sets of virtual rear speakers from one set of actual rear speakers. “VIRTUAL REAR SHIFT,” “VIRTUAL MULTI REAR,” and “VIRTUAL MULTI DIMENSION” make use of this technology. TV TV L : Front speaker (left) R : Front speaker (right) : Virtual speaker For 4 (or more) speaker setups L R B-1 continued 52 NORMAL SURROUND Software with 2 channel audio signals is decoded with Dolby Surround (Pro Logic) to create surround effects. The rear speakers will emit identical monaural sounds. If you are using a center speaker, Dolby Surround (Pro Logic) will also create the appropriate sounds for the center speaker. ENHANCED SURROUND Provides a greater sense of presence from a Dolby Surround (Pro Logic) source with a monaural rear channel signal. Produces a stereo like effect in the rear channels. VIRTUAL REAR SHIFT Uses sound imaging to shift the sound of the rear speakers away from the actual speaker position. The virtual speakers are reproduced as shown in the illustration below. The shift position differs according to “REAR” or “SIDE” setting of the rear speakers (page 72). VIRTUAL MULTI REAR Uses sound imaging to create an array of virtual rear speakers from a single pair of actual rear speakers. The virtual speakers are reproduced as shown in the illustration below. The position of the virtual rear speakers differs according to “REAR” or “SIDE” setting of the rear speakers (page 72). L R RS LS SIDE REAR LS RS L R L LS RS R REAR L LS RS R SIDE L R LS RS Sound Adjustments 53 VIRTUAL MULTI DIMENSION Uses sound imaging to create an array of virtual rear speaker positions higher than the listener from a single pair of actual rear speakers. This mode creates five sets of virtual speakers surrounding the listener at approximately a 30° angle of elevation. The effect differs according to “REAR” or “SIDE” setting of the rear speakers (page 72). You can select SURROUND directly by pressing SURROUND on the remote or player. Each time you press the button, the item changes. If you select any setting other than “OFF,” the indicator on the player lights up. Notes • To enjoy the multichannel audio through the 5.1CH OUTPUT jacks, correctly set each speaker position and distance. For details on setting each speaker, see page 72. • When you select an item, the sound cuts off for a moment. • When the playing signal does not contain a signal for the rear speakers (page 49), the surround effects may be difficult to hear. • When you select “TVS DYNAMIC,” “TVS WIDE,” “TVS NIGHT” or “TVS STANDARD,” the player does not output the sound from the center speaker. • When you select one of the SURROUND modes, turn off the surround setting of the connected TV or amplifier (receiver). • If the player is set up to output the signal from the DIGITAL OUT (OPTICAL or COAXIAL) jack, the surround effect will not be heard when you play a CD. • Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings. Otherwise, the TVS effect may be hard to discern. • TVS NIGHT only works with Dolby Digital discs. However, not all discs will respond to the TVS NIGHT function in the same way. • If you use the DIGITAL OUT (OPTICAL or COAXIAL) jack and set "DOLBY DIGITAL" to "DOLBY DIGITAL" in "AUDIO SETUP," sound will come from your speakers but it will not have the TVS effect. L : Front speaker (left) R : Front speaker (right) LS :Rear speaker (left) RS :Rear speaker (right) : Virtual speaker SIDE REAR L R LS RS LS RS L R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-13 54 Enjoying Movies Changing the Angles If various angles (multi-angles) for a scene are recorded on the DVD, “ANGLE” appears in the front panel display. This means that you can change the viewing angle. For example, while playing a scene of a train in motion, you can display the view from either the front of the train, the left window of the train or from the right window without having the train’s movement interrupted. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (ANGLE). The number of the angle appear. The number in parentheses indicates the total number of angles. 3 Press c or ENTER. The number of the angle changes to “-.” 4 Select the angle number using the number buttons or X/x, then press ENTER. The angle is changed to the selected angle. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. z You can select the angle directly by pressing ANGLE. Each time you press the button, the angle changes. z You can display all the angles recorded on the disc on the same screen, and start playback directly in continuous mode from the chosen angle. The angles are displayed on a screen divided in 9 sections. For details, see page 42. Note Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD. 1 2 3 4 5 6 7 8 0 9 ENTER X/x/c Number Buttons ANGLE DISPLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD 1 ( 9 ) PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD PLAY – ( 9 ) Enjoying Movies 55 Displaying the Subtitles If subtitles are recorded on the discs, you can turn the subtitles on and off whenever you want while playing. If multilingual subtitles are recorded on the disc, you can change the subtitle language while playing, and turn it on or off whenever you want. For example, you can select the language you want to practice and turn the subtitles on for better understanding. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (SUBTITLE), then press ENTER. The options for SUBTITLE appear. 3 Press X/x to select the language. Depending on the DVD, the choice of language varies. When 4 digits are displayed, they indicate the language code. Refer to the language code list on page 82 to see which language the code represents. 4 Press ENTER. To cancel the setting Select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. z You can select SUBTITLE directly by pressing SUBTITLE. Each time you press the button, the item changes. Note Depending on the DVD, you may not be able to change the subtitles on even if multilingual subtitles are recorded on it. 1 2 3 4 5 6 7 8 0 9 ENTER X/x SUBTITLE DISPLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 OFF 1: ENGLISH 2: FRENCH 3: SPANISH OFF DVD PLAY 56 Adjusting the Picture Quality (BNR) The Block Noise Reduction (BNR) function adjusts the picture quality by reducing the “block noise” or mosaic like patterns that appear on your TV screen. 1 Press DISPLAY twice during playback. The Control Menu appears. 2 Press X/x to select (BNR), then press ENTER. The options for BNR appear. 3 Press X/x to select a level. As the value increases, the mosaic like patterns on your TV screen will decrease. • 1: reduces the “block noise”. • 2: reduces the “block noise” more than 1. • 3: reduces the “block noise” more than 2. 4 Press ENTER. The disc plays with the setting you selected. To cancel the BNR setting Select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. z You can set BNR while the player is stopped. z You can select BNR directly by pressing BNR on the remote or player. Each time you press the button, the item changes. If you select any setting other than “OFF,” the indicator on the player lights up. Notes • If the outlines of the images on your screen should become blurred, set “BNR” to “OFF.” • Depending on the disc or the scene being played, the BNR effect may be hard to discern, 1 2 3 4 5 6 7 8 0 9 X/x BNR ENTER DISPLAY OFF 1 2 3 DVD OFF PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 Enjoying Movies 57 Enhancing the Playback Picture (DIGITAL VIDEO ENHANCER) The Digital Video Enhancer function makes the picture appear clear and crisp by enhancing the outlines of images on your TV screen. Also, this function can soften the images on the screen. 1 Press DISPLAY twice during playback. The Control Menu appears. 2 Press X/x to select (DIGITAL VIDEO ENHANCER), then press ENTER. The options for DIGITAL VIDEO ENHANCER appear. 3 Press X/x to select a level. As the value increases, the outlines of images on your TV screen will become crisper. • 1: enhances the outline. • 2: enhances the outline more than 1. • 3: enhances the outline more than 2. • SOFT: softens the image (DVD only). 4 Press ENTER. The disc plays with the setting you selected. To cancel the DIGITAL VIDEO ENHANCER setting Select “OFF” in Step 3. To turn off the Control Menu Press DISPLAY repeatedly until the Control Menu is turned off. z You can set DIGITAL VIDEO ENHANCER while the player is stopped. Note Depending on the DVD/VIDEO CD disc or the scene being played, noise found in the disc may become more apparent. If this happens, reduce the Digital Video Enhancer level. 7 8 0 9 DISPLAY X/x ENTER 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD OFF 3 2 1 OFF PLAY SOFT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-14 58 Using Various Additional Functions Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) You can set two kinds of playback restrictions for the desired disc. • Custom Parental Control You can set the playback restrictions so that the player will not play inappropriate discs. • Parental Control Playback of some DVDs can be limited according to a predetermind level such as the age of the users. The same password is used for both Parental Control and Custom Parental Control. You can set the same Custom Parental Control password for up to 50 discs. When you set the fifty-first-disc, the first disc is cancelled. 1 Insert the disc you want to lock. If the disc is playing, press x to stop playback. 2 Press DISPLAY while the player is in stop mode. The Control Menu appears. 3 Press X/x to select (CUSTOM PARENTAL CONTROL), then press ENTER. “CUSTOM PARENTAL CONTROL” is selected. 4 Press X/x to select “ON t”, then press ENTER. xIf you have not entered a password The display for registering a new password appears. Enter a 4-digit password by using the number buttons, then press ENTER. The display for confirming the password appears. xWhen you have already registered a password The display for entering the password appears. Custom Parental Control 1 2 3 4 5 6 7 8 0 9 O RETURN C/X/x DISPLAY ENTER Number buttons x OFF ON PASSWORD DVD 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 STOP CUSTOM PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER CUSTOM PARENTAL CONTROL Enter password, then press . ENTER Using Various Additional Functions 59 5 Enter or re-enter your 4-digit password by using the number buttons, then press ENTER. “Custom parental control is set.” appears and then the screen returns to the Control Menu display. If you make a mistake entering your password Press C before you press ENTER and input the correct number. If you make a mistake Press O RETURN, then start from Step 3 again. To turn off the Control Menu Press O RETURN, then press DISPLAY repeatedly until the Control Menu is turned off. To turn off the Custom Parental Control function 1 In Step 4, select “OFF t,” then press ENTER. 2 Enter your 4-digit password using the number buttons, then press ENTER. To change the password 1 In Step 4, press X/x to select “PASSWORD t,” then press ENTER. The display for entering the password appears. 2 Enter your 4-digit password using the number buttons then press ENTER. 3 Enter a new 4-digit password using the number buttons, then press ENTER. 4 To confirm your password, re-enter it using the number buttons, then press ENTER. 1 Insert the disc for which Custom Parental Control is set. The CUSTOM PARENTAL CONTROL display appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player is ready for playback. z If you forget your password, enter the 6-digit number “199703” using the number buttons when the CUSTOM PARENTAL CONTROL display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password. Playback of some DVDs can be limited according to a predetermined level such as the age of the users. The “Parental Control” function allows you to set a playback limitation level. A scene that is limited is not played, or it is replaced by a different scene. Playing the disc for which Custom Parental Control is set Limiting playback by children (Parental Control) CUSTOM PARENTAL CONTROL Custom parental control is already set. To play, enter your password and press . ENTER 1 2 3 4 5 6 7 8 0 9 O RETURN ENTER DISPLAY X/x/c H Number buttons continued 60 1 Press DISPLAY while the player is in stop mode. The Control Menu appears. 2 Press X/x to select (SETUP), then press ENTER. 3 Press X/x select “CUSTOM”, then press ENTER. The Setup Display appears. 4 Press X/x to select “CUSTOM SETUP,” then press ENTER. COSTOM SETUP is displayed. 5 Press X/x to select “PARENTAL CONTROL t,” then press ENTER. xIf you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears. xWhen you have already registered a password The display for entering the password appears. 6 Enter or re-enter your password using the number buttons, then press ENTER. The display for setting the playback limitation level and changing the password appears. 7 Press X/x to select “STANDARD,” then press ENTER. The selection items for “STANDARD” are displayed. 8 Press X/x to select a geographic area as the playback limitation level, then press ENTER. The area is selected. When you select “OTHER t” select and enter the standard code in the table on page 62 using the number buttons. CUSTOM SETUP AUTO PLAY: DIMMER: PAUSE MODE: OFF BRIGHT AUTO TRACK SELECTION: OFF ON PARENTAL CONTROL PLAYBACK MEMORY: PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER CUSTOM SETUP PARENTAL CONTROL Enter password, then press . ENTER CUSTOM SETUP CUSTOM SETUP PARENTAL CONTROL LEVEL: OFF USA STANDARD: CHANGE PASSWORD CUSTOM SETUP PARENTAL CONTROL LEVEL: OFF USA STANDARD: CHANGE PASSWORD USA OTHERS Using Various Additional Functions 61 9 Press ENTER. The selection items for “LEVEL” are displayed. 10 Select the level you want using X/x, then press ENTER. Parental Control setting is complete. The lower the value, the more strict the limitation. If you make a mistake Press O RETURN to go back to the previous screen. To turn off the Setup Display Press DISPLAY repeatedly until the Setup Display is turned off. To turn off the Parental Control function and play the DVD after entering your password Set “LEVEL” to “OFF” in Step 10. To change the password 1 In Step 7, select “CHANGE PASSWORD t” using x, then press ENTER. The display for entering the password appears. 2 Follow Step 6 to enter a new password. 1 Insert the disc and press H. The PARENTAL CONTROL display appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player starts playback. z If you forget your password, remove the disc and repeat Step 1 to 5 of “Limiting playback by children”. When you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4- digit password. After you enter a new 4-digit password in Step 6, replace the disc in the player and press H. When the PARENTAL CONTROL display appears, enter your new password. Notes • When you play DVDs which do not have the Parental Control function, playback cannot be limited on this player. • Depending on the DVD, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is cancelled, the level returns to the original level. CUSTOM SETUP PARENTAL CONTROL LEVEL: OFF OFF STANDARD: CHANGE PASSWORD 8: 7: 6: 5: NC17 R CUSTOM SETUP PARENTAL CONTROL LEVEL: STANDARD: CHANGE PASSWORD USA 4: PG13 Playing the disc for which Parental Control is set continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-15 62 Area Code Operation Sound Effects (Sound Feedback) The player beeps when the following operations are performed. The default setting of the Sound Feedback function is set to off. 1 Press POWER on the player, then press [/1 on the remote. The power indicator lights up in green. When there is a disc in the player, press A and remove the disc. Then press A again to close the disc tray. 2 Press and hold X on the player for more than two seconds. You will hear one beep and the Sound Feedback function is turned on. Standard Code number Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 Hong Kong` 2219 India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363 Mexico 2362 Netherlands 2376 New Zealand 2390 Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Taiwan 2543 Thailand 2528 United Kingdom 2184 Standard Code number Operation Operation sound Power is turned on One beep Power is turned off Two beeps H is pressed One beep X is pressed Two beeps Playback is stopped One long beep Operation is not possible Three beeps To set Sound Feedback 1 2 3 4 5 6 7 8 0 9 [/1 A X POWER Power indicator Using Various Additional Functions 63 To turn off the Sound Feedback function When there is no disc in the player, press and hold X on the player for more than two seconds. You will hear two beeps and the Sound Feedback function is turned off. Controlling Your TV or AV Amplifier (Receiver) with the Supplied Remote By adjusting the remote signal, you can control your TV or AV amplifier (receiver) with the supplied remote. If you connect the player with a AV amplifier (receiver), you can control the volume with the supplied remote. Notes • Depending on the units being connected, you may not be able to control your TV or AV amplifier (receiver) using some of the buttons below. • If you enter a new code number, the code number previously entered will be erased. • When you replace the batteries of the remote, the code number may be reset to the default setting. Reset the appropriate code number. Hold down TV [/1, and enter your TV’s manufacturer’s code (see the table) using the number buttons. Then release TV [/1. Code numbers of controllable TVs If more than one code number is listed, try entering them one at a time until you find the one that works with your TV. Controlling TVs with the remote 1 2 3 4 5 6 7 8 0 9 TV [/1 TV/VIDEO Number buttons VOL continued 64 Controlling the TV You can control your TV using the buttons below. Hold down TV [/1, and enter your AV receiver’s manufacturer’s code (see the table) using the number buttons. Then release TV [/1. Code numbers of controllable AV amplifiers (receivers) If more than one code number is listed, try entering them one at a time until you find the one that works with your AV amplifiers (receiver). Controlling the AV amplifier (receiver) You can change the volume of the AV amplifier (receiver) using VOL +/–. By pressing You can TV [/1 Turn the TV on or off VOL Adjust the volume of the TV TV/VIDEO Switch the TV’s input source between the TV and other input sources Manufacture Code number Sony (default) 01 Akai 04 AOC 04 Centurion 12 Coronado 03 Curis-Mathes 12 Daytron 12 Emerson 03,04,14 Fisher 11 General Electric 06,10 Gold Star 03,04,17 Hitachi 02,03 J.C.Penney 04,12 JVC 09 KMC 03 Magnavox 03,08,12 Marantz 04,13 MGA/Mitsubishi 04,12,13,17 NEC 04,12 Panasonic 06,19 Philco 03,04 Philips 08,21 Pioneer 16 Portland 03 Quasar 06,18 Radio Shack 05,14 RCA 04,10 Sampo 12 Samsung 20 Sanyo 11 Scott 12 Sears 07,10,11 Sharp 03,05,18 Sylvania 08,12 Teknika 03,08,14 Toshiba 07 Wards 03,04,12 Yorx 12 Zenith 15 Manufacture Code number Controlling AV amplifiers (receivers) with the remote Manufacturer Code number Sony 91, 89 Denon 84, 85, 86 Kenwood 92, 93 Onkyo 81, 82, 83 Pioneer 99 Sansui 87 Technics 97, 98 Yamaha 94, 95, 96 1 2 3 4 5 6 7 8 0 9 Number buttons VOL TV [/1 Settings and Adjustments 65 Settings and Adjustments Using the Setup Display By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display item, see page 66. For an overall list of Setup Display items, see page 83. 1 Press DISPLAY when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (SETUP), then press ENTER. The options for SETUP appear. 3 Press X/x to select “CUSTOM” then press ENTER. The Setup Display appears. 4 Press X/x to select the setup item from the displayed list: “LANGUAGE SETUP,” “SCREEN SETUP,” “CUSTOM SETUP,” or “AUDIO SETUP,” and “SPEAKER SETUP.” Then press ENTER. The selected setup item appears. Example: “SCREEN SETUP” 5 Select an item using X/x, then press ENTER. The options for the selected item appear. Example: “TV TYPE” 6 Select a setting using X/x, then press ENTER. The setting is selected and setup is complate. Example: “16:9” How to use the Setup Display DISPLAY ENTER X/x ( 47 ) : : QUICK CUSTOM RESET DVD QUICK STOP LANGUAGE SETUP OSD: DVD MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 4:3 LETTER BOX ON JACKET PICTURE Setup items Selected item SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 4:3 LETTER BOX 4:3 PAN SCAN 4:3 LETTER BOX Options continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-16 66 To turn off the Setup Display Press DISPLAY repeatedly until the Setup Display is turned off. z If you select “QUICK” in Step 3, you will enter the Quick Setup mode (page 25). Follow from Step 5 of the Quick Setup explanation to make basic adjustments. z If you select “RESET” in Step 3, you can reset all of the “SETUP” settings on page 83 to 85 (except for PARENTAL CONTROL) to the default settings. After you select “RESET” and press ENTER, select “YES” to reset the settings (it takes a few seconds to complete), or select “NO” and press ENTER to return to the Control Menu. Do not press POWER or [/1 when resetting the player. Setting the Display or Sound Track Language (LANGUAGE SETUP) “LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track. Select “LANGUAGE SETUP” in the Setup Display. For details on using the display, see “Using the Setup Display” (page 65). xOSD (On-Screen Display) Switches the display language on the screen. Selects the language from the displayed list. xDVD MENU (DVD only) You can select the desired language for the DVD menu. xAUDIO (DVD only) Switches the language of the sound track. Selects the language from the displayed list. When you select “ORIGINAL,” the language given priority in the disc is selected. xSUBTITLE (DVD only) Switch the language of the subtitle. Select the language from the displayed list. When you select “AUDIO FOLLOW,” the language for the subtitles changes according to the language you selected for the sound track. SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKETPICTURE Selected setting LANGUAGE SETUP OSD: DVD MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH Settings and Adjustments 67 z If you select “OTHERS t” in “DVD MENU,” “SUBTITLE,” and “AUDIO,” select and enter the language code from the list using the number buttons (page 82). After you have made a selection, the language code (4 digits) is displayed the next time you select “OTHERS t.” Note When you select a language that is not recorded on the DVD, one of the recorded languages will be automatically selected (except for the “OSD”). Settings for the Display (SCREEN SETUP) Choose settings according to the TV to be connected. Select “SCREEN SETUP” in the Setup Display. For details on using the display, see “Using the Setup Display” (page 65). The default settings are underlined. xTV TYPE (DVD only) Selects the aspect ratio of the connected TV (4:3 standard or wide). 4:3 LETTER BOX Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 4:3 PAN SCAN Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function. SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 4:3 LETTER BOX ON JACKET PICTURE continued 68 Note Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa. xSCREEN SAVER Turns on and off the screen saver so that the screen saver image appears when you leave the player in pause or stop mode for 15 minutes, or when you play back a CD for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press H to turn off the screen saver. xBACKGROUND Selects the background color or picture on the TV screen in stop mode or while playing a CD. Custom Settings (CUSTOM SETUP) Allows setting up Parental Control and other settings. Select “CUSTOM SETUP” in the Setup Display. For details on using the display, see “Using the Setup Display” (page 65). The default settings are underlined. xAUTO PLAY Selects the Auto Play setting when you turn on the player. xDIMMER Adjusts the lighting of the front panel display. ON Turns on the screen saver. OFF Turns off the screen saver. JACKET PICTURE The jacket picture (still picture) appears in the background, but only when the jacket picture is already recorded on the disc (CD-EXTRA etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears. GRAPHICS A preset picture stored in the player appears in the background. BLUE The background color is blue. BLACK The background color is black. 16:9 4:3 LETTER BOX 4:3 PAN SCAN OFF Does not use “TIMER,” “DEMO1,” or “DEMO2” to start playback. TIMER Starts playing when the player is turned on. The player can be played at any time when connected to a timer (not supplied). Set the timer when the player is in standby mode (the power indicator lights up in red). DEMO1 Starts playing the first demonstration automatically. DEMO2 Starts playing the second demonstration automatically. BRIGHT Makes the front panel display bright. DARK Makes the front panel display dark. OFF Turns off the lighting of the front panel display. CUSTOM SETUP AUTO PLAY: DIMMER: PAUSE MODE: OFF BRIGHT AUTO TRACK SELECTION: OFF ON PARENTAL CONTROL PLAYBACK MEMORY: Settings and Adjustments 69 xPAUSE MODE (DVD only) Selects the picture in pause mode. xPARENTAL CONTROL t (DVD only) Set a password and playback limitation level for DVDs with playback limitation for children. For details, see “Limiting playback by children (Parental Control)” (page 59). xPLAYBACK MEMORY The player can store the SUBTITLE and other settings of each disc for up to 50 discs (Playback Memory). Set the Playback Memory function on or off. The following settings are stored in memory by the Playback Memory function. — AUDIO (page 48)* — BNR (page 56) — DIGITAL VIDEO ENHANCER (page 57) — SUBTITLE (page 55)* — SURROUND (page 50) ∗DVD only Notes • The player can store the settings of up to 50 discs. When you store the setting of disc number 51, the first disc setting is canceled. • Depending on the DVD, the information stored in the disc takes priority over the Playback Memory settings and the function does not work. • During playback, do not turn off the player by pressing POWER on the player. Doing so may cancel the settings. When you turn off the player, press x first to stop playback and then press [/1 on the remote. After the power indicator lights up in red and the player enters standby mode, press POWER on the player. xTRACK SELECTION (DVD only) Gives the sound track which contains the highest number of channels priority when you play a DVD on which multiple audio formats (PCM, DTS, or Dolby Digital format) are recorded. Notes • When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 66). • If you set “DTS” to “OFF” (page 71), the DTS sound track is not played even if you set “TRACK SELECTION” to “AUTO”. • If PCM, DTS and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS and Dolby Digital sound tracks in this order. • Depending on the DVD, the audio channel with priority may be predetermined. In this case, you cannot give priority to the DTS, Dolby Digital, or format by selecting “AUTO.” AUTO The picture, including subjects that move dynamically, is output with no jitter. Normally select this position. FRAME The picture, including subjects that do not move dynamically, is output in high resolution. ON Stores the settings in memory when you eject the disc. OFF Does not store the settings in memory. OFF No priority given. AUTO Priority given. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-17 70 Settings for the Sound (AUDIO SETUP) “AUDIO SETUP” allows you to set the sound according to the playback and connection conditions. Select “AUDIO SETUP” in the Setup Display. For details on using the display, see “Using the Setup Display” (page 65). The default settings are underlined. xAUDIO ATT (attenuation) If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. This function affects the output of the following jacks: — LINE OUT L/R (AUDIO) 1/2 jacks — 5.1CH OUTPUT jacks xAUDIO DRC (Dynamic Range Control) (DVD only) Makes the sound clear when the volume is turned down when playing a DVD that has the AUDIO DRC function. This affects the output from the following jacks: — LINE OUT L/R (AUDIO) 1/2 jacks — 5.1CH OUTPUT jacks — DIGITAL OUT (OPTICAL or COAXIAL) jack only when “DOLBY DIGITAL” is set to “D-PCM” (page 71). xCENTER SPEAKER EQ (equalizer) Makes the spoken track clear when speech is difficult to hear. This function affects the output to the center speaker that is connected to 5.1CH OUTPUT. xDOWNMIX (DVD only) Switches the mixing down methods when you play a DVD on which rear signal components such as LS, RS, or S are recorded in Dolby Digital format. For details on the rear signal components, see “Changing the Sound” (page 48). This function affects the output of the following jacks: — LINE OUT L/R (AUDIO) 1/2 jacks — DIGITAL OUT (OPTICAL or COAXICAL) jack when “DOLBY DIGITAL” is set to “D-PCM” (page 71). OFF Turns off the audio attenuation. Normally, select this position. ON Reduces the audio output level so that no sound distortion occurs. Select this when the playback sound from the speakers is distorted. AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: OFF STANDARD ON DOWNMIX: DOLBY SURROUND DOLBY DIGITAL: CENTER SPEAKER EQ: D-PCM FLAT DTS: OFF 48kHz/96kHz PCM: 48kHz/16bit STANDARD Normally, select this position. TV MODE Makes the low sounds clear even if you turn the volume down. It is especially recommended when you listen to the sound using the speakers of the TV. WIDE RANGE Gives you the feeling of being at a live performance. When you use high quality speakers, it is even more effective. FLAT Outputs the spoken track as it was recorded. ENHANCED Enhances the spoken track only. SOFT Makes the sound softer by rounding out the sound frequency above 8kHz. Select this when the spoken track sounds shrill. DOLBY SUR- ROUND Select this when the player is connected to an audio component that conforms to Dolby Surround (Pro Logic). The output signals which reproduce the Dolby Surround effect are downmixed to 2 channels. Settings and Adjustments 71 xDIGITAL OUT Selects if audio signals are output via the DIGITAL OUT (OPTICAL or COAXIAL) jack. Switches the method of outputting audio signals when you connect the following component using an optical or a coaxial digital cord via the DIGITAL OUT (OPTICAL or COAXIAL) jack. — Amplifier (receiver) with digital input jack — Amplifier (receiver) with a built-in DTS or DOLBY DIGITAL decoder — MD or DAT deck For connection details, see page 19. Select “DOLBY DIGITAL,” and “DTS” after setting “DIGITAL OUT” to “ON.” xDOLBY DIGITAL Selects the Dolby Digital signals output via the DIGITAL OUT (OPTICAL or COAXIAL) jack. xDTS Select if DTS signals are output via the DIGITAL OUT (OPTICAL and COAXIAL) jack. NORMAL Select this when the player is connected to an audio component that does not conform to Dolby Surround (Pro Logic). All of the output signals are downmixed to 2 channels without the Dolby Surround (Pro Logic) effect. ON Normally, select this position. When you select “ON,” set “DOLBY DIGITAL,” “DTS”, and “48kHz/ 96kHz PCM”. For details on setting these items, see “Setting the digital output signal.” OFF The player does not output the audio signals via the DIGITAL OUT (OPTICAL or COAXIAL) jack. The influence of the digital circuit upon the analog circuit is minimal. Setting the digital output signal AUDIO SETUP AUDIO ATT: AUDIO DRC: DOWNMIX: DIGITAL OUT: DOLBY DIGITAL: OFF STANDARD DOLBY SURROUND CENTER SPEAKER EQ: FLAT ON D-PCM 48kHz/96kHz PCM: 48kHz/16bit DTS: OFF D-PCM Select this when the player is connected to an audio component lacking a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP. ” (page 70) DOLBY DIGITAL Select this when the player is connected to an audio component with a built-in Dolby Digital decoder. If the player is connected to an audio component lacking a built- in Dolby Digital decoder, do not set this. Otherwise, when you play the Dolby Digital sound track, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged. OFF Select this when the player is connected to an audio component lacking a built-in DTS decoder. Note, however, that the DTS signals contained in a CD are output even if “OFF” is selected. ON Select this when the player is connected to an audio component having a built-in DTS decoder. If the player is connected to an audio component lacking a built-in DTS decoder, do not set this. Otherwise, when you play the DTS sound track, a loud noise (or no sound) will come out from the speakers, affecting your ears or causing the speakers to be damaged. continued 72 x48kHz/96kHz PCM (DVD only) Selects the sampling frequency of the audio signal to be output via the DIGITAL OUT (OPTICAL or COAXIAL) jacks. Notes • Even if you set “48kHz/96kHz PCM” in “AUDIO SETUP” to “96kHz/24bit,” the sampling frequency is converted to 48kHz/16bit when a SURROUND mode (page 50) is selected. • The analog audio signals from the LINE OUT L/R (AUDIO) 1/2 jacks are not affected by this setting and keep their original sampling frequency level. Settings for the Speakers (SPEAKER SETUP) To obtain the best possible surround sound, set the size of the speakers you have connected and their distance from your listening position. Then use the test tone to adjust the volume and the balance of the speakers to the same level. This setting is effective when connecting the speaker with 5.1CH OUTPUT jacks (page 21). Select “SPEAKER SETUP” in the Setup Display. For details, see “Using the Setup Display” (page 65). The default settings are underlined. To return to the default setting Select the item, then press CLEAR. xSIZE Selects the size of the speakers to be connected. • FRONT • CENTER 48kHz/16bit The audio signals of DVDs are always converted to 48kHz/16 bit. 96kHz/24bit All types of signals including 96kHz/24bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48 kHz/16 bit. If a receiver (amplifier) which cannot accept 96Hz is connected to the player, do not set this. Otherwise, a loud noise may come out from the speakers. LARGE Normally select this position. SMALL When the sound cracks or the surround sound effects are difficult to hear, select this. This activates the Dolby Digital bass redirection circuitry and outputs the bass frequencies of the front speaker from the subwoofer. NONE If you do not connect a center speaker, select this. LARGE Normally select this position. SPEAKER SETUP SIZE: DISTANCE: BALANCE: LEVEL: OFF TEST TONE: FRONT: CENTER: YES LARGE(REAR) LARGE LARGE REAR: SUBWOOFER: Settings and Adjustments 73 • REAR *Rear speaker position (REAR/SIDE) Correctly specify the location of the rear speakers to enjoy the SURROUND effect. •Set to the “SIDE,” if the location of the rear speakers corresponds to section A below. •Set to the “REAR,” if the location of the rear speakers corresponds to section B below. This setting affects only “VIRTUAL REAR SHIFT,” “VIRTUAL MULTI REAR,” and “VIRTUAL MULTI DIMENSION” mode (page 51). • SUBWOOFER Notes • The cut off frequency for the subwoofer is fixed at 120 Hz. • If your speakers are too small to reproduce low bass frequencies, please set all speaker settings to “SMALL” and utilize a subwoofer for low frequency sound. • Even if there are fewer than 6 speakers connected, the player distributes the audio signal components to the front speakers. xDISTANCE The default distance setting for the speakers in relation to the listening position is shown below. Be sure to change the value in the Setup Display when you move the speakers. The default adjustments are in parentheses. SMALL When the sound cracks or the surround sound effects are difficult to hear, select this. This activates the Dolby Digital bass redirection circuitry and outputs the bass frequencies of the center speaker from other speakers. NONE If you do not connect rear speakers, select this. LARGE (REAR/SIDE): Normally select this position. Select either of these according to the rear speaker’s position*. SMALL (REAR/SIDE): When the sound cracks or the surround sound effects are difficult to hear, select this. Select either of these according to the rear speaker’s position*. This activates the Dolby Digital bass redirection circuitry and outputs the bass frequencies of the rear speaker from other speakers. 90 20 45 NONE If you do not connect a subwoofer, select this. This activates the Dolby Digital bass redirection circuitry and outputs the LFE signals from the front speakers as long as the front speaker size is set to “LARGE.” YES If you connect a subwoofer, select this to output the LFE (low frequency effect) channel from the subwoofer. When you set the other speakers settings to “SMALL,” the subwoofer makes up for the missing bass frequencies of the speakers. 12ft/3.6m 12ft/3.6m 12ft/3.6m 10ft/3.0m 10ft/3.0m continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-18 74 Notes • If each or the front or rear speakers are not placed at an equal distance from your listening position, set the distance according to the closest speaker. • Do not place the rear speakers farther away from your listening position than the front speakers. xBALANCE You can vary the balance of the left and right speakers as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment. The default adjustments are in parentheses. xLEVEL You can vary the level of each speaker as follows. Be sure to set “TEST TONE” to “ON” for easy adjustment. The default adjustments are in parentheses. To adjust the volume of all the speakers at one time Use the amplifier’s (receiver’s) volume control. xTEST TONE The speakers will emit a test tone. Use this when you use the 5.1CH OUTPUT jacks and adjust the “BALANCE” and “LEVEL”. 1 After you stop playback, select “SPEAKER SETUP” in the Setup Display. 2 Select “TEST TONE” and set “TEST TONE” to “ON.” You will hear the test tone from each speaker in sequence. FRONT (12ft/3.6m) Front speaker distance from the listening position can be set in 1 foot (0.3 meter) increments from 4 to 50 feet (1.2 to 15.2 meters). CENTER (12ft/3.6m) Center speaker distance can be moved up to 2 feet (0.6 meters) backward from the front speakers or 5 feet (1.5 meters) forward closer to the listening position, in 1 foot (0.3 meter) increments. REAR (10ft/3m) Rear speaker distance can be moved up to 16 feet (4.8 meters) closer to your listening position from the front speaker position, in 1 foot (0.3 meter) increments. FRONT (0dB) Adjust the balance between the front left and right speakers (– 6dB [L] to +6dB [R], 0.5dB increments). REAR (0dB) Adjust the balance between the rear left and right speakers (– 6dB [L] to +6dB [R], 0.5dB increments). CENTER (0dB) Adjust the level of the center speaker (–6dB to +6dB, 0.5dB increments). REAR (0dB) Adjust the level of the rear speakers (–6dB to +6dB, 0.5dB increments). SUBWOOFER (0dB) Adjust the level of the subwoofer (–10dB to +10dB, 0.5dB increments). OFF The test tone is not emitted from the speakers. ON The test tone is emitted from each speaker in sequence while adjusting balance or level. When you select one of the “SPEAKER SETUP” items, the test tone is emitted from both left and right speakers simultaneously. Adjusting the speaker volume and level Settings and Adjustments 75 3 From your listening position, select “BALANCE” or “LEVEL” and adjust the value of “BALANCE” using C/c and “LEVEL” using X/x. The test tone is emitted from both left and right speakers simultaneously. 4 Select “TEST TONE” and set “TEST TONE” to “OFF” to turn off the test tone. Note When you adjust the speaker settings, the sound cuts off for a moment. 76 Additional Information Troubleshooting If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer. The power is not turned on. , Check that the AC power cord is connected securely. There is no picture. , The connecting cords are not connected securely. , The connecting cords are damaged. , The player is not connected to the correct TV input jack (page 17). , The video input on the TV is not set so that you can view pictures from the player. Picture noise appears. , The disc is dirty or flawed. , If the picture output from your player goes through your VCR to get to your TV, the copy- protection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your player directly to your TV, please try connecting your player to your TV’s S video input (page 17). Even though you set the aspect ratio in “TV TYPE” of “SCREEN SETUP,” the picture does not fill the screen. , The aspect ratio of the disc is fixed on your DVD. There is no sound. , The connecting cord is not connected securely. , The connecting cord is damaged. , The player is connected to the wrong input jack on the amplifier (receiver) (page 21, 23, 24). , The amplifier (receiver) input was not changed so that you can listen to the player. , The player is in pause mode or in Slow-motion play mode. , The player is in fast forward or fast reverse mode. , If the audio signal does not come through the DIGITAL OUT (OPTICAL or COAXIAL) jack, check the audio settings (page 71). Sound is noisy. , The disc is dirty or flawed. , When playing a CD with DTS sound tracks, noise will come from the LINE OUT L/R (AUDIO) 1/2 jacks (page 31). Sound distortion occurs. , Set “AUDIO ATT” in “AUDIO SETUP” to “ON” (page 70). The surround effect is difficult to hear when you are playing a Dolby Digital sound track. , Check the speaker connections and setting (page 21, 27, 71) , Depending on the DVD, the output signal may not be the entire 5.1 channels. It may be monaural or stereo even if the sound track is recorded in Dolby Digital format. The sound comes from the center speaker only. , Depending on the disc, the sound may come from the center speaker only. , Set “SURROUND”to “OFF” in the Control Menu display (page 50). Power Picture Sound Additional Information 77 The remote does not function. , There are obstacles between the remote and the player. , The distance between the remote and the player is too far. , The remote is not pointed at the remote sensor on the player. , The batteries in the remote are weak. The disc does not play. , There is no disc inside. , The disc is turned over. Insert the disc with the playback side facing down on the disc tray. , The disc is skewed. , The player cannot play CD-ROMs, etc. (page 6). , The region code on the DVD does not match the player. , Moisture has condensed inside the player. Remove the disc and leave the player turned on for about half an hour. Turn on the power again before playing the disc (page 3). The disc does not start playing from the beginning. , Program Play, Shuffle Play, Repeat Play, or A-B Repeat Play has been selected (page 35). Press CLEAR to cancel these functions before playing a disc. , Resume Play has been selected. During stop, press x on the player or the remote and then start playback DVD (page 32). , The title, DVD or PBC menu automatically appears on the TV screen. The player starts playing the disc automatically. , The DVD features an auto playback function. , “AUTO PLAY” in “CUSTOM SETUP” is set to “TIMER” (page 68). Playback stops automatically. , Some discs may contain an auto pause signal. While playing such a disc, the player stops playback at the auto pause signal. You cannot perform some functions such as stop, Search, Slow-motion play, Repeat Play, Shuffle Play, or Program Play. , Depending on the disc, you may not be able to do some of the operations above. See the operating manual that comes with the disc. Messages do not appear on the screen in the language you want. , In the Setup Display, select the desired language for the on-screen display in “OSD” under “LANGUAGE SETUP” (page 66). The language for the sound track cannot be changed. , Multilingual tracks are not recorded on the DVD being played. , The DVD prohibits the changing of the language for the sound track. The subtitle language cannot be changed. , Multilingual subtitles are not recorded on the DVD being played. , The DVD prohibits the changing of the subtitles. The subtitle cannot be turned off. , The DVD prohibits the subtitles being turned off. Operation continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-19 78 The angles cannot be changed. , Multi-angles are not recorded on the DVD being played. The angle can be changed when the “ANGLE” indicator lights up on the front panel display (page 9). , The DVD prohibits changing of the angles. The player does not operate properly. , When static electricity, etc., causes the player to operate abnormally, press POWER on the player to turn the player off and then on again. Nothing is displayed on the front panel display. , “DIMMER” in “CUSTOM SETUP” is set to “OFF.” Set “DIMMER” to “BRIGHT” or “DARK” (page 68). 5 numbers or letters are displayed on the screen and on the front panel display. , The self-diagnosis function was activated. (See the table on page 78.) The disc tray does not open and “LOCKED” appears on the front panel display. , Contact your Sony dealer or local authorized Sony service facility. Self-diagnosis Function (When letters/numbers appear in the display) When the self-diagnosis function is activated to prevent the player from malfunctioning, a five-character service number (e.g., C 13 00) with a combination of a letter and digits appears on the screen and the front panel display. In this case, check the following table. First three characters of the service number Cause and/or Corrective Action C 13 The disc is dirty. , Clean the disc with a soft cloth (page 7). C 31 The disc is not inserted correctly. , Re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the player has performed the self- diagnosis function. , Contact your nearest Sony dealer or local authorized Sony service facility and give the 5-character service number. Example: E 61 10 C:13:00 Additional Information 79 Glossary Chapter (page 9) Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded. Digital Cinema Sound (DCS) (page 51) Technology that Sony developed to enjoy surround sound in a home using 4 or more speakers. It simulates the sound of a movie editing studio instead of the usual concert hall so that you can enjoy the surround sound of a movie theater in the comfort of your own home. Dolby Digital (page 21, 71) Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data are recorded discretely and little deterioration is realized because all channel data processing is digital. Dolby Surround (Pro Logic) (page 24) Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals. The rear channel is monaural. DTS (page 21, 71) Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. DVD (page 6) A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double- sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in Dolby Digital as well as in PCM, allowing you to enjoy a more real audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD. Index (CD)/Video Index (VIDEO CD) (page 9) A number that divides a track into sections to easily locate the point you want on a VIDEO CD or CD. Depending on the disc, no index may be recorded. Parental Control (page 59) A function of the DVD used to limit playback of the disc according to the age of the user and the limitation level in each country. The limitation varies from disc to disc; when it is activated, or playback is completely prohibited, violent scenes are skipped or replaced with other scenes, etc. continued 80 Region Code (page 6) This system is used to protect the copyrights. A region number is allocated on each DVD player or DVD disc according to the sales region. Each region code is shown on the player as well as on the disc packaging. The player can play the discs that match its region code. The player can also play discs with the “ ” mark. Even when the region code is not shown on the DVD, the region limit may still be activated. Scene (page 9) On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called “scenes.” Title (page 9) The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software. Track (page 9) Sections of a picture or a music feature on a VIDEO CD or CD (the length of a song). TV Virtual Surround (TVS) (page 50) Technology from Sony developed to produce surround sound for home use using just a stereo TV. Designed to work with the sound characteristics of your TV, this technology brings the excitement of surround sound to your home using nothing more than your stereo TV’s internal speakers. Furthermore, various TVS modes are available. For example, TVS WIDE uses just two speakers to create a virtual sound environment that makes you feel like you are surrounded by multiple steakers. ALL 82 Language Code List For details, see page 48, 55, 66. The language spellings conform to the ISO 639: 1988 (E/F) standard. Code Language Code Language Code Language Code Language 1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali; Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian; Lettish 1345 Malagasy 1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan)Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto; Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto- Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo-Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu 1703 Not specified www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-20 Additional Information 83 List of Setup Display Items The default settings are underlined. LANGUAGE SETUP (page 66) SCREEN SETUP (page 67) OSD ENGLISH FRENCH SPANISH PORTUGUESE DVD MENU ENGLISH FRENCH SPANISH PORTUGUESE GERMAN ITALIAN DUTCH CHINESE JAPAN ESE DANISH SWEDISH FINNISH NORWEGIAN RUSSIAN OTHERS t AUDIO ORIGINAL (All other selections are same as the DVD MENU language.) SUBTITLE AUDIO FOLLOW (All other selections are same as the DVD MENU language.) TV TYPE 4:3 LETTER BOX 4:3 PAN SCAN 16:9 SCREEN SAVER ON OFF BACKGROUND JACKET PICTURE GRAPHICS BLUE BLACK continued Additional Information 85 SPEAKER SETUP (page 72) SIZE FRONT LARGE SMALL CENTER NONE LARGE SMALL REAR NONE LARGE (REAR) LARGE (SIDE) SMALL (REAR) SMALL (SIDE) SUBWOOFER NONE YES DISTANCE (The distance from the listening position.) FRONT 4ft ~ 50ft (1.2m ~ 15.2m) CENTER 0ft ~ 52ft (0m ~ 15.8m) (It changes according to the distance from the front speaker.) REAR 0ft ~ 50ft (0m ~ 15.2m) (It changes according to the distance from the front speaker.) BALANCE FRONT - 6dB ~ + 6dB REAR - 6dB ~ + 6dB LEVEL CENTER - 6dB ~ + 6dB REAR - 6dB ~ + 6dB SUBWOOFER - 10dB ~ + 10dB TEST TONE OFF ON 84 CUSTOM SETUP (page 68) AUDIO SETUP (page 70) AUTO PLAY OFF TIMER DEMO1 DEMO2 DIMMER BRIGHT DARK OFF PAUSE MODE AUTO FRAME PARENTAL CONTROL t PLAYBACK MEMORY ON OFF TRACK SELECTION OFF AUTO AUDIO ATT OFF ON AUDIO DRC STANDARD TV MODE WIDE RANGE CENTER SPEAKER EQ FLAT ENHANCED SOFT DOWNMIX DOLBY SURROUND NORMAL DIGITAL OUT ON DOLBY DIGITAL D-PCM DOLBY DIGITAL DTS OFF ON 48kHz/96kHz PCM 48kHz/16bit 96kHz/24bit OFF 1-20 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 Note: Follow the disassembly procedure in the numerical order given. 2-1. CASE REMOVAL 2-3. REAR PANEL REMOVAL (EXCEPT AEP, UK) 2-2. MB-98 BOARD REMOVAL 2-4. REAR PANEL, ER-15 BOARD REMOVAL (AEP, UK) SECTION 2 DISASSEMBLY DVP-NS400D 1 Three tapping screws 4 Case 2 Tapping screw 3 Tapping screw 3 Six screws (B3) 4 Claw 5 Claw 2 Three screws (B3) 6 Rear panel 1 Connector (CN101) 2 Connector (CN101) 9ER-15 board 1Flexible flat cable (FAE-005: CN901) 7Rear panel 3Three screws (B3) 4Five screws (B3) 5Claw 6Claw 8Four screws (B3) 4 Two screws (B3) 5 Two screws (B3) 6 MB-98 board 3 Connector (CN101) 1 Three flexible flat cables (FMO-001: CN201/ FMO-002: CN202/ FMM-035: CN402) 2 Two flexible flat cables (FMA-023: CN801/ FMA-024: CN802) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 2-5. TRAY COVER REMOVAL 2-7. POWER BLOCK REMOVAL 2-6. FRONT PANEL REMOVAL 2-8. MECHANISM DECK REMOVAL 2 Pull the tray in the direction of arrow B. 3 Two claws 4 Tray cover 1 Insert a tapering driver into the aperture of the unit bottom, and move the lever of chuck cam in the direction of arrow A. B A 4 Two claws 5 Front panel 2 Claw 3 Claw 1 Connector (CN402) 1 Connector (CN101) 2 Connector (CN201) 3 Two screws (WHDB3) 5 Joint (POWER) 4 Two screws (WHDB3) 6 Power block 2 Three screws (B3) 3 Mechanism deck 1 Three flexible flat cables (FMO-001: CN201/ FMO-002: CN202/ FMM-035: CN402) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 2-9. AI-23 BOARD REMOVAL 2-10. TRAY REMOVAL 2-11. LOADING MOTOR (M001), MS-81 BOARD REMOVAL 2-12. OPTICAL PICK-UP REMOVAL 1 Two connectors (FMA-023: CN203/ FMA-024: CN301) 6 AI-23 board 5 Five screws (B3) 3 Two screws (B3) 4 Multi pillar 2 Connector (CN101) 2 Connector (CN201) 1 Move the lever of chuck cam in the direction of arrow A. 3 Claw 4 Tray 3 Claw A 2 4 Loading motor (M001), MS-81 board 3 Two claws 1 BELT 2 Two screws (P2.6 x 4) 2 Insulator 2 Insulator 2 Insulator 1 Insulator screw 1 Insulator screw 3 Optical pick-up 1 Insulator screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 DC motor (loading) 1-541-632-11 2-13. INTERNAL VIEWS Optical pick-up (KHM-240AAA/J1NP) A-4900-634-A DC motor (loading) 1-541-632-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-5 2-14. CIRCUIT BOARDS LOCATION 2-5 E ER-15 (AEP, UK) (EURO AV) AI-23 (AUDIO/VIDEO OUT, INTERFACE CONTROL) MS-81 (LOADING) Power Block (TOP-244U) (US, Canadian) Power Block (HS13S0U) (US, Canadian, Mexican) Power Block (HS13S0E) (AEP, UK, Argentina) Power Block (HS13S0F) (E, Brazilian) (SWITCHING REGULATOR) MB-98 (SIGNAL PROCESS, SERVO) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS400D SECTION 3 BLOCK DIAGRAMS 3-1 3-2 3-1. OVERALL BLOCK DIAGRAM IC202 IC302 IC503 IC303 IC101 IC802 IC803 IC107 IC404 IC504, 505 IC601 IC102 J101 (1/2) J101 (2/2) J302 J103 J102 IC401 BASE UNIT KHM-240AAA/J1NP MS-81 BOARD (SEE PAGE 4-5) MB-98 BOARD (SEE PAGE 4-11 to 4-28) AI-23 BOARD (SEE PAGE 4-31 to 4-38) ER-15 BOARD (SEE PAGE 4-41) OPTICAL DEVICE DVD/CD PD IC RF DVD/CD RF AMP, DIGITAL SERVO RF+ ARP, SERVO DSP FOCUS COIL TRACKING COIL FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED/ LOADING MOTOR DRIVE M M M SPINDLE MOTOR SLED MOTOR M001 LOADING MOTOR FUNCTION KEY ND401 FLUORESCENT INDICATOR TUBE IF CON P CON SERIAL BUS EEPROM FLASH or IC108 OTP PARALLEL BUS CDDOUT, CDDATA, CDBCK, CDLRCK CDDOUT SDI 0 – 7 AV DECODER ACH12, ACH34, ACH56, BCK, LRCK 16M DRAM 16M SDRAM BNR Y, Cb, Cr V, Y, C VIDEO BUFFER RY904 SW SPDIF IC203 AUDIO D/A CONVERTER IC202 AUDIO AMP IC302 IC303 IC304 5.1CH AUDIO AMP AUDIO D/A CONVERTER EVER+3.3V +11V +5V +3.3V +1.8V SW+3.3V +5V SW+11V EVER+11V EVER–11V INLIMIT SENSOR CHUCK/TRAY DETECT HS13S0E BOARD : AEP, UK, AR (SEE PAGE 4-45) HS13S0F BOARD : E, BR (SEE PAGE 4-49) HS13S0U BOARD : US, CND, MX (SEE PAGE 4-53) TOP-244U BOARD : US, CND (SEE PAGE 4-57) SWITCHING REG AC IN PDO0 – 7 PDI0 – 7 05 US, CND, E, MX, AR, BR AEP, UK US, CND, E, MX, AR, BR AEP, UK • Abbreviation AR : Argentina BR : Brazilian CND : Canadian MX : Mexican IC701 AUDIO DSP V, Y, C V/Y, R/C, G, B V/Y, R/C, G, B R, G, B V R, G, B LINE 1 (RGB) –TV CNJ902 LINE 2 CNJ901 PB COMPONENT VIDEO OUT Y PR AEP, UK LINE OUT VIDEO 1 VIDEO 2 VIDEO 1 2 S VIDEO OUT 5.1CH OUTPUT CENTER WOOFER FRONT REAR L R L R LINE OUT AUDIO 2 L R AUDIO 1 L R AUDIO 1 OPTICAL DIGITAL OUT COAXIAL J201 POWER REG AU+5V REG IC103 SYSTEM CONTROL PUSH ENTER CURSOR STICK S001 IC901 VIDEO BUFFER, SELECT SW RY901 – 903 SW w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS400D 3-3 3-4 3-2. RF/SERVO BLOCK DIAGRAM 2 19 25 27 59 42 41 36 38 44 172 13 15 21 33 37 14 ı 11 7 ı 10 45 ı 48 32 ı 29 136 135 137 185 144 197 196 15 ı 18 37 36 21 22 48 1 47 46 204 205 202 203 35 34 27 28 7 10 25 24 3 4 45 5 140 166 167 200 156 24 22 198 199 159 161 MB-98 BOARD (1/4) (SEE PAGE 4-11, 13, 19) BASE UNIT KHM-240AAA/J1NP OPTICAL DEVICE 24 25 17 16 22 20 13 8 12 4 3 15 23 18 26 2 1 Q201 DVD LD DRIVE IC202 IC302 DVD/CD PD IC DVD/CD LD MODULE CN201 DVD/CD RF AMP, DIGITAL SERVO RF IN A – D E – H A2 – D2 VC DVDPD CDPD DVDLD SIGO FE TE PI DFT MON GIO5/PGIN MIRR TZC SRD SWD SCLK SDEN SERVO DSP ADC1 ADC0 ADC2 DFCTI ADC7 POM 2, 3 142 143 ADC5, 6 MIRR TZC ADC4 SIGNAL PROCESSOR (SEE PAGE 3-5) SYSTEM CONTROL (SEE PAGE 3-7) XDSPRST HCS HINT MDSO MDPO 176 177 GIO9/FGREF GIO10/FGIN GIO1/INT3 PWM2 PWM0, 1 POM 0, 1 GIO0/INT2 SPINDLE MOTOR DRIVE FOCUS COIL DRIVE TRACKING COIL DRIVE LOADING MOTOR DRIVE SLED MOTOR DRIVE 7 1 ı 4 9 8 1 5 4 IC401 5 2 4 1 2 CN402 CN001 LDM± CKSW1 OCSW1 INLIMIT SENSOR TRACKING COIL FOCUS COIL M001 LOADING MOTOR M M M MS-81 BOARD (SEE PAGE 4-5) SLED MOTOR SPINDLE MOTOR CN202 39 VCI 19 39 20 22 16 17 168 GIO2/INT4 05 CHUCK/TRAY DETECT S001 (1/2) RF A – D E – H VC PD 24 10 LEDSEL0 SW DVD LD 26 6 Q202 CD LD DRIVE CDLD CD LD VR SLA±, SLB± SPM± INLIM TRK± 139 ADC3 FCS± PS TSD-M 40 42 43 VREF +3.3V LDON 173 ı 175 180 GIO6/SDI GIO7/SDO GIO8/SCK GIO13 XSDPIT XSDPCS XRST XDRVMUTE OCSW1 RF+ CKSW1 XLDON FE TE PI SSDFCTI SS MON MDSO, MDPO SPMUTE SLDA, SLDB LMP, LMM TSD LMCTL TDRV± FDRV± SPFG SLE IC302 – , – , , 1 – 5 pins) and HD [0 – 15] (ig – pins) of the SYSTEM CONTROL (IC103) to check if they are fixed to “L” (0 V) or “H” (3.3 V), or if HA is on the intermediate potential between “L” and “H” (HD is on intermediate potential in nor- mal state), or if same waveform as that of adjacent pins is mea- sured. In case of “L” or “H”, intermediate potential, or same waveform, a soldering failure of that line, a shot with other line, or faulty SYSTEM CONTROL (IC103) is doubtful. 1-2. CPUCK (33 MHz) is outputted (communication with ROM is normal) • AVD (IC503) check Using an oscilloscope, measure the SDCLKO ( pin) of the AVD (IC503) to check that 95 MHz is outputted. If not output- ted, a short of 27 MHz line across CLKI ( pin) and SCLKIN ( pin), IC mounting failure, or faulty AVD (IC503) is doubt- ful. If 27 MHz is outputted, the communication between SYS- TEM CONTROL (IC103) and AVD (IC503) is disabled, and therefore check the following items, particularly the AVD (IC503). • WAIT signal check Using an oscilloscope, measure the XWAIT (yj pin) of the SYS- TEM CONTROL (IC103) to check if it is fixed to “L” (0 V) or on the intermediate potential. In case of “L” or intermediate potential, examine CS2X – CS5X (y; – yd pins) to check if any pin is fixed to “L”. For the CS2X and CS3X, AVD (IC503) mounting failure or faulty IC is doubtful. For the CS4X and CS5X, ARP & SERVO (IC302) mounting failure or faulty IC is doubtful. If CS2X – CS5X are not “L”, or they are sometimes on interme- diate potential, a soldering failure of XWAIT line, a short with other line, or faulty SYSTEM CONTROL (IC103) is doubtful. • INT signal check Using an oscilloscope, measure the INT0 – 2, 4 – 6 (qh – qk pins, w; – ws pins) of the SYSTEM CONTROL (IC103) to check if INT0 – 2, and 6 are fixed to “L” (0 V) and INT5 is fixed to “H” (3.3 V), or they are on intermediate potential. In case of “L”, “H”, or intermediate potential, a soldering failure of IC’s connected to that line, a short with other line, faulty SYSTEM CONTROL (IC103), or faulty each IC is doubtful. INT0 : AVD (IC503) INT1, INT2: ARP & SERVO (IC302) INT5, INT6: AUDIO DSP (IC701) • CSnX signals check Using an oscilloscope, measure the CX0X – CX7X (tk – yd, yg, yh pins) of the SYSTEM CONTROL (IC103) to check if they are fixed to “L” (0 V), or two or more CS’s sometime go “L”, or on intermediate potential. In case of fixed “L”, two or more CS’s on “L” or intermediate potential, a soldering failure of IC’s connected to that line, a short with other line, faulty SYSTEM CONTROL (IC103), or faulty each IC is doubtful. CS0X : ROM (IC107 or IC108) CS2X, CS3X: AVD (IC503) CS4X, CS5X: ARP & SERVO (IC302) • Other CS signals check Using an oscilloscope, measure the VESCS/X39CS (i; pin) and XDACS (ul pin) of the SYSTEM CONTROL (IC103) to check if they are fixed to “L”. If fixed, a soldering failure of that line, a short with other line, or faulty SYSTEM CONTROL (IC103) is doubtful. If the above checking could not find a fault, check the outputted CS signal. If CS signal other than CS0X is outputted, a mounting failure of each IC or faulty IC that corresponds to active CS signal is doubtful. CS2X, CS3X: AVD (IC503) CS4X, CS5X: ARP & SERVO (IC302) 2. Test mode menu is displayed, but operation stops when a menu is selected Using an oscilloscope, measure the PLCK0 (og pin) of the ARP & SERVO (IC302) to check if it is fixed to “L” (0 V) or “H” (3.3 V). If fixed to “L” or “H”, the ARP & SERVO (IC302) is faulty. If not fixed, check the items in 1-2. in order. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-19 6-19 E 3. Specific item failed in Diag All Check A mounting failure of IC or faulty IC for that item is doubtful. If “1901NG” is displayed, a loose connection of CN801, mount- ing failure of AUDIO DSP (IC701), or faulty IC is doubtful. 4. Picture and sound are not outputted Check the CN801 and CN802 for connection, and the flat cable for damage or loose connection. 5. Picture is outputted, but sound is not outputted A mounting failure of AUDIO DSP (IC701) or AUDIO DAC (IC802, IC803), power supply failure, or faulty IC is doubtful. 6. Sound is outputted, but picture is not outputted Using an oscilloscope, measure the yd, yh, yl, uf, uj, and i; pins of AVD (IC503) to check if analog signals are outputted re- spectively. If not outputted, a soldering failure of that line, a short with other line, missing capacitor or resistor, or faulty AVD is doubtful. 6-11-3. Drive Auto Adjustment stops by an error Faulty analog circuits of ARP & SERVO (IC302) or faulty periph- eral circuits of DIGITAL SERVO (IC202) on the MB-98 board, faulty optical pickup, or loose connection of flat cable is doubtful. 6-11-4. Power is Supplied but Unstable If Syscon Diagnosis completed successfully, basically the boards other than MB-98 board, connection, optical pickup, or mechani- cal deck will be faulty. 1. Red LED does not light when AC is supplied Check if the specified voltage is outputted from the EVER –11 V (3 pin), EVER +3.3 V (qa pin), and EVER +11 V (qd pin) of CN201 or CN920 in the power supply block. If not outputted, the power supply block will be faulty. 2. At [POWER] button ON, LED does not light in green even once, but kept in red (standby state) Check if the specified voltage is outputted from the EVER –11 V (3 pin), EVER +3.3 V (qa pin), and EVER +11 V (qd pin) of CN201 or CN920 in the power supply block. If not outputted, the power supply block will be faulty. Check the P-CONT (2 pin) of CN401 on the AI-23 board if it becomes “H”. If not “H”, a soldering failure of that line, a short with other line, missing capacitor or resistor, faulty AVD (IC503), loose connection between power supply block and AI-23 board, loose connection of connectors, faulty power supply block, or faulty AI-23 board is doubtful. 3. At [POWER] button ON, LED lights in green but returns to red (standby state) after several seconds (e.g. it returns to standby state after “SONY DVD” was displayed) There is no regularity between faulty parts and timing when the set returns to the standby state). Check if the specified voltage is outputted from the power supply block. If not outputted, the power supply block will be faulty. Check the XFRRST (9 pin) of CN101 on the MB-98 board if it is fixed to “L”, or the XIBUSY (0 pin), XIFCS (qa pin), SI0 (qs pin), SO0 (qd pin) and SC0 (qf pin) of CN101 if they are fixed to “L” or “H”. If fixed to “L” or “H”, a soldering failure of that line, a short with other line, missing capacitor or resistor, or faulty AVD (IC503) is doubtful. If not fixed to “L” or “H”, loose connection between power sup- ply block and AI-23 board or between AI-23 board and MB-98 board, loose connection of connectors, or faulty AI-23 board is doubtful. 4. At [POWER] button ON, LED lights in green but fluorescent display tube does not light Loose connection between power supply block and AI-23 board, loose connection of connectors, or faulty AI-23 board is doubtful. 5. Picture and sound are not outputted Loose connection between power supply block and AI-23 board or between AI-23 board and MB-98 board, loose connection of connectors, or faulty AI-23 board is doubtful. 6. Picture is out outputted correctly A mounting failure of BNR (IC601) on the MB-98 board, or faulty AVD (IC503) or ARP & SERVO (IC302), or faulty 27 MHz out- put (frequency, waveform) from 27-1OUT (3 pin) of PLL (IC102) is doubtful. 6-11-5. Power is not Supplied 1. Red LED does not light when AC is supplied The power (EVER +3.3 V) is not supplied to the IF CON (IC404) on the AI-23 board. The X401 does not oscillate. 2. At [POWER] button ON, LED is kept in red (standby state) Any button has been pressed. The voltage at PONCHK (e; pin) of the IF CON (IC404) on the AI-23 board exceeds 0.5 V. 3. At [POWER] button ON, LED lights in green but returns to red (standby state) after several seconds The PONCHK (e; pin) of the IF CON (IC404) on the AI-23 board is abnormal (slow rising from 0.5 V to more than 1.5 V, or voltage not rising to more than 1.5 V). The SYSTEM CONTROL (IC103) on the MB-98 board is faulty. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-1 7-1. POWER SUPPLY CHECK 1. HS13S0E/HS13S0F/HS13S0U/TOP-244U Boards Mode E-E Instrument Digital voltmeter EVER +3.3 V Check Test point CN201/CN920 pin qa Specification 3.5 ± 0.2 Vdc SW +3.3 V Check Test point CN201/CN920 pin 8 Specification 3.3 ± 0.2 Vdc +5 V Check Test point CN201/CN920 pin qs Specification 5.0 ± 0.3 Vdc SW +11 V Check Test point CN201/CN920 pin 6, 7 Specification 11.5 Vdc EVER +11 V Check Test point CN201/CN920 pin qd Specification 11.0 ± 1.0 Vdc EVER –11 V Check Test point CN201/CN920 pin 3 Specification –11.0 ± 1.0 Vdc Checking method: 1) Confirm that each voltage satisfies the specification. SECTION 7 ELECTRICAL ADJUSTMENT DVP-NS400D In making adjustment, refer to 7-3. Adjustment Related Parts Arrangement. Note: During diagnostic check, the characters and color bars can be seen only with the NTSC monitor. Therefore, for diag- nostic check, use the monitor that supports both NTSC and PAL modes. Use the reference disc for PAL for check, and use the refer- ence disc for NTSC for adjustment. This section describes procedures and instructions necessary for adjusting electrical circuits in this set. Instruments required: 1) Color monitor TV 2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz, with delay mode 3) Frequency counter (over 8 digits) 4) Digital voltmeter 5) Standard commander (RMT-D128A/D128P) 6) DVD reference disc HLX-501 (J-6090-071-A) (dual layer) (NTSC) HLX-503 (J-6090-069-A) (single layer) (NTSC) HLX-504 (J-6090-088-A) (single layer) (NTSC) HLX-505 (J-6090-089-A) (dual layer) (NTSC) HLX-506 (J-6090-077-A) (single layer) (PAL) HLX-507 (J-6090-078-A)(dual layer) (PAL) 7) SACD reference disc HLXA-509 (J-6090-090-A) 8) Extension Cable (J-6090-107-A) Abbreviation: AR : Argentina BR : Brazilian CND : Canadian MX : Mexican +1.0 –1.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-2 3. Checking S Video Output S-C This checks whether the S-C satisfies the NTSC/PAL Standard. If it is not correct, the colors will be too dark or light. Mode Video level adjustment in test mode Signal Color bars Test point S VIDEO OUT (S-C) connector (75 Ω terminated) Instrument Oscilloscope Specification A = 286 ± 30 mVp-p (NTSC) A = 300 ± 100 mVp-p (PAL) Checking method: 1) In the test mode initial menu “6” Video Level Adjustment, set so that color bars are generated. 2) Confirm that the S-C burst is “A”. Figure 7-3 4. Checking Component Video Output Y (US, CND, E, MX, AR, BR Model) This checks component video output Y. If it is incorrect, correct brightness will not be attained when connected to, for instance, projector. Mode Video level adjustment in test mode Signal Color bars Test point COMPONENT VIDEO OUT (Y) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.05 Vp-p Checking method: 1) In the test mode initial menu “6” Video Level Adjustment, set so that color bars are generated. 2) Confirm that the Y level is 1.0 ± 0.05 Vp-p. Figure 7-4 7-2. ADJUSTMENT OF VIDEO SYSTEM 1. Video Level Adjustment (MB-98 BOARD) This adjustment is made to satisfy the NTSC/PAL standard, and if not adjusted correctly, the brightness will be too large or small. Mode Video level adjustment in test mode Signal Color bars Test point LINE OUT (VIDEO) connector (75 Ω terminated) Instrument Oscilloscope Adjusting element RV501 Specification 1.0 Vp-p Adjusting method: 1) In the test mode initial menu “6” Video Level Adjustment, set so that color bars are generated. 2) Adjust the RV501 to attain 1.0 Vp-p. Figure 7-1 2. Checking S Video Output S-Y Check S-terminal video output. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with a S- terminal cable. Mode Video level adjustment in test mode Signal Color bars Test point S VIDEO OUT (S-Y) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.05 Vp-p Checking method: 1) In the test mode initial menu “6” Video Level Adjustment, set so that color bars are generated. 2) Confirm that the S-Y level is 1.0 ± 0.05 Vp-p. Figure 7-2 +0.04 –0.02 +0.04 –0.02 1.0 Vp-p +0.04 –0.02 A 1.0 ± 0.05 Vp-p 1.0 ± 0.05 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-3 7. Checking RGB Output R (AEP, UK Model) This checks RGB output R. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with an EURO AV connecting cord. Mode In test mode, Push [0] for Syscon Diagnosis and push [7] for Video and push [5] for RGB out Signal Color bars Test point LINE 1 (RGB)-TV connector pin qg (75 Ω terminated) Instrument Oscilloscope Specification 700 ± 50 mVp-p Checking method: 1) Confirm that the R level is 700 ± 50 mVp-p. Figure 7-7 8. Checking RGB Output G (AEP, UK Model) This checks RGB output G. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with an EURO AV connecting cord. Mode In test mode, Push [0] for Syscon Diagnosis and push [7] for Video and push [5] for RGB out Signal Color bars Test point LINE 1 (RGB)-TV connector pin qa (75 Ω terminated) Instrument Oscilloscope Specification 700 ± 50 mVp-p Checking method: 1) Confirm that the G level is 700 ± 50 mVp-p. Figure 7-8 5. Checking Component Video Output B-Y (US, CND, E, MX, AR, BR Model) This checks component video output B-Y. If it is incorrect, cor- rect colors will not be displayed when connected to, for instance, projector. Mode Video level adjustment in test mode Signal Color bars Test point COMPONENT VIDEO OUT (PB) connector (75 Ω terminated) Instrument Oscilloscope Specification 700 ± 50 mVp-p Checking method: 1) In the test mode initial menu “6” Video Level Adjustment, set so that color bars are generated. 2) Confirm that the B-Y level is 700 ± 50 mVp-p. Figure 7-5 6. Checking Component Video Output R-Y (US, CND, E, MX, AR, BR Model) This checks component video output R-Y. If it is incorrect, cor- rect colors will not be displayed when connected to, for instance, projector. Mode Video level adjustment in test mode Signal Color bars Test point COMPONENT VIDEO OUT (PR) connector (75 Ω terminated) Instrument Oscilloscope Specification 700 ± 50 mVp-p Checking method: 1) In the test mode initial menu “6” Video Level Adjustment, set so that color bars are generated. 2) Confirm that the R-Y level is 700 ± 50 mVp-p. Figure 7-6 700 ± 50 mVp-p 700 ± 50 mVp-p 700 ± 50 mVp-p 700 ± 50 mVp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-4 9. Checking RGB Output B (AEP, UK Model) This checks RGB output B. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with an EURO AV connecting cord. Mode In test mode, Push [0] for Syscon Diagnosis and push [7] for Video and push [5] for RGB out Signal Color bars Test point LINE 1 (RGB)-TV connector pin 7 (75 Ω terminated) Instrument Oscilloscope Specification 700 ± 50 mVp-p Checking method: 1) Confirm that the B level is 700 ± 50 mVp-p. Figure 7-9 700 ± 50 mVp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RV501 IC503 VIDEO LEVEL ADJ 13 1 CN201/CN920 7-6 E 7-3. ADJUSTMENT RELATED PARTS ARRANGEMENT MB-98 BOARD (SIDE A) HS13S0E/HS13S0F/HS13S0U/TOP-244U BOARDS (SIDE A) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-1 8-2 8-1-1. CASE ASSEMBLY DVP-NS400D NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. • Abbreviation AR : Argentina BR : Brazilian CND : Canadian MX : Mexican SECTION 8 REPAIR PARTS LIST 8-1. EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied. Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 1 3 4 10 9 8 7 6 6 12 6 5 11 2 6 3-710-901-11 SCREW, TAPPING (US, CND, AEP (DPX1411BM), AEP (DPX1412BM), UK (DPX1411BM)) 6 3-710-901-61 SCREW, TAPPING (AEP (DPX1411HM), AEP (DPX1412HM), UK (DPX1411HM), E, MX, AR, BR) 7 3-068-890-01 CUSHION, REAR LEG 8 3-970-608-51 SUMITITE (B3), +BV 9 1-786-131-11 SWITCH, TACTILE 10 3-067-238-11 CURSOR STICK (US, CND, AEP (DPX1411BM), AEP (DPX1412BM), UK (DPX1411BM)) 10 3-067-238-21 CURSOR STICK (AEP (DPX1411HM), AEP (DPX1412HM), UK (DPX1411HM), E, MX, AR, BR) 11 1-476-604-11 REMOTE COMMANDER (RMT-D128A) (US, CND, E, MX, AR, BR) 11 1-476-605-11 REMOTE COMMANDER (RMT-D128P) (AEP, UK) 12 3-068-047-01 CASE (EXCEPT AEP (DPX1411HM)) 12 3-068-047-11 CASE (AEP (DPX1411HM), AEP (DPX1412HM), UK (DPX1411HM), E, BR) 1 3-067-237-01 EMBLEM (V), DVD (US, CND, AEP (DPX1411BM), AEP (DPX1412BM), UK (DPX1411BM)) 1 3-067-237-11 EMBLEM (V), DVD (AEP (DPX1411HM), AEP (DPX1412HM), UK (DPX1411HM), E, MX, AR, BR) 2 3-067-235-01 COVER (H), TRAY (US (DPX1410BJ), CND (DPX1410BJ)) 2 3-067-235-11 COVER (H), TRAY (US (DPX1410BM), CND (DPX1410BM), AEP (DPX1411BM), AEP (DPX1412BM), UK (DPX1411BM)) 2 3-067-236-01 COVER (P), TRAY (AEP (DPX1411HM), AEP (DPX1412HM), UK (DPX1411HM), E, MX, AR, BR) 3 3-067-225-01 WINDOW 4 3-059-349-11 CUSHION, FOOT 5 A-6062-600-A FRONT PANEL ASSY (BR) 5 X-3951-513-1 FRONT PANEL ASSY (US) 5 X-3951-514-1 FRONT PANEL ASSY (AEP (DPX1411BM), AEP (DPX1412BM), UK (DPX1411BM)) 5 X-3951-517-1 FRONT PANEL ASSY (AEP (DPX1411HM), AEP (DPX1412HM), UK (DPX1411HM)) 5 X-3951-540-1 FRONT PANEL ASSY (E, MX, AR) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark • Description about model name DPX14xxBJ Name of production country J : Japan M : Malaysia Color of set B : Black H : Titanium gray w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-3 8-4 8-1-2. CHASSIS ASSEMBLY 51 52 54 53 57 55 55 65 64 63 62 61 55 60 59 67 67 67 71 70 72 67 66 55 55 56 69 57 Mechanism deck not supplied not supplied not supplied not supplied 67 AEP, UK * 51 1-468-583-11 POWER BLOCK (HS13S0U) (US, CND, MX) * 51 1-468-584-11 POWER BLOCK (TOP-244U) (US, CND) * 51 1-468-585-11 POWER BLOCK (HS13S0E) (AEP, UK, AR) * 51 1-468-586-11 POWER BLOCK (HS13S0F) (E, BR) 52 3-067-232-11 BUTTON (POWER) (US, CND, AEP (DPX1411BM), AEP (DPX1412BM), UK (DPX1411BM)) 52 3-067-232-21 BUTTON (POWER) (AEP (DPX1411HM), AEP (DPX1412HM), UK (DPX1411HM), E, MX, AR, BR) 53 3-059-321-11 INDICATOR (P) 54 3-067-233-11 JOINT (POWER) 55 3-970-608-11 SUMITITE (B3), +BV 056 1-757-140-11 CORD, POWER (AEP, UK, E, BR) 056 1-757-571-11 CORD, POWER (US, CND, MX) 056 1-757-901-11 CORD, POWER (AR) 57 3-050-569-01 SUMITITE (B3), +WHD * 59 A-6065-642-A AI-23 BOARD, COMPLETE (US (DPX1410BJ), CND (DPX1410BJ)) * 59 A-6065-664-A AI-23 BOARD, COMPLETE (US (DPX1410BM), CND (DPX1410BM), E, MX, AR) * 59 A-6065-668-A AI-23 BOARD, COMPLETE (AEP, UK) * 59 A-6065-707-A AI-23 BOARD, COMPLETE (BR) * 60 A-6065-643-A MB-98 BOARD, COMPLETE (US (DPX1410BJ), CND (DPX1410BJ)) * 60 A-6065-665-A MB-98 BOARD, COMPLETE (US (DPX1410BM), CND (DPX1410BM)) * 60 A-6065-667-A MB-98 BOARD, COMPLETE (E, MX, AR, BR) * 60 A-6065-669-A MB-98 BOARD, COMPLETE (AEP (DPX1411BM), AEP (DPX1411HM), UK) * 60 A-6065-671-A MB-98 BOARD, COMPLETE (AEP (DPX1412BM), AEP (DPX1412HM)) 61 1-757-696-11 CABLE, FLEXIBLE FLAT (FMA-024) 62 1-757-695-11 CABLE, FLEXIBLE FLAT (FMA-023) 63 1-757-693-11 CABLE, FLEXIBLE FLAT (FMO-001) 64 1-757-694-11 CABLE, FLEXIBLE FLAT (FMO-002) 65 1-757-697-11 CABLE, FLEXIBLE FLAT (FMM-035) 66 4-966-267-12 BUSHING (FBS001), CORD 67 3-970-608-51 SUMITITE (B3), +BV 69 3-067-248-01 LED HOLDER 70 3-069-090-01 COVER, EJECT * 71 A-6065-670-A ER-15 BOARD, COMPLETE COMPL (AEP, UK) 72 1-757-699-11 CABLE, FLEXIBLE FLAT (FAE-005) (AEP, UK) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-5 8-1-3. MECHANISM DECK ASSEMBLY 101 102 102 102 103 103 104 103 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 102 3-053-847-11 INSULATOR 103 3-067-344-01 INSULATOR SCREW 0104 A-4900-634-A OPTICAL PICK-UP KHM-240 AAA/J1NP 101 A-6062-514-A LOADING ASSY (M) (US (DPX1410BM), CND (DPX1410BM), AEP, UK, E, MX, AR, BR) 101 A-6062-517-A LOADING ASSY (J) (US (DPX1410BJ), CND (DPX1410BJ)) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-6 NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Not all of the parts for POWER BLOCK (HS13S0E, HS13S0F, HS13S0U and TOP- 244U) are listed. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH • Abbreviation AR : Argentina BR : Brazilian CND : Canadian MX : Mexican 8-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied. Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. When indicating parts by reference number, please include the board. • Description about model name DPX14xxBJ Name of production country J : Japan M : Malaysia Color of set B : Black H : Titanium gray AI-23 * A-6065-642-A AI-23 BOARD, COMPLETE (US (DPX1410BJ), CND (DPX1410BJ)) * A-6065-664-A AI-23 BOARD, COMPLETE (US (DPX1410BM), CND (DPX1410BM), E, MX, AR) * A-6065-668-A AI-23 BOARD, COMPLETE (AEP, UK) * A-6065-707-A AI-23 BOARD, COMPLETE (BR) ********************* (Ref.No. 1,000 Series) 3-067-239-11 HOLDER, FL (US (DPX1410BJ), CND(DPX1410BJ), BR) 3-067-239-01 HOLDER, FL (US (DPX1410BM), CND (DPX1410BM), AEP, UK, E, MX, AR) < BUZZER > BZ401 1-529-986-11 BUZZER, VOLTAGE < CAPACITOR > C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-104-664-11 ELECT 47uF 20% 16V C109 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C110 1-104-664-11 ELECT 47uF 20% 16V C111 1-104-664-11 ELECT 47uF 20% 16V C112 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C113 1-104-664-11 ELECT 47uF 20% 16V C114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C202 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C203 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C204 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C205 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C206 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C207 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C208 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C209 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C210 1-104-664-11 ELECT 47uF 20% 16V C212 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C213 1-126-960-11 ELECT 1uF 20% 50V C214 1-104-664-11 ELECT 47uF 20% 16V C215 1-104-664-11 ELECT 47uF 20% 16V C216 1-126-960-11 ELECT 1uF 20% 50V (AEP, UK) C217 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C218 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C225 1-104-664-11 ELECT 47uF 20% 16V C226 1-104-664-11 ELECT 47uF 20% 16V C227 1-104-664-11 ELECT 47uF 20% 16V C228 1-164-230-11 CERAMIC CHIP 220PF 5% 50V (AEP, UK) C229 1-164-230-11 CERAMIC CHIP 220PF 5% 50V (AEP, UK) C305 1-126-767-11 ELECT 1000uF 20% 16V C306 1-126-960-11 ELECT 1uF 20% 50V C309 1-126-924-11 ELECT 330uF 20% 6.3V C313 1-164-315-11 CERAMIC CHIP 470PF 5% 50V (AEP, UK) C314 1-164-315-11 CERAMIC CHIP 470PF 5% 50V (AEP, UK) C315 1-164-315-11 CERAMIC CHIP 470PF 5% 50V (AEP, UK) C316 1-164-315-11 CERAMIC CHIP 470PF 5% 50V (AEP, UK) C317 1-164-315-11 CERAMIC CHIP 470PF 5% 50V (AEP, UK) C319 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C320 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C321 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C322 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C323 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C324 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C325 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C326 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C327 1-104-664-11 ELECT 47uF 20% 16V C328 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C329 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C330 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C331 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C332 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C333 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C334 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C335 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C336 1-164-217-11 CERAMIC CHIP 150PF 5% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-7 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AI-23 C337 1-104-664-11 ELECT 47uF 20% 16V C338 1-104-664-11 ELECT 47uF 20% 16V C339 1-104-664-11 ELECT 47uF 20% 16V C340 1-104-664-11 ELECT 47uF 20% 16V C341 1-104-664-11 ELECT 47uF 20% 16V C342 1-104-664-11 ELECT 47uF 20% 16V C343 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C344 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C345 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C346 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C347 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C348 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C349 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C402 1-124-589-11 ELECT 47uF 20% 16V C404 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C407 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C409 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C411 1-126-933-11 ELECT 100uF 20% 16V C412 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C416 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C417 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C419 1-104-666-11 ELECT 220uF 20% 25V C420 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C421 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C422 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C423 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C425 1-128-131-11 ELECT 22uF 20% 50V C427 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C428 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C429 1-126-933-11 ELECT 100uF 20% 16V C430 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C431 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C432 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C436 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C437 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C438 1-124-584-00 ELECT 100uF 20% 10V C439 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN102 1-815-149-11 CONNECTOR, FPC/FFC (1MM PIC) 21P (AEP, UK) CN203 1-815-390-11 CONNECTOR, FFC/FPC 25P CN301 1-785-696-11 CONNECTOR, FFC/FPC 15P CN401 1-778-317-11 CONNECTOR, BOARD TO BOARD 13P CN402 1-815-381-11 CONNECTOR, FPC/FFC 5P CN403 1-815-458-21 CONNECTOR, BOARD TO BOARD 15P * CN405 1-785-530-11 PIN, CONNECTOR (PC BOARD) 10P < DIODE > D004 8-719-071-15 DIODE HZM6.8ZWA1TL (US, CND, E, MX, AR, BR) D005 8-719-071-15 DIODE HZM6.8ZWA1TL D006 8-719-071-15 DIODE HZM6.8ZWA1TL D007 8-719-071-15 DIODE HZM6.8ZWA1TL (US, CND, E, MX, AR, BR) D201 8-719-914-43 DIODE DAN202K-T-146 D202 8-719-914-44 DIODE DAP202K-T-146 D203 8-719-914-44 DIODE DAP202K-T-146 (AEP, UK) D301 8-719-988-61 DIODE 1SS355TE-17 D402 8-719-083-33 DIODE EB3803X-TP-J300K (DOLBY DIGITAL) D403 8-719-041-97 DIODE MA113-(TX) D404 8-719-041-97 DIODE MA113-(TX) D405 8-719-041-97 DIODE MA113-(TX) D406 8-719-041-97 DIODE MA113-(TX) D412 8-719-422-62 DIODE MA8062-L-TX D414 8-719-056-06 DIODE SLR-342DCT32 (BNR) D415 8-719-056-06 DIODE SLR-342DCT32 (SURROUND) < EARTH TERMINAL > * ET201 1-537-738-21 TERMINAL, EARTH < FERRITE BEAD > FB301 1-216-295-11 SHORT 0 (US, CND, E, MX, AR, BR) FB301 1-414-233-22 FERRITE 0uH (AEP, UK) FB401 1-469-324-21 FERRITE 0uH < IC > IC101 8-759-667-17 IC L79M05TLL-SONY-TL IC102 8-759-826-45 IC LA73050-TLM (US, CND, E, MX, AR, BR) IC102 8-759-826-46 IC LA73051-TLM (AEP, UK) IC201 8-759-052-52 IC NJM78M05DL1A-TE1 IC202 8-759-909-71 IC BA4558F-E2 IC203 8-749-017-80 IC GP1FA551TZ (DIGITAL OUT - OPTICAL) IC302 8-759-909-71 IC BA4558F-E2 IC303 8-759-909-71 IC BA4558F-E2 IC304 8-759-909-71 IC BA4558F-E2 IC401 8-749-019-11 IC GP1UD28SYK IC403 8-759-832-23 IC AN80P18RSPE1 IC404 6-800-321-01 IC TMP86CK74F-3CB8 IC405 8-759-684-35 IC S-80830ANUP-EDT-T2 < JACK > J101 1-815-358-11 JACK, PIN (3P) (LINE OUT) (AEP, UK) J101 1-815-362-11 JACK, PIN (6P) (LINE OUT) (US, CND, E, MX, AR, BR) J102 1-815-360-11 JACK, PIN (3P) (COMPONENT VIDEO OUT) (US, CND, E, MX, AR, BR) J103 1-694-484-21 TERMINAL, S (2P.V) (S VIDEO OUT) (US, CND, E, MX, AR, BR) J103 1-794-198-11 CONNECTOR, S TERMINAL (S VIDEO OUT) (AEP, UK) J201 1-793-446-21 JACK, PIN 1P (DIGITAL OUT - COAXIAL) J302 1-785-536-11 JACK, PIN (6P) (5.1CH OUTPUT) < JUMPER RESISTOR > JR100 1-216-295-11 SHORT 0 JR101 1-216-295-11 SHORT 0 JR102 1-216-295-11 SHORT 0 JR103 1-216-295-11 SHORT 0 JR104 1-216-295-11 SHORT 0 JR105 1-216-295-11 SHORT 0 JR107 1-216-295-11 SHORT 0 JR108 1-216-295-11 SHORT 0 JR109 1-216-295-11 SHORT 0 JR110 1-216-295-11 SHORT 0 JR112 1-216-295-11 SHORT 0 JR114 1-216-295-11 SHORT 0 JR115 1-216-295-11 SHORT 0 JR116 1-216-295-11 SHORT 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-8 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AI-23 JR117 1-216-295-11 SHORT 0 JR118 1-216-295-11 SHORT 0 JR119 1-216-295-11 SHORT 0 JR121 1-216-295-11 SHORT 0 JR125 1-216-295-11 SHORT 0 JR400 1-216-295-11 SHORT 0 JR401 1-216-295-11 SHORT 0 JR402 1-216-295-11 SHORT 0 JR404 1-216-295-11 SHORT 0 JR409 1-216-295-11 SHORT 0 JR411 1-216-295-11 SHORT 0 < COIL > L101 1-412-064-11 INDUCTOR 100uH L401 1-408-978-21 INDUCTOR 47uH < FLUORESCENT INDICATOR TUBE > ND401 1-517-972-11 INDICATOR TUBE, FLUORESCENT < IC LINK > 0PS401 1-576-509-21 LINK, IC (1.0 A) 0PS402 1-576-509-21 LINK, IC (1.0 A) < TRANSISTOR > Q104 8-729-421-19 TRANSISTOR UN2213-TX Q105 8-729-424-08 TRANSISTOR UN2111-TX Q106 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L (AEP, UK) Q201 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q202 8-729-421-19 TRANSISTOR UN2213-TX Q204 8-729-027-53 TRANSISTOR DTC124TKA-T146 Q205 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX Q206 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q207 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q208 8-729-027-53 TRANSISTOR DTC124TKA-T146 (AEP, UK) Q209 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX (AEP, UK) Q210 8-729-421-19 TRANSISTOR UN2213-TX (AEP, UK) Q302 8-729-421-19 TRANSISTOR UN2213-TX Q303 8-729-027-53 TRANSISTOR DTC124TKA-T146 Q304 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX Q305 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q306 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q307 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q308 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q309 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q310 8-729-046-97 TRANSISTOR 2SD1938 (F) -T (TX).SO Q311 8-729-049-31 TRANSISTOR 2SB710-RTX Q312 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q313 8-729-216-22 TRANSISTOR 2SB709A-QRS-TX Q401 8-729-056-46 TRANSISTOR 2SC5053T100Q Q402 8-729-056-46 TRANSISTOR 2SC5053T100Q Q404 8-729-048-28 TRANSISTOR 2SD1766-T100-QR Q405 8-729-424-08 TRANSISTOR UN2111-TX < RESISTOR > R121 1-216-073-00 METAL CHIP 10K 5% 1/10W R122 1-216-049-11 RES-CHIP 1K 5% 1/10W (AEP, UK) R126 1-216-021-00 METAL CHIP 68 5% 1/10W (US, CND, E, MX, AR, BR) R127 1-216-021-00 METAL CHIP 68 5% 1/10W (US, CND, E, MX, AR, BR) R128 1-216-021-00 METAL CHIP 68 5% 1/10W (US, CND, E, MX, AR, BR) R129 1-216-073-00 METAL CHIP 10K 5% 1/10W R130 1-216-021-00 METAL CHIP 68 5% 1/10W (US, CND, E, MX, AR, BR) R131 1-216-021-00 METAL CHIP 68 5% 1/10W R132 1-216-021-00 METAL CHIP 68 5% 1/10W (US, CND, E, MX, AR, BR) R133 1-216-021-00 METAL CHIP 68 5% 1/10W R134 1-216-021-00 METAL CHIP 68 5% 1/10W R135 1-216-021-00 METAL CHIP 68 5% 1/10W (US, CND, E, MX, AR, BR) R201 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R202 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R203 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R204 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R205 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R206 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R207 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R208 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R209 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R210 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R211 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R212 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R213 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R215 1-216-033-00 METAL CHIP 220 5% 1/10W R217 1-216-021-00 METAL CHIP 68 5% 1/10W R218 1-216-065-00 RES-CHIP 4.7K 5% 1/10W (AEP, UK) R219 1-216-073-00 METAL CHIP 10K 5% 1/10W R220 1-216-049-11 RES-CHIP 1K 5% 1/10W R221 1-216-049-11 RES-CHIP 1K 5% 1/10W R222 1-216-073-00 METAL CHIP 10K 5% 1/10W R223 1-216-049-11 RES-CHIP 1K 5% 1/10W R224 1-216-073-00 METAL CHIP 10K 5% 1/10W R225 1-216-089-11 RES-CHIP 47K 5% 1/10W R226 1-216-041-00 METAL CHIP 470 5% 1/10W R227 1-216-041-00 METAL CHIP 470 5% 1/10W R228 1-216-073-00 METAL CHIP 10K 5% 1/10W R229 1-216-089-11 RES-CHIP 47K 5% 1/10W R230 1-216-089-11 RES-CHIP 47K 5% 1/10W R231 1-216-073-00 METAL CHIP 10K 5% 1/10W (AEP, UK) R232 1-216-073-00 METAL CHIP 10K 5% 1/10W (AEP, UK) R233 1-216-089-11 RES-CHIP 47K 5% 1/10W (AEP, UK) R234 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R235 1-216-065-00 RES-CHIP 4.7K 5% 1/10W (US, CND, E, MX, AR, BR) R236 1-216-073-00 METAL CHIP 10K 5% 1/10W (AEP, UK) R237 1-216-065-00 RES-CHIP 4.7K 5% 1/10W (AEP, UK) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AI-23 R238 1-216-097-11 RES-CHIP 100K 5% 1/10W R239 1-216-097-11 RES-CHIP 100K 5% 1/10W (AEP, UK) R240 1-216-041-00 METAL CHIP 470 5% 1/10W (US, CND, E, MX, AR, BR) R241 1-216-041-00 METAL CHIP 470 5% 1/10W R242 1-216-041-00 METAL CHIP 470 5% 1/10W (US, CND, E, MX, AR, BR) R243 1-216-041-00 METAL CHIP 470 5% 1/10W R301 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R302 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R308 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R309 1-216-041-00 METAL CHIP 470 5% 1/10W R310 1-216-073-00 METAL CHIP 10K 5% 1/10W R311 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R312 1-216-073-00 METAL CHIP 10K 5% 1/10W R313 1-216-097-11 RES-CHIP 100K 5% 1/10W R314 1-216-105-00 RES-CHIP 220K 5% 1/10W R322 1-216-073-00 METAL CHIP 10K 5% 1/10W R323 1-216-073-00 METAL CHIP 10K 5% 1/10W R324 1-216-089-11 RES-CHIP 47K 5% 1/10W R325 1-216-073-00 METAL CHIP 10K 5% 1/10W R326 1-216-073-00 METAL CHIP 10K 5% 1/10W R327 1-216-073-00 METAL CHIP 10K 5% 1/10W R328 1-216-073-00 METAL CHIP 10K 5% 1/10W R329 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R330 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R331 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R332 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R333 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R334 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R335 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R336 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R337 1-216-073-00 METAL CHIP 10K 5% 1/10W R338 1-216-073-00 METAL CHIP 10K 5% 1/10W R339 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R340 1-216-089-11 RES-CHIP 47K 5% 1/10W R341 1-216-073-00 METAL CHIP 10K 5% 1/10W R342 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R343 1-216-083-00 METAL CHIP 27K 5% 1/10W R344 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R345 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R347 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R348 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R349 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R350 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R351 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R353 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R354 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R355 1-216-073-00 METAL CHIP 10K 5% 1/10W R356 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R357 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R358 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R359 1-216-089-11 RES-CHIP 47K 5% 1/10W R360 1-216-073-00 METAL CHIP 10K 5% 1/10W R361 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R362 1-216-083-00 METAL CHIP 27K 5% 1/10W R363 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R364 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R365 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R366 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R367 1-216-097-11 RES-CHIP 100K 5% 1/10W R368 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R369 1-216-041-00 METAL CHIP 470 5% 1/10W R370 1-216-041-00 METAL CHIP 470 5% 1/10W R371 1-216-041-00 METAL CHIP 470 5% 1/10W R372 1-216-041-00 METAL CHIP 470 5% 1/10W R373 1-216-041-00 METAL CHIP 470 5% 1/10W R374 1-216-041-00 METAL CHIP 470 5% 1/10W R375 1-216-089-11 RES-CHIP 47K 5% 1/10W R376 1-216-089-11 RES-CHIP 47K 5% 1/10W R377 1-216-089-11 RES-CHIP 47K 5% 1/10W R378 1-216-089-11 RES-CHIP 47K 5% 1/10W R379 1-216-089-11 RES-CHIP 47K 5% 1/10W R380 1-216-089-11 RES-CHIP 47K 5% 1/10W R386 1-216-295-11 SHORT 0 R395 1-216-295-11 SHORT 0 R399 1-216-295-11 SHORT 0 (AEP, UK) R401 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R402 1-216-097-11 RES-CHIP 100K 5% 1/10W R412 1-216-017-00 RES-CHIP 47 5% 1/10W R413 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R414 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R415 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R416 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R417 1-216-097-11 RES-CHIP 100K 5% 1/10W R418 1-216-073-00 METAL CHIP 10K 5% 1/10W R420 1-216-025-11 RES-CHIP 100 5% 1/10W R421 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R422 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R423 1-216-081-00 METAL CHIP 22K 5% 1/10W R424 1-216-013-00 METAL CHIP 33 5% 1/10W R425 1-216-025-11 RES-CHIP 100 5% 1/10W R426 1-216-033-00 METAL CHIP 220 5% 1/10W R427 1-216-063-00 RES-CHIP 3.9K 5% 1/10W R428 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R429 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R430 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R431 1-216-063-00 RES-CHIP 3.9K 5% 1/10W R433 1-216-073-00 METAL CHIP 10K 5% 1/10W R434 1-216-073-00 METAL CHIP 10K 5% 1/10W R435 1-216-073-00 METAL CHIP 10K 5% 1/10W R437 1-216-027-00 METAL CHIP 120 5% 1/10W R440 1-216-073-00 METAL CHIP 10K 5% 1/10W R444 1-216-025-11 RES-CHIP 100 5% 1/10W R446 1-216-097-11 RES-CHIP 100K 5% 1/10W R448 1-216-073-00 METAL CHIP 10K 5% 1/10W R449 1-216-073-00 METAL CHIP 10K 5% 1/10W R450 1-216-073-00 METAL CHIP 10K 5% 1/10W R455 1-216-073-00 METAL CHIP 10K 5% 1/10W R470 1-216-073-00 METAL CHIP 10K 5% 1/10W R472 1-216-073-00 METAL CHIP 10K 5% 1/10W R474 1-216-025-11 RES-CHIP 100 5% 1/10W R481 1-216-025-11 RES-CHIP 100 5% 1/10W R482 1-216-025-11 RES-CHIP 100 5% 1/10W R483 1-216-025-11 RES-CHIP 100 5% 1/10W R484 1-216-025-11 RES-CHIP 100 5% 1/10W R485 1-216-025-11 RES-CHIP 100 5% 1/10W R486 1-216-033-00 METAL CHIP 220 5% 1/10W R487 1-216-033-00 METAL CHIP 220 5% 1/10W R490 1-216-081-00 METAL CHIP 22K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-10 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AI-23 ER-15 R491 1-216-081-00 METAL CHIP 22K 5% 1/10W < SWITCH > S401 1-771-574-21 SWITCH, TACTILE (BNR) S402 1-771-574-21 SWITCH, TACTILE (TITLE) S403 1-771-574-21 SWITCH, TACTILE (>) S404 1-771-574-21 SWITCH, TACTILE (SURROUND) S405 1-771-574-21 SWITCH, TACTILE (O RETURN) S406 1-771-574-21 SWITCH, TACTILE (x) S407 1-771-574-21 SWITCH, TACTILE (DVD MENU) S408 1-771-574-21 SWITCH, TACTILE (.) S409 1-771-574-21 SWITCH, TACTILE (DISPLAY) S410 1-771-574-21 SWITCH, TACTILE (X) S411 1-771-574-21 SWITCH, TACTILE (H) S412 1-771-574-21 SWITCH, TACTILE (A) < TRANSFORMER > T401 1-435-947-11 TRANSFORMER, DC-DC CONVERT < VIBRATOR > X401 1-781-472-21 VIBRATOR, CERAMIC (8 MHz) * A-6065-670-A ER-15 BOARD, COMPLETE (AEP, UK) ********************* (Ref. No. 1,000 Series) < CAPACITOR > C901 1-104-664-11 ELECT 47uF 20% 16V C902 1-104-664-11 ELECT 47uF 20% 16V C903 1-104-664-11 ELECT 47uF 20% 16V C905 1-104-664-11 ELECT 47uF 20% 16V C907 1-104-664-11 ELECT 47uF 20% 16V C913 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C914 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C927 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C940 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C943 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C945 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C950 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C951 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C962 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C963 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN901 1-815-387-11 CONNECTOR, FPC/FFC 21P < JACK > CNJ901 1-251-780-11 SOCKET, PIN (21P) (LINE 2) CNJ902 1-251-780-11 SOCKET, PIN (21P) (LINE 1 (RGB) - TV) < DIODE > D901 8-719-988-61 DIODE 1SS355TE-17 D902 8-719-988-61 DIODE 1SS355TE-17 D903 8-719-988-61 DIODE 1SS355TE-17 D904 8-719-988-61 DIODE 1SS355TE-17 D905 8-719-988-61 DIODE 1SS355TE-17 D907 8-719-914-44 DIODE DAP202K-T-146 D917 8-719-071-15 DIODE HZM6.8ZWA1TL D918 8-719-071-15 DIODE HZM6.8ZWA1TL D919 8-719-071-15 DIODE HZM6.8ZWA1TL D920 8-719-071-15 DIODE HZM6.8ZWA1TL D922 8-719-071-15 DIODE HZM6.8ZWA1TL D924 8-719-071-15 DIODE HZM6.8ZWA1TL D926 8-719-056-82 DIODE UDZ-TE-17-6.2B D927 8-719-977-40 DIODE UDZ-TE-17-13B D929 8-719-056-82 DIODE UDZ-TE-17-6.2B D930 8-719-977-40 DIODE UDZ-TE-17-13B < FERRITE BEAD > FB901 1-414-766-22 FERRITE 0uH FB901 1-469-130-11 FERRITE 0uH FB901 1-469-796-21 FERRITE 0uH FB903 1-414-766-22 FERRITE 0uH FB903 1-469-130-11 FERRITE 0uH FB903 1-469-796-21 FERRITE 0uH FB904 1-414-766-22 FERRITE 0uH FB904 1-469-130-11 FERRITE 0uH FB904 1-469-796-21 FERRITE 0uH FB905 1-414-766-22 FERRITE 0uH FB905 1-469-130-11 FERRITE 0uH FB905 1-469-796-21 FERRITE 0uH FB907 1-414-766-22 FERRITE 0uH FB907 1-469-130-11 FERRITE 0uH FB907 1-469-796-21 FERRITE 0uH FB908 1-414-766-22 FERRITE 0uH FB908 1-469-130-11 FERRITE 0uH FB908 1-469-796-21 FERRITE 0uH FB909 1-414-766-22 FERRITE 0uH FB909 1-469-130-11 FERRITE 0uH FB909 1-469-796-21 FERRITE 0uH FB910 1-414-766-22 FERRITE 0uH FB910 1-469-130-11 FERRITE 0uH FB910 1-469-796-21 FERRITE 0uH FB911 1-414-233-22 FERRITE 0uH FB913 1-414-233-22 FERRITE 0uH FB916 1-414-233-22 FERRITE 0uH FB918 1-414-233-22 FERRITE 0uH < IC > IC901 8-759-826-47 IC LA73052-TLM < JUMPER RESISTOR > JR901 1-216-295-11 SHORT 0 JR903 1-216-295-11 SHORT 0 JR904 1-216-295-11 SHORT 0 < COIL > L905 1-412-064-11 INDUCTOR 100uH < TRANSISTOR > Q901 8-729-421-19 TRANSISTOR UN2213-TX Q902 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX Q903 8-729-424-08 TRANSISTOR UN2111-TX Q906 8-729-421-19 TRANSISTOR UN2213-TX Q907 8-729-424-08 TRANSISTOR UN2111-TX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ER-15 MB-98 Q908 8-729-421-22 TRANSISTOR UN2211-TX Q909 8-729-421-19 TRANSISTOR UN2213-TX Q910 8-729-424-08 TRANSISTOR UN2111-TX Q912 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX Q913 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX Q914 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX Q915 8-729-422-27 TRANSISTOR 2SD601A-QRS-TX < RESISTOR > R905 1-216-089-11 RES-CHIP 47K 5% 1/10W R906 1-216-089-11 RES-CHIP 47K 5% 1/10W R907 1-216-089-11 RES-CHIP 47K 5% 1/10W R908 1-216-105-00 RES-CHIP 220K 5% 1/10W R909 1-216-037-00 METAL CHIP 330 5% 1/10W R910 1-216-037-00 METAL CHIP 330 5% 1/10W R911 1-216-037-00 METAL CHIP 330 5% 1/10W R912 1-216-037-00 METAL CHIP 330 5% 1/10W R914 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R915 1-216-049-11 RES-CHIP 1K 5% 1/10W R916 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R917 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R918 1-216-021-00 METAL CHIP 68 5% 1/10W R923 1-216-041-00 METAL CHIP 470 5% 1/10W R924 1-216-041-00 METAL CHIP 470 5% 1/10W R927 1-216-021-00 METAL CHIP 68 5% 1/10W R928 1-216-021-00 METAL CHIP 68 5% 1/10W R929 1-216-021-00 METAL CHIP 68 5% 1/10W R930 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R931 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R932 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R933 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R938 1-216-021-00 METAL CHIP 68 5% 1/10W R939 1-216-021-00 METAL CHIP 68 5% 1/10W R950 1-216-081-00 METAL CHIP 22K 5% 1/10W < RELAY > RY901 1-515-622-11 RELAY RY902 1-515-622-11 RELAY RY903 1-515-622-11 RELAY RY904 1-515-622-11 RELAY * A-6065-643-A MB-98 BOARD, COMPLETE (US (DPX1410BJ), CND (DPX1410BJ)) * A-6065-665-A MB-98 BOARD, COMPLETE (US (DPX1410BM), CND (DPX1410BM)) * A-6065-667-A MB-98 BOARD, COMPLETE (E, MX, AR, BR) * A-6065-669-A MB-98 BOARD, COMPLETE (AEP (DPX1411BM), AEP (DPX1411HM), UK) * A-6065-671-A MB-98 BOARD, COMPLETE (AEP (DPX1412BM), AEP (DPX1412HM)) ********************* (Ref. No. 2,000 Series) < CAPACITOR > C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C104 1-126-209-11 ELECT CHIP 100uF 20% 4V C105 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C107 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C108 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C109 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C110 1-126-209-11 ELECT CHIP 100uF 20% 4V C111 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C112 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C115 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C116 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C118 1-126-607-11 ELECT CHIP 47uF 20% 4V C121 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C122 1-126-204-11 ELECT CHIP 47uF 20% 16V C123 1-126-246-11 ELECT CHIP 220uF 20% 4V C124 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C201 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C202 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C205 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C206 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C207 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C208 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C209 1-124-779-00 ELECT CHIP 10uF 20% 16V C215 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C216 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C217 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C218 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C219 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C221 1-124-779-00 ELECT CHIP 10uF 20% 16V C222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C223 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C225 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C226 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C227 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C228 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C231 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C232 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C233 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C234 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C235 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C236 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C238 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C239 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C240 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C243 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C244 1-124-779-00 ELECT CHIP 10uF 20% 16V C246 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C247 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C248 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C304 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C305 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C306 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C309 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C310 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C311 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C312 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C313 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C315 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C319 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C320 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C321 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-12 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MB-98 C322 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C323 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C324 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C325 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C326 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C327 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C328 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C331 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C332 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C333 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C334 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C335 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C336 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C337 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C338 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C339 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C340 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C341 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C342 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C343 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C344 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C346 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C347 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C348 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C349 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C350 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C351 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C401 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C402 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C403 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C404 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C406 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C407 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C408 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C409 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C410 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C411 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C412 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C413 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C414 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C415 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C416 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C417 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C418 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C419 1-126-204-11 ELECT CHIP 47uF 20% 16V C420 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C421 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C427 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C428 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C501 1-126-193-11 ELECT 1uF 20% 50V C502 1-124-779-00 ELECT CHIP 10uF 20% 16V C503 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C505 1-124-779-00 ELECT CHIP 10uF 20% 16V C506 1-124-779-00 ELECT CHIP 10uF 20% 16V C508 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C509 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C510 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C512 1-126-246-11 ELECT CHIP 220uF 20% 4V C513 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C514 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C516 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C518 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C519 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C520 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C521 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C522 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C523 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C524 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C525 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C526 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C528 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C529 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C530 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C531 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C532 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C533 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C534 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C535 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C536 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C537 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C538 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C539 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C540 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C541 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C542 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C544 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C545 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C546 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C547 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C601 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C602 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C603 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C604 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C703 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C704 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C705 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C706 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C707 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C708 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C709 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C710 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C711 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C713 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C714 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C715 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C716 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C717 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C718 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C719 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C720 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C721 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C722 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C723 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C724 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C803 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C806 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C812 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C813 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-13 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MB-98 C816 1-124-779-00 ELECT CHIP 10uF 20% 16V C819 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C827 1-124-779-00 ELECT CHIP 10uF 20% 16V C829 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V < CONNECTOR > CN101 1-815-459-21 CONNECTOR, BOARD TO BOARD 15P * CN103 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN201 1-815-507-11 CONNECTOR, FFC/FPC 26P CN202 1-779-935-11 CONNECTOR, FFC/FPC 9P CN402 1-779-353-21 CONNECTOR, FFC/FPC 5P CN801 1-815-396-21 CONNECTOR, FFC/FPC 25P CN802 1-815-395-21 CONNECTOR, FFC/FPC 15P < DIODE > D801 8-719-024-81 DIODE 1SS300-TE85L < FERRITE BEAD > FB102 1-469-324-21 FERRITE 0uH FB103 1-469-324-21 FERRITE 0uH FB104 1-469-324-21 FERRITE 0uH FB105 1-469-324-21 FERRITE 0uH FB106 1-469-324-21 FERRITE 0uH FB107 1-469-324-21 FERRITE 0uH FB108 1-469-324-21 FERRITE 0uH FB109 1-469-784-11 FERRITE 0uH FB110 1-469-324-21 FERRITE 0uH FB111 1-469-784-11 FERRITE 0uH FB112 1-469-784-11 FERRITE 0uH FB701 1-469-784-11 FERRITE 0uH FB702 1-469-784-11 FERRITE 0uH < FILTER > FL101 1-234-177-21 FILTER, CHIP EMI FL102 1-234-177-21 FILTER, CHIP EMI FL103 1-234-177-21 FILTER, CHIP EMI FL104 1-233-893-21 FILTER, CHIP EMI FL105 1-234-177-21 FILTER, CHIP EMI FL106 1-234-177-21 FILTER, CHIP EMI FL108 1-234-177-21 FILTER, CHIP EMI FL201 1-234-177-21 FILTER, CHIP EMI FL501 1-234-177-21 FILTER, CHIP EMI FL502 1-234-177-21 FILTER, CHIP EMI FL505 1-234-177-21 FILTER, CHIP EMI < IC > IC101 8-759-699-33 IC CAT24WC16J-TE13 IC101 8-759-641-86 IC BR24C16F-E2 IC102 8-759-831-81 IC IMIC6001BTD IC103 8-759-829-75 IC MB91307APFV-G-BND-E1 IC107 Note IC108 Note IC202 8-759-828-02 IC SP3728AC IC301 8-759-832-31 IC TK71533ASCL IC302 8-759-828-01 IC CXD9635R IC303 8-759-643-10 IC GM71V18160CT-6TR IC401 8-759-826-42 IC FAN8034 IC501 8-759-832-30 IC TK71518ASCL IC502 8-759-599-45 IC MM1385ENLE IC503 8-752-409-87 IC CXD1933Q IC504 8-759-683-76 IC K4S161622D-TC80T IC505 8-759-683-76 IC K4S161622D-TC80T IC601 8-759-826-44 IC CXD9632Q IC701 8-752-402-09 IC CXD1939R IC802 8-759-825-32 IC CXD9627N-E2 IC803 8-759-825-33 IC CXD9628N-E2 < COIL > L201 1-412-031-11 INDUCTOR CHIP 47uH L202 1-412-031-11 INDUCTOR CHIP 47uH < TRANSISTOR > Q201 8-729-903-46 TRANSISTOR 2SB1132-T100-QR Q202 8-729-903-46 TRANSISTOR 2SB1132-T100-QR < RESISTOR > R101 1-216-789-11 METAL CHIP 2.2 5% 1/16W R106 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R107 1-216-821-11 METAL CHIP 1K 5% 1/16W R108 1-216-797-11 METAL CHIP 10 5% 1/16W R109 1-216-797-11 METAL CHIP 10 5% 1/16W R111 1-216-817-11 METAL CHIP 470 5% 1/16W R112 1-216-821-11 METAL CHIP 1K 5% 1/16W R113 1-216-833-11 METAL CHIP 10K 5% 1/16W R114 1-216-845-11 METAL CHIP 100K 5% 1/16W R116 1-216-833-11 METAL CHIP 10K 5% 1/16W R117 1-216-821-11 METAL CHIP 1K 5% 1/16W R118 1-216-821-11 METAL CHIP 1K 5% 1/16W R119 1-216-833-11 METAL CHIP 10K 5% 1/16W R121 1-216-833-11 METAL CHIP 10K 5% 1/16W R123 1-216-833-11 METAL CHIP 10K 5% 1/16W R124 1-216-797-11 METAL CHIP 10 5% 1/16W R125 1-216-797-11 METAL CHIP 10 5% 1/16W R126 1-216-797-11 METAL CHIP 10 5% 1/16W R127 1-216-797-11 METAL CHIP 10 5% 1/16W R128 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R129 1-216-833-11 METAL CHIP 10K 5% 1/16W R130 1-216-833-11 METAL CHIP 10K 5% 1/16W R131 1-216-833-11 METAL CHIP 10K 5% 1/16W R132 1-216-833-11 METAL CHIP 10K 5% 1/16W R133 1-216-833-11 METAL CHIP 10K 5% 1/16W R134 1-216-833-11 METAL CHIP 10K 5% 1/16W R136 1-216-797-11 METAL CHIP 10 5% 1/16W R137 1-216-797-11 METAL CHIP 10 5% 1/16W R138 1-216-797-11 METAL CHIP 10 5% 1/16W R139 1-216-797-11 METAL CHIP 10 5% 1/16W R141 1-216-797-11 METAL CHIP 10 5% 1/16W R142 1-216-797-11 METAL CHIP 10 5% 1/16W R143 1-216-833-11 METAL CHIP 10K 5% 1/16W R145 1-216-833-11 METAL CHIP 10K 5% 1/16W R146 1-216-833-11 METAL CHIP 10K 5% 1/16W R149 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R150 1-216-069-00 METAL CHIP 6.8K 5% 1/10W (AEP (DPX1412BM), AEP (DPX1412HM)) Note: Part number has not been determined yet. It will be noticed later. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-14 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MB-98 R150 1-216-075-00 METAL CHIP 12K 5% 1/10W (AEP (DPX1411BM), AEP (DPX1411HM), UK) R150 1-216-081-00 METAL CHIP 22K 5% 1/10W (E, MX, AR, BR) R151 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R152 1-216-089-11 RES-CHIP 47K 5% 1/10W R153 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R154 1-216-075-00 METAL CHIP 12K 5% 1/10W (E, MX, AR, BR) R154 1-216-089-11 RES-CHIP 47K 5% 1/10W (AEP, UK) R155 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R156 1-216-833-11 METAL CHIP 10K 5% 1/16W R157 1-216-864-91 SHORT 0 R160 1-216-833-11 METAL CHIP 10K 5% 1/16W R161 1-216-864-91 SHORT 0 R162 1-216-833-11 METAL CHIP 10K 5% 1/16W R163 1-216-833-11 METAL CHIP 10K 5% 1/16W R164 1-126-809-11 METAL CHIP 100 5% 1/16W R165 1-126-809-11 METAL CHIP 100 5% 1/16W R166 1-216-817-11 METAL CHIP 470 5% 1/16W R167 1-216-864-91 SHORT 0 R168 1-216-864-91 SHORT 0 R170 1-216-821-11 METAL CHIP 1K 5% 1/16W R175 1-216-864-91 SHORT 0 R177 1-216-797-11 METAL CHIP 10 5% 1/16W R178 1-216-797-11 METAL CHIP 10 5% 1/16W R182 1-216-845-11 METAL CHIP 100K 5% 1/16W R199 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R201 1-216-815-11 METAL CHIP 330 5% 1/16W R202 1-216-809-11 METAL CHIP 100 5% 1/16W R203 1-216-809-11 METAL CHIP 100 5% 1/16W R204 1-216-837-11 METAL CHIP 22K 5% 1/16W R205 1-216-845-11 METAL CHIP 100K 5% 1/16W R206 1-216-838-11 METAL CHIP 27K 5% 1/16W R207 1-216-803-11 METAL CHIP 33 5% 1/16W R208 1-216-803-11 METAL CHIP 33 5% 1/16W R209 1-216-821-11 METAL CHIP 1K 5% 1/16W R210 1-216-841-11 METAL CHIP 47K 5% 1/16W R211 1-216-809-11 METAL CHIP 100 5% 1/16W R212 1-216-864-91 SHORT 0 R215 1-216-864-91 SHORT 0 R216 1-216-864-91 SHORT 0 R219 1-216-864-91 SHORT 0 R220 1-216-803-11 METAL CHIP 33 5% 1/16W R223 1-216-803-11 METAL CHIP 33 5% 1/16W R224 1-216-801-11 METAL CHIP 22 5% 1/16W R225 1-216-841-11 METAL CHIP 47K 5% 1/16W R229 1-216-809-11 METAL CHIP 100 5% 1/16W R237 1-216-834-11 METAL CHIP 12K 5% 1/16W R238 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R245 1-216-809-11 METAL CHIP 100 5% 1/16W R246 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R299 1-216-847-11 METAL CHIP 150K 5% 1/16W R301 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R302 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R305 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R306 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R307 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R308 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R310 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R311 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R312 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R313 1-216-817-11 METAL CHIP 470 5% 1/16W R314 1-216-817-11 METAL CHIP 470 5% 1/16W R315 1-216-817-11 METAL CHIP 470 5% 1/16W R316 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R317 1-216-833-11 METAL CHIP 10K 5% 1/16W R318 1-216-295-11 SHORT 0 R319 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R320 1-216-295-11 SHORT 0 R321 1-216-817-11 METAL CHIP 470 5% 1/16W R328 1-216-833-11 METAL CHIP 10K 5% 1/16W R329 1-216-295-11 SHORT 0 R330 1-216-295-11 SHORT 0 R334 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R335 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R336 1-216-833-11 METAL CHIP 10K 5% 1/16W R337 1-216-809-11 METAL CHIP 100 5% 1/16W R338 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R341 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R342 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R343 1-218-831-11 METAL CHIP 220 0.5% 1/16W R344 1-218-847-11 METAL CHIP 1K 0.5% 1/16W R345 1-216-833-11 METAL CHIP 10K 5% 1/16W R349 1-216-838-11 METAL CHIP 27K 5% 1/16W R350 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R351 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R352 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R356 1-218-853-11 METAL CHIP 1.8K 0.5% 1/16W R368 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R384 1-216-797-11 METAL CHIP 10 5% 1/16W R385 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R402 1-216-833-11 METAL CHIP 10K 5% 1/16W R403 1-216-833-11 METAL CHIP 10K 5% 1/16W R404 1-216-821-11 METAL CHIP 1K 5% 1/16W R405 1-216-821-11 METAL CHIP 1K 5% 1/16W R406 1-216-846-11 METAL CHIP 120K 5% 1/16W R407 1-216-846-11 METAL CHIP 120K 5% 1/16W R408 1-216-847-11 METAL CHIP 150K 5% 1/16W R409 1-216-847-11 METAL CHIP 150K 5% 1/16W R410 1-216-842-11 METAL CHIP 56K 5% 1/16W R411 1-216-842-11 METAL CHIP 56K 5% 1/16W R412 1-216-850-11 METAL CHIP 270K 5% 1/16W R413 1-216-833-11 METAL CHIP 10K 5% 1/16W R414 1-216-853-11 METAL CHIP 470K 5% 1/16W R415 1-216-846-11 METAL CHIP 120K 5% 1/16W R416 1-216-855-11 METAL CHIP 680K 5% 1/16W R417 1-216-833-11 METAL CHIP 10K 5% 1/16W R418 1-216-839-11 METAL CHIP 33K 5% 1/16W R419 1-216-839-11 METAL CHIP 33K 5% 1/16W R420 1-216-853-11 METAL CHIP 470K 5% 1/16W R421 1-216-839-11 METAL CHIP 33K 5% 1/16W R422 1-216-839-11 METAL CHIP 33K 5% 1/16W R423 1-216-839-11 METAL CHIP 33K 5% 1/16W R424 1-216-839-11 METAL CHIP 33K 5% 1/16W R425 1-216-849-11 METAL CHIP 220K 5% 1/16W R426 1-216-853-11 METAL CHIP 470K 5% 1/16W R427 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R428 1-216-839-11 METAL CHIP 33K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-15 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MB-98 MS-81 POWER BLOCK (HS13S0E) R429 1-218-889-11 METAL CHIP 56K 0.5% 1/16W R430 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R431 1-218-889-11 METAL CHIP 56K 0.5% 1/16W R432 1-216-833-11 METAL CHIP 10K 5% 1/16W R433 1-216-833-11 METAL CHIP 10K 5% 1/16W R434 1-216-815-11 METAL CHIP 330 5% 1/16W R435 1-216-833-11 METAL CHIP 10K 5% 1/16W R436 1-216-809-11 METAL CHIP 100 5% 1/16W R439 1-216-864-91 SHORT 0 R507 1-216-809-11 METAL CHIP 100 5% 1/16W R510 1-216-833-11 METAL CHIP 10K 5% 1/16W R511 1-218-831-11 METAL CHIP 220 0.5% 1/16W R512 1-218-831-11 METAL CHIP 220 0.5% 1/16W R513 1-218-831-11 METAL CHIP 220 0.5% 1/16W R514 1-218-831-11 METAL CHIP 220 0.5% 1/16W R515 1-218-831-11 METAL CHIP 220 0.5% 1/16W R516 1-218-831-11 METAL CHIP 220 0.5% 1/16W R517 1-216-833-11 METAL CHIP 10K 5% 1/16W R518 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R519 1-216-295-11 SHORT 0 R521 1-216-295-11 SHORT 0 R522 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R524 1-216-833-11 METAL CHIP 10K 5% 1/16W R525 1-216-833-11 METAL CHIP 10K 5% 1/16W R533 1-216-797-11 METAL CHIP 10 5% 1/16W R554 1-216-797-11 METAL CHIP 10 5% 1/16W R604 1-216-809-11 METAL CHIP 100 5% 1/16W R710 1-216-864-91 SHORT 0 R721 1-216-809-11 METAL CHIP 100 5% 1/16W R724 1-216-833-11 METAL CHIP 10K 5% 1/16W R726 1-216-833-11 METAL CHIP 10K 5% 1/16W R741 1-216-833-11 METAL CHIP 10K 5% 1/16W R801 1-216-864-91 SHORT 0 R805 1-216-809-11 METAL CHIP 100 5% 1/16W R809 1-216-797-11 METAL CHIP 10 5% 1/16W R821 1-216-864-91 SHORT 0 < VARIABLE RESISTOR > RV501 1-223-583-11 RES, ADJ, CARBON 1K (VIDEO LEVEL ADJ) < VIBRATOR > X101 1-795-174-11 VIBRATOR, CERAMIC (16.5 MHz) X102 1-781-867-21 VIBRATOR, CRYSTAL (27 MHz) MS-81 BOARD ************ (Ref.No. 1,000 Series) < CONNECTOR > CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P < SWITCH > S001 1-786-133-11 SWITCH, ROTARY (CHUCK/TRAY DETECT) * 1-468-585-11 POWER BLOCK (HS13S0E) (AEP, UK, AR) ********************** (Ref.No. 3,000 Series) < CAPACITOR > 0C101 1-115-165-11 FILM 0.1uF 250V 0C102 1-115-165-11 FILM 0.1uF 250V 0C103 1-127-942-11 CERAMIC 330PF 250V 0C104 1-127-942-11 CERAMIC 330PF 250V 0C107 1-127-942-11 CERAMIC 330PF 250V C110 9-885-012-88 ELECT 47uF 400V C115 1-130-483-11 FILM 0.01uF 50V C116 1-130-483-11 FILM 0.01uF 50V C117 1-130-477-11 FILM 0.0033uF 50V C150 9-885-012-89 CERAMIC 47PF 2KV C211 1-111-083-11 ELECT 150uF 35V C213 1-126-947-11 ELECT 47uF 35V C221 1-111-082-11 ELECT 100uF 35V C223 1-126-947-11 ELECT 47uF 35V C301 1-126-960-11 ELECT 1uF 50V C311 1-111-087-11 ELECT 330uF 35V C313 1-126-947-11 ELECT 47uF 35V C314 1-126-965-11 ELECT 22uF 50V C413 1-126-947-11 ELECT 47uF 35V C414 1-130-483-11 FILM 0.01uF 50V C511 1-111-082-11 ELECT 100uF 35V C513 1-126-947-11 ELECT 47uF 35V C611 1-111-087-11 ELECT 330uF 35V C613 1-126-947-11 ELECT 47uF 35V C711 1-126-947-11 ELECT 47uF 35V < CONNECTOR > 0CN101 1-580-230-11 CONNECTOR 2P * CN201 1-778-318-21 CONNNECTOR 13P < DIODE > 0D101 9-885-000-79 DIODE S1WBA60 D102 8-719-160-78 DIODE RD24FB2 D104 8-719-109-66 DIODE RD3.3ES-B2 D105 9-903-904-01 DIODE 1SS270A D211 8-719-018-84 DIODE D2S6M D212 8-719-160-87 DIODE RD33FB2 D221 8-719-032-12 DIODE D1NS6 D311 8-719-510-02 DIODE D1NS4 D413 9-998-285-01 DIODE D1N60 D511 8-719-063-69 DIODE D2L20U D611 8-719-510-02 DIODE D1NS4 D621 8-719-064-11 DIODE SPR-325MVW (ON/STANDBY) < FUSE > 0F101 1-532-388-31 FUSE (2A/250V) < FUSE CLIP > FC1 9-885-012-77 FUSE CLIP FC2 9-885-012-77 FUSE CLIP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-16 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER BLOCK (HS13S0E) POWER BLOCK (HS13S0F) < EARTH TERMINAL > FG101 1-537-738-21 TERMINAL, EARTH FG201 1-537-738-21 TERMINAL, EARTH < IC > IC301 8-759-420-19 IC AN1431T IC411 8-759-420-19 IC AN1431T < COIL > 0L101 9-885-012-78 LINE FILTER 18mH 0L102 9-885-012-78 LINE FILTER 18mH L150 9-885-012-79 BEAD CORE 120 L211 9-885-012-80 COIL, CHOKE 39uH L221 9-885-012-81 COIL, CHOKE 100uH L311 9-885-012-80 COIL, CHOKE 39uH L511 9-885-012-81 COIL, CHOKE 100uH L611 9-885-012-80 COIL, CHOKE 39uH 0P311 9-885-012-82 LINK, IC (1A/60V) 0P611 9-885-012-82 LINK, IC (1A/60V) < PHOT COUPLER > 0PC101 8-749-011-50 PHOT COUPLER PS2561 < TRANSISTOR > Q101 9-885-006-12 TRANSISTOR 2SK2700 Q102 8-729-023-98 TRANSISTOR 2SC3377 Q211 9-885-005-96 TRANSISTOR 2SJ525 Q311 9-885-006-08 TRANSISTOR 2SD1768S Q411 9-885-006-08 TRANSISTOR 2SD1768S Q611 9-885-006-08 TRANSISTOR 2SD1768S Q621 8-729-901-41 TRANSISTOR 2SC1740S Q622 8-729-029-92 TRANSISTOR DTC143ES Q712 8-729-029-92 TRANSISTOR DTC143ES < RESISTOR > R101 1-219-776-11 CARBON 2.2M 1/2W R105 1-219-774-11 CARBON 1M 1/2W < SWITCH > 0SW101 9-885-012-83 SWITCH (POWER) < TRANSFORMER > 0T101 9-885-012-90 TRANSFORMER * 1-468-586-11 POWER BLOCK (HS13S0F) (E, BR) ********************* (Ref.No. 4,000 Series) < CAPACITOR > 0C101 1-115-165-11 FILM 0.1uF 250V 0C103 1-127-942-11 CERAMIC 330PF 250V 0C104 1-127-942-11 CERAMIC 330PF 250V 0C107 1-127-942-11 CERAMIC 330PF 250V C110 9-885-012-91 ELECT 150uF 400V C112 9-885-012-92 FILM 0.047uF 630V C113 9-885-012-89 CERAMIC 47PF 2KV C115 1-130-489-11 FILM 0.033uF 50V C116 1-130-483-11 FILM 0.01uF 50V C117 1-130-477-11 FILM 0.0033uF 50V C131 1-126-966-11 ELECT 33uF 50V C132 1-126-960-11 ELECT 1uF 50V C135 9-885-012-93 CERAMIC 3300PF 1KV C137 9-885-012-94 FILM 0.1uF 50V C211 1-111-083-11 ELECT 150uF 35V C213 1-126-947-11 ELECT 47uF 35V C221 1-111-082-11 ELECT 100uF 35V C223 1-126-947-11 ELECT 47uF 35V C311 9-885-012-95 ELECT 150uF 35V C313 1-126-947-11 ELECT 47uF 35V C314 1-126-965-11 ELECT 22uF 50V C401 9-885-012-95 ELECT 150uF 35V C402 1-126-959-11 ELECT 0.47uF 50V C413 1-126-947-11 ELECT 47uF 35V C511 1-111-082-11 ELECT 100uF 35V C512 1-111-082-11 ELECT 100uF 35V C611 9-885-012-95 ELECT 150uF 35V C613 1-126-947-11 ELECT 47uF 35V C701 1-126-963-11 ELECT 4.7uF 50V C703 1-126-960-11 ELECT 1uF 50V C711 1-126-947-11 ELECT 47uF 35V < CONNECTOR > 0CN101 1-580-230-11 CONNECTOR 2P * CN201 1-778-318-21 CONNECTOR 13P < DIODE > 0D101 9-885-000-79 DIODE S1WBA60 D102 8-719-160-78 DIODE RD24FB2 D104 8-719-981-98 DIODE MTZJ-3.0B D105 9-903-904-01 DIODE 1SS270A D131 9-903-904-01 DIODE 1SS270A D132 8-719-922-11 DIODE MTZJ-22B D135 8-719-030-24 DIODE EG01C D211 8-719-018-84 DIODE D2S6M D212 8-719-160-87 DIODE RD33FB2 D221 8-719-032-12 DIODE D1NS6 D311 8-719-510-02 DIODE D1NS4 D411 8-719-510-02 DIODE D1NS4 D511 8-719-063-69 DIODE D2L20U D611 8-719-510-02 DIODE D1NS4 D615 8-719-064-11 DIODE SPR-325MVW (ON/STANDBY) < FUSE > 0F101 1-532-503-31 FUSE (1.6A/250V) < FUSE CLIP > FC1 9-885-012-77 FUSE CLIP FC2 9-885-012-77 FUSE CLIP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-17 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER BLOCK (HS13S0F) POWER BLOCK (HS13S0U) < EARTH TERMINAL > FG101 1-537-738-21 TERMINAL, EARTH FG201 1-537-738-21 TERMINAL, EARTH < IC > IC131 9-885-005-97 IC MIP0254SPSCF IC401 8-759-667-11 IC HA17L431P IC701 8-759-420-19 IC AN1431T < COIL > 0L101 9-885-012-78 LINE FILTER 18mH 0L102 9-885-012-78 LINE FILTER 18mH L150 9-885-012-96 BEAD CORE 45 L211 9-885-012-80 COIL, CHOKE 39uH L221 9-885-012-81 COIL, CHOKE 100uH L311 9-885-012-81 COIL, CHOKE 100uH L411 9-885-012-80 COIL, CHOKE 39uH L511 9-885-012-81 COIL, CHOKE 100uH L611 9-885-012-81 COIL, CHOKE 100uH 0P311 9-885-012-82 LINK, IC (1A/60V) 0P611 9-885-012-82 LINK, IC (1A/60V) < PHOTO COUPLER > 0PC101 8-749-011-50 PHOTO COUPLER PS2561 0PC103 8-749-011-50 PHOTO COUPLER PS2561 0PC131 8-749-011-50 PHOTO COUPLER PS2561 < TRANSISTOR > Q101 9-885-006-10 TRANSISTOR 2SK2750 Q102 8-729-023-98 TRANSISTOR 2SC3377 Q103 9-885-006-10 TRANSISTOR 2SK2750 Q131 9-885-006-08 TRANSISTOR 2SD1768S Q311 9-885-006-08 TRANSISTOR 2SD1768S Q621 8-729-901-41 TRANSISTOR 2SC1740S Q622 8-729-029-92 TRANSISTOR DTC143ES Q712 8-729-029-92 TRANSISTOR DTC143ES < RESISTOR > R101 1-219-776-11 CARBON 2.2M 1/2W R104 9-885-012-97 CARBON 680K 1/2W < SWITCH > 0SW101 9-885-012-83 SWITCH (POWER) < TRANSFORMER > 0T101 9-885-012-98 TRANSFORMER 0T131 9-885-012-99 TRANSFORMER * 1-468-583-11 POWER BLOCK (HS13S0U) (US, CND, MX) ********************** (Ref.No. 5,000 Series) < CAPACITOR > 0C101 1-115-165-11 FILM 0.1uF 250V 0C107 1-113-937-11 CERAMIC 2200PF 250V C110 9-885-012-85 ELECT 120uF 200V C115 1-130-489-11 FILM 0.033uF 50V C116 1-130-483-11 FILM 0.01uF 50V C117 1-130-477-11 FILM 0.0033uF 50V C150 9-885-012-86 CERAMIC 470PF 1KV C211 1-111-083-11 ELECT 150uF 35V C213 1-126-947-11 ELECT 47uF 35V C221 1-111-082-11 ELECT 100uF 35V C223 1-126-947-11 ELECT 47uF 35V C301 1-126-961-11 ELECT 2.2uF 50V C311 1-111-087-11 ELECT 330uF 35V C313 1-126-947-11 ELECT 47uF 35V C314 1-126-965-11 ELECT 22uF 50V C413 1-126-947-11 ELECT 47uF 35V C414 1-130-483-11 FILM 0.01uF 50V C511 1-111-082-11 ELECT 100uF 35V C513 1-126-947-11 ELECT 47uF 35V C611 1-111-087-11 ELECT 330uF 35V C613 1-126-947-11 ELECT 47uF 35V C711 1-126-947-11 ELECT 47uF 35V < CONNECTOR > 0CN101 1-580-230-11 CONNECTOR 2P * CN201 1-778-318-21 CONNECTOR 13P < DIODE > 0D101 9-885-000-79 DIODE S1WBA60 D104 8-719-062-66 DIODE HZS2C3-TE D105 9-903-904-01 DIODE 1SS270A D211 8-719-018-83 DIODE D2S4M D212 8-719-160-87 DIODE RD33FB2 D221 8-719-510-02 DIODE D1NS4 D311 8-719-510-02 DIODE D1NS4 D413 9-998-285-01 DIODE D1N60 D511 8-719-510-02 DIODE D1NS4 D611 8-719-510-02 DIODE D1NS4 D621 8-719-064-11 DIODE SPR-325MVW (ON/STANDBY) < FUSE > 0F101 1-533-296-11 FUSE (2A/125V) < FUSE CLIP > FC1 9-885-012-77 FUSE CLIP FC2 9-885-012-77 FUSE CLIP < EARTH TERMINAL > FG101 1-537-738-21 TERMINAL, EARTH FG201 1-537-738-21 TERMINAL, EARTH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-18 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. < IC > IC301 8-759-420-19 IC AN1431T IC411 8-759-420-19 IC AN1431T < COIL > 0L101 9-885-012-78 LINE FILTER 18mH L150 9-885-012-79 BEAD CORE 120 L211 9-885-012-80 COIL, CHOKE 39uH L221 9-885-012-81 COIL, CHOKE 100uH L311 9-885-012-80 COIL, CHOKE 39uH L511 9-885-012-81 COIL, CHOKE 100uH L611 9-885-012-80 COIL, CHOKE 39uH 0P311 9-885-012-82 LINK, IC (1A/60V) 0P611 9-885-012-82 LINK, IC (1A/60V) < PHOT COUPLER > 0PC101 9-995-566-01 PHOT COUPLER PS2501 < TRANSISTOR > Q101 9-885-006-10 TRANSISTOR 2SK2750 Q102 8-729-023-98 TRANSISTOR 2SC3377 Q211 9-885-005-96 TRANSISTOR 2SJ525 Q311 9-885-006-08 TRANSISTOR 2SD1768S Q411 9-885-006-08 TRANSISTOR 2SD1768S Q611 9-885-006-08 TRANSISTOR 2SD1768S Q621 8-729-901-41 TRANSISTOR 2SC1740S Q622 8-729-029-92 TRANSISTOR DTC143ES Q712 8-729-029-92 TRANSISTOR DTC143ES < SWITCH > 0SW101 9-885-012-83 SWITCH (POWER) < TRANSFORMER > 0T101 9-885-012-87 TRANSFORMER * 1-468-584-11 POWER BLOCK (TOP-244U) (US, CND) ********************** (Ref.No. 6,000 Series) < CAPACITOR > 0C900 1-115-165-11 FILM 0.1uF 250V 0C901 1-113-920-51 CERAMIC 2200PF 250V 0C902 1-113-906-51 CERAMIC 330PF 250V 0C903 1-113-906-51 CERAMIC 330PF 250V C910 1-107-401-11 ELECT 150uF 200V 0C911 9-885-013-00 FILM 0.01uF 400V C912 9-885-013-01 FILM 0.1uF 50V C913 9-885-013-02 ELECT 47uF 25V C914 9-885-013-03 ELECT 10uF 50V 0C916 9-885-013-00 FILM 0.01uF 400V C917 9-885-013-04 CERAMIC 4700PF 50V C920 9-885-013-01 FILM 0.1uF 50V C921 9-885-013-05 ELECT 470uF 25V C922 9-885-013-04 CERAMIC 4700PF 50V C924 9-885-013-05 ELECT 470uF 25V C925 9-885-013-06 ELECT 100uF 25V C926 9-885-013-01 FILM 0.1uF 50V C927 9-885-013-07 ELECT 1000uF 16V C929 9-885-013-06 ELECT 100uF 25V C930 9-885-013-03 ELECT 10uF 50V C931 9-885-013-06 ELECT 100uF 25V C934 9-885-013-03 ELECT 10uF 50V C936 9-885-013-02 ELECT 47uF 25V C940 9-885-013-05 ELECT 470uF 25V C941 9-885-013-05 ELECT 470uF 25V C943 9-885-013-01 FILM 0.1uF 50V C944 9-885-013-01 FILM 0.1uF 50V C945 9-885-013-01 FILM 0.1uF 50V C947 9-885-013-01 FILM 0.1uF 50V < CONNECTOR > 0CN900 1-580-230-11 CONNECTOR 2P * CN920 1-778-318-21 CONNECTOR 13P < DIODE > 0D901 9-885-013-08 DIODE 1N4007 0D902 9-885-013-08 DIODE 1N4007 0D903 9-885-013-08 DIODE 1N4007 0D904 9-885-013-08 DIODE 1N4007 D910 9-885-013-09 DIODE UF4007 D911 9-885-013-10 DIODE 1N4001 D913 9-885-013-11 DIODE P6KE200A D920 9-885-013-12 DIODE UF202G D921 9-885-013-13 DIODE UF4003 D922 9-885-013-14 DIODE UF5402G D923 9-885-013-13 DIODE UF4003 D925 8-719-983-18 DIODE MTZJ-4.3A D926 9-885-013-10 DIODE 1N4001 D927 9-885-013-10 DIODE 1N4001 D928 9-885-013-10 DIODE 1N4001 D929 8-719-064-11 DIODE SPR-325MVW (ON/STANDBY) D930 9-885-013-10 DIODE 1N4001 D931 9-885-013-10 DIODE 1N4001 D932 9-885-013-10 DIODE 1N4001 D933 9-885-013-10 DIODE 1N4001 < EARTH TERMINAL > ET901 1-537-738-21 TERMINAL, EARTH ET902 1-537-738-21 TERMINAL, EARTH < FUSE > 0F900 1-533-296-11 FUSE (2A/125V) < FUSE HOLDER > FH900 1-533-399-31 HOLDER, FUSE FH901 1-533-399-31 HOLDER, FUSE < IC > 0IC910 9-885-013-15 IC TOP-244Y IC920 9-885-013-16 IC TL431A POWER BLOCK (HS13S0U) POWER BLOCK (TOP-244U) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-19 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < COIL > L921 9-885-013-17 COIL, CHOKE 11.3uH L922 9-885-013-17 COIL, CHOKE 11.3uH L923 9-885-013-17 COIL, CHOKE 11.3uH L924 9-885-013-17 COIL, CHOKE 11.3uH < LINE FILTER > 0LF900 1-416-929-11 COIL, CHOKE 2.3mH < PHOT COUPLER > 0PC910 8-749-010-65 PHOT COUPLER PC123FY2 0PC911 8-749-010-65 PHOT COUPLER PC123FY2 0PS922 1-533-590-31 LINK, IC (1A) 0PS923 1-533-591-31 LINK, IC (1.25A) < TRANSISTOR > Q922 8-929-029-67 TRANSISTOR DTC114ESA-TP Q923 8-729-113-33 TRANSISTOR 2SB733-4 Q924 8-729-012-32 TRANSISTOR 2SC4040-TL2-R Q925 8-729-012-32 TRANSISTOR 2SC4040-TL2-R Q927 8-729-012-32 TRANSISTOR 2SC4040-TL2-R Q928 8-729-018-57 TRANSISTOR DTA114GSTP Q929 8-729-925-12 TRANSISTOR 2SC1740SLN-TP-RS Q930 8-929-029-67 TRANSISTOR DTC114ESA-TP < RESISTOR > R900 1-260-364-91 CARBON 1M 1/2W R911 1-247-779-91 CARBON 6.8 1/4W R917 1-247-863-91 CARBON 22K 1/4W R921 1-247-831-91 CARBON 1K 1/4W R922 1-247-807-91 CARBON 100 1/4W R925 1-247-799-91 CARBON 47 1/4W R926 1-247-831-91 CARBON 1K 1/4W R927 1-247-859-91 CARBON 15K 1/4W R928 1-247-851-91 CARBON 6.8K 1/4W R930 1-247-855-91 CARBON 10K 1/4W R931 1-216-430-51 CARBON 390 1W R932 1-247-879-91 CARBON 100K 1/4W R933 1-247-851-91 CARBON 6.8K 1/4W R934 1-247-811-91 CARBON 150 1/4W R935 1-247-795-91 CARBON 33 1/4W R936 1-247-851-91 CARBON 6.8K 1/4W R938 1-247-811-91 CARBON 150 1/4W R940 1-247-815-91 CARBON 220 1/4W R947 1-247-815-91 CARBON 220 1/4W R948 1-247-831-91 CARBON 1K 1/4W R949 1-247-863-91 CARBON 22K 1/4W < SWITCH > 0SW911 9-885-012-83 SWITCH (POWER) < TRANSFORMER > 0T910 9-885-013-18 TRANSFORMER MISCELLANEOUS ************** 9 1-786-131-11 SWITCH, TACTILE * 51 1-468-583-11 POWER BLOCK (HS13S0U) (US, CND, MX) * 51 1-468-584-11 POWER BLOCK (TOP-244U) (US, CND) * 51 1-468-585-11 POWER BLOCK (HS13S0E) (AEP, UK, AR) * 51 1-468-586-11 POWER BLOCK (HS13SOF) (E, BR) 056 1-757-140-11 CORD, POWER (AEP, UK, E, BR) 056 1-757-571-11 CORD, POWER (US, CND, MX) 056 1-757-901-11 CORD, POWER (AR) 61 1-757-696-11 CABLE, FLEXIBLE FLAT (FMA-024) 62 1-757-695-11 CABLE, FLEXIBLE FLAT (FMA-023) 63 1-757-693-11 CABLE, FLEXIBLE FLAT (FMO-001) 64 1-757-694-11 CABLE, FLEXIBLE FLAT (FMO-002) 65 1-757-697-11 CABLE, FLEXIBLE FLAT (FMM-035) 72 1-757-699-11 CABLE, FLEXIBLE FLAT (FAE-005) (AEP, UK) 0104 A-4900-634-A OPTICAL PICK-UP KHM-240 AAA/J1NP M001 1-541-632-11 MOTOR, DC (LOADING) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-476-604-11 REMOTE COMMANDER (RMT-D128A) (US, CND, E, MX, AR, BR) 1-476-605-11 REMOTE COMMANDER (RMT-D128P) (AEP, UK) 0 1-569-008-21 ADAPTOR, CONVERSION 2P (E) 1-751-271-12 CORD, CONNECTION (STEREO AV CABLE 1.5m) (US, CND, AEP, UK (DPX1411BM), E, MX) 0 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 3-067-120-11 MANUAL, INSTRUCTION (ENGLISH) (US, CND) 3-067-120-21 MANUAL, INSTRUCTION (FRENCH) (CND) 3-067-120-31 MANUAL, INSTRUCTION (SPANISH) (E, MX, BR) 3-067-120-41 MANUAL, INSTRUCTION (ENGLISH) (UK) 3-067-120-51 MANUAL, INSTRUCTION (FRENCH) (AEP (DPX1411BM), AEP (DPX1411HM)) 3-067-120-61 MANUAL, INSTRUCTION (GERMAN) (AEP (DPX1411BM), AEP (DPX1411HM)) 3-067-120-71 MANUAL, INSTRUCTION (ITALIAN) (AEP) 3-067-120-81 MANUAL, INSTRUCTION (DUTCH) (AEP (DPX1411BM), AEP (DPX1411HM)) 3-067-121-11 MANUAL, INSTRUCTION (SPANISH) (AEP (DPX1412BM), AEP (DPX1412HM)) 3-067-121-21 MANUAL, INSTRUCTION (PORTUGUESE) (AEP (DPX1412BM), AEP (DPX1412HM)) 3-067-121-31 MANUAL, INSTRUCTION (DANISH) (AEP (DPX1412BM), AEP (DPX1412HM)) 3-067-121-41 MANUAL, INSTRUCTION (FINNISH) (AEP (DPX1412BM), AEP (DPX1412HM)) 3-067-121-51 MANUAL, INSTRUCTION (SWEDISH) (AEP (DPX1412BM), AEP (DPX1412HM)) POWER BLOCK (TOP-244U) 8-19 E The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 164 – DVP-NS400D Sony Corporation Network Entertainment Group 9-921-791-11 2001C0500-1 © 2001. 3 Published by Quality Assurance Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
