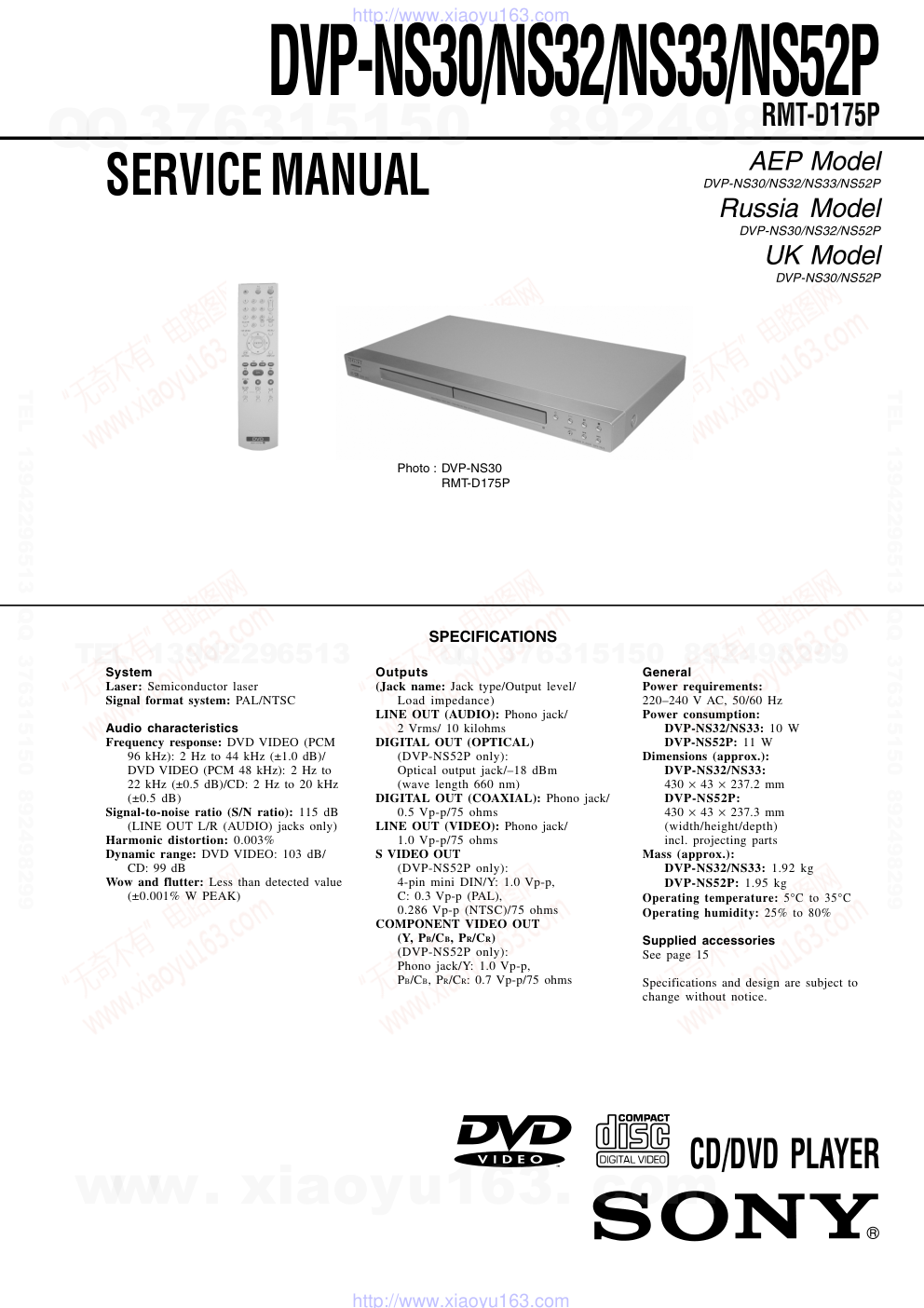

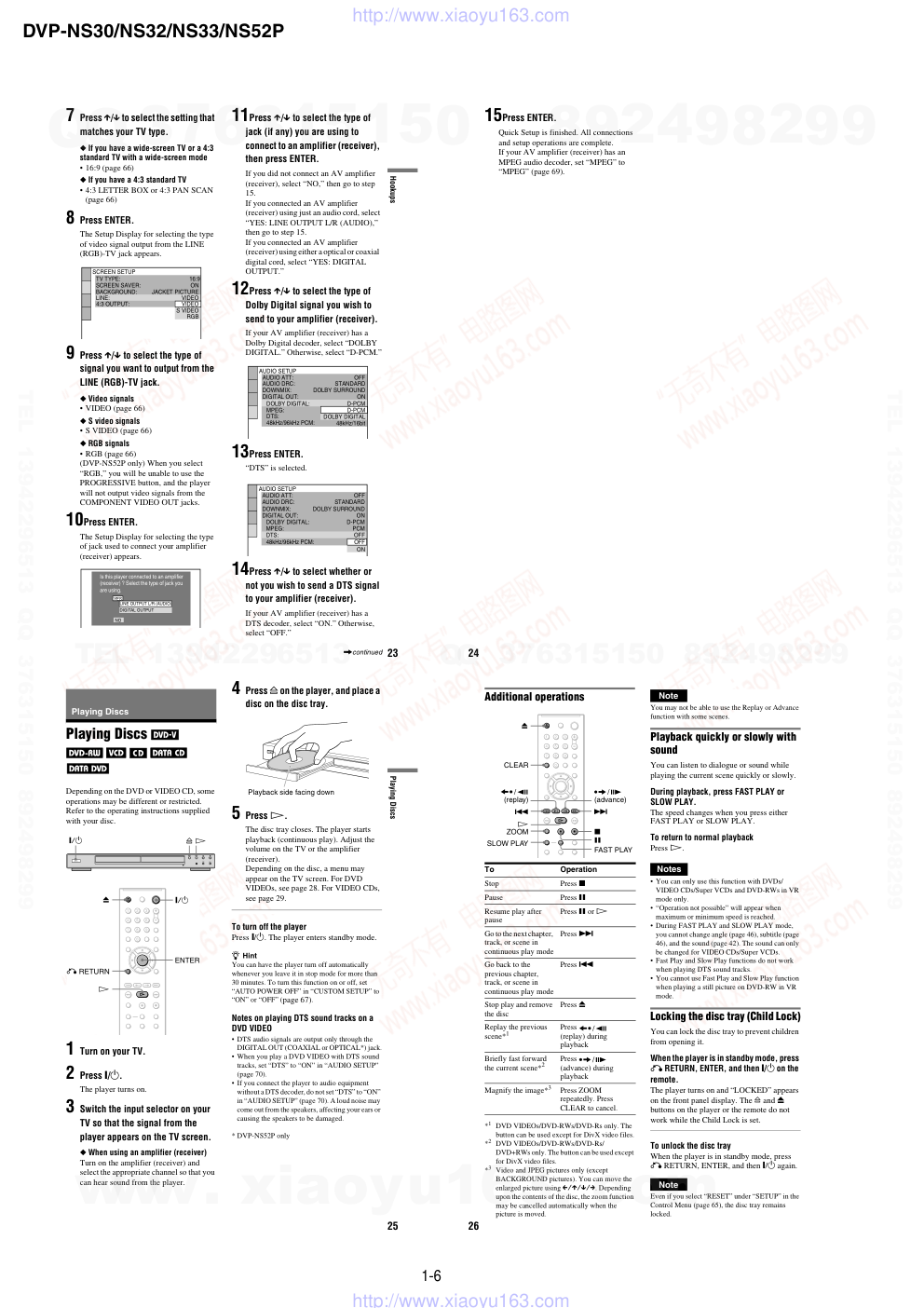

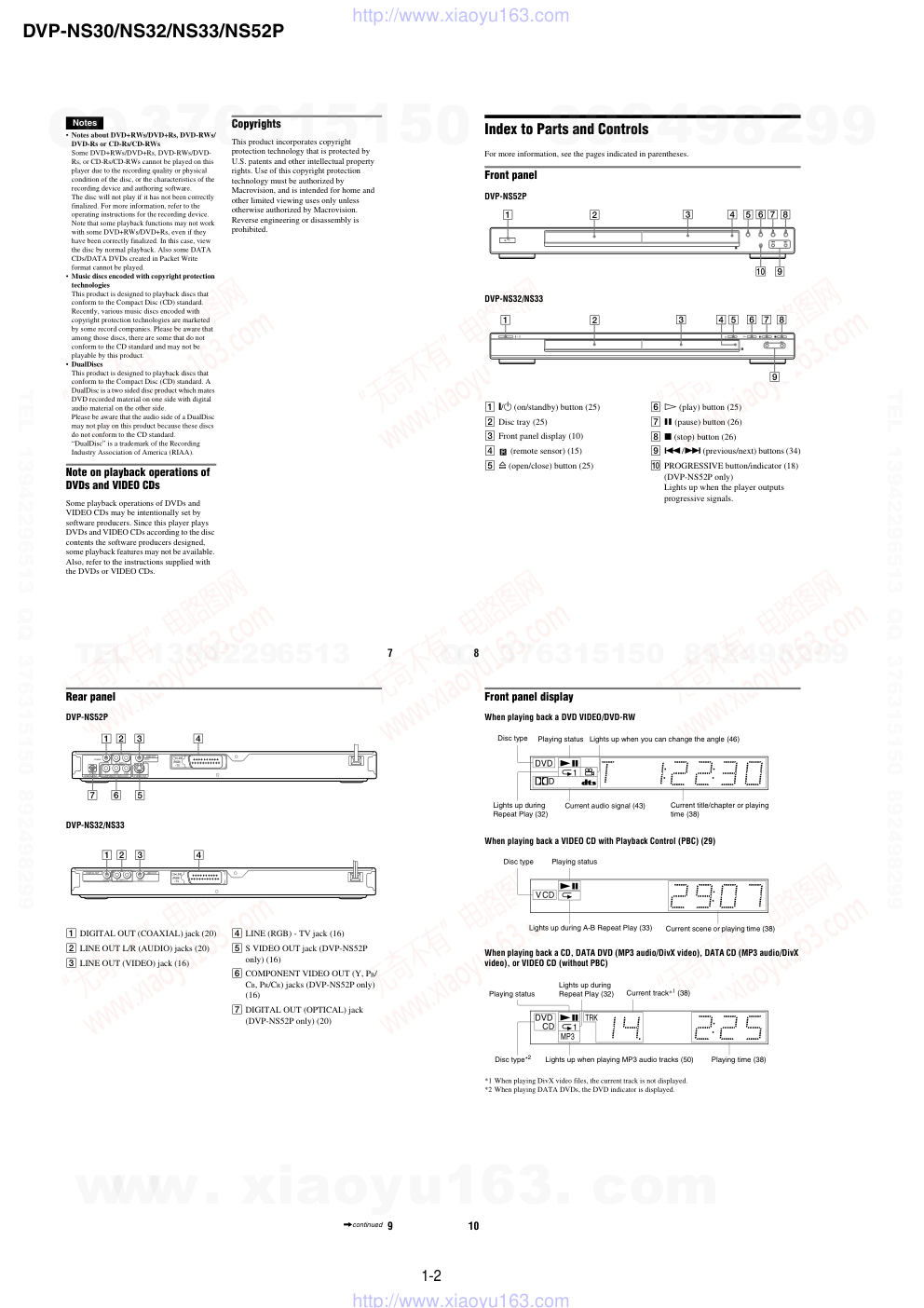

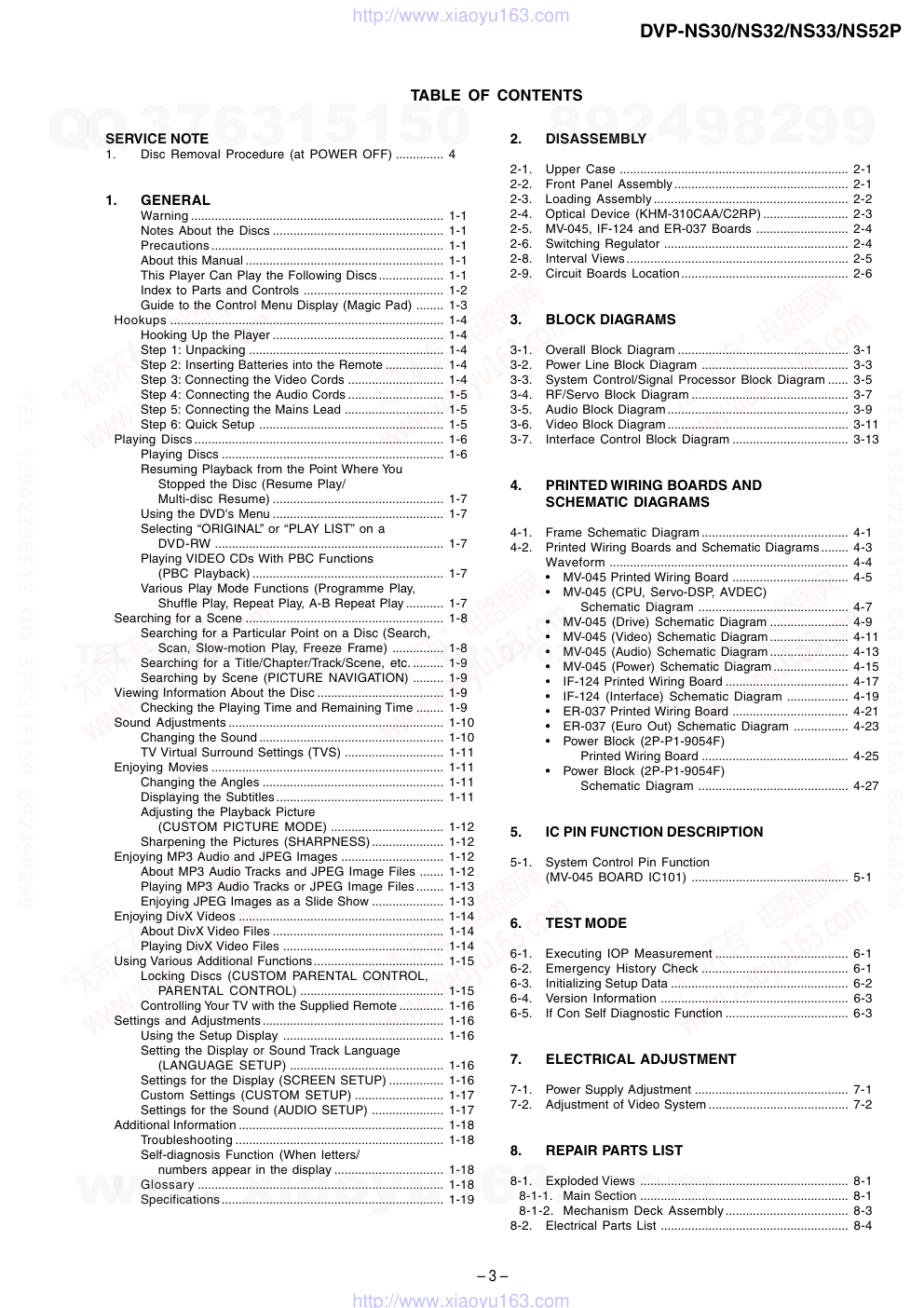

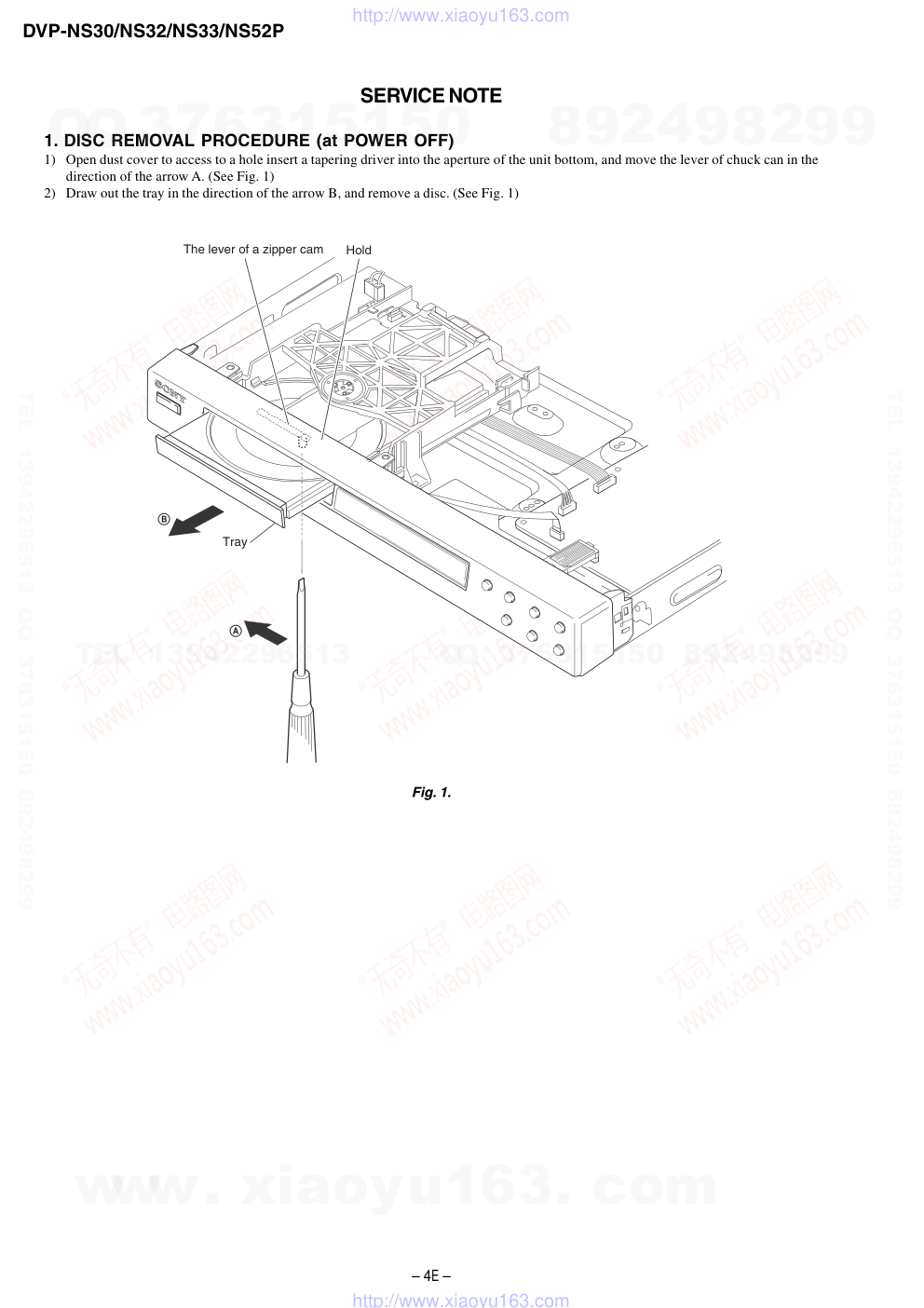

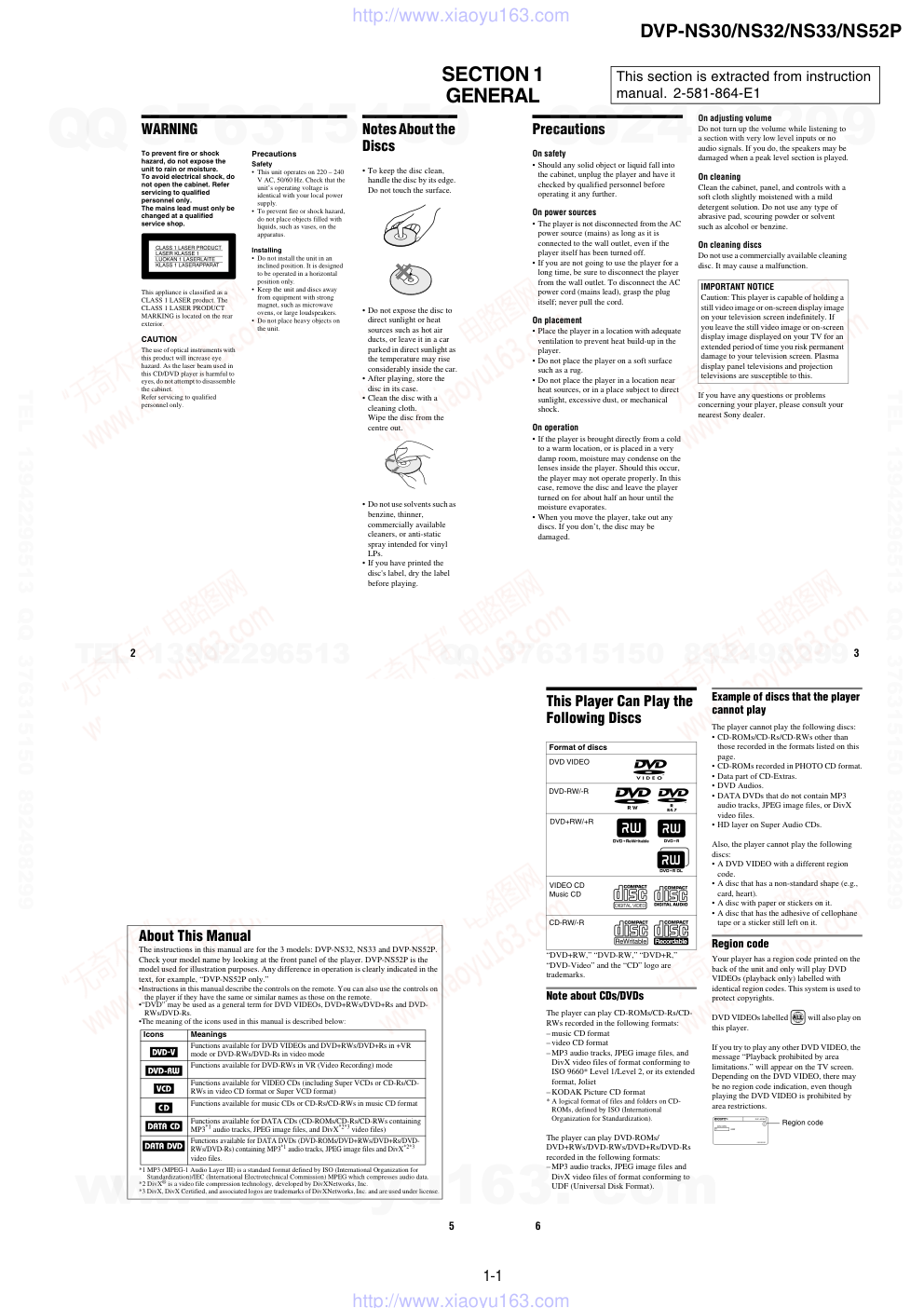

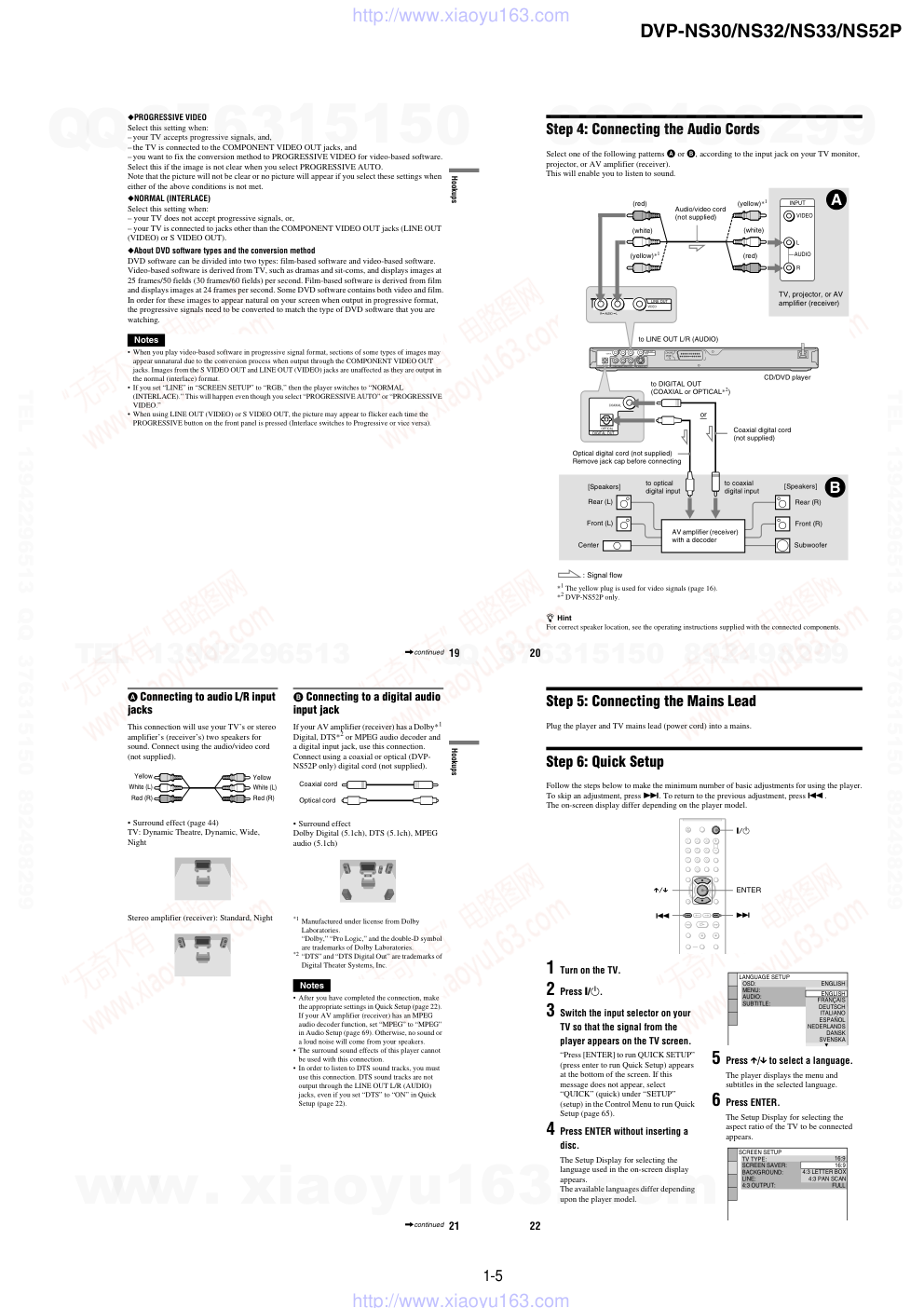

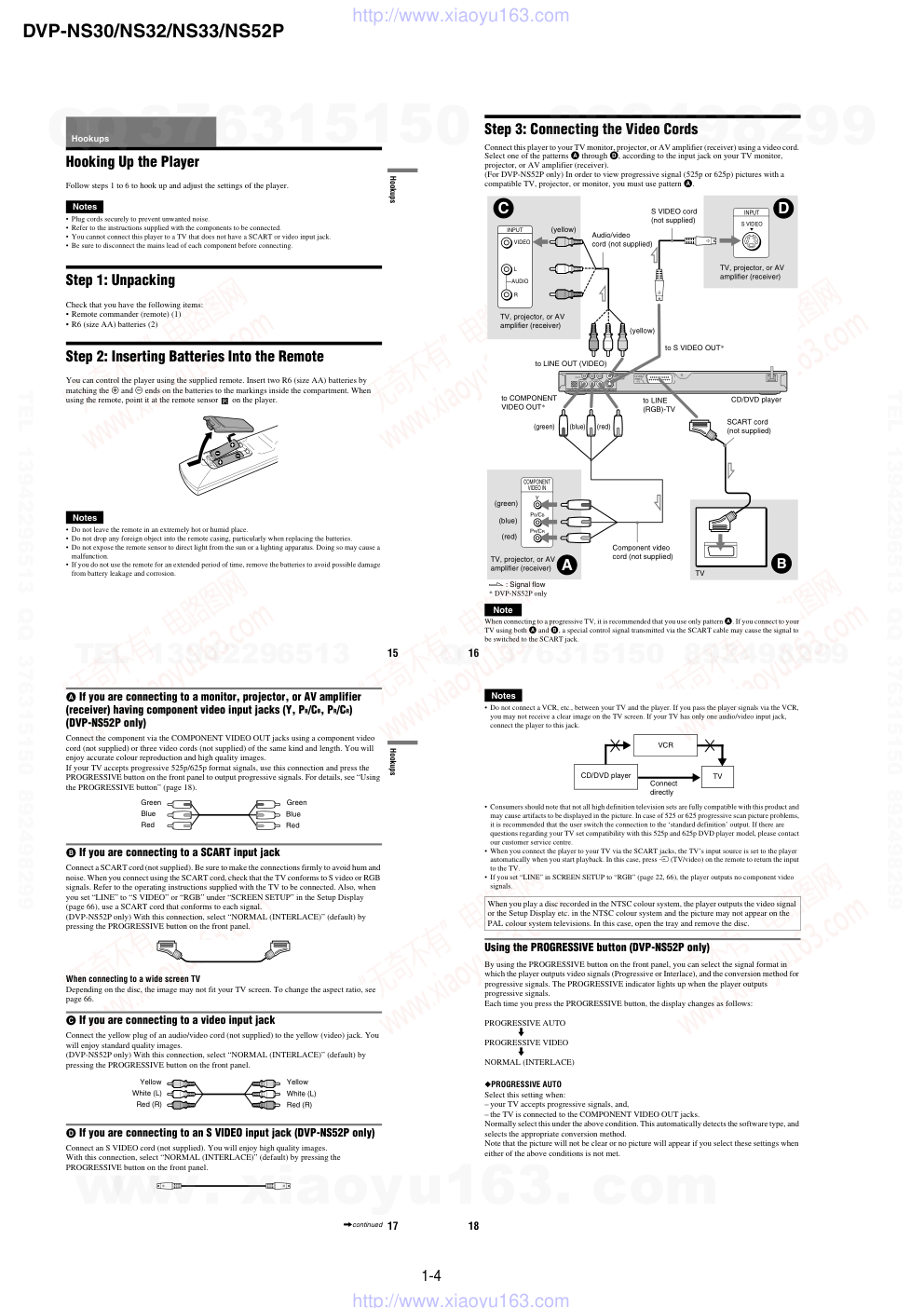

CD/DVD PLAYER System Laser: Semiconductor laser Signal format system: PAL/NTSC Audio characteristics Frequency response: DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)/ DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB) Signal-to-noise ratio (S/N ratio): 115 dB (LINE OUT L/R (AUDIO) jacks only) Harmonic distortion: 0.003% Dynamic range: DVD VIDEO: 103 dB/ CD: 99 dB Wow and flutter: Less than detected value (±0.001% W PEAK) Outputs (Jack name: Jack type/Output level/ Load impedance) LINE OUT (AUDIO): Phono jack/ 2 Vrms/ 10 kilohms DIGITAL OUT (OPTICAL) (DVP-NS52P only): Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL): Phono jack/ 0.5 Vp-p/75 ohms LINE OUT (VIDEO): Phono jack/ 1.0 Vp-p/75 ohms S VIDEO OUT (DVP-NS52P only): 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/75 ohms COMPONENT VIDEO OUT (Y, PB/CB, PR/CR) (DVP-NS52P only): Phono jack/Y: 1.0 Vp-p, PB/CB, PR/CR: 0.7 Vp-p/75 ohms SPECIFICATIONS General Power requirements: 220–240 V AC, 50/60 Hz Power consumption: DVP-NS32/NS33: 10 W DVP-NS52P: 11 W Dimensions (approx.): DVP-NS32/NS33: 430 × 43 × 237.2 mm DVP-NS52P: 430 × 43 × 237.3 mm (width/height/depth) incl. projecting parts Mass (approx.): DVP-NS32/NS33: 1.92 kg DVP-NS52P: 1.95 kg Operating temperature: 5°C to 35°C Operating humidity: 25% to 80% Supplied accessories See page 15 Specifications and design are subject to change without notice. DVP-NS30/NS32/NS33/NS52P RMT-D175P SERVICE MANUAL AEP Model DVP-NS30/NS32/NS33/NS52P Russia Model DVP-NS30/NS32/NS52P UK Model DVP-NS30/NS52P Photo : DVP-NS30 RMT-D175P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – DVP-NS30/NS32/NS33/NS52P SAFETY CHECK-OUT 1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the cus- tomer. 6. Check the B+ voltage to see it is at the values specified. 7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION: The use of optical instrument with this product will increase eye hazard. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK OR DOTTED LINE WITH MARK ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA TW-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC volmeter. The “limit” indication is 0.75V, so analog meters must have an accurate low voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C highter than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. To Exposed Metal Parts on Set 0.15 F 1.5k AC Voltmeter (0.75 V) Earth Ground Fig.A. Using an Acvoltmeter to check AC leakage. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – DVP-NS30/NS32/NS33/NS52P TABLE OF CONTENTS SERVICE NOTE 1. Disc Removal Procedure (at POWER OFF) .............. 4 1. GENERAL Warning .......................................................................... 1-1 Notes About the Discs .................................................. 1-1 Precautions.................................................................... 1-1 About this Manual .......................................................... 1-1 This Player Can Play the Following Discs................... 1-1 Index to Parts and Controls ......................................... 1-2 Guide to the Control Menu Display (Magic Pad) ........ 1-3 Hookups ................................................................................ 1-4 Hooking Up the Player .................................................. 1-4 Step 1: Unpacking ......................................................... 1-4 Step 2: Inserting Batteries into the Remote ................. 1-4 Step 3: Connecting the Video Cords ............................ 1-4 Step 4: Connecting the Audio Cords ............................ 1-5 Step 5: Connecting the Mains Lead ............................. 1-5 Step 6: Quick Setup ...................................................... 1-5 Playing Discs ......................................................................... 1-6 Playing Discs ................................................................. 1-6 Resuming Playback from the Point Where You Stopped the Disc (Resume Play/ Multi-disc Resume) .................................................. 1-7 Using the DVD's Menu .................................................. 1-7 Selecting “ORIGINAL” or “PLAY LIST” on a DVD-RW ................................................................... 1-7 Playing VIDEO CDs With PBC Functions (PBC Playback) ........................................................ 1-7 Various Play Mode Functions (Programme Play, Shuffle Play, Repeat Play, A-B Repeat Play ........... 1-7 Searching for a Scene .......................................................... 1-8 Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play, Freeze Frame) ............... 1-8 Searching for a Title/Chapter/Track/Scene, etc. ......... 1-9 Searching by Scene (PICTURE NAVIGATION) ......... 1-9 Viewing Information About the Disc ..................................... 1-9 Checking the Playing Time and Remaining Time ........ 1-9 Sound Adjustments ............................................................... 1-10 Changing the Sound ...................................................... 1-10 TV Virtual Surround Settings (TVS) ............................. 1-11 Enjoying Movies .................................................................... 1-11 Changing the Angles ..................................................... 1-11 Displaying the Subtitles................................................. 1-11 Adjusting the Playback Picture (CUSTOM PICTURE MODE) ................................. 1-12 Sharpening the Pictures (SHARPNESS) ..................... 1-12 Enjoying MP3 Audio and JPEG Images .............................. 1-12 About MP3 Audio Tracks and JPEG Image Files ....... 1-12 Playing MP3 Audio Tracks or JPEG Image Files........ 1-13 Enjoying JPEG Images as a Slide Show ..................... 1-13 Enjoying DivX Videos ............................................................ 1-14 About DivX Video Files .................................................. 1-14 Playing DivX Video Files ............................................... 1-14 Using Various Additional Functions...................................... 1-15 Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) .......................................... 1-15 Controlling Your TV with the Supplied Remote ............. 1-16 Settings and Adjustments..................................................... 1-16 Using the Setup Display ............................................... 1-16 Setting the Display or Sound Track Language (LANGUAGE SETUP) ............................................. 1-16 Settings for the Display (SCREEN SETUP) ................ 1-16 Custom Settings (CUSTOM SETUP) .......................... 1-17 Settings for the Sound (AUDIO SETUP) ..................... 1-17 Additional Information ............................................................ 1-18 Troubleshooting ............................................................. 1-18 Self-diagnosis Function (When letters/ numbers appear in the display ................................ 1-18 Glossary ........................................................................ 1-18 Specifications................................................................. 1-19 2. DISASSEMBLY 2-1. Upper Case ................................................................... 2-1 2-2. Front Panel Assembly................................................... 2-1 2-3. Loading Assembly ......................................................... 2-2 2-4. Optical Device (KHM-310CAA/C2RP) ......................... 2-3 2-5. MV-045, IF-124 and ER-037 Boards ........................... 2-4 2-6. Switching Regulator ...................................................... 2-4 2-8. Interval Views ................................................................. 2-5 2-9. Circuit Boards Location................................................. 2-6 3. BLOCK DIAGRAMS 3-1. Overall Block Diagram .................................................. 3-1 3-2. Power Line Block Diagram ........................................... 3-3 3-3. System Control/Signal Processor Block Diagram ...... 3-5 3-4. RF/Servo Block Diagram .............................................. 3-7 3-5. Audio Block Diagram ..................................................... 3-9 3-6. Video Block Diagram ..................................................... 3-11 3-7. Interface Control Block Diagram .................................. 3-13 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. Frame Schematic Diagram ........................................... 4-1 4-2. Printed Wiring Boards and Schematic Diagrams ........ 4-3 Waveform ...................................................................... 4-4 • MV-045 Printed Wiring Board .................................. 4-5 • MV-045 (CPU, Servo-DSP, AVDEC) Schematic Diagram ............................................ 4-7 • MV-045 (Drive) Schematic Diagram ....................... 4-9 • MV-045 (Video) Schematic Diagram ....................... 4-11 • MV-045 (Audio) Schematic Diagram ....................... 4-13 • MV-045 (Power) Schematic Diagram...................... 4-15 • IF-124 Printed Wiring Board .................................... 4-17 • IF-124 (Interface) Schematic Diagram .................. 4-19 • ER-037 Printed Wiring Board .................................. 4-21 • ER-037 (Euro Out) Schematic Diagram ................ 4-23 • Power Block (2P-P1-9054F) Printed Wiring Board ........................................... 4-25 • Power Block (2P-P1-9054F) Schematic Diagram ............................................ 4-27 5. IC PIN FUNCTION DESCRIPTION 5-1. System Control Pin Function (MV-045 BOARD IC101) .............................................. 5-1 6. TEST MODE 6-1. Executing IOP Measurement ....................................... 6-1 6-2. Emergency History Check ........................................... 6-1 6-3. Initializing Setup Data .................................................... 6-2 6-4. Version Information ....................................................... 6-3 6-5. If Con Self Diagnostic Function .................................... 6-3 7. ELECTRICAL ADJUSTMENT 7-1. Power Supply Adjustment ............................................. 7-1 7-2. Adjustment of Video System ......................................... 7-2 8. REPAIR PARTS LIST 8-1. Exploded Views ............................................................. 8-1 8-1-1. Main Section ............................................................. 8-1 8-1-2. Mechanism Deck Assembly.................................... 8-3 8-2. Electrical Parts List ....................................................... 8-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – DVP-NS30/NS32/NS33/NS52P – 4E – SERVICE NOTE 1. DISC REMOVAL PROCEDURE (at POWER OFF) 1) Open dust cover to access to a hole insert a tapering driver into the aperture of the unit bottom, and move the lever of chuck can in the direction of the arrow A. (See Fig. 1) 2) Draw out the tray in the direction of the arrow B, and remove a disc. (See Fig. 1) Tray B A The lever of a zipper cam Hold Fig. 1. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 DVP-NS30/NS32/NS33/NS52P 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. The mains lead must only be changed at a qualified service shop. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. Precautions Safety • This unit operates on 220 – 240 V AC, 50/60 Hz. Check that the unit’s operating voltage is identical with your local power supply. • To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Installing • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit and discs away from equipment with strong magnet, such as microwave ovens, or large loudspeakers. • Do not place heavy objects on the unit. Notes About the Discs • To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case. • Clean the disc with a cleaning cloth. Wipe the disc from the centre out. • Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs. • If you have printed the disc's label, dry the label before playing. 5 Enjoying DivX® Videos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 About DivX Video Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Playing DivX Video Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Using Various Additional Functions . . . . . . . . . . . . . . . . . . . . . . . 60 Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Controlling Your TV With the Supplied Remote. . . . . . . . . . . . . . . . . . . . . . . 63 Settings and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Using the Setup Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Setting the Display or Sound Track Language (LANGUAGE SETUP) . . . . . 65 Settings for the Display (SCREEN SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . 66 Custom Settings (CUSTOM SETUP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Settings for the Sound (AUDIO SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 Self-diagnosis Function (When letters/numbers appear in the display). . . . . 74 Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Language Code List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 About This Manual The instructions in this manual are for the 3 models: DVP-NS32, NS33 and DVP-NS52P. Check your model name by looking at the front panel of the player. DVP-NS52P is the model used for illustration purposes. Any difference in operation is clearly indicated in the text, for example, “DVP-NS52P only.” •Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote. •“DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs and DVD- RWs/DVD-Rs. •The meaning of the icons used in this manual is described below: Icons Meanings Functions available for DVD VIDEOs and DVD+RWs/DVD+Rs in +VR mode or DVD-RWs/DVD-Rs in video mode Functions available for DVD-RWs in VR (Video Recording) mode Functions available for VIDEO CDs (including Super VCDs or CD-Rs/CD- RWs in video CD format or Super VCD format) Functions available for music CDs or CD-Rs/CD-RWs in music CD format Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs containing MP3*1 audio tracks, JPEG image files, and DivX*2*3 video files) Functions available for DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/DVD- RWs/DVD-Rs) containing MP3*1 audio tracks, JPEG image files and DivX*2*3 video files. *1 MP3 (MPEG-1 Audio Layer III) is a standard format defined by ISO (International Organization for Standardization)/IEC (International Electrotechnical Commission) MPEG which compresses audio data. *2 DivX® is a video file compression technology, developed by DivXNetworks, Inc. *3 DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and are used under license. 6 This Player Can Play the Following Discs “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-Video” and the “CD” logo are trademarks. Note about CDs/DVDs The player can play CD-ROMs/CD-Rs/CD- RWs recorded in the following formats: – music CD format – video CD format – MP3 audio tracks, JPEG image files, and DivX video files of format conforming to ISO 9660* Level 1/Level 2, or its extended format, Joliet – KODAK Picture CD format * A logical format of files and folders on CD- ROMs, defined by ISO (International Organization for Standardization). The player can play DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs recorded in the following formats: – MP3 audio tracks, JPEG image files and DivX video files of format conforming to UDF (Universal Disk Format). Example of discs that the player cannot play The player cannot play the following discs: • CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on this page. • CD-ROMs recorded in PHOTO CD format. • Data part of CD-Extras. • DVD Audios. • DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files. • HD layer on Super Audio CDs. Also, the player cannot play the following discs: • A DVD VIDEO with a different region code. • A disc that has a non-standard shape (e.g., card, heart). • A disc with paper or stickers on it. • A disc that has the adhesive of cellophane tape or a sticker still left on it. Region code Your player has a region code printed on the back of the unit and only will play DVD VIDEOs (playback only) labelled with identical region codes. This system is used to protect copyrights. DVD VIDEOs labelled will also play on this player. If you try to play any other DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, there may be no region code indication, even though playing the DVD VIDEO is prohibited by area restrictions. Format of discs DVD VIDEO DVD-RW/-R DVD+RW/+R VIDEO CD Music CD CD-RW/-R ALL DVP–XXXX 00V 00Hz 00W NO. 0-000-000-00 X Region code 3 Precautions On safety • Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further. On power sources • The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off. • If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord. On placement • Place the player in a location with adequate ventilation to prevent heat build-up in the player. • Do not place the player on a soft surface such as a rug. • Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock. On operation • If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates. • When you move the player, take out any discs. If you don’t, the disc may be damaged. On adjusting volume Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played. On cleaning Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. On cleaning discs Do not use a commercially available cleaning disc. It may cause a malfunction. If you have any questions or problems concerning your player, please consult your nearest Sony dealer. IMPORTANT NOTICE Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this. SECTION 1 GENERAL This section is extracted from instruction manual. 2-581-864-E1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 DVP-NS30/NS32/NS33/NS52P 7 Notes • Notes about DVD+RWs/DVD+Rs, DVD-RWs/ DVD-Rs or CD-Rs/CD-RWs Some DVD+RWs/DVD+Rs, DVD-RWs/DVD- Rs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played. • Music discs encoded with copyright protection technologies This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. • DualDiscs This product is designed to playback discs that conform to the Compact Disc (CD) standard. A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. Please be aware that the audio side of a DualDisc may not play on this product because these discs do not conform to the CD standard. “DualDisc” is a trademark of the Recording Industry Association of America (RIAA). Note on playback operations of DVDs and VIDEO CDs Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs. Copyrights This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. 8 Index to Parts and Controls For more information, see the pages indicated in parentheses. Front panel DVP-NS52P DVP-NS32/NS33 A [/1 (on/standby) button (25) B Disc tray (25) C Front panel display (10) D (remote sensor) (15) E A (open/close) button (25) F H (play) button (25) G X (pause) button (26) H x (stop) button (26) I ./> (previous/next) buttons (34) J PROGRESSIVE button/indicator (18) (DVP-NS52P only) Lights up when the player outputs progressive signals. 9 Rear panel DVP-NS52P DVP-NS32/NS33 A DIGITAL OUT (COAXIAL) jack (20) B LINE OUT L/R (AUDIO) jacks (20) C LINE OUT (VIDEO) jack (16) D LINE (RGB) - TV jack (16) E S VIDEO OUT jack (DVP-NS52P only) (16) F COMPONENT VIDEO OUT (Y, PB/ CB, PR/CR) jacks (DVP-NS52P only) (16) G DIGITAL OUT (OPTICAL) jack (DVP-NS52P only) (20) LINE (RGB) -TV L C E N T E R PR/CR Y PB/CB VIDEO COAXIAL LINE OUT COMPONENT VIDEO OUT DIGITAL OUT S VIDEO OUT OPTICAL AUDIO R L LINE (RGB) -TV L C E N T E R AUDIO VIDEO COAXIAL R L LINE OUT DIGITAL OUT ,continued 10 Front panel display When playing back a DVD VIDEO/DVD-RW When playing back a VIDEO CD with Playback Control (PBC) (29) When playing back a CD, DATA DVD (MP3 audio/DivX video), DATA CD (MP3 audio/DivX video), or VIDEO CD (without PBC) *1 When playing DivX video files, the current track is not displayed. *2 When playing DATA DVDs, the DVD indicator is displayed. Current title/chapter or playing time (38) Disc type Current audio signal (43) Lights up when you can change the angle (46) Lights up during Repeat Play (32) Playing status Disc type Current scene or playing time (38) Playing status Lights up during A-B Repeat Play (33) Playing time (38) Disc type*2 Current track*1 (38) Lights up during Repeat Play (32) Lights up when playing MP3 audio tracks (50) Playing status www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 DVP-NS30/NS32/NS33/NS52P 11 Remote A TV [/1 (on/standby) button (63) B Z (open/close) button (26) C Number buttons (28) The number 5 button has a tactile dot.* D CLEAR button (30) E TOP MENU button (28) F C/X/x/c buttons (28) G O RETURN (return) button (26) H / (replay/step/ advance/step) buttons (26, 35) I ./> (previous/next) buttons (26) J m/M (scan/slow) buttons (35) K ZOOM button (26, 53) L SLOW PLAY/FAST PLAY buttons (26) M (audio) button (42) N (subtitle) button (46) O [/1 (on/standby) button (25) P 2 (volume) +/– buttons (63) The + button has a tactile dot.* Q t (TV/video) button (63) R PICTURE NAVI (picture navigation) button (37, 53) S TIME/TEXT button (38) T MENU button (28) U ENTER button (22) V DISPLAY button (12) W H (play) button (25) The H button has a tactile dot.* X x (stop) button (26) Y X (pause) button (26) Z SUR (surround) button (44) wj (angle) button (46) * Use the tactile dot as a reference when operating the player. 12 Guide to the Control Menu Display (Magic Pad) Use the Control Menu to select a function and to view related information. Press DISPLAY repeatedly to turn on or change the Control Menu display as follows: Control Menu display The Control Menu display 1 and 2 will show different items depending on the disc type. For details about each item, see the pages in parentheses. Example: Control Menu display 1 when playing a DVD VIDEO. *1 Displays the scene number for VIDEO CDs (PBC is on), track number for VIDEO CDs/CDs, album number for DATA DVDs/DATA CDs. *2 Displays the index number for VIDEO CDs, MP3 audio track number or JPEG image file number for DATA CDs/DATA DVDs. DivX video file number for DATA CDs/DATA DVDs. *3 Displays Super VCD as “SVCD.” *4 Displays the date for JPEG files. To turn off the display Press DISPLAY. Control Menu display 1 m Control Menu display 2 (Only for DATA CDs/DATA DVDs without DivX video files) m Control Menu display off , OFF OFF SET ON PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO Quit: PROGRAM ENTER DISPLAY Currently playing chapter number*2 Playing time*4 Total number of chapters*2 Options Current setting Total number of titles*1 Playback status (N Playback, X Pause, x Stop, etc.) Function name of selected Control Menu item Operation message Selected item Control Menu items Type of disc being played*3 Currently playing title number*1 13 List of Control Menu items Item Item Name, Function TITLE (page 35)/SCENE (page 35)/TRACK (page 35) Selects the title, scene, or track to be played. CHAPTER (page 35)/INDEX (page 35) Selects the chapter or index to be played. TRACK (page 35) Selects the track to be played. ORIGINAL/PLAY LIST (page 28) Selects the type of titles (DVD-RW) to be played, the ORIGINAL one, or an edited PLAY LIST. TIME/TEXT (page 35) Checks the elapsed time and the remaining playback time. Input the time code for picture and music searching. Displays the DVD/CD text, or the DATA CD/DATA DVD track/file name. PROGRAM (page 30) Selects the title, chapter, or track to play in the order you want. SHUFFLE (page 31) Plays the title, chapter, or track in random order. REPEAT (page 32) Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/ track/album/file repeatedly. A-B REPEAT (page 33) Specifies the parts you want to play repeatedly. CUSTOM PICTURE MODE (page 47) Adjusts the video signal from the player. You can select the picture quality that best suits the program you are watching. SHARPNESS (page 49) Exaggerates the outline of the image to produce a sharper picture. PARENTAL CONTROL (page 61) Set to prohibit playback on this player. SETUP (page 64) QUICK Setup (page 22) Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of the TV, and the audio output signal. CUSTOM Setup In addition to the Quick Setup setting, you can adjust various other settings. RESET Returns the settings in “SETUP” to the default setting. ALBUM (page 36) Selects the album that contain JPEG image file to be played. FILE (page 36) Selects the JPEG image file to be played. ALBUM (page 36) Selects the album that contain DivX video file to be played. FILE (page 36) Selects the DivX video file to be played. DATE (page 53) Displays the date the picture was taken by a digital camera. ,continued 14 z Hint The Control Menu icon indicator lights up in green when you select any item except “OFF.” (“PROGRAM,” “SHUFFLE,” “REPEAT,” “A-B REPEAT,” “SHARPNESS,” “CUSTOM PICTURE MODE” only). The “ORIGINAL/PLAY LIST” indicator lights up in green when you select “PLAY LIST” (default setting). INTERVAL (page 55) Specifies the duration for which the slides are displayed on the screen. EFFECT (page 56) Selects the effects to be used for changing slides during a slide show. MODE (MP3, JPEG) (page 54) Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both (AUTO) to be played when playing a DATA CD/DATA DVD. t www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 DVP-NS30/NS32/NS33/NS52P 15 Hookups Hookups Hooking Up the Player Follow steps 1 to 6 to hook up and adjust the settings of the player. Notes • Plug cords securely to prevent unwanted noise. • Refer to the instructions supplied with the components to be connected. • You cannot connect this player to a TV that does not have a SCART or video input jack. • Be sure to disconnect the mains lead of each component before connecting. Step 1: Unpacking Check that you have the following items: • Remote commander (remote) (1) • R6 (size AA) batteries (2) Step 2: Inserting Batteries Into the Remote You can control the player using the supplied remote. Insert two R6 (size AA) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player. Notes • Do not leave the remote in an extremely hot or humid place. • Do not drop any foreign object into the remote casing, particularly when replacing the batteries. • Do not expose the remote sensor to direct light from the sun or a lighting apparatus. Doing so may cause a malfunction. • If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion. 16 Step 3: Connecting the Video Cords Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord. Select one of the patterns A through D, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). (For DVP-NS52P only) In order to view progressive signal (525p or 625p) pictures with a compatible TV, projector, or monitor, you must use pattern A. Note When connecting to a progressive TV, it is recommended that you use only pattern A. If you connect to your TV using both A and B, a special control signal transmitted via the SCART cable may cause the signal to be switched to the SCART jack. C VIDEO AUDIO INPUT L R A PR/CR PB/CB Y COMPONENT VIDEO IN D INPUT S VIDEO B AUDIO R L PR/CR Y PB/CB VIDEO COAXIAL LINE OUT COMPONENT VIDEO OUT DIGITAL OUT S VIDEO OUT OPTICAL LINE (RGB) -TV L C E N T E R Audio/video cord (not supplied) Component video cord (not supplied) (yellow) TV, projector, or AV amplifier (receiver) to S VIDEO OUT* TV, projector, or AV amplifier (receiver) (green) S VIDEO cord (not supplied) TV, projector, or AV amplifier (receiver) (red) (blue) (green) (blue) (red) to LINE OUT (VIDEO) to LINE (RGB)-TV TV l : Signal flow * DVP-NS52P only CD/DVD player to COMPONENT VIDEO OUT* SCART cord (not supplied) (yellow) 17 Hookups A If you are connecting to a monitor, projector, or AV amplifier (receiver) having component video input jacks (Y, PB/CB, PR/CR) (DVP-NS52P only) Connect the component via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate colour reproduction and high quality images. If your TV accepts progressive 525p/625p format signals, use this connection and press the PROGRESSIVE button on the front panel to output progressive signals. For details, see “Using the PROGRESSIVE button” (page 18). B If you are connecting to a SCART input jack Connect a SCART cord (not supplied). Be sure to make the connections firmly to avoid hum and noise. When you connect using the SCART cord, check that the TV conforms to S video or RGB signals. Refer to the operating instructions supplied with the TV to be connected. Also, when you set “LINE” to “S VIDEO” or “RGB” under “SCREEN SETUP” in the Setup Display (page 66), use a SCART cord that conforms to each signal. (DVP-NS52P only) With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on the front panel. When connecting to a wide screen TV Depending on the disc, the image may not fit your TV screen. To change the aspect ratio, see page 66. C If you are connecting to a video input jack Connect the yellow plug of an audio/video cord (not supplied) to the yellow (video) jack. You will enjoy standard quality images. (DVP-NS52P only) With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on the front panel. D If you are connecting to an S VIDEO input jack (DVP-NS52P only) Connect an S VIDEO cord (not supplied). You will enjoy high quality images. With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on the front panel. Green Blue Red Green Blue Red Yellow White (L) Red (R) Yellow White (L) Red (R) ,continued 18 Notes • Do not connect a VCR, etc., between your TV and the player. If you pass the player signals via the VCR, you may not receive a clear image on the TV screen. If your TV has only one audio/video input jack, connect the player to this jack. • Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p and 625p DVD player model, please contact our customer service centre. • When you connect the player to your TV via the SCART jacks, the TV’s input source is set to the player automatically when you start playback. In this case, press t (TV/video) on the remote to return the input to the TV. • If you set “LINE” in SCREEN SETUP to “RGB” (page 22, 66), the player outputs no component video signals. Using the PROGRESSIVE button (DVP-NS52P only) By using the PROGRESSIVE button on the front panel, you can select the signal format in which the player outputs video signals (Progressive or Interlace), and the conversion method for progressive signals. The PROGRESSIVE indicator lights up when the player outputs progressive signals. Each time you press the PROGRESSIVE button, the display changes as follows: PROGRESSIVE AUTO m PROGRESSIVE VIDEO m NORMAL (INTERLACE) ◆PROGRESSIVE AUTO Select this setting when: – your TV accepts progressive signals, and, – the TV is connected to the COMPONENT VIDEO OUT jacks. Normally select this under the above condition. This automatically detects the software type, and selects the appropriate conversion method. Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met. When you play a disc recorded in the NTSC colour system, the player outputs the video signal or the Setup Display etc. in the NTSC colour system and the picture may not appear on the PAL colour system televisions. In this case, open the tray and remove the disc. VCR CD/DVD player TV Connect directly www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 DVP-NS30/NS32/NS33/NS52P 19 Hookups ◆PROGRESSIVE VIDEO Select this setting when: – your TV accepts progressive signals, and, – the TV is connected to the COMPONENT VIDEO OUT jacks, and – you want to fix the conversion method to PROGRESSIVE VIDEO for video-based software. Select this if the image is not clear when you select PROGRESSIVE AUTO. Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met. ◆NORMAL (INTERLACE) Select this setting when: – your TV does not accept progressive signals, or, – your TV is connected to jacks other than the COMPONENT VIDEO OUT jacks (LINE OUT (VIDEO) or S VIDEO OUT). ◆About DVD software types and the conversion method DVD software can be divided into two types: film-based software and video-based software. Video-based software is derived from TV, such as dramas and sit-coms, and displays images at 25 frames/50 fields (30 frames/60 fields) per second. Film-based software is derived from film and displays images at 24 frames per second. Some DVD software contains both video and film. In order for these images to appear natural on your screen when output in progressive format, the progressive signals need to be converted to match the type of DVD software that you are watching. Notes • When you play video-based software in progressive signal format, sections of some types of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. Images from the S VIDEO OUT and LINE OUT (VIDEO) jacks are unaffected as they are output in the normal (interlace) format. • If you set “LINE” in “SCREEN SETUP” to “RGB,” then the player switches to “NORMAL (INTERLACE).” This will happen even though you select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO.” • When using LINE OUT (VIDEO) or S VIDEO OUT, the picture may appear to flicker each time the PROGRESSIVE button on the front panel is pressed (Interlace switches to Progressive or vice versa). ,continued 20 Step 4: Connecting the Audio Cords Select one of the following patterns A or B, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). This will enable you to listen to sound. z Hint For correct speaker location, see the operating instructions supplied with the connected components. VIDEO AUDIO INPUT L R R AUDIO L PR/CR PB/CB S VIDEO OUT LINE (RGB) -TV L C E N T E R A B VIDEO LINE OUT VIDEO LINE OUT AUDIO R L Y COAXIAL COMPONENT VIDEO OUT DIGITAL OUT OPTICAL COAXIAL DIGITAL OUT OPTICAL AV amplifier (receiver) with a decoder (red) TV, projector, or AV amplifier (receiver) Audio/video cord (not supplied) : Signal flow Coaxial digital cord (not supplied) to DIGITAL OUT (COAXIAL or OPTICAL*2) to LINE OUT L/R (AUDIO) Rear (L) CD/DVD player (white) (yellow)*1 (yellow)*1 (white) (red) [Speakers] Front (L) [Speakers] to coaxial digital input Rear (R) Front (R) Subwoofer Center *1 The yellow plug is used for video signals (page 16). *2 DVP-NS52P only. Optical digital cord (not supplied) Remove jack cap before connecting or to optical digital input 21 Hookups A Connecting to audio L/R input jacks This connection will use your TV’s or stereo amplifier’s (receiver’s) two speakers for sound. Connect using the audio/video cord (not supplied). • Surround effect (page 44) TV: Dynamic Theatre, Dynamic, Wide, Night Stereo amplifier (receiver): Standard, Night B Connecting to a digital audio input jack If your AV amplifier (receiver) has a Dolby*1 Digital, DTS*2 or MPEG audio decoder and a digital input jack, use this connection. Connect using a coaxial or optical (DVP- NS52P only) digital cord (not supplied). • Surround effect Dolby Digital (5.1ch), DTS (5.1ch), MPEG audio (5.1ch) *1 Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. *2 “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. Notes • After you have completed the connection, make the appropriate settings in Quick Setup (page 22). If your AV amplifier (receiver) has an MPEG audio decoder function, set “MPEG” to “MPEG” in Audio Setup (page 69). Otherwise, no sound or a loud noise will come from your speakers. • The surround sound effects of this player cannot be used with this connection. • In order to listen to DTS sound tracks, you must use this connection. DTS sound tracks are not output through the LINE OUT L/R (AUDIO) jacks, even if you set “DTS” to “ON” in Quick Setup (page 22). Yellow White (L) Red (R) Yellow White (L) Red (R) Coaxial cord Optical cord ,continued 22 Step 5: Connecting the Mains Lead Plug the player and TV mains lead (power cord) into a mains. Step 6: Quick Setup Follow the steps below to make the minimum number of basic adjustments for using the player. To skip an adjustment, press >. To return to the previous adjustment, press .. The on-screen display differ depending on the player model. 1 Turn on the TV. 2 Press [/1. 3 Switch the input selector on your TV so that the signal from the player appears on the TV screen. “Press [ENTER] to run QUICK SETUP” (press enter to run Quick Setup) appears at the bottom of the screen. If this message does not appear, select “QUICK” (quick) under “SETUP” (setup) in the Control Menu to run Quick Setup (page 65). 4 Press ENTER without inserting a disc. The Setup Display for selecting the language used in the on-screen display appears. The available languages differ depending upon the player model. 5 Press X/x to select a language. The player displays the menu and subtitles in the selected language. 6 Press ENTER. The Setup Display for selecting the aspect ratio of the TV to be connected appears. ENTER LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ITALIANO ESPAÑOL NEDERLANDS DANSK SVENSKA FRANÇAIS ENGLISH ENGLISH DEUTSCH SCREEN SETUP TV TYPE: 16:9 4:3 LETTER BOX 4:3 PAN SCAN FULL SCREEN SAVER: LINE: BACKGROUND: 4:3 OUTPUT: 16:9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 DVP-NS30/NS32/NS33/NS52P 23 Hookups 7 Press X/x to select the setting that matches your TV type. ◆ If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode • 16:9 (page 66) ◆ If you have a 4:3 standard TV • 4:3 LETTER BOX or 4:3 PAN SCAN (page 66) 8 Press ENTER. The Setup Display for selecting the type of video signal output from the LINE (RGB)-TV jack appears. 9 Press X/x to select the type of signal you want to output from the LINE (RGB)-TV jack. ◆ Video signals • VIDEO (page 66) ◆ S video signals • S VIDEO (page 66) ◆ RGB signals • RGB (page 66) (DVP-NS52P only) When you select “RGB,” you will be unable to use the PROGRESSIVE button, and the player will not output video signals from the COMPONENT VIDEO OUT jacks. 10Press ENTER. The Setup Display for selecting the type of jack used to connect your amplifier (receiver) appears. 11Press X/x to select the type of jack (if any) you are using to connect to an amplifier (receiver), then press ENTER. If you did not connect an AV amplifier (receiver), select “NO,” then go to step 15. If you connected an AV amplifier (receiver) using just an audio cord, select “YES: LINE OUTPUT L/R (AUDIO),” then go to step 15. If you connected an AV amplifier (receiver) using either a optical or coaxial digital cord, select “YES: DIGITAL OUTPUT.” 12Press X/x to select the type of Dolby Digital signal you wish to send to your amplifier (receiver). If your AV amplifier (receiver) has a Dolby Digital decoder, select “DOLBY DIGITAL.” Otherwise, select “D-PCM.” 13Press ENTER. “DTS” is selected. 14Press X/x to select whether or not you wish to send a DTS signal to your amplifier (receiver). If your AV amplifier (receiver) has a DTS decoder, select “ON.” Otherwise, select “OFF.” SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKET PICTURE LINE: VIDEO VIDEO S VIDEO RGB 4:3 OUTPUT: YES NO Is this player connected to an amplifier (receiver) ? Select the type of jack you are using. LINE OUTPUT L/R (AUDIO) DIGITAL OUTPUT AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: DOLBY DIGITAL: MPEG: OFF STANDARD ON DOWNMIX: DOLBY SURROUND D-PCM D-PCM 48kHz/96kHz PCM: 48kHz/16bit DTS: DOLBY DIGITAL AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: DOLBY DIGITAL: MPEG: OFF STANDARD ON DOWNMIX: DOLBY SURROUND D-PCM PCM DTS: 48kHz/96kHz PCM: OFF OFF ON ,continued 24 15Press ENTER. Quick Setup is finished. All connections and setup operations are complete. If your AV amplifier (receiver) has an MPEG audio decoder, set “MPEG” to “MPEG” (page 69). 25 Playing Discs Playing Discs Playing Discs Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with your disc. 1 Turn on your TV. 2 Press [/1. The player turns on. 3 Switch the input selector on your TV so that the signal from the player appears on the TV screen. ◆ When using an amplifier (receiver) Turn on the amplifier (receiver) and select the appropriate channel so that you can hear sound from the player. 4 Press A on the player, and place a disc on the disc tray. 5 Press H. The disc tray closes. The player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). Depending on the disc, a menu may appear on the TV screen. For DVD VIDEOs, see page 28. For VIDEO CDs, see page 29. To turn off the player Press [/1. The player enters standby mode. z Hint You can have the player turn off automatically whenever you leave it in stop mode for more than 30 minutes. To turn this function on or off, set “AUTO POWER OFF” in “CUSTOM SETUP” to “ON” or “OFF” (page 67). Notes on playing DTS sound tracks on a DVD VIDEO • DTS audio signals are output only through the DIGITAL OUT (COAXIAL or OPTICAL*) jack. • When you play a DVD VIDEO with DTS sound tracks, set “DTS” to “ON” in “AUDIO SETUP” (page 70). • If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to “ON” in “AUDIO SETUP” (page 70). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged. * DVP-NS52P only ENTER RETURN Playback side facing down 26 Additional operations *1 DVD VIDEOs/DVD-RWs/DVD-Rs only. The button can be used except for DivX video files. *2 DVD VIDEOs/DVD-RWs/DVD-Rs/ DVD+RWs only. The button can be used except for DivX video files. *3 Video and JPEG pictures only (except BACKGROUND pictures). You can move the enlarged picture using C/X/x/c. Depending upon the contents of the disc, the zoom function may be cancelled automatically when the picture is moved. Note You may not be able to use the Replay or Advance function with some scenes. Playback quickly or slowly with sound You can listen to dialogue or sound while playing the current scene quickly or slowly. During playback, press FAST PLAY or SLOW PLAY. The speed changes when you press either FAST PLAY or SLOW PLAY. To return to normal playback Press H. Notes • You can only use this function with DVDs/ VIDEO CDs/Super VCDs and DVD-RWs in VR mode only. • “Operation not possible” will appear when maximum or minimum speed is reached. • During FAST PLAY and SLOW PLAY mode, you cannot change angle (page 46), subtitle (page 46), and the sound (page 42). The sound can only be changed for VIDEO CDs/Super VCDs. • Fast Play and Slow Play functions do not work when playing DTS sound tracks. • You cannot use Fast Play and Slow Play function when playing a still picture on DVD-RW in VR mode. Locking the disc tray (Child Lock) You can lock the disc tray to prevent children from opening it. When the player is in standby mode, press O RETURN, ENTER, and then [/1 on the remote. The player turns on and “LOCKED” appears on the front panel display. The A and Z buttons on the player or the remote do not work while the Child Lock is set. To unlock the disc tray When the player is in standby mode, press O RETURN, ENTER, and then [/1 again. Note Even if you select “RESET” under “SETUP” in the Control Menu (page 65), the disc tray remains locked. To Operation Stop Press x Pause Press X Resume play after pause Press X or H Go to the next chapter, track, or scene in continuous play mode Press > Go back to the previous chapter, track, or scene in continuous play mode Press . Stop play and remove the disc Press Z Replay the previous scene*1 Press (replay) during playback Briefly fast forward the current scene*2 Press (advance) during playback Magnify the image*3 Press ZOOM repeatedly. Press CLEAR to cancel. CLEAR (replay) ZOOM SLOW PLAY FAST PLAY (advance) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 DVP-NS30/NS32/NS33/NS52P 27 Playing Discs Resuming Playback from the Point Where You Stopped the Disc (Resume Play/Multi-disc Resume) The player remembers the point where you stopped the disc. Resuming playback for the current disc (Resume Play) The player remembers the point where you stopped the disc even if the player enters standby mode by pressing [/1. 1 While playing a disc, press x to stop playback. “RESUME” appears on the front panel display. 2 Press H. The player starts playback from the point where you stopped the disc in Step 1. z Hint To play from the beginning of the disc, press x twice, then press H. Note • The resume playback point for the current disc is cleared when: – you change the play mode. – you change the settings on the Setup Display. – you disconnect the mains lead. • When playing a DVD-RW in VR mode, the point where you stopped is cleared when the disc tray is opened or the mains lead is disconnected. • When playing a CD, the point where you stopped is cleared when the disc tray is opened or the mains lead is disconnected. • When playing a DATA CD, the point where you stopped is cleared when the player enters standby mode, the disc tray is opened, or the mains lead is disconnected. • This function may not work with some discs. • Resume Play does not work during Shuffle Play and Programme Play. Storing the point where you stopped the disc (Multi-disc Resume) (DVP-NS33/NS52P only) The player stores the point where you stopped the disc for up to 6 discs and resumes playback the next time you insert the same disc. When you store a resume playback point for the seventh disc, the resume playback point for the first disc is deleted. z Hints • To play from the beginning of the disc, press x twice, then press H. • To turn off the Multi-disc Resume function, set “MULTI-DISC RESUME” in “CUSTOM SETUP” to “OFF” (page 68). Playback restarts at the resume point only for the current disc in the player. Notes • “MULTI-DISC RESUME” in “CUSTOM SETUP” must be set to “ON” (default) for this function to work (page 67). • The point where you stopped playing is cleared when: – you change the play mode. – you change the settings on the Setup Display. • This function may not work with some discs. • Resume Play does not work during Shuffle Play and Programme Play. • If “MULTI-DISC RESUME” in “CUSTOM SETUP” is set to “ON” and you playback a recorded disc such as DVD-RW, the player may playback other recorded discs from the same resume point. To play from the beginning, press x twice and then press H. 28 Using the DVD’s Menu A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as language for the sound and subtitles, select these items using the MENU button. 1 Press TOP MENU or MENU. The disc’s menu appears on the TV screen. The contents of the menu vary from disc to disc. 2 Press C/X/x/c or the number buttons to select the item you want to play or change. If you press the number buttons, the following display appears. Press the number buttons to select the item you want. 3 Press ENTER. Selecting “ORIGINAL” or “PLAY LIST” on a DVD- RW Some DVD-RWs in VR (Video Recording) mode have two types of titles for playback: originally recorded titles (ORIGINAL) and titles that can be created on recordable DVD players for editing (PLAY LIST). You can select the type of title to be played. 1 Press DISPLAY when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (ORIGINAL/PLAY LIST), then press ENTER. The options for “ORIGINAL/PLAY LIST” appear. 3 Press X/x to select a setting. • PLAY LIST: plays the titles created from “ORIGINAL” for editing. • ORIGINAL: plays the titles originally recorded. 4 Press ENTER. ENTER MENU TOP MENU Number buttons 1 ENTER DISPLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) DVD-RW PLAY LIST PLAY LIST ORIGINAL T 1 : 3 2 : 5 5 29 Playing Discs Playing VIDEO CDs With PBC Functions (PBC Playback) PBC (Playback Control) allows you to play VIDEO CDs interactively by following the menu on the TV screen. 1 Start playing a VIDEO CD with PBC functions. The menu for your selection appears. 2 Press the number buttons to select the item number you want. 3 Press ENTER. 4 Follow the instructions in the menu for interactive operations. Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD. To return to the menu Press O RETURN. z Hint To play without using PBC, press ./> or the number buttons while the player is stopped to select a track, then press H or ENTER. “Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H. Note Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H. ENTER RETURN Number buttons 30 Various Play Mode Functions (Programme Play, Shuffle Play, Repeat Play, A-B Repeat Play) You can set the following play modes: • Programme Play (page 30) • Shuffle Play (page 31) • Repeat Play (page 32) • A-B Repeat Play (page 33) Note The play mode is cancelled when: – you eject the disc. – the player enters standby mode by pressing [/1. Creating your own programme (Programme Play) You can play the contents of a disc in the order you want by arranging the order of the titles, chapters, or tracks on the disc to create your own programme. You can programme up to 99 titles, chapters, and tracks. 1 Press DISPLAY. The Control Menu appears. 2 Press X/x to select (PROGRAM), then press ENTER. The options for “PROGRAM” appear. 3 Press X/x to select “SET t,” then press ENTER. 4 Press c. The cursor moves to the title or track row “T” (in this case, “01”). 5 Select the title, chapter, or track you want to programme. ◆ When playing a DVD VIDEO For example, select chapter “03” of title “02.” Press X/x to select “02” under “T,” then press ENTER. CLEAR ENTER DISPLAY OFF OFF SET ON PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO PROGRAM 1. TITLE ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – T – – 01 02 03 04 05 “TRACK” is displayed when you play a VIDEO CD or CD. Titles or tracks recorded on a disc PROGRAM 1. TITLE – – ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – T C ALL 01 02 03 04 05 06 – – 02 03 04 05 01 Chapters recorded on a disc PROGRAM 1. TITLE – – ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – C ALL 03 04 05 06 T – – 01 02 03 04 05 02 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 DVP-NS30/NS32/NS33/NS52P 31 Playing Discs Next, press X/x to select “03” under “C,” then press ENTER. ◆ When playing a VIDEO CD or CD For example, select track “02.” Press X/x to select “02” under “T,” then press ENTER. 6 To programme other titles, chapters, or tracks, repeat steps 4 to 5. The programmed titles, chapters, and tracks are displayed in the selected order. 7 Press H to start Programme Play. Programme Play begins. When the programme ends, you can restart the same programme again by pressing H. To return to normal play Press CLEAR, or select “OFF” in step 3. To play the same programme again, select “ON” in step 3 and press ENTER. To change or cancel a programme 1 Follow steps 1 to 3 of “Creating your own programme (Programme Play).” 2 Select the programme number of the title, chapter, or track you want to change or cancel using X/x and press c. If you want to delete the title, chapter, or track from the programme, press CLEAR. 3 Follow step 5 for new programming. To cancel a programme, select “--” under “T,” then press ENTER. To cancel all of the titles, chapters, or tracks in the programmed order 1 Follow steps 1 to 3 of “Creating your own programme (Programme Play).” 2 Press X and select “ALL CLEAR.” 3 Press ENTER. z Hint You can perform Repeat Play or Shuffle Play of programmed titles, chapters, or tracks. During Programme Play, follow the steps of Repeat Play (page 32) or Shuffle Play (page 31). Notes • When you programme tracks on a Super VCD, the total playing time is not displayed. • You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. Playing in random order (Shuffle Play) You can have the player “shuffle” titles, chapters, or tracks. Subsequent “shuffling” may produce a different playing order. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (SHUFFLE), then press ENTER. The options for “SHUFFLE” appear. 3 Press X/x to select the item to be shuffled. ◆ When playing a DVD VIDEO • TITLE • CHAPTER ◆ When playing a VIDEO CD or CD • TRACK T – – 01 02 03 04 05 PROGRAM 1. TITLE 0 2 – 0 3 ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – Selected title and chapter PROGRAM 1. TRACK 0 2 ALL CLEAR 2. TRACK – – 3. TRACK – – 4. TRACK – – 5. TRACK – – 6. TRACK – – 7. TRACK – – 0:15:30 – – 01 02 03 04 05 T Selected track Total time of the programmed tracks PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 OFF CHAPTER TITLE OFF DVD VIDEO ,continued 32 ◆ When Programme Play is activated • ON: shuffles titles, chapters, or tracks selected in Programme Play. 4 Press ENTER. Shuffle Play starts. To return to normal play Press CLEAR, or select “OFF” in step 3. z Hints • You can set Shuffle Play while the player is stopped. After selecting the “SHUFFLE” option, press H. Shuffle Play starts. • Up to 200 chapters in a disc can be played in random order when “CHAPTER” is selected. Note You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. Playing repeatedly (Repeat Play) You can play all of the titles or tracks on a disc, or a single title, chapter, or track repeatedly. You can use a combination of Shuffle or Programme Play modes. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (REPEAT), then press ENTER. The options for “REPEAT” appear. ◆ When playing a DVD VIDEO • DISC: repeats all of the titles. • TITLE: repeats the current title on a disc. • CHAPTER: repeats the current chapter. ◆ When playing a DVD-RW • DISC: repeats all the titles of the selected type. • TITLE: repeats the current title on a disc. • CHAPTER: repeats the current chapter. ◆ When playing a VIDEO CD or CD • DISC: repeats all of the tracks. • TRACK: repeats the current track. ◆ When playing a DATA CD/DATA DVD • DISC: repeats all of the albums. • ALBUM: repeats the current album. • TRACK (MP3 audio tracks only): repeats the current track. • FILE (DivX video files only): repeats the current file. ◆ When Programme Play or Shuffle Play is activated • ON: repeats Programme Play or Shuffle Play. 3 Press X/x to select a setting, and press ENTER. To return to normal play Press CLEAR, or select “OFF” in step 2. z Hint You can set Repeat Play while the player is stopped. After selecting the “REPEAT” option, press H. Repeat Play starts. Notes • You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. • When repeating a DATA CD/DATA DVD which contains MP3 audio tracks and JPEG image files, and their playing times are not the same, the sound will not match the image. • When “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 54), you cannot select “TRACK.” PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 OFF OFF DISC TITLE CHAPTER DVD VIDEO 33 Playing Discs Repeating a specific portion (A- B Repeat Play) You can play a specific portion of a title, chapter or track repeatedly. (This function is useful when you want to memorize lyrics, etc.) 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (A-B REPEAT), then press ENTER. The options for “A-B REPEAT” appear. 3 Press X/x to select “SET t,” then press ENTER. The “A-B REPEAT” setting bar appears. 4 During playback, when you find the starting point (point A) of the portion to be played repeatedly, press ENTER. The starting point (point A) is set. 5 When you reach the ending point (point B), press ENTER again. The set points are displayed and the player starts repeating this specific portion. To return to normal play Press CLEAR, or select “OFF” in step 3. Notes • When you set A-B Repeat Play, the settings for Shuffle Play, Repeat Play, and Programme Play are cancelled. • A-B Repeat Play does not work across multiple titles. • You may not set A-B Repeat Play for contents on a DVD-RW (VR mode) that contains still pictures. PLAY SET OFF OFF 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO A 18 - 1:32:30 B A 18 - 1:32:30 B 18 - 1:33:05 34 Searching for a Scene Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play, Freeze Frame) You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly. Notes • Depending on the disc, you may not be able to do some of the operations described. • For DATA CDs/DATA DVDs, you can search for a particular point only on MP3 audio track or DivX video file. Locating a point quickly using the previous/next buttons (Search) You can search for the next or previous chapter, track, or scene using ./> on the player. During playback, press > or . once briefly to go to the next or previous chapter/ track/scene. Or, press and hold > or . to search forward or backwards, and release the button when you find the point you want to return to normal playback. (Search) Locating a point quickly by playing a disc in fast forward or fast reverse (Scan) Press m or M while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press m or M during scan, the scan speed changes. With each press the indication changes as shown below. Actual speeds may differ between discs. Playback direction Opposite direction * DivX video only The “×2B”/ “×2b” playback speed is about twice the normal speed. The “3M”/“3m” playback speed is faster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/ “1m.” (step) (step) ×2B t 1M t 2M t 3M 3M (DVD VIDEO/DVD-RW/VIDEO CD/DATA CD*/DATA DVD* only) ×2B (DVD VIDEO/CD only) ×2b t 1m t 2m t 3m 3m (DVD VIDEO/DVD-RW/VIDEO CD/DATA CD*/DATA DVD* only) ×2b (DVD VIDEO only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 DVP-NS30/NS32/NS33/NS52P 35 Searching for a Scene Watching frame by frame (Slow-motion Play) Press m or M when the player is in pause mode. To return to normal speed, press H. Each time you press m or M during Slow-motion Play, the playback speed changes. Two speeds are available. With each press the indication changes as follows: Playback direction 2 y 1 Opposite direction (DVD VIDEO/DVD-RW only) 2 y 1 The “2 y”/“2 ” playback speed is slower than “1 y”/“1 .” Note For DATA CDs/DATA DVDs, this function works only for DivX video files. Playing one frame at a time (Freeze Frame) When the player is in the pause mode, press (step) to go to the next frame. Press (step) to go to the preceding frame (DVD VIDEO/DVD-RW only). To return to normal playback, press H. Notes • You cannot search for a still picture on a DVD- RW in VR mode. • For DATA CDs/DATA DVDs, this function works only for DivX video files. Searching for a Title/ Chapter/Track/Scene, etc. You can search a DVD by title or chapter, and you can search a VIDEO CD/CD/DATA CD/ DATA DVD by track, index, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. You can also search for a scene using the time code. 1 Press DISPLAY (When playing a DATA CD/DATA DVDs with JPEG image files, press twice). The Control Menu appears. 2 Press X/x to select the search method. ◆ When playing a DVD VIDEO/DVD-RW TITLE CHAPTER TIME/TEXT Select “TIME/TEXT” to search for a starting point by inputting the time code. ◆ When playing a VIDEO CD or Super VCD without PBC playback TRACK INDEX ENTER DISPLAY CLEAR Number buttons ,continued 36 ◆ When playing a VIDEO CD or Super VCD with PBC Playback SCENE ◆ When playing a CD TRACK ◆ When playing a DATA CD/DATA DVD ALBUM TRACK (MP3 audio tracks only) FILE (JPEG image files only) ◆ When playing a DATA CD/DATA DVD (DivX video files) ALBUM FILE Example: when you select CHAPTER “** (**)” is selected (** refers to a number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, albums or files. 3 Press ENTER. “** (**)” changes to “-- (**).” 4 Press the number buttons to select the title, chapter, track, index, or scene, etc. number you want to search. ◆ If you make a mistake Cancel the number by pressing CLEAR, then select another number. 5 Press ENTER. The player starts playback from the selected number. To search for a scene using the time code (DVD VIDEO/DVD-RW only) 1 In step 2, select TIME/TEXT. “T **:**:**” (playing time of the current title) is selected. 2 Press ENTER. “T **:**:**” changes to “T --:--:--.” 3 Input the time code using the number buttons, then press ENTER. For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.” z Hints • When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD- RW), track (CD/DATA CD/DATA DVD), or file (DATA CD/DATA DVD (DivX video)) by pressing the number buttons and ENTER. • You can display the first scene of titles, chapters, or tracks recorded on the disc on a screen divided into 9 sections. You can start playback directly by selecting one of the scenes. For details, see “Searching by Scene (PICTURE NAVIGATION)” (page 37). Notes • The title, chapter, or track number displayed is the same number recorded on the disc. • You cannot search for a scene on a DVD+RW using the time code. PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) DVD VIDEO T 1 : 3 2 : 5 5 Selected row PLAY DVD VIDEO 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 ( 3 4 ) 37 Searching for a Scene Searching by Scene (PICTURE NAVIGATION) You can divide the screen into 9 subscreens and find the desired scene quickly. 1 Press PICTURE NAVI during playback. The following display appears. 2 Press PICTURE NAVI repeatedly to select an item. • CHAPTER VIEWER (DVD VIDEO only): displays the first scene of each chapter. • TITLE VIEWER (DVD VIDEO only): displays the first scene of each title. • TRACK VIEWER (VIDEO CD/ Super VCD only): displays the first scene of each track. 3 Press ENTER. The first scene of each chapter, title, or track appears as follows. 4 Press C/X/x/c to select a chapter, title, or track, and press ENTER. Playback starts from the selected scene. To return to normal play during setting Press O RETURN or DISPLAY. z Hint If there are more than 9 chapters, titles, or tracks, V is displayed at the bottom right of the screen. To display the additional chapters, titles, or tracks, select the bottom scenes and press x. To return to the previous scene, select the top scenes and press X. Note Depending on the disc, you may not be able to select some items. DISPLAY PICTURE NAVI RETURN ENTER CHAPTER VIEWER ENTER 1 4 7 2 5 8 3 6 9 38 Viewing Information About the Disc Checking the Playing Time and Remaining Time You can check the playing time and remaining time of the current title, chapter, or track. Also, you can check the DVD/CD text, track name (MP3 audio), or file name (DivX video) recorded on the disc. 1 Press TIME/TEXT during playback. The following display appears. 2 Press TIME/TEXT repeatedly to change the time information. The available time information depends upon the type of disc you are playing. ◆ When playing a DVD VIDEO or DVD- RW • T *:*:* (hours: minutes: seconds) Playing time of the current title • T–*:*:* Remaining time of the current title • C *:*:* Playing time of the current chapter • C–*:*:* Remaining time of the current chapter ◆ When playing a VIDEO CD or Super VCD (with PBC functions) • *:* (minutes: seconds) Playing time of the current scene ◆ When playing a VIDEO CD (without PBC functions) or CD • T *:* (minutes: seconds) Playing time of the current track • T–*:* Remaining time of the current track • D *:* Playing time of the current disc • D–*:* Remaining time of the current disc ◆ When playing a Super VCD (without PBC functions) • T *:* (minutes: seconds) Playing time of the current track ◆ When playing a DATA CD or DATA DVD (MP3 audio) • T *:* (minutes: seconds) Playing time of the current track ◆ When playing a DATA CD or DATA DVD (DivX video) • *:*:* (hours: minutes: seconds) Playing time of the current file TIME/TEXT T 1:01:57 Time information www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10 DVP-NS30/NS32/NS33/NS52P 39 Viewing Information About the Disc Checking the play information of the disc To check the DVD/CD text Press TIME/TEXT repeatedly in step 2 to display text recorded on the DVD/CD. The DVD/CD text appears only when text is recorded in the disc. You cannot change the text. If the disc does not contain text, “NO TEXT” appears. To check DATA CD/DATA DVD (MP3 audio or DivX video) album name, etc. By pressing TIME/TEXT while playing MP3 audio tracks on a DATA CD/DATA DVD or DivX video files on a DATA CD/DATA DVD, you can display the name of the album/ track/file and the audio bit rate (the amount of data per second of the current audio track) on your TV screen. * Appears when: – playing an MP3 audio track on a DATA CD/ DATA DVD. – playing a DivX video file that contains MP3 audio on a DATA CD/DATA DVD. Checking the information on the front panel display You can view the time information and text displayed on the TV screen also on the front panel display. The information on the front panel display changes as follows when you change the time information on your TV screen. When playing a DVD VIDEO or DVD-RW BRAHMS SYMPHONY T 17:30 128k JAZZ RIVER SIDE Bit rate* Album name Track/file name Playing time of the current title Remaining time of the current title Playing time of the current chapter Remaining time of the current chapter Text Current title and chapter number (returns to top automatically) ,continued 40 When playing a DATA CD/DATA DVD (MP3 audio) When playing a DATA CD (DivX video), or DATA DVD (DivX video) When playing a VIDEO CD (without PBC functions), or CD * The current track and index number appear only when playing a VIDEO CD. z Hints • When playing VIDEO CDs without PBC functions, the track number and the index number are displayed after the text. • When playing VIDEO CDs with PBC functions, the scene number or the playing time are displayed. • Long text that does not fit in a single line will scroll across the front panel display. • You can also check the time information and text using the Control Menu (page 12). Playing time and number of the current track Track name Current album and track number (returns to top automatically) Playing time of the current file The current file name The current album and file number (returns to top automatically) Playing time and number of the current track Remaining time of the current track Remaining time of the disc Text Playing time of the disc Current track and index number* (returns to top automatically) 41 Viewing Information About the Disc Notes • Depending on the type of disc being played, the DVD/CD discs text or track name may not be displayed. • The player can only display the first level of the DVD/CD text, such as the disc name or title. • Playing time of MP3 audio tracks and DivX video files may not be displayed correctly. • If you play a disc containing JPEG image files only, “NO AUDIO DATA” appears when “MODE (MP3, JPEG)” is set to “AUTO,” “JPEG” appears when “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” in the front panel display. 42 Sound Adjustments Changing the Sound When playing a DVD VIDEO or DATA CD/ DATA DVD (DivX video files) recorded in multiple audio formats (PCM, Dolby Digital, MPEG audio, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With CDs, DATA CDs, DATA DVDs or VIDEO CDs, you can select the sound from either the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel. 1 Press (audio) during playback. The following display appears. 2 Press (audio) repeatedly to select the desired audio signal. ◆ When playing a DVD VIDEO Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 77 to see which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats. ◆ When playing a DVD-RW The types of sound tracks recorded on a disc are displayed. The default setting is underlined. Example: • 1: MAIN (main sound) • 1: SUB (sub sound) • 1: MAIN+SUB (main and sub sound) ◆ When playing a VIDEO CD, CD, DATA CD or DATA DVD (MP3 audio) The default setting is underlined. • STEREO: the standard stereo sound • 1/L: the sound of the left channel (monaural) • 2/R: the sound of the right channel (monaural) ◆ When playing a DATA CD (DivX video), or DATA DVD (DivX video) The choice of DATA CD or DATA DVD audio signal formats differ, depending on the DivX video file contained on the disc. The format is shown in the display. ◆ When playing a Super VCD The default setting is underlined. • 1:STEREO: the stereo sound of the audio track 1 • 1:1/L: the sound of the left channel of the audio track 1 (monaural) • 1:2/R: the sound of the right channel of the audio track 1 (monaural) • 2:STEREO: the stereo sound of the audio track 2 • 2:1/L: the sound of the left channel of the audio track 2 (monaural) • 2:2/R: the sound of the right channel of the audio track 2 (monaural) Note While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.” 1:ENGLISH DOLBY DIGITAL 3/2.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-11 DVP-NS30/NS32/NS33/NS52P 43 Sound Adjustments Checking the audio signal format You can check the audio signal format by pressing (audio) repeatedly during playback. The format of the current audio signal (Dolby Digital, DTS, PCM, etc.) appears as shown below. ◆When playing a DVD VIDEO Example: Dolby Digital 5.1 ch Example: Dolby Digital 3 ch ◆When playing a DivX video file on a DATA CD or a DATA DVD Example: MP3 audio About audio signals Audio signals recorded in a disc contain the sound elements (channels) shown below. Each channel is output from a separate speaker. • Front (L) • Front (R) • Centre • Rear (L) • Rear (R) • Rear (Monaural): This signal can be either the Dolby Surround Sound processed signals or the Dolby Digital sound’s monaural rear audio signals. • LFE (Low Frequency Effect) signal Notes • If “DTS” in “AUDIO SETUP” is set to “OFF,” the DTS track selection option will not appear on the screen even if the disc contains DTS tracks (page 70). • MPEG audio signals with more than two channels will appear as shown above (3/2.1, 2/1), but only the Front (L) and Front (R) signals will be output from your two front speakers. 1:ENGLISH DOLBY DIGITAL 3 / 2 .1 Rear (L/R) Front (L/R) + Centre LFE (Low Frequency Effect) 2:SPANISH DOLBY DIGITAL 2 / 1 Front (L/R) Rear (Monaural) 1: MP3 128k Bit rate 44 TV Virtual Surround Settings (TVS) When you connect a stereo TV or 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. TVS was developed by Sony to produce surround sound for home use using just a stereo TV. If the player is set up to output the signal from the DIGITAL OUT (OPTICAL* or COAXIAL) jack, the surround effect will only be heard when “DOLBY DIGITAL” is set to “D-PCM” and “MPEG” is set to “PCM” in “AUDIO SETUP” (page 69). * DVP-NS52P only 1 Press SUR during playback. The following display appears. 2 Press SUR repeatedly to select one of the TVS sounds. See the explanations given for each item in the following section. • TVS DYNAMIC THEATER • TVS DYNAMIC • TVS WIDE • TVS NIGHT • TVS STANDARD To cancel the setting Select “OFF” in step 2. ◆TVS DYNAMIC THEATER Creates one set of LARGE virtual rear speakers and virtual subwoofer from the sound of the front speakers (L, R) without using actual rear speakers and subwoofer (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. ◆TVS DYNAMIC Creates one set of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. ◆TVS WIDE Creates five sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. SUR TVS DYNAMIC THEATER TV Sub woofer TV TV 45 Sound Adjustments ◆TVS NIGHT Large sounds, such as explosions, are suppressed, but quieter sounds are unaffected. This feature is useful when you want to hear the dialogue and enjoy the surround sound effects of “TVS WIDE” at low volume. ◆TVS STANDARD Creates three sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). Use this setting when you want to use TVS with 2 separate speakers. Notes • When the playing signal does not contain a signal for the rear speakers, you cannot hear the surround effects. • When you select one of the TVS modes, turn off the surround setting of the connected TV or amplifier (receiver). • Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings. • Not all discs will respond to the “TVS NIGHT” function in the same way. • The TVS effects do not work when using the Fast Play or Slow Play functions, even though you can change the TVS modes. L: Front speaker (left) R: Front speaker (right) : Virtual speaker L R 46 Enjoying Movies Changing the Angles If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “ ” appears in the front panel display. This means that you can change the viewing angle. 1 Press (angle) during playback. The number of the angle appears on the display. 2 Press (angle) repeatedly to select an angle number. The scene changes to the selected angle. Note Depending on the DVD VIDEO, you may not be able to change the angles even if multi-angles are recorded on the DVD VIDEO. Displaying the Subtitles If subtitles are recorded on the discs, you can change the subtitles or turn them on and off whenever you want while playing the disc. 1 Press (subtitle) during playback. The following display appears. 2 Press (subtitle) repeatedly to select a setting. ◆ When playing a DVD VIDEO Select the language. Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 77 to see which language the code represents. ◆ When playing a DVD-RW Select “ON.” 2 1:ENGLISH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-12 DVP-NS30/NS32/NS33/NS52P 47 Enjoying Movies ◆ When playing a DATA CD (DivX video), or DATA DVD (DivX video) The choices of DATA CD or DATA DVD subtitles differ, depending on the DivX video file contained on the disc. The choices are shown in the display. To turn off the subtitles Select “OFF” in step 2. Notes • Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off. • With DATA CDs/DATA DVDs, subtitles can be changed for DivX video files only. • You can change the subtitles if the DivX video file has an “.AVI” or “.DIVX” extension and contains subtitle information within the same file. • While playing a disc with subtitles, the subtitle may disappear when you press FAST PLAY or SLOW PLAY button. Adjusting the Playback Picture (CUSTOM PICTURE MODE) You can adjust the video signal of the DVD, VIDEO CD, DATA CD/DATA DVD in JPEG format, or DATA CD/DATA DVD containing DivX video files from the player to obtain the picture quality you want. Choose the setting that best suits the programme you are watching. When you select “MEMORY,” you can make further adjustments to each element of the picture (colour, brightness, etc.). 1 Press DISPLAY during playback. (When playing a DATA CD/DATA DVD in JPEG format, press twice) The Control Menu appears. 2 Press X/x to select (CUSTOM PICTURE MODE), then press ENTER. The options for “CUSTOM PICTURE MODE” appear. DISPLAY RETURN ENTER DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DYNAMIC 1 STANDARD STANDARD ,continued 48 3 Press X/x to select the setting you want. The default setting is underlined. • STANDARD: displays a standard picture. • DYNAMIC 1: produces a bold dynamic picture by increasing the picture contrast and the colour intensity. • DYNAMIC 2: produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and colour intensity. • CINEMA 1: enhances details in dark areas by increasing the black level. • CINEMA 2: white colours become brighter and black colours become richer, and the colour contrast is increased. • MEMORY: adjusts the picture in greater detail. 4 Press ENTER. The selected setting takes effect. z Hint When you watch a movie, “CINEMA 1” or “CINEMA 2” is recommended. Adjusting the picture items in “MEMORY” You can adjust each element of the picture individually. • PICTURE: changes the contrast • BRIGHTNESS: changes the overall brightness • COLOR: makes the colours deeper or lighter • HUE: changes the colour balance 1 In step 3 of “Adjusting the Playback Picture,” select “MEMORY” and press ENTER. The “PICTURE” adjustment bar appears. 2 Press C/c to adjust the picture contrast. To go the next or previous picture item without saving the current setting, press X/x. 3 Press ENTER. The adjustment is saved, and “BRIGHTNESS” adjustment bar appears. 4 Repeat step 2 and 3 to adjust “BRIGHTNESS,” “COLOR,” and “HUE.” To turn off the display Press O RETURN, or DISPLAY. Note The “BRIGHTNESS” setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel (DVP- NS52P only). 8 ( 3 ) C 0 1 : 3 2 : 5 5 PICTURE 0 Cancel : Select : ENTER RETURN 49 Enjoying Movies Sharpening the Pictures (SHARPNESS) You can enhance the outlines of images to produce a sharper picture. 1 Press DISPLAY during playback (when playing a DATA CD/DATA DVD, press twice). The Control Menu appears. 2 Press X/x to select (SHARPNESS), then press ENTER. The options for “SHARPNESS” appear. 3 Press X/x to select a level. • 1: enhances the outline. • 2: enhances the outline more than 1. 4 Press ENTER. The selected setting takes effect. To cancel the “SHARPNESS” setting Select “OFF” in step 3. Note This setting is not effective if you connect the player via the LINE OUT (VIDEO), S VIDEO OUT, or LINE (RGB)-TV jack, and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel (DVP- NS52P only). ENTER DISPLAY DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 2 1 OFF OFF 50 Enjoying MP3 Audio and JPEG Images About MP3 Audio Tracks and JPEG Image Files MP3 is audio compression technology that satisfies the ISO/IEC MPEG regulations. JPEG is image compression technology. You can play DATA CDs/DATA DVD that contain MP3 audio tracks or JPEG image files. DATA CDs/DATA DVDs that the player can play You can play back DATA CDs (CD-ROMs/ CD-Rs/CD-RWs) or DATA DVDs (DVD- ROMs/DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs) recorded in MP3 (MPEG-1 Audio Layer III) and JPEG format. However, the discs must be recorded according to ISO9660 Level 1/ Level 2 or Joliet format and DATA DVDs of Universal Disk Format (UDF) for the player to recognize the tracks (or files). Refer to the instructions supplied with the CD-R/CD-RW drives and the recording software (not supplied) for details on the recording format. Note The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format. MP3 audio track or JPEG image file that the player can play The player can play the following tracks and files: – MP3 audio tracks with the extension “.MP3.” – JPEG image files with the extension “.JPEG” or “.JPG.” – JPEG image files that conform to the DCF* image file format. * “Design rule for Camera File system”: Image standards for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industries Association). Notes • The player will play any data with the extension “.MP3,” “.JPG,” or “.JPEG,” even if they are not in MP3 or JPEG format. Playing these data may generate a loud noise which could damage your speaker system. • The player does not conform to audio tracks in mp3PRO format. • Some JPEG files cannot be played. • You cannot play MP3 audio tracks/JPEG image files in DATA CDs/DATA DVDs that contain DivX video files. About playback order of albums, tracks, and files Albums play in the following order: ◆Structure of disc contents ROOT Tree 1 Tree 2 Tree 3 Tree 4 Tree 5 Album Track (MP3 audio) or file (JPEG image) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-13 DVP-NS30/NS32/NS33/NS52P 51 Enjoying MP3 Audio and JPEG Images When you insert a DATA CD/DATA DVD and press H, the numbered tracks (or files) are played sequentially, from 1 through 7. Any sub-albums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.) When you press MENU and the list of album names appears (page 52), the album names are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list. z Hints • If you add numbers (01, 02, 03, etc.) to the front of the track/file names when you store the tracks (or files) in a disc, the tracks and files will be played in that order. • Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees. Notes • Depending on the software you use to create the DATA CD/DATA DVD, the playback order may differ from the above illustration. • The playback order above may not be applicable if there are more than 200 albums and 300 tracks/ files in each album. • The player can recognize up to 200 albums (the player will count just albums, including albums that do not contain MP3 audio tracks and JPEG image files). The player will not play any albums beyond the 200th album. • Proceeding to the next or another album may take some time. Playing MP3 Audio Tracks or JPEG Image Files You can play MP3 audio tracks and JPEG image files on DATA CDs (CD-ROMs/CD- Rs/CD-RWs) or DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs). z Hint You can view the disc information while playing MP3 audio tracks (page 38). Notes • DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted. • If no MP3 audio track or JPEG image file is recorded on the DATA CD/DATA DVD, “No audio data” or “No image data” appears on the screen. PICTURE NAVI RETURN ENTER CLEAR ZOOM MENU ,continued 52 Selecting an album 1 Press MENU. The list of albums on the disc appears. When an album is being played, its title is shaded. 2 Press X/x to select the album you want to play. 3 Press H. Playback starts from the selected album. To select MP3 audio tracks, see “Selecting an MP3 audio track” (page 52). To select JPEG image files, see “Selecting a JPEG image file” (page 53). To stop playback Press x. To go to the next or previous page Press c or C. To turn on or off the display Press MENU repeatedly. z Hint Of the selected album, you can select to play only the MP3 audio tracks, JPEG image files, or both, by setting “MODE (MP3, JPEG)” (page 54). Selecting an MP3 audio track 1 After step 2 of “Selecting an album,” press ENTER. The list of tracks in the album appears. 2 Press X/x to select a track, and press ENTER. Playback starts from the selected track. To stop playback Press x. To go to the next or previous page Press c or C. To return to the previous display Press O RETURN. To go to the next or previous MP3 audio track Press > or . during playback. You can select the first track of the next album by pressing > during playback of the last track of the current album. Note that you cannot return to the previous album by using ., and that you need to select the previous album from the album list. 3 ( 3 0 ) R O C K B E S T H I T K A R A O K E M Y F A V O U R I T E S O N G R & B J A Z Z C L A S S I C S A L S A O F C U B A B O S S A N O V A M Y F A V O U R I T E S O N G 1 ( 2 5 6 ) W A L T Z F O R D E B B Y M Y R O M A N C E M I L E S T O N E S M Y F U N N Y V A L E N T I N E A U T U M L E A V E S A L L B L U E S S O M E D A Y M Y P R I N C E W... 53 Enjoying MP3 Audio and JPEG Images Selecting a JPEG image file 1 After step 2 of “Selecting an album,” press PICTURE NAVI. The image files in the album appear in 16 subscreens. A scroll box is displayed on the right. To display the additional image, select the bottom images and press x. To return to the previous image, select the top images and press X. 2 Press C/X/x/c to select the image you want to view, and press ENTER. The selected image appears. Example To go to the next or previous JPEG image file Press C or c during playback. You can select the first file of the next album by pressing c during playback of the last file of the current album. Note that you cannot return to the previous album by using C, and that you need to select the previous album from the album list. To rotate a JPEG image Press X/x while viewing the image. Each time you press X, the image rotates counterclockwise by 90 degrees. To return to normal view, press CLEAR. Note that the view also returns to normal if you press C/c to go to the next or previous image. Example: when X is pressed once. To magnify a JPEG image (ZOOM) Press ZOOM while viewing the image. You can enlarge the image up to four times the original size, and scroll using C/X/x/c. To return to normal view, press CLEAR. ◆When pressed once (x2) The image enlarges twice the original size. ◆When pressed twice (x4) The image enlarges four times the original size. To stop viewing the JPEG image Press x. z Hints • While viewing JPEG image files, you can set options such as “INTERVAL” (page 55), “EFFECT” (page 56), and “SHARPNESS” (page 49). • You can view JPEG images files without MP3 audio by setting “MODE (MP3, JPEG)” to “IMAGE (JPEG)” (page 54). • The date the picture was taken is displayed beside “DATE” in the Control Menu (page 12). Note that no date may appear depending on the digital camera. Note PICTURE NAVI does not work if “AUDIO (MP3)” is selected in “MODE (MP3, JPEG)” (page 54). 1 2 3 4 5 6 7 8 13 14 15 16 9 10 11 12 Rotating direction 54 Enjoying JPEG Images as a Slide Show You can play JPEG image files on a DATA CD or DATA DVD successively as a slide show. 1 Press MENU. The list of albums on the DATA CD/ DATA DVD appears. 2 Press X/x to select an album. 3 Press H. The JPEG images in the selected album start playing as a slide show. To stop playback Press x. Notes • The slide show stops when X/x or ZOOM is pressed.To resume the slide show, press H. • This function does not work if “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 54). Viewing a slide show with sound (MODE (MP3, JPEG)) When JPEG image files and MP3 audio tracks are placed in the same album, you can enjoy a slide show with sound. 1 Press DISPLAY during stop mode. The Control Menu appears. 2 Press X/x to select (MODE (MP3, JPEG)), and press ENTER. The options for “MODE (MP3, JPEG)” appear. 3 Press X/x to select “AUTO” (default), and press ENTER. • AUTO: plays both the JPEG image files and MP3 audio tracks in the same album as a slide show. • AUDIO (MP3): plays only MP3 audio tracks continuously. • IMAGE (JPEG): plays only JPEG image files continuously. 4 Press MENU. The list of albums on the DATA CD/ DATA DVD appears. 5 Press X/x to select the album that contains both the MP3 audio tracks and JPEG images you want to play. 6 Press H. A slide show starts with sound. MENU DISPLAY ENTER 3 ( 3 0 ) R O C K B E S T H I T K A R A O K E M Y F A V O U R I T E S O N G R & B J A Z Z C L A S S I C S A L S A O F C U B A B O S S A N O V A DATA CD MP3 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 3 2 : 5 5 IMAGE (JPEG) AUDIO (MP3) AUTO AUTO 3 ( 3 0 ) R O C K B E S T H I T K A R A O K E M Y F A V O U R I T E S O N G R & B J A Z Z C L A S S I C S A L S A O F C U B A B O S S A N O V A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-14 DVP-NS30/NS32/NS33/NS52P 55 Enjoying MP3 Audio and JPEG Images z Hints • To repeat both MP3 audio tracks and JPEG image files in a single album, repeat the same MP3 audio track or album when “MODE (MP3, JPEG)” is set to “AUTO.” See “Playing repeatedly (Repeat Play)” (page 32) to repeat the track or album. • The player recognizes a maximum of 200 albums regardless of the selected mode. Of each album, the player recognizes up to 300 MP3 audio tracks and 300 JPEG image files when “AUTO” is selected, 600 MP3 audio tracks when “AUDIO (MP3)” is selected, 600 JPEG image files when “IMAGE (JPEG)” is selected. Notes • This function does not work if the MP3 audio tracks and JPEG image files are not placed in the same album. • If playing time of JPEG image or MP3 audio is longer than the other, the longer one continues without sound or image. • If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file. Setting the pace for a slide show (INTERVAL) You can set the time the slides are displayed on the screen. 1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (INTERVAL), then press ENTER. The options for “INTERVAL” appear. 3 Press X/x to select a setting. The default setting is underlined. • NORMAL: sets the duration to between 6 to 9 seconds. • FAST: sets a duration shorter than NORMAL. • SLOW 1: sets a duration longer than NORMAL. • SLOW 2: sets a duration longer than SLOW 1. 4 Press ENTER. Note Some JPEG files, especially progressive JPEG files or JPEG files of 3,000,000 pixels or more, may take longer to display than others, which may make the duration seem longer than the setting you selected. 2 9 / 1 0 / 2 0 0 5 1( NORMAL DATA CD JPEG NORMAL INTERVAL FAST SLOW 1 SLOW 2 4) 3 ( 12) ,continued 56 Selecting the slides’ appearance (EFFECT) You can select the way the slides are displayed during a slide show. 1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode. 2 Press X/x to select (EFFECT), then press ENTER. The options for “EFFECT” appear. 3 Press X/x to select a setting. The default setting is underlined. • MODE 1: the image sweeps in from top to bottom. • MODE 2: the image sweeps in from left to right. • MODE 3: the image stretches out from the centre of the screen. • MODE 4: the images randomly cycle through the effects. • MODE 5: the next image slides over the previous image. • OFF: turns off this function. 4 Press ENTER. 2 3 / 1 0 / 2 0 0 5 1( MODE 1 DATA CD JPEG MODE 1 EFFECT MODE 2 MODE 3 MODE 4 MODE 5 OFF 4) 3 ( 12) 57 Enjoying DivX® Videos Enjoying DivX® Videos About DivX Video Files DivX® is a video file compression technology, developed by DivXNetworks, Inc. This product is an official DivX® Certified product. You can play DATA CDs and DATA DVDs that contain DivX video files. DATA CDs and DATA DVDs that the player can play Playback of DATA CDs (CD-ROMs/CD-Rs/ CD-RWs) and DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs) on this player is subject to certain conditions: – With DATA CDs/DATA DVDs that contain DivX video files in addition to MP3 audio tracks or JPEG image files, the player plays only the DivX video files. However, this player only plays DATA CDs whose logical format is ISO 9660 Level 1/ Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format. About playback order of data on DATA CDs or DATA DVDs See “About playback order of albums, tracks, and files” (page 50). Note that the playback order may not be applicable, depending on the software used for creating the DivX video file, or if there are more than 200 albums and 600 DivX video files in each album. Note The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format. DivX video files that the player can play The player can play data that is recorded in DivX format, and which has the extension “.AVI,” or “.DIVX.” The player will not play files with the extension “.AVI” or “.DIVX” if they do not contain a DivX video. z Hint For details about playable MP3 audio tracks or JPEG image files on DATA CDs/DATA DVDs, see “DATA CDs/DATA DVDs that the player can play” (page 50). Notes • The player may not play a DivX video file when the file has been combined from two or more DivX video files. • The player cannot play a DivX video file of size more than 720 (width) × 576 (height)/2 GB. • Depending on the DivX video file, the picture may be unclear or the sound may skip. • The player cannot play some DivX video files that are longer than 3 hours. 58 Playing DivX Video Files You can play DivX video files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs) and DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/ DVD-RWs/DVD-Rs). z Hint You can view the disc information while playing a DivX video file (page 38). Notes • If there are no DivX video files recorded on the DATA CD/DATA DVD, a message appears to indicate that the disc is not playable. • Depending on the DivX video file, the picture may pause or be unclear. In which case, it is recommended that you create the file at a lower bit rate. If the sound is still noisy, MP3 is the recommended audio format. Note, however, this player does not conform to WMA (Windows Media Audio) format. • Because of the compression technology used for DivX video files, it may take some time after you press H (play) for the picture to appear. • Depending on the DivX video file, the sound may not match the pictures on the screen. Selecting an album 1 Press MENU. A list of albums on the disc appears. Only albums that contain DivX video files are listed. 2 Press X/x to select the album you want to play. 3 Press H. Playback starts from the selected album. To select DivX video files, see “Selecting a DivX video file” (page 59). To stop playback Press x. To go to the next or previous page Press C or c. To turn the display on or off Press MENU repeatedly. ENTER DISPLAY MENU RETURN 3 ( 3 ) S U M M E R 2 0 0 3 N E W Y E A R ' S D A Y M Y F A V O U R I T E S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-15 DVP-NS30/NS32/NS33/NS52P 59 Enjoying DivX® Videos Selecting a DivX video file 1 After step 2 of “Selecting an album,” press ENTER. The list of files in the album appears. 2 Press X/x to select a file, and press ENTER. The selected file starts playing. To stop playback Press x. To go to the next or previous page Press C or c. To return to the previous display Press O RETURN. To go to the next or previous DivX video file without turning on the above file list You can select the next or previous DivX video file in the same album by pressing > or .. You can also select the first file of the next album by pressing > during playback of the last file of the current album. Note that you cannot return to the previous album by using .. To return to the previous album, select it from the album list. z Hint If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences are counted: – when the player is turned off. This includes when the player is automatically turned off by the Auto Power Off function. Press X instead of x when you want to stop viewing – when the disc tray is opened. – when another file is played. M Y F A V O U R I T E S 1 ( 2 ) H A W A I I 2 0 0 4 V E N U S 60 Using Various Additional Functions Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) You can set two kinds of playback restrictions for a disc. • Custom Parental Control You can set playback restrictions so that the player will not play inappropriate discs. • Parental Control Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes. The same password is used for both Parental Control and Custom Parental Control. Custom Parental Control You can set the same Custom Parental Control password for up to 40 discs. When you set the 41st-disc, the first disc is cancelled. 1 Insert the disc you want to lock. If the disc is playing, press x to stop playback. 2 Press DISPLAY while the player is in stop mode. The Control Menu appears. 3 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 4 Press X/x to select “ON t,” then press ENTER. ◆ If you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears. ◆ When you have already registered a password The display for entering the password appears. 5 Enter or re-enter your 4-digit password using the number buttons, then press ENTER. “Custom parental control is set.” appears and then the screen returns to the Control Menu. To turn off the Custom Parental Control function 1 Follow steps 1 to 3 of “Custom Parental Control.” 2 Press X/x to select “OFF t,” then press ENTER. 3 Enter your 4-digit password using the number buttons, then press ENTER. ENTER DISPLAY Number buttons STOP 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO PASSWORD ON PLAYER OFF PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER 61 Using Various Additional Functions To play a disc for which Custom Parental Control is set 1 Insert the disc for which Custom Parental Control is set. The “CUSTOM PARENTAL CONTROL” display appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player is ready for playback. z Hint If you forget your password, enter the 6-digit number “199703” using the number buttons when the “CUSTOM PARENTAL CONTROL” display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password. Parental Control (limited playback) Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The “PARENTAL CONTROL” function allows you to set a playback limitation level. 1 Press DISPLAY while the player is in stop mode. The Control Menu appears. 2 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 3 Press X/x to select “PLAYER t,” then press ENTER. ◆ If you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears. ◆ When you have already registered a password The display for entering the password appears. 4 Enter or re-enter your 4-digit password using the number buttons, then press ENTER. The display for setting the playback limitation level appears. 5 Press X/x to select “STANDARD,” then press ENTER. The selection items for “STANDARD” are displayed. 6 Press X/x to select a geographic area as the playback limitation level, then press ENTER. CUSTOM PARENTAL CONTROL Custom parental control is already set. To play, enter your password and press . ENTER STOP 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO PASSWORD ON PLAYER OFF PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER PARENTAL CONTROL LEVEL: OFF USA STANDARD: PARENTAL CONTROL LEVEL: OFF USA STANDARD: USA OTHERS ,continued 62 The area is selected. When you select “OTHERS t,” select and enter a standard code in the table on page 77 using the number buttons. 7 Press X/x to select “LEVEL,” then press ENTER. The selection items for “LEVEL” are displayed. 8 Select the level you want using X/x, then press ENTER. Parental Control setting is complete. The lower the value, the stricter the limitation. To turn off the Parental Control function Set “LEVEL” to “OFF” in step 8. To play a disc for which Parental Control is set 1 Insert the disc and press H. The display for entering your password appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player starts playback. z Hint If you forget your password, remove the disc and repeat steps 1 to 3 of “Parental Control (limited playback).” When you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password, replace the disc in the player and press H. When the display for entering your password appears, enter your new password. Notes • When you play discs which do not have the Parental Control function, playback cannot be limited on this player. • Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is cancelled, the level returns to the previous level. Changing the password 1 Press DISPLAY while the player is in stop mode. The Control Menu appears. 2 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 3 Press X/x to select “PASSWORD t,” then press ENTER. The display for entering the password appears. 4 Enter your 4-digit password using the number buttons, then press ENTER. 5 Enter a new 4-digit password using the number buttons, then press ENTER. 6 To confirm your password, re-enter it using the number buttons, then press ENTER. If you make a mistake entering your password Press C before you press ENTER and input the correct number. PARENTAL CONTROL LEVEL: OFF OFF STANDARD: 8: 7: 6: 5: NC17 R PARENTAL CONTROL LEVEL: STANDARD: USA 4: PG13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-16 DVP-NS30/NS32/NS33/NS52P 63 Using Various Additional Functions Controlling Your TV With the Supplied Remote You can control the sound level, input source, and power switch of your Sony TV with the supplied remote. You can control your TV using the buttons below. Note Depending on the connected unit, you may not be able to control your TV using all or some of the buttons on the supplied remote. Controlling other TVs with the remote You can control the sound level, input source, and power switch of non-Sony TVs as well. If your TV is listed in the table below, set the appropriate manufacturer’s code. 1 While holding down TV [/1, press the number buttons to select your TV’s manufacturer’s code (see the table below). 2 Release TV [/1. Code numbers of controllable TVs If more than one code number is listed, try entering them one at a time until you find the one that works with your TV. Notes • When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again. • Depending on the unit being connected, you may not be able to control your TV using all or some of the buttons on the supplied remote. By pressing You can TV [/1 Turn the TV on or off 2 (volume) +/– Adjust the volume of the TV t (TV/video) Switch the TV’s input source between the TV and other input sources TV 2 +/– t Number buttons Manufacturer Code number Sony 01 (default) Aiwa 01 (default) Grundig 11 Hitachi 24 JVC 33 LG 06 Loewe 06 Panasonic 17, 49 Philips 06, 08 Samsung 06, 71 Sanyo 25 Sharp 29 Thomson 43 Toshiba 38 64 Settings and Adjustments Using the Setup Display By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display item, see pages from 65 to 70. Note Playback settings stored in the disc take priority over the Setup Display settings and not all of the functions described may work. 1 Press DISPLAY when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (SETUP), then press ENTER. The options for “SETUP” appear. 3 Press X/x to select “CUSTOM,” then press ENTER. The Setup Display appears. 4 Press X/x to select the setup item from the displayed list: “LANGUAGE SETUP,” “SCREEN SETUP,” “CUSTOM SETUP,” or “AUDIO SETUP.” Then press ENTER. The Setup item is selected. Example: “SCREEN SETUP” 5 Press X/x to select an item, then press ENTER. The options for the selected item appear. Example: “TV TYPE” ENTER DISPLAY STOP ( 47 ) QUICK CUSTOM RESET DVD VIDEO QUICK LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKET PICTURE LINE: VIDEO 4:3 OUTPUT: FULL Selected item Setup items SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 4:3 LETTER BOX LINE: 4:3 OUTPUT: 4:3 PAN SCAN FULL 16:9 Options 65 Settings and Adjustments 6 Press X/x to select a setting, then press ENTER. The setting is selected and setup is complete. Example: “4:3 PAN SCAN” To enter the Quick Setup mode Select “QUICK” in step 3. Follow from step 5 of the Quick Setup explanation to make basic adjustments (page 22). To reset all of the “SETUP” settings 1 Select “RESET” in step 3 and press ENTER. 2 Select “YES” using X/x. You can also quit the process and return to the Control Menu by selecting “NO” here. 3 Press ENTER. All the settings explained on pages 65 to 68 return to the default settings. Do not press [/1 while resetting the player, which takes a few seconds to complete. Setting the Display or Sound Track Language (LANGUAGE SETUP) “LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track. Select “LANGUAGE SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 64). ◆ OSD (On-Screen Display) Switches the display language on the screen. ◆ MENU (DVD VIDEO only) You can select the desired language for the disc’s menu. ◆ AUDIO (DVD VIDEO only) Switches the language of the sound track. When you select “ORIGINAL,” the language given priority in the disc is selected. ◆ SUBTITLE (DVD VIDEO only) Switches the language of the subtitle recorded on the DVD VIDEO. When you select “AUDIO FOLLOW,” the language for the subtitles changes according to the language you selected for the sound track. z Hint If you select “OTHERS t” in “MENU,” “SUBTITLE,” or “AUDIO,” select and enter a language code from “Language Code List” on page 77 using the number buttons. Note If you select a language in “MENU,” “SUBTITLE,” or “AUDIO” that is not recorded on a DVD VIDEO, one of the recorded languages will be automatically selected. Selected setting SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 4:3 PAN SCAN ON JACKET PICTURE LINE: VIDEO 4:3 OUTPUT: FULL LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH 66 Settings for the Display (SCREEN SETUP) Choose settings according to the TV to be connected. Select “SCREEN SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 64). The default settings are underlined. ◆ TV TYPE Selects the aspect ratio of the connected TV (4:3 standard or wide). Note Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa. ◆ SCREEN SAVER The screen saver image appears when you leave the player in pause or stop mode for 15 minutes, or when you play a CD or DATA CD/DATA DVD (MP3 audio) for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press H to turn off the screen saver. ◆ BACKGROUND Selects the background colour or picture on the TV screen when the player is in stop mode or while playing a CD or DATA CD/DATA DVD (MP3 audio). ◆ LINE Selects video signals output from the LINE (RGB)-TV jack on the rear panel of the player. Notes • If your TV does not accept S video or the RGB signals, no picture will appear on the TV screen, even if you select “S VIDEO” or “RGB.” Refer to the instructions supplied with your TV. • If your TV has only one SCART (EURO AV) jack, do not select “S VIDEO.” • When you select “RGB,” you cannot use the PROGRESSIVE button or the COMPONENT VIDEO OUT jacks. 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function. 4:3 LETTER BOX Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 4:3 PAN SCAN Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKET PICTURE LINE: VIDEO 4:3 OUTPUT: FULL 16:9 4:3 LETTER BOX 4:3 PAN SCAN ON Turns on the screen saver. OFF Turns off the screen saver. JACKET PICTURE The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CD- EXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears. GRAPHICS A preset picture stored in the player appears. BLUE The background colour is blue. BLACK The background colour is black. VIDEO Outputs video signals. S VIDEO Outputs S video signals. RGB Outputs RGB signals. ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-17 DVP-NS30/NS32/NS33/NS52P 67 Settings and Adjustments ◆ 4:3 OUTPUT (DVP-NS52P only) This setting is effective only when you set “TV TYPE” in “SCREEN SETUP” to “16:9.” Adjust this to watch 4:3 aspect ratio progressive signals. If you can change the aspect ratio on your progressive format (525p/625p) compatible TV, change the setting on your TV, not the player. This setting is effective only when “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” is selected by using the PROGRESSIVE button on the front panel. Custom Settings (CUSTOM SETUP) Use this to set up playback related and other settings. Select “CUSTOM SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 64). The default settings are underlined. ◆ AUTO POWER OFF Switches the Auto Power Off setting on or off. ◆ AUTO PLAY Switches the Auto Play setting on or off. This function is useful when the player is connected to a timer (not supplied). ◆ DIMMER Adjusts the lighting of the front panel display. FULL Select this when you can change the aspect ratio on your TV. NORMAL Select this when you cannot change the aspect ratio on your TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image. 16:9 aspect ratio TV ON The player enters standby mode when left in stop mode for more than 30 minutes. OFF Switches this function off. OFF Switches this function off. ON Automatically starts playback when the player is turned on by a timer (not supplied). BRIGHT Makes the lighting bright. DARK Makes the lighting dark. CUSTOM SETUP AUTO PLAY: DIMMER: OFF BRIGHT AUTO PAUSE MODE: OFF TRACK SELECTION: ON MULTI-DISC RESUME: ON AUTO POWER OFF: Registration Code DivX: ,continued 68 ◆ PAUSE MODE (DVD VIDEO/DVD-RW only) Selects the picture in pause mode. ◆ TRACK SELECTION (DVD VIDEO only) Gives the sound track which contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, MPEG audio, DTS, or Dolby Digital format) are recorded. Notes • When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 65). • If you set “DTS” to “OFF” (page 70), the DTS sound track is not played even if you set “TRACK SELECTION” to “AUTO.” • If PCM, DTS, MPEG audio, and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, MPEG, and Dolby Digital audio sound tracks in this order. ◆ MULTI-DISC RESUME (DVD VIDEO/ VIDEO CD only) (DVP-NS33 and DVP- NS52P only) Switches the Multi-disc Resume setting on or off. Resume playback can be stored in memory for up to 6 different DVD VIDEOs/ VIDEO CDs (page 27). ◆ DivX Displays the registration code for this player. For more information, go to http://www.divx.com on the Internet. Settings for the Sound (AUDIO SETUP) “AUDIO SETUP” allows you to set the sound according to the playback and connection conditions. Select “AUDIO SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 64). The default settings are underlined. ◆ AUDIO ATT (attenuation) If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. This function affects the output of the following jacks: – LINE OUT L/R (AUDIO) jacks – LINE (RGB)-TV jack ◆ AUDIO DRC (Dynamic Range Control) (DVD VIDEO/DVD-RW only) Makes the sound clear when the volume is turned down when playing a DVD that conforms to “AUDIO DRC.” This function affects the output from the following jacks: – LINE OUT L/R (AUDIO) jacks – LINE (RGB)-TV jack – DIGITAL OUT (OPTICAL* or COAXIAL) jack only when “DOLBY DIGITAL” is set to “D-PCM” (page 69). * DVP-NS52P only. AUTO The picture, including subjects that move dynamically, is output with no jitter. Normally select this position. FRAME The picture, including subjects that do not move dynamically, is output in high resolution. OFF No priority given. AUTO Priority given. ON Stores the resume setting in memory for up to 6 discs. OFF Does not store the resume setting in memory. Playback restarts at the resume point only for the current disc in the player. OFF Normally, select this position. ON Select this when the playback sound from the speakers is distorted. STANDARD Normally select this position. TV MODE Makes low sounds clear even if you turn the volume down. WIDE RANGE Gives you the feeling of being at a live performance. AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: OFF STANDARD ON DOWNMIX: DOLBY SURROUND DOLBY DIGITAL: MPEG: D-PCM PCM DTS: OFF 48kHz/96kHz PCM: 48kHz/16bit ,continued 69 Settings and Adjustments ◆ DOWNMIX (DVD VIDEO/DVD-RW only) Switches the method for mixing down to 2 channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see “Checking the audio signal format” (page 43). This function affects the output of the following jacks: – LINE OUT L/R (AUDIO) jacks – LINE (RGB)-TV jack – DIGITAL OUT (OPTICAL* or COAXIAL) jack when “DOLBY DIGITAL” is set to “D-PCM” (page 69). ◆ DIGITAL OUT Selects if audio signals are output via the DIGITAL OUT (OPTICAL* or COAXIAL) jack. Setting the digital output signal Switches the method of outputting audio signals when you connect a component such as an amplifier (receiver) or MD deck with a digital input jack. For connection details, see page 20. Select “DOLBY DIGITAL,” “MPEG,” “DTS,” and “48kHz/96kHz PCM” after setting “DIGITAL OUT” to “ON.” If you connect a component that is incompatible with the selected audio signal, a loud noise (or no sound) may be heard from the speakers, risking damage to your ears or speakers. ◆ DOLBY DIGITAL (DVD VIDEO/DVD-RW only) Selects the type of Dolby Digital signal. ◆ MPEG (DVD VIDEO/DVD-RW only) Selects the type of MPEG audio signal. * DVP-NS52P only DOLBY SUR- ROUND Normally, select this position. Multi-channel audio signals are output to 2 channels for enjoying surround sounds. NORMAL Multi-channel audio signals are downmixed to 2 channels for use with your stereo. ON Normally select this position. When you select “ON,” see “Setting the digital output signal” for further settings. OFF The influence of the digital circuit upon the analog circuit is minimal. D-PCM Select this when the player is connected to an audio component without a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP” (page 68). DOLBY DIGITAL Select this when the player is connected to an audio component with a built-in Dolby Digital decoder. PCM Select this when the player is connected to an audio component without a built-in MPEG decoder. If you play MPEG audio sound tracks, the player outputs stereo signals via the DIGITAL OUT (OPTICAL* or COAXIAL) jack. MPEG Select this when the player is connected to an audio component with a built-in MPEG decoder. ,continued 70 ◆ DTS Selects whether or not to output DTS signals. ◆ 48kHz/96kHz PCM (DVD VIDEO only) Selects the sampling frequency of the audio signal. Note The analogue audio signals from the LINE OUT L/ R (AUDIO) jacks are not affected by this setting and keep their original sampling frequency level. OFF Select this when the player is connected to an audio component without a built-in DTS decoder. ON Select this when the player is connected to an audio component with a built-in DTS decoder. 48kHz/16bit The audio signals of DVD VIDEOs are always converted to 48kHz/16bit. 96kHz/24bit All types of signals including 96kHz/24bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48kHz/16bit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-18 DVP-NS30/NS32/NS33/NS52P 71 Additional Information Additional Information Troubleshooting If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer. Power The power is not turned on. , Check that the mains lead is connected securely. Picture There is no picture/picture noise appears. , Re-connect the connecting cord securely. , The connecting cords are damaged. , Check the connection to your TV (page 16) and switch the input selector on your TV so that the signal from the player appears on the TV screen. , Set “LINE” in “SCREEN SETUP” to an item appropriate for your system (page 66). , The disc is dirty or flawed. , If the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/ VIDEO player, the copy-protection signal applied to some DVD programmes could affect picture quality. If you still experience problems even when you connect your player directly to your TV, try connecting your player to your TV’s S VIDEO input (page 16). , The disc is recorded in a colour system that is different from your TV. , You have selected “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” using the PROGRESSIVE button on the front panel (the PROGRESSIVE indicator lights up) even though your TV cannot accept the progressive signal. In this case, select “NORMAL (INTERLACE)” so that the PROGRESSIVE indicator turns off. , Even if your TV is compatible with progressive format 525p/625p signals, the image may be affected when you set the player to progressive format. In this case, select “NORMAL (INTERLACE)” using the PROGRESSIVE button on the front panel so that the PROGRESSIVE indicator turns off and the player is set to normal (interlace) format. , If you set “LINE” to “RGB” in “SCREEN SETUP” (page 22, 66), the player outputs no component video signals. The picture does not fill the screen, even though the aspect ratio is set in “TV TYPE” under “SCREEN SETUP.” , The aspect ratio of the disc is fixed on your DVD. The picture is black and white. , Set “LINE” in “SCREEN SETUP” to an item appropriate for your TV (page 66). , Depending on the TV, the picture on the screen becomes black and white when you play a disc recorded in the NTSC colour system. , If you are using a SCART cord, be sure to use one that is fully wired (21-pins). Sound There is no sound. , Re-connect the connecting cord securely. , The connecting cord is damaged. , The player is connected to the wrong input jack on the amplifier (receiver) (page 20). , The amplifier (receiver) input is not correctly set. , The player is in pause mode or in Slow- motion Play mode. , The player is in fast forward or fast reverse mode. , If the audio signal does not come through the DIGITAL OUT (OPTICAL* or COAXIAL) jack, check the audio settings (page 69). * DVP-NS52P only. , While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.” , When playing multichannel MPEG audio soundtracks, only the Front (L) and Front (R) signal will be output from your two front speakers. ,continued 72 Sound distortion occurs. , Set “AUDIO ATT” in “AUDIO SETUP” to “ON” (page 68). The sound volume is low. , The sound volume is low on some DVDs. The sound volume may improve if you set “AUDIO DRC” in “AUDIO SETUP” to “TV MODE” (page 68). , Set “AUDIO ATT” in “AUDIO SETUP” to “OFF” (page 68). Operation The remote does not function. , The batteries in the remote are weak. , There are obstacles between the remote and the player. , The distance between the remote and the player is too far. , The remote is not pointed at the remote sensor on the player. The disc does not play. , The disc is turned over. Insert the disc with the playback side facing down. , The disc is skewed. , The player cannot play certain discs (page 6). , The region code on the DVD does not match the player. , Moisture has condensed inside the player (page 3). , The player cannot play a recorded disc that is not correctly finalized (page 6). The MP3 audio track cannot be played (page 51). , The DATA CD is not recorded in an MP3 format that conforms to ISO 9660 Level 1/ Level 2 or Joliet. , The DATA DVD is not recorded in MP3 format that conform to UDF (Universal Disk Format). , The MP3 audio track does not have the extension “.MP3.” , The data is not formatted in MP3 even though it has the extension “.MP3.” , The data is not MPEG-1 Audio Layer III data. , The player cannot play audio tracks in mp3PRO format. , “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 54). , The DATA CD/DATA DVD contains a DivX video file. The JPEG image file cannot be played (page 51). , The DATA CD is not recorded in a JPEG format that conforms to ISO 9660 Level 1/ Level 2, or Joliet. , The DATA DVD is not recorded in JPEG format that conforms to UDF (Universal Disk Format). , The file has an extension other than “.JPEG” or “.JPG.” , The image is larger than 3072 (width) × 2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the file size is within this specified capacity.) , The image does not fit the screen (the image is reduced). , “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 54). , The DATA CD/DATA DVD contains a DivX video file. The MP3 audio tracks and JPEG image files start playing simultaneously. , “MODE (MP3, JPEG)” is set to “AUTO” (page 54). The DivX video file cannot be played. , The file is not created in DivX format. , The file has an extension other than “.AVI” or “.DIVX.” , The DATA CD (DivX video)/DATA DVD (DivX video) is not created in a DivX format that conforms to ISO 9660 Level 1/ Level 2 or Joliet/UDF. , The DivX video file is larger than 720 (width) × 576 (height). The album/track/file names are not displayed correctly. , The player can only display numbers and alphabet. Other characters are displayed as “*”. The disc does not start playing from the beginning. , Programme Play, Shuffle Play, Repeat Play, or A-B Repeat Play is selected (page 30). , Resume play has taken effect (page 27). 73 Additional Information The player starts playing the disc automatically. , The disc features an auto playback function. , “AUTO PLAY” in “CUSTOM SETUP” is set to “ON” (page 67). Playback stops automatically. , While playing discs with an auto pause signal, the player stops playback at the auto pause signal. Some functions such as Stop, Search, Fast Play and Slow Play, Slow-motion Play, Repeat Play, Shuffle Play, or Programme Play cannot be performed. , Depending on the disc, you may not be able to do some of the operations above. Refer to the operating manual that comes with the disc. The language for the sound track cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 28). , Multilingual tracks are not recorded on the DVD being played. , The DVD prohibits the changing of the language for the sound track. The subtitle language cannot be changed or turned off. , Try using the DVD’s menu instead of the direct selection button on the remote (page 28). , Multilingual subtitles are not recorded on the DVD being played. , The DVD prohibits the changing of subtitles. The angles cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 28). , Multi-angles are not recorded on the DVD being played. , The angle can only be changed when the “ ” indicator lights up on the front panel display (page 10). , The DVD prohibits changing of the angles. The player does not operate properly. , When static electricity, etc., causes the player to operate abnormally, unplug the player. 5 numbers or letters are displayed on the screen and on the front panel display. , The self-diagnosis function was activated. (See the table on page 74.) The disc tray does not open and “LOCKED” appears on the front panel display. , Child Lock is set (page 26). The disc tray does not open and “TRAY LOCKED” appears on the front panel display. , Contact your Sony dealer or local authorized Sony service facility. “Data error” appears on the TV screen when playing a DATA CD or DATA DVD. , The MP3 audio track/JPEG image file/ DivX video file you want to play is broken. , The data is not MPEG-1 Audio Layer III data. , The JPEG image file format does not conform to DCF (page 50). , The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG format. , The file you want to play has the extension “.AVI” or “.DIVX,” but is not in DivX format, or is in DivX format but does not conform to a DivX Certified profile. 74 Self-diagnosis Function (When letters/numbers appear in the display) When the self-diagnosis function is activated to prevent the player from malfunctioning, a five-character service number (e.g., C 13 50) with a combination of a letter and four digits appears on the screen and the front panel display. In this case, check the following table. Glossary Album (page 50, 52) A unit in which to store JPEG image files or MP3 audio tracks on a DATA CD/DATA DVD. (“Album” is an exclusive definition for this player.) Chapter (page 10) Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded. DivX® (page 57) Digital video technology created by DivXNetworks, Inc. Videos encoded with DivX technology are among the highest quality with a relatively small file size. Dolby Digital (page 21, 69) Digital audio compression technology developed by Dolby Laboratories. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Digital” theatre surround sound systems. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. DTS (page 21, 70) Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. First three characters of the service number Cause and/or corrective action C 13 The disc is dirty or recorded in a format that this player cannot play (page 6). ,Clean the disc with a soft cloth or check its format (page 2). C 31 The disc is not inserted correctly. ,Re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the player has performed the self-diagnosis function. ,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 C:13:50 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-19 DVP-NS30/NS32/NS33/NS52P 75 Additional Information DVD VIDEO (page 5) A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single- sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more realistic audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD. DVD-RW (page 5) A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited. DVD+RW (page 5) A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format. File (page 50, 53) A JPEG image recorded on a DATA CD/ DATA DVD or a DivX video on a DATA CD/DATA DVD (“File” is an exclusive definition for this player). A single file consist of a single image or video. Film based software, Video based software (page 19) DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theatres. Video based DVDs, such as television dramas or sit-coms, displays images at 25 frames/60 fields (30 frames/60 fields) per second. MPEG audio (page 21, 69) International standard coding system used to compress audio digital signals authorized by ISO/IEC. MPEG 1 conforms to up to 2- channel stereo. MPEG 2, used on DVDs, conforms to up to 7.1-channel surround. Normal (Interlace) format (page 18) Normal (Interlace) format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image. Progressive format (page 18) Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 25 or 30 frames (50-60 fields) in one second, the Progressive format can show 50-60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 525 or 625 progressive format. Progressive JPEG Progressive JPEGs are used mostly on the internet. They are different from other JPEGs in that they “fade in” gradually instead of being drawn from top to bottom when displayed on a browser. This lets you view the image while it is being downloaded. Title (page 10) The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software. 76 Specifications System Laser: Semiconductor laser Signal format system: PAL/(NTSC) Audio characteristics Frequency response: DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB) Signal-to-noise ratio (S/N ratio): 115 dB (LINE OUT L/R (AUDIO) jacks only) Harmonic distortion: 0.003 % Dynamic range: DVD VIDEO: 103 dB/CD: 99 dB Wow and flutter: Less than detected value (±0.001% W PEAK) Outputs (Jack name: Jack type/Output level/Load impedance) LINE OUT (AUDIO): Phono jack/2 Vrms/ 10 kilohms DIGITAL OUT (OPTICAL) (DVP-NS52P only): Optical output jack/ –18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL): Phono jack/ 0.5 Vp-p/75 ohms LINE OUT (VIDEO): Phono jack/1.0 Vp-p/ 75 ohms S VIDEO OUT (DVP-NS52P only): 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/75 ohms COMPONENT VIDEO OUT (Y, PB/CB, PR/CR) (DVP-NS52P only): Phono jack/ Y: 1.0 Vp-p, PB/CB, PR/ CR: 0.7 Vp-p/ 75 ohms General Power requirements: 220 – 240 V AC, 50/60 Hz Power consumption: DVP-NS32/NS33: 10 W DVP-NS52P: 11 W Dimensions (approx.): DVP-NS32/NS33: 430 × 43 × 237.2 mm DVP-NS52P: 430 × 43 × 237.3 mm (width/height/depth) incl. projecting parts Mass (approx.): DVP-NS32/NS33: 1.92 kg DVP-NS52P: 1.95 kg Operating temperature: 5 °C to 35 °C Operating humidity: 25 % to 80 % Supplied accessories See page 15. Specifications and design are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-20 DVP-NS30/NS32/NS33/NS52P 1-20E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 DVP-NS30/NS32/NS33/NS52P Note: Follow the disassembly procedure in the numerical order given. 2-1. UPPER CASE SECTION 2 DISASSEMBLY 2-2. FRONT PANEL ASSEMBLY 4 Tapping Screw 5 Tapping Screw 3 Tray Cover 6 Three Screws +BV3 (3-CR) 1 Dust Cover 2 7 Front Panel Assembly 5 Claw 3 Claw 2 Claw 6 Claw 1 Claw a b b 4 Claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 DVP-NS30/NS32/NS33/NS52P 2-3. LOADING ASSEMBLY 1 Three Screws +BV3 (3-CR) 2 Loading Assembly 1 FMO-004 Flat Flexible Cable (CN101, 24P) 3 FMS-003 Flat Flexible Cable (CN202, 5P) 2 MD-108 Harness (CN201, 6P) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 DVP-NS30/NS32/NS33/NS52P 2-4. OPTICAL DEVICE (KHM-310CAA/C2RP) 5 FMD-004 Flat Flexible Cable (CN101, 24P) 4 MD-108 Harness (CN201, 6P) 1 Four Insulator Screws 6 Two Insulator 6 Two Insulator 3 Optical Device (KHM-310CAA/C2RP) 2 FFC Holder Caution Point on the Laser Diode: Laser Diode in the optical Device is very sensitive to Surge Current or ElectroStatic Discharge (ESD): After take-out FMD-004 Flexible cable from CN101 of MV-045 board immediately ground FMD-004 Flexible cable pattern using short clip. Metal paper clip can be used as short clip. Note: Solder short land before remove the harness from 24 pin BU connector. Shortland Position www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 DVP-NS30/NS32/NS33/NS52P 2-5. MV-045, IF 124 and ER-037 BOARDS 2-6. SWITCHING REGULATOR 5 FMD-004 Flat Flexible Cable (CN101, 24P) 6 FEM-001 Flat Flexible Cable (CN302, 21P) 0 ER-037 Board 8 MV-045 Board 2 MD-108 Harness (CN201, 6P) 3 FMS-003 Flat Flexible Cable (CN202, 5P) 7 Five Screws +BV3 (3-CR) 6 Two Screws +BV3 (3-CR) 1 Five Screws +BV3 (3-CR) 4 (Board to Board) Connector (CN401, 17P) a c d d a c b 9 IF-124 Board d 2 Two Screws +BV3 (3-CR) 1 PM-119 Harness Connector (CN201, 10P) 3 Power Board Note: Caution Point on the PWB IF-124 When handling IF-124 PWB avoid contact with the sharp metal edge on the top side of Vacuum Fluorescent Display (ND401). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-5 DVP-NS30/NS32/NS33/NS52P 2-7. INTERNAL VIEWS MS-203 MOUNT Optical Device (KHM-310CAA/C2RP) TOP VIEW BOTTOM VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-6 DVP-NS30/NS32/NS33/NS52P 2-6E 2-8. CIRCUIT BOARDS LOCATION Power Board ER-037 Board IF-124 Board (INTERFACE) MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P SECTION 3 BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM 3-1 3-2 IC408 IC102 FLASH MEMORY EEPROM IC103 IC101 IC406 IC108 IC104 IC407 3.3V REGULATOR IC VFD DRIVER CIRCUIT SDRAM RESET IC P-CONT O/I POWER TRANSFORMER SECONDARY PRIMARY SW+8V SW+5V SW+3.3V EVER-10V EVER+5V EVER+11V IC201 FOCUS TRACKING COIL DRIVE SPINDLE/SLED /LOADING MOTOR DRIVE IC401 J301 AUDIO/VIDEO OUTPUT AUDIO LPF IC304 VIDEO BUFFER DA CONVERTER MICROPROCESSOR RF AMP SERIAL BUS IC404 ND401 IC406 IF MICON VFD KEY FUNCTION SW-10V SWITCHING REGULATOR EVER +5V IR RECEIVER RESET IC SPINDLE MOTOR SLED MOTOR M M M LOADING MOTOR CHUCK/TRAY DETECT OPTICAL DEVICE DVD / CD PDIC FOCUS COIL TRACKING COIL BASE UNIT SERVICE ASSY DEVICE, OPTICAL KHM-310CAA/C2RP 8-820-290-02 INLIMIT SENSOR LED Vkk EVER 3.3V MV-045 BOARD (SEE PAGE 3-5 to 3-13) IF-124 BOARD (SEE PAGE 3-14 to 3-15) ER-037 BOARD (SEE PAGE 3-11 to 3-12) IC901 VIDEO BUFFER CNJ902 *Only for DVP-NS52P J302 AUDIO/VIDEO OUTPUT *Except DVP-NS52P • Abbreviation AEP : AE1, AE2,AE3 Models UK : UK Model RUS : Russian Model Notes: MV-045 mounted PWB must be replaced if IC103 (EEPROM IC) is damaged or not functioning. The old MV-045 mounted PWB must be completely disposed.w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 3-3 3-4 3-2. POWER LINE BLOCK DIAGRAM Transformer PC101 Photo Coupler IC611 Shunt Reg L312 L512 D511 D311 L211 Q211 Q712 Q311 P.CONT Q501 SW-10V SW + 5V SW + 3.3V MUTE DRIVER D401 Q401 AU-10V Q416 +5V Reg IC403 Audio Buffer IC401/402 Motor Driver IC201 FLD ND401 3.3 Reg IC IC407 PROG LED D401/407 DC-DC CONV T101 VFD DRIVER CIRCUIT FUNCTION KEY Reset IC IC408 IR Receiver IC406 IF MICON IC404 Q401/402 CN106 CN401 11 CN109 IC404, 405 Optical Out Audio DAC IC406 Coaxial Q411 RESET IC IC108 FLASH ROM IC102 EEPROM IC103 SDRAM IC104 1.8V Reg IC110 3.3V Reg IC 105/7 -5V Reg IC303 Video Buffer IC304 MTK IC IC101 VCC OPTICAL DEVICE EVER + 5V POWER EVER-10V SW+5V SW+3.3V EVER+5V EVER+11V AU+11V SW+8V CN501 CN201 Q611 L421 D411 D211 2 Line fiters Switching IC & Circuit Bridge Rectifier Diode F101 CN101 L101, L102 ACIN 1 2 T101 8 9 10 6 5 4 3 1 3 1 8 9 10 15 13 11 15 13 11 6 5 4 POWER BLOCK (2P-P1-9054F-XX) (SEE PAGE 4-27 to 4-28) MV-045 BOARD (SEE PAGE 4-5 to 4-16) IF-124 BOARD (SEE PAGE 4-17 to 4-20 ) ER-037 BOARD (SEE PAGE 4-23 to 4-24) 8 20 19 2 CN302 Video Buffer IC901 The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Les composants identifiés par une marque sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 3-3. SYSTEM CONTROL/SIGNAL PROCESSOR BLOCK DIAGRAM 3-5 3-6 145 146,147,149~151,158~160 IC102 IC101 CXD9849R MICROPROCESSOR AVDECODER SERVO DSP 16M ROM IC104 64M SDRAM RAO~RA11 53~61,67~72,74~76,78,89,92,93 AO~A20 115,117,118,120,121,123~126,128~133,135 RDO-RD15 81~84,86~88,91 HDO – HD7 DQM1 DQMO BA1 SCL SDA 113 137 143 BA0 140 RAS 139 CAS 138 RWE 142 RCS 156 RCLK 157 CKE 101 110 100 99 98 105 IFSCK IFSDO IFBSY 66 77 79 IOWR IOCS IOOE IFSDI PRST XIFCS ACLK SPDIF XRST MAMUTE 176 220 225 215 SPDIF ACLK ABCK ALRCK 214 213 ABCK ALRCK MAMUTE C V MUTE Y V Y/G CB/B CR/R WIDE 196 194 198 200 202 203 209 ASDATA4 222 ASDATA4 C Y CVBS Y/G CB/B CR/R WIDE 229 228 XTALI XTALO XRST 102 103 6 5 IC103 EEPROM SCL SDA IC101 C/BAR PB 5 IC101 C/BAR PB 6 IC101 7 IC101 8 202 203 200 198 199 196 IC101 C/BAR PB 4 IC101 C/BAR PB 3 IC 108 RESET IC CN 106 1 MV-045 BOARD (SEE PAGE 4-7 to 4-8) TO MV-045 AUDIO (SEE PAGE 3-9) TO MV-045 VIDEO (SEE PAGE 3-11) IFBSY IFSCK IFSDO XIFCS IFSDI XSYSRST V MUTE A MUTE TO IF 127 INTERFACE (SEE PAGE 3-13) A_MUTE TO MV-045 AUDIO (SEE PAGE 3-10) 9 5 7 4 6 2 10 14 0.7Vp-p 27MHz 3.3Vp-p IC101 9 228 63.5usec 0.7Vp-p 63.5usec 1Vp-p 63.5usec 280 mVp-p (NTSC) 300 mVp-p (PAL) 63.5us 1Vp-p 63.5usec 1Vp-p 63.5usec IC101 11 215 3.3Vp-p 24MHz IC101 10 156 3.3Vp-p 110MHz X102 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 3-4. RF/SERVO BLOCK DIAGRAM 3-7 3-8 BASE UNIT KHM-310CAA/C2RP SLED MOTOR SPINDLE MOTOR LIMIT DETECT CN201 30 29 36 37 34 10 13 15 4 1 D03- D03+ 28 27 D04- D04+ D01+ D01- D02+ D02- 24 25 D05+ D05- 22 23 20 21 18 19 MDI2 MDI1 LD01 TSD_M MUTE MUTE123 SPFG TROPENPWM DMO FMO TRO FOO LD02 6 DVDRFIP TPI TNI 177 179 OCSW CKSW 176 LIMITSW IN1- IN2- IN3- IN4- CTL 20 22 MUTE4 TSD_M 7 19 21 6 45 OPO RES1 RES2 MUTE123 PS IC201 FAN8036L MOTOR DRIVER IC IC101 CXD9849R RF AMPLIFIER LDM+ LDM- OKSW1 OCSW1 FCS- FCS+ TRK+ TRK- LD (780) LD (650) PD RF F E LOADING MOTOR CHUCK TRAY/ DETECT MS-203 BOARD FOCUS COIL TRACKING COIL DVD/CD LD MODULE 1 2 5 6 4 CN202 5 4 2 1 DVD/CD LD DRIVE Q102 2~5 8~11 24 23 22 21 6 2 5 14 10 17 20 C D A B 19 16 15 CN101 DVD/CD PDIC 186 FWD 185 178 174 170 47 39 37 38 41 42 REV 16 FWD 17 REV 35 MV-045 BOARD (SEE PAGE 4-9 to 4-10) (0.5Vp-p to 1.1Vp-p) (0.65Vp-p to 1.48Vp-p) IC101 6 (DVD PB) 2 IC101 6 (CD PB) 1 200nsec 100nsec SP- SP+ SL- SL+ LIMIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 3-9 3-10 3-5. AUDIO BLOCK DIAGRAM 16 15 1 3 5 7 8 6 2 4 L R L R D402 R442 R443 R414 R413 D403 SYSTEM CONTROL (SEE PAGE 3-5 to 3-6) SPDIF IC406 IC401 MUTE DRIVER Q402, Q405, Q406 AOUTR- MCLK SDTI PDN CSN BICK LRCK CCLK CDTI DZFR DZFL ACLK ALRCK ABCK XDACS ASDATA4 XRST ADSK ADSOO MAMUTE AOUTR + AOUTL+ AOUTL- AUDIO AMPLIFIER AUDIO D/A CONVERTER LINE OUT Q411 BUFFER R437 OPTICAL IC405 DIGITAL OUTPUT A MUTE CN302 ERAUDIOR ERAUDIOL + – + – J301 COAXIAL D IN 1 11 12 10 9 Q408 MUTE 2 3 5 6 1 7 Q407 MUTE 1 3.3Vp-p 40.71ns IC406 1 (DVD) 13 3.3Vp-p 44.24ns IC406 1 (CD) 12 5 2 MUTE DRIVER Q406, Q409, Q410 VIDEO (SEE PAGE 3-11 to 3-12) INTERFACE CONTROL (SEE PAGE 3-13 to 3-14) MV-045 BOARD (SEE PAGE 4-13 to 4-14) DVP-NS52P only Except DVP-NS52P J302 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 3-11 3-12 3-6. VIDEO BLOCK DIAGRAM S VIDEO OUT VIDEO 32 29 27 31 23 25 21 9 11 13 1 16 3 5 21 16 18 10 14 12 11 3 9 1 7 1 6 4 12 8 10 11 19 13 21 15 13 15 5 7 9 11 33 24 28 30 12 25 34 29 27 Y C COMPONENT VIDEO OUT FUNCTION SIGNAL GENERATOR BLANKING SIGNAL GENERATOR CN 302 CN 901 CN 902 Y V C G R B VIDEO BUFFER SELECT SWITCH IC901 J301 J302 19 16 15 11 8 7 C Y V VIDEO IN VIDEO OUT MUTE Y OUT Y IN C IN C OUT MUTE2 Y IN Y OUT Y Cb Cr Cb IN Cr IN Cb OUT Cr OUT Y Cb Cr Coaxial R L VIDEO Coaxial R L V Y C R G B DISCEXT RGBSEL WIDE VMUTE EUROVY SW2 MUTE2 MUTE3 MUTE1 B IN G IN R IN C IN Y IN V IN V/Y OUT R/C OUT G OUT B OUT SW1 EXCEPT NS30,32,33 EXCEPT NS30,32,33 COMBO JACK V/Y OUT BLANKING OUT R/C OUT G OUT FUNC. SW B OUT Q304, 305 WIDE SWITCH V/Y R/C G B D907 63.5usec 2.5Vp-p IC304 wl C/BAR PB 63.5usec 1.8Vp-p IC304 ea 63.5usec 2.0Vp-p IC304 wg C/BAR PB 63.5usec 1.4Vp-p IC304 wa 63.5usec 1.4Vp-p IC304 wd 63.5usec 2.0Vp-p IC304 wj C/BAR PB VIDEO BUFFER IC304 MV-045 BOARD (SEE PAGE 4-11 to 4-12) *Only for DVP-NS52P EXCEPT DVP-NS52P 16 18 17 19 14 15 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 3-13 3-14E 3-7. INTERFACE CONTROL BLOCK DIAGRAM 3.3V REGULATOR IC IC 407 IC 406 IC 408 80 11 8 1 2 1 3 40 PROG LED IR 78 5 VCC VDD /RST VKK 50 69 71 77 12 38 4 11 D401 D407 EVER+3.3V EVER+3.3V EVER+3.3V RESET IC IR RECEIVER IC VFD DRIVER CIRCUIT ND401 FLUORESCENT INDICATOR TUBE SW-10V 1 2 40 41 SEG 1-20 DIG 1-7 IC 404 IF CON AD1 AD2 XIN XOUT 36 34 35 26 27 24 23 17 16 15 14 7 2 3 SYSRST /CS SI SO /SC /AMUTE /VMUTE BUSY PCONT 37 POWER O/C SYSRST EVER+5V SW-10V SW+3.3V XIFCS SOO SIO SCO A-MUTE V-MUTE XIFBUSY PCONT POWER-SWITCH CN401 S401 S409 OPEN/ CLOSE OPEN/ CLOSE R431 R430 S405 S404 S403 S408 S402 R429 R428 S406 S410 S407 PROG PROG STOP PREV PREV NEXT PAUSE PLAY X401 8MHz IF-124 BOARD (SEE PAGE 4-19 to 4-20) 4 5 NS52P only NS52P only NS52P only NS52P only 11 13 15 14 12 16 10 2 4 7 6 9 5 SYSTEM CONTROL (SEE PAGE 3-5 to 3-6) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 1 A B C D E F G H I 2 12 13 11 10 9 8 7 6 5 4 3 14 15 SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1 4-2 FRAME SCHEMATIC DIAGRAM 4-1. FRAME SCHEMATIC DIAGRAM M M SWITCHING REGULATOR IF-124 BOARD MV-045 BOARD MS-203 BOARD BASE UNIT OPTICAL DEVICE SW+8V SC_IN (N) 2P AC_IN (L) 2 1 1 1-963-090-11 Harness PM-119 10P CNXXX 10P CN501 MTR GND 2 EVER+11V 3 EVER+5V 4 SW+3.3V 5 SW+5V 6 GND 7 P-CONT 8 POWER SW 9 EVER-10V 10 SW+8V 1 MTR GND 2 EVER+11V 3 EVER+5V 4 SW+3.3V 5 SW+5V 6 GND 7 P-CONT 8 POWER SW 9 EVER-10V 10 GND POWER_SWITCH SW-10V A_MUTE EVER+3.3V PCONT SW+3.3V V_MUTE SCO GND SOO SIO XIFBUSY XIFCS 3.3V_MNT SYSRST GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 GND POWER_SWITCH SW-10V A_MUTE EVER+3.3V PCONT TXD PI TE FE GND RF 5 4 3 2 1 OCSW1 / REV CKSW1 / FWD GND / CTL LDM- LDM+ 1 2 3 4 5 OCSW1 / REV CKSW1 / FWD GND / CTL LDM- LDM+ 5 4 3 2 1 RXD GND +3.3V V2REF0 RF MON 1 2 3 4 5 6 SW+3.3V V_MUTE SCO GND SOO SIO XIFBUSY XIFCS 3.3V_MNT SYSRST GND 17P CN401 17P *CN106 6P CN105 5P CN103 TO SERVO JIG 5P CN202 CN001 5P 1-830-283-11 FFC (FIM-003) 1.0 pitch 24P CN101 GND (LD) 1 LD (650) 2 N.C 3 N.C 4 PD 5 LD (780) 6 VR (650) 7 VR (780) 8 N.C 9 VoE/e+g 10 Vcc 11 Vc 12 GND (PDIC) 13 VoF/f+n 14 VoB/b 15 VoA/a 16 RF 17 (LO:DVD, HI:CD) MSW 18 VoD/d 19 VoC/c 20 TRK- 21 TRK+ 22 FCS+ 23 FCS- 24 24P CN101 GND (LD) 24 LD (650) 23 N.C 22 N.C 21 PD 20 LD (780) 19 VR (650) 18 VR (780) 17 N.C 16 VoE/e+g 15 Vcc 14 Vc 13 GND (PDIC) 12 VoF/f+n 11 VoB/b 10 VoA/a 9 RF 8 (LO:DVD, HI:CD) MSW 7 VoD/d 6 VoC/c 5 TRK- 4 TRK+ 3 FCS+ 2 FCS- 1 1-830-282-12 FFC (FMD-004) 0.5 pitch HARNESS MD-108 1-963-091-11 SP- SP+ LIMIT (GND) LIMIT SL- SL+ 1 2 3 4 5 6 6P CN201 SP- SP+ LIMIT (GND) LIMIT SL- SL+ 6 5 4 3 2 1 6P CNXXX SPINDLE MOTOR LIMIT SWITCH SLIDER MOTOR ER-037 BOARD 1-830-284-11 FFC (FEM-001) 1.0 pitch V *CN302 21P 21P CN901 VIDEO-5V GND SC GND SY GND Y/G GND Cb/B XV_MUTE Cr/R WIDE SW+5V DISC/XEXT +11V ERAUDIOR EURO_GND_AUDIO SW+8V SW+8V SW+8V 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 V -5V GND SC GND SY GND Y/G GND Cb/B XV_MUTE Cr/R WIDE +5V DISC/XEXT +11V ERAUDIOR GND (AU) EUROVY ERAUDIOL RGBSEL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 4-3 4-4 For printed wiring boards: • : indicates a lead wire mounted on the component side. • : indicates a lead wire mounted on the printed side. • a : Through hole. • : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated.) For schematic diagrams: • All capacitors are in µF unless otherwise noted. pF : µµF. 50V or less are not indicated except for electrolytics and tantalums. • All resistors are in ohms, 1/4W (Chip resistors : 1/10W) un-less otherwise specified. kΩ = 1000Ω, MΩ = 1000kΩ. • Caution when replacing chip parts. New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, because it is damaged by the heat. • All variable and adjustable resistors have characteristic curve B, unless otherwise noted. • : non flammable resistor. • : fusible resistor. • : panel designation. • f : internal component. • : adjustment for repair. • : B+ Line. • : B– Line. • Circled numbers refer to waveforms. • Voltages are dc between measurement point. • Readings are taken with a color-bar signal on DVD refer- ence disc and when playing CD reference disc. • Readings are taken with a digital multimeter (DC 10MΩ). • Voltage variations may be noted due to normal production tolerances. Caution: Pattern face side: Parts on the pattern face side seen from (Side A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side B) the parts face are indicated. When indicating parts by reference number, please include the board name. Note: The components identi- fied by mark or dotted line with mark are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block) B+ B– MV-045 BOARD 63.5usec 63.5usec 63.5usec 63.5usec IC101 C/BAR PB IC101 C/BAR PB IC101 C/BAR PB IC101 9 228 156 215 IC101 6 (CD PB) 1 200nsec IC101 6 (DVD PB) 2 100nsec 5 1Vp-p 63.5usec IC101 C/BAR PB 6 1Vp-p 63.5usec IC101 7 0.7Vp-p 63.5usec IC101 8 0.7Vp-p 63.5usec 3.3Vp-p 203 202 200 198 194 196 4 1Vp-p 63.5usec 3 63.5us 3.3Vp-p 24MHz IC101 11 3.3Vp-p 110MHz 27MHz IC101 10 3.3Vp-p 44.24ns IC406 1 (CD) 12 3.3Vp-p 40.71ns IC406 1 (DVD) 13 IC304 wl C/BAR PB 15 2.5V IC304 wg C/BAR PB 16 2.0Vp-p IC304 wj C/BAR PB 14 2.0Vp-p IC304 ea C/BAR PB 19 1.8Vp-p IC304 wd 17 1.4Vp-p 63.5usec IC304 wa 18 1.4Vp-p 63.5usec (0.5Vp-p to 1.1Vp-p) (0.65Vp-p to 1.48Vp-p) 280 mVp-p (NTSC) 300 mVp-p (PAL) 4-3. WAVEFORM WAVEFORM MV-045 • Abbreviation AEP : AE1, AE2,AE3 models UK : UK model RUS : Russian model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P D C E F B A 1 2 5 4 3 Power Board ER-037 Board IF-124 Board (INTERFACE) MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER MV-045 MV-045 (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) PRINTED WIRING BOARD • : Uses unleaded solder. MV-045 BOARD SIDE A MV-045 BOARD SIDE B 4-5 D C E F G B A 1 2 5 4 3 MV-045 BOARD A SIDE IC101 C-4 IC102 B-3 IC103 B-4 IC104 C-5 IC108 A-2 IC110 D-2 IC201 B-2 IC401 E-4 IC402 E-4 IC404 G-5 IC405 G-4 IC406 E-4 Q101 C-4 Q102 D-2 Q103 C-4 Q304 F-3 Q305 F-2 Q307 F-4 Q371 F-1 Q372 F-1 Q373 E-1 Q374 F-1 Q401 E-3 Q402 E-5 Q403 E-3 Q404 E-4 Q405 F-4 Q406 E-5 Q409 E-5 Q410 F-5 Q414 F-3 Q417 F-2 Q501 E-1 Q502 E-1 Q503 D-1 Q504 D-1 D201 A-2 D310 E-2 D501 A-3 D402 E-4 D403 F-4 D405 E-4 B SIDE IC105 B-3 IC106 D-4 IC107 D-3 IC303 F-5 IC304 F-4 IC403 E-3 IC501 A-3 Q407 F-3 Q408 F-3 Q411 F-1 Q416 E-3 D308 F-4 D309 F-4 D401 E2 D404 E-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-7 4-8 CPU, SERVO-DSP, AVDEC MV-045 (1/5) For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform MV-045 BOARD (1/5) CPU, SERVO-DSP, AVDEC -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE XX w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-10 DRIVE MV-045 (2/5) 4-9 For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform MV-045 BOARD (2/5) DRIVE -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-11 4-12 VIDEO MV-045 (3/5) For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform MV-045 BOARD (3/5) VIDEO -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE SIGNAL PATH VIDEO SIGNAL CHROMA PB Y Y/CHROMA AUDIO SIGNAL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-13 4-14 MV-044 BOARD (4/5) AUDIO -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-044 board. • Refer to page 4-4 for waveform AUDIO MV-044 (4/5) SIGNAL PATH VIDEO SIGNAL CHROMA PB Y Y/CHROMA AUDIO SIGNAL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-15 4-16 POWER MV-044 (5/5) For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-044 board. • Refer to page 4-4 for waveform MV-044 BOARD (5/5) POWER -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Les composants identifiés par une marque sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P A B C 1 2 7 6 5 4 3 A B C 1 2 7 6 5 4 3 4-17 4-18 IF-124 (INTERFACE) PRINTED WIRING BOARD There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board IF-124BOARD A SIDE • : Uses unleaded solder. INTERFACE IF-124 IF-124 BOARD B SIDE Power Board ER-037 Board IF-124 Board (INTERFACE) MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) IF-124 BOARD A SIDE IC406 A-5 D401 B-6 D407 A-7 B SIDE IC404 B-7 IC407 B-2 IC408 B-5 Q401 B-2 Q402 B-2 D402 B-3 D403 B-2 D404 B-2 D405 B-2 D406 B-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-19 4-20 For Schematic Diagram • Refer to page 4-17 for printed wiring board of IF-124 board. IF-124 BOARD INTERFACE -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE INTERFACE IF-124 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 4-21 4-22 ER-037 BOARD B SIDE IC901 A-3 Q901 B-1 Q902 A-2 Q903 A-2 Q906 A-1 Q907 B-1 Q908 B-1 Q909 A-1 D901 B-2 D902 B-2 D907 A-2 D929 B-2 D930 B-2 D932 B-2 D933 B-2 D934 B-3 D935 B-3 D936 B-4 D937 B-4 D938 A-3 D939 B-2 ER-037 (EURO OUT) PRINTED WIRING BOARD There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board ER-037 BOARD A SIDE • : Uses unleaded solder. EURO OUT ER-037 ER-037 BOARD B SIDE Power Board ER-037 Board IF-124 Board (INTERFACE) MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) B A 1 2 4 3 B A 1 2 4 3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-23 4-24 For Schematic Diagram • Refer to page 4-21 for printed wiring board of ER-037 board. ER-037 BOARD EURO OUT -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE SIGNAL PATH VIDEO SIGNAL CHROMA PB Y Y/CHROMA AUDIO SIGNAL EURO OUT ER-037 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NS30/NS32/NS33/NS52P 4-25 4-26 There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board POWER BOARD POWER BLOCK • : Uses unleaded solder. POWER BLOCK PRINTED WIRING BOARD POWER BOARD (2P-P1-9054F) Power Board ER-037 Board IF-124 Board (INTERFACE) MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NS30/NS32/NS33/NS52P 4-27 4-28E For Schematic Diagram • Refer to page 4-25 for printed wiring board of Power Board. POWER BOARD POWER BLOCK (2P-P1-9054F) -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Les composants identifiés par une marque sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. POWER BOARD POWER BLOCK w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-1 DVP-NS30/NS32/NS33/NS52P SECTION 5 IC PIN FUNCTION DESCRIPTION Pin No. Pin name Type Function 1 AGND Ground pin for analog circuitry 2 DVDA Analog Input AC coupled input path A 3 DVDB Analog Input AC coupled input path B 4 DVDC Analog Input AC coupled input path C 5 DVDD Analog Input AC coupled input path D 6 DVDRFIP Analog Input AC coupled DVD RF signal input RFIP 7 DVDRFIN Analog Input AC coupled DVD RF signal input RFIN 8 MA Analog Input DC coupled main-beam RF signal input A 9 MB Analog Input DC coupled main-beam RF signal input B 10 MC Analog Input DC coupled main-beam RF signal input C 11 MD Analog Input DC coupled main-beam RF signal input D 12 SA Analog Input DC coupled sub-beam RF signal input A 13 SB Analog Input DC coupled sub-beam RF signal input B 14 SC Analog Input DC coupled sub-beam RF signal inputC 15 SD Analog Input DC coupled sub-beam RF signal input D 16 SDFON Analog Input CD focusing error negative input 17 SDFOP Analog Input CD focusing error positive input 18 TNI Analog Input 3 beam satellite PD signal negative input 19 TPI Analog Input 3 beam satellite PD signal positive input 20 MDI1 Analog Input Laser power monitor input 21 MDI2 Analog Input Laser power monitor input 22 LDO2 Analog Output Laser driver output 23 LDO1 Analog Output Laser driver output 24 SVDD3 Power Analog 3.3V power 25 CSO Analog Output Central servo 26 RFLVL Analog Output RFRP low pass output 27 SGND Ground Ground pin for analog circuitry 28 V2REFO Analog Output Reference voltage 2.8V 29 V20 Analog Output Reference voltage 2.0V 30 VREFO Analog Output Reference voltage 1.4V 31 FEO Analog Output Focus error monitor output 32 TEO Analog Output Tracking error monitor output 33 TEZISLV Analog Output TE Slicing Level 34 OP_OUT Analog Output OP amp output 35 OP_INN Analog Input OP amp negative input 36 OP_INP Analog Input OP amp positive input 37 DMO Analog Output Disc motor control output.PWM output 38 FMO Analog Output Feed motor control. PWM output 39 TROPENPWM Analog Output Tray PWM output/Tray open output 40 IOPMON Analog Input General A/D input -> IOP Monitor 41 TRO Analog Output PDM output of tracking servo compensator 42 FOO Analog Output PDM output of focus servo compensator 43 USB_VSS Ground Ground pin for USB 44 Not used 45 Not used 46 USB_VDD3 Power 3.3V power pin for USB Input LVTTL 47 SPFG 3.3 V, SMT,PU General A/D input -> Iop Monitor 48 MSW Analog Output Servo GPIO 8 49 CKSW Analog Input Servo GPIO 2 5-1. SYSTEM CONTROL PIN FUNCTION (MV-045 BOARD IC101) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-2 DVP-NS30/NS32/NS33/NS52P Pin No. Pin name Type Function 50 OCSW Input Servo GPIO 1 51 EEWP Output EEPROM write Protect Control 52 DVDD18 Power 1.8V power pin for internal digital circuitry 53 HA2 Output PU Host address bit2 54 HA3 Output PU Host address bit3 55 HA4 Output PU Host address bit4 56 HA5 Output PU Host address bit5 57 HA6 Output PU Host address bit6 58 HA7 Output PU Host address bit7 59 HA8 Output PU Host address bit8 60 HA18 Output SMT Host address bit18 61 HA19 Output SMT Host address bit19 62 DVSS Ground Ground pin for internal digital circuitry 63 APLLCAP Analog Input APLL External Capacitance connection 64 APLLVSS Ground Ground pin for audio clock circuitry 65 APLLVDD3 Power 3.3V power for audio clock circuitry 66 xWR Output SMT Write enable, active Low 67 HA16 Output Host address bit16 68 HA15 Output PU Host address bit15 69 HA14 Output PU Host address bit14 70 HA13 Output PU Host address bit13 71 HA12 Output PU Host address bit12 72 HA11 Output PU Host address bit11 73 DVDD3 Power 3.3V power pin for internal digital circuitry 74 HA10 Output PU Host address bit10 75 HA9 Output PU Host address bit9 76 HA20 Output SMT Host address bit20 77 xROMCS Output PU, SMT Chip select, active Low 78 HA1 Output PU Host address bit1 79 xRD Output SMT Read enable, active Low 80 DVDD3 Power 3.3V power pin for internal digital circuitry 81 HD0 Output Host data bit0 82 HD1 Output Host data bit1 83 HD2 Output Host data bit2 84 HD3 Output Host data bit3 85 DVSS Ground Ground pin for internal digital circuitry 86 HD4 Output Host data bit4 87 HD5 Output Host data bit5 88 HD6 Output Host data bit6 89 HA21 Output SMT Host data bit21 90 ALE Output PU,SMT Address latch enable 91 HD7 Output Host data bit7 92 HD17 Output Host address bit17 93 HA0 Output PU Host address bit0 94 DVSS Ground Ground pin for internal digital circuitry 95 UWR# Output PU,SMT 8032 write strobe 96 URD# Output PU,SMT 8032 read strobe 97 DVDD18 Power 1.8V power pin for internal digital circuitry Output PU,SMT 98 IFSDO Default High Ext. CPU Serial data output (H/W method) Output PU,SMT 99 IFCK Default High Ext. CPU Serial clock (H/W method) Output PU,SMT 100 xIFCS Default High Chip select for Ext.CPU (Low Active, H/W method) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-3 DVP-NS30/NS32/NS33/NS52P Pin No. Pin name Type Function 101 IFSDI Input SMT Ext. CPV Serial data Input Output PU,SMT 102 SCL Default High IIC clock pin Output PU,SMT 103 SDA Default High IIC data pin Output PU,SMT 104 UP3_0 Default High 8032 GPIO 105 IFBSY Int PU,SMT Ext. CPU Ready/Busy interrupt signal (H: Busy, L: Ready) 106 RXD Input PU,SMT Hardwired RS232C RXD Output PU,SMT 107 TXD Default High Hardwired RS232C TXD 108 DVDD3 Power 3.3V power pin for internal digital circuitry 109 ICE Output PU,SMT Ice mode enable 110 xSYSRST Input PU,SMT MT1389 reset input, active Low 111 IR Input SMT IR control signal input 112 INT0# Input PU,SMT 8032 external interrupt 0 (for ICE) 113 DQM0 Output Mask for DRAM input/output byte 0 Output Default 114 GPIO Low GPIO 115 RD7 Output DRAM data bit7 116 DVSS Ground Ground pin for internal digital circuitry 117 RD6 Output DRAM data bit6 118 RD5 Output DRAM data bit5 119 DVSS Ground Ground pin for internal digital circuitry 120 RD4 Output DRAM data bit4 121 RD3 Output DRAM data bti3 122 DVDD18 Power 1.8V power pin for internal digital circuitry 123 RD2 Output DRAM data bit2 124 RD1 Output DRAM data bit1 125 RD0 Output DRAM data bit0 126 RD15 Output DRAM data bit15 127 DVDD3 Power 3.3V power pin for internal digital circuitry 128 RD14 Output DRAM data bit14 129 RD13 Output DRAM data bit13 130 RD12 Output DRAM data bit12 131 RD11 Output DRAM data bit11 132 RD10 Output DRAM data bit10 133 RD9 Output DRAM data bit9 134 DVSS Ground Ground pin for internal circuitry 135 RD8 Output DRAM data bit8 Output Default 136 RGBSEL Low RGB/YCBCR select output signal (H: RGB Disable, L: RGB) 137 DQM1 Output Mask for DRAM input/output byte 1 138 RWE# Output DRAM write enable 139 CAS# Output DRAM columm address strobe 140 RAS# Output DRAM row address strobe 141 DVDD3 Power 3.3V power pin for internal digital circuitry 142 RCS# Output DRAM chip select 143 BA0 Output DRAM bank address 0 144 DVSS Ground Ground pin for internal digital circuitry 145 BA1 Output DRAM bank address 1 146 RA10 Output DRAM address bit10 147 RA0 Output DRAM address bit0 148 DVSS Ground Ground pin for internal digital circuitry 149 RA1 Output DRAM address bit1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-4 DVP-NS30/NS32/NS33/NS52P Pin No. Pin name Type Function 150 RA2 Output DRAM address bit2 151 RA3 Output DRAM address bit3 152 DVDD18 Power 1.8V power pin for internal digital circuitry 153 RVREF Analog Input Reference voltage for DDR DRAM 154 RCLKB Output DRAM clock invert 155 DVDD3 Power 3.3V power pin for internal digital circuitry 156 DRCLK Output DRAM clock 157 CKE Output DRAM clock enable 158 RA11 Output PD DRAM address bit11 159 RA9 Output DRAM address bit9 160 RA8 Output DRAM address bit8 161 DVSS Ground Ground pin for internal digital circuitry 162 RA7 Output DRAM address bit7 163 DVSS Ground Ground pin for internal digital circuitry 164 RA6 Output DRAM address bit6 165 RA5 Output DRAM address bit5 166 RA4 Output DRAM address bit4 167 DVDD3 Power 3.3V power pin for internal digital circuitry 168 FWD Output PD Servo GPIO 6 169 REV Output PU Servo GPIO 7 170 MUTE123 Output PD Servo GPIO 5 171 Not used 172 Not used 173 DVDD18 Power 1.8V power pin for internal digital circuitry Output Default 174 MUTE Output PD Servo GPIO 4 175 Not used 176 XMAMUTE Default LOW Main Audio Mute Signal (H: Unmute, L: Mute) 177 DSEL Output Interlace/Prog select output signal (H: 480i, L:480P) 178 TSD_M Input PU SERVO GPIO 3 179 EUROVY Output PU CVBS/S terminal select output signal (H: CBVS, L: S-Terminal) 180 Not used 181 Not used 182 DVDD3 Power 3.3V power pin for internal digital circuitry 183 Not used 184 Not used 185 Not used 186 Not used 187 Not used 188 Not used 189 DACVDDC Power 3.3V power for Video DAC circuitry 190 VREF Analog Input Bandgap Ref Voltage (No connect) 191 FS Analog Input Full Scale Adjustment Compensation capacitor 192 CIN/YUV0 Output Video data output bit0 193 DACVDDC Ground Ground pin for Video DAC circuitry Analog Y output 194 Y/YUV1 Output Video data output bit1 195 DACVDDB Power 3.3V power for Video DAC circuitry Analog chroma output 196 C/YUV2 Output Video data output bit2 197 DACVSSB Ground Ground pin for Video DAC circuitry Analog composite output 198 CVBS/YUV3 Output Video data output bit3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-5 DVP-NS30/NS32/NS33/NS52P Pin No. Pin name Type Function 199 DACVDDA Power 3.3V power for Video DAC circuitry Green or Y 200 YG/YUV4 Output Video data output bit4 201 DACVSSA Ground Ground pin for Video DAC circuitry Blue or Cb 202 B/Cb/Pb YUV5 Output Video data output bit5 Red or Cr 203 R/Cr/Pr YUV6 Output Video data output bit6 204 DVDD3 Power 3.3V power pin for Video DAC digital circuitry 205 MIC Input SMT Karaoke Microphone detect signal 206 YUV7 Output SMT Video data output bit7 207 KRMOD Output SMT Karaoke Mode Status Output (H: Normal, L: Karaoke) Output Default 208 SCK Output ADAC Serial Clock 209 WIDE Output Voltage select Output signal for S terminal (H: 16:9, L:4:3) Output Default 210 SDO Output ADAC Serial data output 211 xSCS High Chip select for ADAC 212 DVDD3 Power 3.3V power pin for internal digital circuitry 213 ALRCK Output PD,SMT Audio left/right channel clock 214 ABCK Output Audio Bit Clock output 215 ACLK Output Master clock output for Audio DAC 216 DVSS Ground Ground pin for internal digital circuitry 217 Not used 218 Not used 219 Not used 220 xRST Default Low Reset output signal for ADAC (Low Active) 221 DVDD18 Power 1.8V power pin for intenal digital circuitry 222 ASDATA4 Output PD,SMT Audio serial data 4: Down-mixed L/R 223 DVSS Ground Ground pin for internal digital circuitry 224 D-WIDE Input Video aspect ratio control for D-terminal. (H: 16:9, L: 4:3) 225 SPDIF Output SPDIF output 226 RFGND18 Ground Ground pin for internal analog circuitry 227 RFVDD18 Power 1.8V power pin for internal analog circuitry 228 XTALO Output 27M crystal output 229 XTALI Input 27M crystal input 230 JITFO Analog Output The output terminal of RF jitter meter 231 JITFN Analog Input The input terminal of RF jitter meter 232 PLLVSS Ground Ground pin for data PLL and related analog circuitry 233 IDACEXLP Analog Output C input 234 PLLVDD3 Power 3.3V power pin for data PLL and related analog circuitry 235 LPFON Analog Output The negative output terminal of loop filter amplifier 236 LPFIP Analog Input The positive input terminal of loop filter amplifier 237 LPFIN Analog Input The negative input of loop filter amplifier 238 LPFOP Analog Output The positive output of loop filter amplifier 239 ADCVDD3 Power Power pin for ADC circuitry 240 Not used 241 ADCVSS Ground Ground pin for ADC circuitry 242 Not used 243 Not used 244 RFVDD3 Power 3.3V power pin for RF digital circuitry 245 RFRPDC Analog Output RF ripple detect output 246 RFRPAC Analog Input RF ripple detect input (through AC-coupling) 247 HRFZC Analog Input High frequency RF ripple zero crossing 248 CRTPLP Analog Output Defect level filter capacitor connecting www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-6 DVP-NS30/NS32/NS33/NS52P Pin No. Pin name Type Function 249 RFGND Ground Ground pin for RF digital circuitry 250 Not used 251 Not used 252 OSP Analog Output RF Offset cancellation capacitor connecting 253 OSN Analog Output RF Offset cancellation capacitor connecting 254 RFGC Analog Output RF AGC loop capacitor conecting for DVD-ROM 255 IREF Analog Input Current reference input 256 AVDD3 Power 3.3V power pin for analog circuirtry 5-6E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-1 DVP-NS30/NS32/NS33/NS52P 6-1. EXECUTING IOP MEASUREMENT In order to execute IOP measurement, the following standard procedures must be followed. (1) In standby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information 5. Video Level Adjustment Model : xxx xxx xxx IF-con Ver : xxx Syscon Ver : xxx (2) Select “2. Drive Manual Operation” by pressing the 2 key on the remote commander. The screen will appear as below. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time adjust 0. Return to top Menu (3) Select “3. Manual Adjustment” by pressing the 3 key on the remote commander. The screen will appear as below. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eg boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: ? ? Change Value [RETURN] Return to previous menu (4) Select Iop by pressing 6 key on the remote commander. (5) Wait until a hexadecimal number appear. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. ED: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: Change Value - Return to previous menu (6) Convert data from hexadecimal to decimal. (7) Use the following formula to calculate IOP in mA IOP (mA)=IOP (decimal) x 0.622678. (8) Press [RETURN] to return back to previous menu. (9) Press - to return to Top Menu and power OFF the DVD Player. 6-2. EMERGENCY HISTORY CHECK Information of Emergency History. (1) In standby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. (2) Select “3. Emergency History”. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page (3) Laser Hours DVD Laser ON time. (Total ON time) CD Laser ON time. (Total ON time) (4) Emergency History The history information from last “1” to “10” can be scrolled with [NEXT] key or [PREV] key. (5) Error code Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 SECTION 6 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-2 DVP-NS30/NS32/NS33/NS52P (6) Error code list 01: Communication error (No reply from syscon) 02: Syscon hung up 03: Power OFF request when syscon hung up 19: Thermal shutdown 24: MoveSledHome error 25: Mecha move error (5 Changer) 26: Mecha move stack error 30: DC Motor adjustment error 31: DPD offset adjustment error 32: TE Balance adjustment error 33. TE Sensor adjustment error 34. TE loop gain adjustment error 35. FE loop gain adjustment error 36. Bad jitter after adjustment 40. Focus NG 42. Focus Layer Jump NG 52. Open kick spindle error 51: Spindle stop error 60: Focus on error 61: Seek fail error 62: read Qdata/ID error 70: Lead In Data Read Fail 71: TOC read time out (CD) 80: Can’t Buffering 81: Unknown media type (7) Error code parameters Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is the detailed contents od error information (8) Laser hours at error happend. Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is Laser hours when an error happaned. (9) How to Clearing laser hours Press [DISPLAY], [CLEAR] keys in this order. Both CD and DVD data are cleared. Emg. History Check Laser Hours CD 0h 0min DVD 0h 0min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page - Return to Top Menu (10) How to Clearing Emergency code Press [TOPMENU], [CLEAR] keys in this order. All emergency code are cleared. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next] Next Page [Prev] Prev Page (11) Press - key, return to TOP MENU. 6-3. INITIALIZING SETUP DATA How to initializing setup data. (1) In stanby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. (2) Select “3. Emergency History”. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page (3) Initializing setup data Press [MENU], [CLEAR] keys in this order. The data have been initialized when “Initialize setup data...” mesage is displayed. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min Initialize setup data ... [Next] Next Page [Prev] Prev Page www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-3 DVP-NS30/NS32/NS33/NS52P (4) The Emergency history display screen will be restored soon. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page (12) Press - key, return to TOP MENU. 6-4. VERSION INFORMATION Information of firmware version. (1) In stanby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. (2) Select “4. Version Information”. Version information Firm (Main) : Ver. xxxxx Firm (Sub) : xxxxx RISC : xxxxx 8032 : xxxxx Audio DSP : xxxxx Servo DSP : xxxxx - Return to Top Menu (3) Press - key, return to TOP MENU. 6-5. IF CON SELF DIAGNOSTIC FUNCTION 1. IF-124 BOARD (IF CON) TEXT MODE The IF-124 board (IF CON) test mode is the IF CON self- diagnosis mode. THe IF CON can diagnose the functions of the IF-124 board that the IF CON controls. Normally, the IF CON makes a serial communication with the SYSTEM CONTROL and operates following the commands from the SYSTEM CONTROL, but in the Test mode, the IF CON operates independently from the SYSTEM CONTROL. In the test mode, the following functions can be checked. 1. Button function 2. Remote commander receiving function 3. SYSTEM CONTROL-IF CON serial communication 4. Fluorescent display tube lighting check - Grid check - Anode check 5. LED control function In the test mode, the main unit operates same as usual, except voltage monitoring, communication, display of fluorescent display tube, and LED control. 1. The routine that monitors +3.3V (PCONT) of MV-045 board is not provided. 2. The monitoring timer for serial communication with the SYSTEM CONTROL is not provided. The main unit is not placed in the Standby mode, even if the communication with SYSTEM CONTROL is normal. 3. Display of fluorescent display tube. (Normally, display is mode following the commands from SYSTEM CONTROL). 4. LED control. (Normally, control is mode made following the commands from SYSTEM CONTROL). 2. OPERATION OF SELF CHECK MODE The Self Check mode is the function to conduct the basic test to the FL display and DVD panel section. 2-1. Self Check Mode Transition Processing At the AC Power ON after reset of IF CON is released, while pressing with the MV-045 board are not connected to the IF-124 board, or while pressing the x key on the main unit with the IF CON in STANDBY mode, enter [RETURN] t [DISPLAY] (or [SETUP]) on the remote commander, and the main unit transits to the Self Check Mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-4 DVP-NS30/NS32/NS33/NS52P 2-2. Operation of Auto Self Check When the Self Check mode becomes active at the AC Power ON or by key input, the test display of the following steps (1) to (4) is repeated. (1) FLD and LED all ON (for 10 seconds) (2) MODEL display (for 1 seconds) (NS30/NS32/NS33) MODEL display (for 1 seconds) (NS52P only) (3) Version display (for 1 seconds) (4) ROM creation date display (for 1 seconds) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-5 DVP-NS30/NS32/NS33/NS52P 2-3. Each Self Check Function Each Self Check function tests the FLD display, LED display, and key input. 2-3-1. FLD and LED All ON 2-3-1-1.Transition Keys in Self Check Mode • Z key and x key on the main unit • T key on the remote commander 2-3-1-2.Operation and display In this mode, all LEDs and all segments of FLD turn ON. • Example of FLD all ON 2-3-2. Main Unit Key Name Display and Key Code Display 2-3-2-1.Transition Keys in Self Check Mode • Keys on the main unit except keys transited in Self Check Mode 2-3-2-2.Operation and Display When a key on the main unit is pressed in the Self Check mode, the name of that key is displayed on the FLD. Aslo, the key name display and the key code display can be switched with the [DISPLAY] key on the remote commander, “NOTHING” is displayed when nothing is entered. Also, DVD, V, CD segments turn on when a communication error occurred. • FLD display (at input of H key on the main unit) Input Voltage [V] IC404: Pin No. (Signal) PIN ef (AD1) PIN eg (O/C) PIN eh (STOP) PIN ej 0 - 0.20 PLAY OPEN/CLOSE STOP POWER 0.60 - 0.82 PAUSE - PROGRESSIVE - 1.16 - 1.47 PREVIOUS - - - 1.80 - 2.12 NEXT - - - 2.48 - 2.70 - - - - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-6 DVP-NS30/NS32/NS33/NS52P • Key code display (at input of H key, key code: 0Ah) • At input of faulty voltage • When key is pressed double 2-3-3. Remote Commander Key Name Display and Key Code Display 2-3-3-1.Transition Keys in Self Check Mode • Remote commander keys except keys transited in Self Check Mode 2-3-3-2. Operation and Display When a key on the remote commander is pressed in the Self Check Mode, the name of that key is displayed on the FLD. Aslo, the key name display and the key code display can be switched with the [DISPLAY] key on the remote commander. “NOTHING” is displayed when nothing is entered. Also, VIDEO CD, DVD, and CD segments turn on when a communication error occurred. • Remote commander key name display (at input of X key) • Remote commander key code display (at input of X key, key code:39h) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-7 DVP-NS30/NS32/NS33/NS52P 2-3-4. Communication Monitoring Display The communication state is monitored and displayed while the key name on the main unit and the remote commander is displayed. When the communication to the System Controller failed, VIDEO CD, DVD, and CD segments turn on. • Communication error display (at no input of key and remote commander) • Communication error display (at code display without input of the remote commander) 2-3-5. FLD Anode Test Display and SHUTTLE Click Operation Test 2-3-5-1.Transition Keys in Self Check Mode • t key on the remote commander • SHUTTLE on the remote commander during Anode Test display (This unit does not provide JOG/SHUTTLE, and therefore use another DVD remote commander having the JOG/SHUTTLE) 2-3-5-2.Operation and Display The Self Check Mode transits to this mode when t key is entered. This tests whether each segment turns on individually. Only the first segment of each grid of FLD turns on, and each time the SHUTTLE is entered, the segment of each grid switched in order. When SHUTTLE input is clockwise, the segment switches in 1 - 2 -3 direction, or counterclockwise it switches in 3 - 2- 1 direction. • Display at the start of Anode Test r (Input in CW direction) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-8 DVP-NS30/NS32/NS33/NS52P 2-3-6. FLD Grid Test Display and SHUTTLE Click Operation Test 2-3-6-1.Transition Keys in Self Check Mode • R key on the remote commander • SHUTTLE on the remote commander during Grid Test display (This unit does not provide JOG/SHUTTLE, and therefore use another DVD remote commander having the JOG/SHUTTLE) 2-3-6-2.Operation and Display The Self Check Mode transits to this mode when R key is entered. This tests whether each grid turns on individually. The first grid only of FLD turns on and other grid turn off. Each time the SHUTTLE is entered, the grid is switched in order. When SHUTTLE input is clockwise, the grid switched in 1 - 2 - 3 direction, or counterclockwise it switches in 3 - 2 - 1 direction. • Display at the start of Grid Test 2-3-7. LED Test Display 2-3-7-1. Transition Keys in Self Check Mode • r key on the remote commander • SHUTTLE on the remote commander during Grid Test display (This model does not provide JOG/SHUTTLE, and therefore use another DVD remote commander having the JOG/SHUTTLE) 2-3-7-2. Operation and Display LED is switched in order by the input JOG/SHUTTLE on the remote commander. Also, LED ON/OFF is switched by the input of same key as the function that turns on the LED conncerned. • FLD display during LED Test r (Input in CW direction) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-9 DVP-NS30/NS32/NS33/NS52P 7G 6G 5G 4G 3G 2G 1G col - col - - - - - - - - - - - - - - Dp Dp Dp Dp Dp Dp a a a a a a a k k k k k k k j j j j j j j h h h h h h h b b b b b b b f f f f f f f m m m m m m m s s s s s s s g g g g g g g c c c c c c c d d d d d d d r r r r r r r p p p p p p p n n n n n n n e e e e e e e 6G 2G 1G 6G 7G 5G 4G 3G 2G Dp (7G, 4G) (7G~3G, 1G) col (7G~1G) ANODE CONNECTION P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 a f h g e r p n s c m d j k b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-10 DVP-NS30/NS32/NS33/NS52P MEMO 6-10E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-1 SECTION 7 ELECTRICAL ADJUSTMENT DVP-NS30/NS32/NS33/NS52P This section describes procedures and instructions necessary for adjusting electrical circuits in this unit. Instruments required: 1) Color monitor TV 2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz, with delay mode 3) Frequency counter (over 8 digits) 4) Digital multimeter 5) Standard commander (RMT-175A) 6) DVD reference disc HLX-501 (J-6090-071-A) (dual layer) (NTSC) HLX-503 (J-6090-069-A) (single layer) (NTSC) HLX-504 (J-6090-088-A) (single layer) (NTSC) HLX-505 (J-6090-089-A) (dual layer) (NTSC) 7-1. POWER SUPPLY OUTPUT VOLTAGE CHECK Mode Except standby Instrument Digital multimeter EVER +5 V Check Test point CN201 pin 4 Specification 5.0 ± 0.3 Vdc SW +3.3 V Check Test point CN201 pin 5 Specification 3.35 ± 0.2 Vdc SW+5 V Check Test point CN201 pin 6 Specification 5.0 ± Vdc SW +8 V Check Test point CN201 pin 1 Specification 8.0 ± 0.5 Vdc EVER +11 V Check Test point CN201 pin 3 Specification 11.0 ± Vdc EVER –10 V Check Test point CN201 pin q; Specification –10.0 ± Vdc Checking method: 1) Confirm that each voltage satisfies the specification. Caution! Please do not touch any electrical parts at primary circuit to avoid electrical shock. +0.5 –1.0 +1.0 –0.5 +0.3 –0.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-2 DVP-NS30/NS32/NS33/NS52P 1.0 ± 0.08 Vp-p 7-2. ADJUSTMENT OF VIDEO SYSTEM 1. Checking Video Level Checking Video Level the NTSC/PAL standard, and if not correct, the brightness will be too large or small. Mode HLX-504 Signal Color bars 100% Test point LINE OUT (VIDEO) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Adjusting method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the Video Level is 1.0 ± 0.08 Vp-p. Fig. 7-1. 2. Checking Progressive Video Output Level Check progressive video output level. If it is incorrect, correct brightness will not be attained when connected to, for instance, projector. Mode HLX-504 Signal Color bars 100% Test point COMPONENT VIDEO OUT (Y) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Adjusting method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the Y level is 1.0 ± 0.08 Vp-p. Fig. 7-2. 3. Checking S Video Output S-Y Check S-terminal video output. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with a S-terminal cable. Mode HLX-504 Signal Color bars 100% Test point S VIDEO OUT (S-Y) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the S-Y level is 1.0 ± 0.08 Vp-p. Fig. 7-3. 4. Checking S Video Output S-C This checks whether the S-C satisfies the NTSC/PAL standard. If it is not correct, the colors will be too dark or light. Mode HLX-504 Signal Color bars 100% Test point S VIDEO OUT (S-C) connector (75 Ω terminated) Instrument Oscilloscope Specification A = 286 ± 30 mVp-p (NTSC) A = 300 ± 100 mVp-p (PAL) Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the S-C burst is “A”. Fig. 7-4. A 1.0 ± 0.08 Vp-p 1.0 ±0.08 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-3 DVP-NS30/NS32/NS33/NS52P 1.0 ±0.08 Vp-p A B 5. Checking Component Video Output Y This checks component video output Y. If it is incorrect, correct brightness will not be attained when connected to, for instance, projector. Mode HLX-504 Signal Color bars Test point COMPONENT VIDEO OUT (Y) connector, (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the Y level is 1.0 ± 0.08 Vp-p. Fig. 7-5. 6. Checking Component Video Output B-Y This checks component video output B-Y. If it is incorrect, correct colors will not be displayed when connected to, for instance, projector. Mode HLX-504 Signal Color bars Test point COMPONENT VIDEO OUT (PB) connector (75 Ω terminated) Instrument Oscilloscope Specification A = 700 ± 70 mVp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the B-Y level is A. Fig. 7-6. 7. Checking Component Video Output R-Y This checks component video output R-Y. If it is incorrect, correct colors will not be displayed when connected to, for instance, projector. Mode HLX-504 Signal Color bars Test point COMPONENT VIDEO OUT (PR) connector (75 Ω terminated) Instrument Oscilloscope Specification B = 700 ± 70 mVp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the R-Y level is B. Fig. 7-7. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-4E DVP-NS30/NS32/NS33/NS52P MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-1 SECTION 8 REPAIR PARTS LIST The components identified by mark or dotted line with mark are critical for safety. Replace only with part number speci- fied. Les composants identifiés par une marque sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some de- lay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) R R Parts Color Cabinet's Color 8-1. EXPLODED VIEWS • Abbreviation AEP : AE1, AE2,AE3 models UK : UK model RUS : Russian model DVP-NS30/NS32/NS33/NS52P 8-1-1. MAIN SECTION ns : not supplied a a e l l k o o f f g g h n b b q; 4 4 5 qg 4 4 7 6 qs 3 3 9 8 m 2 2 1 3 m n qd qh 3 ns ns ns qf h www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-2 DVP-NS30/NS32/NS33/NS52P 1 3-089-692-01 CASE, UPPER BLACK 1 3-089-692-21 CASE, UPPER SILVER 2 3-070-883-31 SCREW, TAPPING BLACK 2 3-070-883-41 SCREW, TAPPING SILVER 3 3-077-331-11 +BV3 (3-CR) 4 3-077-331-21 +BV3 (3-CR) 5 X-2055-448-1 COVER ASSY,TRAY (NS52P) 6 3-088-489-01 INSULATOR, PS 7 1-828-450-11 POWER-SUPPLY CORD (NS30:AEP,RUS/ NS32:AEP,RUS/NS33/NS52P:AEP,RUS) 7 1-828-454-11 POWER-SUPPLY CORD (NS30:UK/NS52P:UK) 8 3-071-119-91 LID, BATTERY CASE 9 1-479-179-21 REMOTE COMMANDER (RMT-D175P) 10 X-2048-742-1 PANEL ASSY, FRONT (NS30:UK) BLACK 10 X-2050-620-1 PANEL ASSY,FRONT (NS52P) SILVER 10 X-2048-487-1 PANEL ASSY, FRONT (NS30) SILVER 10 X-2048-743-1 PANEL ASSY, FRONT (NS32) SILVER 10 X-2048-744-1 PANEL ASSY, FRONT (NS33) SILVER 10 X-2048-489-1 PANEL ASSY, FRONT (NS32) BLACK 12 A-1102-280-A MV-45 COMPLETE (NS30:AEP,UK) 12 A-1102-282-A MV-45 COMPLETE (NS30:RUS) 12 A-1102-286-A MV-45 COMPLETE (NS32:RUS) 12 A-1102-288-A MV-45 COMPLETE (NS33) 12 A-1102-290-A MV-45 COMPLETE (NS52P:AEP,UK) 12 A-1115-358-A MV-45 COMPLETE (NS32:AEP) 12 A-1121-394-A MV-45 COMPLETE (NS52P:RUS) 13 1-830-282-12 FLEXIBLE FLAT CABLE (FMD-004) 14 1-830-283-11 FLEXIBLE FLAT CABLE (FMS-003) 15 1-478-540-32 POWER SUPPLY BLOCK 16 1-830-284-11 FLEXIBLE FLAT CABLE (FEM-001) Ref. No. Part No. Description Remark Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Note : Les composants identifiés par une marque sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-3 DVP-NS30/NS32/NS33/NS52P 8-1-2. MECHANISM DECK ASSEMBLY ns : not supplied 106 106 101 105 105 105 106 105 not supplied 106 103 102 ns ns ns ns ns ns ns ns ns ns 107 104 Ref. No. Part No. Description Remark 101 A-6071-669-A LOADING ASSY(M) 102 3-088-371-01 BELT 103 4-674-137-11 SCREW (PTP2 x 5) 104 4-974-725-11 SCREW (M1.7 x 2.5), P 105 3-087-599-01 INSULATOR SCREW 106 3-088-372-01 INSULATOR 107 8-820-290-02 DEVICE, OPTICAL KHM-310CAA/C2RP Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-4 NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Not all of the parts for POWER BLOCK (HS12S2U) are listed. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH • Abbreviation AEP : AE1, AE2,AE3 models UK : UK model RUS : Russian model 8-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Les composants identifiés par une marque sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. When indicating parts by reference number, please include the board. DVP-NS30/NS32/NS33/NS52P ER-037 BOARD ************* C904 1-126-947-11 ELECT 47UF 20.00% 35V C905 1-126-947-11 ELECT 47UF 20.00% 35V C906 1-126-947-11 ELECT 47UF 20.00% 35V C907 1-126-947-11 ELECT 47UF 20.00% 35V C913 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C914 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C943 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C945 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C962 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C963 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V CN901 1-815-149-11 CONNECTOR, FPC/FFC(1MM PIC)21P CNJ902 1-251-780-11 SOCKET, PIN (21P) D901 8-719-988-61 DIODE 1SS355TE-17 D902 8-719-988-61 DIODE 1SS355TE-17 D907 8-719-050-37 DIODE M1MA152WA-T1 D929 8-719-069-56 DIODE UDZSTE-176.2B D930 8-719-083-63 DIODE UDZSTE-1713B D932 8-719-071-15 DIODE HZM6.8ZWA1TL D933 8-719-071-15 DIODE HZM6.8ZWA1TL D934 8-719-071-15 DIODE HZM6.8ZWA1TL D935 8-719-071-15 DIODE HZM6.8ZWA1TL D938 8-719-988-61 DIODE 1SS355TE-17 D939 8-719-988-61 DIODE 1SS355TE-17 FB907 1-469-796-21 FERRITE 0UH FB908 1-469-796-21 FERRITE 0UH FB909 1-469-796-21 FERRITE 0UH FB910 1-469-796-21 FERRITE 0UH FB911 1-414-233-22 FERRITE 0UH ER-037 IC901 6-705-924-01 IC LA73052-TLM-E JR902 1-216-295-91 SHORT CHIP 0 JR904 1-216-295-91 SHORT CHIP 0 JR905 1-216-295-91 SHORT CHIP 0 JR906 1-216-295-91 SHORT CHIP 0 JR907 1-216-295-91 SHORT CHIP 0 JR910 1-216-295-91 SHORT CHIP 0 JR911 1-216-295-91 SHORT CHIP 0 JR912 1-216-295-91 SHORT CHIP 0 JR914 1-216-295-91 SHORT CHIP 0 JR915 1-216-295-91 SHORT CHIP 0 JR917 1-216-295-91 SHORT CHIP 0 JR918 1-216-295-91 SHORT CHIP 0 JR919 1-216-295-91 SHORT CHIP 0 JR920 1-216-295-91 SHORT CHIP 0 Q901 8-729-024-89 TRANSISTOR MUN2213T1 Q902 8-729-024-89 TRANSISTOR MUN2213T1 Q903 8-729-024-83 TRANSISTOR MUN2111T1 Q906 8-729-024-89 TRANSISTOR MUN2213T1 Q907 8-729-024-83 TRANSISTOR MUN2111T1 Q908 8-729-024-87 TRANSISTOR MUN2211T1 Q909 8-729-024-89 TRANSISTOR MUN2213T1 R907 1-216-055-00 RES-CHIP 1.8K 5% 1/10W R908 1-216-105-91 RES-CHIP 220K 5% 1/10W R909 1-216-037-00 RES-CHIP 330 5% 1/10W R910 1-216-037-00 RES-CHIP 330 5% 1/10W R911 1-216-037-00 RES-CHIP 330 5% 1/10W R912 1-216-037-00 RES-CHIP 330 5% 1/10W R914 1-216-051-00 RES-CHIP 1.2K 5% 1/10W R915 1-216-033-00 RES-CHIP 220 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-5 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NS30/NS32/NS33/NS52P R916 1-216-051-00 RES-CHIP 1.2K 5% 1/10W R917 1-216-051-00 RES-CHIP 1.2K 5% 1/10W R918 1-211-990-11 METAL CHIP 75 0.5% 1/10W R919 1-216-295-91 SHORT CHIP 0 R922 1-216-033-00 RES-CHIP 220 5% 1/10W R924 1-216-041-00 RES-CHIP 470 5% 1/10W R926 1-216-041-00 RES-CHIP 470 5% 1/10W R927 1-211-990-11 METAL CHIP 75 0.5% 1/10W R928 1-211-990-11 METAL CHIP 75 0.5% 1/10W R929 1-211-990-11 METAL CHIP 75 0.5% 1/10W R939 1-216-017-91 RES-CHIP 47 5% 1/10W R950 1-216-081-00 RES-CHIP 22K 5% 1/10W R956 1-216-295-91 SHORT CHIP 0 R957 1-414-233-22 FERRITE 0UH R958 1-414-233-22 FERRITE 0UH R963 1-216-081-00 RES-CHIP 22K 5% 1/10W IF-124 BOARD ************ C401 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C403 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C404 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C405 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C406 1-163-009-91 CERAMIC CHIP 0.001UF 10.00% 50V C407 1-126-947-11 ELECT 47UF 20.00% 35V C408 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C409 1-104-666-11 ELECT 220UF 20.00% 25V C410 1-130-481-00 MYLAR 0.0068UF 5.00% 50V C411 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C412 1-126-965-91 ELECT 22UF 20.00% 50V C413 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C414 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C416 1-164-489-11 CERAMIC CHIP 0.22UF 10.00% 16V C417 1-164-489-11 CERAMIC CHIP 0.22UF 10.00% 16V D402 8-719-041-97 DIODE MA113-(TX) D403 8-719-041-97 DIODE MA113-(TX) D404 8-719-041-97 DIODE MA113-(TX) D405 8-719-041-97 DIODE MA113-(TX) D406 8-719-422-32 DIODE MA8047-M-TX D407 6-501-147-01 DIODE LTL-1MHAE-112A (NS52P only) * ET401 1-537-738-21 TERMINAL, EARTH * ET402 1-537-738-21 TERMINAL, EARTH IC404 6-805-304-01 IC 86CK74AFG-6A77(M IC406 6-705-738-01 IC RPM7240-H13 IC407 6-702-302-01 IC TK11133CSCL-G IC408 6-704-114-01 IC S-80828CNUA-B8NT2G JR401 1-216-295-91 SHORT CHIP 0 JR402 1-216-295-91 SHORT CHIP 0 JR403 1-216-295-91 SHORT CHIP 0 JR404 1-216-295-91 SHORT CHIP 0 JR405 1-216-295-91 SHORT CHIP 0 JR406 1-216-295-91 SHORT CHIP 0 JR407 1-216-295-91 SHORT CHIP 0 JR408 1-216-295-91 SHORT CHIP 0 JR409 1-216-295-91 SHORT CHIP 0 JR411 1-216-295-91 SHORT CHIP 0 JR412 1-216-295-91 SHORT CHIP 0 JR413 1-216-295-91 SHORT CHIP 0 JR414 1-216-295-91 SHORT CHIP 0 JR417 1-216-295-91 SHORT CHIP 0 JS401 1-216-295-91 SHORT CHIP 0 (NS30/NS32/NS33 ) JS402 1-216-295-91 SHORT CHIP 0 (NS52P only) JS405 7-611-005-04 WIRE, TIN PLATING (NS52P only) JS406 7-611-005-04 WIRE, TIN PLATING (NS52P only) JS407 1-216-295-91 SHORT CHIP 0 (NS52P only) L401 1-408-982-11 INDUCTOR 100UH ND401 1-519-795-11 VACUUM FLUORESCENT DISPLAY Q401 8-729-420-82 TRANSISTOR 2SD874A-R-TX Q402 8-729-420-82 TRANSISTOR 2SD874A-R-TX R401 1-216-073-91 RES-CHIP 10K 5% 1/10W R402 1-216-073-91 RES-CHIP 10K 5% 1/10W R403 1-216-025-11 RES-CHIP 100 5% 1/10W R404 1-216-025-11 RES-CHIP 100 5% 1/10W R405 1-216-073-91 RES-CHIP 10K 5% 1/10W R406 1-216-025-11 RES-CHIP 100 5% 1/10W R407 1-216-025-11 RES-CHIP 100 5% 1/10W R408 1-216-025-11 RES-CHIP 100 5% 1/10W R409 1-216-025-11 RES-CHIP 100 5% 1/10W R411 1-216-025-11 RES-CHIP 100 5% 1/10W R413 1-216-073-91 RES-CHIP 10K 5% 1/10W R414 1-216-073-91 RES-CHIP 10K 5% 1/10W (NS52P only) R415 1-216-073-91 RES-CHIP 10K 5% 1/10W (NS30/NS32/NS33) R416 1-216-073-91 RES-CHIP 10K 5% 1/10W R417 1-216-073-91 RES-CHIP 10K 5% 1/10W R418 1-216-073-91 RES-CHIP 10K 5% 1/10W R419 1-216-073-91 RES-CHIP 10K 5% 1/10W R420 1-216-027-00 RES-CHIP 120 5% 1/10W R421 1-216-013-00 RES-CHIP 33 5% 1/10W R422 1-216-097-11 RES-CHIP 100K 5% 1/10W R423 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R424 1-216-017-91 RES-CHIP 47 5% 1/10W IF-124 ER-037 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-6 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NS30/NS32/NS33/NS52P R426 1-216-073-91 RES-CHIP 10K 5% 1/10W R427 1-216-083-00 RES-CHIP 27K 5% 1/10W R428 1-216-059-00 RES-CHIP 2.7K 5% 1/10W R429 1-216-071-00 RES-CHIP 8.2K 5% 1/10W R430 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R431 1-216-059-00 RES-CHIP 2.7K 5% 1/10W R432 1-216-025-11 RES-CHIP 100 5% 1/10W (NS52P only) R433 1-216-073-91 RES-CHIP 10K 5% 1/10W R434 1-216-073-91 RES-CHIP 10K 5% 1/10W R435 1-216-073-91 RES-CHIP 10K 5% 1/10W R436 1-216-057-00 RES-CHIP 2.2K 5% 1/10W (Except Russian model) R436 1-216-081-00 RES-CHIP 22K 5% 1/10W (Russian model only) R437 1-216-081-00 RES-CHIP 22K 5% 1/10W (Russian model only) R440 1-216-295-91 SHORT CHIP 0 S401 1-771-410-21 SWITCH, TACT (NS30/NS32/NS33 ) S402 1-771-410-21 SWITCH, TACT S403 1-771-410-21 SWITCH, TACT S404 1-771-410-21 SWITCH, TACT S405 1-771-410-21 SWITCH, TACT (NS30/NS32/NS33 ) S407 1-771-410-21 SWITCH, TACT S408 1-771-410-21 SWITCH, TACT (NS52P only) S409 1-771-410-21 SWITCH, TACT (NS52P only) S410 1-771-410-21 SWITCH, TACT (NS52P only) T401 1-443-598-11 DC-DC CONVERTER TRANSFORMER X401 1-781-472-21 VIBRATOR, CERAMIC MS-203 BOARD ************* CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P S001 1-786-693-11 SWITCH, DETECTION S001 1-786-693-11 SWITCH, DETECTION A-1102-280-A MV-045 COMPLETE (NS30:AEP,UK) A-1102-282-A MV-045 COMPLETE (NS30:RUS) A-1102-286-A MV-045 COMPLETE (NS32:RUS) A-1102-288-A MV-045 COMPLETE (NS33) A-1102-290-A MV-045 COMPLETE (NS52P:AEP,UK) A-1115-358-A MV-045 COMPLETE (NS32:AEP) A-1121-394-A MV-45 COMPLETE (NS52P:RUS) ******************************* C101 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C102 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C105 1-126-786-11 ELECT 47UF 20.00% 16V C106 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C112 1-126-786-11 ELECT 47UF 20.00% 16V C113 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C114 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C115 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C116 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C117 1-126-964-11 ELECT 10UF 20.00% 50V C118 1-126-964-11 ELECT 10UF 20.00% 50V C119 1-126-964-11 ELECT 10UF 20.00% 50V C120 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C121 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C122 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C123 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C124 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C125 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C126 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C127 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C128 1-162-965-11 CERAMIC CHIP 0.0015UF 10.00% 50V C130 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C131 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V C132 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C133 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C135 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C136 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C137 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C138 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C139 1-162-919-11 CERAMIC CHIP 22PF 5.00% 50V C140 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C144 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C146 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C147 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V C148 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V C149 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C150 1-126-964-11 ELECT 10UF 20.00% 50V C151 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C152 1-162-915-11 CERAMIC CHIP 10PF 0.50PF 50V C153 1-162-917-11 CERAMIC CHIP 15PF 5.00% 50V C154 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C155 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C156 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C158 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C160 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V MV-045 IF-124 Notes: MV-045 mounted PWB must be replaced if IC103 (EEPROM IC) is damaged or not functioning. The old MV-045 mounted PWB must be completely disposed. MS-203 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-7 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NS30/NS32/NS33/NS52P C161 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C162 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C163 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C164 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C171 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C172 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C174 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C175 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C176 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C177 1-126-947-11 ELECT 47UF 20.00% 35V C179 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C180 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C181 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C182 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C183 1-128-934-91 CERAMIC CHIP 0.33UF 20% 10V C184 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C186 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C187 1-126-947-11 ELECT 47UF 20.00% 35V C188 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C189 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C190 1-126-947-11 ELECT 47UF 20.00% 35V C191 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C192 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C193 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C195 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C197 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C199 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C203 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C205 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C206 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C208 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C209 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C210 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C211 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C212 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C213 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C214 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C216 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C217 1-126-947-11 ELECT 47UF 20.00% 35V C218 1-126-964-11 ELECT 10UF 20.00% 50V C219 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C220 1-126-964-11 ELECT 10UF 20.00% 50V C221 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C222 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C223 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C224 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C225 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C226 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C228 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C301 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C303 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C304 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C310 1-126-786-11 ELECT 47UF 20.00% 16V C311 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C312 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V (NS52P only) C313 1-126-786-11 ELECT 47UF 20.00% 16V C314 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C315 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C316 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C317 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C318 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C319 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C320 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C401 1-164-739-11 CERAMIC CHIP 560PF 5.00% 50V C402 1-164-739-11 CERAMIC CHIP 560PF 5.00% 50V C403 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C404 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C405 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C406 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C407 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C408 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C409 1-126-960-11 ELECT 1UF 20.00% 50V C410 1-126-947-11 ELECT 47UF 20.00% 35V C411 1-126-947-11 ELECT 47UF 20.00% 35V C412 1-126-960-11 ELECT 1UF 20.00% 50V C413 1-126-934-11 ELECT 220UF 20.00% 16V C415 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C416 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C422 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C425 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V (NS52P only) C427 1-126-947-11 ELECT 47UF 20.00% 35V (NS52P only) C428 1-126-964-11 ELECT 10UF 20.00% 50V C429 1-126-964-11 ELECT 10UF 20.00% 50V C432 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C433 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C434 1-126-964-11 ELECT 10UF 20.00% 50V C435 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C444 1-126-947-11 ELECT 47UF 20.00% 35V C501 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C502 1-126-786-11 ELECT 47UF 20.00% 16V C503 1-126-786-11 ELECT 47UF 20.00% 16V C504 1-126-786-11 ELECT 47UF 20.00% 16V C508 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C510 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C512 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C513 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C514 1-126-786-11 ELECT 47UF 20.00% 16V CN101 1-815-763-32 CONNECTOR, FFC/FPC 24P * CN105 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P * CN201 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN202 1-815-381-11 CONNECTOR, FPC/FFC 5P CN302 1-815-149-11 CONNECTOR, FPC/FFC(1MM PIC) 21P * CN501 1-568-937-11 PIN, CONNECTOR 10P D308 8-719-071-15 DIODE HZM6.8ZWA1TL (NS52P only) D309 8-719-071-15 DIODE HZM6.8ZWA1TL (NS52P only) D310 8-719-988-61 DIODE 1SS355TE-17 (NS52P only) D401 8-719-050-38 DIODE M1MA152WK-T1 D402 8-719-050-37 DIODE M1MA152WA-T1 D403 8-719-050-37 DIODE M1MA152WA-T1 D404 8-719-404-50 DIODE MA111-TX MV-045 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-8 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NS30/NS32/NS33/NS52P FB106 1-469-324-21 FERRITE 0UH FB107 1-469-324-21 FERRITE 0UH FB108 1-469-324-21 FERRITE 0UH FB109 1-414-760-21 FERRITE 0UH FB110 1-414-760-21 FERRITE 0UH FB121 1-469-118-21 FERRITE 0UH FB128 1-469-836-21 FERRITE 0UH FB501 1-469-324-21 FERRITE 0UH FB502 1-469-324-21 FERRITE 0UH FB503 1-469-324-21 FERRITE 0UH FB504 1-469-324-21 FERRITE 0UH FB505 1-469-324-21 FERRITE 0UH FB506 1-469-324-21 FERRITE 0UH FL101 1-234-177-21 FERRITE 0UH FL105 1-234-177-21 FERRITE 0UH FL501 1-234-177-21 FERRITE 0UH FL502 1-234-177-21 FERRITE 0UH FL503 1-233-893-21 FILTER, CHIP EMI IC101 6-707-535-01 IC CXD9849R IC102 6-805-909-01 IC MX26LV160BTC-70G-9GPD1900E IC103 6-704-607-01 (NOTE: SEE PAGE 8-4) IC104 6-705-929-01 IC K4S641632H-UC75T (EXCEPT NS32:AEP) IC105 6-702-302-01 IC TK11133CSCL-G IC107 6-702-302-01 IC TK11133CSCL-G IC108 6-703-224-01 IC S-80828CNNB-B8NT2G IC110 6-707-739-01 IC MM1661JTRE IC201 6-704-524-01 IC FAN8036L IC303 8-759-662-86 IC NJM79M05DL1A(TE2) IC304 6-706-453-01 IC NJM2587V(TE2) IC401 6-707-187-01 IC HA17558AFEL-E IC403 6-706-025-01 IC HA178L05UA-TL-E IC405 6-600-430-01 IC TOTX177(F,T) (NS52P only) IC406 6-707-490-01 IC AK4385ET-E2 PS501 1-576-509-21 IC LINK 1A 50V PS502 1-576-509-21 IC LINK 1A 50V Q101 6-550-008-01 TRANSISTOR UM6K1N-TN Q102 6-550-653-01 TRANSISTOR QST8TR Q103 8-729-424-59 TRANSISTOR UN2212-TX Q304 8-729-024-89 TRANSISTOR MUN2213T1 (NS52P only) Q305 8-729-024-83 TRANSISTOR MUN2111T1 (NS52P only) Q371 6-550-840-01 TRANSISTOR 2SC2712-YGR-TE85L (NS52P only) Q372 6-550-841-01 TRANSISTOR 2SA1162-YGR-TE85L (NS52P only) Q373 6-550-840-01 TRANSISTOR 2SC2712-YGR-TE85L Q374 6-550-841-01 TRANSISTOR 2SA1162-YGR-TE85L Q401 8-729-010-08 TRANSISTOR MSB710-RT1 Q402 8-729-024-89 TRANSISTOR MUN2213T1 Q403 8-729-010-25 TRANSISTOR MSD601-RT1 Q404 8-729-424-70 TRANSISTOR UN2217-QRS-TX Q405 8-729-010-05 TRANSISTOR MSB709-RT1 Q406 8-729-024-89 TRANSISTOR MUN2213T1 Q407 6-550-137-01 TRANSISTOR2SD1938(F)-ST(TX).SO Q408 6-550-137-01 TRANSISTOR2SD1938(F)-ST(TX).SO Q409 8-729-424-70 TRANSISTOR UN2217-QRS-TX Q410 8-729-010-05 TRANSISTOR MSB709-RT1 Q411 8-729-010-25 TRANSISTOR MSD601-RT1 Q412 8-729-010-05 TRANSISTOR MSB709-RT1 Q501 8-729-014-90 TRANSISTOR 2SD2185R-TX Q502 8-729-424-24 TRANSISTOR UN2114-TX R101 1-216-809-11 METAL CHIP 100 5% 1/10W R103 1-216-864-11 SHORT CHIP 0 R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-857-11 METAL CHIP 1M 5% 1/10W R109 1-216-864-11 SHORT CHIP 0 R110 1-216-841-11 METAL CHIP 47K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R114 1-216-845-11 METAL CHIP 100K 5% 1/10W R115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R116 1-216-821-11 METAL CHIP 1K 5% 1/10W R117 1-216-841-11 METAL CHIP 47K 5% 1/10W R118 1-216-801-11 METAL CHIP 22 5% 1/10W R119 1-216-295-91 SHORT CHIP 0 R120 1-216-801-11 METAL CHIP 22 5% 1/10W R121 1-216-801-11 METAL CHIP 22 5% 1/10W R123 1-216-864-11 SHORT CHIP 0 R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R125 1-216-864-11 SHORT CHIP 0 R127 1-216-864-11 SHORT CHIP 0 R129 1-216-295-91 SHORT CHIP 0 R132 1-216-845-11 METAL CHIP 100K 5% 1/10W R134 1-216-864-11 SHORT CHIP 0 R135 1-216-833-11 METAL CHIP 10K 5% 1/10W R136 1-216-835-11 METAL CHIP 15K 5% 1/10W R137 1-216-864-11 SHORT CHIP 0 R141 1-216-855-11 METAL CHIP 680K 5% 1/10W R142 1-216-845-11 METAL CHIP 100K 5% 1/10W R143 1-216-864-11 SHORT CHIP 0 R144 1-216-864-11 SHORT CHIP 0 R145 1-216-864-11 SHORT CHIP 0 R146 1-216-864-11 SHORT CHIP 0 R147 1-216-864-11 SHORT CHIP 0 R148 1-216-864-11 SHORT CHIP 0 R149 1-216-864-11 SHORT CHIP 0 R151 1-216-833-11 METAL CHIP 10K 5% 1/10W R152 1-216-864-11 SHORT CHIP 0 R153 1-216-864-11 SHORT CHIP 0 MV-045 Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NS30/NS32/NS33/NS52P R154 1-216-864-11 SHORT CHIP 0 R155 1-216-864-11 SHORT CHIP 0 R156 1-216-809-11 METAL CHIP 100 5% 1/10W R159 1-216-864-11 SHORT CHIP 0 R160 1-216-864-11 SHORT CHIP 0 R161 1-216-864-11 SHORT CHIP 0 R162 1-216-864-11 SHORT CHIP 0 R163 1-216-864-11 SHORT CHIP 0 R164 1-216-864-11 SHORT CHIP 0 R165 1-216-864-11 SHORT CHIP 0 R171 1-216-864-11 SHORT CHIP 0 R172 1-216-864-11 SHORT CHIP 0 R173 1-216-864-11 SHORT CHIP 0 R174 1-216-864-11 SHORT CHIP 0 R175 1-216-864-11 SHORT CHIP 0 R189 1-218-827-11 METAL CHIP 150 0.5% 1/10W R190 1-218-827-11 METAL CHIP 150 0.5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-218-827-11 METAL CHIP 150 0.5% 1/10W R193 1-216-821-11 METAL CHIP 1K 5% 1/10W R195 1-218-827-11 METAL CHIP 150 0.5% 1/10W R197 1-218-827-11 METAL CHIP 150 0.5% 1/10W R204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R208 1-216-839-11 METAL CHIP 33K 5% 1/10W R209 1-216-839-11 METAL CHIP 33K 5% 1/10W R210 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-833-11 METAL CHIP 10K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-835-11 METAL CHIP 15K 5% 1/10W R215 1-216-834-11 METAL CHIP 12K 5% 1/10W R216 1-216-834-11 METAL CHIP 12K 5% 1/10W R219 1-216-838-11 METAL CHIP 27K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R222 1-216-839-11 METAL CHIP 33K 5% 1/10W R223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R227 1-216-864-11 SHORT CHIP 0 R228 1-216-864-11 SHORT CHIP 0 R230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R235 1-216-864-11 SHORT CHIP 0 R236 1-216-821-11 METAL CHIP 1K 5% 1/10W R237 1-216-821-11 METAL CHIP 1K 5% 1/10W R238 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R239 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R240 1-216-864-11 SHORT CHIP 0 R241 1-216-864-11 SHORT CHIP 0 R243 1-216-809-11 METAL CHIP 100 5% 1/10W R246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R248 1-216-864-11 SHORT CHIP 0 R249 1-216-864-11 SHORT CHIP 0 R250 1-216-864-11 SHORT CHIP 0 R251 1-216-864-11 SHORT CHIP 0 R255 1-216-864-11 SHORT CHIP 0 R320 1-216-833-11 METAL CHIP 10K 5% 1/10W (NS52P ONLY) R320 1-216-864-11 SHORT CHIP 0 (EXCEPT NS52P ) R321 1-216-833-11 METAL CHIP 10K 5% 1/10W R325 1-216-864-11 SHORT CHIP 0 R327 1-216-833-11 METAL CHIP 10K 5% 1/10W (NS52P ONLY) R331 1-211-990-11 METAL CHIP 75 0.5% 1/10W (NS52P ONLY) R332 1-211-990-11 METAL CHIP 75 0.5% 1/10W (NS52P ONLY) R333 1-211-990-11 METAL CHIP 75 0.5% 1/10W (NS52P ONLY) R334 1-211-990-11 METAL CHIP 75 0.5% 1/10W R335 1-211-990-11 METAL CHIP 75 0.5% 1/10W (NS52P ONLY) R336 1-211-990-11 METAL CHIP 75 0.5% 1/10W (NS52P ONLY) R371 1-216-864-11 SHORT CHIP 0 (EXCEPT NS52P ) R372 1-216-809-11 METAL CHIP 100 5% 1/10W (NS52P ONLY) R373 1-216-821-11 METAL CHIP 1K 5% 1/10W (NS52P ONLY) R374 1-216-809-11 METAL CHIP 100 5% 1/10W (NS52P ONLY) R375 1-216-864-11 SHORT CHIP 0 (NS52P ONLY) R376 1-216-821-11 METAL CHIP 1K 5% 1/10W (NS52P ONLY) R379 1-216-809-11 METAL CHIP 100 5% 1/10W R380 1-216-821-11 METAL CHIP 1K 5% 1/10W R381 1-216-809-11 METAL CHIP 100 5% 1/10W R382 1-216-864-11 SHORT CHIP 0 (NS52P ONLY) R383 1-216-821-11 METAL CHIP 1K 5% 1/10W R386 1-216-864-11 SHORT CHIP 0 (EXCEPT NS52P) R387 1-216-864-11 SHORT CHIP 0 (EXCEPT NS52P) R401 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R402 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R403 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R404 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R405 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R406 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R407 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R409 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R410 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R411 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R412 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R413 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R414 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R416 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-845-11 METAL CHIP 100K 5% 1/10W R419 1-216-849-11 METAL CHIP 220K 5% 1/10W R420 1-216-817-11 METAL CHIP 470 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-833-11 METAL CHIP 10K 5% 1/10W R424 1-216-833-11 METAL CHIP 10K 5% 1/10W MV-045 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-10 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NS30/NS32/NS33/NS52P R425 1-216-841-11 METAL CHIP 47K 5% 1/10W R426 1-216-817-11 METAL CHIP 470 5% 1/10W R427 1-216-817-11 METAL CHIP 470 5% 1/10W R428 1-216-833-11 METAL CHIP 10K 5% 1/10W R429 1-216-841-11 METAL CHIP 47K 5% 1/10W R430 1-216-841-11 METAL CHIP 47K 5% 1/10W R431 1-216-833-11 METAL CHIP 10K 5% 1/10W R432 1-216-833-11 METAL CHIP 10K 5% 1/10W R433 1-216-841-11 METAL CHIP 47K 5% 1/10W R434 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R436 1-216-833-11 METAL CHIP 10K 5% 1/10W R437 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R438 1-216-845-11 METAL CHIP 100K 5% 1/10W R439 1-216-845-11 METAL CHIP 100K 5% 1/10W R440 1-216-817-11 METAL CHIP 470 5% 1/10W R441 1-216-817-11 METAL CHIP 470 5% 1/10W R442 1-216-864-11 SHORT CHIP 0 R443 1-216-864-11 SHORT CHIP 0 R444 1-216-809-11 METAL CHIP 100 5% 1/10W R449 1-216-813-11 METAL CHIP 220 5% 1/10W R451 1-216-807-11 METAL CHIP 68 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W R453 1-216-821-11 METAL CHIP 1K 5% 1/10W R454 1-216-821-11 METAL CHIP 1K 5% 1/10W R456 1-216-821-11 METAL CHIP 1K 5% 1/10W R468 1-216-864-11 SHORT CHIP 0 R475 1-216-295-91 SHORT CHIP 0 R476 1-216-295-91 SHORT CHIP 0 R484 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R489 1-216-833-11 METAL CHIP 10K 5% 1/10W R503 1-216-833-11 METAL CHIP 10K 5% 1/10W R504 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R505 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R507 1-216-864-11 SHORT CHIP 0 R514 1-216-864-11 SHORT CHIP 0 R515 1-216-864-11 SHORT CHIP 0 R1101 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1102 1-218-827-11 METAL CHIP 150 0.5% 1/10W R1107 1-216-864-11 SHORT CHIP 0 R1110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1114 1-216-801-11 METAL CHIP 22 5% 1/10W R1115 1-216-805-11 METAL CHIP 47 5% 1/10W R1120 1-216-864-11 SHORT CHIP 0 R1121 1-216-864-11 SHORT CHIP 0 R1122 1-216-864-11 SHORT CHIP 0 R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-864-11 SHORT CHIP 0 R1125 1-216-864-11 SHORT CHIP 0 R1129 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-864-11 SHORT CHIP 0 R1138 1-216-864-11 SHORT CHIP 0 R1139 1-216-864-11 SHORT CHIP 0 R1140 1-216-864-11 SHORT CHIP 0 R1141 1-216-864-11 SHORT CHIP 0 R1142 1-216-864-11 SHORT CHIP 0 R1143 1-216-864-11 SHORT CHIP 0 R1144 1-216-295-91 SHORT CHIP 0 R1145 1-216-295-91 SHORT CHIP 0 R1146 1-216-295-91 SHORT CHIP 0 R1147 1-216-295-91 SHORT CHIP 0 R1150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1160 1-216-864-11 SHORT CHIP 0 R1168 1-216-815-11 METAL CHIP 330 5% 1/10W R1169 1-216-864-11 SHORT CHIP 0 R1177 1-216-864-11 SHORT CHIP 0 R1178 1-216-821-11 METAL CHIP 1K 5% 1/10W R1180 1-216-833-11 METAL CHIP 10K 5% 1/10W R1181 1-216-833-11 METAL CHIP 10K 5% 1/10W R1182 1-216-833-11 METAL CHIP 10K 5% 1/10W R1183 1-216-833-11 METAL CHIP 10K 5% 1/10W RB103 1-234-371-21 RES, NETWORK 47 (1005X4) RB104 1-234-371-21 RES, NETWORK 47 (1005X4) RB105 1-234-371-21 RES, NETWORK 47 (1005X4) RB106 1-234-371-21 RES, NETWORK 47 (1005X4) RB107 1-234-371-21 RES, NETWORK 47 (1005X4) RB108 1-234-371-21 RES, NETWORK 47 (1005X4) RB109 1-234-371-21 RES, NETWORK 47 (1005X4) RB110 1-234-371-21 RES, NETWORK 47 (1005X4) RB111 1-234-371-21 RES, NETWORK 47 (1005X4) RB112 1-234-371-21 RES, NETWORK 47 (1005X4) RB113 1-234-371-21 RES, NETWORK 47 (1005X4) RB114 1-234-371-21 RES, NETWORK 47 (1005X4) RB115 1-234-371-21 RES, NETWORK 47 (1005X4) X102 1-813-539-11 QUARTZ CRYSTAL UNIT 1-478-540-32 POWER BLOCK (2P-P1-9054F) ************************* POWER BLOCK (2P-P1-9054F) MV-045 Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NS30/NS32/NS33/NS52P 1-751-271-71 CORD, CONNECTION (AV) (NS30:UK/NS52P:UK) 2-581-864-11 MANUAL, INSTRUCTION (ENGLISH) (NS52P:UK) 2-581-864-21 MANUAL, INSTRUCTION (DANISH)(NS32:AE3/NS33:AE3/NS52P:AE3) 2-581-864-31 MANUAL, INSTRUCTION (DUTCH)(NS32:AE3/NS33:AE3/NS52P:AE3) 2-581-864-41 MANUAL, INSTRUCTION (SWEDISH)(NS32:AE3/NS33:AE3/NS52P:AE3) 2-581-864-61 MANUAL, INSTRUCTION (RUSSIAN) (NS32:RUS/NS52P:RUS) 2-581-897-11 MANUAL, INSTRUCTION (DUTCH ) (NS30:AE1) 2-581-897-21 MANUAL, INSTRUCTION (FRENCH) (NS30:AE1) 2-581-897-31 MANUAL, INSTRUCTION (DUTCH) (NS30:AE1) 2-581-897-41 MANUAL, INSTRUCTION (ITALY) (NS30:AE1) 2-581-897-51 MANUAL, INSTRUCTION (SPANISH) (NS30:AE2) 2-581-897-61 MANUAL, INSTRUCTION (PORTUGIS) (NS30:AE2) 2-581-897-71 MANUAL, INSTRUCTION (GREEK) (NS30:AE2) 2-581-895-11 MANUAL, INSTRUCTION (ENGLISH) (NS30:UK) 2-581-895-21 MANUAL, INSTRUCTION (DANISH) (NS30:AE3) 2-581-895-31 MANUAL, INSTRUCTION (FINNISH) (NS30:AE3) 2-581-895-41 MANUAL, INSTRUCTION (SWEDLISH) (NS30:AE3) 2-581-895-61 MANUAL, INSTRUCTION (RUSSIAN) (NS30:RUS) 2-581-870-11 MANUAL, INSTRUCTION (GERMAN) (NS32:AE1,NS33:AE1,NS52P:AE1) 2-581-870-21 MANUAL, INSTRUCTION (FRANCE)(NS32:AE1,NS33:AE1,NS52P:AE1) 2-581-870-31 MANUAL, INSTRUCTION (DUTCH)(NS32:AE1,NS33:AE1,NS52P:AE1) 2-581-870-41 MANUAL, INSTRUCTION (ITALY)(NS32:AE1,NS33:AE1,NS52P:AE1) 2-581-870-51 MANUAL, INSTRUCTION (SPANISH) (NS32:AE2/NS33:AE2/NS52P:AE2) 2-581-870-61 MANUAL, INSTRUCTION (PORTUGIS)(NS32:AE2/NS33:AE2/NS52P:AE2) 2-581-870-71 MANUAL, INSTRUCTION (GREEK) (NS32:AE2/NS33:AE2/NS52P:AE2) 1-479-179-21 REMOTE COMMANDER (RMT-D175P) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-12 DVP-NS30/NS32/NS33/NS52P – 104 – Sony Corporation Home Electronics Network Company. 2005C0800-1 2005. 03 Published by Video Design Department 9-874-857-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
