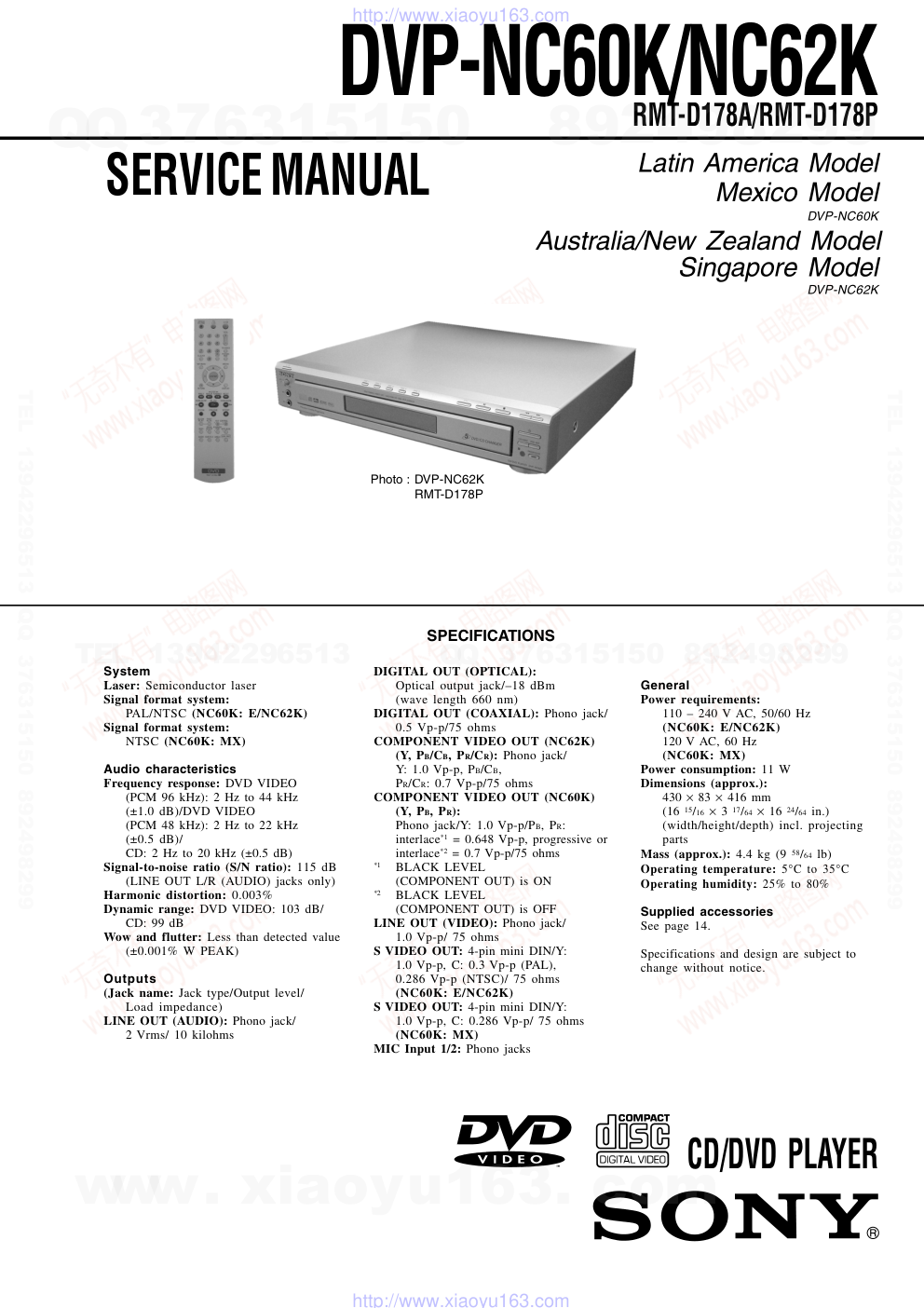

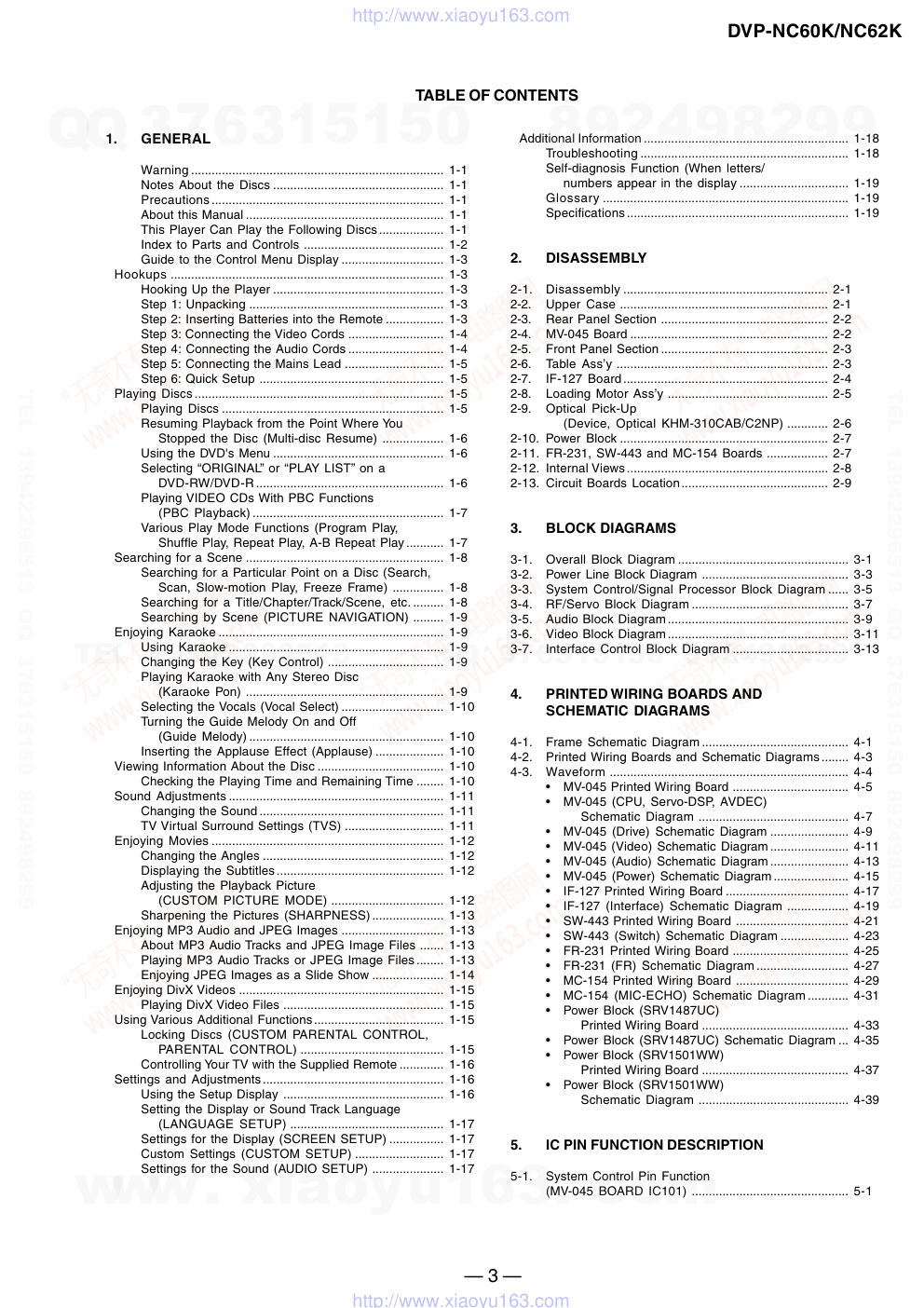

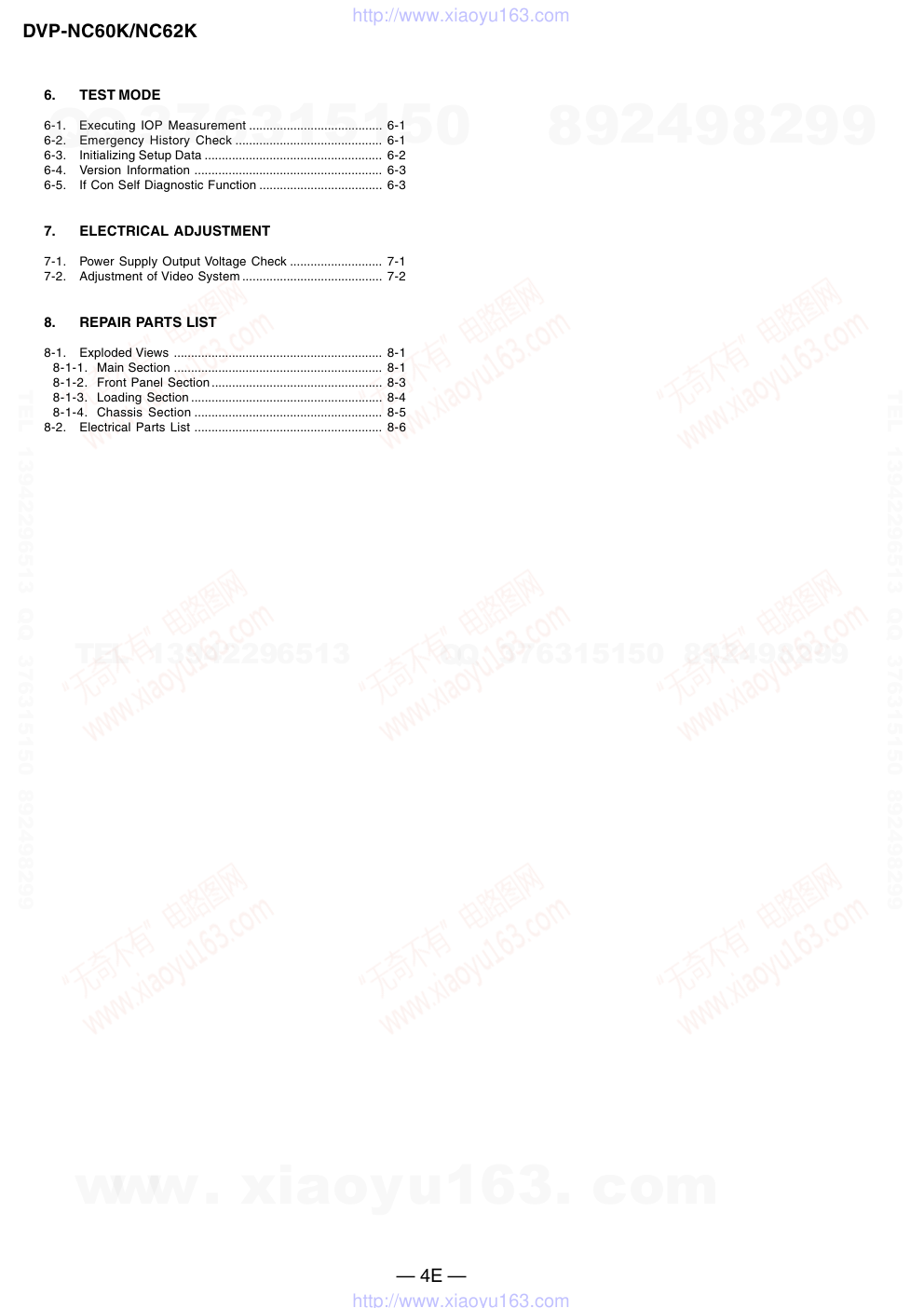

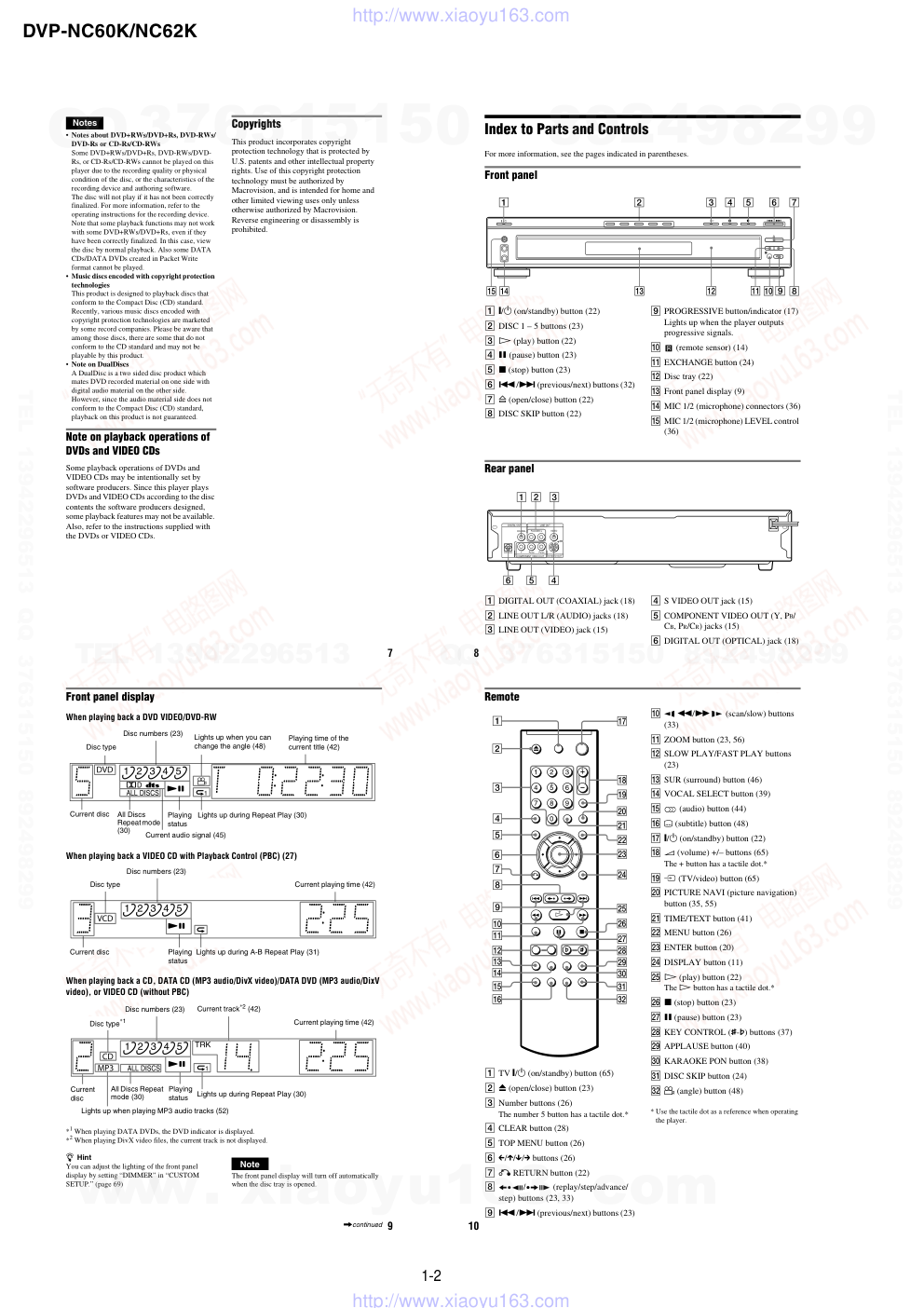

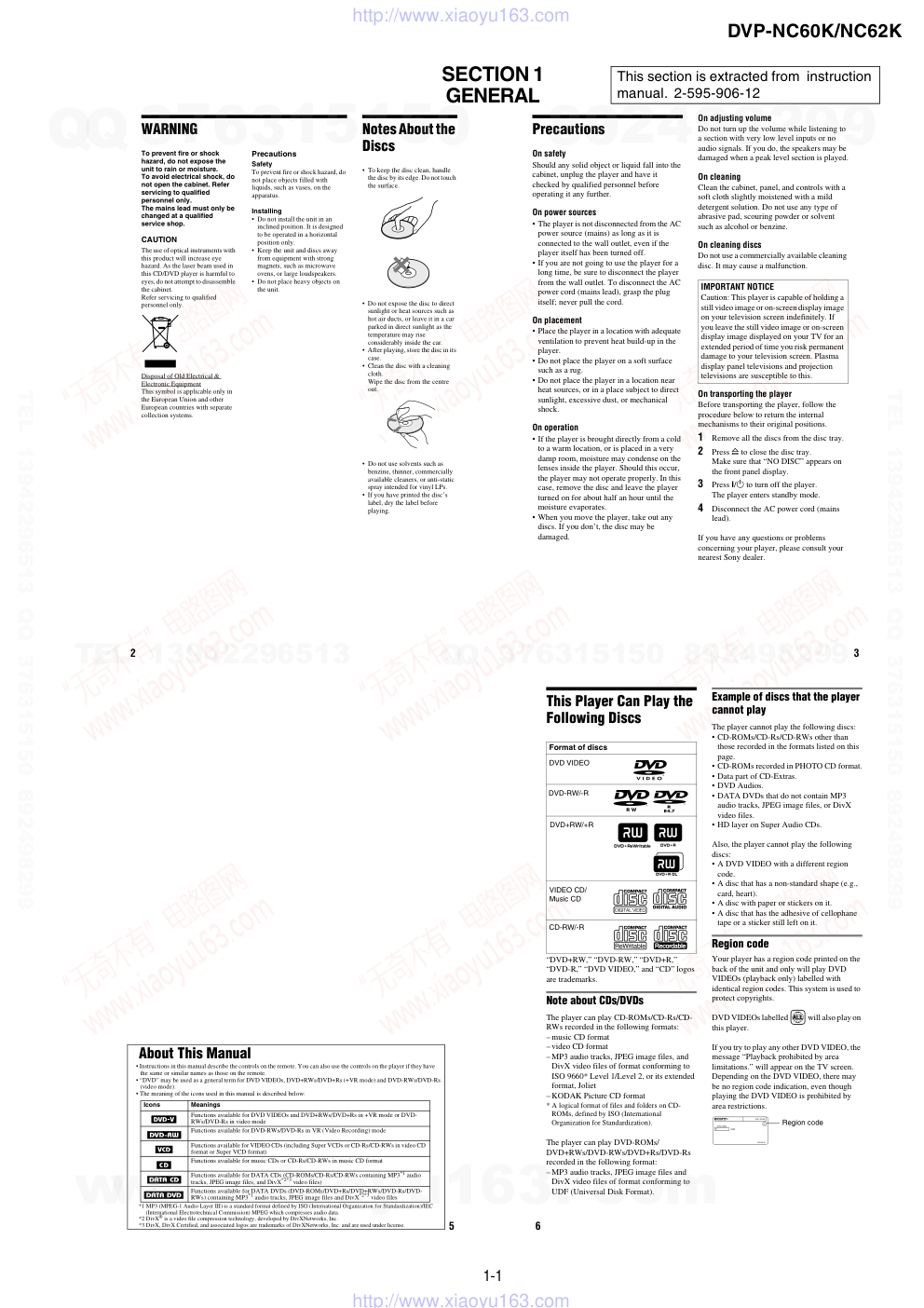

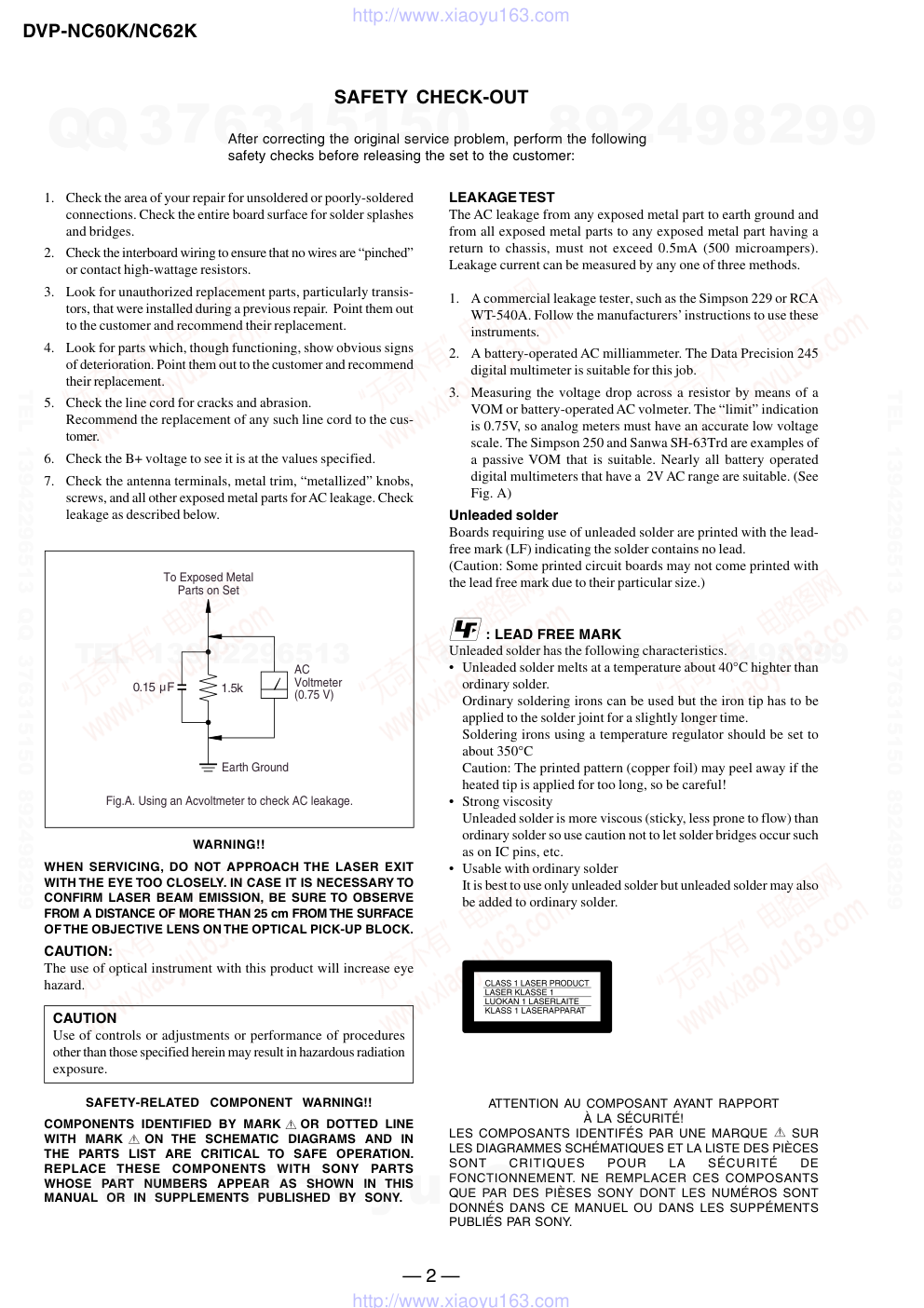

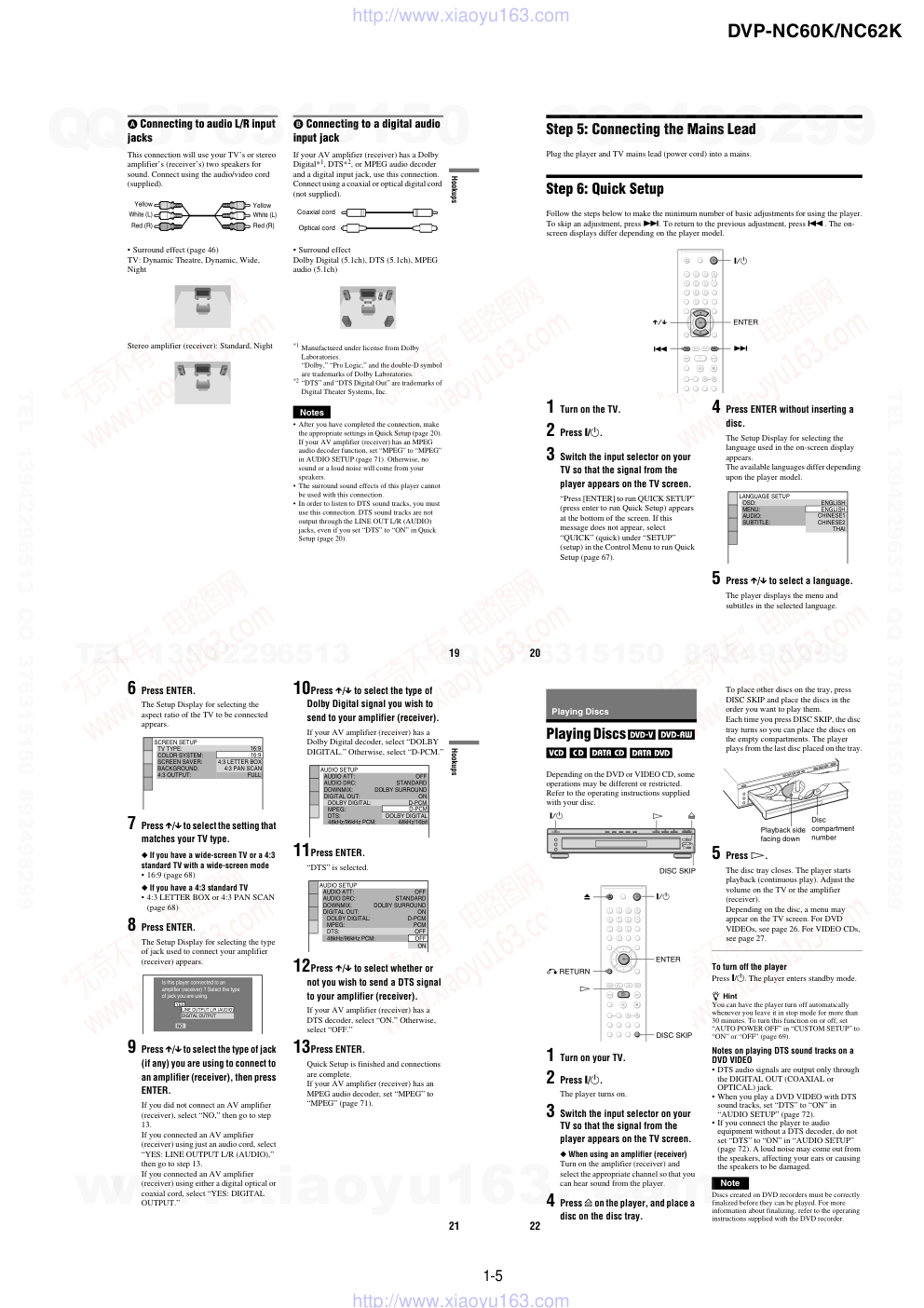

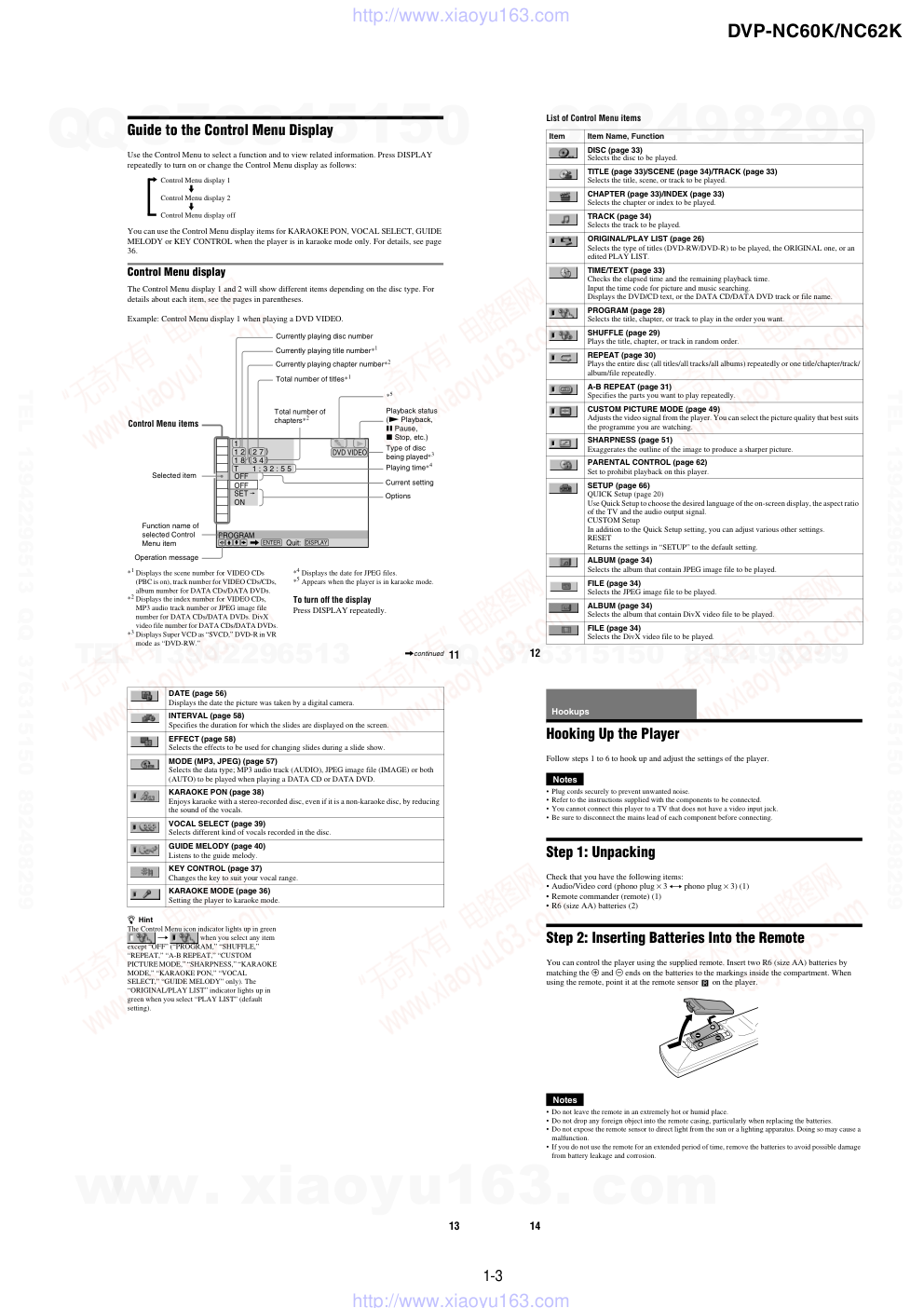

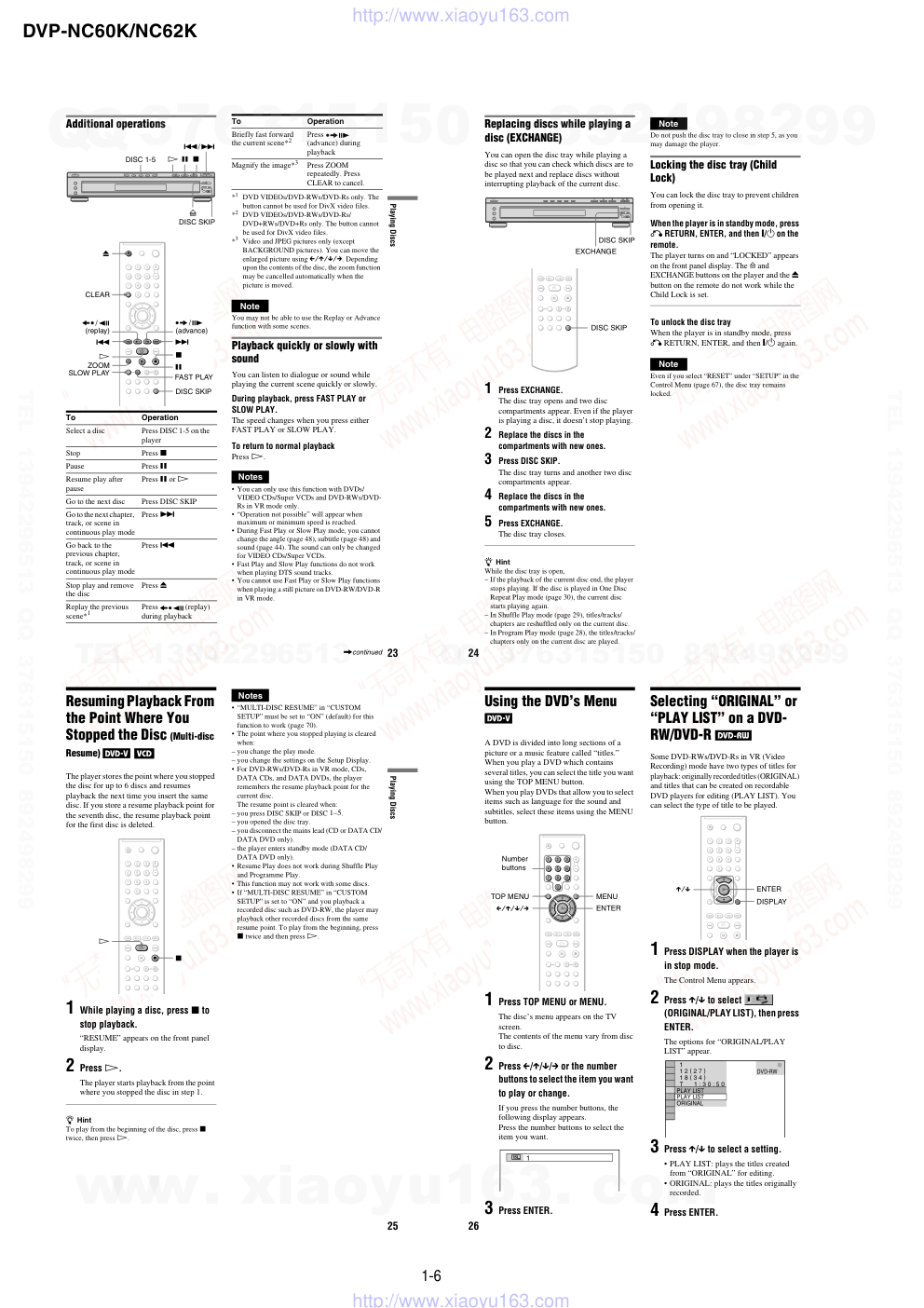

SERVICE MANUAL CD/DVD PLAYER System Laser: Semiconductor laser Signal format system: PAL/NTSC (NC60K: E/NC62K) Signal format system: NTSC (NC60K: MX) Audio characteristics Frequency response: DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)/ CD: 2 Hz to 20 kHz (±0.5 dB) Signal-to-noise ratio (S/N ratio): 115 dB (LINE OUT L/R (AUDIO) jacks only) Harmonic distortion: 0.003% Dynamic range: DVD VIDEO: 103 dB/ CD: 99 dB Wow and flutter: Less than detected value (±0.001% W PEAK) Outputs (Jack name: Jack type/Output level/ Load impedance) LINE OUT (AUDIO): Phono jack/ 2 Vrms/ 10 kilohms DIGITAL OUT (OPTICAL): Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL): Phono jack/ 0.5 Vp-p/75 ohms COMPONENT VIDEO OUT (NC62K) (Y, PB/CB, PR/CR): Phono jack/ Y: 1.0 Vp-p, PB/CB, PR/CR: 0.7 Vp-p/75 ohms COMPONENT VIDEO OUT (NC60K) (Y, PB, PR): Phono jack/Y: 1.0 Vp-p/PB, PR: interlace*1 = 0.648 Vp-p, progressive or interlace*2 = 0.7 Vp-p/75 ohms *1 BLACK LEVEL (COMPONENT OUT) is ON *2 BLACK LEVEL (COMPONENT OUT) is OFF LINE OUT (VIDEO): Phono jack/ 1.0 Vp-p/ 75 ohms S VIDEO OUT: 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/ 75 ohms (NC60K: E/NC62K) S VIDEO OUT: 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.286 Vp-p/ 75 ohms (NC60K: MX) MIC Input 1/2: Phono jacks SPECIFICATIONS General Power requirements: 110 – 240 V AC, 50/60 Hz (NC60K: E/NC62K) 120 V AC, 60 Hz (NC60K: MX) Power consumption: 11 W Dimensions (approx.): 430 × 83 × 416 mm (16 15/16 × 3 17/64 × 16 24/64 in.) (width/height/depth) incl. projecting parts Mass (approx.): 4.4 kg (9 58/64 lb) Operating temperature: 5°C to 35°C Operating humidity: 25% to 80% Supplied accessories See page 14. Specifications and design are subject to change without notice. Latin America Model Mexico Model DVP-NC60K Australia/New Zealand Model Singapore Model DVP-NC62K DVP-NC60K/NC62K RMT-D178A/RMT-D178P Photo : DVP-NC62K RMT-D178P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — DVP-NC60K/NC62K SAFETY CHECK-OUT 1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement. 5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the cus- tomer. 6. Check the B+ voltage to see it is at the values specified. 7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION: The use of optical instrument with this product will increase eye hazard. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK OR DOTTED LINE WITH MARK ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC volmeter. The “limit” indication is 0.75V, so analog meters must have an accurate low voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C highter than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. To Exposed Metal Parts on Set 0.15 F 1.5k AC Voltmeter (0.75 V) Earth Ground Fig.A. Using an Acvoltmeter to check AC leakage. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — DVP-NC60K/NC62K TABLE OF CONTENTS 1. GENERAL Warning .......................................................................... 1-1 Notes About the Discs .................................................. 1-1 Precautions.................................................................... 1-1 About this Manual .......................................................... 1-1 This Player Can Play the Following Discs................... 1-1 Index to Parts and Controls ......................................... 1-2 Guide to the Control Menu Display .............................. 1-3 Hookups ................................................................................ 1-3 Hooking Up the Player .................................................. 1-3 Step 1: Unpacking ......................................................... 1-3 Step 2: Inserting Batteries into the Remote ................. 1-3 Step 3: Connecting the Video Cords ............................ 1-4 Step 4: Connecting the Audio Cords ............................ 1-4 Step 5: Connecting the Mains Lead ............................. 1-5 Step 6: Quick Setup ...................................................... 1-5 Playing Discs ......................................................................... 1-5 Playing Discs ................................................................. 1-5 Resuming Playback from the Point Where You Stopped the Disc (Multi-disc Resume) .................. 1-6 Using the DVD's Menu .................................................. 1-6 Selecting “ORIGINAL” or “PLAY LIST” on a DVD-RW/DVD-R ....................................................... 1-6 Playing VIDEO CDs With PBC Functions (PBC Playback) ........................................................ 1-7 Various Play Mode Functions (Program Play, Shuffle Play, Repeat Play, A-B Repeat Play ........... 1-7 Searching for a Scene .......................................................... 1-8 Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play, Freeze Frame) ............... 1-8 Searching for a Title/Chapter/Track/Scene, etc. ......... 1-8 Searching by Scene (PICTURE NAVIGATION) ......... 1-9 Enjoying Karaoke .................................................................. 1-9 Using Karaoke ............................................................... 1-9 Changing the Key (Key Control) .................................. 1-9 Playing Karaoke with Any Stereo Disc (Karaoke Pon) .......................................................... 1-9 Selecting the Vocals (Vocal Select) .............................. 1-10 Turning the Guide Melody On and Off (Guide Melody) ......................................................... 1-10 Inserting the Applause Effect (Applause) .................... 1-10 Viewing Information About the Disc ..................................... 1-10 Checking the Playing Time and Remaining Time ........ 1-10 Sound Adjustments ............................................................... 1-11 Changing the Sound ...................................................... 1-11 TV Virtual Surround Settings (TVS) ............................. 1-11 Enjoying Movies .................................................................... 1-12 Changing the Angles ..................................................... 1-12 Displaying the Subtitles................................................. 1-12 Adjusting the Playback Picture (CUSTOM PICTURE MODE) ................................. 1-12 Sharpening the Pictures (SHARPNESS)..................... 1-13 Enjoying MP3 Audio and JPEG Images .............................. 1-13 About MP3 Audio Tracks and JPEG Image Files ....... 1-13 Playing MP3 Audio Tracks or JPEG Image Files........ 1-13 Enjoying JPEG Images as a Slide Show ..................... 1-14 Enjoying DivX Videos ............................................................ 1-15 Playing DivX Video Files ............................................... 1-15 Using Various Additional Functions...................................... 1-15 Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) .......................................... 1-15 Controlling Your TV with the Supplied Remote ............. 1-16 Settings and Adjustments..................................................... 1-16 Using the Setup Display ............................................... 1-16 Setting the Display or Sound Track Language (LANGUAGE SETUP) ............................................. 1-17 Settings for the Display (SCREEN SETUP) ................ 1-17 Custom Settings (CUSTOM SETUP) .......................... 1-17 Settings for the Sound (AUDIO SETUP) ..................... 1-17 Additional Information ............................................................ 1-18 Troubleshooting ............................................................. 1-18 Self-diagnosis Function (When letters/ numbers appear in the display ................................ 1-19 Glossary ........................................................................ 1-19 Specifications................................................................. 1-19 2. DISASSEMBLY 2-1. Disassembly ............................................................ 2-1 2-2. Upper Case ............................................................. 2-1 2-3. Rear Panel Section ................................................. 2-2 2-4. MV-045 Board .......................................................... 2-2 2-5. Front Panel Section ................................................. 2-3 2-6. Table Ass’y .............................................................. 2-3 2-7. IF-127 Board............................................................ 2-4 2-8. Loading Motor Ass’y ............................................... 2-5 2-9. Optical Pick-Up (Device, Optical KHM-310CAB/C2NP) ............ 2-6 2-10. Power Block ............................................................. 2-7 2-11. FR-231, SW-443 and MC-154 Boards .................. 2-7 2-12. Internal Views........................................................... 2-8 2-13. Circuit Boards Location........................................... 2-9 3. BLOCK DIAGRAMS 3-1. Overall Block Diagram .................................................. 3-1 3-2. Power Line Block Diagram ........................................... 3-3 3-3. System Control/Signal Processor Block Diagram ...... 3-5 3-4. RF/Servo Block Diagram .............................................. 3-7 3-5. Audio Block Diagram ..................................................... 3-9 3-6. Video Block Diagram ..................................................... 3-11 3-7. Interface Control Block Diagram .................................. 3-13 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. Frame Schematic Diagram ........................................... 4-1 4-2. Printed Wiring Boards and Schematic Diagrams ........ 4-3 4-3. Waveform ...................................................................... 4-4 • MV-045 Printed Wiring Board .................................. 4-5 • MV-045 (CPU, Servo-DSP, AVDEC) Schematic Diagram ............................................ 4-7 • MV-045 (Drive) Schematic Diagram ....................... 4-9 • MV-045 (Video) Schematic Diagram ....................... 4-11 • MV-045 (Audio) Schematic Diagram ....................... 4-13 • MV-045 (Power) Schematic Diagram...................... 4-15 • IF-127 Printed Wiring Board .................................... 4-17 • IF-127 (Interface) Schematic Diagram .................. 4-19 • SW-443 Printed Wiring Board ................................. 4-21 • SW-443 (Switch) Schematic Diagram .................... 4-23 • FR-231 Printed Wiring Board .................................. 4-25 • FR-231 (FR) Schematic Diagram ........................... 4-27 • MC-154 Printed Wiring Board ................................. 4-29 • MC-154 (MIC-ECHO) Schematic Diagram ............ 4-31 • Power Block (SRV1487UC) Printed Wiring Board ........................................... 4-33 • Power Block (SRV1487UC) Schematic Diagram ... 4-35 • Power Block (SRV1501WW) Printed Wiring Board ........................................... 4-37 • Power Block (SRV1501WW) Schematic Diagram ............................................ 4-39 5. IC PIN FUNCTION DESCRIPTION 5-1. System Control Pin Function (MV-045 BOARD IC101) .............................................. 5-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — DVP-NC60K/NC62K — 4E — 6. TEST MODE 6-1. Executing IOP Measurement ....................................... 6-1 6-2. Emergency History Check ........................................... 6-1 6-3. Initializing Setup Data .................................................... 6-2 6-4. Version Information ....................................................... 6-3 6-5. If Con Self Diagnostic Function .................................... 6-3 7. ELECTRICAL ADJUSTMENT 7-1. Power Supply Output Voltage Check ........................... 7-1 7-2. Adjustment of Video System ......................................... 7-2 8. REPAIR PARTS LIST 8-1. Exploded Views ............................................................. 8-1 8-1-1. Main Section ............................................................. 8-1 8-1-2. Front Panel Section.................................................. 8-3 8-1-3. Loading Section ........................................................ 8-4 8-1-4. Chassis Section ....................................................... 8-5 8-2. Electrical Parts List ....................................................... 8-6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 DVP-NC60K/NC62K 2 WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. The mains lead must only be changed at a qualified service shop. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. Disposal of Old Electrical & Electronic Equipment This symbol is applicable only in the European Union and other European countries with separate collection systems. Precautions Safety To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Installing • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit and discs away from equipment with strong magnets, such as microwave ovens, or large loudspeakers. • Do not place heavy objects on the unit. Notes About the Discs • To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case. • Clean the disc with a cleaning cloth. Wipe the disc from the centre out. • Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs. • If you have printed the disc’s label, dry the label before playing. 5 About This Manual • Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote. • “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs (+VR mode) and DVD-RWs/DVD-Rs (video mode). • The meaning of the icons used in this manual is described below: Icons Meanings Functions available for DVD VIDEOs and DVD+RWs/DVD+Rs in +VR mode or DVD- RWs/DVD-Rs in video mode Functions available for DVD-RWs/DVD-Rs in VR (Video Recording) mode Functions available for VIDEO CDs (including Super VCDs or CD-Rs/CD-RWs in video CD format or Super VCD format) Functions available for music CDs or CD-Rs/CD-RWs in music CD format Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs containing MP3*1 audio tracks, JPEG image files, and DivX*2*3 video files) Functions available for DATA DVDs (DVD-ROMs/DVD+Rs/DVD+RWs/DVD-Rs/DVD- RWs) containing MP3*1 audio tracks, JPEG image files and DivX*2*3 video files *1 MP3 (MPEG-1 Audio Layer III) is a standard format defined by ISO (International Organization for Standardization)/IEC (International Electrotechnical Commission) MPEG which compresses audio data. *2 DivX® is a video file compression technology, developed by DivXNetworks, Inc. *3 DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and are used under license. 6 This Player Can Play the Following Discs “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks. Note about CDs/DVDs The player can play CD-ROMs/CD-Rs/CD- RWs recorded in the following formats: – music CD format – video CD format – MP3 audio tracks, JPEG image files, and DivX video files of format conforming to ISO 9660* Level 1/Level 2, or its extended format, Joliet – KODAK Picture CD format * A logical format of files and folders on CD- ROMs, defined by ISO (International Organization for Standardization). The player can play DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs recorded in the following format: – MP3 audio tracks, JPEG image files and DivX video files of format conforming to UDF (Universal Disk Format). Example of discs that the player cannot play The player cannot play the following discs: • CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on this page. • CD-ROMs recorded in PHOTO CD format. • Data part of CD-Extras. • DVD Audios. • DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files. • HD layer on Super Audio CDs. Also, the player cannot play the following discs: • A DVD VIDEO with a different region code. • A disc that has a non-standard shape (e.g., card, heart). • A disc with paper or stickers on it. • A disc that has the adhesive of cellophane tape or a sticker still left on it. Region code Your player has a region code printed on the back of the unit and only will play DVD VIDEOs (playback only) labelled with identical region codes. This system is used to protect copyrights. DVD VIDEOs labelled will also play on this player. If you try to play any other DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, there may be no region code indication, even though playing the DVD VIDEO is prohibited by area restrictions. Format of discs DVD VIDEO DVD-RW/-R DVD+RW/+R VIDEO CD/ Music CD CD-RW/-R ALL DVP–XXXX 00V 00Hz 00W NO. 0-000-000-00 X Region code 3 Precautions On safety Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further. On power sources • The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off. • If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord. On placement • Place the player in a location with adequate ventilation to prevent heat build-up in the player. • Do not place the player on a soft surface such as a rug. • Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock. On operation • If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates. • When you move the player, take out any discs. If you don’t, the disc may be damaged. On adjusting volume Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played. On cleaning Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. On cleaning discs Do not use a commercially available cleaning disc. It may cause a malfunction. On transporting the player Before transporting the player, follow the procedure below to return the internal mechanisms to their original positions. 1 Remove all the discs from the disc tray. 2 Press A to close the disc tray. Make sure that “NO DISC” appears on the front panel display. 3 Press ?/1 to turn off the player. The player enters standby mode. 4 Disconnect the AC power cord (mains lead). If you have any questions or problems concerning your player, please consult your nearest Sony dealer. IMPORTANT NOTICE Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this. SECTION 1 GENERAL This section is extracted from instruction manual. 2-595-906-12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 DVP-NC60K/NC62K 7 Notes • Notes about DVD+RWs/DVD+Rs, DVD-RWs/ DVD-Rs or CD-Rs/CD-RWs Some DVD+RWs/DVD+Rs, DVD-RWs/DVD- Rs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format cannot be played. • Music discs encoded with copyright protection technologies This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. • Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed. Note on playback operations of DVDs and VIDEO CDs Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs. Copyrights This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. 8 Index to Parts and Controls For more information, see the pages indicated in parentheses. Front panel A [/1 (on/standby) button (22) B DISC 1 – 5 buttons (23) C H (play) button (22) D X (pause) button (23) E x (stop) button (23) F ./> (previous/next) buttons (32) G A (open/close) button (22) H DISC SKIP button (22) I PROGRESSIVE button/indicator (17) Lights up when the player outputs progressive signals. J (remote sensor) (14) K EXCHANGE button (24) L Disc tray (22) M Front panel display (9) N MIC 1/2 (microphone) connectors (36) O MIC 1/2 (microphone) LEVEL control (36) Rear panel A DIGITAL OUT (COAXIAL) jack (18) B LINE OUT L/R (AUDIO) jacks (18) C LINE OUT (VIDEO) jack (15) D S VIDEO OUT jack (15) E COMPONENT VIDEO OUT (Y, PB/ CB, PR/CR) jacks (15) F DIGITAL OUT (OPTICAL) jack (18) S VIDEO OUT LINE OUT COMPONENT VIDEO OUT R-AUDIO-L DIGITAL OUT COAXIAL VIDEO Y PB/CB PR/CR OPTICAL 9 Front panel display When playing back a DVD VIDEO/DVD-RW When playing back a VIDEO CD with Playback Control (PBC) (27) When playing back a CD, DATA CD (MP3 audio/DivX video)/DATA DVD (MP3 audio/DixV video), or VIDEO CD (without PBC) *1 When playing DATA DVDs, the DVD indicator is displayed. *2 When playing DivX video files, the current track is not displayed. z Hint You can adjust the lighting of the front panel display by setting “DIMMER” in “CUSTOM SETUP.” (page 69) Note The front panel display will turn off automatically when the disc tray is opened. Disc type Current audio signal (45) Lights up when you can change the angle (48) Lights up during Repeat Play (30) Playing status Current disc Disc numbers (23) All Discs Repeat mode (30) Playing time of the current title (42) Disc type Playing status Lights up during A-B Repeat Play (31) Disc numbers (23) Current playing time (42) Current disc Disc type*1 Current track*2 (42) Lights up during Repeat Play (30) Lights up when playing MP3 audio tracks (52) Playing status Current disc Disc numbers (23) Current playing time (42) All Discs Repeat mode (30) ,continued 10 Remote A TV [/1 (on/standby) button (65) B Z (open/close) button (23) C Number buttons (26) The number 5 button has a tactile dot.* D CLEAR button (28) E TOP MENU button (26) F C/X/x/c buttons (26) G O RETURN button (22) H / (replay/step/advance/ step) buttons (23, 33) I ./> (previous/next) buttons (23) J m/M (scan/slow) buttons (33) K ZOOM button (23, 56) L SLOW PLAY/FAST PLAY buttons (23) M SUR (surround) button (46) N VOCAL SELECT button (39) O (audio) button (44) P (subtitle) button (48) Q [/1 (on/standby) button (22) R 2 (volume) +/– buttons (65) The + button has a tactile dot.* S t (TV/video) button (65) T PICTURE NAVI (picture navigation) button (35, 55) U TIME/TEXT button (41) V MENU button (26) W ENTER button (20) X DISPLAY button (11) Y H (play) button (22) The H button has a tactile dot.* Z x (stop) button (23) wj X (pause) button (23) wk KEY CONTROL (#-2) buttons (37) wl APPLAUSE button (40) e; KARAOKE PON button (38) ea DISC SKIP button (24) es (angle) button (48) * Use the tactile dot as a reference when operating the player. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 DVP-NC60K/NC62K 11 Guide to the Control Menu Display Use the Control Menu to select a function and to view related information. Press DISPLAY repeatedly to turn on or change the Control Menu display as follows: You can use the Control Menu display items for KARAOKE PON, VOCAL SELECT, GUIDE MELODY or KEY CONTROL when the player is in karaoke mode only. For details, see page 36. Control Menu display The Control Menu display 1 and 2 will show different items depending on the disc type. For details about each item, see the pages in parentheses. Example: Control Menu display 1 when playing a DVD VIDEO. *1 Displays the scene number for VIDEO CDs (PBC is on), track number for VIDEO CDs/CDs, album number for DATA CDs/DATA DVDs. *2 Displays the index number for VIDEO CDs, MP3 audio track number or JPEG image file number for DATA CDs/DATA DVDs. DivX video file number for DATA CDs/DATA DVDs. *3 Displays Super VCD as “SVCD,” DVD-R in VR mode as “DVD-RW.” *4 Displays the date for JPEG files. *5 Appears when the player is in karaoke mode. To turn off the display Press DISPLAY repeatedly. Control Menu display 1 m Control Menu display 2 m Control Menu display off , OFF 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 1 DVD VIDEO Quit: PROGRAM ENTER DISPLAY SET ON OFF Currently playing chapter number*2 Playing time*4 Total number of chapters*2 Options Current setting Total number of titles*1 Playback status (N Playback, X Pause, x Stop, etc.) Function name of selected Control Menu item Operation message Selected item Control Menu items Type of disc being played*3 Currently playing title number*1 Currently playing disc number *5 ,continued 12 List of Control Menu items Item Item Name, Function DISC (page 33) Selects the disc to be played. TITLE (page 33)/SCENE (page 34)/TRACK (page 33) Selects the title, scene, or track to be played. CHAPTER (page 33)/INDEX (page 33) Selects the chapter or index to be played. TRACK (page 34) Selects the track to be played. ORIGINAL/PLAY LIST (page 26) Selects the type of titles (DVD-RW/DVD-R) to be played, the ORIGINAL one, or an edited PLAY LIST. TIME/TEXT (page 33) Checks the elapsed time and the remaining playback time. Input the time code for picture and music searching. Displays the DVD/CD text, or the DATA CD/DATA DVD track or file name. PROGRAM (page 28) Selects the title, chapter, or track to play in the order you want. SHUFFLE (page 29) Plays the title, chapter, or track in random order. REPEAT (page 30) Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/ album/file repeatedly. A-B REPEAT (page 31) Specifies the parts you want to play repeatedly. CUSTOM PICTURE MODE (page 49) Adjusts the video signal from the player. You can select the picture quality that best suits the programme you are watching. SHARPNESS (page 51) Exaggerates the outline of the image to produce a sharper picture. PARENTAL CONTROL (page 62) Set to prohibit playback on this player. SETUP (page 66) QUICK Setup (page 20) Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of the TV and the audio output signal. CUSTOM Setup In addition to the Quick Setup setting, you can adjust various other settings. RESET Returns the settings in “SETUP” to the default setting. ALBUM (page 34) Selects the album that contain JPEG image file to be played. FILE (page 34) Selects the JPEG image file to be played. ALBUM (page 34) Selects the album that contain DivX video file to be played. FILE (page 34) Selects the DivX video file to be played. 13 z Hint The Control Menu icon indicator lights up in green when you select any item except “OFF” (“PROGRAM,” “SHUFFLE,” “REPEAT,” “A-B REPEAT,” “CUSTOM PICTURE MODE,” “SHARPNESS,” “KARAOKE MODE,” “KARAOKE PON,” “VOCAL SELECT,” “GUIDE MELODY” only). The “ORIGINAL/PLAY LIST” indicator lights up in green when you select “PLAY LIST” (default setting). DATE (page 56) Displays the date the picture was taken by a digital camera. INTERVAL (page 58) Specifies the duration for which the slides are displayed on the screen. EFFECT (page 58) Selects the effects to be used for changing slides during a slide show. MODE (MP3, JPEG) (page 57) Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both (AUTO) to be played when playing a DATA CD or DATA DVD. KARAOKE PON (page 38) Enjoys karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals. VOCAL SELECT (page 39) Selects different kind of vocals recorded in the disc. GUIDE MELODY (page 40) Listens to the guide melody. KEY CONTROL (page 37) Changes the key to suit your vocal range. KARAOKE MODE (page 36) Setting the player to karaoke mode. t 14 Hookups Hooking Up the Player Follow steps 1 to 6 to hook up and adjust the settings of the player. Notes • Plug cords securely to prevent unwanted noise. • Refer to the instructions supplied with the components to be connected. • You cannot connect this player to a TV that does not have a video input jack. • Be sure to disconnect the mains lead of each component before connecting. Step 1: Unpacking Check that you have the following items: • Audio/Video cord (phono plug × 3 y phono plug × 3) (1) • Remote commander (remote) (1) • R6 (size AA) batteries (2) Step 2: Inserting Batteries Into the Remote You can control the player using the supplied remote. Insert two R6 (size AA) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player. Notes • Do not leave the remote in an extremely hot or humid place. • Do not drop any foreign object into the remote casing, particularly when replacing the batteries. • Do not expose the remote sensor to direct light from the sun or a lighting apparatus. Doing so may cause a malfunction. • If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 DVP-NC60K/NC62K 15 Hookups Step 3: Connecting the Video Cords Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord. Select one of the patterns A through C, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). In order to view progressive signal (525p or 625p) pictures with a compatible TV, projector, or monitor, you must use pattern C. A If you are connecting to a video input jack Connect the yellow plug of an audio/video cord (supplied) to the yellow (video) jack. You will enjoy standard quality images. With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on the front panel. A VIDEO AUDIO INPUT L R C PR/CR PB/CB Y COMPONENT VIDEO IN B INPUT S VIDEO Audio/video cord (supplied) Component video cord (not supplied) (yellow) TV, projector, or AV amplifier (receiver) to S VIDEO OUT TV, projector, or AV amplifier (receiver) (green) S VIDEO cord (not supplied) TV, projector, or AV amplifier (receiver) (red) (green) (blue) (red) to LINE OUT (VIDEO) l : Signal flow CD/DVD player to COMPONENT VIDEO OUT (blue) (yellow) Yellow White (L) Red (R) Yellow White (L) Red (R) ,continued 16 B If you are connecting to an S VIDEO input jack Connect an S VIDEO cord (not supplied). You will enjoy high quality images. With this connection, select “NORMAL (INTERLACE)” (default) by pressing the PROGRESSIVE button on the front panel. C If you are connecting to a monitor, projector, or AV amplifier (receiver) having component video input jacks (Y, PB/CB, PR/CR) Connect the component via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate colour reproduction and high quality images. If your TV accepts progressive 525p/625p format signals, use this connection and press the PROGRESSIVE button on the front panel to output progressive signals. For details, see “Using the PROGRESSIVE button” (page 17). When connecting to a standard 4:3 screen TV Depending on the disc, the image may not fit your TV screen. To change the aspect ratio, see page 68. To change the colour system If the on-screen menu of the player does not appear on the connected TV, switch the player’s colour system to match the colour system of the TV (NTSC or PAL). First turn off the player by pressing "/1, and then press "/1 again while holding down X on the player. The player turns back on, and the name of the colour system scrolls across the front panel display. Notes • Do not connect a VCR, etc., between your TV and the player. If you pass the player signals via the VCR, you may not receive a clear image on the TV screen. If your TV has only one audio/video input jack, connect the player to this jack. • Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p and 625p DVD player model, please contact our customer service centre. Green Blue Red Green Blue Red VCR CD/DVD player TV Connect directly 17 Hookups Using the PROGRESSIVE button By using the PROGRESSIVE button on the front panel, you can select the signal format in which the player outputs video signals (Progressive or Interlace), and the conversion method for progressive signals. The PROGRESSIVE indicator lights up when the player outputs progressive signals. Each time you press PROGRESSIVE, the display changes as follows: PROGRESSIVE AUTO m PROGRESSIVE VIDEO m NORMAL (INTERLACE) ◆PROGRESSIVE AUTO Select this setting when: – your TV accepts progressive signals, and, – the TV is connected to the COMPONENT VIDEO OUT jacks. Normally select this under the above condition. This automatically detects the software type, and selects the appropriate conversion method. Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met. ◆PROGRESSIVE VIDEO Select this setting when: – your TV accepts progressive signals, and, – the TV is connected to the COMPONENT VIDEO OUT jacks, and – you want to fix the conversion method to PROGRESSIVE VIDEO for video-based software. Select this if the image is not clear when you select PROGRESSIVE AUTO. Note that the picture will not be clear or no picture will appear if you select these settings when either of the above conditions is not met. ◆NORMAL (INTERLACE) Select this setting when: – your TV does not accept progressive signals, or, – your TV is connected to jacks other than the COMPONENT VIDEO OUT jacks (LINE OUT (VIDEO) or S VIDEO OUT). ◆About DVD software types and the conversion method DVD software can be divided into two types: film-based software and video-based software. Video-based software is derived from TV, such as dramas and sit-coms, and displays images at 30 frames/60 fields (25 frames/50 fields) per second. Film-based software is derived from film and displays images at 24 frames per second. Some DVD software contains both video and film. In order for these images to appear natural on your screen when output in progressive format, the progressive signals need to be converted to match the type of DVD software that you are watching. Notes • When you play video-based software in progressive signal format, sections of some types of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. Images from the S VIDEO OUT and LINE OUT (VIDEO) jacks are unaffected as they are output in the normal (interlace) format. • When using LINE OUT (VIDEO) or S VIDEO OUT, the picture may appear to flicker each time the PROGRESSIVE button on the front panel is pressed (Interlace switches to Progressive or vice versa). 18 Step 4: Connecting the Audio Cords Select one of the following patterns A or B, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). This will enable you to listen to sound. z Hint For correct speaker location, see the operating instructions supplied with the connected components. S VIDEO OUT COMPONENT VIDEO OUT Y PB/CB PR/CR VIDEO VIDEO AUDIO INPUT L R B A DIGITAL OUT COAXIAL OPTICAL R-AUDIO-L LINE OUT LINE OUT R-AUDIO-L VIDEO DIGITAL OUT COAXIAL OPTICAL AV amplifier (receiver) with a decoder (red) TV, projector, or AV amplifier (receiver) Audio/video cord (supplied) : Signal flow Coaxial digital cord (not supplied) to DIGITAL OUT (COAXIAL or OPTICAL) to LINE OUT L/R (AUDIO) Optical digital cord (not supplied) Rear (L) CD/DVD player (white) (yellow)* (yellow)* (white) (red) [Speakers] Front (L) [Speakers] to coaxial digital input Rear (R) Front (R) Subwoofer or Centre * The yellow plug is used for video signals (page 15). to optical digital input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 DVP-NC60K/NC62K 19 Hookups A Connecting to audio L/R input jacks This connection will use your TV’s or stereo amplifier’s (receiver’s) two speakers for sound. Connect using the audio/video cord (supplied). • Surround effect (page 46) TV: Dynamic Theatre, Dynamic, Wide, Night Stereo amplifier (receiver): Standard, Night B Connecting to a digital audio input jack If your AV amplifier (receiver) has a Dolby Digital*1, DTS*2, or MPEG audio decoder and a digital input jack, use this connection. Connect using a coaxial or optical digital cord (not supplied). • Surround effect Dolby Digital (5.1ch), DTS (5.1ch), MPEG audio (5.1ch) *1 Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. *2 “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. Notes • After you have completed the connection, make the appropriate settings in Quick Setup (page 20). If your AV amplifier (receiver) has an MPEG audio decoder function, set “MPEG” to “MPEG” in AUDIO SETUP (page 71). Otherwise, no sound or a loud noise will come from your speakers. • The surround sound effects of this player cannot be used with this connection. • In order to listen to DTS sound tracks, you must use this connection. DTS sound tracks are not output through the LINE OUT L/R (AUDIO) jacks, even if you set “DTS” to “ON” in Quick Setup (page 20). Yellow White (L) Red (R) Yellow White (L) Red (R) Coaxial cord Optical cord 20 Step 5: Connecting the Mains Lead Plug the player and TV mains lead (power cord) into a mains. Step 6: Quick Setup Follow the steps below to make the minimum number of basic adjustments for using the player. To skip an adjustment, press >. To return to the previous adjustment, press .. The on- screen displays differ depending on the player model. 1 Turn on the TV. 2 Press [/1. 3 Switch the input selector on your TV so that the signal from the player appears on the TV screen. “Press [ENTER] to run QUICK SETUP” (press enter to run Quick Setup) appears at the bottom of the screen. If this message does not appear, select “QUICK” (quick) under “SETUP” (setup) in the Control Menu to run Quick Setup (page 67). 4 Press ENTER without inserting a disc. The Setup Display for selecting the language used in the on-screen display appears. The available languages differ depending upon the player model. 5 Press X/x to select a language. The player displays the menu and subtitles in the selected language. ENTER LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: CHINESE1 ENGLISH ENGLISH CHINESE2 THAI 21 Hookups 6 Press ENTER. The Setup Display for selecting the aspect ratio of the TV to be connected appears. 7 Press X/x to select the setting that matches your TV type. ◆ If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode • 16:9 (page 68) ◆ If you have a 4:3 standard TV • 4:3 LETTER BOX or 4:3 PAN SCAN (page 68) 8 Press ENTER. The Setup Display for selecting the type of jack used to connect your amplifier (receiver) appears. 9 Press X/x to select the type of jack (if any) you are using to connect to an amplifier (receiver), then press ENTER. If you did not connect an AV amplifier (receiver), select “NO,” then go to step 13. If you connected an AV amplifier (receiver) using just an audio cord, select “YES: LINE OUTPUT L/R (AUDIO),” then go to step 13. If you connected an AV amplifier (receiver) using either a digital optical or coaxial cord, select “YES: DIGITAL OUTPUT.” 10Press X/x to select the type of Dolby Digital signal you wish to send to your amplifier (receiver). If your AV amplifier (receiver) has a Dolby Digital decoder, select “DOLBY DIGITAL.” Otherwise, select “D-PCM.” 11Press ENTER. “DTS” is selected. 12Press X/x to select whether or not you wish to send a DTS signal to your amplifier (receiver). If your AV amplifier (receiver) has a DTS decoder, select “ON.” Otherwise, select “OFF.” 13Press ENTER. Quick Setup is finished and connections are complete. If your AV amplifier (receiver) has an MPEG audio decoder, set “MPEG” to “MPEG” (page 71). SCREEN SETUP TV TYPE: 16:9 4:3 LETTER BOX 4:3 PAN SCAN FULL COLOR SYSTEM: BACKGROUND: SCREEN SAVER: 4:3 OUTPUT: 16:9 YES NO Is this player connected to an amplifier (receiver) ? Select the type of jack you are using. LINE OUTPUT L/R (AUDIO) DIGITAL OUTPUT AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: DOLBY DIGITAL: MPEG: OFF STANDARD ON DOWNMIX: DOLBY SURROUND D-PCM DTS: DOLBY DIGITAL 48kHz/96kHz PCM: 48kHz/16bit D-PCM AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: DOLBY DIGITAL: MPEG: OFF STANDARD ON DOWNMIX: DOLBY SURROUND D-PCM PCM DTS: 48kHz/96kHz PCM: OFF OFF ON 22 Playing Discs Playing Discs Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with your disc. 1 Turn on your TV. 2 Press [/1. The player turns on. 3 Switch the input selector on your TV so that the signal from the player appears on the TV screen. ◆ When using an amplifier (receiver) Turn on the amplifier (receiver) and select the appropriate channel so that you can hear sound from the player. 4 Press A on the player, and place a disc on the disc tray. To place other discs on the tray, press DISC SKIP and place the discs in the order you want to play them. Each time you press DISC SKIP, the disc tray turns so you can place the discs on the empty compartments. The player plays from the last disc placed on the tray. 5 Press H. The disc tray closes. The player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). Depending on the disc, a menu may appear on the TV screen. For DVD VIDEOs, see page 26. For VIDEO CDs, see page 27. To turn off the player Press [/1. The player enters standby mode. z Hint You can have the player turn off automatically whenever you leave it in stop mode for more than 30 minutes. To turn this function on or off, set “AUTO POWER OFF” in “CUSTOM SETUP” to “ON” or “OFF” (page 69). Notes on playing DTS sound tracks on a DVD VIDEO • DTS audio signals are output only through the DIGITAL OUT (COAXIAL or OPTICAL) jack. • When you play a DVD VIDEO with DTS sound tracks, set “DTS” to “ON” in “AUDIO SETUP” (page 72). • If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to “ON” in “AUDIO SETUP” (page 72). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged. Note Discs created on DVD recorders must be correctly finalized before they can be played. For more information about finalizing, refer to the operating instructions supplied with the DVD recorder. DISC SKIP DISC SKIP ENTER RETURN Playback side facing down Disc compartment number www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 DVP-NC60K/NC62K 23 Playing Discs Additional operations *1 DVD VIDEOs/DVD-RWs/DVD-Rs only. The button cannot be used for DivX video files. *2 DVD VIDEOs/DVD-RWs/DVD-Rs/ DVD+RWs/DVD+Rs only. The button cannot be used for DivX video files. *3 Video and JPEG pictures only (except BACKGROUND pictures). You can move the enlarged picture using C/X/x/c. Depending upon the contents of the disc, the zoom function may be cancelled automatically when the picture is moved. Note You may not be able to use the Replay or Advance function with some scenes. Playback quickly or slowly with sound You can listen to dialogue or sound while playing the current scene quickly or slowly. During playback, press FAST PLAY or SLOW PLAY. The speed changes when you press either FAST PLAY or SLOW PLAY. To return to normal playback Press H. Notes • You can only use this function with DVDs/ VIDEO CDs/Super VCDs and DVD-RWs/DVD- Rs in VR mode only. • “Operation not possible” will appear when maximum or minimum speed is reached. • During Fast Play or Slow Play mode, you cannot change the angle (page 48), subtitle (page 48) and sound (page 44). The sound can only be changed for VIDEO CDs/Super VCDs. • Fast Play and Slow Play functions do not work when playing DTS sound tracks. • You cannot use Fast Play or Slow Play functions when playing a still picture on DVD-RW/DVD-R in VR mode. To Operation Select a disc Press DISC 1-5 on the player Stop Press x Pause Press X Resume play after pause Press X or H Go to the next disc Press DISC SKIP Go to the next chapter, track, or scene in continuous play mode Press > Go back to the previous chapter, track, or scene in continuous play mode Press . Stop play and remove the disc Press Z Replay the previous scene*1 Press (replay) during playback CLEAR (replay) ZOOM SLOW PLAY FAST PLAY DISC SKIP (advance) DISC SKIP DISC 1-5 CLEAR (replay) ZOOM SLOW PLAY FAST PLAY DISC SKIP (advance) Briefly fast forward the current scene*2 Press (advance) during playback Magnify the image*3 Press ZOOM repeatedly. Press CLEAR to cancel. To Operation ,continued 24 Replacing discs while playing a disc (EXCHANGE) You can open the disc tray while playing a disc so that you can check which discs are to be played next and replace discs without interrupting playback of the current disc. 1 Press EXCHANGE. The disc tray opens and two disc compartments appear. Even if the player is playing a disc, it doesn’t stop playing. 2 Replace the discs in the compartments with new ones. 3 Press DISC SKIP. The disc tray turns and another two disc compartments appear. 4 Replace the discs in the compartments with new ones. 5 Press EXCHANGE. The disc tray closes. z Hint While the disc tray is open, – If the playback of the current disc end, the player stops playing. If the disc is played in One Disc Repeat Play mode (page 30), the current disc starts playing again. – In Shuffle Play mode (page 29), titles/tracks/ chapters are reshuffled only on the current disc. – In Program Play mode (page 28), the titles/tracks/ chapters only on the current disc are played. Note Do not push the disc tray to close in step 5, as you may damage the player. Locking the disc tray (Child Lock) You can lock the disc tray to prevent children from opening it. When the player is in standby mode, press O RETURN, ENTER, and then [/1 on the remote. The player turns on and “LOCKED” appears on the front panel display. The A and EXCHANGE buttons on the player and the Z button on the remote do not work while the Child Lock is set. To unlock the disc tray When the player is in standby mode, press O RETURN, ENTER, and then [/1 again. Note Even if you select “RESET” under “SETUP” in the Control Menu (page 67), the disc tray remains locked. EXCHANGE DISC SKIP DISC SKIP 25 Playing Discs Resuming Playback From the Point Where You Stopped the Disc (Multi-disc Resume) The player stores the point where you stopped the disc for up to 6 discs and resumes playback the next time you insert the same disc. If you store a resume playback point for the seventh disc, the resume playback point for the first disc is deleted. 1 While playing a disc, press x to stop playback. “RESUME” appears on the front panel display. 2 Press H. The player starts playback from the point where you stopped the disc in step 1. z Hint To play from the beginning of the disc, press x twice, then press H. Notes • “MULTI-DISC RESUME” in “CUSTOM SETUP” must be set to “ON” (default) for this function to work (page 70). • The point where you stopped playing is cleared when: – you change the play mode. – you change the settings on the Setup Display. • For DVD-RWs/DVD-Rs in VR mode, CDs, DATA CDs, and DATA DVDs, the player remembers the resume playback point for the current disc. The resume point is cleared when: – you press DISC SKIP or DISC 1–5. – you opened the disc tray. – you disconnect the mains lead (CD or DATA CD/ DATA DVD only). – the player enters standby mode (DATA CD/ DATA DVD only). • Resume Play does not work during Shuffle Play and Programme Play. • This function may not work with some discs. • If “MULTI-DISC RESUME” in “CUSTOM SETUP” is set to “ON” and you playback a recorded disc such as DVD-RW, the player may playback other recorded discs from the same resume point. To play from the beginning, press x twice and then press H. 26 Using the DVD’s Menu A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as language for the sound and subtitles, select these items using the MENU button. 1 Press TOP MENU or MENU. The disc’s menu appears on the TV screen. The contents of the menu vary from disc to disc. 2 Press C/X/x/c or the number buttons to select the item you want to play or change. If you press the number buttons, the following display appears. Press the number buttons to select the item you want. 3 Press ENTER. Selecting “ORIGINAL” or “PLAY LIST” on a DVD- RW/DVD-R Some DVD-RWs/DVD-Rs in VR (Video Recording) mode have two types of titles for playback: originallyrecorded titles (ORIGINAL) and titles that can be created on recordable DVD players for editing (PLAY LIST). You can select the type of title to be played. 1 Press DISPLAY when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (ORIGINAL/PLAY LIST), then press ENTER. The options for “ORIGINAL/PLAY LIST” appear. 3 Press X/x to select a setting. • PLAY LIST: plays the titles created from “ORIGINAL” for editing. • ORIGINAL: plays the titles originally recorded. 4 Press ENTER. ENTER MENU TOP MENU Number buttons 1 ENTER DISPLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 DVD-RW PLAY LIST PLAY LIST ORIGINAL T 1 : 3 0 : 5 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 DVP-NC60K/NC62K 27 Playing Discs Playing VIDEO CDs With PBC Functions (PBC Playback) PBC (Playback Control) allows you to play VIDEO CDs interactively by following the menu on the TV screen. 1 Start playing a VIDEO CD with PBC functions. The menu for your selection appears. 2 Press the number buttons to select the item number you want. 3 Press ENTER. 4 Follow the instructions in the menu for interactive operations. Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD. To return to the menu Press O RETURN. z Hint To play without using PBC, press ./> or the number buttons while the player is stopped to select a track, then press H or ENTER. “Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H. Note Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H. ENTER RETURN Number buttons 28 Various Play Mode Functions (Programme Play, Shuffle Play, Repeat Play, A-B Repeat Play) You can set the following play modes: • Programme Play (page 28) • Shuffle Play (page 29) • Repeat Play (page 30) • A-B Repeat Play (page 31) Note The play mode is cancelled when: – you open the disc tray. – the player enters standby mode by pressing [/1. Creating your own programme (Programme Play) You can play the contents of a disc in the order you want by arranging the order of the titles, chapters, or tracks on the disc to create your own programme. You can programme up to 99 titles, chapters, and tracks. 1 Press DISPLAY. The Control Menu appears. 2 Press X/x to select (PROGRAM), then press ENTER. The options for “PROGRAM” appear. 3 Press X/x to select “SET t,” then press ENTER. 4 Press c. The cursor moves to the title or track row “T” (in this case, “01”). 5 Select the title, chapter, or track you want to programme. ◆ When playing a DVD VIDEO For example, select chapter “03” of title “02.” Press X/x to select “02” under “T,” then press ENTER. CLEAR ENTER DISPLAY OFF OFF SET ON PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 DVD VIDEO PROGRAM 1. TITLE ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – T – – 01 02 03 04 05 “TRACK” is displayed when you play a VIDEO CD, or CD. Titles or tracks recorded on a disc PROGRAM 1. TITLE – – ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – T C ALL 01 02 03 04 05 06 – – 02 03 04 05 01 Chapters recorded on a disc PROGRAM 1. TITLE – – ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – C ALL 03 04 05 06 T – – 01 02 03 04 05 02 01 29 Playing Discs Next, press X/x to select “03” under “C,” then press ENTER. ◆ When playing a VIDEO CD, or CD For example, select track “02.” Press X/x to select “02” under “T,” then press ENTER. 6 To programme other titles, chapters, or tracks, repeat steps 4 to 5. The programmed titles, chapters, and tracks are displayed in the selected order. 7 Press H to start Programme Play. Programme Play begins. When the programme ends, you can restart the same programme again by pressing H. To return to normal play Press CLEAR, or select “OFF” in step 3. To play the same programme again, select “ON” in step 3 and press ENTER. To change or cancel a programme 1 Follow steps 1 to 3 of “Creating your own programme (Programme Play).” 2 Select the programme number of the title, chapter, or track you want to change or cancel using X/x and press c. If you want to delete the title, chapter, or track from the programme, press CLEAR. 3 Follow step 5 for new programming. To cancel a programme, select “--” under “T,” then press ENTER. To cancel all of the titles, chapters, or tracks in the programmed order 1 Follow steps 1 to 3 of “Creating your own programme (Programme Play).” 2 Press X and select “ALL CLEAR.” 3 Press ENTER. z Hint You can perform Repeat Play or Shuffle Play of programmed titles, chapters, or tracks. During Programme Play, follow the steps of Repeat Play (page 30) or Shuffle Play (page 29). Notes • All Discs Repeat is automatically changed into One Disc Repeat when you set to programme play mode (page 30). You can only programme the contents of the current disc. • When you programme tracks on a Super VCD, the total playing time is not displayed. • You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. Playing in random order (Shuffle Play) You can have the player “shuffle” titles, chapters, or tracks. Subsequent “shuffling” may produce a different playing order. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (SHUFFLE), then press ENTER. The options for “SHUFFLE” appear. 3 Press X/x to select the item to be shuffled. ◆ When playing a DVD VIDEO • TITLE • CHAPTER T – – 01 02 03 04 05 PROGRAM 1. TITLE 0 2 – 0 3 ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – Selected title and chapter Selected track Set: Quit: ENTER Start: PLAY PROGRAM 1. TRACK 0 2 ALL CLEAR 2. TRACK – – 3. TRACK – – 4. TRACK – – 5. TRACK – – 6. TRACK – – 7. TRACK – – 0:15:30 – – 01 02 03 04 05 T DISPLAY Total time of the programmed tracks PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 OFF CHAPTER TITLE OFF DVD VIDEO ,continued 30 ◆ When playing a VIDEO CD or CD • TRACK ◆ When Programme Play is activated • ON: shuffles titles, chapters, or tracks selected in Programme Play. 4 Press ENTER. Shuffle Play starts. To return to normal play Press CLEAR, or select “OFF” in step 3. z Hints • You can set Shuffle Play while the player is stopped. After selecting the “SHUFFLE” option, press H. Shuffle Play starts. • Up to 200 chapters in a disc can be played in random order when “CHAPTER” is selected. Notes • You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. • All Discs Repeat is automatically changed into One Disc Repeat when you set to shuffle play mode. You can only shuffle the contents of the current disc. Playing repeatedly (Repeat Play) You can play all of the titles or tracks on a disc, or a single title, chapter, or track repeatedly. You can use a combination of Shuffle or Programme Play modes. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (REPEAT), then press ENTER. The options for “REPEAT” appear. z 3 Press X/x to select the item to be repeated. ◆ When playing a DVD VIDEO • ALL DISCS: repeats all of the discs. • ONE DISC: repeats all of the titles on the current disc. • TITLE: repeats the current title on a disc. • CHAPTER: repeats the current chapter. ◆ When playing a DVD-RW • ALL DISCS: repeats all of the discs. • ONE DISC: repeats all of the titles of the selected type. • TITLE: repeats the current title on a disc. • CHAPTER: repeats the current chapter. ◆ When playing a VIDEO CD, or CD • ALL DISCS: repeats all of the discs. • ONE DISC: repeats all of the tracks on the current disc. • TRACK: repeats the current track. ◆ When playing a DATA CD/DATA DVD with MP3 audio tracks or JPEG image files • ALL DISCS: repeats all of the discs. • ONE DISC: repeats all of the albums on the current disc. • ALBUM: repeats the current album. • TRACK (MP3 audio tracks only): repeats the current track. • FILE (DivX video files only): repeats the current file. ◆ When Programme Play or Shuffle Play is activated • ON: repeats Programme Play or Shuffle Play. 4 Press ENTER. Repeat Play starts. To return to normal play Press CLEAR, or select “OFF” in step 3. z Hint You can set Repeat Play while the player is stopped. After selecting the “REPEAT” option, press H. Repeat Play starts. Notes • You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. • When repeating a DATA CD/DATA DVD which contains MP3 audio tracks and JPEG image files, and their playing times are not the same, the sound will not match the image. • When “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 57), you cannot select “TRACK.” PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 OFF ALL DISCS ONE DISC OFF DVD VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 DVP-NC60K/NC62K 31 Playing Discs Repeating a specific portion (A-B Repeat Play) You can play a specific portion of a title, chapter or track repeatedly. (This function is useful when you want to memorize lyrics, etc.) 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (A-B REPEAT), then press ENTER. The options for “A-B REPEAT” appear. 3 Press X/x to select “SET t,” then press ENTER. The “A-B REPEAT” setting bar appears. 4 During playback, when you find the starting point (point A) of the portion to be played repeatedly, press ENTER. The starting point (point A) is set. 5 When you reach the ending point (point B), press ENTER again. The set points are displayed and the player starts repeating this specific portion. To return to normal play Press CLEAR, or select “OFF” in step 3. Notes • When you set A-B Repeat Play, the settings for Shuffle Play, Repeat Play, and Programme Play are cancelled. • A-B Repeat Play does not work across multiple titles. • You may not set A-B Repeat Play for contents on a DVD-RW/DVD-R (VR mode) that contain still pictures. PLAY SET OFF OFF 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 DVD VIDEO A 18 - 1:32:30 B A 18 - 1:32:55 B 18 - 1:33:05 32 Searching for a Scene Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play, Freeze Frame) You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly. Notes • Depending on the disc, you may not be able to do some of the operations described. • For DATA CDs/DATA DVDs, you can search for a particular point only on MP3 audio track or DivX video file. Locating a point quickly using the PREV (previous)/NEXT (next) buttons (Search) You can search for the next or previous chapter, track, or scene using ./> on the player. During playback, press > or . once briefly to go to the next or previous chapter/ track/scene. Or, press and hold > or . to search forward or backwards, and release the button when you find the point you want to return to normal playback. (Search) Locating a point quickly by playing a disc in fast forward or fast reverse (Scan) Press m or M while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press m or M during scan, the scan speed changes. With each press the indication changes as shown below. Actual speeds may differ between discs. Playback direction Opposite direction * DivX video only The “×2B”/ “×2b” playback speed is about twice the normal speed. The “3M”/“3m” playback speed is faster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/ “1m.” (step) (step) ×2B t 1M t 2M t 3M 3M (DVD VIDEO/DVD-RW/VIDEO CD/DATA CD*/DATA DVD* only) ×2B (DVD VIDEO/CD only) ×2b t 1m t 2m t 3m 3m (DVD VIDEO/DVD-RW/VIDEO CD/DATA CD*/DATA DVD* only) ×2b (DVD VIDEO only) 33 Searching for a Scene Watching frame by frame (Slow-motion Play) Press m or M when the player is in pause mode. To return to normal speed, press H. Each time you press m or M during Slow-motion Play, the playback speed changes. Two speeds are available. With each press the indication changes as follows: Playback direction 2 y 1 Opposite direction (DVD/DVD-RW only) 2 y 1 The “2 y”/“2 ” playback speed is slower than “1 y”/“1 .” Note For DATA CDs/DATA DVDs, this function works only for DivX video files. Playing one frame at a time (Freeze Frame) When the player is in the pause mode, press (step) to go to the next frame. Press (step) to go to the preceding frame (DVD/DVD-RW only). To return to normal playback, press H. Notes • You cannot search for a still picture on a DVD- RW/DVD-R in VR mode. • For DATA CDs/DATA DVDs, this function works only for DivX video files. Searching for a Title/ Chapter/Track/Scene, etc. You can search a DVD by title or chapter, and you can search a VIDEO CD/CD/DATA CD/ DATA DVD by track, index, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. You can also search for a scene using the time code. 1 Press DISPLAY (when playing a DATA CD or DATA DVD with JPEG image files, press twice). The Control Menu appears. 2 Press X/x to select the search method. ◆ When playing a DVD VIDEO/DVD-RW DISC TITLE CHAPTER TIME/TEXT Select “TIME/TEXT” to search for a starting point by inputting the time code. ◆ When playing a VIDEO CD or Super VCD without PBC playback DISC TRACK INDEX ENTER CLEAR DISPLAY Number buttons ,continued 34 ◆ When playing a VIDEO CD or Super VCD with PBC Playback DISC SCENE ◆ When playing a CD DISC TRACK ◆ When playing a DATA CD/DATA DVD DISC ALBUM TRACK (MP3 audio tracks only) FILE (JPEG image files only) ◆ When playing a DATA CD/DATA DVD (DivX video files) DISC ALBUM FILE Example: when you select CHAPTER “** (**)” is selected (** refers to a number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes, scenes, album or files. 3 Press ENTER. “** (**)” changes to “-- (**).” 4 Press the number buttons to select the title, chapter, track, index, scene, etc., number you want to search. If you make a mistake Cancel the number by pressing CLEAR, then select another number. 5 Press ENTER. The player starts playback from the selected number. To search for a scene using the time code (DVD VIDEO/DVD-RW only) 1 In step 2, select TIME/TEXT. “T **:**:**” (playing time of the current title) is selected. 2 Press ENTER. “T **:**:**” changes to “T --:--:--.” 3 Input the time code using the number buttons, then press ENTER. For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.” z Hints • When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD- RW), track (CD/DATA CD/DATA DVD), or file (DATA CD/DATA DVD (DivX video)) by pressing the number buttons and ENTER. • You can display the first scene of titles, chapters, or tracks recorded on the disc on a screen divided into 9 sections. You can start playback directly by selecting one of the scenes. For details, see “Searching by Scene (PICTURE NAVIGATION)” (page 35). Notes • The title, chapter, or track number displayed is the same number recorded on the disc. • You cannot search for a scene on a DVD+RW/ DVD+R using the time code. DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 Selected row DVD VIDEO ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 DVP-NC60K/NC62K 35 Searching for a Scene Searching by Scene (PICTURE NAVIGATION) You can divide the screen into 9 subscreens and find the desired scene quickly. 1 Press PICTURE NAVI during playback. The following display appears. 2 Press PICTURE NAVI repeatedly to select an item. • CHAPTER VIEWER (DVD VIDEO only): displays the first scene of each chapter. • TITLE VIEWER (DVD VIDEO only): displays the first scene of each title. • TRACK VIEWER (VIDEO CD/ Super VCD only): displays the first scene of each track. 3 Press ENTER. The first scene of each chapter, title, or track appears as follows. 4 Press C/X/x/c to select a chapter, title, or track, and press ENTER. Playback starts from the selected scene. To return to normal play during setting Press O RETURN or DISPLAY. z Hint If there are more than 9 chapters, titles, or tracks, V is displayed at the bottom right of the screen. To display the additional chapters, titles, or tracks, select the bottom scenes and press x. To return to the previous scene, select the top scenes and press X. Note Depending on the disc, you may not be able to select some items. DISPLAY PICTURE NAVI RETURN ENTER CHAPTER VIEWER ENTER 1 4 7 2 5 8 3 6 9 36 Enjoying Karaoke Using Karaoke You can enjoy karaoke (singing along with a disc) by setting this player to karaoke mode. You can connect up to two microphones (not supplied) to the player. Setting the player to karaoke mode The player enters karaoke mode when a microphone is plugged into the MIC 1 or 2 connector. The player exits from karaoke mode when you disconnect the microphones from both of the MIC 1 and 2 connectors. You may also turn the karaoke mode on and off by selecting “KARAOKE MODE” in the Control Menu display using X/x, and then pressing ENTER. For details about the Control Menu operations, see “Guide to the Control Menu Display” on page 11. When you turn the karaoke mode on with DVDs or Super VCDs, karaoke play is performed with the audio channel you selected using the (audio) button (page 44). With CDs or VIDEO CDs, the Audio setting automatically changes to “1/L” so that only the accompaniment is played when you turn the karaoke mode on. If the vocal audio is heard with some discs, select the audio channel for karaoke play using the (audio) button (page 44). Note When you set the player to the karaoke mode, you cannot use the Fast Play or Slow Play function (page 23). Adjusting the microphone 1 Set the MIC 1/2 LEVEL control of the MIC connector to MIN. 2 Plug a microphone (not supplied) into the MIC connector. When a microphone is connected to the MIC 1 or 2 connector, the player enters karaoke mode. 3 Set the ON/OFF switch on the microphone to ON and turn the MIC 1/2 LEVEL control to adjust the microphone volume. z Hint If howling occurs: – move the microphone away from the speakers. – lower the overall volume. Notes • The sound input from the microphone is not output from the DIGITAL OUT (OPTICAL and COAXIAL) connectors. • You can turn the karaoke mode off even when a microphone is connected to the MIC 1 or 2 connectors by selecting the “KARAOKE MODE” to “OFF” in the Control Menu display. ENTER DISPLAY MIC 1/2 connectors MIC 1/2 LEVEL control Microphones (not supplied) 37 Enjoying Karaoke Dolby Digital Karaoke format Dolby Digital format, which reproduces surround sound using 5 channels, can also contain the “Dolby Digital Karaoke” format which is specialized for karaoke. In the Dolby Digital Karaoke format discs, guide melody and guide vocal tracks are recorded in addition to the accompaniment. You can select them when the player is in karaoke mode. Speaker output in normal Dolby Digital format (5 channel surround) Speaker output in Dolby Digital Karaoke format You can check the audio information using (audio) button (page 44). When playing a Dolby Digital Karaoke disc, “9” appears at the current audio format (page 45). Example: Changing the Key (Key Control) You can change the key to suit your vocal range. While playing karaoke, press one of the KEY CONTROL buttons repeatedly to find the key that suits your vocal range. 1 Press KEY CONTROL while playing a disc in karaoke mode. The following display appears. 2 Press KEY CONTROL repeatedly to select the desired vocal range. Front (L) Centre Front (R) Rear (L) Rear (R) Accompaniment (L) Accompaniment (R) Guide melody Guide vocal 1 Guide vocal 2 You can select any of these. These are output from the front speakers (L, R). DOLBY DIGITAL 3 / 2 2/0: Recorded only with accompaniment. 3/0: Recorded with guide melody. 3/1: Recorded with guide melody and guide vocal. 3/2: Recorded with guide melody and two kinds of guide vocals. To Press Raise the key # (Sharp) Lower the key 2 (Flat) You can adjust the key in 15 half-tone steps (7 steps higher, 7 steps lower and the original or natural (3) key). KEY CONTROL 7 6 5 4 3 2 1 1 2 3 4 5 6 7 ,continued 38 z Hint The key automatically returns to the original key when: – You turn off the power – You remove the disc – The title or track changes Note Depending on the discs, you may not be able to do the operations above. Playing Karaoke with Any Stereo Disc (Karaoke Pon) You can enjoy karaoke with a stereo-recorded disc, even if it is a non-karaoke disc, by reducing the sound of the vocals. Press KARAOKE PON while playing a disc in karaoke mode The following display appears. To cancel the Karaoke Pon function Press KARAOKE PON again. Notes • This function may not work well in the following cases: – Only a few instruments are playing – A duet is playing – The vocals on the disc deviate from the centre – Monaural-recorded discs (the accompaniment is also reduced) – Multiplex • During the Karaoke Pon mode, the stereo effect is reduced. KARAOKE PON ON www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10 DVP-NC60K/NC62K 39 Enjoying Karaoke Selecting the Vocals (Vocal Select) You can select different kinds of vocals recorded in the disc. 1 Press VOCAL SELECT while playing a disc in karaoke mode. The following display appears. 2 Press VOCAL SELECT repeatedly to select the desired vocal channel. The output channel changes as follows. The default setting is underlined. ◆ When playing a DVD VIDEO ◆ When playing a VIDEO CD or CD ◆ When playing a Super VCD z Hints • The channel returns to the default setting when: – you turn off the power. – you remove the disc. • When playing a DVD VIDEO recorded only with one kind of guide vocal, select “1.” Notes • When playing a DVD VIDEO, the function works only with the Dolby Digital Karaoke format. • Depending on the discs, you may not be able to do the operations above. • While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:L+R” or “2:STEREO.” VOCAL SELECT 1+2 , OFF m 1+2 (Guide vocal 1+2) m 1 (Guide vocal 1) m 2 (Guide vocal 2) OFF m L+R (same sound is output from both speakers) m STEREO (The standard stereo sound) , OFF m 1:L+R m 1:STEREO (The stereo sound of the audio track 1) m 2:L+R m 2:STEREO (The stereo sound of the audio track 2) , 40 Turning the Guide Melody On and Off (Guide Melody) You can listen to the guide melody. 1 Press DISPLAY twice while playing a disc in karaoke mode. The Control Menu appears. 2 Press X/x to select (GUIDE MELODY), then press ENTER. The options for “GUIDE MELODY” appear. 3 Press X/x to select the setting. • OFF: To cancel the guide melody. • ON: To turn on the guide melody. 4 Press ENTER. Notes • This function works only with the Dolby Digital Karaoke format. • If no guide melody is recorded on the disc, you cannot hear the guide melody even if you turn it on. Inserting the Applause Effect (Applause) When using the Karaoke mode, you can insert applause with cheers. Press APPLAUSE while playing a disc in karaoke mode Applause with cheers will sound each time you press the button. Notes • This effect may not work with some DVDs or during PBC playback of VIDEO CDs/Super VCDs. • You will not be able to hear the applause effect from DIGITAL OUT (COAXIAL or OPTICAL) jack when: – you play a disc with DTS sound tracks. – you set “DOLBY DIGITAL” to “DOLBY DIGITAL” or “MPEG” to “MPEG” after setting “DIGITAL OUT” to “ON” in “AUDIO SETUP.” ENTER DISPLAY OFF OFF ON DVD VIDEO APPLAUSE 41 Viewing Information About the Disc Viewing Information About the Disc Checking the Playing Time and Remaining Time You can check the playing time and remaining time of the current title, chapter, or track. Also, you can check the DVD/CD text or track name (MP3 audio), or file name (DivX video) recorded on the disc. 1 Press TIME/TEXT during playback. The following display appears. 2 Press TIME/TEXT repeatedly to change the time information. The available time information depends upon the type of disc you are playing. ◆ When playing a DVD VIDEO or DVD- RW • T *:*:* (hours: minutes: seconds) Playing time of the current title • T–*:*:* Remaining time of the current title • C *:*:* Playing time of the current chapter • C–*:*:* Remaining time of the current chapter ◆ When playing a VIDEO CD or Super VCD (with PBC functions) • *:* (minutes: seconds) Playing time of the current scene ◆ When playing a VIDEO CD (without PBC functions), or CD • T *:* (minutes: seconds) Playing time of the current track • T–*:* Remaining time of the current track • D *:* Playing time of the current disc • D–*:* Remaining time of the current disc ◆ When playing a Super VCD (without PBC functions) • T *:* (minutes: seconds) Playing time of the current track ◆ When playing a DATA CD (MP3 audio)/ DATA DVD (MP3 audio) • T *:* (minutes: seconds) Playing time of the current track ◆ When playing a DATA CD (DivX video)/ DATA DVD (DivX video) • *:*:* (hours: minutes: seconds) Playing time of the current file TIME/TEXT T 1:01:57 Time information ,continued 42 Checking the play information of the disc To check the DVD/CD text Press TIME/TEXT repeatedly in step 2 to display text recorded on the DVD/CD. The DVD/CD text appears only when text is recorded in the disc. You cannot change the text. If the disc does not contain text, “NO TEXT” appears. To check DATA CD/DATA DVD album name, etc. By pressing TIME/TEXT while playing MP3 audio tracks or DivX video files on a DATA CD/DATA DVD, you can display the name of the album/track, and the audio bit rate (the amount of data per second of the current audio track) on your TV screen. * Appears when: – playing an MP3 audio track on a DATA CD/ DATA DVD. – playing a DivX video file that contains MP3 audio on a DATA CD/DATA DVD. Checking the information on the front panel display You can view the time information and text displayed on the TV screen also on the front panel display. The information on the front panel display changes as follows when you change the time information on your TV screen. When playing a DVD VIDEO or DVD-RW When playing a DATA CD/DATA DVD (MP3 audio) BRAHMS SYMPHONY T 17:30 128k JAZZ RIVER SIDE Bit rate* Album name Track/file name Playing time of the current title Remaining time of the current title Playing time of the current chapter Remaining time of the current chapter Text Current title and chapter number (returns to top automatically) Playing time and number of the current track Track name Current album and track number (returns to top automatically) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-11 DVP-NC60K/NC62K 43 Viewing Information About the Disc When playing a DATA CD (DivX video), or DATA DVD (DivX video) When playing a VIDEO CD (without PBC functions), or CD * The current track and index number appear only when playing a VIDEO CD. z Hints • When playing a VIDEO CDs without PBC functions, the track number and the index number are displayed after text. • When playing VIDEO CDs with PBC functions, the scene number or the playing time are displayed. • Long text that does not fit in a single line will scroll across the front panel display. • You can also check the time information and text using the Control Menu (page 11). Notes • Depending on the type of disc being played, the DVD/CD text or track name may not be displayed. • The player can only display the first level of the DVD/CD text, such as the disc name or title. • Playing time of MP3 audio tracks and DivX video files may not be displayed correctly. • If you play a disc containing JPEG image files only, “NO AUDIO DATA” appears when “MODE (MP3, JPEG)” is set to “AUTO,” “JPEG” appears when “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” in the front panel display. Playing time of the current file The current file name The current album and file number (returns to top automatically) Track playing time and current disc track number Remaining time of the current track Remaining time of the disc Text Playing time of the disc Current disc, track*, and index number* (returns to top automatically) 44 Sound Adjustments Changing the Sound When playing a DVD VIDEO, DATA DVD (DivX video files), or DATA CD (DivX video files) recorded in multiple audio formats (PCM, Dolby Digital, MPEG audio, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With CDs, DATA CDs/DATA DVD, or VIDEO CDs, you can select the sound from either the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel. 1 Press (audio) during playback. The following display appears. 2 Press (audio) repeatedly to select the desired audio signal. ◆ When playing a DVD VIDEO Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 79 to see which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats. ◆ When playing a DVD-RW The types of sound tracks recorded on a disc are displayed. The default setting is underlined. Example: • 1: MAIN (main sound) • 1: SUB (sub sound) • 1: MAIN+SUB (main and sub sound) ◆ When playing a VIDEO CD, CD, or DATA CD/DATA DVD (MP3 audio) The default setting is underlined. • STEREO: the standard stereo sound • 1/L: the sound of the left channel (monaural) • 2/R: the sound of the right channel (monaural) ◆ When playing a DATA CD (DivX video), or DATA DVD (DivX video) The choice of DATA CD or DATA DVD audio signal formats differ, depending on the DivX video file contained on the disc. The format is shown in the display. ◆ When playing a Super VCD The default setting is underlined. • 1:STEREO: the stereo sound of the audio track 1 • 1:1/L: the sound of the left channel of the audio track 1 (monaural) • 1:2/R: the sound of the right channel of the audio track 1 (monaural) • 2:STEREO: the stereo sound of the audio track 2 • 2:1/L: the sound of the left channel of the audio track 2 (monaural) • 2:2/R: the sound of the right channel of the audio track 2 (monaural) Note While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.” (audio) 1:ENGLISH DOLBY DIGITAL 3/2.1 45 Sound Adjustments Checking the audio signal format You can check the audio signal format by pressing (audio) repeatedly during playback. The format of the current audio signal (Dolby Digital, DTS, PCM, etc.) appears as shown below. ◆When playing a DVD VIDEO Example: Dolby Digital 5.1 ch Example: Dolby Digital 3 ch ◆When playing a DivX video file on a DATA CD or a DATA DVD Example: MP3 audio About audio signals Audio signals recorded in a disc contain the sound elements (channels) shown below. Each channel is output from a separate speaker. • Front (L) • Front (R) • Centre • Rear (L) • Rear (R) • Rear (Monaural): This signal can be either the Dolby Surround Sound processed signals or the Dolby Digital sound’s monaural rear audio signals. • LFE (Low Frequency Effect) signal. Notes • If “DTS” is set to “OFF” in “AUDIO SETUP” (page 72) the DTS track selection option will not appear on the screen even if the disc contains DTS tracks. • MPEG audio signals with more than two channels will appear as shown above (3/2.1, 2/1), but only the Front (L) and Front (R) signals will be output from your two front speakers. 1:ENGLISH DOLBY DIGITAL 3 / 2 .1 Rear (L/R) Front (L/R) + Centre LFE (Low Frequency Effect) 2:SPANISH DOLBY DIGITAL 2 / 1 Front (L/R) Rear (Monaural) 1: MP3 128k Bit rate 46 TV Virtual Surround Settings (TVS) When you connect a stereo TV or 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. TVS was developed by Sony to produce surround sound for home use using just a stereo TV. This only works when playing a multichannel Dolby audio soundtrack. Furthermore, if the player is set up to output the signal from the DIGITAL OUT (OPTICAL or COAXIAL) jack, the surround effect will only be heard when “DOLBY DIGITAL” is set to “D- PCM” in “AUDIO SETUP” (page 71). 1 Press SUR during playback. The following display appears. 2 Press SUR repeatedly to select one of the TVS sounds. See the explanations given for each item in the following section. • TVS DYNAMIC THEATER • TVS DYNAMIC • TVS WIDE • TVS NIGHT • TVS STANDARD To cancel the setting Select “OFF” in step 2. ◆TVS DYNAMIC THEATER Creates one set of LARGE virtual rear speakers and virtual subwoofer from the sound of the front speakers (L, R) without using actual rear speakers and subwoofer (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. ◆TVS DYNAMIC Creates one set of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. ◆TVS WIDE Creates five sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. SUR TVS DYNAMIC THEATER TV Sub woofer TV TV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-12 DVP-NC60K/NC62K 47 Sound Adjustments ◆TVS NIGHT Large sounds, such as explosions, are suppressed, but the quieter sounds are unaffected. This feature is useful when you want to hear the dialogue and enjoy the surround sound effects of “TVS WIDE” at low volume. ◆TVS STANDARD Creates three sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). Use this setting when you want to use TVS with 2 separate speakers. Notes • When the playing signal does not contain a signal for the rear speakers, the surround effects cannot be heard. • When you select one of the TVS modes, turn off the surround setting of the connected TV or amplifier (receiver). • Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings. • Not all discs will respond to the “TVS NIGHT” function in the same way. • The TVS effects do not work when using the Fast Play or Slow Play functions, even though you can change the TVS modes. • You select one of the TVS modes, the player does not output the sound of center speaker. L: Front speaker (left) R: Front speaker (right) : Virtual speaker L R 48 Enjoying Movies Changing the Angles If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “ ” appears in the front panel display. This means that you can change the viewing angle. 1 Press (angle) during playback. The number of the angle appears on the display. 2 Press (angle) repeatedly to select an angle number. The scene changes to the selected angle. Note Depending on the DVD VIDEO, you may not be able to change the angles even if multi-angles are recorded on the DVD VIDEO. Displaying the Subtitles If subtitles are recorded on the discs, you can change the subtitles or turn them on and off whenever you want while playing a DVD. 1 Press (subtitle) during playback. The following display appears. 2 Press (subtitle) repeatedly to select a setting. ◆ When playing a DVD VIDEO Select the language. Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 79 to see which language the code represents. ◆ When playing a DVD-RW Select “ON.” ◆ When playing a DATA CD (DivX video), or DATA DVD (DivX video) The choices of DATA CD or DATA DVD subtitles differ, depending on the DivX video file contained on the disc. The choices are shown in the display. (angle) 2 (subtitle) 1:ENGLISH 49 Enjoying Movies To turn off the subtitles Select “OFF” in step 2. Notes • Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off. • With DATA CDs/DATA DVDs, subtitles can be changed for DivX video files only. • You can change the subtitles if the DivX video file has an “.AVI” or “.DIVX” extension and contains subtitle information within the same file. • While playing a disc with subtitles, the subtitle may disappear when you press FAST PLAY or SLOW PLAY button. Adjusting the Playback Picture (CUSTOM PICTURE MODE) You can adjust the video signal of the DVD, VIDEO CD, DATA CD/DATA DVD in JPEG format, or DATA CD/DATA DVD containing DivX video files from the player to obtain the picture quality you want. Choose the setting that best suits the programme you are watching. When you select “MEMORY,” you can make further adjustments to each element of the picture (colour, brightness, etc.). 1 Press DISPLAY twice during playback. The Control Menu appears. 2 Press X/x to select (CUSTOM PICTURE MODE), then press ENTER. The options for “CUSTOM PICTURE MODE” appear. DISPLAY RETURN ENTER ,continued 50 3 Press X/x to select the setting you want. The default setting is underlined. • STANDARD: displays a standard picture. • DYNAMIC 1: produces a bold dynamic picture by increasing the picture contrast and the colour intensity. • DYNAMIC 2: produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and colour intensity. • CINEMA 1: enhances details in dark areas by increasing the black level. • CINEMA 2: white colours become brighter and black colours become richer, and the colour contrast is increased. • MEMORY: adjusts the picture in greater detail. 4 Press ENTER. The selected setting takes effect. z Hint When you watch a movie, “CINEMA 1” or “CINEMA 2” is recommended. Adjusting the picture items in “MEMORY” You can adjust each element of the picture individually. • PICTURE: changes the contrast • BRIGHTNESS: changes the overall brightness • COLOR: makes the colours deeper or lighter • HUE: changes the colour balance 1 In step 3 of “Adjusting the Playback Picture,” select “MEMORY” and press ENTER. The “PICTURE” adjustment bar appears. 2 Press C/c to adjust the picture contrast. To go the next or previous picture item without saving the current setting, press X/x. 3 Press ENTER. The adjustment is saved, and “BRIGHTNESS” adjustment bar appears. 4 Repeat step 2 and 3 to adjust “BRIGHTNESS,” “COLOR,” and “HUE.” To turn off the display Press O RETURN, or DISPLAY. Note The “BRIGHTNESS” setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel. DVD VIDEO DYNAMIC 1 STANDARD STANDARD CINEMA 1 DYNAMIC 2 ( ) C 0 1 : 3 2 : 5 5 PICTURE 0 Cancel : Select : ENTER RETURN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-13 DVP-NC60K/NC62K 51 Enjoying Movies Sharpening the Pictures (SHARPNESS) You can enhance the outlines of images to produce a sharper picture. 1 Press DISPLAY twice during playback. The Control Menu appears. 2 Press X/x to select (SHARPNESS), then press ENTER. The options for “SHARPNESS” appear. 3 Press X/x to select a level. • 1: enhances the outline. • 2: enhances the outline more than 1. 4 Press ENTER. The selected setting takes effect. To cancel the “SHARPNESS” setting Select “OFF” in step 3. Note This setting is not effective if you connect the player via the LINE OUT (VIDEO) or S VIDEO OUT jack and select “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” by using the PROGRESSIVE button on the front panel. ENTER DISPLAY DVD VIDEO OFF 2 1 OFF 52 Enjoying MP3 Audio and JPEG Images About MP3 Audio Tracks and JPEG Image Files MP3 is audio compression technology that satisfies the ISO/IEC MPEG regulations. JPEG is image compression technology. You can play DATA CDs/DATA DVDs that contain MP3 audio tracks or JPEG image files. DATA CDs/DATA DVDs that the player can play You can play back DATA CDs (CD-ROMs/ CD-Rs/CD-RWs) or DATA DVDs (DVD- ROMs/DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs) recorded in MP3 (MPEG-1 Audio Layer III) and JPEG format. However, this player only plays DATA CDs whose logical format is ISO 9660 Level 1/ Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format. Note The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format. MP3 audio track or JPEG image file that the player can play The player can play the following tracks and files: – MP3 audio tracks with the extension “.MP3.” – JPEG image files with the extension “.JPEG” or “.JPG.” – JPEG image files that conform to the DCF* image file format. * “Design rule for Camera File system”: Image standards for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industries Association). Notes • The player will play any data with the extension “.MP3,” “.JPG,” or “.JPEG,” even if they are not in MP3 or JPEG format. Playing these data may generate a loud noise which could damage your speaker system. • The player does not conform to audio tracks in mp3PRO format. • Some JPEG files cannot be played. • You cannot play MP3 audio tracks/JPEG image files in DATA CDs/DATA DVDs that contain DivX video files. 53 Enjoying MP3 Audio and JPEG Images About playback order of albums, tracks, and files Albums play in the following order: ◆Structure of disc contents When you insert a DATA CD/DATA DVD and press H, the numbered tracks (or files) are played sequentially, from 1 through 7. Any sub-albums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.) When you press MENU and the list of album names appears (page 54), the album names are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list. z Hints • If you add numbers (01, 02, 03, etc.) to the front of the track/file names when you store the tracks (or files) in a disc, the tracks and files will be played in that order. • Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees. Notes • Depending on the software you use to create the DATA CD/DATA DVD, the playback order may differ from the above illustration. • The playback order above may not be applicable if there are more than 200 albums and 300 tracks/ files in each album. • The player can recognize up to 200 albums (the player will count just albums, including albums that do not contain MP3 audio tracks and JPEG image files). The player will not play any albums beyond the 200th album. • Proceeding to the next or another album may take some time. ROOT Tree 1 Tree 2 Tree 3 Tree 4 Tree 5 Album Track or file 54 Playing MP3 Audio Tracks or JPEG Image Files You can play MP3 audio tracks and JPEG image files on DATA CDs (CD-ROMs/CD- Rs/CD-RWs) or DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs). z Hint You can view the disc information while playing MP3 audio tracks (page 41). Notes • DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted. • If no MP3 audio track or JPEG image file is recorded on the DATA CD/DATA DVD, “No audio data” or “No image data” appears on the screen. Selecting an album 1 Press MENU. The list of albums on the disc appears. When an album is being played, its title is shaded. 2 Press X/x to select the album you want to play. 3 Press H. Playback starts from the selected album. To select MP3 audio tracks, see “Selecting an MP3 audio track” (page 55). To select JPEG image files, see “Selecting a JPEG image file” (page 55). To stop playback Press x. To go to the next or previous page Press c or C. To turn on or off the display Press MENU repeatedly. z Hint Of the selected album, you can select to play only the MP3 audio tracks, JPEG image files, or both, by setting “MODE (MP3, JPEG)” (page 57). MENU PICTURE NAVI RETURN ENTER ZOOM 1 ( 3 0 ) R O C K B E S T H I T K A R A O K E J A Z Z R & B M Y F A V O R I T E S O N G S C L A S S I C A L S A L S A O F C U B A B O S S A N O V A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-14 DVP-NC60K/NC62K 55 Enjoying MP3 Audio and JPEG Images Selecting an MP3 audio track 1 After step 2 of “Selecting an album,” press ENTER. The list of tracks in the album appears. 2 Press X/x to select a track, and press ENTER. Playback starts from the selected track. To stop playback Press x. To go to the next or previous page Press c or C. To return to the previous display Press O RETURN. To go to the next or previous MP3 audio track Press > or . during playback. You can select the first track of the next album by pressing > during playback of the last track of the current album. Note that you cannot return to the previous album by using ., and that you need to select the previous album from the album list. Selecting a JPEG image file 1 After step 2 of “Selecting an album,” press PICTURE NAVI. The image files in the album appear in 16 subscreens. A scroll box is displayed on the right. To display the additional image, select the bottom images and press x. To return to the previous image, select the top images and press X. 2 Press C/X/x/c to select the image you want to view, and press ENTER. The selected image appears. Example To go to the next or previous JPEG image file Press C or c during playback. You can select the first file of the next album by pressing c during playback of the last file of the current album. Note that you cannot return to the previous album by using C, and that you need to select the previous album from the album list. J A Z Z 1 ( 9 0 ) 0 1 S H E I S S P E C I A L 0 2 A L L Y O U N E E D I S . . . 0 3 S P I C Y L I F E 0 4 H A P P Y H O U R 0 5 R I V E R S I D E 0 6 5 0 7 T A K E T I M E , T A K E T I M E 1 2 3 4 5 6 7 8 13 14 15 16 9 10 11 12 ,continued 56 To rotate a JPEG image Press X/x while viewing the image. Each time you press X, the image rotates counterclockwise by 90 degrees. To return to normal view, press CLEAR. Note that the view also returns to normal if you press C/c to go to the next or previous image. Example: when X is pressed once. To magnify a JPEG image (ZOOM) Press ZOOM while viewing the image. You can enlarge the image up to four times the original size, and scroll using C/X/x/c. To return to normal view, press CLEAR. ◆When pressed once (x2) The image enlarges twice the original size. ◆When pressed twice (x4) The image enlarges four times the original size. To stop viewing the JPEG image Press x. z Hints • While viewing JPEG image files, you can set options such as “INTERVAL” (page 58), “EFFECT” (page 58), and “SHARPNESS” (page 51). • You can view JPEG images files without MP3 audio by setting “MODE (MP3, JPEG)” to “IMAGE (JPEG)” (page 57). • The date the picture was taken is displayed beside “DATE” in the Control Menu (page 11). Note that no date may appear depending on the digital camera. Note PICTURE NAVI does not work if “AUDIO (MP3)” is selected in “MODE (MP3, JPEG)” (page 57). Enjoying JPEG Images as a Slide Show You can play JPEG image files on a DATA CD or DATA DVD successively as a slide show. 1 Press MENU. The list of albums on the DATA CD/ DATA DVD appears. 2 Press X/x to select an album. 3 Press H. The JPEG images in the selected album start playing as a slide show. To stop playback Press x. Notes • The slide show stops when X/x or ZOOM is pressed.To resume the slide show, press H. • This function does not work if “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 57). Rotating direction ENTER DISPLAY MENU 1 ( 3 0 ) R O C K B E S T H I T K A R A O K E J A Z Z R & B M Y F A V O R I T E S O N G S C L A S S I C A L S A L S A O F C U B A B O S S A N O V A 57 Enjoying MP3 Audio and JPEG Images Viewing a slide show with sound (MODE (MP3, JPEG)) When JPEG image files and MP3 audio tracks are placed in the same album, you can enjoy a slide show with sound. 1 Press DISPLAY during stop mode. The Control Menu appears. 2 Press X/x to select (MODE (MP3, JPEG)), and press ENTER. The options for “MODE (MP3, JPEG)” appear. 3 Press X/x to select “AUTO” (default), and press ENTER. • AUTO: plays both the JPEG image files and MP3 audio tracks in the same album as a slide show. • AUDIO (MP3): plays only MP3 audio tracks continuously. • IMAGE (JPEG): plays only JPEG image files continuously. 4 Press MENU. The list of albums on the DATA CD/ DATA DVD appears. 5 Press X/x to select the album that contains both the MP3 audio tracks and JPEG images you want to play. 6 Press H. A slide show starts with sound. z Hints • To repeat both MP3 audio tracks and JPEG image files in a single album, repeat the same MP3 audio track or album when “MODE (MP3, JPEG)” is set to “AUTO.” See “Playing repeatedly (Repeat Play)” (page 30) to repeat the track or album. • The player recognizes a maximum of 200 albums regardless of the selected mode. Of each album, the player recognizes up to 300 MP3 audio tracks and 300 JPEG image files when “AUTO” is selected, 600 MP3 audio tracks when “AUDIO (MP3)” is selected, 600 JPEG image files when “IMAGE (JPEG)” is selected. Notes • This function does not work if the MP3 audio tracks and JPEG image files are not placed in the same album. • If playing time of JPEG image or MP3 audio is longer than the other, the longer one continues without sound or image. • If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file. • The player skips to the next disc if the current disc contains MP3 audio tracks only and “MODE (MP3, JPEG)” is set to “IMAGE (JPEG),” or the disc contains JPEG image files only and “MODE (MP3, JPEG)” is set to “AUDIO (MP3).” It is recommended that you set “MODE (MP3, JPEG)” to “AUTO.” DATA CD MP3 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 IMAGE (JPEG) AUDIO (MP3) AUTO AUTO T 3 2 : 5 5 1 ( 3 0 ) R O C K B E S T H I T K A R A O K E J A Z Z R & B M Y F A V O R I T E S O N G S C L A S S I C A L S A L S A O F C U B A B O S S A N O V A ,continued 58 Setting the pace for a slide show (INTERVAL) You can set the time the slides are displayed on the screen. 1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (INTERVAL), then press ENTER. The options for “INTERVAL” appear. 3 Press X/x to select a setting. The default setting is underlined. • NORMAL: sets the duration to between 6 to 9 seconds. • FAST: sets a duration shorter than NORMAL. • SLOW 1: sets a duration longer than NORMAL. • SLOW 2: sets a duration longer than SLOW 1. 4 Press ENTER. Note Some JPEG files, especially progressive JPEG files or JPEG files of 3,000,000 pixels or more, may take longer to display than others, which may make the duration seem longer than the setting you selected. Selecting the slides’ appearance (EFFECT) You can select the way the slides are displayed during a slide show. 1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode. 2 Press X/x to select (EFFECT), then press ENTER. The options for “EFFECT” appear. 3 Press X/x to select a setting. The default setting is underlined. • MODE 1: the image sweeps in from top to bottom. • MODE 2: the image sweeps in from left to right. • MODE 3: the image stretches out from the centre of the screen. • MODE 4: the images randomly cycle through the effects. • MODE 5: the next image slides over the previous image. • OFF: turns off this function. 4 Press ENTER. 2 0 0 5 / 1 0 / 2 9 1( NORMAL DATA CD JPEG NORMAL INTERVAL FAST SLOW 1 SLOW 2 4) 3 ( 1 2) 2 0 0 5 / 1 0 / 2 9 1( MODE 1 DATA CD JPEG WIPE MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 OFF 4) 3 ( 1 2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-15 DVP-NC60K/NC62K 59 Enjoying DivX® Videos Enjoying DivX® Videos About DivX Video Files DivX® is a video file compression technology, developed by DivXNetworks, Inc. This product is an official DivX® Certified product. You can play DATA CDs and DATA DVDs that contain DivX video files. DATA CDs and DATA DVDs that the player can play Playback of DATA CDs (CD-ROMs/CD-Rs/ CD-RWs) and DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs) on this player is subject to certain conditions: – With DATA CDs/DATA DVDs that contain DivX video files in addition to MP3 audio tracks or JPEG image files, the player plays only the DivX video files. However, this player only plays DATA CDs whose logical format is ISO 9660 Level 1/ Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format. About playback order of data on DATA CDs or DATA DVDs See “About playback order of albums, tracks, and files” (page 53). Note that the playback order may not be applicable, depending on the software used for creating the DivX video file, or if there are more than 200 albums and 600 DivX video files in each album. Note The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format. DivX video files that the player can play The player can play data that is recorded in DivX format, and which has the extension “.AVI,” or “.DIVX.” The player will not play files with the extension “.AVI” or “.DIVX” if they do not contain a DivX video. z Hint For details about playable MP3 audio tracks or JPEG image files on DATA CDs/DATA DVDs, see “DATA CDs/DATA DVDs that the player can play” (page 52). Notes • The player may not play a DivX video file when the file has been combined from two or more DivX video files. • The player cannot play a DivX video file of size more than 720 (width) × 576 (height)/2 GB. • Depending on the DivX video file, the picture may be unclear or the sound may skip. • The player cannot play some DivX video files that are longer than 3 hours. 60 Playing DivX Video Files You can play DivX video files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs) and DATA DVDs (DVD-ROMs/DVD+RWs/DVD+Rs/ DVD-RWs/DVD-Rs). z Hints • You can view the disc information while playing a DivX video file (page 41). • The player plays DivX video file either in PAL or NTSC colour system according to the current setting. Notes • If there are no DivX video files recorded on the DATA CD/DATA DVD, a message appears to indicate that the disc is not playable. • Depending on the DivX video file, the picture may pause or be unclear. In which case, it is recommended that you create the file at a lower bit rate. If the sound is still noisy, MP3 is the recommended audio format. Note, however, this player does not conform to WMA (Windows Media Audio) format. • Because of the compression technology used for DivX video files, it may take some time after you press H (play) for the picture to appear. • Depending on the DivX video file, the sound may not match the pictures on the screen. Selecting an album 1 Press MENU. A list of albums on the disc appears. Only albums that contain DivX video files are listed. 2 Press X/x to select the album you want to play. 3 Press H. Playback starts from the selected album. To select DivX video files, see “Selecting a DivX video file” (page 61). To stop playback Press x. To go to the next or previous page Press C or c. To turn the display on or off Press MENU repeatedly. MENU RETURN ENTER DISPLAY 3 ( 3 ) S U M M E R 2 0 0 3 N E W Y E A R ' S D A Y M Y F A V O U R I T E S 61 Enjoying DivX® Videos Selecting a DivX video file 1 After step 2 of “Selecting an album,” press ENTER. The list of files in the album appears. 2 Press X/x to select a file, and press ENTER. The selected file starts playing. To stop playback Press x. To go to the next or previous page Press C or c. To return to the previous display Press O RETURN. To go to the next or previous DivX video file without turning on the above file list You can select the next or previous DivX video file in the same album by pressing > or .. You can also select the first file of the next album by pressing > during playback of the last file of the current album. Note that you cannot return to the previous album by using .. To return to the previous album, select it from the album list. z Hint If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences are counted: – when the player is turned off. This includes when the player is automatically turned off by the Auto Power Off function. Press X instead of x when you want to stop viewing – when the disc tray is opened. – when another file is played. M Y F A V O U R I T E S 1 ( 2 ) H A W A I I 2 0 0 4 V E N U S 62 Using Various Additional Functions Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) You can set two kinds of playback restrictions for a disc. • Custom Parental Control You can set playback restrictions so that the player will not play inappropriate discs. • Parental Control Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes. The same password is used for both Parental Control and Custom Parental Control. Custom Parental Control You can set the same Custom Parental Control password for up to 40 discs. When you set the 41st-disc, the first disc is cancelled. 1 Insert the disc you want to lock. If the disc is playing, press x to stop playback. 2 Press DISPLAY while the player is in stop mode. The Control Menu appears. 3 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 4 Press X/x to select “ON t,” then press ENTER. ◆ If you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears. ◆ When you have already registered a password The display for entering the password appears. 5 Enter or re-enter your 4-digit password using the number buttons, then press ENTER. “Custom parental control is set.” appears and then the screen returns to the Control Menu. To turn off the Custom Parental Control function 1 Follow steps 1 to 3 of “Custom Parental Control.” 2 Press X/x to select “OFF t,” then press ENTER. 3 Enter your 4-digit password using the number buttons, then press ENTER. ENTER DISPLAY Number buttons OFF PASSWORD PLAYER ON DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-16 DVP-NC60K/NC62K 63 Using Various Additional Functions To play a disc for which Custom Parental Control is set 1 Insert the disc for which Custom Parental Control is set. The “CUSTOM PARENTAL CONTROL” display appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player is ready for playback. z Hint If you forget your password, enter the 6-digit number “199703” using the number buttons when the “CUSTOM PARENTAL CONTROL” display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password. Parental Control (limited playback) Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The “PARENTAL CONTROL” function allows you to set a playback limitation level. 1 Press DISPLAY while the player is in stop mode. The Control Menu appears. 2 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 3 Press X/x to select “PLAYER t,” then press ENTER. ◆ If you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears. ◆ When you have already registered a password The display for entering the password appears. 4 Enter or re-enter your 4-digit password using the number buttons, then press ENTER. The display for setting the playback limitation level appears. 5 Press X/x to select “STANDARD,” then press ENTER. The selection items for “STANDARD” are displayed. 6 Press X/x to select a geographic area as the playback limitation level, then press ENTER. CUSTOM PARENTAL CONTROL Custom parental control is already set. To play, enter your password and press . ENTER OFF PASSWORD PLAYER ON DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) 1 T 1 : 3 2 : 5 5 PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER PARENTAL CONTROL LEVEL: OFF USA STANDARD: PARENTAL CONTROL LEVEL: OFF USA STANDARD: USA OTHERS ,continued 64 The area is selected. When you select “OTHERS t,” select and enter a standard code in the table on page 79 using the number buttons. 7 Press X/x to select “LEVEL,” then press ENTER. The selection items for “LEVEL” are displayed. 8 Select the level you want using X/x, then press ENTER. Parental Control setting is complete. The lower the value, the stricter the limitation. To turn off the Parental Control function Set “LEVEL” to “OFF” in step 8. To play a disc for which Parental Control is set 1 Insert the disc and press H. The display for entering your password appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player starts playback. z Hint If you forget your password, remove the disc and repeat steps 1 to 3 of “Parental Control (limited playback).” When you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password, replace the disc in the player and press H. When the display for entering your password appears, enter your new password. Notes • When you play discs which do not have the Parental Control function, playback cannot be limited on this player. • Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is cancelled, the level returns to the previous level. Changing the password 1 Press DISPLAY while the player is in stop mode. The Control Menu appears. 2 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 3 Press X/x to select “PASSWORD t,” then press ENTER. The display for entering the password appears. 4 Enter your 4-digit password using the number buttons, then press ENTER. 5 Enter a new 4-digit password using the number buttons, then press ENTER. 6 To confirm your password, re-enter it using the number buttons, then press ENTER. If you make a mistake entering your password Press C before you press ENTER and input the correct number. PARENTAL CONTROL LEVEL: OFF OFF STANDARD: 8: 7: 6: 5: NC17 R PARENTAL CONTROL LEVEL: STANDARD: USA 4: PG13 65 Using Various Additional Functions Controlling Your TV with the Supplied Remote You can control the sound level, input source, and power switch of your Sony TV with the supplied remote. You can control your TV using the buttons below. Note Depending on the connected unit, you may not be able to control your TV using all or some of the buttons on the supplied remote. Controlling other TVs with the remote You can control the sound level, input source, and power switch of non-Sony TVs as well. If your TV is listed in the table below, set the appropriate manufacturer’s code. 1 While holding down TV [/1, press the number buttons to select your TV’s manufacturer’s code (see the table below). 2 Release TV [/1. Code numbers of controllable TVs If more than one code number is listed, try entering them one at a time until you find the one that works with your TV. Notes • When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again. • Depending on the connected unit, you may not be able to control your TV using all or some of the buttons on the supplied remote. By pressing You can TV [/1 Turn the TV on or off 2 (volume) +/– Adjust the volume of the TV t (TV/video) Switch the TV’s input source between the TV and other input sources. TV 2 (volume)+/– t (TV/video) Number buttons Manufacturer Code number Sony 01 (default) Aiwa 01 (default) Grundig 11 Hitachi 24 JVC 33 LG 06 Loewe 06 Panasonic 17, 49 Philips 06, 08 Samsung 06, 71 Sanyo 25 Sharp 29 Thomson 43 Toshiba 38 66 Settings and Adjustments Using the Setup Display By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display item, see pages from 67 to 72. Note Playback settings stored in the disc take priority over the Setup Display settings and not all of the functions described may work. 1 Press DISPLAY when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (SETUP), then press ENTER. The options for “SETUP” appear. 3 Press X/x to select “CUSTOM,” then press ENTER. The Setup Display appears. 4 Press X/x to select the setup item from the displayed list: “LANGUAGE SETUP,” “SCREEN SETUP,” “CUSTOM SETUP,” or “AUDIO SETUP.” Then press ENTER. The Setup item is selected. Example: “SCREEN SETUP” 5 Press X/x to select an item, then press ENTER. The options for the selected item appear. Example: “TV TYPE” ENTER DISPLAY STOP 1 ( 5) QUICK CUSTOM RESET DVD VIDEO QUICK LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON COLOR SYSTEM: AUTO JACKET PICTURE 4:3 OUTPUT: FULL Selected item Setup items SCREEN SETUP TV TYPE: SCREEN SAVER: COLOR SYSTEM: BACKGROUND: 16:9 4:3 LETTER BOX 4:3 OUTPUT: 4:3 PAN SCAN FULL 16:9 Options www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-17 DVP-NC60K/NC62K 67 Settings and Adjustments 6 Press X/x to select a setting, then press ENTER. The setting is selected and setup is complete. Example: “4:3 PAN SCAN” To enter the Quick Setup mode Select “QUICK” in step 3. Follow from step 5 of the Quick Setup explanation to make basic adjustments (page 20). To reset all of the “SETUP” settings 1 Select “RESET” in step 3 and press ENTER. 2 Select “YES” using X/x. You can also quit the process and return to the Control Menu by selecting “NO” here. 3 Press ENTER. All the settings explained on pages 67 to 72 return to the default settings. Do not press [/1 while resetting the player, which takes a few seconds to complete. Setting the Display or Sound Track Language (LANGUAGE SETUP) “LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track. Select “LANGUAGE SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 66). ◆ OSD (On-Screen Display) Switches the display language on the screen. ◆ MENU (DVD VIDEO only) You can select the desired language for the disc’s menu. ◆ AUDIO (DVD VIDEO only) Switches the language of the sound track. When you select “ORIGINAL,” the language given priority in the disc is selected. ◆ SUBTITLE (DVD VIDEO only) Switches the language of the subtitle recorded on the DVD VIDEO. When you select “AUDIO FOLLOW,” the language for the subtitles changes according to the language you selected for the sound track. z Hint If you select “OTHERS t” in “MENU,” “SUBTITLE,” or “AUDIO,” select and enter a language code from “Language Code List” on page 79 using the number buttons. Note If you select a language in “MENU,” “SUBTITLE,” or “AUDIO” that is not recorded on a DVD VIDEO, one of the recorded languages will be automatically selected. Selected setting SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 4:3 PAN SCAN ON COLOR SYSTEM: AUTO JACKET PICTURE 4:3 OUTPUT: FULL LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH 68 Settings for the Display (SCREEN SETUP) Choose settings according to the TV to be connected. Select “SCREEN SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 66). The default settings are underlined. ◆ TV TYPE Selects the aspect ratio of the connected TV (4:3 standard or wide). Note Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa. ◆ COLOR SYSTEM (VIDEO CD only) Selects the color system when you play a VIDEO CD. ◆ SCREEN SAVER The screen saver image appears when you leave the player in pause or stop mode for 15 minutes, or when you play a CD, or DATA CD/DATA DVD (MP3 audio) for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press H to turn off the screen saver. ◆ BACKGROUND Selects the background colour or picture on the TV screen when the player is in stop mode or while playing a CD, or DATA CD/DATA DVD (MP3 audio). 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function. 4:3 LETTER BOX Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 4:3 PAN SCAN Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON COLOR SYSTEM: AUTO JACKET PICTURE 4:3 OUTPUT: FULL 16:9 4:3 LETTER BOX 4:3 PAN SCAN AUTO Outputs the video signal in the system of the VIDEO CD, either PAL or NTSC. If your TV is the DUAL system, select AUTO. PAL Changes the video signals of an NTSC VIDEO CD and outputs it in the PAL system. NTSC Changes the video signals of a PAL VIDEO CD and outputs it in the NTSC system. ON Turns on the screen saver. OFF Turns off the screen saver. JACKET PICTURE The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CD- EXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears. GRAPHICS A preset picture stored in the player appears. BLUE The background colour is blue. BLACK The background colour is black. 69 Settings and Adjustments ◆ 4:3 OUTPUT This setting is effective only when you set “TV TYPE” in “SCREEN SETUP” to “16:9.” Adjust this to watch 4:3 aspect ratio progressive signals. If you can change the aspect ratio on your progressive format (525p/625p) compatible TV, change the setting on your TV, not the player. This setting is effective only when “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” is selected by using the PROGRESSIVE button on the front panel. Custom Settings (CUSTOM SETUP) Use this to set up playback related and other settings. Select “CUSTOM SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 66). The default settings are underlined. ◆ AUTO POWER OFF Switches the Auto Power Off setting on or off. ◆ AUTO PLAY Switches the Auto Play setting on or off. This function is useful when the player is connected to a timer (not supplied). ◆ DIMMER Adjusts the lighting of the front panel display. FULL Select this when you can change the aspect ratio on your TV. NORMAL Select this when you cannot change the aspect ratio on your TV. Shows a 16:9 aspect ratio signal with black bands on left and right sides of the image. 16:9 aspect ratio TV OFF Switches this function off. ON The player enters standby mode when left in stop mode for more than 30 minutes. OFF Switches this function off. ON Automatically starts playback when the player is turned on by a timer (not supplied). BRIGHT Makes the lighting bright. DARK Makes the lighting dark. CUSTOM SETUP AUTO POWER OFF: AUTO PLAY: DIMMER: OFF OFF BRIGHT AUTO PAUSE MODE: OFF TRACK SELECTION: ON MULTI-DISC RESUME: Registration Code DivX: ,continued 70 ◆ PAUSE MODE (DVD VIDEO/DVD-RW only) Selects the picture in pause mode. ◆ TRACK SELECTION (DVD VIDEO only) Gives the sound track which contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, MPEG audio, DTS, or Dolby Digital format) are recorded. Notes • When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 67). • If you set “DTS” to “OFF” (page 72), the DTS sound track is not played even if you set “TRACK SELECTION” to “AUTO.” • If PCM, DTS, MPEG audio, and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, MPEG audio, and Dolby Digital sound tracks in this order. ◆ MULTI-DISC RESUME (DVD VIDEO/ VIDEO CD only) Switches the Multi-disc Resume setting on or off. Resume playback can be stored in memory for up to 6 different DVD VIDEOs/ VIDEO CDs (page 25). ◆ DivX Displays the registration code for this player. For more information, go to http://www.divx.com on the Internet. Settings for the Sound (AUDIO SETUP) “AUDIO SETUP” allows you to set the sound according to the playback and connection conditions. Select “AUDIO SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 66). The default settings are underlined. ◆ AUDIO ATT (attenuation) If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. This function affects the output of the LINE OUT L/R (AUDIO) jacks. ◆ AUDIO DRC (Dynamic Range Control) (DVD VIDEO/DVD-RW only) Makes the sound clear when the volume is turned down when playing a DVD that conforms to “AUDIO DRC.” This function affects the output from the following jacks: – LINE OUT L/R (AUDIO) jacks – DIGITAL OUT (OPTICAL or COAXIAL) jack only when “DOLBY DIGITAL” is set to “D-PCM” (page 71). AUTO The picture, including subjects that move dynamically, is output with no jitter. Normally select this position. FRAME The picture, including subjects that do not move dynamically, is output in high resolution. OFF No priority given. AUTO Priority given. ON Stores the resume setting in memory for up to 6 discs. OFF Does not store the resume setting in memory. Playback restarts at the resume point only for the current disc in the player. OFF Normally, select this position. ON Select this when the playback sound from the speakers is distorted. STANDARD Normally select this position. TV MODE Makes low sounds clear even if you turn the volume down. WIDE RANGE Gives you the feeling of being at a live performance. AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: OFF STANDARD ON DOWNMIX: DOLBY SURROUND DOLBY DIGITAL: MPEG: D-PCM PCM DTS: OFF 48kHz/96kHz PCM: 48kHz/16bit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-18 DVP-NC60K/NC62K 71 Settings and Adjustments ◆ DOWNMIX (DVD VIDEO/DVD-RW only) Switches the method for mixing down to 2 channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see “Checking the audio signal format” (page 45). This function affects the output of the following jacks: – LINE OUT L/R (AUDIO) jacks – DIGITAL OUT (OPTICAL or COAXIAL) jack when “DOLBY DIGITAL” is set to “D-PCM” (page 71). ◆ DIGITAL OUT Selects if audio signals are output via the DIGITAL OUT (OPTICAL or COAXIAL) jack. Setting the digital output signal Switches the method of outputting audio signals when you connect a component such as an amplifier (receiver) or MD deck with a digital input jack. For connection details, see page 18. Select “DOLBY DIGITAL,” “MPEG,” “DTS,” and “48kHz/96kHz PCM” after setting “DIGITAL OUT” to “ON.” If you connect a component that is incompatible with the selected audio signal, a loud noise (or no sound) may be heard from the speakers, risking damage to your ears or speakers. ◆ DOLBY DIGITAL (DVD VIDEO/DVD-RW only) Selects the type of Dolby Digital signal. ◆ MPEG (DVD VIDEO/DVD-RW only) Selects the type of MPEG audio signal. DOLBY SUR- ROUND Normally, select this position. Multi-channel audio signals are output to 2 channels for enjoying surround sounds. NORMAL Multi-channel audio signals are downmixed to 2 channels for use with your stereo. ON Normally select this position. When you select “ON,” see “Setting the digital output signal” for further settings. OFF The influence of the digital circuit upon the analog circuit is minimal. D-PCM Select this when the player is connected to an audio component without a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP” (page 71). DOLBY DIGITAL Select this when the player is connected to an audio component with a built-in Dolby Digital decoder. PCM Select this when the player is connected to an audio component without a built-in MPEG decoder. If you play multi-channel MPEG audio sound tracks, only the Front (L) and Front (R) signals will be output from your two front speakers. MPEG Select this when the player is connected to an audio component with a built-in MPEG decoder. ,continued 72 ◆ DTS Selects whether or not to output DTS signals. ◆ 48kHz/96kHz PCM (DVD VIDEO only) Selects the sampling frequency of the audio signal. Note The analogue audio signals from the LINE OUT L/ R (AUDIO) jacks are not affected by this setting and keep their original sampling frequency level. OFF Select this when the player is connected to an audio component without a built-in DTS decoder. ON Select this when the player is connected to an audio component with a built-in DTS decoder. 48kHz/16bit The audio signals of DVD VIDEOs are always converted to 48kHz/16bit. 96kHz/24bit All types of signals including 96kHz/24bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48kHz/16bit. 73 Additional Information Additional Information Troubleshooting If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer. Power The power is not turned on. , Check that the mains lead is connected securely. Picture There is no picture/picture noise appears. , Re-connect the connecting cord securely. , The connecting cords are damaged. , Check the connection to your TV (page 15) and switch the input selector on your TV so that the signal from the player appears on the TV screen. , The disc is dirty or flawed. , If the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/ VIDEO player, the copy-protection signal applied to some DVD programmes could affect picture quality. If you still experience problems even when you connect your player directly to your TV, try connecting your player to your TV’s S VIDEO input (page 15). , The disc is recorded in a colour system that is different from your TV. , You have selected “PROGRESSIVE AUTO” or “PROGRESSIVE VIDEO” using the PROGRESSIVE button on the front panel (the PROGRESSIVE indicator lights up) even though your TV cannot accept the progressive signal. In this case, select “NORMAL (INTERLACE)” so that the PROGRESSIVE indicator turns off. , If the colour system of your player does not match with that of your TV, change the colour system of the player. For details, see page 16. (You cannot change the colour system of the DVD disc itself.) , Even if your TV is compatible with progressive format 525p/625p signals, the image may be affected when you set the player to progressive format. In this case, select “NORMAL (INTERLACE)” using the PROGRESSIVE button on the front panel so that the PROGRESSIVE indicator turns off and the player is set to normal (interlace) format. The picture does not fill the screen, even though the aspect ratio is set in “TV TYPE” under “SCREEN SETUP.” , The aspect ratio of the disc is fixed on your DVD. Sound There is no sound. , Re-connect the connecting cord securely. , The connecting cord is damaged. , The player is connected to the wrong input jack on the amplifier (receiver) (page 18). , The amplifier (receiver) input is not correctly set. , The player is in pause mode or in Slow- motion Play mode. , The player is in fast forward or fast reverse mode. , If the audio signal does not come through the DIGITAL OUT (OPTICAL or COAXIAL) jack, check the audio settings (page 71). , While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.” , When playing multichannel MPEG audio soundtracks, only the Front (L) and Front (R) signals will be output from two front speakers. Sound distortion occurs. , Set “AUDIO ATT” in “AUDIO SETUP” to “ON” (page 70). The sound volume is low. , The sound volume is low on some DVDs. The sound volume may improve if you set “AUDIO DRC” in “AUDIO SETUP” to “TV MODE” (page 70). , Set “AUDIO ATT” in “AUDIO SETUP” to “OFF” (page 70). ,continued 74 Operation The remote does not function. , The batteries in the remote are weak. , There are obstacles between the remote and the player. , The distance between the remote and the player is too far. , The remote is not pointed at the remote sensor on the player. The disc does not play. , The disc is turned over. Insert the disc with the playback side facing down. , The disc is skewed. , The player cannot play certain discs (page 6). , The region code on the DVD does not match the player. , Moisture has condensed inside the player (page 3). , The player cannot play a recorded disc that is not correctly finalized (page 7). The MP3 audio track cannot be played (page 54). , The DATA CD is not recorded in an MP3 format that conforms to ISO 9660 Level 1/ Level 2 or Joliet. , The DATA DVD is not recorded in MP3 format that conforms to UDF (Universal Disk Format). , The MP3 audio track does not have the extension “.MP3.” , The data is not formatted in MP3 even though it has the extension “.MP3.” , The data is not MPEG-1 Audio Layer III data. , The player cannot play audio tracks in mp3PRO format. , “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 57). , The DATA CD/DATA DVD contains a DivX video file. The JPEG image file cannot be played (page 54). , The DATA CD is not recorded in a JPEG format that conforms to ISO 9660 Level 1/ Level 2, or Joliet. , The DATA DVD is not recorded in JPEG format that conforms to UDF (Universal Disk Format). , The file has an extension other than “.JPEG” or “.JPG.” , The image is larger than 3072 (width) × 2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the file size is within this specified capacity.) , The image does not fit the screen (the image is reduced). , “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 57). , The DATA CD/DATA DVD contains a DivX video file. The MP3 audio tracks and JPEG image files start playing simultaneously. , “MODE (MP3, JPEG)” is set to “AUTO” (page 57). The DivX video file cannot be played. , The file is not created in DivX format. , The file has an extension other than “.AVI” or “.DIVX.” , The DATA CD (DivX video)/DATA DVD (DivX video) is not created in a DivX format that conforms to ISO 9660 Level 1/ Level 2 or Joliet/UDF. , The DivX video file is larger than 720 (width) × 576 (height). The album/track/file names are not displayed correctly. , The player can only display numbers and alphabet. Other characters are displayed as “*”. The disc does not start playing from the beginning. , Programme Play, Shuffle Play, Repeat Play, or A-B Repeat Play is selected (page 28). , Resume play has taken effect (page 25). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-19 DVP-NC60K/NC62K 1-19E 75 Additional Information The player starts playing the disc automatically. , The disc features an auto playback function. , “AUTO PLAY” in “CUSTOM SETUP” is set to “ON” (page 69). Playback stops automatically. , While playing discs with an auto pause signal, the player stops playback at the auto pause signal. Some functions such as Stop, Search, Fast Play, Slow Play, Slow-motion Play, Repeat Play, Shuffle Play, or Programme Play cannot be performed. , Depending on the disc, you may not be able to do some of the operations above. Refer to the operating manual that comes with the disc. The language for the sound track cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 26). , Multilingual tracks are not recorded on the DVD being played. , The DVD prohibits the changing of the language for the sound track. The subtitle language cannot be changed or turned off. , Try using the DVD’s menu instead of the direct selection button on the remote (page 26). , Multilingual subtitles are not recorded on the DVD being played. , The DVD prohibits the changing of subtitles. The angles cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 26). , Multi-angles are not recorded on the DVD being played. , The angle can only be changed when the “ ” indicator lights up on the front panel display (page 9). , The DVD prohibits changing of the angles. The player does not operate properly. , When static electricity, etc., causes the player to operate abnormally, unplug the player. 5 numbers or letters are displayed on the screen and on the front panel display. , The self-diagnosis function was activated. (See the table on page 76). The disc tray does not open and “LOCKED” appears on the front panel display. , Child Lock is set (page 24). The disc tray does not open and “TRAY LOCKED” appears on the front panel display. , Contact your Sony dealer or local authorized Sony service facility. “Data error” appears on the TV screen when playing a DATA CD or DATA DVD. , The MP3 audio track/JPEG image file/ DivX video file you want to play is broken. , The data is not MPEG-1 Audio Layer III data. , The JPEG image file format does not conform to DCF (page 52). , The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG format. , The file you want to play has the extension “.AVI” or “.DIVX,” but is not in DivX format, or is in DivX format but does not conform to a DivX Certified profile. 76 Self-diagnosis Function (When letters/numbers appear in the display) When the self-diagnosis function is activated to prevent the player from malfunctioning, a five-character service number (e.g., C 13 50) with a combination of a letter and four digits appears on the screen and the front panel display. In this case, check the following table. Glossary Album (page 53, 54) A unit in which to store JPEG image files or MP3 audio tracks on a DATA CD/DATA DVD. (“Album” is an exclusive definition for this player.) Chapter (page 9) Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded. DivX® (page 59) Digital video technology created by DivXNetworks, Inc. Videos encoded with DivX technology are among the highest quality with a relatively small file size. Dolby Digital (page 19, 71) Digital audio compression technology developed by Dolby Laboratories. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Digital” theatre surround sound systems. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. DTS (page 19, 72) Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. First three characters of the service number Cause and/or corrective action C 13 The disc is dirty or recorded in a format that this player cannot play (page 6). ,Clean the disc with a soft cloth or check its format (page 2). C 31 The disc is not inserted correctly. ,Re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the player has performed the self-diagnosis function. ,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 C:13:50 77 Additional Information DVD VIDEO (page 5) A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single- sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more realistic audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD. DVD-RW (page 5) A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited. DVD+RW (page 5) A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format. File (page 53, 55) A JPEG image recorded on a DATA CD/ DATA DVD or DivX video (“File” is an exclusive definition for this player.) A single file consists of a single image or movie. Film based software, Video based software (page 17) DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theatres. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames/60 fields (25 frames/50 fields) per second. MPEG audio (page 19, 71) International standard coding system used to compress audio digital signals authorized by ISO/IEC. MPEG 1 conforms to up to 2- channel stereo. MPEG 2, used on DVDs, conforms to up to 7.1-channel surround. Normal (Interlace) format (page 17) Normal (Interlace) format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image. Progressive format (page 17) Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 25 or 30 frames (50-60 fields) in one second, the Progressive format can show 50-60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 525 or 625 progressive format. Progressive JPEG Progressive JPEGs are used mostly on the internet. They are different from other JPEGs in that they “fade in” gradually instead of being drawn from top to bottom when displayed on a browser. This lets you view the image while it is being downloaded. Title (page 9) The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software. 78 Specifications System Laser: Semiconductor laser Signal format system: PAL/NTSC (See page 16 to switch) Audio characteristics Frequency response: DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB) Signal-to-noise ratio (S/N ratio): 115 dB (LINE OUT L/R (AUDIO) jacks only) Harmonic distortion: 0.003 % Dynamic range: DVD VIDEO: 103 dB/ CD: 99 dB Wow and flutter: Less than detected value (±0.001% W PEAK) Outputs and Input (Jack name: Jack type/Output level/Load impedance) LINE OUT (AUDIO): Phono jack/2 Vrms/ 10 kilohms DIGITAL OUT (OPTICAL): Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL): Phono jack/ 0.5 Vp-p/75 ohms COMPONENT VIDEO OUT (Y, PB/CB, PR/CR): Phono jack/Y: 1.0 Vp-p, PB/CB, PR/CR: 0.7 Vp-p/75 ohms LINE OUT (VIDEO): Phono jack/1.0 Vp-p/ 75 ohms S VIDEO OUT: 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/75 ohms MIC Input 1/2: Phone jacks General Power requirements: 110 – 240 V AC, 50/60 Hz Power consumption: 11 W Dimensions (approx.): 430 × 83 × 416 mm (16 15/16 × 3 17/64 × 16 24/64 in.) (width/height/ depth) incl. projecting parts Mass (approx.): 4.4 kg (9 58/64 lb) Operating temperature: 5 °C to 35 °C Operating humidity: 25 % to 80 % Supplied accessories See page 14. Specifications and design are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 SECTION 2 DISASSEMBLY DVP-NC60K/NC62K 2-1. DISASSEMBLY • This set can be disassembled in the order shown below. 3 Hook 4 Upper Case Hamelon Tape 1 Two Tapping Screws 2 Three Screws +BV3 (3-CR) NOTE: Follow the disassembly procedure in the numerical order given. 2-2. UPPER CASE Loading Motor Ass’y (Page 2-5) Optical Pick-Up (Page 2-6) Rear Panel Section (Page 2-2) Table Ass’y (Page 2-3) MV-045 Board (Page 2-2) Front Panel Section (Page 2-3) IF-127 Board (Page 2-4) Power Block (Page 2-7) FR-231, SW-443 and MC-154 Boards (Page 2-7) Upper Case (Page 2-1) Set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 DVP-NC60K/NC62K 1 2 Four Screws +BV3 (3-CR) 3 Rear Panel 2-4. MV-045 BOARD 2-3. REAR PANEL SECTION a b b 8 FMO-006 Flat Flexible Cable (CN101, 24P) 4 Harness PM-124 (CN501, 10P) q; Harness PM-124 (CN404, 5P) 7 FIM-008 Flat Flexible Cable (CN107, 23P) 6 FIM-009 Flat Flexible Cable (CN202, 5P) Pull the tray in the direction of the arrow B Insert a flat-head (-) screwdriver into a hole at the bottom, the cam gear in the direction of the arrow A. B A 5 MD-109 Harness (CN201, 6P) 9 MV-045 Board 3 Five Screws BV3 (3-CR) a 2 1 Note: Before remove FMO-006 Flat Flexible Cable, please follow caution point at page 2-6. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 DVP-NC60K/NC62K 2-5. FRONT PANEL SECTION Display Filter a a 4 MD-109 Harness (CN201, 6P) 6 FM-100 Harness (CN404, 11P) 5 PM-124 Harness (CN501, 10P) 3 FMO-006 Flat Flexible Cable (CN101, 24P) 7 Table Assembly 1 Four Screws +BV3 (3CR) 2 PM-124 Harness (CN201, 10P) q; Mirror Reflector Assy 9 Screw +BVT2.6 (3CR) qa PM-124 Harness (CN501, 5P) 8 Cover Tray Assy 2-6. TABLE ASS’Y Note: If cover tray removed its should be replaced with new cover tray. a Two Screws +BV3 (3-CR) 4 Front Panel Section 2 FIS-004 Flat Flexible Cable (CN405, 11P) IF-127 PWB Connector (CN201) 3 1 PM-124 Harness (CN501, 5P) a Note: Before remove FMO-006 Flat Flexible Cable, please follow point at page 2-6. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 DVP-NC60K/NC62K 1 FIS-004 Flat Flexible Cable (CN501, 11P) 7 FM-100 Harness (CN404, 11P) Two Screws +BVTP2.6 (3CR) 4 Two Screws +BV3 (3-CR) 6 FIM-008 Flat Flexible Cable (CN401, 23P) 5 FIM-009 Flat Flexible Cable (CN403, 5P) 8 FIS-004 Flat Flexible Cable (CN405, 11P) 9 FLD 3 Table Assy 2 Front Panel 0 IF-127 Board 2-7. IF-127 BOARD Note: Caution Point on the PWB IF-127 When handling IF-127 PWB avoid contact with the sharp metal edge on the top side of Vacuum Fluorescent Display (ND401). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-5 DVP-NC60K/NC62K Loading motor assembly (M901) Table Belt (timing) Screw (M2.6x4) (3CR) Screw (M2.6x4) (3CR) Claws Claw MD-105 Board ML-006 Harness (CN004, 2P) 2-8. LOADING MOTOR ASS’Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-6 DVP-NC60K/NC62K 2-9. OPTICAL PICK-UP (DEVICE, OPTICAL KHM-310CAB/C2RP) 4 FMO-006 Flat Flexible Cable (24P) 5 Optical Pick-Up 2 Four Insulator Screws 3 MD-109 Harness (6P) 1 BU Holder Note: Solder short land before remove the harness from 24 pin BU connector. Short Land Position Caution Point on the Laser Diode: Laser Diode in the optical Device is very sensitive to Surge Current or ElectroStatic Discharge (ESD): After take-out FMO-006 Flexible cable from CN101 of MV-045 board immediately ground FMO-006 Flexible cable pattern using short clip. Metal paper clip can be used as short clip. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-7 DVP-NC60K/NC62K 3 Five Screws +BV2.6 (3-CR) 5 MC-154 Board Front Panel Cover tray 2 FIS-004 Flat Flexible Cable (CN501, 11P) SW-443 Board 4 FR-231 Board 3 1 Four Screws +BV2.6 (3-CR) 2-11.FR-231, SW-443 and MC-154 BOARDS 2 Two Screws +BV3 (3-CR) 3 Two Claws Holder, PS 4 Power Block 1 PM-124 Harness (CN201, 10P) Power Cord 2-10.POWER BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-8 DVP-NC60K/NC62K Optical Pick-Up (Device, Optical KHM-310CAB/C2RP Service Assembly) TD Unit Ass'y PH101 (on the SE-145 Board) PH102 (on the SE-145 Board) Encoder Ass'y (Loading) Loading Motor Ass'y 2-12.INTERNAL VIEWS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-9E DVP-NC60K/NC62K IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) 2-13.CIRCUIT BOARDS LOCATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K SECTION 3 BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM 3-1 3-2 Notes: MV-045 mounted PWB must be replaced if IC103 (EEPROM IC) is damaged or not functioning. The old MV-045 mounted PWB must be completely disposed. IC408 IC102 FLASH MEMORY EEPROM IC103 IC406 IC108 IC474 DRIVER CIRCUIT RESET IC P-CONT O/I POWER TRANSFORMER SECONDARY PRIMARY SW+8V SW+5V SW+3.3V EVER-10V EVER+5V EVER+11V J301 AUDIO/VIDEO OUTPUT MIC JACKS IC304 VIDEO BUFFER DA CONVERTER SERIAL BUS IC404 ND401 IF MICON VFD SW-10V SWITCHING REGULATOR RESET IC Vkk EVER 3.3V IC403 TRAY DRIVER TRAY DETECT ROTATE M TURN TABLE SW-443 BOARD (SEE PAGE 4-21 to 4-24) LED 501 IC501 IR FUNCTION KEY FR-231 BOARD (SEE PAGE 4-25 to 4-28) POWER SWITCH MV-045 BOARD (SEE PAGE 4-5 to 4-16) IF-127 BOARD (SEE PAGE 4-17 to 4-20) IC101 IC104 SDRAM MICROPROCESSOR RF AMP IC201 FOCUS TRACKING COIL DRIVE SPINDLE/SLED /LOADING MOTOR DRIVE IC401 AUDIO LPF IC402 AUDIO LPF SPINDLE MOTOR SLED MOTOR M M M LOADING MOTOR CHUCK/TRAY DETECT OPTICAL DEVICE DVD / CD PDIC FOCUS COIL TRACKING COIL INLIMIT SENSOR BASE UNIT (DEVICE, OPTICAL KHM-310CAB/C2RP) J502 MIC IN 2 RV501 MIC VR J501 MIC IN 1 IC507 MIC ADD IC503 AUDIO MIX IC502 MIC AMP MC-154 BOARD (SEE PAGE 4-29 to 4-32) POWER LINE (SEE PAGE 3-3) • Abbreviation E : Latin America Model MX : Mexico Model AUS : Australia/New Zealand Model SP : Singapore Model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 3-3 3-4 3-2. POWER LINE BLOCK DIAGRAM 11 10 1 2 SW+3.3V EVER+3.3V 11 13 19 18 15 12 20 26 80 IC404 IF CON PCONT PROG LED VKK D403-D406 Q401,402 T401 DC/DC CONVERTER IC408 RESET F1 F2 *N401 FLUORESCENT INDICATOR TUBE 5 VDD TURN TABLE DRIVER IC403 SW+3.3V SW+5V SW+8V SW-10V PCONT EVER+5V D501 PROGRESSIVE IC501 REMOTE COMMANDER RECEIVER SW-443 BOARD (SEE PAGE 4-21 to 4-22) IF-127 BOARD (SEE PAGE 4-19 to 4-20) IC REGULATOR IC474 Q403 13 11 5 6 4 9 12 Transformer PC101 Photo Coupler IC611 Shunt Reg L312 L512 D511 D311 L211 Q211 Q712 Q311 P.CONT Q501 SW-10V SW + 5V SW + 3.3V MUTE DRIVER D401 Q401 AU-10V Q416 +5V Reg IC403 Audio Buffer IC401 Motor Driver IC201 CN107 CN401 11 CN101 IC405 Optical Out Audio DAC IC406 Coaxial Q411 RESET IC IC108 FLASH ROM IC102 EEPROM IC103 SDRAM IC104 1.8V Reg IC110 3.3V Reg IC 105/7 -5V Reg IC303 Video Buffer IC304 MTK IC IC101 VCC OPTICAL DEVICE EVER + 5V POWER EVER-10V SW+5V SW+3.3V EVER+5V EVER+11V AU+11V SW+8V CN501 CN201 Q611 L421 D411 D211 2 Line fiters Switching IC & Circuit Bridge Rectifier Diode F101 CN101 L101, L102 ACIN 1 2 T101 8 9 10 6 5 4 3 1 3 1 8 9 10 6 5 4 POWER BOARD (SRV1487UC) (SEE PAGE 4-35 to 4-38) MV-045 BOARD (SEE PAGE 4-5 to 4-16) P311 P312 CN404 MC-154 BOARD (SEE PAGE 4-31 to 4-32) CN501 3 2 3 2 IC502 IC507 IC503 CN501 CN405 PS401 PS402 The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 3-3. SYSTEM CONTROL/SIGNAL PROCESSOR BLOCK DIAGRAM 3-5 3-6 145 146,147,149~151,158~160 IC102 IC101 CXD9849R MICROPROCESSOR AVDECODER SERVO DSP 16M ROM IC104 64M SDRAM RAO~RA11 53~61,67~72,74~76,78,89,92,93 AO~A20 115,117,118,120,121,123~126,128~133,135 RDO-RD15 81~84,86~88,91 HDO – HD7 DQM1 DQMO BA1 SCL SDA 113 137 143 BA0 140 RAS 139 CAS 138 RWE 142 RCS 156 RCLK 157 CKE 101 110 100 99 98 105 IFSCK IFSDO IFBSY 66 77 79 IOWR IOCS IOOE IFSDI PRST XIFCS ACLK SPDIF XRST MIC XMAMUTE KRMOD 176 220 225 215 SPDIF 205 MIC ACLK ABCK ALRCK 214 213 ABCK ALRCK XMAMUTE 207 KRMOD C V MUTE Y V Y/G CB/B CR/R WIDE 196 194 198 200 202 203 209 ASDATA4 222 ASDATA4 C Y CVBS Y/G CB/B CR/R WIDE 229 228 XTALI XTALO XRST 102 103 6 5 IC103 EEPROM SCL SDA IC101 C/BAR PB 5 IC101 C/BAR PB 6 IC101 7 IC101 8 202 203 200 198 199 196 IC101 C/BAR PB 4 IC101 C/BAR PB 3 IC 108 RESET IC CN 106 1 MV-045 BOARD (SEE PAGE 4-7 to 4-8) TO MV-045 AUDIO (SEE PAGE 3-9) TO MV-045 VIDEO (SEE PAGE 3-11) IFBSY IFSCK IFSDO XIFCS IFSDI XSYSRST V MUTE A MUTE TO IF 127 INTERFACE (SEE PAGE 3-13) 9 5 7 4 6 2 10 14 A_MUTE TO MV-045 AUDIO (SEE PAGE 3-10) 0.7Vp-p 27MHz 3.3Vp-p IC101 9 228 63.5usec 0.7Vp-p 63.5usec 1Vp-p 63.5usec 286 mVp-p (NTSC) 300 mVp-p (PAL) 63.5us 1Vp-p 63.5usec 1Vp-p 63.5usec IC101 11 215 3.3Vp-p 24MHz IC101 10 156 3.3Vp-p 110MHz X102 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 3-4. RF/SERVO BLOCK DIAGRAM 3-7 3-8 BASE UNIT (DEVICE, OPTICAL KHM-310CAB/C2RP) SLED MOTOR SPINDLE MOTOR LIMIT DETECT CN201 36 37 34 10 13 15 4 1 D01+ D01- D02+ D02- 24 25 D05+ D05- 22 23 20 21 18 19 MDI2 MDI1 LD01 TSD_M MUTE MUTE123 SPFG DMO FMO TRO FOO LD02 6 DVDRFIP TPI TNI 114 LIMITSW IN1- IN2- IN3- IN4- CTL 20 22 MUTE4 TSD_M 7 19 21 6 45 OPO RES1 RES2 MUTE123 PS IC201 FAN8036L MOTOR DRIVER IC IC101 CXD9849R RF AMPLIFIER LDM+ LDM- OKSW1 OCSW1 FCS- FCS+ TRK+ TRK- LD (780) LD (650) PD RF F E LOADING MOTOR CHUCK TRAY/ DETECT MS-203 BOARD FOCUS COIL TRACKING COIL DVD/CD LD MODULE 1 2 5 6 3 CN202 5 4 2 1 DVD/CD LD DRIVE Q102 2~5 8~11 24 23 22 21 6 2 5 14 10 17 20 C D A B 19 16 15 CN101 DVD/CD PDIC 178 174 170 47 37 38 41 42 16 FWD 17 REV 35 MV-045 BOARD (SEE PAGE 4-9 to 4-10) (0.5Vpp to 1.1Vpp) (0.65Vpp to 1.48Vpp) LM+ LM- CKSW1 OCSW2 OCSW1 OKSW1 LDM- LDM+ CTL TO INTERFACE (SEE PAGE 3-13 to 3-14) IC101 6 (DVD PB) 2 IC101 6 (CD PB) 1 200nsec 100nsec SP- SP+ SL- SL+ LIMIT 27 28 D04+ D04- 29 30 D03+ D03- w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 3-9 3-10 3-5. AUDIO BLOCK DIAGRAM L R R457 R455 R413 IC401 MUTE DRIVER Q402, Q404, Q405 MUTE DRIVER Q406, Q409, Q410 AUDIO AMPLIFIER IC402 AUDIO AMPLIFIER LINE OUT Q411 BUFFER R435 J301 OPTICAL IC405 COAXIAL DIGITAL OUTPUT XA MUTE KRMOD + – + – D405 Q414 MUTE DRIVER D IN + – + – Q408 MUTE 2 3 5 6 1 7 2 6 3 5 1 7 1 16 1 3 5 7 8 6 2 4 SYSTEM CONTROL (SEE PAGE 3-5 to 3-6) IC406 AOUTR- MCLK SDTI PDN CSN BICK LRCK CCLK CDTI DZFL AOUTR + AOUTL+ AOUTL- AUDIO D/A CONVERTER 11 12 10 9 3.3Vp-p 40.71ns IC406 1 (DVD) 13 3.3Vp-p 44.24ns IC406 1 (CD) 12 ACLK ALRCK ABCK XDACS ASDATA4 XRST ADSK ADSOO XMAMUTE SPDIF MV-045 BOARD (SEE PAGE 4-13 to 4-14) SYSTEM CONTROL (SEE PAGE 3-5 to 3-6) Q417 MIC D402 R415 MIC Q407 MUTE J502 MIC IN 2 RV501 MIC VR J501 MIC IN 1 IC507 MIC ADD IC503 AUDIO MIC IC502 MIC AMP MC-154 BOARD (SEE PAGE 4-31 to 4-32) 4 5 4 5 Q501/Q503 MIC-DETECTION CN404 CN501 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 3-11 3-12 3-6. VIDEO BLOCK DIAGRAM S VIDEO OUT 32 29 27 31 23 25 21 8 11 13 1 16 3 5 Y C COMPONENT VIDEO OUT Y Cb Cr C Y V VIDEO IN VIDEO OUT MUTE Y OUT Y IN C IN C OUT MUTE2 Y IN Y OUT Y Cb Cr Cb IN Cr IN Cb OUT Cr OUT VIDEO COMBO JACK J501 63.5usec 2.0Vp-p IC304 wl 15 63.5usec 572mVp-p (NTSC) 600mVp-p (PAL) IC304 ea 19 63.5usec 2.0Vp-p IC304 wg 16 63.5usec 1.4Vp-p IC304 wa 18 63.5usec 1.4Vp-p IC304 wd 17 63.5usec 2.0Vp-p IC304 wj 14 VIDEO BUFFER IC304 MV-045 BOARD (SEE PAGE 4-11 to 4-12) SYSTEM CONTROL (SEE PAGE 3-5 to 3-6) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 3-13 3-14E 3-7. INTERFACE CONTROL BLOCK DIAGRAM VFD DRIVER CIRCUIT 1 2 49 50 SEG 1-21 VDD VCC DIG 1-8 5 34 49 69 39 ND 401 FLORESENT INDICATOR TUBE 46 70 77 LDMM LMCTL (PWM) LDMP CKSW1 CKSW1 OCSW1 OCSW1 OCSW2 OCSW2 DSENS DSENS TSENS TSENS 28 12 25 9 13 22 6 14 7 20 15 16 17 23 24 26 80 35 34 36 11 36 7 9 2 4 FIN AIN 8 /RST 30 31 TAMP TAMM 1 40 VKK OUT 1-2 IC 408 VOUT EVER+3.3V LDM LM REV FWD CN 403 CTL +- LDM +- -EVER+5.0V SW+3.3V CN 404 11 13 6 7 1 3 2 10 11 1 2 4 5 3 5-6 9 -SW-10V -SW+8V CN 401 SW-10V 27 22 20 17 18 15 10 14 12 19 1 3 4 5 6 2 8 3 4 KEY POWER KEY PLAY KEY STOP IR KEY OPEN/ CLOSE PROG LED IC 404 IF CON SYSRST /CS SI SO /SC /AMUTE /VMUTE BUSY PCONT CN 401 CN 405 SYSRST XIFCS SOO SIO SCO A-MUTE V-MUTE XIFBUSY PCONT CN 501 CN 601 S601 POWER IC403 2 3 5 78 XIN XOUT X401 8MHZ 1 IC 501 S510 S511 S512 S513 S514 S508 STOP PROG 4 3 2 1 S509 S510 S511 S505 S504 S503 S502 R504 R505 R506 R507 S501 D501 CN 502 OPEN/ CLOSE EXCHANGE PROG SEL R512 PLAY PAUSE PREV NEXT 5 R513 S508 R514 S509 S507 S506 DISC SKIP 11 7 8 9 6 10 4 IF-127 BOARD (SEE PAGE 4-19 to 4-20) SW-443 BOARD (SEE PAGE 4-23 to 4-24) FR-231 BOARD (SEE PAGE 4-23 to 4-24) IC REG IC474 8 9 TO MV-045 SYSTEM CONTROL (SEE PAGE 3-5 to 3-6) TO MV-045 RF/SERVO (SEE PAGE 3-7 to 3-8) TO MV-045 RF/SERVO (SEE PAGE 3-7 to 3-8) TO MV-045 SYSTEM CONTROL (SEE PAGE 3-5 to 3-6) Q403 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 1 A B C D E F G H I 2 12 13 11 10 9 8 7 6 5 4 3 14 15 SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1 4-2 ONLY FOR 5 CHANGER PROGRESSIVE Harness (PM-120) 10P 1-963-311-11 10P CN771 SW+8V 10P CNXXX AC_IN (L) SC_IN (N) 1 2 2P MTR GND EVER+11V EVER+5V SW+3.3 V SW+5V P-CONT POWER SW EVER-10V SWITCHING REGULATOR GND SW+8V MTR GND EVER+11V EVER+5V SW+3.3 V SW+5V P-CONT POWER SW EVER-10V GND 1 2 3 4 5 6 8 9 10 7 1 2 3 4 5 6 8 9 10 7 5P CN404 ONLY FOR 5 CHANGER KARAOKE (PM-124) 10P 1-963-445-11 MC-154 GND_AUDIO AU-10V AU+11V XMIC MIC+ECHO 5P CN404 GND_AUDIO AU-10V AU+11V XMIC MIC+ECHO 1 2 3 4 5 1 2 3 4 5 FFC (FIM-008) 23P 1.0 pitch 1-830-273-11 23P CN401 MTR_GND MTR_GND MTR_GND SW+5V SW+8V SW+8V GND POWER_SW SW-10V A_MUTE EVER+5V PCONT SW+3.3V V_MUTE SCO GND SOO SIO XIFBSY XIFCS 3.3_MNT SYSRST GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 CN107 1mm Pitch MTR_GND MTR_GND MTR_GND SW+5V SW+8V SW+8V GND POWER_SW SW-10V XAMUTE EVER+5V P-CONT SW+3.3V XVMUTE SCO GND SOO SIO IFBSY XIFCS 3.3V_MNT SYSRST GND IF-127 SW-443 (L2758) 11P CN405 (D5045) 6P CN502 PROG LED EVER+3.3V OPEN PLAY STOP IR IR GND POWER MULTI_LED SACD DVD_AUDIO PROG LED EVER+3.3V OPEN PLAY STOP GND POWER MULTI_LED SACD DVD_AUDIO 1 2 3 4 5 6 7 8 9 10 11 11 10 9 8 7 6 5 4 3 2 1 11P (L2758) CN405 FFC (FIS-004) 11P 1.0 pitch 1-828-878-11 NC SACD MULTI_LED POWER DVD_AUDIO GND 1 2 3 4 5 6 6 5 4 3 2 1 (D5045) 6P CN601 FR-231 HARNESS 11P (FM-100) 1-962-742-11 OCSW1/REV CKSW1/FWD GND/CTL LDM- LDM+ OCSW1/REV CKSW1/FWD GND/CTL LDM- LDM+ 5 4 3 2 1 1 2 3 4 5 11P (B7344) CN404 OCSW2 OCSW1 CKSW1 GND SENSOR LED TSENS DSENS LM- LM+ TM+ TM- 1 2 3 4 5 6 7 8 9 10 11 5P (J3854) CN403 CN101 5P FFC (FIM-009) 5P 1.0 pitch 1-830-274-11 6P CN105 TO JIG RF MON V2REFO +3.3V GND RXD TXD 6 5 4 3 2 1 MV-045 BOARD MOTOR MOTOR HARNESS 3P ME-60 1-962-738-11 HARNESS 2P ML-66 1-962-737-11 OCSW2 11P CN001 OCSW1 CKSW1 GND SENSOR LED TSENS DSENS LM- LM+ TM+ TM- 1 2 3 4 5 6 7 8 9 10 11 3P CN003 2P CN004 SGND OCSW1 CKWS1 LM+ LM- 1 2 3 1 2 MD-105 TM- TM+ SGND DSENS TSENS SENSOR LED 6 5 4 3 2 1 TM- TM+ SGND DSENS TSENS SENSOR LED 1 2 3 4 5 6 CN101 6P CN002 6P SE-145 FFC 6P 1.0 pitch FMS-025 1-828-874-11 TM+ TM- 1 2 2P CN102 MOTOR OPTICAL DEVICE HARNESS 6P (MD-109) 1-963-312-11 6P CN201 SP- SP+ LIMIT SL- SL+ 6P CNXXX 24P CN103 GND (LD) LD (650) N.C N.C FFC (FMO-006) 24P 0.5pitch 1-830-286-11 PD LD (780) VR (650) VR (780) VoE/e+g Vcc Vc GND (PDIC) VoF/f+n (LO : DVD, HI : CD) MSW VoB/b VoA/a RF PD Vc RF VoD/d VoC/c TRK- TRK+ FCS+ FCS- N.C GND (LD) LD (650) N.C N.C LD (780) VR (650) VR (780) VoE/e+g Vcc GND (PDIC) VoF/f+n (LO : DVD, HI : CD) MSW VoB/b VoA/a VoD/d VoC/c TRK- TRK+ FCS+ FCS- N.C 1 2 3 4 5 6 7 8 10 11 12 13 14 18 15 16 17 19 20 21 22 23 24 9 1 2 3 4 5 6 7 8 10 11 12 13 14 18 15 16 17 19 20 21 22 23 24 9 24P CNXXX (GND) LIMIT SP- SP+ LIMIT SL- SL+ (GND) LIMIT 1 2 3 5 6 4 1 2 3 5 6 4 FRAME SCHEMATIC DIAGRAM 4-1. FRAME SCHEMATIC DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 4-3 4-4 For printed wiring boards: • : indicates a lead wire mounted on the component side. • : indicates a lead wire mounted on the printed side. • a : Through hole. • : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated.) For schematic diagrams: • All capacitors are in µF unless otherwise noted. pF : µµF. 50V or less are not indicated except for electrolytics and tantalums. • All resistors are in ohms, 1/4W (Chip resistors : 1/10W) un-less otherwise specified. kΩ = 1000Ω, MΩ = 1000kΩ. • Caution when replacing chip parts. New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, because it is damaged by the heat. • All variable and adjustable resistors have characteristic curve B, unless otherwise noted. • : non flammable resistor. • : fusible resistor. • : panel designation. • f : internal component. • : adjustment for repair. • : B+ Line. • : B– Line. • Circled numbers refer to waveforms. • Voltages are dc between measurement point. • Readings are taken with a color-bar signal on DVD refer- ence disc and when playing CD reference disc. • Readings are taken with a digital multimeter (DC 10MΩ). • Voltage variations may be noted due to normal production tolerances. Caution: Pattern face side: Parts on the pattern face side seen from (Side A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side B) the parts face are indicated. When indicating parts by reference number, please include the board name. Note: The components identi- fied by mark or dotted line with mark are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block) B+ B– MV-045 BOARD 63.5usec 63.5usec 63.5usec 63.5usec IC101 C/BAR PB IC101 C/BAR PB IC101 C/BAR PB IC101 9 228 156 215 IC101 6 (CD PB) 1 200nsec IC101 6 (DVD PB) 2 100nsec 5 1Vp-p 63.5usec IC101 C/BAR PB 6 1Vp-p 63.5usec IC101 7 0.7Vp-p 63.5usec IC101 8 0.7Vp-p 63.5usec 3.3Vp-p 203 202 200 198 194 196 4 1Vp-p 63.5usec 3 63.5us 3.3Vp-p 24MHz IC101 11 3.3Vp-p 110MHz 27MHz IC101 10 3.3Vp-p 44.24ns IC406 1 (CD) 12 3.3Vp-p 40.71ns IC406 1 (DVD) 13 IC304 wl C/BAR PB 15 2.0Vp-p IC304 wg C/BAR PB 16 2.0Vp-p IC304 wj C/BAR PB 14 2.0Vp-p IC304 ea C/BAR PB 19 IC304 wd 17 1.4Vp-p 63.5usec IC304 wa 18 1.4Vp-p 63.5usec (0.5Vp-p to 1.1Vp-p) (0.65Vp-p to 1.48Vp-p) 286 mVp-p (NTSC) 300 mVp-p (PAL) 572mVp-p (NTSC) 600mVp-p (PAL) 4-3. WAVEFORM WAVEFORM MV-045 • Abbreviation E : Latin America Model MX : Mexico Model AUS : Australia/NZ Model SP : Singapore Model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K D C E F B A 1 2 5 4 3 There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board MV-045 (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) PRINTED WIRING BOARD • : Uses unleaded solder. MV-045 BOARD SIDE A MV-045 BOARD SIDE B 4-5 IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) D C E F G B A 1 2 5 4 3 CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER MV-045 MV-045 BOARD A SIDE IC101 C-4 IC102 B-3 IC103 B-4 IC104 C-5 IC108 A-2 IC110 D-2 IC201 B-2 IC401 E-4 IC402 E-4 IC404 G-5 IC405 G-4 IC406 E-4 Q101 C-4 Q102 D-2 Q103 C-4 Q304 F-3 Q305 F-2 Q307 F-4 Q371 F-1 Q372 F-1 Q373 E-1 Q374 F-1 Q401 E-3 Q402 E-5 Q403 E-3 Q404 E-4 Q405 F-4 Q406 E-5 Q409 E-5 Q410 F-5 Q414 F-3 Q417 F-2 Q501 E-1 Q502 E-1 Q503 D-1 Q504 D-1 D201 A-2 D310 E-2 D501 A-3 D402 E-4 D403 F-4 D405 E-4 B SIDE IC105 B-3 IC106 D-4 IC107 D-3 IC303 F-5 IC304 F-4 IC403 E-3 IC501 A-3 Q407 F-3 Q408 F-3 Q411 F-1 Q416 E-3 D308 F-4 D309 F-4 D401 E2 D404 E-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-7 4-8 CPU, Servo-DSP, AVDEC MV-045 (1/5) For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform MV-045 BOARD (1/5) CPU, Servo-DSP, AVDEC -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-10 DRIVE MV-045 (2/5) 4-9 For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform MV-045 BOARD (2/5) DRIVE -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-11 4-12 VIDEO MV-045 (3/5) For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform MV-045 BOARD (3/5) VIDEO -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE SIGNAL PATH VIDEO SIGNAL CHROMA PB Y Y/CHROMA AUDIO SIGNAL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-13 4-14 MV-045 BOARD (4/5) AUDIO -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform AUDIO MV-045 (4/5) SIGNAL PATH VIDEO SIGNAL CHROMA PB Y Y/CHROMA AUDIO SIGNAL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-15 4-16 POWER MV-045 (5/5) For Schematic Diagram • Refer to page 4-5 for printed wiring board of MV-045 board. • Refer to page 4-4 for waveform MV-045 BOARD (5/5) POWER -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:REC/PB MODE Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K A 1 2 5 4 3 6 9 8 11 10 7 D C B 4-17 4-18 IF-127 (INTERFACE) PRINTED WIRING BOARD IF-127 BOARD SIDE A • : Uses unleaded solder. INTERFACE IF-127 IF-127 BOARD SIDE B IF-127 BOARD SIDE A IC403 A-5 SIDE B IC404 A-3 IC408 B-3 IC474 A-9 Q401 B-7 Q402 B-7 Q403 B-6 Q405 A-9 Q406 B-7 Q407 B-7 Q408 B-6 Q409 B-7 Q410 B-7 Q411 B-6 D402 A-8 D403 C-7 D404 B-7 D405 B-7 D406 C-8 D412 B-6 There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board A 1 2 5 4 3 6 9 8 11 10 7 D C B IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-19 4-20 For Schematic Diagram • Refer to page 4-17 for printed wiring board of IF-127 board. IF-127 BOARD INTERFACE -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE INTERFACE IF-127 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K A 1 2 5 4 3 6 9 8 11 10 7 B A 1 2 5 4 3 6 9 8 11 10 12 7 B 4-21 4-22 SW-443 (SWITCH) PRINTED WIRING BOARD SW-443 BOARD SIDE A • : Uses unleaded solder. SWITCH SW-443 SW-443 BOARD SIDE B SW-443 BOARD SIDE A IC501 B-1 D501 B-1 There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-23 4-24 For Schematic Diagram • Refer to page 4-21 for printed wiring board of SW-443 board. SW-443 BOARD SWITCH -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE SWITCH SW-443 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 4-25 4-26 FR-231 (FR) PRINTED WIRING BOARD FR-231 BOARD SIDE A • : Uses unleaded solder. FR FR-231 There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board A 1 2 5 4 3 FR-231 BOARD SIDE B A 1 2 5 4 3 FR-231 BOARD SIDE A D602 A-3 D603 A-4 IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-27 4-28 For Schematic Diagram • Refer to page 4-25 for printed wiring board of FR-231 board. FR-231 BOARD FR -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE FR FR-231 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 4-29 4-30 MC-154 (MIC-ECHO) PRINTED WIRING BOARD MC-154 BOARD SIDE A • : Uses unleaded solder. There are a few cases that the part printed on this diagram isn’t mounted in this model. For printed wiring board MC-154 BOARD SIDE A IC502 B-3 IC503 A-2 IC507 B-1 Q501 B-1 Q502 A-1 Q503 A-1 SIDE B IC501 A-2 IC504 B-3 Q501 C-2 Q502 C-2 Q503 B-2 B C D A 1 2 MC-154 BOARD SIDE B B C D A 1 2 MIC-ECHO MC-154 IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 4-31 4-32 For Schematic Diagram • Refer to page 4-29 for printed wiring board of MC-154 board. MC-154 BOARD MIC-ECHO -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE MIC-ECHO MC-154 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K B A 1 2 7 6 5 4 3 1-478-538-12 B A 1 2 7 6 5 4 3 POWER BLOCK (SRV1487UC) PRINTED WIRING BOARD POWER BOARD (SRV1487UC) (SIDE A) (NC60K: MX) For printed wiring board There are a few cases that the part printed on this diagram isn’t mounted in this model. 4-33 4-34 • : Uses unleaded solder. POWER BOARD (SRV1487UC) (SIDE B) (NC60K: MX) POWER BOARD POWER BLOCK (SRV1487UC) POWER BOARD (SRV1487UC) SIDE A IC101 B-4 IC611 A-6 Q211 A-6 D101 A-4 D102 A-3 D103 A-3 D104 A-3 D105 B-4 D106 B-4 D107 A-4 D108 A-4 D211 A-5 D212 C-5 D213 A-6 D311 B-5 D312 B-5 D313 B-5 D315 A-6 D317 A-6 D318 A-7 D411 B-5 D511 C-5 SIDE B Q311 A-1 Q611 A-2 Q712 A-1 IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K 8.2K 20µ SW3.3V For Schematic Diagram • Refer to page 4-33 for printed wiring board of Power Board. POWER BOARD POWER BLOCK (SRV1487UC) (NC60K: MX) -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE 4-35 4-36 POWER BOARD POWER BLOCK (SRV1487UC) Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-NC60K/NC62K 4-38 4-37 POWER BLOCK (SRV1501WW) PRINTED WIRING BOARD POWER BOARD (SRV1501WW) (SIDE A) (EXCEPT NC60K: MX) POWER BOARD (SRV1501WW) (SIDE B) (EXCEPT NC60K: MX) POWER BOARD POWER BLOCK (SRV1501WW) B A 1 2 7 6 5 4 3 1-478-539-31 B A 1 2 7 6 5 4 3 For printed wiring board There are a few cases that the part printed on this diagram isn’t mounted in this model. • : Uses unleaded solder. POWER BOARD (SRV1501WW) SIDE A IC101 B-4 IC611 A-6 Q211 A-6 D101 A-4 D102 A-3 D103 A-3 D104 A-3 D105 B-4 D106 B-4 D107 A-4 D108 A-4 D211 A-5 D212 C-5 D213 A-6 D311 B-5 D312 B-5 D313 B-5 D315 A-6 D317 A-6 D318 A-7 D411 B-5 D511 C-5 SIDE B Q311 A-1 Q611 A-2 Q712 A-1 IF-127 Board (INTERFACE) SW-443 Board (SWITCH) Power Board FR-231 Board (FR) MC-154 Board MV-045 Board (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 12 13 11 10 9 8 7 6 5 4 3 14 15 DVP-NC60K/NC62K For Schematic Diagram • Refer to page 4-37 for printed wiring board of Power Board. 4-39 4-40E POWER BOARD POWER BLOCK (SRV1501WW) POWER BOARD POWER BLOCK (SRV1501WW) (EXCEPT NC60K: MX) -REF.NO.:1000 SERIES- XX MARK:NO MOUNT NO MARK:PB MODE MARKED:MOUNT TABLE Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-1 DVP-NC60K/NC62K SECTION 5 IC PIN FUNCTION DESCRIPTION Pin No. Pin name Type Function 1 AGND Ground pin for analog circuitry 2 DVDA Analog Input AC coupled input path A 3 DVDB Analog Input AC coupled input path B 4 DVDC Analog Input AC coupled input path C 5 DVDD Analog Input AC coupled input path D 6 DVDRFIP Analog Input AC coupled DVD RF signal input RFIP 7 DVDRFIN Analog Input AC coupled DVD RF signal input RFIN 8 MA Analog Input DC coupled main-beam RF signal input A 9 MB Analog Input DC coupled main-beam RF signal input B 10 MC Analog Input DC coupled main-beam RF signal input C 11 MD Analog Input DC coupled main-beam RF signal input D 12 SA Analog Input DC coupled sub-beam RF signal input A 13 SB Analog Input DC coupled sub-beam RF signal input B 14 SC Analog Input DC coupled sub-beam RF signal inputC 15 SD Analog Input DC coupled sub-beam RF signal input D 16 SDFON Analog Input CD focusing error negative input 17 SDFOP Analog Input CD focusing error positive input 18 TNI Analog Input 3 beam satellite PD signal negative input 19 TPI Analog Input 3 beam satellite PD signal positive input 20 MDI1 Analog Input Laser power monitor input 21 MDI2 Analog Input Laser power monitor input 22 LDO2 Analog Output Laser driver output 23 LDO1 Analog Output Laser driver output 24 SVDD3 Power Analog 3.3V power 25 CSO Analog Output Central servo 26 RFLVL Analog Output RFRP low pass output 27 SGND Ground Ground pin for analog circuitry 28 V2REFO Analog Output Reference voltage 2.8V 29 V20 Analog Output Reference voltage 2.0V 30 VREFO Analog Output Reference voltage 1.4V 31 FEO Analog Output Focus error monitor output 32 TEO Analog Output Tracking error monitor output 33 TEZISLV Analog Output TE Slicing Level 34 OP_OUT Analog Output OP amp output 35 OP_INN Analog Input OP amp negative input 36 OP_INP Analog Input OP amp positive input 37 DMO Analog Output Disc motor control output.PWM output 38 FMO Analog Output Feed motor control. PWM output 39 TROPENPWM Analog Output Tray PWM output/Tray open output 40 IOPMON Analog Input General A/D input -> IOP Monitor 41 TRO Analog Output PDM output of tracking servo compensator 42 FOO Analog Output PDM output of focus servo compensator 43 USB_VSS Ground Ground pin for USB 44 Not used 45 Not used 46 USB_VDD3 Power 3.3V power pin for USB Input LVTTL 47 SPFG 3.3 V, SMT,PU General A/D input -> Iop Monitor 48 MSW Analog Output Servo GPIO 8 49 CKSW Analog Input Servo GPIO 2 5-1. SYSTEM CONTROL PIN FUNCTION (MV-045 BOARD IC101) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-2 DVP-NC60K/NC62K Pin No. Pin name Type Function 50 OCSW Input Servo GPIO 1 51 EEWP Output EEPROM write Protect Control 52 DVDD18 Power 1.8V power pin for internal digital circuitry 53 HA2 Output PU Host address bit2 54 HA3 Output PU Host address bit3 55 HA4 Output PU Host address bit4 56 HA5 Output PU Host address bit5 57 HA6 Output PU Host address bit6 58 HA7 Output PU Host address bit7 59 HA8 Output PU Host address bit8 60 HA18 Output SMT Host address bit18 61 HA19 Output SMT Host address bit19 62 DVSS Ground Ground pin for internal digital circuitry 63 APLLCAP Analog Input APLL External Capacitance connection 64 APLLVSS Ground Ground pin for audio clock circuitry 65 APLLVDD3 Power 3.3V power for audio clock circuitry 66 xWR Output SMT Write enable, active Low 67 HA16 Output Host address bit16 68 HA15 Output PU Host address bit15 69 HA14 Output PU Host address bit14 70 HA13 Output PU Host address bit13 71 HA12 Output PU Host address bit12 72 HA11 Output PU Host address bit11 73 DVDD3 Power 3.3V power pin for internal digital circuitry 74 HA10 Output PU Host address bit10 75 HA9 Output PU Host address bit9 76 HA20 Output SMT Host address bit20 77 xROMCS Output PU, SMT Chip select, active Low 78 HA1 Output PU Host address bit1 79 xRD Output SMT Read enable, active Low 80 DVDD3 Power 3.3V power pin for internal digital circuitry 81 HD0 Output Host data bit0 82 HD1 Output Host data bit1 83 HD2 Output Host data bit2 84 HD3 Output Host data bit3 85 DVSS Ground Ground pin for internal digital circuitry 86 HD4 Output Host data bit4 87 HD5 Output Host data bit5 88 HD6 Output Host data bit6 89 HA21 Output SMT Host data bit21 90 ALE Output PU,SMT Address latch enable 91 HD7 Output Host data bit7 92 HD17 Output Host address bit17 93 HA0 Output PU Host address bit0 94 DVSS Ground Ground pin for internal digital circuitry 95 UWR# Output PU,SMT 8032 write strobe 96 URD# Output PU,SMT 8032 read strobe 97 DVDD18 Power 1.8V power pin for internal digital circuitry Output PU,SMT 98 IFSDO Default High Ext. CPU Serial data output (H/W method) Output PU,SMT 99 IFCK Default High Ext. CPU Serial clock (H/W method) Output PU,SMT 100 xIFCS Default High Chip select for Ext.CPU (Low Active, H/W method) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-3 DVP-NC60K/NC62K Pin No. Pin name Type Function 101 IFSDI Input SMT Ext. CPV Serial data Input Output PU,SMT 102 SCL Default High IIC clock pin Output PU,SMT 103 SDA Default High IIC data pin Output PU,SMT 104 UP3_0 Default High 8032 GPIO 105 IFBSY Int PU,SMT Ext. CPU Ready/Busy interrupt signal (H: Busy, L: Ready) 106 RXD Input PU,SMT Hardwired RS232C RXD Output PU,SMT 107 TXD Default High Hardwired RS232C TXD 108 DVDD3 Power 3.3V power pin for internal digital circuitry 109 ICE Output PU,SMT Ice mode enable 110 xSYSRST Input PU,SMT MT1389 reset input, active Low 111 IR Input SMT IR control signal input 112 INT0# Input PU,SMT 8032 external interrupt 0 (for ICE) 113 DQM0 Output Mask for DRAM input/output byte 0 Output Default 114 GPIO Low GPIO 115 RD7 Output DRAM data bit7 116 DVSS Ground Ground pin for internal digital circuitry 117 RD6 Output DRAM data bit6 118 RD5 Output DRAM data bit5 119 DVSS Ground Ground pin for internal digital circuitry 120 RD4 Output DRAM data bit4 121 RD3 Output DRAM data bti3 122 DVDD18 Power 1.8V power pin for internal digital circuitry 123 RD2 Output DRAM data bit2 124 RD1 Output DRAM data bit1 125 RD0 Output DRAM data bit0 126 RD15 Output DRAM data bit15 127 DVDD3 Power 3.3V power pin for internal digital circuitry 128 RD14 Output DRAM data bit14 129 RD13 Output DRAM data bit13 130 RD12 Output DRAM data bit12 131 RD11 Output DRAM data bit11 132 RD10 Output DRAM data bit10 133 RD9 Output DRAM data bit9 134 DVSS Ground Ground pin for internal circuitry 135 RD8 Output DRAM data bit8 Output Default 136 RGBSEL Low RGB/YCBCR select output signal (H: RGB Disable, L: RGB) 137 DQM1 Output Mask for DRAM input/output byte 1 138 RWE# Output DRAM write enable 139 CAS# Output DRAM columm address strobe 140 RAS# Output DRAM row address strobe 141 DVDD3 Power 3.3V power pin for internal digital circuitry 142 RCS# Output DRAM chip select 143 BA0 Output DRAM bank address 0 144 DVSS Ground Ground pin for internal digital circuitry 145 BA1 Output DRAM bank address 1 146 RA10 Output DRAM address bit10 147 RA0 Output DRAM address bit0 148 DVSS Ground Ground pin for internal digital circuitry 149 RA1 Output DRAM address bit1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-4 DVP-NC60K/NC62K Pin No. Pin name Type Function 150 RA2 Output DRAM address bit2 151 RA3 Output DRAM address bit3 152 DVDD18 Power 1.8V power pin for internal digital circuitry 153 RVREF Analog Input Reference voltage for DDR DRAM 154 RCLKB Output DRAM clock invert 155 DVDD3 Power 3.3V power pin for internal digital circuitry 156 DRCLK Output DRAM clock 157 CKE Output DRAM clock enable 158 RA11 Output PD DRAM address bit11 159 RA9 Output DRAM address bit9 160 RA8 Output DRAM address bit8 161 DVSS Ground Ground pin for internal digital circuitry 162 RA7 Output DRAM address bit7 163 DVSS Ground Ground pin for internal digital circuitry 164 RA6 Output DRAM address bit6 165 RA5 Output DRAM address bit5 166 RA4 Output DRAM address bit4 167 DVDD3 Power 3.3V power pin for internal digital circuitry 168 FWD Output PD Servo GPIO 6 169 REV Output PU Servo GPIO 7 170 MUTE123 Output PD Servo GPIO 5 171 Not used 172 Not used 173 DVDD18 Power 1.8V power pin for internal digital circuitry Output Default 174 MUTE Output PD Servo GPIO 4 175 Not used 176 XMAMUTE Default LOW Main Audio Mute Signal (H: Unmute, L: Mute) 177 DSEL Output Interlace/Prog select output signal (H: 480i, L:480P) 178 TSD_M Input PU SERVO GPIO 3 179 EUROVY Output PU CVBS/S terminal select output signal (H: CBVS, L: S-Terminal) 180 Not used 181 Not used 182 DVDD3 Power 3.3V power pin for internal digital circuitry 183 Not used 184 Not used 185 Not used 186 Not used 187 Not used 188 Not used 189 DACVDDC Power 3.3V power for Video DAC circuitry 190 VREF Analog Input Bandgap Ref Voltage (No connect) 191 FS Analog Input Full Scale Adjustment Compensation capacitor 192 CIN/YUV0 Output Video data output bit0 193 DACVDDC Ground Ground pin for Video DAC circuitry Analog Y output 194 Y/YUV1 Output Video data output bit1 195 DACVDDB Power 3.3V power for Video DAC circuitry Analog chroma output 196 C/YUV2 Output Video data output bit2 197 DACVSSB Ground Ground pin for Video DAC circuitry Analog composite output 198 CVBS/YUV3 Output Video data output bit3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-5 DVP-NC60K/NC62K Pin No. Pin name Type Function 199 DACVDDA Power 3.3V power for Video DAC circuitry Green or Y 200 YG/YUV4 Output Video data output bit4 201 DACVSSA Ground Ground pin for Video DAC circuitry Blue or Cb 202 B/Cb/Pb YUV5 Output Video data output bit5 Red or Cr 203 R/Cr/Pr YUV6 Output Video data output bit6 204 DVDD3 Power 3.3V power pin for Video DAC digital circuitry 205 MIC Input SMT Karaoke Microphone detect signal 206 YUV7 Output SMT Video data output bit7 207 KRMOD Output SMT Karaoke Mode Status Output (H: Normal, L: Karaoke) Output Default 208 SCK Output ADAC Serial Clock 209 WIDE Output Voltage select Output signal for S terminal (H: 16:9, L:4:3) Output Default 210 SDO Output ADAC Serial data output 211 xSCS High Chip select for ADAC 212 DVDD3 Power 3.3V power pin for internal digital circuitry 213 ALRCK Output PD,SMT Audio left/right channel clock 214 ABCK Output Audio Bit Clock output 215 ACLK Output Master clock output for Audio DAC 216 DVSS Ground Ground pin for internal digital circuitry 217 Not used 218 Not used 219 Not used 220 xRST Default Low Reset output signal for ADAC (Low Active) 221 DVDD18 Power 1.8V power pin for intenal digital circuitry 222 ASDATA4 Output PD,SMT Audio serial data 4: Down-mixed L/R 223 DVSS Ground Ground pin for internal digital circuitry 224 D-WIDE Input Video aspect ratio control for D-terminal. (H: 16:9, L: 4:3) 225 SPDIF Output SPDIF output 226 RFGND18 Ground Ground pin for internal analog circuitry 227 RFVDD18 Power 1.8V power pin for internal analog circuitry 228 XTALO Output 27M crystal output 229 XTALI Input 27M crystal input 230 JITFO Analog Output The output terminal of RF jitter meter 231 JITFN Analog Input The input terminal of RF jitter meter 232 PLLVSS Ground Ground pin for data PLL and related analog circuitry 233 IDACEXLP Analog Output C input 234 PLLVDD3 Power 3.3V power pin for data PLL and related analog circuitry 235 LPFON Analog Output The negative output terminal of loop filter amplifier 236 LPFIP Analog Input The positive input terminal of loop filter amplifier 237 LPFIN Analog Input The negative input of loop filter amplifier 238 LPFOP Analog Output The positive output of loop filter amplifier 239 ADCVDD3 Power Power pin for ADC circuitry 240 Not used 241 ADCVSS Ground Ground pin for ADC circuitry 242 Not used 243 Not used 244 RFVDD3 Power 3.3V power pin for RF digital circuitry 245 RFRPDC Analog Output RF ripple detect output 246 RFRPAC Analog Input RF ripple detect input (through AC-coupling) 247 HRFZC Analog Input High frequency RF ripple zero crossing 248 CRTPLP Analog Output Defect level filter capacitor connecting www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-6 DVP-NC60K/NC62K Pin No. Pin name Type Function 249 RFGND Ground Ground pin for RF digital circuitry 250 Not used 251 Not used 252 OSP Analog Output RF Offset cancellation capacitor connecting 253 OSN Analog Output RF Offset cancellation capacitor connecting 254 RFGC Analog Output RF AGC loop capacitor conecting for DVD-ROM 255 IREF Analog Input Current reference input 256 AVDD3 Power 3.3V power pin for analog circuirtry 5-6E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-1 DVP-NC60K/NC62K 6-1. EXECUTING IOP MEASUREMENT In order to execute IOP measurement, the following standard procedures must be followed. (1) In standby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information 5. Video Level Adjustment Model : xxx xxx xxx IF-con Ver : xxx Syscon Ver : xxx (2) Select “2. Drive Manual Operation” by pressing the 2 key on the remote commander. The screen will appear as below. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Mecha Test Mode 0. Return to top Menu (3) Select “3. Manual Adjustment” by pressing the 3 key on the remote commander. The screen will appear as below. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eg boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: $4 Change Value [RETURN] Return to previous menu (4) Select Iop by pressing 6 key on the remote commander. (5) Wait until a hexadecimal number appear. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. ED: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: $4 Change Value [RETURN] Return to previous menu (6) Convert data from hexadecimal to decimal. (7) Use the following formula to calculate IOP in mA IOP (mA)=IOP (decimal) x 0.622678. (8) Press [RETURN] to return back to previous menu. (9) Press - to return to Top Menu and power OFF the DVD Player. 6-2. EMERGENCY HISTORY CHECK Information of Emergency History. (1) In standby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. (2) Select “3. Emergency History”. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page (3) Laser Hours DVD Laser ON time. (Total ON time) CD Laser ON time. (Total ON time) (4) Emergency History The history information from last “1” to “10” can be scrolled with [NEXT] key or [PREV] key. (5) Error code Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 SECTION 6 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-2 DVP-NC60K/NC62K (6) Error code list 01: Communication error (No reply from syscon) 02: Syscon hung up 03: Power OFF request when syscon hung up 19: Thermal shutdown 24: MoveSledHome error 25: Mecha move error (5 Changer) 26: Mecha move stack error 30: DC Motor adjustment error 31: DPD offset adjustment error 32: TE Balance adjustment error 33. TE Sensor adjustment error 34. TE loop gain adjustment error 35. FE loop gain adjustment error 36. Bad jitter after adjustment 40. Focus NG 42. Focus Layer Jump NG 52. Open kick spindle error 51: Spindle stop error 60: Focus on error 61: Seek fail error 62: read Qdata/ID error 70: Lead In Data Read Fail 71: TOC read time out (CD) 80: Can’t Buffering 81: Unknown media type (7) Error code parameters Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is the detailed contents od error information (8) Laser hours at error happend. Example of Error code 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 This is Laser hours when an error happaned. (9) How to Clearing laser hours Press [DISPLAY], [CLEAR] keys in this order. Both CD and DVD data are cleared. Emg. History Check Laser Hours CD 0h 0min DVD 0h 0min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page - Return to Top Menu (10) How to Clearing Emergency code Press [TOPMENU], [CLEAR] keys in this order. All emergency code are cleared. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 2. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next] Next Page [Prev] Prev Page (11) Press - key, return to TOP MENU. 6-3. INITIALIZING SETUP DATA How to initializing setup data. (1) In stanby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. (2) Select “3. Emergency History”. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page (3) Initializing setup data Press [MENU], [CLEAR] keys in this order. The data have been initialized when “Initialize setup data...” mesage is displayed. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min Initialize setup data ... [Next] Next Page [Prev] Prev Page www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-3 DVP-NC60K/NC62K (4) The Emergency history display screen will be restored soon. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 1. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 2. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page (12) Press - key, return to TOP MENU. 6-4. VERSION INFORMATION Information of firmware version. (1) In stanby mode, press [TOP MENU], [CLEAR], [POWER] to enter Remocon Diagnosis Mode. (2) Select “4. Version Information”. Version information Firm (Main) : Ver. xxxxx Firm (Sub) : xxxxx RISC : xxxxx 8032 : xxxxx Audio DSP : xxxxx Servo DSP : xxxxx - Return to Top Menu (3) Press - key, return to TOP MENU. 6-6. IF CON SELF DIAGNOSTIC FUNCTION 1. IF-127 BOARD (IF CON) TEST MODE The IF-127 board (IF CON) test mode is the IF CON self- diagnosis mode. The IF CON can diagnose the functions of the IF-127 board that the IF CON controls. Normally, the IF CON makes a serial communication with the SYSTEM CONTROL and operates following the commands from the SYSTEM CONTROL, but in the Test Mode, the IF CON operates independently from the SYSTEM CONTROL. In the test mode, the following functions can be checked. 1. Button function 2. Remote commander receiving function 3. SYSTEM CONTROL-IF CON serial communication 4. Click shuttle function 5. Fluorescent display tube lighting check - Grid check - Anode check In the test mode, the main unit operates same as usual, except voltage monitoring, communication, display of fluorescent display tube. 1. The routine that monitors +3.3V (PCONT) of MV-045 board is not provided. 2. The monitoring timer for serial communication with the SYSTEM CONTROL is not provided. The main unit is not placed in the Standby mode, even if the communication with SYSTEM CONTROL is normal. 3. Display of fluorescent display tube. (Normally, display is mode following the commands from SYSTEM CONTROL). 2. OPERATION OF SELF CHECK MODE The Self Check mode is the function to conduct the basic test to the FL display and DVD panel section. 2-1. Self Check Mode Transition Processing At the AC Power ON after reset of IF CON is released, while pressing with the MV-045 board are not connected to the IF-127 board, or while pressing the x key on the main unit with the IF CON in STANDBY mode, enter [RETURN] t [DISPLAY] (or [SETUP]) on the remote commander, and the main unit transits to the Self Check Mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-4 DVP-NC60K/NC62K 2-2. Operation of Auto Self Check When the Self Check mode becomes active at the AC Power ON or by key input, the test display of the following steps (1) to (4) is repeated. (1) FLD and LED all ON (for 5 seconds) (2) MODEL display (for 2 seconds) (3) Version display (for 2 seconds) (4) ROM creation date display (for 2 seconds) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-5 DVP-NC60K/NC62K 2-3. Each Self Check Function Each Self Check function tests the FLD display, and key input. 2-3-1. FLD All ON 2-3-1-1.Transition Keys in Self Check Mode • Z key and x key on the main unit • T key on the remote commander 2-3-1-2.Operation and display In this mode, all segments of FLD turn ON. • Example of FLD all ON 2-3-2. Main Unit Key Code Display 2-3-2-1.Transition Keys in Self Check Mode • Keys on the main unit except keys transited in Self Check Mode 2-3-2-2.Operation and Display When a key on the main unit is pressed in the Self Check mode, key code is displayed on the FLD. • Key code display (at input of H key, key code: 0Ah) • At input of faulty voltage 1 2 3 4 5 DVD VCD MP3 ALL DISCS 1 2 3 4 5 DVD VCD MP3 ALL DISCS 1 2 3 4 5 DVD VCD MP3 ALL DISCS Input Voltage [V] IC404: Pin No. (Signal) PIN ef (AD1) PIN eg (AD2) PIN eh (AD3) PIN ej (AD4) 0 - 0.20 PLAY OPEN/CLOSE STOP POWER 0.60 - 0.82 PAUSE EXCHANGE DISC 4 - 1.16 - 1.47 PREVIOUS DISC SKIP DISC 3 - 1.80 - 2.12 NEXT PROG SEL DISC 2 - 2.48 - 2.70 DISC 5 - DISC 1 - Vref = 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-6 DVP-NC60K/NC62K 2-3-3. Remote Commander Key Code Display 2-3-3-1.Transition Keys in Self Check Mode • Remote commander keys except keys transited in Self Check Mode 2-3-3-2. Operation and Display When a key on the remote commander is pressed in the Self Check Mode, the code is displayed on th FLD. • Remote commander key code display (at input of X key, key code:39h) 2-3-4. FLD Anode Test Display and SHUTTLE Click Operation Test 2-3-4-1.Transition Keys in Self Check Mode • t key on the remote commander • SHUTTLE on the remote commander during Anode Test display (This unit does not provide JOG/SHUTTLE, and therefore use another DVD remote commander having the JOG/SHUTTLE) 2-3-4-2.Operation and Display The Self Check Mode transits to this mode when t key is entered. This tests whether each segment turns on individually. Only the first segment of each grid of FLD turns on, and each time the SHUTTLE is entered, the segment of each grid switched in order. When SHUTTLE input is clockwise, the segment switches in 1 - 2 -3 direction, or counterclockwise it switches in 3 - 2- 1 direction. • Display at the start of Anode Test 1 2 3 4 5 DVD VCD MP3 ALL DISCS 1 2 3 4 5 DVD VCD MP3 ALL DISCS 1 2 3 4 5 DVD VCD MP3 ALL DISCS r (Input in CW direction) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-7 DVP-NC60K/NC62K 2-3-5. FLD Grid Test Display and SHUTTLE Click Operation Test 2-3-5-1.Transition Keys in Self Check Mode • R key on the remote commander • SHUTTLE on the remote commander during Grid Test display (This unit does not provide JOG/SHUTTLE, and therefore use another DVD remote commander having the JOG/SHUTTLE) 2-3-5-2.Operation and Display The Self Check Mode transits to this mode when R key is entered. This tests whether each grid turns on individually. The first grid only of FLD turns on and other grid turn off. Each time the SHUTTLE is entered, the grid is switched in order. When SHUTTLE input is clockwise, the grid switched in 1 - 2 - 3 direction, or counterclockwise it switches in 3 - 2 - 1 direction. • Display at the start of Grid Test 1 2 3 4 5 DVD VCD MP3 ALL DISCS 1 2 3 4 5 DVD VCD MP3 ALL DISCS r (Input in CW direction) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-8 DVP-NC60K/NC62K 6-8E ANODE CONNECTION GRID ASSIGNMENT (1G~7G) Dp col 8G 7G 6G 5G 4G 3G 2G 1G P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 1G n e c g s m f b h j k a p r d _ _ _ _ _ _ 2G n e c g s m f b h j k a p r d _ _ _ _ _ Dp 3G n e c g s m f b h j k a p r d col _ _ _ _ Dp 4G n e c g s m f b h j k a p r d _ _ _ _ _ Dp 5G n e c g s m f b h j k a p r d col _ _ _ _ Dp 6G n e c g s m f b h j k a p r d _ _ _ _ _ Dp 7G n e c g s m f b h j k a p r d _ Dp 8G e c g f b a d 1 2 3 4 5 DVD VCD MP3 ALL DISCS 1 2 3 4 5 DVD V CD MP3 ALL DISCS e r p n d c f b h s j k m a (3G, 5G) (2G~7G) g (8G) e d c f b a g www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-1 SECTION 7 ELECTRICAL ADJUSTMENT DVP-NC60K/NC62K This section describes procedures and instructions necessary for adjusting electrical circuits in this unit. Instruments required: 1) Color monitor TV 2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz, with delay mode 3) Frequency counter (over 8 digits) 4) Digital multimeter 5) Standard commander (RMT-D178A/RMT-D178P) 6) DVD reference disc HLX-501 (J-6090-071-A) (dual layer) (NTSC) HLX-503 (J-6090-069-A) (single layer) (NTSC) HLX-504 (J-6090-088-A) (single layer) (NTSC) HLX-505 (J-6090-089-A) (dual layer) (NTSC) 7-1. POWER SUPPLY OUTPUT VOLTAGE CHECK Mode Except standby Instrument Digital multimeter EVER +5 V Check Test point CN201 pin 4 Specification 5.0 ± 0.3 Vdc SW +3.3 V Check Test point CN201 pin 5 Specification 3.35 ± 0.2 Vdc SW+5 V Check Test point CN201 pin 6 Specification 5.0 ± Vdc SW +8 V Check Test point CN201 pin 1 Specification 8.0 ± 0.5 Vdc EVER +11 V Check Test point CN201 pin 3 Specification 11.0 ± Vdc EVER –10 V Check Test point CN201 pin q; Specification –10.0 ± Vdc Checking method: 1) Confirm that each voltage satisfies the specification. Caution! Please do not touch any electrical parts at primary circuit to avoid electrical shock. +0.5 –1.0 +1.0 –0.5 +0.3 –0.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-2 DVP-NC60K/NC62K 1.0 ± 0.08 Vp-p 7-2. ADJUSTMENT OF VIDEO SYSTEM 1. Checking Video Level Checking Video Level the NTSC/PAL standard, and if not correct, the brightness will be too large or small. Mode HLX-504 Signal Color bars 100% Test point LINE OUT (VIDEO) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Adjusting method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the Video Level is 1.0 ± 0.08 Vp-p. Fig. 7-1. 2. Checking Progressive Video Output Level Check progressive video output level. If it is incorrect, correct brightness will not be attained when connected to, for instance, projector. Mode HLX-504 Signal Color bars 100% Test point COMPONENT VIDEO OUT (Y) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Adjusting method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the Y level is 1.0 ± 0.08 Vp-p. Fig. 7-2. 3. Checking S Video Output S-Y Check S-terminal video output. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with a S-terminal cable. Mode HLX-504 Signal Color bars 100% Test point S VIDEO OUT (S-Y) connector (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the S-Y level is 1.0 ± 0.08 Vp-p. Fig. 7-3. 4. Checking S Video Output S-C This checks whether the S-C satisfies the NTSC/PAL standard. If it is not correct, the colors will be too dark or light. Mode HLX-504 Signal Color bars 100% Test point S VIDEO OUT (S-C) connector (75 Ω terminated) Instrument Oscilloscope Specification A = 286 ± 30 mVp-p (NTSC) A = 300 ± 100 mVp-p (PAL) Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the S-C burst is “A”. Fig. 7-4. A 1.0 ± 0.08 Vp-p 1.0 ±0.08 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-3E DVP-NC60K/NC62K 1.0 ±0.08 Vp-p A B 5. Checking Component Video Output Y This checks component video output Y. If it is incorrect, correct brightness will not be attained when connected to, for instance, projector. Mode HLX-504 Signal Color bars Test point COMPONENT VIDEO OUT (Y) connector, (75 Ω terminated) Instrument Oscilloscope Specification 1.0 ± 0.08 Vp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the Y level is 1.0 ± 0.08 Vp-p. Fig. 7-5. 6. Checking Component Video Output B-Y This checks component video output B-Y. If it is incorrect, correct colors will not be displayed when connected to, for instance, projector. Mode HLX-504 Signal Color bars Test point COMPONENT VIDEO OUT (PB) connector (75 Ω terminated) Instrument Oscilloscope Specification A = 700 ± 70 mVp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the B-Y level is A. Fig. 7-6. 7. Checking Component Video Output R-Y This checks component video output R-Y. If it is incorrect, correct colors will not be displayed when connected to, for instance, projector. Mode HLX-504 Signal Color bars Test point COMPONENT VIDEO OUT (PR) connector (75 Ω terminated) Instrument Oscilloscope Specification B = 700 ± 70 mVp-p Checking method: 1) In the Video Signal menu “1” Color Bar 100% play back. 2) Confirm that the R-Y level is B. Fig. 7-7. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-2 DVP-NC60K/NC62K Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Note : Les composants identifiés par une marque sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remark 1 A-1115-373-A MV-045(1950SM-E32) COMPL (NC60K:E) 1 A-1115-532-A MV-045(1950SM-MX2) COMPL (NC60K:MX) 1 A-1115-534-A MV-045(1955SM-AU2) COMPL (NC62K:AUS) 1 A-1115-375-A MV-045(1955SM-SP6) COMPL (NC62K:SP) 2 1-478-538-12 POWER SUPPLY BLOCK (NC60K:MX) 2 1-478-539-31 POWER SUPPLY BLOCK (EXCEPT NC60K:MX) 4 X-2050-481-1 CASE ASSY, UPPER (S-S) 5 1-828-451-21 POWER-SUPPLY CORD (NC60K:MX) 5 1-828-452-21 POWER-SUPPLY CORD (NC62K:AUS) 5 1-828-450-21 POWER-SUPPLY CORD (NC60K:E/NC62K:SP) 6 3-070-883-41 SCREW, TAPPING 7 3-077-331-11 +BV3 (3-CR) 8 3-077-331-21 +BV3 (3-CR) 9 1-479-250-31 REMOTE COMMANDER (RMT-D178A) (NC60K) 9 1-479-250-41 REMOTE COMMANDER (RMT-D178P) (NC62K) 10 3-957-819-01 FOOT 11 1-828-878-11 FFC FIS-004 12 1-830-273-11 FLEXIBLE FLAT CABLE (FIM-008) 13 1-830-274-11 FLEXIBLE FLAT CABLE (FIM-009) 14 1-830-286-11 FLEXIBLE FLAT CABLE (FMO-006) 15 3-071-119-91 COVER, BATTERY 16 2-587-813-01 DISPLAY FILTER * 17 3-632-494-01 RE-USE CLAMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-5 DVP-NC60K/NC62K 150 172 ns 151 165 170 152 167 152 154 153 158 160 159 163 ns 162 162 169 169 161 157 156 171 ns 8-1-4. CHASSIS SECTION 150 3-091-491-01 GEAR, SHAFT 151 3-088-618-01 SCREW, +B M2.6 x 4 (3CR) 152 3-087-816-01 FR SCREW (+PTPWH M2.6) 153 2-022-451-01 BELT (LOADING) 154 3-074-744-01 GEAR (LOADING A) 156 3-091-490-01 GEAR, SWING 157 3-074-741-01 GEAR (LOADING B) 158 3-016-533-11 WASHER (FR), STOPPER 159 3-074-740-01 GEAR (LOADING C) 160 3-074-739-01 COLLAR (SWING) Ref. No. Part No. Description Remark 161 3-091-489-01 GEAR, CHUCK 162 3-088-372-01 INSULATOR 163 3-087-599-01 INSULATOR SCREW 167 X-2021-925-2 MOTOR ASSY,LOADING 169 3-091-493-01 BU HOLDER 170 4-951-619-01 CUSHION (A) 171 8-820-291-02 DEVICE,OPTICAL KHM-310CAB/C2RP 172 3-091-492-01 SHAFT LOADING Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-6 NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH • Abbreviation E : Latin America Model MX : Mexico Model AUS : Australia/New Zealand Model SP : Singapore Model 8-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. Les composants identifiés par une marque sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. When indicating parts by reference number, please include the board. DVP-NC60K/NC62K FR-231 BOARD ********* CN601 1-750-186-11 CONNECTOR, BOARD TO BOARD 6P JR601 1-216-295-00 SHORT CHIP 0 JR602 1-216-295-00 SHORT CHIP 0 S601 1-771-410-21 SWITCH, TACT IF-127 BOARD ******** C401 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C403 1-124-589-11 ELECT 47UF 20.00% 16V C405 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C406 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C407 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C408 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C409 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C417 1-130-481-00 MYLAR 0.0068UF 5.00% 50V C418 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C419 1-104-666-11 ELECT 220UF 20.00% 25V C420 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C422 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C423 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C425 1-126-965-91 ELECT 22UF 20.00% 50V C431 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V C432 1-163-009-91 CERAMIC CHIP 0.001UF 10.00% 50V C490 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C491 1-164-489-11 CERAMIC CHIP 0.22UF 10.00% 16V C492 1-164-489-11 CERAMIC CHIP 0.22UF 10.00% 16V C493 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V CN403 1-815-381-11 CONNECTOR, FPC/FFC 5P * CN404 1-568-938-11 PIN, CONNECTOR 11P D402 8-719-069-54 DIODE UDZSTE-175.1B D403 8-719-041-97 DIODE MA113-(TX) D404 8-719-041-97 DIODE MA113-(TX) D405 8-719-041-97 DIODE MA113-(TX) D406 8-719-041-97 DIODE MA113-(TX) D412 8-719-422-41 DIODE MA8051-L-TX * ET402 1-537-738-21 TERMINAL, EARTH IC403 8-759-598-69 IC BA6956AN IC404 6-805-401-01 IC TMP86CK74AFG-6AJ0(M IC408 6-704-114-01 IC S-80828CNUA-B8NT2G IC474 6-702-302-01 IC TK11133CSCL-G JR400 1-216-295-00 SHORT CHIP 0 JR401 1-216-295-00 SHORT CHIP 0 JR402 1-216-295-00 SHORT CHIP 0 JR403 1-216-295-00 SHORT CHIP 0 JR404 1-216-295-00 SHORT CHIP 0 JR405 1-216-295-00 SHORT CHIP 0 JR406 1-216-295-00 SHORT CHIP 0 FR-231 IF-127 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-7 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NC60K/NC62K JR407 1-216-295-00 SHORT CHIP 0 JR408 1-216-295-00 SHORT CHIP 0 JR409 1-216-295-00 SHORT CHIP 0 JR410 1-216-295-00 SHORT CHIP 0 JR411 1-216-295-00 SHORT CHIP 0 JR412 1-216-295-00 SHORT CHIP 0 JR413 1-216-295-00 SHORT CHIP 0 JR414 1-216-295-00 SHORT CHIP 0 JR415 1-216-295-00 SHORT CHIP 0 JR416 1-216-295-00 SHORT CHIP 0 JR417 1-216-295-00 SHORT CHIP 0 JR418 1-216-295-00 SHORT CHIP 0 JR419 1-216-295-00 SHORT CHIP 0 JR420 1-216-295-00 SHORT CHIP 0 JR421 1-216-295-00 SHORT CHIP 0 L401 1-408-982-11 INDUCTOR 100UH ND401 1-518-985-11 VACUUM FLUORESCENT DISPLAYS Q401 8-729-420-82 TRANSISTOR 2SD874A-R-TX Q402 8-729-420-82 TRANSISTOR 2SD874A-R-TX Q403 8-729-424-08 TRANSISTOR UN2111 Q405 8-729-230-49 TRANSISTOR 2SC2712-YG R407 1-216-013-00 RES-CHIP 33 5% 1/10W R408 1-216-073-91 RES-CHIP 10K 5% 1/10W R409 1-216-073-91 RES-CHIP 10K 5% 1/10W R411 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R412 1-216-049-11 RES-CHIP 1K 5% 1/10W R413 1-216-047-91 RES-CHIP 820 5% 1/10W R414 1-216-095-00 RES-CHIP 82K 5% 1/10W R415 1-216-033-00 RES-CHIP 220 5% 1/10W R416 1-216-049-11 RES-CHIP 1K 5% 1/10W R417 1-216-069-00 RES-CHIP 6.8K 5% 1/10W R418 1-216-027-00 RES-CHIP 120 5% 1/10W R419 1-216-073-91 RES-CHIP 10K 5% 1/10W R421 1-216-073-91 RES-CHIP 10K 5% 1/10W EXCEPT (NC62K:SP) R421 1-216-841-11 METAL CHIP 47K 5% 1/10W (NC62K:SP) R427 1-216-073-91 RES-CHIP 10K 5% 1/10W R428 1-216-025-11 RES-CHIP 100 5% 1/10W R429 1-216-097-11 RES-CHIP 100K 5% 1/10W R432 1-216-097-11 RES-CHIP 100K 5% 1/10W R433 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R434 1-216-097-11 RES-CHIP 100K 5% 1/10W R437 1-216-073-91 RES-CHIP 10K 5% 1/10W R442 1-216-025-11 RES-CHIP 100 5% 1/10W R443 1-216-025-11 RES-CHIP 100 5% 1/10W R444 1-216-025-11 RES-CHIP 100 5% 1/10W R445 1-216-025-11 RES-CHIP 100 5% 1/10W R446 1-216-025-11 RES-CHIP 100 5% 1/10W R447 1-216-025-11 RES-CHIP 100 5% 1/10W R448 1-216-025-11 RES-CHIP 100 5% 1/10W R449 1-216-089-91 RES-CHIP 47K 5% 1/10W R450 1-216-089-91 RES-CHIP 47K 5% 1/10W R451 1-216-073-91 RES-CHIP 10K 5% 1/10W R452 1-216-073-91 RES-CHIP 10K 5% 1/10W R453 1-216-073-91 RES-CHIP 10K 5% 1/10W R454 1-216-049-11 RES-CHIP 1K 5% 1/10W R460 1-216-073-91 RES-CHIP 10K 5% 1/10W R490 1-216-083-00 RES-CHIP 27K 5% 1/10W R491 1-216-021-00 RES-CHIP 68 5% 1/10W R492 1-216-295-00 SHORT CHIP 0 T401 1-443-639-11 DC-DC CONVERTER TRANSFORMER X401 1-781-472-21 VIBRATOR, CERAMIC MC-154 BOARD ************* C502 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C503 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C505 1-126-160-11 ELECT 1UF 20.00% 50V C506 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C507 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C508 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C509 1-124-589-11 ELECT 47UF 20.00% 16V C510 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C511 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C512 1-124-257-00 ELECT 2.2UF 20.00% 50V C513 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C514 1-124-257-00 ELECT 2.2UF 20.00% 50V C515 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C516 1-124-589-11 ELECT 47UF 20.00% 16V C517 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V C518 1-126-163-11 ELECT 4.7UF 20.00% 50V C519 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V C520 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C522 1-124-257-00 ELECT 2.2UF 20.00% 50V C523 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C524 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V C525 1-162-959-11 CERAMIC CHIP 330PF 5.00% 50V C526 1-126-163-11 ELECT 4.7UF 20.00% 50V C528 1-124-257-00 ELECT 2.2UF 20.00% 50V C530 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C531 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C533 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C553 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C554 1-115-416-11 CERAMIC CHIP 0.001UF 5.00% 25V C555 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V IF-127 MC-145 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-8 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NC60K/NC62K * CN501 1-568-943-11 PIN, CONNECTOR 5P D501 8-719-056-85 DIODE UDZ-TE-17-8.2B D502 8-719-056-85 DIODE UDZ-TE-17-8.2B D503 8-719-800-76 DIODE 1SS226 IC501 6-706-025-01 IC HA178L05UA-TL-E IC502 6-707-187-01 IC HA17558AFEL-E IC503 6-707-187-01 IC HA17558AFEL-E IC507 6-707-187-01 IC HA17558AFEL-E L501 1-469-561-21 INDUCTOR 100UH L502 1-469-561-21 INDUCTOR 100UH Q501 8-729-027-53 TRANSISTOR DTC124TKA-T146 Q502 8-729-424-02 TRANSISTOR 2SB709A-QRS-TX Q503 8-729-027-53 TRANSISTOR DTC124TKA-T146 R504 1-216-295-91 SHORT CHIP 0 R505 1-216-295-91 SHORT CHIP 0 R507 1-216-089-91 RES-CHIP 47K 5% 1/10W R508 1-216-073-91 RES-CHIP 10K 5% 1/10W R509 1-216-295-91 SHORT CHIP 0 R511 1-216-295-91 SHORT CHIP 0 R513 1-216-295-91 SHORT CHIP 0 R514 1-216-025-11 RES-CHIP 100 5% 1/10W R515 1-216-073-91 RES-CHIP 10K 5% 1/10W R516 1-216-097-11 RES-CHIP 100K 5% 1/10W R517 1-216-097-11 RES-CHIP 100K 5% 1/10W R518 1-216-025-11 RES-CHIP 100 5% 1/10W R519 1-216-097-11 RES-CHIP 100K 5% 1/10W R520 1-216-049-11 RES-CHIP 1K 5% 1/10W R521 1-216-085-91 RES-CHIP 33K 5% 1/10W R522 1-216-073-91 RES-CHIP 10K 5% 1/10W R523 1-216-295-91 SHORT CHIP 0 R524 1-216-097-11 RES-CHIP 100K 5% 1/10W R525 1-216-085-91 RES-CHIP 33K 5% 1/10W R526 1-216-049-11 RES-CHIP 1K 5% 1/10W R527 1-216-073-91 RES-CHIP 10K 5% 1/10W R528 1-216-295-91 SHORT CHIP 0 R530 1-216-073-91 RES-CHIP 10K 5% 1/10W R534 1-216-295-91 SHORT CHIP 0 R535 1-216-073-91 RES-CHIP 10K 5% 1/10W R544 1-216-073-91 RES-CHIP 10K 5% 1/10W R548 1-216-049-11 RES-CHIP 1K 5% 1/10W R549 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R550 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R551 1-216-089-91 RES-CHIP 47K 5% 1/10W R552 1-216-073-91 RES-CHIP 10K 5% 1/10W R558 1-216-295-91 SHORT CHIP 0 RV501 1-227-461-11 CARBON FILM POTENTIOMETER A-1115-373-A MV-045 (1950SM-E32) COMPL (NC60K:E) A-1115-375-A MV-045 (1955SM-SP6) COMPL (NC62K:SP) A-1115-532-A MV-045 (1950SM-MX2) COMPL (NC60K:MX) A-1115-534-A MV-045 (1955SM-AU2) COMPL (NC62K:AUS) ************************************* C101 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C102 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C105 1-126-786-11 ELECT 47UF 20% 16V C106 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C112 1-126-786-11 ELECT 47UF 20% 16V C113 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C114 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C115 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C116 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C117 1-126-964-11 ELECT 10UF 20.00% 50V C118 1-126-964-11 ELECT 10UF 20.00% 50V C119 1-126-964-11 ELECT 10UF 20.00% 50V C120 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C121 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C122 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C123 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C124 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C125 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C126 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C127 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C128 1-162-965-11 CERAMIC CHIP 0.0015UF 10.00% 50V C130 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C131 1-125-889-91 CERAMIC CHIP 2.2UF 10% 10V C132 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C133 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C135 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C136 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C137 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C138 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C139 1-162-919-11 CERAMIC CHIP 22PF 5.00% 50V C140 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C144 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C146 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C147 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V C148 1-165-176-11 CERAMIC CHIP 0.047UF 10.00% 16V C149 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C150 1-126-964-11 ELECT 10UF 20.00% 50V C151 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C152 1-162-915-11 CERAMIC CHIP 10PF 0.50PF 50V (NC60K) C152 1-162-916-11 CERAMIC CHIP 12PF 5.00% 50V (NC62K) MV-045 Notes: MV-045 mounted PWB must be replaced if IC103 (EEPROM IC) is damaged or not functioning. The old MV-045 mounted PWB must be completely disposed. MC-145 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NC60K/NC62K C153 1-162-917-11 CERAMIC CHIP 15PF 5.00% 50V (NC60K) C153 1-162-916-11 CERAMIC CHIP 12PF 5.00% 50V (NC62K) C154 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C155 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C156 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C158 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C160 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C161 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C162 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C163 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C164 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C171 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C172 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C174 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C175 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C176 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C177 1-126-947-11 ELECT 47UF 20.00% 35V C179 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C180 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C181 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C182 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C183 1-128-934-91 CERAMIC CHIP 0.33UF 20% 10V C184 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C186 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C187 1-126-947-11 ELECT 47UF 20.00% 35V C188 1-165-908-11 CERAMIC CHIP 1UF 10% 10V C189 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C190 1-126-947-11 ELECT 47UF 20.00% 35V C191 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C192 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C193 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C195 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C197 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C199 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C203 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C205 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C206 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C208 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C209 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C210 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C211 1-164-677-11 CERAMIC CHIP 0.033UF 10.00% 16V C212 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C213 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C214 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C216 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C217 1-126-947-11 ELECT 47UF 20.00% 35V C218 1-126-964-11 ELECT 10UF 20.00% 50V C219 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C220 1-126-964-11 ELECT 10UF 20.00% 50V C221 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C222 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C223 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C224 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C228 1-162-968-11 CERAMIC CHIP 0.0047UF 10.00% 50V C301 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C310 1-126-786-11 ELECT 47UF 20% 16V C311 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C312 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C313 1-126-786-11 ELECT 47UF 20% 16V C314 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C401 1-164-739-11 CERAMIC CHIP 560PF 5.00% 50V C402 1-164-739-11 CERAMIC CHIP 560PF 5.00% 50V C403 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C404 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C405 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C406 1-164-218-11 CERAMIC CHIP 180PF 5.00% 50V C407 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C408 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C409 1-126-960-11 ELECT 1UF 20.00% 50V C410 1-126-947-11 ELECT 47UF 20.00% 35V C411 1-126-947-11 ELECT 47UF 20.00% 35V C412 1-126-947-11 ELECT 47UF 20.00% 35V C413 1-126-934-11 ELECT 220UF 20.00% 16V C414 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C415 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C416 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C419 1-162-927-11 CERAMIC CHIP 100PF 5.00% 50V C420 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C422 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C425 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C427 1-126-947-11 ELECT 47UF 20.00% 35V C428 1-126-964-11 ELECT 10UF 20.00% 50V C429 1-126-964-11 ELECT 10UF 20.00% 50V C430 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C431 1-126-947-11 ELECT 47UF 20.00% 35V C432 1-162-964-11 CERAMIC CHIP 0.001UF 10.00% 50V C433 1-127-715-91 CERAMIC CHIP 0.22UF 10% 16V C434 1-126-964-11 ELECT 10UF 20.00% 50V C435 1-162-970-11 CERAMIC CHIP 0.01UF 10.00% 25V C444 1-126-947-11 ELECT 47UF 20.00% 35V C501 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C502 1-126-786-11 ELECT 47UF 20% 16V C503 1-126-786-11 ELECT 47UF 20% 16V C504 1-126-786-11 ELECT 47UF 20% 16V C508 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C510 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C512 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C513 1-107-826-11 CERAMIC CHIP 0.1UF 10.00% 16V C514 1-126-786-11 ELECT 47UF 20% 16V CN101 1-815-763-32 CONNECTOR, FFC/FPC 24P CN103 1-779-449-21 CONNECTOR, FFC/FPC 5P * CN105 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P * CN201 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN202 1-815-381-11 CONNECTOR, FPC/FFC 5P * CN404 1-568-954-11 PIN, CONNECTOR 5P * CN501 1-568-937-11 PIN, CONNECTOR 10P D308 8-719-071-15 DIODE HZM6.8ZWA1TL D309 8-719-071-15 DIODE HZM6.8ZWA1TL D401 8-719-914-43 DIODE DAN202K D402 8-719-914-44 DIODE DAP202K D404 8-719-988-61 DIODE 1SS355TE-17 D405 8-719-988-61 DIODE 1SS355TE-17 MV-045 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-10 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NC60K/NC62K FB106 1-469-324-21 FERRITE 0UH FB107 1-469-324-21 FERRITE 0UH FB108 1-469-324-21 FERRITE 0UH FB109 1-414-760-21 FERRITE 0UH FB110 1-414-760-21 FERRITE 0UH FB501 1-469-324-21 FERRITE 0UH FB502 1-469-324-21 FERRITE 0UH FB503 1-469-324-21 FERRITE 0UH FB504 1-469-324-21 FERRITE 0UH FB505 1-469-324-21 FERRITE 0UH FB506 1-469-324-21 FERRITE 0UH FL101 1-234-177-21 FERRITE 0UH FL105 1-234-177-21 FERRITE 0UH FL501 1-234-177-21 FERRITE 0UH FL502 1-234-177-21 FERRITE 0UH FL503 1-233-893-21 FILTER, CHIP EMI IC101 6-707-535-01 IC CXD9849R IC102 IC (ROM) IC103 (NOTE: SEE PAGE 8-5) IC104 6-707-897-01 IC EDS6416AHTA-75-E IC105 6-702-302-01 IC TK11133CSCL-G IC107 6-702-302-01 IC TK11133CSCL-G IC108 6-703-224-01 IC S-80828CNNB-B8NT2G IC110 6-707-739-01 IC MM1661JTRE IC201 6-704-524-01 IC FAN8036L IC303 8-759-662-86 IC NJM79M05DL1A(TE2) IC304 6-706-453-01 IC NJM2587V(TE2) IC401 6-707-187-01 IC HA17558AFEL-E IC402 6-707-187-01 IC HA17558AFEL-E IC403 6-706-025-01 IC HA178L05UA-TL-E IC405 6-600-430-01 IC TOTX177(F,T) IC406 6-707-490-01 IC AK4385ET-E2 PS501 1-576-509-21 IC LINK 1A 50V PS502 1-576-509-21 IC LINK 1A 50V Q101 6-550-008-01 TRANSISTOR UM6K1N-TN Q102 6-550-653-01 TRANSISTOR QST8TR Q103 8-729-424-59 TRANSISTOR UN2212-TX Q304 8-729-024-89 TRANSISTOR MUN2213T1 Q305 8-729-024-83 TRANSISTOR MUN2111T1 Q401 8-729-010-08 TRANSISTOR MSB710-RT1 Q402 8-729-024-89 TRANSISTOR MUN2213T1 Q403 8-729-010-25 TRANSISTOR MSD601-RT1 Q404 8-729-424-70 TRANSISTOR UN2217-QRS-TX Q405 8-729-010-05 TRANSISTOR MSB709-RT1 Q406 8-729-024-89 TRANSISTOR MUN2213T1 Q407 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q408 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q409 8-729-424-70 TRANSISTOR UN2217-QRS-TX Q410 8-729-010-05 TRANSISTOR MSB709-RT1 Q411 8-729-010-25 TRANSISTOR MSD601-RT1 Q414 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q416 8-729-010-05 TRANSISTOR MSB709-RT1 Q417 8-729-024-89 TRANSISTOR MUN2213T1 Q501 8-729-014-90 TRANSISTOR 2SD2185R-TX Q502 8-729-024-86 TRANSISTOR MUN2114T1 R101 1-216-809-11 METAL CHIP 100 5% 1/10W R103 1-216-864-11 SHORT CHIP 0 R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-857-11 METAL CHIP 1M 5% 1/10W R109 1-216-864-11 SHORT CHIP 0 R110 1-216-841-11 METAL CHIP 47K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R114 1-216-845-11 METAL CHIP 100K 5% 1/10W R115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R116 1-216-821-11 METAL CHIP 1K 5% 1/10W R117 1-216-841-11 METAL CHIP 47K 5% 1/10W R118 1-216-801-11 METAL CHIP 22 5% 1/10W R119 1-216-295-91 SHORT CHIP 0 R120 1-216-801-11 METAL CHIP 22 5% 1/10W R121 1-216-801-11 METAL CHIP 22 5% 1/10W R123 1-216-864-11 SHORT CHIP 0 R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R125 1-216-864-11 SHORT CHIP 0 R127 1-216-864-11 SHORT CHIP 0 R129 1-216-295-91 SHORT CHIP 0 R132 1-216-845-11 METAL CHIP 100K 5% 1/10W R134 1-216-864-11 SHORT CHIP 0 R135 1-216-833-11 METAL CHIP 10K 5% 1/10W R136 1-216-835-11 METAL CHIP 15K 5% 1/10W R137 1-216-864-11 SHORT CHIP 0 R141 1-216-855-11 METAL CHIP 680K 5% 1/10W R142 1-216-845-11 METAL CHIP 100K 5% 1/10W R143 1-216-864-11 SHORT CHIP 0 R144 1-216-864-11 SHORT CHIP 0 R145 1-216-864-11 SHORT CHIP 0 R146 1-216-864-11 SHORT CHIP 0 R147 1-216-864-11 SHORT CHIP 0 R148 1-216-864-11 SHORT CHIP 0 R149 1-216-864-11 SHORT CHIP 0 R151 1-216-833-11 METAL CHIP 10K 5% 1/10W R152 1-216-864-11 SHORT CHIP 0 R153 1-216-864-11 SHORT CHIP 0 R154 1-216-864-11 SHORT CHIP 0 R155 1-216-864-11 SHORT CHIP 0 R156 1-216-809-11 METAL CHIP 100 5% 1/10W R159 1-216-864-11 SHORT CHIP 0 R160 1-216-864-11 SHORT CHIP 0 MV-045 Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NC60K/NC62K R161 1-216-864-11 SHORT CHIP 0 R162 1-216-864-11 SHORT CHIP 0 R163 1-216-864-11 SHORT CHIP 0 R164 1-216-864-11 SHORT CHIP 0 R165 1-216-864-11 SHORT CHIP 0 R166 1-216-864-11 SHORT CHIP 0 R169 1-216-864-11 SHORT CHIP 0 R170 1-216-833-11 METAL CHIP 10K 5% 1/10W R172 1-216-864-11 SHORT CHIP 0 R173 1-216-864-11 SHORT CHIP 0 R174 1-216-864-11 SHORT CHIP 0 R175 1-216-864-11 SHORT CHIP 0 R189 1-218-827-11 METAL CHIP 150 0.5% 1/10W R190 1-218-827-11 METAL CHIP 150 0.5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-218-827-11 METAL CHIP 150 0.5% 1/10W R193 1-216-821-11 METAL CHIP 1K 5% 1/10W R195 1-218-827-11 METAL CHIP 150 0.5% 1/10W R197 1-218-827-11 METAL CHIP 150 0.5% 1/10W R204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R208 1-216-839-11 METAL CHIP 33K 5% 1/10W R209 1-216-839-11 METAL CHIP 33K 5% 1/10W R210 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-833-11 METAL CHIP 10K 5% 1/10W R213 1-216-831-11 METAL CHIP 6.8K 5% 1/10W R214 1-216-835-11 METAL CHIP 15K 5% 1/10W R215 1-216-834-11 METAL CHIP 12K 5% 1/10W R216 1-216-834-11 METAL CHIP 12K 5% 1/10W R219 1-216-838-11 METAL CHIP 27K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R229 1-216-839-11 METAL CHIP 33K 5% 1/10W R230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R235 1-216-864-11 SHORT CHIP 0 R240 1-216-864-11 SHORT CHIP 0 R241 1-216-864-11 SHORT CHIP 0 R244 1-216-864-11 SHORT CHIP 0 R245 1-216-864-11 SHORT CHIP 0 R246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R248 1-216-864-11 SHORT CHIP 0 R249 1-216-864-11 SHORT CHIP 0 R250 1-216-864-11 SHORT CHIP 0 R251 1-216-864-11 SHORT CHIP 0 R320 1-216-864-11 SHORT CHIP 0 R321 1-216-833-11 METAL CHIP 10K 5% 1/10W R325 1-216-864-11 SHORT CHIP 0 R327 1-216-833-11 METAL CHIP 10K 5% 1/10W R331 1-211-990-11 METAL CHIP 75 0.5% 1/10W R332 1-211-990-11 METAL CHIP 75 0.5% 1/10W R333 1-211-990-11 METAL CHIP 75 0.5% 1/10W R334 1-211-990-11 METAL CHIP 75 0.5% 1/10W R335 1-211-990-11 METAL CHIP 75 0.5% 1/10W R336 1-211-990-11 METAL CHIP 75 0.5% 1/10W R375 1-216-864-11 SHORT CHIP 0 R382 1-216-864-11 SHORT CHIP 0 R405 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R406 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R407 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R409 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R410 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R411 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R412 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R413 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R415 1-216-864-11 SHORT CHIP 0 R416 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-845-11 METAL CHIP 100K 5% 1/10W R419 1-216-849-11 METAL CHIP 220K 5% 1/10W R420 1-216-817-11 METAL CHIP 470 5% 1/10W R421 1-216-841-11 METAL CHIP 47K 5% 1/10W R422 1-216-833-11 METAL CHIP 10K 5% 1/10W R424 1-216-833-11 METAL CHIP 10K 5% 1/10W R425 1-216-841-11 METAL CHIP 47K 5% 1/10W R426 1-216-817-11 METAL CHIP 470 5% 1/10W R427 1-216-817-11 METAL CHIP 470 5% 1/10W R428 1-216-833-11 METAL CHIP 10K 5% 1/10W R429 1-216-841-11 METAL CHIP 47K 5% 1/10W R430 1-216-841-11 METAL CHIP 47K 5% 1/10W R431 1-216-833-11 METAL CHIP 10K 5% 1/10W R432 1-216-833-11 METAL CHIP 10K 5% 1/10W R433 1-216-841-11 METAL CHIP 47K 5% 1/10W R434 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R435 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R436 1-216-833-11 METAL CHIP 10K 5% 1/10W R438 1-216-845-11 METAL CHIP 100K 5% 1/10W R439 1-216-845-11 METAL CHIP 100K 5% 1/10W R440 1-216-817-11 METAL CHIP 470 5% 1/10W R441 1-216-817-11 METAL CHIP 470 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-833-11 METAL CHIP 10K 5% 1/10W R449 1-216-813-11 METAL CHIP 220 5% 1/10W R450 1-216-833-11 METAL CHIP 10K 5% 1/10W R451 1-216-807-11 METAL CHIP 68 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W R453 1-216-821-11 METAL CHIP 1K 5% 1/10W R454 1-216-821-11 METAL CHIP 1K 5% 1/10W R455 1-216-833-11 METAL CHIP 10K 5% 1/10W R456 1-216-821-11 METAL CHIP 1K 5% 1/10W R457 1-216-833-11 METAL CHIP 10K 5% 1/10W R458 1-216-833-11 METAL CHIP 10K 5% 1/10W R459 1-216-833-11 METAL CHIP 10K 5% 1/10W R460 1-216-841-11 METAL CHIP 47K 5% 1/10W R461 1-216-817-11 METAL CHIP 470 5% 1/10W R462 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R464 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R465 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R466 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W MV-045 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-12 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NC60K/NC62K R467 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R468 1-216-821-11 METAL CHIP 1K 5% 1/10W R473 1-216-295-91 SHORT CHIP 0 R474 1-216-295-91 SHORT CHIP 0 R475 1-216-295-91 SHORT CHIP 0 R476 1-216-295-91 SHORT CHIP 0 R484 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R487 1-216-864-11 SHORT CHIP 0 R488 1-216-864-11 SHORT CHIP 0 R489 1-216-833-11 METAL CHIP 10K 5% 1/10W R503 1-216-833-11 METAL CHIP 10K 5% 1/10W R504 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R505 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R507 1-216-864-11 SHORT CHIP 0 R515 1-216-864-11 SHORT CHIP 0 R1101 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R1102 1-218-827-11 METAL CHIP 150 0.5% 1/10W R1107 1-216-864-11 SHORT CHIP 0 R1110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1114 1-216-801-11 METAL CHIP 22 5% 1/10W R1115 1-216-805-11 METAL CHIP 47 5% 1/10W R1120 1-216-864-11 SHORT CHIP 0 R1121 1-216-864-11 SHORT CHIP 0 R1122 1-216-864-11 SHORT CHIP 0 R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-864-11 SHORT CHIP 0 R1125 1-216-864-11 SHORT CHIP 0 R1129 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-864-11 SHORT CHIP 0 R1138 1-216-864-11 SHORT CHIP 0 R1139 1-216-864-11 SHORT CHIP 0 R1140 1-216-864-11 SHORT CHIP 0 R1141 1-216-864-11 SHORT CHIP 0 R1142 1-216-864-11 SHORT CHIP 0 R1143 1-216-864-11 SHORT CHIP 0 R1144 1-216-295-91 SHORT CHIP 0 R1145 1-216-295-91 SHORT CHIP 0 R1146 1-216-295-91 SHORT CHIP 0 R1147 1-216-295-91 SHORT CHIP 0 R1149 1-216-864-11 SHORT CHIP 0 R1150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1160 1-216-864-11 SHORT CHIP 0 R1168 1-216-815-11 METAL CHIP 330 5% 1/10W (NC60K) R1168 1-216-819-11 METAL CHIP 680 5% 1/10W (NC62K) R1169 1-216-864-11 SHORT CHIP 0 R1177 1-216-864-11 SHORT CHIP 0 R1178 1-216-821-11 METAL CHIP 1K 5% 1/10W R1180 1-216-833-11 METAL CHIP 10K 5% 1/10W R1181 1-216-833-11 METAL CHIP 10K 5% 1/10W R1182 1-216-833-11 METAL CHIP 10K 5% 1/10W R1183 1-216-833-11 METAL CHIP 10K 5% 1/10W RB103 1-234-371-21 RES, NETWORK 47 (1005X4) RB104 1-234-371-21 RES, NETWORK 47 (1005X4) RB105 1-234-371-21 RES, NETWORK 47 (1005X4) RB106 1-234-371-21 RES, NETWORK 47 (1005X4) SW-443 RB107 1-234-371-21 RES, NETWORK 47 (1005X4) RB108 1-234-371-21 RES, NETWORK 47 (1005X4) RB109 1-234-371-21 RES, NETWORK 47 (1005X4) RB110 1-234-371-21 RES, NETWORK 47 (1005X4) RB111 1-234-371-21 RES, NETWORK 47 (1005X4) RB112 1-234-371-21 RES, NETWORK 47 (1005X4) RB113 1-234-371-21 RES, NETWORK 47 (1005X4) RB114 1-234-371-21 RES, NETWORK 47 (1005X4) RB115 1-234-371-21 RES, NETWORK 47 (1005X4) X102 1-813-539-11 QUARTZ CRYSTAL UNIT (NC60K) X102 1-813-219-31 QUARTZ CRYSTAL UNIT (NC62K) SW-443 BOARD ************* C501 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V C502 1-124-589-11 ELECT 47UF 20.00% 16V CN502 1-750-195-11 CONNECTOR, BOARD TO BOARD 6P D501 6-501-147-01 DIODE LTL-1MHAE-112A IC501 6-600-256-01 IC GP1UE27SXK0F JR501 1-216-295-00 SHORT CHIP 0 JR502 1-216-295-00 SHORT CHIP 0 JR503 1-216-295-00 SHORT CHIP 0 JR504 1-216-295-00 SHORT CHIP 0 JR505 1-216-295-00 SHORT CHIP 0 JR506 1-216-295-00 SHORT CHIP 0 JR507 1-216-295-00 SHORT CHIP 0 JR508 1-216-295-00 SHORT CHIP 0 R502 1-216-017-91 RES-CHIP 47 5% 1/10W R504 1-216-059-00 RES-CHIP 2.7K 5% 1/10W R505 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R506 1-216-071-00 RES-CHIP 8.2K 5% 1/10W R507 1-216-081-00 RES-CHIP 22K 5% 1/10W R508 1-216-059-00 RES-CHIP 2.7K 5% 1/10W R509 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R510 1-216-071-00 RES-CHIP 8.2K 5% 1/10W MV-045 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-13 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-NC60K/NC62K Note : The components identified by mark or dotted line with mark are critical for safety. Replace only with part number specified. R511 1-216-081-00 RES-CHIP 22K 5% 1/10W R512 1-216-059-00 RES-CHIP 2.7K 5% 1/10W R513 1-216-063-91 RES-CHIP 3.9K 5% 1/10W R514 1-216-071-00 RES-CHIP 8.2K 5% 1/10W S501 1-771-410-21 SWITCH, TACT S502 1-771-410-21 SWITCH, TACT S503 1-771-410-21 SWITCH, TACT S504 1-771-410-21 SWITCH, TACT S505 1-771-410-21 SWITCH, TACT S506 1-771-410-21 SWITCH, TACT S507 1-771-410-21 SWITCH, TACT S508 1-771-410-21 SWITCH, TACT S509 1-771-410-21 SWITCH, TACT S510 1-771-410-21 SWITCH, TACT S511 1-771-410-21 SWITCH, TACT S512 1-771-410-21 SWITCH, TACT S513 1-771-410-21 SWITCH, TACT S514 1-771-410-21 SWITCH, TACT 1-478-538-12 POWER SUPPLY BLOCK (NC60K:MX) 1-478-539-31 POWER SUPPLY BLOCK (EXCEPT NC60K:MX) *************************** ACCESSORIES ************* 1-751-271-71 CORD, CONNECTION (AV) 1-479-250-31 REMOTE COMMANDER (RMT-D178A) (NC60k) 1-479-250-41 REMOTE COMMANDER (RMT-D178P) (NC62k) 2-595-905-11 MANUAL, INSTRUCTION (NC60K:MX) (SPANISH) 2-595-905-21 MANUAL, INSTRUCTION (NC60K:E) (SPANISH) 2-595-906-11 MANUAL, INSTRUCTION (NC62K) (ENGLISH) 2-595-906-21 MANUAL, INSTRUCTION (NC62K:SP) (THAI) 1-569-008-22 ADAPTOR, CONVERSION 2P (NC60K:E) SW-443 POWER BLOCK (SRV1487UC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-14 DVP-NC60K/NC62K – 117 – Sony Corporation Home Electronics Network Company. 2005E0800-1 2005. 05 Published by Product Design 1 Department 9-874-861-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
