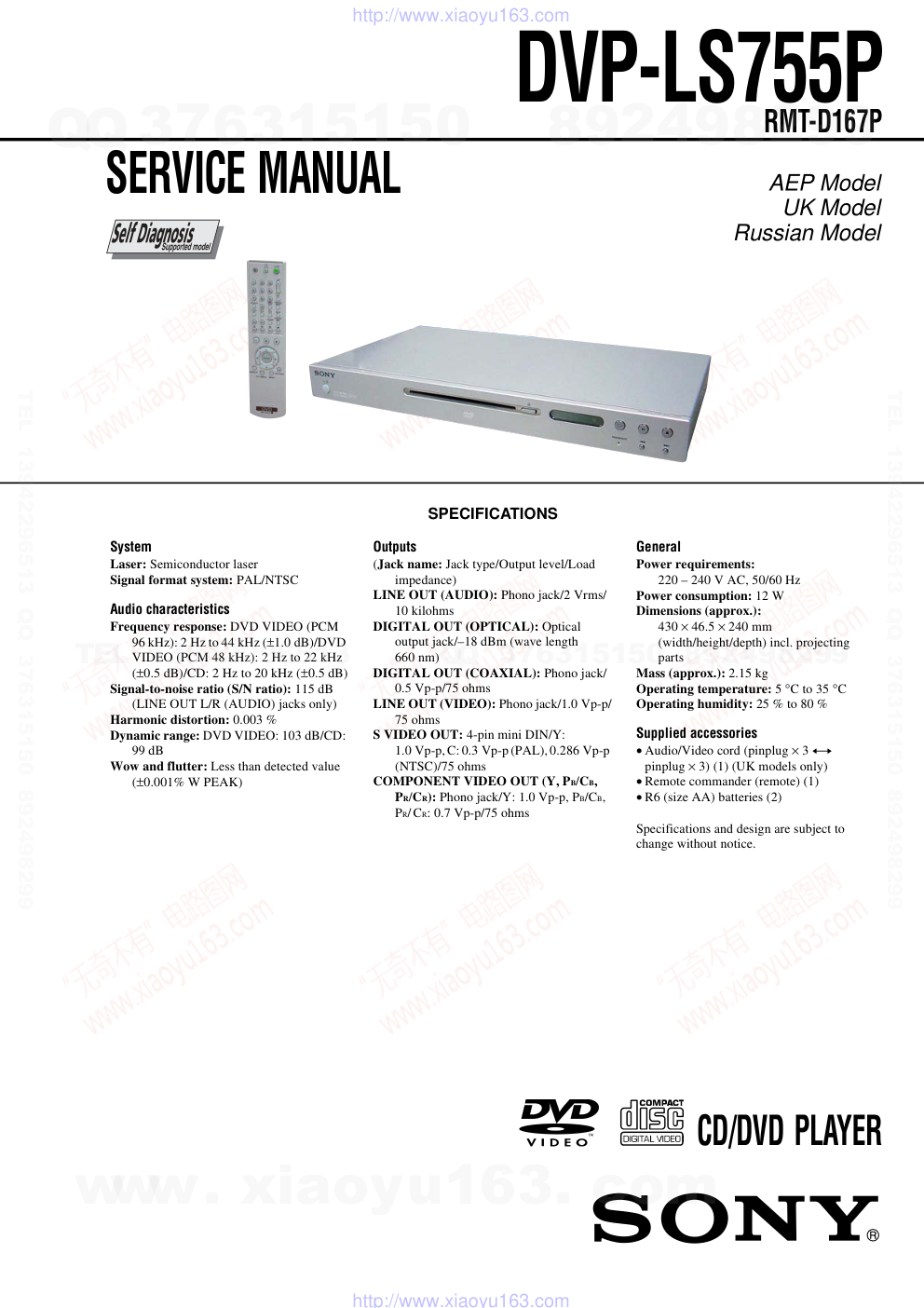

SERVICE MANUAL AEP Model UK Model Russian Model CD/DVD PLAYER DVP-LS755P RMT-D167P SPECIFICATIONS System Laser: Semiconductor laser Signal format system: PAL/NTSC Audio characteristics Frequency response: DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB) Signal-to-noise ratio (S/N ratio): 115 dB (LINE OUT L/R (AUDIO) jacks only) Harmonic distortion: 0.003 % Dynamic range: DVD VIDEO: 103 dB/CD: 99 dB Wow and flutter: Less than detected value (±0.001% W PEAK) Outputs (Jack name: Jack type/Output level/Load impedance) LINE OUT (AUDIO): Phono jack/2 Vrms/ 10 kilohms DIGITAL OUT (OPTICAL): Optical output jack/–18 dBm (wave length 660 nm) DIGITAL OUT (COAXIAL): Phono jack/ 0.5 Vp-p/75 ohms LINE OUT (VIDEO): Phono jack/1.0 Vp-p/ 75 ohms S VIDEO OUT: 4-pin mini DIN/Y: 1.0 Vp-p, C: 0.3 Vp-p (PAL), 0.286 Vp-p (NTSC)/75 ohms COMPONENT VIDEO OUT (Y, PB/CB, PR/CR): Phono jack/Y: 1.0 Vp-p, PB/CB, PR/ CR: 0.7 Vp-p/75 ohms General Power requirements: 220 – 240 V AC, 50/60 Hz Power consumption: 12 W Dimensions (approx.): 430 × 46.5 × 240 mm (width/height/depth) incl. projecting parts Mass (approx.): 2.15 kg Operating temperature: 5 °C to 35 °C Operating humidity: 25 % to 80 % Supplied accessories • Audio/Video cord (pinplug × 3 y pinplug × 3) (1) (UK models only) Specifications and design are subject to change without notice. • Remote commander (remote) (1) • R6 (size AA) batteries (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – SAFETY CHECK-OUT 1. Check the area of your repair for unsoldered or poorly-sol- dered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recom- mend their replacement. 5. Check the B+ voltage to see it is at the values specified. WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION: The use of optical instrument with this product will increase eye hazard. Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. This www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS Section Title Page Section Title Page 1. GENERAL Index to Parts and Controls .......................................... 1-1 Hookups ........................................................................ 1-3 Playing Discs ................................................................. 1-6 Searching for a Scene ................................................... 1-9 Viewing Information About the Disc .............................. 1-10 Sound Adjustments ....................................................... 1-10 Enjoying Movies ............................................................ 1-11 Playing a DATA CD ........................................................ 1-12 Using Various Additional Functions .............................. 1-14 Settings and Adjustments ............................................. 1-15 Additional Information ................................................... 1-17 2. DISASSEMBLY 2-1. Disassembly .................................................................. 2-1 2-2. Upper Case ................................................................... 2-2 2-3. MV-044 Board................................................................ 2-2 2-4. Front Panel Section ....................................................... 2-3 2-5. Power Supply Block....................................................... 2-3 2-6. IF-117 Board ................................................................. 2-4 2-7. Mechanism Deck ........................................................... 2-4 2-8. ER-027 Board ................................................................ 2-5 2-9. Optical Pick-up .............................................................. 2-5 2-10. MS-214 Board ............................................................... 2-6 2-11. Holder (BU) Assy........................................................... 2-6 2-12. Lever (BU Lock) ............................................................. 2-7 2-13. Close Lever ................................................................... 2-7 2-14. Lever (DIR), Gear (IDL-B) ............................................. 2-8 2-15. Chassis (Top) ................................................................ 2-8 2-16. Lever (Loading-L/R) ...................................................... 2-9 2-17. Lever (Disc Sensor)/(Disc Stop) ................................... 2-10 2-18. Gear (IDL-C) .................................................................. 2-10 2-19. Circuit Boards Location ................................................. 2-11 3. BLOCK DIAGRAMS 3-1. Overall Block Diagram................................................... 3-1 3-2. RF/Servo Block Diagram............................................... 3-3 3-3. System Control/Signal Processor Block Diagram ........ 3-5 3-4. Video Block Diagram ..................................................... 3-7 3-5. Audio Block Diagram ..................................................... 3-9 3-6. Interface Control Block Diagram ................................... 3-11 3-7. Power 1 Block Diagram ................................................. 3-13 3-8. Power 2 Block Diagram ................................................. 3-15 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. Frame Schematic Diagram............................................ 4-3 4-2. Printed Wiring Boards and Schematic Diagrams ......... 4-5 MV-044 (RF AMP, SIGNAL PROCESS, SERVO, MOTOR DRIVE, AVDEC, VIDEO, AUDIO, PS THROUGH) Printed Wiring Board ........................... 4-5 MV-044 (RF AMP, SERVO, MOTOR DRIVE) Schematic Diagram ....................................................... 4-9 MV-044 (SIGNAL PROCESS, SERVO DSP, AVDEC) Schematic Diagram ....................................................... 4-11 MV-044 (VIDEO AMP) Schematic Diagram.................. 4-13 MV-044 (AUDIO AMP) Schematic Diagram.................. 4-15 MV-044 (PS THROUGH) Schematic Diagram .............. 4-17 ER-027 (EURO AV) Printed Wiring Board .................... 4-21 ER-027 (EURO AV) Schematic Diagram ...................... 4-23 IF-117 (INTERFACE CONTROL) Printed Wiring Board ..................................................... 4-25 IF-117 (INTERFACE CONTROL) Schematic Diagram ....................................................... 4-27 MS-214 (LOADING MOTOR) Printed Wiring Board and Schematic Diagram ................................................ 4-29 LC-082 (FUNCTION SWITCH) Printed Wiring Board and Schematic Diagram ................................................ 4-31 POWER SUPPLY BLOCK (SWITCHING REGULATOR) Printed Wiring Board ..... 4-33 POWER SUPPLY BLOCK (SWITCHING REGULATOR) Schematic Diagram ....... 4-35 5. IC PIN FUNCTION DESCRIPTION 5-1. System Control Pin Function (MV-044 Board IC201) .................................................. 5-1 6. TEST MODE 6-1. General Description ...................................................... 6-1 6-2. Starting Test Mode ........................................................ 6-1 6-3. Drive Manual Operation ................................................ 6-1 6-4. Mirror Time Adjustment ................................................. 6-1 6-5. Executing Iop Measurement ......................................... 6-3 6-6. IF CON Self Diagnostic Function .................................. 6-4 7. ELECTRICAL ADJUSTMENT 7-1. Power Supply Check ..................................................... 7-1 1. Power Supply Block (Switching Regulator) .................. 7-1 7-2. Adjustment of Video System ......................................... 7-2 1. Checking Video Output Level ........................................ 7-2 2. Checking Progressive Video Output Level ................... 7-2 3. Checking S Video Output S-Y ....................................... 7-2 4. Checking S Video Output S-C....................................... 7-2 5. Checking Component Video Output Y .......................... 7-3 6. Checking Component Video Output B-Y ...................... 7-3 7. Checking Component Video Output R-Y ...................... 7-3 8. Checking RGB Output R ............................................... 7-3 9. Checking RGB Output G ............................................... 7-4 10. Checking RGB Output B ............................................... 7-4 8. REPAIR PARTS LIST 8-1. Exploded Views ............................................................. 8-1 8-1-1. Front Panel Section .................................................. 8-1 8-1-2. CD Mechanism Deck Section-1 ............................... 8-2 8-1-3. CD Mechanism Deck Section-2 ............................... 8-3 8-1-4. CD Mechanism Deck Section-3 ............................... 8-4 8-1-5. CD Mechanism Deck Section-4 ............................... 8-5 8-2. Electrical Parts List ....................................................... 8-6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 SECTION 1 GENERAL This section is extracted from instruction manual (2-021-509-12). DVP-LS755P 6 About This Manual • Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote. • “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs and DVD-RWs/DVD-Rs. • The meaning of the icons used in this manual is described below: * MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO (International Organization for Standardization)/MPEG which compresses audio data. This Player Can Play the Following Discs “DVD VIDEO” and “DVD-RW” are trademarks. Note about CDs The player can play CD-ROMs/CD-Rs/CD- RWs recorded in the following formats: – music CD format – video CD format – MP3 audio tracks and JPEG image files of format conforming to ISO9660* Level 1/ Level 2, or its extended format, Joliet – KODAK Picture CD format * A logical format of files and folders on CD- ROMs, defined by ISO (International Organization for Standardization). Icons Meanings Functions available for DVD VIDEOs and DVD+RWs/ DVD+Rs or DVD-RWs/DVD- Rs in video mode Functions available for DVD- RWs in VR (Video Recording) mode Functions available for VIDEO CDs, Super VCDs or CD-Rs/ CD-RWs in video CD format or Super VCD format Functions available for music CDs or CD-Rs/CD-RWs in music CD format Functions available for DATA CDs (CD-ROMs/CD-Rs/CD- RWs containing MP3* audio tracks and JPEG image files) Format of discs DVD VIDEO (page 76) DVD-RW (page 76) VIDEO CD Music CD 7 Example of discs that the player cannot play The player cannot play the following discs: • CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on the previous page. • CD-ROMs recorded in PHOTO CD format. • Data part of CD-Extras. • DVD-ROMs. • DVD Audios. • HD layer on Super Audio CDs. Also, the player cannot play the following discs: • A DVD VIDEO with a different region code. • A disc that has a non-standard shape (e.g., card, heart). • A disc with paper or stickers on it. • A disc that has the adhesive of cellophane tape or a sticker still left on it. Region code Your player has a region code printed on the back of the unit and only will play DVD VIDEOs (playback only) labelled with identical region codes. This system is used to protect copyrights. DVD VIDEOs labelled will also play on this player. If you try to play any other DVD VIDEO, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD VIDEO, there may be no region code indication, even though playing the DVD VIDEO is prohibited by area restrictions. Notes • Notes about DVD+RWs/DVD+Rs, DVD-RWs/ DVD-Rs or CD-Rs/CD-RWs Some DVD+RWs/DVD+Rs, DVD-RWs/DVD- Rs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs created in Packet Write format cannot be played. • Music discs encoded with copyright protection technologies This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Note on playback operations of DVDs and VIDEO CDs Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs. Copyrights This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. ALL DVP–XXXX 00V 00Hz 00W NO. 0-000-000-00 X Region code 8 Notes About the Discs • To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After pressing Z or A, do not leave the disc half ejected. Remove the disc completely from the player. • After playing, store the disc in its case. • If glue is present on the outer edge of the disc, wipe the edge of the disc with the side of a pen or pencil so that the glue is spread evenly along the edge before inserting the disc into the player. Be sure not to touch the playback side of the disc when wiping the edge. • If burrs remain on the outer edge of the disc, remove them by rubbing with the side of a pen or pencil. If burrs are not removed, discs may not load properly into the player, or fragments of plastic adhering to the playback side of the disc may cause skipping in the sound. • Clean the disc with a cleaning cloth. Wipe the disc from the centre out. • Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs. • If you have printed the disc's label, dry the label before playing. 9 Index to Parts and Controls For more information, see the pages indicated in parentheses. Front panel A [/1 (on/standby) button (28) B Disc slot (28) C A (eject) button (29) D Front panel display (9) E (remote sensor) (15) F H (play) button (28) G X (pause) button (29) H x (stop) button (29) I ./> (previous/next) buttons (38) J PROGRESSIVE indicator (17) Lights up when the player outputs progressive signals. Front panel display A Current title/chapter/scene/track/ playing time, or other disc information (43) B Play mode Lights up during Repeat Play or A-B Repeat Play (35) C Playing status z Hint You can adjust the lighting of the front panel display by setting “DIMMER” in “CUSTOM SETUP.” (page 69) 1 ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 10 Rear panel A COMPONENT VIDEO OUT (Y, PB/ CB, PR/CR) jacks** (16) B LINE OUT (VIDEO) jack* (16) C LINE (RGB) - TV jack* (16) (25) D NORMAL/PROGRESSIVE switch** (18) E S VIDEO OUT jack* (16) F LINE OUT L/R (AUDIO) jacks (20) (21) (22) G DIGITAL OUT (COAXIAL) jack (21) (22) (23) H DIGITAL OUT (OPTICAL) jack (21) (22) (23) * Do not set the NORMAL/PROGRESSIVE switch to PROGRESSIVE if you have connected the TV to these jacks (page 18). ** Only set the NORMAL/PROGRESSIVE switch on the rear panel to PROGRESSIVE if you have connected a progressive signal compatible TV to the player. (page 18). PROGRESSIVE NORMAL S VIDEO OUT LINE OUT LINE OUT VIDEO OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL AUDIO L R DIGITAL OUT COMPONENT VIDEO OUT TV (RGB) LINE CR PB / Y PR / CB 11 Remote A TV [/1 (on/standby) button (63) B Z (eject) button (29) C Number buttons (31) The number 5 button has a tactile dot.* D CLEAR button (33) E (subtitle) button (48) F (audio) button (45) G ./> (previous/next) buttons (29) H m/M (scan/slow) buttons (39) I X (pause) button (29) J H (play) button (28) The H button has a tactile dot.* K C/X/x/c buttons (31) L DISPLAY button (12) M TOP MENU button (31) N [/1 (on/standby) button (28) O 2 (volume) +/– buttons (63) The + button has a tactile dot.* P t (TV/video) button (63) Q TIME/TEXT button (42) R PICTURE MODE button (49) S (angle) button (48) T SUR (surround) button (46) U PICTURE NAVI (picture navigation) button (41, 54) V ZOOM button (29, 54) W (instant advance/step) button (29, 39) X (instant replay/step) button (29, 39) Y x (stop) button (29) Z ENTER button (25) wj O RETURN button (29) wk MENU button (31) (52) * Use the tactile dot as a reference when operating the player. 12 Guide to the Control Menu Display (Magic Pad) Use the Control Menu to select a function and to view related information. Press DISPLAY repeatedly to turn on or change the Control Menu display as follows: Control Menu display The Control Menu display 1 and 2 will show different items depending on the disc type. For details about each item, see the pages in parentheses. Example: Control Menu display 1 when playing a DVD VIDEO. * Displays the scene number for VIDEO CDs (PBC is on), track number for VIDEO CDs/ CDs, album number for DATA CDs. ** Displays the index number for VIDEO CDs, MP3 audio track number or JPEG image file number for DATA CDs. *** Displays Super VCD as “SVCD.” ****Displays the date for JPEG files. To turn off the display Press DISPLAY. Control Menu display 1 m Control Menu display 2 (DATA CD only) m Control Menu display off , OFF OFF SET ON PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO Quit: PROGRAM ENTER DISPLAY Currently playing chapter number** Playing time**** Total number of chapters** Options Current setting Total number of titles* Playback status (N Playback, X Pause, x Stop, etc.) Function name of selected Control Menu item Operation message Selected item Control Menu items Type of disc being played*** Currently playing title number* 13 List of Control Menu items Item Item Name, Function, Relevant Disc Type TITLE (page 39)/SCENE (page 39)/TRACK (page 39) Selects the title, scene, or track to be played. CHAPTER (page 39)/INDEX (page 39) Selects the chapter or index to be played. TRACK (page 39) Selects the track to be played. ORIGINAL/PLAY LIST (page 31) Selects the type of titles (DVD-RW) to be played, the ORIGINAL one, or an edited PLAY LIST. TIME/TEXT (page 39) Checks the elapsed time and the remaining playback time. Input the time code for picture and music searching. Displays the DVD/CD text or the DATA CD’s track name. PROGRAM (page 33) Selects the title, chapter, or track to play in the order you want. SHUFFLE (page 34) Plays the title, chapter, or track in random order. REPEAT (page 35) Plays the entire disc (all titles/all tracks/all albums) repeatedly or one title/chapter/track/ album repeatedly. A-B REPEAT (page 36) Specifies the parts you want to play repeatedly. SHARPNESS (page 50) Exaggerates the outline of the image to produce a sharper picture. PARENTAL CONTROL (page 59) Set to prohibit playback on this player. SETUP (page 65) QUICK Setup (page 24) Use Quick Setup to choose the desired language of the on-screen display, the aspect ratio of the TV, and the audio output signal. CUSTOM Setup In addition to the Quick Setup setting, you can adjust various other settings. RESET Returns the settings in “SETUP” to the default setting. ALBUM (page 51) Selects the album to be played. FILE (page 39) Selects the JPEG image file to be played. DATE (page 54) Displays the date the picture was taken by a digital camera. INTERVAL (page 57) Specifies the duration for which the slides are displayed on the screen. EFFECT (page 57) Selects the effects to be used for changing slides during a slide show. ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 14 z Hint The Control Menu icon indicator lights up in green when you select any item except “OFF.” (“PROGRAM,” “SHUFFLE,” “REPEAT,” “A-B REPEAT,” “SHARPNESS” only). The “ORIGINAL/PLAY LIST” indicator lights up in green when you select “PLAY LIST” (default setting). MODE (MP3, JPEG) (page 54) Selects the data type; MP3 audio track (AUDIO), JPEG image file (IMAGE) or both (AUTO) to be played when playing a DATA CD. t 15 Hookups Hookups Hooking Up the Player Follow steps 1 to 6 to hook up and adjust the settings of the player. Notes • Plug cords securely to prevent unwanted noise. • Refer to the instructions supplied with the components to be connected. • You cannot connect this player to a TV that does not have a SCART (EURO AV) or video input jack. • Be sure to disconnect the mains lead of each component before connecting. Step 1: Unpacking Check that you have the following items: • Audio/Video cord (pinplug � 3 y pinplug � 3) (1) (UK models only) • Remote commander (remote) (1) • R6 (size AA) batteries (2) Step 2: Inserting Batteries Into the Remote You can control the player using the supplied remote. Insert two R6 (size AA) batteries by matching the 3 and # ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player. Notes • Do not leave the remote in an extremely hot or humid place. • Do not drop any foreign object into the remote casing, particularly when replacing the batteries. • Do not expose the remote sensor to direct light from the sun or a lighting apparatus. Doing so may cause a malfunction. • If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion. 16 Step 3: Connecting the Video Cords Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord. Select one of the patterns A through D, according to the input jack on your TV monitor, projector, or AV amplifier (receiver). In order to view progressive signal (525p or 625p) pictures with a compatible TV, projector, or monitor, you must use pattern A. Notes When connecting to a progressive TV, it is recommended that you use only pattern A. If you connect to your TV using both A and B, a special control signal transmitted via the SCART (EURO AV) cable may cause the signal to be switched to the SCART (EURO AV) jack. PROGRESSIVE NORMAL LINE OUT OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL AUDIO L R DIGITAL OUT COMPONENT VIDEO OUT TV (RGB) LINE LINE OUT VIDEO S VIDEO OUT CR PB / Y PR / CB C VIDEO AUDIO INPUT L R A PR/CR PB/CB Y COMPONENT VIDEO IN D INPUT S VIDEO B Audio/video cord (supplied with UK models) Component video cord (not supplied) (yellow) TV, projector, or AV amplifier (receiver) to S VIDEO OUT TV, projector, or AV amplifier (receiver) (green) S VIDEO cord (not supplied) TV, projector, or AV amplifier (receiver) (red) (blue) (green) (blue) (red) to LINE OUT (VIDEO) to LINE (RGB)-TV TV l : Signal flow CD/DVD player to COMPONENT VIDEO OUT SCART (EURO AV) cord (not supplied) NORMAL/ PROGRESSIVE switch 17 Hookups A If you are connecting to a monitor, projector, or AV amplifier (receiver) having component video input jacks (Y, PB/CB, PR/CR) Connect the component via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate colour reproduction and high quality images. If your TV accepts progressive 525p/625p format signals, use this connection and set the NORMAL/PROGRESSIVE switch on the rear panel to PROGRESSIVE to accept progressive video signals. For details, see “Using the NORMAL/PROGRESSIVE switch” (page 18). B If you are connecting to a SCART (EURO AV) input jack Connect a SCART (EURO AV) cord (not supplied). Be sure to make the connections firmly to avoid hum and noise. When you connect using the SCART (EURO AV) cord, check that the TV conforms to S video or RGB signals. Refer to the operating instructions supplied with the TV to be connected. Also, when you set “LINE” to “S VIDEO” or “RGB” under “SCREEN SETUP” in the Setup Display (page 67), use a SCART (EURO AV) cord that conforms to each signal. Set the NORMAL/PROGRESSIVE switch on the rear panel to NORMAL when using this connection. C If you are connecting to a video input jack Connect the yellow plug of an audio/video cord (supplied with UK models) to the yellow (video) jack. You will enjoy standard quality images. Set the NORMAL/PROGRESSIVE switch on the rear panel to NORMAL when using this connection. D If you are connecting to an S VIDEO input jack Connect an S VIDEO cord (not supplied). You will enjoy high quality images. Set the NORMAL/PROGRESSIVE switch on the rear panel to NORMAL when using this connection. When connecting to a wide screen TV Depending on the disc, the image may not fit your TV screen. To change the aspect ratio, see page 67. Green Blue Red Green Blue Red Yellow White (L) Red (R) Yellow White (L) Red (R) ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 18 Notes • Do not connect a VCR, etc., between your TV and the player. If you pass the player signals via the VCR, you may not receive a clear image on the TV screen. If your TV has only one audio/video input jack, connect the player to this jack. • Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p and 625p DVD player model, please contact our customer service centre. • When you connect the player to your TV via the SCART (EURO AV) jacks, the TV’s input source is set to the player automatically when you start playback. In this case, press t (TV/video) on the remote to return the input to the TV. • If you set “LINE” in SCREEN SETUP to “RGB” (page 25, 67), the player outputs no component video signals. Using the NORMAL/PROGRESSIVE switch By using the NORMAL/PROGRESSIVE switch, you can select the signal format in which the player outputs video signals: interlace or progressive. The switch takes priority over the setting made in “COMPONENT OUT.” Connect the player using the COMPONENT VIDEO OUT jacks (pattern A above), and set the NORMAL/PROGRESSIVE switch to NORMAL (interlace) or PROGRESSIVE. The PROGRESSIVE indicator lights up when the player outputs progressive signals. ◆PROGRESSIVE Set to this position when: – your TV accepts progressive signals, and, – the TV is connected to the COMPONENT VIDEO OUT jacks. Note that the pictures will not be clear or no picture will appear if you set the NORMAL/ PROGRESSIVE to PROGRESSIVE when either of the above conditions is not met. ◆NORMAL (interlace) Set to this position when: – your TV does not accept progressive signals, or, – your TV is connected to jacks other than the COMPONENT VIDEO OUT jacks (LINE OUT (VIDEO) or S VIDEO OUT). Note When the NORMAL/PROGRESSIVE switch is set to PROGRESSIVE, you cannot select “LINE” and “COMPONENT OUT” in “SCREEN SETUP.” VCR CD/DVD player TV Connect directly 19 Hookups Step 4: Connecting the Audio Cords Refer to the chart below to select the connection that best suits your system. Be sure to also read the instructions for the components you wish to connect. Select a connection Select one of the following connections, through . z Hint If you connect an AV amplifier (receiver) that conforms to the 96 kHz sampling frequency, use connection . * Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. ** “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. Components to be connected Connection Your setup (example) TV • Surround effects: – TVS DYNAMIC (page 46) – TVS WIDE (page 46) (page 20) Stereo amplifier (receiver) and two speakers • Surround effects: – TVS STANDARD (page 46) or MD deck/DAT deck • Surround effects: – TVS STANDARD (page 46) (page 21) AV amplifier (receiver) having a Dolby* Surround (Pro Logic) decoder and 3 to 6 speakers • Surround effects: – Dolby Surround (Pro Logic) (page 75) (page 22) AV amplifier (receiver) with digital input jacks having a Dolby Digital, DTS**, or MPEG audio decoder and 6 speakers • Surround effects: – Dolby Digital (5.1 ch) (page 75) – DTS (page 75) – MPEG (5.1ch) (page 75) (page 23) A D A B C D D ,continued 20 Connecting to your TV This connection will use your TV’s speakers for sound. If you use the SCART (EURO AV) cord in pattern B of “Step 3: Connecting the Video Cords” (page 16), you do not have to connect audio cords to your TV. * The yellow plug is used for video signals (page 16). z Hint When connecting to a monaural TV, use a stereo- mono conversion cord (not supplied). Connect the LINE OUT L/R (AUDIO) jacks to the TV’s audio input jack. A PROGRESSIVE NORMAL OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL DIGITAL OUT COMPONENT VIDEO OUT TV (RGB) LINE LINE OUT VIDEO S VIDEO OUT CR PB / Y PR / CB LINE OUT AUDIO L R A LINE OUT AUDIO L R TV l: Signal flow CD/DVD player (white) (red) Audio/video cord (supplied with UK models) (yellow)* (white) (red) (yellow)* to LINE OUT L/R (AUDIO) 21 Hookups Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to an MD deck or DAT deck If the stereo amplifier (receiver) has audio input jacks L and R only, use . If the amplifier (receiver) has a digital input jack, or when connecting to an MD deck or DAT deck, use . In this case, you can also connect the player directly to the MD deck or DAT deck without using your stereo amplifier (receiver). B B-1 B-2 PROGRESSIVE NORMAL COMPONENT VIDEO OUT TV (RGB) LINE LINE OUT VIDEO S VIDEO OUT CR PB / Y PR / CB LINE OUT AUDIO L R OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL DIGITAL OUT B-1 B-2 OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL DIGITAL OUT LINE OUT AUDIO L R CD/DVD player or Stereo amplifier (receiver) MD deck/DAT deck Front (L) Front (R) [Speakers] (white) (red) (red) (white) Optical digital cord (not supplied) Remove jack cap before connecting Stereo audio cord (not supplied) to audio input to coaxial or optical digital input Coaxial digital cord (not supplied) or l: Signal flow to LINE OUT L/R (AUDIO) to DIGITAL OUT (COAXIAL or OPTICAL) ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 22 Connecting to an AV amplifier (receiver) having a Dolby Surround (Pro Logic) decoder and 3 to 6 speakers You can enjoy Dolby Surround effects only when playing Dolby Surround audio or multi- channel audio (Dolby Digital) discs. If your amplifier (receiver) has L and R audio input jacks only, use . If your amplifier (receiver) has a digital input jack, use . Note When connecting 6 speakers, replace the monaural rear speaker with a centre speaker, 2 rear speakers and a subwoofer. C C-1 C-2 PROGRESSIVE NORMAL COMPONENT VIDEO OUT TV (RGB) LINE LINE OUT VIDEO S VIDEO OUT CR PB / Y PR / CB LINE OUT AUDIO L R OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL DIGITAL OUT C-1 C-2 OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL DIGITAL OUT LINE OUT AUDIO L R CD/DVD player or Front (R) Front (L) Rear (R) Subwoofer Rear (L) Amplifier (receiver) with Dolby Surround decoder Centre Rear (mono) Stereo audio cord (not supplied) [Speakers] Optical digital cord (not supplied) Remove jack cap before connecting (red) (white) to coaxial or optical digital input Coaxial digital cord (not supplied) [Speakers] or to audio input (white) (red) to LINE OUT L/R (AUDIO) to DIGITAL OUT (COAXIAL or OPTICAL) l: Signal flow 23 Hookups Connecting to an AV amplifier (receiver) with a digital input jack, and a decoder (Dolby Digital, MPEG audio or DTS), and 6 speakers This connection will allow you to use the Dolby Digital, MPEG audio or DTS decoder function of your AV amplifier (receiver). z Hint Use connection when connecting to 7 or more speakers (6.1 ch or more). Notes • After you have completed the connection, be sure to set “DOLBY DIGITAL” to “DOLBY DIGITAL” and “DTS” to “ON” in Quick Setup (page 24). If your AV amplifier (receiver) has an MPEG audio decoder function, set “MPEG” to “MPEG” (page 71). Otherwise, no sound or a loud noise will come from the speakers. • In order to listen to DTS sound tracks, you must use this connection. DTS sound tracks are not output through the LINE OUT L/R (AUDIO) jacks, even if you set “DTS” to “ON” in Quick Setup (page 24). • When you connect an amplifier (receiver) that conforms to the 96 kHz sampling frequency, set “48kHz/96kHz PCM” in “AUDIO SETUP” to “96kHz/24bit” (page 71). D PROGRESSIVE NORMAL COMPONENT VIDEO OUT TV (RGB) LINE LINE OUT VIDEO S VIDEO OUT CR PB / Y PR / CB LINE OUT AUDIO L R OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL DIGITAL OUT D OPTICAL PCM/ DTS/ MPEG/ DOLBY DIGITAL COAXIAL DIGITAL OUT Front (R) Front (L) Rear (R) AV amplifier (receiver) having a decoder Subwoofer Centre Optical digital cord (not supplied) Remove jack cap before connecting Coaxial digital cord (not supplied) [Speakers] CD/DVD player l: Signal flow [Speakers] Rear (L) to optical digital input or to coaxial digital input to DIGITAL OUT (COAXIAL or OPTICAL) D 24 Step 5: Connecting the Mains Lead Plug the player and TV mains lead (power cord) into a mains. Step 6: Quick Setup Follow the steps below to make the minimum number of basic adjustments for using the player. To skip an adjustment, press >. To return to the previous adjustment, press .. 1 Turn on the TV. 2 Press [/1. 3 Switch the input selector on your TV so that the signal from the player appears on the TV screen. “Press [ENTER] to run QUICK SETUP” appears at the bottom of the screen. If this message does not appear, select “QUICK” under “SETUP” in the Control Menu to run Quick Setup (page 66). 4 Press ENTER without inserting a disc. The Setup Display for selecting the language used in the on-screen display appears. 5 Press X/x to select a language. The player displays the menu and subtitles in the selected language. ENTER "/1 ./> X/x LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ITALIANO ESPAÑOL NEDERLANDS DANSK SVENSKA FRANÇAIS ENGLISH ENGLISH DEUTSCH 25 Hookups 6 Press ENTER. The Setup Display for selecting the aspect ratio of the TV to be connected appears. 7 Press X/x to select the setting that matches your TV type. ◆ If you have a wide-screen TV or a 4:3 standard TV with a wide-screen mode • 16:9 (page 67) ◆ If you have a 4:3 standard TV • 4:3 LETTER BOX or 4:3 PAN SCAN (page 67) 8 Press ENTER. The Setup Display for selecting the type of video signal output from the COMPONENT VIDEO OUT jack appears. If you intend to set “LINE” to “RGB” in step 11, select “OFF.” 9 Press X/x to select if you wish to receive progressive video signals or not. Select “ON” only if you have made video connection A (page 16) and wish to view progressive video signals. 10Press ENTER. The Setup Display for selecting the type of video signal output from the LINE (RGB)-TV jack appears. 11Press X/x to select the type of signal you want to output from the LINE (RGB)-TV jack. If you set “LINE” to “RGB,” you cannot select “COMPONENT OUT.” (The player outputs no component video signals.) ◆ Video signals • VIDEO (page 67) ◆ S video signals • S-VIDEO (page 67) ◆ RGB signals • RGB (page 67) 12Press ENTER. The Setup Display for selecting the type of jack used to connect your amplifier (receiver) appears. SCREEN SETUP TV TYPE: 16:9 4:3 LETTER BOX 4:3 PAN SCAN ON AUTO SCREEN SAVER: BACKGROUND: LINE: COMPONENT OUT: MODE (PROGRESSIVE): 16:9 SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKET PICTURE LINE: ON VIDEO ON OFF COMPONENT OUT: MODE (PROGRESSIVE): SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKET PICTURE LINE: VIDEO VIDEO S-VIDEO RGB COMPONENT OUT: MODE (PROGRESSIVE): YES NO Is this player connected to an amplifier (receiver) ? Select the type of jack you are using. LINE OUTPUT L/R (AUDIO) DIGITAL OUTPUT ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 26 13Press X/x to select the type of jack (if any) you are using to connect to an amplifier (receiver), then press ENTER. Choose the item that matches the audio connection you selected on pages 20 to 23 ( through ). • If you connect just a TV and nothing else, select “NO.” Quick Setup is finished and connections are complete. • Select “LINE OUTPUT L/R (AUDIO).” Quick Setup is finished and connections are complete. • Select “DIGITAL OUTPUT.” The Setup Display for “DOLBY DIGITAL” appears. 14Press X/x to select the type of Dolby Digital signal you wish to send to your amplifier (receiver). Choose the signal that matches the audio connection you selected on pages 21 to 23 ( through ). • D-PCM (page 71) • DOLBY DIGITAL (only if the amplifier (receiver) has a Dolby Digital decoder) (page 71) 15Press ENTER. “DTS” is selected. 16Press X/x to select whether or not you wish to send a DTS signal to your amplifier (receiver). Choose the item that matches the audio connection you selected on pages 21 to 23 ( through ). • OFF (page 71) • ON (only if the amplifier (receiver) has a DTS decoder) (page 71) 17Press ENTER. Quick Setup is finished. All connections and setup operations are complete. If your AV amplifier (receiver) has an MPEG audio decoder, set “MPEG” to “MPEG” (page 71). A D A B-1 C-1 B-2 C-2 D B D AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: DOLBY DIGITAL: MPEG: OFF STANDARD ON DOWNMIX: DOLBY SURROUND D-PCM 48kHz/96kHz PCM: 48kHz/16bit DTS: DOLBY DIGITAL D-PCM B-2 C-2 D AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: DOLBY DIGITAL: MPEG: OFF STANDARD ON DOWNMIX: DOLBY SURROUND D-PCM PCM DTS: OFF OFF ON 48kHz/96kHz PCM: B D B-2 C-2 D 27 Hookups Enjoying the surround sound effects To enjoy the surround sound effects of this player or your amplifier (receiver), set the following items as described below for the audio connection you selected on pages 21 to 23 ( through ). Each of these is the default setting and does not need to be adjusted when you first connect the player. See page 65 for using the Setup Display. Audio Connection (pages 21 to 23) • No additional settings are needed. • Set “DOWNMIX” to “DOLBY SURROUND” (page 70) • If the sound distorts even when the volume is turned down, set “AUDIO ATT” to “ON” (page 70) • Set “DOWNMIX” to “DOLBY SURROUND” (page 70) • Set “DIGITAL OUT” to “ON” (page 70) B D A B-1 C-1 B-2 C-2 D 28 Playing Discs Playing Discs Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with your disc. 1 Turn on your TV. 2 Press [/1. The player turns on. 3 Switch the input selector on your TV so that the signal from the player appears on the TV screen. ◆ When using an amplifier (receiver) Turn on the amplifier (receiver) and select the appropriate channel so that you can hear sound from the player. 4 Slowly, insert the disc straight into the disc slot. 5 Press H. The player starts playback (continuous play). Adjust the volume on the TV or the amplifier (receiver). Depending on the disc, a menu may appear on the TV screen. For DVD VIDEOs, see page 31. For VIDEO CDs, see page 32. To turn off the player Press [/1. The player enters standby mode. When playing 8 cm discs You can play an 8 cm disc without the need for an adapter. An adapter may cause a malfunction. z Hint You can have the player turn off automatically whenever you leave it in stop mode for more than 30 minutes. To turn this function on or off, set “AUTO POWER OFF” in “CUSTOM SETUP” to “ON” or “OFF” (page 69). Note When handling the disc, take care not to touch the playback side. If the disc becomes dirty, wipe from the centre out with a soft cloth. [/1 H H [/1 The labelled side (non-playback side) facing up 29 Playing Discs Additional operations * DVD VIDEOs/DVD-RWs/DVD-Rs only ** DVD VIDEOs/DVD-RWs/DVD-Rs/ DVD+RWs only ***Video and JPEG pictures only (except BACKGROUND pictures). You can move the enlarged picture using C/X/x/c. Depending upon the contents of the disc, the zoom function may be cancelled automatically when the picture is moved. z Hints • The Instant Replay function is useful when you want to review a scene or dialogue that you missed. • The Instant Advance function is useful when you want to pass over a scene that you don’t want to watch. Note You may not be able to use the Instant Replay or Instant Advance function with some scenes. Locking the disc slot (Child Lock) You can lock the disc slot to prevent children from ejecting the disc. When the player is in standby mode, press O RETURN, ENTER, and then [/1 on the remote. The player turns on and “LOCKED” appears on the front panel display. The A and Z buttons on the player or the remote do not work while the Child Lock is set. To unlock the disc slot When the player is in standby mode, press O RETURN, ENTER, and then [/1 again. z Hint You can insert a disc even when the Child Lock is set. Note Even if you select “RESET” under “SETUP” in the Control Menu (page 66), the disc slot remains locked. To Operation Stop Press x Pause Press X Resume play after pause Press X or H Go to the next chapter, track, or scene in continuous play mode Press > Go back to the previous chapter, track, or scene in continuous play mode Press . Stop play and eject the disc Press Z Replay the previous scene* Press (instant replay) during playback Briefly fast forward the current scene** Press (instant advance) during playback Magnify the image*** Press ZOOM repeatedly. Press CLEAR to cancel. Z CLEAR ./> X H x (instant advance) (instant replay) ZOOM / ENTER [/1 O RETURN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 30 Resuming Playback From the Point Where You Stopped the Disc (Multi-disc Resume) The player stores the point where you stopped the disc for up to 6 discs and resumes playback the next time you insert the same disc. If you store a resume playback point for the seventh disc, the resume playback point for the first disc is deleted. 1 While playing a disc, press x to stop playback. “RESUME” appears on the front panel display. 2 Press H. The player starts playback from the point where you stopped the disc in step 1. z Hint To play from the beginning of the disc, press x twice, then press H. Notes • “MULTI-DISC RESUME” in “CUSTOM SETUP” must be set to “ON” (default) for this function to work (page 69). • The point where you stopped playing is cleared when: – you change the play mode. – you change the settings on the Setup Display. • For DVD-RWs in VR mode, CDs, and DATA CDs, the player remembers the resume playback point for the current disc. The resume point is cleared when: – you eject the disc. – you disconnect the power cord. – the player enters standby mode (DATA CD only). • Resume Play does not work during Shuffle Play and Programme Play. • This function may not work with some discs. • If “MULTI-DISC RESUME” in “CUSTOM SETUP” is set to “ON” and you playback a recorded disc such as DVD-RW, the player may playback other recorded discs from the same resume point. To play from the beginning, press x twice and then press H. x H 31 Playing Discs Using the DVD’s Menu A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as language for the sound and subtitles, select these items using the MENU button. 1 Press TOP MENU or MENU. The disc’s menu appears on the TV screen. The contents of the menu vary from disc to disc. 2 Press C/X/x/c or the number buttons to select the item you want to play or change. If you press the number buttons, the following display appears. Press the number buttons to select the item you want. 3 Press ENTER. Selecting “ORIGINAL” or “PLAY LIST” on a DVD- RW Some DVD-RWs in VR (Video Recording) mode have two types of titles for playback: originally recorded titles (ORIGINAL) and titles that can be created on recordable DVD players for editing (PLAY LIST). You can select the type of title to be played. 1 Press DISPLAY when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (ORIGINAL/PLAY LIST), then press ENTER. The options for “ORIGINAL/PLAY LIST” appear. 3 Press X/x to select a setting. • PLAY LIST: plays the titles created from “ORIGINAL” for editing. • ORIGINAL: plays the titles originally recorded. 4 Press ENTER. Number buttons ENTER TOP MENU MENU C/X/x/c 1 ENTER DISPLAY X/x 1 8 ( 3 4 ) 1 2 ( 2 7 ) DVD-RW PLAY LIST PLAY LIST ORIGINAL T 1 : 3 2 : 5 5 32 Playing VIDEO CDs With PBC Functions (PBC Playback) PBC (Playback Control) allows you to play VIDEO CDs interactively by following the menu on the TV screen. 1 Start playing a VIDEO CD with PBC functions. The menu for your selection appears. 2 Press the number buttons to select the item number you want. 3 Press ENTER. 4 Follow the instructions in the menu for interactive operations. Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD. To return to the menu Press O RETURN. z Hint To play without using PBC, press ./> or the number buttons while the player is stopped to select a track, then press H or ENTER. “Play without PBC” appears on the TV screen and the player starts continuous play. You cannot play still pictures such as a menu. To return to PBC playback, press x twice then press H. Note Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H. Number buttons ./> H x ENTER O RETURN 33 Playing Discs Various Play Mode Functions (Programme Play, Shuffle Play, Repeat Play, A-B Repeat Play) You can set the following play modes: • Programme Play (page 33) • Shuffle Play (page 34) • Repeat Play (page 35) • A-B Repeat Play (page 36) Note The play mode is cancelled when: – you eject the disc. – the player enters standby mode by pressing [/1. Creating your own programme (Programme Play) You can play the contents of a disc in the order you want by arranging the order of the titles, chapters, or tracks on the disc to create your own programme. You can programme up to 99 titles, chapters, and tracks. 1 Press DISPLAY. The Control Menu appears. 2 Press X/x to select (PROGRAM), then press ENTER. The options for “PROGRAM” appear. 3 Press X/x to select “SET t,” then press ENTER. 4 Press c. The cursor moves to the title or track row “T” (in this case, “01”). 5 Select the title, chapter, or track you want to programme. ◆ When playing a DVD VIDEO For example, select chapter “03” of title “02.” Press X/x to select “02” under “T,” then press ENTER. ENTER X/x/c H DISPLAY CLEAR OFF OFF SET ON PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO PROGRAM 1. TITLE ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – T – – 01 02 03 04 05 “TRACK” is displayed when you play a VIDEO CD or CD. Titles or tracks recorded on a disc PROGRAM 1. TITLE – – ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – T C ALL 01 02 03 04 05 06 – – 02 03 04 05 01 Chapters recorded on a disc PROGRAM 1. TITLE – – ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – C ALL 03 04 05 06 T – – 01 02 03 04 05 02 01 ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 34 Next, press X/x to select “03” under “C,” then press ENTER. ◆ When playing a VIDEO CD or CD For example, select track “02.” Press X/x to select “02” under “T,” then press ENTER. 6 To programme other titles, chapters, or tracks, repeat steps 4 to 5. The programmed titles, chapters, and tracks are displayed in the selected order. 7 Press H to start Programme Play. Programme Play begins. When the programme ends, you can restart the same programme again by pressing H. To return to normal play Press CLEAR, or select “OFF” in step 3. To play the same programme again, select “ON” in step 3 and press ENTER. To change or cancel a programme 1 Follow steps 1 to 3 of “Creating your own programme (Programme Play).” 2 Select the programme number of the title, chapter, or track you want to change or cancel using X/x and press c. 3 Follow step 5 for new programming. To cancel a programme, select “--” under “T,” then press ENTER. To cancel all of the titles, chapters, or tracks in the programmed order 1 Follow steps 1 to 3 of “Creating your own programme (Programme Play).” 2 Press X and select “ALL CLEAR.” 3 Press ENTER. z Hint You can perform Repeat Play or Shuffle Play of programmed titles, chapters, or tracks. During Programme Play, follow the steps of Repeat Play (page 35) or Shuffle Play (page 34). Note When you programme tracks on a Super VCD, the total playing time is not displayed. Playing in random order (Shuffle Play) You can have the player “shuffle” titles, chapters, or tracks. Subsequent “shuffling” may produce a different playing order. 1 Press DISPLAY during playback. The Control Menu appears. T – – 01 02 03 04 05 PROGRAM 1. TITLE 0 2 – 0 3 ALL CLEAR 2. TITLE – – 3. TITLE – – 4. TITLE – – 5. TITLE – – 6. TITLE – – 7. TITLE – – Selected title and chapter PROGRAM 1. TRACK 0 2 ALL CLEAR 2. TRACK – – 3. TRACK – – 4. TRACK – – 5. TRACK – – 6. TRACK – – 7. TRACK – – 0:15:30 – – 01 02 03 04 05 T Selected track Total time of the programmed tracks ENTER X/x H DISPLAY CLEAR 35 Playing Discs 2 Press X/x to select (SHUFFLE), then press ENTER. The options for “SHUFFLE” appear. 3 Press X/x to select the item to be shuffled. ◆ When playing a DVD VIDEO • TITLE • CHAPTER ◆ When playing a VIDEO CD or CD • TRACK ◆ When Programme Play is activated • ON: shuffles titles, chapters, or tracks selected in Programme Play. 4 Press ENTER. Shuffle Play starts. To return to normal play Press CLEAR, or select “OFF” in step 3. z Hints • You can set Shuffle Play while the player is stopped. After selecting the “SHUFFLE” option, press H. Shuffle Play starts. • Up to 200 chapters in a disc can be played in random order when “CHAPTER” is selected. Note You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. Playing repeatedly (Repeat Play) You can play all of the titles or tracks on a disc, or a single title, chapter, or track repeatedly. You can use a combination of Shuffle or Programme Play modes. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (REPEAT), then press ENTER. The options for “REPEAT” appear. ◆ When playing a DVD VIDEO • DISC: repeats all of the titles. • TITLE: repeats the current title on a disc. • CHAPTER: repeats the current chapter. ◆ When playing a DVD-RW • DISC: repeats all the titles of the selected type. • TITLE: repeats the current title on a disc. • CHAPTER: repeats the current chapter. PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 OFF CHAPTER TITLE OFF DVD VIDEO ENTER X/x H DISPLAY CLEAR PLAY 1 ( 2 8 ) 1 ( 1 2 ) T 0 : 0 0 : 0 2 OFF OFF DISC TITLE CHAPTER DVD VIDEO ,continued 36 ◆ When playing a VIDEO CD or CD • DISC: repeats all of the tracks. • TRACK: repeats the current track. ◆ When playing a DATA CD with MP3 audio tracks or JPEG image files • DISC: repeats all of the albums. • ALBUM: repeats the current album. • TRACK (MP3 audio tracks only): repeats the current track. ◆ When Programme Play or Shuffle Play is activated • ON: repeats Programme Play or Shuffle Play. 3 Press X/x to select a setting, and press ENTER. To return to normal play Press CLEAR, or select “OFF” in step 2. z Hint You can set Repeat Play while the player is stopped. After selecting the “REPEAT” option, press H. Repeat Play starts. Notes • You cannot use this function with VIDEO CDs or Super VCDs with PBC playback. • When repeating a DATA CD which contains MP3 audio tracks and JPEG image files, and their playing times are not the same, the sound will not match the image. • When “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 56), you cannot select “TRACK.” Repeating a specific portion (A- B Repeat Play) You can play a specific portion of a title, chapter or track repeatedly. (This function is useful when you want to memorize lyrics, etc.) 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (A-B REPEAT), then press ENTER. The options for “A-B REPEAT” appear. 3 Press X/x to select “SET t,” then press ENTER. The “A-B REPEAT” setting bar appears. ENTER X/x DISPLAY CLEAR PLAY SET OFF OFF 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 DVD VIDEO A 18 - 1:32:30 B 37 Playing Discs 4 During playback, when you find the starting point (point A) of the portion to be played repeatedly, press ENTER. The starting point (point A) is set. 5 When you reach the ending point (point B), press ENTER again. The set points are displayed and the player starts repeating this specific portion. To return to normal play Press CLEAR, or select “OFF” in step 3. Notes • When you set A-B Repeat Play, the settings for Shuffle Play, Repeat Play, and Programme Play are cancelled. • A-B Repeat Play does not work across multiple titles. A 18 - 1:32:55 B 18 - 1:33:05 A 18 - 1:32:55 B 18 - 1:34:30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 38 Searching for a Scene Searching for a Particular Point on a Disc (Search, Scan, Slow-motion Play, Freeze Frame) You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly. Notes • Depending on the DVD/VIDEO CD, you may not be able to do some of the operations described. • For DATA CDs, you can search for a particular point only on an MP3 audio track. Locating a point quickly using the previous/next buttons You can search for the next or previous chapter, track, or scene using ./> on the player. During playback, press > or . once briefly to go to the next or previous chapter/ track/scene. Or, press and hold > or . to search forward or backwards, and release the button when you find the point you want to return to normal playback. (Search) Locating a point quickly by playing a disc in fast forward or fast reverse (Scan) Press m or M while playing a disc. When you find the point you want, press H to return to normal speed. Each time you press m or M during scan, the scan speed changes. With each press the indication changes as shown below. Actual speeds may differ between discs. Playback direction Opposite direction The “�2B”/ “�2b” playback speed is about twice the normal speed. The “3M”/“3m” playback speed is faster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/ “1m.” m/ M H (step) (step) H ./> �2B t 1M t 2M t 3M 3M (DVD VIDEO/DVD-RW/VIDEO CD only) �2B (DVD VIDEO/CD only) �2b t 1m t 2m t 3m 3m (DVD VIDEO/DVD-RW/VIDEO CD only) �2b (DVD VIDEO only) 39 Searching for a Scene Watching frame by frame (Slow-motion play) Press m or M when the player is in pause mode. To return to normal speed, press H. Each time you press m or M during Slow-motion play, the playback speed changes. Two speeds are available. With each press the indication changes as follows: Playback direction 2 y 1 Opposite direction (DVD only) 2 y 1 The “2 y”/“2 ” playback speed is slower than “1 y”/“1 .” Playing one frame at a time (Freeze Frame) When the player is in the pause mode, press (step) to go to the next frame. Press (step) to go to the preceding frame (DVD only). To return to normal playback, press H. Note You cannot search for a still picture on a DVD-RW in VR mode. Searching for a Title/ Chapter/Track/Scene, etc. You can search a DVD by title or chapter, and you can search a VIDEO CD/CD/DATA CD by track, index, or scene. As titles and tracks are assigned unique numbers on the disc, you can select the desired one by entering its number. You can also search for a scene using the time code. 1 Press DISPLAY (When playing a DATA CD with JPEG image files, press twice). The Control Menu appears. 2 Press X/x to select a search method. ◆ When playing a DVD VIDEO/DVD-RW TITLE CHAPTER TIME/TEXT Select “TIME/TEXT” to search for a starting point by inputting the time code. ◆ When playing a VIDEO CD or Super VCD without PBC playback TRACK INDEX Number buttons CLEAR DISPLAY X/x ENTER ,continued 40 ◆ When playing a VIDEO CD or Super VCD with PBC Playback SCENE ◆ When playing a CD TRACK ◆ When playing a DATA CD (MP3 audio) ALBUM TRACK ◆ When playing a DATA CD (JPEG file) ALBUM FILE Example: when you select CHAPTER “** (**)” is selected (** refers to a number). The number in parentheses indicates the total number of titles, chapters, tracks, indexes, or scenes. 3 Press ENTER. “** (**)” changes to “-- (**).” 4 Press the number buttons to select the title, chapter, track, index, or scene number you want to search. ◆ If you make a mistake Cancel the number by pressing CLEAR, then select another number. 5 Press ENTER. The player starts playback from the selected number. To search for a scene using the time code (DVD VIDEO/DVD-RW only) 1 In step 2, select TIME/TEXT. “T **:**:**” (playing time of the current title) is selected. 2 Press ENTER. “T **:**:**” changes to “T --:--:--.” 3 Input the time code using the number buttons, then press ENTER. For example, to find the scene at 2 hours, 10 minutes, and 20 seconds after the beginning, just enter “2:10:20.” z Hints • When the Control Menu display is turned off, you can search for a chapter (DVD VIDEO/DVD- RW) or track (CD) by pressing the number buttons and ENTER. • You can display the first scene of titles, chapters, or tracks recorded on the disc on a screen divided into 9 sections. You can start playback directly by selecting one of the scenes. For details, see “Searching by Scene (PICTURE NAVIGATION)” on the next page. Notes • The title, chapter, or track number displayed is the same number recorded on the disc. • You cannot search for a scene on a DVD+RW using the time code. PLAY 1 8 ( 3 4 ) 1 2 ( 2 7 ) DVD VIDEO T 1 : 3 2 : 5 5 Selected row PLAY DVD VIDEO 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 ( 3 4 ) 41 Searching for a Scene Searching by Scene (PICTURE NAVIGATION) You can divide the screen into 9 subscreens and find the desired scene quickly. 1 Press PICTURE NAVI during playback. The following display appears. 2 Press PICTURE NAVI repeatedly to select an item. • CHAPTER VIEWER (DVD VIDEO only): displays the first scene of each chapter. • TITLE VIEWER (DVD VIDEO only): displays the first scene of each title. • TRACK VIEWER (VIDEO CD/ Super VCD only): displays the first scene of each track. 3 Press ENTER. The first scene of each chapter, title, or track appears as follows. 4 Press C/X/x/c to select a chapter, title, or track, and press ENTER. Playback starts from the selected scene. To return to normal play during setting Press O RETURN. z Hint If there are more than 9 chapters, titles, or tracks, V is displayed at the bottom right of the screen. To display the additional chapters, titles, or tracks, select the bottom scenes and press x. To return to the previous scene, select the top scenes and press X. Note Depending on the disc, you may not be able to select some items. PICTURE NAVI ENTER O RETURN C/X/x/c CHAPTER VIEWER ENTER 1 4 7 2 5 8 3 6 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10 42 Viewing Information About the Disc Checking the Playing Time and Remaining Time You can check the playing time and remaining time of the current title, chapter, or track. Also, you can check the DVD/CD text or track name (MP3 audio) recorded on the disc. 1 Press TIME/TEXT during playback. The following display appears. 2 Press TIME/TEXT repeatedly to change the time information. The available time information depends upon the type of disc you are playing. ◆ When playing a DVD VIDEO or DVD- RW • T *:*:* (hours: minutes: seconds) Playing time of the current title • T–*:*:* Remaining time of the current title • C *:*:* Playing time of the current chapter • C–*:*:* Remaining time of the current chapter ◆ When playing a VIDEO CD or Super VCD (with PBC functions) • *:* (minutes: seconds) Playing time of the current scene ◆ When playing a VIDEO CD (without PBC functions) or CD • T *:* (minutes: seconds) Playing time of the current track • T–*:* Remaining time of the current track • D *:* Playing time of the current disc • D–*:* Remaining time of the current disc ◆ When playing a Super VCD (without PBC functions) • T *:* (minutes: seconds) Playing time of the current track ◆ When playing a DATA CD (MP3 audio) • T *:* (minutes: seconds) Playing time of the current track Checking the play information of the Disc To check the DVD/CD text Press TIME/TEXT repeatedly in step 2 to display text recorded on the DVD/CD. The DVD/CD text appears only when text is recorded in the disc. You cannot change the text. If the disc does not contain text, “NO TEXT” appears. TIME/TEXT T 1:01:57 Time information BRAHMS SYMPHONY 43 Viewing Information About the Disc To check DATA CD (MP3 audio) text By pressing TIME/TEXT while playing MP3 audio tracks on a DATA CD, the track name and album name appear. You can also display the audio bit rate (the amount of data per second of the current audio) on your TV screen. Checking the information on the front panel display You can view the time information and text displayed on the TV screen also on the front panel display. The information on the front panel display changes as follows when you change the time information on your TV screen. When playing a DVD VIDEO or DVD-RW When playing a DATA CD (MP3 audio) T 17:30 128k JAZZ RIVER SIDE Bit rate Album name Track name 1 1 1 1 1 1 Playing time of the current title Remaining time of the current title Playing time of the current chapter Remaining time of the current chapter Text Current title and chapter number (returns to top automatically) 1 1 Playing time and number of the current track Track name ,continued 44 When playing a VIDEO CD (without PBC functions) or CD z Hints • When playing VIDEO CDs without PBC functions, the track number and the index number are displayed after the text. • When playing VIDEO CDs with PBC functions, the scene number or the playing time are displayed. • Long text that does not fit in a single line will scroll across the front panel display. • You can also check the time information and text using the Control Menu (page 12). Notes • Depending on the type of disc being played, the DVD/CD text or track name may not be displayed. • The player can only display the first level of the DVD/CD text, such as the disc name or title. • Playing time of MP3 audio tracks may not be displayed correctly. • If you play a disc containing JPEG image files only, “NO AUDIO DATA” appears when “MODE (MP3, JPEG)” is set to “AUTO,” “JPEG” appears when “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” in the front panel display. 1 1 1 1 1 Playing time and number of the current track Remaining time of the current track Remaining time of the disc Text Playing time of the disc 45 Sound Adjustments Sound Adjustments Changing the Sound When playing a DVD VIDEO recorded in multiple audio formats (PCM, Dolby Digital, MPEG audio, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With CDs, DATA CDs, or VIDEO CDs, you can select the sound from either the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel. 1 Press (audio) during playback. The following display appears. 2 Press (audio) repeatedly to select the desired audio signal. ◆ When playing a DVD VIDEO Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 79 to see which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats. ◆ When playing a DVD-RW The types of sound tracks recorded on a disc are displayed. The default setting is underlined. Example: • 1: MAIN (main sound) • 1: SUB (sub sound) • 1: MAIN+SUB (main and sub sound) ◆ When playing a VIDEO CD, CD, or DATA CD (MP3 audio) The default setting is underlined. • STEREO: the standard stereo sound • 1/L: the sound of the left channel (monaural) • 2/R: the sound of the right channel (monaural) ◆ When playing a Super VCD The default setting is underlined. • 1:STEREO: the stereo sound of the audio track 1 • 1:1/L: the sound of the left channel of the audio track 1 (monaural) • 1:2/R: the sound of the right channel of the audio track 1 (monaural) • 2:STEREO: the stereo sound of the audio track 2 • 2:1/L: the sound of the left channel of the audio track 2 (monaural) • 2:2/R: the sound of the right channel of the audio track 2 (monaural) Note While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.” 1:ENGLISH DOLBY DIGITAL 3/2.1 ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-11 46 Checking the audio signal format You can check the audio signal format by pressing repeatedly during playback. The format of the current audio signal (Dolby Digital, DTS, PCM, etc.) appears as shown below. Example: Dolby Digital 5.1 ch Example: Dolby Digital 3 ch About audio signals Audio signals recorded in a disc contain the sound elements (channels) shown below. Each channel is output from a separate speaker. • Front (L) • Front (R) • Centre • Rear (L) • Rear (R) • Rear (Monaural): This signal can be either the Dolby Surround Sound processed signals or the Dolby Digital sound’s monaural rear audio signals. • LFE (Low Frequency Effect) signal Notes • If “DTS” in “AUDIO SETUP” is set to “OFF,” the DTS track selection option will not appear on the screen even if the disc contains DTS tracks (page 71). • MPEG audio signals with more than two channels will appear as shown above (3/2.1, 2/1), but only the Front (L) and Front (R) signals will be output from your two front speakers. TV Virtual Surround Settings (TVS) When you connect a stereo TV or 2 front speakers, TVS (TV Virtual Surround) lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers (L: left, R: right) without using actual rear speakers. TVS was developed by Sony to produce surround sound for home use using just a stereo TV. This only works when playing a multi- channel Dolby audio sound track. Futhermore, if the player is set up to output the signal from the DIGITAL OUT (OPTICAL or COAXIAL) jack, the surround effect will only be heard when “DOLBY DIGITAL” is set to “D-PCM” in “AUDIO SETUP” (page 71). 1 Press SUR during playback. The following display appears. 2 Press SUR repeatedly to select one of the TVS sounds. See the explanations given for each item in the following section. • TVS DYNAMIC • TVS WIDE • TVS NIGHT • TVS STANDARD 1:ENGLISH DOLBY DIGITAL 3 / 2 .1 Rear (L/R) Front (L/R) + Centre LFE (Low Frequency Effect) 2:SPANISH DOLBY DIGITAL 2 / 1 Front (L/R) Rear (Monaural) SUR TVS DYNAMIC 47 Sound Adjustments To cancel the setting Select “OFF” in step 2. ◆TVS DYNAMIC Creates one set of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. ◆TVS WIDE Creates five sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). This mode is effective when the distance between the front L and R speakers is short, such as with built-in speakers on a stereo TV. ◆TVS NIGHT Large sounds, such as explosions, are suppressed, but quieter sounds are unaffected. This feature is useful when you want to hear the dialog and enjoy the surround sound effects of “TVS WIDE” at low volume. ◆TVS STANDARD Creates three sets of virtual rear speakers from the sound of the front speakers (L, R) without using actual rear speakers (shown below). Use this setting when you want to use TVS with 2 separate speakers. Notes • When the playing signal does not contain a signal for the rear speakers, the surround effects will be difficult to hear. • When you select one of the TVS modes, turn off the surround setting of the connected TV or amplifier (receiver). • Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings. • Not all discs will respond to the “TVS NIGHT” function in the same way. TV TV L: Front speaker (left) R: Front speaker (right) : Virtual speaker L R 48 Enjoying Movies Changing the Angles 1 Press (angle) during playback. The number of the angle appears on the display. 2 Press (angle) repeatedly to select an angle number. The scene changes to the selected angle. Note Depending on the DVD VIDEO, you may not be able to change the angles even if multi-angles are recorded on the DVD VIDEO. Displaying the Subtitles If subtitles are recorded on the discs, you can change the subtitles or turn them on and off whenever you want while playing a DVD. 1 Press (subtitle) during playback. The following display appears. 2 Press (subtitle) repeatedly to select a setting. ◆ When playing a DVD VIDEO Select the language. Depending on the DVD VIDEO, the choice of language varies. When 4 digits are displayed, they indicate a language code. See “Language Code List” on page 79 to see which language the code represents. ◆ When playing a DVD-RW Select “ON.” To turn off the subtitles Select “OFF” in step 2. Note Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off. 2 1:ENGLISH 49 Enjoying Movies Adjusting the Playback Picture (CUSTOM PICTURE MODE) You can adjust the video signal of the DVD, VIDEO CD, or DATA CD in JPEG format from the player to obtain the picture quality you want. Choose the setting that best suits the programme you are watching. 1 Press PICTURE MODE during playback. The following display appears. 2 Press PICTURE MODE repeatedly to select the setting you want. The default setting is underlined. • STANDARD: displays a standard picture. • DYNAMIC 1: produces a bold dynamic picture by increasing the picture contrast and the colour intensity. • DYNAMIC 2: produces a more dynamic picture than DYNAMIC 1 by further increasing the picture contrast and colour intensity. • CINEMA 1: enhances details in dark areas by increasing the black level. • CINEMA 2: white colours become brighter and black colours become richer, and the colour contrast is increased. z Hint When you watch a movie, “CINEMA 1” or “CINEMA 2” is recommended. PICTURE MODE DYNAMIC 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-12 50 Sharpening the Pictures (SHARPNESS) You can enhance the outlines of images to produce a sharper picture. 1 Press DISPLAY during playback. The Control Menu appears. 2 Press X/x to select (SHARPNESS), then press ENTER. The options for “SHARPNESS” appear. 3 Press X/x to select a level. • 1: enhances the outline. • 2: enhances the outline more than 1. 4 Press ENTER. The selected setting takes effect. To cancel the “SHARPNESS” setting Select “OFF” in step 3. ENTER X/x DISPLAY DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 2 1 OFF OFF 51 Playing a DATA CD Playing a DATA CD About MP3 Audio Tracks and JPEG Image Files What is MP3/JPEG? MP3 is audio compression technology that satisfies the ISO/MPEG regulations. JPEG is image compression technology. DATA CDs that the player can play You can play back DATA CDs (CD-ROMs/ CD-Rs/CD-RWs) recorded in MP3 (MPEG1 Audio Layer 3) and JPEG format. However, the discs must be recorded according to ISO9660 Level 1, Level 2 or Joliet format for the player to recognize the tracks (or files). You can also play discs recorded in Multi Session. Refer to the instructions supplied with the CD-R/CD-RW drives and the recording software (not supplied) for details on the recording format. Note on Multi Session discs If MP3 audio tracks or JPEG image files are recorded in the first session, the player will also play MP3 audio tracks or JPEG image files in other sessions. If audio tracks and images in Music CD format or Video CD format are recorded in the first session, only the first session will be played back. Note The player may not be able to play some DATA CDs created in the Packet Write format. In this case, you cannot view the JPEG images recorded. MP3 audio track or JPEG image file that the player can play The player can play the following tracks and files: – MP3 audio tracks with the extension “.MP3.” – JPEG image files with the extension “.JPEG” or “.JPG.” – JPEG image files that conform to the DCF* image file format. * “Design rule for Camera File system”: Image standards for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industries Association). Notes • The player will play any data with the extension “.MP3,” “.JPG,” or “.JPEG,” even if they are not in MP3 or JPEG format. Playing these data may generate a loud noise which could damage your speaker system. • The player does not conform to audio tracks in MP3PRO format. • Some JPEG files cannot be played. Playback order of MP3 audio tracks or JPEG image files Albums containing MP3 audio tracks or JPEG image files play in the following order: ◆Structure of disc contents ROOT Tree 1 Tree 2 Tree 3 Tree 4 Tree 5 Album Track (MP3 audio) or file (JPEG image) ,continued 52 When you insert a DATA CD and press H, the numbered tracks (or files) are played sequentially, from 1 through 7. Any sub- albums/tracks (or files) contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.) When you press MENU and the list of album names appears (page 53), the album names are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (or files) (such as album E) do not appear in the list. z Hints • If you add numbers (01, 02, 03, etc.) to the front of the track/file names when you store the tracks (or files) in a disc, the tracks and files will be played in that order. • Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees. Notes • Depending on the software you use to create the DATA CD, the playback order may differ from the above illustration. • The playback order above may not be applicable if there are more than 200 albums and 300 tracks/ files in each album. • The player can recognize up to 200 albums (the player will count just albums, including albums that do not contain MP3 audio tracks and JPEG image files). The player will not play any albums beyond the 200th album. • Proceeding to the next or another album may take some time. Playing a DATA CD With MP3 Audio Tracks or JPEG Image Files You can play MP3 audio tracks and JPEG image files on DATA CDs (CD-ROMs/CD- Rs/CD-RWs). z Hint You can view the disc information while playing MP3 audio tracks and JPEG image files (page 42). Notes • DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted. • If no MP3 audio track or JPEG image file is recorded on the DATA CD, “No audio data” or “No image data” appears on the screen. CLEAR ./> H C/X/x/c DISPLAY MENU O RETURN ENTER x PICTURE NAVI ZOOM 53 Playing a DATA CD Selecting an album from a DATA CD 1 Press MENU. The list of albums on the DATA CD appears. When an album is being played, its title is shaded. 2 Press X/x to select the album you want to play. 3 Press H. Playback starts from the selected album. To select MP3 audio tracks, see “Selecting an MP3 audio track” (page 53). To select JPEG image files, see “Selecting a JPEG image file” (page 54). To stop playback Press x. To go to the next or previous page Press c or C. To turn on or off the display Press MENU repeatedly. z Hint Of the selected album, you can select to play only the MP3 audio tracks, JPEG image files, or both, by setting “MODE (MP3, JPEG)” (page 56). Selecting an MP3 audio track 1 After step 2 of “Selecting an album from a DATA CD,” press ENTER. The list of tracks in the album appears. 2 Press X/x to select a track, and press ENTER. Playback starts from the selected album. To stop playback Press x. To go to the next or previous page Press c or C. To return to the previous display Press O RETURN. To go to the next or previous MP3 audio track Press > or . during playback. You can select the first track of the next album by pressing > during playback of the last track of the current album. Note that you cannot return to the previous album by using ., and that you need to select the previous album from the album list. 3 ( 3 0 ) R O C K B E S T H I T K A R A O K E M Y F A V O U R I T E S O N G R & B J A Z Z C L A S S I C S A L S A O F C U B A B O S S A N O V A M Y F A V O U R I T E S O N G 1 ( 2 5 6 ) W A L T Z F O R D E B B Y M Y R O M A N C E M I L E S T O N E S M Y F U N N Y V A L E N T I N E A U T U M L E A V E S A L L B L U E S S O M E D A Y M Y P R I N C E W... ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-13 54 Selecting a JPEG image file 1 After step 2 of “Selecting an album from a DATA CD,” press PICTURE NAVI. The image files in the album appear in 16 subscreens. A scroll box is displayed on the right. To display the additional image, select the bottom images and press x. To return to the previous image, select the top images and press X. 2 Press C/X/x/c to select the image you want to view, and press ENTER. The selected image appears. Example To go to the next or previous JPEG image file Press C or c during playback. You can select the first file of the next album by pressing c during playback of the last file of the current album. Note that you cannot return to the previous album by using C, and that you need to select the previous album from the album list. To rotate a JPEG image Press X/x while viewing the image. Each time you press X, the image rotates counterclockwise by 90 degrees. To return to normal view, press CLEAR. Note that the view also returns to normal if you press C/c to go to the next or previous image. Example: when X is pressed once. To magnify a JPEG image (ZOOM) Press ZOOM while viewing the image. You can enlarge the image up to four times the original size, and scroll using C/X/x/c. To return to normal view, press CLEAR. ◆When pressed once (x2) The image enlarges twice the original size. ◆When pressed twice (x4) The image enlarges four times the original size. 1 2 3 4 5 6 7 8 13 14 15 16 9 10 11 12 Rotating direction 55 Playing a DATA CD To stop viewing the JPEG image Press x. z Hints • While viewing JPEG image files, you can set options such as “INTERVAL” (page 57), “EFFECT” (page 57), and “SHARPNESS” (page 50). • You can view JPEG images files without MP3 audio by setting “MODE (MP3, JPEG)” to “IMAGE (JPEG)” (page 56). • The date the picture was taken is displayed beside “DATE” in the Control Menu (page 12). Note that no date may appear depending on the digital camera. Note PICTURE NAVI does not work if “AUDIO (MP3)” is selected in “MODE (MP3, JPEG)” (page 56). Enjoying JPEG Images as a Slide Show You can play JPEG image files on a DATA CD successively as a slide show. 1 Press MENU. The list of albums on the DATA CD appears. 2 Press X/x to select an album. 3 Press H. The JPEG images in the selected album start playing as a slide show. To stop playback Press x. MENU x H X/x 3 ( 3 0 ) R O C K B E S T H I T K A R A O K E M Y F A V O U R I T E S O N G R & B J A Z Z C L A S S I C S A L S A O F C U B A B O S S A N O V A ,continued 56 Notes • The slide show stops when X/x or ZOOM is pressed.To resume the slide show, press H. • This function does not work if “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 56). Viewing a slide show with sound (MODE (MP3, JPEG)) When JPEG image files and MP3 audio tracks are placed in the same album, you can enjoy a slide show with sound. 1 Press DISPLAY during stop mode. The Control Menu appears. 2 Press X/x to select (MODE (MP3, JPEG)), and press ENTER. The options for “MODE (MP3, JPEG)” appear. 3 Press X/x to select “AUTO” (default), and press ENTER. • AUTO: plays both the JPEG image files and MP3 audio tracks in the same album as a slide show. • AUDIO (MP3): plays only MP3 audio tracks continuously. • IMAGE (JPEG): plays only JPEG image files continuously. 4 Press MENU. The list of albums on the DATA CD appears. 5 Press X/x to select the album that contains both the MP3 audio tracks and JPEG images you want to play. 6 Press H. A slide show starts with sound. z Hints • To repeat both MP3 audio tracks and JPEG image files in a single album, repeat the same MP3 audio track or album when “MODE (MP3, JPEG)” is set to “AUTO.” See “Playing repeatedly (Repeat Play)” (page 35) to repeat the track or album. • The player recognizes a maximum of 200 albums regardless of the selected mode. Of each album, the player recognizes up to 300 MP3 audio tracks and 300 JPEG image files when “AUTO” is selected, 600 MP3 audio tracks when “AUDIO (MP3)” is selected, 600 JPEG image files when “IMAGE (JPEG)” is selected. Notes • This function does not work if the MP3 audio tracks and JPEG image files are not placed in the same album. • If playing time of JPEG image or MP3 audio is longer than the other, the longer one continues without sound or image. • If you play large MP3 track data and JPEG image data at the same time, the sound may skip. It is recommended that you set the MP3 bit rate to 128 kbps or lower when creating the file. If the sound still skips, then reduce the size of the JPEG file. ENTER MENU DISPLAY X/x H DATA CD MP3 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 IMAGE (JPEG) AUDIO (MP3) AUTO AUTO 3 ( 3 0 ) R O C K B E S T H I T K A R A O K E M Y F A V O U R I T E S O N G R & B J A Z Z C L A S S I C S A L S A O F C U B A B O S S A N O V A 57 Playing a DATA CD Setting the pace for a slide show (INTERVAL) You can set the time the slides are displayed on the screen. 1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (INTERVAL), then press ENTER. The options for “INTERVAL” appear. 3 Press X/x to select a setting. The default setting is underlined. • NORMAL: sets the duration to between 6 to 9 seconds. • FAST: sets a duration shorter than NORMAL. • SLOW1: sets a duration longer than NORMAL. • SLOW2: sets a duration longer than SLOW1. 4 Press ENTER. Note Some JPEG files, especially progressive JPEG files or JPEG files of 3,000,000 pixels or more, may take longer to display than others, which may make the duration seem longer than the setting you selected. Selecting the slides’ appearance (EFFECT) You can select the way the slides are displayed during a slide show. 1 Press DISPLAY twice while viewing a JPEG image or when the player is in stop mode. 2 Press X/x to select (EFFECT), then press ENTER. The options for “EFFECT” appear. X/x DISPLAY ENTER 2 9 / 1 0 / 2 0 0 4 1( NORMAL DATA CD JPEG NORMAL INTERVAL FAST SLOW1 SLOW2 4) 3 ( 12) X/x DISPLAY ENTER 2 3 / 1 0 / 2 0 0 4 1( MODE1 DATA CD JPEG MODE1 EFFECT MODE2 MODE3 MODE4 MODE5 OFF 4) 3 ( 12) ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-14 58 3 Press X/x to select a setting. The default setting is underlined. • MODE1: the image sweeps in from top to bottom. • MODE2: the image sweeps in from left to right. • MODE3: the image stretches out from the centre of the screen. • MODE4: the images randomly cycle through the effects. • MODE5: the next image slides over the previous image. • OFF: turns off this function. 4 Press ENTER. 59 Using Various Additional Functions Using Various Additional Functions Locking Discs (CUSTOM PARENTAL CONTROL, PARENTAL CONTROL) You can set two kinds of playback restrictions for a disc. • Custom Parental Control You can set playback restrictions so that the player will not play inappropriate discs. • Parental Control Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes. The same password is used for both Parental Control and Custom Parental Control. Custom Parental Control You can set the same Custom Parental Control password for up to 40 discs. When you set the 41st-disc, the first disc is cancelled. 1 Insert the disc you want to lock. If the disc is playing, press x to stop playback. 2 Press DISPLAY while the player is in stop mode. The Control Menu appears. 3 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 4 Press X/x to select “ON t,” then press ENTER. ◆ If you have not entered a password The display for registering a new password appears. Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears. ◆ When you have already registered a password The display for entering the password appears. 5 Enter or re-enter your 4-digit password using the number buttons, then press ENTER. “Custom parental control is set.” appears and then the screen returns to the Control Menu. Number buttons ENTER X/x DISPLAY x OFF PASSWORD PLAYER ON DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER PARENTAL CONTROL Enter password, then press . ENTER ,continued 60 To turn off the Custom Parental Control function 1 Follow steps 1 to 3 of “Custom Parental Control.” 2 Press X/x to select “OFF t,” then press ENTER. 3 Enter your 4-digit password using the number buttons, then press ENTER. To play a disc for which Custom Parental Control is set 1 Insert the disc for which Custom Parental Control is set. The “CUSTOM PARENTAL CONTROL” display appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player is ready for playback. z Hint If you forget your password, enter the 6-digit number “199703” using the number buttons when the “CUSTOM PARENTAL CONTROL” display asks you for your password, then press ENTER. The display will ask you to enter a new 4-digit password. Parental Control (limited playback) Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. The “PARENTAL CONTROL” function allows you to set a playback limitation level. 1 Press DISPLAY while the player is in stop mode. The Control Menu appears. 2 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 3 Press X/x to select “PLAYER t,” then press ENTER. ◆ If you have not entered a password The display for registering a new password appears. CUSTOM PARENTAL CONTROL Custom parental control is already set. To play, enter your password and press . ENTER Number buttons H X/x DISPLAY ENTER OFF PASSWORD PLAYER ON DVD VIDEO 1 8 ( 3 4 ) 1 2 ( 2 7 ) T 1 : 3 2 : 5 5 61 Using Various Additional Functions Enter a 4-digit password using the number buttons, then press ENTER. The display for confirming the password appears. ◆ When you have already registered a password The display for entering the password appears. 4 Enter or re-enter your 4-digit password using the number buttons, then press ENTER. The display for setting the playback limitation level appears. 5 Press X/x to select “STANDARD,” then press ENTER. The selection items for “STANDARD” are displayed. 6 Press X/x to select a geographic area as the playback limitation level, then press ENTER. The area is selected. When you select “OTHERS t,” select and enter a standard code in the table on page 62 using the number buttons. 7 Press X/x to select “LEVEL,” then press ENTER. The selection items for “LEVEL” are displayed. 8 Select the level you want using X/x, then press ENTER. Parental Control setting is complete. The lower the value, the stricter the limitation. To turn off the Parental Control function Set “LEVEL” to “OFF” in step 8. To play a disc for which Parental Control is set 1 Insert the disc and press H. The display for entering your password appears. 2 Enter your 4-digit password using the number buttons, then press ENTER. The player starts playback. PARENTAL CONTROL Enter a new 4-digit password, then press . ENTER PARENTAL CONTROL Enter password, then press . ENTER PARENTAL CONTROL LEVEL: OFF USA STANDARD: PARENTAL CONTROL LEVEL: OFF USA STANDARD: USA OTHERS PARENTAL CONTROL LEVEL: OFF OFF STANDARD: 8: 7: 6: 5: NC17 R PARENTAL CONTROL LEVEL: STANDARD: USA 4: PG13 ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-15 62 z Hint If you forget your password, remove the disc and repeat steps 1 to 3 of “Parental Control (limited playback).” When you are asked to enter your password, enter “199703” using the number buttons, then press ENTER. The display will ask you to enter a new 4-digit password. After you enter a new 4-digit password, replace the disc in the player and press H. When the display for entering your password appears, enter your new password. Notes • When you play discs which do not have the Parental Control function, playback cannot be limited on this player. • Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is cancelled, the level returns to the previous level. Area Code Standard Code number Argentina 2044 Australia 2047 Austria 2046 Belgium 2057 Brazil 2070 Canada 2079 Chile 2090 China 2092 Denmark 2115 Finland 2165 France 2174 Germany 2109 India 2248 Indonesia 2238 Italy 2254 Japan 2276 Korea 2304 Malaysia 2363 Mexico 2362 Netherlands 2376 New Zealand 2390 Norway 2379 Pakistan 2427 Philippines 2424 Portugal 2436 Russia 2489 Singapore 2501 Spain 2149 Sweden 2499 Switzerland 2086 Thailand 2528 United Kingdom 2184 63 Using Various Additional Functions Changing the password 1 Press DISPLAY while the player is in stop mode. The Control Menu appears. 2 Press X/x to select (PARENTAL CONTROL), then press ENTER. The options for “PARENTAL CONTROL” appear. 3 Press X/x to select “PASSWORD t,” then press ENTER. The display for entering the password appears. 4 Enter your 4-digit password using the number buttons, then press ENTER. 5 Enter a new 4-digit password using the number buttons, then press ENTER. 6 To confirm your password, re-enter it using the number buttons, then press ENTER. If you make a mistake entering your password Press C before you press ENTER and input the correct number. Controlling Your TV With the Supplied Remote You can control the sound level, input source, and power switch of your Sony TV with the supplied remote. You can control your TV using the buttons below. By pressing You can TV [/1 Turn the TV on or off 2 (volume) +/– Adjust the volume of the TV t (TV/video) Switch the TV’s input source between the TV and other input sources Number buttons TV [/1 2 t ,continued 64 Controlling other TVs with the remote You can control the sound level, input source, and power switch of non-Sony TVs as well. If your TV is listed in the table below, set the appropriate manufacturer’s code. 1 While holding down TV [/1, press the number buttons to select the manufacturer’s code for your TV (see the table below). 2 Release TV [/1. Code numbers of controllable TVs If more than one code number is listed, try entering them one at a time until you find the one that works with your TV. Notes • Depending on the unit being connected, you may not be able to control your TV using all or some of the buttons on the supplied remote. • If you enter a new code number, the code number previously entered will be erased. • When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again. Manufacturer Code number Sony 01 (default) Aiwa 01 (default) Grundig 11 Hitachi 24 JVC 33 LG 06 Loewe 06 Panasonic 17, 49 Philips 06, 08 Samsung 06, 71 Sanyo 25 Sharp 29 Thomson 43 Toshiba 38 65 Settings and Adjustments Settings and Adjustments Using the Setup Display By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display item, see pages from 66 to 71. Note Playback settings stored in the disc take priority over the Setup Display settings and not all of the functions described may work. 1 Press DISPLAY when the player is in stop mode. The Control Menu appears. 2 Press X/x to select (SETUP), then press ENTER. The options for “SETUP” appear. 3 Press X/x to select “CUSTOM,” then press ENTER. The Setup Display appears. 4 Press X/x to select the setup item from the displayed list: “LANGUAGE SETUP,” “SCREEN SETUP,” “CUSTOM SETUP,” or “AUDIO SETUP.” Then press ENTER. The Setup item is selected. Example: “SCREEN SETUP” 5 Press X/x to select an item, then press ENTER. The options for the selected item appear. Example: “TV TYPE” 6 Press X/x to select a setting, then press ENTER. The setting is selected and setup is complete. Example: “4:3 PAN SCAN” X/x ENTER DISPLAY STOP ( 47 ) QUICK CUSTOM RESET DVD VIDEO QUICK LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKET PICTURE LINE: VIDEO COMPONENT OUT: MODE (PROGRESSIVE): ON AUTO Selected item Setup items SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 4:3 LETTER BOX LINE: 4:3 PAN SCAN 16:9 COMPONENT OUT: MODE (PROGRESSIVE): ON AUTO Options ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-16 66 To enter the Quick Setup mode Select “QUICK” in step 3. Follow from step 5 of the Quick Setup explanation to make basic adjustments (page 24). To reset all of the “SETUP” settings 1 Select “RESET” in step 3 and press ENTER. 2 Select “YES” using X/x. You can also quit the process and return to the Control Menu by selecting “NO” here. 3 Press ENTER. All the settings explained on pages 66 to 71 return to the default settings. Do not press [/1 while resetting the player, which takes a few seconds to complete. Setting the Display or Sound Track Language (LANGUAGE SETUP) “LANGUAGE SETUP” allows you to set various languages for the on-screen display or sound track. Select “LANGUAGE SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 65). ◆OSD (On-Screen Display) Switches the display language on the screen. ◆MENU (DVD VIDEO only) You can select the desired language for the disc’s menu. ◆AUDIO (DVD VIDEO only) Switches the language of the sound track. When you select “ORIGINAL,” the language given priority in the disc is selected. ◆SUBTITLE (DVD VIDEO only) Switches the language of the subtitle recorded on the DVD VIDEO. When you select “AUDIO FOLLOW,” the language for the subtitles changes according to the language you selected for the sound track. z Hint If you select “OTHERS t” in “MENU,” “SUBTITLE,” or “AUDIO,” select and enter a language code from “Language Code List” on page 79 using the number buttons. Note If you select a language in “MENU,” “SUBTITLE,” or “AUDIO” that is not recorded on a DVD VIDEO, one of the recorded languages will be automatically selected. Selected setting SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 4:3 PAN SCAN ON JACKET PICTURE LINE: VIDEO COMPONENT OUT: MODE (PROGRESSIVE): ON AUTO LANGUAGE SETUP OSD: MENU: AUDIO: SUBTITLE: ENGLISH ENGLISH ORIGINAL ENGLISH 67 Settings and Adjustments Settings for the Display (SCREEN SETUP) Choose settings according to the TV to be connected. Select “SCREEN SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 65). The default settings are underlined. ◆ TV TYPE Selects the aspect ratio of the connected TV (4:3 standard or wide). Note Depending on the DVD, “4:3 LETTER BOX” may be selected automatically instead of “4:3 PAN SCAN” or vice versa. ◆ SCREEN SAVER The screen saver image appears when you leave the player in pause or stop mode for 15 minutes, or when you play a CD or DATA CD (MP3 audio) for more than 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press H to turn off the screen saver. ◆ BACKGROUND Selects the background colour or picture on the TV screen when the player is in stop mode or while playing a CD or DATA CD (MP3 audio). ◆ LINE Selects video signals output from the LINE (RGB)-TV jack on the rear panel of the player. Notes • If your TV does not accept S video or the RGB signals, no picture will appear on the TV screen, even if you select “S VIDEO” or “RGB.” Refer to the instructions supplied with your TV. • If your TV has only one SCART (EURO AV) jack, do not select “S VIDEO.” 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function. 4:3 LETTER BOX Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 4:3 PAN SCAN Select this when you connect a 4:3 screen TV. Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. SCREEN SETUP TV TYPE: SCREEN SAVER: BACKGROUND: 16:9 ON JACKET PICTURE LINE: VIDEO COMPONENT OUT: ON MODE (PROGRESSIVE): AUTO 16:9 4:3 LETTER BOX 4:3 PAN SCAN ON Turns on the screen saver. OFF Turns off the screen saver. JACKET PICTURE The jacket picture (still picture) appears, but only when the jacket picture is already recorded on the disc (CD- EXTRA, etc.). If the disc does not contain a jacket picture, the “GRAPHICS” picture appears. GRAPHICS A preset picture stored in the player appears. BLUE The background colour is blue. BLACK The background colour is black. VIDEO Outputs video signals. S VIDEO Outputs S video signals. RGB Outputs RGB signals. ,continued 68 • When “LINE” is set to “RGB” in “SCREEN SETUP”, you cannot select “COMPONENT OUT” (the player outputs no component video signals). • When “COMPONENT OUT” is set to “ON” you cannot select “RGB.” ◆ COMPONENT OUT Allows your TV to receive signals from the COMPONENT VIDEO OUT jacks. Notes • When you connect the player to a monitor or projector via only the COMPONENT VIDEO OUT jacks, do not select “OFF.” If you select “OFF” in this case, the picture may not appear. • When you set NORMAL/PROGRESSIVE switch to PROGRESSIVE, you cannot select “LINE” and “COMPONENT OUT.” ◆ MODE (PROGRESSIVE) (conversion modes) You can fine-tune the Progressive 525p/625p video signal output when you set the NORMAL/PROGRESSIVE switch to PROGRESSIVE (the PROGRESSIVE indicator lights up) and connect the player using the COMPONENT VIDEO OUT jacks to a TV that is able to accept the video signal in progressive format. DVD software can be divided into two types: film based software and video based software. Video based software is derived from TV, such as dramas and sit-coms, and displays images at 30 frames/60 fields (25 frames/50 fields) per second. Film based software is derived from film and displays images at 24 frames per second. Some DVD software contains both Video and Film. In order for these images to appear natural on your screen when output in PROGRESSIVE mode (50 or 60 frames per second), the progressive video signal needs to be converted to match the type of DVD software that you are watching. Note When you play video based software with progressive signals, sections of some types of images may appear unnatural due to the conversion process when output through the COMPONENT VIDEO OUT jacks. ON Select this if you connect your TV to the player’s COMPONENT VIDEO OUT jacks. OFF The player outputs no component video signals AUTO Automatically detects the software type (Film-based or Video-based) and selects the appropriate conversion mode. Normally select this position. VIDEO Fixes the conversion mode to the mode for Video-based software. 69 Settings and Adjustments Custom Settings (CUSTOM SETUP) Use this to set up playback related and other settings. Select “CUSTOM SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 65). The default settings are underlined. ◆ AUTO POWER OFF Switches the Auto Power Off setting on or off. ◆ AUTO PLAY Switches the Auto Play setting on or off. This function is useful when the player is connected to a timer (not supplied). ◆ DIMMER Adjusts the lighting of the front panel display. ◆ PAUSE MODE (DVD VIDEO/DVD-RW only) Selects the picture in pause mode. ◆ TRACK SELECTION (DVD VIDEO only) Gives the sound track which contains the highest number of channels priority when you play a DVD VIDEO on which multiple audio formats (PCM, MPEG audio, DTS, or Dolby Digital format) are recorded. Notes • When you set the item to “AUTO,” the language may change. The “TRACK SELECTION” setting has higher priority than the “AUDIO” settings in “LANGUAGE SETUP” (page 66). • If you set “DTS” to “OFF” (page 71), the DTS sound track is not played even if you set “TRACK SELECTION” to “AUTO.” • If PCM, DTS, MPEG audio, and Dolby Digital sound tracks have the same number of channels, the player selects PCM, DTS, Dolby Digital, and MPEG audio sound tracks in this order. ◆ MULTI-DISC RESUME (DVD VIDEO/ VIDEO CD only) Switches the Multi-disc Resume setting on or off. Resume playback can be stored in memory for up to 6 different DVD VIDEOs/ VIDEO CDs (page 30). ON The player enters standby mode when left in stop mode for more than 30 minutes. OFF Switches this function off. OFF Switches this function off. ON Automatically starts playback when the player is turned on by a timer (not supplied). BRIGHT Makes the lighting bright. DARK Makes the lighting dark. CUSTOM SETUP AUTO POWER OFF: AUTO PLAY: DIMMER: ON OFF BRIGHT AUTO PAUSE MODE: OFF TRACK SELECTION: ON MULTI-DISC RESUME: AUTO The picture, including subjects that move dynamically, is output with no jitter. Normally select this position. FRAME The picture, including subjects that do not move dynamically, is output in high resolution. OFF No priority given. AUTO Priority given. ON Stores the resume setting in memory for up to six discs. OFF Does not store the resume setting in memory. Playback restarts at the resume point only for the current disc in the player. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-17 70 Settings for the Sound (AUDIO SETUP) “AUDIO SETUP” allows you to set the sound according to the playback and connection conditions. Select “AUDIO SETUP” in the Setup Display. To use the display, see “Using the Setup Display” (page 65). The default settings are underlined. ◆ AUDIO ATT (attenuation) If the playback sound is distorted, set this item to “ON.” The player reduces the audio output level. This function affects the output of the following jacks: – LINE OUT L/R (AUDIO) jacks – LINE (RGB)-TV jack ◆ AUDIO DRC (Dynamic Range Control) (DVD VIDEO/DVD-RW only) Makes the sound clear when the volume is turned down when playing a DVD that conforms to “AUDIO DRC.” This affects the output from the following jacks: – LINE OUT L/R (AUDIO) jacks – LINE (RGB)-TV jack – DIGITAL OUT (OPTICAL or COAXIAL) jack only when “DOLBY DIGITAL” is set to “D-PCM” (page 71). ◆DOWNMIX (DVD VIDEO/DVD-RW only) Switches the method for mixing down to 2 channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see “Checking the audio signal format” (page 46). This function affects the output of the following jacks: – LINE OUT L/R (AUDIO) jacks – LINE (RGB)-TV jack – DIGITAL OUT (OPTICAL or COAXIAL) jack when “DOLBY DIGITAL” is set to “D-PCM” (page 71). ◆DIGITAL OUT Selects if audio signals are output via the DIGITAL OUT (OPTICAL or COAXIAL) jack. Setting the digital output signal Switches the method of outputting audio signals when you connect a component such as an amplifier (receiver) or MD deck with a digital input jack. For connection details, see page 19. Select “DOLBY DIGITAL,” “MPEG,” “DTS,” and “48 kHz/96 kHz PCM” after setting “DIGITAL OUT” to “ON.” OFF Normally, select this position. ON Select this when the playback sound from the speakers is distorted. STANDARD Normally select this position. TV MODE Makes low sounds clear even if you turn the volume down. WIDE RANGE Gives you the feeling of being at a live performance. AUDIO SETUP AUDIO ATT: AUDIO DRC: DIGITAL OUT: OFF STANDARD ON DOWNMIX: DOLBY SURROUND DOLBY DIGITAL: MPEG: D-PCM PCM DTS: OFF 48kHz/96kHz PCM: 48kHz/16bit DOLBY SUR- ROUND Normally, select this position. Multi-channel audio signals are output to two channels for enjoying surround sounds. NORMAL Multi-channel audio signals are downmixed to two channels for use with your stereo. ON Normally select this position. When you select “ON,” see “Setting the digital output signal” for further settings. OFF The influence of the digital circuit upon the analog circuit is minimal. AUDIO SETUP AUDIO ATT: AUDIO DRC: DOLBY DIGITAL: MPEG: OFF STANDARD DOWNMIX: DOLBY SURROUND D-PCM PCM DTS: OFF DIGITAL OUT: ON 48kHz/96kHz PCM: 48kHz/16bit 71 Settings and Adjustments If you connect a component that is incompatible with the selected audio signal, a loud noise (or no sound) may be heard from the speakers, risking damage to your ears or speakers. ◆ DOLBY DIGITAL (DVD VIDEO/DVD-RW only) Selects the type of Dolby Digital signal. ◆ MPEG (DVD VIDEO/DVD-RW only) Selects the type of MPEG audio signal. ◆ DTS Selects whether or not to output DTS signals. ◆ 48kHz/96kHz PCM (DVD VIDEO only) Selects the sampling frequency of the audio signal. Note The analogue audio signals from the LINE OUT L/ R (AUDIO) jacks are not affected by this setting and keep their original sampling frequency level. D-PCM Select this when the player is connected to an audio component without a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround (Pro Logic) or not by making adjustments to the “DOWNMIX” item in “AUDIO SETUP” (page 70). DOLBY DIGITAL Select this when the player is connected to an audio component with a built-in Dolby Digital decoder. PCM Select this when the player is connected to an audio component without a built-in MPEG decoder. If you play multi-channel MPEG audio sound tracks, only the Front (L) and Front (R) signals will be output from your two front speakers. MPEG Select this when the player is connected to an audio component with a built-in MPEG decoder. OFF Select this when the player is connected to an audio component without a built-in DTS decoder. ON Select this when the player is connected to an audio component with a built-in DTS decoder. 48kHz/16bit The audio signals of DVD VIDEOs are always converted to 48kHz/16bit. 96kHz/24bit All types of signals including 96kHz/24bit are output in their original format. However, if the signal is encrypted for copyright protection purposes, the signal is only output as 48kHz/16bit. 72 Additional Information Troubleshooting If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer. Power The power is not turned on. , Check that the mains lead is connected securely. Picture There is no picture/picture noise appears. , Re-connect the connecting cord securely. , The connecting cords are damaged. , Check the connection to your TV (page 16) and switch the input selector on your TV so that the signal from the player appears on the TV screen. , Set “LINE” in “SCREEN SETUP” to an item appropriate for your system (page 67). , The disc is dirty or flawed. , If the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/ VIDEO player, the copy-protection signal applied to some DVD programmes could affect picture quality. If you still experience problems even when you connect your player directly to your TV, try connecting your player to your TV’s S VIDEO input (page 16). , The disc is recorded in a colour system that is different from your TV. , You have set the NORMAL/ PROGRESSIVE switch to PROGRESSIVE on the rear panel (the PROGRESSIVE indicator lights up) even though your TV cannot accept the progressive signal. In this case, set the NORMAL/PROGRESSIVE switch to NORMAL on the rear panel so that the PROGRESSIVE indicator turns off. , You set the NORMAL/PROGRESSIVE switch to PROGRESSIVE on the rear panel (the PROGRESSIVE indicator lights up) but did not connect your TV to the player’s COMPONENT VIDEO OUT jacks using a component video cord. Set to PROGRESSIVE only when you connect your TV to the player’s COMPONENT VIDEO OUT jacks using a component video cord (page 16). , Even if your TV is compatible with progressive format 525p/625p signals, the image may be affected when you set the player to progressive format. In this case, set the NORMAL/PROGRESSIVE switch to NORMAL so that the PROGRESSIVE indicator turns off and the player is set to normal (interlace) format. , If you set “LINE” to “RGB” in “SCREEN SETUP” (page 25, 67), the player outputs no component video signals. The picture does not fill the screen, even though the aspect ratio is set in “TY TYPE” under “SCREEN SETUP.” , The aspect ratio of the disc is fixed on your DVD. The picture is black and white. , Set “LINE” in “SCREEN SETUP” to an item appropriate for your TV (page 67). , Depending on the TV, the picture on the screen becomes black and white when you play a disc recorded in the NTSC colour system. , If you are using a SCART (Euro AV) cord, be sure to use one that is fully wired (21- pins). Sound There is no sound. , Re-connect the connecting cord securely. , The connecting cord is damaged. , The player is connected to the wrong input jack on the amplifier (receiver) (page 21, 22, 23). , The amplifier (receiver) input is not correctly set. , The player is in pause mode or in Slow- motion Play mode. , The player is in fast forward or fast reverse mode. , If the audio signal does not come through the DIGITAL OUT (OPTICAL or COAXIAL) jack, check the audio settings (page 70). 73 Additional Information , While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “2:STEREO,” “2:1/L,” or “2:2/R.” , When playing multi-channel MPEG audio sound tracks, only the Front (L) and Front (R) signals will be output from your two front speakers. Sound distortion occurs. , Set “AUDIO ATT” in “AUDIO SETUP” to “ON” (page 70). The sound volume is low. , The sound volume is low on some DVDs. The sound volume may improve if you set “AUDIO DRC” in “AUDIO SETUP” to “TV MODE” (page 70). , Set “AUDIO ATT” in “AUDIO SETUP” to “OFF” (page 70). Operation The remote does not function. , The batteries in the remote are weak. , There are obstacles between the remote and the player. , The distance between the remote and the player is too far. , The remote is not pointed at the remote sensor on the player. The disc does not play. , The disc is turned over. Insert the disc with the playback side facing down. , The disc is skewed. , The player cannot play certain discs (page 7). , The region code on the DVD does not match the player. , Moisture has condensed inside the player (page 3). , The player cannot play a recorded disc that is not correctly finalized (page 7). The MP3 audio track cannot be played (page 52). , The DATA CD is not recorded in an MP3 format that conforms to ISO 9660 Level 1/ Level 2 or Joliet. , The MP3 audio track does not have the extension “.MP3.” , The data is not formatted in MP3 even though it has the extension “.MP3.” , The data is not MPEG1 Audio Layer 3 data. , The player cannot play audio tracks in MP3PRO format. , “MODE (MP3, JPEG)” is set to “IMAGE (JPEG)” (page 54). The JPEG image file cannot be played (page 52). , The DATA CD is not recorded in a JPEG format that conforms to ISO 9660 Level 1/ Level 2, or Joliet. , The file has an extension other than “.JPEG” or “.JPG.” , The image is larger than 3072 (width) � 2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the file size is within this specified capacity.) , The image does not fit the screen (the image is reduced). , “MODE (MP3, JPEG)” is set to “AUDIO (MP3)” (page 56). The MP3 audio tracks and JPEG image files start playing simultaneously. , “MODE (MP3, JPEG)” is set to “AUTO.” (page 56). The album/track/file names are not displayed correctly. , The player can only display numbers and alphabet. Other characters are displayed as “*”. The disc does not start playing from the beginning. , Programme Play, Shuffle Play, Repeat Play, or A-B Repeat Play is selected (page 33). , Resume play has taken effect (page 30). The player starts playing the disc automatically. , The disc features an auto playback function. , “AUTO PLAY” in “CUSTOM SETUP” is set to “ON” (page 69). Playback stops automatically. , While playing discs with an auto pause signal, the player stops playback at the auto pause signal. ,continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-18 74 Some functions such as Stop, Search, Slow-motion Play, Repeat Play, Shuffle Play, or Programme Play cannot be performed. , Depending on the disc, you may not be able to do some of the operations above. Refer to the operating manual that comes with the disc. The language for the sound track cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 31). , Multilingual tracks are not recorded on the DVD being played. , The DVD prohibits the changing of the language for the sound track. The subtitle language cannot be changed or turned off. , Try using the DVD’s menu instead of the direct selection button on the remote (page 31). , Multilingual subtitles are not recorded on the DVD being played. , The DVD prohibits the changing of subtitles. The angles cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 31). , Multi-angles are not recorded on the DVD being played. , The DVD prohibits changing of the angles. The player does not operate properly. , When static electricity, etc., causes the player to operate abnormally, unplug the player. 5 numbers or letters are displayed on the screen and on the front panel display. , The self-diagnosis function was activated. (See the table on page 75.) The disc does not eject and “LOCKED” appears on the front panel display. , Child Lock is set (page 29). The disc does not eject and “DISC LOCKED” appears on the front panel display. , Contact your Sony dealer or local authorized Sony service facility. “Data error” appears on the TV screen when playing a DATA CD. , The MP3 audio track/JPEG image file you want to play is broken. , The data is not MPEG1 Audio Layer 3 data. , The JPEG image file format does not conform to DCF (page 51). , The JPEG image file has the extension “.JPG” or “.JPEG,” but is not in JPEG format. The disc does not load or eject. , Moisture has condensed inside the player (page 3). , The disc is non-standard shaped (page 3). , A disc will not load if there is an another disc inside. 75 Additional Information Self-diagnosis Function (When letters/numbers appear in the display) When the self-diagnosis function is activated to prevent the player from malfunctioning, a five-character service number (e.g., C 13 50) with a combination of a letter and four digits appears on the screen and the front panel display. In this case, check the following table. Glossary Album (page 51, 53) A unit in which to store JPEG image files or MP3 audio tracks on a DATA CD. (“Album” is an exclusive definition for this player.) Chapter (page 9) Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded. Dolby Digital (page 19, 71) Digital audio compression technology developed by Dolby Laboratories. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Digital” theatre surround sound systems. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. Dolby Surround (Pro Logic) (page 19) Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, centre and rear signals. The rear channel is monaural. DTS (page 19, 71) Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high quality digital audio. Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital. First three characters of the service number Cause and/or corrective action C 13 The disc is dirty or recorded in a format that this player cannot play (page 7). ,Clean the disc with a soft cloth or check its format (page 8). C 31 The disc is not inserted correctly. ,Re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the player has performed the self-diagnosis function. ,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 C:13:50 ,continued 76 DVD VIDEO (page 6) A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD. The data capacity of a single-layer and single- sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more realistic audio presence. Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD. DVD-RW (page 6) A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited. DVD+RW (page 6) A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format. File (page 51, 54) A JPEG image recorded on a DATA CD (“File” is an exclusive definition for this player.) A single file consist of a single image. Film based software, Video based software (page 68) DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theatres. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames/60 fields (24 frames/50 fields) per second. MPEG audio (page 19, 71) International standard coding system used to compress audio digital signals authorized by ISO/IEC. MPEG 1 conforms to up to 2- channel stereo. MPEG 2, used on DVDs, conforms to up to 7.1-channel surround. Normal (Interlace) format (page 72) Normal (Interlace) format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image. Progressive format (page 17) Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 25 or 30 frames (50-60 fields) in one second, the Progressive format can show 50-60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 525 or 625 progressive format. Progressive JPEG Progressive JPEGs are used mostly on the internet. They are different from other JPEGs in that they “fade in” gradually instead of being drawn from top to bottom when displayed on a browser. This lets you view the image while it is being downloaded. 77 Additional Information Scene (page 9) On a VIDEO CD with PBC (playback control) functions, the menu screens, moving pictures and still pictures are divided into sections called “scenes.” Title (page 9) The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software. Track (page 9) Sections of a picture or a music feature on a VIDEO CD, CD or DATA CD (the length of a song). (“Track” in DATA-CD is an exclusive definition for this player.) Video Index (VIDEO CD) (page 12) A number that divides a track into sections to easily locate the point you want on a VIDEO CD. Depending on the disc, no index may be recorded. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-19 79 Additional Information Language Code List For details, see pages 45, 48, 66. The language spellings conform to the ISO 639: 1988 (E/F) standard. Code Language Code Language Code Language Code Language 1027 Afar 1028 Abkhazian 1032 Afrikaans 1039 Amharic 1044 Arabic 1045 Assamese 1051 Aymara 1052 Azerbaijani 1053 Bashkir 1057 Byelorussian 1059 Bulgarian 1060 Bihari 1061 Bislama 1066 Bengali; Bangla 1067 Tibetan 1070 Breton 1079 Catalan 1093 Corsican 1097 Czech 1103 Welsh 1105 Danish 1109 German 1130 Bhutani 1142 Greek 1144 English 1145 Esperanto 1149 Spanish 1150 Estonian 1151 Basque 1157 Persian 1165 Finnish 1166 Fiji 1171 Faroese 1174 French 1181 Frisian 1183 Irish 1186 Scots Gaelic 1194 Galician 1196 Guarani 1203 Gujarati 1209 Hausa 1217 Hindi 1226 Croatian 1229 Hungarian 1233 Armenian 1235 Interlingua 1239 Interlingue 1245 Inupiak 1248 Indonesian 1253 Icelandic 1254 Italian 1257 Hebrew 1261 Japanese 1269 Yiddish 1283 Javanese 1287 Georgian 1297 Kazakh 1298 Greenlandic 1299 Cambodian 1300 Kannada 1301 Korean 1305 Kashmiri 1307 Kurdish 1311 Kirghiz 1313 Latin 1326 Lingala 1327 Laothian 1332 Lithuanian 1334 Latvian; Lettish 1345 Malagasy 1347 Maori 1349 Macedonian 1350 Malayalam 1352 Mongolian 1353 Moldavian 1356 Marathi 1357 Malay 1358 Maltese 1363 Burmese 1365 Nauru 1369 Nepali 1376 Dutch 1379 Norwegian 1393 Occitan 1403 (Afan)Oromo 1408 Oriya 1417 Punjabi 1428 Polish 1435 Pashto; Pushto 1436 Portuguese 1463 Quechua 1481 Rhaeto- Romance 1482 Kirundi 1483 Romanian 1489 Russian 1491 Kinyarwanda 1495 Sanskrit 1498 Sindhi 1501 Sangho 1502 Serbo- Croatian 1503 Singhalese 1505 Slovak 1506 Slovenian 1507 Samoan 1508 Shona 1509 Somali 1511 Albanian 1512 Serbian 1513 Siswati 1514 Sesotho 1515 Sundanese 1516 Swedish 1517 Swahili 1521 Tamil 1525 Telugu 1527 Tajik 1528 Thai 1529 Tigrinya 1531 Turkmen 1532 Tagalog 1534 Setswana 1535 Tonga 1538 Turkish 1539 Tsonga 1540 Tatar 1543 Twi 1557 Ukrainian 1564 Urdu 1572 Uzbek 1581 Vietnamese 1587 Volapük 1613 Wolof 1632 Xhosa 1665 Yoruba 1684 Chinese 1697 Zulu 1703 Not specified www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-20 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 SECTION 2 DISASSEMBLY DVP-LS755P 2-1. DISASSEMBLY • This set can be disassembled in the order shown below. Set Upper case (Page 2-2) MV-044 board (Page 2-2) IF-117 board (Page 2-4) MS-214 board (Page 2-6) Front panel section (Page 2-3) Mechanism deck (Page 2-4) ER-027 board (Page 2-5) Power supply block (Page 2-3) Holder (BU) assy (Page 2-6) Lever (BU lock) (Page 2-7) Close lever (Page 2-7) Optical pick-up (Page 2-5) Chassis (top) (Page 2-8) Lever (loading-L/R) (Page 2-9) Lever (disc sensor)/ (disc stop) (Page 2-10) Lever (DIR), Gear (IDL-B) (Page 2-8) Gear (IDL-C) (Page 2-10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 2-3. MV-044 BOARD Note: Follow the disassembly procedure in the numerical order given. 2-2. UPPER CASE 2 Three screws (+BV3) 1 Tapping screw 1 Tapping screw 3 Upper case 3 Flexible flat cable (FMP-012: CN101) 2 Flexible flat cable (FMP-010: CN104) 1 Flexible flat cable (FEM-002: CN502) 4 Harness (PM-112: CN771) 5 Harness (IM-065: CN401) 6 Connector (CN201) 7 Three screws (+BV3) 9 MV-044 board 8 Five screws (+BV3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 2-4. FRONT PANEL SECTION 2-5. POWER SUPPLY BLOCK 1 Flexible flat cable (FIL-001: CN403) 2 Claw 3 Front panel section 2 Claw 2 Two claws 2 Two claws 1 Harness (PM-112: CN201) 2 Two screws (+BV3) 3 Cord bushing 4 Power supply block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 2-7. MECHANISM DECK 2-6. IF-117 BOARD 1 Harness (IM-065: CN401) 2 Two screws (+BV3) 3 IF-117 board 2 Harness (PM-112: CN771) 4 Flexible flat cable (FMP-012: CN101) 3 Flexible flat cable (FMP-010: CN104) 5 Three screws (+BV3) 6 Mechanism deck 1 Harness (PM-112: CN201) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-5 2-8. ER-027 BOARD 2-9. OPTICAL PICK-UP 1 Flexible flat cable (FEM-002: CN502) 2 Two screws (+BV3) 3 ER-027 board 1 Two claws 3 FFC holder 4 Two insulator screws 5 Two insulators 5 Two insulators 6 Optical pick-up (KHM-310AAB/C2RP) 4 Two insulator screws 2 Two claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-6 2-10. MS-214 BOARD 2-11. HOLDER (BU) ASSY 3 Remove two solders. 2 Two screws (B 2.6 × 8) 5 MS-214 board 4 Motor (pully) assy (loading) 1 Belt (MOT) 1 Screw (B 2.6 × 8) 2 Lever (CL UP2) 5 Holder (BU) assy 3 Floating screw (PTPWH M2.6) 4 Floating screw (PTPWH M2.6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-7 2-12. LEVER (BU LOCK) 2-13. CLOSE LEVER 4 Three hooks 1 Floating screw (PTPWH M2.6) 5 Lever (BU lock) 2 Gear (cap) 3 Gear (BU lock) 1 Washer (3-1-0.4) 2 SPR-E lever close 4 Shaft disc stop 5 Close lever 3 Claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-8 2-14. LEVER (DIR), GEAR (IDL-B) 2-15. CHASSIS (TOP) 4 Pulley (gear) 3 Nylon washer 1.7 2 Claw Washer 0 Lever (DIR) 6 Gear (IDL-A) qa Gear (IDL-B) 1 DIR SPR-E 9 Stoper 7 Loosen the screw. 8 Hold the release lever and change the direction. 5 Gear (cap) 1 Screw (B 2.6 × 8) 4 Three screws (B 2.6 × 8) 3 Two screws (B 2 × 10) 5 Chassis (top) 2 Lever (CL UP2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-9 2-16. LEVER (LOADING-L/R) Lever (loading-R) Align the horizontal position. Lever (loading-L) Install the both levers so that they move symmetrically. — Bottom view — 2 Two hooks 4 Two hooks 3 Lever (loading-L) 5 Lever (loading-R) SPT-T (loading-R) SPT-T (loading-L) 1 1 PRECAUTION DURING LEVER (LOADING R / L) INSTALLATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-10 2-17. LEVER (DISC SENSOR) / (DISC STOP) 2-18. GEAR (IDL-C) Chassis (top) Hole Install the lever (disc stop) so that the both holes are aligned. Hole 1 Gear (cap) 3 Two claws 5 Two hooks 6 Lever (disc stop) Lever (disc stop) 4 Lever (disc sensor) PRECAUTION DURING DISC STOP LEVER INSTALLATION 2 Gear (IDL L) 6 Claw 1 Gear (IDL-F) 5 Gear loading lever 2 Two claws 4 Three hooks 3 Gear (IDL-D) 7 Gear (IDL-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-11 2-19. CIRCUIT BOARDS LOCATION IF-117 board (INTERFACE CONTROL) ER-027 board (EURO AV) MV-044 board (RF AMP, SIGNAL PROCESS, SERVO, MOTOR DRIVE, AVDEC, VIDEO, AUDIO, PS THROUGH) LC-082 board (FUNCTION SWITCH) MS-214 board (LOADING MOTOR) Power supply block (SWITCHING REGULATOR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-12 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P SECTION 3 BLOCK DIAGRAMS 3-1 3-2 3-1. OVERALL BLOCK DIAGRAM IF-117 BOARD (SEE PAGE 4-27) MV-044 BOARD (SEE PAGE 4-9 to 4-18) ER-027 BOARD (SEE PAGE 4-23) BASE UNIT KHM-310AAB/ SERVIC ASSY I / CNJ902 IC408 IC204 16M FLASH MEMORY EEPROM IC205 IC201 IC207 IC102 IC206 IC774 REG 64M SDRAM P-CONT SW+8V SW+5V SW+3.3V EVER-10V EVER+5V EVER+11V SERVO DSP, RF AMP IC101 FOCUS TRACKING COIL DRIVE, SPINDLE/SLED /LOADING MOTOR DRIVE IC601 AUDIO AMP IC502 VIDEO BUFFER SYSTEM CONTROL AV DECODER SERIAL BUS IC404 IC409 IF CON KEY FUNCTION SW-10V EVER+3.3V RESET SLED MOTOR SPINDLE MOTOR M M M M001 LOADING MOTOR OPTICAL DEVICE DVD / CD PDIC FOCUS COIL TRACKING COIL INLIMIT SENSOR TRANSFORMER SECONDARY PRIMARY AUDIO D/A CONVERTER COMPONENT VIDEO OUT LINE (RGB) -TV S VIDEO OUT LINE OUT J501 IC901 VIDEO BUFFER SELECT SWITCH REMOTE COMMANDER RECEIVER ND401 VACUUM FLUORESCENT DISPLAY DETECT CHUCK MS-214 BOARD (SEE PAGE 4-30) 05 POWER SUPPLY BLOCK (SWITCHING REGULATOR) (SEE PAGE 4-35) Notes: MV-044 mounted PWB must be replaced if IC205 (EEPROM IC) is damaged or not functioning. The old MV-044 mounted PWB must be completely disposed. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 3-3 3-4 3-2. RF/SERVO BLOCK DIAGRAM F E BASE UNIT KHM-310AAB/ SERVIC ASSY SLED MOTOR SPINDLE MOTOR CN104 30 29 36 37 34 10 13 15 4 1 FOO D03- D03+ 28 27 D04- D04+ D01+ D01- D02+ D02- 24 25 D05+ D05- 126 125 124 123 MDI2 MDI1 LD01 LD02 96 DVDRFIP DVDA – D MA – MD 47 IN1- IN2- IN3- IN4- CTL SL+ SL- SP+ SP- SDEN SDATA ADIN PWMOUT2 RFZC RFRP BDO TEO CSO RFL FEO FMO DMO TRO TROPENPWM 59 77 61 58 23 21 20 19 18 25 30 RFIN RFIP 7 6 IC102 DVD/CD RF AMP, SERVO ERROR PROCESS IC102 6 (CD PLAY) 2 2 2 3 2 IC102 6 (DVD PLAY) IC102 7 (CD PLAY) IC102 7 (DVD PLAY) IC102 qk (CD PLAY) 1.4 Vp-p 3 IC102 qk (DVD PLAY) 1.1 Vp-p LDM+ LDM- CKSW1 FCS- FCS+ TRK+ TRK- LD (780) LD (650) PD RF FOCUS OPTICAL DEVICE COIL TRACKING COIL DVD/CD LD MODULE 6 5 2 1 D159 C D A B CN103 DVD/CD PDIC 1.4 Vp-p 35 IC102 oh (DVD PLAY) 1 IC102 500 mV/DIV 200 ns/DIV 1.2 Vp-p 500 mV/DIV 100 ns/DIV 1.0 Vp-p 500 mV/DIV 100 ns/DIV 1.0 Vp-p 500 mV/DIV 100 ns/DIV 800 mVp-p 500 mV/DIV 200 ns/DIV 800 mVp-p 500 mV/DIV 200 ns/DIV oh (CD PLAY) 1 MV-044 BOARD (1/5) (SEE PAGE 4-9) MS-214 BOARD (SEE PAGE 4-30) IC102 wa (DVD PLAY) 4 IC102 wa (CD PLAY) 4 48 53 79 45 OPO IO5 IO6 IOB SW1 51 20 MUET4 IO9 50 19 MUTE123 21 PS 7 RES2 6 RES1 IO8 44 16 FWD IO2 45 17 REV IO3 46 22 TSD-M IO4 47 46 OP- OP+ IC101 FOCUS TRACKING COIL DRIVE, SPINDLE/SLED/LOADING MOTOR DRIVE SYSTEM CONTROL/ SIGNAL PROCESSOR (SEE PAGE 3-5) SYSTEM CONTROL/ SIGNAL PROCESSOR (SEE PAGE 3-5) SYSTEM CONTROL/ SIGNAL PROCESSOR (SEE PAGE 3-5) SDEN SDATA SWO DPDMUTE HTRC HRFRP DEFECT TEO CSO LVL FEO RFON RFOP SCLK 56 SCLK SYSRST OCSW1 60 RST INTERFACE CONTROL (SEE PAGE 3-12) 97 ı 100 101 ı 104 111 110 SC SD 14 10 7 8 18 12 05 VR (650) VR (780) MSW VC 24 23 22 21 6 2 5 17 20 19 16 15 DVD/CD Q171 LD DRIVE M M001 LOADING MOTOR S002 (CHUCKING) S001 (DISC IN/OUT) S003 (TRIGGER) CN102 5 4 2 1 7 3 4 6 7 1 OCSW1 TRGSW 52 IOA 17 V20 105 SA 106 SB Q170 Q168 1.4 Vp-p 1.4 Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 3-5 3-6 3-3. SYSTEM CONTROL/SIGNAL PROCESSOR BLOCK DIAGRAM 215 205 216 105~107,110,112~114,119,121~124 IC204 IC201 ARP, SERVO DSP, AV DECODER, SYSTEM CONTROL 16M FLASH ROM IC206 64M SDRAM RAO – RA11 22~27,29~30,40~41,43~53 AO – A20 78~81,83~86,93~96,98~101 RDO – RD15 31~34,36~39 HDO – HD7 IFBUSY SCO SOO XIFCS SIO SYSRST RFIN FEI RFIP SCL SDA RF/SERVO (SEE PAGE 3-4) RF/SERVO (SEE PAGE 3-4) 204 203 206 208 209 198 200 195 16 197 196 CSO TEI RFLEVEL RFRP_AC HRFZC 207 RFRP_DC BDO ADIN SDATA PWMOUT2 SCLK SDEN RFIN FEO RFIP CSO TEO RFL RFRP RFZC BDO PWMOUT2 18 19 12 13 DMO FMO FOO TRO 14 TROPENPWM 91 89 88 87 90 103 104 69 188 64 62 63 61 IFSCK IFSDO IFBSY 58 59 57 IOWR IOCS IOOE IFSDI PRST XIFCS MCLK SPDIF SDTI PDN XMAMUTE CCLK 176 177 158 153 154 151 SPDIF ASDATAO ACLK CSN BICK LRCK 148 149 68 ABCK RGBSEL 146 RGBSEL EUROVY 144 EUROVY DISC/XEXT ALRCK XDACS MAMUTE ADSCK CDTI C Y V Y/G CB/B CR/R WIDE 179 164 166 168 170 172 173 175 ADSDO YUV1/C YUV2/Y YUV3/CVBS YUV4/G YUV5/B YUV6/R WIDE 187 186 XTALI XTALO XRST 65 67 6 5 IC205 EEPROM SCL SDA IC201 (CD PLAY) 4 IC201 (CD PLAY) 3 3 203 IC201 (DVD PLAY) 4 203 205 IC201 (DVD PLAY) 205 IC201 10 IC201 9 IC201 8 IC201 (COMPONENT OUT: ON) (COMPONENT OUT: ON) (LINE: RGB mode)) 7 172 173 170 168 166 164 IC201 11 IC201 12 IC201 6 186 IC201 (DVD PLAY) 5 215 216 IC201 (CD PLAY) 5 215 216 IC201 (LINE: RGB mode) 7 173 IC201 8 (COMPONENT OUT: ON) 172 IC201 9 (LINE: RGB mode) 170 MV-044 BOARD (2/5) (SEE PAGE 4-11) ADIN SDATA SCLK SDEN DMO FMO FOO TRO TROPENPWM X202 27MHz 118 116 117 BA0 RAS CAS RWE RCS CLK CLE BA1 DQM1 DQM0 RF/SERVO (SEE PAGE 3-4) VIDEO (SEE PAGE 3-7) INTERFACE CONTROL (SEE PAGE 3-12) AUDIO (SEE PAGE 3-9) VIDEO (SEE PAGE 3-7) 05 143 DISC/XEXT 181 IPSW PROGRESSIVE S501 NORMAL 1.4 Vp-p 1.4 Vp-p 1.4 Vp-p 1.4 Vp-p 1.0 Vp-p 800 mVp-p 500 mV/DIV 100 ns/DIV 500 mV/DIV 200 ns/DIV 3.6 Vp-p (27 MHz) 670 mVp-p (H) 670 mVp-p (H) 670 mVp-p (H) 670 mVp-p (H) 950 mVp-p (H) 670 mVp-p (H) 1.2 Vp-p (H) 950 mVp-p (H) 800 mVp-p (H) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 3-7 3-8 3-4. VIDEO BLOCK DIAGRAM 19 16 15 11 8 7 3 1 S VIDEO OUT 33 29 31 22 24 20 12 15 17 6 7 16 3 8 21 17 19 11 15 13 10 3 9 1 7 1 5 3 7 9 12 19 13 21 15 13 15 5 7 9 11 33 24 28 25 34 29 27 Y C COMPONENT VIDEO OUT PB/CB PR/CR Y CN502 CN901 VIDEO BUFFER SELECT SWITCH IC901 C Y V VIDEO IN Y IN C IN MUTE1 MUTE2 Y IN Y Cb Cr Cb IN Cr IN Cr OUT V Y C R G B SW2 SW1 MUTE2 MUTE3 MUTE1 B IN G IN R IN C IN Y IN V IN V/Y OUT R/C OUT G OUT B OUT VIDEO J501 (1/2) Q504, 505 WIDE SWITCH Q573, 574 BUFFER V/Y R/C G B D907 D938 D939 D902 Q909 IC502 ed 13 IC502 ea 14 IC502 wf 16 Q571, 572 BUFFER IC502 w; 18 IC502 ws 17 IC502 wl 15 V/Y OUT BLANKING OUT R/C OUT G OUT FUNCTION SW OUT B OUT A (L) OUT A (R) OUT LINE (RGB) -TV CNJ902 11 Y V C Y/G Cr/B_Cr/R Cb/R_Cb/B DISCEXT RGBSEL WIDE XV MUTE EUROVY 30 12 Q901 –903 BLANKING SIGNAL GENERATOR V OUT Y OUT C OUT Y/G OUT Cb OUT IC502 VIDEO BUFFER D510 V Y C Y/G CB/B CR/R WIDE XV_MUTE EUROVY RGBSEL ERAUDIOL ERAUDIOR DISC/XEXT SYSTEM CONTROL/ SIGNAL PROCESSOR (SEE PAGE 3-6) SYSTEM CONTROL/ SIGNAL PROCESSOR (SEE PAGE 3-6) INTERFACE CONTROL (SEE PAGE 3-12) AUDIO (SEE PAGE 3-10) MV-044 BOARD (3/5) (SEE PAGE 4-13) 2 20 ERAUDIOL 5 17 ERAUDIOR 05 ER-027 BOARD (SEE PAGE 4-23) Q906 –908 FUNCTION SIGNAL GENERATOR (COMPONENT OUT: ON) (COMPONENT OUT: ON) (COMPONENT OUT: ON) IC901 (LINE: RGB mode) 1 34 IC901 (LINE: S VIDEO mode) 1 34 (LINE: RGB mode) 2 29 IC901 (LINE: RGB mode) 3 27 IC901 (LINE: VIDEO mode) 4 25 IC901 (LINE: S VIDEO mode) 4 25 IC901 2.4 Vp-p (H) 2.0 Vp-p (H) 1.8 Vp-p (H) 1.8 Vp-p (H) 1.4 Vp-p (H) 1.4 Vp-p (H) 1.4 Vp-p (H) 1.4 Vp-p (H) 1.4 Vp-p (H) 2.4 Vp-p (H) 2.0 Vp-p (H) 2.0 Vp-p (H) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 3-9 3-10 3-5. AUDIO BLOCK DIAGRAM 16 15 1 3 5 7 8 6 2 4 L LINE OUT R D602 D603 SPDIF IC207 IC601 AOUTR- MCLK SDTI PDN CSN BICK LRCK CCLK CDTI DZFR DZFL MCLK LRCK BICK CSN SDTI PDN CCLK CDTI XMAMUTE AOUTR + AOUTL+ AOUTL- AUDIO AMP AUDIO D/A CONVERTER MUTE V J501 (2/2) OPTICAL IC605 COAXIAL XA_MUTE + – + – D IN 11 12 10 9 2 3 5 6 1 7 1 MV-044 BOARD (4/5) (SEE PAGE 4-12, 15) SYSTEM CONTROL/ SIGNAL PROCESSOR (SEE PAGE 3-6) INTERFACE CONTROL (SEE PAGE 3-12) Q602, 604, 605 MUTE DRIVER Q606, 609, 610 MUTE DRIVER Q607 MUTE Q608 MUTE Q611 BUFFER DIGITAL OUTPUT ERAUDIOR ERAUDIOL VIDEO (SEE PAGE 3-7) POWER 2 (SEE PAGE 3-16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 3-11 3-12 3-6. INTERFACE CONTROL BLOCK DIAGRAM 8 /RESET 11 IR 1 VOUT IC408 RESET 1 VOUT IC101 REMOTE COMMANDER RECEIVER ND101 LCD UNIT IC404 IF CON 24 /VMUTE 23 /AMUTE 17 SCO 16 SO 15 SI 14 /CS 7 SYSRST 22 OCSW1 4 9 13 12 10 7 8 5 10 5 1 CN201 CN402 2 4 7 6 9 XIFBUSY XV_MUTE XA_MUTE SCO SIO SO0 XIFCS SYSRST OCSW1 IFBUSY XV_MUTE XA_MUTE SCO SIO SO0 XIFCS SYSRST OCSW1 SYSRST 27 BUSY 2 X401 8MHz XIN 3 XOUT IF-117 BOARD (SEE PAGE 4-27) LC-082 BOARD (SEE PAGE 4-32) MV-044 BOARD (5/5) (SEE PAGE 4-11) RF/SERVO (SEE PAGE 3-4) VIDEO (SEE PAGE 3-7) AUDIO (SEE PAGE 3-10) SYSTEM CONTROL/ SIGNAL PROCESSOR (SEE PAGE 3-6) 18 DATA 19 SCK_LCD 20 STB 34 PLAY 35 O/C 36 STOP 80 PROG LED 77 BL1 IR DATA SCK_LCD STB PLAY O/C STOP LED2 LED1 3 8 6 CN403 12 1 2 10 11 9 3 8 6 CN102 12 1 2 10 11 9 8 DATA 7 SCK 6 STB S103 S101 S104 S105 S106 S102 D102 PROGRESSIVE indicator D101 (BACKLIGHT) 05 Q401, 402 LED DRIVE 3 11 IC404 1 3 3.5 Vp-p (8 MHz) IC209 D202 Q201 VOLTAGE DETECTOR 1 OUT VDD 2 SW+3.3V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 3-13 3-14 3-7. POWER 1 BLOCK DIAGRAM Q203 1 CN201 T101 D202 D204 AC IN F101 CN101 D205 PC101 PHOTO COUPLER 4 5 10 8 9 3 L N Q201 L101 LINE FILTER D201 Q202 POWER CONTROL L205 D208 L202 L201 IC201 IC101 SHUNT REG CP202 L203 Q204 POWER SUPPLY BLOCK (SWITCHING REGULATOR) (SEE PAGE 4-35) 05 D101-D104 G D S SW201 I / EVER+11V SW+8V EVER+5V SW+3.3V EVER–10V P-CONT POWER SW 6 SW+5V SWITCHING CONTROL POWER 2 (SEE PAGE 3-15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 3-15 3-16 E 3-8. POWER 2 BLOCK DIAGRAM SW+8V 05 SW+5V SW+3.3V FILTER FL207 OPTICAL DIGITAL OUT CN103 FL208 FILTER FL209 SW+3.3V SW+8V IC201 SERVO DSP, RF AMP IC208 +3.3V REG MUTE V D601 Q603, 616 Q601 IC151 +3.3V REG IC202 +2.5V REG IC207 AUDIO D/A CONVERTER IC605 OPTICAL DIGIT AL OUT IC502 VIDEO BUFFER IC901 VIDEO BUFFER, SELECT SWITCH IC601 AUDIO AMP IC204 16M FLASH IC205 EEPROM IC102 8 20 +11V +11V CN901 CN502 AU+5V VIDEO–5V SW+5V 6 14 2 16 11 3 DEVICE OPTICAL ER-027 BOARD (SEE PAGE 4-23) PS772 PS771 Q772,773 CN771 3 10 4 5 8 9 POWER 1 (SEE PAGE 3-14) 6 1 VIN 5 4 VOUT IC774 +3.3V REG MV-044 BOARD (SEE PAGE 4-9 to 4-18) IF-117 BOARD (SEE PAGE 4-27) LC-082 BOARD (SEE PAGE 4-32) IC206 64M SDRAM IC101 REMOTE COMMANDER RECEIVER AUDIO (SEE PAGE 3-12) L905 VCC EVER+11V EVER-10V EVER+5V SW+8V SW+3.3V P-CONT POWER SW SW+5V IN OUT 2 3 IN OUT 3 1 IC603 +5V REG IC503 -5V REG VIN VOUT 6 4 VIN VOUT 6 4 VIN VOUT 5 4 REG 2 CTL 8 SW+5V FILTER 2 CN205 CN401 3 4 2 3 SW-10V 4 CN403 CN102 5 7 5 7 CN402 EVER+3.3V SW-10V SW+3.3V EVER+3.3V SW+3.3V 3 CN201 13 12 11 1 2 P-CONT POWER_SW 3.3V_MNT PONCHK 30 POWER 37 PCONT 26 VREF 39 IC408 RESET ND101 LCD UNIT D102 PROGRESSIVE indicator IC404 IF CON REGO1 32 REGO2 S+3.6V 31 VREF 43 PWMVREF 210 IC101 FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED/LOADING MOTOR DRIVE PWM2VREF 211 VREFO 16 V2REFO 15 CN104 INLIMIT SENSOR LIMIT SW A ARP, SERVO DSP, AV DECODER, SYSTEM CONTROL IC209 VOLTAGE DETECTOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-1 DVP-LS755P SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. For printed wiring boards: • X : indicates a lead wire mounted on the component side. • x : indicates a lead wire mounted on the printed side. • a : Through hole. • b : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated.) For schematic diagram: • Caution when replacing chip parts. New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, because it is damaged by the heat. • All resistors are in ohms, 1/4 W (Chip resistors : 1/10 W) un- less otherwise specified. kΩ : 1000Ω, MΩ : 1000kΩ. • All capacitors are in µF unless otherwise noted. pF : µµF 50V or less are not indicated except for electrolytics and tantalums. • All variable and adjustable resistors have characteristic curve B, unless otherwise noted. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • f : internal component. • C : adjustment for repair. • U : B+ Line. • V : B– Line. • Circled numbers refer to waveforms. • Voltages are dc between measurement point. • Readings are taken with a color-bar signal on DVD refer- ence disc and when playing CD reference disc. • Readings are taken with a digital multimeter (DC 10MΩ). • Voltage variations may be noted due to normal production tolerances. Caution: Pattern face side: Parts on the pattern face side seen from (Side A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side B) the parts face are indicated. When indicating parts by reference number, please include the board name. Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-3 4-1. FRAME SCHEMATIC DIAGRAM 4-4 FRAME 21P CN901 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 CNJ902 21P A(R)OUT 1 A(R)IN 2 A(L)OUT 3 GND(A) 4 GND(E) 5 A(L)IN 6 B_OUT 7 FUNCTION_SW_OUT 8 GND(E) 9 AVLINKO 10 G_OUT 11 N.C. 12 GND(E) 13 GND(E) 14 R/C_OUT 15 BLANKING_OUT 16 GND(E) 17 GND(E) 18 V/Y_OUT 19 V_IN 20 GND(E) 21 24P GND(LD) 1 LD(650) 2 N.C 3 N.C 4 PD 5 LD(780) 6 VR(650) 7 VR(780) 8 N.C 9 VoE/e+g 10 Vcc 11 Vc 12 GND(PDIC) 13 VoF/f+h 14 VoB/b 15 VoA/a 16 RF 17 (LO:DVD,HI:CD) MSW 18 VoD/d 19 VoC/c 20 TRK- 21 TRK+ 22 FCS+ 23 FCS- 24 CN103 24P GND(LD) 1 LD(650) 2 N.C 3 N.C 4 PD 5 LD(780) 6 VR(650) 7 VR(780) 8 N.C 9 VoE/e+g 10 Vcc 11 Vc 12 GND(PDIC) 13 VoF/f+h 14 VoB/b 15 VoA/a 16 RF 17 (LO:DVD,HI:CD) MSW 18 VoD/d 19 VoC/c 20 TRK- 21 TRK+ 22 FCS+ 23 FCS- 24 M M 7P CN102 1 2 3 4 5 6 7 CN201 13P 1 2 3 4 5 6 7 8 9 10 11 12 13 4P CN205 1 2 3 4 6P CN204 1 2 3 4 5 6 CN502 21P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 13P CN402 1 2 3 4 5 6 7 8 9 10 11 12 13 12P CN403 1 DATA 2 SCK_LCD 3 STB 4 GND 5 SW +3.3V 6 IR 7 EVER +3.3V 8 LED1 9 LED2 10 O/C 11 STOP 12 PLAY 4P CN401 1 GND 2 SW+3.3V 3 SW-10V 4 EVER+3.3V M 7P CN001 1 TRGSW 2 NC 3 LDM+ 4 LDM- 5 GND 6 CKSW1 7 OCSW1 10P CN201 1 2 3 4 5 6 7 8 9 10 10P CN771 1 2 3 4 5 6 7 8 9 10 2P CN101 1 2 12P CN102 1 DATA 2 SCK_LCD 3 STB 4 GND 5 SW +3.3V 6 IR 7 EVER +3.3V 8 LED1 9 LED2 10 O/C 11 STOP 12 PLAY 6P 1 SP- 2 SP+ 3 LIMIT 4 (GND) LIMIT 5 SL- 6 SL+ 6P CN104 1 SP- 2 SP+ 3 LIMIT 4 (GND) LIMIT 5 SL- 6 SL+ XV_MUTE ERAUDIOL ERAUDIOR WIDE EUROVY Y/G D_GND_VIDEO Y Cr/B_Cr/R Cb/R_Cb/B RGBSEL SW+5V V VIDEO-5V ER-027 BOARD MOTOR SPINDLE SLED MOTOR INLIMIT SW OPTICAL DEVICE BASE UNIT KHM-310AAB/ SERVICE ASSY P-CONT POWER_SW 3.3V_MNT XA_MUTE SYSRST GND XV_MUTE SI0 SO0 SC0 OCSW1 RF MON GND TXD +3.3V RXD V2REF0 (FEM-002) FFC IF-117 BOARD (B to B) LOADING MOTOR M001 (FMP-010) FFC GND EVER+5V EVER+11V P-CONT SW+8V EVER-10V SW+3.3V SW+5V POWER SW MTR GND (PM-112) HARNESS AC_IN(N) AC_IN(L) POWER SUPPLY BLOCK DIAG (JIG) MV-044 BOARD B 10 3 1 J 12 14 6 5 8 9 A 7 H D 4 2 I 13 G 05 E C 11 F (FMP-012) FFC LINE (RGB)-TV FFC (FIL-001) MS-214 BOARD BOARD LC-082 HARNESS (MM-146) C DISC/XEXT +11V P_GND_AUDIO D_GND_VIDEO D_GND_VIDEO D_GND_VIDEO HARNESS (IM-065) SWITCHING REGULATOR SW+8V MTR GND POWER SW EVER+11V EVER+5V SW+5V GND SW+3.3V EVER-10V P-CONT SW+3.3V GND EVER+3.5V SW-10V TRG SW LDM- LDM+ OCSW1 GND N.C CKSW1 XIFCS IFBUSY POWER_SW P-CONT XA_MUTE XV_MUTE SCO GND SOO SIO XIFCS 3.3V_MNT SYSRST OCSW1 IFBUSY RGBSEL ERAUDIOL EUROVY P_GND_AUDIO ERAUDIOR +11V DISC/XEXT SW+5V WIDE XV_MUTE Cr/B_Cr/R D_GND_VIDEO Cb/R_Cb/B D_GND_VIDEO Y/G D_GND_VIDEO Y D_GND_VIDEO C VIDEO-5V V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-5 4-6 4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS MV-044 (RF AMP, SIGNAL PROCESS, SERVO, MOTOR DRIVE, AVDEC, VIDEO, AUDIO, PS THROUGH) PRINTED WIRING BOARD : Uses unleaded solder. RF AMP, SIGNAL PROCESS, SERVO, MOTOR DRIVE, AVDEC, VIDEO, AUDIO, PS THROUGH MV-044 There are a few cases that the part isn't mounted in this model is printed on this diagram. 54 55 108 109 162 163 216 1 IC201 R101 R1012 R1013 R1014 R1015 R1018 R1019 R102 R1020 R1021 R1028 R1031 R106 R107 R109 R110 R112 R113 R114 R115 R116 R117 R119 R123 R124 R126 R127 R128 R129 R130 R131 R132 R133 R134 R136 R139 R155 R156 R157 R158 R165 R166 R167 R168 R180 R182 R185 R187 R190 C274 R194 R195 R197 R198 R199 R202 R203 R204 R205 R206 R216 R217 R218 R220 R224 R227 R231 R244 C501 R248 R253 FB255 C509 R260 R261 R263 R264 R265 R266 R267 R268 R270 R272 R273 R274 C157 R276 CL171 R279 R281 R282 R283 R284 R285 R286 R287 R289 FB290 FB291 FB292 FB293 FB294 FB295 C514 C601 C101 C102 C103 C108 C602 C110 C112 C113 C114 C115 C116 C603 C604 C605 C120 C121 C122 C606 C607 C132 C133 C134 C135 C136 C137 C138 C608 C142 C144 C145 C146 C235 C148 C152 C154 C155 C156 C161 C165 C169 C172 C173 C174 C175 C178 C180 C181 C182 C183 C184 C185 C186 C187 C188 C189 C190 C191 C192 C193 C194 C195 C198 C614 C202 C203 C209 C212 C213 C214 C215 C218 C219 C221 C222 C223 C224 C227 C229 C231 C236 C237 C238 C619 C620 C243 C244 CL141 C247 C248 C249 C622 C251 C252 CL144 C256 C257 C258 CL170 C262 C266 C271 C272 C273 FB1022 FB1023 FB176 FB215 FB249 FB251 FB252 LP201 CL101 CL102 CL103CL104 CL105 CL106 CL107 CL108 CL109 CL119 CL120 CL169 CL202 CL203 CL204 CL205 CL206 CL207 CL208 CL209 CL210 C630 C771 C780 CL172 CL142 CL143 CL145 CL146 CL147 CL218 CL232 CL233 CL234 CL278 CL604 CL605 CL287 CL288 CL289 1 2 5 CN106 D159 R159 R229 R544 R545 D165 L165 FB201 FB202 FB203 FB204 FB205 FB206 Q168 1 16 8 9 IC207 R546 1 27 28 54 IC206 Q170 1 2 23 24 CN103 C789 1 2 CN105 38 39 65 64 102 103 128 1 IC102 C232 1 6 7 12 13 18 19 24 25 30 31 36 37 42 43 48 49 50 51 52 IC101 RV201 FL209 D201 1 3 CN206 FL101 FL102 FL103 FL202 FL203 FL204 FL205 FL206 FL207 FL208 R208 2 1 40 39 CN299 D510 D601 6 1 3 4 Q171 D602 3 4 1 6 IC151 3 4 1 6 IC202 D603 D604 C275 FB207 FL210 FL298 FL299 IC204 1 24 25 48 1 3 2 IC503 C276 C503 CL603 R547 R169 R170 R171 IC601 1 4 5 8 D605 R541 R596 R597 R642 R643 R2012 L166 L501 PS771 PS772 Q504 Q505 Q507 Q508 Q601 Q602 Q603 Q604 Q605 Q606 Q609 Q610 Q611 R2015 Q571 Q614 Q616 Q772 Q773 R2016 R141 R143 R178 R179 R181 R183 R184 R188 R189 R209 R210 R212 R213 R245 R246 R2013 R521 Q572 R524 FB525 R526 R527 R528 R529 R532 R535 Q573 Q574 Q613 R601 R602 R603 R604 R605 R606 R607 R608 R609 R610 R611 R612 R613 R614 R618 R620 R622 R624 R625 R628 R630 R629 R631 R632 R633 R636 R637 R638 R639 R571 R572 R646 R647 R649 R653 R654 R658 R659 R660 R661 R662 R573 R664 R665 R666 R667 R668 R669 IC602 1 4 5 8 R775 R776 R777 R778 R2001 R2004 R2005 RB202 RB203 R2022 R2023 R2025 R2026 R2028 FB1024 Q617 R550 R585 R230 R538 R539 FB555 FB2041 RB204 R623 D202 R554 IC209 3 4 1 2 RB206 R787 Q201 Q777 Q778 R161 R162 R163 R164 R201 R779 R780 R781 R782 R672 R574 R575 FB2036 FB2038 R576 R783 R577 R578 R579 R580 R581 R582 R583 D771 R786 R584 R615 R663 R586 LP101 RB205 R280 R191 LP702 CL279 LP701 LP601 C176 FB2039 C281 C280 JS001 1 4 5 8 IC205 JS003 JS002 R103 R104 R111 C104 C106 X201 C245 MV-044 BOARD (SIDE A) 1-861-511- 1 2 3 4 5 6 A B C D 05 C C C C C C C C C C C C C C E B B B E E B E C C C C C C C C C C C B B B B B E E E E E B E E E E E B B E B E E B B E E B B B B B K K K A A A A K K E E E E E B B E B B B C B E (22) 22 MV-044 BOARD (SIDE A) CN103 A-4 D159 A-6 D510 A-2 D601 C-1 D602 B-2 D603 C-2 D604 C-2 IC101 A-6 IC102 A-4 IC151 B-5 IC201 C-5 IC202 B-6 IC204 C-6 IC205 C-6 IC206 C-4 IC207 B-4 IC503 A-2 IC601 B-3 Q168 A-4 Q170 A-4 Q171 A-4 Q504 A-2 Q505 A-2 Q571 A-2 Q572 A-2 Q573 A-2 Q574 A-2 Q601 C-3 Q602 C-2 Q603 C-2 Q604 B-2 Q605 B-2 Q606 C-2 Q609 C-2 Q610 B-2 Q611 C-1 Q616 C-2 Q772 C-3 Q773 C-3 IF-117 board (INTERFACE CONTROL) ER-027 board (EURO AV) MV-044 board (RF AMP, SIGNAL PROCESS, SERVO, MOTOR DRIVE, AVDEC, VIDEO, AUDIO, PS THROUGH) LC-082 board (FUNCTION SWITCH) MS-214 board (LOADING MOTOR) Power supply block (SWITCHING REGULATOR) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-7 4-8 RF AMP, SIGNAL PROCESS, SERVO, MOTOR DRIVE, AVDEC, VIDEO, AUDIO, PS THROUGH MV-044 C117 C118 C119 R105 C123 C131 C140 R122 C177 C179 C196 C197 C199 C207 C225 R175 C226 C240 C241 C242 C246 C250 C253 C261 C268 C297 C211 R207 C299 R225 R226 C505 R557 C512 R288 R296 R297 C111 C166 C616 C615 C618 C617 C254 C255 C625 C109 C626 C778 C779 C782 C783 C790 C204 C208 B JL163 JL164 C267 C217 B C228 B JL181 C A K D508 C A K D509 JL182 JS004 19 36 IC502 IC603 IC774 1 2 3 4 5 JL101 JL102 JL103 JL141 JL142 JL143 JL144 JL145 JL146 JL147 JL149 JL150 JL151 JL152 JL153 JL154 JL155 JL156 JL157 JL158 JL159 JL160 JL161 JL162 JL170 JL169 JL166 JL165 JL168 JL167 JL183 JL184 JL185 CN102 CN101 JL202 JL203 JL204 JL205 JL206 JL207 JL208 JL209 JL210 JL211 JL212 JL213 JL224 C504 JL186 JL241 JL242 JL243 JL244 JL245 JL187 JL247 JL539 JL537 JL642 JL251 JL252 JL253 JL538 JL641 JL643 JL257 JL259 JL645 JL261 JL266 JL267 JL268 JL269 JL270 JL271 JL279 JL273 JL274 JL275 JL276 JL277 JL278 JL646 JL501 JL502 JL503 JL504 JL505 JL507 JL509 JL510 JL511 JL512 JL513 JL514 JL515 JL516 JL517 JL518 JL519 JL520 JL522 JL523 JL524 JL525 JL526 JL527 JL528 JL529 JL530 JL531 JL532 JL533 JL534 JL536 JL602 JL603 JL604 1 2 3 4 5 IC208 JS771 JL521 JL644 C B E Q607 C B E Q608 R118 R120 R121 R140 R142 R144 R145 R146 R160 R186 R192 R193 R219 R221 R222 R223 R228 R232 R234 R236 R247 R254 R256 R257 R258 R259 R262 R269 R298 R523 R530 R533 R534 R536 R598 R599 R537 R616 R617 R619 R621 R626 R627 R634 R635 R641 R640 R648 R650 R651 R652 R655 R656 R657 R683 R684 R1017 R1026 R1027 R2002 R2003 R2024 R2027 R548 R556 R788 JL771 JL772 JL773 JL774 JL775 JL776 JL777 JL778 JL779 JL780 R549 R135 R211 R214 R784 R785 #PC00861 R2018 R2019 R2029 R2030 R2035 R2034 R2033 R2032 R2031 R2036 R2014 C259 C263 FB2040 FB2037 R172 R173 1 12 13 24 1 18 JL148 MV-044 BOARD (SIDE B) 1-861-511- CN502 S501 CN604 1 6 C507 C510 C511 C513 C609 C610 C612 C613 C631 CN503 C611 C628 C640 C641 C642 C643 C644 C776 C784 C775 CN771 10 1 C627 C629 IC604 IC605 J501 J502 1 4 CN205 C239 C264 C265 C269 C270 1 7 CN207 C210 C298 C296 C220 C233 C206 C216 CN201 TP201 X202 C260 C141 C139 C143 C153 C167 C168 C171 1 6 C170 CN104 C107 C124 C125 C126 CN204 R553 C502 1 2 3 4 5 6 A B C D 05 1 2 13 12 1 7 2 6 1 6 1 2 3 OPTICAL COAXIAL DIGITAL OUT R Y L AUDIO PR/CR PB/CB COMPONET VIDEO OUT LINE OUT VIDEO LINE OUT S VIDEO OUT NORMAL PROGRESSIVE (22) 22 Y V C CR/R CB/B L R Y/G COAX MV-044 BOARD (SIDE B) CN102 A-6 CN104 A-5 CN201 B-6 CN204 A-3 CN205 C-3 CN502 A-1 CN771 C-2 D508 A-1 D509 B-1 IC208 B-4 IC502 B-2 IC603 C-3 IC605 C-1 IC774 D-3 Q607 B-1 Q608 C-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ D:DVD PLAY C:CD PLAY NO MARK:DVD/CD PLAY 3.9 4 4 4.9 3.6 4 4 D2.8/C3.2 D5.2/C4.7 D1.2/C3.9 4 8.2 D1.9/C2 4.8 1.4 1.4 1.4 1.4 1.4 1.4 3.2 3.2 2.2 1.4 1.4 1.4 1.4 1.1 0 D0/C3.3 3.2 3.2 3.3 8.2 1.4 3.2 D1.2/C3.9 D1.7C2.6 1.4 D2.9 /C3.3 D1.9 /C2.1 D0/C3.3 3.3 D2.3/C0 1.3 1.6 1.5 0 3.3 1.5 2 1.3 1.4 2.8 3.3 1 1 3.3 3.3 0 D0/C3.3 D0/C3.3 0.4 3.3 3.3 3.2 0.3 3.2 0.2 1.6 D3.2/C0 3.3 0 0 0 0.2 3.3 3.3 3.3 1.3 1.3 1 1.4 1.3 1.5 1.5 1.5 1.5 2.1 1.5 2.1 2.1 2.1 2 2 3.3 3.3 0 D3.2/C2.4 0 0.9 3.3 2 D2.6/C3.2 D3/C0.1 D2.4/C2.7 D1.4/C1.7 D0.1/C0.5 D1.7/C2.6 D0.1/C0.5 2 1 D3.2/C0 D0.1 /C4.2 D0/C0.2 D0.2/C0 D0.1 /C4.2 0 /C0 D2.6 /C3.2 D3.2 /C2.4 D3.6 /C3.1 D3.2 /C3.6 D2.4/C0.1 D0.2/C1.9 4.8 1.3 4.8 3.3 D0.1/C0.5 3 4 D3.2 SCLK MTR_GND ADIN GND FOO V2P8 PWMOUT2 RFIP TRO +5V RFL GND SYSRST BDO SDEN +8V TROPENPWM RF+3.3V SDATA RFMON FMO GND TEO DMO RFZC RFRP FEO RFIN CSO V1P4 OCSW1 CL142 CL144 CL141 CL119 CL106 CL103 CL170 CL108 CL102 CL171 CL147 CL104 CL105 CL143 CL145 CL101 CL120 CL109 CL146 CL169 CL172 CL107 0.1u C173 XX C133 0.01u C110 XX C101 0.01u C176 1u C177 XX C146 0.01u C119 0.033u C197 0.22u C152 0.033u C112 0.1u C138 1u C178 C188 XX 0.015u C190 0.1u C120 0.015u C194 XX C174 0.01u C169 82p C198 0.001u C156 0.01u C172 0.1u C140 2200p C144 470p C184 220p C106 XX C131 0.001u C155 0.1u C185 0.1u C132 0.1u C175 XX C191 XX C108 0.01u C114 0.1u C121 XX C103 0.01u C113 0.01u C115 1u C179 0.1u C186 0.01u C117 0.001u C116 0.01u C166 0.1u C189 XX C187 XX C195 0.1u C193 0.01u C123 0.01u C154 0.01u C165 0.22u C161 4700p C148 0.001u C157 XX C102 220p C104 2200p C145 0.033u C111 1u C181 XX C196 XX C118 1u C180 0.1u C122 0.01u C109 390p C199 0.1u C142 ±0.5% 56k R123 47k R182 XX R168 1200 R110 R197 4700 33k R104 10k R1026 47k R192 1M R185 47k R119 0 R194 10k R1031 XX R140 XX R144 XX R113 XX R161 XX R167 XX R115 0 R191 10k R114 XX R142 ±0.5% 22 R183 XX R1013 10k R107 XX R143 XX R118 ±0.5% 56k R122 ±0.5% 22 R178 12k R109 100k R173 R158 4700 R141 XX XX R193 XX R163 12k R117 10k R132 R198 1k 0 R187 10k R195 1k R156 ±0.5% 100k R120 R157 4700 6800 R124 100 R180 10k R101 XX R145 47k R186 2700 R112 ±0.5% 18k R130 ±0.5% 100k R121 R199 15k 100 R175 XX R1014 XX R116 10k R127 ±0.5% 22 R184 XX R166 1k R181 10k R1027 33k R128 15k R111 XX R146 XX R106 0 R190 XX R1028 10k R102 XX R164 1k R155 22 R189 22 R188 100 R1015 XX R139 XX R165 XX R162 33k R103 27k R126 ±0.5% 33k R131 1k R169 4700 R170 ±0.5% R136 15k XX R135 R172 100k XX R105 22 R179 R129 82k JL186 JL155 JL158 JL170 JL151 JL149 JL162 JL102 JL160 JL142 JL184 JL168 JL159 JL141 JL103 JL166 JL153 JL167 JL164 JL156 JL145 JL169 JL165 JL143 JL147 JL185 JL152 JL161 JL187 JL154 JL183 JL144 JL157 JL146 JL150 JL163 JL101 JL181 JL148 JL182 CN105 XX 1 S+3.6V 2 IOP XX C192 XX C136 XX C135 XX C137 XX C182 XX C134 FB1023 FB1024 FB1022 FB176 50V 10u C141 16V 47u C168 47u C153 16V 50V 10u C124 XX C170 XX C167 10u C143 50V 16V 47u C171 16V 47u C126 50V 10u C139 C125 16V 47u 50V C107 10u XX L165 XX L166 RB521S-30-TE61 D159 XX D165 0 R134 XX R171 0 R1021 XX R1017 XX R1012 0 R133 100 R160 XX R159 XX R1020 XX R1019 0 R1018 6P CN104 1 SP- 2 SP+ 3 LIMIT 4 (GND) LIMIT 5 SL- 6 SL+ UM6K1N-TN Q170 6 1 5 2 4 3 0 JS004 JS003 0 QST8TR Q171 6 5 1 3 2 4 XX FL103 XX FL102 XX FL101 FAN8036L IC101 1 2 3 4 5 6 14 15 16 17 18 19 20 21 22 23 24 27 28 29 30 31 32 33 34 35 36 40 41 42 43 44 45 46 47 48 50 51 52 49 13 25 26 37 38 39 11 12 9 10 7 8 TK11233CMCL-G IC151 1 2 3 4 5 6 Q168 UN2212-TX CN106 XX 1 RF 2 GND 3 FE 4 TE 5 PI XX CN101 1 OCSW1 / REV 2 CKSW1 / FWD 3 GND / CTL 4 LDM- 5 LDM+ 7P CN102 1 2 3 4 5 6 7 CN103 24P GND(LD) 1 LD(650) 2 N.C 3 N.C 4 PD 5 LD(780) 6 VR(650) 7 VR(780) 8 N.C 9 VoE/e+g 10 Vcc 11 Vc 12 GND(PDIC) 13 VoF/f+h 14 VoB/b 15 VoA/a 16 RF 17 (LO:DVD,HI:CD) MSW 18 VoD/d 19 VoC/c 20 TRK- 21 TRK+ 22 FCS+ 23 FCS- 24 XX C183 M M IC102 CXD9780R 1 WOBSO 2 WVDD 3 AGNDX 4 AGNDX 5 AVDDO 6 RFOP 7 RFON 8 AGNDO 9 TM1 10 TM2 11 TM3 12 AGNDT 13 TM4 14 AVDDT 15 V2REFO 16 VREFO 17 V20 18 FEO 19 LVL 20 CSO 21 TEO 22 VDDP 23 DEFECT 24 LRFRP 25 HRFRP 26 CRTP 27 CRTPLP 28 TRLPA 29 TRLP 30 HTRC 31 GNDP 32 DPFN 33 DPFO 34 AGNDX 35 AGNDX 36 AGNDX 37 VDD 38 VFO13 39 GND 40 UDGATE 41 HDGATE 42 IO0 43 IO1 44 IO2 45 IO3 46 IO4 47 IO5 48 IO6 49 IO7 50 IO8 51 IO9 52 IOA 53 IOB 54 VDDS 55 XCK16M 56 SCLK 57 GNDS 58 SDEN 59 SDATA 60 RST 61 DPDMUTE 62 AGNDP 63 AGNDX 64 AVDDP 65 AGNDF 66 VCON 67 AVDDF 68 AGNDX 69 AVDDM 70 COSPHI 71 HALLCOS 72 REFCOS 73 AGNDM 74 HALLSIN 75 REFSIN 76 SINPHI 77 SW0 78 SW2 79 SW1 80 MOP 81 MON 82 AGNDX 83 AGNDX 84 CEON 85 CEOP 86 RFGCI 87 RFGCU 88 RFFGC 89 OSP 90 OSN 91 CDD 92 CDC 93 CDB 94 CDA 95 DVDRFIN 96 DVDRFIP 97 DVDD 98 DVDC 99 DVDB 100 DVDA 101 MA 102 MB 103 MC 104 MD 105 SA 106 SB 107 AGND 108 IR 109 AVDD 110 SC 111 SD 112 CDFOP 113 CDFON 114 SVDD 115 TPI 116 TNI 117 SGND 118 WGAND 119 AGC1 120 WAVDD 121 AGC2 122 AGC3 123 MDI2 124 MDI1 125 LDO1 126 LDO2 127 RFSUBO 128 WGND FCS- FCS+ TRK+ TRK- FE TE PI SL+ VOC VOD FE TE VOF VOE VOA VOB SP- SP- SP+ SL+ SL- VOC VOD VOA VOB VOF VOE DVD_LD CD_LD SCLK SDEN SDATA SYSRST PWMOUT2 SCLK SDEN SDATA SYSRST PWMOUT2 TRK- TRK+ FCS+ FCS- CD_LD SL- SP+ PI DVD_LD OPIN2- FWD OUT4 PGND1 IN4+ IN3- DO4- SW RES1 DO3+ MUTE123 IN2- OUT3 MUTE4 D IN2+ REV DO1- CTL REGO2 IN4- OUT2 DO4+ DO2- IN1+ DO2+ DO5+ OP+ MUTE4 REGO1 PVCC2 TSD_M VREF DO5- PS REG2CTL REG VCC OP- OUT1 D IN3+ - PGND2 MSC MUTE123 Power Save OPO SVCC (5V) OPIN2+ PVCC1 SGND RES2 OPOUT2 + DO1+ DO3- IN1- TSD_M VIN GND VOUT CONT NOISE GND REGVCC (8V) REGVCC REGVCC OCSW1 CKSW1 GND LDM- LDM+ N.C TRG SW CN001 MS-214 BOARD (SEE PAGE 4-30) MV-044 BOARD(2/5) MV-044 BOARD (2/5) (2/5) MV-044 BOARD IC151 3.3V REG IC102 DVD/CD RF AMP, SERVO ERROR PROCESS COIL DRIVE, FOCUS/TRACKING IC101 MOTOR DRIVE SPINDLE/SLED/LOADING VR SELECT SWITCH INVERTER LD DRIVE DVD/CD MV-044 BOARD(2/5) LD MODULE COIL DVD/CD COIL DEVICE OPTICAL PD IC DVD/CD FOCUS SW SPINDLE TRACKING MOTOR SLED INLIMIT MOTOR (2/5) MV-044 BOARD 21 B 10 N L 3 1 J 12 14 6 K 18 5 20 M 8 9 A 7 H D 19 4 2 I 13 G 05 E 16 C 15 17 11 F P O Q 23 22 XX MARK:NO MOUNT MV-044 BOARD (1/5) Y/CHROMA SIGNAL PATH SLED SERVO DVD/CD PB SIGNAL TRACKING SERVO DVD/CD CDV VIDEO SIGNAL SPINDLE SERVO(SPEED AND PHASE) AUDIO FOCUS SERVO KHM-310AAB/ SERVICE ASSY BASE UNIT ±0.5% 4-9 4-10 RF AMP, SERVO, MOTOR DRIVE MV-044 (1/5) MV-044 (RF AMP, SERVO, MOTOR DRIVE) SCHEMATIC DIAGRAM • See page 4-5 for printed wiring board. • See page 4-19 for Waveforms. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-11 4-12 MV-044 (SIGNAL PROCESS, SERVO DSP, AVDEC) SCHEMATIC DIAGRAM • See page 4-5 for printed wiring board. • See page 4-19 for Waveforms. SIGNAL PROCESS, SERVO DSP, AVDEC MV-044 (2/5) B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B- B- B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B- B+ B+ B+ B+ 0 0 5 2.4 2.4 2.4 2.4 1.6 1.6 0 1.6 3.3 3.3 3.3 0 3.3 4.8 1.3 4.8 1.4 3.3 1.2 0.9 0.2 1.4 1.5 1.5 1.7 0.9 1.7 1.4 3.3 0 1.4 0 1.4 2.2 2.5 1.4 3.3 3.3 2.3 3.3 2.1 1.5 1.4 2.7 2.7 1.6 0.1 2.5 0.3 1.4 1.4 1.4 1.2 3.3 3 2.5 0 3.3 3.3 1.6 3.3 1.6 1.6 0 1.6 3.3 3.3 3.3 0 0.1 0 0.8 1.8 0.6 3.3 1.6 1.8 1.8 2 1.8 1.8 2.1 3.2 3.2 1.2 2.9 3 0.7 2.5 0.9 1.2 1.1 2 1.1 1.8 2.1 3.3 2.5 3.9 4.2 4.2 3.3 3.3 3.9 4.3 3.3 3.2 3.3 3.3 3.3 1.5 2.5 0 0 1.2 3.3 0.9 0.5 2.2 4.4 3.1 2 2.4 1.4 2.4 2 2.1 3.3 1.8 1.8 1.2 0.1 1.6 1.3 0.1 2.2 2.5 2.1 2.3 2.8 1.4 1.5 1.2 1.3 0.1 1.3 0 0.2 1.4 2.8 1.4 1.4 D2.3/C0 1.3 0 1.5 1.5 0 1.6 0.1 3.3 0 1.6 1.7 3.3 3.8 2.5 0 0.4 D1.4/C1.7 D2.4/C2.7 D3/C0.1 D0.1/C0.5 0 3.3 0 3.3 0.5 3.3 0.6 0.6 3.3 0.5 0.5 12 11 10 9 8 7 0.6 6 5 0 1.4 1.5 2.1 0.1 0 2.3 1.8 3.3 1.6 2 1.8 3.3 2.1 1.8 1.8 1.8 0.8 0.6 3.3 3.3 0.9 3.3 1.2 0.7 1.1 1.1 3.3 2 1.8 2.1 3.3 3.2 2.7 3.2 3 2.9 1.2 0.1 1.6 0.3 1.4 1.4 1.4 3.3 3.3 3.3 3.3 1.3 3.3 2.5 0.1 0.1 1.4 2.1 1.8 1.8 1.2 1.3 1.6 0.1 0 0 2.1 3.3 1.3 2.4 3.1 2 0.5 2.4 2 2.2 3.3 0.2 3.3 1.3 3.3 0 0 1.4 1.2 0.9 2.8 2.3 1.5 2.2 D:DVD PLAY C:CD PLAY NO MARK:DVD/CD PLAY 2.7 B+ 3 4 GND C MTR_GND FMO SW+8V TRO ART- +5V XV_MUTE XRMUTE ALT- SW+3.3V DISC/XEXT V SW-10V XMAMUTE WIDE GND +5V MTR_GND OCSW1 KRMOD +8V EUROVY PWMOUT2 XLMUTE SW+5V Y GND V1P4 P-CONT ALT+ CB/B TROPENPWM CR/R P_GND_AUDIO SPDIF EVER+3.5V XA_MUTE AU+5V RF+3.3V FOO IPSW DMO RGBSEL DSEL XVOICE POWER_SW RFMON ART+ V2P8 Y/G P_GND_SPDIF MIC XX CN299 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 JL271 JL270 JL268 JL252 JL273 JL279 JL269 JL278 JL205 JL277 JL206 JL210 JL259 JL211 JL242 JL267 JL224 JL261 JL251 JL203 JL243 JL212 JL207 JL245 JL247 JL274 JL204 JL257 JL275 JL202 JL276 JL241 JL253 JL209 JL244 JL213 JL266 JL208 XX R206 XX R274 XX R269 XX R2029 XX R259 0 R2036 ±0.5% 75 R264 XX R2014 47 R285 XX R2026 ±0.5% 75 R266 10k R221 XX R257 ±0.5% 560 R276 R2027 0 47 R261 XX R217 XX R245 100 R2019 XX R212 XX R2005 XX R204 R2015 XX XX R262 R247 100 XX R218 XX R283 XX R281 FB2016 XX XX R2001 10k R223 R2025 XX XX R256 ±0.5% 75 R265 XX R236 47 R2033 XX R246 XX R282 R270 XX 10k R2023 R2013 XX 10k R2030 47 R287 XX R202 2700 R280 100 R258 XX R2004 22 R260 10k R213 1k R226 47 R2034 8200 R220 XX R2012 47 R288 R203 XX 10k R222 XX R2002 100 R279 47 R253 XX R209 10k R2028 XX R228 ±0.5% 75 R268 FB2018 XX 0 R224 1k R225 ±0.5% 75 R267 XX R297 47 R286 XX R234 XX R205 10k R2024 0 R298 XX R219 47 R284 10k R216 XX R296 47 R2031 ±0.5% 75 R263 XX R2035 R273 XX 10k R2022 * XX R210 XX R2003 47 R2032 XX R254 XX R232 0.001u C235 C244 12p C242 XX 0.1u C237 C248 0.01u 0.1u C267 C245 10p C240 0.01u 0.1u C231 C273 100p 0.01u C268 0.1u C229 0.22u C262 XX C221 XX C261 C243 0.01u 0.001u C258 0.01u C219 0.01u C227 XX C271 0.01u C256 0.01u C203 C225 0.01u 0.01u C236 0.01u C223 XX C238 XX C226 XX C253 2.2u C232 0.01u C222 C241 0.01u 2.2u C276 0.01u C263 0.01u C213 0.22u C259 0.22u C207 C247 0.01u C212 100p 1u C215 C249 0.01u C252 0.1u C250 0.01u XX C272 0.22u C266 0.01u C257 0.01u C246 0.22u C202 C254 XX 0.1u C281 XX C275 XX C274 XX C297 0.1u C280 C255 0.01u 0.01u C218 C224 0.01u 0.1u C251 0.01u C299 0.1u C214 C209 0.01u C239 16V 47u C233 XX XX C208 C298 16V 47u XX C206 16V 47u C216 XX C217 47u C260 16V C210 XX C296 XX FL206 XX XX FL203 XX FL205 FL208 XX FL204 FL207 FL202 XX XX FL298 XX FL210 FL299 FB201 FB294 FB2038 FB2039 FB2036 FB206 FB251 FB202 FB207 XX FB252 FB2041 FB2040 FB215 FB249 FB292 FB295 FB203 FB293 FB204 FB255 FB290 XX FB2037 FB205 FB291 16V 47u C269 C220 16V 47u 50V 10u C265 XX C228 16V 47u C270 47u 16V C264 CL209 CL234 CL206 CL289 CL288 CL287 CL204 CL278 CL210 CL203 CL208 CL207 CL218 CL205 CL279 CL202 CL233 CL232 TP201 CN206 XX 1 SPMCLK 2 GND 3 SPLRCK X201 XX X202 27MHz R208 0 XX R231 XX R229 R248 100k 0 R230 18k R244 100k R227 R289 750k TK11133CSCL-G IC208 1 2 3 4 5 IC206 K4S641632H-UC75T 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 AK4385VT-E2 IC207 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 RB203 XX RB202 XX RB206 47 RB204 47 RB205 47 IC205 BR24L16FJ-WE2 1 2 3 4 5 6 7 8 CN201 13P 1 2 3 4 5 6 7 8 9 10 11 12 13 TK11225CMCL-G IC202 1 2 3 4 5 6 XX CN207 1 2 3 4 5 6 7 FL209 XX D201 XX JS001 0 JS002 RV201 XX IC201 CXD9781R 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 44 52 43 51 42 50 41 49 40 48 39 47 38 46 37 45 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 209 210 211 212 213 214 215 216 4P CN205 1 2 3 4 6P CN204 1 2 3 4 5 6 IC204 MBM29LV160BE70TN-KE1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 SDATA SDEN SCLK SYSRST RFIN RFIP RFL FEO TEO CSO RFRP BDO ADIN RFZC XX C204 R272 A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 HD0 HD1 HD2 HD3 HD4 HD5 HD6 HD7 RA3 RA2 RA1 RA0 RA10 RA4 RA5 RA6 RA7 RA11 RA8 RA11 RA9 RA8 RA7 RA6 RA5 RA4 BA0 BA1 RA10 RA0 RA1 RA2 RA3 DQM1 DRCLK DRCLE DQM0 RWE CAS RAS RCS DQM0 DQM1 RD0 RD1 RD2 RD3 RD4 RD5 RD6 RD7 RD8 RD9 RD10 RD11 RD12 RD13 RD14 RD15 RFRP FEO CSO RFIP RFL BDO SDATA SCLK SDEN ADIN TEO RFZC BA1 BA0 RCS RAS CAS RWE XROMCS DRCLK DRCLE HD7 A14 A15 A16 A0 A1 HD0 A2 HD1 A3 A4 HD2 A20 A5 A17 A6 HD3 A19 A9 A7 HD4 A18 A11 HD5 A10 A12 HD6 A8 A13 HD0 HD1 HD7 HD6 HD5 HD4 HD3 HD2 A8 A9 A10 A11 A12 A13 A14 A15 XRD RD10 RD8 RD0 RD1 RD3 RD9 RD11 RD13 RD2 RD12 RD14 RD15 RD4 RD5 RD6 RD7 RFIN XROMCS XRD XWR SCLK SDEN SDATA SYSRST RFIN RFIP RFL FEO TEO CSO RFRP BDO ADIN RFZC RA9 SYSRST XWR IREF PLLVSS LPIOP LPION LPFON LPFIP LPFIN LPFOP JITFO JITFN PLLVDD3 FOO TRO TROPENPWM PWMOUT1 PWMOUT2 DVDD2 DMO FMO DVSS FG HIGHA0 HIGHA1 HIGHA2 HIGHA3 HIGHA4 HIGHA5 DVSS HIGHA6 HIGHA7 AD7 AD6 AD5 AD4 DVDD3 AD3 AD2 AD1 AD0 IOA0 IOA1 DVDD2 IOA2 IOA3 IOA4 IOA5 IOA6 IOA7 A16 A17 IOA18 IOA19 IOA20 APLLVSS APLLVDD3 ALE IOOE IOWR IOCS DVSS IFBSY IFSCK IFSDO XIFCS SCL DVDD3 SDA XDACS IFSDI INT0 IR DVDD2 RXD TXD UWR URD DVSS RD7 RD6 RD5 RD4 DVDD2 RD3 RD2 RD1 RD0 RWE CAS RAS RCS BA0 DVSS RD15 RD14 RD13 RD12 DVDD3 RD11 RD10 RD9 RD8 DVSS CLK CLE RA11 RA9 RA8 DMVDD3 DMVSS RA7 DVDD3 RA6 RA5 RA4 DVSS DQM1 DQM0 BA1 RA10 DVDD2 RA0 RA1 RA2 RA3 DVSS RD31 RD30 RD29 RD28 DVDD3 RD27 RD26 RD25 RD24 DVSS DQM3 DQM2 KRMOD VOICE DVDD2 MIC DSEL DISC/XEXT EUROVY DVSS RGBSEL NT/XPAL ABCK ALRCK DVDD3 ACLK MC_DATA SPDIF ASDATA0 ASDATA1 ASDATA2 ASDATA3 XRST DACVDDC VREF FS YUV0/CIN DACVSSC YUV1/C DACVDDB YUV2/Y DACVSSB YUV3/CVBS DACVDDA YUV4/G DACVSSA YUV5/B YUV6/R ICE WIDE MAMUTE ADSCK DVSS ADSDO SPMCLK IPSW DVDD2 SPLRCK SPBCK DVDD3 XTALO XTALI PRST DVSS VFO13 IDGATE DVDD3 UPGATE WOBSI SDATA SDEN SLCK BDO ADCVSS ADIN RFSUBI TEZISLV TEI CSO FEI RFLEVEL RFRP_DC RFRP_AC HRFZC PWMVREF PWM2VREF ADCVDD3 RFDTSLVP RFDTSLVN RFIN RFIP VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 VDD LDQM WE CAS RAS CS BA0 BA1 A10/AP A0 A1 A2 A3 VDD VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 VSS NC UDQM CLK CLKE NC A11 A9 A8 A7 A6 A5 A4 VSS A0 A1 A2 GND VCC WP SCL SDA CSN BICK MCLK AOUTL+ VSS VDD XDZFR AOUTR- XDZFL PDN AOUTR+ CDTI LRCK AOUTL- CCLK SDTI LPFIP LPFOP JITFN JITFO FG VOUT CONT NOISE VIN GND GND RXD TXD RF MON V2REF0 +3.3V GND CONT VIN VOUT GND NOISE A18 DQ3 RY/BY A17 DQ13 VSS RESET A4 A3 DQ4 A16 A1 DQ9 DQ10 N.C. A14 OE BYTE DQ12 A13 A2 A0 A9 DQ0 A6 DQ8 DQ11 VSS DQ7 DQ2 WE A5 DQ15/A-1 A20 A7 CE A19 WP/ACC DQ6 DQ14 A11 A10 VCC A12 A8 DQ5 A15 DQ1 GND GND GND GND GND AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7 A15 A14 A13 A12 A11 A10 A9 A8 DV33 DV33 IFBSY IR IOCE# BUFOE# ALE URD# UWR# INT0# URST XDACS SDA XIFCS SCK SDI SCL SDO VCC SW+8V SW+5V MTR GND GND SW+3.3V SW-10V EVER+3.5V SW-10V EVER+3.3V GND SW+3.3V FOCUS SERVO SLED SERVO DVD/CD SPINDLE SERVO(SPEED AND PHASE) TRACKING SERVO DVD/CD CDV MV-044 BOARD (4/5) MV-044 BOARD (3/5) MV-044 BOARD (4/5) DIAG (JIG) MV-044 BOARD(1/5) (5/5) MV-044 BOARD (SEE PAGE 4-27) IF-117 BOARD CN401 3.3V REG IC208 AUDIO D/A CONVERTER IC207 IC201 AV DECODER, SYSTEM CONTROL ARP,SERVO DSP, 16M FLASH ROM IC204 +2.5V REG IC202 EEPROM IC205 64M SDRAM IC206 MV-044 BOARD(3/5) MV-044 BOARD(4/5) MV-044 BOARD (1/5) MV-044 BOARD(5/5) (SEE PAGE 4-28) CN402 IF-117 BOARD (1/5) MV-044 BOARD PB Y/CHROMA AUDIO Y SIGNAL PATH SIGNAL VIDEO SIGNAL CHROMA 21 B 10 N L 3 1 J 12 14 6 K 18 5 20 M 8 9 A 7 H D 19 4 2 I 13 G 05 E 16 C 15 17 11 F O P Q R 22 23 21 24 25 MV-044 BOARD (3/5) MV-044 BOARD (2/5) XX MARK:NO MOUNT MV-044 BOARD(1/5) MV-044 BOARD(2/5) (1/5) MV-044 BOARD (1/5,2/5) MV-044 BOARD SC0 SI0 SYSRST SO0 GND OCSW1 3.3V_MNT XIFCS IFBUSY XV_MUTE XA_MUTE P-CONT POWER_SW UN2217-QRS-TX Q201 R201 XX XX R207 4.7k R211 10k R214 XX C211 1 OUT 2 VDD 3 N.C 4 VSS VOLTAGE DETECTOR SWITCH IC209 S-80828CNNB-B8NT2G IC209 D202 DAN202K-T-146 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-13 4-14 VIDEO AMP MV-044 (3/5) MV-044 (VIDEO AMP) SCHEMATIC DIAGRAM • See page 4-5 for printed wiring board. • See page 4-19 for Waveforms. B+ B+ B- B- B- B- B- B- B- B- B- B- B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ NO MARK:DVD/CD PLAY 4.8 0 4.8 4.8 0.4 0 0.4 -5 -5 4.8 0.4 0 0 -5 0.5 0.7 0.6 3.3 0.5 1.3 0.5 1.3 0.6 2.8 0.6 -5 13 14 15 16 17 18 -0.1 0.5 4.8 -0.1 -5 4.8 0.5 -0.1 0.5 -5 -0.1 0 -5 -10.9 0.5 Y/G GND DISC/XEXT COAX IPSW P_GND_AUDIO Y XV_MUTE ERAUDIOL RCH_OUT LCH_OUT WIDE SW+5V VIDEO-5V CB/B ERAUDIOR EVER+11V_VID C V RGBSEL CR/R EUROVY SW-10V DSEL XX R536 XX R596 XX R546 XX R539 R557 0 XX R545 XX R541 XX R597 XX R526 ±0.5% R527 75 XX R544 XX R538 R528 75 ±0.5% R556 0 0 R547 XX R571 1k R576 XX R584 0 R549 XX R586 ±0.5% 75 R533 ±0.5% R535 75 R583 1k XX R577 XX R585 10k R521 ±0.5% 75 R530 R582 0 ±0.5% 75 R534 XX R550 10k R529 0 R578 0 R548 0 R554 0 R575 2SA1162-YGR-TE85L Q572 Q574 2SA1162-YGR-TE85L CN502 21P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 JL524 JL527 JL513 JL514 JL518 JL536 JL519 JL520 JL538 JL501 JL533 JL502 JL529 JL510 JL505 JL539 JL523 JL532 JL503 JL504 JL528 JL511 JL512 JL526 JL530 JL516 JL517 JL515 JL525 JL534 JL521 JL522 JL537 JL531 JL507 JL509 NJM79M05DL1A(TE2) IC503 1 GND 2 IN 3 OUT XX R524 100 R574 R580 1k XX R523 XX R537 100 R579 R532 10k R573 1k 100 R572 100 R581 0.01u C501 0.01u C503 XX C505 0.01u C504 C507 47u 16V 16V 47u C502 16V 47u C513 MUN2213T1 Q504 XX Q507 R553 XX 16V 47u C511 16V 47u C510 1SS355TE-17 D510 STZ6.8N-T146 D509 STZ6.8N-T146 D508 Q508 XX MUN2111T1 Q505 Q571 2SC2712-YGR-TE85L 2SC2712-YGR-TE85L Q573 FB555 FB525 0.1u C509 0.1u C514 0.1u C512 XX L501 CN503 XX 1 2 3 4 5 6 7 IC502 LA73053-TLM-E NC 1 NC 2 V_IN 3 DCCNT1 4 GND 5 C_IN 6 MUTE1 7 Y_IN 8 NC(DCCNT2) 9 NC(GND) 10 NC 11 Y_IN(NC) 12 DCCNT2 13 GND 14 Cb_IN 15 MUTE2 16 Cr_IN 17 -5V 18 -5V 19 Cb_OUT 22 GND 23 Y/G_OUT 24 +5V(NC) 25 NC 26 -5V 27 -5V 28 Y_OUT 29 NC 30 C_OUT 31 GND 32 V_OUT 33 +5V 34 NC 35 NC 36 NC 21 Cr_OUT 20 S501 P_GND_SPDIF XX R599 0 R598 7 6 4 5 1 3 2 NORMAL PROGRESSIVE Q504,505 Y G G C J502 XX J501 COAXIAL DIGITAL OUT LINE OUT L R AUDIO Y PB B /C PR R /C VIDEO OUT COMPONENT S VIDEO OUT VIDEO LINE OUT Y/G GND COAX CB/B GND R CR/R GND L V C GND GND GND Y GND (4/5) MV-044 BOARD WIDE SWITCH IC502 VIDEO BUFFER Q573,574 BUFFER BUFFER Q571,572 IC503 -5V REG MV-044 BOARD (2/5) MV-044 BOARD (2/5) (2/5) MV-044 BOARD MV-044 BOARD (4/5) MV-044 BOARD (5/5) (SEE PAGE 4-23) ER-027 BOARD CN901 SIGNAL PATH PB Y/CHROMA VIDEO SIGNAL AUDIO SIGNAL Y CHROMA XX MARK:NO MOUNT MV-044 BOARD (3/5) J B F C E 05 G I D H A 10 3 1 12 14 6 18 5 8 9 7 4 2 13 16 15 17 11 LINE2 D_GND_VIDEO LINE3 CR_OUT D_GND_VIDEO CB_OUT Y_OUT RGBSEL ERAUDIOL EUROVY P_GND_AUDIO ERAUDIOR +11V DISC/XEXT SW+5V WIDE XV_MUTE Cr/B_Cr/R D_GND_VIDEO Cb/R_Cb/B D_GND_VIDEO Y/G D_GND_VIDEO Y D_GND_VIDEO C VIDEO-5V V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-15 4-16 AUDIO AMP MV-044 (4/5) MV-044 (AUDIO AMP) SCHEMATIC DIAGRAM • See page 4-5 for printed wiring board. B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B+ B- B- B- B- B- B- B+ B+ B- NO MARK:DVD/CD PLAY 0 0.8 0.8 0 -9 0 1.3 1.3 1.3 1.3 0 11.3 10.6 10.6 9.9 0.6 6.6 10.6 10.6 9.9 0 0 6.6 0.6 11.3 11.3 10.6 -9.5 -9 -9.7 -10.3 -10.9 -9.7 5 11.3 5 1.7 2.5 1.8 5 LCH_OUT EVER+11V XVOICE ART- XA_MUTE AU+11V ALT+ P_GND_SPDIF XLMUTE ART+ RCH_OUT P_GND_AUDIO ALT- EVER+3.5V GND ERAUDIOL XMAMUTE AU+5V KRMOD ERAUDIOR SPDIF SW-10V MIC XRMUTE JL645 JL602 JL646 JL604 JL641 JL643 JL603 JL642 JL644 1SS355TE-17 D604 XX D605 D603 DAP202K-T-146 D602 DAP202K-T-146 MSD601-RT1 Q603 2SD1938 (F)-ST(TX).SO Q608 2SD1938 (F)-ST(TX).SO Q607 MSD601-RT1 Q611 XX Q614 XX Q613 R646 XX 10k R621 4.7k ±0.5% R601 1k R653 47k R625 220k R619 R663 XX 470 R620 68 R651 R637 4700 XX R667 2200 R607 5600 R684 R659 XX R640 470 XX R664 R631 10k 10k R622 XX R635 47k R630 10k R624 0 R642 5600 R616 2200 R610 5600 ±0.5% R606 4.7k ±0.5% R602 XX R661 R641 470 2200 R608 100k R638 5600 ±0.5% R605 XX R650 4.7k ±0.5% R604 470 R626 R647 XX XX R655 10k R617 R634 4700 1k R654 XX R666 0 R668 1k R656 R660 XX R623 XX 10k R628 XX R662 XX R657 2200 R609 XX R669 XX R658 XX R648 220 R649 R639 100k R636 10k 5600 ±0.5% R612 5600 ±0.5% R611 47k R629 0 R643 R632 10k R652 4.7k ±0.5% R603 XX R665 100k R618 XX R683 R633 47k 470 R627 C614 XX 0.01u C625 XX C619 XX C617 C616 220p C622 0.01u 180p C604 0.01u C607 180p C603 XX C630 180p C605 XX C620 XX C618 XX C626 560p C602 0.01u C608 C615 220p 180p C606 560p C601 C612 50V 1u XX C642 16V 47u C629 XX C643 16V 47u C644 XX C641 16V 47u C611 16V C613 220u XX C640 50V 1u C609 16V 47u C627 16V 47u C610 16V 47u C628 C631 XX Q601 MSB710-RT1 MSB709-RT1 Q616 MSB709-RT1 Q605 Q610 MSB709-RT1 XX CN604 1 GND 2 AU-10V 3 AU+11V 4 XMIC 5 MIC+ECHO 6 XVOICE Q609 UN2217-QRS-TX UN2217-QRS-TX Q604 XX R615 4700 R613 XX R672 R614 4700 IC604 XX D IN 1 VCC 2 GND 3 IC605 TOTX179 D IN 3 VCC 2 GND 1 CL605 CL604 CL603 XX Q617 MUN2213T1 Q602 Q606 MUN2213T1 NJM4558M-TE2 IC601 1 2 3 4 5 6 7 8 XX IC602 1 2 3 4 5 6 7 8 IC603 NJM78L05UA-TE1 OUT 1 GND 2 IN 3 D601 DAN202K-T-146 P_GND_AUDIO (3/5) MV-044 BOARD MV-044 BOARD (3/5) (2/5) MV-044 BOARD MV-044 BOARD (5/5) B+ SWITCH Q603,616 B+ SWITCH Q601 MUTE MUTE Q602,604,605 MUTE DRIVE MUTE DRIVE Q606,609,610 BUFFER IC601 AUDIO AMP IC603 +5V REG OUTPUT OPTICAL DIGITAL IC605 DIGITAL OUT OPTICAL MV-044 BOARD(2/5) (2/5) MV-044 BOARD B 10 L 3 1 J 12 14 6 K 5 8 9 A 7 H D 4 2 I 13 G 05 E C 15 11 F MV-044 BOARD (4/5) XX MARK:NO MOUNT AUDIO PB SIGNAL SIGNAL PATH 10k COAX P_GND_SPDIF MV-044 BOARD(3/5) MV-044 BOARD(3/5) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-17 4-18 PS THROUGH MV-044 (5/5) MV-044 (PS THROUGH) SCHEMATIC DIAGRAM • See page 4-5 for printed wiring board. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. B+ B- B+ B- B- B- B+ B+ B+ B+ B+ B+ B+ B- B- B- B+ B+ B+ B+ B+ B+ B+ B+ NO MARK:DVD/CD PLAY 3.3 0 -10.9 -10.2 -10.9 3.3 5 3.3 5 1.3 B+ B+ B+ SW+8V P-CONT EVER+11V MTR_GND EVER+11V_VID VIDEO-5V GND POWER_SW SW+5V AU+11V EVER+3.5V XX R782 3300 R776 XX R786 XX R780 0 R787 XX R784 XX R783 R779 XX 0 R788 XX R778 XX R785 3300 R777 0.01u C790 0.22u C779 0.22u C789 0.01u C771 0.01u C783 PS771 PS772 JL779 JL771 JL772 JL775 JL774 JL777 JL780 JL776 JL773 JL778 0.01u C780 0.01u C782 0.01u C778 2SD1766-T100-QR Q772 XX Q778 XX Q777 C784 47u 16V C775 XX XX D771 10k R775 XX R781 XX JS771 16V 47u C776 10P CN771 1 2 3 4 5 6 7 8 9 10 Q773 UN2111-TX TK11133CSCL-G IC774 1 2 3 4 5 GND SW+5V SW-10V GND SW-10V (1A/50V) (1A/50V) CONT VOUT GND NOISE VIN SW+3.3V SW+8V EVER+5V P-CONT GND POWER SW SW+5V EVER-10V EVER+11V MTR GND 5 7 6 11 9 8 E 10 A C 2 MV-044 BOARD (5/5) 4 1 XX MARK:NO MOUNT +3.3V REG IC774 B 05 F D 3 12 Q772,773 B+ SWITCH MV-044 BOARD (3/5) MV-044 BOARD (2/5) (4/5) MV-044 BOARD CN201 (SWITCHING REGULATOR) (SEE PAGE 4-36) POWER SUPPLY BLOCK SW-10V SW+3.3V EVER+3.5V (2/5) MV-044 BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-LS755P 4-19 4-20 WAVEFORMS MV-044 • Waveforms 1 IC102 oh (DVD play) 500 mV/DIV 100 ns/DIV 1.2 Vp-p 1 IC102 oh (CD play) 500 mV/DIV 200 ns/DIV 1.1 Vp-p 2 IC102 6, 7 (DVD play) 500 mV/DIV 100 ns/DIV 1.0 Vp-p 2 IC102 6, 7 (CD play) 500 mV/DIV 200 ns/DIV 800 mVp-p 3 IC102 qk, IC201 This checks whether progressive video output. If it is incorrect, correct brightness will not be attained when connected to, for in- stance, projector. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point COMPONENT VIDEO OUT (Y) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 1.00 Vp-p Checking method: 1) Confirm that the Progressive video output 1.00 Vp-p Figure 7-2 7-2. ADJUSTMENT OF VIDEO SYSTEM 1. Checking Video Output Level This checks whether Video Output level satisfy the NTSC/PAL standard. If it is not correct, the brightness will be too large or small. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point LINE OUT (VIDEO) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 1.00 Vp-p Checking method: 1) Confirm that the Video Output level is 1.00 Vp-p. Figure 7-1 3. Checking S Video Output S-Y Check S-terminal video output. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with a S- terminal cable. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point S VIDEO OUT (S-Y) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 1.00 ± 0.05 Vp-p Checking method: 1) Confirm that the S-Y level is 1.00 ± 0.05 Vp-p. Figure 7-3 4. Checking S Video Output S-C This checks whether the S video output S-C satisfies the NTSC/ PAL Standard. If it is not correct, the colors will be too dark or light. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point S VIDEO OUT (S-C) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification A = 286 ± 30 mVp-p (NTSC) A = 300 ± 100 mVp-p (PAL) Checking method: 1) Confirm that the S-C burst is “A”. Figure 7-4 +0.04 –0.02 + 0.04 – 0.02 1.00 Vp-p +0.04 –0.02 + 0.04 – 0.02 + 0.04 – 0.02 1.00 Vp-p + 0.04 – 0.02 1.00 ± 0.05 Vp-p A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-3 7. Checking Component Video Output R-Y This checks component video output R-Y. If it is incorrect, cor- rect colors will not be displayed when connected to, for instance, component input projector. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point COMPONENT VIDEO OUT (CR) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 700 ± 50 mVp-p Checking method: 1) Confirm that the R-Y level is 700 ± 50 mVp-p. Figure 7-7 5. Checking Component Video Output Y This checks component video output Y. If it is incorrect, correct brightness will not be attained when connected to, for instance, projector. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point COMPONENT VIDEO OUT (Y) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 1.00 ± 0.05 Vp-p Checking method: 1) Confirm that the Y level is 1.00 ± 0.05 Vp-p. Figure 7-5 6. Checking Component Video Output B-Y This checks component video output B-Y. If it is incorrect, cor- rect colors will not be displayed when connected to, for instance, component input projector. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point COMPONENT VIDEO OUT (CB) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 700 ± 50 mVp-p Checking method: 1) Confirm that the B-Y level is 700 ± 50 mVp-p. Figure 7-6 8. Checking RGB Output R This checks RGB output R. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with an EURO AV connecting cord. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point LINE (RGB)-TV connector pin qg (75 Ω terminated) Measuring Instrument Oscilloscope Specification 700 ± 100 mVp-p Checking method: 1) Confirm that the R level is 700 ± 100 mVp-p. Figure 7-8 1.00 ± 0.05 Vp-p 700 ± 50 mVp-p 700 ± 50 mVp-p 700 ± 100 mVp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-4 E 9. Checking RGB Output G This checks RGB output G. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with an EURO AV connecting cord. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point LINE (RGB)-TV connector pin qa (75 Ω terminated) Measuring Instrument Oscilloscope Specification 700 ± 100 mVp-p Checking method: 1) Confirm that the G level is 700 ± 100 mVp-p. Figure 7-9 10. Checking RGB Output B This checks RGB output B. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with an EURO AV connecting cord. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point LINE (RGB)-TV connector pin 7 (75 Ω terminated) Measuring Instrument Oscilloscope Specification 700 ± 100 mVp-p Checking method: 1) Confirm that the B level is 700 ± 100 mVp-p. Figure 7-10 700 ± 100 mVp-p 700 ± 100 mVp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-1 8-1-1. FRONT PANEL SECTION 010 3-088-489-01 INSULATOR, PS 011 1-478-540-31 POWER SUPPLY BLOCK 012 1-828-450-11 POWER-SUPPLY CORD (AEP, Russian) 012 1-828-846-11 POWER-SUPPLY CORD (UK) 13 3-070-883-21 SCREW, TAPPING 14 3-089-652-11 CASE 15 1-478-584-11 REMOTE COMMANDER (RMT-D167P) 16 3-071-119-91 COVER, BATTERY (for RMT-D167P) 1 X-3954-015-1 PANEL ASSY, FRONT 2 3-087-053-01 +BVTP2.6 (3CR) 3 1-829-210-11 CABLE, FLEXIBLE FLAT (FIL-001) 4 3-077-331-21 +BV3 (3-CR) 5 A-1054-562-A MV-044 BOARD, COMPLETE 6 1-829-208-11 CABLE, FLEXIBLE FLAT (FMP-010) 7 1-829-209-11 CABLE, FLEXIBLE FLAT (FMP-012) 8 1-828-427-11 FLAT FLEXIBLE CABLE FEM-002 9 3-077-331-11 +BV3 (3-CR) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DVP-LS755P NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of the electrical parts list. SECTION 8 REPAIR PARTS LIST 8-1. EXPLODED VIEWS The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied. 16 15 1 2 3 4 4 10 11 12 13 14 13 4 4 7 8 9 6 9 9 5 4 2 not supplied not supplied not supplied not supplied not supplied not supplied CD mechanism deck section-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-2 8-1-2. CD MECHANISM DECK SECTION-1 351 4-245-639-01 LEVER (CL UP2) 352 3-087-599-01 INSULATOR SCREW 353 3-088-752-01 FLOATING SCREW (+PTPWH M2.6) 354 3-088-372-01 INSULATOR Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 355 2-023-068-01 TAPPING +B 2.6X8 356 A-1054-616-A MD ASSY 0357 8-820-255-02 DEVICE, OPTICAL KHM-310AAB/C2RP 353 356 353 352 354 357 354 352 not supplied not supplied CD mechanism deck section-2 355 351 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-3 8-1-3. CD MECHANISM DECK SECTION-2 409 4-245-630-01 LEVER (SW) 410 2-023-068-01 TAPPING +B 2.6X8 412 7-623-921-01 WASHER 1.7, NYLON 413 2-023-648-01 TAPPING +B 2X10 414 X-2021-225-1 BRACKET (CURTAIN) ASSY 415 2-023-066-01 TAPPING +B 2X6 M701 X-4955-496-1 MOTOR (PULLEY) ASSY (LOADING) 401 3-088-752-01 FLOATING SCREW (+PTPWH M2.6) 403 4-245-653-01 BELT (MOT) 404 4-245-662-02 PULLEY (GEAR) 405 4-245-646-01 GEAR (IDL-F) 406 4-245-644-01 GEAR (IDL-D) 407 4-245-645-01 GEAR (IDL-E) 408 4-246-203-01 LEVER (RELEASE) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CD mechanism section-3 410 413 410 410 409 408 401 407 406 405 404 415 414 403 412 CD mechanism section-4 not supplied M701 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-4 8-1-4. CD MECHANISM DECK SECTION-3 451 4-245-627-01 WASHER (6-2.7-0.4) 452 4-245-637-01 ROLLER, RUBBER 453 4-245-649-01 GEAR (IDL-I) 454 4-245-657-01 LEVER (LOADING-R) 455 4-245-647-01 GEAR (IDL-G) 456 4-245-648-01 GEAR (IDL-H) 457 4-245-655-01 CHASSIS (TOP) 458 4-245-631-01 SPT-T (LOADING-R) 459 4-245-650-01 GEAR (IDL-J) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 460 4-245-651-01 GEAR (IDL-L) 461 4-245-640-01 GEAR (CAP) 464 3-088-752-01 FLOATING SCREW (+PTPWH M2.6) 465 4-245-636-01 SPR-T CL DOWN 466 4-245-658-01 LEVER (DISC STOP) 467 4-245-659-01 LEVER (DISC SENSOR) 468 4-245-632-01 SPR-T (LOADING-L) 470 4-245-656-01 LEVER (LOADING-L) 451 451 452 452 453 454 457 458 459 460 461 not supplied 453 470 464 467 not supplied 466 not supplied 455 465 455 456 456 468 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-5 8-1-5. CD MECHANISM DECK SECTION-4 510 4-245-628-01 LEVER (BU LOCK) 511 4-248-206-01 WASHER (3-1-0.4) 512 4-245-624-01 LEVER, CLOSE 513 4-245-635-01 SPR-E LEVER CLOSE 514 4-245-629-01 GEAR (BU LOCK) 515 4-245-644-01 GEAR (IDL-D) 516 3-088-752-01 FLOATING SCREW (+PTPWH M2.6) 501 4-245-643-01 GEAR (IDL-C) 503 4-248-722-01 SPR-E, DIR 504 4-245-642-01 GEAR (IDL-B) 505 4-245-814-01 LEVER (DIR FIRST) 506 4-245-633-01 SPR-E DIR BACK 507 4-245-660-01 LEVER (DIR) 508 4-245-641-01 GEAR (IDL-A) 509 4-245-640-01 GEAR (CAP) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied not supplied not supplied 501 515 505 503 507 508 509 504 506 511 512 513 514 509 510 516 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-6 NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Not all of the parts for POWER SUPPLY BLOCK (SWITCHING REGULATOR) are listed. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH 8-2. ELECTRICAL PARTS LIST The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied. When indicating parts by reference number, please include the board. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ER-027 ER-027 BOARD ************ < CAPACITOR > C904 1-126-947-11 ELECT 47uF 20% 35V C905 1-126-947-11 ELECT 47uF 20% 35V C906 1-126-947-11 ELECT 47uF 20% 35V C907 1-126-947-11 ELECT 47uF 20% 35V C913 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C914 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C943 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C945 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C962 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C963 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN901 1-815-149-11 CONNECTOR, FPC/FFC (1MM PIC) 21P < JACK > CNJ902 1-818-083-11 CONNECTOR, SQUARE TYPE 21P (LINE (RGB)-TV) < DIODE > D901 8-719-988-61 DIODE 1SS355TE-17 D902 8-719-988-61 DIODE 1SS355TE-17 D907 8-719-914-44 DIODE DAP202K D929 8-719-069-56 DIODE UDZSTE-176.2B D930 8-719-083-63 DIODE UDZSTE-1713B D932 8-719-071-15 DIODE HZM6.8ZWA1TL D933 8-719-071-15 DIODE HZM6.8ZWA1TL D934 8-719-071-15 DIODE HZM6.8ZWA1TL D935 8-719-071-15 DIODE HZM6.8ZWA1TL D938 8-719-988-61 DIODE 1SS355TE-17 D939 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB907 1-469-796-21 FERRITE, CHIP FB908 1-469-796-21 FERRITE, CHIP FB909 1-469-796-21 FERRITE, CHIP FB910 1-469-796-21 FERRITE, CHIP FB911 1-414-233-22 INDUCTOR, FERRITE BEAD < IC > IC901 6-705-924-01 IC LA73052-TLM-E < JUMPER RESISTOR > JR901 1-216-295-91 SHORT CHIP 0 JR902 1-216-295-91 SHORT CHIP 0 JR904 1-216-295-91 SHORT CHIP 0 JR905 1-216-295-91 SHORT CHIP 0 JR906 1-216-295-91 SHORT CHIP 0 JR907 1-216-295-91 SHORT CHIP 0 JR910 1-216-295-91 SHORT CHIP 0 JR911 1-216-295-91 SHORT CHIP 0 JR912 1-216-295-91 SHORT CHIP 0 JR913 1-216-295-91 SHORT CHIP 0 JR914 1-216-295-91 SHORT CHIP 0 JR915 1-216-295-91 SHORT CHIP 0 JR917 1-216-295-91 SHORT CHIP 0 JR918 1-216-295-91 SHORT CHIP 0 JR919 1-216-295-91 SHORT CHIP 0 JR920 1-216-295-91 SHORT CHIP 0 < COIL > L905 1-412-064-11 INDUCTOR 100uH < TRANSISTOR > Q901 8-729-421-19 TRANSISTOR UN2213 Q902 8-729-421-19 TRANSISTOR UN2213 Q903 8-729-424-08 TRANSISTOR UN2111 Q906 8-729-421-19 TRANSISTOR UN2213 Q907 8-729-424-08 TRANSISTOR UN2111 Q908 8-729-421-22 TRANSISTOR UN2211 Q909 8-729-421-19 TRANSISTOR UN2213 < RESISTOR > R907 1-216-055-00 RES-CHIP 1.8K 5% 1/10W R908 1-216-105-91 RES-CHIP 220K 5% 1/10W R909 1-216-037-00 RES-CHIP 330 5% 1/10W R910 1-216-037-00 RES-CHIP 330 5% 1/10W R911 1-216-037-00 RES-CHIP 330 5% 1/10W R912 1-216-037-00 RES-CHIP 330 5% 1/10W R914 1-216-051-00 RES-CHIP 1.2K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-7 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ER-027 IF-117 LC-082 R915 1-216-033-00 RES-CHIP 220 5% 1/10W R916 1-216-051-00 RES-CHIP 1.2K 5% 1/10W R917 1-216-051-00 RES-CHIP 1.2K 5% 1/10W R918 1-208-754-11 METAL CHIP 68 0.5% 1/10W R919 1-216-295-91 SHORT CHIP 0 R920 1-216-295-91 SHORT CHIP 0 R921 1-216-295-91 SHORT CHIP 0 R922 1-216-033-00 RES-CHIP 220 5% 1/10W R924 1-216-041-00 RES-CHIP 470 5% 1/10W R926 1-216-041-00 RES-CHIP 470 5% 1/10W R927 1-208-754-11 METAL CHIP 68 0.5% 1/10W R928 1-216-807-11 METAL CHIP 68 5% 1/10W R929 1-211-990-11 METAL CHIP 75 0.5% 1/10W R930 1-216-304-11 RES-CHIP 3.3 5% 1/10W R931 1-216-304-11 RES-CHIP 3.3 5% 1/10W R939 1-216-017-91 RES-CHIP 47 5% 1/10W R950 1-216-081-00 RES-CHIP 22K 5% 1/10W R957 1-414-233-22 INDUCTOR, FERRITE BEAD R958 1-414-233-22 INDUCTOR, FERRITE BEAD R963 1-216-081-00 RES-CHIP 22K 5% 1/10W IF-117 BOARD ************ < CAPACITOR > C411 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C415 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C418 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C420 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C430 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN401 1-506-469-11 PIN, CONNECTOR 4P CN403 1-770-643-11 CONNECTOR, FFC/FPC 12P < EARTH TERMINAL > * ET471 1-537-738-21 TERMINAL, EARTH * ET472 1-537-738-21 TERMINAL, EARTH < IC > IC404 6-804-277-01 IC 86CK74AFG-5GJ1 (M IC408 6-704-114-01 IC S-80828CNUA-B8NT2G < JUMPER RESISTOR > JR401 1-216-296-00 SHORT CHIP 0 JR403 1-216-295-00 SHORT CHIP 0 JR409 1-216-295-00 SHORT CHIP 0 JR410 1-216-296-00 SHORT CHIP 0 JR411 1-216-295-00 SHORT CHIP 0 JR412 1-216-296-00 SHORT CHIP 0 JR415 1-216-295-00 SHORT CHIP 0 JR416 1-216-296-00 SHORT CHIP 0 JR417 1-216-296-00 SHORT CHIP 0 JR418 1-216-296-00 SHORT CHIP 0 JR426 1-216-296-00 SHORT CHIP 0 < TRANSISTOR > Q401 8-729-421-22 TRANSISTOR UN2211 Q402 8-729-424-18 TRANSISTOR UN2113 < RESISTOR > R407 1-216-803-11 METAL CHIP 33 5% 1/10W R408 1-216-295-91 SHORT CHIP 0 R409 1-216-864-11 SHORT CHIP 0 R410 1-216-864-11 SHORT CHIP 0 R411 1-216-864-11 SHORT CHIP 0 R413 1-216-295-91 SHORT CHIP 0 R414 1-216-295-91 SHORT CHIP 0 R415 1-216-295-91 SHORT CHIP 0 R416 1-216-833-11 METAL CHIP 10K 5% 1/10W R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-810-11 METAL CHIP 120 5% 1/10W R419 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-845-11 METAL CHIP 100K 5% 1/10W R428 1-216-809-11 METAL CHIP 100 5% 1/10W R429 1-216-833-11 METAL CHIP 10K 5% 1/10W R430 1-216-833-11 METAL CHIP 10K 5% 1/10W R432 1-216-833-11 METAL CHIP 10K 5% 1/10W R434 1-216-833-11 METAL CHIP 10K 5% 1/10W R435 1-216-833-11 METAL CHIP 10K 5% 1/10W R437 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AEP, UK) R437 1-216-837-11 METAL CHIP 22K 5% 1/10W (Russian) R438 1-216-837-11 METAL CHIP 22K 5% 1/10W (Russian) R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W R471 1-216-041-00 RES-CHIP 470 5% 1/10W R472 1-216-833-11 METAL CHIP 10K 5% 1/10W R474 1-216-833-11 METAL CHIP 10K 5% 1/10W R475 1-216-833-11 METAL CHIP 10K 5% 1/10W R489 1-216-833-11 METAL CHIP 10K 5% 1/10W R492 1-216-833-11 METAL CHIP 10K 5% 1/10W R494 1-216-833-11 METAL CHIP 10K 5% 1/10W R496 1-216-833-11 METAL CHIP 10K 5% 1/10W R498 1-216-833-11 METAL CHIP 10K 5% 1/10W R499 1-216-829-11 METAL CHIP 4.7K 5% 1/10W < VIBRATOR > X401 1-781-472-21 VIBRATOR, CERAMIC (8MHz) LC-082 BOARD ************ < CAPACITOR > C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C103 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C104 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C105 1-124-589-11 ELECT 47uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-8 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LC-082 MS-214 MV-044 < CONNECTOR > CN102 1-793-476-11 CONNECTOR, FFC/FPC 12P < DIODE > D101 6-500-083-21 LED NSPW315BST (BACKLIGHT) D102 8-719-077-08 LED SLR-332DCT32 (PROGRESSIVE) < IC > IC101 6-600-256-01 IC GP1UE27SXK0F < JUMPER RESISTOR > JR104 1-216-295-00 SHORT CHIP 0 JR106 1-216-296-00 SHORT CHIP 0 JR110 1-216-295-00 SHORT CHIP 0 JR111 1-216-295-00 SHORT CHIP 0 JR112 1-216-295-00 SHORT CHIP 0 JR120 1-216-296-00 SHORT CHIP 0 JR121 1-216-296-00 SHORT CHIP 0 JR122 1-216-296-00 SHORT CHIP 0 JR123 1-216-296-00 SHORT CHIP 0 JR124 1-216-296-00 SHORT CHIP 0 JR125 1-216-296-00 SHORT CHIP 0 JR126 1-216-296-00 SHORT CHIP 0 JR127 1-216-296-00 SHORT CHIP 0 JR128 1-216-296-00 SHORT CHIP 0 JR129 1-216-296-00 SHORT CHIP 0 JR130 1-216-296-00 SHORT CHIP 0 JR131 1-216-296-00 SHORT CHIP 0 JR132 1-216-296-00 SHORT CHIP 0 JR133 1-216-296-00 SHORT CHIP 0 JR134 1-216-296-00 SHORT CHIP 0 < LCD PANEL > ND101 1-478-220-21 LCD UNIT < RESISTOR > R103 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R105 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R106 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R107 1-216-295-91 SHORT CHIP 0 R108 1-216-295-91 SHORT CHIP 0 R111 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R112 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R116 1-216-805-11 METAL CHIP 47 5% 1/10W R119 1-216-821-11 METAL CHIP 1K 5% 1/10W R120 1-216-821-11 METAL CHIP 1K 5% 1/10W R121 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-810-11 METAL CHIP 120 5% 1/10W < SWITCH > S101 1-771-410-21 SWITCH, TACTILE (A) S102 1-771-410-21 SWITCH, TACTILE (x) S103 1-771-410-21 SWITCH, TACTILE (H) S104 1-771-410-21 SWITCH, TACTILE (X) S105 1-771-410-21 SWITCH, TACTILE (.) S106 1-771-410-21 SWITCH, TACTILE (>) MS-214 BOARD ************* < CONNECTOR > CN001 1-815-569-11 CONNECTOR, FFC/FPC 7P < SWITCH > S001 1-762-951-13 SWITCH, PUSH (DISC IN/OUT) S002 1-762-951-13 SWITCH, PUSH (CHUCKING) S003 1-762-951-13 SWITCH, PUSH (TRIGGER) A-1054-562-A MV-044 BOARD, COMPLETE *********************** Notes: MV-044 mounted PWB must be replaced if IC205 (EEPROM IC) is damaged or not functioning. The old MV-044 mounted PWB must be completely disposed. < CAPACITOR > C104 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C106 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C107 1-126-964-11 ELECT 10uF 20% 50V C109 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C111 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C112 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C115 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C116 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C117 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C119 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C120 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C121 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-126-964-11 ELECT 10uF 20% 50V C125 1-126-947-11 ELECT 47uF 20% 35V C126 1-126-947-11 ELECT 47uF 20% 35V C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C138 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C139 1-126-964-11 ELECT 10uF 20% 50V C140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C141 1-126-964-11 ELECT 10uF 20% 50V C142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C143 1-126-964-11 ELECT 10uF 20% 50V C144 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C145 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C148 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C152 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C153 1-126-947-11 ELECT 47uF 20% 35V C154 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C155 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C156 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C157 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C161 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C165 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C166 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C168 1-126-947-11 ELECT 47uF 20% 35V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MV-044 C169 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-126-947-11 ELECT 47uF 20% 35V C172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C173 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C175 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C177 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C178 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C179 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C180 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C181 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C184 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C185 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C186 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C189 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C190 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C193 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C194 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C197 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C198 1-162-926-11 CERAMIC CHIP 82PF 5% 50V C199 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C202 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C207 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C212 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C214 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C215 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C216 1-126-947-11 ELECT 47uF 20% 35V C218 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C220 1-126-947-11 ELECT 47uF 20% 35V C222 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C223 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C225 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C227 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C229 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C231 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C232 1-125-889-91 CERAMIC CHIP 2.2uF 10% 10V C235 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C236 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C237 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C239 1-126-947-11 ELECT 47uF 20% 35V C240 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C241 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C243 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C244 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C245 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C246 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C247 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C248 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C249 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C250 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C251 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C252 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C255 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C256 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C257 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C258 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C259 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C260 1-126-947-11 ELECT 47uF 20% 35V C262 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C263 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C264 1-126-947-11 ELECT 47uF 20% 35V C265 1-126-964-11 ELECT 10uF 20% 50V C266 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C267 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C268 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C269 1-126-947-11 ELECT 47uF 20% 35V C270 1-126-947-11 ELECT 47uF 20% 35V C273 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C276 1-125-889-91 CERAMIC CHIP 2.2uF 10% 10V C280 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C281 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C298 1-126-947-11 ELECT 47uF 20% 35V C299 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C501 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C502 1-126-947-11 ELECT 47uF 20% 35V C503 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C507 1-126-947-11 ELECT 47uF 20% 35V C509 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C510 1-126-947-11 ELECT 47uF 20% 35V C511 1-126-947-11 ELECT 47uF 20% 35V C512 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C513 1-126-947-11 ELECT 47uF 20% 35V C514 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C601 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C602 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C603 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C604 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C605 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C606 1-164-218-11 CERAMIC CHIP 180PF 5% 50V C607 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C608 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C609 1-126-960-11 ELECT 1uF 20% 50V C610 1-126-947-11 ELECT 47uF 20% 35V C611 1-126-947-11 ELECT 47uF 20% 35V C612 1-126-960-11 ELECT 1uF 20% 50V C613 1-126-934-11 ELECT 220uF 20% 16V C615 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C616 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C622 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C625 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C627 1-126-947-11 ELECT 47uF 20% 35V C628 1-126-947-11 ELECT 47uF 20% 35V C629 1-126-947-11 ELECT 47uF 20% 35V C644 1-126-947-11 ELECT 47uF 20% 35V C771 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C776 1-126-947-11 ELECT 47uF 20% 35V C778 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C779 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C780 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C782 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C783 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C784 1-126-947-11 ELECT 47uF 20% 35V C789 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C790 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-10 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MV-044 < CONNECTOR > CN102 1-815-382-11 CONNECTOR, FPC/FFC 7P * CN104 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P * CN204 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN205 1-506-469-11 PIN, CONNECTOR 4P CN502 1-815-149-11 CONNECTOR, FPC/FFC (1MM PIC) 21P * CN771 1-568-937-11 PIN, CONNECTOR 10P < DIODE > D159 8-719-071-34 DIODE RB521S-30-TE61 D202 8-719-914-43 DIODE DAN202K D508 8-719-067-40 DIODE STZ6.8N-T146 D509 8-719-067-40 DIODE STZ6.8N-T146 D510 8-719-988-61 DIODE 1SS355TE-17 D601 8-719-914-43 DIODE DAN202K D602 8-719-914-44 DIODE DAP202K D603 8-719-914-44 DIODE DAP202K D604 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > * FB176 1-469-670-21 FERRITE, EMI (SMD) (2012) FB201 1-469-324-21 FERRITE, EMI (SMD) (2012) FB202 1-469-324-21 FERRITE, EMI (SMD) (2012) FB203 1-469-324-21 FERRITE, EMI (SMD) (2012) FB204 1-469-324-21 FERRITE, EMI (SMD) (2012) FB205 1-469-324-21 FERRITE, EMI (SMD) (2012) FB206 1-469-324-21 FERRITE, EMI (SMD) (2012) * FB215 1-469-670-21 FERRITE, EMI (SMD) (2012) * FB249 1-469-670-21 FERRITE, EMI (SMD) (2012) * FB251 1-469-670-21 FERRITE, EMI (SMD) (2012) * FB252 1-469-670-21 FERRITE, EMI (SMD) (2012) FB255 1-469-118-21 FERRITE, EMI (SMD) (1608) FB290 1-469-118-21 FERRITE, EMI (SMD) (1608) FB291 1-469-118-21 FERRITE, EMI (SMD) (1608) FB292 1-469-118-21 FERRITE, EMI (SMD) (1608) FB293 1-469-118-21 FERRITE, EMI (SMD) (1608) FB294 1-469-118-21 FERRITE, EMI (SMD) (1608) FB295 1-469-118-21 FERRITE, EMI (SMD) (1608) FB525 1-469-324-21 FERRITE, EMI (SMD) (2012) FB555 1-469-324-21 FERRITE, EMI (SMD) (2012) * FB1022 1-469-670-21 FERRITE, EMI (SMD) (2012) * FB1023 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1024 1-469-324-21 FERRITE, EMI (SMD) (2012) * FB2036 1-469-670-21 FERRITE, EMI (SMD) (2012) FB2038 1-414-444-11 FERRITE, EMI (SMD) (1608) FB2039 1-414-444-11 FERRITE, EMI (SMD) (1608) FB2040 1-414-444-11 FERRITE, EMI (SMD) (1608) FB2041 1-469-324-21 FERRITE, EMI (SMD) (2012) < FILTER > FL207 1-234-177-21 FILTER, CHIP EMI FL208 1-234-177-21 FILTER, CHIP EMI FL209 1-233-893-21 FILTER, CHIP EMI FL299 1-234-177-21 FILTER, CHIP EMI < IC > IC101 6-704-524-01 IC FAN8036L IC102 6-704-471-01 IC CXD9780R IC151 6-704-470-01 IC TK11233CMCL-G IC201 6-704-472-01 IC CXD9781R IC202 6-704-261-01 IC TK11225CMCL-G IC204 6-804-780-01 IC MR27V1602F-1EUTN IC205 IC (Note: SEE PAGE 8-8) IC206 6-705-929-01 IC K4S641632H-UC75T IC207 6-705-515-01 IC AK4385VT-E2 IC208 6-702-302-01 IC TK11133CSCL-G IC209 6-703-224-01 IC S-80828CNNB-B8NT2G IC502 6-701-820-01 IC LA73053-TLM-E IC503 8-759-662-86 IC NJM79M05DL1A (TE2) IC601 8-759-100-96 IC uPC4558G2 IC603 8-759-711-59 IC NJM78L05UA-TE1 IC605 6-600-009-01 IC TOTX179 (DIGITAL OUT (OPTICAL)) IC774 6-702-302-01 IC TK11133CSCL-G < JUMPER RESISTER > JS002 1-216-295-00 SHORT CHIP 0 JS003 1-216-295-00 SHORT CHIP 0 JS004 1-216-295-00 SHORT CHIP 0 < IC LINK > 0PS771 1-576-509-21 IC LINK (1A/50V) 0PS772 1-576-509-21 IC LINK (1A/50V) < TRANSISTOR > Q168 8-729-424-59 TRANSISTOR UN2212 Q170 6-550-008-01 TRANSISTOR UM6K1N-TN Q171 6-550-653-01 TRANSISTOR QST8TR Q201 8-729-424-70 TRANSISTOR UN2217 Q504 8-729-421-19 TRANSISTOR UN2213 Q505 8-729-424-08 TRANSISTOR UN2111 Q571 6-550-840-01 TRANSISTOR 2SC2712-YGR-TE85L Q572 6-550-841-01 TRANSISTOR 2SA1162-YGR-TE85L Q573 6-550-840-01 TRANSISTOR 2SC2712-YGR-TE85L Q574 6-550-841-01 TRANSISTOR 2SA1162-YGR-TE85L Q601 8-729-010-08 TRANSISTOR MSB710-R Q602 8-729-421-19 TRANSISTOR UN2213 Q603 8-729-010-25 TRANSISTOR MSD601-RT1 Q604 8-729-424-70 TRANSISTOR UN2217 Q605 8-729-010-05 TRANSISTOR MSB709-RT1 Q606 8-729-421-19 TRANSISTOR UN2213 Q607 6-550-137-01 TRANSISTOR 2SD1938 (F) -ST (TX).SO Q608 6-550-137-01 TRANSISTOR 2SD1938 (F) -ST (TX).SO Q609 8-729-424-70 TRANSISTOR UN2217 Q610 8-729-010-05 TRANSISTOR MSB709-RT1 Q611 8-729-010-25 TRANSISTOR MSD601-RT1 Q616 8-729-010-05 TRANSISTOR MSB709-RT1 Q772 8-729-048-28 TRANSISTOR 2SD1766-T100-QR Q773 8-729-424-08 TRANSISTOR UN2111 < RESISTOR > R101 1-216-833-11 METAL CHIP 10K 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R103 1-216-839-11 METAL CHIP 33K 5% 1/10W R104 1-216-839-11 METAL CHIP 33K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R109 1-216-834-11 METAL CHIP 12K 5% 1/10W R110 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R111 1-216-835-11 METAL CHIP 15K 5% 1/10W R112 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R114 1-216-833-11 METAL CHIP 10K 5% 1/10W R117 1-216-834-11 METAL CHIP 12K 5% 1/10W R119 1-216-841-11 METAL CHIP 47K 5% 1/10W R120 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R121 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R122 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R123 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R124 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R126 1-216-838-11 METAL CHIP 27K 5% 1/10W R127 1-216-833-11 METAL CHIP 10K 5% 1/10W R128 1-216-839-11 METAL CHIP 33K 5% 1/10W R129 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R130 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R131 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R132 1-216-833-11 METAL CHIP 10K 5% 1/10W R133 1-216-864-11 SHORT CHIP 0 R134 1-216-864-11 SHORT CHIP 0 R136 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R155 1-216-821-11 METAL CHIP 1K 5% 1/10W R156 1-216-821-11 METAL CHIP 1K 5% 1/10W R157 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R158 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R160 1-216-809-11 METAL CHIP 100 5% 1/10W R169 1-216-821-11 METAL CHIP 1K 5% 1/10W R170 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R172 1-216-845-11 METAL CHIP 100K 5% 1/10W R173 1-216-845-11 METAL CHIP 100K 5% 1/10W R175 1-216-809-11 METAL CHIP 100 5% 1/10W R178 1-211-977-11 METAL CHIP 22 0.5% 1/10W R179 1-216-801-11 METAL CHIP 22 5% 1/10W R180 1-216-809-11 METAL CHIP 100 5% 1/10W R181 1-216-821-11 METAL CHIP 1K 5% 1/10W R182 1-216-841-11 METAL CHIP 47K 5% 1/10W R183 1-211-977-11 METAL CHIP 22 0.5% 1/10W R184 1-211-977-11 METAL CHIP 22 0.5% 1/10W R185 1-216-857-11 METAL CHIP 1M 5% 1/10W R186 1-216-841-11 METAL CHIP 47K 5% 1/10W R187 1-216-864-11 SHORT CHIP 0 R188 1-216-801-11 METAL CHIP 22 5% 1/10W R189 1-216-801-11 METAL CHIP 22 5% 1/10W R190 1-216-864-11 SHORT CHIP 0 R191 1-216-864-11 SHORT CHIP 0 R192 1-216-841-11 METAL CHIP 47K 5% 1/10W R194 1-216-864-11 SHORT CHIP 0 R195 1-216-833-11 METAL CHIP 10K 5% 1/10W R197 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R198 1-216-821-11 METAL CHIP 1K 5% 1/10W R199 1-216-835-11 METAL CHIP 15K 5% 1/10W R208 1-216-864-11 SHORT CHIP 0 R211 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R213 1-216-833-11 METAL CHIP 10K 5% 1/10W R214 1-216-833-11 METAL CHIP 10K 5% 1/10W R216 1-216-833-11 METAL CHIP 10K 5% 1/10W R220 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R221 1-216-833-11 METAL CHIP 10K 5% 1/10W R222 1-216-833-11 METAL CHIP 10K 5% 1/10W R223 1-216-833-11 METAL CHIP 10K 5% 1/10W R224 1-216-864-11 SHORT CHIP 0 R225 1-216-821-11 METAL CHIP 1K 5% 1/10W R226 1-216-821-11 METAL CHIP 1K 5% 1/10W R227 1-216-845-11 METAL CHIP 100K 5% 1/10W R230 1-216-864-11 SHORT CHIP 0 R244 1-216-836-11 METAL CHIP 18K 5% 1/10W R247 1-216-809-11 METAL CHIP 100 5% 1/10W R248 1-216-845-11 METAL CHIP 100K 5% 1/10W R253 1-216-805-11 METAL CHIP 47 5% 1/10W R258 1-216-809-11 METAL CHIP 100 5% 1/10W R260 1-216-801-11 METAL CHIP 22 5% 1/10W R261 1-216-805-11 METAL CHIP 47 5% 1/10W R263 1-211-990-11 METAL CHIP 75 0.5% 1/10W R264 1-211-990-11 METAL CHIP 75 0.5% 1/10W R265 1-211-990-11 METAL CHIP 75 0.5% 1/10W R266 1-211-990-11 METAL CHIP 75 0.5% 1/10W R267 1-211-990-11 METAL CHIP 75 0.5% 1/10W R268 1-211-990-11 METAL CHIP 75 0.5% 1/10W R272 1-469-836-21 INDUCTOR, FERRITE BEAD R276 1-218-841-11 METAL CHIP 560 0.5% 1/10W R279 1-216-809-11 METAL CHIP 100 5% 1/10W R280 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R284 1-216-805-11 METAL CHIP 47 5% 1/10W R285 1-216-805-11 METAL CHIP 47 5% 1/10W R286 1-216-805-11 METAL CHIP 47 5% 1/10W R287 1-216-805-11 METAL CHIP 47 5% 1/10W R288 1-216-805-11 METAL CHIP 47 5% 1/10W R289 1-218-916-11 METAL CHIP 750K 0.5% 1/10W R298 1-216-864-11 SHORT CHIP 0 R521 1-216-833-11 METAL CHIP 10K 5% 1/10W R527 1-211-990-11 METAL CHIP 75 0.5% 1/10W R528 1-211-990-11 METAL CHIP 75 0.5% 1/10W R529 1-216-833-11 METAL CHIP 10K 5% 1/10W R530 1-211-990-11 METAL CHIP 75 0.5% 1/10W R532 1-216-833-11 METAL CHIP 10K 5% 1/10W R533 1-211-990-11 METAL CHIP 75 0.5% 1/10W R534 1-211-990-11 METAL CHIP 75 0.5% 1/10W R535 1-211-990-11 METAL CHIP 75 0.5% 1/10W R547 1-216-864-11 SHORT CHIP 0 R548 1-216-864-11 SHORT CHIP 0 R549 1-216-864-11 SHORT CHIP 0 R554 1-216-864-11 SHORT CHIP 0 R556 1-216-864-11 SHORT CHIP 0 R557 1-216-864-11 SHORT CHIP 0 R572 1-216-809-11 METAL CHIP 100 5% 1/10W R573 1-216-821-11 METAL CHIP 1K 5% 1/10W R574 1-216-809-11 METAL CHIP 100 5% 1/10W R575 1-216-864-11 SHORT CHIP 0 R576 1-216-821-11 METAL CHIP 1K 5% 1/10W R578 1-216-864-11 SHORT CHIP 0 R579 1-216-809-11 METAL CHIP 100 5% 1/10W R580 1-216-821-11 METAL CHIP 1K 5% 1/10W R581 1-216-809-11 METAL CHIP 100 5% 1/10W R582 1-216-864-11 SHORT CHIP 0 R583 1-216-821-11 METAL CHIP 1K 5% 1/10W R598 1-216-295-00 SHORT CHIP 0 R601 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R602 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R603 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W MV-044 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-12 E Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R604 1-208-798-11 METAL CHIP 4.7K 0.5% 1/10W R605 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R606 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R608 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R609 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R610 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R611 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R612 1-208-800-11 METAL CHIP 5.6K 0.5% 1/10W R613 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R614 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R616 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R617 1-216-833-11 METAL CHIP 10K 5% 1/10W R618 1-216-845-11 METAL CHIP 100K 5% 1/10W R619 1-216-849-11 METAL CHIP 220K 5% 1/10W R620 1-216-817-11 METAL CHIP 470 5% 1/10W R621 1-216-833-11 METAL CHIP 10K 5% 1/10W R622 1-216-833-11 METAL CHIP 10K 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-841-11 METAL CHIP 47K 5% 1/10W R626 1-216-817-11 METAL CHIP 470 5% 1/10W R627 1-216-817-11 METAL CHIP 470 5% 1/10W R628 1-216-833-11 METAL CHIP 10K 5% 1/10W R629 1-216-841-11 METAL CHIP 47K 5% 1/10W R630 1-216-841-11 METAL CHIP 47K 5% 1/10W R631 1-216-833-11 METAL CHIP 10K 5% 1/10W R632 1-216-833-11 METAL CHIP 10K 5% 1/10W R633 1-216-841-11 METAL CHIP 47K 5% 1/10W R634 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R636 1-216-833-11 METAL CHIP 10K 5% 1/10W R637 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R638 1-216-845-11 METAL CHIP 100K 5% 1/10W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-817-11 METAL CHIP 470 5% 1/10W R641 1-216-817-11 METAL CHIP 470 5% 1/10W R642 1-216-864-11 SHORT CHIP 0 R643 1-216-864-11 SHORT CHIP 0 R649 1-216-813-11 METAL CHIP 220 5% 1/10W R651 1-216-807-11 METAL CHIP 68 5% 1/10W R652 1-216-833-11 METAL CHIP 10K 5% 1/10W R653 1-216-821-11 METAL CHIP 1K 5% 1/10W R654 1-216-821-11 METAL CHIP 1K 5% 1/10W R656 1-216-821-11 METAL CHIP 1K 5% 1/10W R668 1-216-864-11 SHORT CHIP 0 R684 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R775 1-216-833-11 METAL CHIP 10K 5% 1/10W R776 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R777 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R787 1-216-864-11 SHORT CHIP 0 R788 1-216-864-11 SHORT CHIP 0 R1015 1-216-809-11 METAL CHIP 100 5% 1/10W R1018 1-216-864-11 SHORT CHIP 0 R1021 1-216-864-11 SHORT CHIP 0 R1026 1-216-833-11 METAL CHIP 10K 5% 1/10W R1027 1-216-833-11 METAL CHIP 10K 5% 1/10W R1031 1-216-833-11 METAL CHIP 10K 5% 1/10W R2019 1-216-809-11 METAL CHIP 100 5% 1/10W R2022 1-216-833-11 METAL CHIP 10K 5% 1/10W R2023 1-216-833-11 METAL CHIP 10K 5% 1/10W R2024 1-216-833-11 METAL CHIP 10K 5% 1/10W R2027 1-216-864-11 SHORT CHIP 0 R2028 1-216-833-11 METAL CHIP 10K 5% 1/10W R2030 1-216-833-11 METAL CHIP 10K 5% 1/10W R2031 1-216-805-11 METAL CHIP 47 5% 1/10W R2032 1-216-805-11 METAL CHIP 47 5% 1/10W R2033 1-216-805-11 METAL CHIP 47 5% 1/10W R2034 1-216-805-11 METAL CHIP 47 5% 1/10W R2036 1-216-295-00 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB204 1-234-371-21 RES, NETWORK 47 x4 (1005) RB205 1-234-371-21 RES, NETWORK 47 x4 (1005) RB206 1-234-371-21 RES, NETWORK 47 x4 (1005) < SWITCH > S501 1-762-636-11 SWITCH, SLIDE (NORMAL/PROGRESSIVE) < VIBRATOR > X202 1-813-218-21 VIBRATOR, CRYSTAL (27MHz) 0 1-478-540-31 POWER SUPPLY BLOCK (SWITCHING REGULATOR) ******************* MISCELLANEOUS ************** 3 1-829-210-11 CABLE, FLEXIBLE FLAT (FIL-001) 6 1-829-208-11 CABLE, FLEXIBLE FLAT (FMP-010) 7 1-829-209-11 CABLE, FLEXIBLE FLAT (FMP-012) 8 1-828-427-11 FLAT FLEXIBLE CABLE FEM-002 012 1-828-450-11 POWER-SUPPLY CORD (AEP, Russian) 012 1-828-846-11 POWER-SUPPLY CORD (UK) 0357 8-820-255-02 DEVICE, OPTICAL KHM-310AAB/C2RP M701 X-4955-496-1 MOTOR (PULLEY) ASSY (LOADING) ACCESSORIES & PACKING MATERIALS ******************************** 1-478-584-11 REMOTE COMMANDER (RMT-D167P) 1-751-271-71 CORD, CONNECTION (AV) (UK) 2-021-509-11 MANUAL, INSTRUCTION (ENGLISH) (UK) 2-021-509-21 MANUAL, INSTRUCTION (FRENCH, GERMAN, DUTCH) (AEP) 2-021-509-31 MANUAL, INSTRUCTION (ITALIAN, SPANISH) (AEP) 2-021-509-41 MANUAL, INSTRUCTION (RUSSIAN) (Russian) 3-071-119-91 COVER, BATTERY (for RMT-D167P) MV-044 POWER SUPPLY BLOCK (SWITCHING REGULATOR) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number speci- fied. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 122 – DVP-LS755P Sony Corporation Home Electronics Network Company 9-874-828-11 2004G0500-1 © 2004. 7 Published by Quality Assurance Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
