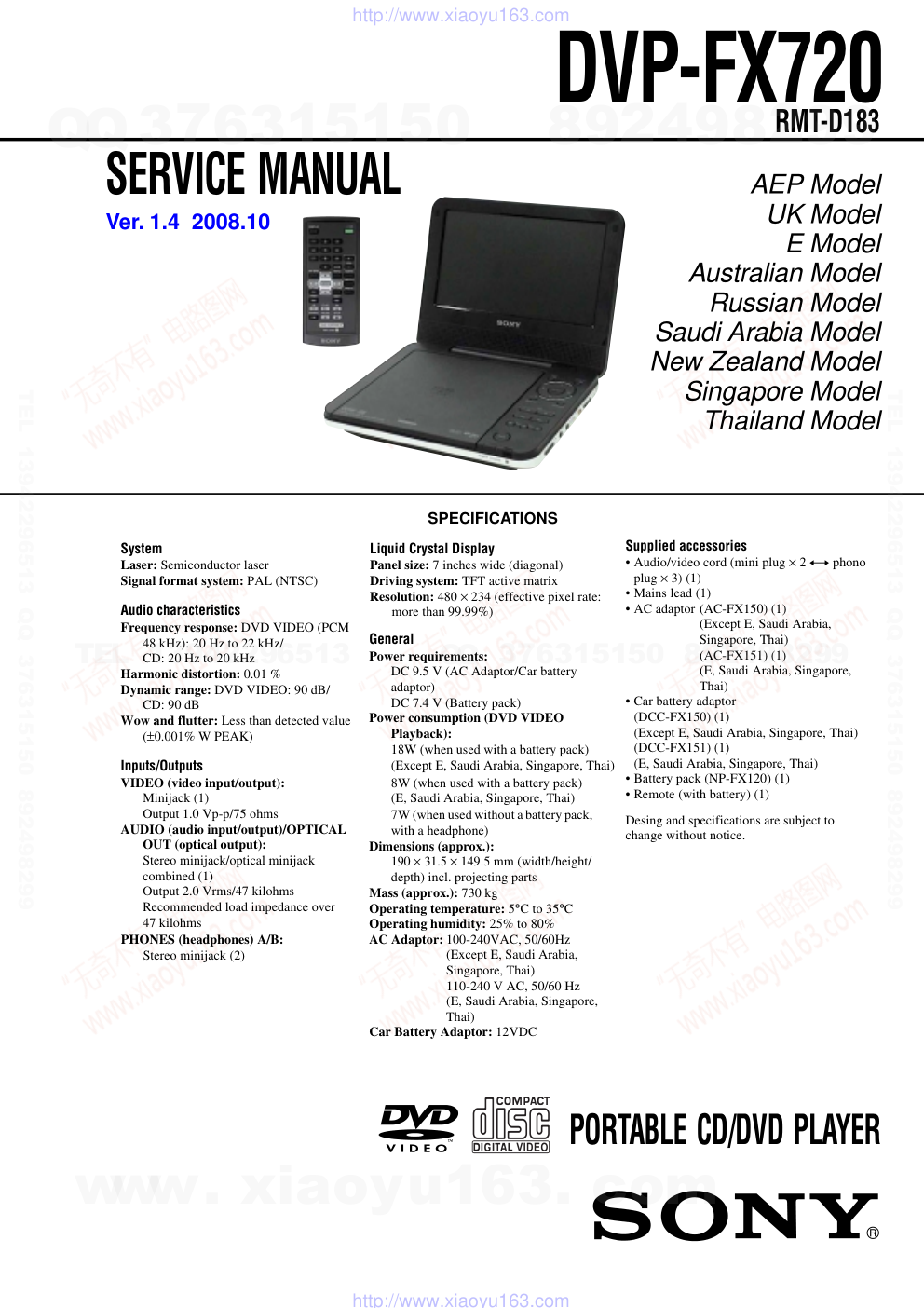

SERVICE MANUAL AEP Model UK Model E Model Australian Model Russian Model Saudi Arabia Model New Zealand Model Singapore Model Thailand Model PORTABLE CD/DVD PLAYER DVP-FX720 RMT-D183 SPECIFICATIONS Ver. 1.4 2008.10 System Laser: Semiconductor laser Signal format system: PAL (NTSC) Audio characteristics Frequency response: DVD VIDEO (PCM 48 kHz): 20 Hz to 22 kHz/ CD: 20 Hz to 20 kHz Harmonic distortion: 0.01 % Dynamic range: DVD VIDEO: 90 dB/ CD: 90 dB Wow and flutter: Less than detected value (±0.001% W PEAK) Inputs/Outputs VIDEO (video input/output): Minijack (1) Output 1.0 Vp-p/75 ohms AUDIO (audio input/output)/OPTICAL OUT (optical output): Stereo minijack/optical minijack combined (1) Output 2.0 Vrms/47 kilohms Recommended load impedance over 47 kilohms PHONES (headphones) A/B: Stereo minijack (2) Liquid Crystal Display Panel size: 7 inches wide (diagonal) Driving system: TFT active matrix Resolution: 480 × 234 (effective pixel rate: more than 99.99%) General Power requirements: DC 9.5 V (AC Adaptor/Car battery adaptor) DC 7.4 V (Battery pack) Power consumption (DVD VIDEO Playback): 18W (when used with a battery pack) 8W (when used with a battery pack) (E, Saudi Arabia, Singapore, Thai) (Except E, Saudi Arabia, Singapore, Thai) 7W (when used without a battery pack, with a headphone) Dimensions (approx.): 190 × 31.5 × 149.5 mm (width/height/ depth) incl. projecting parts Supplied accessories • Audio/video cord (mini plug × 2 y phono plug × 3) (1) • Mains lead (1) • AC adaptor (AC-FX150) (1) (Except E, Saudi Arabia, Singapore, Thai) (AC-FX151) (1) (E, Saudi Arabia, Singapore, Thai) • Car battery adaptor (DCC-FX150) (1) (Except E, Saudi Arabia, Singapore, Thai) (DCC-FX151) (1) (E, Saudi Arabia, Singapore, Thai) • Battery pack (NP-FX120) (1) • Remote (with battery) (1) Mass (approx.): 730 kg Operating temperature: 5°C to 35°C Operating humidity: 25% to 80% AC Adaptor: 100-240VAC, 50/60Hz (Except E, Saudi Arabia, Singapore, Thai) 110-240 V AC, 50/60 Hz (E, Saudi Arabia, Singapore, Thai) Car Battery Adaptor: 12VDC Desing and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 1. Check the area of your repair for unsoldered or poorly-sol- dered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: CAUTION: The use of optical instrument with this product will increase eye hazard. Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recom- mend their replacement. 5. Check the B+ voltage to see it is at the values specified. This label is located on the bottom of the unit (AEP, UK, New Zealand, Australian). MARKING is located on the bottom of the unit (Except E, Saudi Arabia, Singapore, Thai). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS Section Title Page Section Title Page 1. GENERAL Precautions ................................................................... 1-1 About This Manual ........................................................ 1-1 This Player Can Play the Following Discs .................... 1-2 Preparations .................................................................. 1-2 Playing Discs ................................................................. 1-4 Enjoying DivX Videos .................................................... 1-9 Settings and Adjustments ............................................. 1-9 Hookups ........................................................................ 1-11 Additional Information ................................................... 1-12 2. DISASSEMBLY 2-1. UPPER COVER Block................................................... 2-1 2-2. MAIN Board, USB Board............................................... 2-2 2-3. LCD Block ...................................................................... 2-3 2-4. LCD Board ..................................................................... 2-4 2-5. Installation of Travers .................................................... 2-5 3. BLOCK DIAGRAMS 3-1. Oveall Block Diagram .................................................... 3-1 4. SCHEMATIC DIAGRAMS 4-1. Frame (1/2) .................................................................... 4-1 Frame (2/2) .................................................................... 4-3 4-2. DC-DC POWER ............................................................ 4-5 4-3. MCU & KEY ................................................................... 4-7 4-4. DVD SERVO & DSP MT1389HD .................................. 4-9 4-5. SDRAM & FLASH ROM ................................................ 4-11 4-6. VIDEO OUT & PANEL CONNECT ................................ 4-13 4-7. AUDIO OUT ................................................................... 4-15 4-8. T-CON ............................................................................ 4-17 4-9. KEY & HALL SW ........................................................... 4-19 4-10. USB PORT & MODE SW .............................................. 4-21 5. PRINTED WIRING BOARDS 5-1. Circuit Boards Location ................................................. 5-1 5-2. MAIN Board ................................................................... 5-3 5-3. LCD Board ..................................................................... 5-7 5-4. KEY Board ..................................................................... 5-9 5-5. USB Board..................................................................... 5-9 6. WAVEFORMS AND CIRCUIT VOLTAGE 6-1. Waveforms ..................................................................... 6-1 6-2. Circuit Voltage Chart ..................................................... 6-5 7. IC PIN FUNCTION DESCRIPTION 7-1. MPEG/DSP/RF Pin Function (MAIN Board U3: MT1389HD) ...................................... 7-1 7-2. FRONT MICOM Pin Function (MAIN Board U2: Z8F0822) .......................................... 7-7 8. ELECTRICAL ADJUSTMENT 8-1. Standard Video Level .................................................... 8-1 8-2. VCOM DC Level ............................................................ 8-1 9. TROUBLESHOOTING 9-1. Electrical Trouble Shooting Guide ................................. 9-1 1. Power (DC-DC Converter) Circuit ................................. 9-1 2. MPEG Circuit ................................................................. 9-3 3. Front Circuit (Dogotrpm & Key) ..................................... 9-4 4. RF/Servo Circuit ............................................................ 9-5 9-2. LCD Trouble Shooting Guide ........................................ 9-6 10. REPAIR PARTS LIST 10-1. Exploded Views ............................................................. 10-1 10-1-1. Main Block ................................................................ 10-1 10-1-2. LCD Block................................................................. 10-2 10-2. Electrical Parts List ....................................................... 10-3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 SECTION 1 GENERAL This section is extracted from instruc- tion manual (3-274-988-11). DVP-FX720 4 Precautions Road safety Do not use the monitor unit and headphones while driving, cycling, or operating any motorized vehicle. Doing so may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations. On safety Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further. On power sources • The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off. • If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord. • Do not touch the mains lead or the AC adaptor with wet hands. Doing so may cause shock hazard. On temperature increases Heat may build up inside the player during charging or if it is being used for a long time. This is not a malfunction. On placement • Place the player in a location with adequate ventilation to prevent heat build-up in the player. • Do not place the player on a soft surface such as a rug that might block the ventilation holes. • Do not place the player in a confined space such as a bookshelf or similar unit. • To reduce the risk of fire, do not cover the ventilation of the apparatus with newspapers, tablecloths, curtains, etc. • Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust, sand, moisture, rain, or mechanical shock, or in a car with its windows closed. On operation • If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates. • When you move the player, take out any discs. If you don’t, the disc may be damaged. • Keep the lens on the player clean and do not touch it. Touching the lens may damage the lens and cause the player to malfunction. Leave the disc lid closed except when you insert or remove discs. On Liquid Crystal Display • Although manufactured with high precision technology, the LCD may occasionally display dots of various colours. That is not a malfunction. • Do not wipe the LCD surface with wet cloth. If water enters, a malfunction may result. 5 • Do not place or drop any object onto the LCD surface. Also, do not apply pressure from hands or elbows. • Do not damage the LCD surface with a cutter and sharp cutlery. • Do not shut the LCD with the ballpoint etc. put on the disc lid. • If the player is brought directly from a cold to a warm location, moisture may condense over the LCD surface. In which case, wipe out the moisture with tissue paper, etc., before use. However, moisture condensation will continue if the LCD surface is cold. Wait until the surface warms to room temperature. On AC adaptor • Use the supplied AC adaptor for this player, as other adaptors may cause a malfunction. • Do not confine the AC adaptor in a closed place such as a bookshelf or an AV cabinet. • Do not connect the AC adaptor to a traveler’s electric transformer, which may generate heat and cause a malfunction. On battery pack • Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority. • Because of the battery’s limited life, its capacity gradually deteriorates over time and repeated use. Purchase a new one when the battery holds about only half the normal period. • The battery may not be charged to its fullest capacity when charged for the first time, or when it has not been used for a long time. The capacity recovers after being charged and discharged several times. • Do not leave the battery pack in a car or direct sunlight, where temperature goes up above 60 ºC. • Do not expose to water. • Avoid short-circuiting the battery connecting jacks (A) located on the bottom of the player and the connecting jacks (C) on the battery pack with metal objects such as a necklace. • Make sure dust or sand does not enter the battery connecting jacks (A) and the guide holes (B) located on the bottom of the player, and the connecting jacks (C) and the guide holes (D) on the battery pack. On car adapter • Use the supplied car adaptor for this player, as other adaptors may cause a malfunction. • Do not dissemble or reverse-engineer. • Do not drop or apply shock. Install this system so that the mains lead can be unplugged from the wall socket immediately in the event of trouble. B A Bottom of the player C D Battery pack ,continued 6 • Do not touch the metal parts, as it may cause a short and damage the car adaptor, especially if touched by other metal objects. • Do not place the car adaptor in a location near heat sources, or in a place subject to direct sunlight or mechanical shock, or in a car with its windows closed. On adjusting volume Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played. On headphones • Preventing hearing damage Avoid using headphones at high volumes. Hearing experts advice against continuous, loud, and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use. • Showing consideration for others Keep the volume at a moderate level. This will allow you to hear outside sounds and still be considerate to the people around you. On cleaning Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. On cleaning discs, disc/lens cleaners Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction. If you have any questions or problems concerning your player, please consult your nearest Sony dealer. IMPORTANT NOTICE Caution: This player is capable of holding a still video image or on- screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this. 8 About This Manual • Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote. • “DVD” may be used as a general term for DVD VIDEOs, DVD+RWs/DVD+Rs (+VR mode) and DVD-RWs/DVD-Rs (VR mode, video mode). • The meaning of the icons used in this manual is described below: Icons Meaning Functions available for DVD VIDEOs and DVD+RWs/DVD+Rs in +VR mode or DVD-RWs/ DVD-Rs in video mode Functions available for DVD-RWs/DVD-Rs in VR (Video Recording) mode Functions available for VIDEO CDs (including Super VCDs or CD-Rs/CD-RWs in video CD format or Super VCD format) Functions available for music CDs or CD-Rs/CD-RWs in music CD format Functions available for DATA CDs (CD-ROMs/CD- Rs/CD-RWs containing MP3*1 audio tracks, JPEG image files, and DivX*2*3 video files) Functions available for DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/DVD-Rs containing MP3*1 audio tracks, JPEG image files, and DivX*2*3 video files) Functions available for USB devices containing MP3*1 audio tracks, and JPEG image files *1 MP3 (MPEG-1 Audio Layer III) is a standard format defined by ISO (International Organization for Standardization)/IEC (International Electrotechnical Commission) MPEG which compresses audio data. *2 DivX® is a video file compression technology, developed by DivXNetworks, Inc. *3 DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc. and are used under licence. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 9 This Player Can Play the Following Discs “DVD+RW,” “DVD-RW,” “DVD+R,” “DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks. Note about CDs/DVDs The player can play CD-ROMs/CD-Rs/ CD-RWs recorded in the following formats: – music CD format – video CD format – MP3 audio tracks, JPEG image files, and DivX video files of format conforming to ISO 9660* Level 1, or its extended format, Joliet – KODAK Picture CD format * A logical format of files and folders on CD- ROMs, defined by ISO (International Organization for Standardization). The player can play DVD-ROMs/ DVD+RWs/DVD-RWs/DVD+Rs/ DVD-Rs recorded in the following format: – MP3 audio tracks, JPEG image files, and DivX video files of format conforming to UDF (Universal Disk Format). Example of discs that the player cannot play The player cannot play the following discs: • Blu-ray discs. • Discs recorded in AVCHD format. • HD DVDs. • DVD-RAMs. • CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on this page. • CD-ROMs recorded in PHOTO CD format. • Data part of CD-Extras. • DVD Audio discs. • DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files. • HD layer on Super Audio CDs. Also, the player cannot play the following discs: • A DVD VIDEO with a different region code. • A disc that has a non-standard shape (e.g., card, heart). • A disc with paper or stickers on it. • A disc that has the adhesive of cellophane tape or a sticker still left on it. Notes • Notes about DVD+RWs/DVD+Rs, DVD- RWs/DVD-Rs or CD-Rs/CD-RWs Format of discs DVD VIDEO DVD-RW/-R (finalized disc) DVD+RW/+R (finalized disc) VIDEO CD/ Music CD CD-RW/-R ,continued 10 Some DVD+RWs/DVD+Rs, DVD-RWs/ DVD-Rs, or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/DATA DVDs created in Packet Write format or multiple sessions cannot be played. • Notes about DVD+R DLs/DVD-R DLs MP3 and JPEG files recorded on the second layer of a DVD+R DL/-R DL (double layered) cannot be played. DVD-R DL discs recorded in VR mode cannot be played. • Music discs encoded with copyright protection technologies This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. • Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed. Region code It is the system that is used to protect copyrights. The region code is shown on the DVD VIDEO packages according to the region of sale. DVD VIDEOs labelled “ALL” or “2” will play on this player. Note on playback operations of DVDs and VIDEO CDs Some playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs. Copyrights This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. ALL 11 Trademarks • Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. • Manufactured under license under U.S. Patent #: 5,451,942 & other U.S. and worldwide patents issued & pending. DTS and DTS Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. 12 Preparations Checking the Accessories Check that you have the following items: • Audio/video cord (mini plug � 2 y phono plug � 3) (1) • Mains lead (1) • AC adaptor (1) • Car battery adaptor (1) • Battery pack (NP-FX120) (1) • Remote (with battery) (1) Using the Remote When operating, point it at the remote sensor on the player. To replace the remote control battery Insert a lithium battery CR2025 matching the 3 and # ends of the battery. 1 Pull out the battery holder (2) while pressing the lock lever (1). 2 Remove the old battery. 3 Insert the new battery in the battery holder with the 3 side up and then push the holder fully. Notes • Do not expose the remote sensor to direct sunlight or a lighting apparatus. Doing so may cause a malfunction. • No button operation can be made, when the battery drains. If the remote does not work at all, change the battery and check the status. • When disposing the used batteries, follow the battery maker’s instructions. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 13 Preparations Connecting the AC Adapter Connect the AC adaptor (supplied) in the order of 1 to 3 below. To disconnect, follow the steps in reverse order. See also “On AC adaptor” in “Precautions” (page 5). Note Stop playback before disconnecting the mains lead. Failure to do so may cause a malfunction. DC plug 2 To DC IN 9.5V jack AC Adaptor (supplied) 1 Mains lead (supplied) To mains 3 14 Using with Battery Pack When a mains connection is not available, the player can be enjoyed with the battery pack (supplied) installed. Please charge the battery pack before using it. See also “On battery pack” in “Precautions” (page 5). Installing the battery pack 1 Aligning the battery pack with the lines on the player’s bottom, engage the hooks of the battery pack in the holes on the bottom of the player. 2 Slide the battery pack in the direction of the arrow until it clicks into place. To remove the battery pack Push the release knob and slide the battery pack in the direction of the arrow. Bottom of the player Battery pack Release knob 15 Preparations Notes • Turn the player off before installing the battery pack. • Do not remove the battery pack during playback. • Do not touch the connecting points of the player and the battery pack. Doing so may cause a malfunction. • Be careful not to drop the battery pack when installing and removing it. 16 Charging the battery pack 1 Attach the battery pack to the player (page 14). 2 Connect the AC adaptor to the player, and then connect the mains lead into a mains (page 13). When charging begins, the CHARGE indicator turns on. When charging ends, the CHARGE indicator turns off. 3 After charging is finished, disconnect the mains lead from the mains and remove the AC adaptor. To check the battery level When the player is stopped, a battery indicator is displayed on the screen. Recharge the battery, when is displayed or the CHARGE indicator flashes. The battery indicator is not displayed when a DVD, VIDEO CD or JPEG file are being played. Stop the player and check the battery level. Charging time and maximum playing time * This is the indication of the longest continuous playback on the following conditions. – normal temperature (20°C) – Headphone Use – Set Backlight Adjustment to the Minimum – Set “Digital Output” to “Off” in “Audio Setup.” Battery condition may reduce operating time. Charging time (with the player turned off) Playing time (with the display turned on) Approx. 5 hours Approx. 5 hours* CHARGE indicator DC IN 9.5V jack Player Battery pack Full Exhausted www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 18 Using With the Car Battery Adaptor Use the car battery adaptor (supplied) to supply power from the cigarette lighter socket to the player. The adaptor is for a 12V car battery. Do not use it with a 24V car battery. The adaptor is also for use with negatively grounded cars. Do not use it with cars grounded positively. z Hint If the car adaptor interferes with car operation, use a commercial cigarette lighter extension cord. Notes • Do not use the car adaptor if it has been dropped or damaged. • Arrange the cord so as not to interfere with the driver. Also, do not place the LCD panel where the driver can watch. • If the picture is not clear, keep the player away from the car battery adaptor. • Use the car battery adaptor with the car engine running. If it is used with the car engine off, the car battery may become unusable. • If the cigarette lighter socket is dirty with ash, etc, a bad connection may cause the plug to heat up. Always clean well before use. • The car battery adaptor may heat up while charging or after a long period of use. That is not a malfunction. After using the car battery adaptor After turning the player off, disconnect the car battery adaptor from the cigarette lighter socket. To cigarette lighter socket To DC IN 9.5V jack Car battery adaptor (supplied) 17 Preparations Notes • The battery indicator does not appear on the screen when the AC adaptor is used or when inputting from external sources. • Charging times may differ from that indicated above due to conditions of use, environment, and other factors. The recommended charge up surrounding temperature is in the 10-30°C range. 19 Preparations Notes • Do not turn off the car engine while the player is turned on. Doing so stops the power supply and may cause damage to the player. • Disconnect the car battery adaptor after use. Since some cars supply power to the cigarette lighter socket even when the engine is turned off, the car battery may discharge over time. • When disconnecting the car battery adaptor, hold the plug to pull it out. • When listening to the car radio, disconnect the car battery adaptor from the cigarette lighter socket to avoid noise. 20 Playing Discs Playing Discs Depending on the DVD or VIDEO CD, some operations may be different or restricted. Refer to the operating instructions supplied with the disc. Connect the AC adaptor or install the battery pack. 1 Open the player’s LCD panel. Set the LINE SELECT switch on the player’s right side to “OUT” and set the CD/DVD USB switch on the player’s left side to “CD/DVD.” 2 Press [/1 on the remote or slide the [/1/HOLD switch of the player to “[/1.” The player turns on and the power indicator lights up in green. 3 Press the OPEN button on the player to open the disc lid. 4 Insert the disc to be played. Push with the playback side down until it clicks. 5 Push the PUSH CLOSE on the player to shut the disc lid. 6 Press H • Playback starts. • Some discs may start playing automatically after the disc lid is shut. • Depending on the disc, a menu may appear on the screen. For DVD VIDEOs, see page 23. For VIDEO CDs, see page 26. • After all titles have been played, the player will stop itself and the display will return to the menu screen. OPEN x \/1/HOLD LINE SELECT H 1 2 3 4 5 6 7 8 0 9 \/1 H x Playback side facing down www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 21 Playing Discs Notes • If the disc is inserted with playback side up, a “No Disc” or “Cannot play this disc.” message appears. • Discs created on DVD recorders must be correctly finalized to play on this player. For more information about finalizing, refer to the operating instructions supplied with the DVD recorder. • The disc may be still spinning when the disc lid is opened. Wait until the spinning stops before removing the disc. • During operation, “ ” may appear on the screen. This symbol indicates that a function explained in this operating instruction is not available on the current DVD VIDEO. • Some DVD-RWs/DVD-Rs (VR mode) may take time before starting playback because of the recorded content. To stop playback Press x. Pressing H again will start playback from the point you stopped (Resume Play). See page 22 for details. To play from the beginning, press x twice, then press H. To turn off the power Press the remote’s \/1 button or slide the player’s \/1/HOLD switch to “\/1.” To avoid accidental button operation on the player Set the player’s \/1/HOLD switch to “HOLD.” All the buttons on the player are locked, while the button on the remote remains operable. To play DTS sound tracks on a DVD VIDEO • The player’s speaker does not output DTS sound. When you play DTS sound tracks on a DVD VIDEO, connect the player to an AV amplifier (receiver) (page 49) and set up “DTS” in “Audio Setup” (page 44). • If you connect the player to audio equipment such as an AV amplifier (receiver) without a DTS decoder, do not set “DTS” to “On” in “Audio Setup” (page 44). A loud noise may come out from the speakers, which may affect your ears or cause speaker damage. Notes • A screen saver image appears when you leave the player in pause or stop without operation for more than 15 minutes. The image disappears when you press H. See page 42 for details. • The player turns off, 15 minutes after starting the screen saver function (Auto Power Off). ,continued 22 Additional playback operations * DVD VIDEOs, DVD-RWs/DVD-Rs (VR mode) only. The above functions may not be used for some scenes. Resuming playback from the point where you stopped the disc (Resume Play) When you stop playback, the player remembers the stop point and displays a message on the screen. You can resume from the same point by pressing H again. Resume Play works even after the player is turned off, as long as the disc lid is kept closed. 1 While playing a disc, press x to stop playback. A message appears. 2 Press H. The player starts playback from the point you stopped in step 1. z Hints • To play from the beginning of the disc, press x twice, then press H. • When turning power on again after power off, resume play starts automatically. Notes • Depending on the stop point, Resume play may not start from exactly the same point. • The point where you stopped playing is cleared when: To Operation Stop Press x Pause Press X Go to the next chapter, track, or scene in continuous play mode Press > Go back to the previous chapter, track, or scene in continuous play mode Press . Briefly fast forward the current scene* Press during playback. 1 2 3 4 5 6 7 8 0 9 . > x X 1 2 3 4 5 6 7 8 0 9 H x 23 Playing Discs – you turn off the player while playing a DVD-RW/DVD-R (VR mode). – you open the disc lid. – you disconnect the battery pack and the AC adaptor. – you switch LINE SELECT switch or CD/ DVD USB switch. Using the DVD’s menu A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD containing several titles, you can select the title you want using the TOP MENU button. When you play DVDs that allow you to select items such as language for the sound and subtitles, select these items using the MENU button. 1 Press TOP MENU or MENU. The disc’s menu appears on the screen. The contents of the menu vary from disc to disc. 2 Press C/X/x/c or the number buttons to select the item you want to play or change. 3 Press ENTER. Note Depending on the disc, you may not be able to use C/c of the player for the disc menu. In this case, use C/c on the remote. Changing the sound When playing a DVD VIDEO recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD VIDEO is recorded with multilingual tracks, you can also change the language. With CDs or VIDEO CDs, you can select the sound from either the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel. 1 Press AUDIO repeatedly to select the desired audio signal. The default setting is underlined. N When playing a DVD VIDEO Depending on the DVD VIDEO, the choice of language varies. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats. 1 2 3 4 5 6 7 8 0 9 TOP MENU C/X/x/c ENTER MENU Number buttons 1 2 3 4 5 6 7 8 0 9 AUDIO ,continued 24 N When playing a DVD-VR mode disc The types of sound tracks recorded on a disc are displayed. Example: • 1.Main (main sound) • 1.Sub (sub sound) • 1.Main+Sub (main and sub sound) N When playing a CD/VIDEO CD • Stereo: the standard stereo sound • Left: the sound of the left channel (monaural) • Right: the sound of the right channel (monaural) N When playing a Super VCD • Stereo: the stereo sound of the audio track 1 • Left: the sound of the left channel of the audio track 1 (monaural) • Right: the sound of the right channel of the audio track 1 (monaural) • Stereo 1: the stereo sound of the audio track 2 • Left 1: the sound of the left channel of the audio track 2 (monaural) • Right 1: the sound of the right channel of the audio track 2 (monaural) z Hints • You can check of the current audio format (Dolby Digital, DTS, PCM, etc.) by pressing AUDIO repeatedly while playing a DVD VIDEO. • You can switch the sound in the Playback Settings Display while playing a DVD (page 27). Notes • Depending on the disc, you may not be able to change the audio format, even if it is recorded in multiple audio formats. • When playing a Super VCD that does not contain audio track 2, no sound will come out if you select “Stereo 1,” “Left 1,” or “Right 1.” • When playing soundtracks on DVD-RW/ DVD-R (VR mode) with audio equipment such as an AV amplifier (receiver) connected via the OPTICAL OUT jack, set “Dolby Digital” in “Audio Setup” to “Downmix PCM” (page 43). • If “DTS” in “Audio Setup” is set to “Off” (page 44), the player does not output the DTS signal from the OPTICAL OUT jack even when the disc contains a DTS track. • When playing DTS sound tracks on a CD, you cannot change the sound. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 25 Playing Discs Displaying the subtitles If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD. 1 Press SUBTITLE repeatedly to select a setting. Depending on the disc, the choice of language varies. To turn off the subtitles Select “Subtitle Off” in step 1. z Hint You can switch the subtitles in the Playback Settings Display while playing a DVD (page 27). Notes • Depending on the DVD VIDEO, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off. • While you play a disc with subtitles, the subtitle may disappear when you press . Changing the angles If various angles (multi-angles) for a scene are recorded on the DVD VIDEO, “ ” appears on the screen. This means that you can change the viewing angle. 1 Press ANGLE repeatedly to select an angle number. The scene changes to the selected angle. Notes • Some DVD VIDEOs prohibit changing angles even when multi-angles are recorded. • You cannot change angles during Slow Play or Scan Play. • “ ” (angle mark) does not appear when “Angle Mark” in “General Setup” is set to “Off” (page 42). 1 2 3 4 5 6 7 8 0 9 SUBTITLE 1 2 3 4 5 6 7 8 0 9 ANGLE ,continued 26 Selecting “Original” or “Play List” on a DVD-RW/DVD-R Some DVD-RWs/DVD-Rs in VR (Video Recording) mode have two types of title for playback: originally recorded titles (Original), and titles that can be created on recordable DVD players for editing (Play List). You can select the type of title to be played. 1 Press TOP MENU when the player is in stop mode. The current mode appears. The TOP MENU button does not work when Resume Play is activated. Cancel the Resume Play status first by pressing x twice, and then press TOP MENU. 2 Switch the mode by pressing TOP MENU repeatedly. z Hint You can check the current mode by pressing DISPLAY during playback. On the Playback Settings Display (page 27), “PL” or “ORG” will be displayed next to the title number. Notes • When a disc containing a Playlist title is inserted, the player automatically starts playing the Playlist title. • When no Playlist title is recorded, “ORG” appears in step 1. When you press TOP MENU once more, “ ” appears. Playing VIDEO CDs With PBC Functions (PBC Playback) Some VIDEO CDs have Playback Control (PBC) functions allowing for interactive search or playback options. 1 Start playing a VIDEO CD with PBC functions. The menu appears for your selection. 2 Press the number buttons to select the item number you want and press ENTER. 3 Follow the instructions on screen for interactive operations. Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD. 1 2 3 4 5 6 7 8 0 9 TOP MENU ENTER H Number buttons 1 2 3 4 5 6 7 8 0 9 27 Playing Discs z Hint To cancel the PBC function, set “PBC” to “Off” in “General Setup” (page 42) and then, open and close the disc lid. Note Depending on the VIDEO CD, “Press ENTER” in step 2 may appear as “Press SELECT.” In this case, press H. Using the Playback Settings Display While playing a DVD, you can check the current playback settings on the screen. The Playback Settings Display also allows you to change sound, subtitle, and angle or search for a title or track by inputting numbers. 1 Press DISPLAY while playing a DVD. The Playback Settings Display appears. Example: When playing a DVD VIDEO 1 2 3 4 5 6 7 8 0 9 Number buttons DISPLAY C/X/x/c ENTER O Menu Title Chapter Audio Subtitle 02/07 03/20 02 2CH DOLBY DIGITAL English 01 English Title Elapsed 00:12:01 Current playback settings Items Elapsed or remaining time Battery status ,continued 28 The corresponding icon for Play, Pause, Search, or Slow Play is displayed in the upper right corner of the screen. When a DVD-RW/DVD-R (VR mode) is played, “PL” or “ORG” is displayed next to the title number. 2 Press X/x to select the desired item and press ENTER. • Title • Chapter • Audio • Subtitle • Angle • T.Time • C.Time • Repeat • Time Disp. 3 Press X/x to select the setting, and press ENTER. To enter numbers, use the number buttons or X/x. Note Depending on the disc, you may not be able to set some options. To turn off the display Press DISPLAY or O RETURN. Searching for a title/chapter, etc. By entering the number or the time code, you can search a DVD by title or chapter. 1 Press X/x to select the search method on the Playback Settings Display, and press ENTER. • Title • Chapter • T.Time* • C.Time* * You can search the title or chapter of a DVD VIDEO by entering the time code. 2 Press the number buttons or X/x to select the title or chapter number, and press ENTER. The player starts playback from the selected number. When you select “T.Time” or “C.Time” in step 1, “00:00:00” will appear on the screen. Enter the desired time code using the number buttons, and press ENTER. Playback starts from the entered time code. Elapsed or remaining time appears on the footer of the Playback Settings Display. z Hints • You can use direct search without displaying the control menu. See page 30 for details. • See page 30 for details about using direct search for a CD or VIDEO CD. Notes • The displayed title/chapter number is the same as the number recorded on the disc. • Chapter times are not displayed when a DVD-RW/DVD-R (VR mode) is played. Chapter time will be displayed as “--:--:--.” • Depending on the disc, you may not be able to use the time code. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 29 Playing Discs Playing a DVD VIDEO repeatedly (Repeat Play) You can play all of the titles on a DVD VIDEO, or a single title or chapter repeatedly. 1 Select “Repeat” on the Playback Settings Display, and press ENTER. 2 Press X/x to select the setting, and press ENTER. • Chapter: repeats the current chapter. • Title: repeats the current title. • All: repeats all of the titles. To return to normal play Select “Off” in step 2. z Hint When playing a VCD or CD repeatedly, use OPTIONS (page 31). Note Depending on the disc, the Repeat function may not be available. Checking the playing time and remaining time You can check the playing time and remaining time of the current title or chapter. 1 Select “Time Disp.” on the Playback Settings Display, and press ENTER. 2 Press X/x to select the time information setting, and press ENTER. • Title Elapsed • Title Remain • Chapter Elapsed • Chapter Remain z Hint See page 32 for details about displaying the elapsed time of a CD or VIDEO CD. Notes • In the case of DVD-RWs/DVD-Rs (VR mode), the playing time and remaining time of the chapter is not displayed. • The default setting for “Time Disp.” is “Title Elapsed.” After selecting an other option of “Time Disp.” and exiting from the Playback Settings Display, the “Title Elapsed” appears when the Playback Settings Display is re-entered. Time Disp. Title Elapsed Title Remain Chapter Elapsed Chapter Remain Title Elapsed 00:12:48 30 Searching for a Particular Point on a Disc (Search, Scan, Slow Play, Repeat Play, Random Play) You can quickly locate a particular point on a disc by monitoring the picture or playing back slowly. Notes • Depending on the disc, you may not be able to perform some of the operations described. • For DATA CDs/DATA DVDs, you can search for a particular point only on an MP3 audio track. Locating a point quickly using the ./> PREV (previous)/NEXT buttons (Search) During playback, press > or . to go to the next or previous chapter/track/ scene. z Hints When you know the title or chapter number, you can search directly by entering these numbers using the number buttons. • While playing a DVD VIDEO, you can search for a title or chapter using the number buttons and ENTER. Press C/c to switch between title and chapter. • While playing CDs/VIDEO CDs, you can search for a track using the number buttons and ENTER. Locating a point quickly by playing a disc in fast forward or fast reverse (Scan) Press m or M to fast reverse or fast forward during playback. To return to normal play, press H. Each time you press m or M during scan, the scan speed changes. With each press the indication changes as shown below. N Playback direction N Opposite direction The “3M”/“3m” playback speed is faster than “2M”/“2m” and the “2M”/“2m” playback speed is faster than “1M”/“1m.” z Hint C/c on the player works the same as m/M on the remote, and ENTER on the player works the same as H on the remote. This function is effective when you play back a DVD. 1 2 3 4 5 6 7 8 0 9 M m > OPTIONS H . DISPLAY H t 1M t 2M t 3M H t 1m t 2m t 3m 31 Playing Discs Notes • No sound is output during Scan play for a DVD or VIDEO CD. • Scan speed differs depending on the disc type. Watching frame by frame (Slow Play) Press m or M when the player is in pause mode. To return to normal speed, press H. Each time you press m or M during Slow Play, the playback speed changes. With each press the indication changes as follows: N Playback direction N Opposite direction (DVD only) The “3 ”/“3 ” playback speed is slower than “2 ”/“2 ” and the “2 ”/“2 ” playback speed is slower than “1 ”/“1 .” Note Slow speed differs depending on the disc type. Playing CD/VIDEO CD repeatedly or in random order (Repeat Play, Random Play) You can play all of the tracks on a disc, or a single track repeatedly (Repeat Play). Also, you can play the tracks in random order, too (Random Play). 1 Press OPTIONS repeatedly during playback to select the playback mode. • Track: repeats the current track. • All: repeats all tracks on the disc. • Random: plays all tracks on the disc randomly. To return to normal play Select “ Off” in step 1. z Hint During Random Play, you can start playing other randomly selected track by pressing > once. Notes • You cannot use Repeat Play and Random Play with VIDEO CDs or Super VCDs during PBC playback. • Depending on the disc, Random Play may not be available. • The same track may be repeated several times in Random Play. H t 1 t 2 t 3 H t 1 t 2 t 3 ,continued 32 Checking the play information of the disc When playing a DVD Press DISPLAY while playing a DVD, and then use the Playback Settings Display (page 27). When playing a CD Press DISPLAY. The playing track number/the total number of tracks and the elapsed time of the current track appear. Press DISPLAY repeatedly to switch the time information as below. • Track Elapsed • Track Remain • Disc Elapsed • Disc Remain When playing a VIDEO CD Press DISPLAY. The player displays “PBC On” (when you set “PBC” to “Off,” the player displays the playing track number/the total number of tracks), the elapsed time, and the audio mode on the screen. Note The player does not display “Disc Elapsed” or “Disc Remain” on the screen when playing a CD in Random Play. Playing MP3 Audio Tracks or JPEG Image Files You can play MP3 audio tracks and JPEG image files on DATA CDs (CD- ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/DVD+RWs/ DVD+Rs/DVD-RWs/DVD-Rs) or USB devices. For playable MP3 audio files and JPEG image files, see page 54. When you insert DATA CDs and DATA DVDs, the list of albums appears. To play back data on a USB device 1 Set the CD/DVD USB switch on the player’s left side to “USB.” 1 2 3 4 5 6 7 8 0 9 MENU x . C/X/x/c ENTER X H > www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 33 Playing Discs 2 Connect the USB device to the USB jack on the player’s left side. To disconnect a USB device 1 Set the CD/DVD USB switch to “DVD/CD.” 2 Disconnect a USB device. Compatible Sony USB devices JPEG and MP3 file playback via USB port is confirmed with Sony’s USB Memory Stick Reader/Writer and USB Flash drive “Pocket Bit.” (Confirmed device: MSAC-US40, USM-EX series, USM-J series, USM-JX series, USM-H series) Notes • Do not disconnect the USB device while its access indicator is flashing. Doing so may cause data corruption or loss of data. • The access indicator on some USB devices may keep flashing even after the data is transferred. • USB devices which can connect to the player are flash memory and multiple card reader. Other devices (digital still camera, USB hub, etc.) cannot be connected. When an incompatible device is connected, “Cannot recognise the connected device.” appears indicating that the device is unrecognizable. • DATA CDs recorded in KODAK Picture CD format automatically start playing when inserted. Playing an MP3 audio track 1 Press X/x to select an album on the list, and press ENTER. The list of tracks in the album appears. • To go to the next or previous page, press > or .. • To return to the list of albums, press X/x to select and press ENTER. 2 Press X/x to select the track you want to play, and press ENTER. Playback starts from the selected track. To go to the next or previous MP3 audio track Press > or .. To stop playback Press x. Notes • The total albums and files the player can recognize is about 648. • The number of albums in a disc the player can recognize is about 299. CD/DVD USB switch USB device . . MY BEST Dir:001 03 Wing 02 Fire 01 Stardust ,continued 34 Playing a JPEG image file 1 Press X/x to select an album on the list, and press ENTER. The list of files in the album appears. • To go to the next or previous page, press > or .. • To return to the list of albums, press X/x to select and press ENTER. 2 Press X/x to select the image you want to view, and press ENTER. The selected image appears. Example: To display the list of thumbnails Press MENU when a file is displayed on the screen. The image files in the album appear in 12 subscreens with the displayed file in the lead. • To move to the previous or next page of the thumbnail list display, select “bPrev” or “NextB” under the screen. • To exit the list of thumbnails, press MENU. To go to the next or previous JPEG image file Press > or .. To rotate a JPEG image Press C/X/x/c while viewing the image. X: Reverses the image vertically (up and down). x: Reverses the image horizontally (left and right). c: Rotates the image 90 degrees clockwise. C: Rotates the image 90 degrees counter clockwise. Note that the view also returns to normal if you press ./> to go to the next or previous image. Example: when C is pressed once. DSC00005 DSC00004 DSC00003 DSC00002 DSC00001 . . HAWAII Dir:001 1 2 3 4 5 6 7 8 9 10 11 12 35 Playing Discs To stop viewing the JPEG image Press x. The display returns to the list of files. Notes • Images may take time to appear due to the number of recorded files or the size of the folders. If no image appears after a few minutes, some of the files included may be too large. • Some JPEG files, especially progressive JPEG files or JPEG files of 3,000,000 pixels or more, may take longer to display than others. • The player cannot play the JPEG image file that is larger than 3078 (width) x 2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the size is within this specified capacity.) • The total albums and files the player can recognize is about 648. • The number of albums in a disc the player can recognize is about 299. Enjoying JPEG Images as a Slide Show You can play JPEG image files on a DATA CD or DATA DVD successively as a slide show. 1 While displaying the file you want to start a slideshow, press MENU. The list of thumbnails appears. 2 Press C/X/x/c to select “Slide Show” at the bottom of the screen, and press ENTER. A slideshow starts from the displayed file. To pause slideshow Press X. By pressing X again or H, you can return to slideshow. To stop slideshow Press x or MENU. 1 2 3 4 5 6 7 8 9 10 11 12 36 Adjusting the Picture Size and Quality You can adjust the picture displayed on the LCD screen. See “General Setup” (page 41), when outputting the video signal to TV, etc. 1 Press OPTIONS. The Option Menu appears. 2 Press X/x to select “LCD Mode” and press ENTER. The items for “LCD Mode” appear. 3 Press X/x to select items and press ENTER. • LCD Aspect: Change the picture size. Select “Normal” or “Full” by pressing X/x*. • Backlight: Adjust the brightness of the LCD screen by pressing C/c. • Contrast: Adjust the difference between light and dark areas by pressing C/c. • Hue: Adjust the red and green colour balance by pressing C/c. • Color: Adjust the richness of colours by pressing C/c. • Default: Returns all settings to the factory defaults. * In “Normal,” the pictures are displayed in the original configuration, retaining the aspect ratio. For example, a 4:3 picture will have black bands on both sides, and the letterbox pictures recorded either in 16:9 or 4:3 will have black bands on all sides. In “Full,” a 16:9 picture will be adjusted to fill the entire screen. z Hints • The screen turns off automatically when the LCD panel is closed. • You can see the settings for the display in “General Setup” (page 41). Notes • The screen size you can select differs depending on the DVD. • You cannot select “Normal” for a DVD recorded in “16:9.” • You cannot adjust the picture size and quality when playing a VIDEO CD with “PBC” set to “Off.” • You can select “Normal” or “Full” by pressing OPTIONS repeatedly when inputting from external sources. 1 2 3 4 5 6 7 8 0 9 C/X/x/c ENTER OPTIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 37 Enjoying DivX® Videos Enjoying DivX® Videos Playing DivX Video Files You can play DivX video files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs) and DATA DVDs (DVD-ROMs/ DVD+RWs/DVD+Rs/DVD-RWs/ DVD-Rs). When you insert DATA CDs and DATA DVDs, the list of albums appears. Notes • When the selected file is not supported, “Data Error (DivX)” displays on the screen and the file will not be played. • Depending on the DivX video file, the picture may pause or be unclear. In which case, it is recommended that you create the file at a lower bit rate. If the sound is still noisy, MP3 is the recommended audio format. Note, however, this player does not conform to WMA (Windows Media Audio) format. • Because of the compression technology used for DivX video files, it may take some time after you press H (play) for the picture to appear. • Depending on the DivX video file, the sound may not match the pictures on the screen. • The player’s speaker does not output DTS sound. When you play DTS sound tracks on a DivX video file, connect the player to an AV amplifier (receiver) (page 49) and set up “DTS” in “Audio Setup” (page 44). • Depending on the DivX video file, you may not be able to perform some operations. Playing a DivX video file 1 Press X/x to select an album on the list, and press ENTER. A list of files in the album appears. • To go to the next or previous page, press > or .. • To return to the list of albums, press X/x to select and press ENTER. 2 Press X/x to select the file you want to play, and press ENTER. Playback starts from the selected file. To go to the next or previous DivX video file Press > or .. To locate a point quickly by playing DivX video files in fast forward or fast reverse (Scan) Press M/m repeatedly to select the required speed for the search mode during playback. 1 2 3 4 5 6 7 8 0 9 C/X/x/c ENTER DISPLAY > . M AUDIO SUBTITLE x m . . MY FAVORITE Dir:001 02 VENUS 01 HAWAII ,continued 38 To watch frame by frame (Slow Play) Press M repeatedly in pause mode to select the required slow motion speed. To display the playback information Press DISPLAY repeatedly. The playback information changes as follow order, “Title Elapsed,” “Title Remain,” “Display Off,” and “Subtitle.” To change the sound Press AUDIO repeatedly during playback to select the desired audio signal. If “No Audio” appears, the player does not support the audio signal format contained in the disc. To change the subtitles Press SUBTITLE during playback. Press X/x, and ENTER during displaying the subtitle information. To stop playback Press x. z Hint If the number of viewing times is preset, you can play the DivX video files as many times as the preset number. The following occurrences are counted: – when the player is turned off. This includes when the player is automatically turned off by the Auto Power Off function. Press X instead of x to stop viewing. – when the disc lid is opened. – when another file is played. Note The slow reverse function is prohibited. About DivX Video Files DivX® is a video file compression technology, developed by DivX, Inc. This product is an official DivX® Certified product. You can play DATA CDs and DATA DVDs that contain DivX video files. DATA CDs and DATA DVDs that the player can play This player only plays DATA CDs whose logical format is ISO 9660 Level 1 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format. Note The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format or multiple sessions. DivX video files that the player can play The player can play data that is recorded in DivX format, and which has the extension “.AVI,” or “.DIVX.” The player will not play files with the extension “.AVI” or “.DIVX” if they do not contain a DivX video. Notes • The player may not play a DivX video file when the file consists of two or more DivX video files combined. • The player cannot play a DivX video file of size more than 720 (width) � 576 (height)/ 2 GB. 39 Enjoying DivX® Videos • Depending on the DivX video file, the picture may be unclear or the sound may skip. • The player cannot play some DivX video files that are longer than 3 hours. • The player can display a file name up to 14 characters. Any characters after the 14th character do not appear on the screen. • Characters that are not displayable appear as “*.” • Depending on the disc, a file name that is not displayable appears as “*.” • You cannot display correctly the CD-R/CD- RW file names written in the UDF file system. About playback order of DivX video files Note that the playback order may not be applicable, depending on the software used for creating the DivX video file, or if there are more than 299 albums and 648 DivX video files in each album. See “About playback order of albums, tracks, and files” (page 55). 40 Settings and Adjustments Using the Setup Display By using the Setup Display, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup Display, among other things. For details on each Setup Display item, see pages from 41 to 46. Note Playback settings stored in the disc take priority over the Setup Display settings, and not all of the functions described may work. 1 Press OPTIONS when the player is in stop mode. The Option Menu appears. The Setup Display does not appear if Resume Play is activated. Cancel the Resume Play status first by pressing x twice, and then press OPTIONS. 2 Press X/x to select “Setup,” then press ENTER. The items for “Setup” appear. 3 Press X/x to select the desired Setup item from: “General Setup,” “Audio Setup,” “Language Setup,” or “Parental Control,” then press ENTER. The Setup item is selected. Example: “General Setup” 1 2 3 4 5 6 7 8 0 9 C/X/x/c ENTER OPTIONS O x ENTER RETURN General Setup TV Display Angle Mark 16 : 9 On On On Screen Saver PBC Select: Cancel: DivX Default ENTER RETURN General Setup TV Display Angle Mark 16 : 9 On On On Screen Saver PBC Select: Cancel: DivX Default Selected item Setup items www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10 41 Settings and Adjustments 4 Press X/x to select an item, then press ENTER. The settings for the selected item appear. Example: “TV Display” 5 Press X/x to select a setting, then press ENTER. The setting is selected and setup is complete. Example: “4:3 Pan Scan” To turn off the Setup Display Press OPTIONS or O RETURN twice. Settings for the Display (General Setup) Choose playback display options and settings according to the TV to be connected. Select “General Setup” in the Setup Display. To use the display, see “Using the Setup Display” (page 40). The default settings are underlined. N TV Display (DVD only) Selects the aspect ratio of the connected TV (4:3 standard or wide). ENTER RETURN General Setup TV Display Angle Mark 4 : 3 Pan Scan 4 : 3 Letter Box 16 : 9 On Screen Saver PBC Select: Cancel: DivX Default Settings Selected setting ENTER RETURN General Setup TV Display Angle Mark 4 : 3 Pan Scan On On On Screen Saver PBC Select: Cancel: DivX Default 4:3 Pan Scan Select this when you connect a 4:3 screen TV. Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit. 4:3 Letter Box Select this when you connect a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen. 16:9 Select this when you connect a wide-screen TV or a TV with a wide mode function. ENTER RETURN General Setup TV Display Angle Mark 16 : 9 On On On Screen Saver PBC DivX Default Select: Cancel: ,continued 42 Note Depending on the DVD, “4:3 Letter Box” may be selected automatically instead of “4:3 Pan Scan” or vice versa. N Angle Mark Displays the angle mark when you can change the viewing angles during playback of DVDs recorded with multi-angles. N Screen Saver The screen saver image appears when you leave the player in pause or stop mode for 15 minutes. The screen saver will help prevent your display device from becoming damaged (ghosting). Press H to turn off the screen saver. N PBC By using the PBC (Playback Control) function, you can enjoy playing interactive programmes and programmes with search functions (page 26). This set up is effective when you play back VIDEO CDs with the PBC function. Set up becomes available by opening and closing the disc lid after setting. N DivX Displays the registration code for this player. For more information, go to http://www.divx.com on the Internet. N Default Each function returns to its original factory settings. Note that all of your settings will be lost. On Display the angle mark. Off Hide the angle mark. On Activates the screen saver function. Off Deactivates the screen saver function. 16:9 4:3 Letter Box 4:3 Pan Scan On By the PBC function, you can play back VIDEO CDs via the menu screen. Off Turn off the PBC function. 43 Settings and Adjustments Settings for the Sound (Audio Setup) “Audio Setup” allows you to set the sound according to the playback and connection conditions. Select “Audio Setup” in the Setup Display. To use the display, see “Using the Setup Display” (page 40). The default settings are underlined. N Audio DRC (Dynamic Range Control) (DVD only) Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This function affects the output from the following jacks: – AUDIO jack – OPTICAL OUT jack only when “Dolby Digital” is set to “Downmix PCM” (page 43). N Digital Output Selects if audio signals are output via the OPTICAL OUT jack. Setting the digital output signal Switches the method of outputting audio signals when you connect an audio equipment such as an AV amplifier (receiver) with the OPTICAL OUT jack. For connection details, see page 48. After setting “Digital Output” to “On,” select “Dolby Digital” and “DTS.” If you connect a component that is incompatible with the selected audio signal, a loud noise (or no sound) may be heard from the speakers, damaging your ears or speakers. N Dolby Digital (DVD only) Selects the type of Dolby Digital signal. On Makes low sounds clear even if you turn the volume down. Off Normally select this position. ENTER RETURN Audio Setup Audio DRC Digital Output Off On Select: Cancel: On Normally select this position. When you select “On,” see “Setting the digital output signal” for further settings. Off The influence of the digital circuit upon the analog circuit is minimal. Downmix PCM Select this when the player is connected to an audio component without a built- in Dolby Digital decoder. Dolby Digital Select this when the player is connected to an audio component with a built-in Dolby Digital decoder. ,continued 44 N MPEG (DVD only) Selects the type of MPEG audio signal. N DTS Selects whether or not to output DTS signals. Setting the Display or Sound Track Language (Language Setup) “Language Setup” allows you to set various languages for the on-screen display or sound track. Select “Language Setup” in the Setup Display. To use the display, see “Using the Setup Display” (page 40). N OSD (On-Screen Display) Switches the display language on the screen. N Disc Menu (DVD VIDEO only) Switches the language for the disc’s menu. When you select “Original,” the language given priority in the disc is selected. N Subtitle (DVD VIDEO only) Switches the subtitle language. When you select “Off,” no subtitle is displayed. N Audio (DVD VIDEO only) Switches the language of the sound track. When you select “Original,” the language given priority in the disc is selected. PCM Select this when the player is connected to an audio component without a built- in MPEG decoder. If you play multi-channel MPEG audio sound tracks, only the Front (L) and Front (R) signals will be output from your two front speakers. MPEG Select this when the player is connected to an audio component with a built-in MPEG decoder. On Select this when the player is connected to an audio component with a built-in DTS decoder. Off Select this when the player is connected to an audio component without a built-in DTS decoder. ENTER RETURN Language Setup OSD Disc Menu English English English English Subtitle Audio Select: Cancel: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-11 45 Settings and Adjustments Note If you select a language in “Disc Menu,” “Subtitle,” or “Audio” that is not recorded on the DVD VIDEO, one of the recorded languages will be automatically selected. Parental Control Settings (Parental Control) Playback of some DVD VIDEOs can be limited, by the parental control function. Select “Parental Control” in the Setup Display. To use the display, see “Using the Setup Display” (page 40). N Password Enter or change a password. By setting a password, you can limit playback of a DVD that has the parental control function. When the Password option is first accessed, enter a new password (you do not need to enter the old password.). N Parental Control The lower the setting value, the stricter the limitation. To set the parental control, you need the selected password in “Password,” therefore first set the password in the set up. Changing the password 1 Press X/x to select “Password” in the Parental Control setting display, and press ENTER. ENTER RETURN Parental Control Password Parental Control Select: Cancel: ,continued 46 2 Select “Change,” and press ENTER. The display for entering the password appears. 3 Enter your current 6-digit password in the “Old Password” box. 4 Enter your new 6-digit password in the “New Password” box. 5 Enter your new 6-digit password once again in the “Verify Password” box, then press ENTER to confirm. If you make a mistake entering your password Press CLEAR, or press C to return one by one before pressing ENTER in step 5, and then re-enter the password. Setting the parental control (limited playback) 1 Press X/x to select “Parental Control” in the Parental Control setting display, and press ENTER. The display for setting the playback limitation level appears. 2 Press X/x to select the limitation level (1-8), and press ENTER. The lower the value, the stricter the limitation. The display for entering the password appears. 3 Enter or re-enter your 6-digit password using the number buttons, then press ENTER. Parental Control setting is complete. To play a disc for which Parental Control is set 1 Insert the disc and press H. The display for entering your password appears. 2 Enter your 6-digit password using the number buttons, then press ENTER. The player starts playback. If you forget your password Remove the disc and repeat the steps outlined in “Changing the password” (page 45). Enter “136900” in the “Old Password” box, and then enter your new 6-digit password in the “New Password” box and “Verify Password” box. 1 2 3 4 5 6 7 8 Adult ENTER RETURN Parental Control Password Parental Control Select: Cancel: OK Password Enter password, then press . Enter Parental Control 47 Settings and Adjustments Notes • When you play discs which do not have the Parental Control function, playback cannot be limited on this player. • Depending on the disc, you may be asked to change the parental control level while playing the disc. In this case, enter your password, then change the level. If the Resume Play mode is cancelled, the level returns to the previous level. 48 Hookups Connecting to another device To switch LINE SELECT (IN/OUT) switch LINE SELECT IN: Input images or audio from an exterior device. The “Line in” message will be displayed on the LCD screen until the signal from the exterior device is received. LINE SELECT OUT:Sends the playback signal from this player to a TV. Notes • Plug cords securely to prevent noise. • Refer to the instructions supplied with the components to be connected. • You cannot connect this player to a TV that does not have a video input jack. • Be sure to disconnect the mains lead of each component before connecting. • Connect the player to the TV directly. Image quality may suffer when the video output from the player is passed through a video deck on to a TV. Connecting to TV monitor To send the playback signal to a TV or a monitor 1 Set the LINE SELECT switch on the player’s right side to “OUT.” TV or monitor with audio/ video intput jacks To AUDIO/VIDEO Audio/video cord (supplied) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-12 49 Hookups Connecting to an AV amplifier (receiver) Example 1 To send the playback signal to an AV amplifier (receiver) 1 Set the LINE SELECT switch on the player’s right side to “OUT.” * The yellow plug is used for video signals (page 48). Example 2 To send the playback signal to an AV amplifier (receiver) 1 Set the LINE SELECT switch on the player’s right side to “OUT.” 2 Set “Digital Output” to “On” in “Audio Setup” (page 43). Stereo amplifier To AUDIO Audio/video cord (supplied) To AUDIO input Amplifier with Dolby Digital or DTS decoder To OPTICAL OUT Optical digital cord (not supplied) To AUDIO input ,continued 50 Connecting to Video Player or Camcorder To recieve the playback signal from a Video Player or Camcorder 1 Set the LINE SELECT switch on the player’s right side to “IN.” Note Set the LINE SELECT switch to “OUT” after use. You cannot play back on the player if the switch is set to “IN.” Video player or camcorder To AUDIO/VIDEO Audio/video cord (supplied) To AUDIO/ VIDEO output 51 Additional Information Additional Information Troubleshooting If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer (For customers in the USA only). Power The power is not turned on. , Check that the mains lead is connected securely. , When using with the battery pack, check that the battery pack is sufficiently charged. Picture There is no picture/picture noise appears. , The disc is dirty or flawed. , The brightness is set at minimum. Set the brightness in “LCD Mode” (page 36). , When you play discs, set the LINE SELECT switch to “OUT.” When you send the playback signal to other device, set the LINE SELECT switch to “OUT.” When you receive the playback signal from other device, set the LINE SELECT switch to “IN” (page 48). , Re-connect the connecting cord securely. , The connecting cords are damaged. , Check the connection to your TV (page 48) and switch the input selector on your TV so that the signal from the player appears on the TV screen. , The player is connected to the COMPONENT VIDEO IN (Y, PB, PR) jacks of high-vision TV. , If the picture output from your player goes through your video deck to get to your TV or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programmes could affect picture quality. The picture does not fill the screen, even though the aspect ratio is set in “TV Display” under “General Setup.” , The aspect ratio of the disc is fixed on your DVD. The black points appear and the red, blue, green points remain on the LCD. , This is a structural property of the LCD and not mulfunction. Sound There is no sound. , The player is in pause mode or in Slow Play mode. , The player is in fast forward or fast reverse mode. , While playing a Super VCD on which the audio track 2 is not recorded, no sound will come out when you select “Stereo 1,” “Left 1,” or “Right 1.” , Re-connect the connecting cord securely. , The connecting cord is damaged. , The player is connected to the wrong input jack on the amplifier (receiver) (page 49). , The amplifier (receiver) input is not correctly set. , If the audio signal does not come through the OPTICAL OUT jack, check the audio settings (page 43). ,continued 52 The sound volume is low. , The sound volume is low on some DVDs. The sound volume may improve if you set “Audio DRC” in “Audio Setup” to “On” (page 43). Operation The remote does not function. , The batteries in the remote are weak. , There are obstacles between the remote and the player. , The distance between the remote and the player is too far. , The remote is not pointed at the remote sensor on the player. , Direct sunlight or strong illumination is striking the remote sensor. Nothing happens when buttons are pressed. , The player’s \/1/HOLD switch is set on “HOLD” (page 21). The disc does not play. , The disc is turned over. Insert the disc with the playback side facing down. , The disc is not set correctly. , The player cannot play certain discs (page 9). , The region code on the DVD does not match the player (page 10). , Moisture has condensed inside the player (page 4). , The player cannot play a recorded disc that is not correctly finalized (page 9). , Parental Control has been set. Change the setting. , The CD/DVD USB switch on the player’s left side is set to “USB.” , The LINE SELECT switch on the player’s right side is set to “IN.” The player starts playing the disc automatically. , The disc features an auto playback function. Playback stops automatically. , While playing discs with an auto pause signal, the player stops playback at the auto pause signal. Some functions such as Stop, Search, Scan, Slow Play, Repeat Play, or Random Play cannot be performed. , Depending on the disc, you may not be able to do some of the operations above. Refer to the operating instructions supplied with the disc. The language for the sound track cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 23). , Multilingual tracks are not recorded on the DVD being played. , The DVD prohibits the changing of the language for the sound track. The subtitle language cannot be changed or turned off. , Try using the DVD’s menu instead of the direct selection button on the remote (page 23). , Multilingual subtitles are not recorded on the DVD being played. , The DVD prohibits the changing of subtitles. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-13 53 Additional Information The angles cannot be changed. , Try using the DVD’s menu instead of the direct selection button on the remote (page 23). , Multi-angles are not recorded on the DVD being played. , The angle can only be changed when the “ ” indicator lights up on the screen (page 25). , The DVD prohibits changing of the angles. The MP3 audio track cannot be played (page 54). , The DATA CD is not recorded in an MP3 format that conforms to ISO 9660 Level 1 or Joliet. , The DATA DVD is not recorded in MP3 format that conforms to UDF (Universal Disk Format). , The MP3 audio track does not have the extension “.MP3.” , The data is not formatted in MP3 even though it has the extension “.MP3.” , The data is not MPEG-1 Audio Layer III data. , The player cannot play audio tracks in mp3PRO format. , The MP3 audio track is damaged. The JPEG image file cannot be played (page 54). , The DATA CD is not recorded in a JPEG format that conforms to ISO 9660 Level 1 or Joliet. , The DATA DVD is not recorded in JPEG format that conforms to UDF (Universal Disk Format). , The JPEG image file does not have the extension “.JPEG.” , The data is not formatted in JPEG even though it has the extension “.JPEG.” , The JPEG image file format does not conform to DCF (page 55). , The image is larger than 3078 (width) � 2048 (height) in normal mode, or more than 3,300,000 pixels in progressive JPEG. (Some progressive JPEG files cannot be displayed even if the file size is within this specified capacity.) , The JPEG image file is damaged. The DivX video file cannot be played. , The file is not created in DivX format. , The file has an extension other than “.AVI” or “.DIVX.” , The DATA CD (DivX video)/DATA DVD (DivX video) is not created in a DivX format that conforms to ISO 9660 Level 1 or Joliet/UDF. , The DivX video file is larger than 720 (width) × 576 (height). The album/track/file names are not displayed correctly. , The player can only display numbers and alphabet. Other characters are displayed as “*.” ,continued 54 The disc does not start playing from the beginning. , Repeat Play or Random Play is selected (pages 29 and 31). , Resume play has taken effect (page 22). The player does not operate properly. , When static electricity, etc., causes the player to operate abnormally, unplug the player. About MP3 Audio Tracks and JPEG Image Files MP3 is audio compression technology that satisfies the ISO/IEC MPEG regulations. JPEG is image compression technology. You can play DATA CDs/DATA DVDs that contain MP3 audio tracks or JPEG image files. DATA CDs/DATA DVDs that the player can play You can play back DATA CDs (CD- ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/DVD+RWs/ DVD+Rs/DVD-RWs/DVD-Rs) recorded in MP3 (MPEG-1 Audio Layer III) and JPEG format. However, this player only plays DATA CDs whose logical format is ISO 9660 Level 1 or Joliet, and DATA DVDs of Universal Disk Format (UDF). Refer to the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format. Note The player may not be able to play some DATA CDs/DATA DVDs created in the Packet Write format or multiple sessions. 55 Additional Information MP3 audio track or JPEG image file that the player can play The player can play the following tracks and files: • MP3 audio tracks with the extension “.MP3.” • JPEG image files with the extension “.JPEG” or “.JPG.” • JPEG image files that conform to the DCF* image file format. * “Design rule for Camera File system”: Image standards for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industries Association). Notes • Change the extension to “.jpg,” for files with “.jpe” or “.jpeg” extension. • The player will play any data with the extension “.MP3,” “.JPG,” or “.JPEG,” even if they are not in MP3 or JPEG format. Playing this data may generate a loud noise which could damage your speaker system. • The player does not conform to audio tracks in mp3PRO format. • Some JPEG files cannot be played. • The player can display a file or track name up to 14 characters. Any characters after the 14th character do not appear on the screen. • Characters that are not displayable appear as “*.” • Depending on the disc, a file or track name that is not displayable appears as “*.” • You cannot display correctly the CD-R/CD- RW file names written in the UDF file system. • When playing an MP3 audio track recorded in VBR mode, you cannot display the bit rate correctly. About playback order of albums, tracks, and files Tracks and files within an album play in the order of the recorded media (CD-R etc.). z Hint Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees. Notes • The player can recognize up to 299 albums (including albums that do not contain MP3 audio tracks and JPEG image files). The player will not play any albums beyond the 299th album. • The player can recognize a combined total of up to 648 files, tracks, and albums. The player will not play beyond the 648th file, track or album. • Depending on the writing condition of the disc, the total number of files, tracks, and albums recognizable may be fewer than 648. • The Album List displays only the currently playing album name. Any album located on the upper layer is displayed as “\..\.” 57 Additional Information Index to Parts and Controls For more information, see the pages indicated in parentheses. Upper view t A LCD panel B Speaker (21) C Disc lid (20) D PUSH CLOSE (20) E MENU button (23) F DISPLAY button (27) G C/X/x/c buttons, ENTER button (23) H OPTIONS button (30) I RETURN button (27) J VOL -/+ (sound volume) buttons K ./> (previous/next) buttons (22) L H (play) button (20) M x (stop) button (21) N X (pause) button (22) O OPEN button (20) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-14 E 58 Front view A POWER indicator (20) B CHARGE indicator (16) C (remote sensor) (12) Left view A USB jack (32) B CD/DVD USB switch (20) Right view A \/1 (on/standby)/HOLD switch (20) B PHONES (headphone) jack A, B C AUDIO (input/output) jack/ OPTICAL OUT (optical output) jack (48, 49) D VIDEO (input/output) jack (48) E LINE SELECT (IN/OUT) switch (20) F DC IN 9.5V (AC adaptor input) jack (13) 59 Additional Information Remote A DISPLAY button (27) B Number buttons (23)* C TOP MENU button (23) D C/X/x/c buttons, ENTER button (23) E O RETURN button (27) F ./> PREV (previous)/ NEXT buttons (22) G m/M (scan/slow) buttons (30) H ADVANCE button (22) I X PAUSE button (22) J \/1 (on/standby) button (20) K VOL +/- (sound volume) buttons L CLEAR button (45) M AUDIO button (23)* N MENU button (23) O SUBTITLE button (25) P ANGLE button (25) Q OPTIONS button (30) R H PLAY button (20)* S x STOP button (21) * Use the tactile dot as a reference when operating the player. The number 5 button has a tactile dot. 1 2 3 4 5 6 7 8 0 9 Sony Corporation Printed in China Index Numerics 16:9 41 4:3 Letter Box 41 4:3 Pan Scan 41 A Album 55 Angle 25 Audio 23, 44 Audio DRC 43 Audio Setup 43 B Batteries 12 C CD 9, 20 Connecting 48 D DATA CD 8, 38, 54 DATA DVD 8, 38, 54 Digital output 43 Disc Menu 44 Display Playback Settings Display 27 Setup Display 40 DivX® 37, 38 Dolby Digital 23, 43 DTS 23, 44 DVD 8, 20 DVD+RW 8 DVD’s menu 23 DVD-RW 8, 26 F Fast forward 30 Fast reverse 30 G General Setup 41 H Handling discs 3 J JPEG 8, 54 L Language Setup 44 M MP3 8, 54 O OPTICAL OUT 43 Original 26 OSD (On-Screen Display) 44 P PBC Playback 26 Play List 26 R Remote 12, 59 Repeat CD/VIDEO CD 31 DVD 29 Repeat Play 29, 31 Resume Play 22 S Scan 30 Screen Saver 42 Search 30 Setup 40 Setup Display 40 Slide Show 35 Slow Play 31 Subtitle 44 T Top Menu 23 Troubleshooting 51 TV Display 41 U Usable discs 9 V VIDEO CD 8, 10, 20 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 Note: Follow the disassembly procedure in the numerical order given. 2-1. UPPER COVER BLOCK SECTION 2 DISASSEMBLY DVP-FX720 1 two screw pads 3 foot rubber 5 two foot rubbers 2 two screws 6 two screws qa connector qs upper cover block 7 six screws 0 4 screw 9 screw 8 open preve sheet Bottom view www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 2-2. MAIN BOARD, USB BOARD 3 connector 8 connector 9 connector 0 two screws qs four screws qd harness 6 two screws qg two screws qh USB board 7 three weight plates qa IO support 1 flexible cable 2 flexible cable 4 three screws 5 travers qf MAIN board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 2-3. LCD BLOCK 1 four claws 2 four claws 4 connector 5 screw 6 herness 7 two screws 3 hinge cover 7 two screws 0 LCD block 8 two screws 8 two screws 9 hinge L 9 hinge R www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 2-4. LCD BOARD 2 two screws qa two screws qs LCD board speaker speaker 5 seven screws 6 herness 8 flexible cable 9 connector 0 LCD screen 7 LCD brace 4 housing COV. 2 two screws 3 two screws 1 two panel rubbers 1 two panel rubbers www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-5 2-5. INSTALLATION OF TRAVERS 8 connector 2 flexible cable 7 Push a flexible cable under a board with tweezers. 1 Put new double-stick tape on the flexible cable after completely tearing off old double-stick tape. tweezers 5 flexible cable 3 To a mark, stick a flexible cable. 6 three screws 4 travers MAIN board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-6 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 SECTION 3 BLOCK DIAGRAMS 3-1 3-2 3-1. OVEALL BLOCK DIAGRAM DIGITAL VOLUME CONTROL CVBS In Audio In TFT+5V Power Unit FP6340 16Mbit FLASH MEMORY Memory Data Bus Memory Addess Bus 4MX16 SDRAM 6.5V~9.5V +1.9V +3.3V +5VCC VIDEO PROCESSING 7"PANEL TFT-LCD DIGITAL LED DRIVER DC-IN POWER MANAGEMENT Panel Driver PCB RF Amp Signal MT1389HD EEPROM AT24CXX I2C Bus Serial Data Audio DAC PCM1742KE Command Bus 4558 Audio Out/In Audio AMP CVBS Out CVBS Out/In Y,C Out Head Phone SPEAKER Motor Driver Traverse SPINDLE MOTOR SLEDGE MOTOR OPU MST720MA Servo Signal Servo Driver Signal Audio-R Audio-L APA2068 TV Set TV Set R G Signal B Timing Control Main Board PCB Servo & DSP & MPEG IC L-CH R-CH OPA REMOTE CONTROL I2C MCU UPDATE MCU Z8F0822 RS232 IR POWER SW Back Light Vcc AME1117 KEYPAD USB Unit TFT_SDA TFT_IRQ TFT_SCL www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 3-4E DVP-FX720 MEMO www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-1 4-1. FRAME (1/2) 4-2 SECTION 4 SCHEMATIC DIAGRAMS FRAME (1/2) LCD BOARD MECHA DECK OPTICAL PICK-UP UNIT MD UNIT MAIN BOARD USB BOARD KEY BOARD HA1 HA2 HA3 J3 J1 UJ2 UJ1 J11 A 24 D 23 RFO 22 IOA 21 B 20 C 19 E 18 PUH5V 17 V20 16 GND 15 F 14 VR_DVD 13 VR-CD 12 MDI1 11 LD_DVD 10 GND 9 LD_CD 8 GND 7 T- 6 F- 5 F+ 4 T+ 3 TP38 2 TP40 1 GND 18 TF_Y 17 GND 16 TF_C 15 GND 14 IIC_DA 13 IIC_CL 12 IRQ 11 GND 10 5V_TFT_POWER 5V_TFT_POWER 9 8 GND 7 DC_IN1 LED_GND SP4 SP3 SP2 SP1 6 5 4 3 2 1 USB_VCC 1 USBD- 2 USBD+ 3 GND 4 HOME_SW 1 GND 2 H- 3 HW- 4 HW+ 5 HV- 6 HV+ 7 HU- 8 HU+ 9 H+ 10 U 11 V 12 W 13 USB_GND 1 USBM 2 USBP 3 USB_GND 4 DVD_SW 5 USB_SW 6 USB_GND 7 GND 1 PANEL_SW 2 KEY1 3 KEY0 4 DV33 5 GND 1 PANEL_SW 2 KEY1 3 KEY0 4 DV33 5 USB_GND 1 USB_SW 2 DVD_SW 3 GND 4 USBP 5 USBM 6 USB_VCC 7 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-3 4-4 FRAME (2/2) FRAME (2/2) MAIN BOARD LCD BOARD SPEAKER L SPEAKER R LCD PANEL CN7 CN1 CN2 CN6 GND 26 PNL_AVDD 25 P_VB 24 P_VG 23 P_VR 22 GND 21 PNL_DVDD 20 P_CLK1 19 P_CLK2 18 P_CLK3 17 P_STH1 16 P_STH2 15 P_OEH 14 P_MOD 13 P_RL 12 PNL_VCOM 11 PNL_VCOM 10 P_OEV1 9 P_UD 8 P_CPV 7 P_STV2 6 P_STV1 5 VCC15V 4 PNL_VEE 3 DGND 1 PNL_DVDD 2 GND 1 TF_Y 2 GND 3 TF_C 4 GND 5 IIC_DA 6 IIC_CL 7 IRQ 8 GND 9 VCC5V 10 VCC5V 11 GND 12 VCCDC 13 GND 14 SPR2 15 SPR1 16 SPL1 18 SPL2 17 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-5 4-6 DC-DC POWER MAIN (1/6) 4-2. DC-DC POWER • See page 5-3 for printed wiring board. USB_POWER_EN CHARGE_EN SYSTEM_POWER_EN USB_POWER_EN CHARGE_STATUS_DET CHARGE_STATUS_DET SYSTEM_POWER_EN SYSTEM_POWER_EN CHARGE_EN RFGND TFT_5V P_3V3 DC_IN BTVCC RFV33 MO_VCC DC_IN DC_IN DV33 AVCC DC_IN +5V V18 USB_VCC AUDIO_VCC ADVCC 5V_TFT_POWER 3.3V 3.3V VGND AGND SYSTEM_POWER_EN 3,6 USB_POWER_EN 4 CHARGE_EN 3 CHARGE_STATUS_DET 3 PICK_UP POWER 1.9V 31mA 30mA 245mA MAX:0.75A 580mA Max:560mA 104mA MAX:1A Battery in/out 238mA FV:0.36V Adapter Power Supply : 9.5V/2A Battery Power Supply : 7.4V/2800mAh 1 Disable o Enable 190mA 145mA 13mA 180mA 298mA 248mA D AP2309GN S G C 2SB1260 E B C D 2SK3018 S G C 2SB1132 E B CHARGE CURRENT:800mA (MAX) C C 2N3904 E B C 2N3906 E B EC76 47uF/10V 5.0X5.3 EC76 47uF/10V 5.0X5.3 C285 0.1uF C285 0.1uF C272 0.1uF C272 0.1uF C260 0.1uF C260 0.1uF C279 0.1uF/NC C279 0.1uF/NC R281 10K 1% R281 10K 1% C246 1000pF C246 1000pF EC78 47uF/10V 5.0X5.3 EC78 47uF/10V 5.0X5.3 R280 390R 1% R280 390R 1% R278 750R 1% R278 750R 1% C240 1000pF C240 1000pF J9 BATTERY PACK CON J9 BATTERY PACK CON 1 2 3 5 4 6 C276 0.01uF C276 0.01uF C253 0.1uF C253 0.1uF FB40 FB-100R-3A-0805 FB40 FB-100R-3A-0805 10uF/6.3V C254 10uF/6.3V C254 AVCC AVCC C265 0.1uF C265 0.1uF D23 PESD5V0S1BB D23 PESD5V0S1BB 1 1 2 2 J8 DCJACK J8 DCJACK 1 3 2 TP96 TP96 R262 100R R262 100R C274 1000pF/NC C274 1000pF/NC P2 P1261LF/NC P2 P1261LF/NC +5V +5V C262 0.01uF C262 0.01uF FB39 FB-100R-3A-0805 FB39 FB-100R-3A-0805 C277 3.9nF C277 3.9nF TP95 TP95 R273 10K 1% R273 10K 1% FB38 FB-1500R-300mA FB38 FB-1500R-300m EC87 47uF/10V 5.0X5.3 EC87 47uF/10V 5.0X5.3 MO_VCC MO_VCC R264 100K R264 100K EC79 47uF/10V 5.0X5.3 EC79 47uF/10V 5.0X5.3 C263 0.01uF C263 0.01uF EC90 100uF/25V 8X6.5 EC90 100uF/25V 8X6.5 U18 G5240C2T1U U18 G5240C2T1U VIN 5 EN 4 NC 3 GND 2 OUT 1 EC83 22uF/25V 6.3X5.3 EC83 22uF/25V 6.3X5.3 C264 3.3nF C264 3.3nF EC80 47uF/10V 5.0X5.3 EC80 47uF/10V 5.0X5.3 EC85 47uF/10V 5.0X5.3 EC85 47uF/10V 5.0X5.3 R274 5.6K 1% R274 5.6K 1% Q44 AP2309GN Q44 AP2309GN 2 3 1 U19 AME1117_ADJ U19 AME1117_ADJ VIN 3 ADJ/GND 1 VOUT 2 VOUT 4 EC71 100uF/25V 8X6.5 EC71 100uF/25V 8X6.5 ADVCC ADVCC L19 22uH-1.3A L19 22uH-1.3A C242 0.1uF C242 0.1uF C239 0.1uF C239 0.1uF R271 0R R271 0R FB41 FB-100R-3A-0805 FB41 FB-100R-3A-0805 C273 0.1uF C273 0.1uF C278 0.1uF C278 0.1uF C249 0.1uF C249 0.1uF C269 0.1uF C269 0.1uF T5V T5V RFV33 RFV33 EC81 47uF/10V 5.0X5.3 EC81 47uF/10V 5.0X5.3 D25 SK34A D25 SK34A 2 1 U20 FP6340 U20 FP6340 NC 1 BS 2 NC 3 IN 4 SW 5 GND 6 FB 7 Comp 8 EN 9 SS 10 GND 11 C261 1000pF/NC C261 1000pF/NC C245 1000pF C245 1000pF C267 1000pF/NC C267 1000pF/NC C282 0.1uF C282 0.1uF C270 0.1uF C270 0.1uF Q43 AP2309GN Q43 AP2309GN 2 3 1 C266 0.1uF C266 0.1uF C283 0.1uF C283 0.1uF L22 FB-100R-3A-0805 L22 FB-100R-3A-0805 C247 0.1uF C247 0.1uF BVCC BVCC R289 47R/0805 R289 47R/0805 L18 22uH-0.8A L18 L18 22uH-0.8A L18 C284 0.1uF C284 0.1uF R277 1K R277 1K C241 0.1uF C241 0.1uF C243 1000pF C243 1000pF BCH BCH R263 200K R263 200K UVCC UVCC R279 0R R279 0R EC88 10uF/16V 4.0X5.3 EC88 10uF/16V 4.0X5.3 V19 V19 R283 10K R283 10K 0.1uF C255 0.1uF C255 47uF/10V EC73 5.0X5.3 47uF/10V EC73 5.0X5.3 BST BST L21 FB-100R-3A-0805 L21 FB-100R-3A-0805 10uF/6.3V C256 10uF/6.3V C256 D22 SK34A D22 SK34A 2 1 R290 0R/0805 R290 0R/0805 C281 3.9nF C281 3.9nF P1 CF12V3T3R00-3A32V P1 CF12V3T3R00-3A32V C268 2.2nF/NC C268 2.2nF/NC C280 1000pF/NC C280 1000pF/NC C248 0.1uF C248 0.1uF EC77 47uF/10V 5.0X5.3 EC77 47uF/10V 5.0X5.3 R286 15K 1% R286 15K 1% R272 10K 1% R272 10K 1% D21 SK34A D21 SK34A 2 1 U21 S-816A33AMC-BAZ-T2 U21 S-816A33AMC-BAZ-T2 EXT 1 GND 2 ON/OFF 3 Vin 4 Vout 5 Q46 2SB1260 Q46 2SB1260 1 3 2 C271 1uF C271 1uF 33V 33V R285 22K 1% R285 22K 1% R260 10K R260 10K C275 0.01uF C275 0.01uF TP94 TP94 A5V A5V DCIN DCIN EC89 22uF/25V 6.3X5.3 EC89 22uF/25V 6.3X5.3 R265 100K R265 100K FB43 FB43 FB-100R-3A-0805 L23 4.7uH-0.1A L23 4.7uH-0.1A P3V3 P3V3 DV33 DV33 FB37 FB-100R-3A-0805 FB37 FB-100R-3A-0805 R261 100K R261 100K EC82 47uF/10V 5.0X5.3 EC82 47uF/10V 5.0X5.3 Q45 2N3904 Q45 2N3904 1 3 2 U17 U17 FP6340 NC 1 BS 2 NC 3 IN 4 SW 5 GND 6 FB 7 Comp 8 EN 9 SS 10 GND 11 D26 SK34A D26 SK34A 2 1 FB42 FB-100R-3A-0805 FB42 FB-100R-3A-0805 L20 22uH-1.3A L20 22uH-1.3A R282 2.2K 1% R282 2.2K 1% TP93 TP93 R276 100K R276 100K – + DC IN 9.5V TO RECHARGEABLE BATTERY PACK C A D 3 4 8 7 2 B 5 1 E G H I F K L J 6 9 13 12 10 11 MAIN BOARD (1/6) 05 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-7 4-8 MCU & KEY MAIN (2/6) 4-3. MCU & KEY • See page 5-3 for printed wiring board. MCU_R_OU T SYSTEM_POWER_EN DBG DBG CB_CHARGE_EN MCU_R_OUT MCU_RESET MCU_XOUT HOLD SYS_POW_EN MCU_DBG_EN IR_IN IR_IN POWER_KEY MUTE MCU_XIN RXD SYS_POW_EN VOL_PW M MCU_DBG_EN TXD MCU_RESET BATTERY_IN AV_IN_SW MCU_RESET CHARGE_EN VOL_PWM LED2 AV_IN_OUT_CTR L SYSTEM_POWER_EN AV_IN_SW MCU_XOUT HOLD KEY1 KEY1 IR_IN DBG POWER_KEY ADAPTER_DET MCU_RESET BATTERY_IN CB_CHARGE_EN TXD MCU_XIN BTL_SE_SW RXD BTL_SE_SW SYSTEM_POWER_EN AV_IN_OUT_CTRL MUTE KEY0 CHARGE_STATUS_DET CHARGE_EN TXD KEY0 KEY1 PANEL_SW PANEL_SW CHARGE_STATUS_DET ADAPTER_DET DV33 DV33 BTVCC P_3V3 DV33 P_3V3 DV33 ADVCC DV33 P_3V3 DV33 P_3V3 P_3V3 P_3V3 P_3V3 DV33 P_3V3 DV33 P_3V3 MCU_DBG_EN 4 MUTE 7 VOL_PWM 7 SYS_POW_EN 4 AV_IN_SW 6 IR_IN 4 CB_CHARGE_EN 7 RXD 4 MCU_R_OUT 4 TXD 4 BTL_SE_SW 7 SYSTEM_POWER_EN 2,6 AV_IN_OUT_CTRL 6,7 CHARGE_STATUS_DET 2 CHARGE_EN 2 PANEL_SW 4 L POWER Switch Vb=>8.2V For DVD connect to small TV IR receive error LED 2 H H MCU UPDATE 6.0V8.2V ON POWER CHARGE C15 20pF C15 20pF R9 680K R9 680K 2N3904 Q6 2N3904 Q6 1 2 3 R18 10K R18 10K POWER_KEY1 POWER_KEY1 R30 10K R30 10K TP3 TP3 C22 330pF C22 330pF R15 100K 1% R15 100K 1% TP7 TP7 10K R39 10K R39 10K R27 10K R27 TP8 TP8 J3 A2001WV_S_5P A201WV_5P2 J3 A2001WV_S_5P A201WV_5P2 5 4 3 2 1 2N3904 Q9 2N3904 Q9 1 2 3 10K/NC R40 10K/NC R40 HOLD1 HOLD1 RXD1 RXD1 Y1 11.0592MHZ Y1 11.0592MHZ IR1 IR_D3P IR1 IR_D3P 1 2 3 C16 100PF C16 100PF R11 200K 1% R11 200K 1% R10 0R/NC/0402 R10 0R/NC/0402 D29 PESD5V0S1BB D29 PESD5V0S1BB 1 1 2 2 2N3906 Q5 2N3906 Q5 2 1 3 R16 100K R16 100K C21 0.1uF C21 0.1uF C19 100pF C19 100pF 10K R41 10K R41 C10 0.1uF C10 0.1uF R25 10K R25 10K 2N3904 Q4 2N3904 Q4 1 2 3 C12 0.1uF C12 0.1uF R19 10R R19 10R MUTE1 MUTE1 10K R57 10K R57 TP6 TP6 R8 0R R8 0R C11 0.1uF C11 0.1uF R12 10K R12 10K C18 100pF C18 100pF D30 PESD5V0S1BB PESD5V0S1BB 1 1 2 2 R22 200K R22 200K D31 PESD5V0S1BB/NC 1 1 2 2 10K R37 10K R37 TP2 TP2 2N3904 Q8 2N3904 Q8 1 2 3 FB23 FB23 FB-600R-300mA/0603 TP1 TP1 U2 Z8F0822 U2 Z8F0822 PC0/T1IN 1 PA6/SCL 2 PA7/SDA 3 /RESET 4 Vss 5 XIN 6 XOUT 7 Vdd 8 PC5/MISO 9 PC4/MOSI 10 PC3/SCK 11 PC2/SS 12 PA0/T0IN 13 PA1/T0OUT 14 PA2/DE0 15 PA3/CTS0 16 PA4/RXD0 17 PA5/TXD0 18 PC1/T1OUT 19 DBG 20 AVdd 21 AVss 22 VREF 23 PB4/ANA4 24 PB3/ANA3 25 PB2/ANA2 26 PB1/ANA1 27 PB0/ANA0 28 10K/NC R26 10K/NC R26 2N3904 Q7 2N3904 Q7 1 2 3 R31 20K R31 20K R23 274R R23 274R 1K R53 1K R53 R20 330R R20 330R 10K R56 10K R56 10K R55 10K R55 FB22 FB22 FB-600R-300mA/0603 R24 10K R24 10K BATIN1 BATIN1 R14 100K 1% R14 100K 1% C5 1000pF C5 1000pF AVSW AVSW Q3 2N3904 Q3 2N3904 1 3 2 LED1 ORANGE LED1 ORANGE 10K R28 10K R28 10K/NC R59 10K/NC R59 R7 10K R7 10K 10K R54 10K R54 C6 10uF/16V C6 10uF/16V R17 1K R17 1K J1 HEADER4 2.0mm J1 HEADER4 2.0mm 1 2 3 4 TXD1 TXD1 R13 100K R13 100K 10K R43 10K R43 FB24 FB24 FB-600R-300mA/0603 C9 0.1uF C9 0.1uF C7 0.1uF C7 0.1uF C17 10uF/16V C17 10uF/16V SW20 SSS7A0101 SW20 SSS7A0101 HOLD 1 C 2 NC 3 ON 4 C8 1000pF C8 1000pF LED2 GREEN LED2 GREEN TP4 TP4 10K R42 10K R42 FB21 FB21 FB-600R-300mA/0603 ADAPTER-DET1 ADAPTER-DET1 R21 10K R21 10K C14 20pF C14 20pF C13 100PF C13 100PF R6 300K 1% R6 300K 1% R29 10K R29 10K C20 0.1uF C20 0.1uF 10K R58 10K R58 > HOLD/ / . 1 KEY BOARD C A D 3 4 8 7 2 B 5 1 E G H I F 6 9 13 12 10 11 MAIN BOARD (2/6) 05 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-9 4-10 4-4. DVD SERVO & DSP MT1389HD • See page 5-3 for printed wiring board. DVD SERVO & DSP MT1389HD MAIN (3/6) TFT_SCL MA0 CS# DVD_SW E A0 CS# A16 DACVDD3 DMO V2P8 RFON XI DQ6 A20 A[0..21] WE# DACVDD3 F F+ MA1 FOO MA6 DQ3 SDA MDI2 FOO A V20 USB_POWER_EN ICE MA10 PLLVDD3 PANEL_SW AD2 MA3 PLLVDD3 MCU_DBG_EN SDA APLLVDD3 F DQ[0..15] TXD1 RAS# RFV33 FG LDO2 JITFN C DQ12 TFT_SDA AD7 A9 PCE# DCLK V1P4 DQ13 IOA A17 MA2 DQ2 A6 B RFVDD3 RXD1 MDI1 MCU_R_OUT IR_IN LD-DVD ADACVDD DQ11 F- WE# TEZISLV A18 PRD# V1P4 AD4 SUBB DQM0 USBP AD0 DQM1 DQ9 TRO XO PWR# FMO SUBC DCLK DQM[0..1] ALRCK DQ1 MA[0..11] A2 PCE# LDO1 E ADAC_MD A19 D FMO RFVDD3 ASPDIF A12 V2P8 RFV18 INT0# Y1 A14 T- A3 HOME_SW BA0 DCKE DACVDD3 FEO A ADAC_ML PRD# RXD RFOP CAS# DQ0 VR-DVD ABCK Y2 USBVDD A5 JITFO IOA A4 USB_SW TFT_IRQ DQ15 ADAT MA7 CAS# RFVDD3 IOA DMO VREF RFO D RAS# MA11 RFV18 TEO URD# A21 TRO SCL AD6 STBY MA8 DQ8 A7 V1P4 DQ14 PUH5V AD1 A10 A8 AD[0..7] USBM XO BA[0..1] RFVDD3 ACLK MA4 PWR# SUBA C V1P4 Y3 XI A11 A15 ADAC_MC UWR# LD-CD V1P4 SYS_POW_EN DQ10 TXD RFO YUV0 V20 VR-CD FS TRIN DQ5 JITFN V1P4 A1 BA1 DCKE MA9 V18 SUBD MDI1 T+ AD3 A13 JITFO DQ7 MA5 FG APLLVDD3 URST# DACVDD3 V20 RFVDD3 AD5 ADACVDD DACVDD3 ALE V18 SCL B DQ4 URST# LD_SW LDO2 LDO1 LD_SW TRIN FOSO FMSO TRSO DMSO RXD1 TXD1 TXD RX D MCU_R_OUT SYS_POW_EN MCU_DBG_EN IR_IN DEBUG1 DEBUG1 TFT_SDA TFT_SCL TFT_IRQ ADAC_MD ADAC_MC ADAT ACLK ALRCK ABCK ADAC_ML ASPDIF Y2 Y3 Y1 FS VREF V STBY FG V1P4 DMSO U W H- HV- HV+ HW+ HU- HU+ HW- STBY V1P4 FOSO TRSO SL+ FMSO SL- V1P4 F+ F- T+ T- USB_POWER_EN T- F+ F- T+ VR-DVD VR-CD HV+ W HU+ HW- V HW+ H- HU- U HV- PUH5V V20 H+ SL- SL+ HOME_SW C B A D PANEL_SW USBM USBP DVD_SW USB_SW LD-DVD LD-CD DV33 RFV33 AVCC V18 DV33 DV33 V18 RFV33 DV33 DV33 DV33 V18 DV33 V18 DV33 V18 AVCC AVCC RFV33 AVCC DV33 DV33 DV33 V18 USB_GND MO_VCC MO_VCC MO_VCC MO_VCC MO_VCC DV33 RFGND USB_VCC USB_GND USB_GND USB_GND DV33 DV33 DV33 CS# 5 SCL 5 PWR# 5 DQ[0..15] 5 PRD# 5 RAS# 5 AD[0..7] 5 DQM[0..1] 5 DCKE 5 SDA 5 BA[0..1] 5 WE# CAS# 5 DCLK 5 A[0..21] 5 MA[0..11] 5 PCE# 5 RXD 3 TXD 3 MCU_R_OUT 3 SYS_POW_EN 3 MCU_DBG_EN 3 3 IR_IN TFT_SDA 6 TFT_SCL 6 TFT_IRQ 6 ADAC_M D 7 ADAC_M C 7 ADAC_M L 7 ALRCK 7 ABCK 7 ADAT 7 ACLK 7 ASPDIF 7 Y1 6 Y2 6 Y3 6 USB_POWER_EN 2 PANEL_SW 3 RESET Circuit 14 VC-PD F 16 1 F+ FLASH I/F 2 VR-DVD closed to IC's pin 3 LD-CD 17 IIC I/F MD 4 Gnd-PD 18 5 T+ 19 C/c VR-CD 20 B/b A/a 21 6 Gnd-LD D/d VIDEO I/F 22 7 VCC-PD T- 23 8 F- 24 9 SW 15 10 LD-DVD NC 11 Gnd-LD E 12 RF OFF-PAGE CONNECTION Crystal 13 NC MEMORY I/F RS-232 MCU TFT PANEL EC52 1000uF/10V SAMPLE RUN E-->F F-->E D+ D- ADD Test point ADD Test point C222 0.1uF C222 0.1uF C85 0.1uF C85 0.1uF TP58 TP58 C220 0.1uF C220 0.1uF V20 V20 TP31 TP31 PUH5V PUH5V C30 0.47uF/NC C176 0.1uF C176 0.1uF FB33 FB-100R-3A-0805 FB33 FB-100R-3A-0805 C91 0.1uF/NC C91 0.1uF/NC TP54 TP54 C227 0.1uF C227 0.1uF TP41 TP41 C89 1000pF C89 1000pF + EC63 47uF/10V 5.0X5.3 + EC63 47uF/10V 5.0X5.3 R259 4.7K R259 4.7K HV- HV- C34 0.1uF C34 0.1uF + EC62 47uF/10V 5.0X5.3 + EC62 47uF/10V 5.0X5.3 C231 0.1uF C231 0.1uF TP19 TP19 C67 330pF C67 330pF C226 5600pF C226 5600pF V L5 10uH-100mA L5 10uH-100mA L8 10uH-100mA L8 10uH-100mA TP36 TP36 C234 0.1uF C234 0.1uF C53 1uF C53 1uF HW- HW- TP57 TP57 A D R76 R/NC R76 R/NC R60 100k R60 100k TP73 TP73 C79 1000pF C79 1000pF + EC64 100uF/10V 6.3X5.3 + EC64 100uF/10V 6.3X5.3 R83 100K R83 100K R108 1R/0805/NC R108 1R/0805/NC R119 10k R119 10k TFSCL1 TFSCL1 TP9 TP9 TOP HA2 HEADER 13 SMD1.0 TOP HA2 HEADER 13 SMD1.0 1 2 3 4 5 6 7 8 9 10 11 12 13 R68 0R R68 0R Q13 2SB1132 Q13 2SB1132 1 3 2 FB30 FB-100R-3A-0805 FB30 FB-100R-3A-0805 R116 20k R116 20k DVDSW1 DVDSW1 C44 0.047uF C44 0.047uF TP40 TP40 L4 10uH-100mA L4 10uH-100mA C88 150pF C88 150pF C48 0.1uF C48 0.1uF C221 0.1uF C221 0.1uF C97 0.1uF C97 0.1uF R65 0R R65 0R R97 0R/0805 R97 0R/0805 R62 100k R62 100k C76 0.1uF C76 0.1uF C90 1000pF C90 1000pF GPIO33 GPIO33 B USBPEN USBPEN VR-CD VR-CD + EC49 47uF/10V 5.0X5. + EC49 47uF/10V 3 C238 0.1uF C238 0.1uF C217 0.1uF C217 0.1uF R118 NC R118 NC C28 20pF C28 20pF FB29 FB29 FB-100R-3A-0805 C92 1000pF C92 1000pF R82 4.7R/0805 R82 4.7R/0805 LD-CD LD-CD TP42 TP42 R11110K R11110K TP30 TP30 R110 20k R110 20k C224 0.1uF C224 0.1uF C2 C29 0.1uF C175 0.1uF C175 0.1uF C60 0.1uF/NC C60 0.1uF/NC + EC51 10uF/16V 4.0X5.3 + EC51 10uF/16V 4.0X5.3 + EC50 47uF/10V 5.0X5.3 + EC50 47uF/10V 5.0X5.3 1 2 TP60 TP60 C80 0.1uF C80 0.1uF C93 0.1uF C93 0.1uF VR-DVD VR-DVD TP43 TP43 C73 0.1uF C73 0.1uF C286 15p C286 15p R96 0R/0805 R96 0R/0805 FB26 FB-600R-300mA/0603 FB-600R-300mA/0603 C236 0.1uF C236 0.1uF C54 1uF C54 1uF C96 1000pF C96 1000pF HV+ HV+ IR2 IR2 R79 51K R79 51K Q15 2N3904 Q15 2N3904 1 2 3 TP67 TP67 VY2 VY2 TP72 TP72 R71 100k R71 100k W TP61 TP61 C235 0.1uF C235 0.1uF R112 20K R112 20K R70 560R R70 560R TP65 TP65 3 0.033uF C43 0.033uF C95 0.1uF C95 0.1uF R89 100K R89 100K C223 0.1uF C223 0.1uF C287 15p C287 15p TP51 TP51 C39 1000pF C39 1000pF C77 1000pF C77 1000pF C94 1000pF C94 1000pF HU- HU- Pin Assignment v1.5 MT1389HD U3 MT1389HD Pin Assignment v1.5 MT1389HD U3 MT1389HD DVDA 2 CRTPLP 250 DVDB 3 DVDC 4 DVDD 5 AGND 1 OSP 252 OSN 253 DVDRFIP 6 DVDRFIN 7 MA 8 MB 9 MC 10 MD 11 SA 12 SB 13 SC 14 SD 15 CDFON 16 CDFOP 17 TNI 18 TPI 19 MDI1 20 MDI2 21 LDO2 22 LDO1 23 AVDD3 256 V2REFO 28 SGND 27 VREFO 30 V20 29 TEO 32 FEO 31 VPLLVSS 43 RFLVL/RFON 26 CSO/RFOP 25 TEZISLV 33 OP_OUT 34 OP_INN 35 OP_INP 36 FOO 42 TRO 41 VPLLVDD3 45 TROPENPWM 39 PWMOUT1/V_ADIN9 40 USB_VSS 46 FMO 38 DMO 37 IOA5 59 IOA20 75 HIGHA1 74 HIGHA3 72 HIGHA4 71 HIGHA5 70 HIGHA6 69 HIGHA7 68 TMS/V_ADIN5 52 A17 91 HIGHA0 62 IOA18 63 IOA21 87 AD6 86 IOA19 64 DVDD3 65 AD4 84 AD3 83 AD2 82 DVSS 81 HIGHA2 73 DVDD18 93 TCK/V_ADIN6 53 TDO/V_ADIN7 54 DVDD18 55 IOA2 56 AD1 80 IOA3 57 IOA4 58 A16 67 IOA0 92 AD5 85 IOA6 60 IOA7 61 IOCS# 76 IOCE# 78 DVSS 90 AD0 79 IOWR# 66 IOA1 77 UWR# 94 URD# 95 DVDD3 96 UP1_2 97 UP1_3 98 UP1_4 99 UP1_5 100 UP1_6 101 UP1_7 102 UP3_0 103 UP3_1 104 UP3_4 105 RD4 116 UP3_5 106 ICE 107 ADCVDD3 244 ADCVSS 245 PRST# 108 IR 109 INT0# 110 DQM0 111 IO_19 112 RD15 122 RD7 113 RD6 114 RD5 115 RD3 117 DVDD3 118 RD1 120 RD2 119 RD0 121 RD14 123 RD13 124 RD12 125 RD11 126 RD9 128 RD10 127 RD8 129 DACVSSC 192 YUV1/Y 191 DACVDDB 190 YUV2/C 189 DACVSSB 188 YUV3/CVBS 187 DACVDDA 186 YUV4/G 185 DACVSSA 184 YUV5/B 183 YUV6/R 182 VSYNC/V_ADIN1 181 YUV7 180 HSYNC/V_ADIN2 179 DVSS 178 IO_17 177 C0/IO_0 176 C1/IO_1 175 DVDD18 174 C2/IO_2 173 C3/IO_3 172 C4/IO_4 171 DVDD3 170 C5/IO_5 169 C7/IO_7 167 C6/IO_6 168 YUVCLK/IO_8 166 Y0/IO_9 165 Y1/IO_10 164 Y2/IO_11 163 Y3/IO_12 162 Y4/IO_13 161 DVDD18 160 Y5/IO_14 159 Y6/IO_15 158 DVDD3 156 Y7/IO_16 157 RA4 155 RA5 154 RA6 153 RA7 152 RA8 151 RA9 150 DVSS 148 RA11 149 CKE 147 RCLK 146 DVDD3 145 RA3 144 RA2 143 RA1 141 DVDD18 142 RA0 140 RA10 139 BA1 138 BA0 137 RCS# 136 CAS# 134 RAS# 135 RWE# 133 DQM1 132 DVDD3 131 IO_18 130 HRFZC 249 IREF 255 SVDD3 24 RFGC 254 RFGND18 231 ADACVDD2 230 IDACEXLP 238 PLLVSS 237 RFRPAC 248 RFRPDC 247 JITFN 236 RFGND 251 RFVDD3 246 LPFOP 243 LPFIP 241 LPFIN 242 LPFON 240 PLLVDD3 239 XTALI 234 JITFO 235 RFVDD18 232 AR/SDATA1 224 AVCM 225 ARF(SW) 222 ADACVSS1 221 ADACVSS2 220 APLLVSS 219 AL/SDATA2 226 APLLCAP 218 APLLVDD3 217 MC_DATA 215 DVDD18 213 ASDATA4 214 SPMCLK 204 ACLK 211 ABCK 210 ALRCK 209 DVDD3 208 ASDATA3 212 SPBCK 207 SPLRCK 206 SPDATA 205 ASDATA2/GPO_0 203 ASDATA1/GPO_1 202 GPIO_3 201 GPIO_4 200 RCLKB/GPIO_5 199 RVREF/GPIO_6 198 ASDATA0/GPO_2 197 DACVDDC 196 VREF 195 FS 194 YUV0/CIN 193 XTALO 233 CAPPAD 44 USBP 47 USBM 48 USB_VDD3 49 FG/V_ADIN8 50 TDI/V_ADIN4 51 ALE 88 AD7 89 SPDIF 216 ARS/SDATA3 223 ALF/(CTR) 228 ADACVDD1 229 ALS/SDATA0 227 RXD2 RXD2 TP46 TP46 C233 0.1uF C233 0.1uF TFSDA1 TFSDA1 C66 0.1uF C66 0.1uF R113 R113 0R/0805 + EC59 22uF/25V 6.3X5.3 + EC59 22uF/25V 6.3X5.3 R80 100K R80 100K R105 1R/0805 R105 1R/0805 LD-DVD LD-DVD TP56 TP56 F C84 0.1uF C84 0.1uF Q19 2N3904 Q19 2N3904 1 2 3 R77 4.7R/0805 R77 4.7R/0805 HU+ HU+ C100 1000pF C100 1000pF C72 1000pF C72 1000pF Q14 2N3906 SOT23 Q14 2N3906 SOT23 1 2 3 C288 15p C288 15p MC3 10uF/16V MC3 10uF/16V H+ H+ C232 0.1uF C232 0.1uF TP32 TP32 R81 10K R81 10K + EC61 10uF/16V 4.0X5.3 + EC61 10uF/16V 4.0X5.3 C177 0.1uF C177 0.1uF TP13 TP13 TXD2 TXD2 Q11 2SK3018 Q11 2SK3018 UMT3 2 3 1 FB32 FB-100R-3A-0805 FB32 FB-100R-3A-0805 TP38 TP38 R64 15k R64 15k MDI1 MDI1 C87 150pF C87 150pF D27 RLZ4.7B D27 RLZ4.7B 2 1 C45 0.1uF C45 0.1uF C35 100pF C35 100pF TP15 TP15 FB28 FB-100R-3A-0805 FB28 FB-100R-3A-0805 TP29 TP29 Q10 2N3904 SOT23 Q10 2N3904 SOT23 1 2 3 C98 1000pF C98 1000pF C99 0.1uF C99 0.1uF C74 1000pF C74 1000pF D7 MM4148/NC D7 MM4148/NC C31 33pF C31 33pF C289 15p C289 15p R61 750k R61 750k + EC52 100uF/10V 6.3X5.3 + EC52 100uF/10V 6.3X5.3 TP74 TP74 C78 0.1uF C78 0.1uF Q20 2N3904 Q20 2N3904 1 2 3 R109 1R/0805 R109 1R/0805 C237 0.1uF C237 0.1uF R8 6 10K R86 10K + EC70 10uF/16V 4X5.3 + EC70 10uF/16V 4X5.3 C25 0.1uF C25 0.1uF USBP USBP C46 0.1uF C46 0.1uF R101 15k R101 15k C225 0.1uF C225 0.1uF C102 1000pF C102 1000pF D28 RLZ4.7B D28 RLZ4.7B 2 1 TP75 TP75 C58 C/NC C58 C/NC C86 0.1uF C86 0.1uF TP39 TP39 R74 0R R74 0R R75 0R R75 0R C49 C/NC C49 C/NC T- T- + EC54 100uF/10V 6.3X5.3 + EC54 100uF/10V 6.3X5.3 C50 0.1uF C50 0.1uF C57 1uF C57 1uF TP37 TP37 L10 10uH-100mA L10 10uH-100mA R102 1R/0805 R102 1R/0805 R117 10K R117 10K R115 R115 0R/0805 C41 10uF/16V C41 10uF/16V J2 SMD PAD 4P/NC J2 SMD PAD 4P/NC 1 2 3 4 TP48 TP48 R72 0R/0805 R72 0R/0805 C51 0.1uF C51 0.1uF C40 4.7uF/10V/0805 C40 4.7uF/10V/0805 C218 0.1uF C218 0.1uF C27 2200pF C27 2200pF TP10 TP10 C75 1000pF C75 1000pF F+ F+ R93 47R/0603 R93 47R/0603 VY3 VY3 C101 0.1uF C101 0.1uF Q1 G690L Q1 G690L VCC 3 RESET 2 GND 1 C71 0.1uF C71 0.1uF BOTTOM HA1 HEADER 24 SMD0.5 BOTTOM HA1 HEADER 24 SMD0.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 C26 0.01uF C26 0.01uF C42 0.047uF C42 0.047uF TP11 TP11 SL- SL- HOSW HOSW + EC53 100uF/10V 6.3X5.3 + EC53 100uF/10V 6.3X5.3 TP26 TP26 C219 0.1uF C219 0.1uF Q17 2N3906 SOT23 Q17 2N3906 SOT23 1 2 3 R120 1K R120 1K SW17 AET_C SW17 AET_C 1 3 TP45 TP45 C56 120pF/NC C56 120pF/NC E C24 1000pF C24 1000pF + EC60 47uF/10V 5.0X5.3 + EC60 47uF/10V 5.0X5.3 8 0.1uF C38 0.1uF T+ T+ Q18 2SB1132 Q18 2SB1132 1 3 2 TP59 TP59 IRQ1 IRQ1 TP49 TP49 TP12 TP12 C52 1uF C52 1uF Y2 27MHz Y2 27MHz C173 22pF C173 22pF C47 0.1uF C47 0.1uF HW+ HW+ USBSW1 USBSW1 RFO RFO C103 0.1uF C103 0.1uF TP47 TP47 C32 33pF C32 33pF U TP92 TP92 R66 100k R66 100k R104 1R/0805 R104 1R/0805 R69 10k R69 10k HA4 A1251WR HA4 A1251WR 1 2 C33 10uF/16V C33 10uF/16V R99 18k R99 18k TP50 TP50 R84 100K R84 100K TP44 TP44 TP55 TP55 C65 330pF C65 330pF F- F- R107 1R/0805 R107 1R/0805 C R94 0R R94 0R FB31 FB-100R-3A-0805 FB31 FB-100R-3A-0805 TP14 TP14 TP17 TP17 TP62 TP62 AET_C SW18 AET_C 1 3 TP68 TP68 SL+ SL+ R100 10k R100 10k C81 1000pF C81 1000pF C229 0.1uF C229 0.1uF TP53 TP53 USBM USBM U5 BA6849/6869 U5 BA6849/6869 A3 2 A2 4 A1 7 RNF 28 H1+ 9 H1- 10 H2+ 11 H2- 12 H3+ 13 H3- 14 VH 15 FG 24 PS 23 EC 22 ECR 21 GND 8 CNF 17 VCC 25 VM1 27 FR 20 SB 18 BR 16 VM2 26 G1 29 G2 30 U4 BA5954 U4 BA5954 VINFC 1 PVCC1 9 PGND 10 VOSL+ 12 CF2 3 CF1 2 VOTK+ 15 VNFFC 7 VOFC+ 14 VOFC- 13 PVCC2 21 PGND 19 VNFTK 20 CTK2 24 BIAS 27 VOSL 6 VINSL+ 4 VINSL- 5 STBY 28 VCC 8 VOSL- 11 VOLD+ 17 VOLD- 18 VOTK- 16 VINLD 23 PREGND 22 CTK1 25 VINTK 26 G1 29 G2 30 J11 CCHD1407RE-00012 CON7P_1_0 J11 CCHD1407RE-00012 CON7P_1_0 6 5 4 3 2 1 7 8 9 C82 0.1uF C82 0.1uF R2581K R2581K + EC48 47uF/10V 5.0X5. + EC48 47uF/10V 3 C68 0.015uF C68 0.015uF R78 R/NC R78 R/NC R103 1R/0805 R103 1R/0805 R106 10k R106 10k VY1 VY1 FB25 FB-600R-300mA/0603 FB-600R-300mA/0603 C55 1uF C55 1uF R63 6.8R R63 6.8R R73 0R/0805 R73 0R/0805 MC2 47uF/6.3V MC2 47uF/6.3V C230 0.1uF C230 0.1uF R98 20k R98 20k GPIO GPIO R95 47R/0603 R95 47R/0603 TP16 TP16 C83 1000pF C83 1000pF C174 22pF C174 22pF R85 100K R85 100K C36 100pF C36 100pF MC1 47uF/6.3V MC1 47uF/6.3V R114 R114 0R/0805 C228 0.1uF C228 0.1uF Q12 Q12 2SK30183 UMT3 2 3 1 R67 10k R67 10k MC4 10uF/16V MC4 10uF/16V C216 0.1uF C216 0.1uF TP24 TP24 MD UNIT OPTICAL PICK-UP UNIT MECHA DECK USB BOARD C A D 3 4 8 7 2 B 5 1 E G H I F K L M N J 6 9 13 12 10 11 17 16 14 15 18 19 MAIN BOARD (3/6) 05 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-11 4-12 SDRAM & FLASH ROM MAIN (4/6) 4-5. SDRAM & FLASH ROM • See page 5-3 for printed wiring board. CAS# BA[0..1] A12 AA20 DCAS# PCE# DCKE AD5 AD3 A8 DCS# SDCKE DCKE DRAS# PWR# DBA1 BA0 WE# MA[0..11] AD2 SDA A19 A2 DQ9 A17 A9 A14 DCS# DQ7 A5 A0 A10 A13 AD1 PWR# SCL A6 A3 PRD# DQ13 A16 DRAS# DQ2 A7 DBA0 DQ0 AD7 A11 RAS# DWE# A20 AA20 AD[0..7] PRD# DQ11 A18 WE# AD6 DQ3 DQ12 AD0 A1 SDA SDCLK CS# DQ10 SCL DQ[0..15] DQ4 DWE# DQ1 SDA SDCKE DBA1 SD33 PCE# SDCLK DQ14 DQ5 DQM0 CS# DQ15 SCL DQM[0..1] DQ6 RAS# DQ8 DBA0 DCLK A4 CAS# A[0..21] BA1 A15 AD4 DQM1 DCAS# A21 AA21 AA21 MA7 MA4 MA5 MA6 MA2 MA0 MA11 MA1 MA10 MA3 MA8 MA9 DCLK SDCLK DV33 SD33 DV33 DV33 DV33 DV33 DV33 DV33 SD33 SD33 SDA 4 MA[0..11] 4 CAS# 4 DCKE 4 CS# 4 DCLK 4 AD[0..7] 4 BA[0..1] 4 WE# 4 RAS# 4 DQM[0..1] 4 PRD# 4 PWR# 4 PCE# 4 A[0..21] 4 SCL 4 DQ[0..15] 4 FLASH FOR EMI SOLUTION DRAM IIC 32Mb Enable RN5 33R 0402 RN5 33R 0402 1 2 3 4 5 6 7 8 EC8 47uF/10V 5.0X5.3 EC8 47uF/10V 5.0X5.3 FB34 FB-100R-3A-0805 FB34 FB-100R-3A-0805 R123 47R R123 47R C178 10pF C178 10pF R127 39R R127 39R C110 100pF C110 100pF RN3 33R 0402 RN3 33R 0402 1 2 3 4 5 6 7 8 C118 68pF C118 68pF R121 0R/NC/0402 R121 0R/NC/0402 RN2 33R 0402 RN2 33R 0402 1 2 3 4 5 6 7 8 C114 0.1uF C114 0.1uF U7 ESMT M12L64164A U7 ESMT M12L64164A VCC 1 DQ0 2 DQ1 4 VSSQ 12 DQ2 5 DQ3 7 VCCQ 9 DQ4 8 DQ5 10 VSSQ 46 DQ6 11 DQ7 13 DQML 15 WE 16 CAS 17 RAS 18 CS 19 A11 35 A10/AP 22 A0 23 A1 24 A2 25 A3 26 VCC 14 VSS 41 A4 29 A5 30 A6 31 A7 32 A8 33 A9 34 NC 36 CKE 37 CLK 38 DQMH 39 NC 40 VCCQ 43 DQ8 42 DQ9 44 VSSQ 52 DQ10 45 DQ11 47 VCCQ 49 DQ12 48 DQ13 50 DQ14 51 DQ15 53 VSS 54 BA0/A13 20 BA1/A12 21 VCCQ 3 VSSQ 6 VCC 27 VSS 28 R129 NC R129 NC C115 4.7pF C115 4.7pF C104 100pF C104 100pF RN4 33R 0402 RN4 33R 0402 1 2 3 4 5 6 7 8 U8 MX29LV160 U8 MX29LV160 A0 25 A1 24 A2 23 A3 22 A4 21 A5 20 A6 19 A7 18 A8 8 A20 10 OE 28 BYTE 47 A18 16 D0 29 D1 31 D2 33 D3 35 A9 7 CE 26 D4 38 D5 40 D6 42 D7 44 D8 30 D9 32 WP/ACC 14 D11 36 D12 39 D13 41 D14 43 D15 45 VCC 37 GND1 27 WE 11 A19 9 D10 34 GND2 46 A10 6 A12 4 A11 5 A13 3 A14 2 A15 1 A16 48 A17 17 RESET 12 C181 68pF C181 68pF RN7 33R 0402 RN7 33R 0402 1 2 3 4 5 6 7 8 C117 68pF C117 68pF C105 1000pF C105 1000pF U6 EEPROM 24C16 U6 EEPROM 24C16 NC 1 NC 2 NC 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 RN1 47R*4 0402 RN1 47R*4 0402 1 2 3 4 5 6 7 8 C108 100pF C108 100pF C119 0.1uF C119 0.1uF RN9 33R 0402 RN9 33R 0402 1 2 3 4 5 6 7 8 C113 1000pF C113 1000pF C107 1000pF C107 1000pF R126 1K R126 1K C180 100pF C180 100pF C179 1000pF C179 1000pF C109 1000pF C109 1000pF C112 100pF C112 100pF R128 10K R128 10K R211 47R R211 47R R125 47R R125 47R C111 1000pF C111 1000pF R124 1K R124 1K EC7 47uF/10V 5.0X5.3 EC7 47uF/10V 5.0X5.3 R122 47R R122 47R C116 10pF C116 10pF RN8 33R 0402 RN8 33R 0402 1 2 3 4 5 6 7 8 C106 100pF C106 100pF C A D 3 4 8 7 2 B 5 1 E G F 6 9 MAIN BOARD (4/6) 05www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-13 4-14 4-6. VIDEO OUT & PANEL CONNECT • See page 5-3 for printed wiring board. VIDEO OUT & PANEL CONNECT MAIN (5/6) IIC_DA TFT_SDA IRQ TFT-CC VIDEO_I_O IIC_DA SPL1 Y2 CVBS IIC_DA TF_C SP1 CVBS IRQ TFT-CC SPR2 SP2 SP3 AV_IN_SW TF_Y TF_Y VIDEO_I_O SP1 SP2 SP2 IIC_CL TFT-Y IIC_CL TFT-C SP3 Y1 SP4 IRQ TFT-YY SPR1 SPL1 SPL2 TFT-Y SP3 IIC_CL SP4 TFT_IRQ AV_IN_SW TFT_SDA SPR1 SYSTEM_POWER_EN SPL2 AV_IN_OUT_CTRL SP1 Y2 TF_C SP4 Y3 SPR2 TFT-C TFT_SCL AV_IN_OUT_CTRL TFT-YY Y1 TFT_SCL Y3 TFT_IRQ DC_IN1 SYSTEM_POWER_EN VGND VGND VGND 5V_TFT_POWER DC_IN1 DC_IN VGND VGND LED_GND LED_GND VGND 5V_TFT_POWER DC_IN VGND VGND VGND VGND VGND DC_IN1 +5V DV33 VGND VGND VGND VGND VGND TFT_IRQ 4 Y2 4 BO- 7 Y1 4 AO+ 7 AV_IN_OUT_CTRL 3,7 AV_IN_SW 3 AO- 7 Y3 4 BO+ 7 TFT_SCL 4 TFT_SDA 4 SYSTEM_POWER_EN 2,3 TFT IIC INTERFACE Built-in SPEAKER VIDEO DAC OUT TP85 TP85 DC_IN1 DC_IN1 Q21 AP2309GN Q21 AP2309GN 2 3 1 FB13 FB-100R-400mA/0603 FB13 FB-100R-400mA/0603 FB5 FB-600R-300mA/0603 FB5 FB-600R-300mA/0603 C123 1000pF C123 1000pF Q22 2N3904 Q22 2N3904 3 2 1 C122 1000pF C122 1000pF FB12 FB-100R-400mA/0603 FB12 FB-100R-400mA/0603 R212 10K R212 10K FB9 FB-600R-300mA/0603 FB9 FB-600R-300mA/0603 C135 330pF C135 330pF D8 PESD5V0S1BB D8 PESD5V0S1BB 1 1 2 2 L14 1.8uH-50mA L14 1.8uH-50mA TP82 TP82 C133 0.01uF C133 0.01uF C124 1000pF C124 1000pF TP77 TP77 TP81 TP81 FB8 FB-600R-300mA/0603 FB8 FB-600R-300mA/0603 C138 0.1uF C138 0.1uF TP84 TP84 L15 1.8uH-50mA L15 1.8uH-50mA R131 100K R131 100K FB4 FB-600R-300mA/0603 FB4 FB-600R-300mA/0603 C132 47pF C132 47pF R135 75R 1% R135 75R 1% FB10 FB-100R-400mA/0603 FB10 FB-100R-400mA/0603 R134 10K R134 10K C120 0.1uF C120 0.1uF C125 1000pf C125 1000pf TP78 TP78 C131 47pF C131 47pF FB6 FB-600R-300mA/0603 FB6 FB-600R-300mA/0603 C134 470pF/NC C134 470pF/NC C128 NC C128 NC HA3 A1002H00-18PW CON18P_1_0_S HA3 A1002H00-18PW CON18P_1_0_S 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 R133 10K R133 10K R138 75R 1% R138 75R 1% FB11 FB-100R-400mA/0603 FB11 FB-100R-400mA/0603 C130 180pF C130 180pF C126 NC C126 NC L16 1.8uH-50mA L16 1.8uH-50mA EC9 220uF/10V 8X6.5 EC9 220uF/10V 8X6.5 U9 TS5V330D/PT2328 U9 TS5V330D/PT2328 S1A 2 S2A 3 S1B 5 S2B 6 S2C 10 S1C 11 EN 15 DA 4 DB 7 DC 9 VCC 16 GND 8 IN 1 DD 12 S2D 13 S1D 14 TP83 TP83 C137 47pF C137 47pF J4 SCJ315P00ZS0B00 J4 SCJ315P00ZS0B00 1 2 R139 1K R139 1K 1 2 TP79 TP79 FB3 FB-600R-300mA/0603 FB3 FB-600R-300mA/0603 C121 0.1uF C121 0.1uF TP76 TP76 TP80 TP80 C136 47pF C136 47pF EC10 220uF/10V 8X6.5 EC10 220uF/10V 8X6.5 R136 75R 1% R136 75R 1% FB7 FB-600R-300mA/0603 FB7 FB-600R-300mA/0603 R132 0R/0805 R132 0R/0805 SW19 SST-2200 SW19 SST-2200 1 2 3 4 5 6 D9 PESD5V0S1BB D9 PESD5V0S1BB 1 1 2 2 FB44 FB-600R-3A FB44 FB-600R-3A C127 NC C127 NC R130 0R/0805 R130 0R/0805 C129 180pF C129 180pF CVBS1 CVBS1 R137 10K R137 10K LCD BOARD VIDEO LINE SELECT OUT IN r C A D 3 4 8 7 2 B 5 1 E G F 6 9 10 MAIN BOARD (5/6) 05 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-15 4-16 4-7. AUDIO OUT • See page 5-3 for printed wiring board. AUDIO OUT MAIN (6/6) SE RLINE PCMSD3 4066_EN ADAC_MD MUTE_AMP AO- ACLK ACLK BI- A_MUTE VOL_C HP1 HSHUTDOWN AO+ R_CH_OUT BO- REF RLINE AV_IN_OUT_CTRL LLINE ACLK DE2 REF L_CH_OUT 4066_EN SE BO+ A_MUTE AI- ABCK PCMCLK AO- LLINE ADAC_ML R_MUTE R_MUTE PCMCLK DE1 HSHUTDOWN BO- ADAC_MD L_MUTE DE1 OPTICAL-OUT BI- VOL_PWM BO+ A_MUTE ASPDIF BO+ L_MUTE ALRCK PCMWS HP2 A_MUTE MUTE HP4 ADAC_MC MUTE ADAC_MC A_MUTE HP3 BTL_SE_SW AO+ DE2 CB_CHARGE_EN A_MUTE MUTE_AMP HP3 ADAC_ML ASPDIF ADAT PCMSD3 BO+ PCMWS HP4 AO+ AI- VOL_PWM RLINE HP2 HP1 LLINE CB_CHARGE_EN AO+ A_MUTE BTL_SE_SW VOL_C AV_IN_OUT_CTRL AGND AUDIO_VCC AGND AGND +5VOP AGND AUDIO_VCC AGND AGND -AVCC_OP AGND AGND AGND -AVCC_OP DV33 AGND AGND AGND AGND AGND AUDIO_VCC AGND +5VOP AGND AGND AGND -AVCC_OP AUDIO_VCC AGND AGND AGND AGND AGND AGND AGND AGND AGND AGND AUDIO_VCC AUDIO_VCC AGND AGND AGND AGND -AVCC AGND AGND AGND -AVCC AGND DV33 AGND DC_IN AGND P_3V3 AUDIO_VCC +5VOP AGND AGND -AVCC AGND +5V +5V AGND AGND AUDIO_VCC AGND -AVCC AGND AGND AGND AGND AGND P_3V3 AGND AGND AGND AGND AGND +5V ADAC_MD 4 BTL_SE_SW 3 ADAT 4 ACLK 4 VOL_PWM 3 AV_IN_OUT_CTRL 3,6 AO- 6 ALRCK 4 ADAC_MC 4 BO- 6 MUTE 3 BO+ 6 ADAC_ML 4 ABCK 4 CB_CHARGE_EN 3 AO+ 6 ASPDIF 4 LINE OUT&OPTICAL OUT E PWM VOLUME CONTROL B PLUG DE1/2 NON L IN H C 2N3906 R_CH E L_CH R_CH B L_CH WHITE GREEN GREEN C 680pF FOR S2A SOLUTION AUDIO INTERFACE 2N3904 EDL EC17 R157 510R R157 510R FB36 FB-100R-3A-0805 FB36 FB-100R-3A-0805 R213 45.3K R213 45.3K 1 2 C150 100pF C150 100pF D18 PESD5V0S1BB D18 PESD5V0S1BB 1 1 2 2 R168 1K R168 1K C158 18pF C158 18pF Q31 2N3904 Q31 2N3904 1 3 2 R147 47R/0805 R147 47R/0805 R176 68R R176 68R EC13 10uF/16V 4.0X5.3 EC13 10uF/16V 4.0X5.3 HR2 HR2 C149 1000pF C149 1000pF R141 20K R141 20K D19 MM4148 D19 MM4148 2 1 C162 680pF C162 680pF R214 10K R214 10K Q36 2N3904 Q36 2N3904 1 2 3 EC12 47uF/10V 5.0X5.3 EC12 47uF/10V 5.0X5.3 C172 22pF C172 22pF U15 74HC4066 U15 74HC4066 VCC 14 Z4 10 Z3 9 Z2 3 Z1 2 Y1 1 Y2 4 Y3 8 Y4 11 E1 13 E2 5 E3 6 E4 12 GND 7 R146 100K R146 100K EC22 100uF/10V 6.3X5.3 EC22 100uF/10V 6.3X5.3 C161 18pF C161 18pF D20 MM4148 D20 MM4148 2 1 C144 4.7uF/10V/0805 C144 4.7uF/10V/0805 C169 0.1uF C169 0.1uF R193 0R/0603 R193 0R/0603 R164 10K R164 10K EC18 100uF/10V 6.3X5.3 EC18 100uF/10V 6.3X5.3 FB18 FB-100R-400mA/0603 FB18 FB-100R-400mA/0603 Q25 2N3904 Q25 2N3904 3 2 1 J5 DLT13M1 J5 DLT13M1 1 SW1 3 R 2 L 5 SW2 4 GND 7 VCC 8 VIN 6 GND C171 22pF C171 22pF C151 100pF C151 100pF R144 100K R144 100K R163 39R R163 39R R152 100K R152 100K R165 10K R165 10K R198 1K R198 1K C163 39pF R203 1K R203 1K R178 1K R178 1K EC14 100uF/10V 6.3X5.3 EC14 100uF/10V 6.3X5.3 R188 1M R188 1M Q26 2N3906 Q26 2N3906 1 2 3 R156 510R R156 510R D12 RLS4148 D12 RLS4148 2 1 R167 39R R167 39R R200 100K R200 100K EC15 100uF/10V 6.3X5.3 EC15 100uF/10V 6.3X5.3 D15 RLS4148 D15 RLS4148 2 1 R173 7.5K 1% R173 7.5K 1% C168 0.1uF C168 0.1uF Q38 2N3904 Q38 2N3904 1 2 3 R175 68R R175 68R HL2 HL2 R160 10K R160 10K C152 0.1uF C152 0.1uF C142 1uF C142 1uF D14 PESD5V0S1BB D14 PESD5V0S1BB 1 1 2 2 C159 680pF C159 680pF TP87 TP87 R187 3.3K R187 3.3K Q28 2N3904 Q28 2N3904 1 2 3 C156 0.1uF C156 0.1uF Q33 2N3904/NC Q33 2N3904/NC 1 2 3 C139 1uF C139 1uF R182 7.5K 1% R182 7.5K 1% R142 22R R142 22R R153 20K R153 20K R151 220K R151 220K EC16 100uF/10V 6.3X5.3 EC16 100uF/10V 6.3X5.3 EC26 220uF/10V 8X6.5 EC26 220uF/10V 8X6.5 C141 1uF C141 1uF D10 RLS4148 D10 RLS4148 2 1 D13 PESD5V0S1BB D13 PESD5V0S1BB 1 1 2 2 C145 100pF C145 100pF C140 150pF C140 150pF R177 68R R177 68R Q29 2N3904 Q29 2N3904 1 2 3 EC21 10uF/16V 4.0X5.3 EC21 10uF/16V 4.0X5.3 Q27 2N3904 Q27 2N3904 3 2 1 R192 15K 1% R192 15K 1% R207 1K R207 1K R180 39R R180 39R FB19 FB-100R-400mA/0603 FB19 FB-100R-400mA/0603 U13 PCM1742 KE U13 PCM1742 KE ZRL_NA 12 VDDD 5 BCKIN 1 DIN 2 LRCIN 3 VCOM 10 VADD 6 AGND 9 VOUTL 7 DGND 4 SCKIN 16 ML 15 MC 14 MD 13 ZRR_ZRA 11 VOUTR 8 EC11 10uF/16V 4.0X5.3 EC11 10uF/16V 4.0X5.3 R143 47R/0805 R143 47R/0805 R166 39R R166 39R Q34 2N3904/NC Q34 2N3904/NC 1 2 3 R189 4.7K R189 4.7K FB14 FB-100R-400mA/0603 FB14 FB-100R-400mA/0603 Q37 2N3904 Q37 2N3904 1 2 3 R191 10K/NC R191 10K/NC R201 1K/NC R201 1K/NC J7 SCJ315P00WS0B00 J7 SCJ315P00WS0B00 1 GND 2 R 3 SW1 5 L 4 SW2 R179 68R R179 68R + - U14A 4558 + - U14A 4558 3 2 1 8 4 RN6 10K*4 RN6 10K*4 1 2 3 4 5 6 7 8 R172 1M R172 1M C154 680pF C154 680pF R202 10K R202 10K R194 1K R194 1K R186 1K R186 1K OPT1 OPT1 C170 22pF C170 22pF R210 1K R210 1K Q24 2N3906 Q24 2N3906 1 2 3 EC25 100uF/10V 6.3X5.3 EC25 100uF/10V 6.3X5.3 EC27 10uF/16V/NC 4.0X5.3 EC27 10uF/16V/NC 4.0X5.3 EC23 10uF/16V 4.0X5.3 EC23 10uF/16V 4.0X5.3 R183 3.3K 1% R183 3.3K 1% R169 47R/0805 R169 47R/0805 R196 1K R196 1K Q32 2N3906 Q32 2N3906 1 2 3 C148 1uF C148 1uF Q23 2N3904 Q23 2N3904 3 2 1 FB20 FB-100R-400mA/0603 FB20 FB-100R-400mA/0603 FB15 FB-300R-400mA/0603 FB15 FB-300R-400mA/0603 U11 APA2068KA U11 APA2068KA VOLUME 7 GND 5 LOUT- 9 RIN- 3 LOUT+ 11 VOLMAX 8 SE/BTL 13 BYPASS 4 GND 12 ROUT+ 14 LIN- 6 ROUT- 16 SHUTDOWN 2 MUTE 1 VDD 10 VDD 15 HOT_PAD 17 U10 NPC1729 U10 NPC1729 GND 4 VIN 2 CE 5 VOUT 1 C1- 3 C1+ 6 R171 15K 1% R171 15K 1% R181 39R R181 39R R161 1K R161 1K Q35 2N3904 Q35 2N3904 1 3 2 R197 1K R197 1K R145 100K R145 100K R155 100K R155 100K U12 XC6351A/NC U12 XC6351A/NC GND 1 VIN 5 CE 2 VOUT 4 C1- 6 C1+ 3 EC20 10uF/16V 4.0X5.3 EC20 10uF/16V 4.0X5.3 R159 100K R159 100K R208 1K R208 1K R206 1K/NC R206 1K/NC C146 100pF C146 100pF C155 39pF C155 39pF R199 4.7K R199 4.7K TP86 TP86 C143 1uF C143 1uF C167 10uF/16V C167 10uF/16V R140 20K R140 20K R185 39R R185 39R R162 39R R162 39R R184 39R R184 39R D11 RLS4148 D11 RLS4148 2 1 C153 680pF C153 680pF D17 PESD5V0S1BB D17 PESD5V0S1BB 1 1 2 2 C164 22pF C164 22pF R204 0R/NC R204 0R/NC R190 220K R190 220K C157 0.1uF C157 0.1uF FB16 FB-300R-400mA/0603 FB16 FB-300R-400mA/0603 Q30 2N3904 Q30 2N3904 1 2 3 R148 20K R148 20K EC24 100uF/10V 6.3X5.3 EC24 100uF/10V 6.3X5.3 LOR1 LOR1 R154 100K R154 100K + - U14B 4558 + - U14B 4558 5 6 7 8 4 HR1 HR1 R149 510R R149 510R LOL1 LOL1 FB17 FB-100R-400mA/0603 FB17 FB-100R-400mA/0603 C147 1000pF C147 1000pF FB35 FB-100R-3A-0805 FB35 FB-100R-3A-0805 C165 22pF C165 22pF EC19 10uF/16V 4.0X5.3 EC19 10uF/16V 4.0X5.3 J6 SCJ315P00WS0B00 J6 SCJ315P00WS0B00 1 GND 2 R 3 SW1 5 L 4 SW2 C166 22pF C166 22pF HL1 HL1 R209 10K R209 10K R195 100K R195 100K R174 3.3K 1% R174 3.3K 1% R158 220K R158 220K R150 510R R150 510R C160 0.1uF C160 0.1uF D16 RLS4148 D16 RLS4148 2 1 R205 470K/NC R205 470K/NC H5 HOLE H5 HOLE 1 H6 HOLE H6 HOLE 1 H7 HOLE H7 HOLE 1 H13 HOLE H13 HOLE 1 H8 HOLE H8 HOLE 1 H14 HOLE H14 HOLE 1 H1 HOLE H1 HOLE 1 H2 HOLE H2 HOLE 1 H3 HOLE H3 HOLE 1 H4 HOLE H4 HOLE 1 H9 HOLE H9 HOLE 1 H10 HOLE H10 HOLE 1 H11 HOLE H11 HOLE 1 H12 HOLE H12 HOLE 1 PIN-SMD MARK2 OPTICAL MARK MARK2 OPTICAL MARK MARK3 OPTICAL MARK MARK3 OPTICAL MARK MARK4 OPTICAL MARK MARK4 OPTICAL MARK MARK1 OPTICAL MARK MARK1 PHONES A PHONES B AUDIO C A D 3 4 8 7 2 B 5 1 E G H I F K L J 6 9 13 12 10 11 17 16 14 15 20 18 19 MAIN BOARD (6/6) 05 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-17 4-18 T-CON LCD 4-8. T-CON • See page 5-3 for printed wiring board. CHIP_SCL VCC5V YS1INP VRM Q2 SDO VCC25V VCOMAC VB_DAC VRP SDI PGOOD VCLAMP AGND YS1INM FB1 VIN_FB C1INP VG_DAC C1INM VCOMDC FB2 CHIP_SDA XTALOUT SCK CSN PWMOUT1 PWR_RSTN VR_DAC CHIP_P0.2 LED- XTALIN VCC33V VCCN10V PNL_AVDD VCC15V CSNF SDOF SDIF SCKF STH2 STH1 OEH RL OEV1 UD CPV STV1 STV2 CLK1 CLK2 CLK3 P_STV1 P_STH1 P_STH2 P_STV2 P_CPV P_OEV1 P_UD P_RL P_OEH P_CLK3 P_CLK1 P_CLK2 P_VB P_VG P_VR PWMOUT2 PNL_AVDD VCC5V VCC33V PNL_CTRL PNL_DVDD VCOMAC VCOMDC VCCN10V VCCN3V6 VCCN3V6 VCCDC PNL_VEE PNL_VCOM CP2_N CP2_P REF_PWM CP1_P CP1_N VCCDC SPL2 IIC_DA IIC_CL IRQ IIC_CL DGND VCC5V IIC_DA VCC15V VCCN10V IRQ VCC33V VCC25V VCCDC VCC5V TF_Y TF_C SPR2 SPR1 SPL2 SPL1 VCCN3V6 VB_DAC VG_DAC VR_DAC PNL_VCOM PNL_VEE PNL_DVDD PNL_AVDD SPR2 SPL1 SPR1 SPR2 DGND MOD P_MOD CP2O_P REF_PWMO CP1_FB FB2_DPWM FB1_DPWM PGND CP2_FB CP1O_N CP1O_P CP2O_N TF_Y LED_GND SPL2 TF_C PNL_VCOM PNL_VCOM P_MOD P_STH2 P_OEH P_RL P_CLK3 P_CLK1 P_CLK2 P_STH1 P_OEV1 P_UD P_CPV P_STV1 P_STV2 VCC15V PNL_VEE PNL_DVDD P_VB P_VG P_VR PNL_AVDD PNL_DVDD LED+ LED- LED+ PGND SPR1 SPL1 AGND PGND DGND DGND DGND DGND 300mA 900mA 300mA 400mA 200mA VGH VGL SPI FLASH D1 4148 D1 4148 1 2 FB9 B30R FB9 B30R Q1 3904 Q1 3904 1 3 2 SPR1 SPR1 C98 C22 0.1u C22 0.1u R51 4K7 R51 4K7 C90 22u/16V C3225D C90 22u/16V C3225D C62 33p C62 33p BD4 BAV99/S BD4 BAV99/S 3 2 1 C42 0.1u C42 0.1u C73 0.1u C73 0.1u C7 0.1u C7 0.1u R11 0R/0805/NC R11 0R/0805/NC RP3 33R RP3 33R 3 4 5 6 7 8 1 2 C30 0.1u C30 0.1u R17 470R R17 470R C93 NC C3225D C93 NC C3225D R44 4R7 R44 4R7 R62 1.8R/1206 R62 1.8R/1206 R69 100K 1% R69 100K 1% R56 4.7K 1% R56 4.7K 1% FB4 B30R FB4 B30R C14 10p C14 10p M4 AP2301 M4 AP2301 1 3 2 R67 120K 1% R67 120K 1% R18 20R R18 20R R59 33R R59 33R R21 62R R21 62R C32 470p C32 470p R30 10K R30 10K C2 0.1u C2 0.1u C85 22u/16V C3225D C85 22u/16V C3225D C47 1u C47 1u C27 47n C27 47n C84 22u/16V C3225D C84 22u/16V C3225D R9 0R/0805/NC R9 0R/0805/NC PGND PGND IRQ IRQ R4510R/0805 R4510R/0805 R58 33R R58 33R R27 10K R27 10K R66 3.9K 1% R66 3.9K 1% FB6 B30R FB6 B30R R61 390K 1% R61 390K 1% R15 33R R15 33R C67 1u C67 1u VCC5V VCC5V SD2 SK32A/20V/3A SD2 SK32A/20V/3A 1 2 R31 33R R31 33R L6 33uH/CDRH3D16 L6 33uH/CDRH3D16 VCC3V3 VCC3V3 C75 0.1u/25V C75 0.1u/25V C35 NC C35 NC R19 13R R19 13R R65 33K 1% R65 33K 1% BD6 BAV99/S BD6 BAV99/S 3 2 1 CN4 CN4 1 2 BD1 BAV99/S BD1 BAV99/S 3 2 1 R23 33R R23 33R R53 10K R53 10K R8 100R R8 100R C38 470p C38 470p C48 1u C48 1u RP2 33R RP2 33R 3 4 5 6 7 8 1 2 VCCDC VCCDC C91 22u/16V C3225D C91 22u/16V C3225D CN6 CN6 BO- 1 BO+ 2 C78 10u/25V C1206D C78 10u/25V C1206D C100 NC C100 NC NC NC NC LED- LED- VCCN10V VCCN10V C68 0.1u/25V C68 0.1u/25V R34 33R R34 33R C11 0.1u C11 0.1u C23 0.1u C23 0.1u DVDD DVDD R40 22K R40 22K VCCN3V6 VCCN3V6 C55 1u C55 1u FB11 30R FB11 30R Y1 12MHz Y1 12MHz C61 1n C61 1n C52 0.1u C52 0.1u R41 10K R41 10K SPL1 SPL1 C69 0.1u/25V C69 0.1u/25V C43 0.1u C43 0.1u C79 0.1u C79 0.1u C45 0.1u C45 0.1u C89 22u/16V C3225D C89 22u/16V C3225D R47 12K R47 12K M3 AP2301 M3 AP2301 1 3 2 C54 3.3n C54 3.3n C70 0.1u/25V C70 0.1u/25V C40 0.1u C40 0.1u U2B AP4501M U2B AP4501M 5 3 6 4 R48 1 K R48 1 K FB10 B30R FB10 B30R BD5 BAV99/S BD5 BAV99/S 3 2 1 C87 22u/16V C3225D C87 22u/16V C3225D C95 NC C3225D C95 NC C3225D R24 4K7 R24 4K7 C29 0.1u C29 0.1u R29 100K R29 100K R38 4K7 R38 4K7 C5 0.1u C5 0.1u C6 0.1u C6 0.1u C25 47n C25 47n R52 33R R52 33R C74 0.1u/25V C74 0.1u/25V R26 4K7 R26 4K7 R60 6.8K 1% R60 6.8K 1% R32 4K7 R32 4K7 C21 33p C21 33p C13 10p C13 10p VR VR C60 3.3n C60 3.3n R28 10K R28 10K C53 0.1u C53 0.1u R3 0R/0805/NC R3 0R/0805/NC C76 0.1u/25V C76 0.1u/25V C49 1u C49 1u L5 33uH/CDRH3D16 L5 33uH/CDRH3D16 Y_IN1 Y_IN1 R64 1.8R/1206 R64 1.8R/1206 SD1 SK32A/20V/3.0A SD1 SK32A/20V/3.0A 1 2 FB1 0R FB1 0R Q2 3904 Q2 3904 1 3 2 R36 10K R36 10K C56 1n C56 1n C97 R35 33R R35 33R R16 33R R16 33R CN5 4x1 W/HOUSING/NC CN5 4x1 W/HOUSING/NC 1 2 3 4 R39 0R R39 0R R55 5.1K 1% R55 5.1K 1% R33 33R R33 33R R10 0R/0805/NC R10 0R/0805/NC U2A AP4501M U2A AP4501M 7 2 1 8 C65 0.1u C65 0.1u C10 0.1u C10 0.1u R50 200R R50 200R U4 AZ4558 U4 AZ4558 VEE 4 IN2+ 5 IN2- 6 OP2 7 VOC 8 OP1 1 IN1- 2 IN1+ 3 AVDD AVDD C92 22u/16V C3225D C92 22u/16V C3225D R14 68R R14 68R C31 470p C31 470p C59 33p C59 33p C86 22u/16V C3225D C86 22u/16V C3225D LED+ LED+ VCC15V VCC15V SPL2 SPL2 U1 U1 MST720A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 C94 NC C3225D C94 NC C3225D R7 100R R7 100R VEE VEE C24 47n C24 47n U3 PMC25LV512 U3 PMC25LV512 HLD 7 SO 2 WP 3 GND 4 SI 5 SCK 6 VCC 8 CE 1 C4 20p C4 20p RP1 33R RP1 33R 3 4 5 6 7 8 1 2 FB8 B30R FB8 B30R CN1 FFC26(TOP) CN1 FFC26(TOP) AVSS 26 AVDD 25 VB 24 VG 23 VR 22 GND 21 VCC 20 OPH1 19 OPH2 18 OPH3 17 STHR 16 STHL 15 OEH 14 MOD 13 L/R 12 VCOM 11 VCOM 10 OEV 9 U/D 8 CKV 7 STL 6 STR 5 VGH 4 VGL 3 VCC 2 GND 1 Pin1 27 Pin2 28 CN7 CN7 AO+ 1 AO- 2 L3 22uH/CDRH5D18 L3 22uH/CDRH5D18 SPR2 SPR2 R6 0R/0805/NC R6 0R/0805/NC C18 0.1u C18 0.1u C88 22u/16V C3225D C88 22u/16V C3225D BD3 BAV99/S BD3 BAV99/S 3 2 1 C3 20p C3 20p RP4 33R RP4 33R 3 4 5 6 7 8 1 2 L4 33uH/CDRH3D16 L4 33uH/CDRH3D16 R4 0R/0805/NC R4 0R/0805/NC C17 33p C17 33p C41 0.1u C41 0.1u C99 C8 0.1u C8 0.1u C83 10u/25V C1206D C83 10u/25V C1206D C20 47n C20 47n R54 33R R54 33R R42 51K R42 51K C81 22u/16V C3225D C81 22u/16V C3225D M2 AP2301 M2 AP2301 1 3 2 R68 33R R68 33R CN2 A1002H00-18PW CON18P_1_0_R CN2 A1002H00-18PW CON18P_1_0_R 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 C77 0.1u C77 0.1u C72 0.1u/25V C72 0.1u/25V C63 33p C63 33p C16 33p C16 33p FB7 B30R FB7 B30R C71 0.1u/25V C71 0.1u/25V C12 10p C12 10p C44 0.1u C44 0.1u VB VB C82 22u/16V C3225D C82 22u/16V C3225D R12 1M0 R12 1M0 R46 3K6 R46 3K6 FB3 B30R FB3 B30R C46 1u C46 1u R63 510K 1% R63 510K 1% SD3 SGL34-02 SD3 SGL34-02 1 2 VG VG R57 33R R57 33R VCC2V5 VCC2V5 C57 33p C57 33p R13 33R R13 33R C66 0.1u C66 0.1u R25 33R R25 33R C_IN C_IN R37 5R1 1%/1206 R37 5R1 1%/1206 C9 0.1u C9 0.1u C19 1u C19 1u C50 1u C50 1u M1 AP2301 M1 AP2301 1 3 2 C58 10u/NC 16V/C1206D C58 10u/NC 16V/C1206D C34 NC C34 NC R43 10R R43 10R R49 3K3 R49 3K3 FB5 B30R FB5 B30R C64 0.1u C64 0.1u L1 8.2u/CDRH3D L1 8.2u/CDRH3D C80 22u/16V C3225D C80 22u/16V C3225D L2 8.2u/CDRH5D16 L2 8.2u/CDRH5D16 R5 100R R5 100R BD2 BAV99/S BD2 BAV99/S 3 2 1 C37 470p C37 470p C51 1u C51 1u VCOM VCOM SD4 SGL34-02 SD4 SGL34-02 1 2 DPWM∗1 PWM∗3 SAR∗3 GPIO∗3 CVBS∗1 SVideo∗1 Analog TCON TCON15 TCON14 TCON13 TCON12 TCON11 TCON10 TCON9 TCON8 [76]VDDP [77]GND [78]INTOUT TCON7 TCON6 TCON5 TCON4 TCON3 TCON2 TCON1 VDDP GND P0.1 P0.0 P0.2 RESET [48]INT [49]SDA [50]SCL PWM2D PWM1D PWR_RSTN TEST1N 100 99 98 VSYNCIN XTALIN XTALOUT AVDD DAC VCOMOUT VCOMDC VREP_DAC VREM_DAC GND VB VG AVDD_DAC GND VR AVDD_OPLL GND GND VDDC ROM_EN 78 77 76 GND VCLAMP VRM VRP AVDD_ADC C1INP C1INM YS1INP [98]HSYNCIN [99]GND [100]AVDD_MPLL YS1INM CVBS1P CVBS1M AVDD_GMC VIN FAULTZ FB2_DPWM FB1_DPWM AVDD_SAR GND GND AVDD_DPWM [27]FB2 Q2 [26]PWMOUT2 [28]SENSE2 Q1 VDDC GND AVDD_PWM 26 27 28 PWMOUT1 FB1 SENSE1 CP1_FB CP1_N CP1_P REF_PWM PGOOD SAR0 SAR1 SAR2 SCK SDI SDO CSN PWM1D PWM2D 46 47 48 49 50 7inch TFT LCD PANEL COLOR LCD MAIN BOARD (5/6) SPEAKER R SPEAKER L C A D 3 4 8 7 2 B 5 1 E G H I F J 6 9 13 12 10 11 14 LCD BOARD 05 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-19 4-20 KEY & HALL SW KEY 4-9. KEY & HALL SW • See page 5-9 for printed wiring board. KEY1 KEY0 KEY0 PANEL_SW PANEL_SW KEY1 DV33 DV33 0V 0V 0.430V 0.430V 0.808V 0.808V 1.225V 1.225V 1.65V 1.65V 2.113V 2.113V 2.533V 2.533V 3.0V 3.0V ADD ADD SW5 SW5 1 2 5 6 R10 0R R10 0R R18 1.5K 1% R18 1.5K 1% SW9 RETURN 1 2 5 6 SW8 SW8 MENU 1 2 5 6 R13 33K 1% R13 33K 1% SW2 SW2 1 2 5 6 R6 10K 1% R6 10K 1% R3 100K 1% R3 100K 1% R17 3.24K 1% R17 3.24K 1% FB3 FB3 FB-600R-300mA/0603 D4 PESD5V0S1BB/NC D4 PESD5V0S1BB/NC 1 1 2 2 C3 0.1uF C3 0.1uF R14 17.8K 1% R14 17.8K 1% R8 3.24K 1% R8 3.24K 1% C1 0.1uF C1 0.1uF SW16 VOL- SW16 1 2 5 6 SW7 DISPLAY 1 2 5 6 SW4 SW4 1 2 5 6 SW15 SW15 VOL+ 1 2 5 6 FB4 FB4 FB-600R-300mA/0603 R19 0R R19 0R SW14 SW14 1 2 5 6 R4 33K 1% R4 33K 1% D2 PESD5V0S1BB/NC D2 PESD5V0S1BB/NC 1 1 2 2 R15 10K 1% R15 10K 1% MARK1 OPTICAL MARK MARK1 OPTICAL MARK C6 22pF C6 22pF SW13 SW13 1 2 5 6 FB1 FB1 FB-600R-300mA/0603 R12 100K 1% R12 100K 1% SW12 SW12 1 2 5 6 SW1 SW1 1 2 5 6 MARK2 OPTICAL MARK MARK2 OPTICAL MARK J1 CON2.54_5P J1 CON2.54_5P 5 4 3 2 1 R16 5.9K 1% R16 5.9K 1% SW6 OPTIONS 1 2 5 6 C7 22pF C7 22pF FB2 FB2 FB-600R-300mA/0603 D3 PESD5V0S1BB/NC D3 PESD5V0S1BB/NC 1 1 2 2 SW11 1 2 5 6 SW3 SW3 ENTER 1 2 5 6 R7 5.9K 1% R7 5.9K 1% R9 1.5K 1% R9 1.5K 1% Q2 TLE4913 Q2 TLE4913 3 2 1 C5 0.1uF C5 0.1uF SW10 SW10 1 2 5 6 R5 17.8K 1% R5 17.8K 1% C2 0.1uF C2 0.1uF C4 22pF C4 22pF D1 PESD5V0S1BB/ NC D1 PESD5V0S1BB/ NC 1 1 2 2 MAIN BOARD (2/6) . . x X N C A D 3 4 8 7 2 B 5 1 E F 6 KEY BOARD 05www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-21 4-22 USB PORT & MODE SW USB 4-10. USB PORT & MODE SW • See page 5-10 for printed wiring board. DVD_SW USBM USBP DVD_SW USB_SW USBD- USBD+ USB_SW USB_VCC USB_VCC USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND USB_GND D- D+ D- D+ 8&9PIN is ground pad 1,4->2,5 ON CD/DVD 2,5->3,6 ON USB UD1 PESD5V0S1BB/NC UD1 PESD5V0S1BB/NC 1 1 2 2 D1 HOLE D1 HOLE 1 UD2 PESD5V0S1BB/NC UD2 PESD5V0S1BB/NC 1 1 2 2 D2 HOLE D2 HOLE 1 D3 HOLE D3 HOLE 1 UJ2 CCHD1407RE-00012 UJ2 CCHD1407RE-00012 6 5 4 3 2 1 7 8 9 UC1 0.1uF UC1 0.1uF UD4 PESD5V0S1BB/NC UD4 PESD5V0S1BB/NC 1 1 2 2 UC6 NC UC6 NC UC5 NC UC5 NC UFB2 FB-100R/0603 UFB2 FB-100R/0603 UR5 15K UR5 15K 4 2 3 1 UJ1 UB1112C-C1608-FR 4 2 3 1 UJ1 UB1112C-C1608-FR 3 2 1 4 5 6 UC3 UC3 10uF /16V UR6 15K UR6 15K UR3 33R UR3 33R UT1 ACM2012-900-2P/NC UT1 ACM2012-900-2P/NC 2 1 3 4 UC2 0.1uF UC2 0.1uF UR4 0R UR4 0R UR2 33R UR2 33R UC4 0.1uF UC4 0.1uF USW1 SST-2214 USW1 SST-2214 1 2 3 4 5 6 UR1 0R UR1 0R UFB1 FB-100R/0603 UFB1 FB-100R/0603 UD3 PESD5V0S1BB/NC UD3 PESD5V0S1BB/NC 1 1 2 2 MAIN BOARD (3/6) CD/DVD Y USB (USB) C A D 3 4 8 7 2 B 5 1 6 USB BOARD 05 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 4-24E DVP-FX720 MEMO www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 5-1 5-2 SECTION 5 PRINTED WIRING BOARDS 5-1. CIRCUIT BOARDS LOCATION KEY BOARD MAIN BOARD USB BOARD LCD BOARD 7 Inch TFT LCD Panel 2 pin 2 pin 18 Pin 26 Pin LCD BOARD SPEAKER L SPEAKER R MAIN BOARD PICK UP 24 Pin 13 Pin 18 Pin 4 Pin RECHARGEABLE BATTERY PACK www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 5-3 5-4 5-2. MAIN BOARD MAIN MAIN BOARD (SIDE A) D8 C-5 D9 B-7 D13 D-7 D14 D-7 D15 F-7 D16 F-7 D17 E-7 D18 E-7 D19 F-7 D20 F-7 D21 A-7 D29 G-7 D30 F-7 HA1 A-1 HA2 E-3 HA3 A-2 J11 F-1 Q1 D-4 Q23 F-6 Q26 F-7 Q27 E-6 Q28 E-6 Q29 D-6 Q36 E-6 Q37 D-6 Q38 C-7 U2 F-5 U3 C-3 U6 D-4 U11 E-5 U14 D-6 U15 D-6 U18 F-3 : Uses unleaded solder. • See page 5-1 for circuit boards location. There are a few cases that the part isn't mounted in this model is printed on this diagram. C D E F G A 1 2 3 4 5 6 7 05 B MAIN BOARD (SIDE A) POWER CHARGE www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 5-5 5-6 MAIN MAIN BOARD (SIDE B) D10 F-6 D11 F-6 D12 F-6 D22 A-6 D23 B-5 D25 B-7 D26 B-6 D27 A-1 D28 A-1 HA4 F-1 J4 C-7 J5 C-7 J6 D-7 J7 E-7 J8 A-7 J9 B-5 Q3 F-5 Q4 F-5 Q5 F-5 Q6 F-6 Q7 G-5 Q8 G-4 Q9 G-4 Q10 B-2 Q11 A-2 Q12 B-2 Q13 A-2 Q14 A-2 Q15 A-2 Q17 A-2 Q18 A-2 Q19 A-2 Q20 A-2 Q21 A-6 Q22 A-6 Q24 E-5 Q25 E-5 Q30 C-6 Q31 E-5 Q32 F-6 Q35 E-5 Q43 A-6 Q44 A-6 Q45 A-6 Q46 F-6 U4 F-4 U5 E-4 U7 D-5 U8 D-4 U9 A-4 U10 D-5 U13 C-6 U17 B-7 U19 C-6 U20 B-6 U21 F-6 C D E F G A 1 2 3 4 5 6 7 05 B MAIN BOARD (SIDE B) DC IN 9V – + LINE SELECT OUT IN r VIDEO AUDIO PHONES A PHONES B HOLD/ /1 > . www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 5-7 5-8 LCD 5-3. LCD BOARD : Uses unleaded solder. • See page 5-1 for circuit boards location. There are a few cases that the part isn't mounted in this model is printed on this diagram. A 1 2 3 4 5 6 7 8 05 B LCD BOARD (SIDE A) A 1 2 3 4 5 6 7 8 05 B LCD BOARD (SIDE B) LCD BOARD (SIDE A) CN1 A-2 CN2 B-6 CN4 A-8 CN6 B-1 CN7 B-8 D1 A-7 Q1 A-7 SD2 B-7 SD4 A-6 U1 A-4 U3 A-5 U4 B-2 LCD BOARD (SIDE B) BD1 B-6 BD2 A-4 BD3 A-4 BD4 B-5 BD5 B-5 BD6 A-5 Q2 A-7 SD1 B-8 SD3 A-6 U2 B-8 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 5-4. KEY BOARD, USB BOARD 5-9 5-10 KEY, USB USB BOARD UJ1 A1 UJ2 C3 : Uses unleaded solder. • See page 5-1 for circuit boards location. There are a few cases that the part isn't mounted in this model is printed on this diagram. C D E F G H I A 1 2 3 4 05 B KEY BOARD . N X x . C D A 1 2 3 05 B USB BOARD (USB) CD/DVD Y USB KEY BOARD D1 G-4 D4 G-4 J1 I-2 Q2 G-4 www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 5-12E DVP-FX720 MEMO www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 6-1 6-2 SECTION 6 WAVEFORMS AND CIRCUIT VOLTAGE 6-1. WAVEFORMS Fig 6-1 Fig 6-2 Fig 6-3 Fig 6-4 1. Spindle control waveform (No disc condition) 2. Tracking control relate signal (system checking-cd) 3. Tracking control relate signal (system checking-dvd) 4. Audio output from IC (L/R) DMSO/ECR (U5 PIN21) U (U5 PIN7) V (U5 PIN4) W (U5 PIN2) TEO (U3 PIN32) TRSO (U4 PIN26) TRSO (U4 PIN26) TEO (U3 PIN32) AUDIO OUT (J5 PIN2) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 6-3 6-4 Fig 6-5 Fig 6-6 Fig 6-7 Fig 6-8 5. Audio related signal 6. Video output waveform (CVBS) 7. Video output waveform (Y/C) 8. RF waveform LRDIN (U13 PIN3) DIN (U13 PIN2) SCKIN (U13 PIN16) DIN (U9 PIN7) Y FB19 C FB44 DVDRFIP (U3 PIN 6) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 6-5 6-6 6-2. CIRCUIT VOLTAGE CHART PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY 1 0 0 51 0 0 101 3.266 3.269 151 0.041 0.026 201 3.256 3.267 251 0 0 2 0.236 0 52 3.262 0 102 3.266 3.263 152 1.114 1.143 202 0.036 0.039 252 1.68 1.661 3 0.17 0.028 53 0.032 3.212 103 3.302 3.282 153 1.591 1.601 203 0.014 0.034 253 1.684 1.673 4 0.157 0.029 54 0.002 3.246 104 3.026 3.027 154 1.597 1.611 204 2.641 5.027 254 0.983 1.43 5 0.159 0.034 55 1.923 1.905 105 2.723 2.707 155 1.038 1.051 205 3.26 3.404 255 0.896 0.899 6 1.75 1.695 56 2.045 2.022 106 3.262 3.269 156 3.263 3.255 206 3.26 3.247 256 3.262 3.265 7 1.749 1.696 57 1.801 1.848 107 0.014 0.053 157 1.992 1.993 207 0.03 0.034 8 2.192 2.037 58 2.553 1.963 108 3.263 3.268 158 0 0 208 3.262 3.272 9 2.003 2.039 59 2.533 2.172 109 2.772 2.978 159 0 0 209 1.535 1.524 10 2.005 2.035 60 1.558 2.141 110 2.772 2.726 160 1.912 1.928 210 1.585 1.649 11 2.193 2.047 61 0.825 1.963 111 3.263 2.892 161 3.536 3.536 211 1.586 1.608 12 0.807 1.03 62 0.023 1.542 112 3.254 0.047 162 2.614 2.65 212 0.009 0.034 13 0.81 1.027 63 0.037 0.822 113 1.635 1.321 163 3.228 3.229 213 1.909 1.927 14 0.775 1.031 64 0.042 0.04 114 0.13 0.633 164 3.238 3.156 214 0.036 0.039 15 0.687 1.033 65 3.263 3.269 115 1.2 0.866 165 3.238 2.65 215 2.955 2.965 16 0.642 1.047 66 3.262 3.268 116 0.804 1.15 166 3.238 3.126 216 1.643 1.651 17 0.616 1.038 67 0.089 0.107 117 1.048 1.261 167 3.263 3.024 217 3.26 3.27 18 2.013 2.023 68 0.216 0.561 118 3.262 3.271 168 3.263 3 218 1.277 1.84 19 2.009 2.006 69 0.108 0.897 119 0.883 1.18 169 3.262 3.547 219 0 0 20 0.003 0.177 70 3.262 2.853 120 0.94 1.083 170 3.262 3.272 220 0 0 21 0.005 0.177 71 0 3.052 121 0.97 1.207 171 3.072 3.564 221 0 0 22 3.227 3.226 72 3.262 2.876 122 0.123 1.166 172 2.969 2.667 222 3.224 3.223 23 3.246 3.013 73 0.029 0 123 1.604 1.457 173 3.324 3.132 223 1.612 1.612 24 3.267 3.255 74 0.027 1.638 124 1.095 1.177 174 3.263 0 224 1.61 1.612 25 2.809 2.747 75 0.026 0.026 125 1.29 0.955 175 0.011 2.878 225 1.591 1.591 26 2.073 1.763 76 0.025 0.022 126 1.064 1.146 176 0.026 3.342 226 1.613 1.612 27 0 0 77 0.008 2.01 127 0.805 0.804 177 0.042 3.342 227 1.595 1.612 28 2.779 2.705 78 0.008 0.024 128 0.852 1.004 178 0 0 228 1.739 1.613 29 2.03 2 79 3.268 1.451 129 0.961 1.264 179 0.052 0.03 229 3.249 3.259 30 1.395 1.378 80 3.257 1.605 130 2.554 3.242 180 3.258 2.796 230 3.249 3.259 31 1.435 1.187 81 0 0 131 3.262 3.272 181 3.258 3.242 231 0 0 32 1.549 1.308 82 3.267 1.153 132 2.955 2.963 182 0.556 0.897 232 1.906 1.923 33 1.551 1.311 83 3.267 1.051 133 3.242 3.251 183 0.558 0.943 233 0.697 0.701 34 0.214 0.348 84 3.268 1.532 134 3.116 3.125 184 0 0 234 0.703 0.621 35 0.347 1.238 85 3.267 1.816 135 3.211 3.201 185 0.554 0.516 235 0.53 0.971 36 1.051 1.238 86 3.267 1.993 136 3.067 3.076 186 3.257 3.268 236 1.122 0.965 37 1.399 1.378 87 2.921 2.993 137 0.928 0.893 187 0.96 0.937 237 0 0 38 1.399 1.372 88 0 1.2 138 0.933 0.896 188 0 0 238 0.029 0.038 39 1.399 1.377 89 3.267 0.962 139 0.035 0.046 189 1.348 0.667 239 3.204 3.201 40 1.397 1.377 90 0 0 140 0.167 0.177 190 3.256 3.266 240 3.059 1.671 41 1.394 1.017 91 0 0.076 141 0.97 1.043 191 0.96 0.473 241 0.008 1.581 42 1.394 1.372 92 1.553 1.922 142 1.912 1.809 192 0 0 242 1.598 0 43 0 0 93 1.929 1.922 143 0.987 2.428 193 1.959 1.99 243 1.041 1.578 44 1.806 0 94 1.927 2.816 144 1.013 1.52 194 1.302 1.315 244 3.262 3.265 45 3.263 1.827 95 3.19 3.245 145 3.262 3.272 195 1.298 1.315 245 0 0 46 0 0 96 3.266 0 146 1.584 1.605 196 3.256 3.267 246 3.262 3.265 47 0.866 0.795 97 0 0.015 147 3.262 3.27 197 0.035 0.039 247 0.255 2.305 48 0.451 0.69 98 3.262 5.033 148 0 0 198 0.035 0.039 248 1.358 1.345 49 3.265 3.26 99 0 5.033 149 0.015 0.042 199 3.258 3.269 249 3.244 1.544 50 3.746 2.051 100 0 2.706 150 0.041 0.069 200 3.257 3.267 250 1.397 1.866 U3 (MT1389 MPEG) U3 (MT1389 MPEG) U3 (MT1389 MPEG) U3 (MT1389 MPEG) U3 (MT1389 MPEG) U3 (MT1389 MPEG) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX720 6-7 6-8E PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY 1 3.266 3.263 51 0.078 1.449 1 0.107 0.118 1 3.261 3.228 1 0 0 1 0 0 1 0 0 2 1.017 1.612 52 0 0 2 2.25 2.241 2 3.301 3.261 2 0 0 2 3.012 2.952 2 0 0 3 3.266 3.266 53 0.056 0.591 3 2.41 2.401 3 3.301 3.261 3 0 0 3 2.498 2.496 3 0 0 4 1.032 0.579 54 0 0 4 1.51 1.735 4 3.297 3.257 4 0 0 4 2.488 2.489 4 -4.86 -4.859 5 0.079 1.133 5 1.97 2.061 5 0 0 5 5.046 5.094 5 0 0 5 0 0 6 0 0 6 1.497 1.503 6 1.588 1.584 6 5.046 5.094 6 2.503 2.501 6 0 0 7 0.05 1.249 7 1.167 0.889 7 1.834 1.733 7 -4.965 -4.924 7 4.023 0 7 0 0 8 0.052 1.109 8 1.64 2.495 8 3.304 3.262 8 0 0 8 0 0 8 4.988 4.99 9 3.267 3.265 9 0.026 0.026 9 3.262 3.261 9 0 0 9 2.536 2.535 10 0.079 1.156 10 0.045 0.106 10 3.293 3.293 10 0 0 10 5.1 5.096 11 0.076 1.121 11 3.266 3.258 11 3.27 3.264 11 0 0 11 2.536 2.535 PIN STOP PLAY 12 0 0 12 3.266 0 12 3.032 3.016 12 5.042 5.094 12 0 0 1 0 0 13 0.053 1.078 13 0 0 13 2.376 2.379 13 5.042 5.094 13 4.632 2.825 2 0 0 14 3.267 3.265 14 0 0 14 2.175 1.637 14 5.095 5.134 14 2.533 2.532 3 0.037 0.074 15 3.259 2.945 15 1.02 0 15 3.3 3.26 15 5.12 5.098 4 0 0 16 3.264 3.242 16 0.04 0.041 16 2.773 2.729 16 2.541 2.54 5 3.266 3.26 17 3.261 3.117 17 0.83 0.822 17 3.026 3.02 6 3.266 3.26 18 3.26 3.208 18 2.47 1.979 18 3.3 0.038 7 0 0 19 3.256 3.062 19 2.18 1.998 19 3.263 3.259 8 3.266 3.26 20 0.062 1.109 20 2.27 2.141 20 3.3 3.26 21 0.07 0.906 21 3.26 2.172 21 3.3 3.262 22 0.043 0.033 22 3.26 1.963 22 0 0 PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY 23 0.306 0.607 23 0.84 1.849 23 3.3 3.263 1 0 0 1 1.281 1.387 1 1.653 1.645 24 1.492 0.944 24 3.26 2.024 24 3 2.993 2 0 3.762 2 1.107 2.522 2 0.052 0.044 25 1.458 1.024 25 2.179 1.982 25 3.3 3.262 3 0 0 3 0.204 2.52 3 1.544 1.539 26 1.592 1.703 26 0.025 0 26 3.241 3.216 4 0 3.765 4 1.373 1.369 4 0 0 27 3.267 3.264 27 0 0 27 3.241 3.215 5 0 0 5 0.765 1.373 5 3.266 3.261 28 0 0 28 0.023 0 28 0.134 1.388 6 0 0 6 0.626 1.37 6 4.881 4.828 29 1.592 1.475 29 1.881 1.564 7 0 3.767 7 0.102 2.512 7 2.447 2.435 30 1.577 1.065 30 0.307 0.393 8 0 0 8 5.097 5.081 8 2.412 2.401 31 1.578 1.602 31 0.287 1.739 9 1.142 3.121 9 5.098 5.081 9 0 0 32 1.56 1.4 32 1.056 0.39 10 1.132 3.123 10 0 0 10 2.411 2.416 33 1.559 1.266 33 0.294 1.751 11 1.132 3.101 11 0.228 2.525 11 3.266 3.259 34 0.039 0.042 34 0.378 0.43 12 1.136 3.1 12 0.23 2.521 12 3.266 3.259 35 0.045 0.059 35 0.296 0 13 1.161 3.147 13 1.105 2.519 13 0.051 0.044 36 0.003 0 36 1.375 0 14 1.184 3.154 14 0.24 2.543 14 3.262 3.255 37 3.266 3.265 37 0.031 0 15 1.106 1.184 15 0.197 2.529 15 3.262 3.255 38 1.583 1.555 38 3.266 0 16 0 0 16 1.111 2.529 16 1.62 1.595 39 3.26 2.961 39 0.021 0 17 0 0.581 17 1.1 2.579 40 0.003 0 40 2.001 2.133 18 0 0 18 1.101 2.57 41 0 0 41 0.247 0 19 0 0 19 2.367 0 PIN STOP PLAY 42 0.6 0.963 42 1.607 0 20 5.3 0.021 20 1.138 2.513 1 3.262 3.26 43 3.267 3.266 43 0.267 0 21 1.399 1.463 21 0.727 5.064 2 1.596 1.481 44 0.077 0.609 44 2.434 1.75 22 1.395 1.369 22 0 0 3 1.748 1.413 45 0.08 1.007 45 0.233 0 23 0.133 3.205 23 1.305 1.375 4 1.96 1.412 46 0 0 46 0 0 24 4.023 2.055 24 0.19 2.519 5 1.746 1.487 47 0.05 1.065 47 0 0 25 5.312 5.064 25 1.106 2.521 6 1.615 1.423 48 0.05 1.203 48 0 0.8 26 5.323 5.063 26 1.283 1.366 7 1.95 1.456 49 3.267 3.266 27 5.306 5.064 27 1.379 1.369 8 0 0 50 0.079 0.734 28 5.27 5.051 28 0.041 3.228 9 0.943 1.468 10 0.943 1.467 11 3.35 1.294 12 3.3 1.234 13 3.3 1.214 14 3.3 1.244 15 0 0 16 5.2 5.136 U8 (FLASH) U2 (MCU Z8F0822) U15 (74HC4066) U7 (SDRAM) U7 (SDRAM) U18 (PT2328-X(L)) U5 (BA6849) U11 (APA2068KA) U14 (4558) U4 (BA5954) U13 (PCM1742 KE) U6 (EEPROM 24C16) www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-1 Pin Name I/O Description number 1 AGND - Analog ground 2 DVDA I AC coupled input path A 3 DVDB I AC coupled input path B 4 DVDC I AC coupled input path C 5 DVDD I AC coupled input path D 6 DVDRFIP I AC coupled DVD RF signal 7 DVDRFIN I TP45 8 MA I DC coupled main-beam RF signal input A 9 MB I DC coupled main-beam RF signal input B 10 MC I DC coupled main-beam RF signal input C 11 MD I DC coupled main-beam RF signal input D 12 SA I DC coupled sub-beam RF signal input A 13 SB I DC coupled sub-beam RF signal input B 14 SC I DC coupled sub-beam RF signal input C 15 SD I DC coupled sub-beam RF signal input D 16 CDFON I TP52 17 CDFOP I TP53 18 TNI I 3 beam satellite PD signal negative input 19 TPI I 3 beam satellite PD signal positive input 20 MDI1 I Laser power monitor input 21 MDI2 I Laser power monitor 22 LDO2 O Laser driver output 23 LDO1 O Laser driver output 24 SVDD3 - Analog power 3.3V 25 CSO O Positive main beam summing output 26 RFLVL O Negative main beam summing output 27 SGND - Analog ground 28 V2REFO O Reference voltage 2.8V 29 V20 O Reference voltage 2.0V 30 VREFO O Reference voltage 1.4V 31 FEO O Focus error monitor output 32 TEO O Tracking error monitor output 33 TEZISLV O TE Slicing Level 34 OP_OUT O TP162 35 OP_INN I TP163 36 OP_INP I TP164 37 DMO O Disk motor control output. PWM output. 38 FMO O Feed motor control. PWM output. 39 TROPENPWM (-) N.C. 40 PWMOUT1 /V_ADIN9 O 1stGeneral PWM output, or Version AD input 9 41 TRO O Tracking servo output. PDM output of tracking servo compensator 42 FOO O Focus servo output. PDM output of focus servo compensator 43 VPLLVSS - Analog ground for VPLL 44 CAPPAD I Capacitance connection 45 VPLLVDD3 - Analog 3.3V Power for VPLL 46 USB_VSS - USB ground pin 47 USBP I USB port DPLUS analog pin 48 USBM I USB port DMINUS analog pinPin SECTION 7 IC PIN FUNCTION DESCRIPTION DVP-FX720 7-1. MPEG/DSP/RF PIN FUNCTION (MAIN BOARD U3: MT1389HD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-2 Pin Name I/O Description number 49 USB_VDD3 - USB Power pin 3.3V 50 FG/V_ADIN8 I Motor Hall sensor input, or Version AD input 8 51 TDI/V_ADIN4 I/O Serial interface port 3 data-out Version AD input port 4 GPIO 52 TMS/V_ADIN5 I/O Serial interface port 3 data-in Version AD input port 5 GPIO 53 TCK/V_ADIN6 I/O Serial interface port 3 clock pin Version AD input port 6 GPIO 54 TDO/V_ADIN7 I/O Serial interface port 3 chip-select Version AD input port 7 GPO 55 DVDD18 - 1.8V power pin for internal 56 IOA2 I/O Microcontroller address 2 / IO 57 IOA3 I/O Microcontroller address 3 / IO 58 IOA4 I/O Microcontroller address 4 / IO 59 IOA5 I/O Microcontroller address 5 / IO 60 IOA6 I/O Microcontroller address 6 / IO 61 IOA7 I/O Microcontroller address 7 / IO 62 HIGHA0 I/O Microcontroller address 8 63 IOA18 I/O Flash address 18 / IO 64 IOA19 I/O Flash address 19 / IO 65 DVDD3 - 3.3V power pin for internal 66 IOWR I/O Flash write enable, active low / IO 67 A16 O Flash address 16 68 HIGHA7 I/O Microcontroller address 15 69 HIGHA6 I/O Microcontroller address 14 70 HIGHA5 I/O Microcontroller address 13 71 HIGHA4 I/O Microcontroller address 12 72 HIGHA3 I/O Microcontroller address 11 73 HIGHA2 I/O Microcontroller address 10 74 HIGHA1 I/O Microcontroller address 9 75 IOA20 I/O Flash address 20 / IO 76 IOCS I/O Flash chip select, active low / IO 77 IOA1 I/O Microcontroller address 1 / IO 78 IOOE I/O Flash output enable, active low / IO 79 AD0 I/O Microcontroller address/data 0 80 AD1 I/O Microcontroller address/data 1 81 DVSS - Ground pin for internal 82 AD2 I/O Microcontroller address/data 2 83 AD3 I/O Microcontroller address/data 3 84 AD4 I/O Microcontroller address/data 4 85 AD5 I/O Microcontroller address/data 5 86 AD6 I/O Microcontroller address/data 6 87 IOA21/V_ADIN0 I/O Flash address 21 / IO 88 ALE I/O Microcontroller address latch enable 89 AD7 I/O Microcontroller address/data 7 90 DVSS - Ground pin for internal digital circuitry 91 A17 I/O Flash address 17 92 IOA0 I/O Microcontroller address 0 / IO 93 DVDD18 - 1.8V power pin for internal 94 UWR I/O Microcontroller write strobe, active low 95 URD I/O Microcontroller read strobe, active low 96 DVDD3 - 3.3V power pin for internal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-3 Pin Name I/O Description number 97 UP1_2 I/O Microcontroller port 1-2 98 UP1_3 I/O Microcontroller port 1-3 99 UP1_4 I/O Microcontroller port 1-4 100 UP1_5 I/O TP168 101 UP1_6 I/O Microcontroller port 1-6 I2C clock pin 102 UP1_7 I/O Microcontroller port 1-7 I2C data pin 103 UP3_0 I/O Microcontroller port 3-0 8032 RS232 RXD 104 UP3_1 I/O Microcontroller port 3-1 8032 RS232 TXD 105 UP3_4 I/O Microcontroller port 3-4 Hardwired RD232 RXD I2C clock pin 106 UP3_5 I/O Microcontroller port 3-5 Hardwired RD232 TXD I2C data pin 107 ICE I Microcontroller ICE mode enable 108 PRST I Power on reset input, active low 109 IR I IR control signal 110 INT0 I/O Microcontroller external interrupt 0, active 111 DQM0 I/O Data mask 0 112 IO_19 I/O GPIO 113 RD7 I/O DRAM data 7 114 RD6 I/O DRAM data 6 115 RD5 I/O DRAM data 5 116 RD4 I/O DRAM data 4 117 RD3 I/O DRAM data 3 118 DVDD3 - 3.3V power pin for internal 119 RD2 I/O DRAM data 2 120 RD1 I/O DRAM data 1 121 RD0 I/O DRAM data 0 122 RD15 I/O DRAM data 15 123 RD14 I/O DRAM data 14 124 RD13 I/O DRAM data 13 125 RD12 I/O DRAM data 12 126 RD11 I/O DRAM data 11 127 RD10 I/O DRAM data 10 128 RD9 I/O DRAM data 9 129 RD8 I/O DRAM data 8 130 IO_18 I/O GPIO 131 DVDD3 - 3.3V power pin for internal 132 DQM1 I/O Data mask 1 133 RWE O DRAM Write enable, active low 134 CAS O DRAM column address strobe, active low 135 RAS O DRAM row address strobe, active low 136 RCS O DRAM chip select, active low 137 BA0 I/O DRAM bank address 0 138 BA1 I/O DRAM bank address 1 139 RA10 I/O DRAM address 10 140 RA0 I/O DRAM address 0 141 RA1 I/O DRAM address 1 142 DVDD18 - 1.8V power pin for internal 143 RA2 I/O DRAM address 2 144 RA3 I/O DRAM address 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-4 Pin Name I/O Description number 145 DVDD3 - 3.3V power pin for internal 146 RCLK I/O DRAM clock 147 CKE O DRAM clock enable 148 DVSS - Ground pin for internal digital circuitry 149 RA11 I/O DRAM address 11 150 RA9 I/O DRAM address 9 151 RA8 I/O DRAM address 8 152 RA7 I/O DRAM address 7 153 RA6 I/O DRAM address 6 154 RA5 I/O DRAM address 5 155 RA4 I/O DRAM address 4 156 DVDD3 - 3.3V power pin for internal 157 Y_7/IO_16 I/O Digital Video output Y bit 7 GPIO 158 Y_6/IO_15 I/O Digital Video output Y bit 6 GPIO 159 Y_5/IO_14 I/O Digital Video output Y bit 5 GPIO 160 DVDD18 - 1.8V power pin for internal 161 Y_4/IO_13 I/O Digital Video output Y bit 4 GPIO 162 Y_3/IO_12 I/O Digital Video output Y bit 3 GPIO 163 Y_2/IO_11 I/O Digital Video output Y bit 2 GPIO 164 Y_1/IO_10 I/O Digital Video output Y bit 1 GPIO 165 Y_0/IO_9 I/O Digital Video output Y bit 0 GPIO 166 YUVCLK/IO_8 I/O Digital Video output Clock GPIO 167 C_7/IO_7 I/O Digital Video output C bit 7 GPIO 168 C_6/IO_6 I/O Digital Video output C bit 6 GPIO 169 C_5/IO_5 I/O Digital Video output C bit 5 GPIO 170 DVDD3 - 3.3V power pin for internal 171 C_4/IO_4 I/O Digital Video output C bit 4 GPIO 172 C_3/IO_3 I/O Digital Video output C bit 3 GPIO 173 C_2/IO_2 I/O Digital Video output C bit 2 GPIO 174 DVDD18 - 1.8V power pin for internal 175 C_1/IO_1 I/O Digital Video output C bit 1 GPIO 176 C_0/IO_0 I/O Digital Video output C bit 0 GPIO 177 IO_17 I/O GPIO 178 DVSS - Ground pin for internal 179 HSYN/V_ADIN2 I/O Horizontal sync for video-input 180 YUV7 I/O Microcontroller external interrupt 181 VSYNC/V_ADIN1 I/O Vertical sync input/output While no External TV-encoder 182 YUV6/R O TP160 183 YUV5/B O TP159 184 DACVSSA - Ground pin for VIDEO DAC circuitry 185 YUV4/G O TP158 186 DACVDDA - 3.3V power pin for VIDEO DAC circuitry 187 YUV3/CVBS O Video data output bit 3 Analog composite output 188 DACVSSB - Ground pin for VIDEO DAC circuitry 189 YUV2/C O Video data output bit 2 Analog chroma output 190 DACVDDB - 3.3V power pin for VIDEO DAC circuitry 191 YUV1/Y O Video data output bit 1 Analog Y output 192 DACVSSC - Ground pin for VIDEO DAC circuitry www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-5 Pin Name I/O Description number 193 YUV0/CIN O Video data output bit 0 Compensation capacitor 194 FS O Full scale adjustment 195 VREF O Bandgap reference voltage 196 DACVDDC - 3.3V power pin for VIDEO DAC circuitry 197 ASDATA0/GPO_2 I/O Audio serial data 0 (Front-Left/Front-Right) DSD data left channel Trap value in power- on reset 198 RVREF/GPIO_6 I/O GPIO 199 RCLKB/GPIO_5 I/O GPIO 200 GPIO_4 I/O GPIO 201 GPIO_3 I/O GPIO 202 ASDATA1/GPO_1 I/O TP155 203 ASDATA2/GPO_2 I/O TP152 204 SPMCLK I/O KEYSCAN C6 205 SPDATA I/O KEYSCAN C7 206 SPLRCK I/O ADAC MC 207 SPBCK I/O TP165 208 DVDD3 - 3.3V power pin for internal 209 ALRCK I/O Audio left/right channel clock Trap value in power-on reset: I) 1 : use external 373 II) 0: use internal 373 210 ABCK O Audio bit clock Phase de-modulation 211 ACLK O Audio DAC master clock 212 ASDATA3 I/O TP152 213 DVDD18 - 1.8V power pin for internal 214 ASDATA4 I/O TP151 215 MC_DATA I/O Inout PD SMT 216 SPDIF O SPDIF output 217 APLLVDD3 - 3.3V Power pin for audio clock circuitry 218 APLLCAP O APLL External 219 APLLVSS - Ground pin for audio clock circuitry 220 ADACVSS2 - Ground pin for AUDIO DAC circuitry 221 ADACVSS1 - Ground pin for AUDIO DAC circuitry 222 ARF (SW) O AUDIO DAC Sub-woofer channel output While internal AUDIO DAC not used: GPIO 223 ARS/SDATA3 O TP149 224 AR/SDATA1 O AUDIO DAC Right channel output While internal AUDIO DAC not used: a. SDATA1 225 AVCM O AUDIO DAC reference voltage 226 AL/SDATA2 O AUDIO DAC Left Surround channel output While internal AUDIO DAC not used: a. SDATA2 227 ALS/SDATA 0 O TP148 228 ALF/(CTR) O TP147 229 ADACVDD1 - 3.3V power pin for AUDIO DAC circuitry 230 ADACVDD2 - 3.3V power pin for AUDIO DAC circuitry 231 RFGND18 - Analog ground 232 RFVDD18 - Analog power 1.8V 233 XTALO O 27M crystal out 234 XTALI I 27M crystal in 235 JITFO O The output terminal of RF jitter meter. 236 JITFN I The input terminal of RF jitter meter. 237 PLLVSS - Ground pin for data PLL and related analog circuitry. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-6 Pin Name I/O Description number 239 PLLVDD3 - 3.3V power pin for data PLL and related analog circuitry. 240 LPFON O The negative output of loop filter amplifier 241 LPFIP I The positive input terminal of loop filter amplifier. 242 LPFIN I The negative input terminal of loop filter amplifier. 243 LPFOP O The positive output of loop filter amplifier 244 ADCVDD3 - Analog 3.3V Power for ADC 245 ADCVSS - Analog ground for ADC 246 RFVDD3 - Analog Power 247 RFRPDC O RF ripple detect output 248 RFRPAC I RF ripple detect input(through AC-coupling) 249 HRFZC I High frequency RF ripple zero crossing 250 CRTPLP O Defect level filter capacitor connecting 251 RFGND - Analog Power 252 OSP O RF Offset cancellation capacitor connecting 253 OSN O RF Offset cancellation capacitor connecting 254 RFGC O RF AGC loop capacitor connecting for DVD-ROM 255 IREF I RF path. Connect an external 15K resistor to this pin and 256 AVDD3 - Analog power 3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-7 7-2. FRONT MICOM PIN FUNCTION (MAIN BOARD U2: Z8F0822) Pin Name I/O Description number 1 PC0/T1IN O SYSTEM POWER EN 2 PA6/SCL I POWER KEY 3 PA7/SDA I HOLD 4 /RESET I MCU RESET 5 Vss - Ground pin 6 XIN I MCU XIN 7 XOUT O MCU XOUT 8 Vdd - 3.3V 9 PC5/MISO O MUTE 10 PC4/MOSI I Battery detect 11 PC3/SCK I AV IN SW 12 PC2/SS O CHARGE EN 13 PA0/T0IN I ADAPTER_DET 14 PA1/T0OUT O VOL_PWM 15 PA2/DE0 I LED2 (CHARGE) 16 PA3/CTS0 I IR_IN 17 PA4/RXD0 I/O TXD 18 PA5/TXD0 I/O RXD 19 PC1/T1OUT O SE 20 DBG I DBG 21 AVdd - 3.3V 22 AVss - Ground pin 23 VREF - 3.3V 24 PB4/ANA4 O cb charge enable 25 PB3/ANA3 O S MUTE 26 PB2/ANA2 I AUDIO_DTC 27 PB1/ANA1 I LED1 (POWER) 28 PB0/ANA0 I Battery IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-8E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-1 SECTION 8 ELECTRICAL ADJUSTMENT DVP-FX720 This section describes procedures and instructions necessary for adjusting electrical circuits in this set. Instruments required: 1) Color monitor TV 2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz, with delay mode 3) Frequency counter (over 8 digits) 4) Digital voltmeter 5) Standard commander (RMT-D183) 6) DVD reference disc HLX-501 (J-6090-071-A) (dual layer) (NTSC) HLX-503 (J-6090-069-A) (single layer) (NTSC) HLX-504 (J-6090-088-A) (single layer) (NTSC) HLX-505 (J-6090-089-A) (dual layer) (NTSC) HLX-506 (J-6090-077-A) (single layer) (PAL) HLX-507 (J-6090-078-A) (dual layer) (PAL) 8-1. STANDARD VIDEO LEVEL 1. Checking Video Output Level This checks whether Video Output level satisfy the NTSC stan- dard. If it is not correct, the brightness will be too large or small. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point LINE OUT (VIDEO) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 1.00 ± 0.05 Vp-p Checking method: 1) Confirm that the Video Output level is 1.00 ± 0.05 Vp-p. Figure 8-1 1.00 ± 0.05 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-2E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-1 SECTION 9 TROUBLESHOOTING DVP-FX720 9-1. ELECTRICAL TROUBLE SHOOTING GUIDE No power on by adaptor No power on by battery Is adaptor out 9.5V? YES NO Is P1 OK? Replace P1 Is D22 OK? NO. P_3V3 NO. +3.3V NO. +5V NO. +1.8V Is Q46 OK? Replace Q46 Is U20 OK? Replace U20 Is U17 OK? Is U17 OK? Is –AVCC OK? Replace U17 NO. LCD power Replace U10 Replace U17 Is U19 OK? Replace U19 Replace U21 Is U21 OK? Replace D22 Replace adaptor Is battery OK? Replace Q43 Is Q43 OK? Replace battery AUDIO OUT ABNORMAL SPEAKER ABNORMAL Is SW15, SW16 OK? Replace SW15, SW16 Replace U11 Replace U3 Replace speaker Is U11 OK? Is speaker OK? Check audio jack & mode Check U15 Check U14 Check U13 Check signals from U3 (MT1389) YES YES YES YES NO NO NO NO NO NO NO NO NO NO NO NO NO NO NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES YES 1. A. Power (DC-DC Converter) circuit B. Audio out abnormal C. Speaker abnormal Is –USB VCC OK? Replace U18 NO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-2 VIDEO OUT ABNORMAL OPEN/CLOSE ABNORMAL NO CHARGING Is 9.5V OK? Check P1 Is Q46, U21 OK? Replace Q46, U21 Is U2 OK? Replace U2 Is Q44 OK? Replace Q44 Is J9 OK? Replace J9 Check SW17 & SW18 Check the connection of part Check traverse PICTURE ABNORMAL DISC ERROR Check video jack & mode Check the disc Check disc Check the traverse Check traverse Check the SDRAM Refer to servo part Refer to servo part Check LC filter Check video signals from U3 (MT1389) YES YES YES YES D. Video out abnormal G. Open/close abnormal H. Charging circuit E. Picture abnormal F. Disc error NO NO NO NO NO Refer to servo part www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-3 Power is on Does logo appear on the screen? Check power & clock Does the moving picture of the DVD disc play on the screen normally? Does the moving picture of the CD play on the screen normally? Is MPEG data signal normal? Is error signal normal? Check CD/DVD DSP output signal Check MPEG decoder input signal Is clock normal? Check clock signal Check clock signal Does the audio signal output from MPEG decoder? Does the audio sound output normally? 2. MPEG Circuit NO NO NO YES YES YES YES YES OK OK MT1389HD MT1389HD OK OK NO YES NO NO NO YES NO NO Check CD/DVD DSP output signal Check MPEG decoder input signal Check CD/DVD DSP output signal Check MPEG decoder input signal Is MPEG data signal normal? www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-4 START Power on Power green LED on Do all the buttons work normally? Does remote control work normally? Check P_3V3 Check IC MT1389 Does IR1 work by testing waveform normally? Is battery OK? Check J9 on the mainboard Check IC MT1389 Replace IC MT1389 Replace IC MT1389 Replace battery Replace IR1 Check the buttons Is P_3V3 OK? Do the U2 work normally? Check power Replace U2 3. Front Circuit (Dogotrpm & key) YES YES YES YES YES YES YES NO NO NO YES YES NO NO NO NO YES NO NO NO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-5 Put disc in? Disc ID is correct? Does spindle rotate? Focus on OK? Track on OK? DISC is play? Check RF signal waveform Proper signal on A, B, C, D of MT1389 Proper FO+ & FO signal on MT1389 Proper FOSO signal on MT1389? Check the related circuit on MT1389 Check the TRSO connection on MT1389 and motor driver Check the tracking control amp circuit on motor driver Proper TRSO signal on MT1389? TR+ & TR out properly? Check cable connection on pick up head Check the cable connection on pick up head Check the related circuit on MT1389 FO+ & FO signal Check connection between MT1389 and pick up head Check the RF connection between HA1 and MT1389 Proper DMSO signal on MT1389 Check the cable connection between spindle and main PCBA Check the related circuit on MT1389 RFL signal Check DMSO related circuit on MT1389 No disc (laser off) 4. RF/Servo Circuit YES YES YES YES YES YES YES YES YES YES YES NO NO NO NO NO NO NO NO NO NO NO NO NO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-6E Display condition VCC5V normal PNL_DVDD normal VGH normal VGL normal Y1 operate Video_Y, Video_C Is M1, U3 OK? Is U1 OK? SDA, SCL signal R, G, B signal output TFT LCD normal Check CN2 Check M2 Check BD2, BD3 Check BD4, BD5, BD6 Replace Y1 Check R19, R21, C25, R14, R17, R18, FB1, C24 Replace M1, U3 Replace U1 Check R24, R26, R31, R33 Check R8, R7, R5 Replace YES YES YES YES YES YES YES YES YES YES YES NO NO NO NO NO NO NO NO NO NO VCCDC normal Check CN2 YES NO NO 9-2. LCD TROUBLE SHOOTING GUIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-1 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied LCD section not supplied 12 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied 2 1 10 112 2 3 2 7 4 8 9 6 5 DVP-FX720 NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. SECTION 10 REPAIR PARTS LIST 10-1. EXPLODED VIEWS 10-1-1. MAIN BLOCK Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 9-885-116-16 SCREW PAD (091-0001-510) 2 9-885-103-46 FOOT RUBBER (091-0001-261) 3 A-1382-944-A USB BOARD, COMPLETE (02-06040451-00) 04 9-885-116-08 TRAVERS (2Q010SQ00-770-G) 5 A-1382-938-A UPPER COVER ASSY (030-0001-645) (EXCEPT E) 5 A-1443-019-A UPPER COVER ASSY (030-0002-645) (E) 6 A-1382-943-A KEY BOARD, COMPLETE (02-06040452-00) 7 A-1382-941-A MAIN BOARD, COMPLETE (02-01041064-00) (AEP, UK) 7 A-1382-942-A MAIN BOARD, COMPLETE (02-01041065-00) (Russian) 7 A-1443-020-A MAIN BOARD, COMPLETE (02-01041066-00) (E) 7 A-1510-355-A MAIN BOARD, COMPLETE (02-01041067-00) (Singapore, Thai) 7 A-1545-553-A MAIN BOARD, COMPLETE (02-01041072-00) (New Zealand, Australian) 7 A-1551-421-A MAIN BOARD, COMPLETE (02-01041073-00) (Saudi Arabia) 8 9-885-115-87 HINGE L (023-0001-6844) 9 9-885-115-88 HINGE R (023-0001-6845) 10 9-885-116-32 BOTTOM PANEL WITH LABEL (WHITE) (AEP, UK) 10 9-885-116-33 BOTTOM PANEL WITH LABEL (WHITE) (RUS) 10 9-885-116-73 BOTTOM PANEL WITH LABEL (WHITE) (E) 10 9-885-117-12 BOTTOM PANEL WITH LABEL (WHITE) (Singapore, Thai) 10 9-885-118-61 BOTTOM PANEL WITH LABEL (PINK) (AEP, UK) 10 9-885-118-65 BOTTOM PANEL WITH LABEL (RED) (AEP, UK) 10 9-885-118-66 BOTTOM PANEL WITH LABEL (RED) (Russian) 10 9-885-118-70 BOTTOM PANEL WITH LABEL (BLUE) (AEP, UK) 10 9-885-118-71 BOTTOM PANEL WITH LABEL (BLUE) (Russian) 10 9-885-118-82 BOTTOM PANEL WITH LABEL (PINK) (E) 10 9-885-118-83 BOTTOM PANEL WITH LABEL (RED) (E) 10 9-885-118-99 BOTTOM PANEL WITH LABEL (PINK) (Russian) 10 9-885-120-09 BOTTOM PANEL WITH LABEL (WHITE) (New Zealand, Australian) 10 9-885-120-12 BOTTOM PANEL WITH LABEL (PINK) (New Zealand, Australian) 10 9-885-120-14 BOTTOM PANEL WITH LABEL (BLUE) (New Zealand, Australian) 10 9-885-121-14 BOTTOM PANEL WITH LABEL (PINK) (Singapore, Thai) 10 9-885-121-17 BOTTOM PANEL WITH LABEL (BLUE) (Singapore, Thai) 10 9-885-121-22 BOTTOM PANEL WITH LABEL (WHITE) (Saudi Arabia) 10 9-885-121-25 BOTTOM PANEL WITH LABEL (PINK) (Saudi Arabia) 10 9-885-121-27 BOTTOM PANEL WITH LABEL (BLUE) (Saudi Arabia) 11 9-885-108-32 SHEET, OPEN PREVE (086-0001-041) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 12 9-885-115-91 HINGE COVER (013-0001-6840) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-2 10-1-2. LCD BLOCK Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-1382-935-A BEZEL COVER ASSY (030-0001-563) 52 9-885-115-85 SPEAKER (570201C00-600-G) 53 A-1382-936-A LCD BOARD, COMPLETE (02-06040450-00) 054 9-885-115-86 LCD SCREEN (AT070TN07V.A) 55 A-1382-933-A HOUSING COV. ASSY (030-0001-564) (WHITE) not supplied not supplied not supplied not supplied not supplied not supplied not supplied 51 56 56 52 52 53 54 55 55 A-1539-323-A HOUSING COV. ASSY (030-0003-564) (PINK) 55 A-1539-337-A HOUSING COV. ASSY (030-0002-564) (RED) 55 A-1539-344-A HOUSING COV. ASSY (030-0004-564) (BLUE) 56 9-885-115-90 PANEL RUBBER (090-0001-1198) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-3E NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Not all of the parts for POWER BLOCK (ZSSR107G/ZSSR107H) are listed. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH 10-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. KEY LCD MAIN USB A-1382-943-A KEY BOARD, COMPLETE (02-06040452-00) ******************** A-1382-936-A LCD BOARD, COMPLETE (02-06040450-00) ******************** A-1382-941-A MAIN BOARD, COMPLETE (02-01041064-00) (AEP, UK) A-1382-942-A MAIN BOARD, COMPLETE (02-01041065-00) (Russian) A-1443-020-A MAIN BOARD, COMPLETE (02-01041066-00) (E) A-1510-355-A MAIN BOARD, COMPLETE (02-01041067-00) (Singapore, Thai) A-1545-553-A MAIN BOARD, COMPLETE (02-01041072-00) (New Zealand, Australian) A-1551-421-A MAIN BOARD, COMPLETE (02-01041073-00) (Saudi Arabia) ********************* A-1382-944-A USB BOARD, COMPLETE (02-06040451-00) ******************** MISCELLANEOUS ************** 04 9-885-116-08 TRAVERS (2Q010SQ00-770-G) 52 9-885-115-85 SPEAKER (570201C00-600-G) 054 9-885-115-86 LCD SCREEN (AT070TN07V.A) ACCESSORIES & PACKING MATERIALS ******************************** 3-274-988-11 MANUAL, INST. (086-0001-8497) (ENGLISH) (AEP, UK) 3-274-988-21 MANUAL, INST. (086-0002-8497) (FRENCH) (AEP) 3-274-988-31 MANUAL, INST. (086-0003-8497) (GERMAN) (AEP) 3-274-988-41 MANUAL, INST. (086-0004-8497) (SPANISH) (AEP) 3-274-988-51 MANUAL, INST. (086-0005-8497) (ITALIAN) (AEP) 3-274-988-61 MANUAL, INST. (086-0006-8497) (DUTCH) (AEP) 3-274-988-71 MANUAL, INST. (086-0007-8497) (RUSSIAN) (Russian) 3-274-989-11 MANUAL, INST. (086-0008-8497) (SPANISH) (E) 3-274-989-21 MANUAL, INST. (086-0009-8497) (ENGLISH) (Singapore, Thai) 3-274-989-31 MANUAL, INST. (086-0010-8497) (THAI) (Thai) 3-274-989-41 MANUAL, INST. (085-0001-2070) (ENGLISH) (New Zealand, Australian) 3-274-989-51 MANUAL, INST. (085-0001-2363) (ENGLISH, ARABIC) (Saudi Arabia) 9-885-103-56 AV CABLE (010-0001-206) 0 9-885-105-72 POWER CODE (073-0003-2029) (E) 0 9-885-105-82 POWER CODE (073-0002-2029) (AEP, Russian, Saudi Arabia, Singapore) 0 9-885-105-83 POWER CODE (073-0004-2029) (UK) 0 9-885-105-84 POWER CODE (073-0006-2029) (New Zealand, Australian) 0 9-885-116-47 POWER CODE (073-0007-2029) (Thai) 9-885-108-32 SHEET, OPEN PREVE (086-0001-041) 9-885-110-68 REMOCON RMT-D183 (1-885-110-68) 9-885-115-77 DCC-FX151 (G12PCL-513-0031) (E, Saudi Arabia, Singapore, Thai) 9-885-113-61 DCC-FX150 (G12PCL-513-0021) (AEP, UK, Russian) 9-885-116-65 DCC-FX150 (G12PCL-513-0041) (New Zealand, Australian) 9-885-116-23 NP-FX120 (890201C01-815-G) (EXCEPT New Zealand, Australian) 9-885-120-06 NP-FX120 (890201C02-815-G) (New Zealand, Australian) 0 9-885-116-48 AC-FX151 (SYBR019H831LFA) (E, Saudi Arabia, Singapore, Thai) 0 9-885-116-64 AC-FX150 (SYBR019H832LFA) (AEP, UK, Russian, New Zealand, Australian) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 92 – DVP-FX720 Sony Corporation Home Electronics Network Company 9-883-970-15 2008D0500-1 © 2008.4 Published by Quality Assurance Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com REVISION HISTORY Ver. Date Description of Revision 1.0 2007.08 New 1.1 2007.10 Addition of E and Russian models. 1.2 2008.02 Addition of Singapore, Thai, New Zealand and Australian models. Addition of PINK, RED and BLUE types. 1.3 2008.04 Addition of Saudi Arabia model. DVP-FX720 1.4 2008.10 Addition of repair parts list,Ref No.12 (Page 10-1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
