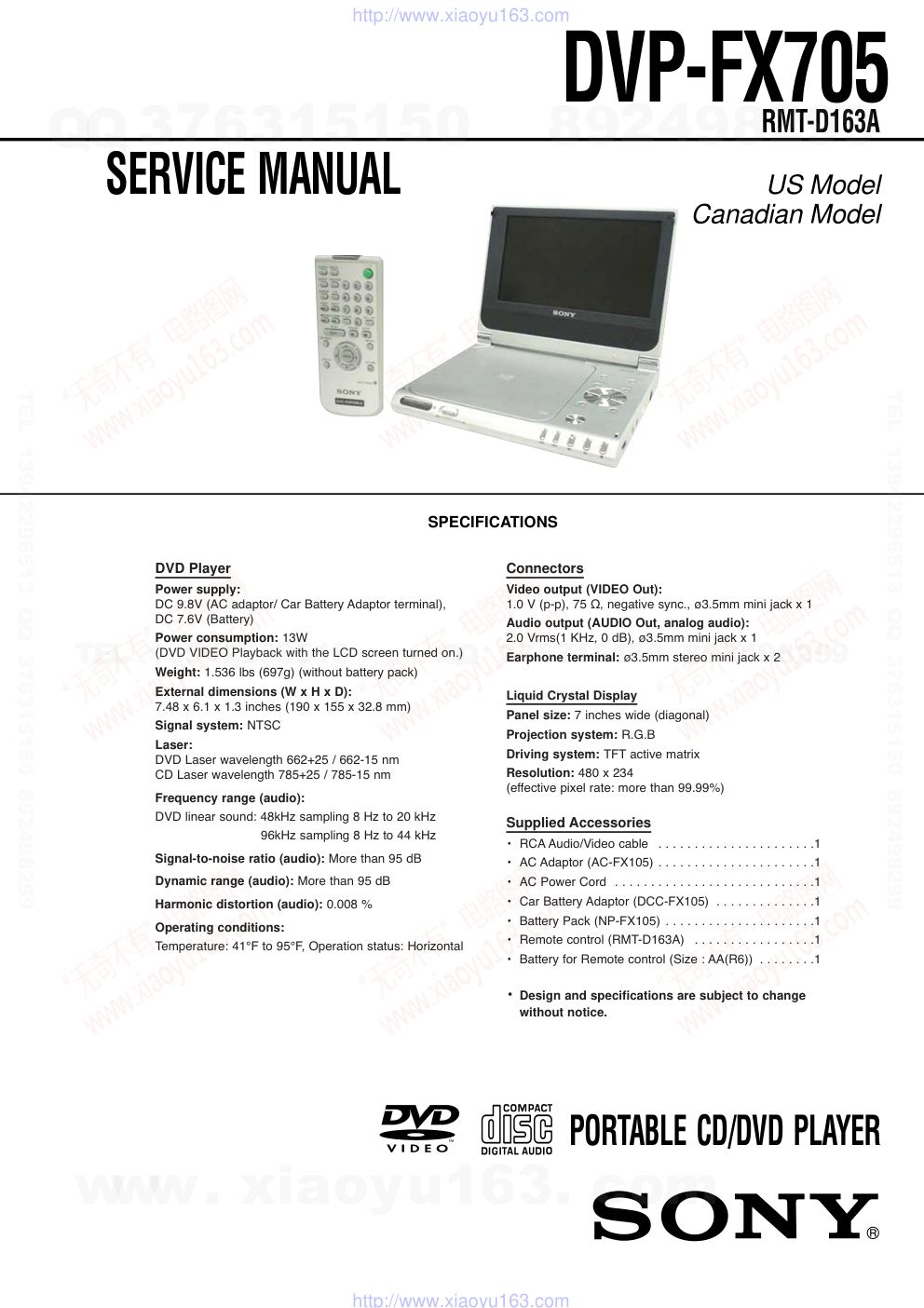

SERVICE MANUAL US Model Canadian Model PORTABLE CD/DVD PLAYER DVP-FX705 RMT-D163A SPECIFICATIONS DVD Player Power supply: DC 9.8V (AC adaptor/ Car Battery Adaptor terminal), DC 7.6V (Battery) Power consumption: 13W (DVD VIDEO Playback with the LCD screen turned on.) Weight: 1.536 lbs (697g) (without battery pack) External dimensions (W x H x D): 7.48 x 6.1 x 1.3 inches (190 x 155 x 32.8 mm) Signal system: NTSC Laser: DVD Laser wavelength 662+25 / 662-15 nm CD Laser wavelength 785+25 / 785-15 nm Frequency range (audio): DVD linear sound: 48kHz sampling 8 Hz to 20 kHz 96kHz sampling 8 Hz to 44 kHz Signal-to-noise ratio (audio): More than 95 dB Dynamic range (audio): More than 95 dB Harmonic distortion (audio): 0.008 % Operating conditions: Temperature: 41°F to 95°F, Operation status: Horizontal Connectors Video output (VIDEO Out): 1.0 V (p-p), 75 Ω, negative sync., ø3.5mm mini jack x 1 Audio output (AUDIO Out, analog audio): 2.0 Vrms(1 KHz, 0 dB), ø3.5mm mini jack x 1 Earphone terminal: ø3.5mm stereo mini jack x 2 Liquid Crystal Display Panel size: 7 inches wide (diagonal) Projection system: R.G.B Driving system: TFT active matrix Resolution: 480 x 234 (effective pixel rate: more than 99.99%) Supplied Accessories • RCA Audio/Video cable . . . . . . . . . . . . . . . . . . . . . .1 • AC Adaptor (AC-FX105) . . . . . . . . . . . . . . . . . . . . . .1 • AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 • Car Battery Adaptor (DCC-FX105) . . . . . . . . . . . . . .1 • Battery Pack (NP-FX105) . . . . . . . . . . . . . . . . . . . . .1 • Remote control (RMT-D163A) . . . . . . . . . . . . . . . . .1 • Battery for Remote control (Size : AA(R6)) . . . . . . . .1 • Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – WARNING!! WHEN SERVICING, DO NOT APPROACH THE LASER EXIT WITH THE EYE TOO CLOSELY. IN CASE IT IS NECESSARY TO CONFIRM LASER BEAM EMISSION, BE SURE TO OBSERVE FROM A DISTANCE OF MORE THAN 25 cm FROM THE SURFACE OF THE OBJECTIVE LENS ON THE OPTICAL PICK-UP BLOCK. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers' instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indica- tion is 0.75V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suit- able. (See Fig. A) 1. Check the area of your repair for unsoldered or poorly-sol- dered connections. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. 3. Look for unauthorized replacement parts, particularly transis- tors, that were installed during a previous repair. Point them out to the customer and recommend their replacement. 4. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recom- mend their replacement. 5. Check the line cord for cracks and abrasion. Recommend the replacement of any such line cord to the customer. 6. Check the B+ voltage to see it is at the values specified. 7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. SAFETY CHECK-OUT After correcting the original service problem, perform the following safety checks before releasing the set to the customer: CAUTION: The use of optical instrument with this product will increase eye hazard. This CD/DVD player is CLASS 1 LASER PRODUCT. Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS Section Title Page Section Title Page 1. GENERAL Precautions ................................................................... 1-1 About This Manual ........................................................ 1-4 This Player Can Play the Following Discs .................... 1-4 Note on playback operations of DVDs .......................... 1-5 Copyrights ..................................................................... 1-5 Notes about the Discs ................................................... 1-5 Identification of Controls ............................................... 1-6 Power Connections ....................................................... 1-8 Playing a Disc ................................................................ 1-10 On-Screen Display ........................................................ 1-12 General Features .......................................................... 1-13 Playing an Audio CD or MP3 Disc ................................ 1-15 Programmed Playback .................................................. 1-16 Random Play ................................................................. 1-17 Viewing a JPEG Disc .................................................... 1-18 Initial Settings ................................................................ 1-19 Setting up the Player ..................................................... 1-22 To use the player with car battery adaptor ................... 1-23 Troubleshooting ............................................................. 1-24 Language Code List ...................................................... 1-24 Country Code List ......................................................... 1-25 2. DISASSEMBLY 2-1. Cabinet Assy Removal .................................................. 2-1 2-2. CD Lid, MD, Main Board Removal ................................ 2-2 2-3. LCD Panel Removal ...................................................... 2-3 3. BLOCK DIAGRAMS 3-1. Oveall Block Diagram .................................................... 3-1 3-2. Power Block ................................................................... 3-3 3-3. Audio/Video Block ......................................................... 3-5 3-4. TFT LCD Block .............................................................. 3-7 4. SCHEMATIC DIAGRAMS 4-1. Frame (1/2) .................................................................... 4-1 Frame (2/2) .................................................................... 4-3 4-2. Main Power .................................................................... 4-5 4-3. Servo ............................................................................. 4-7 4-4. Mpeg (MTK1389) .......................................................... 4-9 4-5. Audio.............................................................................. 4-11 4-6. Video.............................................................................. 4-13 4-7. Front Micom ................................................................... 4-15 4-8. LCD Power .................................................................... 4-17 4-9. Battery Charge .............................................................. 4-19 4-10. Menu Key ....................................................................... 4-21 4-11. TFT-LCD Power ............................................................. 4-23 4-12. TFT-LCD T100 ............................................................... 4-25 5. PRINTED WIRING BOARDS 5-1. Circuit Boards Location ................................................. 5-1 5-2. MAIN Board ................................................................... 5-3 5-3. KEY Board ..................................................................... 5-7 5-4. TFT-LCD Board ............................................................. 5-9 6. WAVEFORMS 6-1. Details and Waveforms on System Test and Debugging .............................................................. 6-1 6-2. Circut Voltage Chart ...................................................... 6-9 7. IC PIN FUNCTION DESCRIPTION 7-1. MPEG/DSP/RF Pin Function (MAIN Board IC501: MT1389) ...................................... 7-1 7-2. FRONT MICOM Pin Function (MAIN Board IC701: HMS81C1816B) .......................... 7-7 8. ELECTRICAL ADJUSTMENT 8-1. TFT LCD Adjustment .................................................... 8-1 1. Power Measuring........................................................... 8-1 2. VCOM Waveform Adjustment ....................................... 8-1 3. TFT Panel Check........................................................... 8-1 8-2. Standard Video Level .................................................... 8-2 1. Checking Video Output Level ........................................ 8-2 2. Checking S Video Output S-Y ....................................... 8-2 3. Checking S Video Output S-C....................................... 8-2 8-3. Adjustment and Checking Location .............................. 8-3 9. TROUBLESHOOTING 9-1. Electrical Trouble Shooting Guide ................................. 9-1 1. Power (DC-DC Converter) Circuit ................................. 9-1 2. MPEG Circuit ................................................................. 9-4 3. Front Circuit (Dogotrpm & Key) ..................................... 9-5 4. RF/Servo Circuit ............................................................ 9-6 9-2. LCD Trouble Shooting Guide (1/2) ................................ 9-10 9-3. LCD Trouble Shooting Guide (2/2) ................................ 9-11 10. REPAIR PARTS LIST 10-1. Exploded Views ............................................................. 10-1 10-1-1. LCD Panel Section ................................................... 10-1 10-1-2. Upper Case Section ................................................. 10-2 10-1-3. Bottom Case Section ............................................... 10-3 10-2. Electrical Parts List ....................................................... 10-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 SECTION 1 GENERAL This section is extracted from instruc- tion manual (2-649-081-11). DVP-FX705 Precautions 4 For Customers in the U.S.A Owner’s Record The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. DVP-FX705 Serial No.______________ For Customers in Canada If this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service. For other product related questions please contact our Customer Information Service Centre at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6 CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interfer- ence will not occur in a particular installation. If this equipment does cause harmful interference to radio or television recep- tion, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Introductions 5 Precautions (continued) • The power requirements and power consumption of this unit are indicated on the AC adaptor. Check that the unit’s operating voltage is identical with your local power supply. On safety • Caution – The use of optical instruments with this product will increase eye hazard. • To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. • Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified per- sonnel before operating it any further. • Do not put any foreign objects in the DC IN 9.8V (external power input) jack. • This car adaptor is not intended to be serviced. Should the product cease to function in its intended manner, it should be returned to the manufacturer or to be discarded. On temperature increases • Heat may build up while charging or during extented use. This is not a malfunction. • If the surrounding temperature is very high, the protective function will turn off the player automatically. Leave the player in a cool location for about 30 minutes before using it again. On power sources • Use only the supplied AC adaptor. Do not use any other AC adaptor. It may cause a malfunction. • If the AC adaptor causes interference to radio reception, move it away from the radio. • Do not touch the AC adaptor with wet hands. • Even when the player is turned off, it is still connected to the AC power source (mains) as long as it remains connected to the wall outlet. • If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To dis- connect the AC power cord (mains lead), grasp the plug itself; never pull the cord. • Should the AC power cord need to be changed, have it done at a qualified service shop only. • Use a commercially available AC plug adaptor, if neces- sary, depending on the design of the wall outlet. Polarity of the plug Wall outlet AC plug adaptor AC-FX105 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 6 Precautions (continued) CAUTION Never expose the battery pack to temperatures above 140° F (60° C) such as in a car parked in the sun or under direct sunlight. On the rechargeable battery • Charge the battery before you start using it. • Do not allow dust to come into contact with the battery terminals of the player and battery. • Do not short the terminals. • Do not open the terminal covers of the player. • Do not leave the battery in a place subject to direct sunlight, or in a car with its windows closed. • Keep the battery dry. • Use only the battery(NP-FX105) supplied with this player(DVP-FX705). Other rechargeable batteries supplied with other models cannot be used with this player. • Do not disassemble. • Do not incinerate. • Dispose of used batteries promptly. To dispose of the rechargeable battery • Certain countries may regulate disposal of the battery used to power this product. Please consult with your local authority. To store the rechargeable battery The battery is consumed gradually as time elapses even if is not used. In order to prevent the battery from deteriorating, store it as follows: • Remove the battery from the player after use. (Even if the player is off, it still uses some power.) • Use up the battery completely on the player before storing it. • Keep the battery in a cool location to prevent it from deteriorating. • Charge and use the battery at least once every 6 months. On charging the rechargeable battery • Heat may build up in the battery while charging. This is not a malfunction. • When the battery life of a fully charged battery becomes about half the normal life, you may need to replace the battery with a new one. • Disconnect the battery from the player as soon as it has been charged. Leaving it connected may result in reduced battery performance. Introductions 7 Precautions (continued) On handling the player • Keep the lens on the player clean and do not touch it. If you do so, the lens may be damaged, and the player will not operate properly. • Place the player in a location with adequate ventilation to prevent heat build-up in the player. • Do not put any heavy object on top of the player. The player and the discs may be damaged. • Do not leave the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or sand, moisture, rain, mechanical shock, on an unlevel surface, or in a car with its windows closed. • Do not wrap the player in a cloth or blanket during use as it may cause malfunction or serious accidents. • If the player causes interference to radio or television reception, turn off the player or move it away from the radio or television. • Keep the player and discs away from equipment with strong magnets, such as microwave ovens, or large loud- speakers. • Do not install this equipment in a confined space such as a bookshelf or similar unit. • If the player is brought directly from a cold to warm loca- tion, or is placed in a very damp place, moisture may con- dense on the lenses of the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player for about half an hour until the moisture evaporates. • Discs with non-standard shapes (e.g, heart, square, star) cannot be played on this player. Do not use such discs. • While operating, do not move, shake or otherwise allow any shock to the player. It may cause a malfunction. • Use this player in a stable, horizontal position where it is not subject to vibration. • Do not touch the disc if it is still spinning when you open the lid. • Before moving the player, remove any disc from it. If you don’t, the disc may be damaged. It’s too warm! www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 8 On handling the LCD screen • The LCD is manufactured using high-precision technolo- gy. You may, however, see tiny black points and/or bright points (red, blue, green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction. • Do not scratch the LCD or exert pressure on it. This could cause a malfunction. • Using the player in low temperature conditions may pro- duce a residual image on the screen. This is not a mal- function. When the player returns to normal temperature, the screen returns to normal. • A residual image may appear on the screen if the same image is displayed for a lengthy period of time. The resid- ual image disappears in a while. If you are going to leave the player for a long time, turn off the power. • The screen becomes warm during operation. This is normal and does not indicate a malfunction. On headphones Preventing hearing damage Avoid using headphones at high volume. Hearing experts advise against continuous, loud, and extended play. If you experience a ringing in your ears, reduce the volume or discontinue use. Showing consideration for others Keep the volume at a moderate level. This will allow you to hear outside sounds and still be considerate to the people around you. On adjusting the volume Do not turn up the volume while listening to a section with very low level inputs or no audio signal. If you do, the speakers may be damaged when a peak-level section is played. Road safety Do not use the monitor unit and headphones while driving, cycling, or operating any motorized vehicle. It may create a traffic hazard and is illegal in some areas. It can also be potentially dangerous to play your headsets at high volume while walking, especially at pedestrian crossings. You should exercise extreme caution or discontinue use in potentially hazardous situations. • Do not install the monitor display where viewable by the driver. • Some states restrict the use of monitors and televisions in vehicles. Where use is permitted, the units should not be installed or operated so as to be viewable by the driver. Precautions (continued) Introductions 9 Precautions (continued) On transportation • When you transport this player, use the original carton box and packing materials. • Before you move this player, make sure to remove any discs from it. On cleaning Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzine. On cleaning discs Do not use a commercially available cleaning disc. It may cause a malfunction. If you have any questions or problems concerning your player, please consult your nearest Sony dealer. RECYCLING LITHIUM-ION BATTERIES Lithium-Ion batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable bat- teries, call toll free 1-800-822-8837, or visit http://www.rbrc.org/ Caution: • Do not handle damaged or leaking Lithium-Ion batteries. Never expose the battery pack to temperatures above 140°F (60° C) such as in a car parked in the sun or under direct sunlight. • For the customers in the United States This product contains mercury. Disposal of this product may be regulated if sold in the United States. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance. (www.eiae.org http://www.eiae.org) IMPORTANT NOTICE Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma Display Panel televisions and projection televisions are especially susceptible to this. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 Format of discs DVD VIDEO Music CD Disc-related terms DVD ±R / DVD ±RW DVD-R and DVD+R are two different standards for recordable DVD drives and discs. This format allows information to be recorded onto the DVD disc only once. DVD +RW and DVD -RW are two standards for re-writable media, meaning the DVD content can be erased and re-recorded. Single-sided discs can hold 4.38 Gigabytes and dou- ble-sided discs can hold twice as much. 10 This Player Can Play the Following Discs About This Manual • Instructions in this manual describe the controls on the remote. You can also use the controls on the player if they have the same or similar names as those on the remote. • The meanings of the icons used in this manual are described below: • “ ” may appear on the LCD screen during operation. This icon means the function explained in this instruction manual is not available on that specific DVD video disc. The “DVD VIDEO” is a trademark. Icon Meaning CD DVD * MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO(International Organization for Standardization)/ MPEG which compresses audio data. Functions available for DVD VIDEOs and DVD-RWs/ DVD-Rs or DVD+RWs / DVD+Rs in video mode Functions available for music CDs or CD-Rs/ CD-RWs in music CD format Functions available for DATA CDs (CD-ROMs/ CD-Rs/ CD-RWs containing MP3* audio tracks and JPEG image files) JPEG MP3 Introductions 11 This Player Can Play the Following Discs (continued) MP3 MP3 is a popular compression format used for digital audio files that yields very high, near-CD quality. JPEG Joint Pictures Expert Group. JPEG is a compressed file format that allows you to save images with no limit on the number of colors. Title (DVD video discs only) A title is generally a distinct section of a DVD disc. For example the main feature could be title 1, a documentary describing how the film was made could be title 2, and cast interviews could be title 3. Each title is assigned a reference number enabling you to locate it easily. Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. NOTE: Depending on the conditions of the recording equipment or the CD-R/RW (or DVD±R/±RW) disc itself, some CD-R/RW (or DVD±R/±RW) discs cannot be played on the unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 This Player Can Play the Following Discs (continued) 12 Region code Your player has a region code printed on the back of the unit and only will play DVD VIDEO discs (playback only) labeled with identical region codes. This system is used to protect copyrights. DVD VIDEOs labeled will also play on this player. If you try to play any other DVD VIDEO, the message “Check Regional Code” will appear on the LCD screen. Depending on the DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by area restrictions. ALL Region code Note on DualDiscs A DualDisc is a two sided disc product which mates DVD recorded material on one side with digital audio material on the other side. However, since the audio material does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed. Note on playback operations of DVDs Introductions 13 Some playback operations of DVDs may be intentionally set by software producers. Since this player plays DVDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. Copyrights On handling discs • To keep the disc clean, handle the disc by its edge. Do not touch the surface. • Do not stick paper or tape on the disc. On storing discs • Do not expose the disc to direct sunlight or heat sources such as air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case. On cleaning discs • Fingerprints or dust on a disc may cause the image or sound quality to deteriorate. Use clean discs. • Wipe the disc with a soft cloth from the center out. • If the disc is very dirty, first wipe it with a damp cloth, then wipe it again with a dry cloth. • Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs. Notes about the Discs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 Introductions 15 Identification of Controls Main Unit OPEN 1 2 4 5 3 1. LCD screen 2. Speaker 3. LCD MODE (page 25) 4. COLOR/BRIGHT (page 24) Brightness → Color → OFF 5. TOP MENU (page 30) displays the title menu. 6. MENU (page 30) displays menu programs. 7. B/V/v/b button, ENTER button 8. RETURN button 9. DISPLAY (page 28-29) operation mode display. 10. OPEN button (page 23) Push this button to open the Disc lid. 11. Disc Lid (page 23) NOTE: Place a disc with the playback side down on the spindle, and push gently on the center of the disc so it goes into position. 6 7 8 9 10 11 16 Identification of Controls (continued) POWER /HOLD VOLUME PHONES PHONES AUDIO VIDEO 1 2 3 4 5 6 7 8 9 10 11 12 13 1. Power indicator (page 23) POWER ON: Green ON POWER OFF: Green OFF 2. CHARGE indicator (page 22) During recharging: Orange ON 3. POWER and HOLD switch To turn off the power, you need to press the POWER switch for at least one second. This is to prevent the player from being accidentally turned off. HOLD switch • The hold function locks the buttons on the DVD player so that they will not work if accidentally touched. • To enable, slide the HOLD switch on the right side of the DVD player to the HOLD position. • To disable, slide the switch back to its original position. 4. PREV/NEXT buttons (page 30) 5. PLAY button (page 23) 6. PAUSE button (page 27) 7. STOP button 8. VOLUME dial (page 23) 9. PHONES connector 10. AUDIO OUT connector (page 47) 11. VIDEO OUT connector (page 47) 12. S-VIDEO OUT connector (page 47) 13. DC IN 9.8V connector (page 20) Connect the AC adaptor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 Introductions 17 17 Identification of Controls (continued) Inserting batteries into the remote You can control the player using the supplied remote. Insert two size AA(R6) batteries (supplied) by matching the and ends on the batteries to the markings inside the compartment. When using the remote, point it at the remote sensor on the player. Insert the end first NOTES: • Do not leave the remote in an extremely hot or humid place. • Do not drop any foreign object into the remote casing, particularly when replacing the batteries. • Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction. • If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion. Remote Control 18 Identification of Controls (continued) AUDIO PREV NEXT CLEAR PLAY PAUSE STOP SET UP SCAN TOP MENU MENU DISPLAY RETURN SLOW REPEAT RANDOM A-B PROGRAM ANGLE 1 2 3 6 5 4 7 8 0 9 DVD PORTABLE ENTER 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 20 1. AUDIO button (page 31) 2. ANGLE button (page 31) 3. REPEAT button (page 32) 4. PROGRAM button (page 36-37) 5. RANDOM button (page 38) 6. A-B button (page 32) 7. PREV/NEXT button (page 30) 8. SCAN/SLOW button (page 27) 9. CLEAR button 10. PLAY button 11. * TOP MENU button (page 30) 12. DISPLAY button (page 28-29) 13. POWER button 14. NUMBER buttons 15. SET UP button (page 41) 9 18 19 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 Introductions 19 Identification of Controls (continued) 16. STOP button 17. MENU button Use the MENU button to display the menu screen included on a DVD disc. To operate a menu screen, follow the instructions in “Using a DVD Menu” (page 30). 18. PAUSE button 19. B/V/v/b button, ENTER button (up, down, left, right) for use in highlighting a selection on a GUI menu screen, TOP MENU and MENU screen. 20. RETURN button * TOP MENU button: Use the TOP MENU button to display the title screen included on DVD video discs. To operate a menu screen, follow the instructions in “Using a Title Menu” (page 30). 20 Power Connections AC Adaptor To DC IN 9.8V 1 2 3 AC power cord To AC outlet VOLUME PHONES PHONES AUDIO VIDEO AC adaptor (supplied) Follow steps 1 to 3 to connect. When disconnecting, reverse the order. NOTES: • When you disconnect the AC power cord, be sure to stop playback. • Disconnecting the AC power cord during playback may cause a malfunction. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 Introductions Power Connections (continued) 21 Battery Pack You can use the NP-FX105 rechargeable battery pack (supplied) to enjoy the player when an AC outlet is not available. • Charge the battery pack before using it for the first time. A Attaching the battery pack (supplied) 1. Match the hooks of the battery pack into the holes on the bottom of the player. 2. Press and slide the battery pack until the hooks click. NOTES: • Do not detach the battery pack during playback. • Be careful not to drop the battery pack. A Detaching the battery pack 1. Press the RELEASE knob. 2. Slide the battery pack until the hooks click. 1 2 RELEASE knob 1 2 Hooks NOTE: If you use the main unit without the battery pack, use the tab on the player to keep it from tipping over. 22 Power Connections (continued) A Charging the battery pack 1. Attach the battery pack to the player. 2. Connect the AC adaptor to the player and then plug into an AC outlet. When charging starts, the charge indicator lights up in orange. 3. During recharging, the charge indicator lights up in orange. When recharging is complete, the indicator turns off. 4. Disconnect the AC adaptor from the player and pull out the plug from the AC outlet after charging. A Confirm the battery charge on the LCD screen during stop or playback. When “ ” appears, the charge indicator flashes in orange. The battery mark does not appear during DVD or JPEG playback. To check the battery charge, stop playback • If using the AC adaptor, battery display does not appear. A Recharging and play times * When Brightness control is set to “ b ”(minimum). - using the headphones. - at room temperature (25°C) NOTES: • Recharging times shown above depend on operating conditions. • When the power is ON, you cannot charge the battery. • Charge the battery at a temperature of +5°C (+41°F) to +35°C (+95°F). The charging time may vary, depending on the surrounding temperature. • The battery will not be charged when it is naturally or purposely discharged. Because the unit cannot perceive battery voltage, even if you attached the battery. When you are in this situation, power on the unit and then power off again. Then battery charging will proceed. VOLUME PHONES PHONES AUDIO VIDEO POWER /HOLD Player AC adaptor cord insert jack (DC IN 9.8V) Recharging Play time (DVD-VIDEO) with player LCD On Approx. Approx. 4 hours 3 hours* Full Low Recharge Charge indicator Battery Pack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10 Playing a Disc - Prepare the power supply. 1. Open the outer cover and slide the POWER switch to the left to turn the unit on. The power indicator lights up in green. 2. Press OPEN to open the disc lid and insert a disc onto the side you want to play, label up. Close the disc lid by hand. • If the disc is placed in upside down (and it is a single- sided disc), “NO DISC” or “Disc Error” appears on the LCD screen. 3. Press PLAY to start play. • After playing back all of the chapters in the title, the DVD player automatically stops and returns to the menu screen. 4. Adjust the volume. • Reduce the volume before playback, then gradually increase it. After operation When the unit is not in use, remove the disc and slide the POWER switch to the left and hold it there to turn off the DVD player. The power indicator turns off. When a menu screen appears on the LCD screen. In case of interactive DVDs with control, a menu screen appears on the LCD screen. Press B/V/v/b and press ENTER, or press the number buttons, to select the desired item. Playback of the selected item begins. For further information, also refer to the jacket or case of the disc you are playing. DVD 23 Basic Playback 1 2 3 4 LCD MODE COLOR/BRIGHT VOLUME Down Up Basic Operation 24 Playing a Disc (continued) NOTES: • Place a disc with the playback side down on the spindle, and push gently on the center of the disc so it goes into position. • Confirm LCD MODE position by pressing LCD MODE button. • If parental control is set and the disc is not within the rating settings you must input the password. (See “PARENTAL CONTROL” on page 44-45.) • DVDs may have a region code. Your player does not play discs that have a region code different from your player. Adjusting the brightness and color intensity Use the COLOR/BRIGHT button to adjusting the brightness and color intensity. Each time you press the button, the adjustment mode changes as follows. Brightness → Color → OFF Adjusting the brightness Select “Brightness” and then press B/b to adjust the brightness. b ; dark B ; light Adjusting color intensity Select “Color” and then press B/b to adjust the color intensity. b ; darker colors B ; lighter colors NOTES: • This COLOR/BRIGHT button adjusts only the image on the LCD screen. • Power consumption increases with the level of brightness. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-11 Basic Operation Playing a Disc (continued) 25 A Changing the size of the picture Use the LCD MODE button to change the picture mode. DVD disc Audio CD/ MP3 disc/ JPEG disc (Menu) NORMAL → FULL → ZOOM → LCD OFF FULL → LCD OFF JPEG disc (Slide show) NORMAL → FULL → LCD OFF NOTES: • The picture mode will appear differently for different kinds of discs. • If you play back an image that was recorded in Widescreen (16:9) mode and “TV Aspect” in “SET UP” is set to “16:9 Wide”, then the LCD MODE button will only switch between FULL, ZOOM and LCD OFF. A The picture mode and size The picture shown on the LCD depends on the display mode and the size recorded on the disc. NOTES: • If you are not using the LCD on this unit, select OFF to conserve power. • The LCD is turned off if you close the unit. • Horizontal lines may appear in the picture when the mode is switched to ZOOM, but this is not an indication of a malfunction. Playing a Disc (continued) 26 Stopping Play Press STOP during playback. NOTE: Do not touch the disc if it is still spinning when you open the lid. Resume Play When play is stopped, the unit records the point where STOP was pressed (RESUME function). Press PLAY and play will resume from this point. NOTES: • When you press the STOP button, RESUME x (stop) appears on the LCD screen and the player enters the resume mode. • For MP3/JPEG data no information may be displayed depending upon the condition of the disc. . Screen Saver The screen saver appears when you leave the player in Stop mode for about 15 minutes. If the Screen Saver is displayed for 15 minutes, the Player automatically turns itself off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-12 Basic Operation Playing a Disc (continued) 27 Pause 1. Press PAUSE during playback. 2. To exit still motion mode, press PLAY. Search 1. Press SCAN/SLOW m or M during playback. The player will now go into SEARCH mode. 2. Press SCAN/SLOW m or M repeatedly to select the required speed: X2b, 1m, 2m, 3m (backward) or X2B, 1M, 2M, 3M (forward). 3. To exit SEARCH mode, press PLAY. NOTE: The DVD player does not play back sound during the high speed reverse and forward playback of DVD video discs. Slow Motion 1. Press PAUSE(X) during playback. The player will now go into PAUSE mode. 2. Use the SCAN/SLOW m or M to select the required speed: 4 , 3 , 2 , 1 (backward), or 4 , 3 , 2 , 1 (forward). 3. To exit slow motion mode, press PLAY. DVD DVD DVD On-Screen Display 28 You can display the general playback status on the screen. Some items can be changed using the menu. To use the on-screen display: 1. Press DISPLAY during playback. 2. Press V/v to select an item. The selected item is highlighted. 3. Press B/b to change the setting. You can also use the number buttons if appropriate (e.g. inputting the title number). For some functions, press ENTER to execute the setting. NOTES: • Some discs may not provide all of the features shown next page. • If no button is pressed for 10 seconds, the on-screen display disappears. AUDIO PREV NEXT CLEAR PLAY PAUSE STOP SET UP SCAN TOP MENU MENU DISPLAY RETURN SLOW REPEAT RANDOM A-B PROGRAM ANGLE 1 2 3 6 5 4 7 8 0 9 DVD PORTABLE ENTER 1 2, 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-13 Basic Operation On-Screen Display (continued) 29 Items Title Number Chapter Number Time search Audio language and Digital Audio Output mode Subtitle language Angle Selection Method B/b, Numbers ENTER B/b, Numbers ENTER Numbers, ENTER B/b or AUDIO B/b B/b or ANGLE 1 / 3 1 / 12 0:20:09 1 ENG 1 / 3 Example: On-Screen Display during playing of DVD Video Title Menu Checking the contents of DVD discs: Menus DVDs may offer menus that allow you to access special features. To use the disc menu, press TOP MENU. Input the corresponding number or use the B/V/v/b buttons to highlight your selection. Then press ENTER. DVD Menu 1. Press MENU. If the current title has a menu, the menu appears on the screen. Otherwise, the disc menu may appear. 2. The menu offers features such as camera angles, spoken language and subtitle options, and chapters for the title. Press B/V/v/b and ENTER, or press the numeric button(s), to select desired item. Unless stated otherwise, all operations described use the remote control. Some features may also be available on the Setup menu. Moving to another TITLE When a disc has more than one title, you can move to another title. Press DISPLAY while playback is stopped then the appropriate number (0-9) or use B/b to move to another title. You can play any title by inputting its number while playback is stopped. Moving to another CHAPTER When a title on a disc has more than one chapter, you can move to another chapter as follows: • Press PREV/NEXT . or > briefly during playback to select the next chapter or to return to the beginning of the current chapter. • Press PREV . twice briefly to step back to the previous chapter. • To go directly to any chapter during DVD playback, press DISPLAY and press V/v to select the chapter icon. Then, input the chapter number or use B/b. DVD DVD DVD DVD General Features 30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-14 Advanced Operations General Features (continued) Time Search To start playing at any chosen time on the disc: 1. Press DISPLAY during playback. The time search box shows the elapsed playing time. 2. Press V/v to select the time clock icon and “-:--:--” appears. 3. Input the required start time in hours, minutes, and seconds from left to right. If you enter the wrong numbers, press CLEAR to remove the numbers you entered. Then input the correct numbers. 4. Press ENTER to confirm. Playback starts from the selected time. NOTE: The Time Search function may not be available on some DVD discs. Changing the Audio Language Press AUDIO repeatedly during playback to hear a different audio language or audio track. This operation works only with discs on which multiple audio soundtrack languages are recorded. Subtitles It is possible to change the subtitle language to a different language from the one selected at the initial settings. (See page 41 for further info.) This operation works only with discs on which multiple subtitle languages are recorded. 1. Press DISPLAY during playback. 2. Press V/v to select the subtitle item. 3. Press B/b repeatedly until the desired Subtitle is selected. Each time this button is pressed, the LCD screen display changes. Camera Angle If the disc contains scenes recorded at different camera angles, you can change to a different camera angle during playback. 1. Press ANGLE during playback. 2. Press B/b repeatedly until the desired Angle is selected. NOTE: You cannot change the angle during slow playback. TIP: The angle indicator will blink on the screen during scenes recorded at different angles as an indication that angle switching is possible. DVD DVD DVD DVD 31 General Features (continued) 32 Repeat A-B To repeat a sequence. 1. Press A-B during playback at your chosen starting point. “ A * ” appears briefly on the screen. 2. Press A-B again at your chosen end point. “A B” appears briefly on the screen and the repeat sequence begins. 3. Press A-B again to cancel. NOTE: A-B repeat can only be used within a single title. Repeat Each time this button is pressed, the LCD screen changes as shown below and the disc will repeat a chapter or title (DVD). DVD Video Discs - Repeat Chapter/Title/Off • Chapter : repeats the current chapter. • Title : repeats the current title. • Off : does not play repeatedly. NOTES: • If you press NEXT (>) once during Repeat Chapter playback, the repeat playback cancels. • Repeat play may not work correctly with some DVDs . DVD DVD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-15 Advanced Operations Playing an Audio CD or MP3 Disc 33 This player can play MP3 formatted recordings on CD-ROM, CD-R, or CD-RW discs. Audio CD Once you insert an audio CD a menu appears on the screen. Press V/v to select a track then press PLAY or ENTER and playback starts. MP3 1. Press V/v to select a folder, and press ENTER to see the folder contents. 2. Press V/v to select a track then press PLAY or ENTER. Playback starts. ID3 TAG (Version 1) • When playing a file containing information such as track titles, you can see the information by pressing DISPLAY. [ Title, Artist, Album, Year, Comment ] • If there is no information, “No ID3 TAG” appears on the display. TIPS: • If you are in a file list on the AUDIO menu and want to return to the Folder list, use the V/v to highlight and press ENTER. • Press MENU to move to the next page. • On a CD with MP3 and JPEG you can switch MP3 and JPEG. Press TOP MENU and AUDIO or IMAGE word on top of the menu is highlighted. Track01 Track02 Track03 Track04 Track05 Track06 Track07 Track08 AUDIO CD 0:52:07 1 / 12 Clear All Program List 0:00:00 1 / 12 Clear All AUDIO 2-Music02 1-Music01 3-Music03 4-Music04 5-Music05 6-Music06 7-Music07 Program List /MP3 Playing an Audio CD or MP3 Disc (continued) 34 Audio CD and MP3 Disc Features Pause 1. Press PAUSE during playback. 2. To return to playback, press PLAY, ENTER or press PAUSE again. Moving to another Track 1. Press PREV/NEXT (. or >) briefly during playback to go to the next track or to return to the beginning of the current track. 2. Press PREV . twice briefly to go back to the previous track. 3. You can play any track by inputting its number. Search 1. Press SCAN/SLOW (m or M) during playback. The player will now go into SEARCH mode. 2. Press SCAN/SLOW (m or M) repeatedly to select the required speed: 1m, 2m, 3m (backward) or 1M, 2M, 3M (forward). Search speed and direction are indicated on the menu screen. 3. To exit SEARCH mode, press PLAY. Repeat Track/All/Off You can play a track/all on a disc. 1. Press REPEAT when playing a disc. The repeat icon appears. 2. Press REPEAT to select a desired repeat mode. • Track : repeats the current track • All : CD: repeats all the tracks on a disc. MP3 : repeats all the tracks in a folder. • Off(No display) : does not play repeatedly. NOTE: If you press NEXT (>) once during Repeat Track play- back, the repeat playback cancels. Repeat A-B 1. To repeat a sequence during disc playback, press A-B at your chosen starting point. The Repeat icon and “A” appear on the menu screen. 2. Press A-B again at your chosen end point. The Repeat icon and “A-B” appear on the menu screen, and the sequence begins to play repeatedly. 3. To exit the sequence and return to normal play, press A-B again. The Repeat icon disappears from the menu screen. CD MP3 CD MP3 CD MP3 CD MP3 CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-16 Advanced Operations Playing an Audio CD or MP3 Disc (continued) 35 MP3 disc compatibility with this player is limited as follows: • Sampling frequency: within 8 - 48 kHz (MP3) • Bit rate: within 8 - 320kbps (MP3) • The player cannot read an MP3 file that has a file extension other than “.mp3”. • CD-R physical format should be ISO 9660. • If you record MP3 files using software that cannot cre- ate a file system (eg. Direct-CD), it is impossible to playback MP3 files. We recommend that you use Easy- CD Creator, which creates an ISO 9660 file system. • File names should have a maximum of 8 letters and must incorporate an .mp3 extension. • They should not contain special letters such as / ? * : “ < > l etc. • The total number of files on the disc should be about 600. This DVD player requires discs and recordings to meet certain technical standards in order to achieve optimal playback quality. Pre-recorded DVDs are automatically set to these standards. There are many different types of recordable disc formats (including CD-R containing MP3 files) and these require certain pre-existing conditions (see above) to ensure compatible playback. A Multi-session recording is not ensured. Customers should note that permission is required in order to download MP3 files and music from the Internet. Our company has no right to grant such permission. Permission should always be sought from the copyright owner. Programmed Playback 36 The program function enables you to store the playback order of your favorite tracks from any disc in the player memory. A program can contain 30 tracks. 1. Insert a disc. Audio CD or MP3 Discs: AUDIO CD or AUDIO menu appears. 2. Press PROGRAM. The mark will appear to the right of the word “Program” on the right side of the menu screen. NOTE: Press PROGRAM. again, then the mark will disappear to exit the Program Edit mode. Audio CD Menu MP3 Menu 3. Select a track on the “List”, then press ENTER to place the selected track on the “Program” list. Repeat to place additional tracks on the list. 4. Press b. Select the track you want to start playing on the “Program” list. 5. Press PLAY or ENTER to start. Playback begins in the order in which you programmed the tracks. Playback stops after all of the tracks on the “Program” list have played once. 6. To resume normal playback from programmed playback, select any track from the AUDIO list and then press PLAY. Track01 Track01 Track04 Track07 Track05 Track02 Track03 Track04 Track05 Track06 Track07 Track08 AUDIO CD 0:52:07 1 / 12 Clear All Program List 0:00:00 1 / 12 Clear All AUDIO 2-Music02 2-Music02 4-Music04 6-Music06 1-Music01 1-Music01 3-Music03 4-Music04 5-Music05 6-Music06 7-Music07 Program List /MP3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-17 Advanced Operations Programmed Playback (continued) 37 Repeat Programmed Tracks 1. Press REPEAT when playing a disc. The repeat icon appears. 2. Press REPEAT to select a desired repeat mode. • Track: repeats the current track • All: repeats all the tracks on programmed list. • Off(No display): does not play repeatedly. NOTE: If you press > once during Repeat Track playback, the repeat playback cancels. Erasing a Track from Program List 1. Press PROGRAM. 2. Use V/v/b to select the track that you wish to erase from the Program list. 3. Press CLEAR. Repeat to erase additional tracks on the list. Erasing the Complete Program List 1. Press PROGRAM. 2. Press b to move to the “Program” list. 3. Use V/v to select “Clear All”, then press ENTER. NOTE: The programs are also cleared when the disc is removed. 38 Random Play Random play (Karaoke DVD, CD, MP3) You can playback titles or tracks in random order. (Random playback) NOTE: Random does not work with DVD movie discs. 1. Press RANDOM during playback. This player automatically starts random playback and the RANDOM indicator appears on the LCD screen. 2. To return to normal play. Press RANDOM again. NOTES: • RANDOM playback may not be possible on certain discs. • If you press the > or . button during random playback, the DVD player goes to another track randomly and starts playback. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-18 Advanced Operations 39 Viewing a JPEG Disc Using this DVD Player you can view discs with JPEG files. 1. Insert a disc and close the tray. The IMAGE menu appears on the screen. 2. Press V/v to select a folder, and press ENTER. A list of files in the folder appears. If you are in a file list and want to return to the previous Folder list, use the V/v buttons on the remote to highlight and press ENTER. 3. If you want to view a particular file, press V/v to highlight a file and press ENTER or PLAY. Viewing of the file starts. While viewing a file, you can press STOP to move to the previous menu (IMAGE menu). TIPS: • Press MENU to move to the next page. • There are three Slide Speed options : >>> (Fast), >> (Normal), and > (Slow). Use B/V/v/b to highlight the Speed. Then use B/b to select the option you want to use and press ENTER. • On a disc with MP3 and JPEG you can switch MP3 and JPEG. Press TOP MENU and AUDIO or IMAGE word on top of the menu is highlighted. Slide Show Use B/V/v/b to highlight the (Slide Show) then press ENTER. Still Picture 1. Press PAUSE during slide show. The player will now go into PAUSE mode. 2. To return to the slide show, press PLAY or press PAUSE again. JPEG JPEG Preview List JPEG Folder 1 JPEG Folder 2 JPEG Folder 3 JPEG Folder 4 JPEG Folder 5 JPEG Folder 6 JPEG Folder 7 JPEG Folder 8 IMAGE 40 Viewing a JPEG Disc (continued) Moving to another File Press PREV/NEXT (. or >) or cursor (B or b) once while viewing a picture to advance to the next or previous file. To rotate picture Press V/v while showing a picture to rotate the picture clockwise or counterclockwise. To listen to MP3 music while watching a picture You can display files while listening to MP3 music files recorded on the same disc. 1. Insert the disc containing the two types of files in the player. 2. Press TOP MENU to display IMAGE menu. 3. Press V/v to select a photo file. 4. Use b to select icon then press ENTER. Playback starts. When the JPEG file display ends, MP3 playback will stop as well. TIP: To listen to only the desired music watching a picture, program the desired tracks from the “AUDIO” menu and then proceed as above. JPEG disc compatibility with this player is limited as follows: • Depending upon the size and number of JPEG files, it could take a long time for the DVD player to read the disc’s contents. If you don’t see an on-screen display after several minutes, some of the files may be too large — reduce the resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels. • The total number of files and folders on the disc should be about 600. • Some discs may be incompatible due to a different recording format or the condition of disc. • Ensure that all the selected files have the “.jpg” extensions when copying into the CD layout. • If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg” files. • File names without “.jpg” extension will not be able to be read by this DVD player. Even though the files are shown as JPEG image files in Windows Explorer. JPEG JPEG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-19 41 Initial Settings By using the Setup menu, you can make various adjustments to items such as picture and sound. You can also set a language for the subtitles and the Setup menu, among other things. For details on each Setup menu item, see pages 41 to 46. To display and exit the Menu: Press SETUP to display the menu. A second press of SETUP will take you back to initial screen. To go to the next level: Press b on the remote control. To go back to the previous level: Press B on the remote control. General Operation 1. Press SETUP. The Setup menu appears. 2. Use V/v to select the desired option then press b to move to the second level. The screen shows the current setting for the selected item, as well as alternate setting(s). 3. Use V/v to select the second desired option then press b to move to the third level. 4. Use V/v to select the desired setting then press ENTER to confirm your selection. Some items require additional steps. 5. Press SETUP or PLAY to exit the Setup menu. LANGUAGE SET UP Menu Language Select a language for the Setup menu and on-screen display. Disc Audio / Subtitle / Menu Select the language you prefer for the audio track (disc audio), subtitles, and the disc menu. Original: Refers to the original language in which the disc was recorded. Other: To select another language, press number buttons then ENTER to enter the corresponding 4-digit number according to the language code list in the reference chapter. If you enter the wrong language code, press CLEAR. (See “Language Code List”, page53.) DVD Menu Language Original English Off Original Disc Audio Disc Subtitle Disc Menu LANGUAGE ENTER Initial Settings 42 Initial Settings (continued) SCREEN SET UP TV Aspect 4:3: Select when a standard 4:3 TV is connected. 16:9 Wide: Select when a 16:9 wide TV is connected. Display Mode Display Mode setting works only when the TV Aspect mode is set to “4:3”. LetterBox: Displays a wide picture with bands on the upper and lower portions of the screen. Panscan: Automatically displays the wide picture on the entire screen and cuts off the portions that do not fit. DVD DVD DISPLAY TV Aspect Widescreen 16 : 9 Wide Display Mode ENTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-20 Initial Settings 43 Initial Settings (continued) AUDIO SET UP Each DVD disc has a variety of audio output options. Set the player’s AUDIO SET UP options according to the type of audio system you use. Dynamic Range Control (DRC) With the DVD format, you can hear a program’s soundtrack in the most accurate and realistic presentation possible, thanks to digital audio technology. However, you may wish to compress the dynamic range of the audio output (the difference between the loudest sounds and the quietest ones). This allows you to listen to a movie at a lower volume without losing clarity of sound. Set DRC to On for this effect. NOTE: • The DRC function works only during playback of Dolby Digital recorded discs. • The Level of Dynamic Range Compression may differ depending on the DVD disc. DVD On DRC AUDIO ENTER 44 Initial Settings (continued) PARENTAL CONTROL Rating Some movies contain scenes that may not be suit- able for children to view. Many of these discs contain parental control information that applies to the com- plete disc or to certain scenes on the disc. Movies and scenes are rated from 1 to 8, depending on the country. Some discs offer more suitable scenes as an alternative. The parental control feature allows you to block access to scenes below the rating you input, thereby preventing your children from being able to view material you believe is unsuitable. 1. Select “Rating” on the PARENTAL CONTROL menu then press b. 2. To access the Rating, Password, and Country Code features, you must input the 4-digit security code you created. If you have not yet entered a security code you are prompted to do so. Input a 4-digit code and press ENTER. Enter it again and press ENTER to verify. If you make a mistake before pressing ENTER, press CLEAR. 3. Select a rating from 1 to 8 using the V/v buttons. Rating 1-8: Rating one (1) has the most restrictions and rating eight (8) is the least restrictive. Unlock If you select unlock, parental control is not active and the disc plays in full. NOTE: If you set a rating for the player, all disc scenes with the same rating or higher are played. Lower rated scenes are not played unless alternate scenes are available on the disc. The alternatives must have the same or a higher rating. If no suitable alternative is found, playback stops. You must enter the 4-digit password or change the rating level in order to play the disc. 4. Press ENTER to confirm your rating selection, then press SETUP to exit the menu. DVD LOCK Rating New U S Unlock Password Country Code ENTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-21 Initial Settings 45 Initial Settings (continued) Password (Security Code) You can enter or change password. 1. Select Password on the PARENTAL CONTROL menu then press b. 2. Follow step 2 as shown left (Rating). “Change” or “New” is highlighted. 3. Enter the new 4-digit code, then press ENTER. Input it again to verify. 4. Press SETUP to exit the menu. If you forget your Security Code If you forget your security code you can clear it using the following steps: 1. Open disc lid. 2. Press SETUP to display the Setup menu. 3. Input the 6-digit number “210499” and the security code is cleared. 4. Enter a new code as described above. Country Code Enter the code of the country/area whose standards were used to rate the DVD video disc, based on the list in the reference chapter. (See “Country Code List”, page 54.) 1. Select “Country Code” on the PARENTAL CONTROL menu then press b. 2. Follow step 2 as shown left (Rating). 3. Select the first character using V/v buttons. 4. Press ENTER and select the second character using V/v buttons. 5. Press ENTER to confirm your country code selection. DVD 46 Initial Settings (continued) CUSTOM SETUP The BLACK LEVEL settings can be changed. BLACK LEVEL Selects the black level(setup level) for the video sig- nals output from the jacks (Video output and S-video output) and LCD screen. On: Sets the black level of the output signal to the standard level. Off: Lowers the standard black level. Use when the picture becomes too white. BLACK LEVEL OTHERS On ENTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-22 Setting up the Player The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. If this occurs, position the player away from the TV, VCR, or radio, or turn off the unit after removing the disc. DVD Player Connections Depending on your TV and other equipment, there are various ways you can connect the player. Please refer to the manuals of your TV, stereo system, or other devices as necessary for additional connection information. Video and Audio Connections to Your TV Make sure the DVD player is connected directly to the TV and not to a VCR, otherwise the DVD image could be distorted by the copy protection system. Video: Connect the VIDEO OUT jack on the DVD player to the VIDEO INPUT jack on the TV using the video cable. S-Video: Connect the S-VIDEO OUT jack on the DVD Player to the S-VIDEO INPUT jack on the TV using the S-Video cable. Audio Connection to Your TV: Connect the AUDIO OUT jack of the DVD Player to the AUDIO L and R INPUT jacks on the TV using the audio cables. Do not connect the DVD Player’s AUDIO OUT jack to the PHONES jack (record deck) of your audio system. 47 VOLUME PHONES PHONES AUDIO VIDEO Rear of TV Right side of unit Audio/ Video cable (Supplied) (Yellow) S-Video cable (Not supplied) Connections 48 Setting up the Player (continued) Audio Connection to Optional Equipment Connect the DVD player to your optional equipment for audio output. Amplifier equipped with 2-channel analog stereo or Dolby Pro Logic ll / Pro Logic: Connect the AUDIO OUT jacks on the DVD player to the audio left and right IN jacks on your amplifier, receiver, or stereo system, using the audio cables. NOTES: To see the audio format of the current DVD in the on-screen display, press AUDIO. VOLUME PHONES PHONES AUDIO VIDEO Right side of unit Amplifier (Receiver) R L AUDIO INPUT Audio/ Video cable (Supplied) (Black) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-23 Connections 49 To use the player with car battery adaptor NOTES: • Route the cords so that they will not interfere with driver. • Turn off the player by Power switch. If you turn off the player by turning off the ignition key of the car when the rechargeable battery is not attached, the settings may be cleared. • Do not install the monitor display where viewable by the driver. • Some states restrict the use of monitors and televisions in vehicles. Where use is permitted, the units should not be installed or operated so as to be viewable by the driver. • Keep this unit away from Sony DVP-FX705 if the picture is disturbed. Connect the player to the cigarette lighter socket using the supplied car battery adaptor (DCC-FX105). This adaptor can only be used 12V electrical currents. It will not work with 24V electrical currents. To a cigarette lighter socket DCC-FX105 (Supplied) To a DC power input jack (DC IN 9.8V) DVP-FX705 50 To use the player with car battery adaptor (continued) Others • Use this car battery adaptor only for cars which use a 12 volt battery. Do not use this with a car that has a 24 volt battery. • There are cars which are negatively grounded and there are others which are positively grounded. This car battery adaptor is for negatively grounded cars only. • Use the unit with the car engine running. If you use the unit with the car engine stopped, the car battery may become unusable. • This unit is not disconnected from the power source as long as it is connected to the cigarette lighter socket of a car. • Unplug the car battery cord from the cigarette lighter socket when not in use. To disconnect the cord, pull it out by the plug. Never pull the cord itself. • Do not operate the unit if it has been dropped or damaged. • Be sure that nothing metallic comes into contact with the metal parts of the unit. If it does, a short may occur and the unit may be damaged. • Always keep the metal contacts clean. • If the car’s cigarette lighter socket is dirty with ash, etc., the plug part will become hot due to a poor connection. Be sure to clean it before using. • Do not disassemble or convert the unit. • Do not apply mechanical shock or drop the unit. • Heat may build up while charging or during extented use. This is not a malfunction. • While listening to the car radio, keep the plug of the Car Battery Cord out of the cigarette lighter socket or keep the radio away from the unit to avoid static. • Avoid placing it where it would be subject to vibration. • Avoid leaving the unit where it would be subject to high temperatures, such as direct sunlight e.g. on the dashboard or hot air from the heater. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-24 51 Troubleshooting Reference 52 Language Code List Use this list to input your desired language for the following initial settings: Disc Audio, Disc Subtitle, Disc Menu. Language Code Abkhazian 6566 Afar 6565 Afrikaans 6570 Albanian 8381 Ameharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Aymara 6588 Azerbaijani 6590 Bashkir 6665 Basque 6985 Bengali; Bangla 6678 Bhutani 6890 Bihari 6672 Breton 6682 Bulgarian 6671 Burmese 7789 Byelorussian 6669 Cambodian 7577 Catalan 6765 Chinese 9072 Corsican 6779 Croatian 7282 Czech 6783 Danish 6865 Dutch 7876 English 6978 Esperanto 6979 Estonian 6984 Faroese 7079 Language Code Fiji 7074 Finnish 7073 French 7082 Frisian 7089 Galician 7176 Georgian 7565 German 6869 Greek 6976 Greenlandic 7576 Guarani 7178 Gujarati 7185 Hausa 7265 Hebrew 7387 Hindi 7273 Hungarian 7285 Icelandic 7383 Indonesian 7378 Interlingua 7365 Irish 7165 Italian 7384 Japanese 7465 Javanese 7487 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kirghiz 7589 Korean 7579 Kurdish 7585 Laothian 7679 Latin 7665 Latvian, Lettish 7686 Language Code Lingala 7678 Lithuanian 7684 Macedonian 7775 Malagasy 7771 Malay 7783 Malayalam 7776 Maltese 7784 Maori 7773 Marathi 7782 Moldavian 7779 Mongolian 7778 Nauru 7865 Nepali 7869 Norwegian 7879 Oriya 7982 Panjabi 8065 Pashto, Pushto 8083 Persian 7065 Polish 8076 Portuguese 8084 Quechua 8185 Rhaeto-Romance 8277 Romanian 8279 Russian 8285 Samoan 8377 Sanskrit 8365 Scots Gaelic 7168 Serbian 8382 Serbo-Croatian 8372 Shona 8378 Sindhi 8368 Language Code Singhalese 8373 Slovak 8375 Slovenian 8376 Somali 8379 Spanish 6983 Sudanese 8385 Swahili 8387 Swedish 8386 Tagalog 8476 Tajik 8471 Tamil 8465 Tatar 8484 Telugu 8469 Thai 8472 Tibetan 6679 Tigrinya 8473 Tonga 8479 Turkish 8482 Turkmen 8475 Twi 8487 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapük 8679 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 7473 Yoruba 8979 Zulu 9085 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-25 Reference 53 Country Code List Choose a country code from this list. Country Code Afghanistan AF Argentina AR Australia AU Austria AT Belgium BE Bhutan BT Bolivia BO Brazil BR Cambodia KH Canada CA Chile CL China CN Colombia CO Congo CG Costa Rica CR Croatia HR Czech Republic CZ Denmark DK Ecuador EC Egypt EG El Salvador SV Country Code Ethiopia ET Fiji FJ Finland FI France FR Germany DE Great Britain GB Greece GR Greenland GL Islands HM Hungary HU India IN Indonesia ID Israel IL Italy IT Jamaica JM Japan JP Kenya KE Kuwait KW Libya LY Luxembourg LU Country Code Malaysia MY Maldives MV Mexico MX Monaco MC Mongolia MN Morocco MA Nepal NP Netherlands NL Netherlands Antilles AN New Zealand NZ Nigeria NG Norway NO Oman OM Pakistan PK Panama PA Paraguay PY Philippines PH Poland PL Portugal PT Romania RO Russian Federation RU Country Code Saudi Arabia SA Senegal SN Singapore SG Slovak Republic SK Slovenia SI South Africa ZA South Korea KR Spain ES Sri Lanka LK Sweden SE Switzerland CH Thailand TH Turkey TR Uganda UG Ukraine UA United States US Uruguay UY Uzbekistan UZ Vietnam VN Zimbabwe ZW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-26 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 Note: Follow the disassembly procedure in the numerical order given. 2-1. CABINET ASSY REMOVAL SECTION 2 DISASSEMBLY DVP-FX705 3 Cabinet Assy 2 Screws (M2 x 14pcs) 2 Screw (M2 x 2pcs) 1 Robber foot rotary table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 2-2. CD LID, MD, MAIN BOARD REMOVAL 6 Tension Spring (Open) 8 Key Board 3 Compression Spring 4 Lock Lever 2 Open Blacket Power S/W KNOB qd Main Board 1 Screws (M1.7 x 3pcs) 7 Screws (M1.7 x 4pcs) 0 Damper 9 Screw (M1.7 x 4pcs) qs Screws (M2 x 17pcs) qa MD Joining is possible only when both knobs are in Hold position (to the right). 5 CD, Lid www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 2-3. LCD PANEL REMOVAL 1 Screws (M1.7 x 7pcs) qd Case Monitor Body Assy qs Monitor Deco 0 Lever Monitor E/J Assy 0 Lever Monitor E/J Assy qa Monitor GND Plate 2 LCD Cover 5 Screws (M1.7 x 2pcs) 4 Speaker 9 LCD Panel 4 Speaker 7 Screw (M1.7 x 1pcs) Key Board 8 Inverter Board 6 TFT-LCD Board 3 Screws (M1.7 x 2pcs) 3 Screws (M1.7 x 2pcs) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 SECTION 3 BLOCK DIAGRAMS 3-1 3-2 3-1. OVEALL BLOCK DIAGRAM M DISC SPINDLE MOTOR DECK MECHANISM A,B,C,D,E,F,RFIP PICK UP IC503 HY57V641620 1M 8BIT FLASH ROM A[00:20] PCE# PRD# PWR# /M_RESET DQ[00:15] FOSO,TRSO,DMSO FMSO 27MHz X-TAL STEPPING MOTOR IC200 AN41204A MOTOR DRIVER M LD01,LD02, IOA,V20 AD[0:7] FG,SFG,STBY,V1P4 MDI1 IC502 MX26LV160T 1M 4Banks 16BIT SDRAM MA[00:11] BA[0:1] DCLK DCKE DQM[0:1] CS# RAS# CAS# WE# IC501 MT1389C Lite MPEG/DSP/RF STEP1+/-,STEP2+/- FO+,FO-,TR+,TR- V,W,U, HW+/-,HV+/-,HU+/-,H- LIMIT IC301 CS4391 2DAC IC302 NJM4580M OP AMP ACLK ABCK ALRCK ADATA0 /VRST AUDIO JACK HP_SENSE SP1_L/R SP2_L/R SP_AMP_EN /A_MUTE CVBS JACK CVBS S_VIDEO_Y /V_MUTE PWRCTL_LCD,LCD_MUTE,/RSTB,SCL,SDA IC601 MB3887 BAT7.6V BATTERY PACK DC+9.8V CH_EN THERMISTER I_SENSE I_FAST LF101 ACM0908 Q102 SI3863DV Q103 SI3865DV POWER JACK BAT7.6V A-5V S+5V A+3.3V D+1.8V D+3.3V PWRCTL_LCD PWRCTL_5V PWRCTL_3.3V E+5V BAT_SENSE DC_SENSE IC8F1 TL1451AC IC8F2 IMZ1A T801 TRANS +17V -15V +8.25V DC+9.8V X701 5MHz RC701 REMOCON RECEIVER IC702 RESET IC IC701 HMS81C186B VFD_SCK VFD_TXD M_REQ SP_AMP_EN /M_RESET,VFD_RXD IC704 BU4S11 BAT7.6V DC+9.8V KEY INPUT +17V,-15V,+8.25V,S+5V,LCDPWR MPEG MPEG BATTERY BLOCK A+5V LCDPWR POWER BLOCK POWER POWER FRONT FRONT POWER/ POWER/ FRONT FRONT FRONT FRONT LCD LCD BATTERY/ BATTERY/ FRONT FRONT MPEG MPEG FRONT FRONT FRON FRONT MPEG MPEG FRON FRONT POWER/ POWER/ BATTERY BATTERY I_SENSE,THERMISTER BATTERY BATTERY PWRCTL_3.3V POWER POWER I_FAST,CH_EN BAT_SENSE,DC_SENSE KEY_N KEY_M MPEG MPEG POWER POWER IC504 24C021 EEPROM SCL SDA TRAY_OPEN_SW TRAY_OPEN_SW2 LCD_OPEN_SW LED IC102 BD9851EFV FRONT BLOCK S_VIDEO_C S-VIDEO JACK VIDEO_Y VIDEO_C HP JACK 1 HP JACK 2 /SP_MUTE AUDIO_CD_CON MPEG MPEG IC306 BA7786FP-Y SPEAKER AMP IC305/307 BH3544F HP-AMP IC101 BD9851EFV LCD BLOCK IC801 T100 LCD PANEL KEY BLOCK w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 3-3 3-4 3-2. POWER BLOCK IC101 BD9851EFV IC102 BD9851EFV Q103 SI3865DV E+5V S+5V A+5V A-5V A+3.3V Q102 SI3863DV +17V -15V +8.25V Battery : 7.6V Adaptor : 9.8V PWRCTL_LCD PWRCTL_3.3V PWRCTL_5V Q601 SI4435DY CH_EN D+3.3V D+1.8V IC8F2 IMZ1A IC8F1 TL1451AC T801 TRANS LCDPWR IC601 MB3887 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 3-5 3-6 3-3. AUDIO/VIDEO BLOCK IC302 NJM4580M OP-AMP IC305/307 BH3544F HP-AMP SPEAKER CVBS JACK VIDEO SIGNAL AUDIO SIGNAL AUDIO_CD_CON HP_SENSE AUDIO JACK IC301 CS4391 2DAC IC501 MT1389C Lite MPEG/DSP/RF IC306 BA7786FP-Y SPEAKER AMP S-VIDEO JACK HEADPHONE JACK /V_MUTE SCL SDA ACLK ABCK ALRCK ADATA0 /VRST A_SP_AMP_EN /SP_MUTE /A_MUTE LCD Driver CVBS S_VIDEO_Y S_VIDEO_C VIDEO_Y/VIDEO_C w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 3-7 3-8E 3-4. TFT LCD BLOCK TFT LCD 7” 480(H)X3(RGB)X234(V) T100 (CHROMA + TCON 1CHIP) I N V E R T E R Y / C SCL/SDA LCD_RESET(RSTB) PWRCTL_LCD R G B V C O M LCDPWR LCDMUTE High Voltage Low Voltage Back light Unit (Cold Cathode Fluorescent lamp) VGL/ VGH/ VDD SCL STH STV CLK U_D L_R 27Mhz 3.3V,2.5V POWER BLOCK LCDPWR +5VA From MPEG +17V,-15V,+8.25V PWM +5VA +17V, -15V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-1 4-1. FRAME (1/2) 4-2 SECTION 4 SCHEMATIC DIAGRAMS FRAME (1/2) STEP2- 4 STEP2+ 3 STEP1- 2 STEP1+ 1 Fo+ 24 Tr- 23 Tr+ 22 Fo- 21 NC 20 NC 19 DVD LD 18 GND LD 17 CD LD 16 MD 15 VR DVD 14 VR CD 13 GND PD 12 VC PD 11 VCC PD 10 E 9 F 8 RF 7 CD DVD SW 6 A/a 5 B/b 4 C/c 3 D/d 2 NC 1 MD UNIT H+ 13 HU+ 12 HU- 11 HV+ 10 HV- 9 HW+ 8 HW- 7 H- 6 U 5 W 4 V 3 SW+ 2 LIMIT 1 KEY BOARD CON201 CON202 SP1_L 30 SP2_L 29 SP1_R 28 SP2_R 27 GND 26 PWRCTL _LCD 25 LCD_MUTE 24 SIZE 23 Y 22 C 21 GND 20 NC 19 SCL 18 GND 17 SDA 16 GND 15 +17V 14 -15V 13 8.25V 12 +5VDD 11 +5VDD 10 LCDPWR 9 LCDPWR 8 LCDPWR 7 GND 6 /RSTB 3 GND 4 GND 3 KEY_N 2 KEY_M 1 CON403 CON200 OPTICAL PICK-UP UNIT MECHA DECK MAIN BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-3 4-4 FRAME (2/2) FRAME (2/2) SP1_L 1 SP2_L 2 SP1_R 3 SP2_R 4 GND 5 GND 6 SIZE 7 LCD_MUTE 8 GND 9 NC 10 GND 11 C 12 GND 13 Y 14 RSTB 12 GND 11 LCDPWR3 10 LCDPWR2 9 LCDPWR3 8 +5VDD 7 +8.25V 6 -15V 5 +17V 4 GND 3 SDA 2 SCL 1 INVERTER BOARD TFT-LCD BOARD LCD PANEL LCDMUTE 7 PWM 6 +5VA 5 GND1 4 GND2 3 LCDPWR2 2 LCDPWR1 1 CON805 CON806 CON802 CON801 CON803 CON804 KEY BOARD CKV 25 STV2 26 U_D 27 GND 28 D3.3V 29 D3.3V 30 OEV 24 GND 23 GND 22 VGOFF 21 VGH 20 GND 19 GND 18 VDD+5 17 VDD+5 16 B 15 G 14 R 13 GND 12 STH2 11 SEQ/SIN 10 L_R 9 GND 8 OEH 7 CPH1 6 CPH2 5 CPH3 4 STH1 3 VGL 2 VCOM 1 SPEAKER L SPEAKER R w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-5 4-6 MAIN POWER MAIN (1/8) 4-2. MAIN POWER MAIN BOARD (1/8) – + DC IN 9.8V C A D 3 4 8 7 2 B 5 9 1 F 10 E 6 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-7 4-8 SERVO MAIN (2/8) 4-3. SERVO MAIN BOARD (2/8) SLED MOTOR M SPINDLE MOTOR OPTICAL PICK-UP UNIT MECHA DECK M C A D 3 4 8 7 2 B 5 9 1 F 10 E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-9 4-10 4-4. MPEG (MTK1389) MPEG (MTK1389) MAIN (3/8) MAIN BOARD (3/8) C A D 3 4 8 7 2 B 5 G 9 1 F 10 E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-11 4-12 4-5. AUDIO AUDIO MAIN (4/8) MAIN BOARD (4/8) AUDIO PHONES PHONES VOLUME w C A D 3 4 8 7 2 B 5 G 9 1 F 10 E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-13 4-14 VIDEO MAIN (5/8) 4-6. VIDEO MAIN BOARD (5/8) VIDEO S-VIDEO OUT KEY BOARD CON903 C A D 3 4 8 7 2 B 5 9 1 F E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-15 4-16 FRONT MICOM MAIN (6/8) 4-7. FRONT MICOM MAIN BOARD (6/8) HOLD/POWER CHARGE D703 POWER D702 C A D 3 4 8 7 2 B 5 G 9 1 F 10 E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-17 4-18 LCD POWER MAIN (7/8) 4-8. LCD POWER MAIN BOARD (7/8) C A D 3 4 8 7 2 B 5 9 1 10 E 6 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-19 4-20 BATTERY CHARGE MAIN (8/8) 4-9. BATTERY CHARGE MAIN BOARD (8/8) TO RECHARGEABLE BATTERY PACK C A D 3 4 8 7 2 B 5 9 1 10 E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-21 4-22 MENU KEY KEY 4-10. MENU KEY KEY BOARD DOWN SW911 UP SW912 RIGHT SW913 LEFT SW914 PUSH ENTER SW915 DISPLAY SW901 COLOR/BRIGHT SW902 TOP MENU SW903 MENU SW904 LCD MODE SW906 RETURN SW907 MAIN BOARD (5/8) CON403 TFT-LCD BOARD (2/2) CON804 TFT-LCD BOARD (2/2) CON803 C A D 3 4 8 7 2 B 5 9 1 F E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-23 4-24 TFT-LCD POWER TFT-LCD (1/2) 4-11. TFT-LCD POWER TFT-LCD BOARD (1/2) VCOM WAVEFORM ADJ. (DC offset level) VCOM WAVEFORM ADJ. (Vpp level) C A D 3 4 8 7 2 B 5 9 1 F E 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-25 4-26 TFT-LCD T100 TFT-LCD (2/2) 4-12. TFT-LCD T100 TFT-LCD BOARD (2/2) SPEAKER R SPEAKER L KEY BOARD CON902 KEY BOARD CON901 COLOR LCD LCD PANEL INVERTER BOARD C A D 3 4 8 7 2 B 5 G 9 1 F 10 11 E 6 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 4-28 E MEMO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 5-1 5-2 SECTION 5 PRINTED WIRING BOARDS 5-1. CIRCUIT BOARDS LOCATION 7 Inch TFT LCD Panel MECHA DECK 13pin 30pin 4pin 24pin 7 pin 30pin 2pin 2pin 4pin 12pin INVERTER BOARD TFT-LCD BOARD MAIN BOARD KEY BOARD SPEAKER L SPEAKER R 14pin RECHARGEABLE BATTERY PACK ( ) INVERTER BOARD KEY BOARD TFT-LCD BOARD MAIN BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 5-3 5-4 5-2. MAIN BOARD MAIN MAIN BOARD (TOP) CON200 A-3 CON201 B-4 CON202 E-3 CON403 C-6 D101 A-7 D102 A-7 D104 A-7 D105 A-7 D106 F-4 D107 F-3 D109 F-5 D112 E-4 D303 D-6 D403 B-7 D404 B-7 D405 C-7 D500 A-5 D601 B-5 D602 B-6 D603 B-6 D604 A-4 D609 B-6 D702 F-1 D703 F-1 D8F1 A-6 D8F4 B-5 IC301 D-6 IC302 D-6 IC306 E-6 IC501 E-5 IC504 E-3 IC8F1 B-4 IC8F2 B-5 Q111 F-4 Q200 A-3 Q201 A-3 Q202 A-4 Q203 A-4 Q204 A-4 Q316 D-6 Q401 C-6 Q701 F-5 Q703 F-3 Q704 F-3 Q707 F-3 Q708 F-3 POWER/HOLD POWER CHARGE TO RECHARGEABLE BATTERY PACK MAIN BOARD (TOP) A B C D E F 05 2 1 3 4 5 6 7 : Uses unleaded solder. There are a few cases that the part isn't mounted in this model is printed on this diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 5-5 5-6 MAIN MAIN BOARD (BOTTOM) D108 F-4 D110 F-6 D301 E-7 D302 E-7 D700 D-4 D701 F-3 D8F2 A-6 D8F3 B-5 IC101 F-4 IC102 E-5 IC200 B-4 IC305 E-6 IC307 D-7 IC502A C-4 IC503 E-4 IC601 A-5 IC702 E-3 IC704 B-5 IC705 B-6 Q102 A-6 Q103 F-4 Q106 F-3 Q107 F-4 Q108 F-5 Q109 F-5 Q301 D-6 Q302 C-6 Q303 D-6 Q304 D-6 Q305 F-6 Q306 D-6 Q307 E-6 Q309 D-6 Q311 D-6 Q313 D-6 Q314 D-6 Q315 E-6 Q317 D-6 Q318 E-6 Q319 E-6 Q402 C-7 Q403 B-7 Q404 C-7 Q601 A-5 Q702 F-5 Q705 B-5 Q706 B-6 Q8F1 B-5 – + DC IN 9.8V S-VIDEO OUT VIDEO AUDIO PHONES PHONES VOLUME MAIN BOARD (BOTTOM) 05 A B C D E F 2 1 3 4 5 6 7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 5-7 5-8 KEY 5-3. KEY BOARD COLOR/BRIGHT UP MENU TOP MENU DISPLAY RETURN DOWN LEFT LCD MODE PUSH ENTER RIGHT A B C 1 2 05 KEY BOARD (TOP) 05 KEY BOARD (BOTTOM) A B C 1 2 KEY BOARD (BOTTOM) CON901 B-2 CON902 A-2 CON903 B-1 D902 B-1 D906 C-1 D909 C-1 D910 C-1 : Uses unleaded solder. There are a few cases that the part isn't mounted in this model is printed on this diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 5-9 5-10 TFT-LCD 5-4. TFT-LCD BOARD TFT-LCD BOARD (TOP) A 05 2 1 3 4 5 TFT-LCD BOARD (BOTTOM) A 05 2 1 3 4 5 : Uses unleaded solder. There are a few cases that the part isn't mounted in this model is printed on this diagram. TFT LCD BOARD (TOP) CON801 A-5 CON802 A-1 CON803 A-1 CON804 A-1 CON805 A-2 CON806 A-4 Q801 A-2 Q802 A-2 Q803 A-2 TFT LCD BOARD (BOTTON) D802 A-2 IC801 A-3 IC803 A-2 IC804 A-2 IC805 A-1 IC806 A-1 Q804 A-4 Q810 A-1 Q811 A-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 5-12E MEMO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 6-1 6-2 SECTION 6 WAVEFORMS 6-1. DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING 2. SDRAM CLOCK 1) SDRAM (IC502) clock is at 110MHz Fig 2-1 CLK 3. DISC TYPE JUDGEMENT WAVEFORM Fig 3-1 FOSO FE RFIP 2) MT1389 reset is high active. Fig 1-2 E+5V PWRCTL +5V (Q103 4PIN) PWRCTL +3.3V (TP123) M_RESET (IC701 9PIN) 1. SYSTEM 27MHz CLOCK, RESET, FLASH R/W SIGNAL 1) MT1389 main clock is at 27MHz (X501) Fig 1-1 X501 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 6-3 6-4 4. SPINDLE CONTROL WAVEFORM (NO DISC CONDITION) Fig 4-1 DMSO U (IC200 37PIN) V (IC200 39PIN) W (IC200 40PIN) 5-2. TRACKING CONTROL RELATED SIGNAL (System checking-CD) Fig 5-2 TEO (IC501 32PIN) TRSO (R503) 6. RF WAVEFORM Fig 6-1 RF DVDRF IP RF DVDRF IN 5-1. TRACKING CONTROL RELATED SIGNAL (System checking-DVD) Fig 5-1 TEO (IC501 32PIN) TRSO (R503) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 6-5 6-6 7. AUDIO OUTPUT FROM SPEAKER IC 1) Audio L/R Fig 7-1 Audio (IC306 10PIN) 2) Audio related Signal Fig 7-2 ASDATA (IC301 3PIN) SCLK (IC301 4PIN) LRCLK (IC301 5PIN) 8. MT1389 VIDEO OUTPUT WAVEFORM 1) Full color bar signal (CVBS) Fig 8-1 CVBS (L401) 2) Y Fig 8-2 Y (L402) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 6-7 6-8 3) C Fig 8-3 C (L403) MEMO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 6-9 6-10 6-2. CIRCUT VOLTAGE CHART stop play stop play stop play stop play stop play stop play stop play 1 0 0 41 1.43 0 81 1.2 1.07 121 1.36 1.7 161 0 0 201 0 0 241 0 0 2 1.73 0 42 1.4 1.41 82 0 0.82 122 1.8 1.75 162 1.56 1.4 202 0.57 0.38 242 0 0 3 1.73 1.73 43 0 0 83 1.17 0.77 123 1.26 1.51 163 0 0 203 0 0.42 243 0 0 4 1.73 1.73 44 0 0 84 0.64 0.54 124 1.23 1.4 164 2.36 1.54 204 3.3 3.3 244 3.19 3.19 5 1.73 1.73 45 0 0 85 0 0 125 1.28 1.16 165 2.32 1.61 205 0.25 2.62 245 1.55 1.55 6 1.75 1.73 46 3.3 3.3 86 1.44 0.53 126 0 0.86 166 1.49 1.61 206 2.72 2.64 246 1.39 1.39 7 2.15 1.74 47 2.64 0 87 1.65 1.77 127 3.3 3.3 167 3.3 3.3 207 2.71 2.63 247 1.45 1.44 8 2.2 2.21 48 3.32 0 88 1.4 1.53 128 2.35 1.28 168 3.25 3.24 208 0 0 248 1.93 1.94 9 2.18 2.18 49 0.01 0 89 0 0 129 1.8 1.05 169 3.3 3.27 209 0 0 249 0 0 10 2.16 0 50 3.3 0 90 1.21 1.2 130 0 1.1 170 0 0 210 0 0 250 0 0 11 2.14 2.14 51 0 0 91 1.02 1.03 131 1.39 1.25 171 0 0 211 0.1 3.3 251 0 0 12 1.74 1 52 1.76 1.8 92 0 0 132 1.37 1.27 172 0 0 212 3.3 3.3 252 1.75 1.75 13 1.04 1 53 2.13 0 93 2.06 1.93 133 1.31 1.3 173 1.8 1.8 213 1.31 1.66 253 1.71 1.71 14 1.03 1 54 2.14 2.12 94 0 0 134 0 0 174 3.33 3.3 214 1.67 1.64 254 1.37 1.37 15 0.12 1 55 2.13 1.74 95 3 2.74 135 1.33 1.37 175 0 0 215 1.58 1.57 255 0.94 0.94 16 0.13 0 56 1.81 1.34 96 3.28 3.25 136 3.3 3.3 176 2.73 2.73 216 0 0 256 3.3 3.3 17 0.12 1 57 2.12 0 97 1.8 1.8 137 2.63 1.65 177 0 0 217 0 1.24 18 0.13 2.05 58 1.83 1.52 98 3 2.7 138 3.27 3.1 178 3.32 3.32 218 0 1.1 19 2.05 0 59 0 1.63 99 3 2.7 139 3 2.63 179 2.75 0 219 0 0 20 2.05 0 60 0 2.99 100 2.97 2.67 140 3.2 3.1 180 0 0 220 0 0 21 2.05 0 61 0 0 101 0 2.68 141 3.3 3.3 181 0 0 221 1.76 1.76 22 2.38 0 62 0 0 102 3.33 3.32 142 2.9 2.38 182 3.3 3.3 222 0 1.24 23 3.29 0 63 0 2.05 103 3.33 3.32 143 1.59 1.7 183 0 0 223 0 0 24 3.3 3.3 64 0 0 104 3 2.7 144 0 0 184 0 0 224 0 0 25 0.21 1 65 3.3 3.3 105 5.18 5.18 145 1.38 1.55 185 0 0 225 1.66 1.65 26 2.34 0 66 3.3 3.32 106 3.32 3.31 146 0.07 0 186 0 0 226 0 0 27 0 0 67 1.29 0 107 2.76 2.75 147 0.31 0.78 187 0 0 227 1.8 1.76 28 2.8 2.8 68 2.36 0.32 108 3.3 3.3 148 0 0 188 0 0 228 3.3 3.3 29 2 0 69 0 0.37 109 0 0 149 1.51 1.95 189 3.3 3.3 229 3.3 3.3 30 1.4 0 70 0.56 0.46 110 5.2 5.2 150 1.49 1.93 190 1.24 1.24 230 0.85 0.86 31 1.52 0 71 0 3.2 111 2.67 2.92 151 1.49 1.62 191 1.25 1.24 231 0.81 0.82 32 1.38 0 72 1.27 1.42 112 3.14 3.18 152 1.8 1.75 192 2.26 2.25 232 0 0 33 1.38 0 73 3.3 3.3 113 2.28 1.6 153 0 0 193 0 0 233 0.83 0.89 34 2.62 0 74 2.23 1.93 114 0 0 154 0 0 194 0.46 0.47 234 3.19 3.18 35 2.62 2.73 75 1.39 0 115 1.06 0.85 155 3.3 3.3 195 3.3 3.3 235 1.74 1.72 36 2.25 0 76 0 0 116 0 0 156 1.72 1.72 196 0.7 0.7 236 1.71 1.71 37 2.2 2.11 77 0 0 117 1.04 1.09 157 0.92 2.29 197 0 0 237 1.71 1.71 38 1.37 1.36 78 2.06 0 118 1.28 0.94 158 0 0 198 3.28 3.29 238 1.72 1.75 38 0 0 79 0 0 119 0 0 159 0 0 199 3.3 3.3 239 3.19 3.18 40 1.4 0 80 3.3 3.3 120 1.18 1.65 160 0 0 200 0.42 0.43 240 0 0 pin IC501(MT1389 MPEG) pin IC501(MT1389 MPEG) IC501(MT1389 MPEG) IC501(MT1389 MPEG) IC501(MT1389 MPEG) pin IC501(MT1389 MPEG) pin IC501(MT1389 MPEG) pin pin pin w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-FX705 6-11 6-12E PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY PIN STOP PLAY 1 10 10 1 0 0 1 0 0 1 3.31 3.29 1 3.31 0.32 1 4.24 4.24 1 0 2.5 1 0 0 1 1.72 1.72 1 0 0 1 3.2 3.2 72 2.1 2.1 1 4.98 4.98 2 1 1 2 0 3.31 2 0 0 2 0.77 1.5 2 1.72 0.56 2 4.27 4.27 2 0 0.5 2 0.16 0.15 2 0.94 0.94 2 5 5 2 0 0 73 1.26 1.26 2 2.92 2.92 3 1.55 1.55 3 0 1.65 3 0 0 3 3.31 3.29 3 0.07 0.65 3 0 1.65 3 0 0.5 3 0 0 3 1.28 1.28 3 3.3 3.3 3 0.64 0.64 74 1.26 1.26 3 4.97 4.97 4 0.99 0.99 4 0 0 4 0 0 4 0.5 0.3 4 1.72 0 4 2 2 4 -5 -5 4 0 0 4 1.23 1.23 4 NC NC 4 1.4 1.4 75 2.24 2.24 4 2.94 2.94 5 0.99 0.99 5 1.4 1.51 5 3.31 3.31 5 0.58 1.38 5 0.07 1.51 5 1.8 1.8 5 0 0.5 5 1.93 2.23 5 2.07 2.07 5 NC NC 5 0.64 0.64 76 0 0 5 4.9 4.9 6 0 0 6 0.01 0.01 6 0 0 6 0 0 6 0.07 3 6 2 2 6 0 0.2 6 0 0 6 1.6 1.6 6 1.4 1.4 77 3.2 3.2 6 0 0 7 2.24 2.24 7 1.4 1.41 7 0 0 7 0.28 1.37 7 1.21 1.6 7 0 0 7 0 0.2 7 0.31 0.03 7 9.07 9.07 7 3.2 3.2 78 2.23 2.23 7 0 0 8 0 0 8 1.4 1.41 8 3.31 3.31 8 0.81 1.45 8 1.27 0 8 0.34 0 8 5 5 8 0.82 0.02 8 0 0 PIN STOP PLAY 8 0 0 79 0 0 8 4.9 4.9 9 9.86 9.86 9 1.4 1.41 9 3.31 3.3 9 0 0 9 3.7 3.7 9 0 0 9 10.16 10.16 1 0 0 9 3.2 3.2 80 3.26 3.26 9 4.98 4.98 10 0 0 10 1.81 1.21 10 0.74 1.18 10 0 0.2 10 0 0 10 0.12 0.04 10 1.6 1.6 2 5 5 10 0 0 81 0 0 10 4.98 4.98 11 8.42 8.42 11 4.72 0.16 11 0.45 1.45 11 3.32 1.29 11 5.9 5.9 PIN STOP PLAY 11 2.1 1.61 11 0 0 3 2.5 2.5 11 0.3 0.3 82 0 0 11 0 0 12 10 10 12 1.4 1.41 12 0 0 12 4.93 0 12 0 0 1 2 2 12 0 0 12 2.38 2.38 4 NC NC 12 1.38 1.38 83 0 0 12 0 0 13 1.55 1.55 13 1.4 1.41 13 0.7 0.93 13 3.31 1.05 13 5.67 5.67 2 1.5 1.5 13 0 0 13 2.35 2.35 5 NC NC 13 0.54 0.54 84 0 0 13 4.98 4.98 14 0 0 14 1.4 1.41 14 3.31 3.4 14 2 0.1 14 2.93 2.93 3 2 2 14 0 0 14 2.37 2.37 14 1.38 1.38 85 0 0 14 1.86 1.86 15 1.39 1.39 15 1.4 1.41 15 2.78 1.88 15 1.97 1.58 15 2.94 2.94 4 0 0 15 0.69 0.48 15 0.05 0.05 15 3.2 3.2 86 0 0 15 4.98 4.98 16 0.99 0.99 16 1.4 1.41 16 3.24 3.13 16 0 0 16 0 0 5 2 2 16 0 0 16 2.47 2.47 PIN STOP PLAY 16 0 0 87 0.002 0.002 16 0 0 17 2.49 2.49 17 4.97 4.97 17 4.08 3.15 17 3.32 0 17 6.17 6.17 6 2 2 17 0.08 0 1 4 4 17 3.2 3.2 88 0 0 17 4.98 4.98 18 10 10 18 2.26 3.21 18 3.18 3.16 18 1.82 2.03 18 2.88 2.88 7 2 2 18 10.53 10.48 2 4 4 18 0 0 89 2.24 2.24 18 4.98 4.98 19 10 10 19 2.26 2.3 19 2.94 2.64 19 1.8 2.56 19 2.6 2.6 8 5 5 19 0 0 PIN STOP PLAY 3 0 0 19 0.2 0.2 90 0 0 19 4.92 4.92 20 0 0 20 2.32 0 20 1.82 1.64 20 1.78 1.6 20 0 0 20 10.43 10.4 1 0.14 0.14 4 -15 -15 20 0.2 0.2 91 3.26 3.26 20 4.95 4.95 21 0 0 21 1.64 1.79 21 1.87 1.19 21 10.53 10.4 2 9.08 9.08 5 4 4 21 0.51 0.51 92 1.53 1.53 21 2.3 2.3 22 4.97 4.36 22 0.05 0.06 22 1.91 2.4 PIN STOP PLAY 22 0 0.05 3 9.33 9.33 6 4 4 22 0.06 0.06 93 1.72 1.72 22 4.98 4.98 PIN STOP PLAY 23 2.32 2.29 23 0.24 0.7 23 2.11 1.94 1 2 2 23 0 0 4 0.14 0.14 7 4 4 23 3.2 3.2 94 0 0 23 4.98 4.98 1 10 10 24 2.25 2.25 24 1.7 2.05 24 2.05 2.24 2 1.5 1.5 24 0 0 5 0 0 8 8.25 8.25 24 0 0 95 0.001 0.001 24 4.6 4.6 2 0.99 0.99 25 4.97 4.36 25 2.09 1.97 25 1.95 2.08 3 2 2 6 0 0 25 0 0 96 2.25 2.25 25 4.98 4.98 3 1.53 1.53 26 0 0 26 1.14 1.57 26 0 0 4 0 0 26 3.2 3.2 97 0.01 0.01 26 4.98 4.98 4 1.23 1.23 27 4.97 4.97 27 3.31 3.3 27 0 0 5 2 2 27 2.23 2.23 98 0 0 27 1.85 1.85 5 1.23 1.23 28 2.49 2.59 28 0 0 28 0 0 6 2 2 28 3.27 3.27 99 0.45 0.45 28 0 0 6 1.34 1.34 29 2.71 2.59 29 1.21 1.63 29 0 1.4 7 2 2 29 3.27 3.27 100 1.27 1.27 29 4.98 4.98 7 1.61 1.61 30 2.71 2.57 30 1.91 1.58 30 1.42 1.33 8 5 5 30 0.06 0.06 30 4.98 4.98 8 10 10 31 2.47 2.57 31 0.83 1.6 31 1.83 1.62 31 3.11 3.11 31 2.27 2.27 9 8.29 8.29 32 2.53 2.57 32 1.44 1.48 32 1.47 1.27 32 0 0 32 2.31 2.31 10 0 0 33 2.65 2.58 33 0.03 0.045 33 1.44 1.52 33 0 0 33 4.88 4.88 11 6.79 6.79 34 0.23 0.33 34 0.04 0.052 34 1.2 1.27 34 3.26 3.26 34 0 0 12 10 10 35 5.97 5.97 35 0.02 0.045 35 0.98 0 35 3.26 3.26 35 4.97 4.97 13 1.58 1.58 36 0 0 36 0 0 36 0.94 0.32 36 1.34 1.34 36 4.98 4.98 14 0 0 37 0.67 2.48 37 0.92 1.98 37 3.38 3.31 37 0 0 37 4.98 4.98 15 1.44 1.44 38 0 0 38 1.68 1.76 38 1.61 1.63 38 3.26 3.26 38 0 0 16 0.99 0.99 39 0.68 2.48 39 1.68 1.83 39 1.13 1.34 39 3.26 3.26 39 4.24 4.24 17 2.48 2.48 40 0.66 0 40 0.4 0.29 40 1.42 1.22 40 0 0 40 4.98 4.98 18 10 10 41 0 0 41 0 0 41 0.27 3.31 41 0.01 0.01 41 0 0 19 4.91 4.91 42 4.97 4.97 42 1.02 1.48 42 0 0 42 2.97 2.97 42 4.98 4.98 20 0 0 43 4.97 4.97 43 3.31 1.48 43 0.36 1.73 43 0.2 0.2 43 4.97 4.97 44 0 0 44 0.78 1.46 44 1.26 1.24 44 0.06 0.06 44 1.83 1.83 45 0 0 45 0.78 1.36 45 2.09 2.16 45 1.63 1.63 46 0 0 46 0 0 46 0 0 46 2.23 2.23 47 0 0 47 0.86 1.57 47 0 0 47 3.26 3.26 48 0 0 48 0.46 1.31 48 0.62 0.33 48 0 0 49 3.31 3.3 49 0 0 50 0.58 1.45 50 0 0 51 0.38 1.51 51 0 0 52 0 0 52 1.46 1.46 53 0.25 1.18 53 1.46 1.46 54 0 0 54 1.46 1.46 55 0 0 56 3.26 3.26 57 2.23 2.23 58 0 0 59 0 0 60 2.23 2.23 61 0.88 0.88 62 0.88 0.88 63 3.2 3.2 64 0 0 65 0.88 0.88 66 3.2 3.2 67 0 0 68 0.87 0.87 69 3.2 3.2 70 0 0 71 1.25 1.25 IC801(T100) IC803 IC305 IC301 IC302 IC601 IC8F1 IC102 IC701 IC804 IC101 IC200 IC504 IC503 IC502 IC805 IC8F2 IC305 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-1 Pin Name I/O Description number 1 AGND - Ground pin (Analog) 2 DVDA I AC coupled DVD RF signal input A 3 DVDB I AC coupled DVD RF signal input B 4 DVDC I AC coupled DVD RF signal input C 5 DVDD I AC coupled DVD RF signal input D 6 DVDRFIP I AC coupled DVD RF signal input RFIP 7 DVDRFIN (-) N.C. 8 MA I DC coupled DVD-RAM main-beam RF signal input A 9 MB I DC coupled DVD-RAM main-beam RF signal input B 10 MC I DC coupled DVD-RAM main-beam RF signal input C 11 MD I DC coupled DVD-RAM main-beam RF signal input D 12 SA I DC coupled DVD-RAM sub-beam RF signal input A 13 SB I DC coupled DVD-RAM sub-beam RF signal input B 14 SC (-) N.C. 15 SD (-) N.C. 16 CDFON (-) N.C. 17 CDFOP (-) N.C. 18 TNI I 3 beam satellite PD signal negative input 19 TPI I 3 beam satellite PD signal positive input 20 MDI1 I Laser power monitor input. 21 MDI2 I Laser power monitor input. 22 LDO2 O DVD Laser drive output 23 LDO1 O CD Laser drive output 24 SVDD3 - A+3.3V (Servo) 25 CSO/RFOP I Positive input of RF differential signal 26 RFLVL/RFON I negative input of RF differential signal 27 SGND - Ground pin (Servo) 28 V2REFO O Reference voltage 2.8V 29 V20 O Referenc voltage 2.0V 30 VREFO O Reference voltage 1.4V 31 FEO I Focus error input 32 TEO I Tracking error input 33 TEZISLV I Tracking error zero crossing low pass input. 34 OP_OUT (-) N.C. 35 OP_INN (-) N.C. 36 OP_INP (-) N.C. 37 DMO O Disc motor control output. PWM output. 38 FMO O Feed motor control. PWM output. 39 TROPENPWM (-) N.C. 40 PWMOUT1/V_ADIN9 O DPD mute control (PWM) 41 TRO O TRSO (Tracking servo output.) 42 FOO O FOSO (Focus servo output.) 43 USB_VSS - Ground pin (USB) 44 USBP (-) N.C 45 USBM (-) N.C 46 USB_VDD3 - D+3.3V (USB) 47 FG/V_ADIN8 I Spindlr motor Hall sensor input. 48 TDI/V_ADIN4 (-) N.C. SECTION 7 IC PIN FUNCTION DESCRIPTION DVP-FX705 7-1. MPEG/DSP/RF PIN FUNCTION (MAIN BOARD IC501: MT1389) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-2 Pin Name I/O Description number 49 TMS/V_ADIN5 I TRAY_OPEN_SW (Disc Lid detection) 50 TCK/V_ADIN6 O STBY (Motor Drive IC Total shutdwon control) 51 TDO/V_ADIN7 O SP FG signal output 52 DVDD18 - D+1.8V 53 IOA2 I/O A2 (FROM address 1) 54 IOA3 I/O A3 (FROM address 2) 55 IOA4 I/O A4 (FROM address 3) 56 IOA5 I/O A5 (FROM address 4) 57 IOA6 I/O A6 (FROM address 5) 58 IOA7 I/O A7 (FROM address 6) 59 HIGHA0 I/O A8 (FROM address 7) 60 IOA18 I/O A18 (FROM address 17) 61 IOA19 I/O A19 (FROM address 18) 62 DVSS - Ground pin (digital) 63 APLLCAP I APLL External Capacitance connection 64 APLLVSS - Ground pin 65 APLLVDD - D+3.3V 66 IOWR O FROM write enable, active low 67 A16 I/O A16 (FROM address 15) 68 HIGHA7 I/O A15 (FROM address 14) 69 HIGHA6 I/O A14 (FROM address 13) 70 HIGHA5 I/O A13 (FROM address 12) 71 HIGHA4 I/O A12 (FROM address 11) 72 HIGHA3 I/O A11 (FROM address 10) 73 DVDD3 - D+3.3V 74 HIGHA2 I/O A10 (FROM address 9) 75 HIGHA1 I/O A9 (FROM address 8) 76 IOA20 I/O A20 (FROM address 19) 77 IOCS O PCE (FROM Cjip enable ) 78 IOA1 I/O A1 (FROM address 1) 79 IOOE O PRD (FROM output enable) 80 DVDD3 - D+3.3V 81 AD0 I/O FROM data 0 82 AD1 I/O FROM data 1 83 AD2 I/O FROM data 2 84 AD3 I/O FROM data 3 85 DVSS - Ground pin 86 AD4 I/O FROM data 4 87 AD5 I/O FROM data 5 88 AD6 I/O FROM data 6 89 IOA21/V_ADIN0 I/O A21 (FROM address 20) 90 ALE (-) N.C. 91 AD7 I/O FROM data 7 92 A17 I/O A17 (FROM address 16) 93 IOA0 I/O A0 (FROM address A-1) 94 DVSS - Ground pin 95 UWR (-) N.C. 96 URD (-) N.C. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-3 Pin Name I/O Description number 97 DVDD18 - D+1.8V 98 UP1_2 O N.C. 99 UP1_3 O N.C. 100 UP1_4 O N.C. 101 UP1_5 O VFD_TXD (Front micon communication signal) 102 UP1_6 O SCL (Serial clock) 103 UP1_7 O SDA (Serial data) 104 UP3_0 O VFD_SCK (Front micon communication clock signal) 105 UP3_1 I VFD_RXD (Front micon communication signal) 106 UP3_4 O RXD (Not use/Download jig) 107 UP3_5 I TXD (Not use/Download jig) 108 DVDD3 - D+3.3V 109 ICE (-) N.C. 110 PRST I /M_RESET (Master reset) 111 IR (-) N.C. 112 INT0 (-) N.C. 113 DQM0 I DQM0 (FROM Ready/Busy) 114 DQS0 O IOA (DVD, CD VR control signal) 115 RD7 I/O DQ7 (DRAM data 7) 116 DVSS - Ground pin 117 RD6 I/O DQ6 (DRAM data 6) 118 RD5 I/O DQ5 (DRAM data 5) 119 DVSS - Ground pin 120 RD4 I/O DQ4 (DRAM data 4) 121 RD3 I/O DQ3 (DRAM data 3) 122 DVDD18 - D+1.8V 123 RD2 I/O DQ2 (DRAM data 2) 124 RD1 I/O DQ1 (DRAM data 1) 125 RD0 I/O DQ0 (DRAM data 0) 126 RD15 I/O DQ15 (DRAM data 15) 127 DVDD3 - D+3.3V 128 RD14 I/O DQ14 (DRAM data 14) 129 RD13 I/O DQ13 (DRAM data 13) 130 RD12 I/O DQ12 (DRAM data 12) 131 RD11 I/O DQ11 (DRAM data 11) 132 RD10 I/O DQ10 (DRAM data 10) 133 RD9 I/O DQ9 (DRAM data 9) 134 DVSS - Ground pin 135 RD8 I/O DQ8 (DRAM data 8) 136 DQS1 O LIMIT (SPINDLE MOTOR control) 137 DQM1 O DQM1(Mask for DRAM input) 138 RWE O WE (DRAM Write enable, active low.) 139 CAS O CAS (DRAM columnaddress strobe, active low.) 140 RAS O RAS (DRAM row address strobe, active low.) 141 DVDD3 - D+3.3V 142 RCS O CS (DRAM chip select, active low.) 143 BA0 O BA0 (DRAM bank address 0) 144 DVSS - Ground pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-4 Pin Name I/O Description number 145 BA1 O BA1 (DRAM bank address 0) 146 RA10 O MA10 (DRAM address 10) 147 RA0 O MA0 (DRAM address 0) 148 DVSS - Ground pin 149 RA1 O MA1 (DRAM address 1) 150 RA2 O MA2 (DRAM address 2) 151 RA3 O MA3 (DRAM address 3) 152 DVDD18 - D+1.8V 153 RVREF/V_ADIN3 (-) N.C. 154 RCLKB (-) N.C. 155 DVDD3 - D+3.3V 156 RCLKB O DCLK (DRAM clock) 157 CKE O DCKE (DRAM clock enable) 158 RA11 O MA11 (DRAM address 11) 159 RA9 O MA9 (DRAM address 9) 160 RA8 O MA8 (DRAM address 8) 161 DVSS - Ground pin 162 RA7 O MA7 (DRAM address 7) 163 DVSS - Ground pin 164 RA6 O MA6 (DRAM address 6) 165 RA5 O MA5 (DRAM address 5) 166 RA4 O MA4 (DRAM address 4) 167 DVDD3 - D+3.3V 168 RD31/ASDATA5 O N.C. 169 RD30 O /RSTB (TFT-LCD drive IC chip reset) 170 RD29 O LCD_MUTE (TFT-LCD mute control) 171 RD28 O N.C. 172 RD27 (-) N.C. 173 DVDD18 - D+1.8V 174 RD26 O /SP_MUTE (Speaker mute control) 175 DVSS - Ground pin 176 RD25 O N.C. 177 RD24 O SP_AMP_EN (Headphone mute control) 178 DQM3 O PWRCTL_5V (5V power supply control) 179 DQM2 O PWRCTL_LCD (TFT-LCD's power supply control) 180 RD23 (-) N.C. 181 RD22 (-) N.C. 182 DVDD3 - D+3.3V 183 RD21 (-) N.C. 184 RD20 (-) N.C. 185 RD19 (-) N.C. 186 RD18 (-) N.C. 187 RD17 (-) N.C. 188 RD16 (-) N.C. 189 DACVDDC - D+3.3V (DACVDD3) 190 VREFO I Bandgap reference voltage 191 FS O Full scale adjustment 192 YUV0/CIN (-) N.C. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-5 Pin Name I/O Description number 193 DACVSSC - Ground pin 194 YUV1/Y O S_VIDEO_Y (Analog Y output) 195 DACVDDB - D+3.3V (DACVDD3) 196 YUV3/CVBS O S_VIDEO_C (Analog chroma output) 197 DACVSSB - Ground pin 198 YUV3/CVBS O CVBS (Analog composite output) 199 DACVDDA - D+3.3V (DACVDD3) 200 YUV4/G (-) N.C. 201 DACVSSA - Ground pin 202 YUV5/B O VIDEO_C (Analog chroma output) 203 YUV6/R O VIDEO_Y (Analog Y output) 204 DVDD3 - D+3.3V 205 VSYNC/V_ADIN1 O M_REQ (Front maicro controller chip select) 206 YUV7/ASDATA5 (-) N.C. 207 HSYNC/V_ADIN2 O AUDIO_CD_CON (AUDIO output ON/OFF control) 208 SPMCLK (-) N.C. 209 SPDATA (-) N.C. 210 SPLRCK I HP_SENSE (Headphone Jack input detect) 211 SPBCK/ASDATA5 I LCD_OPEN (LCD open detect) 212 DVDD3 - D+3.3V 213 ALRCK O ALRCK (Audio left/right channel clock) 214 ABCK O ABCK (Audio serial clock) 215 ACLK I ACLK (Audio DAC master clock) 216 DVSS - Ground pin 217 ASDATA0 O ASDATA0 (Audio serial data0 (left/right channel)) 218 ASDATA1 (-) N.C. 219 ASDATA2 (-) N.C. 220 ASDATA3 O /A_MUTE (LINE, Headphone audio mute) 221 DVDD18 - D+1.8V 222 ASDATA4 O /VRST (DAC reset control) 223 DVSS - Ground pin 224 MC_DATA O /V_MUTE (Y/C/V mute control) 225 SPDIF O ASPDIF (SPDIF output) (Fixed at “Open”) 226 RFGND18 - Ground pin 227 RFVDD18 - D+1.8V (RFV18) 228 XTALO O XO (Crystal output “27MHz”) 229 XTALI I XI (Crystal input “27MHz”) 230 JITFO O RF jitter meter output 231 JITFN I Negative input of the operation amplifier for RF jigger meter 232 PLLVSS - Ground pin 233 IDACEXLP O Data PLL DAC Low-pass filter 234 PLLVDD3 - A+3.3V (PLL) 235 LPFON O Negative output of loop filter amplifter 236 LPFIP I Poditive input of loop filter ampliftier 237 LPFIN I Negative input of loop filter amplifier 238 LPFOP O Positive output of loop filter amplifier 239 ADCVDD3 - A+3.3V (RF) 240 S_VCM I SACD Common mode reference www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-6 Pin Name I/O Description number 241 ADCVSS - Ground pin 242 S_VREFP I SACD Top reference 243 S_VREFN I SACD Buttom reference 244 RFVDD3 - A+3.3V (RF) 245 RFRPDC I TF ripple detect input 246 RFRPAC I RF ripple detect input (through AC coupling) 247 HRFZC I High frequency RF ripple zero crossing 248 CRTPLP I Defect level filter capacitor connecting. For RF RIPPLE. 249 RFGND - Ground pin 250 CEQP (-) N.C. 251 CEQN (-) N.C. 252 OSP O RF Offset cancellation capacitor connecting 253 OSN O RF Offset cancellation capacitor connecting 254 RFGC O RF AGC loop capacitor connecting for DVD-ROM 255 IREF I Current reference input. It generates reference current for data PLL. 256 AVDD3 - A+3.3V (RF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-7 7-2. FRONT MICOM PIN FUNCTION (MAIN BOARD IC701: HMS81C1816B) Pin Name I/O Description number 1 BUZ/RB1 (-) N.C. 2 INT0/RB2 I M_REQ (Main maicon/IC501 chip select) 3 INT1/RB3 I POWER switch ON/OFF detection input 4 PWM0/COMP0/RB4 I M_REQ (Main maicon/IC501 chip select) 5 PWM1/COMP1/RB5 (-) N.C. 6 EC1/RB6 I Remocon Select (Fixed at “L”) 7 TMR20V/RB7 O Remocon Select (Fixed at “L”) 8 RE6 O PWRCTL_3.3V (+3.3V power supply control) 9 RE5 O /M_RESET (Master reset) 10 RE4 (-) N.C. 11 RE3 I I_FAST (Reference voltage of IC601 detection) 12 RE2 O CH_EN (The change-control of DC-input or Battery-DC.) 13 RE1 I HOLD switch detection. 14 RE0 I/O Select2 (Fixed at “Open”) 15 RC0 O CHARGE LED, light control. 16 RC1 O POWER LED, light control. 17 RC2 (-) N.C. 18 SRDYIN/SRDYOUT/RC3 (-) N.C. 19 RC4/SCK I VFD_SCK (Main maicon/IC501 communication clock signal) 20 RC5/SIN I VFD_TXD (Main maicon/IC501 communication signal) 21 RC6/SOUT O VFD_RXD (Main maicon/IC501 communication signal) 22 RC7 (-) N.C. 23 RD0/INT2 I The wakeup signal input by DC and Battery voltage. 24 RD1/INT3 I REMOCON CONTROL (Remote controller signal input). 25 RD2 (-) N.C. 26 RD3 (-) N.C. 27 RD4 (-) N.C. 28 RD5 (-) N.C. 29 RD6 (-) N.C. 30 RD7 (-) N.C. 31 XIN I Connecting crystal resonator for main system click oscillation. (5MHz) 32 XOUT O Connecting crystal resonator for main system click oscillation. (5MHz) 33 RESET I System reset input. 34 VSS - Ground pin 35 RA0/EC0 (-) N.C. 36 RA1/AN1 I KEY_M switch (DISPLAY/COLOR-BRIGHT/TOP MENU/MENU/LCD MODE/ RETURN) input. 37 RA2/AN2 I Function switch (F-SKIP/R-SKIP/PLAY/PAUSE/STOP) input. 38 RA3/AN3 I BAT_SENSE (Battry input voltage detection) 39 RA4/AN4 I DC_SENSE (DC input voltage detection) 40 RA5/AN5 I THERMISTER (Thermister detection input.). 41 RA6/AN6 I I_SENSE (Battery charge current sensor). 42 RA7/AN7 I KEY_N switch (DOWN/UP/RIGHT/LEFT/PUSH ENTER) input. 43 VDD - E+5V 44 AN0/AVREF/RB0 (-) N.C. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-8 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-1 SECTION 8 ELECTRICAL ADJUSTMENT DVP-FX705 This section describes procedures and instructions necessary for adjusting electrical circuits in this set. Instruments required: 1) Color monitor TV 2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz, with delay mode 3) Frequency counter (over 8 digits) 4) Digital voltmeter 5) Standard commander (RMT-D163A) 6) DVD reference disc HLX-501 (J-6090-071-A) (dual layer) (NTSC) HLX-503 (J-6090-069-A) (single layer) (NTSC) HLX-504 (J-6090-088-A) (single layer) (NTSC) HLX-505 (J-6090-089-A) (dual layer) (NTSC) 8-1. TFT LCD ADJUSTMENT 1. POWER MEASURING Measure each power after power supply TFT-LCD Board Measurement point Specification L807 –15V L806 +17V L810 +8.25V 2. VCOM WAVEFORM ADJUSTMENT A. Adjust the VCOM Vpp level while changing the VR801 as be- low waveform by using the scope in the TP8F2. B. Adjust the VCOM DC Offset level while changing the VR803 as below waveform by using the scope in the TP8F2. Vcom Waveform Figure 8-1 3. TFT PANEL CHECK Check that there is no big difference to color of image between LCD Screen and TV monitor (LINE output). And Use the “COLOR” adjustment (On LCD Screen) of “COLOR/ BRIGHT” button on the KEY Board. Check the color depth of LCD screen is changed. 59.0 µs 4.6Vp-p -0.8V 3.8V GND A B In making adjustment, refer to 8-3. Adjustment and Checking Location. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-2 3. Checking S Video Output S-C This checks whether the S video output S-C satisfies the NTSC Standard. If it is not correct, the colors will be too dark or light. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point S-VIDEO OUT (S-C) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 286 ± 30 mVp-p Checking method: 1) Confirm that the S-C burst is “286 ± 30 mVp-p”. Figure 8-4 2. Checking S Video Output S-Y Check S-terminal video output. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with a S- terminal cable. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point S-VIDEO OUT (S-Y) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 1.00 ± 0.05 Vp-p Checking method: 1) Confirm that the S-Y level is 1.00 ± 0.05 Vp-p. Figure 8-3 8-2. STANDARD VIDEO LEVEL 1. Checking Video Output Level This checks whether Video Output level satisfy the NTSC stan- dard. If it is not correct, the brightness will be too large or small. Mode Play Signal Check the Color-bar (100%) signal on DVD reference disc Measurement Point LINE OUT (VIDEO) connector (75 Ω terminated) Measuring Instrument Oscilloscope Specification 1.00 ± 0.02 Vp-p Checking method: 1) Confirm that the Video Output level is 1.00 ± 0.02 Vp-p. Figure 8-2 1.00 ± 0.02 Vp-p 1.00 ± 0.05 Vp-p 286 ± 30 mVp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-3 8-3. ADJUSTMENT AND CHECKING LOCATION TFT-LCD BOARD (TOP) A 05 2 1 3 4 5 VR801 TP8F2 VR803 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8-4 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-1 SECTION 9 TROUBLESHOOTING DVP-FX705 9-1. ELECTRICAL TROUBLE SHOOTING GUIDE 1. Power (DC-DC Converter) Circuit A. NO POWER ON by ADAPTOR NO POWER ON by BATTERY Is ADAPTOR OUT 9.8V? Is BATTERY OK? Is F101 OK? Is LF101 OK? Replace F101 YES Is D105 OK? Replace D105 Replace ADAPTOR NO +1.8V Is Q102 OK? NO -5V NO + 5V NO +3.3V NO LCD POWER Replace Q102 Is E+5V OK? Replace IC101 Replace IC101 Is Q108 OK? Is Q109 OK? Replace Q109 Replace Q108 Replace IC102 Is D104 OK? Replace D104 Replace BATTERY Replace LF101 NO NO YES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-2 AUDIO OUT ABNORMAL VIDEO OUT ABNORMAL Check Audio Jack & Mode Check +5V , -5V Check Signals from MPEG Replace IC301 Check Video Jack & Mode Check Video signals from MPEG Check LC Filter SPEAKER ABNORMAL Is Q305 OK ? Is VR300 OK ? Replace Q305 Replace VR300 Is Speakers OK ? Replace Speakers Replace IC306 B. Audio Out abnormal C. Video Out abnormal D. Speaker abnormal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-3 Check the disc. If OK YES (If OK) YES (If OK) Refer to Servo part Check MPEG_CLK Signal of MPEG part Check MPEG (IC501) Replace B/D PICTURE ABNORMAL Check Disc YES (If OK) YES (If OK) Refer to Servo part Replace B/D DISC ERROR Check SW501 switch Check IC501 pin99 YES NO YES YES (If OK) YES Refer to SERVO part. Check the connection of MD. OPEN/CLOSE ABNORMAL E. Picture abnormal G. Open/Close abnormal F. Disc Error www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-4 2. MPEG Circuit Power is on Does Logo appear on the screen? Does the moving picture of the DVD Disc play on the screen normally? Is MPEG data signal normal? Is error signal normal? Is MPEG data signal normal? Is Clock normal? Does the audio signal output from MPEG decoder? Does the moving picture of the video CD play on the screen normally? Does the audio sound output normally? END Check power & clock. Check CD/DVD DSP output signal. Check MPEG Decoder input signal. Check CD/DVD DSP output signal. Check MPEG Decoder input signal. Check CD/DVD DSP output signal. Check MPEG Decoder input signal. Check clock signal Check clock signal YES YES YES YES YES YES YES YES YES YES NO NO NO OK OK OK OK NO NO NO NO NO OPTION If included VCD function. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-5 3. Front Circuit(Dogotrpm & Key) NO NO NO START Does remote control work normally? Do all the buttons work normally? Check waveform of IC701 Pin 24, 36 Check waveform of IC701 Pin 3. POWER LED ON? Check waveform of IC701 Pin 33. when power S/W turn on, Is oscillation of X701 normal? Check SW707 Check waveform of SW707. Does pulse waveform of RC701 Pin 1 appear? Is IC701 Pin 24 connected to RC701 Pin1? Is RC701 Pin 3 5V? Power on. Check R746,R747,R756,R749,R750 and replace Check the buttons Solder defective parts Replace IC701. Solder Key part. Check Power. Replace IC702. Replace SW707. Replace RC701. Re-solder. Recheck Replace IC701. Complete repairing Front B/D. NO NO NO NO NO NO NO NO YES YES YES YES YES YES YES YES YES YES YES YES YES YES RECHECK YES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-6 4. RF/Servo Circuit A. No No No No No Yes Yes Yes Yes Yes Check the related circuit on MT1389 RFL signal . Laser off Proper RFL signal on MT1389? Proper DMSO signal on MT1389 Check DMSO related circuit on MT1389. Check the cable connection between spindle and main PCBA. Check the RFL connection between CON200 and MT1389. Put disc in? Disc ID is correct? Does spindle rotate? D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-7 B. Yes Yes No No Yes Yes Yes Yes Yes Yes Yes No No No No No Focus ON OK? Track On OK? Disc is play? E Proper signals on A, B, C, D of MT1389 Check connections between MT1389 and pick-up head. Proper FO+&FO-signal on MT1389? Proper FOSO signal on MT1389? Check the related circuit on MT1389 FO+&FO-sugnal Check the related circuit on MT1389 Properly TRSO signal on MT1389? TR+&TR-output properly? Check the TRSO connection on MT1389 and motor dirver. Check the tracking control amp circuit on motor driver. Check cable connection on pick-up head. Check RF signal waveform. Check IC501 IC D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-8 C. E Audio DAC received correct data stream? Normal Audio DAC out? (IC301) Check Audio filter, amplify, mute circuit. (IC301 Application circuit)? Check connection between MT1389 & Audio DAC. (Check VRST, ACLK, ABCK, ASDAT0) Check the related circuit of Audio DAC. (Check Audio out Pin 14, 15,18,19) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-9 * Chargeing Circuit No turn on +8.25V, +17V, -15V Is J601_Pin1 OK? Is L601, C613, C614, R610 OK? Is Q601 OK? Is IC601 OK? Replace L601, C613, C614, R610? Replace Q601 Replace IC601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-10 9-2. LCD TROUBLE SHOOTING GUIDE (1/2) DISPLAY CONDITION? INVERTOR ABNORMAL appear shadow form interference in black background There is only bright light.(LCD B/D abnormal) +8.25V, +17V, -15V Check and Replace T801, D8F1, D8F2, D8F3 Check Main B/D on located IC901 Check and Replace(Key B/D Located) IC801, IC804 Check Q8F1 Normal operate? +8.8V, +16V, -10V Normal? +5V Normal? +3.3V, +2.5V Normal? YES YES NO NO NO NO YES YES YES X801 Replace IC801 Check and Replace IC802, IC803 Check and Replace X801 operate? R.G.B signal output? VCOM signal?(4.6Vpp) NO NO NO YES YES YES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-11 9-3. LCD TROUBLE SHOOTING GUIDE (2/2) VIDEO_Y, VIDEO_C IC501, Key B/D Check IC501, Key B/D Check SDA, SCL signal TFT LCD Normal? Replace Color Bright Adjusting Normal? IC801 Check Each CONNECTOR? Replace and Reassemble INVERTOR Normal? Replace END YES YES YES YES YES YES NO NO NO NO NO NO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9-12 E MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-1 DVP-FX705 NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. SECTION 10 REPAIR PARTS LIST 10-1. EXPLODED VIEWS 10-1-1. LCD PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 277 9-885-075-41 SPEAKER, FULLRANGE 290 9-885-090-60 TFT-LCD PANEL 454 9-885-075-42 TP1.7X4 H10 A41 9-885-090-61 CASE, MAIN A41 290 A49 A44B 454 454 277 not supplied not supplied not supplied not supplied not supplied not supplied not supplied A44 not supplied not supplied not supplied not supplied A44 9-885-090-59 TFT LCD BOARD 0A44B 9-885-090-58 INVERTER BOARD A49 A-1138-393-A CASE, BODY ASSY Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-2 10-1-2. UPPER CASE SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 260 9-885-090-62 HINGE, MONITOR 262 9-885-090-64 COVER, TOP 263 9-885-095-35 COVER, HINGE L 266 9-885-095-36 COVER, HINGE R 268 9-885-050-57 KNOB, OPEN/CLOSE 269A 9-885-050-58 LEVER, EJECT 269B 9-885-050-59 PLATE, LEVER EJECT 292 A-1138-397-A DOOR ASSY 451 9-885-090-51 TP1.7X4 453 9-885-050-38 TP1.7X4 A43B A-1138-396-A CASE, TOP ASSY 268 262 263 292 260 451 266 A43B 453 451 451 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied 269A 269B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-3 10-1-3. BOTTOM CASE SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 021 9-885-075-54 DAMPER 452 9-885-050-40 TP2X7 0809 9-885-090-87 BATTERY, LITHIUM (NP-FX105) 0A00 A-1138-398-A DECK ASSY, DVD A48 A00 021 021 021 A46A A50 809 452 452 not supplied not supplied A46A A-1138-399-A MAIN BOARD ASSY A48 A-1138-400-A CASE, BOTTOM ASSY A50 A-1138-395-A KEY BOARD ASSY Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-4 NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH 10-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. INVERTER KEY MAIN 0 9-885-090-58 INVERTER BOARD *************** KEY BOARD ********** A-1138-395-A KEY BOARD ASSY < DIODE > D902 9-885-048-80 DIODE STZ6.8N D906 9-885-048-80 DIODE STZ6.8N D909 9-885-048-81 DIODE UDZS16B D910 9-885-048-81 DIODE UDZS16B < SWITCH > SW901 9-885-049-33 SWITCH, TACT (DISPLAY) SW902 9-885-049-33 SWITCH, TACT (COLOR/BRIGHT) SW903 9-885-049-33 SWITCH, TACT (TOP MENU) SW904 9-885-049-33 SWITCH, TACT (MENU) SW906 9-885-049-33 SWITCH, TACT (LCD MODE) SW907 9-885-049-33 SWITCH, TACT (RETURN) SW911 9-885-049-33 SWITCH, TACT (DOWN) SW912 9-885-049-33 SWITCH, TACT (UP) SW913 9-885-049-33 SWITCH, TACT (RIGHT) SW914 9-885-049-33 SWITCH, TACT (LEFT) SW915 9-885-049-33 SWITCH, TACT (PUSH ENTER) A-1138-399-A MAIN BOARD ASSY **************** < DIODE > D101 9-885-048-81 DIODE UDZS16B D102 9-885-048-81 DIODE UDZS16B D104 9-885-075-04 DIODE RB050L-40 D105 9-885-075-04 DIODE RB050L-40 D106 9-885-091-24 DIODE RB521G-30 D107 9-885-091-25 DIODE RB051L-40 D108 9-885-091-25 DIODE RB051L-40 D109 9-885-091-24 DIODE RB521G-30 D110 9-885-091-24 DIODE RB521G-30 D112 9-885-091-38 DIODE DA204U-T106 D301 9-885-048-80 DIODE STZ.68N SMD D302 9-885-048-80 DIODE STZ.68N SMD D303 9-885-039-36 DIODE DAP202K 0 D403 9-885-048-80 DIODE STZ.68N SMD D404 9-885-048-80 DIODE STZ.68N SMD D405 9-885-048-80 DIODE STZ.68N SMD D500 9-885-048-80 DIODE STZ.68N SMD D601 9-885-075-04 DIODE RB050L-40 D602 9-885-048-81 DIODE UDZS16B D603 9-885-048-81 DIODE UDZS16B D604 9-885-075-04 DIODE RB050L-40 D609 9-885-048-80 DIODE STZ.68N SMD D700 9-885-048-80 DIODE STZ.68N SMD D701 9-885-048-80 DIODE STZ.68N SMD D702 9-885-091-35 LED SML-310MT (POWER) D703 9-885-091-36 LED SML-512DW (CHARGE) D8F1 9-885-048-77 DIODE CRS02 D8F2 9-885-048-77 DIODE CRS02 D8F3 9-885-048-77 DIODE CRS02 D8F4 9-885-048-77 DIODE CRS02 < FUSE > 0F101 9-885-048-83 FUSE (3A/63V) < IC > 0IC101 9-885-091-26 IC BD9851EFV 0IC102 9-885-091-26 IC BD9851EFV IC200 9-885-075-07 IC AN41204A-VT IC301 9-885-039-63 IC CS4391-KZR 0 IC302 9-885-039-46 IC NJM4580M IC305 9-885-075-08 IC BH3544F IC306 9-885-048-89 IC BA7786FP-Y IC307 9-885-075-08 IC BH3544F IC501 9-885-091-33 IC MT1389FE IC502 9-885-091-22 IC MX26LV160TTC-(6957R-201DN) IC503 9-885-091-21 IC HY57V641620ETP IC504 9-885-041-61 IC S524A40X21-SCTO 0 IC601 9-885-075-14 IC MB3887 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-5 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN TFT-LCD IC702 9-885-049-01 IC XC61CN4402MR IC704 9-885-050-27 IC BU4S11 IC705 9-885-075-16 IC BU4S81G2 0IC8F1 9-885-049-00 IC TL1451ACPWLE IC8F2 9-885-049-18 TRANSISTOR IMZ1A < JACK > J101 9-885-049-35 JACK, DC POWER (DC IN 9.8V) J302 9-885-049-36 JACK, PHONE (PHONES) J303 9-885-049-36 JACK, PHONE (PHONES) J402 9-885-049-38 CONNECTOR, S TERMINAL (S-VIDEO OUT) J403 9-885-049-73 PKG42B3J3 BOARD HT4-9S899282 (VIDEO) < TRANSISTOR > Q102 9-885-049-12 TRANSISTOR SI3863DV Q103 9-885-048-92 IC SI3865DV Q106 9-885-091-28 TRANSISTOR RSR020P03 Q107 9-885-091-28 TRANSISTOR RSR020P03 Q108 9-885-091-27 TRANSISTOR QS5U27 Q109 9-885-091-27 TRANSISTOR QS5U27 Q111 9-885-039-68 TRANSISTOR KRA103S-T1 (PC) 0 Q200 9-885-075-24 TRANSISTOR 2SK3018 Q201 9-885-075-24 TRANSISTOR 2SK3018 Q202 9-885-039-74 TRANSISTOR KTC3875S 0 Q203 9-885-049-14 TRANSISTOR 2SB1132 (BA) Q204 9-885-049-14 TRANSISTOR 2SB1132 (BA) Q301 9-885-039-74 TRANSISTOR KTC3875S 0 Q302 9-885-039-74 TRANSISTOR KTC3875S 0 Q303 9-885-039-68 TRANSISTOR KRA103S-T1 (PC) 0 Q304 9-885-039-68 TRANSISTOR KRA103S-T1 (PC) 0 Q305 9-885-049-15 TRANSISTOR KTA1504S-Y Q306 9-885-039-74 TRANSISTOR KTC3875S 0 Q307 9-885-039-74 TRANSISTOR KTC3875S 0 Q309 9-885-039-74 TRANSISTOR KTC3875S 0 Q311 9-885-039-68 TRANSISTOR KRA103S-T1 (PC) 0 Q313 9-885-039-68 TRANSISTOR KRA103S-T1 (PC) 0 Q314 9-885-049-15 TRANSISTOR KTA1504S-Y Q315 9-885-039-74 TRANSISTOR KTC3875S 0 Q316 9-885-039-74 TRANSISTOR KTC3875S 0 Q317 9-885-039-74 TRANSISTOR KTC3875S 0 Q318 9-885-091-20 TRANSISTOR KRC103S Q319 9-885-091-20 TRANSISTOR KRC103S Q401 9-885-049-15 TRANSISTOR KTA1504S-Y Q402 9-885-039-74 TRANSISTOR KTC3875S 0 Q403 9-885-039-74 TRANSISTOR KTC3875S 0 Q404 9-885-039-74 TRANSISTOR KTC3875S 0 Q601 9-885-075-23 TRANSISTOR SI4435DY Q701 9-885-049-15 TRANSISTOR KTA1504S-Y Q702 9-885-039-74 TRANSISTOR KTC3875S 0 Q703 9-885-039-74 TRANSISTOR KTC3875S 0 Q704 9-885-039-74 TRANSISTOR KTC3875S 0 Q705 9-885-039-74 TRANSISTOR KTC3875S 0 Q706 9-885-050-28 TRANSISTOR 2N7002E Q707 9-885-049-15 TRANSISTOR KTA1504S-Y Q708 9-885-049-15 TRANSISTOR KTA1504S-Y 0Q8F1 9-885-049-17 TRANSISTOR 2SD1898R < RECEIVER IC > RC701 9-885-092-06 REMOTE CONTROLLER < SWITCH > SW500 9-885-049-29 SWITCH, PUSH (LCD OPEN SW) SW501 9-885-049-34 SWITCH, PUSH (TRAY OPEN SW) SW502 9-885-049-34 SWITCH, PUSH (TRAY OPEN SW2) SW700 9-885-049-31 SWITCH, TACT (x) SW701 9-885-049-31 SWITCH, TACT (X) SW702 9-885-049-31 SWITCH, TACT (N) SW703 9-885-049-31 SWITCH, TACT (>) SW704 9-885-049-31 SWITCH, TACT (.) SW707 9-885-049-32 SWITCH, TACT (>POWER/HOLD.) < VARIABLE RESISTOR > VR300 9-885-049-23 VOLUME, ROTARY 50K (VOLUMEw) < VIBRATOR > X500 9-885-049-24 VIBRATOR, CRYSTAL (27MHz) X701 9-885-049-26 VIBRATOR, CERAMIC (5MHz) TFT-LCD BOARD ************* 9-885-090-59 TFT-LCD BOARD < DIODE > D802 9-885-048-77 DIODE CRS02 < IC > IC801 9-885-091-15 IC T100 TERAWINS IC803 9-885-091-18 IC AME8800AEEVZ IC804 9-885-091-17 IC AME8800DEEVZ IC805 9-885-091-16 IC NJM4558M IC806 9-885-049-18 TRANSISTOR IMZ1A < TRANSISTOR > Q801 9-885-091-19 TRANSISTOR 2N3904S Q802 9-885-091-19 TRANSISTOR 2N3904S Q803 9-885-091-19 TRANSISTOR 2N3904S Q804 9-885-091-19 TRANSISTOR 2N3904S Q810 9-885-049-15 TRANSISTOR KTA1504S-Y Q811 9-885-039-74 TRANSISTOR KTC3875S 0 < VIBRATOR > X801 9-885-049-24 VIBRATOR, CRYSTAL (27MHz) MISCELLANEOUS ************** 277 9-885-075-41 SPEAKER, FULLRANGE 290 9-885-090-60 TFT-LCD PANEL 0A44B 9-885-090-58 INVERTER BOARD 0A00 A-1138-398-A DECK ASSY, DVD The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10-6 E Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ACCESSORIES ************ 1-478-365-11 REMOTE COMMANDER (RMT-D163A) 2-649-081-11 OWNER'S MANUAL 3-709-572-01 LID, BATTERY (for RMT-D163A) 0 9-885-049-28 CORD, POWER 9-885-049-44 CABLE, DIN (RCA AUDIO/VIDEO) 0 9-885-090-86 ADAPTOR, AC-DC (AC-FX105) 0 9-885-090-87 BATTERY, LITHIUM (NP-FX105) 0 9-885-090-88 ADAPTOR, DC (DCC-FX105) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 126 – DVP-FX705 Sony Corporation Home Electronics Network Company 9-874-884-11 2005G0500-1 © 2005.7 Published by Quality Assurance Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
