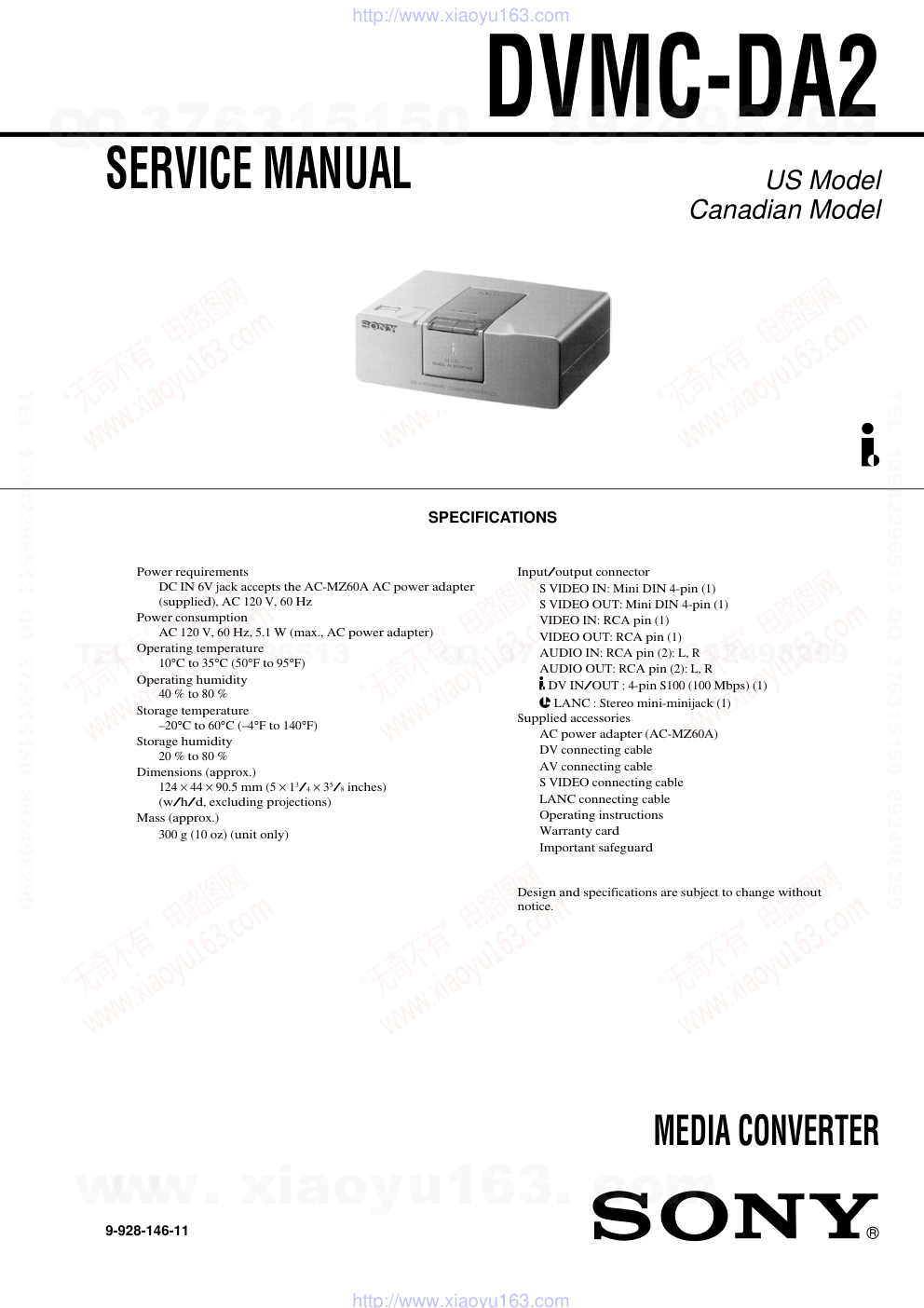

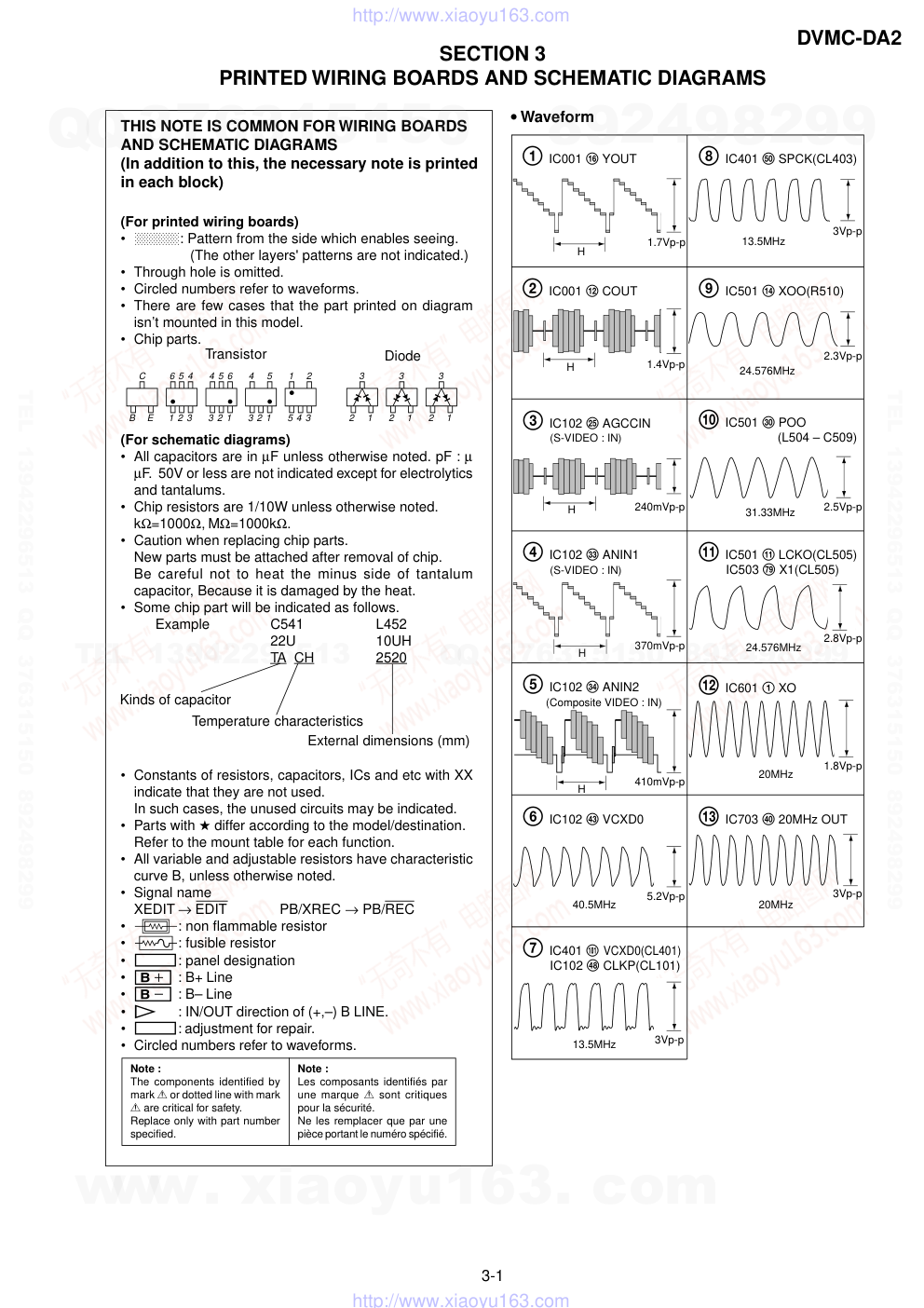

DVMC-DA2 US Model Canadian Model SERVICE MANUAL MEDIA CONVERTER 9-928-146-11 SPECIFICATIONS Power requirements DC IN 6V jack accepts the AC-MZ60A AC power adapter (supplied), AC 120 V, 60 Hz Power consumption AC 120 V, 60 Hz, 5.1 W (max., AC power adapter) Operating temperature 10°C to 35°C (50°F to 95°F) Operating humidity 40 % to 80 % Storage temperature –20°C to 60°C (–4°F to 140°F) Storage humidity 20 % to 80 % Dimensions (approx.) 124 × 44 × 90.5 mm (5 × 13/4 × 35/8 inches) (w/h/d, excluding projections) Mass (approx.) 300 g (10 oz) (unit only) Input/output connector S VIDEO IN: Mini DIN 4-pin (1) S VIDEO OUT: Mini DIN 4-pin (1) VIDEO IN: RCA pin (1) VIDEO OUT: RCA pin (1) AUDIO IN: RCA pin (2): L, R AUDIO OUT: RCA pin (2): L, R DV IN/OUT : 4-pin S100 (100 Mbps) (1) LANC : Stereo mini-minijack (1) Supplied accessories Design and specifications are subject to change without notice. AC power adapter (AC-MZ60A) DV connecting cable AV connecting cable S VIDEO connecting cable LANC connecting cable Operating instructions Warranty card Important safeguard www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. 1. GENERAL·····························································1-1 2. BLOCK DIAGRAMS 2-1. OVERALL BLOCK DIAGRAM ····································2-1 2-2. POWER BLOCK DIAGRAM ········································2-3 3. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS • SWX-22 (SWITCH) SCHEMATIC DIAGRAM ·········3-2 • SWX-22 (SWITCH) PRINTED WIRING BOARD ····3-3 • IFX-52 (MAIN : SIDE A) PRINTED WIRING BOARD ······································3-5 • IFX-52 (MAIN : SIDE B) PRINTED WIRING BOARD ······································3-7 • IFX-52 (J CORE) SCHEMATIC DIAGRAM ··············3-9 • IFX-52 (VFD) SCHEMATIC DIAGRAM ················· 3-11 • IFX-52 (MECH CON) SCHEMATIC DIAGRAM ····3-13 • IFX-52 (HI) SCHEMATIC DIAGRAM ·····················3-15 • IFX-52 (DC CON) SCHEMATIC DIAGRAM ··········3-17 • IFX-52 (AMP) SCHEMATIC DIAGRAM ················3-19 • IFX-52 (AGC) SCHEMATIC DIAGRAM ················3-21 • IFX-52 (AUDIO) SCHEMATIC DIAGRAM ············3-23 • IFX-52 (JACK) SCHEMATIC DIAGRAM ···············3-25 • IFX-52 (CN) SCHEMATIC DIAGRAM ···················3-26 4. ELECTRICAL ADJUSTMENT ··························4-1 5. REPAIR PARTS LIST 5-1. EXPLODED VIEWS ······················································5-1 5-2. ELECTRICAL PARTS LIST ··········································5-2 TABLE OF CONTENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 DVMC-DA2 SECTION 1 GENERAL This section is extracted from instruction manual (3-868-211-11). 4-US Overview The DVMC-DA2 is a media converter unit which converts analog video signals to digital video signals and vice versa. Converting pictures and sound from 8 mm/VHS format to DV format and vice versa (pages 8 - 10) You can convert analog video on Hi8, 8 mm, or VHS format cassettes to digital video (DV) by connecting both analog and digital video units via the media converter. Component video and MPEG data are not compatible. Since pictures and sound are recorded on the DV unit in digital format, little or no picture and sound quality are lost. You can also convert digital video to analog video. Note You cannot record video which includes copyright protection signals. (pages 22- 23) Viewing pictures from the DV unit (page 11 - 12) You can enjoy high quality digital video when you connect a DV unit to a TV via the media converter using the DV connecting cable. In this case, you do not have to change the connection between your TV and the other analog video unit. Digital Analog 8 mm/VHS Digital video 5-US Capturing images from an analog video unit using a PC (page 13-15) You can capture images from an analog video unit connected to your PC via the media converter using the DV (i.LINK) connector. You can operate the analog video unit from the PC by connecting to the LANC (Local Application Control Bus System) connectors of the media converter and the analog video unit. (Compatible software is required for respective operations in the PC.) In this case, you can edit a movie or add titles using your PC. You can also print out the captured images using your PC printer instead of a video printer. Selecting the audio mode when recording to the DV unit (page 9) You can add messages or background music after recording. When you record to the DV unit from an analog video unit, you can select 16-bit audio mode for higher quality, or 12-bit audio mode for adding messages or background music (post sound recording). Listening to the audio with the desired mixing rate (page 12) When playing back video recorded in 12-bit audio mode on a DV unit via the media converter, you can listen to: the recorded message and/or background music only (post sound recording), the original audio, or the combined audio of both tracks with the desired mixing rate (5 steps). Original sound + Added sound Original sound 6-US Checking the supplied parts and accessories Check to make sure you have received the following items in the carton. If something is missing, contact your Sony dealer or service facility. AC power adapter (AC-MZ60A) DV connecting cable AV connecting cable S VIDEO connecting cable LANC connecting cable Operating instructions Warranty card Important safeguard 7-US Before using the media converter Notes on the connections • Connect the AC power adapter (supplied) to the DC IN 6V connector on the unit. Do not connect the power source until all other connections are complete. • If you connect your TV to a VCR via the media converter, you can watch VCR pictures whenever the media converter is not turned on (with the AC power adapter connected). • Be sure to insert the connecting cable squarely into the connector/jack to avoid malfunctions. • Keep metal objects away from the connector pins to avoid short circuits. • If your PC has a 6-pin i.LINK (DV) connector, the converting cable (4-piny6-pin) VMC-IL4615, IL4635 (not supplied) is required. If your analog video unit or TV has an S VIDEO input/output connector For higher picture quality, use the supplied S VIDEO connecting cable to connect to the S VIDEO IN/OUT connector of the media converter rather than the VIDEO IN/OUT connector. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 8-US R L AUDIO VIDEO S VIDEO DV DV IN/OUT DC IN 6V Connecting an analog video unit and a DV unit via the media converter Example: Converting analog video to digital video to Audio/video output to S VIDEO output to DV input/output Audio L (white) Audio R (red) Video (yellow) S VIDEO connecting cable (supplied) AV connecting cable (supplied) DV connecting cable (supplied) : Signal flow to AC outlet AC power adapter (supplied) Using with an analog video unit and a digital video unit 9-US If you want to convert digital video to analog video Make the connection as follows: • Connect the DV output connector of the DV unit to the DV IN/OUT connector of the media converter using the supplied DV connecting cable. • Connect the input connectors of the analog video unit to the AUDIO/VIDEO OUT connectors of the media converter using the supplied a AV connecting cable. Converting analog video to digital video You can convert and record pictures and sound from an analog video unit to a DV unit by connecting both units via the media converter. 1 Press POWER to turn on the media converter. 2 Press ANALOG IN. The key indicator lights up. 3 Select the audio mode. Each time you press and hold ANALOG IN for a few seconds, the audio mode changes as follows. 16-bit mode (high quality sound): The key indicator lights up in red. 12-bit mode (post sound recording): The key indicator lights up in green. 4 Pause playback on the analog video unit slightly ahead of the point from which you want to start recording. 5 Pause recording on the DV unit at the point from which you want to start recording. For details on how to record, refer to the instruction manual of your DV unit. (If you use the SONY DCR-PC1/PC7/PC10, the remote controller is necessary for recording operations.) 6 Start playback on the analog video unit, then start recording on the DV unit. The picture and sound played back on the analog video unit are recorded on the DV unit. continued Note Depending on the condition of the analog video signal input to the media converter, some DV units may not output the analog video signal correctly when the digital video signal is output from the media converter. The video recorded on the DV unit is not affected. When previewing a recorded VIDEO ,we recommend connecting the input connector of the TV to the VIDEO OUT or S VIDEO OUT of the media converter. 10-US Converting digital video to analog video You can convert and record pictures and sound from a DV unit to an analog video unit by connecting both units via the media converter. For the connection, refer to “If you want to convert digital video to analog video” on page 9. 1 Press POWER to turn on the media converter. 2 Press DV IN. The key indicator lights up. 3 Pause playback on the DV unit slightly ahead of the point from which you want to start recording. 4 Pause recording on the analog video unit at the point from which you want to start recording. 5 Start playback on the DV unit, then start recording on the analog video unit. The picture and sound played back on the DV unit are recorded on the analog video unit. Using with an analog video unit and a digital video unit (continued) 11-US R L AUDIO VIDEO S VIDEO DV DV IN/OUT DC IN 6V Connecting a DV unit and a TV via the media converter to Audio/video input to S VIDEO input Audio L (white) Audio R (red) Video (yellow) S VIDEO connecting cable (supplied) AV connecting cable (supplied) DV connecting cable (supplied) : Signal flow to AC outlet AC power adapter (supplied) Viewing digital video on your TV to DV input/output continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 12-US Viewing digital video on your TV (continued) Note When the power on the media converter is turned off, the mixing rate is reset to the default setting (original audio: 100%, added audio: 0%). Original audio Added audio m 100% 0% m 75% 25% m 50% 50% m 25% 75% m 0% 100% Viewing digital video on your TV You can enjoy high quality digital video when you connect the DV unit to the TV via the media converter. 1 Press POWER to turn on the media converter. 2 Press DV IN. The key indicator lights up. 3 Start playback on the DV unit. Pictures played back on the DV unit appear on the TV screen. Playing back the audio while changing the mixing rate When playing back video recorded in 12-bit audio mode on a DV unit via the media converter, you can listen to: the recorded message and/or background music only (post sound recording), the original audio, or the combined audio of both tracks with the desired mixing rate (5 steps). Press and while holding DV IN, press ANALOG IN. Each time you press ANALOG IN, the mixing rate changes as follows: z Tip TVs which conform to the ID-1 system automatically switch to wide mode when the appropriate signal is received. 13-US R L AUDIO VIDEO S VIDEO DV DV IN/OUT DC IN 6V LANC Connecting a PC and an analog video unit via the media converter Example: Capturing images from an analog video unit using a PC. to Audio/video output to S VIDEO output to LANC Audio L (white) Audio R (red) Video (yellow) S VIDEO connecting cable (supplied) AV connecting cable (supplied) DV connecting cable (supplied) : Signal flow to AC outlet AC power adapter (supplied) Using with an analog video unit and a PC to DV input/ output continued Note On using the media converter and a PC for analog video image editing, the PC must have DV image processing software which is capable of video image capturing and re- recording with the analog video equipment through the media converter. LANC connecting cable (supplied) 14-US Using with an analog video unit and a PC (continued) If you want to convert captured images from your PC to analog video Make the connection as follows: • Connect the DV output connector of the PC to the DV IN/OUT connector of the media converter using the supplied DV connecting cable. • Connect the input connectors of the analog video unit to the AUDIO/VIDEO OUT connectors of the media converter using the supplied AV connecting cable. Capturing images from an analog video unit using a PC You can capture the images from an analog video unit using a PC which is connected via the media converter.(*1) Also, you can operate the analog video unit from the PC by the LANC connection.(*2) Compatible software is required for respective operations in the PC. 1 Press POWER to turn on the media converter. 2 Press ANALOG IN. The key indicator lights up. 3 Start playback on the analog video unit slightly ahead of the point from which you want to start capturing images. You can operate the analog video unit from the PC by the LANC connection. But some functions, depending on the analog video unit, may not work. 4 Start capturing procedures on your PC. The operation procedures depend on your PC and the software which you use. For details on how to capture images and how to operate the analog video unit from the PC, refer to the instruction manual of your PC and software, or ask your PC and software makers. z Tip The DV still image capture card kit DVBK- CW200 for PC/AT compatible or DV still image capture board kit DVBK-2000 (not supplied) can be used. For details, refer to the operating instructions of DV still image capture card kit or DV still image capture board kit. *1 For VAIO, DVgate Motion Version 1.2 or later However, because the LANC connection cannot transfer the track number data (tape position of the DV unit) to the PC, image capturing by setting IN/OUT of the DVgate Motion is impossible. For manual control, select “Settings”– “Select Device Controller”–“Do not control DV device with DVgate Motion”. *2 For VAIO, DVgate Motion Version 1.4.2 or later Select “Help”–“About DVgate Motion...” of DVgate Motion for checking the software version. zTip •For further information of LANC, see page 24. •DVgate Motion is the software for the DV video and audio import/export bundled with VAIO. 15-US Note You cannot operate the media converter from a LANC compatible unit, for example a remote commander or remote tripod. Recording images from a PC to analog video 1 Press POWER to turn on the media converter. 2 Press DV IN. The key indicator lights up. 3 Start recording on the analog video unit. You can operate the analog video unit from the PC by the LANC connection. But some functions, depending on the analog video unit, may not work. 4 Start outputting procedures on your PC. The operation procedures depend on your PC and the software which you use. For details on how to capture images and how to operate the analog video unit from the PC, refer to the instruction manual of your PC and software, or ask your PC and software makers. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 16-US Precautions Use • Operate the product only with the supplied AC power adapter. If you use a different AC power adapter, it may cause a malfunction. Unified polarity plug • Should any liquid or solid object fall into the cabinet, unplug the product and have it checked by qualified personnel before operating it further. • Always turn the product off when not in use. Unplug the product from the wall outlet if you are not going to use it for several days or more. To disconnect the cord, pull it out by the plug. Never pull the cord itself. • Do not overload wall outlets, extension cords, or convenience receptacles beyond their capacity, since this can result in fire or electric shock. • Do not use attachments not recommended by the manufacturer, as they may cause hazards. • Do not touch the AC power adapter with wet hands. If you fail to observe this, it may cause electric shock. • Do not drop or give a mechanical shock to the product. Installation • To prevent internal heat build-up, do not block the ventilation openings. • Avoid operating the product at temperatures below 5˚C (41˚F). • Do not subject the product to high temperature or direct sunlight. If you do not observe the above instructions, the product may become deformed. • Do not place the product in locations where it is wet, humid, dusty, smoky, or steamy. Do not use this product near or around water. It may cause fire or electric shock. Especially, do not use the product in the bathroom. • If the product is transported directly from a cold to a warm location, or if the room temperature has changed suddenly, moisture may condense in the unit. If this happens, let the moisture evaporate before using the product. • Do not place the product on an unstable cart, stand, table, or shelf. The product may fall, causing serious injury to a child or an adult, and serious damage to the product. • Do not allow anything to rest on or roll over the power cord, and do not place the product where the power cord is subject to wear or abuse. 17-US Others • Unplug the product from the wall outlet and refer servicing to qualified service personnel under the following conditions: - When the power cord or plug is damaged or frayed. - If liquid has been spilled into the product. - If the product has been exposed to rain or water. - If the product has been subject to excessive shock by being dropped, or the cabinet has been damaged. - If the product does not operate normally when following the operating instructions. Adjust only those controls that are specified in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation. - When the product exhibits a distinct change in performance –– this indicates a need for service. • Do not disassemble or modify the product. It may cause fire or electric shock. Have the product checked and repaired at your Sony dealer or local authorized Sony service facility. • Do not attempt to service the product yourself since opening the cabinet may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. • When replacement parts are required, be sure the service technician certifies in writing that he has used replacement parts specified by the manufacturer that have the same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards. • Upon completion of any service or repairs to the product, ask the service technician to perform routine safety checks (as specified by the manufacturer) to determine that the product is in safe operating condition, and to so certify. • Unplug the product from the wall outlet before cleaning. Clean the product with a dry, soft cloth, or a soft cloth slightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine. 21-US The signal flow of the media converter and the connected unit is illustrated below: When the media converter is turned off (with the AC power adapter connected) When you connect your TV to a VCR via the media converter, you can watch VCR pictures whenever the media converter is not turned on. Analog signal from the ANALOG OUT Analog signal to the ANALOG IN output analog signal The signals are output from both the DV IN/OUT and ANALOG OUT connectors. convert to digital signal output analog signal Analog signal from the ANALOG OUT Analog signal to the ANALOG IN Digital signal to the DV IN/OUT convert to analog signal Digital signal to the DV IN/OUT Analog signal from the ANALOG OUT When the media converter is turned on (When inputting analog signals) When the media converter is turned on (When inputting digital signal) Signal flows Technical information continued 22-US Technical information (continued) Depending on which connection is used, VIDEO IN or S VIDEO IN, the output signal changes as follows. The input signal is coming from only the VIDEO IN connector c The signal is output from the VIDEO OUT connector, but not from the S VIDEO OUT connector. The input signal is coming from only the S VIDEO IN connector c The signal is output both from the VIDEO OUT and S VIDEO OUT connectors. The input signal is coming from both the VIDEO IN and S VIDEO IN connectors c The signal is output both from the VIDEO OUT and S VIDEO OUT connectors. Notes • When connecting to only the VIDEO IN connector, the signal cannot be output to the S VIDEO OUT connector. • When connecting both the S VIDEO IN and VIDEO IN connectors, the S VIDEO signal is automatically selected for converting the digital video signal regardless signal type. • For higher quality pictures, we recommend connecting both the S VIDEO IN and S VIDEO OUT connectors. On recording When you play back video which includes copyright protection signals and the playback signals are input to the media converter, the PROTECT indicator on the media converter lights up. In this case, You cannot record or capture the video output from the media converter. ID-2 system This copyright protection system is used for the analog connection. The ID-2 system is added to the ID-1 system. CGMS-D system This copyright protection system is used for the digital connection. Output/input of analog video signals Copyright precautions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5E 23-US The following figure shows how the signals are recorded on a DV tape. 10 tracks = 1 frame Sub code sector Index signals, time codes, etc. Video sector Video signals, recording data, etc. ITI sector Reference signals for insert editing, etc. Audio sector Audio signals 12-bit audio mode 2 stereo tracks 16-bit audio mode 1 stereo track Macrovision This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering from disassembly is prohibited. DV recording format continued 24-US LANC (Local Application Control Bus System) is a system to control other equipment. The data is transported via the LANC connectors, and includes the operation command, such as play, stop, and pause as well as the status of the equipment. is the label of the LANC. • If your analog video unit has a LANC setting choice of “M” (control side) or “S” (passive side), be sure to select “S”. • To control a video camera recorder with the LANC connection, set the video camera recorder to “VTR” mode. • When you control an analog video unit from the PC, some functions which the analog video does not have may not be available. Technical information (continued) LANC connector 16-bit mode The 16-bit mode uses the whole audio area to output one stereo track. The original audio can be output with high quality in this mode. This mode uses 48 kHz sampling frequencies. 12-bit mode The 12-bit mode consists of two separate stereo tracks – Stereo 1 and 2. This mode uses 32 kHz sampling frequencies. With the DV unit, you can add messages or background music independent from the recorded sound in this mode. 12-bit/16-bit audio output modes 25-US Locating the parts and controls Front 12 34 1 POWER button Turns on/off the media converter. 2 PROTECT indicator Lights when the input picture includes a copy protection signal. You cannot record the signal when this indicator is lit. 3 ANALOG IN key and indicator Select the signal input from the AUDIO/ VIDEO/S VIDEO IN as the input signal to the media converter. 4 DV IN key and indicator Select the signal input from the DV IN/ OUT as the input signal to the media converter. 5 DC IN 6V connector Connect to the supplied AC power adapter. 6 DV IN/OUT connector Connect to the DV unit. 7 AUDIO/VIDEO/S VIDEO OUT connectors Connect to the analog video unit or TV. 8 AUDIO/VIDEO/S VIDEO IN connectors Connect to the analog video unit. When you connect both the S VIDEO IN and VIDEO IN connectors, the S video signal is automatically selected. When connecting to VIDEO IN connectors only, no signals are output from the S VIDEO OUT connector. 9 LANC connector Connect to a video unit with a LANC connector. Rear 56 7 8 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVMC-DA2 SECTION 2 BLOCK DIAGRAMS 2-1. OVERALL BLOCK DIAGRAM 2-1 2-2 IC401 BLOCKING SHUFFLING STILL FILTER MEMORY FEATURE DIGITAL EFFECT TEST SIG. ENCODER 34 25 33 43 44 72 73 48 46 LINE V J802 J802 J802 J802 J802 S Y S C X101 40.5MHz 51 58 61 68 105 104 101 50 61 68 17 8 9 12 7 106 109 4 Y0-Y7 IC501 DCT/IDCT ESTIMATION QUANTIZE VLC/VLD FRAMING ADSP INTERLEAVE/ DEINTERLEAVE 90 | 93 90 | 83 V BUS C0-C7 HD 11 LCKO VD AFCK 97 96 22 23 51 TRCK FRRV TRRV SPCKO X401 13.5MHz IC102 VIDEO IN S-VIDEO IN AGC, AFC, A-D CONV. 34 L 36 R 37 L 38 28 26 24 20 R IC201 AUDIO I/O IC001 LINE OUT AMP IC101 EVR 53 | 56 • 58 | 61 13 14 X501 24.576MHz IC503 DV INTERFACE 6 | 9 L BUS TPA+, TPA–, TPB+, TPB– IC502 ECC/PTG DESHUFFLING ENCODE/DECODE CONCEAL TBC 38 | 48 71 | 74 • 77 | 80 5 | 12 45 | 42 79 TRCK 47 TRCK 26 84 85 86 27 • 29 | 32 • 34 | 37 IC601 MECHA CONTROL IC301 DC-DC CONV. 26 | 33 • 35 | 37 SCK 74 SO 75 115 116 117 76 75 74 14 13 1 2 16 15 SI SCK SO SI SCK SO SCK SO SI 76 81 83 82 IC602 EEPROM 2 3 4 SCK SO SI SCK SO SI SCK SO SI IC703 HI CONTROL 33 34 35 SCK STB DATA STB 50 49 31 32 106 107 FRRV TRRT TRRV AUDIO L IN AUDIO R IN AUDIO L OUT AUDIO R OUT 7 VIDEO OUT S-VIDEO OUT 12 15 S Y S C C Y LINE V IC002 VIDEO SWITCH 1 3 7 IC701 VDO SWITCH RESET 6 5 7 IC704 SWITCH 12 9 13 14 10 11 IC202 A-D CONV. D-A CONV. 27 31 25 29 LINE V S Y S C Y C 45 39 44 SCK DATA 6 L 3 R 19 L 20 12 15 11 R DATA TO SFD DATA FROM SFD SFD BCK 40 38 41 60 27 28 29 X701 20MHz VDD XRESET IC702 LANC I/F 12 11 4 2 12 10 1 14 UNREG EVER 5V UNREG EVER 5V AU EVER 3V AOI EVER 3V AU 2V SW 5V VFD 3V A 3V SW 3V POW ON DD 34 ON LANC IN LANC OUT XLANC ON KEY AD1, KEY AD2 ERR LED, ANALOG LED, DV LED, MS LED DD 2 ON DD PWR ON 30 LANC JACK IN DV IN/OUT CN801 DC IN 6V J301 LANC JACK J801 80 | 83 94 • 95 9 • 10 3 | 6 2 4 3 9 • 10 3 | 6 ANALOG IN LED DV IN LED PROTECT LED D901-D903 ANALOG IN SW DV IN SW POWER SW S901, S902, S905 SWX-22 BOARD JK-02 BOARD IFX-52 BOARD T BUS MC BUS 108 2 4 3 (SEE PAGE 3-9 ~ 3-26) (SEE PAGE 3-2) (SEE PAGE 3-2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVMC-DA2 2-2. POWER BLOCK DIAGRAM 2-3 2-4E IC401 BLOCKING SHUFFLING STILL FILTER MEMORY FEATURE DIGITAL EFFECT TEST SIG. ENCODER IC501 DCT/IDCT ESTIMATION QUANTIZE VLC/VLD FRAMING DEFRAMING IC102 AGC, AFC, A-D CONV. IC201 AUDIO I/O IC001 LINE OUT AMP IC101 EVR IC503 DV INTERFACE IC502 ECC/PTG DESHUFFLING ENCODE/DECODE CONCEAL TBC IC601 MECHA CONTROL IC301 DC-DC CONV. IC602 EEPROM IC703 HI CONTROL IC002 VIDEO SWITCH IC704 SWITCH IC202 AUDIO ADC&DAC IC702 LANC I/F DC IN 6V J301 FUNCTION SWITCH SWX-22 BOARD IFX-52 BOARD JK-02 BOARD L001,L002 FB748 EVER 5V EVER 5V EVER 5V AU EVER 3V AOI EVER 3V AU SW 5V L201, L202, L203 Q205, Q207 FB747 L101 SW 3V L106 FL101 L305 L313 L312 L314 A 3V L102 VFD 3V L401, L403 SW 3V L503 FL505 L402 FL404 SW 3V L501 FL503 SW 3V L505 FL501 FL402 2V L502 FL504 FL401 X401 13.5MHz 18 46 45 LF301 FL301 FB301 FB302 F301 VCC1 VCC2 OUT1 7 +IN1(E) L701 FL701 Q302 SWITCHING D302 Q308 EVER 5V EVER 5V AU SW 5V L307 L315 L311 L316 44 OUT2 12 +IN2(E) Q304 SWITCHING D304 Q305 EVER 3V AOI EVER 3V AU VFD 3V L309 A 3V L310 SW 3V L306 L308 40 20 21 22 OUT3 26 -IN3(E) CTL1 CTL2 CTL3 IC701 7 3 1 REG 5 6 Q303 SWITCHING D303 2V L601 FL601 SW 3V D701 PS701 BATTERY IN DETECT RESET 4 8 UNREG 14 8 4 LANC DC 11 LANC SIG VCC POWER LANC JACK J801 Q701 38 XRESET 27 DD 34 ON POW ON 28 DD 2 ON 29 DD PWR ON 61 BATT IN 16 VCC 12 XLANC ON 31•42•51 62•63•65 86•87•92 VDD 30 XLANC JACK IN 60 KEY AD1 94 1 1 8 3 3 2 2 4 4 8 9 9 LED EVER 5V 3V S901 POWER (SEE PAGE 3-9 ~ 3-26) (SEE PAGE 3-2) (SEE PAGE 3-2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-1 DVMC-DA2 SECTION 3 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS (For printed wiring boards) • b: Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Through hole is omitted. • Circled numbers refer to waveforms. • There are few cases that the part printed on diagram isn’t mounted in this model. • Chip parts. (For schematic diagrams) • All capacitors are in µF unless otherwise noted. pF : µ µF. 50V or less are not indicated except for electrolytics and tantalums. • Chip resistors are 1/10W unless otherwise noted. kΩ=1000Ω, MΩ=1000kΩ. • Caution when replacing chip parts. New parts must be attached after removal of chip. Be careful not to heat the minus side of tantalum capacitor, Because it is damaged by the heat. • Some chip part will be indicated as follows. Example C541 L452 22U 10UH TA CH 2520 • Constants of resistors, capacitors, ICs and etc with XX indicate that they are not used. In such cases, the unused circuits may be indicated. • Parts with # differ according to the model/destination. Refer to the mount table for each function. • All variable and adjustable resistors have characteristic curve B, unless otherwise noted. • Signal name XEDIT → EDIT PB/XREC → PB/REC • 2: non flammable resistor • 1: fusible resistor • C: panel designation • U : B+ Line • V : B– Line • N : IN/OUT direction of (+,–) B LINE. • C: adjustment for repair. • Circled numbers refer to waveforms. THIS NOTE IS COMMON FOR WIRING BOARDS AND SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) Transistor Diode Kinds of capacitor Temperature characteristics External dimensions (mm) C B E 5 6 4 2 1 3 5 4 6 2 3 1 4 5 2 3 1 1 2 4 5 3 3 2 1 3 2 1 3 2 1 Note : The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note : Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 1 IC001 qh YOUT 8 IC401 t; SPCK(CL403) 9 IC501 qf XOO(R510) 0 IC501 e; POO (L504 – C509) qa IC501 qa LCKO(CL505) IC503 ul X1(CL505) qs IC601 1 XO qd IC703 r; 20MHz OUT 2 IC001 qs COUT 3 IC102 wg AGCCIN (S-VIDEO : IN) 4 IC102 ed ANIN1 (S-VIDEO : IN) 5 IC102 ef ANIN2 (Composite VIDEO : IN) 6 IC102 rd VCXD0 7 IC401 Measurement Point Display data of page: 3, address: 04 Measuring Instrument Adjustment remote commander Adjustment Page C Adjustment Address AA Specified Value 0A Adjusting method: 1) Select page: 0, address: 01, and set data: 01. 2) Select page: C, address: 56, set data: 00, and press the PAUSE button of the adjustment remote commander. (digital EE mode) 3) Select page: 3, address: 0C, set data: 80, and press the PAUSE button of the adjustment remote commander. 4) Select page: C, address: AA, and set data: 00, and press the PAUSE button. 5) Select page: 3, address: 04, and check. If the data is “0A” , proceed to step 8). 6) Select page: C, address: AA, add “10”(hexadecimal) to the data and press the PAUSE button. 7) Select page: 3, address: 04, and check the data is “0A” . If not repeat step 7). 8) Select page: 3, address: 0C, set data: 00, and press the PAUSE button of the adjustment remote commander. 9) Select page: C, address: 56, set data: 08, and press the PAUSE button of the adjustment remote commander. 10) Select page: 0, address: 01, and set data: 00. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-8E 4-5. SERVICE MODE ADJUSTMENT REMOTE COMMANDER The adjustment remote commander is used for changing the calculation coefficient in signal processing, EVR data, etc. The adjustment remote commander performs bi-directional communication with the unit using the remote commander signal line (LANC). The resultant data of this bi-directional communication is written in the non-volatile memory. 1. Using the adjustment remote commander 1) Connect the adjustment remote commander to the LANC terminal. 2) Set the HOLD switch of the adjustment remote commander to “HOLD” (SERVICE position). If it has been properly connected, the LCD on the adjustment remote commander will display as shown in Fig. 4-9. 3) Operate the adjustment remote commander as follows. • Changing the page The page increases when the EDIT SEARCH+ button is pressed, and decreases when the EDIT SEARCH– button is pressed. There are altogether 16 pages, from 0 to F. • Changing the address The address increases when the FF (M) button is pressed, and decreases when the REW (m) button is pressed. There are altogether 256 addresses, from 00 to FF. • Changing the data (Data setting) The data increases when the PLAY (N) button is pressed, and decreases when the STOP (x) button is pressed. There are altogether 256 data, from 00 to FF. • Writing the adjustment data The PAUSE button must be pressed to write the adjustment data (B, C, D, F page) in the nonvolatile memory. (The new adjusting data will not be recorded in the nonvolatile memory if this step is not performed.) 4) After completing all adjustments, turn off the main power supply (8.4V) once. Hexadecimal notation LCD Display Decimal notation conversion value 0 1 2 3 4 5 6 7 8 9 A B C D E F 0 1 2 3 4 5 6 7 8 9 A b c d E F 0 1 2 3 4 5 6 7 8 9 101112131415 Page Data Address Fig. 4-9 2. Precautions upon using the adjustment remote commander Mishandling of the adjustment remote commander may erase the correct adjustment data at times. To prevent this, it is recommended that all adjustment data be noted down before beginning adjustments and new adjustment data after each adjustment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-1 DVMC-DA2 SECTION 5 REPAIR PARTS LIST 5-1. EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. 8 8 8 13 14 7 1 6 1 4 10 9 16 3 2 5 15 5 8 12 12 8 11 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 4-639-967-01 SCREW, 0 PLATE SPECIAL HEAD 2 X-4622-479-1 CABINET (LOWER) ASSY * 3 4-639-053-11 SHIELD (LOWER) 4 A-8056-554-A IFX-52 BOARD, COMPLETE 5 4-982-491-01 SCREW (2X8) TAPPING 6 1-790-197-11 FFC(IF-SW) * 7 4-639-054-02 SHIELD (UPPER) 8 4-641-086-01 TAPPING, PRECISION 9 A-8046-118-A CABINET (UPPER) BLOCK ASSY 10 4-942-636-21 EMBLEM (NO 3.5) SONY 11 A-8054-858-A SWX-22 BOARD, COMPLETE 12 7-685-647-74 +BV3X10 13 A-8056-556-A JK-02 BOARD, COMPLETE * 14 4-644-562-01 STAY, RANK 15 4-641-233-01 FOOT, RUBBER 16 4-640-530-01 STICKER, I.LINK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-2 5-2. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks IFX-52 A-8056-554-A IFX-52 BOARD,COMPLETE ********************* * 4-639-140-01 PLATE,JACK GROUND < CAPACITOR > C001 1-109-994-11 CERAMIC CHIP 2.2uF 10% 10V C002 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C003 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C004 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C005 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C006 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C007 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C008 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C009 1-109-994-11 CERAMIC CHIP 2.2uF 10% 10V C010 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C014 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C015 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C016 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C017 1-135-099-91 TANTALUM CHIP 2.2uF 20% 6.3V C019 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C020 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C021 1-135-099-91 TANTALUM CHIP 2.2uF 20% 6.3V C022 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C023 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C024 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C025 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C026 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C027 1-164-858-11 CERAMIC CHIP 22PF 5% 16V C101 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C102 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C103 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C104 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C105 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C106 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C107 1-164-856-81 CERAMIC CHIP 18PF 5% 16V C108 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C109 1-164-874-11 CERAMIC CHIP 100PF 5% 16V C110 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C111 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C112 1-135-210-11 TANTALUM CHIP 4.7uF 20% 10V C113 1-135-210-11 TANTALUM CHIP 4.7uF 20% 10V C115 1-164-874-11 CERAMIC CHIP 100PF 5% 16V C116 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C117 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C118 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C119 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C120 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C121 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C123 1-164-874-11 CERAMIC CHIP 100PF 5% 16V C124 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C125 1-164-856-81 CERAMIC CHIP 18PF 5% 16V C126 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C127 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C128 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C129 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C130 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C131 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C132 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C133 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C134 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C135 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C136 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C137 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C203 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C204 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C207 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C208 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C209 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C210 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C211 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C215 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V C217 1-135-091-00 TANTALUM CHIP 1uF 20% 16V C219 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C221 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C222 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C225 1-135-099-91 TANTALUM CHIP 2.2uF 20% 6.3V C226 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C229 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C230 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C231 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C232 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C233 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C234 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C235 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C236 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C237 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C238 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C239 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C240 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C242 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks IFX-52 C243 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C244 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C245 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C247 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C248 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C249 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C250 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C301 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C302 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C303 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C304 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C305 1-125-838-91 CERAMIC CHIP 2.2uF 10% 6.3V C306 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C307 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C308 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C309 1-164-935-11 CERAMIC CHIP 470PF 10% 16V C310 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C311 1-164-935-11 CERAMIC CHIP 470PF 10% 16V C312 1-164-935-11 CERAMIC CHIP 470PF 10% 16V C313 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C314 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C315 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C319 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C322 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C324 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C329 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C330 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C331 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C332 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C333 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C334 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C335 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C336 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C337 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C338 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C339 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C340 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C341 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C342 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C343 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C344 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C345 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C346 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C347 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C348 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C349 1-135-091-00 TANTALUM CHIP 1uF 20% 16V C350 1-135-091-00 TANTALUM CHIP 1uF 20% 16V C351 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C352 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C353 1-135-091-00 TANTALUM CHIP 1uF 20% 16V C355 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C356 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C357 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C359 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C361 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C362 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C401 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C402 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C403 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C404 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C405 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C406 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C407 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C501 1-135-099-91 TANTALUM CHIP 2.2uF 20% 6.3V C502 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C503 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C504 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C505 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C506 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C507 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C508 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C509 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C510 1-218-945-11 RES,CHIP 220 5% 1/16W C511 1-164-852-11 CERAMIC CHIP 12PF 5% 16V C512 1-164-852-11 CERAMIC CHIP 12PF 5% 16V C513 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C514 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C515 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C516 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C517 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C519 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C521 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C522 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C523 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C601 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C602 1-164-852-11 CERAMIC CHIP 12PF 5% 16V C603 1-164-852-11 CERAMIC CHIP 12PF 5% 16V C604 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C605 1-218-945-11 RES,CHIP 220 5% 1/16W C606 1-218-945-11 RES,CHIP 220 5% 1/16W C701 1-107-820-11 CERAMIC CHIP 0.1uF 16V C702 1-107-820-11 CERAMIC CHIP 0.1uF 16V C703 1-107-820-11 CERAMIC CHIP 0.1uF 16V C704 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C705 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C706 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C707 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C708 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C709 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C712 1-107-820-11 CERAMIC CHIP 0.1uF 16V C713 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C714 1-107-820-11 CERAMIC CHIP 0.1uF 16V C715 1-107-820-11 CERAMIC CHIP 0.1uF 16V C801 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V < CONNECTOR > CN701 1-770-305-11 CONNECTOR,FFC/FPC 10P CN801 1-779-523-11 CONNECTOR,SQUARE TYPE (INDI) 4P (DV IN/OUT) CN802 1-573-290-21 PIN CONNECTOR (1.5MM) (SMD) 4P CN905 1-750-321-41 CONNECTOR,BOARD TO BOARD 20P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-4 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks IFX-52 Note : The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note : Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. < DIODE > D101 8-719-071-32 DIODE HVC350BTRF D102 8-719-071-32 DIODE HVC350BTRF D302 8-719-066-34 DIODE RB461F-T106 D303 8-719-066-34 DIODE RB461F-T106 D304 8-719-066-16 DIODE RB491D-T146 D501 8-719-055-86 DIODE KV1470TL1-3 D701 8-719-421-27 DIODE MA728-TX D702 8-719-056-23 DIODE MA2S111-(K8).SO D703 8-719-064-61 DIODE 01BZA8.2(TE85L) D705 8-719-064-61 DIODE 01BZA8.2(TE85L) D706 8-719-064-61 DIODE 01BZA8.2(TE85L) D707 8-719-064-61 DIODE 01BZA8.2(TE85L) D801 8-719-064-61 DIODE 01BZA8.2(TE85L) D802 8-719-064-61 DIODE 01BZA8.2(TE85L) < FUSE > 0F301 1-533-760-21 FUSE (SMD)(1.4A) < FERRITE BEAD > * FB301 1-500-449-21 BEAD,FERRITE 0UH * FB302 1-500-449-21 BEAD,FERRITE 0UH FB739 1-414-555-21 FERRITE,EMI 0UH FB740 1-414-555-21 FERRITE,EMI 0UH FB741 1-414-555-21 FERRITE,EMI 0UH FB742 1-414-555-21 FERRITE,EMI 0UH FB743 1-414-555-21 FERRITE,EMI 0UH FB744 1-414-555-21 FERRITE,EMI 0UH * FB746 1-469-092-11 FERRITE,EMI 0UH * FB747 1-469-092-11 FERRITE,EMI 0UH FB748 1-414-555-21 FERRITE,EMI 0UH FB801 1-469-108-21 FERRITE,EMI 0UH FB802 1-469-108-21 FERRITE,EMI 0UH FB803 1-469-108-21 FERRITE,EMI 0UH FB804 1-469-108-21 FERRITE,EMI 0UH FB805 1-469-311-22 BEAD,FERRITE 0UH FB806 1-500-113-22 BEAD,FERRITE 0UH FB807 1-469-311-22 BEAD,FERRITE 0UH FB808 1-469-311-22 BEAD,FERRITE 0UH FB809 1-469-311-22 BEAD,FERRITE 0UH FB810 1-469-311-22 BEAD,FERRITE 0UH FB811 1-469-311-22 BEAD,FERRITE 0UH FB812 1-500-113-22 BEAD,FERRITE 0UH FB813 1-500-113-22 BEAD,FERRITE 0UH FB814 1-500-113-22 BEAD,FERRITE 0UH FB815 1-500-113-22 BEAD,FERRITE 0UH FB816 1-469-311-22 BEAD,FERRITE 0UH FB817 1-469-311-22 BEAD,FERRITE 0UH FB818 1-469-311-22 BEAD,FERRITE 0UH FB819 1-469-311-22 BEAD,FERRITE 0UH < FILTER > FL101 1-234-177-21 FERRITE,CHIP EMI FL301 1-233-893-11 FERRITE,CHIP EMI FL401 1-234-177-21 FERRITE,CHIP EMI FL402 1-234-177-21 FERRITE,CHIP EMI FL404 1-234-177-21 FERRITE,CHIP EMI FL501 1-234-177-21 FERRITE,CHIP EMI FL503 1-234-177-21 FERRITE,CHIP EMI FL504 1-234-177-21 FERRITE,CHIP EMI FL505 1-234-177-21 FERRITE,CHIP EMI FL601 1-234-177-21 FERRITE,CHIP EMI FL701 1-234-177-21 FERRITE,CHIP EMI < IC > IC001 8-759-534-25 IC AN2222FBQ-EB IC002 8-759-432-78 IC MM1111XFBE IC101 8-759-430-57 IC M62367GP-75ED IC102 8-759-579-81 IC SC371053AFTAEB IC201 8-759-583-66 IC AN2902FHQBEB IC202 8-759-524-60 IC AK4512-VF-E2 IC301 8-759-060-93 IC MB3785APFV-G-BND-ER IC401 8-759-584-66 IC M65511AWG-600D IC501 8-759-584-36 IC HG73C050BPTL IC502 8-752-394-00 IC CXD3129R-T6 IC503 8-759-566-52 IC SN104266PN-TEB IC601 8-759-653-34 IC MB91191RPFF-G-151-BND-ER IC602 8-759-445-94 IC AK6480AM-E2 IC701 8-759-424-79 IC S-8423YFS-T2 IC702 8-759-536-45 IC TL1596CPW-ELM2000 IC703 8-759-653-33 IC S579195PZ-TEB IC704 8-759-524-29 IC TC74VHC257FT(EL) < JACK > J301 1-770-443-11 JACK,DC(POLARITY UNIFIED TYPE)(DC IN 6V) J802 1-785-511-11 AV JACK(S-VIDEO/VIDEO/AUDIO) < INDUCTOR > L001 1-414-754-11 INDUCTOR 10uH L002 1-414-754-11 INDUCTOR 10uH L101 1-414-754-11 INDUCTOR 10uH L102 1-414-757-11 INDUCTOR 100uH L103 1-412-957-11 INDUCTOR,SMALL TYPE 33uH L104 1-412-943-81 INDUCTOR 2.2uH L105 1-412-957-11 INDUCTOR,SMALL TYPE 33uH L106 1-414-754-11 INDUCTOR 10uH L201 1-414-754-11 INDUCTOR 10uH L202 1-414-754-11 INDUCTOR 10uH L203 1-414-754-11 INDUCTOR 10uH L305 1-416-345-11 COIL,CHOKE 22uH L306 1-416-345-11 COIL,CHOKE 22uH L307 1-416-345-11 COIL,CHOKE 22uH L308 1-412-056-11 INDUCTOR(SMD) 4.7uH L309 1-412-056-11 INDUCTOR(SMD) 4.7uH L310 1-412-056-11 INDUCTOR(SMD) 4.7uH L311 1-412-056-11 INDUCTOR(SMD) 4.7uH L312 1-412-056-11 INDUCTOR(SMD) 4.7uH L313 1-412-056-11 INDUCTOR(SMD) 4.7uH L314 1-412-056-11 INDUCTOR(SMD) 4.7uH L315 1-412-056-11 INDUCTOR(SMD) 4.7uH L316 1-412-056-11 INDUCTOR(SMD) 4.7uH L401 1-414-757-11 INDUCTOR 100uH * L402 1-414-482-21 INDUCTOR CHIP 82NH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks IFX-52 Note : The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note : Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. L403 1-414-757-11 INDUCTOR 100uH L501 1-414-754-11 INDUCTOR 10uH L502 1-414-754-11 INDUCTOR 10uH L503 1-414-754-11 INDUCTOR 10uH L504 1-412-941-11 INDUCTOR 1.5uH L505 1-414-754-11 INDUCTOR 10uH L601 1-414-754-11 INDUCTOR 10uH L701 1-414-754-11 INDUCTOR 10uH < LINE FILTER > LF301 1-411-957-11 FILTER,COMMON MODE < IC LINK > 0PS701 1-576-122-21 LINK,IC 0.4A < TRANSISTOR > Q003 8-729-042-70 TRANSISTOR UN9211J-(K8).SO Q004 8-729-042-28 TRANSISTOR 2SD2216J-QR(K8).SO Q101 8-729-807-94 TRANSISTOR 2SB1295-UL5-TB Q102 8-729-042-73 TRANSISTOR UN9215J-(K8).SO Q103 8-729-042-28 TRANSISTOR 2SD2216J-QR(K8).SO Q104 8-729-042-26 TRANSISTOR 2SB1462J-QR(K8).SO Q105 8-729-042-28 TRANSISTOR 2SD2216J-QR(K8).SO Q106 8-729-042-28 TRANSISTOR 2SD2216J-QR(K8).SO Q107 8-729-042-28 TRANSISTOR 2SD2216J-QR(K8).SO Q108 8-729-042-28 TRANSISTOR 2SD2216J-QR(K8).SO Q109 8-729-042-26 TRANSISTOR 2SB1462J-QR(K8).SO Q110 8-729-807-94 TRANSISTOR 2SB1295-UL5-TB Q201 8-729-042-32 TRANSISTOR UN9113J-(K8).SO Q202 8-729-042-69 TRANSISTOR UN9210J-(K8).SO Q203 8-729-042-69 TRANSISTOR UN9210J-(K8).SO Q205 8-729-041-23 TRANSISTOR NDS356AP Q206 8-729-042-31 TRANSISTOR UN9213J-(K8).SO Q207 8-729-041-23 TRANSISTOR NDS356AP Q208 8-729-042-31 TRANSISTOR UN9213J-(K8).SO Q209 8-729-042-70 TRANSISTOR UN9211J-(K8).SO Q302 8-729-043-94 TRANSISTOR CPH3106-PM-TL Q303 8-729-043-94 TRANSISTOR CPH3106-PM-TL Q304 8-729-043-94 TRANSISTOR CPH3106-PM-TL Q305 8-729-041-23 TRANSISTOR NDS356AP Q306 8-729-042-31 TRANSISTOR UN9213J-(K8).SO Q307 8-729-042-31 TRANSISTOR UN9213J-(K8).SO Q308 8-729-041-23 TRANSISTOR NDS356AP Q701 8-729-042-58 TRANSISTOR UN9111J-(K8).SO Q702 8-729-042-70 TRANSISTOR UN9211J-(K8).SO Q703 8-729-042-70 TRANSISTOR UN9211J-(K8).SO Q704 8-729-042-70 TRANSISTOR UN9211J-(K8).SO Q705 8-729-042-70 TRANSISTOR UN9211J-(K8).SO Q951 8-729-042-72 TRANSISTOR UN9214J-(K8).SO < RESISTOR > R002 1-218-965-11 RES,CHIP 10K 5% 1/16W R003 1-218-941-11 RES,CHIP 100 5% 1/16W R004 1-218-969-11 RES,CHIP 22K 5% 1/16W R005 1-218-953-11 RES,CHIP 1K 5% 1/16W R006 1-218-990-11 CONDUCTOR,CHIP 0 R007 1-218-953-11 RES,CHIP 1K 5% 1/16W R008 1-218-990-11 CONDUCTOR,CHIP 0 R009 1-218-990-11 CONDUCTOR,CHIP 0 R010 1-218-969-11 RES,CHIP 22K 5% 1/16W R011 1-218-941-11 RES,CHIP 100 5% 1/16W R012 1-218-941-11 RES,CHIP 100 5% 1/16W R013 1-218-941-11 RES,CHIP 100 5% 1/16W R014 1-218-953-11 RES,CHIP 1K 5% 1/16W R015 1-218-953-11 RES,CHIP 1K 5% 1/16W R016 1-218-965-11 RES,CHIP 10K 5% 1/16W R017 1-218-939-11 RES,CHIP 68 5% 1/16W R018 1-218-939-11 RES,CHIP 68 5% 1/16W R019 1-218-939-11 RES,CHIP 68 5% 1/16W R020 1-218-981-11 RES,CHIP 220K 5% 1/16W R021 1-218-941-11 RES,CHIP 100 5% 1/16W R023 1-218-961-11 RES,CHIP 4.7K 5% 1/16W R024 1-218-961-11 RES,CHIP 4.7K 5% 1/16W R028 1-218-953-11 RES,CHIP 1K 5% 1/16W R029 1-218-957-11 RES,CHIP 2.2K 5% 1/16W R030 1-218-939-11 RES,CHIP 68 5% 1/16W R031 1-218-989-11 RES,CHIP 1M 5% 1/16W R101 1-218-973-11 RES,CHIP 47K 5% 1/16W R102 1-218-965-11 RES,CHIP 10K 5% 1/16W R103 1-218-953-11 RES,CHIP 1K 5% 1/16W R104 1-218-959-11 RES,CHIP 3.3K 5% 1/16W R105 1-218-957-11 RES,CHIP 2.2K 5% 1/16W R106 1-218-953-11 RES,CHIP 1K 5% 1/16W R107 1-218-979-11 RES,CHIP 150K 5% 1/16W R108 1-218-959-11 RES,CHIP 3.3K 5% 1/16W R109 1-218-965-11 RES,CHIP 10K 5% 1/16W R110 1-218-953-11 RES,CHIP 1K 5% 1/16W R111 1-218-990-11 CONDUCTOR,CHIP 0 R112 1-218-953-11 RES,CHIP 1K 5% 1/16W R113 1-218-977-11 RES,CHIP 100K 5% 1/16W R114 1-218-989-11 RES,CHIP 1M 5% 1/16W R115 1-218-977-11 RES,CHIP 100K 5% 1/16W R116 1-218-977-11 RES,CHIP 100K 5% 1/16W R117 1-218-965-11 RES,CHIP 10K 5% 1/16W R118 1-218-965-11 RES,CHIP 10K 5% 1/16W R119 1-218-977-11 RES,CHIP 100K 5% 1/16W R120 1-218-950-11 RES,CHIP 560 5% 1/16W R121 1-216-864-11 RES,CHIP 0 5% 1/16W R122 1-218-953-11 RES,CHIP 1K 5% 1/16W R123 1-218-952-11 RES,CHIP 820 5% 1/16W R124 1-218-965-11 RES,CHIP 10K 5% 1/16W R127 1-218-990-11 CONDUCTOR,CHIP 0 R128 1-218-990-11 CONDUCTOR,CHIP 0 R201 1-218-953-11 RES,CHIP 1K 5% 1/16W R202 1-218-953-11 RES,CHIP 1K 5% 1/16W R203 1-218-973-11 RES,CHIP 47K 5% 1/16W R204 1-218-973-11 RES,CHIP 47K 5% 1/16W R205 1-218-965-11 RES,CHIP 10K 5% 1/16W R206 1-218-965-11 RES,CHIP 10K 5% 1/16W R207 1-218-973-11 RES,CHIP 47K 5% 1/16W R209 1-218-990-11 CONDUCTOR,CHIP 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-6 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks IFX-52 R210 1-218-941-11 RES,CHIP 100 5% 1/16W R212 1-218-949-11 RES,CHIP 470 5% 1/16W R213 1-218-941-11 RES,CHIP 100 5% 1/16W R214 1-218-949-11 RES,CHIP 470 5% 1/16W R215 1-218-990-11 CONDUCTOR,CHIP 0 R216 1-218-990-11 CONDUCTOR,CHIP 0 R217 1-218-990-11 CONDUCTOR,CHIP 0 R219 1-218-989-11 RES,CHIP 1M 5% 1/16W R220 1-218-979-11 RES,CHIP 150K 5% 1/16W R221 1-218-989-11 RES,CHIP 1M 5% 1/16W R222 1-218-979-11 RES,CHIP 150K 5% 1/16W R223 1-218-990-11 CONDUCTOR,CHIP 0 R301 1-208-903-81 RES,CHIP 4.7K 0.50% 1/16W R302 1-208-903-81 RES,CHIP 4.7K 0.50% 1/16W R303 1-208-903-81 RES,CHIP 4.7K 0.50% 1/16W R304 1-208-903-81 RES,CHIP 4.7K 0.50% 1/16W R305 1-218-979-11 RES,CHIP 150K 5% 1/16W R306 1-218-981-11 RES,CHIP 220K 5% 1/16W R307 1-208-895-81 RES,CHIP 2.2K 0.50% 1/16W R308 1-218-981-11 RES,CHIP 220K 5% 1/16W R309 1-218-957-11 RES,CHIP 2.2K 5% 1/16W R310 1-218-957-11 RES,CHIP 2.2K 5% 1/16W R312 1-208-905-81 RES,CHIP 5.6K 0.50% 1/16W R313 1-218-974-11 RES,CHIP 56K 5% 1/16W R315 1-218-955-11 RES,CHIP 1.5K 5% 1/16W R316 1-218-951-11 RES,CHIP 680 5% 1/16W R317 1-208-899-81 RES,CHIP 3.3K 0.50% 1/16W R318 1-208-903-81 RES,CHIP 4.7K 0.50% 1/16W R319 1-216-023-00 RES,CHIP 82 5% 1/10W R320 1-218-969-11 RES,CHIP 22K 5% 1/16W R321 1-216-023-00 RES,CHIP 82 5% 1/10W R322 1-216-023-00 RES,CHIP 82 5% 1/10W R325 1-218-967-11 RES,CHIP 15K 5% 1/16W R328 1-218-974-11 RES,CHIP 56K 5% 1/16W R331 1-216-296-91 CONDUCTOR,CHIP 0 R333 1-218-965-11 RES,CHIP 10K 5% 1/16W R334 1-216-296-91 CONDUCTOR,CHIP 0 R337 1-218-990-11 CONDUCTOR,CHIP 0 R338 1-218-990-11 CONDUCTOR,CHIP 0 R339 1-208-903-81 RES,CHIP 4.7K 0.50% 1/16W R340 1-208-903-81 RES,CHIP 4.7K 0.50% 1/16W R342 1-208-921-81 RES,CHIP 27K 0.50% 1/16W R344 1-208-927-11 RES,CHIP 47K 0.50% 1/16W R345 1-218-949-11 RES,CHIP 470 5% 1/16W R346 1-218-949-11 RES,CHIP 470 5% 1/16W R347 1-218-949-11 RES,CHIP 470 5% 1/16W R352 1-218-989-11 RES,CHIP 1M 5% 1/16W R353 1-218-977-11 RES,CHIP 100K 5% 1/16W R354 1-218-989-11 RES,CHIP 1M 5% 1/16W R355 1-218-977-11 RES,CHIP 100K 5% 1/16W R359 1-218-990-11 CONDUCTOR,CHIP 0 R360 1-218-953-11 RES,CHIP 1K 5% 1/16W R362 1-218-990-11 CONDUCTOR,CHIP 0 R363 1-218-953-11 RES,CHIP 1K 5% 1/16W R364 1-218-953-11 RES,CHIP 1K 5% 1/16W R365 1-218-953-11 RES,CHIP 1K 5% 1/16W R366 1-218-990-11 CONDUCTOR,CHIP 0 R367 1-208-883-81 RES,CHIP 680 0.50% 1/16W R368 1-218-990-11 CONDUCTOR,CHIP 0 R369 1-218-990-11 CONDUCTOR,CHIP 0 R370 1-216-295-91 CONDUCTOR,CHIP 0 R401 1-216-864-11 RES,CHIP 0 5% 1/16W R402 1-218-977-11 RES,CHIP 100K 5% 1/16W R403 1-218-959-11 RES,CHIP 3.3K 5% 1/16W R404 1-218-959-11 RES,CHIP 3.3K 5% 1/16W R405 1-216-864-11 RES,CHIP 0 5% 1/16W R406 1-218-990-11 CONDUCTOR,CHIP 0 R407 1-218-965-11 RES,CHIP 10K 5% 1/16W R408 1-218-965-11 RES,CHIP 10K 5% 1/16W R409 1-218-965-11 RES,CHIP 10K 5% 1/16W R410 1-218-951-11 RES,CHIP 680 5% 1/16W R411 1-218-947-11 RES,CHIP 330 5% 1/16W R416 1-218-990-11 CONDUCTOR,CHIP 0 R417 1-218-965-11 RES,CHIP 10K 5% 1/16W R418 1-218-965-11 RES,CHIP 10K 5% 1/16W R419 1-218-965-11 RES,CHIP 10K 5% 1/16W R501 1-218-937-11 RES,CHIP 47 5% 1/16W R502 1-218-961-11 RES,CHIP 4.7K 5% 1/16W R503 1-218-947-11 RES,CHIP 330 5% 1/16W R504 1-218-965-11 RES,CHIP 10K 5% 1/16W R505 1-218-965-11 RES,CHIP 10K 5% 1/16W R506 1-218-990-11 CONDUCTOR,CHIP 0 R507 1-218-990-11 CONDUCTOR,CHIP 0 R508 1-218-990-11 CONDUCTOR,CHIP 0 R509 1-218-990-11 CONDUCTOR,CHIP 0 R510 1-218-950-11 RES,CHIP 560 5% 1/16W R512 1-218-990-11 CONDUCTOR,CHIP 0 R513 1-218-990-11 CONDUCTOR,CHIP 0 R514 1-218-990-11 CONDUCTOR,CHIP 0 R516 1-218-990-11 CONDUCTOR,CHIP 0 R517 1-218-990-11 CONDUCTOR,CHIP 0 R521 1-218-990-11 CONDUCTOR,CHIP 0 R524 1-218-990-11 CONDUCTOR,CHIP 0 R525 1-218-990-11 CONDUCTOR,CHIP 0 R526 1-218-990-11 CONDUCTOR,CHIP 0 R532 1-208-913-81 RES,CHIP 12K 0.50% 1/16W R533 1-218-990-11 CONDUCTOR,CHIP 0 R535 1-208-913-81 RES,CHIP 12K 0.50% 1/16W R536 1-218-990-11 CONDUCTOR,CHIP 0 R538 1-208-857-81 RES,CHIP 56 0.50% 1/16W R539 1-208-857-81 RES,CHIP 56 0.50% 1/16W R540 1-208-911-81 RES,CHIP 10K 0.50% 1/16W R541 1-208-857-81 RES,CHIP 56 0.50% 1/16W R542 1-208-911-81 RES,CHIP 10K 0.50% 1/16W R543 1-208-857-81 RES,CHIP 56 0.50% 1/16W R602 1-218-985-11 RES,CHIP 470K 5% 1/16W R603 1-218-977-11 RES,CHIP 100K 5% 1/16W R604 1-218-977-11 RES,CHIP 100K 5% 1/16W R605 1-218-977-11 RES,CHIP 100K 5% 1/16W R606 1-218-977-11 RES,CHIP 100K 5% 1/16W R607 1-218-953-11 RES,CHIP 1K 5% 1/16W R608 1-218-977-11 RES,CHIP 100K 5% 1/16W R609 1-218-977-11 RES,CHIP 100K 5% 1/16W R610 1-218-985-11 RES,CHIP 470K 5% 1/16W R611 1-218-977-11 RES,CHIP 100K 5% 1/16W R613 1-218-977-11 RES,CHIP 100K 5% 1/16W R614 1-218-977-11 RES,CHIP 100K 5% 1/16W R615 1-218-977-11 RES,CHIP 100K 5% 1/16W R616 1-218-977-11 RES,CHIP 100K 5% 1/16W R701 1-218-985-11 RES,CHIP 470K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-7 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks IFX-52 SWX-22 JK-02 R703 1-218-973-11 RES,CHIP 47K 5% 1/16W R704 1-218-973-11 RES,CHIP 47K 5% 1/16W R705 1-218-977-11 RES,CHIP 100K 5% 1/16W R706 1-218-965-11 RES,CHIP 10K 5% 1/16W R707 1-218-958-11 RES,CHIP 2.7K 5% 1/16W R708 1-218-990-11 CONDUCTOR,CHIP 0 R709 1-218-989-11 RES,CHIP 1M 5% 1/16W R710 1-218-977-11 RES,CHIP 100K 5% 1/16W R711 1-218-977-11 RES,CHIP 100K 5% 1/16W R712 1-218-977-11 RES,CHIP 100K 5% 1/16W R715 1-218-977-11 RES,CHIP 100K 5% 1/16W R716 1-218-953-11 RES,CHIP 1K 5% 1/16W R717 1-218-953-11 RES,CHIP 1K 5% 1/16W R718 1-218-953-11 RES,CHIP 1K 5% 1/16W R719 1-218-989-11 RES,CHIP 1M 5% 1/16W R720 1-218-989-11 RES,CHIP 1M 5% 1/16W R721 1-218-989-11 RES,CHIP 1M 5% 1/16W R722 1-218-953-11 RES,CHIP 1K 5% 1/16W R723 1-218-973-11 RES,CHIP 47K 5% 1/16W R726 1-218-977-11 RES,CHIP 100K 5% 1/16W R728 1-218-977-11 RES,CHIP 100K 5% 1/16W R729 1-218-949-11 RES,CHIP 470 5% 1/16W R734 1-218-990-11 CONDUCTOR,CHIP 0 R736 1-218-990-11 CONDUCTOR,CHIP 0 R737 1-218-973-11 RES,CHIP 47K 5% 1/16W R739 1-218-953-11 RES,CHIP 1K 5% 1/16W R741 1-218-990-11 CONDUCTOR,CHIP 0 R798 1-218-977-11 RES,CHIP 100K 5% 1/16W R799 1-218-990-11 CONDUCTOR,CHIP 0 R803 1-220-882-81 RES,CHIP 33 0.50% 1/16W R804 1-220-881-81 RES,CHIP 30 0.50% 1/16W R805 1-220-881-81 RES,CHIP 30 0.50% 1/16W R806 1-220-882-81 RES,CHIP 33 0.50% 1/16W R807 1-220-881-81 RES,CHIP 30 0.50% 1/16W R808 1-220-882-81 RES,CHIP 33 0.50% 1/16W R809 1-218-935-11 RES,CHIP 33 5% 1/16W R810 1-220-802-11 RES,CHIP 3.3 5% 1/16W R811 1-220-802-11 RES,CHIP 3.3 5% 1/16W R812 1-220-802-11 RES,CHIP 3.3 5% 1/16W R954 1-218-990-11 CONDUCTOR,CHIP 0 < VARISTOR > VDR801 1-801-925-21 VARISTOR,CHIP VDR802 1-801-925-21 VARISTOR,CHIP VDR803 1-801-925-21 VARISTOR,CHIP VDR804 1-801-864-21 VARISTOR,CHIP VDR805 1-801-925-21 VARISTOR,CHIP VDR806 1-801-925-21 VARISTOR,CHIP VDR807 1-801-925-21 VARISTOR,CHIP VDR808 1-801-862-11 VARISTOR,CHIP VDR809 1-801-862-11 VARISTOR,CHIP VDR810 1-801-862-11 VARISTOR,CHIP VDR811 1-801-862-11 VARISTOR,CHIP < VIBRATOR > X101 1-781-304-41 VIBRATOR,CRYATAL (40.500000MHz) X401 1-781-180-21 OSCILLATOR(13.5MHz) X501 1-579-922-11 VIBRATOR,CRYATAL(24.576MHz) X601 1-760-655-41 VIBRATOR,CRYATAL(20MHz) X701 1-767-450-11 VIBRATOR,CRYATAL(20MHz) ************************************************************ A-8056-556-A JK-02 BOARD,COMPLETE ******************** < CONNECTOR > CN893 1-568-953-11 PIN,CONNECTOR 4P < JACK > J881 1-565-276-31 JACK,ULTRA SMALL 1P(LANC) ************************************************************ A-8054-858-A SWX-22 BOARD,COMPLETE ********************** < CAPACITOR > C901 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C902 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V < CONNECTOR > * CN901 1-764-895-21 SOCKET CONNECTOR 10P < DIODE > D901 8-719-991-27 DIODE CL-170G-CD-T D902 8-719-027-84 DIODE CL-155UR/G-DT(PROTECT) D903 8-719-029-45 DIODE CL-155SD/G-D-T < JUMPER RESISTOR > JR901 1-216-296-91 CONDUCTOR,CHIP 0 JR902 1-216-295-91 CONDUCTOR,CHIP 0 JR903 1-216-296-91 CONDUCTOR,CHIP 0 JR904 1-216-296-91 CONDUCTOR,CHIP 0 JR905 1-216-296-91 CONDUCTOR,CHIP 0 JR906 1-216-296-91 CONDUCTOR,CHIP 0 JR907 1-216-296-91 CONDUCTOR,CHIP 0 JR908 1-216-296-91 CONDUCTOR,CHIP 0 JR909 1-216-295-91 CONDUCTOR,CHIP 0 JR910 1-216-296-91 CONDUCTOR,CHIP 0 JR911 1-216-296-91 CONDUCTOR,CHIP 0 < RESISTOR > R901 1-216-031-00 RES,CHIP 180 5% 1/10W R902 1-216-029-00 RES,CHIP 150 5% 1/10W R903 1-216-073-00 RES,CHIP 10K 5% 1/10W R905 1-216-073-00 RES,CHIP 10K 5% 1/10W R906 1-216-051-00 RES,CHIP 1.2K 5% 1/10W R908 1-216-053-00 RES,CHIP 1.5K 5% 1/10W R912 1-216-029-00 RES,CHIP 150 5% 1/10W R914 1-216-029-00 RES,CHIP 150 5% 1/10W < SWITCH > S901 1-762-366-11 SWITCH,TACTILE(POWER) S902 1-762-366-11 SWITCH,TACTILE(ANALOG IN) S905 1-762-366-11 SWITCH,TACTILE(DV IN) ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-8E Ref. No. Part No. Description Remarks Note : The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note : Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. MISCELLANEOUS ************** 6 1-790-197-11 FFC (IF-SW) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 0 1-467-510-31 ADAPTOR,AC (AC-MZ60A) 1-574-316-11 CORD,CONNECTION (LANC CABLE)(2m) 1-690-852-11 CORD (WITH CONNECTOR) (AV CABLE)(1.5m) 1-777-360-21 CORD,CONNECTION (S VIDEO CABLE)(1.5m) 1-790-930-11 CORD,CONNECTION (DV CABLE)(2m) 3-868-211-11 MANUAL INSTRUCTION (ENGLISH/FRENCH) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVMC-DA2 — 56 — Sony Corporation Information Technology Company 9-928-146-11 2000A16024-1 Printed in Japan ©2000.1 Published by VAIO Customer Link www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
