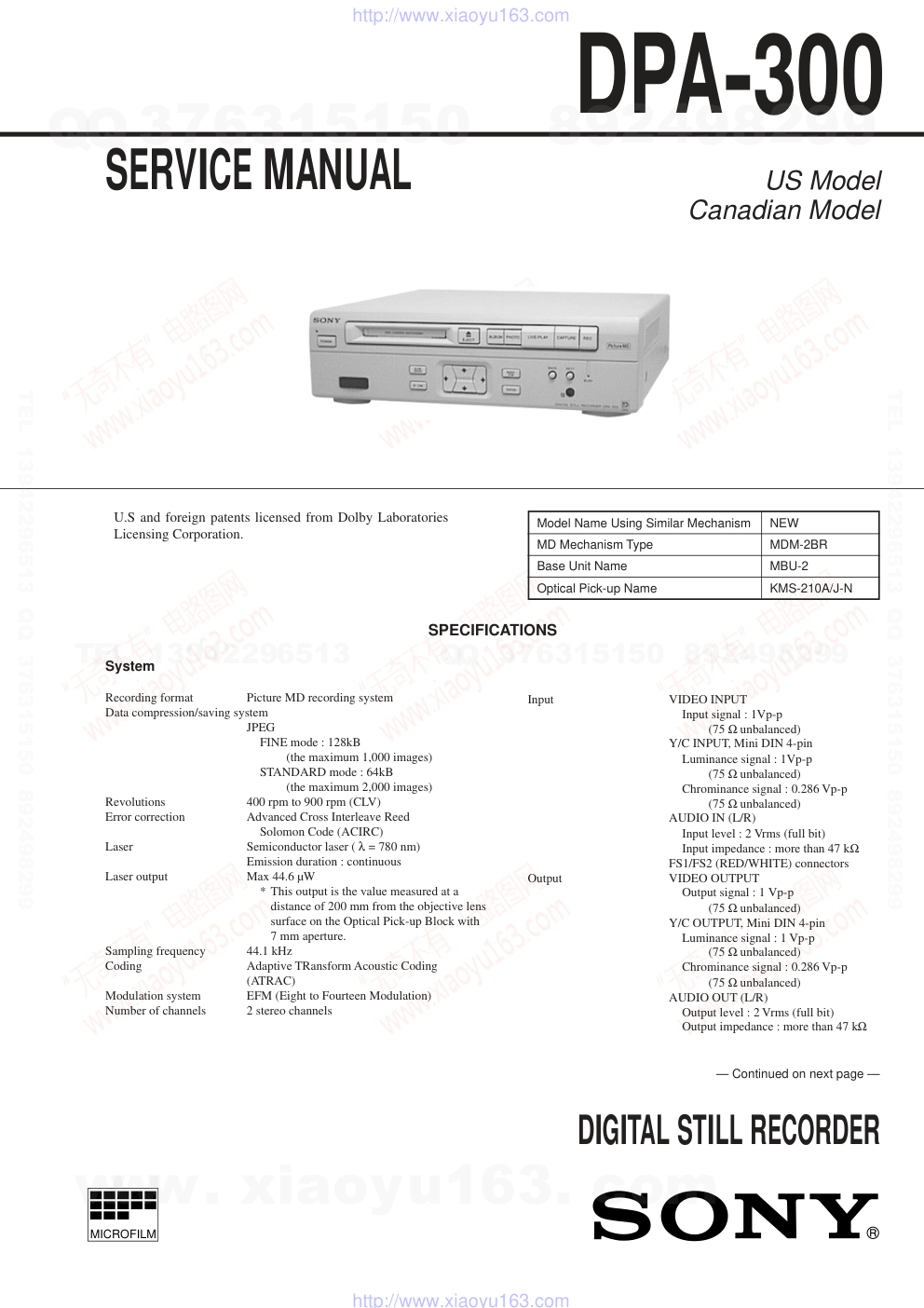

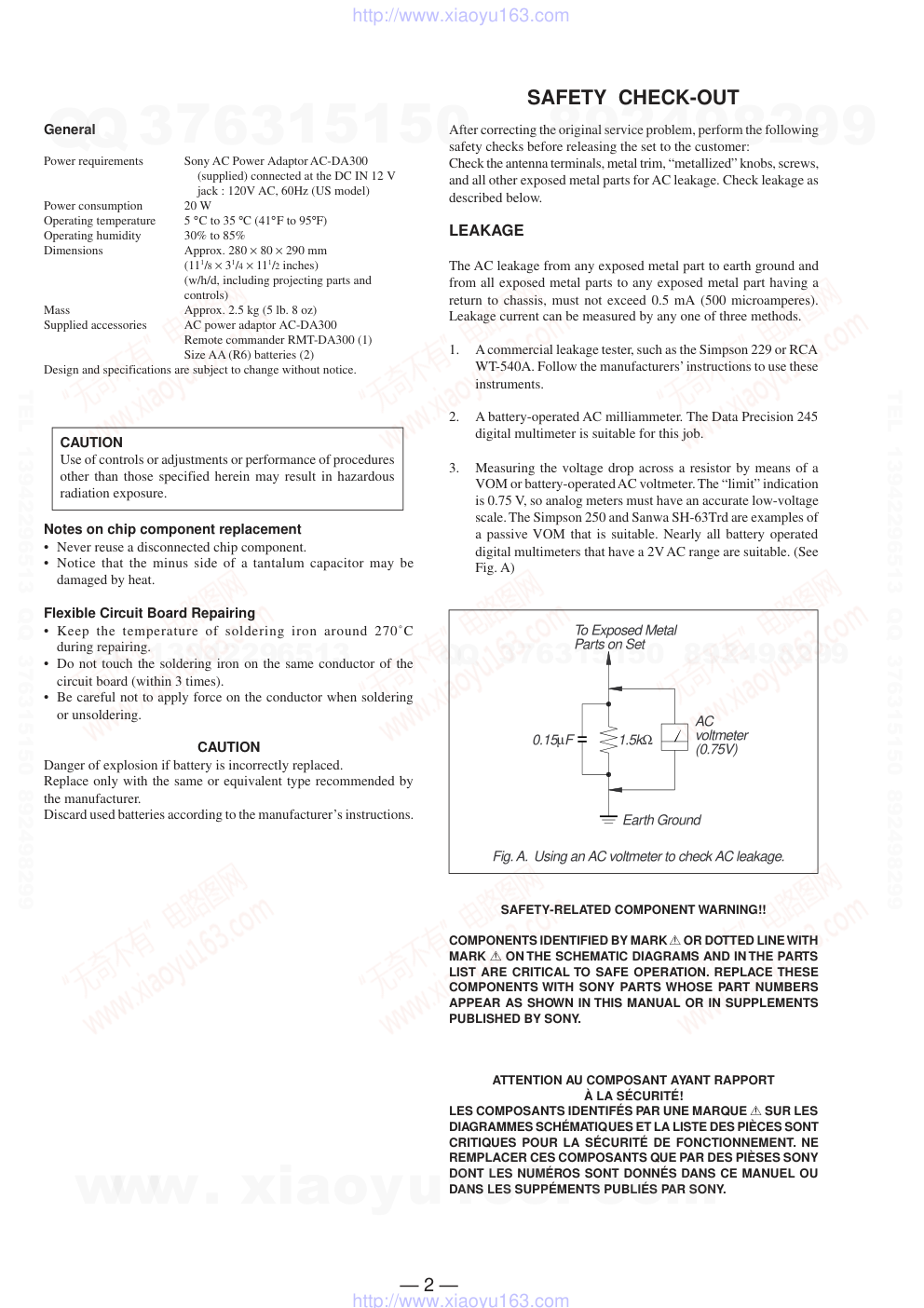

US Model Canadian Model SERVICE MANUAL DIGITAL STILL RECORDER MICROFILM Model Name Using Similar Mechanism NEW MD Mechanism Type MDM-2BR Base Unit Name MBU-2 Optical Pick-up Name KMS-210A/J-N U.S and foreign patents licensed from Dolby Laboratories Licensing Corporation. — Continued on next page — SPECIFICATIONS System Recording format Picture MD recording system Data compression/saving system JPEG FINE mode : 128kB (the maximum 1,000 images) STANDARD mode : 64kB (the maximum 2,000 images) Revolutions 400 rpm to 900 rpm (CLV) Error correction Advanced Cross Interleave Reed Solomon Code (ACIRC) Laser Semiconductor laser ( λ = 780 nm) Emission duration : continuous Laser output Max 44.6 µW * This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Sampling frequency 44.1 kHz Coding Adaptive TRansform Acoustic Coding (ATRAC) Modulation system EFM (Eight to Fourteen Modulation) Number of channels 2 stereo channels Input VIDEO INPUT Input signal : 1Vp-p (75 Ω unbalanced) Y/C INPUT, Mini DIN 4-pin Luminance signal : 1Vp-p (75 Ω unbalanced) Chrominance signal : 0.286 Vp-p (75 Ω unbalanced) AUDIO IN (L/R) Input level : 2 Vrms (full bit) Input impedance : more than 47 kΩ FS1/FS2 (RED/WHITE) connectors Output VIDEO OUTPUT Output signal : 1 Vp-p (75 Ω unbalanced) Y/C OUTPUT, Mini DIN 4-pin Luminance signal : 1 Vp-p (75 Ω unbalanced) Chrominance signal : 0.286 Vp-p (75 Ω unbalanced) AUDIO OUT (L/R) Output level : 2 Vrms (full bit) Output impedance : more than 47 kΩ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15µF 1.5kΩ AC voltmeter (0.75V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. General Power requirements Sony AC Power Adaptor AC-DA300 (supplied) connected at the DC IN 12 V jack : 120V AC, 60Hz (US model) Power consumption 20 W Operating temperature 5 °C to 35 °C (41°F to 95°F) Operating humidity 30% to 85% Dimensions Approx. 280 × 80 × 290 mm (111/8 × 31/4 × 111/2 inches) (w/h/d, including projecting parts and controls) Mass Approx. 2.5 kg (5 lb. 8 oz) Supplied accessories AC power adaptor AC-DA300 Remote commander RMT-DA300 (1) Size AA (R6) batteries (2) Design and specifications are subject to change without notice. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — TABLE OF CONTENTS 1. SERVICING NOTE ·························································· 4 2. GENERAL ·········································································· 7 3. DISASSEMBLY 3-1. Upper Case ································································· 11 3-2. Front Panel, Panel Board and Video In Board ··········· 11 3-3. Picture Board, Power Board and Mechanism Deck ···················································································· 12 3-4. MD Mechanism Deck ················································ 13 3-5. Slider (MD Mechanism) ············································ 13 3-6. MD Base Unit (MBU-2) and Loading Motor Assy ··· 14 3-7. How to Attach the Slider (MD Mechanism) ·············· 14 4. TEST MODE ···································································· 15 5. ELECTRICAL ADJUSTMENTS ······························· 18 6. DIAGRAMS 6-1. Circuit Board Location··············································· 28 6-2. Block Diagram — BD Section —······························ 29 6-3. Block Diagram — MD Control Section — ··············· 31 6-4. Block Diagram — Video Control Section — ············ 33 6-5. Block Diagram — Video Process Section — ············ 35 6-6. Block Diagram — IR Section — ······························· 37 6-7. Block Diagram — Video Out Section —··················· 39 6-8. Block Diagram — Video In Section — ····················· 41 6-9. Block Diagram — Audio Section — ························· 43 6-10. Block Diagram — Power Section — ························· 45 6-11. Printed Wiring Board — Picture Section — ·············· 47 6-12. Schematic Diagram — Picture Section (1/3) — ········ 51 6-13. Schematic Diagram — Picture Section (2/3) — ········ 55 6-14. Schematic Diagram — Picture Section (3/3) — ········ 59 6-15. Printed Wiring Board — BD Section — ···················· 62 6-16. Schematic Diagram — BD Section — ······················ 65 6-17. Schematic Diagram — Video In Section — ·············· 69 6-18. Printed Wiring Board — Video In Section — ··········· 73 6-19. Printed Wirimg Board — MD Section — ·················· 77 6-20. Schematic Diagram — MD Section (1/2) — ············· 81 6-21. Schematic Diagram — MD Section (2/2) — ············· 85 6-22. Printed Wiring Board — Power Section — ··············· 89 6-23. Schematic Diagram — Power Section — ·················· 91 6-24. Printed Wiring Board — Panel Section — ················ 94 6-25. Schematic Diagram — Panel Section — ··················· 97 6-26. IC Block Diagrams····················································· 99 6-27. IC Pin Function ························································ 111 7. EXPLODED VIEWS 7-1. Upper Case Section ·················································· 144 7-2. Front Panel Section ·················································· 145 7-3. Bottom Cabinet Section ··········································· 146 7-4. Mechanism Section (MDM-2BR) ···························· 147 7-5. Base Unit Section (MBU-2)····································· 148 8. ELECTRICAL PARTS LIST ································· 149 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 1 SERVICING NOTE [About Switches on POWER Board] • Backup Power ON/OFF Switch (S1351 B. UP ON) Be sure to turn this switch to OFF when removing and inserting connectors to and from the circuit boards. This switch protects semiconductors from breakdown due to static electricity. Set this switch to ON during normal operation. The DPA-300 does not work unless this switch is set to ON. • Reset Switch (S1352 RESET) This switch resets forcibly system of DPA-300. Press the reset switch when microprocessor runs away, or when DPA-300 does not operate normally, or when the main power is desired to turn ON, OFF and back ON momentarily during test mode, etc. Rear Side S1351 (B.UP ON) S1352 (RESET) POWER board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — [How to Set the Mode Displaying the Through Picture] Input the color bar signal and enter this mode as follows to check the DPA-300 for voltages, waveforms and to implement a part of adjustments. Connection: When the equipment connection is completed, set up this mode by following the procedures in the order given below. 1. Turn the main power ON. (Turn on the main power of color bar generator, DPA-300 and monitor.) 2. Connect the color bar signal to video input. Color bar signal specifications to be input Color bar signal for voltage and waveform measurement Color bar signal for adjustment 3. Insert the MD data disc. List of album appears. When the MD data disc has not been formatted, format it. 4. Select “Load” using the f F g G button and press the ENTER button. The message “Create new album and add photos?” appears. 5. Select “Yes” using the f F g G button and press the ENTER button. The new album to load the pictures are created. When an album is created, the loading menu appears. 6. Select “Video input” using the g G button and press the ENTER button. The display from which the modes can be selected, appears 7. Select “Frame” using the g G button and press the ENTER button. Mode differs depending on the type of input signal supplied from the video equipment connected. 8. Select “OK” using the f F g G button and press the ENTER button. 9. Color bars supplied to the Video Input connector, appear on monitor when the ENTER button is pressed. Note : When the ENTER button is pressed in the state of step 9, the picture is loaded and the DPA-300 exits the Through mode. When the ENTER button is pressed incorrectly, follow the instruction shown on the monitor screen and return to the state of step 9. DPA-300 Color bar generator Output Input Video Output Video Input or S-Video Input monitor WHITE (75%) YELLOW CYAN GREEN MAGENTA RED BLUE BLACK WHITE (75%) YELLOW CYAN GREEN MAGENTA RED BLUE BLACK Q I WHITE (100%) BLACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — [About Extension Cable] To check the MD board, connect the PICTURE board and the POWER board using the extension cables as shown before starting to check. [How to Route the Cables] Be sure to route the cables which connect the POWER board CN1002, CN1006, CN1007 and PICTURE board CN1001 as shown. CN2007 PICTURE board CN4002 Extension cable 40p J-2501-122-A Extension cable 5p J-2501-120-A Extension cable 10p J-2501-121-A CN2003 CN2006 MD board POWER board to CN1004 to CN1001 Rear panel Lead pin (LP1003) CN1002 CN1006 CN1007 POWER board Rear panel Rear Side to CN1001 on PICTURE board Lead pin (LP1004) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 9 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 10 — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 11 — SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 3-1. UPPER CASE 3-2. FRONT PANEL , PANEL BOARD AND VIDEO IN BOARD 1 Two screws (M3 × 8) 2 Two screws (M3 × 8) 3 Two screws (BV/RING) 4 Remove the upper case by pilling it in the directions shown by the arrow A. A 8 Connector (CN106 : VIDEO IN board) 7 Connector (CN8201 : JACK board) 6 Connector (CN5002 : PICTURE board) 5 Connector (CN5003 : PICTURE board) 9 FRONT PANEL assy 4 VIDEO IN board !¢ PANEL board 3 Screw (BVTP 3 × 6) !™ Screw (BVTP 2.6 × 8) !¡ Screw (BVTP 2.6 × 8) 2 Five screws (BVTP 3 × 12) !º Two screws (BVTP 2.6 × 8) 1 Five screws (BVTP 3 × 8) !£ Two screws (BVTP 2.6 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 12 — 3-3. PICTURE BOARD, POWER BOARD AND MECHANISM DECK @¡ Two screws (BVTP 3 × 6) @™ Two screws (BVTP 3 × 6) @£ Mechanism deck (MDM-2BR) !∞ POWER board @¢ Screw (BVTP 3 × 6) !ª Screw (BVTP 3 × 6) @º Stay plate 6 Screw (BVTT 2.6 × 5) 7 Screw (BVTT 2.6 × 5) !§ Connector (CN2005) !• Connector (CN2001) !¶ Connector (CN2002) !¡ Connector (CN2006) !º Connector (CN2008) !™ Connector (CN2501) !¢ Nylon rivet 8 PICTURE board 9 Connector (CN2007) 5 Connector (CN1002) 4 Connector (CN1001) 2 Connector (CN3002) 1 Connector (CN5001) 3 Connector (CN3001) !£ Connector (CN1002) @¶ MD board @∞ Screw (BVTP 3 × 6) @§ Screw (BVTP 3 × 6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 13 — 3-4. MD MECHANISM DECK 3-5. SLIDER (MD MECHANISM) 1 Two screws (B2.6 × 18) 2 Two collars (damper) 3 Turn the pulley (BD) in the direction of arrow A , and move the slider in the direction of the arrow B. (Because the slider is caught by the stopper in the middle, move the stopper slightly up to make the slider free as shown in illustration A. Then turn the pulley (BD) in the direction of the arrow A further.) Pulley (BD) Illustration A 4 Two screws (B2.6 × 18) 5 Two collars (damper) Slider !™ Insulator (MD) !£ Compression coil spring 6 Screw (BVTT 2.6 × 4) 7 Ground terminal 8 Two insulators (MD) 9 Two compression coil springs !º Insulator (MD) !¡ Compression coil spring Mounting bracket (MD) A B 1 Remove the torsion coil spring from the claw A. A B 2 While removing the claw B, lift up the lever (SLM) and remove it. 5 Move the claw C of the slider in the direction of the arrow A� while taking care not to be caught by the craw D. Lift up the claw C of the slider. Remove the torsion coil spring from the claw B. Craw C Craw D 3 Screw (PTT 2 × 4) Lever (SLM) Torsion coil spring Craw B Craw A 4 Ground terminal Slider www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 14 — 3-6. MD BASE UNIT (MBU-2) AND LOADING MOTOR ASSY 3-7. HOW TO ATTACH THE SLIDER (MD MECHANISM) 4 Belt (BD) 5 Two screws (B2.6 × 5) 6 Connector (CN192) 7 Loading motor assy 1 Screw (BVTP3 × 6) 3 MD base unit (MBU-2) 2 Two screws (BVTP3 × 6) 3 Turn the pulley (BD) in the direction of the arrow C to move the slider in the direction of the arrow B, and lock it with the lever (SLM). 2 Turn the lever (SLM) fully in the direction of the arrow A. 1 Set the four projections of the lever in the right and the left to the position as shown. A C B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 15 — SECTION 4 TEST MODE Close Audio Test Video Test Capture Mode Audio Test [PREPARATION FOR USE OF TEST MODE] Connect the equipment as shown below before starting the test mode. Connection: • How to Enter the Test Mode While pressing the + button, press the RESET button. • How to Exit the Test Mode Remove the AC adapter from wall outlet. There are two test modes. One is the audio test mode and the other is the video test mode. When the DPA-300 enters the test mode, main menu appears allowing operator to select either audio test mode or video test mode. Select the desired test mode by pressing the cross marked button ( , ), and press the ENTER button. • Main menu Refer to the respective items for more details. Audio Test Mode → Page 15 Video Test Mode → Page 17 DPA-300 Monitor VIDEO OUTPUT connector VIDEO INPUT connector AUDIO SECTION [INTRODUCTION] Enter the test mode referring to [PREPARATION FOR USE OF TEST MODE] in the left column of this page. All of the messages described as “displayed” in section “ 5. ELECTRICAL ADJUSTMENT ” appears on monitor screen during adjustment. 1. BASIC OPERATIONS OF THE TEST MODE All operations are performed using the cross marked button ( , , n , N ), and press the ENTER button. The respective buttons have the following functions. 2. SELECTING THE TEST MODE Select the desired test mode from the ten test modes by pressing the , buttons. • For detailed description of each adjustment mode, refer to the “ 5. ELECTRICAL ADJUSTMENTS ”. • If a different adjustment mode has been selected by mistake, press the N button to exit from it. *1: The EEP MODE, Vol MODE, Ver.xx.xx and Virgin mode are not used in servicing. If set accidentally, press the N button immediately to exit it. , button Changes parameters and modes n button Proceeds onto the next steps. Confirms the entry. N button Returns to the previous step. Stop operations. Function Name Function TEMP ADJUST Temperature compensation offset adjustment LDPWR ADJUST Laser power adjustment EFBAL ADJUST Traverse adjustment FBIAS ADJUST Focus bias adjustment FBIAS CHECK Focus bias check CPLAY MODE Continuous playback mode CREC MODE Continuous recording mode EEP MODE Non-volatile memory mode (*1) Vol MODE The mode corresponding to the electronic volume control mode (*1) Ver. xx.xx Displays version No. of MD microprocessor Virgin mode TOC all clear mode (*1) Total Time WR = x: xx (Laser total write hours) SP = x: xx (Spindle rotation hours) Display Contents n N n N n N n N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 16 — 2-1. OPERATING THE CONTINUOUS PLAYBACK MODE 1. Entering the Continuous Playback Mode 1 Set the MO or CD disc in the unit. (Whichever recordable discs or discs for playback only are available.) 2 Press the button or button and display “CPLAY MODE”. 3 Press the n button to change the display to “CPLAY IN”. 4 When access completes, the display changes to “C1= AD= ”. Note: The numbers “ ” displayed are undefinite numbers. 2. Changing the Parts to be Played-back 1 Press the n button during continuous playback to change the display as below. 2 When access completes, the display changes to “C1= AD= ”. Note: The numbers “ ” displayed are undefinite numbers. 3. Exitting the Continuous Playback Mode 1 Press the N button. The display will change to “CPLAY MODE”. 2 Press the 6 button and remove the disc. Notes: 1. The playback start address for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT : 700h cluster n N N n CPLAY MID CPLAY OUT CPLAY IN CREC MID CREC OUT CREC IN 2-2. OPERATING THE CONTINUOUS RECORDING MODE 1. Entering the Continuous Recording Mode 1 Set the MO disc in the unit. 2 Press the button or button and display “CREC MODE”. 3 Press the n button to change the display to “CREC IN”. 4 When access completes, the display changes to “CREC ( )” . Note: The numbers “ ” displayed are undefinite numbers. 2. Changing the Parts to be Recorded 1 When the n button is pressed access is completed, the display changes as below. 2 When access completes, the display changes to “CREC ( )” . Note: The numbers “ ” displayed sare undefinite numbers. 3. Ending the Continuous Recording Mode 1 Press the N button. The display will change to “CREC MODE”. 2 Press the 6 button and remove the disc. Notes: 1. The recording start address for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT : 700h cluster 2. The N button can be used to stop recording anytime. 3. During the test mode, the erasing-protection tab will not be detected. Therefore be careful not to set the continuous recording mode when a disc not to be erased is set in the unit. 4. Do not perform continuous recording for long periods of time above 5 minutes. 5. During continuous recording, be careful not to apply vibration. 2-3. NON-VOLATILE MEMORY MODE This mode reads and writes the contents of the non-volatile memory. It is not used in servicing. If set accidentally, press the N button immediately to exit it. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 17 — 4. TEST MODE DISPLAYS Each time the IR LINK button pressed, the display changes in the following order. 3. FUNCTIONS OF OTHER BUTTONS • Sets continuous playback when pressed in the STOP state. • When pressed during continuous playback, the tracking servo turns on/off. Stop continuous playback and continuous recording. The sled moves to the outer circumference only when this is pressed. The sled moves to the inner circumference only when this is pressed. Switches the diaplay when pressed. Button Function LIVE/PLAY CAPTURE PHOTO ALBUM IR LINK 1. MODE display Displays “TEMP ADJUST”, “CPLAY MODE”, etc.. 2. Error rate display Error rates are displayed as follows. C1= AD= C1= : Indicates C1 error AD= : Indicates ADER 3. Address display Address are displayed as follows. h= s= (MO pits and CD) h= a= (MO grooves) h= : Header address a= : ADIP address s= : SUB Q address Note: “—” is displayed when the address cannot be read. Mode display Error rate display Address Display 5. PRECAUTIONS FOR USE OF TEST MODE 1. As loading related operations will be performed regardless of the test mode operations being performed, be sure to check that the disc is stopped before setting and removing it. Even if the 6 button is pressed while the disc is rotating during continuous playback, continuous recording, etc., the disc will not stop rotating. Therefore, it will be ejected while rotating. Be sure to press the 6 button after pressing the N button and the rotation of disc is stopped. 2. The erasing-protection tab is not detected in the test mode. Therefore, operating in the recording laser emission modes suchas continuous resord mode, traverse adjustment mode, etc., the recorded contents will be erased regardless of the position of the tab. When using a disc that is not to be erased in the test mode, be careful not to enter the continuous recording mode and traverse adjustment mode. [INTRODUCTION] Enter the test mode referring to [PREPARATION FOR USE OF TEST MODE] on page 15. • VIDEO TEST MODE Enter the video test mode by selecting VIDEO on the main menu. The various video test signals are output from built-in microprocessor in the video test mode. • Menu The menu as shown appears. Select the desired submenu by pressing the cross marked button ( , ), and press the ENTER button. Color Bar ............ The color bars signal is output. Blue Back ........... All blue screen appears. Half Tone ............ All gray screen appears. White .................. 100% white signal is output. • When a desired submenu is selected, the specified screen appears, but the submenu remains on the display. Press “Close” to clear the submenu. The submenu disappears and the specified screen appears. Return to the main menu of the test mode by pressing the ENTER button. VIDEO SECTION N n Close Color Bar Blue Back Half Tone White www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 18 — SECTION 5 ELECTRICAL ADJUSTMENTS Precautions for Adjustments 1) When replacing the following parts, perform the adjustments and checks with ® in the order shown in the following table. 2) Set the test mode when performing adjustments. After completing the adjustments, exit the test mode. 3) Perform the adjustments in the order shown. 4) Use the following tools and measuring devices. • Check Disc (CD) TGYS-1 (Parts No. 4-963-646-01) • Laser power meter LPM-8001 (Parts No. J-2501-046-A) • Oscilloscope • Digital voltmeter • Thermometer 5) When observing several signals on the oscilloscope, etc., make sure that VC and ground do not connect inside the oscilloscope. (VC and ground will become short-circuited.) Creating Continuously Recorded Disc * This disc is used in focus bias adjustment and error rate check. The following describes how to create a continuous recording disc. 1. Insert a MO disc (blank disc) commercially available. 2. Press the , buttons and display “CREC MODE”. 3. Press the n button and display “CREC IN”. 4. Press the n button again to display “CREC MID”. “CREC (0300” is displayed for a moment and recording starts. 5. Complete recording within 5 minutes. 6. Press the N button and stop recording . 7. Press the § button and remove the MO disc. The above has been how to create a continuous recording data for the focus bias adjustment and error rate check. Note : • Be careful not to apply vibration during continuous recording. Optical pick-up flexible board • Abbreviation MO : Recordable disc CD : Disc for playback only 4. Focus bias adjustment 5. Error rate check BD Board Optical Pick-up 1. Temperature compensation offset adjustment 2. Laser power adjustment 3. Traverse adjustment IC171 D101 IC101, IC121, IC191 G ¬ ¬ ¬ ¬ ¬ ¬ ¬ ¬ ¬ ¬ ¬ ¬ ¬ ¬ G G G G G laser tap AUDIO SECTION [INTRODUCTION] Enter the test mode referring to [PREPARATION FOR USE OF TEST MODE] on page 15. All of the messages described as “displayed” appears on monitor screen during adjustment. Precautions for Checking Laser Diode Emission To check the emission of the laser diode during adjustments, never view directly from the top as this may lose your eye-sight. Precautions for Use of optical pick-up (KMS-210A) As the laser diode in the optical pick-up is easily damaged by static electricity, solder the laser tap of the flexible board when using it. Before disconnecting the connector, desolder first. Before connecting the connector, be careful not to remove the solder. Also take adequate measures to prevent damage by static electricity. Handle the flexible board with care as it breaks easily. N n www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 19 — Laser Power Adjustment Connection : Adjusting Method : 1. Set the laser power meter on the objective lens of the optical pick-up. (When it cannot be set properly, press the ALBUM button or PHOTO button and move the optical pick-up.) Connect the digital volt meter to TP (IOP) and TP (I+5V). 2. Press the , buttons and display “LDPWR ADJUST”. (Laser power : For adjustment) 3. Press the n button twice and display “LD $ 4B = 3.5 mW”. 4. Adjust RV102 of the BD board so that the reading of the laser power meter becomes 3.45+0.1 mW. 5. Press the n button and display “LD $ 96 = 7.0 mW”. (Laser power : MO writing) 6. Check that the laser power meter and digital voltmeter readings satisfy the specified value. Specification : Laser power meter reading : 7.0 ± 0.3 mW Digital voltmeter reading : Optical pick-up displayed value ± 10% (Optical pick-up label) 7. Press the n button and display “LD $ 0F = 0.7 mW”. (Laser power : MO reading) 8. Check that the laser power meter at this time satisfies the specified value. Specification : Laser power meter reading : 0.70 ± 0.1 mW 9. Press the N button and display “LDPWR ADJUST”, and stop laser emission. (The N button is effective at all times to stop the laser emission.) – 0 Temperature Compensation Offset Adjustment Save the temperature data at that time in the non-volatile memory as 25 ˚C reference data. Note : 1. Usually, do not perform this adjustment. 2. Perform this adjustment in an ambient temperature of 22 ˚C to 28 ˚C. Perform it immediately after the power is turned on when the internal temperature of the unit is the same as the ambient temperature. 3. When D101 has been replaced, perform this adjustment after the temperature of this part has become the ambient temperature. Adjusting Method : 1. Press the , buttons and display “TEMP ADJUST”. 2. Press the n button and select the “TEMP ADJUST” mode. 3. “TEMP = ” and the current temperature data will be displayed. 4. To save the data, press the n button. When not saving the data, press the N button. 5. When the n button is pressed, “TEMP = SAVE” will be displayed for some time, followed by “TEMP ADJUST”. When the N button is pressed, “TEMP ADJUST” will be displayed. Specifications : The “TEMP = ” should be within “E0 - EF”, “F0 - FF”, “00 - 0F”, “10 - 1F” and “20 - 2F”. lop = 82.5 mA in this case lop (mA) = Digital voltmeter reading (mV)/ 1 (Ω) KMS210A 27X40 B0825 Laser power meter Optical pick-up objective lens Digital voltmeter BD board TP (I + 5V) TP (IOP) N n N n www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 20 — Traverse Adjustment Connection : Adjusting method : 1. Connect an oscilloscope to TP (TEO) and TP (VC) of the BD board. 2. Load a MO disc (any available on the market). 3. Press the ALBUM button or PHOTO button and move the optical pick-up outside the pit. 4. Press the , buttons and display “EFBAL ADJUST”. 5. Press the n button and display “EFBAL MO-W”. (Laser power WRITE power/Focus servo ON/tracking servo OFF/spindle (S) servo ON) 6. Adjust RV101 of the BD board so that the waveform of the oscilloscope becomes the specified value. (MO groove write power traverse adjustment) (Traverse Waveform) 7. Press the n button and display “EFB = $ MO-R”. (Laser power : MO reading) 8. Press the , buttons so that the waveform of the oscilloscope becomes the specified value. (When the , buttons are pressed, the of “EFB = $ ” changes and the waveform changes.) In this adjustment, waveform varies at intervals of approx. 3%. Adjust the waveform so that the specified value is satisfied as much as possible. (MO groove read power traverse adjustment) (Traverse Waveform) 9. Press the n button, display “EFB = $ SAVE” for a moment and save the adjustment results in the non-volatile memory. Next “EFBAL MO-P” is displayed. 10. Press the n button and display “EFB = $ MO-P”. The optical pick-up moves to the pit area automatically and servo is imposed. 11. Press the , buttons until the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 3%. Adjust the waveform so that the specified value is satisfied as much as possible. (Traverse Waveform) 12. Press the n button, display “EFB = $ SAVE” for a moment and save the adjustment results in the non-volatile memory. Next “EFBAL CD” is displayed. The disc stops rotating automatically. 13. Press the § button and remove the MO disc. 14. Load the check disc (MD) TDYS-1. 15. Press the n button and display “EFB = $ CD”. Servo is imposed automatically. 16. Press the , buttons so that the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 3%. Adjust the waveform so that the specified value is satisfied as much as possible. (Traverse Waveform) 17. Press the n button, display “EFB = $ SAVE” for a moment and save the adjustment results in the non-volatile memory. Next “EFBAL ADJUST” is displayed. 18. Press the § button and remove the test disc TDYS-1. Note 1 : Data will be erased during MO reading if a recorded disc is used in this adjustment. Note 2 : If the traverse waveform is not clear, connect the oscilloscope as shown in the following figure so that it can be seen more clearly. Oscilloscope BD board TP (TEO) TP (VC) 330kΩ 10pF Oscilloscope BD board TP (TEO) TP (VC) Specification A = B VC A B VC A B Specification A=B VC A B Specification A=B VC A B Specification A=B N n N n N n N n N n www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 21 — — 22 — Focus Bias Adjustment Adjusting Method : 1. Load a continuously recorded disc (Refer to “Page 18 Creating Continuously Recorded Disc”.). 2. Press the , buttons and display “CPLAY MODE”. 3. Press the n button twice and display “CPLAY MID”. 4. Press the N button when “C1 = AD = ” is displayed. 5. Press the , buttons and display “FBIAS ADJUST”. 6. Press the n button and display “ / a = ”. The first four digits indicate the C1 error rate, the two digits after [/] indicate ADER, and the 2 digits after [a =] indicate the focus bias value. 7. Press the , buttons and find the focus bias value at which the C1 error rate becomes 220. 8. Press the n button and display “ / b = ”. 9. Press the , buttons and find the focus bias value at which the C1 error rate becomes 220. 10. Press the n button and display “ / c = ”. 11. Check that the C1 error rate is below 50 and ADER is 00. Then press the n button. 12. If the “( ” in “ - - ( ” is above 20, press the n button. If below 20, press the N button and repeat the adjustment from step 2 again. 13. Press the § button to remove the continuously recorded disc. Note 1 : The relation between the C1 error and focus bias is as shown in the following figure. Find points a and b in the following figure using the above adjustment. The focal point position c is automatically calculated from points a and b. Note 2 : As the C1 error rate changes, perform the adjustment using the average value. Adjusting Points and Connecting Points [BD BOARD] (SIDE A) [BD BOARD] (SIDE B) Error Rate Check CD Error Rate Check Checking Method : 1. Load a check disc TGYS-1. 2. Press the , buttons and display “CPLAY MODE”. 3. Press the n button twice and display “CPLAY MID”. 4. “C1 = AD = ” is displayed. 5. Check that the C1 error rate is below 20. 6. Press the N button, stop playback, press the § button, and remove the test disc. MO Error Rate Check Checking Method : 1. Load a continuously recorded disc (Refer to “Page 18 Creating Continuously Recorded Disc”.). 2. Press the , buttons and display “CPLAY MODE”. 3. Press the n button twice and display “CPLAY MID”. 4. “C1 = AD = ” is displayed. 5. If the C1 error rate is below 50, check that ADER is 00. 6. Press the N button, stop playback, press the § button, and remove the continuously recorded disc. Focus Bias Check Change the focus bias and check the focus tolerance amount. Checking Method : 1. Load a continuously recorded disc (Refer to “Page 18 Creating Continuously Recorded Disc”.). 2. Press the , buttons and display “CPLAY MODE”. 3. Press the n button twice and display “CPLAY MID”. 4. Press the N button when “C1 = AD = ” is displayed. 5. Press the , buttons and display “FBIAS CHECK”. 6. Press the n button and display “ / c = ”. The first four digits indicate the C1 error rate, the two digits after [/] indicate ADER, and the 2 digits after [c =] indicate the focus bias value. Check that the C1 error is below 50 and ADER is 00. 7. Press the n button and display “ / b = ”. Check that the C1 error is not below 220 and ADER is not above 00 every time. 8. Press the n button and display “ / a = ”. Check that the C1 error is not below 220 and ADER is not above 00 every time. 9. Press the N button, next press the § button, and remove the continuously recorded disc. Note 1 : If the C1 error and ADER are above 00 at points a or b, the focus bias adjustment may not have been carried out properly. Adjust perform the beginning again. a C1 error Focus bias value (F. BIAS) 220 b c D101 IC191 n N n N n N n N n N n N n N n N (I + 5V) RV101 TRAVERSE Adj (IOP) IC101 IC171 RV102 LASER POWER Adj (VC) (TEO) IC121 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 23 — — 24 — VIDEO SECTION [SYNC LEVEL ADJUSTMENT] Connection: Adjustment Procedure: 1. Connect an oscilloscope and monitor to the Video Output (J106) of the DPA-300. 2. Enter the video test mode. Output the color bar from the DPA- 300. (Refer to page 15.) After color bar output is confirmed, disconnect a monitor. 3. Adjust RV3003 on the PICTURE board until the level (A) satisfies the specification on an oscilloscope. Waveform: Specification: 286 ± 15 mVp-p (Measured in the 50 mV range of oscilloscope) Adjustment Location: PICTURE board - Reference - Pattern of built-in color bar signal + – 75 Ω DPA-300 Oscilloscope Video Output (J106) A H WHITE (100%) YELLOW CYAN GREEN MAGENTA RED BLUE BLACK [WHITE LEVEL ADJUSTMENT] Connection: Adjustment Procedure: 1. Connect an oscilloscope and monitor to the Video Output (J106) of the DPA-300. 2. Enter the video test mode. Output the 100 % white signal from the DPA-300. (Refer to page 15.) After the 100 % white signal is confirmed, disconnect a monitor. 3. Observe waveform on an oscilloscope. Adjust RV3001 on the PICTURE board until the level (A) of the color bar’s white peak (100 %) satisfies the specification on an oscilloscope. Waveform: Specification: 714 ± 30 mVp-p (Measured in the 100 mV range of oscilloscope) Adjustment Location: PICTURE board + – 75 Ω DPA-300 Oscilloscope Video Output (J106) A H White (100 %) [CLOCK ADJUSTMENT] Connection: Adjustment Procedure: 1. Connect a frequency counter to TP4091 (DCLK) on the PICTURE board. 2. Turn the POWER switch of the DPA-300 to ON. 3. Adjust CT4001 on the PICTURE board until frequency of TP4091 (DCLK) satisfies the specification. Specification: 12.272725 MHz ± 30 Hz Adjustment Location: PICTURE board [ S INPUT Y-SIGNAL AMPLITUDE ADJUSTMENT] Connection: Adjustment Procedure: 1. Connect a color bar generator to the S-Video input (J101) of the DPA-300. 2. Connect an oscilloscope and monitor to Video Output (J106) of the DPA-300. 3. Output the 100 % white color bar signal from a color bar generator. 4. Set the mode in which the Through picture is displayed. (Refer to SERVICE NOTE on page 5.) After the mode is set, disconnect a monitor. 5. Adjust RV403 of the VIDEO-IN board until the 100 % white level (A) satisfies the specification on an oscilloscope. Waveform: Specification: 714 ± 30 mVp-p Adjustment Location: VIDEO-IN board PICTURE board TP4091 (DCLK) Frequency counter + – + – 75 Ω DPA-300 Oscilloscope Video Output (J106) Color bar generator S-Video Input (J101) Video Output A H White (100 %) [Y OUTPUT AMPLITUDE ADJUSTMENT] Connection: Adjustment Procedure: 1. Connect a color bar generator to the Video input (J102) of the DPA-300. 2. Connect an oscilloscope and monitor to Video Output (J106) of the DPA-300. 3. Output the 100 % white color bar signal from a color bar generator. 4. Set the mode in which the Through picture is displayed. (Refer to SERVICE NOTE on page 5.) After the mode is set, disconnect a monitor. 5. Adjust RV402 of the VIDEO-IN board until the 100 % white level (A) satisfies the specification on an oscilloscope. Waveform: Specification: 714 ± 30 mVp-p Adjustment Location: VIDEO-IN board + – 75 Ω DPA-300 Oscilloscope Video Output (J106) S-Video Input (J102) Color bar generator Video Output A H White (100 %) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 25 — — 26 — — 27 — [+6 V ADJUSTMENT] Connection: Adjustment Procedure: 1. Connect a digital voltmeter across C1204 of the POWER board. 2. Adjust RV1111 on the POWER board until the digital voltmeter reading satisfies the specification. 3. Connect a digital voltmeter across C1501 of the POWER board. 4. Adjust RV1201 on the POWER board until the digital voltmeter reading satisfies the specification. Specification: 6.0 ± 0.1 V Adjustment Location: POWER board [+5.3 V ADJUSTMENT] Connection: Adjustment Procedure: 1. Connect a digital voltmeter to TP (M+5 V) and TP (MGND) of the POWER board. 2. Adjust RV1121 on the POWER board until the digital voltmeter reading satisfies the specification. Specification: 5.3 ± 0.1 V Adjustment Location: POWER board POWER board C1204 C1501 + – Digital Voltmeter POWER board TP (M+5V) TP (MGND) + – Digital Voltmeter RV1111 +6V Adj CN1901 C1204 +6V Adj CN1004 RV1121 +5.3V Adj C1501 +6V Adj RV1201 +6V Adj M+5V +5.3V Adj Q1001 MGND +5.3V Adj IC1121 Adjusting Points and Connecting Points [POWER BOARD] (SIDE A) [POWER BOARD] (SIDE B) IC401 J101 J102 J106 RV403 S INPUT SIGNAL AMPLITUDE Adj RV402 Y OUTPUT AMPLITUDE Adj IC402 [VIDEO-IN BOARD] (SIDE A) IC4004 IC4019 IC4010 IC4011 IC4016 CT4001 CLOCK Adj TP4091 (DCLK) IC1003 RV3001 WHITE LEVEL Adj CN1002 RV3003 SYNC LEVEL Adj [PICTURE BOARD] (SIDE A) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 28 — — 29 — — 30 — SECTION 6 DIAGRAMS 6-1. CIRCUIT BOARD LOCATION 6-2. BLOCK DIAGRAM — BD SECTION — 46 45 44 43 42 48 34 41 45 14 58 61 63 94 93 82 60 62 18 2 1 19 11 14 47 1 7 2 3 6 5 RF AMP BUFFER IC172 OPTICAL PICK–UP BLOCK (KMS–210A/J–N) HR901 OVER WRITE HEAD VC IV AMP IV AMP +2.5V GENERATOR RF AGC &EQ HEAD DRIVE Q181,182 BPF J I 2 3 A B 4 5 C D 6 7 8 1 12 16 9 E F 10 11 26 29 PD APCREF FI FO VC TEMPR D101 VC PD +5V TEMPI IV–AMP 1 C D B 6 A IV–AMP AUX SW AUX RF OVER WRITE HEAD DRIVE IC181 +5V ABCD AMP AT AMP TEMP AMP LASER ON SWITCH APC APC DRIVER SLED/SPINDLE MOTOR DRIVE, FOCUS/TRACKING COIL DRIVE IC151 IC122 Q101 Q162,163 4 2 FOCUS ERROR AMP TRACKING ERROR AMP SERIAL XLAT PARALLEL DECODER 38 BOTM 39 26 29 27 17 18 14 15 19 20 PEAK TE SE TLB 4 2 37 ABCD 35 FE 30 31 33 ADFM ADFG ADIN IC102 PEAK & BOTTOM E–F BALANCE SCLK SWDT XRST DAPC AAPC F J E 6 VC RV101 LASER POWER HIGH POWER LD L.F MOD H.F MOD TRACKING COIL FOCUS COIL TRK+ FCS+ TRK– FCS– SLED+ SLED– SPDL+ SPDL– M101 SLED MOTOR M102 SPINDLE MOTOR 16 M 2 Q164 2 RV102 8 11 DRIVER 15 13 DRIVER 22 24 31 32 5 6 17 18 19 20 33 3 DRIVER CLOCK DETECTOR Q151 RESET SWITCH HF MODULE SWITCH 4 2 2 M TFDR TRDR FRDR FFDR SFDR SRDR SPFD SPRD FS4 | 15 17 | 3 9 | IC182 EFMO RFI 4 2 EFM MOD/DMOD DICV SOSY PLL 4 FILTER SPFD SPRD CLTV FILI PCO FILO REGISTER DTO DTI BCK BCK LRCK BCK LRCK SCTX SOSY DOSY LRCK FS4 XTAI 32K RAM AUDIO DATA CONTROL ECC ENCODER DECODER DIN PLL DIGITAL SIGNAL PROCESSOR. DIGITAL SERVO SIGNAL PROCESSOR. EFM/ACIRC ENCODER/DECODER IC121 FILTER EFM TIMING GENERATOR DIGITAL CLV PROCESSOR ADIP DEMOD A/D CONV APC PWM GEN PROCESSOR SERVO DSP/PWM GENERATOR CPU IF SERVO CONTROL SENS CONTROL FOCUS/TRACKING/ SLED SERVO & PWM SERVO AUTO SEQUENCER ANALOG MUX ADIP DECODER SUBCODE PROCESSOR. READER/ GENERATOR 51 DIFI 52 DIPD 49 DIFO 53 DIGITAL AUDIO IN/OUT DIN 15 DOUT 21 DQSY 20 30 29 DIDT DIDT DODT DODT 28 27 C2PO 31 5 5 4 TIMING GENERATOR & CLOCK GENERATOR 68 65 AUX BOTM 64 66 PEAK ABCD 67 77 FE DFCT FOK SHCK FOK SHCK OFTRK COUT WRPWR WRPWR LDDR LD TE 76 SE 69 VC VC 8 9 SWDT SCLK 10 XLAT 16 24 86 85 11 87 7 12 5 6 89 91 92 XRST REC SRDT DIRC SENS TRDR TFDR FFDR FRDR SRDR SFDR 6 6 32 33 90 35 3 2 4 98 99 6 84 5 6 SENS IC171 MEMORY S102–1 PROTECT S102–2 REFLECT S101 LIMIT SRDT SDA –1 –2 SCL SDA SCL PROTECT REFRECT SWDT XRST XLAT Signal Path VIDEO(PB) VIDEO(REC) AUDIO(PB) AUDIO(REC) SCLK REC MOD LDON 4 SWDT AUDIO SECTION (Page 43) A SCLK XLAT XRST 512FS 512FS DATA C2PO LIMIT MD CONTROL SECTION (Page 31) B : : :: 8 MOTOR board POWER board VIDEO IN board DETECTION SW board JACK board PICTURE board MD board PANEL board BD board IRDA board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 31 — — 32 — 6-3. BLOCK DIAGRAM — MD CONTROL SECTION — DIG RST 88 81 38 XDRST STB 28 B BD SECTION (Page 30) H POWER SECTION (Page 45) DATA 2 6 1 BUFFER IC2003 IC2011 DATA OUT 6 DATA IN 5 2 1 4 QA 14 12 QC 1 CLR 2 CLK IC2002 IC2001 CIRCUIT DIVIDE-BY-6 WFCK 10 LRCK 9 LRCK BCK 512FS C2PO BCK 8 XTLI 49 C2PO 7 SQSY 3 6 3 1 7 5 2 8 IC2012 BUFFER 2 1 4 4 2 1 DIRECTION OR IC2006 18 12 2 8 A1 A7 B1 B7 19 G 18 11 2 9 A1 A8 B1 B8 19 G 1 DIR IC2010 BUFFER IC2015 4 2 IC2004 ADDRESS BUS BUFFER BUFFER IC2005 DATA-BUS OE 24 12 5 26 .27 25 .23 28 .4 3 .29 . 2 . . . . 13 15 17 21 . 10 13 16 20 . 9 . 2 5 24 27 . WE 31 CE 22 8 RAS 23 CAS 7 WE D0 D7 A0 A16 A0 A9 I/O0 I/O7 IC2008 DRAM IC2202 1M EEP ROM XCS 96 XRD 95 XWR 94 XINT 93 XRST 98 78 83 74 . 84 87 . 89 . 92 A0 A6 DB0 DB7 Q2002 66 64 62 58 . HDB0 HDB7 D AUDIO SECTION (Page 43) 43 ADTO 54 .53 HA1 . HA0 42 ADTI 41 ACLK 44 XABS 45 AC2 46 XARQ 56 HINT 69 HDRQ/HSAC 70 XHAC/SDRQ 67 XHRD 68 XHWE 55 XHCS XRAS 22 XCAS 23 XMWR 24 21 14 37 38 MA0 MA9 MDB0 MDB7 ENCODER/DECODER IC2007 MD DATA 72 65 63 . A0 A16 .61 54 19 DINT 47 CS3 44 RD 29 XRST36 46 WR 50 CSO A0 A6 ATSY 18 RECPB 34 DQSY 25 SWDT 31 SRDT 32 SCLK 33 SENS 78 XLAT 30 SCTX 24 FOK 21 SHCK 77 WRPWR 22 LIMIT IN 92 PROTECT REFLECT 93 SCL 79 SDA 80 LDON 89 MOD 23 XRST SQSY REC DQSY XLAT SWDT SRDT SCLK SENS SCTX FOK SHCK WRPWR LIMIT REFLECT SCL SDA LDON MOD PROTECT 16 1 7 . 2 6 . IC2301 LOADING MOTOR DRIVE 9 13 . 11 10 . M M191 LOADING MOTOR LD IN 1 OUT-SW 5 LD OUT 2 S191 LOAD OUT DET PLAY-SW 100 S192 LOAD IN DET REC-SW 7 S193 CHUCKING DET 1 7 . 3 XCIN 10 13 15 . X2201 10MHz INVERTER IC2203 X2202 32.768kHz XOUT XIN 97 95 94 . KEY0 KEY2 . KEY MATRIX IC8101 REMOTE CONTROL RECEIVER LED DRIVER Q8101 2 LED DRIVER Q8121,8122 RMC 6 BUSY 91 BUSY POWER D8121 D8102 6 7 5 LED DRIVER IC8121 12 RST 76 XAMUTE 4 MIC MUTE 3 LINE VOL CE 73 HP VOL CE 37 VOL CLK 35 VOL DATA 26 DF LATCH 27 DA RST 75 X.H.RST 20 POWER DOWN X.H RST IOWR IORD MDCS DACK1 DREQ1 HINT XARQ AC2 XALT ACLK ADTI ADTO HA0,1 D0-D7 C VIDEO CONTROL SECTION G AUDIO SECTION (Page 43) (Page 33) E VIDEO CONTROL SECTION (Page 33) F VIDEO PROCESS SECTION (Page 36) DA RST DF LAT VOL DT VOL CK HP CE LIN CE M MUTE AMUTE P DWN P DWN S RST STB SYSTEM CONTROL IC2201 : VIDEO (REC) : VIDEO (PB) • Signal Path w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 33 — — 34 — 6-4. BLOCK DIAGRAM — VIDEO CONTROL SECTION — 13 D0 D0-7 D0-7 A1-2 HA0-1 D15 CHINESE CHARACTER ROM IC4015 A0 DATA-BUS D0-15 ADDRESS-BUS A1-23 A17 CE OE 15 (Page 42) (Page 40) (Page 37) (Page 32) I VIDEO IN SECTION (Page 32) C MD CONTROL SECTION . 17 . 19 . 22 . 24 . 26 . 28 . 14 . 16 . 18 . 20 . 23 . 25 . 27 . 29 . I/O1 I/O8 A0 A15 CE DATA-BUS D0-15 ADDRESS-BUS A1-23 NE OE 12 22 29 24 80 10 15 O0 O15 PROGRAM ROM IC4016 D0-15 D0-15 D0-7 A1-16 A1-18 A1-16 D8-15 A1-19 A0 A18 OE CE 17 . 19 . 21 . 24 . 26 . 28 . 30 . 16 . 18 . 20 . 22 . 25 . 27 . 29 . 31 . . . . 12 14 . A1 INTP01 VSYNC D0 D15 A21 A23 A1-21,23 . . . . . 12 5 27 26 . 25 23 . . 4 . . 28 . . 3 SRAM IC4021 . 31 . I/O1 I/O8 A0 A15 OE CE NE 24 22 29 12 5 27 26 . 25 23 . . 4 . 28 . 3 SRAM IC4020 . 31 . D1 D15 D0-15 A1-10 DATA-BUS D0-15 ADDREDD-BUS A1-23 D0-15 CS FONT1 CE LMWR UMWR CS SRAM RST CLKIN CS1 CS2 CS3 XDACK0 DRQ0 INT IOWR DACK1 IORD 1G SRAM DRIVE IC4019 A1-23 A0 A9 CE UMWR LMWR/WE UCAS LCAS RAS RESET LCKOUT CS1 CS2 CS3 WE UCAS 29 13 30 LCAS 31 RAS 14 18 1 78 79 73 74 77 30 68 83 84 85 DACK0/P02 14 DREQ0/P01 15 INTP10 29 2 5 7 10 . 36 33 . 38 . 41 DRAM IC4013 17 20 . 23 28 (Page 35) L VIDEO PROCESS SECTION (Page 36) M VIDEO PROCESS SECTION 53 57 60 65 86 90 93 97 99 . 39 32 42 49 D0-15 MRD 9 2 40 32 1 22 J VIDEO OUT SECTION INTP00 M2FDO 23 K E IR SECTION MD CONTROL SECTION INTP13/T1 IRQSCC+ 24 INTP11 HINT 28 2 3 DREQ/P03 DREQ1 13 DACK/P04 IORD IOWR DACK1 IORD IOWR 12 IRQUART 27 INTP12 2 2 71 1 7 . INVERTER IC4001 SYSTEM MICOM CPU IC4003 X4002 4MHz X1 16 13 15 17 21 . 13 15 17 21 11 4 42 34 3 2 : VIDEO (REC) : VIDEO (PB) • Signal Path w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 35 — — 36 — 6-5. BLOCK DIAGRAM — VIDEO PROCESS SECTION — 1 : VIDEO (REC) : VIDEO (PB) • Signal Path 18 11 2 9 A1 A8 B1 B8 19 DIR G DATA-BUS BUFFER IC4010 1 18 11 2 9 A1 A8 B1 B8 19 DIR G DATA-BUS BUFFER IC4011 D0-7 31 24 XMCWED 12 VCOMUTE 16 PAL 18 NTSC 19 MUTE 20 OUT RESET 43 RST 21 BUZZER 38 4 . 5 D0 D7 A1 A2 RESET 32 WR 35 RD 44 CS 2 DMA SEL0VDD 6 DMA SEL1 7 10 END 37 50X RESET 9 STDBY 8 CLKEN 11 DINT 13 50X INT I/O DEMODULATOR IC5004 MI RESET 36 . N VIDEO OUT SECTION XMCWED VCO MUTE PAL MUTE NTSC IC3002 SEL MI RST RST BEEP (Page 39) O VIDEO IN SECTION (Page 42) D0-D15 D8-15 D0-7 L VIDEO CONTROL SECTION (Page 34) DATA BUS D0-D15 ADDRESS BUS HA1-6 END 14 RESET 58 STBY 59 CLKEN 64 DINT 92 INT 100 12 3 ADDR0 ADDR9 DREQ 93 DACK 95 CS 96 WR 97 RD 98 HA1-10 HA1,2 HA1-10 CODE I/F 91 84 81 .82 79 . 74 CODE0 CODE7 DATA0 DATA7 HOST I/O ENCODE/ DECODE UNIT DCT UNIT PIXEL DATA I/F 47 .48 45 . 40 PIXEL4 PIXEL11 X4003 24.54545MHz PIX0-7 33 COMP 36 STOP 37 EOS 39 DSYNC 63 DCLK 3 .1 5 1 5 Q CK CT4001 CLOCK INVERTER IC4008 CLOCK DIVIDER IC4009 GATE ARRAY IC4004 34 25 36 MD3605X DREQ 18 DMA SEL1 43 DACK 50 41 XHCS 50 40 XWR2 19 DREQ M1 39 XRD2 47 DACK M1 49 XHCS M1 93 MD CS 12 RST 62 CLK IN 80 LMWR 81 UMWR 100 CE ROM8M0 22 CS SRAM 82 CS FONT1 89 CS1 90 CS2 91 CS3 77 DACK1 78 DRQ0 96 XDACK0 52 58 67 70 . . 69 79 . 72 74 . A1 - 10,16,19,21,23 ADDRESS BUS A1-23 17 DMA SEL0 83 CS IO1 94 IORD 95 IOWR 10 RST OUT 37 BE 50 45 BUF DIR HA1 HA10 44 XBE M1 DACKIR 6 IRAEN 5 IRDROX 4 CS 102 84 XH CS IR 7 XH CS IRS 8 XIRD3 2 XIWR3 3 16 XIWR3 XIRD3 H CS IRS XH CS IR CS 102 IRDRQX IRAEN DACKIR IOWR IORD RST OUT HA1-6 D0-15 XBE MI BUF DIR P IR SECTION (Page 38) Q IR SECTION (Page 37) COMP STOP EOS DSYNC CLK XRD M VIDEO CONTROL SECTION R VIDEO OUT SECTION XWR HA1,2 XDREQ XDACK XCS (Page 39) MD CS X.H.RST INT IOWR IORD RST F MD CONTROL SECTION (Page 32) CLK IN LMWR UMWR CE CS SRAM CS FONT1 CS1 CS2 CS3 DACK1 DRQ0 XDACK0 (Page 34) A1-23 JPEG IMAGE COMPRESSION/ DECOMPRESSION PROCESSOR IC4007 HA1,2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 37 — — 38 — 6-6. BLOCK DIAGRAM — IR SECTION — D0-7 (Page 42) S VIDEO IN SECTION 14 31 24 D0 D7 P10 I/O DEMODULATOR IC5003 IC4006 IC4005 IC5002 P17 P11 P22 16 11 DIG D8-15 1 ENABLE G 19 12 CS WR RESET P00 REGISTORV IRBUSY 2 35 RD 44 32 43 7 18 16 54 2 A1 A8 9 11 18 SA0 DATA-BUS D0-15 ADDRESS-BUS HA1-6 HA1-6 SA5 5 20 21 4 A1 HA1-2 D0-7 A2 18 22 . . . D0-7 HOST STB CS-102 IOWR IORD RST-OUT D0-15 HA1-6 DACKIR DACKX SA15 DRQX SETUP AEN IOR IOW IRQUART IRQSCC+ 48 XH CS IR 79 IRDRQX 86 H CS IRS 92 IRAEN 93 XIRD3 94 XIWR3 82 IRQUART 83 IRQSCC+ 16 VIN BUSY DATA-BUS BUFFER BUFFER . 23 . 28 . 30 . 32 . 61 64 . 60 SO0 TXO 96 RXDIR 97 RXDSH 6 2 11 9 5 3 12 7 2 6 8 X4001 36.864MHz GAINCTRL CLK SO7 . 65 . 68 . 69 . 71 . 72 . HA1-6 B8 B1 DIG 1 ENABLE G 19 2 A1 A8 9 11 18 1. 3 DATA-BUS BUFFER IRDA IC8001 IC112 INVERTER IC5001 BUFDIR D8-15 MAR XBE MI RECEIVER/TRANSMITER IR CONTROLLER B8 B1 90 CONTROL Signal Path :VIDEO(PB) (Page 39) T VIDEO OUT SECTION (Page 35) P VIDEO PROCESS SECTION (Page 35) Q VIDEO PROCESS SECTION (Page 33) K VIDEO CONTROL SECTION D0-7 MAR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 39 — — 40 — 6-7. BLOCK DIAGRAM — VIDEO OUT SECTION — D0-7 MAR 63 25 18 D0 D7 VD0 PICTURE MEMORY CONTROLLER IC1005 IC1003 IC2003 IC3004 IC3001 IC2002 IC3002 VD15 DSYNC EOS 56 91 92 CLK ADRQ MKTGI ADRREQ 128 1 98 78 65 72 LPF C BUFFER Q3002 C BUFFER Q3002 81 88 A1 A2 54 47 . . DSYNC XRD XWR IC3002SEL MUTE VCOMUTE NTSC PAL 58 VCOMUTE 59 NTSC 60 PAL ADAK ADRAQN 77 73 SCLK SIOCLK 75 70 SDAT SIODAT 73 71 EOS RAM DIGITAL NTSC ENCODER 7 10 . 5 W0/IO0 W15/IO15 . 12 . 15 . 17 . 20 . 60 . 43 45 . 22. 48 . 50 . 53 . 55 . . 58. D8-15 MAR 17 10 D8 D15 76 91 DIN0 DIN15 PIX0-7 8 7 HA1-2 PIX0 PIX7 29 37 VA0 VA8 STOP COMP 93 94 STOP XDRQ XDACK 2 3 XDREQ XDACK XCS 127 XCS WEND 5 XMCWED RAS 26 43 RAS1 CAS 39 40 CAS DSF 41 38 DSF SEX 63 69 SE1 UWEX 25 44 WEH LWEX 24 45 WEL DTX/OEX 2 71 OW1 RAMSCK 74 YCON 57 XRST 125 MI RST CLK COMP XRD XWR . 64 37 A0 A8 34 31 27 . SC 64 FDO 27 NCPO 43 YVREF 33 CDAO 46 YDAO 62 6 7 VDO 6 9 . 4 SIO0 SIO15 . 11 . 14 . 16 . 19 . 61 . 44 46 . 21. 49 . 51 . 54 . 56 . . 59. VXONI VXONO . 8 7 . RV3001 LPF Y BUFFER Q3001 Q3020 RV3003 Y BUFFER Q3003 LPF WHITE LEVEL INVERTER SYNC LEVEL Y AMP Q3016,3019 7 3 5 2 4 SW1 SW2 VIDEO SWITCH 7 1 3 2 SW1 VIDEO SWITCH C BUFFER Q3005-3007 C BUFFER Q3013,3104 C BUFFER Q3014 Y BUFFER Q3010,3011 Y BUFFER Q3101,3102 VIDEO AMP Q3012,3013 VIDEO BUFFER Q3017,3018 3 4 J104 J106 VIDEO OUT YC(S) OUT VIN Y VIN C M2FD0 VIDEO IN SECTION VIDEO CONTROL SECTION J U VIDEO PROCESS SECTION N VIDEO PROCESS SECTION R IR SECTION T : CHROMA Signal Path : VIDEO (PB) : Y : VIDEO (REC) X2001 14.31818MHz D2001,2002 16 (Page 38) (Page 36) (Page 35) (Page 42) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 41 — — 42 — 6-8. BLOCK DIAGRAM — VIDEO IN SECTION — LOGIC VIDEO IN J102 Q401 1 3 7 2 VIDEO IN SWITCH IC201 CTLA Q403 4 13 20 V2 IN 26 30 VO1 BURST GATE PULSE 8 C IN Q405 2 H SYNC SEP. 22 Q404,421 4FSC CLOCK GENERATOR IC402 Q406 Y 23 20 BGP O 32FH 5 19 BGP I 17 4FSC OUT 14.3M 11 X402 14.3MHz X401 500kHz 25 OCLK 11 CLPI 17 A/D CONV. ADAPTIV FILTER OPRATION AD IN D/A CONV. D/A CONV. 31 39 33 VCC Y BUFFER Q408.411 C BUFFER Q409,412 Y OUT PUT LEVEL RV402 1 3 7 2 1 3 7 2 Y INPUT SELECTOR IC203 Y BUFFER Q416 Y BUFFER Q414 C BUFFER Q415 C BUFFER Q413 C INPUT SELECTOR IC202 Y BUFFER Q419,420 C BUFFER Q410 Y BUFFER Q407 3 S INPUT Y LEVEL S VIDEO IN Q407 J101 RV403 30 27 24 21 . Y0-7 PIXEL I/F DRAM I/F AND CONTROL AI31 17 AI41 13 AI22 19 FRONT-END IC104 AI32 15 66 .65 54 53 50 45 . DY0 DY7 38 HSYNC X101 26.798MHz 62 55 30 LLC2 41 VSYNC 40 ODD/EVEN SCL 6 SDA 5 . XTALI XTAL DUV0 DUV7 31 34 37 39 . 3 WR 1 4 2 5 12 13 3 6 11 39 35 33 31 . C0-7 HBLK 42 VBLK 43 ODV/EVEN 44 MCLK 98 V/H SYNC NAND GATE IC103 SCL SDA HOST I/F DCT/IDCT AND Q/Q-1 ENCODER AND DECODE 14 7 4 RD 5 CS 1 RSTI 8 DACK 10 DREQ 11 INT 7 .6 HA1 . HA0 D0-7 JPEG ENCODER/DECODER IC105 64 59 56 . 55 74 81 OE1 52 WE1 53 RAS 54 CASY 65 CASC 73 83 87 90 . 93 OE2 50 WE2 51 . A0-8 AD0-7 27 OE 13 W 14 RAS 28 URAS 29 L CAS 16 19 22 . 26 A0 A8 2 5 7 10 . DQ9 DQ16 DQ1 DQ8 DRAM IC101 31 34 37 39 . 16 19 22 . 26 A0 A8 2 5 7 10 . DQ9 DQ16 DQ1 DQ8 27 OE 13 W 14 RAS 28 URAS 29 L CAS DRAM IC102 16 S IR SECTION (Page 37) : CHROMA : Y : VIDEO • Signal Path 61 SEL S/O ODD/EVEN 29 13 15 . D0 D7 1 .2 HA1 . HA0 WR 5 RD 4 CS 3 RSTO 6 DACK 64 DREQ 46 INT 45 XTALO XTAL X102 16MHz . VSYNC 31 IICLK 50 IICDATA 49 RSTI 27 SCL SDA BD0-7 62 SEL R/F VIDEO INPUT CONTROL MICOM IC108 1 18 11 2 9 A1 A8 B1 B8 DIR DATA-BUS BUFFER IC110 22 15 HD0 HD7 37 I/O SEL 12 13 11 11 12 13 1 2 3 4 5 6 9 10 8 B+ NAND GATE INVERTER IC106,109 41 HSTBI 39 HHDET 38 HCLR HSTBO 36 BUZZER SWITCH Q103 V SYNC BZ101 BUZZER 1 6 BUZZER CONT. IC111 BEEP RST HOST STB I VIDEO CONTROL SECTION (Page 33) O VIDEO PROCESS SECTION (Page 35) U VIDEO OUT SECTION (Page 40) VIN BUSY D0-7 VIN Y VIN C DIGITAL COMB FILTER, Y/C SEP IC401 Q408 AY0 CY0 IC109 IC109 IC109 IC106 IC106 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DPA-300 — 43 — — 44 — — 45 — — 46 — 6-9. BLOCK DIAGRAM — AUDIO SECTION — 6-10. BLOCK DIAGRAM — POWER SECTION — DIDT DOUT DATA L1+ L2+ R1+ R2+ MIX AMP IC2503 D/A CONVERTER IC2501 LRCK XBCK ATT SHIFT LATCH INIT 256FSO ATRAC ENCODER/DECODER IC2101 ATRAC ENCODER /DECODER ATRAC INTERFACE CPU INTERFACE X2101 45MHz X2501 22.57MHz CLOCK GENERATOR 94 DODT DIDT DODT BCK 2 4 IC2601 SCK SWDT LRCK SWDT SCLK XLAT XRST 512FS ADTO 4 4 ADTI XARQ XALT 95 ADTO 28 ADTI 29 ABCK 43 ALRCK SWDT SCK XLAT XRST XRD XALT ACK AC2 OSCO OSCI 44 2 3 4 17 27 14 16 10 20 1 15 30 31 32 36 37 . 21 22 . XOUT 512IN . 41 11 27 25 16 18 5 7 6 3 2 12 10 3 4 5 1 6 ADIN 42 ACLK 2 IC2502 4 AC2 D2502 D2503 D2501 16 DATA A/D CONVERTER IC2701 FRONT-END IC2702 AINL+ 2 AINL DTG.PD 256FSI LRCK BCK VOL.DT DF.LAT VOL.CK HP.CE LIN.CE AMUTE DIG.RST DA.RST P.DWN 2 2 1 MUTE Q2502,2503 L.P.F IC2504 1 3 5 2 MIX AMP IC2703 ELECTRICAL VOL. IC2705 5 + + 7 1 3 6 VOLUME CONTROL CE LIN.CE VOL.DT COL.CK DATA CLK INT 15 1 L AUDIO IN 7 8 9 10 20 (Page 30) A BD SECTION (Page 32) D MD CONTROL SECTION (Page 32) G MD CONTROL SECTION 28 AINR+ 29 9 4 19 10 13 12 AINR AOUTL AINL AINR+ AOUTL+ AOUTR AOUTR+ R R L MUTE SWITCH Q2501 AUDIO OUT J105 J105 : AUDIO(PB) Signal Path : MIC : AUDIO(REC) 6 VOUT VIN ADJ 4 CTL FAN MOTOR DRIVE Q1901 DC-DC CONVERTER IC1101 STBY SWITCH Q1101 STBY SWITCH Q2451 1 2 5 STB +5V REG IC191 1 2 3 VC VIN +5V REG IC1131 M1901 FAN MOTOR PIC. D+5V MD. +5V M2.A+5V H/M +5V RV1121 +5.3V VIN. D+5V IRDA.+5V SYS. +5V M 2 8 VOUT VIN ADJ 4 CTL DC-DC CONVERTER IC1121 2 8 6 VOUT VIN ADJ 4 CTL DC-DC CONVERTER IC1111 2 8 1 2 3 VC IRDA +5V REG IC1141 1 2 +5V REG IC1301 D1356 RV1111 +6V D1358 D1353 B.UP. +5V STB P.DWN S.RST S1351 (BACK-UP) OFF ON D1352 D1357 LITHIUM ION BATTERY S1352 (RESET) 5 3 RESET GENERATOR IC1351 1 2 3 VC M2 ANALOG +5V REG IC1503 VIN. +5V MD.A+5V MD.A 5V 1 13 8 9 14 2 3 VC 1 2 3 ON/OFF 1 3 A2.+9V +5V,-5V REG IC1501 ON/OFF +5V REG VIN ANALOG +5V REG IC1504 STBY SWITCH Q1151 STBY SWITCH Q1121 ON/OFF CONTROL Q1801,1802 6 RV1201 RECT D1704 OUT2 -6V SWITCHING POWER CONTROL IC1701 ANALOG +9V REG IC1601 POWER DOWN DET IC1311 VCC +6V VOUT VIN ADJ 4 CTL DC-DC CONVERTER IC1201 2 8 ON/OFF CONTROL IC1201 +11.3V REG Q1001 6 1 11 3 5V REG VIN/PIC. A+5V VIN/PIC A-5V 13 14 +5V, 5V REG IC1502 ON/OFF +5V REG 1 11 3 -5V REG SWITCHING Q1702 DC IN 12V J1001 D1311 16 (Page 32) H MD CONTROL SECTION w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 99 — 6-26. IC BLOCK DIAGRAMS — MD SECTION — IC2004, 2005 SN74LV245PW-E05 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 A1 DIR A2 A3 A4 A5 A6 A7 A8 GND ENABLE G VCC B1 B2 B3 B4 B5 B6 B7 B8 ATRAC DMA CONTROL 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 VDD Vss MA9 MA8 MA7 MA6 MA5 MA4 MA3 MA0 NC NC ACLK ADTO ADTI AC2 XABS XARQ Vss XTL2 MA2 MA1 Vss XTL1 XTL0 75 74 73 72 71 70 69 68 67 66 63 62 61 60 59 58 57 56 55 54 53 52 51 64 65 TEST A6 NC NC Vss XHAC/SDRQ HDRQ/XSAC XHWR XHRD HDB0 HDB1 HDB2 Vss HDB3 HDB4 HDB5 HDB6 HDB7 HMDS HINT XHCS HA1 HA0 Vss VDD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 VDD Vss ENSY NC DATA DTO C2PO BCLK LRCK WFCK NC Vss BDB7 BDB6 BDB5 BDB4 BDB3 BDB2 20 BDB1 21 22 23 24 25 BDB0 XRAS XCAS XMWR MA10 NC Vss XRST XCS XRD XWR INT DB7 DB6 DB5 DB4 Vss DB3 DB2 DB1 DB0 A5 A4 NC A3 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 A2 A1 A0 Vss VDD DMA CONTROLLER (PRIORITY RESOLVER & SEQUENCER) S/P ATRAC I/F HOST DMA CONTROL HOST I/F EDC ENCODER ENCODE HEADER REGISTER CPU INTERFACE, DMA CONTROLLER FIFO (10 BYTEX2) DE- SCRAMBLE DATA INPUT I/F S/P SCRAMBLE DATA OUTPUT I/F P/S SYNC GENERATOR DATA OUTPUT DMA CONTROL DRIVE DMA CONTROL SYNC DETECTOR ENCODER PARITY GENERATOR DECODE ERROR CORRECTOR ERROE DETECTOR ECC DMA CONTROL ENCODE START DECODE /ENCODE NC IC2007 CXD1805AR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 100 — IC2101 CXD2536R SHCK 4 DFCT 3 FOK 2 TEOK 1 75 70 69 68 67 66 65 63 62 61 60 59 58 57 56 55 54 53 52 51 50 DVSS DIPO TEST2 MVC1 RAOF EFMO 49 48 46 45 GFS 43 GTOP 42 RFCK 40 WDCK 39 DVDD 38 XBCK 37 MCLK 36 XTAI 35 XTAO 34 LRCK 33 BCK 32 C2PO 31 DTO 30 DTI DIDT 28 DODT 27 DOVF 26 WFCK 41 XPLCK 44 74 73 72 71 AVSS ADRB ADRT AVDD BIA2 ADIO VC AUX FE ABCD BOTM PEAK FILO FILI PCO CLTV AVSS DVDD DIFO DIFI DICV RFI BIAS ASYI ASYO DVSS 25 REC ADER 23 FMCK 22 DOUT 20 SBIOT SBODT 18 SBOCK XRST DQSY 15 SQSY 14 ADSY 13 SENS 12 SRDT 11 XLAT 10 SCLK 9 SWDT 8 DIRC 7 WRPWR SSTOP DVSS 100 COUT 99 OFTRK 98 XDCL 97 DCLI 96 DCLO 95 SPFD 94 SPRD 93 SFDR 92 SRDR 91 FS4 90 FRDR 89 DVDD 88 FFDR 87 TFDR 86 TRDR 85 LDDR 84 TS25 83 ADFG TEST1 81 APC 80 MID 79 TENV 78 TE 77 SE 76 DIN ANALOG MUX 34 MHz PLL A/D CONVERTER OP AMP SERVO DSP PWM GENERATOR DIGITAL CLV PROCESSOR OFTRK/DFCT/ FOK/C OUT/ SHCK/TEOK PROCESSOR SERVO CONTROL CPU I/F SENS CONTROL SERVO AUTO SEOUENCER APC COMP./ FILTER APC PWM GENERATOR DIN PLL (22 MHz) COMP ECC ENCODER/ DECODER REGISTER 32K RAM REGISTER AUDIO DATA CONTROL EFM MODULATOR TIMING GENERATOR EFM DIGITAL PLL EFM SYNC DETECTOR/ PROTECTOR TIMING GENERATOR DIGITAL AUDIO IN/OUT PEAK DETECT 64 47 EFM DEMODULATOR CLOCK GENERATOR 29 24 21 19 SUBCODE P~W PROCESSOR 17 16 AD IP DEMODULATOR AD IP DECODER 6 5 82 TRACKING PWM FOCUS PWM SLED PWM TRACKING SERVO FOCUS SERVO SLED SERVO SUBCODE Q READER/ GENERATOR 28 AINR+ 27 AINR– 26 VREFO 25 LGND 24 VLOGIC 23 NC 22 MODE1 21 OSFR 20 256FSI 19 DVSS 18 DVDD 17 FSYNC 16 DATA 15 BCK 1 AINL+ 2 AINL– 3 V REF IN 4 AVDD 5 AVSS 6 ANAPD 7 HPBYP 8 MODE2 9 OSFL 10 DIGPD 11 TEST 12 CMODE 13 SMODE 14 LRCK + – VOLTAGE REFERENCE LOW CUT FILTER I/O DECIMATION FILTER + – DECIMATION FILTER LOW CUT FILTER TIMING CIRCUIT Σ∆ MODULATOR Σ∆ MODULATOR IC2701 CXD8566M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 101 — 1 2 3 4 5 6 7 + – + – INN2 VCT2 INAO2 VRIN2 INP2 INP1 INN1 VCT1 INAO1 VRIN1 OUT1 N.C. GND VCT Vcc CE DATA CLK INIT OUT2 8 9 10 11 12 13 14 15 16 17 18 19 20 8dB STEP VOLUME VCT BUFFER 1dB STEP VOLUME SHIFT REGISTOR LATCH LATCH CONTROL 8dB STEP VOLUME 1dB STEP VOLUME ZC DET 3 1 2 4 5 6 7 12 14 13 11 10 9 8 REFERENCE VOLTAGE THERMAL LOGIC PRE DRIVER LOGIC PRE DRIVER VCC OUT2 GND OUT1 OUT3 GND OUT4 IN4 IN3 VC2 VC1 VREF IN1 IN2 IC2301 LB1837M-TE-L IC2705 CXA1846N + – 1 2 VREF AVSS 3 AINL+ 4 AINL– 5 OUTL 6 VREFL 7 8 9 OUTL– 10 OUTL+ + – + – 20 19 VREF AINR+ AINR– OUTR VREFR OUTR– OUTR+ AVDD 18 17 16 15 14 13 12 11 + – 1 INIT 2 3 4 5 6 7 8 9 10 11 12 13 14 D Vdd 2 SYSM L1 (+) ATT A Vdd L SHIFT L2 (+) LATCH A Vss L 256FSO X Vss TEST1 512IN D Vss X OUT MCKSEL X Vdd XBCK A Vss R DATA R2 (+) LRCK A Vdd R MUTE L R1 (+) MUTE R D Vdd 1 28 27 26 25 24 23 22 21 20 19 18 17 16 15 MODE S/P ATT IIR FIR3 FIR2 FIR1 PLM PLM MUTE CIRCUIT CLOCK GENERATOR AC DITHER DC DITHER 3RD ORDER NOISE SHAPER SAMPLE HOLD (X1) TIMING CIRCUIT IC2501 CXD8567AM IC2702 CXA8054M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 102 — SHCK 4 DFCT 3 FOK 2 TEOK 1 75 70 69 68 67 66 65 63 62 61 60 59 58 57 56 55 54 53 52 51 50 DVSS DIPO TEST2 MVC1 RAOF EFMO 49 48 46 45 GFS 43 GTOP 42 RFCK 40 WDCK 39 DVDD 38 XBCK 37 MCLK 36 XTAI 35 XTAO 34 LRCK 33 BCK 32 C2PO 31 DTO 30 DTI DIDT 28 DODT 27 DOVF 26 WFCK 41 XPLCK 44 74 73 72 71 AVSS ADRB ADRT AVDD BIA2 ADIO VC AUX FE ABCD BOTM PEAK FILO FILI PCO CLTV AVSS DVDD DIFO DIFI DICV RFI BIAS ASYI ASYO DVSS 25 REC ADER 23 FMCK 22 DOUT 20 SBIOT SBODT 18 SBOCK XRST DQSY 15 SQSY 14 ADSY 13 SENS 12 SRDT 11 XLAT 10 SCLK 9 SWDT 8 DIRC 7 WRPWR SSTOP DVSS 100 COUT 99 OFTRK 98 XDCL 97 DCLI 96 DCLO 95 SPFD 94 SPRD 93 SFDR 92 SRDR 91 FS4 90 FRDR 89 DVDD 88 FFDR 87 TFDR 86 TRDR 85 LDDR 84 TS25 83 ADFG TEST1 81 APC 80 MID 79 TENV 78 TE 77 SE 76 DIN ANALOG MUX 34 MHz PLL A/D CONVERTER OP AMP SERVO DSP PWM GENERATOR DIGITAL CLV PROCESSOR OFTRK/DFCT/ FOK/C OUT/ SHCK/TEOK PROCESSOR SERVO CONTROL CPU I/F SENS CONTROL SERVO AUTO SEOUENCER APC COMP./ FILTER APC PWM GENERATOR DIN PLL (22 MHz) COMP ECC ENCODER/ DECODER REGISTER 32K RAM REGISTER AUDIO DATA CONTROL EFM MODULATOR TIMING GENERATOR EFM DIGITAL PLL EFM SYNC DETECTOR/ PROTECTOR TIMING GENERATOR DIGITAL AUDIO IN/OUT PEAK DETECT 64 47 EFM DEMODULATOR CLOCK GENERATOR 29 24 21 19 SUBCODE P~W PROCESSOR 17 16 AD IP DEMODULATOR AD IP DECODER 6 5 82 TRACKING PWM FOCUS PWM SLED PWM TRACKING SERVO FOCUS SERVO SLED SERVO SUBCODE Q READER/ GENERATOR — BD SECTION — IC121 CXD2535CR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 103 — IC151 MPC17A38VMEL VC VC VC VC VC VC VC VC 36 7 VG VD 12 VD 16 VD 8 FO1 11 RO1 9 PGND 10 PGND 15 FO2 13 RO2 14 PGND 21 VD 25 VD 30 VD 29 FO3 26 RO3 27 PGND 28 PGND 22 FO4 24 RO4 23 PGND 2 VC 3 CLK 34 PS 6 FI1 5 RI1 33 OE 17 FI2 18 RI2 31 FI3 32 RI3 20 F/R4 19 PI4 4 GND 35 GND 1 G VC VC CLOCK DC/DC Converter CLK Detector Driver Pre-driver Control Driver Pre-driver Control Driver Pre-driver Control Driver Pre-driver Control 8 VCC 7 TEST INPUT 6 SCL 5 SDA 1 NC 2 NC 3 NC 4 VSS START STOP LOGIC CONTROL LOGIC START CYCLE H.V. GENERATION TIMING & CONTROL E PROM 32 x 32 2 32 XDEC INC LOAD 5 R/W PIN 2 8 DOUT CK 32 WORD ADDRESS COUNTER YDEC DOUT ACK DATA REGISTER IC171 X24C01S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 104 — I C-BUS INTERFACE 2 I C-BUS CONTROL 2 TEST CONTROL BLOCK ANALOG PRECESSING ANALOG CONTROL BRIGHTNESS CONTRAST SATURATION CONTROL & OUTPUT FORMATTER CHROMINANCE CIRCUIT LUMINANCE CIRCUIT SYNCHRONIZATION CIRCUIT CLOCK GENERATION POWER-ON CONTROL 9 8 7 6 5 4 3 2 1 68 67 66 65 64 63 62 61 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 DUV2 DUV3 DUV4 DUV5 DUV6 DUV7 DY0 DY1 VDD VSS DY2 DY3 DY4 DY5 DY6 DY7 VDD VSSA4 AI42 VDDA4 AI41 VSSA3 AI32 VDDA3 AI31 VSSA2 AI22 VDDA2 AI21 VSSS AOUT ADDA0 VSSA0 LFCO RSRV3 RSRV2 RSRV1 SCL SDA IICSA RTCO ACTP SHIFT VDD VSS XTALI XTAL GPSW FEI DUVO DUV1 VDD VSS LLC LLC2 CREF RESO CGCE VDD VSS HCL HSIND HSYHC PLIN CDD/EVEN VSYNC HREF VSS CLOCKS Y/CVBS Y/CVBS Y UV AD3 AD2 8 Y Y CON IC104 SAA7110AWP — VIDEO SECTION — 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 A1 DIR A2 A3 A4 A5 A6 A7 A8 GND ENABLE G VCC B1 B2 B3 B4 B5 B6 B7 B8 IC110 TC74HC245AF (EL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 105 — 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 RSTI TEST WR RD CS HA0 HA1 DACK GND DREQ INT VDD D0 D1 D2 D3 D4 D5 D6 20 D7 21 22 23 24 Y7 Y6 Y5 Y4 25 26 Vss VDD 27 28 29 30 Y3 Y2 Y1 Y0 95 94 93 92 91 90 88 87 86 85 84 83 82 99 98 97 96 VDD MCLK Vss Vss VDD A9 A8 A7 A6 A5 Vss VDD A4 A3 A2 A1 A0 Vss 89 100 STDBY HOST INTERFACE AND CONTROL BLOCK SRAM BLOCK ENCODE AND DECODE BLOCK DCT/IDCT AND Q/Q-1 BLOCK DRAM INTERFACE AND CONTROL BLOCK 81 BD7 PIXEL INTERFACE BLOCK 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 63 62 61 60 59 58 57 56 55 54 53 52 51 64 65 BD6 BD5 BD4 BD3 BD2 BD1 BD0 CASC Vss N.C. VDD VDD Vss Vss VDD CASY AD0 AD1 AD2 AD3 AD4 AD5 Vss VDD AD6 AD7 RAS WE1 OE1 WE2 C7 C6 C5 Vss C4 C3 C2 C1 C0 SWE DOE HBLK VBLK VDD FLD Vss HOUT DSPLY RFSH OE2 2 1 3 4 7 8 6 5 LOGIC GND OUT VCC IN3 IN1 CTL A IN2 CTL B SW2 VCC IN1 SW1 IN2 GND OUT IN3 1 2 3 4 5 6 7 8 BIAS SW SW BUFFER IC201, 203 BA7653AF-E2 IC202 MM1113XFBE IC105 MD2201A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 106 — C3 C4 C5 C6 C7 C8 C9 CA XYOE Y1 Y2 DVDD DVSS Y3 Y4 Y5 Y6 Y7 Y8 Y9 YA CVSS CIRF CVRF 40 CVG ACO 38 XACO 37 CVDD 36 VB 35 YVSS 34 YIRF 33 YVRF 32 YVG AYO 30 XAYO 29 YVDD 28 ADVD 27 RT 26 AAVD 25 ADIN 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 C2 C1 XCOE APON TEST TEST TST DVSS DVDD TEST TEST TEST TEST TEST BPF 80 TEST 1 V18 2 V17 3 V16 4 V15 5 V14 6 V13 7 V12 8 V11 9 ADCO 10 INSL 11 OCLK 12 DVSS 13 DVDD 14 CLKO 15 MCK 16 ADCK 17 CLPI 18 XCPON 19 ADVS 20 ICP 21 CRV 22 RB 23 GR 24 AAVS 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 43 42 41 ADAPTIVE FILTER OPARATION LOGIC OPARATION 64 44 ADC DAC BPF BPF BPF 1HDL 1HDL DAC + DL 39 31 VO1 30 ATT HSYNC SEP 32fH VCO Limiter AMP Killer Detector VCO1 NTSC VCO2 PAL 1/32 6dB AMP VCC1 29 VO2 28 V CONT1 27 V2 IN 26 V CONT2 25 FSC OUT 24 BGP MS 23 H S/S 22 FH CLK BGP OUT 20 BCP IN 19 VCC2 18 4FSC OUT 17 ID OUT 16 V1 IN Y IN 2 AFC 3 GND1 4 32FH 5 G CONT 6 NC 7 C IN 8 KILL FIL 9 NT/PAL 10 14.3M XTAL 11 17.73M XTAL 13 GND2 12 ID CONT 1 AFC Burst Gate Pulse 21 APC 1/4 15 APC 14 AMP IC401 CXD2023Q IC402 CXA1686M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 107 — JPEG I/F MODULE CAPTURE MODULE HOST MODULE HOST CPU I/F DISPLAY MODULE MODE CONTROLLER REFRESH MODULE 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 34 33 35 GND CLK GND NC WEI FDI HDI NC VCC Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 GND C0 C1 C2 C3 C4 C5 C6 C7 NC VCC XRST NC XCS XRD VCC VD0 VD1 VD2 VD3 VD4 VD5 VD6 VD7 GND VD8 VD9 VD10 VD11 VD12 VD13 VD14 VD15 NC WEL WEH RAS1 RAS2 VCC CAS GND DSF VA8 VA7 VA6 VA5 VA4 NC NC COMP STOP EOS DSYNC VCC NC PIX7 PIX6 PIX5 PIX4 PIX3 PIX2 PIX1 PIX0 GND TEST ADRQ ADAK VCC SCLK GND SDAT NC OE1 OE2 SE1 SE2 NC NC NC XWR XDRQ XDACK GND WEND FDO A1 A2 VCC D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 GND NC VCC VA0 VA1 VA2 VA3 8 8 2 16 9 8 8 VRAM CONTROLLER 8 1 2 3 4 5 6 7 GND VCC NC NC 8 BIAS SW BIAS CLAMP CLAMP 6dB CLAMP IN1 1 SW1 2 IN2 3 SW2 4 GND 8 OUT 7 VCC 6 IN3 5 SW IC1005 CXD8648R-AV — PICTURE SECTION — IC3001 NJM2233BM IC3002 MM1118XFBE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 108 — IC4005, 4006, 4010, 4011 TC74ACT245F-EL 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 A1 DIR A2 A3 A4 A5 A6 A7 A8 GND ENABLE G VCC B1 B2 B3 B4 B5 B6 B7 B8 20 19 18 17 16 15 14 13 12 11 1 2 3 4 5 6 7 8 9 10 Vcc 1Y1 2A4 1Y2 2A3 1Y3 2A3 1Y4 2A4 1A1 2Y4 1A2 2Y3 1A3 2Y2 1A4 2Y1 GND 1G 2G IC4019 TC74AC240F-EL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 109 — IC1501, 1502 M5294P — POWER SECTION — 1 2 3 4 5 6 7 + – + – -5V +3.0V GND -VCC -VCC BALANCE ADJ. +VCC VREF +5V +VCC +5V RESET OUT RESET DELAY CAPACITOR ON/OFF +5V DELAY CAPACITOR PHASE COMPENSATION 8 9 10 11 12 13 14 15 16 DELAY CIRCUIT DELAY CIRCUIT ON/OFF CONTROL CURRENT LIMITER CURRENT LIMITER + – REFERENCE VOLTAGE THERMAL SHUT DOWN + – R3 R4 V REF OSC 5 4 3 2 1 6 7 8 12 13 14 15 16 11 10 9 – + – + – + – + + – – + + + + + U.V.L.O + OUT2 GND FB2 IN (–) IN (+) DT2 CS CT 1.5V 30µA P.W.M P.W.M 1.5V BIAS 2.5V 0.5V ERROR AMP OFF VCC OUT1R OUT1 FB1 IN (–) DT1 REF IN (+) OFF IC1701 FA7611M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 110 — POWER CIRCUIT CONTROL CIRCUIT DRIVER VIN NC 7 ADJ 6 NC 5 CTL 4 GND 3 V OUT 2 FB 1 8 1 2 3 4 5 VCC Cd RESET INT GND + – + – RESET SIGNAL GENERATOR INTERRUPT SIGNAL GENERATOR IC1101, 1111, 1121, 1201 BP5020 IC1351 M62005L GND SD/MODE IRED CATHODE RXD VCC IRED ANODE TX NC COMPARATOR AMPLIFIER CONTROL LOGIC DRIVER DRIVER 1 2 3 4 5 6 7 8 IC8001 IBM31T1100 (K) — IRDA SECTION — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 111 — 6-27. IC PIN FUNCTION • IC101 RF AMPLIFIER (CXA1981AR) / BD BOARD Pin No. 1 2 ~ 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47, 48 I/O O I I O I I I — O O O I I I I O O I — I O I I O O I I O O O I O O O I O I I O I O I Description Middle point voltage (+2.5V) generation output Input of signal from optical pick-up detector F operation amplifier input F operation amplifier output Front monitor Connected to photo diode Input for setting laser power Temperature sensor connection pin Ground APC LD amplifier output Digital APC output (Not used) Temperature sensor reference voltage output Input of reset signal from system controller Reset: “L” Input of write data signal from system controller Input of clock signal from system controller Input of latch signal from system controller Reference voltage output (Not used) Tracking envelop signal output (Not used) Track hold capacitor connection pin Power supply (+5V) Track hold input (Connected to VC) Output of tracking error signal to CXD2535CR Input of add signal to tracking error Sled error LPF pin Output of sled error signal to CXD2535CR ADIP FM signal output Inputs ADIP FM signal by AC coupling Connection pin of external capacitor for ADIP AGC Output of ADIP dual FM signal to CXD2535CR (22.05 kHz±1 kHz) Output of auxiliary signal to CXD2535CR Output of focus error signal to CXD2535CR Focus bias control input (Not used) Output of light amount signal to CXD2535CR Output of bottom hold signal of light amount signal to CXD2535CR Output of peak hold signal of light amount signal to CXD2535CR Connection pin of RF AGC circuit external capacitor Output of playback EFM RF signal to CXD2535CR Internal circuit constant setting pin 22 kHz BPF center frequency (Fixed at “H”) Inputs RF signal by AC coupling Output pin of RF signal Inputs MO RF signal by AC coupling Output pin of MO RF signal Input of signal from optical pick-up detector Pin Name VC A ~ F FI FO PD APCREF TEMPI GND AAPC DAPC TEMPR XRST SWDT SCLK XLAT VREF TENV THLD VCC TFIL TE TLB CSLED SE ADFM ADIN ADAGC ADFG AUX FE FLB ABCD BOTM PEAK RFAGC RF ISET AGCT RFO MORFI MORFO I, J www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 112 — Pin No. 1 2 3 4 5 6 7 ~ 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 I/O I I O I I/O I — — I — I — I — I — I — I — O — — O — — I/O O I/O I/O I — — I/O I/O O O O Description Test pin. (Fixed to “L”) Test pin. (Fixed to “L”) Real time control output (Not used) IIC bus slave address selection signal input (Not used) “L”: Slave address = 9CH write, 9DH read “H”: Slave address = 9DH write, 9FH read IIC bus serial data input/output IIC bus serial clock input Not used Analog Ground-4 Analog input (Not used) Analog power supply-4 (+5 V) Y (luminance) signal analog input Analog Ground-3 C (chroma) signal analog input Analog power supply-3 (+5 V) Y (luminance) signal analog input Analog Ground-2 C (chroma) signal analog input Analog power supply-2 (+5 V) Analog input (Not used) Sub-state Ground Analog test output (Not used) Power supply for internal clock circuit (+ 5 V) Ground for internal clock circuit External clock circuit control signal output (Not used) Power supply (+5 V) Ground Line lock clock input/output (32 MHz). Pin-33 CGCE is “H”: Output, “L”: Input 1/2 signal output of line lock clock (16 MHz). Pin-33 CGCE is “H” output, “L”: High impedance Reference clock input/output. Pin-33 CGCE is “H”: Output, “L”: Input (Not used) Reset input/output. Pin-33 CGCE is “H”: Output, “L”: Input (Not used) Internal clock circuit enable input. (Not used) Power supply (+5 V) Ground Horizontal clamp pulse input/output (Not used) Horizontal sync display signal input/output (Not used) Horizontal sync signal output Not used ODD/EVEN identification signal output Pin Name SHIFTTP ACTP RTCO IICSA SDA SCL RSRV1 ~ RSRV3 VSSA4 AI42 VDDA4 AI41 VSSA3 AI32 VDDA3 AI31 AVSS2 AI22 AVDD2 AI21 VSSS AOUT VDDA0 VSSA0 LFCO VDD VSS LLC LLC2 CREF RESO CGCE VDD VSS HCL HSIND HSYNC PLIN ODD/EVEN • IC104 FRONT END (SAA7110AWP) / VIDEO-IN BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 113 — Pin No. 41 42 43 44 45 ~ 50 51 52 53, 54 55 ~ 62 63 64 65 66 67 68 I/O I/O O — — O — — O O I O O I — — Description Vertical sync signal output Vertical reference signal output (Not used) Ground Power supply (+5 V) Upper 6 bits of Y (luminance) signal digital output Ground Power supply (+5 V) Lower two bits of Y (luminance) signal digital output C (chroma) signal digital output Enable input. “L”: Active Not used Clock output (26.8 MHz) Clock input (26.8 MHz) Ground Power supply (+5 V) Pin Name VSYNC HREF VSS VDD DY7 ~ DY2 VSS VDD DT1, DY0 DUV7 ~ DUV0 FEI GPSW XTAL XTALI VSS VDD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 114 — Pin No. 1 2 3 4 5 6, 7 8 9 10 11 12 13 ~ 20 21 ~ 24 25 26 27 ~ 30 31 ~ 33 34 35 ~ 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55, 56 57 58 I/O I — I I I I I — O O — I/O I/O — — I/O I/O — I/O I I I I I — — O O O O O O O O I/O — — Description Reset input Test terminal. (Fixed to “L”) Data bus write signal input Data bus read signal input Data bus chip select signal input I/O address input DMA transfer acknowledge signal input. (Compressed data and picture data only are valid.) Ground DMA transfer request signal output. (Compressed data and picture data only are valid.) End signal output of the respective mode processing. “L”: Mode ended. “H”: Mode is continued or mode has not started yet Power supply (+5 V) Data bus input/output. (Compressed data, picture data, command, status) Y-data bus during synchronous pixel input/output Ground Power supply (+5 V) Y-data bus during synchronous pixel input/output Cb/Cr-data bus during synchronous pixel input/output. (Cb and Cr are mutually interleaved when input and output.) Ground Cb/Cr-data bus during synchronous pixel input/output. (Cb and Cr are mutually interleaved when input and output.) DRAM selection input DRAM control setting put. “L”: Normal access, “H”: Hi-Z Horizontal sync data effective period input during sync signal input/output. (Refresh operation during blanking period Data access during real display mode.) Vertical sync data effective period input during sync signal input/output. Odd/even field identification signal input during sync signal input/output. “H”: First field, “L”: Second field Power supply (+5 V) Ground HBLK is delayed for the time equivalent to internal processing time, and is output. (Not used) Status output indicating that Y/C data bus is output status when this pin is “H” DRAM status output. “L”: During refreshing, “H”: Normal operation Read enable signal 2 output Write enable signal 2 output Read enable signal 1 output Write enable signal 1 output Row address selection signal output Y data bus input/output with DRAM Power supply (+5 V) Ground Pin Name RSTI TEST WR RD CS HA0, HA1 DACK GND DREQ INT VDD D0 ~ D7 Y7 ~ Y4 VSS VDD Y3 ~ Y0 C7 ~ C5 VSS C4 ~ C0 SWE DOE HBLK VBLK ODD/EVEN VDD VSS HOUT DSPLY RFSH OE2 WE2 OE1 WE1 RAS AD7, AD6 VDD VSS DRAM control WE1 OE1 WE2 OE2 SWE Active at CAS address 0 to 511 Active at CAS address 0 to 1023 Active at CAS address 512 to 1023 Active at CAS address 1024 to 2047 L R • IC105 JPEG ENCODER/DECODER (MD2201A) / VIDEO-IN BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 115 — Pin No. 59 ~ 64 65 66 67, 68 69, 70 71 72 73 74 ~ 81 82 83 ~ 87 88 89 90 ~ 93 94 95 96, 97 98 99 100 I/O I/O O — — — — — O I/O — O — — O O — — I — I Description Y data bus input/output with DRAM Y-component column address selection signal output Power supply (+5 V) Ground Power supply (+5 V) Not used Ground C-component column address selection signal output Cb/Cr data bus input/output with DRAM Ground Address output to DRAM Power supply (+5 V) Ground Address output to DRAM Address output (Not used) Power supply (+5 V) Ground Clock input Power supply (+5 V) Standby input. “L”: Standby, “H”: Normal operation Pin Name AD5 ~ AD0 CASY VDD VSS VDD N.C. VSS CASC BD0 ~ BD7 VSS A0 ~ A4 VDD VSS A5 ~ A8 A9 VDD VSS MCLK VDD STDBY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 116 — Pin No. 1, 2 3 4 5 6 7 ~ 14 15 ~ 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43, 44 45 46 47, 48 49 50 51 ~ 55 56 57 58 59 ,60 61 62 63 64 I/O O O O O O I/O I/O I O I — I I I O I/O — I — O O O O I I I I O I I I/O I/O O O — — — O O O O O Description I/O address output to JPEG encoder/decoder Chip select output to JPEG encoder/decoder Data read signal output to JPEG encoder/decoder Data write signal output to JPEG encoder/decoder Reset output to JPEG encoder/decoder Data input/output to JPEG encoder/decoder Data input/output with host controller Not used Clock output (16 MHz) Clock input (16 MHz) Ground Reset input. “L”: reset Not used Used field identification input Not used Vertical sync signal input/output Analog Ground Reference voltage input (+5 V) Analog power supply (+5 V) Not used Strobe signal output to host controller Data input/output selection output. “H”: Output Clear signal output. “L”: Clear H signal detection input from host controller L signal detection input from host controller Strobe signal input from host controller Not used Not used End signal input from JPEG encoder/decoder. “L”: End Data transfer request input from JPEG encoder/decoder. “L”: Request Not used IIC control data input/output with front end IIC control clock output to front end Not used Not used Power supply (+5 V) Ground Not used Chip select signal output to video switch Chip select signal output to video switch Not used Acknowledge signal output to JPEG encoder/decoder. “L”: Acknowledge Pin Name HA1, HA0 CS RD WR RSTO D7 ~ D0 HD7 ~ HD0 — XTALO XTALI VSS RSTI — ODD/EVEN — VSYNC AVSS — AVDD — HSTBO I/O SEL HCLR HHDET HLDET HSTBI — — INT DREQ — IICDATA IICCLK — NC VDD VSS — SEL-S/C SEL-P/F — DACK • IC108 VIDEO INPUT CONTROL MICROPROCESSOR (CXP81120-032R) / VIDEO-IN BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 117 — Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 I/O O O O O I I I I I I O O (3) O O O I I O I O I O O I — I I O I O (3) O O O O I O O — O O Description 11.2896 MHz clock output (MCLK) (Not used) Output of FOK signal to system controller Outputs “H” when focus is set Outputs defect ON/OFF switching signal to ATRAC encoder/decoder Outputs track jump detection signal to system controller Track jump detection enable input (Not used) (Fixed at “H”) Inputs laser power switching signal from system controller Disc drive recording/playback switching signal input (Fixed at “H”) Inputs write data signal from system controller Inputs serial clock signal from system controller Inputs serial latch signal from system controller Outputs read data signal to system controller Outputs internal status (SENSE) to system controller ADIP sync signal output (Not used) Output subcode Q sync (SCOR) to system controller Outputs “L” every 13.3 msec Outputs “H” at all most mostly Outputs digital-in U-bit CD format subcode Q sync (SCOR) to system controller Outputs “L” every 13.3 msec Outputs “H” at all most mostly Inputs reset signal from system controller Reset: “L” Test input (Fixed at “L”) Not used Test input (Fixed at “L”) Digital audio signal output (For optical output) Digital audio signal input (For optical input) (Not used) ADIP FM demodulation clock signal output ADIP CRC flag output “H”:Error Input of recording/playback switching signal from system controller Recording: “H” Playback: “L” Ground (Digital) Digital audio output validity flag input (Fixed at “L”) Input of 16bit data for digital audio output Output of 16bit data for digital audio input to ATRAC encoder/decoder Input of recording audio data signal from ATRAC encoder/decoder Output of playback audio data signal to ATRAC encoder/decoder Outputs C2PO signal to ATRAC encoder/decoder (Output indicating data error status) Playback: C2PO (“H”) Digital recording: Digital-in-Vflag Analog recording: “L” Outputs bit clock signal (2.8224 MHz) (MCLK) Outputs L/R clock signal (44.1 kHz) (MCLK) System clock (512 fs=22.5792 MHz) signal output Input of system clock (512fs=22.5792 MHz) signal input MCLK clock (22.5792 MHz) signal output (Not used) Pin 32 (BCK) inversion output (Not used) Power supply (+5V) (Digital) WDCK clock (88.2 kHz) signal output (MCLK) RFCK clock (7.35 kHz) signal output (MCLK) Pin Name FS256 FOK DFCT SHCK SHCKEN WRPWR DIRC SWDT SCLK XLAT SRDT SENS ADSY SQSY DQSY XRST TEST4 CLVSCK TEST5 DOUT DIN FMCK ADER REC DVSS DOVF DODT DIDT DTI DTO C2PO BCK LRCK XTAO XTAI MCLK XBCK DVDD WDCK RFCK • IC121 DIGITAL SIGNAL PROCESS, DIGITAL SERVO SIGNAL PROCESS (CXD2535CR) / BD BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 118 — Pin No. 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I/O O O O O O O I I O (3) — I (A) I (A) O (A) — O I (A) I (A) I (A) — I (A) O (3) I (A) O (3) I (A) I (A) I (A) I (A) I (A) I (A) O (A) I (A) — I (A) I (A) — I (A) I (A) I (A) I (A) I (A) Description WFCK clock (7.35 kHz) signal output (Playback: EFM decoder PLL Recording: EFM encoder PLL) “H”: Opens playback EFM frame sync protection window “H”: Playback EFM sync and interpolation protection timing match EFM decoder PLL clock output (98 fs=4.3218 MHz) Falling edge and EFM signal edge match EFM signal output (Recording) Internal RAM overflow detection signal output (decoder monitor output) Outputs “H” when the disc rotation exceeds ±4F jitter margin during playback Digital-in PLL oscillation input (Not used) (Fixed at “L”) Test pin (Fixed at “L”) Digital-in PLL phase comparison output Internal VCO: (Frequency: Low n “H”) External VCO: (Frequency: Low n “L”) Ground (Digital) Digital-in PLL internal VCO control voltage input Filter input when digital-in PLL internal VCO is used Filter output when digital-in PLL internal VCO is used (Not used) Power supply (+5V) (Analog ) Playback EFM full-swing output (L=VSS, H=VDD) Playback EFM asymmetry comparate voltage input Playback EFM asymmetry circuit constant current input Inputs playback EFM RF signal from RF amplifier Ground (Analog ) Decoder PLL master clock PLL VCO control voltage input Decoder PLL master clock PLL phase comparison output Decoder PLL master clock PLL filter input Decoder PLL master clock PLL filter output Inputs peak hold signal for light amount signal from RF amplifier Inputs bottom hold signal for light amount signal from RF amplifier Light amount signal from RF amplifier Input of focus error signal from RF amplifier Input of auxiliary signal from RF amplifier Input of middle point voltage (+2.5V) from RF amplifier A/D converter input signal monitor output Test input (Fixed at “L”) Power supply (+5V) (Analog) A/D converter operation range upper limit voltage input (Fixed at “H”) A/D converter operation range lower limit voltage input (Fixed at “L”) Ground (Analog) Input of sled error signal from RF amplifier Input of tracking error signal from RF amplifier Auxiliary input pin 2 (Fixed at “L”) Connected to ground Laser APC input (Fixed at “L”) Pin Name WFCK GTOP GFS XPLCK EFMO RAOF MVCI TEST2 DIPD DVSS DICV DIFI DIFO AVDD ASYO ASYI BIAS RFI AVSS CLTV PCO FILI FILO PEAK BOTM ABCD FE AUX1 VC ADIO TEST3 AVDD ADRT ADRB AVSS SE TE AUX2 DCHG APC • Abbreviation EFM : Eight to Fourteen Modulation PLL : Phase Locked Loop * (3) of I/O is 3-state output, (A) is analog output. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 119 — Pin No. 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O I I I O O O O — O O O O O O O I O O O — Description Test pin (Fixed at “L”) Input of ADIP dual FM signal from RF amplifier (22.05 kHz ±1 kHz) (TTL Schmidt input) Test pin (Fixed at “L”) Laser APC signal output Tracking servo drive signal output (–) Tracking servo drive signal output (+) Focus servo drive signal output (+) Power supply (+5V) (Digital) Focus servo drive signal output (–) 176.4 kHz clock signal output (MCLK) (Not used) Sled servo drive signal output (–) Sled servo drive signal output (+) Spindle servo drive signal output (–) Spindle servo drive signal output (+) Not used normally Not used normally (Fixed at “H”) Not used normally Off track signal output (Not used) Traverse count signal output (Not used) Ground (Digital) Pin Name TEST1 ADFG TS25 LDDR TRDR TFDR FFDR DVDD FRDR FS4 SRDR SFDR SPRD SPFD DCLO DCLI XDCL OFTRK COUT DVSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 120 — Pin No. 1 2 ~ 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 ~ 51 I/O I I I I I I — — O I I I I — I I O — — I — O — — O O O I O — O — I O O I O — O O Description Digital input (MSB) (Not used) Digital input (Not used) Digital input (LSB) (Not used) When this pin is “H”, the video signal input coming from the A/D converter (input pin A/DIN) is output to the Y output terminal (YA to Y3) in the form of 8-bit digital data with delay of 3.5 clocks. When this pin is “L”, this is normal mode. (Fixed to “L”.) Input selection of comb filter. “H”: Digital input. “L”: Analog input (Fixed to “L”.) Clock amplifier input (14.3 MHz) Digital Ground Digital power supply (+5 V) Clock amplifier output (14.3 MHz) Clock input (Connected pin-14) Clock input to A/D converter (Connected pin-14) A/D converter clamp pulse input. The signal voltage when the clamp pulse is Low, is clamped. When this pin is “H”, the clamp function is turned “OFF” so that the normal A/D converter function only works. When this pin is “L”, the clamp function is turned “ON”. (Fixed to “L”.) Digital Ground for A/D converter Voltage integrator terminal for clamp control Clamp reference voltage input Reference voltage (Bottom) standard value (+0.5 V) Guard ring (Connected to Ground) Analog Ground for A/D converter Comb filter analog input (A/D converter input) Analog power supply for A/D converter (+5 V) Reference voltage (Top) standard value (+2.6 V) Digital power supply for A/D converter (+5 V) Power supply for Y-A/D converter (+5 V) AYO inverted current output terminal (Connected to Ground) Analog luminance signal output Connected to capacitor Full scale value setting terminal for analog luminance signal An external resistor having “16R” that is 16 times with respect to the output resistance “R” of the AYO terminal, is connected to this pin Ground for Y-D/A converter Connected to capacitor Analog power supply for C-D/A converter (+5 V) ACO inverted current output terminal (Connected to Ground) Analog chroma signal output Connected to capacitor Full scale value setting terminal for analog chroma signal An external resistor having “16R” that is 16 times with respect to the output resistance “R” of the ACO terminal, is connected to this pin Ground for C-D/A converter Digital luminance signal output (MSB) Digital luminance signal output (Not used) Pin Name VI8 VI7 ~ VI2 VI1 ADCO INSL OCLK DVSS DVDD CLKO MCK ADCK CLPI XCPON ADVS ICP CRV RB GR AAVS ADIN AAVD RT ADVD YVDD XAYO AYO YVG YVRF YIRF YVSS VB CVDD XACO ACO CVG CVRF CIRF CVSS YA Y9 ~ Y3 • IC401 DIGITAL COMB FILTER (CXD2023Q) / VIDEO-IN BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 121 — Pin No. 52 53 54 55 56 57 58 ~ 65 66 67 68 69, 70 71 72 73 74 ~ 78 79 80 I/O — — O O I O O O I I I I — — I I I Description Digital Ground Digital power supply (+5 V) Digital luminance signal output (Not used) Digital luminance signal output (LSB) (Not used) Digital luminance signal output control “H”: High impedance, “L”: Enable (Fixed to “H”) Digital chroma signal output (MSB) (Not used) Digital chroma signal output (Not used) Digital chroma signal output (LSB) (Not used) Digital chroma signal output control “H”: High impedance, “L”: Enable (Fixed to “H”) Aperture correction selection. “H”: Deterioration of frequency response due to aperture effect is corrected. Aperture correction works on the Y output even in the through mode (TST ON). “L”: Standard mode (Fixed to “L”.) Test terminal (Fixed to “H”) Y-output through mode. “H”: The input composite video signal is output from the Y-output. At this time, the output signal is delayed after input by 1H + 18 clocks (with digital input). The C output that is separated by Y/C separator is output to the C-output. “L”: Y/C separation mode (Fixed to “L”.) Digital Ground Digital power supply (+5 V) Test terminal (Fixed to “H”) When this pin is “H”, Fixed to separation with BPF. When this pin is “L”, this is normal mode. (Fixed to “L”.) Test terminal (Fixed to “H”) Pin Name DVSS DVDD Y2 Y1 XYOE CA C9 ~ C2 C1 XCOE APCN TEST TST DVSS DVDD TEST BPF TEST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 122 — Pin No. 1 2 3 4 5 6 7, 8 9 10 ~ 25 26 27 28 29 ~ 37 38 39 40 41 42 43 44 45 46 47 ~ 54 55 56 ~ 63 64 65 ~ 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I/O I O I — O O I — I/O — — — O O — O — O O O O — I/O — I/O — — O O O O — I — O — O I I — Description Host data bus write signal input. “L”: Active Low pulse is output during DMA transfer request DMA acknowledge signal input. “L”: Active Ground JPEG stream window end signal output. “L”: End Register set timing frame pulse output during the picture-input lock mode. “L”: Active (Not used) Address input from host CPU Power supply (+5 V) Data bus input/output with host CPU Ground Not used Power supply (+5 V) Address output to VRAM Special function enable signal output to VRAM Ground Column address strobe signal output to VRAM Power supply (+5 V) Row address strobe signal output to VRAM (Not used) Row address strobe signal output to VRAM Upper bytes data write enable signal output to VRAM Lower bytes data write enable signal output to VRAM Not used Data bus input/output with VRAM Ground Data bus input/output with VRAM Power supply (+5 V) Not used Serial data enable output to VRAM (Not used) Serial data enable output to VRAM Data transfer/output enable output to VRAM (Not used) Data transfer/output enable output to VRAM Not used Serial clock input from digital NTSC encoder Ground Serial clock output to digital NTSC encoder Power supply (+5 V) Address acknowledge output to digital NTSC encoder. “L”: Active Address transfer request input from digital NTSC encoder. “H”: Active Test pin (Fixed “L”) Ground Pin Name XWR XDRQ XDACK GND WEND FDO A2, A1 VCC D15 ~ D0 GND TP2 VCC VA0 ~ VA8 DSF GND CAS VCC RAS2 RAS1 WEH WEL TP3 VD15 ~ VD8 GND VD7 ~ VD0 VCC TP4 ~ TP6 SE2 SE1 OE2 OE1 TP7 SDAT GND SCLK VCC ADAK ADRQ TEST GND • IC1005 PICTURE MEMORY CONTROLLER (CXD8648R-AV) / PICTURE BOARD (1/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 123 — Pin No. 81 ~ 88 89 90 91 92 93 94 95, 96 97 98 99 100 101 102 103 104 105 106 ~ 113 114 115 ~ 122 123 124 125 126 127 128 I/O I/O — — I/O I/O I/O I — — I — — I I I — — I — I — — I — I I Description Picture data input/output with JPEG image compression/expansion processing (Compression during output and expansion during input) Not used Power supply (+5 V) Block data start signal input/output with JPEG image compression/expansion processing (Compression during output and expansion during input) Final data scan information signal input/output with JPEG image compression/expansion processing Picture data feed approved/not-approved signal input/output with JPEG image compression/expansion processing (Compression during output and expansion during input) CODER’s internal status signal input from JPEG image compression/expansion processing. “H”: Compression, “L”: Expansion Not used Ground System clock input (12.27 MHz) Ground Not used Picture effective data signal input (Amount equivalent to 480H). “H”: Active Frame sync signal input. “L”: Active Horizontal sync signal input. “L”: Active Not used Power supply (+5 V) Luminance signal input during input-lock mode (Not used) Ground Color difference signal input during input-lock mode. Signals are input sequentially in the order of Cb then Cr (Not used) Not used Power supply (+5 V) System reset input. “L”: Active Not used Chip select signal input. “L”: Active Host data bus read-out signal input. “L”: Active Pin Name PIX0 ~ PIX7 TP8 VCC DSYNC EOS STOP COMP TP9, TP10 GND CLK GND TP11 WEI FDI HDI TP12 VCC Y0 ~ Y7 GND C0 ~ C7 TP13 VCC XRST TP14 XCS XRD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 124 — • IC2003 DIGITAL NTSC ENCODER (CXD8649R-AV) / PICTURE BOARD (1/3) Pin No. 1 ~ 4 5 6 ~ 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39, 40 41 42 43 44 45 46 47 48 49 50, 51 52 53 54 55 I/O O — O O O I O — O O — I O — O O O O O I O — I I I I — I I I I — O O — I I I — — O Description Chroma signal digital output (Not used) Ground Y (luminance) signal digital output (Not used) BIST output (Not used) Chip select signal output for BIST (Fixed to “H”) PAL clock input (Not used) PAL clock output (Not used) Ground Divider output to 4 FSC (Not used) Divider output of H signal to 24 MHz (Not used) Digital power supply (+5 V) NTSC clock input (14.3 MHz) NTSC clock output (14.3 MHz) Digital Ground NTSC phase comparator output PAL phase comparator output (Not used) PAL phase comparator output (Window type L-side) (Not used) PAL phase comparator output (Window type H-side) (Not used) PLL lock detection signal output. “H”: Lock, “L”: Unlock PLL lock signal input Chroma signal D/A output Analog power supply (+5 V) Reference current input to chroma signal D/A converter Reference voltage input to chroma signal D/A converter Connected to capacitor Chroma bias input Analog Ground Y (luminance) bias input Connected to capacitor Reference voltage input to Y (luminance) signal D/A converter Reference current input to Y (luminance) signal D/A converter Analog power supply (+5 V) Y (luminance) signal D/A output Phase comparator output to 24 MHz VCO Analog Ground VCO control voltage input Connected to the VCO reference resistor VCO test pin (Open) Analog power supply (+5 V) Digital power supply (+5 V) WIDE ID signal output (Not used) Pin Name COT6 ~ COT9 GND YOT0 ~ YOT9 BISTO XCS VXOPI VXOPO GND FHSCO FHMKO DVCC VXONI VXONO DGND NCPO PPCM0 PPCWLO PPCWHO PLLLOCK LOCKIN CDAO AVCC CIREF CVREF CCOMP CBIAS AGND YBIAS YCOMP YVREF YIREF AVCC YDAO MPHDET AGND MVCOIN MR1, MR2 MTEST AVCC DVCC WIDEID www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 125 — Pin No. 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 ~ 91 92 93 94 95 ~ 100 I/O I I I I I I O O O I O — I O I O O I O — I — O — O Description Test pin (Fixed “L”) Y/C signal D/A output control signal input VCO oscillation control signal input Mode control signal input. “H”: NTSC Mode control signal input. “L”: PAL Analog test pin (Fixed to “L”) VD or SYNC signal output HD signal output FD signal output 12 MHz input 4 FSC output Digital Ground 24 MHz input 24 MHz output Serial clock input Serial data output Address request signal output Address acknowledge signal input RAM read clock output Digital power supply (+5 V) Data input Digital Ground 12 MHz output (Not used) Digital power supply (+5 V) Chroma signal digital output (Not used) Pin Name TEST YCON VCOMUTE NTSC PAL ATEST VDO HDO FDO MKTGI 4FSC DGND M2CKI M2CKO SIOCLK SIODAT ADRREQ ADRAQN RAMSCK DVCC DIN0 ~ DIN15 DGND MCLK DVCC COT0 ~ COT5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 126 — Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 ~ 21 22 23 24 25 26 27 28 ~ 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53, 54 55 56 57 I/O — — I — I O I I I I — — — I/O O O O O — — O — — — O I O O O I — O I O — — I I O I Description Power supply (+5 V) Ground Subcode Q sync (SCOR) input from CXD2535CR Not used Playback picture data signal input Record picture data signal output C2PO signal input from CXD2535CR Bit clock input (2.8224 MHz) (MCLK system) L/R clock input (44.1 kHz) (MCLK system) Write frame clock input Not used Not used Ground Buffer memory data bus Row address strobe output to buffer memory Column address strobe output to buffer memory Data write output to buffer memory Address output to buffer memory Power supply (+5 V) Ground Address output to buffer memory Ground Not used Not used Data transfer clock output to ATRAC encoder/decoder Data input from ATRAC encoder/decoder Data output to ATRAC encoder/decoder Data transfer sync pulse output to ATRAC encoder/decoder C2PO signal output to ATRAC encoder/decoder Data request input from ATRAC encoder/decoder Ground System clock output (Not used) System clock (22.5792 MHz) input Clock output (Not used) Power supply (+5 V) Ground Address input from host Chip select input from host Interrupt request output to host Host mode selection input (Fixed to “L”) Pin Name VDD VSS ENSC MOSY DATA DTO C2PO BCK LRCK WFCK NC NC VSS MOB7 ~ MOB0 XRAS XCAS XMWR MAIO VDD VSS MA9 ~ MA0 VSS NC NC ACLK ADTI ADTO XABS AC2 XARQ VSS XTL2 XTL1 XTL0 VDD VSS HA0, HA1 XHCS HINT HMDS • IC2007 MD ENCODER/DECODER (CXD1805AR) / MD BOARD (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 127 — Pin No. 58 ~ 62 63 64 ~ 66 67 68 69 70 71 72 73 74 75 76 77 78 ~ 83 84 ~ 87 88 89 ~ 92 93 94 95 96 97 98 99 100 I/O I/O — I/O I/O I/O O I — — — I O — — I I/O — I/O O I I I — I — — Description Host data bus Ground Host data bus Data read strobe signal input/output from host or to IRDA Data write strobe signal input/output from host or to IRDA Data request output to host, or data acknowledge output to IRDA Data acknowledge input from host, or data request input from IRDA Ground Not used Not used CPU address input Test signal input Power supply (+5 V) Ground CPU address input CPU data bus Ground CPU data bus Interrupt request output to system control Internal register write strobe input from system control Internal register read strobe input from system control Chip select input from system control Ground Reset input Not used Not used Pin Name HDB7 ~ HDB3 VSS HDB2 ~ HDB0 XHRD XHWR HDRQ/XSAC XHAC/SDRQ VSS NC NC A6 TEST VDD VSS A0 ~ A5 DB0 ~ DB3 VSS DB4 ~ DB7 XINT XWR XRD XCS VSS XRST NC NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 128 — Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 ~ 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46, 47 I/O — I I I O/Z O/Z I I O I I I — I I I I I I I I — O O I O I I I I/O I/O I/O O I — I/O O O I O O O O Description Power supply (+5 V) Write data input from system control Serial clock input from system control Serial latch input from system control Read-out data output (Not used) Internal status (SENSE) output (Not used) Serial command control mode input (Fixed to “H”) Serial command control mode input (Fixed to “H”) Interrupt status output Record/playback selection input (Fixed to “L”) Write/monitor mode selection signal input (Fixed to “L”) Write data transmission timing input. Used also as ON/OFF output of magnetic field head Ground Chip reservation pin (Fixed to “H”) Chip reservation pin (Fixed to “H”) Chip reservation pin (Fixed to “H”) Reset signal input from system control. “L” at reset. Test pin (Fixed to “L”) Chip reservation pin (Fixed to “L”) Block selection when single is used. “L”: ATRAC, “H”: RAM Controller (Fixed to “L”) Normally fixed to “L”. Fixed to “H” when single is used as ATRAC or RAM controller. (Fixed to“H”) Ground ATRAC and external audio block record/playback mode signal output terminal (Not used) ATRAC I/F data request signal output ATRAC decode data signal input terminal ATRAC encode data signal output terminal ATRAC I/F data transfer sync pulse signal input terminal ATRAC I/F data transfer clock signal input terminal ATRAC I/F C2PO signal input terminal ATRAC I/F L-channel start data signal input/output terminal (Not used) ATRAC I/F EXE signal input/output terminal (Not used) ATRAC I/F MUTE signal input/output terminal (Not used) Clock output (45 MHz) Clock input (45 MHz) Ground ATRAC I/F ATT signal input/output terminal (Not used) ATRAC block 11.6 msec timing signal output terminal (Not used) Audio data signal output to D/A converter Audio data signal input from A/D converter Bit clock signal output L/R clock signal output Address signal output (Not used) Address signal output (Not used) Pin Name VDD SWDT SCK XLAT SRDT SENS SCMD0 SCMD1 XINT TD26 TD27 TD28 VSS SICK IDSL XILT XRST TS0 ~ TS3 EXIR SASL SGL VSS AIRCPB XRQ ADTO ADTI XALT ACK AC2 LCHST EXE MUTE OSCO OSCI VSS ATT F86 DOUT ADIN ABCK ALRCK TA12 SA1, SA0 O/Z: The pin goes to high impedance when output data is not present. • IC2101 ATRAC ENCODER/DECODER (CXD2536R) / MD BOARD (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 129 — Pin No. 48, 49 50 51 52 ~ 55 56 ~ 60 61 62 63 64 65 66 67 68, 69 70 ~ 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O O — — O O O O — O O O O I/O I/O — I/O I/O I O O O O O O O O O — O I I I I/O I O O I I O — Description Address signal output (Not used) Ground Power supply (+5 V) Address signal output (Not used) Address signal output (Not used) Output enable control signal output (Not used) Column address strobe signal output (Not used) Ground Chip select signal output (Not used) Address signal output (Not used) Row address strobe signal output (Not used) Read/write control signal output (Not used) Data signal input/output terminal (Not used) Data signal input/output terminal (Not used) Ground Data signal input/output terminal (Not used) Error (C2PO) data input/output terminal with external RAM (Not used) External RAM selection input for error data write. (“H”: External RAM) (Fixed to “L”) RAM access BUSY signal output (Not used) ATRAC data EMPTY or immediately before FULL (“H” when DSC = ASC +1) (Not used) (Fixed to “L”) ATRAC data FULL or immediately before EMPTY (“H” when ASC = DSC +1) (Not used) (Fixed to “L”) ATRAC data is EMPTY (“H” when ASC = DSC) (Not used) (Fixed to “L”) Output signal indicating main/sub of playback data. (“H”: Sub, ringing. “L”: Main) (Not used) (Fixed to “L”) Insertion signal output (Not used) DSC counter mode output (Not used) DSC counter mode output (Not used) System clock (512 fs = 22.5792 MHz) signal output (Not used) Ground Main data sync detection signal output (Not used) L/R clock signal input (44.1 kHz) Bit clock signal input (2.8224 MHz) C2PO signal input (Indicates error status of data) During recording: Record audio data signal output During playback: Playback audio data signal input 16-bit data input for CXD2535CR digital audio input 16-bit data output for CXD2535CR digital audio output Disc drive, EFM encoder/decoder playback mode output (Not used) Defect ON/OFF switching signal input (Not used) (Fixed to “L”) Pin-87 (SPO) input/output switching input. (“L”: IN, “H”: OUT) (Not used) (Fixed to “L”) RAM controller internal master clock output terminal (Not used) Ground Pin Name TA11, TA10 VSS VDD TA03 ~ TA00 TA04 ~ TA08 XOE TD9 VSS TD10 TA09 TD11 TD12 TD1, TD0 TD2 ~ TD6 VSS TD7 TD8 TD29 TD13 TD14 TD15 TD16 TD17 TD18 TD19 TD20 SPO VSS MDSY TD30 TD31 TD32 TD21 DIDT DODT TD23 TD33 SPOSL TD22 VSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 130 — Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 I/O O O O O I I I I I I O I O — I — I I I I I O O O I O O O O O O I O O O I O O I O Description Loading motor control output LINE input electronic volume control signal output MIC input mute control signal output Detection signal input from loading OUT switch Remote control signal input Detection signal input from loading OUT switch (“L” at REC position) Not used (Fixed to “H”) Not used (Fixed to “L”) Clock signal input for watch (32 kHz) Clock signal output for watch (32 kHz) (Not used) System reset signal input System clock output (10 MHz) Ground System clock input (10 MHz) Power supply (+5 V) Not used (Fixed to “H”) ATIP SYNC or SUBQ SYNC input from CXD2535CR Interrupt signal input from MD encoder/decoder Power down detection input (Power down at “L”) FOK signal input from CXD2535CR Laser power switching signal output to CXD2535CR and optical block Laser modulation switching signal output Magnetic field head ON/OFF output DIGITAL IN SUBQ SYNC input from CXD2535CR Latch signal output to D/A converter Reset signal output to A/D and D/A converter Reset signal output to RF amplifier, CXD2535CR, MD encoder/decoder and motor driver Reset signal output to ATRAC encoder/decoder Latch signal output to serial bus Write data output signal to serial bus Read data input signal of serial bus Clock signal output to serial bus Record or playback switching signal output to CXD2535CR Serial data output signal to electronic volume Not used Serial clock signal output to electronic volume Strobe signal output to power supply circuit Not used (Fixed to “H”) Pin Name LDIN LDOUT LIN. VOL. CE MIC. MUTE OUT-SW RMC REC-SW BYTE CNVSS XCIN XCOUT RST XOUT VSS XIN VCC NMI ATSY DINT POWER DOWN FOK WRPWR RMS SCTX DQSY DF-LATCH DA-RST XDRST XRST36 XLAT SWDT SRDT SCLK RECPB VOL. DATA — VOL. CLK STB RDY ALE • IC2201 SYSTEM CONTROL (M30600M8-101FP) / MD BOARD (1/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 131 — Pin No. 41 42 43 44 45 46 47 48, 49 50 51 ~ 53 54 ~ 61 62 63 64 65 ~ 72 73 74 75 76 77 78 79 80 81 ~ 88 89 90 91 92 93 94, 95 96 97 98 99 100 I/O I O O O O O O I O O O — O — O O O O O I I O I/O I/O O O O I I I — I — — I Description Not used (Fixed to “H”) Bit clock output (Not used) (Fixed to “H”) Data read strobe signal output Bus high bytes enable signal output Data write strobe signal output Chip select output to MD encoder/decoder Not used (Fixed to “H”) Chip select output to flash ROM Address output (Not used) Address output Power supply (+5 V) Address output Ground Address output Chip enable signal output to HEADPHONE electronic volume Not used Reset signal output to host (V821) LINE OUT mute output. Mute at “L” Track jump signal input from CXD2535CR Internal status input from CXD2535CR Clock signal output to backup memory Data signal input/output with backup memory Data bus Laser ON/OFF control output. ON at “H” Cooling fan drive voltage selection signal output. Low output at “H” BUSY lamp. ON at “H” Detection signal input from LIMIT IN switch. Limit in at “L” PROTECT and REFLECT signal input Key input Ground Key input Reference voltage input (+5 V) Analog power supply (+5 V) Loading switch detection signal input (Chucking at “L”) Pin Name HOLD HLDA BCLK RD BHE WR CS3 CS2, CS1 CS0 A19 ~ A17 A16 ~ A9 VCC A8 VSS A7 ~ A0 HP. VOL. CE HSTB X. H. RST XAMUTE SHCK SENS SCL SDA D7 ~ D0 LDON FANSW BUSY XLIMIT-IN PROTECT, REFLECT KEY2, KEY1 AVSS KEY0 Vref AVCC PLAY-SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 132 — Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 I/O I I I — — I I I O I I I I I/O I/O O I/O — — I O I — — — O I I Description L-channel analog (+) input L-channel analog (–) input Reference voltage input (+3.2 V) Analog power supply of modulator block (+5 V) Analog Ground of modulator block Modulator block power down. “H”: Normal operation. “L”: Power down (Fixed to “H”) Test terminal. (Fixed to “L”) Mode setting terminal. (Fixed to “L”) L-channel over-flow flag output (Not used) Decimation filter block power down. “H”: Normal operation. “L”: Power down/Reset Test terminal. (Fixed to “L”) Master clock selection. “H”: 384 fs “L”: 256 fs (Fixed to “L”) Mode setting terminal. (Fixed to “L”) LRCK output during master mode. LRCK input during slave mode BCK output during master mode. BCK input during slave mode Data output SYNC output during master mode. FSYNC input during slave mode (Fixed to “H”) Power supply of decimation filter block (+5 V) Ground of decimation filter block (+5 V) Master clock input (256 fs) R-channel over-flow flag ooutput (Not used) Mode setting terminal. (Fixed to “L”) Not used Logic power supply of modulator block (+5 V) Logic Ground of modulator block Reference voltage output R-channel analog (–) input R-channel analog (+) input Pin Name INLP INLM REFI AVDD AVSS ANAPD HPBYP MODE2 OSFL DIGPD TEST CMODE MODE0 LRCK SCLK DOUT FSYNC DVDD DVSS MCLK OSFR MODE1 NC VLOGIC LGND REFO INRM INRP • IC2701 A/D CONVERTER (CXD8566M) / MD BOARD (2/2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 133 — • IC4003 SYSTEM MICROPROCESSOR CPU (µPD70741GC-25-7EA) / PICTURE BOARD (2/3) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 ~ 23 24 25 26 27 ~ 29 30 31 32 ~ 39 40 41 42 ~ 49 50 51 52 53 ~ 57 58 59 60 ~ 65 66 67 68 69 70 I/O — O (3) O (3) I I O O O (3) I/O O I O I O I — — I O I I — — I I — I/O (3) — — I/O (3) — — O (3) O (3) — — O (3) — — O — I Description Ground Read strobe signal output to I/O data Write strobe signal output to I/O data Non-maskable interrupt request input (Not used) Bus right request input (Not used) Bus acknowledge signal output (Not used) DMA end signal output (Not used) Data bus higher bytes enable signal output (Not used) Serial clock input/output of CSI (Not used) Serial data output of CSI (Not used) Serial data input of CSI (Not used) DMA acknowledge signal output (Channel 1) DMA request signal input (Channel 1) DMA acknowledge signal output (Channel 0) DMA request signal input (Channel 0) Ground Power supply (+5 V) External clear and start signal input to timer 0 (Not used) Bus prohibit signal output, or WDT overflow signal output (Not used) Interrupt request input (Not used) Interrupt request input (Not used) Power supply (+5 V) Ground Interrupt request input System reset input Connected Ground Data bus input/output Power supply (+5 V) Ground Data bus input/output Ground Power supply (+5 V) Address bus output (Not used) Address bus output Power supply (+5 V) Ground Address bus output Ground Power supply (+5 V) System clock output Power supply (+5 V) Clock input (Not used) Pin Name GND IORD IOWR NMI HLDRQ HLDAK RXD/P09/TC TXD/P08/UBE SCLK/P07 SO/P6 SI/P5 DACK1/P04 DREQ1/P03 DACK0/P02 DREQ0/P01 GND VDD TCLR/P00 BLOCK/WDTOUT INTP03 ~ INTP00 INTP13/TI VDD GND INTP12 ~ INTP10 RESET I.C. D0 ~ D7 VDD GND D8 ~ D15 GND VDD A0 A1 ~ A5 VDD GND A6 ~ A11 GND VDD LCKOUT VDD X2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 134 — Pin No. 71 72 73 74 75 76 77 78 79 80 81 82 83 ~ 85 86 ~ 90 91 92 93 ~ 97 98 99 100 I/O I — O (3) O (3) — — O (3) O (3) O (3) O (3) I O (3) O (3) O (3) — — O (3) O (3) O (3) — Description Clock input (4 MHz) Ground Column address strobe signal output to higher data of DRAM Column address strobe signal output to lower data of DRAM Ground Power supply (+5 V) Row address strobe signal output to DRAM Write strobe signal output to higher data of memory Write strobe signal output to lower data of memory Read strobe signal output to memory Bus cycle end ready signal input (Not used) Chip select signal, or refresh request signal output to DRAM (Not used) Chip select signal output Address bus output Ground Power supply (+5 V) Address bus output Address bus output (Not used) Address bus output Power supply (+5 V) Pin Name X1 GND UCAS LCAS GND VDD RAS UMWR LMWR/WE MRD READY CS0/REFRQ CS1 ~ CS3 A12 ~ A16 GND VDD A17 ~ A21 A22 A23 VDD * (3) of I/O is 3-state output. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 135 — Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 ~ 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 I/O I O O I O O O O — O — I — — — — I I I — — O — — O — O O — O O O — O O O — O — O Description ROM selection input. “H”: External ROM. “L”: ROM on board. (Fixed to “H”) IRDA I/O read signal output IRDA I/O write signal output DMA request signal input (IRDA) IRDA address enable signal output DMA acknowledge signal output (IRDA) Chip select output (IRDA) Ground Reset output to IRDA and I/O expansion Not used Reset input Power supply (+5 V) Not used Power supply (+5 V) DMA select signal 0 input DMA select signal 1 input DMA request signal input from system microprocessor CPU Not used Chip select signal output to SRAM Not used Address bus signal output (System microprocessor CPU, JPEG image compression/expansion processing) Ground DMA request signal to JPEG image compression/expansion processing Bus buffer enable signal output Ground I/O read signal output I/O write signal output Chip select output to JPEG image compression/expansion processing Power supply (+5 V) DMA acknowledge signal output to JPEG image compression/expansion processing Bus buffer enable signal output Bus buffer input/output select output Not used DMA acknowledge signal output to system microprocessor CPU Not used Chip select output to JPEG image compression/expansion processing Pin Name SEL IRD3 IWR3 DREQ IR IR AEN DACK IR H CS IR H CS IR S GND RST OUT — RST VCC — — VCC DMA SEL0 DMA SEL1 DRQ M1 — — CS SRAM — — HA10 ~ HA1 GND MD36050X DREQ BE 50 GND XIRD2 XIWR2 X CS 50 VCC DACK 50 XBE M1 BUFDIR — DACK M1 — XH CS M1 • IC4004 GATE ARRAY (MSM10S0110-122TS-K) / PICTURE BOARD (2/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 136 — Pin No. 50, 51 52 ~ 58 59 60, 61 62 63 64, 65 66 67 ~ 72 73 74 75, 76 77 78 79 80 81 82 83 84 85 86, 87 88 89 ~ 91 92 93 94 95 96 97 ~ 99 100 I/O — I — — I — — — I — I — I O I I I O O O — — — I — O I I I — O Description Not used Address bus signal output (CPU) Ground Not used Clock input Power supply (+5 V) Not used Power supply (+5 V) Address bus signal output (CPU) Not used Address bus signal output (CPU) Not used DMA acknowledge signal input DMA request signal output Address bus signal output (CPU) Memory lower bits signal write strobe input Memory higher bits signal write strobe input Chip select output (Chinese character ROM) Chip select output (Expansion I/O 1) Chip select output (Expansion I/O 2) Ground Not used Ground Chip select input Power supply (+5 V) Chip select output (MD microprocessor) Expansion I/O read signal input Expansion I/O write signal input DMA acknowledge signal input Not used Chip select output (P ROM) Pin Name — A1 ~ A7 GND — CLKIN VCC — VCC A8 ~ A10, A19 ~ A21 A22 A23 — DACK1 DRQ0 A16 LMWR UMWR CS FONT1 CS-IO1 CS-IO2 GND — GND CS1 ~ CS3 VCC MD CS IORD IOWR XDACK0 — CE ROM8M0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 137 — • IC4007 JPEG IMAGE COMPRESSION/EXPANSION (MD36050X-B5) / PICTURE BOARD (2/3) Pin No. 1, 2 3 ~ 12 13 14 15 16 17 18 ~ 22 23 24 25 ~ 28 29, 30 31, 32 33 34, 35 36 37 38 39 40 ~ 45 46 47, 48 49, 50 51, 52 53, 54 55, 56 57 58 59 60 61 62 63 64 65 I/O — I — O I/O — — O — — O — O O O/Z I/O I/O — I/O I/O — I/O I/O — I/O — I I I — — — I I — Description Ground Address bus input Power supply (+5 V) Compression/expansion end signal output The respective blocks’ start signal output (Not used) Power supply (+5 V) Ground The DCT coefficient under processing is output to outside the IC (Not used) Ground Power supply (+5 V) The DCT coefficient under processing is output to outside the IC (Not used) Ground The DCT coefficient under processing is output to outside the IC (Not used) CODER’s internal status signal output. “H”: Compression. “L”: Expansion Component signal output used during expansion (Not used) Active low control terminal. During compression: Data field to picture data controller is OK or NG output During expansion: Picture data controller ready OK signal input Active low control terminal. Input or output in synchronous with the final data of each scan. During compression: Input. During expansion: Output Power supply (+5 V) Block data start signal input/output. During compression: Input. During expansion : Output Original picture data and expanded picture data access input/output Power supply (+5 V) Original picture data and expanded picture data access input/output Original picture data and expanded picture data access input/output (Not used) Ground Original picture data and expanded picture data access input/output (Not used) Power supply (+5 V) Operation freeze input. “H”: Normal operation. “L”: Operation freeze (Fixed to “H”) Reset input. “L”: Reset Standby signal input. “L”: Standby Not used Ground Power supply (+5 V) System clock input (24.54545 MHz) Internal clock control terminal. “H”: Normal operation. “L”: Clock line stop Ground Pin Name GND ADDR9 ~ ADDR0 VDD END CSYNC VDD GND COEF10 ~ COEF6 GND VDD COEF5 ~ COEF2 GND COEF1, COEF0 COMP CL1, CL0 STOP EOS VDD DSYNC PIXEL11 ~ PIXEL6 VDD PIXEL5, PIXEL4 PIXEL3, PIXEL2 GND PIXEL1, PIXEL0 VDD FREEZE RESET STDBY NC GND VDD DCLK CLKEN GND CL0 CL1 Component signal used L L Component 1 or non-interleave L H Component 2 H L Component 3 H H Component 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 138 — Pin No. 66 67 68 69 70 71 72 73 74 ~ 79 80 81, 82 83 84 ~ 91 92 93 94 95 96 97 98 99 100 I/O — O O O O I — — I/O — I/O — I/O O O — I I I I — O Description Power supply (+5 V) Numbers of access synchronous output of device connected to CODE bus. “L”: Synchronized (Notused) Control output of device connected to CODE bus (Not used) Compression data write signal output to device connected to CODE bus (Not used) Compression data read signal output to device connected to CODE bus (Not used) BUSY signal input from device connected to CODE bus (Not used) Power supply (+5 V) Ground High speed access to compression data during master mode. During compression: Output. During expansion: Input Ground High speed access to compression data during master mode. During compression: Output. During expansion: Input Power supply (+5 V) Host data bus input/output Interrupt signal output DMA transfer request signal output to host. “L”: Request Power supply (+5 V) DMA transfer acknowledge input from host. “L”: Acknowledge Chip select input from host. “L”: Active Host data bus write signal input Host data bus read signal input Power supply (+5 V) Interrupt request output to host. “L”: Acknowledge Pin Name VDD CAEN CCS CWE COE CBUSY VDD GND CODE7 ~ CODE2 GND CODE1, CODE0 VDD DATA7 ~ DATA0 DINT DREQ VDD DACK CS WR RD VDD INT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 139 — • IC5003 I/O EXPANSION (µPD71055GB-10-3B4) / PICTURE BOARD (3/3) Pin No. 1 2 3 4, 5 6 ~ 10 11 12 13 14 ~ 16 17 18 ~ 22 23 24 ~ 31 32 33, 34 35 36 ~ 41 42 43 44 Description Not used Chip select input from gate array Ground Address input Not used BUSY signal input from image loading control microprocessor Strobe signal output to image loading control microprocessor Not used Data input/output Not used Data input/output Power supply (+5 V) Data input/output Reset input Not used Write strobe input Not used PSD signal input from IRDA BUSY signal input from IR controller Read strobe input Pin Name NC CS GND A2, A1 P27 ~ P24, P20 P21 P22 P23 P10 ~ P12 NC P13 ~ P17 VDD D7 ~ D0 RESET NC WR P07 ~ P02 P01 P00 RD I/O — I — I — I O — I/O — I/O — I/O I — I — I I I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 140 — Pin No. 1 2 3 4, 5 6 7 8 9 10 11 12 13 14, 15 16 17 18 19 20 21 22 23 24 ~ 31 32 33, 34 35 36 37 38 39 40 41 42 43 44 I/O — I — I O O O O I I I I — O — O O O O — — I/O I — I O O O — — O — O I Description Not used Chip select input from gate array Ground Address input DMA select signal output to JPEG image compression/expansion processing Clock enable output to JPEG image compression/expansion processing Standby signal output to JPEG image compression/expansion processing End signal input from JPEG image compression/expansion processing Data interrupt signal input from JPEG image compression/expansion processing Write enable output to picture memory controller Interrupt signal input Not used VCO reset output to digital NTSC encoder Not used PAL selection output to digital NTSC encoder (Not used) NTSC selection output to digital NTSC encoder Picture output mute output to digital NTSC encoder Reset output Not used Power supply (+5 V) Data input/output Reset input Not used Write strobe input Reset output to picture memory controller Reset output to JPEG image compression/expansion processing Buzzer control signal output Not used Power supply strobe output to VIDEO IN Not used Video input/output selection output to video switch Read strobe input Pin Name NC CS GND A2, A1 DMA SEL0 DMA SEL1 P25 P24 P20 P21 P22 50XINT P10, P11 P12 NC P13 P14 P15 P16 P17 VDD D7 ~ D0 RESET NC WR M1 RESET 50X RESET BUZZER P04 V MUTE V POWER OUT SEL1 OUT SEL0 RD • IC5004 I/O EXPANSION (µPD71055GB-10-3B4) / PICTURE BOARD (3/3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 141 — • IC5002 IR CONTROLLER (VCS94450-1) / PICTURE BOARD (3/3) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12, 13 14 15 16 17 18 19 20, 21 22 23 24 ~ 27 28 29 30 31 32 33 ~ 35 36 37 38 39 40 I/O — — — O O O O — — — — I — I I — I — I — I — I — I — I I — — — — — Description Not used Ground Not used Power ON/OFF output to IR transceiver. “H”: IR OFF (Not used) Power control output to IR transmitter and gain control output to IR receiver Transmission data output to IR device +5 V power supply Not used Ground Not used Test mode setting terminal (Fixed to “L”) Not used DMA acknowledge signal input (Fixed to “H”) DMA acknowledge signal input from gate array Not used Reset input. “H”: Reset Not used Address bus input Not used Address bus input Not used Address bus input Not used Address bus input Not used Address bus input Address bus input (Not used) Not used +5 V power supply Not used Ground Not used Pin Name NC VSS NC XCVR DOWN1 XCVR DOWN0 GAIN CTRL TXO VDD NC VSS NC MODE1, MODE2 NC DACKY DACKX NC REGISTORV NC SA0, SA1 NC SA2 NC SA3 NC SA4 NC SA5 SA6 ~ SA8 NC VDD NC VSS NC MODE1 MODE2 Contents of mode L L Normal operation L H UART-A H L UART-B H H SCC+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 142 — Pin No. 41 ~ 44 45 46 ~ 48 49 ~ 52 53 54 55 56 57 58 59 60, 61 62 63 64, 65 66 67 68, 69 70 71, 72 73 74 ~ 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 I/O I — I — — O O O — — — I/O — — I/O — — I/O — I/O — — — I/O O — O O — — I — I — I — I I I Description Address bus input (Not used) Not used Address bus input (Not used) Not used Ground IR controller status signal output. “H”: Under loading Buffer direction command output (Not used) Buffer enable signal output (Not used) +5 V power supply Not used Ground Data bus input/output +5 V power supply Not used Data bus input/output Ground Not used Data bus input/output +5 V power supply Data bus input/output Ground Not used +5 V power supply DMA send request output to gate array DMA receive request output (Not used) Not used Interrupt request output to gate array. This output occurs when UART-A is “H” Interrupt request output to gate array. This output occurs when the WRAP bit of either SCC+ or UART-B is “H” Ground Not used Access enable input to POS register. “L”: Active Ground The internal IR function is disabled when “L” (Fixed to “H”) +5 V power supply Clock input (36.864 MHz) Not used Address enable input I/O read signal input I/O write signal input Pin Name SA9 ~ SA12 NC SA13 ~ SA15 NC VSS IRBUSY BUFFDIR BUFFEND VDD NC VSS SO0, SO1 VDD NC SO2, SO3 VSS NC SO4, SO5 VDD SO6, SO7 VSS NC VDD DRQX DRQY NC IRQUART IRQSCC+ VSS NC SETUP VSS IRDISABLE VDD CLK NC AEN IOR IOW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 143 — Pin No. 95 96 97 98 99 100 I/O — I I — — — Description Not used Low frequency receive data input from IR High frequency receive data input from IR Not used +5 V power supply Not used Pin Name NC RXDIR RXDSH NC VDD NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. SECTION 7 EXPLODED VIEWS — 144 — When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. * 1 A-4699-901-A VIDEO IN BOARD, COMPLETE 2 1-698-851-11 FAN, DC 3 3-704-366-11 SCREW (CASE) (M3 × 8) 4 3-724-182-01 NUT (SMALL JACK), M6 5 A-8042-756-B FILTER 6 4-624-933-01 HOLDER, FILTER Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 7 4-996-502-01 PANEL, REAR * 8 1-668-277-11 JACK BOARD * 9 4-309-753-00 HOLDER, WIRE 10 3-704-515-31 SCREW (BV/RING) 11 4-969-922-92 UPPER CASE 7-1. UPPER CASE SECTION 1 11 3 3 7 10 6 5 4 8 2 9 #1 Front panel block #1 #1 #6 #1 #6 #1 #14 #15 not supplied not supplied supplied with J8201, J8202 #2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 145 — * 51 A-4699-905-A PANEL BOARD, COMPLETE 52 X-4949-319-1 PANEL ASSY, FRONT * 53 4-930-336-71 FOOT (FELT) 54 4-978-356-01 SPRING (LID), TORSION * 55 1-668-276-11 IRDA BOARD 56 A-4660-730-A BRACKET (LEVER) ASSY 57 4-951-620-01 SCREW (2.6 × 8), +BVTP Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 7-2. FRONT PANEL SECTION 56 57 57 57 57 51 57 not supplied not supplied 52 53 53 54 55 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 146 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks * 101 A-4699-903-A POWER BOARD, COMPLETE * 102 A-4699-908-A PICTURE BOARD, COMPLETE * 103 A-4699-910-A MD BOARD, COMPLETE 104 1-783-069-11 WIRE (FLAT TYPE) (13 CORE) 105 1-783-070-11 WIRE (FLAT TYPE) (25 CORE) 106 1-777-555-21 WIRE (FLAT TYPE) (7 CORE) 107 1-777-553-11 WIRE (FLAT TYPE) (30 CORE) 108 1-777-552-11 WIRE (FLAT TYPE) (18 CORE) 109 4-812-134-11 RIVET (DIA. 3.5), NYLON 110 4-965-822-01 FOOT * 111 3-703-044-26 LABEL, CAUTION * 112 3-672-754-01 HOLDER, PC BOARD * 113 3-682-419-71 HOLDER, P.C.B 114 3-831-441-99 CUSHION 115 4-999-924-01 CUSHION (A) 116 4-309-753-00 HOLDER, WIRE 7-3. BOTTOM CABINET SECTION 101 109 108 114 107 106 105 102 104 103 115 116 112 113 110 111 MDM-2BR not supplied not supplied not supplied not supplied not supplied not supplied not supplied #6 #6 #6 #6 #6 #6 #6 #6 #3 #3 #3 #3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 147 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 4-983-100-01 COLLAR (DAMPER) 202 4-967-671-01 INSULATOR (MD) 203 4-967-673-01 SPRING, COMPRESSION 204 4-967-668-01 SPRING (UDL), TORSION 205 4-967-667-01 LEVER (UDL) 206 4-977-610-01 GEAR (BD-B) 207 X-4945-069-1 CAM ASSY 208 4-967-656-01 BELT (BD) 209 4-933-134-01 SCREW (+PTPWH M2.6X6) 210 4-967-637-01 LEVER (SLM) 211 4-984-426-01 SPRING (SLM), TORSION 212 4-968-273-01 SPRING (OWH), TORSION 213 4-968-272-01 LEVER (OWH) 214 4-977-609-01 GEAR (BD-A) 215 4-977-608-01 PULLEY (BD) 216 4-977-777-01 BASE (BD) 217 4-967-669-01 LEVER (UDR) 218 4-967-670-01 SPRING (UDR), TORSION 219 4-979-400-01 LEVER (DOOR) 220 4-970-710-01 SPRING, COMPRESSION * 221 1-653-411-11 DETECTION SW BOARD * 222 1-653-412-11 MOTOR BOARD 223 A-4672-087-A BRACKET (LVO) ASSY 224 X-4947-136-2 HOLDER ASSY 225 4-968-919-11 WASHER, STOPPER 226 4-967-646-01 SPRING (SHT), TORSION 227 4-967-645-01 LEVER (SHT) 228 4-983-106-02 SPRING (LM), TORSION 229 4-967-639-01 LEVER (LM) 230 4-968-919-01 WASHER, STOPPER 231 4-967-641-01 LEVER (L) 232 4-967-642-01 SPRING (L), TORSION 233 4-982-040-01 LEVER (LOCK) 234 4-982-099-01 SPRING (LOCK), TORSION 235 4-967-664-05 SPRING, TENSION 236 A-4672-071-B HOLDER COMPLETE ASSY * 237 X-4945-872-1 SLIDER (M) ASSY 238 4-972-910-01 SCREW (2.6X18), +B 239 4-971-743-02 SPRING, TENSION 240 4-983-110-01 CUSHION (LVO) 241 4-991-727-01 STOPPER (SLD) M191 A-4660-646-A MOTOR (LOADING) ASSY 7-4. MECHANISM SECTION (MDM-2BR) 238 201 202 203 204 206 205 219 207 209 208 210 211 214 212 213 238 201 216 202 218 203 217 222 221 202 203 220 203 202 MBU-2 not supplied not supplied not supplied M191 215 #10 #11 #11 #11 #5 #5 #5 #6 #6 #7 not supplied 237 240 223 235 224 234 230 226 236 233 225 227 228 229 230 230 231 232 239 #9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 148 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 251 4-967-679-01 SPRING (OP), LEAF 252 4-967-675-01 GEAR (SL-A) * 253 A-4673-174-A BD BOARD, COMPLETE 254 4-967-676-01 GEAR (SL-B) 255 4-967-677-01 GEAR (SL-C) 256 4-967-678-01 SHAFT (OP) !257 8-583-009-12 OPTICAL PICK-UP KMS-210A/J-N HR901 1-500-304-21 HEAD, OVER LIGHT M101 A-4660-651-A MOTOR (SLED) ASSY M102 A-4660-650-A CHASSIS ASSY, BU S102 1-762-148-11 SWITCH, PUSH (2 KEY) 7-5. BASE UNIT SECTION (MBU-2) 252 254 255 256 257 253 251 not supplied not supplied not supplied #8 #8 #4 #4 #4 M102 M101 S102 HR901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 149 — SECTION 8 ELECTRICAL PARTS LIST * A-4673-174-A BD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C102 1-163-038-91 CERAMIC CHIP 0.1uF 25V C103 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C104 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C105 1-164-232-11 CERAMIC CHIP 0.01uF 50V C106 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C107 1-164-232-11 CERAMIC CHIP 0.01uF 50V C108 1-164-232-11 CERAMIC CHIP 0.01uF 50V C109 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C111 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C112 1-164-232-11 CERAMIC CHIP 0.01uF 50V C113 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C114 1-163-038-91 CERAMIC CHIP 0.1uF 25V C115 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C116 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C117 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C119 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C121 1-126-395-11 ELECT 22uF 20% 16V C122 1-164-232-11 CERAMIC CHIP 0.01uF 50V C123 1-163-038-91 CERAMIC CHIP 0.1uF 25V C124 1-163-038-91 CERAMIC CHIP 0.1uF 25V C125 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C126 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C127 1-163-038-91 CERAMIC CHIP 0.1uF 25V C128 1-164-232-11 CERAMIC CHIP 0.01uF 50V C129 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C130 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C131 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C132 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C133 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C134 1-163-038-91 CERAMIC CHIP 0.1uF 25V C135 1-163-038-91 CERAMIC CHIP 0.1uF 25V C136 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C141 1-163-038-91 CERAMIC CHIP 0.1uF 25V C142 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C143 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C144 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C151 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C152 1-163-038-91 CERAMIC CHIP 0.1uF 25V C155 1-104-916-11 TANTAL. CHIP 6.8uF 20% 20V C160 1-104-601-11 ELECT CHIP 10uF 20% 10V C161 1-104-601-11 ELECT CHIP 10uF 20% 10V C163 1-164-232-11 CERAMIC CHIP 0.01uF 50V C164 1-164-232-11 CERAMIC CHIP 0.01uF 50V C166 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C167 1-163-038-91 CERAMIC CHIP 0.1uF 25V C169 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C170 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C171 1-163-038-91 CERAMIC CHIP 0.1uF 25V C175 1-163-038-91 CERAMIC CHIP 0.1uF 25V C176 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C177 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C178 1-163-038-91 CERAMIC CHIP 0.1uF 25V C181 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C182 1-163-038-91 CERAMIC CHIP 0.1uF 25V C183 1-163-038-91 CERAMIC CHIP 0.1uF 25V C184 1-107-836-11 ELECT CHIP 22uF 20% 8V C185 1-164-611-11 CERAMIC CHIP 0.001uF 10% 500V C186 1-163-038-91 CERAMIC CHIP 0.1uF 25V C191 1-126-395-11 ELECT 22uF 20% 16V C192 1-163-038-91 CERAMIC CHIP 0.1uF 25V C193 1-164-346-11 CERAMIC CHIP 1uF 16V C194 1-126-206-11 ELECT CHIP 100uF 20% 6.3V < CONNECTOR > CN101 1-766-508-11 CONNECTOR, FFC/FPC (ZIF) 22P CN102 1-766-510-21 CONNECTOR, FFC/FPC 30P CN103 1-766-509-21 CONNECTOR, FFC/FPC 18P CN104 1-766-898-21 HOUSING, CONNECTOR(PC BOARD) 4P < DIODE > D101 8-719-988-62 DIODE 1SS355 D155 8-719-031-17 DIODE 1SS322-TE85L D161 8-719-421-15 DIODE MA8027-L D181 8-719-033-60 DIODE F1P2STP D183 8-719-033-60 DIODE F1P2STP < IC > IC101 8-752-072-68 IC CXA1981AR IC102 8-759-243-19 IC TC7SU04F IC121 8-752-378-79 IC CXD2535CR IC122 8-759-243-19 IC TC7SU04F IC151 8-759-179-60 IC MPC17A38VMEL IC171 8-759-504-12 IC X24C01S IC172 8-759-149-73 IC UPC842G2 IC181 8-759-095-65 IC TC74ACT540FS IC182 8-759-243-19 IC TC7SU04F IC191 8-759-822-99 IC L88MS05T-FA BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 150 — < COIL > L101 1-414-234-11 INDUCTOR CHIP 0uH L102 1-414-234-11 INDUCTOR CHIP 0uH L103 1-414-234-11 INDUCTOR CHIP 0uH L105 1-414-234-11 INDUCTOR CHIP 0uH L106 1-414-234-11 INDUCTOR CHIP 0uH L121 1-414-234-11 INDUCTOR CHIP 0uH L122 1-412-039-51 INDUCTOR CHIP 100uH L151 1-412-622-51 INDUCTOR 10uH L152 1-412-622-51 INDUCTOR 10uH L153 1-412-039-51 INDUCTOR CHIP 100uH L154 1-412-039-51 INDUCTOR CHIP 100uH L155 1-410-980-51 INDUCTOR CHIP 1mH L161 1-414-234-11 INDUCTOR CHIP 0uH L162 1-414-234-11 INDUCTOR CHIP 0uH L195 1-233-316-21 FERRITE 0uH < TRANSISTOR > Q101 8-729-905-12 TRANSISTOR DTA144EU Q151 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q162 8-729-101-07 TRANSISTOR 2SB798-DL Q163 8-729-905-12 TRANSISTOR DTA144EU Q164 8-729-924-19 TRANSISTOR DTA123JU Q181 8-729-018-75 TRANSISTOR 2SJ278MY Q182 8-729-017-65 TRANSISTOR 2SK1764KY < RESISTOR > R101 1-216-077-00 METAL CHIP 15K 5% 1/10W R102 1-216-073-00 METAL CHIP 10K 5% 1/10W R103 1-216-073-00 METAL CHIP 10K 5% 1/10W R104 1-216-049-91 RES,CHIP 1K 5% 1/10W R105 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R106 1-216-133-00 METAL CHIP 3.3M 5% 1/10W R107 1-216-113-00 METAL CHIP 470K 5% 1/10W R110 1-216-077-00 METAL CHIP 15K 5% 1/10W R113 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R114 1-216-025-91 RES,CHIP 100 5% 1/10W R116 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R117 1-216-113-00 METAL CHIP 470K 5% 1/10W R120 1-216-025-91 RES,CHIP 100 5% 1/10W R121 1-216-097-91 RES,CHIP 100K 5% 1/10W R122 1-216-295-91 SHORT 0 R123 1-216-037-00 METAL CHIP 330 5% 1/10W R124 1-216-025-91 RES,CHIP 100 5% 1/10W R125 1-216-025-91 RES,CHIP 100 5% 1/10W R128 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R129 1-216-037-00 METAL CHIP 330 5% 1/10W R130 1-216-041-00 METAL CHIP 470 5% 1/10W R131 1-216-073-00 METAL CHIP 10K 5% 1/10W R132 1-216-097-91 RES,CHIP 100K 5% 1/10W R133 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R134 1-216-037-00 METAL CHIP 330 5% 1/10W R135 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R136 1-216-041-00 METAL CHIP 470 5% 1/10W R137 1-216-025-91 RES,CHIP 100 5% 1/10W R139 1-216-017-91 RES,CHIP 47 5% 1/10W R140 1-216-017-91 RES,CHIP 47 5% 1/10W R141 1-216-295-91 SHORT 0 R142 1-216-073-00 METAL CHIP 10K 5% 1/10W R143 1-216-073-00 METAL CHIP 10K 5% 1/10W R144 1-216-025-91 RES,CHIP 100 5% 1/10W R145 1-216-121-91 RES,CHIP 1M 5% 1/10W R146 1-216-037-00 METAL CHIP 330 5% 1/10W R147 1-216-025-91 RES,CHIP 100 5% 1/10W R148 1-216-045-00 METAL CHIP 680 5% 1/10W R150 1-216-295-91 SHORT 0 R151 1-216-097-91 RES,CHIP 100K 5% 1/10W R154 1-220-262-11 RES,CHIP 680 5% 1/4W R155 1-220-262-11 RES,CHIP 680 5% 1/4W R158 1-216-121-91 RES,CHIP 1M 5% 1/10W R161 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R162 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R164 1-216-045-00 METAL CHIP 680 5% 1/10W R165 1-216-097-91 RES,CHIP 100K 5% 1/10W R166 1-220-250-11 RES,CHIP 10 5% 1/2W R167 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R169 1-219-724-11 METAL CHIP 1 1% 1/4W R170 1-216-073-00 METAL CHIP 10K 5% 1/10W R171 1-216-073-00 METAL CHIP 10K 5% 1/10W R172 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R174 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R176 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R178 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R181 1-216-073-00 METAL CHIP 10K 5% 1/10W R182 1-216-089-91 RES,CHIP 47K 5% 1/10W R183 1-216-089-91 RES,CHIP 47K 5% 1/10W R186 1-216-134-00 METAL CHIP 2.2 5% 1/8W R187 1-216-134-00 METAL CHIP 2.2 5% 1/8W < VARIABLE RESISTOR > RV101 1-241-396-11 RES, ADJ, METAL GLAZE 22K RV102 1-241-396-11 RES, ADJ, METAL GLAZE 22K < SWITCH > S101 1-572-467-61 SWITCH, PUSH (1 KEY)(LIMIT) ************************************************************ * 1-653-411-11 DETECTION SW BOARD ******************* < CONNECTOR > CN193 1-770-010-21 CONNECTOR, BOARD TO BOARD 4P < SWITCH > S191 1-762-149-11 SWITCH, PUSH (1 KEY) (LOAD OUT) S192 1-762-149-11 SWITCH, PUSH (1 KEY) (LOAD IN) S193 1-762-149-11 SWITCH, PUSH (1 KEY) (CHUCKING) ************************************************************ BD DETECTION SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 151 — * 1-668-276-11 IRDA BOARD *********** < CONNECTOR > CN8001 1-766-724-11 CONNECTOR, BOARD TO BOARD 7P < IC > IC8001 8-749-013-15 IC IBM31T1100(K) ************************************************************ * 1-668-277-11 JACK BOARD *********** < CAPACITOR > C8201 1-164-159-11 CERAMIC 0.1uF 50V C8202 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN8201 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P < JACK > J8201 1-784-249-11 JACK (LARGE TYPE) 1P (WHITE) J8202 1-784-249-11 JACK (LARGE TYPE) 1P (RED) J8203 1-507-743-21 JACK, STEREO MINIATURE (FS1) < RESISTOR > R8201 1-247-807-31 CARBON 100 5% 1/4W R8202 1-247-807-31 CARBON 100 5% 1/4W R8203 1-247-807-31 CARBON 100 5% 1/4W R8204 1-249-421-11 CARBON 2.2K 5% 1/4W F R8205 1-247-843-11 CARBON 3.3K 5% 1/4W R8206 1-249-437-11 CARBON 47K 5% 1/4W R8207 1-249-429-11 CARBON 10K 5% 1/4W R8209 1-247-807-31 CARBON 100 5% 1/4W R8210 1-249-421-11 CARBON 2.2K 5% 1/4W F R8211 1-247-843-11 CARBON 3.3K 5% 1/4W < SWITCH > S8201 1-553-725-21 SWITCH, SLIDE (REC MODE) ************************************************************ * A-4699-910-A MD BOARD, COMPLETE ******************* < CAPACITOR > C2001 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2002 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2003 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2004 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2005 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2006 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2007 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2008 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2009 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2010 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2011 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2012 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2013 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2014 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2015 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2016 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2017 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2018 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2019 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2021 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2023 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2024 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2101 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2102 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2103 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2104 1-163-091-00 CERAMIC CHIP 8PF 50V C2105 1-163-091-00 CERAMIC CHIP 8PF 50V C2106 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2110 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2111 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2112 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2201 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2202 1-163-234-11 CERAMIC CHIP 20PF 5% 50V C2203 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C2204 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2205 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2206 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2207 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2208 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2209 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2210 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C2211 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2212 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C2213 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C2214 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C2215 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C2216 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C2221 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2244 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2301 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2302 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2303 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2401 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2402 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2403 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2404 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2405 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2406 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2451 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2452 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2453 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2500 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2501 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C2502 1-163-031-11 CERAMIC CHIP 0.01uF 50V C2504 1-163-038-91 CERAMIC CHIP 0.1uF 25V IRDA JACK MD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 152 — C2505 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2506 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2507 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2508 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2509 1-163-031-11 CERAMIC CHIP 0.01uF 50V C2510 1-163-031-11 CERAMIC CHIP 0.01uF 50V C2511 1-163-031-11 CERAMIC CHIP 0.01uF 50V C2512 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2513 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2514 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2515 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2516 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2517 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C2518 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C2519 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2520 1-216-295-91 SHORT 0 C2521 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2522 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2523 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C2524 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C2525 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C2526 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C2527 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C2528 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C2529 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2530 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2531 1-162-625-11 CERAMIC CHIP 0.0047uF 5% 50V C2532 1-162-625-11 CERAMIC CHIP 0.0047uF 5% 50V C2533 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V C2534 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V C2535 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2536 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2537 1-126-204-11 ELECT CHIP 47uF 20% 16V C2538 1-126-204-11 ELECT CHIP 47uF 20% 16V C2549 1-126-204-11 ELECT CHIP 47uF 20% 16V C2550 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2560 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2561 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2562 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C2566 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2567 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2568 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2601 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2704 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2705 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2706 1-163-031-11 CERAMIC CHIP 0.01uF 50V C2708 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2709 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2710 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2711 1-162-625-11 CERAMIC CHIP 0.0047uF 5% 50V C2712 1-162-625-11 CERAMIC CHIP 0.0047uF 5% 50V C2713 1-162-625-11 CERAMIC CHIP 0.0047uF 5% 50V C2714 1-162-625-11 CERAMIC CHIP 0.0047uF 5% 50V C2715 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2716 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2717 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2718 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2719 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2720 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C2721 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2722 1-163-259-91 CERAMIC CHIP 220PF 5% 50V C2723 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2724 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2725 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C2726 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C2727 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2728 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2729 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2730 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2731 1-124-779-00 ELECT CHIP 10uF 20% 16V C2732 1-124-779-00 ELECT CHIP 10uF 20% 16V C2733 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2734 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C2735 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2736 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C2737 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2738 1-124-779-00 ELECT CHIP 10uF 20% 16V C2739 1-124-779-00 ELECT CHIP 10uF 20% 16V C2740 1-124-779-00 ELECT CHIP 10uF 20% 16V C2741 1-124-779-00 ELECT CHIP 10uF 20% 16V C2742 1-163-031-11 CERAMIC CHIP 0.01uF 50V C2743 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2744 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2745 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C2746 1-124-779-00 ELECT CHIP 10uF 20% 16V C2747 1-124-779-00 ELECT CHIP 10uF 20% 16V C2748 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C2749 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C2751 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2755 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2757 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2759 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2760 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2761 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2762 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2763 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2901 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2902 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2903 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2904 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2905 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2906 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2907 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2908 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2909 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2910 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2911 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2912 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C2991 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2992 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2999 1-124-779-00 ELECT CHIP 10uF 20% 16V < CONNECTOR > CN2001 1-766-509-21 CONNECTOR, FFC/FPC 18P CN2002 1-766-510-21 CONNECTOR, FFC/FPC 30P * CN2003 1-766-418-11 CONNECTOR, BOARD TO BOARD 40P CN2005 1-774-180-11 PIN, CONNECTOR (PC BOARD) 6P CN2006 1-695-223-21 PIN, CONNECTOR (SMD) 10P MD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 153 — CN2007 1-569-775-21 PIN, CONNECTOR 5P CN2008 1-580-789-21 PIN, CONNECTOR (SMD) 6P CN2501 1-580-789-21 PIN, CONNECTOR (SMD) 6P < DIODE > D2501 8-719-988-62 DIODE 1SS355 D2502 8-719-988-62 DIODE 1SS355 D2503 8-719-988-62 DIODE 1SS355 D2504 8-719-056-15 DIODE F01J4L D2701 8-719-056-15 DIODE F01J4L D2702 8-719-914-42 DIODE DA204K D2703 8-719-914-42 DIODE DA204K < FERRITE BEAD > FB2501 1-414-234-11 INDUCTOR CHIP 0UH FB2502 1-414-234-11 INDUCTOR CHIP 0UH FB2503 1-414-234-11 INDUCTOR CHIP 0UH FB2504 1-216-295-91 SHORT 0 FB2505 1-414-234-11 INDUCTOR CHIP 0UH FB2506 1-216-295-91 SHORT 0 FB2507 1-414-234-11 INDUCTOR CHIP 0UH FB2508 1-414-234-11 INDUCTOR CHIP 0UH FB2509 1-414-234-11 INDUCTOR CHIP 0UH FB2601 1-216-017-91 RES,CHIP 47 5% 1/10W FB2702 1-216-295-91 SHORT 0 < IC > IC2001 8-759-050-11 IC SN74HC163APW-E20 IC2002 8-759-058-54 IC TC7S00FU(TE85R) IC2003 8-759-327-60 IC TC7W125FU-TE12R IC2004 8-759-393-81 IC SN74LV245PW-E05 IC2005 8-759-393-81 IC SN74LV245PW-E05 IC2006 8-759-058-64 IC TC7S32FU(TE85R) IC2007 8-752-372-86 IC CXD1805AR IC2008 8-759-438-20 IC MSM514800A-70JSR1 IC2010 8-759-196-96 IC TC7SH08FU-TE85R IC2011 8-759-058-59 IC TC7SU04FU-TE85L IC2012 8-759-327-60 IC TC7W125FU-TE12R IC2015 8-759-058-59 IC TC7SU04FU-TE85L IC2101 8-752-371-17 IC CXD2536R IC2201 8-759-435-87 IC M30600M8-101FP IC2202 8-759-425-24 IC LE28C1001M-12-TRA IC2203 8-759-096-87 IC TC7WU04FU(TE12R) IC2301 8-759-433-95 IC LB1837M-TE-L IC2501 8-759-362-47 IC CXD8567AM IC2502 8-759-058-59 IC TC7SU04FU-TE85L IC2503 8-759-359-66 IC TL082CPW-E05 IC2504 8-759-278-58 IC NJM4558V-TE2 IC2601 8-759-271-89 IC TS7SHU04FU-TE85L IC2701 8-759-352-63 IC CXD8566M IC2702 8-759-352-59 IC CXA8054M IC2703 8-759-278-58 IC NJM4558V-TE2 IC2705 8-752-067-30 IC CXA1846N < COIL > L2001 1-414-398-11 INDUCTOR 10uH L2002 1-414-398-11 INDUCTOR 10uH L2003 1-414-398-11 INDUCTOR 10uH L2101 1-414-398-11 INDUCTOR 10uH L2201 1-414-398-11 INDUCTOR 10uH L2202 1-414-398-11 INDUCTOR 10uH L2203 1-414-398-11 INDUCTOR 10uH L2301 1-414-398-11 INDUCTOR 10uH L2401 1-414-392-21 INDUCTOR 1uH L2402 1-414-398-11 INDUCTOR 10uH L2502 1-414-398-11 INDUCTOR 10uH L2503 1-414-398-11 INDUCTOR 10uH L2701 1-414-404-11 INDUCTOR 100uH L2702 1-414-398-11 INDUCTOR 10uH L2703 1-414-398-11 INDUCTOR 10uH L2901 1-414-398-11 INDUCTOR 10uH L2902 1-414-398-11 INDUCTOR 10uH L2903 1-414-398-11 INDUCTOR 10uH L2904 1-414-394-11 INDUCTOR 2.2uH < TRANSISTOR > Q2002 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q2451 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q2501 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q2502 8-729-107-46 TRANSISTOR 2SC3624A-L15 Q2503 8-729-107-46 TRANSISTOR 2SC3624A-L15 < RESISTOR > R2008 1-216-097-91 RES,CHIP 100K 5% 1/10W R2009 1-216-097-91 RES,CHIP 100K 5% 1/10W R2010 1-216-097-91 RES,CHIP 100K 5% 1/10W R2011 1-216-073-00 METAL CHIP 10K 5% 1/10W R2044 1-216-073-00 METAL CHIP 10K 5% 1/10W R2045 1-216-295-91 SHORT 0 R2101 1-216-073-00 METAL CHIP 10K 5% 1/10W R2107 1-216-097-91 RES,CHIP 100K 5% 1/10W R2108 1-216-097-91 RES,CHIP 100K 5% 1/10W R2111 1-216-037-00 METAL CHIP 330 5% 1/10W R2112 1-216-063-91 RES,CHIP 3.9K 5% 1/10W R2201 1-216-295-91 SHORT 0 R2202 1-216-077-00 METAL CHIP 15K 5% 1/10W R2203 1-216-073-00 METAL CHIP 10K 5% 1/10W R2205 1-216-073-00 METAL CHIP 10K 5% 1/10W R2206 1-216-073-00 METAL CHIP 10K 5% 1/10W R2207 1-216-073-00 METAL CHIP 10K 5% 1/10W R2218 1-216-073-00 METAL CHIP 10K 5% 1/10W R2219 1-216-097-91 RES,CHIP 100K 5% 1/10W R2220 1-216-097-91 RES,CHIP 100K 5% 1/10W R2222 1-216-073-00 METAL CHIP 10K 5% 1/10W R2224 1-216-073-00 METAL CHIP 10K 5% 1/10W R2225 1-216-073-00 METAL CHIP 10K 5% 1/10W R2226 1-216-117-00 METAL CHIP 680K 5% 1/10W R2227 1-216-295-91 SHORT 0 R2228 1-216-073-00 METAL CHIP 10K 5% 1/10W R2229 1-218-179-11 RES,CHIP 10M 5% 1/10W R2231 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R2232 1-216-097-91 RES,CHIP 100K 5% 1/10W R2233 1-216-049-91 RES,CHIP 1K 5% 1/10W MD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 154 — R2237 1-216-073-00 METAL CHIP 10K 5% 1/10W R2239 1-216-097-91 RES,CHIP 100K 5% 1/10W R2240 1-216-073-00 METAL CHIP 10K 5% 1/10W R2243 1-216-073-00 METAL CHIP 10K 5% 1/10W R2244 1-216-073-00 METAL CHIP 10K 5% 1/10W R2245 1-216-049-91 RES,CHIP 1K 5% 1/10W R2246 1-216-097-91 RES,CHIP 100K 5% 1/10W R2247 1-216-073-00 METAL CHIP 10K 5% 1/10W R2249 1-216-097-91 RES,CHIP 100K 5% 1/10W R2250 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R2251 1-216-097-91 RES,CHIP 100K 5% 1/10W R2252 1-216-073-00 METAL CHIP 10K 5% 1/10W R2254 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R2255 1-216-025-91 RES,CHIP 100 5% 1/10W R2256 1-218-179-11 RES,CHIP 10M 5% 1/10W R2257 1-216-025-91 RES,CHIP 100 5% 1/10W R2301 1-216-041-00 METAL CHIP 470 5% 1/10W R2302 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R2451 1-216-073-00 METAL CHIP 10K 5% 1/10W R2452 1-216-025-91 RES,CHIP 100 5% 1/10W R2501 1-216-033-00 METAL CHIP 220 5% 1/10W R2502 1-216-025-91 RES,CHIP 100 5% 1/10W R2503 1-216-121-91 RES,CHIP 1M 5% 1/10W R2504 1-216-039-00 METAL CHIP 390 5% 1/10W R2505 1-216-085-00 METAL CHIP 33K 5% 1/10W R2506 1-216-085-00 METAL CHIP 33K 5% 1/10W R2507 1-216-085-00 METAL CHIP 33K 5% 1/10W R2508 1-216-085-00 METAL CHIP 33K 5% 1/10W R2509 1-216-081-00 METAL CHIP 22K 5% 1/10W R2510 1-216-081-00 METAL CHIP 22K 5% 1/10W R2511 1-216-081-00 METAL CHIP 22K 5% 1/10W R2512 1-216-093-00 METAL CHIP 68K 5% 1/10W R2513 1-216-093-00 METAL CHIP 68K 5% 1/10W R2514 1-216-081-00 METAL CHIP 22K 5% 1/10W R2515 1-216-093-00 METAL CHIP 68K 5% 1/10W R2516 1-216-093-00 METAL CHIP 68K 5% 1/10W R2517 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R2518 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R2519 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R2520 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R2521 1-216-105-91 RES,CHIP 220K 5% 1/10W R2522 1-216-105-91 RES,CHIP 220K 5% 1/10W R2523 1-216-045-00 METAL CHIP 680 5% 1/10W R2524 1-216-045-00 METAL CHIP 680 5% 1/10W R2525 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R2526 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R2527 1-216-117-00 METAL CHIP 680K 5% 1/10W R2701 1-216-033-00 METAL CHIP 220 5% 1/10W R2702 1-216-017-91 RES,CHIP 47 5% 1/10W R2703 1-216-017-91 RES,CHIP 47 5% 1/10W R2704 1-216-295-91 SHORT 0 R2705 1-216-017-91 RES,CHIP 47 5% 1/10W R2706 1-216-081-00 METAL CHIP 22K 5% 1/10W R2707 1-216-073-00 METAL CHIP 10K 5% 1/10W R2708 1-216-081-00 METAL CHIP 22K 5% 1/10W R2709 1-216-073-00 METAL CHIP 10K 5% 1/10W R2710 1-216-097-91 RES,CHIP 100K 5% 1/10W R2711 1-216-097-91 RES,CHIP 100K 5% 1/10W R2712 1-216-089-91 RES,CHIP 47K 5% 1/10W R2713 1-216-089-91 RES,CHIP 47K 5% 1/10W R2715 1-216-089-91 RES,CHIP 47K 5% 1/10W R2717 1-216-097-91 RES,CHIP 100K 5% 1/10W R2718 1-216-089-91 RES,CHIP 47K 5% 1/10W R2719 1-216-097-91 RES,CHIP 100K 5% 1/10W R2720 1-216-025-91 RES,CHIP 100 5% 1/10W R2721 1-216-025-91 RES,CHIP 100 5% 1/10W R2722 1-216-025-91 RES,CHIP 100 5% 1/10W R2723 1-216-025-91 RES,CHIP 100 5% 1/10W R2724 1-216-073-00 METAL CHIP 10K 5% 1/10W R2725 1-216-073-00 METAL CHIP 10K 5% 1/10W R2726 1-216-073-00 METAL CHIP 10K 5% 1/10W R2727 1-216-073-00 METAL CHIP 10K 5% 1/10W R2732 1-216-073-00 METAL CHIP 10K 5% 1/10W R2733 1-216-073-00 METAL CHIP 10K 5% 1/10W R2734 1-216-073-00 METAL CHIP 10K 5% 1/10W R2735 1-216-073-00 METAL CHIP 10K 5% 1/10W < CONPOSITION CIRCUIT BLOCK > RB2001 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2003 1-236-436-11 NETWORK, RES 100K RB2005 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2006 1-239-711-11 NETWORK RESISTOR (CHIP) 0 RB2007 1-239-711-11 NETWORK RESISTOR (CHIP) 0 RB2008 1-239-711-11 NETWORK RESISTOR (CHIP) 0 RB2009 1-239-711-11 NETWORK RESISTOR (CHIP) 0 RB2101 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2102 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2103 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2104 1-236-436-11 NETWORK, RES 100K RB2201 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2202 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2203 1-236-424-11 NETWORK, RES 10K RB2204 1-236-424-11 NETWORK, RES 10K RB2205 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2206 1-236-436-11 NETWORK, RES 100K RB2207 1-236-436-11 NETWORK, RES 100K RB2208 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2209 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2210 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB2211 1-236-907-11 NETWORK RESISTOR (CHIP) 100K < VIBRATOR > X2101 1-760-841-11 VIBRATOR, CRYSTAL 45MHz X2201 1-767-273-11 VIBRATOR, CERAMIC (CHIP TYPE) 10MHz X2202 1-760-928-21 VIBRATOR, CRYSTAL 32.768kHz X2501 1-579-870-21 VIBRATOR, CRYSTAL 22.57MHz ************************************************************ * 1-653-412-11 MOTOR BOARD ************* < CAPACITOR > C199 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN191 1-568-944-11 PIN, CONNECTOR 6P CN192 1-770-011-41 CONNECTOR, BOARD TO BOARD 4P ************************************************************ MD MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 155 — * A-4699-905-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C8001 1-164-159-11 CERAMIC 0.1uF 50V C8002 1-164-159-11 CERAMIC 0.1uF 50V C8003 1-164-159-11 CERAMIC 0.1uF 50V C8005 1-124-584-00 ELECT 100uF 20% 10V C8007 1-124-584-00 ELECT 100uF 20% 10V C8008 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN8101 1-691-644-11 SOCKET, CONNECTOR 7P CN8103 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P CN8104 1-564-723-11 PIN, CONNECTOR (SMALL TYPE) 7P CN8105 1-766-600-21 CONNECTOR, BOARD TO BOARD 7P < DIODE > D8101 8-719-301-42 DIODE SEL2410E (POWER) D8102 8-719-313-45 DIODE SEL6810A-TH10 (BUSY) D8103 8-719-911-19 DIODE 1SS119 < IC > IC8101 8-742-018-00 IC SBX1810-59 < COIL > L8001 1-410-526-11 INDUCTOR 10uH L8101 1-410-526-11 INDUCTOR 10uH < TRANSISTOR > Q8101 8-729-900-80 TRANSISTOR DTC114ES < RESISTOR > R8001 1-249-409-11 CARBON 220 5% 1/4W F R8002 1-249-413-11 CARBON 470 5% 1/4W F R8004 1-249-435-11 CARBON 33K 5% 1/4W R8005 1-249-435-11 CARBON 33K 5% 1/4W R8006 1-249-429-11 CARBON 10K 5% 1/4W R8007 1-249-429-11 CARBON 10K 5% 1/4W R8008 1-249-421-11 CARBON 2.2K 5% 1/4W F R8009 1-249-429-11 CARBON 10K 5% 1/4W R8010 1-247-807-31 CARBON 100 5% 1/4W R8011 1-249-425-11 CARBON 4.7K 5% 1/4W F R8012 1-249-425-11 CARBON 4.7K 5% 1/4W F R8013 1-247-807-31 CARBON 100 5% 1/4W R8014 1-247-807-31 CARBON 100 5% 1/4W R8015 1-247-807-31 CARBON 100 5% 1/4W R8016 1-247-807-31 CARBON 100 5% 1/4W R8017 1-247-807-31 CARBON 100 5% 1/4W R8018 1-249-425-11 CARBON 4.7K 5% 1/4W F R8019 1-247-843-11 CARBON 3.3K 5% 1/4W R8020 1-247-843-11 CARBON 3.3K 5% 1/4W R8021 1-247-843-11 CARBON 3.3K 5% 1/4W R8022 1-249-441-11 CARBON 100K 5% 1/4W R8023 1-249-421-11 CARBON 2.2K 5% 1/4W F R8024 1-249-421-11 CARBON 2.2K 5% 1/4W F R8025 1-249-429-11 CARBON 10K 5% 1/4W R8026 1-249-421-11 CARBON 2.2K 5% 1/4W F R8029 1-247-807-31 CARBON 100 5% 1/4W R8030 1-247-807-31 CARBON 100 5% 1/4W < SWITCH > S8101 1-554-303-21 SWITCH, TACTILE (AUDIO DUB) S8102 1-554-303-21 SWITCH, TACTILE (>) S8103 1-554-303-21 SWITCH, TACTILE (ALBUM) S8104 1-554-303-21 SWITCH, TACTILE (/) S8105 1-554-303-21 SWITCH, TACTILE (POWER) S8106 1-554-303-21 SWITCH, TACTILE (PHOTO) S8107 1-554-303-21 SWITCH, TACTILE (ENTER) S8108 1-554-303-21 SWITCH, TACTILE (SLIDE SHOW) S8109 1-554-303-21 SWITCH, TACTILE (LIVE/PLAY) S8110 1-554-303-21 SWITCH, TACTILE (EJECT) S8111 1-554-303-21 SWITCH, TACTILE (IR LINK) S8112 1-554-303-21 SWITCH, TACTILE (CAPTURE) S8113 1-554-303-21 SWITCH, TACTILE (BACK) S8114 1-554-303-21 SWITCH, TACTILE (?) S8115 1-554-303-21 SWITCH, TACTILE (REC) S8116 1-554-303-21 SWITCH, TACTILE (NEXT) S8117 1-554-303-21 SWITCH, TACTILE (.) ************************************************************ * A-4699-908-A PICTURE BOARD, COMPLETE ************************ * 4-921-941-31 CUSHION (FL) < CAPACITOR > C1001 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1002 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1003 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1004 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1005 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C1006 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1007 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1008 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1009 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1010 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C1011 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1012 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C1013 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1014 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1015 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C1016 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C1017 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C1018 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1019 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C1020 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1021 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1022 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1023 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1024 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1025 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1026 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1027 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1028 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1029 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1031 1-163-038-91 CERAMIC CHIP 0.1uF 25V PANEL PICTURE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 156 — C1033 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2001 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2002 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2003 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2007 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2016 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2017 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2018 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2019 1-163-085-00 CERAMIC CHIP 2PF 50V C2020 1-163-085-00 CERAMIC CHIP 2PF 50V C2021 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C2022 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C2023 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C2024 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C2025 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2026 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2027 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2028 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C2029 1-163-038-91 CERAMIC CHIP 0.1uF 25V C2030 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3001 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3002 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3003 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3004 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3006 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C3007 1-135-091-00 TANTALUM CHIP 1uF 20% 16V C3008 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3009 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3010 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3011 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3012 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3013 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3014 1-135-091-00 TANTALUM CHIP 1uF 20% 16V C3015 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3016 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3017 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3018 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3019 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3020 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3021 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3022 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3023 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C3024 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C3025 1-216-295-91 SHORT 0 C3026 1-216-295-91 SHORT 0 C3027 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V C3028 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V C3031 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C3032 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C3033 1-164-232-11 CERAMIC CHIP 0.01uF 50V C3034 1-164-232-11 CERAMIC CHIP 0.01uF 50V C3035 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3036 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3038 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C3039 1-164-232-11 CERAMIC CHIP 0.01uF 50V C3040 1-164-232-11 CERAMIC CHIP 0.01uF 50V C3041 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3042 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3043 1-124-779-00 ELECT CHIP 10uF 20% 16V C3044 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C3045 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3046 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3047 1-124-779-00 ELECT CHIP 10uF 20% 16V C3049 1-126-204-11 ELECT CHIP 47uF 20% 16V C3050 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3051 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3052 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3053 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3055 1-124-779-00 ELECT CHIP 10uF 20% 16V C3061 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C3062 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3063 1-163-038-91 CERAMIC CHIP 0.1uF 25V C3101 1-164-232-11 CERAMIC CHIP 0.01uF 50V C3102 1-216-295-91 SHORT 0 C4001 1-163-220-11 CERAMIC CHIP 3PF 0.25PF 50V C4002 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C4003 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4004 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4005 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4006 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4007 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4008 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4009 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4010 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4011 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4012 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4013 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C4015 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4017 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4021 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4022 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4023 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4024 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4025 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4026 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4031 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4032 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C4036 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4037 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4038 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4046 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4047 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4048 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4049 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4050 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4051 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4052 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4053 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4054 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4055 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4056 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4057 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4058 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4059 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4060 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4061 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4062 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4063 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4070 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4071 1-126-206-11 ELECT CHIP 100uF 20% 6.3V PICTURE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 157 — C4072 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4075 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4076 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4078 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4079 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4080 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4081 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4082 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4083 1-163-038-91 CERAMIC CHIP 0.1uF 25V C4084 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C4085 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4086 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4087 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4088 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4089 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4090 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4091 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4092 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4093 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4094 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4095 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4096 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4097 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4098 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4099 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C4100 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C5001 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5002 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V C5003 1-163-089-00 CERAMIC CHIP 6PF 50V C5004 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5005 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5006 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5007 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5008 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C5009 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C5010 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5011 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C5012 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5013 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5014 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5015 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5016 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C5017 1-163-038-91 CERAMIC CHIP 0.1uF 25V C5018 1-163-038-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN1001 1-691-591-11 PIN, CONNECTOR (1.5MM) (SMD) 8P * CN1002 1-764-177-11 PIN, CONNECTOR (SMD)(1.5MM) 7P * CN3001 1-764-177-11 PIN, CONNECTOR (SMD)(1.5MM) 7P CN3002 1-778-274-11 CONNECTOR, FFC/FPC 13P CN4002 1-778-442-11 CONNECTOR, BOARD TO BOARD 40P CN5001 1-774-769-11 CONNECTOR, FFC/FPC 25P CN5002 1-573-806-21 PIN, CONNECTOR (1.5MM) (SMD) 6P CN5003 1-750-537-11 CONNECTOR, FLEXIBLE 7P < TRIMMER > CT4001 1-141-422-11 CAP, ADJ 10PF < DIODE > D2001 8-719-031-68 DIODE HVU359-TRU D2002 8-719-031-68 DIODE HVU359-TRU < FERRITE BEAD > FB4001 1-216-025-91 RES,CHIP 100 5% 1/10W FB4002 1-216-033-00 METAL CHIP 220 5% 1/10W FB5001 1-216-295-91 SHORT 0 < IC > IC1003 8-759-438-19 IC MSM5416283-60GS-KR1 IC1005 8-759-438-23 IC CXD8648R-AV IC2002 8-759-983-69 IC LM358PS IC2003 8-759-438-22 IC CXD8649R-AV IC3001 8-759-710-86 IC NJM2233BM IC3002 8-759-324-99 IC MM1118XFBE IC3004 8-759-096-87 IC TC7WU04FU(TE12R) IC4001 8-759-096-87 IC TC7WU04FU(TE12R) IC4003 8-759-426-14 IC uPD70741GC-25-7EA IC4004 8-759-494-44 IC MSM10S0110-122TS-K IC4005 8-759-448-57 IC TC74ACT245F-EL IC4006 8-759-448-57 IC TC74ACT245F-EL IC4007 8-759-428-92 IC MD36050X-B5 IC4008 8-759-096-87 IC TC7WU04FU(TE12R) IC4009 8-759-083-94 IC TC7W74FU IC4010 8-759-448-57 IC TC74ACT245F-EL IC4011 8-759-448-57 IC TC74ACT245F-EL IC4013 8-759-527-09 IC KM416C1200BJ-6T IC4015 8-759-454-29 IC MSM534002C-37GS-AKR1 IC4016 8-759-530-90 IC MSM27C822ZB-F7GS-KR1 IC4019 8-759-448-56 IC TC74AC240F-EL IC4020 8-759-448-35 IC KM68512ALG-7LT IC4021 8-759-448-35 IC KM68512ALG-7LT IC5001 8-759-096-87 IC TC7WU04FU(TE12R) IC5002 8-759-434-47 IC VCS94450-1 IC5003 8-759-154-60 IC UPD71055GB-10-3B4 IC5004 8-759-154-60 IC UPD71055GB-10-3B4 < COIL > L1001 1-414-398-11 INDUCTOR 10uH L1002 1-414-398-11 INDUCTOR 10uH L1003 1-414-398-11 INDUCTOR 10uH L2001 1-414-398-11 INDUCTOR 10uH L3001 1-414-398-11 INDUCTOR 10uH L3002 1-414-398-11 INDUCTOR 10uH L3003 1-414-398-11 INDUCTOR 10uH L3006 1-414-767-11 INDUCTOR 27uH L3007 1-414-767-11 INDUCTOR 27uH L3010 1-414-404-11 INDUCTOR 100uH L3011 1-414-398-11 INDUCTOR 10uH L3012 1-414-398-11 INDUCTOR 10uH L3013 1-414-398-11 INDUCTOR 10uH L4001 1-414-398-11 INDUCTOR 10uH L4003 1-414-398-11 INDUCTOR 10uH L4004 1-414-398-11 INDUCTOR 10uH L4005 1-414-398-11 INDUCTOR 10uH L4006 1-414-398-11 INDUCTOR 10uH L4007 1-414-398-11 INDUCTOR 10uH L4008 1-414-398-11 INDUCTOR 10uH PICTURE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 158 — L4009 1-414-398-11 INDUCTOR 10uH L4013 1-414-398-11 INDUCTOR 10uH L4014 1-414-398-11 INDUCTOR 10uH L5001 1-414-398-11 INDUCTOR 10uH L5002 1-414-398-11 INDUCTOR 10uH L5003 1-414-398-11 INDUCTOR 10uH < IC LINK > * PS4001 1-537-814-11 CHIP, CHECKER < TRANSISTOR > Q3001 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3002 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3003 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3004 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3005 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3006 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3007 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3010 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3011 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3012 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3013 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3014 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3016 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3017 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q3018 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3019 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3020 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3101 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q3102 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q3103 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q3104 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R1006 1-216-073-00 METAL CHIP 10K 5% 1/10W R1129 1-216-073-00 METAL CHIP 10K 5% 1/10W R1131 1-216-073-00 METAL CHIP 10K 5% 1/10W R2029 1-216-295-91 SHORT 0 R2030 1-216-073-00 METAL CHIP 10K 5% 1/10W R2047 1-216-121-91 RES,CHIP 1M 5% 1/10W R2048 1-216-091-00 METAL CHIP 56K 5% 1/10W R2049 1-216-091-00 METAL CHIP 56K 5% 1/10W R2050 1-216-117-00 METAL CHIP 680K 5% 1/10W R2051 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R2052 1-216-081-00 METAL CHIP 22K 5% 1/10W R2053 1-216-085-00 METAL CHIP 33K 5% 1/10W R2054 1-216-295-91 SHORT 0 R2055 1-216-295-91 SHORT 0 R2058 1-216-073-00 METAL CHIP 10K 5% 1/10W R2059 1-216-073-00 METAL CHIP 10K 5% 1/10W R2060 1-216-295-91 SHORT 0 R2061 1-216-295-91 SHORT 0 R2064 1-216-025-91 RES,CHIP 100 5% 1/10W R2066 1-216-025-91 RES,CHIP 100 5% 1/10W R3001 1-216-089-91 RES,CHIP 47K 5% 1/10W R3002 1-216-081-00 METAL CHIP 22K 5% 1/10W R3003 1-216-097-91 RES,CHIP 100K 5% 1/10W R3004 1-216-049-91 RES,CHIP 1K 5% 1/10W R3005 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R3006 1-216-025-91 RES,CHIP 100 5% 1/10W R3007 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R3008 1-216-025-91 RES,CHIP 100 5% 1/10W R3013 1-216-025-91 RES,CHIP 100 5% 1/10W R3014 1-216-025-91 RES,CHIP 100 5% 1/10W R3017 1-216-025-91 RES,CHIP 100 5% 1/10W R3018 1-216-025-91 RES,CHIP 100 5% 1/10W R3021 1-216-047-91 RES,CHIP 820 5% 1/10W R3022 1-216-047-91 RES,CHIP 820 5% 1/10W R3023 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R3024 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R3025 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R3026 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R3027 1-216-049-91 RES,CHIP 1K 5% 1/10W R3028 1-216-049-91 RES,CHIP 1K 5% 1/10W R3029 1-216-049-91 RES,CHIP 1K 5% 1/10W R3030 1-216-041-00 METAL CHIP 470 5% 1/10W R3031 1-216-049-91 RES,CHIP 1K 5% 1/10W R3032 1-216-049-91 RES,CHIP 1K 5% 1/10W R3033 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R3034 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R3035 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R3040 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R3041 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R3042 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R3043 1-216-025-91 RES,CHIP 100 5% 1/10W R3051 1-216-049-91 RES,CHIP 1K 5% 1/10W R3053 1-216-025-91 RES,CHIP 100 5% 1/10W R3054 1-216-049-91 RES,CHIP 1K 5% 1/10W R3055 1-216-041-00 METAL CHIP 470 5% 1/10W R3056 1-216-041-00 METAL CHIP 470 5% 1/10W R3057 1-216-045-00 METAL CHIP 680 5% 1/10W R3058 1-216-041-00 METAL CHIP 470 5% 1/10W R3059 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R3060 1-216-089-91 RES,CHIP 47K 5% 1/10W R3061 1-216-025-91 RES,CHIP 100 5% 1/10W R3062 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R3063 1-216-025-91 RES,CHIP 100 5% 1/10W R3064 1-216-041-00 METAL CHIP 470 5% 1/10W R3065 1-216-041-00 METAL CHIP 470 5% 1/10W R3066 1-216-021-00 METAL CHIP 68 5% 1/10W R3070 1-216-049-91 RES,CHIP 1K 5% 1/10W R3071 1-216-049-91 RES,CHIP 1K 5% 1/10W R3072 1-216-049-91 RES,CHIP 1K 5% 1/10W R3074 1-216-049-91 RES,CHIP 1K 5% 1/10W R3075 1-216-011-00 METAL CHIP 27 5% 1/10W R3091 1-216-097-91 RES,CHIP 100K 5% 1/10W R3092 1-216-097-91 RES,CHIP 100K 5% 1/10W R3101 1-216-089-91 RES,CHIP 47K 5% 1/10W R3102 1-216-025-91 RES,CHIP 100 5% 1/10W R3103 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R3104 1-216-025-91 RES,CHIP 100 5% 1/10W R3105 1-216-041-00 METAL CHIP 470 5% 1/10W R3106 1-216-021-00 METAL CHIP 68 5% 1/10W R3107 1-216-089-91 RES,CHIP 47K 5% 1/10W R3108 1-216-025-91 RES,CHIP 100 5% 1/10W R3109 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R3110 1-216-025-91 RES,CHIP 100 5% 1/10W R3112 1-216-049-91 RES,CHIP 1K 5% 1/10W R3113 1-216-049-91 RES,CHIP 1K 5% 1/10W PICTURE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 159 — R3114 1-216-021-00 METAL CHIP 68 5% 1/10W R3115 1-216-049-91 RES,CHIP 1K 5% 1/10W R3116 1-216-049-91 RES,CHIP 1K 5% 1/10W R3117 1-216-049-91 RES,CHIP 1K 5% 1/10W R3118 1-216-049-91 RES,CHIP 1K 5% 1/10W R3119 1-216-049-91 RES,CHIP 1K 5% 1/10W R3121 1-216-041-00 METAL CHIP 470 5% 1/10W R3144 1-216-295-91 SHORT 0 R3145 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R4001 1-216-025-91 RES,CHIP 100 5% 1/10W R4001 1-216-295-91 SHORT 0 R4002 1-216-121-91 RES,CHIP 1M 5% 1/10W R4003 1-216-049-91 RES,CHIP 1K 5% 1/10W R4004 1-216-121-91 RES,CHIP 1M 5% 1/10W R4005 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R4006 1-216-295-91 SHORT 0 R4007 1-216-073-00 METAL CHIP 10K 5% 1/10W R4009 1-216-025-91 RES,CHIP 100 5% 1/10W R4010 1-216-017-91 RES,CHIP 47 5% 1/10W R4011 1-216-025-91 RES,CHIP 100 5% 1/10W R4012 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R4013 1-216-025-91 RES,CHIP 100 5% 1/10W R4016 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R4020 1-216-017-91 RES,CHIP 47 5% 1/10W R4050 1-216-073-00 METAL CHIP 10K 5% 1/10W R4070 1-216-073-00 METAL CHIP 10K 5% 1/10W R4071 1-216-025-91 RES,CHIP 100 5% 1/10W R4072 1-216-097-91 RES,CHIP 100K 5% 1/10W R4073 1-216-097-91 RES,CHIP 100K 5% 1/10W R4074 1-216-097-91 RES,CHIP 100K 5% 1/10W R4075 1-216-021-00 METAL CHIP 68 5% 1/10W R4076 1-216-021-00 METAL CHIP 68 5% 1/10W R4077 1-216-021-00 METAL CHIP 68 5% 1/10W R4078 1-216-021-00 METAL CHIP 68 5% 1/10W R4079 1-216-073-00 METAL CHIP 10K 5% 1/10W R4080 1-216-073-00 METAL CHIP 10K 5% 1/10W R4081 1-216-073-00 METAL CHIP 10K 5% 1/10W R4082 1-216-073-00 METAL CHIP 10K 5% 1/10W R4083 1-216-073-00 METAL CHIP 10K 5% 1/10W R5001 1-216-121-91 RES,CHIP 1M 5% 1/10W R5002 1-216-039-00 METAL CHIP 390 5% 1/10W R5003 1-216-009-00 METAL CHIP 22 5% 1/10W R5004 1-216-009-00 METAL CHIP 22 5% 1/10W R5005 1-216-073-00 METAL CHIP 10K 5% 1/10W R5006 1-216-033-00 METAL CHIP 220 5% 1/10W R5007 1-216-097-91 RES,CHIP 100K 5% 1/10W R5008 1-216-025-91 RES,CHIP 100 5% 1/10W R5016 1-216-073-00 METAL CHIP 10K 5% 1/10W R5017 1-216-073-00 METAL CHIP 10K 5% 1/10W R5021 1-216-073-00 METAL CHIP 10K 5% 1/10W R5034 1-216-073-00 METAL CHIP 10K 5% 1/10W R5040 1-216-073-00 METAL CHIP 10K 5% 1/10W R5041 1-216-073-00 METAL CHIP 10K 5% 1/10W R5042 1-216-097-91 RES,CHIP 100K 5% 1/10W < CONPOSITION CIRCUIT BLOCK > RB1002 1-236-420-11 NETWORK, RES 4.7K RB4001 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB4002 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB4003 1-236-908-11 NETWORK RESISTOR (CHIP) 10K RB4004 1-236-424-11 NETWORK, RES 10K RB4005 1-236-398-11 NETWORK, RES 68 RB4006 1-236-398-11 NETWORK, RES 68 RB4007 1-236-398-11 NETWORK, RES 68 RB4008 1-236-398-11 NETWORK, RES 68 RB4009 1-236-398-11 NETWORK, RES 68 RB4010 1-236-398-11 NETWORK, RES 68 RB4011 1-236-908-11 NETWORK RESISTOR (CHIP) 10K RB4012 1-236-424-11 NETWORK, RES 10K RB4013 1-236-424-11 NETWORK, RES 10K RB4014 1-236-424-11 NETWORK, RES 10K RB4015 1-236-424-11 NETWORK, RES 10K RB4016 1-236-908-11 NETWORK RESISTOR (CHIP) 10K RB4017 1-236-424-11 NETWORK, RES 10K RB4018 1-236-424-11 NETWORK, RES 10K RB4019 1-236-424-11 NETWORK, RES 10K RB5002 1-236-908-11 NETWORK RESISTOR (CHIP) 10K RB5003 1-236-908-11 NETWORK RESISTOR (CHIP) 10K RB5004 1-236-908-11 NETWORK RESISTOR (CHIP) 10K RB5005 1-236-424-11 NETWORK, RES 10K RB5006 1-236-907-11 NETWORK RESISTOR (CHIP) 100K RB5007 1-236-424-11 NETWORK, RES 10K RB5008 1-236-908-11 NETWORK RESISTOR (CHIP) 10K RB5009 1-236-908-11 NETWORK RESISTOR (CHIP) 10K < VARIABLE RESISTOR > RV3001 1-241-394-11 RES, ADJ, METAL GLAZE 4.7K (WHITE LEVEL) RV3003 1-241-396-11 RES, ADJ, METAL GLAZE 22K (SYNC LEVEL) < VIBRATOR > X2001 1-527-722-00 VIBRATOR, CRYSTAL 14.31818MHz X4001 1-767-348-11 VIBRATOR, CRYSTAL 36.864MHz X4002 1-767-340-11 VIBRATOR, CRYSTAL 4MHz X4003 1-767-187-11 VIBRATOR, CRYSTAL 24.545MHz ************************************************************ * A-4699-903-A POWER BOARD, COMPLETE *********************** < CAPACITOR > C223 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1001 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1002 1-117-404-11 ELECT 15000uF 20% 16V C1003 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1004 1-126-964-11 ELECT 10uF 20% 50V C1008 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1101 1-124-910-11 ELECT 47uF 20% 50V C1102 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1103 1-127-516-11 ELECT 220uF 20% 10V C1111 1-124-910-11 ELECT 47uF 20% 50V PICTURE POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 160 — C1112 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1113 1-127-516-11 ELECT 220uF 20% 10V C1121 1-124-910-11 ELECT 47uF 20% 50V C1122 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1123 1-127-516-11 ELECT 220uF 20% 10V C1131 1-126-935-11 ELECT 470uF 20% 16V C1132 1-128-057-11 ELECT 330uF 20% 6.3V C1133 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1134 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1142 1-128-057-11 ELECT 330uF 20% 6.3V C1144 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1145 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1201 1-124-910-11 ELECT 47uF 20% 50V C1202 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1203 1-127-516-11 ELECT 220uF 20% 10V C1204 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C1301 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C1302 1-126-154-11 ELECT 47uF 20% 6.3V C1311 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1313 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1351 1-528-750-11 BATTERY, V/L RECHARGEABLE C1352 1-528-750-11 BATTERY, V/L RECHARGEABLE C1353 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C1354 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1355 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1356 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1357 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1358 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1501 1-126-926-11 ELECT 1000uF 20% 10V C1502 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1503 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1504 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C1505 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1506 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1507 1-128-057-11 ELECT 330uF 20% 6.3V C1508 1-128-057-11 ELECT 330uF 20% 6.3V C1509 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1510 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C1511 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C1512 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C1513 1-128-057-11 ELECT 330uF 20% 6.3V C1514 1-128-057-11 ELECT 330uF 20% 6.3V C1516 1-128-057-11 ELECT 330uF 20% 6.3V C1518 1-128-057-11 ELECT 330uF 20% 6.3V C1519 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1520 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1521 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1522 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1601 1-126-940-11 ELECT 330uF 20% 25V C1602 1-126-935-11 ELECT 470uF 20% 16V C1603 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1604 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1605 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1704 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C1707 1-126-948-11 ELECT 100uF 20% 35V C1708 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C1709 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C1710 1-126-963-11 ELECT 4.7uF 20% 50V C1711 1-127-516-11 ELECT 220uF 20% 10V C1712 1-126-926-11 ELECT 1000uF 20% 10V C1713 1-126-948-11 ELECT 100uF 20% 35V C1801 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1802 1-163-031-11 CERAMIC CHIP 0.01uF 50V C1803 1-163-038-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > * CN1001 1-766-382-11 PIN, CONNECTOR (1.5MM)(SMD)10P CN1002 1-691-591-11 PIN, CONNECTOR (1.5MM) (SMD)8P * CN1003 1-580-756-21 PIN, CONNECTOR 7P CN1004 1-573-768-21 PIN, CONNECTOR (1.5MM) (SMD)5P CN1005 1-580-789-21 PIN, CONNECTOR (SMD) 6P * CN1901 1-568-951-11 PIN, CONNECTOR 2P < DIODE > D1004 8-719-028-74 DIODE NSQ03A04 D1311 8-719-016-74 DIODE 1SS352 D1352 8-719-026-23 DIODE MA786 D1353 8-719-210-39 DIODE EC10QS-04 D1355 8-719-210-39 DIODE EC10QS-04 D1356 8-719-026-23 DIODE MA786 D1357 8-719-026-23 DIODE MA786 D1358 8-719-023-22 DIODE MA704A D1704 8-719-210-39 DIODE EC10QS-04 < FUSE > !F1001 1-532-780-21 FUSE, MICRO 2.5A 125V < IC > IC1101 8-749-011-33 IC BP5020 IC1111 8-749-011-33 IC BP5020 IC1121 8-749-011-33 IC BP5020 IC1131 8-759-182-86 IC PQ05TZ5U IC1141 8-759-182-86 IC PQ05TZ5U IC1201 8-749-011-33 IC BP5020 IC1301 8-759-182-84 IC PQ05SZ5U IC1311 8-759-067-98 IC PST600CMT-T1 IC1351 8-759-327-15 IC M62005L IC1501 8-759-631-40 IC M5294P IC1502 8-759-631-40 IC M5294P IC1503 8-759-182-86 IC PQ05TZ5U IC1504 8-759-182-86 IC PQ05TZ5U IC1601 8-759-182-88 IC PQ09TZ5U IC1701 8-759-946-09 IC FA7611M < JACK > J1001 1-774-741-11 JACK, DC (DC IN 12V) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 161 — < COIL > L1101 1-414-430-11 INDUCTOR 4.7uH L1201 1-414-741-11 INDUCTOR 10uH L1301 1-414-398-11 INDUCTOR 10uH L1501 1-414-741-11 INDUCTOR 10uH L1601 1-414-398-11 INDUCTOR 10uH L1703 1-414-741-11 INDUCTOR 10uH L1704 1-408-615-31 INDUCTOR 100uH L1705 1-414-741-11 INDUCTOR 10uH < LINE FILTER > LF1001 1-411-799-11 INDUCTOR 0uH < TRANSISTOR > Q1001 8-729-033-94 TRANSISTOR 2SB1204T-FA-TL Q1101 8-729-905-35 TRANSISTOR 2SC4081T106R Q1121 8-729-905-35 TRANSISTOR 2SC4081T106R Q1151 8-729-905-35 TRANSISTOR 2SC4081T106R Q1201 8-729-905-35 TRANSISTOR 2SC4081T106R Q1702 8-729-921-93 TRANSISTOR 2SB1182F5-QR Q1801 8-729-900-53 TRANSISTOR DTC114EK Q1802 8-729-900-53 TRANSISTOR DTC114EK < RESISTOR > R1001 1-216-097-91 RES,CHIP 100K 5% 1/10W R1002 1-220-264-11 RES,CHIP 1K 5% 1/4W R1003 1-220-264-11 RES,CHIP 1K 5% 1/4W R1101 1-216-105-91 RES,CHIP 220K 5% 1/10W R1102 1-216-097-91 RES,CHIP 100K 5% 1/10W R1111 1-216-105-91 RES,CHIP 220K 5% 1/10W R1112 1-216-097-91 RES,CHIP 100K 5% 1/10W R1113 1-216-101-00 METAL CHIP 150K 5% 1/10W R1121 1-216-105-91 RES,CHIP 220K 5% 1/10W R1122 1-216-097-91 RES,CHIP 100K 5% 1/10W R1123 1-216-113-00 METAL CHIP 470K 5% 1/10W R1201 1-216-109-00 METAL CHIP 330K 5% 1/10W R1202 1-216-097-91 RES,CHIP 100K 5% 1/10W R1203 1-216-101-00 METAL CHIP 150K 5% 1/10W R1314 1-216-049-91 RES,CHIP 1K 5% 1/10W R1315 1-216-643-11 METAL CHIP 470 0.5% 1/10W R1316 1-216-643-11 METAL CHIP 470 0.5% 1/10W R1317 1-216-667-11 METAL CHIP 4.7K 0.5% 1/10W R1353 1-216-178-00 RES,CHIP 150 5% 1/8W R1354 1-216-039-00 METAL CHIP 390 5% 1/10W R1355 1-216-178-00 RES,CHIP 150 5% 1/8W R1356 1-216-039-00 METAL CHIP 390 5% 1/10W R1357 1-216-049-91 RES,CHIP 1K 5% 1/10W R1702 1-216-049-91 RES,CHIP 1K 5% 1/10W R1705 1-216-043-91 RES,CHIP 560 5% 1/10W R1706 1-216-186-00 RES,CHIP 330 5% 1/8W R1707 1-216-085-00 METAL CHIP 33K 5% 1/10W R1708 1-216-109-00 METAL CHIP 330K 5% 1/10W R1709 1-216-119-00 METAL CHIP 820K 5% 1/10W R1710 1-216-188-00 RES,CHIP 390 5% 1/8W R1711 1-216-097-91 RES,CHIP 100K 5% 1/10W R1712 1-216-081-00 METAL CHIP 22K 5% 1/10W R1713 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R1714 1-216-077-00 METAL CHIP 15K 5% 1/10W R1801 1-216-049-91 RES,CHIP 1K 5% 1/10W R1802 1-216-049-91 RES,CHIP 1K 5% 1/10W R1803 1-216-033-00 METAL CHIP 220 5% 1/10W R1902 1-216-295-91 SHORT 0 < VARIABLE RESISTOR > RV1111 1-241-399-11 RES, ADJ, METAL GLAZE 220K (+6V) RV1121 1-241-470-11 RES, ADJ, METAL GLAZE 1M (5.3V) RV1201 1-241-399-11 RES, ADJ, METAL GLAZE 220K (+6V) < SWITCH > S1351 1-553-977-00 SWITCH, SLIDE (BACK UP) S1352 1-554-088-00 SWITCH, KEY BOARD (RESET) ************************************************************ * A-4699-901-A VIDEO IN BOARD, COMPLETE ************************ < BUZZER > BZ101 1-504-920-11 BUZZER < CAPACITOR > C101 1-163-031-11 CERAMIC CHIP 0.01uF 50V C102 1-163-031-11 CERAMIC CHIP 0.01uF 50V C103 1-163-031-11 CERAMIC CHIP 0.01uF 50V C104 1-163-031-11 CERAMIC CHIP 0.01uF 50V C105 1-124-589-11 ELECT 47uF 20% 16V C106 1-124-589-11 ELECT 47uF 20% 16V C107 1-124-589-11 ELECT 47uF 20% 16V C108 1-163-031-11 CERAMIC CHIP 0.01uF 50V C109 1-163-031-11 CERAMIC CHIP 0.01uF 50V C110 1-163-031-11 CERAMIC CHIP 0.01uF 50V C111 1-163-031-11 CERAMIC CHIP 0.01uF 50V C112 1-163-031-11 CERAMIC CHIP 0.01uF 50V C113 1-163-031-11 CERAMIC CHIP 0.01uF 50V C114 1-163-031-11 CERAMIC CHIP 0.01uF 50V C115 1-163-031-11 CERAMIC CHIP 0.01uF 50V C116 1-163-031-11 CERAMIC CHIP 0.01uF 50V C117 1-124-589-11 ELECT 47uF 20% 16V C119 1-124-589-11 ELECT 47uF 20% 16V C121 1-163-031-11 CERAMIC CHIP 0.01uF 50V C122 1-163-031-11 CERAMIC CHIP 0.01uF 50V C123 1-163-031-11 CERAMIC CHIP 0.01uF 50V C124 1-163-031-11 CERAMIC CHIP 0.01uF 50V C125 1-163-031-11 CERAMIC CHIP 0.01uF 50V C126 1-163-031-11 CERAMIC CHIP 0.01uF 50V C127 1-163-031-11 CERAMIC CHIP 0.01uF 50V C128 1-163-031-11 CERAMIC CHIP 0.01uF 50V C129 1-163-031-11 CERAMIC CHIP 0.01uF 50V C130 1-163-031-11 CERAMIC CHIP 0.01uF 50V C131 1-163-031-11 CERAMIC CHIP 0.01uF 50V C132 1-163-031-11 CERAMIC CHIP 0.01uF 50V C133 1-163-031-11 CERAMIC CHIP 0.01uF 50V C134 1-163-099-00 CERAMIC CHIP 18PF 5% 50V C135 1-163-099-00 CERAMIC CHIP 18PF 5% 50V C136 1-163-031-11 CERAMIC CHIP 0.01uF 50V C138 1-163-031-11 CERAMIC CHIP 0.01uF 50V POWER VIDEO IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 162 — C139 1-163-031-11 CERAMIC CHIP 0.01uF 50V C140 1-124-589-11 ELECT 47uF 20% 16V C141 1-163-031-11 CERAMIC CHIP 0.01uF 50V C142 1-163-031-11 CERAMIC CHIP 0.01uF 50V C143 1-124-589-11 ELECT 47uF 20% 16V C148 1-163-031-11 CERAMIC CHIP 0.01uF 50V C149 1-163-031-11 CERAMIC CHIP 0.01uF 50V C150 1-163-038-91 CERAMIC CHIP 0.1uF 25V C152 1-163-038-91 CERAMIC CHIP 0.1uF 25V C163 1-163-031-11 CERAMIC CHIP 0.01uF 50V C164 1-124-589-11 ELECT 47uF 20% 16V C165 1-163-031-11 CERAMIC CHIP 0.01uF 50V C170 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C177 1-163-031-11 CERAMIC CHIP 0.01uF 50V C178 1-163-031-11 CERAMIC CHIP 0.01uF 50V C180 1-124-589-11 ELECT 47uF 20% 16V C182 1-163-031-11 CERAMIC CHIP 0.01uF 50V C185 1-137-367-11 FILM 0.0033uF 5% 50V C186 1-137-367-11 FILM 0.0033uF 5% 50V C187 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C188 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C190 1-124-589-11 ELECT 47uF 20% 16V C191 1-163-038-91 CERAMIC CHIP 0.1uF 25V C195 1-163-031-11 CERAMIC CHIP 0.01uF 50V C220 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C221 1-163-038-91 CERAMIC CHIP 0.1uF 25V C222 1-163-038-91 CERAMIC CHIP 0.1uF 25V C250 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C251 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C252 1-163-038-91 CERAMIC CHIP 0.1uF 25V C253 1-163-038-91 CERAMIC CHIP 0.1uF 25V C401 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C402 1-124-589-11 ELECT 47uF 20% 16V C403 1-163-031-11 CERAMIC CHIP 0.01uF 50V C404 1-163-031-11 CERAMIC CHIP 0.01uF 50V C405 1-163-031-11 CERAMIC CHIP 0.01uF 50V C406 1-163-031-11 CERAMIC CHIP 0.01uF 50V C407 1-163-038-91 CERAMIC CHIP 0.1uF 25V C408 1-163-038-91 CERAMIC CHIP 0.1uF 25V C409 1-163-031-11 CERAMIC CHIP 0.01uF 50V C410 1-163-031-11 CERAMIC CHIP 0.01uF 50V C411 1-163-031-11 CERAMIC CHIP 0.01uF 50V C412 1-163-038-91 CERAMIC CHIP 0.1uF 25V C413 1-163-031-11 CERAMIC CHIP 0.01uF 50V C414 1-163-031-11 CERAMIC CHIP 0.01uF 50V C415 1-124-584-00 ELECT 100uF 20% 10V C416 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C417 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C418 1-163-031-11 CERAMIC CHIP 0.01uF 50V C419 1-164-232-11 CERAMIC CHIP 0.01uF 50V C420 1-163-031-11 CERAMIC CHIP 0.01uF 50V C421 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V C422 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C423 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C424 1-163-031-11 CERAMIC CHIP 0.01uF 50V C425 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C426 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C427 1-124-584-00 ELECT 100uF 20% 10V C428 1-163-031-11 CERAMIC CHIP 0.01uF 50V C429 1-163-038-91 CERAMIC CHIP 0.1uF 25V C430 1-163-031-11 CERAMIC CHIP 0.01uF 50V C431 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C432 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C433 1-124-589-11 ELECT 47uF 20% 16V C434 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C436 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C437 1-164-232-11 CERAMIC CHIP 0.01uF 50V C438 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C439 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C440 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C441 1-163-031-11 CERAMIC CHIP 0.01uF 50V C442 1-163-031-11 CERAMIC CHIP 0.01uF 50V C443 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C444 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V C445 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V C446 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C447 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C448 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C449 1-163-031-11 CERAMIC CHIP 0.01uF 50V C450 1-163-031-11 CERAMIC CHIP 0.01uF 50V C451 1-163-031-11 CERAMIC CHIP 0.01uF 50V C452 1-163-031-11 CERAMIC CHIP 0.01uF 50V C453 1-163-031-11 CERAMIC CHIP 0.01uF 50V C454 1-216-295-91 SHORT 0 C455 1-216-295-91 SHORT 0 C456 1-124-589-11 ELECT 47uF 20% 16V C459 1-163-031-11 CERAMIC CHIP 0.01uF 50V C460 1-163-031-11 CERAMIC CHIP 0.01uF 50V C461 1-163-031-11 CERAMIC CHIP 0.01uF 50V C462 1-124-589-11 ELECT 47uF 20% 16V C463 1-163-031-11 CERAMIC CHIP 0.01uF 50V C463 1-216-295-91 SHORT 0 C464 1-163-031-11 CERAMIC CHIP 0.01uF 50V C465 1-163-031-11 CERAMIC CHIP 0.01uF 50V C466 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C467 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C468 1-163-038-91 CERAMIC CHIP 0.1uF 25V C469 1-163-038-91 CERAMIC CHIP 0.1uF 25V C470 1-163-038-91 CERAMIC CHIP 0.1uF 25V C471 1-163-038-91 CERAMIC CHIP 0.1uF 25V C500 1-163-038-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN102 1-580-789-21 PIN, CONNECTOR (SMD) 6P * CN103 1-580-756-21 PIN, CONNECTOR 7P CN104 1-779-636-11 CONNECTOR, FFC/FPC 25P CN105 1-779-203-11 CONNECTOR, FFCC/FPC 13P * CN106 1-764-177-11 PIN, CONNECTOR (SMD)(1.5MM) 7P < DIODE > D101 8-719-158-15 DIODE RD5.6S-B D102 8-719-158-15 DIODE RD5.6S-B D103 8-719-158-15 DIODE RD5.6S-B D104 8-719-158-15 DIODE RD5.6S-B D105 8-719-027-45 DIODE MA740 VIDEO IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 163 — < FERRITE BEAD > FB101 1-216-295-91 SHORT 0 FB102 1-216-295-91 SHORT 0 FB103 1-163-031-11 CERAMIC CHIP 0.01µF 50V FB104 1-216-295-91 SHORT 0 FB106 1-216-295-91 SHORT 0 FB107 1-216-295-91 SHORT 0 FB108 1-216-295-91 SHORT 0 FB109 1-216-295-91 SHORT 0 FB110 1-216-295-91 SHORT 0 FB111 1-216-295-91 SHORT 0 FB112 1-216-295-91 SHORT 0 FB113 1-216-295-91 SHORT 0 FB114 1-216-295-91 SHORT 0 < IC > IC101 8-759-438-15 IC MSM514260B70JSDR1 IC102 8-759-438-15 IC MSM514260B70JSDR1 IC103 8-759-032-01 IC MC74HC00AF IC104 8-759-433-99 IC SAA7110AWP IC105 8-759-433-97 IC MD2201A IC106 8-759-032-01 IC MC74HC00AF IC108 8-752-879-46 IC CXP81120-032R IC109 8-759-032-01 IC MC74HC00AF IC110 8-759-236-83 IC TC74HC245AF(EL) IC111 8-759-032-01 IC MC74HC00AF * IC112 8-759-346-77 IC SN74LS125ADB-E20 IC201 8-759-295-66 IC BA7653AF-E2 IC202 8-759-446-66 IC MM1113XFBE IC203 8-759-295-66 IC BA7653AF-E2 IC401 8-752-352-20 IC CXD2023Q IC402 8-752-062-80 IC CXA1686M < JACK > J101 1-784-248-11 CONNECTOR (ROUND TYPE)(VIDEO IN YC(S)) J102 1-779-744-11 JACK, PIN 1P (VIDEO IN V) J104 1-784-248-11 CONNECTOR (ROUND TYPE) (VIDEO OUT YC(S)) J105 1-766-396-11 JACK, PIN 4P (AUDIO) J106 1-779-744-11 JACK, PIN 1P (VIDEO OUT V) < COIL > L101 1-408-970-21 INDUCTOR 10uH L102 1-408-970-21 INDUCTOR 10uH L104 1-408-970-21 INDUCTOR 10uH L105 1-408-970-21 INDUCTOR 10uH L108 1-408-970-21 INDUCTOR 10uH L401 1-414-404-11 INDUCTOR 100uH L402 1-414-404-11 INDUCTOR 100uH L403 1-410-386-11 INDUCTOR CHIP 27uH L404 1-408-970-21 INDUCTOR 10uH L405 1-410-656-11 INDUCTOR CHIP 150uH L406 1-408-970-21 INDUCTOR 10uH L407 1-410-386-11 INDUCTOR CHIP 27uH L408 1-410-386-11 INDUCTOR CHIP 27uH L411 1-408-970-21 INDUCTOR 10uH < TRANSISTOR > Q103 8-729-027-60 TRANSISTOR DTC144TKA-T146 Q401 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q402 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q403 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q404 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q405 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q406 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q407 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q408 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q409 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q410 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q411 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q412 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q413 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q414 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q415 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q416 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q417 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q418 1-801-806-11 TRANSISTOR DTC144EKA-T146 Q419 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q420 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q421 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R < RESISTOR > R101 1-216-022-00 METAL CHIP 75 5% 1/10W R102 1-216-022-00 METAL CHIP 75 5% 1/10W R103 1-216-022-00 METAL CHIP 75 5% 1/10W R104 1-216-022-00 METAL CHIP 75 5% 1/10W R105 1-216-073-00 METAL CHIP 10K 5% 1/10W R105 1-216-295-91 SHORT 0 R106 1-216-073-00 METAL CHIP 10K 5% 1/10W R107 1-216-041-00 METAL CHIP 470 5% 1/10W R108 1-216-073-00 METAL CHIP 10K 5% 1/10W R113 1-216-121-91 RES,CHIP 1M 5% 1/10W R114 1-216-035-00 METAL CHIP 270 5% 1/10W R115 1-216-025-91 RES,CHIP 100 5% 1/10W R116 1-216-025-91 RES,CHIP 100 5% 1/10W R117 1-216-073-00 METAL CHIP 10K 5% 1/10W R118 1-216-025-91 RES,CHIP 100 5% 1/10W R119 1-216-025-91 RES,CHIP 100 5% 1/10W R120 1-216-025-91 RES,CHIP 100 5% 1/10W R121 1-216-025-91 RES,CHIP 100 5% 1/10W R122 1-216-025-91 RES,CHIP 100 5% 1/10W R123 1-216-025-91 RES,CHIP 100 5% 1/10W R124 1-216-073-00 METAL CHIP 10K 5% 1/10W R125 1-216-025-91 RES,CHIP 100 5% 1/10W R126 1-216-025-91 RES,CHIP 100 5% 1/10W R127 1-216-025-91 RES,CHIP 100 5% 1/10W R128 1-216-025-91 RES,CHIP 100 5% 1/10W R129 1-216-025-91 RES,CHIP 100 5% 1/10W R130 1-216-025-91 RES,CHIP 100 5% 1/10W R131 1-216-025-91 RES,CHIP 100 5% 1/10W R132 1-216-025-91 RES,CHIP 100 5% 1/10W R133 1-216-025-91 RES,CHIP 100 5% 1/10W VIDEO IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 164 — R134 1-216-025-91 RES,CHIP 100 5% 1/10W R135 1-216-025-91 RES,CHIP 100 5% 1/10W R136 1-216-025-91 RES,CHIP 100 5% 1/10W R137 1-216-025-91 RES,CHIP 100 5% 1/10W R138 1-216-025-91 RES,CHIP 100 5% 1/10W R139 1-216-025-91 RES,CHIP 100 5% 1/10W R140 1-216-025-91 RES,CHIP 100 5% 1/10W R141 1-216-025-91 RES,CHIP 100 5% 1/10W R142 1-216-025-91 RES,CHIP 100 5% 1/10W R143 1-216-025-91 RES,CHIP 100 5% 1/10W R144 1-216-025-91 RES,CHIP 100 5% 1/10W R145 1-216-025-91 RES,CHIP 100 5% 1/10W R146 1-216-025-91 RES,CHIP 100 5% 1/10W R149 1-216-295-91 SHORT 0 R158 1-216-049-91 RES,CHIP 1K 5% 1/10W R159 1-216-025-91 RES,CHIP 100 5% 1/10W R160 1-216-099-00 METAL CHIP 120K 5% 1/10W R161 1-216-121-91 RES,CHIP 1M 5% 1/10W R166 1-216-295-91 SHORT 0 R168 1-216-037-00 METAL CHIP 330 5% 1/10W R169 1-216-037-00 METAL CHIP 330 5% 1/10W R173 1-216-033-00 METAL CHIP 220 5% 1/10W R174 1-216-033-00 METAL CHIP 220 5% 1/10W R175 1-216-033-00 METAL CHIP 220 5% 1/10W R176 1-216-033-00 METAL CHIP 220 5% 1/10W R177 1-216-033-00 METAL CHIP 220 5% 1/10W R178 1-216-033-00 METAL CHIP 220 5% 1/10W R179 1-216-033-00 METAL CHIP 220 5% 1/10W R180 1-216-033-00 METAL CHIP 220 5% 1/10W R181 1-216-033-00 METAL CHIP 220 5% 1/10W R182 1-216-033-00 METAL CHIP 220 5% 1/10W R183 1-216-033-00 METAL CHIP 220 5% 1/10W R184 1-216-033-00 METAL CHIP 220 5% 1/10W R185 1-216-295-91 SHORT 0 R186 1-216-025-91 RES,CHIP 100 5% 1/10W R187 1-216-025-91 RES,CHIP 100 5% 1/10W R188 1-216-025-91 RES,CHIP 100 5% 1/10W R189 1-216-025-91 RES,CHIP 100 5% 1/10W R190 1-216-295-91 SHORT 0 R191 1-216-295-91 SHORT 0 R192 1-216-033-00 METAL CHIP 220 5% 1/10W R193 1-216-049-91 RES,CHIP 1K 5% 1/10W R194 1-216-049-91 RES,CHIP 1K 5% 1/10W R195 1-216-049-91 RES,CHIP 1K 5% 1/10W R196 1-216-073-00 METAL CHIP 10K 5% 1/10W R199 1-216-073-00 METAL CHIP 10K 5% 1/10W R200 1-216-073-00 METAL CHIP 10K 5% 1/10W R202 1-216-025-91 RES,CHIP 100 5% 1/10W R203 1-216-025-91 RES,CHIP 100 5% 1/10W R204 1-216-295-91 SHORT 0 R205 1-216-025-91 RES,CHIP 100 5% 1/10W R206 1-216-025-91 RES,CHIP 100 5% 1/10W R210 1-216-295-91 SHORT 0 R211 1-216-295-91 SHORT 0 R212 1-216-295-91 SHORT 0 R220 1-216-049-91 RES,CHIP 1K 5% 1/10W R222 1-216-025-91 RES,CHIP 100 5% 1/10W R250 1-216-037-00 METAL CHIP 330 5% 1/10W R251 1-216-037-00 METAL CHIP 330 5% 1/10W R252 1-216-296-91 SHORT 0 R322 1-216-295-91 SHORT 0 R401 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R402 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R403 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R404 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R405 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R406 1-216-073-00 METAL CHIP 10K 5% 1/10W R408 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R409 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R410 1-216-049-91 RES,CHIP 1K 5% 1/10W R411 1-216-049-91 RES,CHIP 1K 5% 1/10W R412 1-216-022-00 METAL CHIP 75 5% 1/10W R413 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R414 1-216-032-00 METAL CHIP 200 5% 1/10W R415 1-216-049-91 RES,CHIP 1K 5% 1/10W R416 1-216-032-00 METAL CHIP 200 5% 1/10W R417 1-216-049-91 RES,CHIP 1K 5% 1/10W R418 1-216-651-11 METAL CHIP 1K 0.5% 1/10W R419 1-216-047-91 RES,CHIP 820 5% 1/10W R420 1-216-663-11 METAL CHIP 3.3K 0.5% 1/10W R421 1-216-073-00 METAL CHIP 10K 5% 1/10W R422 1-216-043-91 RES,CHIP 560 5% 1/10W R423 1-216-043-91 RES,CHIP 560 5% 1/10W R424 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R425 1-216-025-91 RES,CHIP 100 5% 1/10W R426 1-216-025-91 RES,CHIP 100 5% 1/10W R427 1-216-025-91 RES,CHIP 100 5% 1/10W R428 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R429 1-216-077-00 METAL CHIP 15K 5% 1/10W R430 1-216-025-91 RES,CHIP 100 5% 1/10W R431 1-216-041-00 METAL CHIP 470 5% 1/10W R432 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R434 1-216-073-00 METAL CHIP 10K 5% 1/10W R435 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R436 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R437 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R438 1-216-073-00 METAL CHIP 10K 5% 1/10W R439 1-216-047-91 RES,CHIP 820 5% 1/10W R440 1-216-047-91 RES,CHIP 820 5% 1/10W R441 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R442 1-216-025-91 RES,CHIP 100 5% 1/10W R443 1-216-025-91 RES,CHIP 100 5% 1/10W R445 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R446 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R447 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R448 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R449 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R450 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R451 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R452 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R455 1-216-073-00 METAL CHIP 10K 5% 1/10W R457 1-216-025-91 RES,CHIP 100 5% 1/10W R458 1-216-025-91 RES,CHIP 100 5% 1/10W R459 1-216-025-91 RES,CHIP 100 5% 1/10W R460 1-216-025-91 RES,CHIP 100 5% 1/10W R461 1-216-073-00 METAL CHIP 10K 5% 1/10W R462 1-216-073-00 METAL CHIP 10K 5% 1/10W R464 1-216-295-91 SHORT 0 R465 1-216-041-00 METAL CHIP 470 5% 1/10W R466 1-216-053-00 METAL CHIP 1.5K 5% 1/10W VIDEO IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 165 — R467 1-216-049-91 RES,CHIP 1K 5% 1/10W R468 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R470 1-216-025-91 RES,CHIP 100 5% 1/10W R471 1-216-025-91 RES,CHIP 100 5% 1/10W R472 1-216-041-00 METAL CHIP 470 5% 1/10W R500 1-216-295-91 SHORT 0 < VARIABLE RESISTOR > RV402 1-241-394-11 RES, ADJ, METAL GLAZE 4.7K (Y OUTPUT AMPLITUDE) RV403 1-241-392-11 RES, ADJ, METAL GLAZE 1K (S INPUT Y AMPLITUDE) < VIBRATOR > X101 1-767-213-11 VIBRATOR, CRYSTAL 26.798MHz X102 1-767-396-11 VIBRATOR, CERAMIC 16MHz X401 1-577-611-11 OSCILALTOR, CERAMIC 500kHz X402 1-567-878-11 OSCILLATOR, CRYSTAL 14.31818MHz ************************************************************ MISCELLANEOUS *************** 2 1-698-851-11 FAN, DC 104 1-783-069-11 WIRE (FLAT TYPE) (13 CORE) 105 1-783-070-11 WIRE (FLAT TYPE) (25 CORE) 106 1-777-555-21 WIRE (FLAT TYPE) (7 CORE) 107 1-777-553-11 WIRE (FLAT TYPE) (30 CORE) 108 1-777-552-11 WIRE (FLAT TYPE) (18 CORE) 111 1-777-554-11 WIRE (FLAT TYPE) (6 CORE) !257 8-583-009-12 OPTICAL PICK-UP KMS-210A/J-N HR901 1-500-304-21 HEAD, OVER LIGHT M101 A-4660-651-A MOTOR (SLED) ASSY M102 A-4660-650-A CHASSIS ASSY, BU M191 A-4660-646-A MOTOR (LOADING) ASSY S102 1-762-148-11 SWITCH, PUSH (2 KEY) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-475-539-11 REMOTE COMMANDER (RMT-DA300) 1-475-540-11 ADAPTOR, AC (AC-DA300) 3-862-160-11 MANUAL, INSTRUCTION (ENGLISH) 4-981-643-01 BATTERY COVER (RMT-DA300) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-646-79 SCREW +BVTP 3 × 8 TYPE2 N-S #2 7-685-648-79 SCREW +BVTP 3 × 12 TYPE2 N-S #3 7-685-861-01 SCREW +BVTT 2.6 × 5 (S) #4 7-685-105-19 TPG +P 2 × 8, TYPE 2, NON-SLIT #5 7-685-104-19 SCREW +P 2 × 6 TYPE2 NON-SLIT #6 7-685-645-79 SCREW +BVTP 3 × 6 TYPE2 N-S #7 7-685-860-04 SCREW +BVTT 2.6 × 4 (S) #8 7-627-852-08 SCREW,PRECISION +P 1.7 × 2.5 #9 7-685-781-09 SCREW +PTT 2 × 4 (S) #10 7-621-775-20 SCREW +B 2.6 × 5 #11 7-621-770-67 SCREW +PWH 2.6 × 6 #12 7-685-850-04 SCREW +BVTT 2 × 3 (S) #13 7-685-862-09 SCREW +BVTT 2.6 × 6 (S) #14 7-682-652-09 SCREW +PS 3 × 16 #15 7-684-023-04 N 3, TYPE 2 #16 7-685-871-01 SCREW +BVTT 3 × 6 (S) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. VIDEO IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 166 — DPA-300 Sony Corporation Home A&V Products Company 9-922-743-11 97L16044-1 Printed in Japan © 1997.12 Published by General Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
