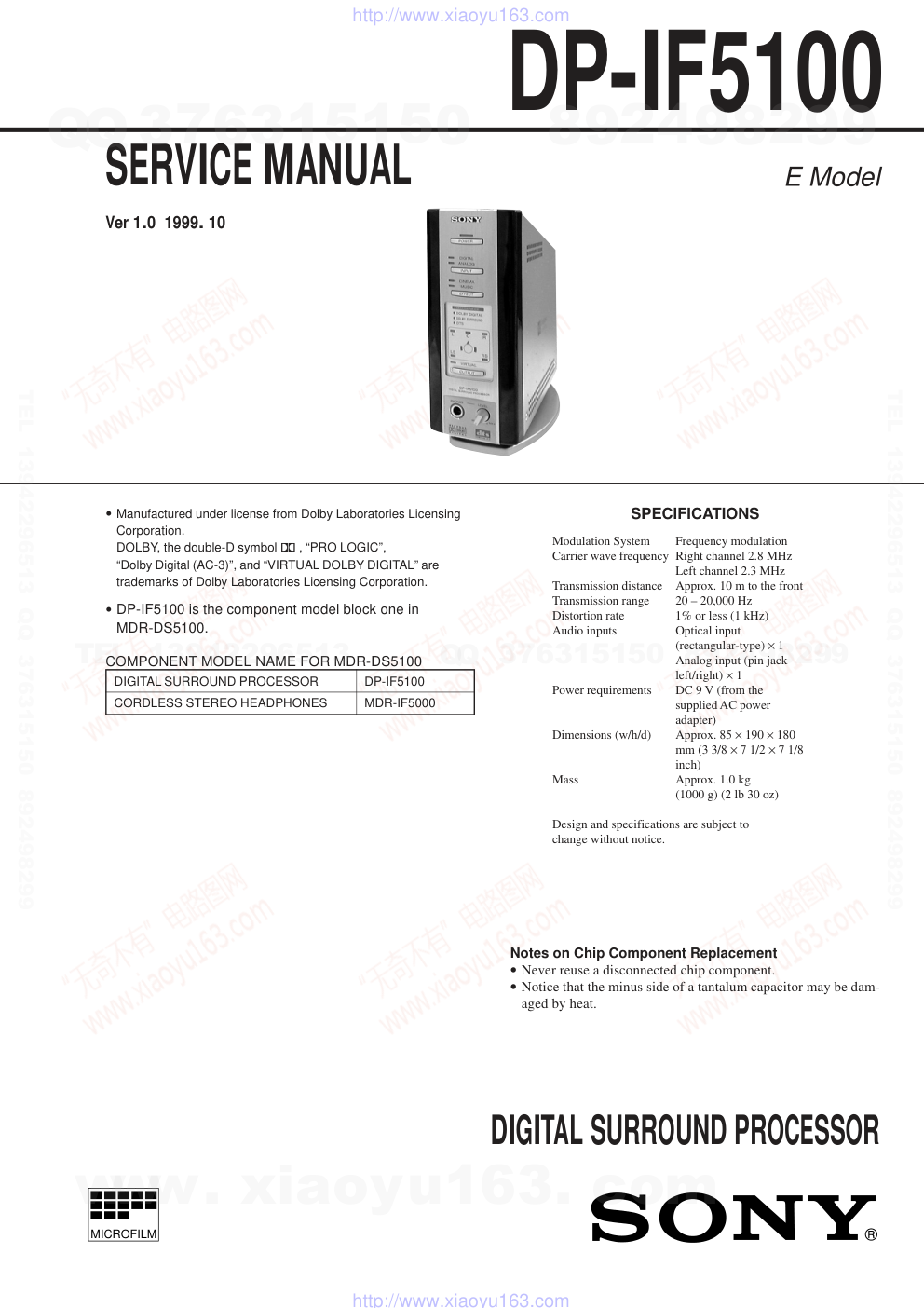

– 1 – SERVICE MANUAL MICROFILM DIGITAL SURROUND PROCESSOR SPECIFICATIONS Modulation System Frequency modulation Carrier wave frequency Right channel 2.8 MHz Left channel 2.3 MHz Transmission distance Approx. 10 m to the front Transmission range 20 – 20,000 Hz Distortion rate 1% or less (1 kHz) Audio inputs Optical input (rectangular-type) × 1 Analog input (pin jack left/right) × 1 Power requirements DC 9 V (from the supplied AC power adapter) Dimensions (w/h/d) Approx. 85 × 190 × 180 mm (3 3/8 × 7 1/2 × 7 1/8 inch) Mass Approx. 1.0 kg (1000 g) (2 lb 30 oz) Design and specifications are subject to change without notice. • DP-IF5100 is the component model block one in MDR-DS5100. COMPONENT MODEL NAME FOR MDR-DS5100 DIGITAL SURROUND PROCESSOR DP-IF5100 CORDLESS STEREO HEADPHONES MDR-IF5000 • Manufactured under license from Dolby Laboratories Licensing Corporation. DOLBY, the double-D symbol ; , “PRO LOGIC”, “Dolby Digital (AC-3)”, and “VIRTUAL DOLBY DIGITAL” are trademarks of Dolby Laboratories Licensing Corporation. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. E Model Ver 1.0 1999. 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. GENERAL Location and Function of Parts............................................... 3 Listening to the Sound of the Connected Component ............ 3 2. DISASSEMBLY 2-1. Cover Assy .......................................................................... 5 2-2. Panel Assy, Front................................................................. 5 2-3. Panel Assy, Sub ................................................................... 6 2-4. TX Board ............................................................................ 6 3. SERVICE MODE 3-1. General ................................................................................ 7 3-2. Setting the Test Mode.......................................................... 7 3-3. Releasing the Test Mode ..................................................... 7 3-4. Test Mode ............................................................................ 7 4. ELECTRICAL ADJUSTMENTS................................... 8 5. DIAGRAMS 5-1. IC Pin Descriptions ............................................................. 9 5-1-1. IC201 µPD784216 (Program, System Control) ............ 9 5-1-2. IC301 CXD9511AQ (Dolby Digital (AC-3)/ Pro Logic, DTS Decoder)............................................ 11 5-1-3. IC302 XCB56362PV100 (24 Bit Audio Digital Signal Processor) ......................................................... 13 5-2. Block Diagrams ................................................................ 17 5-2-1. Block Diagram –Processor Section– ........................... 17 5-2-2. Block Diagram –Transmitter Section– ........................ 19 5-3. Printed Wiring Boards and Schematic Diagrams .............. 21 5-3-1. Printed Wiring Board –TX Board– ............................. 21 5-3-2. Schematic Diagram –TX Board (1/2)– ....................... 25 5-3-3. Schematic Diagram –TX Board (2/2)– ....................... 27 5-3-4. Printed Wiring Board –LED Board– ........................... 29 5-3-5. Schematic Diagram –LED Board– .............................. 31 5-3-6. Printed Wiring Board –AMP Board– .......................... 33 5-3-7. Schematic Diagram –AMP Board– ............................. 34 5-4. IC Block Diagrams ........................................................... 35 6. EXPLODED VIEW........................................................... 38 7. ELECTRICAL PARTS LIST......................................... 39 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – SECTION 2 DISASSEMBLY 2-1. COVER ASSY • The equipment can be removed using the following procedure. Note : Follow the disassembly procedure in the numerical order given. 2-2. PANEL ASSY, FRONT Set Cover assy Panel assy, front Panel assy, sub TX board 3 PTT 2.6X5 5 cover assy 2 PTT 2.6X5 4 PTT 2.6X5 1 PTT 2.6X5 4 CN103 5 CN101 6 P 3X6 7 P 3X6 3 CN102 2 PTT 2.6X5 9 panel assy, front 8 claws 1 screws (2.6x6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 2-3. PANEL ASSY, SUB 2-4. TX BOARD 1 P 2X8 3 LED board 4 panel assy, sub 2 P 2X8 2 screws BTT 4 TX board 1 BVTP 3X8 3 screw BTT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SECTION 3 SERVICE MODE 3-1. GENERAL This set has the test mode of the built-in microprocessor which allows various check items required repairing. 3-2. SETTING THE TEST MODE Press the POWER key and the EFFECT key at the same time and turn on the power. (Insert the DC plug) 3-3. RELEASING THE TEST MODE Remove the DC plug. 3-4. TEST MODE 1. LED check *1) In test mode *2) All infrared LEDs on *3) All infrared LEDs on 2. Key check *4) Corresponding LEDs POWER key : POWER LED INPUT key : ANALOG LED EFFECT key : MUSIC LED OUTPUT key : VIRTUAL LED 3. Audio check *5) Digital input check : Do not use this in repair. *6) Analog input check : Other than MUTE check, do not use this in repair. *7) Mute mode : Use this in electrical adjustment (see page 8). *8) L C R LS RS HR LED HL LED 4. IF test tone LEDs go on in sequence *1) All LEDs on All LEDs off POWER,INPUT keys POWER,INPUT keys Go to Key check *3) *2) POWER,INPUT keys Go to Audio check Press each key and its corresponding LED goes on *4) POWER,INPUT keys Go to IF test tone ANALOG, HR and HL LEDs on *5) *7) POWER, DIGITAL, L and R LEDs on *5) HL and HR LEDs off *6) POWER,INPUT keys POWER,INPUT keys POWER and MUSIC LEDs on OUTPUT key OUTPUT key OUTPUT key OUTPUT key OUTPUT key OUTPUT key End of Test mode 1 kHz, –10 dBv 1 kHz, –30 dBv 100 Hz, –30 dBv 10 kHz, –30 dBv 1 kHz, FS L LED on C LED on R LED on RS LED on LS LED on POWER,INPUT keys www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – SECTION 4 ELECTRICAL ADJUSTMENTS Notes: 1. These adjustments are performed in the order that they are described. 2. Adjustment and measurement are performed for each channel unless otherwise specified. 3. Adjustment is made for the right channel first and then the left channel. 4. The power voltage is supplied with 9 V. Oscillation Frequency Adjustment Setting: + – LED board TP03 or TP04 (L-ch) TP05 or TP06 (R-ch) digital frequency counter Adjustment method: • Perform this adjustment without signal. 1. Connect TP (A MUTE) to ground on the TX board (to set the mute state), or use the test mode to set the mute state (see page 7). 2. Connect a digital frequency counter to TP03 or TP04 for L-ch and TP05 or TP06 for R-ch on the LED board. 3. Adjust L51 (L-ch) and L1 (R-ch) on the TX board so that the reading on the digital frequency counter is each within 2.3 MHz (L-ch) and 2.8 MHz (R-ch). Specified value: L-ch L51 2.298 to 2.302 MHz R-ch L1 2.798 to 2.802 MHz RF Level Adjustment Setting: digital voltmeter + – LED board TP03 or TP04 (L-ch) TP05 or TP06 (R-ch) Adjustment method: • Perform this adjustment without signal. 1. Connect TP L (L-ch) and TP R (R-ch) to ground on the LED board (to set the mute state), or use the test mode to set the mute state (see page 7). 2. Connect a digital voltmeter to TP03 or TP04 for L-ch and TP05 or TP06 for R-ch on the LED board. 3. Adjust RV51 (L-ch) and RV1 (R-ch) on the TX board so that the reading on the digital voltmeter is 480 mV. Specified value: L-ch RV51 477.5 to 482.5 mV R-ch RV1 477.5 to 482.5 mV Adjustment Location: RV51 RF LEVEL ADJUSTMENT OSCILLATION FREQUENCY ADJUSTMENT L51 RV1 L1 – TX board (side A) – TP05 TP06 TP03 TP04 – LED board (conductor side) – – TX board (side A) – TP (A MUTE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – 5-1. IC PIN DESCRIPTIONS 5-1-1. IC201 µPD784216 (PROGRAM, SYSTEM CONTROL) Pin No. Pin Name I/O Pin Description 1 RTP0/P120 O Analog circuit block mute signal output (H: Mute) 2 RTP1/P121 O D/A mute signal output (H: Mute) 3 RTP2/P122 O IF circuit block power control signal output (H: ON) 4 RTP3/P123 O Main circuit block power control signal output (H: ON) 5 RTP4/P124 O DIR block clock select signal output (H: Digital, L: Analog) 6 RTP5/P125 O DIR serial select signal output 7 RTP6/P126 — Not used. (Open) 8 RTP7/P127 — Not used. (Open) 9 VDD I Power supply pin 10 X2 O Connect to crystal for main system clock oscillator 11 X1 I Connect to crystal for main system clock oscillator 12 VSS — Ground 13 XT2 — Not used. (Open) 14 XT1 — Not used. (Fix to “L”.) 15 RESET I Reset signal input 16 INTP0/P00 I DIR audio data detect signal input 17 INTP1/P01 — Not used. (Open) 18 INTP2/P02 O Sub DSP serial select signal output 19 INTP3/P03 O Decoder serial select signal output 20 INTP4/P04 O Main DSP serial select signal output 21 INTP5/P05 O SLAVE reset signal output 22 INTP6/P06 I DIR lock signal input 23 AVDD I Power supply pin 24 AVREF0 — Ground 25 ANI0/P10 I DSP serial BUSY 5 V signal input 26 ANI1/P11 — Not used. (Open) 27 ANI2/P12 I Not used. (Open) 28 ANI3/P13 I Not used. (Open) 29 ANI4/P14 I Not used. (Open) 30 ANI5/P15 I Auto mute detect signal (L: OFF, H: ON) 31 ANI6/P16 — Not used. (Open) 32 ANI7/P17 I Audio input level signal input 33 AVSS — Analog ground 34 ANO0/P130 — Not used. (Open) 35 ANO1/P131 — Not used. (Open) 36 AVREF1 I Power supply pin 37 SI2 I Main serial data signal input 38 SO2 O Main serial data signal output 39 SCK2 O Main serial clock signal output 40 SI1 I Main serial data signal input 41 SO2 O Not used. (Open) 42 SCK1 O Main serial clock signal output 43 PCL/P23 O Main DSP reset signal output 44 BUZ/P24 — Not used. 45 SI0 I LED/FLASH serial data signal input 46 SO0 O LED/FLASH serial data signal output 47 SCK0 O LED/FLASH serial clock signal output 48 A0/P80 O Main DSP mute signal output 49 A1/P81 O Not used. (Main DSP ATT setting bit HIGH) 50 A2/P82 O Not used. (Main DSP ATT setting bit LOW) 51 A3/P83 O Main DSP ALC ON signal output SECTION 5 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – Pin No. Pin Name I/O Pin Description 52 A4/P84 O Main DSP VR setting bit HIGH signal output 53 A5/P85 O Main DSP VR setting bit LOW signal output 54 A6/P86 O Reserve terminal (Fix to “L”.) 55 A7/P87 O Reserve terminal (Fix to “L”.) 56 – 63 AD0 – 7/P40 – 47 — Not used. (Open) 64 A8/P50 O Not used. (Open) (LED 0) 65 A9/P51 O Not used. (Open) (LED 1) 66 A10/P52 O Not used. (Open) (LED 2) 67 A11/P53 O Not used. (Open) (LED 3) 68 – 71 A12 – 15/P54 – 57 — Not used. (Open) 72 VSS — Ground 73 A16/P60 I Power on/off key input 74 A17/P61 I INPUT key input 75 A18/P62 I EFFECT key input 76 A19/P63 I OUTPUT key input 77 RD/P64 I Jump key input 78 WR/P65 I Not used. (Open) 79 WAIT/P66 I Not used. (Open) 80 ASTB/P67 I Not used. (Open) 81 VDD I Power supply pin 82 T05/P100 O LEDEN signal output 83 T06/P101 O LEDLAT signal output 84 T07/P102 O LEDRESET signal output 85 T08/P103 — Not used. (Open) 86 T00/P30 — Not used. (Open) 87 T01/P31 — Not used. (Open) 88 T02/P32 — Not used. (Open) 89 T03/P33 — Not used. (Open) 90 T04/P34 — Not used. (Open) 91 TI00/P35 — Not used. (Open) 92 TI01/P36 — Not used. (Open) 93 P37 — Not used. (Open) 94 VPP I VPP signal input 95 – 100 P90 – 95 — Not used. (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – 5-1-2. IC301 CXD9511AQ (DOLBY DIGITAL (AC-3)/PRO LOGIC, DTS DECODER) Pin No. Pin Name I/O Pin Description 1 VDD1 I Power supply pin (+5 V) 2 RAMCEN — Not used. (Open) 3 • 4 RAM16 • 15 — Not used. (Open) 5 SDIB0 I PCM signal input 6 • 7 SDIB1 • 2 — Not used. (Open) 8 XI I External system clock signal input (12.288 MHz) 9 XO — Not used. (Open) 10 VSS — Ground 11 AVDD I Power supply pin (+3.3 V) 12 SDIB3 — Not used. (Open) 13 • 14 TEST — Test pin 15 OVFB — Not used. (Open) 16 DTSDATA — Not used. (Open) 17 AC3DATA — Not used. (Open) 18 SPDOB3 — Not used. (Open) 19 CPO O PLL signal output 20 AVSS — Ground 21 ADD2 I Power supply pin 22 SDOA2 O PCM signal output (C, LFE output) 23 SDOA1 O PCM signal output (LS, RS output) 24 SDOA0 O PCM signal output (L, R output) 25 – 29 RAMA14 – 10 — Not used. (Open) 30 VSS — Ground 31 VDD1 I Power supply pin (+5 V) 32 – 39 OPORT0 – 7 — Not used. (Open) 40 VSS — Ground 41 VDD2 I Power supply pin (+3.3 V) 42 – 44 RAMA9 – 7 — Not used. (Open) 45 SDOB2 — Not used. (Open) 46 SDOB1 O PCM signal output 47 SDOB0 O PCM signal output 48 SDBCK1 — Not used. (Open) 49 SDWCK1 — Not used. (Open) 50 VSS — Ground 51 VDD2 I Power supply pin (+3.3 V) 52 NONPCM — Not used. (Open) 53 CRC — Not used. (Open) 54 MUTE O Auto mute detect signal output 55 KARAOKE — Not used. (Open) 56 SCRENC — Not used. (Open) 57 SDBCK0 O SDBCK0 turn over clock signal output 58 • 59 RAMA6 • 5 — Not used. (Open) 60 VSS — Ground 61 RAMA4 — Not used. (Open) 62 IC I Initial clear terminal 63 TEST — Test pin 64 RAMA3 — Not used. (Open) 65 CSB I Sub DSP chip select signal input 66 CS I Interface chip select signal input 67 SO O Interface data signal output 68 SI I Interface and sub DSP data signal input 69 SCK I Interface and sub DSP clock signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – Pin No. Pin Name I/O Pin Description 70 RAMA2 — Not used. (Open) 71 VDD1 I Power supply pin (+5 V) 72 – 79 RAMD0 – 7 — Not used. (Open) 80 VSS — Ground 81 VDD2 I Power supply pin (+3.3 V) 82 SDWCK0 I SDIA, SDOA, SDIB and SDOB signal word clock signal input 83 SDBCK0 I SDIA, SDOA, SDIB and SDOB signal bit clock signal input 84 SDIA0 I AC-3/DTS bitstream (or PCM) data signal input 85 SDIA1 I AC-3/DTS bitstream (or PCM) data signal input 86 • 87 RAMA1 • 0 — Not used. (Open) 88 RAMWEN — Not used. (Open) 89 RAMOEN — Not used. (Open) 90 VSS — Ground 91 VDD2 I Power supply pin (+3.3 V) 92 • 93 IPORT7 • 6 I Input port resister pin 94 – 99 IPORT5 – 0 — Not used. (Open) 100 VSS — Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – 5-1-3. IC302 XCB56362PV100 (24 BIT AUDIO DIGITAL SIGNAL PROCESSOR) Pin No. Pin Name I/O Pin Description 1 SCK I SPI serial clock signal input 2 SS I SPI SLAVE select signal input 3 HREQ O Host request signal output 4 SDO0 O Serial data signal output 5 SDO1 O Serial data signal output 6 SDO2 O Serial data signal output 7 SDO3 O Serial data signal output 8 VCCS I Power supply pin 9 GNDS — Ground 10 SDO4 O Serial data signal output 11 SDO5 O Serial data signal output 12 FST I Transmitter frame sync signal input 13 FSR I Receiver frame sync signal input 14 SCKT I Transmitter serial clock signal input 15 SCKR I Receiver serial clock signal input 16 HCKT — Not used. (Open) 17 HCKR — Not used. (Open) 18 VCCQL I Power supply pin 19 GNDQ — Ground 20 VCCQL I Power supply pin 21 HDS — Not used. (Open) 22 HRW — Not used. (Open) 23 HACK — Not used. (Open) 24 HOREQ — Not used. (Open) 25 VCCS I Power supply pin 26 GNDS — Not used. (Open) 27 ADO — Not used. (Open) 28 ACI — Not used. (Open) 29 TIO0 I Timer schmitt trigger signal input 30 HCS — Not used. (Open) 31 HA9 — Not used. (Open) 32 HA8 — Not used. (Open) 33 HAS O Host address strobe signal output 34 HAD7 — Not used. 35 HAD6 — Not used. 36 HAD5 I Host address signal input 37 HAD4 I Host address signal input 38 VCCH I Power supply pin 39 GNDH — Ground 40 HAD3 I Host address signal input 41 HAD2 I Host address signal input 42 HAD1 I Host address signal input 43 HAD0 I Host address signal input 44 RESET I Reset signal input 45 VCCP I Power supply pin 46 PCAP I PLL capacitor connecting pin 47 GNDP — Ground 48 GNDP1 — Ground 49 VCCQH I Power supply pin 50 • 51 AA3 • 2 — Not used. (Open) 52 CAS — Not used. (Open) 53 DE — Not used. (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – Pin No. Pin Name I/O Pin Description 54 GNDQ — Ground 55 EXTAL I External clock signal input (12.288 MHz) 56 VCCQL I Power supply pin 57 VCCC I Power supply pin 58 GNDC — Ground 59 CLKOUT — Not used. (Open) 60 NC — Not used. (Open) 61 PINIT — Ground 62 TA — Ground 63 BR — Not used. (Open) 64 BB I Bus BUSY signal input 65 VCCC I Power supply pin 66 GNDC — Ground 67 WR — Not used. (Open) 68 RD — Not used. (Open) 69 • 70 AA1 • 0 — Not used. (Open) 71 BG — Ground 72 • 73 A0 • 1 — Not used. (Open) 74 VCCA I Power supply pin 75 GNDA — Ground 76 – 79 A2 – 5 — Not used. (Open) 80 VCCA I Power supply pin 81 GNDA — Ground 82 – 85 A6 – 9 — Not used. (Open) 86 VCCA I Power supply pin 87 GNDA — Ground 88 • 89 A10 • 11 — Not used. (Open) 90 GNDQ — Ground 91 VCCQL I Power supply pin 92 – 94 A12 – 14 — Not used. (Open) 95 VCCQH I Power supply pin 96 GNDA — Ground 97 – 99 A15 – 17 — Not used. (Open) 100 – 102 D0 – 2 — Not used. (Open) 103 VCCD I Power supply pin 104 GNDD — Ground 105 – 110 D3 – 8 — Not used. (Open) 111 VCCB I Power supply pin 112 GNDD — Ground 113 – 118 D9 – 14 — Not used. (Open) 119 VCCD I Power supply pin 120 GNDD — Ground 121 – 125 D15 – 19 — Not used. (Open) 126 VCCQL I Power supply pin 127 GNDQ — Ground 128 D20 — Not used. (Open) 129 VCCD I Power supply pin 130 GNDD — Ground 131 – 133 D21 – 23 — Not used. (Open) 134 MODD — Not used. (Fix to “L”.) 135 MODC I Mode select/external discontinue request signal input 136 MODB I Mode select/external discontinue request signal input 137 MODA I Mode select/external discontinue request signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – – 16 – Pin No. Pin Name I/O Pin Description 138 TRST — Not used. (Open) 139 TDO — Not used. (Open) 140 TDI — Not used. (Open) 141 TCK I Test clock input 142 TMS — Not used. (Open) 143 SI I SPI master data signal input 144 SO — Not used. (Open) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DP-IF5100 – 17 – – 18 – 5-2. BLOCK DIAGRAMS 5-2-1. BLOCK DIAGRAM — PROCESSOR SECTION — 4 SDO0 SDO2 SDO3 SDO4 SDO5 SCKT SCKR 18 VCCQL 8 VCCS VCCQH VCCH VCCP VCCC VCCA VCCD 20 38 45 57 74 33 HAS 3 HREQ 5 44 43 40 37 36 35 34 2 SDO1 6 7 10 11 85 19 1 1 2 3 6 57 84 3 7 8 10 15 22 13 12 44 43 42 83 82 8 37 1 3 14 15 12 FST 13 FSR 1 SCK 55 EXTAL 143 103 SI LR DATA BCK F1DA SRESET LRCK MCK AMUTE DAMUTE 25 ANI0/P10 ANI7/P13 BUSY 5V NOSG 5V 32 2 1 RTP0/P120 RTP1/P121 73 76 75 74 A17/P61 A18/P62 A19/P63 A16/P60 83 82 TO5/P100 TO6/P101 TO7/P102 47 SCK0 46 SO0 84 43 48 51 52 53 54 55 20 94 VPP 45 SI0 38 SO2 39 SCK2 42 SCK1 18 INTP2/P02 INTP4/PO4 A7/P87 A6/P86 A5/P85 A4/P84 37/P83 A0/P90 PCL/P23 19 INTP3/P03 37 SI2 30 ANI5/P15 68 SI SDBCK0 SDOB1 IC SDIB0 SDOB0 SDOA2 SDOA1 SDOA0 69 SCK 65 CSB 66 CS 67 SO 54 MUTE SO2 BCK F1DA SRESET VPOUT IF5000SG CLFSG CLRSG LRSG SCK2 CSSD CSYM SI2 YMMUTE 16 INTP0/P00 INTP5/P05 INTP6/P06 RTP4/P124 RTP5/P125 SI1 21 22 5 6 40 3 RTP2/P122 4 36 RTP3/P123 AVREF1 23 AVDD 81 VDD 9 VDD 15 RESET 1 2 3 6 5 4 46 62 1•31•71 11•41•51•81•91 3 2 14 13 15 4 13 14 2 3 15 12 I 5 01 I 08 12 I 5 RES LAT SIN SIN SCK EN LAT RES SO SCK EN POWER SELECT EFFECT OUTPUT ANALOG FRONT END EIAJ(AES/EBU) DIGITAL AUDIO INTERFACE DECODER µ-CON INTERFACE DECIMATION/ FILTER DIGITAL AUDIO INTERFACE (1/2) ANALOG FRONT END DELTA SIGMA MODULATOR D OUT V IN L V IN R DDIN VDD VDDA S/P P/S ASYNCHRONOUS BUFFER SYSTEM CLOCK TIMING OCCURENCE B+ (SW+5V) B+ (+5V) OUT VCC X301 12.288MHz IC306 12M/3V DISPLAY LED D201-208 DISPLAY LED DRIVE IC206 DISPLAY LED DRIVE IC205 DISPLAY LED D209-216 01 I 08 SW BLOCK SW1-5 A/D CONVERTER IC102(1/2) ATT SW Q101 LINE AMP IC101 L -1 -2 R J101 LINE INPUT R CH R CH B+ (SW+9V) B+ (SW+5V) B+ (+3.3V) SW101 ATT -8dB 0dB OPTICAL RECEIVER MODULE IC305 DIGITAL IN DIGITAL AUDIO,INTERFACE RECEIVER IC304 DIRSG /BCK LRCK DOUT MCC WC RSTN 12.288M 23 SRESET B+ (+3.3V) B+ (+5V) IC303 NOSG3V BUSY 3V 24BIT AUDIO DIGITAL SIGNAL PROCESSOR IC302 SS HAD7 HAD6 HAD5 HAD4 HAD3 HAD0 RESET CSDSP TMP3 TMP2 VRSBL VRSBH ALCON TRANSMITTER SECTION TRANSMITTER SECTION 1 TRANSMITTER SECTION 3 2 SO0 SCK0 LEDEN LEDLAT LEDRES B+ (UN+5.7V) POWER LEDPOWER RESET PROGRAM, SYSTEM CONTROL IC201 DSPRESET DSPMUTE 5 47 22 23 24 DOLBY DIGITAL(AC-3) /PRO LOGIC,DTS DECODER IC301 SDIA1 VDD1 SDIA0 VDD2 X1 SDBCK0 SDWCK0 39 24 SI1 CLKSEL LOCKN MCK DIRSCK CSDIR IC307(2/2) IC307(1/2) • Signal Path : ANALOG : DIGITAL 04 LOGIC LEVEL CONVERTER (Page 19) (Page 19) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – – 20 – DP-IF5100 5-2-2. BLOCK DIAGRAM — TRANSMITTER SECTION — 18 12 12 13 10 9 5 14 1 8 2 7 6 5 3 12 4 14 13 9 10 11 16 LOGIC LEVEL CONVERTER 2 3 5 17 12 6 6 8 5 7 3 2 1 6 5 7 3 2 SERIAL DATA INTERFACE MULTIBIT SIGMA-DELTA MODULATOR 2 24 23 28 CLOCK CIRCUIT ATTEN/ MUTE INTERPOLATION FILTER DELTA SIGMA MODULATION BIAS LPF & BUFFER LPF & BUFFER 8x INTERPOLATOR OUTPUT BUFFER DAC 15 11 6 4 2 6 4 2 L51 FREQUENCY (L-CH) 2.3MHz OSC COIL L1 FREQUENCY (R-CH) RV1 RF LEVEL (R-CH) RV51 RF LEVEL (L-CH) 2.8MHz OSC COIL OSC Q51 BUFFER Q52 LED DRIVE Q301,351 OSC Q1 MUTE Q901 MUTE Q902 UN5.7V REG IC801 RESET IC204 BUFFER Q2 ! 8 UN+5V REG Q903 B+ (UN+5V) B+ (UN+5.7V) LF801 PROCESSOR SECTION 3 PROCESSOR SECTION 1 PROCESSOR SECTION 2 LED POWER POWER RESET +3.3V REG IC803 B+ (+3.3V) LR DATA LR CK BCK MCK SRESET A MUTE F1DA DAMUTE DIN 16 17 22 28 RESET CLK/OSC MANAGER DIGITAL AUDIO INTERFACE (2/2) V OUT L V COM V OUT R 3 D51 D1 B+ (+9V) INFRARED EMITTER D301-304 B+ (+9V) INFRARED EMITTER D305-308 27 25 B+ (SW+5V) PD/RST MUTE R CH SDATA BCK LRCK MCLK R CH DVDD STEREO AUDIO DAC SYSTEM IC105 LPF IC106 -1 L -2 R HEADPHONES AMP IC901 HEADPHONES AMP IC902 1 J901 PHONES J801 DC IN 9V +9V REG IC804 +9V REG IC805 +5V REG IC802 B+ (SW+5V) B+ (SW+9V) B+ (+9V) B+ (UN+5V) MUTE VCC 15 D/A CONVERTER IC102(2/2) BINAURAL L BINAURAL R BINAURAL L BINAURAL R MUTE SWITCH IC104 EMPHASIS & LPF IC103 LED DRIVE Q302,352 B+ (SW+5V) 1 7 • Signal Path : DIGITAL : ANALOG : RF 04 26 B+ (UN+5.7V) PHONES LEVEL RV901 (Page 18) (Page 18) (Page 18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DP-IF5100 – 21 – – 22 – 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 TP (A MUTE) 5-3. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 5-3-1. PRINTED WIRING BOARD — TX BOARD — D1 G-4 D51 F-4 D101 H-10 D102 H-10 D103 G-5 D104 I-10 D201 E-5 D202 B-3 IC101 G-10 IC102 E-6 IC103 F-4 IC104 G-5 IC105 E-7 IC106 G-8 IC201 C-3 IC204 E-3 IC301 D-8 IC302 C-6 IC303 D-4 IC304 E-9 IC306 E-8 IC307 C-4 Q1 G-3 Q2 H-3 Q51 F-3 Q52 F-2 Q101 G-9 Q102 G-10 • Semiconductor Location Ref. No. Location Note: • X : parts extracted from the component side. • a : Through hole. • b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 – 23 – – 24 – DP-IF5100 • Waveforms 1 2 3 4 5 IC102 qh (LRCK) IC201 qa (X1) IC301 tj (SDBCK0) IC302 qs (FST) qd (FSR) 6 IC304 7 (MCC) 5Vp-p 21µsec 4.8Vp-p IC102 qj (BCKIN) 3.2Vp-p 0.3µsec 8MHz 5Vp-p 0.3µsec 5Vp-p 22µsec 5Vp-p 0.3µsec 7 IC304 qs (XI) 3.3Vp-p 12.288MHz IC305 E-11 IC801 H-8 IC802 I-9 IC803 H-6 IC804 H-9 IC805 I-5 • Semiconductor Location Ref. No. Location (Page 33) (Page 29) (Page 30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DP-IF5100 – 25 – – 26 – EMPHASIS & LPF 5-3-2. SCHEMATIC DIAGRAM — TX BOARD (1/2) — • Refer to page 35 for IC Block Diagrams. • Refer to page 24 for Waveforms. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 9 V and fed with regulated dc power supply from external power voltage jack. • Voltage and waveforms are dc with respect to ground under no-signal conditions. no mark : DIGITAL mode ( ) : ANALOG mode ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : ANALOG J : RF c : DIGITAL (Page 34) (Page 31) (Page 31) (Page 27, 28) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – – 28 – DP-IF5100 LOGIC LEVEL CONVERTER LOGIC LEVEL CONVERTER 5-3-3. SCHEMATIC DIAGRAM — TX BOARD (2/2) — • Refer to page 36 for IC Block Diagrams. • Refer to page 24 for Waveforms. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • U : B+ Line. • Power voltage is dc 9 V and fed with regulated dc power supply from external power voltage jack. • Voltage and waveforms are dc with respect to ground under no-signal conditions. no mark : DIGITAL mode ( ) : ANALOG mode ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : ANALOG J : RF c : DIGITAL (Page 26) (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DP-IF5100 – 29 – – 30 – 1 A B C D E F G 2 3 4 5 6 7 8 9 10 11 12 13 14 5-3-4. PRINTED WIRING BOARD — LED BOARD — Note: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. (Page 24) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – – 32 – DP-IF5100 5-3-5. SCHEMATIC DIAGRAM — LED BOARD — • Refer to page 36 for IC Block Diagrams. D201 E-13 D202 F-11 D203 F-10 D204 F-3 D205 F-6 D206 E-7 D207 F-5 D208 D-5 D209 C-5 D210 E-4 D211 D-4 D212 F-4 D213 C-4 D214 F-9 D215 F-6 D216 F-9 D301 G-13 D302 G-10 D303 G-7 D304 G-4 D305 B-13 D306 B-10 D307 B-7 D308 B-4 IC205 C-12 IC206 D-7 Q301 G-4 Q302 B-3 Q351 G-3 Q352 B-3 • Semiconductor Location Ref. No. Location Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • U : B+ Line. • Power voltage is dc 9 V and fed with regulated dc power supply from external power voltage jack. • Voltage is dc with respect to ground under no-signal condition. no mark : DIGITAL mode ( ) : ANALOG mode ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. J : RF (Page 26) (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DP-IF5100 – 33 – – 34 – 1 A B C D E F 2 3 4 5 6 7 5-3-6. PRINTED WIRING BOARD — AMP BOARD — 5-3-7. SCHEMATIC DIAGRAM — AMP BOARD — IC901 D-5 IC902 D-4 Q901 C-2 Q902 B-2 Q903 C-6 • Semiconductor Location Ref. No. Location Note: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • U : B+ Line. • Power voltage is dc 9 V and fed with regulated dc power supply from external power voltage jack. • Voltage is dc with respect to ground under no-signal condition. no mark : DIGITAL/ANALOG mode • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : ANALOG (Page 24) (Page 25) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – 5-4. IC BLOCK DIAGRAMS IC102 PCM3001E-T2 IC105 AD1855JRSRL IC104 TC74HC4053AFT 1 28 27 26 25 24 23 22 21 20 19 18 17 16 15 RSTB FMT0 FMT1 FMT2 DGND VDD CLKIO XTO XTI DOUT DIN BCKIN LRCIN VOUTL 2 3 4 5 6 REFERENCE ANALOG FRONT-END DELTA SIGMA MODULATOR CLK/OSC MANAGER FORMAT CONTROL INTERFACE DECIMATION FILTER INTER- POLATION FILTER DIGITAL AUDIO INTER- FACE ANALOG FRONT-END 7 8 9 10 11 12 13 14 VINL VCC1 AGND1 VREFL VREFR VINR CINPR CINNR CINNL CINPL – + – + VCOM VOUTR AGND2 VCC2 DELTA SIGMA MODULATOR BIAS LPF & BUFFER LPF & BUFFER RESET 16 15 14 13 12 11 10 9 1 2 3 4 5 6 7 8 C B A OX IX X-COM Y-COM VCC GND VEE INH OZ Z-COM IZ OY IY C OUT IN C OUT IN C OUTIN C OUTIN C OUTIN C OUTIN LOGIC LEVEL CONVERTOR IC204 RN5VL42AA-TL SERIAL CONTROL INTERFACE SERIAL DATA INTERFACE CLOCK CIRCUIT OUTPUT BUFFER FLAG DE-EMPHASIS AGND DGND DVDD SDATA BCK LRCK PD/RST MUTE ZEROL IDPM0 IDPM1 FILTB A VDD OUTL+ OUTL– AGND DIGITAL SUPPLY ANALOG SUPPLY PD/RST MUTE X2CLK ZEROR DEEMP 96/48 AGND OUTR– OUTR+ FILTR 384/256 SI SCK CS MCLK DGND AGND DAC DAC OUTPUT BUFFER MULTIBIT SIGMA-DELTA MODULATOR 8X INTERPOLATOR VOLTAGE REFERENCE ATTEN/ MUTE MULTIBIT SIGMA-DELTA MODULATOR 8X INTERPOLATOR ATTEN/ MUTE 1 2 3 4 5 6 7 9 10 11 8 12 13 14 16 15 17 18 19 20 21 22 23 24 25 26 27 28 + – VREF 3 2 1 4 5 OUT VDD VSS NC NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – S8 S7 S6 S5 S4 S3 S2 S1 P8 P7 P6 P5 P4 P3 P2 P1 100k 100k 100k 100k 100k 2 1 3 4 5 6 7 8 O8 O7 O6 O5 LAT EN Vss SO 13 12 11 10 9 14 15 16 O1 SIN SCK RES VDD O2 O3 O4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1A 1B 1Y 2A 2B 2Y GND VCC 4B 4A 4Y 3B 3A 3Y AMP CIRCUIT CONVERTER 1 OUT 2 GND 3 VCC IC205, 206 µPD6345GS 34 32 31 25 31 35 36 37 38 39 40 41 42 43 44 1 SEL EIAJ (AES/EBU) DIGITAL AUDIO INTERFACE DECODER DATA CLOCK CONTROL SYSTEM CLOCK TIMING OCCURENCE ASYNCHRONOUS BUFFER (L, R ONE WORD) S/P u-CON INTERFACE 2 4 3 5 6 7 8 9 10 11 12 16 13 17 18 19 20 21 22 14 15 P/S PLL 26 27 28 29 30 23 24 KM1 DOM0 DOM1 DIM0 DIM1 TST2 VSS LOCKN P256 XO XI SKSY MCA MCB WC MCC SYNC OPT VFL DOUT HDLT DAUX CLD CCK CDO EMP ERR VDD LR DDIN EXTW CSM FSO FS1 KM0 KM2 TSTN VSSA CTPL (NC) PCD CLTN VDDA RSTN IC304 YM3436D IC303 TC74VHCT08AFT (EL) IC305 TORX178A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – 1 2 IN GND OUT 3 EXCLUSIVE IC 3 2 1 4 VIN VOUT GND VC + – REFERENCE VOLTAGE 1 2 3 VCC GND OUT IC801 TA78057S IC802 PQ05RD11 IC804, 805 PQ09RD11 IC803 BA033T 1 2 3 4 8 7 6 5 VDD OUT1 IN2 OUT3 VSS IN3 OUT2 IN1 2 3 1 4 5 GND IN A OUT Y VCC IN B IC306 TC7SH08FU IC307 TC7W04FU www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SECTION 6 EXPLODED VIEW NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • -XX and -X mean standardized parts, so they may have some difference from the original one. R R • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color 1 X-4952-190-1 PANEL ASSY, FRONT * 2 4-223-990-01 PLATE (B), LIGHT GUIDE * 3 4-223-989-01 PLATE (A), LIGHT GUIDE 4 4-213-828-01 KNOB (VOL) * 5 4-223-991-01 PLATE (C), LIGHT GUIDE 6 4-223-999-01 PANEL, SUB * 7 A-4542-611-A AMP BOARD, COMPLETE * 8 A-4542-612-A LED BOARD, COMPLETE 9 1-790-200-11 WIRE, PARALLEL 12P 10 1-790-199-11 WIRE, PARALLEL 6P 11 X-4952-191-1 COVER ASSY * 12 A-4542-613-A TX BOARD, COMPLETE 13 3-922-535-11 SCREW (+BTT) 14 4-224-922-01 SCREW (2.6X6) (S TITE) 15 7-685-105-19 SCREW +P 2X8 TYPE2 NON-SLIT 16 7-685-645-79 SCREW +P 3X6 TYPE2 NON-SLIT 17 7-685-791-04 SCREW +PTT 2.6X5 (S) 18 7-685-647-79 SCREW +BVTP 3X8 TYPE2 IT-3 1 2 5 3 4 16 14 16 6 7 17 8 9 15 15 10 12 18 18 11 17 17 17 13 13 18 17 not supplied supplied with RV supplied with JACK not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AMP NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH When indicating parts by reference number, please include the board. * A-4542-611-A AMP BOARD, COMPLETE ********************* < CAPACITOR > C901 1-115-197-11 ELECT 100uF 20% 25V C902 1-115-197-11 ELECT 100uF 20% 25V C903 1-104-545-11 FILM CHIP 0.0033uF 5% 16V C904 1-104-545-11 FILM CHIP 0.0033uF 5% 16V C905 1-124-584-00 ELECT 100uF 20% 10V C906 1-124-584-00 ELECT 100uF 20% 10V C907 1-127-694-11 ELECT 47uF 20% 25V C908 1-127-694-11 ELECT 47uF 20% 25V C909 1-115-198-11 ELECT 470uF 20% 25V C910 1-115-198-11 ELECT 470uF 20% 25V C911 1-127-693-51 ELECT 1000uF 20% 16V C912 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C913 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C914 1-124-233-11 ELECT 10uF 20% 16V < CONNECTOR > * CN901 1-563-474-11 HOUSING, CONNECTOR 6P < IC > IC901 8-759-358-47 IC NJM2115V(TE2) IC902 8-759-648-12 IC AD8532ARU-REEL < JACK > J901 1-766-850-11 JACK (LARGE TYPE) (PHONES) < FERRITE BEAD > L902 1-414-235-22 FERRITE BEAD INDUCTOR L903 1-414-235-22 FERRITE BEAD INDUCTOR L904 1-414-235-22 FERRITE BEAD INDUCTOR L905 1-414-235-22 FERRITE BEAD INDUCTOR L906 1-414-235-22 FERRITE BEAD INDUCTOR L907 1-414-235-22 FERRITE BEAD INDUCTOR L908 1-414-235-22 FERRITE BEAD INDUCTOR L910 1-414-235-22 FERRITE BEAD INDUCTOR < TRANSISTOR > Q901 8-729-043-69 TRANSISTOR UN2225-(TX).SO Q902 8-729-043-69 TRANSISTOR UN2225-(TX).SO Q903 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R901 1-216-049-11 RES,CHIP 1K 5% 1/10W R902 1-216-049-11 RES,CHIP 1K 5% 1/10W R903 1-216-075-00 METAL CHIP 12K 5% 1/10W R904 1-216-075-00 METAL CHIP 12K 5% 1/10W R905 1-216-081-00 METAL CHIP 22K 5% 1/10W R906 1-216-081-00 METAL CHIP 22K 5% 1/10W R907 1-216-049-11 RES,CHIP 1K 5% 1/10W R908 1-216-049-11 RES,CHIP 1K 5% 1/10W R909 1-216-083-00 METAL CHIP 27K 5% 1/10W R910 1-216-083-00 METAL CHIP 27K 5% 1/10W R911 1-216-005-00 METAL CHIP 15 5% 1/10W R912 1-216-005-00 METAL CHIP 15 5% 1/10W R913 1-216-073-00 METAL CHIP 10K 5% 1/10W R914 1-216-073-00 METAL CHIP 10K 5% 1/10W R915 1-216-025-11 RES,CHIP 100 5% 1/10W R916 1-216-025-11 RES,CHIP 100 5% 1/10W R917 1-216-049-11 RES,CHIP 1K 5% 1/10W R918 1-216-065-11 RES,CHIP 4.7K 5% 1/10W R919 1-216-073-00 METAL CHIP 10K 5% 1/10W R920 1-216-073-00 METAL CHIP 10K 5% 1/10W R921 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R922 1-216-057-00 METAL CHIP 2.2K 5% 1/10W < VARIABLE RESISTOR > RV901 1-237-671-11 RES, VAR, CARBON 10K/10K (PHONES LEVEL) ************************************************************* * A-4542-612-A LED BOARD, COMPLETE ******************** < CAPACITOR > C201 1-163-038-00 CERAMIC CHIP 0.1uF 25V C202 1-163-038-00 CERAMIC CHIP 0.1uF 25V C203 1-124-589-11 ELECT 47uF 20% 16V C204 1-163-038-00 CERAMIC CHIP 0.1uF 25V C205 1-163-038-00 CERAMIC CHIP 0.1uF 25V C206 1-163-038-00 CERAMIC CHIP 0.1uF 25V C207 1-163-038-00 CERAMIC CHIP 0.1uF 25V C209 1-163-031-11 CERAMIC CHIP 0.01uF 50V C210 1-163-031-11 CERAMIC CHIP 0.01uF 50V C211 1-163-031-11 CERAMIC CHIP 0.01uF 50V C212 1-163-031-11 CERAMIC CHIP 0.01uF 50V LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C213 1-163-031-11 CERAMIC CHIP 0.01uF 50V C290 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-163-038-00 CERAMIC CHIP 0.1uF 25V C351 1-126-382-11 ELECT 100uF 20% 16V < CONNECTOR > CN902 1-691-071-31 HOUSING, CONNECTOR 12P CN903 1-691-065-31 HOUSING, CONNECTOR 6P < DIODE > D201 8-719-072-97 LED TLG124A(TPJ52) (POWER) D202 8-719-077-16 LED TLSU124(TPJ52) (DIGITAL) D203 8-719-077-16 LED TLSU124(TPJ52) (ANALOG) D204 8-719-077-16 LED TLSU124(TPJ52) (VIRTUAL) D205 8-719-077-16 LED TLSU124(TPJ52) (DOLBY SURROUND (DECODE MODE)) D206 8-719-077-16 LED TLSU124(TPJ52) (DOLBY DIGITAL (DECODE MODE)) D207 8-719-077-15 LED TLOU124(TPJ52-SONY) (L) D208 8-719-077-15 LED TLOU124(TPJ52-SONY) (C) D209 8-719-077-15 LED TLOU124(TPJ52-SONY) (R) D210 8-719-077-15 LED TLOU124(TPJ52-SONY) (HL) D211 8-719-077-15 LED TLOU124(TPJ52-SONY) (HR) D212 8-719-077-15 LED TLOU124(TPJ52-SONY) (LS) D213 8-719-077-15 LED TLOU124(TPJ52-SONY) (RS) D214 8-719-077-16 LED TLSU124(TPJ52) (CINEMA) D215 8-719-077-16 LED TLSU124(TPJ52) (DTS (DECODE MODE)) D216 8-719-077-16 LED TLSU124(TPJ52) (MUSIC) D301 8-719-052-34 LED DAL5821(INFRARED EMITTER) D302 8-719-052-34 LED DAL5821(INFRARED EMITTER) D303 8-719-052-34 LED DAL5821(INFRARED EMITTER) D304 8-719-052-34 LED DAL5821(INFRARED EMITTER) D305 8-719-052-34 LED DAL5821(INFRARED EMITTER) D306 8-719-052-34 LED DAL5821(INFRARED EMITTER) D307 8-719-052-34 LED DAL5821(INFRARED EMITTER) D308 8-719-052-34 LED DAL5821(INFRARED EMITTER) < IC > IC205 8-759-560-82 IC uPD6345GS-T1 IC206 8-759-560-82 IC uPD6345GS-T1 < TRANSISTOR > Q301 8-729-106-68 TRANSISTOR 2SD1615A-GP Q302 8-729-106-68 TRANSISTOR 2SD1615A-GP Q351 8-729-106-68 TRANSISTOR 2SD1615A-GP Q352 8-729-106-68 TRANSISTOR 2SD1615A-GP < RESISTOR > R201 1-216-033-00 METAL CHIP 220 5% 1/10W R202 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R203 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R204 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R205 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R206 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R207 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R208 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R209 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R210 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R211 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R212 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R213 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R214 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R215 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R216 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R301 1-216-003-11 RES,CHIP 12 5% 1/10W R302 1-216-003-11 RES,CHIP 12 5% 1/10W R351 1-216-003-11 RES,CHIP 12 5% 1/10W R352 1-216-003-11 RES,CHIP 12 5% 1/10W < SWITCH > SW1 1-571-760-11 SWITCH, KEY BOARD (POWER) SW2 1-571-760-11 SWITCH, KEY BOARD (INPUT) SW3 1-571-760-11 SWITCH, KEY BOARD (OUTPUT) SW4 1-571-760-11 SWITCH, KEY BOARD (EFFECT) ************************************************************* * A-4542-613-A TX BOARD, COMPLETE ******************* 7-685-647-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C5 1-124-234-00 ELECT 22uF 20% 16V C6 1-124-589-11 ELECT 47uF 20% 16V C7 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C8 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C9 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C10 1-163-107-00 CERAMIC CHIP 39PF 5% 50V C11 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C12 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C13 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C34 1-124-589-11 ELECT 47uF 20% 16V C36 1-163-038-00 CERAMIC CHIP 0.1uF 25V C37 1-124-589-11 ELECT 47uF 20% 16V C38 1-163-038-00 CERAMIC CHIP 0.1uF 25V C39 1-124-589-11 ELECT 47uF 20% 16V C40 1-163-038-00 CERAMIC CHIP 0.1uF 25V C55 1-124-234-00 ELECT 22uF 20% 16V C56 1-124-589-11 ELECT 47uF 20% 16V C57 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C58 1-163-229-11 CERAMIC CHIP 12PF 5% 50V C59 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C60 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C61 1-163-229-11 CERAMIC CHIP 12PF 5% 50V C62 1-163-111-00 CERAMIC CHIP 56PF 5% 50V C63 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C101 1-163-117-00 CERAMIC CHIP 100PF 5% 50V TX LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C102 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C103 1-124-233-11 ELECT 10uF 20% 16V C104 1-124-233-11 ELECT 10uF 20% 16V C107 1-124-233-11 ELECT 10uF 20% 16V C108 1-124-233-11 ELECT 10uF 20% 16V C109 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C110 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C111 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C112 1-125-972-61 ELECT 100uF 20% 16V C113 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C114 1-124-584-11 ELECT 100uF 20% 6.3V C115 1-124-584-11 ELECT 100uF 20% 6.3V C116 1-124-233-11 ELECT 10uF 20% 16V C117 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C118 1-124-233-11 ELECT 10uF 20% 16V C119 1-124-233-11 ELECT 10uF 20% 16V C120 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C121 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C122 1-124-233-11 ELECT 10uF 20% 16V C123 1-124-233-11 ELECT 10uF 20% 16V C124 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C125 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C126 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C127 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C128 1-124-234-00 ELECT 22uF 20% 16V C129 1-124-234-00 ELECT 22uF 20% 16V C130 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C131 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C132 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C133 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C136 1-104-542-11 FILM CHIP 0.0018uF 5% 50V C137 1-104-542-11 FILM CHIP 0.0018uF 5% 50V C138 1-104-538-11 FILM CHIP 820PF 5% 50V C139 1-104-538-11 FILM CHIP 820PF 5% 50V C140 1-104-532-11 FILM CHIP 270PF 5% 50V C141 1-104-532-11 FILM CHIP 270PF 5% 50V C142 1-125-972-61 ELECT 100uF 20% 16V C143 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C144 1-125-972-61 ELECT 100uF 20% 16V C145 1-124-584-11 ELECT 100uF 20% 6.3V C146 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C150 1-124-233-11 ELECT 10uF 20% 16V C151 1-115-197-11 ELECT 100uF 20% 25V C152 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C153 1-128-197-11 ELECT 10uF 20% 50V C154 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C155 1-128-197-11 ELECT 10uF 20% 50V C156 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C160 1-115-197-11 ELECT 100uF 20% 25V C161 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C162 1-136-478-11 FILM 470PF 5% 630V C163 1-136-478-11 FILM 470PF 5% 630V C164 1-136-437-11 FILM 220PF 5% 630V C165 1-136-437-11 FILM 220PF 5% 630V C166 1-136-270-11 FILM 47PF 5% 630V C167 1-136-270-11 FILM 47PF 5% 630V C168 1-115-197-11 ELECT 100uF 20% 25V C169 1-115-197-11 ELECT 100uF 20% 25V C201 1-126-916-11 ELECT 1000uF 20% 6.3V C202 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C203 1-126-968-11 ELECT 100uF 20% 6.3V C204 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C205 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C206 1-126-968-11 ELECT 100uF 20% 6.3V C207 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C208 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C209 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C210 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C301 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C302 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C303 1-124-584-11 ELECT 100uF 20% 6.3V C304 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C305 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C306 1-124-584-11 ELECT 100uF 20% 6.3V C307 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C308 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C309 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C310 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C311 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C312 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C313 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C314 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C315 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C316 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C317 1-130-467-00 MYLAR 470PF 5% 50V C318 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C330 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C331 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C332 1-124-584-11 ELECT 100uF 20% 6.3V C333 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C334 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C335 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C336 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C337 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C338 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C339 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C340 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C341 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C342 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C343 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C344 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C345 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C346 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C347 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C348 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C349 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V TX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C350 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C351 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C352 1-130-493-00 MYLAR 0.068uF 5% 50V C353 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C354 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C355 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C360 1-124-584-11 ELECT 100uF 20% 6.3V C361 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C362 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C363 1-163-100-00 CERAMIC CHIP 20PF 5% 50V C364 1-163-100-00 CERAMIC CHIP 20PF 5% 50V C365 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C366 1-124-584-11 ELECT 100uF 20% 6.3V C367 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C368 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C369 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C380 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C800 1-128-548-11 ELECT 4700uF 20% 25V C801 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C802 1-125-972-61 ELECT 100uF 20% 16V C803 1-163-038-00 CERAMIC CHIP 0.1uF 25V C806 1-163-038-00 CERAMIC CHIP 0.1uF 25V C807 1-163-038-00 CERAMIC CHIP 0.1uF 25V C808 1-125-972-61 ELECT 100uF 20% 16V C809 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C810 1-124-584-11 ELECT 100uF 20% 6.3V C811 1-163-038-00 CERAMIC CHIP 0.1uF 25V C812 1-163-038-00 CERAMIC CHIP 0.1uF 25V C813 1-124-584-11 ELECT 100uF 20% 6.3V C816 1-125-972-61 ELECT 100uF 20% 16V < CONNECTOR > * CN101 1-568-955-11 PIN, CONNECTOR 6P CN102 1-691-044-11 HOUSING, CONNECTOR 12P CN103 1-691-038-31 HOUSING, CONNECTOR 6P < DIODE > D1 8-719-939-02 DIODE SVC203CP D51 8-719-939-02 DIODE SVC203CP D101 8-719-421-59 DIODE MA3130WA-TX D102 8-719-421-59 DIODE MA3130WA-TX D103 8-719-988-61 DIODE 1SS355TE-17 D104 8-719-421-59 DIODE MA3130WA-TX D201 8-719-210-33 DIODE EC10DS2 D202 8-719-210-33 DIODE EC10DS2 < IC > IC101 8-759-100-96 IC uPC4558G2 IC102 8-759-490-70 IC PCM3001E-T2 IC103 8-759-161-75 IC NJM2112V(TE2) IC104 8-759-523-02 IC TC74HC4053AFT(E) IC105 8-759-648-65 IC AD1855JRSRL IC106 8-759-358-47 IC NJM2115V(TE2) IC201 8-759-657-27 IC uPD784215GC-146-8EU IC204 8-759-526-81 IC RN5VL42AA-TL IC301 8-759-643-42 IC CXD9511AQ IC302 8-759-582-38 IC XCB56362PV100 IC303 8-759-491-47 IC TC74VHCT08AFT(EL) IC304 8-759-648-13 IC YM3436D IC305 8-749-923-05 IC TORX178 (DIGITAL IN) IC306 8-759-196-96 IC TC7SH08FU-TE85R IC307 8-759-082-57 IC TC7W04FU IC801 8-759-158-77 IC TA78057S(LBSONY) IC802 8-759-471-81 IC PQ05RD11 IC803 8-759-445-59 IC BA033T IC804 8-759-459-99 IC PQ09RD11 IC805 8-759-459-99 IC PQ09RD11 < JACK > J101 1-784-653-11 JACK, PHONO 2P (LINE INPUT) J801 1-785-066-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 9V) < COIL > L1 1-409-693-11 COIL (OSC) L2 1-412-961-11 INDUCTOR 68uH L51 1-409-692-11 COIL (OSC) L52 1-412-962-11 INDUCTOR 82uH L101 1-412-953-11 INDUCTOR 15uH L102 1-412-953-11 INDUCTOR 15uH L103 1-414-234-22 FERRITE BEAD INDUCTOR L104 1-414-235-22 FERRITE BEAD INDUCTOR L105 1-414-235-22 FERRITE BEAD INDUCTOR L106 1-414-235-22 FERRITE BEAD INDUCTOR L107 1-412-953-11 INDUCTOR 15uH L150 1-412-953-11 INDUCTOR 15uH L151 1-412-953-11 INDUCTOR 15uH L152 1-412-953-11 INDUCTOR 15uH L201 1-412-953-11 INDUCTOR 15uH L203 1-414-235-22 FERRITE BEAD INDUCTOR L301 1-412-953-11 INDUCTOR 15uH L302 1-416-668-11 INDUCTOR 10uH L303 1-414-234-22 FERRITE BEAD INDUCTOR L304 1-414-234-22 FERRITE BEAD INDUCTOR L305 1-414-234-22 FERRITE BEAD INDUCTOR L306 1-414-234-22 FERRITE BEAD INDUCTOR L307 1-414-234-22 FERRITE BEAD INDUCTOR L308 1-414-234-22 FERRITE BEAD INDUCTOR L310 1-412-953-11 INDUCTOR 15uH L315 1-414-234-22 FERRITE BEAD INDUCTOR L330 1-416-668-11 INDUCTOR 10uH L331 1-414-234-22 FERRITE BEAD INDUCTOR L332 1-414-234-22 FERRITE BEAD INDUCTOR L333 1-412-953-11 INDUCTOR 15uH L360 1-412-953-11 INDUCTOR 15uH L361 1-414-234-22 FERRITE BEAD INDUCTOR L362 1-414-234-22 FERRITE BEAD INDUCTOR TX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – L363 1-414-234-22 FERRITE BEAD INDUCTOR L364 1-414-234-22 FERRITE BEAD INDUCTOR L365 1-414-234-22 FERRITE BEAD INDUCTOR L366 1-414-234-22 FERRITE BEAD INDUCTOR L367 1-412-953-11 INDUCTOR 15uH L368 1-414-234-22 FERRITE BEAD INDUCTOR L802 1-416-668-11 INDUCTOR 10uH L803 1-469-349-11 INDUCTOR 1uH < LINE FILTER > LF101 1-403-601-21 FILTER, COMMON MODE LF801 1-416-846-21 COIL, LINE FILTER < TRANSISTOR > Q1 8-729-920-38 TRANSISTOR 2SC2059K-N Q2 8-729-216-22 TRANSISTOR 2SA1162-G Q51 8-729-920-38 TRANSISTOR 2SC2059K-N Q52 8-729-216-22 TRANSISTOR 2SA1162-G Q101 1-801-806-11 TRANSISTOR DTC144EKA-T146 Q102 1-801-806-11 TRANSISTOR DTC144EKA-T146 < RESISTOR > R7 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R8 1-216-063-11 RES,CHIP 3.9K 5% 1/10W R9 1-216-063-11 RES,CHIP 3.9K 5% 1/10W R10 1-216-081-00 METAL CHIP 22K 5% 1/10W R11 1-216-107-00 METAL CHIP 270K 5% 1/10W R12 1-216-025-11 RES,CHIP 100 5% 1/10W R13 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R14 1-216-747-11 METAL CHIP 33K 1% 1/10W R15 1-216-596-11 RES,CHIP 2.7K 1% 1/10W R16 1-216-047-11 RES,CHIP 820 5% 1/10W R30 1-216-049-11 RES,CHIP 1K 5% 1/10W R33 1-216-049-11 RES,CHIP 1K 5% 1/10W R57 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R58 1-216-063-11 RES,CHIP 3.9K 5% 1/10W R59 1-216-063-11 RES,CHIP 3.9K 5% 1/10W R60 1-216-081-00 METAL CHIP 22K 5% 1/10W R61 1-216-107-00 METAL CHIP 270K 5% 1/10W R62 1-216-025-11 RES,CHIP 100 5% 1/10W R63 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R64 1-216-747-11 METAL CHIP 33K 1% 1/10W R65 1-216-596-11 RES,CHIP 2.7K 1% 1/10W R66 1-216-047-11 RES,CHIP 820 5% 1/10W R101 1-216-117-00 METAL CHIP 680K 5% 1/10W R102 1-216-117-00 METAL CHIP 680K 5% 1/10W R103 1-216-089-11 RES,CHIP 47K 5% 1/10W R104 1-216-089-11 RES,CHIP 47K 5% 1/10W R105 1-216-081-00 METAL CHIP 22K 5% 1/10W R106 1-216-081-00 METAL CHIP 22K 5% 1/10W R109 1-216-072-00 METAL CHIP 9.1K 5% 1/10W R110 1-216-072-00 METAL CHIP 9.1K 5% 1/10W R111 1-216-081-00 METAL CHIP 22K 5% 1/10W R112 1-216-081-00 METAL CHIP 22K 5% 1/10W R113 1-216-089-11 RES,CHIP 47K 5% 1/10W R114 1-216-089-11 RES,CHIP 47K 5% 1/10W R115 1-216-081-00 METAL CHIP 22K 5% 1/10W R116 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R117 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R118 1-216-089-11 RES,CHIP 47K 5% 1/10W R119 1-216-089-11 RES,CHIP 47K 5% 1/10W R120 1-216-049-11 RES,CHIP 1K 5% 1/10W R121 1-216-065-11 RES,CHIP 4.7K 5% 1/10W R122 1-216-089-11 RES,CHIP 47K 5% 1/10W R124 1-216-021-00 METAL CHIP 68 5% 1/10W R125 1-216-039-00 METAL CHIP 390 5% 1/10W R130 1-216-074-00 METAL CHIP 11K 5% 1/10W R131 1-216-074-00 METAL CHIP 11K 5% 1/10W R134 1-216-025-11 RES,CHIP 100 5% 1/10W R135 1-216-025-11 RES,CHIP 100 5% 1/10W R136 1-216-073-00 METAL CHIP 10K 5% 1/10W R137 1-216-073-00 METAL CHIP 10K 5% 1/10W R138 1-216-073-00 METAL CHIP 10K 5% 1/10W R139 1-216-073-00 METAL CHIP 10K 5% 1/10W R150 1-216-296-00 SHORT 0 R160 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R161 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R162 1-216-082-00 RES,CHIP 24K 5% 1/10W R163 1-216-082-00 RES,CHIP 24K 5% 1/10W R164 1-216-082-00 RES,CHIP 24K 5% 1/10W R165 1-216-082-00 RES,CHIP 24K 5% 1/10W R231 1-216-065-11 RES,CHIP 4.7K 5% 1/10W R232 1-216-089-11 RES,CHIP 47K 5% 1/10W R301 1-216-073-00 METAL CHIP 10K 5% 1/10W R302 1-216-039-00 METAL CHIP 390 5% 1/10W R303 1-216-039-00 METAL CHIP 390 5% 1/10W R304 1-216-039-00 METAL CHIP 390 5% 1/10W R305 1-216-039-00 METAL CHIP 390 5% 1/10W R306 1-216-039-00 METAL CHIP 390 5% 1/10W R307 1-216-039-00 METAL CHIP 390 5% 1/10W R308 1-216-295-00 SHORT 0 R330 1-216-073-00 METAL CHIP 10K 5% 1/10W R333 1-216-073-00 METAL CHIP 10K 5% 1/10W R335 1-216-073-00 METAL CHIP 10K 5% 1/10W R337 1-216-073-00 METAL CHIP 10K 5% 1/10W R339 1-216-073-00 METAL CHIP 10K 5% 1/10W R341 1-216-039-00 METAL CHIP 390 5% 1/10W R342 1-216-039-00 METAL CHIP 390 5% 1/10W R344 1-216-073-00 METAL CHIP 10K 5% 1/10W R360 1-216-121-11 RES,CHIP 1M 5% 1/10W R361 1-216-039-00 METAL CHIP 390 5% 1/10W R362 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R363 1-216-025-11 RES,CHIP 100 5% 1/10W R364 1-216-039-00 METAL CHIP 390 5% 1/10W R365 1-216-039-00 METAL CHIP 390 5% 1/10W TX Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – DP-IF5100 Sony Corporation Personal Audio Division Company 9-927-602-11 99J0410-1 Printed in Japan C1999. 10 Published by General Engineering Dept. R366 1-216-039-00 METAL CHIP 390 5% 1/10W R367 1-216-039-00 METAL CHIP 390 5% 1/10W R368 1-216-039-00 METAL CHIP 390 5% 1/10W R369 1-216-039-00 METAL CHIP 390 5% 1/10W R805 1-216-073-00 METAL CHIP 10K 5% 1/10W R806 1-216-073-00 METAL CHIP 10K 5% 1/10W < CERMET RESISTOR > RV1 1-241-762-11 RES, ADJ, CERMET 2.2K RV51 1-241-762-11 RES, ADJ, CERMET 2.2K < SWITCH > S101 1-554-574-21 SWITCH, SLIDE (ATT) < VIBRATOR > X201 1-760-599-11 VIBRATOR, CERAMIC (8MHz) X301 1-767-878-11 VIBRATOR, CRYSTAL (12.288MHz) ************************************************************* MISCELLANEOUS *************** 9 1-790-200-11 WIRE, PARALLEL 12P 10 1-790-199-11 WIRE, PARALLEL 6P Ref. No. Part No. Description Remark TX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
