索尼SONY DMP-1000音响电路原理图

分类:电子电工 日期: 点击:0

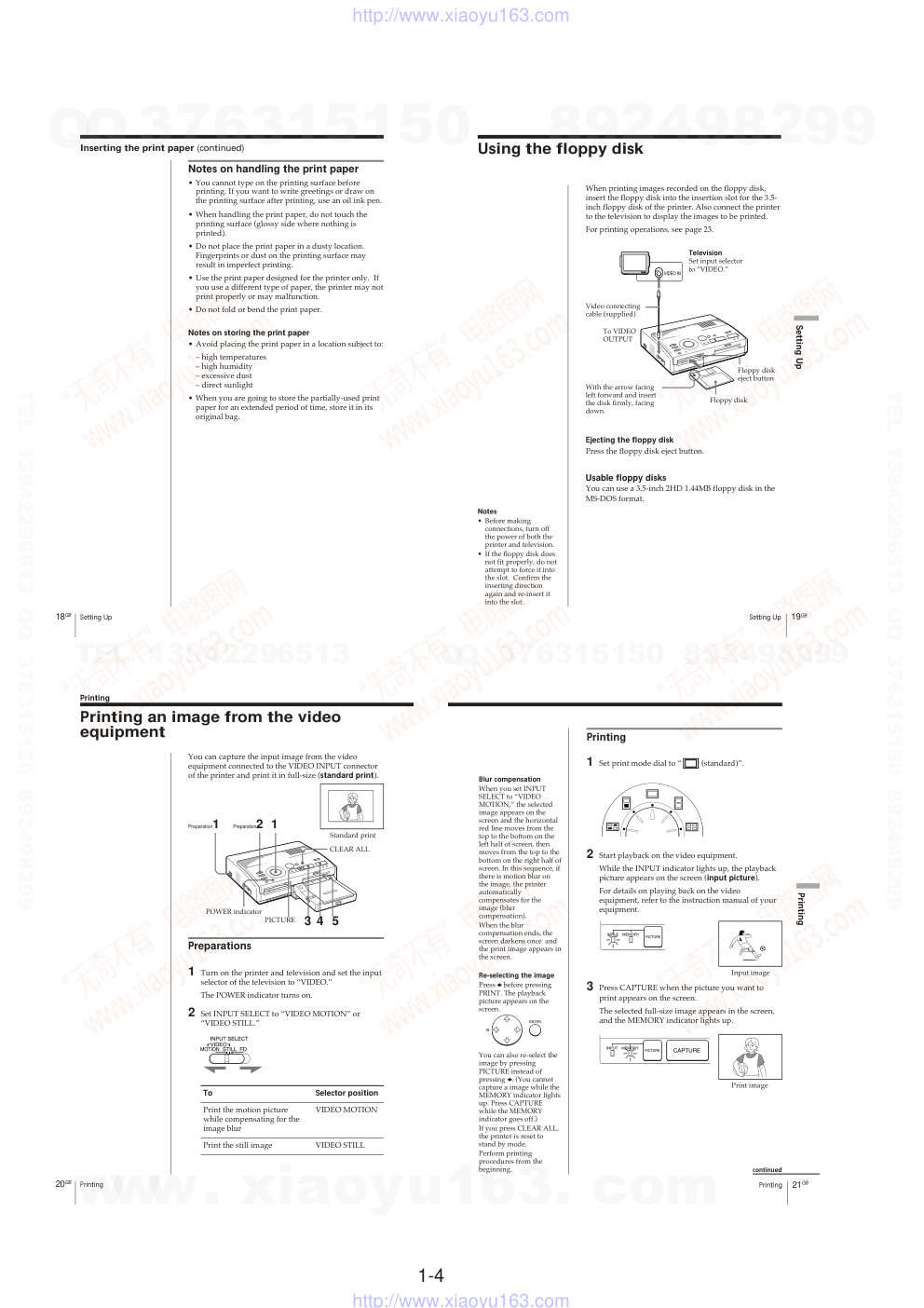

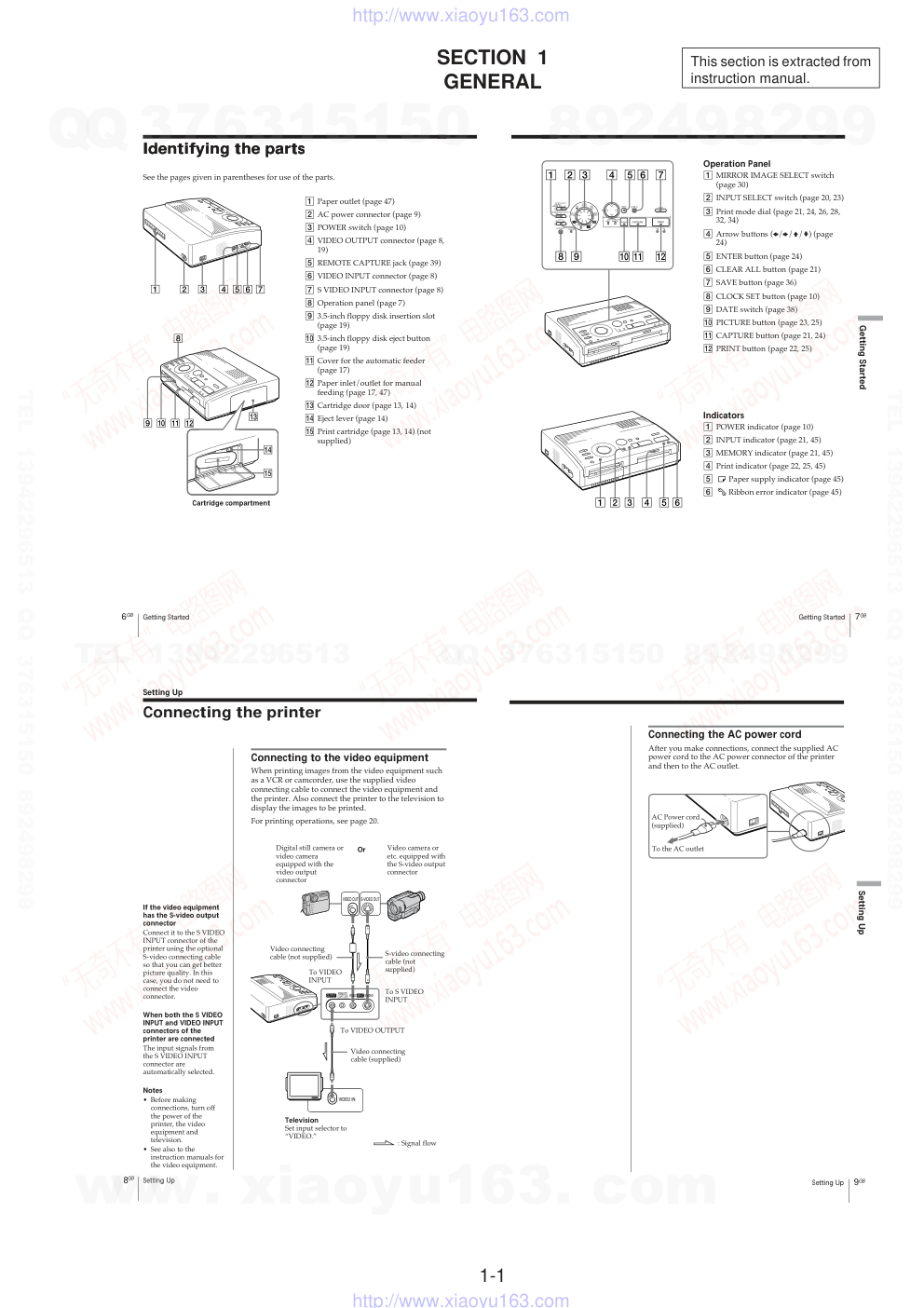

索尼SONY DMP-1000音响电路原理图-0 索尼SONY DMP-1000音响电路原理图-1 索尼SONY DMP-1000音响电路原理图-2 索尼SONY DMP-1000音响电路原理图-3 索尼SONY DMP-1000音响电路原理图-4 索尼SONY DMP-1000音响电路原理图-5 索尼SONY DMP-1000音响电路原理图-6 索尼SONY DMP-1000音响电路原理图-7 索尼SONY DMP-1000音响电路原理图-8 索尼SONY DMP-1000音响电路原理图-9

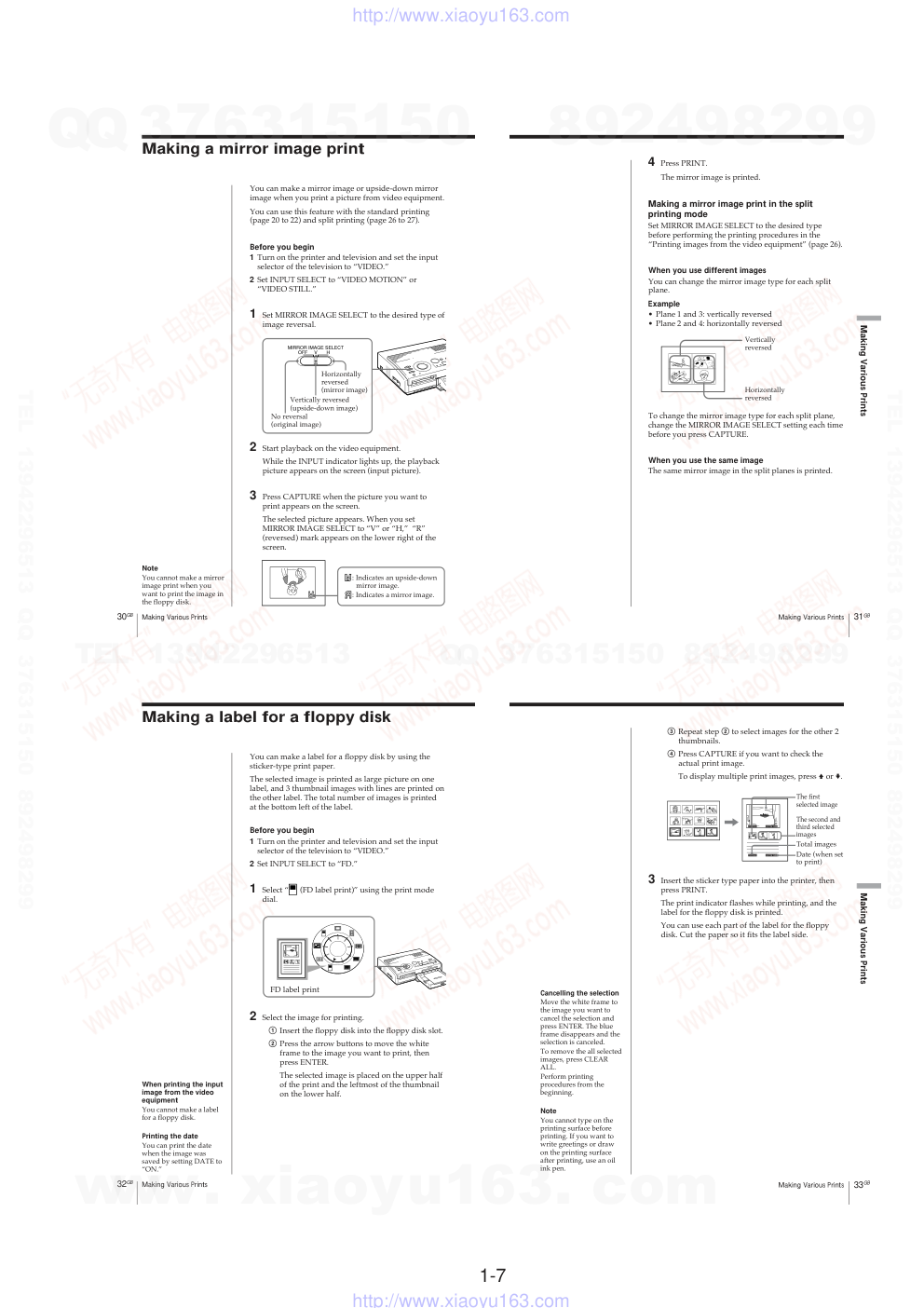

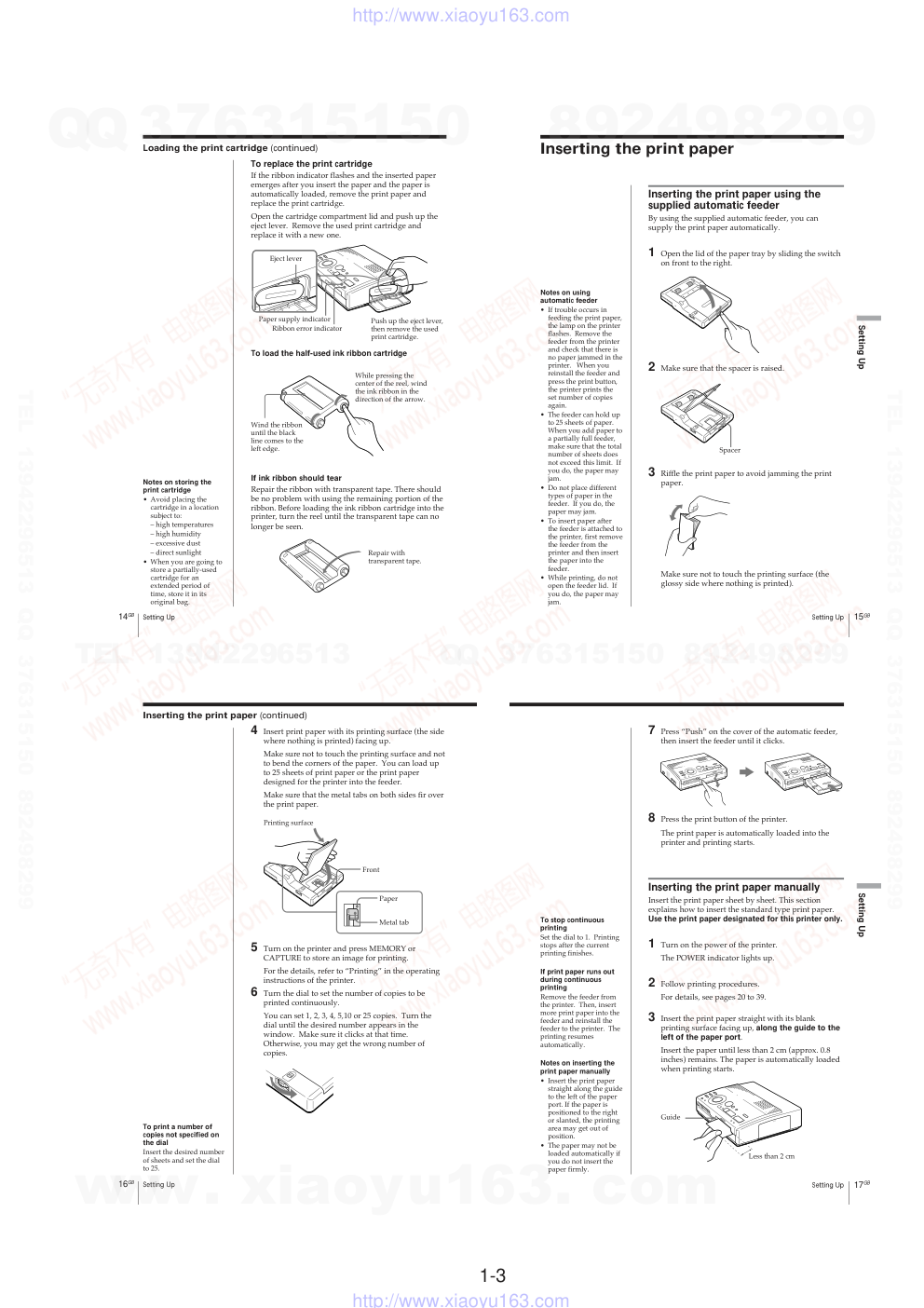

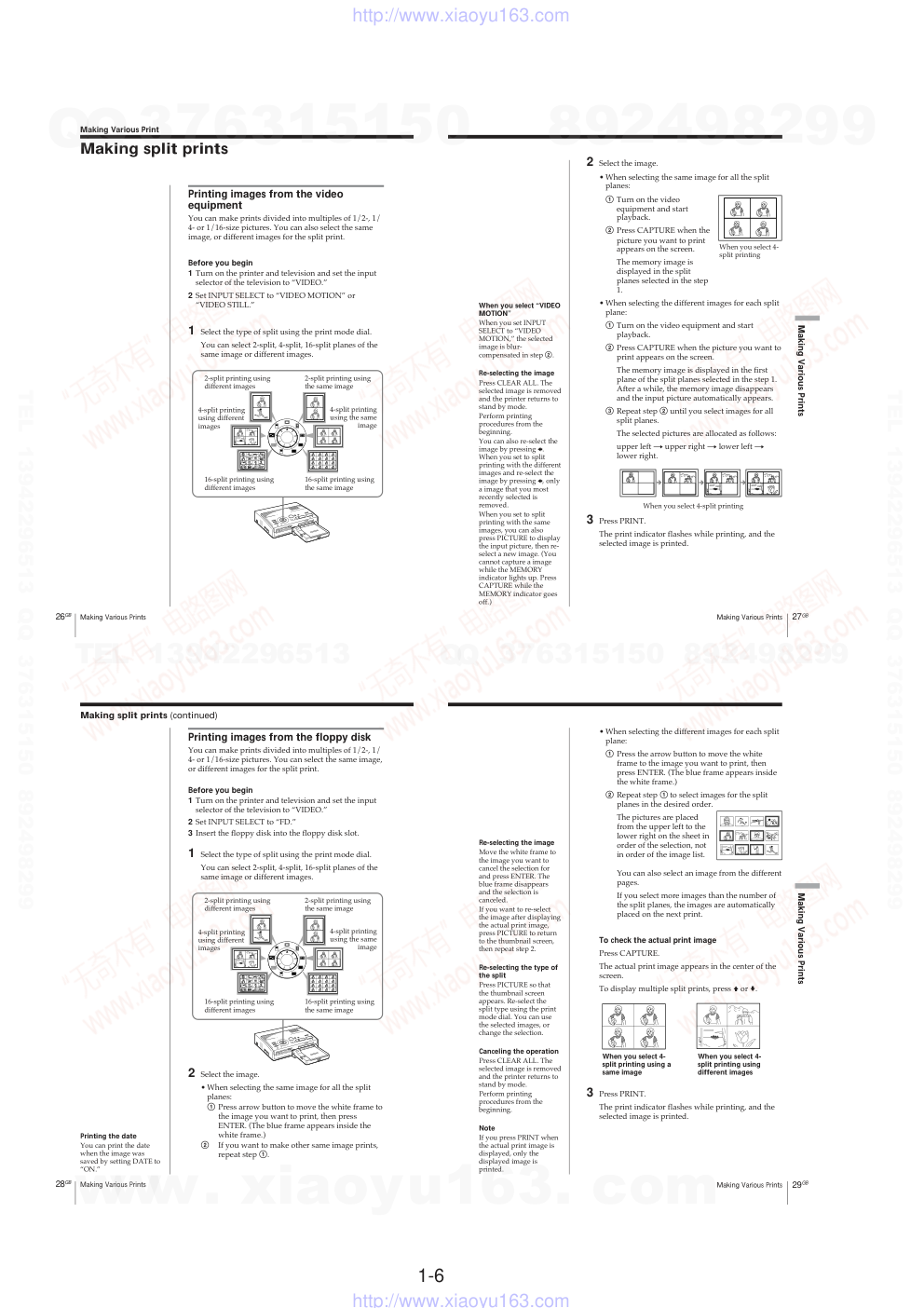

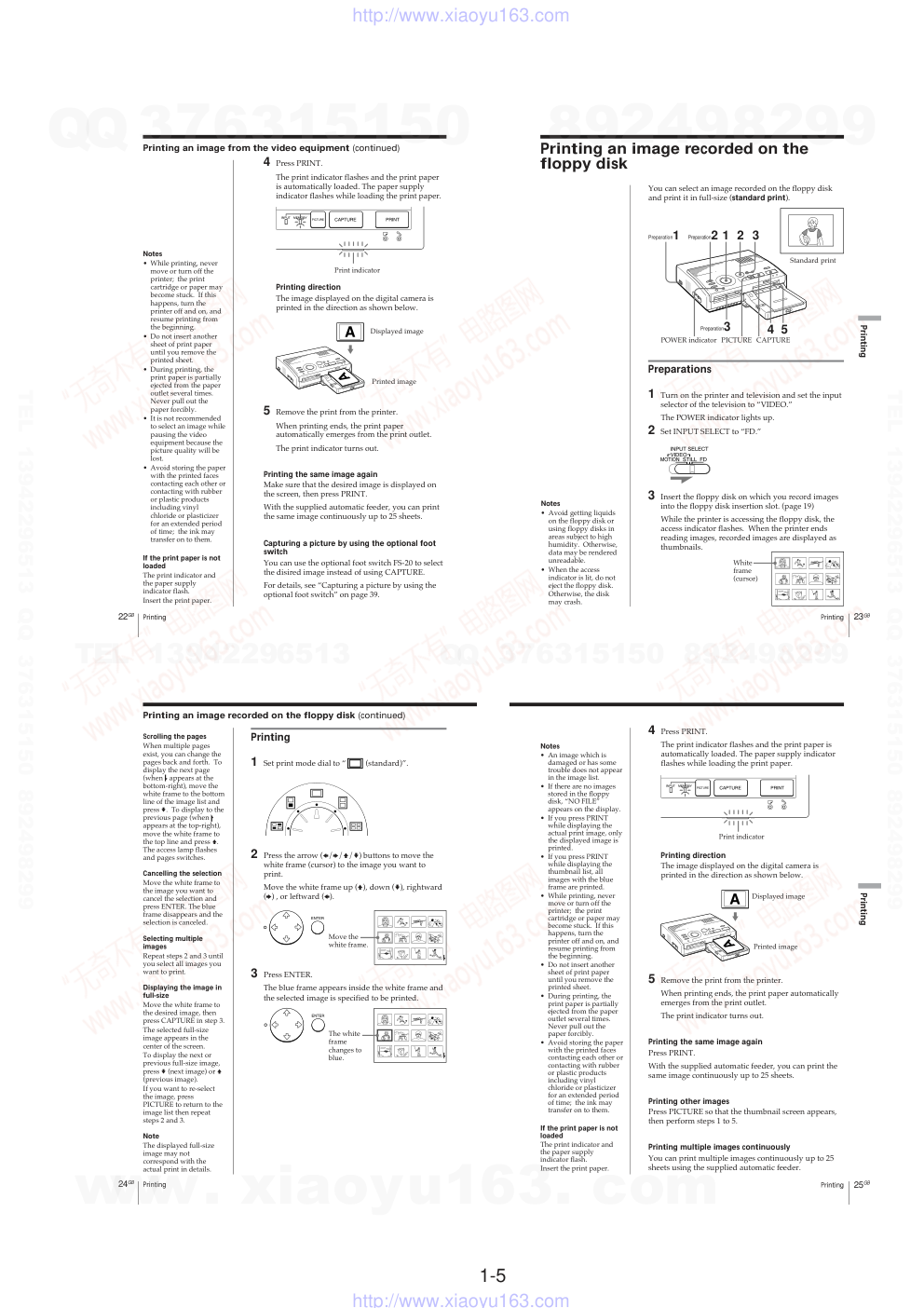

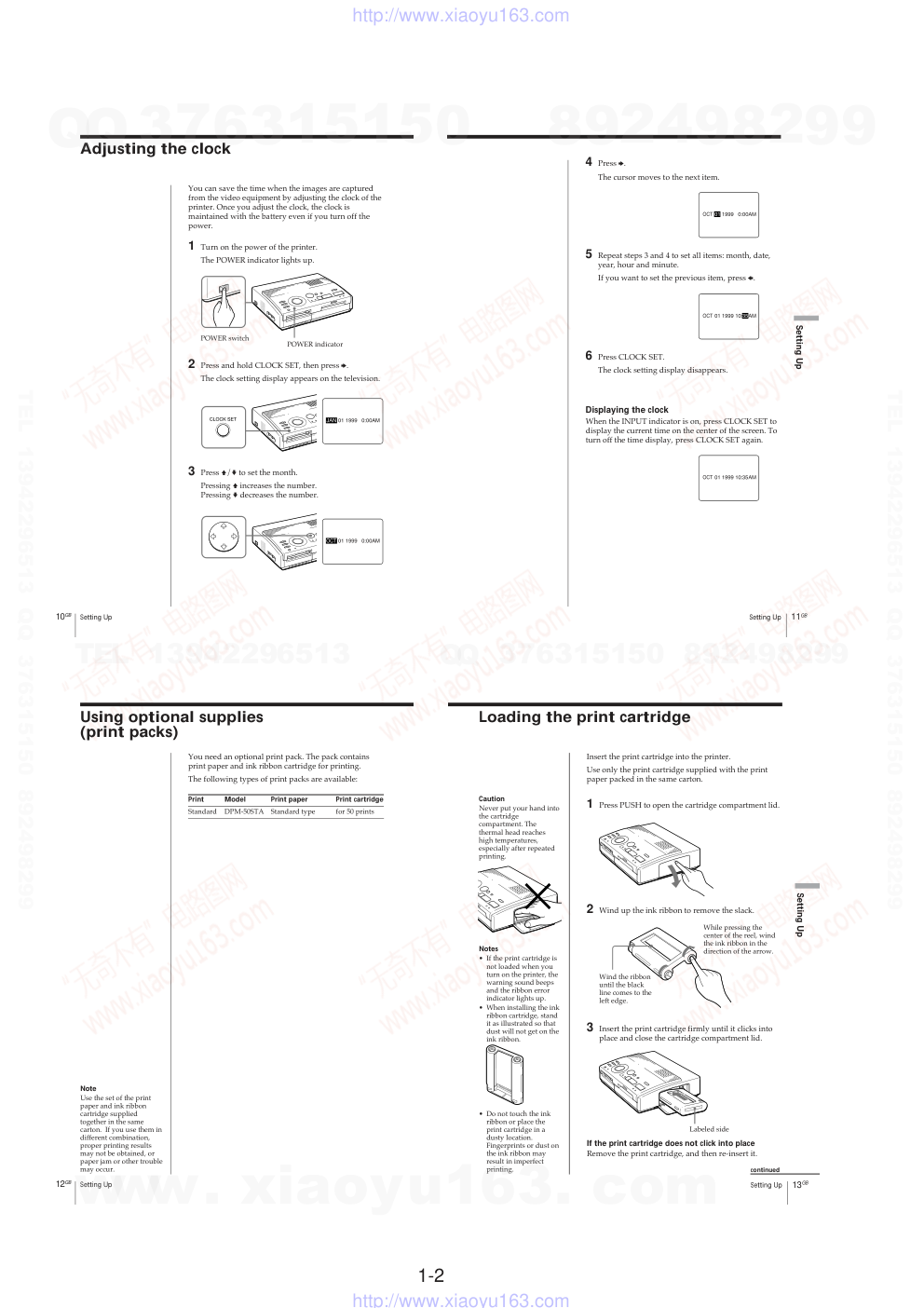

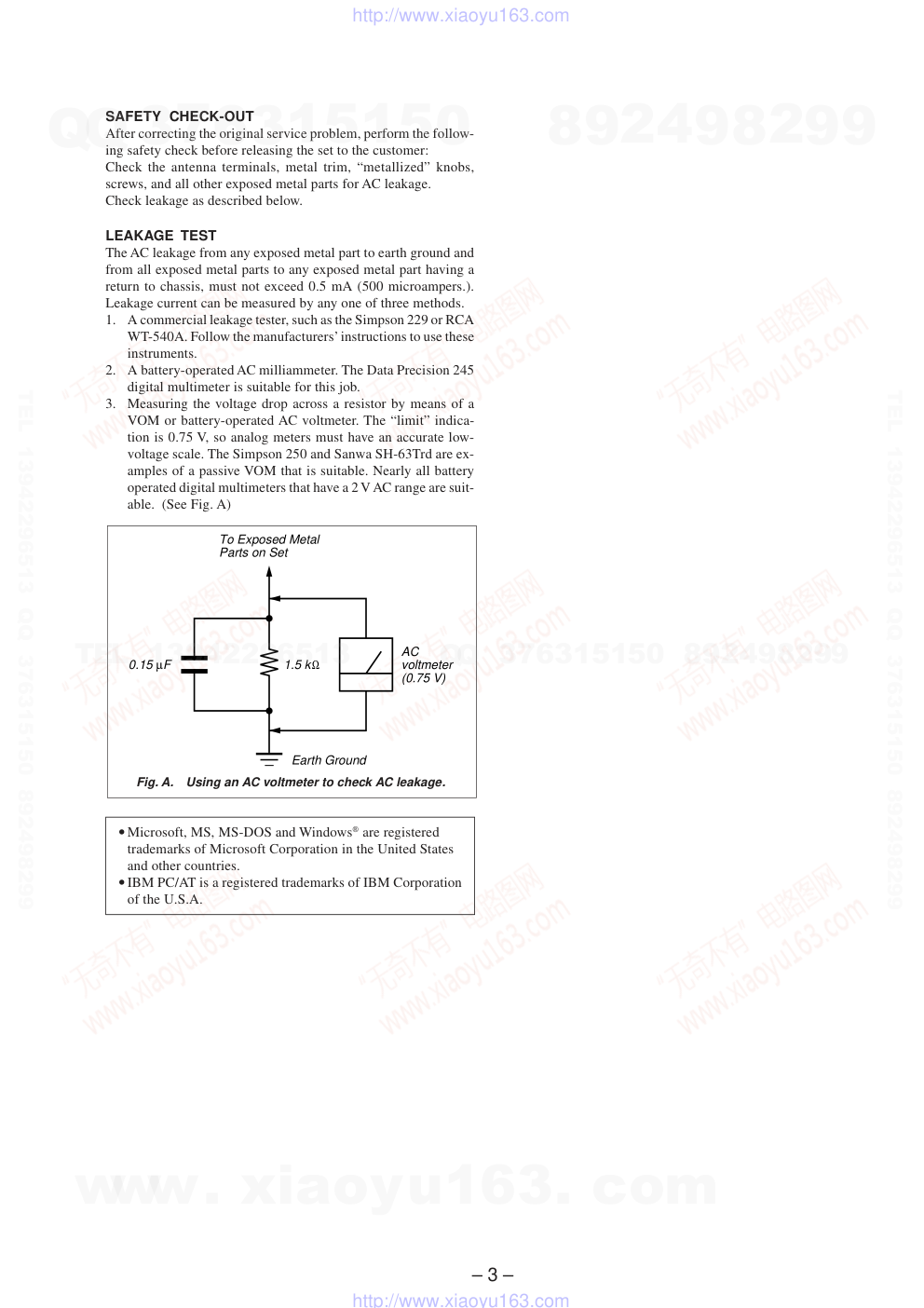

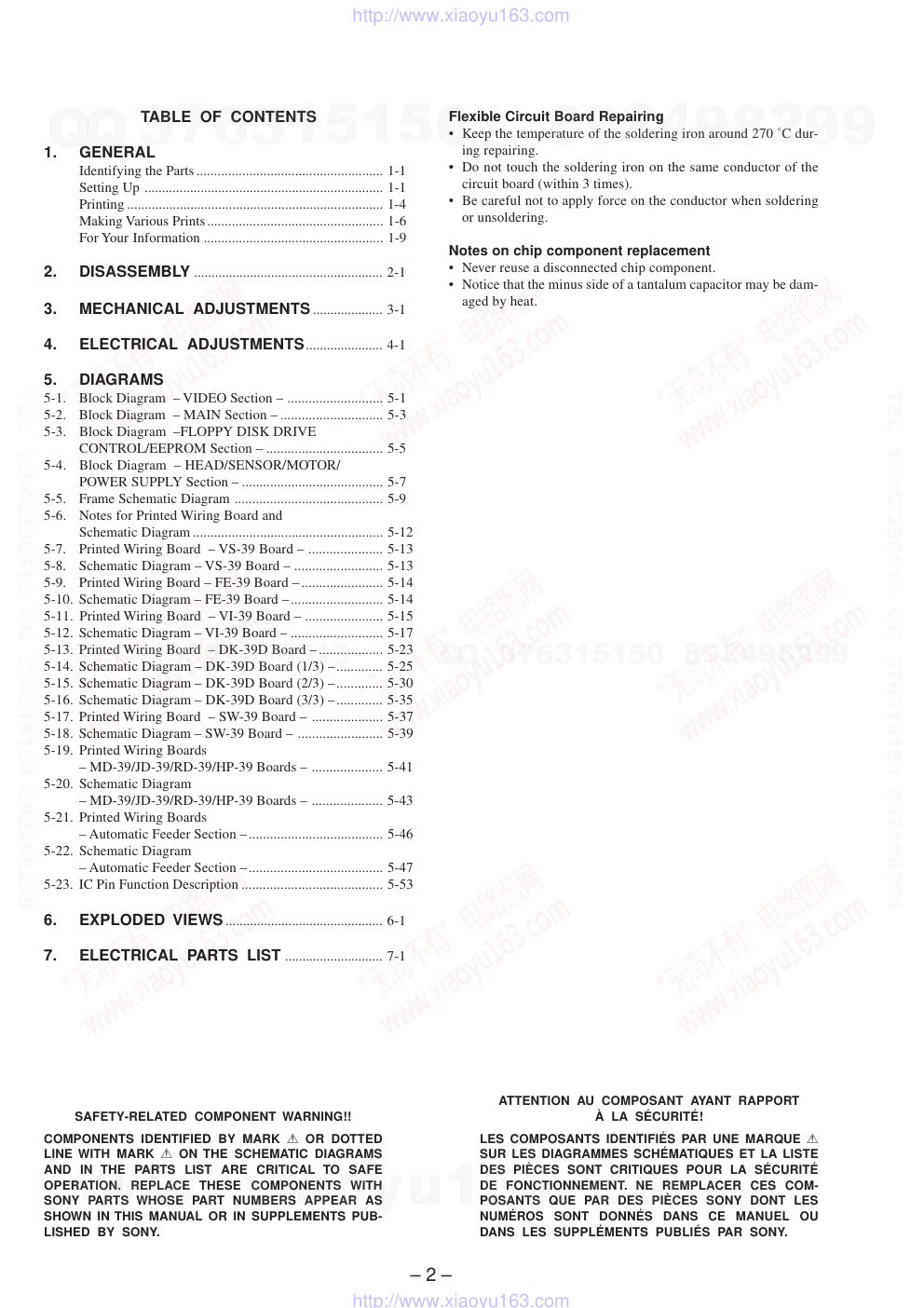

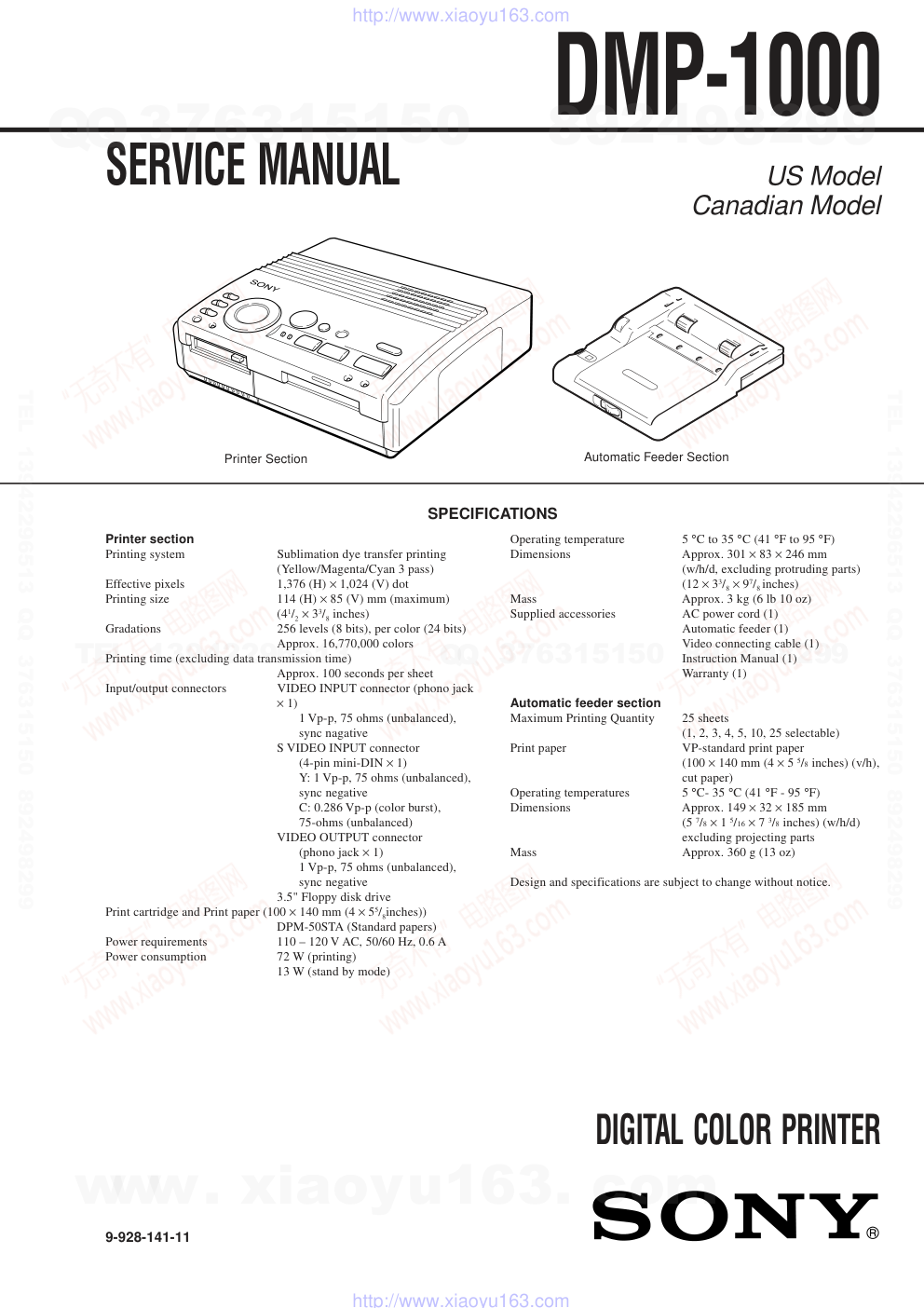

SERVICE MANUAL DIGITAL COLOR PRINTER US Model Canadian Model SPECIFICATIONS DMP-1000 9-928-141-11 Printer section Printing system Sublimation dye transfer printing (Yellow/Magenta/Cyan 3 pass) Effective pixels 1,376 (H) × 1,024 (V) dot Printing size 114 (H) × 85 (V) mm (maximum) (41/2 × 33/8 inches) Gradations 256 levels (8 bits), per color (24 bits) Approx. 16,770,000 colors Printing time (excluding data transmission time) Approx. 100 seconds per sheet Input/output connectors VIDEO INPUT connector (phono jack × 1) 1 Vp-p, 75 ohms (unbalanced), sync nagative S VIDEO INPUT connector (4-pin mini-DIN × 1) Y: 1 Vp-p, 75 ohms (unbalanced), sync negative C: 0.286 Vp-p (color burst), 75-ohms (unbalanced) VIDEO OUTPUT connector (phono jack × 1) 1 Vp-p, 75 ohms (unbalanced), sync negative 3.5" Floppy disk drive Print cartridge and Print paper (100 × 140 mm (4 × 55/8inches)) DPM-50STA (Standard papers) Power requirements 110 – 120 V AC, 50/60 Hz, 0.6 A Power consumption 72 W (printing) 13 W (stand by mode) Operating temperature 5 °C to 35 °C (41 °F to 95 °F) Dimensions Approx. 301 × 83 × 246 mm (w/h/d, excluding protruding parts) (12 × 33/8 × 97/8 inches) Mass Approx. 3 kg (6 lb 10 oz) Supplied accessories AC power cord (1) Automatic feeder (1) Video connecting cable (1) Instruction Manual (1) Warranty (1) Automatic feeder section Maximum Printing Quantity 25 sheets (1, 2, 3, 4, 5, 10, 25 selectable) Print paper VP-standard print paper (100 × 140 mm (4 × 5 5/8 inches) (v/h), cut paper) Operating temperatures 5 °C- 35 °C (41 °F - 95 °F) Dimensions Approx. 149 × 32 × 185 mm (5 7/8 × 1 5/16 × 7 3/8 inches) (w/h/d) excluding projecting parts Mass Approx. 360 g (13 oz) Design and specifications are subject to change without notice. Printer Section Automatic Feeder Section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. GENERAL Identifying the Parts ..................................................... 1-1 Setting Up .................................................................... 1-1 Printing ......................................................................... 1-4 Making Various Prints.................................................. 1-6 For Your Information ................................................... 1-9 2. DISASSEMBLY ...................................................... 2-1 3. MECHANICAL ADJUSTMENTS .................... 3-1 4. ELECTRICAL ADJUSTMENTS...................... 4-1 5. DIAGRAMS 5-1. Block Diagram – VIDEO Section – ........................... 5-1 5-2. Block Diagram – MAIN Section – ............................. 5-3 5-3. Block Diagram –FLOPPY DISK DRIVE CONTROL/EEPROM Section – ................................. 5-5 5-4. Block Diagram – HEAD/SENSOR/MOTOR/ POWER SUPPLY Section – ........................................ 5-7 5-5. Frame Schematic Diagram .......................................... 5-9 5-6. Notes for Printed Wiring Board and Schematic Diagram ...................................................... 5-12 5-7. Printed Wiring Board – VS-39 Board – ..................... 5-13 5-8. Schematic Diagram – VS-39 Board – ......................... 5-13 5-9. Printed Wiring Board – FE-39 Board –....................... 5-14 5-10. Schematic Diagram – FE-39 Board –.......................... 5-14 5-11. Printed Wiring Board – VI-39 Board – ...................... 5-15 5-12. Schematic Diagram – VI-39 Board – .......................... 5-17 5-13. Printed Wiring Board – DK-39D Board –.................. 5-23 5-14. Schematic Diagram – DK-39D Board (1/3) –............. 5-25 5-15. Schematic Diagram – DK-39D Board (2/3) –............. 5-30 5-16. Schematic Diagram – DK-39D Board (3/3) –............. 5-35 5-17. Printed Wiring Board – SW-39 Board – .................... 5-37 5-18. Schematic Diagram – SW-39 Board – ........................ 5-39 5-19. Printed Wiring Boards – MD-39/JD-39/RD-39/HP-39 Boards – .................... 5-41 5-20. Schematic Diagram – MD-39/JD-39/RD-39/HP-39 Boards – .................... 5-43 5-21. Printed Wiring Boards – Automatic Feeder Section –...................................... 5-46 5-22. Schematic Diagram – Automatic Feeder Section –...................................... 5-47 5-23. IC Pin Function Description ........................................ 5-53 6. EXPLODED VIEWS ............................................. 6-1 7. ELECTRICAL PARTS LIST ............................ 7-1 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground • Microsoft, MS, MS-DOS and Windows are registered trademarks of Microsoft Corporation in the United States and other countries. • IBM PC/AT is a registered trademarks of IBM Corporation of the U.S.A. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-1 SECTION 1 GENERAL This section is extracted from instruction manual. 6GB Getting Started 1 Paper outlet (page 47) 2 AC power connector (page 9) 3 POWER switch (page 10) 4 VIDEO OUTPUT connector (page 8, 19) 5 REMOTE CAPTURE jack (page 39) 6 VIDEO INPUT connector (page 8) 7 S VIDEO INPUT connector (page 8) 8 Operation panel (page 7) 9 3.5-inch floppy disk insertion slot (page 19) 0 3.5-inch floppy disk eject button (page 19) qa Cover for the automatic feeder (page 17) qs Paper inlet/outlet for manual feeding (page 17, 47) qd Cartridge door (page 13, 14) qf Eject lever (page 14) qg Print cartridge (page 13, 14) (not supplied) Cartridge compartment See the pages given in parentheses for use of the parts. Identifying the parts Identifying the parts 7GB Getting Started Getting Started Operation Panel 1 MIRROR IMAGE SELECT switch (page 30) 2 INPUT SELECT switch (page 20, 23) 3 Print mode dial (page 21, 24, 26, 28, 32, 34) 4 Arrow buttons (B/b/V/v) (page 24) 5 ENTER button (page 24) 6 CLEAR ALL button (page 21) 7 SAVE button (page 36) 8 CLOCK SET button (page 10) 9 DATE switch (page 38) 0 PICTURE button (page 23, 25) qa CAPTURE button (page 21, 24) qs PRINT button (page 22, 25) Indicators 1 POWER indicator (page 10) 2 INPUT indicator (page 21, 45) 3 MEMORY indicator (page 21, 45) 4 Print indicator (page 22, 25, 45) 5 Paper supply indicator (page 45) 6 Ribbon error indicator (page 45) 8GB Setting Up If the video equipment has the S-video output connector Connect it to the S VIDEO INPUT connector of the printer using the optional S-video connecting cable so that you can get better picture quality. In this case, you do not need to connect the video connector. When both the S VIDEO INPUT and VIDEO INPUT connectors of the printer are connected The input signals from the S VIDEO INPUT connector are automatically selected. Notes • Before making connections, turn off the power of the printer, the video equipment and television. • See also to the instruction manuals for the video equipment. Connecting to the video equipment When printing images from the video equipment such as a VCR or camcorder, use the supplied video connecting cable to connect the video equipment and the printer. Also connect the printer to the television to display the images to be printed. For printing operations, see page 20. Television Set input selector to “VIDEO.” Video connecting cable (supplied) S-video connecting cable (not supplied) Video connecting cable (not supplied) Video camera or etc. equipped with the S-video output connector Digital still camera or video camera equipped with the video output connector Or Setting Up Connecting the printer To VIDEO OUTPUT To S VIDEO INPUT To VIDEO INPUT l : Signal flow 9GB Setting Up Setting Up Connecting the AC power cord After you make connections, connect the supplied AC power cord to the AC power connector of the printer and then to the AC outlet. To the AC outlet AC Power cord (supplied) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-2 10GB Setting Up Adjusting the clock You can save the time when the images are captured from the video equipment by adjusting the clock of the printer. Once you adjust the clock, the clock is maintained with the battery even if you turn off the power. 1 Turn on the power of the printer. The POWER indicator lights up. 2 Press and hold CLOCK SET, then press b. The clock setting display appears on the television. 3 Press V/v to set the month. Pressing V increases the number. Pressing v decreases the number. POWER indicator POWER switch 11GB Setting Up Setting Up 4 Press b. The cursor moves to the next item. 5 Repeat steps 3 and 4 to set all items: month, date, year, hour and minute. If you want to set the previous item, press B. 6 Press CLOCK SET. The clock setting display disappears. Displaying the clock When the INPUT indicator is on, press CLOCK SET to display the current time on the center of the screen. To turn off the time display, press CLOCK SET again. 12GB Setting Up You need an optional print pack. The pack contains print paper and ink ribbon cartridge for printing. The following types of print packs are available: Print Model Print paper Print cartridge Standard DPM-50STA Standard type for 50 prints Note Use the set of the print paper and ink ribbon cartridge supplied together in the same carton. If you use them in different combination, proper printing results may not be obtained, or paper jam or other trouble may occur. Using optional supplies (print packs) 13GB Setting Up Setting Up Insert the print cartridge into the printer. Use only the print cartridge supplied with the print paper packed in the same carton. 1 Press PUSH to open the cartridge compartment lid. 2 Wind up the ink ribbon to remove the slack. 3 Insert the print cartridge firmly until it clicks into place and close the cartridge compartment lid. If the print cartridge does not click into place Remove the print cartridge, and then re-insert it. Labeled side Loading the print cartridge Caution Never put your hand into the cartridge compartment. The thermal head reaches high temperatures, especially after repeated printing. Notes • If the print cartridge is not loaded when you turn on the printer, the warning sound beeps and the ribbon error indicator lights up. • When installing the ink ribbon cartridge, stand it as illustrated so that dust will not get on the ink ribbon. • Do not touch the ink ribbon or place the print cartridge in a dusty location. Fingerprints or dust on the ink ribbon may result in imperfect printing. Wind the ribbon until the black line comes to the left edge. While pressing the center of the reel, wind the ink ribbon in the direction of the arrow. continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-3 14GB Setting Up To replace the print cartridge If the ribbon indicator flashes and the inserted paper emerges after you insert the paper and the paper is automatically loaded, remove the print paper and replace the print cartridge. Open the cartridge compartment lid and push up the eject lever. Remove the used print cartridge and replace it with a new one. To load the half-used ink ribbon cartridge If ink ribbon should tear Repair the ribbon with transparent tape. There should be no problem with using the remaining portion of the ribbon. Before loading the ink ribbon cartridge into the printer, turn the reel until the transparent tape can no longer be seen. Notes on storing the print cartridge • Avoid placing the cartridge in a location subject to: – high temperatures – high humidity – excessive dust – direct sunlight • When you are going to store a partially-used cartridge for an extended period of time, store it in its original bag. Repair with transparent tape. Push up the eject lever, then remove the used print cartridge. Eject lever Wind the ribbon until the black line comes to the left edge. While pressing the center of the reel, wind the ink ribbon in the direction of the arrow. Ribbon error indicator Paper supply indicator Loading the print cartridge (continued) 15GB Setting Up Setting Up Inserting the print paper Spacer Inserting the print paper using the supplied automatic feeder By using the supplied automatic feeder, you can supply the print paper automatically. 1 Open the lid of the paper tray by sliding the switch on front to the right. 2 Make sure that the spacer is raised. 3 Riffle the print paper to avoid jamming the print paper. Make sure not to touch the printing surface (the glossy side where nothing is printed). Notes on using automatic feeder • If trouble occurs in feeding the print paper, the lamp on the printer flashes. Remove the feeder from the printer and check that there is no paper jammed in the printer. When you reinstall the feeder and press the print button, the printer prints the set number of copies again. • The feeder can hold up to 25 sheets of paper. When you add paper to a partially full feeder, make sure that the total number of sheets does not exceed this limit. If you do, the paper may jam. • Do not place different types of paper in the feeder. If you do, the paper may jam. • To insert paper after the feeder is attached to the printer, first remove the feeder from the printer and then insert the paper into the feeder. • While printing, do not open the feeder lid. If you do, the paper may jam. 16GB Setting Up 4 Insert print paper with its printing surface (the side where nothing is printed) facing up. Make sure not to touch the printing surface and not to bend the corners of the paper. You can load up to 25 sheets of print paper or the print paper designed for the printer into the feeder. Make sure that the metal tabs on both sides fir over the print paper. 5 Turn on the printer and press MEMORY or CAPTURE to store an image for printing. For the details, refer to “Printing” in the operating instructions of the printer. 6 Turn the dial to set the number of copies to be printed continuously. You can set 1, 2, 3, 4, 5,10 or 25 copies. Turn the dial until the desired number appears in the window. Make sure it clicks at that time. Otherwise, you may get the wrong number of copies. To print a number of copies not specified on the dial Insert the desired number of sheets and set the dial to 25. Inserting the print paper (continued) Printing surface Front Paper Metal tab 2 17GB Setting Up Setting Up 7 Press “Push” on the cover of the automatic feeder, then insert the feeder until it clicks. 8 Press the print button of the printer. The print paper is automatically loaded into the printer and printing starts. Inserting the print paper manually Insert the print paper sheet by sheet. This section explains how to insert the standard type print paper. Use the print paper designated for this printer only. 1 Turn on the power of the printer. The POWER indicator lights up. 2 Follow printing procedures. For details, see pages 20 to 39. 3 Insert the print paper straight with its blank printing surface facing up, along the guide to the left of the paper port. Insert the paper until less than 2 cm (approx. 0.8 inches) remains. The paper is automatically loaded when printing starts. Guide Less than 2 cm To stop continuous printing Set the dial to 1. Printing stops after the current printing finishes. If print paper runs out during continuous printing Remove the feeder from the printer. Then, insert more print paper into the feeder and reinstall the feeder to the printer. The printing resumes automatically. Notes on inserting the print paper manually • Insert the print paper straight along the guide to the left of the paper port. If the paper is positioned to the right or slanted, the printing area may get out of position. • The paper may not be loaded automatically if you do not insert the paper firmly. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-4 18GB Setting Up Notes on handling the print paper • You cannot type on the printing surface before printing. If you want to write greetings or draw on the printing surface after printing, use an oil ink pen. • When handling the print paper, do not touch the printing surface (glossy side where nothing is printed). • Do not place the print paper in a dusty location. Fingerprints or dust on the printing surface may result in imperfect printing. • Use the print paper designed for the printer only. If you use a different type of paper, the printer may not print properly or may malfunction. • Do not fold or bend the print paper. Notes on storing the print paper • Avoid placing the print paper in a location subject to: – high temperatures – high humidity – excessive dust – direct sunlight • When you are going to store the partially-used print paper for an extended period of time, store it in its original bag. Inserting the print paper (continued) 19GB Setting Up Setting Up When printing images recorded on the floppy disk, insert the floppy disk into the insertion slot for the 3.5- inch floppy disk of the printer. Also connect the printer to the television to display the images to be printed. For printing operations, see page 23. Ejecting the floppy disk Press the floppy disk eject button. Usable floppy disks You can use a 3.5-inch 2HD 1.44MB floppy disk in the MS-DOS format. Notes • Before making connections, turn off the power of both the printer and television. • If the floppy disk does not fit properly, do not attempt to force it into the slot. Confirm the inserting direction again and re-insert it into the slot. With the arrow facing left forward and insert the disk firmly, facing down. Television Set input selector to “VIDEO.” Floppy disk To VIDEO OUTPUT Floppy disk eject button Video connecting cable (supplied) Using the floppy disk 20GB Printing Printing an image from the video equipment You can capture the input image from the video equipment connected to the VIDEO INPUT connector of the printer and print it in full-size (standard print). Preparations 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” The POWER indicator turns on. 2 Set INPUT SELECT to “VIDEO MOTION” or “VIDEO STILL.” To Selector position Print the motion picture VIDEO MOTION while compensating for the image blur Print the still image VIDEO STILL 1 Preparation1 Preparation2 Standard print CLEAR ALL PICTURE 3 4 5 Printing POWER indicator 21GB Printing Printing Blur compensation When you set INPUT SELECT to “VIDEO MOTION,” the selected image appears on the screen and the horizontal red line moves from the top to the bottom on the left half of screen, then moves from the top to the bottom on the right half of screen. In this sequence, if there is motion blur on the image, the printer automatically compensates for the image (blur compensation). When the blur compensation ends, the screen darkens once and the print image appears in the screen. Re-selecting the image Press B before pressing PRINT. The playback picture appears on the screen. You can also re-select the image by pressing PICTURE instead of pressing B. (You cannot capture a image while the MEMORY indicator lights up. Press CAPTURE while the MEMORY indicator goes off.) If you press CLEAR ALL, the printer is reset to stand by mode. Perform printing procedures from the beginning. Printing 1 Set print mode dial to “ (standard)”. 2 Start playback on the video equipment. While the INPUT indicator lights up, the playback picture appears on the screen (input picture). For details on playing back on the video equipment, refer to the instruction manual of your equipment. 3 Press CAPTURE when the picture you want to print appears on the screen. The selected full-size image appears in the screen, and the MEMORY indicator lights up. Print image Input image continued www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-5 22GB Printing 4 Press PRINT. The print indicator flashes and the print paper is automatically loaded. The paper supply indicator flashes while loading the print paper. Printing direction The image displayed on the digital camera is printed in the direction as shown below. 5 Remove the print from the printer. When printing ends, the print paper automatically emerges from the print outlet. The print indicator turns out. Printing the same image again Make sure that the desired image is displayed on the screen, then press PRINT. With the supplied automatic feeder, you can print the same image continuously up to 25 sheets. Capturing a picture by using the optional foot switch You can use the optional foot switch FS-20 to select the disired image instead of using CAPTURE. For details, see “Capturing a picture by using the optional foot switch” on page 39. Notes • While printing, never move or turn off the printer; the print cartridge or paper may become stuck. If this happens, turn the printer off and on, and resume printing from the beginning. • Do not insert another sheet of print paper until you remove the printed sheet. • During printing, the print paper is partially ejected from the paper outlet several times. Never pull out the paper forcibly. • It is not recommended to select an image while pausing the video equipment because the picture quality will be lost. • Avoid storing the paper with the printed faces contacting each other or contacting with rubber or plastic products including vinyl chloride or plasticizer for an extended period of time; the ink may transfer on to them. If the print paper is not loaded The print indicator and the paper supply indicator flash. Insert the print paper. Print indicator Displayed image Printed image Printing an image from the video equipment (continued) 23GB Printing Printing Notes • Avoid getting liquids on the floppy disk or using floppy disks in areas subject to high humidity. Otherwise, data may be rendered unreadable. • When the access indicator is lit, do not eject the floppy disk. Otherwise, the disk may crash. Printing an image recorded on the floppy disk 1 2 3 You can select an image recorded on the floppy disk and print it in full-size (standard print). Preparations 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” The POWER indicator lights up. 2 Set INPUT SELECT to “FD.” 3 Insert the floppy disk on which you record images into the floppy disk insertion slot. (page 19) While the printer is accessing the floppy disk, the access indicator flashes. When the printer ends reading images, recorded images are displayed as thumbnails. 4 5 POWER indicator PICTURE Preparation1 Preparation2 Preparation3 White frame (cursor) Standard print CAPTURE 24GB Printing Printing an image recorded on the floppy disk (continued) Printing 1 Set print mode dial to “ (standard)”. 2 Press the arrow (B/b/V/v) buttons to move the white frame (cursor) to the image you want to print. Move the white frame up (V), down (v), rightward (b) , or leftward (B). 3 Press ENTER. The blue frame appears inside the white frame and the selected image is specified to be printed. Scrolling the pages When multiple pages exist, you can change the pages back and forth. To display the next page (when appears at the bottom-right), move the white frame to the bottom line of the image list and press v. To display to the previous page (when appears at the top-right), move the white frame to the top line and press V. The access lamp flashes and pages switches. Cancelling the selection Move the white frame to the image you want to cancel the selection and press ENTER. The blue frame disappears and the selection is canceled. Selecting multiple images Repeat steps 2 and 3 until you select all images you want to print. Displaying the image in full-size Move the white frame to the desired image, then press CAPTURE in step 3. The selected full-size image appears in the center of the screen. To display the next or previous full-size image, press v (next image) or V (previous image). If you want to re-select the image, press PICTURE to return to the image list then repeat steps 2 and 3. Note The displayed full-size image may not correspond with the actual print in details. Move the white frame. The white frame changes to blue. 25GB Printing Printing 4 Press PRINT. The print indicator flashes and the print paper is automatically loaded. The paper supply indicator flashes while loading the print paper. Printing direction The image displayed on the digital camera is printed in the direction as shown below. 5 Remove the print from the printer. When printing ends, the print paper automatically emerges from the print outlet. The print indicator turns out. Printing the same image again Press PRINT. With the supplied automatic feeder, you can print the same image continuously up to 25 sheets. Printing other images Press PICTURE so that the thumbnail screen appears, then perform steps 1 to 5. Printing multiple images continuously You can print multiple images continuously up to 25 sheets using the supplied automatic feeder. Displayed image Printed image Notes • An image which is damaged or has some trouble does not appear in the image list. • If there are no images stored in the floppy disk, “NO FILE” appears on the display. • If you press PRINT while displaying the actual print image, only the displayed image is printed. • If you press PRINT while displaying the thumbnail list, all images with the blue frame are printed. • While printing, never move or turn off the printer; the print cartridge or paper may become stuck. If this happens, turn the printer off and on, and resume printing from the beginning. • Do not insert another sheet of print paper until you remove the printed sheet. • During printing, the print paper is partially ejected from the paper outlet several times. Never pull out the paper forcibly. • Avoid storing the paper with the printed faces contacting each other or contacting with rubber or plastic products including vinyl chloride or plasticizer for an extended period of time; the ink may transfer on to them. If the print paper is not loaded The print indicator and the paper supply indicator flash. Insert the print paper. Print indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-6 26GB Making Various Prints Making split prints Printing images from the video equipment You can make prints divided into multiples of 1/2-, 1/ 4- or 1/16-size pictures. You can also select the same image, or different images for the split print. Before you begin 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” 2 Set INPUT SELECT to “VIDEO MOTION” or “VIDEO STILL.” 1 Select the type of split using the print mode dial. You can select 2-split, 4-split, 16-split planes of the same image or different images. 16-split printing using different images 2-split printing using the same image 4-split printing using the same image 16-split printing using the same image 2-split printing using different images 4-split printing using different images Making Various Print 27GB Making Various Prints Making Various Prints When you select “VIDEO MOTION” When you set INPUT SELECT to “VIDEO MOTION,” the selected image is blur- compensated in step 2. Re-selecting the image Press CLEAR ALL. The selected image is removed and the printer returns to stand by mode. Perform printing procedures from the beginning. You can also re-select the image by pressing B. When you set to split printing with the different images and re-select the image by pressing B, only a image that you most recently selected is removed. When you set to split printing with the same images, you can also press PICTURE to display the input picture, then re- select a new image. (You cannot capture a image while the MEMORY indicator lights up. Press CAPTURE while the MEMORY indicator goes off.) 2 Select the image. • When selecting the same image for all the split planes: 1 Turn on the video equipment and start playback. 2 Press CAPTURE when the picture you want to print appears on the screen. The memory image is displayed in the split planes selected in the step 1. • When selecting the different images for each split plane: 1 Turn on the video equipment and start playback. 2 Press CAPTURE when the picture you want to print appears on the screen. The memory image is displayed in the first plane of the split planes selected in the step 1. After a while, the memory image disappears and the input picture automatically appears. 3 Repeat step 2 until you select images for all split planes. The selected pictures are allocated as follows: upper left t upper right t lower left t lower right. 3 Press PRINT. The print indicator flashes while printing, and the selected image is printed. When you select 4- split printing When you select 4-split printing 28GB Making Various Prints Making split prints (continued) Printing the date You can print the date when the image was saved by setting DATE to “ON.” Printing images from the floppy disk You can make prints divided into multiples of 1/2-, 1/ 4- or 1/16-size pictures. You can select the same image, or different images for the split print. Before you begin 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” 2 Set INPUT SELECT to “FD.” 3 Insert the floppy disk into the floppy disk slot. 1 Select the type of split using the print mode dial. You can select 2-split, 4-split, 16-split planes of the same image or different images. 2 Select the image. • When selecting the same image for all the split planes: 1 Press arrow button to move the white frame to the image you want to print, then press ENTER. (The blue frame appears inside the white frame.) 2 If you want to make other same image prints, repeat step 1. 16-split printing using different images 2-split printing using the same image 4-split printing using the same image 16-split printing using the same image 2-split printing using different images 4-split printing using different images 29GB Making Various Prints Making Various Prints Re-selecting the image Move the white frame to the image you want to cancel the selection for and press ENTER. The blue frame disappears and the selection is canceled. If you want to re-select the image after displaying the actual print image, press PICTURE to return to the thumbnail screen, then repeat step 2. Re-selecting the type of the split Press PICTURE so that the thumbnail screen appears. Re-select the split type using the print mode dial. You can use the selected images, or change the selection. Canceling the operation Press CLEAR ALL. The selected image is removed and the printer returns to stand by mode. Perform printing procedures from the beginning. Note If you press PRINT when the actual print image is displayed, only the displayed image is printed. • When selecting the different images for each split plane: 1 Press the arrow button to move the white frame to the image you want to print, then press ENTER. (The blue frame appears inside the white frame.) 2 Repeat step 1 to select images for the split planes in the desired order. The pictures are placed from the upper left to the lower right on the sheet in order of the selection, not in order of the image list. You can also select an image from the different pages. If you select more images than the number of the split planes, the images are automatically placed on the next print. To check the actual print image Press CAPTURE. The actual print image appears in the center of the screen. To display multiple split prints, press V or v. 3 Press PRINT. The print indicator flashes while printing, and the selected image is printed. When you select 4- split printing using different images When you select 4- split printing using a same image www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-7 30GB Making Various Prints Making a mirror image print You can make a mirror image or upside-down mirror image when you print a picture from video equipment. You can use this feature with the standard printing (page 20 to 22) and split printing (page 26 to 27). Before you begin 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” 2 Set INPUT SELECT to “VIDEO MOTION” or “VIDEO STILL.” 1 Set MIRROR IMAGE SELECT to the desired type of image reversal. 2 Start playback on the video equipment. While the INPUT indicator lights up, the playback picture appears on the screen (input picture). 3 Press CAPTURE when the picture you want to print appears on the screen. The selected picture appears. When you set MIRROR IMAGE SELECT to “V” or “H,” “R” (reversed) mark appears on the lower right of the screen. : Indicates an upside-down mirror image. : Indicates a mirror image. Note You cannot make a mirror image print when you want to print the image in the floppy disk. No reversal (original image) Horizontally reversed (mirror image) Vertically reversed (upside-down image) 31GB Making Various Prints Making Various Prints 4 Press PRINT. The mirror image is printed. Making a mirror image print in the split printing mode Set MIRROR IMAGE SELECT to the desired type before performing the printing procedures in the “Printing images from the video equipment” (page 26). When you use different images You can change the mirror image type for each split plane. Example • Plane 1 and 3: vertically reversed • Plane 2 and 4: horizontally reversed To change the mirror image type for each split plane, change the MIRROR IMAGE SELECT setting each time before you press CAPTURE. When you use the same image The same mirror image in the split planes is printed. Vertically reversed Horizontally reversed 32GB Making Various Prints Making a label for a floppy disk You can make a label for a floppy disk by using the sticker-type print paper. The selected image is printed as large picture on one label, and 3 thumbnail images with lines are printed on the other label. The total number of images is printed at the bottom left of the label. Before you begin 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” 2 Set INPUT SELECT to “FD.” 1 Select “ (FD label print)” using the print mode dial. 2 Select the image for printing. 1 Insert the floppy disk into the floppy disk slot. 2 Press the arrow buttons to move the white frame to the image you want to print, then press ENTER. The selected image is placed on the upper half of the print and the leftmost of the thumbnail on the lower half. FD label print When printing the input image from the video equipment You cannot make a label for a floppy disk. Printing the date You can print the date when the image was saved by setting DATE to “ON.” 33GB Making Various Prints Making Various Prints 3 Repeat step 2 to select images for the other 2 thumbnails. 4 Press CAPTURE if you want to check the actual print image. To display multiple print images, press V or v. 3 Insert the sticker type paper into the printer, then press PRINT. The print indicator flashes while printing, and the label for the floppy disk is printed. You can use each part of the label for the floppy disk. Cut the paper so it fits the label side. Cancelling the selection Move the white frame to the image you want to cancel the selection and press ENTER. The blue frame disappears and the selection is canceled. To remove the all selected images, press CLEAR ALL. Perform printing procedures from the beginning. Note You cannot type on the printing surface before printing. If you want to write greetings or draw on the printing surface after printing, use an oil ink pen. The second and third selected images The first selected image Date (when set to print) Total images www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-8 34GB Making Various Prints Making an index list of images You can make an index list of images saved in a floppy disk. When you want to search for the recorded image, you can find the desired images immediately with this index list. Before you begin 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” 2 Set INPUT SELECT to “FD.” 1 Select “ (Index print)” using the print mode dial. 2 Insert the floppy disk into the floppy disk slot. All the images recorded in the floppy disk are displayed in a thumbnail list. If there are multiple pages, press V or v to display the next or previous page. About date printing The date when the image was saved is printed regardless of the DATE setting. However, the date does not appear on the displayed image. Index print 35GB Making Various Prints Making Various Prints To display the actual print image Press CAPTURE. All the images recorded in the floppy disk are displayed as the thumbnail images. 3 Press PRINT. The print indicator flashes while printing, and the index list of the recorded images on the floppy disk is printed. The size of each image depends on the number of the images. • When the number of images is 1 to 12 The images are made into the size of 12 thumbnails. Each thumbnail has the corresponding image number. • When the number of images is 13 to 20 The images are made into the size of 20 thumbnails. Each thumbnail has the corresponding image number. • When the number of images is over 21 The images are made into the size of 42 thumbnails. Each thumbnail has the corresponding image number. Notes • If the number of images is less than that of split planes, planes without images remain blank. • If the number of image is over 43, the image number 43 or more is not printed. 36GB Making Various Prints You can record the playback picture from the video equipment as a still image onto the floppy disk. Before you begin 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” 2 Set INPUT SELECT to “VIDEO MOTION” or “VIDEO STILL.” 1 Set the print mode dial to “ (standard)” or split printing mode. 2 Select the image to be recorded. For details of operating procedures, refer to the pages for the corresponding printing mode. 1 Turn on and start playback on the video equipment. 2 Press CAPTURE when the picture you want to record appears on the screen. 3 Insert the floppy disk into the floppy disk slot. Insert a floppy disk formatted in the MS-DOS format. Check that the write protect switch on the disk is set to the write enable position. 4 Press SAVE. The access indicator of the floppy disk drive lights up, and the displayed image is recorded onto the floppy disk. Recording the video picture as a still image When you set the print mode dial to the split mode You can also record the picture in the split mode. In this case, only the most recently selected picture is recorded onto the floppy disk. Re-selecting the image Press PICTURE before pressing SAVE. The playback picture appears on the screen. Follow step 2. (You cannot capture a image while the MEMORY indicator lights up. Press CAPTURE while the MEMORY indicator goes off.) You can also re-select the image by pressing the arrow (B) instead of pressing PICTURE. If you press CLEAR ALL, the printer is reset to stand by mode. Perform printing procedures from the beginning. 37GB Making Various Prints Making Various Prints About file name of the recorded image The image is recorded with the file name “MVC-###f .jpg.” The number “###” is sequentially allocated following the largest file number (same as the image number) recorded in the floppy disk. If an error message appears Error message Meaning DISK ERROR The inserted floppy disk is not formatted. Insert a disk in the MS-DOS format. DISK FULL There is not enough space to record the image. Replace the floppy disk with new one. DISK PROTECT The write protect tab on the inserted floppy disk is set to write protect position. Set it to the write enable position and then record the image. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-9 38GB Making Various Prints Printing the date Date When printing the image in the floppy disk, you can print the date shot with the Digital Mavica. Note that you cannot print the date when you print the image from the video equipment. Before you begin 1 Turn on the printer and television and set the input selector of the television to “VIDEO.” 2 Set INPUT SELECT to “FD.” 1 Set DATE to “ON.” 2 Select the desired print using the print mode dial. You can select standard printing (page 20, 23), split printing (page 26 to 29), label printing (page 32) or index printing (page 34). 3 Select the image for printing. 1 Insert the floppy disk into the floppy disk slot. 2 Press the arrow buttons to move the white frame to the image you want to print, then press ENTER. 4 Press PRINT. The selected image is printed with the date. Date is not printed. Date is printed. 39GB Making Various Prints Making Various Prints Capturing the picture using the optional foot switch When you make a print from the video equipment, you can use the optional foot switch FS-20 to select the desired image remotely. Connecting the optional foot switch Connect the optional foot switch FS-20 to REMOTE CAPTURE jack on this unit. Using the optional foot switch When you select the desired picture, use the optional foot switch instead of pressing CAPTURE. Notes • Turn off the power of this unit before connecting the optional foot switch. • You cannot use other remote controller for this unit. Optional foot switch FS-20 To REMOTE CAPTURE 40GB For Your Information Precautions For Your Information On safety • Operate the printer on 110 to 120 V AC, 50/60 Hz only. • Be careful not to set or drop any heavy objects on the power cord, or to damage the power cord in any way. Never operate this printer with a damaged power cord. • Should any solid object or liquid fall into the cabinet, unplug the printer and have it checked by qualified personnel before operating it any further. • Never disassemble the printer. • To disconnect the power cord, pull it out by the plug. Never pull the power cord itself. • When the printer is not going to be used for an extended period of time, disconnect the power cord from the wall outlet. • Do not handle the printer roughly. • To reduce the risk of electrical shock, always unplug the printer from electrical outlet before cleaning and servicing the printer. On installation • Avoid placing the unit in a location subject to: – vibration – high humidity – excessive dust – direct sunlight – extremely high or low temperatures • Do not use electrical equipment near the unit. The unit will not work properly in electromagnetic fields. • The unit is designed to operate horizontally. Never attempt to operate the printer in a tilted position. If the unit was placed on its side or with its top panel facing down, make sure to remove the paper tray and check that the print papers are set properly before starting operation. 41GB For Your Information For Your Information • Do not place heavy objects on the printer. • Leave enough room around the printer so that the ventilation holes are not blocked. Blocking these holes may cause internal heat build-up. On moisture condensation If the printer is brought directly from a cold location to warm location or placed in an extremely warm or humid room, moisture may condense inside the unit. In such cases the printer will probably not work properly and may even develop a fault if you persist in using it. If moisture condensation occurs, turn off the power and do not use the printer for at least one hour. On transport When you transport the printer, remove the print cartridge from the printer and put the unit in the original box with the protective packaging. If you no longer have the original box and packing parts, use the substitutive packing material so that it will not be damaged while transporting. On cleaning Clean the cabinet, panel and controls with a soft dry cloth, or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine, which may damage the finish. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1-10 42GB For Your Information On floppy disks To protect data recorded on floppy disk, note the following: • Avoid storing floppy disks near magnets or magnetic fields such as those of speakers and televisions, permanent erasure of disk data may result. • Avoid storing floppy disks in areas subject to direct sunlight or sources of high temperature, such a heating device. Floppy disk warping of damage may result, rendering the disk useless. • Avoid contact with the disk’s surface by opening the disk shutter plate. If the disk’s surface becomes blemished, data may be rendered unreadable. • Avoid getting liquids on the floppy disk or using floppy disks in areas subject to high humidity. Otherwise, data may be rendered unreadable. • Be sure to use the floppy disk case to ensure protection of important data. • Use only a 2HD type disk head cleaner when cleaning the disk drive. • Even when you use a 3.5 inch 2HD floppy disk, image data may not be recorded and/or displayed depending on the using environment. In this case, use the other brand disks. Back up recommendation To avoid the potential risk of data loss, always copy (back up) data to the other floppy disk. On print paper Use the set of the print paper and print cartridge supplied together in the same carton. If you use them in different combination, proper printing results may not be obtained, or paper jam or other trouble may occur. Precautions (continued) 50GB For Your Information Chart for various print mode Standard printing (page 20, 23) Date printing (page 38) Split printing using the same image (page 26, 28) 2-split printing 4-split printing 16-split printing Split printing using different images (page 26, 28) 2-split printing Floppy disk label printing (page 32) Index printing (page 34) 4-split printing 16-split printing Mirror printing (page 30) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-1 UPPER CABINET ASSY Note: Follow the disassembly procedure in the numerical order given. SECTION 2 DISASSEMBLY 1�two screws (BVTP3 × 20) 1�two screws (BVTP3 × 20) 3�flat cable (DKSW39) (CN504) 2�upper cabinet Assy 2�two screws (BTP2.6 × 12) 1�connector (CN1938) 3�DC fan (head fan) (M901) 4�cushion, fan DC FAN (HEAD FAN) (M901) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-2 VI-39 BOARD SECTION, DC FAN (POWER FAN) (M905) DK-39D BOARD SECTION 5�two screws (BV2.6 × 8) 6�VI-39 board section 4�flat cable (VIVS39) (CN101) 4�flat cable (VIDK20) (CN102) 1�connector (CN402) 2�DC fan (power fan) (M905) 3 cushion (9 × 50 × 0.2) 5�DK-39D board section 3�two screws (BV2.6 × 8) 1�flat cable (DKFD39) (CN2100) 1�FP-700 flexible board (CN501) 1�flat cable (ADFE13) (CN503) 1�flat cable (ADHE13) (CN502) 2�mini jack block 4�harness www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-3 FLOPPY DISK DRIVE (3.5 inch) ESCUTCHEON (60) BLOCK ASSY, MECHANISM DECK SECTION 4�two screws (M2 × 3) 3�FD bracket Assy 1�flat cable (DKFD39) 5�floppy disk drive (3.5 inch) 2�two screws (BV2.6 × 8) 4�screw (M2 × 3) 5�core (FPC) 7�machanism deck section 6�two screws (BV2.6 × 8) 6�two screws (BV2.6 × 8) 1�two screws (BV2.6 × 8) 1�two screws (BV2.6 × 8) 4�flat cable (POHE13) (CN202) 3�connector (CN201) 2�escutcheon (60) block Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-4 HEAD MOTOR BLOCK ASSY (HEAD UP/DOWN) (M902) MD-39 BOARD 5�two screws (PS3 × 4) 3�two screws (BVTT2.6 × 6) 4�HM bracket Assy 6�head motor block Assy (head up/down) (M902) 2�connector (CN1940) 1�two clamps (LOW TYPE) 2�three connectors (CN1931, 1932, 1935) 1�FP-702 flexible board (CN1933) 2�connector (CN1942) 2�two connectors (CN1940, 1941) 3�screw (BVTT2.6 × 6) 4�Removal the MD-39 board to direction of the arrow. 1�FP-703 flexible board (CN1934) 1�FP-700 flexible board (CN1936) 2�connector (CN1938) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-5 DC MOTOR (STEPPING MOTOR) (PLATEN) (M904), REEL MOTOR BLOCK ASSY (RIBBON) (M903) 3�two screws (BVTT2.6 × 6) 2�DC motor (stepping motor) (platen) (M904) 1�two screws (BVTT2.6 × 6) 4�motor bracket Assy section 3�two screws (BVTT2.6 × 6) 5�two screws (PS2 × 4) 6�reel motor block ass’y (ribbon) (M903) S100 FR-23 board Indication dial CAUTION FOR INSTALLING Cabinet (upper) Assy Install the Indication dial to the switch (S100) on the FR-23 board as shown in the figure. Fig.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2-6 E 1 Two screws 2 Feeder motor Assy 3 Tension spring 4 Feed lock 6 Feed lock 7 Feeder cam (R) Assy 5 Tension spring Reinforcement Feeder cam (L) Assy Positioning hole Side plate (R) 7 Feeder cam (R) Assy 0 Pin (ø1) 9 Pin (ø1) 8 Gear (A) Phase adjusting of Feeder cam Assy 1) Remove each part in numerical order in the figure. (Refer to Fig.2) Fig.2 2) Rotate the gear (A) 8 in the direction of arrow, and pierce the Pin (ø1) 9 through from a positioning hole on the reinforce- ment to the feeder cam (L) Assy. (Refer to Fig.3) 3) Pierce the Pin (ø1) 0 though a positioning hole on the side plate (R) in the state of step 2), then install the feeder cam (R) Assy 7. (Refer to Fig.3) 4) Pull out the two Pins (ø1) 9 and 0, then install each part 1 to 6 in reverse order of removing. (Refer to Fig.2) FIg.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-1 E SECTION 3 MECHANICAL ADJUSTMENTS Replacing the Thermal Head 1) Before replacing the head, print the stair-step pattern with the old head (faulty head). Note 1: Only when the head is not entirely damaged with black or white lines. Note 2: To reproduce the stair-step pattern, refer to “Adjusting Method 1” in “4. Electrical Adjustments”. 2) Remove the upper cabinet. (Refer to “2. Disassembly”.) 3) Remove the flat cables 1 (POHE13) and 2 (ADHE13) from the thermal head. (Refer to Fig. 1) 4) Remove the two screws 3 (BVTT2.6 × 6) and remove the harnesses 4 and fan holder 5. (Refer to Fig. 1) 5) Remove screw 6, (PS2.6 × 4) and remove the ribbon guide 7. (Refer to Fig. 2) 6) Remove the two screws 8 (PSW2.6 × 8) and remove the ther- mal head 9 from the heat sink 0. (Refer to Fig. 2) Note: Do not remove the screw qs fixing the heat sink 0 and head arm qa. 7) Replace the thermal head 9. Note: Make sure that the silicon grease (white) does not stick onto the printing screen of the thermal head. If it does, remove with alcohol. 8) Assemble in the reverse order of steps 2) to 6). 9) Perform “Head Voltage Adjustment” of “4. Electrical Adjust- ments” (Page 4-3). 3 two screws (BVTT2.6 × 6) 4 harness 2 flat cable (ADHE13) 1 flat cable (POHE13) 5 fan holder qa head arm 8 two screws (PSW2.6 × 8) 6 screw (PS2.6 × 4) 7 ribbon guide qs�two screws Note: Do not remove the screw. 0 heat sink 9 thermal head Fig. 1 Fig. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-1 SECTION 4 ELECTRICAL ADJUSTMENTS During the adjustment, see the Adjustment and Adjust- ment Pats on page 4-7. Pre-Adjustment Preparations 1. Equipment required Electrical adjustment requires the following measuring equip- ment. (1) Monitor TV (2) Oscilloscope: 2 phenomena, bend 30 MHz or more, with de- lay mode (use 10 : 1 probe unless otherwise specified) (3) Frequency counter (4) Pattern generator (5) Digital voltmeter (6) Video print paper (7) Video print cartridge (8) Vector scope 2. Connection of Equipment Following the designation of input terminal (S-VIDEO or VIDEO), connect measuring units as shown in Fig. 4-1 and make adjust- ment. The input terminal is designated with ( ) in the signal column. Unless otherwise designated, either input terminal may be used. Note: In the adjustment where the S-VIDEO input is designated, if ad- justment was made with the VIDEO input. The specification of this set will not be satisfied. Always follow the designation. If adjustment was made using the VTR with S-VIDEO OUT termi- nal as a signal source, the performance of this set depends on that VTR. Therefore, use the pattern generator with the Y/C separate output terminals, if possible. Fig. 4-1 If S-VIDEO is designated Pattern Generator Pattern Generator Pattern Generator VIDEO IN S-VIDEO IN Monitor TV Set VIDEO IN VIDEO OUT S-VIDEO OUT VIDEO OUT (75 Ω) VIDEO OUT (75 Ω) Y OUT (75 Ω) Chroma OUT (75 Ω) VTR with S-VIDEO terminal (E-E mode) • If pattern generator does not provide Y/C separate output terminals • If pattern generator provide Y/C separate output terminals If VIDEO is designated www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-2 3. Input Signal Check The video circuit adjustment uses as adjustment signals the video signals obtained from the pattern generator, and therefore these video output signals must be within the specification. (1) When S-VIDEO is input Connect an oscilloscope to the Y signal pin of the S-VIDEO IN connector, and check that the sync signal of Y signal is 286 mV, video amplitude is 714 mV, and the setup level is 0 mV. (If using the VTR with S-VIDEO OUT terminal, check further that the chroma signal and burst signal do not remain.) Also, connect an oscilloscope to the chroma signal pin of the S- VIDEO IN connector, and check that the burst signal amplitude of chroma signal is 286 mV and it is flat, and moreover, the ampli- tude ratio of burst signal to chroma signal is 0.30 : 0.705. The Y signal and chroma signal used for adjustment are shown in Fig. 4-2. Setup level: Potential difference between black and pedestal Y signal Chroma signal Burst amplitude : chroma amplitude = 0.30 : 0.705 Fig. 4-2 Color bar signals of pattern generator (at terminating resistance 75 Ω) (2) When VIDEO is input Connect an oscilloscope to the VIDEO IN terminal, and check that the sync signal amplitude of VIDEO signal is 286 mV, video amplitude is 714 mV, the setup level is 0 mV, and the burst signal amplitude is 286 mV and it is flat. Also, check that the level ratio of burst signal to red signal is 0.3 : 0.705. The VIDEO signal (color bars) used for adjustment is shown in Fig. 4-3. Fig. 4-3 Color bar signal of pattern generator (at terminating resistance 75 Ω) White (75%) 535 ± 3 mV 714 ± 3 mV 286 ± 3 mV Red 672 ± 3 mV Pedestal Horizontal sync signal Black Burst signal (to be flat) 286 ± 3 mV White (100%) 535 ± 3 mV 714 ± 3 mV 286 ± 3 mV White (75%) White (100%) Black Pedestal Horizontal sync signal Burst signal (to be flat) 286 ± 10 mV Chroma amplitude www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-3 POWER SUPPLY BLOCK [Head Voltage Adjustment] Before performing this adjustment, print the stair-step pattern (Note 2) two times continuously with the old head (Note 1) or normal unit. The second print will be used as a sample of the print density. Note 1: Only when the old head (faulty head) is not entirely damaged with black or white lines. Note 2: To print the stair-step test pattern, turn on the power switch while pressing the S1714 (SAVE) and S1717 (ENTER) on the SW-39 board. (Press the S1714 (SAVE) and S1717 (ENTER) until a peep is heard.) Set the S1701 (Rotaly switch) to the position, and press the S1706 (print), then the print will start. Adjustment Procedure: (1) To print the stair-step test pattern, turn on the power switch while pressing the S1714 (SAVE) and S1717 (ENTER) on the SW-39 board. (Press the S1714 (SAVE) and S1717 (ENTER) until a peep is heard.) Set the S1701 (Rotaly switch) to the position, and press the S1706 (print), then the print will start. (2) After printing, repeat (1) immediately. (3) Compare the second printed pattern density with that of the sample, and if the density differs, perform the following ad- justment. (4) Adjust VR201 according to the print density. If darker than the sample: Decrease the head voltage. If lighter than the sample: Increase the head voltage. (5) Print the stair-step pattern two times continuously. (6) Compare the second printed pattern density with that of the simple, and if the density differs, repeat steps (3) to (6). Note: Only one print is required after the second time. (7) Turn off the power switch. Mode Test mode (Note 1) Signal Test pattern (Stair-step) Measuring points +: CN1943 2 pin (MD-39 board) –: CN1943 3 pin Measuring instrument Digital Voltmerter Adjustment part VR201 Specification Print density should be the same as the sample Fig. 4-4 Stair-step pattern * VR201 is in the power block (1-468-364-41). Adjustment Location: power block VR201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-4 VIDEO BLOCK [Free-Run Frequency Adjustment (1)] (VI-39 board) Note 1: Connect IC108 5 pin to the GND via 0.1µF capacitor (chroma signal grounded.) Adjustment Procedure: (1) Connect IC108 7 pin to the GND via 1 MΩ resisitor. (2) Adjust CT102 so that the frequency counter reading satisfies the specification value. [Free-Run Frequency Adjustment (2)] (DK-39D board) Adjustment Procedure: (1) Adjust CT500 so that the frequency counter reading satisfies the specification value. [910fh Adjustment] (DK-39D board) Adjustment Procedure: (1) Adjust CT401 so that the digital voltmeter reading satisfies the specification value. [Y/C Separation Y Level Adjustment] (VI-39 board) Adjustment Procedure: (1) Adjust RV103 so that the A level (white) of waveform on the oscilloscope satisfies the specification value. Fig. 4-5 Mode VIDEO Input Signal Color bar (S-VIDEO IN) (Note 1) Measuring point IC108 qk pin Measuring equipment Frequency Counter Adjustment part CT102 Specification value 3.579545 MHz ± 30 Hz Mode VIDEO Input Signal Color bar (S-VIDEO IN) Measuring point IC407 pin Measuring equipment Frequency Counter Adjustment part CT500 Specification value 14.31818 MHz ± 100 Hz Mode VIDEO Input Signal Color bar (VIDEO IN) Measuring point CL138 Measuring equipment Oscilloscope Adjustment part RV103 Specification value 1.00 ± 0.02Vp-p [Y/C Separation CHROMA Level] (VI-39 board) Adjustment Procedure: (1) Adjust RV102 so that the A level (white) of waveform on the oscilloscope satisfies the specification value. Fig. 4-6 [D/A Output Y Level Adjustment] (DK-39D board) Note: Turn of the power switch once, then turn it on again. Adjustment Procedure: (1) Adjust RV401 so that the A level (white) of waveform on the oscilloscope satisfies the specification value. Fig. 4-7 Mode VIDEO Input Signal Color bar (VIDEO IN) Measuring point J1802 (OUTPUT) Measuring equipment Oscilloscope Adjustment part RV401 Specification value 535 ± 15 mVp-p White (75%) H A Mode VIDEO Input Signal Color bar (S-VIDEO IN) Measuring point IC401 qa pin (or CL427) Measuring equipment Digital Voltmeter Adjustment part CT401 Specification value 2.5 ± 0.1 Vdc White (100%) H A Mode VIDEO Input Signal Color bar (VIDEO IN) Measuring point CL129 Measuring equipment Oscilloscope Adjustment part RV102 Specification value 286 ± 6 mVp-p A H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-5 [D/A Output CHROMA Level Adjustment] (DK-39D board) Adjustment Procedure: (1) Adjust RV402 so that the A level (Red) of waveform on the oscilloscope satisfies the specification value. (2) Turn off the power switch. Fig. 4-8 [A/D Input Y Level Adjustment] (DK-39D board) Note: Turn off the power switch once, then turn it on again. Adjustment Procedure: (1) Connect on oscilloscope to the CL409 (from IC407 yf pin to the point via R478). (2) Adjust RV404 so that the A level (white) of waveform on the oscilloscope satisfies the specification value. Fig. 4-9 Mode VIDEO Input Signal Color bar (S-VIDEO IN) Measuring point CL409 Measuring equipment Oscilloscope Adjustment part RV404 Specification value 1.35 ± 0.03 Vp-p [A/D Input R-Y/B-Y Level Adjustment] (VI-39, DK-39D board) Adjustment Procedure: (1) Connect on oscilloscope to the CL408. (2) Adjust RV105 so that waveform to be Fig. 4-10. Fig. 4-10 (3) Adjust RV106 so that the A level (B-Y) of waveform on the oscilloscope satisfies the specification value. Fig. 4-11 (4) Connect on oscilloscope to the CL407. (5) Adjust RV405 so that the A level (R-Y) of waveform on the oscilloscope satisfies the specification value. Fig. 4-12 Mode VIDEO Input Signal Color bar (S-VIDEO IN) Measuring point CL407, 408 Measuring equipment Oscilloscope Adjustment parts RV105, 106, 405 Specification value CL407 (R-Y) 1.05 ± 0.02 Vp-p CL408 (B-Y) 1.32 ± 0.02 Vp-p Red Yellow A Mode VIDEO Input Signal Color bar (VIDEO IN) Measuring point J1802 (OUTPUT) Measuring equipment Oscilloscope Adjustment part RV402 Specification value 672 ± 15 mVp-p Red A H White (100%) H A A B C Yellow C 1/4A B 2/3A Blue Yellow A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-6 [HUE Level Adjustment] (VI-39 board) Adjustment Procedure: (1) Connect on vector scope to the J1802. (2) Press the S1707 (CAPTURE). (3) Check yellow phase satisfies the specification value. (4) If NG, press the S1708 (PICTURE) and lights on the D1733 (INPUT) (5) A little adjust the RV105 and press the S1707. (6) Repeat steps (2) to (5) until yellow phase satisfies the speci- fication value. Fig. 4-12 Fig. 4-13 Mode VIDEO Input Signal Color bar (S-VIDEO IN) Measuring point J1802 (OUTPUT) Measuring equipment Vector scope Adjustment part RV105 Specification value Yellow phase 167 ± 4 deg 167 ± 4 ° 180 ° 90 ° 0 ° Yellow Reference : B-Y Waveform (CL408) A • If yellow phase is under 163 °, extend the A level. • If yellow phase is over 171°, shorten the A level. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4-7 Adjustment Parts and Measuring Points: RV404 A/D Input Y Level Adjustment RV405 A/D Input R/Y Level Adjustment – DK-39D Board (Side A) – CT401 910fh Adjustment RV401 D/A Output Y Level Adjustment RV402 D/A Output Chroma Level Adjustment IC407 CN501 CN503 1 132 89 44 176 133 88 45 IC503 CT500 Free-run Frequency (2) Adjustment – DK-39D Board (Side B) – IC401 CL407 CL408 IC506 IC505 CL409 CL427 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – VI-39 Board (Side A) – RV105 HUE Level Adjustment IC108 CN102 20 1 RV106 A/D Input B/Y Level Adjustment CT102 Free-Run Frequency (1) Adjustment RV102 Y/C Separation Chroma Level Adjustment CL138 CL129 RV103 Y/C Separation Y Level Adjustment – VI-39 Board (Side B) – CN1943 4 1 – MD-39 Board (Side A) – J1802 OUTPUT – VS-39 Board (Side A) – 4-8 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-1 5-2 SECTION 5 DIAGRAMS 5-1. BLOCK DIAGRAM – VIDEO Section – 2 1 3 4 (ON: PLUG IN) CJ1801 S VIDEO INPUT J1801 VIDEO INPUT J1802 OUTPUT 05 AD IN CVRF YVRF INSL 25 AYO 31 ACO 39 41 33 10 50 20 OCLK 11 Y SIGNAL SELECT SWITCH & VIDEO AMP IC102 Y/C SEPARATOR IC105 Y/C MIX IC103 (1/2) VIDEO ENCODER IC103 (2/2) AFC IC401 A/D, D/A CONVERTER, MEMORY BUS CONTROL IC407 (1/2) Y IN C IN Y OUT Y IN R-Y IN B-Y IN C SYNC IN XO IN C OUT C VIDEO OUT 1 3 2 5 4 7 16 15 18 17 20 5 15 9 16 VSIN VCIN MCKI YO 1 3 2 5 4 7 CHROMA SIGNAL SELECT SWITCH & VIDEO AMP IC101 6 10 3 2 4 VIDEO AMP Q104, 123 BFP 23 WEVN 32 AFH 27 VD 26 MCKO 17 YMCK 37 LOW-PASS FILTER FL102 Y AMP Q107 Y/C MIX CLAMP CLAMP R-Y MODULATOR PULSE GENERATOR PHASE SHIFTER OSC B-Y MODULATOR CLAMP VIDEO AMP BAND-PASS FILTER FL101 Y BUFFER Q101 R-Y BUFFER Q102 (1/2) B-Y BUFFER Q102 (2/2) R-Y AMP Q404 B-Y AMP Q402 R-Y BUFFER Q406 B-Y BUFFER Q405 CLAMP Q408 CLAMP Q409 R-Y BUFFER Q411 B-Y BUFFER Q413 LOW-PASS FILTER FL106 LOW-PASS FILTER FL107 CHROMA AMP Q109 CLAMP Q124 RV102 Y/C SEPARATION CHROMA LEVEL RV103 Y/C SEPARATION Y LEVEL CT410 910fh RV404 A/D IN Y LEVEL RV405 A/D IN R-Y LEVEL RV401 D/A OUT Y LEVEL RV402 D/A OUT CHROMA LEVEL + SYCX 29 Y OUT 43 V OUT 36 U OUT 19 SC CGEEX 82 V IN Y AMP Q403 Y BUFFER Q407 CLAMP Q410 Y BUFFER Q412 LOW-PASS FILTER FL105 LOW-PASS FILTER Q401, 416 64 Y IN 90 ECK 88 EVD 89 EHD 91 EEVN 73 U IN 26 VREF1 33 VREF2 40 VREF3 • SIGNAL PATH : COMPOSITE VIDEO : Y SIGNAL : CHROMA SIGNAL : R-Y SIGNAL : B-Y SIGNAL Y C VIDEO C IN C OUT 25 5 3 R-Y OUT 20 B-Y OUT X101 14.318MHz 19 B-Y IN 14 R-Y IN 16 C CNT 4 CLOCK BUFFER Q113 RV105 HUE LEVEL T IN 11 VCXI 12 VCXO 10 RV106 A/D IN B-Y LEVEL CT102 FREE-RUN FREQUENCY (1) R-Y/B-Y DECODER IC108 XO OUT 5 R-Y B-Y R-Y B-Y R-Y B-Y R-Y B-Y R-Y B-Y R-Y B-Y R-Y B-Y R-Y B-Y B-Y R-Y w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-3 5-4 5-2. BLOCK DIAGRAM – MAIN Section – 05 A/D, D/A CONVERTER, MEMORY BUS CONTROL IC407 (2/2) D-RAM IC403 (Page 5-7) (Page 5-7) C 1/2 DIVIDER IC406 124 125 123 30 31 14 13 MCSX 113 ICKI CS6 WR 104 BSH 103 STRS 102 SVBK 100 VRSR SVW 107 SC6X 106 SWEX 105 SRDX 109 SRSX 110 SCSX MAD0 – MAD9 A0 – A9 MDT0 – MDT15 I/O0 – I/O15 MWEX 99 PCS (Page 5-7) (Page 5-7) F (Page 5-7) G (Page 5-5) H (Page 5-5) I WR, RD PCSX 97 51 160 – 167, 170 – 176, 1 16 – 13, 11 – 6 2 – 5, 7 – 10, 33 – 36, 38 – 41 17 – 20, 23 – 28 SAD0 – SAD11, SADA, SADB SDT0 – SDT15 A1 – A14 D0 – D15 157 – 150, 147 – 140 138 – 127, 121, 120 MRSX WE RAS LCAS UCAS RESX 1 5 67 3 4 48 50 36 31 43 143 107 SWITCHING IC513 (1/4) 3 2 1 5 3 2 2 2 1 LATCH IC514 IC515 IC510 1 SWITCHING IC513 (2/4) 6 RD 4 4 4 5 SWITCHING IC511 4 RAS0 HCAS 1 2 SWITCHING IC513 (3/4) 11 RD 12 13 SWITCHING IC513 (4/4) 8 WE RD WE A13 10 9 Q D CK XRD RDWR XRAS 34 XCASH 32 XCASL RAS-CNT XWR XCS0 VWR VRSR VBLK VTRS BSH 108 101 SHWX WAIT CK WR RD Q WR 36 38 14 D-RAM IC509 19 – 24, 27 – 32 D0 – D15 A0 – A11 OE WE 7 32 30 57 37 FLASH MEMORY IC506 RD DQ0 – DQ7 A0 – A17 OE WE CE FLASH UCAS LCAS 13 21 – 23, 25 – 29 20 – 13, 3, 2, 31, 1, 12, 4, 5, 11, 10, 6 2 – 5, 7 – 10, 41 – 44, 46 – 49 RAS 2 IC502 RESET SWITCH 1 4 +5V D513 RESET SIGNAL GENERATOR IC501 108 XRES 44 XWDTOVF B RESET (Page 5-6) A RESET A0 – A17 ADDRESS BUS ADDRESS BUS DATA BUS ADDRESS BUS DATA BUS DATA BUS ADDRESS BUS DATA BUS ADDRESS BUS DATA BUS D0 – D15 D0 – D15 A0 – A17 92 – 88, 86, 84 – 80, 78, 76 – 73 7 – 11, 13, 15 – 25, 27 D0 – D7 A0 – A17 D0 – D15 A1 – A12 A0 D0 – D15 D0 – D7 A1 – A12 41 51 SWAY COMPEN FD/VIDEO SEL SYSTEM CONTROLLER IC503 (1/3) 110 BUZZER (FUNCTION SELECT) X503 14.31818MHz 118 KEY0 119 KEY1 120 KEY2 BZ201 (BUZZER) S1706 – 1708, S1710 – 1715, 1717, 1718 MINI JACK BLOCK 94 XTL 96 EXTL ROTARY SWITCH S1701 CT500 FREE-RUN FREQUENCY (2) S1719 INPUT SELECT REMOTE CAPTURE FD VIDEO MOTION VIDEO STILL TIMER IC1700 D1750 BT1700 LITHIUM BATTERY 45 TIMER WR 46 TIMER CE 132 TIMER SCR 130 6 8 12 11 14 TIMER RXD WR CE CLK DATA 131 TIMER TXD BUFFER Q2000 +5V VDD E (Page 5-5) WR, RD D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-5 5-6 5-3. BLOCK DIAGRAM – FLOPPY DISK DRIVE CONTROL/EEPROM Section – 05 D (Page 5-3) (Page 5-4) H 8 6 MD1 FWP DA RA2 RESET CN551 FOR CHECK 102 MD1/BOOT 5 4 7 BUFFER IC2000 BUFFER IC2001 EEPROM IC2002 33 PD 30 29 136 EEPROM SCK 134 2 6 1 EEPROM TXD 133 EEPROM RXD DO CLK DI 99 VCC/FWP 5 3 7 6 2 6 4 CS 3 RST 8 PD 1 5 1 3 5 7 EEPROM RESET EEPROM CS 4 2 FLOPPY DISK DRIVE CONTROLLER IC2101 IC2102 TO FLOPPY DISK DRIVE UNIT D0 – D7 D0 – D7 DATA BUS A0 D0 – D7 RD WR (Page 5-4) I A0 ADDRESS BUS BUFFER Q2100 4 DRIVE SELECT 0 CN2100 6 DISK CHANGE 9 DENSITY OUT 10 MOTOR ON 8 READYO 2 INDEX 12 DIRECTION 14 STEP 16 WRITE DATA 18 WRITE GATE 20 TRACK 00 22 WRITE PROTECT 24 READ DATA 26 SIDE1 SELECT WR, RD X2100 16MHz DMAAK DMARQ TC READY FDC INT RESET FDC FDC TC FDC CS FDC DMA ACK FDD DMA RQ FDD READY IN FDD READY OUT FDD MOTOR ON FDD DENSITY OUT FDD DISK CHANGE FDD DRIVE SELECT 0 30 68 76 8 10 11 13 24 26 27 36 69 50 70 INT 71 46 47 39 69 137 53 59 109 144 72 116 115 114 113 D2100 CS 45 RESET A0 INDEX DIR STEP WDATA WE TRK0 WPRT RDATA SIDE 57 – 60, 62, 63, 65, 67 51 XB1 86 XA2 83 XA1 82 RD WR (Page 5-3) A RESET SYSTEM CONTROLLER IC503 (2/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-4. BLOCK DIAGRAM – HEAD/SENSOR/MOTOR/POWER SUPPLY Section – 5-7 5-8 1 4 5 36 RDX 39 CS1X 23 PDT0 22 PDT1 21 PDT2 20 PDT3 25 1 3 6 11 8 2 4 5 12 13 9 10 HDCK 24 LATX 19 DRVX 98 RCODE0 5 HPS0 6 HPS1 DATA1 TH HEAD901 THERMAL HEAD DATA2 DATA3 DATA4 CLOCK LATCH STROBE 35 37 WEX 13 XIN 14 XOUT RD WR WR, RD PCS HEAD CONTROLLER, MECHANISM CONTROLLER IC505 126 125 123 RMARK1 RMARK0 122 PPEDG 121 HEADTMP JDET 142 140 139 STP4 STP3 138 STP1 STP2 +5V SELECTOR IC1903 HEAD UP/DOWN MOTOR DRIVE, RIBBON MOTOR DRIVE IC1900 PLATEN MOTOR DRIVE IC1901 MOTOR +22V HIGH/LOW SPEED SWITCH Q1902 M901 (HEAD FAN) M904 (PLATEN) 51 – 40 AD1 – AD10, REGX, CUTEX 71 – 64, 61 – 54 DT0 – DT15 X502 20MHz RESX RESET 92 82 DATE (PWSW) D1734 MEMORY D1733 INPUT S1702 PRESET SELECT S1720 DATE ON OFF 2 6 4 8 10 1 3 7 5 9 PAPER EDGE SENSOR PH901 JAMMING DETECT SENSOR PH1861 RIBBON MARK 0 SENSOR PH902 HEAD POSITION 0 SENSOR PH1852 COMPARATOR IC1902 (1/2) HEAD FAN MOTOR DRIVE Q1900 SWITCH MOTOR DRIVE SWITCH SWITCH SWITCH 14 10 11 COMPARATOR IC1902 (2/2) HEAD POSITION SENSOR AMP IC508 HEAD POSITION 1 SENSOR PH1851 LED DRIVE Q1731 RIBBON CODE 0 SENSOR PH906 97 RCODE1 RIBBON CODE 1 SENSOR PH905 96 RCODE2 81 STPLOW 83 FAN RMTRCCW RMTRCW HMTRCCW HMTRCW OUT4 OUT3 OUT2 OUT1 IN4 IN3 IN2 IN1 RIBBON CODE 2 SENSOR PH904 RIBBON MARK 1 SENSOR PH903 M M903 (RIBBON) 10 7 2 15 90 89 87 86 11 6 3 14 M M M902 (HEAD UP/DOWN) M 79 PAPER-LED 77 PRN-LED 76 MEM-LED 75 INP-LED 74 RIBBON-LED 05 D1735 D1736 PAPER REPLACEMENT INDICATOR D1737 – 1739 PRINTING STATUS INDICATOR RIBBON ERROR INDICATOR PRESET PRINT ON OFF (Page 5-4) F (Page 5-4) G (Page 5-3) E (Page 5-3) C (Page 5-3) B A1 – A12 D0 – D15 SYSTEM CONTROLLER IC503 (3/3) MOTOR DRIVE 3 5 1 7 80 POWER-LED 92 MAVICA PRINT 91 PC D1731 POWER S1702 MIRROR IMAGE OFF H V +5V REGULATOR IC2100 +5V REGULATOR IC110 +5V REGULATOR IC404 +5V REGULATOR IC504 LED DRIVE Q1903 M905 (POWER FAN) M +5V VIDEO CIRCUIT B+ +22V MOTOR B+ +7V MOTOR B+ +6.25V SIGNAL B+ +5V FLOPPY DISK DRIVE UNIT B+ +5V S1871 (RIBBON DOOR DETECT) +5V A/D, D/A CONVERTER (IC407), VIDEO CIRCUIT B+ RIBBON CODE SENSOR LED (PH904 – 906) B+ +5V (DIGITAL SYSTEM) SYSTEM CONTROLLER (IC503), HEAD/MECHANISM CONTROLLER (IC505) B+ POWER BLOCK POWER (AC IN) 99 FKEY2 100 FKEY1 1 FKEY0 84 FPS 85 FMTRCW 3 FMTRCCW 2 FEEDER FEEDER MOTOR DRIVE IC102 ENCODER IC101 FE MOTOR 0 FE DESORPTION SENSE FE POSITION SENSE SHEET BIT0 SHEET BIT1 SHEETBIT2 FE MOTOR 1 CN1882 3 2 6 4 5 7 1 3 2 6 4 5 7 1 CN201 AUTOMATIC FEEDER UNIT ROTARY SWITCH S100 SHEETS SET COMPARATOR IC100 OUT1 OUT2 IN1 A0 IN0 IN2 A2 M101 (FEEDER) FEEDER POSITION SENSOR 3 4 9 10 A1 A0 A2 A1 7 6 9 7 M +5V +5V 11 1 13 – . – 4 IN1 IN7 – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-9 5-10 5-5. FRAME SCHEMATIC DIAGRAM D GND CLK DATA WR CE G_GND SWAY COMPEN KEY0 KEY1 KEY2 FD PC MAVICA PRINT DATE D GND POWER INPUT MEMORY RIBBON PAPER-IN PRINT D +5V 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 D GND CLK DATA WR CE D GND SWAY COMPEN KEY0 KEY1 KEY2 FD PC MAVICA PRINT DATE D GND POWER INPUT MEMORY RIBBON PAPER-IN PRINT D +5V 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SW-39 CN1701 CN504 +6.25V S +6.25V S VIDEO/AVLINK GND S GND S HD A GND Y. VA OUT R-Y. VA OUT B-Y. VA OUT CGFFX A GND DA. V DA. U DA. Y A GND SYNC A GND SC A GND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 +6.25V S +6.25V S VIDEO/AVLINK GND S GND S HD A GND Y. VA OUT R-Y. VA OUT B-Y. VA OUT CGFFX A GND DA. V DA. U DA. Y A GND SYNC A GND SC A GND 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 VI-39 THERMAL HEAD VS-39 POWER BLOCK CN102 CN401 V OUT V OUT GND V IN VIN GND Y S IN GND C S/V SEL 1 2 3 4 5 6 7 8 CN101 V OUT V OUT GND V IN V IN GND Y S IN GND C S/V SEL 8 7 6 5 4 3 2 1 CN1801 SWDK22 (FFC) SIDE 1 SELECT GND READ DATA GND WRITE PROTECT GND TRACK 00 GND WRITE GATE GND WRITE DATA NC STEP NC DIRECTION NC MOTOR ON DENSITY OUT READYO NC DISK CHENGE +5V DRIVE SELECT 0 +5V INDEX +5V 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 SIDE 1 SELECT GND READ DATA GND WRITE PROTECT GND TRACK 00 GND WRITE GATE GND WRITE DATA NC STEP NC DIRECTION NC MOTOR ON DENSITY OUT READY0 NC DISK CHENGE +5V DRIVE SELECT 0 +5V INDEX +5V 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 FLOPY DISK DRIVE UNIT DK-39D FE-39 POWER FAN CN1651 CN701 CN1881 CN503 DKFD-26 (FFC) VIDK20 (FFC) VIVS8 (FFC) 05 DATA1 TH TH LATCH NC GND DATA2 CLOCK VDD STROBE 1 2 3 4 5 6 7 8 9 10 HEAD901 (1/2) HEAD901 (2/2) DATA1 TH TH LATCH NC GND DATA2 CLOCK -5V (DIGITAL) STROBE 10 9 8 7 6 5 4 3 2 1 CN502 ADHE13 (FFC) GND (TH) GND (TH) GND (TH) GND (TH) GND (TH) GND (TH) +22V (VTH) +22V (VTH) +22V (VTH) +22V (VTH) +22V (VTH) +22V (VTH) 12 11 10 9 8 7 6 5 4 3 2 1 GND (TH) GND (TH) GND (TH) GND (TH) GND (TH) GND (TH) +22V (VTH) +22V (VTH) +22V (VTH) +22V (VTH) +22V (VTH) +22V (VTH) 1 2 3 4 5 6 7 8 9 10 11 12 POHE13 (FFC) +22V (MOTOR) +22V (MOTOR) GND (MOTOR) GND (MOTOR) GND (MOTOR) GND (MOTOR) +7V (MOTOR) +7V (MOTOR) GND (SIGNAL) GND (SIGNAL) +6.25V (SIGNAL) +6.25V (SIGNAL) +22V CONT GND (FAN) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 +22V (MOTOR) +22V (MOTOR) GND (MOTOR) GND (MOTOR) GND (MOTOR) GND (MOTOR) +7V (MOTOR) +7V (MOTOR) GND (SIGNAL) GND (SIGNAL) +6.25V (SIGNAL) +6.25V (SIGNAL) +22V CONT GND (FAN) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 PS-33 HEAD FAN CONT PAPER EDGE SENS RIBBON MARK1 SENS RIBBON MARK0 SENS HEAD MOTOR IN1 HEAD MOTOR IN0 RIBBON MOTOR IN1 RIBBON MOTOR IN0 STEP MOTOR IN4 STEP MOTOR IN3 STEP MOTOR IN2 STEP MOTOR IN1 HIGH/LOW +6.25V (SIGNAL) +6.25V (SIGNAL) +6.25V (SIGNAL) GND (SIGNAL) GND (SIGNAL) GND (SIGNAL) +5V (SIGNAL) +7V (MOTOR) +7V (MOTOR) GND (MOTOR) GND (MOTOR) RIBBON CODE2 SENS RIBBON CODE1 SENS RIBBON CODE0 SENS HEAD POSI1 SENS HEAD POSI0 SENS JD SENS 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 HEAD FAN CONT PAPER EDGE SENS RIBBON MARK1 SENS RIBBON MARK0 SENS HEAD MOTOR IN1 HEAD MOTOR IN0 RIBBON MOTOR IN1 RIBBON MOTOR IN0 STEP MOTOR IN4 STEP MOTOR IN3 STEP MOTOR IN2 STEP MOTOR IN1 HIGH/LOW +6.25V (SIGNAL) +6.25V (SIGNAL) +6.25V (SIGNAL) GND (SIGNAL) GND (SIGNAL) GND (SIGNAL) +5V (SIGNAL) +7V (MOTOR) +7V (MOTOR) GND (MOTOR) GND (MOTOR) RIBBON CODE2 SENS RIBBON CODE1 SENS RIBBON CODE0 SENS HEAD POSI1 SENS HEAD POSI0 SENS JD SENS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CN501 CN1936 CN1937 FJ-23 +5V (DIGITAL) GND (MOTOR) GND (MOTOR) +7V (MOTOR) +7V (MOTOR) COUNT BIT2 COUNT BIT1 COUNT BIT0 FE MOTOR 0 FE MOTOR 1 FE POSI SENS FE ON/OFF SENS GND (DIGITAL) 1 2 3 4 5 6 7 8 9 10 11 12 13 +5V (DIGITAL) GND (MOTOR) GND (MOTOR) +7V (MOTOR) +7V (MOTOR) COUNT BIT2 COUNT BIT1 COUNT BIT0 FE MOTOR 0 FE MOTOR 1 FE POSI SENS FE ON/OFF SENS GND (DIGITAL) 13 12 11 10 9 8 7 6 5 4 3 2 1 MD-39 PLATEN MOTOR RIBBON MOTOR ADFE13 (FFC) M905 M904 M903 M902 CN402 CN2100 GND (POWER FAN) +5V (POWER FAN) 1 2 CN1941 RM-33 HM-33 JD-33 CN1861 CN1935 CN1933 RIBBON MOTOR X RIBBON MOTOR Y 1 2 RIBBON MOTOR + RIBBON MOTOR – 1 2 HEAD MOTOR CN1940 HEAD MOTOR X HEAD MOTOR Y +22V (MOTOR) 1 2 3 JUMMING DET SENS JUMMING DET LED GND (DIGITAL) 1 2 3 HEAD MOTOR + HEAD MOTOR – 1 2 GND +5V BLK RED CN1942 +24V (MOTOR) +24V (MOTOR) φ1 φ2 φ3 φ4 6 5 4 3 2 1 +24V (MOTOR) +24V (MOTOR) φ1 φ2 φ3 φ4 WHT RED BLU YEL BRN HEAD FAN M901 CN1938 +5V(HEAD FAN) FAN (HEAD FAN) 1 2 +5V (DIGITAL) FAN (HEAD) + – JD-39 JUMMING DET SENS JUMMING DET LED GND (DIGITAL) 1 2 3 FP-703 FLEXBLE BOARD RCODE RIBBON CODE2 SENS RIBBON CODE2 LED RIBBON CODE1 SENS RIBBON CODE1 LED RIBBON CODE0 SENS RIBBON CODE0 LED GND (DIGITAL) 1 2 3 4 5 6 7 RIBBON CODE2 SENS RIBBON CODE2 LED RIBBON CODE1 SENS RIBBON CODE1 LED RIBBON CODE0 SENS RIBBON CODE0 LED GND (DIGITAL) 1 2 3 4 5 6 7 CN1882 GND (DIGITAL) GND (DIGITAL) GND (DIGITAL) +5V (DIGITAL) GND (MOTOR) GND (MOTOR) +7V (MOTOR) +7V (MOTOR) COUNT BIT2 COUNT BIT1 COUNT BIT0 FE MOTOR 0 FE MOTOR 1 FE POSI SENS FE ON/OFF SENS 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 GND (DIGITAL) GND (DIGITAL) GND (DIGITAL) +5V (DIGITAL) GND (MOTOR) GND (MOTOR) +7V (MOTOR) +7V (MOTOR) COUNT BIT2 COUNT BIT1 COUNT BIT0 FE MOTOR 0 FE MOTOR 1 FE POSI SENS FE ON/OFF SENS 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 CN1934 RIBBON MARK & PE HP-39 GND (DIGITAL) PE LED PE SENS RM 0 LED RE 1 LED GND (DIGITAL) RM 1 SENS RM 0 SENS 1 2 3 4 5 6 7 8 GND (DIGITAL) PAPER EDGE LED PAPER EDGE SENS RIBBON MARK0 LED RIBBON MARK1 LED GND (DIGITAL) RIBBON MARK1 SENS RIBBON MARK0 SENS 1 2 3 4 5 6 7 8 CN1931 CN1851 RD-39 CN1932 RD-33 +5V (DIGITAL) RIBBON DOOR SENS 1 2 +5V (DIGITAL) RIBBON DOOR SENS 1 2 CN1871 HMD-3 GND (DIGITAL) HEAD POSI 1 SENS HEAD POSI 1 LED HEAD POSI 0 LED HEAD POSI 0 SENS 5 4 3 2 1 GND (DIGITAL) HEAD POSI 1 SENS HEAD POSI 1 LED HEAD POSI 0 LED HEAD POSI 0 SENS 5 4 3 2 1 ( ( FP-702 FLEXBLE BOARD ( ( FP-700 FLEXBLE BOARD ( ( CN2000 KEY 0 KEY 1 D GND 1 2 3 MINI JACK BLOCK KEY 0 KEY 1 D GND 1 2 3 AUTOMATIC FEEDER UNIT FP-701 FLEXBLE BOARD ( ( M101 FR-23 FE MOTOR 1 FE MOTOR 0 FE POSI SENS SHEET BIT0 +5V (DIGITAL) SHEET BIT1 GND (DIGITAL) SHEEET BIT2 +7V (MOTOR) +7V (MOTOR) GND (MOTOR) GND (MOTOR) 12 11 10 9 8 7 6 5 4 3 2 1 FE MOTOR 1 FE MOTOR 0 FE POSI SENS SHEET BIT0 +5V (DIGITAL) SHEET BIT1 GND (DIGITAL) SHEET BIT2 +7V (MOTOR) +7V (MOTOR) GND (MOTOR) GND (MOTOR) 1 2 3 4 5 6 7 8 9 10 11 12 FR-35 FEEDER POSITION SENSOR FE POS LED FE POS LED FE POS SENS FE POS SENS GND (DIGITAL) GND (DIGITAL) 6 5 4 3 2 1 FE POS LED FE POS LED FE POS SENS FE POS SENS GND (DIGITAL) GND (DIGITAL) 6 5 4 3 2 1 FE MOTOR 0 FE MOTOR 1 1 2 FE MOTOR 0 FE MOTOR 1 1 2 FE MOTOR 0 FE MOTOR 1 1 2 FE MOTOR 0 FE MOTOR 1 1 2 FEEDER MOTOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-11 5-12 • Circuit Boards Location – Printer Section – MD-39 board HP-39 board RD-39 board JD-39 board FE-39 board DK-39D board VS-39 board SW-39 board VI-39 board POWER BLOCK (SWITCHING POWER) THERMAL HEAD 5-6. NOTES FOR PRINTED WIRING BOARD AND SCHEMATIC DIAGRAM Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground in color-bar signal input. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. i : COMPOSITE VIDEO h : Y SIGNAL f : CHROMA SIGNAL f : R-Y SIGNAL f : B-Y SIGNAL R-Y B-Y Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. – Automatic Feeder Section – FR-23 board FR-35 board FJ-23 board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-13 DMP-1000 5-7. PRINTED WIRING BOARD – VS-39 Board – • See page 5-11 for Circuit Boards Location. 5-8. SCHEMATIC DIAGRAM – VS-39 Board – 1-672-599- 05 (13) 13 VS-39 BOARD (SIDE A) 1-672-599- 05 (13) 13 VS-39 BOARD (SIDE B) K K A 8 1 A VI-39 BOARD CN101 J1802 OUTPUT J1801 VIDEO 2 1 4 3 (ON:PLUG IN) S-VIDEO CJ1801 K K A K K A K K A INPUT (Page 5-16) (Page 5-17) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-14 DMP-1000 5-9. PRINTED WIRING BOARD – FE-39 Board – • See page 5-11 for Circuit Boards Location. 5-10. SCHEMATIC DIAGRAM – FE-39 Board – 1-672-604- 05 (13) 13 FE-39 BOARD (SIDE A) J AUTOMATIC FEEDER FJ-23 BOARD CN201 12 13 1 2 1-672-604- 05 (13) 13 FE-39 BOARD (SIDE B) B DK-39D BOARD CN503 K K K A K D1881,1882 (Page 5-24) (Page 5-46) (Page 5-47) (Page 5-34) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-15 5-16 5-17 5-18 5-19 5-11. PRINTED WIRING BOARD – VI-39 Board – • See page 5-11 for Circuit Boards Location. 5-12. SCHEMATIC DIAGRAM – VI-39 Board – • See page 5-49 for Waveforms. • See page 5-50 for IC Block Diagrams. • Semiconductor Location (Side A) Ref. No. Location Q101 C-7 Q102 B-7 Q104 A-12 Q107 B-9 Q109 B-9 Q113 C-8 Q123 A-12 Q124 A-12 IC101 A-8 IC102 B-8 IC103 C-7 IC105 B-11 IC108 C-5 IC110 C-1 • Semiconductor Location (Side B) Ref. No. Location 1-672-598- 05 (13) 13 VI-39 BOARD (SIDE A) C DK-39D BOARD CN401 20 1 A VS-39 BOARD CN1801 7 8 1 2 8 6 4 7 1 2 3 8 6 4 7 1 2 3 6 1 12 7 9 10 8 5 1 4 8 5 1 4 13 12 24 1 28 15 14 1 8 6 4 7 1 2 3 6 7 9 10 12 1 5 1 4 3 6 7 9 10 12 1 41 40 25 64 65 80 24 1 E E A B C D 1 2 3 4 5 6 7 8 9 10 11 12 1-672-598- 05 (13) 13 VI-39 BOARD (SIDE B) 2E 2C 2B 1B 1C 1E Q102,104,107, 109,123,124 CL129 CL106 CL105 1 2 3 4 5 6 7 8 9 10 11 12 A B C D (Page 5-13) (Page 5-23) (Page 5-13) (Page 5-25) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D513 H-19 D603 G-19 D604 G-19 IC401 F-5 IC406 G-10 IC505 G-18 IC506 F-15 IC508 D-10 IC511 E-14 IC515 E-14 Q401 F-4 Q402 F-2 Q403 E-2 Q404 E-2 Q405 F-2 Q406 E-2 Q407 E-2 Q408 E-3 Q409 F-3 Q410 D-3 Q411 E-3 Q412 E-3 Q413 F-3 Q416 E-4 5-20 5-21 5-22 5-23 5-24 5-13. PRINTED WIRING BOARD – DK-39D Board – • See page 5-11 for Circuit Boards Location. • Semiconductor Location (Side A) Ref. No. Location • Semiconductor Location (Side B) Ref. No. Location D400 F-7 D402 E-5 D601 E-19 D696 F-19 D697 F-19 D2000 F-19 D2100 B-4 IC403 F-8 IC404 C-2 IC407 G-10 IC501 G-19 IC502 G-17 IC503 F-15 IC504 D-10 IC509 G-12 IC510 E-15 IC513 E-15 IC514 E-14 IC2000 H-17 IC2001 H-17 IC2002 H-17 IC2100 B-3 IC2101 C-5 IC2102 D-5 Q2000 E-17 Q2100 D-5 • Waveforms – DK-39D Board – 1 IC401 ej (YMCK) 2 IC401 wj (AFH) 7 IC407 yf (YIN) 8 IC407 rd (V_OUT) 9 IC407 eh (U_OUT) 3 IC401 wd (BFP) q; IC407 wl (Y_OUT) 6 IC407 ud (UIN) qa IC407 w; (SYCX) 4 IC407 (ICKI) 5 IC407 is (VIN) qs IC407 ql (SC) qj IC2101 is (XA1) qd IC503 oh (EXTL) qh IC505 qd (XIN) qf IC503 (CK) qg IC505 ea (CK) DMP-1000 7.8 Vp-p 69 ns 5.2 Vp-p 64 µs 4.8 Vp-p 64 µs 7.2 Vp-p 69 ns 1 Vp-p H 1.6 Vp-p H 1.5 Vp-p H 0.7 Vp-p H 1 Vp-p H 1.2 Vp-p H 5.1 Vp-p H 6.8Vp-p 3.58 MHz 4.9 Vp-p 14.31818 MHz 6.2 Vp-p 35 ns 7.4 Vp-p 50 ns 1.4 Vp-p 20 MHz 4 Vp-p 16 MHz K K A 5 4 3 1 A K K 9 2 10 1 E 1 3 4 5 1 3 K A K A K K K K K A A 21 25 26 1 2 KI0 1-672-605- 05 (13) 13 DK-39D BOARD (SIDE A) E MD-39 BOARD CN1936 B FE-39 BOARD CN1881 FP-700 FLEXIBLE BOARD 1-661-552- 11 FLOPPY DISK DRIVE UNIT (CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS) D SW-39 BOARD (CN1701) HEAD901(1/2) THERMAL HEAD M M905 (POWER FAN) 4 5 1 3 A B C D E F G H 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 3 1 CN2000 MINI JACK BLOCK REMOTE CAPTURE 37 36 25 24 13 12 1 48 1 1 3 3 4 4 5 5 K K K K K K K K A A 1-672-605- 05 (13) 13 DK-39D BOARD (SIDE B) C B E 1C 2B 2E 1E 1B 2C Q401,405-410,416 Q402-404,411-413 C VI-39 BOARD CN102 CL408 CL407 CL409 CL492 A B C D E F G H 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 (Page 5-42) (Page 5-14) (Page 5-38) (Page 5-15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-25 5-26 5-27 5-28 5-29 5-14. SCHEMATIC DIAGRAM – DK-39D Board (1/3) – • See page 5-21 for Waveforms. • See page 5-51 for IC Block Diagram. (Page 5-35) (Page 5-34) (Page 5-19) (Page 5-34) (Page 5-30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-30 5-31 5-32 5-33 5-34 5-15. SCHEMATIC DIAGRAM – DK-39D Board (2/3) – • See page 5-21 for Waveforms. • See page 5-51 for IC Block Diagram. (Page 5-35) (Page 5-36) (Page 5-27) (Page 5-40) (Page 5-14) (Page 5-25) (Page 5-43) (Page 5-27) (Page 5-36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-35 5-36 5-16. SCHEMATIC DIAGRAM – DK-39D Board (3/3) – • See page 5-21 for Waveform. (Page 5-30) (Page 5-25) (Page 5-34) (Page 5-30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-37 5-38 5-17. PRINTED WIRING BOARD – SW-39 Board – • See page 5-11 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D1731 E-3 D1733 D-10 D1734 D-11 D1735 E-19 D1736 E-18 D1737 E-15 D1738 E-16 D1739 E-16 D1750 B-15 IC1700 B-16 Q1731 E-17 (Page 5-24) – 1 – 2 – 1 – 2 – 1 – 2 1-672-606- 05 (12) 12 SW-39 BOARD D DK-39D BOARD CN504 VIDEO FD SAVE PRINT CAPTURE D1737-1739 (PRINTING STATUS INDICATOR) E BT1700 LITHIUM BATTERY CLEAR ALL C ENTER PICTURE MEMORY INPUT S1719 INPUT SELECT S1702 MIRROR IMAGE SELECT S1720 DATE OFF V H OFF ON CLOCK SET MOTION STILL FD VIDEO POWER S1706-1708,1710-1715,1717,1718 S1701 ROTARY SWITCH (FUNCTION SELECT) 9 5 1 C 4 LN1701 9 8 7 6 5 2 1 3 4 FD LABEL INDEX (CHASSIS) A B C D E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-39 5-40 5-18. SCHEMATIC DIAGRAM – SW-39 Board – • See page 5-52 for IC Block Diagram. (Page 5-30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-41 5-42 5-19. PRINTED WIRING BOARDS – MD-39/JD-39/RD-39/HP-39 Boards – • See page 5-11 for Circuit Boards Location. • Semiconductor Location (Side A) Ref. No. Location D1901 F-4 Q1900 G-4 Q1903 B-4 • Semiconductor Location (Side B) Ref. No. Location D1903 H-3 IC1900 G-3 IC1901 E-2 IC1902 F-4 IC1903 F-3 Q1902 E-4 (Page 5-42) (Page 5-42) (Page 5-42) (Page 5-41) (Page 5-24) (Page 5-41) (Page 5-41) 1-672-603- 05 (13) 13 JD-39 BOARD (SIDE A) 1-672-603- 05 (13) 13 JD-39 BOARD (SIDE B) G MD-39 BOARD CN1935 PH1861 PH1861 JAMMING DETECT SENSOR 1-672-602- 05 (13) 13 MD-39 BOARD (SIDE A) F HP-39 BOARD CN1851 M E DK-39D BOARD CN501 M903 (RIBBON) K K A E E FP-703 FLEXIBLE BOARD 1-661-553- 11 PH903 RIBBON MARK1 SENSOR PH902 RIBBON MARK0 SENSOR PAPER EDGE SENSOR PH901 1-661-554- 11 (FOR CHECK) FP-700 FLEXIBLE BOARD 1-661-522- 11 PH905 RIBBON CODE1 SENSOR PH906 RIBBON CODE2 SENSOR PH902 PH903 PH904 PH905 PH906 FP-702 FLEXIBLE BOARD PH904 RIBBON CODE2 SENSOR 1 2 3 4 A B C D E F G H 1-672-602- (13) 13 MD-39 BOARD (SIDE B) G JD-39 BOARD CN1861 H RD-39 BOARD CN1871 M M901 (HEAD FAN) M M902 (HEAD) 1 14 7 8 1 14 7 8 18 1 9 8 E 05 A B C D E F G H 1 2 3 4 M M904 (PLATEN) POWER BLOCK (AC IN) HEAD901(2/2) THERMAL HEAD POWER 1-672-600- 05 (13) 13 RD-39 BOARD H MD-39 BOARD CN1932 S1871 (RIBBON DOOR DETECT) 1-672-601- 05 (13) 13 HP-39 BOARD F MD-39 BOARD CN1931 PH1851 HEAD POSITION1 SENSOR PH1852 HEAD POSITION0 SENSOR PH1852 PH1851 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-43 5-44 5-20. SCHEMATIC DIAGRAM – MD-39/JD-39/RD-39/HP-39 Boards – • See page 5-52 for IC Block Diagrams. 5-45 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. (Page 5-34) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DMP-1000 5-46 5-47 5-48 5-21. PRINTED WIRING BOARDS – Automatic Feeder Section – • See page 5-11 for Circuit Boards Location. C 1 2 5 6 M PRINTER FE-39 BOARD CN1882 J 1-659-936- 1-659-936- 1-659-937- 1-659-937- FR-35 BOARD FJ-23 BOARD (SIDE A) FJ-23 BOARD (SIDE B) FR-23 BOARD (SIDE B) FR-23 BOARD (SIDE A) 11 (11) 1-666-882- (CHASSIS) M101 (FEEDER) FP701 FLEXIBLE BOARD FEEDER POSITION SENSOR 2 3 5 10 15 1 30 SHEETS SET S100 A K K 11 (11) 21 (21) 11 (11) 11 (11) A B C D E F G H I 1 2 3 4 5 6 7 05 • Semiconductor Location Ref. No. Location D100 I-5 D101 I-4 D102 I-5 IC100 I-4 IC101 H-4 IC102 I-5 5-22. SCHEMATIC DIAGRAM – Automatic Feeder Section – • IC Block Diagrams IC101 SN74HC148ANSR IC102 LB1638 1 2 3 4 5 6 7 8 9 16 10 11 12 13 14 15 5 6 7 E1 A2 A1 EO VCC GS 3 2 1 0 A0 EO GS 3 2 1 0 5 4 6 7 E1 A2 A1 GND A0 4 INPUT OUTPUT OUTPUT INPUT OUTPUT 1 2 3 4 5 6 7 8 9 10 GND IN1 VCC IN2 GND N.C. OUT2 VS OUT1 N.C. CONTROL LOGIC (Page 5-14) (Page 5-14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-49 • Waveforms – VI-39 Board – 1 IC105 el (ACO), IC101 7 2 IC105 ea (AYO), IC102 7 3 IC105 wg (ADIN) 4 IC108 wg (VIDEO) 5 IC108 w; (R-Y) 6 IC108 ql (B-Y) 7 IC108 qk (SC OUT) 8 IC108 q; (VCXO) 9 IC108 5 (C IN) 0 IC103 w; (V OUT) qa IC103 q; (SYNC IN) qs IC103 6 (XO IN) 0.7 Vp-p H 1Vp-p H H 1.5 Vp-p 0.5 Vp-p H 1.1 Vp-p H 0.9 Vp-p H 0.7 Vp-p 3.58 MHz 1 Vp-p 14.318 MHz 0.4 Vp-p H H 2 Vp-p 5 Vp-p H 1 Vp-p 3.58 MHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-50 • IC Block Diagrams – VI-39 Board – IC101, 102 MM1113XFBE IC103 CXA1229AM-T6 SW2 VCC IN1 SW1 IN2 GND OUT IN3 1 2 3 4 5 6 7 8 BIAS SW SW BUFFER + REGULATOR 6 7 5 4 21 20 19 18 17 15 14 13 16 Y/C MIX VIDEO OUT B OUT SYNC SLICE SYNC OUT G OUT R OUT MATRIX CLAMP CLAMP CLAMP X'TAL OSC PHASE SHIFTER PULSE GENERATOR R-Y MODULATOR B-Y MODULATOR BUFFER 3 2 1 24 9 10 11 12 8 22 23 VCC1 C SYNC OUT C SYNC IN AUDIO OUT AUDIO IN NTSC/PAL IN XO IN XO OUT Y IN B-Y IN R-Y IN GND1 I REF V REF CHROMA OUT CHROMA IN Y IN VCC2 Y OUT C VIDEO OUT B OUT G OUT R OUT GND2 IC105 CXD2023Q C3 C4 C5 C6 C7 C8 C9 CA XYOE Y1 Y2 DVDD DVSS Y3 Y4 Y5 Y6 Y7 Y8 Y9 YA CVSS CIRF CVRF 40 CVG ACO 38 XACO 37 CVDD 36 VB 35 YVSS 34 YIRF 33 YVRF 32 YVG AYO 30 XAYO 29 YVDD 28 ADVD 27 RT 26 AAVD 25 ADIN 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 C2 C1 XCOE APON TEST TEST TST DVSS DVDD TEST TEST TEST TEST TEST BPF 80 TEST 1 V18 2 V17 3 V16 4 V15 5 V14 6 V13 7 V12 8 V11 9 ADCO 10 INSL 11 OCLK 12 DVSS 13 DVDD 14 CLKO 15 MCK 16 ADCK 17 CLPI 18 XCPON 19 ADVS 20 ICP 21 CRV 22 RB 23 GR 24 AAVS 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 43 42 41 ADAPTIVE FILTER OPARATION LOGIC OPARATION 64 44 ADC DAC BPF BPF BPF 1HDL 1HDL DAC + DL 39 31 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-51 IC108 M51271FP-70AD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 28 27 26 25 24 23 21 20 19 18 17 22 BGP PGW C OUT C CNT C IN BYPC ACCK REFV APC VCXO TIN VCXI GND B-Y IN NTSC PAL 90° 90° 180° 90° 270° SYNCO SLC FBC VIDEO HD BLK KFC KILF R-Y OUT B-Y OUT R-Y IN VCC SC NTSC/PAL COMP SYNC SEPARATOR COMP BURST GATE PULSE 2nd AMPLIFIER 1st AMPLIFIER ACC DETECTOR BURST GATE APC DETECTOR TINTO REFERENCE VOLTAGE ID PULSE B-Y DECODER R-Y DECODER ID KILLER DETECTOR 4FSC VCXO 1/4 COMP – DK-39D Board – IC406, 514 TC7W74FU 6 CLR 7 PR 8 VCC 5 Q R S Q 3 Q 2 D 4 GND 1 CK Q D C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-52 1 2 3 6 7 9 10 11 8 14 13 15 16 VZ1 IN4 IN1 OUT4 OUT1 VCC2 GND 12 GND VCC1 IN2 IN3 OUT2 5 GND 4 GND OUT3 VZ2 INPUT LOGIC BLOCK INPUT LOGIC BLOCK PRE DRIVER PRE DRIVER TSD IC1901 STA506A SWITCH SWITCH SWITCH SWITCH 1 2 3 4 5 6 7 8 9 10 1 2 4 3 5 6 7 14 13 11 2 10 9 8 1 OUT 2 OUT 2 IN– 2 IN+ 1 IN– 1 IN+ VCC 3 OUT 4 OUT 4 IN+ 4 IN– 3 IN+ 3 IN– GND IC1902 LM339NS-E20 1 2 3 4 5 6 7 8 9 18 17 16 15 12 11 10 I/O CONTROLLER CONTROL CIRCUIT DEVIDER VOLTAGE DETECT OUT PUT CONTROLLER OSC NC NC NC NC NC 14 VCC 13 NC CLK DATA FOUT NC NC NC FOE WR FSEL CE GND 32.768kHz SHIFT REGISTER CLOCK AND CALENDER – SW-39 Board – IC1700 RTC-4543SBB-L2 – MD-39 Board – IC1900 LB1644 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-53 5-23. IC PIN FUNCTION DESCRIPTION • DK-39D BOARD IC407 F432301PGF (A/D, D/A CONVERTER, MEMORY BUS CONTROL) Pin No. Pin Name I/O Description 1 MDT15 I/O Two-way data bus with the D-RAM (IC403) (upper 8 bit) 2 DGND — Ground terminal (logic system) 3 DVCC — Power supply terminal (+5V) (logic system) 4, 5 MAD11, MAD10 O Address signal output terminal Not used (open) 6 to11 MAD9 to MAD4 O Address signal output to the D-RAM (IC403) 12 DGND — Ground terminal (logic system) 13 to16 MAD3 to MAD0 O Address signal output to the D-RAM (IC403) 17 DGND — Ground terminal (logic system) 18 DVCC — Power supply terminal (+5V) (logic system) 19 SC O Sub carrier output to the CXA1229M (IC103) 20 SYCX O Composite sync signal output to the CXA1229M (IC103) 21 DVCC — Power supply terminal (+5V) (logic system) 22 DGND — Ground terminal (logic system) 23 AGND — Ground terminal (D/A converter, analog system) 24 BIAS1 I/O Bias control terminal of the D/A converter 25 COMP1 I/O Comparator in/out terminal of the D/A converter 26 VREF1 I Reference voltage (+3V) input terminal Used for the D/A output level adjustment of luminance signal (Y signal) 27 IREF1 I/O Reference current control terminal 28 AVCC — Power supply terminal (+5V) (D/A converter, analog system) 29 Y OUT O Analog Y signal output terminal (luminance signal output terminal) 30 AGND — Ground terminal (D/A converter, analog system) 31 BIAS2 I/O Bias control terminal of the D/A converter 32 COMP2 I/O Comparator in/out terminal of the D/A converter 33 VREF2 I Reference voltage (+3V) input terminal Used for the D/A output level adjustment of chroma signal 34 IREF2 I/O Reference current control terminal 35 AVCC — Power supply terminal (+5V) (D/A converter, analog system) 36 U OUT O Analog U signal output terminal (B-Y color difference signal output terminal) 37 AGND — Ground terminal (D/A converter, analog system) 38 BIAS3 I/O Bias control terminal of the D/A converter 39 COMP3 I/O Comparator in/out terminal of the D/A converter 40 VREF3 I Reference voltage (+3V) input terminal Used for the D/A output level adjustment of chroma signal 41 IREF3 I/O Reference current control terminal 42 AVCC — Power supply terminal (+5V) (D/A converter, analog system) 43 V OUT O Analog V signal output terminal (R-Y color difference signal output terminal) 44 DGND — Ground terminal (logic, digital system) 45 TI CHK I Test input terminal (normally: fixed at “L”) 46 LDX I Test input terminal (normally: fixed at “L”) 47 RESV I Reset signal input for the internal SG V “H”: reset Not used (fixed at “L”) 48 SYET O Sync selection signal output at external reading Not used (open) 49 EXET O Internal/external selection signal output terminal Not used (open) 50 CGEEX O EE, WR/READ select signal output to the video input circuit (IC101, 102) and Y/C separator (IC105) 51 RESX I System reset signal input from the reset signal generator (IC501) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-54 Pin No. Pin Name I/O Description 52 TSTC I 53 TSTB I 54 TSTA I 55 TST2 I 56 TST1 I 57 TST0 I 58 DVCC — Power supply terminal (+5V) (logic system) 59 DVCC — Power supply terminal (+5V) (A/D converter, digital system) 60 AGND — Ground terminal (A/D converter, analog system) 61 VRT1 I Reference voltage (top side) input of the A/D converter 62 VRTS1 O Reference voltage (top side) output of the A/D converter Generated 3V at connected to VRT1 (pin ya) 63 AVCC — Power supply terminal (+5V) (A/D converter, analog system) 64 Y IN I Analog Y signal input terminal (luminance signal input terminal) 65 VRBS1 O Reference voltage (bottom side) output of the A/D converter Generated 1V at connected to VRB1 (pin yh) 66 VRB1 I Reference voltage (bottom side) input of the A/D converter 67 DGND — Ground terminal (A/D converter, digital system) 68 DVCC — Power supply terminal (+5V) (A/D converter, digital system) 69 AGND — Ground terminal (A/D converter, analog system) 70 VRT2 I Reference voltage (top side) input of the A/D converter 71 VRTS2 O Reference voltage (top side) output of the A/D converter Generated 3V at connected to VRT2 (pin u;) 72 AVCC — Power supply terminal (+5V) (A/D converter, analog system) 73 U IN I Analog U signal input terminal (B-Y color difference signal input terminal) 74 VRBS2 O Reference voltage (bottom side) output of the A/D converter Generated 1V at connected to VRB2 (pin ug) 75 VRB2 I Reference voltage (bottom side) input of the A/D converter 76 DGND — Ground terminal (A/D converter, digital system) 77 DVCC — Power supply terminal (+5V) (A/D converter, digital system) 78 AGND — Ground terminal (A/D converter, analog system) 79 VRT3 I Reference voltage (top side) input of the A/D converter 80 VRTS3 O Reference voltage (top side) output of the A/D converter Generated 3V at connected to VRT3 (pin ul) 81 AVCC — Power supply terminal (+5V) (A/D converter, analog system) 82 V IN I Analog V signal input terminal (R-Y color difference signal input terminal) 83 VRBS3 O Reference voltage (bottom side) output of the A/D converter Generated 1V at connected to VRB3 (pin if) 84 VRB3 I Reference voltage (bottom side) input of the A/D converter 85 DGND — Ground terminal (A/D converter, digital system) 86 DGND — Ground terminal (logic system) 87 DVCC — Power supply terminal (+5V) (logic system) 88 EVD I Vertical drive data input from the CXD1229Q (IC401) 89 EHD I Horizontal drive data input from the CXD1229Q (IC401) 90 ECK I Serial clock signal input from the CXD1229Q (IC401) 91 EEVN I E/O input from the CXD1229Q (IC401) 92 MNT4 O Test monitor output terminal (normally: open) 93 MNT3 O Test monitor output terminal (normally: open) Test input terminal (normally: fixed at “L”) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-55 Pin No. Pin Name I/O Description 94 MNT2 O Test monitor output terminal (normally: open) 95 MNT1 O Test monitor output terminal (normally: open) 96 DVCC — Power supply terminal (+5V) (logic system) 97 PCSX O Chip select signal output to the mechanism controller (IC505) 98 DCSX O Chip select signal output terminal Not used (open) 99 SVW I Data write end latch pulse input from the system controller (IC503) 100 VRSR I Refresh stop request input from the system controller (IC503) 101 DGND — Ground terminal (logic system) 102 SVBK O V blanking interrupt signal output to the system controller (IC503) 103 STRS O Busy signal output to the system controller (IC503) 104 BSH O Status (CPU emancipation of memory bus) output to the system controller (IC503) 105 SRDX I Data read enable signal input from the system controller (IC503) 106 SWEX I Data write enable signal input from the system controller (IC503) 107 SC6X I Chip select signal input from the system controller (IC503) 108 SHWX O CPU D-RAM access wait control signal output to the system controller (IC503) 109 SRSX I Row address strobe signal input from the system controller (IC503) 110 SCSX I Column address strobe signal input from the system controller (IC503) 111 DGND — Ground terminal (logic system) 112 DVCC — Power supply terminal (+5V) (logic system) 113 ICKI I System clock signal (for INT SG) input from the system controller (IC503) 114 ICKO O System clock signal output terminal Not used (open) 115 XGND — Ground terminal (crystal system) 116 XOUT O System clock signal output terminal Not used (open) 117 XIN I System clock signal input terminal Not used (fixed at “L”) 118, 119 DGND — Ground terminal (logic system) 120 SADB I Address signal input for the chip select signal generate Connected to address bus (A14) 121 SADA I Address signal input for the chip select signal generate Connected to address bus (A13) 122 DGND — Ground terminal (logic system) 123 MRSX O Row address strobe signal output to the D-RAM (IC403) 124 MCSX O Column address strobe signal output to the D-RAM (IC403) 125 MWEX O Write enable signal output to the D-RAM (IC403) 126 DVCC — Power supply terminal (+5V) (logic system) 127 to138 SAD11 to SAD0 I Address signal input from the system controller (IC503) 139 DGND — Ground terminal (logic system) 140 to147 SDT15 to SDT8 I/O Two-way data bus with the system controller (IC503), mechanism controller (IC505) and D-RAM (IC509) (upper 8 bit) 148 DGND — Ground terminal (logic system) 149 DVCC — Power supply terminal (+5V) (logic system) 150 to157 SDT7 to SDT0 I/O Two-way data bus with the system controller (IC503), mechanism controller (IC505), flash memory (IC506), D-RAM (IC509) and floppy disk drive controller (IC2101) (lower 8 bit) 158 DGND — Ground terminal (logic system) 159 DVCC — Power supply terminal (+5V) (logic system) 160 to167 MDT0 to MTD7 I/O Two-way data bus with the D-RAM (IC403) (lower 8 bit) 168 DGND — Ground terminal (logic system) 169 DVCC — Power supply terminal (+5V) (logic system) 170 to176 MDT8 to MTD14 I/O Two-way data bus with the D-RAM (IC403) (upper 8 bit) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-56 • DK-39D BOARD IC503 HD64F7045F28S621 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 BSH I Status (CPU emancipation of memory bus) input from the A/D, D/A converter (IC407) 2 NC — Not used (open) 3 VRSR O Refresh stop request output to the A/D, D/A converter (IC407) 4 VWR O Internal register data write end latch pulse output to the A/D, D/A converter (IC407) 5 VTRS I Busy signal input from the A/D, D/A converter (IC407) 6 VSS — Ground terminal 7 A0 O Address signal output to the flash memory (IC506) and floppy disk drive controller (IC2101) 8 to 11 A1 to A4 O Address signal output to the A/D, D/A converter (IC407), mechanism controller (IC505), flash memory (IC506) and D-RAM (IC509) 12 VCC — Power supply terminal (+5V) 13 A5 O Address signal output to the A/D, D/A converter (IC407), mechanism controller (IC505), flash memory (IC506) and D-RAM (IC509) 14 VSS — Ground terminal 15 to 21 A6 to A12 O Address signal output to the A/D, D/A converter (IC407), mechanism controller (IC505), flash memory (IC506) and D-RAM (IC509) 22, 23 A13, A14 O Address signal output to the A/D, D/A converter (IC407) and flash memory (IC506) 24, 25 A15, A16 O Address signal output to the flash memory (IC506) 26 VCC — Power supply terminal (+5V) 27 A17 O Address signal output to the flash memory (IC506) 28 VSS — Ground terminal 29 EEPROM CS O Chip select signal output to the EEPROM (IC2002) “L”: select 30 EEPROM RESET O Reset signal output to the EEPROM (IC2002) “L”: reset 31 XRAS O Row address strobe signal output terminal “L” active 32 XCASL O Lower byte column address strobe signal output to the D-RAM (IC509) “L” active 33 PD I LVD signal input from the EEPROM (IC2002) 34 XCASH O Upper byte column address strobe signal output to the D-RAM (IC509) “L” active 35 VSS — Ground terminal 36 RDWR O Data write enable signal output to the D-RAM (IC509) 37, 38 A18, A19 O Address signal output terminal Not used 39 FDC INT I Interrupt request signal input from the floppy disk drive controller (IC2101) 40 VCC — Power supply terminal (+5V) 41 SWAY COMPEN I INPUT SELECT switch (S1719) input terminal “L”: VIDEO MOTION, “H”: FD or VIDEO STILL 42 VSS — Ground terminal 43 XRD O Data read enable signal output terminal “L” active 44 XWDTOVF O Watch dog timer overflow output terminal 45 TIMER WR O Data write enable signal output to the timer (IC1700) 46 TIMER CE O Chip enable signal output to the timer (IC1700) 47 TESTO O Job output terminal (open) 48 XWR O Data write enable signal output terminal “L” active 49 XCS1 O Chip select signal output terminal Not used 50 XCS0 O Chip select signal output to the A/D, D/A converter (IC407) 51 FD/VIDEO SEL I INPUT SELECT switch (S1719) input terminal “L”: FD, “H”: VIDEO MOTION or VIDEO STILL 52 3.3V O 3.3V/5V selection signal output terminal Not used (open) 53 FDC CS O Chip select signal output to the floppy disk drive controller (IC2101) 54 CP O CP signal output terminal Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-57 Pin No. Pin Name I/O Description 55 VSS — Ground terminal 56 CS O Chip select signal output terminal Not used (open) 57 FLASH O Chip select signal output to the flash memory (IC506) “L” active 58 XACK O Acknowledge signal output terminal Not used 59 FDC DMA ACK O DMA acknowledge signal output to the floppy disk drive controller (IC2101) 60 STB I Strobe signal input terminal Not used 61 VSS — Ground terminal 62 IR-DRQ — Not used (open) 63 VCC — Power supply terminal (+5V) 64 MAC-HSKI I HSKI input terminal Not used 65 CD I Control signal input terminal Not used (fixed at “L”) 66 IR-IRQ I Not used (fixed at “L”) 67 VBLK I V blanking signal input from the A/D, D/A converter (IC407) “L” active 68 XSTB I Strobe signal input terminal Not used 69 RESET FDC O Reset signal output to the floppy disk drive controller (IC2101) “L”: reset 70 R/B I R/B select signal input terminal Not used (open) 71 VSS — Ground terminal 72 FDD READY OUT O Ready signal output to the floppy disk drive controller (IC2101) and floppy disk drive unit 73 to 76 D15 to D12 I/O Two-way data bus with the A/D, D/A converter (IC407), mechanism controller (IC505) and D-RAM (IC509) (upper 8 bit) 77 VCC — Power supply terminal (+5V) 78 D11 I/O Two-way data bus with the A/D, D/A converter (IC407), mechanism controller (IC505) and D-RAM (IC509) (upper 8 bit) 79 VSS — Ground terminal 80 to 82 D10 to D8 I/O Two-way data bus with the A/D, D/A converter (IC407), mechanism controller (IC505) and D-RAM (IC509) (upper 8 bit) 83, 84 D7, D6 I/O Two-way data bus with the A/D, D/A converter (IC407), mechanism controller (IC505), flash memory (IC506), D-RAM (IC509) and floppy disk drive controller (IC2101) (lower 8 bit) 85 VCC — Power supply terminal (+5V) 86 D5 I/O Two-way data bus with the A/D, D/A converter (IC407), mechanism controller (IC505), flash memory (IC506), D-RAM (IC509) and floppy disk drive controller (IC2101) (lower 8 bit) 87 VSS — Ground terminal 88 to 92 D4 to D0 I/O Two-way data bus with the A/D, D/A converter (IC407), mechanism controller (IC505), flash memory (IC506), D-RAM (IC509) and floppy disk drive controller (IC2101) (lower 8 bit) 93 VSS — Ground terminal 94 XTL I System clock input terminal (7.159 MHz) 95 MD3 I Setting terminal for the CPU operational mode (fixed at “H” in this set) 96 EXTL O System clock output terminal (7.159 MHz) 97 MD2 I Setting terminal for the CPU operational mode (fixed at “L” in this set) 98 XINIT I Interrupt input terminal Not used (fixed at “L”) 99 VCC/FWP O Control signal output for the EEPROM communication bus 100 RESET/WP O Wakeup control signal output terminal Not used (open) 101 XWAIT I Wait control input from the A/D, D/A converter (IC407) “L” active 102 MD1/BOOT I Setting terminal for the CPU operational mode (fixed at “H” in this set) 103 MD0 I Setting terminal for the CPU operational mode (fixed at “L” in this set) 104 PLL VCC — Power supply terminal (+5V) (PLL system) 105 PLL CAP I Connected to capacitor for the PLL 106 PLL VSS — Ground terminal (PLL system) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-58 Pin No. Pin Name I/O Description 107 CK O System clock signal output to the A/D, D/A converter (IC407) (for INT SG) 108 XRES I System reset signal input from the reset signal generator (IC501) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 109 FDD DMA RQ I DMA request signal input from the floppy disk drive controller (IC2101) 110 BUZZER O Buzzer drive signal output terminal 111 G2 O Not used (open) 112 VCC — Power supply terminal (+5V) 113 FDD DRIVE SELECT 0 O Drive select 0 control signal output to the floppy disk drive unit 114 FDD DISK CHANGE I Disk change control signal input from the floppy disk drive unit 115 FDD DENSITY OUT O Density control signal output to the floppy disk drive unit 116 FDD MOTOR ON O Motor on/off control signal output to the floppy disk drive unit 117 VSS — Ground terminal 118 KEY0 I Key input (A/D input) or REMOTE CAPTURE jack input terminal S1706, 1714, 1715, 1718 (PRINT, SAVE VIDEO B FD, CLOCK SET, CLEAR ALL C keys input) 119 KEY1 I Key input (A/D input) or REMOTE CAPTURE jack input terminal S1707, 1708, 1710 to 1713, 1717 (CAPTURE, PICTURE, g, G, f, F, ENTER keys input) 120 KEY2 I Rotary switch (S1701) input for the function select 121 HEADTMP I Temperature detect input from the thermal-head (HEAD901) 122 PPEDG I Paper edge detection sensor (PH901) input terminal 123 JDET I Paper jamming detection sensor (PH1861) input terminal 124 AVSS — Ground terminal (for A/D converter) 125 RMARK0 I Ribbon mark (0) detection sensor (PH902) input terminal 126 RMARK1 I Ribbon mark (1) detection sensor (PH903) input terminal 127 AVREF I Reference voltage (+5V) input terminal (for A/D converter) 128 AVCC — Power supply terminal (+5V) (for A/D converter) 129 VSS — Ground terminal 130 TIMER RXD I Serial receive data input from the timer (IC1700) 131 TIMER TXD O Serial transmit data output to the timer (IC1700) 132 TIMER SCK O Serial data transfer clock signal output to the timer (IC1700) 133 EEPROM RXD I Serial receive data input from the EEPROM (IC2002) 134 EEPROM TXD O Serial transmit data output to the EEPROM (IC2002) 135 VCC — Power supply terminal (+5V) 136 EEPROM SCK O Serial clock signal output to the EEPROM (IC2002) 137 FDC TC O Terminal count signal output to the floppy disk drive controller (IC2101) 138 STP1 O Stepping pulse (1) output for the platen motor (M904) 139 STP2 O Stepping pulse (2) output for the platen motor (M904) 140 STP3 O Stepping pulse (3) output for the platen motor (M904) 141 VSS — Ground terminal 142 STP4 O Stepping pulse (4) output for the platen motor (M904) 143 RAS-CNT O Selection signal output of the row address strobe signal 144 FDD READY IN I Ready signal input from the floppy disk drive controller (IC2101) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-59 • DK-39D BOARD IC505 HG51BS263AFB (HEAD CONTROLLER, MECHANISM CONTROLLER) Pin No. Pin Name I/O Description 1 FKEY0 I Sheets bit (0) input from the auto feeder unit 2 FEEDER I Auto feeder unit desorption detect input terminal “L”: attach, “H”: removed 3 FPS I Auto feeder unit position detect sensor input terminal 4 BUSY I/O Busy signal in/out terminal Connected to TMGE (pin wh) 5 HPS0 I Head position (0) detect sensor (PH1852) input terminal 6 HPS1 I Head position (1) detect sensor (PH1851) input terminal 7 IVO2 O Not used (open) 8 IVO1 O Not used (open) 9 IVI2 I Not used (fixed at “L”) 10 IVI1 I Not used (fixed at “L”) 11 IVEN I Not used (fixed at “L”) 12 GND — Ground terminal 13 XIN I System clock input terminal (20 MHz) 14 XOUT O System clock output terminal (20 MHz) 15 VCC — Power supply terminal (+5V) 16 AC T I Not used (fixed at “H”) 17 AC W I Not used (fixed at “H”) 18 CALC O Not used (open) 19 DRVX O Strobe signal output to the thermal-head (HEAD901) “L”: power on 20 PDT3 O Printing data (3) output to the thermal-head (HEAD901) 21 PDT2 O Printing data (2) output to the thermal-head (HEAD901) 22 PDT1 O Printing data (1) output to the thermal-head (HEAD901) 23 PDT0 O Printing data (0) output to the thermal-head (HEAD901) 24 LATX O Serial data latch pulse output to the thermal-head (HEAD901) 25 HDCK O Serial data transfer clock signal output to the thermal-head (HEAD901) 26 TMGE I/O Timing pulse in/out terminal Connected to BUSY (pin 4) 27 DRQX O Not used (open) 28 CKO O Clock signal output terminal (20 MHz) 29 VCC — Power supply terminal (+5V) 30 GND — Ground terminal 31 CK I Clock signal input terminal (20 MHz) Connected to CKO (pin wk) 32 DTRX I Not used (fixed at “L”) 33 TMG I Timing pulse input terminal Connected to TMG (pin of) 34 PSTX I Print start signal input terminal Connected to PSTX (pin og) 35 RESX I System reset signal input from the reset signal generator (IC501) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 36 RDX I Data read enable signal input from the system controller (IC503) “L” active 37 WEX I Data write enable signal input from the system controller (IC503) “L” active 38 VCC — Power supply terminal (+5V) 39 CS1X I Chip select signal input from the A/D, D/A converter (IC407) “L” active 40 CUTEX I Address signal input for the chip select signal generate Connected to address bus (A12) 41 REGX I Address signal input for the chip select signal generate Connected to address bus (A11) 42 to 51 AD10 to AD1 I Address signal input from the system controller (IC503) 52 VCC — Power supply terminal (+5V) 53 GND — Ground terminal 54 to 61 DT15 to DT8 I/O Two-way data bus with the A/D, D/A converter (IC407), system controller (IC503) and D-RAM (IC509) (upper 8 bit) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-60 Pin No. Pin Name I/O Description 62, 63 GND — Ground terminal 64 to 71 DT7 to DT0 I/O Two-way data bus with the A/D, D/A converter (IC407), system controller (IC503), flash memory (IC506), D-RAM (IC509) and floppy disk drive controller (IC2101) (lower 8 bit) 72 GND — Ground terminal 73 VCC — Power supply terminal (+5V) 74 RIBBON-LED O LED drive signal output of the ribbon error indicator (D1735) “L”: LED on 75 INP-LED O LED drive signal output of the INPUT indicator (D1733) “L”: LED on 76 MEM-LED O LED drive signal output of the MEMORY indicator (D1734) “L”: LED on 77 PRN-LED O LED drive signal output of the printing status indicator (D1737 to D1739) “H”: LED on 78 CARD-LED O LED drive signal output terminal “L”: LED on Not used (open) 79 PAPER-LED O LED drive signal output of the paper replacement indicator (D1736) “L”: LED on 80 POWER-LED O LED drive signal output of the POWER indicator (D1731) “L”: LED on 81 STPLOW O Low/high speed control signal output for the platen motor (M904) 82 DATE (PWSW) I DATE switch (S1720) input terminal “L”: on, “H”: off 83 FAN O Head fan motor (M901) drive signal output terminal “H”: motor on 84 FMTRCW O Motor drive signal (CW) output for the auto feeder unit “H” active 85 FMTRCCW O Motor drive signal (CCW) output for the auto feeder unit “H” active 86 HMTRCW O Head up/down motor (M902) drive signal (CW) output terminal “H” active 87 HMTRCCW O Head up/down motor (M902) drive signal (CCW) output terminal “H” active 88 VCC — Power supply terminal (+5V) 89 RMTRCW O Ribbon motor (M903) drive signal (CW) output terminal “H” active 90 RMTRCCW O Ribbon motor (M903) drive signal (CCW) output terminal “H” active 91 PC I MIRROR IMAGE SELECT switch (S1702) input terminal “L”: V, “H”: H or OFF 92 MAVICA PRINT I MIRROR IMAGE SELECT switch (S1702) input terminal “L”: H, “H”: V or OFF 93 VMUTE — Not used (open) 94 TMG O Timing pulse output terminal Connected to TMG (pin ed) 95 PSTX O Print start signal output terminal Connected to PSTX (pin ef) 96 RCODE2 I Ribbon code (2) detect sensor (PH904) input terminal 97 RCODE1 I Ribbon code (1) detect sensor (PH905) input terminal 98 RCODE0 I Ribbon code (0) detect sensor (PH906) input terminal 99 FKEY2 I Sheets bit (2) input from the auto feeder unit 100 FKEY1 I Sheets bit (1) input from the auto feeder unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-61 • DK-39D BOARD IC2101 µPD72069GF-3BA (FLOPPY DISK DRIVE CONTROLLER) Pin No. Pin Name I/O Description 1 NC — Not used (open) 2 GND3 — Ground terminal (buffer system) 3 NC — Not used (open) 4 EM2 O Spindle motor on/off control signal output of the drive unit Not used (open) 5 EM1 O Spindle motor on/off control signal output of the drive unit Not used (open) 6 GND3 — Ground terminal (buffer system) 7 EM0 O Spindle motor on/off control signal output of the drive unit Not used (open) 8 DIR O Signal specifying the seek direction is output to the floppy disk drive unit “L”: centripetal direction, “H”: centrifugal direction 9 GND3 — Ground terminal (buffer system) 10 STEP O Signal generating seek pulses is output to the floppy disk drive unit 11 WDATA O Written data output to the floppy disk drive unit 12 GND3 — Ground terminal (buffer system) 13 WE O Signal specifying data writing to drive is output to the floppy disk drive unit 14 ENIDX I Signal that makes INDEX signal and RDATA signal active is input from the floppy disk drive unit Fixed at “L” in this set 15 NC — Not used (open) 16 VDD2 — Power supply terminal (+5V) (analog system) 17 NC — Not used (open) 18 CGP1 O Phase error in sub PLL system is output 19 NC — Not used (open) 20 CGP2 O Phase error in sub PLL system is output 21 GND2 — Ground terminal (analog system) 22 LPF1 O Phase error in main PLL system is output 23 LPF2 O Phase error in main PLL system is output 24 TRK0 I Signal showing that the head of drive positions at cylinder 0 is input from the floppy disk drive unit 25 NC — Not used (open) 26 WPRT I Signal showing that the medium is in write protect status is input from the floppy disk drive unit 27 RDATA I Read data input from the floppy disk drive unit 28, 29 NC — Not used (open) 30 READY I Signal showing that the drive is ready is input from the floppy disk drive unit 31 2SIDE I Signal showing that a both sided medium is inserted in the drive is input Not used (fixed at “L”) 32 FLT I Signal showing that the drive is in fault status is input Not used (fixed at “H”) 33 ENPCS I Not used (fixed at “L”) 34 ACTL I Initial setting signal to select active level of drive interface signal is input Fixed at “H” in this set (Set the active level is “L”) 35 MSEL I Not used (fixed at “L”) 36 SIDE O Signal selecting the head of both sided drive is output to the floppy disk drive unit 37 GND3 — Ground terminal (buffer system) 38 FLTR O Signal to reset the drive fault status is output Not used (open) 39 HDLD O Signal setting the head of drive in load status is output Not used (open) 40 GND3 — Ground terminal (buffer system) 41 LCT O Signal showing that the head of drive positions at the inside from No. 43 cylinder is output Not used (open) 42, 43 VDD1 — Power supply terminal (+5V) (digital system) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-62 Pin No. Pin Name I/O Description 44 NC — Not used (open) 45 RESET I Reset signal input from the system controller (IC503) “L”: reset 46 RD I Data read strobe signal input from the system controller (IC503) 47 WR I Data write strobe signal input from the system controller (IC503) 48 ENRW I Not used (open) 49 RSEL I Not used (open) 50 CS I Chip select signal input from the system controller (IC503) Signal that makes RD, WR signals of FDC active is input 51 A0 I Address signal input from the system controller (IC503) 52 to 54 NC — Not used (open) 55, 56 GND1 — Ground terminal (digital system) 57 to 60 D0 to D3 I/O Two-way data bus with the A/D, D/A converter (IC403), system controller (IC503), mechanism controller (IC505), flash memory (IC506) and D-RAM (IC509) 61 GND3 — Ground terminal (buffer system) 62, 63 D4, D5 I/O Two-way data bus with the A/D, D/A converter (IC403), system controller (IC503), mechanism controller (IC505), flash memory (IC506) and D-RAM (IC509) 64 NC — Not used (open) 65 D6 I/O Two-way data bus with the A/D, D/A converter (IC403), system controller (IC503), mechanism controller (IC505), flash memory (IC506) and D-RAM (IC509) 66 NC — Not used (open) 67 D7 I/O Two-way data bus with the A/D, D/A converter (IC403), system controller (IC503), mechanism controller (IC505), flash memory (IC506) and D-RAM (IC509) 68 DMARQ O Data transfer request signal in DMA mode is output to the system controller (IC503) 69 DMAAK I Data register select signal in DMA cycle is input from the system controller (IC503) 70 TC I Signal showing the completion of data transfer to a floppy disk is input from the system controller (IC503) (Active when final byte of data is transferred) 71 INT O Signal notifying that a cause of interruption occurred in host system is output to the system controller (IC503) 72 FMT I Not used (fixed at “L”) 73 DR0 I Not used (fixed at “L”) 74 DR1 I Not used (fixed at “L”) 75 DR2 I Not used (fixed at “H”) 76 INDEX I Signal showing that the head of drive positions at physical start point of tracks on a medium is input from the floppy disk drive unit 77 NC — Not used (open) 78 PCS0 I Not used (fixed at “H”) 79 NC — Not used (open) 80 PCS1 I Not used (fixed at “L”) 81 GND3 — Ground terminal (buffer system) 82 XA1 I Main system clock input terminal (16 MHz) 83 XA2 O Main system clock output terminal (16MHz) 84 NC — Not used (open) 85 GND1 — Ground terminal (digital system) 86 XB1 I Clock input terminal 87 XB2 O Clock output terminal Not used (open) 88 NC — Not used (open) 89, 90 GND1 — Ground terminal (digital system) 91 DEN0 O Value corresponding to the set data transfer rate is output Not used (open) 92 GND3 — Ground terminal (buffer system) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-63 Pin No. Pin Name I/O Description 93 DEN1 O Value corresponding to the set data transfer rate is output Not used (open) 94 DS3 O Drive select signal is output Not used (open) 95 GND3 — Ground terminal (buffer system) 96 DS1 O Drive select signal is output Not used (open) 97 DS2 O Drive select signal is output Not used (open) 98 GND3 — Ground terminal (buffer system) 99 DS0 O Drive select signal is output Not used (open) 100 EM3 O Spindle motor on/off control signal output of the drive unit Not used (open) 5-63 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-1 (1) UPPER CABINET SECTION SECTION 6 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 3-946-346-01 SCREW (+BV) (2.6X8), TAPPING * 2 4-639-927-03 BRACKET, FD 3 3-719-381-31 SCREW (M2X3) 4 1-759-644-21 DRIVE, FLOPPY DISK (3.5inch) 5 1-790-360-11 CABLE, FLAT (DKFD39) 6 X-4622-519-1 CABINET ASSY, UPPER 7 4-639-920-21 DIAL 8 4-639-919-01 HOLDER, DIAL 9 1-790-361-11 CABLE, FLAT (DKSW39) 10 A-8054-962-A SW-39 MOUNT * 11 4-639-921-01 REINFORCEMENT, BUTTON 12 3-971-519-01 RAIL (L), FEEDER 13 3-971-530-01 RAIL (R), FEEDER * 14 X-4622-018-3 BRACKET ASSY, FD 15 4-640-196-01 BUTTON, FD EJECT 16 1-500-169-11 CORE (FPC) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 6 7 8 9 16 10 11 1 13 1 1 12 #2 #2 1 1 3 2 14 3 4 1 15 5 1 1 not supplied DK-39D/VI-39 board section not supplied mechanism deck section escutcheon (60) section #2 7-685-651-79 SCREW +BVTP3X20 TYPE2 IT-3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-2 (2) DK-39D/VI-39 BOARD SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-8056-571-A DK-39D COMPLETE PWB * 52 4-639-317-01 INSULATED PLATE, VI 53 1-783-919-11 CABLE, FLAT (VIDK20) 54 3-946-346-01 SCREW (+BV) (2.6X8), TAPPING 55 A-8054-965-A VI-39 COMPL * 56 4-639-184-01 SHIELD, VI * 57 4-638-736-01 SPRING, JACK GROUND * 58 4-639-930-02 BRACKET, JK 54 53 55 56 54 57 58 not supplied not supplied 51 52 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-3 (3) MECHANISM DECK SECTION-1 117 118 119 120 121 122 124 123 122 125 126 127 128 129 122 109 122 113 114 115 116 131 110 111 112 108 103 104 105 106 107 102 101 108 130 #3 #3 #3 #3 #3 #4 #5 M901 #13 M903 135 134 133 136 M904 not supplied not supplied not supplied #3 7-685-862-09 SCREW +BVTT2.6X6 (S) #4 7-628-253-05 SCREW +PS2X4 #5 7-624-105-04 STOP RING 2.3, TYPE-E #13 7-685-536-19 SCREW +BTP2.6X12 TYPE2N-S Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-639-928-11 GUIDE, CASSETTE ENTRANCE 102 3-971-511-05 GUIDE, PAPER 103 3-971-507-03 SPRING, PAPER GUIDE 104 3-971-505-03 SHAFT (D) 105 3-971-504-04 RETAINER, PAPER 106 3-971-508-01 SPRING, SEPARETION GUIDE 107 3-971-506-02 SHAFT (E) 108 4-995-081-01 LATCH, DC 109 3-971-435-01 WHEEL, WORM 110 3-945-884-01 SCREW (2X5) 111 3-971-509-51 ESCUTCHEON (A) 112 3-971-503-02 GUIDE, SEPARETION 113 A-7093-413-A REEL BLOCK ASSY, T * 114 X-3946-402-2 BRACKET ASSY, MOTOR 115 3-971-501-01 BELT, TN * 116 A-7092-969-A PLATE BLOCK ASSY, SP MOTOR 117 3-971-460-01 SPRING (PM), TENSION 118 1-661-552-11 FP-700 FLEXIBLE BOARD 119 1-543-936-11 CORE (FPC) 120 A-8054-958-A MD-39 MOUNT 121 3-971-439-02 GEAR, LIMITTER 122 4-926-219-02 RING (DIA. 2.3), RETAINING 123 3-973-467-02 GEAR (A), PENDULUM 124 A-7018-291-B ARM BLOCK ASSY, PENDULUM 125 3-973-516-01 FELT, R 126 3-973-470-01 SLEEVE 127 3-973-515-01 SPRING (S TENSION), COMPRESSION 128 A-7018-290-B REEL BLOCK ASSY, S 129 3-701-439-21 WASHER * 130 3-050-965-05 HOLDER, FAN 131 3-951-872-01 SCREW (2.6X6) 133 1-956-625-31 HARNESS (HH-C00-010-BB) 134 4-640-655-01 CUSHION, FAN 135 1-956-195-21 HARNESS (RM-33) 136 3-971-473-11 GEAR, WORM M901 1-763-018-21 FAN, DC (HEAD FAN) * M903 A-7092-966-A MOTOR BLOCK ASSY, REEL (RIBBON) M904 1-698-790-11 MOTOR, DC (STEPPING MOTOR) (PLATEN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-4 (4) MECHANISM DECK SECTION-2 157 156 158 159 155 161 160 162 161 163 164 158 165 151 152 153 154 158 166 167 168 #6 #7 #3 #7 #3 not supplied not supplied not supplied 170 #3 #3 #3 #8 #8 #8 169 M902 #3 7-685-862-09 SCREW +BVTT2.6X6 (S) #6 7-685-852-04 SCREW +BVTT2X5 (S) #7 7-685-103-19 SCREW +P2X5 TYPE2 NON-SLIT #8 7-682-645-01 SCREW +PS3X4 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 3-971-488-02 GUIDE, PAPER 152 3-971-484-06 GUIDE (T), CASSETTE 153 1-661-553-11 FP-703 FLEXIBLE BOARD 154 3-971-499-01 LEVER, EJECT 155 3-971-498-01 GUIDE (S), CASSETTE 156 3-847-537-11 CUSHION (5) * 157 X-3946-408-3 BRACKET ASSY, HM 158 4-926-219-02 RING (DIA. 2.3), RETAINING 159 3-971-474-01 GEAR (A), HEAD DRIVE 160 3-971-513-41 COVER, REAR 161 3-971-471-01 BEARING, ROLLER 162 A-7092-963-C GEAR BLOCK ASSY, HEAD DRIVING * 163 A-8054-960-A RD-39 MOUNT 164 3-971-486-01 LOCK, CASSETTE 165 3-971-487-02 LOCK (SP), CASSETTE 166 3-971-500-01 SPRING (EJ), TENSION 167 3-971-497-01 ARM, C LOCK FIXED 168 3-971-492-01 ARM (SP), C LOCK 169 1-956-196-21 HARNESS (HM-33) 170 1-956-198-21 HARNESS (RD-33) * M902 A-7092-967-A MOTOR BLOCK ASSY, HEAD (HEAD UP/DOWN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-5 (5) MECHANISM DECK SECTION-3 216 215 213 214 215 217 207 218 219 220 221 222 223 219 228 225 224 226 212 211 210 209 206 215 205 208 207 204 203 202 201 227 206 206 231 232 207 208 215 229 207 215 230 217 #12 #9 #10 #11 #9 #3 #3 not supplied not supplied HEAD901 213 234 233 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 3-971-466-01 ROLLER, PLATEN 202 3-971-465-15 ROLLER, CAPSTAN 203 3-701-441-11 WASHER * 204 X-3946-399-7 CHASSIS ASSY, MECHANICAL 205 3-971-468-01 GEAR, CAPSTAN 206 3-971-471-01 BEARING, ROLLER 207 3-971-502-01 BEARING, PINCH ROLLER 208 3-312-434-01 WASHER, SLIT 209 3-971-496-01 HOLDER, SENSOR 210 1-661-554-11 FP-702 FLEXIBLE BOARD 211 3-971-495-01 SPRING, LEAF * 212 A-8054-961-A HP-39 MOUNT 213 3-971-472-01 SPRING (PINCH ROLLER), TENSION 214 3-971-489-02 ARM (L), PINCH ROLLER 215 4-926-219-02 RING (DIA. 2.3), RETAINING * 216 X-3946-412-2 ARM (L) ASSY, RELEASE 217 3-669-607-11 +PSW (SMALL ROUND) (2.6) * 218 X-3946-401-1 ARM (L) ASSY, HEAD 219 3-971-424-01 SPRING (HEAD), TENSION 220 1-783-926-11 CABLE, FLAT (POHE13) 221 1-783-924-11 CABLE, FLAT (ADHE13) 222 1-500-204-11 CORE, FERRITE 223 3-971-494-02 GUIDE, RIBBON 224 3-971-493-02 HEAT SINK 225 3-971-464-02 PINCH ROLLER 226 3-971-483-02 ROLLER, GUIDE * 227 A-8054-959-A JD-39 MOUNT * 228 X-3946-400-1 ARM (R) ASSY, HEAD 229 3-971-490-02 ARM (R), PINCH ROLLER * 230 X-3946-411-2 ARM (R) ASSY, RELEASE * 231 X-3946-406-1 GEAR (R) ASSY, POWER * 232 X-3946-407-1 GEAR (L) ASSY, POWER 233 1-956-197-21 HARNESS (JD-33) 234 1-956-651-21 HARNESS (HMD-3) HEAD9011-500-568-21 HEAD, THERMAL #3 7-685-862-09 SCREW +BVTT2.6X6 (S) #9 7-624-108-04 STOP RING 4.0, TYPE-E #10 7-628-253-90 SCREW +PS2.6X4 #11 7-621-759-65 +PSW, 2.6X8 #12 7-685-792-19 SCREW +PTT2.6X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-6 (6) LOWER CABINET SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 251 X-4622-517-1 CABINET ASSY, LOWER 252 4-047-474-01 FOOT, RUBBER 253 3-971-517-01 ARM, FEEDER LOCK 254 3-971-518-01 SPRING, FEEDER LOCK 255 X-4622-518-1 DOOR ASSY, FRONT 256 A-8054-967-A VS-39 MOUNT 257 4-639-931-21 COVER, VS 258 1-790-362-41 CABLE, FLAT (VIVS39) 259 3-946-346-01 SCREW (+BV) (2.6X8), TAPPING 0260 1-468-364-41 POWER BLOCK (POWER, SWITCHING) 261 1-956-199-21 HARNESS (PS-33) * 262 A-7093-373-E LEVER BLOCK ASSY, SEPARETION 0263 1-473-791-51 SWITCH BLOCK, POWER 264 1-783-925-12 CABLE, FLAT (ADFE13) 265 1-543-936-11 CORE (FPC) 266 3-971-643-01 PLATE, GROUND * 267 A-8054-968-A FE-39 MOUNT 268 3-971-529-02 HOLDER, FE 269 4-639-923-21 DOOR, RIBBON * 270 4-640-197-01 PLATE, FD GROUND * 271 4-640-658-01 DUCT (REAR) 273 4-641-239-01 PLATE, PF GROUND 274 1-500-227-41 BEAD, FERRITE 275 1-761-308-11 ASSY BLOCK, MINIATURE 276 1-956-625-21 HARNESS (HH-C00-010-BB) 277 4-645-788-01 CUSHION M905 1-763-018-21 FAN, DC (POWER FAN) 257 275 260 274 262 266 268 265 256 270 277 258 259 276 259 273 259 259 271 259 263 259 261 259 264 267 252 269 251 255 253 254 M905 supplied with MINI JACK BLOCK not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-7 (7) CABINET (UPPER) ASSY SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 301 3-719-381-01 SCREW (M2X4) 303 3-945-884-11 SCREW (2X6) * 304 3-971-605-04 BRACKET, M 305 3-971-565-05 GEAR, WORM 306 1-666-882-21 FR-35 BOARD 307 3-968-729-21 SCREW (M2), LOCK ACE, P2 308 3-971-601-01 SPRING, COMPRESSION 309 3-971-585-21 BUTTON, FEEDER LID 310 3-971-584-01 RETAINER, BUTTON 311 X-4622-520-1 CABINET (UPPER) ASSY, F 312 3-971-581-01 SPRING (L), FEEDER 313 X-4622-521-1 LID ASSY, FEEDER 314 3-971-591-01 SHAFT, HINGE 315 3-971-582-01 SPRING (R), FEEDER 316 3-971-587-02 RETAINER (L), HINGE 317 3-971-588-02 RETAINER (R), HINGE * 318 3-971-621-01 HOOK, SEPARETION 319 A-8045-344-A PREPARE BLOCK ASSY, PAPER 320 1-958-356-41 HARNESS 321 1-956-200-31 HARNESS (FM-33) M101 1-698-377-11 MOTOR (FEEDER) 301 311 316 303 314 317 306 321 320 301 305 M101 not supplied 304 319 307 318 307 307 303 303 303 303 301 314 315 313 303 310 309 308 303 312 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-8 (8) CABINET (LOWER) ASSY SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 351 3-971-589-51 CABINET (LOWER), F 352 3-971-583-21 PLATE, CHANGE 353 3-971-566-02 ARM, LOCK 354 3-971-604-01 SPRING, LOCK ARM 355 3-971-603-01 SHAFT, LOCK ARM 356 3-971-570-01 PLATE, LOCK ARM FIXED 357 1-777-226-11 CABLE, FLAT (FFC) (FRJ-3) 12P * 358 A-7072-804-A FR-23 MOUNTED PWB 359 3-945-884-11 SCREW (2X6) * 360 3-971-569-03 PLATE, UP 361 3-971-623-01 SPRING, COMPRESSION 362 3-968-729-01 SCREW (M2), LOCK ACE, P2 363 3-971-592-01 NUT, PLATE * 364 3-971-572-01 GUIDE, PAPER 365 1-659-936-11 FJ-23 BOARD 366 1-500-385-11 CORE, FPC 367 3-971-580-01 GUIDE, PAPER PUSH 368 3-971-579-01 SPRING, PUSH GUIDE 369 3-973-900-01 CUSHION, F 358 359 357 355 356 353 354 352 351 369 361 362 363 363 368 367 359 366 365 364 359 360 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 401 A-8045-344-A PREPARE BLOCK ASSY, PAPER 402 3-167-330-01 WASHER 403 3-669-465-01 WASHER (1.5), STOPPER 404 3-945-884-11 SCREW (2X6) 405 3-971-575-02 REINFORCEMENT 406 3-971-563-01 GEAR (CL) 407 3-971-616-01 SHAFT, CAM 408 3-971-555-01 GEAR (SW1) 409 X-3946-568-2 GEAR ASSY, PENDULUM 410 3-971-560-01 GEAR (F) 411 3-971-561-01 GEAR (K) 412 3-971-559-01 GEAR (C) 413 3-971-564-01 GEAR (FK) 414 3-971-556-02 GEAR (SW2) 415 3-971-618-01 SHAFT, LIMITTER FULCRUM 416 3-971-599-01 SLEEVE, R 417 3-971-554-02 ROLLER, R 418 3-972-608-01 RETAINER, PAPER 419 3-701-438-11 WASHER, 2.5 420 3-971-568-01 FRAME, ROLLER 421 3-971-553-01 ROLLER, F 422 3-971-578-01 SHAFT, ROLLER FRAME 423 3-971-622-01 SPRING, TENSION 424 3-345-112-01 RING, RETAINING 425 3-971-574-02 PLATE (R), SIDE 426 X-3946-416-2 CAM (R) ASSY, FEEDER 427 3-971-615-02 PREPARE, PAPER 428 3-971-586-01 PIN, LOCK 429 X-3946-428-1 ROLLER ASSY, PAPER 430 3-971-649-02 SHAFT 431 3-971-571-01 LOCK, FEED 432 3-971-617-01 SHAFT, JOINT 433 X-3946-429-3 CAM (L) ASSY, FEEDER 434 X-3946-567-2 GEAR ASSY, LIMITTER 435 3-971-622-01 SPRING, TENSION 436 3-971-573-04 PLATE (L), SIDE 437 3-971-557-03 GEAR (A) 438 3-971-567-01 GEAR (X) 439 3-971-558-01 GEAR (B) 440 1-661-555-11 FP-701 FLEXIBLE BOARD (9) PAPER PREPARE BLOCK ASSY SECTION 402 404 403 402 405 411 410 406 407 404 440 410 439 438 437 408 409 412 411 414 401 436 414 415 433 434 430 417 410 418 419 412 420 422 423 421 424 402 425 426 431 429 427 428 416 432 410 435 431 #14 6-9 E #14 7-624-118-01 RING, RETAINING E-2.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SECTION 7 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH DK-39D A-8056-571-A DK-39D COMPLETE PWB ******************** < BUZZER > BZ201 1-529-080-11 BUZZER, PIEZOELECTRIC < CAPACITOR > C001 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C002 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C005 1-164-156-11 CERAMIC CHIP 0.1uF 25V C400 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C401 1-164-156-11 CERAMIC CHIP 0.1uF 25V C402 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C403 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C404 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C405 1-164-156-11 CERAMIC CHIP 0.1uF 25V C406 1-164-156-11 CERAMIC CHIP 0.1uF 25V C407 1-164-156-11 CERAMIC CHIP 0.1uF 25V C408 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C409 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C410 1-164-156-11 CERAMIC CHIP 0.1uF 25V C411 1-126-193-11 ELECT CHIP 1uF 20% 50V C412 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C413 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C414 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C415 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C416 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C417 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C418 1-164-156-11 CERAMIC CHIP 0.1uF 25V C419 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C420 1-135-150-91 TANTALUM CHIP 3.3uF 20% 6.3V C421 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C422 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C423 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C424 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C425 1-164-237-11 CERAMIC CHIP 16PF 5% 50V C426 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C427 1-164-816-11 CERAMIC CHIP 220PF 2% 50V C428 1-115-414-11 CERAMIC CHIP 820PF 5% 25V C431 1-164-156-11 CERAMIC CHIP 0.1uF 25V C432 1-164-156-11 CERAMIC CHIP 0.1uF 25V C433 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C434 1-164-505-11 CERAMIC CHIP 2.2uF 16V C435 1-164-156-11 CERAMIC CHIP 0.1uF 25V C436 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C437 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C438 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C439 1-165-128-11 CERAMIC CHIP 0.22uF 16V C440 1-164-346-11 CERAMIC CHIP 1uF 16V C441 1-165-128-11 CERAMIC CHIP 0.22uF 16V C442 1-165-128-11 CERAMIC CHIP 0.22uF 16V C443 1-165-128-11 CERAMIC CHIP 0.22uF 16V C444 1-165-128-11 CERAMIC CHIP 0.22uF 16V C445 1-164-346-11 CERAMIC CHIP 1uF 16V C446 1-165-128-11 CERAMIC CHIP 0.22uF 16V C447 1-165-128-11 CERAMIC CHIP 0.22uF 16V C448 1-164-156-11 CERAMIC CHIP 0.1uF 25V C449 1-165-128-11 CERAMIC CHIP 0.22uF 16V C450 1-165-128-11 CERAMIC CHIP 0.22uF 16V C451 1-165-128-11 CERAMIC CHIP 0.22uF 16V C452 1-165-128-11 CERAMIC CHIP 0.22uF 16V C453 1-165-128-11 CERAMIC CHIP 0.22uF 16V C455 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C456 1-165-128-11 CERAMIC CHIP 0.22uF 16V C457 1-165-128-11 CERAMIC CHIP 0.22uF 16V C458 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C459 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C460 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C461 1-124-779-21 ELECT CHIP 10uF 20% 16V C462 1-164-156-11 CERAMIC CHIP 0.1uF 25V C463 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C464 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C466 1-164-346-11 CERAMIC CHIP 1uF 16V C468 1-164-156-11 CERAMIC CHIP 0.1uF 25V C469 1-164-156-11 CERAMIC CHIP 0.1uF 25V C470 1-164-156-11 CERAMIC CHIP 0.1uF 25V C471 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C472 1-164-156-11 CERAMIC CHIP 0.1uF 25V C473 1-164-156-11 CERAMIC CHIP 0.1uF 25V C474 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C500 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C501 1-115-156-11 CERAMIC CHIP 1uF 10V C503 1-124-779-21 ELECT CHIP 10uF 20% 16V C505 1-115-156-11 CERAMIC CHIP 1uF 10V C507 1-164-156-11 CERAMIC CHIP 0.1uF 25V C508 1-164-156-11 CERAMIC CHIP 0.1uF 25V C511 1-164-156-11 CERAMIC CHIP 0.1uF 25V Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C512 1-115-156-11 CERAMIC CHIP 1uF 10V C513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C514 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C515 1-115-156-11 CERAMIC CHIP 1uF 10V C516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C517 1-164-156-11 CERAMIC CHIP 0.1uF 25V C518 1-115-156-11 CERAMIC CHIP 1uF 10V C520 1-164-156-11 CERAMIC CHIP 0.1uF 25V C522 1-164-156-11 CERAMIC CHIP 0.1uF 25V C523 1-164-156-11 CERAMIC CHIP 0.1uF 25V C524 1-164-156-11 CERAMIC CHIP 0.1uF 25V C525 1-164-156-11 CERAMIC CHIP 0.1uF 25V C526 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C531 1-164-156-11 CERAMIC CHIP 0.1uF 25V C534 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C536 1-164-156-11 CERAMIC CHIP 0.1uF 25V C543 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C544 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C545 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C546 1-126-189-11 ELECT CHIP 0.22uF 20% 50V C548 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C549 1-164-160-11 CERAMIC CHIP 20PF 5% 50V C553 1-164-156-11 CERAMIC CHIP 0.1uF 25V C554 1-164-156-11 CERAMIC CHIP 0.1uF 25V C555 1-164-156-11 CERAMIC CHIP 0.1uF 25V C556 1-164-156-11 CERAMIC CHIP 0.1uF 25V C560 1-164-156-11 CERAMIC CHIP 0.1uF 25V C561 1-164-156-11 CERAMIC CHIP 0.1uF 25V C562 1-164-156-11 CERAMIC CHIP 0.1uF 25V C563 1-164-156-11 CERAMIC CHIP 0.1uF 25V C564 1-164-156-11 CERAMIC CHIP 0.1uF 25V C566 1-164-156-11 CERAMIC CHIP 0.1uF 25V C576 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C604 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C721 1-164-156-11 CERAMIC CHIP 0.1uF 25V C722 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C723 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2000 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2001 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2002 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C2003 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2100 1-124-779-21 ELECT CHIP 10uF 20% 16V C2120 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C2121 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C2122 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2123 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2124 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C2126 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2128 1-124-779-21 ELECT CHIP 10uF 20% 16V C2129 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C2130 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C2131 1-126-391-11 ELECT CHIP 47uF 20% 6.3V C2132 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2133 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2134 1-124-779-21 ELECT CHIP 10uF 20% 16V < CONNECTOR > CN401 1-770-703-11 CONNECTOR, FFC/FPC 20P * CN402 1-580-055-21 PIN, CONNECTOR (SMD) 2P CN501 1-778-544-11 CONNECTOR, FFC/FPC (ZIF) 30P CN502 1-778-622-21 CONNECTOR, FFC/FPC 10P CN503 1-785-468-11 CONNECTOR, FFC/FPC 13P CN504 1-774-287-11 CONNECTOR, FFC/FPC 22P * CN551 1-691-551-11 PIN, CONNECTOR (SMD) 8P * CN2000 1-580-056-21 PIN, CONNECTOR (SMD) 3P CN2100 1-784-225-11 CONNECTOR, FFC/FPC 26P < TRIMMER > CT401 1-141-367-51 CAP, CHIP TRIMMER 20PF CT500 1-141-368-11 CAP, CHIP TRIMMER 30PF < DIODE > D400 8-719-067-40 DIODE STZ6.8N-T146 D402 8-713-101-94 DIODE 1T363A-M20-T8A D513 8-719-988-61 DIODE 1SS355TE-17 D601 8-719-066-17 DIODE FTZ6.8E-T148 D603 8-719-066-17 DIODE FTZ6.8E-T148 D604 8-719-066-17 DIODE FTZ6.8E-T148 D696 8-719-941-23 DIODE DA204UT106 D697 8-719-941-23 DIODE DA204UT106 D2000 8-719-941-23 DIODE DA204UT106 D2100 8-719-941-09 DIODE DAP202UT106 < FERRITE BEAD/RESISTOR > FB351 1-414-595-11 FERRITE FB352 1-414-595-11 FERRITE FB353 1-414-595-11 FERRITE FB406 1-500-238-22 FERRITE FB407 1-500-288-21 FERRITE * FB408 1-543-959-22 FERRITE FB409 1-500-245-22 FERRITE FB410 1-500-245-22 FERRITE FB414 1-500-245-22 FERRITE FB415 1-500-245-22 FERRITE FB500 1-414-595-11 FERRITE FB501 1-500-288-21 FERRITE FB502 1-500-238-22 FERRITE FB504 1-500-288-21 FERRITE FB505 1-500-238-22 FERRITE FB506 1-500-288-21 FERRITE FB507 1-500-238-22 FERRITE FB508 1-500-238-22 FERRITE FB509 1-500-238-22 FERRITE FB510 1-500-238-22 FERRITE FB511 1-500-238-22 FERRITE FB512 1-500-238-22 FERRITE FB513 1-500-238-22 FERRITE FB514 1-500-238-22 FERRITE FB515 1-500-238-22 FERRITE FB516 1-500-238-22 FERRITE FB517 1-500-238-22 FERRITE FB518 1-500-238-22 FERRITE FB519 1-500-238-22 FERRITE FB520 1-500-238-22 FERRITE DK-39D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FB521 1-500-238-22 FERRITE FB523 1-500-238-22 FERRITE FB524 1-500-238-22 FERRITE FB525 1-500-238-22 FERRITE FB532 1-500-238-22 FERRITE FB533 1-500-238-22 FERRITE FB534 1-500-238-22 FERRITE FB535 1-500-238-22 FERRITE FB536 1-500-238-22 FERRITE FB537 1-500-238-22 FERRITE FB538 1-500-238-22 FERRITE FB539 1-500-238-22 FERRITE FB540 1-500-238-22 FERRITE FB541 1-500-238-22 FERRITE FB542 1-500-238-22 FERRITE FB543 1-500-238-22 FERRITE FB545 1-500-288-21 FERRITE FB555 1-500-242-22 FERRITE FB556 1-500-242-22 FERRITE FB561 1-500-242-22 FERRITE FB562 1-500-242-22 FERRITE FB563 1-500-242-22 FERRITE FB565 1-500-242-22 FERRITE FB566 1-500-242-22 FERRITE FB576 1-414-595-11 FERRITE FB580 1-500-242-22 FERRITE FB582 1-500-242-22 FERRITE FB591 1-216-821-11 RES, CHIP 1K 5% 1/16W FB592 1-216-821-11 RES, CHIP 1K 5% 1/16W FB593 1-216-821-11 RES, CHIP 1K 5% 1/16W FB594 1-216-821-11 RES, CHIP 1K 5% 1/16W FB595 1-216-821-11 RES, CHIP 1K 5% 1/16W FB596 1-216-821-11 RES, CHIP 1K 5% 1/16W FB597 1-216-821-11 RES, CHIP 1K 5% 1/16W FB2000 1-500-238-22 FERRITE FB2001 1-500-238-22 FERRITE FB2002 1-500-238-22 FERRITE FB2003 1-500-238-22 FERRITE FB2004 1-500-238-22 FERRITE FB2005 1-500-238-22 FERRITE FB2100 1-500-238-22 FERRITE FB2101 1-500-238-22 FERRITE FB2102 1-500-238-22 FERRITE FB2103 1-500-238-22 FERRITE FB2104 1-500-238-22 FERRITE FB2105 1-500-238-22 FERRITE FB2106 1-500-238-22 FERRITE FB2107 1-500-238-22 FERRITE FB2108 1-500-238-22 FERRITE FB2109 1-500-238-22 FERRITE FB2110 1-500-238-22 FERRITE FB2111 1-500-238-22 FERRITE FB2112 1-500-238-22 FERRITE FB2113 1-500-238-22 FERRITE FB2114 1-500-288-21 FERRITE FB2115 1-500-288-21 FERRITE FB2116 1-500-288-21 FERRITE FB2122 1-500-288-21 FERRITE < IC > IC401 8-759-987-20 IC CXD1229Q IC403 8-759-645-74 IC MSM5118160D-60JS-R1 IC404 8-759-460-74 IC BA05FP-E2 IC406 8-759-083-94 IC TC7W74FU (TE12R) IC407 8-759-421-81 IC F432301PGF IC501 8-759-542-91 IC S-80840ANUP-ED4-T2 IC502 8-759-234-20 IC TC7S08F (TE85R) IC503 8-759-662-90 IC HD64F7045F28S621 IC504 8-759-460-74 IC BA05FP-E2 IC505 8-759-445-92 IC HG51BS263AFB IC506 8-759-563-36 IC LH531VTT IC508 8-759-276-28 IC LM393PS-E20 IC509 8-759-661-41 IC KM416C4104CS-6T IC510 8-759-234-20 IC TC7S08F (TE85R) IC511 8-759-058-64 IC TC7S32FU (TE85R) IC513 8-759-185-70 IC TC74VHC32F (EL) IC514 8-759-083-94 IC TC7W74FU (TE12R) IC515 8-759-058-58 IC TC7S04FU (TE85R) IC2000 8-759-443-08 IC TC7W241FU-TE12R IC2001 8-759-443-08 IC TC7W241FU-TE12R IC2002 8-759-464-95 IC AK6420AF-E2 IC2100 8-759-157-17 IC PQ05SZ1U IC2101 8-759-458-76 IC uPD72069GF-3BA IC2102 8-759-058-58 IC TC7S04FU (TE85R) < COIL > L400 1-412-064-11 INDUCTOR CHIP 100uH L402 1-412-067-21 INDUCTOR CHIP 330uH L403 1-410-377-31 INDUCTOR CHIP 4.7uH L406 1-412-064-11 INDUCTOR CHIP 100uH L410 1-412-006-31 INDUCTOR CHIP 10uH L2000 1-414-194-11 INDUCTOR 33uH L2100 1-412-006-31 INDUCTOR CHIP 10uH < TRANSISTOR > Q401 8-729-421-69 TRANSISTOR 2SB709A-R-TX Q402 8-729-402-84 TRANSISTOR XN4601-TW Q403 8-729-402-84 TRANSISTOR XN4601-TW Q404 8-729-402-84 TRANSISTOR XN4601-TW Q405 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q406 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q407 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q408 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q409 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q410 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q411 8-729-402-84 TRANSISTOR XN4601-TW Q412 8-729-402-84 TRANSISTOR XN4601-TW Q413 8-729-402-84 TRANSISTOR XN4601-TW Q416 8-729-421-69 TRANSISTOR 2SB709A-R-TX Q2000 8-729-027-59 TRANSISTOR DTC144EKA-T146 Q2100 8-729-027-59 TRANSISTOR DTC144EKA-T146 < RESISTOR > R001 1-216-833-91 RES, CHIP 10K 5% 1/16W DK-39D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-4 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R002 1-216-833-91 RES, CHIP 10K 5% 1/16W R003 1-216-837-11 RES, CHIP 22K 5% 1/16W R004 1-216-837-11 RES, CHIP 22K 5% 1/16W R005 1-216-849-11 RES, CHIP 220K 5% 1/16W R006 1-216-841-11 RES, CHIP 47K 5% 1/16W R009 1-216-849-11 RES, CHIP 220K 5% 1/16W R010 1-216-841-11 RES, CHIP 47K 5% 1/16W R156 1-216-864-11 SHORT 0 R158 1-216-864-11 SHORT 0 R159 1-216-864-11 SHORT 0 R301 1-216-809-11 RES, CHIP 100 5% 1/16W R302 1-216-817-11 RES, CHIP 470 5% 1/16W R303 1-216-817-11 RES, CHIP 470 5% 1/16W R304 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R305 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R311 1-216-809-11 RES, CHIP 100 5% 1/16W R314 1-216-841-11 RES, CHIP 47K 5% 1/16W R315 1-216-821-11 RES, CHIP 1K 5% 1/16W R318 1-216-821-11 RES, CHIP 1K 5% 1/16W R319 1-216-821-11 RES, CHIP 1K 5% 1/16W R322 1-216-813-11 RES, CHIP 220 5% 1/16W R401 1-216-821-11 RES, CHIP 1K 5% 1/16W R402 1-216-817-11 RES, CHIP 470 5% 1/16W R403 1-216-821-11 RES, CHIP 1K 5% 1/16W R404 1-216-821-11 RES, CHIP 1K 5% 1/16W R405 1-216-833-91 RES, CHIP 10K 5% 1/16W R406 1-216-838-11 RES, CHIP 27K 5% 1/16W R407 1-216-833-91 RES, CHIP 10K 5% 1/16W R408 1-216-838-11 RES, CHIP 27K 5% 1/16W R409 1-216-834-11 RES, CHIP 12K 5% 1/16W R410 1-216-841-11 RES, CHIP 47K 5% 1/16W R412 1-216-864-11 SHORT 0 R413 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R414 1-216-806-11 RES, CHIP 56 5% 1/16W R416 1-216-864-11 SHORT 0 R417 1-216-817-11 RES, CHIP 470 5% 1/16W R419 1-216-821-11 RES, CHIP 1K 5% 1/16W R420 1-216-817-11 RES, CHIP 470 5% 1/16W R421 1-216-823-11 RES, CHIP 1.5K 5% 1/16W R422 1-216-817-11 RES, CHIP 470 5% 1/16W R423 1-216-821-11 RES, CHIP 1K 5% 1/16W R424 1-216-813-11 RES, CHIP 220 5% 1/16W R425 1-216-813-11 RES, CHIP 220 5% 1/16W R426 1-216-813-11 RES, CHIP 220 5% 1/16W R427 1-216-821-11 RES, CHIP 1K 5% 1/16W R428 1-216-813-11 RES, CHIP 220 5% 1/16W R429 1-216-813-11 RES, CHIP 220 5% 1/16W R430 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R431 1-216-806-11 RES, CHIP 56 5% 1/16W R432 1-216-813-11 RES, CHIP 220 5% 1/16W R433 1-216-813-11 RES, CHIP 220 5% 1/16W R434 1-216-811-11 RES, CHIP 150 5% 1/16W R435 1-216-855-11 RES, CHIP 680K 5% 1/16W R436 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R437 1-216-821-11 RES, CHIP 1K 5% 1/16W R438 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R439 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R440 1-216-839-11 RES, CHIP 33K 5% 1/16W R441 1-216-839-11 RES, CHIP 33K 5% 1/16W R442 1-216-833-91 RES, CHIP 10K 5% 1/16W R444 1-216-833-91 RES, CHIP 10K 5% 1/16W R446 1-216-833-91 RES, CHIP 10K 5% 1/16W R447 1-216-809-11 RES, CHIP 100 5% 1/16W R448 1-216-833-91 RES, CHIP 10K 5% 1/16W R449 1-216-839-11 RES, CHIP 33K 5% 1/16W R450 1-216-833-91 RES, CHIP 10K 5% 1/16W R451 1-216-816-11 RES, CHIP 390 5% 1/16W R452 1-216-821-11 RES, CHIP 1K 5% 1/16W R453 1-216-821-11 RES, CHIP 1K 5% 1/16W R455 1-216-809-11 RES, CHIP 100 5% 1/16W R456 1-218-844-11 METAL CHIP 750 0.5% 1/16W R457 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R458 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R459 1-216-809-11 RES, CHIP 100 5% 1/16W R460 1-216-817-11 RES, CHIP 470 5% 1/16W R461 1-216-821-11 RES, CHIP 1K 5% 1/16W R462 1-216-839-11 RES, CHIP 33K 5% 1/16W R463 1-216-817-11 RES, CHIP 470 5% 1/16W R464 1-216-809-11 RES, CHIP 100 5% 1/16W R465 1-216-806-11 RES, CHIP 56 5% 1/16W R466 1-216-806-11 RES, CHIP 56 5% 1/16W R468 1-216-826-11 RES, CHIP 2.7K 5% 1/16W R469 1-216-809-11 RES, CHIP 100 5% 1/16W R470 1-218-852-11 METAL CHIP 1.6K 0.5% 1/16W R471 1-218-830-11 METAL CHIP 200 0.5% 1/16W R472 1-218-852-11 METAL CHIP 1.6K 0.5% 1/16W R473 1-218-830-11 METAL CHIP 200 0.5% 1/16W R474 1-216-821-11 RES, CHIP 1K 5% 1/16W R475 1-218-852-11 METAL CHIP 1.6K 0.5% 1/16W R476 1-218-830-11 METAL CHIP 200 0.5% 1/16W R477 1-216-841-11 RES, CHIP 47K 5% 1/16W R478 1-216-821-11 RES, CHIP 1K 5% 1/16W R479 1-216-820-11 RES, CHIP 820 5% 1/16W R480 1-216-820-11 RES, CHIP 820 5% 1/16W R481 1-216-809-11 RES, CHIP 100 5% 1/16W R482 1-216-809-11 RES, CHIP 100 5% 1/16W R483 1-216-813-11 RES, CHIP 220 5% 1/16W R484 1-216-821-11 RES, CHIP 1K 5% 1/16W R485 1-216-821-11 RES, CHIP 1K 5% 1/16W R486 1-216-864-11 SHORT 0 R487 1-216-823-11 RES, CHIP 1.5K 5% 1/16W R488 1-216-809-11 RES, CHIP 100 5% 1/16W R489 1-216-809-11 RES, CHIP 100 5% 1/16W R490 1-216-821-11 RES, CHIP 1K 5% 1/16W R492 1-216-821-11 RES, CHIP 1K 5% 1/16W R493 1-216-809-11 RES, CHIP 100 5% 1/16W R494 1-216-809-11 RES, CHIP 100 5% 1/16W R495 1-216-157-91 RES, CHIP 20 5% 1/8W R496 1-216-157-91 RES, CHIP 20 5% 1/8W R497 1-216-821-11 RES, CHIP 1K 5% 1/16W R500 1-216-809-11 RES, CHIP 100 5% 1/16W R501 1-216-864-11 SHORT 0 R502 1-216-809-11 RES, CHIP 100 5% 1/16W R504 1-216-809-11 RES, CHIP 100 5% 1/16W R505 1-216-853-11 RES, CHIP 470K 5% 1/16W DK-39D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-5 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R506 1-216-809-11 RES, CHIP 100 5% 1/16W R509 1-216-857-11 RES, CHIP 1M 5% 1/16W R510 1-216-809-11 RES, CHIP 100 5% 1/16W R512 1-216-864-11 SHORT 0 R513 1-216-809-11 RES, CHIP 100 5% 1/16W R514 1-216-841-11 RES, CHIP 47K 5% 1/16W R515 1-216-833-91 RES, CHIP 10K 5% 1/16W R518 1-216-836-11 RES, CHIP 18K 5% 1/16W R519 1-216-809-11 RES, CHIP 100 5% 1/16W R520 1-216-809-11 RES, CHIP 100 5% 1/16W R521 1-216-853-11 RES, CHIP 470K 5% 1/16W R523 1-216-809-11 RES, CHIP 100 5% 1/16W R524 1-216-841-11 RES, CHIP 47K 5% 1/16W R525 1-216-809-11 RES, CHIP 100 5% 1/16W R527 1-216-809-11 RES, CHIP 100 5% 1/16W R528 1-216-809-11 RES, CHIP 100 5% 1/16W R529 1-216-809-11 RES, CHIP 100 5% 1/16W R532 1-216-809-11 RES, CHIP 100 5% 1/16W R533 1-216-809-11 RES, CHIP 100 5% 1/16W R536 1-216-809-11 RES, CHIP 100 5% 1/16W R537 1-216-813-11 RES, CHIP 220 5% 1/16W R538 1-218-852-11 METAL CHIP 1.6K 0.5% 1/16W R540 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R542 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R544 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R546 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R549 1-218-839-11 METAL CHIP 470 0.5% 1/16W R550 1-216-826-11 RES, CHIP 2.7K 5% 1/16W R563 1-216-809-11 RES, CHIP 100 5% 1/16W R566 1-216-809-11 RES, CHIP 100 5% 1/16W R567 1-216-809-11 RES, CHIP 100 5% 1/16W R572 1-216-809-11 RES, CHIP 100 5% 1/16W R574 1-216-809-11 RES, CHIP 100 5% 1/16W R576 1-216-809-11 RES, CHIP 100 5% 1/16W R579 1-216-809-11 RES, CHIP 100 5% 1/16W R580 1-216-809-11 RES, CHIP 100 5% 1/16W R581 1-216-821-11 RES, CHIP 1K 5% 1/16W R582 1-216-821-11 RES, CHIP 1K 5% 1/16W R583 1-216-821-11 RES, CHIP 1K 5% 1/16W R584 1-216-821-11 RES, CHIP 1K 5% 1/16W R594 1-216-809-11 RES, CHIP 100 5% 1/16W R604 1-218-830-11 METAL CHIP 200 0.5% 1/16W R605 1-218-858-11 METAL CHIP 3K 0.5% 1/16W R612 1-216-841-11 RES, CHIP 47K 5% 1/16W R615 1-216-809-11 RES, CHIP 100 5% 1/16W R622 1-216-809-11 RES, CHIP 100 5% 1/16W R623 1-216-809-11 RES, CHIP 100 5% 1/16W R629 1-216-809-11 RES, CHIP 100 5% 1/16W R632 1-216-809-11 RES, CHIP 100 5% 1/16W R633 1-216-809-11 RES, CHIP 100 5% 1/16W R654 1-216-841-11 RES, CHIP 47K 5% 1/16W R655 1-216-841-11 RES, CHIP 47K 5% 1/16W R656 1-216-841-11 RES, CHIP 47K 5% 1/16W R657 1-216-841-11 RES, CHIP 47K 5% 1/16W R658 1-216-841-11 RES, CHIP 47K 5% 1/16W R659 1-216-841-11 RES, CHIP 47K 5% 1/16W R660 1-216-837-11 RES, CHIP 22K 5% 1/16W R661 1-216-837-11 RES, CHIP 22K 5% 1/16W R662 1-216-837-11 RES, CHIP 22K 5% 1/16W R663 1-216-841-11 RES, CHIP 47K 5% 1/16W R664 1-216-841-11 RES, CHIP 47K 5% 1/16W R665 1-216-841-11 RES, CHIP 47K 5% 1/16W R666 1-216-821-11 RES, CHIP 1K 5% 1/16W R667 1-216-841-11 RES, CHIP 47K 5% 1/16W R692 1-216-833-91 RES, CHIP 10K 5% 1/16W R693 1-216-833-91 RES, CHIP 10K 5% 1/16W R694 1-216-833-91 RES, CHIP 10K 5% 1/16W R695 1-216-833-91 RES, CHIP 10K 5% 1/16W R696 1-216-833-91 RES, CHIP 10K 5% 1/16W R697 1-216-833-91 RES, CHIP 10K 5% 1/16W R2003 1-216-809-11 RES, CHIP 100 5% 1/16W R2004 1-216-809-11 RES, CHIP 100 5% 1/16W R2005 1-216-809-11 RES, CHIP 100 5% 1/16W R2006 1-216-809-11 RES, CHIP 100 5% 1/16W R2007 1-216-833-91 RES, CHIP 10K 5% 1/16W R2008 1-216-833-91 RES, CHIP 10K 5% 1/16W R2009 1-216-809-11 RES, CHIP 100 5% 1/16W R2010 1-216-864-11 SHORT 0 R2012 1-216-833-91 RES, CHIP 10K 5% 1/16W R2013 1-216-817-11 RES, CHIP 470 5% 1/16W R2016 1-216-817-11 RES, CHIP 470 5% 1/16W R2100 1-216-821-11 RES, CHIP 1K 5% 1/16W R2101 1-216-821-11 RES, CHIP 1K 5% 1/16W R2102 1-216-833-91 RES, CHIP 10K 5% 1/16W R2103 1-216-821-11 RES, CHIP 1K 5% 1/16W R2104 1-216-821-11 RES, CHIP 1K 5% 1/16W R2105 1-216-821-11 RES, CHIP 1K 5% 1/16W R2106 1-218-854-11 METAL CHIP 2K 0.5% 1/16W R2107 1-218-878-11 METAL CHIP 20K 0.5% 1/16W R2108 1-216-864-11 SHORT 0 R2109 1-216-864-11 SHORT 0 R2111 1-216-864-11 SHORT 0 R2112 1-216-833-91 RES, CHIP 10K 5% 1/16W R2114 1-216-864-11 SHORT 0 R2115 1-216-841-11 RES, CHIP 47K 5% 1/16W R2116 1-216-864-11 SHORT 0 R2117 1-216-821-11 RES, CHIP 1K 5% 1/16W < COMPOSITION CIRCUIT BLOCK > RB401 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB402 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB403 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB404 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB405 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB406 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB407 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB408 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB409 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB410 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB417 1-236-904-11 NETWORK RESISTOR (CHIP) 1K RB501 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB502 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB503 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB504 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB505 1-239-412-11 NETWORK RESISTOR (CHIP) 100 DK-39D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-6 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark RB506 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB507 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB508 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB509 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB510 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB511 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB512 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB513 1-239-419-11 NETWORK RESISTOR (CHIP) 470 RB514 1-239-419-11 NETWORK RESISTOR (CHIP) 470 RB515 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB516 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB520 1-236-904-11 NETWORK RESISTOR (CHIP) 1K RB521 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB2100 1-239-412-11 NETWORK RESISTOR (CHIP) 100 RB2101 1-239-412-11 NETWORK RESISTOR (CHIP) 100 < VARIABLE RESISTOR > RV401 1-238-853-11 RES, ADJ, CERMET 1K RV402 1-238-853-11 RES, ADJ, CERMET 1K RV404 1-238-855-11 RES, ADJ, CERMET 4.7K RV405 1-238-854-11 RES, ADJ, CERMET 2.2K < VIBRATOR > X502 1-579-907-21 VIBRATOR, CERAMIC (20MHz) X503 1-760-339-21 VIBRATOR, CRYSTAL (7.159MHz) X2100 1-781-262-21 VIBRATOR, CRYSTAL (16MHz) ************************************************************** * A-8054-968-A FE-39 MOUNT *********** < CONNECTOR > CN1881 1-785-468-11 CONNECTOR, FFC/FPC 13P CN1882 1-778-273-11 CONNECTOR (RESEPTACLE) 15P < DIODE > D1881 8-719-066-17 DIODE FTZ6.8E-T148 D1882 8-719-066-17 DIODE FTZ6.8E-T148 D1885 8-719-017-19 DIODE 02DZ10-TPH3 ************************************************************** A-7072-805-A FJ-23 MOUNTED PWB (not supplied) * 1-659-936-11 FJ-23 BOARD *********** < CONNECTOR > CN201 1-778-275-11 CONNECTOR (PLUG) 15P CN202 1-778-276-11 CONNECTOR, FFC/FPC 12P < SHORT > FB202 1-216-295-91 SHORT 0 R201 1-216-295-91 SHORT 0 ************************************************************** A-7072-813-A FP-702 MOUNTED PWB (not supplied) 1-661-554-11 FP-702 FLEXIBLE BOARD ********************* < PHOTO INTERRUPTER > PH904 8-719-980-75 PHOTO INTERRUPTER GP2S24-C PH905 8-719-980-75 PHOTO INTERRUPTER GP2S24-C PH906 8-719-980-75 PHOTO INTERRUPTER GP2S24-C ************************************************************** A-7072-814-A FP-703 MOUNTED PWB (not supplied) 1-661-553-11 FP-703 FLEXIBLE BOARD ********************* < PHOTO INTERRUPTER > PH901 8-719-980-75 PHOTO INTERRUPTER GP2S24-C PH902 8-749-923-97 PHOTO INTERRUPTER GP2S40K PH903 8-749-923-97 PHOTO INTERRUPTER GP2S40K ************************************************************** * A-7072-804-A FR-23 MOUNTED PWB ****************** < CAPACITOR > C100 1-165-319-11 CERAMIC CHIP 0.1uF 50V C101 1-163-031-11 CERAMIC CHIP 0.01uF 50V C102 1-165-319-11 CERAMIC CHIP 0.1uF 50V C103 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C104 1-165-319-11 CERAMIC CHIP 0.1uF 50V C105 1-126-217-11 ELECT CHIP 15uF 20% 10V C106 1-165-319-11 CERAMIC CHIP 0.1uF 50V C107 1-165-319-11 CERAMIC CHIP 0.1uF 50V < CONNECTOR > CN100 1-778-545-11 CONNECTOR, FFC/FPC (ZIF) 6P * CN101 1-695-320-21 PIN, CONNECTOR (1.5mm) (SMD) 2P CN102 1-565-771-11 CONNECTOR, FPC (1.0mm) (ZIF) 12P < DIODE > D100 8-719-420-83 DIODE MA3075WA- (TX) D101 8-719-017-19 DIODE 02DZ10-TPH3 D102 8-719-017-19 DIODE 02DZ10-TPH3 < IC > IC100 8-759-276-28 IC LM393PS-E20 IC101 8-759-269-40 IC SN74HC148ANSR IC102 8-759-184-40 IC LB1638 < RESISTOR > R100 1-216-073-91 RES, CHIP 10K 5% 1/10W R101 1-216-073-91 RES, CHIP 10K 5% 1/10W R102 1-216-073-91 RES, CHIP 10K 5% 1/10W R103 1-216-073-91 RES, CHIP 10K 5% 1/10W R104 1-216-073-91 RES, CHIP 10K 5% 1/10W R105 1-216-033-91 RES, CHIP 220 5% 1/10W R106 1-216-073-91 RES, CHIP 10K 5% 1/10W R107 1-216-073-91 RES, CHIP 10K 5% 1/10W R108 1-216-089-91 RES, CHIP 47K 5% 1/10W DK-39D FE-39 FJ-23 FP-702 FLEXIBLE FP-703 FLEXIBLE FR-23 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-7 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R109 1-216-081-91 RES, CHIP 22K 5% 1/10W R110 1-216-105-91 RES, CHIP 220K 5% 1/10W R111 1-216-089-91 RES, CHIP 47K 5% 1/10W R112 1-216-073-91 RES, CHIP 10K 5% 1/10W R113 1-216-295-91 SHORT 0 R114 1-216-089-91 RES, CHIP 47K 5% 1/10W R115 1-216-295-91 SHORT 0 R116 1-216-295-91 SHORT 0 R117 1-216-295-91 SHORT 0 R118 1-216-295-91 SHORT 0 R119 1-216-295-91 SHORT 0 R120 1-216-295-91 SHORT 0 < SWITCH > S100 1-762-733-11 SWITCH, ROTARY (SHEETS SET) ************************************************************** A-7073-391-A FR-35 MOUNTED PC BOARD (not supplied) * 1-666-882-21 FR-35 BOARD *********** < CAPACITOR > C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < COIL > LF101 1-416-107-21 COIL, COMMON MODE CHOKE ************************************************************** * A-8054-961-A HP-39 MOUNT ************ < CONNECTOR > * CN1851 1-573-768-21 PIN, CONNECTOR (1.5mm) (SMD) 5P < PHOTO INTERRUPTER > PH1851 8-749-015-68 PHOTO INTERRUPTER RPI-221N PH1852 8-749-015-68 PHOTO INTERRUPTER RPI-221N ************************************************************** * A-8054-959-A JD-39 MOUNT ************ < CONNECTOR > CN1861 1-691-550-11 PIN, CONNECTOR (1.5mm) (SMD) 3P < PHOTO INTERRUPTER > PH1861 8-719-980-75 PHOTO INTERRUPTER GP2S24-C ************************************************************** A-8054-958-A MD-39 MOUNT ************ < CAPACITOR > C1900 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1901 1-165-319-11 CERAMIC CHIP 0.1uF 50V C1902 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C1903 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C1904 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C1905 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C1906 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1907 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1911 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > * CN1931 1-569-775-21 PIN, CONNECTOR (SMD) 5P * CN1932 1-580-055-21 PIN, CONNECTOR (SMD) 2P CN1933 1-573-347-11 CONNECTOR, FFC/FPC 7P CN1934 1-573-917-11 CONNECTOR, FFC/FPC (ZIF) 8P * CN1935 1-580-056-21 PIN, CONNECTOR (SMD) 3P CN1936 1-573-370-21 CONNECTOR, FFC/FPC 30P CN1937 1-564-630-11 PIN, CONNECTOR 14P * CN1938 1-580-055-21 PIN, CONNECTOR (SMD) 2P * CN1940 1-580-056-21 PIN, CONNECTOR (SMD) 3P CN1941 1-580-055-21 PIN, CONNECTOR (SMD) 2P CN1942 1-564-016-11 PIN, CONNECTOR 6P * CN1943 1-580-057-11 PIN, CONNECTOR (SMD) 4P < DIODE > D1901 8-719-941-09 DIODE DAP202UT106 D1903 8-719-056-77 DIODE UDZ-TE-17-3.9B < FUSE > 0F1901 1-533-771-21 FUSE (SMD) (0.8A) 0F1902 1-533-771-21 FUSE (SMD) (0.8A) 0F1903 1-533-710-11 FUSE (SMD) (1.6A) 0F1904 1-533-710-11 FUSE (SMD) (1.6A) < IC > IC1900 8-759-821-82 IC LB1644 IC1901 8-759-471-56 IC STA506A IC1902 8-759-329-01 IC LM339NS-E20 IC1903 8-759-268-61 IC SN74HC08ANSR < TRANSISTOR > Q1900 8-729-140-75 TRANSISTOR 2SD999-T1-CLCK Q1902 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1903 8-729-904-60 TRANSISTOR DTB113ZK-T-146 < RESISTOR > R1900 1-216-033-91 RES, CHIP 220 5% 1/10W R1901 1-216-033-91 RES, CHIP 220 5% 1/10W R1902 1-216-033-91 RES, CHIP 220 5% 1/10W R1903 1-216-033-91 RES, CHIP 220 5% 1/10W R1904 1-216-033-91 RES, CHIP 220 5% 1/10W R1905 1-216-033-91 RES, CHIP 220 5% 1/10W R1906 1-216-033-91 RES, CHIP 220 5% 1/10W R1907 1-216-033-91 RES, CHIP 220 5% 1/10W R1908 1-216-033-91 RES, CHIP 220 5% 1/10W R1910 1-216-841-11 RES, CHIP 47K 5% 1/16W R1911 1-216-817-11 RES, CHIP 470 5% 1/16W R1917 1-218-835-11 METAL CHIP 330 0.5% 1/16W R1918 1-218-827-11 METAL CHIP 150 0.5% 1/16W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. FR-23 FR-35 HP-39 JD-39 MD-39 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-8 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1919 1-216-826-11 RES, CHIP 2.7K 5% 1/16W R1920 1-218-847-11 METAL CHIP 1K 0.5% 1/16W R1921 1-216-826-11 RES, CHIP 2.7K 5% 1/16W 0R1922 1-216-352-11 METAL OXIDE 1.8 5% 1W F 0R1923 1-216-352-11 METAL OXIDE 1.8 5% 1W F R1924 1-216-841-11 RES, CHIP 47K 5% 1/16W R1925 1-216-841-11 RES, CHIP 47K 5% 1/16W R1926 1-218-847-11 METAL CHIP 1K 0.5% 1/16W R1927 1-216-841-11 RES, CHIP 47K 5% 1/16W R1937 1-216-827-11 RES, CHIP 3.3K 5% 1/16W R1938 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R1939 1-216-826-11 RES, CHIP 2.7K 5% 1/16W R1940 1-216-826-11 RES, CHIP 2.7K 5% 1/16W R1944 1-216-864-11 SHORT 0 R1945 1-216-841-11 RES, CHIP 47K 5% 1/16W ************************************************************** * A-8054-960-A RD-39 MOUNT ************ < CONNECTOR > * CN1871 1-580-055-21 PIN, CONNECTOR (SMD) 2P < SWITCH > S1871 1-572-467-21 SWITCH, PUSH (1 KEY) (RIBBON DOOR DETECT) ************************************************************** A-8054-962-A SW-39 MOUNT ************ < BATTERY > BT1700 1-528-724-11 BATTERY, V/L RICHARGEABL < CAPACITOR > C1700 1-163-038-91 CERAMIC CHIP 0.1uF 25V C1701 1-163-038-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN1701 1-785-684-11 CONNECTOR, FFC/FPC 22P < DIODE > D1731 8-719-023-59 LED PG1102W-TR (POWER) D1733 8-719-018-24 LED AA1102W-TR (INPUT) D1734 8-719-018-24 LED AA1102W-TR (MEMORY) D1735 8-719-018-24 LED AA1102W-TR (RIBBON ERROR) D1736 8-719-018-24 LED AA1102W-TR (PAPER ERROR) D1737 8-719-064-59 LED PG1101F-TR (PRINTING STATUS INDICATOR) D1738 8-719-064-59 LED PG1101F-TR (PRINTING STATUS INDICATOR) D1739 8-719-064-59 LED PG1101F-TR (PRINTING STATUS INDICATOR) D1750 8-719-421-27 DIODE MA728-TX < FERRITE BEAD > FB1700 1-500-241-22 FERRITE FB1701 1-500-241-22 FERRITE FB1702 1-500-241-22 FERRITE FB1703 1-500-241-22 FERRITE FB1704 1-500-242-22 FERRITE FB1705 1-500-242-22 FERRITE FB1706 1-500-242-22 FERRITE < IC > IC1700 8-759-570-30 IC RTC-4543SBB-L2 < SHORT > JR1701 1-216-296-91 SHORT 0 JR1702 1-216-296-91 SHORT 0 JR1703 1-216-296-91 SHORT 0 JR1704 1-216-296-91 SHORT 0 JR1705 1-216-296-91 SHORT 0 JR1706 1-216-296-91 SHORT 0 JR1707 1-216-296-91 SHORT 0 JR1708 1-216-296-91 SHORT 0 JR1709 1-216-296-91 SHORT 0 JR1710 1-216-296-91 SHORT 0 JR1711 1-216-296-91 SHORT 0 < COIL > L1700 1-412-058-11 INDUCTOR CHIP 10uH < HARNESS > LN1701 1-958-356-31 HARNESS < TRANSISTOR > Q1731 8-729-923-81 TRANSISTOR DTC143EK-T146 < RESISTOR > R1701 1-216-210-91 RES, CHIP 3.3K 5% 1/8W R1702 1-216-202-91 RES, CHIP 1.5K 5% 1/8W R1703 1-216-242-91 RES, CHIP 68K 5% 1/8W R1704 1-216-228-91 RES, CHIP 18K 5% 1/8W R1705 1-216-234-91 RES, CHIP 33K 5% 1/8W R1706 1-216-222-91 RES, CHIP 10K 5% 1/8W R1707 1-216-216-91 RES, CHIP 5.6K 5% 1/8W R1709 1-216-296-91 SHORT 0 R1710 1-216-224-91 RES, CHIP 12K 5% 1/8W R1711 1-216-218-91 RES, CHIP 6.8K 5% 1/8W R1712 1-216-212-91 RES, CHIP 3.9K 5% 1/8W R1713 1-216-208-91 RES, CHIP 2.7K 5% 1/8W R1714 1-216-204-91 RES, CHIP 1.8K 5% 1/8W R1715 1-216-202-91 RES, CHIP 1.5K 5% 1/8W R1716 1-216-202-91 RES, CHIP 1.5K 5% 1/8W R1717 1-216-204-91 RES, CHIP 1.8K 5% 1/8W R1718 1-216-208-91 RES, CHIP 2.7K 5% 1/8W R1719 1-216-212-91 RES, CHIP 3.9K 5% 1/8W R1720 1-216-218-91 RES, CHIP 6.8K 5% 1/8W R1721 1-216-224-91 RES, CHIP 12K 5% 1/8W R1722 1-216-236-11 RES, CHIP 39K 5% 1/8W R1723 1-216-236-11 RES, CHIP 39K 5% 1/8W R1724 1-216-296-91 SHORT 0 R1725 1-216-296-91 SHORT 0 MD-39 RD-39 SW-39 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-9 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1731 1-216-182-91 RES, CHIP 220 5% 1/8W R1733 1-216-182-91 RES, CHIP 220 5% 1/8W R1734 1-216-182-91 RES, CHIP 220 5% 1/8W R1735 1-216-182-91 RES, CHIP 220 5% 1/8W R1736 1-216-182-91 RES, CHIP 220 5% 1/8W R1737 1-216-182-91 RES, CHIP 220 5% 1/8W R1738 1-216-182-91 RES, CHIP 220 5% 1/8W R1739 1-216-182-91 RES, CHIP 220 5% 1/8W R1750 1-216-190-91 RES, CHIP 470 5% 1/8W R1751 1-216-180-91 RES, CHIP 180 5% 1/8W R1752 1-216-296-91 SHORT 0 R1753 1-216-296-91 SHORT 0 R1754 1-216-214-91 RES, CHIP 4.7K 5% 1/8W R1755 1-216-214-91 RES, CHIP 4.7K 5% 1/8W < SWITCH > S1701 1-762-733-11 SWITCH, ROTARY (FUNCTION SELECT) S1702 1-771-497-21 SWITCH, SLIDE (MIRROR IMAGE SELECT) S1706 1-572-921-11 SWITCH, KEY BOARD (PRINT) S1707 1-572-921-11 SWITCH, KEY BOARD (CAPTURE) S1708 1-572-921-11 SWITCH, KEY BOARD (PICTURE) S1710 1-572-921-11 SWITCH, KEY BOARD (g) S1711 1-572-921-11 SWITCH, KEY BOARD (G) S1712 1-572-921-11 SWITCH, KEY BOARD (f) S1713 1-572-921-11 SWITCH, KEY BOARD (F) S1714 1-572-921-11 SWITCH, KEY BOARD (CLOCK SET) S1715 1-572-921-11 SWITCH, KEY BOARD (SAVE, VIDEO B FD) S1717 1-572-921-11 SWITCH, KEY BOARD (ENTER) S1718 1-572-921-11 SWITCH, KEY BOARD (CLEAR ALL, C) S1719 1-771-497-21 SWITCH, SLIDE (INPUT SELECT) S1720 1-771-246-21 SWITCH, SLIDE (DATE) ************************************************************** A-8054-965-A VI-39 COMPL *********** < CAPACITOR > C100 1-164-156-11 CERAMIC CHIP 0.1uF 25V C102 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C104 1-164-156-11 CERAMIC CHIP 0.1uF 25V C105 1-164-156-11 CERAMIC CHIP 0.1uF 25V C106 1-164-156-11 CERAMIC CHIP 0.1uF 25V C107 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C108 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C109 1-126-193-11 ELECT CHIP 1uF 20% 50V C110 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C111 1-164-156-11 CERAMIC CHIP 0.1uF 25V C112 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C113 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C114 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C117 1-164-156-11 CERAMIC CHIP 0.1uF 25V C118 1-164-156-11 CERAMIC CHIP 0.1uF 25V C119 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C120 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C121 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C122 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C123 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C124 1-164-156-11 CERAMIC CHIP 0.1uF 25V C125 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C126 1-164-156-11 CERAMIC CHIP 0.1uF 25V C127 1-164-156-11 CERAMIC CHIP 0.1uF 25V C128 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C130 1-164-156-11 CERAMIC CHIP 0.1uF 25V C131 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C133 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C139 1-164-156-11 CERAMIC CHIP 0.1uF 25V C141 1-164-156-11 CERAMIC CHIP 0.1uF 25V C144 1-164-156-11 CERAMIC CHIP 0.1uF 25V C145 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C146 1-164-156-11 CERAMIC CHIP 0.1uF 25V C147 1-164-156-11 CERAMIC CHIP 0.1uF 25V C148 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C149 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C150 1-164-156-11 CERAMIC CHIP 0.1uF 25V C151 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C152 1-164-156-11 CERAMIC CHIP 0.1uF 25V C153 1-164-156-11 CERAMIC CHIP 0.1uF 25V C154 1-164-156-11 CERAMIC CHIP 0.1uF 25V C156 1-164-326-91 CERAMIC CHIP 0.47uF 16V C157 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C158 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C159 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C160 1-164-156-11 CERAMIC CHIP 0.1uF 25V C161 1-164-156-11 CERAMIC CHIP 0.1uF 25V C162 1-164-156-11 CERAMIC CHIP 0.1uF 25V C163 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C164 1-164-156-11 CERAMIC CHIP 0.1uF 25V C167 1-164-156-11 CERAMIC CHIP 0.1uF 25V C168 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C169 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C170 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C171 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C172 1-164-156-11 CERAMIC CHIP 0.1uF 25V C173 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C174 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C177 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C178 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C179 1-164-156-11 CERAMIC CHIP 0.1uF 25V C180 1-164-156-11 CERAMIC CHIP 0.1uF 25V C185 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V C186 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C187 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C188 1-164-156-11 CERAMIC CHIP 0.1uF 25V C189 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C190 1-164-156-11 CERAMIC CHIP 0.1uF 25V C193 1-164-156-11 CERAMIC CHIP 0.1uF 25V C194 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C195 1-124-779-21 ELECT CHIP 10uF 20% 16V C196 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C197 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C198 1-124-778-21 ELECT CHIP 22uF 20% 6.3V C201 1-162-919-11 CERAMIC CHIP 22PF 5% 50V SW-39 VI-39 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-10 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C202 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C260 1-164-156-11 CERAMIC CHIP 0.1uF 25V C261 1-124-778-21 ELECT CHIP 22uF 20% 6.3V < CONNECTOR > CN101 1-785-467-11 CONNECTOR, FFC/FPC 8P CN102 1-785-471-21 CONNECTOR, FPC 20P < TRIMMER > CT102 1-141-430-51 CAP, CHIP TRIMMER 6PF < FERRITE BEAD > FB101 1-500-288-21 FERRITE < FILTER > FL101 1-233-677-11 FILTER, BAND PASS FL102 1-233-676-11 FILTER, LOW PASS FL105 1-233-615-11 FILTER, LOW PASS FL106 1-233-616-11 FILTER, LOW PASS FL107 1-233-616-11 FILTER, LOW PASS < IC > IC101 8-759-446-66 IC MM1113XFBE IC102 8-759-446-66 IC MM1113XFBE IC103 8-752-089-35 IC CXA1229AM-T6 IC105 8-752-352-20 IC CXD2023Q IC108 8-759-253-78 IC M51271FP-70AD IC110 8-759-182-84 IC PQ05SZ5U < COIL > L100 1-412-006-31 INDUCTOR CHIP 10uH L101 1-412-006-31 INDUCTOR CHIP 10uH L102 1-412-006-31 INDUCTOR CHIP 10uH L103 1-412-006-31 INDUCTOR CHIP 10uH L104 1-412-006-31 INDUCTOR CHIP 10uH L106 1-412-006-31 INDUCTOR CHIP 10uH L108 1-414-194-11 INDUCTOR 33uH < TRANSISTOR > Q101 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q102 8-729-402-81 TRANSISTOR XN4501-TW Q104 8-729-402-81 TRANSISTOR XN4501-TW Q107 8-729-402-81 TRANSISTOR XN4501-TW Q109 8-729-402-81 TRANSISTOR XN4501-TW Q113 8-729-901-80 TRANSISTOR 2SC2412K-T-146-Q Q123 8-729-402-84 TRANSISTOR XN4601-TW Q124 8-729-402-84 TRANSISTOR XN4601-TW < RESISTOR > R100 1-216-832-11 RES, CHIP 8.2K 5% 1/16W R101 1-216-817-11 RES, CHIP 470 5% 1/16W R102 1-216-821-11 RES, CHIP 1K 5% 1/16W R103 1-216-821-11 RES, CHIP 1K 5% 1/16W R104 1-216-817-11 RES, CHIP 470 5% 1/16W R105 1-216-817-11 RES, CHIP 470 5% 1/16W R106 1-216-817-11 RES, CHIP 470 5% 1/16W R109 1-216-833-91 RES, CHIP 10K 5% 1/16W R111 1-216-839-11 RES, CHIP 33K 5% 1/16W R112 1-216-837-11 RES, CHIP 22K 5% 1/16W R113 1-216-823-11 RES, CHIP 1.5K 5% 1/16W R114 1-216-816-11 RES, CHIP 390 5% 1/16W R115 1-216-818-11 RES, CHIP 560 5% 1/16W R116 1-211-990-11 METAL CHIP 75 0.5% 1/16W R118 1-216-821-11 RES, CHIP 1K 5% 1/16W R119 1-216-813-11 RES, CHIP 220 5% 1/16W R120 1-216-821-11 RES, CHIP 1K 5% 1/16W R121 1-216-864-11 SHORT 0 R122 1-216-815-11 RES, CHIP 330 5% 1/16W R123 1-216-833-91 RES, CHIP 10K 5% 1/16W R124 1-218-881-11 METAL CHIP 27K 0.5% 1/16W R125 1-216-825-11 RES, CHIP 2.2K 5% 1/16W R127 1-216-843-11 RES, CHIP 68K 5% 1/16W R128 1-216-817-11 RES, CHIP 470 5% 1/16W R134 1-216-864-11 SHORT 0 R135 1-216-821-11 RES, CHIP 1K 5% 1/16W R136 1-216-821-11 RES, CHIP 1K 5% 1/16W R137 1-216-864-11 SHORT 0 R138 1-218-849-11 METAL CHIP 1.2K 0.5% 1/16W R139 1-216-819-11 RES, CHIP 680 5% 1/16W R140 1-216-802-11 RES, CHIP 27 5% 1/16W R141 1-216-819-11 RES, CHIP 680 5% 1/16W R145 1-216-839-11 RES, CHIP 33K 5% 1/16W R146 1-216-832-11 RES, CHIP 8.2K 5% 1/16W R147 1-218-851-11 METAL CHIP 1.5K 0.5% 1/16W R148 1-216-819-11 RES, CHIP 680 5% 1/16W R150 1-216-818-11 RES, CHIP 560 5% 1/16W R151 1-216-864-11 SHORT 0 R152 1-216-864-11 SHORT 0 R153 1-216-864-11 SHORT 0 R154 1-216-864-11 SHORT 0 R155 1-216-864-11 SHORT 0 R157 1-218-859-11 METAL CHIP 3.3K 0.5% 1/16W R160 1-216-809-11 RES, CHIP 100 5% 1/16W R161 1-216-833-91 RES, CHIP 10K 5% 1/16W R162 1-216-839-11 RES, CHIP 33K 5% 1/16W R163 1-216-836-11 RES, CHIP 18K 5% 1/16W R164 1-202-930-11 RES, CHIP 750K 5% 1/16W R165 1-218-830-11 METAL CHIP 200 0.5% 1/16W R166 1-218-859-11 METAL CHIP 3.3K 0.5% 1/16W R167 1-218-830-11 METAL CHIP 200 0.5% 1/16W R168 1-216-844-11 RES, CHIP 82K 5% 1/16W R169 1-216-836-11 RES, CHIP 18K 5% 1/16W R170 1-216-817-11 RES, CHIP 470 5% 1/16W R171 1-216-821-11 RES, CHIP 1K 5% 1/16W R172 1-216-821-11 RES, CHIP 1K 5% 1/16W R173 1-216-840-11 RES, CHIP 39K 5% 1/16W R175 1-216-821-11 RES, CHIP 1K 5% 1/16W R176 1-216-864-11 SHORT 0 R177 1-216-821-11 RES, CHIP 1K 5% 1/16W R178 1-216-850-11 RES, CHIP 270K 5% 1/16W R179 1-216-823-11 RES, CHIP 1.5K 5% 1/16W R181 1-216-864-11 SHORT 0 R188 1-211-986-11 METAL CHIP 51 0.5% 1/16W VI-39 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7-11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R190 1-216-815-11 RES, CHIP 330 5% 1/16W R191 1-216-837-11 RES, CHIP 22K 5% 1/16W R192 1-216-837-11 RES, CHIP 22K 5% 1/16W R193 1-216-821-11 RES, CHIP 1K 5% 1/16W R196 1-216-833-91 RES, CHIP 10K 5% 1/16W R197 1-216-833-91 RES, CHIP 10K 5% 1/16W R202 1-216-821-11 RES, CHIP 1K 5% 1/16W R203 1-216-821-11 RES, CHIP 1K 5% 1/16W R204 1-216-821-11 RES, CHIP 1K 5% 1/16W R207 1-216-841-11 RES, CHIP 47K 5% 1/16W R214 1-216-821-11 RES, CHIP 1K 5% 1/16W R215 1-216-821-11 RES, CHIP 1K 5% 1/16W R221 1-216-821-11 RES, CHIP 1K 5% 1/16W R222 1-216-821-11 RES, CHIP 1K 5% 1/16W R238 1-216-864-11 SHORT 0 R239 1-216-864-11 SHORT 0 R259 1-216-841-11 RES, CHIP 47K 5% 1/16W R260 1-216-821-11 RES, CHIP 1K 5% 1/16W R289 1-216-847-11 RES, CHIP 150K 5% 1/16W < VARIABLE RESISTOR > RV102 1-223-273-11 RES, ADJ, CERMET 1K RV103 1-223-273-11 RES, ADJ, CERMET 1K RV105 1-223-258-21 RES, ADJ, CERMET 4.7K RV106 1-223-258-21 RES, ADJ, CERMET 4.7K < VIBRATOR > X101 1-760-502-11 VIBRATOR, CRYSTAL (14.318MHz) ************************************************************** A-8054-967-A VS-39 MOUNT ************ < CAPACITOR > C1801 1-126-611-11 ELECT 1000uF 20% 6.3V < JACK/CONNECTOR > CJ1801 1-694-129-11 TERMINAL, S (S-VIDEO INPUT) CN1801 1-778-320-21 CONNECTOR, FPC 8P < DIODE > D1801 8-719-017-13 DIODE 02DZ7.5-TPH3 D1802 8-719-067-40 DIODE STZ6.8N-T146 D1803 8-719-067-40 DIODE STZ6.8N-T146 D1804 8-719-067-40 DIODE STZ6.8N-T146 D1805 8-719-067-40 DIODE STZ6.8N-T146 < JACK > J1801 1-563-866-51 JACK, PIN 1P (VIDEO INPUT) J1802 1-563-866-51 JACK, PIN 1P (OUTPUT) < COIL > L1803 1-500-288-21 FERRITE < RESISTOR > R1805 1-211-990-11 METAL CHIP 75 0.5% 1/16W R1806 1-211-990-11 METAL CHIP 75 0.5% 1/16W VI-39 VS-39 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. R1807 1-211-990-11 METAL CHIP 75 0.5% 1/16W R1808 1-216-864-11 SHORT 0 R1809 1-216-864-11 SHORT 0 R1810 1-216-864-11 SHORT 0 R1811 1-216-864-11 SHORT 0 R1812 1-216-821-11 RES, CHIP 1K 5% 1/16W ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-696-863-11 CORD, CONNECTION 0 1-790-107-22 CORD, POWER 3-868-283-01 MANUAL, INSTRUCTION (ENGLISH, FRENCH) 7-11 E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 116 – Sony Corporation Printing Technologies Company 99J05023-1 Printed in Japan © 1999. 10 Published by VAIO Customer Link 9-928-141-11 DMP-1000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
