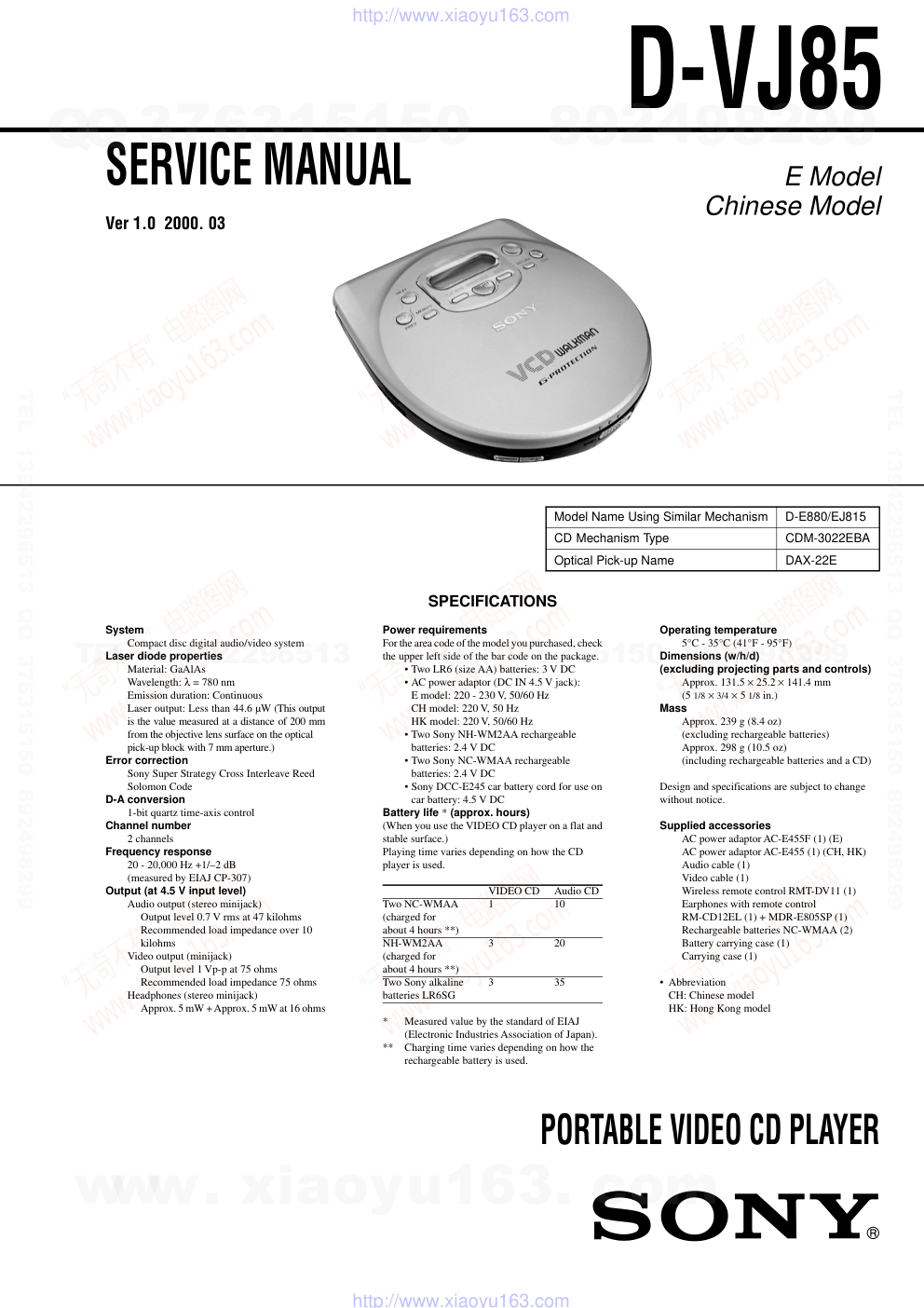

– 1 – Model Name Using Similar Mechanism D-E880/EJ815 CD Mechanism Type CDM-3022EBA Optical Pick-up Name DAX-22E SERVICE MANUAL E Model Chinese Model PORTABLE VIDEO CD PLAYER System Compact disc digital audio/video system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Error correction Sony Super Strategy Cross Interleave Reed Solomon Code D-A conversion 1-bit quartz time-axis control Channel number 2 channels Frequency response 20 - 20,000 Hz +1/–2 dB (measured by EIAJ CP-307) Output (at 4.5 V input level) Audio output (stereo minijack) Output level 0.7 V rms at 47 kilohms Recommended load impedance over 10 kilohms Video output (minijack) Output level 1 Vp-p at 75 ohms Recommended load impedance 75 ohms Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 ohms SPECIFICATIONS Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): E model: 220 - 230 V, 50/60 Hz CH model: 220 V, 50 Hz HK model: 220 V, 50/60 Hz • Two Sony NH-WM2AA rechargeable batteries: 2.4 V DC • Two Sony NC-WMAA rechargeable batteries: 2.4 V DC • Sony DCC-E245 car battery cord for use on car battery: 4.5 V DC Battery life * (approx. hours) (When you use the VIDEO CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. VIDEO CD Audio CD Two NC-WMAA 1 10 (charged for about 4 hours **) NH-WM2AA 3 20 (charged for about 4 hours **) Two Sony alkaline 3 35 batteries LR6SG * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). ** Charging time varies depending on how the rechargeable battery is used. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 131.5 × 25.2 × 141.4 mm (5 1/8 × 3/4 × 5 1/8 in.) Mass Approx. 239 g (8.4 oz) (excluding rechargeable batteries) Approx. 298 g (10.5 oz) (including rechargeable batteries and a CD) Design and specifications are subject to change without notice. Supplied accessories AC power adaptor AC-E455F (1) (E) AC power adaptor AC-E455 (1) (CH, HK) Audio cable (1) Video cable (1) Wireless remote control RMT-DV11 (1) Earphones with remote control RM-CD12EL (1) + MDR-E805SP (1) Rechargeable batteries NC-WMAA (2) Battery carrying case (1) Carrying case (1) • Abbreviation CH: Chinese model HK: Hong Kong model Ver 1.0 2000. 03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TAP802 – main board (side A) – S801 CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT table is located on the bottom exterior. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Before Replacing the Optical Pick-Up Block Please be sure to check throughly the parameters as par the “Opti- cal Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output : IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.35 - 0.65 Vp-p Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver having a thin tip as shown in Fig.1. or TAP802 is shorted as shown in Fig.2. Note: Do not push the detection lever strongly, or it may be bent or damaged. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. Fig. 2 Fig. 1 detection lever detection lever main board S801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS 1. GENERAL Getting started ......................................................................... 4 Playing a VIDEO CD .............................................................. 4 Playing an audio CD................................................................ 5 2. DISASSEMBLY 2-1. Cabinet (Lower) Assy ......................................................... 6 2-2. Lid Assy, Upper ................................................................... 6 2-3. Switch Board ....................................................................... 7 2-4. MD Assy ............................................................................. 7 2-5. Main Board, IR Board ......................................................... 8 2-6. Optical Pick-up ................................................................... 8 3. TEST MODE 3-1. How to Enter the Test Mode................................................ 9 3-2. How to Release the Test Mode ............................................ 9 3-3. Each Key Function in Test Mode ........................................ 9 4. ELECTRICAL ADJUSTMENT 4-1. Focus Bias Check .............................................................. 11 5. DIAGRAMS 5-1. IC Pin Descriptions ........................................................... 12 5-2. Block Diagram –CD Section (1/2)– .................................. 17 5-3. Block Diagram –CD Section (2/2)– .................................. 19 5-4. Block Diagram –Video Section–....................................... 21 5-5. Block Diagram –Power Supply Section– .......................... 23 5-6. Printed Wiring Boards ....................................................... 25 5-7. Schematic Diagram –Main Section (1/4)– ........................ 29 5-8. Schematic Diagram –Main Section (2/4)– ........................ 31 5-9. Schematic Diagram –Main Section (3/4)– ........................ 33 5-10. Schematic Diagram –Main Section (4/4)– ........................ 35 6. EXPLODED VIEWS 6-1. Cabinet Section ................................................................. 41 6-2. CD Mechanism Deck Section ........................................... 42 7. ELECTRICAL PARTS LIST ........................................ 43 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 1 GENERAL This section is extracted from instruction manual. Locating the Controls For details, see pages in parentheses. CD player (front) 2 Display (pages 9, 11, 21–24) 6 VOLUME +/– buttons (page 8, 10) 4 MENU button (page 15) 5 HOLD switch (page 24) 9 PLAY MODE button (pages 15, 20–22) 7 OPEN switch (pages 6, 9) 3 ./>• PREV/NEXT (AMS/search) buttons (pages 9, 11, 16, 22) 1 RETURN O button (page 15) 8 Remote sensor (pages 12) qj REPEAT/ENTER/SELECT button (page 11, 16, 20, 21) qh SOUND button (page 23) qg i/REMOTE jack (page 10) qf AUDIO OUT (OPTICAL) jack (pages 7, 17) qd VIDEO OUT jack (pages 7, 17) qs DC IN 4.5V (external power input) jack (pages 7, 10, 28) qax (stop) /CHG (charge) button (pages 8, 10, 13, 28) q; u (play/pause) button (page 8, 10, 15, 23) Getting started Remote control Note Use only the supplied remote control. You cannot operate this VIDEO CD player with the remote control supplied with other VIDEO CD players. ek x (stop) button (pages 8, 10, 13, 28) (Front) rdP (play) MODE button (pages 15, 20 - 22) rj DISPLAY button (page 25) Press to check the remaining time on the CD and the number of the tracks left. el Jog lever u: play/pause (pages 8, 10, 15, 23) ./>: AMS/search (pages 9, 11, 16, 22) rf RPT (repeat)/ENT (enter) button (pages 11, 16, 21) (Rear) ej HOLD switch (page 24) rg Clip You can turn and change the angle of the clip. rs VOLUME +/– tab (page 7) r; Display (pages 9, 11, 21 - 24) ra LIGHT button Press to illuminate the display on the remote control for about 5 seconds when using the player on the rechargeable batteries or alkaline batteries. rh SOUND button (page 23) CD player (rear) Wireless remote control wk Number buttons (pages 9, 11, 15, 18, 19, 20, 22) e; x (stop) button (pages 8, 10) ea NEXT > button (pages 9, 11, 16, 22) ed SELECT button (pages 20) This button does not function on this model. eh REPEAT/ENTER button (pages 11, 16, 21, 22, 23) wl ≥10 button (pages 15, 18, 19, 22) es RETURN O button (page 15) ef ST/L/R button (page 14) eg V-INDEX button (page 18) wd u (play/pause) button (pages 8,11, 12, 16, 22) wj TIME button (page 19) wg SLOW button (page 14) wh PLAY MODE button (pages 20 - 22) ws PBC button (page 15) qk NTSC/PAL switch (pages 7) w; Battery compartment (pages 28) wa OSD button (page12) ql AVLS switch (pages 24) (Continued) wf PREV . button (pages 16, 22) Playing a VIDEO CD You can play back a VIDEO CD, using the supplied AC power adaptor. You can also use rechargeable batteries and alkaline batteries. (See “Connecting a power source” on pages 28 – 30.) To produce color pictures normally, you need to set the color system properly according to the connected TV. VIDEO AUDIO INPUT R L to an AC outlet AC power adaptor to DC IN 4.5V to AUDIO OUT (OPTICAL) to VIDEO OUT Audio cable Yellow Red White TV PAL NTSC Video cable Turn on the power and set the input mode selector to the proper position. (Continued) 1. Connect your VIDEO CD player. 1 Connect the AC power adaptor. 2 Connect the video and audio cables. 3 Turn on the power of the TV and set the input mode selector to the proper position. 2. Set the NTSC/PAL switch to the color system of your TV. 1 Open the battery compartment lid. 2 Switch to “PAL” or “NTSC” using a pointed material. PAL system countries: China, India, Indonesia, Singapore, Malaysia, etc. NTSC system countries: Japan, Korea, Taiwan, U.S.A., etc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 3. Insert a VIDEO CD. 1 Slide OPEN to open the lid. 2 Fit the VIDEO CD to the pivot and close the lid. OPEN switch Label side up 4. Play a VIDEO CD. 1 Press u on the main unit or the wireless remote control. 2 Adjust the volume on the equipment connected to this player. (You cannot adjust the volume on this player except for the signals output from the i/REMOTE jack). To stop playing, press x. The player also turn off. u VOLUME +/– u Do this Press u. Press x/CHG (x). Press u Press > repeatedly until you find the scene or track. Press . repeatedly unitl you find the scene or track. Press the number button of the track (wireless remote control only). Press . or > and hold it down until m or M appears on the TV screen. To Pause Stop Resume play after pause Locate the next or succeeding tracks Locate the current or preceding tracks Locate a specific track directly Locate a point in the track while monitoring the picture* * To return to normal playback, press u. The above operations can also be done with the buttons on the supplied earphones with remote control or wireless remote control. About the display • No indication appears on the display while you operate the unit with the wired remote control. • During play, the track number and the elapsed playing time of the current track appear. • During pause, the elapsed playing time flashes. If the volume level does not increase (when listening with the headphones/earphone) Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “To protect your hearing (AVLS)” on page 24. If a cable is connected to the AUDIO OUT jack, you cannot adjust the volume. In such a case, disconnect the cable. Removing the VIDEO CD Remove the VIDEO CD as illustrated. Dent Playing an audio CD You can also use rechargeable batteries, alkaline batteries and a car battery. (See “Connecting a power source” on pages 28 - 30.) 1. Connect your CD player. 1 Connect the AC power adaptor. 2 Connect the earphones with remote control. Connect the earphones firmly. A loose connection may cause noise during playback. to DC IN 4.5V AC power adaptor to an AC outlet to i/REMOTE 2. Insert an audio CD. 1 Slide OPEN to open the lid. OPEN switch Label side up 2 Fit the audio CD to the pivot and close the lid. 3. Play an audio CD. 1 Press u on the main unit or press the jog lever on the remote control toward u. 2 Adjust the volume by pressing VOLUME + or –. To stop playing, press x. The player is also turned off. u VOLUME +/– Jog lever VOLUME Earphones with remote control (supplied) Note When playing back an audio CD using the AC power adaptor, it takes a while until the sound is heard. Press u x/CHG (x) u . once** . repeatedly** > once** > repeatedly** Number buttons of the track (wireless remote control only)** Hold down >** Hold down .** To Pause Stop Resume play after pause Find the beginning of the current track (AMS*) Find the beginning of previous tracks (AMS) Find the beginning of the next track (AMS) Find the beginning of succeeding tracks (AMS) Locate a specific track directly Go forward quickly Go backwards quickly * Automatic Music Sensor ** These operations are possible during both play and pause. The above operations can also be done with the buttons on the supplied earphones with remote control or wireless remote control. If you press REPEAT/ENTER (RPT/ENT) to display “REPEAT”, you can locate the tracks continuously in the following order: • When using >: next track t next track ...... last track t first track t second track ...... • When using .: previous track t previous track ...... first track t last track ...... About the display • When playing an audio CD using the AC power adaptor, indications on the remote control display window go off until the sound is heard. • When you press u, the total number of tracks in the audio CD and total playing time appear for about two seconds. • During play, the track number and the elapsed playing time of the current track appear. • Between tracks, the time to the beginning of the next track appears with the “-” indication. • During pause, the elapsed playing time flashes. If the volume level does not increase Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “To protect your hearing (AVLS)” on page 24. If a cable is connected to the AUDIO OUT jack, you cannot adjust the volume. In such a case, disconnect the cable. Removing the audio CD Remove the audio CD as illustrated. Dent www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 3 boss 2 boss 1 screw (M1.4), step 4 lid assy, upper lid, battery case claws 7 claws 6 claw 4 claws 8 CN801 3 claws 5 claws 2 screws (B2) 1 screws (B2) 9 cabinet (lower) assy • The equipment can be removed using the following procedure. 2-2. LID ASSY, UPPER SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. CABINET (LOWER) ASSY Set Cabinet (Lower) Assy Lid Assy, Upper Switch Board MD Assy Main Board, IR Board Optical Pick-up www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – 5 MD assy 1 CN503 4 CN501 2 CN502 3 3 SWITCH board 1 screws 2 screws 2-3. SWITCH BOARD 2-4. MD ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – 2 MAIN board 3 Removal the solders. 4 IR board 1 6 optical pick-up 2 rack 1 M1.4x1.8 3 M1.4x4 5 shaft, standard 4 bracket assy, sled 2-5. MAIN BOARD, IR BOARD 2-6. OPTICAL PICK-UP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – SECTION 3 TEST MODE 3-1. OUTLINE This set has the test mode in which the pick-up can be operational checked and the video signal can be verified. 3-2. PICK-UP OPERATIONAL CHECKS 3-2-1. Setting the test mode 1. Switch positions OPEN switch (S801) : OPEN HOLD switch (S804) : OFF AVLS switch (S893) : OFF 2. Short the TEST terminal TAP801 (TEST) by soldering it. Remove the solder from the TAP901 (V-TEST) and open the terminal. 3. Supply 4.5 V DC from the DC jack (J401). 3-2-2. Releasing the test mode 1. Open the TEST terminal TAP801 (TEST) and short the TAP901 (V-TEST). 2. Turn the power OFF. 3-2-3.Operational checks 1. When a specific key is operated: KEY Contents of the operation. ((LCD DISPLAY)) u Spindle on. Tracking servo off. ((UP 00 03)) x All servo off. Mute on. CHG ((10 different displays are repeatedly presented.)) Moves the pick-up to the outside (with the open > switch open). Tracking servo off. Mute on. NEXT ((Among 10 different displays, the display when the key is pressed is held.)) Moves the pick-up to the inside (with the open . switch open). Tracking servo off. Mute on. PREV ((Among 10 different displays, the display when the key is pressed is held.)) 2. In play mode • Press the u key: KEY Contents of the operation. ((LCD DISPLAY)) Tracking servo on. Mute off. Each time this key is pressed, the display changes PLAY as follows: MODE x1 speed t x2 speed t x3 speed t x4 speed t x1 speed (( 01 00 01)) t ((02 00 02)) t ((03 00 03)) t ((04 00 04)) Each time this key is pressed, the display changes SELECT as follows: REPEAT/ Tracking gain up. Emphasis on. LCD back light ENTER on h Tracking gain down. Emphasis off. LCD back light off 3-3. VIDEO SIGNAL VERIFICATION 3-3-1. Setting the test mode 1. Switch positions OPEN switch (S801) : OPEN HOLD switch (S804) : OFF AVLS switch (S893) : OFF 2. Short the TEST terminal TAP801(TEST) by soldering it. Remove the solder from the TAP901(V-TEST) and connect the terminal to the TP945 (VDD) with a 47 kΩ resistor. 3. Supply 4.5V DC from the DC jack (J401). 3-3-2. Releasing the test mode 1. Open the TEST terminal TAP801(TEST). Remove the resistor from the TAP901 (V-TEST) and short the terminal by soldering it. 2. Turn the power OFF. 3-3-3. Operational checks 1. Connect the TP931 to the TP945 (VDD) with a 47 kΩ resistor (NTSC mode). 2. Press the O RETURN key once. 3. Verify that a 100% white pattern is output from the VIDEO OUT (J901). 4. Press the O RETURN key once (output off). 5. Connect the TP931 to the TP919 (GND) (PAL mode). 6. Press O RETURN key once. 7. Verify that a 100% white pattern is output from the VIDEO OUT (J901). 8. Press the O RETURN key once (output off). 9. Open the TP931. H 1.0 ± 0.2Vp-p Fig. 100% white pattern Adjustment Location: See page 10. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – Test Points: J901 (VIDEO OUT) TP945 – main board (side A) – – main board (side B) – TAP801 (TEST) TAP901 (V-TEST) CN801 IC902 TP919 TP931 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – – main board (side A) – TP601 (RF) TP614 (RF) – main board (side B) – Procedure: 1. Connect the oscilloscope between TP614 (RF) or TP601 (RF) and GND on MAIN board. 2. Insert the disc (YEDS-18). (Part No. : 3-702-101-01) 3. Press the u button. 4. Confirm that the oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape ( ) in the center of the waveform can be clearly distinguished. 5. Stop revolving of the disc motor by pressing the x button. • RF signal reference waveform (eye pattern) SECTION 4 ELECTRICAL ADJUSTMENT CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. 4-1. PRECAUTIONS FOR CHECK 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC 4.5 V in DC IN jack. (J401) VOLUME button : Minimum AVLS switch : NORM HOLD switch : OFF 4-2. FOCUS BIAS CHECK Condition: • Hold the set in horizontal state. Connection: oscilloscope (AC range) 2 kΩ MAIN board TP601 (RF) When observing the eye pattern, set the oscilloscope for AC range and raise vertical sensitivity. RF level : 0.35 to 0.65 Vp-p VOLT/DIV : 50 mV (10 : 1 probe in use) TIME/DIV : 500 nS Test Points: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – 5-1. IC PIN DESCRIPTIONS • IC801 TMP88CM22F (SYSTEM CONTROLLER) Pin No. Pin Name I/O Pin Description 1 VSS I Ground 2 IRRMC I Infrared remote control signal input 3 FOKI I Focus OK signal input from CXD3027R (IC601). 4 AGCCON O AGC control pulse output 5 XLEDDISP O CHG/HOLD LED control signal output 6 VCC SWITCHING O Control signal output for Switching power supply circuit. 7 AMUTE O Analog audio muting ON/OFF signal control signal output (H: Mute ON) 8 VCC2 ON O VCC2 voltage control output 9 XRST O Reset signal output to CXD3027R (IC601). (L: Reset) 10 SCK O Serial data transfer clock signal output to CXD3027R (IC601). 11 SDTI I Serial data input from CXD3027R (IC601). 12 SDTO O Serial data output to CXD3027R (IC601). 13 SLPOUT O WAKE-UP control signal output (for system standby reset) 14 SEL I Plug-in detection signal input of AUDIO OUT (OPTICAL) jack. 15 CHGMNT1 I Battery charge voltage detection input from TB2119F (IC401). 16 VCDKEY I VCD key input 17 BATMNT I Battery voltage detection input 18 KEY I Key input from switch board (A/D input). 19 RMKEY I Key input from headphones with remote controller (A/D input). 20 DCINMNT I DC input voltage detection input (A/D input) DC input jack use/no-use detect input 21 OPEN I CD door open/close detection input 22 VREFL I Reference voltage (0 V) input for A/D converter. 23 VREFH I Reference voltage (+2 V) input for A/D converter. 24 VDD — Power supply pin (+2 V) 25 SCOR I Sub code sync detection input from CXD3027R (IC601). 26 GRSCOR I GRSCOR signal input 27 FG I FG pulse input 28 BEEP O Beep sound output to headphone AMP (IC351). 29 XU TX REQ O Request signal output to TMP87PM41U (IC902). 30 RMSCK O Communication clock to CXD751-103R (IC802) and TMP87PM41U (IC902). 31 RMDATI I Communication data bus input from CXD751-103R (IC802) and TMP87PM41U (IC902). 32 RMDATO O Communication data bus output to CXD751-103R (IC802) and TMP87PM41U (IC902). 33 RMRW O Read/write control signal output to headphones with remote. (L: Read, H: Write) 34 RMLAT O Serial data latch pulse output to headphones with remote. 35 WFCKI I WFCK input 36 NC — Not used. (Open) 37 XNTSC I I NTSC/PAL select input (“L”: PAL, “H”: NTSC) 38 AVLS I AVLS (Automatic Volume Limiter System) switch input (L: Normal, H: Limit) 39 HOLD I HOLD switch input (L: HOLD on, H: HOLD off) 40 EX BATT I EXT BATT plug-in detection input 41 XSPDOE O Spindle motor driver control signal output 42 XHGON O Optical pick-up VCC control signal output (L: on) 43 XLAT O Serial data latch pulse output to CXD3027R (IC601). (for ESP) 44 XSOE O Output enable signal output (for ESP) 45 DRVLT O Spindle motor driver latch output 46 XPOWLT O Latch output to VCD control IC. 47 XDOUTON O DIGITAL OUT LED control signal output 48 XAPC OFF O APC mute signal output (L: mute) 49 XVRST O Reset signal output to TMP87PM41U (IC902). 50 – 52 SEG14 – 12 O LCD drive segment output 53 – 56 SEG11 – 8 O LCD drive segment output SECTION 5 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – Pin No. Pin Name I/O Pin Description 57 – 64 SEG7 – 0 O LCD drive segment output 65 – 68 COM3 – 0 O LCD drive common output 69 – 71 V3 – 1 O LCD drive bias output 72, 73 C1, 0 O Capacitor connected terminal of LCD driver for voltage-up. 74 STOP O Stop signal output to VCD control IC. 75 TEST I Test terminal for IC. (Fixed at L in this set) 76 XHPSW O Headphone AMP ON/OFF control signal output (L: ON) 77 XLIGHT O LCD back light control signal output to LCD. 78 RESET I System reset signal input from TB2119F (IC401). (L: Reset) 79 XIN I Oscillation input 80 XOUT O Oscillation output (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – • IC902 TMP87PM41U (MICON VIDEO ENCODER/VIDEO CONTROLLER) Pin No. Pin Name I/O Pin Description 1 – 8 P00 – 07 — Not used. (Open) 9 (INT0) P10 — Not used. (Open) 10 (INT1) P11 — Not used. (Open) 11 (INT2/TC1) P12 — Not used. (Open) 12 (DVO) P13 — Not used. (Open) 13 (PPG) P14 — Not used. (Open) 14 (TC2) P15 — Not used. (Open) 15 P16 — Not used. (Open) 16 P17 I Visual system test mode pin (“L”: Test mode) 17 P20 (INT5/STOP) I Interruption request signal input from CL680T-D1 (IC906). 18 TEST I Test pin (Fixed at “L” in this set) 19 P21 (XTI) — Not used. (Open) 20 P22 (XTOUT) — Not used. (Open) 21 RESET I I System reset signal input from TMP88CM22F (IC801). (“L”: Reset) 22 XIN I I High frequency oscillator input from TMP88CM22F (IC801). 23 XOUT O High frequency oscillator output (Not used in this set) 24 VSS — Digital ground 25 P30 O CD DA/CD ROM judgment output (“L”: Audio CD) 26 – 30 P31 – 35 — Not used. (Open) 31 — — Not used. (Open) 32 C RESET O Reset signal output to CL680T-D1 (IC906). (“L”: Reset) 33 P40 O Ready signal output to CL680T-D1 (IC906). 34 P41 O Address select signal output to CL680T-D1 (IC906). 35 P42 (SCK1) O Serial clock signal output to CL680T-D1 (IC906). 36 P43 (SI1) I Serial data signal input from CL680T-D1 (IC906). 37 P44 (SO1) O Serial data signal output to CL680T-D1 (IC906). 38 P45 (SCK2) I Serial clock signal input from TMP88CM22F (IC801). 39 P46 (SI2) I Serial data signal input from TMP88CM22F (IC801). 40 P47 (SO2) O Serial data signal output to TMP88CM22F (IC801). 41 P50 (INT3/TC3) I Request signal input from TMP88CM22F (IC801). 42 P51 (INT4/TC4) I Ready signal input from TMP88CM22F (IC801). 43 P52 (PWM/PDO) O Request signal output to TMP88CM22F (IC801). 44 P53 (HPWM0) — Not used. (Open) 45 P54 (HPWM1) — Not used. (Open) 46 AVSS — Not used. (Open) 47 AVREF — Not used. (Open) 48 (AIN0) P60 — Not used. (Open) 49 (AIN1) P61 — Not used. (Open) 50 (AIN2) P62 — Not used. (Open) 51 (AIN3) P63 — Not used. (Open) 52 (AIN4) P64 — Not used. (Open) 53 (AIN5) P65 — Not used. (Open) 54 (AIN6) P66 — Not used. (Open) 55 (AIN7) P67 — Not used. (Open) 56 VDD — Digital power supply pin (+3.2 V) 57 (AIN10) P70 — Not used. (Open) 58 (AIN11) P71 — Not used. (Open) 59 (AIN12) P72 — Not used. (Open) 60 (AIN13) P73 — Not used. (Open) 61 (AIN14) P74 — Not used. (Open) 62 (AIN15) P75 — Not used. (Open) 63 (AIN16) P76 — Not used. (Open) 64 (AIN17) P77 — Not used. (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Pin No. Pin Name I/O Pin Description 78 CLK SEL [1] I Clock select 1 input (Fixed at “H” in this set) 79 CLK SEL [2] I Clock select 2 input (Fixed at “H” in this set) 80 VSS — Ground 81 CLK SEL [3] I Clock select 3 input (Fixed at “L” in this set) 82 VDD3 — Power supply pin (+3.3 V) 83 CLK SEL [4] O Clock select 4 output (Fixed at “L” in this set) 84 CLK SEL [5] O Clock select 5 output (Fixed at “L” in this set) 85 AGND PLL — Ground (for PLL system) 86 DA XCK I Main reference clock signal (16.9344 MHz=384 fs) from CXD3027R (IC601). 87 AVDD PLL — Power supply pin (+3.3 V) (for PLL system) 88 PGIO4 I/O Connect to VSS in this set. 89 PGIO5 I/O Connect to VSS in this set. 90 PGIO6 I/O Connect to VSS in this set. 91 PGIO0 I/O Not used in this set. (Open) 92 PGIO8 I/O Connect to VSS in this set. 93 PGIO2/VSYNC/CSYNC O Vertical synchronized signal output (Not used in this set) 94 AVDD PLL — Power supply pin (+3.3 V) (for PLL system) 95 NC O Not used. (Fixed at “L” in this set) 96, 97 NC O Not used. (Open) 98 AGND PLL — Ground (for PLL system) 99 VSS — Ground 100 NC O Not used. (Open) 101 PGIO3/HSYNC I/O Not used in this set. (Open) 102 VDD3 — Power supply pin (+3.3 V) 103 PGIO1/VCK-OUT I/O Not used in this set. (Open) 104 VSS — Ground 105 GCK I Connect to VSS in this set. 106 VCK IN I Main clock for video signal processor input from Buffer (27 MHz) (IC904). 107 DA-EMP O Not used. (Open) 108 DA-LRCK O Digital audio L/R sampling clock signal (44.1 kHz) output to CXD3027R (IC601). 109 VDDMAX OUT O Fix the maximum output voltage (+5 V) certain output 110 DA-DATA O Digital audio data output to CXD3027R (IC601). 111 DA-BCK O Digital audio bit clock signal (2.8224 MHz) output to CXD3027R (IC601). 112 HD-OUT O Serial data output to TMP87PM41U (IC902). 113 HRDY O Ready signal output to TMP87PM41U (IC902) 114 HINT O Interrupt request signal output to TMP87PM41U (IC902). 115 CDG-SCK I/O CD graphics serial clock input/output (Fixed at “L” in this set) 116 VSS — Ground 117 HCK I Serial data transfer clock signal input from TMP87PM41U (IC902). 118 VDD3 — Power supply pin (+3.3 V) 119 HD-IN I Serial data input from TMP87PM41U (IC902). 120 VDD3 — Power supply pin (+3.3 V) 121 HSEL I Command selection signal input from TMP87PM41U (IC902). 122 CDG-SDATA I CD graphics serial data input (Fixed at “L” in this set) 123 CDG-VFSY I CD graphics VFSY input (Fixed at “L” in this set) 124 CDG-SOS1 I CD graphics SOS1 input (Fixed at “L” in this set) 125 – 128 NC O Not used. (Open) – 15 – – 16 – • IC906 CL680T-D1 (AUDIO/VIDEO MPEG DECODER) Pin No. Pin Name I/O Pin Description 1 NC O Not used. (Open) 2 VSS — Ground 3 CD BCK I CD decode bit clock signal (2.8224 MHz) input from the CXD3027R (IC601). 4 CD DATA I CD decode data input from the CXD3027R (IC601). 5 CD LRCK I CD decode L/R sampling clock signal (44.1 kHz) input from the CXD3027R (IC601). 6 CD C2PO I CD decode C2 error data input from the CXD3027R (IC601). 7 – 9 NC O Not used. (Open) 10 – 15 MD0 – 5 I/O Two-way data bus with the program ROM (IC903) and DRAM (IC905). 16 VSS — Ground 17 MD6 I/O Two-way data bus with the program ROM (IC903) and DRAM (IC905). 18 VDD3 — Power supply pin (+3.3 V) 19 MD7 I/O Two-way data bus with the program ROM (IC903) and DRAM (IC905). 20 VSS — Ground 21 MD8 I/O Two-way data bus with the program ROM (IC903) and DRAM (IC905). 22 VDD3 — Power supply pin (+3.3 V) 23 – 28 MD9 – 14 I/O Two-way data bus with the program ROM (IC903) and DRAM (IC905). 29 MD15 I/O Two-way data bus with the program ROM (IC903). 30 – 36 NC O Not used. (Open) 37 MCE O Chip enable signal output to the program ROM (IC903). 38 MWE O Write enable signal output to the DRAM (IC905). 39 VSS — Ground 40 CAS O Column address strobe signal output to the DRAM (IC905). 41 VDD3 — Power supply pin (+3.3 V) 42 RAS0 O Row address strobe signal output to the DRAM (IC905). 43 RAS1 O Row address strobe signal output (Not used in this set) 44, 45 MA10, 9 O Address signal output to the program ROM (IC903). 46 MA8 O Address signal output to the program ROM (IC903) and DRAM (IC905). 47 VSS — Ground 48 MA7 O Address signal output to the program ROM (IC903) and DRAM (IC905). 49 VDD3 — Power supply pin (+3.3 V) 50 – 52 MA6 – 4 O Address signal output to the program ROM (IC903) and DRAM (IC905). 53 VSS — Ground 54 MA3 O Address signal output to the program ROM (IC903) and DRAM (IC905). 55 VDD3 — Power supply pin (+3.3 V) 56 – 58 MA2 – 0 O Address signal output to the program ROM (IC903) and DRAM (IC905). 59 PGIO7 I/O Connect to VSS in this set. 60 RESET I Reset signal input from TMP87PM41U (IC902). (“L”: Reset) 61 VDDMAX IN I Fix the maximum input voltage each input pin and input/output pin. 62 – 64 NC O Not used. (Open) 65 AGND DAC — Ground (for D/A converter) 66 AVDD DAC — Power supply pin (+3.3 V) (for D/A converter) 67 COMPOS OUT O Composite video signal output 68 AGND DAC — Ground (for D/A converter) 69 Y-OUT O Luminance video signal output (Not used in this set) 70 AVDD DAC — Power supply pin (+3.3 V) (for D/A converter) 71 AGND DAC — Ground (for D/A converter) 72 RREF I Fix the video signal output level control. 73 VREF O Reference voltage (+1.235 V) output 74 AVDD DAC — Power supply pin (+3.3 V) (for D/A converter) 75 C-OUT O Chrominance video signal output (Not used in this set) 76 AGND DAC — Ground (for D/A converter) 77 CLK SEL [0] I Clock select 0 input (Fixed at “H” in this set) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 04 RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER IC601 85 30 86 88 90 116, 115, 118, 117 109 - 106, 7 - 5, 3 -1, 111 113 114 119 120 13 97 104 94 93 78 83 28 26 30 35 24 25 23 3 26 35 11 44 43 10 12 25 21 DIGITAL OUT SELECTOR LPF MODE CONTROL ROTATION DETECTOR BEMF SEPARATOR PREDRIVER CPU INTERFACE FEEDBACK PATTERN GENERATOR OR PHASE/PWM DECODER SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK SERVO BLOCK • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) MDS 44 MDS MDP 43 MDP SENS SCOR 17 SCOR 42 3 1 4 4 1 3 2 23 24 25 14 16 18 20 45 27 41 22 C176 SDTO XTAI XTAO RFAC XSOE R4M XLAT CLOK DOUT R4M LRCK PCMD BCK XRAS XWE XCAS XOE LRCK1 PCMD1 BCK1 LOUT1 LOUT2 AMUTE FOK FOK R4M 78 RESET 79 XIN 31 RMDATI 42 XHGON 39 HOLD 21 OPEN 32 5 7 RMDATO 30 RMSCK 34 RMLAT 33 RMRW XSOE WDCK WFCK SDTD SENS CLOK XLAT XSOE GRSCOR FOKI WFCKI SDTD SCOR SDTI SCK XLAT 46 47 SFDR XRST RFDC B A D0-D3 A0-A10 4 4 11 11 2 WDCK WFCK XTAO XTAI E F SRDR TRDR FRDR FFDR TFDR SFDR SRDR 59 F 62 61 A B 58 71 RFDC RFAC E 50 51 FFDR FRDR 48 49 41 42 12 13 79 TFDR TRDR OPTICAL PICK-UP BLOCK (DAX-22E) A A B RF E F B RF E F PD PD LD LD DETECTOR VCC M901 SLED MOTOR FOCUS COIL TRACKING COIL FI1 RI1 43 44 FI2 RI2 FI3 RI3 APC REF FO2 VDD 2.0 RO2 FO1 RO1 FO3 RO3 M F+ F- S+ S- T+ T- + + BUFFER IC403 SYNC SYNC 8 9 12 7 6 RST RST DATA LTCH CLK OEB VDD 2.0 PWM POL FG + + U1 V1 W1 COM U V W VG VG SPINDLE MOTOR DRIVER IC402 V U W M902 SPINDLE MOTOR FG DRVLT XSPDOE 48 XAPC_OFF 4 AGC PWM_0 SDTO SCK D414 RSTB X601 16.9MHz F G D A E C H ON OFF S804 (HOLD) VCPU 2.0 S801 (OPEN) OPTICAL PICK-UP POWER ON SWITCH Q411 VCPU 2.0 2 1 3 19 23 20 21 4 5 6 7 12 13 14 15 16 17 18 27 60 SYSTEM CONTROLLER IC801 (2/3) 10 9 8 11 36 34 40 38 32 30 69 4 77 DRIVER DRIVER CONTROLLER DRIVER LD AMP PD AMP LEVEL SHIFTER 78 FOCUS/TRACKING COIL DRIVER, SLED MOTOR DRIVER IC401 (1/2) +B 80 TP802 28 LOGIC OUT IN OUT IN 6 1 SWITCH IC803 87 24 89 25 91 26 22 : VIDEO (VIDEO CD) J I B K 5-2. BLOCK DIAGRAM — CD SECTION (1/2) — – 17 – – 18 – D-VJ85 (Page19) (Page22) (Page22) (Page21) (Page22) (Page23) (Page 23) (Page23) (Page23) (Page23) (Page23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2, 3, 24, 25 9 - 12, 15 - 19, 21, 8 5 4 23 22 47 76 14 7 9 28 38 19 77 50 - 64 65 - 68 18 B+ SWITCH Q601 LINE MUTE Q301 LINE MUTE CONTROL SWITCH Q302 MICRO COMPUTER INTERFACE REMOTE CONTROL INTERFACE XDOUTON XHPSW SEL AMUTE XRST BEEP AVLS RMKEY KEY 16 VCDKEY 18 RW 17 XLT 16 SCK 15 19 SO TSB 14 1SI 10 MCLK 11 RST SYSTEM CONTROLLER IC801(3/3) COMMUNICATION FORMAT CONVERTER (TSB) IC802 D602 D601 D-RAM IC602 DQ1-DQ4 A0-A10 XRAS XWE XCAS XOE VCC 2 (LINE OUT JACK) J301 AUDIO OUT (OPTICAL) OPTICAL TRANSCEIVER VCPU +2V TSB RMKEY GND J302 SWITCH BOARD 4 3 2 1 VCPU 2.0V OFF ON S803 AVLS VCPU 2.0V 37 XNTSC I NTSC PAL S811 (NTSC/PAL) IN L IN R HEADPHONE AMP IC351 14 ANALOG SWITCH IC302 6 3 5 15 OUT L OUT R 8 6 PW SW MT SW 19 BEEP 17 PW SW BEEP MT SW 20 1 7 2 TAP801 (TEST) + + 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 3 2 1 A 4 11 04 • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) VCC VIN TG R L 2G SWITCH XLIGHT 2 IRRMC SEG14 | SEG0 COM3 | COM0 BACK LIGHT SW Q801 IRRMC SWITCH Q811 REMOTE CONTROL RECEIVER PH901 LCD UNIT LCD1 i/REMOTE 5-3. BLOCK DIAGRAM — CD SECTION (2/2) — D-VJ85 – 19 – – 20 – (Page18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-4. BLOCK DIAGRAM — VIDEO SECTION — – 21 – – 22 – D-VJ85 D0 – D15 LEVEL SHIFT IC907 DATA BCK LRCK 20 21 19 CD-DATA CD-BCK CD-LRCK DA-DATA DA-BCK DA-LRCK DA-XCLK COMPOS OUT VCK-IN CD-ROM INTERFACE CIRCUIT MPEG SYSTEM DECODER MPEG VIDEO DECODER MPEG VIDEO DECODER VIDEO PROCESS CIRCUIT AUDIO INTERFACE CIRCUIT LEVEL SHIFT IC908 D-RAM/ROM INTERFACE CPU INTERFACE HD-IN HCK HD-OUT HSEL HINT HRDY CAS RESET RAS0 MWE MCE MD0–MD15 MA0–MA10 A0 – A10 A0 – A10 D0 – D15 A0 – A8 D8 – D14 A11–A17 O0–O7 D0–D7 A0–A10 1, 4-6, 10-12 21-23, 25-29 A0–A8 2,3, 13-16, 17-20, 31 DQ1–DQ16 30 CE UCAS LCAS RAS WE PROGRAM ROM IC903 16-19, 22-26 2-5, 7-10, 31-34, 36-39 28 29 14 13 D-RAM IC905 DATA BUS ADDRESS BUS 42 17 34 36 39 35 32 21 SCK1 SI4 SI1 P41 INT5 INT4/TC4 C RESET RESET_L 38 SCK2 Q913 VREF 39 S12 41 INT3/TC3 VREF COMPARATOR IC901 7 5 6 1 3 2 SWITCH Q911 42 INT4/TC4 SWITCH Q912 43 PWM/PD0 25 P30 22 XIN_I 40 SO2 28 22 24 26 25 23 27 XVRST RMSCK RMDATO XU_TX_REQ XU_RX_RDY XV_TX_REQ 29 32 30 49 6 74 SYSTEM CONTROL IC801 VIDEO CONTROLLER IC902 4 3 5 110 111 108 86 67 106 10-15, 17, 19, 21, 23-29 58-56, 54 52-50, 48, 46-44 60 40 119 117 112 121 114 113 42 38 37 VIDEO/AUDIO MPEG DECODER IC906 4 2 IC910 4 2 IC902 X951 27MHz J901 04 VIDEO OUT • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) : VIDEO (VIDEO CD) J I K B (Page18) (Page18) (Page18) (Page18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – – 24 – 5-5. BLOCK DIAGRAM — POWER SUPPLY SECTION — D-VJ85 SWITCHING POWER CIRCUIT SWITCHING POWER CIRCUIT DET COMP CHARGE CONTROL REG SW Q406, 409, 410 OSC T401 MEMORY REG Q602 INVERTER Q603 CHARGE SW INTERFACE CLK OSC CHARGE SW Q403, 404 DC IN SW Q408 REG SW Q401, 405 D416 71 61 58 51 7 8 9 10 11 73 65 60 59 46 48 49 5 45 CHAREE ON/OFF VCC1 1 5 15 8 SYSTEM CONTROL IC801 17 20 VREF VREF 52 RESET VCDON O 46 XPOWLT CHGMNT1 VCC2 ON BATMNT DC IN MNT DC IN VCC1 AVDD DVDD D E G F VCPU 2.0V 4 2 IC405 VC Q402 DVDD M VCC Q901, 902 VCC2 CVCD POWER CONTROL IC401 VCC2 B+ BM1 B1 Q407 C H 04 SWITCH Q412,413 J401 DC IN 4.5V ! RECHARGEABLE BATTERY (Page17) (Page18) (Page18) (Page18) (Page18) (Page17) For schematic diagrams • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • Power voltage is dc 4.5V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground in playback mode. no mark : VIDEO CD PLAY ( ) : AUDIO CD PLAY Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD (ANALOG OUT) c : CD (OPTICAL OUT) L : VIDEO For printed wiring boards • Y : parts extracted from the conductor side. • a : Through hole. • b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) VIDEO TEST DISC: HLV-401 (TGIS-3) Part No.: J-6095-031-A Playback track No.: 34 (Full field color bar 75%) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H J I 2 3 4 5 6 7 8 9 10 11 D-VJ85 – 25 – – 26 – 5-6. PRINTED WIRING BOARDS • Refer to page 24 for Note. Ref. No. Location D405 E-10 D406 D-9 D409 B-7 D413 B-7 D603 G-6 IC351 H-9 IC403 B-7 IC405 C-9 IC602 H-5 IC802 H-7 J301 F-11 PH901 J-8 Q404 D-9 Q406 D-10 Q409 D-9 Q410 C-9 Q801 H-7 • Semiconductor Location (Side A) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VJ85 – 27 – – 28 – J I FB901 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 Ref. No. Location D302 G-10 D401 D-9 D402 E-8 D411 C-10 D414 C-11 D415 E-8 D416 D-9 D417 D-9 D601 I-5 D602 H-9 D901 F-6 D902 F-7 D903 F-7 IC302 H-8 IC401 C-9 IC402 B-7 IC601 H-5 IC801 H-7 IC803 G-7 IC901 E-5 IC902 D-5 IC903 C-4 IC904 E-7 IC905 C-5 IC906 D-6 IC907 E-5 IC908 F-6 IC910 F-7 Q301 G-9 Q302 G-9 Q401 E-9 Q402 D-8 Q403 D-8 Q405 D-9 Q407 D-8 Q408 E-9 Q411 B-8 Q412 C-11 Q413 C-10 Q414 D-10 Q601 H-8 Q602 B-7 Q603 B-7 Q811 I-6 Q901 F-9 Q902 E-9 Q911 F-5 Q912 F-5 Q913 F-5 • Semiconductor Location (Side B) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com (Page 31) D-VJ85 – 29 – 5-7. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 24 for Note and page 37 for IC Block Diagrams. • Refer to page 31 for Waveforms. – 30 – (Page 35) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – – 32 – (Page 35) D-VJ85 5-8. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — • Refer to page 24 for Note and page 38 for IC Block Diagrams. (Page 29) (Page 33) • Waveforms 1 500mVp-p TP601 (RF), TP614 (RF) 20mV/div 0.5µsec/div 2 250mVp-p TP617 (A), TP618 (B) 0.2V/div 0.5µsec/div 3 2Vp-p TP637 (SCOR) 0.1V/div 2msec/div 4 2Vp-p TP634 (LRCK) 0.1V/div 5µsec/div 6.6msec 23µsec 16.9MHz IC601 of (XTAO) 6 0.9Vp-p 50mV/div 0.05µsec/div 5 2Vp-p TP644 (BCK) 0.1V/div 0.1µsec/div 0.44µsec 16.9MHz TP944 (16M) 27MHz TP921 (27M) 8 50mV/div 0.05µsec/div 7 0.1V/div 0.05µsec/div IC906 yj (COMPOS OUT) q; 50mV/div 0.5µsec/div 9 0.1V/div 0.1µsec/div IC405 2 qa 0.1V/div 2µsec/div 1.2Vp-p 1Vp-p 3Vp-p 3Vp-p 3Vp-p 0.44µsec H 5.8µsec TP946 (CD BCK) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – – 34 – 5-9. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — • Refer to page 24 for Note. • Refer to page 31 for Waveforms. D-VJ85 (Page 31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – – 36 – 5-10. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) — • Refer to page 24 for Note and page 40 for IC Block Diagrams. D-VJ85 (Page 30) (Page 32) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 VLGO1 BATM1 59 BATM2 58 CHGMNT 57 INP1 56 RF1 55 INM1 DTC1D DTC2D RSTB VCC1 VCPU DCIN RF4 INM4 RS CHGSW R12 F12 42 R11 41 40 F11 VREF L4 RF2 INM2 VG GND 7 SYNC 8 CLOCK 9 10 DATA WAKE UP 11 LATCH 12 F13 13 R13 NC 14 PWM4 15 FR4 16 HP11 17 HP12 18 STNG 19 20 HPIC F01 39 NGND1 38 R01 37 VD12 36 F02 35 MGND2 34 R02 33 VD23 32 F03 31 MGND3 30 R03 29 VD34 28 F04 27 MGND4 26 R04 25 HPOUT1 24 HGND 23 HPOUT3 22 VHP 21 HPOUT2 LIL PGND1 L1H VIN L2H PGND2 PGND3 L2L VLGO2 L3 VLG3 INM3 RF3 CNP3 DTC3 RF21 PAPC APCREF VIHDET 61 62 63 64 65 66 67 68 69 70 71 72 74 75 73 76 77 78 1 2 3 4 5 6 79 80 LEVEL SHIFTER LEVEL SHIFTER PWM H/P DRIVER H BRIDGE DRIVER 4 H BRIDGE DRIVER 3 H BRIDGE DRIVER 2 H BRIDGE DRIVER 1 CONTROLLER STANDBY REFERENCE BANDGAP REFERENCE (VREF) CLK OR OSC SAW GEN 54 53 52 51 50 49 48 47 46 45 44 CONTROL CHARGE VREF VREF VREF VREF VCPU VREF VCPU VREF VG VCPU 1/2 VREF SAWTOOTH SAWTOOTH SAWTOOTH SAWTOOTH VREF VREF SUB VREF VCC1 VCPU DCIN OEB BIAS INTERFACE CLK R-2 R-1 R-6 D-1 to 4 D-5 S-3 S-1 S-2 R-3 R-4 R-5 R-4 CHGON/OFF 43 VIN CONTROLLER MUTE – 37 – – 38 – IC401 TB2119F • IC Block Diagrams 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26 29 30 27 28 17 16 MODE CONTROL ROTATION DETECTOR MODE CLOCK REGULATOR HOLD PWM REGULATOR MODE TIME REGULATOR CLOCK DIVIDER STATE MACHINE STARTUP PATTERN GENERATOR PATTERN REGULATOR SEQUENCER CPU INTERFACE SERIAL PORT PARALLEL INTERFACE OPERATION MODE OPERATION MODE REGULATOR TEST MODE REGULATOR PREDRIVER FEEDBACK PATTERN GENERATOR BEMF SEPARATOR OVERFLOW REGULATOR PHASE DELAY REGULATOR FEEDBACK RESISTOR PHASE DECODER PWM DECODER FG SYNC PWM POL TEST RST DATA LTCH CLK VC AGND OEB VDU U PGDUV V VDVW W PGDW VG DGND W1 OE WP VP UP BEMF DETECT V1 U1 COM TST0 TST1 TST2 TST3 NC ON CHIP VBB GENERATOR TIMING GENERATOR TIMING GENERATOR REFRESH CONTROL CLOCK INTERNAL ADDRESS COUNTER COLUMN ADDRESS BUFFER 11 COLUMN DECODER ROW ADDRESS BUFFER ROW DECODER WORD DRIVER WRITE CLOCK GENERATOR 1 2 3 4 5 6 7 9 8 10 11 12 13 25 26 24 23 22 11 4 4 4 11 5 11 11 18 19 17 16 15 14 20 21 MEMORY CELLS SENS AMPLIFIER I/O SELECTOR OUTPUT BUFFER 4 4 4 6 INPUT BUFFER VCC DQ1 DQ2 XWE XRAS NC A10 A0 A1 A2 A3 VCC DQ4 VSS DQ3 XCAS XOE A9 A8 A7 A6 A5 A4 VSS 2 2 IC402 MPC17H71MTAEL IC602 MSM51X17400D-10TFSR1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – IC601 CXD3027R ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE A0 – A11 SYSM AMUTE HPL HPM HPR PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI LOCK MDP SDTI SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0 IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 A VDD A GND D VDD AVDD0 IGEN AVSS0 RFDC E F RFDC E F B A VC CLTV XPCK A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI XQCK SCSY SCOR VSS0 SBSO EXCK XRST SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – IC351 TA2120FN + – + – + – 23 18 17 16 15 14 13 2 3 4 5 6 7 8 9 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW OUT B OUT A BEEP IN BST PW B PW C BST NF ADD OUT RF IN PWC SW OUT B OUT C OUT A PWR GND MIX OUT ALC IN ALC DET ATT SW IN A IN B GND MT TC MT SW PW SW BIAS BIAS IN BST SW BST OUT VCC ADDA ADDB 21 22 PW A ALC ALC 20 19 10 IC802 CXD751-103R IC803 TC7W53FU (TE12R) 25 26 27 28 29 30 31 32 16 15 14 13 12 11 10 9 BIT SELECT SERIAL PARALLEL CONVERTER TSB SIGNAL ENCODER DECODER 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 PO26 PO27 NC NC VSS2 TSB RW SEL22 SEL20 VSS0 XLT2 SO2 SCK2 REQ SEL21 XLT SCK SO 1SI VDD0 VSS1 RST MCLK BUSY PO25 PO24 PO23 VSS3 VDD1 PO22 PO21 PO20 2 8 3 4 LOGIC LEVEL CONVERTER OUT OUT IN IN C COM VCC CH 0 CH 1 A INH VEE GND C 7 6 1 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – SECTION 6 EXPLODED VIEWS Ref. No. Part No. Description Remark 6-1. CABINET SECTION Ref. No. Part No. Description Remark NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. A A 4 4 6 5 1 2 3 7 8 9 10 12 13 14 11 16 17 18 3 19 20 21 21 24 23 22 25 26 28 28 28 24 31 29 29 32 32 15 33 34 35 30 27 36 CDM-3022EBA not supplied not supplied 1 X-4952-439-1 CABINET (LOWER) SUB ASSY 2 4-225-414-01 LID, BATTERY CASE 3 4-908-792-91 SCREW (B2) 4 4-224-048-01 FOOT, RUBBER 5 4-225-413-01 WINDOW (RAY CATCHER) 6 4-224-020-01 KNOB (HOLD) * 7 1-676-499-11 IR BOARD 8 A-3323-414-A MAIN BOARD, COMPLETE 9 4-225-416-01 TERMINAL SPRING (–), BATTERY 10 4-225-417-01 PLATE, CHARGE DETECTION 11 4-225-415-01 TERMINAL BOARD (+), BATTERY 12 4-908-792-51 SCREW (B2) 13 3-318-382-01 SCREW (1.7X3), TAPPING 14 4-225-407-01 LEVER, DETECTION 15 4-224-229-01 SPACER (A) 16 X-4952-438-1 OPEN ASSY 17 4-224-016-01 KNOB (OPEN) 18 4-224-015-01 BUTTON (VOL) 19 X-4952-437-1 CABINET (UPPER) SUB ASSY 20 X-4952-436-1 PLATE ASSY, ORNAMENTAL 21 3-345-710-21 SCREW (M1.4X3) TAPPING 22 X-4952-435-1 LID SUB ASSY, UPPER 23 4-224-230-01 SPACER (B) 24 3-043-558-01 SPRING (B) (OPEN) 25 X-4952-205-1 ARM ASSY, SWITCHING * 26 1-674-587-21 SWITCH BOARD 27 4-224-053-01 SCREW (M1.4), STEP 28 4-221-927-01 INSULATOR 29 3-375-114-51 SCREW 30 3-042-766-11 CUSHION (BATT) 31 3-318-201-51 SCREW (B) (1.4X4), TAPPING 32 3-318-382-01 SCREW (1.7X3), TAPPING 33 3-045-650-01 SHEET, RADIATION 34 3-044-559-01 RAIL 35 4-225-396-01 SPACER (C) * 36 1-678-339-11 WAKE BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – 51 52 53 54 55 56 57 57 58 59 60 61 62 63 64 65 M902 M901 6-2. CD MECHANISM DECK SECTION (CDM-3022EBA) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-3328-418-A CHASSIS ASSY (INCLUDING M902) 52 4-220-645-01 SHAFT, STANDARD 053 X-4952-079-1 DAX-22E RP ASSY 54 4-220-646-01 RACK 55 3-704-197-92 SCREW (M1.4X1.8), LOCKING 56 X-4951-687-1 BASE ASSY, SLED 57 3-348-998-61 SCREW (M1.4X4), TAPPING, PAN 58 4-220-648-01 GEAR (C) 59 3-338-645-31 WASHER (0.8-2.5) 60 A-3328-298-A SCREW ASSY, FEED 61 A-3328-299-A MOTOR BLOCK ASSY, SLED (INCLUDING M901) 62 4-964-564-01 SCREW (M1.2X1.6) 63 3-686-458-03 SCREW (P1.4X3.5), TAPPING 64 4-973-631-31 SCREW 65 X-4951-688-1 BRACKET ASSY, SLED The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. MAIN • Abbreviation CH : Chinese model HK : Hong Kong model IR * 1-676-499-11 IR BOARD ********* < IC > PH901 8-749-015-96 IC GP1UC10J ************************************************************* A-3323-414-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C101 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C102 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C103 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C104 1-126-246-11 ELECT CHIP 220uF 20% 4V C161 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C163 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C201 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C202 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C203 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C204 1-126-246-11 ELECT CHIP 220uF 20% 4V C261 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C263 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C301 1-117-720-11 CERAMIC CHIP 4.7uF 10V C304 1-164-156-11 CERAMIC CHIP 0.1uF 25V C306 1-115-156-11 CERAMIC CHIP 1uF 10V C307 1-127-569-11 TANTAL. CHIP 100uF 20% 4V C308 1-164-156-11 CERAMIC CHIP 0.1uF 25V C361 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C362 1-115-156-11 CERAMIC CHIP 1uF 10V C363 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C364 1-115-156-11 CERAMIC CHIP 1uF 10V C365 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C401 1-164-156-11 CERAMIC CHIP 0.1uF 25V C403 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C404 1-104-752-11 TANTAL. CHIP 33uF 20% 6.3V C405 1-104-752-11 TANTAL. CHIP 33uF 20% 6.3V C406 1-164-156-11 CERAMIC CHIP 0.1uF 25V C407 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C408 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C411 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C412 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C413 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C414 1-125-899-11 TANTAL. CHIP 220uF 20% 4V C415 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C416 1-115-156-11 CERAMIC CHIP 1uF 10V C417 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C418 1-164-156-11 CERAMIC CHIP 0.1uF 25V C419 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C420 1-115-156-11 CERAMIC CHIP 1uF 10V C421 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C422 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C424 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C425 1-164-156-11 CERAMIC CHIP 0.1uF 25V C426 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C427 1-115-156-11 CERAMIC CHIP 1uF 10% 10V C428 1-164-156-11 CERAMIC CHIP 0.1uF 25V C430 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C431 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C432 1-113-682-11 TANTAL. CHIP 33uF 20% 10V C433 1-164-156-11 CERAMIC CHIP 0.1uF 25V C434 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C435 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C436 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C437 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C438 1-115-156-11 CERAMIC CHIP 1uF 10V C439 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C441 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C442 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C444 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C445 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C446 1-164-156-11 CERAMIC CHIP 0.1uF 25V C447 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C448 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C449 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C450 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C451 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C452 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C453 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C454 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C456 1-115-156-11 CERAMIC CHIP 1uF 10% 10V C457 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C459 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C461 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C462 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C463 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C602 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C604 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C605 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C606 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C607 1-164-156-11 CERAMIC CHIP 0.1uF 25V C608 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C609 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C612 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C613 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C614 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C615 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C616 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C617 1-115-156-11 CERAMIC CHIP 1uF 10V C618 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C619 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C620 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C621 1-164-156-11 CERAMIC CHIP 0.1uF 25V C622 1-115-156-11 CERAMIC CHIP 1uF 10V C623 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C624 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C626 1-115-156-11 CERAMIC CHIP 1uF 10V C629 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C630 1-164-156-11 CERAMIC CHIP 0.1uF 25V C631 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C632 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C633 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C801 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C802 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C803 1-117-720-11 CERAMIC CHIP 4.7uF 10V C804 1-165-128-11 CERAMIC CHIP 0.22uF 16V C805 1-165-128-11 CERAMIC CHIP 0.22uF 16V C806 1-165-128-11 CERAMIC CHIP 0.22uF 16V C807 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C808 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-164-156-11 CERAMIC CHIP 0.1uF 25V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C813 1-115-156-11 CERAMIC CHIP 1uF 10V C814 1-164-156-11 CERAMIC CHIP 0.1uF 25V C819 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C851 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C904 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C905 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C906 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C911 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C913 1-164-156-11 CERAMIC CHIP 0.1uF 25V C921 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C922 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C923 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C924 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C927 1-119-944-22 ELECT CHIP 470uF 20% 4V C928 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C929 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C930 1-162-958-11 CERAMIC CHIP 270PF 5% 50V C931 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C932 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C933 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C934 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C935 1-115-156-11 CERAMIC CHIP 1uF 10V C936 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C937 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C938 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C939 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C940 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C941 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C942 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C943 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C944 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C945 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C946 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C947 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C948 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C949 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C951 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C953 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > * CN501 1-793-627-21 CONNECTOR (SMT) 13P * CN502 1-785-877-21 HOUSING, CONNECTOR 4P CN503 1-784-342-21 HOUSING, CONNECTOR 2P CN801 1-766-492-21 CONNECTOR, FFC/FPC (ZIF) 24P < DIODE > D302 8-719-422-23 DIODE MA8047 D401 8-719-072-70 DIODE MA2ZD14001S0 D402 8-719-404-49 DIODE MA111 D405 8-719-077-01 DIODE CRS03(TE85L) D406 8-719-077-01 DIODE CRS03(TE85L) D409 8-719-072-70 DIODE MA2ZD14001S0 D411 8-719-071-87 DIODE MA785-(TX).SO D413 8-719-072-70 DIODE MA2ZD14001S0 D415 8-719-422-23 DIODE MA8047 D416 8-719-044-74 DIODE MA792WK-TX D417 8-719-017-79 DIODE MA8033 D601 8-719-044-74 DIODE MA792WK-TX D602 8-719-044-74 DIODE MA792WK-TX D603 8-719-422-23 DIODE MA8047 D901 8-719-072-70 DIODE MA2ZD14001S0 D902 8-719-072-70 DIODE MA2ZD14001S0 D903 8-719-072-70 DIODE MA2ZD14001S0 < FERRITE BEAD > FB101 1-216-864-11 METAL CHIP 0 5% 1/16W FB102 1-216-864-11 METAL CHIP 0 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN FB201 1-216-864-11 METAL CHIP 0 5% 1/16W FB202 1-216-864-11 METAL CHIP 0 5% 1/16W FB301 1-216-864-11 METAL CHIP 0 5% 1/16W FB302 1-414-760-21 FERRITE BEAD INDUCTOR FB303 1-216-295-00 SHORT 0 FB305 1-216-295-00 SHORT 0 FB601 1-414-760-21 FERRITE BEAD INDUCTOR FB901 1-216-295-00 SHORT 0 < IC > IC302 8-759-488-29 IC TC7W66FU(TE12R) IC351 8-759-522-87 IC TA2120FN(EL) IC401 8-759-642-56 IC TB2119F IC402 8-759-594-58 IC MPC17H71MTAEL IC403 8-759-594-55 IC TC75S57F(TE85R) IC405 8-759-592-44 IC TC7SZ04FU(TE85R) IC601 8-752-398-18 IC CXD3027R IC602 8-759-594-56 IC MSM51X17400D-10TFSR1 IC801 8-759-646-19 IC TMP88CM22F-06 IC802 8-752-397-55 IC CXD751-103R IC803 8-759-564-49 IC TC7W53FU(TE12R) IC901 8-759-655-23 IC TC75W57FK(TE85R) IC902 8-759-655-24 IC TMP87PM41U IC903 8-759-655-25 IC MR27V401D IC904 8-759-058-60 IC TC7SU04FU(TE85R) IC905 8-759-597-78 IC MSM54V16258BSL-40TSK IC906 8-759-671-90 IC CL680T-P-D1 IC907 8-759-655-22 IC TC7WH34FK(TE85R) IC908 8-759-655-22 IC TC7WH34FK(TE85R) IC910 8-759-058-58 IC TC7S04FU(TE85R) J301 8-749-016-28 IC JFJ8001-010010 (AUDIO OUT (OPTICAL)) < JACK > J302 1-793-288-21 JACK (i/REMOTE) J401 1-778-153-21 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 4.5V) J901 1-778-696-21 JACK (VIDEO OUT) < COIL > L301 1-216-295-00 SHORT 0 L302 1-216-295-00 SHORT 0 L304 1-216-295-00 SHORT 0 L305 1-216-295-00 SHORT 0 L401 1-419-188-21 INDUCTOR 100uH L403 1-414-434-11 INDUCTOR 100uH L404 1-414-404-11 INDUCTOR 100uH L405 1-414-402-11 INDUCTOR 47uH L407 1-414-398-11 INDUCTOR 10uH L409 1-414-392-41 INDUCTOR 1uH L411 1-414-398-11 INDUCTOR 10uH L412 1-414-392-41 INDUCTOR 1uH L413 1-216-295-00 SHORT 0 L414 1-216-295-00 SHORT 0 L415 1-216-295-00 SHORT 0 L416 1-414-404-11 INDUCTOR 100uH L417 1-414-406-11 INDUCTOR 220uH L418 1-414-404-41 INDUCTOR 100uH L601 1-414-521-11 INDUCTOR CHIP 10uH L602 1-414-521-11 INDUCTOR CHIP 10uH L603 1-414-521-11 INDUCTOR CHIP 10uH L801 1-412-991-11 INDUCTOR 10uH L911 1-412-987-31 INDUCTOR 4.7uH L912 1-216-864-11 METAL CHIP 0 5% 1/16W L913 1-414-521-11 INDUCTOR 10uH L951 1-410-996-22 INDUCTOR CHIP 1.8uH L952 1-410-998-31 INDUCTOR CHIP 2.7uH L953 1-414-398-11 INDUCTOR 10uH L954 1-414-398-11 INDUCTOR 10uH L955 1-412-002-31 INDUCTOR CHIP 4.7uH L956 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q301 8-729-043-90 TRANSISTOR IMX9T110 Q302 8-729-429-50 TRANSISTOR XP4312 Q401 8-729-051-47 FET XP162A12A6PR Q402 8-729-921-73 TRANSISTOR 2SD1781K-QR Q403 8-729-230-63 TRANSISTOR 2SC4116-YG Q404 8-729-921-93 TRANSISTOR 2SB1182F5-QR Q405 8-729-402-42 TRANSISTOR UN5213 Q406 8-729-420-24 TRANSISTOR 2SB1218A-QRS Q407 8-729-028-26 FET 2SK1829(TE85L) Q408 8-729-427-74 TRANSISTOR XP4601 Q409 8-729-028-60 TRANSISTOR 2SD1950VKVLVM Q410 8-729-051-48 FET XP-161A1355PR Q411 8-729-420-53 TRANSISTOR UN5115 Q413 8-729-402-42 TRANSISTOR UN5213 Q414 8-729-427-83 TRANSISTOR XP6501 Q601 8-729-420-47 TRANSISTOR UN511L Q602 8-729-402-96 TRANSISTOR UN5114 Q603 8-729-015-76 TRANSISTOR UN5211 Q801 8-729-810-13 TRANSISTOR 2SA1677 Q811 8-729-402-42 TRANSISTOR UN5213 Q901 8-729-015-76 TRANSISTOR UN5211 Q902 8-729-051-47 FET XP162A12A6PR Q911 8-729-429-49 TRANSISTOR XP4311-TXE Q912 8-729-429-49 TRANSISTOR XP4311-TXE Q913 8-729-402-42 TRANSISTOR UN5213 < RESISTOR > R101 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R102 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R103 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R104 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R105 1-216-815-11 METAL CHIP 330 5% 1/16W R106 1-216-813-11 METAL CHIP 220 5% 1/16W R107 1-216-845-11 METAL CHIP 100K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 46 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R108 1-216-821-11 METAL CHIP 1K 5% 1/16W R109 1-216-845-11 METAL CHIP 100K 5% 1/16W R161 1-216-793-11 RES-CHIP 4.7 5% 1/16W R162 1-216-821-11 METAL CHIP 1K 5% 1/16W R201 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R202 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R203 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R204 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R205 1-216-815-11 METAL CHIP 330 5% 1/16W R206 1-216-813-11 METAL CHIP 220 5% 1/16W R207 1-216-845-11 METAL CHIP 100K 5% 1/16W R208 1-216-821-11 METAL CHIP 1K 5% 1/16W R209 1-216-845-11 METAL CHIP 100K 5% 1/16W R261 1-216-793-11 RES-CHIP 4.7 5% 1/16W R262 1-216-821-11 METAL CHIP 1K 5% 1/16W R301 1-216-851-11 METAL CHIP 330K 5% 1/16W R302 1-216-851-11 METAL CHIP 330K 5% 1/16W R303 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R304 1-216-821-11 METAL CHIP 1K 5% 1/16W R305 1-216-821-11 METAL CHIP 1K 5% 1/16W R308 1-216-807-11 METAL CHIP 68 5% 1/16W R401 1-216-853-11 METAL CHIP 470K 5% 1/16W R403 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R404 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R405 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R406 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R407 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R408 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R409 1-216-833-11 RES-CHIP 10K 5% 1/16W R410 1-216-821-11 METAL CHIP 1K 5% 1/16W R411 1-216-864-11 METAL CHIP 0 5% 1/16W R412 1-216-864-11 METAL CHIP 0 5% 1/16W R413 1-216-805-11 METAL CHIP 47 5% 1/16W R415 1-216-833-11 RES-CHIP 10K 5% 1/16W R416 1-216-833-11 RES-CHIP 10K 5% 1/16W R417 1-216-811-11 METAL CHIP 150 5% 1/16W R418 1-216-304-11 METAL CHIP 3.3 5% 1/10W R419 1-216-298-00 METAL CHIP 2.2 5% 1/10W R420 1-216-298-00 METAL CHIP 2.2 5% 1/10W R421 1-216-845-11 METAL CHIP 100K 5% 1/16W R422 1-216-849-11 METAL CHIP 220K 5% 1/16W R427 1-216-845-11 METAL CHIP 100K 5% 1/16W R428 1-216-857-11 METAL CHIP 1M 5% 1/16W R429 1-216-864-11 METAL CHIP 0 5% 1/16W R431 1-216-864-11 METAL CHIP 0 5% 1/16W R432 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R433 1-216-839-11 METAL CHIP 33K 5% 1/16W R434 1-216-845-11 METAL CHIP 100K 5% 1/16W R436 1-216-857-11 METAL CHIP 1M 5% 1/16W R437 1-216-864-11 METAL CHIP 0 5% 1/16W R438 1-216-837-11 METAL CHIP 22K 5% 1/16W R439 1-216-833-11 RES-CHIP 10K 5% 1/16W R440 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R441 1-216-837-11 METAL CHIP 22K 5% 1/16W R442 1-216-845-11 METAL CHIP 100K 5% 1/16W R443 1-216-837-11 METAL CHIP 22K 5% 1/16W R444 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R445 1-216-857-11 METAL CHIP 1M 5% 1/16W R447 1-218-911-11 METAL CHIP 470K 0.5% 1/16W R448 1-216-864-11 METAL CHIP 0 5% 1/16W R449 1-216-841-11 METAL CHIP 47K 5% 1/16W R450 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R452 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R453 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R454 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R455 1-216-805-11 METAL CHIP 47 5% 1/16W R456 1-216-853-11 METAL CHIP 470K 5% 1/16W R457 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R458 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R459 1-216-809-11 METAL CHIP 100 5% 1/16W R461 1-216-864-11 METAL CHIP 0 5% 1/16W R462 1-216-845-11 METAL CHIP 100K 5% 1/16W R465 1-216-821-11 METAL CHIP 1K 5% 1/16W R466 1-216-857-11 METAL CHIP 1M 5% 1/16W R467 1-216-821-11 METAL CHIP 1K 5% 1/16W R468 1-216-815-11 METAL CHIP 330 5% 1/16W R469 1-216-864-11 METAL CHIP 0 5% 1/16W R470 1-216-853-11 METAL CHIP 470K 5% 1/16W R471 1-216-857-11 METAL CHIP 1M 5% 1/16W R473 1-216-857-11 METAL CHIP 1M 5% 1/16W R474 1-218-911-11 METAL CHIP 470K 0.5% 1/16W R475 1-216-821-11 METAL CHIP 1K 5% 1/16W R476 1-216-857-11 METAL CHIP 1M 5% 1/16W R477 1-216-843-11 METAL CHIP 68K 5% 1/16W R601 1-216-833-11 RES-CHIP 10K 5% 1/16W R602 1-216-833-11 RES-CHIP 10K 5% 1/16W R603 1-216-839-11 METAL CHIP 33K 5% 1/16W R604 1-216-819-11 METAL CHIP 680 5% 1/16W R605 1-216-864-11 METAL CHIP 0 5% 1/16W R606 1-216-851-11 METAL CHIP 330K 5% 1/16W R607 1-216-857-11 METAL CHIP 1M 5% 1/16W R608 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R609 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R610 1-216-833-11 RES-CHIP 10K 5% 1/16W R611 1-216-853-11 METAL CHIP 470K 5% 1/16W R612 1-216-833-11 RES-CHIP 10K 5% 1/16W R613 1-216-864-11 METAL CHIP 0 5% 1/16W R614 1-216-841-11 METAL CHIP 47K 5% 1/16W R615 1-216-837-11 METAL CHIP 22K 5% 1/16W R616 1-216-845-11 METAL CHIP 100K 5% 1/16W R617 1-216-837-11 METAL CHIP 22K 5% 1/16W R618 1-216-845-11 METAL CHIP 100K 5% 1/16W R619 1-216-837-11 METAL CHIP 22K 5% 1/16W R621 1-216-837-11 METAL CHIP 22K 5% 1/16W R623 1-216-837-11 METAL CHIP 22K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 47 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R624 1-216-845-11 METAL CHIP 100K 5% 1/16W R625 1-216-864-11 METAL CHIP 0 5% 1/16W R626 1-216-864-11 METAL CHIP 0 5% 1/16W R627 1-216-864-11 METAL CHIP 0 5% 1/16W R628 1-216-864-11 METAL CHIP 0 5% 1/16W R629 1-216-864-11 METAL CHIP 0 5% 1/16W R630 1-216-805-11 METAL CHIP 47 5% 1/16W R631 1-216-845-11 METAL CHIP 100K 5% 1/16W R632 1-216-845-11 METAL CHIP 100K 5% 1/16W R633 1-216-815-11 METAL CHIP 330 5% 1/16W R634 1-216-821-11 METAL CHIP 1K 5% 1/16W R635 1-216-807-11 METAL CHIP 68 5% 1/16W R636 1-216-821-11 METAL CHIP 1K 5% 1/16W R637 1-216-864-11 METAL CHIP 0 5% 1/16W R638 1-216-833-11 RES-CHIP 10K 5% 1/16W R639 1-216-833-11 RES-CHIP 10K 5% 1/16W R640 1-216-833-11 RES-CHIP 10K 5% 1/16W R641 1-216-864-11 METAL CHIP 0 5% 1/16W R801 1-216-845-11 METAL CHIP 100K 5% 1/16W R802 1-216-833-11 RES-CHIP 10K 5% 1/16W R803 1-216-835-11 METAL CHIP 15K 5% 1/16W R804 1-216-809-11 METAL CHIP 100 5% 1/16W R805 1-216-845-11 METAL CHIP 100K 5% 1/16W R806 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R807 1-216-845-11 METAL CHIP 100K 5% 1/16W R808 1-216-845-11 METAL CHIP 100K 5% 1/16W R809 1-216-864-11 METAL CHIP 0 5% 1/16W R810 1-216-833-11 RES-CHIP 10K 5% 1/16W R811 1-216-837-11 METAL CHIP 22K 5% 1/16W R812 1-216-845-11 METAL CHIP 100K 5% 1/16W R813 1-216-833-11 RES-CHIP 10K 5% 1/16W R814 1-216-833-11 RES-CHIP 10K 5% 1/16W R815 1-216-864-11 METAL CHIP 0 5% 1/16W R817 1-216-841-11 METAL CHIP 47K 5% 1/16W R818 1-216-843-11 METAL CHIP 68K 5% 1/16W R819 1-216-864-11 METAL CHIP 0 5% 1/16W R820 1-216-864-11 METAL CHIP 0 5% 1/16W R821 1-216-864-11 METAL CHIP 0 5% 1/16W R824 1-216-864-11 METAL CHIP 0 5% 1/16W R825 1-216-849-11 METAL CHIP 220K 5% 1/16W R827 1-216-857-11 METAL CHIP 1M 5% 1/16W R830 1-216-843-11 METAL CHIP 68K 5% 1/16W R831 1-216-864-11 METAL CHIP 0 5% 1/16W R832 1-216-821-11 METAL CHIP 1K 5% 1/16W R835 1-216-864-11 METAL CHIP 0 5% 1/16W R836 1-216-864-11 METAL CHIP 0 5% 1/16W R837 1-216-864-11 METAL CHIP 0 5% 1/16W R851 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R852 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R853 1-216-295-00 SHORT 0 R855 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R856 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R901 1-216-864-11 METAL CHIP 0 5% 1/16W R902 1-216-864-11 METAL CHIP 0 5% 1/16W R903 1-216-833-11 RES-CHIP 10K 5% 1/16W R904 1-216-833-11 RES-CHIP 10K 5% 1/16W R905 1-216-845-11 METAL CHIP 100K 5% 1/16W R906 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R907 1-216-864-11 METAL CHIP 0 5% 1/16W R911 1-216-841-11 METAL CHIP 47K 5% 1/16W R912 1-216-841-11 METAL CHIP 47K 5% 1/16W R913 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R914 1-216-841-11 METAL CHIP 47K 5% 1/16W R915 1-216-841-11 METAL CHIP 47K 5% 1/16W R916 1-216-841-11 METAL CHIP 47K 5% 1/16W R917 1-216-845-11 METAL CHIP 100K 5% 1/16W R919 1-216-811-11 METAL CHIP 150 5% 1/16W R920 1-216-811-11 METAL CHIP 150 5% 1/16W R921 1-216-833-11 RES-CHIP 10K 5% 1/16W R922 1-216-833-11 RES-CHIP 10K 5% 1/16W R923 1-216-833-11 RES-CHIP 10K 5% 1/16W R924 1-218-855-11 METAL CHIP 2.2K 5% 1/16W R925 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R926 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R929 1-218-855-11 RES-CHIP 2.2K 5% 1/16W R933 1-216-864-11 METAL CHIP 0 5% 1/16W R934 1-216-833-11 RES-CHIP 10K 5% 1/16W R935 1-216-833-11 RES-CHIP 10K 5% 1/16W R936 1-216-833-11 RES-CHIP 10K 5% 1/16W R937 1-216-864-11 METAL CHIP 0 5% 1/16W R938 1-216-833-11 RES-CHIP 10K 5% 1/16W R939 1-216-864-11 METAL CHIP 0 5% 1/16W R940 1-216-857-11 METAL CHIP 1M 5% 1/16W R942 1-216-295-00 SHORT 0 R943 1-216-864-11 METAL CHIP 0 5% 1/16W R944 1-216-864-11 METAL CHIP 0 5% 1/16W R945 1-216-864-11 METAL CHIP 0 5% 1/16W R947 1-216-864-11 METAL CHIP 0 5% 1/16W R948 1-216-833-11 RES-CHIP 10K 5% 1/16W R949 1-216-833-11 RES-CHIP 10K 5% 1/16W R950 1-216-864-11 METAL CHIP 0 5% 1/16W R951 1-216-864-11 METAL CHIP 0 5% 1/16W R952 1-216-833-11 RES-CHIP 10K 5% 1/16W R953 1-216-833-11 RES-CHIP 10K 5% 1/16W R954 1-216-833-11 RES-CHIP 10K 5% 1/16W R955 1-216-803-11 METAL CHIP 33 5% 1/16W R956 1-216-864-11 METAL CHIP 0 5% 1/16W R957 1-216-864-11 METAL CHIP 0 5% 1/16W R958 1-216-864-11 METAL CHIP 0 5% 1/16W R959 1-216-864-11 METAL CHIP 0 5% 1/16W R960 1-216-864-11 METAL CHIP 0 5% 1/16W R961 1-216-864-11 METAL CHIP 0 5% 1/16W R963 1-216-864-11 METAL CHIP 0 5% 1/16W < SWITCH > S801 1-762-805-41 SWITCH, PUSH (1 KEY) (OPEN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 48 – Ref. No. Part No. Description Remark Sony Corporation Personal Audio Division Company 9-927-628-11 2000C0425-1 Printed in Japan ©2000. 3 Published by General Engineering Dept. D-VJ85 MAIN S803 1-762-078-11 SWITCH, SLIDE (AVLS) S804 1-762-078-11 SWITCH, SLIDE (HOLD) S809 1-771-742-21 SWITCH, TACTILE (VOLUME +) S810 1-771-742-21 SWITCH, TACTILE (VOLUME –) S811 1-762-078-11 SWITCH, SLIDE (NTSC/PAL) < COIL > T401 1-419-417-21 COIL, DC/DC CONVERTER < VARISTOR > VDR101 1-801-923-11 VARISTOR, CHIP VDR102 1-801-923-11 VARISTOR, CHIP VDR201 1-801-923-11 VARISTOR, CHIP VDR202 1-801-923-11 VARISTOR, CHIP VDR301 1-801-923-11 VARISTOR, CHIP VDR303 1-801-923-11 VARISTOR, CHIP < VIBRATOR > X601 1-767-605-11 VIBRATOR, LITHIUM TANTALATE (16.9MHz) X951 1-781-714-21 VIBRATOR, CRYSTAL (27MHz) ************************************************************* * 1-678-339-11 WAKE BOARD ************ < CAPACITOR > C464 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V < DIODE > D414 8-719-049-09 DIODE 1SS367-T3SONY < TRANSISTOR > Q412 8-729-231-74 TRANSISTOR 2SC4116-GL < RESISTOR > R463 1-216-829-11 METAL CHIP 4.7K 5% 1/16W ************************************************************* MISCELLANEOUS *************** 51 A-3328-418-A CHASSIS ASSY (INCLUDING M902) 053 X-4952-079-1 DAX-22E RP ASSY 61 A-3328-299-A MOTOR BLOCK ASSY, SLED (INCLUDING M901) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 0 1-418-261-11 ADAPTOR, AC (AC-E455F) (E) 1-418-608-11 REMOTE CONTROL UNIT (RM-CD12EL) 1-418-757-11 WIRELESS REMOTE COMMANDER (RMT-DV11) 0 1-475-622-13 ADAPTOR, AC (AC-E455) (CH) 0 1-475-623-11 ADAPTOR, AC (AC-E455) (HK) 1-559-906-32 CORD, CONNECTION (1P-2P) (AUDIO) 1-756-035-11 BATTERY PACK (NC-WMAA) 1-791-954-11 CORD, CONNECTION (1P-1P) (VIDEO) 3-042-645-11 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (E,HK) 3-042-645-21 MANUAL, INSTRUCTION (ENGLISH) 3-042-645-31 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (CH) 3-043-596-01 CASE, CARRYING 4-991-047-11 LID, BATTERY CASE (for RMT-DV11) 8-953-304-90 RECEIVER MDR-E805SP SET WAKE Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
