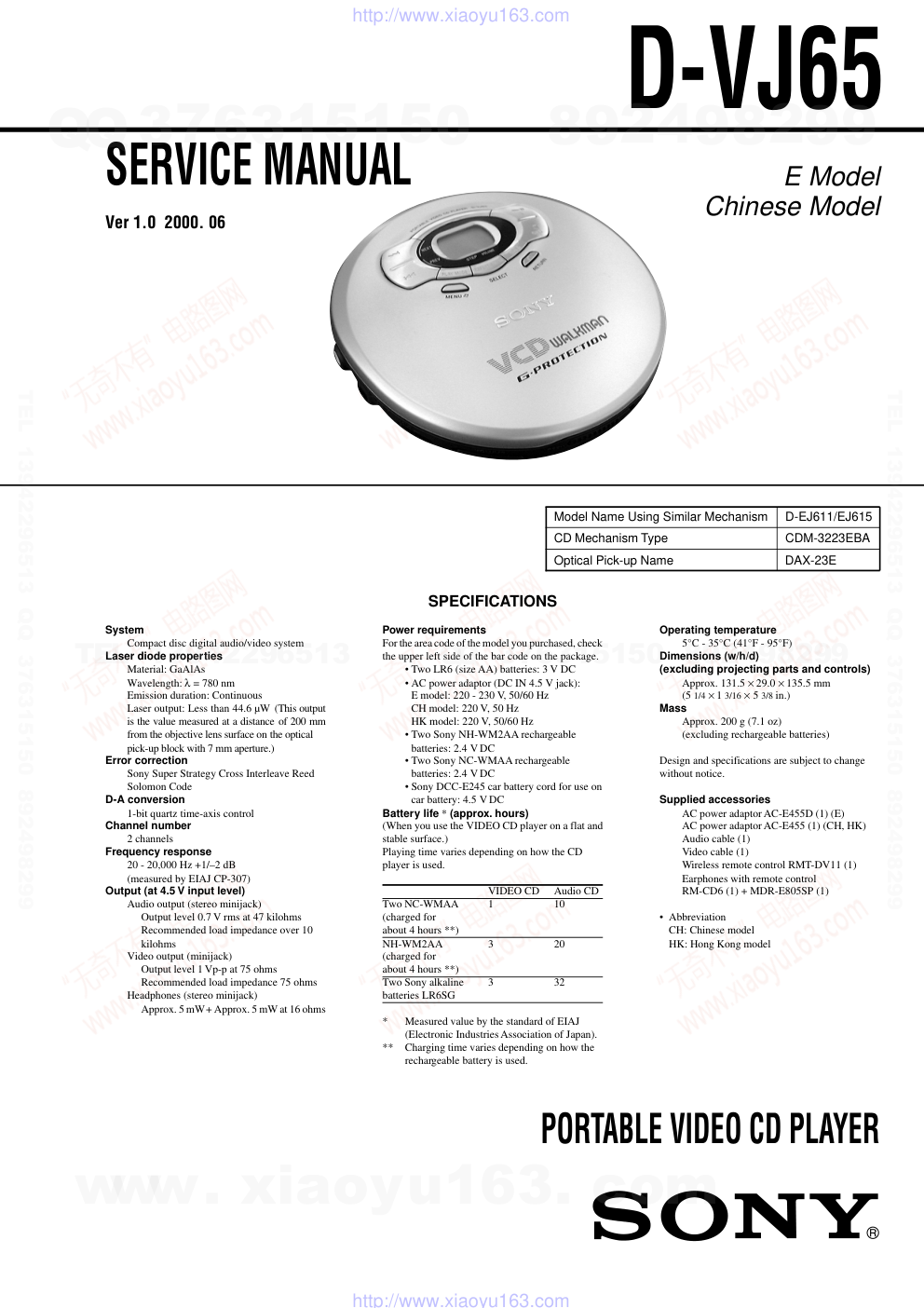

– 1 – Model Name Using Similar Mechanism D-EJ611/EJ615 CD Mechanism Type CDM-3223EBA Optical Pick-up Name DAX-23E SERVICE MANUAL E Model Chinese Model PORTABLE VIDEO CD PLAYER System Compact disc digital audio/video system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Error correction Sony Super Strategy Cross Interleave Reed Solomon Code D-A conversion 1-bit quartz time-axis control Channel number 2 channels Frequency response 20 - 20,000 Hz +1/–2 dB (measured by EIAJ CP-307) Output (at 4.5 V input level) Audio output (stereo minijack) Output level 0.7 V rms at 47 kilohms Recommended load impedance over 10 kilohms Video output (minijack) Output level 1 Vp-p at 75 ohms Recommended load impedance 75 ohms Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 ohms SPECIFICATIONS Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): E model: 220 - 230 V, 50/60 Hz CH model: 220 V, 50 Hz HK model: 220 V, 50/60 Hz • Two Sony NH-WM2AA rechargeable batteries: 2.4 V DC • Two Sony NC-WMAA rechargeable batteries: 2.4 V DC • Sony DCC-E245 car battery cord for use on car battery: 4.5 V DC Battery life * (approx. hours) (When you use the VIDEO CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. VIDEO CD Audio CD Two NC-WMAA 1 10 (charged for about 4 hours **) NH-WM2AA 3 20 (charged for about 4 hours **) Two Sony alkaline 3 32 batteries LR6SG * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). ** Charging time varies depending on how the rechargeable battery is used. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 131.5 × 29.0 × 135.5 mm (5 1/4 × 1 3/16 × 5 3/8 in.) Mass Approx. 200 g (7.1 oz) (excluding rechargeable batteries) Design and specifications are subject to change without notice. Supplied accessories AC power adaptor AC-E455D (1) (E) AC power adaptor AC-E455 (1) (CH, HK) Audio cable (1) Video cable (1) Wireless remote control RMT-DV11 (1) Earphones with remote control RM-CD6 (1) + MDR-E805SP (1) • Abbreviation CH: Chinese model HK: Hong Kong model Ver 1.0 2000. 06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Before Replacing the Optical Pick-Up Block Please be sure to check throughly the parameters as par the “Opti- cal Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output : IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.45 - 0.65 Vp-p Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver having a thin tip as shown in Fig.1. Note: Do not push the detection lever strongly, or it may be bent or damaged. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. S801 Fig. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS 1. GENERAL Getting started ......................................................................... 4 Playing a VIDEO CD .............................................................. 4 Playing an audio CD................................................................ 5 2. DISASSEMBLY 2-1. Cabinet (Rear) Sub Assy, Cabinet (Upper), Main Board .... 6 2-2. MD Assy ............................................................................. 6 2-3. Motor Assy, Turntable (Spindle) (M901)............................ 7 2-4. “Motor Assy, Sled (Sled) (M902)”, Optical Pick-up DAX-23E ................................................... 7 2-5. Switch Unit ......................................................................... 7 3. TEST MODE 3-1. Outline ................................................................................. 8 3-2. Pick-up Operational Checks................................................ 8 3-3. Video Signal Verification .................................................... 8 4. ELECTRICAL ADJUSTMENT 4-1. Precautions for Check ......................................................... 9 4-2. Focus Bias Check ................................................................ 9 5. DIAGRAMS 5-1. IC Pin Descriptions ........................................................... 10 5-2. Block Diagram –CD Section (1/2)– .................................. 15 5-3. Block Diagram –CD Section (2/2)– .................................. 17 5-4. Block Diagram –Video Section–....................................... 19 5-5. Block Diagram –Power Supply Section–.......................... 21 5-6. Printed Wiring Boards....................................................... 25 5-7. Schematic Diagram –Main Section (1/4)– ........................ 29 5-8. Schematic Diagram –Main Section (2/4)– ........................ 31 5-9. Schematic Diagram –Main Section (3/4)– ........................ 33 5-10. Schematic Diagram –Main Section (4/4)– ........................ 35 6. EXPLODED VIEWS 6-1. Cabinet Section ................................................................. 39 6-2. CD Mechanism Deck Section ........................................... 40 7. ELECTRICAL PARTS LIST ......................................... 41 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 1 GENERAL This section is extracted from instruction manual. 4 Getting started Locating the Controls For details, see pages in parentheses. CD player (front) CD player (inside) qd SOUND button (page 23) 1 Display (pages 9, 11, 21-24) 7 VOLUME +/– buttons (page 10) 8 MENU button (page 15) 6 HOLD switch (page 24) 2 PLAY MODE button (pages 20-23) 5 AUDIO OUT jack (pages 7, 17, 25) 4 VIDEO OUT jack (pages 7, 17) 3 ./>• PREV/ NEXT(AMS/search) buttons (pages 9, 11, 16, 18, 21, 22) ql NTSC/PAL switch (pages 7) qk G-PROTECTION switch (pages 23) qs RETURN O button (page 15) 9 u (play/pause) button (page 8-12, 14, 15, 23) q;x (stop) /CHG (charge) button (pages 8-11, 27) qa DC IN 4.5V (external power input) jack (pages 7, 10, 27) qg i/REMOTE jack (page 10) qh OPEN switch (pages 8, 10) qf REPEAT/ENTER/ SELECT button (page 11, 16, 20-23) qj Remote sensor (pages 12) 5 CD player (rear) Getting started Wireless remote control wl Number buttons (pages 9, 11, 15, 18-20, 22) ea x (stop) button (pages 8-11) es NEXT > button (pages 9, 11, 16, 18, 21, 22) ef SELECT button (pages 20) This button does not function on this model. ej REPEAT/ENTER button (pages 11, 16, 21-23) e; ≥10 button (pages 15, 18, 19, 23) ed RETURN O button (page 15) eg ST/L/R button (page 14) eh V-INDEX button (page 18) wf u (play/pause) button (pages 8-12, 14, 15, 23) wk TIME button (page 19) wh SLOW button (page 14) wj PLAY MODE button (pages 20 - 23) wd PBC button (page 15) wa Battery compartment (pages 27) ws OSD button (page12) w; AVLS switch (pages 24) (Continued) wg PREV . button (pages 9, 11, 16, 18, 21, 22) 6 Remote control Note Use only the supplied remote control. You cannot operate this VIDEO CD player with the remote control supplied with other VIDEO CD players. ek x (stop) button (pages 9-11) r; N(play) •> (AMS/ search) button (pages 8- 11, 15, 16, 18, 22, 23) ra HOLD switch (page 24) el VOL (volume) +/– button (page 10) rs . (AMS/search) button (pages 9, 11, 16, 18, 22) 7 Playing a VIDEO CD You can play back a VIDEO CD, using the supplied AC power adaptor. You can also use rechargeable batteries and alkaline batteries. (See “Connecting a power source” on pages 27 – 29.) To produce color pictures normally, you need to set the color system properly according to the connected TV. VIDEO AUDIO INPUT R L to an AC outlet AC power adaptor to DC IN 4.5V to AUDIO OUT to VIDEO OUT Audio cable Yellow Red White TV PAL NTSC Video cable Turn on the power and set the input mode selector to the proper position. Playing a VIDEO CD (Continued) 1. Connect your VIDEO CD player. 1 Connect the AC power adaptor. 2 Connect the video and audio cables. 3 Turn on the power of the TV and set the input mode selector to the proper position. 2. Set the NTSC/PAL switch to the color system of your TV. 1 Slide OPEN and raise the CD compartment lid. 2 Switch to “PAL” or “NTSC” using a pointed material. PAL system countries: China, India, Indonesia, Singapore, Malaysia, etc. NTSC system countries: Japan, Korea, Taiwan, U.S.A., etc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 8 3. Insert a VIDEO CD. 1 Slide OPEN to open the lid. 2 Fit the VIDEO CD to the pivot and close the lid. OPEN switch Label side up 4. Play a VIDEO CD. 1 Press u on the main unit or the wireless remote control. 2 Adjust the volume on the equipment connected to this player. (You cannot adjust the volume from this player except for the signals output from the i/REMOTE jack of the player). To stop playing, press x. The player is also turned off. u u Notes The playback picture may be distorted when: – playing back a PAL system VIDEO CD on an NTSC system TV with the NTSC/PAL switch of this player set to NTSC. – playing back an NTSC system VIDEO CD on a PAL system TV with the NTSC/PAL switch of this player set to PAL. 9 Do this Press u. Press x/CHG (x). Press u (N). Press > repeatedly until you find the scene or track. Press . repeatedly unitl you find the scene or track. Press the number button of the track (wireless remote control only). Press . or > and hold it down until m or M appears on the TV screen. To Pause Stop Resume play after pause Locate the next or succeeding tracks Locate the current or preceding tracks Locate a specific track directly Locate a point in the track while monitoring the picture* * To return to normal playback, press u (N for the wireless remote control). The above operations can also be done with the buttons on the supplied wired remote control or wireless remote control. About the display • During play, the track number and the elapsed playing time of the current track appear. • During pause, the elapsed playing time flashes. If the volume level does not increase (when listening with the headphones/earphone) Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “To protect your hearing (AVLS)” on page 24. If a cable is connected to the AUDIO OUT jack, you cannot adjust the volume. In such a case, disconnect the cable. Removing the VIDEO CD Remove the VIDEO CD as illustrated. Playing a VIDEO CD 10 Playing an audio CD You can also use rechargeable batteries, alkaline batteries and a car battery. (See “Connecting a power source” on pages 27 - 29.) 1. Connect your CD player. 1 Connect the AC power adaptor. 2 Connect the earphones with remote control. Connect the earphones firmly. A loose connection may cause noise during playback. 2. Insert an audio CD. 1 Slide OPEN to open the lid. OPEN switch Label side up 2 Fit the audio CD to the pivot and close the lid. 3. Play an audio CD. 1 Press u on the main unit or press N on the remote control. 2 Adjust the volume by pressing VOLUME + or –. To stop playing, press x. The player is also turned off. u VOLUME +/– VOL N Note When playing back an audio CD using the AC power adaptor, it takes a while until the sound is heard. Earphones with remote control (supplied) to an AC outlet AC power adaptor to DC IN 4.5V to i/REMOTE 11 Playing an audio CD To Pause Stop Resume play after pause Find the beginning of the current track (AMS*) Find the beginning of previous tracks (AMS) Find the beginning of the next track (AMS) Find the beginning of succeeding tracks (AMS) Locate a specific track directly Go forward quickly Go backwards quickly * Automatic Music Sensor ** These operations are possible during both play and pause. The above operations can also be done with the buttons on the supplied wired remote control or wireless remote control. If you press REPEAT/ENTER to display “REPEAT”, you can locate the tracks continuously in the following order: • When using >: next track t next track ...... last track t first track t second track ...... • When using .: previous track t previous track ...... first track t last track ...... About the display • When you press u (N for the remote control), the total number of tracks in the audio CD and total playing time appear for about two seconds. • During play, the track number and the elapsed playing time of the current track appear. • Between tracks, the time to the beginning of the next track appears with the “-” indication. • During pause, the elapsed playing time flashes. If the volume level does not increase Is AVLS set to “LIMIT”? Set AVLS to “NORM.” For details, see “To protect your hearing (AVLS)” on page 24. If a cable is connected to the AUDIO OUT jack, you cannot adjust the volume. In such a case, disconnect the cable. Removing the audio CD Remove the audio CD as illustrated. Press u x/CHG (x) u (N) . once** . repeatedly** > once** > repeatedly** Number buttons of the track (wireless remote control only)** Hold down >** Hold down .** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – • The equipment can be removed using the following procedure. 2-2. MD ASSY SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. CABINET (REAR) SUB ASSY, CABINET (UPPER), MAIN BOARD Set Cabinet (Rear) Sub Assy, Cabinet (Upper), Main Board Switch Unit Motor Assy, Turntable (Spindle) (M901) “Motor Assy, Sled (Sled) (M902)”, Optical Pick-up DAX-23E MD Assy 3 screws (B2) 5 7 1 screw (B2) 2 knob (open) 6 flexible board (CN801) lid, upper cabinet (upper) MAIN board MD assy cabinet (rear) sub assy 4 claws 4 claws 4 claws 4 claws 4 1 CN503 (white) 2 CN502 (black) 5 MD assy 3 optical pick-up flexible board (CN501) MAIN board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – 2-3. MOTOR ASSY, TURNTABLE (SPINDLE) (M901) 2-5. SWITCH UNIT 2-4. “MOTOR ASSY, SLED (SLED) (M902)”, OPTICAL PICK-UP DAX-23E 2 motor assy, turntable (spindle) (M901) 1 screws (B1.7x5) chassis 3 5 6 2 1 screw (B 1.7x5) 4 screw (P 1.4x3.5) screw (feed) assy chassis optical pick-up DAX-23E bracket (shaft) gear (B) cover, gear motor assy, sled (sled) (M902) 2 4 3 1 knob (open) 7 cover assy, lid lid, upper cabinet (upper) 6 claws 6 claws 6 claws 8 claw 8 claw 9 switch unit 5 screws spring (full open) qa window (LCD) 0 button (operate) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – SECTION 3 TEST MODE 3-1. OUTLINE This set has the test mode in which the pick-up can be operational checked and the video signal can be verified. 3-2. PICK-UP OPERATIONAL CHECKS 3-2-1. Setting the test mode 1. Switch positions OPEN switch (S801) : OPEN HOLD switch (S803) : OFF AVLS switch (S802) : NORM 2. Short the terminal TAP801 (TEST) by soldering it. 3. Supply 4.5 V DC from the DC jack (J401). 3-2-2. Releasing the test mode 1. Open the terminal TAP801 (TEST). 2. Turn the power OFF. 3-2-3.Operational checks 1. When a specific key is operated: KEY Contents of the operation. ((LCD DISPLAY)) u Spindle on. Tracking servo off. ((88-00 00)) x All servo off. Mute on. CHG ((LCD all on)) Moves the pick-up to the outside (with the open > switch open). Tracking servo off. Mute on. ((LCD all on)) Moves the pick-up to the inside (with the open . switch open). Tracking servo off. Mute on. ((LCD all on)) 2. In play mode • Press the u key: KEY Contents of the operation. ((LCD DISPLAY)) Tracking servo on. Mute off. Each time this key is pressed, the display changes PLAY as follows: MODE x1 speed t x2 speed t x3 speed t x4 speed t x1 speed ((01 00 01)) t ((02 00 02)) t ((03 00 03))t ((04 00 04)) Each time this key is pressed, the display changes SELECT as follows: REPEAT/ Tracking gain up. Emphasis on. ((UP 00 00)) ENTER h Tracking gain down. Emphasis off. 3-3. VIDEO SIGNAL VERIFICATION 3-3-1. Setting the test mode 1. Switch positions OPEN switch (S801) : OPEN HOLD switch (S803) : OFF AVLS switch (S802) : NORM 2. Short the terminal TAP802 (OPEN) and TAP806 (V-TEST) by soldering it. 3. Set the reference video disc HLV-401. 4. Supply 4.5V DC from the DC jack (J401). 3-3-2. Releasing the test mode 1. Open the terminal TAP801(TEST) and TAP806 (V-TEST). 2. Turn the power OFF. 3-3-3. Operational checks 1. Press the u key once (NTSC mode). 2. Verify that a 100% white pattern is output from the VIDEO OUT (J701). 3. Press the x CHG key once (output off). 4. Short the terminal TAP804 (PAL mode) 5. Press u key once. 6. Verify that a 100% white pattern is output from the VIDEO OUT (J701). 7. Press the x CHG key once (output off). 8. Open the TAP804. Fig. 100% white pattern Adjustment Location: H 1.0 ± 0.2Vp-p – main board (side A) – TAP804 TAP801 (TEST) TAP802 (OPEN) TAP806 (V-TEST) J401 (DC JACK) J701 (VIDEO OUT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – 1 1 2 3 6 5 4 2 3 6 5 4 55 60 50 45 40 35 30 25 20 15 10 5 1 115 110 105 100 95 90 85 80 75 70 65 – main board (side B) – TP629 (RF) Procedure: 1. Connect the oscilloscope between TP629 (RF) and GND on MAIN board. 2. Insert the disc (YEDS-18). (Part No. : 3-702-101-01) 3. Press the u button. 4. Confirm that the oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape ( ) in the center of the waveform can be clearly distinguished. 5. Stop revolving of the disc motor by pressing the x button. • RF signal reference waveform (eye pattern) SECTION 4 ELECTRICAL ADJUSTMENT CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. 4-1. PRECAUTIONS FOR CHECK 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC 4.5 V in DC IN jack. (J401) VOLUME button : Minimum AVLS switch : NORM HOLD switch : OFF 4-2. FOCUS BIAS CHECK Condition: • Hold the set in horizontal state. Connection: oscilloscope (AC range) 2 kΩ MAIN board TP629 (RF) When observing the eye pattern, set the oscilloscope for AC range and raise vertical sensitivity. RF level : 0.45 to 0.65 Vp-p VOLT/DIV : 50 mV (10 : 1 probe in use) TIME/DIV : 500 nS Test Points: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – 5-1. IC PIN DESCRIPTIONS • IC801 TMP88CM22F-1B20 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Pin Description 1 VSS — Ground 2 RMC_I I Infrared remote control signal input 3 FOK_I I Focus OK signal input from CXD3037R (IC601). 4 AGCPWM_O O AGC control pulse output 5 VCDON_O O CHG/HOLD LED control signal output 6 XV_RECV_O O Control signal output for Switching power supply circuit. 7 AMUTE_O O Analog audio muting ON/OFF signal control signal output (H: Mute ON) 8 VCC2ON_O O VCC2 voltage control output 9 XRST_O O Reset signal output to CXD3037R (IC601). (L: Reset) 10 SCK_O O Serial data transfer clock signal output to CXD3037R (IC601). 11 (SENS) MSDTI_I I Serial data input from CXD3037R (IC601). 12 MSDTO_O O Serial data output to CXD3037R (IC601). 13 WAKEUP_O O WAKE-UP control signal output (for system standby reset) 14 AD_SEL I Plug-in detection signal input of AUDIO OUT (OPTICAL) jack. 15 AD_CHGMNT I Battery charge voltage detection input from TB2119F (IC401). 16 AD_KEY2 I VCD key input 17 AD_BATMNT I Battery voltage detection input 18 AD_KEY I Key input from switch board (A/D input). 19 AD_RMKEY I Key input from headphones with remote controller (A/D input). 20 AD_DCINMNT I DC input voltage detection input (A/D input) DC input jack use/no-use detect input 21 WP_OPEN (SLVCD) I CD door open/close detection input 22 VREFL I Reference voltage (0 V) input for A/D converter. 23 VREFH I Reference voltage (+2 V) input for A/D converter. 24 VDD — Power supply pin (+2 V) 25 SCOR_I I Sub code sync detection input from CXD3037R (IC601). 26 GRSCOR_I I GRSCOR signal input 27 FG_I I FG pulse input 28 BEEP_O O Beep sound output to HEADPHONE AMP (IC351). 29 XV_SEND_O O Request signal output to TMP87CM41U (IC803). 30 RMSCK_O O Communication clock to TMP87CM41U (IC803). 31 RMDATI_I I Communication data bus input from TMP87CM41U (IC803). 32 RMDATO_O O Communication data bus output to TMP87CM41U (IC803). 33 RMRW_O O Read/write control signal output to headphones with remote. (L: Read, H: Write) 34 RMLAT_O O Serial data latch pulse output to headphones with remote. 35 WFCK I WFCK input 36 COMPON_I I G PROTECTION switch input 37 (NTSC/PAL) I NTSC/PAL select input (“L”: PAL, “H”: NTSC) 38 AVLS_I I AVLS (Automatic Volume Limiter System) switch input (L: Normal, H: Limit) 39 HOLD_I I HOLD switch input (L: HOLD on, H: HOLD off) 40 BATDET_I I EXT BATT plug-in detection input 41 XSPDOE_O O Spindle motor driver control signal output 42 XDE_O O Optical pick-up VCC control signal output (L: on) 43 XLAT_O O Serial data latch pulse output to CXD3037R (IC601). (for ESP) 44 XSOE_O O Output enable signal output (for ESP) 45 VOLUME_IC_LATCH_O O Spindle motor driver latch output 46 XPOWLT_O O Latch output to VCD control IC. 47 XDOUTON_O O DIGITAL OUT LED control signal output 48 XAPC_OFF_O O APC mute signal output (L: mute) 49 VRST_O O Reset signal output to TMP87CM41U (IC803). 50 – 64 SEG14 – 0 O LCD drive segment output SECTION 5 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – Pin No. Pin Name I/O Pin Description 65 – 68 COM3 – 0 O LCD drive common output 69 – 71 V3 – 1 O LCD drive bias output 72, 73 C1, 0 O Capacitor connected terminal of LCD driver for voltage-up. 74 V_REQ_I I Stop signal input from VCD control IC. 75 TEST I Test terminal for IC. (Fixed at L in this set) 76 SCSY_O O HEADPHONE AMP ON/OFF control signal output (L: ON) 77 XLIGHT_O O LCD back light control signal output to LCD. 78 RESET_I I System reset signal input from TB2119F (IC401). (L: Reset) 79 XIN_I I Oscillation input 80 XOUT O Oscillation output (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – • IC803 TMP87CM41U-MP1 (MICON VIDEO ENCODER, VIDEO CONTROLLER) Pin No. Pin Name I/O Pin Description 1 P00 I Connect to VSS in this set. 2 – 8 P01 – 07 — Not used. (Open) 9 (INT0) P10 — Not used. (Open) 10 (INT1) P11 — Interruption request signal input from CL680T-D1 (IC701) 11 (INT2/TC1) P12 — Not used. (Open) 12 (DVO) P13 — Not used. (Open) 13 (PPG) P14 — Not used. (Open) 14 (TC2) P15 — Not used. (Open) 15 P16 — Not used. (Open) 16 P17 I Visual system test mode pin (“L”: Test mode) 17 P20 (INT5/STOP) I Interruption request signal input from CL680T-D1 (IC701). 18 TEST I Test pin (Fixed at “L” in this set) 19 P21 (XTI) — Not used. (Open) 20 P22 (XTOUT) — Not used. (Open) 21 RESET_I I System reset signal input from TMP88CM22F (IC801). (“L”: Reset) 22 XIN_I I High frequency oscillator input from TMP88CM22F (IC801). 23 XOUT O High frequency oscillator output (Not used in this set) 24 VSS — Digital ground 25 – 30 P30 – 35 — Not used. (Open) 31 NC — Not used. (Open) 32 C_RESET O Reset signal output to CL680T-D1 (IC701). (“L”: Reset) 33 P40 I Ready signal input from CL680T-D1 (IC701). 34 P41 O Address select signal output to CL680T-D1 (IC701). 35 P42 (SCK1) O Serial clock signal output to CL680T-D1 (IC701). 36 P43 (SI1) I Serial data signal input from CL680T-D1 (IC701). 37 P44 (SO1) O Serial data signal output to CL680T-D1 (IC701). 38 P45 (SCK2) I Serial clock signal input from TMP88CM22F (IC801). 39 P46 (SI2) I Serial data signal input from TMP88CM22F (IC801). 40 P47 (SO2) O Serial data signal output to TMP88CM22F (IC801). 41 P50 (INT3/TC3) I Request signal input from TMP88CM22F (IC801). 42 P51 (INT4/TC4) I Ready signal input from TMP88CM22F (IC801). 43 P52 (PWM/PDO) O Request signal output to TMP88CM22F (IC801). 44 P53 (HPWM0) — Not used. (Open) 45 P54 (HPWM1) — Not used. (Open) 46 AVSS — Not used. (Open) 47 AVREF — Not used. (Open) 48 (AIN0) P60 — Not used. (Open) 49 (AIN1) P61 — Not used. (Open) 50 (AIN2) P62 — Not used. (Open) 51 (AIN3) P63 — Not used. (Open) 52 (AIN4) P64 — Not used. (Open) 53 (AIN5) P65 — Not used. (Open) 54 (AIN6) P66 — Not used. (Open) 55 (AIN7) P67 — Not used. (Open) 56 VDD — Digital power supply pin (+3.2 V) 57 (AIN10) P70 — Not used. (Open) 58 (AIN11) P71 — Not used. (Open) 59 (AIN12) P72 — Not used. (Open) 60 (AIN13) P73 — Not used. (Open) 61 (AIN14) P74 — Not used. (Open) 62 (AIN15) P75 — Not used. (Open) 63 (AIN16) P76 — Not used. (Open) 64 (AIN17) P77 — Not used. (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – • IC701 CL680T-D1 (AUDIO/VIDEO MPEG DECODER) Pin No. Pin Name I/O Pin Description 1 NC — Not used. (Open) 2 VSS — Ground 3 CD_BCK I CD decode bit clock signal (2.8224 MHz) input from the CXD3037R (IC601). 4 CD_DATA I CD decode data input from the CXD3037R (IC601). 5 CD_LRCK I CD decode L/R sampling clock signal (44.1 kHz) input from the CXD3037R (IC601). 6 CD_C2PO I CD decode C2 error data input from the CXD3037R (IC601). 7 – 9 NC — Not used. (Open) 10 – 15 MD0 – 5 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 16 VSS — Ground 17 MD6 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 18 VDD3 — Power supply pin (+3.3 V) 19 MD7 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 20 VSS — Ground 21 MD8 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 22 VDD3 — Power supply pin (+3.3 V) 23 – 28 MD9 – 14 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 29 MD15 I/O Two-way data bus with the program ROM (IC704). 30 – 36 NC — Not used. (Open) 37 MCE O Chip enable signal output to the program ROM (IC704). 38 MWE O Write enable signal output to the DRAM (IC703). 39 VSS — Ground 40 CAS O Column address strobe signal output to the DRAM (IC703). 41 VDD3 — Power supply pin (+3.3 V) 42 RAS0 O Row address strobe signal output to the DRAM (IC703). 43 RAS1 O Row address strobe signal output (Not used in this set) 44, 45 MA10, 9 O Address signal output to the program ROM (IC704). 46 MA8 O Address signal output to the program ROM (IC704) and DRAM (IC703). 47 VSS — Ground 48 MA7 O Address signal output to the program ROM (IC704) and DRAM (IC703). 49 VDD3 — Power supply pin (+3.3 V) 50 – 52 MA6 – 4 O Address signal output to the program ROM (IC704) and DRAM (IC703). 53 VSS — Ground 54 MA3 O Address signal output to the program ROM (IC704) and DRAM (IC703). 55 VDD3 — Power supply pin (+3.3 V) 56 – 58 MA2 – 0 O Address signal output to the program ROM (IC704) and DRAM (IC703). 59 PGIO7 I/O Connect to VSS in this set. 60 RESET I Reset signal input from TMP87CM41U (IC803). (“L”: Reset) 61 VDDMAX_IN I Fix the maximum input voltage each input pin and input/output pin. 62 – 64 NC — Not used. (Open) 65 AGND_DAC — Ground (for D/A converter) 66 AVDD_DAC — Power supply pin (+3.3 V) (for D/A converter) 67 COMPOS_OUT O Composite video signal output 68 AGND_DAC — Ground (for D/A converter) 69 Y-OUT O Luminance video signal output (Not used in this set) 70 AVDD_DAC — Power supply pin (+3.3 V) (for D/A converter) 71 AGND_DAC — Ground (for D/A converter) 72 RREF I Fix the video signal output level control. 73 VREF O Reference voltage (+1.235 V) output 74 AVDD_DAC — Power supply pin (+3.3 V) (for D/A converter) 75 C-OUT O Chrominance video signal output (Not used in this set) 76 AGND_DAC — Ground (for D/A converter) 77 CLK_SEL [0] I Clock select 0 input (Fixed at “H” in this set) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – Pin No. Pin Name I/O Pin Description 78 CLK_SEL [1] I Clock select 1 input (Fixed at “H” in this set) 79 CLK_SEL [2] I Clock select 2 input (Fixed at “H” in this set) 80 VSS — Ground 81 RESERVED I Clock select 3 input (Fixed at “L” in this set) 82 VDD3 — Power supply pin (+3.3 V) 83, 84 RESERVED O Clock select 4 output (Fixed at “L” in this set) 85 AGND_PLL — Ground (for PLL system) 86 DA_XCK (16.934MHz) I Main reference clock signal (16.9344 MHz=384 fs) from CXD3037R (IC601). 87 AVDD_PLL — Power supply pin (+3.3 V) (for PLL system) 88 PGIO4 I/O Not used in this set. (Open) 89 PGIO5 I/O Not used in this set. (Open) 90 PGIO6 I/O Not used in this set. (Open) 91 PGIO0 I/O Not used in this set. (Open) 92 PGIO8 I/O Not used in this set. (Open) 93 PGIO2/VSYNC/CSYNC O Vertical synchronized signal output (Not used in this set) 94 AVDD_PLL — Power supply pin (+3.3 V) (for PLL system) 95 NC — Not used. (Fixed at “L” in this set) 96, 97 NC — Not used. (Open) 98 AGND PLL — Ground (for PLL system) 99 VSS — Ground 100 NC — Not used. (Open) 101 PGIO3/HSYNC I/O Not used in this set. (Open) 102 VDD3 — Power supply pin (+3.3 V) 103 PGIO1/VCK-OUT I/O Not used in this set. (Open) 104 VSS — Ground 105 GCK I Connect to VSS in this set. 106 VCK_IN (27MHz) I Main clock for video signal processor input from Buffer (27 MHz) (IC705). 107 DA-EMP O Not used. (Open) 108 DA-LRCK O Digital audio L/R sampling clock signal (44.1 kHz) output to CXD3037R (IC601). 109 VDDMAX_OUT O Fix the maximum output voltage (+5 V) certain output 110 DA-DATA O Digital audio data output to CXD3037R (IC601). 111 DA-BCK O Digital audio bit clock signal (2.8224 MHz) output to CXD3037R (IC601). 112 HD-OUT O Serial data output to TMP87CM41U (IC803). 113 HRDY O Ready signal output to TMP87CM41U (IC803) 114 HINT O Interrupt request signal output to TMP87CM41U (IC803). 115 CDG-SCK I/O CD graphics serial clock input/output (Fixed at “L” in this set) 116 VSS — Ground 117 HCK I Serial data transfer clock signal input from TMP87CM41U (IC803). 118 VDD3 — Power supply pin (+3.3 V) 119 HD-IN I Serial data input from TMP87CM41U (IC803). 120 VDD3 — Power supply pin (+3.3 V) 121 HSEL I Command selection signal input from TMP87CM41U (IC803). 122 CDG-SDATA I CD graphics serial data input (Fixed at “L” in this set) 123 CDG-VFSY I CD graphics VFSY input (Fixed at “L” in this set) 124 CDG-SOS1 I CD graphics SOS1 input (Fixed at “L” in this set) 125 – 128 NC — Not used. (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VJ65 – 15 – – 16 – 04 RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER IC601 86 88 90 13 97 104 94 93 78 83 28 26 30 35 24 25 23 3 26 27 11 44 43 10 12 25 21 SELECTOR LPF SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK SERVO BLOCK • SIGNAL PATH : CD PLAY MDS 44 MDS MDP 43 MDP SENS SCOR 17 SCOR 42 3 1 4 C176 SDTO XTAI XTAO RFAC XSOE R4M XLAT CLOK LRCK PCMD BCK LRCKI PCMDI BCKI LOUT1 LOUT2 AMUTE FOK FOK R4M 78 RESET_I 79 XIN_I 42 XDE_O 39 HOLD_I 21 WP_OPEN (SLVCD) XSOE WDCK WFCK SDTD SENS CLOK XLAT XSOE_O GRSCOR_I FOK_I FG_I MSDTO_O SCOR_I (SENS) MSDTI_I SCK_O XLAT_O 46 47 SFDR XRST RFDC B A 2 WDCK WFCK XTAO XTAI E F SRDR TRDR FRDR FFDR TFDR SFDR SRDR 59 F 62 61 A B 58 71 RFDC RFAC E 50 51 FFDR FRDR 48 49 41 42 12 13 79 TFDR TRDR OPTICAL PICK-UP BLOCK (DAX-23E) A A B RF E F B RF E F PD PD LD LD DETECTOR VCC M902 SLED MOTOR FOCUS COIL TRACKING COIL FI1 RI1 43 44 FI2 RI2 FI3 VINDET RI3 14 FI4 15 RI4 APCREF 3 RF2 FO1 RO1 FO2 RO2 FO3 RO3 VLGO2 INM2 RF21 PAPC M F+ F- S+ S- T+ T- + COMPARATOR IC402 SYNC 48 XAPC_OFF_O 4 AGCPWM_O SDTO SCK D823 RSTB X601 16.9MHz F G E D H ON OFF S803 HOLD VCPU +2V S801 (OPEN) OPTICAL PICK-UP POWER ON SWITCH Q500 +2.5V 5 6 7 60 SYSTEM CONTROLLER IC801 (1/4) 3 2 1 4 40 38 36 34 32 30 69 4 77 DRIVER M901 SPINDLE MOTOR FO4 RO4 M C+ C- 28 26 DRIVER DRIVER CONTROLLER DRIVER LD AMP PD AMP LEVEL SHIFTER 78 FOCUS/TRACKING COIL DRIVER, SLED MOTOR DRIVER, SPINDLE MOTOR DRIVER IC401 (1/2) B+ +3V 80 TP802 87 8 89 9 91 10 11 : VIDEO (VIDEO CD) C B A 5-2. BLOCK DIAGRAM — CD SECTION (1/2) — (Page 21) (Page 21) (Page 21) (Page 22) (Page 20) (Page 17) (Page 20) (Page 19) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-3. BLOCK DIAGRAM — CD SECTION (2/2) — – 17 – – 18 – D-VJ65 45 14 7 9 28 38 19 50 - 64 65 - 68 18 LINE MUTE Q301 LINE MUTE CONTROL SWITCH Q302 MUTE SWITCH Q601 VOLUME_IC_LATCH_O AD_SEL AMUTE_O XRST_O BEEP_O AVLS_I AD_RMKEY AD_KEY 16 AD_KEY2 SYSTEM CONTROLLER IC801(2/4) D601 J301 AUDIO OUT VCPU +2V RMKEY GND J302 SWITCH UNIT 37 (NTSC/PAL) 4 2 1 VCPU +2V NORM LIMIT S802 AVLS S804 G-PROTECTION VCPU +2V VCPU +2V 36 COMPON_I VCPU +2V ON OFF LIN RIN HEADPHONE AMP IC351 14 HEADPHONE ON/OFF SWITCH IC301 6 3 5 15 LOUT ROUT 8 6 PWRSW MUTE BIAS 19 BEEP 17 PW SW BEEP MT SW 20 2 7 1 TAP801 (TEST) + + 1 2 3 4 A 04 • SIGNAL PATH : CD PLAY TG R L 2G SWITCH 2 RMC_I SEG14 | SEG0 COM3 | COM0 REMOTE CONTROL SWITCH Q815 REMOTE CONTROL RECEIVER IC805 LIQUID CRYSTAL DISPLAY PANEL LCD1 i/REMOTE 21 BIAS VOLUME S805 S806 D601 B+ +3V (Page 16) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-4. BLOCK DIAGRAM — VIDEO SECTION — D-VJ65 – 19 – – 20 – D0 – D15 LEVEL SHIFT IC708 6 7 5 CD_DATA CD_BCK CD_LRCK DA-DATA DA-BCK DA-LRCK DA_XCK(16.934MHz) COMPOS_OUT VCK_IN(27MHz) CD-ROM INTERFACE CIRCUIT MPEG SYSTEM DECODER MPEG VIDEO DECODER MPEG VIDEO DECODER VIDEO PROCESS CIRCUIT AUDIO INTERFACE CIRCUIT D-RAM/ROM INTERFACE CPU INTERFACE HD-IN HCK HD-OUT HSEL HINT HRDY CAS RESET RAS0 MWE MCE MD0–MD15 MA0–MA10 A0 – A10 A0 – A10 D0 – D15 A0 – A8 D8 – D14 A11–A17 D0–D7 D0–D7 A0–A10 1, 4-6, 10-12 21-23, 25-29 A0–A8 2,3, 13-16, 17-20, 31 D0–D15 30 CE UCAS LCAS RAS WE ROM(512K) IC704 16-19, 22-26 2-5, 7-10, 31-34, 36-39 28 29 14 13 DRAM(4M) IC703 DATA BUS ADDRESS BUS 33 17 34 36 39 35 32 21 SCK1 SO1 SI1 P41 INT5/STOP P40 C_RESET RESET_I 38 SCK2 VREF 39 S12 41 INT3/TC3 VREF COMPARATOR IC706,707 4 3 1 4 3 1 SWITCH Q810 42 INT4/TC4 SWITCH Q811 40 PWM/PDO 22 XIN_I 43 SO2 11 8 10 9 VRST_O RMSCK_O RMDATO_O XV_SEND_O XV_RECV_O RMDATI_I 29 32 30 49 6 31 SYSTEM CONTROLLER IC801(3/4) VIDEO ENCODER VIDEO CONTROLLER IC803 4 3 5 6 1 3 2 7 5 110 111 108 86 67 106 10-15, 17, 19, 21, 23-29 58-56, 54 52-50, 48, 46-44 60 40 119 117 112 121 114 113 42 38 37 VIDEO/AUDIO MPEG DECODER IC701 4 2 IC709 4 2 IC705 X701 27MHz J701 04 VIDEO OUT • SIGNAL PATH : CD PLAY : VIDEO (VIDEO CD) I J C D B LEVEL SHIFT IC710 1 6 3 7 2 5 IC706 IC707 Q814 (Page 16) (Page 16) (Page 21) (Page 16) (Page 21) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-5. BLOCK DIAGRAM — POWER SUPPLY SECTION — – 21 – – 22 – D-VJ65 SWITCHING POWER CIRCUIT 3 VIDEO VOLTAGE SELECTOR Q490 SWITCHING POWER CIRCUIT 2 SWITCHING POWER CIRCUIT 6 SWITCHING POWER CIRCUIT 5 CHARGE CONTROL DC-DC CONVERTER Q410 DC-DC CONVERTER T401 RISING TIME ADJUSTMENT Q405 RECTIFIER Q409 CHARGE SWITCH INTERFACE CLK OR OSC AMP BIAS SAWTOOTH GENERATOR STANDBY REFERENCE CHARGE SW Q403, 404 +4.5V REG SWITCH Q411 DC IN REGULATOR Q401,402,412 +3V POWER SWITCH Q406, 407 D410 B+ +3V 72 71 61 58 18 VCPU WAKE-UP Q416 51 7 8 9 10 11 73 65 60 59 46 48 49 4 5 1 3 2 5 45 CHG ON/OFF VCC1 BANDGAP REFERENCE (VREF) 52 5 15 SYSTEM CONTROLLER IC801(4/4) 17 20 1 VCDON _O 46 13 74 40 XPOWLT_O WAKEUP_O V_REQ_I BATDET_I AD_CHGMNT AD_BATMNT AD_DCINMNT VCC1 +2V AVDD +2V DVDD +2V E J I G F VCPU +2V 4 4 5 2 5 IC405 +2.5V REG IC407 Q701, 702 VCC2 +3V POWER CONTROL IC401(2/2) B+ BCENTER B- H 04 WAKE-UP RESET SWITCH Q408 J401 DC IN 4.5V ! B+ +3V COMPARATOR IC404 VLG3 L3 INP3 VIN BATM1 BATM2 CHGSW RS DCIN RF4 DC IN L4 VG HPINP VLGO1 CHGMHT VCC1 SYNC WAKEUP CLOCK DATA LATCH RSTB VREF B+ +2.5V D801 CHARGE DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS,3V RECHARGEABLE BATTERY NC-WMAA/NH-WM2AA 2.4V SYNC SCK SDTO VREF B+ +3V D401 (Page 16) (Page 16) (Page 16) (Page 20) (Page 20) (Page 16) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – – 24 – D-VJ65 0.1V/div 2µsec/div 0.1V/div 2msec/div 0.2V/div 20µsec/div 10mV/div 0.5µsec/div 20mV/div 0.5µsec/div 0.1V/div 0.05µsec/div 0.1V/div 5µsec/div 50mV/div 0.05µsec/div 0.1V/div 0.5µsec/div 0.1V/div 2µsec/div • Waveforms 3 450-650mVp-p TP629 (RF) 6 2Vp-p IC601 qj (SCOR) 0 2Vp-p TP707 (LRCK) 9msec 23µsec IC405 2 8 0.9Vp-p 9 2Vp-p TP705 (BCK) 0.1V/div 0.1µsec/div 0.44µsec 27MHz TP713 (27MHz) 16.9MHz IC601 of (XTAO) qa 50mV/div 0.05µsec/div qf IC701 yj (COMPOS OUT) qd 50mV/div 0.5µsec/div qs 0.1V/div 0.1µsec/div 1.2Vp-p 1Vp-p 1Vp-p 3Vp-p 0.44µsec H IC701 3 (CD BCK) 2 2Vp-p TP405 (SCK) IC601 wg (SCK) 1 3Vp-p 5.8µsec 2µsec 4 250mVp-p TP633 (A), TP632 (B) 5 TP620 (FOK) 2V 0V 7 IC601 rd (MDP) 2Vp-p 4µsec 16.9MHz IC701 ih (16.934MHz) For schematic diagrams • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • Power voltage is dc 4.5V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground in playback mode. no mark : VIDEO CD PLAY ( ) : AUDIO CD PLAY Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD L : VIDEO For printed wiring boards • Y : parts extracted from the conductor side. • a : Through hole. • b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) VIDEO TEST DISC: HLV-401 (TGIS-3) Part No.: J-6095-031-A Playback track No.: 34 (Full field color bar 75%) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VJ65 – 25 – – 26 – 5-6. PRINTED WIRING BOARDS • Refer to page 23 for Note. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 S803 HOLD OFF ON M901 SPINDLE MOTOR OPTICAL PICK-UP BLOCK DAX-23E M902 SLED MOTOR BLK WHT BLK RED BLK WHT BLK RED 5 10 13 1 5 9 15 19 23 2 6 10 16 20 24 2 1 3 5 4 LIQUID CRYSTAL DISPLAY PLAY MODE SOUND REPEAT/ ENTER MENU RETURN . > u x CHG O SWITCH UNIT 1-675-859- (11) 11 1-676-284- (11) 11 1-676-284- (11) 11 MAIN BOARD (SIDE A) SUB BOARD (SIDE B) SUB BOARD (SIDE A) 04 G D S Ref. No. Location D401 B-9 D403 H-7 D404 B-9 D409 B-9 D411 G-5 D413 B-10 D461 G-4 D602 F-6 D802 B-5 D805 B-5 D806 A-6 D807 B-6 D808 B-5 D809 A-6 D810 A-6 D811 A-6 D812 A-6 D813 A-6 IC351 H-9 IC402 G-5 IC805 J-9 Q402 B-9 Q403 A-8 Q408 G-5 Q409 H-7 Q410 H-7 Q412 B-8 Q500 F-4 Q601 G-6 • Semiconductor Location (Side A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 1 2 3 6 54 1 2 3 5 4 1 1 2 3 6 5 4 2 3 6 5 4 J701 VIDEO OUT J301 AUDIO OUT 1 1 1 2 3 6 5 4 1 3 2 1 4 5 6 2 3 5 4 1 1 2 3 5 4 2 3 5 4 4 8 5 4 8 5 55 60 50 45 40 35 30 25 20 15 10 5 1 115 120 110 105 100 95 90 85 80 75 70 65 1 4 8 5 1 2 3 5 4 S801 (OPEN/CLOSE) Note: Note for installation of the copper sheet Solder the B side of the main board at the five places ( ) of a , b , c , d and e to the copper sheet. J302 i/REMOTE S802 AVLS NORM LIMIT S804 G-PROTECTION ON OFF VOLUME S805 S806 1 23 5 4 1 2 3 5 4 J401 DC IN 4.5V ! 1-675-859- (11) 11 MAIN BOARD (SIDE B) DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS.3V RECHARGEABLE BATTERY NC-WMAA/NH-WM2AA 2.4V 04 S D G a b c d e D-VJ65 – 27 – – 28 – • Refer to page 23 for Note. Ref. No. Location D311 I-10 D406 H-7 D410 F-8 D415 H-10 D601 H-5 D702 E-3 D703 E-3 D801 D-8 D823 E-5 IC301 I-8 IC401 H-7 IC404 H-9 IC405 G-7 IC407 F-8 IC601 G-5 IC701 C-6 IC703 B-6 IC704 B-7 IC705 C-5 IC706 B-4 IC707 C-4 IC708 B-5 IC709 E-6 IC710 B-5 IC801 E-5 IC803 D-4 Q301 F-3 Q302 F-3 Q401 B-8 Q404 A-8 Q405 H-5 Q406 G-7 Q407 G-7 Q411 B-9 Q416 I-7 Q490 H-7 Q701 E-8 Q702 D-8 Q810 B-4 Q811 B-4 Q814 B-4 Q815 I-8 • Semiconductor Location (Side B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VJ65 – 29 – 5-7. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 23 for Note and page 37 for IC Block Diagrams. • Refer to page 24 for Waveforms. – 30 – (Page 31) (Page 33) (Page 35) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – – 32 – D-VJ65 5-8. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — • Refer to page 23 for Note and page 38 for IC Block Diagrams. • Refer to page 24 for Waveforms. (Page 33) (Page 35) (Page 30) (Page 35, 36) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – – 34 – 5-9. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — • Refer to page 23 for Note. • Refer to page 24 for Waveforms. D-VJ65 (Page 30) (Page 35) (Page 31) (Page 31) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – – 36 – 5-10. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) — • Refer to page 23 for Note and page 37 for IC Block Diagrams. D-VJ65 B (Page 32) (Page 33) (Page 32) (Page 30) (Page 33) (Page 31) (Page 30) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – – 38 – IC401 TB2119F • IC Block Diagrams IC601 CXD3037R 60 VLGO1 BATM1 59 BATM2 58 CHGMNT 57 INP1 56 RF1 55 INM1 DTC1D DTC2D RSTB VCC1 VCPU DCIN RF4 INM4 RS CHGSW RI2 FI2 42 RI1 41 40 FI1 VREF L4 RF2 INM2 VG GND 7 SYNC 8 CLOCK 9 10 DATA WAKE UP 11 LATCH 12 FI3 13 RI3 HPINM 14 FI4 15 RI4 16 HPI1 17 HPI2 18 HPINP 19 20 HPRF FO1 39 MGND1 38 RO1 37 VD12 36 FO2 35 MGND2 34 RO2 33 VD23 32 FO3 31 MGND3 30 RO3 29 VD34 28 FO4 27 MGND4 26 RO4 25 HPOUT1 24 HPGND 23 HPOUT3 22 VHP 21 HPOUT2 L1L PGND1 L1H VIN L2H PGND2 PGND3 L2L VLGO2 L3 VLG3 INM3 RF3 INP3 DTC3 RF21 PAPC APCREF VINDET 61 62 63 64 65 66 67 68 69 70 71 72 74 75 73 76 77 78 1 2 3 4 5 6 79 80 LEVEL SHIFTER LEVEL SHIFTER PWM H/P DRIVER H BRIDGE DRIVER 4 H BRIDGE DRIVER 3 H BRIDGE DRIVER 2 H BRIDGE DRIVER 1 CONTROLLER STANDBY REFERENCE BANDGAP REFERENCE (VREF) CLK OR OSC SAW GEN 54 53 52 51 50 49 48 47 46 45 44 CONTROL CHARGE VREF VREF VREF VREF VCPU VREF VCPU VREF VG VCPU 1/2 VREF SAWTOOTH SAWTOOTH SAWTOOTH SAWTOOTH VREF VREF SUB VREF VCC1 VCPU DCIN OEB BIAS INTERFACE CLK R-2 R-1 R-6 D-1 to 4 D-5 S-3 S-1 S-2 R-3 R-4 R-5 R-4 CHGON/OFF 43 VIN CONTROLLER MUTE + – + – + – 23 18 17 16 15 14 13 2 3 4 5 6 7 8 9 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW ROUT LOUT BEEP MUTE MUTE BST PW B PW C BST NF ADD OUT RF IN OSC SW ROUT VREF LOUT PGND MIX OUT ALC IN ALC DET ATT SW LIN RIN GND PWR SW BIAS BIAS IN BB SW BST OUT VCC ADDA ADDB 21 22 PW A ALC ALC 20 19 10 IC351 TA2120FN (EL) ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE A0 – A11 SYSM AMUTE HPL HPM HPR PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI LOCK MDP SDTI SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL/HPVDD(2.0V) VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0(2.5V) IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD(2.5V) A0 A1 A2 A3 AVDD2(2.5V) LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1(2.5V) XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 A VDD A GND D VDD AVDD0 IGEN AVSS0 RFDC E F RFDC E F B A VC CLTV XPCK A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI XQCK SCSY SCOR VSS0 SBSO EXCK XRST SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – SECTION 6 EXPLODED VIEWS Ref. No. Part No. Description Remark 6-1. CABINET SECTION Ref. No. Part No. Description Remark NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 A-3323-413-A MAIN BOARD, COMPLETE 2 4-223-585-01 TERMINAL (+), BATTERY 3 4-223-584-01 TERMINAL (–), BATTERY 4 A-3328-766-A CABINET (REAR) SUB ASSY 5 4-908-792-51 SCREW (B2) 6 4-223-606-01 LID, BATTERY 7 4-966-278-01 FOOT, RUBBER 8 4-993-131-41 KNOB (HOLD) 9 4-223-586-01 TERMINAL, BATTERY LINK 10 3-375-114-31 SCREW 11 X-4952-179-1 COVER ASSY, LID 12 1-418-639-11 SWITCH UNIT 13 4-223-596-01 BUTTON (OPERATE) 14 4-223-611-11 COVER, DECORATION 15 4-223-610-11 WINDOW (LCD) 16 4-223-595-01 LID, UPPER 17 4-223-587-01 SPRING (FULL OPEN) 18 4-223-593-01 CABINET (UPPER) 19 4-223-592-01 PSA (LCD WINDOW) 20 4-222-794-01 CLAW, LOCK 21 4-223-583-01 SPRING (OPEN) 22 4-223-609-01 KNOB (JOGGABLE) 23 4-222-793-11 KNOB (OPEN) 24 4-223-607-01 BUTTON (VOLUME) 25 3-222-710-01 LEAF, COPPER 4 3 2 1 7 8 9 22 25 21 20 23 24 10 10 11 12 13 14 15 16 5 5 17 18 6 19 CDM-3223EBA SUB BOARD (not supplied) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – M901 M902 51 52 52 53 54 55 56 56 56 57 58 59 60 61 62 63 6-2. CD MECHANISM DECK SECTION (CDM-3223EBA) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-218-821-01 COVER, GEAR 52 3-318-203-71 SCREW (B1.7X5), TAPPING 53 A-3328-628-A SCREW (FEED) ASSY 54 4-218-823-01 GEAR (B) 55 4-218-825-01 SPRING (SLED) 56 4-222-765-01 INSULATOR 57 4-218-820-01 CHASSIS 58 4-218-827-01 BRACKET (SHAFT) 59 3-686-458-03 SCREW (P1.4X3.5), TAPPING 060 X-4952-506-1 OPTICAL PICK-UP DAX-23E 61 4-223-600-01 RACK 62 3-895-823-61 SCREW (B1.4X2.3), TAPPING 63 4-220-645-01 SHAFT, STANDARD M901 A-3328-760-A MOTOR ASSY, TURNTABLE (SPINDLE) M902 A-3328-627-A MOTOR ASSY, SLED (SLED) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. MAIN • Abbreviation CH : Chinese model HK : Hong Kong model A-3323-413-A MAIN BOARD, COMPLETE (Including SUB BOARD) ********************* 4-223-585-01 TERMINAL (+), BATTERY < CAPACITOR > C101 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C102 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C103 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C104 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C105 1-115-156-11 CERAMIC CHIP 1uF 10V C106 1-164-156-11 CERAMIC CHIP 0.1uF 25V C154 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C202 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C203 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C204 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C205 1-115-156-11 CERAMIC CHIP 1uF 10V C254 1-164-156-11 CERAMIC CHIP 0.1uF 25V C312 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C351 1-115-156-11 CERAMIC CHIP 1uF 10V C352 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C353 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C356 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C357 1-164-505-11 CERAMIC CHIP 2.2uF 16V C362 1-216-864-11 METAL CHIP 0 5% 1/16W C400 1-164-156-11 CERAMIC CHIP 0.1uF 25V C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C402 1-164-505-11 CERAMIC CHIP 2.2uF 16V C403 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C404 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C407 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C408 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C409 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C410 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C411 1-164-677-11 CERAMIC CHIP 3000PF 10% 16V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C415 1-164-156-11 CERAMIC CHIP 0.1uF 25V C416 1-164-156-11 CERAMIC CHIP 0.1uF 25V C417 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C418 1-128-705-11 ELECT 100uF 6.3V C419 1-162-968-11 CERAMIC CHIP 4700PF 10% 50V C420 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C421 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C422 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C424 1-165-112-11 CERAMIC CHIP 0.33uF 16V C425 1-115-156-11 CERAMIC CHIP 1uF 10V C426 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C427 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C428 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C430 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C431 1-119-661-11 TANTAL. CHIP 33uF 20% 6.3V C432 1-135-594-21 ELECT 68uF 20% 6.3V C433 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C435 1-119-661-11 TANTALUM 33uF 20% 6.3V C436 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C437 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C442 1-115-156-11 CERAMIC CHIP 1uF 10V C451 1-115-156-11 CERAMIC CHIP 1uF 10V C453 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C455 1-115-156-11 CERAMIC CHIP 1uF 10V C456 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C461 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C462 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C475 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C498 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C500 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C602 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C604 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C607 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C609 1-162-965-11 CERAMIC CHIP 1500PF 10% 50V C610 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C611 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C612 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C613 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C614 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C615 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C616 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C620 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C621 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C622 1-164-156-11 CERAMIC CHIP 0.1uF 25V C623 1-115-156-11 CERAMIC CHIP 1uF 10V C624 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C625 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C626 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C627 1-164-156-11 CERAMIC CHIP 0.1uF 25V C628 1-164-156-11 CERAMIC CHIP 0.1uF 25V C629 1-164-156-11 CERAMIC CHIP 0.1uF 25V C630 1-125-838-91 CERAMIC CHIP 22uF 10% 6.3V C632 1-164-156-11 CERAMIC CHIP 0.1uF 25V C634 1-127-569-11 TANTAL. CHIP 100uF 20% 4V C635 1-115-156-11 CERAMIC CHIP 1uF 10V C636 1-164-156-11 CERAMIC CHIP 0.1uF 25V C640 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C641 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C642 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C651 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C652 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C702 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C704 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C705 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C706 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C707 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C710 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C711 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C712 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C713 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C715 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C716 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C717 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C718 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C719 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C720 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C721 1-119-944-22 ELECT 470uF 20% 4V C722 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C723 1-162-958-11 CERAMIC CHIP 270PF 5% 50V C724 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C725 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C726 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C727 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C728 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C731 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C732 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C733 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C735 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C740 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C741 1-104-912-11 TANTAL. CHIP 3.3uF 20% 16V C750 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C751 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C752 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C770 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-165-128-11 CERAMIC CHIP 0.22uF 16V C802 1-165-128-11 CERAMIC CHIP 0.22uF 16V C803 1-165-128-11 CERAMIC CHIP 0.22uF 16V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C807 1-164-156-11 CERAMIC CHIP 0.1uF 25V C808 1-164-156-11 CERAMIC CHIP 0.1uF 25V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-117-720-11 CERAMIC CHIP 4.7uF 10V C812 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C813 1-135-201-11 TANTALUM 10uF 20% 4V C815 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C816 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C817 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C819 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C841 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > * CN501 1-778-161-11 CONNECTOR, FFC/FPC 13P CN502 1-784-342-31 HOUSING, CONNECTOR 2P CN503 1-784-342-21 HOUSING, CONNECTOR 2P CN801 1-766-492-21 CONNECTOR, FFC/FPC (ZIF) 24P < DIODE > D311 8-719-069-54 DIODE UDZS-TE17-5.1B D401 8-719-078-99 DIODE MI1A3V D403 8-719-049-09 DIODE 1SS367-T3SONY D404 8-719-078-99 DIODE MI1A3V D406 8-719-058-24 DIODE RB501V-40TE-17 D409 8-719-976-96 DIODE DTZ4.7C D410 8-719-074-34 DIODE RB495D-T146 D411 8-719-049-09 DIODE 1SS367-T3SONY D413 8-719-069-54 DIODE UDZS-TE17-5.1B D415 8-719-069-54 DIODE UDZS-TE17-5.1B D461 8-719-049-09 DIODE 1SS367-T3SONY D601 8-719-988-78 DIODE SB007W03Q D602 8-719-049-09 DIODE 1SS367-T3SONY D702 8-719-069-54 DIODE UDZS-TE17-5.1B D703 8-719-069-54 DIODE UDZS-TE17-5.1B D801 8-719-049-09 DIODE 1SS367-T3SONY D802 8-719-069-54 DIODE UDZS-TE17-5.1B D805 8-719-069-54 DIODE UDZS-TE17-5.1B D806 8-719-069-54 DIODE UDZS-TE17-5.1B D807 8-719-069-54 DIODE UDZS-TE17-5.1B D808 8-719-069-54 DIODE UDZS-TE17-5.1B D809 8-719-069-54 DIODE UDZS-TE17-5.1B D810 8-719-069-54 DIODE UDZS-TE17-5.1B D811 8-719-069-54 DIODE UDZS-TE17-5.1B D812 8-719-069-54 DIODE UDZS-TE17-5.1B D813 8-719-069-54 DIODE UDZS-TE17-5.1B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN D823 8-719-049-09 DIODE 1SS367-T3SONY < FERRITE BEAD > FB101 1-412-987-31 INDUCTOR 4.7uH FB111 1-412-004-31 INDUCTOR 6.8uH FB201 1-412-987-31 INDUCTOR 4.7uH FB211 1-412-004-31 INDUCTOR 6.8uH FB301 1-412-987-31 INDUCTOR 4.7uH FB311 1-412-004-31 INDUCTOR 6.8uH FB312 1-216-864-11 METAL CHIP 0 5% 1/16W FB602 1-412-987-31 INDUCTOR 4.7uH FB603 1-412-987-31 INDUCTOR 4.7uH FB701 1-216-864-11 METAL CHIP 0 5% 1/16W FB702 1-216-864-11 METAL CHIP 0 5% 1/16W FB733 1-216-807-11 RES-CHIP 68 5% 1/16W < IC > IC301 8-759-488-29 IC TC7W66FU(TE12R) IC351 8-759-522-87 IC TA2120FN(EL) IC401 8-759-642-56 IC TB2119F IC402 8-759-594-55 IC TC75S57F(TE85R) IC404 8-759-594-55 IC TC75S57F(TE85R) IC405 8-759-592-44 IC TC7SZ04FU(TE85R) IC407 8-759-664-91 IC TK11126SCL IC601 8-752-401-56 IC CXD3037R IC701 8-759-535-48 IC CL680T-D1 IC703 8-759-597-78 IC MSM54V16258BSL-40TSK IC704 8-759-655-25 IC MR27V401D-03TAZ08 IC705 8-759-058-60 IC TC7SU04FU(TE85R) IC706 8-759-594-55 IC TC75S57F(TE85R) IC707 8-759-594-55 IC TC75S57F(TE85R) IC708 8-759-679-05 IC TC7WH34FU(TE12R) IC709 8-759-058-60 IC TC7SU04FU(TE85R) IC710 8-759-679-05 IC TC7WH34FU(TE12R) IC801 8-759-668-35 IC TMP88CM22F-1B20 IC803 8-759-657-17 IC TMP87CM41U-MP1 < JACK > J301 1-778-696-11 JACK (AUDIO OUT) J302 1-580-680-11 JACK (i/REMOTE) J401 1-778-153-21 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 4.5V) J701 1-778-696-21 JACK (VIDEO OUT) < COIL > L311 1-412-987-31 INDUCTOR 4.7uH L401 1-419-188-11 INDUCTOR 100uH L402 1-414-398-11 INDUCTOR 10uH L403 1-414-434-11 INDUCTOR 100uH L404 1-414-406-11 INDUCTOR 220uH L405 1-414-404-11 INDUCTOR 100uH L407 1-424-674-11 INDUCTOR 22uH L408 1-414-400-21 INDUCTOR 22uH L409 1-414-404-11 INDUCTOR 100uH L410 1-414-402-11 INDUCTOR 47uH L411 1-419-256-21 INDUCTOR 2.2uH L412 1-414-392-21 INDUCTOR 1uH L601 1-412-002-31 INDUCTOR 4.7uH L604 1-414-398-11 INDUCTOR 10uH L701 1-216-296-00 SHORT 0 L702 1-216-296-00 SHORT 0 L703 1-216-296-00 SHORT 0 L704 1-410-996-31 INDUCTOR CHIP 1.8uH L705 1-410-998-31 INDUCTOR CHIP 2.7uH L706 1-412-002-31 INDUCTOR CHIP 4.7uH L707 1-410-993-11 INDUCTOR CHIP 1uH L708 1-414-398-11 INDUCTOR 10uH L709 1-216-295-00 SHORT 0 L710 1-216-296-00 SHORT 0 L711 1-216-295-00 SHORT 0 L712 1-216-295-00 SHORT 0 L713 1-216-296-00 SHORT 0 L719 1-216-295-00 SHORT 0 L720 1-216-295-00 SHORT 0 L722 1-410-993-11 INDUCTOR CHIP 1uH L723 1-410-993-11 INDUCTOR CHIP 1uH L725 1-410-999-11 INDUCTOR CHIP 3.3uH L814 1-412-987-31 INDUCTOR 4.7uH L815 1-412-987-31 INDUCTOR 4.7uH < TRANSISTOR > Q301 8-729-043-90 TRANSISTOR IMX9T110 Q302 8-729-930-00 TRANSISTOR UMD2 Q401 8-729-050-17 TRANSISTOR 2SA1241-Y Q402 8-729-920-82 TRANSISTOR 2SB1188-QR Q403 8-729-921-73 TRANSISTOR 2SD1781K-QR Q404 8-729-425-41 FET 2SK1374 Q405 8-729-047-36 FET CPH3303-TL Q406 8-729-047-36 FET CPH3303-TL Q407 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q408 8-729-231-74 TRANSISTOR 2SC4116-GL Q409 8-729-320-66 TRANSISTOR 2SD1870 Q410 8-729-051-48 TRANSISTOR XP-161A1355PR Q411 8-729-053-50 TRANSISTOR 2SB1590K-T146 Q412 8-729-429-44 TRANSISTOR XP1501 Q416 8-729-427-83 TRANSISTOR XP6501 Q490 8-729-420-26 TRANSISTOR 2SB1218A-QRS Q500 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q601 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q701 8-729-047-90 FET XP162A11C0PR Q702 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q810 8-729-048-85 TRANSISTOR IMD3A-T108 Q811 8-729-048-85 TRANSISTOR IMD3A-T108 Q814 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q815 8-729-029-14 TRANSISTOR DTC144EUA-T106 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN < RESISTOR > R1 1-216-864-11 METAL CHIP 0 5% 1/16W R2 1-216-864-11 METAL CHIP 0 5% 1/16W R3 1-216-864-11 METAL CHIP 0 5% 1/16W R4 1-216-864-11 METAL CHIP 0 5% 1/16W R5 1-216-864-11 METAL CHIP 0 5% 1/16W R101 1-216-813-11 METAL CHIP 220 5% 1/16W R102 1-216-835-11 METAL CHIP 15K 5% 1/16W R103 1-216-833-11 RES-CHIP 10K 5% 1/16W R104 1-216-833-11 RES-CHIP 10K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-845-11 METAL CHIP 100K 5% 1/16W R107 1-216-837-11 METAL CHIP 22K 5% 1/16W R112 1-216-853-11 METAL CHIP 470K 5% 1/16W R113 1-216-845-11 METAL CHIP 100K 5% 1/16W R152 1-216-831-11 RES-CHIP 6.8K 5% 1/16W R153 1-216-847-11 METAL CHIP 150K 5% 1/16W R154 1-216-793-11 RES-CHIP 4.7 5% 1/16W R201 1-216-813-11 METAL CHIP 220 5% 1/16W R202 1-216-835-11 METAL CHIP 15K 5% 1/16W R203 1-216-833-11 RES-CHIP 10K 5% 1/16W R204 1-216-833-11 RES-CHIP 10K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-845-11 METAL CHIP 100K 5% 1/16W R207 1-216-837-11 METAL CHIP 22K 5% 1/16W R212 1-216-853-11 METAL CHIP 470K 5% 1/16W R213 1-216-845-11 METAL CHIP 100K 5% 1/16W R252 1-216-831-11 RES-CHIP 6.8K 5% 1/16W R253 1-216-847-11 METAL CHIP 150K 5% 1/16W R254 1-216-793-11 RES-CHIP 4.7 5% 1/16W R302 1-216-809-11 METAL CHIP 100 5% 1/16W R303 1-216-809-11 METAL CHIP 100 5% 1/16W R315 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R353 1-216-308-00 METAL CHIP 4.7 5% 1/10W R401 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R402 1-216-833-11 RES-CHIP 10K 5% 1/16W R403 1-216-853-11 METAL CHIP 470K 5% 1/16W R404 1-216-864-11 METAL CHIP 0 5% 1/16W R405 1-216-864-11 METAL CHIP 0 5% 1/16W R406 1-216-864-11 METAL CHIP 0 5% 1/16W R408 1-216-853-11 METAL CHIP 470K 5% 1/16W R409 1-216-849-11 METAL CHIP 220K 5% 1/16W R410 1-216-843-11 METAL CHIP 68K 5% 1/16W R413 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R415 1-216-833-11 RES-CHIP 10K 5% 1/16W R416 1-216-857-11 METAL CHIP 1M 5% 1/16W R417 1-216-864-11 METAL CHIP 0 5% 1/16W R418 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R419 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R420 1-216-864-11 METAL CHIP 0 5% 1/16W R421 1-216-863-11 RES-CHIP 3.3M 5% 1/16W R422 1-216-835-11 RES-CHIP 15K 5% 1/16W R423 1-216-839-11 METAL CHIP 33K 5% 1/16W R424 1-216-833-11 RES-CHIP 10K 5% 1/16W R426 1-216-837-11 METAL CHIP 22K 5% 1/16W R427 1-216-815-11 METAL CHIP 330 5% 1/16W R429 1-216-857-11 METAL CHIP 1M 5% 1/16W R430 1-216-864-11 METAL CHIP 0 5% 1/16W R432 1-216-853-11 METAL CHIP 470K 5% 1/16W R433 1-216-864-11 METAL CHIP 0 5% 1/16W R434 1-218-915-11 METAL CHIP 680K 0.5% 1/16W R435 1-218-740-11 METAL CHIP 100K 0.5% 1/16W R436 1-216-864-11 METAL CHIP 0 5% 1/16W R437 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R438 1-216-859-11 METAL CHIP 1.5M 5% 1/16W R439 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R440 1-216-033-00 METAL CHIP 220 5% 1/10W R441 1-216-817-11 METAL CHIP 470 5% 1/16W R443 1-216-811-11 METAL CHIP 150 5% 1/16W R445 1-216-864-11 METAL CHIP 0 5% 1/16W R446 1-216-821-11 METAL CHIP 1K 5% 1/16W R447 1-216-304-11 METAL CHIP 3.3 5% 1/10W R448 1-216-298-00 METAL CHIP 2.2 5% 1/10W R449 1-216-298-00 METAL CHIP 2.2 5% 1/10W R450 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R452 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R453 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R454 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R455 1-216-839-11 METAL CHIP 33K 5% 1/16W R458 1-216-859-11 METAL CHIP 1.5M 5% 1/16W R459 1-216-857-11 METAL CHIP 1M 5% 1/16W R460 1-216-805-11 RES-CHIP 47 5% 1/16W R461 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R462 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R463 1-216-857-11 METAL CHIP 1M 5% 1/16W R465 1-216-864-11 METAL CHIP 0 5% 1/16W R467 1-216-864-11 METAL CHIP 0 5% 1/16W R468 1-216-841-11 RES-CHIP 47K 5% 1/16W R469 1-216-853-11 METAL CHIP 470K 5% 1/16W R470 1-216-857-11 METAL CHIP 1M 5% 1/16W R471 1-216-864-11 METAL CHIP 0 5% 1/16W R473 1-216-857-11 METAL CHIP 1M 5% 1/16W R475 1-216-833-11 RES-CHIP 10K 5% 1/16W R476 1-216-821-11 METAL CHIP 1K 5% 1/16W R480 1-216-845-11 METAL CHIP 100K 5% 1/16W R496 1-216-825-11 RES-CHIP 2.2K 5% 1/16W R498 1-218-851-11 METAL CHIP 1.5K 0.5% 1/16W R600 1-216-864-11 METAL CHIP 0 5% 1/16W R602 1-216-864-11 METAL CHIP 0 5% 1/16W R603 1-216-851-11 METAL CHIP 330K 5% 1/16W R604 1-216-857-11 METAL CHIP 1M 5% 1/16W R605 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R606 1-216-827-11 METAL CHIP 3.3K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R607 1-216-833-11 RES-CHIP 10K 5% 1/16W R608 1-216-851-11 METAL CHIP 330K 5% 1/16W R609 1-216-833-11 RES-CHIP 10K 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-216-837-11 METAL CHIP 22K 5% 1/16W R612 1-216-841-11 METAL CHIP 47K 5% 1/16W R613 1-216-837-11 METAL CHIP 22K 5% 1/16W R614 1-216-845-11 METAL CHIP 100K 5% 1/16W R615 1-216-837-11 METAL CHIP 22K 5% 1/16W R616 1-216-845-11 METAL CHIP 100K 5% 1/16W R617 1-216-837-11 METAL CHIP 22K 5% 1/16W R619 1-216-837-11 METAL CHIP 22K 5% 1/16W R621 1-216-864-11 METAL CHIP 0 5% 1/16W R622 1-216-864-11 METAL CHIP 0 5% 1/16W R623 1-216-821-11 METAL CHIP 1K 5% 1/16W R624 1-216-845-11 METAL CHIP 100K 5% 1/16W R625 1-216-833-11 RES-CHIP 10K 5% 1/16W R626 1-216-864-11 METAL CHIP 0 5% 1/16W R627 1-216-864-11 METAL CHIP 0 5% 1/16W R628 1-216-864-11 METAL CHIP 0 5% 1/16W R629 1-216-833-11 RES-CHIP 10K 5% 1/16W R630 1-216-864-11 METAL CHIP 0 5% 1/16W R632 1-216-839-11 METAL CHIP 33K 5% 1/16W R633 1-216-845-11 METAL CHIP 100K 5% 1/16W R634 1-216-805-11 METAL CHIP 47 5% 1/16W R636 1-216-864-11 METAL CHIP 0 5% 1/16W R639 1-216-845-11 METAL CHIP 100K 5% 1/16W R641 1-216-833-11 RES-CHIP 10K 5% 1/16W R642 1-216-864-11 METAL CHIP 0 5% 1/16W R643 1-216-833-11 RES-CHIP 10K 5% 1/16W R645 1-216-833-11 RES-CHIP 10K 5% 1/16W R647 1-216-819-11 RES-CHIP 680 5% 1/16W R648 1-216-819-11 RES-CHIP 680 5% 1/16W R650 1-216-819-11 METAL CHIP 680 5% 1/16W R657 1-216-864-11 METAL CHIP 0 5% 1/16W R660 1-216-833-11 RES-CHIP 10K 5% 1/16W R700 1-216-833-11 RES-CHIP 10K 5% 1/16W R701 1-216-845-11 METAL CHIP 100K 5% 1/16W R702 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R704 1-216-821-00 METAL CHIP 1K 5% 1/16W R706 1-216-821-00 METAL CHIP 1K 5% 1/16W R708 1-216-821-00 METAL CHIP 1K 5% 1/16W R709 1-216-833-11 RES-CHIP 10K 5% 1/16W R710 1-216-819-11 METAL CHIP 680 5% 1/16W R711 1-216-821-00 METAL CHIP 1K 5% 1/16W R712 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R720 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R721 1-216-833-11 RES-CHIP 10K 5% 1/16W R722 1-216-833-11 RES-CHIP 10K 5% 1/16W R723 1-216-864-11 METAL CHIP 0 5% 1/16W R724 1-216-833-11 RES-CHIP 10K 5% 1/16W R725 1-216-833-11 RES-CHIP 10K 5% 1/16W R726 1-216-833-11 RES-CHIP 10K 5% 1/16W R727 1-216-857-11 METAL CHIP 1M 5% 1/16W R728 1-216-864-11 METAL CHIP 0 5% 1/16W R729 1-216-807-11 RES-CHIP 68 5% 1/16W R730 1-216-295-00 SHORT 0 R731 1-216-811-11 METAL CHIP 150 5% 1/16W R732 1-216-811-11 METAL CHIP 150 5% 1/16W R734 1-216-833-11 RES-CHIP 10K 5% 1/16W R735 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R736 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R737 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R738 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R740 1-216-833-11 RES-CHIP 10K 5% 1/16W R741 1-216-833-11 RES-CHIP 10K 5% 1/16W R742 1-216-833-11 RES-CHIP 10K 5% 1/16W R743 1-216-833-11 RES-CHIP 10K 5% 1/16W R744 1-216-833-11 RES-CHIP 10K 5% 1/16W R748 1-216-823-11 RES-CHIP 1.5K 5% 1/16W R756 1-216-803-11 METAL CHIP 33 5% 1/16W R757 1-216-809-11 METAL CHIP 100 5% 1/16W R758 1-216-833-11 RES-CHIP 10K 5% 1/16W R759 1-216-833-11 RES-CHIP 10K 5% 1/16W R760 1-216-809-11 RES-CHIP 100 5% 1/16W R762 1-216-809-11 RES-CHIP 100 5% 1/16W R763 1-216-809-11 RES-CHIP 100 5% 1/16W R764 1-216-809-11 RES-CHIP 100 5% 1/16W R765 1-216-809-11 RES-CHIP 100 5% 1/16W R766 1-216-809-11 RES-CHIP 100 5% 1/16W R767 1-216-809-11 RES-CHIP 100 5% 1/16W R768 1-216-809-11 RES-CHIP 100 5% 1/16W R769 1-216-809-11 RES-CHIP 100 5% 1/16W R770 1-216-809-11 RES-CHIP 100 5% 1/16W R771 1-216-809-11 RES-CHIP 100 5% 1/16W R772 1-216-809-11 RES-CHIP 100 5% 1/16W R773 1-216-809-11 RES-CHIP 100 5% 1/16W R774 1-216-809-11 RES-CHIP 100 5% 1/16W R775 1-216-809-11 RES-CHIP 100 5% 1/16W R776 1-216-809-11 RES-CHIP 100 5% 1/16W R777 1-216-809-11 RES-CHIP 100 5% 1/16W R778 1-216-809-11 RES-CHIP 100 5% 1/16W R779 1-216-809-11 RES-CHIP 100 5% 1/16W R780 1-216-809-11 RES-CHIP 100 5% 1/16W R781 1-216-809-11 RES-CHIP 100 5% 1/16W R782 1-216-809-11 RES-CHIP 100 5% 1/16W R783 1-216-809-11 RES-CHIP 100 5% 1/16W R784 1-216-809-11 RES-CHIP 100 5% 1/16W R785 1-216-809-11 RES-CHIP 100 5% 1/16W R786 1-216-809-11 RES-CHIP 100 5% 1/16W R787 1-216-809-11 RES-CHIP 100 5% 1/16W R788 1-216-809-11 RES-CHIP 100 5% 1/16W R789 1-216-809-11 RES-CHIP 100 5% 1/16W R790 1-216-809-11 RES-CHIP 100 5% 1/16W R801 1-216-845-11 METAL CHIP 100K 5% 1/16W R802 1-216-845-11 METAL CHIP 100K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 46 – Ref. No. Part No. Description Remark Sony Corporation Audio Entertainment Group 9-927-649-11 2000F0416-1 Printed in Japan ©2000. 6 Published by PE General Engineering Dept. D-VJ65 MAIN R803 1-216-843-11 METAL CHIP 68K 5% 1/16W R808 1-216-864-11 METAL CHIP 0 5% 1/16W R809 1-216-845-11 METAL CHIP 100K 5% 1/16W R810 1-216-864-11 METAL CHIP 0 5% 1/16W R811 1-216-864-11 METAL CHIP 0 5% 1/16W R812 1-216-864-11 METAL CHIP 0 5% 1/16W R813 1-216-839-11 METAL CHIP 33K 5% 1/16W R814 1-216-845-11 METAL CHIP 100K 5% 1/16W R818 1-216-835-11 METAL CHIP 15K 5% 1/16W R819 1-216-849-11 METAL CHIP 220K 5% 1/16W R820 1-216-864-11 METAL CHIP 0 5% 1/16W R821 1-216-864-11 METAL CHIP 0 5% 1/16W R824 1-216-833-11 RES-CHIP 10K 5% 1/16W R826 1-216-849-11 METAL CHIP 220K 5% 1/16W R827 1-216-851-11 METAL CHIP 330K 5% 1/16W R828 1-216-833-11 RES-CHIP 10K 5% 1/16W R829 1-216-847-11 METAL CHIP 150K 5% 1/16W R830 1-216-845-11 METAL CHIP 100K 5% 1/16W R831 1-216-864-11 METAL CHIP 0 5% 1/16W R832 1-216-821-11 METAL CHIP 1K 5% 1/16W R835 1-216-864-11 METAL CHIP 0 5% 1/16W R836 1-216-845-11 METAL CHIP 100K 5% 1/16W R837 1-216-837-11 RES-CHIP 22K 5% 1/16W R838 1-216-845-11 METAL CHIP 100K 5% 1/16W R841 1-216-857-11 METAL CHIP 1M 5% 1/16W R842 1-216-833-11 RES-CHIP 10K 5% 1/16W R844 1-216-833-11 RES-CHIP 10K 5% 1/16W R846 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R849 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R850 1-216-833-11 RES-CHIP 10K 5% 1/16W R851 1-216-833-11 RES-CHIP 10K 5% 1/16W R854 1-216-833-11 RES-CHIP 10K 5% 1/16W R857 1-216-833-11 RES-CHIP 10K 5% 1/16W R861 1-216-833-11 RES-CHIP 10K 5% 1/16W R862 1-216-819-11 METAL CHIP 680 5% 1/16W R863 1-216-819-11 METAL CHIP 680 5% 1/16W R864 1-216-819-11 METAL CHIP 680 5% 1/16W R865 1-216-819-11 METAL CHIP 680 5% 1/16W R866 1-216-819-11 METAL CHIP 680 5% 1/16W R867 1-216-819-11 METAL CHIP 680 5% 1/16W R871 1-216-833-11 RES-CHIP 10K 5% 1/16W R872 1-216-833-11 RES-CHIP 10K 5% 1/16W R873 1-216-833-11 RES-CHIP 10K 5% 1/16W R874 1-216-833-11 RES-CHIP 10K 5% 1/16W < SWITCH > S801 1-692-440-11 SWITCH, PUSH (OPEN) S802 1-762-078-11 SWITCH, SLIDE (AVLS) S803 1-762-078-11 SWITCH, SLIDE (HOLD .) S804 1-553-977-00 SWITCH, SLIDE (G-PROTECTION) S805 1-771-482-11 SWITCH, PUSH (1 KEY) (VOLUME +) S806 1-771-482-11 SWITCH, PUSH (1 KEY) (VOLUME –) < COIL > T401 1-419-417-21 COIL, DC/DC CONVERTER < VARISTOR > VDR101 1-801-862-11 VARISTOR, CHIP VDR111 1-801-862-11 VARISTOR, CHIP VDR201 1-801-862-11 VARISTOR, CHIP VDR211 1-801-862-11 VARISTOR, CHIP VDR301 1-801-862-11 VARISTOR, CHIP VDR312 1-801-862-11 VARISTOR, CHIP VDR313 1-801-862-11 VARISTOR, CHIP < VIBRATOR > X601 1-781-690-21 VIBRATOR, CERAMIC (16.93MHz) X701 1-781-714-21 VIBRATOR, CRYSTAL (27MHz) ************************************************************* SUB BOARD (Supplied with MAIN BOARD, COMPLETE) ********** < CAPACITOR > C860 1-104-852-11 CERAMIC CHIP 22uF 20% 10V < IC > IC805 8-749-015-96 IC GP1UC10J < RESISTOR > R833 1-216-801-11 RES-CHIP 22 5% 1/16W ************************************************************* MISCELLANEOUS *************** 12 1-418-639-11 SWITCH UNIT 060 X-4952-506-1 OPTICAL PICK-UP DAX-23E M901 A-3328-760-A MOTOR ASSY, TURNTABLE (SPINDLE) M902 A-3328-627-A MOTOR ASSY, SLED (SLED) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 1-418-670-11 REMOTE CONTROL UNIT (RM-CD6) 1-418-757-11 WIRELESS REMOTE COMMANDER (RMT-DV11) 0 1-473-116-35 ADAPTOR, AC (AC-E455D) (E) 0 1-475-622-14 ADAPTOR, AC (AC-E455) (CH) 0 1-475-623-12 ADAPTOR, AC (AC-E455) (HK) 1-559-906-32 CORD, CONNECTION (1P-2P) (for AUDIO) 1-791-954-11 CORD, CONNECTION (1P-1P) (for VIDEO) 3-868-176-11 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (E,HK) 3-868-176-21 MANUAL, INSTRUCTION (ENGLISH) 3-868-176-31 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (CH) 4-991-047-01 LID, BATTERY CASE (for RMT-DV11) 8-953-304-90 RECEIVER MDR-E805SP SUB Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
