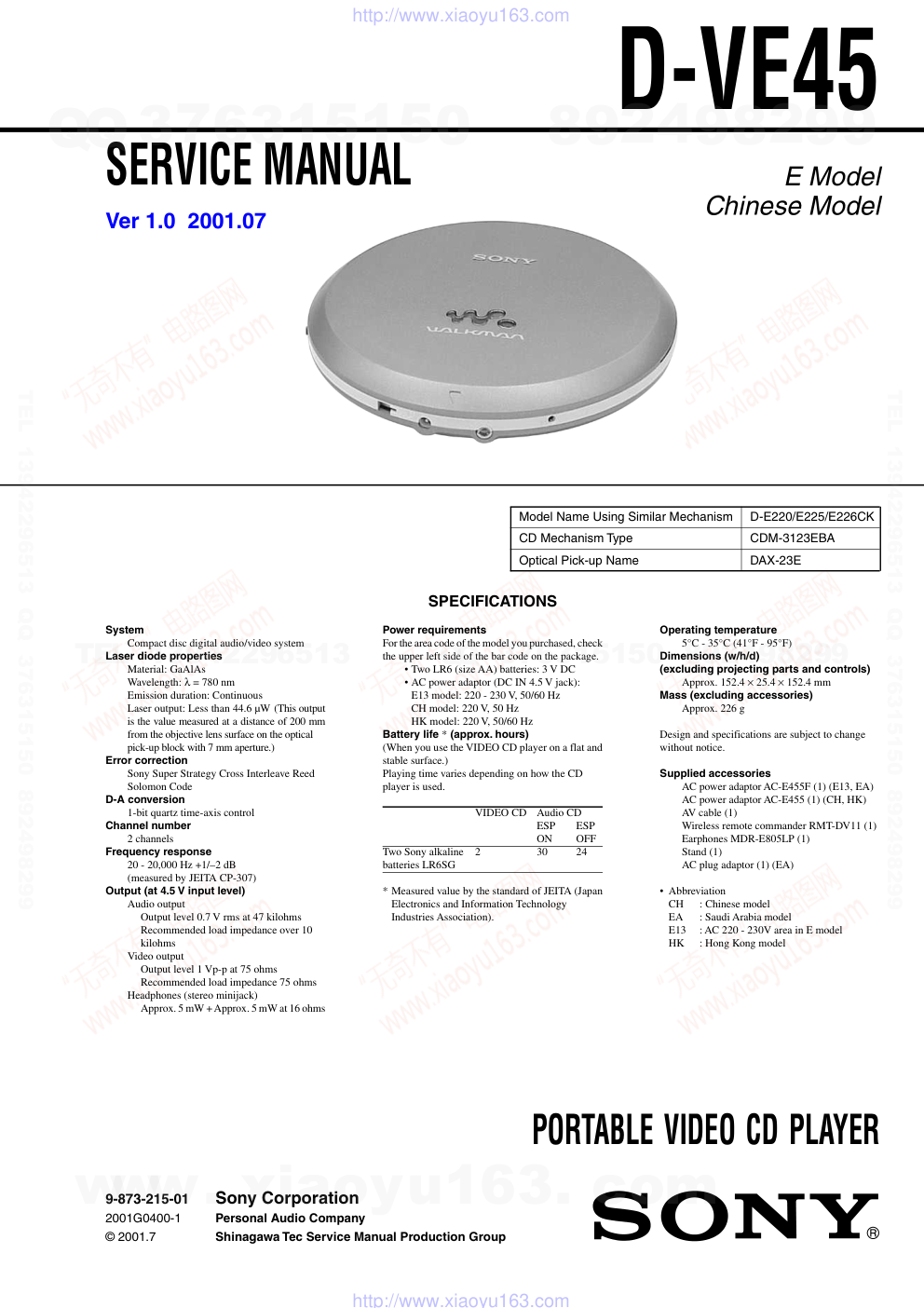

1 SERVICE MANUAL E Model Chinese Model D-VE45 PORTABLE VIDEO CD PLAYER Ver 1.0 2001.07 9-873-215-01 2001G0400-1 © 2001.7 Sony Corporation Personal Audio Company Shinagawa Tec Service Manual Production Group Model Name Using Similar Mechanism D-E220/E225/E226CK CD Mechanism Type CDM-3123EBA Optical Pick-up Name DAX-23E System Compact disc digital audio/video system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Error correction Sony Super Strategy Cross Interleave Reed Solomon Code D-A conversion 1-bit quartz time-axis control Channel number 2 channels Frequency response 20 - 20,000 Hz +1/–2 dB (measured by JEITA CP-307) Output (at 4.5 V input level) Audio output Output level 0.7 V rms at 47 kilohms Recommended load impedance over 10 kilohms Video output Output level 1 Vp-p at 75 ohms Recommended load impedance 75 ohms Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 ohms SPECIFICATIONS Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): E13 model: 220 - 230 V, 50/60 Hz CH model: 220 V, 50 Hz HK model: 220 V, 50/60 Hz Battery life * (approx. hours) (When you use the VIDEO CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. VIDEO CD Audio CD ESP ESP ON OFF Two Sony alkaline 2 30 24 batteries LR6SG * Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association). Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 152.4 × 25.4 × 152.4 mm Mass (excluding accessories) Approx. 226 g Design and specifications are subject to change without notice. Supplied accessories AC power adaptor AC-E455F (1) (E13, EA) AC power adaptor AC-E455 (1) (CH, HK) AV cable (1) Wireless remote commander RMT-DV11 (1) Earphones MDR-E805LP (1) Stand (1) AC plug adaptor (1) (EA) • Abbreviation CH : Chinese model EA : Saudi Arabia model E13 : AC 220 - 230V area in E model HK : Hong Kong model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. TABLE OF CONTENTS 1. SERVICE NOTE................................................................. 3 2. GENERAL Getting Started ......................................................................... 4 3. DISASSEMBLY 3-1. Lid Sub Assy, Upper ........................................................... 6 3-2. Cabinet (Front) Assy ........................................................... 6 3-3. Main Board, MD Assy ........................................................ 7 3-4. Optical Pick-up, Motor ....................................................... 7 4. ELECTRICAL ADJUSTMENTS 4-1. Precautions for Check ......................................................... 8 4-2. Focus Bias Check ................................................................ 8 5. DIAGRAMS 5-1. IC Pin Descriptions ............................................................. 9 5-2. Block Diagram –CD Section–........................................... 15 5-3. Block Diagram –Video Section– ....................................... 16 5-4. Block Diagram –Audio Section– ...................................... 17 5-5. Block Diagram –Power Supply Section– .......................... 18 5-6. Printed Wiring Boards –Main Section– ............................ 20 5-7. Schematic Diagram –Main Section (1/3)– ........................ 22 5-8. Schematic Diagram –Main Section (2/3)– ........................ 23 5-9. Schematic Diagram –Main Section (3/3)– ........................ 24 5-10. IC Block Diagrams............................................................ 25 6. EXPLODED VIEWS 6-1. Cabinet (Front) Section ..................................................... 28 6-2. Cabinet (Rear) Section ...................................................... 29 6-3. CD Mechanism Deck Section (CDM-3123EBA) ............. 30 6-4. Stand (Set) Section ............................................................ 31 7. ELECTRICAL PARTS LIST......................................... 32 D-VE45 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-VE45 S801 (OPEN) S801 – MAIN BOARD – (SIDE B) TAP802 – MAIN BOARD – (SIDE A) SECTION 1 SERVICE NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Before Replacing the Optical Pick-Up Block Please be sure to check throughly the parameters as par the “Opti- cal Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output : IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.6 ± 0.2 Vp-p • The repairing grating holder is impossible. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver having a thin tip as shown in Fig.1. or TAP802 is shorted as shown in Fig.2. Note: Do not push the detection lever strongly, or it may be bent or damaged. 3. Press the N > button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pick-up is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. Fig. 2 Fig. 1 detection lever detection lever main board S801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-VE45 SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-VE45 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-VE45 Note : Follow the disassembly procedure in the numerical order given. 3-2. CABINET (FRONT) ASSY SECTION 3 DISASSEMBLY 3-1. LID SUB ASSY, UPPER 1 claws 2 lid sub assy, upper cabinet (rear) assy 1 screws, tapping 2 screws (B2), tapping, P3 3 screws (B2), tapping, P3 4 screws (B2), tapping, P3 5 cabinet (front) assy claws claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 D-VE45 3-3. MAIN BOARD, MD ASSY 1 CN501 6 MAIN board 4 MD assy 5 2 CN502 S803 3 CN503 1 B 1.7x5 3 B 1.7x5 7 P 1.4x3.5 9 B 1.4x2.3 q; rack 8 retainer, shaft qa screw (feed) assy qd shaft, standard qs pick-up block, optical 4 cover, gear 2 motor assy, turntable (M502) 5 motor assy, sled (M501) chassis 6 gear (B) 3-4. OPTICAL PICK-UP, MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-VE45 J302 TP629 (RF) – MAIN BOARD – (SIDE B) Procedure: 1. Connect the oscilloscope between TP629 (RF) and GND on MAIN board. 2. Insert the disc (YEDS-18). (Part No. : 3-702-101-01) 3. Press the N > button. 4. Confirm that the oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape ( ) in the center of the waveform can be clearly distinguished. 5. Stop revolving of the disc motor by pressing the x button. • RF signal reference waveform (eye pattern) SECTION 4 ELECTRICAL ADJUSTMENT CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. 4-1. PRECAUTIONS FOR CHECK 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC 4.5 V in DC IN jack. (J401) VOLUME button : Minimum HOLD switch : OFF 4-2. FOCUS BIAS CHECK Condition: • Hold the set in horizontal state. Connection: oscilloscope (AC range) 2 kΩ MAIN board TP629 (RF) When observing the eye pattern, set the oscilloscope for AC range and raise vertical sensitivity. RF level : 0.6 ± 0.2 Vp-p VOLT/DIV : 50 mV (10 : 1 probe in use) TIME/DIV : 500 nS Test Points: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 D-VE45 5-1. IC PIN DESCRIPTIONS • IC801 TMP88CM22AF-MIRXV-2 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Pin Description 1 VSS — Ground 2 RMC_I I Infrared remote control signal input 3 FOK_I I Focus OK signal input from CXD3028R (IC601). 4 AGCPWM_O O AGC control pulse output 5 VCDON_O O Control signal output for video block power. 6 XV_RECV_O O Ready signal output to TMP87CM41U (IC803). 7 AMUTE_O O Analog audio muting ON/OFF signal control signal output (H: Mute ON) 8 I_LIMIT_O O Limit current circuitry control signal output 9 XRST_O O Reset signal output to CXD3028R (IC601). (L: Reset) 10 SCK_O O Serial data transfer clock signal output to CXD3028R (IC601). 11 (SENS) MSDTI_I I Serial data input from CXD3028R (IC601). 12 MSDTO_O O Serial data output to CXD3028R (IC601). 13 WAKEUP_O O WAKE-UP control signal output (for system standby reset) 14 AD_SEL I Plug-in detection signal input of AUDIO/VIDEO OUT jack. 15 AD_CHGMNT I Not used. (Fixed at “L” in this set) 16 COLOR_BAR_DET I Color-bar detection signal input 17 AD_BATMNT I Battery voltage detection input 18 AD_KEY I Key input from switches (A/D input). 19 AD_RMKEY I Not used. (Fixed at “L” in this set) 20 AD_DCINMNT I DC input voltage detection input (A/D input) DC input jack use/no-use detect input 21 WP_OPEN (SLVCD) I CD door open/close detection input 22 VREFL I Reference voltage (0 V) input for A/D converter. 23 VREFH I Reference voltage (+2 V) input for A/D converter. 24 VDD — Power supply pin (+2 V) 25 SCOR_I I Sub code sync detection input from CXD3028R (IC601). 26 GRSCOR_I I GRSCOR signal input from CXD3028R (IC601). 27 MIR_I I Not used. (Fixed at “H” in this set) 28 BEEP_O O Beep sound output to AN17880A (IC351). 29 XV_SEND_O O Request signal output to TMP87CM41U (IC803). 30 RMSCK_O O Communication clock to TMP87CM41U (IC803). 31 RMDATI_I I Communication data bus input from TMP87CM41U (IC803). 32 RMDATO_O O Communication data bus output to TMP87CM41U (IC803). 33 XV_REQ_I I Request signal input from TMP87CM41U (IC803). 34 RESERVE I Not used. (Open) 35 RESERVE I Not used. (Open) 36 COMPON_I I ESP switch input (L: OFF, H: ON) 37 (NTSC/PAL) I SYSTEM SELECT (NTSC/PAL) select input (L: NTSC, H: PAL) 38 RESERVE I Not used. (Open) 39 HOLD_I I HOLD switch input (H: HOLD on, L: HOLD off) 40 COLOR_BAR_SW I Color-bar recovery circuit. (Fixed at “H” in this set) 41 RESERVE I Not used. (Open) 42 XDE_O O Optical pick-up VCC control signal output (L: on) 43 XLAT_O O Serial data latch pulse output to CXD3028R (IC601). (for ESP) 44 XSOE_O O Output enable signal output to CXD3028R (IC601). (for ESP) 45 RESERVE O Not used. (Open) 46 XPOWLT_O O Latch output to TB2125F (IC401). 47 RESERVE I Not used. (Open) 48 XAPC_OFF_O O Not used. (Open) 49 VRST_O O Reset signal output to TMP87CM41U (IC803). 50 – 57 SEG14 – 7 O LCD drive segment output (Not used in this set) SECTION 5 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 D-VE45 Pin No. Pin Name I/O Pin Description 58 – 64 SEG6 – 0 O LCD drive segment output 65 – 68 COM3 – 0 O LCD drive common output 69 – 71 V3 – 1 O LCD drive bias output 72, 73 C1, 0 O Capacitor connected terminal of LCD driver for voltage-up. 74 TEST I Test terminal for IC. (Fixed at “L” in this set) 75 TEST I Test terminal for IC. (Fixed at “L” in this set) 76 PWRSW_O O HEADPHONE AMP ON/OFF control signal output (L: ON) 77 RESERVE I Not used. (Open) 78 RESET_I I System reset signal input from TB2125F (IC401). (L: Reset) 79 XIN_I I Oscillation input 80 XOUT O Oscillation output (Not used in this set) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 D-VE45 • IC803 TMP87CM41U-3E64 (VIDEO ENCODER, VIDEO CONTROLLER) Pin No. Pin Name I/O Pin Description 1 TEST NTSC I NTSC/PAL video system test mode input (L: PAL, H: NTSC) (Normally, fixed at “H” in this set) 2 – 8 P01 – 07 O Not used. (Open) 9 (INT0) P10 O Not used. (Open) 10 (INT1) P11 O Not used. (Open) 11 (INT2/TC1) P12 O Not used. (Open) 12 (DVO) P13 O Not used. (Open) 13 (PPG) P14 O Not used. (Open) 14 (TC2) P15 O Not used. (Open) 15 P16 O Not used. (Open) 16 TEST MODE I Video system test mode input (L: Normal mode, H: Test mode) (Normally, fixed at “L” in this set) 17 XCV_INT_I I Interruption request signal input from CL680T-D1 (IC701). 18 TEST I Test pin (Fixed at “L” in this set) 19 P21 (XTI) O Not used. (Open) 20 P22 (XTOUT) O Not used. (Open) 21 RESET_I I System reset signal input from TMP88CM22F (IC801). (L: Reset) 22 XIN_I I High frequency oscillator input 23 XOUT O High frequency oscillator output (Not used in this set) 24 VSS — Ground 25 – 30 P30 – 35 O Not used. (Open) 31 NC O Not used. (Open) 32 C_RESET O Reset signal output to CL680T-D1 (IC701). (L: Reset) 33 XCV_RDY_I I Ready signal input from CL680T-D1 (IC701). 34 VC_SEL_O O Address select signal output to CL680T-D1 (IC701). 35 VC_CLK_O O Serial clock signal output to CL680T-D1 (IC701). 36 DATA_C2V_I I Serial data signal input from CL680T-D1 (IC701). 37 DATA_V2C_O O Serial data signal output to CL680T-D1 (IC701). 38 UV_CLK_I I Serial clock signal input from TMP88CM22F (IC801). 39 DATA_U2V_I I Serial data signal input from TMP88CM22F (IC801). 40 DATA_V2U_O O Serial data signal output to TMP88CM22F (IC801). 41 XU_TX_REQ_I I Request signal input from TMP88CM22F (IC801). 42 XU_RX_RDY_I I Ready signal input from TMP88CM22F (IC801). 43 XV_TX_REQ_O O Request signal output to TMP88CM22F (IC801). 44 P53 (HPWM0) I Not used. (Open) 45 P54 (HPWM1) I Not used. (Open) 46 AVSS — Not used. (Open) 47 AVREF — Not used. (Open) 48 P60 (AIN0) O Not used. (Open) 49 P61 (AIN1) O Not used. (Open) 50 P62 (AIN2) O Not used. (Open) 51 P63 (AIN3) O Not used. (Open) 52 P64 (AIN4) O Not used. (Open) 53 P65 (AIN5) O Not used. (Open) 54 P66 (AIN6) O Not used. (Open) 55 P67 (AIN7) O Not used. (Open) 56 VDD — Digital power supply pin (+3.2 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 D-VE45 Pin No. Pin Name I/O Pin Description 57 P70 (AIN10) O Not used. (Open) 58 P71 (AIN11) O Not used. (Open) 59 P72 (AIN12) O Not used. (Open) 60 P73 (AIN13) O Not used. (Open) 61 P74 (AIN14) O Not used. (Open) 62 P75 (AIN15) O Not used. (Open) 63 P76 (AIN16) O Not used. (Open) 64 P77 (AIN17) O Not used. (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 D-VE45 • IC701 CL680T-P-D1 (AUDIO/VIDEO MPEG DECODER) Pin No. Pin Name I/O Pin Description 1 NC — Not used. (Open) 2 VSS — Ground 3 CD_BCK I CD decode bit clock signal (2.8224 MHz) input from the CXD3028R (IC601). 4 CD_DATA I CD decode data input from the CXD3028R (IC601). 5 CD_LRCK I CD decode L/R sampling clock signal (44.1 kHz) input from the CXD3028R (IC601). 6 CD_C2PO I CD decode C2 error data input from the CXD3028R (IC601). 7 – 9 NC — Not used. (Open) 10 – 15 MD0 – 5 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 16 VSS — Ground 17 MD6 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 18 VDD3 — Power supply pin (+3.3 V) 19 MD7 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 20 VSS — Ground 21 MD8 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 22 VDD3 — Power supply pin (+3.3 V) 23 – 28 MD9 – 14 I/O Two-way data bus with the program ROM (IC704) and DRAM (IC703). 29 MD15 I/O Two-way data bus with the program ROM (IC704). 30 – 36 NC — Not used. (Open) 37 MCE O Chip enable signal output to the program ROM (IC704). 38 MWE O Write enable signal output to the DRAM (IC703). 39 VSS — Ground 40 CAS O Column address strobe signal output to the DRAM (IC703). 41 VDD3 — Power supply pin (+3.3 V) 42 RAS0 O Row address strobe signal output to the DRAM (IC703). 43 RAS1 O Row address strobe signal output (Not used in this set) 44, 45 MA10, 9 O Address signal output to the program ROM (IC704). 46 MA8 O Address signal output to the program ROM (IC704) and DRAM (IC703). 47 VSS — Ground 48 MA7 O Address signal output to the program ROM (IC704) and DRAM (IC703). 49 VDD3 — Power supply pin (+3.3 V) 50 – 52 MA6 – 4 O Address signal output to the program ROM (IC704) and DRAM (IC703). 53 VSS — Ground 54 MA3 O Address signal output to the program ROM (IC704) and DRAM (IC703). 55 VDD3 — Power supply pin (+3.3 V) 56 – 58 MA2 – 0 O Address signal output to the program ROM (IC704) and DRAM (IC703). 59 PGIO7 I/O Not used. (Open) 60 RESET I Reset signal input from TMP87CM41U (IC803). (L: Reset) 61 VDDMAX_IN I Fix the maximum input voltage each input pin and input/output pin. 62 – 64 NC — Not used. (Open) 65 AGND_DAC — Ground (for D/A converter) 66 AVDD_DAC — Power supply pin (+3.3 V) (for D/A converter) 67 COMPOS_OUT O Composite video signal output 68 AGND_DAC — Ground (for D/A converter) 69 Y-OUT O Luminance video signal output (Not used in this set) 70 AVDD_DAC — Power supply pin (+3.3 V) (for D/A converter) 71 AGND_DAC — Ground (for D/A converter) 72 RREF I Fix the video signal output level control. 73 VREF O Reference voltage (+1.235 V) output 74 AVDD_DAC — Power supply pin (+3.3 V) (for D/A converter) 75 C-OUT O Chrominance video signal output (Not used in this set) 76 AGND_DAC — Ground (for D/A converter) 77 CLK_SEL (0) I Clock select 0 input (Fixed at “H” in this set) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 D-VE45 Pin No. Pin Name I/O Pin Description 78 CLK_SEL (1) I Clock select 1 input (Fixed at “H” in this set) 79 CLK_SEL (2) I Clock select 2 input (Fixed at “H” in this set) 80 VSS — Ground 81 CLK_SEL (3) I Clock select 3 input (Fixed at “L” in this set) 82 VDD3 — Power supply pin (+3.3 V) 83, 84 CLK_SEL (4), (5) O Clock select 4, 5 output (Fixed at “L” in this set) 85 AGND_PLL — Ground (for PLL system) 86 DA_XCK (16.934MHz) I Main reference clock signal (16.9344 MHz=384 fs) from CXD3028R (IC601). 87 AVDD_PLL — Power supply pin (+3.3 V) (for PLL system) 88 PGIO4 I/O Not used. (Open) 89 PGIO5 I/O Not used. (Open) 90 PGIO6 I/O Not used. (Open) 91 PGIO0 I/O Not used. (Open) 92 PGIO8 I/O Not used. (Open) 93 PGIO2/VSYNC/CSYNC O Vertical synchronized signal output (Not used in this set) 94 AVDD_PLL — Power supply pin (+3.3 V) (for PLL system) 95 VID_DAC_CK — Not used. (Fixed at “L” in this set) 96 PROC_CK — Not used. (Open) 97 NC — Not used. (Open) 98 AGND_PLL — Ground (for PLL system) 99 VSS — Ground 100 NC — Not used. (Open) 101 PGIO3/HSYNC I/O Not used in this set. (Open) 102 VDD3 — Power supply pin (+3.3 V) 103 PGIO1/VCK-OUT I/O Not used. (Open) 104 VSS — Ground 105 GCK I Normally, fixed at “L” in this set. 106 VCK_IN (27MHz) I Main clock for video signal processor input from Buffer (27 MHz) (IC705). 107 DA-EMP O Not used. (Open) 108 DA-LRCK O Digital audio L/R sampling clock signal (44.1 kHz) output to CXD3028R (IC601). 109 VDDMAX_OUT O Fix the maximum output voltage (+5 V) certain output 110 DA-DATA O Digital audio data output to CXD3028R (IC601). 111 DA-BCK O Digital audio bit clock signal (2.8224 MHz) output to CXD3028R (IC601). 112 HD-OUT_O O Serial data output to TMP87CM41U (IC803). 113 HRDY_O O Ready signal output to TMP87CM41U (IC803) 114 HINT_O O Interrupt request signal output to TMP87CM41U (IC803). 115 CDG-SCK I/O CD graphics serial clock input/output (Fixed at “L” in this set) 116 VSS — Ground 117 HCK_I I Serial data transfer clock signal input from TMP87CM41U (IC803). 118 VDD3 — Power supply pin (+3.3 V) 119 HD-IN_I I Serial data input from TMP87CM41U (IC803). 120 VDD3 — Power supply pin (+3.3 V) 121 HSEL_I I Command selection signal input from TMP87CM41U (IC803). 122 CDG-SDATA I CD graphics serial data input (Fixed at “L” in this set) 123 CDG-VFSY I CD graphics VFSY input (Fixed at “L” in this set) 124 CDG-SOS1 I CD graphics SOS1 input (Fixed at “L” in this set) 125 – 128 NC — Not used. (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 15 15 5-2. BLOCK DIAGRAM — CD SECTION — RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER IC601 13 99 98 97 38 39 83 78 28 26 30 35 24 25 23 3 26 11 44 43 10 12 25 21 LPF SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK SERVO BLOCK MDS 44 42 43 MDS MDP C176 MDP SENS SCOR 17 SCOR_O SDTO RFAC XSOE R4M XLAT CLOK AMUTE FOK FOK R4M WDCK WFCK NC SDTO_I SENS_O CLOK_I XLAT_I XSOE_I XSOE_O GRSCOR_I FOK_I 9 XRST MSDTO_O SCOR_I (SENS) MSDTI_I SCK_O XLAT_O 46 47 SFDR XRST RFDC B A 2 WDCK WFCK XTAO XTAI E F SRDR TRDR FRDR FFDR TFDR FFDR FRDR 59 F 62 61 A B 58 71 RFDC RFAC E 50 51 SFDR XTAO XTAI SRDR 48 49 35 36 13 14 61 TFDR TRDR OPTICAL PICK-UP BLOCK (DAX-23E) A A B RF E F B RF E F PD VR PD LD LD DETECTOR VCC FOCUS COIL TRACKING COIL FI2 RI2 33 34 FI1 RI1 FI3 VINDET RI3 16 PDL/RI4 TRDR TFDR FRDR FFDR SRDR SFDR 15 PWM/FI4 APCREF VCC1 +2V FO2 RO2 FO3 RO3 RF2 INM2 RF21 PAPC F+ F- T+ T- 4 AGCPWM_O 42 XDE_O 60 94 93 SYSTEM CONTROLLER IC801 (1/4) D-RAM IC603 11 12 14 13 15 16 17 8 7 28 26 23 21 63 64 59 DRIVER FO1 RO1 32 30 DRIVER FO4 RO4 19 17 DRIVER CONTROLLER DRIVER PD AMP LD AMP OPTICAL PICK-UP POWER CONTROL Q403,405 LEVEL SHIFTER 60 FOCUS/TRACKING COIL DRIVER, SPINDLE/SLED MOTOR DRIVER IC401 (1/2) NC 62 A B C E F D 115 – 118 113 114 119 120 4 3 23 22 XRAS XWE XCAS XOE AOUT1 AIN1 LOUT1 D0-D3 D0-D3 A0-A9 A0-A9 RAS WE CAS OE 4 10 2 4 10 6 5 4 89 91 87 PCMDI SELECTOR BCKI LRCKI 3 2 1 88 90 86 PCMD CD_DATA DA_DATA CD_BCK DA_BCK CD_LRCK DA_LRCK BCK LRCK 1-3, 5-7, 106-109 1, 2, 24, 25 5, 9-12, 14-18 79 XIN_I MAIN BOARD (1/4) 102 103 104 LPF AOUT2 AIN2 LOUT2 HPL HPR HPL AU_R AU_L HPR 9 10 X601 16.9MHz COMP OUT 11 12 10 SAW TOOTH COMPARATOR MDP + OPTICAL PICK-UP POWER ON SWITCH Q500 13 12 11 7 8 6 4 1 2 3 9 1 2 10 CN501 CN503 2 1 CN502 M501 SLED MOTOR M S+ S- C+ C- M502 SPINDLE MOTOR M • Signal Path : CD PLAY : VIDEO (VIDEO CD) (Page 16) (Page 16) (Page 17) (Page 16) (Page 18) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 16 16 5-3. BLOCK DIAGRAM — VIDEO SECTION — D0 – D15 LEVEL SHIFT IC708 1 2 3 CD_DATA CD_BCK CD_LRCK CD_DATA CD_BCK CD_LRCK DA-DATA DA-BCK DA-LRCK DA-DATA DA-BCK DA-LRCK DA_XCK(16.934MHz) COMPOS_OUT VCK_IN(27MHz) CD-ROM INTERFACE CIRCUIT MPEG SYSTEM DECODER MPEG VIDEO DECODER MPEG VIDEO DECODER VIDEO PROCESS CIRCUIT AUDIO INTERFACE CIRCUIT D-RAM/ROM INTERFACE CPU INTERFACE HD-IN_I HCK_I HD-OUT_O HSEL_I HINT_O HRDY_O CAS RESET RAS0 MWE MCE MD0–MD15 MA0–MA10 A0 – A10 A0 – A10 D0 – D15 A0 – A8 D8 – D14 A11–A17 D0–D7 D0–D7 A0–A10 1, 4-6, 10-12 21-23, 25-29 A0–A8 A0 2,3, 13-16, 17-20, 31 D0–D15 30 CE UCAS LCAS RAS WE ROM(512K) IC704 16-19, 22-26 2-5, 7-10, 31-34, 36-39 28 29 14 13 DRAM(4M) IC703 DATA BUS ADDRESS BUS 33 17 34 36 37 35 32 21 VC_CLK_O DATA_V2C_O DATA_C2V_I VC_SEL_O XCV_INT_I XCV_RDY_I C_RESET RESET_I 38 UV_CLK_I VREF 39 DATA_U2V_I 41 XU_TX_REQ_I VREF 4.19MHz 16.9MHz COMPARATOR IC706,707 4 3 1 4 3 1 SWITCH Q810 42 XU_RX_RDY_I SWITCH Q811 40 XV_TX_REQ_O 22 XIN_I 43 DATA_V2U_O 17 19 14 18 6 5 4 VRST_O RMSCK_O RMDATO_O XV_SEND_O XV_RECV_O RMDATI_I 29 32 30 49 COLOR_BAR_DET 16 6 31 XV_REQ_I 33 SYSTEM CONTROLLER IC801(2/4) VIDEO ENCODER VIDEO CONTROLLER IC803 4 3 5 6 1 3 2 7 5 110 111 108 86 67 106 10-15, 17, 19, 21, 23-29 58-56, 54 52-50, 48, 46-44 60 40 119 117 112 121 114 113 42 38 37 AUDIO/VIDEO MPEG DECODER IC701 4 2 IC709 4 2 IC705 OSC X701 27MHz B F G D H A IC706 IC707 Q814 MAIN BOARD (2/4) • Signal Path : CD PLAY : VIDEO (VIDEO CD) (Page 15) (Page 15) (Page 15) (Page 17) (Page 15) (Page 18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 17 17 5-4. BLOCK DIAGRAM — AUDIO SECTION — 7 2 76 28 39 14 AMUTE_O RMC_I PWRSW_O BEEP_O HOLD_I SEG6 I SEG0 COM3 I COM0 AD_SEL SYSTEM CONTROLLER IC801 (3/4) D601 Q815 HPR HPL AU_R AU_L V_OUT OFF ON HOLD VCPU +2V TAP801 (TEST) 36 COMPON_I ON OFF S804 ESP LIN RIN BIAS HEADPHONE AMP IC351 8 9 LOUT ROUT VREF 6 5 4 PWRSW MUTE 13 BEEP 11 PW SW BEEP MT SW 14 58 - 64 65 - 68 LIQUID CRYSTAL DISPLAY PANEL LCD801 LINE MUTE Q301 LINE MUTE CONTROL SWITICH Q302 S803 37 (NTSC/PAL) NTSC PAL S802 21 WP_OPEN 18 AD_KEY S801 (OPEN) TAP802 (OPEN) 11 10 9 C 19 7 8 J302 J701 i MAIN BOARD (3/4) S806-812 SYSTEM SELECT REMOTE CONTROL RECEIVER IC905 SUB BOARD G AUDIO / VIDEO OUT • Signal Path : CD PLAY : VIDEO (VIDEO CD) (Page 16) (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 18 18 5-5. BLOCK DIAGRAM — POWER SUPPLY SECTION — SWITCHING POWER CIRCUIT 2 SWITCHING POWER CIRCUIT 6 SWITCHING POWER CIRCUIT 5 CHARGE CONTROL +2.5V POWER SWITCH Q407 CHARGE SWITCH INTERFACE CLK OR OSC AMP BIAS SAWTOOTH GENERATOR STANDBY REFERENCE DC IN REGULATOR Q401,405,408 SWITCH Q402 52 50 49 57 42 5 6 8 7 9 53 55 56 38 40 41 2 37 CHG ON/OFF BANDGAP REFERENCE (VREF) 4 SYSTEM CONTROLLER IC801 (4/4) 17 20 58 AD_BATMNT 78 RESET_I 5 VCDON_O 8 I_LIMIT_O 13 WAKEUP_O 46 XPOWLT_O AD_DCINMNT VCC3 +3.3V VCPU +2V VCC1 +2V VCC2 +2.6V VREF POWER CONTROLLER IC401 (2/2) B+ B- WAKE-UP RESET SWITCH Q406 RESET SWITCH IC403 OUT VIN J401 DC IN 4.5V ! L1H L1L NC VCPU2 (2.0V) VCPU1 (2.65V) VCC1 (2.65V) VCC1 VCPU 48 INP1 54 STNG VIN NC NC NC BATM1 BATM2 CHGSW RS DCIN RF4 DC IN VG 43 VLGO1 CHGMHT SYNC WAKEUP CLOCK DATA 16 LATCH RSTB VREF 44 DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS,3V D406 L408 L4 D401 L412 D823 E B+ +3V FOCUS/TRACKING COIL DRIVER SPINDLE/SLED MOTOR DRIVER (IC401) +3V, HEADPHONE AMP (IC351) +3V MAIN BOARD (4/4) 1 1 3 L401 L402 Q812 Q411 Q413 PWM-PFM CONTROLLER IC421 EXT VDD 5 2 FB CE 1 3 DC/DC CONVERTER Q409,410 SWITCH Q490 SWITCH Q412 15 12 13 18 H + + (Page 15) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 19 19 1V/div 2µsec/div 100mV/div 0.5µsec/div 1V/div 2msec/div 1V/div 0.05µsec/div 1V/div 5µsec/div 1V/div 0.05µsec/div 1V/div 0.5µsec/div • Waveforms 3 2Vp-p IC601 qj (SCOR_O) 6 0 2Vp-p TP707 (LRCK) 6.9msec 23µsec IC421 5 (EXT) (VIDEO CD PB) 8 1.8Vp-p 9 2Vp-p TP705 (BCK) 1V/div 0.1µsec/div 0.44µsec 27MHz TP713 (27MHz) (VIDEO CD PB) 16.9MHz IC601 of (XTAO) qa 1V/div 0.05µsec/div qf IC701 yj (COMPOS_OUT) (VIDEO CD PB) qd 500mV/div 0.5µsec/div qs 1V/div 0.1µsec/div 3.4Vp-p 2Vp-p 3.5Vp-p 2.6Vp-p 0.44µsec H IC701 3 (CD_BCK) (VIDEO CD PB) 2 2Vp-p TP405 (SCK) 1 2.6Vp-p 5.5µsec 1.9µsec 4 200mVp-p TP633 (A), TP632 (B) 5 7 IC601 rd (MDP) 2Vp-p 3.8µsec 16.9MHz IC701 ih (DA_XCK (16.934MHz)) (VIDEO CD PB) For schematic diagrams • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • Power voltage is dc 4.5V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground in playback mode. no mark : VIDEO CD PLAY ( ) : AUDIO CD PLAY ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD L : VIDEO For printed wiring boards • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • a : Through hole. • f : internal component. • : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. VIDEO TEST DISC: HLV-401 (TGIS-3) Part No.: J-6095-031-A Playback track No.: 34 (Full field color bar 75%) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. 1V/div 2µsec/div 200mV/div 0.5µsec/div 0.6±0.2Vp-p TP629 (RF) 1V/div 0.5µsec/div 2Vp-p IC601 wg (CLOK_I) 1.9µsec w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 20 20 5-6. PRINTED WIRING BOARDS — MAIN SECTION — • Refer to page 19 for Note. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 1-681-215- 1-681-216- 1-681-216- MAIN BOARD (SIDE A) SUB BOARD (SIDE B) SUB BOARD (SIDE A) VCC VOUT GND VCC VOUT GND LCD801 LCD MODULE OPTICAL PICK-UP BLOCK DAX-23E M502 SPINDLE MOTOR OFF ON HOLD RED BLK M501 SLED MOTOR WHT BLK BLK RED BLK WHT 2 1 2 1 Ref. No. Location D403 C-7 D404 I-6 D409 J-5 D501 B-7 D502 B-7 D806 C-8 IC351 D-10 IC421 C-8 IC603 C-8 IC905 G-1 Q401 I-5 Q403 E-8 Q404 E-8 Q405 I-5 Q408 J-5 Q409 C-7 Q410 C-7 Q413 C-8 Q500 E-9 Q812 D-9 Q815 E-3 • Semiconductor Location (Side A) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 21 21 • Refer to page 19 for Note. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 J401 DC IN 4.5V S806 MENU S812 S811 S810 S807 SOUND S808 S809 VOLUME J701 AUDIO/VIDEO OUT 1-681-215- S801 (OPEN) DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 2PCS, 3V J302 MAIN BOARD (SIDE B) ESP SYSTEM SELECT ON OFF NTSC PAL Ref. No. Location D111 D-11 D211 C-11 D301 D-11 D311 D-11 D401 I-6 D402 I-6 D406 C-6 D408 C-5 D461 B-6 D601 C-9 D700 J-8 D802 C-4 D807 C-5 D823 E-7 D901 E-3 D902 E-3 IC401 C-7 IC403 C-6 IC601 D-9 IC701 G-8 IC703 I-8 IC704 H-7 IC705 F-9 IC706 H-11 IC707 H-11 IC708 F-10 IC709 E-8 IC801 F-7 IC803 G-11 Q301 I-8 Q302 J-9 Q402 I-6 Q406 C-6 Q407 D-7 Q411 B-8 Q412 C-8 Q490 B-8 Q810 H-10 Q811 H-10 Q814 F-11 • Semiconductor Location (Side B) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 22 22 5-7. SCHEMATIC DIAGRAM — MAIN SECTION (1/3) — • Refer to page 19 for Note and page 25 for IC Block Diagrams. • Refer to page 19 for Waveforms. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. IC B/D IC B/D (Page 24) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 23 23 5-8. SCHEMATIC DIAGRAM — MAIN SECTION (2/3) — • Refer to page 19 for Note and page 26 for IC Block Diagrams. • Refer to page 19 for Waveforms. IC B/D IC B/D (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-VE45 24 24 5-9. SCHEMATIC DIAGRAM — MAIN SECTION (3/3) — • Refer to page 19 for Note. • Refer to page 19 for Waveforms. (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 D-VE45 5-10. IC Block Diagrams IC601 CXD3028R ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE XROF A0 – A10 SYSM AMUTE HPVDD HPR HPL PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI MDP SDT1 SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI HPVSS HPL HPR HPVDD(2.0V) VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0(2.0V) IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS XROF A10 DVDD(2.65V) A3 A2 12 A0 AVDD2(2.65V) LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1(2.65V) XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS XROF A10 DVDD A3 A2 A1 A0 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI VDD0 COUT MIRR DFCT FOK PWMI HPVSS HPL HPR HPVDD VDD1 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 A VDD A GND D VDD AVDD0 IGEN AVSS0 RFDC E F RFDC E F B A VC CLTV XPCK A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDT1 XQCK_I SCSY_I SCOR_O VSS0 SBSO_O EXCK_I XRST_I SYSM_I SDTO_I XLAT_I CLOK_I SENS_O SCLK_I XSOE_I ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDT1 SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 D-VE45 VLGO1 48 INP1 47 RF1 46 INM1 DTC1D VCC1(2.65V) VCPU1(2.65V) DCIN RF4 INM4 RS CHGSW RI2 FI2 34 RI1 33 32 FI1 L4 VG GND 5 SYNC 4 RSTB 6 CLOCK 7 8 DATA WAKEUP 9 LATCH FO1 31 MGND1 30 RO1 29 VD12 28 FO2 27 MGND2 26 RO2 24 VD23A 23 FO3 22 MGND3 21 RO3 20 VD34 19 FO4 18 MGND4 17 RO4 L1L PGND1 L1H VIN STNG BATM1 VREF BATM2 CHGMNT RF21 PAPC VINDET RF2 APCREF INM2 49 50 51 52 53 54 55 56 57 58 59 60 62 63 61 64 1 2 3 LEVEL SHIFTER H BRIDGE DRIVER 4 H BRIDGE DRIVER 3 H BRIDGE DRIVER 2 H BRIDGE DRIVER 1 CONTROLLER STANDBY REFERENCE BANDGAP REFERENCE (VREF) CLK OR OSC SAW GEN 25 VD23B 45 44 43 41 40 39 38 37 36 CONTROL CHARGE VREF VREF VREF DCIN COMP OUT MDP SAW TOOTH 10 11 12 VG VCPU 1/2 VREF SAW TOOTH SAW TOOTH VREF VREF VCPU CLK VCPU VCPU VCPU VCPU VCPU VG VCPU VCPU VCPU VCPU VCPU2 VCPU SUB VREF SUB VREF VCC1 VG VCPU DCIN DCIN VG VCPU2 VCPU VCPU VIN VCPU DCIN VG VG VG VG VIN VCPU2 VCPU VCPU2(2.0V) 42 DCIN OEB BIAS INTERFACE CLK R-2 R-1 R-6 D-1 to 4 S-3 S-1 D-5 S-2 R-5 CHGON/OFF 35 13 FI3 14 RI3 15 POL/FR4 16 PWM4/FI4 VCPU2 R-4 VREF VIN VREF VCPU VCPU VCPU IC401 TB2125F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-VE45 + – + + – – 14 13 12 11 10 9 2 3 4 5 6 7 8 1 BIAS BEEP STANDBY SW MUTE SW C-AMP SW MUTE BIAS PWRSW RFIN OCLSW VCC ROUT LOUT PGND LIN RIN GND BEEP MUTE_γ BIAS_IN VREF 16 15 VDD FB CE GND EXT 1 2 3 5 4 VLX LIMITER PWM/PFM CONTROL OSC 100kHz BUFFER PHASE COMPARATOR REFERENCE VOLTAGE CHIP ENABLE SLOW START + – VDD IC351 AN17880A-EAL IC421 XC6367B102MR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 D-VE45 SECTION 6 EXPLODED VIEWS Ref. No. Part No. Description Remark 6-1. CABINET (FRONT) SECTION Ref. No. Part No. Description Remark 1 X-3380-813-1 LID SUB ASSY, UPPER (SILVER) 1 X-3380-814-1 LID SUB ASSY, UPPER (BLUE) 2 3-228-616-01 LID, BATTERY CASE (BLUE) 2 3-228-616-11 LID, BATTERY CASE (WHITE) 3 3-375-114-81 SCREW 4 3-228-644-01 SPRING (POP UP) 5 3-228-627-01 PLATE (UPPER LID), STOPPER 6 3-719-408-01 SCREW (B2), TAPPING, P3 7 3-228-621-01 BUTTON (FUNCTION) 8 3-228-648-01 TERMINAL BOARD (RELAY), BATTERY NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color • Accessories and packing materials are given in the last of this parts list. R R 9 3-228-624-01 KNOB (OPEN) 10 3-228-625-01 LOCK, CLAW 11 3-925-165-01 SCREW (1.4X2.5) 12 3-228-626-01 LEVER, DETECTOR 13 3-228-613-01 CABINET (FRONT) (BLUE) 13 3-228-613-11 CABINET (FRONT) (WHITE) 14 3-228-643-01 BRACKET, SCREW 15 3-355-424-71 SCREW, TAPPING * 16 3-234-091-01 CUSHION, SARANET • Abbreviation CH : Chinese model EA : Saudi Arabia model E13 : AC 220 - 230V area in E model HK : Hong Kong model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 2 3 16 16 16 16 4 5 6 6 15 7 8 9 10 11 12 13 14 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 D-VE45 6-2. CABINET (REAR) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-228-645-01 SPACER (MD) 52 3-231-543-01 KNOB (JOGGABLE) (BLUE) 52 3-231-543-11 KNOB (JOGGABLE) (WHITE) * 53 A-3021-471-A MAIN BOARD, COMPLETE 54 4-223-585-01 TERMINAL BOARD (+), BATTERY (BT400) 55 3-221-307-01 TERMINAL BOARD (–), BATTERY (BT402) 56 3-228-639-01 HOLDER, LCD 57 3-047-194-01 SHEET (CDM), ADHESIVE 58 3-228-619-01 WINDOW, BUTTON 59 3-228-650-01 SHEET (WINDOW BUTTON), ADHESIVE 60 3-228-620-01 BUTTON (OPERATE) 61 3-355-424-71 SCREW, TAPPING 62 3-228-618-01 WINDOW, LCD 63 3-228-649-01 SHEET (WINDOW LCD), ADHESIVE 64 3-228-615-01 COVER (SIDE) (BLUE) 64 3-228-615-11 COVER (SIDE) (WHITE) 65 3-228-622-01 KNOB (HOLD) (BLUE) 65 3-228-622-11 KNOB (HOLD) (WHITE) 66 3-228-614-01 CABINET (REAR) (SILVER) (E13,HK) 66 3-228-614-11 CABINET (REAR) (BLUE) (E13,HK) 66 3-228-614-21 CABINET (REAR) (SILVER) (EA) 66 3-228-614-31 CABINET (REAR) (SILVER) (CH) 66 3-228-614-41 CABINET (REAR) (BLUE) (CH) 67 3-234-838-01 CUSHION, FOAM LCD801 1-804-338-11 LCD MODULE 51 51 51 52 53 54 55 67 56 58 59 60 61 62 63 64 65 66 LCD801 CDM-3123EBA 57 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 D-VE45 6-3. CD MECHANISM DECK SECTION (CDM-3123EBA) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-218-820-01 CHASSIS 102 4-218-827-01 RETAINER, SHAFT 103 3-686-458-03 SCREW (P1.4X3.5), TAPPING 104 A-3328-628-A SCREW (FEED) ASSY 105 4-220-645-01 SHAFT, STANDARD 106 4-223-600-01 RACK 107 3-895-823-61 SCREW (B1.4X2.3), TAPPING 0108 X-4952-506-1 RP ASSY, DAX-23E 109 3-318-203-71 SCREW (B1.7X5), TAPPING 110 4-218-821-01 COVER, GEAR 111 4-218-823-01 GEAR (B) 112 4-218-825-01 SPRING, SLED M501 A-3328-627-A MOTOR ASSY, SLED (SLED) M502 A-3328-759-A MOTOR ASSY, TURNTABLE (SPINDLE) 101 102 103 104 105 106 107 108 109 110 M501 M502 111 112 109 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 D-VE45 151 152 152 153 154 155 156 6-4. STAND (SET) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 3-228-640-01 STAND (SET) (BLUE) 151 3-228-640-11 STAND (SET) (WHITE) 152 4-966-278-01 FOOT, RUBBER 153 3-590-768-00 RING (A), E 154 3-231-460-01 PLATE, DIAL 155 3-375-114-81 SCREW 156 X-3380-658-1 SCREW ASSY, DIAL (BLUE) 156 X-3380-659-1 SCREW ASSY, DIAL (WHITE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 D-VE45 SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH * A-3021-471-A MAIN BOARD, COMPLETE (including SUB BOARD) ********************* 3-047-194-01 SHEET (CDM), ADHESIVE 3-221-307-01 TERMINAL BOARD (–), BATTERY (BT402) 3-228-639-01 HOLDER, LCD 4-223-585-01 TERMINAL BOARD (+), BATTERY (BT400) < CAPACITOR > C101 1-117-720-11 CERAMIC CHIP 4.7uF 10V C102 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C103 1-117-720-11 CERAMIC CHIP 4.7uF 10V C104 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C111 1-164-505-11 CERAMIC CHIP 2.2uF 16V C112 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C113 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C114 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C201 1-117-720-11 CERAMIC CHIP 4.7uF 10V C202 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C203 1-117-720-11 CERAMIC CHIP 4.7uF 10V C204 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C211 1-164-505-11 CERAMIC CHIP 2.2uF 16V C212 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C213 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C214 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C351 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C352 1-124-261-00 ELECT 10uF 20% 50V C353 1-124-261-00 ELECT 10uF 20% 50V C356 1-128-057-11 ELECT 330uF 20% 6.3V C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C403 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C406 1-128-057-11 ELECT 330uF 20% 6.3V C408 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C409 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C410 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C415 1-164-156-11 CERAMIC CHIP 0.1uF 25V C416 1-164-156-11 CERAMIC CHIP 0.1uF 25V C417 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C418 1-165-456-21 ELECT CHIP 100uF 6.3V C419 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C421 1-115-156-11 CERAMIC CHIP 1uF 10V C423 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C424 1-115-156-11 CERAMIC CHIP 1uF 10V C425 1-115-156-11 CERAMIC CHIP 1uF 10V C427 1-135-201-11 TANTAL. CHIP 10uF 20% 4V C428 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C429 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C430 1-164-156-11 CERAMIC CHIP 0.1uF 25V C432 1-165-456-21 ELECT CHIP 100uF 6.3V C433 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C434 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C435 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C436 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C437 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C438 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C439 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C441 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C442 1-115-156-11 CERAMIC CHIP 1uF 10V C443 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C444 1-164-156-11 CERAMIC CHIP 0.1uF 25V C451 1-115-156-11 CERAMIC CHIP 1uF 10V C453 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C456 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C462 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C500 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C501 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C602 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C604 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C605 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C606 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C607 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C609 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C610 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C611 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C612 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C613 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C614 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C615 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C616 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C617 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C618 1-124-584-00 ELECT 100uF 20% 10V C620 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C621 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C622 1-164-156-11 CERAMIC CHIP 0.1uF 25V C623 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V • Abbreviation CH : Chinese model EA : Saudi Arabia model E13 : AC 220 - 230V area in E model HK : Hong Kong model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 D-VE45 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C624 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C625 1-135-201-11 TANTAL. CHIP 10uF 20% 4V C626 1-135-201-11 TANTAL. CHIP 10uF 20% 4V C627 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C628 1-164-156-11 CERAMIC CHIP 0.1uF 25V C629 1-164-505-11 CERAMIC CHIP 2.2uF 16V C630 1-117-720-11 CERAMIC CHIP 4.7uF 10V C632 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C634 1-128-705-11 ELECT CHIP 100uF 6.3V C635 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C636 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C638 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C642 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C643 1-117-720-11 CERAMIC CHIP 4.7uF 10V C652 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C702 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C703 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C704 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C705 1-164-156-11 CERAMIC CHIP 0.1uF 25V C706 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C707 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C711 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C712 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C715 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C716 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C719 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C720 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C721 1-119-944-22 ELECT CHIP 470uF 20% 4V C722 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C723 1-164-388-11 CERAMIC CHIP 270PF 5% 50V C724 1-164-156-11 CERAMIC CHIP 0.1uF 25V C725 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C726 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C727 1-164-156-11 CERAMIC CHIP 0.1uF 25V C728 1-164-156-11 CERAMIC CHIP 0.1uF 25V C730 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C731 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C732 1-164-156-11 CERAMIC CHIP 0.1uF 25V C733 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C734 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C735 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C737 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C738 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C739 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C750 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C751 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C752 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C753 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C754 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C770 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C801 1-165-128-11 CERAMIC CHIP 0.22uF 16V C802 1-165-128-11 CERAMIC CHIP 0.22uF 16V C803 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C804 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-165-128-11 CERAMIC CHIP 0.22uF 16V C807 1-164-156-11 CERAMIC CHIP 0.1uF 25V C808 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C811 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C813 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C816 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C817 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C819 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C841 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C842 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C961 1-104-852-11 TANTAL. CHIP 22uF 20% 6.3V < CONNECTOR > * CN501 1-778-161-11 CONNECTOR, FFC/FPC (ZIF) 13P CN502 1-784-342-11 HOUSING, CONNECTOR 2P CN503 1-784-342-21 HOUSING, CONNECTOR 2P < DIODE > D111 8-719-069-54 DIODE UDZS-TE-17-5.1B D211 8-719-069-54 DIODE UDZS-TE-17-5.1B D301 8-719-069-54 DIODE UDZS-TE-17-5.1B D311 8-719-069-54 DIODE UDZS-TE-17-5.1B D401 8-719-067-42 DIODE MA2H735-(TX).SO D402 8-719-049-09 DIODE 1SS367-T3SONY D403 8-719-049-09 DIODE 1SS367-T3SONY D404 8-719-067-42 DIODE MA2H735-(TX).SO D406 8-719-058-24 DIODE RB501V-40TE-17 D408 8-719-404-50 DIODE MA111-TX D409 8-719-976-96 DIODE DTZ4.7C D461 8-719-049-09 DIODE 1SS367-T3SONY D501 8-719-069-54 DIODE UDZS-TE-17-5.1B D502 8-719-069-54 DIODE UDZS-TE-17-5.1B D601 8-719-988-78 DIODE SB007W03Q D700 8-719-069-54 DIODE UDZS-TE-17-5.1B D802 8-719-069-54 DIODE UDZS-TE-17-5.1B D806 8-719-069-54 DIODE UDZS-TE-17-5.1B D807 8-719-069-54 DIODE UDZS-TE-17-5.1B D823 8-719-072-70 DIODE MA2ZD14001S0 D901 8-719-069-54 DIODE UDZS-TE-17-5.1B D902 8-719-069-54 DIODE UDZS-TE-17-5.1B < FERRITE BEAD > FB101 1-412-987-31 INDUCTOR 4.7uH FB111 1-414-551-11 BEAD, FERRITE (CHIP) FB201 1-412-987-31 INDUCTOR 4.7uH FB211 1-414-551-11 BEAD, FERRITE (CHIP) FB301 1-469-116-21 FERRITE, EMI (SMD) FB311 1-414-551-11 BEAD, FERRITE (CHIP) FB602 1-216-797-11 METAL CHIP 10 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 D-VE45 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN FB603 1-216-864-11 METAL CHIP 0 5% 1/16W FB701 1-216-864-11 METAL CHIP 0 5% 1/16W FB702 1-216-864-11 METAL CHIP 0 5% 1/16W < IC > IC351 8-759-830-22 IC AN17880A-EAL IC401 8-759-714-74 IC TB2125F IC403 8-759-830-82 IC XC61CN1102MR IC421 8-759-565-69 IC XC6367B102MR IC601 8-752-409-05 IC CXD3028R IC603 8-759-671-27 IC MSM51V4400E-70TS-K IC701 8-759-671-90 IC CL680T-P-D1 IC703 8-759-597-78 IC MSM54V16258BSL-40TSK IC704 6-800-091-01 IC MR27V401D-50TAZ080 IC705 8-759-058-60 IC TC7SU04FU(TE85R) IC706 8-759-594-55 IC TC75S57F(TE85R) IC707 8-759-594-55 IC TC75S57F(TE85R) IC708 8-759-679-05 IC TC7WH34FU(TE12R) IC709 8-759-058-57 IC TC7S04FU-TE85L IC801 6-800-083-01 IC TMP88CM22AF-MIRXV-2 IC803 6-800-087-01 IC TMP87CM41U-3E64 < JACK > J302 1-774-804-11 JACK (i) J401 1-778-153-21 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 4.5V) J701 1-778-040-11 JACK, SMALL TYPE (AUDIO/VIDEO OUT) < COIL > L401 1-419-188-21 INDUCTOR 100uH L402 1-414-398-11 INDUCTOR 10uH L407 1-424-674-11 INDUCTOR 22uH L408 1-414-400-11 INDUCTOR 22uH L409 1-414-402-11 INDUCTOR 47uH L410 1-414-402-11 INDUCTOR 47uH L411 1-419-256-21 INDUCTOR 2.2uH L412 1-414-392-21 INDUCTOR 1uH L601 1-412-006-31 INDUCTOR 10uH L605 1-412-004-31 INDUCTOR 6.8uH L704 1-410-996-22 INDUCTOR 1.8uH L705 1-410-998-31 INDUCTOR 2.7uH L706 1-216-864-11 METAL CHIP 0 5% 1/16W L707 1-410-993-42 INDUCTOR 1uH L709 1-216-295-11 SHORT 0 L711 1-216-295-11 SHORT 0 L712 1-216-295-11 SHORT 0 L722 1-410-993-22 INDUCTOR 1uH L723 1-410-993-22 INDUCTOR 1uH L725 1-412-987-31 INDUCTOR 4.7uH L730 1-216-864-11 METAL CHIP 0 5% 1/16W < LIQUID CRYSTAL DISPLAY > LCD801 1-804-338-11 LCD MODULE < TRANSISTOR > Q301 8-729-043-90 TRANSISTOR IMX9T110 Q302 8-729-930-00 TRANSISTOR UMD2 Q401 8-729-921-93 TRANSISTOR 2SB1182F5-QR Q402 8-729-807-34 TRANSISTOR 2SB1123-S Q403 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q404 8-729-905-40 TRANSISTOR 2SC4081T106 Q405 8-729-429-44 TRANSISTOR XP1501 Q406 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q407 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q408 8-729-420-24 TRANSISTOR 2SB1218A-QRS Q409 8-729-028-60 TRANSISTOR 2SD1950VKVLVM-T1 Q410 8-729-056-20 TRANSISTOR TPC6001(TE85R) Q411 8-729-231-74 TRANSISTOR 2SC4116-GL Q412 8-729-054-79 TRANSISTOR 2SB167900LSO Q413 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q490 8-729-054-79 TRANSISTOR 2SB167900LSO Q500 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q810 8-729-429-49 TRANSISTOR XP4311-TXE Q811 8-729-429-49 TRANSISTOR XP4311-TXE Q812 8-729-420-24 TRANSISTOR 2SB1218A-QRS Q814 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q815 8-729-402-93 TRANSISTOR UN5214 < RESISTOR > R1 1-216-864-11 METAL CHIP 0 5% 1/16W R3 1-216-864-11 METAL CHIP 0 5% 1/16W R4 1-216-864-11 METAL CHIP 0 5% 1/16W R5 1-216-864-11 METAL CHIP 0 5% 1/16W R101 1-216-813-11 METAL CHIP 220 5% 1/16W R102 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R103 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R104 1-216-845-11 METAL CHIP 100K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-845-11 METAL CHIP 100K 5% 1/16W R109 1-216-843-11 METAL CHIP 68K 5% 1/16W R111 1-216-837-11 METAL CHIP 22K 5% 1/16W R112 1-216-821-11 METAL CHIP 1K 5% 1/16W R113 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R114 1-216-833-11 METAL CHIP 10K 5% 1/16W R122 1-216-809-11 METAL CHIP 100 5% 1/16W R201 1-216-813-11 METAL CHIP 220 5% 1/16W R202 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R203 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R204 1-216-845-11 METAL CHIP 100K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-845-11 METAL CHIP 100K 5% 1/16W R209 1-216-843-11 METAL CHIP 68K 5% 1/16W R211 1-216-837-11 METAL CHIP 22K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 D-VE45 Ref. No. Part No. Description Remark MAIN R212 1-216-821-11 METAL CHIP 1K 5% 1/16W R213 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R214 1-216-833-11 METAL CHIP 10K 5% 1/16W R222 1-216-809-11 METAL CHIP 100 5% 1/16W R354 1-218-610-11 METAL CHIP 4.7 5% 1W R401 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R402 1-216-839-11 METAL CHIP 33K 5% 1/16W R404 1-216-864-11 METAL CHIP 0 5% 1/16W R405 1-216-864-11 METAL CHIP 0 5% 1/16W R406 1-216-864-11 METAL CHIP 0 5% 1/16W R409 1-216-849-11 METAL CHIP 220K 5% 1/16W R410 1-216-843-11 METAL CHIP 68K 5% 1/16W R411 1-216-853-11 METAL CHIP 470K 5% 1/16W R412 1-216-833-11 METAL CHIP 10K 5% 1/16W R413 1-216-837-11 METAL CHIP 22K 5% 1/16W R414 1-216-819-11 METAL CHIP 680 5% 1/16W R415 1-216-833-11 METAL CHIP 10K 5% 1/16W R416 1-216-857-11 METAL CHIP 1M 5% 1/16W R417 1-216-864-11 METAL CHIP 0 5% 1/16W R419 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R420 1-216-845-11 METAL CHIP 100K 5% 1/16W R421 1-216-864-11 METAL CHIP 0 5% 1/16W R422 1-216-839-11 METAL CHIP 33K 5% 1/16W R423 1-216-839-11 METAL CHIP 33K 5% 1/16W R424 1-216-841-11 METAL CHIP 47K 5% 1/16W R426 1-216-837-11 METAL CHIP 22K 5% 1/16W R430 1-216-843-11 METAL CHIP 68K 5% 1/16W R431 1-216-821-11 METAL CHIP 1K 5% 1/16W R432 1-216-797-11 METAL CHIP 10 5% 1/16W R433 1-216-809-11 METAL CHIP 100 5% 1/16W R434 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R435 1-218-875-11 METAL CHIP 15K 0.5% 1/16W R438 1-216-821-11 METAL CHIP 1K 5% 1/16W R439 1-218-891-11 METAL CHIP 68K 0.5% 1/16W R441 1-216-817-11 METAL CHIP 470 5% 1/16W R442 1-216-857-11 METAL CHIP 1M 5% 1/16W R443 1-216-811-11 METAL CHIP 150 5% 1/16W R444 1-216-833-11 METAL CHIP 10K 5% 1/16W R446 1-216-821-11 METAL CHIP 1K 5% 1/16W R447 1-216-298-00 METAL CHIP 2.2 5% 1/10W R448 1-216-821-11 METAL CHIP 1K 5% 1/16W R449 1-216-821-11 METAL CHIP 1K 5% 1/16W R450 1-216-864-11 METAL CHIP 0 5% 1/16W R451 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R452 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R453 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R454 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R455 1-216-839-11 METAL CHIP 33K 5% 1/16W R458 1-216-845-11 METAL CHIP 100K 5% 1/16W R459 1-216-857-11 METAL CHIP 1M 5% 1/16W R460 1-216-797-11 METAL CHIP 10 5% 1/16W R461 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R462 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R463 1-216-864-11 METAL CHIP 0 5% 1/16W R464 1-216-864-11 METAL CHIP 0 5% 1/16W R465 1-216-864-11 METAL CHIP 0 5% 1/16W R468 1-216-817-11 METAL CHIP 470 5% 1/16W R472 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R480 1-216-845-11 METAL CHIP 100K 5% 1/16W R496 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R603 1-216-851-11 METAL CHIP 330K 5% 1/16W R604 1-216-857-11 METAL CHIP 1M 5% 1/16W R605 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R606 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R608 1-216-853-11 METAL CHIP 470K 5% 1/16W R609 1-216-833-11 METAL CHIP 10K 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-216-837-11 METAL CHIP 22K 5% 1/16W R612 1-216-841-11 METAL CHIP 47K 5% 1/16W R613 1-216-837-11 METAL CHIP 22K 5% 1/16W R614 1-216-845-11 METAL CHIP 100K 5% 1/16W R615 1-216-837-11 METAL CHIP 22K 5% 1/16W R616 1-216-845-11 METAL CHIP 100K 5% 1/16W R617 1-216-837-11 METAL CHIP 22K 5% 1/16W R619 1-216-837-11 METAL CHIP 22K 5% 1/16W R621 1-216-864-11 METAL CHIP 0 5% 1/16W R622 1-216-817-11 METAL CHIP 470 5% 1/16W R623 1-216-819-11 METAL CHIP 680 5% 1/16W R624 1-216-845-11 METAL CHIP 100K 5% 1/16W R625 1-216-833-11 METAL CHIP 10K 5% 1/16W R626 1-216-819-11 METAL CHIP 680 5% 1/16W R627 1-216-819-11 METAL CHIP 680 5% 1/16W R628 1-216-833-11 METAL CHIP 10K 5% 1/16W R629 1-216-833-11 METAL CHIP 10K 5% 1/16W R630 1-216-864-11 METAL CHIP 0 5% 1/16W R632 1-216-839-11 METAL CHIP 33K 5% 1/16W R634 1-216-805-11 METAL CHIP 47 5% 1/16W R636 1-216-864-11 METAL CHIP 0 5% 1/16W R639 1-216-864-11 METAL CHIP 0 5% 1/16W R646 1-216-845-11 METAL CHIP 100K 5% 1/16W R647 1-216-819-11 METAL CHIP 680 5% 1/16W R648 1-216-819-11 METAL CHIP 680 5% 1/16W R650 1-216-819-11 METAL CHIP 680 5% 1/16W R700 1-216-833-11 METAL CHIP 10K 5% 1/16W R702 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R703 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R704 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R705 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R706 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R707 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R708 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R709 1-216-833-11 METAL CHIP 10K 5% 1/16W R710 1-216-819-11 METAL CHIP 680 5% 1/16W R711 1-216-821-11 METAL CHIP 1K 5% 1/16W R712 1-216-829-11 METAL CHIP 4.7K 5% 1/16W Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 D-VE45 R713 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R714 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R715 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R716 1-216-821-11 METAL CHIP 1K 5% 1/16W R717 1-216-821-11 METAL CHIP 1K 5% 1/16W R719 1-216-857-11 METAL CHIP 1M 5% 1/16W R721 1-216-833-11 METAL CHIP 10K 5% 1/16W R722 1-216-833-11 METAL CHIP 10K 5% 1/16W R723 1-216-864-11 METAL CHIP 0 5% 1/16W R724 1-216-833-11 METAL CHIP 10K 5% 1/16W R725 1-216-833-11 METAL CHIP 10K 5% 1/16W R726 1-216-833-11 METAL CHIP 10K 5% 1/16W R727 1-216-857-11 METAL CHIP 1M 5% 1/16W R729 1-216-807-11 METAL CHIP 68 5% 1/16W R731 1-216-811-11 METAL CHIP 150 5% 1/16W R732 1-216-811-11 METAL CHIP 150 5% 1/16W R733 1-216-807-11 METAL CHIP 68 5% 1/16W R734 1-216-833-11 METAL CHIP 10K 5% 1/16W R735 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R736 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R739 1-216-845-11 METAL CHIP 100K 5% 1/16W R740 1-216-833-11 METAL CHIP 10K 5% 1/16W R741 1-216-833-11 METAL CHIP 10K 5% 1/16W R742 1-216-833-11 METAL CHIP 10K 5% 1/16W R743 1-216-833-11 METAL CHIP 10K 5% 1/16W R744 1-216-833-11 METAL CHIP 10K 5% 1/16W R748 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R756 1-216-803-11 METAL CHIP 33 5% 1/16W R757 1-216-809-11 METAL CHIP 100 5% 1/16W R758 1-216-833-11 METAL CHIP 10K 5% 1/16W R759 1-216-833-11 METAL CHIP 10K 5% 1/16W R760 1-216-809-11 METAL CHIP 100 5% 1/16W R762 1-216-809-11 METAL CHIP 100 5% 1/16W R763 1-216-809-11 METAL CHIP 100 5% 1/16W R764 1-216-809-11 METAL CHIP 100 5% 1/16W R765 1-216-809-11 METAL CHIP 100 5% 1/16W R766 1-216-809-11 METAL CHIP 100 5% 1/16W R767 1-216-809-11 METAL CHIP 100 5% 1/16W R768 1-216-809-11 METAL CHIP 100 5% 1/16W R769 1-216-809-11 METAL CHIP 100 5% 1/16W R770 1-216-809-11 METAL CHIP 100 5% 1/16W R771 1-216-809-11 METAL CHIP 100 5% 1/16W R772 1-216-809-11 METAL CHIP 100 5% 1/16W R773 1-216-809-11 METAL CHIP 100 5% 1/16W R774 1-216-809-11 METAL CHIP 100 5% 1/16W R775 1-216-809-11 METAL CHIP 100 5% 1/16W R776 1-216-809-11 METAL CHIP 100 5% 1/16W R777 1-216-809-11 METAL CHIP 100 5% 1/16W R778 1-216-809-11 METAL CHIP 100 5% 1/16W R779 1-216-809-11 METAL CHIP 100 5% 1/16W R780 1-216-809-11 METAL CHIP 100 5% 1/16W R781 1-216-809-11 METAL CHIP 100 5% 1/16W R782 1-216-809-11 METAL CHIP 100 5% 1/16W R783 1-216-809-11 METAL CHIP 100 5% 1/16W R784 1-216-809-11 METAL CHIP 100 5% 1/16W R785 1-216-809-11 METAL CHIP 100 5% 1/16W R786 1-216-809-11 METAL CHIP 100 5% 1/16W R787 1-216-809-11 METAL CHIP 100 5% 1/16W R788 1-216-809-11 METAL CHIP 100 5% 1/16W R789 1-216-809-11 METAL CHIP 100 5% 1/16W R790 1-216-809-11 METAL CHIP 100 5% 1/16W R792 1-216-864-11 METAL CHIP 0 5% 1/16W R802 1-216-837-11 METAL CHIP 22K 5% 1/16W R803 1-216-843-11 METAL CHIP 68K 5% 1/16W R806 1-216-833-11 METAL CHIP 10K 5% 1/16W R807 1-216-837-11 METAL CHIP 22K 5% 1/16W R808 1-216-864-11 METAL CHIP 0 5% 1/16W R809 1-216-833-11 METAL CHIP 10K 5% 1/16W R810 1-216-864-11 METAL CHIP 0 5% 1/16W R811 1-216-864-11 METAL CHIP 0 5% 1/16W R812 1-216-864-11 METAL CHIP 0 5% 1/16W R813 1-216-839-11 METAL CHIP 33K 5% 1/16W R814 1-216-845-11 METAL CHIP 100K 5% 1/16W R815 1-216-833-11 METAL CHIP 10K 5% 1/16W R817 1-216-833-11 METAL CHIP 10K 5% 1/16W R818 1-216-845-11 METAL CHIP 100K 5% 1/16W R820 1-216-833-11 METAL CHIP 10K 5% 1/16W R821 1-216-864-11 METAL CHIP 0 5% 1/16W R823 1-216-864-11 METAL CHIP 0 5% 1/16W R824 1-216-833-11 METAL CHIP 10K 5% 1/16W R825 1-216-864-11 METAL CHIP 0 5% 1/16W R826 1-216-849-11 METAL CHIP 220K 5% 1/16W R827 1-216-851-11 METAL CHIP 330K 5% 1/16W R828 1-216-833-11 METAL CHIP 10K 5% 1/16W R829 1-216-847-11 METAL CHIP 150K 5% 1/16W R835 1-216-845-11 METAL CHIP 100K 5% 1/16W R836 1-216-837-11 METAL CHIP 22K 5% 1/16W R837 1-216-845-11 METAL CHIP 100K 5% 1/16W R838 1-216-849-11 METAL CHIP 220K 5% 1/16W R839 1-216-833-11 METAL CHIP 10K 5% 1/16W R841 1-216-864-11 METAL CHIP 0 5% 1/16W R842 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R843 1-218-847-11 METAL CHIP 1K 0.5% 1/16W R844 1-218-851-11 METAL CHIP 1.5K 0.5% 1/16W R845 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R846 1-218-859-11 METAL CHIP 3.3K 0.5% 1/16W R847 1-218-863-11 METAL CHIP 4.7K 0.5% 1/16W R848 1-218-867-11 METAL CHIP 6.8K 0.5% 1/16W R850 1-216-833-11 METAL CHIP 10K 5% 1/16W R851 1-216-833-11 METAL CHIP 10K 5% 1/16W R853 1-216-837-11 METAL CHIP 22K 5% 1/16W R854 1-216-833-11 METAL CHIP 10K 5% 1/16W R857 1-216-833-11 METAL CHIP 10K 5% 1/16W R861 1-216-833-11 METAL CHIP 10K 5% 1/16W R863 1-216-819-11 METAL CHIP 680 5% 1/16W R864 1-216-819-11 METAL CHIP 680 5% 1/16W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 D-VE45 R865 1-216-819-11 METAL CHIP 680 5% 1/16W R866 1-216-819-11 METAL CHIP 680 5% 1/16W R867 1-216-819-11 METAL CHIP 680 5% 1/16W R871 1-216-833-11 METAL CHIP 10K 5% 1/16W R872 1-216-833-11 METAL CHIP 10K 5% 1/16W R873 1-216-833-11 METAL CHIP 10K 5% 1/16W R874 1-216-833-11 METAL CHIP 10K 5% 1/16W R875 1-216-809-11 METAL CHIP 100 5% 1/16W R876 1-216-809-11 METAL CHIP 100 5% 1/16W R877 1-216-809-11 METAL CHIP 100 5% 1/16W R878 1-216-809-11 METAL CHIP 100 5% 1/16W R879 1-216-809-11 METAL CHIP 100 5% 1/16W R880 1-216-809-11 METAL CHIP 100 5% 1/16W R881 1-216-809-11 METAL CHIP 100 5% 1/16W R882 1-216-809-11 METAL CHIP 100 5% 1/16W R883 1-216-809-11 METAL CHIP 100 5% 1/16W R884 1-216-809-11 METAL CHIP 100 5% 1/16W R885 1-216-809-11 METAL CHIP 100 5% 1/16W R933 1-216-801-11 METAL CHIP 22 5% 1/16W < SWITCH > S801 1-692-440-11 SWITCH, PUSH (OPEN) S802 1-553-977-00 SWITCH, SLIDE (SYSTEM SELECT) S803 1-762-078-11 SWITCH, SLIDE (HOLD) S804 1-553-977-00 SWITCH, SLIDE (ESP) S806 1-771-482-11 SWITCH, PUSH (1 KEY) (MENU) S807 1-771-482-11 SWITCH, PUSH (1 KEY) (SOUND) S808 1-771-482-11 SWITCH, PUSH (1 KEY) (VOLUME +) S809 1-771-482-11 SWITCH, PUSH (1 KEY) (VOLUME –) S810 1-771-482-11 SWITCH, PUSH (1 KEY) (N >) S811 1-771-482-11 SWITCH, PUSH (1 KEY) (.) S812 1-771-482-11 SWITCH, PUSH (1 KEY) (x) < COIL > T401 1-419-417-21 COIL, D.C-D.C CONVERTER < VARISTOR > VDR101 1-801-862-11 VARISTOR, CHIP VDR201 1-801-862-11 VARISTOR, CHIP VDR301 1-801-862-11 VARISTOR, CHIP < VIBRATOR > X601 1-795-218-21 VIBRATOR, CERAMIC (16.9MHz) X701 1-795-147-11 VIBRATOR, CRYSTAL (27MHz) ************************************************************* SUB BOARD (supplied with MAIN BOARD, COMPLETE) ********** < IC > IC905 8-749-015-96 IC GP1UC10J ************************************************************* MISCELLANEOUS *************** 0108 X-4952-506-1 RP ASSY, DAX-23E M501 A-3328-627-A MOTOR ASSY, SLED (SLED) M502 A-3328-759-A MOTOR ASSY, TURNTABLE (SPINDLE) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 1-418-757-11 REMOTE COMMANDER (RMT-DV11) 0 1-418-261-12 ADAPTOR, AC (AC-E455F) (E13,EA) 0 1-475-622-21 ADAPTOR, AC (AC-E455) (CH) 0 1-475-623-11 ADAPTOR, AC (AC-E455) (HK) 0 1-569-008-21 ADAPTOR, CONVERSION 2P (EA) 1-765-080-11 CORD, CONNECTION (1P-3P) (AV CABLE) 3-231-554-11 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (E13,HK) 3-231-554-21 MANUAL, INSTRUCTION (ENGLISH,ARABIC) 3-231-554-31 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (CH) 4-991-047-01 LID, BATTERY CASE (for RMT-DV11) 8-953-130-90 HEADPHONE MDR-E805LP Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SUB MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 D-VE45 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001. 07 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
