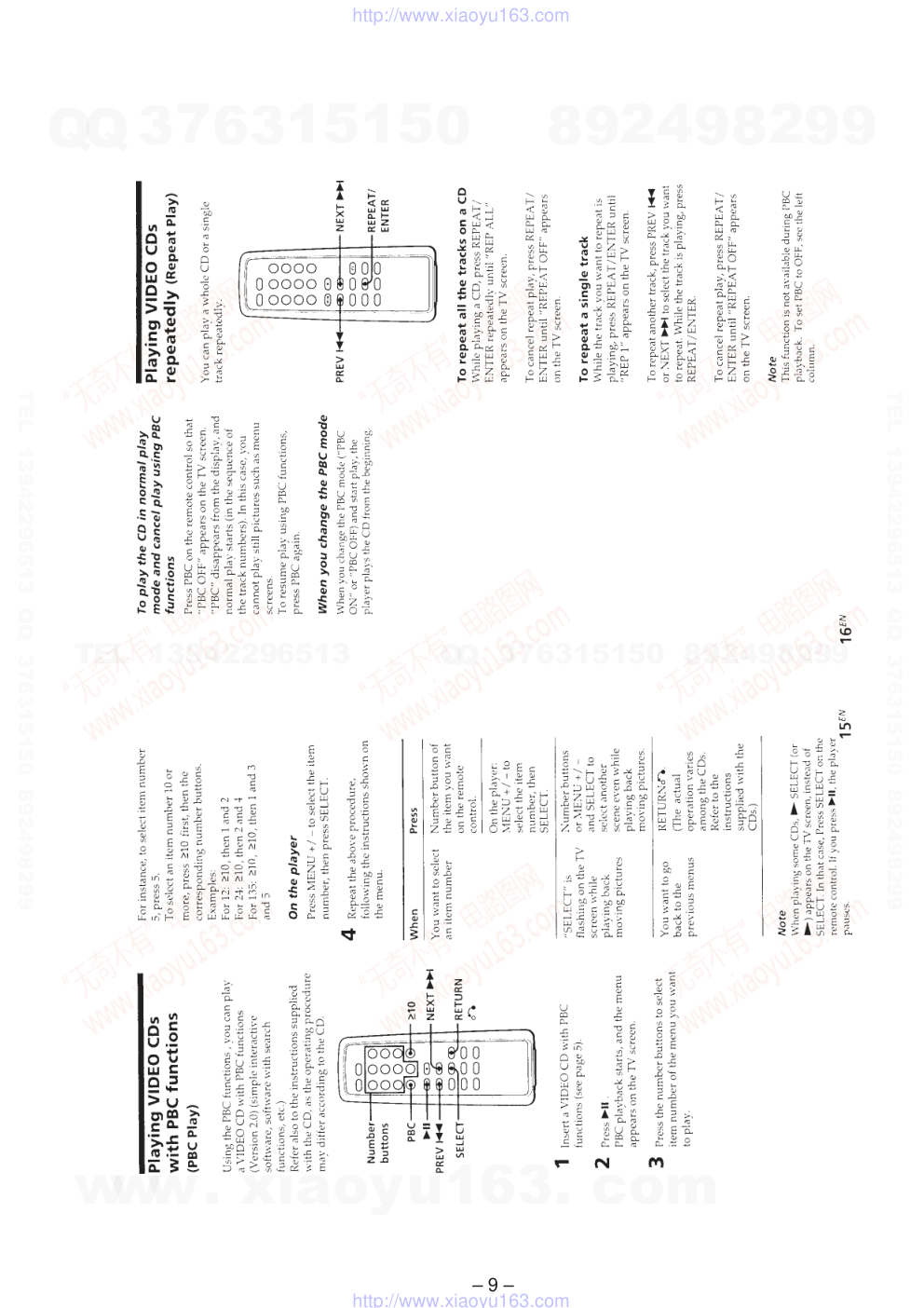

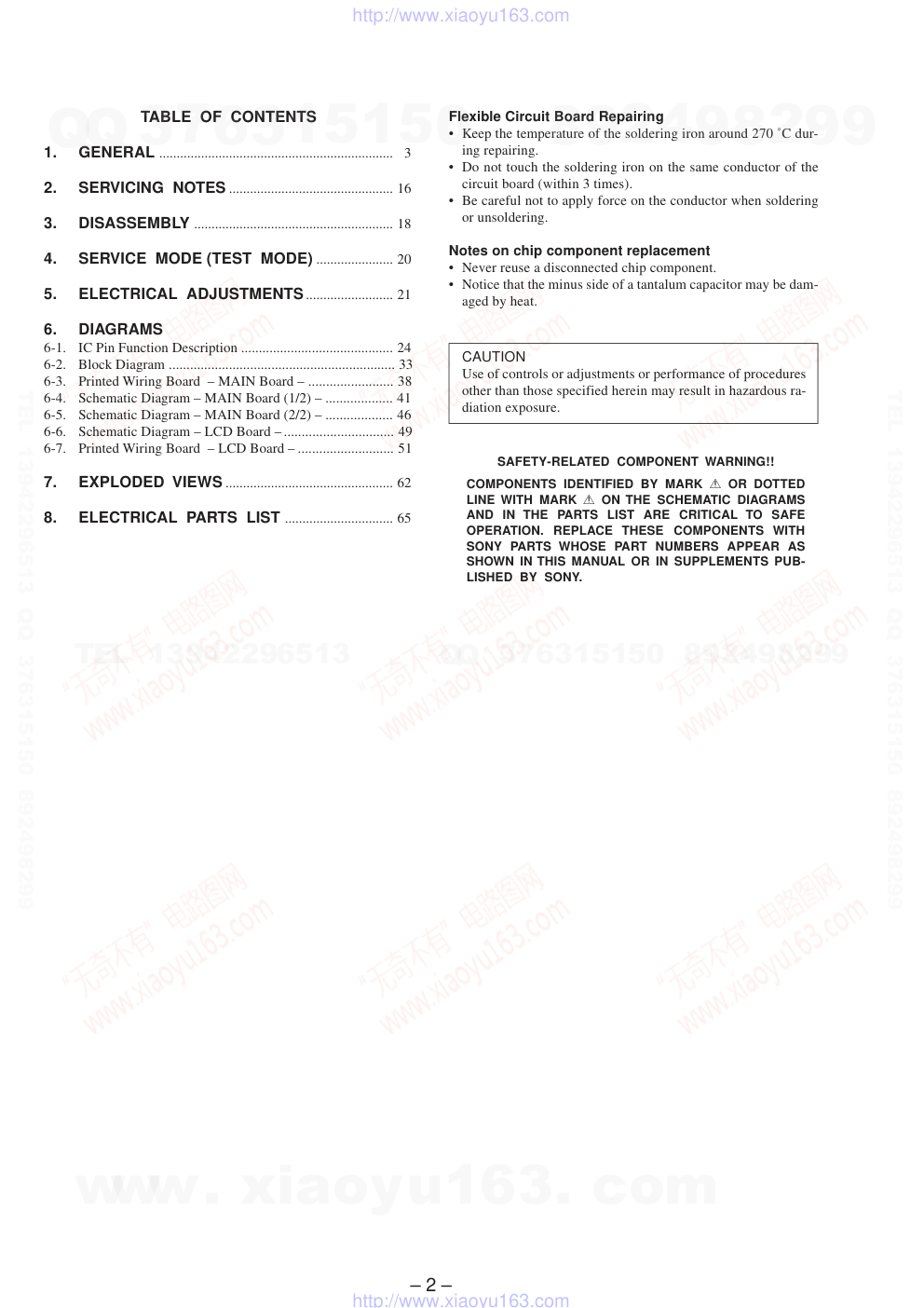

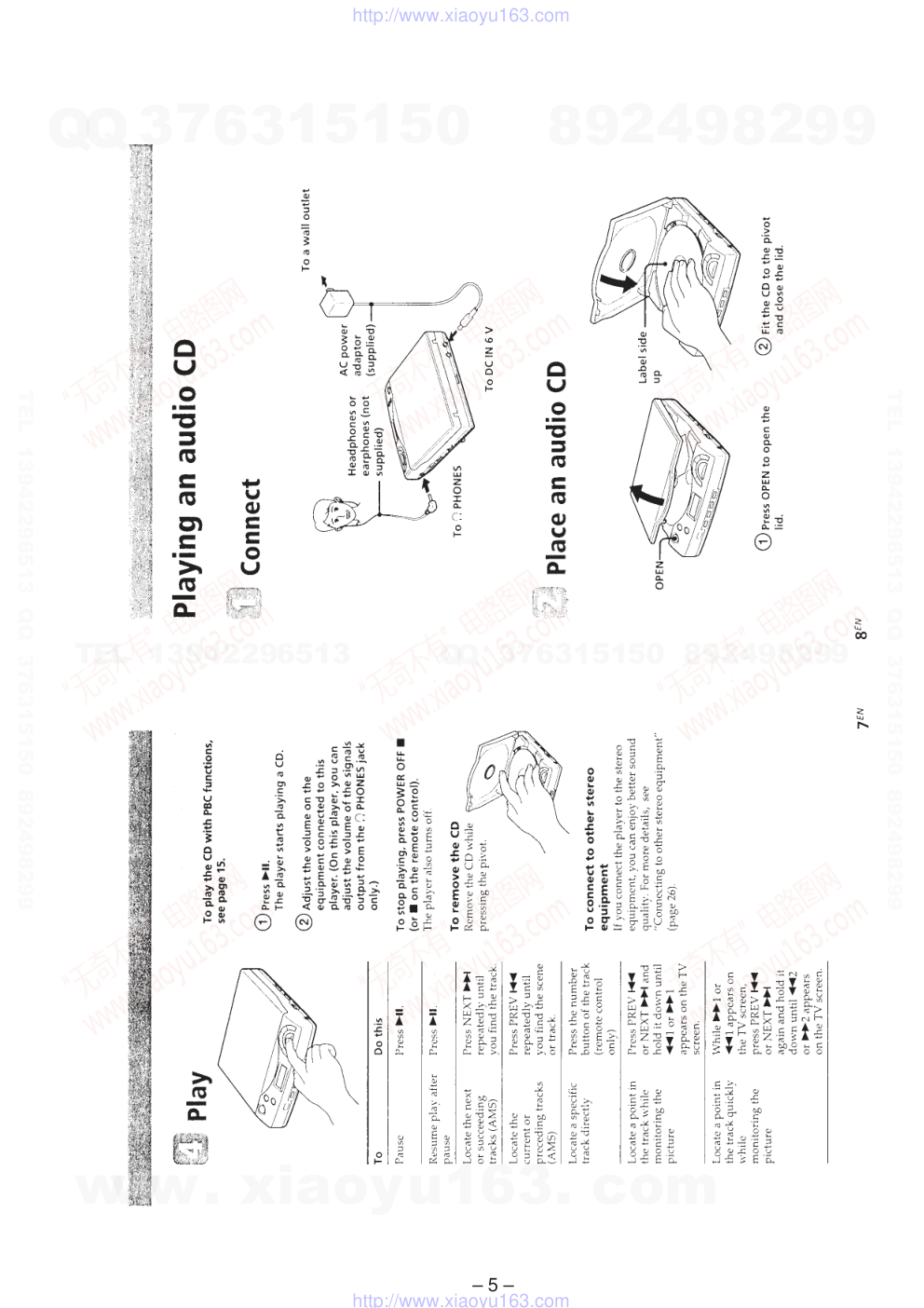

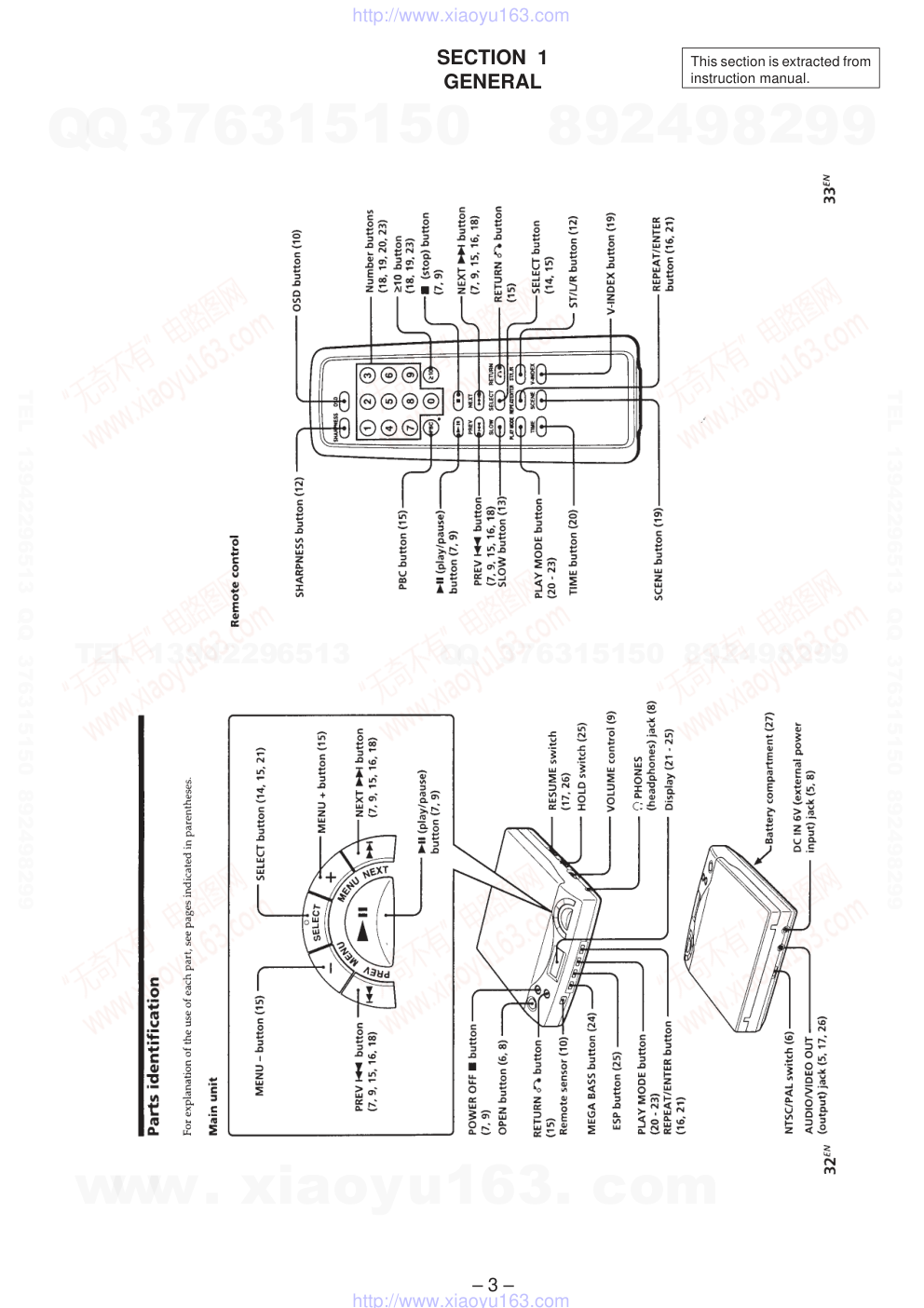

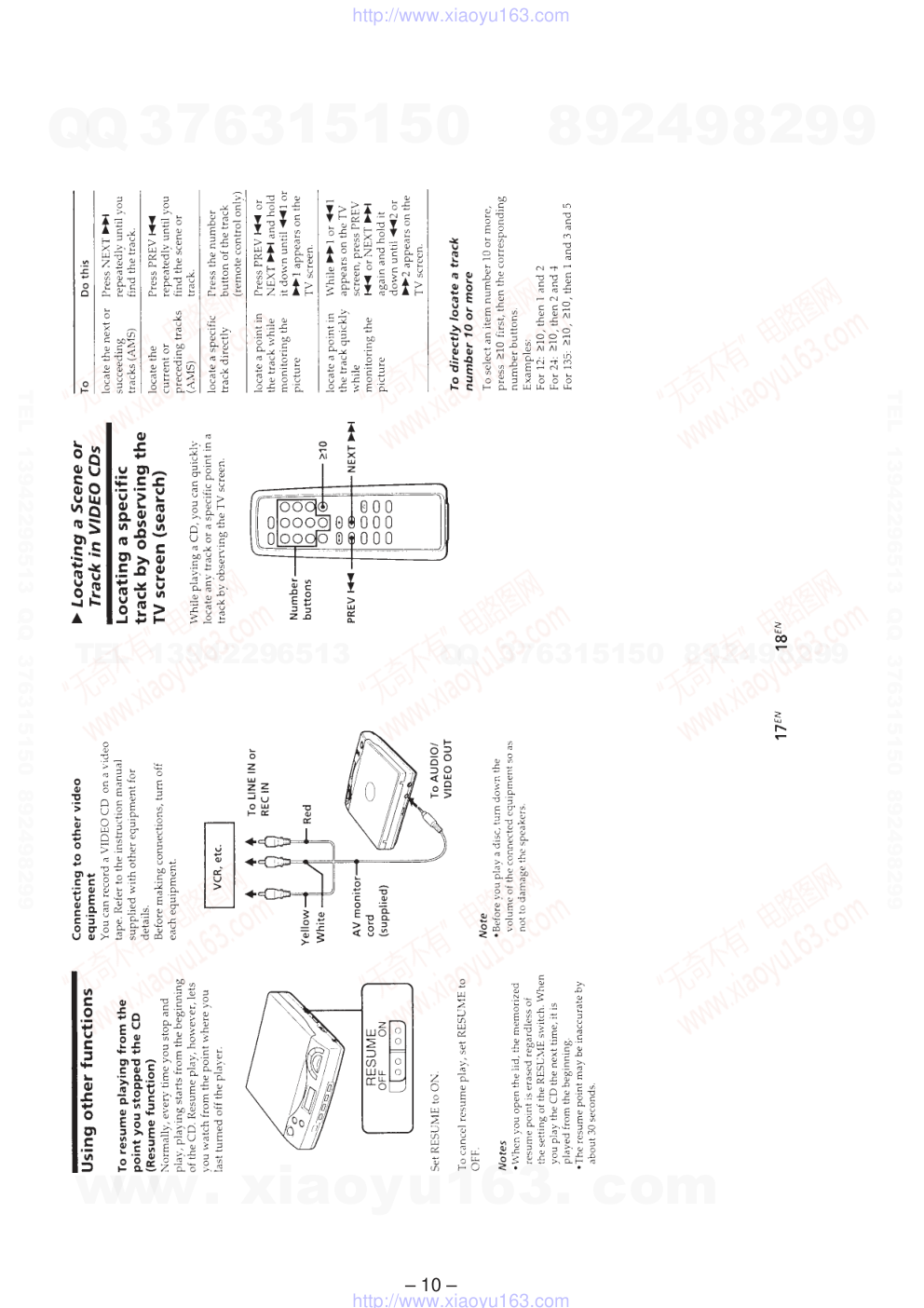

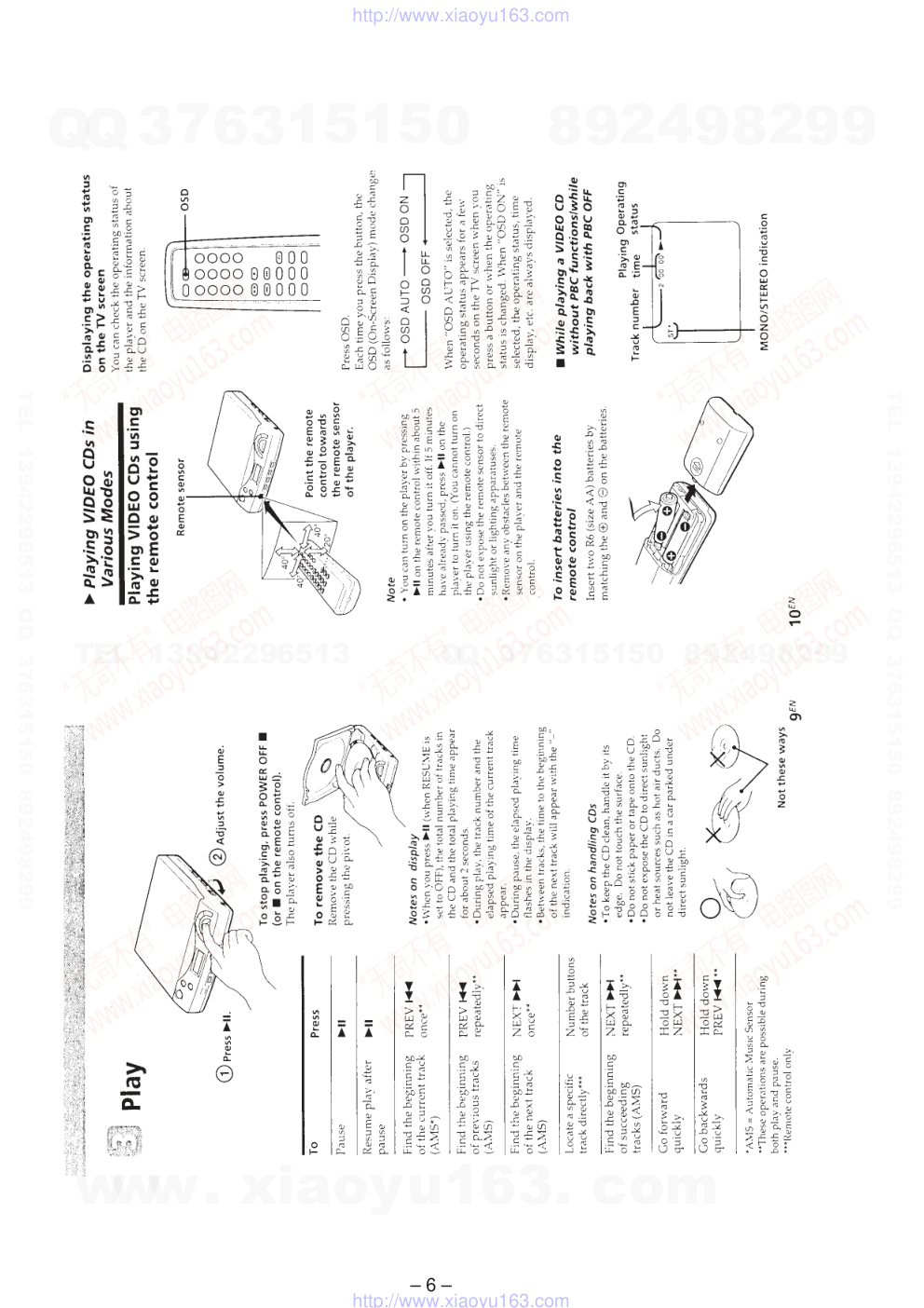

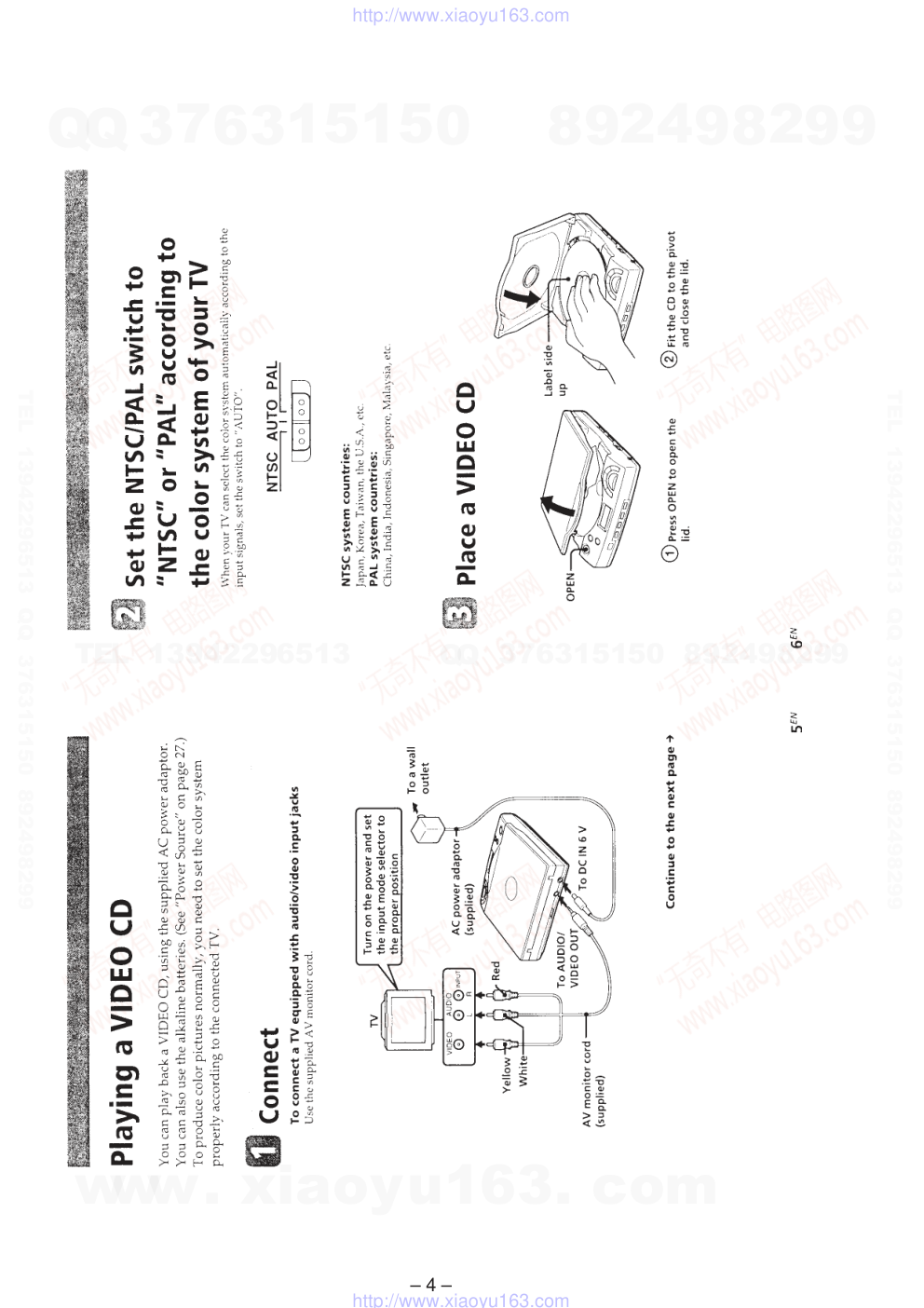

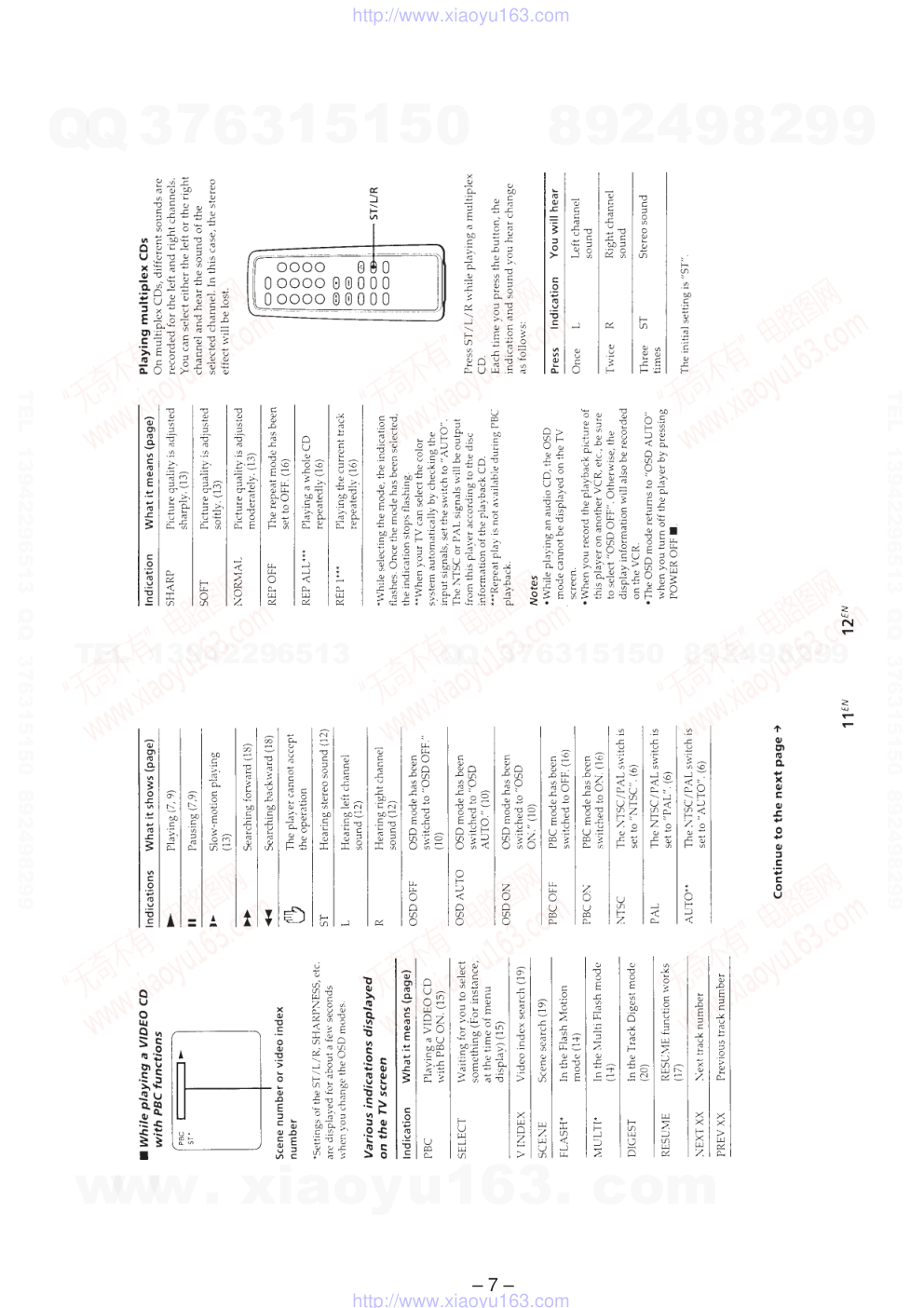

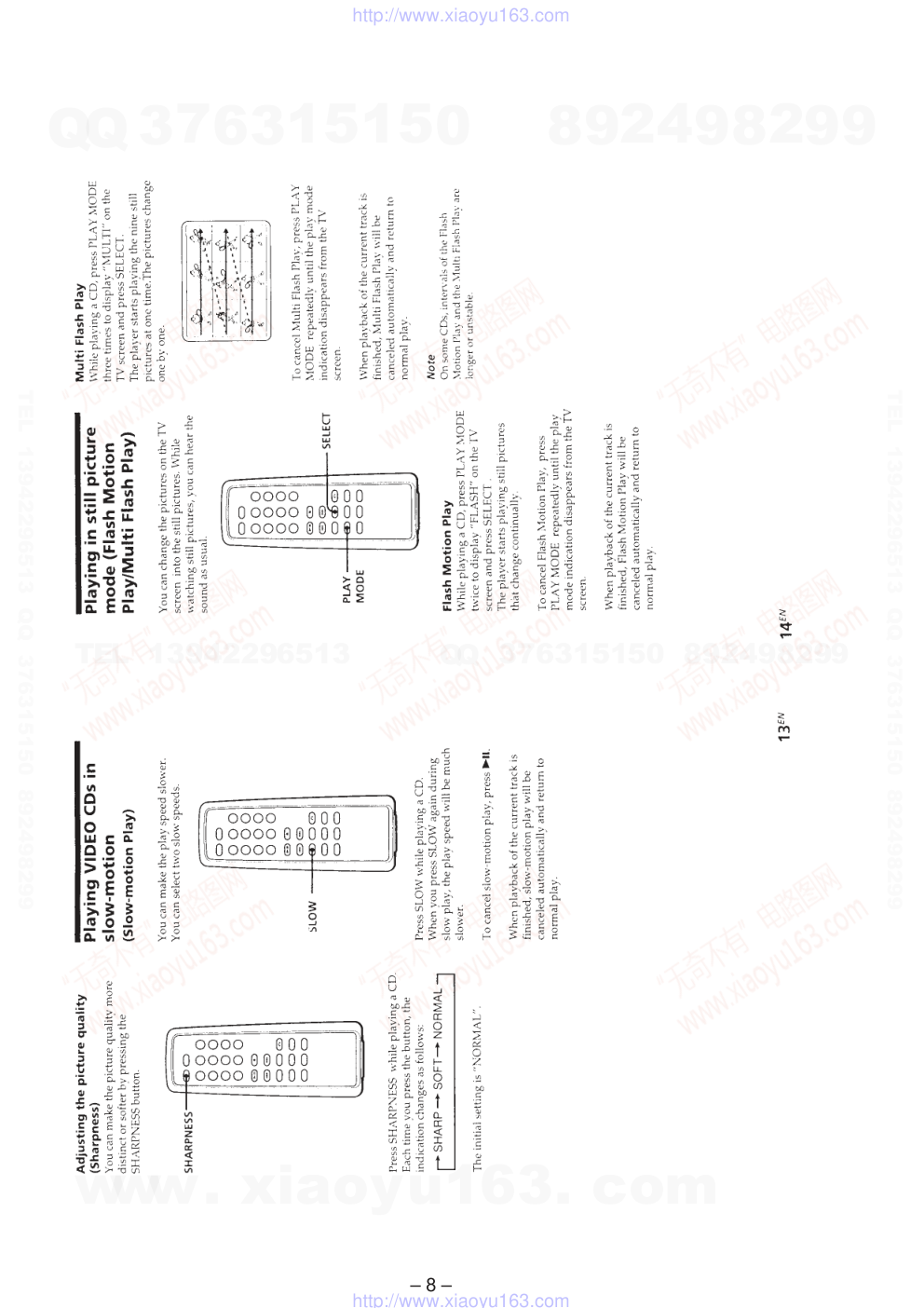

MICROFILM PORTABLE VIDEO CD PLAYER E Model Chinese Model Tourist Model Model Name Using Similar Mechanism D-223 CD Mechanism Type KSM-331CAN (S) Optical Pick-Up Name KSS-331C System Compact disc digital audio/video system Laser diode properties Material: GaAlAs Wavelength: λ=780 nm Emission duration: Continuous Laser output power: Less than 44.6 µW* * This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture. Error correction Sony Super Strategy Cross Interleave Reed Solomon Code D-A conversion 1-bit Channel number 2 channels Frequency response 20 - 20,000 Hz dB (measured by EIAJ CP-307) Output (at 6 V input level) Headphones (stereo minijack) 10 mW + 10 mW at 16 ohms Line output (stereo minijack) Output level 0.7 V rms at 47 kilohms Recommended load impedance over 10 kilohms Video output (minijack) Output level 1 Vp-p at 75 ohms Recommended load impedance over 75 ohms General Power requirements Player: • Four LR6 (size AA) batteries: 6 V DC • AC power adaptor (DC IN 6 V jack): 120 V, 60 Hz 220 - 230 V, 50/60 Hz 100 - 240 V, 50/60 Hz (AC power required differs depending on where you purchased the player.) Remote control: • Two LR6 (size AA) batteries 3 V DC Dimensions (w/h/d) (incl. projecting parts and controls) Approx. 140.5 × 30.5 × 144.2 mm (7 × 13/8 × 53/4 in.) Mass (excl. rechargeable batteries) Approx. 330 g (14 oz) Approx. 440 g (1 lb 2 oz) (incl. alkaline batteries and a CD) Operating temperature 5˚C - 35˚C (41˚F - 95˚F) Supplied accessories AC power adaptor (1) AV monitor cord (1) Remote control (1) Design and specifications are subject to change without notice. SPECIFICATIONS SERVICE MANUAL +1 –2 Ver 1.2 1998. 12 With SUPPLEMENT 1 (9-923-273-81) With SUPPLEMENT 2 (9-923-273-83) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. GENERAL ................................................................... 3 2. SERVICING NOTES ............................................... 16 3. DISASSEMBLY ......................................................... 18 4. SERVICE MODE (TEST MODE) ...................... 20 5. ELECTRICAL ADJUSTMENTS ......................... 21 6. DIAGRAMS 6-1. IC Pin Function Description ........................................... 24 6-2. Block Diagram ................................................................ 33 6-3. Printed Wiring Board – MAIN Board – ........................ 38 6-4. Schematic Diagram – MAIN Board (1/2) – ................... 41 6-5. Schematic Diagram – MAIN Board (2/2) – ................... 46 6-6. Schematic Diagram – LCD Board – ............................... 49 6-7. Printed Wiring Board – LCD Board – ........................... 51 7. EXPLODED VIEWS ................................................ 62 8. ELECTRICAL PARTS LIST ............................... 65 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 16 – SECTION 2 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. Before Replacing the Optical Pick-Up Block Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 (£ pin (FOK) When checking FOK, remove the lead wire to disc motor. • S curve P-to-P value: 2.0 Vp-p IC501 !§ pin When checking S curve P-to-P value, remove the lead wire to disc motor. • RF signal P-to-P value: 0.8-1.2 Vp-p • Traverse signal P-to-P value: 0.7-1.7 Vp-p • The repairing grating holder is impossible. Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more than 30 cm apart from the object lens when you check the emission of laser diode. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S401 (push switch type). The following two checking methods for the laser diode are oper- able. • Method-1 (In the service mode or normal operation): Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S401 as shown in Fig. 1. 3. Press the fl key 4. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. During normal operation, the laser diode is turned ON about 2.5 seconds for focus searching. Fig. 1 Method to push the S401 S401 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 17 – • Method-2 (In service mode or normal operation): Check the value of current flowing in the laser diode. 1. Remove the upper cabinet. 2. Read the current printed on the label attached on the rear side of the optical pick-up. 3. Connect a digital voltmeter as shown in Fig. 2. 4. Press the fl key. 5. Calculate current value by the reading of the digital voltmeter. Reading of the digital voltmeter (V) ÷ 4.7 (Ω) = current value (A) (Example) Reading of the digital voltmeter of 0.1645 V: 0.1645 V ÷ 4.7 Ω = 0.035 (A) = 35 mA 6. Check that the current value is within the following range. • Current value of the label mA (25˚C) Variation by temperature: 0.4 mA/˚C Current increases with temperature increased. Current decreases with temperature decreased. If the current is more than the range above, there is a trouble in the automatic power control circuit or the laser diode is in deterioration. If less than the range, a trouble exists in the automatic power control circuit or the optical pick-up. (Label stuck outside of the optical pick-up) action number year month Indicates current value. (In this case, 35.0 mA) day KSS-331C 24Y59 SA350 A current value will vary depending on the set. Q501 IC501 IC502 IC601 – MAIN Board – (Side B) +5 –11 Fig. 2 Digital voltmeter connecting location digital voltmeter + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 18 – Note: Follow the disassembly procedure in the numerical order given. 3-1. CABINET (UPPER) ASS’Y SECTION 3 DISASSEMBLY 3� cabinet (upper) ass’y 2� two claws 2� claw 2� claw 2� claw 1� two screws (2 × 8) 1� three screws (2 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – 3-2. UPPER LID BLOCK ASS’Y 1� spring (lock) 2� spring (open) 3� Push the open button. 4� Open the upper lid block ass’y. 5� shaft 7� Pull up the upper lid block ass’y to direction of arrow B. 8� Remove the upper lid block ass’y to direction of arrow C. 6� Close the upper lid block ass’y to direction of arrow A. B C A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – SECTION 4 SERVICE MODE (TEST MODE) • In this set, there are two test modes; CD-DA Test Mode and VIDEO CD Test Mode. 4-1. How to Enter the Test Mode 1. Disconnect external power (no current is applied to the set). 2. Bridge the SOL701 (TEST) on the MAIN Board with a sol- der. (IC701 (∞ (TEST) pin is shorted to the ground.) 3. Connect the external power. 4. The CD-DA Test Mode is activated. (LCD display varies in 5- ways, and its 5-way display is repeated.) 5. Before connecting external power in step 3, if π (POWER OFF) key was pressed, the mode is switched to VIDEO CD Test Mode. (On the LCD, all segments are displayed, and the TV monitor becomes 100% white.) 4-2. How to Release the Test Mode 1. Always disconnect external power, and break the solder bridge of SOL701 (TEST) on the MAIN Board. 2. Thus, the set become ready for normal operation. 4-3. Each key Function in Test Mode 1. CD-DA Test Mode 2. VIDEO CD Test Mode – MAIN Board – (Side A) Fig. 1 Test terminal location and connecting position Switches Description π Stop processing (POWER OFF) Press once: Initialize, Average Correct fl Press twice: Auto Focus (PLAY/PAUSE) Press 3 times: Focus Auto Gain Press 4 times: Tracking Auto Gain Press 5 times: All Servo ON, Mute OFF g Repeat once more the processing currently SELECT selected with fl (PLAY/PAUSE) key. ± Move optical pick-up toward outside track (NEXT) ≠ Move optical pick-up toward inside track (PREV) ˆ Turn off the Mute (RETURN) ESP Turn on/off the ESP (fast speed play, when ON) REPEAT/ Tracking Gain up/normal switching ENTER + Raise K13* by one step after Focus Auto Gain MENU Raise K23** by one step after Tracking Auto Gain – Lower K13* by one step after Focus Auto Gain MENU Lower K23** by one step after Tracking Auto Gain Switches Description π Go to CD-DA Test Mode (POWER OFF) g Video system reset (return to 100% white screen) SELECT CN701 CN501 J901 Monitor IN TV monitor Video OUT SOL701 (TEST) * Coefficient of Focus Gain ** Coefficient of Tracking Gain www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – SECTION 5 ELECTRICAL ADJUSTMENTS 5-1. Precautions for Adjustment 1. Before beginning adjustment, set the equipment to service mode. After the completion of adjustment, be sure to reset the ser- vice mode. For more information, see “Service Mode (Test Mode)” on page 20. 2. Perform adjustments in the order given. 3. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indi- cated. 4. Power supply voltage requirement: DC6 V HOLD switch : OFF VOLUME control : Minimum RESUME switch : OFF 5-2. Before Beginning Adjustment Set the equipment to service mode (See page 20) and check the following. If there is an error, repair the equipment. • Checking of the sled motor 1. Open the upper lid. 2. Press the fl key once. 3. Press the ± and ≠ keys and check that the optical pick- up can move smoothly without sluggishness or abnormal noise in innermost periphery → outermost periphery → innermost periphery. ± : The optical pick-up moves outwardly. ≠ : The optical pick-up moves inwardly. • Checking of focus searching 1. Open the upper lid. 2. Press the fl key thrice. (Focus searching operation is acti- vated continuously.) 3. Check the object lens of the optical pick-up for smooth up/ down motion without sluggishness or abnormal noise. 4. Press the π key. Check that focus searching operation is deactivated. If not, again press the π key slightly longer. 5-3. Tracking Balance Check Condition: • Hold the set in horizontal state. Connection: Checking Method: 1. Connect the oscilloscope to TP524 (TE) and TP534 (VC) on the MAIN board. 2. Set the equipment to service mode stop state. (See page 20.) 3. Press the fl key once. 4. Move the optical pick-up to the center by pressing the ± and ≠ keys. 5. Put the disc (YEDS-18). 6. Press the fl key twice. From focus searching, focus is turned ON while en- tering CLV drawing-in mode. Tracking and sled are turned OFF. 7. Confirm that a waveform on the oscilloscope is vertically symmetric against 0 V. 8. Stop removing of the disc motor by pressing the π key. 9. After the completion of check, reset service mode. (See page 20.) Connection Location: MAIN board (See page 23.) + – oscilloscope (DC range) MAIN board TP524 (TE) TP534 (VC) (see page 23) A B 0 V A B 0 V 1.2 ± 0.5 Vp-p A=B A=B Note: Take long sweep time for easy monitoring. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – + – oscilloscope (AC range) MAIN board TP535 (RFO) TP534 (VC) (see page 23) 2 k Ω RF level 0.7 ± 0.2 Vp-p 5-4. Focus Bias Check Condition: • Hold the set in horizontal state. Connection: Checking Method: 1. Connect the oscilloscope to TP535 (RFO) and TP534 (VC) on the MAIN board. 2. Set the equipment to service mode stop state. (See page 20.) 3. Press the fl key once. 4. Move the optical pick-up to the center by pressing the ± and ≠ keys. 5. Put the disc (YEDS-18). 6. Press the fl key four times. From focus searching, focus is turned ON while en- tering CLV drawing-in mode. Both tracking and sled are turned ON. 7. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (≈) in the center of the waveform can be clearly distinguished. RF SIGNAL REFERENCE WAVEFORM (EYE PATTERN) VOLT/DIV : 200 mV (With the 10:1 probe in use) TIME/DIV: 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watching. 8. Stop revolving of the disc motor by pressing the π key. 9. After the completion of check, reset service mode. (See page 20.) Connection Location: MAIN board (See page 23.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – Connection Location CN501 CN701 – MAIN Board – (Side A) TP535 (RFO) TP534 (VC) TP524 (TE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – 6-1. IC PIN FUNCTION DESCRIPTION • MAIN BOARD (1/2) IC601 CXD2545Q (DIGITAL SIGNAL PROCESSOR, FOCUS/TRACKING/SLED SERVO, EFM COMPARATOR) SECTION 6 DIAGRAMS Pin No. Pin Name I/O Function 1 SRON O Sled servo drive PWM signal output terminal Not used (open) 2 SRDR O Sled servo drive PWM signal (–) output to the MPC17A38ZVMEL (IC502) 3 SFON O Sled servo drive PWM signal output terminal Not used (open) 4 TFDR O Tracking servo drive PWM signal (–) output to the MPC17A38ZVMEL (IC502) 5 TRON O Tracking servo drive PWM signal output terminal Not used (open) 6 TRDR O Tracking servo drive PWM signal (+) output to the MPC17A38ZVMEL (IC502) 7 TFON O Tracking servo drive PWM signal output terminal Not used (open) 8 FFDR O Focus servo drive PWM signal (+) output to the MPC17A38ZVMEL (IC502) 9 FRON O Focus servo drive PWM signal output terminal Not used (open) 10 FRDR O Focus servo drive PWM signal (–) output to the MPC17A38ZVMEL (IC502) 11 FFON O Focus servo drive PWM signal output terminal Not used (open) 12 VCOO O Oscillator circuit output terminal for analog PLL of the playback EFM 13 VCOI I Oscillator circuit input terminal for analog PLL of the playback EFM 14 TEST I Input terminal for the test (fixed at “L”) 15 DVSS — Ground terminal (digital system) 16 TES2 I Input terminal for the test (fixed at “L”) 17 TES3 I Input terminal for the test (fixed at “L”) 18 PDO O Charge-pump output terminal for analog PLL of the playback EFM Not used (open) 19 VPCO O PLL charge-pump output terminal for the variable pitch Not used (open) 20 VCKI I Master clock signal (16.9344 MHz) input from the D/A converter (IC320) for the variable pitch 21 AVD2 — Power supply terminal (+3.3V) (analog system) 22 IGEN I Power supply terminal (+3.3V) (for operational amplifier) 23 AVS2 — Ground terminal (analog system) 24 ADIO I Input terminal for the A/D converter Not used (open) 25 RFC O Output terminal of the operational amplifier Not used (open) 26 RFDC I RF signal (DC level) input terminal for the digital servo process 27 TE I Tracking error signal input from the CXA1791N (IC501) 28 SE I Sled error signal input from the CXA1791N (IC501) 29 FE I Focus error signal input from the CXA1791N (IC501) 30 VC I Middle point voltage (+1.65V) input from the CXA1791N (IC501) 31 FILO O Filter output terminal for master clock of the playback master PLL 32 FILI I Filter input terminal for master clock of the playback master PLL 33 PCO O Phase comparison output terminal for master clock of the playback EFM master PLL 34 CLTV I Internal VCO control voltage input of the playback master PLL 35 AVS1 — Ground terminal (analog system) 36 RFAC I RF signal (AC level) input terminal for the EFM demodulator 37 BIAS I Constant current input terminal of the playback EFM asymmetry circuit 38 ASYI I Playback EFM asymmetry comparator voltage input terminal 39 ASYO O Playback EFM full-swing output terminal 40 AVD1 — Power supply terminal (+3.3V) (analog system) 41 DVDD — Power supply terminal (+3.3V) (digital system) 42 ASYE I Playback EFM asymmetry circuit on/off selection input terminal (fixed at “H”) 43 PSSL I Audio data output mode selection input terminal (fixed at “L”) 44 WDCK O Word clock signal (88.2 kHz) output terminal Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – Pin No. Pin Name I/O Function 45 LRCK O L/R sampling clock signal (44.1 kHz) output to the D-RAM controller (IC680) and MPEG audio/video decoder (IC901) 46 DATA O DA16 output when PSSL=“H”, 48-bit slot serial data output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Serial data output to the D-RAM controller (IC680) and MPEG audio/video decoder (IC901) 47 BCLK O DA15 output when PSSL=“H”, 48-bit slot bit clock signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Bit clock signal (2.8224 MHz) output to the D-RAM controller (IC680) and MPEG audio/video decoder (IC901) 48 64 DATA O DA14 output when PSSL=“H”, 64-bit slot serial data output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 49 64 BCLK O DA13 output when PSSL=“H”, 64-bit slot bit clock signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 50 64 LRCK O DA12 output when PSSL=“H”, 64-bit slot L/R sampling clock signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 51 GTOP O DA11 output when PSSL=“H”, GTOP signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 52 XUGF O DA10 output when PSSL=“H”, XUGF signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 53 XPLCK O DA09 output when PSSL=“H”, XPLCK signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 54 GFS O DA08 output when PSSL=“H”, GFS (guard frame sync) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 55 RFCK O DA07 output when PSSL=“H”, RFCK (read frame clock) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Read frame clock signal output to the D-RAM controller (IC680) 56 C2PO O DA06 output when PSSL=“H”, C2PO signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) C2PO signal output to the D-RAM controller (IC680) and MPEG audio/video decoder (IC901) 57 XRAOF O DA05 output when PSSL=“H”, XRAOF (RAM over flow) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 58 MNT3 O DA04 output when PSSL=“H”, MNT3 (monitor 3) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 59 MNT2 O DA03 output when PSSL=“H”, MNT2 (monitor 2) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 60 MNT1 O DA02 output when PSSL=“H”, MNT1 (monitor 1) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 61 MNT0 O DA01 output when PSSL=“H”, MNT0 (monitor 0) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 62 XTAI I Master clock signal (16.9344 MHz) input from the D/A converter (IC320) 63 XTAO O Master clock output terminal (16.9344 MHz) Not used (open) 64 XTSL I Master clock selection input terminal (fixed at “L”) 65 DVSS — Ground terminal (digital system) 66 FSTI I 2/3 divider input terminal of pins ^™ (XATI) and ^£ (XTAO) 67 FSTO O 2/3 divider output terminal of pins ^™ (XATI) and ^£ (XTAO) 68 C4M O 4.2336 MHz clock signal output terminal Not used (open) 69 C16M O 16.9344 MHz clock signal output terminal Not used (open) 70 MD2 I Digital out on/off control signal input terminal Fixed at “H” in this set 71 DOUT O Digital signal (for coaxial out and optical out) output terminal Not used (open) 72 EMPH O Emphasis control signal output terminal Not used (open) 73 WFCK O Write frame clock signal output terminal Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – Pin No. Pin Name I/O Function 74 SCOR O Sub-code sync (S0+S1) detection signal output to the D-RAM controller (IC680) and system controller (IC701) 75 SBSO O Sub-code P-W serial data output terminal Not used (open) 76 EXCK I Sub-code P-W serial data reading clock signal input terminal Not used (fixed at “L”) 77 SUBQ O Sub-code Q data signal output to the system controller (IC701) 78 SQCK I Sub-code Q data reading clock signal input from the system controller (IC701) 79 MUTE I Mute signal input terminal Fixed at “L” in this set 80 SENS O Internal status (SENSE) signal output to the system controller (IC701) 81 XRST I Reset signal input from the system controller (IC701) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 82 DIRC I 1-track jump mode input terminal Not used (fixed at “H”) 83 SCLK I Sense serial data reading clock signal input from the system controller (IC701) 84 DFSW I Defect on/off select signal input terminal Not used (fixed at “L”) 85 ATSK I Input terminal for the anti-shock Not used (fixed at “L”) 86 DATA I Serial data input from the system controller (IC701) 87 XLAT I Serial data latch pulse signal input from the system controller (IC701) 88 CLOK I Serial data transfer clock signal input from the system controller (IC701) 89 COUT O Track number count signal output terminal Not used (open) 90 DVDD — Power supply terminal (+3.3V) (digital system) 91 MIRR O Mirror detection signal output terminal Not used (open) 92 DFCT O Defect signal output terminal Not used (open) 93 FOK O Focus OK signal output terminal Not used (open) 94 FSW O Selection signal output terminal of the output filter for spindle motor Not used (open) 95 MON O Spindle motor on/off control signal output terminal Not used (open) 96 MDP O Spindle servo control signal output to the BA3890F (IC602) 97 MDS O Spindle servo control signal output to the BA3890F (IC602) 98 LOCK O GFS is sampled by 460 Hz “H” output when GFS is “H” Not used (open) 99 SSTP I Detection input from the sled limit-in detect switch (S910) The optical pick-up is inner position when “H” 100 SFDR O Sled servo drive PWM signal (+) output to the MPC17A38ZVMEL (IC502) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – Pin No. Pin Name I/O Function 1 COM1 O 2 COM2 O 3 COM3 O 4 COM4 O 5 SEG0 O 6 SEG1 O 7 SEG2 O 8 SEG3 O Segment drive signal output to the liquid crystal display (LCD401) 9 SEG4 O 10 SEG5 O 11 SEG6 O 12 NC O Not used (open) 13 SEG7 O 14 SEG8 O 15 SEG9 O 16 SEG10 O 17 SEG11 O 18 SEG12 O 19 to 36 NC O Not used (open) 37 AGND — Ground terminal (analog system) 38 — I Not used (fixed at “H”) 39 DOOR OPEN I CD lid open/close detection switch (S401) input terminal The stop status is reset with the falling edge of input signal “H”: CD lid open, “L”: CD lid close 40 KEY IN1 I Key input terminal (A/D input) RETURN, MENU –, PREV ≠, fl, NEXT ±, MENU + keys input (S441 to 446) 41 KEY IN2 I Key input terminal (A/D input) π POWER OFF, SELECT, MEGA BASS, ESP, PLAY MODE, REPEAT/ENTER keys input (S421 to 426) 42 DC CHK I DC in voltage detection input terminal (A/D input) Also used for DC IN detection 43 NTSC/PAL I Video system select switch (S703) input terminal “L”: NTSC, “H”: AUTO 44 DCINJACK I DC IN 6V jack (J801) detection input terminal “L”: plug in 45 VIDEOJACK I AUDIO/VIDEO OUT jack (J901) detection input terminal “L”: plug in 46 VRH I Reference voltage input terminal (+3.3V) (for A/D converter) 47 AVDD — Power supply terminal (+3.3V) (analog system) 48 DBB CTL1 O MEGA BASS on/off control signal output to the BA3574BFS (IC360) “L”: MEGA BASS on (level-1 and level-2) 49 AU-MUTE O Analog line mute control signal output terminal “H”: mute on 50 XAU-RESET O Reset signal output to the CXD2545Q (IC601) and D-RAM controller (IC680) “L”: reset 51 XV-RESET O Reset signal output to the MPEG audio/video decoder (IC901) and video encoder (IC920) “L”: reset 52 HOLD O HOLD switch (S701) input terminal “L”: hold off, “H”: hold on 53 RESUME I RESUME switch (S702) input terminal “L”: resume off, “H”: resume on 54 XDSPLT O Serial data latch pulse signal output to the CXD2545Q (IC601) 55 XDACLT O Serial data latch pulse signal output to the D/A converter (IC320) 56 V-POWER O Video CD system power supply on/off control signal output terminal “L”: power on 57 AU-POWER O Audio CD system power supply on/off control signal output terminal “L”: power on Common drive signal output to the liquid crystal display (LCD401) Segment drive signal output to the liquid crystal display (LCD401) • MAIN BOARD (1/2) IC701 MSM65354-406GS-BK4 (SYSTEM CONTROLLER, LCD DRIVER, KEY CONTROL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – Pin No. Pin Name I/O Function 58 ESP-POWER O Control signal output to the ESP (Electronic Shock Protection) circuit 59 TRVCTL O Tracking gain control signal output terminal 60 TRV3 O 61 TRV2 O 62 TRV1 O 63 TRV0 O 64 XSOE O Serial data output enable signal output to the D-RAM controller (IC680) 65 DSP-SUBQ I Sub-code Q data signal input from the CXD2545Q (IC601) 66 DSP-SBQCLK O Sub-code Q data reading clock signal output to the CXD2545Q (IC601) 67 REMOTE I Sircs remote control signal input from the remote control receiver (IC401) 68 DSP-DATA O Serial data output to the CXD2545Q (IC601) and D/A converter (IC320) 69 DSP-SENS I Internal status (SENSE) signal input from the CXD2545Q (IC601) 70 DSP-CLK O Serial data transfer clock signal output to the CXD2545Q (IC601) and D/A converter (IC320) 71 DSP-SNSCLK O Sense serial data reading clock signal output to the CXD2545Q (IC601) 72 VDD — Power supply terminal (+3.3V) (digital system) 73 BEEP O Beep sound drive signal output terminal 74 C2PO O C2PO signal control output to the D-RAM controller (IC680) “L”: stop mode, “H”: searching 75 ESP-CLK O Serial data transfer clock signal output to the D-RAM controller (IC680) 76 ESP-DATA O Serial data output to the D-RAM controller (IC680) 77 ESP-LT O Serial data latch pulse signal output to the D-RAM controller (IC680) 78 ESP-SENSE I Sense serial data input from the D-RAM controller (IC680) 79 XLASERCTL O Laser diode on/off control signal output to the CXA1791N (IC501) “L”: laser on 80 DSP-SCOR I Sub-code sync (S0+S1) detection signal input from the CXD2545Q (IC601) 81 OSC1 O Main system clock output terminal (4.19 MHz) 82 OSC0 I Main system clock input terminal (4.19 MHz) 83 GND — Ground terminal (digital system) 84 XT I Sub system clock input terminal Not used (fixed at “L”) 85 XTO O Sub system clock output terminal Not used (open) 86 A-SELECT O Selection signal output to the DATA, BCLK, LRCK signal select switch (IC301) “L”: CD play, “H”: video CD play 87 XIRCTL O Power supply on/off control signal for the remote control receiver (IC401) “L”: power on 88 SYS XMT RQ O Communication request signal output to the MPEG audio/video decoder (IC901) 89 SYS RCV RDY O Ready signal output to the MPEG audio/video decoder (IC901) 90 MPG XMT RQ I Communication request signal input from the MPEG audio/video decoder (IC901) 91 ESS-DATAO O Serial data output to the MPEG audio/video decoder (IC901) 92 ESS-DATAI I Serial data input from the MPEG audio/video decoder (IC901) 93 ESS-CLK O Serial data transfer clock signal output to the MPEG audio/video decoder (IC901) 94 RESET I System reset signal input from the reset signal generator (IC702) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 95 TEST I Service mode setting terminal The stop status is reset with the falling edge of input signal “L”: service mode, Normally: “H” 96 DBB CTL2 O MEGA BASS level control signal output to the BA3574BFS (IC360) “L”: MEGA BASS level-1, “H”: MEGA BASS level-2 97 VDDL — 98 VDD1 — 99 VDD2 — 100 VDD3 — Tracking balance control signal output terminal Power supply output for the liquid crystal display bias www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – Pin No. Pin Name I/O Function 1 VCC — Power supply terminal (+3.3V) 2 DRAS B O Row address strobe signal output to the D-RAM (IC903) “L” active 3 DWE B O Write enable signal output to the D-RAM (IC903) “L” active 4 MA0 O 5 MA1 O 6 MA2 O 7 MA3 O 8 MA4 O Address signal output to the D-RAM (IC903) 9 MA5 O 10 MA6 O 11 MA7 O 12 MA8 O 13 DBUS0 I/O 14 DBUS1 I/O 15 DBUS2 I/O 16 DBUS3 I/O 17 DBUS4 I/O 18 DBUS5 I/O 19 DBUS6 I/O 20 DBUS7 I/O 21 DBUS8 I/O 22 DBUS9 I/O 23 DBUS10 I/O 24 DBUS11 I/O 25 DBUS12 I/O 26 DBUS13 I/O 27 DBUS14 I/O 28 DBUS15 I/O 29 RESET B I Reset signal input from the system controller (IC701) “L”: reset 30 VSS — Ground terminal 31 VCC — Power supply terminal (+3.3V) 32 YUV0 O 33 YUV1 O 34 YUV2 O 35 YUV3 O 36 YUV4 O 37 YUV5 O 38 YUV6 O 39 YUV7 O 40 VSSCN B O Vertical synchronous signal output to the video encoder (IC920) 41 HSSCN B O Horizontal synchronous signal output to the video encoder (IC920) 42 CLK I System clock signal input terminal Not used (open) 43 PCLK2XSCN I System clock signal (27 MHz) input from the video encoder (IC920) 44 PCKLQSCN O Pixel clock qualifier output for the screen video interface Not used (open) 45 AUX0 O Sub control signal output terminal Not used (open) Two-way data bus with the D-RAM (IC903) Video data output to the video encoder (IC920) (YUV; Y: luminance signal, UV: Screen video interface chrominance data bus) • MAIN BOARD (1/2) IC901 ES3210 (MPEG AUDIO/VIDEO DECODER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – Pin No. Pin Name I/O Function 46 AUX1 I Serial data input from the system controller (IC701) 47 AUX2 O Serial data output to the system controller (IC701) 48 AUX3 O NTSC/PAL mode selection signal output to the video encoder (IC920) “L”: NTSC, “H”: PAL 49 AUX4 I C2PO signal input from the CXD2545Q (IC601) 50 VSS — Ground terminal 51 VCC — Power supply terminal (+3.3V) 52 AUX6 O Communication request signal output to the system controller (IC701) 53 AUX5 I Ready signal input from the system controller (IC701) 54 AUX7 I Communication request signal input from the system controller (IC701) 55 LD0 I 56 LD1 I 57 LD2 I 58 LD3 I 59 LD4 I 60 LD5 I 61 LD6 I 62 LD7 I 63 LWR B O Write enable signal output terminal “L” active Not used 64 LOE B O Output enable signal output to the program ROM (IC902) “L” active 65 LCS3 B O Chip select signal output to the program ROM (IC902) “L” active 66 LCS1 B I Serial data transfer clock signal input from the system controller (IC701) “L” active 67 LCS0 B O Chip select signal output terminal “L” active Not used (open) 68 LA0 O 69 LA1 O 70 LA2 O 71 LA3 O 72 LA4 O 73 LA5 O 74 LA6 O 75 LA7 O 76 LA8 O 77 LA9 O 78 LA10 O 79 LA11 O 80 VSS — Ground terminal 81 VPP — Power supply terminal (+5V) (digital system) 82 LA12 O 83 LA13 O 84 LA14 O 85 LA15 O 86 LA16 O 87 LA17 O 88 AUDIOCLK I Audio master clock signal (16.9344 MHz) input from the D/A converter (IC320) 89 AOUT O Audio interface serial data output to the D/A converter (IC320) 90 TBCK O Bit clock signal (2.8224 MHz) output to the D/A converter (IC320) 91 ATFS O L/R sampling clock signal (44.1 kHz) output to the D/A converter (IC320) Data input from the program ROM (IC902) Address signal output to the program ROM (IC902) Address signal output to the program ROM (IC902) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – Pin No. Pin Name I/O Function 92 DOE B O Output enable signal output to the D-RAM (IC903) “L” active 93 AIN I Audio interface serial data input terminal Not used (open) 94 RBCK I Audio interface bit clock signal (2.8224 MHz) input terminal Not used (open) 95 ARFS I Audio interface L/R sampling clock signal (44.1 kHz) input terminal Not used (open) 96 TDMCLK I Bit clock signal (2.8224 MHz) input from the CXD2545Q (IC601) 97 TDMDR I Serial data input from the CXD2545Q (IC601) 98 TDMFS I L/R sampling clock signal (44.1 kHz) input from the CXD2545Q (IC601) 99 DCAS B O Column address strobe signal output to the D-RAM (IC903) “L” active 100 VSS — Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – Pin No. Pin Name I/O Function 1 MIFH I Horizontal synchronous signal input from the MPEG audio/video decoder (IC901) 2 MIFFL I Vertical synchronous signal input from the MPEG audio/video decoder (IC901) 3 MIFFR O Frame synchronous signal output terminal Not used (open) 4 VBLNKI I Video blanking signal input terminal “L”: blanking 5 VDD — Power supply terminal (+3.3V) (digital system) 6 GND — Ground terminal (digital system) 7 YCDI0 I 8 bit pixel data (LSB) input from the MPEG audio/video decoder (IC901) 8 to 13 YCDI1 to YCDI6 I 8 bit pixel data input from the MPEG audio/video decoder (IC901) 14 YCDI7 I 8 bit pixel data (MSB) input from the MPEG audio/video decoder (IC901) 15 MODE I NTSC/PAL mode selection signal input from the MPEG audio/video decoder (IC901) “L”: NTSC, “H”: PAL 16 VBLNKO O Video blanking signal output terminal 17 VDD — Power supply terminal (+3.3V) (digital system) 18 GND — Ground terminal (digital system) 19 CLPF I Low-pass filter on/off control signal input for the internal CbCr “L”: on, “H”: off Fixed at “L” in this set 20 BF O Burst flag pulse output terminal Not used (open) 21 BLK O Blanking signal output terminal Not used (open) 22 FLD O Field discrimination signal output terminal “L”: odd number field, “H”: even number field Not used (open) 23 BIAS2 — Connect a capacitor for the D/A converter bias 24 BIAS1 — Connect a capacitor for the D/A converter bias 25 VREF I Reference voltage input terminal (for D/A converter) 26 AGND — Ground terminal (analog system for D/A converter) 27 YOUT O Analog Y signal (luminance signal) output terminal Not used (open) 28 AVCC — Power supply terminal (+3.3V) (analog system for D/A converter) 29 COUT O Analog C signal (chroma signal) output terminal Not used (open) 30 AGND — Ground terminal (analog system for D/A converter) 31 CVOUT O Analog composite video signal output terminal 32 AVCC — Power supply terminal (+3.3V) (analog system for D/A converter) 33 CSYNC O Composite synchronous signal output terminal Not used (open) 34 HSYNC O Horizontal synchronous signal output terminal Not used (open) 35 VSYNC O Vertical synchronous signal output terminal Not used (open) 36 TMS3 I Mode setting terminal Normally fixed at “H” 37 VDD — Power supply terminal (+3.3V) (digital system) 38 CK27I I System clock input terminal (27 MHz) 39 XO O System clock output terminal (27 MHz) 40 GND — Ground terminal (digital system) 41 TMS2 I Mode setting terminal Normally fixed at “H” 42 CK27O O System clock signal (27 MHz) output to the MPEG audio/video decoder (IC901) 43 TMS1 I Reset signal input from the system controller (IC701) “L”: reset 44 TMS0 I Video output mode setting terminal “L”: normal output mode, “H”: color bar output mode • MAIN BOARD (1/2) IC920 TC90A07U (VIDEO ENCODER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com • Waveforms – MAIN Board (1/2) – 1 IC501 !¶ (RFO) 200 mV/DIV, 500 ns/DIV 0.7 ± 0.2 Vp-p 3.1 Vp-p 472 ns 7 IC601 %∞ (RFCK) 1 V/DIV, 50 µs/DIV 6 IC601 $¶ (BCLK) 1 V/DIV, 200 ns/DIV 2 IC501 !§ (FE) 50 mV/DIV, 5 ms/DIV 3 IC501 !¢ (TE) 200 mV/DIV, 5 ms/DIV 4 IC601 @º (VCKI) 1 V/DIV, 20 ns/DIV 5 IC601 $∞ (LRCK) 1 V/DIV, 10 µs/DIV 8 IC601 ^™ (XTAI) 1 V/DIV, 20 ns/DIV 9 IC601 ^§ (FSTI) 2 V/DIV, 50 ns/DIV 0 IC601 (§ (MDP) 2 V/DIV, 2 µs/DIV !™ IC603 !¡ 2 V/DIV, 5 µs/DIV !¡ IC603 3 2 V/DIV, 200 ns/DIV !£ IC680 !∞ (LRCK) 2 V/DIV, 10 µs/DIV !¢ IC680 !¢ (BCLK) 2 V/DIV, 200 ns/DIV !∞ IC680 9 (CLK) 1 V/DIV, 20 ns/DIV @™ IC901 $£ (PCLK2XSCN) 2 V/DIV, 1 ms/DIV @¡ IC901 (¡ (ATFS) 1 V/DIV, 10 µs/DIV !¶ IC320 !§ (XTLO) 2 V/DIV, 20 ns/DIV !• IC320 @£ (BCLK) 2 V/DIV, 200 ns/DIV !ª IC320 @¢ (LRCK) 1 V/DIV, 10 µs/DIV @º IC901 (º (TBCK) 1 V/DIV, 200 ns/DIV @£ IC701 *™ (OSC0) 1 V/DIV, 100 ns/DIV @¢ IC920 #¡ (CVOUT) 500 mV/DIV, 20 µs/DIV @∞ IC920 #ª (XO) 2 V/DIV, 20 ns/DIV @¶ IC960 1 (OUT) 500 mV/DIV, 20 µs/DIV @§ IC920 $™ (CK270) 2 V/DIV, 20 ns/DIV @• IC602 1 (OUT) 1 V/DIV, 2 µs/DIV – MAIN Board (2/2) – @ª IC820 1 (OUT) 2 V/DIV, 2 µs/DIV !§ IC320 !£ (CKO) 2 V/DIV, 20 ns/DIV Approx. 120 mVp-p Approx. 500 mVp-p 2.5 Vp-p 16.9344 MHz 3.2 Vp-p 22.7 µs 3.2 Vp-p 136 µs 2.3 Vp-p 16.9344 MHz 3.8 Vp-p 87 ns 3.7 Vp-p 7.6 µs 4.1 Vp-p 472 ns 3.3 Vp-p 22.7 µs 3.3 Vp-p 22.7 µs 4.0 Vp-p 472 ns 2.5 Vp-p 16.9344 MHz 0.84 Vp-p 59 ns 3.7 Vp-p 16.9344 MHz 3.3 Vp-p 472 ns 3.3 Vp-p 22.7 µs 3.2 Vp-p 472 ns 3.2 Vp-p 22.7 µs 5.2 Vp-p 27 MHz 2.72 Vp-p 4.19 MHz 1.0 Vp-p H 4.2 Vp-p 27 MHz 3.9 Vp-p 27 MHz 2.0 Vp-p H 3.1 Vp-p 7.5 µs 5.27 Vp-p 5.24 µs – 53 – – 54 – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 55 – #§ Q881 D 2 V/DIV, 2 µs/DIV #∞ Q881 G 2 V/DIV, 2 µs/DIV #¡ IC861 7 (OUT2) 2 V/DIV, 2 µs/DIV #™ IC861 0 (OUT2) 2 V/DIV, 2 µs/DIV #£ Q891 G 2 V/DIV, 2 µs/DIV #¢ T891 4 5 V/DIV, 2 µs/DIV #º IC861 1 (CT) 200 mV/DIV, 2 µs/DIV 680 mVp-p 4.9 µs 4.6 µs 5.5 Vp-p 5.5 Vp-p 4.5 µs 5.6 Vp-p 5.2 µs 12.8 Vp-p 5.2 µs 5.4 Vp-p 4.5 µs 5.8 Vp-p 4.5 µs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 56 – • IC Block Diagrams – MAIN Board (1/2) – IC301 TC74VHC157F IC320 TC9434AFNEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 57 – IC360 BA3574BFS-T1 IC501 CXA1791N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 58 – IC502 MPC17A38ZVMEL IC602 BA3890F IC680 RS5C357 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 59 – IC601 CXD2545Q www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 60 – IC920 TC90A07U – MAIN Board (2/2) – IC820 TL5001CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 61 – IC861 TL1453CPW-E20 IC862 TC4053BFS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 62 – SECTION 7 EXPLODED VIEWS The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. (1) CABINET SECTION-1 4 5 3 2 1 6 6 not supplied not supplied 8 7 1 4-996-341-01 BUTTON, CONTROL 2 X-4949-052-1 CABINET (UPPER) ASSY 3 4-982-475-01 WINDOW, RAY CATCHER 4 A-3320-060-A LID BLOCK ASSY, UPPER 5 4-996-352-01 SHAFT 6 3-336-395-01 SCREW (B2X10), TAPPING 7 4-996-347-01 SPRING (LOCK) 8 4-996-344-02 SPRING (OPEN) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Ver 1.2 1998. 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 63 – 60 61 62 62 63 64 64 KSM-331CAN(S) LCD401 64 65 66 69 67 68 52 52 53 54 55 56 57 58 59 51 51 X-4949-051-1 CABINET (LOWER) ASSY 52 4-962-025-21 FOOT, RUBBER 53 4-996-333-01 LID, BATTERY CASE 54 4-996-334-01 BUTTON, FRONT 55 4-996-339-01 TERMINAL (RELAY), BATTERY 56 1-475-520-11 LIGHT UNIT, BACK 57 1-694-374-11 CONDUCTIVE BOARD, CONNECTION 58 4-996-338-01 HOLDER, LCD 59 4-996-337-01 BASE, BUTTON 60 A-3321-005-A LCD BOARD, COMPLETE 61 1-776-149-11 FLEXIBLE FLAT CABLE 62 4-982-491-01 SCREW (2X8), TAPPING 63 4-956-818-01 RETAINER, FLEXIBLE 64 4-975-811-01 INSULATOR 65 4-996-335-01 TERMINAL (+), BATTERY 66 4-996-336-01 TERMINAL (–), BATTERY 67 A-3293-778-A MAIN BOARD, COMPLETE 68 4-975-765-01 KNOB (DBB/ESP) * 69 1-669-608-11 SUB BOARD LCD401 1-801-975-11 DISPLAY PANEL, LIQUID CRYSTAL (2) CABINET SECTION-2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 64 – The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. (3) OPTICAL PICK-UP SECTION (KSM-331CAN (S)) 101 102 103 104 107 108 109 106 105 M902 S910 M901 #4 #3 #1 #1 #2 101 X-2625-483-1 SCREW ASSY, SLED !102 8-848-295-51 OPTICAL PICK-UP KSS-331C 103 1-948-418-21 HARNESS 104 2-625-412-02 SPRING, SLED 105 2-625-415-05 CHASSIS, MD 106 2-625-411-01 RETAINER, SHAFT 107 3-732-988-01 SCREW (M2X2.5) 108 2-625-410-01 GEAR (B) 109 2-625-414-02 RACK M901 X-2625-485-1 MOTOR ASSY (MS), T.T. (SPINDLE) M902 X-2625-171-2 MOTOR ASSY, SLED S910 1-570-771-11 SWITCH (LIMIT) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 65 – SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. A-3321-005-A LCD BOARD, COMPLETE ******************** 1-776-149-11 FLEXIBLE CABLE, FLAT (FCR-1) 4-996-337-01 BASE, BUTTON 4-996-338-01 HOLDER, LCD < CAPACITOR > C401 1-115-156-11 CERAMIC CHIP 1uF 10V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C403 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C404 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V < CONNECTOR > CN401 1-573-370-21 CONNECTOR, FFC/FPC 30P < IC > IC401 8-749-014-29 IC RS-350 < RESISTOR > R401 1-216-813-11 METAL CHIP 220 5% 1/16W R402 1-216-158-00 RES, CHIP 22 (3216) R403 1-216-813-11 METAL CHIP 220 5% 1/16W R421 1-218-692-11 METAL CHIP 1K 0.5% 1/16W R422 1-218-696-11 METAL CHIP 1.5K 0.5% 1/16W R423 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R424 1-218-704-11 METAL CHIP 3.3K 0.5% 1/16W R425 1-218-708-11 METAL CHIP 4.7K 0.5% 1/16W R441 1-218-692-11 METAL CHIP 1K 0.5% 1/16W R442 1-218-696-11 METAL CHIP 1.5K 0.5% 1/16W R443 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R444 1-218-704-11 METAL CHIP 3.3K 0.5% 1/16W R445 1-218-708-11 METAL CHIP 4.7K 0.5% 1/16W < SWITCH > S401 1-771-273-21 SWITCH, PUSH (OPEN) S421 1-762-366-21 SWITCH, TACTILE (π POWER OFF) S422 1-762-366-21 SWITCH, TACTILE (® SELECT) S423 1-762-366-21 SWITCH, TACTILE (MEGA BASS) S424 1-762-366-21 SWITCH, TACTILE (ESP) S425 1-762-366-21 SWITCH, TACTILE (PLAY MODE) S426 1-762-366-21 SWITCH, TACTILE (REPEAT/ENTER) S441 1-762-366-21 SWITCH, TACTILE (ˆ RETURN) S442 1-762-366-21 SWITCH, TACTILE (– MENU) S443 1-762-366-21 SWITCH, TACTILE (≠ PREV) S444 1-762-366-21 SWITCH, TACTILE (fl) S445 1-762-366-21 SWITCH, TACTILE (± NEXT) S446 1-762-366-21 SWITCH, TACTILE (+ MENU) ************************************************************ A-3293-778-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C101 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C102 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C103 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C104 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C105 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C107 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C202 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C203 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C204 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C205 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C206 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C207 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V C322 1-126-209-11 ELECT CHIP 100uF 20% 4V C323 1-164-156-11 CERAMIC CHIP 0.1uF 25V C324 1-126-246-11 ELECT CHIP 220uF 20% 4V C325 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C326 1-164-156-11 CERAMIC CHIP 0.1uF 25V C327 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C328 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C329 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C330 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C332 1-164-156-11 CERAMIC CHIP 0.1uF 25V C360 1-104-915-11 TANTAL. CHIP 2.2uF 20% 20V C361 1-115-156-11 CERAMIC CHIP 1uF 10V C362 1-126-602-11 ELECT CHIP 3.3uF 20% 50V C363 1-115-156-11 CERAMIC CHIP 1uF 10V LCD MAIN When indicating parts by reference number, please include the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 66 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C364 1-164-346-11 CERAMIC CHIP 1uF 16V C366 1-164-156-11 CERAMIC CHIP 0.1uF 25V C367 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C368 1-124-779-00 ELECT CHIP 10uF 20% 16V C369 1-165-112-11 CERAMIC CHIP 0.33uF 16V C370 1-126-395-11 ELECT 22uF 20% 16V C371 1-115-156-11 CERAMIC CHIP 1uF 10V C372 1-164-156-11 CERAMIC CHIP 0.1uF 25V C373 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C374 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C500 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C503 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C504 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C507 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C508 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C510 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C511 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C512 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C513 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C515 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C517 1-164-156-11 CERAMIC CHIP 0.1uF 25V C518 1-104-915-11 TANTAL. CHIP 2.2uF 20% 20V C523 1-126-246-11 ELECT CHIP 220uF 20% 4V C524 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V C602 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C603 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C604 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C605 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C606 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C607 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C608 1-164-156-11 CERAMIC CHIP 0.1uF 25V C609 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C610 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C611 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C613 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C614 1-164-156-11 CERAMIC CHIP 0.1uF 25V C615 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C616 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C617 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C618 1-164-156-11 CERAMIC CHIP 0.1uF 25V C619 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C680 1-164-156-11 CERAMIC CHIP 0.1uF 25V C682 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C684 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C701 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C702 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C703 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C707 1-115-156-11 CERAMIC CHIP 1uF 10V C708 1-164-156-11 CERAMIC CHIP 0.1uF 25V C711 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C801 1-164-156-11 CERAMIC CHIP 0.1uF 25V C802 1-126-193-11 ELECT 1uF 20% 50V C803 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C820 1-164-156-11 CERAMIC CHIP 0.1uF 25V C821 1-115-156-11 CERAMIC CHIP 1uF 10V C822 1-124-779-00 ELECT CHIP 10uF 20% 16V C823 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C826 1-119-764-21 ELECT 47uF 4V C827 1-164-156-11 CERAMIC CHIP 0.1uF 25V C828 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C860 1-128-416-11 ELECT CHIP 100uF 20% 16V C861 1-164-156-11 CERAMIC CHIP 0.1uF 25V C862 1-164-505-11 CERAMIC CHIP 2.2uF 16V C863 1-164-156-11 CERAMIC CHIP 0.1uF 25V C864 1-164-505-11 CERAMIC CHIP 2.2uF 16V C865 1-104-915-11 TANTAL. CHIP 2.2uF 20% 20V C867 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C869 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C870 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C872 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C873 1-164-156-11 CERAMIC CHIP 0.1uF 25V C881 1-119-764-21 ELECT 47uF 4V C882 1-164-156-11 CERAMIC CHIP 0.1uF 25V C883 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C884 1-165-112-11 CERAMIC CHIP 0.33uF 16V C890 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C891 1-128-416-11 ELECT CHIP 100uF 20% 16V C892 1-119-765-21 ELECT 47uF 6.3V C895 1-165-112-11 CERAMIC CHIP 0.33uF 16V C901 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C902 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C903 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C904 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C905 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C906 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C907 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C908 1-119-944-21 ELECT 470uF 4V C915 1-164-156-11 CERAMIC CHIP 0.1uF 25V C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C921 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-164-156-11 CERAMIC CHIP 0.1uF 25V C923 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C924 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C925 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C926 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C927 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C928 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C929 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C930 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C931 1-164-156-11 CERAMIC CHIP 0.1uF 25V C932 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C933 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C935 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C936 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C937 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 67 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C960 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C961 1-115-156-11 CERAMIC CHIP 1uF 10V C962 1-104-914-11 TANTAL. CHIP 22uF 20% 16V C963 1-119-944-21 ELECT 470uF 4V C966 1-162-919-11 CERAMIC CHIP 22PF 5% 50V < CONNECTOR > CN501 1-566-534-11 CONNECTOR, FPC (ZIF) 18P * CN502 1-695-320-31 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN503 1-695-320-21 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN504 1-695-320-51 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN701 1-573-939-11 CONNECTOR, FFC/FPC (ZIF) 30P < DIODE > D101 8-719-039-99 DIODE UMZ8.2T D105 8-719-039-99 DIODE UMZ8.2T D201 8-719-039-99 DIODE UMZ8.2T D205 8-719-039-99 DIODE UMZ8.2T D206 8-719-039-99 DIODE UMZ8.2T D302 8-719-039-99 DIODE UMZ8.2T D340 8-719-988-78 DIODE SB007W03Q D501 8-719-988-78 DIODE SB007W03Q D502 8-719-039-99 DIODE UMZ8.2T D504 8-719-404-49 DIODE MA111 D601 8-719-024-81 DIODE 1SS300-TE85L D602 8-719-049-09 DIODE 1SS367-T3SONY D805 8-719-048-98 DIODE RB160L-40TE25 D808 8-719-048-98 DIODE RB160L-40TE25 D820 8-719-048-98 DIODE RB160L-40TE25 D880 8-719-048-98 DIODE RB160L-40TE25 D890 8-719-048-98 DIODE RB160L-40TE25 D891 8-719-049-09 DIODE 1SS367-T3SONY D901 8-719-056-66 DIODE 1SS378-TE85L D961 8-719-039-99 DIODE UMZ8.2T < FERRITE BEAD > FB101 1-500-444-11 INDUCTOR 0uH FB102 1-500-444-11 INDUCTOR 0uH FB201 1-500-444-11 INDUCTOR 0uH FB202 1-500-444-11 INDUCTOR 0uH FB306 1-500-444-11 INDUCTOR 0uH FB605 1-414-656-11 INDUCTOR 0uH FB680 1-414-656-11 INDUCTOR 0uH FB681 1-414-656-11 INDUCTOR 0uH FB701 1-500-444-11 INDUCTOR 0uH FB702 1-500-444-11 INDUCTOR 0uH FB703 1-414-656-11 INDUCTOR 0uH FB960 1-414-656-11 INDUCTOR 0uH FB962 1-414-656-11 INDUCTOR 0uH < IC > IC301 8-759-186-51 IC TC74VHC157F IC320 8-759-459-18 IC TC9434AFNEL IC360 8-759-386-50 IC BA3574BFS-T1 IC501 8-752-069-29 IC CXA1791N IC502 8-759-442-80 IC MPC17A38ZVMEL IC601 8-752-369-78 IC CXD2545Q IC602 8-759-179-64 IC BA3890F IC603 8-759-396-26 IC SN74LV08PW-E20 IC680 8-759-493-51 IC RS5C357 IC681 8-759-498-44 IC MSM51V4400D-70TSK IC701 8-759-493-54 IC MSM65354-406GS-BK4 IC702 8-759-442-79 IC RH5VL27AA-T1 IC801 8-759-085-76 IC S-81332HG-KC-T1 IC820 8-759-521-35 IC TL5001CD IC861 8-759-360-66 IC TL1453CPW-E20 IC862 8-759-066-61 IC TC4053BFS IC901 8-759-493-57 IC ES3210 IC902 8-759-493-50 IC MX27C1000TC-90 IC903 8-759-498-43 IC MSM54V16258ASL-45TSK IC920 8-759-493-55 IC TC90A07U IC921 8-759-085-76 IC S-81332HG-KC-T1 IC960 8-759-433-44 IC MM1031XML < JACK > J301 1-565-287-11 JACK (2 PHONES) J801 1-778-153-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 6V) J901 1-778-040-11 JACK, SMALL TYPE (AUDIO/VIDEO OUT) < COIL > L301 1-412-002-31 INDUCTOR CHIP 4.7uH L320 1-412-002-31 INDUCTOR CHIP 4.7uH L321 1-412-002-31 INDUCTOR CHIP 4.7uH L322 1-412-002-31 INDUCTOR CHIP 4.7uH L323 1-412-979-21 INDUCTOR 1uH L501 1-414-398-11 INDUCTOR 10uH L502 1-414-398-11 INDUCTOR 10uH L503 1-414-854-11 INDUCTOR 1mH L504 1-414-404-11 INDUCTOR 100uH L505 1-414-404-11 INDUCTOR 100uH L601 1-410-997-31 INDUCTOR CHIP 2.2uH L602 1-410-997-31 INDUCTOR CHIP 2.2uH L801 1-414-392-21 INDUCTOR 1uH L820 1-414-526-21 INDUCTOR 47uH L880 1-414-526-21 INDUCTOR 47uH L901 1-414-392-21 INDUCTOR 1uH L902 1-410-997-31 INDUCTOR CHIP 2.2uH L921 1-412-979-21 INDUCTOR 1uH L923 1-414-398-11 INDUCTOR 10uH L924 1-410-997-31 INDUCTOR CHIP 2.2uH L925 1-410-997-31 INDUCTOR CHIP 2.2uH L960 1-410-993-11 INDUCTOR CHIP 1uH L961 1-412-002-31 INDUCTOR CHIP 4.7uH < TRANSISTOR > Q101 8-729-231-74 TRANSISTOR 2SC4116-GL Q201 8-729-231-74 TRANSISTOR 2SC4116-GL Q340 8-729-907-39 TRANSISTOR IMD2 Q341 8-729-231-74 TRANSISTOR 2SC4116-GL Q342 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q501 8-729-904-86 TRANSISTOR 2SB1197K-Q Q502 8-729-921-05 TRANSISTOR FMC3-T148 Q503 8-729-930-32 TRANSISTOR UMH11 Q504 8-729-930-32 TRANSISTOR UMH11 Q505 8-729-029-14 TRANSISTOR DTC144EUA-T106 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 68 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q506 8-729-231-74 TRANSISTOR 2SC4116-GL Q507 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q508 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q509 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q601 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q701 8-729-928-70 TRANSISTOR DTA143TE-TL Q702 8-729-202-38 TRANSISTOR 2SC3326N Q703 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q801 8-729-904-86 TRANSISTOR 2SB1197K-Q Q802 8-729-903-10 TRANSISTOR FMW1 Q803 8-729-930-32 TRANSISTOR UMH11 Q810 8-729-930-32 TRANSISTOR UMH11 Q820 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q822 8-729-043-79 TRANSISTOR 2SJ517TL Q861 8-729-921-05 TRANSISTOR FMC3-T148 Q881 8-729-043-79 TRANSISTOR 2SJ517TL Q882 8-729-043-79 TRANSISTOR 2SJ517TL Q891 8-729-024-44 TRANSISTOR 2SK2315TYTR < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/16W R102 1-216-845-11 METAL CHIP 100K 5% 1/16W R103 1-216-834-11 METAL CHIP 12K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R107 1-216-789-11 METAL CHIP 2.2 5% 1/16W R108 1-216-813-11 METAL CHIP 220 5% 1/16W R201 1-216-821-11 METAL CHIP 1K 5% 1/16W R202 1-216-845-11 METAL CHIP 100K 5% 1/16W R203 1-216-834-11 METAL CHIP 12K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R207 1-216-789-11 METAL CHIP 2.2 5% 1/16W R208 1-216-813-11 METAL CHIP 220 5% 1/16W R301 1-216-809-11 METAL CHIP 100 5% 1/16W R302 1-216-809-11 METAL CHIP 100 5% 1/16W R303 1-216-809-11 METAL CHIP 100 5% 1/16W R311 1-216-845-11 METAL CHIP 100K 5% 1/16W R313 1-216-864-11 METAL CHIP 0 5% 1/16W R314 1-216-857-11 METAL CHIP 1M 5% 1/16W R315 1-216-837-11 METAL CHIP 22K 5% 1/16W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R320 1-216-803-11 METAL CHIP 33 5% 1/16W R323 1-216-857-11 METAL CHIP 1M 5% 1/16W R324 1-216-809-11 METAL CHIP 100 5% 1/16W R325 1-216-809-11 METAL CHIP 100 5% 1/16W R326 1-216-809-11 METAL CHIP 100 5% 1/16W R501 1-218-667-11 METAL CHIP 91 0.5% 1/16W R502 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R503 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R504 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R505 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R506 1-218-739-11 METAL CHIP 91K 0.5% 1/16W R507 1-218-739-11 METAL CHIP 91K 0.5% 1/16W R508 1-216-308-00 METAL CHIP 4.7 5% 1/10W R509 1-216-845-11 METAL CHIP 100K 5% 1/16W R510 1-216-821-11 METAL CHIP 1K 5% 1/16W R511 1-216-837-11 METAL CHIP 22K 5% 1/16W R512 1-216-843-11 METAL CHIP 68K 5% 1/16W R513 1-216-833-11 METAL CHIP 10K 5% 1/16W R514 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R515 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R516 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R517 1-216-835-11 METAL CHIP 15K 5% 1/16W R519 1-216-833-11 METAL CHIP 10K 5% 1/16W R520 1-216-841-11 METAL CHIP 47K 5% 1/16W R521 1-216-839-11 METAL CHIP 33K 5% 1/16W R522 1-216-843-11 METAL CHIP 68K 5% 1/16W R523 1-218-743-11 METAL CHIP 130K 0.5% 1/16W R524 1-216-850-11 METAL CHIP 270K 5% 1/16W R525 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R526 1-216-835-11 METAL CHIP 15K 5% 1/16W R527 1-216-845-11 METAL CHIP 100K 5% 1/16W R528 1-216-857-11 METAL CHIP 1M 5% 1/16W R530 1-216-821-11 METAL CHIP 1K 5% 1/16W R531 1-216-845-11 METAL CHIP 100K 5% 1/16W R532 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R533 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R534 1-216-809-11 METAL CHIP 100 5% 1/16W R536 1-216-295-11 SHORT 0 R541 1-216-841-11 METAL CHIP 47K 5% 1/16W R542 1-216-821-11 METAL CHIP 1K 5% 1/16W R543 1-216-821-11 METAL CHIP 1K 5% 1/16W R601 1-216-845-11 METAL CHIP 100K 5% 1/16W R602 1-216-839-11 METAL CHIP 33K 5% 1/16W R603 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R604 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R605 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R606 1-216-857-11 METAL CHIP 1M 5% 1/16W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R608 1-216-864-11 METAL CHIP 0 5% 1/16W R609 1-216-813-11 METAL CHIP 220 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-216-841-11 METAL CHIP 47K 5% 1/16W R612 1-218-740-11 METAL CHIP 100K 0.5% 1/16W R613 1-216-864-11 METAL CHIP 0 5% 1/16W R614 1-218-716-11 METAL CHIP 10K 0.5% 1/16W R615 1-216-864-11 METAL CHIP 0 5% 1/16W R618 1-216-809-11 METAL CHIP 100 5% 1/16W R619 1-216-833-11 METAL CHIP 10K 5% 1/16W R620 1-216-833-11 METAL CHIP 10K 5% 1/16W R621 1-216-809-11 METAL CHIP 100 5% 1/16W R622 1-216-809-11 METAL CHIP 100 5% 1/16W R623 1-216-809-11 METAL CHIP 100 5% 1/16W R681 1-216-833-11 METAL CHIP 10K 5% 1/16W R682 1-216-864-11 METAL CHIP 0 5% 1/16W R683 1-216-864-11 METAL CHIP 0 5% 1/16W R684 1-216-809-11 METAL CHIP 100 5% 1/16W R700 1-216-853-11 METAL CHIP 470K 5% 1/16W R701 1-216-845-11 METAL CHIP 100K 5% 1/16W R702 1-216-845-11 METAL CHIP 100K 5% 1/16W R703 1-216-864-11 METAL CHIP 0 5% 1/16W R704 1-216-853-11 METAL CHIP 470K 5% 1/16W R705 1-216-833-11 METAL CHIP 10K 5% 1/16W R706 1-216-833-11 METAL CHIP 10K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 69 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R707 1-216-857-11 METAL CHIP 1M 5% 1/16W R708 1-216-853-11 METAL CHIP 470K 5% 1/16W R709 1-216-845-11 METAL CHIP 100K 5% 1/16W R710 1-216-853-11 METAL CHIP 470K 5% 1/16W R711 1-216-853-11 METAL CHIP 470K 5% 1/16W R712 1-216-853-11 METAL CHIP 470K 5% 1/16W R713 1-216-853-11 METAL CHIP 470K 5% 1/16W R714 1-216-813-11 METAL CHIP 220 5% 1/16W R715 1-216-845-11 METAL CHIP 100K 5% 1/16W R716 1-216-851-11 METAL CHIP 330K 5% 1/16W R801 1-218-742-11 METAL CHIP 120K 0.5% 1/16W R802 1-218-740-11 METAL CHIP 100K 0.5% 1/16W R803 1-218-752-11 METAL CHIP 330K 0.5% 1/16W R804 1-216-295-11 SHORT 0 R810 1-216-833-11 METAL CHIP 10K 5% 1/16W R811 1-216-847-11 METAL CHIP 150K 5% 1/16W R812 1-216-821-11 METAL CHIP 1K 5% 1/16W R813 1-216-817-11 METAL CHIP 470 5% 1/16W R814 1-216-295-11 SHORT 0 R820 1-218-731-11 METAL CHIP 43K 0.5% 1/16W R821 1-218-733-11 METAL CHIP 51K 0.5% 1/16W R822 1-216-833-11 METAL CHIP 10K 5% 1/16W R824 1-216-801-11 METAL CHIP 22 5% 1/16W R826 1-216-857-11 METAL CHIP 1M 5% 1/16W R827 1-218-722-11 METAL CHIP 18K 0.5% 1/16W R828 1-218-724-11 METAL CHIP 22K 0.5% 1/16W R860 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R861 1-218-732-11 METAL CHIP 47K 0.5% 1/16W R862 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R863 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R864 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R865 1-218-732-11 METAL CHIP 47K 0.5% 1/16W R866 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R867 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R869 1-216-833-11 METAL CHIP 10K 5% 1/16W R870 1-218-723-11 METAL CHIP 20K 0.5% 1/16W R871 1-216-833-11 METAL CHIP 10K 5% 1/16W R872 1-216-833-11 METAL CHIP 10K 5% 1/16W R873 1-218-692-11 METAL CHIP 1K 0.5% 1/16W R874 1-218-692-11 METAL CHIP 1K 0.5% 1/16W R880 1-216-801-11 METAL CHIP 22 5% 1/16W R881 1-216-857-11 METAL CHIP 1M 5% 1/16W R883 1-218-727-11 METAL CHIP 30K 0.5% 1/16W R884 1-218-722-11 METAL CHIP 18K 0.5% 1/16W R885 1-216-857-11 METAL CHIP 1M 5% 1/16W R886 1-216-864-11 METAL CHIP 0 5% 1/16W R887 1-216-295-11 SHORT 0 R888 1-216-295-11 SHORT 0 R892 1-216-857-11 METAL CHIP 1M 5% 1/16W R893 1-216-295-11 SHORT 0 R896 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R897 1-218-714-11 METAL CHIP 8.2K 0.5% 1/16W R898 1-216-295-11 SHORT 0 R901 1-216-833-11 METAL CHIP 10K 5% 1/16W R904 1-216-845-11 METAL CHIP 100K 5% 1/16W R910 1-216-809-11 METAL CHIP 100 5% 1/16W R911 1-216-809-11 METAL CHIP 100 5% 1/16W R912 1-216-809-11 METAL CHIP 100 5% 1/16W R913 1-216-809-11 METAL CHIP 100 5% 1/16W R914 1-216-809-11 METAL CHIP 100 5% 1/16W R915 1-216-809-11 METAL CHIP 100 5% 1/16W R920 1-216-845-11 METAL CHIP 100K 5% 1/16W R921 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R922 1-218-724-11 METAL CHIP 22K 0.5% 1/16W R923 1-216-845-11 METAL CHIP 100K 5% 1/16W R924 1-216-857-11 METAL CHIP 1M 5% 1/16W R925 1-216-845-11 METAL CHIP 100K 5% 1/16W R926 1-216-845-11 METAL CHIP 100K 5% 1/16W R927 1-216-845-11 METAL CHIP 100K 5% 1/16W R929 1-216-809-11 METAL CHIP 100 5% 1/16W R930 1-216-809-11 METAL CHIP 100 5% 1/16W R932 1-216-833-11 METAL CHIP 10K 5% 1/16W R960 1-216-809-11 METAL CHIP 100 5% 1/16W R961 1-218-285-11 METAL CHIP 75 5% 1/10W R962 1-216-833-11 METAL CHIP 10K 5% 1/16W R963 1-216-821-11 METAL CHIP 1K 5% 1/16W < COMPOSITION CIRCUIT BLOCK > RB901 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB902 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB903 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB904 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB905 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB906 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB907 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB908 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB909 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB910 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB911 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB913 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB914 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB915 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB916 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB917 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 < VARIABLE RESISTOR > RV301 1-225-570-21 RES, VAR 10Kx10K (∑ VOLUME) < SWITCH > S701 1-572-922-11 SWITCH, SLIDE (HOLD c) S702 1-572-922-11 SWITCH, SLIDE (RESUME) S703 1-692-605-31 SWITCH, SLIDE (VIDEO SYSTEM PAL/AUTO/NTSC) < TRANSFORMER > T891 1-431-652-21 TRANSFORMER, DC-DC CONVERTER < VIBRATOR > X320 1-767-366-21 VIBRATOR, CERAMIC (16.9344MHz) X701 1-579-063-21 VIBRATOR, CERAMIC (4.19MHz) X920 1-767-519-11 VIBRATOR, CRYSTAL (27MHz) ************************************************************ MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 70 – D-V8000 Ref. No. Part No. Description Remark * 1-669-608-11 SUB BOARD ********** < IC > IC1 8-759-530-69 IC XC61A4502 < TRANSISTOR > Q1 8-729-907-00 TRANSISTOR DTC114EUA-T106 < RESISTOR > R1 1-216-809-11 METAL CHIP 100 5% 1/16W R3 1-216-809-11 METAL CHIP 100 5% 1/16W MISCELLANEOUS *************** 56 1-475-520-11 LIGHT UNIT, BACK 57 1-694-374-11 CONDUCTIVE BOARD, CONNECTION 61 1-776-149-11 FLEXIBLE FLAT CABLE !102 8-848-295-51 OPTICAL PICK-UP KSS-331C 103 1-948-418-21 HARNESS LCD401 1-801-975-11 DISPLAY PANEL, LIQUID CRYSTAL M901 X-2625-485-1 MOTOR ASSY (MS), T.T. (SPINDLE) M902 X-2625-171-2 MOTOR ASSY, SLED S910 1-570-771-11 SWITCH (LIMIT) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-105-19 SCREW (2X8), TAPPING (B) #2 7-627-852-17 +P 1.7X4 #3 7-627-852-18 SCREW, PRECISION +P 1.7X4 TYPE3 #4 7-685-104-19 SCREW (2X6), TAPPING (B) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** ! 1-467-570-31 ADAPTOR, AC (AC-E60HG) (E) ! 1-475-609-11 ADAPTOR, AC (AC-E67) (Chinese) 1-783-028-11 CORD (WITH PLUG) (AV MONITOR CORD) 3-861-942-11 MANUAL, INSTRUCTION (ENGLISH,CHINESE) 3-861-942-21 MANUAL, INSTRUCTION (JAPANESE, KOREAN) (Tourist) 4-991-047-01 LID, BATTERY CASE (for RM-DV8000) 8-917-618-90 REMOTE COMMADER RM-DV8000 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Sony Corporation Personal A&V Products Company 98F05035-2 Printed in Japan © 1997. 11 Published by Quality Engineering Dept. (Shibaura) 9-923-278-11 SUB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL SUPPLEMENT-1 File this supplement with the service manual. E Model Chinese Model Tourist Model Subject: Board Modification (ENG-98002) BOARD MODIFICATION Two types of the printed circuit board and the SUB board disappeared exist because the board type has been changed in the production. This manual contains the printed wiring boards, the schematic diagram, and the electrical parts list of only the new board type and the block diagram of compare only different portion. For other information, refer to the D-V8000 service manual (9-923-278-11) previously issued. TABLE OF CONTENTS 1. DIAGRAMS 1-1. Printed Wiring Board – MAIN Board (TYPE A) – ........ 3 1-2. Printed Wiring Board – MAIN Board (TYPE B) – ........ 6 1-3. Schematic Diagram – MAIN Board (1/2) – .................... 9 1-4. Schematic Diagram – MAIN Board (2/2) – .................... 14 1-5. Schematic Diagram – LCD Board –................................ 17 1-6. Printed Wiring Board – LCD Board – ............................ 19 1-7. Block Diagram................................................................. 21 2. ELECTRICAL PARTS LIST ................................ 22 1998. 03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – [MAIN BOARD] — Side A — [LCD BOARD] — Side A — CN501 CN701 Former Type : 1-668-145-11 New Type : 1-668-145-12 (TYPE A) : 1-668-145-21 (TYPE B) Former Type : 1-668-146-11 New Type : 1-668-146-21 • New/Former Discrimination www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – – 22 – 1-7. BLOCK DIAGRAM Page Ref. No. Former Type 36 IC1 Q1 Q810 New Type SECTION 2 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Ref. No. Part No. Description Remark LCD MAIN When indicating parts by reference number, please include the board. A-3321-307-A LCD BOARD, COMPLETE ******************** 1-776-149-11 FLEXIBLE CABLE, FLAT (FCR-1) 4-996-337-02 BASE, BUTTON 4-996-338-02 HOLDER, LCD < CAPACITOR > C401 1-115-156-11 CERAMIC CHIP 1uF 10V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C403 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C404 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V < CONNECTOR > CN401 1-573-370-21 CONNECTOR, FFC/FPC 30P < FERRITE BEAD > FB401 1-414-656-11 FERRITE 0uH FB402 1-414-656-11 FERRITE 0uH < IC > IC401 8-749-014-29 IC RS-350 < RESISTOR > R401 1-216-813-11 METAL CHIP 220 5% 1/16W R402 1-216-158-00 RES, CHIP 22 (3216) R403 1-216-813-11 METAL CHIP 220 5% 1/16W R421 1-218-692-11 METAL CHIP 1K 0.5% 1/16W R422 1-218-696-11 METAL CHIP 1.5K 0.5% 1/16W R423 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R424 1-218-704-11 METAL CHIP 3.3K 0.5% 1/16W R425 1-218-708-11 METAL CHIP 4.7K 0.5% 1/16W R441 1-218-692-11 METAL CHIP 1K 0.5% 1/16W R442 1-218-696-11 METAL CHIP 1.5K 0.5% 1/16W R443 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R444 1-218-704-11 METAL CHIP 3.3K 0.5% 1/16W R445 1-218-708-11 METAL CHIP 4.7K 0.5% 1/16W < SWITCH > S401 1-771-273-11 SWITCH, PUSH (OPEN) S421 1-762-366-11 SWITCH, TACTILE (π POWER OFF) S422 1-762-366-11 SWITCH, TACTILE (® SELECT) S423 1-762-366-11 SWITCH, TACTILE (MEGA BASS) S424 1-762-366-11 SWITCH, TACTILE (ESP) S425 1-762-366-11 SWITCH, TACTILE (PLAY MODE) S426 1-762-366-11 SWITCH, TACTILE (REPEAT/ENTER) S441 1-762-366-11 SWITCH, TACTILE (ˆ RETURN) S442 1-762-366-11 SWITCH, TACTILE (– MENU) S443 1-762-366-11 SWITCH, TACTILE (≠ PREV) S444 1-762-366-11 SWITCH, TACTILE (fl) S445 1-762-366-11 SWITCH, TACTILE (± NEXT) S446 1-762-366-11 SWITCH, TACTILE (+ MENU) ************************************************************ A-3293-778-A MAIN BOARD, COMPLETE (TYPE A) A-3293-924-A MAIN BOARD, COMPLETE (TYPE B) ***************************** < CAPACITOR > C101 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C102 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C103 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C104 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C105 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (TYPE A) C105 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (TYPE B) C106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C107 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C202 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C203 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C204 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C205 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (TYPE A) C205 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (TYPE B) C206 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C207 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V (TYPE A) C301 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V (TYPE A) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C321 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C323 1-164-156-11 CERAMIC CHIP 0.1uF 25V (TYPE A) C323 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C324 1-126-246-11 ELECT CHIP 220uF 20% 4V C325 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C326 1-164-156-11 CERAMIC CHIP 0.1uF 25V (TYPE A) C326 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C327 1-162-919-11 CERAMIC CHIP 22PF 5% 50V (TYPE B) C328 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C329 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C330 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C332 1-164-156-11 CERAMIC CHIP 0.1uF 25V (TYPE A) C332 1-109-982-11 CERAMIC CHIP 1uF 10% 10V (TYPE B) C360 1-104-915-11 TANTAL. CHIP 2.2uF 20% 20V C361 1-115-156-11 CERAMIC CHIP 1uF 10V C362 1-126-602-11 ELECT CHIP 3.3uF 20% 50V C363 1-115-156-11 CERAMIC CHIP 1uF 10V C364 1-164-346-11 CERAMIC CHIP 1uF 16V (TYPE A) C364 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C366 1-164-156-11 CERAMIC CHIP 0.1uF 25V C367 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C368 1-124-779-00 ELECT CHIP 10uF 20% 16V C369 1-165-112-11 CERAMIC CHIP 0.33uF 16V C370 1-126-395-11 ELECT 22uF 20% 16V C371 1-115-156-11 CERAMIC CHIP 1uF 10V C372 1-164-156-11 CERAMIC CHIP 0.1uF 25V C373 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C374 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C500 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C503 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C504 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C507 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C508 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C510 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C511 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C512 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C513 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C515 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C517 1-164-156-11 CERAMIC CHIP 0.1uF 25V C519 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C520 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C523 1-126-246-11 ELECT CHIP 220uF 20% 4V C524 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V C602 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C603 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C604 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C605 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C606 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C607 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C608 1-164-156-11 CERAMIC CHIP 0.1uF 25V C609 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C610 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C611 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C613 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C614 1-164-156-11 CERAMIC CHIP 0.1uF 25V C615 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C616 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C617 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C618 1-164-156-11 CERAMIC CHIP 0.1uF 25V C619 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C680 1-164-156-11 CERAMIC CHIP 0.1uF 25V (TYPE A) C680 1-115-156-11 CERAMIC CHIP 1uF 10V (TYPE B) C682 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C684 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C701 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C702 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C703 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C707 1-115-156-11 CERAMIC CHIP 1uF 10V C708 1-164-156-11 CERAMIC CHIP 0.1uF 25V C711 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C801 1-164-156-11 CERAMIC CHIP 0.1uF 25V C802 1-126-193-11 ELECT 1uF 20% 50V C803 1-164-156-11 CERAMIC CHIP 0.1uF 25V C804 1-109-982-11 CERAMIC CHIP 1uF 10% 50V (TYPE B) C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C820 1-164-156-11 CERAMIC CHIP 0.1uF 25V C821 1-115-156-11 CERAMIC CHIP 1uF 10V C822 1-124-779-00 ELECT CHIP 10uF 20% 16V C823 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C826 1-119-764-21 ELECT 47uF 4V C827 1-164-156-11 CERAMIC CHIP 0.1uF 25V C828 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C860 1-128-416-11 ELECT CHIP 100uF 20% 16V C861 1-164-156-11 CERAMIC CHIP 0.1uF 25V C862 1-164-505-11 CERAMIC CHIP 2.2uF 16V C863 1-164-156-11 CERAMIC CHIP 0.1uF 25V C864 1-164-505-11 CERAMIC CHIP 2.2uF 16V C865 1-104-915-11 TANTAL. CHIP 2.2uF 20% 20V C867 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 25V C869 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C870 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C872 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C873 1-164-156-11 CERAMIC CHIP 0.1uF 25V C881 1-119-764-21 ELECT 47uF 4V C882 1-164-156-11 CERAMIC CHIP 0.1uF 25V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C883 1-162-966-11 CERAMIC CHIP 0.0022uF 5% 25V C884 1-165-112-11 CERAMIC CHIP 0.33uF 16V C890 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C891 1-128-416-11 ELECT CHIP 100uF 20% 16V C892 1-119-765-21 ELECT 47uF 6.3V C895 1-165-112-11 CERAMIC CHIP 0.33uF 16V C901 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C902 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C903 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C904 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C905 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C906 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (TYPE A) C907 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C908 1-119-944-11 ELECT 470uF 4V C915 1-164-156-11 CERAMIC CHIP 0.1uF 25V C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C921 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-164-156-11 CERAMIC CHIP 0.1uF 25V C923 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C924 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C925 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C926 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C927 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C928 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V (TYPE A) C928 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V (TYPE B) C929 1-162-914-11 CERAMIC CHIP 9PF 5% 50V (TYPE A) C929 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V (TYPE B) C930 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (TYPE A) C931 1-164-156-11 CERAMIC CHIP 0.1uF 25V C932 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C933 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C936 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C937 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C960 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C961 1-115-156-11 CERAMIC CHIP 1uF 10V C962 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C963 1-119-944-21 ELECT 470uF 4V C966 1-162-919-11 CERAMIC CHIP 22PF 5% 50V < CONNECTOR > CN501 1-566-534-11 CONNECTOR, FPC (ZIF) 18P * CN502 1-695-320-31 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN503 1-695-320-21 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN504 1-695-320-51 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN701 1-573-939-11 CONNECTOR, FFC/FPC (ZIF) 30P < DIODE > D101 8-719-039-99 DIODE UMZ8.2T D105 8-719-039-99 DIODE UMZ8.2T D201 8-719-039-99 DIODE UMZ8.2T D205 8-719-039-99 DIODE UMZ8.2T D206 8-719-039-99 DIODE UMZ8.2T D302 8-719-039-99 DIODE UMZ8.2T D340 8-719-988-78 DIODE SB007W03Q D501 8-719-988-78 DIODE SB007W03Q D502 8-719-039-99 DIODE UMZ8.2T D504 8-719-404-49 DIODE MA111 D601 8-719-024-81 DIODE 1SS300-TE85L D602 8-719-049-09 DIODE 1SS367-T3SONY D805 8-719-048-98 DIODE RB160L-40TE25 D808 8-719-048-98 DIODE RB160L-40TE25 D820 8-719-048-98 DIODE RB160L-40TE25 D880 8-719-048-98 DIODE RB160L-40TE25 D890 8-719-048-98 DIODE RB160L-40TE25 D891 8-719-049-09 DIODE 1SS367-T3SONY D961 8-719-039-99 DIODE UMZ8.2T < FERRITE BEAD > FB101 1-500-444-11 INDUCTOR 0uH FB102 1-500-444-11 INDUCTOR 0uH FB201 1-500-444-11 INDUCTOR 0uH FB202 1-500-444-11 INDUCTOR 0uH FB306 1-500-444-11 INDUCTOR 0uH FB605 1-414-656-11 INDUCTOR 0uH FB680 1-414-656-11 INDUCTOR 0uH FB681 1-414-656-11 INDUCTOR 0uH FB701 1-500-444-11 INDUCTOR 0uH FB702 1-500-444-11 INDUCTOR 0uH FB703 1-414-656-11 INDUCTOR 0uH FB801 1-414-633-21 INDUCTOR CHIP 0uH FB960 1-414-656-11 INDUCTOR 0uH FB962 1-414-656-11 INDUCTOR 0uH (TYPE A) < IC > IC301 8-759-186-51 IC TC74VHC157F IC320 8-759-459-18 IC TC9434AFNEL IC360 8-759-386-50 IC BA3574BFS-T1 IC501 8-752-069-29 IC CXA1791N IC502 8-759-442-80 IC MPC17A38ZVMEL IC601 8-752-369-78 IC CXD2545Q IC602 8-759-179-64 IC BA3890F IC603 8-759-396-26 IC SN74LV08PW-E20 IC680 8-759-493-51 IC RS5C357 IC681 8-759-498-44 IC MSM51V4400D-70TSK IC701 8-759-528-77 IC MSM65354-407GS-BK4 IC702 8-759-442-79 IC RH5VL27AA-T1 IC801 8-759-085-76 IC S-81332HG-KC-T1 IC810 8-759-530-69 IC XC61AC4502PR IC820 8-759-521-35 IC TL5001CD IC861 8-759-360-66 IC TL1453CPW-E20 IC862 8-759-066-61 IC TC4053BFS IC901 8-759-493-57 IC ES3210 IC902 8-759-524-92 IC MX23C1010TC-90 IC903 8-759-498-43 IC MSM54V16258ASL-45TSK IC920 8-759-493-55 IC TC90A07U IC921 8-759-085-76 IC S-81332HG-KC-T1 IC960 8-759-433-44 IC MM1031XML MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JACK > J301 1-565-287-11 JACK (2 PHONES) J801 1-778-153-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 6V) J901 1-778-040-11 JACK, SMALL TYPE (AUDIO/VIDEO OUT) < COIL > L301 1-412-002-31 INDUCTOR CHIP 4.7uH L320 1-412-002-31 INDUCTOR CHIP 4.7uH L321 1-412-002-31 INDUCTOR CHIP 4.7uH L322 1-412-002-31 INDUCTOR CHIP 4.7uH L323 1-412-979-21 INDUCTOR 1uH L501 1-414-398-11 INDUCTOR 10uH L502 1-414-398-11 INDUCTOR 10uH L503 1-414-854-11 INDUCTOR 1mH L504 1-414-404-11 INDUCTOR 100uH L505 1-414-404-11 INDUCTOR 100uH L506 1-414-402-21 INDUCTOR 47uF (TYPE B) L507 1-414-402-21 INDUCTOR 47uF (TYPE B) L601 1-410-997-31 INDUCTOR CHIP 2.2uH L602 1-410-997-31 INDUCTOR CHIP 2.2uH L801 1-414-392-21 INDUCTOR 1uH L820 1-414-526-21 INDUCTOR 47uH L880 1-414-526-21 INDUCTOR 47uH L901 1-414-392-21 INDUCTOR 1uH L902 1-410-997-31 INDUCTOR CHIP 2.2uH L921 1-412-979-21 INDUCTOR 1uH L923 1-414-398-11 INDUCTOR 10uH L924 1-410-997-31 INDUCTOR CHIP 2.2uH L960 1-410-993-11 INDUCTOR CHIP 1uH L961 1-412-002-31 INDUCTOR CHIP 4.7uH < TRANSISTOR > Q101 8-729-231-74 TRANSISTOR 2SC4116-GL Q201 8-729-231-74 TRANSISTOR 2SC4116-GL Q340 8-729-907-39 TRANSISTOR IMD2 Q341 8-729-231-74 TRANSISTOR 2SC4116-GL Q342 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q501 8-729-904-86 TRANSISTOR 2SB1197K-Q Q502 8-729-921-05 TRANSISTOR FMC3-T148 Q503 8-729-930-32 TRANSISTOR UMH11 Q504 8-729-930-32 TRANSISTOR UMH11 Q505 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q506 8-729-231-74 TRANSISTOR 2SC4116-GL Q507 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q508 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q509 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q601 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q701 8-729-928-70 TRANSISTOR DTA143TE-TL Q702 8-729-202-38 TRANSISTOR 2SC3326N Q703 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q801 8-729-904-86 TRANSISTOR 2SB1197K-Q Q802 8-729-903-10 TRANSISTOR FMW1 Q803 8-729-930-32 TRANSISTOR UMH11 Q810 8-729-930-32 TRANSISTOR UMH11 Q820 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q822 8-729-043-79 TRANSISTOR 2SJ517TL Q861 8-729-921-05 TRANSISTOR FMC3-T148 Q881 8-729-043-79 TRANSISTOR 2SJ517TL Q882 8-729-043-79 TRANSISTOR 2SJ517TL Q891 8-729-024-44 TRANSISTOR 2SK2315TYTR < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/16W R102 1-216-845-11 METAL CHIP 100K 5% 1/16W R103 1-216-834-11 METAL CHIP 12K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R107 1-216-789-11 METAL CHIP 2.2 5% 1/16W R108 1-216-813-11 METAL CHIP 220 5% 1/16W R201 1-216-821-11 METAL CHIP 1K 5% 1/16W R202 1-216-845-11 METAL CHIP 100K 5% 1/16W R203 1-216-834-11 METAL CHIP 12K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R207 1-216-789-11 METAL CHIP 2.2 5% 1/16W R208 1-216-813-11 METAL CHIP 220 5% 1/16W R301 1-216-809-11 METAL CHIP 100 5% 1/16W R302 1-216-809-11 METAL CHIP 100 5% 1/16W R303 1-216-809-11 METAL CHIP 100 5% 1/16W R311 1-216-845-11 METAL CHIP 100K 5% 1/16W R313 1-216-864-11 METAL CHIP 0 5% 1/16W R314 1-216-857-11 METAL CHIP 1M 5% 1/16W R315 1-216-837-11 METAL CHIP 22K 5% 1/16W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R320 1-216-803-11 METAL CHIP 33 5% 1/16W R323 1-216-857-11 METAL CHIP 1M 5% 1/16W R324 1-216-809-11 METAL CHIP 100 5% 1/16W R325 1-216-809-11 METAL CHIP 100 5% 1/16W R326 1-216-809-11 METAL CHIP 100 5% 1/16W R501 1-218-667-11 METAL CHIP 91 0.5% 1/16W R502 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R503 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R504 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R505 1-218-735-11 METAL CHIP 62K 0.5% 1/16W R506 1-218-739-11 METAL CHIP 91K 0.5% 1/16W R507 1-218-739-11 METAL CHIP 91K 0.5% 1/16W R508 1-216-308-00 METAL CHIP 4.7 5% 1/10W R509 1-216-845-11 METAL CHIP 100K 5% 1/16W R510 1-216-821-11 METAL CHIP 1K 5% 1/16W R511 1-216-837-11 METAL CHIP 22K 5% 1/16W R512 1-216-843-11 METAL CHIP 68K 5% 1/16W R513 1-216-833-11 METAL CHIP 10K 5% 1/16W R514 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R515 1-218-700-11 METAL CHIP 2.2K 0.5% 1/16W R516 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R517 1-216-835-11 METAL CHIP 15K 5% 1/16W R519 1-216-833-11 METAL CHIP 10K 5% 1/16W R520 1-216-841-11 METAL CHIP 47K 5% 1/16W R521 1-216-839-11 METAL CHIP 33K 5% 1/16W R522 1-216-843-11 METAL CHIP 68K 5% 1/16W R523 1-218-743-11 METAL CHIP 130K 0.5% 1/16W R524 1-216-850-11 METAL CHIP 270K 5% 1/16W R525 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R526 1-216-835-11 METAL CHIP 15K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R527 1-216-845-11 METAL CHIP 100K 5% 1/16W R528 1-216-857-11 METAL CHIP 1M 5% 1/16W R530 1-216-821-11 METAL CHIP 1K 5% 1/16W R531 1-216-845-11 METAL CHIP 100K 5% 1/16W R532 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R533 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R534 1-216-809-11 METAL CHIP 100 5% 1/16W R536 1-216-295-11 SHORT 0 (TYPE A) R541 1-216-841-11 METAL CHIP 47K 5% 1/16W R542 1-216-821-11 METAL CHIP 1K 5% 1/16W R543 1-216-821-11 METAL CHIP 1K 5% 1/16W R601 1-216-845-11 METAL CHIP 100K 5% 1/16W R602 1-216-839-11 METAL CHIP 33K 5% 1/16W R603 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R604 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R605 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R606 1-216-857-11 METAL CHIP 1M 5% 1/16W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R608 1-216-864-11 METAL CHIP 0 5% 1/16W R609 1-216-813-11 METAL CHIP 220 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-216-841-11 METAL CHIP 47K 5% 1/16W R612 1-218-740-11 METAL CHIP 100K 0.5% 1/16W R613 1-216-864-11 METAL CHIP 0 5% 1/16W R614 1-218-716-11 METAL CHIP 10K 0.5% 1/16W R615 1-216-864-11 METAL CHIP 0 5% 1/16W R618 1-216-809-11 METAL CHIP 100 5% 1/16W R619 1-216-833-11 METAL CHIP 10K 5% 1/16W R620 1-216-833-11 METAL CHIP 10K 5% 1/16W R621 1-216-809-11 METAL CHIP 100 5% 1/16W R622 1-216-809-11 METAL CHIP 100 5% 1/16W R623 1-216-809-11 METAL CHIP 100 5% 1/16W R681 1-216-833-11 METAL CHIP 10K 5% 1/16W R682 1-216-864-11 METAL CHIP 0 5% 1/16W R683 1-216-864-11 METAL CHIP 0 5% 1/16W R684 1-216-809-11 METAL CHIP 100 5% 1/16W R685 1-216-809-11 METAL CHIP 100 5% 1/16W (TYPE B) R686 1-216-809-11 METAL CHIP 100 5% 1/16W (TYPE B) R687 1-216-809-11 METAL CHIP 100 5% 1/16W (TYPE B) R700 1-216-853-11 METAL CHIP 470K 5% 1/16W R701 1-216-845-11 METAL CHIP 100K 5% 1/16W R702 1-216-845-11 METAL CHIP 100K 5% 1/16W R703 1-216-864-11 METAL CHIP 0 5% 1/16W R704 1-216-853-11 METAL CHIP 470K 5% 1/16W R705 1-216-833-11 METAL CHIP 10K 5% 1/16W R706 1-216-833-11 METAL CHIP 10K 5% 1/16W R707 1-216-857-11 METAL CHIP 1M 5% 1/16W R708 1-216-853-11 METAL CHIP 470K 5% 1/16W R709 1-216-845-11 METAL CHIP 100K 5% 1/16W R710 1-216-853-11 METAL CHIP 470K 5% 1/16W R711 1-216-853-11 METAL CHIP 470K 5% 1/16W R712 1-216-845-11 METAL CHIP 100K 5% 1/16W R713 1-216-853-11 METAL CHIP 470K 5% 1/16W R714 1-216-813-11 METAL CHIP 220 5% 1/16W R715 1-216-845-11 METAL CHIP 100K 5% 1/16W R716 1-216-851-11 METAL CHIP 330K 5% 1/16W R801 1-218-742-11 METAL CHIP 120K 0.5% 1/16W (TYPE A) R801 1-218-743-11 METAL CHIP 130K 0.5% 1/16W (TYPE B) R802 1-218-740-11 METAL CHIP 100K 0.5% 1/16W (TYPE A) R802 1-218-739-11 METAL CHIP 91K 0.5% 1/16W (TYPE B) R803 1-218-752-11 METAL CHIP 330K 0.5% 1/16W R810 1-216-833-11 METAL CHIP 10K 5% 1/16W R811 1-216-847-11 METAL CHIP 150K 5% 1/16W R812 1-216-821-11 METAL CHIP 1K 5% 1/16W R813 1-216-817-11 METAL CHIP 470 5% 1/16W R814 1-216-295-11 SHORT 0 R815 1-216-809-11 METAL CHIP 100 5% 1/16W R820 1-218-731-11 METAL CHIP 43K 0.5% 1/16W R821 1-218-733-11 METAL CHIP 51K 0.5% 1/16W R822 1-216-833-11 METAL CHIP 10K 5% 1/16W R824 1-216-801-11 METAL CHIP 22 5% 1/16W R826 1-216-857-11 METAL CHIP 1M 5% 1/16W R827 1-218-722-11 METAL CHIP 18K 0.5% 1/16W R828 1-218-724-11 METAL CHIP 22K 0.5% 1/16W R860 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R861 1-218-732-11 METAL CHIP 47K 0.5% 1/16W R862 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R863 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R864 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R865 1-218-732-11 METAL CHIP 47K 0.5% 1/16W R866 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R867 1-218-730-11 METAL CHIP 39K 0.5% 1/16W R869 1-216-833-11 METAL CHIP 10K 5% 1/16W R870 1-218-723-11 METAL CHIP 20K 0.5% 1/16W R871 1-216-833-11 METAL CHIP 10K 5% 1/16W R872 1-216-833-11 METAL CHIP 10K 5% 1/16W R873 1-218-716-11 METAL CHIP 10K 0.5% 1/16W R874 1-218-692-11 METAL CHIP 1K 0.5% 1/16W R880 1-216-801-11 METAL CHIP 22 5% 1/16W R881 1-216-857-11 METAL CHIP 1M 5% 1/16W R883 1-218-727-11 METAL CHIP 30K 0.5% 1/16W R884 1-218-722-11 METAL CHIP 18K 0.5% 1/16W R885 1-216-857-11 METAL CHIP 1M 5% 1/16W R886 1-216-809-11 METAL CHIP 100 5% 1/16W R887 1-216-295-11 SHORT 0 R888 1-216-295-11 SHORT 0 R892 1-216-857-11 METAL CHIP 1M 5% 1/16W R893 1-216-295-11 SHORT 0 R896 1-218-728-11 METAL CHIP 33K 0.5% 1/16W R897 1-218-714-11 METAL CHIP 8.2K 0.5% 1/16W R898 1-216-295-11 SHORT 0 R901 1-216-833-11 METAL CHIP 10K 5% 1/16W R904 1-216-845-11 METAL CHIP 100K 5% 1/16W R910 1-216-809-11 METAL CHIP 100 5% 1/16W R911 1-216-809-11 METAL CHIP 100 5% 1/16W R912 1-216-809-11 METAL CHIP 100 5% 1/16W R913 1-216-809-11 METAL CHIP 100 5% 1/16W R914 1-216-809-11 METAL CHIP 100 5% 1/16W R915 1-216-809-11 METAL CHIP 100 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – Ref. No. Part No. Description Remark MAIN R920 1-216-845-11 METAL CHIP 100K 5% 1/16W R921 1-218-728-11 METAL CHIP 33K 0.5% 1/16W (TYPE A) R921 1-218-732-11 METAL CHIP 47K 0.5% 1/16W (TYPE B) R922 1-218-724-11 METAL CHIP 22K 0.5% 1/16W (TYPE A) R922 1-218-728-11 METAL CHIP 33K 0.5% 1/16W (TYPE B) R923 1-216-845-11 METAL CHIP 100K 5% 1/16W R924 1-216-857-11 METAL CHIP 1M 5% 1/16W R925 1-216-845-11 METAL CHIP 100K 5% 1/16W R926 1-216-845-11 METAL CHIP 100K 5% 1/16W R927 1-216-845-11 METAL CHIP 100K 5% 1/16W R929 1-216-809-11 METAL CHIP 100 5% 1/16W R930 1-216-809-11 METAL CHIP 100 5% 1/16W R932 1-216-833-11 METAL CHIP 10K 5% 1/16W R960 1-216-809-11 METAL CHIP 100 5% 1/16W R961 1-218-285-11 METAL CHIP 75 5% 1/10W (TYPE A) R961 1-216-022-11 METAL CHIP 75 5% 1/10W (TYPE B) R962 1-216-833-11 METAL CHIP 10K 5% 1/16W R963 1-216-821-11 METAL CHIP 1K 5% 1/16W < COMPOSITION CIRCUIT BLOCK > RB901 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB902 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB903 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB904 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB905 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB906 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB907 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB908 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB909 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB910 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB911 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB913 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB914 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB915 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB916 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 RB917 1-233-955-21 RES, NETWORK (CHIP TYPE) 100X4 < VARIABLE RESISTOR > RV301 1-225-570-21 RES, VAR 10Kx10K (∑ VOLUME) < SWITCH > S701 1-572-922-11 SWITCH, SLIDE (HOLD c) S702 1-572-922-11 SWITCH, SLIDE (RESUME) S703 1-692-605-31 SWITCH, SLIDE (VIDEO SYSTEM PAL/AUTO/NTSC) < TRANSFORMER > T891 1-431-652-21 TRANSFORMER, DC-DC CONVERTER < VIBRATOR > X320 1-767-366-21 VIBRATOR, CERAMIC (16.9344MHz) X701 1-579-063-21 VIBRATOR, CERAMIC (4.19MHz) X920 1-767-519-11 VIBRATOR, CRYSTAL (27MHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – D-V8000 Sony Corporation Personal A&V Products Company 9-923-278-81 98C057025-1 Printed in Singapore © 1998. 3 Published by Quality Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL – 2 – – 3 – E Model Chinese Model Tourist Model SUPPLEMENT-2 File this supplement with the service manual. Subject: 1. Correction 2. Board Modification (ENG-98010) TABLE OF CONTENTS 1. CORRECTION ........................................................... 2 2. BOARD MODIFICATION ...................................... 3 2-1. New/Former Discrimination............................................ 3 2-2. Printed Wiring Board – MAIN Board – .......................... 4 2-3. Schematic Diagram – MAIN Board (1/2) – .................... 7 2-4. Schematic Diagram – MAIN Board (2/2) – .................... 12 2-5. Printed Wiring Board – LCD Board – ............................. 15 2-6. Schematic Diagram –LCD Board –................................. 17 2-7. Exploded Views ............................................................... 19 2-8. Electrical Parts List.......................................................... 21 1. CORRECTION ! : indicates corrected portion. Page Incorrect Correct Ref. No. Part No. Description Remark 7 4-996-347-01 SPRING (LOCK) * 8 4-996-344-02 SPRING (OPEN) Ref. No. Part No. Description Remark 62 not supplied not supplied 3 not supplied not supplied 3 not supplied 7 8 @ # • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. 2. BOARD MODIFICATION MAIN and LCD boards were been changed in the middle of production. At the same time, the optical pick-up block was changed from KSM-331CAN (S) to CDM-2401AAA. This supplement contains only new optical pick-up block, MAIN and LCD boards. 2-1. NEW/FORMER TYPE DISCRIMINATION • MAIN and LCD Boards • Optical Pick-up Block • MAIN Board Former Type: 18P (CN501) New Type : 14P (CN501) • LCD Board Former Type: 1-668-146-2 [] New Type : 1-671-850-1 [] Former Type: The sled motor (M902) is invisible. New Type: The sled motor (M902) is visible. 1998. 12 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-V8000 – 7 – – 8 – – 9 – – 10 – – 11 – 2-3. SCHEMATIC DIAGRAM – MAIN BOARD (1/2) – Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • ¢ : internal component. • C : panel designation. • A : B+ Line. • Power voltage is dc 6 V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : VIDEO CD PLAY ( ) : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. L : VIDEO J : CD Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. (Page 14) (Page 14) (Page 14) (Page 17) (Page 14) (Page 14) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-V8000 – 12 – – 13 – – 14 – 2-4. SCHEMATIC DIAGRAM – MAIN BOARD (2/2) – Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • A : B+ Line. • Power voltage is dc 6 V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : VIDEO CD PLAY ( ) : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. (Page 11) (Page 11) (Page 11) (Page 11) (Page 8) (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-V8000 – 17 – – 18 – 2-6. SCHEMATIC DIAGRAM – LCD BOARD – Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • A : B+ Line. • Power voltage is dc 6 V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : VIDEO CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. (Page 11) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – – 20 – 2-7. EXPLODED VIEWS NOTE: • Accessories and packing materials are given in the last of the electrical parts list. Page Former Type New Type Ref. No. Part No. Description Remark 51 X-4951-045-1 CABINET (LOWER) ASSY 60 A-3323-073-A LCD BOARD, COMPLETE 67 A-3323-079-A MAIN BOARD, COMPLETE Ref. No. Part No. Description Remark 62 51 X-4949-051-1 CABINET (LOWER) ASSY 60 A-3321-005-A LCD BOARD, COMPLETE 63 4-956-818-01 RETAINER, FLEXIBLE 67 A-3393-778-A MAIN BOARD, COMPLETE Ref. No. Part No. Description Remark 4 A-3320-688-A LID BLOCK ASSY, UPPER 5 4-214-493-01 SHAFT (FUL CRUM) Ref. No. Part No. Description Remark 4 A-3320-060-A LID BLOCK ASSY, UPPER 5 4-996-352-01 SHAFT 63 62 63 64 64 KSM-331CAN(S) 64 65 4 64 CDM-2401AAA 64 (3) MECHANISM DECK SECTION New Type (CDM-2401AAA) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 A-3320-684-A SCREW ASSY, FEED 102 3-318-203-11 SCREW (B1.7X6), TAPPING 103 4-972-163-04 SPRING, SLED 104 1-690-530-81 LEAD (WITH CONNECTOR) 105 7-627-850-17 SCREW, PRECISION +P 1.4X2.5 106 3-719-401-11 SCREW (B1.7), TAPPING 107 4-972-162-01 CHASSIS 108 4-974-003-01 GEAR (B) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 109 1-660-965-11 SLIDE FLEXIBLE BOARD !110 X-4950-060-1 OPTICAL PICK-UP (DAX-01A2) 111 4-972-165-01 RACK 112 4-973-631-01 SCREW M901 A-3303-458-A MOTOR ASSY, TURNTABLE (SPINDLE) M902 A-3303-403-A MOTOR ASSY, SLED S910 1-571-099-21 SWITCH (1 KEY) (LIMIT) not supplied M901 M902 S910 106 107 108 105 103 102 101 112 111 110 109 104 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LCD MAIN A-3323-073-A LCD BOARD, COMPLETE ******************** 1-475-520-11 LIGHT UNIT, BACK 1-694-374-11 CONDUCTIVE BOARD, CONNECTION * 4-918-544-11 SPACER (T) 4-996-338-01 HOLDER, LCD < CAPACITOR > C401 1-115-156-11 CERAMIC CHIP 1uF 10V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C403 1-104-851-11 ELECT CHIP 10uF 20% 10V C404 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN401 1-573-370-21 CONNECTOR, FFC/FPC 30P < FERRITE BEAD > FB401 1-500-444-11 FERRITE 0uH FB402 1-500-444-11 FERRITE 0uH FB404 1-500-444-11 FERRITE 0uH < IC > IC401 8-749-014-29 IC RS-350 < LIQUID CRYSTAL DISPLAY > LCD401 1-801-975-11 DISPLAY PANEL, LIQUID CRYSTAL < RESISTOR > R401 1-216-813-11 METAL CHIP 220 5% 1/16W R402 1-216-158-00 RES, CHIP 22 5% 1/8W R403 1-216-813-11 METAL CHIP 220 5% 1/16W R404 1-216-821-11 METAL CHIP 1K 5% 1/16W R421 1-218-847-11 RES, CHIP 1K 0.50% 1/16W R422 1-218-696-11 RES, CHIP 1.5K 0.50% 1/16W R423 1-218-700-11 RES, CHIP 2.2K 0.50% 1/16W R424 1-218-704-11 RES, CHIP 3.3K 0.50% 1/16W R425 1-218-708-11 RES, CHIP 4.7K 0.50% 1/16W R441 1-218-847-11 RES, CHIP 1K 0.50% 1/16W R442 1-218-851-11 RES, CHIP 1.5K 0.50% 1/16W R443 1-218-855-11 RES, CHIP 2.2K 0.50% 1/16W R444 1-218-859-11 RES, CHIP 3.3K 0.50% 1/16W R445 1-218-863-11 RES, CHIP 4.7K 0.50% 1/16W < SWITCH > S401 1-692-366-11 SWITCH, PUSH (1 KEY) (OPEN) S421 1-762-366-11 SWITCH, TACTILE (p POWER OFF) S422 1-762-366-11 SWITCH, TACTILE (SELECT) S423 1-762-366-11 SWITCH, TACTILE (MEGA BASS) S424 1-762-366-11 SWITCH, TACTILE (ESP) S425 1-762-366-11 SWITCH, TACTILE (PLAY MODE) S426 1-762-366-11 SWITCH, TACTILE (REPEAT/ENTER) S441 1-762-366-11 SWITCH, TACTILE (ˆ RETURN) S442 1-762-366-11 SWITCH, TACTILE (– MENU) S443 1-762-366-11 SWITCH, TACTILE (= PREV) S444 1-762-366-11 SWITCH, TACTILE (^) S445 1-762-366-11 SWITCH, TACTILE (+ NEXT) S446 1-762-366-11 SWITCH, TACTILE (+ MENU) ************************************************************ A-3323-079-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C101 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C102 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C103 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C104 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C105 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C107 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C202 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C203 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C204 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C205 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C206 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C207 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-115-156-11 CERAMIC CHIP 1uF 10V C321 1-115-156-11 CERAMIC CHIP 1uF 10V C322 1-126-209-11 ELECT CHIP 100uF 20% 4V C323 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C324 1-126-246-11 ELECT CHIP 220uF 20% 4V C325 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C326 1-115-156-11 CERAMIC CHIP 1uF 10V C332 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C360 1-115-565-11 CERAMIC CHIP 2.2uF 10% 10V C362 1-126-602-11 ELECT CHIP 3.3uF 20% 50V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. 2-8. ELECTRICAL PARTS LIST (New Type) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (New Type) C363 1-115-156-11 CERAMIC CHIP 1uF 10V C364 1-115-156-11 CERAMIC CHIP 1uF 10V C366 1-164-156-11 CERAMIC CHIP 0.1uF 25V C367 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C368 1-124-779-00 ELECT CHIP 10uF 20% 16V C369 1-165-112-11 CERAMIC CHIP 0.33uF 16V C370 1-126-395-11 ELECT 22uF 20% 16V C371 1-115-156-11 CERAMIC CHIP 1uF 10V C372 1-164-156-11 CERAMIC CHIP 0.1uF 25V C373 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C374 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C500 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C503 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C504 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C507 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C508 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C509 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C510 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C511 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C512 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C513 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C515 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C517 1-164-156-11 CERAMIC CHIP 0.1uF 25V C518 1-104-915-11 TANTAL. CHIP 2.2uF 20% 20V C519 1-115-156-11 CERAMIC CHIP 1uF 10V C520 1-115-156-11 CERAMIC CHIP 1uF 10V C523 1-126-246-11 ELECT CHIP 220uF 20% 4V C524 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V C602 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C603 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C604 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C605 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C606 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C607 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C608 1-164-156-11 CERAMIC CHIP 0.1uF 25V C609 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C610 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C611 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C614 1-164-156-11 CERAMIC CHIP 0.1uF 25V C615 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C616 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C617 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C618 1-164-156-11 CERAMIC CHIP 0.1uF 25V C619 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C680 1-115-156-11 CERAMIC CHIP 1uF 10V C682 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C684 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C701 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C702 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C703 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C708 1-164-156-11 CERAMIC CHIP 0.1uF 25V C711 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C802 1-126-193-11 ELECT 1uF 20% 50V C803 1-164-156-11 CERAMIC CHIP 0.1uF 25V C804 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C820 1-164-156-11 CERAMIC CHIP 0.1uF 25V C821 1-115-156-11 CERAMIC CHIP 1uF 10V C822 1-124-779-00 ELECT CHIP 10uF 20% 16V C823 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C826 1-119-764-11 ELECT 47uF 20% 4V C827 1-164-156-11 CERAMIC CHIP 0.1uF 25V C828 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C860 1-128-416-11 ELECT CHIP 100uF 20% 16V C861 1-164-156-11 CERAMIC CHIP 0.1uF 25V C862 1-164-505-11 CERAMIC CHIP 2.2uF 16V C863 1-164-156-11 CERAMIC CHIP 0.1uF 25V C864 1-164-505-11 CERAMIC CHIP 2.2uF 16V C865 1-104-915-11 TANTAL. CHIP 2.2uF 20% 20V C867 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C869 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C870 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C872 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C873 1-164-156-11 CERAMIC CHIP 0.1uF 25V C881 1-119-764-11 ELECT 47uF 20% 4V C882 1-164-156-11 CERAMIC CHIP 0.1uF 25V C883 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C884 1-164-156-11 CERAMIC CHIP 0.1uF 25V C890 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C891 1-128-416-11 ELECT CHIP 100uF 20% 16V C892 1-119-765-11 ELECT 47uF 20% 6.3V C895 1-164-156-11 CERAMIC CHIP 0.1uF 25V C901 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C904 1-115-156-11 CERAMIC CHIP 1uF 10V C905 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C907 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C908 1-119-944-11 ELECT 470uF 20% 4V C910 1-115-156-11 CERAMIC CHIP 1uF 10V C911 1-115-156-11 CERAMIC CHIP 1uF 10V C915 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C921 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-164-156-11 CERAMIC CHIP 0.1uF 25V C923 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C924 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C925 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C926 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C927 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C928 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C929 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C931 1-164-156-11 CERAMIC CHIP 0.1uF 25V C932 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C933 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C936 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C960 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C961 1-115-156-11 CERAMIC CHIP 1uF 10V C962 1-104-852-11 TANTAL. CHIP 22uF 20% 10V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (New Type) C963 1-119-944-11 ELECT 470uF 20% 4V C966 1-162-919-11 CERAMIC CHIP 22PF 5% 50V < CONNECTOR > CN501 1-566-530-11 CONNECTOR, FPC (ZIF) 14P * CN502 1-695-320-31 PIN, CONNECTOR (1.5mm) (SMD) 2P * CN503 1-695-320-21 PIN, CONNECTOR (1.5mm) (SMD) 2P * CN504 1-695-320-51 PIN, CONNECTOR (1.5mm) (SMD) 2P * CN701 1-573-939-11 CONNECTOR, FFC/FPC (ZIF) 30P < DIODE > D101 8-719-039-99 DIODE UMZ8.2T D105 8-719-039-99 DIODE UMZ8.2T D201 8-719-039-99 DIODE UMZ8.2T D205 8-719-039-99 DIODE UMZ8.2T D302 8-719-039-99 DIODE UMZ8.2T D340 8-719-404-35 DIODE MA141WK D501 8-719-031-17 DIODE 1SS322-TE85L D502 8-719-039-99 DIODE UMZ8.2T D504 8-719-404-49 DIODE MA111 D601 8-719-024-81 DIODE 1SS300-TE85L D602 8-719-049-09 DIODE 1SS367-T3SONY D805 8-719-048-98 DIODE RB160L-40TE25 D808 8-719-048-98 DIODE RB160L-40TE25 D820 8-719-048-98 DIODE RB160L-40TE25 D880 8-719-048-98 DIODE RB160L-40TE25 D890 8-719-048-98 DIODE RB160L-40TE25 D891 8-719-049-09 DIODE 1SS367-T3SONY < FERRITE BEAD > FB101 1-500-444-11 FERRITE 0uH FB102 1-500-444-11 FERRITE 0uH FB201 1-500-444-11 FERRITE 0uH FB202 1-500-444-11 FERRITE 0uH FB301 1-414-656-11 FERRITE 0uH FB306 1-500-444-11 FERRITE 0uH FB680 1-414-656-11 FERRITE 0uH FB681 1-414-656-11 FERRITE 0uH FB701 1-500-444-11 FERRITE 0uH FB702 1-500-444-11 FERRITE 0uH FB703 1-414-656-11 FERRITE 0uH FB801 1-414-633-22 INDUCTOR CHIP 0uH FB903 1-414-656-11 FERRITE 0uH FB960 1-414-656-11 FERRITE 0uH < IC > IC301 8-759-186-51 IC TC74VHC157F IC320 8-759-459-18 IC TC9434AFNEL IC360 8-759-386-50 IC BA3574BFS-T1 IC501 8-752-069-29 IC CXA1791N IC502 8-759-442-80 IC MPC17A38ZVMEL IC601 8-752-369-78 IC CXD2545Q IC602 8-759-179-64 IC BA3890F IC680 8-759-571-16 IC RL5C358A IC681 8-759-498-44 IC MSM51V4400D-70TSK IC701 8-759-571-15 IC MSM65354-414GS-BK4 IC702 8-759-442-79 IC RH5VL27AA-T1 IC801 8-759-085-76 IC S-81332HG-KC-T1 IC810 8-759-530-69 IC XC61AC4502PR IC820 8-759-521-35 IC TL5001CD IC861 8-759-360-66 IC TL1453CPW-E20 IC862 8-759-441-31 IC MC14053BDTR2 IC901 8-759-493-57 IC ES3210S IC902 8-759-573-32 IC MX23C1010TI-90-SG2 IC903 8-759-498-43 IC MSM54V16258ASL-45TSK IC904 8-759-396-26 IC SN74LV08PW-E20 IC920 8-759-493-55 IC TC90A07U IC921 8-759-085-76 IC S-81332HG-KC-T1 IC960 8-759-433-44 IC MM1031XML < JACK > J301 1-580-709-21 JACK (2 PHONES) J801 1-778-153-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 6V) J901 1-778-040-11 JACK, SMALL TYPE (AUDIO/VIDEO OUT) < COIL > L320 1-412-002-31 INDUCTOR CHIP 4.7uH L321 1-412-002-31 INDUCTOR CHIP 4.7uH L322 1-412-002-31 INDUCTOR CHIP 4.7uH L323 1-412-979-21 INDUCTOR 1uH L501 1-414-398-11 INDUCTOR 10uH L502 1-414-398-11 INDUCTOR 10uH L503 1-414-854-11 INDUCTOR 1mH L504 1-414-404-11 INDUCTOR 100uH L505 1-414-404-11 INDUCTOR 100uH L506 1-414-402-11 INDUCTOR 47uH L507 1-414-402-11 INDUCTOR 47uH L601 1-410-997-22 INDUCTOR CHIP 2.2uH L602 1-410-997-22 INDUCTOR CHIP 2.2uH L801 1-414-392-21 INDUCTOR 1uH L820 1-414-526-11 INDUCTOR CHIP 47uH L880 1-414-526-11 INDUCTOR CHIP 47uH L901 1-414-392-21 INDUCTOR 1uH L902 1-410-997-22 INDUCTOR CHIP 2.2uH L921 1-412-979-21 INDUCTOR 1uH L923 1-414-398-11 INDUCTOR 10uH L924 1-410-997-22 INDUCTOR CHIP 2.2uH L960 1-410-993-42 INDUCTOR CHIP 1uH L961 1-412-002-31 INDUCTOR CHIP 4.7uH < TRANSISTOR > Q101 8-729-231-74 TRANSISTOR 2SC4116-GL Q201 8-729-231-74 TRANSISTOR 2SC4116-GL Q340 8-729-907-39 TRANSISTOR IMD2 Q341 8-729-231-74 TRANSISTOR 2SC4116-GL Q342 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q501 8-729-904-86 TRANSISTOR 2SB1197K-Q Q503 8-729-930-32 TRANSISTOR UMH11 Q504 8-729-930-32 TRANSISTOR UMH11 Q505 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q506 8-729-231-74 TRANSISTOR 2SC4116-GL Q507 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q508 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q509 8-729-028-91 TRANSISTOR DTA144EUA-T106 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (New Type) Q601 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q701 8-729-928-70 TRANSISTOR DTA143TE-TL Q702 8-729-027-60 TRANSISTOR DTC144TKA-T146 Q703 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q801 8-729-904-86 TRANSISTOR 2SB1197K-Q Q802 8-729-903-10 TRANSISTOR FMW1 Q803 8-729-930-32 TRANSISTOR UMH11 Q810 8-729-930-32 TRANSISTOR UMH11 Q820 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q822 8-729-043-79 TRANSISTOR 2SJ517TL Q861 8-729-921-05 TRANSISTOR FMC3-T148 Q881 8-729-043-79 TRANSISTOR 2SJ517TL Q882 8-729-043-79 TRANSISTOR 2SJ517TL Q891 8-729-024-44 TRANSISTOR 2SK2315TYTR < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/16W R102 1-216-845-11 METAL CHIP 100K 5% 1/16W R103 1-216-833-11 METAL CHIP 10K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R107 1-216-789-11 METAL CHIP 2.2 5% 1/16W R108 1-216-813-11 METAL CHIP 220 5% 1/16W R201 1-216-821-11 METAL CHIP 1K 5% 1/16W R202 1-216-845-11 METAL CHIP 100K 5% 1/16W R203 1-216-833-11 METAL CHIP 10K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R207 1-216-789-11 METAL CHIP 2.2 5% 1/16W R208 1-216-813-11 METAL CHIP 220 5% 1/16W R311 1-216-845-11 METAL CHIP 100K 5% 1/16W R314 1-216-857-11 METAL CHIP 1M 5% 1/16W R315 1-216-837-11 METAL CHIP 22K 5% 1/16W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R320 1-216-803-11 METAL CHIP 33 5% 1/16W R323 1-216-857-11 METAL CHIP 1M 5% 1/16W R327 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R502 1-216-845-11 METAL CHIP 100K 5% 1/16W R503 1-216-845-11 METAL CHIP 100K 5% 1/16W R504 1-216-845-11 METAL CHIP 100K 5% 1/16W R505 1-216-845-11 METAL CHIP 100K 5% 1/16W R506 1-216-847-11 METAL CHIP 150K 5% 1/16W R507 1-216-847-11 METAL CHIP 150K 5% 1/16W R508 1-216-308-00 METAL CHIP 4.7 5% 1/10W R509 1-216-845-11 METAL CHIP 100K 5% 1/16W R510 1-216-821-11 METAL CHIP 1K 5% 1/16W R511 1-216-837-11 METAL CHIP 22K 5% 1/16W R513 1-216-864-11 METAL CHIP 0 5% 1/16W R514 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R515 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R516 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R517 1-216-835-11 METAL CHIP 15K 5% 1/16W R519 1-216-833-11 METAL CHIP 10K 5% 1/16W R520 1-216-841-11 METAL CHIP 47K 5% 1/16W R521 1-216-839-11 METAL CHIP 33K 5% 1/16W R522 1-216-843-11 METAL CHIP 68K 5% 1/16W R523 1-218-898-11 RES, CHIP 130K 0.50% 1/16W R524 1-216-850-11 METAL CHIP 270K 5% 1/16W R525 1-216-836-11 METAL CHIP 18K 5% 1/16W R526 1-216-864-11 METAL CHIP 0 5% 1/16W R527 1-216-845-11 METAL CHIP 100K 5% 1/16W R528 1-216-857-11 METAL CHIP 1M 5% 1/16W R529 1-216-837-11 METAL CHIP 22K 5% 1/16W R530 1-216-821-11 METAL CHIP 1K 5% 1/16W R531 1-216-845-11 METAL CHIP 100K 5% 1/16W R532 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R533 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R534 1-216-809-11 METAL CHIP 100 5% 1/16W R541 1-216-841-11 METAL CHIP 47K 5% 1/16W R542 1-216-821-11 METAL CHIP 1K 5% 1/16W R543 1-216-821-11 METAL CHIP 1K 5% 1/16W R559 1-216-864-11 METAL CHIP 0 5% 1/16W R601 1-216-845-11 METAL CHIP 100K 5% 1/16W R602 1-216-839-11 METAL CHIP 33K 5% 1/16W R603 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R604 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R605 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R606 1-216-857-11 METAL CHIP 1M 5% 1/16W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R611 1-216-841-11 METAL CHIP 47K 5% 1/16W R612 1-218-895-11 RES, CHIP 100K 0.50% 1/16W R614 1-218-871-11 RES, CHIP 10K 0.50% 1/16W R619 1-216-833-11 METAL CHIP 10K 5% 1/16W R620 1-216-833-11 METAL CHIP 10K 5% 1/16W R681 1-216-833-11 METAL CHIP 10K 5% 1/16W R700 1-216-853-11 METAL CHIP 470K 5% 1/16W R701 1-216-845-11 METAL CHIP 100K 5% 1/16W R702 1-216-845-11 METAL CHIP 100K 5% 1/16W R704 1-216-853-11 METAL CHIP 470K 5% 1/16W R705 1-216-833-11 METAL CHIP 10K 5% 1/16W R706 1-216-833-11 METAL CHIP 10K 5% 1/16W R707 1-216-845-11 METAL CHIP 100K 5% 1/16W R708 1-216-853-11 METAL CHIP 470K 5% 1/16W R709 1-216-845-11 METAL CHIP 100K 5% 1/16W R710 1-216-853-11 METAL CHIP 470K 5% 1/16W R711 1-216-853-11 METAL CHIP 470K 5% 1/16W R712 1-216-845-11 METAL CHIP 100K 5% 1/16W R713 1-216-853-11 METAL CHIP 470K 5% 1/16W R714 1-216-813-11 METAL CHIP 220 5% 1/16W R715 1-216-845-11 METAL CHIP 100K 5% 1/16W R716 1-216-851-11 METAL CHIP 330K 5% 1/16W R801 1-218-898-11 RES, CHIP 130K 0.50% 1/16W R802 1-218-894-11 RES, CHIP 91K 0.50% 1/16W R803 1-218-907-11 RES, CHIP 330K 0.50% 1/16W R804 1-216-295-00 SHORT 0 R805 1-218-752-11 METAL CHIP 330K 0.50% 1/16W R806 1-218-748-11 METAL CHIP 220K 0.50% 1/16W R810 1-216-833-11 METAL CHIP 10K 5% 1/16W R811 1-216-847-11 METAL CHIP 150K 5% 1/16W R812 1-216-821-11 METAL CHIP 1K 5% 1/16W R813 1-216-817-11 METAL CHIP 470 5% 1/16W R815 1-216-809-11 METAL CHIP 100 5% 1/16W R820 1-218-886-11 RES, CHIP 43K 0.50% 1/16W R821 1-218-888-11 RES, CHIP 51K 0.50% 1/16W R822 1-216-833-11 METAL CHIP 10K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R824 1-216-801-11 METAL CHIP 22 5% 1/16W R826 1-216-857-11 METAL CHIP 1M 5% 1/16W R827 1-218-877-11 RES, CHIP 18K 0.50% 1/16W R828 1-218-879-11 RES, CHIP 22K 0.50% 1/16W R860 1-218-883-11 RES, CHIP 33K 0.50% 1/16W R861 1-218-887-11 RES, CHIP 47K 0.50% 1/16W R862 1-218-885-11 RES, CHIP 39K 0.50% 1/16W R863 1-218-885-11 RES, CHIP 39K 0.50% 1/16W R864 1-218-883-11 RES, CHIP 33K 0.50% 1/16W R865 1-218-887-11 RES, CHIP 47K 0.50% 1/16W R866 1-218-885-11 RES, CHIP 39K 0.50% 1/16W R867 1-218-885-11 RES, CHIP 39K 0.50% 1/16W R869 1-216-833-11 METAL CHIP 10K 5% 1/16W R870 1-218-878-11 RES, CHIP 20K 0.50% 1/16W R871 1-216-833-11 METAL CHIP 10K 5% 1/16W R872 1-216-833-11 METAL CHIP 10K 5% 1/16W R873 1-218-871-11 RES, CHIP 10K 0.50% 1/16W R874 1-218-847-11 RES, CHIP 1K 0.50% 1/16W R880 1-216-801-11 METAL CHIP 22 5% 1/16W R881 1-216-857-11 METAL CHIP 1M 5% 1/16W R882 1-218-907-11 RES, CHIP 330K 0.50% 1/16W R883 1-218-882-11 RES, CHIP 30K 0.50% 1/16W R884 1-218-877-11 RES, CHIP 18K 0.50% 1/16W R885 1-216-857-11 METAL CHIP 1M 5% 1/16W R886 1-216-809-11 METAL CHIP 100 5% 1/16W R888 1-216-295-00 SHORT 0 R892 1-216-857-11 METAL CHIP 1M 5% 1/16W R896 1-218-883-11 RES, CHIP 33K 0.50% 1/16W R897 1-218-869-11 RES, CHIP 8.2K 0.50% 1/16W R901 1-216-833-11 METAL CHIP 10K 5% 1/16W R904 1-216-845-11 METAL CHIP 100K 5% 1/16W R921 1-218-887-11 RES, CHIP 47K 0.50% 1/16W R922 1-218-883-11 RES, CHIP 33K 0.50% 1/16W R924 1-216-857-11 METAL CHIP 1M 5% 1/16W R926 1-216-845-11 METAL CHIP 100K 5% 1/16W R927 1-216-845-11 METAL CHIP 100K 5% 1/16W R960 1-216-809-11 METAL CHIP 100 5% 1/16W R961 1-216-022-00 METAL CHIP 75 5% 1/10W R962 1-216-833-11 METAL CHIP 10K 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-570-11 RES, VAR, CARBON 10K/10K (VOLUME) < SWITCH > S701 1-572-922-11 SWITCH, SLIDE (HOLD) S702 1-572-922-11 SWITCH, SLIDE (RESUME) S703 1-692-605-31 SWITCH, SLIDE (PAL, AUTO, NTSC (VIDEO SYSTEM)) < TRANSFORMER > T891 1-431-652-21 TRANSFORMER, DC-DC CONVERTER < VIBRATOR > X320 1-767-366-21 VIBRATOR, CERAMIC (16.934MHz) X701 1-579-063-41 VIBRATOR, CERAMIC (4.19MHz) X920 1-767-519-11 VIBRATOR, CRYSTAL (27MHz) ************************************************************ MISCELLANEOUS ************** 61 1-776-149-11 FLEXIBLE FLAT CABLE 104 1-690-530-81 LEAD (WITH CONNECTOR) 109 1-660-965-11 SLIDE FLEXIBLE BOARD !110 X-4950-060-1 OPTICAL PICK-UP (DAX-01A2) M901 A-3303-458-A MOTOR ASSY, TURNTABLE (SPINDLE) M902 A-3303-403-A MOTOR ASSY, SLED S910 1-571-099-21 SWITCH (1 KEY) (LIMIT) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** ! 1-467-570-31 ADAPTOR, AC (AC-E60HG) (E) ! 1-475-712-11 ADAPTOR, AC (AC-E67A) (Chinese) 1-783-028-11 CORD (WITH PLUG) (AV MONITOR CORD) 3-861-942-11 MANUAL, INSTRUCTION (ENGLISH,CHINESE) 3-861-942-21 MANUAL, INSTRUCTION (JAPANESE, KOREAN) (Tourist) 4-991-047-01 LID, BATTERY CASE (for RM-DV10) 8-917-658-90 REMOTE COMMADER RM-DV10 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. MAIN (New Type) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – D-V8000 Sony Corporation Personal A&V Products Company 9-923-278-83 98L0518-1 Printed in Japan © 1998. 12 Published by Quality Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
