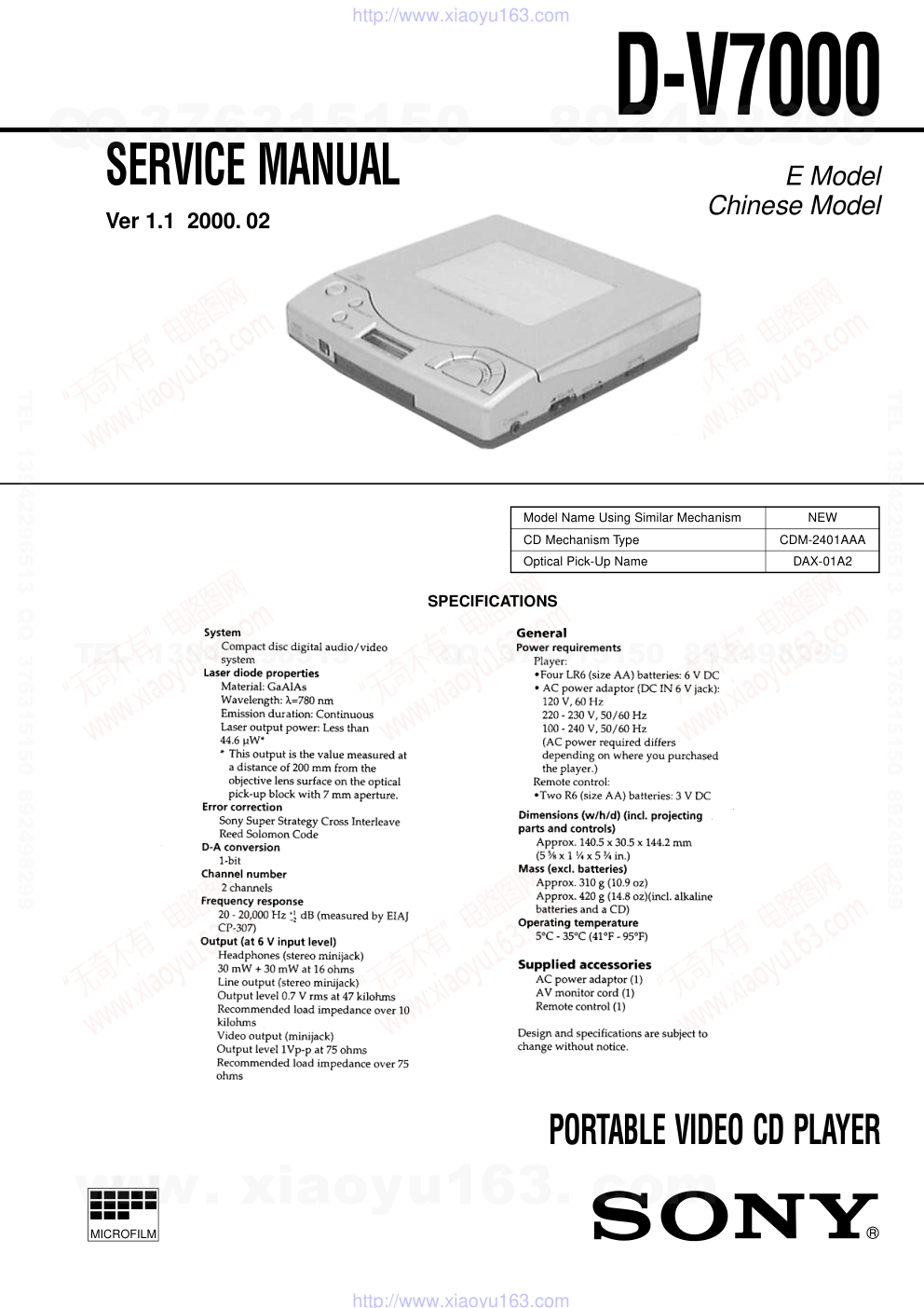

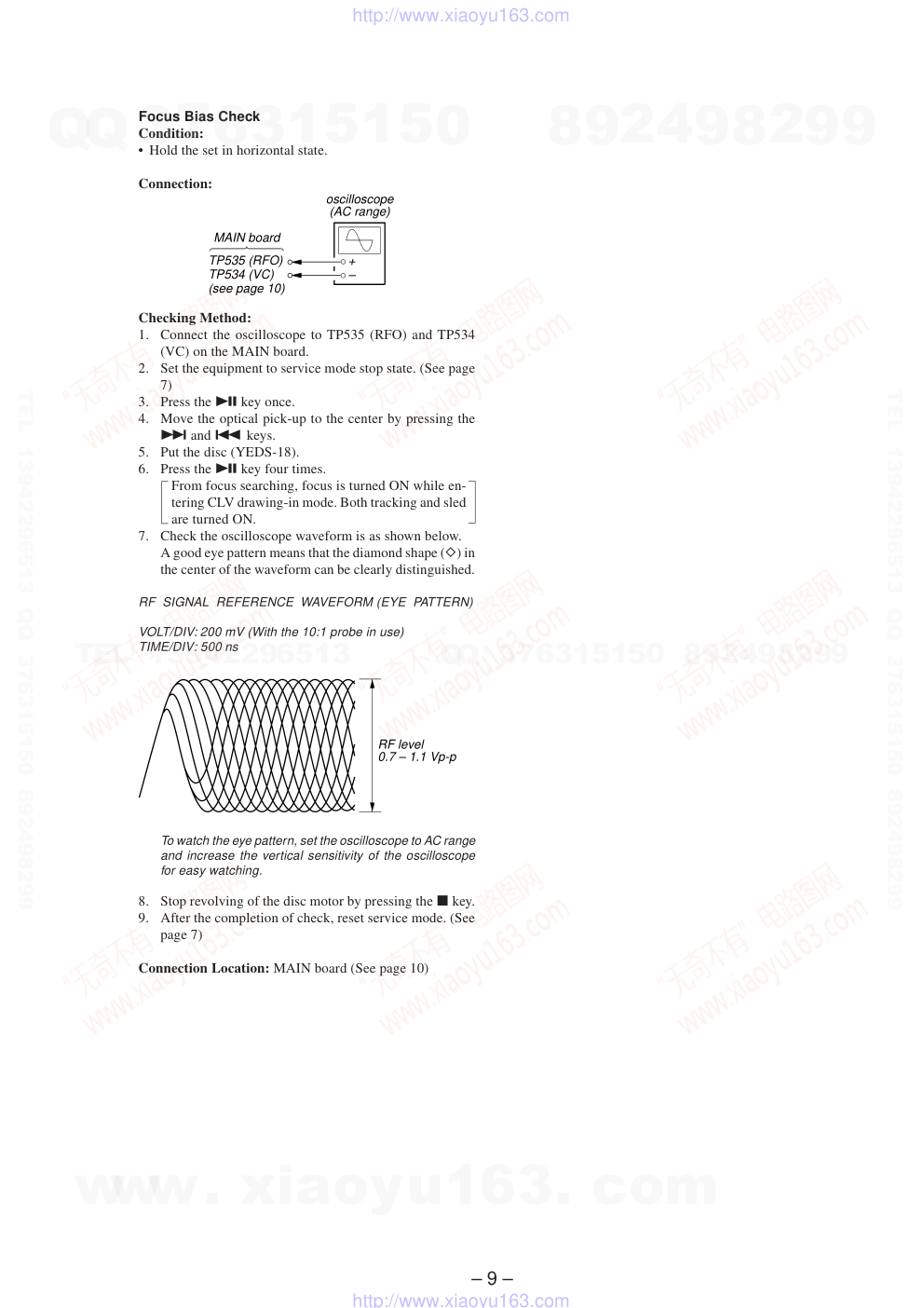

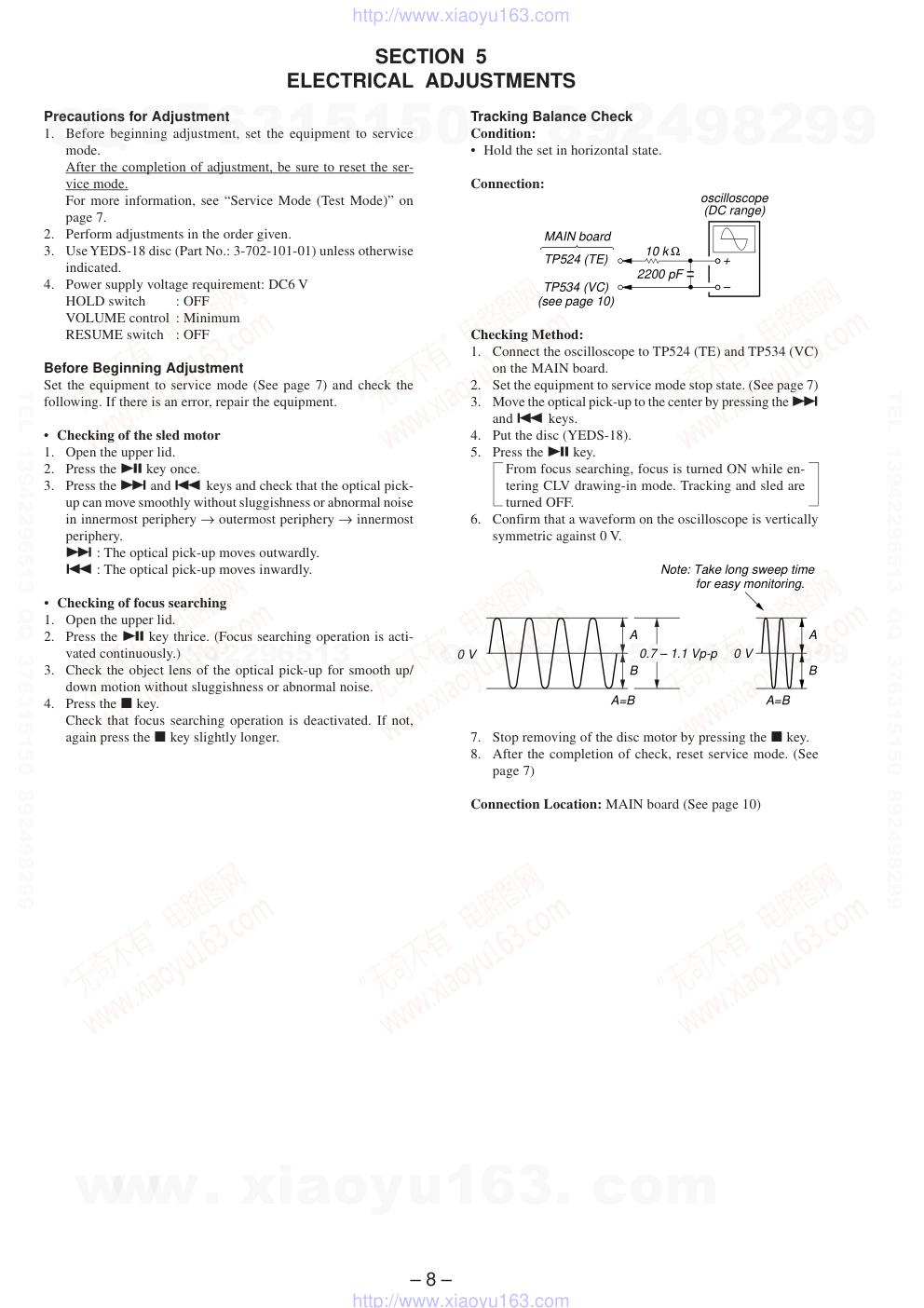

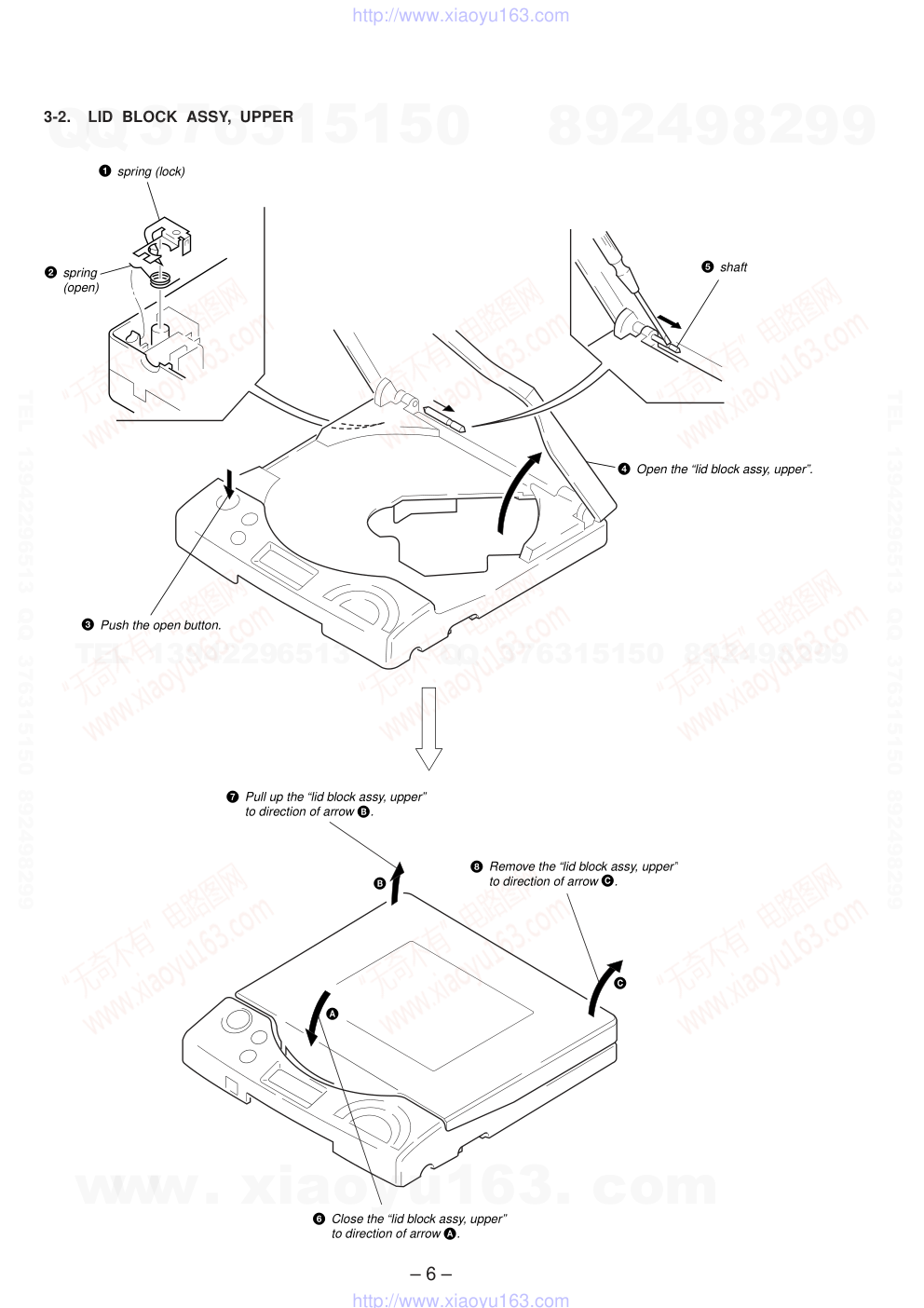

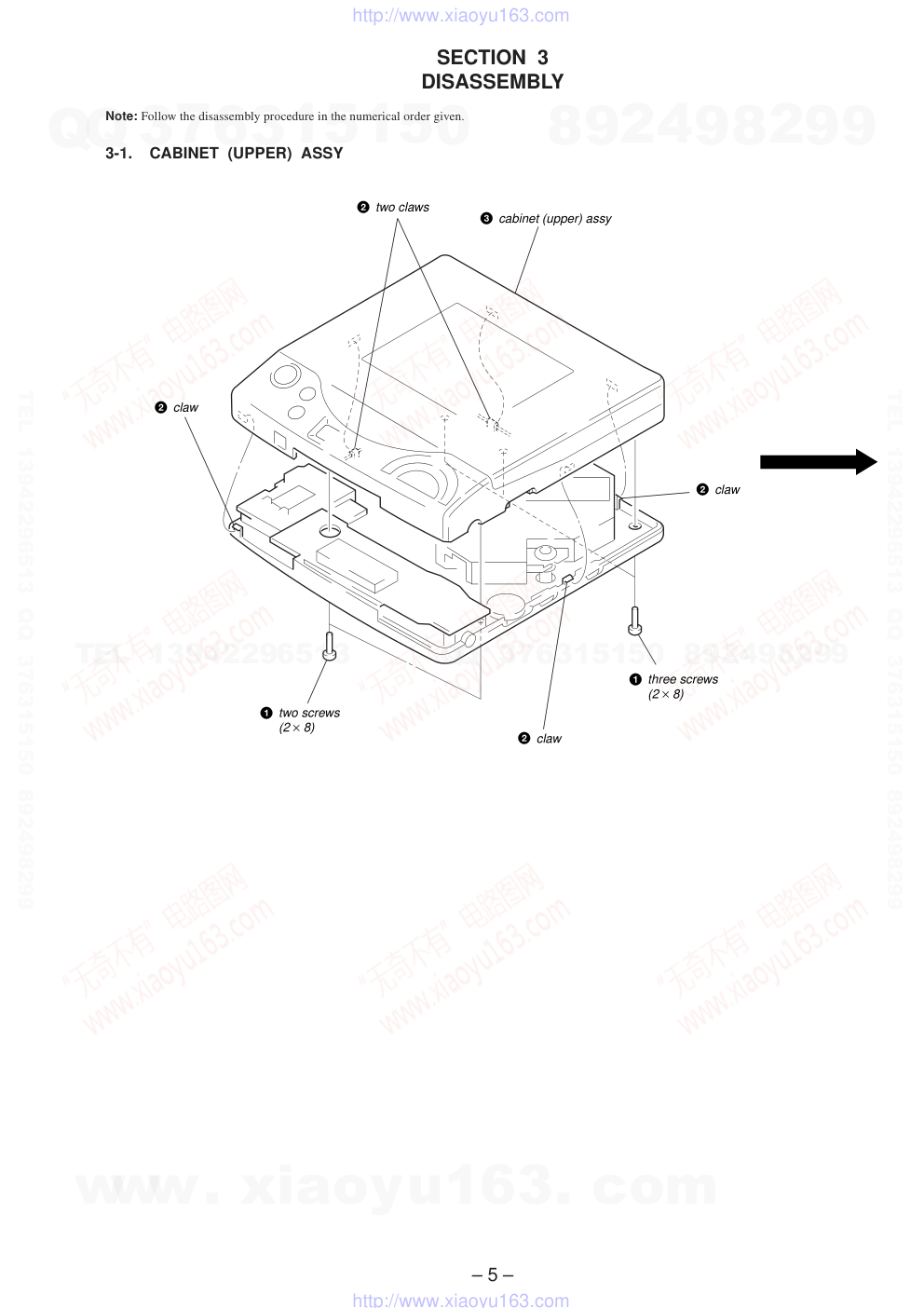

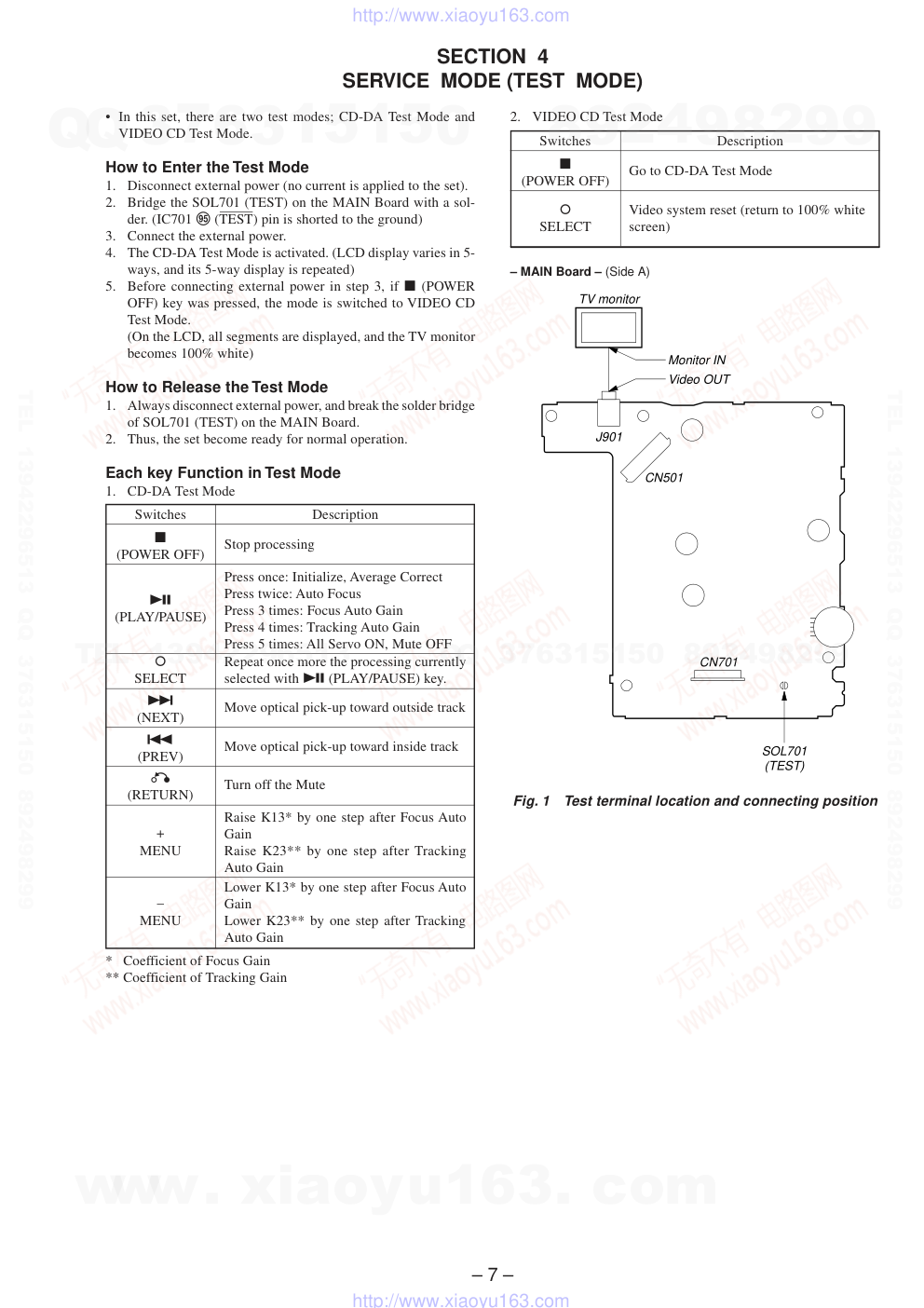

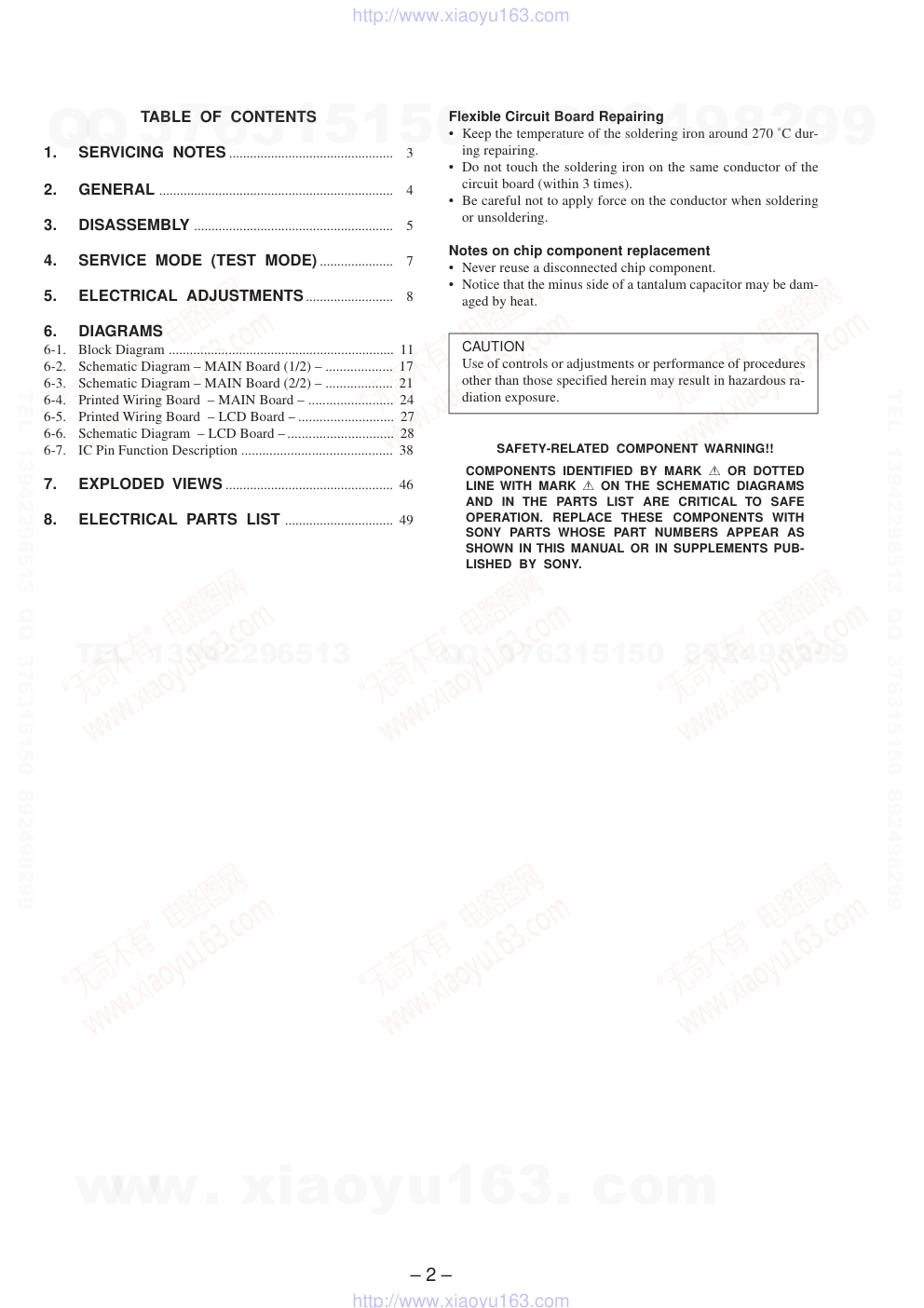

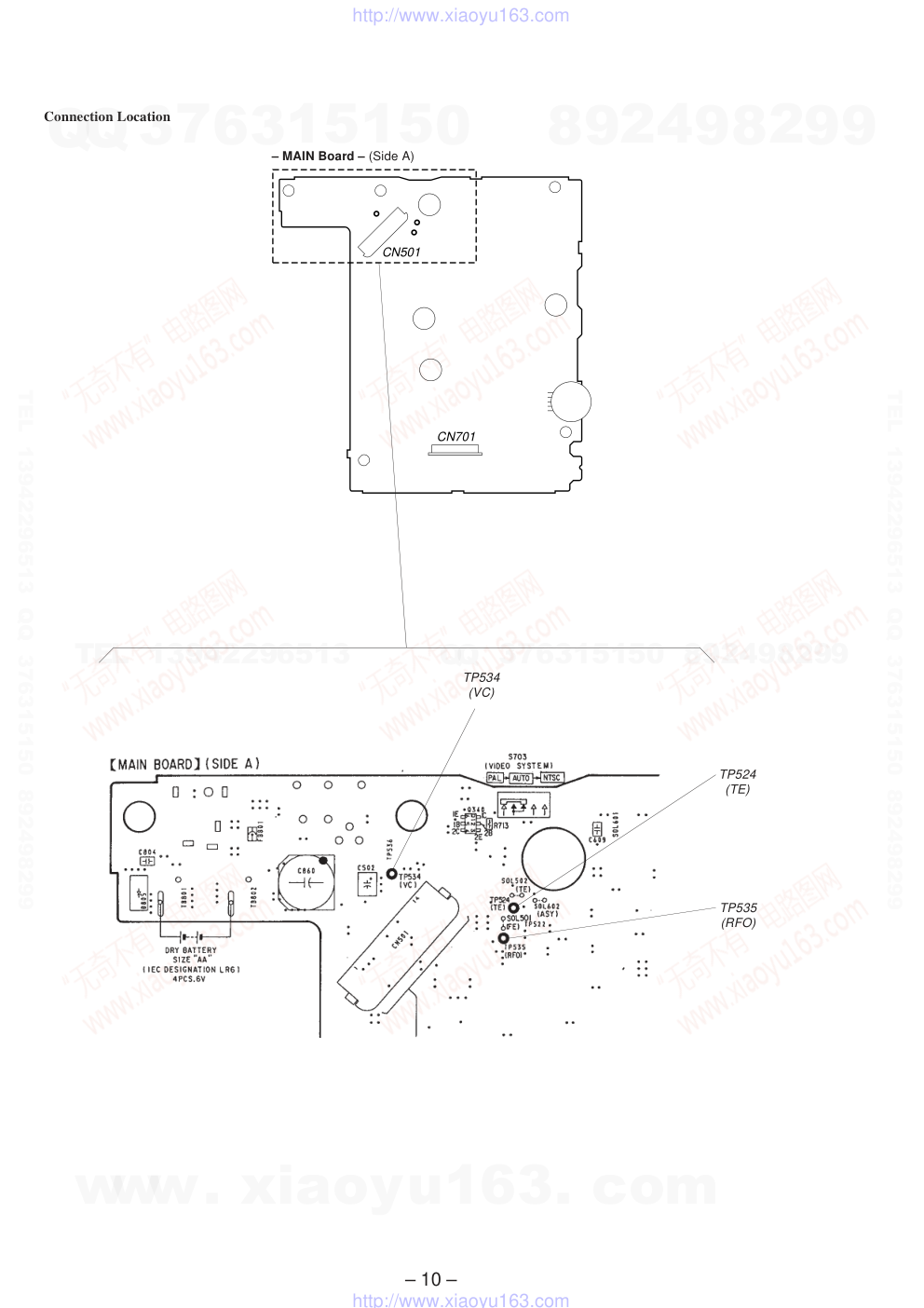

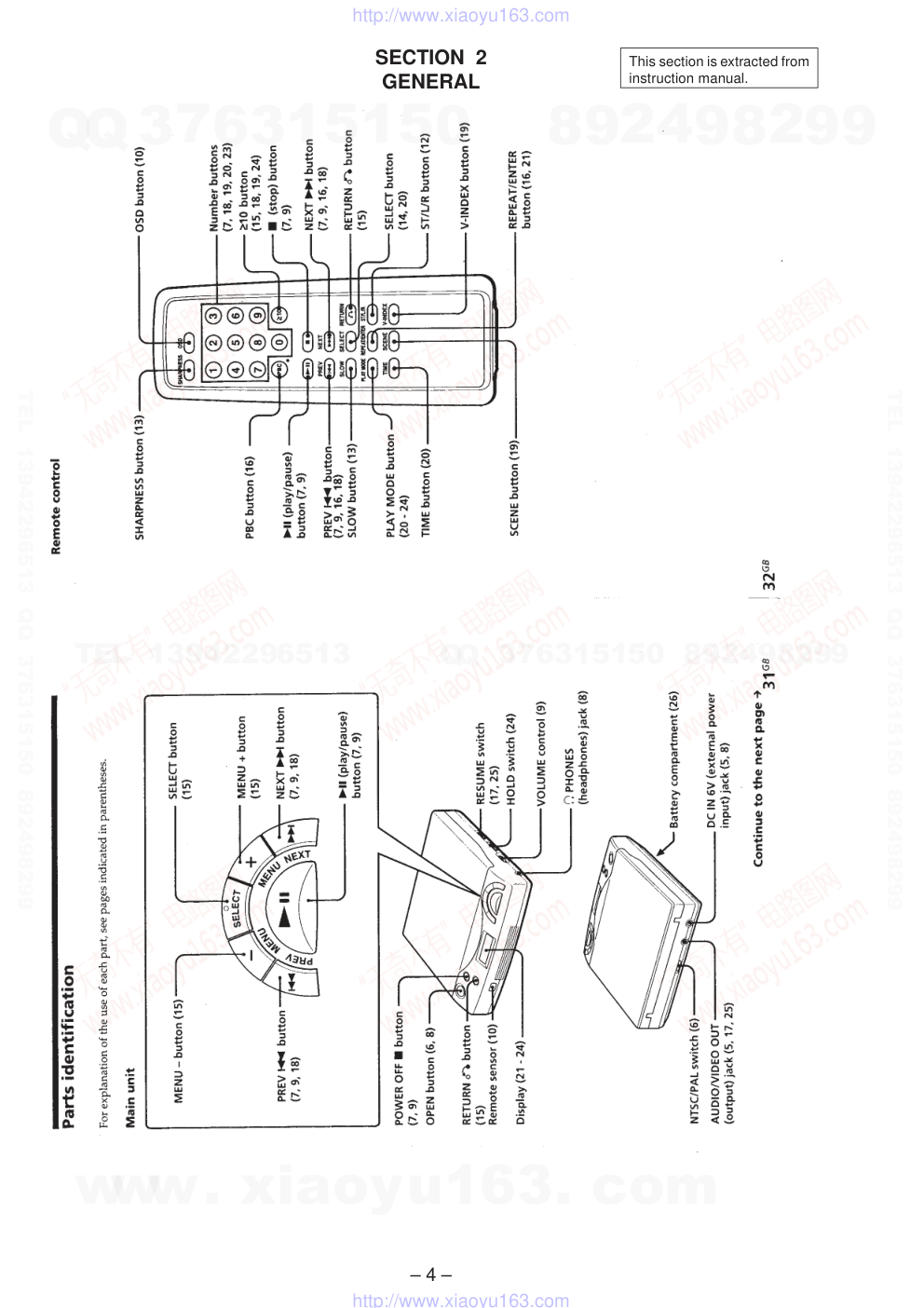

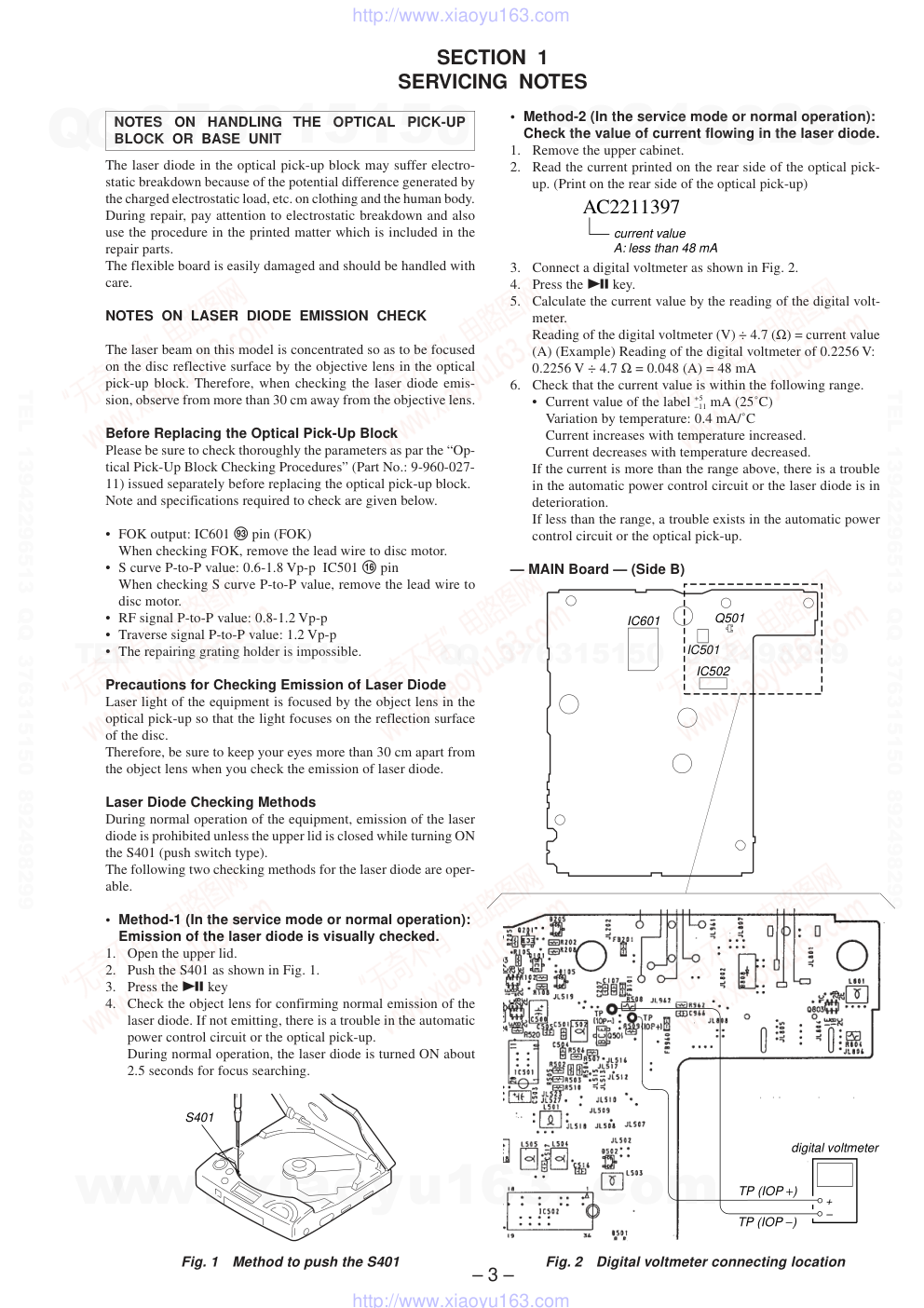

MICROFILM SERVICE MANUAL Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-2401AAA Optical Pick-Up Name DAX-01A2 PORTABLE VIDEO CD PLAYER E Model Chinese Model SPECIFICATIONS D-V7000 Ver 1.1 2000. 02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY ......................................................... 5 4. SERVICE MODE (TEST MODE) ..................... 7 5. ELECTRICAL ADJUSTMENTS ......................... 8 6. DIAGRAMS 6-1. Block Diagram ................................................................ 11 6-2. Schematic Diagram – MAIN Board (1/2) – ................... 17 6-3. Schematic Diagram – MAIN Board (2/2) – ................... 21 6-4. Printed Wiring Board – MAIN Board – ........................ 24 6-5. Printed Wiring Board – LCD Board – ........................... 27 6-6. Schematic Diagram – LCD Board – .............................. 28 6-7. IC Pin Function Description ........................................... 38 7. EXPLODED VIEWS ................................................ 46 8. ELECTRICAL PARTS LIST ............................... 49 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. Before Replacing the Optical Pick-Up Block Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 (£ pin (FOK) When checking FOK, remove the lead wire to disc motor. • S curve P-to-P value: 0.6-1.8 Vp-p IC501 !§ pin When checking S curve P-to-P value, remove the lead wire to disc motor. • RF signal P-to-P value: 0.8-1.2 Vp-p • Traverse signal P-to-P value: 1.2 Vp-p • The repairing grating holder is impossible. Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more than 30 cm apart from the object lens when you check the emission of laser diode. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S401 (push switch type). The following two checking methods for the laser diode are oper- able. • Method-1 (In the service mode or normal operation): Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S401 as shown in Fig. 1. 3. Press the ^ key 4. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. During normal operation, the laser diode is turned ON about 2.5 seconds for focus searching. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S401 S401 • Method-2 (In the service mode or normal operation): Check the value of current flowing in the laser diode. 1. Remove the upper cabinet. 2. Read the current printed on the rear side of the optical pick- up. (Print on the rear side of the optical pick-up) 3. Connect a digital voltmeter as shown in Fig. 2. 4. Press the ^ key. 5. Calculate the current value by the reading of the digital volt- meter. Reading of the digital voltmeter (V) ÷ 4.7 (Ω) = current value (A) (Example) Reading of the digital voltmeter of 0.2256 V: 0.2256 V ÷ 4.7 Ω = 0.048 (A) = 48 mA 6. Check that the current value is within the following range. • Current value of the label +5 mA (25˚C) Variation by temperature: 0.4 mA/˚C Current increases with temperature increased. Current decreases with temperature decreased. If the current is more than the range above, there is a trouble in the automatic power control circuit or the laser diode is in deterioration. If less than the range, a trouble exists in the automatic power control circuit or the optical pick-up. — MAIN Board — (Side B) current value A: less than 48 mA AC2211397 Q501 IC501 IC502 IC601 digital voltmeter + – TP (IOP +) TP (IOP −) Fig. 2 Digital voltmeter connecting location –11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 3-1. CABINET (UPPER) ASSY Note: Follow the disassembly procedure in the numerical order given. SECTION 3 DISASSEMBLY 3� cabinet (upper) assy 2� two claws 2� claw 2� claw 2� claw 1� two screws (2 × 8) 1� three screws (2 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 3-2. LID BLOCK ASSY, UPPER 1� spring (lock) 2� spring (open) 3� Push the open button. 4� Open the “lid block assy, upper”. 5� shaft 7� Pull up the “lid block assy, upper” to direction of arrow B. 8� Remove the “lid block assy, upper” to direction of arrow C. 6� Close the “lid block assy, upper” to direction of arrow A. B C A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SECTION 4 SERVICE MODE (TEST MODE) • In this set, there are two test modes; CD-DA Test Mode and VIDEO CD Test Mode. How to Enter the Test Mode 1. Disconnect external power (no current is applied to the set). 2. Bridge the SOL701 (TEST) on the MAIN Board with a sol- der. (IC701 (∞ (TEST) pin is shorted to the ground) 3. Connect the external power. 4. The CD-DA Test Mode is activated. (LCD display varies in 5- ways, and its 5-way display is repeated) 5. Before connecting external power in step 3, if p (POWER OFF) key was pressed, the mode is switched to VIDEO CD Test Mode. (On the LCD, all segments are displayed, and the TV monitor becomes 100% white) How to Release the Test Mode 1. Always disconnect external power, and break the solder bridge of SOL701 (TEST) on the MAIN Board. 2. Thus, the set become ready for normal operation. Each key Function in Test Mode 1. CD-DA Test Mode 2. VIDEO CD Test Mode – MAIN Board – (Side A) Fig. 1 Test terminal location and connecting position Switches Description p Stop processing (POWER OFF) Press once: Initialize, Average Correct ^ Press twice: Auto Focus (PLAY/PAUSE) Press 3 times: Focus Auto Gain Press 4 times: Tracking Auto Gain Press 5 times: All Servo ON, Mute OFF g Repeat once more the processing currently SELECT selected with ^ (PLAY/PAUSE) key. + Move optical pick-up toward outside track (NEXT) = Move optical pick-up toward inside track (PREV) ˆ Turn off the Mute (RETURN) + Raise K13* by one step after Focus Auto Gain MENU Raise K23** by one step after Tracking Auto Gain – Lower K13* by one step after Focus Auto Gain MENU Lower K23** by one step after Tracking Auto Gain Switches Description p Go to CD-DA Test Mode (POWER OFF) g Video system reset (return to 100% white SELECT screen) CN701 CN501 J901 Monitor IN TV monitor Video OUT SOL701 (TEST) * Coefficient of Focus Gain ** Coefficient of Tracking Gain www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – SECTION 5 ELECTRICAL ADJUSTMENTS Precautions for Adjustment 1. Before beginning adjustment, set the equipment to service mode. After the completion of adjustment, be sure to reset the ser- vice mode. For more information, see “Service Mode (Test Mode)” on page 7. 2. Perform adjustments in the order given. 3. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 4. Power supply voltage requirement: DC6 V HOLD switch : OFF VOLUME control : Minimum RESUME switch : OFF Before Beginning Adjustment Set the equipment to service mode (See page 7) and check the following. If there is an error, repair the equipment. • Checking of the sled motor 1. Open the upper lid. 2. Press the ^ key once. 3. Press the + and = keys and check that the optical pick- up can move smoothly without sluggishness or abnormal noise in innermost periphery → outermost periphery → innermost periphery. + : The optical pick-up moves outwardly. = : The optical pick-up moves inwardly. • Checking of focus searching 1. Open the upper lid. 2. Press the ^ key thrice. (Focus searching operation is acti- vated continuously.) 3. Check the object lens of the optical pick-up for smooth up/ down motion without sluggishness or abnormal noise. 4. Press the p key. Check that focus searching operation is deactivated. If not, again press the p key slightly longer. Tracking Balance Check Condition: • Hold the set in horizontal state. Connection: Checking Method: 1. Connect the oscilloscope to TP524 (TE) and TP534 (VC) on the MAIN board. 2. Set the equipment to service mode stop state. (See page 7) 3. Move the optical pick-up to the center by pressing the + and = keys. 4. Put the disc (YEDS-18). 5. Press the ^ key. From focus searching, focus is turned ON while en- tering CLV drawing-in mode. Tracking and sled are turned OFF. 6. Confirm that a waveform on the oscilloscope is vertically symmetric against 0 V. 7. Stop removing of the disc motor by pressing the p key. 8. After the completion of check, reset service mode. (See page 7) Connection Location: MAIN board (See page 10) MAIN board TP524 (TE) TP534 (VC) (see page 10) + – oscilloscope (DC range) 2200 pF 10 k Ω A B 0 V A B 0 V 0.7 – 1.1 Vp-p A=B A=B Note: Take long sweep time for easy monitoring. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – Focus Bias Check Condition: • Hold the set in horizontal state. Connection: Checking Method: 1. Connect the oscilloscope to TP535 (RFO) and TP534 (VC) on the MAIN board. 2. Set the equipment to service mode stop state. (See page 7) 3. Press the ^ key once. 4. Move the optical pick-up to the center by pressing the + and = keys. 5. Put the disc (YEDS-18). 6. Press the ^ key four times. From focus searching, focus is turned ON while en- tering CLV drawing-in mode. Both tracking and sled are turned ON. 7. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (≈) in the center of the waveform can be clearly distinguished. RF SIGNAL REFERENCE WAVEFORM (EYE PATTERN) VOLT/DIV: 200 mV (With the 10:1 probe in use) TIME/DIV: 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watching. 8. Stop revolving of the disc motor by pressing the p key. 9. After the completion of check, reset service mode. (See page 7) Connection Location: MAIN board (See page 10) MAIN board TP535 (RFO) TP534 (VC) (see page 10) + – oscilloscope (AC range) RF level 0.7 – 1.1 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – Connection Location CN501 CN701 – MAIN Board – (Side A) TP535 (RFO) TP534 (VC) TP524 (TE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-V7000 RFAC MIX ASYO ASYI FILTER FILO PCO CLTV FILI DIGITAL PLL ASYMMETRY CORRECTOR EFM DEMODULATOR REGISTER DIGITAL SIGNAL PROCESSOR IC601 (1/2) MON MDP MDS FSW CLV PROCESSOR 18-TIMES OVERSAMPLING FILTER NOISE SHAPER INTERNAL BUS 32K RAM ERROR CORRECTOR SUBQ SQCK SCLK MUTE EXCK SUBCODE Q PROCESSOR SUBCODE P – W PROCESSOR SYNC PROTECTOR TIMING GENERATOR 1 TIMING GENERATOR 2 DATA DATA BCLK LRCK C16M DATA DATA, BCLK, LRCK SELECT SWITCH IC301 POWER CONTROL IC861 SWITCHING REGULATOR CONTROL SWITCH IC862 (2/2) DIGITAL FILTER, D/A CONVERTER, LOW-PASS FILTER IC320 HEADPHONE AMP IC360 IC301 2A DATA CKO X320 16.9344MHz D340 BCLK LRCK LO RO LIN -1 -2 RIN MUTE-O 2Y 3Y 1Y SEL 2B 3A 3B 1A 1B BCLK LRCK DATA BCLK LRCK VIDEO DATA DATA DATA, BCLK, LRCK, C16M SWITCHING IC904 BCLK LRCK C16M VCKI XTAI BCLK LRCK RFCK GFS C2PO DOUT DIGITAL OUT SERIAL/PARALLEL PROCESSOR D/A DIGITAL PROCESSOR CLOCK GENERATOR INPUT INTERFACE CIRCUIT CPU INTERFACE Y/C SEPARATOR SYNC GENERATOR CIRCUIT Y LEVEL ALIGNMENT OSC & TIMING GENERATOR ERROR AMP DIGITAL FILTER CIRCUIT ADDRESS GENERATOR PRIORITY ENCODER PEAK DETECTOR SCOR DSP-SCOR ESP-POWER DSP-SBQCLK DSP-SUBQ DSP-SNSCLK TRVCTL WFCK SBSO XRST VARI-PITCH DOUBLE SPEED A/D CONVERTER FO+ FO– 31 32 20 1 5 2 19 17 18 6 5 29 26 22 24 SE MDP TE FE SW RFDC FOCUS/TRACKING/SLED SERVO DSP FOCUS/TRACKING/SLED PWM GENERATOR SFDR SLI+ OUT BUFFER CONT SLI– F/R MDS SPI SLO+ SLO– TI+ TI– FI+ FI– 33 SRDR TFDR TRDR FFDR FRDR SSTP S910 (LIMIT) COUT DSP-SENS DSP-DATA DSP-CLK XDSPLT XDACLT AU-POWER MIRR, DFCT, FOK DETECTOR SERVO AUTO SEQUENCER SERVO MICRO PROGRAM INTERFACE CPU INTERFACE CLOK DATA XLAT CLK DATA XLAT CLK DATA XLAT SENS FOK MIRR DFCT SPO+ SPO– M901 (SPINDLE) SPINDLE MOTOR DRIVE SLED MOTOR DRIVE TO+ TO– TRACKING COIL DRIVE FOCUS COIL DRIVE M M M902 (SLED) SPINDLE/SLED MOTOR DRIVE, FOCUS/TRACKING COIL DRIVE IC502 DIGITAL SERVO PROCESSOR IC601 (2/2) SPINDLE MOTOR CONTROL IC602 MPEG AUDIO/VIDEO DECODER IC901 VIDEO ENCODER IC920 SYSTEM CONTROLLER, LCD DRIVER, KEY CONTROL IC701 13 15 11 8 OPTICAL PICK-UP (DAX-01A2) DETECTOR A B C F E LASER DIODE LD 05 PD 2-AXIS DEVICE (FOCUS) (TRACKING) TRK+ TRK– FCS+ FCS– 3 4 17 16 15 14 13 12 6 7 19 2 1 PD1 RF 3.3V PD2 RF I-V AMP RF SUMMING AMP FOCUS ERROR AMP TRACKING ERROR AMP RFO 18 RFI FE FE RF DC TE FE BIAS RF AMP, FOCUS/TRACKING ERROR AMP IC501 TE TRV0 TRV1 TRV2 TRV3 TRV0 TRV1 TRV2 TRV3 E F F I-V AMP E I-V AMP EI EO AUTOMATIC POWER CONTROL Q501 CD ON SWITCHING Q507 SWITCHING Q702 RESET SIGNAL GENERATOR IC702 REMOTE CONTROL RECEIVER IC401 B+ SWITCH Q703 TRACKING BALANCE SWITCH Q503, 504 TRACKING GAIN SWITCH Q505 LINE MUTE Q101, 201 VIDEO AMP IC960 MUTING CONTROL SWITCH Q340 RF DC AMP Q506 B+ SWITCH Q861 ESP RF EQ CONTROL SWITCH Q508, 509 APC LD AMP APC PD AMP COMPARATOR LD LDON PD 94 58 66 65 71 MPG XMT RQ 90 SYS RCV RDY 89 SYS XMT RQ 88 ESS-CLK 93 ESS-DATAI 92 ESS-DATAO AUX6 AUX5 AUX7 LCS1 B AUX2 AUX1 8 9 4 5 1 2 12 13 10 6 3 11 DATAO DATAI CLK CTL0 CTL1 CTL2 DATAO DATAI CLK CTL0 CTL1 CTL2 91 52 53 54 66 DCAS B 99 UCAS 28 LCAS 29 WE 13 OE 27 RAS 14 DRAS B 2 DWE B 3 DOE B 92 47 46 TDMCLK TDMDR 96 97 AOUT 89 TBCK 90 ATFS 91 PCLK2XSCN TMS1 43 HSSCN B 41 VSSCN B 40 AUX3 MIFH VCD 3.3V X920 27MHz SOL921 (COLOR BAR) LIQUID CRYSTAL DISPLAY LCD401 MIFFL MODE 48 29 50 59 TRV0 TRV1 63 62 TRV2 TRV3 61 60 79 4 28 27 29 26 6 8 10 99 89 87 88 86 80 69 68 70 54 55 57 HOLD 52 RESUME 53 NTSC/PAL KEY IN1, KEY IN2 S421, 422, S441 – 446 43 DOOR OPEN OSC1 39 TEST 95 RESET 94 81 OSC0 82 V-POWER 56 DCINJACK 44 DC CHK VIDEO CD ON CD ON 38 92 91 93 100 2 74 80 73 78 77 76 75 EMPH 72 83 79 81 71 56 55 54 45 47 46 11 10 2 LOW-PASS FILTER LOW-PASS FILTER ∆Σ MODULATOR CIRCUIT IN2 PWM COMPARATOR 24 11 SDATA XTLO XTLI SHCK DACLT 20 19 18 9 13 LOUT 4 14 ROUT 2 REF 3 MUTE 11 CV OUT C SYNC ADD C SIGNAL GENERATOR OSC CIRCUIT ROM COLOR BAR GENERATOR DAC DAC DAC C LEVEL ALIGNMENT 31 COUT 29 YOUT 27 42 38 39 43 1 2 15 16 15 BEEP 19 PWRSW 12 5 9 23 1 4 B+ SWITCH Q882 SWITCHING REGULATOR Q822 B+ SWITCH Q801, 802 B+ SWITCH Q820 3 6 5 7 22 13 3 ERROR AMP OSC IN1 OUT2 H VCC MOTOR 2.8V ACD 3.3V, RF 3.3V OUT1 PWM COMPARATOR OUTPUT CIRCUIT OUTPUT CIRCUIT 14 7 11 2 1 12 14 15 13 10 10 VDD 9 62 20 32 34 33 31 36 38 39 95 96 97 OE XLASERCTL ON : When the optical pick-up is inner position. XAU-RESET XV-RESET RESET B TDMFS 98 OE 32 CE 30 LOE B 64 LCS3 B 65 51 TMS0 CK27O CK27I XO 44 X701 4.19MHz VCPU 3.3V VCPU 3.3V A-SELECT 86 AU-MUTE 49 BEEP 73 REMOTE VCC 67 XIRCTL 87 AUDIOCLK DQ0 – DQ15 D-RAM IC903 PROGRAM ROM IC902 A0 – A8 MA0 – MA8 DBUS0 – DBUS15 88 4/4 1/4 2/4 3/4 2 – 5, 7 – 10, 31 – 34, 36 – 39 13 – 28 55 – 62 32 – 39 7 – 14 4 – 12 16 – 19, 22 – 26 O0 – O7 LD0 – LD7 1 – 4 COM1 – COM4 YUV0 – YUV7 YDI0 – YCDI7 LA0 – LA16 A0 – A16 21 – 23, 25 – 29 68 – 79, 82 – 86 5 – 11, 13 – 18 SEG0 – SEG12 20 – 13, 3, 2, 31, 1, 12, 4, 5, 11, 10 POWER CONTROL IC820 ERROR AMP IN PWM COMPARATOR 4 OSC OUT OUTPUT CIRCUIT 1 VCC 2 SWITCHING REGULATOR Q881 VOLTAGE DETECT IC810 DC VOLTAGE DETECT Q803-2 DC IN DETECT Q803-1 VCD 3.3V VCD 5V Q810-1 Q810-2 VCD 5V D890 +3.2V VIDEO ENCODER (IC920) B+ DC/DC CONVERTER Q891, T891 +3.2V REGULATOR IC921 VCPU 3.3V +3.2V REGULATOR IC801 + SOL702 (DOOR) S401 (ON: When the CD lid is closed.) SOL701 (TEST MODE) RV301 ∑ VOLUME J301 2 PHONES J901 AUDIO/VIDEO OUT 40, 41 OFF ON OFF ON S701 HOLD c S702 RESUME NTSC AUTO PAL S401 OPEN S703 (VIDEO SYSTEM) DC/DC CONVERTER CONTROL SWITCH IC862 (1/2) 9 3 4 5 D805 DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 4PCS. 6V J801 DC IN 6V – + • SIGNAL PATH : CD PLAY : VIDEO – 11 – – 12 – – 13 – – 14 – – 15 – 6-1. BLOCK DIAGRAM SECTION 6 DIAGRAMS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – – 31 – – 32 – 0.9 ± 0.2 Vp-p 3.1 Vp-p 472 ns • Waveforms – MAIN Board (1/2) – 1 IC501 !¶ (RFO) 200 mV/DIV, 500 ns/DIV 7 IC601 %∞ (RFCK) 1 V/DIV, 50 µs/DIV 6 IC601 $¶ (BCLK) 1 V/DIV, 200 ns/DIV 2 IC501 !§ (FE) 50 mV/DIV, 5 ms/DIV 3 IC501 !¢ (TE) 200 mV/DIV, 5 ms/DIV 4 IC601 @º (VCKI) 1 V/DIV, 20 ns/DIV 5 IC601 $∞ (LRCK) 1 V/DIV, 10 µs/DIV 8 IC601 ^™ (XTAI) 1 V/DIV, 20 ns/DIV 9 IC601 ^§ (FSTI) 2 V/DIV, 50 ns/DIV 0 IC601 (§ (MDP) 2 V/DIV, 2 µs/DIV !™ IC904 !¡ 2 V/DIV, 5 µs/DIV !¡ IC904 3 2 V/DIV, 200 ns/DIV !ª IC901 $£ (PCLK2XSCN) 2 V/DIV, 1 ms/DIV !• IC901 (¡ (ATFS) 1 V/DIV, 10 µs/DIV !¢ IC320 !§ (XTLO) 2 V/DIV, 20 ns/DIV !∞ IC320 @£ (BCLK) 2 V/DIV, 200 ns/DIV !§ IC320 @¢ (LRCK) 1 V/DIV, 10 µs/DIV !¶ IC901 (º (TBCK) 1 V/DIV, 200 ns/DIV @º IC701 *™ (OSC0) 1 V/DIV, 100 ns/DIV @¡ IC920 #¡ (CVOUT) 500 mV/DIV, 20 µs/DIV @™ IC920 #ª (XO) 2 V/DIV, 20 ns/DIV @¢ IC960 1 (OUT) 500 mV/DIV, 20 µs/DIV @£ IC920 $™ (CK270) 2 V/DIV, 20 ns/DIV @∞ IC602 1 (OUT) 1 V/DIV, 2 µs/DIV – MAIN Board (2/2) – @§ IC820 1 (OUT) 2 V/DIV, 2 µs/DIV !£ IC320 !£ (CKO) 2 V/DIV, 20 ns/DIV #£ Q881 D 2 V/DIV, 2 µs/DIV #™ Q881 G 2 V/DIV, 2 µs/DIV @• IC861 7 (OUT1) 2 V/DIV, 2 µs/DIV @ª IC861 0 (OUT2) 2 V/DIV, 2 µs/DIV #º Q891 G 2 V/DIV, 2 µs/DIV #¡ T891 4 5 V/DIV, 2 µs/DIV @¶ IC861 1 (CT) 200 mV/DIV, 2 µs/DIV Approx. 50 mVp-p Approx. 570 mVp-p 2.5 Vp-p 16.9344 MHz 3.2 Vp-p 22.7 µs 3.7 Vp-p 7.6 µs 3.8 Vp-p 87 ns 2.3 Vp-p 16.9344 MHz 3.2 Vp-p 136 µs 4.1 Vp-p 472 ns 3.3 Vp-p 22.7 µs 0.84 Vp-p 59 ns 3.7 Vp-p 16.9344 MHz 3.3 Vp-p 472 ns 2.72 Vp-p 4.19 MHz 5.2 Vp-p 27 MHz 3.2 Vp-p 22.7 µs 3.2 Vp-p 472 ns 3.3 Vp-p 22.7 µs 1.0 Vp-p H 4.2 Vp-p 27 MHz 3.9 Vp-p 27 MHz 2.0 Vp-p H 3.1 Vp-p 7.5 µs 5.6 Vp-p 5.2 µs 5.5 Vp-p 4.5 µs 4.6 µs 5.5 Vp-p 680 mVp-p 4.9 µs 5.27 Vp-p 5.24 µs 12.8 Vp-p 5.2 µs 5.4 Vp-p 4.5 µs 5.8 Vp-p 4.5 µs w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – • IC Block Diagrams – MAIN Board (1/2) – IC301 TC74VHC157F IC360 BA3574BFS IC320 TC9434AFNEL SELECT 111 1A 2 3 4 5 6 7 INPUT INPUT OUTPUT OUTPUT 1A 1B 1Y 2A 2B 2Y 1B 1Y 2A 2B 2Y GND 8 VCC STROBE 16 4A 15 14 13 11 12 11 10 INPUT INPUT OUTPUT OUTPUT G 4B 4Y 3A 4A 4B 4Y 3A 3B 9 3B 3Y 3Y S 2 1 3 4 5 6 7 9 10 13 19 18 11 TEST CIRCUIT OUTPUT CIRCUIT CPU INTERFACE CIRCUIT INPUT INTERFACE CIRCUIT ∆Σ MODULATOR CIRCUIT DIGITAL FILTER CIRCUIT, DIGITAL BASS BOOST CIRCUIT, ATTENUATOR OPERATIONAL CIRCUIT, DE-EMPHASIS FILTER CIRCUIT ANALOG FILTER VDD T1 P/S VDA RO GNDA VR GNDA LO VDA ZD GNDD ATT (LB1) LB2 SH (EMP) LA (SM) LRCK BCK DATA 20 16 15 OSCILLATOR TIMING GENERATOR VDX XO MCKO 14 GNDX XI 17 21 22 24 23 OUTPUT CIRCUIT ANALOG FILTER 12 8 MUTE MUTE SW 11 P.SW PW SW 12 IN 1 13 IN 2 14 BIAS OUT 15 BIAS IN 16 RF OUT 17 RF IN 18 BEEP IN 19 VCC 20 RIPPLE FILTER BEEP 10 9 8 BB SW 7 6 5 4 3 2 1 MUTE LP MUTE SW AVC AVC IN AVC DET MIX OUT OUT 1 VREF OUT 2 GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – IC502 MPC17A38ZVMEL IC501 CXA1791N + – + – APC PD AMP APC LD AMP VREF 1.25V 1 LD 2 PD VC – + RF IV AMP1 3 PD1 VC VC – + RF IV AMP2 4 PD2 VC VC – + RF SUMMING AMP VC – + FOCUS ERROR AMP 18 RFI 19 APC ON 20 VCC VCC 17 RFO 16 FE 15 FE BIAS – + F IV AMP 6 F VC VC – + TRACKING ERROR AMP 14 TE VC 5 GND – + E IV AMP 7 E VC 13 EI 12 EO VC 8 VR VC 10 NC 11 NC VC 9 – + VCC VC BUFFER 15 13 12 11 DC/DC CONVERTER CLK DETECTOR PRE-DRIVER CONTROL DRIVER PRE-DRIVER CONTROL DRIVER PRE-DRIVER CONTROL DRIVER PRE-DRIVER CONTROL DRIVER 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 1 2 3 4 5 6 7 8 9 10 14 VC VC VC VC VC VC VC VC VC VC PI4 PGND PGND RO3 VD RO4 PGND FO4 VD F/R4 FO3 VD FI3 RI3 VG GND PS OE RI2 FI2 VD FO2 VD RO2 PGND RO1 PGND PGND FO1 VD FI1 RI1 GND CLK VC LG CLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – IC601 CXD2545Q 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 92 91 90 89 88 87 86 85 84 83 93 94 95 96 97 98 99 100 SLED PWM GENERATOR TRACKING PWM GENERATOR FOCUS PWM GENERATOR PWM GENERATOR SERVO DSP FOCUS SERVO TRACKING SERVO SLED SERVO CLV PROCESSOR CPU INTERFACE NOISE SHAPER 18-TIMES OVER SAMPLING FILTER CPU INTERFACE CPU INTERFACE ADDRESS GENERATOR CPU INTERFACE PRIORITY ENCODER CPU INTERFACE ERROR CORRECTOR CPU INTERFACE TIMING GENERATOR 2 MIRR DFCT FOK DETECTOR 32K RAM RESISTER D/A DIGITAL PROCESSOR TIMING GENERATOR 1 SYNC PROTECTOR DIGITAL OUT SUBCODE P-W PROCESSOR SUBCODE Q PROCESSOR DIGITAL PLL VARI-PITCH DOUBLE SPEED CPU INTERFACE EFM DEMODULATOR SERIAL PARALLEL PROCESSOR CPU INTERFACE ASYMMETRY CORRECTION 1 2 3 4 5 6 7 8 9 10 11 20 19 18 17 16 15 14 13 12 21 22 23 24 25 46 | 50 61 – 51 PEAK DETECTOR CLOCK GENERATOR MUX     A/D CONVERTER SWITCH & BUFFER SERVO AUTO SEQUENCER SERVO MICRO PROGRAM INTERFACE RFC ADIO AVSS IGEN AVDD VCKI VPCO PDO TES3 TES2 DVSS TEST VCO1 VCO0 SRON SRDR SFON TFDR TRON TRDR TFON FFDR FRON FRDR FFON RFDC TE SE FE VC FILO FILI PCO CLTV AVSS RFAC BIAS ASYI ASYO AVDD ADD ASYE PSSL WDCK LRCK XTAI XTAO XTSL DVSS FSTI FSTO D OUT MD2 C16M C4M SCOR WFCK EMPH SBSO EXCK SQSO SQCK MUTE SENS XRST DIRC SCLK DFSW ATSK DATA XLAT CLOK COUT ADD MIRR DFCT FOK FSW MON MDP MDS LOCK SSTP SFDR 4 3 DA01 | DA11 DA16 | DA12 26 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – IC920 TC90A07U IC602 BA3890F 1 OUT 2 CONT 3 CT 4 GND 8 Vcc 7 6 5 – + BUFF BUFF VIN2 SW VIN1 COMP 0.25V SYNC GENERATOR 43 2 1 3 5 4 6 LOW-PASS FILTER LOW-PASS FILTER Y LEVEL ALIGNMENT C SYNC ADD C LEVEL ALIGNMENT Y/Cb/Cr SEPARATOR CLK GENERATOR COLOR BAR GENERATOR Cb LEVEL ALIGNMENT INTERPOLATE DAC DAC DAC INTERPOLATE ROM CVOUT AVCC CSYNC HSYNC VSYNC TMS3 VDD CK27I XO GND TMS2 CK27O TMS1 44 TMS0 AGND COUT AVCC YOUT AGND VREF BIAS1 BIAS2 FLD BLK BF CLPF GND VDD VBLNKO MODE BURST FLAG BLANKING Y Cb Cr C SIGNAL GENERATOR C Y 20 21 22 YCDI7 YCDI6 YCDI5 12 13 14 YCDI0 YCDI1 YCDI2 YCDI3 YCDI4 MIFH MIFFL MIFFR VBLNKI VDD GND 9 8 7 11 10 17 18 15 16 19 24 25 26 27 30 29 39 40 28 23 42 41 38 37 36 35 31 32 34 33 + + www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – – MAIN Board (2/2) – IC820 TL5001CD IC861 TL1453CPW-E20 IC862 MC14053BDTR2 REFERENCE VOLTAGE S.C.P. COMPARATOR 1 SWITCH 'ON' AT 'H' PWM COMPARATOR S.C.P. COMPARATOR 2 DEAD-TIME COMPARATOR S.C.P. LATCH OSC U.V.L.O ERROR AMP – + – + + – + – – + 5 6 7 8 1 2 3 4 OUT VCC FEED BACK INPUT SCP DEAD-TIME CONTROL RT GND + – + – OUTPUT 2 OUTPUT 1 PWM COMPARATOR 1 PWM COMPARATOR 2 VREF ERROR AMP 1 ERROR AMP 2 REFERENCE VOLTAGE R U. V. L. O. TRIANGLE OSCILLATOR VREF VREF 13 14 15 16 REF OUT UVK NON INV INPUT2 INV INPUT2 12 FEED BACK2 11 DEAD TIME CONTROL2 10 OUT2 9 VCC CT RT NON INV INPUT1 INV INPUT1 FEED BACK1 DEAD TIME CONTROL1 OUT1 GND 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 B1 B0 C.COM CO INH VEE VSS VDD B.COM A.COM A1 A0 A B C C1 9 10 11 12 13 14 15 16 OPEN OPEN OPEN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – • Pin No. Pin Name I/O Function 1 SRON O Sled servo drive PWM signal output terminal Not used (open) 2 SRDR O Sled servo drive PWM signal (–) output to the MPC17A38ZVMEL (IC502) 3 SFON O Sled servo drive PWM signal output terminal Not used (open) 4 TFDR O Tracking servo drive PWM signal (+) output to the MPC17A38ZVMEL (IC502) 5 TRON O Tracking servo drive PWM signal output terminal Not used (open) 6 TRDR O Tracking servo drive PWM signal (–) output to the MPC17A38ZVMEL (IC502) 7 TFON O Tracking servo drive PWM signal output terminal Not used (open) 8 FFDR O Focus servo drive PWM signal (+) output to the MPC17A38ZVMEL (IC502) 9 FRON O Focus servo drive PWM signal output terminal Not used (open) 10 FRDR O Focus servo drive PWM signal (–) output to the MPC17A38ZVMEL (IC502) 11 FFON O Focus servo drive PWM signal output terminal Not used (open) 12 VCOO O Oscillator circuit output terminal for analog PLL of the playback EFM 13 VCOI I Oscillator circuit input terminal for analog PLL of the playback EFM 14 TEST I Input terminal for the test (fixed at “L”) 15 DVSS — Ground terminal (digital system) 16 TES2 I Input terminal for the test (fixed at “L”) 17 TES3 I Input terminal for the test (fixed at “L”) 18 PDO O Charge-pump output terminal for analog PLL of the playback EFM Not used (open) 19 VPCO O PLL charge-pump output terminal for the variable pitch Not used (open) 20 VCKI I Master clock signal (16.9344 MHz) input from the D/A converter (IC320) for the variable pitch 21 AVD2 — Power supply terminal (+3.3V) (analog system) 22 IGEN I Power supply terminal (+3.3V) (for operational amplifier) 23 AVS2 — Ground terminal (analog system) 24 ADII I Input terminal for the A/D converter Not used (open) 25 ADIO O Output terminal of the operational amplifier Not used (open) 26 RFDC I RF signal (DC level) input terminal for the digital servo process 27 TE I Tracking error signal input from the CXA1791N (IC501) 28 SE I Sled error signal input from the CXA1791N (IC501) 29 FE I Focus error signal input from the CXA1791N (IC501) 30 VC I Middle point voltage (+1.65V) input from the CXA1791N (IC501) 31 FILO O Filter output terminal for master clock of the playback master PLL 32 FILI I Filter input terminal for master clock of the playback master PLL 33 PCO O Phase comparison output terminal for master clock of the playback EFM master PLL 34 CLTV I Internal VCO control voltage input of the playback master PLL 35 AVS1 — Ground terminal (analog system) 36 RFAC I RF signal (AC level) input terminal for the EFM demodulator 37 BIAS I Constant current input terminal of the playback EFM asymmetry circuit 38 ASYI I Playback EFM asymmetry comparator voltage input terminal 39 ASYO O Playback EFM full-swing output terminal 40 AVD1 — Power supply terminal (+3.3V) (analog system) 41 DVDD — Power supply terminal (+3.3V) (digital system) 42 ASYE I Playback EFM asymmetry circuit on/off selection input terminal (fixed at “H”) 43 PSSL I Audio data output mode selection input terminal (fixed at “L”) 44 WDCK O Word clock signal (88.2 kHz) output terminal Not used (open) 45 LRCK O L/R sampling clock signal (44.1 kHz) output to the D/A converter (IC320) and MPEG audio/video decoder (IC901) MAIN BOARD IC601 CXD2545Q (DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR) 6-7. IC PIN FUNCTION DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – Pin No. Pin Name I/O Function 46 DATA O DA16 output when PSSL=“H”, 48-bit slot serial data output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Serial data output to the D/A converter (IC320) and MPEG audio/video decoder (IC901) 47 BCLK O DA15 output when PSSL=“H”, 48-bit slot bit clock signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Bit clock signal (2.8224 MHz) output to the D/A converter (IC320) and MPEG audio/video decoder (IC901) 48 64 DATA O DA14 output when PSSL=“H”, 64-bit slot serial data output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 49 64 BCLK O DA13 output when PSSL=“H”, 64-bit slot bit clock signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 50 64 LRCK O DA12 output when PSSL=“H”, 64-bit slot L/R sampling clock signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 51 GTOP O DA11 output when PSSL=“H”, GTOP signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 52 XUGF O DA10 output when PSSL=“H”, XUGF signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 53 XPLCK O DA09 output when PSSL=“H”, XPLCK signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 54 GFS O DA08 output when PSSL=“H”, GFS (guard frame sync) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 55 RFCK O DA07 output when PSSL=“H”, RFCK (read frame clock) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 56 C2PO O DA06 output when PSSL=“H”, C2PO signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used 57 XRAOF O DA05 output when PSSL=“H”, XRAOF (RAM over flow) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 58 MNT3 O DA04 output when PSSL=“H”, MNT3 (monitor 3) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 59 MNT2 O DA03 output when PSSL=“H”, MNT2 (monitor 2) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 60 MNT1 O DA02 output when PSSL=“H”, MNT1 (monitor 1) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 61 MNT0 O DA01 output when PSSL=“H”, MNT0 (monitor 0) signal output when PSSL=“L” (PSSL (pin $£)=fixed at “L”) Not used (open) 62 XTAI I Master clock signal (16.9344 MHz) input from the D/A converter (IC320) 63 XTAO O Master clock output terminal (16.9344 MHz) Not used (open) 64 XTSL I Master clock selection input terminal (fixed at “L”) 65 DVSS — Ground terminal (digital system) 66 FSTI I 2/3 divider input terminal of pins ^™ (XATI) and ^£ (XTAO) 67 FSTO O 2/3 divider output terminal of pins ^™ (XATI) and ^£ (XTAO) 68 C4M O 4.2336 MHz clock signal output terminal Not used (open) 69 C16M O 16.9344 MHz clock signal output terminal Not used (open) 70 MD2 I Digital out on/off control signal input terminal Fixed at “H” in this set 71 DOUT O Digital signal (for coaxial out and optical out) output terminal Not used (open) 72 EMPH O Emphasis control signal output terminal Not used (open) 73 WFCK O Write frame clock signal output terminal Not used (open) 74 SCOR O Sub-code sync (S0+S1) detection signal output to the system controller (IC701) 75 SBSO O Sub-code P-W serial data output terminal Not used (open) 76 EXCK I Sub-code P-W serial data reading clock signal input terminal Not used (fixed at “L”) 77 SUBQ O Sub-code Q data signal output to the system controller (IC701) 78 SQCK I Sub-code Q data reading clock signal input from the system controller (IC701) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – Pin No. Pin Name I/O Function 79 MUTE I Mute signal input terminal Fixed at “L” in this set 80 SENS O Internal status (SENSE) signal output to the system controller (IC701) 81 XRST I Reset signal input from the system controller (IC701) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 82 DIRC I 1-track jump mode input terminal Not used (fixed at “H”) 83 SCLK I Sense serial data reading clock signal input from the system controller (IC701) 84 DFSW I Defect on/off select signal input terminal Not used (fixed at “L”) 85 ATSK I Input terminal for the anti-shock Not used (fixed at “L”) 86 DATA I Serial data input from the system controller (IC701) 87 XLAT I Serial data latch pulse signal input from the system controller (IC701) 88 CLOK I Serial data transfer clock signal input from the system controller (IC701) 89 COUT O Track number count signal output terminal Not used (open) 90 DVDD — Power supply terminal (+3.3V) (digital system) 91 MIRR O Mirror detection signal output terminal Not used (open) 92 DFCT O Defect signal output terminal Not used (open) 93 FOK O Focus OK signal output terminal Not used (open) 94 FSW O Selection signal output terminal of the output filter for spindle motor Not used (open) 95 MON O Spindle motor on/off control signal output terminal Not used (open) 96 MDP O Spindle servo control signal output to the BA3890F (IC602) 97 MDS O Spindle servo control signal output to the BA3890F (IC602) 98 LOCK O GFS is sampled by 460 Hz “H” output when GFS is “H” Not used (open) 99 SSTP I Detection input from the sled limit-in detect switch (S910) The optical pick-up is inner position when “H” 100 SFDR O Sled servo drive PWM signal (+) output to the MPC17A38ZVMEL (IC502) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – • MAIN BOARD IC701 MSM65354-412GS-BK4 (SYSTEM CONTROLLER, LCD DRIVER, KEY CONTROL) Pin No. Pin Name I/O Function 1 to 4 COM1 to COM4 O Common drive signal output to the liquid crystal display (LCD401) 5 to 11 SEG0 to SEG6 O Segment drive signal output to the liquid crystal display (LCD401) 12 NC O Not used (open) 13 to 18 SEG7 to SEG12 O Segment drive signal output to the liquid crystal display (LCD401) 19 to 36 NC O Not used (open) 37 AGND — Ground terminal (analog system) 38 DC CHK I DC in voltage detection input terminal (A/D input) Also used for DC IN detection 39 DOOR OPEN I CD lid open/close detection switch (S401) input terminal The stop status is reset with the falling edge of input signal “H”: CD lid open, “L”: CD lid close 40 KEY IN1 I Key input terminal (A/D input) RETURN, MENU –, PREV =, ^, NEXT +, MENU + keys input (S441 to S446) 41 KEY IN2 I Key input terminal (A/D input) p POWER OFF, SELECT keys input (S421 and S422) 42 BATT CHK I Battery voltage detection input terminal 43 NTSC/PAL I Video system select switch (S703) input terminal “L”: NTSC, “H”: AUTO 44 DCINJACK I DC IN 6V jack (J801) detection input terminal “L”: plug in 45 MODE I Fixed at “L” in this set 46 VRH I Reference voltage input terminal (+3.3V) (for A/D converter) 47 AVDD — Power supply terminal (+3.3V) (analog system) 48 DBB CTL1 O MEGA BASS on/off control signal output terminal “L”: MEGA BASS on (level-1 and level-2) Not used (open) 49 AU-MUTE O Analog line mute control signal output terminal “H”: mute on 50 XAU-RESET O Reset signal output to the CXD2545Q (IC601) and headphone amplifier (IC360) “L”: reset 51 XV-RESET O Reset signal output to the MPEG audio/video decoder (IC901) and video encoder (IC920) “L”: reset 52 HOLD I HOLD switch (S701) input terminal “L”: hold off, “H”: hold on 53 RESUME I RESUME switch (S702) input terminal “L”: resume off, “H”: resume on 54 XDSPLT O Serial data latch pulse signal output to the CXD2545Q (IC601) 55 XDACLT O Serial data latch pulse signal output to the D/A converter (IC320) 56 V-POWER O Video CD system power supply on/off control signal output terminal “L”: power on 57 AU-POWER O Audio CD system power supply on/off control signal output terminal “L”: power on 58 ESP-POWER O Control signal output to the ESP (Electronic Shock Protection) circuit 59 TRVCTL O Tracking gain control signal output terminal 60 to 63 TRV3 to TRV0 O Tracking balance control signal output terminal 64 XSOE O Serial data output enable signal output terminal Not used (open) 65 DSP-SUBQ I Sub-code Q data signal input from the CXD2545Q (IC601) 66 DSP-SBQCLK O Sub-code Q data reading clock signal output to the CXD2545Q (IC601) 67 REMOTE I Sircs remote control signal input from the remote control receiver (IC401) 68 DSP-DATA O Serial data output to the CXD2545Q (IC601) and D/A converter (IC320) 69 DSP-SENS I Internal status (SENSE) signal input from the CXD2545Q (IC601) 70 DSP-CLK O Serial data transfer clock signal output to the CXD2545Q (IC601) and D/A converter (IC320) 71 DSP-SNSCLK O Sense serial data reading clock signal output to the CXD2545Q (IC601) 72 VDD — Power supply terminal (+3.3V) (digital system) 73 BEEP O Beep sound drive signal output terminal 74 C2PO O C2PO signal control output terminal “L”: stop mode, “H”: searching Not used 75 ESP-CLK O Serial data transfer clock signal output terminal Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – Pin No. Pin Name I/O Function 76 ESP-DATA O Serial data output terminal Not used (open) 77 ESP-LT O Serial data latch pulse signal output terminal Not used (open) 78 ESP-SENSE I Sense serial data input terminal Not used (open) 79 XLASERCTL O Laser diode on/off control signal output to the CXA1791N (IC501) “L”: laser on 80 DSP-SCOR I Sub-code sync (S0+S1) detection signal input from the CXD2545Q (IC601) 81 OSC1 O Main system clock output terminal (4.19 MHz) 82 OSC0 I Main system clock input terminal (4.19 MHz) 83 GND — Ground terminal (digital system) 84 XT I Sub system clock input terminal Not used (fixed at “L”) 85 XTO O Sub system clock output terminal Not used (open) 86 A-SELECT O Selection signal output to the DATA, BCLK, LRCK signal select switch (IC301) “L”: CD play, “H”: video CD play 87 XIRCTL O Power supply on/off control signal for the remote control receiver (IC401) “L”: power on 88 SYS XMT RQ O Communication request signal output to the MPEG audio/video decoder (IC901) 89 SYS RCV RDY O Ready signal output to the MPEG audio/video decoder (IC901) 90 MPG XMT RQ I Communication request signal input from the MPEG audio/video decoder (IC901) 91 ESS-DATAO O Serial data output to the MPEG audio/video decoder (IC901) 92 ESS-DATAI I Serial data input from the MPEG audio/video decoder (IC901) 93 ESS-CLK O Serial data transfer clock signal output to the MPEG audio/video decoder (IC901) 94 RESET I System reset signal input from the reset signal generator (IC702) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 95 TEST I Service mode setting terminal The stop status is reset with the falling edge of input signal “L”: service mode, Normally: “H” 96 DBB CTL2 O MEGA BASS level control signal output terminal “L”: MEGA BASS level-1, “H”: MEGA BASS level-2 Not used (open) 97 VDDL — Power supply output for the liquid crystal display bias 98 to 100 VDD1 to VDD3 — Power supply output for the liquid crystal display bias www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – • MAIN BOARD IC901 ES3210 (MPEG AUDIO/VIDEO DECODER) Pin No. Pin Name I/O Function 1 VCC — Power supply terminal (+3.3V) 2 DRAS B O Row address strobe signal output to the D-RAM (IC903) “L” active 3 DWE B O Write enable signal output to the D-RAM (IC903) “L” active 4 to 12 MA0 to MA8 O Address signal output to the D-RAM (IC903) 13 to 28 DBUS0 to DBUS15 I/O Two-way data bus with the D-RAM (IC903) 29 RESET B I Reset signal input from the system controller (IC701) “L”: reset 30 VSS — Ground terminal 31 VCC — Power supply terminal (+3.3V) 32 to 39 YUV0 to YUV7 O Video data output to the video encoder (IC920) (YUV; Y: luminance signal, UV: Screen video interface chrominance data bus) 40 VSSCN B O Vertical synchronous signal output to the video encoder (IC920) 41 HSSCN B O Horizontal synchronous signal output to the video encoder (IC920) 42 CLK I System clock signal input terminal Not used (open) 43 PCLK2XSCN I System clock signal (27 MHz) input from the video encoder (IC920) 44 PCKLQSCN O Pixel clock qualifier output for the screen video interface Not used (open) 45 AUX0 O Sub control signal output terminal Not used (open) 46 AUX1 I Serial data input from the system controller (IC701) 47 AUX2 O Serial data output to the system controller (IC701) 48 AUX3 O NTSC/PAL mode selection signal output to the video encoder (IC920) “L”: NTSC, “H”: PAL 49 AUX4 O Sub control signal output terminal Not used (open) 50 VSS — Ground terminal 51 VCC — Power supply terminal (+3.3V) 52 AUX6 O Communication request signal output to the system controller (IC701) 53 AUX5 I Ready signal input from the system controller (IC701) 54 AUX7 I Communication request signal input from the system controller (IC701) 55 to 62 LD0 to LD7 I Data input from the program ROM (IC902) 63 LWR B O Write enable signal output terminal “L” active Not used (open) 64 LOE B O Output enable signal output to the program ROM (IC902) “L” active 65 LCS3 B O Chip select signal output to the program ROM (IC902) “L” active 66 LCS1 B I Serial data transfer clock signal input from the system controller (IC701) “L” active 67 LCS0 B O Chip select signal output terminal “L” active Not used (open) 68 to 79 LA0 to LA11 O Address signal output to the program ROM (IC902) 80 VSS — Ground terminal 81 VPP — Power supply terminal (+5V) (digital system) 82 to 86 LA12 to LA16 O Address signal output to the program ROM (IC902) 87 LA17 O Address signal output terminal Not used (open) 88 AUDIOCLK I Audio master clock signal (16.9344 MHz) input from the D/A converter (IC320) 89 AOUT O Audio interface serial data output to the D/A converter (IC320) 90 TBCK O Bit clock signal (2.8224 MHz) output to the D/A converter (IC320) 91 ATFS O L/R sampling clock signal (44.1 kHz) output to the D/A converter (IC320) 92 DOE B O Output enable signal output to the D-RAM (IC903) “L” active 93 AIN I Audio interface serial data input terminal Not used (open) 94 RBCK I Audio interface bit clock signal (2.8224 MHz) input terminal Not used (open) 95 ARFS I Audio interface L/R sampling clock signal (44.1 kHz) input terminal Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – Pin No. Pin Name I/O Function 96 TDMCLK I Bit clock signal (2.8224 MHz) input from the CXD2545Q (IC601) 97 TDMDR I Serial data input from the CXD2545Q (IC601) 98 TDMFS I L/R sampling clock signal (44.1 kHz) input from the CXD2545Q (IC601) 99 DCAS B O Column address strobe signal output to the D-RAM (IC903) “L” active 100 VSS — Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – • MAIN BOARD IC920 TC90A07U (VIDEO ENCODER) Pin No. Pin Name I/O Function 1 MIFH I Horizontal synchronous signal input from the MPEG audio/video decoder (IC901) 2 MIFFL I Vertical synchronous signal input from the MPEG audio/video decoder (IC901) 3 MIFFR O Frame synchronous signal output terminal Not used (open) 4 VBLNKI I Video blanking signal input terminal “L”: blanking 5 VDD — Power supply terminal (+3.3V) (digital system) 6 GND — Ground terminal (digital system) 7 YCDI0 I 8 bit pixel data (LSB) input from the MPEG audio/video decoder (IC901) 8 to 13 YCDI1 to YCDI6 I 8 bit pixel data input from the MPEG audio/video decoder (IC901) 14 YCDI7 I 8 bit pixel data (MSB) input from the MPEG audio/video decoder (IC901) 15 MODE I NTSC/PAL mode selection signal input from the MPEG audio/video decoder (IC901) “L”: NTSC, “H”: PAL 16 VBLNKO O Video blanking signal output terminal 17 VDD — Power supply terminal (+3.3V) (digital system) 18 GND — Ground terminal (digital system) 19 CLPF I Low-pass filter on/off control signal input for the internal CbCr “L”: on, “H”: off Fixed at “L” in this set 20 BF O Burst flag pulse output terminal Not used (open) 21 BLK O Blanking signal output terminal Not used (open) 22 FLD O Field discrimination signal output terminal “L”: odd number field, “H”: even number field Not used (open) 23 BIAS2 — Connect a capacitor for the D/A converter bias 24 BIAS1 — Connect a capacitor for the D/A converter bias 25 VREF I Reference voltage input terminal (for D/A converter) 26 AGND — Ground terminal (analog system for D/A converter) 27 YOUT O Analog Y signal (luminance signal) output terminal Not used (open) 28 AVCC — Power supply terminal (+3.3V) (analog system for D/A converter) 29 COUT O Analog C signal (chroma signal) output terminal Not used (open) 30 AGND — Ground terminal (analog system for D/A converter) 31 CVOUT O Analog composite video signal output terminal 32 AVCC — Power supply terminal (+3.3V) (analog system for D/A converter) 33 CSYNC O Composite synchronous signal output terminal Not used (open) 34 HSYNC O Horizontal synchronous signal output terminal Not used (open) 35 VSYNC O Vertical synchronous signal output terminal Not used (open) 36 TMS3 I Mode setting terminal Normally fixed at “H” 37 VDD — Power supply terminal (+3.3V) (digital system) 38 CK27I I System clock input terminal (27 MHz) 39 XO O System clock output terminal (27 MHz) 40 GND — Ground terminal (digital system) 41 TMS2 I Mode setting terminal Normally fixed at “H” 42 CK27O O System clock signal (27 MHz) output to the MPEG audio/video decoder (IC901) 43 TMS1 I Reset signal input from the system controller (IC701) “L”: reset 44 TMS0 I Video output mode setting terminal “L”: normal output mode, “H”: color bar output mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 46 – (1) CABINET SECTION-1 SECTION 7 EXPLODED VIEWS The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4 5 3 2 1 6 6 not supplied 7 8 1 4-996-341-01 BUTTON (CONTROL) 2 X-4950-497-1 CABINET (UPPER) ASSY 3 4-982-475-01 WINDOW, RAY CATCHER 4 A-3320-682-A LID BLOCK ASSY, UPPER 5 4-996-352-01 SHAFT (FULCRUM) 6 3-336-395-01 SCREW (B2X10) (G), TAPPING 7 4-996-347-01 SPRING (LOCK) * 8 4-996-344-02 SPRING (OPEN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 47 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (2) CABINET SECTION-2 60 61 62 64 64 CDM-2401AAA LCD401 64 65 66 67 68 52 52 53 55 57 58 59 51 56 54 63 51 X-4950-496-1 CABINET (LOWER) ASSY 52 4-962-025-21 FOOT, RUBBER 53 4-996-333-01 LID, BATTERY CASE 54 3-485-343-11 SHEET 55 4-996-339-01 TERMINAL (RELAY), BATTERY 56 4-213-585-01 SPACER (LCD) 57 1-694-374-11 CONDUCTIVE BOARD, CONNECTION 58 4-996-338-01 HOLDER, LCD 59 4-996-337-01 BASE, BUTTON 60 A-3323-071-A LCD BOARD, COMPLETE 61 1-776-149-11 CABLE, FLEXIBLE FLAT 30P 62 3-336-395-01 SCREW (B2X10) (G), TAPPING 63 4-918-544-11 SPACER (T) 64 4-975-811-01 INSULATOR 65 4-996-335-01 TERMINAL (+), BATTERY 66 4-996-336-01 TERMINAL (-), BATTERY 67 A-3323-070-A MAIN BOARD, COMPLETE 68 4-975-765-01 KNOB (DBB/ESP) LCD401 1-801-975-11 DISPLAY PANEL, LIQUID CRYSTAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 48 – not supplied M901 M902 S901 106 107 108 105 103 102 101 112 111 110 109 104 (3) MECHANISM DECK SECTION (CDM-2401AAA) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 A-3320-684-A SCREW ASSY, FEED 102 3-318-203-11 SCREW (B1.7X6), TAPPING 103 4-972-163-04 SPRING, SLED 104 1-690-530-81 LEAD (WITH CONNECTOR) 105 7-627-850-17 SCREW, PRECISION +P 1.4X2.5 106 3-719-401-11 SCREW (B1.7), TAPPING 107 4-972-162-01 CHASSIS 108 4-974-003-01 GEAR (B) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. 109 1-660-965-11 SLIDE FLEXIBLE BOARD !110 X-4950-060-1 OPTICAL PICK-UP (DAX-01A2) 111 4-972-165-01 RACK 112 4-973-631-01 SCREW M901 A-3303-458-A MOTOR ASSY, TURNTABLE (SPINDLE) M902 A-3303-403-A MOTOR ASSY, SLED S910 1-571-099-21 SWITCH (1 KEY) (LIMIT) Ver 1.1 2000. 02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 49 – SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LCD MAIN NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. A-3323-071-A LCD BOARD, COMPLETE ******************** 1-694-374-11 CONDUCTIVE BOARD, CONNECTION 4-213-585-01 SPACER (LCD) 4-996-338-01 HOLDER, LCD < CAPACITOR > C401 1-115-156-11 CERAMIC CHIP 1uF 10V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C403 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C404 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN401 1-573-370-21 CONNECTOR, FFC/FPC 30P < FERRITE BEAD > FB401 1-500-444-11 FERRITE 0uH FB402 1-500-444-11 FERRITE 0uH FB404 1-500-444-11 FERRITE 0uH < IC > IC401 8-749-014-29 IC RS-350 < LIQUID CRYSTAL DISPLAY > LCD401 1-801-975-11 DISPLAY PANEL, LIQUID CRYSTAL < RESISTOR > R401 1-216-813-11 METAL CHIP 220 5% 1/16W R403 1-216-813-11 METAL CHIP 220 5% 1/16W R404 1-216-821-11 METAL CHIP 1K 5% 1/16W R421 1-218-847-11 RES, CHIP 1K 0.5% 1/16W R441 1-218-847-11 RES, CHIP 1K 0.5% 1/16W R442 1-218-851-11 RES, CHIP 1.5K 0.5% 1/16W R443 1-218-855-11 RES, CHIP 2.2K 0.5% 1/16W R444 1-218-859-11 RES, CHIP 3.3K 0.5% 1/16W R445 1-218-863-11 RES, CHIP 4.7K 0.5% 1/16W < SWITCH > S401 1-692-366-11 SWITCH, PUSH (1 KEY) (OPEN) S421 1-762-366-11 SWITCH, TACTILE (p POWER OFF) S422 1-762-366-11 SWITCH, TACTILE (® SELECT) S441 1-762-366-11 SWITCH, TACTILE (ˆ RETURN) S442 1-762-366-11 SWITCH, TACTILE (– MENU) S443 1-762-366-11 SWITCH, TACTILE (= PREV) S444 1-762-366-11 SWITCH, TACTILE (^) S445 1-762-366-11 SWITCH, TACTILE (+ NEXT) S446 1-762-366-11 SWITCH, TACTILE (+ MENU) ************************************************************ A-3323-070-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C101 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V C102 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C103 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C104 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C105 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C107 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V C202 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C203 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C204 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C205 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C206 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C207 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-115-156-11 CERAMIC CHIP 1uF 10V C321 1-115-156-11 CERAMIC CHIP 1uF 10V C322 1-126-209-11 ELECT CHIP 100uF 20% 4V C323 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C324 1-126-246-11 ELECT CHIP 220uF 20% 4V C325 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C326 1-115-156-11 CERAMIC CHIP 1uF 10V C332 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C360 1-104-915-11 TANTALUM CHIP 2.2uF 20% 20V C362 1-126-602-11 ELECT CHIP 3.3uF 20% 50V C363 1-115-156-11 CERAMIC CHIP 1uF 10V C364 1-115-156-11 CERAMIC CHIP 1uF 10V C366 1-164-156-11 CERAMIC CHIP 0.1uF 25V C367 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C368 1-124-779-00 ELECT CHIP 10uF 20% 16V C369 1-165-112-11 CERAMIC CHIP 0.33uF 16V C370 1-126-395-11 ELECT 22uF 20% 16V C371 1-115-156-11 CERAMIC CHIP 1uF 10V C372 1-164-156-11 CERAMIC CHIP 0.1uF 25V C373 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 50 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C374 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C500 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C503 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C504 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C505 1-164-156-11 CERAMIC CHIP 0.1uF 25V C507 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C508 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C509 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C510 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C511 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C512 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C513 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C515 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C516 1-164-156-11 CERAMIC CHIP 0.1uF 25V C517 1-164-156-11 CERAMIC CHIP 0.1uF 25V C518 1-104-915-11 TANTALUM CHIP 2.2uF 20% 20V C519 1-115-156-11 CERAMIC CHIP 1uF 10V C520 1-115-156-11 CERAMIC CHIP 1uF 10V C523 1-126-246-11 ELECT CHIP 220uF 20% 4V C524 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V C602 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C603 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C604 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C605 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C606 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C607 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C608 1-164-156-11 CERAMIC CHIP 0.1uF 25V C609 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C610 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C611 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C614 1-164-156-11 CERAMIC CHIP 0.1uF 25V C615 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C616 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C617 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C618 1-164-156-11 CERAMIC CHIP 0.1uF 25V C619 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C682 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C701 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C702 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C703 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C708 1-164-156-11 CERAMIC CHIP 0.1uF 25V C711 1-135-208-11 TANTALUM CHIP 1uF 20% 10V C802 1-126-193-11 ELECT 1uF 20% 50V C803 1-164-156-11 CERAMIC CHIP 0.1uF 25V C804 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C820 1-164-156-11 CERAMIC CHIP 0.1uF 25V C821 1-115-156-11 CERAMIC CHIP 1uF 10V C822 1-124-779-00 ELECT CHIP 10uF 20% 16V C823 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C826 1-119-764-11 ELECT 47uF 20% 4V C827 1-164-156-11 CERAMIC CHIP 0.1uF 25V C828 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C860 1-128-416-11 ELECT CHIP 100uF 20% 16V C861 1-164-156-11 CERAMIC CHIP 0.1uF 25V C862 1-164-505-11 CERAMIC CHIP 2.2uF 16V C863 1-164-156-11 CERAMIC CHIP 0.1uF 25V C864 1-164-505-11 CERAMIC CHIP 2.2uF 16V C865 1-104-915-11 TANTALUM CHIP 2.2uF 20% 20V C867 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C869 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C870 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C872 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C873 1-164-156-11 CERAMIC CHIP 0.1uF 25V C881 1-119-764-11 ELECT 47uF 20% 4V C882 1-164-156-11 CERAMIC CHIP 0.1uF 25V C883 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C884 1-164-156-11 CERAMIC CHIP 0.1uF 25V C890 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C891 1-128-416-11 ELECT CHIP 100uF 20% 16V C892 1-119-765-11 ELECT 47uF 20% 6.3V C895 1-164-156-11 CERAMIC CHIP 0.1uF 25V C901 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C904 1-115-156-11 CERAMIC CHIP 1uF 10V C905 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C907 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C908 1-119-944-11 ELECT 470uF 20% 4V C910 1-115-156-11 CERAMIC CHIP 1uF 10V C911 1-115-156-11 CERAMIC CHIP 1uF 10V C915 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C921 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-164-156-11 CERAMIC CHIP 0.1uF 25V C923 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C924 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C925 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C926 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C927 1-162-922-11 CERAMIC CHIP 39PF 5% 50V C928 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C929 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C931 1-164-156-11 CERAMIC CHIP 0.1uF 25V C932 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C933 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C936 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C960 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C961 1-115-156-11 CERAMIC CHIP 1uF 10V C962 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C963 1-119-944-11 ELECT 470uF 20% 4V C966 1-162-919-11 CERAMIC CHIP 22PF 5% 50V < CONNECTOR > CN501 1-566-530-11 CONNECTOR, FPC (ZIF) 14P * CN502 1-695-320-31 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN503 1-695-320-21 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN504 1-695-320-51 PIN, CONNECTOR (1.5MM) (SMD) 2P * CN701 1-573-939-11 CONNECTOR, FFC/FPC (ZIF) 30P < DIODE > D101 8-719-039-99 DIODE UMZ8.2T MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 51 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN D105 8-719-039-99 DIODE UMZ8.2T D201 8-719-039-99 DIODE UMZ8.2T D205 8-719-039-99 DIODE UMZ8.2T D302 8-719-039-99 DIODE UMZ8.2T D340 8-719-404-35 DIODE MA141WK D501 8-719-031-17 DIODE 1SS322-TE85L D502 8-719-039-99 DIODE UMZ8.2T D504 8-719-404-49 DIODE MA111 D601 8-719-024-81 DIODE 1SS300-TE85L D805 8-719-048-98 DIODE RB160L-40TE25 D808 8-719-048-98 DIODE RB160L-40TE25 D820 8-719-048-98 DIODE RB160L-40TE25 D880 8-719-048-98 DIODE RB160L-40TE25 D890 8-719-048-98 DIODE RB160L-40TE25 D891 8-719-049-09 DIODE 1SS367-T3SONY < FERRITE BEAD > FB101 1-500-444-11 FERRITE 0uH FB102 1-500-444-11 FERRITE 0uH FB201 1-500-444-11 FERRITE 0uH FB202 1-500-444-11 FERRITE 0uH FB301 1-414-656-11 FERRITE 0uH FB306 1-500-444-11 FERRITE 0uH FB701 1-500-444-11 FERRITE 0uH FB703 1-414-656-11 FERRITE 0uH FB801 1-414-633-22 INDUCTOR CHIP 0uH FB903 1-414-656-11 FERRITE 0uH FB960 1-414-656-11 FERRITE 0uH < IC > IC301 8-759-186-51 IC TC74VHC157F IC320 8-759-459-18 IC TC9434AFNEL IC360 8-759-386-50 IC BA3574BFS IC501 8-752-069-29 IC CXA1791N IC502 8-759-442-80 IC MPC17A38ZVMEL IC601 8-752-369-78 IC CXD2545Q IC602 8-759-179-64 IC BA3890F IC701 8-759-571-15 IC MSM65354-412GS-BK4 IC702 8-759-442-79 IC RH5VL27AA-T1 IC801 8-759-085-76 IC S-81332HG-KC-T1 IC810 8-759-530-69 IC XC61AC4502PR IC820 8-759-521-35 IC TL5001CD IC861 8-759-360-66 IC TL1453CPW-E20 IC862 8-759-441-31 IC MC14053BDTR2 IC901 8-759-493-57 IC ES3210 IC902 8-759-548-16 IC MX23C1010TI-90-54816 IC903 8-759-498-43 IC MSM54V16258ASL-45TSK IC904 8-759-396-26 IC SN74LV08PW-E20 IC920 8-759-493-55 IC TC90A07U IC921 8-759-085-76 IC S-81332HG-KC-T1 IC960 8-759-433-44 IC MM1031XML < JACK > J301 1-580-709-21 JACK (2 PHONES) J801 1-778-153-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 6V) J901 1-778-040-11 JACK, SMALL TYPE (AUDIO/VIDEO OUT) < COIL > L320 1-412-002-41 INDUCTOR CHIP 4.7uH L321 1-412-002-41 INDUCTOR CHIP 4.7uH L322 1-412-002-41 INDUCTOR CHIP 4.7uH L323 1-412-979-21 INDUCTOR 1uH L501 1-414-398-11 INDUCTOR 10uH L502 1-414-398-11 INDUCTOR 10uH L503 1-414-854-11 INDUCTOR 1mH L504 1-414-402-11 INDUCTOR 47uH L505 1-414-402-11 INDUCTOR 47uH L506 1-414-402-11 INDUCTOR 47uH L507 1-414-402-11 INDUCTOR 47uH L601 1-410-997-22 INDUCTOR CHIP 2.2uH L602 1-410-997-22 INDUCTOR CHIP 2.2uH L801 1-414-392-21 INDUCTOR 1uH L820 1-414-526-11 INDUCTOR CHIP 47uH L880 1-414-526-11 INDUCTOR CHIP 47uH L901 1-414-392-21 INDUCTOR 1uH L902 1-410-997-22 INDUCTOR CHIP 2.2uH L921 1-412-979-21 INDUCTOR 1uH L923 1-414-398-11 INDUCTOR 10uH L924 1-410-997-22 INDUCTOR CHIP 2.2uH L960 1-410-993-42 INDUCTOR CHIP 1uH L961 1-412-002-41 INDUCTOR CHIP 4.7uH < TRANSISTOR > Q101 8-729-231-74 TRANSISTOR 2SC4116-GL Q201 8-729-231-74 TRANSISTOR 2SC4116-GL Q340 8-729-907-39 TRANSISTOR IMD2 Q501 8-729-904-86 TRANSISTOR 2SB1197K-Q Q503 8-729-930-32 TRANSISTOR UMH11 Q504 8-729-930-32 TRANSISTOR UMH11 Q505 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q506 8-729-231-74 TRANSISTOR 2SC4116-GL Q507 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q508 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q509 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q601 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q702 8-729-027-60 TRANSISTOR DTC144TKA-T146 Q703 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q801 8-729-904-86 TRANSISTOR 2SB1197K-Q Q802 8-729-903-10 TRANSISTOR FMW1 Q803 8-729-930-32 TRANSISTOR UMH11 Q810 8-729-930-32 TRANSISTOR UMH11 Q820 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q822 8-729-043-79 FET 2SJ517TL Q861 8-729-921-05 TRANSISTOR FMC3-T148 Q881 8-729-043-79 FET 2SJ517TL Q882 8-729-043-79 FET 2SJ517TL Q891 8-729-024-44 FET 2SK2315TYTR < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/16W R102 1-216-845-11 METAL CHIP 100K 5% 1/16W R103 1-216-833-11 METAL CHIP 10K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 52 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R107 1-216-789-11 METAL CHIP 2.2 5% 1/16W R108 1-216-813-11 METAL CHIP 220 5% 1/16W R201 1-216-821-11 METAL CHIP 1K 5% 1/16W R202 1-216-845-11 METAL CHIP 100K 5% 1/16W R203 1-216-833-11 METAL CHIP 10K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R207 1-216-789-11 METAL CHIP 2.2 5% 1/16W R208 1-216-813-11 METAL CHIP 220 5% 1/16W R312 1-216-845-11 METAL CHIP 100K 5% 1/16W R314 1-216-857-11 METAL CHIP 1M 5% 1/16W R320 1-216-803-11 METAL CHIP 33 5% 1/16W R323 1-216-857-11 METAL CHIP 1M 5% 1/16W R327 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R502 1-216-847-11 METAL CHIP 150K 5% 1/16W R503 1-216-847-11 METAL CHIP 150K 5% 1/16W R504 1-216-847-11 METAL CHIP 150K 5% 1/16W R505 1-216-847-11 METAL CHIP 150K 5% 1/16W R506 1-216-850-11 METAL CHIP 270K 5% 1/16W R507 1-216-850-11 METAL CHIP 270K 5% 1/16W R508 1-216-308-00 METAL CHIP 4.7 5% 1/10W R509 1-216-845-11 METAL CHIP 100K 5% 1/16W R510 1-216-821-11 METAL CHIP 1K 5% 1/16W R511 1-216-845-11 METAL CHIP 100K 5% 1/16W R513 1-216-833-11 METAL CHIP 10K 5% 1/16W R514 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R515 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R516 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R517 1-216-835-11 METAL CHIP 15K 5% 1/16W R519 1-216-833-11 METAL CHIP 10K 5% 1/16W R520 1-216-841-11 METAL CHIP 47K 5% 1/16W R521 1-216-839-11 METAL CHIP 33K 5% 1/16W R522 1-216-843-11 METAL CHIP 68K 5% 1/16W R523 1-218-898-11 RES, CHIP 130K 0.5% 1/16W R524 1-216-850-11 METAL CHIP 270K 5% 1/16W R525 1-216-836-11 METAL CHIP 18K 5% 1/16W R526 1-216-864-11 METAL CHIP 0 5% 1/16W R527 1-216-845-11 METAL CHIP 100K 5% 1/16W R528 1-216-857-11 METAL CHIP 1M 5% 1/16W R529 1-216-837-11 METAL CHIP 22K 5% 1/16W R530 1-216-821-11 METAL CHIP 1K 5% 1/16W R531 1-216-845-11 METAL CHIP 100K 5% 1/16W R532 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R533 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R534 1-216-809-11 METAL CHIP 100 5% 1/16W R541 1-216-841-11 METAL CHIP 47K 5% 1/16W R542 1-216-821-11 METAL CHIP 1K 5% 1/16W R543 1-216-821-11 METAL CHIP 1K 5% 1/16W R559 1-216-864-11 METAL CHIP 0 5% 1/16W R601 1-216-845-11 METAL CHIP 100K 5% 1/16W R602 1-216-839-11 METAL CHIP 33K 5% 1/16W R603 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R604 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R605 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R606 1-216-857-11 METAL CHIP 1M 5% 1/16W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R611 1-216-841-11 METAL CHIP 47K 5% 1/16W R612 1-218-895-11 RES, CHIP 100K 0.5% 1/16W R614 1-218-871-11 RES, CHIP 10K 0.5% 1/16W R619 1-216-833-11 METAL CHIP 10K 5% 1/16W R620 1-216-833-11 METAL CHIP 10K 5% 1/16W R681 1-216-833-11 METAL CHIP 10K 5% 1/16W R685 1-216-864-11 METAL CHIP 0 5% 1/16W R686 1-216-864-11 METAL CHIP 0 5% 1/16W R687 1-216-864-11 METAL CHIP 0 5% 1/16W R700 1-216-853-11 METAL CHIP 470K 5% 1/16W R701 1-216-845-11 METAL CHIP 100K 5% 1/16W R702 1-216-845-11 METAL CHIP 100K 5% 1/16W R703 1-216-853-11 METAL CHIP 470K 5% 1/16W R704 1-216-853-11 METAL CHIP 470K 5% 1/16W R705 1-216-833-11 METAL CHIP 10K 5% 1/16W R706 1-216-833-11 METAL CHIP 10K 5% 1/16W R707 1-216-845-11 METAL CHIP 100K 5% 1/16W R708 1-216-853-11 METAL CHIP 470K 5% 1/16W R709 1-216-845-11 METAL CHIP 100K 5% 1/16W R710 1-216-853-11 METAL CHIP 470K 5% 1/16W R712 1-216-845-11 METAL CHIP 100K 5% 1/16W R713 1-216-853-11 METAL CHIP 470K 5% 1/16W R714 1-216-813-11 METAL CHIP 220 5% 1/16W R715 1-216-845-11 METAL CHIP 100K 5% 1/16W R716 1-216-851-11 METAL CHIP 330K 5% 1/16W R801 1-218-896-11 RES, CHIP 110K 0.5% 1/16W R802 1-218-894-11 RES, CHIP 91K 0.5% 1/16W R803 1-218-907-11 RES, CHIP 330K 0.5% 1/16W R804 1-216-295-00 SHORT 0 R806 1-218-903-11 RES, CHIP 220K 0.5% 1/16W R810 1-216-833-11 METAL CHIP 10K 5% 1/16W R811 1-216-847-11 METAL CHIP 150K 5% 1/16W R812 1-216-821-11 METAL CHIP 1K 5% 1/16W R813 1-216-817-11 METAL CHIP 470 5% 1/16W R815 1-216-809-11 METAL CHIP 100 5% 1/16W R820 1-218-886-11 RES, CHIP 43K 0.5% 1/16W R821 1-218-888-11 RES, CHIP 51K 0.5% 1/16W R822 1-216-833-11 METAL CHIP 10K 5% 1/16W R824 1-216-801-11 METAL CHIP 22 5% 1/16W R826 1-216-857-11 METAL CHIP 1M 5% 1/16W R827 1-218-877-11 RES, CHIP 18K 0.5% 1/16W R828 1-218-879-11 RES, CHIP 22K 0.5% 1/16W R860 1-218-883-11 RES, CHIP 33K 0.5% 1/16W R861 1-218-887-11 RES, CHIP 47K 0.5% 1/16W R862 1-218-885-11 RES, CHIP 39K 0.5% 1/16W R863 1-218-885-11 RES, CHIP 39K 0.5% 1/16W R864 1-218-883-11 RES, CHIP 33K 0.5% 1/16W R865 1-218-887-11 RES, CHIP 47K 0.5% 1/16W R866 1-218-885-11 RES, CHIP 39K 0.5% 1/16W R867 1-218-885-11 RES, CHIP 39K 0.5% 1/16W R869 1-216-833-11 METAL CHIP 10K 5% 1/16W R870 1-218-878-11 RES, CHIP 20K 0.5% 1/16W R871 1-216-833-11 METAL CHIP 10K 5% 1/16W R872 1-216-833-11 METAL CHIP 10K 5% 1/16W R873 1-218-871-11 RES, CHIP 10K 0.5% 1/16W R874 1-218-847-11 RES, CHIP 1K 0.5% 1/16W R880 1-216-801-11 METAL CHIP 22 5% 1/16W R881 1-216-857-11 METAL CHIP 1M 5% 1/16W R883 1-218-882-11 RES, CHIP 30K 0.5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 53 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R884 1-218-877-11 RES, CHIP 18K 0.5% 1/16W R885 1-216-857-11 METAL CHIP 1M 5% 1/16W R886 1-216-809-11 METAL CHIP 100 5% 1/16W R888 1-216-295-00 SHORT 0 R892 1-216-857-11 METAL CHIP 1M 5% 1/16W R896 1-218-883-11 RES, CHIP 33K 0.5% 1/16W R897 1-218-869-11 RES, CHIP 8.2K 0.5% 1/16W R901 1-216-833-11 METAL CHIP 10K 5% 1/16W R904 1-216-845-11 METAL CHIP 100K 5% 1/16W R921 1-218-887-11 RES, CHIP 47K 0.5% 1/16W R922 1-218-883-11 RES, CHIP 33K 0.5% 1/16W R924 1-216-857-11 METAL CHIP 1M 5% 1/16W R926 1-216-845-11 METAL CHIP 100K 5% 1/16W R927 1-216-845-11 METAL CHIP 100K 5% 1/16W R960 1-216-809-11 METAL CHIP 100 5% 1/16W R961 1-216-022-00 METAL CHIP 75 5% 1/10W R962 1-216-833-11 METAL CHIP 10K 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-570-11 RES, VAR, CARBON 10K/10K (∑ VOLUME) < SWITCH > S701 1-572-922-11 SWITCH, SLIDE (HOLD c) S702 1-572-922-11 SWITCH, SLIDE (RESUME) S703 1-692-605-31 SWITCH, SLIDE (PAL, AUTO, NTSC (VIDEO SYSTEM)) < TRANSFORMER > T891 1-431-652-21 TRANSFORMER, DC-DC CONVERTER < VIBRATOR > X320 1-767-366-21 VIBRATOR, CERAMIC (16.9344MHz) X701 1-579-063-41 VIBRATOR, CERAMIC (4.19MHz) X920 1-767-519-11 VIBRATOR, CRYSTAL (27MHz) ************************************************************ MISCELLANEOUS ************** 61 1-776-149-11 CABLE, FLEXIBLE FLAT 30P 104 1-690-530-81 LEAD (WITH CONNECTOR) 109 1-660-965-11 SLIDE FLEXIBLE BOARD !110 X-4950-060-1 OPTICAL PICK-UP (DAX-01A2) M901 A-3303-458-A MOTOR ASSY, TURNTABLE (SPINDLE) M902 A-3303-403-A MOTOR ASSY, SLED S910 1-571-099-21 SWITCH (1 KEY) (LIMIT) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** ! 1-467-570-31 ADAPTOR, AC (E) ! 1-475-712-11 ADAPTOR, AC (AC-E67A) (Chinese) ! 1-475-754-11 ADAPTOR, AC (AC-E67) (Hong Kong) 1-783-028-11 CORD, CONNECTION (AV MONITOR CORD) 3-865-070-11 MANUAL, INSTRUCTION (ENGLISH, CHINESE) (E, Hong Kong) 3-865-070-21 MANUAL, INSTRUCTION (ENGLISH, CHINESE) (Chinese) 4-991-047-01 LID, BATTERY CASE (for RMT-DV10) 8-917-658-90 REMOTE COMMANDER RMT-DV10 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 54 – D-V7000 Sony Corporation Personal A&V Products Company 9-924-962-11 98I057016-1 Printed in Singapore © 1998. 9 Published by Quality Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
