索尼SONY D-NF420音响电路图

分类：电子电工日期：2023-04-04 点击：0

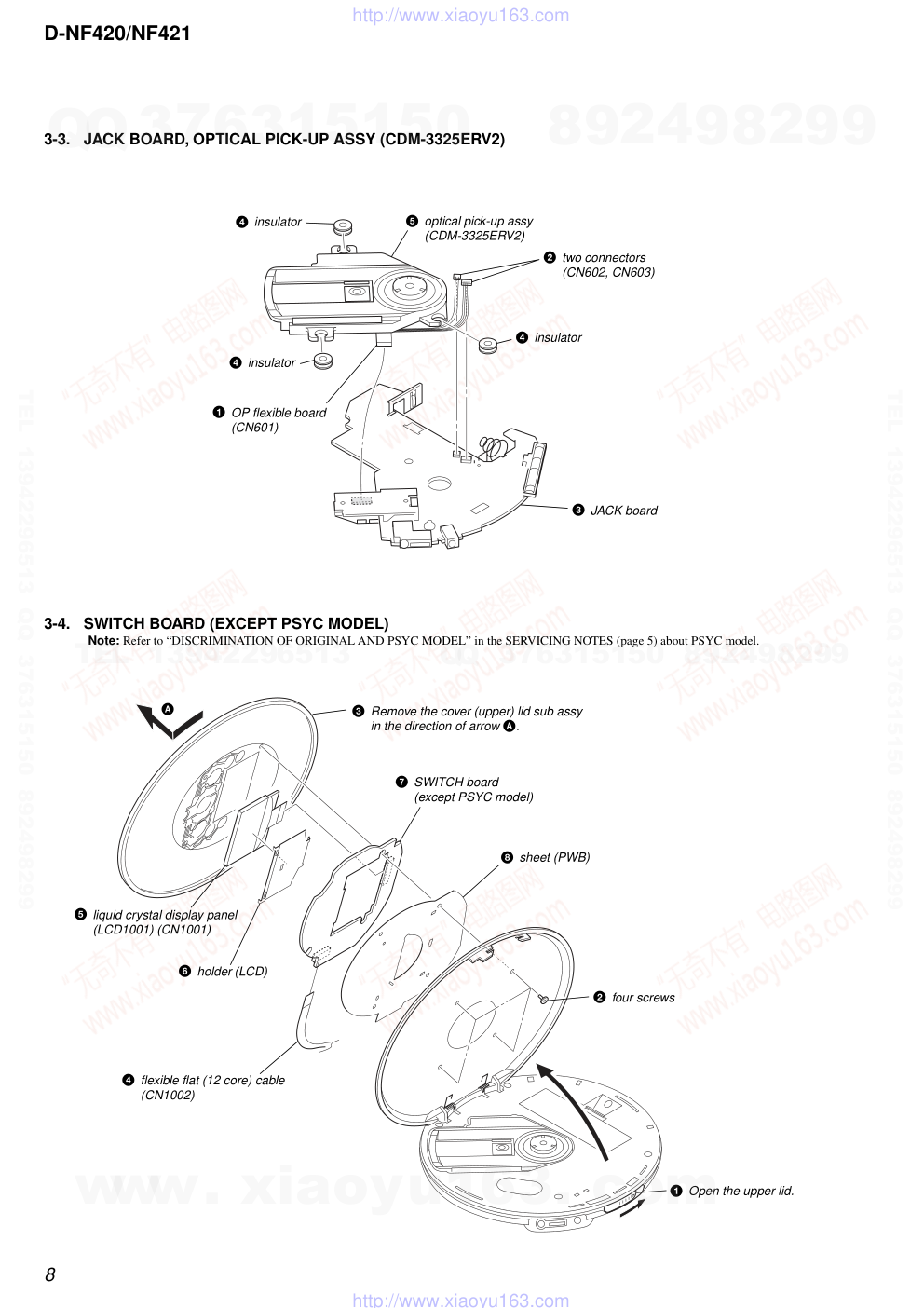

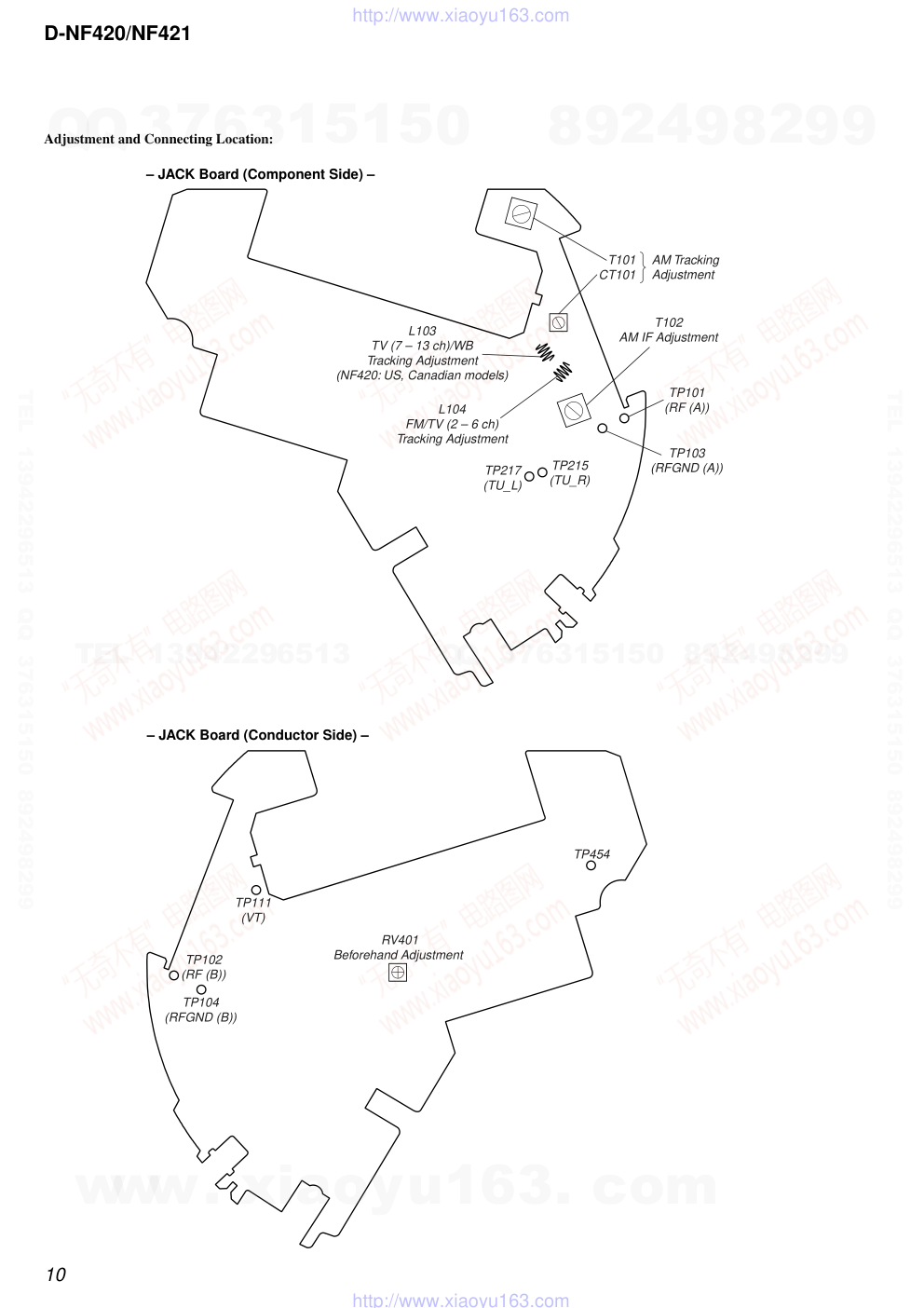

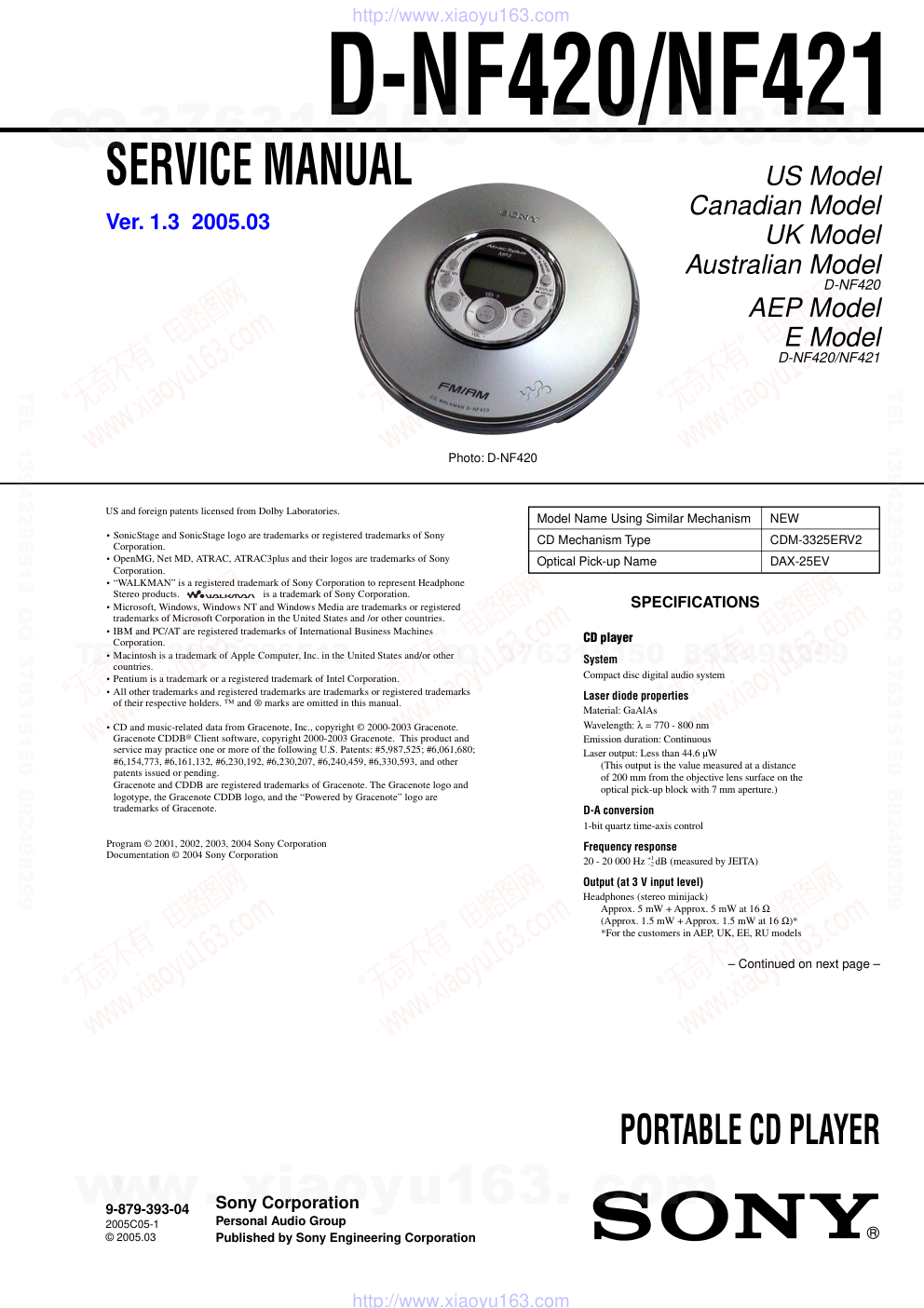

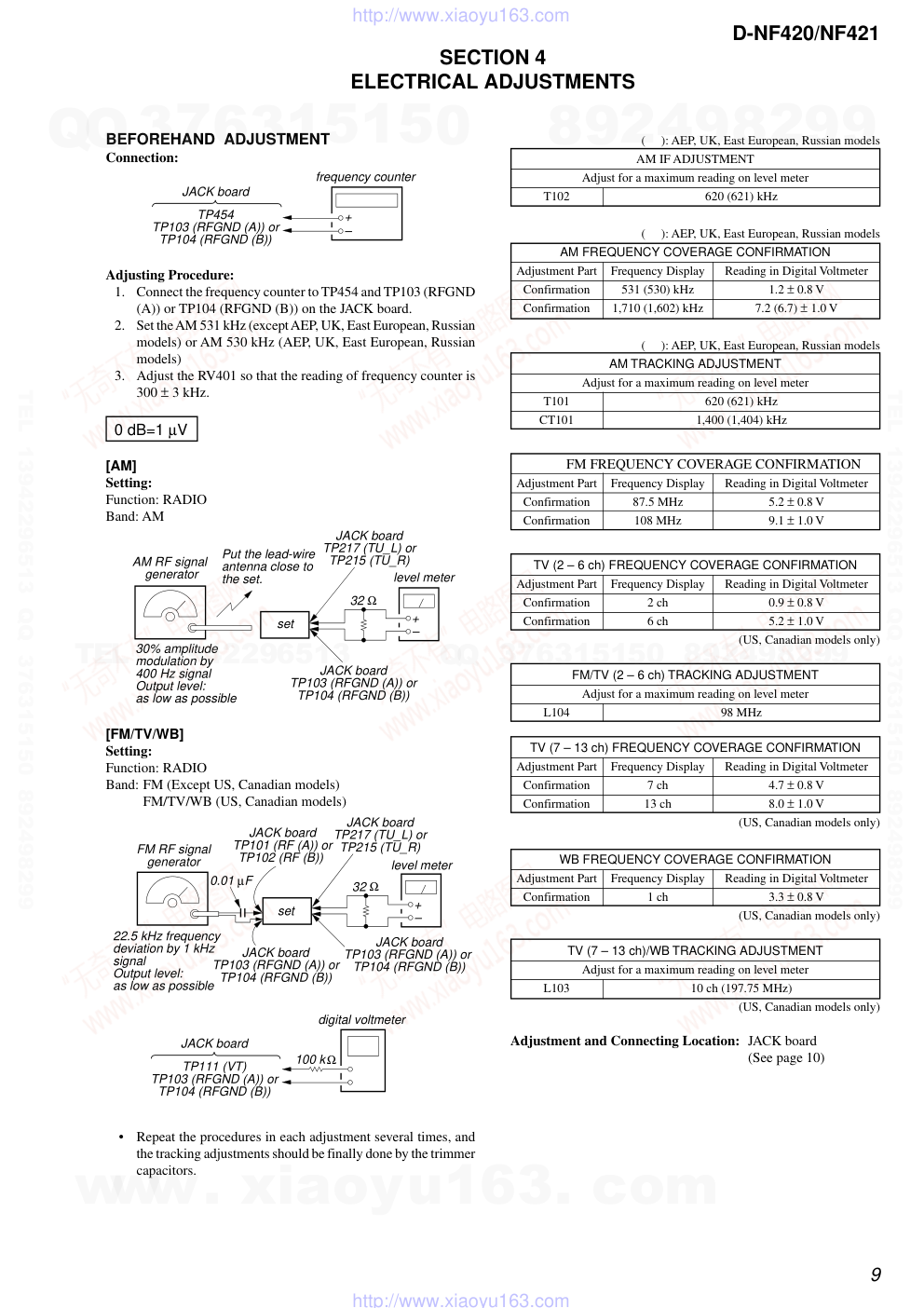

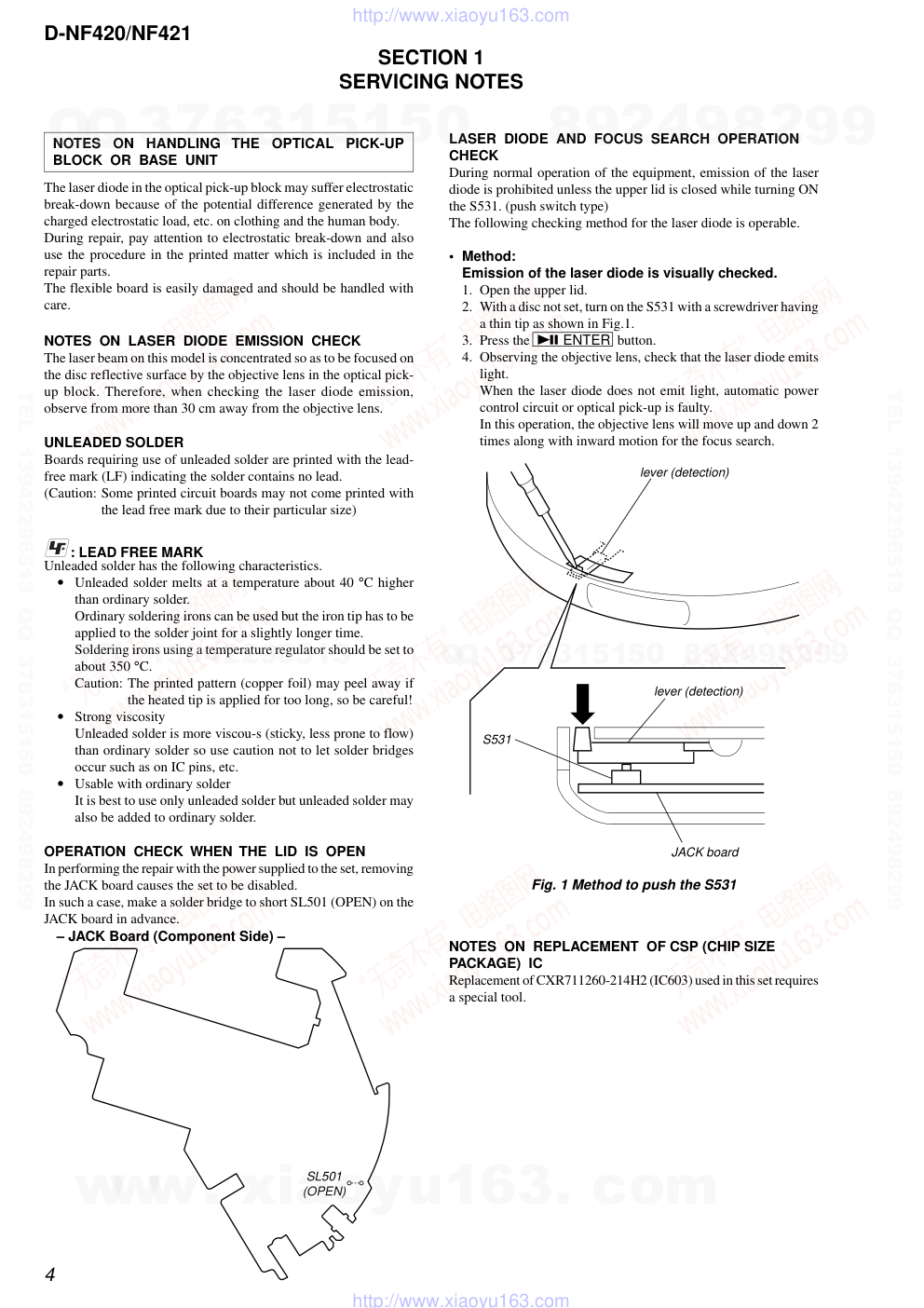

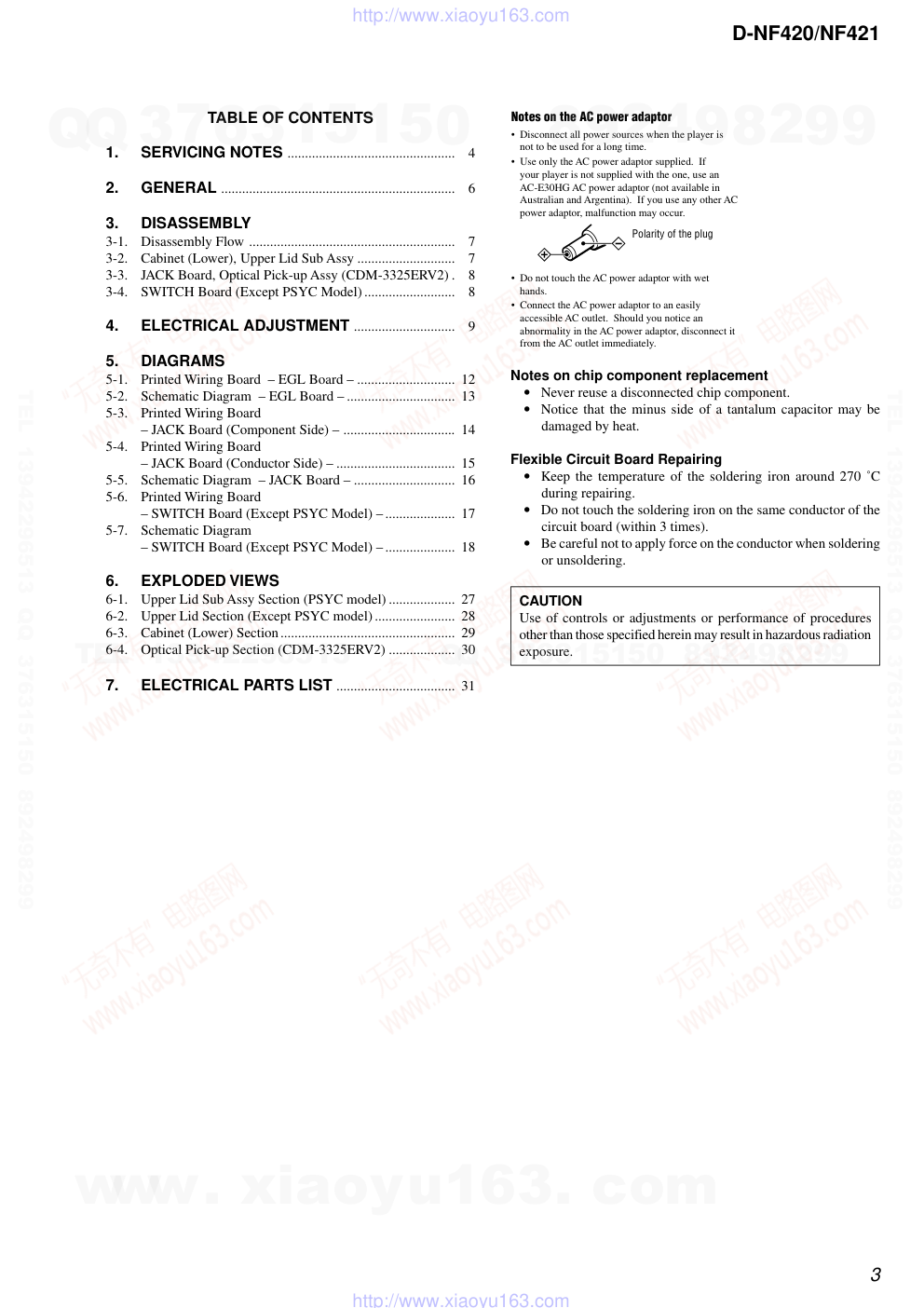

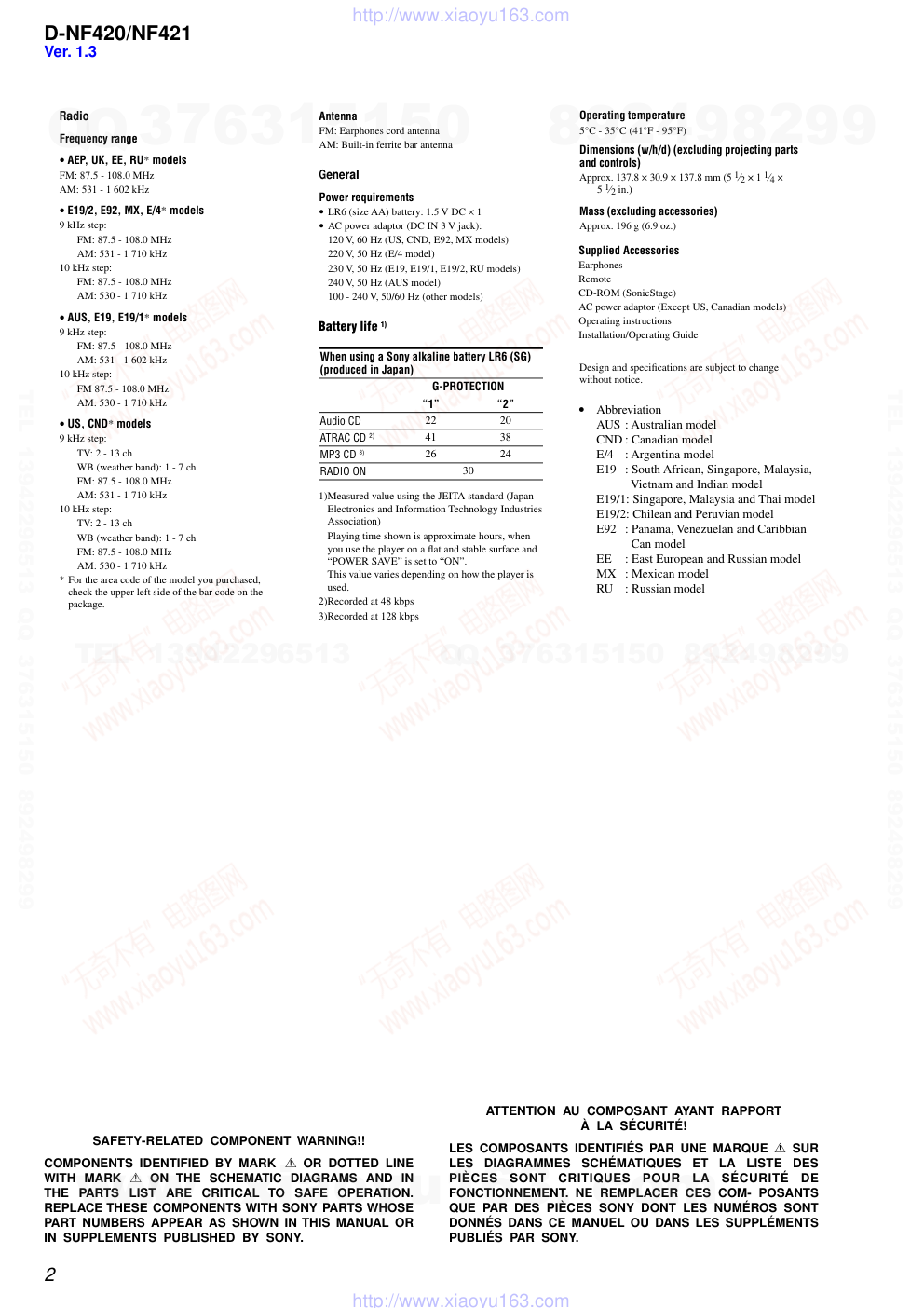

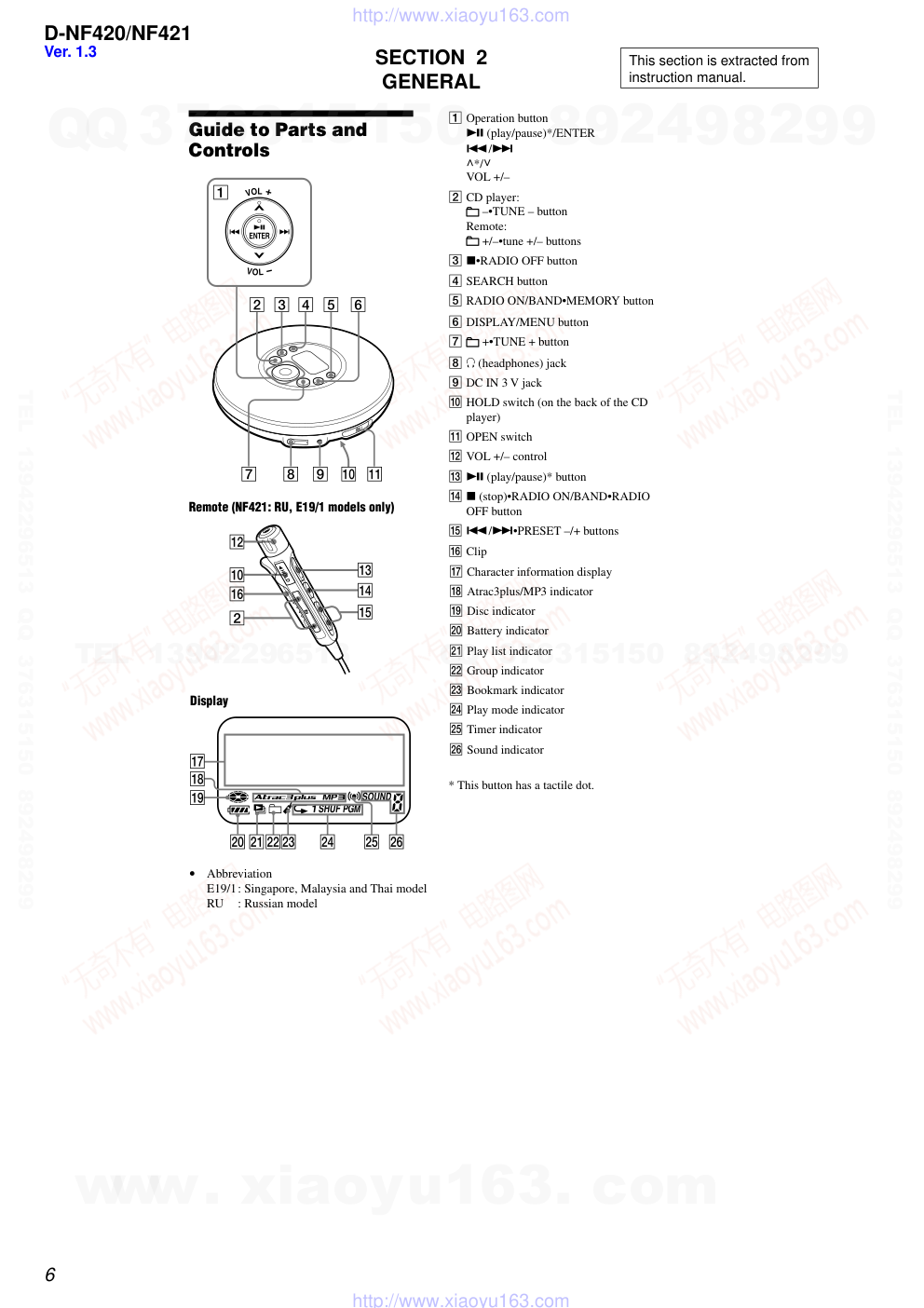

SERVICE MANUAL PORTABLE CD PLAYER US Model Canadian Model UK Model Australian Model D-NF420 AEP Model E Model D-NF420/NF421 SPECIFICATIONS D-NF420/NF421 Photo: D-NF420 Ver. 1.3 2005.03 Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-3325ERV2 Optical Pick-up Name DAX-25EV 9-879-393-04 2005C05-1 © 2005.03 Sony Corporation Personal Audio Group Published by Sony Engineering Corporation – Continued on next page – US and foreign patents licensed from Dolby Laboratories. • SonicStage and SonicStage logo are trademarks or registered trademarks of Sony Corporation. • OpenMG, Net MD, ATRAC, ATRAC3plus and their logos are trademarks of Sony Corporation. • “WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products. is a trademark of Sony Corporation. • Microsoft, Windows, Windows NT and Windows Media are trademarks or registered trademarks of Microsoft Corporation in the United States and /or other countries. • IBM and PC/AT are registered trademarks of International Business Machines Corporation. • Macintosh is a trademark of Apple Computer, Inc. in the United States and/or other countries. • Pentium is a trademark or a registered trademark of Intel Corporation. • All other trademarks and registered trademarks are trademarks or registered trademarks of their respective holders. ™ and ® marks are omitted in this manual. • CD and music-related data from Gracenote, Inc., copyright © 2000-2003 Gracenote. Gracenote CDDB® Client software, copyright 2000-2003 Gracenote. This product and service may practice one or more of the following U.S. Patents: #5,987,525; #6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593, and other patents issued or pending. Gracenote and CDDB are registered trademarks of Gracenote. The Gracenote logo and logotype, the Gracenote CDDB logo, and the “Powered by Gracenote” logo are trademarks of Gracenote. Program © 2001, 2002, 2003, 2004 Sony Corporation Documentation © 2004 Sony Corporation �� Output (at 3 V input level) Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω (Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)* *For the customers in AEP, UK, EE, RU models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 D-NF420/NF421 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. �� . �� Supplied Accessories Earphones Remote CD-ROM (SonicStage) AC power adaptor (Except US, Canadian models) Operating instructions Installation/Operating Guide • Abbreviation AUS : Australian model CND : Canadian model E/4 : Argentina model E19 : South African, Singapore, Malaysia, Vietnam and Indian model E19/1: Singapore, Malaysia and Thai model E19/2: Chilean and Peruvian model E92 : Panama, Venezuelan and Caribbian Can model EE : East European and Russian model MX : Mexican model RU : Russian model Ver. 1.3 Radio Frequency range • AEP, UK, EE, RU* models FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz • E19/2, E92, MX, E/4* models 9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz • AUS, E19, E19/1* models 9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz 10 kHz step: FM 87.5 - 108.0 MHz AM: 530 - 1 710 kHz • US, CND* models 9 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz * For the area code of the model you purchased, check the upper left side of the bar code on the package. Antenna FM: Earphones cord antenna AM: Built-in ferrite bar antenna General Power requirements • LR6 (size AA) battery: 1.5 V DC × 1 • AC power adaptor (DC IN 3 V jack): 120 V, 60 Hz (US, CND, E92, MX models) 220 V, 50 Hz (E/4 model) 230 V, 50 Hz (E19, E19/1, E19/2, RU models) 240 V, 50 Hz (AUS model) 100 - 240 V, 50/60 Hz (other models) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-NF420/NF421 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. �� n�� TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Cabinet (Lower), Upper Lid Sub Assy ............................ 7 3-3. JACK Board, Optical Pick-up Assy (CDM-3325ERV2) . 8 3-4. SWITCH Board (Except PSYC Model) .......................... 8 4. ELECTRICAL ADJUSTMENT ............................. 9 5. DIAGRAMS 5-1. Printed Wiring Board – EGL Board – ............................ 12 5-2. Schematic Diagram – EGL Board – ............................... 13 5-3. Printed Wiring Board – JACK Board (Component Side) – ................................ 14 5-4. Printed Wiring Board – JACK Board (Conductor Side) – .................................. 15 5-5. Schematic Diagram – JACK Board – ............................. 16 5-6. Printed Wiring Board – SWITCH Board (Except PSYC Model) – .................... 17 5-7. Schematic Diagram – SWITCH Board (Except PSYC Model) – .................... 18 6. EXPLODED VIEWS 6-1. Upper Lid Sub Assy Section (PSYC model) ................... 27 6-2. Upper Lid Section (Except PSYC model) ....................... 28 6-3. Cabinet (Lower) Section.................................................. 29 6-4. Optical Pick-up Section (CDM-3325ERV2) ................... 30 7. ELECTRICAL PARTS LIST .................................. 31 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-NF420/NF421 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S531. (push switch type) The following checking method for the laser diode is operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S531 with a screwdriver having a thin tip as shown in Fig.1. 3. Press the u ENTER button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pick-up is faulty. In this operation, the objective lens will move up and down 2 times along with inward motion for the focus search. Fig. 1 Method to push the S531 UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. OPERATION CHECK WHEN THE LID IS OPEN In performing the repair with the power supplied to the set, removing the JACK board causes the set to be disabled. In such a case, make a solder bridge to short SL501 (OPEN) on the JACK board in advance. NOTES ON REPLACEMENT OF CSP (CHIP SIZE PACKAGE) IC Replacement of CXR711260-214H2 (IC603) used in this set requires a special tool. – JACK Board (Component Side) – SL501 (OPEN) S531 lever (detection) lever (detection) JACK board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-NF420/NF421 COLOR VARIATION Providing the required system environment The following system environment is required in order to use the SonicStage Ver. 2.3. This software is not supported by the following environments: • OSs other than the indicated above • Personally constructed PCs or operating systems • An environment that is an upgrade of the original manufacturer-installed operating system • Multi-boot environment • Multi-monitor environment • Macintosh • We do not ensure trouble-free operation on all computers that satisfy the system requirements. • The NTFS format of Windows XP/Windows 2000 Professional can be used only with the standard (factory) settings. • We do not ensure trouble-free operation of the system suspend, sleep, or hibernation function on all computers. • For Windows 2000 Professional users, install Service Pack 3 or later before using the software. System requirements Computer IBM PC/AT or Compatible • CPU: Pentium II 400 MHz or higher (Pentium III 450 MHz or higher is recommended.) • Hard disk drive space: 200 MB or more (1.5 GB or more is recommended) (The amount space will vary according to Windows version and the number of music files stored on the hard disk.) • RAM: 64 MB or more (128 MB or more is recommended) Others • CD drive (capable of digital playback by WDM) • Sound Board • USB port (supports USB (previously USB 1.1)) Operating System Factory installed: Windows XP Media Center Edition 2005/Windows XP Media Center Edition 2004/Windows XP Media Center Edition/Windows XP Professional/Windows XP Home Edition/Windows 2000 Professional/ Windows Millennium Edition/Windows 98 Second Edition Display High Color (16 bit) or higher, 800 � 600 dots or better (1024 � 768 dots or better is recommended) Others • Internet access: for Web registration, EMD services and CDDB • Windows Media Player (version 7.0 or higher) installed for playing WMA files Notes DISCRIMINATION OF ORIGINAL AND PSYC MODEL There are two types of D-NF420. Refer to following. ORIGINAL MODEL – COVER (UPPER LID) Top View – PSYC MODEL Model Destination SILVER BLUE (PSYC) US z CND z AEP z D-NF420 UK z E/4 z E19 z EE z AUS z RU z E19/1 z D-NF421 E19/2 z E92 z MX z Ver. 1.3 • Abbreviation AUS : Australian model CND : Canadian model E/4 : Argentina model E19 : South African, Singapore, Malaysia, Vietnam and Indian model E19/1 : Singapore, Malaysia, and Thai model E19/2 : Chilean and Peruvian model E92 : Panama, Venezuelan and Caribbian Can model EE : East European and Russian model MX : Mexican model RU : Russian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-NF420/NF421 SECTION 2 GENERAL This section is extracted from instruction manual. �� Ver. 1.3 �� (NF421: RU, E19/1 models only) �� • Abbreviation E19/1: Singapore, Malaysia and Thai model RU : Russian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 D-NF420/NF421 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. CABINET (LOWER), UPPER LID SUB ASSY Note: Follow the disassembly procedure in the numerical order given. 3-2. CABINET (LOWER) , UPPER LID SUB ASSY (Page 7) 3-4. SWITCH BOARD (EXCEPT PSYC MODEL) (Page 8) 3-3. JACK BOARD, OPTICAL PICK-UP ASSY (CDM-3325ERV2) (Page 8) SET 1 Open the upper lid. 4 cabinet (lower) 5 flexible flat (12 core) cable (CN801) 6 upper lid sub assy S530 knob (hold) Note: On installation of JACK board, adjust the position of switch (S530) and knob (hold). 3 two claws 3 two claws 3 two claws 2 two screws 2 four screws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-NF420/NF421 3-3. JACK BOARD, OPTICAL PICK-UP ASSY (CDM-3325ERV2) 3-4. SWITCH BOARD (EXCEPT PSYC MODEL) Note: Refer to “DISCRIMINATION OF ORIGINAL AND PSYC MODEL” in the SERVICING NOTES (page 5) about PSYC model. 1 OP flexible board (CN601) 5 optical pick-up assy (CDM-3325ERV2) 3 JACK board 4 insulator 4 insulator 4 insulator 2 two connectors (CN602, CN603) 1 Open the upper lid. 2 four screws 5 liquid crystal display panel (LCD1001) (CN1001) 6 holder (LCD) 7 SWITCH board (except PSYC model) A 3 Remove the cover (upper) lid sub assy in the direction of arrow A. 4 flexible flat (12 core) cable (CN1002) 8 sheet (PWB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 D-NF420/NF421 SECTION 4 ELECTRICAL ADJUSTMENTS BEFOREHAND ADJUSTMENT Connection: Adjusting Procedure: 1. Connect the frequency counter to TP454 and TP103 (RFGND (A)) or TP104 (RFGND (B)) on the JACK board. 2. Set the AM 531 kHz (except AEP, UK, East European, Russian models) or AM 530 kHz (AEP, UK, East European, Russian models) 3. Adjust the RV401 so that the reading of frequency counter is 300 ± 3 kHz. 0 dB=1 µV [AM] Setting: Function: RADIO Band: AM [FM/TV/WB] Setting: Function: RADIO Band: FM (Except US, Canadian models) FM/TV/WB (US, Canadian models) • Repeat the procedures in each adjustment several times, and the tracking adjustments should be finally done by the trimmer capacitors. + – frequency counter TP454 TP103 (RFGND (A)) or TP104 (RFGND (B)) JACK board AM RF signal generator 30% amplitude modulation by 400 Hz signal Output level: as low as possible Put the lead-wire antenna close to the set. + – level meter set 32 Ω JACK board TP103 (RFGND (A)) or TP104 (RFGND (B)) JACK board TP217 (TU_L) or TP215 (TU_R) FM RF signal generator 22.5 kHz frequency deviation by 1 kHz signal Output level: as low as possible + – level meter set 32 Ω 0.01 µF JACK board TP101 (RF (A)) or TP102 (RF (B)) JACK board TP103 (RFGND (A)) or TP104 (RFGND (B)) JACK board TP103 (RFGND (A)) or TP104 (RFGND (B)) JACK board TP217 (TU_L) or TP215 (TU_R) digital voltmeter TP111 (VT) TP103 (RFGND (A)) or TP104 (RFGND (B)) 100 kΩ JACK board ( ): AEP, UK, East European, Russian models AM IF ADJUSTMENT Adjust for a maximum reading on level meter T102 620 (621) kHz ( ): AEP, UK, East European, Russian models AM FREQUENCY COVERAGE CONFIRMATION Adjustment Part Frequency Display Reading in Digital Voltmeter Confirmation 531 (530) kHz 1.2 ± 0.8 V Confirmation 1,710 (1,602) kHz 7.2 (6.7) ± 1.0 V ( ): AEP, UK, East European, Russian models AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter T101 620 (621) kHz CT101 1,400 (1,404) kHz FM FREQUENCY COVERAGE CONFIRMATION Adjustment Part Frequency Display Reading in Digital Voltmeter Confirmation 87.5 MHz 5.2 ± 0.8 V Confirmation 108 MHz 9.1 ± 1.0 V TV (2 – 6 ch) FREQUENCY COVERAGE CONFIRMATION Adjustment Part Frequency Display Reading in Digital Voltmeter Confirmation 2 ch 0.9 ± 0.8 V Confirmation 6 ch 5.2 ± 1.0 V (US, Canadian models only) FM/TV (2 – 6 ch) TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L104 98 MHz TV (7 – 13 ch) FREQUENCY COVERAGE CONFIRMATION Adjustment Part Frequency Display Reading in Digital Voltmeter Confirmation 7 ch 4.7 ± 0.8 V Confirmation 13 ch 8.0 ± 1.0 V (US, Canadian models only) WB FREQUENCY COVERAGE CONFIRMATION Adjustment Part Frequency Display Reading in Digital Voltmeter Confirmation 1 ch 3.3 ± 0.8 V (US, Canadian models only) TV (7 – 13 ch)/WB TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L103 10 ch (197.75 MHz) (US, Canadian models only) Adjustment and Connecting Location: JACK board (See page 10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 D-NF420/NF421 Adjustment and Connecting Location: TP217 (TU_L) TP215 (TU_R) TP103 (RFGND (A)) TP101 (RF (A)) L104 FM/TV (2 – 6 ch) Tracking Adjustment L103 TV (7 – 13 ch)/WB Tracking Adjustment (NF420: US, Canadian models) AM Tracking Adjustment T101 CT101 T102 AM IF Adjustment – JACK Board (Component Side) – TP454 TP111 (VT) TP104 (RFGND (B)) TP102 (RF (B)) RV401 Beforehand Adjustment – JACK Board (Conductor Side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 D-NF420/NF421 D-NF420/NF421 SECTION 5 DIAGRAMS Note on Printed Wiring Boards. • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • z : Through hole. • W : indicates side identified with part number. • f : internal component • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Note for Printed Wiring Boards and Schematic Diagrams Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • EGL board is multi-layer printed board. However, the patterns of intermediate-layer have not been in- cluded in the diagram. Note on Schematic Diagrams. • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal tolerance. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 1.5 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : CD PLAY ( ) : FM [ ] : AM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD PLAY F : FM/TV (2 – 6 ch) f : AM L : TV (7 – 13 ch)/WB • The voltage and waveform of CSP (chip size package) cannot be measured, because its lead layout is different from that conventional IC. • Abbreviation AUS : Australian model CND : Canadian model E/4 : Argentina model E19 : South African, Singapore, Malaysia, Vietnam and Indian model E19/1 : Singapore, Malaysia and Thai model E19/2 : Chilean and Peruvian model E92 : Panama, Venezuelan and Caribbian Can model EE : East European and Russian model MX : Mexican model RU : Russian model Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. * Replacement of IC603 used in this set requires a special tool. • Lead Layouts Lead layout of conventional IC CSP (chip size package) surface * Replacement of IC603 used in this set requires a special tool. Note: The components identi- fied by mark 0 or dot- ted line with mark 0 are critical for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont cri- tiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. – EGL Board – – JACK Board – 1 X602 500 mV/DIV, 20 ns/DIV 45.5 ns 1.1 Vp-p qs Q104 (Collector) (FM mode) 1 V/DIV, 50 ns/DIV 195 ns 2.2 Vp-p qs Q104 (Collector) (AM mode) 500 mV/DIV, 50 ns/DIV 195 ns 1.2 Vp-p qa IC101 qg (X_0) (FM mode) 1 V/DIV, 5 µs/DIV 13.3 µs 1.6 Vp-p qa IC101 qg (X_0) (AM mode) 200 mV/DIV, 5 µs/DIV 13.3 µs 0.5 Vp-p qd IC401 wd (SYNC) (CD play mode) 1 V/DIV, 1 µs/DIV 2.8 µs 2.1 Vp-p 2.8 µs 2.7 Vp-p qf IC401 ta (LO_2), ts (LO_1) 1 V/DIV, 1 µs/DIV • Waverforms Ver. 1.3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 D-NF420/NF421 D-NF420/NF421 5-1. PRINTED WIRING BOARD – EGL BOARD – :Uses unleaded solder. • Semiconductor Location Ref. No. Location D601 B-2 D602 B-1 IC603 D-7 IC604 G-3 IC1602 B-4 Q602 A-1 1-864-385- (12) 12 EGL BOARD (SIDE A) Q602 R407 R620 R615 R617 R606 D602 C683 X602 R611 R612 D601 C639 R668 C695 R621 R624 R625 C617 R623 C632 C619 C631 C644 C629 C627 C662 C682 R647 C667 C686 C687 1 50 25 26 8 5 4 1 R616 C684 R406 -1 -2 1-864-385- (12) 12 EGL BOARD (SIDE B) CN9001 R663 R667 VDR601 R618 R632 C607 C676 R662 C675 R602 R610 C678 C664 C646 C663 R613 R644 R653 R642 C659 C677 R604 C610 C603 R629 R638 R636 R637 R609 C608 C654 C653 C649 R628 R608 R639 C648 R634 C642 R635 C650 R656 R655 R650 R651 R649 C624 C626 C618 R669 C602 RB601 C601 R603 C694 CN601 C609 60 31 30 1 1 15 OPTICAL PICK-UP BLOCK (DAX-25EV) A B C D E F G H I 1 2 3 4 5 6 7 8 9 10 JACK BOARD CN901 A R619 IC604 IC1602 * IC603 (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 D-NF420/NF421 D-NF420/NF421 5-2. SCHEMATIC DIAGRAM – EGL BOARD – • See page 11 for Waveforms. • See page 20 for IC Pin Function Description. C602 C694 R602 C601 R603 R608 R609 C609 R624 R623 R618 C629 R621 C631 C632 C695 C618 C617 C619 C624 C642 R638 R629 R628 R635 R636 R634 C650 C653 R637 C654 R639 R642 R649 R604 C610 C603 R653 R613 C667 R644 X602 C682 C683 R611 R612 D601 C684 D602 R615 R616 R617 Q602 R606 R610 C686 C687 C662 IC1602 RB601 C627 C607 C677 C664 C675 C676 C663 R406 C649 R656 R655 CN601 CN9001 C608 R625 C648 R650 R651 C626 C646 C659 R647 C678 C644 C639 R668 R407 R663 R667 R662 R669 R632 R620 VDR601 IC603 R619 IC604 470p 0.1 0 22 6.3V 10 47k 22k 2200p 10k 10k 1k 0.1 1k 0.1 0.1 4700p 4700p 4700p 4700p 0.1 0.1 22k 2.2k 2.2k 1M 100k 10k 4700p 0.47 220k 0.1 47k 47k 22k 10 0.1 100 4V 10k 0 0.1 10 22MHz 47p 100p 470k 470k HVL375CM 0.1 HVL375CM 100k 470k 470k RT3T67M 0 100k 47 6.3V 0.1 0.1 AK6510CL-L 22k 22 6.3V 0.01 0.1 47 6.3V 0.1 0.1 0.1 0 0.47 100k 47k 15P 60P 22p 10k 0.1 100k 100k 0.1 0.1 0.1 1M 22 6.3V 0.1 0.1 100k 0 0 0 0 47k 0 100k CXR711260-214H2 MSM56X16160J -20T3 FE(A) SE(B) TE(F) CE(E) SFDR SRDR TFDR TRDR FFDR FRDR MDP SYNC POWERLT SI0 SO0 XSCK0 COLDST PG6 PG5 LCD_XRST SEL_LINE_HP OPEN CHGMNT BATMNT AD_RMKEY AD_KEY2 AD_KEY1 DCINMNT CASINO_WAKE XADEVENT XRST CLOCK_SHIFT HOLD X_METAL_DTC PWMR PWML DAMPCLK AOUTL AOUTR PWRSW EN1 EN2 HP_LATCH MUTE SDA0 SDA1 SDA2 SDA3 SDA4 SDA5 SDA6 SDA7 SDA8 SDA9 SDA10 SDA11 SDCLK SDCKE SDXRAS SDXCS SDXCAS SDUDQM SDLDQM SDDQ5 SDDQ1 SDDQ2 SDDQ3 SDDQ4 SDDQ6 SDDQ7 SDDQ8 SDDQ9 SDDQ10 SDDQ11 SDDQ12 SDDQ13 SDDQ14 SDDQ15 SDDQ16 LCD_XSCK_O LCD_SDT_O LCD_SDT_I SI0 XSCK0 SO0 SI0 HP_LATCH SEL_LINE_HP AOUTR AOUTL BEEP PWRSW XRST POWERLT SO0 SXCK0 COLDST XADEVENT SYNC CASINO_WAKE MUTE MDP FG SRDR SFDR TRDR TFDR FRDR FFDR LCD_SDT_I LCD_SDT_O LCD_XSCR_O LCD_CS LCD_XRST AD_KEY2 AD_KEY1 CNGMNT HOLD OPEN DCINMNT AD_RMKEY PG5 PG6 X_METAL_DTC TSB FE(A) SE(B) CE(E) TE(F) T+ T- F- F+ F+ F- T+ T- SDDQ1 SDDQ2 SDDQ3 SDDQ4 SDDQ5 SDDQ6 SDDQ7 SDDQ8 SDLDQM SDXWE SDXCAS SDXRAS SDXCS SDA11 SDA10 SDA0 SDA1 SDA2 SDA3 SDDQ9 SDDQ10 SDDQ11 SDDQ12 SDDQ13 SDDQ14 SDDQ15 SDDQ16 SDUDQM SDCLK SDCKE SDA4 SDA5 SDA6 SDA7 SDA8 SDA9 SDXWE TSB TU_CE BATMNT CLOCK_SHIFT TC_CE FG BEEP LCD_CS OPGSW A B RF OPSTB LD PD GND_A VCC E F F+ T- T+ F- F- LINEOUT_DTC TSB LED1 LED2 D-R GND_AU D-L AD_RMKEY DCINMNT VIN OPEN HOLD VSTB1 VSTB2 CNGMNT AD_KEY1 AD_KEY2 LCD_XRST LCD_CS LCD_CLOCK LCD_DATA_O LCD_DATA_I FFDR FRDR TFDR TRDR SFDR SRDR FG MDP F+ T- T+ MUTE CASINO_WAKE SYNC WAKE COLDST CLOCK LATCHB GND RSTB VCC2 VAPC PAPC VCC0 VCC1 PWRSW BEEP A-L A-R GND GND_A SEL_LINE_HP SI0/LCD_BL/XEXBAT VG TU_CE/OPOUT DTC VCC DQ1 DQ2 VSSQ DQ3 DQ4 VCCQ DQ5 DQ6 VSSQ DQ7 DQ8 VCCQ LDQM VSS DQ16 DQ15 VSSQ DQ14 DQ13 VCCQ DQ12 DQ11 VSSQ DQ10 DQ9 VCCQ NC XWE XRAS XCS A11 A10 A0 A1 A2 A3 VCC UDQM CLK CKE NC A9 A8 A7 A6 A5 A4 VSS XCS DO WP GND VCC HOLD SCK DI -1-2 CLOCK SHIFT XCAS SD-RAM EEPROM HP_LATCH/DOUT DATA_SO0 OPTICAL PICK-UP BLOCK SYSTEM CONTROLLER, DSP,LCD DRIVER ∗ CSP (Chip Size Package) (DAX-25EV) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 D-NF420/NF421 D-NF420/NF421 5-3. PRINTED WIRING BOARD – JACK BOARD (COMPONENT SIDE) – :Uses unleaded solder. OPEN R102 C103 C102 C136 C161 CN602 CN603 L106 C145 C130 C129 C122 R115 R126 R120 C126 C123 C128 C127 C116 C418 C414 CN901 L420 R471 L201 TH401 C403 FB405 FB404 S531 FB403 C406 C401 C201 C407 C502 C165 R501 D401 C131 C408 R305 FB206 C210 D404 C133 C132 L107 Q102 C134 R118 R109 Q101 R114 R112 CT101 SL501 (OPEN) C402 C146 L108 C423 C421 L414 L413 R119 1 2 1 4 1 60 30 31 1-864-028- (12) 12 1 V W U 4 M603 (SLED) M M602 (SPINDLE) TP215 (TU_R ) TP217 (TU_L) TP101 (RF (A) ) TP103 (RFGND (A) ) A EGL BOARD CN9001 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 EXCEPT NF421: RU, E19/1 D302 D301 FB207 (NF421: RU, E19/1) (NF421: RU, E19/1) JACK BOARD (COMPONENT SIDE) (Page 12) Ver. 1.3 • Semiconductor Location Ref. No. Location D301 I-8 D302 I-7 D401 H-8 D404 G-7 Q101 E-8 Q102 E-8 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 D-NF420/NF421 D-NF420/NF421 5-4. PRINTED WIRING BOARD – JACK BOARD (CONDUCTOR SIDE) – :Uses unleaded solder. 1-864-028- (12) 12 C420 C106 C109 R103 R101 R111 C120 C119 R125 C150 C118 C138 C142 C143 C125 C117 R110 R212 R211 R213 R214 R215 R221 R217 R216 R220 C228 R210 C229 C230 C234 C231 C235 C232 C226 C225 C220 C218 C215 C212 C211 R202 FB205 FB203 R201 C205 D204 D202 D203 FB204 C206 C202 C227 C224 C219 C217 C216 C221 R232 R231 C223 R230 C115 C121 C113 C107 C149 C114 R132 D104 D103 D105 R108 C160 C108 S530 R106 R107 C162 R130 R128 Q103 C156 C140 C135 C137 C141 R129 R131 R116 C164 L105 D106 D102 D101 C110 R104 C148 C233 C155 TP102 (RF (B) ) R801 R802 R404 R405 R411 R466 R473 R474 R502 C501 R452 C454 C437 C410 R455 R477 R470 R469 C405 D402 Q402 R451 IC501 IC401 R434 R412 L412 L411 L418 C438 C411 C412 C413 C442 C452 R464 R415 C433 L416 C431 C428 R419 L415 L419 R408 FB806 F401 R478 R481 C432 C429 R124 C147 C144 R123 R121 R122 C139 C163 R482 C443 R414 R413 R467 R468 C435 C434 R475 R484 R479 R480 R454 FB801 FB802 FB803 FB804 FB805 FB808 R418 R416 C415 R463 R407 C450 C416 CN801 C417 C456 C419 L417 FB807 D412 D413 D414 D415 Q401 Q410 Q411 D108 D107 Q104 C409 C426 C436 C455 R410 R476 R465 RV401 D403 Q404 D411 C404 R803 R804 IC201 1 11 12 23 22 33 34 44 IC101 1 3 6 4 HOLD HOLD OFF T102 CF102 CF101 L101 AM FERRITE-ROD ANTENNA L103 L104 CF104 CF103 1 1 5 3 FL101 T103 DC/DC CONVERTER 1.5V 1PC DRY BATTERY SAZE "AA" (IEC DESIGNATION LR6) T101 C101 C104 C105 R105 DC IN 3V – + J402 5 8 4 1 1 12 -1 -2 NF420: US,CND TP111 (VT) NF420: US, CND EXCEPT NF420: US, CND (NF420: US, CND) TP104 (RFGND (B) ) NF420: AEP,UK, EE, E19, AUS/NF421: RU, E19/1 NF420: AEP, UK, EE/NF421: RU B SWITCH BOARD CN1002 TP454 FL102 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 1 15 16 30 1 20 21 40 41 60 61 80 JACK BOARD (CONDUCTOR SIDE) NF420: AEP, UK, EE/NF421: RU J301 i FB306 D304 (NF421: RU, E19/1) (NF421: RU, E19/1) C451 R402 R460 R462 R461Q409 (NF421: RU, E19/1) (NF421: RU, E19/1) Ver. 1.3 (Page 17) • Semiconductor Location Ref. No. Location D101 C-2 D102 D-3 D103 E-2 D104 E-2 D105 D-2 D106 D-3 D107 A-9 D108 B-9 D202 I-4 D203 I-4 D204 I-4 D304 I-4 D402 F-7 D403 F-5 D411 C-7 D412 D-8 D413 D-8 D414 D-8 D415 E-8 IC101 E-3 IC201 G-3 IC401 D-7 IC501 F-6 Q103 E-4 Q104 B-10 Q401 D-8 Q402 F-7 Q404 F-6 Q409 C-6 Q410 C-9 Q411 C-9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 D-NF420/NF421 D-NF420/NF421 IC201 R413 C211 C212 C220 C221 R201 R202 C206 D205 C219 TH401 D204 C218 C217 C216 C205 R305 R408 R103 C107 D102 C109 R107 C113 C150 R125 C164 C119 C120 R112 R115 R114 C139 R121 D108 R122 C146 C147 R124 R501 C502 R502 C501 IC501 C102 C103 R101 R102 C106 D101 C233 C148 C121 C122 R129 R131 R118 R116 C138 C142 C162 C143 C140 C141 C137 C135 C134 C132 R119 C123 R109 C116 R132 R105 C160 C108 C104 C105 C101 TAP1 C131 C117 R110 R128 C156 C228 R231 R230 C223 C227 C224 C406 C161 C401 FB403 C408 R404 C404 R466 R411 D403 R465 R410 R476 RV401 Z403 C225 C226 D404 C235 R216 R220 R217 R221 R215 C234 R214 C229 C230 C231 C232 C145 C163 R481 R482 R478 R484 Q410 C455 C423 C428 C436 C426 C429 R464 C411 C412 C413 C438 R434 R412 C405 C410 R451 R477 R471 R455 C437 R416 C415 C435 C434 C421 C443 R467 D412 C417 C420 R463 C450 R418 R801 R802 R803 R804 CN801 CN901 CN603 C149 D105 D106 C118 C144 T103 Q104 R123 R111 S530 S531 SL501 T101 R106 L104 C114 IC101 C126 Q102 C125 T102 CF101 C165 C201 C210 C215 C202 D202 FB206 FB203 FB205 R232 F401 FB404 FB405 C403 D401 C407 J402 R405 R213 R211 R210 R212 C409 L416 199µH R419 D411 R414 C452 C431 C432 C433 R415 R452 D402 Q402 C442 R475 Q401 R454 D415 C418 D413 L413 22µH C456 L417 47µH D414 C419 R470 Q404 C454 R474 R473 CN602 C414 M603 M602 FB801 FB802 FB803 FB804 FB805 FB806 FB807 FB808 R469 L420 L103 TP111 R130 C110 C155 R104 L101 CT101 D107 C136 Q101 C129 C130 R126 C128 C127 C133 R120 C115 CF103 CF104 Q103 Q411 R468 IC401 FL101 FL102 L105 TP454 D103 R108 D104 TP101 TP102 TP103 TP104 TP217 TP215 C416 R407 R479 R480 C402 CF102 R462 R460 R461 R402 C451 FB207 FB306 D304 D302 D301 FB204 J301 Q409 TB2173FTG 47k 1 0.47 4.7 2.2 2.2 2.2 0.22 MA3J14700LSO 10 RSB6.8STE61 0.22 2.2 0.22 L201 47µH 0.22 10k 2.2M 470k 220p HVC306CTRU 0.01 470k 0.01 4p 4.7k 0.01 47p 100p 0 47k 22k 0.01 10k 1SS355TE-17 1k 4.7 L108 47µH 0.01 220 0 4700p 1M 470p RT8H055C 2200p 0.022 470k 1k 0.1 KV1610S 220p 0.022 0.01 4.7 4V 220 220 10k 4.7k 1 L106 47µH 10p 5p 22p 0.47 0.47 0.022 0.022 0.1 0.1 2.2k 4.7 4V 10 47 4V 0 2.2k 0 0.01 5p 0.01 220p 220p 0.1 470 4.7k L107 47µH 1 10 100k 100k 0.47 2.2 2.2 0.1 0.01 1 0 4.7 220k 0.22 220 47k UDZSTE-174.7B 0 100k 100k 47k 0.22 0.47 RB521S-30FTE61 1000p 22k 47k 4.7k 47k 22k 1000p 4.7k 0.47 0.47 1 1 10 6.3V 100p 1k 4.7 10k 0 2SC4154TP-IF 0.01 100 4V 47 6.3V 0.1 0.22 47 6.3V 10k 0.01 0.01 0.01 0.22 L418 47µH L419 10µH L415 10µH 2.2M 4.7k L412 47µH L411 47µH 10 0.01 100k 0 2.2k 100k 1 100 470p 1000p 220p 100 4V 0.01 L414 10µH 220 RB521S -30FTE61 0.47 1 100 100p 220 2.2k 4.7k 4.7k 1k 12P 60P 2P 2p HVC306CTRU HVC306 CTRU 0.01 5p 2SC4154TP-1F 100k 10k AM OSC 2.2k 0.01 TB2132FNG 470p DTA114TUA-T106 0.1 1000p 1000p 220 4V 1 0.01 RSB6.8STE61 0 0 1.4A 32V 1 MA22D28 00LS0 1 47k ∗ ∗ 1 0 MA785-TX,(SO) 0 2.2 2.2 47 6.3V 4.7 47k 0 MA2YD23 00LS0 2SA1363 -T111-1E 47 6.3V 22k NTHD4508N 0 UDZSTE-175.6E 47 4V RB521S -30FTE61 0.01 MA22D2800LS0 100 6.3V 0 DTC115TE 10 0 100k 4P 1000p 1k TV RF (VT) 220 47p 100p 470k MA8130 2.2 2SK3019TL 0.01 0.22 47k 0.1 0.01 1 1k 1000p 75KHz 2SA2018TL 220 SC901591AFR2 27nH HSC277-TRF 2.2k HSC277-TRF (RF(A)) (RF(B)) (RFGND(A)) (RFGND(B)) 0.47 100 47k 22k 220 6.3V 220k 220k 470k 10k 0.22 MA8051 -TX RSB6.8 STE61 RSB6.8 STE61 2SA1832FV (TH3SONY) HP_LATCH DATA_SO0 CLOCK A_MUTE HP_PWR BEEP CD_R CD_L DCINMT TU_CE CLOCK SI0 OPEN CASINO_WAKE PAPC VAPC MDP FG AD_RMKEY RS COM U V W F+ F- T- T+ S- S+ LATCH_B CHGMNT SFDR SRDR VG TFDR TRDR FFDR FRDR RS DATA_SO0 CLOCK COLDST WAKE SYNC RSTB LCD_CLK LCD_CS DATA_O DATA_I LCD_XRST AD_KEY1 AD_KEY2 AD_RMKEY DCINMT OPEN HOLD CHGMNT FFDR FRDR TFDR TRDR SFDR SRDR FG MDP F+ F- T- T+ A_MUTE WAKE COLDST CLOCK DATA_SO0 RSTB PAPC HP_PWR BEEP CD_L CD_R HP_LATCH VG TU_CE CASINO_WAKE SYNC HOLD V U S+ S- COM W VAPC AD_RMKEY SI0 LATCH_B DATA_SO0 DATA_I AD_KEY1 AD_KEY2 LCD_XRST LCD_CS LCD_CLK DATA_O ∗ ∗ IF NC VIN VCC GND OUT P2 P1 OUT-L OUT-C PW-GND BP-L OUT-R BP-R VCC2 BST-TC AGC_I BST_O PNF-R PNF-L VDD STB DATA CK RESET LPF2 BST-NF LPF1 BIAS-O RF OUT-ADJ BIAS-I VCC1 BEEP-I PW-SW MUTE-SW MUTE-T MODE-T FM-RF_O FM/TV_I GND RF-VCC AM-RF FM/TV-OSC AM-OSC TU-CE CLK MIX_O FM-IF_I AGC VCC AM-IF_I QUAD DET-O MPX_IN VDD LPF1 LPF2 DO D_I/O TV_O L_O FM_O R_O D-GND X_O X_I C-SW GND TU-L V_O-L P_I-L P_I-R V_O-R TU-R CD-L PRE-GND RF INM PAPC VAPC GND VREF VIN SW VCP VCC2 VSTB2 VSTB1 VCC1 APWM PWM FG RMCRB CPUI CPVI CPWI COM VMVW GNDW VMU GNDUV FO3 VM3 RO3 RO2 VM2 FO2 HBGND12 HBGND23 RO1 VM1 FO1 HBGND1 TEST RSTB SYNC WAKE COLDST CLOCK DATA_SO0 LATCHB EXTRSTB DCIN CRF CINM BATM CHGSW RSOSCR OSCC R13 F13 R12 F12 INPVD INP0 VD VDLX VD_T VD_B VCC0 L0_1 L0_2 PGND1 PGND2 C1L C1H CINP VG CHGMON FI1 RI1 W V U COM CLK_I LCD_CS_I DATA_O DATA_I VCC0_+2.7V AD_KEY1 AD_KEY2 PS SGND LINEOUT_DTC TSB LED1 LED2 D-R GND_AU D_L AD_RMKEY DCINMNT VIN OPEN HOLD VSTB1 VSTB2 CHGMNT AD_KEY1 AD_KEY2 LCD_XRST LCD_CS LCD_CLOCK LCD_DATA_O LCD_DATA_I FFDR FRDR TFDR TRDR SFDR SRDR FG MDP F+ F- T- T+ MUTE CASINO_WAKE SYNC WAKE COLDST CLOCK DATA_SO0 LATCHB GND RSTB VCC2 VAPC PAPC VCC0 VCC1 PWRSW BEEP A-L A-R GND GND_A SEL_LINE_HP HP_LATCH/DOUT VG TU_CE/OPOUT_DTC COM W V U S+ S- DC/DC CONVERTER DC/DC CONVERTER S LOW-PASS FILTER HOLD HOLD OFF OPEN (OPEN) VOLTAGE DETECT AM ANTENNA (NF420:US,CND) FERRITE-ROD 1 1 2 3 4 5 (NF420:US,CND) FM/AM IF AMP, FM/TV RF AMP, FM/TV/AM MIX AMP, FM/TV/AM OSC, FM/AM DET FM MPX,PLL TV-RF_O TONE CONTROL SWITCH AM IFT HEADPHONE AMP AGC-D DRY BATTERY SIZE"AA" (IEC DESIGNATION LR6) DC IN 3V ∗R211,212 CD-R NF420:AEP,UK, -1-2 UMT1N-TN Q410,411 RIPPLE FILTER S S SWITCHING SIO/LCD_BL/XEXBAT (SLED) (SPINDLE) LCD_XRST_I VCC2_+2.1V D_GND 2 3 FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE, POWER CONTROL L101 1PC 1.5V B+ SWITCH B+ SWITCH B+ SWITCH CPV0 VO0 WO VO UO (TU_L) (TU_R) 4.7K 1K 47K 4.7K (EXCEPT NF420:US/CND) FM RF DC DETECT (NF421:RU,E19/1) (NF421:RU,E19/1) ∗R210,213 (NF420:AEP,UK,EE/NF421:RU) (NF420:E19,AUS,NF421:E19/1) EE,E19,AUS/ NF421:RU,E19/1 NF420:US,CND/ NF421:E19/2,E92,MX NF420:AEP,UK,EE,E19, AUS/NF421:RU,E19/1 NF420:AEP,UK,EE /NF421:RU (NF421:RU,E19/1) EXCEPT NF421:RU,E19/1 5-5. SCHEMATIC DIAGRAM – JACK BOARD – • See page 11 for Waveforms. • See page 19 for IC Block Diagrams. • See page 20 for IC Pin Function Description. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver. 1.3 (Page 18) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 D-NF420/NF421 D-NF420/NF421 5-6. PRINTED WIRING BOARD – SWITCH BOARD (EXCEPT PSYC MODEL) – :Uses unleaded solder. • Refer to “DISCRIMINATION OF ORIGINAL AND PSYC MODEL” in the SERVICING NOTES (page 5) about PSYC model. B JACK BOARD CN801 SWITCH BOARD 1-864-657- (11) 11 1 12 R1007 R1001 R1002 R1003 VDR1001 C1001 C1002 R1115 CN1001 R1004 R1005 R1006 C1003C1004C1005 C1008 C1006 C1010 C1009 C1007 C1011 R1113 R1114 R1101 R1102 R1105 R1106 R1103 R1104 R1107 R1108 R1110 R1109 R1111 R1112 CN1002 S1111 SEARCH S1108 RADIO OFF S1101 – TUNE – S1103 S1110 u VOL – S1105 u ENTER S1109 VOL + U S1104 S1102 + TUNE + S1107 DISPLAY MENU RADIO ON/ S1106 BAND MEMORY LCD1001 LIQUID CRYSTAL DISPLAY 1 23 . > A B C D E F G H 1 2 3 4 5 6 7 8 (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 D-NF420/NF421 D-NF420/NF421 5-7. SCHEMATIC DIAGRAM – SWITCH BOARD (EXCEPT PSYC MODEL) – • Refer to “DISCRIMINATION OF ORIGINAL AND PSYC MODEL” in the SERVICING NOTES (page 5) about PSYC model. C1001 C1003 C1004 C1005 C1006 C1007 C1008 C1009 C1010 C1011 C1002 R1001 R1002 R1003 R1004 R1005 R1006 R1007 R1101 R1102 R1103 R1104 R1105 R1106 R1107 R1108 R1110 R1111 R1112 CN1002 CN1001 VDR1001 R1109 R1113 R1114 S1111 S1101 S1102 S1103 S1104 S1105 S1110 S1109 S1108 S1106 S1107 R1115 1 0.22 0.22 0.22 0.47 0.22 0.22 0.22 0.22 0.22 1 1k 1k 1k 1k 1k 0 0 10k 4.7k 2.2k 22k 2.2k 47k 10k 22k 2.2k 2.2k 22k 12P 23P 1k 47k 4.7k 0 SCK CSB SDI SDO RSTB VDD VSS VREF VCIN CP1 CN1 CP2 CN2 CP3 CN3 VSSL VCOUT VLCIN V1 V2 V3 V4 V5 CLK_I LCD_CS_I DATA_O DATA_I LCD_XRST D_GND AD_KEY1 AD_KEY2 PS SGND SEARCH TUNE - - ENTER VOL - TUNE + + VOL + RADIO OFF DISPLAY MENU RADIO ON/ BAND MEMORY LCD1001 LIQUID CRYSTAL DISPLAY VCC2_+2.1V VCC0_+2.7V (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 D-NF420/NF421 • IC Block Diagrams – JACK Board – IC101 TB2132FNG IC201 TB2173FTG FM/TV RF IN 1 MIX OUT 3 GND 2 AGC 4 FM IFIN 5 FM RF TV RF FM/TV MIX AM MIX 27 AM RFIN 17 PLL GND 21 PLL VCC 18 OUT1 (ST) 26 FM/TV OSC 28 RF VCC 29 TV RFOUT 30 FM RFOUT FM IF AM IFIN 7 VCC 6 DET OUT 9 QUAD 8 MPX IN 10 LPF1 11 LPF2 12 AM IF AM DET FM DET L-CH 13 R-CH 14 XO 15 IF BUFFER AF FM MPX MUTE OSC 25 AM OSC 16 XI AM OSC 1/2 1/4 1/16 AM TV 1/8 FM 1/32 FM/TV 1/2 BUFFER AM OSCIN FM OSCIN PROGRAM COUNTER REFERENCE DIVIDER IFIN 1/8 AM FM FM/AM/TV SWITCH 22 DATA 19 OUT2 (DO2) 20 DO PHASE COMPARATOR 23 CK 24 CE PLL AGC 34 MUTE SW C-SW OUTA MODE SWITCH VOLUME VOLUME/SWITCH /PORT CONTORL 2 35 PW SW 36 RESET 37 CK 38 DATA 39 STB 43 P1 44 P2 40 VDD 41 PRE NFA 33 IN2A 31 PRE INA 29 PRE INB 28 VOL OUTA 30 VOLUME IN2B 26 IN1A 25 VOL OUTB 27 GND 32 PRE GND MODE TC 23 + – + – 42 PRE NFB BEEP OUTA 1 BEEP OUTB 6 VCC2 7 BST TC 8 AGC DET 9 AGC IN 10 OUTC 3 PW GND 4 OUTB 5 ATTENUATOR IN1B 24 ATTENUATOR 22 MUTE TC 21 BEEP 20 VCC1 19 BIAS IN 18 BEEP OUT ADJ 17 RF 16 LPF1 14 LPF2 12 BST NF 13 BIAS OUT 15 BIAS + – + – + – BST AGC BST OUT 11 PORT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 D-NF420/NF421 • IC Pin Function Description EGL BOARD IC603 CXR711260-214H2 (SYSTEM CONTROLLER, DSP, LCD DRIVER) Pin No. Pin Name I/O Description 1 PE6/SI1 I Serial data input from the liquid crystal display 2 PE5/SO1 O Serial data output to the liquid crystal display 3 PE4/XSCK1 O Serial clock signal output to the liquid crystal display 4 PE3 O Chip select signal output to the EEPROM 5 VDIO0 - Power supply terminal (+2.1V) 6 VSS0 - Ground terminal 7 DVDD7 - Power supply terminal (+1.3V) 8 PE2/DTCK I/O Not used 9 PE1/RXD0 I Not used 10 PE0/TXD0 O Not used 11 EVA - Not used 12, 13 SDDQ16, SDDQ15 I/O Two-way data bus with the SD-RAM 14 TAPTDO - Not used 15, 16 SDDQ14, SDDQ13 I/O Two-way data bus with the SD-RAM 17 SCANEN - Not used 18, 19 SDDQ12, SDDQ11 I/O Two-way data bus with the SD-RAM 20 TEST2 - Not used 21, 22 SDDQ10, SDDQ8 I/O Two-way data bus with the SD-RAM 23 VDIOSD0 - Power supply terminal (+2.7V) 24 VSS1 - Ground terminal 25 to 28 SDDQ9, SDDQ6, SDDQ7, SDDQ2 I/O Two-way data bus with the SD-RAM 29 TEST3 - Not used 30, 31 SDDQ4, SDDQ3 I/O Two-way data bus with the SD-RAM 32 TEST0 - Not used 33 XSDWE O Write enable signal output to the SD-RAM 34 SDDQ1 I/O Two-way data bus with the SD-RAM 35 TEST1 - Not used 36 SDDQ5 I/O Two-way data bus with the SD-RAM 37 SDLDQM O Lower byte input/output mask signal output to the SD-RAM 38 VDIOSD1 - Power supply terminal (+2.7V) 39 VSS2 - Ground terminal 40 SDUDQM O Upper byte input/output mask signal output to the SD-RAM 41 XSDCAS O Column address strobe signal output to the SD-RAM 42 XSDCS O Chip select signal output to the SD-RAM 43 TEST5 - Not used 44 XSDRAS O Row address strobe signal output to the SD-RAM 45 SDCKE O Clock enable signal output to the SD-RAM 46 TEST6 - Not used 47 SDCLK O Clock signal output to the SD-RAM 48 SDA13 O Address signal output to the SD-RAM 49 XTRST - Not used 50 to 52 SDA12 to SDA10 O Address signal output to the SD-RAM 53 VDIOSD2 - Power supply terminal (+2.7V) 54 VSS3 - Ground terminal 55 DVDD0 - Power supply terminal (+1.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 D-NF420/NF421 Pin No. Pin Name I/O Description 56 TMS - Not used 57, 58 SDA8, SDA9 O Address signal output to the SD-RAM 59 TDO - Not used 60, 61 SDA7, SDA6 O Address signal output to the SD-RAM 62 TDI - Not used 63, 64 SDA5, SDA4 O Address signal output to the SD-RAM 65 TEST4 - Not used 66, 67 SDA1, SDA2 O Address signal output to the SD-RAM 68 RTCK - Not used 69, 70 SDA0, SDA3 O Address signal output to the SD-RAM 71 TCK - Not used 72 VDIOSD3 - Power supply terminal (+2.7V) 73 VSS4 - Ground terminal 74 VDIO1 - Power supply terminal (+2.1V) 75 PI7/AIFBCK - Not used 76 PI6/AIFLRCK - Not used 77 PI5 O Muting on/off control signal output to the headphone amplifier "H": muting on 78 PI4/AIFPCMD - Not used 79 PI3/XBCKO - Not used 80 PI2/LRCKO - Not used 81 PI1 O Command latch signal output to the headphone amplifier 82 PI0/PCMDO - Not used 83 ADCLK - Not used 84 DOUT - Not used 85 PJ7/MON7 (MONCK) - Not used 86 PJ6/MON6 (MONDO) - Not used 87 PJ5/MON5 O Amplifier power on/off control signal output to the headphone amplifier "H": amplifier power on 88 to 91 PJ4/MON4 to PJ1/MON1 - Not used 92 XRST_PWR_O - Not used 93 VSS6 - Ground terminal 94 VDIO2 - Power supply terminal (+2.1V) 95 DVDD1 - Power supply terminal (+1.3V) 96 AVDDA1 - Power supply terminal (+2.7V) 97 AOUTR O Analog audio signal output to the headphone amplifier (R-ch) 98 VREFR O Reference voltage output terminal (R-ch) 99, 100 AVSDA1, AVSDA0 - Ground terminal 101 VREFL O Reference voltage output terminal (L-ch) 102 AOUTL O Analog audio signal output to the headphone amplifier (L-ch) 103 AVDDA0 - Power supply terminal (+2.7V) 104 AVSMO - Ground terminal 105 EXTAL O System clock output terminal (22 MHz) 106 XTAL I System clock input terminal (22 MHz) 107 AVDMO - Power supply terminal (+2.7V) 108 VDIOFS256 - Power supply terminal (+2.1V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 D-NF420/NF421 Pin No. Pin Name I/O Description 109 DAMPCLK - Not used 110 VDIOAMP - Power supply terminal (+2.1V) 111 PWML - Not used 112 PWMR - Not used 113 VSSAMP - Ground terminal 114 VSS7 - Ground terminal 115 AVDPLL0 - Power supply terminal (+2.7V) 116 AVSPLL0 - Ground terminal 117 VDIOPLL0 - Power supply terminal (+2V) 118 VSS8 - Ground terminal 119 AVSPLL1 - Ground terminal 120 AVDPLL1 - Power supply terminal (+2.7V) 121 VDIOPLL1 - Power supply terminal (+2V) 122 VSS9 - Ground terminal 123 XIN - Not used 124 VDIO3 - Power supply terminal (+2.1V) 125 MSDIO - Not used 126 DVDD2 - Power supply terminal (+1.3V) 127, 128 PF7/DBG7, PF6/DBG6 - Not used 129, 130 ADDSEL_0, ADDSEL_1 - Not used 131 PF3/DBG3 - Not used 132 PF2/DBG2 I HOLD switch input terminal "L": hold on 133 PF1/SSCK/DBG1 - Not used 134 PF0/SSIO/DBG0 - Not used 135 VDIO4 - Power supply terminal (+2V) 136 AVSSAD - Ground terminal 137 AVDSAD - Power supply terminal (+2.1V) 138 IGEN I Stabilized current input for operational amplifiers 139 FE (A) I A signal input from the optical pick-up block 140 SE (B) I B signal input from the optical pick-up block 141 TE (F) I F signal input from the optical pick-up block 142 CE (E) I E signal input from the optical pick-up block 143 VC I Middle point voltage input terminal Not used 144 RFDC (RFDCO) I RF signal input from the optical pick-up block 145 VSS11 - Ground terminal 146 ASYI I Asymmetry comparator voltage input terminal 147 BIAS I Asymmetry circuit constant current input terminal 148 ASYO O EFM full-swing output terminal 149 AVDASM - Power supply terminal (+2.1V) 150 AVSASM - Ground terminal 151 RFACI I EFM signal input from the optical pick-up 152 AVDVCO - Power supply terminal (+2.1V) 153 VCTL I VCO control voltage input terminal for the wideband EFM PLL 154 CLTV I Internal VCO control voltage input terminal 155 AVSVCO - Ground terminal 156 VPCO O Charge pump output terminal for the wideband EFM PLL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 D-NF420/NF421 Pin No. Pin Name I/O Description 157 FILO O Filter output terminal for master PLL 158 FILI I Filter input terminal for master PLL 159 PCO O Charge pump output terminal for master PLL 160 VSS12 - Ground terminal 161 DVDD3 - Power supply terminal (+1.3V) 162 VDIODSP - Power supply terminal (+2V) 163 SFDR O Sled servo drive signal (+) output to the motor/coil drive 164 SRDR O Sled servo drive signal (-) output to the motor/coil drive 165 TFDR O Tracking servo drive signal (+) output to the motor/coil drive 166 TRDR O Tracking servo drive signal (-) output to the motor/coil drive 167 FFDR O Focus servo drive signal (+) output to the motor/coil drive 168 FRDR O Focus servo drive signal (-) output to the motor/coil drive 169 MDP O Spindle motor servo drive signal output to the motor/coil drive 170 MDS - Not used 171 C176 O 176.4 kHz clock signal output to the motor/coil drive 172 VDIOEM0 - Power supply terminal (+2V) 173 DVDD4 - Power supply terminal (+1.3V) 174 VSS14 - Ground terminal 175 PC3/XSCS0 O Command latch signal output to the power control 176 PC2/SI0 I Serial data input from the FM/AM/TV tuner and EEPROM 177 PC1/SO0 O Serial data output to the power control and EEPROM 178 PC0/SCK0 O Serial clock signal output to the power control and EEPROM 179 VSS15 - Ground terminal 180 VDIO5 - Power supply terminal (+2V) 181 PG7 I Cold start flag input from the power control 182, 183 PG6, PG5 - Not used 184 PG4 O Reset signal output to the liquid crystal display 185, 186 PG3, PG2 - Not used 187 PG1 O Standby signal output to the optical pick-up block 188 PG0 O RF gain-up signal output for CD-RW to the optical pick-up block 189, 190 DVDD5, DVDD6 - Power supply terminal (+1.3V) 191 VSS18 - Ground terminal 192 AVDAD - Power supply terminal (+2V) 193 AVSAD - Ground terminal 194 AN7 I CD lid open/close switch input terminal "L": close, "H": open 195 AN6 I Charge voltage monitor input from the power control 196 AN5 I Battery voltage monitor input terminal 197 AN4 I Wake up signal input from the power control Remote commander key input terminal (NF421: Russian, Singapore, Malaysia and Thai models only) 198 AN3 - Not used 199, 200 AN2, AN1 I Top panel key input terminal (A/D input) 201 AN0 I DCIN voltage monitor input terminal 202 WAKE I Wake up signal input terminal 203 XADEVENT O Wake up signal output to the power control 204 XRST I System reset signal input from the power control 205, 206 DVDBK0, DVDBK1 - Power supply terminal (+1.2V) 207 VSS19 - Ground terminal Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 D-NF420/NF421 Pin No. Pin Name I/O Description 208 VDIO6 - Power supply terminal (+2V) 209 PD7/INT7 - Not used 210 PD6/INT6 O Tuner clock shift signal output terminal 211 PD5/INT5 O Chip enable signal output to the FM/AM/TV tuner 212, 213 PD4/INT4, PD3/INT3 - Not used 214 PD2/INT2/ECIN I FG signal input from the motor/coil drive 215 PD1/INT1/T1 O Beep signal output to the headphone amplifier 216 PD0/INT0/EC0 - Not used 217 PE7/XSCS1 O Command latch signal output to the liquid crystal display 218 NCS1 - Not used 219 to 237 A0, A19 to A1 - Not used 238 NRD - Not used 239 NWE - Not used 240 to 255 DQ15 to DQ0 - Not used 256 VDD_FL1 - Power supply terminal Not used 257 VSS_FL1 - Ground terminal 258 VDD_SR1 - Power supply terminal Not used 259 VSS_SR1 - Ground terminal 260 VDD_SR2 - Power supply terminal Not used 261 VSS_SR2 - Ground terminal 262 to 272 NC - Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 D-NF420/NF421 Pin No. Pin Name I/O Description 1 COM I Comparator (U/V/W) negative pole input terminal 2 VMU - Power supply terminal (for spindle motor drive U phase) 3 UO O Spindle motor drive U phase output terminal 4 GNDUV - Ground terminal (for spindle motor drive U/V phase) 5 VO O Spindle motor drive V phase output terminal 6 VMVW - Power supply terminal (for spindle motor drive V/W phase) 7 WO O Spindle motor drive V phase output terminal 8 GNDW - Ground terminal (for spindle motor drive W phase) 9 FO3 O Focus coil drive signal (+) output terminal 10 VM3 - Power supply terminal (for focus coil drive) 11 RO3 O Focus coil drive signal (-) output terminal 12 HBGND23 - Ground terminal (for focus/tracking coil drive) 13 RO2 O Tracking coil drive signal (-) output terminal 14 VM2 - Power supply terminal (for tracking coil drive) 15 FO2 O Tracking coil drive signal (+) output terminal 16 HBGND12 - Ground terminal (for tracking coil drive and sled motor drive) 17 RO1 O Sled motor drive signal (-) output terminal 18 VM1 - Power supply terminal (for sled motor drive) 19 FO1 O Sled motor drive signal (+) output terminal 20 HBGND1 - Ground terminal (for sled motor drive) 21 TEST - Test mode terminal 22 RSTB O System reset signal output to the system controller 23 SYNC I 176.4 kHz clock signal input from the system controller 24 WAKE I Wake up signal input from the system controller 25 COLDST O Cold start flag output to the system controller 26 CLOCK I Serial clock signal input from the system controller 27 DATA I Serial data input from the system controller 28 LATCHB I Command latch signal input from the system controller 29 EXTRSTB I External reset signal input terminal Not used 30 DCIN - AC adapter power supply connection terminal 31 CRF O Battery charge circuit error amplifier output for rechargeable battery 32 CINM I Battery charge circuit error amplifier invert input for rechargeable battery 33 BATM - Battery minus terminal 34 CHGSW O Battery charge control transistor drive signal output for rechargeable battery Not used 35 RSOSCR - Connection terminal of sense resistor and external resistor for internal oscillation circuit 36 OSCC - External capacitor connection terminal for internal oscillation circuit 37 RI3 I Focus servo drive signal (-) input from the system controller 38 FI3 I Focus servo drive signal (+) input from the system controller 39 RI2 I Tracking servo drive signal (-) input from the system controller 40 FI2 I Tracking servo drive signal (+) input from the system controller 41 RI1 I Sled servo drive signal (-) input from the system controller 42 FI1 I Sled servo drive signal (+) input from the system controller 43 CHGMON O Charge voltage monitor output to the system controller 44 VG O VG power supply output terminal (+5V) 45 CINP I Battery charge circuit error amplifier non-invert input for rechargeable battery JACK BOARD IC401 SC901591AFR2 (FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE, POWER CONTROL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 D-NF420/NF421 Pin No. Pin Name I/O Description 46 C1H - Capacitor connection terminal for charge pump (high side) of VG power supply circuit 47 C1L - Capacitor connection terminal for charge pump (low side) of VG power supply circuit 48 CPVO I Check terminal for phase compensation VCC0 power supply phase 49, 50 PGND2, PGND1 - Ground terminal (for VCC0 switching power supply circuit) 51, 52 LO_2, LO_1 - Coil connection terminal for VCC0 switching power supply circuit 53 VO0 O VO0 voltage output terminal of switching power supply circuit Not used 54 VCC0 O VCC0 power supply voltage output terminal (+2.7V) 55 VD_B O FET (bottom side) drive signal output for VD switching power supply circuit 56 VD_T O FET (top side) drive signal output for VD switching power supply circuit 57 VDLX - Coil connection terminal for VD switching power supply circuit 58 VD I Feed back voltage input terminal of VD switching power supply circuit 59 INPVD I Error amplifier non-invert input of VD switching power supply circuit 60 INP0 I Error amplifier non-invert input of VCC0 switching power supply circuit 61 RF - Error amplifier connection terminal of APC circuit 62 INM O Error amplifier output terminal of APC circuit 63 PAPC I Feed back voltage input terminal of APC circuit 64 VAPC O Voltage output terminal of APC circuit 65 GND - Ground terminal 66 VREF O Reference voltage output terminal 67 VIN - Dry battery connection terminal 68 SW - Coil connection terminal for VCP power supply circuit 69 VCP O Voltage output terminal of VCP power supply circuit 70 VCC2 O VCC2 power supply voltage output terminal (+2.1V) 71 VSTB2 O Standby power supply (2) output terminal (+2V) 72 VSTB1 O Standby power supply (1) output terminal (+1.2V) 73 VCC1 O VCC1 power supply voltage output terminal (+1.3V) 74, 75 APWM, PWM I Spindle motor servo drive signal input from the system controller 76 FG O FG signal output to the system controller 77 RMCRB O Wake up signal output to the systerm controller 78 CPUI I Comparator (U) positive pole input terminal 79 CPVI I Comparator (V) positive pole input terminal 80 CPWI I Comparator (W) positive pole input terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-NF420/NF421 SECTION 6 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) R R Parts of Color Cabinet’s Color • Accessories are given in the last of the electrical parts list. • Refer to “DISCRIMINATION OF ORIGINAL AND PSYC MODEL” in the SERVICING NOTES (page 5) about PSYC model. • Refer to “COLOR VARIATION” in the “SERVICING NOTES” (page 5) about color variation of model and destination. • Abbreviation AUS : Australian model CND : Canadian model E/4 : Argentina model E19 : South African, Singapore, Malaysia, Vietnam and Indian model E19/1 : Singapore, Malaysia and Thai model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 2-187-934-01 SPRING (LEFT) 2 2-187-935-01 SPRING (RIGHT) 3 2-541-612-71 LID, BATTERY (BLUE) 4 3-254-058-11 SCREW 5 2-187-928-11 KNOB (OPEN) (BLUE) 6 2-187-930-01 SPRING (OPEN) 7 2-187-929-01 LEVER (OPEN) 8 3-034-792-11 SCREW, TAPPING (B2.0) 9 X-2048-622-1 LID SUB ASSY, UPPER 10 3-252-725-01 SPACER, CDM 6-1. UPPER LID SUB ASSY SECTION (PSYC model) 7 8 10 6 5 3 2 4 4 4 9 1 not supplied not supplied not supplied CABINET (lower) section The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver. 1.3 E19/2 : Chilean and Peruvian model E92 : Panama, Venezuelan and Caribbian Can model EE : East European and Russian model MX : Mexican model RU : Russian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 D-NF420/NF421 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 2-187-934-01 SPRING (LEFT) 52 2-187-935-01 SPRING (RIGHT) 53 2-541-612-61 LID, BATTERY 54 3-254-058-11 SCREW 55 2-187-928-01 KNOB (OPEN) 56 2-187-930-01 SPRING (OPEN) 57 2-187-929-01 LEVER (OPEN) 58 3-034-792-11 SCREW, TAPPING (B2.0) 59 3-254-082-01 SCREW 60 X-2048-624-1 LID SUB ASSY, COVER (UPPER) (SILVER) (NF420) 6-2. UPPER LID SECTION (EXCEPT PSYC model) 60 X-2048-625-1 LID SUB ASSY, COVER (UPPER) (SILVER) (NF421) 61 A-1081-774-A SWITCH BOARD, COMPLETE 62 3-252-725-01 SPACER, CDM 63 1-829-981-11 CABLE, FLEXIBLE FLAT (12 CORE) 64 X-2050-418-1 LID (S) SUB ASSY, UPPER (SILVER) 66 2-187-924-01 BUTTON (SCROLL)(U > u .) 67 2-187-925-01 BUTTON (CONTROL) (RADIO ON/BAND MEMORY, DISPLAY MENU, GROUP +, u ENTER, GROUP –, x, SEARCH) LCD1001 1-805-689-21 DISPLAY PANEL, LIQUID CRYSTAL 60 66 67 61 59 52 54 54 54 55 56 57 58 54 64 51 63 53 LCD1001 SWITCH board not supplied not supplied not supplied CABINET (lower) section not supplied not supplied 62 Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 D-NF420/NF421 6-3. CABINET (LOWER) SECTION 101 101 105 104 106 101 102 103 JACK board not supplied not supplied not supplied not supplied CDM-3325ERV2 104 107 108 101 3-245-331-02 INSULATOR 102 A-1081-778-B EGL BOARD, COMPLETE (NF420: US, CND, E/4, E19, AUS/NF421: E19/1, E19/2, E92, MX) 102 A-1094-414-B EGL BOARD, COMPLETE (NF420: AEP, UK, EE/NF421: RU) 103 2-187-932-01 TERMINAL BOARD (+) (NF421: E19/1) 103 2-187-932-11 TERMINAL BOARD (+) (EXCEPT NF421: E19/1) 104 2-187-933-01 SPRING (–), COIL (NF421: E19/1) 104 2-187-933-11 SPRING (–), COIL (EXCEPT NF421: E19/1) 105 A-1081-743-A JACK BOARD, COMPLETE (NF420: US, CND) 105 A-1081-776-A JACK BOARD, COMPLETE (NF420: AEP, UK, EE) 105 A-1081-790-A JACK BOARD, COMPLETE (NF420: E/4/NF421: E19/2, E92, MX) 105 A-1081-791-A JACK BOARD, COMPLETE (NF420: E19, AUS) 105 A-1118-201-A JACK BOARD, COMPLETE (NF421: RU) 105 A-1122-801-A JACK BOARD, COMPLETE (NF421: E19/1) 106 X-2048-761-1 CABINET (LOWER) ASSY (NF420: US, CND) 106 X-2048-763-1 CABINET (LOWER) ASSY (EXCEPT NF420: US, CND) 107 2-178-877-31 KNOB, HOLD (SILVER) (EXCEPT NF420: US, CND) 107 2-178-877-41 KNOB, HOLD (BLUE) (NF420: US, CND) 108 4-225-396-01 SPACER (C) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 D-NF420/NF421 6-4. OPTICAL PICK-UP SECTION (CDM-3325ERV2) 151 153 161 160 156 159 158 155 157 151 154 152 M603 M602 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 3-318-203-61 SCREW (B1.7X4), TAPPING 0152 X-3383-995-1 OPTICAL PICK-UP (DAX-25EV) 153 3-221-473-01 COVER, GEAR 154 3-221-472-02 CHASSIS 155 3-221-474-01 SPRING, SLED 156 A-3331-663-A SCREW (FEED) ASSY 157 3-221-268-01 GEAR (B) 158 3-221-475-01 SHAFT, STANDARD 159 3-222-298-01 RACK 160 3-222-299-01 SPRING, RACK RETAINER 161 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN M602 A-3608-777-A MOTOR ASSY, TURN TABLE (SPINDLE) M603 A-3174-850-A MOTOR ASSY, SLED The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 D-NF420/NF421 SECTION 7 ELECTRICAL PARTS LIST EGL Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1081-778-B EGL BOARD, COMPLETE (NF420: US, CND, E/4, E19, AUS/NF421: E19/1, E19/2, E92, MX) A-1094-414-B EGL BOARD, COMPLETE (NF420: AEP, UK, EE/NF421: RU) ******************** (Included in JACK BOARD, COMPLETE) < CAPACITOR > C601 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C602 1-112-063-11 CERAMIC CHIP 470PF 10% 50V C603 1-100-661-11 TANTALUM CHIP 100uF 20% 4V C607 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C608 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C609 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C610 1-107-820-11 CERAMIC CHIP 0.1uF 16V C617 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C618 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C619 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C624 1-107-820-11 CERAMIC CHIP 0.1uF 16V C626 1-107-820-11 CERAMIC CHIP 0.1uF 16V C627 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C629 1-107-820-11 CERAMIC CHIP 0.1uF 16V C631 1-107-820-11 CERAMIC CHIP 0.1uF 16V C632 1-107-820-11 CERAMIC CHIP 0.1uF 16V C639 1-107-820-11 CERAMIC CHIP 0.1uF 16V C642 1-107-820-11 CERAMIC CHIP 0.1uF 16V C644 1-107-820-11 CERAMIC CHIP 0.1uF 16V C646 1-107-820-11 CERAMIC CHIP 0.1uF 16V C648 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C649 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C650 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C653 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C654 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C659 1-107-820-11 CERAMIC CHIP 0.1uF 16V C662 1-107-820-11 CERAMIC CHIP 0.1uF 16V C663 1-107-820-11 CERAMIC CHIP 0.1uF 16V C664 1-100-539-11 TANTALUM CHIP 47uF 20% 6.3V C667 1-107-820-11 CERAMIC CHIP 0.1uF 16V C675 1-107-820-11 CERAMIC CHIP 0.1uF 16V C676 1-107-820-11 CERAMIC CHIP 0.1uF 16V C677 1-107-820-11 CERAMIC CHIP 0.1uF 16V C678 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C682 1-164-866-11 CERAMIC CHIP 47PF 5% 50V C683 1-164-931-11 CERAMIC CHIP 100PF 10% 50V C684 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C686 1-100-539-11 TANTALUM CHIP 47uF 20% 6.3V C687 1-107-820-11 CERAMIC CHIP 0.1uF 16V C694 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C695 1-100-945-11 CERAMIC CHIP 4700PF 10% 25V < CONNECTOR > CN601 1-818-130-11 CONNECTOR, FFC/FPC (ZIF) 15P CN9001 1-818-894-11 CONNECTOR, BOARD TO BOARD 60P < DIODE > D601 6-501-065-01 DIODE HVL375CMKRF-E D602 6-501-065-01 DIODE HVL375CMKRF-E < IC > @ IC603 1-789-071-31 MOUNTED PC BOARD (CXR711260-214H2) IC604 6-707-964-01 IC MSM56X16160J-20T3 IC1602 6-702-355-01 IC AK6510CL-L < TRANSISTOR > Q602 6-550-875-01 TRANSISTOR RT3T67M < RESISTOR/FERRITE BEAD > R406 1-218-990-11 SHORT CHIP 0 R407 1-218-990-11 SHORT CHIP 0 R602 1-218-990-11 SHORT CHIP 0 R603 1-218-929-11 RES-CHIP 10 5% 1/16W R604 1-218-929-11 RES-CHIP 10 5% 1/16W R606 1-218-990-11 SHORT CHIP 0 R608 1-218-973-11 RES-CHIP 47K 5% 1/16W R609 1-218-969-11 RES-CHIP 22K 5% 1/16W R610 1-218-977-11 RES-CHIP 100K 5% 1/16W R611 1-218-985-11 RES-CHIP 470K 5% 1/16W R612 1-218-985-11 RES-CHIP 470K 5% 1/16W R613 1-218-990-11 SHORT CHIP 0 R615 1-218-977-11 RES-CHIP 100K 5% 1/16W R616 1-218-985-11 RES-CHIP 470K 5% 1/16W R617 1-218-985-11 RES-CHIP 470K 5% 1/16W NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH • Abbreviation AUS : Australian model CND : Canadian model E/4 : Argentina model E19 : South African, Singapore, Malaysia, Vietnam and Indian model E19/1 : Singapore, Malaysia and Thai model Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. @ Replacement of IC603 used in this set requires a special tool. Ver. 1.3 • Refer to “DISCRIMINATION OF ORIGINAL AND PSYC MODEL” in the SERVICING NOTES (page 4) about PSYC model. E19/2 : Chilean and Peruvian model E92 : Panama, Venezuelan and Caribbian Can model EE : East European and Russian model MX : Mexican model RU : Russian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 32 D-NF420/NF421 R618 1-218-953-11 RES-CHIP 1K 5% 1/16W R619 1-400-461-21 FERRITE, EMI (SMD) (1005) R620 1-218-977-11 RES-CHIP 100K 5% 1/16W R621 1-218-953-11 RES-CHIP 1K 5% 1/16W R623 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R624 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R625 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R628 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R629 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R632 1-218-990-11 SHORT CHIP 0 R634 1-218-965-11 RES-CHIP 10K 5% 1/16W R635 1-218-989-11 RES-CHIP 1M 5% 1/16W R636 1-218-977-11 RES-CHIP 100K 5% 1/16W R637 1-208-943-11 RES-CHIP 220K 0.5% 1/16W R638 1-218-969-11 RES-CHIP 22K 5% 1/16W R639 1-218-973-11 RES-CHIP 47K 5% 1/16W R642 1-218-973-11 RES-CHIP 47K 5% 1/16W R644 1-218-929-11 RES-CHIP 10 5% 1/16W R647 1-218-989-11 RES-CHIP 1M 5% 1/16W R649 1-218-969-11 RES-CHIP 22K 5% 1/16W R650 1-218-977-11 RES-CHIP 100K 5% 1/16W R651 1-218-977-11 RES-CHIP 100K 5% 1/16W R653 1-218-965-11 RES-CHIP 10K 5% 1/16W R655 1-218-973-11 RES-CHIP 47K 5% 1/16W R656 1-218-977-11 RES-CHIP 100K 5% 1/16W R662 1-218-990-11 SHORT CHIP 0 R663 1-218-990-11 SHORT CHIP 0 R667 1-218-990-11 SHORT CHIP 0 R668 1-218-977-11 RES-CHIP 100K 5% 1/16W R669 1-218-973-11 RES-CHIP 47K 5% 1/16W < COMPOSITION CIRCUIT BLOCK > RB601 1-233-969-11 RES, NETWORK (CHIP TYPE) 22K < VARISTOR > VDR601 1-801-862-11 VARISTOR, CHIP (1608) < VIBRATOR > X602 1-813-421-21 VIBRATOR, CERAMIC (22MHz) ************************************************************ A-1081-743-A JACK BOARD, COMPLETE (NF420: US, CND) A-1081-776-A JACK BOARD, COMPLETE (NF420: AEP, UK, EE) A-1081-790-A JACK BOARD, COMPLETE (NF420: E/4 /NF421: E19/2, E92, MX) A-1081-791-A JACK BOARD, COMPLETE (NF420: E19, AUS) A-1118-201-A JACK BOARD, COMPLETE (NF421: RU) A-1122-801-A JACK BOARD, COMPLETE (NF421: E19/1) ********************* (Including EGL BOARD, COMPLETE) < CAPACITOR/SHORT > C101 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C102 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C103 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C104 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C105 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V (NF420: US, CND) C106 1-107-820-11 CERAMIC CHIP 0.1uF 16V C107 1-164-882-11 CERAMIC CHIP 220PF 5% 16V (NF420: US, CND) C108 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V (NF420: US, CND) C109 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V (NF420: US, CND) C110 1-164-866-11 CERAMIC CHIP 47PF 5% 50V C113 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C114 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C115 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C116 1-126-208-21 ELECT CHIP 47uF 20% 4V C117 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C118 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C119 1-164-866-11 CERAMIC CHIP 47PF 5% 50V C120 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C121 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C122 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C123 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C125 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C126 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C127 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C128 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C129 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C130 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C131 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C132 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C133 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C134 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C135 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C136 1-164-505-11 CERAMIC CHIP 2.2uF 16V C137 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C138 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C139 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C140 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C141 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C142 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C143 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C144 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 50V C145 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C146 1-164-506-11 CERAMIC CHIP 4.7uF 16V C147 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C148 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C149 1-164-842-11 CERAMIC CHIP 2PF 0.25PF 50V (NF420: US, CND) C150 1-164-844-11 CERAMIC CHIP 4PF 0.25PF 50V C155 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C156 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C160 1-218-990-11 SHORT CHIP 0 C161 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C162 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 50V C163 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C164 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C165 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C202 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C205 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V (NF420: AEP, UK, EE/NF421: RU) JACK EGL Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 33 D-NF420/NF421 C206 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V (NF420: AEP, UK, EE/NF421: RU) C210 1-126-246-11 ELECT CHIP 220uF 20% 4V C211 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C212 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C215 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C216 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C217 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V C218 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C219 1-100-735-11 CERAMIC CHIP 10uF 20% 4V C220 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V C221 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V C223 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C224 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V C225 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C226 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C227 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V C228 1-100-735-11 CERAMIC CHIP 10uF 20% 4V C229 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C230 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C231 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C232 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C233 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C234 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C235 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C401 1-115-156-11 CERAMIC CHIP 1uF 10V C402 1-128-829-11 TANTALUM CHIP 220uF 20% 6.3V C403 1-115-156-11 CERAMIC CHIP 1uF 10V C404 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C405 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C406 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C407 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C408 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V C409 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C410 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C411 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C412 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C415 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C416 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C417 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C418 1-126-208-21 ELECT CHIP 47uF 20% 4V C419 1-128-964-11 TANTALUM CHIP 100uF 20% 6.3V C420 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C421 1-113-689-11 ELECT CHIP 100uF 20% 4V C423 1-126-209-11 ELECT CHIP 100uF 20% 4V C426 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C428 1-100-539-11 TANTALUM CHIP 47uF 20% 6.3V C429 1-100-539-11 TANTALUM CHIP 47uF 20% 6.3V C431 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V C432 1-100-539-11 TANTALUM CHIP 47uF 20% 6.3V C433 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C434 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C435 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C436 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C437 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C438 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C442 1-100-539-11 TANTALUM CHIP 47uF 20% 6.3V C443 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C450 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C451 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V (NF421: RU, E19/1) C452 1-165-884-11 CERAMIC CHIP 2.2uF 10% 6.3V C454 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C455 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C456 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C501 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C502 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V < FILTER/DISCRIMINATOR/VIBRATOR > CF101 1-760-738-61 FILTER, CERAMIC (EXCEPT NF421: RU) CF101 1-767-021-11 FILTER, CERAMIC (NF421: RU) CF102 1-795-323-11 FILTER, CERAMIC CF103 1-813-422-11 DISCRIMINATOR, CERAMIC CF104 1-577-262-11 VIBRATOR, CRYSTAL (75kHz) < CONNECTOR > CN602 1-785-877-21 HOUSING, CONNECTOR 4P CN603 1-784-342-21 HOUSING, CONNECTOR 2P CN801 1-573-352-11 CONNECTOR, FFC/FPC 12P CN901 1-818-895-11 CONNECTOR, BOARD TO BOARD 60P < TRIMMER > CT101 1-141-615-21 CAP, ADJ < DIODE > D101 6-500-338-01 DIODE KV1610S D102 6-501-063-01 DIODE HV306CTRU-E (NF420: US, CND) D103 8-719-066-14 DIODE HSC277-TRF (NF420: US, CND) D104 8-719-066-14 DIODE HSC277-TRF (NF420: US, CND) D105 6-501-063-01 DIODE HV306CTRU-E D106 6-501-063-01 DIODE HV306CTRU-E D107 8-719-420-87 DIODE MA8130 D108 8-719-988-61 DIODE 1SS355TE-17 D202 8-719-059-53 DIODE MA3J14700LSO D203 8-719-083-04 DIODE RSB6.8STE61 D204 8-719-083-04 DIODE RSB6.8STE61 D301 8-719-083-04 DIODE RSB6.8STE61 (NF421: RU, E19/1) D302 8-719-083-04 DIODE RSB6.8STE61 (NF421: RU, E19/1) D304 8-719-422-37 DIODE MA8051 (NF421: RU, E19/1) D401 6-500-483-01 DIODE MA22D2800LS0 D402 8-719-085-43 DIODE MA2YD2300LS0 D403 8-719-083-60 DIODE UDZSTE-174.7B D404 6-500-540-01 DIODE RB521S-30FTE61 D411 8-719-071-87 DIODE MA785- (TX), SO D412 6-500-540-01 DIODE RB521S-30FTE61 D413 6-500-540-01 DIODE RB521S-30FTE61 D414 6-500-483-01 DIODE MA22D2800LS0 D415 8-719-069-55 DIODE UDZSTE-175.6B < FUSE > 0F401 1-576-406-21 FUSE, MICRO (1.4A/32V) JACK The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 34 D-NF420/NF421 < FERRITE BEAD/JUMPER RESISTOR > FB203 1-414-813-11 FERRITE, EMI (SMD) (2012) FB204 1-414-813-11 FERRITE, EMI (SMD) (2012) FB205 1-414-813-11 FERRITE, EMI (SMD) (2012) FB206 1-216-295-00 SHORT CHIP 0 FB207 1-414-553-11 FERRITE, EMI (SMD) (2012)(NF421: RU, E19/1) FB306 1-500-234-22 BEAD, FERRITE (CHIP) (1608) (NF421: RU, E19/1) FB403 1-216-295-00 SHORT CHIP 0 FB404 1-500-451-11 FERRITE, EMI (SMD) (4516) FB405 1-500-451-11 FERRITE, EMI (SMD) (4516) FB801 1-414-760-21 FERRITE, EMI (SMD) (1608) FB802 1-414-760-21 FERRITE, EMI (SMD) (1608) FB803 1-414-760-21 FERRITE, EMI (SMD) (1608) FB804 1-414-760-21 FERRITE, EMI (SMD) (1608) FB805 1-414-760-21 FERRITE, EMI (SMD) (1608) FB806 1-414-760-21 FERRITE, EMI (SMD) (1608) FB807 1-414-760-21 FERRITE, EMI (SMD) (1608) FB808 1-414-760-21 FERRITE, EMI (SMD) (1608) < FILTER > FL101 1-781-765-31 FILTER, BAND PASS (NF420: US, CND) FL102 1-236-711-21 FILTER, BAND PASS (EXCEPT NF420: US, CND) < IC > IC101 6-706-435-01 IC TB2132FNG IC201 6-707-074-01 IC TB2173FTG IC401 6-707-304-01 IC SC901591AFR2 IC501 6-707-315-01 IC RT8H055C-T1 < JACK > J301 1-818-805-11 JACK (i) (NF421: RU, E19/1) J301 1-818-810-11 JACK (i) (EXCEPT NF421: RU, E19/1) J402 1-816-936-41 JACK, DC (DC IN 3V) < COIL > L101 1-456-896-11 COIL, AM FERRITE-ROD ANTENNA L103 1-456-899-11 COIL, AIR-CORE (NF420: US, CND) L104 1-456-898-11 COIL, AIR-CORE L105 1-419-135-21 INDUCTOR 27nH L106 1-469-846-11 INDUCTOR 47uH L107 1-469-846-11 INDUCTOR 47uH L108 1-469-846-11 INDUCTOR 47uH L201 1-469-846-11 INDUCTOR 47uH L411 1-400-145-21 INDUCTOR 47uH L412 1-400-145-21 INDUCTOR 47uH L413 1-419-354-21 INDUCTOR 22uH L414 1-428-912-21 INDUCTOR 10uH L415 1-469-967-21 INDUCTOR 10uH L416 1-400-317-21 INDUCTOR 100uH L417 1-400-145-21 INDUCTOR 47uH L418 1-400-145-21 INDUCTOR 47uH L419 1-469-967-21 INDUCTOR 10uH L420 1-414-235-22 INDUCTOR, FERRITE BEAD < TRANSISTOR > Q101 8-729-044-37 FET 2SK3019TL Q102 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q103 8-729-051-23 TRANSISTOR 2SA2018TL Q104 8-729-602-21 TRANSISTOR 2SC4154-F Q401 6-550-859-01 TRANSISTOR NTHD4508NT1G Q402 6-550-760-01 TRANSISTOR 2SA1363-T111-1E Q404 6-551-139-01 TRANSISTOR DTC115TE-TL Q409 6-550-232-01 TRANSISTOR 2SA2029T2LQ/R (NF421: RU, E19/1) Q410 8-729-602-21 TRANSISTOR 2SC4154-F Q411 8-729-055-85 TRANSISTOR UMT1N-TN < RESISTOR > R101 1-218-985-11 RES-CHIP 470K 5% 1/16W R102 1-218-953-11 RES-CHIP 1K 5% 1/16W R103 1-218-985-11 RES-CHIP 470K 5% 1/16W (NF420: US, CND) R104 1-218-985-11 RES-CHIP 470K 5% 1/16W R105 1-218-957-11 RES-CHIP 2.2K 5% 1/16W (NF420: US, CND) R106 1-218-957-11 RES-CHIP 2.2K 5% 1/16W (NF420: US, CND) R107 1-218-985-11 RES-CHIP 470K 5% 1/16W R108 1-218-957-11 RES-CHIP 2.2K 5% 1/16W (NF420: US, CND) R109 1-218-929-11 RES-CHIP 10 5% 1/16W R110 1-218-949-11 RES-CHIP 470 5% 1/16W R111 1-218-965-11 RES-CHIP 10K 5% 1/16W R112 1-218-990-11 SHORT CHIP 0 R114 1-218-969-11 RES-CHIP 22K 5% 1/16W R115 1-218-973-11 RES-CHIP 47K 5% 1/16W R116 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R118 1-218-965-11 RES-CHIP 10K 5% 1/16W R119 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R120 1-218-953-11 RES-CHIP 1K 5% 1/16W R121 1-218-965-11 RES-CHIP 10K 5% 1/16W R122 1-218-953-11 RES-CHIP 1K 5% 1/16W R123 1-218-977-11 RES-CHIP 100K 5% 1/16W R124 1-218-945-11 RES-CHIP 220 5% 1/16W R125 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R126 1-218-973-11 RES-CHIP 47K 5% 1/16W R128 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R129 1-218-945-11 RES-CHIP 220 5% 1/16W R130 1-218-945-11 RES-CHIP 220 5% 1/16W R131 1-218-945-11 RES-CHIP 220 5% 1/16W R132 1-218-990-11 SHORT CHIP 0 (EXCEPT NF420: US, CND) R201 1-216-789-11 METAL CHIP 2.2 5% 1/10W (NF420: AEP, UK, EE/NF421: RU) R202 1-216-789-11 METAL CHIP 2.2 5% 1/10W (NF420: AEP, UK, EE/NF421: RU) R210 1-218-953-11 RES-CHIP 1K 5% 1/16W (NF420: AEP, UK, EE/NF421: RU) R210 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (NF420: E19, AUS/NF421: E19/1) R211 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (NF420: AEP, UK, EE, E19, AUS/NF421: RU, E19/1) R211 1-218-973-11 RES-CHIP 47K 5% 1/16W (NF420: US, CND, E/4/NF421: E19/2, E92, MX) R212 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (NF420: AEP, UK, EE, E19, AUS/NF421: RU, E19/1) Ver. 1.3 JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 35 D-NF420/NF421 R212 1-218-973-11 RES-CHIP 47K 5% 1/16W (NF420: US, CND, E/4/NF421: E19/2, E92, MX) R213 1-218-953-11 RES-CHIP 1K 5% 1/16W (NF420: AEP, UK, EE/NF421: RU) R213 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (NF420: E19, AUS/NF421: E19/1) R214 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R215 1-218-969-11 RES-CHIP 22K 5% 1/16W R216 1-218-969-11 RES-CHIP 22K 5% 1/16W R217 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R220 1-218-973-11 RES-CHIP 47K 5% 1/16W R221 1-218-973-11 RES-CHIP 47K 5% 1/16W R230 1-218-977-11 RES-CHIP 100K 5% 1/16W R231 1-218-977-11 RES-CHIP 100K 5% 1/16W R232 1-216-864-11 SHORT CHIP 0 R305 1-218-965-11 RES-CHIP 10K 5% 1/16W (EXCEPT NF421: RU, E19/1) R402 1-216-833-11 METAL CHIP 10K 5% 1/10W (NF421: RU, E19/1) R404 1-216-849-11 METAL CHIP 220K 5% 1/10W R405 1-216-841-11 METAL CHIP 47K 5% 1/10W R407 1-218-941-11 RES-CHIP 100 5% 1/16W R408 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R410 1-218-977-11 RES-CHIP 100K 5% 1/16W R411 1-216-841-11 METAL CHIP 47K 5% 1/10W R412 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R413 1-218-973-11 RES-CHIP 47K 5% 1/16W R414 1-218-990-11 SHORT CHIP 0 R415 1-216-841-11 METAL CHIP 47K 5% 1/10W R416 1-216-809-11 METAL CHIP 100 5% 1/10W R418 1-218-945-11 RES-CHIP 220 5% 1/16W R419 1-218-990-11 SHORT CHIP 0 R434 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R451 1-218-977-11 RES-CHIP 100K 5% 1/16W R452 1-216-864-11 SHORT CHIP 0 R454 1-218-990-11 SHORT CHIP 0 R455 1-218-977-11 RES-CHIP 100K 5% 1/16W R460 1-216-849-11 METAL CHIP 220K 5% 1/10W (NF421: RU), E19/1 R461 1-216-853-11 METAL CHIP 470K 5% 1/10W (NF421: RU, E19/1) R462 1-216-849-11 METAL CHIP 220K 5% 1/10W (NF421: RU, E19/1) R463 1-218-941-11 RES-CHIP 100 5% 1/16W R464 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R465 1-216-864-11 SHORT CHIP 0 R466 1-216-813-11 METAL CHIP 220 5% 1/10W R467 1-218-945-11 RES-CHIP 220 5% 1/16W R468 1-218-945-11 RES-CHIP 220 5% 1/16W R469 1-218-953-11 RES-CHIP 1K 5% 1/16W R470 1-218-990-11 SHORT CHIP 0 R471 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R473 1-218-977-11 RES-CHIP 100K 5% 1/16W R474 1-218-990-11 SHORT CHIP 0 R475 1-218-969-11 RES-CHIP 22K 5% 1/16W R476 1-218-977-11 RES-CHIP 100K 5% 1/16W R477 1-218-990-11 SHORT CHIP 0 R478 1-218-965-11 RES-CHIP 10K 5% 1/16W R479 1-218-969-11 RES-CHIP 47K 5% 1/16W R480 1-218-981-11 RES-CHIP 22K 5% 1/16W R481 1-218-953-11 RES-CHIP 1K 5% 1/16W R482 1-220-803-81 RES-CHIP 4.7 5% 1/16W R484 1-218-990-11 SHORT CHIP 0 R501 1-218-990-11 SHORT CHIP 0 R502 1-218-989-11 RES-CHIP 1M 5% 1/16W R801 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R802 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R803 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R804 1-218-953-11 RES-CHIP 1K 5% 1/16W < VARIABLE RESISTOR > RV401 1-227-412-21 RES, ADJ, CERMET 47K < SWITCH > S530 1-572-922-11 SWITCH, SLIDE (HOLD) S531 1-762-805-41 SWITCH, PUSH (1 KEY) (OPEN) < COIL/TRANSFORMER > T101 1-456-985-11 COIL, AM OSC T102 1-443-490-11 TRANSFORMER, IF (AM IFT) T103 1-443-599-11 TRANSFORMER, DC/DC CONVERTER < THERMISTOR > TH401 1-805-719-11 THERMISTOR, POSITIVE ************************************************************ A-1081-774-A SWITCH BOARD, COMPLETE (EXCEPT PSYC model) *********************** 1-829-981-11 CABLE, FLEXIBLE FLAT (12 CORE) < CAPACITOR > C1001 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C1002 1-100-506-11 CERAMIC CHIP 1uF 20% 6.3V C1003 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C1004 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C1005 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C1006 1-112-324-11 CERAMIC CHIP 0.47uF 20% 10V C1007 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C1008 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C1009 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C1010 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V C1011 1-165-887-11 CERAMIC CHIP 0.22uF 10% 6.3V < CONNECTOR > CN1001 1-778-171-21 CONNECTOR, FFC/FPC (ZIF) 23P CN1002 1-778-160-11 CONNECTOR, FFC/FPC (ZIF) 12P < LIQUID CRYSTAL DISPLAY > LCD1001 1-805-689-21 DISPLAY PANEL, LIQUID CRYSTAL < RESISTOR > R1001 1-216-821-11 METAL CHIP 1K 5% 1/10W R1002 1-216-821-11 METAL CHIP 1K 5% 1/10W R1003 1-216-821-11 METAL CHIP 1K 5% 1/10W SWITCH JACK Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 36 D-NF420/NF421 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. R1004 1-216-821-11 METAL CHIP 1K 5% 1/10W R1005 1-216-821-11 METAL CHIP 1K 5% 1/10W R1006 1-216-864-11 SHORT CHIP 0 R1007 1-216-864-11 SHORT CHIP 0 R1101 1-216-833-11 METAL CHIP 10K 5% 1/10W R1102 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1103 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1104 1-216-837-11 METAL CHIP 22K 5% 1/10W R1105 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1106 1-216-841-11 METAL CHIP 47K 5% 1/10W R1107 1-216-833-11 METAL CHIP 10K 5% 1/10W R1108 1-216-837-11 METAL CHIP 22K 5% 1/10W R1109 1-216-821-11 METAL CHIP 1K 5% 1/10W R1110 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1111 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1112 1-216-837-11 METAL CHIP 22K 5% 1/10W R1113 1-216-841-11 METAL CHIP 47K 5% 1/10W R1114 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1115 1-216-864-11 SHORT CHIP 0 < SWITCH > S1101 1-786-650-21 SWITCH, TACTILE (TUNE –, GROUP –) S1102 1-786-650-21 SWITCH, TACTILE (TUNE +, GROUP +) S1103 1-786-650-21 SWITCH, TACTILE (.) S1104 1-786-650-21 SWITCH, TACTILE (>) S1105 1-786-650-21 SWITCH, TACTILE (u, ENTER) S1106 1-786-650-21 SWITCH, TACTILE(RADIO ON/BAND, MEMORY) S1107 1-786-650-21 SWITCH, TACTILE (DISPLAY, MENU) S1108 1-786-650-21 SWITCH, TACTILE (RADIO OFF, x) S1109 1-786-650-21 SWITCH, TACTILE (VOL +, U) S1110 1-786-650-21 SWITCH, TACTILE (u, VOL –) S1111 1-786-650-21 SWITCH, TACTILE (SEARCH) < VARISTOR > VDR10011-801-862-11 VARISTOR, CHIP (1608) ************************************************************ MISCELLANEOUS ************** 0152 X-3383-995-1 OPTICAL PICK-UP (DAX-25EV) M602 A-3608-777-A MOTOR ASSY, TURN TABLE (SPINDLE) M603 A-3174-850-A MOTOR ASSY, SLED ************************************************************ ACCESSORIES ************ 2-318-768-12 MANUAL, INSTRUCTION (ENGLISH) (EXCEPT NF420: E/4/NF421: RU, E19/1, MX) 2-318-768-22 MANUAL, INSTRUCTION (SPANISH, PORTUGUESE, FRENCH) (NF420: CND, AEP, E/4/NF421: E19/2, E92, MX) 2-318-768-31 MANUAL, INSTRUCTION (DUTCH, GERMAN, ITALIAN) (NF420: AEP) 2-318-768-41 MANUAL, INSTRUCTION (SWEDISH, FINNISH) (NF420: AEP) 2-318-768-52 MANUAL, INSTRUCTION (HUNGARIAN, RUSSIAN, POLISH) (NF420: EE) 2-318-768-62 MANUAL, INSTRUCTION (CZECH, SLOVAKIAN) (NF420: EE) 2-318-768-72 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (NF420: E19) 2-318-768-81 MANUAL, INSTRUCTION (ENGLISH) (NF421: RU, E19/1) 2-318-768-91 MANUAL, INSTRUCTION (RUSSIAN) (NF421: RU) 2-590-334-11 MANUAL, INSTRUCTION (Installation/operation guide) (ENGLISH) (EXCEPT NF420: E/4, NF421: RU, E19/1, E19/2, MX) 2-590-334-21 MANUAL, INSTRUCTION (Installation/operation guide) (SPANISH) (NF420: AEP, E/4/NF421: E19/2, E92, MX) 2-590-334-31 MANUAL, INSTRUCTION (Installation/operation guide) (PORTUGUESE) (NF420: AEP/NF421: E92) 2-590-334-41 MANUAL, INSTRUCTION (Installation/operation guide) (FRENCH) (NF420: CND, AEP) 2-590-334-51 MANUAL, INSTRUCTION (Installation/operation guide) (DUTCH, GERMAN, ITALIAN) (NF420: AEP) 2-590-334-61 MANUAL, INSTRUCTION (Installation/operation guide) (SWEDISH, FINNISH) (NF420: AEP) 2-590-334-71 MANUAL, INSTRUCTION (Installation/operation guide) (HUNGARIAN, RUSSIAN, POLISH) (NF420: EE) 2-590-334-81 MANUAL, INSTRUCTION (Installation/operation guide) (CZECH, SLOVAKIAN) (NF420: EE) 2-590-335-31 MANUAL, INSTRUCTION (Installation/operation guide) (SIMPLIFIED CHINESE) (NF420: E19) 2-590-336-11 MANUAL, INSTRUCTION (Installation/operation guide) (ENGLISH) (NF421: RU, E19/1) 2-590-336-71 MANUAL, INSTRUCTION (Installation/operation guide) (HUNGARIAN, POLISH, RUSSIAN) (NF421: RU) 2-590-337-31 MANUAL, INSTRUCTION (Installation/operation guide) (SIMPLIFIED CHINESE) (NF421: E19/1) 2-630-501-11 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (NF421: E19/1) 3-235-711-21 ATTACHMENT (EAR PAD) (BLUE) (NF420: US, CND) SWITCH Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 37 D-NF420/NF421 501 AC power adaptor (AC-ET305K/ET305K2/ET307K) × 1 Earphones (MDR-E808LP) × 1 CD-ROM (SonicStage) × 1 Do not play this CD-ROM on an audio CD player including this player. 502 503 Earphones (MDR-E808SP) × 1 Remote (RM-MC23F) × 1 504 505 0501 1-477-732-12 ADAPTOR, AC (AC-ET305K) (NF420: UK) 0501 1-477-737-12 ADAPTOR, AC (AC-ET305K) (NF421: E92, MX) 0501 1-477-738-22 ADAPTOR, AC (AC-ET305K2) (NF420: AEP, E19, EE/NF421: RU, E19/1, E19/2) 0501 1-478-374-11 ADAPTOR, AC (AC-ET307K) (NF420: AUS) 502 8-912-744-90 EARPHONES MDR-E808LPB19 SET (NF420: AEP, UK, E/4, EE/ NF421: E19/2, E92, MX) 502 8-912-744-92 EARPHONES MDR-E808LPL19 SET (NF420: US, CND) 502 8-954-008-93 RECEIVER, EAR MDR-E808LP/C1 SET (NF420: E19, AUS) 503 X-2050-857-1 CD-ROM (APPLICATION) ASSY (SS2.3) (SonicStage) 504 8-912-743-90 EARPHONES MDR-E808SPB19 SET (NF421: RU) 504 8-954-008-90 RECEIVER, EAR MDR-E808SP/C SET (NF421: E19/1) 505 1-478-401-11 REMOTE CONTROL UNIT (RM-MC23F) (NF421: RU, E19/1) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver. 1.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF420/NF421 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2005.01 New 1.1 2005.02 Addition of South African Singapore, Malaysia, Vietnam and Indian models to D-NF420 Replacement of JACK board (Suffix-12) (ECN-ECA71211) 1.2 2005.03 Addition of Australian model to D-NF420 Addition of Russian model to D-NF421 1.3 2005.03 Addition of Argentina model to D-NF420 Addition of Singapore, Malaysia and Thai models to D-NF421 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
