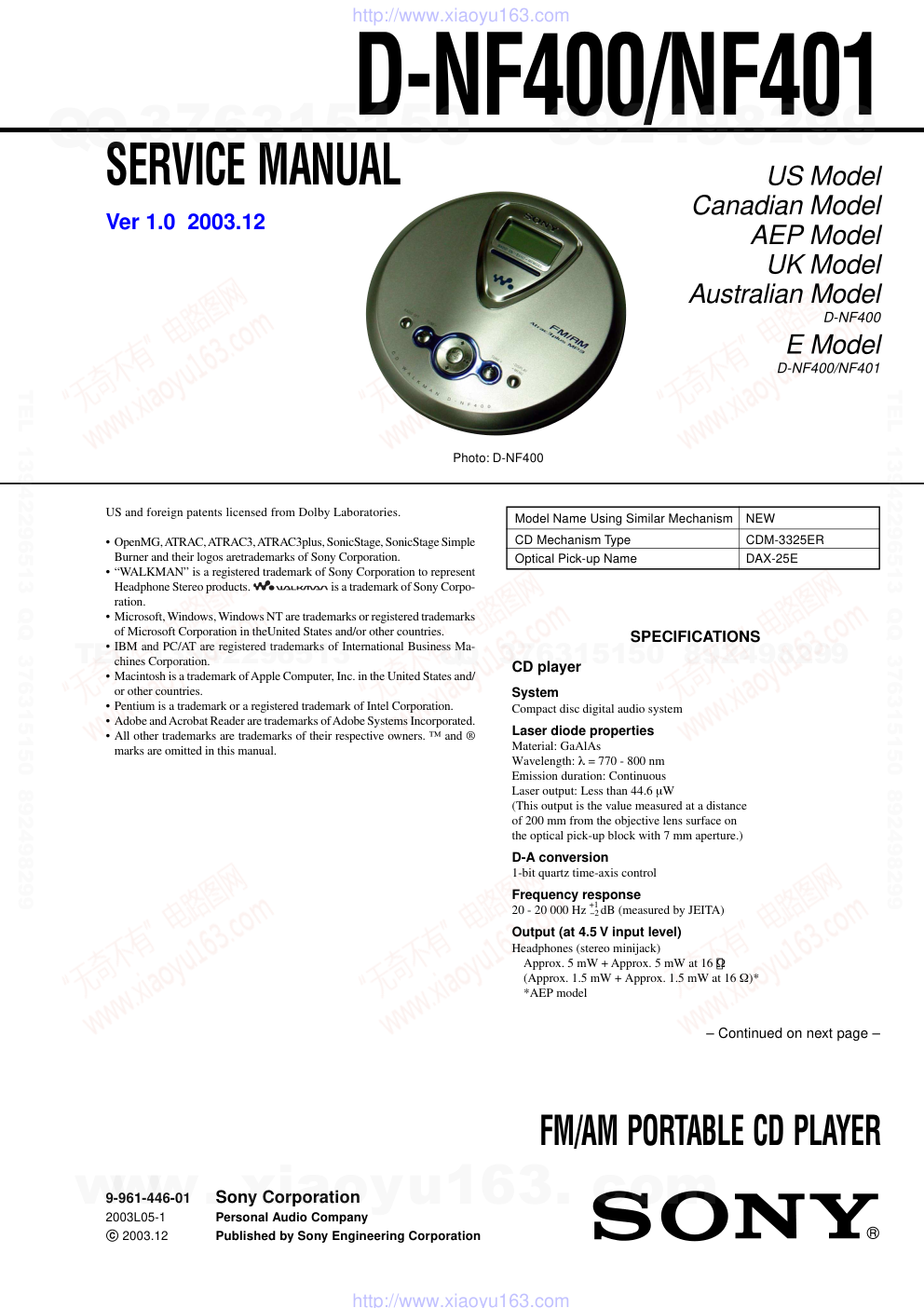

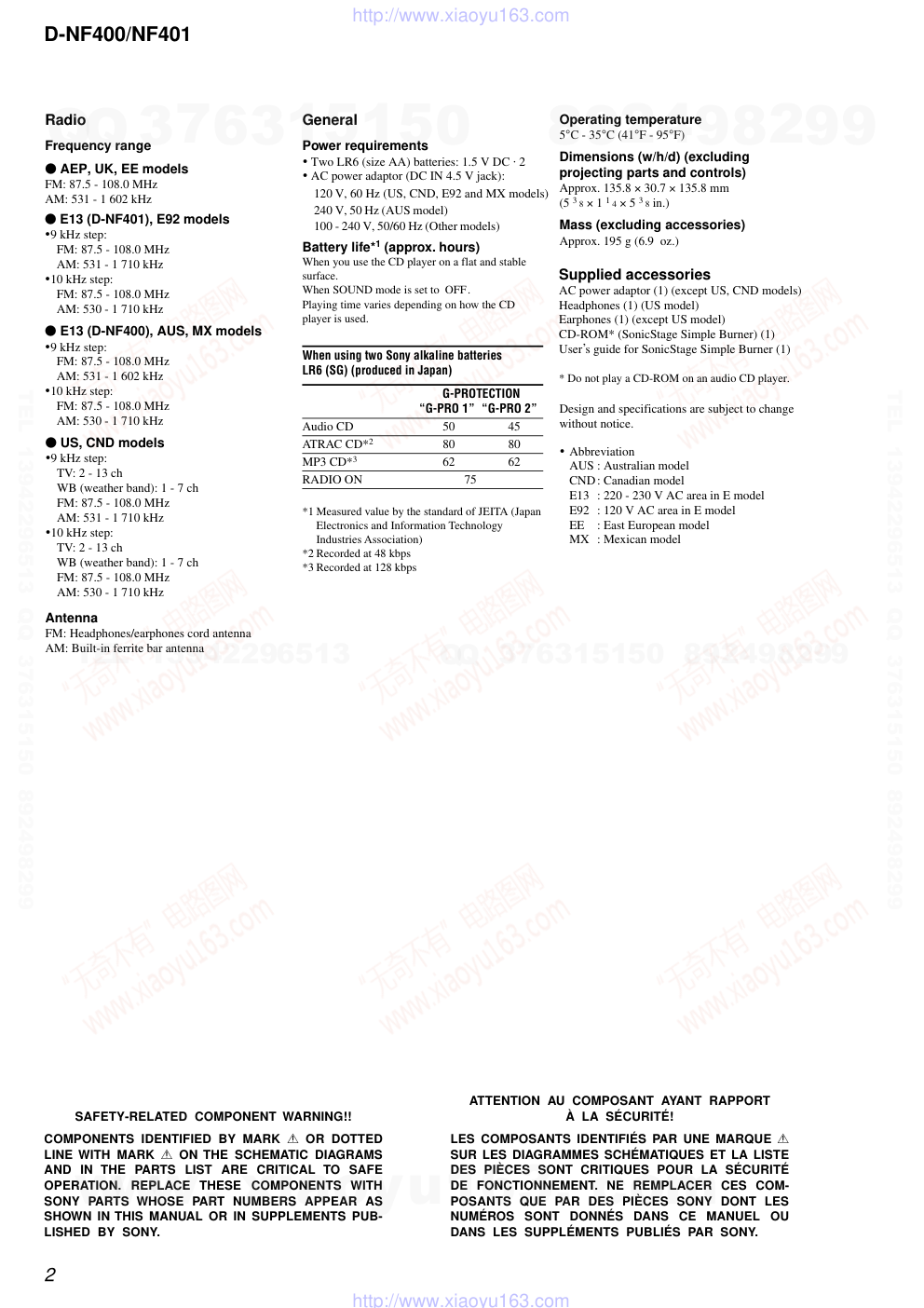

SERVICE MANUAL Ver 1.0 2003.12 SPECIFICATIONS FM/AM PORTABLE CD PLAYER D-NF400/NF401 US Model Canadian Model AEP Model UK Model Australian Model D-NF400 E Model D-NF400/NF401 Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-3325ER Optical Pick-up Name DAX-25E CD player System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 770 - 800 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 −2 dB (measured by JEITA) Output (at 4.5 V input level) Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω� (Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)* *AEP model 9-961-446-01 Sony Corporation 2003L05-1 Personal Audio Company C 2003.12 Published by Sony Engineering Corporation US and foreign patents licensed from Dolby Laboratories. • OpenMG, ATRAC, ATRAC3, ATRAC3plus, SonicStage, SonicStage Simple Burner and their logos aretrademarks of Sony Corporation. • “WALKMAN” is a registered trademark of Sony Corporation to represent Headphone Stereo products. is a trademark of Sony Corpo- ration. • Microsoft, Windows, Windows NT are trademarks or registered trademarks of Microsoft Corporation in theUnited States and/or other countries. • IBM and PC/AT are registered trademarks of International Business Ma- chines Corporation. • Macintosh is a trademark of Apple Computer, Inc. in the United States and/ or other countries. • Pentium is a trademark or a registered trademark of Intel Corporation. • Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated. • All other trademarks are trademarks of their respective owners. ™ and ® marks are omitted in this manual. – Continued on next page – Photo: D-NF400 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 D-NF400/NF401 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. Radio Frequency range z AEP, UK, EE models FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz z E13 (D-NF401), E92 models •9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz •10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz z E13 (D-NF400), AUS, MX models •9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz •10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz z US, CND models •9 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz •10 kHz step: TV: 2 - 13 ch WB (weather band): 1 - 7 ch FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz Antenna FM: Headphones/earphones cord antenna AM: Built-in ferrite bar antenna General Supplied accessories AC power adaptor (1) (except US, CND models) Headphones (1) (US model) Earphones (1) (except US model) CD-ROM* (SonicStage Simple Burner) (1) User s guide for SonicStage Simple Burner (1) * Do not play a CD-ROM on an audio CD player. Power requirements • Two LR6 (size AA) batteries: 1.5 V DC ⋅ 2 • AC power adaptor (DC IN 4.5 V jack): 120 V, 60 Hz (US, CND, E92 and MX models) 240 V, 50 Hz (AUS model) 100 - 240 V, 50/60 Hz (Other models) Battery life*1 (approx. hours) When you use the CD player on a flat and stable surface. When SOUND mode is set to OFF. Playing time varies depending on how the CD player is used. When using two Sony alkaline batteries LR6 (SG) (produced in Japan) G-PROTECTION “G-PRO 1” “G-PRO 2” Audio CD 50 45 ATRAC CD*2 80 80 MP3 CD*3 62 62 RADIO ON 75 *1 Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association) *2 Recorded at 48 kbps *3 Recorded at 128 kbps Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 135.8 × 30.7 × 135.8 mm (5 3 8 × 1 1 4 × 5 3 8 in.) Mass (excluding accessories) Approx. 195 g (6.9 oz.) Design and specifications are subject to change without notice. • Abbreviation AUS : Australian model CND: Canadian model E13 : 220 - 230 V AC area in E model E92 : 120 V AC area in E model EE : East European model MX : Mexican model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-NF400/NF401 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 4 2. GENERAL ................................................................... 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Cabinet (Lower) Section ................................................. 7 3-3. Optical Pick-up Assy (CDM-3325ER) ........................... 8 3-4. MAIN Board ................................................................... 8 3-5. Liquid Crystal Display Panel (LCD2001), SWITCH Board............................................................... 9 4. TEST MODE ............................................................... 10 5. ELECTIRICAL CHECK .......................................... 11 6. DIAGRAMS 6-1. Block Diagram – MAIN Section – ................................ 12 6-2. Block Diagram – TUNER Section – ............................. 13 6-3. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 14 6-4. Schematic Diagram – MAIN Board (1/7) ..................... 15 6-5. Schematic Diagram – MAIN Board (2/7) ..................... 16 6-6. Schematic Diagram – MAIN Board (3/7) ..................... 17 6-7. Schematic Diagram – MAIN Board (4/7) ..................... 18 6-8. Schematic Diagram – MAIN Board (5/7) ..................... 19 6-9. Schematic Diagram – MAIN Board (6/7) ..................... 20 6-10. Schematic Diagram – MAIN Board (7/7) ..................... 21 6-11. Printed Wiring Board – MAIN Board (Component Side) – .............................. 22 6-12. Printed Wiring Board – MAIN Board (Conductor Side) – ................................ 23 6-13. Printed Wiring Board – SWITCH Board – ................... 24 6-14. Schematic Diagram – SWITCH Board – ...................... 25 7. EXPLODED VIEWS 7-1. Cabinet (Inner) Section ................................................... 36 7-2. Cabinet (Upper) Section ................................................. 37 7-3. Cabinet (Lower) Section ................................................. 38 7-4. Optical Pick-up Section (CDM-3325ER)....................... 39 8. ELECTRICAL PARTS LIST ............................... 40 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. On AC power adaptor • Use only the AC power adaptor supplied. If your CD player is not supplied with the one, use the AC-E45HG AC power adaptor. Do not use any other AC power adaptor. It may cause a malfunction. Polarity of the plug This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. About CD-Rs/RWs This CD player can play CD-Rs/RWs recorded in the ATRAC3plus/ ATRAC3, MP3 or CDDA*format, but playback capability may vary depending on the quality of the disc and the conditionof the recording device. *CDDA is the abbreviation for Compact Disc Digital Audio. It is a recording standard used for the AudioCDs. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges oc- cur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-NF400/NF401 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. BEFORE REPLACING THE OPTICAL PICK-UP BLOCK Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 yg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value: 0.45 to 0.65 Vp-p LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S820. (push switch type) The following checking method for the laser diode is operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S820 with a screwdriver having a thin tip as shown in Fig.1. 3. Push the N X button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 4 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S804 S820 detection lever detection lever MAIN board • In performing the repair with the power supplied to the set, re- moving the MAIN board causes the set to be disabled. In such a case, make a solder bridge to short SL825 (OPEN/ CLOSE DETECT) on the MAIN board in advance. SL825 (OPEN) – MAIN Board (Conductor Side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-NF400/NF401 System requirements The following hardware and software specifications are required in order to use the SonicStage Simple Burner software. Computer IBM PC/AT or Compatible � CPU: Pentium II 300 MHz or higher (Pentium III 600 MHz or higher is recommended.) � Hard disk drive space: System folder (on boot disc) � 200 MB or more/ Temporary folder � 200 MB or more (The amount of free space required differs according to the size of the audio files that you want to handle. 1.5 GB of free space or more is recommended.) � RAM: 64 MB or more (128 MB or more is recommended) Others � CD-R/RW drive (capable of digital playback by WDM) � Sound Board Operating System Factory installed: Windows XP Home Edition/Windows XP Professional/Windows Millennium Edition/Windows 2000 Professional/Windows 98 Second Edition Display High Color (16 bit) or higher, 800 × 600 dots or better Others � Internet access: for Web registration and CDDB* services � Adobe Acrobat Reader installed for viewing the PDF manual This software is not supported by the following environments: � NEC PC-98 series or compatible machines, Macintosh systems � Windows XP versions other than Home Edition or Professional � Windows 2000 versions other than Professional � Windows 98 versions other than Second Edition � Windows NT � Windows 95 � Personally constructed PCs or operating systems � An environment that is an upgrade of the original manufacturer-installed operating system � Multi-boot environment � Multi-monitor environment Notes � We do not ensure trouble-free operation on all computers that satisfy the system requirements. � We do not ensure trouble-free operation of the system suspend, sleep, or hibernation function on all computers. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-NF400/NF401 SECTION 2 GENERAL This section is extracted from instruction manual. Locating the controls CD player 1 Operation button u*1/ENTER: play/pause/ enter .: AMS*2/rewind/tune in a preset station >: AMS/fast forward/ tune in a preset station V/v: Use to select a file, play mode, etc. 2 x (stop)•RADIO OFF button 3 ( group) –•TUNE – button 4 ( group) +•TUNE + button 5 DISPLAY/MENU button Use to enter the menu. Also use to enter the selection as well as u/ENTER. 6 i (headphones) jack 7 RADIO ON/BAND•MEMORY button RADIO ON: Press to turn on the radio. BAND: Press to change the band. MEMORY: Press and hold to preset stations. 8 Display 9 DC IN 4.5 V (external power input) jack 0 VOL (volume) +*1/– buttons qa OPEN switch Slide the switch to open the CD player lid. qs HOLD switch (rear) Slide the switch in the direction of the arrow to disable the buttons on the CD player. *1 The button has a tactile dot. *2 Automatic Music Sensor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 7 SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 3-2. CABINET (LOWER) SECTION • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. CABINET (LOWER) SECTION (Page 7) 3-3. OPTICAL PICK-UP ASSY (CDM-3325ER) (Page 8) 3-5. LIQUID CRYSTAL DISPLAY PANEL (LCD2001), SWITCH BOARD (Page 9) SET 3-4. MAIN BOARD (Page 8) 4 five screws 5 claw 5 two claws 2 two screws 7 flexible flat (20core) cable (CN801) 1 Open the cabinet (upper) section. 8 cabinet (lower) section 3 Open the battery lid. 5 two claws 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 8 3-3. OPTICAL PICK-UP ASSY (CDM-3325ER) 3-4. MAIN BOARD 3 OP flexible board (CN601) 5 optical pick-up assy (CDM-3325ER) 4 insulator 4 insulator 4 insulator 2 1 two connectors (CN401, CN402) 2 MAIN board 1 Note : On installation of main board, adjust the position of switch (S810) and knob (hold). knob (hold) S810 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 9 3-5. LIQUID CRYSTAL DISPLAY PANEL (LCD2001), SWITCH BOARD 2 eight screws 1 Open the cabinet (upper) section. 3 claw 7 sheet 9 cover 8 SWITCH board 6 liquid crystal display panel (LCD2001) (CN2001) 5 flexible flat (20core) cable (CN2002) 4 Open the cover. 3 claw 3 claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 10 SECTION 4 TEST MODE In the test mode, this set can check the microcomputer version and liquid crystal display. 1) Short SL824 (TEST) on the MAIN board with a solder bridge. Then, turn on the power. 2) microcomputer version is displayed on the liquid crystal dis- play, and the liquid crystal display is all lighted. 3) turn off the power and open the solder bridge on SL824 (TEST) on the MAIN board. Note: Remove the solders completely. Remaining could be shorted with the chassis, etc. SL824 (TEST) – MAIN Board (Conductor Side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 11 11 SECTION 5 ELECTRICAL CHECK CD SECTION The CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC4.5 V in DC IN jack. (J401) HOLD switch : OFF Connecting and Checking Location: Focus Bias Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test points TP601 (RF) and TP498 (GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Push the N X button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) VOLT/DIV : 100 mV (With the 10:1 probe in use) TIME/DIV : 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch- ing. 5. Stop revolving of the disc motor by pressing the x button. oscilloscope (AC range) + – MAIN board TP601 (RF) TP498 (MAIN_GND) 2 k Ω RF level 0.45 to 0.65 Vp-p TP601 (RF) TP498 (MAIN_GND) – MAIN Board (Conductor Side) – TUNER SECTION 0 dB=1 µV [AM] Setting: Band switch: AM [FM] Setting: Band switch: FM • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. AM RF signal generator 30% amplitude modulation by 400 Hz signal Output level: as low as possible Put the lead-wire antenna close to the set. + – level meter set 32 Ω MAIN board i jack (J301) FM RF signal generator 22.5 kHz frequency deviation by 400 Hz signal Output level: as low as possible + – level meter set 32 Ω 0.01 µF MAIN board TP (FM ANT) MAIN board i jack (J301) digital voltmeter 100 kΩ TP8 (VT) TP498 (MAIN_GND) MAIN board ( ): AEP, UK, East European, E, Australian Models AM FREQUENCY COVERAGE CONFIRMATION Adjustment Part Frequency Display Reading on Digital Voltmeter Confirmation 530 (531) kHz 1.0 ± 0.5 V Confirmation 1,710 (1,602) kHz 7.3 ± 1.0 (6.8 ± 1.0) V AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L3 620 kHz CT3 1400 kHz ( ): AEP, UK, East European, E, Australian Models FM FREQUENCY COVERAGE CONFIRMATION Adjustment Part Frequency Display Reading on Digital Voltmeter Confirmation 87.5 (108.0) MHz 5.1 ± 0.5 (8.7 ± 0.5) V FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L1 98.0 MHz TV TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L5 ch10/97.75 MHz (D-NF400: US, Canadian models only) TP428 (MAIN_GND) L3 CT3 AM Tracking Adjustment – MAIN Board (Conductor Side) – – MAIN Board (Component Side) – TP8 (VT) D-NF400: US, Canadian models L1 FM Tracking Adjustment L5 TV Tracking Adjustment w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 12 12 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – MAIN Section – V U W • SIGNAL PATH : CD PLAY : MP3 PLAY : FM LASER DIODE PD LD M FOCUS COIL TRACKING COIL M902 (SLED) (SPINDLE) M901 F+ F- T+ T- S+ S- SYSTEM CONTROLLER IC801(1/2) DRY BATTRY SIZE "AA" (IEC DESIGNATION LR6) 2PCS 3V LD DETECTOR COIL/MOTOR DRIVE IC403(1/2) RF A E B F PWG 31 INM4 32 FO3 44 PD RO3 42 FO2 48 RO2 46 FO1 52 RO1 50 COM COM 80 W W 6 V V 4 U U 2 56 FI1 55 RI1 60 FI3 59 RI3 58 FI2 57 RI2 70 XBRK 73 APWM 34 SYNC 39 DATA 38 CLOK 40 LATCH 74 FG CD DSP IC601 MP3 DECODER IC701 EEPROM IC803 RFDC 88 RFAC 84 A 92 B 91 E 89 F 90 X601 16.934MHz 47 XTAO XTAI 48 SFDR 100 SRDR 99 FFDR 96 FRDR 95 TFDR 98 TRDR 97 MDP 103 C176 104 MDS 102 SDTO 21 CLOK 20 XLAT 23 SENS 22 SCOR 27 FOK 65 R8M 32 GFS 69 XRST 28 D0 D3 A0 A10 XRAS 5 D-RAM IC603 2 XWE 9 XCAS 1 XRAS A0 A10 2 3 24 25 . . . XWE 4 XCAS 23 BCK 2 PCMD_O LRCK_O BCK_O PCMD 4 LRCK 1 SK 2 CS 1 XRESET_I 30 DO 4 DI 3 PI3 13 PCMD_I LRCK_I BCK_I PF4 12 18 XRDE PI0 15 PI2 14 D0 D3 17 15 13 . 11. 116 113. 117 9 12 15 . 19 21 . 8 . 51 AOUT1 56 AOUT2 61 LRMU FM ANT TU-R TU-L A B TU VOL TU BEEP TU BASS1 CD-L_I 32 CD-R_I 36 MUTE-SW_I D320 1 STB_HPSW_I 31 BEEP_I 3 INPUT SELECT, ELECTRICAL VOLUME IC302 TU-L_I 33 TU-R_I 35 IN-SEL 44 VOL-CTL_I 14 BASS-SW 26 BASS-H/L-SW 25 7 POWER-L_O 6 CENTER-AMP 5 POWER-R_O TU BASS2 DC IN 4.5V J401 J301 10 FG_I 90 PWRLAT_O 84 MSDTO0_O 83 MSCK0_O 87 XLAT0_O 85 MSDTI0_I 86 SCOR_I 52 FOK_I 28 XIN 53 GFS_I 4 XRST_O 77 PWRSW 56 AUD_SEL_O 6 BEEP_O RIPPLE FILTER Q408 POWER CONTROL IC403(2/2) 12 VIN VIN 5 VD5 1 VD4 8 L5 69 BATM2 62 RF1 61 DC IN VCC2 18 VCPU 19 VCC2 VCPU SL801 VCC1 AD_DCINMNT 95 AD_BATMNT 92 VIN 4.5V BATMNT C OPSTB OPGSW 4 3 6 5 . . . XSOE 24 88 XSOE_O SYSM 25 7 AMUTE_O NRST 33 PF0 34 PF3 37 PC1 40 PC2 41 60 XKRESET 66 WAKEUP_K_O 11 REQ_I 20 SDIN_I 19 SDOUT_O PC0 38 18 SDCLK_O PC3 42 17 SDXLAT_O 67 EEP_CS_O TU MUTE TU_DCINMNT HG-XSTB_O 12 HG-GUP_O 13 VCC1 17 VCC3 AVD IC702 VCC3 11 VCC0 VLGO2 16 VCC0 20 L7 10 RSTB 35 XWAKE_O 32 WAKEUP 37 D401 VCPU D402 UI 79 VI 78 WI 77 X701 22MHz 29 XTAL EXTAL 30 108 106 110 109 107 111 +1.4V (OPEN/CLOSE DETECT) S820 HOLD 40 HOLD_I 37 LID-SW_I OPEN ON OFF HOLD. S810 OPTICAL PICK-UP BLOCK DAX-25E (Page 13) (Page 13) (Page 13) AUTOMATIC POWER CONTROL Q601 +1.4V REGULATOR IC806 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 13 13 6-2. BLOCK DIAGRAM – TUNER Section – FM RF L1 TV/FM OSC L2 ANTENNA AM FERRITE-BAR L3 CT3 AM OSC L4 CONVERTER DC/DC Q86, T81 D1 2 FM-RF_I L_O 10 FM RF AMP, FM/AM MIX AMP, FM/AM OSC, FM/AM IF AMP, FM/AM DET, MPX IC1 CF1 16 R_O 15 FM-IF_I X61 75kHz IC3 DTS MICRO CONTROLLER 24 FM/TVOSC 25 AMOSC FM-MIX_O 4 8 CF2 AM-IF_I MODE1 21 DET_O 12 QUAD 11 X1 62 TUMUTE-O FM-RF_O 29 BAND-CTRL1-O 53 RE1 23 14 LPF MODE2 22 B+ SWITCH B+ SWITCH Q4,11 V IN BAND-CTRL2-O 52 +B ON/OFF_O 60 MONO/LOCAL- CTR_O 55 EO(D01)_O 65 X_O 74 X_I 75 3 DI 4 DO 2 SK 1 CS EEPROM IC62 47 CDU-SDO_O 26 AO_O 32 EEP-CS_O 27 CS_O IC801(2/2) SYSTEM CONTROLLER 46 CDU-SDI_I 48 CDU-SCK_I 54 ACK-CD_O ACKCD_I 35 28 LCD-REQ_I LCDREQ_O 16 39 CD-ON_I CDON_O 55 DTS_SDTI 22 DTS_SDTO 21 DTS_SCK 23 73 RESET_I DTS_RST-O 59 51 38 TU-ON_O TUON_I D6 D7 D0 D5 CS A0 68 AD_KEY1 96 50 VOL-PWM_O 58 XTU-BASS1-O 59 XTU-BASS2-O 49 TUBEEP_O 44 HIDC-I 44 49 AD0 AD5 FM ANT TU-L TU-R TU MUTE A C TU_VOL TU BASS1 TU_DCINMNT 43 BATT-I BATMNTT TU BASS2 TU BEEP B HOLD D3 D2 1 TV-RF_I BPF FL1 (NF400 : US, CND) (NF400 : US, CND) AM-RF_I 27 AM_BP 28 AM-MIX_O 5 IF-COUNT_O 19 IF_I 64 OSC_O 23 TV/FM/AM_I 71 IF-REQ_O 61 Q71 Q3 Q8 TV RF L5 30 TV-RF_O D5 Q40, 41 LOW-PASS FILTER Q84, 85 VCPU TU_POWERON_O Abbreviation AUS : Australian model CND : Canadian model E13 : 220-230 V AC area in E model E92 :120 V AC area in E model EE : East European model MX : Mexican model 54 LCD_AO 69 AD7 51 AD6 50 XRD_O 71 42 AD-KEY_I WAKE_I 36 37 KEY2 TU_VCC V IN Q802 AD_KEY2 97 TU HOLD_I RD XWR_O 72 WR LCD-XRST_O 73 RES XCS_O VCPU 61 PS 29 XLID-OPEN_I OPEN NF400 : US, CND/ NF401 : E92, MX LIQUD CRYSTAL DISPLAY LCD2001 S2001 - 2005 FUNCTION KEY S806, 809, 2007 - 2011 FUNCTION KEY KEY2 KEY1 B+ SWITCH Q10, 12 REQ-SW 20 • SIGNAL PATH : FM : AM NF400 : AEP, UK, EE, E13, AUS/ NF401 : E13 CT3, L3 AM TRACKING FM TRACKING TV TRACKING (Page 12) (Page 12) (Page 12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 14 14 2.8 Vp-p 118 us 2.0 Vp-p 5.7 µs Approx. 600 mVp-p 1.4 Vp-p 59 us 2 IC601 es (R8M) 2.1 Vp-p 119 us 2.0 Vp-p 1.9 µs Note on Printed Wiring Board • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • z : Through hole. • f : Internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : Internal component. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 4.5 V and fed with regulated dc power supply from DC IN jack (J401). • Voltages and waveforms are dc with respect to ground in no-signal conditions. no mark : CD PLAY 〈〈 〉〉 : MP3 PLAY ( ) : FM [ ] : AM ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD PLAY d : MP3 PLAY F : FM f : AM • Abbreviation AUS : Australian model CND : Canadian model E13 : 220 - 230 V AC area in E model E92 : 120 V AC area in E model EE : East European model MX : Mexican model 6-3. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 3 IC601 rk (XTAO) 4 IC601 if (RFAC) 5 IC601 DTS_CK ACKCD AD_KEY1 AD_KEY2 TU_ON CD_ON NRST DTS_RST AD6 A-0 LCD_CS SDCLK SDIN SDOUT WAKEUP_K REQ_I TUPWRON DATA DATA CLOK CLOK XWAKEUP RESET POWERLT FG OPSTB OPGSW HOLD AD_KEY1 AD_KEY2 AD_KEY2 HOLD OPEN XRST SYSM SENS SCOR XLAT XSOE GFS FOK BEEP AD_KEY1 AD_KEY1 AD_KEY2 LCD_REQ LCD_REQ AD_KEY1 DTS_SDTO DTS_SI DTS_CK DTS_SDTO DTS_SI DTS_CK ACKCD ACKCD AD_KEY2 AD_KEY1 CD_ON NRST DTS_RST TU_ON NRST DTS_RST AUD_SEL CD_ON TUPWRON R8M AD0 AD1 AD2 AD3 AD4 AD5 AD6 EEP_CS EEP_CS DTS_SI DTS_SI PS A-0 A-0 RD RD WR WR LCDRST LCDRST AD0 AD1 AD2 AD3 AD4 AD5 AD6 REQ_I SOCLK SDOUT SDOUT SDIN SDIN SDIN SDOUT SDCLK BATMN DCINMNT SDCLK REQ_I TUPWRON TU_ON DTS_SDTO DTS_SI DTS_CK OPEN PS NC GND GND GND VCPU TXD21 RXD22 TCK23 RST30 BOOT78 8M28 ON OFF SGND AD_KEY1 AD_KEY2 DGND VCC2_2.7V PS VCPU_2.0V D0 D1 D2 D3 D4 D5 D6 D7 LCDA0 RD WR LCD_CS RES XCEX_I MSCK0_O MSDTO0_O MSDTI0_I SCOR_I XLAT0_O XSOE_O VCPU PWRLAT_O GND AD-BATMNT AD-CHGMNT AD-CHGSTMNT AD-DCINMNT AD-KEY1 AD-KEY2 AD-RMKEY VCPU AD-KEY3 BOOT XBAT_ICELL_I NC XLCD-4LINE_I GND GND VCPU FG_I PWM_O BEEP_O LINEOUT_I OPTOUT_I REQ_I HG-XSTB_O HG-GUP_O RE2_I XRST_O SDXLAT_O SDCLK_O DTS_SDTO DTS_SDTI DTS_SCK AMO_I VCPU SDOUT_O SDIN_I AMUTE_O RE1_I LCDREQ_O ACKCD_I XOUT GND XIN AM1_I XRESET_I TSB XWAKE_O EMU0_O EMU1_O LID-SW_I EXTBAT_I HOLD_I TEST_I AD0 AD2 AD3 AD4 AD5 AD6 AD1 WAKE_I XLCD_CJK_I XCE_CEL_I AD7 FOK_I GFS_I CDON_O AUD_SEL DTS_RST_O GND XNMI_I VCPU WAKEUP_K_O TUON_I EEP_CS_O OPTPWRCTL_O HP_LIN_SEL_I TUPWRON_O CHGGND_ON_O BAT_VCC_ON_O XKRESET XCS_O XRD_O XWR_O LCD-XRST_O XLCD-BL_O LED_DISP1_O DISP2_O XLED_ (5/7) (FOR CHECK) + - VOL (OPEN) (OPEN/CLOSE DETECT) EEPROM (TEST) (NF400:AUS) SYSTEM CONTROLLER I O +1.4V REGULATOR (NF400:AEP,UK,EE) -2 -1 SWITCH (NOT SUPPLIED) D0 DI CS SK VCC GND RESET RDV/ BUSY G HOLD (NF400:AEP,UK,EE) PWRSW LCD_AO (Page 15) (Page 18) (Page 21) (Page 20) (Page 20) (Page 20) (Page 25) (Page 21) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 20 20 6-9. SCHEMATIC DIAGRAM – MAIN Board (6/7) – • See page 14 for Waveform. • See page 29 for IC Pin Function Description. C72 R49 Q40 C170 C92 R50 R52 C62 R70 R72 C66 C69 C71 C54 VDR1 X61 C63 C64 C65 C158 C70 R62 R59 IC62 R42 C53 R76 R75 C168 C167 R47 R48 C59 C58 R43 R40 R71 Q41 R63 R51 IC3 C50 R56 R55 R53 R54 L62 Q71 C74 C56 R61 R73 TAP60 0.01 100k DTC144TUA 1000p 1 10k 1k 1000p 0 470 1 22 6.3V 0.1 0.1 220K 75KHz 22p 10p 0.47 5p 0.01 100k 100k AK93C55AV-L 470 1 470k 470k 1000p 1000p 4.7k 10k 10 6.3V 10 6.3V 1k 10k 100k 2SA1577-T106 100k 10k TC9327AF-04CDW 0.1 220k 2SC3931-C-TX 0.01 0.01 10k 1k G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 J1 L1 L2 L3 HOLD OPEN AD_KEY2 AD_KEY1 DTS_RST ACKCD DTS_CK DTS_SI DTS_SDTO AD6 CD_ON TU_ON LCD_REQ LCD_CS A-0 TU_MUTE TU_BASS1 TU_BASS2 TU_BEEP TU_DCINMNT BATMNT VOL_CTRL HOLD HOLD OPEN OPEN AD_KEY1 AD_KEY2 AD_KEY1 AD_KEY2 DTS_RST DTS_RST ACKCD ACKCD DTS_CK DTS_SI DTS_SI DTS_SDTO DTS_SDTO DTS_CK AD6 AD6 CD_ON CD_ON TU_ON TU_ON LCD_REQ LCD_REQ LCD_CS LCD_CS A-0 A-0 TU_MUTE TU_MUTE TU_BASS1 TU_BASS2 TU_BASS1 TU_BASS2 TU_BEEP TU_BEEP TU_DCINMNT TU_DCINMNT BATMNT BATMNT VOL_CTR VOL_CTRL ∗ ∗ ∗ CS VCC SK DI DO PE NC GND IF-REQ_O TU-MUTE_O TEST IF_I ED(D01)_O NC(D02) HOLD_I NC(FM_I) NC(OT1) GND TV/FM/AM_I VDD(1.8-2.2V) RESET_I X_O X_I VXT XLCD C1 C2 VEE COM1 COM2 COM3 COM4 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 XTU-BASS2_O XTU-BASS1_O +B ON/OFF_O XTU-TEST_I S/W IDEN_I -CTR_O MONO/LOCAL ACK-CD_O BAND-CTL1_O BAND-CTL2_O TU-HOLD_I VOL-PWM_O TU-BEEP_O CDU-SCK_I CDU-SDO_O CDU-SDI_I AD-DC_REF HIDC_I BATT_I AD-KEY1_I TV-L-ON_O TU-AVLS_O CD-ON_I TU-ON_O KEY2 AD-KEY3_I DEST RM-KEY_I EEP-CS_O EEP DO/DI_IO XLID-OPEN_I LCD-REQ_I CS_O DESTVSS_O MODEL2 RE1 RE2 MODEL1 EEP-SK_O (6/7) B+ SWITCH B+ SWITCH SWITCH DTS MICRO CONTROLLER EEPROM (EXCEPT NF400:US,CND) (NF400:AUS) ∗ R53 100k 220k ∗ 100k 220k R55 47k 1M (NF400:AEP,UK,EE) (NF400:AUS) (NF401:E92,MX) ∗ 100k 220k 47k (NF400:AEP,UK,EE) (NF400:AUS) (NF401:E92,MX) R56 XL/_I AO_O (EXCEPT NF400:US,CND,E13/NF401:E13) (NF400:AEP,UK,EE,E13/NF401:E13) (NF400:US,CND,E13/NF401:E13) (NF400:AUS/NF401:E92,MX) (Page 19) (Page 19) (Page 19) (Page 18) (Page 16) (Page 21) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 21 21 6-10. SCHEMATIC DIAGRAM – MAIN Board (7/7) – • See page 14 for Waveforms. • See page 26 for IC Block Diagrams. R702 R1001 R722 C714 C709 C713 R716 C715 C718 C716 C717 C712 C705 C706 C710 R711 R728 C702 C701 C703 R733 C720 R732 VDR701 VDR702 IC701 C22 C164 R10 D86 Q12 Q11 Q10 R25 C3 L80 10µH R83 C85 R86 C86 C90 C79 D89 C88 L703 47µH 47µH C711 R22 C78 D82 R90 R89 T81 Q86 C708 R735 IC702 C97 R87 X701 Q4 R731 R707 FB701 L704 0 470k 220 0.1 0.1 0.1 10k 0.1 0.1 0.1 0.1 0.1 22 6.3V 0.1 0.1 0 100k 47 4V 0.1 0.1 1M 0.1 1M CXR70160-207R 1 1 4.7k MA111-TX DTC114TUA-T106 DTC114TUA-T106 2SA1577-T106 4.7k 1 100k 10 220 0.01 0.01 0.01 MA8130-TX 4.7 0.1 47k 5p 1SS355TE-17 1k 10k 2SC4154TP-1F 0.1 10k XN0NE9200LS 0.1 0 22MHz 2SA1577-T106 1M 100k D1 D2 D3 H2 H4 K1 K2 K3 L1 L2 L3 SDCLK SDIN SDOUT REQ_I NRST WAKEUP_K VIN A_GND_TU D_GND TUPWRON KJ_D_GND LRCKO LRCKI BCKI BCKO PCMDO PCMDI XWAKEUP REQ_I SDIN SDOUT NRST WAKEUP_K REQ_I SDCLK SDIN SDOUT WAKE_UP NRST SDCLK KCLK KCS VDIO1 KDI KD0 KRB DVDD1 DVSS3 AVSOSC AVDM0 EXTAL XTAL XIN OSSEL AVSPLL AVDPLL LRCK BCK VDIOCD0 PCMD DVDD4 TAPTD0 SCANEN DVDD0 DVSS0 VDIOCD1 PF4 PI3 PI2 PI0 EVA VDIO0 VDIO2 TEST3 TEST2 TEST1 DVDD3 DVSS1 TEST0 TCK TDI VDIO3 TMS TD0 NTRST TACK(TEST6) XOUT(TEST5) TRST(TEST4) NRST PF0 PF1 PF2 PF3 PC0 VDIOCD2 PC1 PC2 PC3 DVDD2 DVSS2 PE0 PE1 PE2 PE3 (7/7) B+ SWITCH Q10,12 B+ SWITCH Q4,11 MP3 DECODER SWITCH DC/DC CONVERTER DC/DC CONVERTER (Page 17) (Page 15) (Page 20) (Page 19) (Page 19) (Page 18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 22 22 6-11. PRINTED WIRING BOARD – MAIN Board (Component Side) – :Uses unleaded solder. IC702 IC701 IC806 IC3 48 49 64 1 16 17 32 33 20 21 40 41 60 61 1 80 1-860-995- 11 (11) (COMPONENT SIDE) MAIN BOARD M902 (SLED) 1 2 M M901 (SPINDLE) U V W 4 1 OPEN/CLOSE DETECT S820 1 3 5 4 1 2 19 20 A SWITCH BOARD CN2002 EXCEPT NF400: US, CND, E13/ NF401: E13 (EXCEPT NF400: US, CND) (NF400: AUS) D S G (NF400: US, CND) OPTICAL PICK-UP BLOCK DAX-25E 1 2 3 1 1 4 2 1 15 A B C D E F G H I 1 2 3 4 5 6 7 8 9 D82 B-6 D86 I-4 D89 A-7 D320 H-3 D401 H-7 D402 G-7 D421 H-6 D422 H-6 IC3 B-3 IC701 D-5 IC702 E-6 IC806 F-6 Q4 C-7 Q8 C-2 Q10 I-5 Q11 C-6 Q12 I-5 Q40 B-2 Q41 B-2 Q85 B-2 Q86 C-7 Q408 H-7 • Semiconductor Location Ref. No. Location (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 23 23 @ When IC803 is damaged, replace the MAIN board. 6-12. PRINTED WIRING BOARD – MAIN Board (Conductor Side) – :Uses unleaded solder. D1 E-8 D2 E-7 D3 F-8 D5 E-8 D308 I-6 D321 H-6 D403 H-1 D801 B-7 IC1 D-8 IC62 B-7 IC302 G-6 IC403 G-4 IC601 E-6 IC603 E-4 IC801 C-6 IC803 D-6 Q3 E-9 Q71 B-8 Q84 B-8 Q601 F-7 Q801 B-7 • Semiconductor Location Ref. No. Location IC62 IC1 IC302 IC601 IC803 IC801 IC603 IC403 4 1 5 8 15 1 16 30 22 23 33 34 44 12 11 1 90 61 60 31 30 120 91 1 4 8 5 1 25 76 75 26 50 51 100 1 26 14 13 40 21 20 1 80 41 60 61 (CONDUCTOR SIDE) MAIN BOARD 1-860-995- 11 (11) NF400: US, CND/ NF401: E92, MX (NF400: US, CND/NF401: E92, MX) FL1 5 1 (NF400: US, CND) L5 TV RF L1 FM RF (RF) TP601 TP8 (VT) (FOR CHECK) NF400: AEP, UK, EE,E13, AUS/ NF401: E13 (NF400: AEP, UK, EE) (NF400: AUS) (TEST) SL824 NF400: AEP, UK, EE L3 AM FERRITE-ROD ANTENNA J301 (OPEN) S810 ON OFF HOLD S806 S809 + – VOL (MAIN GND) DC IN 4.5V J401 – + DRY BATTERY SIZE “AA” (IEC DESIGNATION LR6) 2PCS. 3V 10 1 -1 -2 1 A B C D E F G H I 1 2 3 4 5 6 7 8 9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 24 24 6-13. PRINTED WIRING BOARD – SWITCH Board – :Uses unleaded solder. 1-860-997- 11 (11) SWITCH BOARD S2001 – 2005, S2007 - 2011 -DISPLAY – MENU + TUNE+ – TUNE– ENTER M m A MAIN BOARD CN801 LCD2001 LIQUID CRYSTAL DISPLAY S2001 RADIO OFF RADIO ON/ -BAND –MEMORY 1 20 1 24 (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 25 25 6-14. SCHEMATIC DIAGRAM – SWITCH Board – C2001 C2002 C2003 C2004 CN2001 CN2002 S2004 S2005 S2008 S2009 R2005 R2006 R2008 R2010 R2011 R2012 R2016 R2017 R2018 R2019 R2020 R2021 S2002 S2007 S2003 S2001 S2011 S2010 R2002 1 1 1 1 24P 20P 2.2k 22k 2.2k 10k 22k 22k 1k 2.2k 4.7k 2.2k 10k 4.7k 0 SGND AD_KEY1 AD_KEY2 DGND VCC2_2.7V PS VCPU_2.0V D0 D1 D2 D3 D4 D5 D6 D7 LCDA0 RD WR LCD_CS RES PS D0 D1 D2 D3 D4 D5 D6 D7 XRES XCS XWR XRD A0 VDD VDD2 VSS VOUT V0 C3+ C2+ C2- C1+ C1- LIQUID CRYSTAL DISPLAY DISPLAY MENU ENTER + - RADIO OFF BAND MEMORY RADIO ON/ TUNE- TUNE+ LCD2001 (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 26 26 • IC Block Diagrams – MAIN Board – IC1 TA2154FN (EL) 1 2 3 4 27 26 25 5 FM/TV MIX 30 29 28 AM MIX 24 AM OSC 1/2 FM OSC TV OSC 6 7 8 9 10 AGC 23 22 21 20 1/8 OR 1/16 FM/AM/TV PW SW 11 12 FM DET LEVEL DET AM DET 19 SW 13 14 15 FM MPX 18 17 16 TV RF FM RF BUFFER BUFFER BUFFER IF BUFFER FM IF AM IF AF TV RF IN FM RF IN RF GND FM MIX AM MIX AGC VCC FM IF IN GND AM IF IN QUAD DET OUT MPX IN LPF1 R OUT AM RF IN RFVCC AM OSC TV RF OUT FM RF OUT AM BYPASS TV FM OSC OSC OUT MODE2 MODE1 IF REQ IF COUNT LPF2B LPF2A L OUT 33 32 31 30 29 28 27 26 25 24 23 1 44 2 3 5 6 7 8 9 10 11 43 42 41 40 39 38 37 36 35 34 12 13 14 15 16 17 18 19 20 21 22 IN-SEL TU-R-ATT TU-L-ATT VOL-R_1 VOL-L_1 NC CD_R_1 TU_R_1 LINE-R_0 LINE-L_0 PRE-GND TU-L_1 CD-L_1 STB_HPSW_1 RIPPLE-F BASE_1 BASE_0 BASE-T BASE-SW BASE-H/L-SW BASE_0 BASE_CTL MUTE-SW_1 MUTE-T BEEP_1 VCC2 POWER-R_0 CENTER-AMP POWER-L_0 POWER-GND C-AMP_SW AVLS_0 AVLS_1 NC VOL-CTL_1 AVLS_SW RIPPLE-F VOL-BIAS VCC1 NC AGC_SW NC MIX_0 BASE_NF MUTE BEEP AGC BST BIAS ALC VOLUME VOLUME INPUT CONTROL VOLUME CONTROL VOLUME BIAS + − + − + − + − 4 IC302 AN17883A-VF w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-NF400/NF401 IC403 TB2138AFG DC IN H BRIDGE CH3 H BRIDGE CH1 H BRIDGE CH2 CONTROLLER LEVEL SHIFTER CONTROL CHARGE PRE DRIVER LOGIC/ MOTOR DRIVER BIAS STANDBY REF BAND GAP REF VD4 SAW GEN VCC3 VG VG VCC0 VREF VCC4 VIN VREF VCPU MONITOR AMP IVREF CLX & OSC VCPU VCPU VG VCC0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 61 62 63 65 64 66 67 69 68 70 71 72 74 73 75 76 77 78 79 80 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 REGB DET CHGB CHGMNT_O BATM1_I BATM2_I BRK UI COM VI WI FG DTC2 DTC3 PREGND PWM APWM DC IN LATCH DATA CLOCK WAKEUP RSTOUT SYNC VCC0_O POWGND DSW VIN VCC3 SSW VG(6.5V) LG SPGND W_OUT SPVCC V_OUT SPGND U_OUT SPVCC USW VCC0_I VCC1 VCPU VCC2 STNG GSW SEO SEM PREGND INP2 RF2 INM2 LD PD PWG PWS SEP VREF VMMNT_O IMM1 VM3 RO3 PGND3 FO3 VM23 RO2 PGND2 FO2 VM12 R01 RI1 FI1 RI2 FI2 RI3 FI3 PGND1 F01 VM1 DGND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 D-NF400/NF401 IC701 CXR710160-207R ARM77TDMI CPU CORE VIRTUAL ENGINE CORE HUFFMAN HW MAGIC GATE CORE CLOCK GENERATOR/ SYSTEM CONTROLLER DMAC (CH0) DMAC (CH1) DMAC (CH2) WATCHDOG TIMER PRESCALLER/ TIME BASETIMER RAM 160K BYTES RAM 512K BYTES EEPROM SERIAL INTERFACE CD-ROM INTERFACE DAC INTERFACE DMAC (CH3) SERIAL INTERFACE (CH0) UART (CH0) UART (CH1) RAM 2 8 2 NTRST TDO TMS VDIO3 TDI TCK TEST0 DVSS1 DVDD3 TEST2 TEST1 XOUT TEST3 TACK TEST6 VDIO2 LRCKI BCKI VDIOCD0 PCMDI DVDD4 TAPTD0 SCANEN DVDD0 DVSS0 DVIO0 VDIOCD1 PF4/XRDE PI3/BCKO PI2/LRCKO PI0/PCMDO EVA DVDD2 DVSS2 PC3/SCS0 PC2/SI0 PC1/SO0 VDIOCD2 PC0/SCK0 PF3/T3 PF2/EC2/INT4 PF1/T1 PF0/EC0/INT3 NRST KCS VDIO1 KDO KDI KRB DVDD1 DVSS3 AVDPLL AVSPLL AVSOSC AVDMO EXTAL XTAL XIN OSSEL KCLK INTERRUPT CONTROLLER 8BIT TIMER (CH7) 8BIT TIMER (CH6) 8BIT TIMER (CH5) 8BIT TIMER (CH4) 8BIT TIME 8BIT TIMER/COUNTER (CH2) 8BIT TIMER (CH1) 8BIT TIMER/COUNTER (CH0) 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 42 41 40 39 38 37 36 35 34 33 44 43 PE3/RxD1 48 PE2/TxD1 47 PE1/RxD0 46 PE0/TxD0 45 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 64 63 62 61 60 59 58 57 56 55 53 54 52 51 50 49 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 D-NF400/NF401 • IC Pin Function Description MAIN BOARD IC601 CXD3048R (CD DSP) Pin No. Pin Name I/O Description 1 XRAS O Row address strobe signal output to the D-RAM 2 XWE O Data input enable signal output to the D-RAM 3 to 6 D1, D0, D3, D2 I/O Two-way data bus with the D-RAM 7 DCLK O Not used 8 DCKE O Not used 9 XCAS O Column address strobe signal output to the D-RAM 10 WFCK/DQM O Not used 11 to 13 A9 to A7 O Address signal output to the D-RAM 14 DVSS — Ground terminal 15 to 17 A6 to A4 O Address signal output to the D-RAM 18 XRDE I D-RAM read enable signal input terminal 19 VDD0 — Power supply terminal (+2.1V) 20 CLOCK I Serial data transfer clock signal input from the system controller 21 SDTO I Serial data input from the system controller 22 SENS O SENS signal output to the system controller 23 XLAT I Serial data latch pulse signal input from the system controller 24 XSOE I Serial data output enable signal input from the system controller 25 SYSM I Analog muting on/off control signal input from the system controller “H”: muting on 26 WDCK O Not used 27 SCOR O Subcode sync (S0+S1) detection signal output to the system controller 28 XRST I Reset signal input from the system controller “L”: reset 29 PWMI I Not used 30 XQOK I Not used 31 XWRE I Not used 32 R8M O System clock output to the system controller 33 VSS0 — Ground terminal 34 SQCK I SQSO readout clock signal input terminal Not used 35 SCLK I SENS serial data read clock signal input terminal Not used 36 SQSO O Not used 37 XEMP O Not used 38 XWIH O Not used 39 SBSO O Not used 40 EXCK O SQSO readout clock signal output terminal Not used 41 XTSL I Input terminal for the system clock frequency setting fixed at “L” in this set 42 HVSS — Ground terminal 43 HPL O Not used 44 HPR O Not used 45 HPVDD — Power supply terminal (+2.1V) 46 XVDD — Power supply terminal (+2.1V) 47 XTAI I System clock input terminal (16.934 MHz) 48 XTAO O System clock output terminal (16.934 MHz) 49 XVSS — Ground terminal 50 AVDD1 — Power supply terminal (+2.8V) 51 AOUT1 O L-ch analog audio signal output terminal 52 VREFL O L-ch reference voltage output terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 D-NF400/NF401 Pin No. Pin Name I/O Description 53, 54 AVSS1, AVSS2 — Ground terminal 55 VREFR O R-ch reference voltage output terminal 56 AOUT2 O R-ch analog audio signal output terminal 57 AVDD2 — Power supply terminal (+2.8V) 58 TES1 I Input terminal for the test (fixed at “L”) 59 TEST I Input terminal for the test (fixed at “L”) 60 VSS1 — Ground terminal 61 LRMU O Muting on/off control signal output to the electrical volume 62 DOUT O Not used 63 ATSK I/O Not used 64 DFCT I/O Not used 65 FOK O Focus OK signal output to the system controller 66 MIRR I/O Not used 67 COUT I/O Not used 68 C2PO O Not used 69 GFS O GFS signal output to the system controller 70 XUGF O Not used 71 XPCK O Not used 72 VDD1 — Power supply terminal (+2.1V) 73 PCO O Charge pump output terminal for master PLL 74 FILI I Filter input terminal for master PLL 75 FILO O Filter output terminal for master PLL 76 CLTV I VCO1 control voltage input terminal for multiplier 77 VCTL I VCO2 control voltage input terminal for broad-band EFM PLL 78 VPCO O Charge pump output terminal for broad-band EFM PLL 79 AVSS3 — Ground terminal 80 ASY_O O EFM full-swing output terminal 81 ASY_I I Asymmetry comparator voltage input terminal 82 BIAS I Asymmetry circuit constant current input terminal 83 AVDD3 — Power supply terminal (+2.1V) 84 RFAC I EFM signal input from the optical pick-up 85 AVDD0 — Power supply terminal (+2.1V) 86 IGEN I Stabilized current input terminal 87 AVSS0 — Ground terminal 88 RFDC I RF signal input from the optical pick-up block 89 E I E signal input from the optical pick-up block 90 F I F signal input from the optical pick-up block 91 B I B signal input from the optical pick-up block 92 A I A signal iuput from the optical pick-up block 93 VC I Middle point voltage input terminal Not used 94 VSS2 — Ground terminal 95 FRDR O Focus servo drive signal (–) output to the coil/motor drive 96 FFDR O Focus setvo drive signal (+) output to the coil/motor drive 97 TRDR O Tracking servo drive signal (–) output to the coil/motor drive 98 TFDR O Tracking servo drive signal (+) output to the coil/motor drive 99 SRDR O Sled servo drive signal (–) output to the coil/motor drive www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 D-NF400/NF401 Pin No. Pin Name I/O Description 100 SFDR O Sled servo drive signal (+) output to the coil/motor drive 101 SSTP I Disc inner position detection signal input terminal Not used 102 MDS O Spindle motor drive signal output terminal 103 MDP O Spindle motor servo control signal output terminal 104 C176 O 176.4 kHz clock signal output to coil/motor drive 105 VDD2 — Power supply terminal (+2.1V) 106 LRCK_O O L/R sampling clock signal output to the MP3 decoder 107 LRCK_I I L/R sampling clock signal input from the MP3 decoder 108 PCMD_O O Serial data output to the MP3 decoder 109 PCMD_I I Serial data input from the MP3 decoder 110 BCK_O O Bit clock signal output to the MP3 decoder 111 BCK_I I Bit clock signal input from the MP3 decoder 112 DVDD — Power supply terminal (+2.1V) 113 to 117 A3 to A0, A10 O Address signal output to the D-RAM 118 to 120 A11 to A13 O Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 D-NF400/NF401 MAIN BOARD IC801 TMP91CY28FG-2772-01 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1, 2 GND — Ground terminal 3 VCPU — Power supply terminal (+2.0V) 4 XRST_O O System reset signal output to the CD DSP 5 PWM_O O Power on/off signal output terminal Not used 6 BEEP_O O Beep signal output to the electrical volume 7 AMUTE_O O Analog muting on/off control signal output to the CD DSP “H”: muting on 8 LINEOUT_I I Not used 9 OPTOUT_I I Not used 10 FG_I I Motor flag monitor input from the power control 11 REQ_I I Request signal input from the MP3 decoder 12 HG-XSTB_O O Strobe signal output to optical pick-up block 13 HG-GUP_O O Guide-up signal output to optical pick-up block 14, 15 RE1_I, RE2_I I Encode signal input terminal Not used 16 LCD_REQ_O O Request signal output to the DTS micro controller 17 SDXLAT_O O Data latch signal output to the MP3 decoder 18 SDCLK_O O Serial data transfer clock output to the MP3 decoder and EEPROM 19 SDOUT_O O Serial data output to the MP3 decoder and EEPROM 20 SDIN_I I Serial data input from the MP3 decoder and EEPROM 21 DTS_SDTO O Serial data output to the DTS micro controller, EEPROM and LCD unit 22 DTS_SDTI I Serial data input from the DTS micro controller, EEPROM and LCD unit 23 DTS_SCK O Serial data transfer clock output to the DTS micro controller 24 AMO_I I Not used 25 VCPU — Power supply terminal (+2.0V) 26 XOUT O Not used 27 GND — Ground terminal 28 XIN I System clock signal input from the CD DSP 29 AM1_I I Not used 30 XRESET_I I System reset signal input from the power control 31 TSB I Not used 32 XWAKE_O O WAKE-UP signal output to the power control 33 EMU0_O O Not used 34 EMU1_O O Not used 35 ACKCD_I I CD acknowledge signal input from the DTS micro controller 36 WAKE_I I KEY interrupt signal input terminal 37 LID-SW_I I CD lid switch signal input terminal 38 EXTBAT_I I Not used 39 XLCD_CJK_I I Not used 40 HOLD_I I HOLD switch signal input terminal 41 XCE_CEL_I I Not used 42 TEST_I I Test mode setting input terminal “L”: test mode, Normally: “H” 43 NC — Not used 44 to 51 AD0 to AD7 I/O Address and data input/output with the LCD unit 52 FOK_I I Focus OK signal input from the CD DSP 53 GFS_I I GFS signal input from the CD DSP 54 TUPWRON_O O Tuner power on/off control signal output terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 D-NF400/NF401 Pin No. Pin Name I/O Description 55 CDON_O O CD on request signal output to the DTS micro controller 56 AUD_SEL O Audio data selection signal output to the input select 57 CHGGND_ON_O O Not used 58 BAT_VCC_ON_O O Not used 59 DTS_RST_O O Reset signal output to the DTS micro controller 60 XKRESET O Reset signal output to the MP3 decoder 61 XCS_O O P/S signal output to the LCD unit 62 GND — Ground terminal 63 XNMI_I I Not used 64 VCPU — Power supply terminal (+2.0V) 65 HP_LIN_SEL_I I Line/headphone out selection signal input terminal Not used 66 WAKEUP_K_O O Interrupt signal output to the MP3 decoder 67 EEP_CS_O O Chip select signal output to the EEPROM 68 TUON_I I Tuner on request signal input from the DTS micro controller 69 LCD_AO O AO signal output to the LCD unit 70 OPTPWRCTL_O O Not used 71 XRD_O O Read signal output to the LCD unit 72 XWR_O O Write signal output to the LCD unit 73 LCD-XRST_O O Reset signal output to the LCD unit 74 XLCD-BL_O O Not used 75 LED_DISP1_O O Not used 76 XLED_DISP2_O O Not used 77 PWRSW I Power on/off control signal output to the electrical volume 78 BOOT I Single boot setup terminal 79 XBATT_ICELL_I I Not used 80 NC I Not used 81 XCEX_I I Not used 82 XLCD-4LINE_I I Not used 83 MSCK0_O O Serial data transfer clock output to the CD DSP and power control 84 MSDTO0_O O Serial data output to the CD DSP and power control 85 MSDTI0_I I SENS signal input from the CD DSP 86 SCOR_I I Sub-code sync (S0+S1) detect signal input from the CD DSP 87 XLAT0_O O Latch signal output to the CD DSP 88 XSOE_O O Serial data output enable signal output to the CD DSP 89 VCPU — Power supply terminal (+2.0V) 90 PWRLAT_O O Data Latch signal output to the power control 91 GND — Ground terminal 92 AD-BATMNT I Battery voltage level monitor input terminal 93 AD-CHGMNT I Not used 94 AD-CHGSTMNT I Not used 95 AD-DCINMNT I DC IN voltage level monitor input terminal 96, 97 AD-KEY1, AD-KEY2 I Key input terminal 98 AD-KEY3 I Key input terminal Not used 99 AD-RMKEY I Key input terminal Not used 100 VCPU — Power supply terminal (+2.0V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 D-NF400/NF401 MAIN BOARD IC3 TC9327AF-04CDW (DTS MICRO CONTROLLER) Pin No. Pin Name I/O Description 1 to 4 COM1 to COM4 O Common drive signal output to the liquid crystal display Not used 5 to 20 S1 to S16 O Segment drive signal output to the liquid crystal display Not used 21 MODEL1 I Key setting selection terminal Fixed at “L” in this set 22 RE2 O AM mode DC/DC converter frequency shift signal output terminal Not used 23 RE1 O AM mode DC/DC converter on/off control signal output terminal 24 MODEL2 O Not used 25 DESTVSS_O O Destination setting terminal 26 AO_O O AO signal output to the LCD unit 27 CS_O O Chip select signal output to the LCD unit 28 LCD-REQ_I I Request signal input from the system controller 29 XLID-OPEN_I I CD lid switch signal input terminal 30 EEP DO/DI_IO I/O Serial data input/output terminal Not used 31 EEP-SK_O O Serial data transfer clock signal output terminal Not used 32 EEP-CS_I O Chip select signal output to the EEPROM 33 XL/O_I I Line out jack detection terminal Not used 34 RM-KEY_I I Not used 35 DEST I Destination setting terminal 36 AD-KEY3_I I Not used 37 KEY2 I Key input terminal 38 TU-ON_O O Tuner on request signal output to the system controller 39 CD-ON_I I CD on request signal input from the system controller 40 TU-AVLS_O O Not used 41 TV-L-ON_O O Not used 42 AD-KEY1_I I Key input terminal 43 BATT_I I Battery voltage detection input terminal 44 HIDC_I I High DC voltage monitor input terminal 45 AD-DC_REF I Reference voltage (+1.5V) input terminal (for DC) 46 CDU-SDI_I I Serial data input from the system controller and EEPROM 47 CDU-SDO_O O Serial data output to the system controller and EEPROM 48 CDU-SCK_I I Serial data transfer clock signal input from the system controller 49 TU-BEEP_O O Beep sound control signal output to the electrical volume 50 VOL-PWM_O O Volume control PWM signal output for the electrical volume 51 TU-HOLD_I I HOLD switch signal input terminal 52 BAND-CTL2_O O Tuner band selection signal output terminal “H”: AM 53 BAND-CTL1_O O Tuner band selection signal output terminal “H”: FM 54 ACK-CD_O O CD acknowledge signal output to the system controller 55 MONO/LOCAL- CTR_O O Local/DX or Mono/Stereo selectionl signal output terminal 56 S/W IDEN_I O Line/headphone out selection signal output terminal Not used 57 XTU-TEST_I I Test mode setting input terminal “L”: test mode, Normally: “H” 58 XTU-BASS1_O O Bass on/off control signal output to the electrical volume 59 XTU-BASS2_O O Bass line/headphone out selection signal output to the electrical volume 60 +B ON/OFF_O O Tuner system power supply on/off control signal output “H”: tuner power on 61 IF-REQ_O O Intermediate frequency request signal output terminal 62 TU-MUTE_O O Muting on/off control signal output to the electrical volume www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 D-NF400/NF401 Pin No. Pin Name I/O Description 63 TEST — Not used 64 IF_I I Tuner band (FM/AM/TV/WB) intermediate frequency detection signal input terminal 65 ED (DO1)_O O PLL error signal output terminal 66 NC (DO2) — Not used 67 HOLD_I I Not used 68 NC (OT1) O Not used 69 GND — Ground terminal 70 NC (FM_I) — Not used 71 TV/FM/AM_I I FM/AM/TV/WB OSC signal input terminal 72 VDD (1.8-2.2V) — Power supply terminal (+2.0V) 73 RESET_I I System reset signal input from the system controller 74 X_O O System clock output terminal (16.934 MHz) 75 X_I I System clock input terminal (16.934 MHz) 76 XVT I Crystal OSC signal input terminal Not used 77 VLCD — Terminal for doubler circuit capacitor connection to develop liquid crystal display drive voltage Not used 78, 79 C1, C2 — Connection terminal of doubler circuit capacitor for liquid crystal display drive power supply Not used 80 VEE — Constant voltage (+1.55V) for liquid crystal display drive power supply Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 D-NF400/NF401 SECTION 7 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories are given in the last of the elec- trical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-3384-317-1 CABINET (INNER) SUB ASSY 3 3-254-070-11 SCREW 4 3-262-724-01 SPRING, FULL (OPEN) (L) 5 3-262-725-01 SPRING, FULL (OPEN) (R) 6 3-261-452-01 LID, BATTERY 7-1. CABINET (INNER) SECTION 7 3-261-441-01 KNOB (OPEN LOCK) 8 3-261-443-01 SPRING (OPEN LOCK) 9 3-261-442-01 LEVER (OPEN LOCK) 10 3-034-792-11 SCREW, TAPPING (B2-0) 1 cabinet (upper) section 3 3 4 5 6 7 8 9 10 10 cabinet (lower) section Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation AUS : Australian model CND : Canadian model E13 : 220 - 230 V AC area in E model EE : East European model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 D-NF400/NF401 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-261-435-01 LID, UPPER (NF400: US, CND) 51 3-261-435-11 LID, UPPER (NF400: AEP, UK, EE, AUS) 51 3-261-435-21 LID, UPPER (NF401) 52 3-261-436-01 WINDOW, LCD 53 3-261-438-01 LID (1) (KNOB), UPPER 54 3-261-439-01 LID (2) (KNOB), UPPER 55 3-267-343-01 SPRING (BUTTON) 56 1-827-979-11 CABLE, FLEXIBLE FLAT (20 CORE) * 57 A-4541-766-A SWITCH BOARD, COMPLETE 7-2. CABINET (UPPER) SECTION 58 3-261-434-01 COVER 59 3-254-003-01 SCREW 60 3-266-397-01 SHEET (COVER) 61 3-260-975-01 KNOB (TUNER) 62 3-261-437-01 ESCUTCHEON 63 3-266-396-01 SHEET, ELECTROSTATIC PREVENTION 64 3-266-398-01 SHEET (COLOR) LCD2001 1-805-467-12 DISPLAY PANEL, LIQUID CRYSTAL 51 62 52 53 54 55 61 56 57 58 59 59 60 LCD2001 63 64 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 D-NF400/NF401 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 3-245-331-02 INSULATOR * 103 X-3385-176-1 MAIN BOARD, COMPLETE (for service) (NF400: AUS) * 103 X-3385-177-1 MAIN BOARD, COMPLETE (for service) (NF400: E13, AUS) * 103 X-3385-179-1 MAIN BOARD, COMPLETE (for service) (NF400: AEP, UK, EE) * 103 X-3385-180-1 MAIN BOARD, COMPLETE (for service) (NF400: CND) 103 MAIN BOARD, COMPLETE (for service) (NF401) 104 3-261-318-01 BOARD (+), TERMINAL, BATTERY 105 3-261-319-01 BOARD (–), TERMINAL, BATTERY 106 3-261-447-01 TERMINAL (RELAY), BATTERY 107 X-3384-319-1 CABINET (LOWER) SUB ASSY 7-3. CABINET (LOWER) SECTION 101 101 101 103 104 105 106 107 main board CDM-3325ER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 D-NF400/NF401 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 3-318-203-61 SCREW (B1.7X4), TAPPING 0152 X-3380-950-1 OPTICAL PICK-UP (DAX-25E) 153 3-221-473-01 COVER, GEAR 154 3-221-472-02 CHASSIS 155 3-221-474-01 SPRING, SLED 156 A-3180-952-A FEED ASSY, SCREW 157 3-221-268-01 GEAR (B) 158 3-221-475-01 SHAFT, STANDARD 159 3-222-298-01 RACK 160 3-222-299-01 SPRING, RACK RETAINER 161 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN M901 A-3180-953-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3180-951-A MOTOR ASSY, SLED The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 7-4. OPTICAL PICK-UP SECTION (CDM-3325ER) 151 153 161 160 156 159 158 155 157 151 154 152 M902 M901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 D-NF400/NF401 MAIN SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: SWITCH, PUSH (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation AUS : Australian model CND : Canadian model E13 : 220-230V AC area in E model EE : East European model E92 : 120V AC area in E model * X-3385-176-1 MAIN BOARD, COMPLETE (for service) (NF400: US) * X-3385-177-1 MAIN BOARD, COMPLETE (for service) (NF400: E13, AUS) * X-3385-179-1 MAIN BOARD, COMPLETE (for service) (NF400: AEP, UK, EE) * X-3385-180-1 MAIN BOARD, COMPLETE (for service) (NF400: CND) MAIN BOARD, COMPLETE (for service) (NF401) ********************* 3-261-318-01 BOARD (+), TERMINAL, BATTERY 3-261-319-01 BOARD (–), TERMINAL, BATTERY < CAPACITOR > C3 1-115-156-11 CERAMIC CHIP 1uF 10V C4 1-164-843-11 CERAMIC CHIP 3PF 0.25PF 50V C6 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C7 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C8 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C9 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C10 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C11 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C13 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V (NF400: US, CND) C15 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C16 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C17 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V (NF400: US, CND) C19 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C20 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C22 1-115-156-11 CERAMIC CHIP 1uF 10V C23 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V (NF400: US, CND/NF401: E92, MX) C24 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C25 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C26 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C27 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C28 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C29 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C30 1-115-156-11 CERAMIC CHIP 1uF 10V C31 1-115-156-11 CERAMIC CHIP 1uF 10V C32 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C33 1-218-990-11 SHORT CHIP 0 C34 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C35 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C36 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V (NF400: US, CND/NF401: E92, MX) C37 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C38 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C39 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C40 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C41 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C42 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C43 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C45 1-124-434-00 ELECT 220uF 20% 4V C46 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C47 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C50 1-107-820-11 CERAMIC CHIP 0.1uF 16V C53 1-115-156-11 CERAMIC CHIP 1uF 10V C54 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C56 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C57 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C58 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C59 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C62 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C63 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C64 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C65 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C66 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C69 1-104-852-11 TANTALUM CHIP 22uF 20% 6.3V C70 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C71 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C72 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C74 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C78 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 50V C79 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C80 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C81 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C82 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C83 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C85 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C86 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C88 1-164-506-11 CERAMIC CHIP 4.7uF 16V C90 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C92 1-115-156-11 CERAMIC CHIP 1uF 10V C97 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C121 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C145 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V MX : Mexican model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 41 D-NF400/NF401 MAIN C151 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C153 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C157 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C158 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 50V C160 1-164-866-11 CERAMIC CHIP 47PF 5% 50V C163 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C164 1-115-156-11 CERAMIC CHIP 1uF 10V C165 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C166 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C167 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C168 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C169 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C170 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C221 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C245 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C314 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C320 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C321 1-107-820-11 CERAMIC CHIP 0.1uF 16V C322 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C323 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C324 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C325 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C326 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C327 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C328 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C329 1-107-820-11 CERAMIC CHIP 0.1uF 16V C330 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C331 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C332 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C333 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C334 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C335 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C336 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C337 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C338 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C340 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C341 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C342 1-126-369-11 ELECT 220uF 20% 6.3V C343 1-107-820-11 CERAMIC CHIP 0.1uF 16V C344 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C403 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C404 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-164-505-11 CERAMIC CHIP 2.2uF 16V C410 1-115-156-11 CERAMIC CHIP 1uF 10V C415 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C416 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C417 1-107-820-11 CERAMIC CHIP 0.1uF 16V C419 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C420 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C421 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C422 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C423 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C424 1-135-210-11 TANTALUM CHIP 4.7uF 20% 10V C425 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C426 1-126-369-11 ELECT 220uF 20% 6.3V C427 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C428 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V C429 1-107-820-11 CERAMIC CHIP 0.1uF 16V C430 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C432 1-126-246-11 ELECT CHIP 220uF 20% 4V C433 1-115-156-11 CERAMIC CHIP 1uF 10V C434 1-165-851-11 TANTALUM CHIP 10uF 20% 6.3V C435 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C436 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C437 1-126-246-11 ELECT CHIP 220uF 20% 4V C438 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C440 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C446 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C447 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C450 1-115-156-11 CERAMIC CHIP 1uF 10V C454 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C455 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C458 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C460 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C601 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C605 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C606 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C607 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C608 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C609 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C610 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C611 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C612 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C613 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C614 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C616 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C617 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C618 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C619 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C621 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C622 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C623 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C624 1-115-156-11 CERAMIC CHIP 1uF 10V C631 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C632 1-107-820-11 CERAMIC CHIP 0.1uF 16V C697 1-107-820-11 CERAMIC CHIP 0.1uF 16V C698 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C699 1-107-820-11 CERAMIC CHIP 0.1uF 16V C701 1-107-820-11 CERAMIC CHIP 0.1uF 16V C702 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C703 1-107-820-11 CERAMIC CHIP 0.1uF 16V C705 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C706 1-107-820-11 CERAMIC CHIP 0.1uF 16V C708 1-107-820-11 CERAMIC CHIP 0.1uF 16V C709 1-107-820-11 CERAMIC CHIP 0.1uF 16V C710 1-107-820-11 CERAMIC CHIP 0.1uF 16V C711 1-107-820-11 CERAMIC CHIP 0.1uF 16V C712 1-107-820-11 CERAMIC CHIP 0.1uF 16V C713 1-107-820-11 CERAMIC CHIP 0.1uF 16V C714 1-107-820-11 CERAMIC CHIP 0.1uF 16V C715 1-107-820-11 CERAMIC CHIP 0.1uF 16V C716 1-107-820-11 CERAMIC CHIP 0.1uF 16V C717 1-107-820-11 CERAMIC CHIP 0.1uF 16V C718 1-107-820-11 CERAMIC CHIP 0.1uF 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 42 D-NF400/NF401 MAIN C720 1-107-820-11 CERAMIC CHIP 0.1uF 16V C805 1-115-156-11 CERAMIC CHIP 1uF 10V C806 1-107-820-11 CERAMIC CHIP 0.1uF 16V C808 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C810 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C812 1-107-820-11 CERAMIC CHIP 0.1uF 16V C821 1-107-820-11 CERAMIC CHIP 0.1uF 16V C830 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C833 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C834 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C835 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C896 1-107-820-11 CERAMIC CHIP 0.1uF 16V C897 1-115-156-11 CERAMIC CHIP 1uF 10V C898 1-107-820-11 CERAMIC CHIP 0.1uF 16V C899 1-107-820-11 CERAMIC CHIP 0.1uF 16V < FILTER > CF1 1-767-480-11 FILTER, CERAMIC (AM) CF2 1-767-021-11 FILTER, CERAMIC < CONNECTOR > CN401 1-784-342-21 HOUSING, CONNECTOR 2P * CN402 1-785-877-21 HOUSING, CONNECTOR 4P CN601 1-818-127-11 CONNECTOR, FFC/FPC (ZIF) 15P CN801 1-818-129-21 CONNECTOR, FFC/FPC (ZIF) 20P < TRIMMER > CT3 1-141-615-21 CAP, ADJ < DIODE > D1 8-719-080-77 DIODE MA2S357 (E) -(TX).SO D2 8-719-080-77 DIODE MA2S357 (E) -(TX).SO D3 6-500-338-01 DIODE KV1610S D5 8-719-080-77 DIODE MA2S357 (E) -(TX).SO (NF400: US, CND) D82 8-719-988-61 DIODE 1SS355TE-17 D86 8-719-404-50 DIODE MA111-TX D89 8-719-420-87 DIODE MA8130-TX D308 8-719-421-33 DIODE MA147 D320 8-719-044-74 DIODE MA792WK-TX D321 8-719-072-70 DIODE MA2ZD14001S0 D401 8-719-085-43 DIODE MA2YD2300LS0 D402 8-719-085-43 DIODE MA2YD2300LS0 D403 8-719-085-43 DIODE MA2YD2300LS0 D421 8-719-404-50 DIODE MA111-TX D422 8-719-404-50 DIODE MA111-TX D801 8-719-421-27 DIODE MA728 < FERRITE BEAD/SHORT > FB1 1-216-864-11 SHORT CHIP 0 FB101 1-500-234-22 BEAD, FERRITE (CHIP) (1608) FB201 1-500-234-22 BEAD, FERRITE (CHIP) (1608) FB302 1-414-760-21 FERRITE, EMI (SMD) (1608) FB303 1-414-553-11 FERRITE, EMI (SMD) (2012) FB401 1-216-864-11 SHORT CHIP 0 FB402 1-216-864-11 SHORT CHIP 0 FB413 1-216-295-00 SHORT CHIP 0 FB601 1-414-760-21 FERRITE, EMI (SMD) (1608) FB602 1-414-760-21 FERRITE, EMI (SMD) (1608) FB701 1-414-760-21 FERRITE, EMI (SMD) (1608) FB703 1-414-760-21 FERRITE, EMI (SMD) (1608) < FILTER > FL1 1-236-711-21 FILTER, BAND PASS (EXCEPT NF400: US, CND) FL1 1-781-765-11 FILTER, BAND PASS (NF400: US, CND) < IC/TRANSISTOR > IC1 6-701-310-01 IC TA2154FN (EL) IC3 6-803-850-01 IC TC9327AF-04CDW IC62 8-759-449-23 IC AK93C55AV-L IC302 6-704-626-01 IC AN17883A-VF IC403 6-704-187-01 IC TB2138AFG IC601 8-752-419-91 IC CXD3048R IC603 6-702-737-01 IC MSM51X17400F-10TFSR1 IC701 8-753-210-87 IC CXR710160-207R IC702 6-550-559-01 TRANSISTOR XN0NE9200LS0 IC801 6-803-671-01 IC TMP91CY28FG-2772-01 @ IC803 (Not supplied) IC AK6417CH-E2 IC806 6-705-397-01 IC XC6206P142MR < JACK > J301 1-818-051-11 JACK (i) J401 1-778-153-51 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 4.5V) < COIL/SHORT > L1 1-428-917-21 COIL, FM RF L2 1-419-135-21 INDUCTOR 27nH L3 1-424-851-31 COIL, FERRITE-ROD ANTENNA (MW) L4 1-406-404-11 COIL (MW OSCILATION) L5 1-428-918-21 COIL, TV RF (NF400: US, CND) L10 1-414-410-21 INDUCTOR 10uH L62 1-412-006-31 INDUCTOR 10uH L80 1-400-389-21 INDUCTOR 10uH L320 1-400-389-21 INDUCTOR 10uH L401 1-400-373-21 INDUCTOR 4.7uH L402 1-400-373-21 INDUCTOR 4.7uH L403 1-400-387-21 INDUCTOR 47uH L404 1-400-388-21 INDUCTOR 220uH L406 1-400-145-21 INDUCTOR 47uH L407 1-456-178-21 INDUCTOR 100uH L408 1-400-388-21 INDUCTOR 220uH L409 1-400-145-21 INDUCTOR 47uH L411 1-400-387-21 INDUCTOR 47uH L413 1-216-295-00 SHORT CHIP 0 L414 1-216-295-00 SHORT CHIP 0 L601 1-400-389-21 INDUCTOR 10uH L602 1-400-390-21 INDUCTOR 47uH L603 1-400-386-21 INDUCTOR 10uH L703 1-400-390-21 INDUCTOR 47uH L704 1-400-390-21 INDUCTOR 47uH @ When IC803 is damaged, replace the MAIN board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 43 D-NF400/NF401 MAIN < TRANSISTOR > Q3 8-729-602-21 TRANSISTOR 2SC4154TP-1F (NF400: US, CND/NF401: E92, MX) Q4 8-729-922-10 TRANSISTOR 2SA1577-T106-QR Q8 8-729-029-15 TRANSISTOR DTC144TUA-T106 Q10 8-729-922-10 TRANSISTOR 2SA1577-T106-QR Q11 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q12 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q40 8-729-029-15 TRANSISTOR DTC144TUA-T106 Q41 8-729-922-10 TRANSISTOR 2SA1577-T106-QR Q71 8-729-423-52 TRANSISTOR 2SC3931-C-TX Q84 8-729-602-21 TRANSISTOR 2SC4154TP-1F Q85 8-729-053-44 FET 2SK880GR-TE85L Q86 8-729-602-21 TRANSISTOR 2SC4154TP-1F Q408 6-550-396-01 TRANSISTOR 2SB16990LSO Q601 8-729-054-79 TRANSISTOR 2SB167900LSO Q801 8-729-427-72 TRANSISTOR XP4501 < RESISTOR > R1 1-218-973-11 RES-CHIP 47K 5% 1/16W R3 1-218-985-11 RES-CHIP 470K 5% 1/16W R4 1-218-985-11 RES-CHIP 470K 5% 1/16W R5 1-218-985-11 RES-CHIP 470K 5% 1/16W (NF400: US, CND) R6 1-218-965-11 RES-CHIP 10K 5% 1/16W R7 1-218-985-11 RES-CHIP 470K 5% 1/16W R8 1-218-985-11 RES-CHIP 470K 5% 1/16W R9 1-218-973-11 RES-CHIP 47K 5% 1/16W R10 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R12 1-218-953-11 RES-CHIP 1K 5% 1/16W R13 1-216-295-00 SHORT CHIP 0 R15 1-218-990-11 SHORT CHIP 0 R16 1-218-957-11 RES-CHIP 2.2K 5% 1/16W (NF400: US, CND/NF401: E92, MX) R18 1-218-990-11 SHORT CHIP 0 R21 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R22 1-218-973-11 RES-CHIP 47K 5% 1/16W R24 1-218-953-11 RES-CHIP 1K 5% 1/16W R25 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R29 1-218-973-11 RES-CHIP 47K 5% 1/16W R40 1-218-965-11 RES-CHIP 10K 5% 1/16W R42 1-218-949-11 RES-CHIP 470 5% 1/16W R43 1-218-953-11 RES-CHIP 1K 5% 1/16W R47 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R48 1-218-965-11 RES-CHIP 10K 5% 1/16W R49 1-218-977-11 RES-CHIP 100K 5% 1/16W R50 1-218-965-11 RES-CHIP 10K 5% 1/16W R51 1-218-965-11 RES-CHIP 10K 5% 1/16W R52 1-218-953-11 RES-CHIP 1K 5% 1/16W R53 1-218-977-11 RES-CHIP 100K 5% 1/16W (NF400: AEP, UK, EE/NF401: E13) R53 1-218-981-11 RES-CHIP 220K 5% 1/16W (NF400: E13, AUS/NF401: E92, MX) R54 1-218-981-11 RES-CHIP 220K 5% 1/16W (NF400: E13, AUS) R55 1-218-973-11 RES-CHIP 47K 5% 1/16W (NF400: AEP, UK, EE) R55 1-218-977-11 RES-CHIP 100K 5% 1/16W (NF400: US, CND/NF401: E13) R55 1-218-981-11 RES-CHIP 220K 5% 1/16W (NF400: E13, AUS) R55 1-218-989-11 RES-CHIP 1M 5% 1/16W (NF401: E92, MX) R56 1-218-973-11 RES-CHIP 47K 5% 1/16W (NF401: E92, MX) R56 1-218-977-11 RES-CHIP 100K 5% 1/16W (NF400: E13, AUS) R56 1-218-981-11 RES-CHIP 220K 5% 1/16W (NF400: AEP, UK, EE) R59 1-218-977-11 RES-CHIP 100K 5% 1/16W R60 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R61 1-218-965-11 RES-CHIP 10K 5% 1/16W R62 1-218-977-11 RES-CHIP 100K 5% 1/16W R63 1-218-977-11 RES-CHIP 100K 5% 1/16W R66 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R67 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R70 1-216-864-11 SHORT CHIP 0 R71 1-218-977-11 RES-CHIP 100K 5% 1/16W R72 1-218-949-11 RES-CHIP 470 5% 1/16W R73 1-218-953-11 RES-CHIP 1K 5% 1/16W R75 1-218-985-11 RES-CHIP 470K 5% 1/16W R76 1-218-985-11 RES-CHIP 470K 5% 1/16W R80 1-218-965-11 RES-CHIP 10K 5% 1/16W R81 1-218-990-11 SHORT CHIP 0 R82 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R83 1-218-977-11 RES-CHIP 100K 5% 1/16W R84 1-218-949-11 RES-CHIP 470 5% 1/16W R85 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R86 1-218-945-11 RES-CHIP 220 5% 1/16W R87 1-218-990-11 SHORT CHIP 0 R89 1-218-965-11 RES-CHIP 10K 5% 1/16W R90 1-218-953-11 RES-CHIP 1K 5% 1/16W R91 1-218-990-11 SHORT CHIP 0 (NF400: AEP, UK, EE, E13, AUS/NF401: E13) R120 1-218-990-11 SHORT CHIP 0 R121 1-218-969-11 RES-CHIP 22K 5% 1/16W (EXCEPT NF400: AEP, UK, EE) R121 1-218-973-11 RES-CHIP 47K 5% 1/16W (NF400: AEP, UK, EE) R122 1-218-973-11 RES-CHIP 47K 5% 1/16W R145 1-218-990-11 SHORT CHIP 0 R154 1-208-635-11 RES-CHIP 10 5% 1/16W R162 1-218-969-11 RES-CHIP 22K 5% 1/16W R220 1-218-990-11 SHORT CHIP 0 R221 1-218-969-11 RES-CHIP 22K 5% 1/16W (EXCEPT NF400: AEP, UK, EE) R221 1-218-973-11 RES-CHIP 47K 5% 1/16W (NF400: AEP, UK, EE) R245 1-218-990-11 SHORT CHIP 0 R301 1-218-977-11 RES-CHIP 100K 5% 1/16W R302 1-218-973-11 RES-CHIP 47K 5% 1/16W R320 1-218-990-11 SHORT CHIP 0 R322 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R324 1-218-941-81 RES-CHIP 100 5% 1/16W R325 1-218-965-11 RES-CHIP 10K 5% 1/16W R328 1-218-990-11 SHORT CHIP 0 R333 1-218-990-11 SHORT CHIP 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 44 D-NF400/NF401 R334 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (NF400: AEP, UK, EE) R334 1-218-965-11 RES-CHIP 10K 5% 1/16W (EXCEPT NF400: AEP, UK, EE) R335 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (NF400: AEP, UK, EE) R335 1-218-965-11 RES-CHIP 10K 5% 1/16W (EXCEPT NF400: AEP, UK, EE) R336 1-218-965-11 RES-CHIP 10K 5% 1/16W R337 1-218-973-11 RES-CHIP 47K 5% 1/16W R338 1-218-990-11 SHORT CHIP 0 R339 1-218-990-11 SHORT CHIP 0 R404 1-218-969-11 RES-CHIP 22K 5% 1/16W R406 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R411 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R412 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R413 1-218-969-11 RES-CHIP 22K 5% 1/16W R414 1-216-864-11 SHORT CHIP 0 R415 1-218-985-11 METAL CHIP 470K 0.5% 1/16W R416 1-216-864-11 SHORT CHIP 0 R417 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R418 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R419 1-218-973-11 RES-CHIP 47K 5% 1/16W R422 1-216-864-11 SHORT CHIP 0 R424 1-216-864-11 SHORT CHIP 0 R425 1-216-295-00 SHORT CHIP 0 R427 1-218-977-11 RES-CHIP 100K 5% 1/16W R428 1-216-864-11 SHORT CHIP 0 R429 1-216-864-11 SHORT CHIP 0 R438 1-218-965-11 RES-CHIP 10K 5% 1/16W R440 1-218-989-11 RES-CHIP 1M 5% 1/16W R448 1-216-864-11 SHORT CHIP 0 R452 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R453 1-218-989-11 RES-CHIP 1M 5% 1/16W R454 1-218-990-11 SHORT CHIP 0 R459 1-218-977-11 RES-CHIP 100K 5% 1/16W R460 1-218-941-81 RES-CHIP 100 5% 1/16W R480 1-218-989-11 RES-CHIP 1M 5% 1/16W R483 1-216-864-11 SHORT CHIP 0 R485 1-216-864-11 SHORT CHIP 0 R486 1-216-864-11 SHORT CHIP 0 R487 1-216-864-11 SHORT CHIP 0 R490 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R491 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R492 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R495 1-216-864-11 SHORT CHIP 0 R496 1-216-864-11 SHORT CHIP 0 R498 1-216-864-11 SHORT CHIP 0 R602 1-218-969-11 RES-CHIP 22K 5% 1/16W R603 1-218-969-11 RES-CHIP 22K 5% 1/16W R604 1-218-969-11 RES-CHIP 22K 5% 1/16W R605 1-218-969-11 RES-CHIP 22K 5% 1/16W R606 1-218-990-11 SHORT CHIP 0 R607 1-218-990-11 SHORT CHIP 0 R608 1-244-161-11 RES-CHIP 2.2 5% 1/16W R609 1-218-990-11 SHORT CHIP 0 R610 1-218-977-11 RES-CHIP 100K 5% 1/16W R611 1-218-990-11 SHORT CHIP 0 R612 1-218-937-11 RES-CHIP 47 5% 1/16W R613 1-218-965-11 RES-CHIP 10K 5% 1/16W R614 1-218-965-11 RES-CHIP 10K 5% 1/16W R618 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R619 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R621 1-218-965-11 RES-CHIP 10K 5% 1/16W R622 1-218-989-11 RES-CHIP 1M 5% 1/16W R623 1-218-981-11 RES-CHIP 220K 5% 1/16W R624 1-218-965-11 RES-CHIP 10K 5% 1/16W R625 1-218-985-11 RES-CHIP 470K 5% 1/16W R626 1-218-990-11 SHORT CHIP 0 R628 1-218-969-11 RES-CHIP 22K 5% 1/16W R629 1-218-973-11 RES-CHIP 47K 5% 1/16W R630 1-218-973-11 RES-CHIP 47K 5% 1/16W R632 1-218-977-11 RES-CHIP 100K 5% 1/16W R633 1-218-977-11 RES-CHIP 100K 5% 1/16W R638 1-218-990-11 SHORT CHIP 0 R639 1-218-990-11 SHORT CHIP 0 R640 1-218-990-11 SHORT CHIP 0 R641 1-218-990-11 SHORT CHIP 0 R642 1-218-990-11 SHORT CHIP 0 R643 1-218-990-11 SHORT CHIP 0 R644 1-218-990-11 SHORT CHIP 0 R645 1-218-990-11 SHORT CHIP 0 R646 1-218-990-11 SHORT CHIP 0 R647 1-218-990-11 SHORT CHIP 0 R648 1-218-977-11 RES-CHIP 100K 5% 1/16W R649 1-218-949-11 RES-CHIP 470 5% 1/16W R651 1-218-990-11 SHORT CHIP 0 R662 1-218-973-11 RES-CHIP 47K 5% 1/16W R663 1-218-977-11 RES-CHIP 100K 5% 1/16W R670 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R702 1-216-864-11 SHORT CHIP 0 R707 1-218-977-11 RES-CHIP 100K 5% 1/16W R711 1-218-990-11 SHORT CHIP 0 R716 1-218-965-11 RES-CHIP 10K 5% 1/16W R722 1-218-945-11 RES-CHIP 220 5% 1/16W R728 1-218-977-11 RES-CHIP 100K 5% 1/16W R731 1-218-989-11 RES-CHIP 1M 5% 1/16W R732 1-218-989-11 RES-CHIP 1M 5% 1/16W R733 1-218-989-11 RES-CHIP 1M 5% 1/16W R735 1-218-965-11 RES-CHIP 10K 5% 1/16W R801 1-216-864-11 SHORT CHIP 0 R802 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R805 1-218-977-11 RES-CHIP 100K 5% 1/16W R806 1-218-977-11 RES-CHIP 100K 5% 1/16W R809 1-218-990-11 SHORT CHIP 0 R812 1-208-707-11 METAL CHIP 10K 0.5% 1/16W R813 1-208-707-11 METAL CHIP 10K 0.5% 1/16W R817 1-218-990-11 SHORT CHIP 0 (NF400: AEP, UK, EE) R820 1-218-990-11 SHORT CHIP 0 R824 1-218-990-11 SHORT CHIP 0 R826 1-218-989-11 RES-CHIP 1M 5% 1/16W R827 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R828 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R830 1-218-985-11 RES-CHIP 470K 5% 1/16W R831 1-218-989-11 RES-CHIP 1M 5% 1/16W R840 1-218-965-11 RES-CHIP 10K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 45 D-NF400/NF401 R843 1-218-990-11 SHORT CHIP 0 R866 1-218-965-11 RES-CHIP 10K 5% 1/16W R868 1-218-973-11 RES-CHIP 47K 5% 1/16W R875 1-218-965-11 RES-CHIP 10K 5% 1/16W R877 1-218-977-11 RES-CHIP 100K 5% 1/16W R878 1-216-864-11 SHORT CHIP 0 R880 1-218-990-11 SHORT CHIP 0 (NF400: AEP, UK, EE) R881 1-218-990-11 SHORT CHIP 0 (NF400: E, AUS) R886 1-218-977-11 RES-CHIP 100K 5% 1/16W R903 1-218-953-11 RES-CHIP 1K 5% 1/16W R935 1-218-977-11 RES-CHIP 100K 5% 1/16W R942 1-218-973-11 RES-CHIP 47K 5% 1/16W R949 1-218-977-11 RES-CHIP 100K 5% 1/16W R970 1-218-977-11 RES-CHIP 100K 5% 1/16W R971 1-218-990-11 SHORT CHIP 0 R972 1-218-965-11 RES-CHIP 10K 5% 1/16W R1001 1-218-985-11 RES-CHIP 470K 5% 1/16W < SWITCH > S806 1-572-499-21 SWITCH, TACTILZ (VOL +) S809 1-572-499-21 SWITCH, TACTIL (VOL –) S810 1-572-922-11 SWITCH, SLIDE (HOLD .) S820 1-786-447-21 SWITCH, PUSH (1 KEY) (OPEN/CLOSE DETECT) < TRANSFORMER > T81 1-449-021-21 TRANSFORMER, DC/DC CONVERTER < VARISTOR > VDR101 1-801-862-11 VARISTOR, CHIP (1608) VDR201 1-801-862-11 VARISTOR, CHIP (1608) VDR301 1-801-862-11 VARISTOR, CHIP (1608) VDR401 1-801-864-21 VARISTOR, CHIP (1608) VDR402 1-801-864-21 VARISTOR, CHIP (1608) VDR602 1-801-862-11 VARISTOR, CHIP (1608) VDR603 1-801-862-11 VARISTOR, CHIP (1608) VDR701 1-801-862-11 VARISTOR, CHIP (1608) VDR702 1-801-862-11 VARISTOR, CHIP (1608) < FILTER/VIBRATOR > X1 1-795-411-11 FILTER, CERAMIC X61 1-577-262-11 VIBRATOR, CRYSTAL (75kHz) X601 1-795-101-21 VIBRATOR, CERAMIC (16.934MHz) X701 1-795-392-41 VIBRATOR, CERAMIC (22MHz) ************************************************************ * A-4541-766-A SWITCH BOARD, COMPLETE ************** < CAPACITOR > C2001 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C2002 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C2003 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C2004 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V < CONNECTOR > CN2001 1-817-947-21 CONNECTOR, FFC/FPC (ZIF) 24P CN2002 1-818-128-11 CONNECTOR, FFC/FPC (ZIF) 20P < RESISTOR > R2002 1-216-864-11 SHORT CHIP 0 R2005 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2006 1-216-837-11 METAL CHIP 22K 5% 1/10W R2008 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2010 1-216-833-11 METAL CHIP 10K 5% 1/10W R2011 1-216-837-11 METAL CHIP 22K 5% 1/10W R2012 1-216-837-11 METAL CHIP 22K 5% 1/10W R2016 1-216-821-11 METAL CHIP 1K 5% 1/10W R2017 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2018 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2019 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2020 1-216-833-11 METAL CHIP 10K 5% 1/10W R2021 1-216-829-11 METAL CHIP 4.7K 5% 1/10W < SWITCH > S2001 1-786-650-41 SWITCH, TACTILE (RADIO ON/-BAND –MEMORY) S2002 1-786-650-41 SWITCH, TACTILE (-DISPLAY, –MENU) S2003 1-786-650-41 SWITCH, TACTILE (RADIO OFF, x) S2004 1-786-650-41 SWITCH, TACTILE (M) S2005 1-786-650-41 SWITCH, TACTILE (m) S2007 1-786-650-41 SWITCH, TACTILE (N X, ENTER) S2008 1-786-650-41 SWITCH, TACTILE (>) S2009 1-786-650-41 SWITCH, TACTILE (.) S2010 1-786-650-41 SWITCH, TACTILE (TUNE +, +) S2011 1-786-650-41 SWITCH, TACTILE (TUNE –, –) *********************************************************** MAIN SWITCH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 46 D-NF400/NF401 MISCELLANEOUS ************** 56 1-827-979-11 CABLE, FLEXIBLE FLAT (20 CORE) 0152 X-3380-950-1 OPTICAL PICK-UP (DAX-25E) LCD2001 1-805-467-11 DISPLAY PANEL, LIQUID CRYSTAL M901 A-3180-953-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3180-951-A MOTOR ASSY, SLED ************************************************************ ACCESSORIES ************ 1-543-798-11 FILTER, CLAMP (FERRITE CORE) (MX) 1-543-798-31 FILTER, CLAMP (FERRITE CORE) (AEP, UK, E13, E92, EE, AUS) 3-258-820-11 MANUAL, INSTRUCTION (SonicStage Simple Burner V1.1) (ENGLISH) (UK) 3-260-906-11 MANUAL, INSTRUCTION (ENGLISH) (EXCEPT MX) 3-260-906-21 MANUAL, INSTRUCTION (SPANISH, FRENCH, PORTUGUESE) (NF400: CND, AEP/NF401) 3-260-906-31 MANUAL, INSTRUCTION (GERMAN, ITALIAN, DUTCH) (AEP) 3-260-906-41 MANUAL, INSTRUCTION (FINNISH, SWEDISH) (AEP) 3-260-906-51 MANUAL, INSTRUCTION (HUNGARIAN, POLISH, RUSSIAN) (EE) 3-260-906-61 MANUAL, INSTRUCTION (CZECH, SLOVAKIAN) (EE) 3-260-906-71 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (NF400: E13) 3-262-906-01 CARD, EXPLANATION (US) 3-262-907-01 CARD, EXPLANATION (MX) 0501 1-477-661-11 ADAPTOR, AC (AC-ET455K) (E92, MX) 0501 1-477-662-11 ADAPTOR, AC (AC-ET455K) (AEP, E13, EE) 0501 1-477-663-12 ADAPTOR, AC (AC-ET455K) (UK) 0501 1-477-664-11 ADAPTOR, AC (AC-ET455K) (AUS) 502 8-954-007-95 RECEVER, EAR MDR-027LP SET (US) 503 8-954-008-93 RECEIVER, EAR MDR-E808LP/C1 SET (EXCEPT US) 504 X-3384-248-1 CD-ROM (APPLICATION) ASSY (US) 504 X-3384-249-1 CD-ROM (APPLICATION) ASSY (CND) 504 X-3384-250-1 CD-ROM (APPLICATION) ASSY (AEP, UK, EE) 504 X-3384-251-1 CD-ROM (APPLICATION) ASSY (NF400: E13, AUS) 504 X-3384-253-1 CD-ROM (APPLICATION) ASSY (NF401: E13, E92) 504 X-3384-254-1 CD-ROM (APPLICATION) ASSY (MX) 501 AC power adaptor (AC-ET455K) (1) (EXCEPT US, CND) 502 Headphones (MDR-027LP) (1) (for US model) 503 Earphones (MDR-E808LP) (1) (EXCEPT US model) 504 CD-ROM* (SonicStage Simple Burner) (1) *Do not play a CD-ROM on an audio CD player. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 D-NF400/NF401 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NF400/NF401 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.12 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
