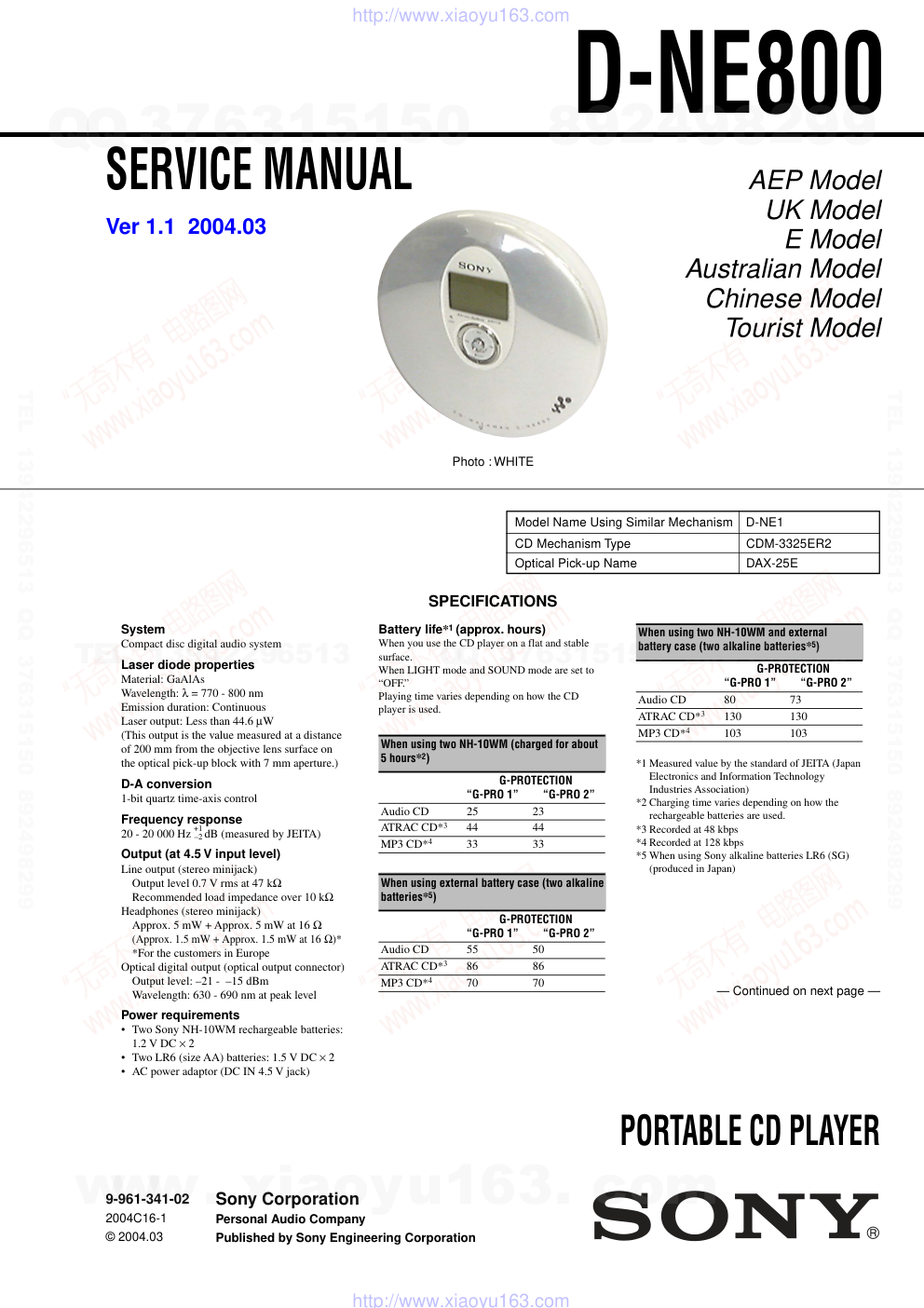

'D-NE800
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Tourist Model
SERVICE MANUAL
PORTABLE CD PLAYER
Sony Corporation
Personal Audio Company
Published by Sony Engineering Corporation
9-961-341-02
2004C16-1
© 2004.03
SPECIFICATIONS
Ver 1.1  2004.03
Model Name Using Similar Mechanism
D-NE1
CD Mechanism Type
CDM-3325ER2
Optical Pick-up Name
DAX-25E
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wavelength: λ = 770 - 800 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance
of 200 mm from the objective lens surface on
the optical pick-up block with 7 mm aperture.)
D-A conversion
1-bit quartz time-axis control
Frequency response
20 - 20 000 Hz +1
–2 dB (measured by JEITA)
Output (at 4.5 V input level)
Line output (stereo minijack)
Output level 0.7 V rms at 47 kΩ
Recommended load impedance over 10 kΩ
Headphones (stereo minijack)
Approx. 5 mW + Approx. 5 mW at 16 Ω
(Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)*
*For the customers in Europe
Optical digital output (optical output connector)
Output level: –21 -  –15 dBm
Wavelength: 630 - 690 nm at peak level
Power requirements
• Two Sony NH-10WM rechargeable batteries:
1.2 V DC × 2
• Two LR6 (size AA) batteries: 1.5 V DC × 2
• AC power adaptor (DC IN 4.5 V jack)
Battery life*1 (approx. hours)
When you use the CD player on a flat and stable
surface.
When LIGHT mode and SOUND mode are set to
“OFF.”
Playing time varies depending on how the CD
player is used.
When using two NH-10WM (charged for about
5 hours*2)
G-PROTECTION
“G-PRO 1”
“G-PRO 2”
Audio CD
25
23
ATRAC CD*3
44
44
MP3 CD*4
33
33
When using external battery case (two alkaline
batteries*5)
G-PROTECTION
“G-PRO 1”
“G-PRO 2”
Audio CD
55
50
ATRAC CD*3
86
86
MP3 CD*4
70
70
When using two NH-10WM and external
battery case (two alkaline batteries*5)
G-PROTECTION
“G-PRO 1”
“G-PRO 2”
Audio CD
80
73
ATRAC CD*3
130
130
MP3 CD*4
103
103
*1 Measured value by the standard of JEITA (Japan
Electronics and Information Technology
Industries Association)
*2 Charging time varies depending on how the
rechargeable batteries are used.
*3 Recorded at 48 kbps
*4 Recorded at 128 kbps
*5 When using Sony alkaline batteries LR6 (SG)
(produced in Japan)
Photo : WHITE
— Continued on next page —
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
2
D-NE800

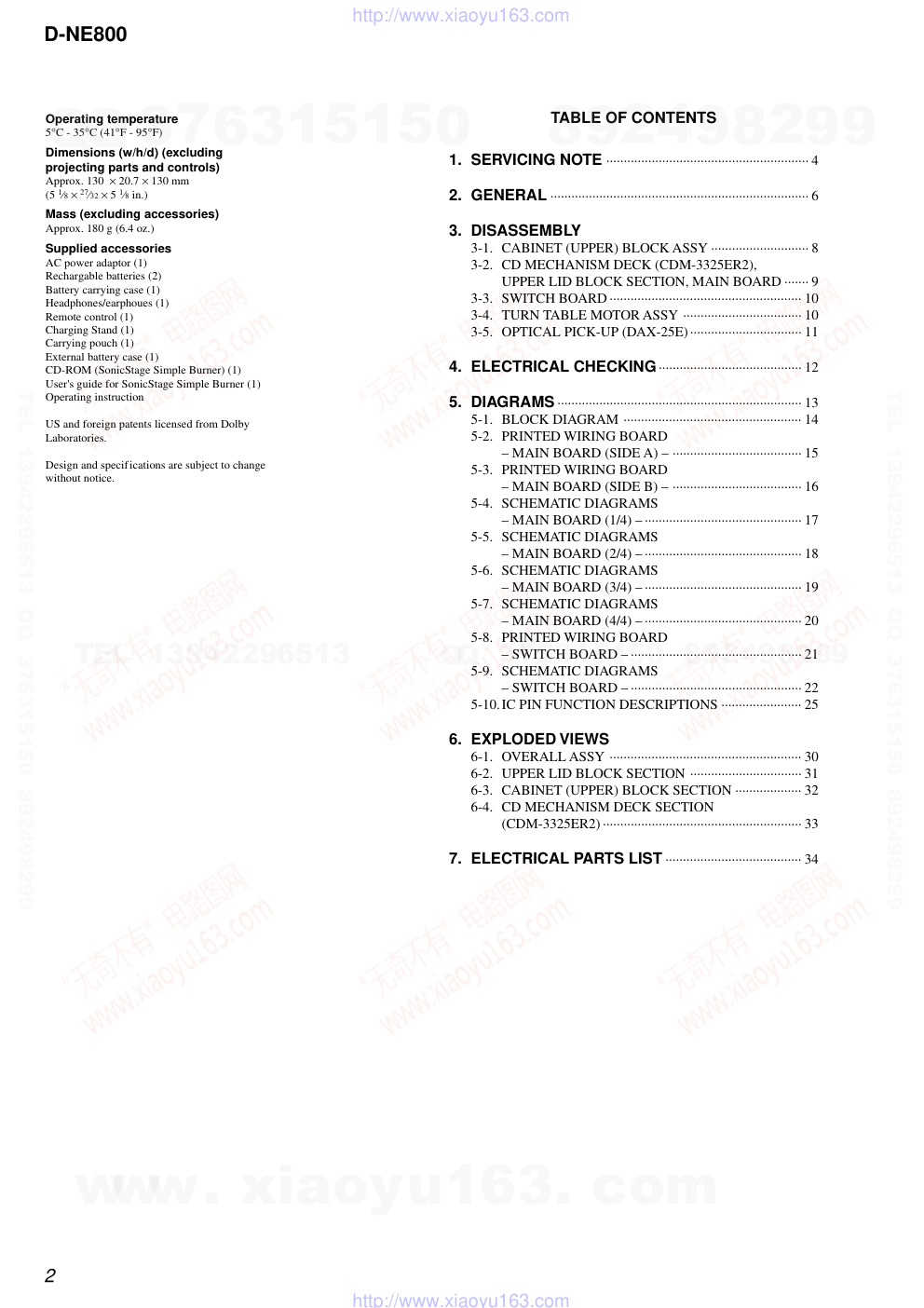

TABLE OF CONTENTS
1. SERVICING NOTE ·························································· 4

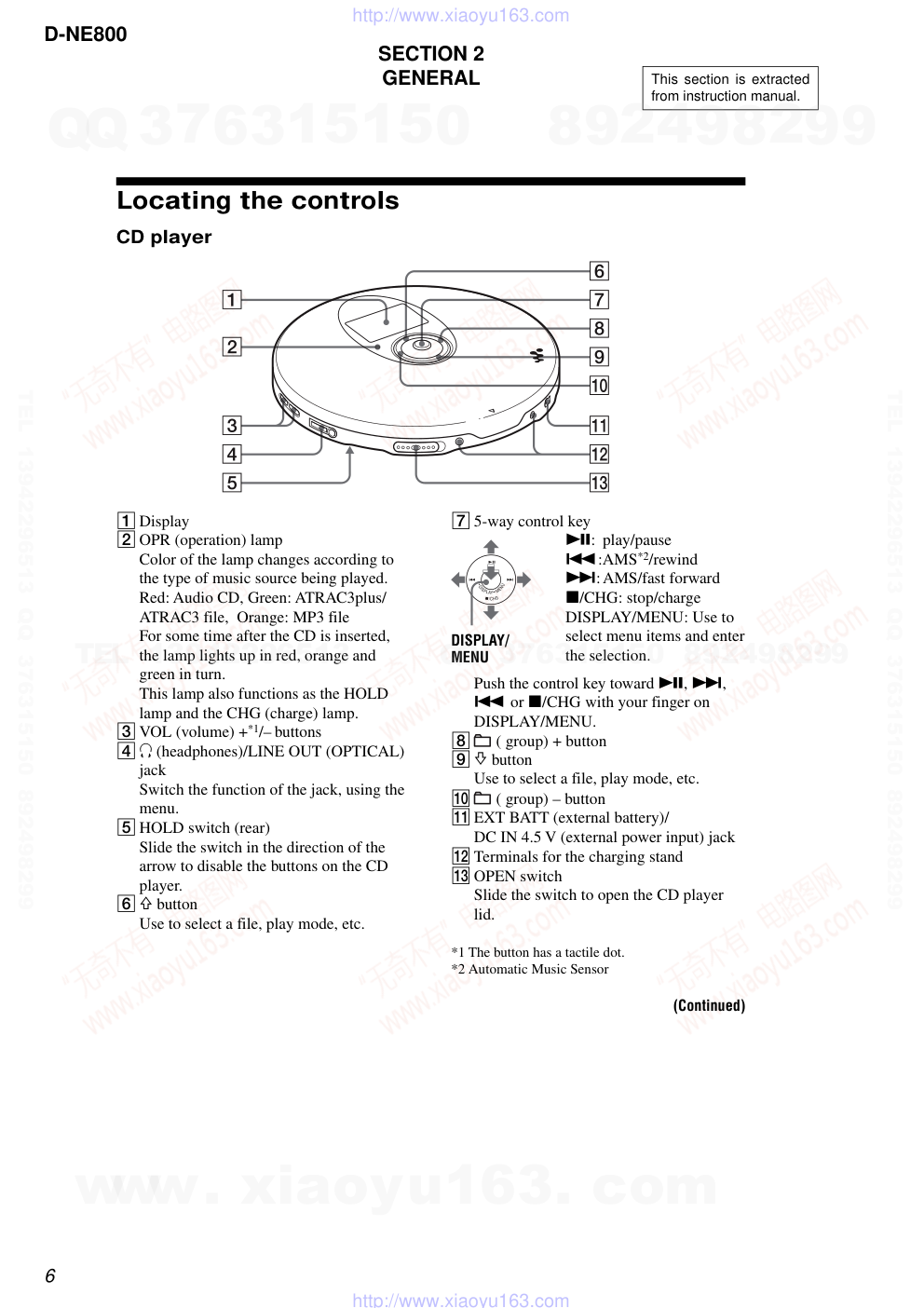

2. GENERAL ·········································································· 6

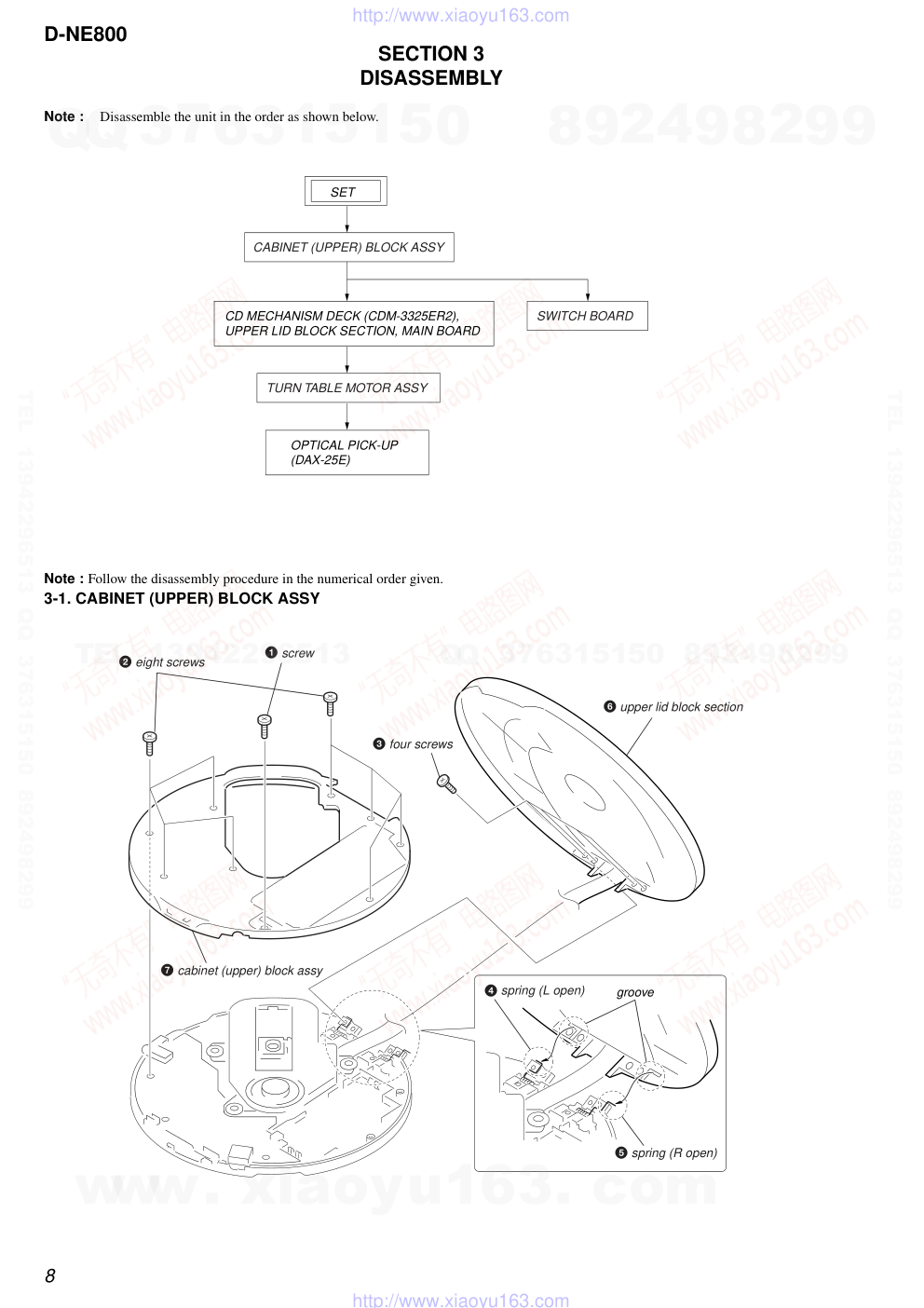

3. DISASSEMBLY
3-1. CABINET (UPPER) BLOCK ASSY ···························· 8

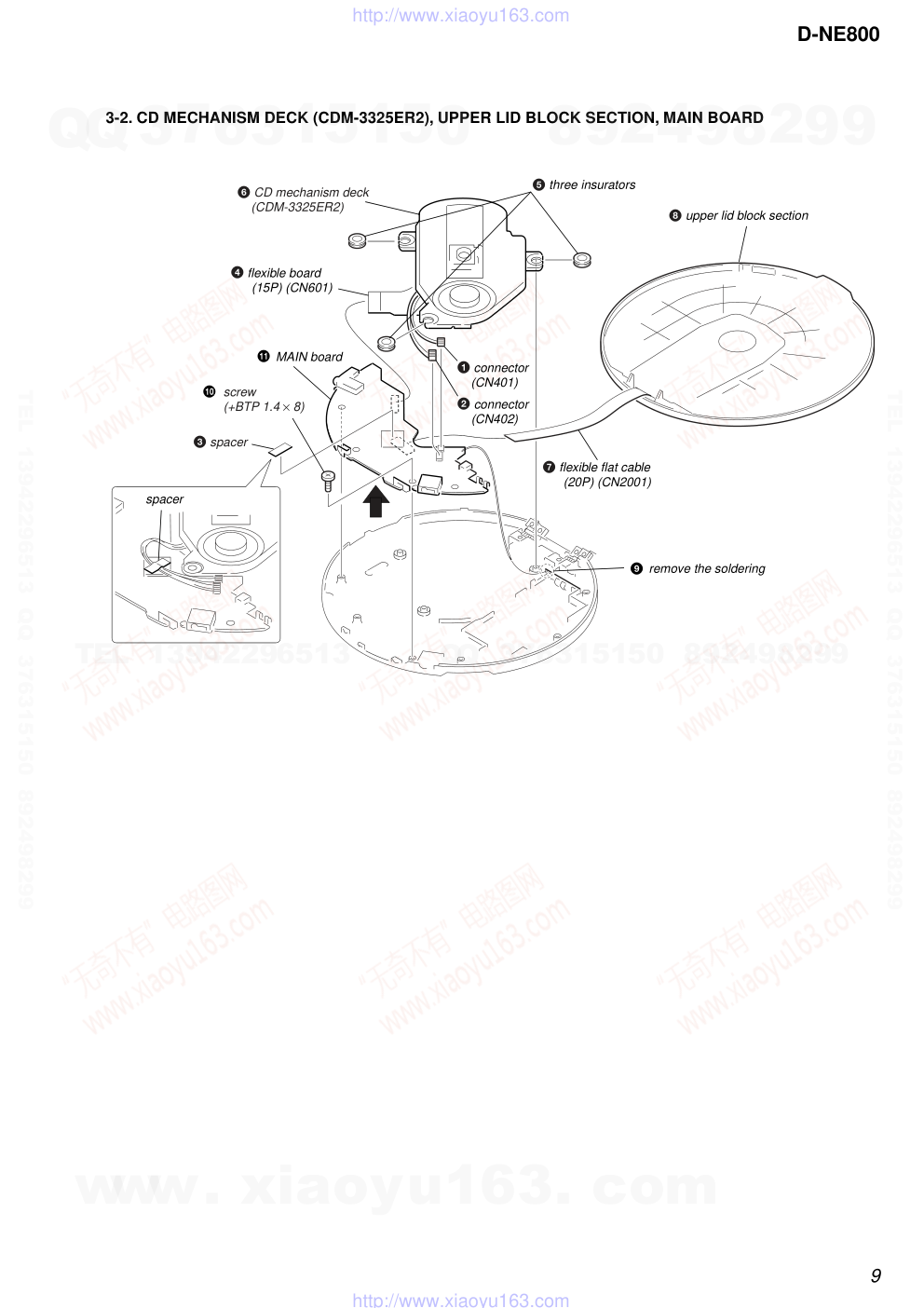

3-2. CD MECHANISM DECK (CDM-3325ER2),
UPPER LID BLOCK SECTION, MAIN BOARD ······· 9

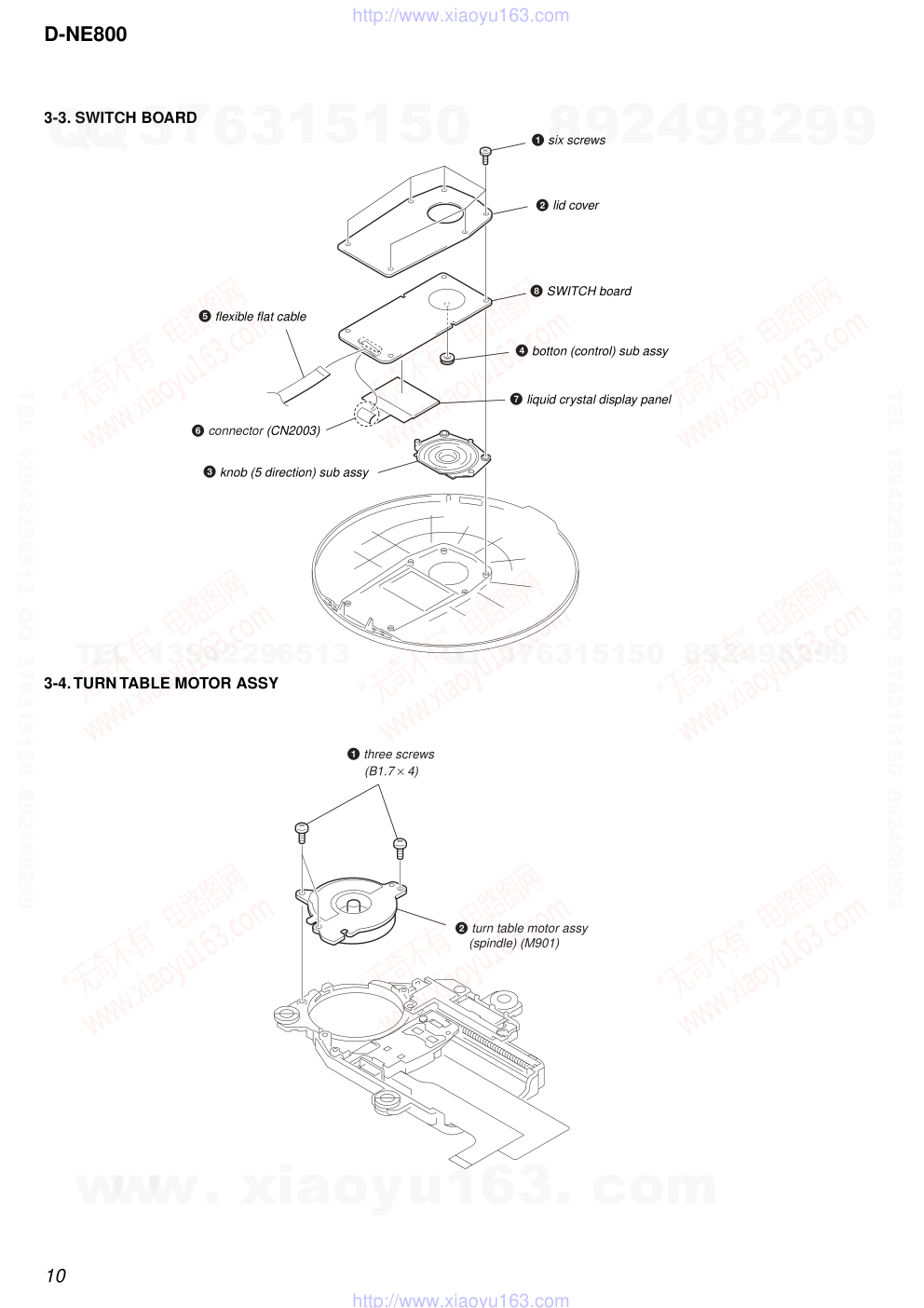

3-3. SWITCH BOARD ······················································· 10
3-4. TURN TABLE MOTOR ASSY ·································· 10
3-5. OPTICAL PICK-UP (DAX-25E)································ 11
4. ELECTRICAL CHECKING ········································· 12
5. DIAGRAMS ······································································ 13
5-1. BLOCK DIAGRAM ··················································· 14
5-2. PRINTED WIRING BOARD
– MAIN BOARD (SIDE A) – ····································· 15
5-3. PRINTED WIRING BOARD
– MAIN BOARD (SIDE B) – ····································· 16
5-4. SCHEMATIC DIAGRAMS
– MAIN BOARD (1/4) – ············································· 17
5-5. SCHEMATIC DIAGRAMS
– MAIN BOARD (2/4) – ············································· 18
5-6. SCHEMATIC DIAGRAMS
– MAIN BOARD (3/4) – ············································· 19
5-7. SCHEMATIC DIAGRAMS
– MAIN BOARD (4/4) – ············································· 20
5-8. PRINTED WIRING BOARD
– SWITCH BOARD – ················································· 21
5-9. SCHEMATIC DIAGRAMS
– SWITCH BOARD – ················································· 22
5-10.IC PIN FUNCTION DESCRIPTIONS ······················· 25
6. EXPLODED VIEWS
6-1. OVERALL ASSY ······················································· 30
6-2. UPPER LID BLOCK SECTION ································ 31
6-3. CABINET (UPPER) BLOCK SECTION ··················· 32
6-4. CD MECHANISM DECK SECTION
(CDM-3325ER2) ························································· 33
7. ELECTRICAL PARTS LIST ······································· 34
Operating temperature
5°C - 35°C (41°F - 95°F)
Dimensions (w/h/d) (excluding
projecting parts and controls)
Approx. 130 × 20.7 × 130 mm
(5 1⁄8 × 27⁄32 × 5 1⁄8 in.)
Mass (excluding accessories)
Approx. 180 g (6.4 oz.)
US and foreign patents licensed from Dolby
Laboratories.
Design and specifications are subject to change
without notice.
Supplied accessories
AC power adaptor (1)
Rechargable batteries (2)
Battery carrying case (1)
Headphones/earphoues (1)
Remote control (1)
Charging Stand (1)
Carrying pouch (1)
External battery case (1)
CD-ROM (SonicStage Simple Burner) (1)
User\'s guide for SonicStage Simple Burner (1)
Operating instruction
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com

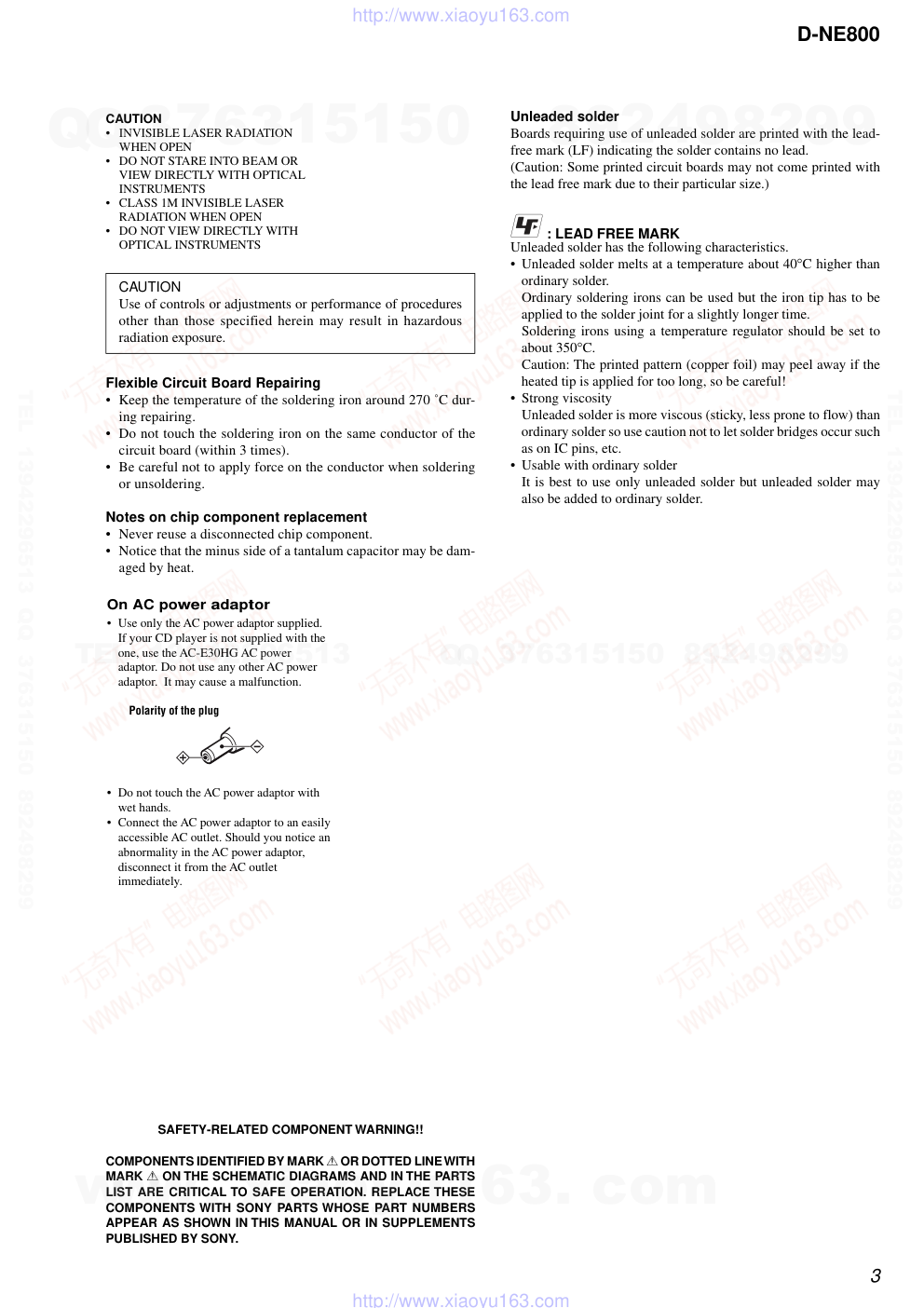

3
D-NE800
Unleaded solder
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size.)
 : LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40°C higher than
ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350°C.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to flow) than
ordinary solder so use caution not to let solder bridges occur such
as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 270 ˚C dur-
ing repairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering
or unsoldering.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous
radiation exposure.
CAUTION
• INVISIBLE LASER RADIATION
WHEN OPEN
• DO NOT STARE INTO BEAM OR
VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS
• CLASS 1M INVISIBLE LASER
RADIATION WHEN OPEN
• DO NOT VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS
On AC power adaptor
• Use only the AC power adaptor supplied.
If your CD player is not supplied with the
one, use the AC-E30HG AC power
adaptor. Do not use any other AC power
adaptor.  It may cause a malfunction.
Polarity of the plug
• Do not touch the AC power adaptor with
wet hands.
• Connect the AC power adaptor to an easily
accessible AC outlet. Should you notice an
abnormality in the AC power adaptor,
disconnect it from the AC outlet
immediately.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH
MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com

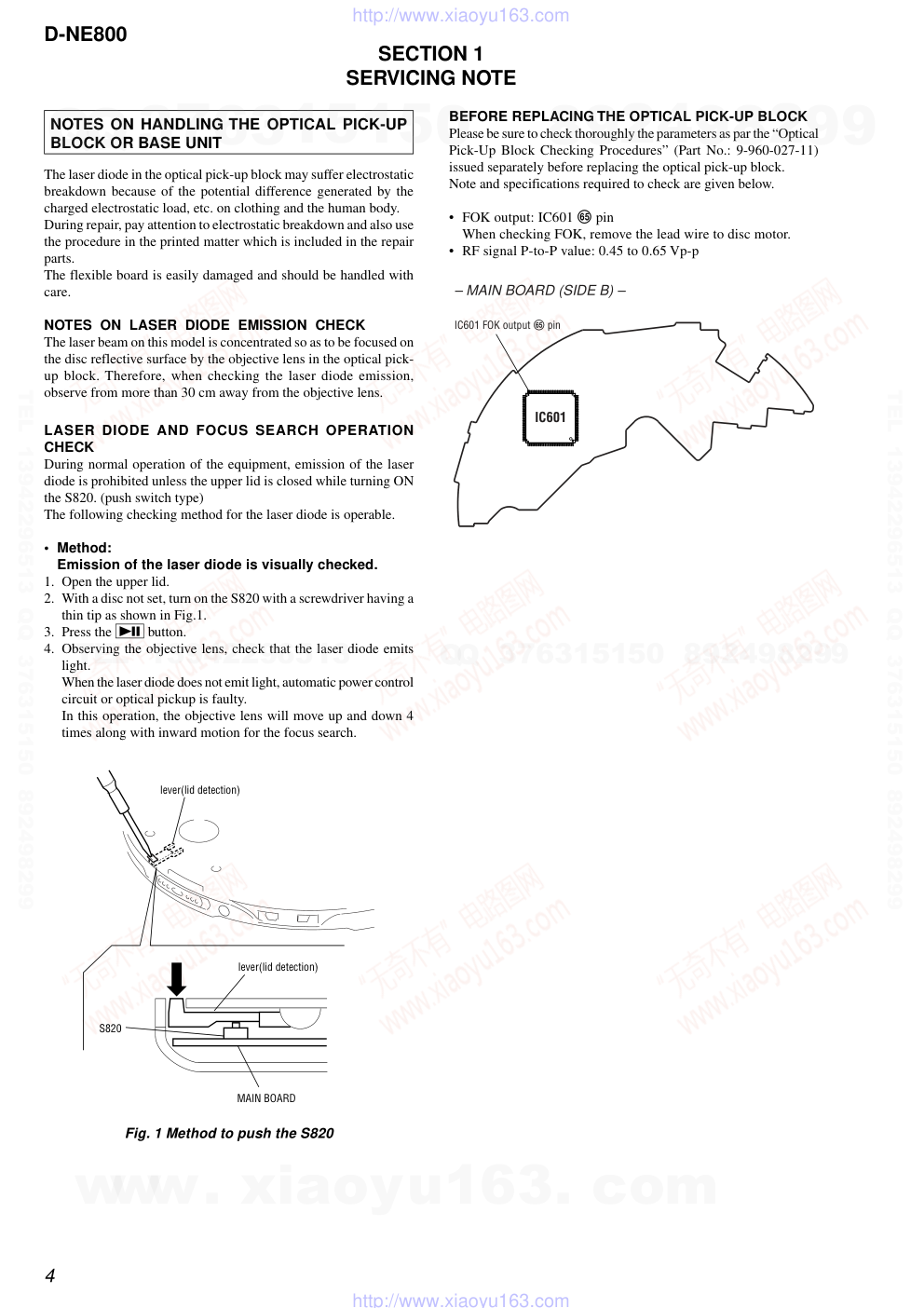

4
D-NE800
SECTION 1
SERVICING NOTE
The laser diode in the optical pick-up block may suffer electrostatic
breakdown because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic breakdown and also use
the procedure in the printed matter which is included in the repair
parts.
The flexible board is easily damaged and should be handled with
care.
NOTES  ON  LASER  DIODE  EMISSION  CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
BEFORE REPLACING THE OPTICAL PICK-UP BLOCK
Please be sure to check thoroughly the parameters as par the “Optical
Pick-Up Block Checking Procedures” (Part No.: 9-960-027-11)
issued separately before replacing the optical pick-up block.
Note and specifications required to check are given below.
• FOK output: IC601 yg pin
When checking FOK, remove the lead wire to disc motor.
• RF signal P-to-P value: 0.45 to 0.65 Vp-p
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
Fig. 1 Method to push the S820
S820
lever(lid detection)
lever(lid detection)
MAIN BOARD
IC601
IC601 FOK output yg pin
– MAIN BOARD (SIDE B) –
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
During normal operation of the equipment, emission of the laser
diode is prohibited unless the upper lid is closed while turning ON
the S820. (push switch type)
The following checking method for the laser diode is operable.
• Method:
Emission of the laser diode is visually checked.
1. Open the upper lid.
2. With a disc not set, turn on the S820 with a screwdriver having a
thin tip as shown in Fig.1.
3. Press the u button.
4. Observing the objective lens, check that the laser diode emits
light.
When the laser diode does not emit light, automatic power control
circuit or optical pickup is faulty.
In this operation, the objective lens will move up and down 4
times along with inward motion for the focus search.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
5
D-NE800

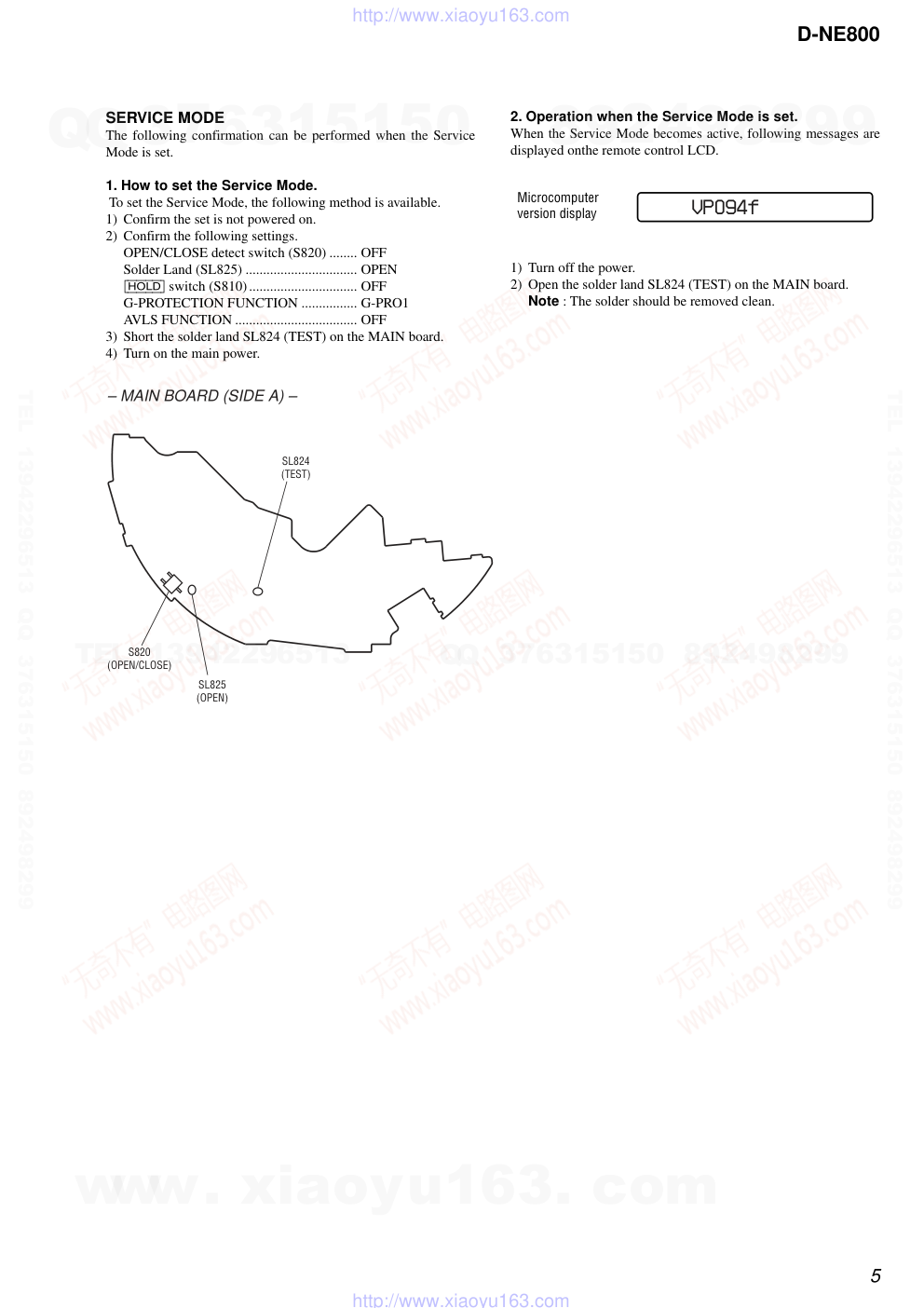

SERVICE MODE
The following confirmation can be performed when the Service
Mode is set.
1. How to set the Service Mode.
 To set the Service Mode, the following method is available.
1) Confirm the set is not powered on.
2) Confirm the following settings.
OPEN/CLOSE detect switch (S820) ........ OFF
Solder Land (SL825) ................................ OPEN
[HOLD] switch (S810)............................... OFF
G-PROTECTION FUNCTION ................ G-PRO1
AVLS FUNCTION ................................... OFF
3) Short the solder land SL824 (TEST) on the MAIN board.
4) Turn on the main power.
2. Operation when the Service Mode is set.
When the Service Mode becomes active, following messages are
displayed onthe remote control LCD.
1) Turn off the power.
2) Open the solder land SL824 (TEST) on the MAIN board.
Note : The solder should be removed clean.
Microcomputer
version display
VP094f
S820
(OPEN/CLOSE)
SL825
(OPEN)
SL824
(TEST)
– MAIN BOARD (SIDE A) –
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
6
D-NE800
SECTION 2
GENERAL
This section is extracted
from instruction manual.
Locating the controls
CD player
1 Display
2 OPR (operation) lamp
Color of the lamp changes according to
the type of music source being played.
Red: Audio CD, Green: ATRAC3plus/
ATRAC3 file,  Orange: MP3 file
For some time after the CD is inserted,
the lamp lights up in red, orange and
green in turn.
This lamp also functions as the HOLD
lamp and the CHG (charge) lamp.
3 VOL (volume) +*1/– buttons
4 i (headphones)/LINE OUT (OPTICAL)
jack
Switch the function of the jack, using the
menu.
5 HOLD switch (rear)
Slide the switch in the direction of the
arrow to disable the buttons on the CD
player.
6 F button
Use to select a file, play mode, etc.
7 5-way control key
u: play/pause
.:AMS*2/rewind
>:AMS/fast forward
x/CHG: stop/charge
DISPLAY/MENU: Use to
select menu items and enter
the selection.
Push the control key toward u, >,
. or x/CHG with your finger on
DISPLAY/MENU.
8
 ( group) + button
9 f button
Use to select a file, play mode, etc.
q;
 ( group) – button
qa EXT BATT (external battery)/
DC IN 4.5 V (external power input) jack
qs Terminals for the charging stand
qd OPEN switch
Slide the switch to open the CD player
lid.
*1 The button has a tactile dot.
*2 Automatic Music Sensor
(Continued)
DISPLAY/
MENU
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
7
D-NE800
1
2
3
4
5
6
7
8
9
q;

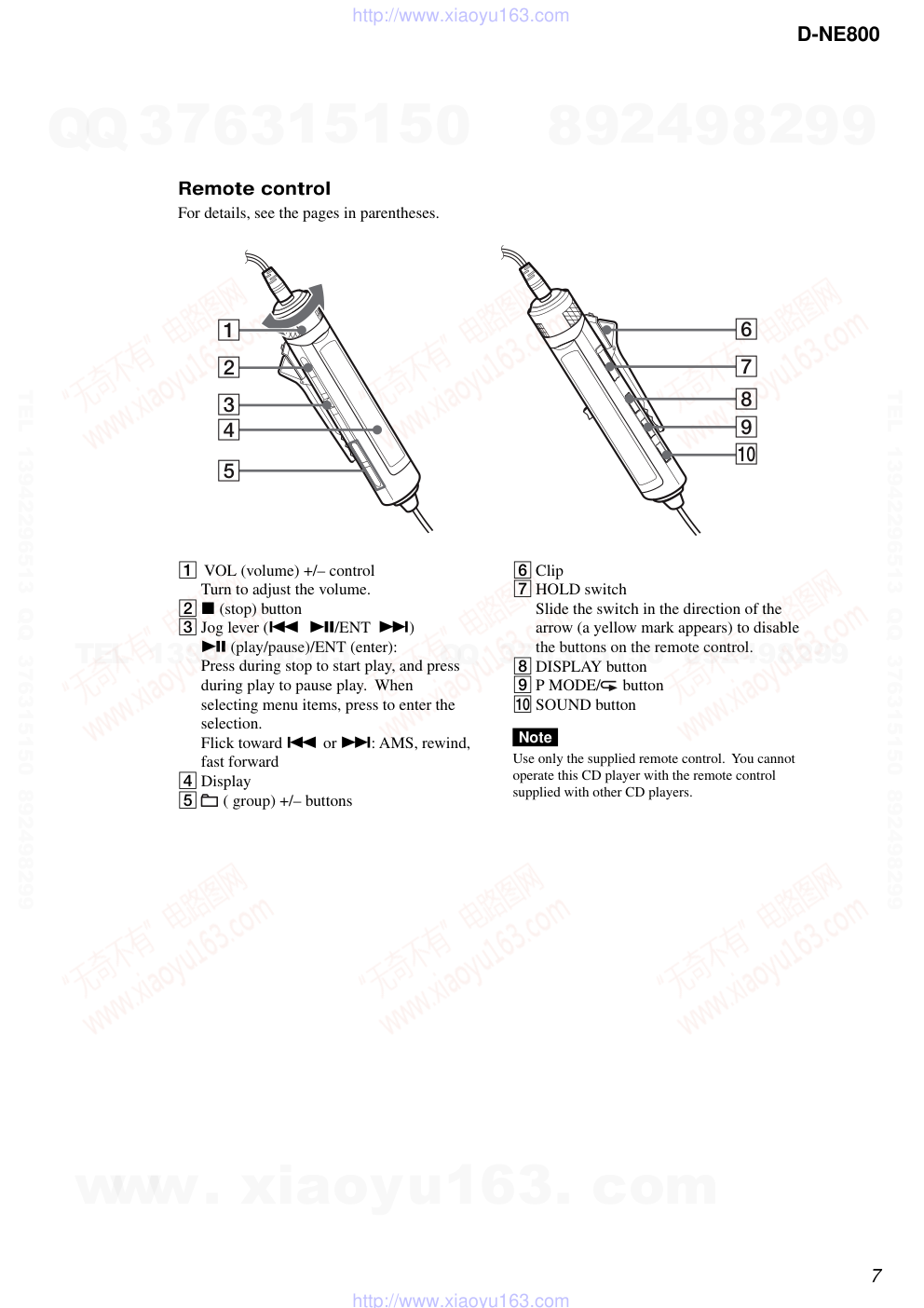

Remote control
For details, see the pages in parentheses.
1 VOL (volume) +/– control
Turn to adjust the volume.
2 x (stop) button
3 Jog lever (. u/ENT >)
u (play/pause)/ENT (enter):
Press during stop to start play, and press
during play to pause play.  When
selecting menu items, press to enter the
selection.
Flick toward . or >: AMS, rewind,
fast forward
4 Display
5
 ( group) +/– buttons
6 Clip
7 HOLD switch
Slide the switch in the direction of the
arrow (a yellow mark appears) to disable
the buttons on the remote control.
8 DISPLAY button
9 P MODE/
 button
q; SOUND button
Note
Use only the supplied remote control.  You cannot
operate this CD player with the remote control
supplied with other CD players.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
8
D-NE800
3-1. CABINET (UPPER) BLOCK ASSY
2 eight screws
1 screw
3 four screws
7 cabinet (upper) block assy
6 upper lid block section
4 spring (L open)
5 spring (R open)
groove
Note : Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
Note :
Disassemble the unit in the order as shown below.
CD MECHANISM DECK (CDM-3325ER2),
UPPER LID BLOCK SECTION, MAIN BOARD
OPTICAL PICK-UP
(DAX-25E)
SET
CABINET (UPPER) BLOCK ASSY
TURN TABLE MOTOR ASSY
SWITCH BOARD
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
9
D-NE800
q; screw
(+BTP 1.4 × 8)
9 remove the soldering
qa MAIN board
4 flexible board
      (15P) (CN601)
6 CD mechanism deck
    (CDM-3325ER2)
5 three insurators
7 flexible flat cable
      (20P) (CN2001)
8 upper lid block section
1 connector
    (CN401)
2 connector
    (CN402)
3 spacer
spacer
3-2. CD MECHANISM DECK (CDM-3325ER2), UPPER LID BLOCK SECTION, MAIN BOARD
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
10
D-NE800
1 three screws
     (B1.7 × 4)
2 turn table motor assy
    (spindle) (M901)
3-3. SWITCH BOARD
3-4. TURN TABLE MOTOR ASSY
1 six screws
2 lid cover
3 knob (5 direction) sub assy
6 connector (CN2003)
4 botton (control) sub assy
7 liquid crystal display panel
8 SWITCH board
5 flexible flat cable
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
11
D-NE800
5 feed screw assy
7 optical pick-up
(DAX-25E)
4 gear B
6 sled spring
2 gear cover
3 motor assy
    (sled) (M902)
1 three screws
     (B1.7 × 4)
3-5. OPTICAL PICK-UP (DAX-25E)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
12
D-NE800
The CD section adjustments are done automatically in this set.
In case of operation check, confirm that RF level.
Precautions for Check
1.
Perform check in the order given.
2.
Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise
indicated.
3.
Power supply voltage requirement : DC4.5V in terminals
(J401).
VOLUME button
: Minimum
AVLS FUNCTION
: OFF
HOLD switch
: OFF
G-PROTECTION FUNCTION
: G-PRO1
Checking Location:
RF Level Check
Condition:
• Hold the set in horizontal state.
Connection:
Procedure:
1.
Connect the oscilloscope to the test points TP746 (RF) and
TP701 (AGND) on the MAIN board.
2.
Set a disc. (YEDS-18)
3.
Press the u button.
4.
Check the oscilloscope waveform is as shown below.
A good eye pattern means that the diamond shape (◊) in the
center of the waveform can be clearly distinguished.
RF Signal reference Waveform (Eye Pattern)
  VOLT/DIV : 100 mV (With the 10:1 probe in use)
  TIME/DIV : 500 ns
To watch the eye pattern, set the oscilloscope to AC range and
increase the vertical sensitivity of the oscilloscope for easy watch-
ing.
5.
Stop revolving of the disc motor by pressing the x button.
Oscilloscope
(AC range)
+
–
MAIN board
TP746 (RF)
TP701 (AGND)
2 kΩ
RF level
0.45 to 0.65 Vp-p
TP746
(RF)
TP701
(AGND)
– MAIN BOARD (SIDE B) –
IC601
SECTION 4
ELECTRICAL CHECKING
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
13
13
D-NE800
SECTION 5
DIAGRAMS
Note on Printed Wiring Board
• X : parts extracted from the component side.
• Y : parts extracted from the conductor side.
•
: Pattern from the side which enables seeing.
(The other layers\' patterns are not indicated.)
• MAIN board is multi-layer printed board. However, the pat-
terns of intermediate-layer have not been included in the dia-
gram.
Caution:
Pattern face side:
Parts on the pattern face side seen from
(Side B)
the pattern face are indicated.
Parts face side:
Parts on the parts face side seen from
(Side A)
the parts face are indicated.
NOTE  FOR  PRINTED  WIRING  BOARDS  AND  SCHEMATIC  DIAGRAMS
• WAVEFORMS
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted.  pF: µµF 50 WV or
less are not indicated except for electrolytics and tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise specified.
•
%
: indicates tolerance.
• C : panel designation.
• A : B+ Line.
• Total current is measured with CD installed.
• Power voltage is dc 4.5 V and fed with regulated dc power supply
from terminals (J401).
• Voltages and waveforms are dc with respect to ground in playback
mode.
no mark : CD PLAY
          *       : Impossible to measure
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal production toler-
ances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production toler-
ances.
• Circled numbers refer to waveforms.
• Signal path.
J
: CD
c
: DIGITAL OUT
• Abbreviation
EE : East European model
500 mVp-p
1 IC601 if RFAC
       100mV/DIV, 400ns/DIV
2 IC601 rk XTAO
       1V/DIV, 20ns/DIV
3 IC801 wk XIN
       1V/DIV, 40ns/DIV
4 IC403 ef SYNC
       1V/DIV, 2us/DIV
59ns
118ns
5.7us
2.1 Vp-p
3.1 Vp-p
2.5 Vp-p
5 IC701 e; XTAL
       1V/DIV, 20ns/DIV
44ns
3.0 Vp-p
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
14
14
D-NE800
5-1. BLOCK DIAGRAM
+1.4V
REG
• Signal Path
: CD
: DIGITAL OUT
LASER
DIODE
OPTICAL PICK-UP
DAX-25E
PD
LD
M
FOCUS
COIL
TRACKING
COIL
SLED
M902
M901
MOTOR
SPINDLE
MOTOR
F+
F-
T+
T-
S+
S-
SYSTEM CONTROLLER
IC801
VCC
LD
VCC1_2.25V
DETECTOR
COIL/MOTOR
DRIVER
IC403(1/2)
RF
A
E
B
F
PWG
31
INM4
32
FO3
44
PD
RO3
42
FO2
48
RO2
46
FO1
52
RO1
50
COM
COM
80
W
W
6
V
V
4
U
U
2
56
FI1
55
RI1
60
FI3
59
RI3
58
FI2
57
RI2
70
XBRK
73
APWM
34
SYNC
39
DATA
38
CLOK
40
LATCH
74
FG
RF AMP,SERVO,DSP,
D/A CONV,D-RAM CONT
IC601
MP3 DECODER
IC701
EEPROM
IC803
RFDC
88
RFAC
84
A
92
B
91
E
89
F
90
X601
16.934MHz
47
XTAO
XTAI
48
SFDR
100
SRDR
99
FFDR
96
FRDR
95
TFDR
98
TRDR
97
MDP
103
C176
104
MDS
102
SDTO
21
CLOK
20
XLAT
23
SENS
22
SCOR
27
FOK
65
R8M
32
GFS
69
XRST
28
D0
D3
A0
A10
XRAS
5
DRAM
IC603
2
XWE
9
XCAS
1
XRAS
A0
A10
2
3
24
25
.
.
.
XWE
4
XCAS
23
BCK
2
PCMD_O
LRCK_O
BCK_O
PCMD
4
LRCK
1
XSK
2
XCS
1
XRESET_I 30
DO
4
DI
3
PI3
13
PCMD_I
LRCK_I
BCK_I
PF4
12
18
XRDE
PI0
15
PI2
14
D0
D3
17
15
13
.
11.
116
113.
117
9
12
15
.
19
21
.
8
.
51
AOUT1
62
DOUT
56
AOUT2
10
FG_I
90
PWRLAT_O
84
MSDTO0_O
83
MSCK0_O
87
XLAT0_O
85
MSDTI0_I
86
SCOR_I
52
FOK_I
28
XIN
53
GFS_I
4
XRST_O
77
HP_PWRSW
65
HP_LIN_SEL_O
6
BEEP_O
CHG_GND_ON_O
57
AD-DCINMNT
95
AD-CHGSTMNT
94
JOGKEY_I/FAVKEY_I
36
XLED-DSP1_O
75
LID-SW_I
37
VCC0
OPSTB
OPGSW
4
3
6
5
.
.
.
XSOE
24
88
XSOE_O
7
AMUTE_O
NRST
33
PF0
34
PF3
37
PC1
40
PC2
41
60
XKRESET_O
66
WAKEUP_K_O
11
REQ_I
20
SDIN_I
19
SDOUT_O
PC0
38
18
SDCLK_O
PC3
42
17
SDXLAT_O
67
EEP_CS_O
HG_XSTB_O
12
HG_GUP_O
13
IC702
RSTB
35
AD-CHGMNT 93
67
XWAKE_O 32
WAKEUP
37
UI
79
VI
78
WI
77
X701
22MHz
29
XTAL
EXTAL
30
108
106
110
109
107
111
SWITCH
Q601
38
EXTBAT_I
70
OPTPWRCTL_O
9
OPTOUT_I
92
AD-BATMNT
58
BAT_VCC_O
8
LINEOUT_I
31
TSB
OFF
ON
> HOLD
S810
8
VCC1
VCC3
TSB
RMKEY
L-IN
5
R-IN
3
BEEP
16
HP/L
2
MUTE
1
12
LOUT
14
ROUT
HEADPHONE AMP
IC301
(REMOTE)
VCPU
LINE OUT
(OPTICAL)
J302
VCC3
RECHARGEABLE
BATTERY
MH-10WM OR MH-14WM
2PCS. 2.4V
REG
Q408
62
RF1
61
DCIN
63
RS
68
BATM1
53
VD1
5
VD5
1
VD4
12
VIN
8
L5
IC403(2/2)
POWER CONTROL
D402
Q401
CHARGE
SWITCH
65
CHGSW
41
VD3
45
VD23
49
VD12
VCC0
VCC0
20
VLGO2
16
VCC2
18
DC IN 4.5V
J401
EXT BATT
CN404(+4.5V)
(CHARGE STAND)
CN403(GND)
D410
Q414
GND
SWITCH
69
BATM2
VIN
Q410, 411
Q416
Q301, 304
B+ SWITCH
VCPU
VCPU
IC701 AVD
19
VCC3
VCC3
11
CHGMNT
+1.4V
IC806
Q303, 803
3
2
SWITCH
Q418
SWITCH
Q409
SWITCH
Q801(1/2)
SWITCH
Q801(2/2)
VCC1
VCC1
VCC2
17
L7
10
S820
(OPEN/CLOSE)
D2001
OPR
LCD_A0
69
XRD_O
71
XWR_O
72
LCD-XRST_O
73
XLED-DSP2_O
76
AD-KEY2
97
HOLD_I
AD0 - AD7
AD0 - AD7
40
FUNCTION
KEY
S2003,2004
FUNCTION
KEY
S2007,2008
5-WAY
CONTROL KEY
S2002
LIQUID CRYSTAL
DISPLAY MODULE
AD-KEY1
96
AD-RMKEY
99
MUTING
CONTROL
Q302
FUNCTION
KEY
S806, 809
Q804
LED DRIVER
44-51
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
15
15
D-NE800
5-2. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) –
•
 : Uses unleaded solder.
IC603
IC702
IC301
IC803
IC701
IC806
(SIDE A)
2 /
/
or
0
(OPEN / CLOSE)
CN403
CN404
-
+
1-860-578- (11)
11
(TEST)
(OPEN)
C308
AEP,UK,EE
1
2
A
B
C
D
E
3
4
5
6
7
8
• Semiconductor
  Location
Ref. No.
Location
D302
D-2
D402
E-6
D410
D-6
IC301
C-2
IC603
C-3
IC701
D-4
IC702
C-4
IC803
D-4
IC806
D-5
Q301
E-3
Q302
D-2
Q303
B-2
Q304
E-3
Q401
D-6
Q408
D-6
Q601
B-2
Q801
E-4
Q803
D-3
Q804
C-5
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
16
16
D-NE800
5-3. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) –
•
 : Uses unleaded solder.
IC601
IC801
IC403
ON
OFF
A
SWITCH BOARD
CN2002
(Page 21)
(SIDE B)
(AGND)
(RF)
1-860-578- (11)
11
1
2
A
B
C
D
E
3
4
5
6
7
8
• Semiconductor
  Location
Ref. No.
Location
D403
D-2
D421
C-4
D422
C-3
D801
E-4
IC403
D-3
IC601
C-6
IC801
E-5
Q409
D-2
Q410
D-3
Q411
C-3
Q414
D-2
Q416
D-2
Q418
D-2
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
17
17
D-NE800
5-4. SCHEMATIC DIAGRAMS – MAIN BOARD (1/4) –
(Page 19)
(Page 18)
CN601
C632
TP744
TP745
TP746
TP702
TP747
TP512
TP701
C631
TP742
TP743
TP703
TP739
TP740
TP738
TP741
AP663
AP664
AP666
AP667
AP668
AP670
AP671
AP669
AP665
TP662
C624
R619
R618
R621
C605
C608
R622
R623
R624
C609
C612
R662
R628
R629
C614
R626
R625
C698
VDR612
C699
R630
SL601
R602
R603
R663
R632
R633
SL602
R605
R604
C616
C617
C601
C611
R670
R610
C610
TP750
R608
TP760
R646
AP695
AP696
AP697
AP698
AP699
AP700
AP702
R607
AP693
FB401
FB402
R404
TP510
AP706
AP707
AP708
AP709
AP710
AP711
C618
C623
AP607
AP608
AP610
IC601
R606
L602
AP639
AP638
AP637
AP636
X601
R611
C627
C604
C602
FB601
C619
C621
R648
AP626
FB602
C697
AP628 R649
R645
TP619
TP618
R211
R111
VDR603
VDR602
R643
R642
R641
R640
R639
R638
C606
VDR601
IC603
R302
C607
C613
Q601
R609
C622
L603
L601
R612
15P
0.1
A
B
RF
LD
PD
AGND
22 6.3V
E
F
T-
T+
E+
F-
GFS
FOK
1
2.2k
2.2k
10k
0.1
0.47
1M
220k
10k
0.47
100p
47k
22k
47k
22p
0
470k
47 4V
0.1
47k
22k
22k
100k
100k
100k
22k
22k
470p
470p
470p
470p
4.7k
100k
10
6.3V
LD-
2.2
LD+
0
0
10
0.1
1
CXD3039AR
470
16.934MHz
0
1
22p
10p
22 6.3V
47 6.3V
22k
0.1
470
0
0
0
0
0
0
0
0
0
0.001
41SV44052-100TG
10k
0.0047
0.0022
2SB167900LSO
0
10
6.3V
47
• See page 25 for IC PIN FUNCTION DESCRIPTIONS.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
18
18
D-NE800
5-5. SCHEMATIC DIAGRAMS – MAIN BOARD (2/4) –
(Page 19)
(Page 17)
(Page 20)
Q301
Q803
C821
C810
R878
IC301
IC701
Q303
C204
C104
C304
C303
L303
C205
C105
C208
C108
C808
S820
C337
C317
C713
C711
C709
C708
X701
L301
C715
C716
C717
C718
C720
C703
C701
C706
C710
C712
S810
C714
R303
Q304
FB302
R304
IC806
TP804
IC702
J302
AP715
AP717
AP721
AP719
AP720
AP722
AP718
Q302
C313
R201
R101
R309
R307
R318
D302
C306
C307
C301
C302
C207
C206
C106
C107
C309
R203
R204
R103
R104
R206
FB301
FB202
FB102
R208
AP307
AP102
AP202
TP912
SL825
R873
R316
FB304
FB306
R314
R313
TP306
TP320
TP309
TP308
R731
R707
FB701
TP304
R305
R716
R732
R722
R735
R733
AP704
AP705
AP712
R728
AP713
C702
TP1018
R702
R1001
FB702
R879
AP723
R866
TP907
R106
R108
R701
DTC143TUA-T106
DTC124XE-TL
0.1
1
0
AN17020B-E1
CXR710160-207R
DTA143EUA-T106
1
1
1
0.01
0
470p
470p
0.01
0.01
4700p
0.001
0.0047
0.1
0.1
0.1
0.1
22MHz
0
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
10k
2SA1577-T106-QR
10k
XC6206P142MR
XN0NE9200LS0
DTC143TUA-T106
4.7
10k
10k
220k
100k
0
MA2S111-TX
4.7
6.3V
220
4V
22
6.3V
22
4V
2.2
10V
220
4V
220
4V
2.2
10V
100
6.3V
C308
22
4V
47
10k
47
100k
4.7
10k
OPEN
OPEN
1M
1k
1k
10k
RMKEY
COM
1M
100k
AU GND
10
10k
1M
220
10k
1M
100k
47 4V
1.5V
0
470k
0
10k
HOLD
4.7
10k
0
AEP,UK,EE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
19
19
D-NE800
5-6. SCHEMATIC DIAGRAMS – MAIN BOARD (3/4) –
(Page 17)
(Page 18)
(Page 20)
L409
L406
C438
CN402
C455
C458
Q411
Q401
C416
L403
C429
C454
C406
C421
C422
C423
C420
C419
Q409
VDR403
CN404
CN403
BT401
BT402
BT403
C460
VDR402
L401
L402
VDR401
C410
C411
C415
C417
L404
L408
C433
C450
L407
C404
C430
C440
C446
C427
L411
C447
C405
CN401
R422
R424
R429
C435
R452
R415
R453
D421
D422
Q408
R460
R459
Q410
R444
TP491
TP492
TP493
TP494
R408
R403
R407
C425
AP403
TP401
C428
R416
R410
R435
D410
TP488
TP489
FB413
J401
TH401
R420
R433
R405
D403
D402
Q418
R431
R430
R426
R413
R411
R412
R418
R423
R421
R417
C426
R485
R486
R487
TP409
R425
TP420
C432
C434
C436
C437
C424
TP498
R438
R480
R406
AP402
AP401
AP404
TP437
R440
R427
R495
R428
R498
R414
TP502
TP511
TP501
AP405
AP433
AP500
TP499
IC403
R419
Q416
Q414
C403
1
4P
0.0047
1
MCH3309-TL-E
2SD1664-T100-QR
4.7
0.1
0.1
2.2
16V
0.001
0.001
0.001
0.1
0.1
DTC144EUA-T106
0.1
1
1
0.22
0.1
1
1
0.1
2200p
0.0022
1
0.1
0.001
1
2P
0
0
0
47
6.3V
220k
470k
1M
MA111-TX
MA111-TX
2SB1188-T100-QR
100
100k
XP1211-TXE
100k
U
V
W
COM
0
1
2.2
47 6.3V
VIN
4.7
16V
0
0
100k
MA2YD2300LS0
0
100k
0
47k
MA2YD2300LS0
MA2YD2300LS0
2SA1576A-T106-QR
1M
470k
470k
22k
220k
47k
100k
220k
470k
100k
220
6.3V
0
0
0
VG
0
VCC0
220
6.3V
10
6.3V
10
6.3V
220
6.3V
4.7
10V
MAIN GND
10k
1M
2.2M
WAKE
1M
100k
0
0
0
0
VCC2
VCC3
VCC1
VCPU
TB2138AFG(8AF)
47k
RTQ035P02TR
RTQ045N03TR
470p
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
20
20
D-NE800
5-7. SCHEMATIC DIAGRAMS – MAIN BOARD (4/4) –
(Page 19)
(Page 18)
(Page 22)
C831
C832
C834
C835
C811
C896
C897
VDR803
VDR802
C898
C806
VDR801
IC803
C899
C812
C805
R801
R448
AP905
R813
R812
R889
R970
TP805
AP804
AP803
AP801
R949
R824
R806
TP806
R877
R804
R803
R912
R913
R914
SL802
SL803
SL804
R809
TP810
AP809
AP808
AP814
R820
SL805
SL801
D801
R832
R830
R831
R827
R826
R828
TP802
R971
R819
R840
SL806
R881
Q804
TP840
SL824
R880
Q801
TP911
TP801
CN2001
S809
S806
AP802
AP806
AP807
AP817
AP810
AP811
AP812
AP813
TP908
TP909
TP910
TP901
R807
TP803
FB801
R802
R805
R942
FB802
R869
IC801
R808
0.0047
0.0047
0.0047
0.0047
0.001
0.1
0.1
0.1
AVRm1608C120mT6A
C
AK6417CH-E2
0.1
0.1
1
0
0
D_GND
10k
10k
0
10k
100k
100k
100k
100k
470
1k
10k
100k
100k
0
RESET
0
MA4SD0100LS0
1M
470k
1M
4.7k
1M
2.2M
100k
0
10k
0
XP42145-TXE
TEST
TEST
0
XP4501-TXE
20P
0
0
1k
4.7k
10k
0
47k
TMP91CW28FG-4PN0
100k
• See page 28 for IC PIN FUNCTION DESCRIPTIONS.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
21
21
D-NE800
5-8. PRINTED WIRING BOARD – SWITCH BOARD –
•
 : Uses unleaded solder.
R2027
R2024
LIQUID
CRYSTAL
DISPLAY
A
MAIN BOARD
CN2001
(Page 16)
SWITCH BOARD
(SIDE A)
SWITCH BOARD
(SIDE B)
F
F
+
-
3
^
+
p
+
CHG
PUSH   .DISPLAY   - MENU
1
2
A
B
C
D
E
F
3
4
5
6
7
8
1-860-580-
(11)
11
1-860-580-
(11)
11
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
22
22
D-NE800
5-9. SCHEMATIC DIAGRAMS – SWITCH BOARD –
100K
24P
F
F
20P
SWITCH BOARD
^
+
p
+
CHG
PUSH   .DISPLAY   - MENU
+
-
OPR
LIQUID
CRYSTAL DISPLAY
A
MAIN BOARD
(4/4)
CN2001
(Page 20)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
23
D-NE800
• IC BLOCK DIAGRAMS
IC301  AN17020B-E1
+
-
+
-
RF2
4
BEEP
MUTE
RF1
HP/Line
SW
BEEP
GA-R
ROUT
GND
LOUT
GA-L
VCC2
VCC2
MUTE
MSW
R-IN
GND
L-IN
HVCC1
VREF
VCC1
1
2
3
4
5
6
7
8
4
16
15
14
13
12
11
10
9
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
24
D-NE800
ARM77TDMI
CPU CORE
VIRTUAL ENGINE
CORE
HUFFMAN HW
 MAGIC GATE
CORE
CLOCK GENERATOR/
SYSTEM CONTROLLER
DMAC (CH0)
DMAC (CH1)
DMAC (CH2)
WATCHDOG TIMER
PRESCALLER/
TIME BASETIMER
RAM
160K BYTES
RAM
512K BYTES
EEPROM SERIAL
INTERFACE
CD-ROM
INTERFACE
DAC
INTERFACE
DMAC (CH3)
SERIAL INTERFACE
 (CH0)
UART (CH0)
UART (CH1)
RAM
2
8
2
TRST
TDO
TMS
VDIO3
TDI
TCK
TEST0
DVSS1
DVDD3
TEST1
TEST2
TEST3
TEST4
TEST5
TEST6
VDIO2
LRCKI
BCKI
VDIOCD0
PCMDI
DVDD4
TEST8
TEST7
DCDD0
DVSS0
DVIO0
VDIOCD1
PF4/XRDE
P13/BCKO
P12/LRCKO
P10/PCMDO
EVA
DVSS2
DVDD2
PC3/SCS0
PC2/SI0
PC1/SO0
VDIOCD2
PC0/SCK0
PF3/T3
PF2/EC2/INT4
PF1/T1
OF0/EC0/INT3
RST
KCS
VDIO1
KDO
KDI
KRB
DVDD1
DVSS3
AVDPLL
AVSPLL
AVSSOSC
AVDMO
EXTAL
XTAL
XIN
OSCSEL
KCLK
 INTERRUPT CONTROLLER
8BIT TIMER (CH6)
8BIT TIMER (CH7)
8BIT TIMER (CH4)
8BIT TIMER (CH5)
8BIT TIMER/COUNTER (CH2)
8BIT TIME
8BIT TIMER/COUNTER (CH0)
8BIT TIMER (CH1)
17 18 19 20 21 22 23 24 25 26 27 28 29 30
31 32
42
41
40
39
38
37
36
35
34
33
44
43
PE3/RxD1
48
PE2/TxD1
47
PE1/RxD0
46
PE0/TxD0
45
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
64 63 62 61 60 59 58 57 56 55
54
53
52 51 50 49
IC701  CXR710160-207R
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
25
D-NE800
5-10. IC PIN FUNCTION DESCRIPTIONS
Pin No.
Pin Name
I/O
Description
1
XRAS
O
Row address strobe signal output to the D-RAM
2
XWE
O
Data input enable signal output to the D-RAM
3 to 6
D1, D0, D3, D2
I/O
Two-way data bus with the D-RAM
7
DCLK
O
Not used
8
DCKE
O
Not used
9
XCAS
O
Column address strobe signal output to the D-RAM
10
WFCK
O
WFCK signal output terminal    Not used
11 to 13
A9 to A7
O
Address signal output to the D-RAM
14
DVSS
—
Ground terminal (for D-RAM interface)
15 to 17
A6 to A4
O
Address signal output to the D-RAM
18
XRDE
I
D-RAM read enable signal input terminal
19
VDD0
—
Power supply terminal (digital system)
20
CLOK
I
Serial data transfer clock input from the system controller
21
SDTO
I
Serial data input from the system controller
22
SENS
O
Serial data output to the system controller
23
XLAT
I
Serial data latch pulse signal input from the system controller
24
XSOE
I
Serial data output enable signal input from the system controller
25
SYSM
I
Analog muting on/off control signal input    “H”: muting on    Not used
26
WDCK
O
GRSCOR signal output to the system controller    Not used
27
SCOR
O
Subcode sync (S0+S1) detection signal output to the system controller
28
XRST
I
Reset signal input from the system controller    “L”: reset
29
PWMI
I
Spindle motor external control signal input terminal    Not used
30
XQOK
I
Subcode Q OK signal input terminal    Not used
31
XWRE
I
D-RAM write enable signal input terminal    Not used
32
R8M
O
System clock output to the system controller
33
VSS0
—
Ground terminal (digital system)
34
SQCK
I
SQSO readout clock input terminal    Not used
35
SCLK
I
SENS serial data read clock input terminal    Not used
36
SQSO
O
CD text data output terminal    Not used
37
XEMP
O
D-RAM read prohibition signal output terminal    Not used
38
XWIH
O
D-RAM write prohibition signal output terminal    Not used
39
SBSO
O
Subcode P to W serial data output terminal    Not used
40
EXCK
O
SQSO readout clock output terminal    Not used
41
XTSL
I
Input terminal for the system clock frequency setting
“L”: 16.9344 MHz,  “H”: 33.8688MHz (fixed at “L” in this set)
42
HVSS
—
Ground terminal (for headphone)
43
HPL
O
PDM signal output for L-ch headphone to the headphone amplifier    Not used
44
HPR
O
PDM signal output for R-ch headphone to the headphone amplifier    Not used
45
HPVDD
—
Power supply terminal (for headphone)
46
XVDD
—
Power supply terminal (for master clock)
47
XTAI
I
System clock input terminal (16.9344 MHz)
48
XTAO
O
System clock output terminal (16.9344 MHz)
49
XVSS
—
Ground terminal (for master clock)
50
AVDD1
—
Power supply terminal (analog system)
51
AOUT1
O
L-ch analog audio signal output
52
VREFL
O
L-ch reference voltage output terminal
• IC601 CXD3039AR
(RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
26
D-NE800
Pin No.
Pin Name
I/O
Description
53, 54
AVSS1, AVSS2
—
Ground terminal (analog system)
55
VREFR
O
R-ch reference voltage output terminal
56
AOUT2
O
R-ch analog audio signal output
57
AVDD2
—
Power supply terminal (analog system)
58
TES1
I
Input terminal for the test (normally: fixed at “L”)
59
TEST
I
Input terminal for the test (normally: fixed at “L”)
60
VSS1
—
Ground terminal (digital system)
61
LRMU
O
Muting on/off control signal output to the audio line and the headphone amplifier
“H”: muting on    Not used
62
DOUT
O
Digital audio signal output
63
ATSK
I/O
Input/output terminal for anti-shock    Not used
64
DFCT
I/O
Defect signal input/output terminal    Not used
65
FOK
O
Focus OK signal output to the system controller    “L”: NG, “H”: OK
66
MIRR
I/O
Defect signal input/output terminal    Not used
67
COUT
I/O
Numbers of track counted signal input/output terminal    Not used
68
C2PO
O
C2PO signal output terminal    Not used
69
GFS
O
GFS signal output terminal
70
XUGF
O
XUGF signal output terminal    Not used
71
XPCK
O
XPCK signal output terminal    Not used
72
VDD1
—
Power supply terminal (digital system)
73
PCO
O
Charge pump output for master PLL
74
FILI
I
Filter input for master PLL
75
FILO
O
Filter output for master PLL
76
CLTV
I
VCO1 control voltage input terminal for multiplier
77
VCTL
I
VCO2 control voltage input terminal for broad-band EFM PLL
78
VPCO
O
Charge pump output terminal for broad-band EFM PLL
79
AVSS3
—
Ground terminal (analog system)
80
ASYO
O
EFM full-swing output terminal
81
ASYI
I
Asymmetry comparator voltage input terminal
82
BIAS
I
Asymmetry circuit constant current input terminal
83
AVDD3
—
Power supply terminal (analog system)
84
RFAC
I
EFM signal input from the optical pick-up
85
AVDD0
—
Power supply terminal (analog system)
86
IGEN
I
Stabilized current input for operational amplifiers
87
AVSS0
—
Ground terminal (analog system)
88
RFDC
I
RF signal input from the optical pick-up
89
E
I
E signal input from the optical pick-up
90
F
I
F signal input from the optical pick-up
91
B
I
B signal input from the optical pick-up
92
A
I
A signal input from the optical pick-up
93
VC
I
Middle point voltage input terminal    Not used
94
VSS3
—
Ground terminal (digital system)
95
FRDR
O
Focus servo drive signal (–) output to the IC403
96
FFDR
O
Focus servo drive signal (+) output to the IC403
97
TRDR
O
Tracking servo drive signal (–) output to the IC403
98
TFDR
O
Tracking servo drive signal (+) output to the IC403
99
SRDR
O
Sled servo drive signal (–) output to the IC403
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
27
D-NE800
Pin No.
Pin Name
I/O
Description
100
SFDR
O
Sled servo drive signal (+) output to the IC403
101
SSTP
I
Disc inner position detection signal input terminal    Not used
102
MDS
O
Spindle motor drive signal output to the spindle motor driver
103
MDP
O
Spindle motor servo control signal output to the spindle motor driver
104
C176
O
176.4 kHz clock output to the power control and spindle motor driver
105
VDD2
—
Power supply terminal (digital system)
106
LRCK
O
L/R sampling clock (44.1 kHz) output terminal
107
LRCKI
I
L/R sampling clock (44.1 kHz) input terminal
108
PCMD
O
Serial data output terminal
109
PCMDI
I
Serial data input terminal
110
BCKO
O
Bit clock (2.8224 MHz) output terminal
111
BCKI
I
Bit clock (2.8224 MHz) input terminal
112
DVDD
—
Power supply terminal (for D-RAM interface)
113 to 117
A3 to A0, A10
O
Address signal output to the D-RAM
118 to 120
A11 to A13
O
Address signal output terminal to the D-RAM    Not used
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
28
D-NE800
• IC801   TMP91CW28FG-4PNO (SYSTEM CONTROLLER)
Pin No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44 to 51
52
53
54
55
56
57
I/O
—
—
—
O
O
O
O
I
I
I
I
O
O
I
I
O
O
O
O
I
O
I
O
I
—
O
—
I
I
I
I/O
O
O
O
I
I
I
I
I
I
I
I
—
I/O
I
I
O
O
O
O
Pin Name
GND
GND
VCPU
XRST_O
PWM_O
BEEP_O
AMUTE_O
LINEOUT_I
OPTOUT_I
FG_I
REQ_I
HG-XSTB_O
HG-GUP_O
RE1_I
RE2_I
LCD_REQ_O
SDXLAT_O
SDCLK_O
SDOUT_O
SDIN_I
DTS_SDTO
DTS_SDTI
DTS_SCK
AM0_I
VCPU
XOUT
GND
XIN
AM1_I
XRESET_I
TSB
XWAKE_O
EMU0_O
EMU1_O
ACKCD_I
JOGKEY_I/FAVKEY_I
LID-SW_I
EXTBAT_I
XLCD_CJK_I
HOLD_I
X_PEQ_EN_I
TEST_I
NC
AD0 to AD7
FOK_I
GFS_I
TUPWRON_O
CDON_O
AUD_SEL_O
CHG_GND_ON_O
Description
Reference voltage terminal (A/D converter)
Ground terminal (A/D converter)
Power supply terminal (A/D converter)
Reset signal output to the DSP (IC601)
Not used (open)
BEEP signal output
Muting signal output to the headphone amplifier (IC301)
Line plug in detection signal input (“H” : line plug in)
Optical plug in detection signal input (“H” : optical plug in)
FG (3 phase drive) signal input from the power control (IC403)
Request signal input from the MP3 decoder (IC701)
HG sleep mode signal output to the optical-pickup
HG gain up signal output to the optical-pickup
Not used (open)
Not used (open)
Not used (open)
Serial data latch signal output to the MP3 decoder (IC701)
Clock output to the MP3 decoder (IC701)
Serial data output to the MP3 decoder (IC701)
Serial data input from the MP3 decoder (IC701)
Not used
Not used
Not used
Not used (fixed at “H”)
Power supply terminal
Clock output (not used)
Ground terminal
Clock input
Not used (fixed at “H”)
Reset signal input (“L” : reset)
Data input/output from/to the remote control
Wake signal output to the power control (IC403) (“L” : running)
Not used (open)
Not used (open)
Not used (fixed at “L”)
Key signal input from the jog key or the remote control key
Lid open/close detection signal input (“H” : lid open)
External battery in detection signal input (“H” : external battery in)
Not used
HOLD switch detection signal input (“H” : HOLD on)
Not used
Test mode setting terminal (“L” : test mode)
Not used (open)
Data input/output from/to the liquid crystal display
FOK signal input from the DSP (IC601)
GFS signal input from the DSP (IC601)
Not used (open)
Not used (open)
Not used (open)
Charge ground switch control signal output
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
29
D-NE800
Pin No.
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
I/O
O
O
O
O
—
I
—
O
O
O
I
O
O
O
O
O
O
O
O
O
I
I
I
I
I
O
O
I
I
O
O
—
O
—
I
I
I
I
I
I
I
I
—
Pin Name
BAT_VCC_ON_O
DTS_RST_O
XKRESET_O
XCS_O
GND
XNMI_I
VCPU
HP_LIN_SEL_O
WAKEUP_K_O
EEP_CS_O
TUON_I
LCD_A0
OPTPWRCTL_O
XRD_O
XWR_O
LCD-XRST_O
XLCD-BL_O
XLED_DISP1_O
XLED_DISP2_O
HP_PWRSW
BOOT
XBAT_1CELL_I
NC
XCEX_I
XLCD_4LINE_I
MSCK0_O
MSDTO0_O
MSDTI0_I
SCOR_I
XLAT0_O
XSOE_O
VCPU
PWRLAT_O
GND
AD-BATMNT
AD-CHGMNT
AD-CHGSTMNT
AD-DCINMNT
AD-KEY1
AD-KEY2
AD-KEY3
AD-RMKEY
VCPU
Description
Battery power switch control signal output
Not used (open)
Reset signal output to the MP3 decoder (IC701)
Not used (open)
Ground terminal
Not used (fixed at “H”)
Power supply terminal
Headphone or line out selection control signal output
Wakeup signal output to the MP3 decoder (IC701)
Chip select signal output to the EEPROM (IC803)
Not used (fixed at “H”)
A0 signal output to the liquid crystal diplay
Optical output power supply control signal output
Read signal output to the liquid crystal diplay
Write signal output to the liquid crystal diplay
Reset signal output to the liquid crystal diplay
Not used (open)
LED control signal output
LED control signal output
Headphone amplifier power supply on/off signal output
BOOT signal input
Not used (fixed at “L”)
Not used
Not used (open)
Not used (fixed at “L”)
Clock signal output to the DSP (IC601) and the power control (IC403)
Serial data output to the DSP (IC601) and the power control (IC403)
SENS signal input from the DSP (IC601)
SCOR signal input from the DSP (IC601)
Latch signal output to the DSP (IC601)
Serial data output enable signal output to the DSP (IC601)
Power supply terminal
Data latch signal output to the power control (IC403)
Ground terminal
Batttery monitoring signal input
Charge monitoring signal input
Charge stand monitoring signal input
DC in monitoring signal input
Key 1 signal A/D input
Key 2 signal A/D input
Key 3 signal A/D input  Not used
Remote control key signal A/D input
Reference voltage terminal (A/D converter)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
SECTION 6
EXPLODED VIEWS
30
D-NE800
NOTE:
•
-XX, -X mean standardized parts, so they may
have some differences from the original one.
•
Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
•
The mechanical parts with no reference number
in the exploded views are not supplied.
•
Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑
 ↑
Parts of Color Cabinet’s Color
•
Accessories are given in the last of electrical
parts list.
•
Abbreviation
8-E18 :  Philippines model
AUS : Australian model
CH : Chinese model
E18 : 100-230 V AC area in E model
EE
: East European model
HK : Hong Kong model
JE
: Tourist model
KR : Korean model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
6-1. OVERALL ASSY
1
X-3384-105-2
CABINET (LOWER) ASSY (AUS,8-E18,JE)
1
X-3384-153-1
CABINET (LOWER) ASSY (AEP,UK,EE)
1
X-3384-154-1
CABINET (LOWER) ASSY (E18,HK)
1
X-3384-743-1
CABINET (LOWER) ASSY (CH,KR)
* 2
X-3384-558-1
MAIN BOARD, COMPLETE (E18,AUS,JE,HK)
* 2
X-3384-748-1
MAIN BOARD, COMPLETE (AEP,UK,EE)
* 2
X-3384-749-1
MAIN BOARD, COMPLETE (CH,KR)
3
3-245-331-02
INSULATOR
4
3-254-070-01
SCREW
5
3-318-201-01
SCREW (B)(1.4X8) TAPPING
7
3-254-082-01
SCREW
8
3-259-178-01
SPRING (OPEN,R)
9
3-259-177-01
SPRING (OPEN,L)
10
3-259-131-01
BRACKET (HINGE)
11
3-259-132-01
HINGE
12
3-259-176-01
TERMINAL,BATTERY LINK
13
3-831-441-99
SPACER
CD mechanism deck section
(CDM-3325ER2)
cabinet (upper) block assy
upper lid block section
2
3
3
9
8
a
a
7
3
4
4
1
11
12
13
10
not
supplied
not
supplied
5
Ver 1.1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
31
D-NE800
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
51
X-3384-570-1
LID BLOCK ASSY, UPPER (W)(WHITE)
(EXCEPT CH,KR)
51
X-3384-571-1
LID BLOCK ASSY, UPPER (L)(BLUE)
(EXCEPT 8-E18,CH,KR)
51
X-3384-572-1
LID BLOCK ASSY, UPPER (P)(PINK)
(EXCEPT 8-E18,CH,KR)
51
X-3384-744-1
LID SUB (W) ASSY, UPPER (WHITE)(CH, KR)
51
X-3384-745-1
LID SUB (L) ASSY, UPPER (BLUE)(CH, KR)
51
X-3384-746-1
LID SUB (P) ASSY, UPPER (PINK)(CH, KR)
52
X-3384-574-1
BUTTON (CONTROL) SUB ASSY (W)(8-E18)
52
X-3384-574-3
BUTTON (CONTROL) SUB ASSY (W)
(EXCEPT 8-E18)
53
X-3384-578-1
KNOB (5 DIRECTION) SUB ASSY (W)(8-E18)
53
X-3384-578-3
KNOB (5 DIRECTION) SUB ASSY (W)
(EXCEPT 8-E18)
54
1-827-812-11
CABLE, FLEXIBLE FLAT
* 55
A-4541-557-A SWITCH BOARD, COMPLETE (EXCEPT CH,KR)
* 55
A-4542-879-A SWITCH BOARD, COMPLETE (CH,KR)
56
3-259-154-01
COVER, LID
57
3-254-082-01
SCREW
58
3-261-938-01
SHEET, COVER
59
3-261-130-01
SHEET (BUTTON) ADHESIVE
60
1-805-435-11
DISPLAY PANEL, LIQUID CRYSTAL
(EXCEPT CH, KR)
* 60
1-805-532-11
DISPLAY PANEL, LIQUID CRYSTAL (CH, KR)
61
3-243-233-01
SPACER (A)
6-2. UPPER LID BLOCK SECTION
51
52
53
54
55
56
57
59
58
61
60
not
supplied
not
supplied
Ver 1.1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
32
D-NE800
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
6-3. CABINET (UPPER) BLOCK SECTION
101
3-259-155-01
BUTTON (VOL)
102
3-259-122-01
KNOB,OPEN
103
3-259-121-01
CAM,OPEN
104
3-259-128-01
LINK (LOCK LEVER)
105
3-318-201-81
SCREW (B)(1.4X8), TAPPING
106
3-259-129-01
LEVER (R), LOCK
107
3-259-143-01
SPRING (LOCK LEVER)
108
3-259-130-01
LEVER (L), LOCK
109
X-3384-104-1
CABINET (UPPER) ASSY
110
X-3384-152-1
LID ASSY, BATTERY CASE (EXCEPT CH)
110
X-3384-587-1
LID ASSY, BATTERY CASE (CH)
101
102
104
105
105
106
108
107
105
103
109
110
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
33
D-NE800
6-4. CD MECHANISM DECK SECTION (CDM-3325ER2)
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
151
3-318-203-61
SCREW (B1.7X4), TAPPING
152
3-221-474-01
SPRING, SLED
153
3-221-472-02
CHASSIS
0154
X-3380-950-1
OPTICAL PICK-UP (DAX-25E)
155
3-222-298-01
RACK
156
3-222-299-01
SPRING, RACK RETAINER
157
3-348-998-31
SCREW (M1.4X2.5), TAPPING, PAN
158
A-3331-663-A SCREW (FEED) ASSY
M902
158
159
161
152
M901
153
160
151
151
157
151
156
155
154
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
159
3-221-268-01
GEAR (B)
160
3-221-475-01
SHAFT, STANDARD
161
3-221-473-01
COVER, GEAR
M901
A-3608-777-A MOTOR ASSY, TURN TABLE (SPINDLE)
M902
A-3174-850-A MOTOR ASSY, SLED (SLED)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
34
SECTION 7
ELECTRICAL PARTS LIST
D-NE800
NOTE:
•
Due to standardization, replacements in the parts
list may be different from the parts specified in
the diagrams or the components used on the set.
•
-XX, -X mean standardized parts, so they may
have some difference from the original one.
•
Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
•
CAPACITORS:
uF: µF
•
RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
•
COILS
uH: µH
•
Abbreviation
8-E18 :Philippines model
AUS : Australian model
CH : Chinese model
E18 : 100-230 V AC area in E model
EE
: East European model
HK : Hong Kong model
JE
: Tourist model
KR : Korean model
When indicating parts by reference number,
please include the board name.
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
•
SEMICONDUCTORS
In each case, u: µ, for example:
uA...: µA... , uPA... , µPA... ,
uPB... , µPB... , uPC... , µPC... ,
uPD..., µPD...
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
MAIN
*
X-3384-558-1
MAIN BOARD, COMPLETE (E18, AUS, JE, HK)
*********************
*
X-3384-748-1
MAIN BOARD, COMPLETE (AEP, UK, EE)
*********************
*
X-3384-749-1
MAIN BOARD, COMPLETE (CH, KR)
*********************
3-245-312-01
BOARD (+), TERMINAL, BATTERY
3-246-403-01
TERMINAL BOARD (-), BATTERY
3-259-164-01
TERMINAL, CHARGE (+)
3-259-165-01
TERMINAL, CHARGE (-)
< CAPACITOR >
C104
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C105
1-164-935-11
CERAMIC CHIP
470PF
10.00% 50V
C106
1-137-859-11
TANTAL. CHIP
220uF
20%
4V
C107
1-135-149-21
TANTALUM CHIP 2.2uF
20%
10V
C108
1-164-943-11
CERAMIC CHIP
0.01uF
10.00% 16V
C204
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C205
1-164-935-11
CERAMIC CHIP
470PF
10.00% 50V
C206
1-137-859-11
TANTAL. CHIP
220uF
20%
4V
C207
1-135-149-21
TANTALUM CHIP 2.2uF
20%
10V
C208
1-164-943-11
CERAMIC CHIP
0.01uF
10.00% 16V
C301
1-119-750-11
TANTAL. CHIP
22uF
20.00% 6.3V
C302
1-104-847-11
TANTAL. CHIP
22uF
20.00% 4V
C303
1-164-943-11
CERAMIC CHIP
0.01uF
10.00% 16V
C304
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C306
1-127-760-11
CERAMIC CHIP
4.7uF
10%
6.3V
C307
1-137-859-11
TANTAL. CHIP
220uF
20%
4V
C308
1-104-847-11
TANTAL. CHIP
22uF
20.00% 4V
(AEP, UK, EE)
C309
1-128-964-91
TANTAL. CHIP
100uF
20%
6.3V
C313
1-117-720-11
CERAMIC CHIP
4.7uF
10V
C317
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C337
1-164-937-11
CERAMIC CHIP
0.001uF
10.00% 50V
C403
1-164-935-11
CERAMIC CHIP
470PF
10.00% 50V
C404
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C405
1-115-156-11
CERAMIC CHIP
1uF
10V
C406
1-164-505-11
CERAMIC CHIP
2.2uF
16V
C410
1-115-156-11
CERAMIC CHIP
1uF
10V
C411
1-115-156-11
CERAMIC CHIP
1uF
10V
C415
1-115-467-11
CERAMIC CHIP
0.22uF
10.00% 10V
C416
1-127-760-11
CERAMIC CHIP
4.7uF
10%
6.3V
C417
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C419
1-125-777-11
CERAMIC CHIP
0.1uF
10.00% 10V
C420
1-125-777-11
CERAMIC CHIP
0.1uF
10.00% 10V
C421
1-164-937-11
CERAMIC CHIP
0.001uF
10.00% 50V
C422
1-164-937-11
CERAMIC CHIP
0.001uF
10.00% 50V
C423
1-164-937-11
CERAMIC CHIP
0.001uF
10.00% 50V
C424
1-135-210-11
TANTALUM CHIP 4.7uF
20%
10V
C425
1-110-569-11
TANTAL. CHIP
47uF
20.00% 6.3V
C426
1-128-829-91
TANTAL. CHIP
220uF
20%
6.3V
C427
1-125-777-11
CERAMIC CHIP
0.1uF
10.00% 10V
C428
1-107-686-11
TANTAL. CHIP
4.7uF
20.00% 16V
C429
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C430
1-164-939-11
CERAMIC CHIP
0.0022uF
10.00% 50V
C432
1-128-829-91
TANTAL. CHIP
220uF
20%
6.3V
C433
1-115-156-11
CERAMIC CHIP
1uF
10V
C434
1-165-851-91
TANTAL. CHIP
10uF
20%
6.3V
C435
1-110-569-11
TANTAL. CHIP
47uF
20.00% 6.3V
C436
1-135-259-11
TANTAL. CHIP
10uF
20.00% 6.3V
C437
1-128-829-91
TANTAL. CHIP
220uF
20%
6.3V
C438
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C440
1-164-939-11
CERAMIC CHIP
0.0022uF
10.00% 50V
C446
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C447
1-164-937-11
CERAMIC CHIP
0.001uF
10.00% 50V
C450
1-115-156-11
CERAMIC CHIP
1uF
10V
C454
1-125-777-11
CERAMIC CHIP
0.1uF
10.00% 10V
C455
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C458
1-127-573-11
CERAMIC CHIP
1uF
10%
16V
C460
1-125-777-11
CERAMIC CHIP
0.1uF
10.00% 10V
C601
1-164-935-11
CERAMIC CHIP
470PF
10.00% 50V
C602
1-164-850-11
CERAMIC CHIP
10PF
0.50PF 50V
C604
1-164-858-11
CERAMIC CHIP
22PF
5.00%
50V
C605
1-125-777-11
CERAMIC CHIP
0.1uF
10.00% 10V
C606
1-164-937-11
CERAMIC CHIP
0.001uF
10.00% 50V
C607
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C608
1-117-863-11
CERAMIC CHIP
0.47uF
10.00% 6.3V
C609
1-117-863-11
CERAMIC CHIP
0.47uF
10.00% 6.3V
C610
1-135-259-11
TANTAL. CHIP
10uF
20.00% 6.3V
C611
1-164-935-11
CERAMIC CHIP
470PF
10.00% 50V
C612
1-164-874-11
CERAMIC CHIP
100PF
5.00%
50V
C613
1-164-939-11
CERAMIC CHIP
0.0022uF
10.00% 50V
C614
1-164-858-11
CERAMIC CHIP
22PF
5.00%
50V
C616
1-164-935-11
CERAMIC CHIP
470PF
10.00% 50V
C617
1-164-935-11
CERAMIC CHIP
470PF
10.00% 50V
C618
1-125-777-11
CERAMIC CHIP
0.1uF
10.00% 10V
C619
1-119-750-11
TANTAL. CHIP
22uF
20.00% 6.3V
C621
1-110-569-11
TANTAL. CHIP
47uF
20.00% 6.3V
C622
1-135-259-11
TANTAL. CHIP
10uF
20.00% 6.3V
Ver 1.1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
35
D-NE800
MAIN
C623
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C624
1-115-156-11
CERAMIC CHIP
1uF
10V
C627
1-115-156-11
CERAMIC CHIP
1uF
10V
C631
1-119-750-11
TANTAL. CHIP
22uF
20.00% 6.3V
C632
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C697
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C698
1-131-862-91
TANTAL. CHIP
47uF
20%
4V
C699
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C701
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C702
1-131-862-91
TANTAL. CHIP
47uF
20%
4V
C703
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C706
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C708
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C709
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C710
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C711
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C712
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C713
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C714
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C715
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C716
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C717
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C718
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C720
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C805
1-115-156-11
CERAMIC CHIP
1uF
10V
C806
1-801-862-11
VARISTOR, CHIP (1608)
C808
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C810
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C811
1-164-937-11
CERAMIC CHIP
0.001uF
10.00% 50V
C812
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C821
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C831
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C832
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C834
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C835
1-164-941-11
CERAMIC CHIP
0.0047uF
10.00% 16V
C896
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C897
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C898
1-107-820-11
CERAMIC CHIP
0.1uF
16V
C899
1-107-820-11
CERAMIC CHIP
0.1uF
16V
< CONNECTOR >
CN401
1-784-342-21
HOUSING, CONNECTOR 2P
* CN402
1-785-877-21
HOUSING, CONNECTOR 4P
CN601
1-573-924-11
CONNECTOR, FFC/FPC (ZIF) 15P
CN2001 1-818-131-11
FFC/FPC CONECTOR (ZIF) 20P
< DIODE >
D302
8-719-046-91
DIODE MA2S111-TX
D402
8-719-085-43
DIODE MA2YD2300LS0
D403
8-719-085-43
DIODE MA2YD2300LS0
D410
8-719-085-43
DIODE MA2YD2300LS0
D421
8-719-404-50
DIODE MA111-TX
D422
8-719-404-50
DIODE MA111-TX
D801
6-500-473-01
DIODE MA4SD0100LS0
< FERRITE BEAD >
FB102
1-500-234-22
FERRITE
0uH
FB202
1-500-234-22
FERRITE
0uH
FB301
1-500-234-22
FERRITE
0uH
FB302
1-414-813-11
FERRITE
0uH
FB304
1-414-813-11
FERRITE
0uH
FB306
1-414-813-11
FERRITE
0uH
FB401
1-414-760-21
FERRITE
0uH
FB402
1-414-760-21
FERRITE
0uH
FB413
1-216-295-91
SHORT CHIP
0
FB601
1-414-760-21
FERRITE
0uH
FB602
1-414-760-21
FERRITE
0uH
FB701
1-414-760-21
FERRITE
0uH
FB702
1-216-864-11
METAL CHIP
0
5%
1/16W
FB801
1-216-864-11
METAL CHIP
0
5%
1/16W
FB802
1-216-864-11
METAL CHIP
0
5%
1/16W
< IC >
IC301
6-705-414-01
IC AN17020B-E1
IC403
6-704-187-01
IC TB2138AFG
IC601
8-752-420-71
IC CXD3039AR
IC603
6-704-280-01
IC 41SV44052-100TG
IC701
8-753-210-87
IC CXR710160-207R
IC702
6-550-559-01
TRANSISTOR XN0NE9200LS0
IC801
6-802-813-01
IC TMP91CW28FG-4PNO
IC803
not supplied
IC AK6417CH-E2
IC806
6-705-397-01
IC XC6206P142MR
< JACK >
J302
1-817-873-11
JACK, HP (LIGHT COMBINATION)
(i/LINE OUT (OPTICAL))
J401
1-793-156-31
JACK, DC (EXT BATT DC IN 4.5V)
< COIL >
L301
1-216-295-91
SHORT CHIP
0
L303
1-216-295-91
SHORT CHIP
0
L401
1-400-373-21
INDUCTOR
4.7uH
L402
1-400-373-21
INDUCTOR
4.7uH
L403
1-400-145-21
INDUCTOR
47uH
L404
1-400-388-21
INDUCTOR
220uH
L406
1-400-145-21
INDUCTOR
47uH
L407
1-456-178-21
INDUCTOR
100uH
L408
1-400-388-21
INDUCTOR
220uH
L409
1-400-145-21
INDUCTOR
47uH
L411
1-400-145-21
INDUCTOR
47uH
L601
1-469-967-21
INDUCTOR
10uH
L602
1-400-145-21
INDUCTOR
47uH
L603
1-469-967-21
INDUCTOR
10uH
< TRANSISTOR >
Q301
8-729-029-10
TRANSISTOR
DTC143TUA-T106
Q302
8-729-029-10
TRANSISTOR
DTC143TUA-T106
Q303
8-729-028-86
TRANSISTOR
DTA143EUA-T106
Q304
8-729-922-10
TRANSISTOR
2SA1577-T106-QR
Q401
8-729-920-85
TRANSISTOR
2SD1664-T100-QR
Q408
8-729-807-34
TRANSISTOR
2SB1188-T100-QR
Q409
8-729-029-14
TRANSISTOR
DTC144EUA-T106
Q410
8-729-426-24
TRANSISTOR
XP1211-TXE
Q411
8-729-055-99
TRANSISTOR
MCH3309-TL-E
Q414
6-550-355-01
TRANSISTOR
RTQ045N03TR
Q416
6-550-354-01
TRANSISTOR
RTQ035P02TR
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
36
D-NE800
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
MAIN
Q418
8-729-026-53
TRANSISTOR
2SA1576A-T106-QR
Q601
8-729-054-79
TRANSISTOR
2SB167900LSO
Q801
8-729-427-72
TRANSISTOR
XP4501-TXE
Q803
8-729-929-02
TRANSISTOR
DTC124XE-TL
Q804
8-729-427-51
TRANSISTOR
XP4215-TXE
< RESISTOR >
R101
1-218-965-11
RES-CHIP
10K
5%
1/16W
R103
1-218-937-11
RES-CHIP
47
5%
1/16W
R104
1-218-977-11
RES-CHIP
100K
5%
1/16W
R106
1-220-803-81
RES-CHIP
4.7
5%
1/16W
R108
1-218-965-11
RES-CHIP
10K
5%
1/16W
R111
1-218-990-11
SHORT CHIP
0
R201
1-218-965-11
RES-CHIP
10K
5%
1/16W
R203
1-218-937-11
RES-CHIP
47
5%
1/16W
R204
1-218-977-11
RES-CHIP
100K
5%
1/16W
R206
1-220-803-81
RES-CHIP
4.7
5%
1/16W
R207
1-218-977-11
RES-CHIP
100K
5%
1/16W
R208
1-218-965-11
RES-CHIP
10K
5%
1/16W
R211
1-218-990-11
SHORT CHIP
0
R302
1-218-965-11
RES-CHIP
10K
5%
1/16W
R303
1-218-965-11
RES-CHIP
10K
5%
1/16W
R304
1-218-965-11
RES-CHIP
10K
5%
1/16W
R305
1-208-635-11
RES-CHIP
10
5%
1/16W
R307
1-208-935-11
METAL CHIP
100K
0.5%
1/16W
R309
1-208-943-11
METAL CHIP
220K
0.5%
1/16W
R313
1-208-707-11
METAL CHIP
10K
0.5%
1/16W
R314
1-218-953-11
RES-CHIP
1K
5%
1/16W
R316
1-216-821-11
METAL CHIP
1K
5%
1/16W
R318
1-218-990-11
SHORT CHIP
0
R403
1-217-671-11
METAL CHIP
1
5%
1/10W
R404
1-216-797-11
METAL CHIP
10
5%
1/16W
R405
1-218-973-11
RES-CHIP
47K
5%
1/16W
R406
1-220-804-11
RES-CHIP
2.2M
5%
1/16W
R407
1-216-789-11
METAL CHIP
2.2
5%
1/16W
R408
1-218-990-11
SHORT CHIP
0
R410
1-218-990-11
SHORT CHIP
0
R411
1-208-943-11
METAL CHIP
220K
0.5%
1/16W
R412
1-208-927-11
METAL CHIP
47K
0.5%
1/16W
R413
1-218-969-11
RES-CHIP
22K
5%
1/16W
R414
1-216-864-11
METAL CHIP
0
5%
1/16W
R415
1-218-985-11
METAL CHIP
470K
0.5%
1/16W
R416
1-216-864-11
METAL CHIP
0
5%
1/16W
R417
1-208-935-11
METAL CHIP
100K
0.5%
1/16W
R418
1-208-935-11
METAL CHIP
100K
0.5%
1/16W
R419
1-218-973-11
RES-CHIP
47K
5%
1/16W
R420
1-218-977-11
RES-CHIP
100K
5%
1/16W
R421
1-218-985-11
METAL CHIP
470K
0.5%
1/16W
R422
1-216-864-11
METAL CHIP
0
5%
1/16W
R423
1-208-943-11
METAL CHIP
220K
0.5%
1/16W
R424
1-216-864-11
METAL CHIP
0
5%
1/16W
R425
1-216-864-11
METAL CHIP
0
5%
1/16W
R426
1-218-985-11
RES-CHIP
470K
5%
1/16W
R427
1-218-977-11
RES-CHIP
100K
5%
1/16W
R428
1-216-864-11
METAL CHIP
0
5%
1/16W
R429
1-216-864-11
METAL CHIP
0
5%
1/16W
R430
1-218-985-11
RES-CHIP
470K
5%
1/16W
R431
1-218-989-11
RES-CHIP
1M
5%
1/16W
R433
1-216-295-91
SHORT CHIP
0
R435
1-218-977-11
RES-CHIP
100K
5%
1/16W
R438
1-218-965-11
RES-CHIP
10K
5%
1/16W
R440
1-218-989-11
RES-CHIP
1M
5%
1/16W
R444
1-218-977-11
RES-CHIP
100K
5%
1/16W
R448
1-216-295-91
SHORT CHIP
0
R452
1-208-943-11
METAL CHIP
220K
0.5%
1/16W
R453
1-218-989-11
RES-CHIP
1M
5%
1/16W
R459
1-218-977-11
RES-CHIP
100K
5%
1/16W
R460
1-218-941-81
RES-CHIP
100
5%
1/16W
R480
1-218-989-11
RES-CHIP
1M
5%
1/16W
R485
1-216-864-11
METAL CHIP
0
5%
1/16W
R486
1-216-864-11
METAL CHIP
0
5%
1/16W
R487
1-216-864-11
METAL CHIP
0
5%
1/16W
R495
1-216-864-11
METAL CHIP
0
5%
1/16W
R498
1-216-864-11
METAL CHIP
0
5%
1/16W
R602
1-218-969-11
RES-CHIP
22K
5%
1/16W
R603
1-218-969-11
RES-CHIP
22K
5%
1/16W
R604
1-218-969-11
RES-CHIP
22K
5%
1/16W
R605
1-218-969-11
RES-CHIP
22K
5%
1/16W
R606
1-216-864-11
METAL CHIP
0
5%
1/16W
R607
1-218-990-11
SHORT CHIP
0
R608
1-216-789-11
METAL CHIP
2.2
5%
1/16W
R609
1-216-864-11
METAL CHIP
0
5%
1/16W
R610
1-218-977-11
RES-CHIP
100K
5%
1/16W
R611
1-218-990-11
SHORT CHIP
0
R612
1-218-937-11
RES-CHIP
47
5%
1/16W
R618
1-218-957-11
RES-CHIP
2.2K
5%
1/16W
R619
1-218-957-11
RES-CHIP
2.2K
5%
1/16W
R621
1-218-965-11
RES-CHIP
10K
5%
1/16W
R622
1-218-989-11
RES-CHIP
1M
5%
1/16W
R623
1-218-981-11
RES-CHIP
220K
5%
1/16W
R624
1-218-965-11
RES-CHIP
10K
5%
1/16W
R625
1-218-985-11
RES-CHIP
470K
5%
1/16W
R626
1-218-990-11
SHORT CHIP
0
R628
1-218-969-11
RES-CHIP
22K
5%
1/16W
R629
1-218-973-11
RES-CHIP
47K
5%
1/16W
R630
1-218-973-11
RES-CHIP
47K
5%
1/16W
R632
1-218-977-11
RES-CHIP
100K
5%
1/16W
R633
1-218-977-11
RES-CHIP
100K
5%
1/16W
R638
1-218-990-11
SHORT CHIP
0
R639
1-218-990-11
SHORT CHIP
0
R640
1-218-990-11
SHORT CHIP
0
R641
1-218-990-11
SHORT CHIP
0
R642
1-218-990-11
SHORT CHIP
0
R643
1-218-990-11
SHORT CHIP
0
R645
1-218-990-11
SHORT CHIP
0
R646
1-216-864-11
METAL CHIP
0
5%
1/16W
R648
1-218-977-11
RES-CHIP
100K
5%
1/16W
R649
1-218-949-11
RES-CHIP
470
5%
1/16W
R662
1-218-973-11
RES-CHIP
47K
5%
1/16W
R663
1-218-977-11
RES-CHIP
100K
5%
1/16W
R670
1-218-961-11
RES-CHIP
4.7K
5%
1/16W
R701
1-414-760-21
FERRITE
0uH
R702
1-216-864-11
METAL CHIP
0
5%
1/16W
R707
1-218-977-11
RES-CHIP
100K
5%
1/16W
R716
1-218-965-11
RES-CHIP
10K
5%
1/16W
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
37
D-NE800
MAIN
SWITCH
R722
1-218-945-11
RES-CHIP
220
5%
1/16W
R728
1-218-977-11
RES-CHIP
100K
5%
1/16W
R731
1-218-989-11
RES-CHIP
1M
5%
1/16W
R732
1-218-989-11
RES-CHIP
1M
5%
1/16W
R733
1-218-989-11
RES-CHIP
1M
5%
1/16W
R735
1-218-965-11
RES-CHIP
10K
5%
1/16W
R801
1-216-864-11
METAL CHIP
0
5%
1/16W
R802
1-218-953-11
RES-CHIP
1K
5%
1/16W
R803
1-218-953-11
RES-CHIP
1K
5%
1/16W
R804
1-218-949-11
RES-CHIP
470
5%
1/16W
R805
1-218-961-11
RES-CHIP
4.7K
5%
1/16W
R806
1-218-977-11
RES-CHIP
100K
5%
1/16W
R807
1-218-990-11
SHORT CHIP
0
R808
1-218-977-11
RES-CHIP
100K
5%
1/16W
R809
1-218-990-11
SHORT CHIP
0
R812
1-208-707-11
METAL CHIP
10K
0.5%
1/16W
R813
1-208-707-11
METAL CHIP
10K
0.5%
1/16W
R817
1-218-990-11
SHORT CHIP
0 (AEP, UK, EE)
R819
1-218-990-11
SHORT CHIP
0
R820
1-218-990-11
SHORT CHIP
0
R824
1-218-977-11
RES-CHIP
100K
5%
1/16W
R826
1-218-989-11
RES-CHIP
1M
5%
1/16W
R827
1-218-961-11
RES-CHIP
4.7K
5%
1/16W
R828
1-220-804-11
RES-CHIP
2.2M
5%
1/16W
R830
1-218-985-11
RES-CHIP
470K
5%
1/16W
R831
1-218-989-11
RES-CHIP
1M
5%
1/16W
R832
1-218-989-11
RES-CHIP
1M
5%
1/16W
R840
1-218-965-11
RES-CHIP
10K
5%
1/16W
R866
1-218-965-11
RES-CHIP
10K
5%
1/16W
R869
1-218-973-11
RES-CHIP
47K
5%
1/16W
R873
1-218-989-11
RES-CHIP
1M
5%
1/16W
R877
1-218-977-11
RES-CHIP
100K
5%
1/16W
R878
1-216-864-11
METAL CHIP
0
5%
1/16W
R879
1-218-990-11
SHORT CHIP
0
R880
1-218-990-11
SHORT CHIP
0
R881
1-218-990-11
SHORT CHIP
0
R889
1-218-990-11
SHORT CHIP
0
R912
1-218-965-11
RES-CHIP
10K
5%
1/16W
R913
1-218-977-11
RES-CHIP
100K
5%
1/16W
R914
1-218-977-11
RES-CHIP
100K
5%
1/16W
R942
1-218-965-11
RES-CHIP
10K
5%
1/16W
R949
1-218-977-11
RES-CHIP
100K
5%
1/16W
R970
1-218-965-11
RES-CHIP
10K
5%
1/16W
R971
1-218-977-11
RES-CHIP
100K
5%
1/16W
R1001
1-218-985-11
RES-CHIP
470K
5%
1/16W
< SWITCH >
S806
1-771-248-11
SWITCH, TACTILE (+ (VOL))
S809
1-771-248-11
SWITCH, TACTILE (- (VOL))
S810
1-572-922-11
SWITCH, SLIDE (HOLD .)
S820
1-762-805-41
SWITCH, PUSH (1 KEY)
< THERMISTOR >
TH401
1-805-064-11
THERMISTOR, POSITIVE
< VARISTOR >
VDR401 1-801-864-21
VARISTOR, CHIP (1608)
VDR402 1-801-864-21
VARISTOR, CHIP (1608)
VDR403 1-801-864-21
VARISTOR, CHIP (1608)
VDR601 1-801-862-11
VARISTOR, CHIP (1608)
VDR602 1-801-862-11
VARISTOR, CHIP (1608)
VDR603 1-801-862-11
VARISTOR, CHIP (1608)
VDR801 1-801-862-11
VARISTOR, CHIP (1608)
VDR802 1-801-862-11
VARISTOR, CHIP (1608)
VDR803 1-801-862-11
VARISTOR, CHIP (1608)
< VIBRATOR >
X601
1-795-003-21
VIBRATOR, CRYSTAL 16.934MHz
(EXCEPT CH, KR)
X601
1-795-003-22
VIBRATOR, CRYSTAL 16.934MHz (CH, KR)
X701
1-795-392-21
VIBRATOR, CERAMIC 22MHz
************************************************************
*
A-4541-557-A SWITCH BOARD, COMPLETE (EXCEPT CH, KR)
***********************
*
A-4542-879-A SWITCH BOARD, COMPLETE (CH, KR)
***********************
1-805-435-11
DISPLAY PANEL, LIQUID CRYSTAL
(EXCEPT CH, KR)
*
1-805-532-11
DISPLAY PANEL, LIQUID CRYSTAL (CH, KR)
3-243-233-01
SPACER (A)
3-259-263-01
SHEET (LCD), ADHESIVE
< CAPACITOR >
C2001
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C2003
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
C2004
1-125-837-91
CERAMIC CHIP
1uF
10%
6.3V
< CONNECTOR >
* CN2002 1-794-903-21
FFC/FPC CONECTOR (ZIP) 20P
< DIODE >
D2001
6-500-781-01
DIODE SML-521MUW (OPR)
< RESISTOR >
R2001
1-216-845-11
METAL CHIP
100K
5%
1/16W
R2003
1-216-845-11
METAL CHIP
100K
5%
1/16W
R2007
1-216-864-11
METAL CHIP
0
5%
1/16W
R2009
1-216-864-11
METAL CHIP
0
5%
1/16W
R2010
1-216-825-11
METAL CHIP
2.2K
5%
1/16W
R2011
1-216-825-11
METAL CHIP
2.2K
5%
1/16W
R2012
1-218-953-11
RES-CHIP
1K
5%
1/16W
R2013
1-218-961-11
RES-CHIP
4.7K
5%
1/16W
R2014
1-218-957-11
RES-CHIP
2.2K
5%
1/16W
R2015
1-218-961-11
RES-CHIP
4.7K
5%
1/16W
R2020
1-218-957-11
RES-CHIP
2.2K
5%
1/16W
R2021
1-218-965-11
RES-CHIP
10K
5%
1/16W
R2022
1-216-864-11
METAL CHIP
0
5%
1/16W
R2024
1-216-864-11
METAL CHIP
0
5%
1/16W
R2026
1-218-965-11
RES-CHIP
10K
5%
1/16W
R2027
1-218-969-11
RES-CHIP
22K
5%
1/16W
R2028
1-218-969-11
RES-CHIP
22K
5%
1/16W
< SWITCH >
S2002
1-786-617-21
SWITCH, PUSH (5 DIRECTION)
(7/l/L/s/CHG/-DISPLAY-MENU)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
38
D-NE800
Ref. No.
Part No.
Description
Remarks
Ref. No.
Part No.
Description
Remarks
S2003
1-786-650-21
SWITCH, TACTILE (      +)
S2004
1-786-650-21
SWITCH, TACTILE (      -)
S2007
1-786-650-21
SWITCH, TACTILE (F)
S2008
1-786-650-21
SWITCH, TACTILE (f)
************************************************************
MISCELLANEOUS
**************
54
1-827-812-11
CABLE, FLEXIBLE FLAT
0154
X-3380-950-1
OPTICAL PICK-UP (DAX-25E)
M901
A-3608-777-A MOTOR ASSY, TURN TABLE (SPINDLE)
M902
A-3174-850-A MOTOR ASSY, SLED (SLED)
************************************************************
ACCESSORIES
************
0
1-477-496-21
ADAPTOR, AC (AC-ES455K)(JE)
1-477-547-22
REMOTE COMMANDER (RM-MC33L)(8-E18)
1-478-547-23
REMOTE COMMANDER (RM-MC33L)
(EXCEPT 8-E18)
0
1-478-430-11
ADAPTOR, AC (AC-ES455K)(KR)
0
1-478-431-11
ADAPTOR, AC (AC-ES455K)(CH)
0
1-478-432-31
ADAPTOR, AC (AC-ES455K)(AEP,8-E18,E18,EE)
0
1-478-433-31
ADAPTOR, AC (AC-ES455K)(UK, HK)
0
1-478-435-11
ADAPTOR, AC (AC-ES455K)(AUS)
1-756-294-12
EXTERNAL BATERRY CASE (EBP-25)
1-756-306-22
BATTERY, NICKEL HYDRIGEN
1-756-414-11
STAND, CHARGE
3-235-292-02
POUCH, CARRYING
3-252-309-01
CASE, CHARGE (Battery carrying case)
3-266-166-11
MANUAL, INSTRUCTION
(FOR SonicStage Simple Burner)
(ENGLISH)(EXCEPT KR)
3-266-166-21
MANUAL, INSTRUCTION
(FOR SonicStage Simple Burner)
(SPANISH, PORTUGUESE, FRENCH)(AEP)
3-266-166-31
MANUAL, INSTRUCTION
(FOR SonicStage Simple Burner)
(DUTCH, GERMAN, ITALIAN)(AEP)
3-266-166-41
MANUAL, INSTRUCTION
(FOR SonicStage Simple Burner)
(SWEDISH, FINNISH)(AEP)
3-266-166-51
MANUAL, INSTRUCTION
(FOR SonicStage Simple Burner)
(HUNGARIAN, RUSSIAN, POLISH)(EE)
3-266-166-61
MANUAL, INSTRUCTION
(FOR SonicStage Simple Burner)
(CZECH, SLOVAK)(EE)
3-266-166-71
MANUAL, INSTRUCTION
(FOR SonicStage Simple Burner)
(SIMPLIFIED CHINESE, TRADITIONAL CHINESE,
 KOREAN)(8-E18, E18, HK, KR, CH, JE)
3-266-167-11
MANUAL, INSTRUCTION (ENGLISH)
(EXCEPT KR)
3-266-167-21
MANUAL, INSTRUCTION
(SPANISH, PORTUGUESE, FRENCH)(AEP)
3-266-167-31
MANUAL, INSTRUCTION
(DUTCH, GERMAN, ITALIAN)(AEP)
3-266-167-41
MANUAL, INSTRUCTION (SWEDISH, FINNISH)
(AEP)
3-266-167-51
MANUAL, INSTRUCTION
(HUNGARIAN, RUSSIAN, POLISH)(EE)
SWITCH
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
3-266-167-61
MANUAL, INSTRUCTION (CZECH, SLOVAK)(EE)
3-266-167-71
MANUAL, INSTRUCTION
(SIMPLIFIED CHINESE, TRADITIONAL CHINESE,
KOREAN)(8-E18, E18, HK, KR)
3-266-167-71
MANUAL, INSTRUCTION
(SIMPLIFIED CHINESE, TRADITIONAL CHINESE,
KOREAN)(KOREAN, CHINESE)
8-954-008-90
RECEIVER, EAR MDR-E808SP
X-3384-676-3
CD-ROM (APPLICATION) ASSY (2.0)(AEP,UK,EE)
X-3384-676-3
CD-ROM (APPLICATION) ASSY (2.0)
(8-E18, E18, AUS, CH, HK, KR)
X-3384-252-1
CD-ROM (APPLICATION) ASSY (2.0)(JE)
Ver 1.1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
39
D-NE800
MEMO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
D-NE800
REVISION  HISTORY
Clicking the version allows you to jump to the revised page.
Also, clicking the version at the upper right on the revised page allows you to jump to the next revised
page.
Ver.
Date
Description of Revision
1.0
2003.11
New
1.1
2004.03
Addition of Philippines model
(SPM-04028)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/f97a95c94ebe0d.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63188',
    'title' => '索尼SONY D-NE800音响电路图-0',
    'description' => '索尼SONY D-NE800音响电路图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/0dd834a7433ee17.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63189',
    'title' => '索尼SONY D-NE800音响电路图-1',
    'description' => '索尼SONY D-NE800音响电路图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/6fecaa8d2213b12.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63190',
    'title' => '索尼SONY D-NE800音响电路图-2',
    'description' => '索尼SONY D-NE800音响电路图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/a6239c6437e3ac.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63191',
    'title' => '索尼SONY D-NE800音响电路图-3',
    'description' => '索尼SONY D-NE800音响电路图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/2c8c5ebd6330cd2.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63192',
    'title' => '索尼SONY D-NE800音响电路图-4',
    'description' => '索尼SONY D-NE800音响电路图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/a61970341b92a4e.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63193',
    'title' => '索尼SONY D-NE800音响电路图-5',
    'description' => '索尼SONY D-NE800音响电路图-5',
  ),
  6 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/ffa8335ce914350.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63194',
    'title' => '索尼SONY D-NE800音响电路图-6',
    'description' => '索尼SONY D-NE800音响电路图-6',
  ),
  7 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/a4d8ee4642fe958.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63195',
    'title' => '索尼SONY D-NE800音响电路图-7',
    'description' => '索尼SONY D-NE800音响电路图-7',
  ),
  8 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/63c6a29bd3dc4ee.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63196',
    'title' => '索尼SONY D-NE800音响电路图-8',
    'description' => '索尼SONY D-NE800音响电路图-8',
  ),
  9 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/589327570877a95.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '63197',
    'title' => '索尼SONY D-NE800音响电路图-9',
    'description' => '索尼SONY D-NE800音响电路图-9',
  ),
)

'1680574117'

'1680574117'

'{"file":["63188","63189","63190","63191","63192","63193","63194","63195","63196","63197"],"title":["\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-0","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-1","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-2","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-3","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-4","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-5","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-6","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-7","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-8","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-9"],"description":["\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-0","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-1","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-2","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-3","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-4","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-5","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-6","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-7","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-8","\\u7d22\\u5c3cSONY D-NE800\\u97f3\\u54cd\\u7535\\u8def\\u56fe-9"]}'

'索尼,SONY, ,D,-,NE800,音响,电路,电路图'

array (
  '索尼' => '/index.php?s=wenku&c=search&keyword=%E7%B4%A2%E5%B0%BC',
  'SONY' => '/index.php?s=wenku&c=search&keyword=SONY',
  'D' => '/index.php?s=wenku&c=search&keyword=D',
  '-' => '/index.php?s=wenku&c=search&keyword=-',
  'NE800' => '/index.php?s=wenku&c=search&keyword=NE800',
  '音响' => '/index.php?s=wenku&c=search&keyword=%E9%9F%B3%E5%93%8D',
  '电路' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF',
  '电路图' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF%E5%9B%BE',
)

array (
)

array (
  'id' => '14439',
  'catid' => '8',
  'title' => '索尼SONY D-NE718CK音响电路图',
  'thumb' => '63177',
  'keywords' => '索尼,SONY, ,D,-,NE718CK,音响,电路,电路图',
  'description' => '',
  'hits' => '1',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a14439.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680574021',
  'updatetime' => '1680574021',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '63176',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '14441',
  'catid' => '8',
  'title' => '索尼SONY D-NE900音响电路图',
  'thumb' => '63199',
  'keywords' => '索尼,SONY, ,D,-,NE900,音响,电路,电路图',
  'description' => '',
  'hits' => '2',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a14441.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680574188',
  'updatetime' => '1680574188',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '63198',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'索尼SONY D-NE800音响电路图_电子电工_行业资料_文汇知识网'

'索尼,SONY, ,D,-,NE800,音响,电路,电路图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=14440&page=[page]'

''

'http://www.wenhuiw.com/wenku/a14440.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '14440',
  'm' => 'index',
)
