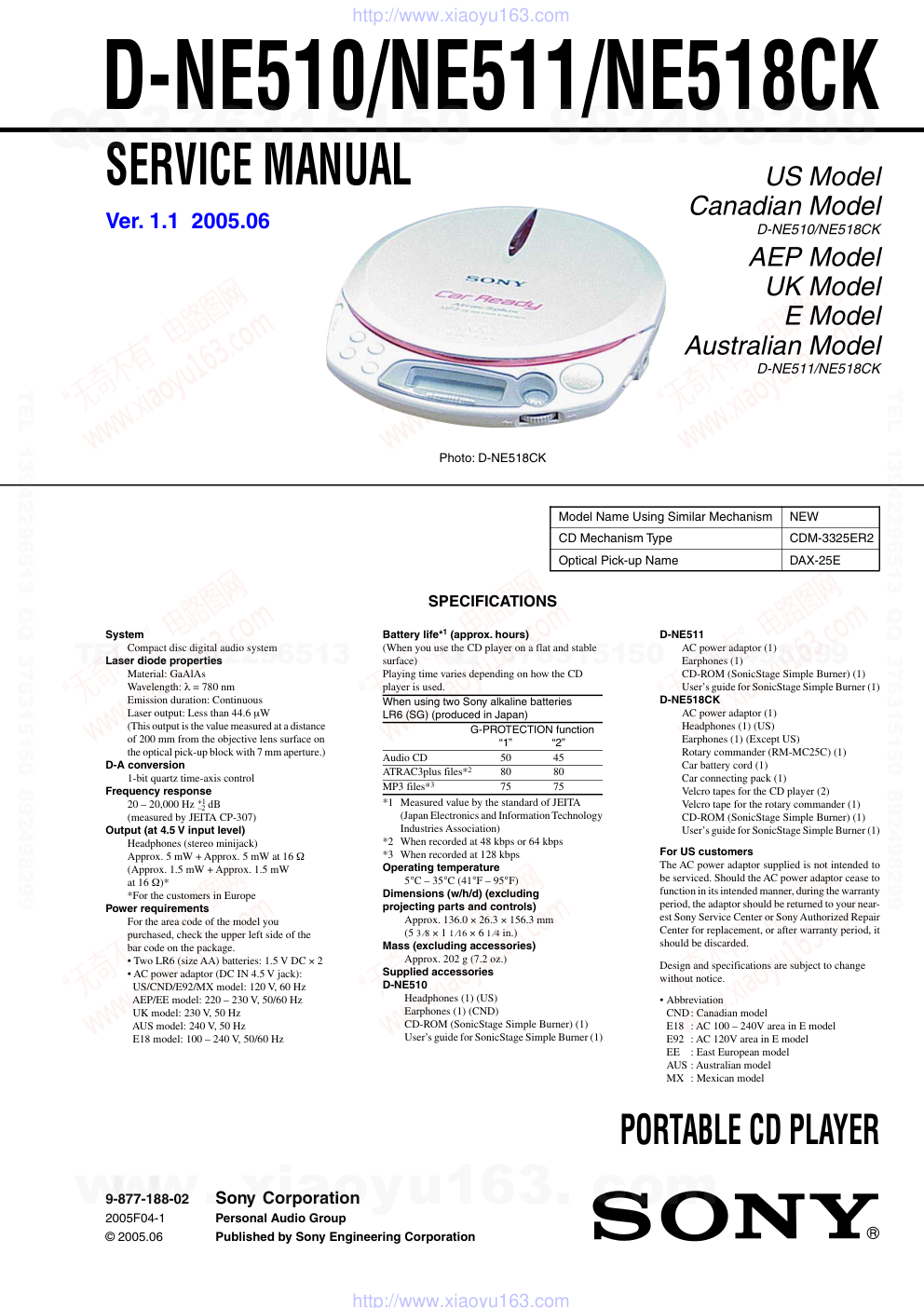

1 Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-3325ER2 Optical Pick-up Name DAX-25E SERVICE MANUAL US Model Canadian Model D-NE510/NE518CK AEP Model UK Model E Model Australian Model D-NE511/NE518CK D-NE510/NE511/NE518CK PORTABLE CD PLAYER SPECIFICATIONS Ver. 1.1 2005.06 9-877-188-02 2005F04-1 © 2005.06 Sony Corporation Personal Audio Group Published by Sony Engineering Corporation Photo: D-NE518CK System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 – 20,000 Hz dB (measured by JEITA CP-307) Output (at 4.5 V input level) Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω (Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)* *For the customers in Europe Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two LR6 (size AA) batteries: 1.5 V DC × 2 • AC power adaptor (DC IN 4.5 V jack): US/CND/E92/MX model: 120 V, 60 Hz AEP/EE model: 220 – 230 V, 50/60 Hz UK model: 230 V, 50 Hz AUS model: 240 V, 50 Hz E18 model: 100 – 240 V, 50/60 Hz Battery life*1 (approx. hours) (When you use the CD player on a flat and stable surface) Playing time varies depending on how the CD player is used. When using two Sony alkaline batteries LR6 (SG) (produced in Japan) G-PROTECTION function “1” “2” Audio CD 50 45 ATRAC3plus files*2 80 80 MP3 files*3 75 75 *1 Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association) *2 When recorded at 48 kbps or 64 kbps *3 When recorded at 128 kbps Operating temperature 5°C – 35°C (41°F – 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 136.0 × 26.3 × 156.3 mm (5 3 ⁄8 × 1 1 ⁄16 × 6 1 ⁄4 in.) Mass (excluding accessories) Approx. 202 g (7.2 oz.) Supplied accessories D-NE510 Headphones (1) (US) Earphones (1) (CND) CD-ROM (SonicStage Simple Burner) (1) User’s guide for SonicStage Simple Burner (1) D-NE511 AC power adaptor (1) Earphones (1) CD-ROM (SonicStage Simple Burner) (1) User’s guide for SonicStage Simple Burner (1) D-NE518CK AC power adaptor (1) Headphones (1) (US) Earphones (1) (Except US) Rotary commander (RM-MC25C) (1) Car battery cord (1) Car connecting pack (1) Velcro tapes for the CD player (2) Velcro tape for the rotary commander (1) CD-ROM (SonicStage Simple Burner) (1) User’s guide for SonicStage Simple Burner (1) For US customers The AC power adaptor supplied is not intended to be serviced. Should the AC power adaptor cease to function in its intended manner, during the warranty period, the adaptor should be returned to your near- est Sony Service Center or Sony Authorized Repair Center for replacement, or after warranty period, it should be discarded. Design and specifications are subject to change without notice. • Abbreviation CND: Canadian model E18 : AC 100 – 240V area in E model E92 : AC 120V area in E model EE : East European model AUS : Australian model MX : Mexican model +1 –2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. TABLE OF CONTENTS 1. SERVICE NOTE................................................................. 3 2. GENERAL Locating the controls ............................................................... 4 3. DISASSEMBLY 3-1. Lid (Upper) Assy ................................................................. 5 3-2. Cabinet (Front) Assy ........................................................... 6 3-3. Main Board ......................................................................... 6 4. ELECTRICAL ADJUSTMENTS 4-1. Focus Bias Check ................................................................ 7 5. DIAGRAMS 5-1. IC Pin Descriptions ............................................................. 8 5-2. Block Diagram –CD Section–........................................... 15 5-3. Block Diagram –Audio Section– ...................................... 16 5-4. Block Diagram –Power Supply Section– .......................... 17 5-5. Printed Wiring Board –Main Section– .............................. 18 5-6. Schematic Diagram –Main Section (1/2)– ......................... 20 5-7. Schematic Diagram –Main Section (2/2)– ......................... 21 5-8. IC Block Diagrams............................................................ 22 6. EXPLODED VIEWS 6-1. Cabinet (Front) Section ..................................................... 23 6-2. Main Board Section .......................................................... 24 6-3. CD Mechanism Deck Section (CDM-3325ER2) .............. 25 7. ELECTRICAL PARTS LIST......................................... 26 D-NE510/NE511/NE518CK SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Music sources playable on this CD player You can play the following 3 music sources on this CD player: • Audio CDs • ATRAC3plus/ATRAC3 format files • MP3 files Usable disc formats You can use ISO 9660 Level 1/2, Joliet extension format discs only. ATRAC3plus and ATRAC3 “ATRAC3plus,” which stands for “Adaptive Transform Acoustic Coding3plus” is audio compression technology, developed from the ATRAC3 format. Though the ATRAC3plus format can compress music content to about 1/20 of its original size, you can still enjoy high quality sound. The available transfer bit rates are 64 kbps and 48 kbps. “ATRAC3,” which stands for “Adaptive Transform Acoustic Coding3” is audio compression technology that satisfies the demand for high sound quality and high compression rates. The ATRAC3 format can compress music content to about 1/10 of their original size, which contributes to reduction of the media volume. The available transfer bit rates are 132 kbps, 105 kbps and 66 kbps. The usable number of groups and files • Maximum number of groups: 255 • Maximum number of files: 999 For details, refer to the supplied booklet “SonicStage Simple Burner.” MP3 files MP3, which stands for MPEG-1 Audio Layer3, a standard for audio files compression supported by the Motion Picture Experts Group, an ISO (International Organization for Standardization) working group, enables compression of audio files to about 1/10 of the data size of a standard compact disc. Since the MP3 encoding algorithm is public, there are various encoders/decoders that are compliant with this standard, including freeware that is available for no charge. Thus, the MP3 standard is widely used in the computer field. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-NE510/NE511/NE518CK C308 R301 C307 R302 FN406 C309 FB405 FB404 R650 FB409 R606 CN601 TAP805 TP910 TP911 FB402 FB410 R427 SL806 C424 R436 R477 C427 C303 C302 C442 15 1 TAP805 – MAIN BOARD – (SIDE A) S820 – MAIN BOARD – (SIDE B) L301 R467 R438 R484 R101 R201 R102 C103 R111 R303 R202 C203 R211 R871 R948 R945 R946 R867 TJ402 C853 R612 R947 C808 C306 C107 C207 TP941 TP942 TP940 TP939 TJ503 TP826 TP930 TP929 TJ406(VCPU) TP820 TJ501 TJ502 TP934 TP933 TP932 13 24 12 1 IC301 R943 R806 R498 R495 FB403 R487 S804 S820 (OPEN/CLOSE) C447 TP422 C436 C305 C434 SECTION 1 SERVICE NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Before Replacing the Optical Pick-Up Block Please be sure to check throughly the parameters as par the “Opti- cal Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output : IC601 yg pin (or TP618 (FOK)) When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.45 ± 0.1 Vp-p • The repairing grating holder is impossible. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S820. (push switch type) The following two checking methods for the laser diode are operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S820 with a screwdriver having a thin tip as shown in Fig.1. or TAP805 is shorted as shown in Fig.2. Note: Do not push the detection lever strongly, or it may be bent or damaged. 3. Press the N X button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pick-up is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. Fig. 2 Fig. 1 detection lever detection lever main board S820 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-NE510/NE511/NE518CK SECTION 2 GENERAL This section is extracted from instruction manual. 9-GB Getting started Locating the controls For details, see pages in parentheses. CD player (front) CD player (inside) 1 i (headphones) jack (pages 11, 24, 29) 6 DISPLAY button (pages 21, 22) qj Battery compartment (page 27) 7 HOLD switch (page 23) 3 OPEN button (page 11) 8 JOG DIAL/ ENTER (pages 16, 20) qs DC IN 4.5 V (external power input) jack (pages 11, 24) qf u* (play/pause) button (pages 11, 12, 16, 18, 19) qd x (stop) button (pages 12, 23) qg ./> (AMS/search) buttons (pages 12, 16, 19) qh G-PROTECTION switch (page 21) 4 +/– buttons (page 12) 2 VOL (volume) +*/– buttons (page 11) 5 P MODE/ (play mode/repeat) button (pages 16 - 19) q; SOUND button (pages 22, 23) 9 Display (pages 13, 16, 19 - 23) qa Strap holes *The button has a tactile dot. Getting started (Continued) Rotary commander Note The supplied rotary commander should be used with this player only. wa x (stop) button (pages 12, 23) ql .(AMS/search)• > (AMS/search) control (pages 12, 19) w; Jack for connecting a car connecting pack (page 24) qk u (play/pause) button (pages 12, 18, 19) ws +/– control Push down and turn. (page 12) (D-NE518CK only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-NE510/NE511/NE518CK Note : Follow the disassembly procedure in the numerical order given. 3-1. LID (UPPER) ASSY SECTION 3 DISASSEMBLY • The equipment can be removed using the following procedure. 3-1. LID (UPPER) ASSY (Page 5) SET 3-2. CABINET (FRONT) ASSY (Page 6) 3-3. MAIN BOARD (Page 6) 1 claws 2 lid (upper) assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-NE510/NE511/NE518CK 3-3. MAIN BOARD 3-2. CABINET (FRONT) ASSY 5 claw 6 claws 9 cabinet (front) assy 8 7 1 boss battery case lid 2 screws (B 2) 3 screws (B 2) 4 screws (B 2) 1 CN401 2 CN402 3 CN601 4 MD assy 5 MAIN board cabinet (rear) sub assy battery link terminal battery terminal plate (+) battery terminal plate (–) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 D-NE510/NE511/NE518CK C704 L701 R725 C701 R826 C B E E B C C899 R842 R836 R835 R897 R822 R823 VDR803 R913 R912 C898 R971 R840 R844 R843 R845 R819 R401 L406 L602 L603 L409 CN807 R608 R609 FB305 C614 R634 R604 C618 C630 C617 R635 R605 FB101 R603 R602 R622 R849 C608 C607 C605 R621 R623 C609 R626 C613 C624 R601 Q601 C615 D601 R610 R670 C706 R711 C712 R729 R708 R720 R710 R709 R721 R733 R723 C718 C717 C716 C811 R832 R829 R830 R831 C813 C814 D802 D801 D803 Q801 SL804 D404 R906 C414 C412 R409 R402 C603 D308 FB201 C301 R662 R626 R629 C614 R630 R627 C611 C601 R633 R632 C699 VDR612 C612 R625 R624 C318 R607 D301 R616 R615 R637 R312 R316 R663 R620 R814 R949 R897 R853 R619 R934 R935 R933 R877 R847 R617 R618 R850 R911 R699 R631 C632 VDR308 VDR306 VDR307 R914 R908 R837 R820 R825 R827 R717 R718 R730 R719 C623 R640 C626 FB601 C602 R611 C696 R636 R640 R645 R614 C606 R706 FB701 R707 R731 X701 C711 IC701 C713 VDR609 VDR608 VDR603 VDR607 VDR606 VDR601 VDR806 SL805 VDR605 VDR604 VDR610 R715 13 1 31 60 30 1 1 716 32 33 48 64 49 1 120 61 90 91 14 26 R630 R639 R641 R642 R643 IC603 IC601 FB602 C697 C715 C628 R886 R816 R817 R846 C604 C627 R613 C620 R887 C896 IC801 C812 R811 R821 R828 R649 R716 C719 R726 TP711 TP709 TP713 TP716 TP727 TP951 TP729 TP730 TP715 TP712 TP714 TP710 C707 TP702 TP602 TP603 TP642 TP643 TP644 TP640 TP641 TP603 TP638 TP636 TP634 TP635 TP633 TP637 TP960 TP949 TP946 TP629 SL601TP630 TP631 TP347 TP301 TJ306 TP302 TP632 TP604 TP606 TP608 TP953 TP608 TP954 TP701 TP703 Q802 TP811 TP804 TP823 TP852 TP824 TP851 TP808 TP810 TP809 TP802 TP803 TP813 TJ801 (TEST) TP620 TP617 TP615 TP621 TP831 TP648 TP821 TP646 TP652 TP914 TJ603 TP946 TJ201 TJ301 TJ101 TJ602 TP627 TP645 TP647 TP653 TP651 TP620 TP626 TP618 TP622 TP624 TP615 TP616 TP625 TP619 TP623 TJ601 SL602 TP818 TP812 TP805 E C B EC B SL803 SL802 SL801 C619 C631 L601 KAKA C610 X601 TP612 TP952 C705 C622 C621 1 25 26 50 51 75 76 100 TJ601 (RF) — MAIN BOARD — (SIDE B) RF level : 0.45 ± 0.1 Vp-p VOLT/DIV : 20 mV (10 : 1 probe in use) TIME/DIV : 500 nS SECTION 4 ELECTRICAL ADJUSTMENTS CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. 4-1. FOCUS BIAS CHECK 1. Connect the oscilloscope between TJ601 (RF) and GND on main board. 2. Insert the disc (YEDS-18). (Part No. : 3-702-101-01) 3. Press the N X button. 4. Confirm that the oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape ( ) in the center of the waveform can be clearly distinguished. • RF signal reference waveform (eye pattern) Test Points: When observing the eye pattern, set the oscilloscope for AC range and raise vertical sensitivity. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-NE510/NE511/NE518CK SECTION 5 DIAGRAMS 5-1. IC PIN DESCRIPTIONS • IC601 CXD3048R (RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER) Pin No. Pin Name I/O Pin Description 1 XRAS O Low address strobe signal output to the D-RAM 2 XWE O Data input enable signal output to the D-RAM 3 to 6 D1, D0, D3, D2 I/O Two-way data bus with the D-RAM 7 DCLK O Not used (open) 8 DCKE O Not used (open) 9 XCAS O Column address strobe signal output to the D-RAM 10 WFCK/DQM O Not used (open) 11 to 13 A9 to A7 O Address signal output to the D-RAM 14 DVSS — Ground 15 to 17 A6 to A4 O Address signal output to the D-RAM 18 XRDE I D-RAM read enable signal input 19 VDD0 — Power supply 20 CLOK I Serial data transfer clock signal input from TMP91CW28FG 21 SDTO I Serial data input from TMP91CW28FG 22 SENS O Serial data output to TMP91CW28FG 23 XLAT I Serial data latch pulse signal input from TMP91CW28FG 24 XSOE I Serial data output enable signal input from TMP91CW28FG 25 SYSM I Analog muting on/off control signal input from TMP91CW28FG “H”: muting on 26 WDCK O Not used (open) 27 SCOR O Subcode sync (S0+S1) detection signal output to TMP91CW28FG 28 XRST I Reset signal input from TMP91CW28FG “L”: reset 29 PWMI I Not used (open) 30 XQOK I Not used (open) 31 XWRE I Not used (open) 32 R8M O System clock output to TMP91CW28FG 33 VSS0 — Ground 34 SQCK I SQSO readout clock signal input Not used (fixed at “H”) 35 SCLK I SENS serial data read clock signal input Not used (fixed at “H”) 36 SQSO O Not used (open) 37 XEMP O Not used (open) 38 XWIH O Not used (open) 39 SBSO O Not used (open) 40 EXCK O SQSO readout clock signal output Not used (pull down) 41 XTSL I Input terminal for the system clock frequency setting (pull down) 42 HVSS — Ground 43 HPL O Not used (open) 44 HPR O Not used (open) 45 HPVDD — Power supply 46 XVDD — Power supply 47 XTAI I System clock input (16.934 MHz) 48 XTAO O System clock output (16.934 MHz) 49 XVSS — Ground 50 AVDD1 — Power supply 51 AOUT1 O L-ch analog audio signal output 52 VREFL O L-ch reference voltage output 53, 54 AVSS1, AVSS2 — Ground 55 VREFR O R-ch reference voltage output 56 AOUT2 O R-ch analog audio signal output 57 AVDD2 — Power supply www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 D-NE510/NE511/NE518CK Pin No. Pin Name I/O Pin Description 58 TES1 I Input terminal for the test (fixed at “L”) 59 TEST I Input terminal for the test (fixed at “L”) 60 VSS1 — Ground 61 LRMU O Muting on/off control signal output to TA2120FN 62 DOUT O Not used (open) 63 ATSK I/O Not used (open) 64 DFCT I/O Not used (open) 65 FOK O Focus OK signal output to TMP91CW28FG 66 MIRR I/O Not used (open) 67 COUT I/O Not used (open) 68 C2PO O Not used (open) 69 GFS O GFS signal output to TMP91CW28FG 70 XUGF O Not used (open) 71 XPCK O Not used (open) 72 VDD1 — Power supply 73 PCO O Charge pump output for master PLL 74 FILI I Filter input for master PLL 75 FILO O Filter output for master PLL 76 CLTV I VCO1 control voltage input for multiplier 77 VCTL I VCO2 control voltage input for broad-band EFM PLL 78 VPCO O Charge pump output for broad-band EFM PLL 79 AVSS3 — Ground 80 ASY_O O EFM full-swing output 81 ASY_I I Asymmetry comparator voltage input 82 BIAS I Asymmetry circuit constant current input 83 AVDD3 — Power supply 84 RFAC I EFM signal input from the optical pick-up 85 AVDD0 — Power supply 86 IGEN I Stabilized current input (pull up) 87 AVSS0 — Ground 88 RFDC I RF signal input from the optical pick-up 89 E I E signal input from the optical pick-up 90 F I F signal input from the optical pick-up 91 B I B signal input from the optical pick-up 92 A I A signal input from the optical pick-up 93 VC I Middle point voltage input Not used (fixed at “L”) 94 VSS3 — Ground 95 FRDR O Focus servo drive signal (–) output to the TB2138FG 96 FFDR O Focus servo drive signal (+) output to the TB2138FG 97 TRDR O Tracking servo drive signal (–) output to the TB2138FG 98 TFDR O Tracking servo drive signal (+) output to the TB2138FG 99 SRDR O Sled servo drive signal (–) output to the TB2138FG 100 SFDR O Sled servo drive signal (+) output to the TB2138FG 101 SSTP I Disc inner position detection signal input Not used (fixed at “L”) 102 MDS O Spindle motor drive signal output 103 MDP O Spindle motor servo control signal output 104 C176 O 176.4 kHz clock signal output to TB2138FG 105 VDD2 — Power supply 106 LRCK_O O L/R sampling clock signal output to CXR710 107 LRCKI_I I L/R sampling clock signal input from CXR710 108 PCMD_O O Serial data output to CXR710 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 D-NE510/NE511/NE518CK Pin No. Pin Name I/O Pin Description 109 PCMD_I I Serial data input from CXR710 110 BCK_O O Bit clock signal output to CXR710 111 BCK_I I Bit clock signal input from CXR710 112 DVDD — Power supply 113 to 117 A3 to A0, A10 O Address signal output to the D-RAM 118 A11 O Not used (open) 119, 120 TEST3, TEST4 O Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 D-NE510/NE511/NE518CK • IC701 CXR710 (SOUND PROCESSOR) Pin No. Pin Name I/O Pin Description 1 LRCH I D/A I/F L/R clock input from CXD3048 2 BCK I D/A I/F bit clock input from CXD3048 3 VDIOCD0 — Power supply (+2.0 V) 4 PCMD I D/A I/F serial data input from CXD3048 5 DVDD4 — Power supply (+1.5 V) 6 TAPTDO O Debug signal output 7 SCANEN I Not used (fixed at “L”) 8 DVDD0 — Power supply (+1.5 V) 9 DVSS0 — Ground 10 VDIO0 — Power supply (+2.0 V) 11 VDIOCD1 — Power supply (+2.0 V) 12 PF4 I XRDE monitor signal input from CXD3048 13 PI3 O D/A I/F bit clock output to CXD3048 14 PI2 O D/A I/F L/R clock output to CXD3048 15 PI0 O D/A I/F serial clock output to CXD3048 16 EVA I Mode select input terminal 17 KCLK O Not used (open) 18 KSC O Not used (open) 19 VDIO1 — Power supply (+2.0 V) 20 KDI O Not used (fixed at “L”) 21 KDO I Not used (fixed at “L”) 22 KRB I Not used (open) 23 DVDD1 — Power supply (+1.5 V) 24 DVSS3 — Ground 25 AVDPLL — Power supply (PLL) (+2.6 V) 26 AVSPLL — Ground (PLL) 27 AVSOSC — Ground 28 AVDMO — Power supply (+2.6 V) 29 EXTAL I System clock input (22 MHz) 30 XTAL O System clock output (22 MHz) 31 XIN I System clock input (22 MHz) 32 OSSEL I Input terminal for clock frequency setting (fixed at “L”) 33 NRST I Reset signal input 34 PF0 I Interrupt signal input to TMP91CW28FG 35 PF1 I Not used (fixed at “L”) 36 PF2 O Data latch signal input from TMP91CW28FG 37 PF3 O REQ signal output to TMP91CW28FG 38 PC0 I Clock signal input from TMP91CW28FG 39 VDIOCD2 — Power supply (+2.0 V) 40 PC1 O Serial data output to TMP91CW28FG 41 PC2 I Serial data input from TMP91CW28FG 42 PC3 I Data latch signal input from TMP91CW28FG 43 DVDD2 — Power supply (+1.5 V) 44 DVSS2 — Ground 45 PE0 — Not used (open) 46 PE1 — Not used (open) 47 PE2 — Not used (pull down) 48 PE3 — Not used (pull up) 49 VDIO2 — Power supply (+2.0 V) 50 TACK (TEST6) O Not used (open) 51 XOUT (TEST5) O Not used (open) 52 TRST (TEST4) I Not used (pull down) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 D-NE510/NE511/NE518CK Pin No. Pin Name I/O Pin Description 53 TEST3 I Not used (pull down) 54 TEST2 I Not used (pull down) 55 TEST1 I Not used (pull down) 56 DVDD3 — Power supply 57 DVSS1 — Ground 58 TEST0 I Not used (pull down) 59 TCK I Not used (open) 60 TDI I Not used (open) 61 VDIO3 — Power supply (+2.0 V) 62 TMS I Not used (open) 63 TDO O Not used (open) 64 NTRST I Not used (pull down) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 D-NE510/NE511/NE518CK • IC801 TMP91CW28FG (SYSTEM CONTROL) Pin No. Pin Name I/O Pin Description 1 GND — Ground 2 GND — Ground 3 VCPU — Power supply (+2.0 V) 4 XRST_O O System reset signal output 5 PWM_O O Power on/off signal output (Not used) 6 BEEP_O O Beep signal output 7 AMUTE_O O Mute signal output to CXD3048 8 LINEOUT_I I Not used (open) 9 OPTOUT_I I Not used (open) 10 FG_I I Motor flag monitor input from TB2138FG 11 REQ_I I REQ signal input from CXA710 12 HG-XSTB_O O Strobe signal output to optical pick up block 13 HG-GUP_O O Guide-up signal output to optical pick up block 14 RE1_I I Encode signal input from jog dial 15 RE2_I I Encode signal input from jog dial 16 LCD_REQ_O O Not used (open) 17 SDXLAT_O O Data latch signal output to CXD3048 18 SDCLK_O O Serial clock output to EEPROM 19 SDOUT_O O Serial data output to EEPROM 20 SDIN_I I Serial data input from EEPROM 21 DTS_SDTO O Serial data output 22 DTS_SDTI I Serial data input 23 DTS_SCK O Serial data transfer clock output 24 AMO_I I Not used (fixed at “L”) 25 VCPU — Power supply (+2.0 V) 26 XOUT O Not used (open) 27 GND — Ground 28 XIN I System clock signal input 29 AM1_I I Not used (fixed at “H”) 30 XRESET_I I System reset signal input from TB2138FG 31 TSB I TSB signal input from headphones with remote controller 32 XWAKE_O O WAKE-UP signal output to TB2138FG 33 EMU0_O O Not used (open) 34 EMU1_O O Not used (open) 35 ACKCD_I I Not used (pull down) 36 WAKE I KEY interrupt signal input 37 LID-SW_I I CD lid switch signal input 38 EXTBAT_I I Not used (fixed at “L”) 39 ESP_I I G-protection switch signal input 40 HOLD_I I HOLD switch signal input 41 AVSL_I I Not used (fixed at “L”) 42 TEST_I I Test mode setting input 43 NC — Not used (open) 44 to 51 AD0 to 7 I/O Address and data input/output to LCD unit 52 FOK_I I Focus OK signal input from CXD3039R 53 GFS_I I GFS signal input from CXD3039R 54 TUPWRON_O O Not used (open) 55 CDON_O O Not used (open) 56 AUD_SEL O Not used (open) 57 CHGGND_ON_O O Not used (pull down) 58 BATT_VCC_ON_O O Not used (open) 59 DTS_RST_O O Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 D-NE510/NE511/NE518CK Pin No. Pin Name I/O Pin Description 60 AT3_MP3_V_O O IC701 reset 61 P/S_O O P/S signal output to LCD unit 62 GND — Ground 63 XNMI_I I Not used (fixed at “H”) 64 VCPU — Power supply (+2.0 V) 65 HP_LIN_SEL_I I HP/LINE select input (fixed at “H”) 66 WAKEUP_K_O O Interrupt signal output to CXR710 67 EEP_CS_O O Chip select signal output to EEPROM 68 TUON_I I Not used (pull up) 69 LCD_A0 O A0 signal output to LCD 70 OPTWRCTL_O O Not used (open) 71 XRD_O O Read signal output to LCD unit 72 XWR_O O Write signal output to LCD unit 73 LCD-XRST_O O Reset signal output to LCD unit 74 XLCD-BL_O O Not used (open) 75 DISPLAY_TYPE I DISPLAY type setting input (fixed at “L”) (pull down) 76 TUNER_TYPE I TUNER type setting input (fixed at “L”) (pull down) 77 NC — H/P power switch control 78 BOOT — Not used (open) 79 DRAM0_I I 4M/16M select input to DRAM (fixed at “L”) 80 DRAM1_I I Not used (fixed at “L”) 81 XCEX_I I Fixed at “L” (AEP, UK model) 82 XLED-DSP_O O Not used (open) 83 MSCK0_O O Serial data transfer clock output to CXD3048 and TB2138FG 84 MSDTO0_O O Serial data output to CXD3048 and TB2138FG 85 MSDTIO_I I SENS signal input from CXD3048 86 SCOR_I I Sub-code sync (S0+S1) detect signal input from CXD3048 87 XLAT0_O O Latch signal output to CXD3048 88 XSOE_O O Serial data enable signal output to CXD3048 89 VCPU — Power supply (+2.0 V) 90 PWRLAT_O O Data Latch signal output to TB2138FG 91 GND — Ground 92 AD-BATMNT I Battery voltage level monitor input 93 AD-CHGMNT I Not used (pull up) 94 AD-CHGSTMNT I Not used (fixed at “L”) 95 AD-DCINMNT I DC IN voltage level monitor input 96 AD-KEY1 I Key input from switch unit 97 AD-KEY2 I Key input from switch unit 98 AD-KEY3 I Key input from jog switch 99 AD-RMKEY I Key input from headphones with remote controller 100 VCPU — Power supply (+2.0 V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 15 15 5-2. BLOCK DIAGRAM — CD SECTION — RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER IC601 51 48 47 10 26 24 22 32 65 23 20 21 52 85 88 87 83 84 86 LPF SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK SERVO BLOCK • Signal Path : CD PLAY MDS 102 106 LRCK_O LRCK_I PCMD_O PCMD_I BCK_O BCK_I 107 108 109 110 111 18 XRDE MDP 103 MDP SENS SCOR 27 SCOR 104 C176 SDTO XTAI XTAO RFAC XSOE R8M XLAT CLOK AOUT2 SYSM FOK FOK R8M XSOE WDCK WFCK SDTO SENS CLOK XLAT XSOE_O FOK_I MSDTO0_O SCOR_I MSDTI0_I_I MSCK0_O XLAT0_O 100 99 SFDR RFDC B A 2 WDCK WFCK XTAO XTAI E F SRDR TRDR FRDR FFDR TFDR FFDR FRDR 89 F 92 91 A B 88 84 RFDC RFAC E 96 95 SFDR SRDR 98 97 60 59 58 57 TFDR TRDR OPTICAL PICK-UP BLOCK (DAX-23E) A A B RF E F B RF E F PD PD LD LD DETECTOR VCC M901 SPINDLE MOTOR FOCUS COIL TRACKING COIL FI3 RI3 56 55 FI1 RI1 FI2 RI2 72 PWM 70 XBRK FO1 VCC1 (+2.2V) RO1 FO3 RO3 FO2 RO2 CUT4(LD) PWG INM4 (PD) M F+ F- S+ S- T+ T- 34 SYNC 60 AT3_MP3_V_O 7 AMUTE_O 69 53 GFS GFS_I 28 3 XRST XRST_0 SDTO SCK X601 16.934MHz X601 16.934MHz B C D 90 SYSTEM CONTROLLER IC801 (1/3) SOUND PROCESSOR IC701 +1.5V REG IC806 B+SWITCH IC702 8 7 6 5 4 3 2 17 SDXLAT_O 11 REQ_I 33 42 36 37 38 40 41 SD CLK SD IN SD OUT 1 14 4 15 2 13 12 NRST LRCK 30 2 3 XTAL 29 EXTAL PI2 PCMD PI0 BCK PI3 PI2 PC3 PF2 PF3 PC4 PC1 PC2 PC2 DVDD VCC3 (+2.6V) B+ +3V 52 50 44 42 48 46 36 31 DRIVER M902 SLED MOTOR U W M U V COM W 2 6 DRIVER DRIVER CONTROLLER DRIVER PD AMP LEVEL SHIFTER 32 FOCUS/TRACKING COIL DRIVER, SPINDLE/SLED MOTOR DRIVER IC403 (1/2) A F E 1 4,3,6,5 1 2 9 120 XRAS XWE XCAS XOE D0-D3 A0-A10 4 11 4 11 116-113,17-15,13-11,117 28 XIN_I V 4 COM 80 LD DRIVER Q601 X701 22MHz 1 2 5 25 AOUT1 48 XTAO 61 56 LRMU 47 XTAI (Page 17) (Page 17) (Page 17) (Page 17) (Page 16) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 16 16 5-3. BLOCK DIAGRAM — AUDIO SECTION — • Signal Path : CD PLAY 11 2,3, 24, 25 9 - 13, 15 - 19,21,8 5 4 23 22 77 6 40 NC 21 DTS_SDTO 22 DTS_SDTI 23 DTS_SCK 30 XRESET_I 78 BOOT 28 XIN BEEP_O SDCLK TXP21 CN807 RXD22 TEK23 RST30 BOOT78 8M28 SDIN SDOUT HOLD_I AD0 I AD7 EEP_CS_O SDCLK_O SDOUT_O SDIN_I SYSTEM CONTROLLER IC801 (2/3) IC803 EEPROM 16 BIT D-RAM IC603 D0-D3 A0-A10 XRAS XWE XCAS XOE 99 AD-RMKEY 31 TSB OFF ON HOLD 39 ESP-I 1 2 S811 G-PROTECTION LIN RIN HEADPHONE AMP IC301 14 15 LOUT ROUT 8 6 PWRSW MUTE 19 BEEP 17 PW SW BEEP MT SW VREF 7 20 44 - 51 17 - 10 LIQUID CRYSTAL DISPLAY PANEL LCD801 NE518CK 4 S810 37 LID-SW_I 36 WAKE 71 72 69 61 73 18 19 20 23 24 96 AD_KEY1 AD_KEY2 AD_KEY3 RE1_I RE2_I 97 15 14 XRD_O XWR_O LCD_A0 P/S_O LCD_XRST_O 98 3 2 S820 OPEN/CLOSE S801-806,809 S808,812-814 TAP805 7 6 5 4 3 2 A F 1 8 VCPU +2V RD WR A0 P/S RES 67 18 19 20 1 2 3 4 CS SK DI DO +2.4V REG IC802 VCC3 (+2.6V) VDD JOG S822 JOG DIAL T t r ENTER INTERRUPT I/F Q801,802 J301 i 5 6 7 8 9 10 TEST CONNECTOR (Page 15) (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 17 17 5-4. BLOCK DIAGRAM — POWER SUPPLY SECTION — SWITCHING POWER CIRCUIT 2 MONITOR AMP SWITCHING POWER VG CONTROL CHARGE INTERFACE CLK & OSC AMP BIAS SAW GENERATOR STANDBY REFERENCE 67 34 37 39 38 40 12 68 69 63 62 61 8 9 65 CHG ON/OFF BANDGAP REFERENCE (VREF) 35 SYSTEM CONTROLLER IC801 (3/3) 95 92 26 32 XWAK 90 PWRLAT_O AD_BATMNT 30 XRESET_I AD_DCINMNT POWER CONTROLLER IC403 (2/2) B+ B- J401 DC IN 4.5V ! VCPU VCCO VIN NC NC NC BATM1 BATM2 CHGSW RS DCIN DCIN +VG RF4 L5 VG VLGO2 11 L7 10 L7 CHGMHT SYNC WAKEUP CLOCK DATA SYNC VCPU(+2V) VCC2 (+2.0V) VCC1 (+2.2V) VCC3 (+2.6V) NC SCK SDTO LATCH RSTB VREF DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS,3V D405 D B C E B+ +3V FOCUS/TRACKING COIL DRIVER SPINDLE/SLED MOTOR DRIVER (IC403) +3V, HEADPHONE AMP (IC301) +3V CHARGE SWITCH Q402 SWITCHING POWER CIRCUIT 3 20 18 VCC2 VCC1 17 19 16 L404 L401 DCIN DETECT IC404 4 5 VOUT VIN (Page 15) (Page 15) (Page 15) (Page 15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 18 18 5-5. PRINTED WIRING BOARD — MAIN SECTION — Common Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • a : Through hole. • f : internal component. • : Pattern from the side which enables seeing. Common Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • C : panel designation. • A : B+ Line. • Total current is measured with CD installed. • Power voltage is dc 4.5 V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground in playback mode. no mark : CD PLAY ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD • Abbreviation CND : Canadian model. E18 : AC 100 – 240V area in E model. E92 : AC 120V area in E model. EE : East European model. AUS : Australian model. MX : Mexican model. Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. • Abbreviation CND : Canadian model. E18 : AC 100 – 240V area in E model. E92 : AC 120V area in E model. EE : East European model. AUS : Australian model. MX : Mexican model. Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 FB704 C709 R722 R732 R1001 C821 IC806 C703 R724 C710 R876 VDR802 R727 C810 TP918 IC702 TP917 C708 TP920 TP919 VDR703 TP922 R702 C805 R894 C830 C445 TP915 TP303 J301(1/2) NE518CK MODEL C438 R418 TP825 TP912 TP913 IC803 C417 C308 R301 C307 R302 FB406 FB408 R313 R314 R316 R315 R873 C309 FB405 FB404 R650 FB409 R606 CN601 TAP805 TP910 TP911 FB401 FB402 R898 FB410 R427 SL806 TP814 TP819 TP916 TP817 TP816 TP828 C420 VDR406 C901 R1003 R931 C802 C804 R413 R412 C415 R411 C406 VDR407 R917 C432 C437 C424 C446 C426 C435 R903 R419 CN401 CN402 R476 L413 IC404 C419 C458 TP901 TP419 TP418 TP902 C459 BT401 BT403 R460 R416 R916 TP806 1-686-788- 12 (12) TP807 TP832 TP401 S822 JOG DIAL T t r ENTER S803 . S812 x S801 u S802 > TP904 TP905 TP907 TP906 TP909 TP908 R932 R1002 C803 S801 S803 S802 S812 S822 C801 R925 R924 R923 R922 R921 R920 R919 FB407 VDR901 L408 R436 C404 VDR408 R477 VDR405 VDR404 R406 C427 R927 R926 R936 R901 R930 FB801 R928 R929 C809 L412 C834 C833 C835 R703 OPTICAL PICK-UP BLOCK (DAX-25E) C714 L704 L411 L703 L407 C303 C302 C463 C698 TP614 TP613 TP611 TP609 TP610 TP650 TP601 TP607 8 5 1 4 MAIN BOARD (SIDE A) 2 3 1 1 3 5 4 15 1 BLK BLK M902 SPINDLE MOTOR M901 SLED MOTOR ORG GRY RED BLK RED RED RED GRY ORG BLK 1 2 4 1 • Semiconductor Location (Side A) IC404 H-3 IC702 A-4 IC803 E-4 IC806 B-4 Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 19 19 • Refer to page 18 for Common note on Printed Wiring Board. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 C701 R735 R728 R826 C B E E B C C899 R842 R897 R822 R823 VDR803 R913 10 1 R912 C898 R971 R840 R844 R843 R845 R865 FB305 R819 R429 L406 L602 L603 L401 L402 L301 L409 L403 L404 R452 D421 CN807 R414 R424 R422 C403 R417 C421 R802 D402 R941 R807 R812 R946 R809 R803 VDR401 TP421 TP925 TP926 TP924 TJ405 TJ409 C410 C429 R874 R808 C422 C423 C430 R438 R101 IC802 R201 R102 C103 R111 R608 R646 FB303 C616 R604 C618 C617 R605 FB101 FB201 R603 R602 R622 C608 C607 C605 R621 R623 C609 R626 C613 C624 Q601 R610 R670 R202 C203 R211 R948 R945 R944 R867 C706 R711 C712 R729 R708 R720 R710 R709 R721 R733 R723 C718 C717 C716 C811 R832 R830 R831 D801 D803 Q801 SL804 D422 R906 C416 C454 R403 R489 C450 LCD801 LIQUID CRYSTAL DISPLAY C433 R459 C455 FB413 FB414 R456 R454 D426 D405 C405 D425 D403 ! R813 R804 R440 IC403 TJ401 TJ402 C852 C853 R612 R947 C808 C306 R318 C107 C207 TP941 TP942 TP940 TP939 TJ503 TP826 TP930 TP929 TJ406(VCPU) TJ404 (AU GND) TP820 TP923 S813 P.MODE/ TP801 OFF t ON 2 T 1 TJ403 (A GND) TP822 TP943 TP935 TP936 TP937 TP938 TJ501 TJ502 TP934 TP933 TP932 D308 C301 R662 R628 R629 C614 R630 C611 C601 R633 R632 C699 C612 R625 R624 R607 C630 R312 C318 R663 R814 R949 C897 R619 R934 R935 R933 R877 R618 R911 R699 C632 VDR308 VDR307 VDR306 C304 13 24 12 1 IC301 R943 R806 R498 R495 FB403 R487 R801 S810 HOLD . R942 R805 S805 S808 DISPLAY S804 S809 VOL - S806 VOL + S820 (OPEN/CLOSE) R866 C447 R480 C440 R415 R453 R914 R908 R837 R820 R717 R718 R730 R719 C623 R648 C696 C626 FB601 R611 R636 R640 VDR806 R645 C606 TP955 R706 FB701 R707 VDR701 VDR702 R731 X701 C711 IC701 C713 SL805 R713 R714 R715 13 1 31 60 30 1 1 716 32 33 48 64 49 1 120 61 90 91 14 26 R638 R639 VDR607 VDR601 R641 VDR606VDR605 VDR604 R642 R643 IC603 IC601 FB602 C697 C715 R886 R816 R817 R848 C627 R887 C896 C620 AEP,UK,EE MODEL IC801 C812 R811 R821 R828 R649 VDR603 R716 C719 TP711 TP709 TP713 TP716 TP727 TP951 TP729 TP730 TP715 TP712 TP714 TP710 TP708 TP702 TP602 TP603 TP642 TP643 TP644 TP640 TP641 TP603 TP638 TP636 TP634 TP635 TP633 TP637 TP960 TP949 TP946 TP629 SL601TP630 TP631 TP347 TP301 TJ306 TP302 TP632 TP604 TP606 TP608 TP953 TP608 TP954 TP701 TP703 Q802 TP853 TP811 DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS,3V TP804 TP823 TP852 TP824 TP851 TP808 TP810 TP809 TP944 TP412 TP422 TP945 TP413 TP414 TP415 TP402 TP403 Q402 TP404 TP417 TP927 TP409 TP410 TP411 TP416 TP420 TJ407 BT403 BT401 TP802 TP803 TP813 TJ801 (TEST) TP620 TP617 TP615 TP621 TP831 TP648 S811 G-PROTECTION S814 SOUND J401 DC IN 4.5V TP821 TP646 TP654 TP652 TP914 TJ604 TJ606 TJ603 TP946 TJ201 TJ301 TJ101 J301(2/2) TJ602 TP627 TP645 TP647 TP653 TP651 TP620 TP626 TP618 TP622 TP624 TP615 TP616 TP625 TP619 TP623 TJ601 SL602 TP818 TP812 TP805 E C B EC B SL803 SL802 SL801 C619 C631 L601 KAKA C610 X601 TP612 TP952 C705 C622 C702 C428 C425 C436 C305 C621 C434 1 25 26 50 51 75 76 100 60 61 24 1 1 2 4 3 80 1 20 40 41 21 MAIN BOARD (SIDE B) i 1-686-788- 12 (12) NE518CK MODEL • Semiconductor Location (Side B) D303 E-9 D304 F-9 D305 F-9 D308 F-9 D402 H-3 D403 G-3 D405 H-4 D421 F-4 D422 F-4 D801 D-5 D803 D-5 IC301 G-8 IC403 F-5 IC601 D-8 IC603 B-7 IC701 C-5 IC801 E-6 IC802 G-7 Q402 H-4 Q601 F-8 Q801 D-5 Q802 E-5 Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 20 20 5-6. SCHEMATIC DIAGRAM — MAIN SECTION (1/2) — • Refer to page 22 for IC Block Diagram. • Refer to page 18 for Common Note on Schematic Diagram. IC B/D C619 R611 C627 C626 TP613 TP612 L602 R636 FB602 TP611 TP953 C697 TP610 TP609 TP601 TP602 TP603 TP604 TP605 TP606 TP607 TP608 R645 R648 C606 C622 L603 TP954 TP639 TP640 TP641 TP642 TP643 TP644 R607 C618 TP614 TP615 TP616 TP617 TP618 TP619 TP620 TP621 TP622 TP623 TP624 TP625 C624 R618 R619 C605 R621 C607 C608 R622 R623 C609 R624 C612 R625 R630 R662 R629 C614 C699 R628 R632 R633 C601 C611 C698 TP916 TP626 TP948 TP949 TP627 TP628 TP629 TP630 TP950 C617 C616 C613 R626 R602 R603 R604 R605 TJ603 TP652 TJ606 R610 R608 R699 C610 R650 TP631 TP632 TP633 TP634 TP635 TP636 CN601 TP651 TP653 TJ602 TJ604 TP654 TP645 TP646 TP647 TP648 CN401 CN402 M901 M902 TP414 TP413 TP409 TP410 TP411 TP412 R706 R707 R731 FB701 C709 C711 TP920 TP955 TP703 TP702 TP701 C708 C713 C714 R716 R717 R718 R719 R730 C715 C719 C716 C717 C718 R713 R714 R715 TP712 TP713 TP714 TP715 TP716 C712 C710 R711 R710 R709 R720 R708 C705 C706 TP922 R723 R724 R702 R703 TP708 TP709 TP711 C703 TP919 TP918 C810 C821 IC806 C305 C306 IC301 R111 R211 C103 C203 TP936 TP940 R318 TP911 TP910 TP943 TP934 TP933 TP932 FB201 FB101 FB303 J301 TJ201 TJ101 TJ301 TP914 R313 D308 TP946 C301 R315 TJ306 TP303 TP302 TP947 TP915 TP301 R873 R302 C309 R301 C307 C308 C621 FB409 R612 R1001 FB402 FB401 C632 C631 R606 SL601 SL602 D421 R414 C416 R453 D422 R415 R452 TP638 L301 L703 L704 R312 FB408 TP710 C701 C702 C623 R646 R102 R202 C207 R101 R201 TP937 TP941 TP938 TP942 C107 Q601 X601 TP650 TP952 TP939 TP935 R316 X701 TP917 R663 IC603 FB601 R314 IC702 TJ601 TP637 FB704 R721 R735 R732 VDR701 VDR703 R728 VDR702 IC701 C304 C303 C302 VDR306 VDR307 VDR308 C318 FB305 C620 C696 R643 R642 R641 R640 R639 R638 VDR603 VDR604 VDR605 VDR606 VDR607 VDR601 R649 R670 IC601 L601 C630 R733 R727 R722 (Page 21) • Waveforms (CD play mode) IC601 rk (XTAO) 2 1V/div 20nsec/div 16.934MHz 3.0Vp-p IC601 es (R8M) 1 1V/div 117nsec 2.0Vp-p 50nsec/div IC601 if (RFAC) 3 200mV/div 500nsec/div 0.6Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 21 21 IC B/D IC403 L403 TP401 L404 L407 C433 C450 C429C428 C424 C432 C434 C437 TP417 TP908 TP927 TP904 TP907 TP906 C430 C440 R438 TJ401 TJ402 TP422 R477 R436 R440 R427 C427 C447 R422 R424 R429 L406 L409 L411 C438 C458 C459 R460 D405 IC404 R403 R489 TP902 TP901 TP415 TP416 TP402 TP403 TP404 C419 C420 C421 C422 C423 R456 C406 TJ406 TJ501 R498 FB403 FB405 R495 BT401 BT403 J401 D403 VDR401 C410 D402 C405 C415 L401 L402 R411 R412 R413 TJ407 TJ408 TP421 TP813 R845 R844 R819 R843 R840 R820 R837 TP810 TP831 TP809 R908 R906 R897 R842 TP808 TP805 TP804 TP803 TP802 R898 TP817 TP814 R814 R949 TP815 TP816 R911 TP818 TP819 R933 R934 TP828 TP829 TP830 R886 R887 R821 C811 R912 R913 R914 SL802 SL803 SL804 SL801 SL806 TJ801 R971 C898 R811 C899 C812 C896 SL805 R935 R877 R816 R848 Q801 Q802 TP811 TP812 D801 D803 R832 R828 R830 R831 R807 S808 R808 S812 R809 R946 S813 R874 S814 FB801 S801 S802 S803 S804 S805 S806 S809 R802 R941 R803 R804 R805 R942 R806 R943 R867 R944 R948 R945 R947 TP923 TP924 TP925 TP926 TP929 TP930 R812 R813 TP823 TP824 TP851 TP825 TP852 C805 R894 R876 TP853 C852 C853 IC802 IC803 S822 C808 TAP805 TP826 S820 TP822 TP821 TP806 TP807 TP832 R866 R865 R903 R916 R917 C802 C803 C801 R931R1002 R932R1003 R419 TJ502 R487 TP820 FB406 TJ403 R801 TP801 FB407 FB410 C830 C835 C833 C834 TJ503 TP420 R418 C417 TP419 TP418 TP905 C426 IC801 C901 LCD801 TP827 R823 R822 S810 S811 C804 R927 R926 R919 R920 R921 R922 R923 R924 R925 R901 R929 R928 CN807 Q402 TJ405 R476 R417 C403 R480 R826 R936 C897 R817 FB416 D425 TJ409 VDR407 R416 C809 VDR901 VDR803 VDR802 VDR806 VDR404 VDR405 VDR408 C446 FB414 C463 L408 FB413 VDR406 C425 D426 R454 C454 C455 R459 C436 C404 FB404 L412 R930 5-7. SCHEMATIC DIAGRAM — MAIN SECTION (2/2) — • Refer to page 22 for IC Block Diagram. • Refer to page 18 for Common Note on Schematic Diagram. (Page 20) • Waveforms (CD play mode) 2µsec/div IC403 qd (L2H) 4 1V/div 5.7µsec 3.0Vp-p 5 1V/div IC801 wk (XIN) 50nsec/div 117nsec 3.0Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE510/NE511/NE518CK 22 22 5-8. IC BLOCK DIAGRAMS IC301 TA2120FN + – + – + – 23 18 17 16 15 14 13 2 3 4 5 6 7 8 9 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW ROUT LOUT BEEP MUTE MUTE BST PW B PW C BSTNF ADDOUT RF-IN DCL-SW ROUT VREF LOUT PGND MIXOUT ALCIN ALCDET ATTSW LIN RIN GND PWRSW BIAS BIAS_IN BBSW BESTOUT VCC ADDA ADDB 21 22 PW A ALC ALC 20 19 10 1 VD4 60 FI3 59 RI3 58 FI2 57 RI1 56 FI1 54 DEF 55 RI1 53 VD1 52 FO1 51 MGND1 50 RO1 48 FO2 49 VD12 45 VD23 41 VD3 47 MGND2 46 RO2 44 FO3 43 MGND3 42 RO3 11 VCC3 10 L7 12 VIN 13 L2H 14 PGND1 15 L2L 16 VLG02 17 VCC1 18 VCC2 19 VCPU 21 VCC0 CONTROL CHARGE MONITOR AMP LOGIC/ MOTOR DRIVER PRE DRIVER VG VCPU VCC3 VG 9 VG 8 L5 7 MGND5 6 W 5 VD5 4 V 3 MGND4 2 U 80 COM 79 UI 78 VI 77 WI 76 DTC3 75 DTC2 74 FG 73 APWM 72 PWM 71 PGND2 70 XBBK 69 BATM2 68 BATM1 67 CHGMNT 66 INP1 65 CHGSW 61 DCIN 40 LATCH 39 DATA 38 CLOCK 37 WAKEUP 36 OUT4(LD) 35 RSTB 34 SYNC 33 GND 32 INM4(PD) 31 PWG 30 INM2 29 RF2 28 PWS 27 INP2 26 VREF 25 STNG VCC4 VG 24 INP3 IVREF 23 INM3 22 RF3 21 PWM3 62 RF1 63 RS VREF DC IN VIN CONRROLLER 64 INM1 LEVEL SHIFTER CH1 H BRIDGE CH2 H BRIDGE CH3 H BRIDGE VD4 CLX & OSC SAW GEN VCPU STANBY REF BIAS BAND GAP REF VREF VCCO VCPU VCCO IC403 TB2138FG w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 D-NE510/NE511/NE518CK SECTION 6 EXPLODED VIEWS Ref. No. Part No. Description Remark 6-1. CABINET (FRONT) SECTION Ref. No. Part No. Description Remark NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color • Accessories are given in the last of this parts list. R R • Abbreviation CND : Canadian model E18 : AC 100 – 240V area in E model E92 : AC 120V area in E model EE : East European model AUS : Australian model MX : Mexican model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 1 X-3383-336-1 LID (UPPER) ASSY (SILVER)...(SILVER) (NE510) 1 X-3383-339-1 LID (UPPER) ASSY (BLACK)...(BLACK) (NE518CK) 1 X-3383-343-1 LID (UPPER) ASSY (SILVER)...(SILVER) (NE511) 1 X-3383-344-1 LID (UPPER) ASSY (BLUE)...(BLUE) (NE511) 1 X-3383-350-1 LID (UPPER) ASSY (RED)...(RED) (NE511) 1 X-3383-358-1 LID (UPPER) ASSY (SILVER)...(SILVER) (NE518CK) 2 3-251-360-01 SPRING (L) 3 3-251-361-01 SPRING (R) 4 4-908-792-61 SCREW (B2) 5 X-3383-338-1 CABINET (FRONT) ASSY (BLACK)...(BLACK) (NE518CK) 5 X-3383-341-1 CABINET (FRONT) ASSY (SILVER)...(SILVER) 5 X-3383-346-1 CABINET (FRONT) ASSY (BLUE)...(BLUE) (NE511) 5 X-3383-349-1 CABINET (FRONT) ASSY (RED)...(RED) (NE511) 6 3-250-777-01 LID, BATTERY CASE (SILVER)...(SILVER) 6 3-250-777-11 LID, BATTERY CASE (RED)...(RED) (NE511) 6 3-250-777-21 LID, BATTERY CASE (BLUE)...(BLUE) (NE511) 6 3-250-777-31 LID, BATTERY CASE (BLACK)...(BLACK) (NE518CK) 1 5 6 4 4 4 2 3 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 D-NE510/NE511/NE518CK 6-2. MAIN BOARD SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-245-331-01 INSULATOR 52 3-245-557-01 TERMINAL, BATTERY LINK 53 X-3383-337-1 CABINET (REAR) SUB ASSY (SILVER)...(SILVER) (NE510:US) 53 X-3383-340-1 CABINET (REAR) SUB ASSY (BLACK)...(BLACK) (NE518CK) 53 X-3383-342-1 CABINET (REAR) SUB ASSY (SILVER)...(SILVER) (NE510:CND/NE511) 53 X-3383-345-1 CABINET (REAR) SUB ASSY (BLUE)...(BLUE) (NE511) 53 X-3383-348-1 CABINET (REAR) SUB ASSY (RED)...(RED) (NE511) 53 X-3383-357-1 CABINET (REAR) SUB ASSY (SILVER)...(SILVER) (NE518CK) 54 3-249-876-01 BOARD (–), TERMINAL, BATTERY 55 3-249-875-01 BOARD (+), TERMINAL, BATTERY 56 4-223-609-21 KNOB (JOGGABLE) 57 3-250-782-01 HOLDER (LCD) * 58 A-3683-479-B MAIN BOARD, COMPLETE (NE510/NE511:E18,E92,AUS,MX) * 58 A-3683-490-B MAIN BOARD, COMPLETE (NE518CK:US,CND,E92,AUS,MX) * 58 A-3683-500-B MAIN BOARD, COMPLETE (NE511:AEP,UK,EE) * 58 A-3683-506-B MAIN BOARD, COMPLETE (NE518CK:AEP,UK) LCD801 1-805-092-11 DISPLAY PANEL, LIQUID CRYSTAL 51 52 58 51 51 CDM-3325ER2 LCD801 53 54 55 56 57 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 D-NE510/NE511/NE518CK 6-3. CD MECHANISM DECK SECTION (CDM-3325ER2) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 101 3-221-472-02 CHASSIS 102 A-3331-663-A SCREW (FEED) ASSY 103 3-221-475-01 SHAFT, STANDARD 104 3-222-298-01 RACK 105 3-222-299-01 SPRING, RACK RETAINER 106 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN 0107 X-3380-950-1 DAX-25E RP ASSY 108 3-318-203-61 SCREW (B1.7X4), TAPPING 109 3-221-474-01 SPRING, SLED 110 3-221-268-01 GEAR (B) 111 3-221-473-01 COVER, GEAR M501 A-3174-850-A MOTOR ASSY, SLED (SLED) M502 A-3608-777-A MOTOR ASSY, TURNTABLE (SPINDLE) M501 M502 101 102 103 104 105 106 107 108 108 109 110 111 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 D-NE510/NE511/NE518CK SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH • Abbreviation CND : Canadian model E18 : AC 100 – 240V area in E model E92 : AC 120V area in E model EE : East European model AUS : Australian model MX : Mexican model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. When indicating parts by reference number, please include the board. * A-3683-479-B MAIN BOARD, COMPLETE (NE510/NE511:E18,E92,AUS,MX) * A-3683-490-B MAIN BOARD, COMPLETE (NE518CK:US,CND,E92,AUS,MX) * A-3683-500-B MAIN BOARD, COMPLETE (NE511:AEP,UK,EE) * A-3683-506-B MAIN BOARD, COMPLETE (NE518CK:AEP,UK) ********************* 3-245-557-01 TERMINAL, BATTERY LINK 3-249-875-01 PLATE (+), TERMINAL, BATTERY 3-249-876-01 PLATE (–), TERMINAL, BATTERY 3-250-782-01 HOLDER (LCD) 3-250-855-01 ORNAMENT (JOG) 4-223-609-21 KNOB (JOGGABLE) < CAPACITOR > C103 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C107 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C203 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C207 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C301 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C302 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C303 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C304 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C305 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C306 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C307 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C308 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C309 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C318 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (NE518CK) C403 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C404 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-164-505-11 CERAMIC CHIP 2.2uF 16V C410 1-115-156-11 CERAMIC CHIP 1uF 10V C415 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C416 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C417 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C419 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C420 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C421 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C422 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C423 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C424 1-124-259-11 ELECT 4.7uF 20% 16V C425 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C426 1-126-369-11 ELECT 220uF 20% 6.3V C427 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C428 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C429 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C430 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C432 1-124-635-00 ELECT 220uF 20% 6.3V C433 1-115-156-11 CERAMIC CHIP 1uF 10V C434 1-165-851-11 TANTAL. CHIP 10uF 20% 6.3V C435 1-124-589-11 ELECT 47uF 20% 16V C436 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C437 1-124-635-00 ELECT 220uF 20% 6.3V C438 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C440 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C445 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C446 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C447 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C450 1-115-156-11 CERAMIC CHIP 1uF 10V C454 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C455 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C458 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C459 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C463 1-135-210-11 TANTAL. CHIP 4.7uF 20% 10V C601 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C605 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C606 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C607 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C608 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C609 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C610 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C611 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C612 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C613 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C614 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C616 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C617 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C618 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C619 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C620 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C621 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C622 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C623 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C624 1-115-156-11 CERAMIC CHIP 1uF 10V C626 1-164-156-11 CERAMIC CHIP 0.1uF 25V C627 1-115-156-11 CERAMIC CHIP 1uF 10V C630 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-NE510/NE511/NE518CK Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C631 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C632 1-164-156-11 CERAMIC CHIP 0.1uF 25V C696 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C697 1-164-156-11 CERAMIC CHIP 0.1uF 25V C698 1-131-862-11 TANTAL. CHIP 47uF 20% 4V C699 1-164-156-11 CERAMIC CHIP 0.1uF 25V C701 1-164-156-11 CERAMIC CHIP 0.1uF 25V C702 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C703 1-164-156-11 CERAMIC CHIP 0.1uF 25V C705 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C706 1-164-156-11 CERAMIC CHIP 0.1uF 25V C708 1-164-156-11 CERAMIC CHIP 0.1uF 25V C709 1-164-156-11 CERAMIC CHIP 0.1uF 25V C710 1-164-156-11 CERAMIC CHIP 0.1uF 25V C711 1-164-156-11 CERAMIC CHIP 0.1uF 25V C712 1-164-156-11 CERAMIC CHIP 0.1uF 25V C713 1-164-156-11 CERAMIC CHIP 0.1uF 25V C714 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C715 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C716 1-164-156-11 CERAMIC CHIP 0.1uF 25V C717 1-164-156-11 CERAMIC CHIP 0.1uF 25V C718 1-164-156-11 CERAMIC CHIP 0.1uF 25V C719 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C802 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C803 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C804 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C805 1-115-156-11 CERAMIC CHIP 1uF 10V C808 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C809 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C810 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C811 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C821 1-164-360-11 CERAMIC CHIP 0.1uF 16V C830 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C833 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C834 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C835 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C852 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C853 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C896 1-164-156-11 CERAMIC CHIP 0.1uF 25V C897 1-164-156-11 CERAMIC CHIP 0.1uF 25V C898 1-164-156-11 CERAMIC CHIP 0.1uF 25V C899 1-164-156-11 CERAMIC CHIP 0.1uF 25V C901 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V < CONNECTOR > CN401 1-784-342-21 HOUSING, CONNECTOR 2P * CN402 1-785-877-21 HOUSING, CONNECTOR 4P CN601 1-816-419-21 CONNECTOR, FPC (ZIF) 15P CN807 1-794-743-21 CONNECTOR, FFC (LIF(NON-ZIF)) 10P < DIODE > D308 8-719-421-33 DIODE MA147 D402 8-719-081-34 DIODE RB160M-30TR D403 8-719-081-34 DIODE RB160M-30TR D405 8-719-081-34 DIODE RB160M-30TR D421 8-719-404-50 DIODE MA111-TX D422 8-719-404-50 DIODE MA111-TX D425 8-719-083-04 DIODE RSB6.8STE61 D426 8-719-083-04 DIODE RSB6.8STE61 D801 8-719-421-27 DIODE MA728 D803 8-719-421-27 DIODE MA728 < FERRITE BEAD > FB101 1-500-234-22 BEAD, FERRITE (CHIP) FB201 1-500-234-22 BEAD, FERRITE (CHIP) FB303 1-414-813-11 FERRITE, EMI (SMD) FB305 1-414-813-11 FERRITE, EMI (SMD) FB401 1-414-760-21 FERRITE, EMI (SMD) FB402 1-414-760-21 FERRITE, EMI (SMD) FB403 1-414-760-21 FERRITE, EMI (SMD) FB404 1-216-864-11 METAL CHIP 0 5% 1/10W FB405 1-414-760-21 FERRITE, EMI (SMD) FB406 1-414-760-21 FERRITE, EMI (SMD) FB407 1-414-760-21 FERRITE, EMI (SMD) FB408 1-414-760-21 FERRITE, EMI (SMD) FB409 1-414-760-21 FERRITE, EMI (SMD) FB410 1-414-760-21 FERRITE, EMI (SMD) FB413 1-469-234-21 INDUCTOR (EMI FERRITE) FB414 1-469-234-21 INDUCTOR (EMI FERRITE) FB416 1-414-813-11 FERRITE, EMI (SMD) FB601 1-414-760-21 FERRITE, EMI (SMD) FB602 1-414-760-21 FERRITE, EMI (SMD) FB701 1-500-245-11 FERRITE, EMI (SMD) FB704 1-414-760-21 FERRITE, EMI (SMD) FB801 1-414-760-21 FERRITE, EMI (SMD) < IC > IC301 8-759-681-65 IC AN7531SA IC403 6-703-902-01 IC TB2138FG IC404 6-704-186-01 IC TAR5S50U IC601 8-752-419-91 IC CXD3048R IC603 6-702-737-01 IC MSM51X17400F-10TFSR1 IC701 8-752-935-69 IC CXR710160-201R IC801 6-802-813-01 IC TMP91CW28FG IC802 6-703-892-01 IC MM3032EULE IC803 Not supplied IC806 6-703-916-01 IC XC6206P152MR < TRANSISTOR > IC702 6-550-559-01 TRANSISTOR XN0NE9200LS0 < JACK > J301 1-815-088-41 JACK, HEADPHONE (i) (NE518CK) J301 1-817-380-11 JACK, HEADPHONE (i) (NE510/NE511) J401 1-778-153-51 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 4.5V) < COIL > L301 1-400-389-11 INDUCTOR 10uH L401 1-400-373-21 INDUCTOR 4.7uH L402 1-400-373-21 INDUCTOR 4.7uH L403 1-400-387-11 INDUCTOR 47uH L404 1-400-388-11 INDUCTOR 220uH L406 1-400-145-21 INDUCTOR 47uH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 D-NE510/NE511/NE518CK Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN L407 1-456-178-21 COIL, CHOKE 100uH L408 1-400-388-11 INDUCTOR 220uH L409 1-400-145-21 INDUCTOR 47uH L411 1-400-387-11 INDUCTOR 47uH L412 1-216-296-11 SHORT CHIP 0 L601 1-400-389-11 INDUCTOR 10uH L602 1-400-390-11 INDUCTOR 47uH L603 1-400-386-11 INDUCTOR 10uH L703 1-400-390-11 INDUCTOR 47uH L704 1-400-390-11 INDUCTOR 47uH < LIQUID CRYSTAL DISPLAY > LCD801 1-805-092-11 DISPLAY PANEL, LIQUID CRYSTAL < TRANSISTOR > Q402 6-550-070-01 TRANSISTOR 2SB1237TV2PQR Q601 8-729-054-79 TRANSISTOR 2SB167900LSO Q801 8-729-427-72 TRANSISTOR XP4501 Q802 8-729-029-10 TRANSISTOR DTC143TUA-T106 < RESISTOR > R101 1-216-864-11 METAL CHIP 0 5% 1/10W R102 1-216-845-11 METAL CHIP 100K 5% 1/10W R111 1-216-837-11 METAL CHIP 22K 5% 1/10W R201 1-216-864-11 METAL CHIP 0 5% 1/10W R202 1-216-845-11 METAL CHIP 100K 5% 1/10W R211 1-216-837-11 METAL CHIP 22K 5% 1/10W R301 1-216-793-11 METAL CHIP 4.7 5% 1/10W R302 1-216-793-11 METAL CHIP 4.7 5% 1/10W R312 1-216-864-11 METAL CHIP 0 5% 1/10W R313 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R314 1-216-821-11 METAL CHIP 1K 5% 1/10W R315 1-216-864-11 METAL CHIP 0 5% 1/10W (NE518CK) R316 1-216-809-11 METAL CHIP 100 5% 1/10W (NE518CK) R318 1-216-864-11 METAL CHIP 0 5% 1/10W R403 1-216-864-11 METAL CHIP 0 5% 1/10W R406 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R411 1-218-903-11 METAL CHIP 220K 0.5% 1/10W R412 1-218-887-11 METAL CHIP 47K 0.5% 1/10W R413 1-216-837-11 METAL CHIP 22K 5% 1/10W R414 1-216-864-11 METAL CHIP 0 5% 1/10W R415 1-218-911-11 METAL CHIP 470K 0.5% 1/10W R416 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R417 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R418 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R419 1-216-841-11 METAL CHIP 47K 5% 1/10W R422 1-216-864-11 METAL CHIP 0 5% 1/10W R424 1-216-864-11 METAL CHIP 0 5% 1/10W R427 1-216-845-11 METAL CHIP 100K 5% 1/10W R429 1-216-864-11 METAL CHIP 0 5% 1/10W R436 1-216-864-11 METAL CHIP 0 5% 1/10W R438 1-216-833-11 METAL CHIP 10K 5% 1/10W R440 1-216-857-11 METAL CHIP 1M 5% 1/10W R452 1-218-903-11 METAL CHIP 220K 0.5% 1/10W R453 1-216-857-11 METAL CHIP 1M 5% 1/10W R454 1-216-864-11 METAL CHIP 0 5% 1/10W R456 1-216-864-11 METAL CHIP 0 5% 1/10W R459 1-216-845-11 METAL CHIP 100K 5% 1/10W R460 1-216-809-11 METAL CHIP 100 5% 1/10W R476 1-216-864-11 METAL CHIP 0 5% 1/10W R477 1-216-864-11 METAL CHIP 0 5% 1/10W R480 1-216-857-11 METAL CHIP 1M 5% 1/10W R487 1-216-864-11 METAL CHIP 0 5% 1/10W R489 1-216-864-11 METAL CHIP 0 5% 1/10W R495 1-216-864-11 METAL CHIP 0 5% 1/10W R498 1-216-864-11 METAL CHIP 0 5% 1/10W R602 1-216-837-11 METAL CHIP 22K 5% 1/10W R603 1-216-837-11 METAL CHIP 22K 5% 1/10W R604 1-216-837-11 METAL CHIP 22K 5% 1/10W R605 1-216-837-11 METAL CHIP 22K 5% 1/10W R606 1-216-864-11 METAL CHIP 0 5% 1/10W R607 1-216-864-11 METAL CHIP 0 5% 1/10W R608 1-216-789-11 METAL CHIP 2.2 5% 1/10W R610 1-216-845-11 METAL CHIP 100K 5% 1/10W R611 1-216-864-11 METAL CHIP 0 5% 1/10W R612 1-216-805-11 METAL CHIP 47 5% 1/10W R618 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R619 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R621 1-216-833-11 METAL CHIP 10K 5% 1/10W R622 1-216-857-11 METAL CHIP 1M 5% 1/10W R623 1-216-849-11 METAL CHIP 220K 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-853-11 METAL CHIP 470K 5% 1/10W R626 1-216-864-11 METAL CHIP 0 5% 1/10W R628 1-216-837-11 METAL CHIP 22K 5% 1/10W R629 1-216-841-11 METAL CHIP 47K 5% 1/10W R630 1-216-841-11 METAL CHIP 47K 5% 1/10W R632 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-845-11 METAL CHIP 100K 5% 1/10W R636 1-216-817-11 METAL CHIP 470 5% 1/10W R638 1-216-817-11 METAL CHIP 470 5% 1/10W R639 1-216-817-11 METAL CHIP 470 5% 1/10W R640 1-216-817-11 METAL CHIP 470 5% 1/10W R641 1-216-817-11 METAL CHIP 470 5% 1/10W R642 1-216-817-11 METAL CHIP 470 5% 1/10W R643 1-216-817-11 METAL CHIP 470 5% 1/10W R645 1-216-864-11 METAL CHIP 0 5% 1/10W R646 1-216-864-11 METAL CHIP 0 5% 1/10W R648 1-216-845-11 METAL CHIP 100K 5% 1/10W R649 1-216-817-11 METAL CHIP 470 5% 1/10W R650 1-216-864-11 METAL CHIP 0 5% 1/10W R662 1-216-841-11 METAL CHIP 47K 5% 1/10W R663 1-216-845-11 METAL CHIP 100K 5% 1/10W R670 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R699 1-216-864-11 METAL CHIP 0 5% 1/10W R702 1-216-864-11 METAL CHIP 0 5% 1/10W R703 1-216-864-11 METAL CHIP 0 5% 1/10W R706 1-216-845-11 METAL CHIP 100K 5% 1/10W R707 1-216-845-11 METAL CHIP 100K 5% 1/10W R708 1-216-845-11 METAL CHIP 100K 5% 1/10W R709 1-216-845-11 METAL CHIP 100K 5% 1/10W R710 1-216-845-11 METAL CHIP 100K 5% 1/10W R711 1-216-845-11 METAL CHIP 100K 5% 1/10W R713 1-216-864-11 METAL CHIP 0 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 D-NE510/NE511/NE518CK Ref. No. Part No. Description Remark MAIN Ref. No. Part No. Description Remark R714 1-216-864-11 METAL CHIP 0 5% 1/10W R715 1-216-864-11 METAL CHIP 0 5% 1/10W R716 1-216-833-11 METAL CHIP 10K 5% 1/10W R717 1-216-864-11 METAL CHIP 0 5% 1/10W R718 1-216-864-11 METAL CHIP 0 5% 1/10W R719 1-216-864-11 METAL CHIP 0 5% 1/10W R720 1-216-845-11 METAL CHIP 100K 5% 1/10W R721 1-216-864-11 METAL CHIP 0 5% 1/10W R722 1-216-813-11 METAL CHIP 220 5% 1/10W R723 1-216-864-11 METAL CHIP 0 5% 1/10W R724 1-216-864-11 METAL CHIP 0 5% 1/10W R727 1-216-864-11 METAL CHIP 0 5% 1/10W R728 1-216-845-11 METAL CHIP 100K 5% 1/10W R730 1-216-864-11 METAL CHIP 0 5% 1/10W R731 1-216-857-11 METAL CHIP 1M 5% 1/10W R732 1-216-857-11 METAL CHIP 1M 5% 1/10W R733 1-216-857-11 METAL CHIP 1M 5% 1/10W R735 1-216-833-11 METAL CHIP 10K 5% 1/10W R801 1-216-295-11 SHORT CHIP 0 R802 1-216-821-11 METAL CHIP 1K 5% 1/10W R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R804 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R805 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R806 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R807 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R808 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R809 1-216-833-11 METAL CHIP 10K 5% 1/10W R811 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R812 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R813 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R814 1-216-864-11 METAL CHIP 0 5% 1/10W R816 1-216-864-11 METAL CHIP 0 5% 1/10W R817 1-216-864-11 METAL CHIP 0 5% 1/10W (AEP,UK,EE) R819 1-216-864-11 METAL CHIP 0 5% 1/10W R820 1-216-864-11 METAL CHIP 0 5% 1/10W R821 1-216-864-11 METAL CHIP 0 5% 1/10W R822 1-216-864-11 METAL CHIP 0 5% 1/10W R823 1-216-864-11 METAL CHIP 0 5% 1/10W R826 1-216-857-11 METAL CHIP 1M 5% 1/10W R828 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R830 1-216-853-11 METAL CHIP 470K 5% 1/10W R831 1-216-857-11 METAL CHIP 1M 5% 1/10W R832 1-216-857-11 METAL CHIP 1M 5% 1/10W R837 1-216-864-11 METAL CHIP 0 5% 1/10W R840 1-216-833-11 METAL CHIP 10K 5% 1/10W R842 1-216-864-11 METAL CHIP 0 5% 1/10W R843 1-216-864-11 METAL CHIP 0 5% 1/10W R844 1-216-864-11 METAL CHIP 0 5% 1/10W R845 1-216-864-11 METAL CHIP 0 5% 1/10W R848 1-216-864-11 METAL CHIP 0 5% 1/10W R865 1-216-833-11 METAL CHIP 10K 5% 1/10W R866 1-216-833-11 METAL CHIP 10K 5% 1/10W R867 1-216-833-11 METAL CHIP 10K 5% 1/10W R873 1-216-857-11 METAL CHIP 1M 5% 1/10W (NE518CK) R874 1-216-837-11 METAL CHIP 22K 5% 1/10W R876 1-216-864-11 METAL CHIP 0 5% 1/10W R877 1-216-845-11 METAL CHIP 100K 5% 1/10W R886 1-216-845-11 METAL CHIP 100K 5% 1/10W R887 1-216-864-11 METAL CHIP 0 5% 1/10W R894 1-216-833-11 METAL CHIP 10K 5% 1/10W R897 1-216-864-11 METAL CHIP 0 5% 1/10W R898 1-216-821-11 METAL CHIP 1K 5% 1/10W R901 1-216-864-11 METAL CHIP 0 5% 1/10W R903 1-216-821-11 METAL CHIP 1K 5% 1/10W R906 1-216-864-11 METAL CHIP 0 5% 1/10W R908 1-216-864-11 METAL CHIP 0 5% 1/10W R911 1-216-845-11 METAL CHIP 100K 5% 1/10W R912 1-216-833-11 METAL CHIP 10K 5% 1/10W R913 1-216-845-11 METAL CHIP 100K 5% 1/10W R914 1-216-845-11 METAL CHIP 100K 5% 1/10W R916 1-216-821-11 METAL CHIP 1K 5% 1/10W R917 1-216-821-11 METAL CHIP 1K 5% 1/10W R919 1-216-864-11 METAL CHIP 0 5% 1/10W R920 1-216-864-11 METAL CHIP 0 5% 1/10W R921 1-216-864-11 METAL CHIP 0 5% 1/10W R922 1-216-864-11 METAL CHIP 0 5% 1/10W R923 1-216-864-11 METAL CHIP 0 5% 1/10W R924 1-216-864-11 METAL CHIP 0 5% 1/10W R925 1-216-864-11 METAL CHIP 0 5% 1/10W R926 1-216-864-11 METAL CHIP 0 5% 1/10W R927 1-216-864-11 METAL CHIP 0 5% 1/10W R928 1-216-864-11 METAL CHIP 0 5% 1/10W R929 1-216-864-11 METAL CHIP 0 5% 1/10W R930 1-216-833-11 METAL CHIP 10K 5% 1/10W R931 1-216-857-11 METAL CHIP 1M 5% 1/10W R932 1-216-853-11 METAL CHIP 470K 5% 1/10W R933 1-216-833-11 METAL CHIP 10K 5% 1/10W R934 1-216-833-11 METAL CHIP 10K 5% 1/10W R935 1-216-845-11 METAL CHIP 100K 5% 1/10W R936 1-216-864-11 METAL CHIP 0 5% 1/10W R941 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R942 1-216-833-11 METAL CHIP 10K 5% 1/10W R943 1-216-841-11 METAL CHIP 47K 5% 1/10W R944 1-216-837-11 METAL CHIP 22K 5% 1/10W R945 1-216-841-11 METAL CHIP 47K 5% 1/10W R946 1-216-837-11 METAL CHIP 22K 5% 1/10W R947 1-216-841-11 METAL CHIP 47K 5% 1/10W R948 1-216-837-11 METAL CHIP 22K 5% 1/10W R949 1-216-845-11 METAL CHIP 100K 5% 1/10W R971 1-216-845-11 METAL CHIP 100K 5% 1/10W R1001 1-218-985-11 RES-CHIP 470K 5% 1/16W R1002 1-216-845-11 METAL CHIP 100K 5% 1/10W R1003 1-216-857-11 METAL CHIP 1M 5% 1/10W < SWITCH > S801 1-786-442-11 SWITCH, TACT (u) S802 1-786-442-11 SWITCH, TACT (>) S803 1-786-442-11 SWITCH, TACT (.) S804 1-692-014-11 SWITCH, KEYBOARD ( +) S805 1-692-014-11 SWITCH, KEYBOARD ( –) S806 1-786-211-21 SWITCH, KEYBOARD (VOL +) S808 1-692-014-11 SWITCH, KEYBOARD (DISPLAY) S809 1-786-211-21 SWITCH, KEYBOARD (VOL –) S810 1-762-078-11 SWITCH, SLIDE (HOLD) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 D-NE510/NE511/NE518CK The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN S811 1-553-977-00 SWITCH, SLIDE (G-PROTECTION) S812 1-786-442-11 SWITCH, TACT (x) S813 1-692-014-11 SWITCH, KEYBOARD (P.MODE/ ) S814 1-786-211-21 SWITCH, KEYBOARD (SOUND) S820 1-762-003-11 SWITCH, PUSH (OPEN/CLOSE) S822 1-477-651-11 ENCODER, ROTARY (JOG DIAL/ENTER) < VARISTOR > VDR306 1-801-862-11 VARISTOR, CHIP (1608) VDR307 1-801-862-11 VARISTOR, CHIP (1608) VDR308 1-801-862-11 VARISTOR, CHIP (1608) VDR401 1-801-864-21 VARISTOR, CHIP (1608) VDR404 1-801-862-11 VARISTOR, CHIP (1608) VDR405 1-801-862-11 VARISTOR, CHIP (1608) VDR406 1-801-862-11 VARISTOR, CHIP (1608) VDR407 1-801-862-11 VARISTOR, CHIP (1608) VDR408 1-801-862-11 VARISTOR, CHIP (1608) VDR601 1-801-862-11 VARISTOR, CHIP (1608) VDR603 1-801-862-11 VARISTOR, CHIP (1608) VDR604 1-801-923-11 VARISTOR, CHIP (1608) VDR605 1-801-923-11 VARISTOR, CHIP (1608) VDR606 1-801-923-11 VARISTOR, CHIP (1608) VDR607 1-801-923-11 VARISTOR, CHIP (1608) VDR701 1-801-862-11 VARISTOR, CHIP (1608) VDR702 1-801-862-11 VARISTOR, CHIP (1608) VDR703 1-801-862-11 VARISTOR, CHIP (1608) VDR802 1-801-862-11 VARISTOR, CHIP (1608) VDR803 1-801-862-11 VARISTOR, CHIP (1608) VDR806 1-801-862-11 VARISTOR, CHIP (1608) VDR901 1-801-862-11 VARISTOR, CHIP (1608) < VIBRATOR > X601 1-795-561-21 VIBRATOR, CERAMIC (16.9344MHz) X701 1-795-891-11 VIBRATOR, CERAMIC (22MHz) ************************************************************* MISCELLANEOUS *************** 0107 X-3380-950-1 DAX-25E RP ASSY M501 A-3174-850-A MOTOR ASSY, SLED (SLED) M502 A-3608-777-A MOTOR ASSY, TURNTABLE (SPINDLE) ************************************************************* ACCESSORIES ************ 1-251-824-41 CONNECTING PACK, CAR (CPA-7) (NE518CK) 0 1-477-500-11 ADAPTOR, AC (AC-ES455K) (AEP,E18,EE) 0 1-477-501-11 ADAPTOR, AC (AC-ES455K) (UK) 0 1-477-502-11 ADAPTOR, AC (AC-ES455K) (NE511:E92,MX/ NE518CK:US,CND,E92,MX) 0 1-477-503-11 ADAPTOR, AC (AC-ES455K) (AUS) 1-477-629-11 REMOTE COMMANDER (RM-MC25C) (NE518CK) 1-792-970-41 CORD, CAR BATTERY (DCC-E2455) (NE518CK) 3-252-232-11 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (ENGLISH,SPANISH,PORTUGUESE) (AEP,UK,E92,AUS,MX) 3-252-232-21 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (FRENCH,DUTCH,SWEDISH) (AEP) 3-252-232-31 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (GERMAN,ITALIAN,FINNISH) (AEP) 3-252-232-41 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (ENGLISH,HUNGARIAN,RUSSIAN) (EE) 3-252-232-51 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (POLISH,CZECH,SLOVAKIAN) (EE) 3-252-232-71 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (ENGLISH) (US) 3-252-232-81 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (ENGLISH,FRENCH) (CND) 3-252-419-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH, PORTUGUESE) (NE511:AEP,UK,E92,AUS,MX) 3-252-419-21 MANUAL, INSTRUCTION (FRENCH,DUTCH, SWEDISH) (NE511:AEP) 3-252-419-31 MANUAL, INSTRUCTION (GERMAN,ITALIAN, FINNISH) (NE511:AEP) 3-252-419-41 MANUAL, INSTRUCTION (ENGLISH,HUNGARIAN, RUSSIAN) (NE511:EE) 3-252-419-51 MANUAL, INSTRUCTION (POLISH,CZECH, SLOVAKIAN) (NE511:EE) 3-252-419-61 MANUAL, INSTRUCTION (ENGLISH) (NE510:US) 3-252-419-71 MANUAL, INSTRUCTION (ENGLISH,FRENCH) (NE510:CND) 3-252-420-11 MANUAL, INSTRUCTION (ENGLISH, SIMPLIFIED CHINESE) (NE511:E18) 3-252-421-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH, PORTUGUESE) (NE518CK:AEP,UK,E92,AUS,MX) 3-252-421-21 MANUAL, INSTRUCTION (FRENCH,DUTCH, SWEDISH) (NE518CK:AEP) 3-252-421-31 MANUAL, INSTRUCTION (GERMAN,ITALIAN, FINNISH) (NE518CK:AEP) 3-252-421-41 MANUAL, INSTRUCTION (ENGLISH) (NE518CK:US) 3-252-421-51 MANUAL, INSTRUCTION (ENGLISH,FRENCH) (NE518CK:CND) 3-253-976-11 MANUAL, INSTRUCTION (SONICSTAGE SIMPLE BURNER) (ENGLISH,SIMPLIFIED CHINESE, TRADITIONAL CHINESE) (NE511:E18) 8-954-007-92 RECEIVER, EAR MDR-027LP (US) 8-954-008-93 RECEIVER, EAR MDR-E808LP (EXCEPT US) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 D-NE510/NE511/NE518CK MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 D-NE510/NE511/NE518CK REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.04 New 1.1 2005.06 Change of part number of S801, S802, S803, S812. (SPM-05090) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
