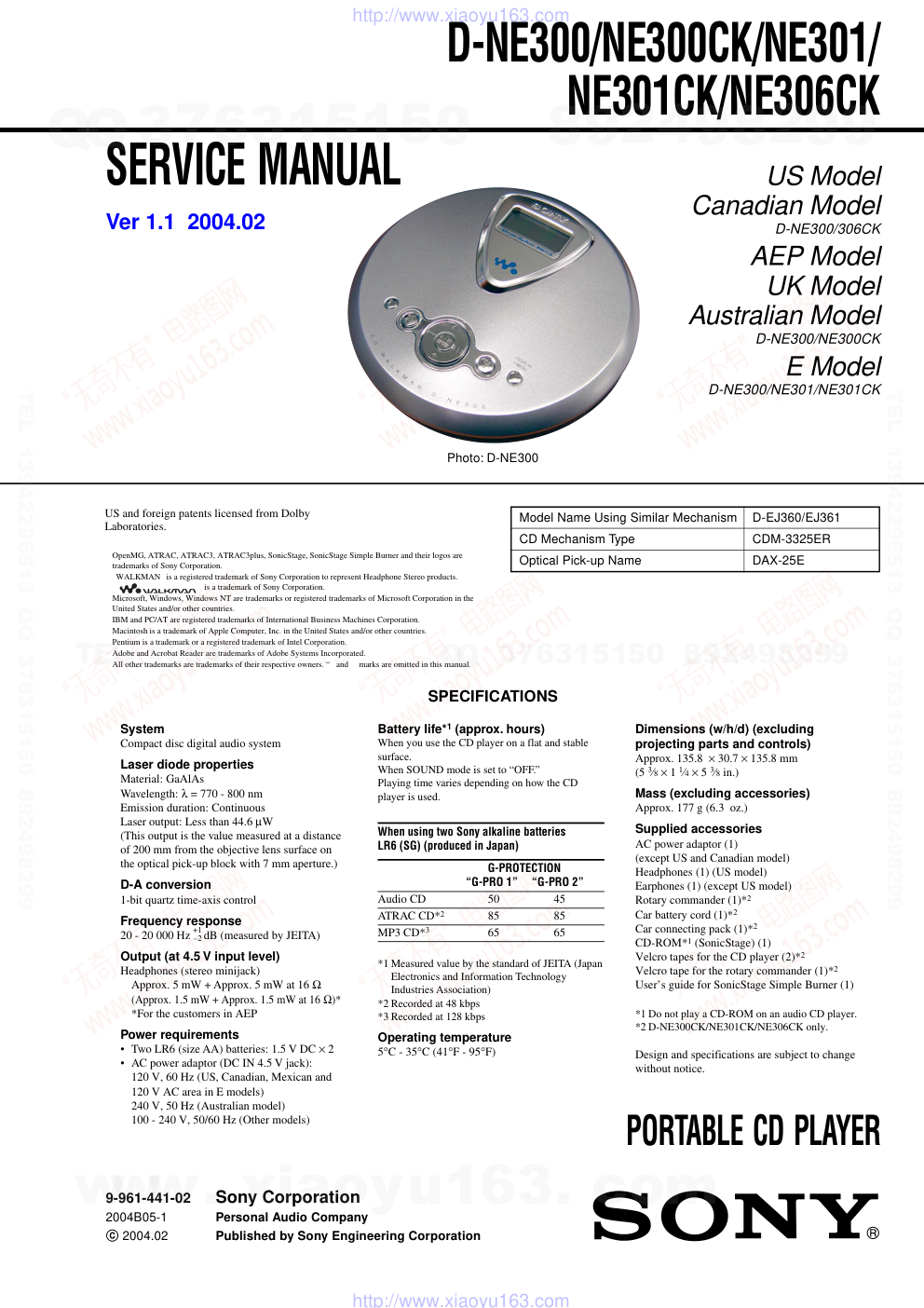

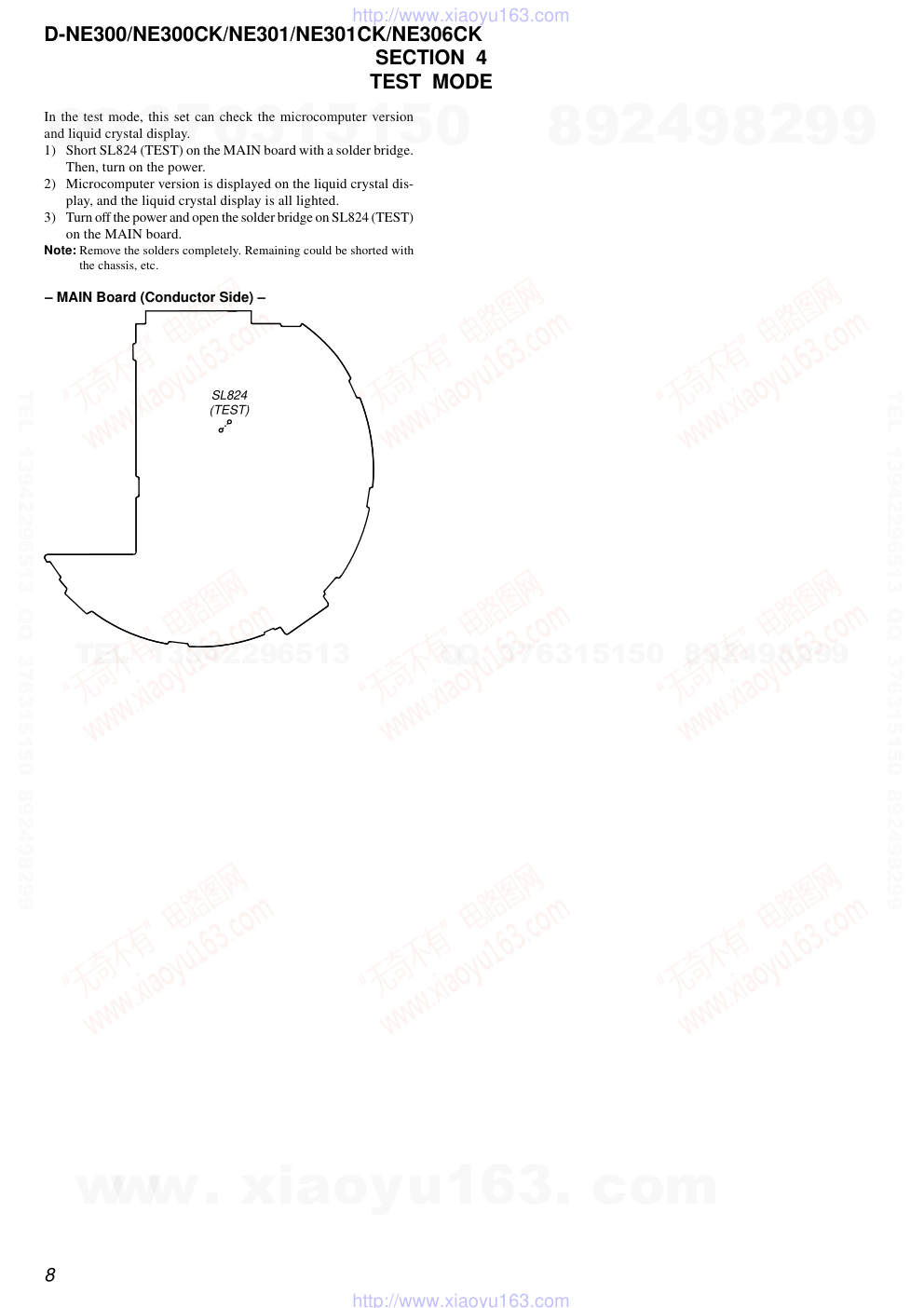

SERVICE MANUAL Ver 1.1 2004.02 SPECIFICATIONS PORTABLE CD PLAYER D-NE300/NE300CK/NE301/ NE301CK/NE306CK US Model Canadian Model D-NE300/306CK AEP Model UK Model Australian Model D-NE300/NE300CK E Model D-NE300/NE301/NE301CK 9-961-441-02 Sony Corporation 2004B05-1 Personal Audio Company C 2004.02 Published by Sony Engineering Corporation System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 770 - 800 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 –2 dB (measured by JEITA) Output (at 4.5 V input level) Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω (Approx. 1.5 mW + Approx. 1.5 mW at 16 Ω)* *For the customers in AEP Power requirements • Two LR6 (size AA) batteries: 1.5 V DC × 2 • AC power adaptor (DC IN 4.5 V jack): 120 V, 60 Hz (US, Canadian, Mexican and 120 V AC area in E models) 240 V, 50 Hz (Australian model) 100 - 240 V, 50/60 Hz (Other models) Battery life*1 (approx. hours) When you use the CD player on a flat and stable surface. When SOUND mode is set to “OFF.” Playing time varies depending on how the CD player is used. When using two Sony alkaline batteries LR6 (SG) (produced in Japan) G-PROTECTION “G-PRO 1” “G-PRO 2” Audio CD 50 45 ATRAC CD*2 85 85 MP3 CD*3 65 65 *1 Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association) *2 Recorded at 48 kbps *3 Recorded at 128 kbps *1 Do not play a CD-ROM on an audio CD player. *2 D-NE300CK/NE301CK/NE306CK only. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 135.8 × 30.7 × 135.8 mm (5 3⁄8 × 1 1⁄4 × 5 3⁄8 in.) Mass (excluding accessories) Approx. 177 g (6.3 oz.) Design and specifications are subject to change without notice. Supplied accessories AC power adaptor (1) (except US and Canadian model) Headphones (1) (US model) Earphones (1) (except US model) Rotary commander (1)*2 Car battery cord (1)*2 Car connecting pack (1)*2 CD-ROM*1 (SonicStage) (1) Velcro tapes for the CD player (2)*2 Velcro tape for the rotary commander (1)*2 User’s guide for SonicStage Simple Burner (1) US and foreign patents licensed from Dolby Laboratories. � OpenMG, ATRAC, ATRAC3, ATRAC3plus, SonicStage, SonicStage Simple Burner and their logos are trademarks of Sony Corporation. � � WALKMAN� is a registered trademark of Sony Corporation to represent Headphone Stereo products. is a trademark of Sony Corporation. � Microsoft, Windows, Windows NT are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. � IBM and PC/AT are registered trademarks of International Business Machines Corporation. � Macintosh is a trademark of Apple Computer, Inc. in the United States and/or other countries. � Pentium is a trademark or a registered trademark of Intel Corporation. � Adobe and Acrobat Reader are trademarks of Adobe Systems Incorporated. � All other trademarks are trademarks of their respective owners. “ and � marks are omitted in this manual. Model Name Using Similar Mechanism D-EJ360/EJ361 CD Mechanism Type CDM-3325ER Optical Pick-up Name DAX-25E Photo: D-NE300 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 D-NE300/NE300CK/NE301/NE301CK/NE306CK Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 5 3-2. Cabinet (Lower) Section ................................................. 5 3-3. Optical Pick-up Assy (CDM-3325ER) ........................... 6 3-4. MAIN Board ................................................................... 6 3-5. Liquid Crystal Display Panel (LCD2001), SWITCH Board............................................................... 7 4. TEST MODE .............................................................. 8 5. ELECTRICAL CHECK .......................................... 9 6. DIAGRAMS 6-1. Block Diagram ................................................................ 10 6-2. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 11 6-3. Printed Wiring Board – MAIN Board (Component Side) – .............................. 12 6-4. Printed Wiring Board – MAIN Board (Conductor Side) – ................................ 13 6-5. Schematic Diagram – MAIN Board (1/4) – .................. 14 6-6. Schematic Diagram – MAIN Board (2/4) – .................. 15 6-7. Schematic Diagram – MAIN Board (3/4) – .................. 16 6-8. Schematic Diagram – MAIN Board (4/4) – .................. 17 6-9. Printed Wiring Board – SWITCH Board – ................... 18 6-10. Schematic Diagram – SWITCH Board – ...................... 19 7. EXPLODED VIEWS 7-1. Cabinet (Inner) Section ................................................... 26 7-2. Cabinet (Upper) Section ................................................. 27 7-3. Cabinet (Lower) Section ................................................. 28 7-4. Optical Pick-up Section (CDM-3325ER)....................... 29 8. ELECTRICAL PARTS LIST ............................... 30 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges oc- cur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. On AC power adaptor � Use only the AC power adaptor supplied. If your CD player is not supplied with the one, use the AC-E45HG AC power adaptor. Do not use any other AC power adaptor. It may cause a malfunction. Polarity of the plug About CD-Rs/RWs This CD player can play CD-Rs/RWs recorded in the ATRAC3plus/ATRAC3, MP3 or CDDA* format, but playback capability may vary depending on the quality of the disc and the condition of the recording device. * CDDA is the abbreviation for Compact Disc Digital Audio. It is a recording standard used for the Audio CDs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-NE300/NE300CK/NE301/NE301CK/NE306CK Sys tem requirements The following hardware and software specifications are required in order to use the SonicStage Simple Burner software. Computer IBM PC/AT or Compatible • CPU: Pentium II 300 MHz or higher (Pentium III 600 MHz or higher is recommended.) • Hard disk drive space: System folder (on boot disc) – 200 MB or more/ Temporary folder – 200 MB or more (The a mount of free space required differs according to the size of the audio files that you want to handle. 1.5 GB of free space or more is recommended.) • RAM: 64 MB or more (128 MB or more is recommended) Others • CD-R/RW drive (capable of digital playback by WDM) • Sound Board Operating System Factory installed: Windows XP Home Edition/Windows XP Professional/Windows Millennium Edition/Wi ndows 2000 Professiona l/Windows 98 Second Edition Display High Color (16 bit) or higher, 800 × 600 dots or better Others • Internet access: for Web registration and CDDB services • Adobe Acrobat Reader installed for viewing the PDF manual This s oftware is not s upported by the following environments : • NEC PC-98 series or compatible machines, Macintosh systems • Windows XP versions other than Home Edition or Professional • Windows 2000 versions other than Professional • Windows 98 versions other than Second Edition • Windows NT • Windows 95 • Personally constructed PCs or operating systems • An environment that is an upgrade of the original manufacturer-installed operating system • Multi-boot environment • Multi-monitor environment Notes • We do not ensure trouble-free operation on all computers that satisfy the system requirements. • We do not ensure trouble-free operation of the system suspend, sleep, or hibernation function on all computers. 3. Push the N X button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 4 times along with inward motion for the focus search. SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. BEFORE REPLACING THE OPTICAL PICK-UP BLOCK Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 yg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value: 0.45 to 0.65 Vp-p LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S820. (push switch type) The following checking method for the laser diode is operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S820 with a screwdriver having a thin tip as shown in Fig.1. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S804 S820 detection lever detection lever MAIN board • In performing the repair with the power supplied to the set, re- moving the MAIN board causes the set to be disabled. In such a case, make a solder bridge to short SL825 (OPEN/ CLOSE DETECT) on the MAIN board in advance. – MAIN Board (Component Side) – SL825 (OPEN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-NE300/NE300CK/NE301/NE301CK/NE306CK SECTION 2 GENERAL This section is extracted from instruction manual. Locating the controls CD player 1 Operation button u*1/ENTER: play/pause/ enter .: AMS*2/rewind >: AMS/fast forward V/v: Use to select a group, a file, play mode, etc. 2 x (stop) button 3 ( group) – button 4 ( group) + button 5 DISPLAY/MENU button Use to enter the menu. Also use to enter the selection, instead of u/ENTER. 6 i (headphones) jack 7 Display 8 DC IN 4.5 V (external power input) jack 9 VOL (volume) +*1/– buttons q; OPEN switch Slide the switch to open the CD player lid. qa HOLD switch (rear) Slide the switch in the direction of the arrow to disable the buttons on the CD player. *1 The button has a tactile dot. *2 Automatic Music Sensor Rotary commander (D-NE300CK/NE301CK/NE306CK only) 1 u (play/pause) button 2 .(AMS/search)•> (AMS/search) control 3 Jack for connecting a car connecting pack 4 x (stop) button 5 ( group) +/– control Push down and turn. Note The supplied rotary commander should be used with this player only. 1 2 3 4 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE300/NE300CK/NE301/NE301CK/NE306CK 5 SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 3-2. CABINET (LOWER) SECTION • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 4 five screws 5 claw 5 two claws 2 two screws 7 flexible flat (20core) cable (CN801) 1 Open the cabinet (upper) section. 8 cabinet (lower) section 3 Open the battery case lid. 5 two claws 6 3-2. CABINET (LOWER) SECTION (Page 5) 3-3. OPTICAL PICK-UP ASSY (CDM-3325ER) (Page 6) 3-5. LIQUID CRYSTAL DISPLAY PANEL (LCD2001), SWITCH BOARD (Page 7) SET 3-4. MAIN BOARD (Page 6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE300/NE300CK/NE301/NE301CK/NE306CK 6 3-3. OPTICAL PICK-UP ASSY (CDM-3325ER) 3-4. MAIN BOARD 4 OP flexible board (CN601) 6 optical pick-up assy (CDM-3325ER) 5 insulator 5 insulator 5 insulator 3 2 two connectors (CN401, CN402) 1 knob spacer 2 MAIN board 1 Note : On installation of main board, adjust the position of switch (S810) and knob (hold). knob (hold) S810 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE300/NE300CK/NE301/NE301CK/NE306CK 7 3-5. LIQUID CRYSTAL DISPLAY PANEL (LCD2001), SWITCH BOARD 2 eight screws 1 Open the cabinet (upper) section. 3 claw 7 sheet 9 cover 8 SWITCH board 6 liquid crystal display panel (LCD2001) (CN2001) 5 flexible flat (20core) cable (CN2002) 4 Open the cover. 3 claw 3 claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-NE300/NE300CK/NE301/NE301CK/NE306CK – MAIN Board (Conductor Side) – SL824 (TEST) SECTION 4 TEST MODE In the test mode, this set can check the microcomputer version and liquid crystal display. 1) Short SL824 (TEST) on the MAIN board with a solder bridge. Then, turn on the power. 2) Microcomputer version is displayed on the liquid crystal dis- play, and the liquid crystal display is all lighted. 3) Turn off the power and open the solder bridge on SL824 (TEST) on the MAIN board. Note: Remove the solders completely. Remaining could be shorted with the chassis, etc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE300/NE300CK/NE301/NE301CK/NE306CK 9 9 – MAIN Board (Conductor Side) – TP498 (MAIN_GND) TP601 (RF) SECTION 5 ELECTRICAL CHECK The CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC4.5 V in DC IN jack. (J401) HOLD switch : OFF Connecting and Checking Location: Focus Bias Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test points TP601 (RF) and TP498 (MAIN_GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Push the N X button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) VOLT/DIV : 100 mV (With the 10:1 probe in use) TIME/DIV : 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch- ing. 5. Stop revolving of the disc motor by pressing the x button. oscilloscope (AC range) + – MAIN board TP601 (RF) TP498 (MAIN_GND) 2 k Ω RF level 0.45 to 0.65 Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE300/NE300CK/NE301/NE301CK/NE306CK 10 10 V U W • SIGNAL PATH : CD PLAY : MP3 PLAY LASER DIODE PD LD M FOCUS COIL TRACKING COIL M902 (SLED) (SPINDLE) M901 F+ F- T+ T- S+ S- SYSTEM CONTROLLER IC801 DRY BATTRY SIZE "AA" (IEC DESIGNATION LR6) 2PCS. 3V LD DETECTOR COIL/MOTOR DRIVE IC403(1/2) RF A E B F PWG 31 INM4 32 FO3 44 PD RO3 42 FO2 48 RO2 46 FO1 52 RO1 50 COM COM 80 W W 6 V V 4 U U 2 56 FI1 55 RI1 60 FI3 59 RI3 58 FI2 57 RI2 70 XBRK 73 APWM 34 SYNC 39 DATA 38 CLOK 40 LATCH 74 FG CD DSP IC601 MP3 DECODER IC701 EEPROM IC803 RFDC 88 RFAC 84 A 92 B 91 E 89 F 90 X601 16.934MHz 47 XTAO XTAI 48 SFDR 100 SRDR 99 FFDR 96 FRDR 95 TFDR 98 TRDR 97 MDP 103 C176 104 MDS 102 SDTO 21 CLOK 20 XLAT 23 SENS 22 SCOR 27 FOK 65 R8M 32 GFS 69 XRST 28 D0 D3 A0 A10 XRAS 5 D-RAM IC603 2 XWE 9 XCAS 1 XRAS A0 A10 2 3 24 25 . . . XWE 4 XCAS 23 BCK 2 PCMD_O LRCK_O BCK_O PCMD 4 LRCK 1 SK 2 CS 1 XRESET_I 30 DO 4 DI 3 PI3 13 PCMD_I LRCK_I BCK_I PF4 12 18 XRDE PI0 15 PI2 14 D0 D3 17 15 13 . 11. 116 113. 117 9 12 15 . 19 21 . 8 . 56 AOUT2 51 AOUT1 61 LRMU RIN 15 LIN 14 MUTE 19 BEEP PWRSW HEADPHONE AMP IC301 17 20 8 LOUT 7 VREF 6 ROUT DC IN 4.5V J401 J301 10 FG_I 90 PWRLAT_O 84 MSDTO0_O 83 MSCK0_O 87 XLAT0_O 85 MSDTI0_I 86 SCOR_I 52 FOK_I 28 XIN 53 GFS_I 4 XRST_O 77 HP_PWESW 6 BEEP_O RIPPLE FILTER Q408 POWER CONTROL IC403(2/2) 12 VIN VIN 5 VD5 1 VD4 8 L5 69 BATM2 62 RF1 61 DC IN VCC2 18 VCPU 19 VCC2 VCPU VCC1 AD_DCINMNT 95 AD_BATMNT 92 VIN 4.5V OPSTB OPGSW 4 3 6 5 . . . XSOE 24 88 XSOE_O SYSM 25 7 AMUTE_O NRST 33 PF0 34 PF3 37 PC1 40 PC2 41 60 XKRESET_O 66 WAKEUP_K_O 11 REQ_I 20 SDIN_I 19 SDOUT_O PC0 38 18 SDCLK_O PC3 42 17 SDXLAT_O 67 EEP_CS_O HG-XSTB_O 12 HG-GUP_O 13 VCC1 17 VCC3 AVD IC702 VCC3 11 VCC0 VLGO2 16 VCC0 20 L7 10 RSTB 35 XWAKE_O 32 WAKEUP 37 D401 VCPU D402 UI 79 VI 78 WI 77 X701 22MHz 29 XTAL EXTAL 30 108 106 110 109 107 111 +1.4V (OPEN/CLOSE DETECT) S820 40 HOLD_I 37 LID-SW_I 99 AD-RMKEY ON OFF HOLD. S810 OPTICAL PICK-UP BLOCK DAX-25E AUTOMATIC POWER CONTROL Q601 +1.4V REGULATOR IC806 VCPU D0 D5 A0 44 51 AD0 AD7 LCD_AO 69 XRD_O 71 RD XWR_O 72 WR LCD-XRST_O 73 RES VCPU LIQUD CRYSTAL DISPLAY LCD2001 JOGKEY_I/ FAVKE_I 36 Q802 S2002 - 2005 FUNCTION KEY S806, 809, 2007 - 2011 FUNCTION KEY KEY2 KEY1 AD_KEY1 96 (NE300CK/NE301CK/NE306CK) (NE300CK/NE301CK/NE306CK) AD_KEY2 97 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE300/NE300CK/NE301/NE301CK/NE306CK 11 11 2.0 Vp-p 1.9 µs 2.1 Vp-p 119 ns 1.4 Vp-p 59 ns Approx. 600 mVp-p 2.0 Vp-p 5.7 µs 1.6 Vp-p 44.4 ns 2.0 Vp-p 5.7 µs 2.9 Vp-p 118 ns Note on Printed Wiring Board • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • z : Through hole. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • Power voltage is dc 4.5 V and fed with regulated dc power supply from DC IN jack (J401). • Voltages and waveforms are dc with respect to ground in no-signal conditions. no mark : CD PLAY ( ) : MP3 PLAY ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD PLAY d : MP3 PLAY • Abbreviation EE : East European model Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 6-2. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS • Waveforms – MAIN Board – 1 IC601 w; (CLOCK) 2 IC601 es (R8M) 3 IC601 rk (XTAO) 4 IC601 if (RFAC) 5 IC601 C103 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C107 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C203 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C207 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C302 1-124-779-00 ELECT CHIP 10uF 20% 16V C303 1-124-779-00 ELECT CHIP 10uF 20% 16V C304 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C305 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C306 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C307 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C308 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C309 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C310 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C314 1-162-974-11 CERAMIC CHIP 0.01uF 50V C317 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (NE300CK/NE301CK/NE306CK) C318 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (NE300CK/NE301CK/NE306CK) C337 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (NE300CK/NE301CK/NE306CK) C403 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C404 1-164-360-11 CERAMIC CHIP 0.1uF 16V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-164-505-11 CERAMIC CHIP 2.2uF 16V C410 1-115-156-11 CERAMIC CHIP 1uF 10V C415 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C416 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C417 1-164-360-11 CERAMIC CHIP 0.1uF 16V C419 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C420 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C421 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C422 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C423 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C424 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C425 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C426 1-128-390-11 ELECT CHIP 220uF 20% 6.3V C427 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C428 1-107-686-11 TANTALUM CHIP 4.7uF 20% 16V C429 1-164-360-11 CERAMIC CHIP 0.1uF 16V C430 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C432 1-126-246-11 ELECT CHIP 220uF 20% 4V C433 1-115-156-11 CERAMIC CHIP 1uF 10V C434 1-165-851-11 TANTALUM CHIP 10uF 20% 6.3V C435 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C436 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C437 1-126-246-11 ELECT CHIP 220uF 20% 4V C438 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C440 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C446 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C447 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C450 1-115-156-11 CERAMIC CHIP 1uF 10V C454 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C455 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C458 1-127-573-11 CERAMIC CHIP 1uF 10% 16V C460 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C601 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C605 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C606 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C607 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C608 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C609 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C610 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C611 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C612 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C613 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C614 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C616 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C617 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C618 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C619 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C621 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V • Abbreviation AUS : Australian model CND : Canadian model E18 : 100 - 240 V AC area in E model E92 : 120 V AC area in E model EA : Saudi Arabia model EE : East European model HK : Hong Kong model MX : Mexican model PH : Philippines model NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 31 D-NE300/NE300CK/NE301/NE301CK/NE306CK C622 1-127-688-21 TANTALUM CHIP 10uF 20% 6.3V C623 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C624 1-115-156-11 CERAMIC CHIP 1uF 10V C629 1-115-156-11 CERAMIC CHIP 1uF 10V C631 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C632 1-164-360-11 CERAMIC CHIP 0.1uF 16V C696 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C697 1-164-360-11 CERAMIC CHIP 0.1uF 16V C698 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C699 1-164-360-11 CERAMIC CHIP 0.1uF 16V C701 1-164-360-11 CERAMIC CHIP 0.1uF 16V C702 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C703 1-164-360-11 CERAMIC CHIP 0.1uF 16V C705 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C706 1-164-360-11 CERAMIC CHIP 0.1uF 16V C708 1-164-360-11 CERAMIC CHIP 0.1uF 16V C709 1-164-360-11 CERAMIC CHIP 0.1uF 16V C710 1-164-360-11 CERAMIC CHIP 0.1uF 16V C711 1-164-360-11 CERAMIC CHIP 0.1uF 16V C712 1-164-360-11 CERAMIC CHIP 0.1uF 16V C713 1-164-360-11 CERAMIC CHIP 0.1uF 16V C714 1-164-360-11 CERAMIC CHIP 0.1uF 16V C715 1-164-360-11 CERAMIC CHIP 0.1uF 16V C716 1-164-360-11 CERAMIC CHIP 0.1uF 16V C717 1-164-360-11 CERAMIC CHIP 0.1uF 16V C718 1-164-360-11 CERAMIC CHIP 0.1uF 16V C720 1-164-360-11 CERAMIC CHIP 0.1uF 16V C804 1-801-862-11 VARISTOR, CHIP (1608) C805 1-115-156-11 CERAMIC CHIP 1uF 10V C806 1-164-360-11 CERAMIC CHIP 0.1uF 16V C808 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C809 1-164-360-11 CERAMIC CHIP 0.1uF 16V C810 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C811 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (NE300CK/NE301CK/NE306CK) C811 1-216-833-11 METAL CHIP 10K 5% 1/10W (NE300/NE301) C812 1-164-360-11 CERAMIC CHIP 0.1uF 16V C821 1-164-360-11 CERAMIC CHIP 0.1uF 16V C830 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C833 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C834 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C835 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C896 1-164-360-11 CERAMIC CHIP 0.1uF 16V C897 1-164-360-11 CERAMIC CHIP 0.1uF 16V C898 1-164-360-11 CERAMIC CHIP 0.1uF 16V C899 1-164-360-11 CERAMIC CHIP 0.1uF 16V < CONNECTOR > CN401 1-784-342-21 HOUSING, CONNECTOR 2P * CN402 1-785-877-21 HOUSING, CONNECTOR 4P CN601 1-818-127-11 CONNECTOR, FFC/FPC (ZIF) 15P CN801 1-818-129-21 CONNECTOR, FFC/FPC (ZIF) 20P < DIODE > D307 8-719-069-54 DIODE UDZSTE-175.1B D308 8-719-421-33 DIODE MA147 D401 8-719-081-34 DIODE RB160M-30TR D402 8-719-081-34 DIODE RB160M-30TR D403 8-719-081-34 DIODE RB160M-30TR D407 8-719-069-54 DIODE UDZSTE-175.1B D421 8-719-988-61 DIODE 1SS355TE-17 D422 8-719-988-61 DIODE 1SS355TE-17 D801 8-719-060-48 DIODE RB751V-40TE-17 D803 8-719-060-48 DIODE RB751V-40TE-17 (NE300CK/NE301CK/NE306CK) < FERRITE BEAD/RESISTOR > FB101 1-500-234-22 BEAD, FERRITE (CHIP) (1608) FB201 1-500-234-22 BEAD, FERRITE (CHIP) (1608) FB302 1-414-553-11 FERRITE, EMI (SMD) (2012) FB303 1-414-813-11 FERRITE, EMI (SMD) (2012) FB304 1-414-553-11 FERRITE, EMI (SMD) (2012) (NE300CK/NE301CK/NE306CK) FB306 1-414-813-11 FERRITE, EMI (SMD) (2012) (NE300CK/NE301CK/NE306CK) FB401 1-216-797-11 METAL CHIP 10 5% 1/10W FB402 1-216-797-11 METAL CHIP 10 5% 1/10W FB413 1-400-179-21 INDUCTOR, EMI FERRITE (1608) FB601 1-414-760-21 FERRITE, EMI (SMD) (1608) FB602 1-414-760-21 FERRITE, EMI (SMD) (1608) FB701 1-414-760-21 FERRITE, EMI (SMD) (1608) FB702 1-414-760-21 FERRITE, EMI (SMD) (1608) FB801 1-216-864-11 SHORT CHIP 0 FB802 1-414-760-21 FERRITE, EMI (SMD) (1608) FB803 1-414-760-21 FERRITE, RMI (SMD) (1608) < IC/TRANSISTOR > IC301 8-759-681-65 IC AN7531SA IC403 6-704-187-01 IC TB2138AFG IC601 8-752-419-91 IC CXD3048R IC603 6-702-737-01 IC MSM51X17400F-10TFSR1 IC701 8-753-210-87 IC CXR710160-207R IC702 6-550-559-01 TRANSISTOR XN0NE9200LS0 IC801 6-803-671-01 IC TMP91CY28FG-2772-01 @ IC803 (Not supplied) IC AK6417CH-E2 IC806 6-705-397-01 IC XC6206P142MR < JACK > J301 1-816-153-61 JACK (i) (NE300CK/NE301CK/NE306CK) J301 1-818-051-11 JACK (i) (NE300/NE301) J401 1-778-153-51 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 4.5V) < COIL > L301 1-469-525-11 INDUCTOR 10uH L401 1-400-373-21 INDUCTOR 4.7uH L402 1-400-373-21 INDUCTOR 4.7uH L403 1-400-387-21 INDUCTOR 47uH L404 1-400-388-21 INDUCTOR 220uH L406 1-400-145-21 INDUCTOR 47uH L407 1-456-178-21 INDUCTOR 100uH L408 1-400-388-21 INDUCTOR 220uH L409 1-400-145-21 INDUCTOR 47uH L411 1-400-387-21 INDUCTOR 47uH L601 1-400-389-21 INDUCTOR 10uH MAIN @ When IC803 is damaged, replace the MAIN board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 32 D-NE300/NE300CK/NE301/NE301CK/NE306CK MAIN L602 1-400-390-21 INDUCTOR 47uH L603 1-400-389-21 INDUCTOR 10uH L703 1-400-390-21 INDUCTOR 47uH L704 1-400-390-21 INDUCTOR 47uH < TRANSISTOR > Q408 6-550-396-01 TRANSISTOR 2SB16990LSO Q601 8-729-054-79 TRANSISTOR 2SB167900LSO Q801 6-550-376-01 TRANSISTOR UMX1N-TN < RESISTOR/FERRITE BEAD > R102 1-216-845-11 METAL CHIP 100K 5% 1/10W R111 1-216-837-11 METAL CHIP 22K 5% 1/10W R202 1-216-845-11 METAL CHIP 100K 5% 1/10W R211 1-216-837-11 METAL CHIP 22K 5% 1/10W R301 1-216-793-11 METAL CHIP 4.7 5% 1/10W R302 1-216-793-11 METAL CHIP 4.7 5% 1/10W R303 1-216-797-11 METAL CHIP 10 5% 1/10W R313 1-218-871-11 METAL CHIP 10K 0.5% 1/10W (NE300CK/NE301CK/NE306CK) R314 1-216-821-11 METAL CHIP 1K 5% 1/10W (NE300CK/NE301CK/NE306CK) R406 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R411 1-218-903-11 METAL CHIP 220K 0.5% 1/10W R412 1-218-887-11 METAL CHIP 47K 0.5% 1/10W R413 1-216-837-11 METAL CHIP 22K 5% 1/10W R415 1-218-911-11 METAL CHIP 470K 0.5% 1/10W R416 1-216-864-11 SHORT CHIP 0 R417 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R418 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R419 1-216-841-11 METAL CHIP 47K 5% 1/10W R425 1-400-180-21 INDUCTOR, EMI FERRITE (EMI) R427 1-216-845-11 METAL CHIP 100K 5% 1/10W R428 1-216-864-11 SHORT CHIP 0 R438 1-216-833-11 METAL CHIP 10K 5% 1/10W R440 1-216-857-11 METAL CHIP 1M 5% 1/10W R448 1-216-295-00 SHORT CHIP 0 R452 1-218-903-11 METAL CHIP 220K 0.5% 1/10W R453 1-216-857-11 METAL CHIP 1M 5% 1/10W R459 1-216-845-11 METAL CHIP 100K 5% 1/10W R460 1-216-809-11 METAL CHIP 100 5% 1/10W R480 1-216-857-11 METAL CHIP 1M 5% 1/10W R602 1-216-837-11 METAL CHIP 22K 5% 1/10W R603 1-216-837-11 METAL CHIP 22K 5% 1/10W R604 1-216-837-11 METAL CHIP 22K 5% 1/10W R605 1-216-837-11 METAL CHIP 22K 5% 1/10W R608 1-216-789-11 METAL CHIP 2.2 5% 1/10W R610 1-216-845-11 METAL CHIP 100K 5% 1/10W R612 1-216-805-11 METAL CHIP 47 5% 1/10W R613 1-216-833-11 METAL CHIP 10K 5% 1/10W R614 1-216-833-11 METAL CHIP 10K 5% 1/10W R618 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R619 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R621 1-216-833-11 METAL CHIP 10K 5% 1/10W R622 1-216-857-11 METAL CHIP 1M 5% 1/10W R623 1-216-849-11 METAL CHIP 220K 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-853-11 METAL CHIP 470K 5% 1/10W R628 1-216-837-11 METAL CHIP 22K 5% 1/10W R629 1-216-841-11 METAL CHIP 47K 5% 1/10W R630 1-216-841-11 METAL CHIP 47K 5% 1/10W R632 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-845-11 METAL CHIP 100K 5% 1/10W R646 1-216-797-11 METAL CHIP 10 10% 1/10W R648 1-216-845-11 METAL CHIP 22K 5% 1/10W R649 1-216-864-11 SHORT CHIP 0 R662 1-216-841-11 METAL CHIP 47K 5% 1/10W R663 1-216-845-11 METAL CHIP 100K 5% 1/10W R670 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R707 1-216-845-11 METAL CHIP 100K 5% 1/10W R716 1-216-833-11 METAL CHIP 10K 5% 1/10W R722 1-216-813-11 METAL CHIP 220 5% 1/10W R731 1-216-857-11 METAL CHIP 1M 5% 1/10W R732 1-216-857-11 METAL CHIP 1M 5% 1/10W R733 1-216-857-11 METAL CHIP 1M 5% 1/10W R735 1-216-833-11 METAL CHIP 10K 5% 1/10W R801 1-216-864-11 SHORT CHIP 0 R802 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R804 1-216-864-11 SHORT CHIP 0 R805 1-216-845-11 METAL CHIP 100K 5% 1/10W R806 1-216-845-11 METAL CHIP 100K 5% 1/10W R808 1-216-809-11 METAL CHIP 100 5% 1/10W R812 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R813 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R817 1-216-864-11 SHORT CHIP 0 (NE300: AEP, UK, EE/NE300CK: AEP, UK) R824 1-216-845-11 METAL CHIP 100K 5% 1/10W R826 1-216-857-11 METAL CHIP 1M 5% 1/10W R827 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R828 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R830 1-216-853-11 METAL CHIP 470K 5% 1/10W R831 1-216-857-11 METAL CHIP 1M 5% 1/10W R832 1-216-857-11 METAL CHIP 1M 5% 1/10W (NE300CK/NE301CK/NE306CK) R840 1-216-833-11 METAL CHIP 10K 5% 1/10W R866 1-216-833-11 METAL CHIP 10K 5% 1/10W R868 1-216-841-11 METAL CHIP 47K 5% 1/10W R877 1-216-845-11 METAL CHIP 100K 5% 1/10W R886 1-216-845-11 METAL CHIP 100K 5% 1/10W R894 1-216-849-11 METAL CHIP 220K 5% 1/10W R903 1-216-821-11 METAL CHIP 1K 5% 1/10W R935 1-216-845-11 METAL CHIP 100K 5% 1/10W R942 1-216-841-11 METAL CHIP 47K 5% 1/10W R949 1-216-845-11 METAL CHIP 100K 5% 1/10W R970 1-216-845-11 METAL CHIP 100K 5% 1/10W R971 1-216-845-11 METAL CHIP 100K 5% 1/10W R1001 1-216-853-11 METAL CHIP 470K 5% 1/10W < SWITCH > S806 1-572-499-21 SWITCH, TACTILZ (VOL +) S809 1-572-499-21 SWITCH, TACTIL (VOL –) S810 1-572-922-11 SWITCH, SLIDE (HOLD .) S820 1-762-805-41 SWITCH, PUSH (1 KEY) (OPEN/CLOSE DETECT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 33 D-NE300/NE300CK/NE301/NE301CK/NE306CK MAIN SWITCH < VARISTOR > VDR309 1-801-862-11 VARISTOR, CHIP (1608) (NE300CK/NE301CK/NE306CK) VDR401 1-801-864-21 VARISTOR, CHIP (1608) VDR402 1-801-864-21 VARISTOR, CHIP (1608) VDR403 1-801-864-21 VARISTOR, CHIP (1608) VDR404 1-801-862-11 VARISTOR, CHIP (1608) VDR405 1-801-862-11 VARISTOR, CHIP (1608) VDR406 1-801-862-11 VARISTOR, CHIP (1608) VDR601 1-801-862-11 VARISTOR, CHIP (1608) VDR602 1-801-862-11 VARISTOR, CHIP (1608) VDR603 1-801-862-11 VARISTOR, CHIP (1608) VDR610 1-801-862-11 VARISTOR, CHIP (1608) VDR611 1-801-862-11 VARISTOR, CHIP (1608) VDR701 1-801-862-11 VARISTOR, CHIP (1608) VDR702 1-801-862-11 VARISTOR, CHIP (1608) VDR703 1-801-862-11 VARISTOR, CHIP (1608) VDR704 1-801-862-11 VARISTOR, CHIP (1608) VDR801 1-801-862-11 VARISTOR, CHIP (1608) VDR802 1-801-862-11 VARISTOR, CHIP (1608) (NE300/NE301) VDR803 1-801-862-11 VARISTOR, CHIP (1608) VDR804 1-801-862-11 VARISTOR, CHIP (1608) < VIBRATOR > X601 1-795-101-21 VIBRATOR, CERAMIC (16.934MHz) X701 1-795-392-41 VIBRATOR, CERAMIC (22MHz) ************************************************************ * A-4541-652-A SWITCH BOARD, COMPLETE *********************** < CAPACITOR > C2001 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C2002 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C2003 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C2004 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V < CONNECTOR > CN2001 1-817-947-21 CONNECTOR, FFC/FPC (ZIF) 24P CN2002 1-818-128-11 CONNECTOR, FFC/FPC (ZIF) 20P < RESISTOR > R2001 1-216-864-11 SHORT CHIP 0 R2005 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2006 1-216-837-11 METAL CHIP 22K 5% 1/10W R2008 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2010 1-216-833-11 METAL CHIP 10K 5% 1/10W R2011 1-216-837-11 METAL CHIP 22K 5% 1/10W R2012 1-216-837-11 METAL CHIP 22K 5% 1/10W R2014 1-216-864-11 SHORT CHIP 0 R2016 1-216-821-11 METAL CHIP 1K 5% 1/10W R2017 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2018 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2019 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2020 1-216-833-11 METAL CHIP 10K 5% 1/10W R2021 1-216-829-11 METAL CHIP 4.7K 5% 1/10W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. < SWITCH > S2002 1-786-650-41 SWITCH, TACTILE (-DISPLAY, –MENU) S2003 1-786-650-41 SWITCH, TACTILE (x) S2004 1-786-650-41 SWITCH, TACTILE (M) S2005 1-786-650-41 SWITCH, TACTILE (m) S2007 1-786-650-41 SWITCH, TACTILE (N X, ENTER) S2008 1-786-650-41 SWITCH, TACTILE (>) S2009 1-786-650-41 SWITCH, TACTILE (.) S2010 1-786-650-41 SWITCH, TACTILE ( +) S2011 1-786-650-41 SWITCH, TACTILE ( –) *********************************************************** MISCELLANEOUS ************** 56 1-827-979-11 CABLE, FLEXIBLE FLAT (20 CORE) 0152 X-3380-950-1 OPTICAL PICK-UP (DAX-25E) LCD2001 1-805-467-12 DISPLAY PANEL, LIQUID CRYSTAL M901 A-3180-953-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3180-951-A MOTOR ASSY, SLED ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 34 D-NE300/NE300CK/NE301/NE301CK/NE306CK ACCESSORIES ************ 3-258-820-11 MANUAL, INSTRUCTION (SonicStage Simple Burner Ver 1.1) (ENGLISH) (NE300: UK/NE300CK: UK) 3-260-831-11 MANUAL, INSTRUCTION (ENGLISH) (NE300: US, CND, AEP, UK, EE, E18, AUS, HK/ NE301: E18, E92) 3-260-831-21 MANUAL, INSTRUCTION (SPANISH, FRENCH, PORTUGUESE) (NE300: CND, AEP/NE301) 3-260-831-31 MANUAL, INSTRUCTION (GERMAN, ITALIAN, DUTCH) (NE300: AEP) 3-260-831-41 MANUAL, INSTRUCTION (FINNISH, SWEDISH) (NE300: AEP) 3-260-831-51 MANUAL, INSTRUCTION (HUNGARIAN, POLISH, RUSSIAN) (NE300: EE) 3-260-831-61 MANUAL, INSTRUCTION (CZECH, SLOVAKIAN) (NE300: EE) 3-260-831-71 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (NE300: E18) 3-260-831-81 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (NE300: HK) 3-260-833-11 MANUAL, INSTRUCTION (ENGLISH) (NE300CK: AEP, UK, AUS/ NE301CK: E18, E92/NE306CK) 3-260-833-21 MANUAL, INSTRUCTION (SPANISH, FRENCH, PORTUGUESE) (NE300CK: AEP, UK/NE301CK/NE306CK: CND) 3-260-833-31 MANUAL, INSTRUCTION (GERMAN, ITALIAN, DUTCH) (NE300CK: AEP) 3-260-833-41 MANUAL, INSTRUCTION (FINNISH, SWEDISH) (NE300CK: AEP) 3-264-974-11 MANUAL, INSTRUCTION (SSSB 1.1) (SonicStage Simple Burner Ver 1.1) (ENGLISH) (NE300: UK/NE300CK: UK) 3-265-088-11 MANUAL, INSTRUCTION (Installation/operation guide) (ENGLISH) 3-265-088-21 MANUAL, INSTRUCTION (Installation/operation guide) (SPANISH, FRENCH, PORTUGUESE) (NE300: CND, AEP/NE301/NE300CK: AEP/ NE301CK/NE306CK: CND) 3-265-088-31 MANUAL, INSTRUCTION (Installation/operation guide) (GERMAN, ITALIAN, DUTCH) (NE300: AEP/NE300CK: AEP) 3-265-088-41 MANUAL, INSTRUCTION (Installation/operation guide) (FINNISH, SWEDISH) (NE300: AEP/NE300CK: AEP) 3-265-088-51 MANUAL, INSTRUCTION (Installation/operation guide) (HUNGARIAN, POLISH, RUSSIAN) (NE300: EE) 3-265-088-61 MANUAL, INSTRUCTION (Installation/operation guide) (CZECH, SLOVAKIAN) (NE300: EE) 3-265-088-71 MANUAL, INSTRUCTION (Installation/operation guide) (TRADITIONAL CHINESE, SIMPLIFIED CHINESE) (NE300: E18, PH, HK) 3-265-088-81 MANUAL, INSTRUCTION (Installation/operation guide) (ARABIC) (NE300: EA/NE300CK: EA) Ver 1.1 3-266-362-12 MANUAL, INSTRUCTION (ENGLISH) (NE300: EXCEPT EA/NE301: E18, E92) 3-266-362-21 MANUAL, INSTRUCTION (SPANISH, FRENCH, PORTUGUESE) (NE300: CND, AEP/NE301) 3-266-362-31 MANUAL, INSTRUCTION (GERMAN, ITALIAN, DUTCH) (NE300: AEP) 3-266-362-41 MANUAL, INSTRUCTION (FINNISH, SWEDISH) (NE300: AEP) 3-266-362-51 MANUAL, INSTRUCTION (HUNGARIAN, POLISH, RUSSIAN) (NE300: EE) 3-266-362-61 MANUAL, INSTRUCTION (CZECH, SLOVAKIAN) (NE300: EE) 3-266-362-71 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (NE300: E18, PH) 3-266-362-81 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (NE300: HK) 3-266-362-91 MANUAL, INSTRUCTION (ARABIC) (NE300: EA) 3-266-365-11 MANUAL, INSTRUCTION (ENGLISH) (NE300CK: AEP, UK, AUS/ NE301CK: E18, E92/NE306CK) 3-266-365-21 MANUAL, INSTRUCTION (SPANISH, FRENCH, PORTUGUESE) (NE300CK: AEP/NE301CK/NE306CK: CND) 3-266-365-31 MANUAL, INSTRUCTION (GERMAN, ITALIAN, DUTCH) (NE300CK: AEP) 3-266-365-41 MANUAL, INSTRUCTION (FINNISH, SWEDISH) (NE300CK: AEP) 3-266-365-51 MANUAL, INSTRUCTION (ARABIC) (NE300CK: EA) 3-266-365-61 MANUAL, INSTRUCTION (ENGLISH) (NE300CK: EA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 35 D-NE300/NE300CK/NE301/NE301CK/NE306CK 501 AC power adaptor (AC-ES455K) (1) 503 Headphones (MDR-027LP) (1) (for US model) 505 Earphones (MDR-E808LP) (1) (for EXCEPT US model) 507 Rotary commander (RM-MC25C) (1) (for D-NE300CK/NE301CK/NE306CK) 502 Car battery cord (1) (for D-NE300CK/NE301CK/NE306CK) 504 Car connecting pack (1) (for D-NE300CK/NE301CK/NE306CK) 506 CD-ROM* (SonicStage) (1) *Do not play a CD-ROM on an audio CD player. 0501 1-478-432-11 ADAPTOR, AC (AC-ES455K) (NE300: AEP, EE, E18, PH/NE300CK: AEP/ NE301: E18/NE301CK: E18) 0501 1-478-433-11 ADAPTOR, AC (AC-ES455K) (NE300: UK, EA, HK/NE300CK: UK, EA) 0501 1-478-434-11 ADAPTOR, AC (AC-ES455K) (NE301: E92, MX/ NE301CK: E92, MX/ NE306CK: US) 0501 1-478-435-11 ADAPTOR, AC (AC-ES455K) (NE300: AUS/NE300CK: AUS) 502 1-792-970-41 CORD, CAR BATTERY (DCC-E2455) (NE300CK/NE301CK/NE306CK) 503 8-954-007-95 RECEVER, EAR MDR-027LP SET (US) 504 1-251-824-41 CONNECTING PACK, CAR (CPA-7) (NE300CK/NE301CK/NE306CK) 505 8-954-008-93 RECEIVER, EAR MDR-E808LP/C1 SET (EXCEPT US) 506 X-3384-846-1 CD-ROM (APPLICATION) ASSY (NE300CK: UK) 506 X-3384-858-1 CD-ROM (APPLICATION) ASSY (2.0) (NE300: US, CND/NE306CK) 506 X-3384-860-1 CD-ROM (APPLICATION) ASSY (2.0) (NE300: AEP, EE, EA/NE300CK: AEP, UK, EA) 506 X-3384-861-1 CD-ROM (APPLICATION) ASSY (2.0) (NE300: E18, AUS, HK, PH/NE300CK: AUS) 506 X-3384-862-1 CD-ROM (APPLICATION) ASSY (2.0) (NE301: E18, E92/NE301CK: E18, E92) 506 X-3384-863-1 CD-ROM (APPLICATION) ASSY (NE301: MX/NE301CK: MX) 506 X-3385-037-1 CD-ROM (APPLICATION) ASSY (NE300: UK) 506 X-3385-120-1 CD-ROM (APPLICATION) ASSY (2.0) (NE300: UK) 507 1-477-629-12 REMOTE COMMANDER (RM-MC25C) (NE300CK/NE301CK/NE306CK) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE300/NE300CK/NE301/NE301CK/NE306CK REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.12 New 1.1 2004.02 Addition of Saudi Arabia, Hong Kong and Philippines models to D-NE300 Addition of Saudi Arabia model to D-NE300CK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
