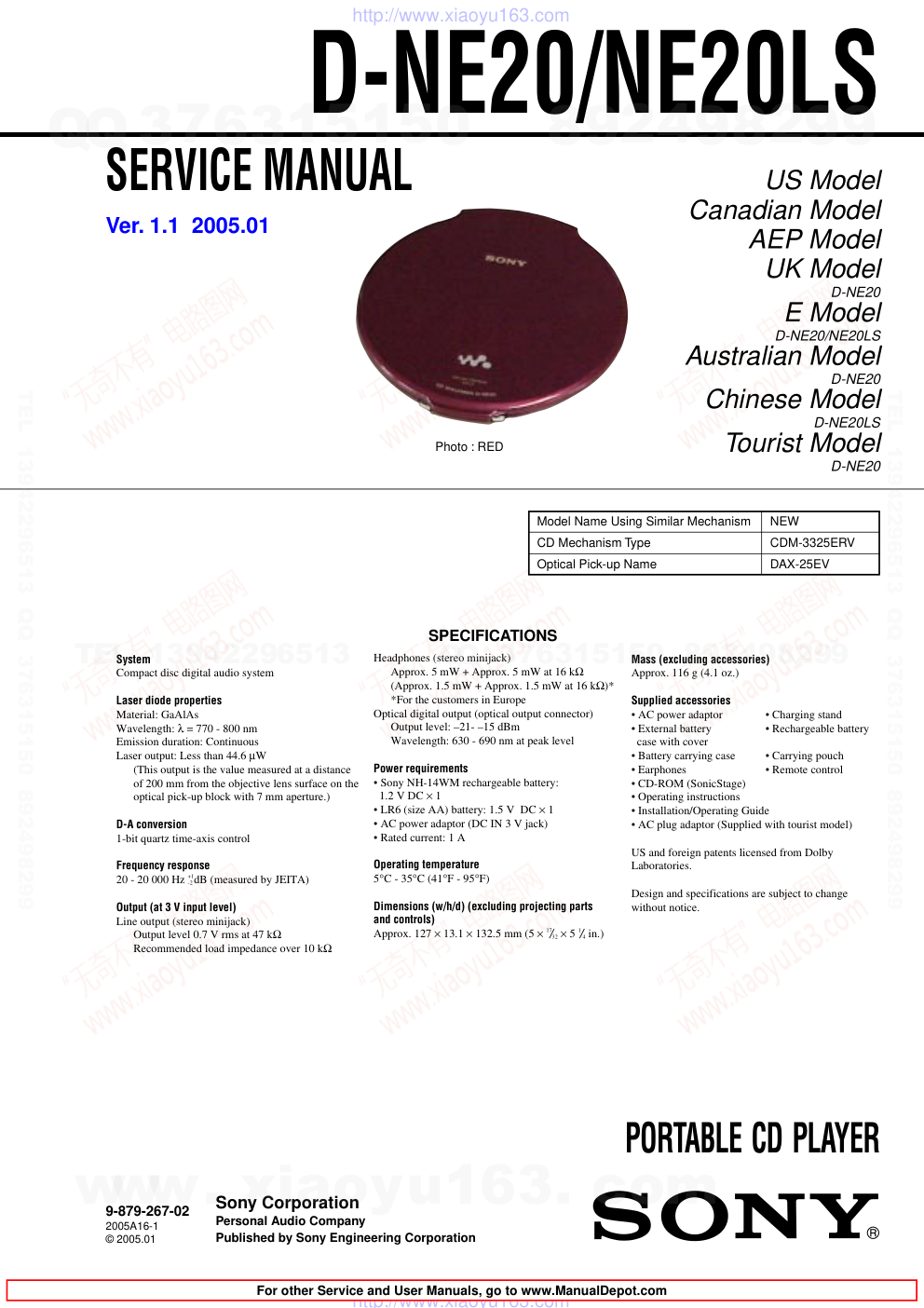

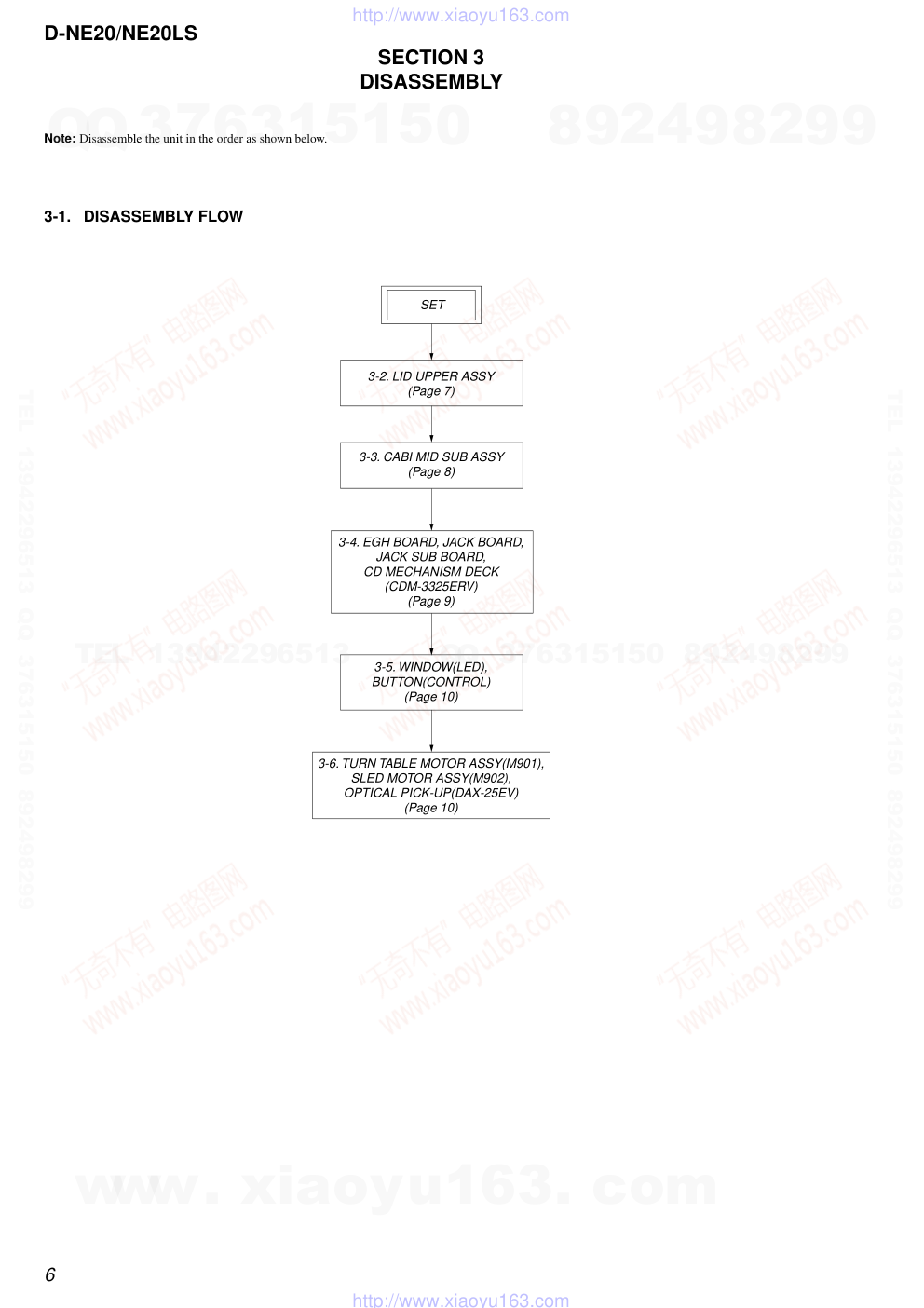

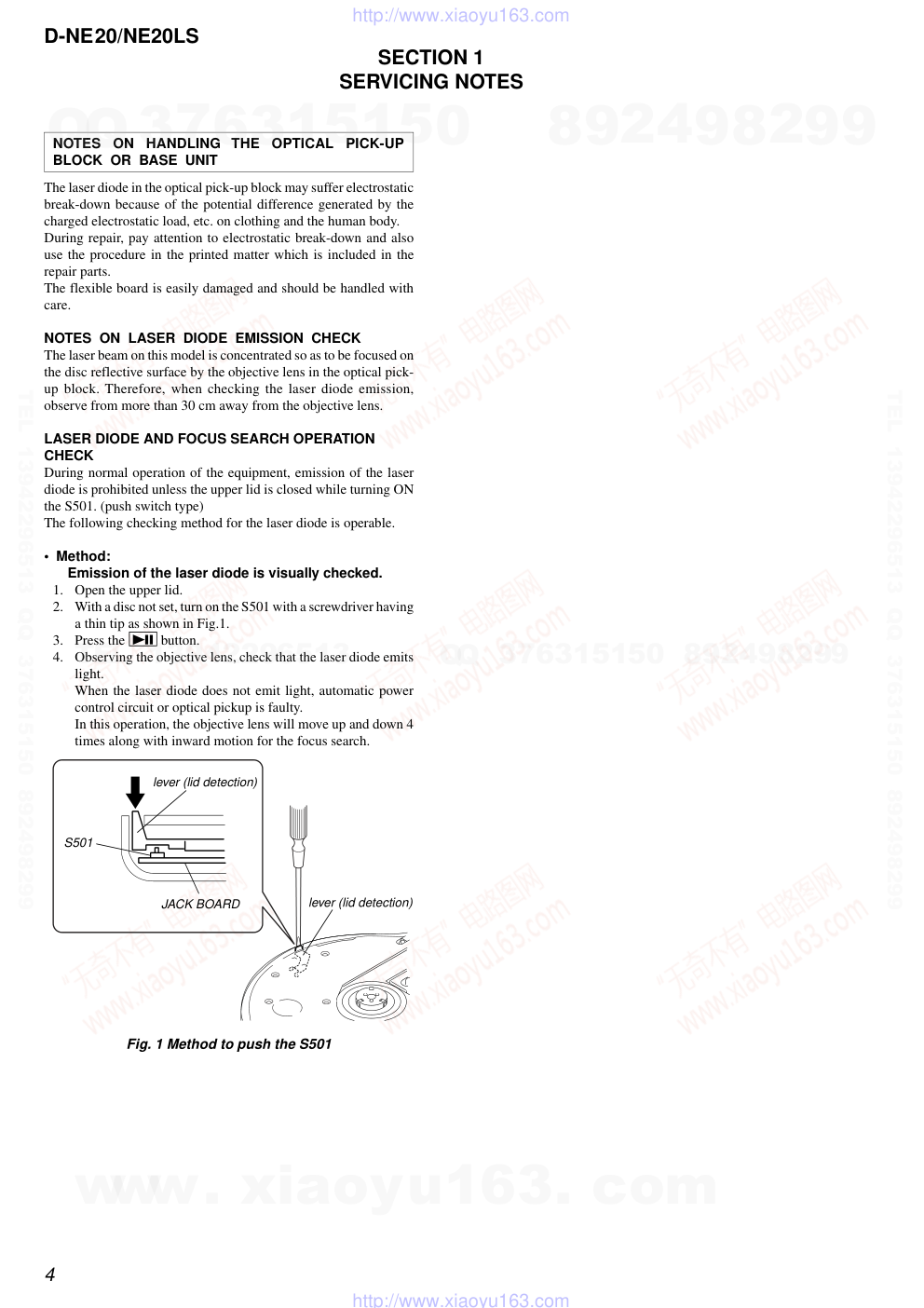

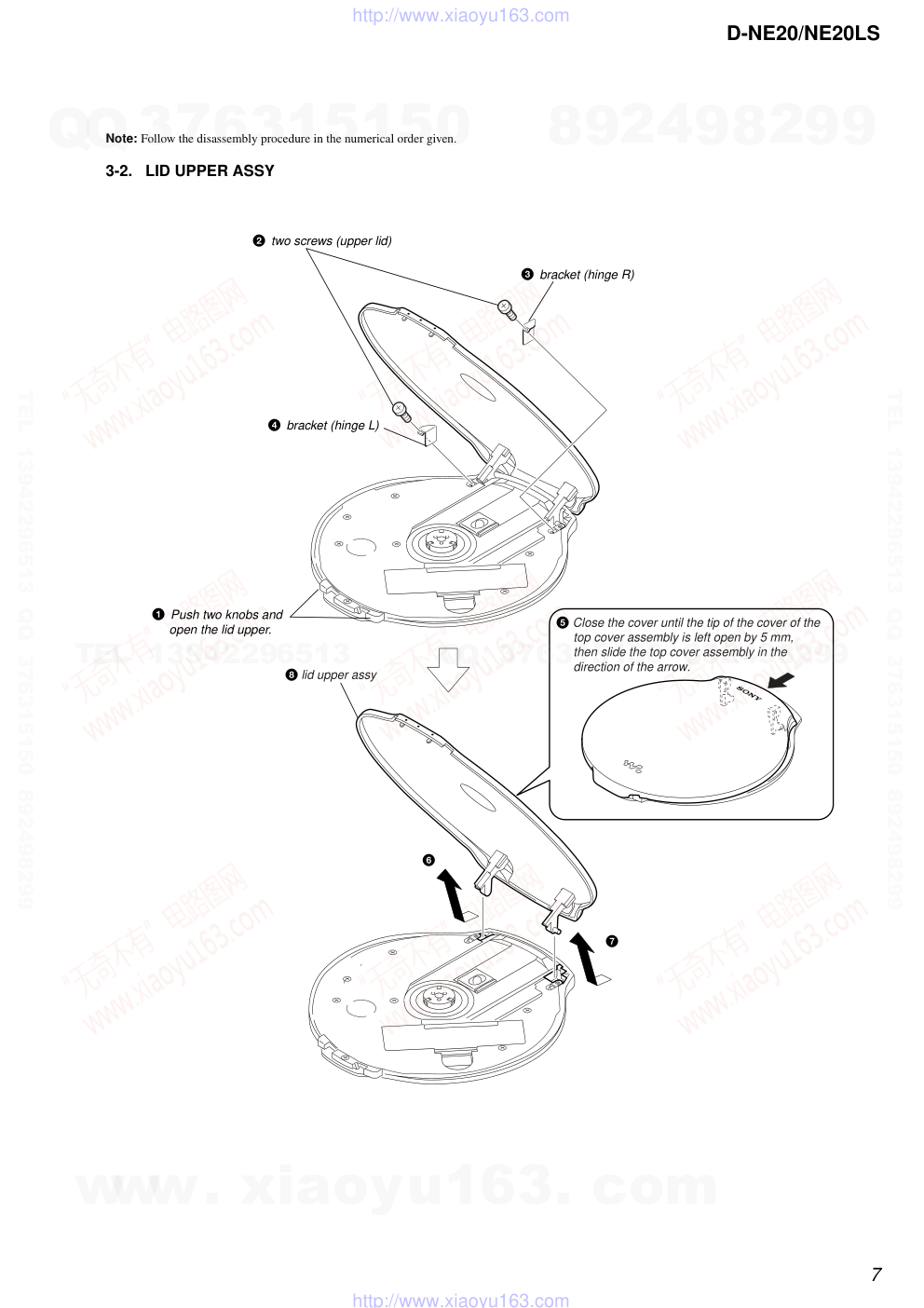

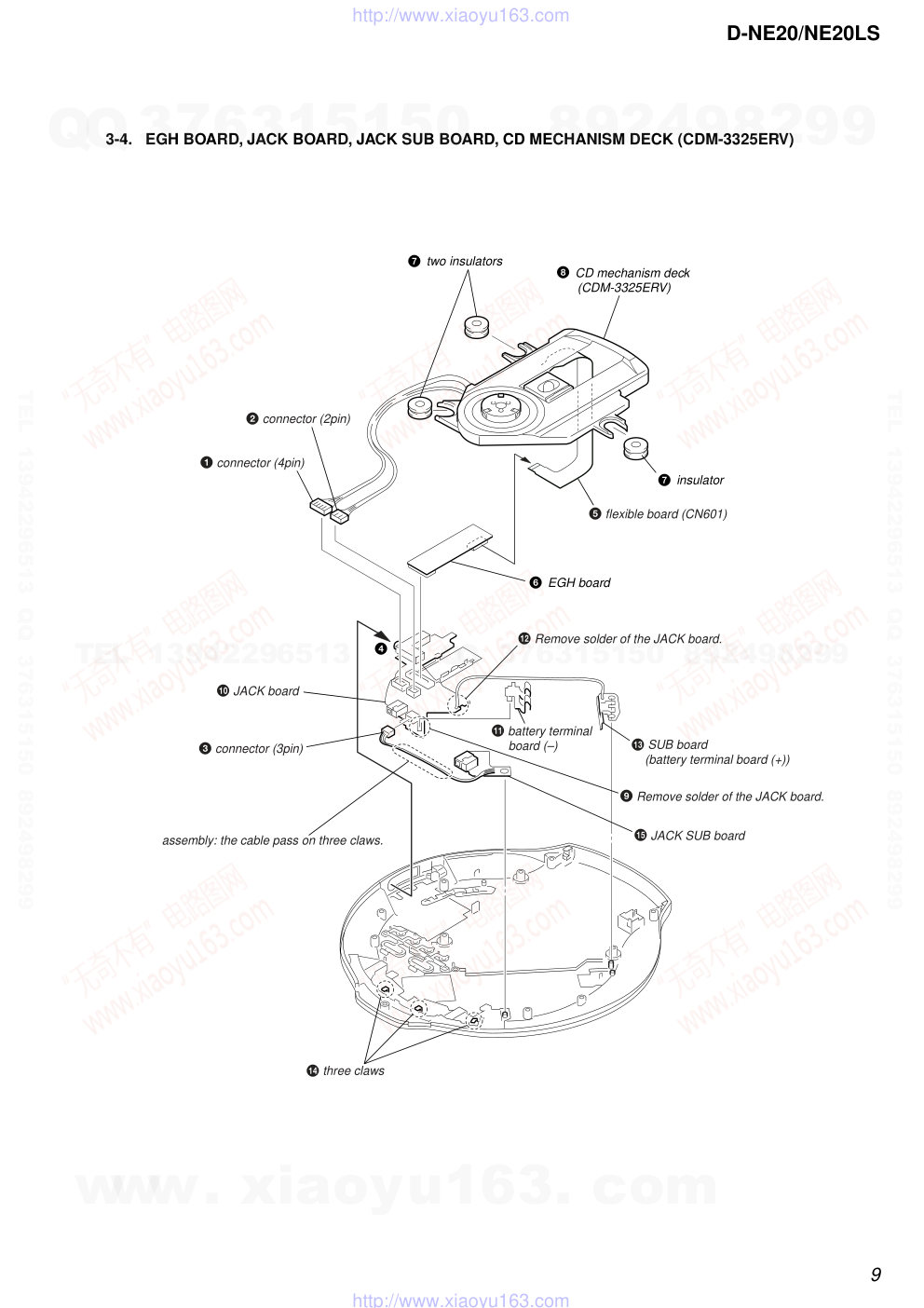

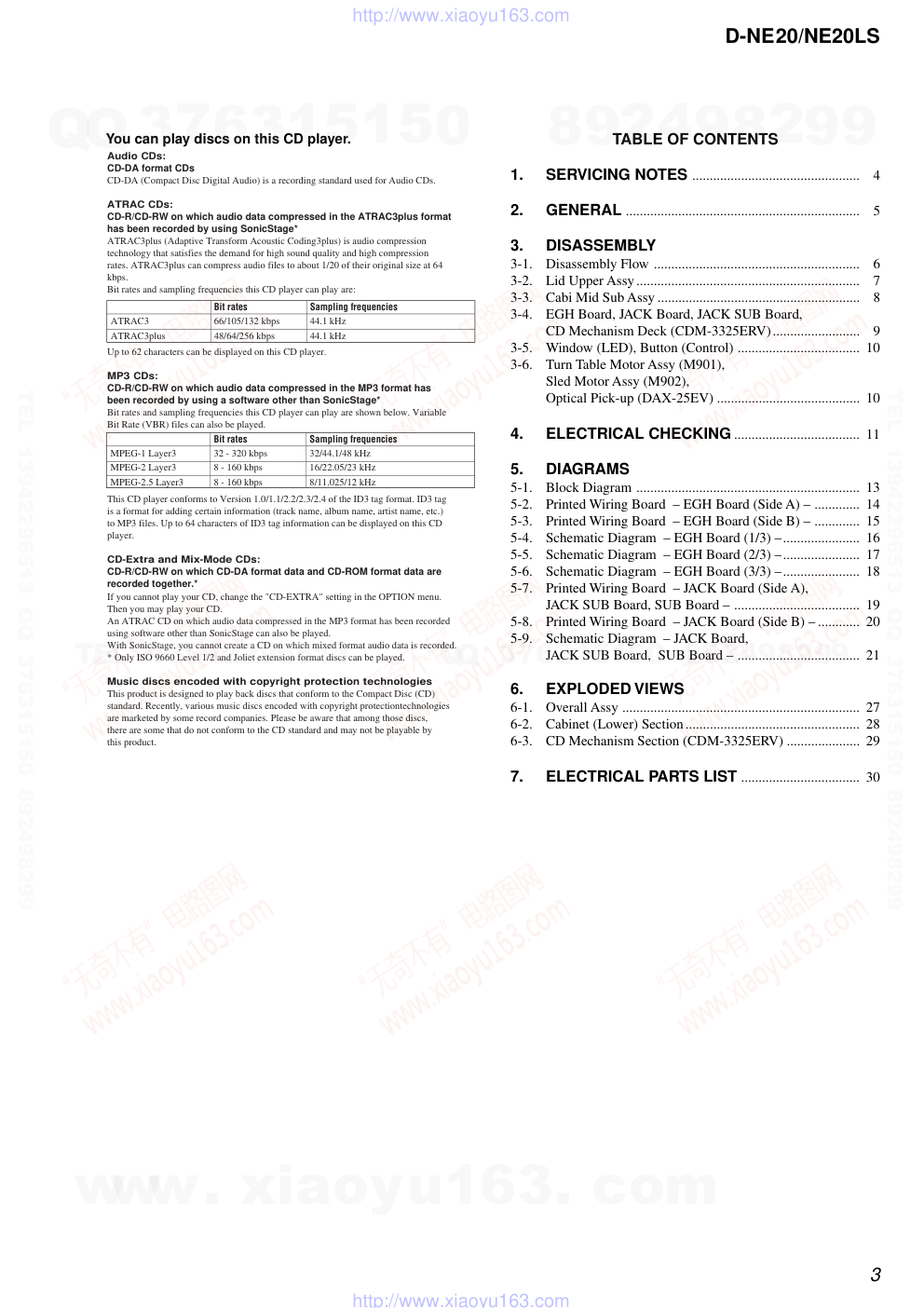

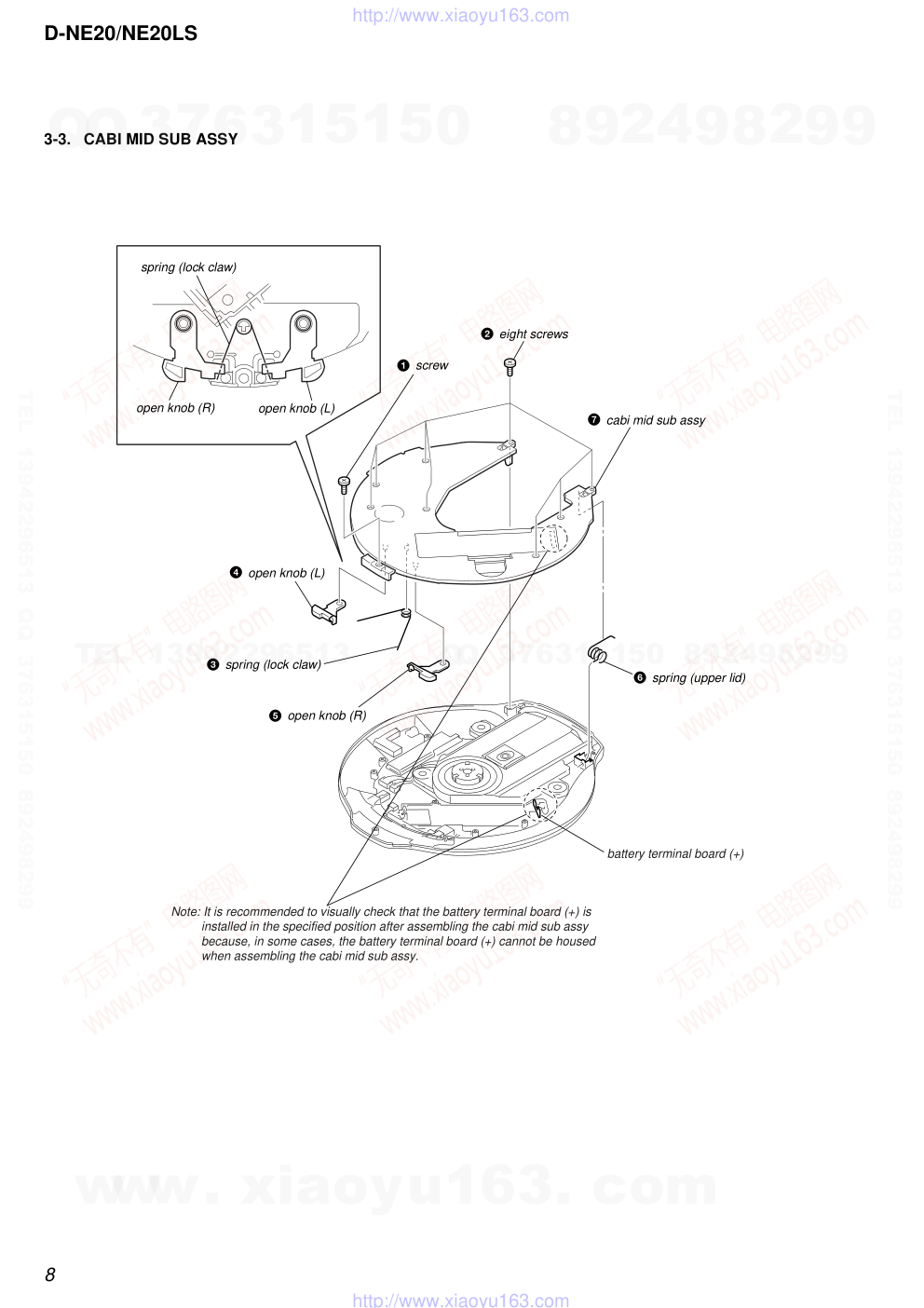

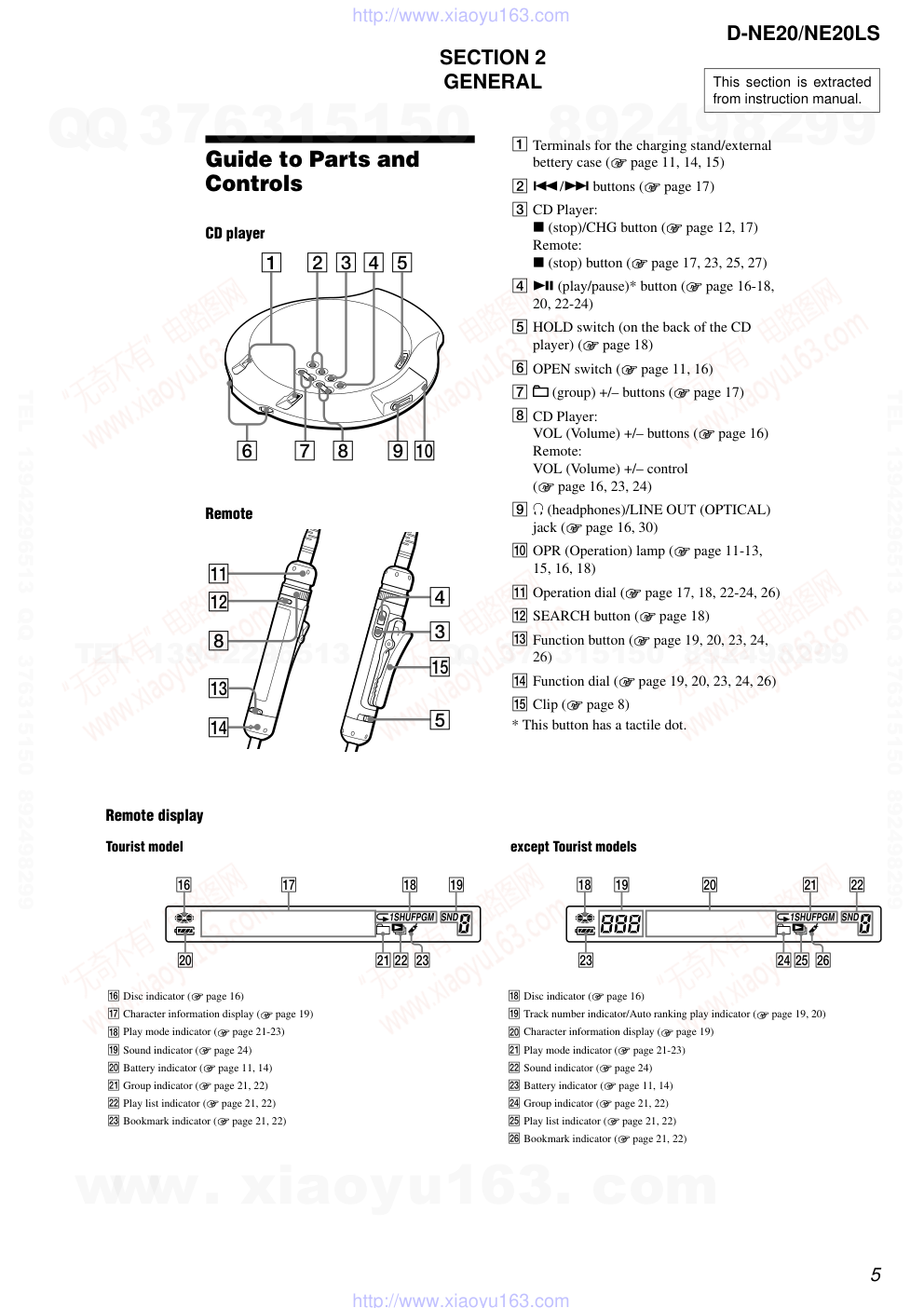

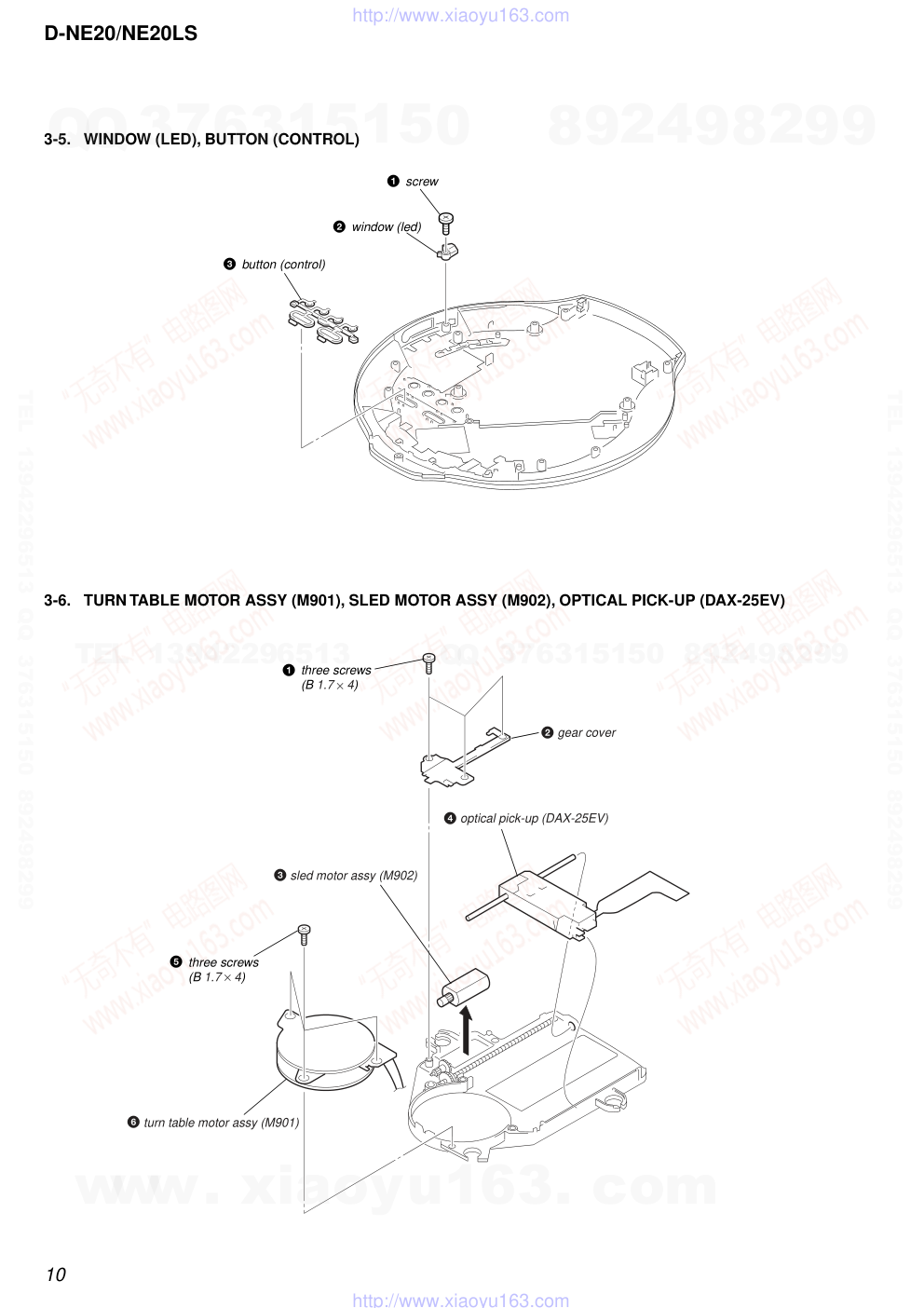

SERVICE MANUAL Sony Corporation Personal Audio Company Published by Sony Engineering Corporation US Model Canadian Model AEP Model UK Model D-NE20 E Model D-NE20/NE20LS Australian Model D-NE20 Chinese Model D-NE20LS Tourist Model D-NE20 PORTABLE CD PLAYER 9-879-267-02 2005A16-1 © 2005.01 Ver. 1.1 2005.01 SPECIFICATIONS D-NE20/NE20LS Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-3325ERV Optical Pick-up Name DAX-25EV System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 770 - 800 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 -2dB (measured by JEITA) Output (at 3 V input level) Line output (stereo minijack) Output level 0.7 V rms at 47 kΩ Recommended load impedance over 10 kΩ Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 kΩ (Approx. 1.5 mW + Approx. 1.5 mW at 16 kΩ)* *For the customers in Europe Optical digital output (optical output connector) Output level: –21- –15 dBm Wavelength: 630 - 690 nm at peak level Power requirements • Sony NH-14WM rechargeable battery: 1.2 V DC × 1 • LR6 (size AA) battery: 1.5 V DC × 1 • AC power adaptor (DC IN 3 V jack) • Rated current: 1 A Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 127 × 13.1 × 132.5 mm (5 × 17 32 × 5 1 4 in.) Mass (excluding accessories) Approx. 116 g (4.1 oz.) Supplied accessories • AC power adaptor • Charging stand • External battery • Rechargeable battery case with cover • Battery carrying case • Carrying pouch • Earphones • Remote control • CD-ROM (SonicStage) • Operating instructions • Installation/Operating Guide • AC plug adaptor (Supplied with tourist model) US and foreign patents licensed from Dolby Laboratories. Design and specifications are subject to change without notice. Photo : RED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com For other Service and User Manuals, go to www.ManualDepot.com 2 D-NE20/NE20LS CAUTION • INVISIBLE LASER RADIATION WHEN OPEN • DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS • CLASS 1M INVISIBLE LASER RADIATION WHEN OPEN • DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. On AC power adaptor • Use only the AC power adaptor supplied. If your CD player is not supplied with the one, use the AC-E30HG AC power adaptor. Do not use any other AC power adaptor. It may cause a malfunction. Polarity of the plug • Do not touch the AC power adaptor with wet hands. • Connect the AC power adaptor to an easily accessible AC outlet. Should you notice an abnormality in the AC power adaptor, disconnect it from the AC outlet immediately. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Terminals • To clean the terminals If the terminals on the charging stand become dirty, the battery may not be charged properly. Clean the terminals with a cotton swab or a dry cloth periodically as illustrated below. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-NE20/NE20LS TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Lid Upper Assy................................................................ 7 3-3. Cabi Mid Sub Assy .......................................................... 8 3-4. EGH Board, JACK Board, JACK SUB Board, CD Mechanism Deck (CDM-3325ERV)......................... 9 3-5. Window (LED), Button (Control) ................................... 10 3-6. Turn Table Motor Assy (M901), Sled Motor Assy (M902), Optical Pick-up (DAX-25EV) ......................................... 10 4. ELECTRICAL CHECKING .................................... 11 5. DIAGRAMS 5-1. Block Diagram ................................................................ 13 5-2. Printed Wiring Board – EGH Board (Side A) – ............. 14 5-3. Printed Wiring Board – EGH Board (Side B) – ............. 15 5-4. Schematic Diagram – EGH Board (1/3) –...................... 16 5-5. Schematic Diagram – EGH Board (2/3) –...................... 17 5-6. Schematic Diagram – EGH Board (3/3) –...................... 18 5-7. Printed Wiring Board – JACK Board (Side A), JACK SUB Board, SUB Board – .................................... 19 5-8. Printed Wiring Board – JACK Board (Side B) – ............ 20 5-9. Schematic Diagram – JACK Board, JACK SUB Board, SUB Board – ................................... 21 6. EXPLODED VIEWS 6-1. Overall Assy .................................................................... 27 6-2. Cabinet (Lower) Section.................................................. 28 6-3. CD Mechanism Section (CDM-3325ERV) ..................... 29 7. ELECTRICAL PARTS LIST .................................. 30 You can play discs on this CD player. Audio CDs: CD-DA format CDs CD-DA (Compact Disc Digital Audio) is a recording standard used for Audio CDs. ATRAC CDs: CD-R/CD-RW on which audio data compressed in the ATRAC3plus format has been recorded by using SonicStage* ATRAC3plus (Adaptive Transform Acoustic Coding3plus) is audio compression technology that satisfies the demand for high sound quality and high compression rates. ATRAC3plus can compress audio files to about 1/20 of their original size at 64 kbps. Bit rates and sampling frequencies this CD player can play are: Up to 62 characters can be displayed on this CD player. MP3 CDs: CD-R/CD-RW on which audio data compressed in the MP3 format has been recorded by using a software other than SonicStage* Bit rates and sampling frequencies this CD player can play are shown below. Variable Bit Rate (VBR) files can also be played. This CD player conforms to Version 1.0/1.1/2.2/2.3/2.4 of the ID3 tag format. ID3 tag is a format for adding certain information (track name, album name, artist name, etc.) to MP3 files. Up to 64 characters of ID3 tag information can be displayed on this CD player. CD-Extra and Mix-Mode CDs: CD-R/CD-RW on which CD-DA format data and CD-ROM format data are recorded together.* If you cannot play your CD, change the "CD-EXTRA" setting in the OPTION menu. Then you may play your CD. An ATRAC CD on which audio data compressed in the MP3 format has been recorded using software other than SonicStage can also be played. With SonicStage, you cannot create a CD on which mixed format audio data is recorded. * Only ISO 9660 Level 1/2 and Joliet extension format discs can be played. Music discs encoded with copyright protection technologies This product is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protectiontechnologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product. Bit rates Sampling frequencies ATRAC3plus 48/64/256 kbps 44.1 kHz ATRAC3 66/105/132 kbps 44.1 kHz Bit rates Sampling frequencies MPEG-2 Layer3 8 - 160 kbps 16/22.05/23 kHz MPEG-2.5 Layer3 8 - 160 kbps 8/11.025/12 kHz MPEG-1 Layer3 32 - 320 kbps 32/44.1/48 kHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-NE20/NE20LS SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S501. (push switch type) The following checking method for the laser diode is operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S501 with a screwdriver having a thin tip as shown in Fig.1. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 4 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT S501 lever (lid detection) lever (lid detection) JACK BOARD Fig. 1 Method to push the S501 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-NE20/NE20LS SECTION 2 GENERAL This section is extracted from instruction manual. ������������������� �������� ��������� � � � � � � � � � � ������ �� �� � �� �� � � � �� � �������������������������������������������� �������������������������������� ������������������������� ������������� ������������������������������������ �������� ��������������������������������������� ���������������������������������������� ���������� ������������������������������������� ������������������� ����������������������������� �� �������������������������������� ������������� ������������������������������������� �������� �������������������������� ������������������� ������������������������������������ �������������������� �������������������������������������� ����������� ������������������������������������������� ��������������������������� ������������������������������������������ ��� ������������������������������������������� ����������������� �������������������������������� �� �� ���� �� �� �� �� ���������������������������� �������������������������������������������� ������������������������������������ ����������������������������� ����������������������������������� ��������������������������������� ������������������������������������� ������������������������������������ �� �� ���� �� �� �� �� �� ���������������������������� �������������������������������������������������������������������� ������������������������������������������� ������������������������������������ ����������������������������� ����������������������������������� ��������������������������������� ������������������������������������� ������������������������������������ Tourist model except Tourist models Remote display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-NE20/NE20LS SECTION 3 DISASSEMBLY 3-1. DISASSEMBLY FLOW Note: Disassemble the unit in the order as shown below. 3-3. CABI MID SUB ASSY (Page 8) 3-2. LID UPPER ASSY (Page 7) 3-4. EGH BOARD, JACK BOARD, JACK SUB BOARD, CD MECHANISM DECK (CDM-3325ERV) (Page 9) 3-5. WINDOW(LED), BUTTON(CONTROL) (Page 10) 3-6. TURN TABLE MOTOR ASSY(M901), SLED MOTOR ASSY(M902), OPTICAL PICK-UP(DAX-25EV) (Page 10) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 D-NE20/NE20LS Note: Follow the disassembly procedure in the numerical order given. 3-2. LID UPPER ASSY 6 7 3 bracket (hinge R) 4 bracket (hinge L) 1 Push two knobs and open the lid upper. 2 two screws (upper lid) 8 lid upper assy 5 Close the cover until the tip of the cover of the top cover assembly is left open by 5 mm, then slide the top cover assembly in the direction of the arrow. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-NE20/NE20LS 3-3. CABI MID SUB ASSY 1 screw 4 open knob (L) 5 open knob (R) 3 spring (lock claw) 6 spring (upper lid) 7 cabi mid sub assy spring (lock claw) open knob (R) open knob (L) 2 eight screws battery terminal board (+) Note: It is recommended to visually check that the battery terminal board (+) is installed in the specified position after assembling the cabi mid sub assy because, in some cases, the battery terminal board (+) cannot be housed when assembling the cabi mid sub assy. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 D-NE20/NE20LS 3-4. EGH BOARD, JACK BOARD, JACK SUB BOARD, CD MECHANISM DECK (CDM-3325ERV) 4 6 EGH board 7 two insulators 7 insulator 8 CD mechanism deck (CDM-3325ERV) 5 flexible board (CN601) 0 JACK board qg JACK SUB board qf three claws assembly: the cable pass on three claws. 2 connector (2pin) 1 connector (4pin) 3 connector (3pin) qd SUB board (battery terminal board (+)) qa battery terminal board (–) 9 Remove solder of the JACK board. qs Remove solder of the JACK board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 D-NE20/NE20LS 3-5. WINDOW (LED), BUTTON (CONTROL) 1 screw 2 window (led) 3 button (control) 2 gear cover 4 optical pick-up (DAX-25EV) 3 sled motor assy (M902) 6 turn table motor assy (M901) 1 three screws (B 1.7 × 4) 5 three screws (B 1.7 × 4) 3-6. TURN TABLE MOTOR ASSY (M901), SLED MOTOR ASSY (M902), OPTICAL PICK-UP (DAX-25EV) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 D-NE20/NE20LS SECTION 4 ELECTRICAL CHECKING The CD section adjustments are done automatically in this set. In case of operation check, confirm that RF level. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement : DC1.5V in battery termi- nals. VOLUME button : Minimum HOLD switch : OFF Checking Location: TP608 IC604 (RF) TP602 (GND A) [EGH BOARD] (SIDE B) RF Level Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test points TP608 (RF) and TP602 (GND A) on the EGH board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) VOLT/DIV : 100 mV (With the 10:1 probe in use) TIME/DIV : 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watching. 5. Stop revolving of the disc motor by pressing the x button. Oscilloscope (AC range) + – EGH board TP608 (RF) TP602 (GND A) 2 kΩ RF level 0.55 to 0.6 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 D-NE20/NE20LS SECTION 5 DIAGRAMS Note on Printed Wiring Boards. • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. • These boards are multi-layer printed board. However, the paterns of intermediate-layer have not been included in the diagram. • Waveforms – EGH Board – 540 mVp-p 1 TP608 (RF) 3.0 Vp-p 2 IC603 EXTAL 44.1 ns 200 mV/DIV, 400 ns/DIV 1 V/DIV, 20 ns/DIV Note on Schematic Diagrams. • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal tolerance. • C : panel designation. • A : B+ Line. • Total current is measured with CD installed. • Power voltage is dc 1.5 V and fed with regulated dc power supply from battery terminals. • Voltages and waveforms are dc with respect to ground in playback mode. no mark : CD PLAY ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production toler- ances. • Circled numbers refer to waveforms. • Signal path. J : CD c : DIGITAL OUT • Abbreviation CH : Chinese model EE : East European model JE : Tourist model KR : Korean model Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 D-NE20/NE20LS D-NE20/NE20LS 5-1. BLOCK DIAGRAM RSTB 5 55 WAKE 38 RECHARGEABLE BATTERY NH-14WM 1PCS. 1.2V (FOR STAND CHARGER) REG Q402 54 CRF 64 DCIN 50 RS 78 PWRSW1 53 CINW 10 VM-U 101 SW 105 VIN 7 VM-VW 81 PWRSW2 IC401(2/2) POWER CONTROL Q403 CHARGE SWITCH 49 CHGSW 70 VIN12 66 VO2 61 VIN34 VM23 25 VM2 22 VCC2 66 J402 (FOR STAND CHARGER) J401 67 BATM1 VIN RMCRB 39 CHGWON SWITCH Q401 SWITCH Q404 VCC1 VCC1 VCC2 74 VCC1 98 VM3 27 VCC2 97 VD B 3 VD T 2 LATCHB 32 84 97 85 86 128 102 127 111 106 105 151 144 139 140 142 141 112 LINEOUT (OPTICAL) J301 VCC1 R-CH R-CH R-CH 109 VCC2 SWITCH Q406 LED DRIVER OPR Q601 D501 VDD CONTROLLER Q402,403 MUTING CONTROL Q302,303 MUTING CONTROL Q304,305 IN1 3 MCK 1 EN2 11 EN1 4 VDD0 VDD0 7 8 6 OUT1 HP AMP IC3007 SYSTEM CONTROLLER IC603 ADDSEL0 NCS1 NRD KEY CONTROLLER IC401 BUFFER IC403 VG 24 27 32 19 . XWE 15 LDQW 14 XCAS 16 XCS 18 XRAS 17 CLK 35 CKE 34 UDQW 36 DQ16 DQ1 SDDQ16 SDDQ1 A1-A19 D0-D-15 SDA11 SDA0 A11 A0 S-RAM IC604 2,3,5, 6,8,9, 11,12, 39,40, 42,43, 45,46, 48,49, 12,13, 15,16, 21,22, 18,19, 25-28, 30,31, 34,36, 51,52, 57,58, 60,61, 63,64, 66,67, 69,70, DOUT PF6/DBG6/X PLUG DTC PF7/DBG7/X METAL DTC AOUTL AOUTR PWML XTAN EXTAL RFAC RFDC FE(A) SE(B) FE(A) SE(B) CE(E) TE(F) 167 FFDR PWMR DAMPCLK PJ7/MON7(MON CK) PJ6/MON6(MONDO) 33 XSDWE 40 SOUDQW 41 XSDCAS 42 XSXCS 44 XSDRAS 47 SDCLK 45 SDCKE 48 SDUDQW 129 218 PD4/INT4 XRST AN6 XADEVENT 212 204 195 203 PE2/DTCK 8 AN4 197 P15 77 PG3 185 P14/AIFPCMD 78 238 183 182 PG5 PG6 194 AN7 202 4 1 WAKE 132 PF2/DBG2 201 AN0 175 PC3/XCS0 LED2 LED1 S502 S501 (OPEN/CLOSE) > HOLD ON OFF SWITCH Q602 SWITCH Q401 SWITCH Q405 POWER CONTROLLER IC402 +2V REG IC606 X601 22.579MHz 168 FRDR 165 TFDR 166 TRDR 163 SFDR 164 SRDR 169 MDP OPTICAL PICK-UP BLOCK (DAX-25EV) RF A B E F F+ F- T+ T- S+ S- LD DETECTOR LASER DIODE VCC PD FOCUS C0IL TRACKING COIL SLED MOTOR M SPINDLE MOTOR VCC1 VCC3 2V COIL/MOTOR DRIVER IC401(1/2) PAPC 89 63 13 17 42 F13 41 R13 43 44 34 47 48 VAPC F12 R12 APWM 35 PWM FO1 21 FO2 RO1 26 28 FO3 RO3 24 RO2 F11 R11 171 C176 33 SYNC 181 PG7 37 COLDST 177 PC1/SO0 36 DATA 178 PC0/SCK0 30 CLOCK 214 PD2/INT2/ECIN 199 AN2 23 FG 12 CPV1 107 CPW1 8 CPU1 11 COM 9 UO 6 VO 4 WO M902 M901 U COM V W FUNCTION KEY S503,504,506,508,510 200 AN1 FUNCTION KEY S505,507,509 • R-CH is omitted due to same as L-CH. • Signal Path : CD : DIGITAL OUT W401 W402 MUTE Q307 MUTE Q306 A19 22 CE 31 OE 37 A0-A15 P2ROM IC605 JE, HK, KR, CH 1,2 5-8, 11-15, 17-20, 23-25, 30 D0-D15 26-29, 32-35, 38,39, 41,42, 44-47 219 237 240 255 EEPROM IC602 6 5 2 1 SCK DI DO XCS 176 PC2/SI0 4 PE3 RF AMP IC601 10 12 11 15 SENB SDATA SCLK RFOUT 17 RFIN 75 P17/AIFBCK w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 D-NE20/NE20LS D-NE20/NE20LS 5-2. PRINTED WIRING BOARD – EGH BOARD (SIDE A) – :Uses unleaded solder. IC3007 IC403 IC603 * *CSP (Chip Size Package) IC602 IC601 IC605 IC606 * *CSP (Chip Size Package) R622 EGH BOARD (SIDE A) A JACK BOARD CN9002 (Page 19) OPTICAL PICK-UP BLOCK (DAX-25EV) 1-863-862- (11) 11 EXCEPT AEP, UK, EE AEP, UK, EE JE, HK, KR, CH • Semiconductor Location Ref. No. Location IC403 D-4 IC601 C-9 IC602 D-8 IC603 C-7 IC605 C-10 IC606 A-7 IC3007 D-3 Q601 C-5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 D-NE20/NE20LS D-NE20/NE20LS 5-3. PRINTED WIRING BOARD – EGH BOARD (SIDE B) – :Uses unleaded solder. IC401 IC402 IC604 * *CSP (Chip Size Package) R624 R625 R621 C631 R616 C617 1-863-862- (11) 11 EGH BOARD (SIDE B) (RF) (GND A) 1 3 5 4 • Semiconductor Location Ref. No. Location D401 C-8 D405 A-8 IC401 C-9 IC402 C-8 IC604 B-3 Q401 D-8 Q402 C-6 Q403 D-7 Q404 B-8 Q405 B-8 Q406 B-7 Q602 C-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 D-NE20/NE20LS D-NE20/NE20LS 5-4. SCHEMATIC DIAGRAM – EGH BOARD (1/3) – 21 17 18 IC401 Q405 Q404 Q401 D405 TP618 R414 C401 C415 C434 C432 L408 C418 R430 C419 C421 R431 R436 R432 C420 R404 C422 C445 R429 R427 R426 R446 C446 C414 R424 R437 C413 C411 C412 FB401 C447 L403 L401 C408 L410 TP405 C440 C441 C442 C443 C429 C427 C426 C437 C448 FB402 TP404 L404 L407 R406 R407 C428 C430 R417 R421 R401 R405 R408 C435 C402 C405 C449 C439 L405 L402 R423 C431 C423 C450 L409 R409 TP403 R402 R435 C444 L406 C424 R428 C416 C417 C410 C409 CN9001 SC901590VAR2 QS6K1 QS6K1 DTC115TE-TL MA785-(TX),SO 4.7k 0.1 0.01 2.2 10 0.1 1M 0.01 1 1M 1k 1k 0.1 1M 1 0.1 22k 2.2M 47k 10k 1 4700p 1M 1k 0.01 0.1 0.1 0H 1 0.22 VIN 47 6.3V 0.1 0.1 0.1 22 6.3V 22 6.3V 47 6.3V 47 6.3V 0.1 0 P_GND 0 0 10 6.3V 47 6.3V 100 100k 100k 100k 100k 4.7 0.01 0.047 100p 0.22 4.7k 47 6.3V 47 6.3V 1 47k VCC1 100k 47k 47 6.3V 0.22 47k 0.22 0.22 0.01 0.01 50P w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 D-NE20/NE20LS D-NE20/NE20LS 5-5. SCHEMATIC DIAGRAM – EGH BOARD (2/3) – 16 18 C602 RB601 Q602 IC601 TP601 TP604 TP609 TP622 TP623 TP624 TP625 TP626 TP629 C678 C664 TP615 TP614 TP612 TP613 TP616 TP619 TP620 TP607 TP621 TP611 TP610 IC606 Q601 CN601 C694 C609 C611 C604 C613 R617 R601 R615 R616 C605 C607 C631 C619 C695 C618 C617 C626 C629 C649 C654 C653 C650 C648 C610 C603 C659 R642 R650 R639 R637 R635 R628 R629 R621 R618 R624 R614 C677 C680 C681 C667 R653 R613 R644 R604 R612 R606 C639 C645 TP617 R610 R636 R655 R611 C608 R602 C614 C627 R625 C646 R620 R623 R651 R634 IC602 R608 R603 TP627 TP630 TP602 C612 R609 C606 TP608 C601 C676 IC603 R649 X601 470p 22k 2SA1832FV (TH3SONY) CXD9839K-G OPGSW OPSTB TEST MON1 MON2 MON3 MON4 MON5 PI1 22 6.3V 47 6.3V CS DO SK DI GND EXT_FLASH&SRAM_V PD7 PD5 PD1 XC6213B212NR XP4214-TXE 15P 0.1 2200p 0.01 0.1 0.1 10k 220k 220k 470k 0.22 0.01 0.1 4700p 4700p 4700p 4700p 1 0.1 0.47 0.1 0.47 4700p 0.1 1 1 0.1 47k 100k 47k 220k 1M 2.2k 2.2k 1k 1k 10k 0 0.1 6p 6p 0.1 10k 0 47 220k EXCEPT AEP, UK, EE AEP, UK, EE 100k 0 0.1 0.22 VCC2 22k 100k 100k 0 22p 10k 0.047 22 6.3V 10k 0.1 47k 10k 100k 10k AK6510CL-L 47k 10 ADDSEL_1 ADDSEL_0 GND_A 0.1 22k 0.01 RF 22 6.3V 0.1 CASINO1 22k 22.579MHz R622 220k • See page 12 for Waveforms. • See page 22 for IC Block Diagram. • See page 22 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 D-NE20/NE20LS D-NE20/NE20LS 5-6. SCHEMATIC DIAGRAM – EGH BOARD (3/3) – 16 17 IC403 Q406 C202 C103 C102 C404 L412 IC605 JE, HK, KR, CH IC604 Q402 IC3007 IC402 C689 C687 R607 R420 R410 R412 R415 R418 R419 R201 R101 R302 R403 C425 C436 C201 FB201 FB101 C3089 C403 D401 R411 R413 C433 C438 R102 R202 R619 C686 Q403 LMV301MGX/NOPB DTA115TE 220 4V 220 4V 100 4V 100 6.3V MR27T1602F MSM56X16160F-20T EMX1T2R NJU8713V-TE2 NCP1400ASN22T1G 0.1 0.1 0 10k 47k 2.2k 100 22k 1k 100 100 100 100k 1 0.47 1 0H 0H 0.1 10 RB521S-30FTE61 10k 10k 0.047 1 100k 100k 0H 47 6.3V EMT1T2R • See page 22 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 D-NE20/NE20LS D-NE20/NE20LS 5-7. PRINTED WIRING BOARD – JACK BOARD (SIDE A), JACK SUB BOARD, SUB BOARD – :Uses unleaded solder. IC401 JACK BOARD (SIDE A) S501 (OPEN/CLOSE) D501 TP9007 OPR J301 2 / LINE OUT (OPTICAL) A EGH BOARD CN9001 (Page 14) M901 SPINDLE MOTOR M902 SLED MOTOR J402 (FOR STAND CHARGER) SUB BOARD RECHARGEABLE BATTERY NH-14WM 1.2V 1350mAh JACK SUB BOARD J401 (FOR STAND CHARGER) 1-864-412- (11) 11 1-864-413- (11) 11 1-864-411- (11) 11 D401 1 3 6 4 • Semiconductor Location Ref. No. Location D401 F-8 D402 E-8 D501 A-3 D901 B-3 D903 C-3 D905 F-7 D906 F-8 IC401 E-7 Q301 B-4 Q302 C-4 Q306 B-3 Q307 B-3 Q401 E-7 Q402 F-8 Q403 E-6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 D-NE20/NE20LS D-NE20/NE20LS 5-8. PRINTED WIRING BOARD – JACK BOARD (SIDE B) – :Uses unleaded solder. EXCEPT AEP,EE,UK JACK BOARD (SIDE B) S502 ON OFF HOLD ^ + = p VOL 1-864-411- (11) 11 • Semiconductor Location Ref. No. Location D902 C-3 D904 D-6 Q303 C-7 Q304 C-7 Q305 D-7 Ver. 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 D-NE20/NE20LS D-NE20/NE20LS 5-9. SCHEMATIC DIAGRAM – JACK BOARD, JACK SUB BOARD, SUB BOARD – 16 CN9002 TP9034 TP9005 TP9004 TP9009 TP9007 TP9033 TP9032 TP9003 TP9001 TP9036 TP9008 TP9035 TP9030 TP9038 TP9037 TP9024 TP9028 TP9029 TP9026 TP9011 TP9012 TP9013 TP9014 TP9015 TP9016 TP9017 TP9039 TP9019 TP9020 TP9025 R314 FB806 L101 L201 R315 Q307 D904 Q402 C203 C103 R310 C306 RB301 Q301 Q302 D402 R406 R408 R409 R410 R407 C406 R404 R405 C409 Q401 R401 R402 R403 C403 D905 D401 D906 C402 TP411 FB402 VDR901 LF401 FB401 R901 TP902 TH401 C901 TP407 TP408 W402 W401 TP410 TP409 TP401 TP402 TP403 J401 J402 R305 R306 C903 FB801 R309 D903 D902 C302 TP901 J301 C301 R304 R303 R307 R308 C801 C802 C305 R311 C304 R312 Q304 R313 Q305 R316 R203 R103 C201 C101 R202 R102 C407 R411 R514 R511 R512 R510 R507 R508 R504 R509 R505 R506 R503 R501 R502 SL501 CN601 CN602 CN401 F401 D901 C404 FB802 FB805 FB804 FB803 Q306 S501 S502 S505 S507 S509 S508 S510 S506 S504 S503 D501 R513 IC401 Q303 Q403 50P 2.2k 0 2.2k EMX18 MA8051-TX 2SA1363-T111-1E 0.22 0.22 1k 0.01 1.0k 2SD2652T106 2SD2652T106 MA2YD2300LS0 100 47k 220 47k 0.22 0.22 220k 47k 10 2SA1602TP-1EF 1M 470k 470k 220 6.3V MA8051-TX MA22D2800LS0 RSB6.8STE61 1 0 1000P 0 1 220k 220k 1000p BLM21B102 1M RSB6.8STE61 RSB6.8STE61 0.1 1 4.7 2.2k 2.2k 1k 220p 220p 0.1 22k 1 1M UMD12N-TR 22k EMG6 2.2k 220k 220k 2.2 2.2 220 220 470p 1M 1k 2.2k 22k 2.2k 10k 22k 22k 1k 2.2k 4.7k 2.2k 10k 4.7k 4P 2P 3P 1.4A /32V MAZZ068H01S0 4.7 NTHD5904T1 (OPEN/CLOSE) BRPG1211F-TR 220 RT8H055C-T1 UMD2N-TR 2SD2652T106 EXCEPT AEP,EE,UK Ver. 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 D-NE20/NE20LS D-NE20/NE20LS • IC Block Diagrams – EGH Board – IC601 CXD9839K-G LOW BOOST RF EQUALIZER 17 RFIN 16 NC 18 VDD 20 WLOUT 1 WBIN 2 WBOUT 3 WCIN 19 WOIN AGC WOBBLE LPF AMP WOBBLE BPF AMP RF EQUALIZER RF EQUALIZER SERIAL I/F to each block 15 RFOUT 14 DETIN 13 CAGCT 12 CAGCT 11 CAGCT 10 SENB 9 VSS 8 VREF 7 XPCLK 6 WPOL 4 WOOUT 5 WPCOU Pin No. Pin Name I/O Description 1 PE6/SI1 I Status read signal input from LCD driver (not used) 2 PE5/SO1 O Command send signal output to LCD driver (not used) 3 PE4/XSCK1 O Clock signal output to LCD driver (not used) 4 PE3 O Chip select signal output to EEPROM 5 VDIO0 – Power supply terminal (+2.1V) 6 VSS0 – Ground terminal 7 DVDD7 – Power supply terminal (+1.5V) 8 PE2/DTCK I LCD indication of remote control signal output 9 PE1/RxD0 I not used 10 PE0/TxD0 O not used 11 EVA – Ground terminal 12 SDDQ16 I/O Data bus to SDRAM 13 SDDQ15 I/O Data bus to SDRAM 14 TAPTDO – not used 15 SDDQ14 I/O Data bus to SDRAM 16 SDDQ13 I/O Data bus to SDRAM 17 SCANEN – Ground terminal 18 SDDQ12 I/O Data bus to SDRAM 19 SDDQ11 I/O Data bus to SDRAM 20 TEST2 – Ground terminal 21 SDDQ10 I/O Data bus to SDRAM 22 SDDQ8 I/O Data bus to SDRAM 23 VDIOSD0 – Power supply terminal (+2.1V) 24 VSS1 – Ground terminal 25 SDDQ9 I/O Data bus to SDRAM 26 SDDQ6 I/O Data bus to SDRAM 27 SDDQ7 I/O Data bus to SDRAM 28 SDDQ2 I/O Data bus to SDRAM 29 TEST3 – Ground terminal 30 SDDQ4 I/O Data bus to SDRAM 31 SDDQ3 I/O Data bus to SDRAM 32 TEST0 – Ground terminal 33 XSDWE O WE signal output to SDRAM 34 SDDQ1 I/O Data bus to SDRAM 35 TEST1 – Ground terminal 36 SDDQ5 I/O Data bus to SDRAM 37 SDLDQM O UDQM signal output to SDRAM 38 VDIOSD1 – Power supply terminal (+2.1V) 39 VSS2 – Ground terminal 40 SDUDQM O LDQW signal output to SDRAM 41 XSDCAS O XCAS signal output to SDRAM 42 XSDCS O Chip select signal output to SDRAM 43 TEST5 – not used 44 XSDRAS O XRAS signal output to SDRAM 45 SDCKE O CKE signal output to SDRAM 46 TEST6 – not used 47 SDCLK – Clock signal output to SDRAM 48 SDA13 – not used 49 XTRST – not used 50 SDA12 – not used • IC Pin Function Description EGH BOARD IC603 CASINO1 (SYSTEM CONTROLLER) IC3007 NJU8713V-TE2 6 OUT1 4 EN1 3 IN1 2 VSS 1 MCK 5 VSSO 7 VDDO BPZ OUTPUT OUTPUT CONTROL 9 OUT2 8 VDDO 10 VSSO 12 IN2 11 EN2 13 VDD 14 BEEP BPZ OUTPUT IC402 NCP1400ASN22TIG - + VOLTAGE REFERENCE PHASE COMPENSATION SOFT-START PWM CONTROLLER 180 kHz OSCILLATOR DRIVER VLX LIMITER POWER SWITCH GND NC OUT CE ERROR AMP 4 LX 5 3 2 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 D-NE20/NE20LS Pin No. Pin Name I/O Description 51 SDA11 O Address bus to SDRAM 52 SDA10 O Address bus to SDRAM 53 VDIOSD2 – Power supply terminal (+2.1V) 54 VSS3 – Ground terminal 55 DVDD0 – Power supply terminal (+1.5V) 56 TMS – not used 57 SDA8 O Address bus to SDRAM 58 SDA9 O Address bus to SDRAM 59 TDO – not used 60 SDA7 O Address bus to SDRAM 61 SDA6 O Address bus to SDRAM 62 TDI – not used 63 SDA4 O Address bus to SDRAM 64 SDA5 O Address bus to SDRAM 65 TEST4 – Ground terminal 66 SDA1 O Address bus to SDRAM 67 SDA2 O Address bus to SDRAM 68 RTCK – not used 69 SDA0 O Address bus to SDRAM 70 SDA3 O Address bus to SDRAM 71 TCK – not used 72 VDIOSD3 – Power supply terminal (+2.1V) 73 VSS4 – Ground terminal 74 VDIO1 – Power supply terminal (+2.1V) 75 PI7/AIFBCK O Latch signal output to RF amplifier (not used) 76 PI6/AIFLRCK O LCD back light on/off signal output (not used) 77 PI5 O Line out/headphone mute control signal output 78 PI4/AIFPCMD O Headphone amplifier chip enable signal output 79 PI3/XBCKO O signal output to outside D/A converter (not used) 80 PI2/LRCKO O signal output to outside D/A converter (not used) 81 PI1 I/O not used 82 PI0/PCMDO O signal output to outside D/A converter (not used) 83 ADCLK I signal output to outside D/A converter (not used) 84 DOUT O Output terminal of digital audio signal 85 PJ7/MON7(MONCK) O Headphone amplifier setting control signal output 86 PJ6/MON6(MONDO) O Headphone amplifier setting control signal output 87 PJ5/MON5 O Headphone amplifier, power control signal output (not used) 88 PJ4/MON4 O SCOR monitor signal output (not used) 89 PJ3/MON3 O GPS monitor signal output (not used) 90 PJ2/MON2 I Sound pressure regulation volume setting signal output (not used) 91 PJ1/MON1 O DFCT monitor signal output (not used) 92 XRST_PWR_O O not used 93 VSS6 – Ground terminal 94 VDIO2 – Power supply terminal (+2.1V) 95 DVDD1 – Power supply terminal (+1.5V) 96 AVDDA1 – Power supply terminal (+2.7V) 97 AOUTR O Built in D/A converter (R-ch) signal output 98 VREFR I Standard voltage terminal (for built in D/A converter R-ch) 99 AVSDA1 – Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 D-NE20/NE20LS Pin No. Pin Name I/O Description 100 AVSDA0 – Ground terminal 101 VREFL I Standard voltage terminal (for built in D/A converter L-ch) 102 AOUTL O Built in D/A converter (L-ch) signal output 103 AVDDA0 – Power supply terminal (+2.7V) 104 AVSMO – Ground terminal 105 EXTAL O System clock signal output 106 XTAL I System clock signal input 107 AVDMO – Power supply terminal (+2.7V) 108 VDIOFS256 – Power supply terminal (+2.1V) 109 DAMPCLK O Master clock signal output to headphone amplifier 110 VDIOAMP – Power supply terminal (+2.1V) 111 PWML O Audio (L-ch) signal output to headphone amplifier 112 PWMR O Audio (R-ch) signal output to headphone amplifier 113 VSSAMP – Ground terminal 114 VSS7 – Ground terminal 115 AVDPLL0 – Power supply terminal (+2.7V) 116 AVSPLL0 – Ground terminal 117 VDIOPLL0 – Power supply terminal (+2.7V) 118 VSS8 – Ground terminal 119 AVSPLL1 – Ground terminal 120 AVDPLL1 – Power supply terminal (+2.7V) 121 VDIOPLL1 – Power supply terminal (+2.7V) 122 VSS9 – Ground terminal 123 XIN – Ground terminal 124 VDIO3 – Power supply terminal (+2.1V) 125 MSDIO I Pull up fixed at “H” 126 DVDD2 – Power supply terminal (+1.5V) 127 PF6/DBG6/X_PLUG_DTC I Line out plug insert detection signal input 128 PF7/DBG7/X_METAL_DTC I Line out plug insert detection signal input 129 ADDR_SEK0 O not used 130 ADDR_SEK1 O not used 131 PF3/DBG3 I not used 132 PF2/DBG2 I Hold switch input terminal 133 PF1/SSCK/DBG1 O not used 134 PF0/SSIO/DBG0 O not used 135 VDIO4 – Power supply terminal (+2.7V) 136 AVSSAD – Ground terminal 137 AVDSAD – Power supply terminal (+2.1V) 138 IGEN I Pull up fixed at “H” 139 FE(A) O RF focus error signal output from pick-up 140 SE(B) O RF sled error signal output from pick-up 141 TE(F) O RF tracking error signal output from pick-up 142 CE(E) O RF select error signal output from pick-up 143 VC – Ground terminal 144 RFDC(RFDCO) I RF signal input from pick-up 145 VSS11 – Ground terminal 146 ASYI I ASY signal input 147 BIAS I Pull up fixed at “H” 148 ASYO O ASY signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 D-NE20/NE20LS Pin No. Pin Name I/O Description 149 AVDASM – Power supply terminal (+2.1V) 150 AVSASM – Ground terminal 151 RFACI I RF signal output from pick-up 152 AVDVCO – Power supply terminal (+2.1V) 153 VCTL I VCT signal input 154 CLTV I Pull up fixed at “H” 155 AVSVCO – Ground terminal 156 VPCO O VPC signal output 157 FILO O FIL signal output 158 FILI I FIL signal input 159 PCO O PC signal output 160 VSS12 – Ground terminal 161 DVDD3 – Power supply terminal (+1.5V) 162 VDIODSP – Power supply terminal (+2.1V) 163 SFDR O Sled servo drive PWM signal output to motor driver 164 SRDR O Sled servo drive control signal output to motor driver 165 TFDR O Tracking servo drive PWM signal output to coil driver (+) 166 TRDR O Tracking servo drive PWM signal output to coil driver (-) 167 FFDR O Focus servo drive PWM signal output to coil driver (+) 168 FRDR O Focus servo drive PWM signal output to coil driver (-) 169 MDP O PWM signal output to motor driver 170 MDS – not used 171 C176 O Data signal output to motor driver 172 VDIOEM0 – Power supply terminal (+2.7V) 173 DVDD4 – Power supply terminal (+1.5V) 174 VSS14 – Ground terminal 175 PC3/XSCS0 O Command latch signal output to power controller 176 PC2/SI0 I Serial data signal input from EEPROM 177 PC1/SO0 O Serial data signal output to power controller/EEPROM 178 PC0/XSCK0 O Clock signal output to power controller/EEPROM 179 VSS15 – Ground terminal 180 VDIO5 – Power supply terminal (+2.1V) 181 PG7 I Reset signal output to power controller 182 PG6 O LED 1 drive control signal output 183 PG5 O LED 2 drive control signal output 184 PG4 O Reset signal output to LCD driver (not used) 185 PG3 O Switching line/headphone signal output (L = headphone) 186 PG2 O LED 3 drive control signal output (not used) 187 PG1 O RF gain control signal output to pick-up 188 PG0 O Standby control signal output to pick-up 189 DVDD5 – Power supply terminal (+1.5V) 190 DVDD6 – Power supply terminal (+1.5V) 191 VSS18 – Ground terminal 192 AVDAD – Power supply terminal (+2.1V) 193 AVSAD – Ground terminal 194 AN7 I Lid upper open/close detection switch input terminal 195 AN6 I Rest of rechargeable battery detection 196 AN5 I Battery voltage detection 197 AN4 I Remote control key signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 D-NE20/NE20LS Pin No. Pin Name I/O Description 198 AN3 I Pull up fixed at “H” 199 AN2 I Key input terminal 200 AN1 I Key input terminal 201 AN0 I DC in voltage detection 202 WAKE I Wake up control signal input 203 XADEVENT O Wake signal output to power controller 204 XRST I System reset input terminal 205 DVDBK0 I Pull up fixed at “H” 206 DVDBK1 I Pull up fixed at “H” 207 VSS19 – Ground terminal 208 VDIO6 – Power supply terminal (+2.1V) 209 PD7/INT7 – not used 210 PD6/INT6 – not used 211 PD5/INT5 O not used 212 PD4/INT4 I External battery detection signal input (“L”: external battery) 213 PD3/INT3 I Pull up fixed at “L” 214 PD2/INT2/ECIN I FG pulse signal input 215 PD1/INT1/T1 O not used 216 PD0/INT0/EC0 I Charging stand detection signal input 217 PE7/ZSCS1 O LCD driver chip select signal output 218 NCS1 O Chip enable signal output to P2ROM 219 to 237 A1 to A19 O Address data signal output to P2ROM 238 NRD O Out enable signal output to P2ROM 239 NWE1 – not used 240 to 255 DQ0 to DQ15 I P2ROM data signal input 256 VDD_FL1 – not used 257 VSS_LF1 – Ground terminal 258 XTAO – not used 259 XTAI – not used 260 MSBS – not used 261 MSSCLK – not used 262 NMSINS – Power supply terminal (+2.1V) 263 to 272 NC – not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-NE20/NE20LS 1 X-2048-764-1 LID UPPER ASSY (SILVER) (NE20LS) 2 3-234-002-01 SCREW (UPPER LID) 3 2-188-920-01 BLACKET (HINGE L) 4 2-188-921-01 BLACKET (HINGE R) SECTION 6 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) R R Parts of Color Cabinet’s Color Ref. No. Part No. Description Remark 1 X-2024-317-1 LID UPPER ASSY (BLUE) (NE20) 1 X-2048-765-1 LID UPPER ASSY (BLUE) (NE20LS) 1 X-2024-318-1 LID UPPER ASSY (RED) (NE20) 1 X-2048-766-1 LID UPPER ASSY (RED) (NE20LS) 1 X-2024-041-1 LID UPPER ASSY (SILVER) (NE20) 6-1. OVERALL ASSY Ref. No. Part No. Description Remark • Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model E18 : 100-230 V AC area in E model EA : Saudi Arabia model EE : East European model HK : Hong Kong model JE : Tourist model KR : Korean model 1 2 2 4 3 not supplied not supplied cabinet (lower ) section not supplied not supplied not supplied not supplied The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 D-NE20/NE20LS 6-2. CABINET (LOWER) SECTION 55 60 59 61 62 64 65 52 52 53 66 51 54 56 57 57 57 not supplied not supplied CD mechanism section (CDM-3325ERV) 58 63 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 2-541-612-11 LID, BATTERY (EXCEPT CH) 51 2-541-612-21 LID, BATTERY (CH) 52 3-245-709-01 SCREW 53 X-2024-309-1 CABI MID SUB ASSY 54 2-187-578-01 KNOB, OPEN (L) 55 2-187-579-01 KNOB, OPEN (R) 56 3-258-894-01 SPRING (LOCK CLAW) 57 3-245-331-02 INSULATOR 58 A-1076-645-A EGH BOARD, COMPLETE (JE, HK, KR, CH) 58 A-1083-356-A EGH BOARD, COMPLETE (AEP, UK, EE) 58 A-1097-743-A EGH BOARD, COMPLETE (US, CND, EA, AUS, E18) 59 2-187-571-01 WINDOW (LED) 60 2-187-569-01 BUTTON (CONTROL) 61 2-187-581-01 SPRING (UPPER LID) 62 X-2024-040-1 CABINET, LOWER SUB ASSY (SILVER) (US, CND, EA, AUS, JE) 62 X-2024-325-1 CABINET, LOWER SUB ASSY (BLUE) (US, CND, EA, AUS, JE) 62 X-2024-326-1 CABINET, LOWER SUB ASSY (RED) (US, EA, AUS, JE) 62 X-2024-514-1 CABINET (LOWER) SUB ASSY (SILVER) (E18) 62 X-2024-515-1 CABINET (LOWER) SUB ASSY (BLUE) (E18) 62 X-2024-516-1 CABINET (LOWER) SUB ASSY (RED) (E18) 62 X-2024-539-1 CABINET (LOWER) SUB ASSY (BLUE) (AEP, UK, EE) 62 X-2048-767-1 CABINET, LOWER SUB ASSY (SILVER) (KR, CH) 62 X-2048-768-1 CABINET, LOWER SUB ASSY (BLUE) (KR, CH) 62 X-2048-769-1 CABINET, LOWER SUB ASSY (RED) (KR, CH) 63 A-1076-646-A JACK BOARD, COMPLETE (JE, KR) 63 A-1098-010-A JACK BOARD, COMPLETE (US, CND) 63 A-1098-011-A JACK BOARD, COMPLETE (E18, EA, AUS, CH) 63 A-1113-456-A JACK BOARD, COMPLETE (AEP, EE, UK) 64 2-187-574-01 TERMINAL (+), BATTERY 65 2-187-575-01 TERMINAL (–), BATTERY 66 3-254-022-01 SCREW Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 D-NE20/NE20LS 6-3. CD MECHANISM SECTION (CDM-3325ERV) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 3-318-203-61 SCREW (B1.7X4), TAPPING 0102 X-3383-995-1 OPTICAL PICK-UP ASSY (DAX-25EV) 103 3-221-473-01 COVER, GEAR 104 3-221-472-02 CHASSIS 105 3-221-474-01 SPRING, SLED 106 A-3331-663-A SCREW (FEED) ASSY 107 3-221-268-01 GEAR (B) 108 3-221-475-01 SHAFT, STANDARD 109 3-222-298-01 RACK 110 3-222-299-01 SPRING, RACK RETAINER 111 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN M901 A-3174-848-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3174-850-A MOTOR ASSY, SLED (SLED) 101 103 106 105 107 108 109 110 111 101 104 102 M902 M901 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 D-NE20/NE20LSW-E53 SECTION 7 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model E18 : 100-230 V AC area in E model EA : Saudi Arabia model EE : East European model HK : Hong Kong model JE : Tourist model KR : Korean model • Accessories are given in the last of this parts list. • CAPACITORS uF: µF • COILS uH: µH Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1076-645-A EGH BOARD, COMPLETE (JE,KR,CH) A-1083-356-A EGH BOARD, COMPLETE (AEP,UK,EE) A-1097-743-A EGH BOARD, COMPLETE (US,CND,EA,AUS,E18) ************************************** < CAPACITOR > C102 1-100-661-11 TANTAL. CHIP 100uF 20% 4V C103 1-137-859-11 TANTAL. CHIP 220uF 20% 4V C201 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C202 1-137-859-11 TANTAL. CHIP 220uF 20% 4V C401 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V C402 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C403 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C404 1-100-875-91 TANTAL. CHIP 100uF 20% 6.3V C405 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C408 1-165-887-91 CERAMIC CHIP 0.22uF 10% 6.3V C409 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C410 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C411 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C412 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C413 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C414 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C415 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C416 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C417 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C418 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C419 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C420 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C421 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C422 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C423 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C424 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C425 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V C426 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C427 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C428 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C429 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C430 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C431 1-100-662-11 TANTAL. CHIP 47uF 20% 6.3V C432 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C433 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C434 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C435 1-100-507-91 CERAMIC CHIP 4.7uF 20% 6.3V C436 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C437 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C438 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V C439 1-165-887-91 CERAMIC CHIP 0.22uF 10% 6.3V C440 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C441 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C442 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C443 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C444 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C445 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C446 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C447 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V C448 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C449 1-164-931-11 CERAMIC CHIP 100PF 10% 50V C450 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C601 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C602 1-112-063-11 CERAMIC CHIP 470PF 10% 50V C603 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V C604 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C605 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C606 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C607 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C608 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C609 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C610 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V C611 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C612 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C613 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C614 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C617 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C618 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C619 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C626 1-100-506-91 CERAMIC CHIP 1uF 20% 6.3V C627 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C629 1-107-820-11 CERAMIC CHIP 0.1uF 16V C631 1-107-820-11 CERAMIC CHIP 0.1uF 16V C639 1-107-820-11 CERAMIC CHIP 0.1uF 16V C645 1-165-887-91 CERAMIC CHIP 0.22uF 10% 6.3V C646 1-107-820-11 CERAMIC CHIP 0.1uF 16V C648 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C649 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V C650 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C653 1-100-415-11 CERAMIC CHIP 0.47uF 10% 6.3V EGH When indicating parts by reference number, please include the board name. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 D-NE20/NE20LS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C654 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C659 1-107-820-11 CERAMIC CHIP 0.1uF 16V C664 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C667 1-107-820-11 CERAMIC CHIP 0.1uF 16V C676 1-107-820-11 CERAMIC CHIP 0.1uF 16V C677 1-107-820-11 CERAMIC CHIP 0.1uF 16V C678 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C680 1-164-846-11 CERAMIC CHIP 6PF 0.5PF 50V C681 1-164-846-11 CERAMIC CHIP 6PF 0.5PF 50V C686 1-100-539-91 TANTAL. CHIP 47uF 20% 6.3V C687 1-107-820-11 CERAMIC CHIP 0.1uF 16V C689 1-107-820-11 CERAMIC CHIP 0.1uF 16V (JE, HK, KR, CH) C694 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C695 1-100-945-11 CAP, CHIP CERAMIC 4700PF B C3089 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V < CONNECTOR > CN601 1-818-130-11 CONNECTOR, FFC/FPC (ZIF) 15P CN9001 1-818-842-11 CONNECTOR, BOARD TO BOARD 50P < DIODE > D401 6-500-540-01 DIODE RB521S-30FTE61 D405 8-719-071-87 DIODE MA785-(TX), SO < FERRITE BEAD > FB101 1-400-808-21 INDUCTOR (EMI FERRITE) (1608) FB201 1-400-808-21 INDUCTOR (EMI FERRITE) (1608) FB401 1-400-461-21 FERRITE, EMI (SMD) (1005) FB402 1-216-864-11 SHORT CHIP 0 < IC > IC401 6-706-457-01 IC SC901590VAR2 IC402 6-707-209-01 IC NCP1400ASN22T1G IC403 6-703-652-01 IC LMV301MGX/NOPB IC601 6-707-088-01 IC CXD9839K-G IC602 6-702-355-01 IC AK6510CL-L IC603 not supplied MOUNTED PC BOARD (CASINO1) IC604 6-706-995-01 IC MSM56X16160F-20T IC605 6-804-719-01 IC MR27T1602F (JE, HK, KR, CH) IC606 6-707-398-01 IC XC6213B212NR IC3007 6-703-631-01 IC NJU8713V-TE2 < COIL > L401 1-456-894-21 INDUCTOR 47uH L402 1-400-850-21 INDUCTOR 47uH L403 1-419-646-21 INDUCTOR 47uH L404 1-469-967-21 INDUCTOR 10uH L405 1-400-850-21 INDUCTOR 47uH L406 1-456-218-21 INDUCTOR 22uH L407 1-400-145-21 INDUCTOR 47uH L408 1-400-145-21 INDUCTOR 47uH L409 1-428-912-21 INDUCTOR 10uH L410 1-400-317-21 INDUCTOR 100uH L412 1-456-894-21 INDUCTOR 47uH < TRANSISTOR > Q401 6-551-139-01 TRANSISTOR DTC115TE-TL Q402 8-729-053-52 TRANSISTOR EMX1T2R Q403 8-729-053-54 TRANSISTOR EMT1T2R Q404 6-551-140-01 TRANSISTOR QS6K1 Q405 6-551-140-01 TRANSISTOR QS6K1 Q406 6-551-279-01 TRANSISTOR DTA115TE Q601 8-729-427-49 TRANSISTOR XP4214-TXE Q602 6-550-232-01 TRANSISTOR 2SA1832FV (TH3SONY) < RESISTOR > R101 1-218-941-81 RES-CHIP 100 5% 1/16W R102 1-218-977-11 RES-CHIP 100K 5% 1/16W R201 1-218-941-81 RES-CHIP 100 5% 1/16W R202 1-218-977-11 RES-CHIP 100K 5% 1/16W R302 1-218-941-81 RES-CHIP 100 5% 1/16W R401 1-218-977-11 RES-CHIP 100K 5% 1/16W R402 1-218-977-11 RES-CHIP 100K 5% 1/16W R403 1-218-977-11 RES-CHIP 100K 5% 1/16W R404 1-218-989-11 RES-CHIP 1M 5% 1/16W R405 1-218-977-11 RES-CHIP 100K 5% 1/16W R406 1-216-864-11 SHORT CHIP 0 R407 1-218-990-11 SHORT CHIP 0 R408 1-218-977-11 RES-CHIP 100K 5% 1/16W R409 1-218-973-11 RES-CHIP 47K 5% 1/16W R410 1-218-973-11 RES-CHIP 47K 5% 1/16W R411 1-218-965-11 RES-CHIP 10K 5% 1/16W R412 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R413 1-218-965-11 RES-CHIP 10K 5% 1/16W R414 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R415 1-218-941-81 RES-CHIP 100 5% 1/16W R417 1-218-941-81 RES-CHIP 100 5% 1/16W R418 1-218-969-11 RES-CHIP 22K 5% 1/16W R419 1-218-953-11 RES-CHIP 1K 5% 1/16W R420 1-218-965-11 RES-CHIP 10K 5% 1/16W R421 1-218-977-11 RES-CHIP 100K 5% 1/16W R423 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R424 1-218-989-11 RES-CHIP 1M 5% 1/16W R426 1-218-973-11 RES-CHIP 47K 5% 1/16W R427 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R428 1-218-973-11 RES-CHIP 47K 5% 1/16W R429 1-218-969-11 RES-CHIP 22K 5% 1/16W R430 1-218-989-11 RES-CHIP 1M 5% 1/16W R431 1-218-989-11 RES-CHIP 1M 5% 1/16W R432 1-218-953-11 RES-CHIP 1K 5% 1/16W R435 1-218-973-11 RES-CHIP 47K 5% 1/16W R436 1-218-953-11 RES-CHIP 1K 5% 1/16W R437 1-218-953-11 RES-CHIP 1K 5% 1/16W R446 1-218-965-11 RES-CHIP 10K 5% 1/16W R601 1-218-981-11 RES-CHIP 220K 5% 1/16W R602 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R603 1-218-929-11 RES-CHIP 10 5% 1/16W R604 1-218-981-11 RES-CHIP 220K 5% 1/16W (EXCEPT AEP, UK, EE) R606 1-218-990-11 SHORT CHIP 0 R607 1-218-990-11 SHORT CHIP 0 R608 1-218-973-11 RES-CHIP 47K 5% 1/16W R609 1-218-969-11 RES-CHIP 22K 5% 1/16W R610 1-218-969-11 RES-CHIP 22K 5% 1/16W R611 1-218-990-11 SHORT CHIP 0 EGH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 D-NE20/NE20LS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R612 1-218-977-11 RES-CHIP 100K 5% 1/16W R613 1-218-990-11 SHORT CHIP 0 R614 1-218-990-11 SHORT CHIP 0 R615 1-218-981-11 RES-CHIP 220K 5% 1/16W R616 1-218-985-11 RES-CHIP 470K 5% 1/16W R617 1-218-965-11 RES-CHIP 10K 5% 1/16W R618 1-218-953-11 RES-CHIP 1K 5% 1/16W R619 1-400-461-21 FERRITE, EMI (SMD) (1005) R620 1-218-973-11 RES-CHIP 47K 5% 1/16W R621 1-218-953-11 RES-CHIP 1K 5% 1/16W R622 1-218-981-11 RES-CHIP 220K 5% 1/16W (AEP, UK, EE) R623 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R624 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R625 1-208-911-11 METAL CHIP 10K 0.5% 1/16W R628 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R629 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R634 1-218-965-11 RES-CHIP 10K 5% 1/16W R635 1-218-989-11 RES-CHIP 1M 5% 1/16W R636 1-218-977-11 RES-CHIP 100K 5% 1/16W R637 1-218-981-11 RES-CHIP 220K 5% 1/16W R639 1-218-973-11 RES-CHIP 47K 5% 1/16W R642 1-218-973-11 RES-CHIP 47K 5% 1/16W R644 1-218-937-11 RES-CHIP 47 5% 1/16W R649 1-218-969-11 RES-CHIP 22K 5% 1/16W R650 1-218-977-11 RES-CHIP 100K 5% 1/16W R651 1-218-977-11 RES-CHIP 100K 5% 1/16W R653 1-218-965-11 RES-CHIP 10K 5% 1/16W R655 1-218-977-11 RES-CHIP 100K 5% 1/16W < COMPOSITION CIRCUIT BLOCK > RB601 1-233-969-11 RES, NETWORK (CHIP TYPE) 22K < VIBRATOR > X601 1-813-314-11 VIBRATOR, CRYSTAL 22.579MHz ************************************************************* A-1076-646-A JACK BOARD, COMPLETE (JE, KR) A-1098-010-A JACK BOARD, COMPLETE (US, CND) A-1098-011-A JACK BOARD, COMPLETE (E18, EA, AUS, CH) A-1113-456-A JACK BOARD, COMPLETE (AEP, EE, UK) ************************************* 2-187-575-01 TERMINAL (–), BATTERY < CAPACITOR > C101 1-165-884-91 CERAMIC CHIP 2.2uF 10% 6.3V C103 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C201 1-165-884-91 CERAMIC CHIP 2.2uF 10% 6.3V C203 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C301 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C302 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C304 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C305 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C306 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C402 1-115-156-11 CERAMIC CHIP 1uF 10V C403 1-128-829-91 TANTAL. CHIP 220uF 20% 6.3V C404 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C406 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C407 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C409 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C801 1-164-933-11 CERAMIC CHIP 220PF 10% 50V C802 1-164-933-11 CERAMIC CHIP 220PF 10% 50V C901 1-115-156-11 CERAMIC CHIP 1uF 10V C903 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN401 1-770-620-21 PIN, CONNECTOR 3P CN601 1-785-877-21 HOUSING, CONNECTOR 4P CN602 1-784-342-21 HOUSING, CONNECTOR 2P CN9002 1-818-843-11 CONNECTOR, BOARD TO BOARD 50P < DIODE > D401 6-500-483-01 DIODE MA22D2800LS0 D402 8-719-085-43 DIODE MA2YD2300LS0 D501 6-500-191-01 DIODE BRPG1211F-TR (OPR) D901 8-719-077-43 DIODE MAZZ068H01S0 D902 8-719-083-04 DIODE RSB6.8STE61 D903 8-719-083-04 DIODE RSB6.8STE61 D904 8-719-422-37 DIODE MA8051-TX D905 8-719-422-37 DIODE MA8051-TX D906 8-719-083-04 DIODE RSB6.8STE61 < FUSE > 0F401 1-576-406-21 FUSE 1.4A/32V < FERRITE BEAD > FB401 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V FB402 1-216-864-11 SHORT CHIP 0 FB801 1-414-813-11 FERRITE, EMI (SMD) (2012) FB802 1-216-295-91 SHORT CHIP 0 (US, CND) FB802 1-414-813-11 FERRITE, EMI (SMD) (2012) (EXCEPT US, CND) FB803 1-414-813-11 FERRITE, EMI (SMD) (2012) FB804 1-414-813-11 FERRITE, EMI (SMD) (2012) FB805 1-414-813-11 FERRITE, EMI (SMD) (2012) FB806 1-216-295-91 SHORT CHIP 0 < IC > IC401 6-707-315-01 IC RT8H055C-T1 < JACK > J301 1-818-840-21 JACK (i / LINE OUT(OPTICAL)) J402 1-818-841-11 JACK, DC < COIL > L101 1-400-849-21 INDUCTOR, CHIP 100uH (2518) L201 1-400-849-21 INDUCTOR, CHIP 100uH (2518) < LINE FILTER > LF401 1-416-405-21 FILTER, CHIP EMI (COMMON MODE) < TRANSISTOR > Q301 6-550-364-01 TRANSISTOR 2SD2652T106 Q302 6-550-364-01 TRANSISTOR 2SD2652T106 Q303 6-550-375-01 TRANSISTOR UMD2N-TR JACK EGH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 D-NE20/NE20LS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q304 8-729-047-48 TRANSISTOR UMD12N-TR Q305 6-551-132-01 TRANSISTOR EMG6 (EXCEPT AEP, EE, UK) Q306 6-550-527-01 TRANSISTOR NTHD5904T1 Q307 6-551-186-01 TRANSISTOR EMX18 Q401 8-729-602-36 TRANSISTOR 2SA1602TP-1EF Q402 6-550-760-01 TRANSISTOR 2SA1363-T111-1E Q403 6-550-364-01 TRANSISTOR 2SD2652T106 < RESISTOR > R102 1-218-945-11 RES-CHIP 220 5% 1/16W R103 1-218-981-11 RES-CHIP 220K 5% 1/16W R202 1-218-945-11 RES-CHIP 220 5% 1/16W R203 1-218-981-11 RES-CHIP 220K 5% 1/16W R303 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R304 1-220-803-81 RES-CHIP 4.7 5% 1/16W R305 1-218-981-11 RES-CHIP 220K 5% 1/16W R306 1-218-981-11 RES-CHIP 220K 5% 1/16W R307 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R308 1-218-953-11 RES-CHIP 1K 5% 1/16W R309 1-218-989-11 RES-CHIP 1M 5% 1/16W R310 1-218-953-11 RES-CHIP 1K 5% 1/16W R311 1-218-969-11 RES-CHIP 22K 5% 1/16W R312 1-218-989-11 RES-CHIP 1M 5% 1/16W R313 1-218-969-11 RES-CHIP 22K 5% 1/16W R314 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R315 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R316 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (EXCEPT AEP, EE, UK) R401 1-218-989-11 RES-CHIP 1M 5% 1/16W R402 1-218-985-11 RES-CHIP 470K 5% 1/16W R403 1-218-985-11 RES-CHIP 470K 5% 1/16W R404 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R405 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R406 1-218-941-81 RES-CHIP 100 5% 1/16W R407 1-245-927-21 METAL CHIP 0.22 1% 1/5W R408 1-218-973-11 RES-CHIP 47K 5% 1/16W R409 1-218-945-11 RES-CHIP 220 5% 1/16W R410 1-218-973-11 RES-CHIP 47K 5% 1/16W R411 1-218-989-11 RES-CHIP 1M 5% 1/16W R501 1-218-965-11 RES-CHIP 10K 5% 1/16W R502 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R503 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R504 1-218-969-11 RES-CHIP 22K 5% 1/16W R505 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R506 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R507 1-218-965-11 RES-CHIP 10K 5% 1/16W R508 1-218-969-11 RES-CHIP 22K 5% 1/16W R509 1-218-953-11 RES-CHIP 1K 5% 1/16W R510 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R511 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R512 1-218-969-11 RES-CHIP 22K 5% 1/16W R513 1-218-945-11 RES-CHIP 220 5% 1/16W R514 1-218-953-11 RES-CHIP 1K 5% 1/16W R901 1-216-864-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB301 1-233-787-11 RES, NETWORK 1.0K (1608) < SWITCH > S501 1-762-805-41 SWITCH, PUSH (1 KEY) S502 1-572-922-11 SWITCH, SLIDE (HOLD .) S503 1-771-105-11 SWITCH, TACTILE (–( )) S504 1-771-105-11 SWITCH, TACTILE (+( )) S505 1-771-105-11 SWITCH, TACTILE (–(VOL)) S506 1-771-105-11 SWITCH, TACTILE (.) S507 1-771-105-11 SWITCH, TACTILE (+(VOL)) S508 1-771-105-11 SWITCH, TACTILE (>) S509 1-771-105-11 SWITCH, TACTILE (x) S510 1-771-105-11 SWITCH, TACTILE (u) < THERMISTOR > TH401 1-805-719-11 THERMISTOR, POSITIVE < VARISTOR > VDR901 1-801-862-11 VARISTOR, CHIP (1608) ************************************************************* JACK SUB BOARD *************** < JACK > J401 1-818-841-11 JACK, DC ************************************************************* SUB BOARD ********** 2-187-574-01 TERMINAL (+), BATTERY ************************************************************* MISCELLANEOUS ************** 0102 X-3383-995-1 OPTICAL PICK-UP ASSY (DAX-25EV) M901 A-3174-848-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3174-850-A MOTOR ASSY, SLED (SLED) ACCESSORIES ************ 0 1-478-845-21 ADAPTOR, AC (AC-ES3010K2) (CH) 0 1-478-846-21 ADAPTOR, AC (AC-ES3010K2) (US, CND) 0 1-478-847-21 ADAPTOR, AC (AC-ES3010K2) (KR) 0 1-478-848-21 ADAPTOR, AC (AC-ES3010K2) (AEP, EE, E18) 0 1-478-849-21 ADAPTOR, AC (AC-ES3010K2) (UK, EA, HK) 0 1-478-850-21 ADAPTOR, AC (AC-ES3010K2) (AUS) 0 1-478-853-22 ADAPTOR, AC (AC-ES3010K2) (JE) 0 1-569-007-22 ADAPTOR, CONVERSION 2P (JE) 1-756-120-51 BATTERY, NICKEL HYDROGEN (EXCEPT US) 1-756-120-61 BATTERY, NICKEL HYDROGEN (US, CND) 1-816-149-32 PLUG, DC 2-187-958-01 COVER, BATTERY CASE 2-318-320-11 MANUAL, INSTRUCTION (ENGLISH) (EXCEPT EA, KR) 2-318-320-21 MANUAL, INSTRUCTION (SPANISH, PORTUGUESE, FRENCH) (CND, AEP) 2-318-320-31 MANUAL, INSTRUCTION (DUTCH, GERMAN, ITALISH) (AEP) JACK JACK SUB SUB The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 D-NE20/NE20LS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 2-318-320-41 MANUAL, INSTRUCTION (SWEDISH, FINNISH) (AEP) 2-318-320-51 MANUAL, INSTRUCTION (HUNGARIAN, RUSSIAN, POLISH) (EE) 2-318-320-61 MANUAL, INSTRUCTION (CZECH, SLOVAK) (EE) 2-318-320-71 MANUAL, INSTRUCTION (KOREAN) (JE, KR) 2-318-320-81 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (JE, HK) 2-318-320-91 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (E18, JE, CH) 2-318-321-11 MANUAL, INSTRUCTION (ENGLISH) (EA) 2-318-321-21 MANUAL, INSTRUCTION (ARABIC) (EA) 2-318-452-11 MANUAL, INSTRUCTION (EE) 2-345-232-11 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (ENGLISH) (JE, E18, EA, AUS, CH) 2-345-232-21 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (SPANISH) (AEP) 2-345-232-31 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (PORTUGUESE) (AEP) 2-345-232-41 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (FRENCH) (AEP) 2-345-232-51 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (DUTCH, GERMAN, ITALISH) (AEP) 2-345-232-61 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (SWEDISH, FINNISH) (AEP) 2-345-232-71 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (HUNGARIAN, RUSSIAN, POLISH) (EE) 2-345-232-81 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (CZECH, SLOVAK) (EE) 2-345-232-91 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (ARABIC) (EA) 2-348-135-11 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (KOREAN) (JE, KR) 2-348-135-21 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (TRADITIONAL CHINESE) (JE, HK) 2-348-135-31 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (SIMPLIFIED CHINESE) (E18, JE, CH) 2-590-336-11 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (ENGLISH) (US, CND, AEP, UK, EE) 2-590-336-21 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (SPANISH) (AEP) 2-590-336-31 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (PORTUGUESE) (AEP) 2-590-336-41 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (FRENCH) (CND, AEP) 2-590-336-51 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (DUTCH, GERMAN, ITALISH) (AEP) 2-590-336-61 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (SWEDISH, FINNISH) (AEP) 2-590-336-71 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (HUNGARIAN, RUSSIAN, POLISH) (EE) 2-590-336-81 MANUAL, INSTRUCTION (INSTALL OPERATION GUIDE) (CZECH, SLOVAK) (EE) 3-008-521-01 CASE, CHARGE 3-021-018-01 LABEL, FRANCE (AEP) 3-235-292-02 POUCH, CARRYING 8-912-735-90 HEADPHONE MDR-E0931SP/B SET (EA, AUS, E18, JE, HK, KR, CH) 8-912-742-91 EARPHONES MDR-E0931SPB9 SET (US, CND, AEP, UK, EE) A-1071-445-A RM-MC55ELK/SM (JE, HK, KR, CH) A-1071-446-A RM-MC53EL/SM (US, CND, AEP, UK, EE, EA, AUS, E18) A-1074-427-A EBP-J101//M (EXTERNAL BATTERY CASE) A-1077-817-A BCA-DNE20/SM (CHARGING STAND) (FOR SILVER) A-1078-511-A BCA-DNE20/BM (CHARGING STAND) (FOR BLUE, RED) X-2024-504-2 CD-ROM (APPLICATION) ASSY (SS2.1)(SonicStage)(CH) X-2024-753-1 (APPLICATION) ASSY (SS2.1)(SonicStage)(JE, E18, EA, KR, AUS) X-2050-857-1 CD-ROM (APPLICATION) ASSY (SS2.3)(SonicStage)(US, CND, AEP, UK, EE) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 D-NE20/NE20LS MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-NE20/NE20LS REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.11 New 1.1 2005.01 Addition of Canadian model for D-NE20 Change a color variation into blue for UK and EE model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
