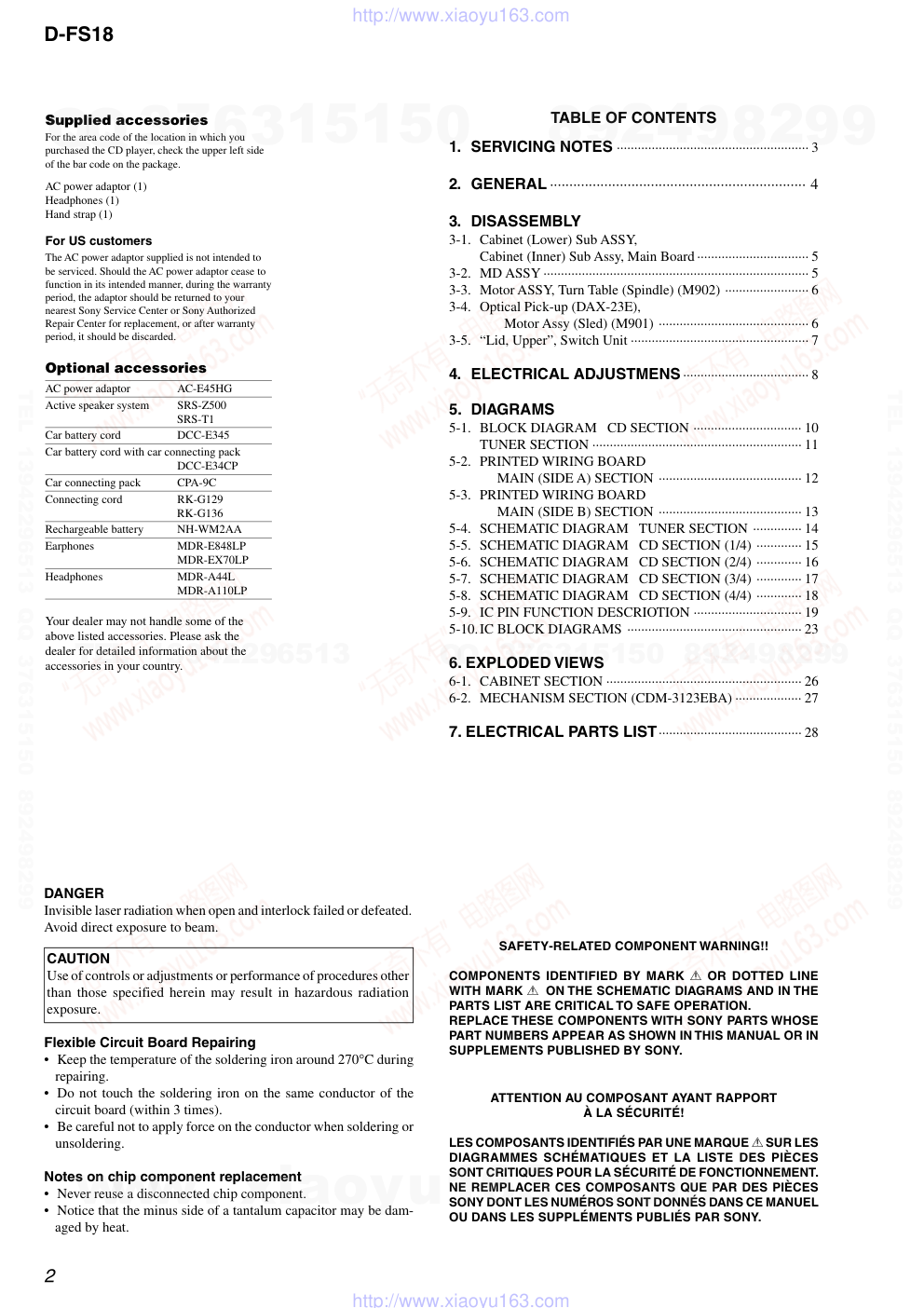

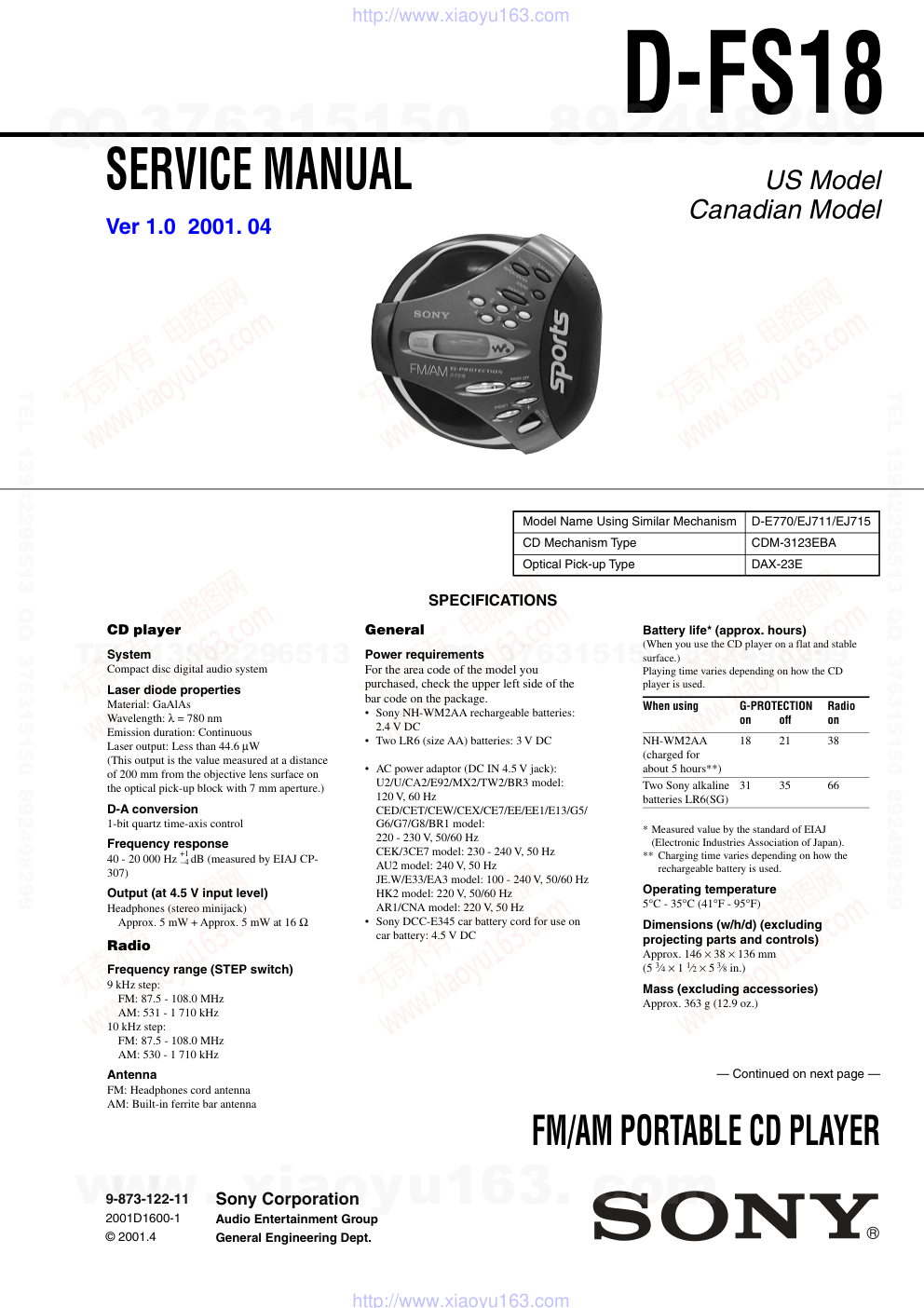

D-FS18 US Model Canadian Model SERVICE MANUAL FM/AM PORTABLE CD PLAYER Sony Corporation Audio Entertainment Group General Engineering Dept. 9-873-122-11 2001D1600-1 © 2001.4 Model Name Using Similar Mechanism D-E770/EJ711/EJ715 CD Mechanism Type CDM-3123EBA Optical Pick-up Type DAX-23E — Continued on next page — SPECIFICATIONS Ver 1.0 2001. 04 CD player System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 40 - 20 000 Hz +1 –4 dB (measured by EIAJ CP- 307) Output (at 4.5 V input level) Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω Radio Frequency range (STEP switch) 9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz Antenna FM: Headphones cord antenna AM: Built-in ferrite bar antenna General Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Sony NH-WM2AA rechargeable batteries: 2.4 V DC • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): U2/U/CA2/E92/MX2/TW2/BR3 model: 120 V, 60 Hz CED/CET/CEW/CEX/CE7/EE/EE1/E13/G5/ G6/G7/G8/BR1 model: 220 - 230 V, 50/60 Hz CEK/3CE7 model: 230 - 240 V, 50 Hz AU2 model: 240 V, 50 Hz JE.W/E33/EA3 model: 100 - 240 V, 50/60 Hz HK2 model: 220 V, 50/60 Hz AR1/CNA model: 220 V, 50 Hz • Sony DCC-E345 car battery cord for use on car battery: 4.5 V DC Battery life* (approx. hours) (When you use the CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. When using G-PROTECTION Radio on off on NH-WM2AA 18 21 38 (charged for about 5 hours**) Two Sony alkaline 31 35 66 batteries LR6(SG) * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). ** Charging time varies depending on how the rechargeable battery is used. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 146 × 38 × 136 mm (5 3⁄4 × 1 1⁄2 × 5 3⁄8 in.) Mass (excluding accessories) Approx. 363 g (12.9 oz.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 D-FS18 1. SERVICING NOTES ······················································· 3 2. GENERAL ·································································· 4 3. DISASSEMBLY 3-1. Cabinet (Lower) Sub ASSY, Cabinet (Inner) Sub Assy, Main Board ································ 5 3-2. MD ASSY ············································································ 5 3-3. Motor ASSY, Turn Table (Spindle) (M902) ························ 6 3-4. Optical Pick-up (DAX-23E), Motor Assy (Sled) (M901) ··········································· 6 3-5. “Lid, Upper”, Switch Unit ··················································· 7 4. ELECTRICAL ADJUSTMENS ···································· 8 5. DIAGRAMS 5-1. BLOCK DIAGRAM CD SECTION ······························· 10 TUNER SECTION ···························································· 11 5-2. PRINTED WIRING BOARD MAIN (SIDE A) SECTION ········································· 12 5-3. PRINTED WIRING BOARD MAIN (SIDE B) SECTION ········································· 13 5-4. SCHEMATIC DIAGRAM TUNER SECTION ·············· 14 5-5. SCHEMATIC DIAGRAM CD SECTION (1/4) ············· 15 5-6. SCHEMATIC DIAGRAM CD SECTION (2/4) ············· 16 5-7. SCHEMATIC DIAGRAM CD SECTION (3/4) ············· 17 5-8. SCHEMATIC DIAGRAM CD SECTION (4/4) ············· 18 5-9. IC PIN FUNCTION DESCRIOTION ······························· 19 5-10.IC BLOCK DIAGRAMS ·················································· 23 6. EXPLODED VIEWS 6-1. CABINET SECTION ························································ 26 6-2. MECHANISM SECTION (CDM-3123EBA) ··················· 27 7. ELECTRICAL PARTS LIST········································· 28 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. DANGER Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. Supplied accessories For the area code of the location in which you purchased the CD player, check the upper left side of the bar code on the package. AC power adaptor (1) Headphones (1) Hand strap (1) For US customers The AC power adaptor supplied is not intended to be serviced. Should the AC power adaptor cease to function in its intended manner, during the warranty period, the adaptor should be returned to your nearest Sony Service Center or Sony Authorized Repair Center for replacement, or after warranty period, it should be discarded. Optional accessories AC power adaptor AC-E45HG Active speaker system SRS-Z500 SRS-T1 Car battery cord DCC-E345 Car battery cord with car connecting pack DCC-E34CP Car connecting pack CPA-9C Connecting cord RK-G129 RK-G136 Rechargeable battery NH-WM2AA Earphones MDR-E848LP MDR-EX70LP Headphones MDR-A44L MDR-A110LP Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information about the accessories in your country. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-FS18 The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30cm away from the objective lens. Before Replacing the Optical pick-up Block Please be sure to check thoroughly the parameters as per the “Optical pick- up Block Checking Procedure” (Part No. : 9-960-027-11) issued separately before replacing the optical Pick-up block. Note and specifications required to check are given below. • FOK output : IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.4 to 0.5Vp-p SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig.1 Method to push S801 MAIN board S801 Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are oper-able. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver having a thin tip as shown in Fig.1. Note: Do not push the detection lever strongly, or it may be bent or dam- aged. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-FS18 SECTION 2 GENERAL This section is extracted from instruction manual. CD player (front) 6 i(headphones) jack qf Display 5 VOL(volume) control qs HOLD switch 2 PLAY MODE• TUNING + button 1 SOUND button 3 REPEAT/ENTER• TUNING – button qd DC IN 4.5 V (external power input) jack 9 u (play/pause) button 7 Buckle 4 RADIO ON•BAND button 8 1 - 5 buttons q; x (stop)/CHG (charge)• RADIO OFF button qa ./> (AMS/search) • PRESET –/+ buttons www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-FS18 SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. z The equipment can be removed using the following procedure. 1 Screw, step 2 Screw, tapping 8 Flexible board (CN801) Lid, Upper 6 9 7 Claws 5 Five screws (B2) Cabinet (Inner) sub assy MAIN board 2 Screw, tapping 3 Screw, (B2) 4 Switching arm assy MD ASSY Main board 3 Optical pick-up flexible board CN502 (Green) 2 CN503 (White) 1 4 3-1. CABINET (LOWER) SUB ASSY, CABINET (INNER) SUB ASSY, MAIN BOARD 3-2. MD ASSY “Lid, Upper”, Switch unit Cabinet (lower) sub ASSY, Cabinet (inner) sub ASSY, Main board MD ASSY Motor ASSY, Turn table (Spindle) (M902), Optical pick-up (DAX-23E), Motor ASSY (Sled) (M901) Cabinet (front) Set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-FS18 Motor ASSY, Turn tabl (Spindle) (M902) 1 Screws (B1.7x5) Chassis 2 3 5 6 2 1 Screw (B 1.7x5) 4 Screw (P 1.4x3.5) Chassis Optical pick-up (DAX-23E) Bracket (Shaft) Gear B Cover, Gear Motor ASSY (Sled) (M901) Screw (feed) assy 3-3. MOTOR ASSY, TURN TABLE (SPINDLE) (M902) 3-4. OPTICAL PICK-UP (DAX-23E), MOTOR ASSY (SLED) (M901) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 D-FS18 1 4 5 3 2 Lid, Upper Switch unit Five screws (B 1.7 × 3.5) Cover, Lid 3-5. “LID, UPPER”, SWITCH UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-FS18 SECTION 4 ELECTRICAL ADJUSTMENTS The CD section adjustments are done automatically in this set. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement : DC4.5 V in DC IN jack. (J401) VOLUME : Minimum AVLS : NORM HOLD : OFF Focus bias Check Condition: • Hold the set in horizontal state. • Terminate TAP802 (open) by solder. Connection: Procedure: 1. Connect the oscilloscope to the test points TJ629 (RF) and TJ635 (GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch-ing. 5. Stop revolving of the disc motor by pressing the x button. RF level 0.4 to 0.5 Vp-p VOLT/DIV : 100 mV (With the 10 : 1 probe in use) TIME/DIV : 500ns TJ629 (RF) TJ635 (GND) 2 K Ω Oscilloscope (AC range) [MAIN BOARD] (Side B) CD SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 D-FS18 • Switch Location VOLUME : MAX MEGA BASS : OFF AVLS : NORMAL [AM] BAND: AM [FM] BAND : FM AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L3 620kHz CT3 1,400kHz TUNER SECTION Put the lead-wire antenna close to the set. 30% amplitude modulation by 400Hz signal. Output level : as low as possible AM RF signal generator 0.01µF FM RF signal generator FM IN point 75kHz(100%) amplitude modulation by 1kHz signal. Output level: as low as possible 16 Ω set level meter i jack (J302) AM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L4 520kHz AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 450kHz FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 86.5MHz CT1 109.5MHz FM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L2 86.5MHz Adjustment Location: Main board 0 dB = 1 µV • Repeat the procedures in each adjustment several times for the maximum level meter indication. • The frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. SECTION 5 DIAGRAMS • Waveforms Note on Printed Wiring Board: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. Note on Schematic Diagrams: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • C : panel designation. • H : adjustment for repair. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : AM < > : CD • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : FM f : AM J : CD • Abbreviation CND : Canadian model Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 1 IC601 of XTAO 3.6 Vp-p 4MHz 2 IC801 ul XIN 3 IC601 ua RFAC 4 IC61 uf XOUT 5 T81 C86 VOLT/DIV: 0.1 V AC TIME/DV: 0.1 µsec VOLT/DIV: 0.1 V AC TIME/DV: 0.1 µsec VOLT/DIV: 1.2 V AC TIME/DV: 10 µsec VOLT/DIV: 10 V AC TIME/DV: 0.2 µsec 2.3 Vp-p 16.9MHz VOLT/DIV: 1.2 V AC TIME/DV: 20 nsec 400 – 500 mVp-p 2.4 Vp-p 13.3 µsec 30 Vp-p 480 nsec T1 AM IF adjustment L3 CT3 AM TRACKING adjustment L1 CT1 FM TRACKING adjustment L2 FM FREQUENCY COVERAGE adjustment L4 AM FREQUENCY COVERAGE adjustment w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 D-FS18 5-1. BLOCK DIAGRAMS CD SECTION A TUNER SECTION B TUNER SECTION C TUNER SECTION IC402 IC604 IC404 • Signal Path : FM : CD LASER DIODE OPTICAL PICK-UP DAX-23E PD LD M M FOCUS COIL TRACKING COIL SLED M901 MOTOR SPINDLE M902 MOTOR F+ F- T+ T- S+ S- C+ C- SYSTEM CONTROL IC801(2/2) DRY BATTRY SIZE "AA" (IEC DESIGNATION LR6) 2PCS 3V OFF ON G-PROTECTION S802 (OPEN/CLOSE) S801 +B SWITCH Q501 VCC LD VCC1 2V DETECTOR COIL/MOTOR DRIVE IC401(1/2) RF A E B F VLGO2 69 INM2 4 RF21 77 PAPC 78 FO2 36 PD RO2 34 FO3 32 RO3 30 FO1 40 RO1 38 FO4 28 RO4 26 41 FI1 42 RI1 43 FI2 44 RI2 12 FI3 13 RI3 15 RI4 14 FI4 7 SYNC 10 DATA 3 3 1 4 4 9 CLOCK 3 RF2 11 LATCH 58 CHGMNT 8 WAKEUP 52 RSTB Q409 RF AMP,SERVO,DSP D/A CONV,D-RAM CONT IC601 RFAC 71 RFDC 58 A 62 E 59 15 13 11 RF RFO IV2+ IV3+ 10 GCNT 1 IN2+ 3 IN2- 4 IN3+ 5 IN3- 6 STBY 9 SFDR 46 SRDR 47 FFDR 50 FRDR 51 TFDR 48 TRDR 49 MDP 43 ATSK 29 C176 42 MDS 44 SDTO 23 CLOCK 25 XLAT 24 SENS 26 SCOR 17 FOK 35 R4M 30 XSOE 28 XRST 21 D0 D3 A0 A10 XRAS 5 DRAM IC602 IC501 I-V AMP 114 XWE 120 XOE 119 XCAS 113 XRAS A0 A10 2 3 24 25 . . . XWE 4 XOE 22 XCAS 23 D0 D3 7 5 3 . 1. 106 109. 115 118 111 9 12 15 . 19 21 . 8 . 97 L OUT 104 R OUT 13 A MUTING FM ANT TU-R TUMUTE TU-L 11 10 9 2 4 14 12 6 13 5 8 1 3 IC302 Q306 Q601 Q305 TUVCC+ VCC D603 D601 VOLUME RV301 TU BASS1 BEEP O HP Q304 L IN 14 R IN 15 MUTE 19 PWR SW 20 BEEP 17 BB SW 23 BST NF 1 HP AMP IC301 8 L OUT 6 R OUT 24 BST OUT 21 BIAS 2 AD DOUT 10 MIX OUT 11 ALC IN 12 ALC DET 2 1 4 IC304 TU BASS2 DC IN 4.5V J401 J302 NORM LIMIT AVLS S804 Q301 AVLS I SW VCPU 2V Q302 13 WAKEUP 15 AD CHGMNT 4 AGC PWM 48 XAPC OFF 46 XPOWLT 42 XHG ON 12 MSDTO 10 SCK 43 XLAT 11 MSDTI 25 SCOR 3 FOK 79 XIN 44 XSOE 9 XRST 47 TU AUDIO 78 RESET 7 A MUTING 56 SEG8 45 CD AUDIO 2 HPSW 28 BEEP 38 AVLS 36 COMPON 21 WP OPEN VCPU 2V +B SWITCH Q412 REG CHARGE SWITCH Q402 SWITCH Q404 +4.5V +4.8V CHARGE ON/OFF Q403 D401 D408 D301 D302 Q416 Q411 1 3 4 POWER CONTROL IC401(2/2) 65 V IN 18 STNG 50 VCPU 61 LGO1 48 RF4 60 BATM1 59 BATM2 46 RS 45 CHG SW 49 DC IN 5 7 8 3 1 4 VG VCPU 2V Q405 Q413,414 Q406,407 Q408,410 L3 71 DTC2D 53 VCC1 51 VLG3 72 VCC2ON 8 BATDET 41 VCC1 2V VCC2 3.3V DCINMNT 20 AD BATMNT 17 AD I BATT VIN 3V 4.5V VCPU 2V TUVCC+ TUVCC+ VIN 3V AD I HIDC VIN 3V X601 16.9MHz XTAO 94 XTAI 93 IC405 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 D-FS18 TUNER SECTION A CD SECTION C B CD SECTION CD SECTION • Signal Path : FM B.P.F FL1 FM RF L1 CT1 FM OSC L2 AM IFT T1 ANTTENA MW FERRITE-ROD L3 AM OSC L4 CONVERTER DC/DC T81,Q86 D3 V IN 2 FM IN L OUT 6 IF/RF AMP IC1 FM /AM 450kHz CF1 12 R OUT 11 FM IF X61 75kHz IC61 DTS µCOM FM LOCAL/DX Q3 21 FM OSC 20 AM OSC MIX OUT 4 7 10.7MHz CF2,3 AM IF LPF2 13 QUAD 10 10.7MHz X1 62 TUMUTE FM RF 24 AM RF 22 AM/XFM 59 AM/FM SWITCH Q2 IF ON CONTROL Q6 XIF REQ 17 OSC OUT 19 XAM/FM BUFFER Q60 LPF Q84,85 +B SWITCH Q4,5 V IN TU +B +1.6V REG 3 2 IC81 V IN IF REQ 61 IF IN 64 AM IN 71 +B ON/OFF 60 FM IN 70 AD DC REF 45 DX O CTR 55 EQ 65 XOUT 74 XIN 75 EEP DO/DI 30 EEP SK 31 EEP CS 32 3 DI 4 DO 2 SK 1 CS EEPROM IC62 47 SDO O CDU (CD)SDI 31 IC801(1/2) SYSTEM CONTROL 46 SDI I CDU (CD)SDO 32 48 SCK I CDU TUSCK 30 38 TUON TUON 34 28 LCD REQ LCD REQ 33 39 CDON IWP CDU CDON 5 73 RESET XCD RESET TU 29 29 LID OPEN WP OPEN 21 52 XAVLS I SW 51 XHOLD I SW 54 ACK CD ACK CD 19 42 AD1 KEY AD CD KEY 18 HOLD 39 TU PWSWEN 6 58 TU BASS1 56 TU BASS2 49 TU BEEP 44 AD3 HIDC 72 V IN XLOCAL DET 25 +B SWITCH Q8,9 1 4 5 20 COM0 COM3 S1 S16 AM STEP 21 MEM KEY 36 SWITCH UNIT FM ANT TU-L TU-R TUMUTE VDD TU BASS1 AD I HIDC 43 AD2 BATT AD I BATT VCPU 2V TU BASS2 BEEP O HP VIN 3V TU VCC AVLS I SW AM TRACKING FM TRACKING FM F-COVER AM F-COVER AM IF LCD LOCAL DX CD/RADIO KEYS VCPU HOLD AM STEP SW PRESETKEYS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 D-FS18 5-2. PRINTED WIRING BOARD MAIN (SIDE A) SECTION IC304 IC402 IC404 IC405 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 OPTICAL PICK-UP BLOCK DAX-23E Ref. No. Location D403 I-5 D408 I-5 D461 E-6 D601 E-7 IC304 F-3 IC402 E-4 IC404 E-5 IC405 E-10 Q301 G-3 Q403 D-10 Q405 F-4 Q406 H-5 Q407 I-5 Q409 I-5 Q412 E-10 Q413 G-4 Q501 D-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 D-FS18 5-3. PRINTED WIRING BOARD MAIN (SIDE B) SECTION IC602 IC401 IC301 IC302 IC501 IC604 IC601 IC61 IC62 IC81 IC801 IC1 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 Ref. No. Location D1 C-7 D2 C-6 D3 C-8 D80 E-5 D82 E-5 D301 E-9 D302 E-9 D401 D-2 D404 E-3 D405 I-8 D602 F-7 D603 F-7 D804 E-5 IC1 B-6 IC61 C-4 IC62 B-3 IC81 B-3 IC301 F-9 IC302 E-9 IC401 H-8 IC501 D-10 IC601 E-7 IC602 G-6 IC604 D-9 IC801 E-4 Q2 C-6 Q3 B-7 Q4 D-5 Q5 D-5 Q6 B-6 Q8 C-5 Q9 C-5 Q60 C-5 Q84 C-5 Q85 C-4 Q86 F-6 Q302 I-8 Q304 E-10 Q305 E-10 Q306 E-9 Q402 D-2 Q404 F-4 Q408 I-7 Q410 I-8 Q411 G-7 Q414 F-9 Q416 I-9 Q601 D-6 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 D-FS18 5-4. SCHEMATIC DIAGRAM TUNER SECTION IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 D-FS18 5-5. SCHEMATIC DIAGRAM CD SECTION (1/4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 D-FS18 5-6. SCHEMATIC DIAGRAM CD SECTION (2/4) IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 D-FS18 5-7. SCHEMATIC DIAGRAM CD SECTION (3/4) IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 D-FS18 5-8. SCHEMATIC DIAGRAM CD SECTION (4/4) IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 D-FS18 5-9. IC PIN FUNCTION DESCRIPTION • IC801 TMP88CM22R-SFMP1 (SYSTEM CONTROLLER) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49-64 65-68 I/O — — I O O O O O O O I O O I I I I I I I I I I — I I I O O O I O O O I I I I I I O O O O O O O O O O Description Ground terminal. Headphone IC power switch. Focus OK signal input from the digital servo processor (IC601). “L”:NG,”H”:OK AGC control puls signal output terminal. CD mode on. tuner power block on.(Supply vin) Analog audio muting ON/OFF control signal output terminal. “H”:muting ON VCC2 voltage control signal output terminal. Reset signal output to IC601. “L”:reset Serial data transfer clock signal output to IC601. Serial data input from the IC601. Serial data output to IC601. WAKE-UP control signal output terminal. (for system standby reset) Plug-in detection signal input terminal of LINE OUT/OPTICAL OUT. Batery charge voltage detection input from the power control(IC401). Not used. Batery voltage monitor signal input . Main switch unit kye AD port. Acknowledgement and status from DTS. DC in voltage monitor signal input. Upper lid ststus signal input. Analog GND for A/D signal input. Analog VDD for A/D signal input. Power supply terminal(+2V). Sub-code sync(S0+S1)detection signal input from the IC601. GRSCOR signal input from the IC601. H-MIRX series, L-MISX Beep sound output to the headphone amplifier(IC302). DTS pull up 200K. Communication clock output to the communication format converter (IC802). Serial data out to DTS. Serial data in to DTS. LCD buty data send request signal output. Radio mode status signal output. H-CD RW disc enabled , L-disabled. ADPCM compression on sigunal inout. Not used. Automatic volume limit system. HOLD switch detection signal input. Not usde. Signal cell battery detection sigunal output. Optical pick-up power ON/OFF control signal output terminal. “L”:ON. Serial data latch pulse signal output to IC601. Serial data output enable signal output terminal. Audio channel selection. (Raidio/CD music) Latch signal output to the power control(IC401). Audio channel selection. (Raidio/CD music) APC mute signal output terminal. “L”:mute LCD segment signal output. Not usde. Pin Name VSS HPSW FOK I AGCPWM O CDON O TU PWSWEN O AMUTE O VCC2ON O XRST O SCK O SCK O MSDTO O WAKEUP O AD CDTEST AD CHGMNT RESERVE AD BATMNT AD CDKEY ACK CD I AD DCINMNT WP OPEN VREFL VREFH VDD SCOR I GRSCOR I MIR I BEEP O XCDRESET TU O TUSCK O SDI I SDO O LCDREQ TUON I CD RW I COMPON I DIG TU I AVLS I HOLD I EXBATT I BATDET XHGON O XLAT O XSOE O CDAUDIO O XPOWLT O TUAUDIO O XAPC OFF O SEG15-SEG0 COM3-COM0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 D-FS18 Pin No. 69-71 72,73 74 75 76 77 78 79 80 I/O O O O I O O I I — Description Not usde. Not usde. Auto. Test terminal for IC (Fixed at “L”). Not usde. Not usde. System reset signal input from the power control(IC401). “L”:reset. System clock input terminal. Not usde. Pin Name V3-V1 C1,C0 STOP ICTEST NC NC RESET I XIN I XOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 D-FS18 • IC61 TC9327AF-630 (DTSµCOM) Pin No. 1 to 4 5 to 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 I/O O O I I I I I O O I I I/O O O I — — I I O I — — I I I I I O I O — I I I O O O I O O Description LCD drivers LCD drivers AM 9K/10K tuning step select (initialisation) Bit 2 Tu Destination setting Bit 1 Tu Destination setting Bit 0 Tu Destination setting Local/DX or Mono/Stereo ON-Off switch detection Not used Not used LCD display request signal from CD Upper Lid Open Detect Data I/O for EEPROM Clock for EEPROM 2K bits (software timing) Chip select for EEPROM Line Out Jack detect Not used Not used Memory key ( use Vdd as ref) 5 keys Not used TU On request CD ON request (Weakup TU in sleep mode) Reserved Not used Set Keys Remote Key Battery/ HiDC Level detect (use VEE1.55 or 3.3V external) Ref DC of A/D (use for HiDC and batt detects, keys ,vol +,- and RMkeys use VDD as ref) Serial input from CD micon Serial output to CD micon (reserved line) Not use Serial clock to CD micon Beep sound control Not used HOLD detect AVLS detect DC-in detect Acknowlege CD Local/DX or Mono/Stereo ON-Off control Sound mode, Mega Bass 2 TU Test Mode detect (active LOW) Sound mode, Mega Bass 1 Band control FM/AM to Tuner IC TA2104 Pin Name COM1-4 S1-16 AMSTEP-I DEST2-I DEST1-I DEST0-I XLOCAL/XMONO-DET_I NC NC LCDREQ-I LID OPEN EEPSD EEPSK EEPCS XL/O-I NC NC PRESET_KEY NC CD_ACK-I CDON-I NC NC KEY RMKEY HIDC_BATT ADREF TUCDSDI TUCDSDO TUCDSCK TUBEEP NC XHOLD XAVLS XDC IN DET TUON ST-DX TUBASS2 TUTEST TUBASS1 AM/XFM-O www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 D-FS18 Pin No. 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I/O O O O — I O — I O — I I — I — — — — — — — Description Radio Power On/Off (VCO Amp block) IF Request Mute HP control Not used FM,AM IF input PLL error output Not used Not used Not used IC System GND FM OSC in AM OSC in VDD power supply 3.0V Power reset (Resset by CD Micon) Crystal Osc pin Crystal Osc pin Crystal Osc pin LCD voltage doubler LCD voltage doubler LCD voltage doubler Constant voltage for LCD 1.55V Pin Name +B ON/OFF IFREQ-O TUMUTE-O TEST IFIN EO NC HOLD NC GND FMIN AMIN VDD RESET XOUT XIN VXT VLCD C1 C2 VEE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 D-FS18 5-10. IC BLOCK DIAGRAMS IC1 TA2104BFN IC301 TA2120FN 24 23 22 21 20 19 18 17 16 15 14 13 DECODE DIVIDE VCO 11 10 9 8 7 6 5 4 3 2 1 12 FM RF OUT RF GND FM RF IN AM IF IN FM IF IN GND AGC QUAD R-OUT L-OUT AM LOW CUT MIX OUT VCC RF VCC AM RF IN FM OSC AM OSC OSC OUT ST LED IF REQ DET OUT LPF1 LPF2 FM OSC AM OSC AM MIX FM MIX BUFF BUFF FM RF AMIF FMIF AGC MUTE ST/MO FM/AM FM DET AM DET 1/8 LEVEL DET IF BUFF AF BUFF AF IF REQ SW ST + – + – + – 23 20 19 18 17 16 15 14 13 2 3 4 5 6 7 8 9 10 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW OUT B OUT A BEEP IN BST PW B PW C BST NF ADD OUT RF IN PWC SW OUT B OUT C OUT A PWR GND MIX OUT ALC IN ALC DET ATT SW IN A IN B GND MT TC MT SW PW SW BIAS BIAS IN BST SW BST OUT VCC ADDA ADDB 21 22 PW A ALC ALC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 D-FS18 IC401 TB2119FA 1 2 3 4 5 6 7 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 15 14 13 12 11 10 9 HPOUT2 HPOUT3 HPOUT1 APCREF VHP HCND RO4 FO4 RO3 RO2 RO1 FO3 FO2 FO1 FI1 RI1 FI2 RI2 RS RF4 DCIN VCPU VCC1 RSTB DTC2D DTC1D INM1 RF1 BATM2 BATM1 INP1 INM4 CHGSW CHGMNT MGND4 MGND3 MGND2 MGND1 VD34 VD23 VD12 VLGO1 VLGO2 VLG3 L1L L1H L2H L2L L3 PGND1 PGND2 PGND3 VIN INP3 INM3 RF3 RF21 DTC3 PAPC VINDET VREF L4 VG GND SYNC CLOCK DATA LATCH HIPC HPI2 HPI1 FR4 RI3 FI3 PWM4 STNG N.C. WAKE UP RF2 INM2 PWM H/P DRIVER H BRIDGE DRIVER4 H BRIDGE DRIVER3 H BRIDGE DRIVER2 H BRIDGE DRIVER1 CONTROLLER CONTROLLER LEVEL SHIFTER LEVEL SHIFTER CONTROL CHARGE SAW GEN CLK OR OSC BIAS INTERFACE STNBY REFERENCE BANDGAP REFERENCE (VREF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 D-FS18 IC601 CXD3028R ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE A0 – A11 SYSM AMUTE HPL HPM HPR PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI LOCK MDP SDTI SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI/HPVSS LOCK/HPL HPR HPM HPL/HPVDD VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0 IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 A VDD A GND D VDD AVDD0 IGEN AVSS0 RFDC E F RFDC E F B A VC CLTV XPCK A6 A5/PWMI XWRE XRDE XEMP XWIH XQOK AMUTE SDTI XQCK SCSY SCOR VSS0 SBSO EXCK XRST SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP A4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. SECTION 6 EXPLODED VIEWS 26 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. D-FS18 8 29 31 32 7 6 5 4 3 1 2 27 28 1 26 25 21 21 18 16 17 22 20 13 19 24 23 15 9 a a 10 11 10 13 12 14 14 14 CDM-3123EBA 29 30 1 4-908-792-51 SCREW (B2) 2 X-3380-333-1 BUCKLE SUB ASSY 3 X-3380-572-1 BRACKET (ROLLER) ASSY 4 3-338-687-21 SCREW (M1.4X2), TAPPING 5 3-343-254-41 SCREW (B1.7X3.5), TAPPING 6 3-225-157-01 COVER, LID 7 1-476-429-11 SWITCH UNIT 8 3-221-301-01 PACKING (UPPER LID) 9 3-224-858-01 SPACER 10 3-224-719-01 SPACER (C) 11 3-225-462-01 SPACER (D) 12 X-3379-446-1 CABINET (INNER) ASSY 13 4-908-792-71 SCREW (B2) 14 4-222-765-01 INSULATOR 15 3-047-194-01 SHEET (CDM), ADHESIVE * 16 A-3323-695-A MAIN PC BOARD ASSY 17 4-223-609-01 KNOB (JOGGABLE) 18 3-318-201-51 SCREW (B) (1.4X4), TAPPING 19 X-3379-391-1 ARM ASSY, SWITCHING 20 3-387-566-01 SCREW, STEP 21 3-326-536-11 SCREW, TAPPING 22 3-221-310-01 LEVER (VOL) (B) 23 3-221-311-01 PACKING (H/P) 24 3-225-155-01 CABINET (LOWER) 25 3-221-312-01 PACKING (DC-IN) 26 3-225-154-01 BRACKET (STRAP) 27 3-221-329-01 RING, O 28 3-221-321-01 KNOB (VOL) 29 X-3380-729-1 LID ASSY, UPPER 29 3-221-318-01 LEVER, DETECTION 30 3-229-056-01 LEAF, COPPER 31 3-318-201-31 SCREW (B) (1.4X5), TAPPING 32 3-375-114-71 SCREW Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 6-1. CABINET SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-FS18 51 52 61 63 60 58 59 M901 not supplied 54 55 56 57 51 53 62 M902 51 3-318-203-71 SCREW(B1.7X5),TAPPING 52 4-218-820-01 CHASSIS 53 A-3328-628-A SCREW(FEED)ASSY 54 4-218-823-01 GEAR(B) 55 4-964-564-01 SCREW(M1.2X1.6) 56 4-218-821-01 COVER,GEAR 57 4-218-825-01 SPPRING(SLED) 58 3-895-823-31 SCREW(B1.4X2.3),TAPPING 59 4-220-645-01 SHAFT,STANDARD 60 4-223-600-01 RACK 61 4-218-827-01 BRACKET(SHAFT) 62 3-686-458-03 SCREW(P1.4X3.5),TAPPING 063 X-4952-506-1 OPTICAL PICK-UP(DAX-23E) M901 A-3328-627-A MOTOR ASSY,SLED(WITH GEAR) M902 A-3328-759-A MOTOR ASSY,TURN TABLE(SPINDLE) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 6-2. MECHANISM SECTION (CDM-3123EBA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 28 SECTION 7 ELECTRICAL PARTS LIST D-FS18 * A-3323-695-A MAIN BOARD, COMPLETE ********************* 3-221-307-01 TERMINAL BOARD (-), BATTERY 3-221-308-01 TERMINAL BOARD (RELAY),BATTERY 3-221-309-01 LEVER (VOL) (A) 4-223-413-01 SCREW (M1.4X3) 4-223-585-01 TERMINAL BOARD (+), BATTERY < CAPACITOR > C2 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C4 1-164-118-11 CERAMIC CHIP 15PF 5.00% 50V C5 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C6 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V C9 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C10 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C11 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C12 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C13 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C15 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C16 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C17 1-164-346-11 CERAMIC CHIP 1uF 16V C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C19 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C20 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C21 1-164-156-11 CERAMIC CHIP 0.1uF 25V C22 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C23 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C24 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C25 1-117-887-11 TANTAL. CHIP 220uF 20.00% 6.3V C26 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C27 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C28 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V C29 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V C30 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C31 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C32 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V C33 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C34 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C35 1-104-852-11 TANTAL. CHIP 22uF 20.00% 6.3V C36 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C39 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C40 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C41 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C45 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C46 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C50 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C51 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C54 1-115-156-11 CERAMIC CHIP 1uF 10V C58 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C59 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C60 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C61 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C62 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C63 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C64 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C65 1-107-823-11 CERAMIC CHIP 0.47uF 10.00% 16V C66 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C67 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C68 1-107-823-11 CERAMIC CHIP 0.47uF 10.00% 16V C69 1-104-852-11 TANTAL. CHIP 22uF 20.00% 6.3V C70 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C72 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C76 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C80 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C81 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C82 1-164-489-11 CERAMIC CHIP 0.22uF 10.00% 16V C83 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C84 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C85 1-164-505-11 CERAMIC CHIP 2.2uF 16V C86 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C87 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C88 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C90 1-104-852-11 TANTAL. CHIP 22uF 20.00% 6.3V C92 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C93 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C94 1-164-156-11 CERAMIC CHIP 0.1uF 25V C97 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C98 1-164-505-11 CERAMIC CHIP 2.2uF 16V C102 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C104 1-164-936-11 CERAMIC CHIP 680PF 10.00% 16V C121 1-115-156-11 CERAMIC CHIP 1uF 10V C123 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C124 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C202 1-164-935-11 CERAMIC CHIP 470PF 10.00% 16V C204 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C221 1-115-156-11 CERAMIC CHIP 1uF 10V C223 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C224 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V C322 1-164-156-11 CERAMIC CHIP 0.1uF 25V C323 1-115-156-11 CERAMIC CHIP 1uF 10V C324 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C325 1-117-720-11 CERAMIC CHIP 4.7uF 10V C326 1-117-720-11 CERAMIC CHIP 4.7uF 10V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 29 D-FS18 C327 1-115-156-11 CERAMIC CHIP 1uF 10V C328 1-165-128-11 CERAMIC CHIP 0.22uF 16V C329 1-164-505-11 CERAMIC CHIP 2.2uF 16V C331 1-128-057-11 ELECT 330uF 20.00% 6.3V C332 1-164-156-11 CERAMIC CHIP 0.1uF 25V C333 1-115-156-11 CERAMIC CHIP 1uF 10V C334 1-124-584-00 ELECT 100uF 20% 10V C335 1-164-156-11 CERAMIC CHIP 0.1uF 25V C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C402 1-135-259-11 TANTAL. CHIP 10uF 20.00% 6.3V C403 1-164-941-11 CERAMIC CHIP 0.0047uF 10.00% 16V C404 1-104-913-11 TANTAL. CHIP 10uF 20.00% 16V C405 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C406 1-124-584-00 ELECT 100uF 20% 10V C407 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C408 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C409 1-124-584-00 ELECT 100uF 20% 10V C410 1-124-584-00 ELECT 100uF 20% 10V C411 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C413 1-164-937-11 CERAMIC CHIP 0.001uF 10.00% 16V C414 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C415 1-164-156-11 CERAMIC CHIP 0.1uF 25V C417 1-104-752-11 TANTAL. CHIP 33uF 20.00% 6.3V C418 1-124-635-00 ELECT 220uF 20.00% 6.3V C420 1-110-569-11 TANTAL. CHIP 47uF 20.00% 4V C421 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C422 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C423 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V C424 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V C425 1-115-156-11 CERAMIC CHIP 1uF 10V C426 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C427 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C428 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C429 1-117-720-11 CERAMIC CHIP 4.7uF 10V C431 1-124-229-00 ELECT 33uF 20% 10V C432 1-117-720-11 CERAMIC CHIP 4.7uF 10V C433 1-164-941-11 CERAMIC CHIP 0.0047uF 10.00% 16V C435 1-117-720-11 CERAMIC CHIP 4.7uF 10V C436 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C437 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C439 1-124-635-00 ELECT 220uF 20.00% 6.3V C440 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C442 1-115-156-11 CERAMIC CHIP 1uF 10V C443 1-115-156-11 CERAMIC CHIP 1uF 10V C444 1-124-584-00 ELECT 100uF 20% 10V C446 1-104-913-11 TANTAL. CHIP 10uF 20.00% 16V C451 1-164-346-11 CERAMIC CHIP 1uF 16V C453 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C461 1-107-823-11 CERAMIC CHIP 0.47uF 10.00% 16V C462 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-117-720-11 CERAMIC CHIP 4.7uF 10V C504 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C505 1-115-156-11 CERAMIC CHIP 1uF 10V C506 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C507 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C508 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C602 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C603 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C604 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-164-874-11 CERAMIC CHIP 100PF 5.00% 16V C607 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C609 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C611 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C612 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C620 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V C621 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V C622 1-107-820-11 CERAMIC CHIP 0.1uF 16V C623 1-115-156-11 CERAMIC CHIP 1uF 10V C624 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C625 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C626 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C627 1-107-820-11 CERAMIC CHIP 0.1uF 16V C628 1-164-156-11 CERAMIC CHIP 0.1uF 25V C629 1-164-505-11 CERAMIC CHIP 2.2uF 16V C630 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C631 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C632 1-115-156-11 CERAMIC CHIP 1uF 10V C634 1-127-569-11 TANTAL. CHIP 100uF 20% 4V C635 1-115-156-11 CERAMIC CHIP 1uF 10V C636 1-164-156-11 CERAMIC CHIP 0.1uF 25V C638 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C641 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C642 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C645 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V C647 1-164-156-11 CERAMIC CHIP 0.1uF 25V C803 1-107-820-11 CERAMIC CHIP 0.1uF 16V C804 1-113-619-11 CERAMIC CHIP 0.47uF 10V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C807 1-107-820-11 CERAMIC CHIP 0.1uF 16V C809 1-107-820-11 CERAMIC CHIP 0.1uF 16V C810 1-107-820-11 CERAMIC CHIP 0.1uF 16V C811 1-164-505-11 CERAMIC CHIP 2.2uF 16V C813 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C816 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C841 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < FILTER > CF1 1-767-480-11 FILTER, CERAMIC (AM) CF2 1-767-313-11 FILTER, CERAMIC CF3 1-767-313-11 FILTER, CERAMIC < CONNECTOR > * CN501 1-778-161-11 CONNECTOR, FFC/FPC (ZIF) 13P CN502 1-784-342-11 HOUSING, CONNECTOR 2P CN503 1-784-342-21 HOUSING, CONNECTOR 2P CN801 1-764-534-21 CONNECTOR, FFC/FPC (ZIF) 28P < TRIMMER > CT1 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF CT3 1-141-486-11 CAP, ADJ 10PF MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 30 D-FS18 < DIODE > D1 8-719-080-77 DIODE MA2S357(E)-(TX).SO D2 8-719-080-77 DIODE MA2S357(E)-(TX).SO D3 8-759-072-60 DIODE SVC347T-TL D80 8-719-404-50 DIODE MA111-TX D82 8-719-158-49 DIODE MA8120-TX D301 8-719-941-23 DIODE DA204UT106 D302 8-719-941-23 DIODE DA204UT106 D401 8-719-067-42 DIODE MA2H735-(TX).SO D403 8-719-404-50 DIODE MA111-TX D404 8-719-067-42 DIODE MA2H735-(TX).SO D405 8-719-049-09 DIODE 1SS367-T3SONY D408 8-719-071-87 DIODE MA785-(TX),SO D461 8-719-072-70 DIODE MA2ZD14001S0 D601 8-719-071-87 DIODE MA785-(TX),SO D602 8-719-069-54 DIODE UDZSTE-175.1B D603 8-719-071-87 DIODE MA785-(TX),SO D804 8-719-404-50 DIODE MA111-TX < FERRITE BEAD > FB111 1-500-234-11 FERRITE 0uH FB211 1-500-234-11 FERRITE 0uH FB311 1-500-234-11 FERRITE 0uH FB602 1-216-803-11 METAL CHIP 33 5% 1/16W FB603 1-216-864-11 METAL CHIP 0 5% 1/16W < FILTER > FL1 1-236-711-21 FILTER, BAND PASS < IC > IC1 8-759-712-19 IC TA2104BFN(EL) IC61 8-759-835-46 IC TC9327AF-630 IC62 8-759-449-23 IC CAT93C56U-1.8TE13 IC81 8-759-457-70 IC XC62RP1602MR IC301 8-759-681-65 IC TA2120FN(EL) IC302 8-759-523-03 IC TC74HC4066AFT(EL) IC304 8-759-082-60 IC TC7S66FU-TE85L IC401 8-759-670-16 IC TB2119FA IC402 8-759-651-13 IC NJU7116F(TE2) IC404 8-759-651-13 IC NJU7116F(TE2) IC405 8-759-694-91 IC SI-3048LSA-TL IC501 8-759-714-51 IC BA6779BFV-E2 IC601 8-752-409-05 IC CXD3028R IC602 8-759-594-56 IC MSM51X17400D-10TFSR1 IC604 8-759-075-70 IC TA75S393F-TE85R IC801 8-759-835-49 IC TMP88CM22R-SFMP1 < JACK > J302 1-778-224-31 JACK (SMALL TYPE) (WATERPROOF)(i) J401 1-778-153-41 JACK,DC (POLARITY UNIFIED TYPE) (DC IN 4.5V) < JUMPER RESISTOR > JR1 1-216-296-11 SHORT 0 JR2 1-216-296-11 SHORT 0 < COIL > L1 1-419-497-11 COIL (WITH FM RF CORE) L2 1-419-496-11 COIL (WITH FM OSC CORE) L3 1-754-168-11 ANTENNA, FERRITE-ROD (MW) L4 1-406-404-11 COIL (MW OSCILATION) L5 1-414-410-21 INDUCTOR 10uH L62 1-412-006-31 INDUCTOR 10uH L80 1-412-006-31 INDUCTOR 10uH L321 1-414-756-11 INDUCTOR 47uH L401 1-419-188-11 INDUCTOR 100uH L402 1-414-754-11 INDUCTOR 10uH L403 1-414-434-11 INDUCTOR 100uH L404 1-414-757-11 INDUCTOR 100uH L405 1-414-757-11 INDUCTOR 100uH L406 1-414-404-11 INDUCTOR 100uH L407 1-414-754-11 INDUCTOR 10uH L408 1-414-400-11 INDUCTOR 22uH L409 1-414-402-11 INDUCTOR 47uH L410 1-414-400-11 INDUCTOR 22uH L411 1-414-394-11 INDUCTOR 2.2uH L412 1-414-392-21 INDUCTOR 1uH L414 1-419-403-11 INDUCTOR 47uH L601 1-412-002-31 INDUCTOR 4.7uH L604 1-216-295-91 SHORT 0 < TRANSISTOR > Q2 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q3 8-729-602-21 TRANSISTOR 2SC4154TP-1F Q4 8-729-904-86 TRANSISTOR 2SB1197K-T-146-Q Q5 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q6 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q8 8-729-904-86 TRANSISTOR 2SB1197K-T-146-Q Q9 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q60 8-729-423-52 TRANSISTOR 2SC3931-C-TX Q84 8-729-602-21 TRANSISTOR 2SC4154TP-1F Q85 8-729-053-44 TRANSISTOR 2SK880GR-TE85L Q86 8-729-602-21 TRANSISTOR 2SC4154TP-1F Q301 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q302 8-729-028-91 TRANSISTOR DTA144EUA-T106 Q304 8-729-029-06 TRANSISTOR DTC124EUA-T106 Q305 8-729-930-00 TRANSISTOR UMD2-TL Q306 8-729-930-00 TRANSISTOR UMD2-TL Q402 8-729-807-34 TRANSISTOR 2SB1188-QR Q403 8-729-921-73 TRANSISTOR 2SD1781K-T146-QR Q404 8-729-425-41 TRANSISTOR 2SK1374-TX Q405 8-729-047-36 TRANSISTOR CPH3303-TL Q406 8-729-054-79 TRANSISTOR 2SB167900LSO Q407 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q408 8-729-029-13 TRANSISTOR DTC143ZUA-T106 Q409 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q410 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q411 8-729-047-36 TRANSISTOR CPH3303-TL Q412 8-729-422-87 TRANSISTOR 2SB1073-QR-TX Q413 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q414 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q416 8-729-427-83 TRANSISTOR XP6501-(TX).SO MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 31 D-FS18 Q501 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q601 8-729-028-74 TRANSISTOR DTA114TUA-T106 < RESISTOR > R1 1-216-851-11 METAL CHIP 330K 5% 1/16W R2 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R3 1-216-853-11 METAL CHIP 470K 5% 1/16W R4 1-216-853-11 METAL CHIP 470K 5% 1/16W R5 1-216-833-11 METAL CHIP 10K 5% 1/16W R6 1-216-851-11 METAL CHIP 330K 5% 1/16W R7 1-216-851-11 METAL CHIP 330K 5% 1/16W R9 1-216-809-11 METAL CHIP 100 5% 1/16W R10 1-216-821-11 METAL CHIP 1K 5% 1/16W R12 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R13 1-216-815-11 METAL CHIP 330 5% 1/16W R15 1-216-795-11 RES-CHIP 6.8 5% 1/16W R16 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R17 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R18 1-216-851-11 METAL CHIP 330K 5% 1/16W R23 1-216-833-11 METAL CHIP 10K 5% 1/16W R25 1-216-833-11 METAL CHIP 10K 5% 1/16W R49 1-216-845-11 METAL CHIP 100K 5% 1/16W R54 1-216-845-11 METAL CHIP 100K 5% 1/16W R55 1-216-845-11 METAL CHIP 100K 5% 1/16W R56 1-216-845-11 METAL CHIP 100K 5% 1/16W R60 1-216-845-11 METAL CHIP 100K 5% 1/16W R61 1-216-811-11 METAL CHIP 150 5% 1/16W R62 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R63 1-216-845-11 METAL CHIP 100K 5% 1/16W R64 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R66 1-216-837-11 METAL CHIP 22K 5% 1/16W R67 1-216-837-11 METAL CHIP 22K 5% 1/16W R70 1-216-818-11 METAL CHIP 560 5% 1/16W R71 1-216-833-11 METAL CHIP 10K 5% 1/16W R75 1-216-833-11 METAL CHIP 10K 5% 1/16W R76 1-216-864-11 METAL CHIP 0 5% 1/16W R77 1-216-864-11 METAL CHIP 0 5% 1/16W R78 1-216-864-11 METAL CHIP 0 5% 1/16W R79 1-216-864-11 METAL CHIP 0 5% 1/16W R80 1-216-833-11 METAL CHIP 10K 5% 1/16W R82 1-216-835-11 METAL CHIP 15K 5% 1/16W R83 1-218-990-11 SHORT 0 R84 1-216-817-11 METAL CHIP 470 5% 1/16W R85 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R86 1-216-813-11 METAL CHIP 220 5% 1/16W R87 1-216-845-11 METAL CHIP 100K 5% 1/16W R88 1-216-821-11 METAL CHIP 1K 5% 1/16W R89 1-218-990-11 SHORT 0 R90 1-218-990-11 SHORT 0 R91 1-216-845-11 METAL CHIP 100K 5% 1/16W R92 1-218-990-11 SHORT 0 R93 1-218-990-11 SHORT 0 R102 1-216-839-11 METAL CHIP 33K 5% 1/16W R103 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R104 1-216-833-11 METAL CHIP 10K 5% 1/16W R106 1-216-841-11 METAL CHIP 47K 5% 1/16W R107 1-218-975-11 RES-CHIP 68K 5% 1/16W R108 1-216-809-11 METAL CHIP 100 5% 1/16W R121 1-216-864-11 METAL CHIP 0 5% 1/16W R124 1-216-793-11 RES-CHIP 4.7 5% 1/16W R202 1-216-839-11 METAL CHIP 33K 5% 1/16W R203 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R204 1-216-833-11 METAL CHIP 10K 5% 1/16W R206 1-216-841-11 METAL CHIP 47K 5% 1/16W R207 1-218-975-11 RES-CHIP 68K 5% 1/16W R208 1-218-941-11 RES-CHIP 100 5% 1/16W R221 1-216-864-11 METAL CHIP 0 5% 1/16W R224 1-216-793-11 RES-CHIP 4.7 5% 1/16W R305 1-216-845-11 METAL CHIP 100K 5% 1/16W R308 1-216-845-11 METAL CHIP 100K 5% 1/16W R309 1-216-839-11 METAL CHIP 33K 5% 1/16W R321 1-216-308-00 METAL CHIP 4.7 5% 1/10W R322 1-216-857-11 METAL CHIP 1M 5% 1/16W R323 1-216-864-11 METAL CHIP 0 5% 1/16W R324 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R326 1-216-845-11 METAL CHIP 100K 5% 1/16W R401 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R402 1-218-965-11 RES-CHIP 10K 5% 1/16W R403 1-218-985-11 RES-CHIP 470K 5% 1/16W R404 1-216-864-11 METAL CHIP 0 5% 1/16W R405 1-216-864-11 METAL CHIP 0 5% 1/16W R406 1-216-864-11 METAL CHIP 0 5% 1/16W R408 1-216-853-11 METAL CHIP 470K 5% 1/16W R409 1-216-849-11 METAL CHIP 220K 5% 1/16W R410 1-216-843-11 METAL CHIP 68K 5% 1/16W R411 1-216-295-91 SHORT 0 R412 1-216-295-91 SHORT 0 R414 1-216-845-11 METAL CHIP 100K 5% 1/16W R415 1-218-979-11 RES-CHIP 150K 5% 1/16W R416 1-218-989-11 RES-CHIP 1M 5% 1/16W R418 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R419 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R420 1-218-990-11 SHORT 0 R421 1-218-989-11 RES-CHIP 1M 5% 1/16W R422 1-216-835-11 METAL CHIP 15K 5% 1/16W R423 1-216-839-11 METAL CHIP 33K 5% 1/16W R424 1-216-833-11 METAL CHIP 10K 5% 1/16W R426 1-216-853-11 METAL CHIP 470K 5% 1/16W R427 1-216-845-11 METAL CHIP 100K 5% 1/16W R428 1-218-990-11 SHORT 0 R429 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R430 1-216-041-00 METAL CHIP 470 5% 1/10W R431 1-216-864-11 METAL CHIP 0 5% 1/16W R432 1-218-989-11 RES-CHIP 1M 5% 1/16W R433 1-218-990-11 SHORT 0 R434 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R435 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R436 1-216-864-11 METAL CHIP 0 5% 1/16W R437 1-220-398-11 RES-CHIP 1.5M 5% 1/16W R438 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R439 1-220-398-11 RES-CHIP 1.5M 5% 1/16W R440 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R441 1-220-398-11 RES-CHIP 1.5M 5% 1/16W R443 1-216-811-11 METAL CHIP 150 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 32 D-FS18 R445 1-216-864-11 METAL CHIP 0 5% 1/16W R447 1-216-304-11 METAL CHIP 3.3 5% 1/10W R448 1-216-298-00 METAL CHIP 2.2 5% 1/10W R449 1-216-298-00 METAL CHIP 2.2 5% 1/10W R450 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-216-849-11 METAL CHIP 220K 5% 1/16W R452 1-216-841-11 METAL CHIP 47K 5% 1/16W R453 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R454 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R455 1-216-839-11 METAL CHIP 33K 5% 1/16W R456 1-216-815-11 METAL CHIP 330 5% 1/16W R457 1-218-987-11 RES-CHIP 680K 5% 1/16W R461 1-216-845-11 METAL CHIP 100K 5% 1/16W R462 1-216-841-11 METAL CHIP 47K 5% 1/16W R463 1-216-857-11 METAL CHIP 1M 5% 1/16W R464 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R465 1-216-864-11 METAL CHIP 0 5% 1/16W R466 1-218-990-11 SHORT 0 R469 1-216-864-11 METAL CHIP 0 5% 1/16W R470 1-218-985-11 RES-CHIP 470K 5% 1/16W R473 1-216-857-11 METAL CHIP 1M 5% 1/16W R474 1-218-989-11 RES-CHIP 1M 5% 1/16W R475 1-218-985-11 RES-CHIP 470K 5% 1/16W R477 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R478 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R480 1-216-839-11 METAL CHIP 33K 5% 1/16W R482 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R603 1-218-983-11 RES-CHIP 330K 5% 1/16W R604 1-216-857-11 METAL CHIP 1M 5% 1/16W R605 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R606 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R608 1-218-983-11 RES-CHIP 330K 5% 1/16W R609 1-218-965-11 RES-CHIP 10K 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-216-837-11 METAL CHIP 22K 5% 1/16W R612 1-216-845-11 METAL CHIP 100K 5% 1/16W R613 1-216-845-11 METAL CHIP 100K 5% 1/16W R615 1-216-864-11 METAL CHIP 0 5% 1/16W R617 1-216-864-11 METAL CHIP 0 5% 1/16W R619 1-216-864-11 METAL CHIP 0 5% 1/16W R621 1-216-864-11 METAL CHIP 0 5% 1/16W R623 1-216-821-11 METAL CHIP 1K 5% 1/16W R624 1-218-977-11 RES-CHIP 100K 5% 1/16W R625 1-218-965-11 RES-CHIP 10K 5% 1/16W R626 1-216-864-11 METAL CHIP 0 5% 1/16W R627 1-216-864-11 METAL CHIP 0 5% 1/16W R629 1-218-965-11 RES-CHIP 10K 5% 1/16W R630 1-216-819-11 METAL CHIP 680 5% 1/16W R632 1-218-971-11 RES-CHIP 33K 5% 1/16W R634 1-216-809-11 METAL CHIP 100 5% 1/16W R635 1-216-864-11 METAL CHIP 0 5% 1/16W R644 1-218-977-11 RES-CHIP 100K 5% 1/16W R647 1-218-951-11 RES-CHIP 680 5% 1/16W R648 1-216-819-11 METAL CHIP 680 5% 1/16W R649 1-218-951-11 RES-CHIP 680 5% 1/16W R652 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R653 1-216-841-11 METAL CHIP 47K 5% 1/16W R654 1-216-847-11 METAL CHIP 150K 5% 1/16W R655 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R656 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R657 1-216-845-11 METAL CHIP 100K 5% 1/16W R803 1-218-975-11 RES-CHIP 68K 5% 1/16W R804 1-216-864-11 METAL CHIP 0 5% 1/16W R805 1-216-864-11 METAL CHIP 0 5% 1/16W R806 1-218-990-11 SHORT 0 R807 1-216-821-11 METAL CHIP 1K 5% 1/16W R808 1-218-990-11 SHORT 0 R809 1-216-845-11 METAL CHIP 100K 5% 1/16W R810 1-218-990-11 SHORT 0 R811 1-216-864-11 METAL CHIP 0 5% 1/16W R812 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R813 1-218-977-11 RES-CHIP 100K 5% 1/16W R814 1-216-833-11 METAL CHIP 10K 5% 1/16W R815 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R816 1-216-845-11 METAL CHIP 100K 5% 1/16W R817 1-216-833-11 METAL CHIP 10K 5% 1/16W R819 1-216-833-11 METAL CHIP 10K 5% 1/16W R820 1-218-990-11 SHORT 0 R821 1-218-990-11 SHORT 0 R822 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R824 1-216-833-11 METAL CHIP 10K 5% 1/16W R825 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R826 1-218-965-11 RES-CHIP 10K 5% 1/16W R827 1-216-864-11 METAL CHIP 0 5% 1/16W R828 1-218-990-11 SHORT 0 R829 1-218-965-11 RES-CHIP 10K 5% 1/16W R830 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R831 1-218-990-11 SHORT 0 R832 1-218-990-11 SHORT 0 R833 1-218-990-11 SHORT 0 R834 1-216-864-11 METAL CHIP 0 5% 1/16W R836 1-216-864-11 METAL CHIP 0 5% 1/16W R837 1-216-864-11 METAL CHIP 0 5% 1/16W R841 1-216-849-11 METAL CHIP 220K 5% 1/16W R845 1-216-845-11 METAL CHIP 100K 5% 1/16W < VARIABLE RESISTOR > RV301 1-230-593-11 RES, VAR, CARBON 10K/10K(VOL) < SWITCH > S801 1-762-822-11 SWITCH, PUSH (1 KEY)(OPEN/CLOSE) S802 1-553-977-00 SWITCH, SLIDE(G.PROTECTION) S804 1-553-977-00 SWITCH, SLIDE(AVLS) < TRANSFORMER > T1 1-411-603-11 COIL (AM-MIX) T81 1-449-021-21 TRANSFORMER, DC/DC CONVERTER < VIBRATOR > X1 1-781-367-21 FILTER, CERAMIC(DISCRIMINATOR)(10.7MHz) X61 1-577-262-11 VIBRATOR, CRYSTAL(75kHz) X601 1-795-218-11 VIBRATOR, CERAMIC(16.9MHz) ************************************************************ MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 33 D-FS18 MISCELLANEOUS ************** 1-476-429-11 SWITCH UNIT M901 A-3328-627-A MOTOR ASSY,SLED(WITH GEAR) M902 A-3328-759-A MOTOR ASSY,TURN TABLE(SPINDLE) * A-3323-695-A MAIN PC BOARD ASSY X-3380-572-1 BRACKET (ROLLER) ASSY 063 X-4952-506-1 OPTICAL PICK-UP(DAX-23E) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 0 1-467-009-21 ADAPTOR, AC (AC-E455D) 3-221-356-01 STRAP, HAND 3-226-007-11 MANUAL, INSTRUCTION(ENGLISH)(US) 3-226-008-11 MANUAL, INSTRUCTION(FRENCH)(CND) 3-226-008-21 MANUAL, INSTRUCTION(ENGLISH)(CND) 8-953-284-93 HEADPHONE MDR-W014LPY1K SET The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-FS18 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.04 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
