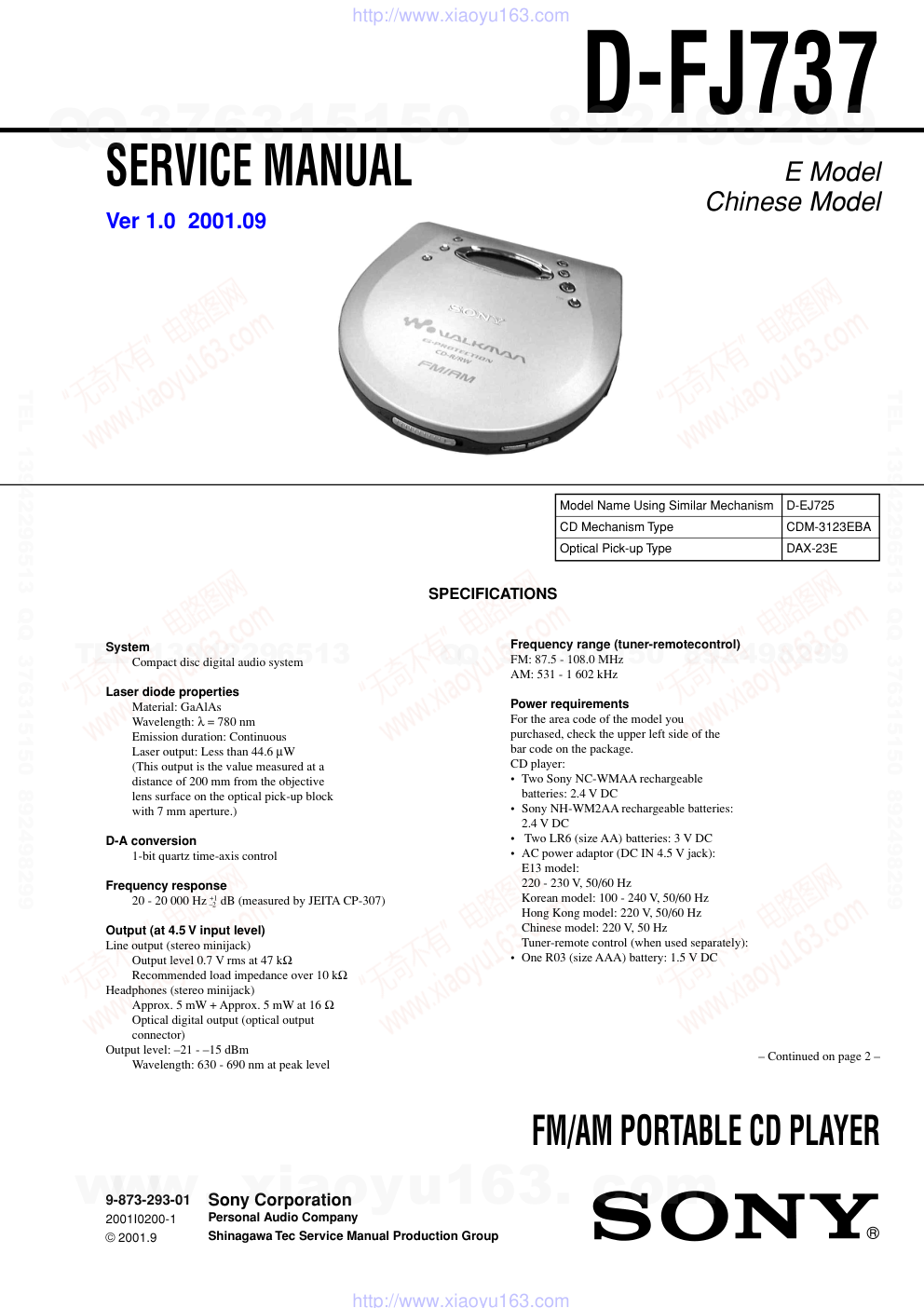

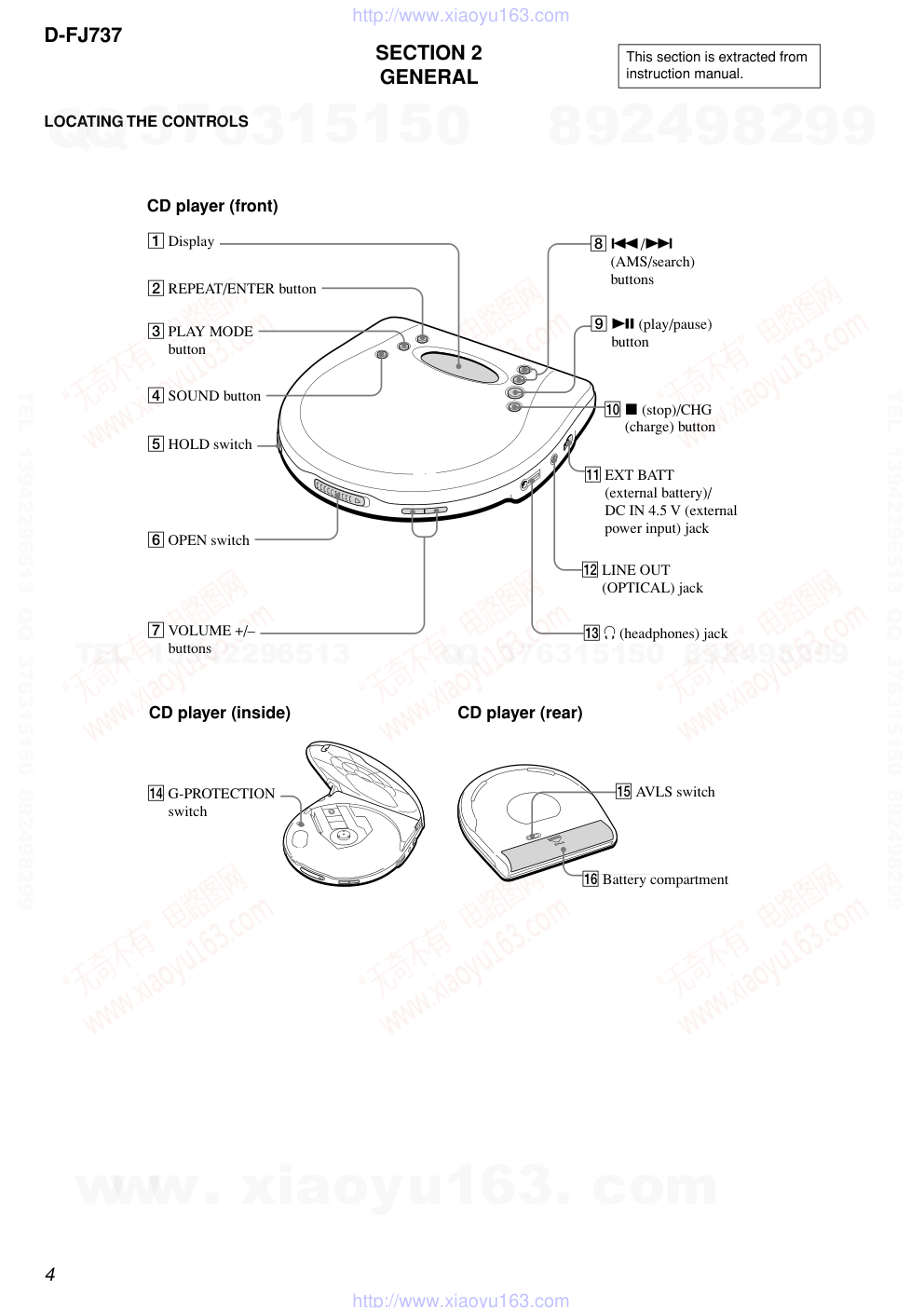

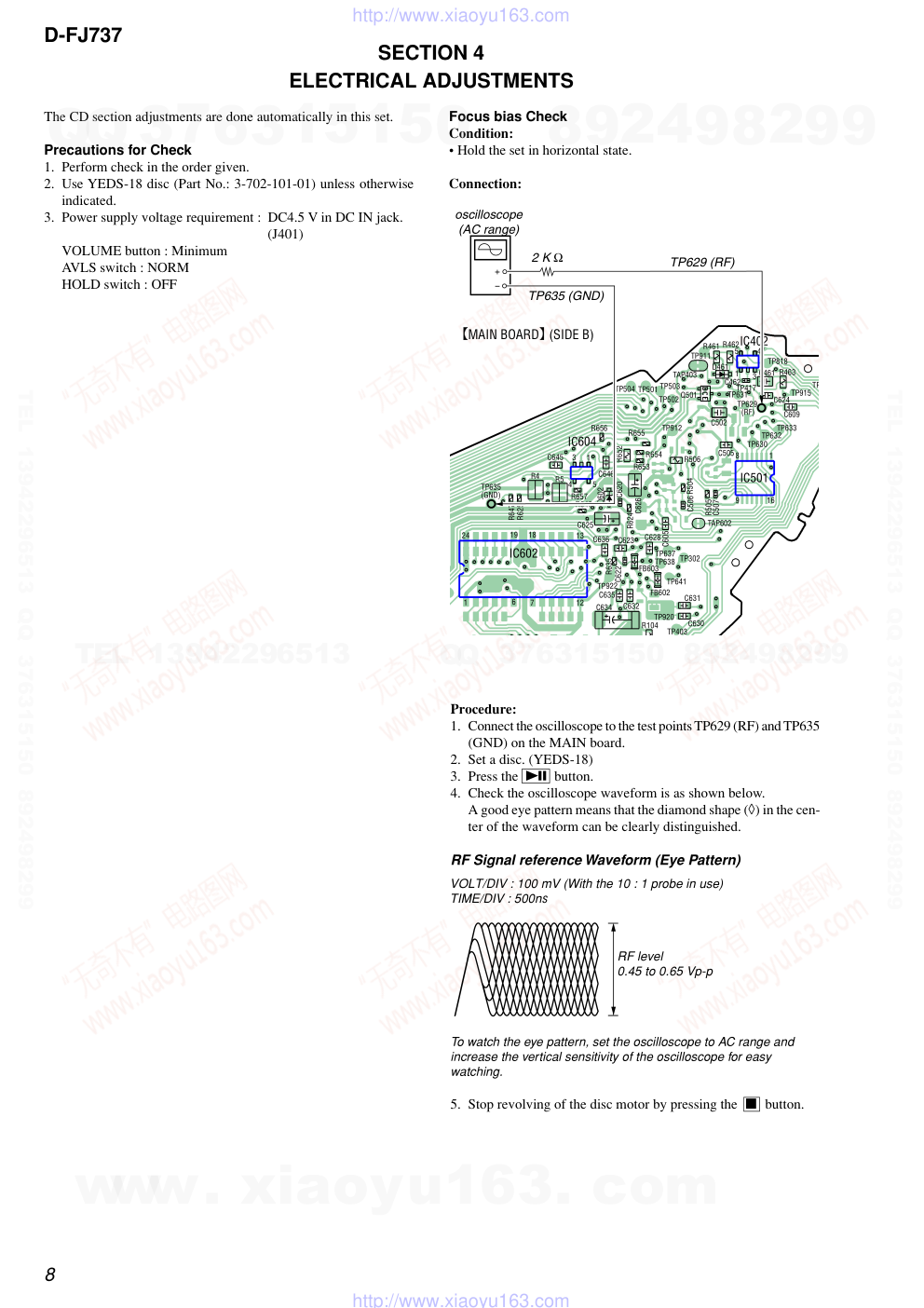

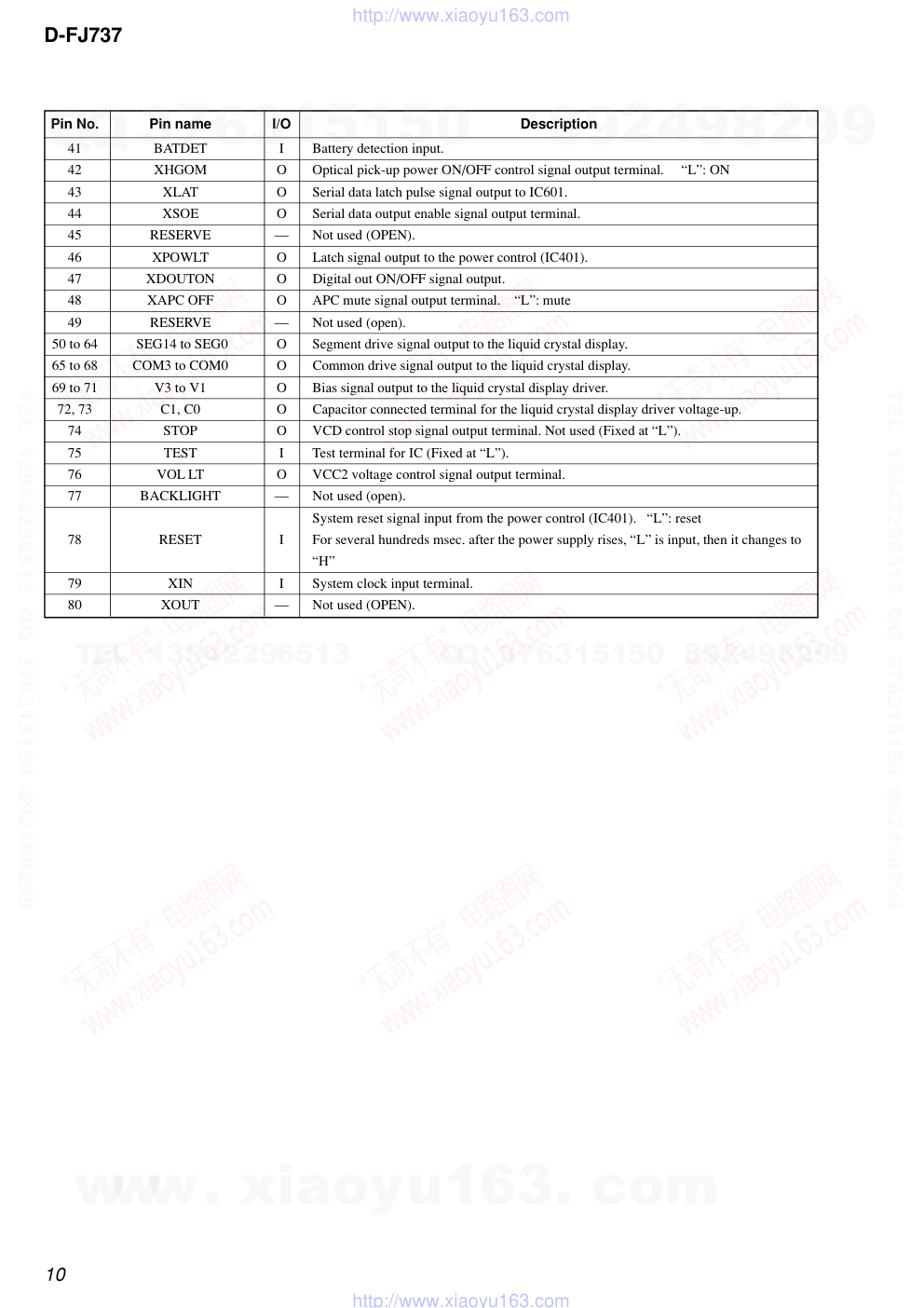

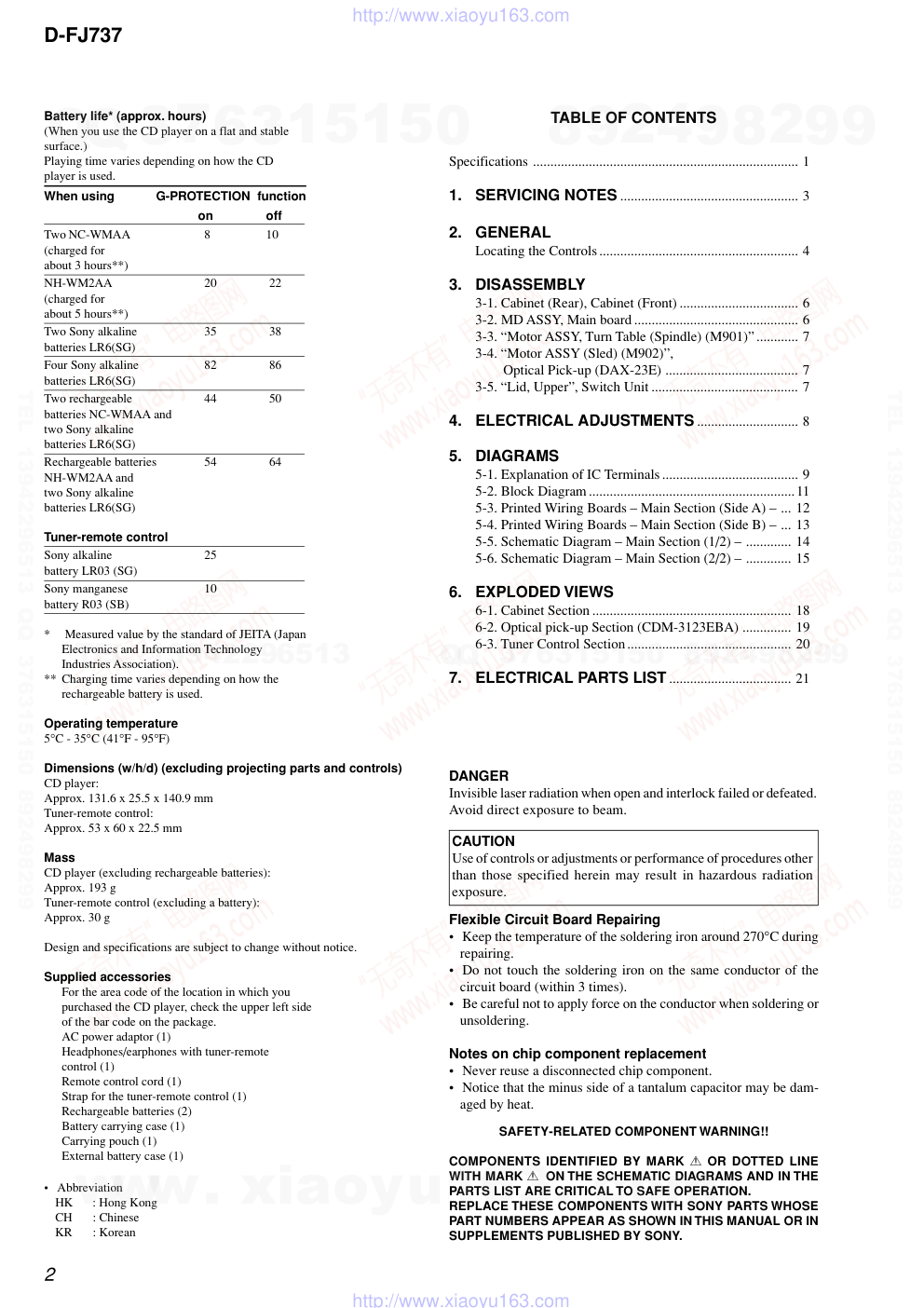

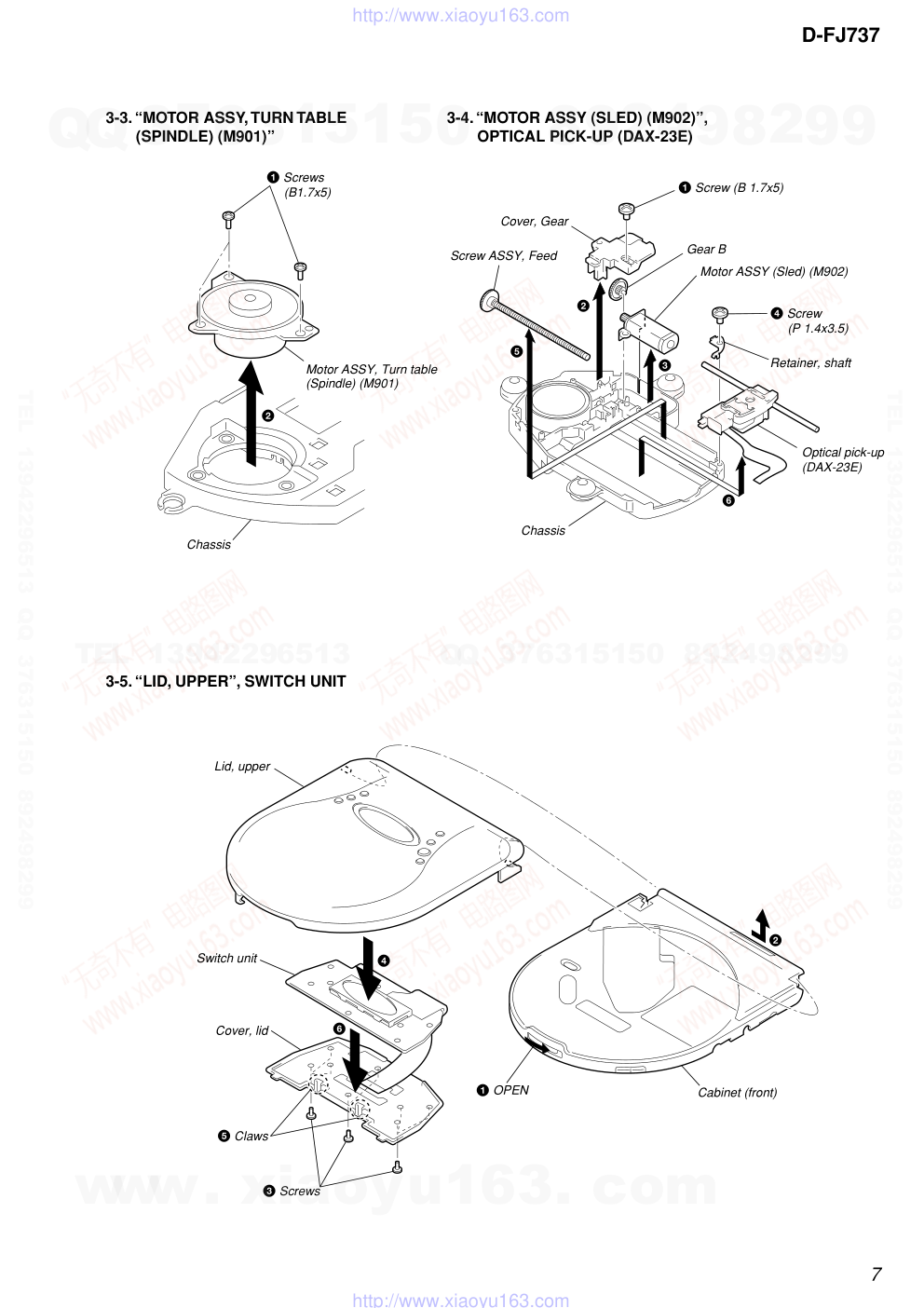

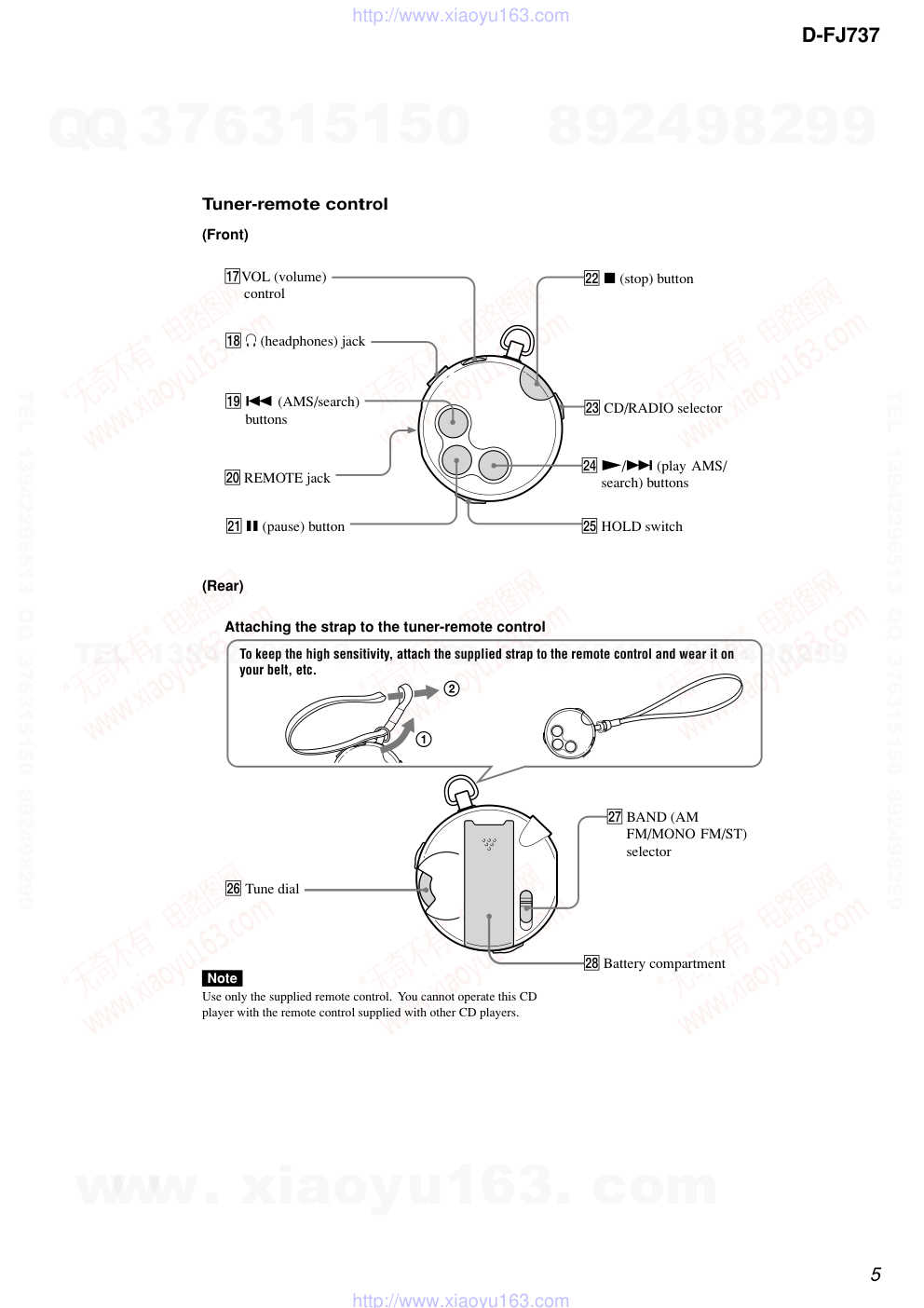

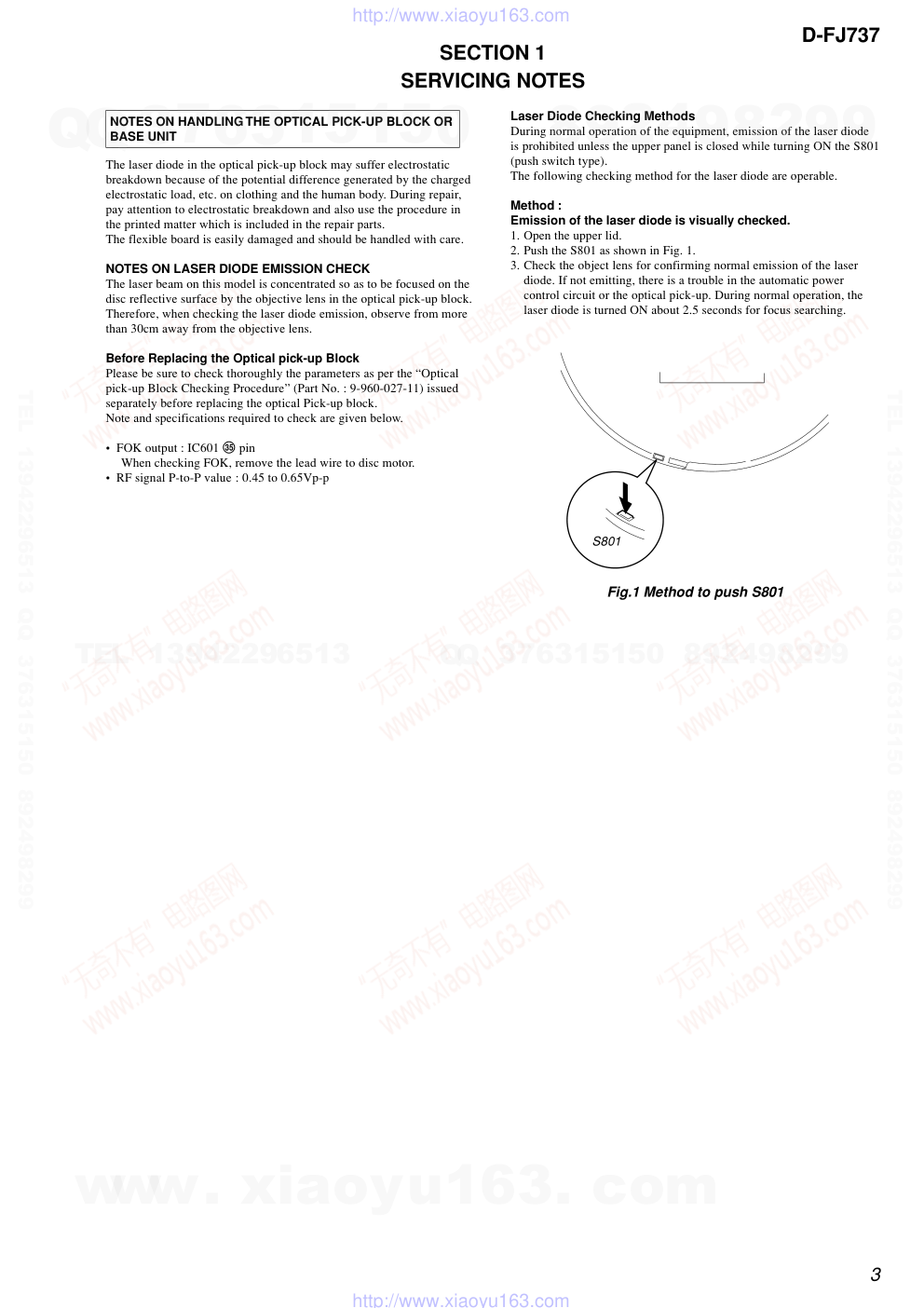

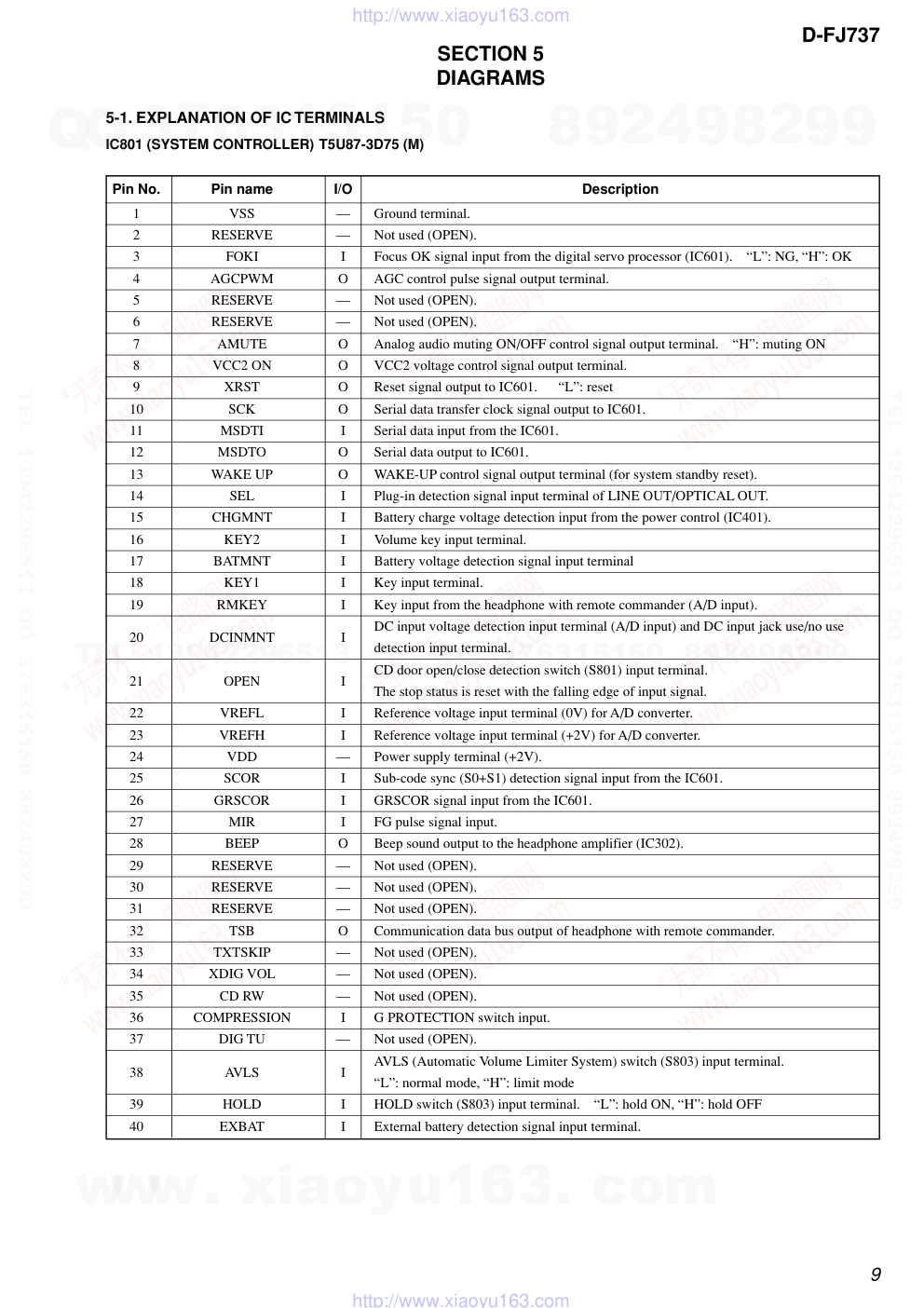

9-873-293-01 2001I0200-1 © 2001.9 Ver 1.0 2001.09 Sony Corporation Personal Audio Company Shinagawa Tec Service Manual Production Group SERVICE MANUAL FM/AM PORTABLE CD PLAYER E Model Chinese Model Model Name Using Similar Mechanism D-EJ725 CD Mechanism Type CDM-3123EBA Optical Pick-up Type DAX-23E SPECIFICATIONS D-FJ737 System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 dB (measured by JEITA CP-307) Output (at 4.5 V input level) Line output (stereo minijack) Output level 0.7 V rms at 47 kΩ Recommended load impedance over 10 kΩ Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω Optical digital output (optical output connector) Output level: –21 - –15 dBm Wavelength: 630 - 690 nm at peak level Frequency range (tuner-remotecontrol) FM: 87.5 - 108.0 MHz AM: 531 - 1 602 kHz Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. CD player: • Two Sony NC-WMAA rechargeable batteries: 2.4 V DC • Sony NH-WM2AA rechargeable batteries: 2.4 V DC • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): E13 model: 220 - 230 V, 50/60 Hz Korean model: 100 - 240 V, 50/60 Hz Hong Kong model: 220 V, 50/60 Hz Chinese model: 220 V, 50 Hz Tuner-remote control (when used separately): • One R03 (size AAA) battery: 1.5 V DC – Continued on page 2 – –2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 D-FJ737 Specifications ............................................................................ 1 1. SERVICING NOTES ................................................... 3 2. GENERAL Locating the Controls......................................................... 4 3. DISASSEMBLY 3-1. Cabinet (Rear), Cabinet (Front) .................................. 6 3-2. MD ASSY, Main board ............................................... 6 3-3. “Motor ASSY, Turn Table (Spindle) (M901)” ............ 7 3-4. “Motor ASSY (Sled) (M902)”, Optical Pick-up (DAX-23E) ...................................... 7 3-5. “Lid, Upper”, Switch Unit .......................................... 7 4. ELECTRICAL ADJUSTMENTS ............................. 8 5. DIAGRAMS 5-1. Explanation of IC Terminals ....................................... 9 5-2. Block Diagram...........................................................11 5-3. Printed Wiring Boards – Main Section (Side A) – ... 12 5-4. Printed Wiring Boards – Main Section (Side B) – ... 13 5-5. Schematic Diagram – Main Section (1/2) – ............. 14 5-6. Schematic Diagram – Main Section (2/2) – ............. 15 6. EXPLODED VIEWS 6-1. Cabinet Section ......................................................... 18 6-2. Optical pick-up Section (CDM-3123EBA) .............. 19 6-3. Tuner Control Section............................................... 20 7. ELECTRICAL PARTS LIST ................................... 21 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. DANGER Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. • Abbreviation HK : Hong Kong CH : Chinese KR : Korean Battery life* (approx. hours) (When you use the CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. When using G-PROTECTION function on off Two NC-WMAA 8 10 (charged for about 3 hours**) NH-WM2AA 20 22 (charged for about 5 hours**) Two Sony alkaline 35 38 batteries LR6(SG) Four Sony alkaline 82 86 batteries LR6(SG) Two rechargeable 44 50 batteries NC-WMAA and two Sony alkaline batteries LR6(SG) Rechargeable batteries 54 64 NH-WM2AA and two Sony alkaline batteries LR6(SG) Tuner-remote control Sony alkaline 25 battery LR03 (SG) Sony manganese 10 battery R03 (SB) * Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association). ** Charging time varies depending on how the rechargeable battery is used. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) CD player: Approx. 131.6 x 25.5 x 140.9 mm Tuner-remote control: Approx. 53 x 60 x 22.5 mm Mass CD player (excluding rechargeable batteries): Approx. 193 g Tuner-remote control (excluding a battery): Approx. 30 g Design and specifications are subject to change without notice. Supplied accessories For the area code of the location in which you purchased the CD player, check the upper left side of the bar code on the package. AC power adaptor (1) Headphones/earphones with tuner-remote control (1) Remote control cord (1) Strap for the tuner-remote control (1) Rechargeable batteries (2) Battery carrying case (1) Carrying pouch (1) External battery case (1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-FJ737 The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30cm away from the objective lens. Before Replacing the Optical pick-up Block Please be sure to check thoroughly the parameters as per the “Optical pick-up Block Checking Procedure” (Part No. : 9-960-027-11) issued separately before replacing the optical Pick-up block. Note and specifications required to check are given below. • FOK output : IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.45 to 0.65Vp-p SECTION 1 SERVICING NOTES Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper panel is closed while turning ON the S801 (push switch type). The following checking method for the laser diode are operable. Method : Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S801 as shown in Fig. 1. 3. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. During normal operation, the laser diode is turned ON about 2.5 seconds for focus searching. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig.1 Method to push S801 S801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-FJ737 SECTION 2 GENERAL LOCATING THE CONTROLS This section is extracted from instruction manual. CD player (front) CD player (inside) qd i (headphones) jack qg AVLS switch qh Battery compartment 1 Display 7 VOLUME +/– buttons 5 HOLD switch 3 PLAY MODE button 6 OPEN switch 2 REPEAT/ENTER button 4 SOUND button 9 u (play/pause) button q; x (stop)/CHG (charge) button CD player (rear) 8 ./> (AMS/search) buttons qf G-PROTECTION switch qs LINE OUT (OPTICAL) jack qa EXT BATT (external battery)/ DC IN 4.5 V (external power input) jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-FJ737 Tuner-remote control qk i (headphones) jack (Front) ql . (AMS/search) buttons wd CD/RADIO selector (Rear) qjVOL (volume) control ws x (stop) button w; REMOTE jack wg HOLD switch wa X (pause) button Attaching the strap to the tuner-remote control To keep the high sensitivity, attach the supplied strap to the remote control and wear it on your belt, etc. wh Tune dial wj BAND (AM� FM/MONO�FM/ST) selector wk Battery compartment Note Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players. wf N/> (play�AMS/ search) buttons www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-FJ737 SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 3-1. CABINET (REAR), CABINET (FRONT) 3-2. MD ASSY, MAIN BOARD z The equipment can be removed using the following procedure. 3 CN502 (green) 4 2 CN503 (white) 1 Optical pick-up flexible board MD ASSY Main board Cabinet (rear) Cabinet (rear) MD ASSY, Main board “Lid, upper”, Switch unit “Motor ASSY (Sled) (M902)”, Optical pick-up (DAX-23E) “Motor ASSY, Turn table (Spindle) (M901)” Cabinet (front) Set Cabinet (rear) 1 Screw (2x8) 1 Screw (2x8) 4 Switch unit flexible board Cabinet (front) 2 Claw 2 Claws 3 2 Claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 D-FJ737 3-3. “MOTOR ASSY, TURN TABLE (SPINDLE) (M901)” 3-4. “MOTOR ASSY (SLED) (M902)”, OPTICAL PICK-UP (DAX-23E) 3 5 6 2 1 Screw (B 1.7x5) 4 Screw (P 1.4x3.5) Screw ASSY, Feed Chassis Optical pick-up (DAX-23E) Retainer, shaft Gear B Cover, Gear Motor ASSY (Sled) (M902) 2 Motor ASSY, Turn table (Spindle) (M901) 1 Screws (B1.7x5) Chassis 3-5. “LID, UPPER”, SWITCH UNIT 4 2 6 Switch unit Cover, lid Cabinet (front) Lid, upper 1 OPEN 5 Claws 3 Screws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-FJ737 Procedure: 1. Connect the oscilloscope to the test points TP629 (RF) and TP635 (GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the cen- ter of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watching. 5. Stop revolving of the disc motor by pressing the x button. SECTION 4 ELECTRICAL ADJUSTMENTS The CD section adjustments are done automatically in this set. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement : DC4.5 V in DC IN jack. (J401) VOLUME button : Minimum AVLS switch : NORM HOLD switch : OFF Focus bias Check Condition: • Hold the set in horizontal state. Connection: RF level 0.45 to 0.65 Vp-p VOLT/DIV : 100 mV (With the 10 : 1 probe in use) TIME/DIV : 500ns IC501 D461 C505 R649 IC402 IC604 C622 C461 R506 R461 TP818 R654 TP922 TP635 (GND) TP637 TP638 R463 TP912 Q501 R624 TP641 R635 C625 C646 TP403 TP911 R653 R647 C605 C609 R504 R652 R462 TP R625 TP501 TP503 FB602 TP502 TP504 C620 FB603 TP417 C631 C632 C630 R657 R104 R505 D602 C645 TP633 TP629 (RF) TP630 C635 C636 C502 TP632 C506 C462 R655 C507 C628 C626 C624 C623 R656 TAP602 TP302 TAP403 TP920 TP915 C634 TP631 R5 R4 1 6 7 12 24 19 18 13 IC602 1 3 4 5 1 3 4 5 1 8 9 16 MAIN BOARD (SIDE B) TP629 (RF) TP635 (GND) 2 K Ω oscilloscope (AC range) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 D-FJ737 Pin No. Pin name I/O Description 1 VSS — Ground terminal. 2 RESERVE — Not used (OPEN). 3 FOKI I Focus OK signal input from the digital servo processor (IC601). “L”: NG, “H”: OK 4 AGCPWM O AGC control pulse signal output terminal. 5 RESERVE — Not used (OPEN). 6 RESERVE — Not used (OPEN). 7 AMUTE O Analog audio muting ON/OFF control signal output terminal. “H”: muting ON 8 VCC2 ON O VCC2 voltage control signal output terminal. 9 XRST O Reset signal output to IC601. “L”: reset 10 SCK O Serial data transfer clock signal output to IC601. 11 MSDTI I Serial data input from the IC601. 12 MSDTO O Serial data output to IC601. 13 WAKE UP O WAKE-UP control signal output terminal (for system standby reset). 14 SEL I Plug-in detection signal input terminal of LINE OUT/OPTICAL OUT. 15 CHGMNT I Battery charge voltage detection input from the power control (IC401). 16 KEY2 I Volume key input terminal. 17 BATMNT I Battery voltage detection signal input terminal 18 KEY1 I Key input terminal. 19 RMKEY I Key input from the headphone with remote commander (A/D input). 20 DCINMNT I DC input voltage detection input terminal (A/D input) and DC input jack use/no use detection input terminal. 21 OPEN I CD door open/close detection switch (S801) input terminal. The stop status is reset with the falling edge of input signal. 22 VREFL I Reference voltage input terminal (0V) for A/D converter. 23 VREFH I Reference voltage input terminal (+2V) for A/D converter. 24 VDD — Power supply terminal (+2V). 25 SCOR I Sub-code sync (S0+S1) detection signal input from the IC601. 26 GRSCOR I GRSCOR signal input from the IC601. 27 MIR I FG pulse signal input. 28 BEEP O Beep sound output to the headphone amplifier (IC302). 29 RESERVE — Not used (OPEN). 30 RESERVE — Not used (OPEN). 31 RESERVE — Not used (OPEN). 32 TSB O Communication data bus output of headphone with remote commander. 33 TXTSKIP — Not used (OPEN). 34 XDIG VOL — Not used (OPEN). 35 CD RW — Not used (OPEN). 36 COMPRESSION I G PROTECTION switch input. 37 DIG TU — Not used (OPEN). 38 AVLS I AVLS (Automatic Volume Limiter System) switch (S803) input terminal. “L”: normal mode, “H”: limit mode 39 HOLD I HOLD switch (S803) input terminal. “L”: hold ON, “H”: hold OFF 40 EXBAT I External battery detection signal input terminal. SECTION 5 DIAGRAMS 5-1. EXPLANATION OF IC TERMINALS IC801 (SYSTEM CONTROLLER) T5U87-3D75 (M) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 D-FJ737 Pin No. Pin name I/O Description 41 BATDET I Battery detection input. 42 XHGOM O Optical pick-up power ON/OFF control signal output terminal. “L”: ON 43 XLAT O Serial data latch pulse signal output to IC601. 44 XSOE O Serial data output enable signal output terminal. 45 RESERVE — Not used (OPEN). 46 XPOWLT O Latch signal output to the power control (IC401). 47 XDOUTON O Digital out ON/OFF signal output. 48 XAPC OFF O APC mute signal output terminal. “L”: mute 49 RESERVE — Not used (open). 50 to 64 SEG14 to SEG0 O Segment drive signal output to the liquid crystal display. 65 to 68 COM3 to COM0 O Common drive signal output to the liquid crystal display. 69 to 71 V3 to V1 O Bias signal output to the liquid crystal display driver. 72, 73 C1, C0 O Capacitor connected terminal for the liquid crystal display driver voltage-up. 74 STOP O VCD control stop signal output terminal. Not used (Fixed at “L”). 75 TEST I Test terminal for IC (Fixed at “L”). 76 VOL LT O VCC2 voltage control signal output terminal. 77 BACKLIGHT — Not used (open). System reset signal input from the power control (IC401). “L”: reset 78 RESET I For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 79 XIN I System clock input terminal. 80 XOUT — Not used (OPEN). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 D-FJ737 5-2. BLOCK DIAGRAM • Signal path. J : CD D401 X601 S803 S804 S802 J302 S801 Q409 Q400 RV401 F401 D411 J301 J401 16.9MHz (OPEN/CLOSE) RESET APC MUTE /REMOTE DC IN 4.5V DRY BATTERY SIZE "AA" 2PCS, 3V (IEC DESIGNATION LR6) RECHARGEABLE BATTERY NC-WMAA/NH-WM2AA 2.4V RIN LIN LOUT ROUT MUTE PWRSW BEEP BEEP HEADPHONE AMP CHARGE ON/OFF Q403 Q404 CONVERTER D-D BATTERY DET VCC1 L3 INM4 VLGO1 BATM2 BATM1 DCIN RS CHGSW VG B+ 4.5V B+ 3V B+ 2V B+ 2.5V VLG3 MUTE Q301,302 B+ 2V GND RMKY TSB VCPU B A RFDC RFAC F MDP SFDR SRDR FFDR FRDR TRDR TFDR MDS LOUT1 LOUT2 FOK SCOR SDTO SENS CLOK XLAT R4M XSOE WDCK XRST XTAI XTAO SCOR SDTO SENS CLOK XLAT R4M XSOE WDCK MDS RFAC MDP E F E B A RFDC SERVO SIGNAL PROCESSER BLOCK CONTROLLER, BUS BOOST BLOCK LPF AMUTE WAKEUP_O XPOWLT_O AGCPWM_O AD_CHGMNT XAPC_OFF_O WP_OPEN AD_KEY2 AVLS_I HOLD_I COMPRESSION_I AD_KEY1 VCC2ON_O BATDET_I AD_DCINMNT AD_BATMNT AMUTE_O XHGON_O FOK_I SCOR_I MSDTO_O (SENS)MSDTI_I SCK_O XLAT_O XIN_I XSOE_O GRSCOR_I XRST_O AD_SEL ON ON OFF LIMIT NORM OFF DISPLAY LIQUID CRYSTAL - - 65 68 50 64 B+ 2V FI1 RI1 FI2 RI2 FI3 RI3 POL/RI4 CLOCK DATA RSTB WAKEUP LATCH RF2 APCREF CHGMNT FO2 RO2 FO3 RO3 PAPC VLGO2 RF21 INM2 FO4 RO4 FO1 FOCUS COIL TRACKING COIL VCC A B RF E F LD ON/OFF SWITCH B+ 2V LD PD SPINDLE MOTOR SLED MOTOR COMPARATOR B+ SWITCH Q405 S805,806 B+ 2V SYSTEM CONTROL PWM/FI4 SYNC F+ F- T+ T- RMKY RMKY B+ 2V COM0-3 B+ 3V B+ 4.5V MEMORY VIN AD_RMKEY B+ 3V VCPU +2V VCPU - - 106 109 7 1 115 118 XRAS XWE XCAS XOE A0 A9 - HPR HPL VCC1 2V ATSK (IC402,404) RO1 COMPARATOR C176 SEG0-14 RF1 VC IN2+ IN2- IN3+ IN3- RFO IV2- IV2+ IV3- IV3+ GCNT VC VCPU VCPU +2V B+ 3V 16M DRAM IC601 IC402 IC604 IC602 IC404 IC801 IC401 IC401 STNG VCC2 VOLTAGE CONTROL Q406,407 CHARGE SWITCH Q402 POWER CONTROL (2/2) B+ SWITCH Q412 REG IC405 G PROTECTION HOLD AVLS VOLUME+/- M902 M901 (1/2) SPINDLE/SLED MOTOR DRIVE, TRACKING/FOCUS COIL DRIVE POWER CONTROL, RF AMP RF AMP, SERVO,DIGITAL SIGNAL PROCESSOR, D/A CONVERTER, D-RM CONTROLLER IC501 STBY B+ 2V VOLTAGE CONTROL Q410 INP1 EXBATT_I Q416 Q414 AC ADAPTOR DET B+ 4.5V TSB I/O IC351 D0 D3 XDOUTON_O Q601 DOUT Q501 DIGITAL OUT ON/OFF SOUND PLAY MODE ENTER REPEAT/ /CHG BEEP_O RES ET_I BLOCK LINE OUT (OPTICAL) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 D-FJ737 5-3. PRINTED WIRING BOARDS – MAIN BOARD (SIDE A) – Note: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. • Abbreviation HK : Hong Kong CH : Chinese KR : Korean D312 D-8 D401 A-4 D402 B-7 D403 E-6 D405 D-6 D406 D-7 D411 C-7 D601 F-4 D804 C-6 IC404 A-5 IC405 A-7 IC601 F-3 IC801 B-6 Q301 G-4 Q400 D-7 Q405 F-6 Q406 F-6 Q407 G-5 Q408 D-6 Q409 E-6 Q414 C-7 Q601 C-8 VDR111 E-8 VDR211 E-8 Ref. No. Location z Semiconductor Location 2 3 4 5 6 7 8 9 A 1 B C D E F G H 1 5 10 15 20 25 30 31 35 40 45 50 55 60 61 65 70 75 80 85 90 91 95 100 105 110 115 120 65 80 75 70 61 60 55 50 45 41 40 35 30 25 21 20 15 10 LIQUID CRYSTAL DISPLAY (SWITCH UNIT) [LCD UNIT] u PLAY MODE REPEAT/ENTER SOUND /CHG . x > S803 HOLD OPTICAL PICK-UP BLOCK DAX-23E MAIN BOARD (SIDE A) M M 1 5 10 13 J302 i/REMOTE J401 DC IN 4.5V DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS, 3V RECHAGEABLE BATTERY NC-WMAA/NH-WM2AA 2.4V S804 G PROTECTION t ON OFF S801 (OPEN/CLOSE) M901 SPINDLE MOTOR M902 SLED MOTOR ON OFF r R438 IC801 TP815 TP427 BT401 R432 C452 C638 R804 TAP802 R110 R401 Q407 C409 CN503 R842 R644 TP650 D601 R206 IC405 C811 C403 S801 TP648 D406 TP649 R457 R439 TP923 R809 TP805 FB312 C431 R402 C803 C802 VDR211 R810 R353 R102 TP801 L407 R103 R801 R443 1 5 10 15 20 C435 R622 R437 R841 R434 R507 C651 C354 TP609 R626 TP612 TP613 TP614 TP615 R627 TAP801 Q414 R631 TP640 TP639 C454 R301 C351 R621 TP804 C841 C407 L411 R608 D411 R436 C456 R433 C410 C433 L408 R846 C418 R632 D402 1 4 5 8 L401 C204 C201 C402 R633 C426 TP929 R424 R803 R422 C422 BT400 L406 R423 C641 Q409 C455 R503 TP607 C809 R435 IC601 C642 IC404 R605 R609 R603 C602 C603 C604 C102 C104 C607 R610 TP610 TP611 TP616 R205 R630 R629 R606 L431 C405 C445 R207 C114 R105 TP604 C801 C202 R203 R210 L403 X601 TP603 L601 R317 R825 R108 C606 C432 TP429 C639 C154 C311 TP628 TP627 TP626 TP625 TP624 TP623 C436 C621 R628 Q405 R502 S803 TP428 C254 R254 C404 R440 R444 R460 R441 R811 TAP601 C627 C437 R637 R107 C356 R201 C214 R154 TP619 TAP402 R612 D401 R208 R202 Q400 R623 R820 R845 C101 C611 Q601 BT402 VDR111 C352 CN502 TP925 TP924 R607 TP916 R648 Q301 R604 TP919 TP910 R611 TP909 TP902 CN501 D312 D403 TP651 CN801 D804 C429 Q408 D405 Q406 L602 C508 1 3 4 5 1 5 11 (11) 1-679-326- w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 D-FJ737 5-4. PRINTED WIRING BOARDS – MAIN BOARD (SIDE B) – D311 E-2 D404 B-3 D461 E-7 D602 F-7 D803 B-4 IC351 G-4 IC401 E-3 IC402 E-8 IC501 F-8 IC602 G-6 IC604 F-6 Q302 H-6 Q402 B-3 Q403 C-2 Q404 B-3 Q412 B-3 Q416 F-3 Q501 E-7 VDR101 C-2 VDR201 D-2 VDR301 C-2 VDR801 B-4 Ref. No. Location z Semiconductor Location 2 3 4 5 6 7 8 9 A 1 B C D E F G H TP416 IC501 TP816 C111 TP404 R112 L412 TP420 TP807 C112 C235 TP410 FB101 R413 D461 R473 TP505 L311 C406 C806 R404 Q404 C443 C301 TP409 C401 C505 TP407 TP405 TP406 C211 R649 IC402 C135 TP414 R450 TP421 TP402 C804 R802 IC604 TP408 L413 R213 L409 R474 C622 TP809 R453 FB301 R315 R319 C805 C808 R211 FB201 C812 VDR101 C461 TP901 R410 C423 TP820 R506 C417 R405 TP415 R452 C810 Q403 R447 R407 R114 R461 R418 TP818 TP412 L405 TP211 D404 IC401 L402 TP111 R408 R212 R465 Q416 TP819 TP634 TP606 TP817 R654 IC351 TP922 TP311 R475 TP635 (GND) TP637 TP638 R463 TP411 C451 TP912 R111 L404 R427 R449 C453 R448 Q501 R455 R826 R409 C442 TP903 TP802 R414 R419 C413 C415 R624 R420 C813 TP641 TAP401 TP401 R403 TP419 R416 C414 R429 C424 R635 C213 C425 C625 TP315 C412 C408 C646 R813 TP806 D803 C428 TP403 TP911 R653 TP508 R647 C814 C605 C609 TP509 R504 R652 TP507 TP506 R415 R462 Q402 FB211 FB111 TP461 VDR201 S802 FB311 R625 TP501 C212 Q302 TP503 FB602 TP502 TP504 C620 FB603 TP417 C631 C632 C630 R657 R104 R204 R505 L410 C110 C304 D602 R113 C303 C645 R634 TP633 TP629 (RF) C444 TP630 C411 C635 C636 C502 TP632 TP322 TP314 TP636 C506 C462 R655 R302 C507 C628 R421 VDR301 TP620 C626 C624 C623 R656 R101 TP201 R214 C807 TP312 TP101 TP301 TP313 TP904 C113 TAP602 R316 R355 VDR801 D311 R821 R106 R430 R454 TP803 R451 R456 TP302 TP424 TP425 TP808 TP821 TP413 Q412 TAP403 R816 TP920 TP915 R406 TP900 C634 C210 R466 R824 R458 C421 C420 L604 L603 R320 TP631 R5 R4 C353 S805 S806 S805 VOL+ S806 VOL– J301 LINE OUT (OPTICAL) S802 AVLS LIMITtNORM MAIN BOARD (SIDE B) 1-679-326- 11 (11) 1 6 7 12 24 19 18 13 IC602 1 5 10 15 20 25 21 30 35 40 75 80 70 65 61 41 50 45 60 55 1 5 10 12 13 15 20 24 1 3 4 5 1 3 4 5 1 8 9 16 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 D-FJ737 5-5. SCHEMATIC DIAGRAM – MAIN SECTION (1/2) – z Refer to page 16 to 17 for IC Block Diagrams. z Refer to page 16 for Waveforms z Refer to page 16 for Notes. C451 TP420 D404 R451 TP421 C452 R452 R453 R454 R455 TP422 C455 C456 D402 R413 R458 C453 TP903 IC401 TP509 TP508 CN502 CN503 TP506 TP507 CN501 TP505 C502 TP501 TP502 TP503 TP504 TP411 TP410 R408 TP412 C407 TP909 R409 C408 R448 R447 R449 R456 TP902 R432 R441 TP427 TP428 R439 R450 L431 Q406 R440 R410 TP413 TP414 TP415 C415 C417 TP416 TAP403 R444 L405 C420 TP408 C421 C422 R422 R423 C426 R424 TP401 L408 22µH TAP402 C402 D406 C403 R402 R401 C404 TP403 TP404 TP405 TP406 TP407 C428 R466 R465 TP409 TP322 R474 R473 R475 L604 R457 R460 D411 C406 R404 L409 47µH R406 R405 R403 D403 C405 TP419 R436 C435 C433 R435 R434 R433 TP910 C432 C431 L406 C418 J401 C454 TP429 BT400 BT401 BT402 TP423 TP424 C445 C611 R611 TP911 TP912 TP629 R4 R5 TP402 L404 L401 100µH 100µH 100µH 100µH L403 C424 R414 R420 TP901 TAP401 C414 R419 R421 C423 Q407 Q404 Q403 R443 D401 C444 IC405 C443 R407 R418 R429 R430 Q414 TP425 Q409 TP417 C401 C410 C409 Q402 Q412 Q416 R506 C506 C507 C508 C505 R504 R505 Q501 IC501 C436 C412 C413 R415 R416 TP900 R438 L412 L411 4.7µH 2.2µH R427 C651 R622 R503 R502 Q405 L410 10µH C411 C425 L407 R437 L402 C442 IC404 BATTERY DET R612 L413 1 DC + MA2H735 220k MAINGND 2.2 47k 47k 47k 33k B+ 0.22 0.1 UDZ5.1B 0 330k 0.22 TB2119F POWER/DRIVER IC POWER CONTROL, SPINDLE/SLED MOTOR DRIVE, FOCUS/TRACKING COIL DRIVE C- C+ GREEN WHITE S- S+ 13P GND 4.7 F- T+ T- F+ VCPU VCC1 470k CHGSW 1500p 220k 22p 2.2 3.3 2.2 330 1M 1.5M 1.5M 100k 0 2SB16790 2.2k 68k RESET DTC2D DTC1D 0.1 33 6.3V LD LD 1k 22 4V 10 4V 1 15k 33k 1 10k VREF VIN 4.7 MA785TX 4700p 10k 2.2M 10 16V 176K WAKEUP SCK SDTO POWERLT 220p 0 0 MDS 1M 1M 470k 0 100 100k 1SS367 33 6.3V 0 0 0 470k MA111-TX 1 VCC2 0 4.7 4700p 47k 220k 0 4.7 10 10V 100 6.3V 0.1 B+ BCENTER B- BATC B- 0.1 15p 22k RF 0 0 VG 0.033 100k 0 VIN 2200p 220k 1M 0.01 DTC144EUA 2SK1374 D-D CONVERTER 2SD1781K CHARGE ON/OFF 150 MA2H735 22 10V SI-3048LSA REGULATOR IC 1 0 100k 2.2M 470 DTC144EUA AC ADAPTOR DET AGCPWM DTC143TUA RESET PD 0.01 100 4V 100 4V 2SB1188 CHARGE SWITCH 2SB1073-QR B+ SWITCH XP6501 STNG SWITCH 0 100p 68p 10 1 0 0 DTA114TUA LD ON/OFF SWITCH BA6779BFV-E2 0.22 0.1 0.01 10k 1M 2.2M 100k 3300p 100k 1k 2.2k SSM3J01T B+ SWITCH 1 0.1 0 1M 0 0.1 TC75S57F 100k 0 3 5 7 8 9 10 11 12 13 14 15 17 18 19 20 22 23 1 2 24 6 4 16 21 T- C+ C- F- T+ T- F+ S+ S- C- C+ E F B A WAKEUP SCK SDTO POWERLT T+ SRDR SFDR FFDR FRDR TFDR TRDR RF F+ F- S- S+ BATMNT DCINMNT CHGMNT BATDET RF A B E F E F B A A B RF F E VCC RF VREF RF2 INM2 VG GND SYNC WAKEUP CLOCK DATA LATCH FI3 RI3 FI4 RI4 HPI1 HPI2 HPOUT2 VHP HPOUT3 HPGND HPOUT1 RO4 MGND4 FO4 VD34 RO3 MGND3 FO3 VD23 RO2 MGND2 FO2 VD12 RO1 MGND1 FO1 FI1 RI1 FI2 RI2 CHGSW RS INM4 RF4 DCIN VCPU VCC1 RSTB DTC2D DTC1D INM1 RF1 INP1 CHGMNT BATM2 BATM1 VLGO1 L1L PGND1 L1H VIN L2H PGND2 L2L VLGO2 PGND3 L3 VLG3 INP3 INM3 RF3 DTC3 RF21 PAPC APCREF VINDET WHITE L4 DVDD AVDD VCC GND LD PD VCC1/VCPU VCC2 LASER STNG NC HPI3 RFO FEO TEO GREEN LD PD + - + - TRACKING COIL FOCUS COIL SPINDLE MOTOR SLED MOTOR DRY BATTERY SIZE "AA" 2PCS, 3V (IEC DESIGNATION LR6) RECHARGEABLE BATTERY NC-WMAA/NH-WM2AA 2.4V DC IN 4.5V RF1 VC IN2+ IN2- IN3+ IN3- OFFADJ GND AVDD RFO IV2- IV2+ IV3- IV3+ GCNT XSTBY RF AMP 1 13 DETECTOR BOARD MAIN (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 D-FJ737 5-6. SCHEMATIC DIAGRAM – MAIN SECTION (2/2) – z Refer to page 16 to 17 for IC Block Diagrams. z Refer to page 16 for Waveforms z Refer to page 16 for Notes. IC601 IC801 S801 S803 S802 S804 IC604 R657 R653 R654 R656 R655 TP461 C645 R652 C646 TP915 R463 D461 C462 C461 C624 R205 TP904 FB301 R105 FB201 C304 VDR301 C303 TP302 TP101 TP201 VDR101 VDR201 C201 C101 R101 R201 R206 R106 J302 TP312 TP313 TP314 D312 D311 C311 R315 R316 L311 TP111 TP311 FB311 VDR211 VDR111 TP211 R114 R214 R317 TP819 TP818 TP817 TAP802 R841 TP816 R825 C841 C154 C254 C354 R254 R154 C356 R320 R208 R108 R204 R103 R203 R104 R207 R202 C202 C204 C104 C102 R102 R107 TP922 TP920 TP301 C634 FB602 R621 C630 C631 X601 R644 C135 C235 C110 C213 C113 C211 C111 C212 C112 R113 R112 R353 R633 R634 TP635 TP634 R632 TP919 C627 C626 TP623 TP625 TP626 TP627 TP628 TP624 C623 C625 TP620 R637 C639 TP619 R630 C622 L601 4.7µH TP616 R648 R628 R647 C641 R627 R649 R624 C620 D602 R623 TP916 D601 R626 R625 C642 R629 TP607 TP604 TP603 TP606 C636 TP651 TP650 TP649 TP648 R607 C603 C604 TP637 TP638 TP639 TP640 TP641 C628 R610 R609 C607 C606 R608 R603 R606 R605 R604 C602 C605 TP636 FB603 R826 C810 C809 C808 C807 C813 C806 C805 C801 C802 C803 TP801 R803 R802 C814 TP802 R801 TP803 R820 R821 TP815 R824 C429 C437 D405 R211 R111 R212 TP925 TP924 C352 C351 TP929 R355 TP615 TP614 TP613 TP612 TP611 TP610 TP609 L602 R846 R845 S805 S806 R804 R213 C210 TP820 TAP801 L603 TP805 TP804 R811 R810 TP808 TP806 TP809 R319 C812 TP821 R809 CN801 D803 TP807 R462 R461 C301 Q302 Q301 IC351 R842 R813 R302 R635 IC602 R816 Q408 Q400 R507 TP923 C609 Q601 C811 C214 C114 TP315 J301 FB312 FB211 10µH 10µH 10µH 2.2µH FB111 R301 C638 FB101 2.2µH C635 C632 C629 C621 R631 IC402 R110 R210 C804 D804 C353 VDR801 2.2µF CXD3028R DSP IC T5U87 MICON (OPEN/CLOSE) TA75S393F 100k 47k 150k 2.2k 2.2k MDP1 0.033 6.8k 0.1 1M MA2ZD1400 68p 0.47 1000p 1k 0 1k 2.2UH 1 AVRM1608C120 100p DOUT LOUT ROUT AVRM1608C120 AVRM1608C120 4.7 4.7 220 220 100k 100k RMGND RMKEY TSB UDZ5.1B UDZ5.1B 47 4V 10k 1k HP_LOUT HP_GND mmZ1608Y152B AVRM1608C120 AVRM1608C120 HP_ROUT 330 330 1k J-MODE HOLD AVLS 220k OPEN 1M 0.01 0.1 0.1 0.1 4.7 4.7 100 6.3V 0 100 100 100k 10k 10k 100k 220k 15k 220p 4.7 4.7 220p 15k 220k AU_GND 220 4V 33 68 15p 47p 16.9MHz 100k 1000p 1000p 2.2 220p 220p 4700p 4700p 680p 680p 10k 6.8k 4.7 47 47 AGND DGND 33k 0.1 10 4V SFDR TFDR TRDR FFDR FRDR SRDR 1 10 4V FOK 0 100 4V DFCT 680 0.1 ATSK 680 0 680 100p 0 680 100k 0.01 UDZ5.1B 1k MA729WK 0 10k 100p 10k XWIH XEMP AMUTE 0.1 XOE XCAS XWE XRAS 10k 0.1 4700p XUGF XPCK GFS C2PO 0.1 0 10k 0.47 100p 330k 330k 3.3k 3.3k 1M 0.22 0.1 WDCK 0 10k 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.22 68k 100k 0.1 R4M 100k DGND 0 0 10k 0.22 0.22 1SS367 1k 1k 6.8k 4.7 1 0 XSOE SENS SCK XLAT SDTO XRST SCOR 0 3.3k 4.7k 10k 10k 2.2 SEL TEST 0 0 0 BATMNT CHGMNT DCINMN T 0 470p KEY 100k 24PIN UDZ5.1B KEY2 47k 100k 4.7 UMD2T108 MUTE DRIVE XP4501 MUTE TA2120FN HP IC 10k 0 MSM51V4400D 4M DRAM 10k 2SA1576A APC MUTE DRIVE DTC143ZUA APC MUTE 0 DTA143EUA DIGITAL OUT ON/OFF 2.2 220 4V 220 4V VCPU 330k 10 4V 0.1 0.1 1 68p 680 TC75S57F 22k 22k 0.47 MA2ZD 10 4V 1 2 3 5 7 8 9 10 11 12 13 14 15 17 18 19 20 22 23 24 4 6 16 21 XRAS XWE D1 D0 D3 D2 XCAS XOE SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 COM0 COM1 COM2 COM3 OPEN AVLS HOLD XLAT XSOE SCOR XRST SDTO SCK SENS COM0 COM1 COM2 COM3 SEG1 SEG2 SEG3 HOLD AVLS SCOR OPEN RMKEY SFDR SRDR TFDR AMUTE XLAT XSOE A4 A5 A6 A7 A8 A9 POWERLT SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG6 SEG0 J-MODE J-MODE A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 D0 D1 D2 D3 XOE XCAS XRAS XWE A10 A0 A2 A1 A3 BATDET DCINMNT BATMNT WAKEUP AMUTE XRST SCK SDTO SENS TRDR FFDR FRDR RF E F B A SCOR XRST SDTO SCK SENS XLAT XSOE CHGMNT RMKEY DVSS A6 A5 A4 XWRE XRDE XEMP XWIH AMUTE SDT1 VSSO DFCT FOK C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 VC VPCO VCTL FILO FILI PCO CLTV AVSS3 RFAC BIAS ASYI ASYO XTSL VSS2 WDCK XUGF XPCK GFS C2PO AOUT2 AVSS2 LOUT2 AIN2 A3 A2 A1 A0 A10 XRAS XWE D1 D0 D3 TEST TES1 IGEN AVSS0 RFDC SEG14 SEG13 SEG6 SEG5 XOUT SEG4 SEG12 SEG11 SEG10 SEG9 SEG8 SEG7 SEG3 SEG2 SEG1 SEG0 COM3 COM2 COM1 COM0 V3 V2 V1 C1 C0 STOP TEST XQOK E B F A VDD VREFH VREFL VSS XIN_I FOK_I AGCPWM_O AMUTE_O VCC2ON_O XRST_O SCK_O WAKEUP_O AD_CHGMNT AD_SEL AD_BATMNT AD_KEY AD_RMKEY AD_DCINMNT WP_OPEN SCOR_I GRSCOR_I BEEP_O AVLS_I HOLD_I XLAT_O XPOWLT_O XDOUTON_O XAPC_OFF_O RESET_I MSDTI_I MSDTO_O XSOE_O AD_KEY2 XBACKLIGHT_O COMPON-I XHGON_O BATDET_I VOL_LT_O VDD1(2.0V) AVDD(2.0V) (2.5V)AVDD2 (2.5V)DVDD PWMI HPVSS HPL HPR HPVDD(2.0V) AVDD0 EXBATT_I TEXTSKIP-I MIR_I SENS_O CLOK_I SDTO_I XRST_I SCOR_O SCLK_I XLAT_I SYSM_I EXCK_I SBSO_O SCSY_I XQCK_I XDIG_VOL_I CD_RW_I XROF RESERVE RESERVE DIG_TU_I RESERVE RESERVE RESERVE TSB_I/O RESERVE RESERVE RESERVE /REMOTE LIMIT NORM ON OFF ON OFF 1K 1.5K 2.2K 3.3K 4.7K 6.8K SOUND PLAY MODE ENTER REPEAT/ DISPLAY LIQUID CRYSTAL 10K /CHG COMPARATOR COMPARATOR ATTSW GND BEEP MUTE_τ BIAS PGND VCC LIN RIN LOUT ROUT VREF BBSW PWRSW MUTE ALCDET ALCIN MIXOUT RFIN ADDOUT BSTNF BSTOUT BIAS_IN OCLSW XSOE ATSK R4M (2.0V) VDDO COUT MIRR WFCK DOUT LRCK LRCKI PCMD PCMDI BCK BCKI XVDD XTAI XTAO XVSS AOUT1 AIN1 LOUT1 AVSS1 VDD2(2.0) AVDD1(3.0V) A8 A7 A9 XOE D2 XCAS D1 D0 VSS D3 D2 A0 A1 A2 A3 VCC A4 A5 A6 A7 A8 XCAS XOE XRAS XWE HEADPHONE AMP VOLUME+ VOLUME- 1 5 10 15 20 24 22k 330k 4M DRAM VSS A10 VCC (OPTICAL) LINE OUT 1000p RF AMP, SERVO,DIGITAL D/A CONVERTER, D-RAM CONTROLLER SIGNAL PROCESSOR, SYSTEM CONTROL AVLS HOLD G PROTECTION (1/2) BOARD MAIN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 D-FJ737 1 2 3 5 4 6 + – 7 4 3 2 1 10 11 12 13 14 15 16 9 8 GAIN CTL RFI XSTBY GCNT VC IN2+ IN3- OFFADJ GND IV2+ 5 6 V-I V-I + – + V-I V-I + – + + – STB CTL RF BIAS ADJUST IN3+ IN2- IV2- RFO AVDD IV3- IV3+ Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. Note: Note: The components identi- Les composants identifiés fied by mark 0 or dotted par une marque 0 sont cri- line with mark 0 are cri- tiques pour la sécurité. tical for safety. Ne les remplacer que par Replace only with part une piéce portant le number specified. numéro spécifié. • A : B+ Line. • Power voltage is dc 4.5V and fed with regulated dc power supply from external power voltage jack (J401). • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : PLAY ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD • Abbreviation HK : Hong Kong CH : Chinese KR : Korean r Waveforms IC601 wg CLOCK VOLT/DIV : 0.5 V AC TIME/DIV : 0.5 µsec IC601 e; R4M IC601 rd MDP IC601 of XTAO IC601 ua RFAC IC801 ul XIN VOLT/DIV : 0.5 V AC TIME/DIV : 0.1 µsec PLAY MODE VOLT/DIV :0.5 V AC TIME/DIV : 2 µsec VOLT/DIV : 0.1 V AC TIME/DIV : 0.5 msec VOLT/DIV : 0.2 V AC TIME/DIV : 20 nsec VOLT/DIV : 0.5 V AC TIME/DIV : 0.1 µsec 2.1 Vp-p 1.9 µsec 2.1 Vp-p 239 nsec 2.1 Vp-p 3.8 µsec 450 – 650 mVp-p 0.9 Vp-p 16.9MHz 1.4 Vp-p 4MHz z IC Block Diagrams IC351 TA2120FN (EL) IC501 BA6779BFV-E2 60 VLGO1 BATM1 59 BATM2 58 CHGMNT 57 INP1 56 RF1 55 INM1 DTC1D DTC2D RSTB VCC1 VCPU DCIN RF4 INM4 RS CHGSW R12 F12 42 R11 41 40 F11 VREF L4 RF2 INM2 VG GND 7 SYNC 8 CLOCK 9 10 DATA WAKE UP 11 LATCH 12 F13 13 R13 NC 14 PWM4 15 FR4 16 HP11 17 HP12 18 STNG 19 20 HPIC F01 39 NGND1 38 R01 37 VD12 36 F02 35 MGND2 34 R02 33 VD23 32 F03 31 MGND3 30 R03 29 VD34 28 F04 27 MGND4 26 R04 25 HPOUT1 24 HGND 23 HPOUT3 22 VHP 21 HPOUT2 LIL PGND1 L1H VIN L2H PGND2 PGND3 L2L VLGO2 L3 VLG3 INM3 RF3 CNP3 DTC3 RF21 PAPC APCREF VIHDET 61 62 63 64 65 66 67 68 69 70 71 72 74 75 73 76 77 78 1 2 3 4 5 6 79 80 LEVEL SHIFTER LEVEL SHIFTER PWM H/P DRIVER H BRIDGE DRIVER 4 H BRIDGE DRIVER 3 H BRIDGE DRIVER 2 H BRIDGE DRIVER 1 CONTROLLER STANDBY REFERENCE BANDGAP REFERENCE (VREF) CLK OR OSC SAW GEN 54 53 52 51 50 49 48 47 46 45 44 CONTROL CHARGE VREF VREF VREF VREF VCPU VREF VCPU VREF VG VCPU 1/2 VREF SAWTOOTH SAWTOOTH SAWTOOTH SAWTOOTH VREF VREF SUB VREF VCC1 VCPU DCIN BIAS INTERFACE CLK R-2 R-1 R-6 D-1 to 4 D-5 S-3 S-1 S-2 R-3 R-4 R-5 R-4 CHG ON/OFF 43 VIN CONTROLLER MUTE IC401 TB2119F + – + – + – 23 20 19 18 17 16 15 14 13 2 3 4 5 6 7 8 9 10 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW OUT B OUT A BEEP BST PW B PW C BST NF ADD OUT RF IN OCL SW ROUT VREF LOUT PWR GND MIX OUT ALC IN ALC DET ATT SW LIN RIN GND TC MUTE MUTE SW PWR SW BIAS BIAS IN BB SW BST OUT VCC ADDA ADDB 21 22 PW A ALC ALC w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 D-FJ737 IC601 CXD3028R ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE A0 – A11 SYSM AMUTE HPL HPM HPR PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI LOCK MDP SDTI SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0 IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 A0 A1 A2 A3 LOUT2 AIN2 AOUT2 AOUT1 AIN1 LOUT1 XVSS XTAO XTAI BCKI COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 IGEN RFDC E F RFDC E F B A VC CLTV XPCK A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI XQCK SCSY SCOR VSS0 SBSO EXCK XRST SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL ASYO ASYI BIAS RFAC CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 D-FJ737 SECTION 6 EXPLODED VIEWS NOTE : • -XX, -X mean standardized parts, so they may have some difference from the original one. • Color indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ••• (RED) ↑ ↑ Parts color Cabinet's color • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories are given in the last of this parts list. 6-1. CABINET SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation HK : Hong Kong CH : Chinese KR : Korean Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 6 4 30 3 2 29 29 1 1 28 27 26 25 24 16 23 22 20 21 19 18 17 13 12 14 9 8 7 7 7 5 15 10 11 1 4-982-491-11 SCREW (2X8), TAPPING 2 3-222-733-11 CABINET (LOWER) 3 4-993-131-31 KNOB (HOLD) * 4 A-3323-644-A MAIN BOARD, COMPLETE 5 3-222-736-01 TERMINAL BOARD (+), BATTERY 6 4-222-762-01 KNOB (JOG) 7 3-375-114-31 SCREW 8 3-222-741-01 COVER, LID...(BLUE) 8 3-222-741-11 COVER, LID...(SILVER) 9 1-476-262-11 SWITCH UNIT 10 3-234-914-01 LID, UPPER...(BLUE) 10 3-234-914-11 LID, UPPER...(SILVER) 11 3-222-740-01 BUTTON (MODE) 12 3-223-134-11 SHEET (WINDOW.LCD), ADHESIVE 13 3-224-568-01 RING, COVER 14 3-222-738-01 WINDOW, LCD 15 3-222-744-02 SPRING (FULL OPEN) 16 3-222-734-12 CABINET (UPPER) 17 3-222-739-01 BUTTON (PLAY) 18 4-222-792-21 LEVER, DETECTOR 19 3-222-742-01 KNOB (OPEN) 20 3-222-743-01 CLAW, LOCK 21 3-375-114-41 SCREW 22 4-222-791-01 SPRING (OPEN) 23 4-222-764-11 BUTTON (VOLUME) 24 3-318-201-01 SCREW (B) (1.4X3), TAPPING 25 4-222-768-01 TERMINAL BOARD (+,-), BATTERY 26 4-222-767-11 TERMINAL BOARD (-), BATTERY 27 3-222-737-11 LID, BATTERY CASE 28 4-984-751-51 KNOB (AVLS) 29 4-224-048-01 FOOT, RUBBER 30 3-048-661-01 SHEET (BATTERY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 D-FJ737 6-2. OPTICAL PICK-UP SECTION (CDM-3123EBA) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark M902 M901 51 52 53 54 55 56 57 58 59 56 60 61 62 63 52 56 52 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 51 4-218-821-01 COVER, GEAR 52 3-318-203-71 SCREW (B1.7X5), TAPPING 53 A-3328-628-A SCREW (FEED) ASSY 54 4-218-823-01 GEAR (B) 55 4-218-825-01 SPRING, SLED 56 4-222-765-02 INSULATOR 57 4-218-820-01 CHASSIS 58 4-218-827-02 RETAINER, SHAFT 59 3-686-458-03 SCREW (P1.4X3.5), TAPPING 060 X-4952-506-1 OPTICAL PICK-UP (DAX-23E) 61 4-223-600-01 RACK 62 3-895-823-61 SCREW (B1.4X2.3), TAPPING 63 4-220-645-01 SHAFT, STANDARD M901 A-3328-759-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3328-627-A MOTOR ASSY, SLED (SLED) (INCLUDING GEAR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 D-FJ737 103 106 107 104 102 101 105 6-3. TUNER CONTROL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 A-3052-870-A REMOTE CONTROL ASSY (L)(RM-CDF2) ...(BLUE) 101 A-3052-871-A REMOTE CONTROL ASSY (S)(RM-CDF2) ...(SILVER) 102 3-938-224-01 BRACKET, SUSPENDER 103 3-234-403-01 LID, BATTERY CASE...(SILVER) 103 3-234-403-11 LID, BATTERY CASE...(BLUE) 104 7-624-104-04 STOP RING 2.0, TYPE -E 105 1-791-925-11 CORD (WITH PLUG) 106 3-318-203-01 SCREW (B 1.7X6), TAPPING 107 7-627-552-07 SCREW,PRECISION +P 1.7X2.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 D-FJ737 NOTE : • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms METAL : Metal-film resistor METAL OXIDE :Metal oxide-film resistor F : nonflammable • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ , for example : uA.... : µ A.... , uPA.... : µ PA.... uPB.... : µ PB.... , uPC.... : µ PC.... uPD.... : µ PD.... • CAPACITORS uF : µ F • COILS uH : µ H When indicating parts by reference num- ber, please include the board. SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark • Abbreviation HK : Hong Kong CH : Chinese KR : Korean MAIN * A-3323-644-A MAIN BOARD, COMPLETE ******************* 3-222-736-01 TERMINAL BOARD (+), BATTERY C101 1-117-720-11 CERAMIC CHIP 4.7uF 10V C102 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C104 1-117-720-11 CERAMIC CHIP 4.7uF 10V C110 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C111 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C112 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C113 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C114 1-113-690-11 ELECT CHIP 220uF 20% 4V C135 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C154 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-117-720-11 CERAMIC CHIP 4.7uF 10V C202 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C204 1-117-720-11 CERAMIC CHIP 4.7uF 10V C210 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C211 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C212 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C213 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C214 1-113-690-11 ELECT CHIP 220uF 20% 4V C235 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C254 1-164-156-11 CERAMIC CHIP 0.1uF 25V C301 1-117-720-11 CERAMIC CHIP 4.7uF 10V C303 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C304 1-115-156-11 CERAMIC CHIP 1uF 10V C311 1-113-688-11 ELECT CHIP 47uF 20% 4V C351 1-115-156-11 CERAMIC CHIP 1uF 10V C352 1-117-720-11 CERAMIC CHIP 4.7uF 10V C353 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C354 1-164-156-11 CERAMIC CHIP 0.1uF 25V C356 1-128-705-11 ELECT 0PF 0V C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C402 1-117-720-11 CERAMIC CHIP 4.7uF 10V C403 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C404 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-104-752-11 TANTAL. CHIP 33uF 20% 6.3V C407 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C408 1-164-858-11 CERAMIC CHIP 22PF 5% 16V C409 1-113-689-11 ELECT CHIP 100uF 20% 4V C410 1-113-689-11 ELECT CHIP 100uF 20% 4V C411 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C412 1-107-820-11 CERAMIC CHIP 0.1uF 16V C413 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C414 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C415 1-164-156-11 CERAMIC CHIP 0.1uF 25V C417 1-104-752-11 TANTAL. CHIP 33uF 20% 6.3V C418 1-128-705-11 ELECT 0PF 0V C420 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C421 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C422 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C423 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C424 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C425 1-164-156-11 CERAMIC CHIP 0.1uF 25V C426 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C428 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C429 1-165-128-11 CERAMIC CHIP 0.22uF 16V C431 1-125-822-11 TANTALUM 10uF 20% 10V C432 1-117-720-11 CERAMIC CHIP 4.7uF 10V C433 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C435 1-117-720-11 CERAMIC CHIP 4.7uF 10V C436 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C437 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C442 1-164-156-11 CERAMIC CHIP 0.1uF 25V C443 1-115-156-11 CERAMIC CHIP 1uF 10V C444 1-104-852-11 TANTAL. CHIP 22uF 20% 10V C445 1-107-820-11 CERAMIC CHIP 0.1uF 16V C451 1-115-156-11 CERAMIC CHIP 1uF 10V C452 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C453 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C454 1-164-156-11 CERAMIC CHIP 0.1uF 25V C455 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C456 1-164-156-11 CERAMIC CHIP 0.1uF 25V C461 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C462 1-164-870-11 CERAMIC CHIP 68PF 5% 16V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 D-FJ737 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C502 1-117-720-11 CERAMIC CHIP 4.7uF 10V C505 1-115-156-11 CERAMIC CHIP 1uF 10V C506 1-164-874-11 CERAMIC CHIP 100PF 5% 16V C507 1-164-870-11 CERAMIC CHIP 68PF 5% 16V C508 1-127-692-11 CERAMIC CHIP 10uF 10% 6.3V C602 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C604 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-164-874-11 CERAMIC CHIP 100PF 5% 16V C607 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C609 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C611 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C620 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C621 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C622 1-107-820-11 CERAMIC CHIP 0.1uF 16V C623 1-115-156-11 CERAMIC CHIP 1uF 10V C624 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C625 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C626 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C627 1-107-820-11 CERAMIC CHIP 0.1uF 16V C628 1-164-156-11 CERAMIC CHIP 0.1uF 25V C629 1-164-346-11 CERAMIC CHIP 1uF 16V C630 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C631 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C632 1-164-156-11 CERAMIC CHIP 0.1uF 25V C634 1-125-899-11 TANTAL. CHIP 220uF 20% 4V C635 1-164-156-11 CERAMIC CHIP 0.1uF 25V C636 1-164-156-11 CERAMIC CHIP 0.1uF 25V C638 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C639 1-127-569-91 TANTAL. CHIP 100uF 20% 4V C641 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C642 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C645 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C646 1-164-156-11 CERAMIC CHIP 0.1uF 25V C651 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C801 1-164-156-11 CERAMIC CHIP 0.1uF 25V C802 1-164-156-11 CERAMIC CHIP 0.1uF 25V C803 1-165-128-11 CERAMIC CHIP 0.22uF 16V C804 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C805 1-107-820-11 CERAMIC CHIP 0.1uF 16V C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C807 1-107-820-11 CERAMIC CHIP 0.1uF 16V C808 1-107-820-11 CERAMIC CHIP 0.1uF 16V C809 1-107-820-11 CERAMIC CHIP 0.1uF 16V C810 1-107-820-11 CERAMIC CHIP 0.1uF 16V C811 1-164-505-11 CERAMIC CHIP 2.2uF 16V C812 1-164-935-11 CERAMIC CHIP 470PF 10% 16V C813 1-107-820-11 CERAMIC CHIP 0.1uF 16V C814 1-107-820-11 CERAMIC CHIP 0.1uF 16V C841 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V * CN501 1-778-161-11 CONNECTOR, FFC/FPC (ZIF) 13P * CN501 1-815-223-21 CONNECTOR, FFC/FPC (ZIF) 13P CN502 1-784-342-11 HOUSING, CONNECTOR 2P CN503 1-784-342-21 HOUSING, CONNECTOR 2P * CN801 1-815-222-21 CONNECTOR, FFC/FPC (ZIF) 24P D311 8-719-069-54 DIODE UDZSTE-175.1B D312 8-719-069-54 DIODE UDZSTE-175.1B D401 8-719-067-42 DIODE MA2H735-(TX).SO D402 8-719-069-54 DIODE UDZSTE-175.1B D403 8-719-404-50 DIODE MA111-TX D404 8-719-067-42 DIODE MA2H735-(TX).SO D405 8-719-049-09 DIODE 1SS367-T3SONY D406 8-719-071-87 DIODE MA785-(TX),SO D411 8-719-049-09 DIODE 1SS367-T3SONY D461 8-719-072-70 DIODE MA2ZD14001S0 D601 8-719-044-74 DIODE MA792WK-TX D602 8-719-069-54 DIODE UDZSTE-175.1B D803 8-719-069-54 DIODE UDZSTE-175.1B D804 8-719-072-70 DIODE MA2ZD14001S0 FB101 1-412-983-31 INDUCTOR 2.2uH FB111 1-412-991-31 INDUCTOR 10uH FB201 1-412-983-31 INDUCTOR 2.2uH FB211 1-412-991-31 INDUCTOR 10uH FB301 1-216-864-11 METAL CHIP 0 5% 1/16W FB311 1-500-234-22 FERRITE 0uH FB312 1-412-983-31 INDUCTOR 2.2uH FB602 1-216-803-11 METAL CHIP 33 5% 1/16W FB603 1-216-864-11 METAL CHIP 0 5% 1/16W IC351 8-759-681-65 IC TA2120FN(EL) IC401 8-759-642-56 IC TB2119F IC402 8-759-594-55 IC TC75S57F(TE85R) IC404 8-759-594-55 IC TC75S57F(TE85R) IC405 8-759-694-91 IC SI-3048LSA-TL IC501 8-759-714-51 IC BA6779BFV-E2 IC601 8-752-409-05 IC CXD3028R IC602 8-759-594-56 IC MSM51X17400D-10TFSR1 IC604 8-759-075-70 IC TA75S393F-TE85R IC801 6-800-489-01 IC T5U87-3D75(M) J301 1-793-659-11 JACK, OPTICAL OUT (LINE OUT (OPTICAL) J302 1-793-967-62 JACK (i/REMOTE) J401 1-793-156-22 JACK, DC (DC IN 4.5V) L311 1-414-754-11 INDUCTOR 10uH L401 1-419-188-21 INDUCTOR 100uH L402 1-216-295-91 SHORT 0 L403 1-414-434-11 INDUCTOR 100uH L404 1-414-757-11 INDUCTOR 100uH L405 1-414-757-11 INDUCTOR 100uH L406 1-414-404-11 INDUCTOR 100uH L407 1-216-295-91 SHORT 0 L408 1-414-400-41 INDUCTOR 22uH L409 1-414-402-11 INDUCTOR 47uH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 D-FJ737 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN L410 1-414-754-11 INDUCTOR 10uH L411 1-412-056-11 INDUCTOR 4.7uH L412 1-414-394-11 INDUCTOR 2.2uH L413 1-216-295-91 SHORT 0 L431 1-216-295-91 SHORT 0 L601 1-412-002-31 INDUCTOR 4.7uH L602 1-216-295-91 SHORT 0 L603 1-216-295-91 SHORT 0 L604 1-216-295-91 SHORT 0 Q301 8-729-427-72 TRANSISTOR XP451 Q302 8-729-930-00 TRANSISTOR UMD2 Q400 8-729-029-13 TRANSISTOR DTC143ZUA-T106 Q402 8-729-807-34 TRANSISTOR 2SB1123-S Q403 8-729-921-73 TRANSISTOR 2SD1781K-QR Q404 8-729-425-41 TRANSISTOR 2SK1374 Q405 8-729-056-55 TRANSISTOR SSM3J01T(TE85L) Q406 8-729-054-79 TRANSISTOR 2SB167900LSO Q407 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q408 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q409 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q412 8-729-422-87 TRANSISTOR 2SB1073-R Q414 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q416 8-729-427-83 TRANSISTOR XP651 Q501 8-729-028-74 TRANSISTOR DTATUA-T106 Q601 8-729-028-86 TRANSISTOR DTA143EUA-T106 R4 1-216-295-91 SHORT 0 R5 1-216-295-91 SHORT 0 R101 1-216-813-11 METAL CHIP 220 5% 1/16W R102 1-218-875-11 METAL CHIP 15K 1% 1/10W R103 1-218-871-11 METAL CHIP 10K 1% 1/10W R104 1-216-845-11 METAL CHIP 100K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-845-11 METAL CHIP 100K 5% 1/16W R107 1-216-849-11 METAL CHIP 220K 5% 1/16W R108 1-216-809-11 METAL CHIP 100 5% 1/16W R110 1-216-837-11 METAL CHIP 22K 5% 1/16W R111 1-218-953-11 RES-CHIP 1K 5% 1/16W R112 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R113 1-216-833-11 METAL CHIP 10K 5% 1/16W R114 1-216-815-11 METAL CHIP 330 5% 1/16W R154 1-216-793-11 RES-CHIP 4.7 5% 1/16W R201 1-216-813-11 METAL CHIP 220 5% 1/16W R202 1-218-875-11 METAL CHIP 15K 1% 1/10W R203 1-218-871-11 METAL CHIP 10K 1% 1/10W R204 1-216-845-11 METAL CHIP 100K 5% 1/16W R205 1-218-953-11 RES-CHIP 1K 5% 1/16W R206 1-216-845-11 METAL CHIP 100K 5% 1/16W R207 1-216-849-11 METAL CHIP 220K 5% 1/16W R208 1-216-809-11 METAL CHIP 100 5% 1/16W R210 1-216-837-11 METAL CHIP 22K 5% 1/16W R211 1-216-821-11 METAL CHIP 1K 5% 1/16W R212 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R213 1-216-833-11 METAL CHIP 10K 5% 1/16W R214 1-216-815-11 METAL CHIP 330 5% 1/16W R254 1-216-793-11 RES-CHIP 4.7 5% 1/16W R301 1-218-983-11 RES-CHIP 330K 5% 1/16W R302 1-216-851-11 METAL CHIP 330K 5% 1/16W R315 1-218-871-11 METAL CHIP 10K 1% 1/10W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R317 1-218-953-11 RES-CHIP 1K 5% 1/16W R319 1-218-990-11 SHORT 0 R320 1-218-990-11 SHORT 0 R353 1-216-308-00 METAL CHIP 4.7 5% 1/10W R355 1-216-864-11 METAL CHIP 0 5% 1/16W R401 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R402 1-218-965-11 RES-CHIP 10K 5% 1/16W R403 1-218-985-11 RES-CHIP 470K 5% 1/16W R404 1-216-864-11 METAL CHIP 0 5% 1/16W R405 1-218-990-11 SHORT 0 R406 1-218-990-11 SHORT 0 R407 1-218-990-11 SHORT 0 R408 1-218-985-11 RES-CHIP 470K 5% 1/16W R409 1-218-981-11 RES-CHIP 220K 5% 1/16W R410 1-218-975-11 RES-CHIP 68K 5% 1/16W R413 1-216-864-11 METAL CHIP 0 5% 1/16W R414 1-218-977-11 RES-CHIP 100K 5% 1/16W R415 1-218-965-11 RES-CHIP 10K 5% 1/16W R416 1-218-989-11 RES-CHIP 1M 5% 1/16W R418 1-218-895-11 METAL CHIP 100K 1% 1/10W R419 1-218-903-11 METAL CHIP 220K 1% 1/10W R420 1-218-990-11 SHORT 0 R421 1-218-989-11 RES-CHIP 1M 5% 1/16W R422 1-216-835-11 METAL CHIP 15K 5% 1/16W R423 1-216-839-11 METAL CHIP 33K 5% 1/16W R424 1-216-833-11 METAL CHIP 10K 5% 1/16W R427 1-216-845-11 METAL CHIP 100K 5% 1/16W R429 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R430 1-216-041-00 METAL CHIP 470 5% 1/10W R432 1-218-989-11 RES-CHIP 1M 5% 1/16W R433 1-216-864-11 METAL CHIP 0 5% 1/16W R434 1-218-903-11 METAL CHIP 220K 1% 1/10W R435 1-218-887-11 METAL CHIP 47K 1% 1/10W R436 1-218-990-11 SHORT 0 R437 1-218-989-11 RES-CHIP 1M 5% 1/16W R438 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R439 1-220-398-11 RES-CHIP 1.5M 5% 1/16W R440 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R441 1-220-398-11 RES-CHIP 1.5M 5% 1/16W R443 1-216-811-11 METAL CHIP 150 5% 1/16W R444 1-218-953-11 RES-CHIP 1K 5% 1/16W R447 1-216-304-11 METAL CHIP 3.3 5% 1/10W R448 1-216-298-00 METAL CHIP 2.2 5% 1/10W R449 1-216-298-00 METAL CHIP 2.2 5% 1/10W R450 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-218-903-11 METAL CHIP 220K 1% 1/10W R452 1-218-887-11 METAL CHIP 47K 1% 1/10W R453 1-218-887-11 METAL CHIP 47K 1% 1/10W R454 1-218-887-11 METAL CHIP 47K 1% 1/10W R455 1-216-839-11 METAL CHIP 33K 5% 1/16W R456 1-216-815-11 METAL CHIP 330 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R457 1-216-809-11 METAL CHIP 100 5% 1/16W R458 1-216-851-11 METAL CHIP 330K 5% 1/16W R460 1-216-845-11 METAL CHIP 100K 5% 1/16W R461 1-218-895-11 METAL CHIP 100K 1% 1/10W R462 1-218-887-11 METAL CHIP 47K 1% 1/10W R463 1-216-857-11 METAL CHIP 1M 5% 1/16W R465 1-216-864-11 METAL CHIP 0 5% 1/16W R466 1-218-990-11 SHORT 0 R473 1-218-989-11 RES-CHIP 1M 5% 1/16W R474 1-216-857-11 METAL CHIP 1M 5% 1/16W R475 1-218-985-11 RES-CHIP 470K 5% 1/16W R502 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R503 1-218-953-11 RES-CHIP 1K 5% 1/16W R504 1-218-990-11 SHORT 0 R505 1-218-990-11 SHORT 0 R506 1-216-864-11 METAL CHIP 0 5% 1/16W R507 1-216-864-11 METAL CHIP 0 5% 1/16W R603 1-218-983-11 RES-CHIP 330K 5% 1/16W R604 1-218-989-11 RES-CHIP 1M 5% 1/16W R605 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R606 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R607 1-218-965-11 RES-CHIP 10K 5% 1/16W R608 1-218-983-11 RES-CHIP 330K 5% 1/16W R609 1-218-965-11 RES-CHIP 10K 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-218-969-11 RES-CHIP 22K 5% 1/16W R612 1-218-977-11 RES-CHIP 100K 5% 1/16W R621 1-216-807-11 METAL CHIP 68 5% 1/16W R622 1-216-845-11 METAL CHIP 100K 5% 1/16W R623 1-218-953-11 RES-CHIP 1K 5% 1/16W R624 1-218-977-11 RES-CHIP 100K 5% 1/16W R625 1-218-965-11 RES-CHIP 10K 5% 1/16W R626 1-216-864-11 METAL CHIP 0 5% 1/16W R627 1-216-864-11 METAL CHIP 0 5% 1/16W R628 1-216-864-11 METAL CHIP 0 5% 1/16W R629 1-216-833-11 METAL CHIP 10K 5% 1/16W R630 1-216-819-11 METAL CHIP 680 5% 1/16W R631 1-216-819-11 METAL CHIP 680 5% 1/16W R632 1-218-971-11 RES-CHIP 33K 5% 1/16W R633 1-216-805-11 METAL CHIP 47 5% 1/16W R634 1-216-805-11 METAL CHIP 47 5% 1/16W R635 1-218-990-11 SHORT 0 R637 1-216-864-11 METAL CHIP 0 5% 1/16W R644 1-216-845-11 METAL CHIP 100K 5% 1/16W R647 1-218-951-11 RES-CHIP 680 5% 1/16W R648 1-216-819-11 METAL CHIP 680 5% 1/16W R649 1-218-951-11 RES-CHIP 680 5% 1/16W R652 1-218-867-11 METAL CHIP 6.8K 1% 1/10W R653 1-218-973-11 RES-CHIP 47K 5% 1/16W R654 1-218-979-11 RES-CHIP 150K 5% 1/16W R655 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R656 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R657 1-218-977-11 RES-CHIP 100K 5% 1/16W R801 1-216-845-11 METAL CHIP 100K 5% 1/16W R802 1-218-977-11 RES-CHIP 100K 5% 1/16W R803 1-216-843-11 METAL CHIP 68K 5% 1/16W R804 1-216-833-11 METAL CHIP 10K 5% 1/16W R809 1-216-845-11 METAL CHIP 100K 5% 1/16W R810 1-216-864-11 METAL CHIP 0 5% 1/16W R811 1-216-864-11 METAL CHIP 0 5% 1/16W R813 1-218-969-11 RES-CHIP 22K 5% 1/16W R816 1-216-833-11 METAL CHIP 10K 5% 1/16W R820 1-218-990-11 SHORT 0 R821 1-218-990-11 SHORT 0 R824 1-218-965-11 RES-CHIP 10K 5% 1/16W R825 1-216-857-11 METAL CHIP 1M 5% 1/16W R826 1-218-965-11 RES-CHIP 10K 5% 1/16W R841 1-216-849-11 METAL CHIP 220K 5% 1/16W R842 1-218-965-11 RES-CHIP 10K 5% 1/16W R845 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R846 1-218-959-11 RES-CHIP 3.3K 5% 1/16W S801 1-692-366-31 SWITCH, PUSH (1KEY) (DOOR OPEN) S802 1-762-078-11 SWITCH, SLIDE (AVLS) S803 1-762-078-11 SWITCH, SLIDE (HOLD) S804 1-762-078-11 SWITCH, SLIDE (G PROTECTION) S805 1-572-499-21 SWITCH, TACTIL (VOLUME +) S806 1-572-499-21 SWITCH, TACTIL (VOLUME –) VDR101 1-801-862-11 VARISTOR, CHIP VDR111 1-801-862-11 VARISTOR, CHIP VDR201 1-801-862-11 VARISTOR, CHIP VDR211 1-801-862-11 VARISTOR, CHIP VDR301 1-801-862-11 VARISTOR, CHIP VDR801 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V X601 1-767-605-11 VIBRATOR, LITHIUM TANTALATE (16.9MHz) ***************************************************** MISCELLANEOUS ************* 9 1-476-262-11 SWITCH UNIT 060 X-4952-506-1 OPTICAL PICK-UP (DAX-23E) M901 A-3328-759-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3328-627-A MOTOR ASSY, SLED (SLED) (INCLUDING GEAR) ***************************************************** The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark MAIN ACCESSORIES ********** 0 1-418-261-12 ADAPTOR, AC (AC-E455D) (E) 0 1-475-622-21 ADAPTOR, AC (AC-E455) (CH) 0 1-475-623-12 ADAPTOR, AC (AC-E455) (HK) 1-756-008-22 EXTERNAL BATTERY CASE 1-756-158-51 BATTERY PACK (NC-WMAA) 1-791-925-11 CORD (WITH PLUG) 3-224-970-01 POUCH, CARRYING 3-234-403-01 LID, BATTERY CASE...(SILVER) 3-234-403-11 LID, BATTERY CASE...(BLUE) 3-235-448-11 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (E,HK) 3-235-448-21 MANUAL, INSTRUCTION (ENGKISH) (CH,E,HK) 3-235-448-31 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (CH) 3-235-448-41 MANUAL, INSTRUCTION (KOREAN) (KR) 3-328-319-01 STRAP, HAND 8-954-008-93 RECEIVER,EAR MDR-E808LP A-3052-870-A REMOTE CONTROL ASSY (L)(RM-CDF2) ...(BLUE) A-3052-871-A REMOTE CONTROL ASSY (S)(RM-CDF2) ...(SILVER) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 25 D-FJ737 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.09 New D-FJ737 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
