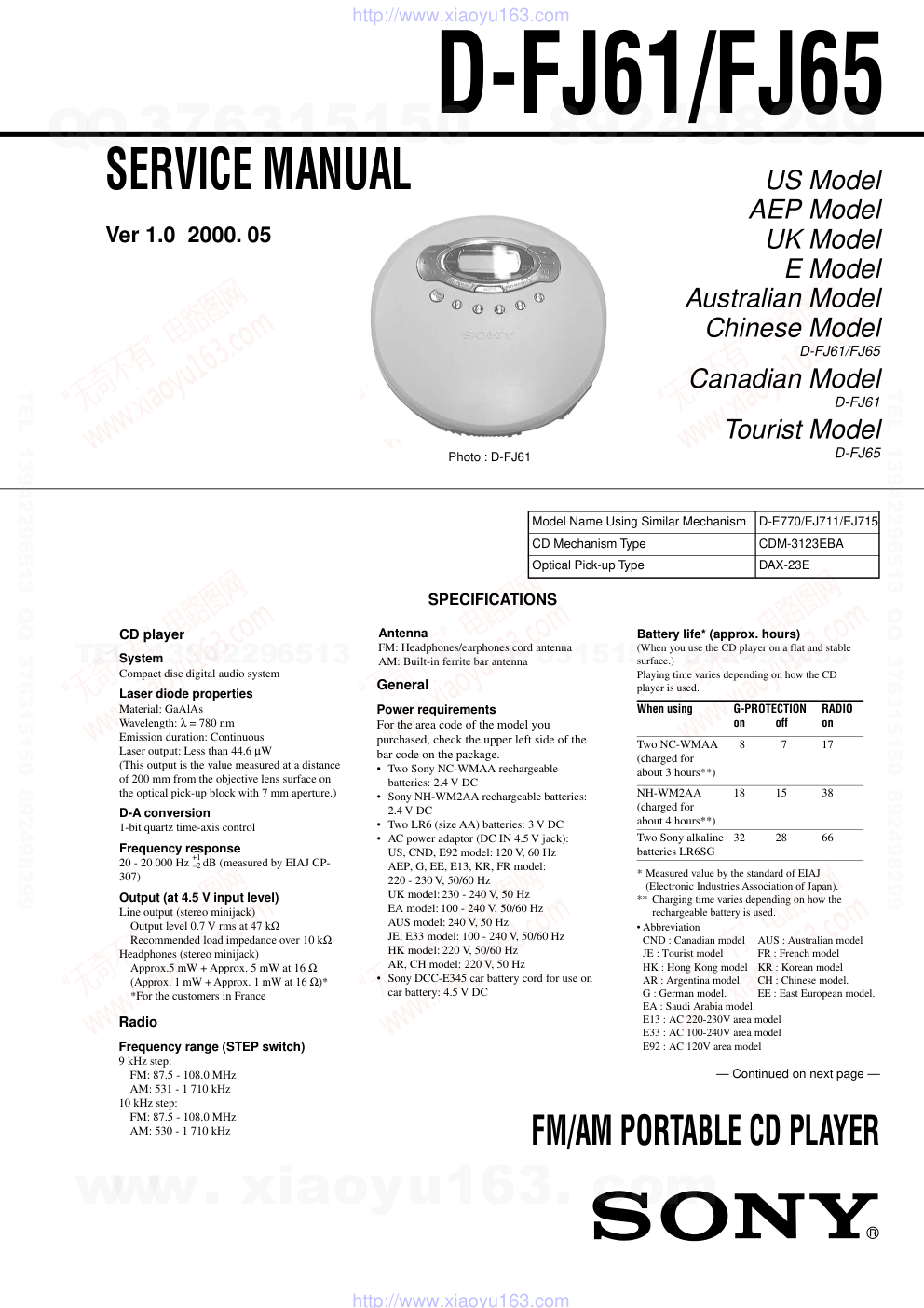

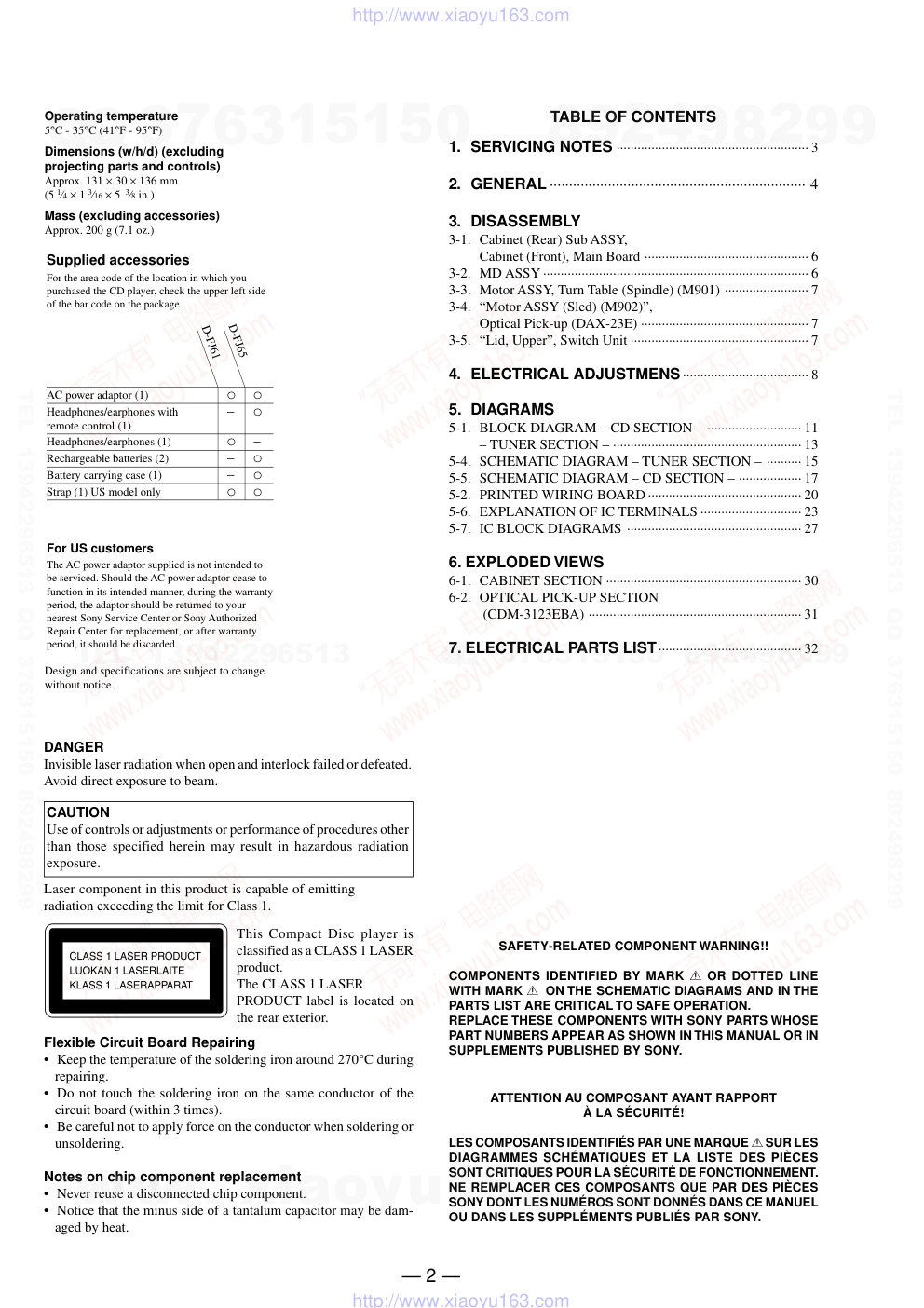

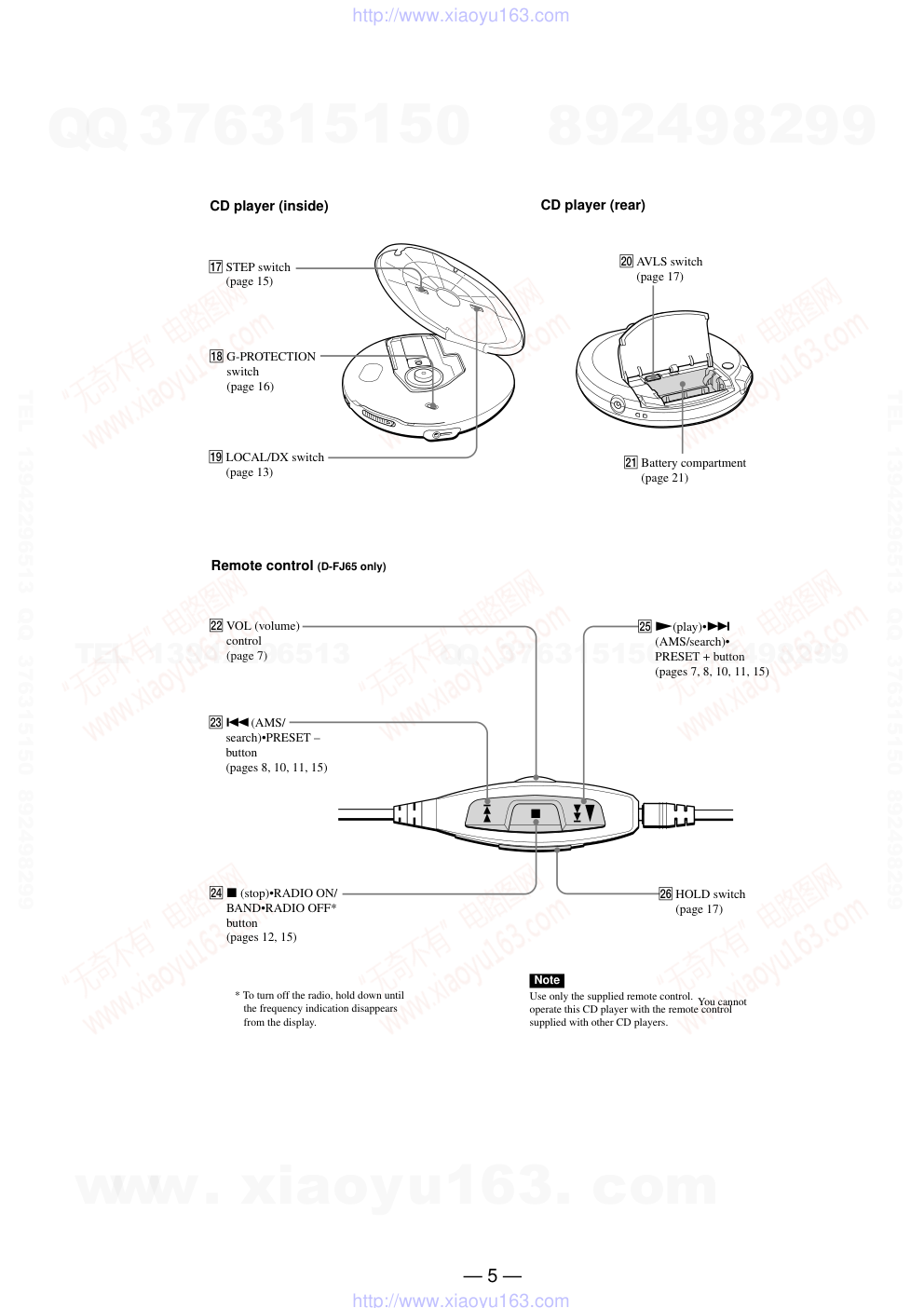

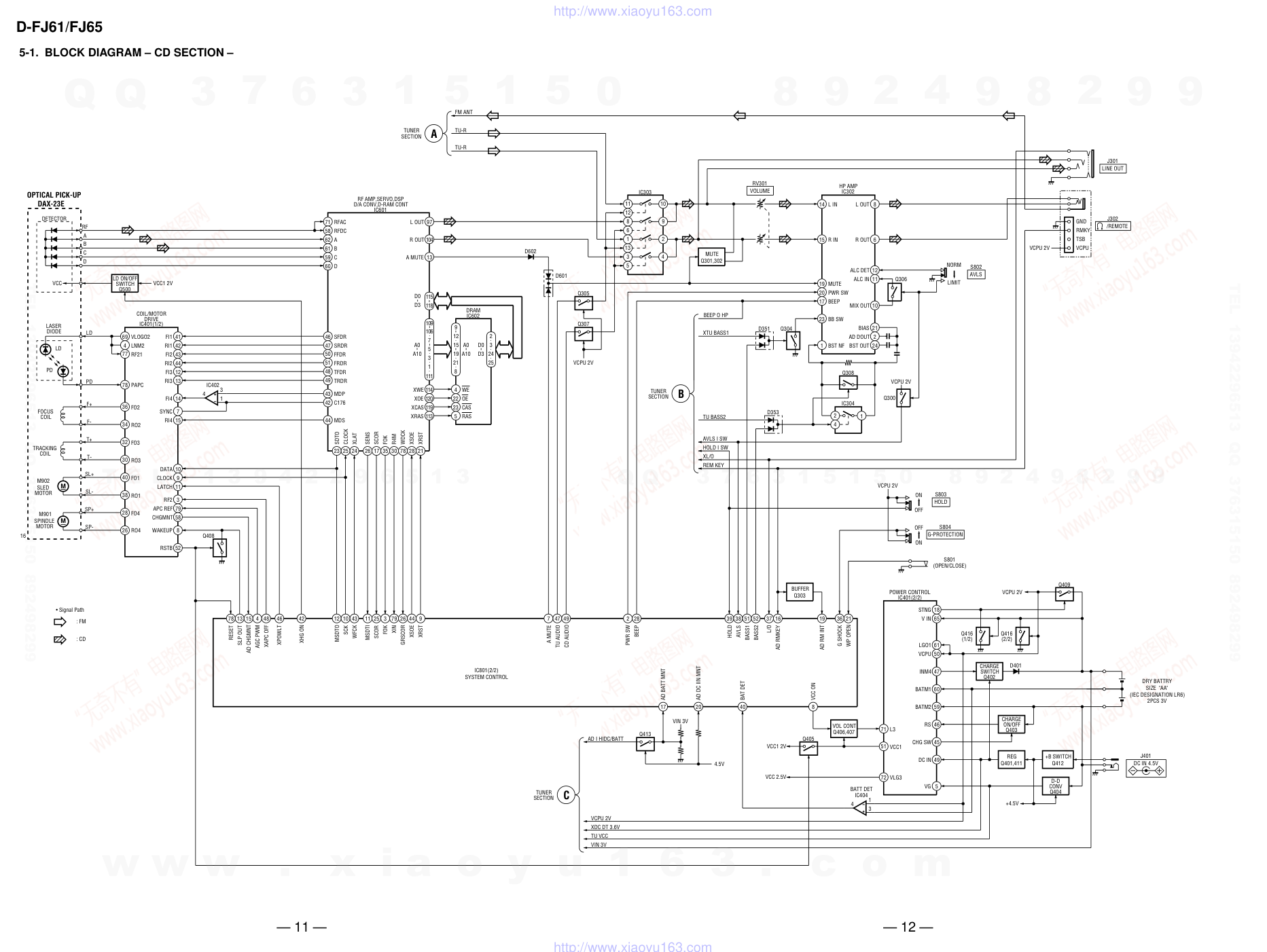

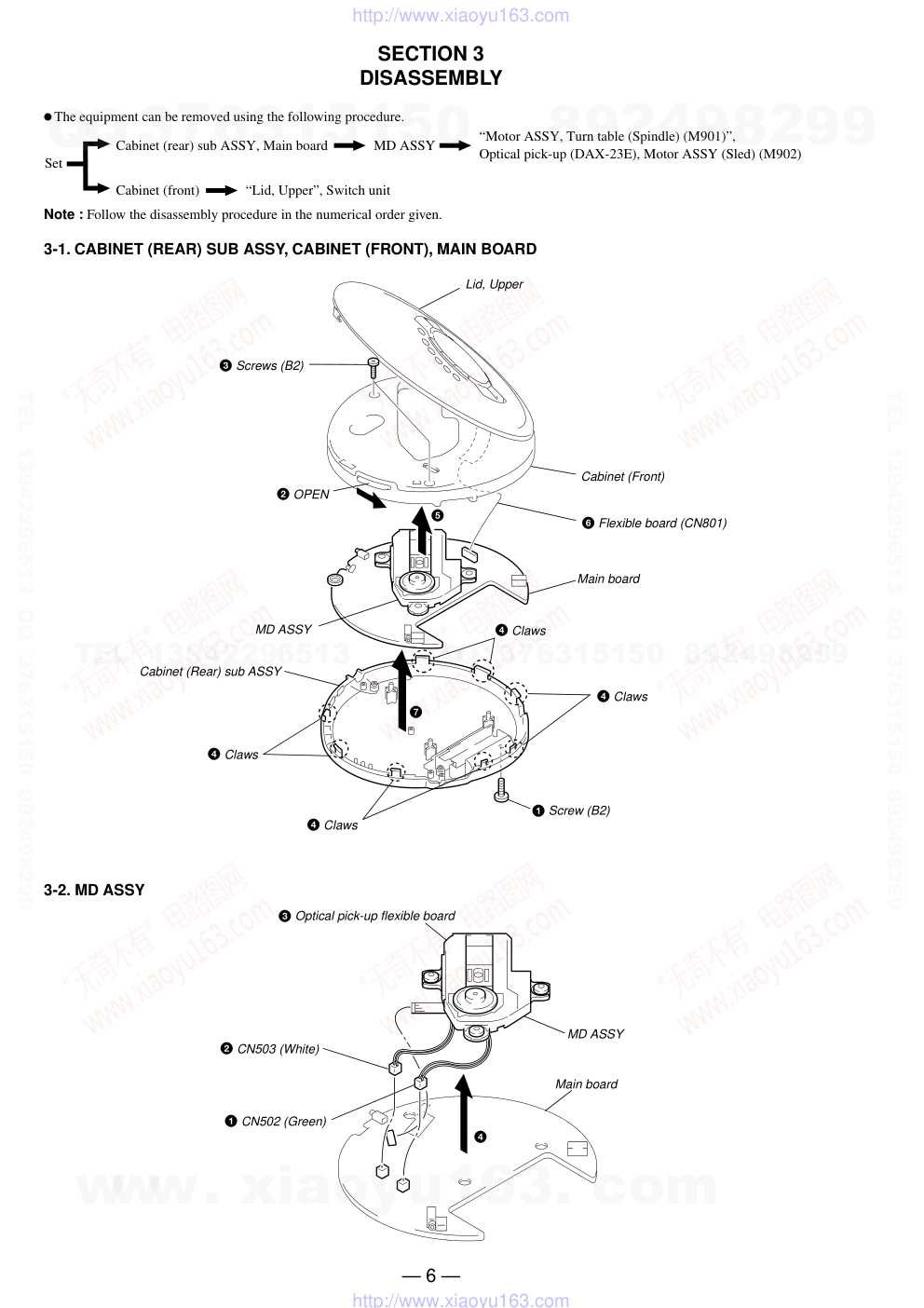

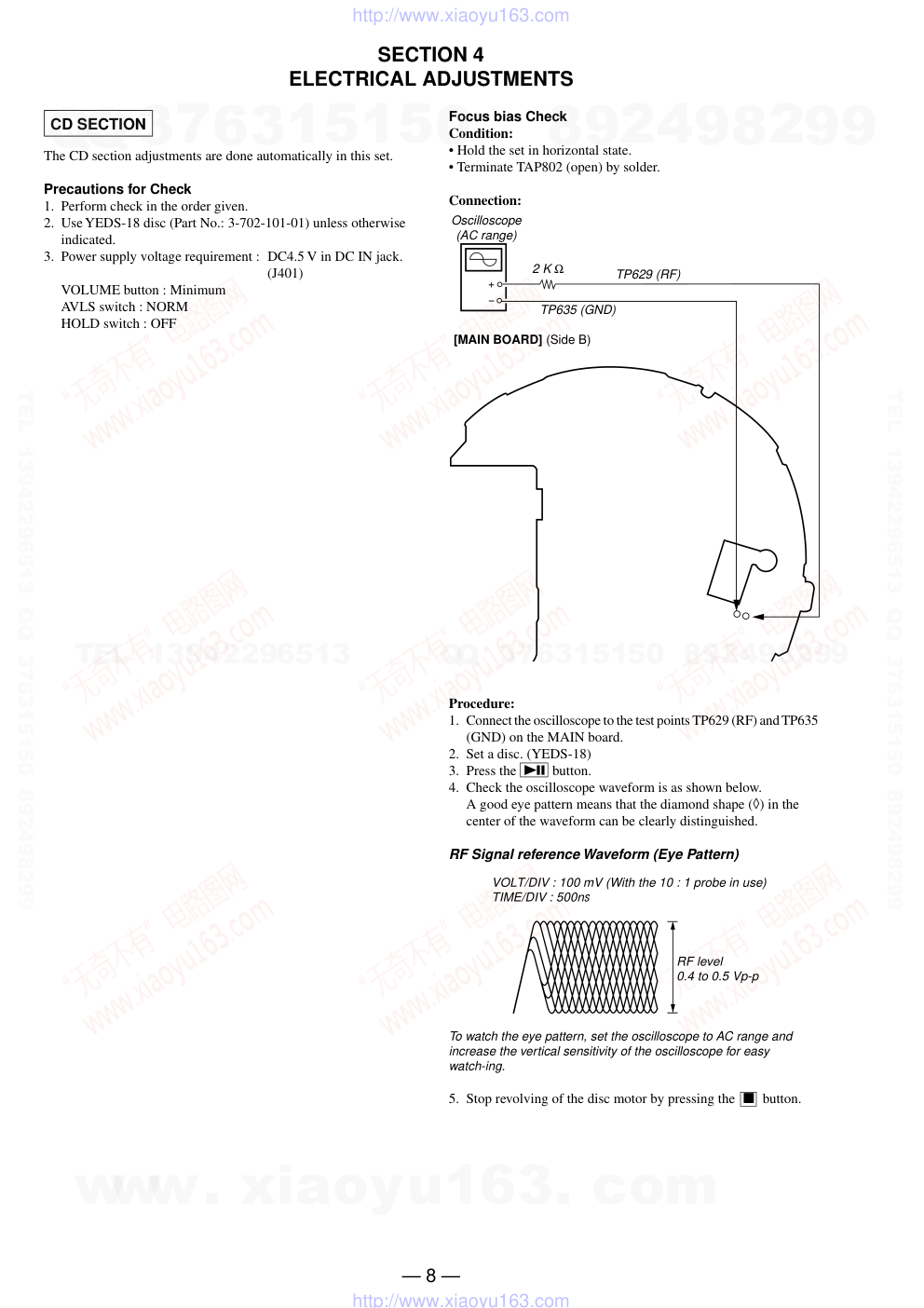

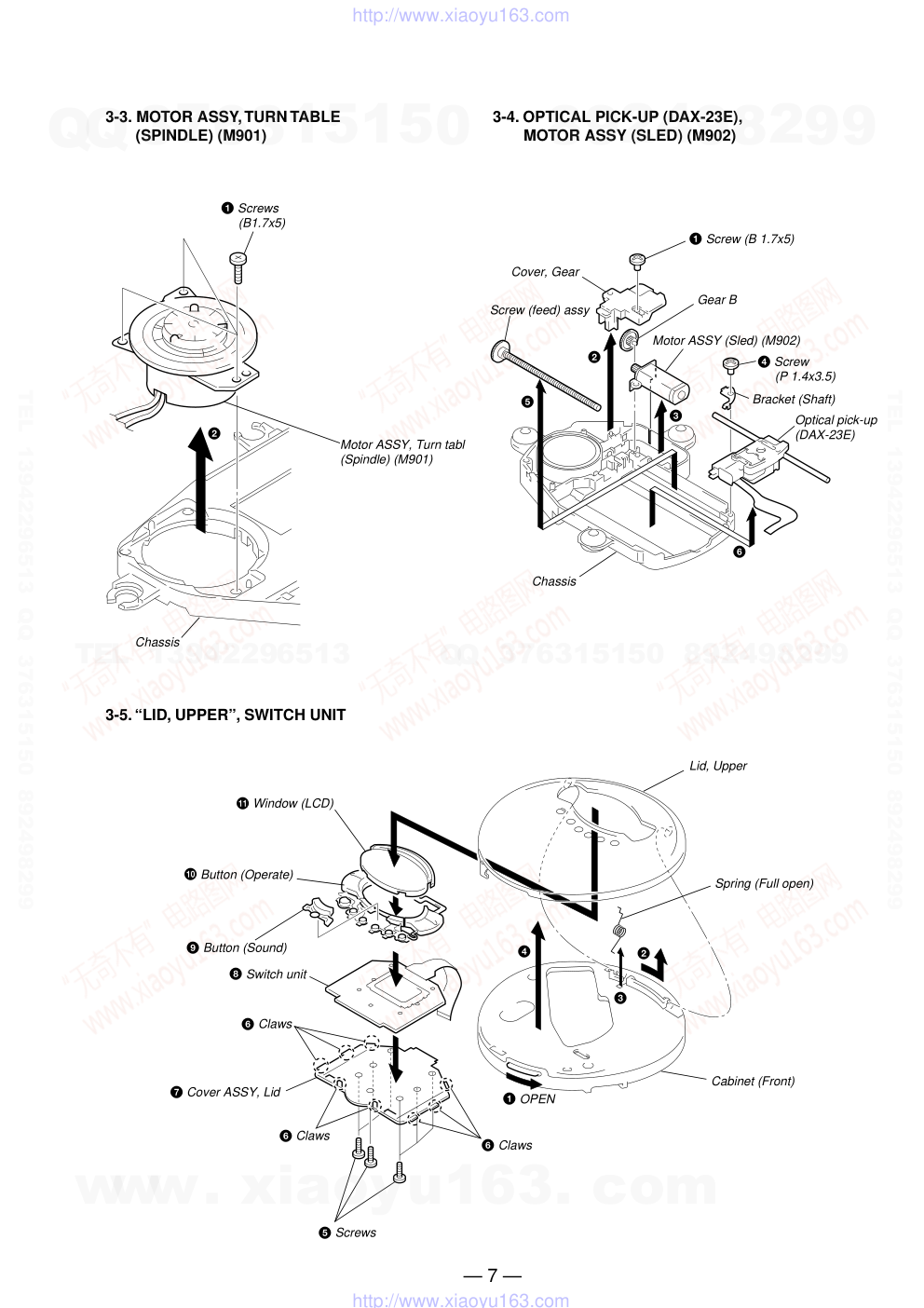

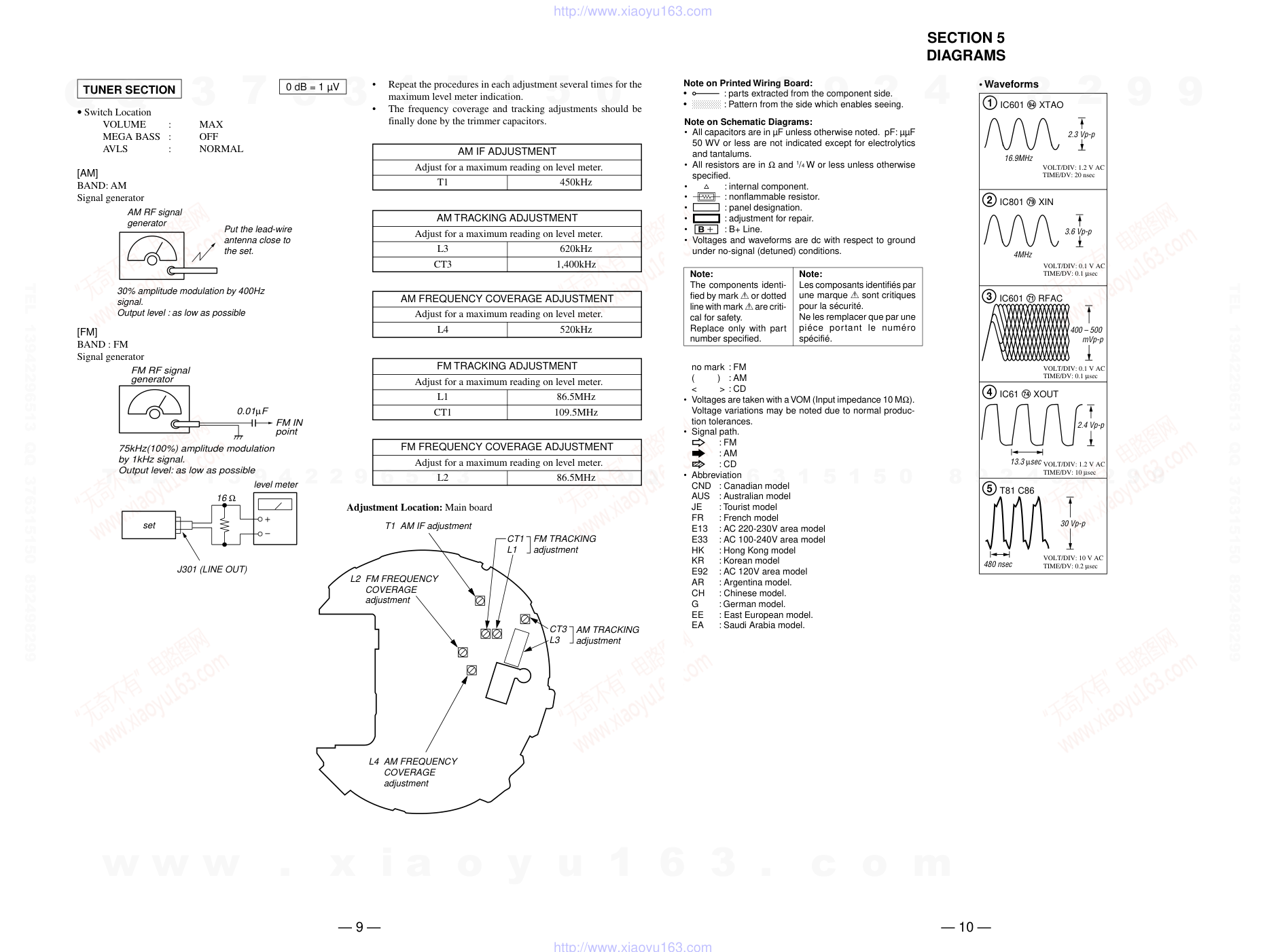

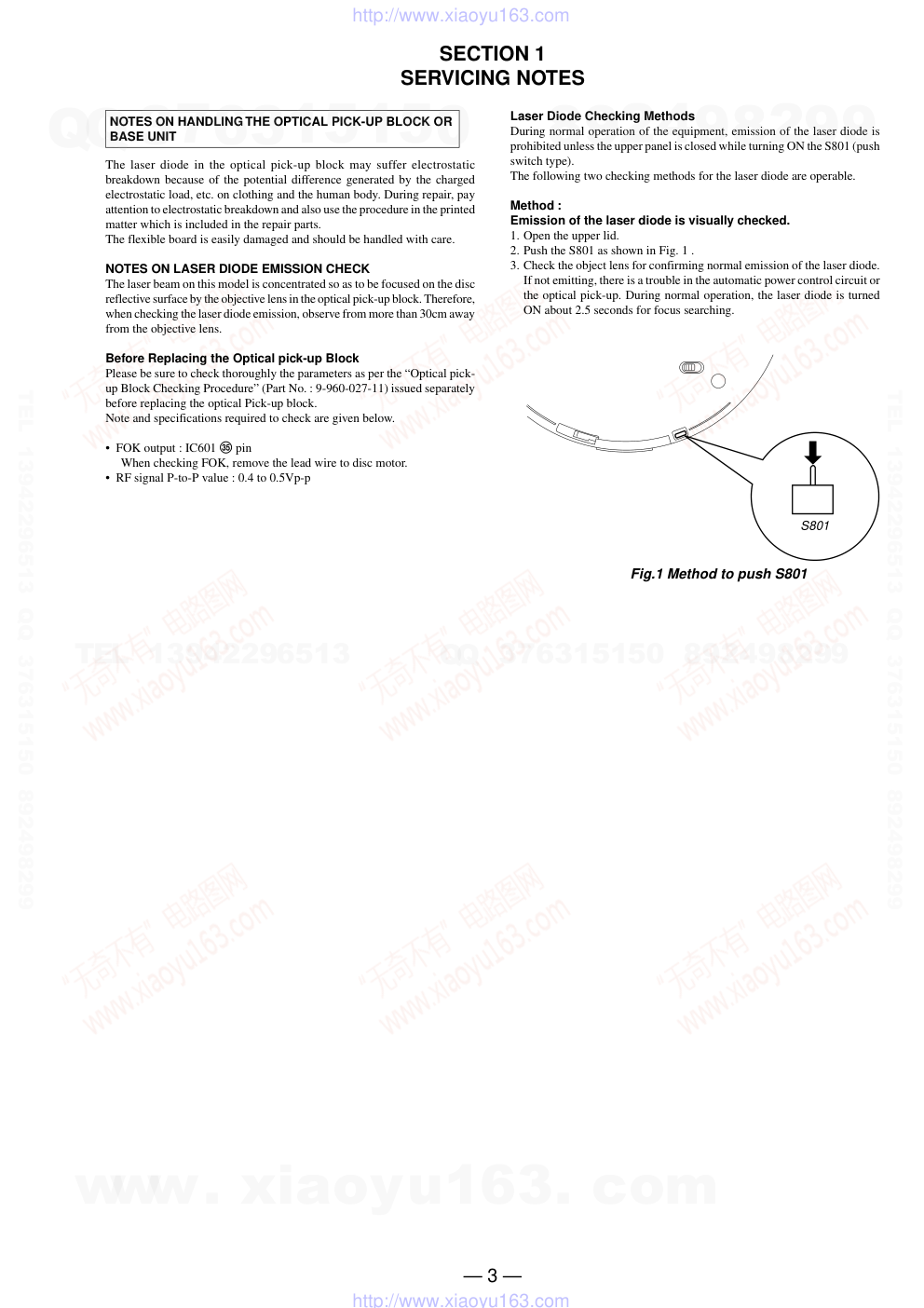

D-FJ61/FJ65 US Model AEP Model UK Model E Model Australian Model Chinese Model D-FJ61/FJ65 Canadian Model D-FJ61 Tourist Model D-FJ65 SERVICE MANUAL FM/AM PORTABLE CD PLAYER — Continued on next page — SPECIFICATIONS CD player System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 –2 dB (measured by EIAJ CP- 307) Output (at 4.5 V input level) Line output (stereo minijack) Output level 0.7 V rms at 47 kΩ Recommended load impedance over 10 kΩ Headphones (stereo minijack) Approx.5 mW + Approx. 5 mW at 16 Ω (Approx. 1 mW + Approx. 1 mW at 16 Ω)* *For the customers in France Radio Frequency range (STEP switch) 9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz General Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two Sony NC-WMAA rechargeable batteries: 2.4 V DC • Sony NH-WM2AA rechargeable batteries: 2.4 V DC • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): US, CND, E92 model: 120 V, 60 Hz AEP, G, EE, E13, KR, FR model: 220 - 230 V, 50/60 Hz UK model: 230 - 240 V, 50 Hz EA model: 100 - 240 V, 50/60 Hz AUS model: 240 V, 50 Hz JE, E33 model: 100 - 240 V, 50/60 Hz HK model: 220 V, 50/60 Hz AR, CH model: 220 V, 50 Hz • Sony DCC-E345 car battery cord for use on car battery: 4.5 V DC Battery life* (approx. hours) (When you use the CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. When using G-PROTECTION RADIO on off on Two NC-WMAA 8 7 17 (charged for about 3 hours**) NH-WM2AA 18 15 38 (charged for about 4 hours**) Two Sony alkaline 32 28 66 batteries LR6SG * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). ** Charging time varies depending on how the rechargeable battery is used. Antenna FM: Headphones/earphones cord antenna AM: Built-in ferrite bar antenna • Abbreviation CND : Canadian model AUS : Australian model JE : Tourist model FR : French model HK : Hong Kong model KR : Korean model AR : Argentina model. CH : Chinese model. G : German model. EE : East European model. EA : Saudi Arabia model. E13 : AC 220-230V area model E33 : AC 100-240V area model E92 : AC 120V area model Model Name Using Similar Mechanism D-E770/EJ711/EJ715 CD Mechanism Type CDM-3123EBA Optical Pick-up Type DAX-23E Photo : D-FJ61 Ver 1.0 2000. 05 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — D-FJ65 D-FJ61 Supplied accessories For the area code of the location in which you purchased the CD player, check the upper left side of the bar code on the package. AC power adaptor (1) a a Headphones/earphones with – a remote control (1) Headphones/earphones (1) a – Rechargeable batteries (2) – a Battery carrying case (1) – a Strap (1) US model only a a For US customers The AC power adaptor supplied is not intended to be serviced. Should the AC power adaptor cease to function in its intended manner, during the warranty period, the adaptor should be returned to your nearest Sony Service Center or Sony Authorized Repair Center for replacement, or after warranty period, it should be discarded. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 131 × 30 × 136 mm (5 1⁄4 × 1 3⁄16 × 5 3⁄8 in.) Mass (excluding accessories) Approx. 200 g (7.1 oz.) Design and specifications are subject to change without notice. 1. SERVICING NOTES ······················································· 3 2. GENERAL ·································································· 4 3. DISASSEMBLY 3-1. Cabinet (Rear) Sub ASSY, Cabinet (Front), Main Board ··············································· 6 3-2. MD ASSY ············································································ 6 3-3. Motor ASSY, Turn Table (Spindle) (M901) ························ 7 3-4. “Motor ASSY (Sled) (M902)”, Optical Pick-up (DAX-23E) ················································ 7 3-5. “Lid, Upper”, Switch Unit ··················································· 7 4. ELECTRICAL ADJUSTMENS ···································· 8 5. DIAGRAMS 5-1. BLOCK DIAGRAM – CD SECTION – ··························· 11 – TUNER SECTION – ······················································ 13 5-4. SCHEMATIC DIAGRAM – TUNER SECTION – ·········· 15 5-5. SCHEMATIC DIAGRAM – CD SECTION – ·················· 17 5-2. PRINTED WIRING BOARD ············································ 20 5-6. EXPLANATION OF IC TERMINALS ····························· 23 5-7. IC BLOCK DIAGRAMS ·················································· 27 6. EXPLODED VIEWS 6-1. CABINET SECTION ························································ 30 6-2. OPTICAL PICK-UP SECTION (CDM-3123EBA) ····························································· 31 7. ELECTRICAL PARTS LIST········································· 32 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. DANGER Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — S801 The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30cm away from the objective lens. Before Replacing the Optical pick-up Block Please be sure to check thoroughly the parameters as per the “Optical pick- up Block Checking Procedure” (Part No. : 9-960-027-11) issued separately before replacing the optical Pick-up block. Note and specifications required to check are given below. • FOK output : IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.4 to 0.5Vp-p SECTION 1 SERVICING NOTES Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper panel is closed while turning ON the S801 (push switch type). The following two checking methods for the laser diode are operable. Method : Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S801 as shown in Fig. 1 . 3. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. During normal operation, the laser diode is turned ON about 2.5 seconds for focus searching. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig.1 Method to push S801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 2 GENERAL LOCATING THE CONTROLS This section is extracted from instruction manual. CD player (front) 1 Display (pages 8, 10 - 14, 16, 17) 6 VOLUME control (page 7) 5 HOLD switch (page 17) 2 PLAY MODE• TUNING – button (pages 9 - 12) 3 ./> (AMS/search) • PRESET –/+ buttons (pages 8, 10, 11, 15) 4 LINE OUT jack (page 19) 7 RADIO ON•B button (pages 12, 15) 9 DC IN 4.5 V (external power input) jack (pages 7, 21) 8 u (play/pause) button (pages 7, 8, 11) q; Strap holes (pages 6) qa x (stop)/CHG (charge)• RADIO OFF button (pages 8, 12, 18, 21) qf i/REMOTE jack (page 7) qg OPEN switch (page 7) qs REPEAT/ENTER• TUNING + button (pages 9 - 12) qd SOUND button (page 16) qh 1 - 5 buttons (page 14) AND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — CD player (inside) qk G-PROTECTION switch (page 16) qj STEP switch (page 15) ql LOCAL/DX switch (page 13) w; AVLS switch (page 17) wa Battery compartment (page 21) wh HOLD switch (page 17) wg N(play)•> (AMS/search)• PRESET + button (pages 7, 8, 10, 11, 15) * To turn off the radio, hold down until the frequency indication disappears from the display. Remote control (D-FJ65 only) wf x (stop)•RADIO ON/ BAND•RADIO OFF* button (pages 12, 15) ws VOL (volume) control (page 7) wd .(AMS/ search)•PRESET – button (pages 8, 10, 11, 15) Note Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players. CD player (rear) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — Cabinet (rear) sub ASSY, Main board MD ASSY “Lid, Upper”, Switch unit “Motor ASSY, Turn table (Spindle) (M901)”, Optical pick-up (DAX-23E), Motor ASSY (Sled) (M902) Cabinet (front) Set SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 3-1. CABINET (REAR) SUB ASSY, CABINET (FRONT), MAIN BOARD 3-2. MD ASSY z The equipment can be removed using the following procedure. 5 7 4 3 Screws (B2) 1 Screw (B2) 2 OPEN 6 Flexible board (CN801) Lid, Upper Cabinet (Front) Main board MD ASSY Cabinet (Rear) sub ASSY 4 Claws 4 Claws Claws 4 Claws 4 CN502 (Green) 2 CN503 (White) 3 Optical pick-up flexible board MD ASSY Main board 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — 3-3. MOTOR ASSY, TURN TABLE (SPINDLE) (M901) 3-4. OPTICAL PICK-UP (DAX-23E), MOTOR ASSY (SLED) (M902) 3-5. “LID, UPPER”, SWITCH UNIT Motor ASSY, Turn tabl (Spindle) (M901) 1 Screws (B1.7x5) Chassis 2 3 5 6 2 1 Screw (B 1.7x5) 4 Screw (P 1.4x3.5) Chassis Optical pick-up (DAX-23E) Bracket (Shaft) Gear B Cover, Gear Motor ASSY (Sled) (M902) Screw (feed) assy 7 Cover ASSY, Lid 6 Claws 6 Claws 8 Switch unit q; Button (Operate) 5 Screws 6 Claws 1 OPEN 4 3 2 Lid, Upper Spring (Full open) Cabinet (Front) qa Window (LCD) 9 Button (Sound) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — SECTION 4 ELECTRICAL ADJUSTMENTS The CD section adjustments are done automatically in this set. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement : DC4.5 V in DC IN jack. (J401) VOLUME button : Minimum AVLS switch : NORM HOLD switch : OFF Focus bias Check Condition: • Hold the set in horizontal state. • Terminate TAP802 (open) by solder. Connection: Procedure: 1. Connect the oscilloscope to the test points TP629 (RF) and TP635 (GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch-ing. 5. Stop revolving of the disc motor by pressing the x button. RF level 0.4 to 0.5 Vp-p VOLT/DIV : 100 mV (With the 10 : 1 probe in use) TIME/DIV : 500ns TP629 (RF) TP635 (GND) 2 K Ω Oscilloscope (AC range) [MAIN BOARD] (Side B) CD SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com • Switch Location VOLUME : MAX MEGA BASS : OFF AVLS : NORMAL [AM] BAND: AM Signal generator [FM] BAND : FM Signal generator AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L3 620kHz CT3 1,400kHz TUNER SECTION Put the lead-wire antenna close to the set. 30% amplitude modulation by 400Hz signal. Output level : as low as possible AM RF signal generator 0.01µF FM RF signal generator FM IN point 75kHz(100%) amplitude modulation by 1kHz signal. Output level: as low as possible 16 Ω set level meter J301 (LINE OUT) AM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L4 520kHz AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 450kHz FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 86.5MHz CT1 109.5MHz FM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L2 86.5MHz Adjustment Location: Main board 0 dB = 1 µV T1 AM IF adjustment CT3 L3 AM TRACKING adjustment CT1 L1 FM TRACKING adjustment L2 FM FREQUENCY COVERAGE adjustment L4 AM FREQUENCY COVERAGE adjustment • Repeat the procedures in each adjustment several times for the maximum level meter indication. • The frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. — 9 — — 10 — SECTION 5 DIAGRAMS • Waveforms Note on Printed Wiring Board: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. Note on Schematic Diagrams: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • C : panel designation. • H : adjustment for repair. • U : B+ Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : AM < > : CD • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : FM f : AM J : CD • Abbreviation CND : Canadian model AUS : Australian model JE : Tourist model FR : French model E13 : AC 220-230V area model E33 : AC 100-240V area model HK : Hong Kong model KR : Korean model E92 : AC 120V area model AR : Argentina model. CH : Chinese model. G : German model. EE : East European model. EA : Saudi Arabia model. Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 1 IC601 of XTAO 3.6 Vp-p 4MHz 2 IC801 ul XIN 3 IC601 ua RFAC 4 IC61 uf XOUT 5 T81 C86 VOLT/DIV: 0.1 V AC TIME/DV: 0.1 µsec VOLT/DIV: 0.1 V AC TIME/DV: 0.1 µsec VOLT/DIV: 1.2 V AC TIME/DV: 10 µsec VOLT/DIV: 10 V AC TIME/DV: 0.2 µsec 2.3 Vp-p 16.9MHz VOLT/DIV: 1.2 V AC TIME/DV: 20 nsec 400 – 500 mVp-p 2.4 Vp-p 13.3 µsec 30 Vp-p 480 nsec w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-FJ61/FJ65 5-1. BLOCK DIAGRAM – CD SECTION – — 11 — — 12 — LASER DIODE OPTICAL PICK-UP DAX-23E PD LD M M FOCUS COIL TRACKING COIL SLED MOTOR M902 SPINDLE MOTOR M901 F+ F- T+ T- SL+ SL- SP+ SP- 16 SYSTEM CONTROL IC801(2/2) DRY BATTRY SIZE "AA" (IEC DESIGNATION LR6) 2PCS 3V LINE OUT J301 ON OFF HOLD S803 OFF ON G-PROTECTION S804 (OPEN/CLOSE) S801 LD ON/OFF SWITCH Q500 VCC LD VCC1 2V DETECTOR COIL/MOTOR DRIVE IC401(1/2) RF A C B D VLOGO2 69 LNM2 4 RF21 77 PAPC 78 FO2 36 PD RO2 34 FO3 32 RO3 30 FO1 40 RO1 38 FO4 28 RO4 26 41 FI1 42 RI1 43 FI2 44 RI2 12 FI3 13 RI3 15 RI4 14 FI4 7 SYNC 10 DATA 3 1 4 IC402 9 CLOCK 3 RF2 11 LATCH 79 APC REF 58 CHGMNT 8 WAKEUP 52 RSTB Q408 RF AMP,SERVO,DSP D/A CONV,D-RAM CONT IC601 RFAC 71 RFDC 58 A 62 B 61 C 59 D 60 SFDR 46 SRDR 47 FFDR 50 FRDR 51 TFDR 48 TRDR 49 MDP 43 C176 42 MDS 44 SDTO 23 CLOCK 25 XLAT 24 SENS 26 SCOR 17 FOK 35 R4M 30 WDCK 78 XSOE 28 XRST 21 D0 D3 A0 A10 RAS 5 DRAM IC602 114 XWE 120 XOE 119 XCAS 113 XRAS A0 A10 2 3 24 25 . . . WE 4 OE 22 CAS 23 D0 D3 7 5 3 . 1 . . 109 106. 115 118 111 9 12 15 . 19 21 . 8 . 97 L OUT 104 R OUT 13 A MUTE • Signal Path : FM : CD FM ANT TU-R TU-R A TUNER SECTION 11 10 9 2 4 12 6 13 5 8 1 3 IC303 Q305 Q307 VCPU 2V D602 D601 MUTE Q301,302 VOLUME RV301 B TUNER SECTION D351 XTU BASS1 BEEP O HP Q304 L IN 14 R IN 15 MUTE 19 PWR SW 20 BEEP 17 BB SW 23 BST NF 1 HP AMP IC302 8 L OUT 6 R OUT 24 BST OUT 21 BIAS 2 AD DOUT 10 MIX OUT 11 ALC IN 12 ALC DET Q308 2 1 4 IC304 D353 TU BASS2 XL/O REM KEY GND RMKY TSB VCPU DC IN 4.5V J401 /REMOTE J302 VCPU 2V NORM LIMIT AVLS S802 Q306 AVLS I SW VCPU 2V Q300 HOLD I SW 13 SLP OUT 15 AD CHGMNT 4 AGC PWM 48 XAPC OFF 46 XPOWLT 42 XHG ON 12 MSDTO 10 SCK 43 WFCK 11 MSDTI 25 SCOR 3 FOK 79 XIN 26 GRSCOR 44 XSOE 9 XRST 47 TU AUDIO 78 RESET 7 A MUTE 49 CD AUDIO 2 PWR SW 28 BEEP 39 HOLD 38 AVLS 51 BASS1 52 BASS2 37 L/O 16 AD RMKEY 19 AD RM INT BUFFER Q303 36 G SHOCK 21 WP OPEN VCPU 2V +B SWITCH Q412 REG Q401,411 CHARGE SWITCH Q402 D-D CONV Q404 +4.5V CHARGE ON/OFF Q403 D401 Q416 (1/2) Q416 (2/2) Q409 1 3 4 IC404 POWER CONTROL IC401(2/2) 65 V IN 18 STNG 50 VCPU 61 LGO1 47 INM4 60 BATM1 59 BATM2 46 RS 45 CHG SW 49 DC IN 5 VG VCPU 2V BATT DET Q405 VOL CONT Q406,407 L3 71 VCC1 51 VLG3 72 VCC ON 8 BAT DET 40 VCC1 2V VCC 2.5V AD DC IIN MNT 20 AD BATT MNT 17 Q413 AD I HIDC/BATT VIN 3V 4.5V VCPU 2V XDC DT 3.6V TU VCC VIN 3V C TUNER SECTION w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-FJ61/FJ65 – TUNER SECTION – — 13 — — 14 — RF AMP Q7 B.P.F FL1 FM RF L1 FM OSC L2 AM IFT T1 ANTTENA MW FERRITE-ROD L3 AM OSC L4 CONVERTER DC/DC T81,Q84-86 D3 V IN 2 FM IF L OUT 6 IF/RF AMP IC1 FM /AM 450kHz CF1 12 R OUT 11 FM IF 2 1 LINE AMP IC71 X1 75kHz IC1 DTS µCOM 16 FM LOCAL/DX Q3 MONO/ST SWITCH Q1 21 FM OSC 20 AM OSC 17 LPF1 MIX OUT 4 7 10.7MHz CF2,3 AM IF LPF2 13 QUAD 10 10.7MHz X1 EXCEPT US, CND, E92, AR MODEL US, CND, E92, AR MODEL • Signal Path : FM 62 TU MUTE FM RF 24 AM RF 22 AM/XFM 59 XMO/ST AM/FM SWITCH Q2 IF ON CONTROL Q6 XIF REQ 17 OSC OUT 19 XAM/FM BUFFER Q60 +B SWITCH Q4,5 V IN TU +B +1.6V REG 3 2 IC81 V IN 6 7 IF REQ 61 IF IN 64 AM IN 71 +B ON/OFF 60 FM IN 70 AD DL REF 45 ST/DX CTR 55 EQ 65 XOUT 74 XIN 75 EEP DO/DI 30 EEP SK 31 EEP CS 32 3 DI 4 DO 2 SK 1 CS EEPROM IC62 47 SDO CDU (CD)SDI 31 IC801(1/2) SYSTEM CONTROL 46 SDI CDU (CD)SDO 32 48 SCK CDU TU SCK 30 38 CD ACK ACK CD 34 28 LCD REQ LCD REQ 53 39 CDON IWP CDU CDON 5 73 RESET XCD RESET TU 29 29 LID OPEN WP OPEN 21 52 XAVLS I SW 51 XHOLD I SW 54 TU ON TU ON 35 CD WP 74 42 AD1 KEY AD CD KEY 18 SWEN2 6 43 AD2 REM KEY 33 XL/O 58 TU BASS1 56 TU BASS2 49 TU BEEP 44 AD3 BATT HIDC 72 V IN 53 XDC DET XLOCAL/XMONO DET 25 +B SWITCH Q61 +B SWITCH Q8,9 1 4 5 20 COM0 COM3 S1 S16 AM STEP 21 MEM KEY 36 SWITCH UNIT FM ANT TU-L TU-R MUTE O HP A MAIN SECTION C MAIN SECTION XDC DET VDD REM KEY XL/O XTU BASS1 AD I HIDC/BATT VCPU 2V XDC DT 3.6V TU BASS2 BEEP O HP VIN 3V TU VCC B MAIN SECTION AVLS I SW HOLD I SW AM TRACKING FM TRACKING FM F-COVER AM F-COVER AM IF w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-FJ61/FJ65 5-2. SCHEMATIC DIAGRAM – TUNER SECTION – — 15 — — 16 — Q1 Q2 5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-FJ61/FJ65 5-3. SCHEMATIC DIAGRAM – CD SECTION – — 17 — — 18 — — 19 — TOTAL CURRENT PLAY : 90mA FF : 50mA FR : 50mA LD PD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ D-FJ61/FJ65 — 20 — — 21 — — 22 — 5-4. PRINTED WIRING BOARD S802 AVLS LIMIT r NORM S804 G-PROTECTION ON t OFF TP635 TP629 L3 AM FERRITE BAR ANTENNA 16 1 2 A B C D E F G 3 4 5 6 7 8 9 10 11 12 13 14 Ref. No. Location D1 C-11 D2 C-11 D3 C-12 D80 C-9 D82 C-9 D311 G-10 D312 G-4 D351 C-11 D353 C-11 D401 A-5 D402 B-5 D404 B-6 D405 F-4 D406 F-9 D408 F-9 D409 A-9 D461 E-3 D601 F-4 D603 E-3 IC1 C-11 IC61 A-9 IC62 B-9 IC71 B-10 IC81 C-9 IC302 F-5 IC303 F-11 IC304 G-5 IC401 F-10 IC402 D-3 IC404 E-12 IC601 E-3 IC602 D-10 IC801 D-11 Q1 C-10 Q2 C-10 Q3 B-11 Q4 B-9 Q5 B-9 Q6 B-11 Q7 B-12 Q8 C-10 Q9 C-10 Q60 A-10 Q61 A-11 Q84 C-9 Q85 B-9 Q86 D-9 Q300 C-5 Q301 E-13 Q302 E-13 Q303 E-12 Q304 G-5 Q305 G-10 Q306 F-8 Q307 G-10 Q401 A-5 Q402 A-5 Q403 A-5 Q404 A-5 Q405 C-11 Q406 E-12 Q407 E-11 Q408 F-4 Q409 C-5 Q411 A-9 Q412 A-5 Q413 B-5 Q500 D-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 23 — 5-5. EXPLANATION OF IC TERMINALS IC801 (SYSTEM CONTROLLER) TMP88CM22F-TUMP1 Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 I/O — O I O O O O O O O I O O I I I I I I I I I I — I I I O O O I O O O I I I I I I Description Ground terminal. Headphone IC power switch. Focus OK signal input from the digital servo processor (IC601). “L”: NG, “H”: OK AGC control pulse signal output terminal. CD mode on. Tuner power block on. (Supply vin) Analog audio muting ON/OFF control signal output terminal. “H”: muting ON VCC2 voltage control signal output terminal. Reset signal output to IC601. “L”: reset Serial data transfer clock signal output to IC601. Serial data input from the IC601. Serial data output to IC601. WAKE-UP control signal output terminal (for system standby reset). Plug-in detection signal input terminal of LINE OUT/OPTICAL OUT. Battery charge voltage detection input from the power control (IC401). Volume key input terminal. Battery voltage detection signal input terminal Key input terminal. Key input from the headphone with remote commander (A/D input). DC input voltage detection input terminal (A/D input) and DC input jack use/no use detection input terminal. CD door open/close detection switch (S801) input terminal.The stop status is reset with the falling edge of input signal. Reference voltage input terminal (0V) for A/D converter. Reference voltage input terminal (+2V) for A/D converter. Power supply terminal (+2V). Sub-code sync (S0+S1) detection signal input from the IC601. GRSCOR signal input from the IC601. FG pulse signal input. Beep sound output to the headphone amplifier (IC302). DTS pull up 200K. Communication clock output to the communication format converter (IC802). Communication data bus input of headphone with remote commander from the communication format converter (IC802). Communication data bus output of headphone with remote commander to the communication format converter (IC802). Read/write control signal output of headphone with remote commander to the communication format converter (IC802). “L”: read mode, “H”: write mode Serial data latch pulse signal output of headphone with remote commander to the communication format converter (IC802). WFCK signal input from the IC601. G PROTECTION switch input. Not used (Fixed at “H”). AVLS (Automatic Volume Limiter System) switch (S803) input terminal. “L”: normal mode, “H”: limit mode HOLD switch (S803) input terminal. “L”: hold ON, “H”: hold OFF External battery detection signal input terminal. Pin Name VSS PWRSW FOKI AGCPWM CDON O SWEN2 O AMUTE VCC2 ON XRST O SCK O SDTI I SDTO O SLPOUT O AD CDTEST AD CHGMNT AD RM KEY AD BATMNT AD CDKEY AD RM INT AD DCINMNT WP OPEN VREFL VREFH VDD SCOR GRSCOR TUON BEEP XCDRESETTU TUSCK TUSDI TUSDO RESERVED ACK CD TUON G SHOCK XL101 AVLS HOLD BATT DET I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 24 — Pin No. 41 42 43 44 45 46 47 48 49 50 to 64 65 to 68 69 to 71 72,73 74 75 76 77 78 79 80 I/O O O O O O O O O O O O O O O I O O I I — Description Mode select terminal for IC601. Optical pick-up power ON/OFF control signal output terminal. “L”: ON Serial data latch pulse signal output to IC601. Serial data output enable signal output terminal. Headphone attenuater ON/OFF signal output. Latch signal output to the power control (IC401). Audio channel selection. (Radio/CD music) APC mute signal output terminal. “L”: mute Audio channel selection. (Radio/CD music) Segment drive signal output to the liquid crystal display. Common drive signal output to the liquid crystal display. Bias signal output to the liquid crystal display driver. Capacitor connected terminal for the liquid crystal display driver voltage-up. VCD control stop signal output terminal. Not used (Fixed at “L”). Test terminal for IC (Fixed at “L”). ON/OFF control signal output to the headphone amplifier (IC302). LCD back light control signal output to the liquid crystal display. (EJ616CK) System reset signal input from the power control (IC401). “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” System clock input terminal. Not used (OPEN). Pin Name DSP TYPE SELECTION XHGOM XLT XSOE RESERVED POWLT TUAUDIO XAPC OFF CDAUDIO SEG14 to SEG0 COM3 to COM0 V3 to V1 C1, C0 CDWP/TUON IC TEST BBSW XLED RESET XIN XOUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — Pin No. 1 to 4 5 to 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 I/O O O I I I I I O O I I I/O O O I — — I I O I — — I I I I I O I O — I I I O O O I O O Description LCD drivers LCD drivers AM 9K/10K tuning step select (initialisation) Bit 2 Tu Destination setting Bit 1 Tu Destination setting Bit 0 Tu Destination setting Local/DX or Mono/Stereo ON-Off switch detection Not used Not used LCD display request signal from CD Upper Lid Open Detect Data I/O for EEPROM Clock for EEPROM 2K bits (software timing) Chip select for EEPROM Line Out Jack detect Not used Not used Memory key ( use Vdd as ref) 5 keys Not used TU On request CD ON request (Weakup TU in sleep mode) Reserved Not used Set Keys Remote Key Battery/ HiDC Level detect (use VEE1.55 or 3.3V external) Ref DC of A/D (use for HiDC and batt detects, keys ,vol +,- and RMkeys use VDD as ref) Serial input from CD micon Serial output to CD micon (reserved line) Not use Serial clock to CD micon Beep sound control Not used HOLD detect AVLS detect DC-in detect Acknowlege CD Local/DX or Mono/Stereo ON-Off control Sound mode, Mega Bass 2 TU Test Mode detect (active LOW) Sound mode, Mega Bass 1 Band control FM/AM to Tuner IC TA2104 Pin Name COM1-4 S1-16 AMSTEP-I DEST2-I DEST1-I DEST0-I XLOCAL/XMONO-DET_I NC NC LCDREQ-I LID OPEN EEPSD EEPSK EEPCS XL/O-I NC NC PRESET_KEY NC CD_ACK-I CDON-I NC NC KEY RMKEY HIDC_BATT ADREF TUCDSDI TUCDSDO TUCDSCK TUBEEP NC XHOLD XAVLS XDC IN DET TUON ST-DX TUBASS2 TUTEST TUBASS1 AM/XFM-O • IC61 (DTC MICROCOMPUTER) TC9327AF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 26 — Pin No. 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I/O O O O — I O — I O — I I — I — — — — — — — Description Radio Power On/Off (VCO Amp block) IF Request Mute HP control Not used FM,AM IF input PLL error output Not used Not used Not used IC System GND FM OSC in AM OSC in VDD power supply 3.0V Power reset (Resset by CD Micon) Crystal Osc pin Crystal Osc pin Crystal Osc pin LCD voltage doubler LCD voltage doubler LCD voltage doubler Constant voltage for LCD 1.55V Pin Name +B ON/OFF IFREQ-O TUMUTE-O TEST IFIN EO NC HOLD NC GND FMIN AMIN VDD RESET XOUT XIN VXT VLCD C1 C2 VEE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 27 — 5-6. IC BLOCK DIAGRAMS IC1 TA2104AFN(EL) IC71 NJM2100E 24 23 22 21 20 19 18 17 16 15 14 13 DECODE DIVIDE VCO 11 10 9 8 7 6 5 4 3 2 1 12 FM RF OUT RF GND FM RF IN AM IF IN FM IF IN GND AGC QUAD R-OUT L-OUT AM LOW CUT MIX OUT VCC RF VCC AM RF IN FM OSC AM OSC OSC OUT ST LED IF REQ DET OUT LPF1 LPF2 FM OSC AM OSC AM MIX FM MIX BUFF BUFF FM RF AMIF FMIF AGC MUTE ST/MO FM/AM FM DET AM DET 1/8 LEVEL DET IF BUFF AF BUFF AF IF REQ SW ST 1 2 3 4 8 7 6 5 V– + – A –INPUT A +INPUT A OUTPUT V+ B OUTPUT B –INPUT B +INPUT + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 28 — IC401 TB2119F IC302 TA2120FN(EL) + – + – + – 23 20 19 18 17 16 15 14 13 2 3 4 5 6 7 8 9 10 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW OUT B OUT A BEEP IN BST PW B PW C BST NF ADD OUT RF IN PWC SW OUT B OUT C OUT A PWR GND MIX OUT ALC IN ALC DET ATT SW IN A IN B GND MT TC MT SW PW SW BIAS BIAS IN BST SW BST OUT VCC ADDA ADDB 21 22 PW A ALC ALC 1 2 3 4 5 6 7 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 15 14 13 12 11 10 9 HPOUT2 HPOUT3 HPOUT1 APCREF VHP HCND RO4 FO4 RO3 RO2 RO1 FO3 FO2 FO1 FI1 RI1 FI2 RI2 RS RF4 DCIN VCPU VCC1 RSTB DTC2D DTC1D INM1 RF1 BATM2 BATM1 INP1 INM4 CHGSW CHGMNT MGND4 MGND3 MGND2 MGND1 VD34 VD23 VD12 VLGO1 VLGO2 VLG3 L1L L1H L2H L2L L3 PGND1 PGND2 PGND3 VIN INP3 INM3 RF3 RF21 DTC3 PAPC VINDET VREF L4 VG GND SYNC CLOCK DATA LATCH HIPC HPI2 HPI1 FR4 RI3 FI3 PWM4 STNG N.C. WAKE UP RF2 INM2 PWM H/P DRIVER H BRIDGE DRIVER4 H BRIDGE DRIVER3 H BRIDGE DRIVER2 H BRIDGE DRIVER1 CONTROLLER CONTROLLER LEVEL SHIFTER LEVEL SHIFTER CONTROL CHARGE SAW GEN CLK OR OSC BIAS INTERFACE STNBY REFERENCE BANDGAP REFERENCE (VREF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 29 — IC601 CXD3027R (US) IC601 CXD3037R (EXCEPT US) ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE A0 – A11 SYSM AMUTE HPL HPM HPR PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI LOCK MDP SDTI SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI/HPVSS LOCK/HPL HPR HPM HPL/HPVDD VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0 IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 A VDD A GND D VDD AVDD0 IGEN AVSS0 RFDC E F RFDC E F B A VC CLTV XPCK A6 A5/PWMI XWRE XRDE XEMP XWIH XQOK AMUTE SDTI XQCK SCSY SCOR VSS0 SBSO EXCK XRST SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP A4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 6 EXPLODED VIEWS — 30 — NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation CND : Canadian model AUS : Australian model JE : Tourist model FR : French model E13 : AC 220-230V area model E33 : AC 100-240V area model HK : Hong Kong model KR : Korean model E92 : AC 120V area model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. AR : Argentina model. CH : Chinese model. G : German model. EE : East European model. EA : Saudi Arabia model. 4 11 12 13 14 25 15 1 2 3 5 6 9 7 8 10 16 26 17 18 18 19 20 23 23 23 21 22 CDM-3123EBA 24 not supplied 6-1. CABINET SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 X-3378-897-1 CABINET (REAR) SUB ASSY 2 4-966-278-01 FOOT,RUBBER 3 4-223-586-01 TERMINAL, BATTERY LINK 4 4-993-131-41 KNOB(HOLD) 5 A-3323-563-A MAIN BOARD, COMPLETE (AEP,UK,CH,G,EE,EA) 5 A-3323-564-A MAIN BOARD, COMPLETE (FR) 5 A-3323-565-A MAIN BOARD, COMPLETE (AUS,E13,E33,HK,KR) 5 A-3323-566-A MAIN BOARD, COMPLETE (US) 5 A-3323-567-A MAIN BOARD, COMPLETE (CND,E92,AR) 5 A-3323-568-A MAIN BOARD, COMPLETE (JE) 6 4-223-583-01 SPRING (OPEN) 7 4-222-794-01 CLAW,LOCK 8 4-222-793-11 KNOB(OPEN) 9 3-375-114-81 SCREW 10 4-223-585-01 TERMINAL (+), BATTERY 11 3-375-114-31 SCREW 12 3-043-765-01 COVER, LID (AUS,E13,E33,JE,HK,KR) 12 3-043-765-11 COVER, LID (AEP,UK,CH,FR,G,EE,EA) 12 3-043-765-21 COVER, LID (US,CND,E92,AR) 13 1-418-826-11 SWITCH UNIT (US,CND,AUS,E13,E92,AR,E33,JE,HK,KR) 13 1-418-826-21 SWITCH UNIT (AEP,UK,CH,FR,G,EE,EA) 14 3-043-762-01 BUTTON (OPERATE) 15 3-043-763-01 COVER, DECORATION 16 3-043-764-01 WINDOW, LCD 17 3-043-761-01 LID,UPPER (FJ61:US,CND,AUS,CH,E13,E92,AR) 17 3-043-761-11 LID,UPPER (FJ61:AEP,UK,FR,G,EE,EA) 17 3-043-761-21 LID,UPPER (FJ65:US,AUS,CH,E13,E33,JE,HK,KR) 17 3-043-761-31 LID,UPPER (FJ65:AEP,UK,FR,EE) 18 3-719-408-01 SCREW (B2), TAPPING, P3 19 4-223-587-01 SPRING (FULL OPEN) 20 X-3378-896-1 CABINET (FRONT) SUB ASSY 21 4-223-584-01 TERMINAL (-), BATTERY 22 4-223-606-01 LID,BATTERY 23 4-222-765-02 INSULATOR 24 3-046-491-01 KNOB(JOGGABLE) 25 3-045-689-01 BUTTON (SOUND) 26 3-044-073-01 SHEET, LCD WINDOW ADHESIVE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 31 — 51 52 61 63 60 58 59 M901 54 55 57 56 51 53 62 M902 6-2. OPTICAL PICK-UP SECTION (CDM-3123EBA) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 3-318-203-71 SCREW (B1.7X5), TAPPING 52 4-218-820-01 CHASSIS 53 A-3328-628-A SCREW (FEED) ASSY 54 4-218-823-01 GEAR(B) 55 4-964-564-01 SCREW (M1.2X1.6) 56 4-218-821-01 COVER, GEAR 57 4-218-825-01 SPRING (SLED) 58 3-895-823-61 SCREW (B1.4X2.3), TAPPING 59 4-220-645-01 SHAFT, STANDARD 60 4-223-600-01 RACK 61 4-218-827-01 BRACKET (SHAFT) 62 3-686-458-03 SCREW (P1.4X3.5), TAPPING 063 X-4952-506-1 OPTICAL PICK-UP BLOCK(DAX-23E) M901 A-3328-627-A MOTOR ASSY, SLED (WITH GEAR) M902 A-3328-759-A MOTOR ASSY, TURN TABLE (SPINDLE) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 32 — SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation CND : Canadian model AUS : Australian model JE : Tourist model FR : French model E13 : AC 220-230V area model E33 : AC 100-240V area model HK : Hong Kong model KR : Korean model E92 : AC 120V area model When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. AR : Argentina model. CH : Chinese model. G : German model. EE : East European model. EA : Saudi Arabia model. A-3323-566-A MAIN BOARD, COMPLETE (US) ********************* A-3323-568-A MAIN BOARD, COMPLETE (JE) ********************* A-3323-564-A MAIN BOARD, COMPLETE (FR) ************************ A-3323-565-A MAIN BOARD, COMPLETE (AUS,E13,E33,HK,KR) ********************* A-3323-567-A MAIN BOARD, COMPLETE (CND,E92,AR) ********************* A-3323-563-A MAIN BOARD, COMPLETE (AEP,UK,CH,G,EE,EA) ********************* 3-375-114-81 SCREW 4-223-584-01 TERMINAL (-), BATTERY 4-223-585-01 TERMINAL (+), BATTERY 4-223-586-01 TERMINAL, BATTERY LINK < CAPACITOR > C2 1-162-934-11 CERAMIC CHIP 3PF 0.25PF 50V (JE) C2 1-164-118-11 CERAMIC CHIP 15PF 5.00% 50V (EXCEPT JE) C4 1-162-942-11 CERAMIC CHIP 12PF 5% 50V C5 1-162-923-11 CERAMIC CHIP 47PF 5% 50V (EXCEPT JE) C6 1-162-958-11 CERAMIC CHIP 270PF 5% 50V (JE) C6 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V (EXCEPT JE) C9 1-115-416-11 CERAMIC CHIP 1000PF 5.00% 25V C10 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C11 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C12 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C13 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C16 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C17 1-164-346-11 CERAMIC CHIP 1uF 16V C18 1-115-416-11 CERAMIC CHIP 1000PF 5.00% 25V C19 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C20 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C21 1-164-156-11 CERAMIC CHIP 0.1uF 25V C22 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C23 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C24 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C25 1-117-887-11 TANTAL. CHIP 220uF 20.00% 6.3V C26 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C27 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C28 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V C29 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V C30 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C31 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C32 1-164-362-11 CERAMIC CHIP 470PF 5.00% 50V C33 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C34 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C35 1-104-852-11 TANTAL. CHIP 22uF 20.00% 6.3V C36 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (US,CND,E92,AR) C39 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C40 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C41 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C43 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C44 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C45 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C46 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C47 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C48 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C49 1-117-887-91 TANTAL. CHIP 220uF 20.00% 6.3V C50 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C51 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C52 1-164-156-11 CERAMIC CHIP 0.1uF 25V C53 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C54 1-164-156-11 CERAMIC CHIP 0.1uF 25V C57 1-110-569-11 TANTAL. CHIP 47uF 20.00% 4V C58 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C59 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C60 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C61 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C62 1-115-416-11 CERAMIC CHIP 1000PF 5.00% 25V C63 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C64 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C65 1-107-823-11 CERAMIC CHIP 0.47uF 10.00% 16V C66 1-107-826-91 CERAMIC CHIP 0.1uF 10.00% 16V C67 1-107-826-91 CERAMIC CHIP 0.1uF 10.00% 16V C68 1-107-823-11 CERAMIC CHIP 0.47uF 10.00% 16V C69 1-127-569-91 TANTAL. CHIP 100uF 20% 4V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 33 — C70 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C71 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C72 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C73 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C74 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C75 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C76 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C79 1-104-852-11 TANTAL. CHIP 22uF 20.00% 6.3V C81 1-115-416-11 CERAMIC CHIP 1000PF 5.00% 25V C82 1-164-489-11 CERAMIC CHIP 0.22uF 10.00% 16V C83 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C85 1-164-505-11 CERAMIC CHIP 2.2uF 16V C86 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C87 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C88 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C89 1-164-156-11 CERAMIC CHIP 0.1uF 25V C90 1-104-852-11 TANTAL. CHIP 22uF 20.00% 6.3V C92 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C93 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C101 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C102 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V C103 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C104 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C105 1-115-156-11 CERAMIC CHIP 1uF 10V C154 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C201 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C202 1-164-878-11 CERAMIC CHIP 150PF 5.00% 16V C203 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C204 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C205 1-115-156-11 CERAMIC CHIP 1uF 10V C254 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C300 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C312 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C313 1-127-569-11 TANTAL. CHIP 100uF 20% 4V C318 1-164-156-11 CERAMIC CHIP 0.1uF 25V C319 1-164-156-11 CERAMIC CHIP 0.1uF 25V C350 1-115-156-11 CERAMIC CHIP 1uF 10V C351 1-115-156-11 CERAMIC CHIP 1uF 10V C352 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C353 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C354 1-117-887-11 TANTAL. CHIP 220uF 20.00% 6.3V C355 1-115-156-11 CERAMIC CHIP 1uF 10V C356 1-165-128-11 CERAMIC CHIP 0.22uF 16V C357 1-107-820-11 CERAMIC CHIP 0.1uF 16V C358 1-164-505-11 CERAMIC CHIP 2.2uF 16V C359 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C400 1-164-156-11 CERAMIC CHIP 0.1uF 25V C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C402 1-164-505-11 CERAMIC CHIP 2.2uF 16V C403 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C404 1-125-822-11 TANTALUM 10uF 20.00% 10V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-110-569-11 TANTAL. CHIP 47uF 20.00% 6.3V C407 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C408 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C409 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C410 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C411 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C415 1-164-156-11 CERAMIC CHIP 0.1uF 25V C416 1-164-156-11 CERAMIC CHIP 0.1uF 25V C417 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C418 1-128-705-11 ELECT 0PF 0V C419 1-164-156-11 CERAMIC CHIP 0.1uF 25V C420 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C421 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C422 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C424 1-165-112-11 CERAMIC CHIP 0.33uF 16V C425 1-115-156-11 CERAMIC CHIP 1uF 10V C426 1-115-156-11 CERAMIC CHIP 1uF 10V C427 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C430 1-164-156-11 CERAMIC CHIP 0.1uF 25V C431 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C432 1-125-822-11 TANTALUM 10uF 20.00% 10V C433 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C435 1-125-822-11 TANTALUM 10uF 20.00% 10V C438 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C439 1-117-887-11 TANTAL. CHIP 220uF 20.00% 6.3V C442 1-115-156-11 CERAMIC CHIP 1uF 10V C444 1-125-822-11 TANTALUM 10uF 20.00% 10V C451 1-115-156-11 CERAMIC CHIP 1uF 10V C453 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C461 1-107-823-11 CERAMIC CHIP 0.47uF 10.00% 16V C462 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C500 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C601 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C602 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C603 1-107-820-11 CERAMIC CHIP 0.1uF 16V C604 1-164-941-11 CERAMIC CHIP 0.0047uF 10.00% 16V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-128-661-11 CERAMIC CHIP 100PF 5% 50V C607 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C609 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C611 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C612 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C613 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C614 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C615 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C616 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V (EXCEPT US) C618 1-164-505-11 CERAMIC CHIP 2.2uF 16V (EXCEPT US) C619 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C620 1-164-943-11 CERAMIC CHIP 0.01uF 10.00% 16V C621 1-164-230-11 CERAMIC CHIP 220PF 5.00% 50V C622 1-107-820-11 CERAMIC CHIP 0.1uF 16V C623 1-115-156-11 CERAMIC CHIP 1uF 10V C624 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C625 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C626 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C627 1-164-156-11 CERAMIC CHIP 0.1uF 25V C629 1-164-505-11 CERAMIC CHIP 2.2uF 16V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 34 — C630 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C631 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C632 1-164-156-11 CERAMIC CHIP 0.1uF 25V C634 1-127-569-11 TANTAL. CHIP 100uF 20% 4V C635 1-115-156-11 CERAMIC CHIP 1uF 10V C636 1-164-156-11 CERAMIC CHIP 0.1uF 25V C639 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V (US) C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C807 1-164-156-11 CERAMIC CHIP 0.1uF 25V C808 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-117-720-11 CERAMIC CHIP 4.7uF 10V C813 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C841 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < FILTER > CF1 1-767-480-11 FILTER, CERAMIC (AM) CF2 1-767-362-11 FILTER, CERAMIC CF3 1-767-362-11 FILTER, CERAMIC < CONNECTOR > * CN501 1-778-161-11 CONNECTOR, FFC/FPC (ZIF) 13P CN502 1-784-342-31 HOUSING, CONNECTOR 2P CN503 1-784-342-21 HOUSING, CONNECTOR 2P CN801 1-764-534-21 CONNECTOR, FFC/FPC (ZIF) 28P < TRIMMER > CT1 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF CT3 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF < DIODE > D1 8-719-080-77 DIODE MA2S357(E)-(TX).SO D2 8-719-080-77 DIODE MA2S357(E)-(TX).SO D3 8-719-951-05 DIODE KV1560 D80 8-719-073-01 DIODE MA111-(K8).S0 D82 8-719-158-49 DIODE RD12SB2 D311 8-719-941-23 DIODE DA204U D312 8-719-941-23 DIODE DA204U D351 8-719-941-86 DIODE DAN202U D353 8-719-941-86 DIODE DAN202U D401 8-719-077-01 DIODE CRS03(TE85L) D402 8-719-071-87 DIODE MA785-(TX),SO D404 8-719-077-01 DIODE CRS03(TE85L) D405 8-719-072-70 DIODE MA2ZD14001S0 D406 8-719-071-87 DIODE MA785-(TX),SO D408 8-719-071-87 DIODE MA785-(TX),SO D409 8-719-976-96 DIODE DTZ4.7C D461 8-719-049-09 DIODE 1SS367-T3SONY D601 8-719-044-74 DIODE MA792WK-TX D602 8-719-071-87 DIODE MA785-(TX),SO < FERRITE BEAD > FB101 1-216-864-11 METAL CHIP 0 5% 1/16W FB111 1-414-760-21 FERRITE 0uH FB201 1-216-864-11 METAL CHIP 0 5% 1/16W FB211 1-414-760-21 FERRITE 0uH FB300 1-216-864-11 METAL CHIP 0 5% 1/16W FB301 1-216-864-11 METAL CHIP 0 5% 1/16W FB302 1-216-864-11 METAL CHIP 0 5% 1/16W FB311 1-414-760-21 FERRITE 0uH FB312 1-216-864-11 METAL CHIP 0 5% 1/16W FB602 1-216-803-11 METAL CHIP 33 5% 1/16W FB603 1-216-864-11 METAL CHIP 0 5% 1/16W < FILTER > FL1 1-239-108-11 FILTER, BAND PASS (JE) FL1 1-239-015-21 FILTER, BAND PASS (EXCEPT JE) < IC > IC1 8-759-564-18 IC TA2104AFN(EL) IC61 8-759-676-11 IC TC9327AF-622 IC62 8-759-449-23 IC AK93C55AV-L IC71 8-759-293-74 IC NJM2100E IC81 8-759-457-70 IC XC62RP1602MR IC302 8-759-522-87 IC TA2120FN(EL) IC303 8-759-523-03 IC TC74HC4066AFT(EL) IC304 8-759-082-60 IC TC7S66FU IC401 8-759-642-56 IC IC TB2119F IC402 8-759-594-55 IC TC75S57F(TE85R) IC404 8-759-651-13 IC NJU7116F (TE2) IC601 8-752-401-56 IC CXD3037R (EXCEPT US) IC601 8-752-398-18 IC CXD3027R (US) IC602 8-759-538-44 IC KM44V4100CS-6 (US) IC801 8-759-681-25 IC TMP88CM22F-1B14 < JACK > J301 1-778-696-11 JACK (iLINE OUT) J302 1-580-680-11 JACK (REMOTE) J401 1-778-153-21 JACK,DC(POLARITY UNIFIED TYPE)(DC IN 4.5V) < JUMPER RESISTOR > JR11 1-216-864-11 METAL CHIP 0 5% 1/16W JR12 1-216-864-11 METAL CHIP 0 5% 1/16W JR16 1-216-295-91 SHORT 0 JR17 1-216-295-91 SHORT 0 JR18 1-216-295-91 SHORT 0 JR19 1-216-864-11 METAL CHIP 0 5% 1/16W JR31 1-216-296-91 SHORT 0 JR32 1-216-296-91 SHORT 0 JR101 1-216-296-91 SHORT 0 JR102 1-216-296-91 SHORT 0 JR104 1-216-864-11 METAL CHIP 0 5% 1/16W JR105 1-216-864-11 METAL CHIP 0 5% 1/16W JR106 1-216-864-11 METAL CHIP 0 5% 1/16W JR107 1-216-864-11 METAL CHIP 0 5% 1/16W JR108 1-216-296-91 SHORT 0 < COIL > L1 1-419-499-11 COIL, FM RF (WITH CORE) (JE) L1 1-419-497-11 COIL, FM RF (WITH CORE) (EXCEPT JE) L2 1-419-498-11 COIL, FM OSC (WITH CORE) (JE) L2 1-419-496-11 COIL, FM OSC (WITH CORE) (EXCEPT JE) L3 1-754-120-11 ANTENNA, FERRITE-ROD (MW) L4 1-406-404-11 COIL (MW OSCILATION) L5 1-414-410-21 INDUCTOR 10uH L61 1-412-972-11 INDUCTOR 0.27uH L62 1-412-006-31 INDUCTOR CHIP 10uH L80 1-412-006-31 INDUCTOR CHIP 10uH MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 35 — L311 1-414-821-11 INDUCTOR 4.7uH L401 1-419-188-21 INDUCTOR 100uH L402 1-469-525-91 INDUCTOR 10uH L403 1-414-434-11 INDUCTOR 100uH L404 1-469-528-91 INDUCTOR 100uH L405 1-469-525-91 INDUCTOR 10uH L406 1-414-404-11 INDUCTOR 100uH L407 1-469-525-91 INDUCTOR 10uH L408 1-414-404-11 INDUCTOR 100uH L409 1-469-527-11 INDUCTOR 47uH L410 1-469-527-11 INDUCTOR 47uH L411 1-419-256-11 INDUCTOR 2.2uH L412 1-414-392-21 INDUCTOR 1uH < TRANSISTOR > Q1 8-729-028-97 TRANSISTOR DTC114TUA-T106 (EXCEPT US,CND,E92,AR) Q2 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q3 8-729-602-21 TRANSISTOR 2SC4154-F (US,CND,E92,AR) Q4 8-729-800-71 TRANSISTOR 2SB815B7-TB Q5 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q6 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q7 8-729-117-83 TRANSISTOR 2SK160A-K25 Q8 8-729-800-71 TRANSISTOR 2SB815B7-TB Q9 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q60 8-729-423-52 TRANSISTOR 2SC3931-C Q61 8-729-930-00 TRANSISTOR UMD2 Q84 8-729-602-21 TRANSISTOR 2SC4154-F Q85 8-729-053-44 TRANSISTOR 2SK880-Y-TE85R Q86 8-729-602-21 TRANSISTOR 2SC4154-F Q300 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q301 8-729-043-90 TRANSISTOR IMX9T110 Q302 8-729-930-00 TRANSISTOR UMD2 Q303 8-729-026-52 TRANSISTOR 2SA1576A-T106-QR Q304 8-729-029-06 TRANSISTOR DTC124EUA-T106 Q305 8-729-930-00 TRANSISTOR UMD2 Q306 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q307 8-729-930-00 TRANSISTOR UMD2 Q401 8-729-052-27 TRANSISTOR TRANSISTOR 2SA1241-Y Q402 8-729-920-82 TRANSISTOR 2SB1188-QR Q403 8-729-921-73 TRANSISTOR 2SD1781K-QR Q404 8-729-425-41 TRANSISTOR 2SK1374 Q405 8-729-047-36 TRANSISTOR CPH3303-TL Q406 8-729-904-86 TRANSISTOR 2SB1197K-Q Q407 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q408 8-729-231-74 TRANSISTOR 2SC4116-GL Q409 8-729-047-36 TRANSISTOR CPH3303-TL Q411 8-729-429-44 TRANSISTOR XP1501 Q412 8-729-904-86 TRANSISTOR 2SB1197K-Q Q413 8-729-047-36 TRANSISTOR CPH3303-TL Q500 8-729-028-74 TRANSISTOR DTA114TUA-T106 < RESISTOR > R1 1-216-851-11 METAL CHIP 330K 5% 1/16W R2 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R3 1-216-853-11 METAL CHIP 470K 5% 1/16W R4 1-216-853-11 METAL CHIP 470K 5% 1/16W R5 1-216-833-11 RES-CHIP 10K 5% 1/16W R6 1-216-851-11 METAL CHIP 330K 5% 1/16W R7 1-216-851-11 METAL CHIP 330K 5% 1/16W R9 1-216-813-11 METAL CHIP 220 5% 1/16W (JE) R9 1-216-817-11 METAL CHIP 470 5% 1/16W (EXCEPT JE) R10 1-216-821-11 METAL CHIP 1K 5% 1/16W R12 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R13 1-216-815-11 METAL CHIP 330 5% 1/16W R15 1-216-298-00 METAL CHIP 2.2 5% 1/10W R16 1-216-825-11 METAL CHIP 2.2K 5% 1/16W (US,CND,E92,AR) R17 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R18 1-216-851-11 METAL CHIP 330K 5% 1/16W R19 1-216-837-11 METAL CHIP 22K 5% 1/16W R20 1-216-821-11 METAL CHIP 1K 5% 1/16W R21 1-216-809-11 METAL CHIP 100 5% 1/16W R22 1-216-809-11 METAL CHIP 100 5% 1/16W R23 1-216-833-11 RES-CHIP 10K 5% 1/16W R48 1-216-845-11 METAL CHIP 100K 5% 1/16W R49 1-216-845-11 METAL CHIP 100K 5% 1/16W R50 1-216-864-11 METAL CHIP 0 5% 1/16W R51 1-216-864-11 METAL CHIP 0 5% 1/16W R52 1-216-864-11 METAL CHIP 0 5% 1/16W R53 1-216-864-11 METAL CHIP 0 5% 1/16W R54 1-216-845-11 METAL CHIP 100K 5% 1/16W (US,CND,AEP,UK,CH,E92,FR,G,EE,EA,AR) R55 1-216-845-11 METAL CHIP 100K 5% 1/16W (US,CND,AUS,E13,E92,AR,E33,JE,HK,KR) R56 1-216-845-11 METAL CHIP 100K 5% 1/16W (EXCEPT JE) R57 1-216-845-11 METAL CHIP 100K 5% 1/16W (AUS,E13,E33,JE,HK,KR) R58 1-216-845-11 METAL CHIP 100K 5% 1/16W (AEP,UK,CH,FR,G,EE,EA) R59 1-216-845-11 METAL CHIP 100K 5% 1/16W (JE) R60 1-216-841-11 METAL CHIP 47K 5% 1/16W R61 1-216-805-11 METAL CHIP 47 5% 1/16W R62 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R63 1-216-845-11 METAL CHIP 100K 5% 1/16W R66 1-216-845-11 METAL CHIP 100K 5% 1/16W R67 1-216-845-11 METAL CHIP 100K 5% 1/16W R68 1-216-833-11 RES-CHIP 10K 5% 1/16W R69 1-216-833-11 RES-CHIP 10K 5% 1/16W R70 1-216-845-11 METAL CHIP 100K 5% 1/16W R71 1-216-845-11 METAL CHIP 100K 5% 1/16W R72 1-216-845-11 METAL CHIP 100K 5% 1/16W R73 1-216-845-11 METAL CHIP 100K 5% 1/16W R74 1-216-847-11 METAL CHIP 150K 5% 1/16W R75 1-216-847-11 METAL CHIP 150K 5% 1/16W R76 1-216-833-11 RES-CHIP 10K 5% 1/16W R77 1-216-833-11 RES-CHIP 10K 5% 1/16W R78 1-216-845-11 METAL CHIP 100K 5% 1/16W R79 1-216-845-11 METAL CHIP 100K 5% 1/16W R80 1-216-833-11 RES-CHIP 10K 5% 1/16W R82 1-216-835-11 METAL CHIP 15K 5% 1/16W R83 1-216-864-11 METAL CHIP 0 5% 1/16W R84 1-216-829-11 METAL CHIP 4.7K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 36 — R85 1-216-841-11 METAL CHIP 47K 5% 1/16W (US,CND,AEP,UK,CH,E92,FR,G,EE,EA,AR,JE) R86 1-216-813-11 METAL CHIP 220 5% 1/16W R87 1-216-845-11 METAL CHIP 100K 5% 1/16W R88 1-216-821-11 METAL CHIP 1K 5% 1/16W R91 1-216-845-11 METAL CHIP 100K 5% 1/16W R101 1-216-813-11 METAL CHIP 220 5% 1/16W R102 1-216-835-11 METAL CHIP 15K 5% 1/16W R103 1-216-833-11 RES-CHIP 10K 5% 1/16W R104 1-216-833-11 RES-CHIP 10K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-845-11 METAL CHIP 100K 5% 1/16W R107 1-216-849-11 METAL CHIP 220K 5% 1/16W (FR) R107 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT FR) R109 1-216-843-11 METAL CHIP 68K 5% 1/16W (EXCEPT US) R154 1-216-793-11 RES-CHIP 4.7 5% 1/16W R201 1-216-813-11 METAL CHIP 220 5% 1/16W R202 1-216-835-11 METAL CHIP 15K 5% 1/16W R203 1-218-965-11 RES-CHIP 10K 5% 1/16W R204 1-218-965-11 RES-CHIP 10K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-845-11 METAL CHIP 100K 5% 1/16W R207 1-216-849-11 METAL CHIP 220K 5% 1/16W (FR) R207 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT FR) R209 1-216-843-11 METAL CHIP 68K 5% 1/16W (EXCEPT US) R254 1-216-793-11 RES-CHIP 4.7 5% 1/16W R305 1-216-845-11 METAL CHIP 100K 5% 1/16W R306 1-216-864-11 METAL CHIP 0 5% 1/16W R307 1-216-864-11 METAL CHIP 0 5% 1/16W R308 1-216-845-11 METAL CHIP 100K 5% 1/16W R315 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R317 1-216-857-11 METAL CHIP 1M 5% 1/16W R352 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R353 1-216-308-00 METAL CHIP 4.7 5% 1/10W R354 1-216-864-11 METAL CHIP 0 5% 1/16W R355 1-216-845-11 METAL CHIP 100K 5% 1/16W R401 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R402 1-216-833-11 RES-CHIP 10K 5% 1/16W R403 1-216-853-11 METAL CHIP 470K 5% 1/16W R406 1-216-864-11 METAL CHIP 0 5% 1/16W R408 1-216-853-11 METAL CHIP 470K 5% 1/16W R409 1-216-849-11 METAL CHIP 220K 5% 1/16W R410 1-216-843-11 METAL CHIP 68K 5% 1/16W R415 1-218-965-11 RES-CHIP 10K 5% 1/16W R416 1-218-989-11 RES-CHIP 1M 5% 1/16W R417 1-216-864-11 METAL CHIP 0 5% 1/16W R418 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R419 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R420 1-216-864-11 METAL CHIP 0 5% 1/16W R421 1-216-857-11 METAL CHIP 1M 5% 1/16W R422 1-216-835-11 METAL CHIP 15K 5% 1/16W R423 1-216-839-11 METAL CHIP 33K 5% 1/16W R424 1-216-833-11 RES-CHIP 10K 5% 1/16W R425 1-216-864-11 METAL CHIP 0 5% 1/16W R426 1-216-837-11 METAL CHIP 22K 5% 1/16W R427 1-216-815-11 METAL CHIP 330 5% 1/16W R429 1-216-857-11 METAL CHIP 1M 5% 1/16W (US) R430 1-216-041-00 METAL CHIP 470 5% 1/10W R431 1-216-864-11 METAL CHIP 0 5% 1/16W R432 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R434 1-218-899-11 METAL CHIP 150K 0.5% 1/16W (EXCEPT US) R434 1-218-903-11 METAL CHIP 220K 0.5% 1/16W (US) R435 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R436 1-216-864-11 METAL CHIP 0 5% 1/16W R437 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R439 1-220-398-11 RES-CHIP 1.5M 5% 1/16W R440 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R442 1-216-817-11 METAL CHIP 470 5% 1/16W R443 1-216-811-11 METAL CHIP 150 5% 1/16W R446 1-216-821-11 METAL CHIP 1K 5% 1/16W R447 1-216-304-11 METAL CHIP 3.3 5% 1/10W R448 1-216-298-00 METAL CHIP 2.2 5% 1/10W R449 1-216-298-00 METAL CHIP 2.2 5% 1/10W R450 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R452 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R453 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R454 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R455 1-216-839-11 METAL CHIP 33K 5% 1/16W R456 1-218-990-11 SHORT 0 R457 1-216-864-11 METAL CHIP 0 5% 1/16W R461 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R462 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R463 1-216-857-11 METAL CHIP 1M 5% 1/16W R465 1-216-864-11 METAL CHIP 0 5% 1/16W R467 1-216-864-11 METAL CHIP 0 5% 1/16W R468 1-220-398-11 RES-CHIP 1.5M 5% 1/16W R469 1-218-989-11 RES-CHIP 1M 5% 1/16W R471 1-216-864-11 METAL CHIP 0 5% 1/16W R472 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R475 1-216-864-11 METAL CHIP 0 5% 1/16W R600 1-469-034-11 INDUCTOR 4.7UH R602 1-216-845-11 METAL CHIP 100K 5% 1/16W (EXCEPT US) R603 1-218-983-11 RES-CHIP 330K 5% 1/16W R604 1-218-989-11 RES-CHIP 1M 5% 1/16W R605 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R606 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R607 1-218-965-11 RES-CHIP 10K 5% 1/16W R608 1-218-985-11 RES-CHIP 470K 5% 1/16W R609 1-216-833-91 RES-CHIP 10K 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-216-837-11 METAL CHIP 22K 5% 1/16W R612 1-216-841-11 METAL CHIP 47K 5% 1/16W R613 1-216-837-11 METAL CHIP 22K 5% 1/16W R614 1-216-845-11 METAL CHIP 100K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 37 — R615 1-216-837-11 METAL CHIP 22K 5% 1/16W R616 1-216-845-11 METAL CHIP 100K 5% 1/16W R617 1-216-837-11 METAL CHIP 22K 5% 1/16W R619 1-216-837-11 METAL CHIP 22K 5% 1/16W R621 1-216-864-11 METAL CHIP 0 5% 1/16W R623 1-216-819-11 METAL CHIP 680 5% 1/16W R624 1-218-977-11 RES-CHIP 100K 5% 1/16W R625 1-216-833-11 RES-CHIP 10K 5% 1/16W R626 1-216-864-11 METAL CHIP 0 5% 1/16W R627 1-218-990-11 SHORT 0 R628 1-216-864-11 METAL CHIP 0 5% 1/16W R629 1-216-833-11 RES-CHIP 10K 5% 1/16W R630 1-216-864-11 METAL CHIP 0 5% 1/16W R632 1-216-839-11 METAL CHIP 33K 5% 1/16W R633 1-216-845-11 METAL CHIP 100K 5% 1/16W (EXCEPT US) R634 1-216-805-11 METAL CHIP 47 5% 1/16W (EXCEPT US) R634 1-216-807-11 METAL CHIP 68 5% 1/16W (US) R636 1-216-864-11 METAL CHIP 0 5% 1/16W R638 1-216-864-11 METAL CHIP 0 5% 1/16W R639 1-216-819-11 METAL CHIP 680 5% 1/16W R640 1-216-819-11 METAL CHIP 680 5% 1/16W R641 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US) R642 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US) R643 1-216-819-11 METAL CHIP 680 5% 1/16W R644 1-216-864-11 METAL CHIP 0 5% 1/16W (US) R645 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US) R646 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US) R647 1-218-965-11 RES-CHIP 10K 5% 1/16W R648 1-218-965-11 RES-CHIP 10K 5% 1/16W R649 1-218-965-11 RES-CHIP 10K 5% 1/16W R801 1-216-845-11 METAL CHIP 100K 5% 1/16W R802 1-216-819-11 METAL CHIP 680 5% 1/16W R803 1-218-975-11 RES-CHIP 68K 5% 1/16W R804 1-218-975-11 RES-CHIP 68K 5% 1/16W R805 1-216-821-11 METAL CHIP 1K 5% 1/16W R807 1-216-857-11 METAL CHIP 1M 5% 1/16W R808 1-216-864-11 METAL CHIP 0 5% 1/16W R809 1-216-845-11 METAL CHIP 100K 5% 1/16W R810 1-216-845-11 METAL CHIP 100K 5% 1/16W R811 1-216-864-11 METAL CHIP 0 5% 1/16W R812 1-216-849-11 METAL CHIP 220K 5% 1/16W (US) R813 1-216-845-11 METAL CHIP 100K 5% 1/16W R814 1-216-833-11 RES-CHIP 10K 5% 1/16W R815 1-216-833-11 RES-CHIP 10K 5% 1/16W R816 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R818 1-216-845-11 METAL CHIP 100K 5% 1/16W R820 1-216-864-11 METAL CHIP 0 5% 1/16W R821 1-216-864-11 METAL CHIP 0 5% 1/16W R822 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R824 1-216-845-11 METAL CHIP 100K 5% 1/16W R829 1-216-845-11 METAL CHIP 100K 5% 1/16W R830 1-216-845-11 METAL CHIP 100K 5% 1/16W R831 1-216-845-11 METAL CHIP 100K 5% 1/16W R834 1-216-829-11 METAL CHIP 4.7K 5% 1/16W (US) R835 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US) R841 1-216-857-11 METAL CHIP 1M 5% 1/16W R845 1-216-845-11 METAL CHIP 100K 5% 1/16W R860 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R863 1-216-837-11 METAL CHIP 22K 5% 1/16W R864 1-216-843-11 METAL CHIP 68K 5% 1/16W < VARIABLE RESISTOR > RV301 1-223-609-21 RES, VAR, CARBON 10K/10K < SWITCH > S801 1-692-440-11 SWITCH, PUSH (OPEN) S802 1-762-078-11 SWITCH, SLIDE (AVLS) S803 1-762-078-11 SWITCH, SLIDE (HOLD) S804 1-553-977-00 SWITCH, SLIDE (G-PROTECTION) < TRANSFORMER > T1 1-411-603-11 COIL (AM-MIX) T81 1-449-021-21 TRANSFORMER, DC/DC CONVERTER < VARISTOR > VDR101 1-801-862-11 VARISTOR, CHIP VDR102 1-801-862-11 VARISTOR, CHIP VDR201 1-801-862-11 VARISTOR, CHIP VDR202 1-801-862-11 VARISTOR, CHIP VDR303 1-801-862-11 VARISTOR, CHIP < VIBRATOR > X1 1-781-367-21 FILTER, CERAMIC(DISCRIMINATOR) 10.7MHz X61 1-577-262-11 VIBRATOR, CRYSTAL 75KHz X601 1-767-366-21 VIBRATOR, CERAMIC 16.9MHz ************************************************************ MISCELLANEOUS ************** 13 1-418-826-11 SWITCH UNIT (US,CND,AUS,E13,E92,AR,E33,JE,HK,KR) 13 1-418-826-21 SWITCH UNIT (AEP,UK,CH,FR,G,EE,EA) 063 X-4952-506-1 OPTICAL PICK-UP BLOCK(DAX-23E) M901 A-3328-627-A MOTOR ASSY, SLED (WITH GEAR) M902 A-3328-759-A MOTOR ASSY, TURN TABLE (SPINDLE) ************************************************************ MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 38 — ACCESSORIES & PACKING MATERIALS ******************************** 0 1-418-261-11 ADAPTOR, AC (AC-E455F) (AEP,E13,FR,G,EE) 0 1-418-264-11 ADAPTOR, AC (AC-E455A) (AUS) 0 1-467-009-21 ADAPTOR, AC (AC-E455D) (US,CND,E92) 0 1-467-012-11 ADAPTOR, AC (AC-E455) (EA) 0 1-467-195-12 ADAPTOR, AC (AC-E455A) (US,CND,E92) 0 1-467-550-13 ADAPTOR, AC (AC-E455A) (JE) 0 1-467-550-24 ADAPTOR, AC (AC-E455A) (E33,JE) 0 1-473-115-11 ADAPTOR, AC (AC-E455F) (UK 1-475-603-31 REMOTE CONTROL UNIT (FJ61:AR,FJ65) 0 1-475-622-14 ADAPTOR, AC (AC-E455) (CH) 0 1-475-623-12 ADAPTOR, AC (AC-E455) (HK) 0 1-475-969-12 ADAPTOR, AC (AC-E455) (AR) 0 1-569-007-11 ADAPTOR, CONVERSION 2P (E33,JE) 0 1-569-008-21 ADAPTOR, CONVERSION 2P (EA) 0 1-756-035-11 BATTERY PACK (NC-WMAA) (FJ65:AUS,CH,E13,E33,JE,HK,KR) 0 1-756-035-21 BATTERY PACK (NC-WMAA) (FJ65:AEP,UK,FR,EE) 0 1-756-035-31 BATTERY PACK (NC-WMAA) (FJ65:US) 3-045-816-11 MANUAL, INSTRUCTION (SPANISH)(AEP) 3-045-816-21 MANUAL, INSTRUCTION (ENGLISH)(AEP,UK,FR,EE,EA) 3-045-816-31 MANUAL, INSTRUCTION (FRENCH)(AEP,FR) 3-045-816-41 MANUAL, INSTRUCTION (DUTCH)(AEP,EE) 3-045-816-51 MANUAL, INSTRUCTION (SWEDISH)(AEP) 3-045-816-61 MANUAL, INSTRUCTION (PORTUGUESE)(AEP) 3-045-816-71 MANUAL, INSTRUCTION (GERMAN)(AEP,G) 3-045-816-81 MANUAL, INSTRUCTION (ITALIAN)(AEP) 3-045-816-91 MANUAL, INSTRUCTION (FINNISH)(AEP) 3-045-817-11 MANUAL, INSTRUCTION (CHINESE)(E13,HK) 3-045-817-21 MANUAL, INSTRUCTION (ENGLISH)(E13,HK) 3-045-817-31 MANUAL, INSTRUCTION (CHINESE)(CH) 3-045-817-41 MANUAL, INSTRUCTION (ENGLISH)(CH) 3-045-818-11 MANUAL, INSTRUCTION (RUSSIAN)(EE) 3-045-818-21 MANUAL, INSTRUCTION (CZECH)(EE) 3-045-818-31 MANUAL, INSTRUCTION (HUNGARIAN)(EE) 3-045-818-41 MANUAL, INSTRUCTION (POLISH)(EE) 3-045-818-51 MANUAL, INSTRUCTION (SLOVAK)(EE) 3-045-818-61 MANUAL, INSTRUCTION (ARABIC)(EA) 3-046-319-01 STRAP, HAND (FJ65:US) 3-220-245-11 MANUAL, INSTRUCTION (ENGLISH)(US) 3-220-246-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, CHINESE, KOREAN)(JE) 3-220-246-11 MANUAL, INSTRUCTION (SPANISH)(E92,AR,E33,JE) 3-220-246-21 MANUAL, INSTRUCTION (ENGLISH)(CND,AUS,E92,AR,AUS,E33,JE) 3-220-246-31 MANUAL, INSTRUCTION (FRENCH)(CND,JE) 3-220-246-41 MANUAL, INSTRUCTION (PORTUGUESE)(E92,AR) 3-220-246-51 MANUAL, INSTRUCTION (KOREAN)(KR) 8-953-130-90 HEADPHONE MDR-E805LP/K SET (FJ61:CND,AEP,UK,AUS,CH,E13,E92,FR,G,EE,EA) 8-953-276-90 HEADPHONE MDR-24SP SET (FJ65:US) 8-953-304-90 RECEIVER MDR-E805SP SET(FJ61:AR/ FJ65:AEP,UK,AUS,CH,E13,E33,JE,FR,EE,HK,KR) 8-953-342-93 HEADPHONE MDR-24 (FJ61:US) 8-953-342-98 HEADPHONE, STEREO MDR-24 (FJ61:US) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. D-FJ61/FJ65 Sony Corporation Audio Entertainment Group 2000E1673-1 Printed in Japan ©2000.5 Published by PE General Engineering Dept. 9-927-937-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
