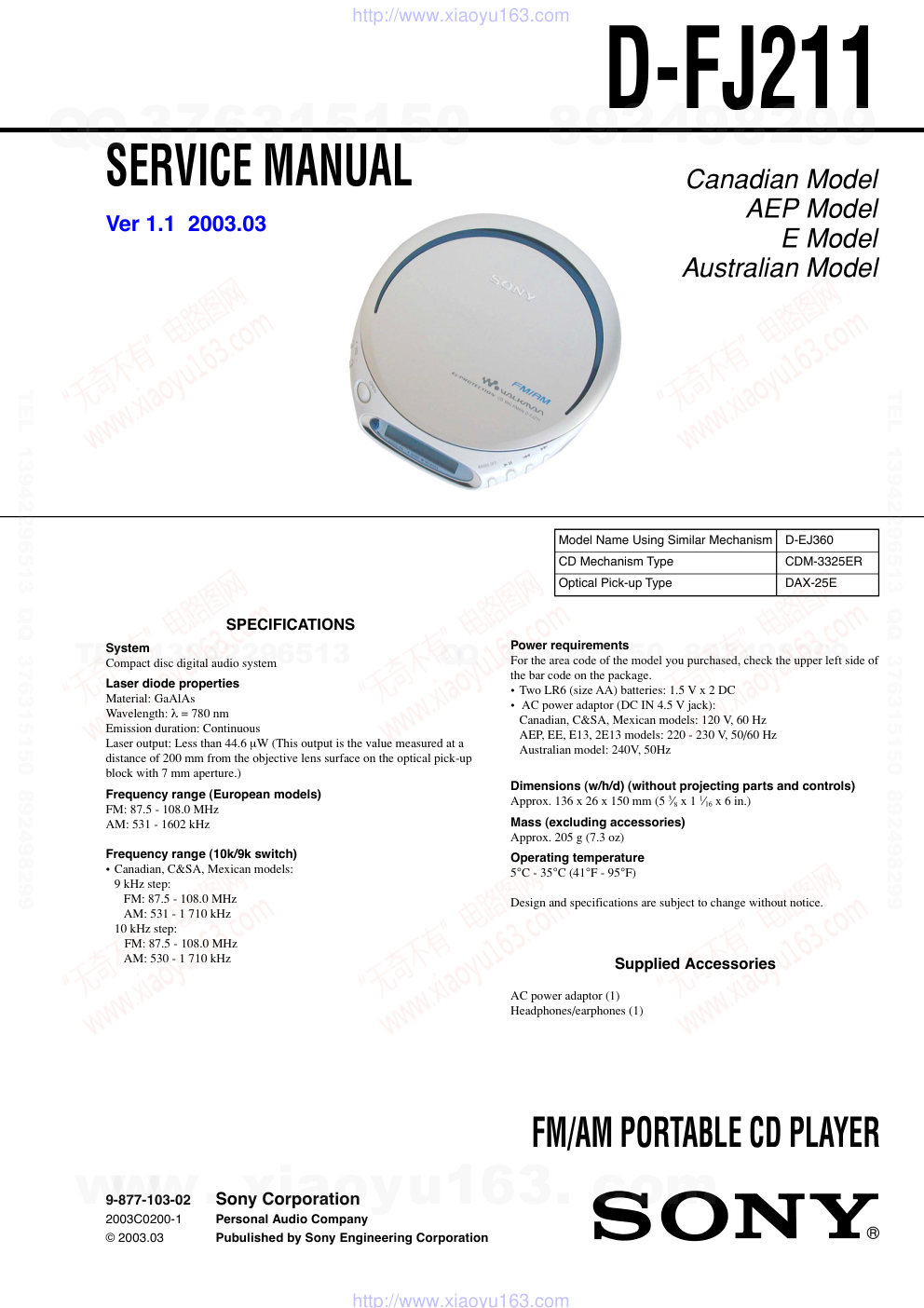

Model Name Using Similar Mechanism D-EJ360 CD Mechanism Type CDM-3325ER Optical Pick-up Type DAX-25E Ver 1.1 2003.03 9-877-103-02 2003C0200-1 © 2003.03 Sony Corporation Personal Audio Company Pubulished by Sony Engineering Corporation FM/AM PORTABLE CD PLAYER SPECIFICATIONS System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Frequency range (European models) FM: 87.5 - 108.0 MHz AM: 531 - 1602 kHz Frequency range (10k/9k switch) • Canadian, C&SA, Mexican models: 9 kHz step: FM: 87.5 - 108.0 MHz AM: 531 - 1 710 kHz 10 kHz step: FM: 87.5 - 108.0 MHz AM: 530 - 1 710 kHz Canadian Model AEP Model E Model Australian Model SERVICE MANUAL Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two LR6 (size AA) batteries: 1.5 V x 2 DC • AC power adaptor (DC IN 4.5 V jack): Canadian, C&SA, Mexican models: 120 V, 60 Hz AEP, EE, E13, 2E13 models: 220 - 230 V, 50/60 Hz Australian model: 240V, 50Hz Dimensions (w/h/d) (without projecting parts and controls) Approx. 136 x 26 x 150 mm (5 3⁄8 x 1 1⁄16 x 6 in.) Mass (excluding accessories) Approx. 205 g (7.3 oz) Operating temperature 5°C - 35°C (41°F - 95°F) Design and specifications are subject to change without notice. Supplied Accessories AC power adaptor (1) Headphones/earphones (1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. DANGER Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. D-FJ211 z UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead-free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. Specifications ............................................................................ 1 1. SERVICING NOTES ................................................... 3 2. GENERAL Locating the Controls......................................................... 3 3. DISASSEMBLY 3-1. Upper Lid ASSY, Cabinet (Upper) Sub ASSY ........... 4 3-2. MD ASSY, Main Board .............................................. 5 3-3. “Motor ASSY (Sled) (M902)”, Optical Pick-up (DAX-25E), “Motor ASSY, Turn Table (Spindle) (M901)” ............ 5 4. ELECTRICAL ADJUSTMENS ............................... 6 5. DIAGRAMS 5-1. Block Diagram –CD SECTION– .............................. 9 5-2. Block Diagram –Tuner SECTION– ........................ 10 5-3. Printed Wiring Boards –Side A– ..............................11 Printed Wiring Boards –Side B– .............................. 12 5-4. Schematic Diagram –MAIN SECTION (1/4)– ....... 13 5-5. Schematic Diagram –MAIN SECTION (2/4)– ....... 14 5-6. Schematic Diagram –MAIN SECTION (3/4)– ....... 15 5-7. Schematic Diagram –MAIN SECTION (4/4)– ....... 16 5-8. IC Pin Function Description ..................................... 20 6. EXPLODED VIEWS 6-1. Cabinet Section ......................................................... 22 6-2. Optical pick-up Section (CDM-3325ER) ................. 23 7. ELECTRICAL PARTS LIST ................................... 24 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-FJ211 The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emission, observe from more than 30cm away from the objective lens. Before Replacing the Optical pick-up Block Please be sure to check thoroughly the parameters as per the “Optical pick-up Block Checking Procedure” (Part No. : 9-960-027-11) issued separately before replacing the optical Pick-up block. Note and specifications required to check are given below. • FOK output : IC601 yg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value : 0.45 to 0.75Vp-p SECTION 1 SERVICING NOTES Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper panel is closed while turning ON the S809 (push switch type). The following two checking methods for the laser diode are operable. Method : Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the S809 as shown in Fig. 1 . 3. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. During normal operation, the laser diode is turned ON about 2.5 seconds for focus searching. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig.1 Method to push S809 SECTION 2 GENERAL LOCATING THE CONTROLS This section is extracted from instruction manual. S809 CD player (front) CD player (inside) i (headphones) jack OPEN DC IN 4.5 V (external power Strap holes input) jack VOL +*/– Battery Compartment . > u* x HOLD RADIO ON/BAND • MEMORY *The button has a tactile dot. Display • RADIO OFF G-PROTECTIO P MODE/ F SOUN/AVLS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-FJ211 SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 3-1. UPPER LID ASSY, CABINET (UPPER) SUB ASSY z The equipment can be removed using the following procedure. Upper lid ASSY, Cabinet (upper) sub ASSY MD ASSY “Motor ASSY (Sled) (M902)”, Optical pick-up (DAX-25E), “Motor ASSY, turn table (spindle) (M901)” Main board Set 5 Upper lid Assy • CAUTION DURING ASSEMBLY 2 Spring (L) 6 Spring (L) 3 Spring (R) 3 Spring (R) 0 Cabinet (upper) sub ASSY 1 Open 7 Ten screws (B2) 6 2 1 4 5 9 4 8 Four craws 2 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-FJ211 3-2. MD ASSY, MAIN BOARD 2 Connector (CN401) 3 Connector (CN402) 7 MAIN board Cabinet (lower) sub ASSY 5 MD ASSY 1 CN601 4 6 3-3. “MOTOR ASSY (SLED) (M902)”, OPTICAL PICK-UP (DAX-25E), “MOTOR ASSY, TURN TABLE (SPINDLE) (M901)” 6 2 4 9 5 Motor ASSY (Sled) (M902) 1 Three screws (B1.7x4) Chassis 8 Three screws (B1.7x4) 0 Motor ASSY, Turn table (Spindle) (M901) 7 Optical pick-up (DAX-25E) 3 Cover, Gear www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-FJ211 TUNER SECTION AM section BAND : AM FM section BAND :FM AM FREQUENCY COVERAGE ADJUSTMENT Adjust parts Frequency display Reading on digtal voltmeter L5 530kHz <531kHz> Adjustment value : 0.7V Standard value : 0.2–1.4V Adjustment value : 5.0V Confirmation 1,710kHz <1,602kHz> <4.4V> Standard value : 4.3–5.7V <3.7–5.2V> AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 620kHz <621kHz> CT1 1,400kHz <1,395kHz> FM FREQUENCY COVERAGE ADJUSTMENT Frequency display Reading on digtal voltmeter Confirmation 87.5MHz Standard value : 4.3–5.7V L2 108MHz Adjustment value : 9.5V Standard value : 9.0–10.0V FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L4 87.5MHz Confirmation 108MHz 0 dB = 1µV • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. AM RF signal generator 30% amplitude modulation by 400Hz signal. Output level : as low as possible Put the lead-wire antenna close to the set. set 16 Ω phones jack (J301) level meter L4 L3 L2 FL2 1 30 R601 C22 C810 C21 12 3 7 C109 C8 C9 C325 R73 R74 R75 R4 R873 R2 R65 R66 R815 R844 VDR302 VDR305 D306 J102 TJ304 A A D TJ307 TJ3 (FM RF IN) TJ6 IC1 TJ8 TJ5 TJ410 TJ605 TJ606 TJ608 TJ801 TJ611 TJ10 TJ802 L606 C44 TJ1 TAP1 606 D2 D3 FJ120 FM RF signal generator 33.75kHz frequency deviation by 1kHz signal. Output level : as low as possible TJ3 (FM RF IN) 0.01µF [MAIN BOARD] � (Side A) < > : 9kHz step SECTION 4 ELECTRICAL ADJUSTMENTS Adjustment Location : Main board Frequency Coverage Adjustment Setting : L4 L3 L2 FL2 1 30 R601 C22 C810 C21 12 3 7 C109 C8 C9 C325 R73 R74 R75 R4 R873 R2 R65 R66 R815 R844 VDR302 VDR305 D306 J102 TJ304 A A D TJ307 TJ3 (FM RF IN) TJ6 (TU GND) IC1 TJ8 TJ5 TJ410 TJ605 TJ606 TJ608 TJ801 TJ611 TJ10 TJ802 L606 C44 TJ1 (VT) TAP1 606 D2 D3 FJ120 [MAIN BOARD] � (Side A) TJ1 (VT) TJ6 (TU GND) digital voltmeter (DC range) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 D-FJ211 Adjustment Location : [MAIN BOARD] (SIDE B) L4 : FM Traking Adjustment L2 : FM Frequency Coverage Adjustment L5 : AM Frequency Coverage Adjustment CT1 : AM Tracking Adjustment L1 : AM Tracking Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 D-FJ211 RF Level Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test point TJ601(RF) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the cen- ter of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch-ing. 5. Stop revolving of the disc motor by pressing the x button. The CD section adjustments are done automatically in this set. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement : DC4.5 V in DC IN jack. (J401) VOLUME button : Minimum HOLD switch : OFF RF level 0.45 to 0.75 Vp-p VOLT/DIV : 100 mV (With the 10 : 1 probe in use) TIME/DIV : 500ns FL2 1 25 26 1 C624 R616 C633 C618 C605 C609 C612 C613 C608 C607 C614 R615 R612 R613 05 R601 C810 C604 C9 C325 R614 C632 C619 R2 VDR302 VDR305 D306 TJ305 A A D TJ307 TJ3 TJ5 TJ410 (A GND) TJ605 TJ606 TJ608 TJ801 TJ611 TJ614 TJ10 TJ802 L606 C44 TAP1 FB FB301 FB101 R306 L602 TJ303 X601 IC601 TJ601 (RF) C606 D3 TJ601(RF) TJ401(A GND) oscilloscope (AC range) [MAIN BOARD] (Side A) CD SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 D-FJ211 5-1. BLOCK DIAGRAM –CD SECTION– SECTION 5 DIAGRAMS 13 16 17 32 36 31 7 44 17 4 5 6 29 34 5 9 8 6 7 88 75 74 77 76 79 78 72 73 71 50 49 47 53 37 38 12 22 6 71 13 7 11 77 2 79 78 65 70 64 52 43 45 14 16 17 18 66 39 40 38 37 8 35 36 34 72 70 57 58 55 56 59 60 44 CH3 H BRIDGE 42 48 46 LEVEL SHIFTER LEVEL SHIFTER I/F CH2 H BRIDGE 52 50 CH1 H BRIDGE 6 2 53 49 45 41 1 CH4 H BRIDGE EFM DEMODULATOR SERVO RF AMP A/D OP IC PWM FDOP PD LD-SW FDON TDOP TDON SDOP SDON CLVON CLVOP CLKDRV FIN+ FIN- TIN+ TIN- SIN+ SIN- SLVOP CPOL SYNC FIN+ FIN- TIN+ TIN- SIN+ SIN- CPOL CLVOP SYNC X_O X_I CLK4M SCLK_I SDTO_I SDTI_O P-OFF_I SCOR XBUSY_O DEFDCT_O GFS_O FOK_O CLOCK OSC DAC SIO DEFFERENTIAL Q407 WARK-UP DETECT Q801,802 27 67 65 19 17 18 20 21 16 23 22 68 12 69 64 8 25 SWITCH Q402, 403 26 4 23 3 2,3,24,25 9-12,14-18,5 87,88,84,85 97-100,96-91,82 SUB CODE PROCESSOR 25 23 28 40 +VBAT L403 31 38 KEY MATRIX S801 S805 | | S804 S808 X_I POWER-OFF_O 15 48 SRW_I SRW_O SCOR_I XBUSY_I DEFECT_I 68 67 4 TEST PGM_SDTO_O PGM_SDTI_I 73 69 PGM_SCK_O PGM_SC_SEL TEST TIST PGM_SDTO CLK4M_2 RESET2 PGM_SDTI PGM_SCK PGM_SC_SEL HPSW_O WP/AD_RMKEY GFS_I FOK_I XPOWLT_O 72 FG_I 33 WP/KEY2_RM_I SDTI_I SDTO_O SCK_O XWAKEUP_O XREST_I 76 XRST_O VCPU_2.0V WP/AD_KEY1 AD_KEY_2 WP/XOPEN_I HOLD_I GPROSW AVCPU AD_DCINMNT 24 AD_BATTMNT 34 TUNER_ON_I +V BAT BATT_MNT TU_ON PGM_SC_SEL OPEN_DTS HOLD AD_KYE2 AD_KYE1 SDTO SCK AD_CHGMNT VCC1_2.2V VCC2_2.0V VCPU_2.0V OP_G-SW_O XOPSTBY_O D802 19 ADVREF 20 VCPU_2.0V IC801(2/2) SYSTEM CONTROL MICON L404 Q405 Q404 Q408 D408 Q406 D405 D402 L401 L402 VCC2_2.0V VCC1_2.2V VCPU_1.5V Q401 VCC2 VMMNT VCC GSW SEM VCPU_1.5V SEO L410 VCC0 STNG LG VIN BATM1 BATM2 DCIN_S +VBAT CHARGE SWITCH VCC1 VCPU 2.0V CHGMNT 61 DCIN 62 REGB 63 DET CHGB X601 16.934MHz DVDDIO VCHK AVDD2 2.25V DVDDV 1.5V RDACO LDACO POWER-L_O IN SEL VCC1 VCC2 POWER-R_O CENTER-AMP 25 BASS-H/L-SW TU_BASS2 +VBAT VCC2_2.0V XTU_BASS1 PWM BEEP AMUTE 26 BASS-SW 14 VOL-CTL_I 3 BEEP_I 1 MUTE-SW_I CD_L-I CD_I_R STB_HPSW_I IC301 PRE EQ AMP/EVR/ HADPHONE AMP IC403 (2/2) POWER CONTROL RFI A VCC1_2.2V B E FO3 RO3 FO2 RO2 FO1 RO1 W_O V_O U_O V COM COM VM1 VM12 VM23 VM3 SPVCC F RFDC FIN3 RIN3 FIN1 RIN1 FIN2 RIN2 BBK PWM POWER_LT_I XSDTO XCSK WAKEUP H_RESET XRST_I SYNC 74 FG IC403 (1/2) FOCUS/TRACKING COIL DRIVE SLED/SPINDLE MOTOR DRIVE IC603 D-RAM(4M) XRAS XCAS XWE XRAS A0-A10 D0-D3 DETI RFGO XCAS XWE D0-3 A0-9 90 83 89 IC601 RF AMP,SERVO DIGITAL SIGNAL PROCESSOR D-RAM CONTROLLER D/A CONVERTER J401 DC IN 4.5V ! DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS, 3V J301 i M M902 SLED MOTOR FOCUS COIL M901 SPINDLE MOTOR M TRACKING COIL F+ F- T+ T- S+ S- W U OPTICAL PICK-UP BLOCK (DAX-25E) VCC RF A A E F LD PD OP_G-SW OP_STB LD DRIVER Q601 VCC1_2.2V S809 (OPEN) S810 HOLD. OFF ON S811 G.PROTECTION OFF ON 4 80 40 51 36 80 86 APC 2 3 (Page 10) (Page 10) TO TUNER SECTION A (Page 10) TO TUNER SECTION B (Page 10) TO TUNER SECTION D TO TUNER SECTION C ANT TU_L TU_R 66 33 35 • SIGNAL PATH : FM : CD PLAY w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 D-FJ211 5-2. BLOCK DIAGRAM –TUNER SECTION– FM TRACKING FM/TV FREQUENCY COVERAGE L4 AM TRACKING L1, CT1 AM FREQUENCY COVERAGE L5 L2 FM/TV MIX FM-MIX_O CF2 FM-IF_I DET_O MPX_I LPF1 MODE1 Q2 Q3 MODE2 LPF2B LPF2A R_O L_O TU_L TU_R Q7 FM-IF IF BUFF TU-VCC Q4 L4 (FM RF) L2 (FM/TV OSC) L1 AM FERRITE-ROD ANTENNA L5 (AM OSC) D3 D4 CT1 TU-VCC 2E13,C&SA,CND,AUS,E13,MX (VT) D6 T1 +VBAT VCPU_2.0V FM-RF ANT FM-RF_O FM/TV-OSC AM-MIX_O BUFF BUFF AM_BP AM-RF_I AM-OSC CS X_O EO(D01)_O AM-STEP_I LCD-REQ_O XL_O CD_ON_O RESET-TU_O SDTI_I_TU ACK_CD_I LCD-REQ_I XL/O-I CD-ON_I RESET-TU_I SDU-SDO_O ACK-CD_O TV/FM/AM_I IF_I IF-REQ_O BAND-CTL2_O BAND-CTL1_O MONO/LOCAL-CTL_O CF5 (75KHz) X_I EEP-CS_O EEP-SK_O EEP DO/DI_IO SK D1 D0 IC1 TV/FM/AM FRONTEND, FM MPX IC4 EEPROM IC3 TUNER CONTROL IC801(1/2) SYSTEM CONTROL MICON IC2 +1.6V REG. 2 29 24 TV OSC FM OSC AM MIX 1/2 28 27 LPF Q12,13 B+ SWITCH Q10,11 DC-DC CONVERTOR Q14 S1 STEP 10K R 9K 25 1 32 75 74 65 21 71 64 61 52 59 55 31 30 2 3 4 AM OSC 1/8 or 1/16 8 12 13 TU-VCC CF3 AM-IF_I AM-IF 5 10 23 26 45 AM DEF FM DET FM MPX FM/TV/AM PW SW 4 16 15 17 18 14 SW RF-VCC Q8 TU-VCC AD-DC_REF OSC_O IF-COUNT_O REQ-SW 20 19 21 22 2E13,C&SA,CND,MX (Page 9) TO CD SECTION D BUFFER Q15 B+ SWITCH Q5,9 VOUT VIN VCPU_2.0V +VBAT 1 3 (Page 9) TO CD SECTION C 39 37 70 75 10 9 TUNER_POWER_O AMUTE_O TU_MUTE_O TU-HOLD_I XLID-OPEN_I CDU-SCK_I CDU-SDI_I BATT_I PLAY-KEY-CLT_O AD-KEY2_I AD-KEY1_I TU-ON_O SC-SEL_I TU-BASS_O XTU-BASS_O VOL_PWM_O HOLD OPEN_DTS SCK SDTO BATT_MNT AD-KEY1 AD-KEY2 TU_ON PGM_SC_SEL TU-BASS2 XTU-BASS1 PWM BEEP AMUTE TU_BEEP_O BEEP_O D302 D301 29 74 62 49 50 58 56 43 46 48 29 51 38 28 33 39 73 47 54 26 37 38 34 36 (Page 9) TO CD SECTION B (Page 9) TO CD SECTION A BUFF COM1-4 S1-17 LCD1 LIQUID CRYSTAL DISPLAY 1-4 5-20,25 • SIGNAL PATH : FM : AM • Abbreviation CND : Canadian C&SA : Central and South America MX : Mexican AUS : Australian E13 : AM frequency range 531-1,602kHz 2E13 : AM frequency range 531-1,710kHz Ver 1.1 2003.03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 D-FJ211 5-3. PRINTED WIRING BOARDS –SIDE A– • Refer to page 17 for Notes. : USES UNLEADED SOLDER. L11 C85 TP35 TP36 TP20 TP25 TAP2 E E D408 D804 D805 A MAIN BOARD (SIDE B ) (SIDE A) MAIN BOARD L5 Q402 B C E C426 C434 C442 C437 C436 C425 S806 S805 S807 S808 LCD1 C435 CF4 CF3 CF2 S811 L4 S801 S802 S804 S803 S812 S809 (OPEN) L2 FL2 DC IN 3V 1 10 CN801 21 40 80 61 60 41 20 1 13 1 23 33 76 75 100 1 25 26 50 51 34 44 1 11 12 22 26 14 E E FOR CHECK 1 15 16 30 G-PROTECTION ON OFF t 2E13,AUS,E13 1 D E G S 100 21 40 61 E E 20 60 41 2E13,AUS,E13 2E13,AUS,E13 2E13,AUS,E13 E J301 i 2E13,AUS,E13 C402 R416 C418 C423 C419 R408 C408 C405 L405 R809 R869 C420 R865 R800 R864 R428 R431 R439 R421 C400 C450 C439 C440 C447 FB402 C438 C448 R863 R425 R438 R444 R435 R430 R436 R432 JC C403 R448 R403 R407 R420 R449 C404 C422 C429 C433 C421 VDR401 VDR402 R813 R805 R817 R827 R832 R808 R830 R836 R804 C806 R837 R845 R854 R846 R807 R843 C623 R606 R849 R858 R310 R204 R104 R103 R102 R106 R629 R624 R626 R619 R617 R620 R618 R630 C627 C620 C624 R616 C633 C618 C605 C609 C612 C613 C608 C607 C614 C621 C631 R611 R615 R612 R613 R105 R101 R627 R631 R201 C204 C103 C305 C102 C324 C201 R203 C205 C105 C203 C202 C629 C104 C101 C626 R311 R205 R202 R206 R820 R304 R859 R300 C304 C308 C309 JC C313 C300 C315 C317 C318 C310 R301 R852 R7 C2 C19 C6 C20 C7 C11 C18 C14 C13 R8 R3 R6 R811 R802 R812 R25 R825 R604 R605 R601 C42 C31 C30 C10 C22 C810 R447 R600 C55 C610 R603 C604 R602 R608 R446 R610 C803 C804 C802 C809 C801 FB405 R433 R85 R822 C80 C71 C100 C81 C39 C32 C12 C23 C27 C9 C325 R614 C632 C619 C75 C60 C78 R57 R59 R60 R61 R55 R56 R871 C808 C94 C96 C811 C93 C87 R41 R82 R50 C97 R43 R40 R27 R28 R11 R10 R12 R29 R38 R45 R18 R1 R823 R872 R829 R810 R873 R2 JC R835 R815 R844 R874 R46 R53 FB408 FB406 D306 AEP,EE 2E13,AUS,E13 AEP,C&SA,CND,EE,MX EXCEPT AUS,E13 ON OFF t HOLD . PRESET/TUNE– > ,RADIO OFF PRESET/TUNE+ > x RADIO ON/ BAND • MEMORY VOL- VOL+ SOUND/AVLS P MODE/ AEP,C&SA,CND,EE,MX C&SA,CND,MX C&SA,CND,MX C&SA,CND,MX C&SA,CND,MX C&SA,CND,MX C&SA,CND,MX 2E13,C&SA, CND,MX 2E13,C&SA, CND,AUS,E13,MX 2E13,C&SA, CND,AUS,E13,MX TJ202 TJ305 TJ304 TJ102 TJ304 A A D TJ307 TJ3 TJ6 IC1 TJ8 TJ8 TJ9 TJ5 TJ410 TJ605 TJ606 TJ608 TJ801 TJ611 TJ614 TJ10 TJ802 L606 C44 C36 TJ1 TAP1 FB201 FB301 FB101 L602 L603 L604 TJ303 TJ18 TJ19 TJ302 X601 C307 C306 C303 C311 C312 C328 C321 IC301 IC603 IC601 TP639 TP610 TP637 TJ601 C606 C600 L601 TJ602 TJ607 TJ609 TJ618 TJ604 TJ406 TJ603 TP811 Q7 Q10 Q601 Q8 TJ409 S810 TP83 TJ804 TP807 TAP800 TAP807 TP833 TAP804 TJ806 TJ803 C622 IC801 TP834 TP26 L409 TJ418 TJ7 TP40 TJ407 TP417 Q404 Q405 L406 TJ404 TJ612 TJ613 TJ411 TJ4 TJ402 TJ405 C1 TP22 Q801 Q802 IC403 Q403 Q401 D402 L401 J401 L402 C428 L403 TJ401 TJ403 D4 D3 L605 DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS, 3V L1 AM FERRITE-BAR ANTENNA 2E13,AUS,E13 2E13,AUS,E13 21 (21) 1-685-956- X B 2E13,AUS,E13 2E13,AUS,E13 2 3 4 5 6 7 A 1 B C D E • Semiconductor Location Ref. No. Location D3 A-4 D4 B-5 D306 A-4 D402 E-5 D408 D-5 D804 D-3 D805 D-3 IC1 B-4 IC301 B-2 IC403 D-5 IC601 B-3 IC603 C-2 IC801 C-3 Q7 B-4 Q8 B-5 Q10 C-3 Q401 E-5 Q402 D-4 Q403 E-5 Q404 D-5 Q405 D-5 Q601 C-3 Q801 D-3 Q802 D-2 Ver 1.1 2003.03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 D-FJ211 : USES UNLEADED SOLDER. • Semiconductor Location Ref. No. Location D1 D-5 D6 D-4 D7 D-4 D301 C-5 D302 C-5 D403 E-3 D405 D-3 D406 E-3 D409 D-2 D410 D-2 D802 D-5 IC2 D-4 IC3 C-2 IC4 C-2 Q2 B-3 Q3 B-3 Q4 A-3 Q5 C-4 Q9 C-3 Q11 D-4 Q12 B-2 Q13 B-3 Q14 D-4 Q15 C-2 Q301 C-6 Q406 D-2 Q407 D-2 Q408 D-2 R21 C33 C43 Q4 TP4 C25 C40 C41 C48 C76 R33 R32 R39 R30 R49 R63 R42 R84 R80 R37 E E E E E D S G E C59 C82 C62 C58 C35 C47 TP3 TP9 TP609 CN601 TP16 C625 R621 C210 R209 R309 C314 C110 R109 TP829 TP1 TP6 TP633 TP828 TP818 D802 TP824 TP825 TP634 R22 R831 R833 R841 R35 R803 R814 Q9 R23 R19 C45 L9 C53 C50 C49 R24 R31 C89 C92 C95 C88 C99 R821 R78 C73 C38 C107 R44 TP33 TP805 CF5 R302 R427 C807 C800 C805 Q408 Q407 Q406 R423 C432 R434 C445 R440 C427 C441 C443 R441 R429 R424 R801 R422 FB404 FB403 FB401 TP420 C66 C61 R52 C65 C69 C68 R34 C64 C70 R36 D6 T1 IC2 S1 Q11 Q14 TP24 C67 D1 CT1 R419 R451 R452 R411 R412 C406 C411 C415 R414 R413 C417 C410 D403 A MAIN BOARD (SIDE A) (SIDE B) MAIN BOARD E E E 1 15 E G S D AEP,C&SA,CND,EE,MX AEP,C&SA,CND,EE,MX AEP,C&SA,CND,EE,MX E E 1 2 3 C630 C316 TP632 TP631 TP629 TP628 TP627 TP820 TP12 TP8 TP2 TP21 TP17 TP630 TP615 TP620 TP616 TP15 TP7 Q3 Q2 Q12 Q15 Q13 C46 Q5 IC3 D301 D302 Q301 1 20 60 41 21 40 80 61 4 1 5 8 IC4 D410 D405 D7 D409 L411 L10 L404 L407 TP401 TP419 TP418 TP801 CN402 CN401 D406 TP402 TP403 TP404 TP406 L410 K K A A A A 10k 9k t STEP M901 SPINDLE MOTOR M902 SLED MOTOR M M 1 1 2 4 21 (21) 1-685-956- OPTICAL PICK-UP BLOCK DAX-25E 2 3 4 5 6 A 1 B C D E 2E13,C&SA, CND,AUS,E13,MX 2E13,C&SA, CND,MX PRINTED WIRING BOARDS –SIDE B– • Refer to page 17 for Notes. Ver 1.1 2003.03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 D-FJ211 5-4. SCHEMATIC DIAGRAM – MAIN SECTION (1/4) – • Refer to page 17 for Notes. R416 Q403 R408 R407 R403 C418 C419 C420 C421 C422 C423 R419 L403 47µH 100µH L404 220µH C429 C426 R425 C433 L407 C450 L411 FB404 R436 R440 FB406 R435 C441 D409 R434 C445 R444 R439 R421 R432 D410 L410 47µH Q406 R423 R438 C447 C448 L406 47µH 47µH 47µH L409 C435 C438 L401 4.7µH 4.7µH L402 C404 VDR402 VDR401 C410 D403 C405 FB401 D402 R411 R412 C443 CN402 CN401 CN601 C440 C427 D406 J401 Q407 C411 FB408 FB405 FB403 C415 R601 R414 Q404 IC403 Q401 TJ601 M902 M901 C425 C428 C400 C439 R441 R422 R424 R429 C417 R451 R452 L405 C402 C408 C403 Q405 Q408 D408 R430 R431 R428 R433 R413 C432 R448 FB402 R427 R420 R449 C406 C434 C437 C436 C442 Q402 D405 R801 220 2SC4116GL 100 2.2 1 0.1 0.022 0.022 4700p 4700p 4700p 10k 0.1 220 6.3V 0 1 1 0 0 47k 0 10k 0.22 MA111-TX 100k 1 100k 47k 10k 1k MA2H735 CPH3403 0 10k 1000p 0.047 22 6.3V 1 1000p 1 MA2H735 1 0 MA2H735 220k 47k 1 4P 2P 15P 2200p 0.01 UDZSTE-175.1B 2SC4081T106 1 0 0 0 0.22 0 0 2SB167900LSO BH6580KV-F 2SD1781K CHARGE SWITCH (RF) 22 6.3V 4.7 16V 1 2200p 100k 0 0 0 0.1 100k 100k 0 1000p 1000p 1 CPH3303-TL 2SC4081T106 MA111-TX 1k 100k 100k 100k 47k 220 6.3V 0 0 47k 100k 100k 2.2 47 16V 47 16V 47 16V 100 10V 2SB1237TV2PQR MA2YD2300LSO 0 W V U BUS-2 D GND2 VCC1 VCC2 3V CLVOP RF 1-2 2.2V AU GND D GND B1 POWER GND VCPU 2V VIN TU ON D GND UCOM VCPU4 1.5V B1-4 A GND TU U V W RESET SYNC RESET FG CHGMNT XWAKE COM E F B A COM W V U CPOL PD LD S+ S- T+ T- F+ F- POWERLT SDTO SCK BATMNT XWAKE OPGSW OPSTB FIN+ FIN- TIN- SIN- SIN+ TIN+ DC MNT BATT MNT F+ T- T+ F- S+ S- SWITCH SWITCH SWITCH DIFFARENTIAL DRY BATTERY SIZE"AA" (IEC DESIGNATION LR6) 2PCS,3V COIL TRACKING COIL FOCUS 1 5 10 15 1 2 1 4 POWER CONTROL SLED/SPINDLE MOTOR DRIVE, FOCUS/TRACKING COIL DRIVE, SWITCH SWITCH SWITCH 2E13,AUS,E13 EXCEPT AUS,E13 EXCEPT AUS,E13 EXCEPT AUS,E13 Ver 1.1 2003.03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 D-FJ211 5-5. SCHEMATIC DIAGRAM – MAIN SECTION (2/4) – • Refer to page 17 for Notes. FB101 FB201 C618 R615 R616 C624 C619 X601 L602 R618 C626 R630 L605 R626 R629 C629 L604 10µH R631 R621 C621 L601 10µH R608 R610 Q601 C631 R447 R602 R603 R604 R605 C604 C605 C613 C614 C607 R612 C608 C609 R613 C623 R619 R620 IC601 R600 C606 C625 R627 C627 L603 10µH C600 R446 C104 R300 C304 C303 C306 C307 R204 C202 C203 C324 C105 R311 C318 C310 C325 R302 D301 D302 C204 C102 C103 R104 C315 C201 C101 C311 C321 C312 C309 C308 C205 R624 C622 C620 R617 C632 C633 C630 R614 R304 C300 C313 C310 Q301 C316 C317 FB301 D306 C612 R611 R109 R209 R309 C110 C314 C210 R310 R301 C610 R606 R103 R203 R106 R206 R105 R205 C305 C305 R202 R102 R101 R201 2.2 0 1M 10p 10p 16.934MHz 0 470 0.1 0 0 0 0 47p 2.2k 0 0.1 2.2 100k 2SB167900LSO 0.1 0 100k 100k 100k 100k 0.1 1000p 0.01 2200p 0.1 0 0.22 1 470 1 470 470 BU9354KV 2.2 6.3V 16V 0.1 10k 0.01 47 6.3V 0 1 2.2k 0.047 22 6.3V 22 6.3V 10 6.3V 2.2k 470p 470p 0.01 2.2 100k 0.22 2.2 0.01 4.7 MA792WK MA792WK 1 470p 470p 2.2k 0.1 1 1 22 6.3V 22 6.3V 22 6.3V 0.047 1 2.2 10k 22 6.3V 0.1 0 0.1 0.1 100 6.3V 47 0 4.7 4.7 22 6.3V DTC143TUA INV. 220 6.3V 0.1 MA3J14700LSO 0.01 470 0 0 0 1000p 1000p 1000p 22k 22k 0 1 10 6.3V B1 RF CLVOP VCC1 1-2 2.2V BUS-2 VCPU4 1.5V VCC2 D GND UCOM POWER GND 3V B 2-4 AU GND TU L TU R FM ANT A GND TU A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 D0 D1 D2 D3 XRAS XWE FIN- FIN+ XCAS TIN- TIN+ SIN- SIN+ SDTI SDTO SRW SCK POFF XRST SCOR PD A B E F BATMNT GFS DEFECT FOK XBUSY CLK4M CPOL SYNC TU BASS2 BEEP PWM HP SW XTU BASS1 LD TU MUTE A MUTE TU BEEP A0 A1 A2 A3 D1 XWE XRAS D0 XCAS D3 D2 A5 A6 A7 A8 A4 A9 *8 *5 *5 *1 *1 *2 *2 *6 *6 *7 *7 DIGITAL SIGNAL PROCESSOR LD DRIVER RF AMP,SERVO, D-RAM CONTROLLER D/A CONVERTER PRE GND TU I R VREF LINE L O LINE R O VOL L O VOL R O IN SEL BASS NF MIX O AGC SW NC NC VCC1 VOL BIAS RIPPLE F AVLS SW VOL BIAS VOL CTL I C AMP SW POWER GND POWER L O CENTER AMP POWER R O VCC2 BEEP 1 MUTE T MUTE SW I AVLS I AVLS O STB HPSW I RIPPLE F BIAS I BIAS O BASS T BASS SW BASS H/L SW BASS O BASS CTL CD L I TU L I IC301 PRE EQ AMP/EVR/ HEADPHONE AMP AN17882A-E1 0uH 0uH 0uH 2.2 4.7 2E13,AUS,E13 AEP,C&SA,CND,EE,MX 2E13,AUS,E13 AEP,C&SA,CND,EE,MX 2E13,AUS,E13 *8 C610 2E13,AUS,E13 AEP,C&SA,CND,EE,MX 2E13,AUS,E13 AEP,C&SA,CND,EE,MX 2E13,AUS,E13 AEP,C&SA,CND,EE,MX *5 R103,203 2.2k 4.7k 4.7k *1 R106,206 *2 R105,205 10k AEP,EE 2E13,C&SA,CND,AUS,E13,MX AEP,EE 2E13,C&SA,CND,AUS,E13,MX 10k 2E13,AUS,E13 AEP,C&SA,CND,EE,MX 10k *6 R102,202 *7 R101,201 22K 10k 0 AEP,EE 2E13,C&SA,CND,AUS,E13,MX AEP,EE 2E13,C&SA,CND,AUS,E13,MX CD I R 22k Ver 1.1 2003.03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 D-FJ211 5-6. SCHEMATIC DIAGRAM – MAIN SECTION (3/4) – • Refer to page 17 for Notes. • Refer to page 20 for IC Pin Function Description. IC801 R835 R844 R815 R873 R863 R864 R865 S801 S802 S803 S804 C808 R871 S809 S810 TAP805 D802 C807 R854 C809 R827 R830 R832 R833 R836 TAP806 R852 R849 R872 R810 R814 R829 R823 S805 S806 S807 S808 S811 R820 R831 R825 R812 R821 CN801 C800 C805 C801 R837 R822 C802 R802 R805 R817 R811 R803 R800 R809 R869 S812 C811 C810 C806 R874 C803 C804 R808 D804 D805 R846 Q802 Q801 R813 R843 R807 R845 R804 R858 R859 R841 T5AW6-Z7C 2.2k 10k 22k 22k 10k 2.2k 2.2k 4700p 220k (OPEN) MA2ZD14001S0 0.22 0 0.01 470 0 470 470 0 470 470 10k 22k 100k 2.2k 10k 0 0 0 0 0 10P 0.1 0.01 0.01 470 10k 0.01 0 0 470 0 100k 22k 10k 22k 0.01 0.01 0.1 10k 1000p 1000p 1M MA728-TX MA728-TX 470k 2SC4116GL DTC143TUA 100k 2.2M 2.2M 10k 1k 1k 100k B1 VCC2 D GND2 VCPU 2V TU ON B 3-4 HOLD XRST POFF RESET SRW SCK FOK XBUSY G-PRO OPEN SCOR SDTO POWERLT SDTI CLK4M G-PRO GFS OPEN OPSTB DEFECT PGM_SCK PGM_SDTI PGM_SDTO PGM_SEL TEST RESET2 FG XWAKE OPGSW BEEP CHGMNT BATMNT PGM_SEL PGM_SCK PGM_SDTI PGM_SDTO RESET2 TEST DC MNT HOLD CD ON RESET TU SDTI TU ACK CD A MUTE HP SW AD KEY2 AD KEY1 TUPWR ON OPEN DTS HOLD LCD REQ XL TU ON PGM SC SEL *1 VOL- VOL+ SYSTEM CONTROL MICON HOLD ON OFF ON OFF OPEN:NORMAL MODE SHORT:TEST MODE SOUND/AVLS P MODE/ G-PROTECTION CHECK Q801,802 WAKE-UP DETECT ,PRESET TUNING - ,PRESET TUNING + ,RADIO OFF 2.2k *1 R804 AEP,C&SA,CND,EE,MX AEP,EE 2E13,C&SA,CND,AUS,E13,MX 10k C&SA,CND,MX 2E13,AUS,E13 2E13,AUS,E13 C&SA,CND,MX C&SA,CND,MX Ver 1.1 2003.03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 D-FJ211 5-7. SCHEMATIC DIAGRAM – MAIN SECTION (4/4) – • Refer to page 17 for Notes. FL2 C55 C75 R27 R28 R29 CT1 C6 C18 C19 D1 C2 C7 C11 C13 C14 C20 R6 R7 R8 L5 D3 D4 C10 C25 C47 R10 C30 C32 CF2 CF3 CF4 C36 C39 C40 C41 C42 C49 C50 C53 D7 C65 C66 D6 T1 C61 C68 C69 C67 R35 R36 L10 10µH R21 C43 C60 R32 R33 R30 R31 C58 C59 R87 C62 C71 R37 R38 R39 R46 C81 C97 L11 10µH C85 C100 R53 CF5 C88 C89 C92 C93 C94 C95 C96 R40 R42 C73 R60 R61 R54 R63 C99 R50 R80 R85 R41 C80 L9 R19 R18 R23 C46 C76 C48 C35 C44 C45 IC3 C87 C12 C22 C23 R44 R49 C82 R45 R57 R52 R25 R34 R1 R2 R3 R24 C33 C1 R43 R11 C31 R12 R84 L606 R22 L4 L2 Q12 Q13 Q4 Q7 Q15 Q11 Q14 C27 C79 C9 C64 C70 Q10 Q5 Q9 Q8 Q3 Q2 S1 R55 R59 R56 C78 R82 1 0.01 22k 0 100k 0.022 0.022 0.022 KV1520-TL00 100p 220p 47p 5p 10p 0.1 470k 470k 10k MA2S357 MA2S357 220p 1000p 0.1 0 1000p 0.1 4.7 4V 470p 0.01 0.01 0.047 0.047 0.022 0.47 MA8130 0.01 2.2 MA111 5p 0.01 0.01 22 6.3V 100k 220 2.2k 0.01 0.01 470 4.7k 10k 4.7k 0.22 1000p 0 100p 0.01 100k 1k 470 100k 1 0.01 22 6.3V 0.1 4.7k 22p 5p 10p 0.47 0.1 0.1 0.47 100k 10k 0.1 10k 10k 10k 100k 1 470k 0 0 0 1000p 47 47k 4.7k 47 6.3V 1000p 1000p 0.022 4.7 4V 100 6.3V TC9327AF-Z7CTU 0.1 5p 0.01 0.01 0 10k 0.01 10k 10k 100k 4.7k 1k 470k 470k 10k 1k 1000p 47 6.3V 0 2.2k 0.01 1k 0 0 47k 2SK880GR-TE85L LPF 2SC4154TP-1F LPF 2SC4154TP-1F SWITCH DTC144TUA SWITCH 2SC3931-C-TX BUFFER 2SB167900LSO B+ SWITCH 2SC4154TP-1F DC-DC CONVERTOR 100p 1000p 0.01 10p 1000p DTC144TUA B+ SWITCH 2SA1576 B+ SWITCH DTC144TUA B+ SWITCH DTC144TUA SWITCH DTA144TUA SWITCH DTA144TUA SWITCH 10k 10k 10k 1 0 TU L TU R D GND VIN B 2-4 B1-4 B1 FM ANT VCPU 2V B 3-4 A GND TU RESET TU TU MUTE XTU BASS1 TU BASS2 PWM TU BEEP SDTO BATT MNT SCK HOLD SDTI TU ACK CD CD ON TU ON OPEN DTS XL AD KEY1 LCD REQ PGM SC SEL AD KEY2 TUPWR ON CS SK DO CS SK DO TV RF I RF GND FM MIX O AGC VCC FM IF I GND QUAD R O LPF1 MPX I DET O FM RF I AM MIX O AM IF I L O LPF2A LPF2B IF COUNT O REQ SW MODE1 MODE2 OSC O AM OSC RF VCC AM RF I AM BP FM RF O TV RF O FM/TV OSC IC1 TA2154FN(EL) S1 S2 S3 S4 S5 S6 S7 S8 S9 S11 S12 S13 S14 S15 S16 COM1 COM2 COM3 BAND CTL1 0 +B ON/OFF O XTU BASS O TU BASS O MONO/LOCAL CTR O ACK CD O DCIN DET I BAND CTL2 O TU HOLD I XTU TEST I TU BEEP O CDU SCK I CDU SDO O CDU SDI I AD DC REF HDC I BATT I RM KEY I TV L ON O T AVSL O CD ON I TU ON I SC SEL I AD KEY2 I NC AD KEY1 I XL/O I EEP CS O EEP SK O EEP DO/DI IO XLID OPEN I LCD REQ I NC PLAY KEY CTL O S17 DEST0 I AM STEP I DEST2 I DEST1 I IF REQ O TU MUTE O TEST IF I EO(D01) O EO(D02) HOLD I NC GND NC TV/FM/AM I VDD(1.8-2.2V) RESET I X O X I VXT VLCD C1 C2 VEE XC62RP1602MR IC2 CS SK D1 D0 VCC PE NC GND AM ANTENNA FERRITE-BAR L1 LIQUID CRYSTAL DISPLAY VOL PWM O COM4 S10 LCD1 1.6V REG. VIN VOUT GND FM TRACKING FREQUENCY COVERAGE TRACKING AM L1,CT1 AM FREQUENCY COVERAGE L5 FM MPX FRONTEND, AK93C55AV IC4 TUNER CONTROL EEPROM STEP 9k 10k 2E13,C&SA,CND,MX 2E13,AUS,E13 2E13,C&SA,CND,MX 2E13,C&SA,CND,AUS,E13,MX 2E13,C&SA,CND,AUS,E13,MX AEP,EE AEP,C&SA,CND,EE,MX 2E13,AUS,E13 C&SA,CND,MX FM L2 L4 FM/AM Ver 1.1 2003.03 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 D-FJ211 For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specifed. • C : panel designation. Note: Note: The components identi- Les composants identifiés fied by mark 0 or dotted par une marque 0 sont cri- line with mark 0 are cri- tiques pour la sécurité. tical for safety. Ne les remplacer que par Replace only with part une piéce portant le number specified. numéro spécifié. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 3 V and fed with regulated dc power supply from battery terminal. • Voltages are dc with respect to ground under no-signal(detuned) conditions. no mark : FM ( ) : AM [ ] : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production toler ances. • Circled numbers refer to waveforms. • Signal path. E : CD PLAY F : FM f : AM • Abbreviation CND : Canadian C&SA : Central and South America EE : East European AUS : Australian MX : Mexican E13 : AM frequency range 531-1,602 kHz 2E13 : AM frequency range 531-1,710 kHz Note on Printed Wiring Boards: Note: • X : parts extracted from the component side. • a : Through hole. • : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated.) Caution: Pattern face side :Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side : Parts on the parts face side seen from the (Side A) parts face are indicated. • Abbreviation CND : Canadian C&SA : Central and South America EE : East European AUS : Australian MX : Mexican E13 : AM frequency range 531-1,602 kHz 2E13 : AM frequency range 531-1,710 kHz r Waveforms IC3 uf X_O VOLT/DIV : 0.5 V AC TIME/DIV : 5 µsec Q14 C VOLT/DIV : 2 V AC TIME/DIV : 0.1 µsec 1 2 IC601 qd RF_I VOLT/DIV : 0.2 V AC TIME/DIV : 0.5 µsec 3 1.0 Vp-p 75 KHz 4.0 Vp-p 0.29 µsec 0.45 to 0.75Vp-p IC801 2 X_I VOLT/DIV : 1 V AC TIME/DIV : 0.1 µsec 6 2.0Vp-p 235 µsec IC601 td CLK4M VOLT/DIV : 1 V AC TIME/DIV : 0.1 µsec 5 2.0Vp-p 235 µsec IC601ek X_O VOLT/DIV : 1 V AC TIME/DIV : 20 nsec 4 1.2 Vp-p 16.934MHz (FM/AM/TV/WB MODE) (CD PLAY MODE) (CD PLAY MODE) IC403 wa GSW VOLT/DIV : 2 V AC TIME/DIV : 2 µsec 8 6.0 Vp-p 5.7 µsec IC403 qd DSW VOLT/DIV : 1 V AC TIME/DIV : 2 µsec 7 3.0 Vp-p 5.7 µsec (CD PLAY MODE) (CD PLAY MODE) (CD PLAY MODE) (CD PLAY MODE) Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 D-FJ211 • IC BLOCK DIAGRAM IC1 TA2154FN (EL) 12 13 14 19 15 FM/TV MIX 8 9 10 TV RF IN VCC FM IF IN AM IF IN QUAD DET OUT MPX IN LPF IN R OUT GND 1 4 2 3 5 6 FM FR IN RF GND FM MIX AM MIX AGC 7 AM MIX SW FM/AM/TV PW SW 1/2 FM OSC TV OSC 1/8 OR 1/16 AM DET LEVEL DET FM MPX FM DET AM OSC AGC 18 17 16 20 TV FM OSC AM RF IN OSC OUT TV RF OUT FM RF OUT AM BYPASS AM OSC MODE2 MODE1 IF REQ IF COUNT LPF2B LPF2A L OUT RFVCC 30 29 27 28 23 24 25 26 22 21 11 BUFF IF BUFF BUFF BUFF FM IF AM IF AF TV RF FM RF IC601 BU9354KV 1 100 AVDD1 2 LD 3 PD 4 VMON 5 VCHK 6 VE 7 VF 8 VBD 9 VAC 10 AVSS1 11 VBIAS 12 N.C. 13 RF1 14 PKC 15 BTC 16 RFGO 17 DETI 18 ASYI 19 ASYO 20 MON1 22 ADPFO 23 ADPFI 24 FCO 25 PCO 75 FDOP 74 FDON 73 CLVOP 72 CLVON 71 CLKDRV 70 SYNC 69 EXPLCK 68 TEST_S 67 EFM/YFLG 66 C2FX 65 FOK 64 63 62 61 60 59 58 DOCKO DOUTAO LRCKO DOUTAI LRCKI 57 N.C. TEST DEFECT 56 N.C. 55 N.C. 54 N.C. 53 CLK4M 52 BUSYB 51 DVDD A3 99 A2 98 A1 97 A0 96 A4 95 A5 94 A6 93 A7 92 A8 91 A9 90 RASB 88 D1 87 D0 86 DVDDIO2 85 D3 84 D2 83 CAS1B 82 A10/CAS2B 81 DVSSIO2 80 DVDDIO 79 SDOP 78 SDON 77 TDOP 76 TDON 28 RLINI 29 RDACO 26 AVSS2 27 RLINO 30 VCDACO 31 LDACO 32 LLINI 33 LLINO 34 AVDD2 35 MUTE 36 DVDD1 37 XIN 38 XOUT 39 DVSSIO 40 DVDD 41 DOCKI 42 DVSS1 43 SBSY 44 RSTB 45 PDWNB 46 DVSSIO 47 SCLK 48 SRW 49 SDIN 50 SDOUT ESP SERVO CORE APC PWM FLAG 21 MON2 89 WEB A/D D/A PLL 1bit DAC WINDOW ECC CLOCK GEN SUB SIO RF AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 D-FJ211 IC403 BH6580KV 61 60 DCIN 59 58 57 56 55 54 53 51 50 49 47 46 45 48 52 36 35 34 32 31 30 33 23 22 29 27 26 25 24 28 21 9 1 2 3 4 7 8 5 6 10 11 12 13 14 15 16 62 REGB 63 DET 64 DCIN_S 65 CHGB 66 VMMNT 67 CHGMNT 68 BATM1 69 BATM2 70 BBK 71 PREGND 72 PWM 73 SOFTPWM 74 FG 75 CSL1 SPVCC1 U_OUT SPGND1 V_OUT SPVCC2 W_OUT LG SPGND2 VG SSW VCC3 VIN DSW POWERGND USW VCC0 17 VCC1 18 VCC2 20 VCC FIN3 RIN3 FIN2 RIN2 FIN1 RIN1 VM1 0GND FO1 PGND1 VM12 RO1 FO2 PGND2 RO2 VM23 44 FO3 43 PGND3 42 RO3 41 VM3 76 WI PRE DRIVE LOGIC VG VCC VG SLOPE SIGNAL 77 VI 78 UI 79 COM 80 CSL2 XRST 37 WAKEUP 38 CLOXK 39 DATA 40 LATCH RESET_O SYNC PREGND EI SOFT SLOW EO PMG VCPUNF VCC2NF STNG SEP SEM SEO GSW INPUT SELECT CHARGE CONTROLLER LEVEL SHIFTER HVPROT MONTOR AMP VM VCC VG VG VCC3 CH1 H BRIDGE CH2 H BRIDGE CH3 H BRIDGE INTERFACE RESET CLK SAW GEN VG VCC VCC2 19 VCPU_2.0V 10msec DELAY VCC4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 D-FJ211 5-8. IC PIN FUNCTION DESCRINTION Pin No. Pin name I/O Description IC801 (SYSTEM CONTROL) T5AW6-Z7C 1 GND – Ground terminal 2 XIN I System clock input 3 XOUT O Not used (OPEN) 4 TEST I Test mode terminal 5 VCPU_2.0V – Power supply for CPU & I/O 6 FOK_I I Focus OK signal input 7 XBUSY_I I DSP’s auto sequencer status 8 RESET_I I/O Micon reset terminal 9 ACKCD_I I ACK signal input 10 SDTI_I_TU I Signal data input from TC9327AF-641 11 SCOR_I I SCOR pulse input 12 HPSW_O O Headphone IC power switch 13 DEFECT_I I DEFECT signal input 14 XPOWLT_O O Power IC’s serial interface latch output 15 SRW_O O DSP’s serial interface Read/Write signal output 16 SDTI_I I Serial interface input 17 SDTO_O O Serial interface output 18 SCK_O O Serial interface clock output 19 AVCPU – Power supply for CPU and I/O 20 ADVREF – Analog reference voltage for A/D converter 21 AD_SEL I Test mode detection input 22 AD_CHGMNT I Charging monitor input 23 AD_KEY2 I Key input 24 AD_BATTMNT I Battery voltage monitor input 25 WP/AD_KEY1 I Set’s key detection input 26 WP/AD_RMKEY I Remocon’s key detection input 27 AD_DCINMNT I DC voltage monitoring input 28 WP/XOPEN I OPEN switch status detection input 29 TUPWR O Power supply for tuner 30 BEEP_O O BEEP sound 31 NC O Not used (OPEN) 32 VDD_EEPROM – Power supply for EEPROM (OPEN) 33 WP/K2_RM I Wake-up signal input 34 TU_ON_I I Tuner ON signal input 35 TEST O Not used (OPEN) 36 X4M/16M_I I DRAM size selection terminal (fixed at H) 37 XL_O O Line out detection signal output 38 GPROSW_I I ESP switch status detection input 39 LCD_REQ_O O LCD request signal output 40 HOLD_I I HOLD switch status detection input 41 to 56 SEG0-15 O Not used (OPEN) 57-60 COM0-3 O Not used (OPEN) 61-63 V1-3 – Not used (OPEN) 64 C1 – Not used (OPEN) 65 C0 – Not used (OPEN) 66 XWAKEUP_O O Wake-up signal output 67 PGM_SDTO – Not used (OPEN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 D-FJ211 Pin No. Pin name I/O Description 68 PGM_SDTI – Not used (OPEN) 69 PGM_SCK_O – Not used (OPEN) 70 CD_ON O CD ON signal output 71 GFS_I I Guard Frame Synchronous signal input 72 FG_I I FG signal input 73 PGMSEL_O – Not used (OPEN) 74 AMUTE_O O Mute ON/OFF control output 75 RESET_TU_O O Reset signal output 76 XREST_O O System reset output 77 POFF_O O DSP’s power off output 78 XOPSTBY_O O Pick-up’s power supply ON/OFF control 79 OPGSW_O O RF IC’s gain control 80 C2POEN_O O Not used (OPEN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 D-FJ211 SECTION 6 EXPLODED VIEWS NOTE : • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation CND : Canadian C&SA : Central and South America EE : East European AUS : Australian MX : Mexican E13 : AM frequency range 531-1,602 kHz 2E13 : AM frequency range 531-1,710 kHz 6-1. CABINET SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12 13 11 10 8 1 2 17 7 6 5 9 4 3 14 15 16 CDM-3325ER LCD1 1 X-3383-192-1 CABINET (LOWER) SUB ASSY 2 3-248-574-01 SHEET, SHIELD * 3 A-3347-658-A MAIN PC BOARD ASSY (AEP,EE) * 3 A-3347-662-A MAIN PC BOARD ASSY (C&SA,CND,MX) * 3 A-3347-666-A MAIN PC BOARD ASSY (AUS,E13) * 3 A-3683-315-A MAIN PC BOARD ASSY (2E13) 4 3-249-578-01 KNOB (GPRO) 5 3-831-441-99 SPACER, KNOB 6 3-246-653-01 TERMINAL BOARD (+), BATTERY 7 3-246-654-01 TERMINAL BOARD (-), BATTERY 8 3-247-456-01 BOARD (RELAY),TERMINAL,BATTERY Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 9 3-252-360-01 CUSHION (MD) 10 3-245-331-01 INSULATOR 11 4-908-792-61 SCREW (B2) 12 X-3383-195-1 LID ASSY, UPPER 13 3-248-061-01 SPRING (L) 14 3-248-062-01 SPRING (R) 15 X-3383-289-1 CABINET (UPPER) SUB ASSY 16 3-246-595-01 LID, BATTERY CASE 17 3-254-514-01 SHEET (LCD), SHIELD LCD1 1-804-997-11 DISPLAY PANEL, LIQUID CRYSTAL Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 D-FJ211 6-2. OPTICAL PICK-UP SECTION (CDM-3325ER) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark M901 M902 101 101 102 103 104 105 106 107 108 109 110 111 101 3-318-203-61 SCREW (B1.7X4), TAPPING 102 3-221-474-01 SPRING, SLED 103 3-221-472-02 CHASSIS 104 A-3180-952-A FEED ASSY, SCREW 105 3-221-473-01 COVER, GEAR 106 3-221-268-01 GEAR (B) 0107 X-3380-950-1 OPTICAL PICK-UP (DAX-25E RP ASSY) 108 3-221-475-01 SHAFT, STANDARD 109 3-222-298-01 RACK 110 3-222-299-01 SPRING, RACK RETAINER 111 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN M901 A-3180-953-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3180-951-A MOTOR ASSY, SLED (including GEAR) Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 D-FJ211 NOTE : • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms METAL : Metal-film resistor METAL OXIDE :Metal oxide-film resistor F : nonflammable • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ , for example : uA.... : µ A.... , uPA.... : µ PA.... uPB.... : µ PB.... , uPC.... : µ PC.... uPD.... : µ PD.... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation CND : Canadian C&SA : Central and South America EE : East European AUS : Australian MX : Mexican E13 : AM frequency range 531-1,602 kHz 2E13 : AM frequency range 531-1,710 kHz When indicating parts by reference num- ber, please include the board. SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. * A-3347-658-A MAIN BOARD, COMPLETE (AEP,EE) * A-3347-662-A MAIN BOARD, COMPLETE (C&SA,CND,MX) * A-3347-666-A MAIN BOARD, COMPLETE (AUS,E13) * A-3683-315-A MAIN BOARD, COMPLETE (2E13) ******************* 3-246-653-01 TERMINAL BOARD (+), BATTERY 3-246-654-01 TERMINAL BOARD (-), BATTERY 3-247-456-01 BOARD (RELAY),TERMINAL,BATTERY 3-252-360-01 CUSHION (MD) < CAPACITOR > C1 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C2 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C6 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C7 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C9 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C10 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C11 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C12 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C13 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C14 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C18 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C19 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C20 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C22 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C23 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C25 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C27 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C30 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C31 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C32 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C33 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C35 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C36 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C39 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C40 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C41 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C42 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C43 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (2E13,C&SA,CND,MX) C44 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C45 1-128-964-91 TANTAL. CHIP 100uF 20% 6.3V C46 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C47 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C48 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C49 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C50 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C53 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C55 1-115-156-11 CERAMIC CHIP 1uF 10V C58 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C59 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C60 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C61 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C62 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C64 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C65 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C66 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C67 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C68 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C69 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C70 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AEP,C&SA,CND,EE,MX) C71 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C73 1-164-156-11 CERAMIC CHIP 0.1uF 25V C75 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C76 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C78 1-115-156-11 CERAMIC CHIP 1uF 10V C80 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C81 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V (AUS,2E13,E13) C82 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C85 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C87 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C88 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C89 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C92 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C93 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C94 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C95 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C96 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C97 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C99 1-115-156-11 CERAMIC CHIP 1uF 10V C100 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C101 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 D-FJ211 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C102 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C103 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C104 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C105 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C110 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C202 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C203 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C204 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C205 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C210 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C300 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C303 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C304 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C305 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V (AUS,2E13,E13) C305 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V (AEP,C&SA,CND,EE,MX) C306 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C307 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C308 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C309 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C310 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V (AEP,C&SA,CND,EE,MX) C310 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V (AUS,2E13,E13) C311 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C312 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C313 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C314 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C316 1-126-369-11 ELECT 220uF 20% 6.3V (AEP,C&SA,CND,EE,MX) C317 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (AUS,2E13,E13) C318 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C321 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C324 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C325 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C328 1-135-856-91 TANTAL. CHIP 100uF 20% 10V C400 1-115-156-11 CERAMIC CHIP 1uF 10V C402 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AUS,2E13,E13) C403 1-115-156-11 CERAMIC CHIP 1uF 10V C404 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C408 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AUS,2E13,E13) C410 1-115-156-11 CERAMIC CHIP 1uF 10V C411 1-115-156-11 CERAMIC CHIP 1uF 10V C415 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C417 1-164-156-11 CERAMIC CHIP 0.1uF 25V C418 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C419 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C420 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C421 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C422 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C423 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C425 1-126-153-11 ELECT 22uF 20% 6.3V (EXCEPT AUS,E13) C426 1-126-369-11 ELECT 220uF 20% 6.3V C427 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C428 1-107-686-11 TANTAL. CHIP 4.7uF 20% 16V C429 1-164-156-11 CERAMIC CHIP 0.1uF 25V C430 1-115-156-11 CERAMIC CHIP 1uF 10V C432 1-128-829-91 TANTAL. CHIP 220uF 20% 6.3V C433 1-115-156-11 CERAMIC CHIP 1uF 10V C434 1-124-589-11 ELECT 47uF 20% 16V C435 1-126-153-11 ELECT 22uF 20% 6.3V C436 1-124-589-11 ELECT 47uF 20% 16V (EXCEPT AUS,E13) C437 1-124-589-11 ELECT 47uF 20% 16V (EXCEPT AUS,E13) C438 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C439 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C440 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C441 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C442 1-124-584-00 ELECT 100uF 20% 10V C443 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C445 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C447 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C448 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C450 1-115-156-11 CERAMIC CHIP 1uF 10V C600 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C604 1-164-156-11 CERAMIC CHIP 0.1uF 25V C605 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C606 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C607 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C608 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C609 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C610 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V (AEP,C&SA,CND,EE,MX) C610 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V (AUS,2E13,E13) C612 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C613 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C614 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C618 1-135-834-91 CERAMIC CHIP 2.2uF 6.3V C619 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C620 1-164-156-11 CERAMIC CHIP 0.1uF 25V C621 1-164-156-11 CERAMIC CHIP 0.1uF 25V C622 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C623 1-115-156-11 CERAMIC CHIP 1uF 10V C624 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C625 1-164-156-11 CERAMIC CHIP 0.1uF 25V C626 1-164-156-11 CERAMIC CHIP 0.1uF 25V C627 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C629 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C630 1-128-964-91 TANTAL. CHIP 100uF 20% 6.3V C631 1-164-156-11 CERAMIC CHIP 0.1uF 25V C632 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (AUS,2E13,E13) C633 1-164-156-11 CERAMIC CHIP 0.1uF 25V C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C802 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C803 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C804 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C805 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 D-FJ211 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C807 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C808 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C809 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C810 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (AUS,2E13,E13) C811 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (AUS,2E13,E13) < CERAMIC FILTER > CF2 1-795-035-11 FILTER, CERAMIC CF3 1-781-271-11 FILTER, CERAMIC CF4 1-795-845-21 DISCRIMINATOR, CERAMIC CF5 1-760-130-11 VIBRATOR, CRYSTAL < CONNECTOR > CN401 1-784-342-21 HOUSING, CONNECTOR 2P * CN402 1-785-877-21 HOUSING, CONNECTOR 4P * CN601 1-816-237-21 CONNECTOR, FFC/FPC (ZIF) 15P < TRIMMER CAPACITOR > CT1 1-141-374-11 CAP, TRIMMER 20PF (AM TRACKING) < DIODE > D1 8-719-076-70 DIODE KV1520TL D3 8-719-080-77 DIODE MA2S357(E)-(TX).SO D4 8-719-080-77 DIODE MA2S357(E)-(TX).SO D6 8-719-404-50 DIODE MA111-TX D7 8-719-420-87 DIODE MA8130 D301 8-719-044-74 DIODE MA792WK-TX D302 8-719-044-74 DIODE MA792WK-TX D306 8-719-059-53 DIODE MA3J14700LSO D402 8-719-067-42 DIODE MA2H735-(TX).SO D403 8-719-067-42 DIODE MA2H735-(TX).SO D405 8-719-085-43 DIODE MA2YD2300LS0 D406 8-719-069-54 DIODE UDZSTE-175.1B D408 8-719-404-50 DIODE MA111-TX D409 8-719-404-50 DIODE MA111-TX D410 8-719-067-42 DIODE MA2H735-(TX).SO D802 8-719-072-70 DIODE MA2ZD14001S0 D804 8-719-421-27 DIODE MA728 D805 8-719-421-27 DIODE MA728 < FERRITE BEAD > FB101 1-414-760-21 FERRITE 0uH FB201 1-414-760-21 FERRITE 0uH FB301 1-414-813-11 FERRITE 0uH FB401 1-216-295-91 SHORT CHIP 0 FB402 1-216-295-91 SHORT CHIP 0 FB403 1-216-295-91 SHORT CHIP 0 FB404 1-216-295-91 SHORT CHIP 0 FB405 1-216-295-91 SHORT CHIP 0 FB406 1-216-295-91 SHORT CHIP 0 FB408 1-216-295-91 SHORT CHIP 0 < FILTER > FL2 1-236-711-21 FILTER, BAND PASS < IC > IC1 6-701-310-01 IC TA2154FN(EL) IC2 8-759-457-70 IC XC62RP1602MR IC3 6-802-330-01 IC TC9327AF-Z7CTU IC4 8-759-449-23 IC AK93C55AV-L IC301 6-703-718-01 IC AN17882A-E1 IC403 6-703-034-01 IC BH6580KV IC601 6-703-033-01 IC BU9354KV IC603 6-703-609-01 IC MSM51X4400E-10TSK-FS IC801 6-802-331-01 IC T5AW6-Z7C < JACK > J301 1-815-135-32 JACK, HEADPHONE (i) J401 1-778-153-51 JACK,DC(POLARITY UNIFIED TYPE) (DC IN 4.5V) < COIL > L1 1-424-851-31 COIL, FERRITE-ROD ANTENNA (MW) (AM TRACKING) L2 1-419-542-11 COIL, AIR-CORE (FM FREQUENCY COVERAGE) L4 1-456-313-11 COIL, AIR-CORE (FM TRACKING) L5 1-424-883-11 COIL (AM OSC) (AM FREQUENCY COVERAGE) L9 1-414-398-11 INDUCTOR 10uH L10 1-412-006-31 INDUCTOR 10uH L11 1-412-006-31 INDUCTOR 10uH L401 1-412-056-11 INDUCTOR 4.7uH L402 1-412-056-11 INDUCTOR 4.7uH L403 1-400-145-21 INDUCTOR 47uH L404 1-414-406-41 INDUCTOR 220uH L405 1-216-295-91 SHORT CHIP 0 L406 1-400-145-21 INDUCTOR 47uH L407 1-419-387-21 INDUCTOR 100uH L409 1-400-145-21 INDUCTOR 47uH L410 1-400-145-21 INDUCTOR 47uH L411 1-410-389-31 INDUCTOR CHIP 47uH L601 1-469-967-21 INDUCTOR 10uH L602 1-216-295-91 SHORT CHIP 0 L603 1-412-006-31 INDUCTOR 10uH L604 1-412-006-31 INDUCTOR 10uH L605 1-216-295-91 SHORT CHIP 0 L606 1-216-295-91 SHORT CHIP 0 < LIQUID CRYSTAL DISPLAY > LCD1 1-804-997-11 DISPLAY PANEL, LIQUID CRYSTAL < TRANSISTOR > Q2 8-729-028-92 TRANSISTOR DTA144TUA-T106 Q3 8-729-028-92 TRANSISTOR DTA144TUA-T106 Q4 8-729-602-21 TRANSISTOR 2SC4154-F (2E13,C&SA,CND,MX) Q5 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q7 8-729-029-15 TRANSISTOR DTC144TUA-T106 Q8 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q9 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q10 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q11 8-729-054-79 TRANSISTOR 2SB167900LSO Q12 8-729-053-44 TRANSISTOR 2SK880-Y-TE85R Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-FJ211 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q13 8-729-602-21 TRANSISTOR 2SC4154-F Q14 8-729-602-21 TRANSISTOR 2SC4154-F Q15 8-729-423-52 TRANSISTOR 2SC3931-C Q301 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q401 8-729-921-73 TRANSISTOR 2SD1781K-QR Q402 6-550-070-01 TRANSISTOR 2SB1237TV2PQR Q403 8-729-231-74 TRANSISTOR 2SC4116-GL Q404 8-729-054-79 TRANSISTOR 2SB167900LSO Q405 8-729-047-36 TRANSISTOR CPH3303-TL Q406 8-729-044-84 TRANSISTOR CPH3403-TL-E Q407 8-729-905-40 TRANSISTOR 2SC4081T106 Q408 8-729-905-40 TRANSISTOR 2SC4081T106 Q601 8-729-054-79 TRANSISTOR 2SB167900LSO Q801 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q802 8-729-231-74 TRANSISTOR 2SC4116-GL < RESISTOR > R1 1-216-853-11 METAL CHIP 470K 5% 1/10W R2 1-216-853-11 METAL CHIP 470K 5% 1/10W R3 1-216-833-11 METAL CHIP 10K 5% 1/10W R6 1-216-853-11 METAL CHIP 470K 5% 1/10W R7 1-216-853-11 METAL CHIP 470K 5% 1/10W R8 1-216-833-11 METAL CHIP 10K 5% 1/10W R10 1-216-864-11 METAL CHIP 0 5% 1/10W R11 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R12 1-216-821-11 METAL CHIP 1K 5% 1/10W R18 1-216-841-11 METAL CHIP 47K 5% 1/10W R19 1-216-805-11 METAL CHIP 47 5% 1/10W R21 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (2E13,C&SA,CND,MX) R22 1-216-841-11 METAL CHIP 47K 5% 1/10W R23 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R24 1-216-821-11 METAL CHIP 1K 5% 1/10W R25 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R27 1-216-837-11 METAL CHIP 22K 5% 1/10W (C&SA,CND,MX) R28 1-216-864-11 METAL CHIP 0 5% 1/10W R29 1-216-845-11 METAL CHIP 100K 5% 1/10W R30 1-216-833-11 METAL CHIP 10K 5% 1/10W R31 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R32 1-216-817-11 METAL CHIP 470 5% 1/10W R33 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R34 1-216-821-11 METAL CHIP 1K 5% 1/10W R35 1-216-845-11 METAL CHIP 100K 5% 1/10W R36 1-216-813-11 METAL CHIP 220 5% 1/10W R37 1-216-845-11 METAL CHIP 100K 5% 1/10W R38 1-216-821-11 METAL CHIP 1K 5% 1/10W R39 1-216-817-11 METAL CHIP 470 5% 1/10W R40 1-216-845-11 METAL CHIP 100K 5% 1/10W R41 1-216-864-11 METAL CHIP 0 5% 1/10W R42 1-216-833-11 METAL CHIP 10K 5% 1/10W R43 1-216-864-11 METAL CHIP 0 5% 1/10W R44 1-216-864-11 METAL CHIP 0 5% 1/10W R45 1-216-833-11 METAL CHIP 10K 5% 1/10W (AUS,2E13,E13) R46 1-216-845-11 METAL CHIP 100K 5% 1/10W (AUS,2E13,E13) R49 1-216-833-11 METAL CHIP 10K 5% 1/10W R50 1-216-853-11 METAL CHIP 470K 5% 1/10W R52 1-216-845-11 METAL CHIP 100K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R53 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R55 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R56 1-216-833-11 METAL CHIP 10K 5% 1/10W (AUS,2E13,E13) R57 1-216-833-11 METAL CHIP 10K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R59 1-216-833-11 METAL CHIP 10K 5% 1/10W R60 1-216-833-11 METAL CHIP 10K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R61 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,C&SA,CND,EE,MX) R63 1-216-845-11 METAL CHIP 100K 5% 1/10W R78 1-216-864-11 METAL CHIP 0 5% 1/10W R80 1-216-864-11 METAL CHIP 0 5% 1/10W R82 1-216-864-11 METAL CHIP 0 5% 1/10W R84 1-216-864-11 METAL CHIP 0 5% 1/10W R85 1-216-864-11 METAL CHIP 0 5% 1/10W R101 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R101 1-216-864-11 METAL CHIP 0 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R102 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R102 1-216-837-11 METAL CHIP 22K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R103 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AEP,EE) R103 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R104 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R105 1-216-833-11 METAL CHIP 10K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R105 1-216-837-11 METAL CHIP 22K 5% 1/10W (AEP, EE) R106 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R106 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R109 1-216-864-11 METAL CHIP 0 5% 1/10W R201 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R201 1-216-864-11 METAL CHIP 0 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R202 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R202 1-216-837-11 METAL CHIP 22K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R203 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AEP,EE) R203 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R204 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R205 1-216-837-11 METAL CHIP 22K 5% 1/10W (AEP, EE) R206 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R206 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 D-FJ211 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R209 1-216-864-11 METAL CHIP 0 5% 1/10W R300 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R301 1-216-837-11 METAL CHIP 22K 5% 1/10W R302 1-216-793-11 METAL CHIP 4.7 5% 1/10W R304 1-216-864-11 METAL CHIP 0 5% 1/10W (AEP,C&SA,CND,EE,MX) R309 1-216-864-11 METAL CHIP 0 5% 1/10W R310 1-216-837-11 METAL CHIP 22K 5% 1/10W R311 1-216-845-11 METAL CHIP 100K 5% 1/10W R403 1-218-446-11 METAL CHIP 1 5% 1/10W R407 1-216-789-11 METAL CHIP 2.2 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-218-903-11 METAL CHIP 220K 0.5% 1/10W R412 1-218-887-11 METAL CHIP 47K 0.5% 1/10W R413 1-216-841-11 METAL CHIP 47K 5% 1/10W R414 1-216-864-11 METAL CHIP 0 5% 1/10W R416 1-216-813-11 METAL CHIP 220 5% 1/10W R419 1-216-833-11 METAL CHIP 10K 5% 1/10W R420 1-216-845-11 METAL CHIP 100K 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W R422 1-216-295-91 SHORT CHIP 0 R423 1-216-295-91 SHORT CHIP 0 R424 1-216-295-91 SHORT CHIP 0 R425 1-216-295-91 SHORT CHIP 0 R427 1-216-841-11 METAL CHIP 47K 5% 1/10W R428 1-216-845-11 METAL CHIP 100K 5% 1/10W R429 1-216-295-91 SHORT CHIP 0 R430 1-216-821-11 METAL CHIP 1K 5% 1/10W R431 1-216-845-11 METAL CHIP 100K 5% 1/10W R432 1-216-821-11 METAL CHIP 1K 5% 1/10W R433 1-216-845-11 METAL CHIP 100K 5% 1/10W R434 1-216-845-11 METAL CHIP 100K 5% 1/10W R435 1-216-833-11 METAL CHIP 10K 5% 1/10W R436 1-216-864-11 METAL CHIP 0 5% 1/10W R438 1-216-833-11 METAL CHIP 10K 5% 1/10W R439 1-216-841-11 METAL CHIP 47K 5% 1/10W R440 1-216-841-11 METAL CHIP 47K 5% 1/10W R441 1-216-845-11 METAL CHIP 100K 5% 1/10W R444 1-216-845-11 METAL CHIP 100K 5% 1/10W R446 1-216-864-11 METAL CHIP 0 5% 1/10W R447 1-216-864-11 METAL CHIP 0 5% 1/10W R448 1-216-864-11 METAL CHIP 0 5% 1/10W R449 1-216-845-11 METAL CHIP 100K 5% 1/10W R451 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R452 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R600 1-216-789-11 METAL CHIP 2.2 5% 1/10W R601 1-216-864-11 METAL CHIP 0 5% 1/10W R602 1-216-845-11 METAL CHIP 100K 5% 1/10W R603 1-216-845-11 METAL CHIP 100K 5% 1/10W R604 1-216-845-11 METAL CHIP 100K 5% 1/10W R605 1-216-845-11 METAL CHIP 100K 5% 1/10W R606 1-216-797-11 METAL CHIP 10 5% 1/10W (AUS,2E13,E13) R608 1-216-789-11 METAL CHIP 2.2 5% 1/10W R610 1-216-845-11 METAL CHIP 100K 5% 1/10W R611 1-216-817-11 METAL CHIP 470 5% 1/10W R612 1-216-864-11 METAL CHIP 0 5% 1/10W R613 1-216-817-11 METAL CHIP 470 5% 1/10W R614 1-216-805-11 METAL CHIP 47 5% 1/10W R615 1-216-864-11 METAL CHIP 0 5% 1/10W R616 1-216-857-11 METAL CHIP 1M 5% 1/10W R617 1-216-864-11 METAL CHIP 0 5% 1/10W R618 1-216-817-11 METAL CHIP 470 5% 1/10W R619 1-216-817-11 METAL CHIP 470 5% 1/10W R620 1-216-817-11 METAL CHIP 470 5% 1/10W R621 1-216-864-11 METAL CHIP 0 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R626 1-216-864-11 METAL CHIP 0 5% 1/10W R627 1-216-833-11 METAL CHIP 10K 5% 1/10W R629 1-216-864-11 METAL CHIP 0 5% 1/10W R630 1-216-864-11 METAL CHIP 0 5% 1/10W R631 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R800 1-216-837-11 METAL CHIP 22K 5% 1/10W (C&SA,CND,MX) R801 1-216-295-91 SHORT CHIP 0 R802 1-216-864-11 METAL CHIP 0 5% 1/10W R803 1-216-845-11 METAL CHIP 100K 5% 1/10W R804 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP,EE) R804 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (2E13,C&SA,CND,AUS,E13,MX) R805 1-216-864-11 METAL CHIP 0 5% 1/10W R807 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R808 1-216-857-11 METAL CHIP 1M 5% 1/10W R809 1-216-833-11 METAL CHIP 10K 5% 1/10W R810 1-216-837-11 METAL CHIP 22K 5% 1/10W (C&SA,CND,MX) R811 1-216-864-11 METAL CHIP 0 5% 1/10W R812 1-216-864-11 METAL CHIP 0 5% 1/10W R813 1-216-845-11 METAL CHIP 100K 5% 1/10W R814 1-216-845-11 METAL CHIP 100K 5% 1/10W (AEP,C&SA,CND,EE,MX) R815 1-216-837-11 METAL CHIP 22K 5% 1/10W (C&SA,CND,MX) R817 1-216-817-11 METAL CHIP 470 5% 1/10W R820 1-216-864-11 METAL CHIP 0 5% 1/10W R821 1-216-864-11 METAL CHIP 0 5% 1/10W R822 1-216-833-11 METAL CHIP 10K 5% 1/10W R823 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R825 1-216-864-11 METAL CHIP 0 5% 1/10W R827 1-216-817-11 METAL CHIP 470 5% 1/10W R829 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R830 1-216-864-11 METAL CHIP 0 5% 1/10W R831 1-216-864-11 METAL CHIP 0 5% 1/10W R832 1-216-817-11 METAL CHIP 470 5% 1/10W R833 1-216-817-11 METAL CHIP 470 5% 1/10W R835 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R836 1-216-864-11 METAL CHIP 0 5% 1/10W R837 1-216-817-11 METAL CHIP 470 5% 1/10W R841 1-216-845-11 METAL CHIP 100K 5% 1/10W R843 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R844 1-216-833-11 METAL CHIP 10K 5% 1/10W R845 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R846 1-216-853-11 METAL CHIP 470K 5% 1/10W R849 1-216-817-11 METAL CHIP 470 5% 1/10W R852 1-216-817-11 METAL CHIP 470 5% 1/10W R854 1-216-864-11 METAL CHIP 0 5% 1/10W MAIN Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 D-FJ211 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R858 1-216-821-11 METAL CHIP 1K 5% 1/10W R859 1-216-821-11 METAL CHIP 1K 5% 1/10W R863 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R864 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R865 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R869 1-216-837-11 METAL CHIP 22K 5% 1/10W (C&SA,CND,MX) R871 1-216-849-11 METAL CHIP 220K 5% 1/10W R872 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R873 1-216-837-11 METAL CHIP 22K 5% 1/10W R874 1-216-833-11 METAL CHIP 10K 5% 1/10W < SWITCH > S1 1-762-078-11 SWITCH, SLIDE (9K/10K) (STEP) (2E13,C&SA,CND,AUS,E13,MX) S801 1-786-211-21 SWITCH, KEYBOARD (P MODE/ F) S802 1-786-211-21 SWITCH, KEYBOARD (SOUND/AVLS) S803 1-786-211-21 SWITCH, KEYBOARD (VOL -) S804 1-786-211-21 SWITCH, KEYBOARD (VOL +) S805 1-786-211-21 SWITCH, KEYBOARD (u) S806 1-786-211-21 SWITCH, KEYBOARD (x,RADIO OFF) S807 1-786-211-21 SWITCH, KEYBOARD (.,PRESET/TUNE -) S808 1-786-211-21 SWITCH, KEYBOARD (>,PRESET/TUNE +) S809 1-762-003-11 SWITCH, PUSH (OPEN) S810 1-762-078-11 SWITCH, SLIDE (HOLD .) S811 1-553-977-81 SWITCH, SLIDE (G-PROTECTION) S812 1-786-211-21 SWITCH, KEYBOARD (RADIO ON/BAND.MEMORY) < TRANSFORMER > T1 1-449-021-21 TRANSFORMER, DC/DC CONVERTER < VARISTOR > VDR401 1-801-864-21 VARISTOR, CHIP VDR402 1-801-864-21 VARISTOR, CHIP < VIBRATOR > X601 1-795-561-21 VIBRATOR, CERAMIC (16.934MHz) ****************************************************** MISCELLANEOUS ************* 0107 X-3380-950-1 OPTICAL PICK-UP (DAX-25E RP ASSY) LCD1 1-804-997-11 DISPLAY PANEL, LIQUID CRYSTAL M901 A-3180-953-A MOTOR ASSY, TURN TABLE (SPINDLE) M902 A-3180-951-A MOTOR ASSY, SLED (including GEAR) ****************************************************** ACCESSORIES *********** 0 1-477-661-11 ADAPTOR, AC (AC-ET455K) (C&SA,CND,MX) 0 1-477-662-11 ADAPTOR, AC (AC-ET455K) (2E13,AEP,E13,EE) 0 1-477-664-11 ADAPTOR, AC (AC-ET455K) (AUS) 3-249-386-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH) (AEP,C&SA,CND,AUS,MX) 3-249-386-21 MANUAL, INSTRUCTION (SPANISH,PORTUGUESE)(AEP,C&SA,MX) 3-249-386-31 MANUAL, INSTRUCTION (DUTCH,SWEDISH) (AEP) 3-249-386-41 MANUAL, INSTRUCTION (GERMAN,ITALIAN) (AEP) 3-249-386-51 MANUAL, INSTRUCTION (FINNISH) (AEP) 3-249-386-61 MANUAL, INSTRUCTION (ENGLISH,RUSSIAN) (EE) 3-249-386-71 MANUAL, INSTRUCTION (HUNGARIAN,POLISH)(EE) 3-249-386-81 MANUAL, INSTRUCTION (CZECH,SLOVAK)(EE) 3-252-536-11 MANUAL, INSTRUCTION (ENGLISH,SIMPLIFIED CHINESE)(E13) 3-252-536-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH) (2E13) 8-954-008-93 RECEIVER,EAR MDR-E808LP/C1 SET 8-954-008-94 RECEIVER MDR-E808LP (2E13,C&SA,CND,AUS,E13,MX) 8-954-008-96 RECEIVER MDR-E808LP (AEP,EE) Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN Ver 1.1 2003.03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-FJ211 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.02 New 1.1 2003.03 Addition of Australian model (ENG-03008) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
