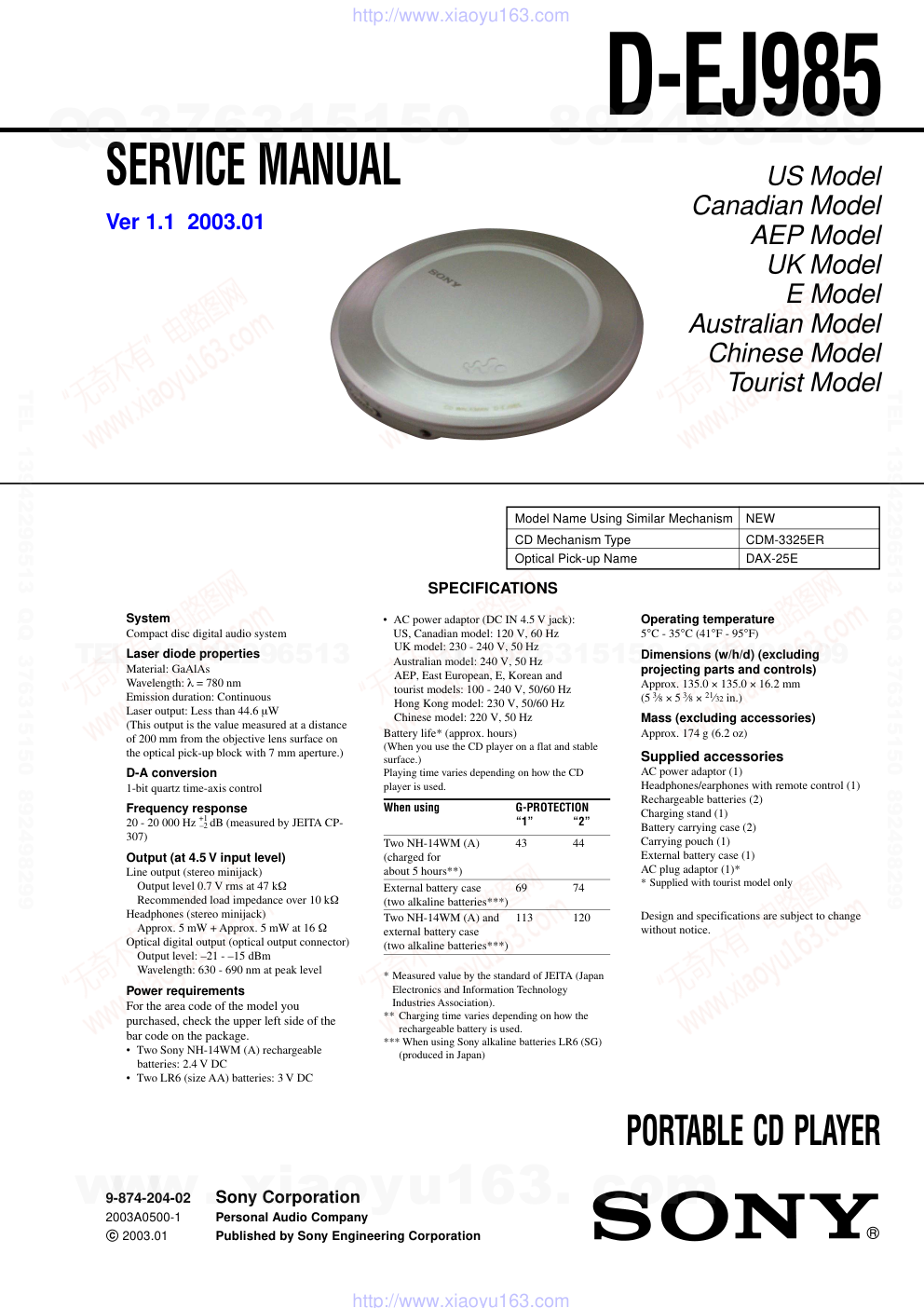

SERVICE MANUAL Ver 1.1 2003.01 SPECIFICATIONS PORTABLE CD PLAYER D-EJ985 US Model Canadian Model AEP Model UK Model E Model Australian Model Chinese Model Tourist Model Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-3325ER Optical Pick-up Name DAX-25E System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 –2 dB (measured by JEITA CP- 307) Output (at 4.5 V input level) Line output (stereo minijack) Output level 0.7 V rms at 47 kΩ Recommended load impedance over 10 kΩ Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω Optical digital output (optical output connector) Output level: –21 - –15 dBm Wavelength: 630 - 690 nm at peak level Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two Sony NH-14WM (A) rechargeable batteries: 2.4 V DC • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): UK model: 230 - 240 V, 50 Hz AEP, East European, E, Korean and tourist models: 100 - 240 V, 50/60 Hz Hong Kong model: 230 V, 50/60 Hz Chinese model: 220 V, 50 Hz Battery life* (approx. hours) (When you use the CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. When using G-PROTECTION “1” “2” Two NH-14WM (A) 43 44 (charged for about 5 hours**) External battery case 69 74 (two alkaline batteries***) Two NH-14WM (A) and 113 120 external battery case (two alkaline batteries***) * Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association). ** Charging time varies depending on how the rechargeable battery is used. *** When using Sony alkaline batteries LR6 (SG) (produced in Japan) Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 135.0 × 135.0 × 16.2 mm (5 3⁄8 × 5 3⁄8 × 21⁄32 in.) Mass (excluding accessories) Approx. 174 g (6.2 oz) Design and specifications are subject to change without notice. AC power adaptor (1) Headphones/earphones with remote control (1) Rechargeable batteries (2) Charging stand (1) Battery carrying case (2) Carrying pouch (1) External battery case (1) AC plug adaptor (1)* * Supplied with tourist model only Supplied accessories US, Canadian model: 120 V, 60 Hz Australian model: 240 V, 50 Hz 9-874-204-02 Sony Corporation 2003A0500-1 Personal Audio Company C 2003.01 Published by Sony Engineering Corporation www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 D-EJ985 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Upper Lid (A) Sub Assy ................................................. 7 3-3. Cabinet (Upper) Sub Assy .............................................. 8 3-4. Main Board, Optical Pick-up Section (CDM-3325ER)............................................................... 8 4. ELECTRICAL CHECK .......................................... 9 5. DIAGRAMS 5-1. Block Diagram – MAIN Section (1/2) – ....................... 10 5-2. Block Diagram – MAIN Section (2/2) – ....................... 11 5-3. Block Diagram – POWER Section – ............................. 12 5-4. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 13 5-5. Printed Wiring Board – Main Board (Component Side) – ................................ 14 5-6. Printed Wiring Board – Main Board (Conductor Side) – .................................. 15 5-7. Schematic Diagram – MAIN Board (1/3) – .................. 16 5-8. Schematic Diagram – MAIN Board (2/3) – .................. 17 5-9. Schematic Diagram – MAIN Board (3/3) – .................. 18 5-10. IC Pin Function Description ........................................... 20 6. EXPLODED VIEWS 6-1. Upper Lid, Cabinet (Upper) Section .............................. 27 6-2. Cabinet (Lower) Section ................................................. 28 6-3. Optical Pick-up Section (CDM-3325ER)....................... 29 7. ELECTRICAL PARTS LIST ............................... 30 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. On AC power adaptor • Use only the AC power adaptor supplied or recommended in “Accessories (supplied/ optional).” Do not use any other AC power adaptor. It may cause a malfunction. Polarity of the plug ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 D-EJ985 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. BEFORE REPLACING THE OPTICAL PICK-UP BLOCK Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 yg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value: 0.45 to 0.65 Vp-p LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S804. (push switch type) The following checking method for the laser diode is operable. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S804 with a screwdriver having a thin tip as shown in Fig.1. 3. Push the N X button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 4 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S804 S804 detection lever detection lever MAIN board About CD-Rs/CD-RWs This CD player can play CD-Rs/CD-RWs recorded in the CD-DA format*, but playback capability may vary depending on the qual- ity of the disc and the condition of the recording device. * CD-DA is the abbreviation for Compact Disc Digital Audio. It is a recording standard used for the Audio CDs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 D-EJ985 SERVICE MODE In the Service mode, this set can check the following. 1. Service Mode Setting Method To set the service mode, perform as follows. 1) Make sure that the power is not turned on. 2) Check for the following states: CD lid open detection switch (S804) ....... OFF Solder bridge at SL806 (OPEN)............... OPEN [AVLS] switch (S802) .............................. NORM [HOLD] switch (S801) ............................. OFF [G-PROTECTION] switch (S803) ........... 1 3) Short the solder bridge at the SL807 (TEST) on the MAIN board (see Fig. 2). 4) Turn the power on. 2. Operation in Service Mode When the Service mode is set, the LCD on the remote commander displays the following. Remote commander LCD display 3. Operation of Buttons and Knobs in Service Mode The following operation can be checked by operating the buttons and knobs on the set and remote commander. 3-1 . Case without Setting a CD • N X button on the set and > N / . knobs on remote commander Optical pick-up movement (outward or inward) Tracking/sled servo off Note: Do not look directly at the laser beam from the optical pick-up. Do not move forcibly the optical pick-up exceeding the most-out- side or most-inside track. 3-2 . Case with Setting a CD Cheking method: 1) Make sure that the power is not turned on. 2) Leave a solder bridge of the SL807 (TEST) on the MAIN board shorted. 3) Turn the power on, and then set a CD and play it with the X button on the remote commander. • x button on the set and remote commander All servos (focus/tracking/sled) off • N X button on the set and > N / . knobs on remote commander Optical pick-up movement (outward or inward) Tracking/sled servo off • [PRT/ENT] button on remote commander Tracking gain up mode • [VOL +] / [VOL --] buttons on the set and [VOL +] / [VOL --] knobs on remote commander 2-step volume setting • [PLAYMODE] button on remote commander CLV speed becomes 1 to 4 times each time the button is pressed Tracking/sled servo on Service mode All lit 888 Microcomputer version display VB102 DDDD BASS12 Fig. 2 SL807 (TEST) SL806 (OPEN) – MAIN Board (Component Side) – 0000 Remote Commander LCD display (play mode) Remote Commander LCD display (For the rest, turn the power off and then turn it on again) Up0000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 D-EJ985 • [SOUND] button on remote commander Servo auto adjustment 4.Service Mode Releasing Method To release the service mode, perform as follows. 1) Turn the power off. 2) Open the solder bridge at the SL807 (TEST) on the MAIN board. Note: Remove the solder completely. 5.Error Rate Check Display The C1 error rate check display mode becomes active if the fol- lowing operation is performed during the operation in the normal mode. 1) Turn the power off, and cancel other service operations. 2) Turn the power on, and then set a CD and play it with the X button on the remote commander. 3) Press the [SOUND] button on the remote commander to make automatic adjustment. 4) Press the [PLAY MODE] button on the remote commander. 5) Press the [DISPLAY] button on the remote commander, and the C1 error rate display will be activated and the LCD on the remote commander will display as follows. Note: In the play state, press the [SOUND] button on the remote com- mander before pressing the [PLAY MODE] button. Wrong order of button operations will result in very large Er**** value. 6) Turn the power off. 7) Open the solder bridges at the SL807 (TEST) on the MAIN board. Note: Remove the solder completely. Remote Commander LCD display (1 time) 010001 (4 times) 040004 (For the rest, turn the power off and then turn it on again) 0000 Remote Commander LCD display Remote Commander LCD display 010001 Remote Commander LCD display **** value 0000 to 0099 : OK more than 0100 : NG Er**** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 D-EJ985 SECTION 2 GENERAL This section is extracted from instruction manual. Locating the controls For details, see pages in parentheses. CD player (front) CD player (inside) 4 x (stop) /CHARGE button• CHARGE lamp 6 i (headphones) jack 9 AVLS switch 1 EXT BATT (external battery)/ DC IN 4.5 V (external power input) jack 5 VOL (volume) +*/– buttons 2 LINE OUT (OPTICAL) jack qs HOLD switch 7 OPEN switch 8 Terminals for the charging stand qa Battery compartment CD player (rear) q; G-PROTECTION switch 3 Jog lever (u (play/pause)• ./> (AMS/search)) *The button has a tactile dot. Remote control Note Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players. qd x (stop) button wa P MODE/ (play mode/repeat) button ql DISPLAY button w; SOUND button qk HOLD switch qj Clip qf VOL (volume) +/– control qg Display qh Jog lever (u (play/pause)• ENT (enter)• ./> (AMS/search)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 7 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. UPPER LID (A) SUB ASSY (Page 7) 3-3. CABINET (UPPER) SUB ASSY (Page 8) 3-4. MAIN BOARD, OPTICAL PICK-UP SECTION (CDM-3325ER) (Page 8) SET 3 guide (L) 2 screw (B2) 4 screw (B2) 1 Open the upper lid (A) sub assy. 6 Close the upper lid (A) sub assy a little in the direction of arrow A, then remove it in the direction of arrow B. B A 5 guide (R) Note: Follow the disassembly procedure in the numerical order given. 3-2. UPPER LID (A) SUB ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 8 4 cabinet (lower) assy 6 main board 5 flexible board (CN503) 7 two insulators 7 insulator 8 optical pick-up section (CDM-3325ER) 1 cushion 2 two connectors (CN501, CN502) 3 Hold up both the main board and the optical pick-up section at once, and remove them form the cabinet (lower) assy. Note : Handle the flexible board with care when you hold up the optical pick-up section. 7 spring (upper lid-2702) 6 battery terminal board (relay) 5 Remove the solder. 3 claw 2 three screws (B2) 2 four screws (B2) 1 screw (B2) 4 cabinet (upper) sub assy Note : On installation of cabinet (upper) sub assy, adjust the position of two switches (S802, S803) and AVLS knob, G-PROTECTION knob. G-PROTECTION knob AVLS knob S802 3 claw 3 claw S803 3-3. CABINET (UPPER) SUB ASSY 3-4. MAIN BOARD, OPTICAL PICK-UP SECTION (CDM-3325ER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 9 9 SECTION 4 ELECTRICAL CHECK The CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC4.5 V in DC IN jack. (J401) VOLUME : Minimum AVLS switch : NORM HOLD switch : OFF G•PROTECTION switch : 1 Connecting and Checking Location: Focus Bias Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test points TP601 (RF) and TP418 (GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Push the N X button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) VOLT/DIV : 100 mV (With the 10:1 probe in use) TIME/DIV : 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch- ing. 5. Stop revolving of the disc motor by pressing the x button. oscilloscope (AC range) + – MAIN board TP601 (RF) TP418 (GND) 2 k Ω RF level 0.45 to 0.65 Vp-p TP418 (GND) TP601 (RF) – MAIN Board (Conductor Side) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 10 10 SECTION 5 DIAGRAMS 5-1. BLOCK DIAGRAM – MAIN Section (1/2) – RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER IC601 DIGITAL OUT LPF SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK SERVO BLOCK MDS MDP SENS SCOR SDTO XTAI XTAO RFAC XSOE R4M XLAT CLOK DOUT XRAS XWE XCAS AOUT1 AOUTL, AOUTR HPL, HPR AOUT2 LRMU FOK XRST RFDC B A SFDR SRDR FFDR FRDR TFDR TRDR D0-D3 A0-A10 WDCK WFCK XTAO XTAI E F 89 F 92 91 A B 88 81 RFDC RFAC E LASER DIODE OPTICAL PICK-UP BLOCK DAX-25E A A B RF E F B RF E F PD PD LD LD DETECTOR VCC X601 16.9344MHz A B 90 2, 3, 24, 25 9 – 12, 15 – 19, 21, 8 5 4 23 D-RAM IC602 D1 – D4 A0 – A10 DOUT XRAS XWE XCAS D E G H 100 99 SFDR SRDR 96 95 FFDR FRDR 98 97 17 18 40 41 21 22 34 32 38 36 26 24 TFDR TRDR M901 (SLED) (FOCUS) (TRACKING) FI2 RI2 FI1 RI1 FI4 FI4 FO2 RO2 FO1 RO1 FO4 RO4 FOCUS/TRACKING COIL DRIVER SLED MOTOR DRIVER IC403 (1/2) 26 24 22 32 23 20 21 9 12 16 14 15 18 17 11 PREDRIVER 102 MDS 103 MDP 27 SCOR 104 2 3 24 1 18 19 20 11 13 15 21 74 72 17 C176 FOK R4M 40 HOLD 28 CLOSE XSOE WDCK SDTD SENS CLOK XLAT XSOE XIN GRSCOR FOK MSDTO SCOR MSDTI MSCK XLAT + BUFFER IC405 SYNC 8 9 7 XRST DATA XLTCH CLK PWM 23 APWM XBRAK FG + + U1 V1 W1 COM U V W VG VG SPINDLE MOTOR DRIVER IC404 M902 (SPINDLE) FG/FGSEL XDRVLT C HOLD OFF VCPU B+ SL806 (OPEN) VCPU B+ SYSTEM CONTROLLER IC801 (1/3) SDTO SCK J L K SYNC 2-AXIS DEVICE CPU INTERFACE S801 HOLD 61 28 62 4, 3, 6, 5 116 – 113, 17 – 15, 13 – 11, 117 51 56 48 47 1 2 9 LRMU XRST HPL HPR F 43 44 • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) V U W 6 CONTROLLER, H BRIDGE DRIVER 2 M CONTROL CIRCUIT 65 13 SYSM AMUTE 25 S804 CD LID OPEN DETECT VCPU B+ OPSTB OPGSW 78 77 HG XSTB HG GUP ( ) (Page 12) (Page 12) (Page 12) (Page 11) (Page 11) (Page 11) (Page 11) (Page11) (Page 12) (Page 12) (Page 12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 11 11 5-2. BLOCK DIAGRAM – MAIN Section (2/2) – G 6 24 79 30 26 25 B+ SWITCH Q301 LINE MUTING CONTROL SWITCH Q302 P21 AD SEL XRST BEEP AD RMKEY AD KEY SYSTEM CONTROLLER IC801(2/3) VCC3 (LINE OUT JACK) J301 LINE OUT (OPTICAL) OPTICAL TRANSCEIVER 31 TSB VCPU 2V TSB RMKEY GND J302 i S805, 806, 808, 809 4 3 2 1 VCPU B+ IN_L IN_R HEADPHONE AMP IC301 13 12 OUT_L OUT_R BEEPO_L BEEPO_R 4 9 PW_SW MUTE_SW 17 BEEP 15 PW SW BEEP MUTE SW 18 SL807 (TEST) HPL HPR D F H E DOUT AOUTL AOUTR LRMU XRST MUTING Q303 • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) 3 10 39 AVLS LIMIT NORM VCPU B+ S802 AVLS 38 ESP 2 1 VCPU B+ S803 G-PROTECTION (Page 10) (Page 10) (Page 10) (Page 10) (Page 10) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 12 12 5-3. BLOCK DIAGRAM – POWER Section – LINEAR CONSTANT CURRENT, CONSTANT VOLTAGE CHARGING BATTERY CHARGE CIRCUIT CHARGING BATTERY VOLTAGE DETECTOR CIRCUIT PRE-DRIVER SWITCHING POWER CIRCUIT CHARGE ON SWITCH Q403 SWITCHING POWER CIRCUIT LINEAR REGULATOR INTERFACE VG POWER CIRCUIT CLK OR OSC 45 46 43 65 42 CHGSW RF1 INM1 RF41 RF41 RF4 RF4 VCC1 VCPU VLGO3 VCC2 VCC1 INM4 INM4 APCREF APCREF DTC3 VREF PAPC PAPC WAKE LATCH DATA CLOCK DATA CLOCK VLGO4 SYNC 14 13 6 5 3 12 16 51 15 56 61 50 7 79 1 73 58 11 SDTO SCK PD LD J L K B A SYNC DTC2 DTC3 INP2 INP2 RS1 DC IN VIN VCC3 VCPU RF1 INM1 RS1 CHGSW VIN DCIN VCC3 75 VCC2 74 DTC2 53 LATCH WAKE VLGO2 BATM1 CHGMNT BATM2 CHGMNT VLGO4 VLGO2 VLG3 VG L5 9 8 VG L5 BATM1 RSTB 75 XPOWLT 21 AD CHGMNT 27 AD DCINMNT 33 EXTBATT 22 AD BATMNT 80 LEDDISP 70 AGCPWN SYSTEM CONTROLLER IC801 (3/3) VCC1 VCC3 49 VDRAM 10 NC VCPU B+ VCC2 D801 CHARGE 66 XWAKE 8 RESET 37 XSTAND ON 7 BATVCC ON 76 CHGGND ON D405 D403 D404 RECHARGEABLE BATTERY NH-14WM 2PCS. 2.4V – + J401 EXT BATT DC IN 4.5V VG CHARGE C POWER CONTROL IC403 (2/2) VREF SAW GEN. 60 BATM2 59 B+ SWITCH IC402 B+ SWITCH Q416, 417 CHARGE CONTROL Q406, 415 RIPPLE FILTER Q408 B+ SWITCH Q421, 422 48 + – CHARGE TERMINAL CHARGE ON SWITCH Q412 EXTERNAL BATTERY DETECT Q414 CHARGE STAND DETECT Q407 2 WAKEUP SWITCH Q413 69 VIN B+ (Page 10) (Page 10) (Page 10) (Page 10) (Page 10) (Page 10) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 13 13 2.0 Vp-p 950 ns 400 to 600 mVp-p 2.4 Vp-p 59.1 ns 2.5 Vp-p 236 ns 2 IC601 w; (CLOK) 2.0 Vp-p 950 ns 2.0 Vp-p 950 ns Note on Printed Wiring Board • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • z : Through hole. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • MAIN board is multi-layer printed board. However, the patterns of intermediate-layer have not been included in the diagram. Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • A : B+ Line. • Power voltage is dc 4.5 V and fed with regulated dc power supply from DC IN jack (J401). • Voltages and waveforms are dc with respect to ground in no-signal conditions. no mark : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD PLAY (ANALOG OUT) c : CD PLAY (OPTICAL OUT) 5-4. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 3 IC601 es (R4M) 4 IC601 rk (XTAO) 5 IC601 if (RFAC) (CD play mode) 6 IC601 ik (RFDC) (CD play mode) 7 IC403 qd (CLOK) 8 IC801 2 (XIN) 2.5 Vp-p 236 ns 450 to 650 mVp-p • Waveforms 1 IC404 9 (CLK) 9 IC801 qk (MSCK) 2.0 Vp-p 950 ns Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 14 14 5-5. PRINTED WIRING BOARD – MAIN Board (Component Side) – TH401 FB401 Q412 FB402 VDR403 C404 R479 E C B Q414 C502 + C501 R477 R478 CN502 CN501 Q301 C E R892 R302 C456 R301 C451 C447 Q303 Q302 IC405 R471 R470 R621 C457 C450 D406 A K R467 R468 D407 A K C617 + + C616 R620 C618 C615 R623 X601 L602 C608 C610 C607 + L413 + C449 IC602 C620 FB602 FB601 VDR609 C621 + C108 + C625 R625 C622 FB406 C619 R635 C624 + L604 VDR601 C697 VDR802 C808 D801 R815 C814 S805 R814 R816 R891 R817 R818 S808 S809 R819 C107 R103 R104 R105 C106 C104 R108 R106 R191 R291 R206 + C307 L303 C208 + R626 C692 C691 SL891 R804 VDR801 FB801 R805 L101 L201 D804 SL806 (OPEN) C805 R811 C806 + C440 + D803 C807 SL807 (TEST) C809 D805 FB803 R813 C811 C810 R458 C464 C804 R496 R435 + C401 D408 A K R801 R802 C802 C801 J302 i Q405 R474 + C444 L410 L401 C432 + C426 + C466 + L403 L405 C425 D402 K A C463 FB404 FB405 R807 R808 S802 S803 C408 R418 + C411 R413 R411 R416 C413 + C424 + C446 + + C422 L409 L406 L411 L408 L402 C419 C412 VDR499 R437 R444 R421 + C433 S804 L404 J401 B VDR608 C105 Q413 (COMPONENT SIDE) MAIN BOARD 13 14 1 26 K A A E B C S806 S D D D G D A A A A E B C (11) 11 1-685-918- EXT BATT DC IN 4.5V – + 6 5 2 1 4 1 2 1 M901 (SLED) M 4 2 1 3 M902 (SPINDLE) 2E 1C 2B 2C 1E 1B 2C1B1E 2E2B1C 4 5 3 1 + − VOL 1 4 AVLS LIMIT NORM G-PROTECTION 2 1 BLK RECHARGEABLE BATTERY NH-14WM 2PCS. 2.4V CD LID OPEN DETECT A B C D E F G H 1 2 3 4 5 6 7 8 9 10 11 12 CHARGE U W V CHARGE • Semiconductor Location Ref. No. Location D402 E-10 D406 G-5 D407 G-5 D408 F-9 D801 H-6 D803 E-8 D804 F-9 D805 E-9 IC405 G-5 IC602 F-6 Q301 F-4 Q302 G-5 Q303 G-4 Q405 F-10 Q412 F-3 Q413 E-10 Q414 F-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 15 15 R304 R303 R322 R321 FB201 FB301 C211 C111 FB101 R102 R202 R201 R101 C102 C202 R469 C453 C452 C454 C455 C301 C407 R611 R613 R610 R612 R618 C609 C448 C605 R602 C606 C601 C603 R619 R605 R601 R603 C602 R606 R614 R615 C611 C612 R607 R608 C613 C614 R609 C626 R632 SL892 C623 R631 R630 R629 R628 R627 S801 R803 C812 VDR803 R821 C303 + C305 C304 C207 C302 C306 C204 R203 C205 R204 C206 R205 R208 FB303 SL893 VDR302 FB304 VDR303 R308 C313 D307 K A D304 A K D303 K A D305 A K D306 A K R820 C803 R309 R307 C311 R310 R806 R107 VDR102 VDR202 R428 R427 R207 FB302 Q421 Q422 Q406 R409 R414 C468 R482 C403 C406 R488 C469 C443 C431 C434 D405 A K C445 C462 R494 R493 R495 R460 C465 R454 R498 R901 R455 R499 R450 C439 C437 C442 C438 C436 R448 R902 R457 C429 R461 R424 R426 D404 K A VDR401 R425 C490 Q407 R429 C423 R422 R445 C421 R423 C405 D401 A K R420 R443 R436 C418 C417 C409 R441 C416 Q415 Q403 Q416 R483 R484 R440 C414 Q417 IC301 IC601 IC801 IC403 IC402 CN503 D403 K A J301 24 13 1 12 30 60 31 IC404 13 24 12 1 C604 R604 61 90 91 120 1 20 1 21 40 60 41 61 80 1 4 8 5 41 60 20 1 40 21 61 80 (CONDUCTOR SIDE) MAIN BOARD C B E R452 R456 C435 C E B C E B C B E + − CHARGE TERMINAL D D S D D G S D G 1B E 2B 1C 2C G D D D D S HOLD OFF ON TP601 (RF) 15 1 TP418 (GND) OPTICAL PICK-UP BLOCK DAX-25E LINE OUT (OPTICAL) (11) 11 1-685-918- A B C D E F G H 1 2 3 4 5 6 7 8 9 10 11 12 R410 (EXCEPT AEP, UK) 5-6. PRINTED WIRING BOARD – MAIN Board (Conductor Side) – • Semiconductor Location Ref. No. Location D303 G-4 D304 G-4 D305 G-4 D306 G-4 D307 G-4 D401 B-2 D403 F-11 D404 D-2 D405 E-3 IC301 G-6 IC402 F-3 IC403 D-3 IC404 G-9 IC601 F-7 IC801 F-5 Q403 C-4 Q406 E-3 Q407 D-2 Q415 C-3 Q416 B-3 Q417 B-3 Q421 F-3 Q422 F-3 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 16 16 EXCEPT AEP, UK IC41LV44002A 5-7. SCHEMATIC DIAGRAM – MAIN Board (1/3) – • See page 13 for Waveforms. • See page 19 for IC Block Diagrams. (Page 17) (Page 18) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 17 17 5-8. SCHEMATIC DIAGRAM – MAIN Board (2/3) – • See page 13 for Waveform. (Page 16) (Page 18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 18 18 5-9. SCHEMATIC DIAGRAM – MAIN Board (3/3) – • See page 13 for Waveforms. (Page 16) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 D-EJ985 • IC Block Diagrams IC301 TA2152FN (EL) + – 24 OUT ADJ 23 BIAS IN 22 RF IN 21 C-AMP SW 20 GND 19 BIAS OUT 18 BEEP IN 17 MUTE SW 16 PW SW 15 MUTE TC 14 VCC1 13 INB 1 NC 2 NC 3 BEEP OUTB 4 OUTB 5 EQB 6 OUTC 7 PW GND 8 EQA 9 OUTA 10 BEEP OUTA 11 VCC2 12 INA + – BIAS C-AMP SW BEEP PW/MUTE SW PWA PWC PWB IC404 TB2127AFN (EL) + – CONTROL + – + – + – TRIANGULAR WAVE GENERATING INTERFACE PRE-DRIVER VC 1 SYNC 2 XBRK 3 FG 4 VC 5 DGND 6 XRST 7 DATA 8 XLAT 9 CLK 10 VDU 11 U 12 PGUV 24 PWM 23 APWM 22 AGND 21 VG 20 COM 19 UI 18 VI 17 WI 16 PGW 15 W 14 VDVW 13 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 D-EJ985 5-10. IC PIN FUNCTION DESCRIPTION • IC403 TB2130AF (FOCUS/TRACKING COIL DRIVER, SLED MOTOR DRIVER, POWER CONTROL) Pin No. Pin Name I/O Description 1 VREF I Reference voltage input terminal 2 RF41 O Power supply 4 (APC) section operational amplifier 1 output 3 PAPC I Power supply 4 (APC) section operational amplifier 1 non-invert input 4 VINDET I VIN detection signal input terminal Not used 5 RF4 O Power supply 4 (APC) section operational amplifier 2 output 6 INM4 I Power supply 4 (APC) section operational amplifier 2 invert input 7 APCREF I AGC control pulse signal input from the system controller 8 L5 — Connected to the inductor for VG 9 VG O VG output terminal 10 GND — Ground terminal 11 SYNC I 176.4 kHz clock signal input from the CXD3039AR 12 WAKE I Wakeup control signal input from the system controller (for system standby reset) “L”: wakeup The stop status is reset with the falling edge of input signal 13 CLOK I Serial data transfer clock signal input from the system controller 14 DATA I Serial data input from the system controller 15 LATCH I Serial data latch pulse signal input from the system controller 16 RSTB O System reset signal output to the system controller “L”: reset For several hundreds msec. after the power supply rises, “L” is output, then it changes to “H” 17 FI2 I Sled servo drive signal (+) input from the CXD3039AR 18 RI2 I Sled servo drive signal (–) input from the CXD3039AR 19 FI3 I Not used 20 RI3 I Not used 21 FI4 I Tracking servo drive signal (+) input from the CXD3039AR 22 RI4 I Tracking servo drive signal (–) input from the CXD3039AR 23 VD4 I Power supply input terminal for tracking servo drive 24 RO4 O Tracking coil drive signal (–) output 25 MGND4 — Ground terminal (for tracking servo drive) 26 FO4 O Tracking coil drive signal (+) output 27 VD34 I Power supply input terminal for tracking servo drive 28 RO3 O Not used 29 MGND3 — Ground terminal 30 FO3 O Not used 31 VD23 I Power supply input terminal for sled servo drive 32 RO2 O Sled motor drive signal (–) output 33 MGND2 — Ground terminal (for sled servo drive) 34 FO2 O Sled motor drive signal (+) output 35 VD12 I Power supply input terminal for focus servo drive and sled servo drive 36 RO1 O Focus coil drive signal (–) output 37 MGND1 — Ground terminal (for focus servo drive) 38 FO1 O Focus coil drive signal (+) output 39 VD1 I Power supply input terminal for focus servo drive 40 FI2 I Focus servo drive signal (+) input from the CXD3039AR 41 RI2 I Focus servo drive signal (–) input from the CXD3039AR 42 CHGSW O Battery charge control transistor drive signal output 43 RS1 I Battery charge current detection terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 D-EJ985 Pin No. Pin Name I/O Description 44 INP1 I Battery charge circuit error amplifier non-invert input terminal for rechargeable battery Not used 45 INW1 I Battery charge circuit error amplifier invert input for rechargeable battery 46 RF1 O Battery charge circuit error amplifier output for rechargeable battery 47 VOUT1 O VIN power supply circuit control transistor drive signal output terminal Not used 48 DCIN I DCIN (AC adapter power supply) detection terminal 49 VDRAM O VDRAM output to the system controller 50 VCPU I VCPU input terminal 51 VCC1 O VCC1 output terminal 52 DFLAY — Constant terminal at the VCC1 control 53 DTC2 — Power supply 2 (VCPU) duty setting terminal 54 INM2 I Power supply 2 (VCPU) operational amplifier invert input 55 RF2 O Power supply 2 (VCPU) operational amplifier output 56 INP2 I Power supply 2 (VCPU) operational amplifier non-invert input 57 STNG — Connected to the external transistor for power supply 2 (VCPU) Not used 58 CHGMNT O Battery charge voltage detection signal output to the system controller 59 BATM2 I Lower rechargeable battery minus terminal 60 BATM1 I Upper rechargeable battery minus terminal 61 VLGO2 O Power supply 2 (VCPU) output terminal 62 L2L — Connected to the inductor for power supply 2 (VCPU) 63 PGND2 — Ground terminal (for power supply 2 (VCPU)) 64 L2H — Connected to the inductor for power supply 2 (VCPU) 65 VIN I VIN input terminal for power supply 4 66 L4L — Connected to the inductor for power supply 4 (VAPC) 67 PGND4 — Ground terminal (for power supply 4 (VAPC)) 68 L4H — Connected to the inductor for power supply 4 (VAPC) 69 VLGO4 O Power supply 4 (VAPC) output terminal 70 L3L — Connected to the inductor for power supply 3 (VDAC) 71 PGND3 — Ground terminal (for power supply 3 (VDAC)) 72 L3H — Connected to the inductor for power supply 3 (VDAC) 73 VLGO3 O Power supply 3 (VDAC) output terminal 74 VCC2 I VCC2 input terminal for VCC3 75 VCC3 O VCC3 (VDOJ) output terminal 76 INP3 I Power supply 3 (VDAC) operational amplifier 1 invert input 77 INM3 I Power supply 3 (VDAC) operational amplifier 1 non-invert input 78 RF3 O Power supply 3 (VDAC) operational amplifier output terminal and connected to the external transistor for power supply 3 (VDAC) Not used 79 DTC3 — Power supply 3 (VDAC) duty setting terminal 80 DTC4 — Power supply 4 (VAPC) duty setting terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 D-EJ985 • Pin No. Pin Name I/O Description 1 XRAS O Row address strobe signal output to the D-RAM 2 XWE O Data input enable signal output to the D-RAM 3 to 6 D1, D0, D3, D2 I/O Two-way data bus with the D-RAM 7 DCLK O Not used 8 DCKE O Not used 9 XCAS O Column address strobe signal output to the D-RAM 10 WFCK O WFCK signal output terminal Not used 11 to 13 A9 to A7 O Address signal output to the D-RAM 14 DVSS — Ground terminal (for D-RAM interface) 15 to 17 A6 to A4 O Address signal output to the D-RAM 18 XRDE I D-RAM read enable signal input terminal Not used 19 VDD0 — Power supply terminal (digital system) 20 CLOK I Serial data transfer clock signal input from the system controller 21 SDTO I Serial data input from the system controller 22 SENS O Serial data output to the system controller 23 XLAT I Serial data latch pulse signal input from the system controller 24 XSOE I Serial data output enable signal input from the system controller 25 SYSM I Analog muting on/off control signal input from the system controller “H”: muting on 26 WDCK O GRSCOR signal output to the system controller 27 SCOR O Subcode sync (S0+S1) detection signal output to the system controller 28 XRST I Reset signal input from the system controller “L”: reset 29 PWMI I Spindle motor external control signal input terminal Not used 30 XQOK I Subcode Q OK signal input terminal Not used 31 XWRE I D-RAM write enable signal input terminal Not used 32 R4M O System clock output to the system controller 33 VSS0 — Ground terminal (digital system) 34 SQCK I SQSO readout clock signal input terminal Not used 35 SCLK I SENS serial data read clock signal input terminal Not used 36 SQSO O CD text data output terminal Not used 37 XEMP O D-RAM read prohibition signal output terminal Not used 38 XWIH O D-RAM write prohibition signal output terminal Not used 39 SBSO O Subcode P to W serial data output terminal Not used 40 EXCK O SQSO readout clock signal output terminal Not used 41 XSTL I Input terminal for the system clock frequency setting “L”: 16.9344 MHz, “H”: 33.8688MHz (fixed at “L” in this set) 42 HVSS — Ground terminal (for headphone) 43 HPL O PDM signal output for L-ch headphone to the headphone amplifier 44 HPR O PDM signal output for R-ch headphone to the headphone amplifier 45 HVDD — Power supply terminal (for headphone) 46 XVDD — Power supply terminal (for master clock) 47 XTAI I System clock input terminal (16.9344 MHz) 48 XTAO O System clock output terminal (16.9344 MHz) 49 XVSS — Ground terminal (for master clock) 50 AVDD1 — Power supply terminal (analog system) 51 AOUT1 O L-ch analog audio signal output 52 VREFL O L-ch reference voltage output terminal C601 CXD3039AR (RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 D-EJ985 Pin No. Pin Name I/O Description 53, 54 AVSS1, AVSS2 — Ground terminal (analog system) 55 VREFR O R-ch reference voltage output terminal 56 AOUT2 O R-ch analog audio signal output 57 AVDD2 — Power supply terminal (analog system) 58 TES1 I Input terminal for the test (normally: fixed at “L”) 59 TEST I Input terminal for the test (normally: fixed at “L”) 60 VSS1 — Ground terminal (digital system) 61 LRMU O Muting on/off control signal output to the audio line and the headphone amplifier “H”: muting on 62 DOUT O Digital audio signal output 63 ATSK I/O Input/output terminal for anti-shock Not used 64 DFCT I/O Defect signal input/output terminal Not used 65 FOK O Focus OK signal output to the system controller “L”: NG, “H”: OK 66 MIRR I/O Defect signal input/output terminal Not used 67 COUT I/O Numbers of track counted signal input/output terminal Not used 68 C2PO O C2PO signal output terminal Not used 69 GFS O GFS signal output terminal Not used 70 XUGF O XUGF signal output terminal Not used 71 XPCK O XPCK signal output terminal Not used 72 VDD1 — Power supply terminal (digital system) 73 PCO O Charge pump output for master PLL 74 FILI I Filter input for master PLL 75 FILO O Filter output for master PLL 76 CLTV I VCO1 control voltage input terminal for multiplier 77 VCTL I VCO2 control voltage input terminal for broad-band EFM PLL 78 VPCO O Charge pump output terminal for broad-band EFM PLL 79 AVSS3 — Ground terminal (analog system) 80 ASYO O EFM full-swing output terminal 81 ASYI I Asymmetry comparator voltage input terminal 82 BIAS I Asymmetry circuit constant current input terminal 83 AVDD3 — Power supply terminal (analog system) 84 RFAC I EFM signal input from the optical pick-up 85 AVDD0 — Power supply terminal (analog system) 86 IGEN I Stabilized current input for operational amplifiers 87 AVSS0 — Ground terminal (analog system) 88 RFDC I RF signal input from the optical pick-up 89 E I E signal input from the optical pick-up 90 F I F signal input from the optical pick-up 91 B I B signal input from the optical pick-up 92 A I A signal input from the optical pick-up 93 VC I Middle point voltage input terminal Not used 94 VSS3 — Ground terminal (digital system) 95 FRDR O Focus servo drive signal (–) output to the TB2130AF 96 FFDR O Focus servo drive signal (+) output to the TB2130AF 97 TRDR O Tracking servo drive signal (–) output to the TB2130AF 98 TFDR O Tracking servo drive signal (+) output to the TB2130AF 99 SRDR O Sled servo drive signal (–) output to the TB2130AF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 D-EJ985 Pin No. Pin Name I/O Description 100 SFDR O Sled servo drive signal (+) output to the TB2130AF 101 SSTP I Disc inner position detection signal input terminal Not used 102 MDS O Spindle motor drive signal output to the spindle motor driver 103 MDP O Spindle motor servo control signal output to the spindle motor driver 104 C176 O 176.4 kHz clock signal output to the power control and spindle motor driver 105 VDD1 — Power supply terminal (digital system) 106 LRCK O L/R sampling clock signal (44.1 kHz) output terminal 107 LRCKI I L/R sampling clock signal (44.1 kHz) input terminal 108 PCMD O Serial data output terminal 109 PCMDI I Serial data input terminal 110 BCLK O Bit clock signal (2.8224 MHz) output terminal 111 BCLKI I Bit clock signal (2.8224 MHz) input terminal 112 DVDD — Power supply terminal (for D-ARM interface) 113 to 117 A3 to A0, A10 O Address signal output to the D-RAM 118 to 120 A11 to A13 O Address signal output terminal to the D-RAM Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 D-EJ985 • IC801 T5AJ4-4H37 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 VSS — Ground terminal (digital system) 2 XIN I System clock input from the CXD3039AR 3 XOUT O High frequency oscillator output terminal Not used 4 TEST I Test terminal for IC Not used 5 VCPU — Power supply terminal 6 P21 O Digital output LED control signal output “L”: ON 7 BATVCC ON O Power supply control signal output for battery charge “H”: ON 8 RESET I System reset signal input from the power control “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 9 FOK I Focus OK signal input from the CXD3039AR “L”: NG, “H”: OK 10 NC I VDRAM input from the power control 11 SCOR I Subcode sync (S0+S1) detection signal input from the CXD3039AR 12 GRSCOR I GRSCOR signal input from the CXD3039AR 13 AMUTE O Analog muting on/off control signal output to the CXD3039AR “H”: muting on 14 XSOE O Serial data output enable signal output to the CXD3039AR 15 XLAT O Serial data latch pulse signal output to the CXD3039AR 16 MSDTI I Serial data input from the CXD3039AR 17 MSDTO O Serial data output to the power control, spindle motor driver and CXD3039AR 18 MSCK O Serial data transfer clock signal output to the power control, spindle motor driver and CXD3039AR 19, 20 VCPU — Power supply terminal 21 AD CHGMNT I Battery charge voltage detection signal input from the power control 22 AD BATMNT I Battery voltage detection signal input and rechargeable battery use/no use detection signal input 23 AD VCDKEY2 I Key input terminal Not used 24 AD SEL I Plug-in detection signal input of LINE OUT (OPTICAL) 25 AD KEY I Key input terminal (A/D input) 26 AD RMKEY I Key input from the headphone with remote commander (A/D input) 27 AD DCINMNT I DC input voltage detection signal input (A/D input) and DC input jack use/no use detection signal input 28 CLOSE I CD lid open/close detection switch input terminal “L”: CD lid open, “H”: CD lid close The stop status is reset with the falling edge of input signal 29 EXTVCC O VCC2 voltage control signal output terminal “H”: ON Not used 30 BEEP O Beep sound output to the headphone amplifier 31 TSB I/O Communication two-way data bus with the headphone with remote commander 32 VCPU2 — Power supply terminal Not used 33 EXTBATT I External battery detection signal input 34 TEXTSKIP I Not used 35 DIG TU I Not used 36 LOADING I Not used 37 XSTAND ON I Charge stand detection signal input 38 ESP I G-PROTECTION switch input terminal “L”: G-PROTECTION 1, “H”: G-PROTECTION 2 39 AVLS I AVLS (Automatic Volume Limiter System) switch input terminal “L”: normal, “H”: limit 40 HOLD I HOLD switch input terminal “L”: hold off, “H”: hold on 41 to 56 SEG15 to SEG0 O Segment drive signal output terminal for the liquid crystal display Not used 57 to 60 COM3 to COM0 O Common drive signal output terminal for the liquid crystal display Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 D-EJ985 Pin No. Pin Name I/O Description 61 to 63 V3 to V1 O Liquid crystal display drive bias control signal output terminal Not used 64, 65 C1, C0 O Terminal for doubler circuit capacitor connection to develop liquid crystal display drive voltage Not used 66 XWAKE O Wakeup control signal output to the power control (for system standby reset) “L”: wakeup The stop status is reset with the falling edge of input signal 67 PGMSO O Not used 68 PGMSI I Not used 69 PGMSCK O Not used 70 AGCPWM O AGC control pulse signal output to the power control 71 IR RMC I Not used 72 FG/FGSEL O FG pulse signal input from the spindle motor driver 73 PGMSEL O Not used 74 XDRVLT O Serial data latch pulse signal output to the spindle motor driver 75 XPOWLT O Serial data latch pulse signal output to the power control 76 CHGGND ON O Ground control signal output at the battery charge 77 HG XCTB O Hologram control signal output to the optical pick-up “L”: stop 78 HG GUP O CD-RW gain control signal output to the optical pick-up “H”: gain up 79 XRST O Reset signal output to the headphone amplifier, spindle motor driver and CXD3039AR “L”: reset 80 LEDDISP O CHARGE LED drive signal output “L”: LED on www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 D-EJ985 SECTION 6 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories are given in the last of the elec- trical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color 6-1. UPPER LID, CABINET (UPPER) SECTION 1 3 2 2 6 5 3 3 2 8 cabinet (lower) section 7 • Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model EE : East European model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-3382-567-1 LID (A) SUB ASSY (S), UPPER (SILVER) 1 X-3382-568-1 LID (A) SUB ASSY (L), UPPER (BLUE) (EXCEPT AEP, UK, EE, JE) 1 X-3382-569-1 LID (A) SUB ASSY (R), UPPER (RED) (EXCEPT AEP, UK, EE) 2 3-245-862-01 SCREW (B2), TAPPING (for BLUE, RED) 2 4-908-792-01 SCREW (B2) (for SILVER) 3 3-245-862-31 SCREW (B2), TAPPING (for BLUE, RED) 3 4-908-792-61 SCREW (B2) (for SILVER) 5 3-245-864-01 GUIDE (L) 6 3-245-865-01 GUIDE (R) 7 X-3382-564-1 LID ASSY, BATTERY CASE (JE) 7 X-3382-566-1 LID ASSY, BATTERY CASE (US, CND, E, HK, KR) 7 X-3382-580-1 LID ASSY, BATTERY CASE (AEP, UK, EE, AUS, CH) 8 X-3382-570-1 CABINET (UPPER) SUB ASSY (S) (SILVER) 8 X-3382-571-1 CABINET (UPPER) SUB ASSY (L) (BLUE) (EXCEPT AEP, UK, EE, JE) 8 X-3382-572-1 CABINET (UPPER) SUB ASSY (R) (RED) (EXCEPT AEP, UK, EE) HK : Hong Kong model JE : Tourist model KR : Korean model Ver 1.1 Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 D-EJ985 6-2. CABINET (LOWER) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 X-3382-561-1 CABINET (LOWER) ASSY (L) (BLUE) (EXCEPT US, CND, KR) 51 X-3382-562-1 CABINET (LOWER) ASSY (S) (SILVER) (EXCEPT US, CND, KR) 51 X-3382-563-1 CABINET (LOWER) ASSY (R) (RED) (EXCEPT US, CND, KR) 51 X-3382-589-2 CABINET (LOWER) ASSY (S) (SILVER) (US, CND, KR) 51 X-3382-590-1 CABINET (LOWER) ASSY (L) (BLUE) (US, CND, KR) 51 X-3382-591-1 CABINET (LOWER) ASSY (R) (RED) (US, CND, KR) 52 3-245-837-01 TERMINAL BOARD (-), CHARGE 53 3-233-988-01 TERMINAL BOARD (+), CHARGE * 54 A-3178-881-A MAIN BOARD, COMPLETE (for BLUE, RED) (EXCEPT AEP, UK) * 54 A-3347-265-A MAIN BOARD, COMPLETE (for BLUE, RED) (AEP, UK) * 54 A-3347-678-A MAIN BOARD, COMPLETE (for SILVER) (EXCEPT AEP, UK) * 54 A-3347-680-A MAIN BOARD, COMPLETE (for SILVER) (AEP, UK) 55 3-245-312-01 BOARD (+), TERMINAL, BATTERY 56 3-246-403-01 TERMINAL BOARD (-), BATTERY 57 3-831-441-99 SPACER 58 X-3382-242-1 WIRE ASSY, LEAD 59 3-245-331-01 INSULATOR 60 3-245-863-01 TERMINAL BOARD (RELAY), BATTERY 61 3-245-866-01 SPRING (UPPER LID) 62 3-238-747-01 SHEET (HOLD), ELECTROSTATIC R410 1-218-989-11 RES-CHIP 1M 5% 1/16W 56 52 59 59 CDM-3325ER 59 60 58 61 51 55 R410 57 54 62 53 not supplied not supplied Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 D-EJ985 101 103 111 110 106 109 108 105 107 101 104 102 M901 M902 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 3-318-203-61 SCREW (B1.7X4), TAPPING 0102 X-3380-950-1 OPTICAL PICK-UP (DAX-25E) 103 3-221-473-01 COVER, GEAR 104 3-221-472-02 CHASSIS 105 3-221-474-01 SPRING, SLED 106 A-3331-663-A SCREW (FEED) ASSY 107 3-221-268-01 GEAR (B) 108 3-221-475-01 SHAFT, STANDARD 109 3-222-298-01 RACK 110 3-222-299-01 SPRING, RACK RETAINER 111 3-348-998-31 SCREW (M1.4X2.5), TAPPING, PAN M901 A-3174-850-A MOTOR ASSY, SLED M902 A-3174-848-A MOTOR ASSY, TURN TABLE (SPINDLE) 6-3. OPTICAL PICK-UP SECTION (CDM-3325ER) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 D-EJ985 MAIN SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-3178-881-A MAIN BOARD, COMPLETE (for BLUE, RED) (EXCEPT AEP, UK) * A-3347-265-A MAIN BOARD, COMPLETE (for BLUE, RED) (AEP, UK) * A-3347-678-A MAIN BOARD, COMPLETE (for SILVER) (EXCEPT AEP, UK) * A-3347-680-A MAIN BOARD, COMPLETE (for SILVER) (AEP, UK) ********************* 3-233-988-01 TERMINAL BOARD (+), CHARGE 3-245-312-01 BOARD (+), TERMINAL, BATTERY 3-245-837-01 TERMINAL BOARD (–), CHARGE 3-246-403-01 TERMINAL BOARD (–), BATTERY < CAPACITOR > C102 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C104 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C105 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V C106 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C107 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C108 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C111 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C202 1-127-760-11 CERAMIC CHIP 4.7uF 10% 6.3V C204 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C205 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V C206 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C207 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C208 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C211 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C301 1-117-720-11 CERAMIC CHIP 4.7uF 10V C302 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C303 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C304 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C305 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C306 1-115-156-11 CERAMIC CHIP 1uF 10V C307 1-137-934-91 TANTALUM CHIP 47uF 20% 10V C311 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C313 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C401 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C403 1-115-156-11 CERAMIC CHIP 1uF 10V C404 1-115-156-11 CERAMIC CHIP 1uF 10V C405 1-107-820-11 CERAMIC CHIP 0.1uF 16V C406 1-117-720-11 CERAMIC CHIP 4.7uF 10V C407 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C408 1-107-820-11 CERAMIC CHIP 0.1uF 16V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: SWITCH, PUSH (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . C409 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C411 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C412 1-115-156-11 CERAMIC CHIP 1uF 10V C413 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C414 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C416 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C417 1-107-820-11 CERAMIC CHIP 0.1uF 16V C418 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C419 1-107-820-11 CERAMIC CHIP 0.1uF 16V C421 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C422 1-137-934-91 TANTALUM CHIP 47uF 20% 10V C423 1-107-820-11 CERAMIC CHIP 0.1uF 16V C424 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C425 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C426 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C429 1-107-820-11 CERAMIC CHIP 0.1uF 16V C431 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C432 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C433 1-137-934-11 TANTALUM CHIP 47uF 20% 10V C434 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C435 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C436 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C437 1-119-923-11 CERAMIC CHIP 0.047uF 10% 10V C438 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C439 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C440 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C442 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C443 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C444 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C445 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C446 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C447 1-107-820-11 CERAMIC CHIP 0.1uF 16V C448 1-115-156-11 CERAMIC CHIP 1uF 10V C449 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C450 1-164-506-11 CERAMIC CHIP 4.7uF 16V C451 1-115-156-11 CERAMIC CHIP 1uF 10V C452 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C453 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C454 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C455 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C456 1-107-820-11 CERAMIC CHIP 0.1uF 16V C457 1-164-866-11 CERAMIC CHIP 47PF 5% 50V C462 1-109-982-11 CERAMIC CHIP 1uF 10% 10V • CAPACITORS uF: µF • COILS uH: µH Ver 1.1 Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model EE : East European model HK : Hong Kong model JE : Tourist model KR : Korean model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 31 D-EJ985 MAIN C463 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C464 1-164-156-11 CERAMIC CHIP 0.1uF 25V C465 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C466 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C468 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C469 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C490 1-115-156-11 CERAMIC CHIP 1uF 10V C501 1-107-820-11 CERAMIC CHIP 0.1uF 16V C502 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C601 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C602 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C603 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C604 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C605 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C606 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C607 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C608 1-107-820-11 CERAMIC CHIP 0.1uF 16V C609 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C610 1-107-820-11 CERAMIC CHIP 0.1uF 16V C611 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C612 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C613 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C614 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C615 1-107-820-11 CERAMIC CHIP 0.1uF 16V C616 1-128-964-11 TANTALUM CHIP 100uF 20% 6.3V C617 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C618 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C619 1-164-858-11 CERAMIC CHIP 22PF 5% 50V C620 1-115-156-11 CERAMIC CHIP 1uF 10V C621 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C622 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C623 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V (EXCEPT AEP, UK) C624 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C625 1-107-820-11 CERAMIC CHIP 0.1uF 16V C626 1-107-820-11 CERAMIC CHIP 0.1uF 16V C691 1-107-820-11 CERAMIC CHIP 0.1uF 16V C692 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C697 1-107-820-11 CERAMIC CHIP 0.1uF 16V C801 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C802 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C803 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C804 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C805 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C806 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C807 1-107-820-11 CERAMIC CHIP 0.1uF 16V C808 1-107-820-11 CERAMIC CHIP 0.1uF 16V C809 1-107-820-11 CERAMIC CHIP 0.1uF 16V C810 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C811 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C812 1-107-820-11 CERAMIC CHIP 0.1uF 16V C814 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V < CONNECTOR > * CN501 1-785-877-21 HOUSING, CONNECTOR 4P CN502 1-784-342-21 HOUSING, CONNECTOR 2P CN503 1-573-924-11 CONNECTOR, FFC/FPC (ZIF) 15P < DIODE > D303 8-719-422-37 DIODE MA8051-TX D304 8-719-422-37 DIODE MA8051-TX D305 8-719-422-37 DIODE MA8051-TX D306 8-719-422-37 DIODE MA8051-TX D307 8-719-422-37 DIODE MA8051-TX D401 8-719-081-83 DIODE CRS03 (TE85L) D402 8-719-404-50 DIODE MA111-TX D403 8-719-081-83 DIODE CRS03 (TE85L) D404 8-719-081-83 DIODE CRS03 (TE85L) D405 8-719-071-87 DIODE MA785-(TX) , SO D406 8-719-404-50 DIODE MA111-TX D407 8-719-072-70 DIODE MA2ZD14001S0 D408 8-719-081-83 DIODE CRS03 (TE85L) D801 8-719-064-07 LED SML-310LTT86 (CHARGE) D803 8-719-056-66 DIODE 1SS378-TE85L D804 8-719-083-04 DIODE RSB6.8STE61 D805 8-719-083-04 DIODE RSB6.8STE61 < FERRITE BEAD/SHORT > FB101 1-414-760-21 FERRITE 0uH FB201 1-414-760-21 FERRITE 0uH FB301 1-414-760-21 FERRITE 0uH FB302 1-414-760-21 FERRITE 0uH FB303 1-414-760-21 FERRITE 0uH FB304 1-414-760-21 FERRITE 0uH FB401 1-500-451-11 FERRITE 0uH FB402 1-500-451-11 FERRITE 0uH FB404 1-216-864-11 SHORT CHIP 0 FB405 1-216-864-11 SHORT CHIP 0 FB406 1-216-864-11 SHORT CHIP 0 FB601 1-414-760-21 FERRITE 0uH FB602 1-414-760-21 FERRITE 0uH FB801 1-414-760-21 FERRITE 0uH FB803 1-414-760-21 FERRITE 0uH < IC > IC301 6-700-702-01 IC TA2152FN (EL) IC402 8-759-694-91 IC SI-3048LSA-TL IC403 6-702-261-01 IC TB2130AF IC404 6-701-860-01 IC TB2127AFN (EL) IC405 8-759-594-55 IC TC75S57F (TE85R) IC601 8-752-420-71 IC CXD3039AR IC602 6-702-614-01 IC IC41LV44002A-50T (T&R) IC801 6-802-578-01 IC T5AJ4-4H37 < JACK > J301 1-816-884-11 JACK, OPTICAL OUT (LINE OUT (OPTICAL)) J302 1-815-088-61 JACK, HEADPHONE (i) J401 1-793-156-31 JACK, DC (EXT BATT, DC IN 4.5V) < COIL > L101 1-414-402-11 INDUCTOR 47uH L201 1-414-402-11 INDUCTOR 47uH L303 1-400-144-21 INDUCTOR 22uH L401 1-414-434-11 INDUCTOR 100uH L402 1-414-398-11 INDUCTOR 10uH Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 32 D-EJ985 MAIN L403 1-414-404-11 INDUCTOR 100uH L404 1-419-188-41 INDUCTOR 100uH L405 1-414-404-11 INDUCTOR 100uH L406 1-400-145-21 INDUCTOR 47uH L408 1-414-434-11 INDUCTOR 100uH L409 1-400-145-21 INDUCTOR 47uH L410 1-414-402-11 INDUCTOR 47uH L411 1-414-434-11 INDUCTOR 100uH L413 1-414-398-11 INDUCTOR 10uH L602 1-414-521-11 INDUCTOR 10uH L604 1-414-521-11 INDUCTOR 10uH < TRANSISTOR > Q301 8-729-028-86 TRANSISTOR DTA143EUA-T106 Q302 8-729-429-50 TRANSISTOR XP4312-TXE Q303 8-729-427-72 TRANSISTOR XP4501-TXE Q403 8-729-921-73 TRANSISTOR 2SD1781K-T146-QR Q405 8-729-921-93 TRANSISTOR 2SB1182F5-QR-TLQR Q406 8-729-230-63 TRANSISTOR 2SD1819A-QRS-TX Q407 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q412 8-729-056-20 FET TPC6001 (TE85L) Q413 8-729-013-60 TRANSISTOR UN9216J-(TX).SO Q414 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q415 8-729-026-30 FET 2SJ346-TE85L Q416 8-729-056-19 FET TPC6101 (TE85R) Q417 8-729-230-63 TRANSISTOR 2SD1819A-QRS-TX Q421 8-729-056-19 FET TPC6101 (TE85R) Q422 8-729-426-30 TRANSISTOR XP1213-TXE < RESISTOR > R101 1-218-977-11 RES-CHIP 100K 5% 1/10W R102 1-218-945-11 RES-CHIP 220 5% 1/10W R103 1-218-965-11 RES-CHIP 10K 5% 1/10W R104 1-218-953-11 RES-CHIP 1K 5% 1/10W R105 1-218-953-11 RES-CHIP 1K 5% 1/10W R106 1-218-961-11 RES-CHIP 4.7K 5% 1/10W R107 1-218-945-11 RES-CHIP 220 5% 1/10W R108 1-218-990-11 SHORT CHIP 0 R191 1-218-953-11 RES-CHIP 1K 5% 1/10W R201 1-218-977-11 RES-CHIP 100K 5% 1/10W R202 1-218-945-11 RES-CHIP 220 5% 1/10W R203 1-218-965-11 RES-CHIP 10K 5% 1/10W R204 1-218-953-11 RES-CHIP 1K 5% 1/10W R205 1-218-953-11 RES-CHIP 1K 5% 1/10W R206 1-218-961-11 RES-CHIP 4.7K 5% 1/10W R207 1-218-945-11 RES-CHIP 220 5% 1/10W R208 1-218-990-11 SHORT CHIP 0 R291 1-218-953-11 RES-CHIP 1K 5% 1/10W R301 1-218-953-11 RES-CHIP 1K 5% 1/10W R302 1-218-953-11 RES-CHIP 1K 5% 1/10W R303 1-218-977-11 RES-CHIP 100K 5% 1/10W R304 1-218-977-11 RES-CHIP 100K 5% 1/10W R307 1-218-953-11 RES-CHIP 1K 5% 1/10W R308 1-218-941-11 RES-CHIP 100 5% 1/10W R309 1-208-707-11 METAL CHIP 10K 0.5% 1/10W R310 1-218-937-11 RES-CHIP 47 5% 1/10W R321 1-208-943-11 METAL CHIP 220K 0.5% 1/10W R322 1-208-943-11 METAL CHIP 220K 0.5% 1/10W R409 1-218-965-11 RES-CHIP 10K 5% 1/10W R411 1-216-308-00 RES-CHIP 4.7 5% 1/10W R413 1-217-671-11 METAL CHIP 1 5% 1/10W R414 1-218-957-11 RES-CHIP 2.2K 5% 1/10W R416 1-217-671-11 METAL CHIP 1 5% 1/10W R418 1-218-973-11 RES-CHIP 47K 5% 1/10W R420 1-208-943-11 METAL CHIP 220K 0.5% 1/10W R421 1-208-927-11 METAL CHIP 47K 0.5% 1/10W R422 1-208-927-11 METAL CHIP 47K 0.5% 1/10W R423 1-208-927-11 METAL CHIP 47K 0.5% 1/10W R424 1-216-864-11 SHORT CHIP 0 R425 1-216-864-11 SHORT CHIP 0 R426 1-216-864-11 SHORT CHIP 0 R427 1-216-864-11 SHORT CHIP 0 R428 1-216-864-11 SHORT CHIP 0 R429 1-218-977-11 RES-CHIP 100K 5% 1/10W R435 1-218-981-11 RES-CHIP 220K 5% 1/10W R436 1-218-965-11 RES-CHIP 10K 5% 1/10W R437 1-218-977-11 RES-CHIP 100K 5% 1/10W R440 1-218-981-11 RES-CHIP 220K 5% 1/10W R441 1-218-989-11 RES-CHIP 1M 5% 1/10W R443 1-208-935-11 METAL CHIP 100K 0.5% 1/10W R444 1-218-969-11 RES-CHIP 22K 5% 1/10W R445 1-208-943-11 METAL CHIP 220K 0.5% 1/10W R448 1-218-989-11 RES-CHIP 1M 5% 1/10W R450 1-218-965-11 RES-CHIP 10K 5% 1/10W R452 1-218-989-11 METAL CHIP 1M 0.5% 1/10W R454 1-218-965-11 RES-CHIP 10K 5% 1/10W R455 1-218-965-11 RES-CHIP 10K 5% 1/10W R456 1-208-943-11 METAL CHIP 220K 0.5% 1/10W R457 1-208-927-11 METAL CHIP 47K 0.5% 1/10W R458 1-218-969-11 RES-CHIP 22K 5% 1/10W R460 1-220-804-11 RES-CHIP 2.2M 5% 1/10W R461 1-216-864-11 SHORT CHIP 0 R467 1-218-985-11 METAL CHIP 470K 0.5% 1/10W R468 1-208-927-11 METAL CHIP 47K 0.5% 1/10W R469 1-218-973-11 RES-CHIP 47K 5% 1/10W R470 1-208-715-11 METAL CHIP 22K 0.5% 1/10W R471 1-208-715-11 METAL CHIP 22K 0.5% 1/10W R474 1-218-985-11 RES-CHIP 470K 5% 1/10W R477 1-218-985-11 RES-CHIP 470K 5% 1/10W R478 1-218-989-11 RES-CHIP 1M 5% 1/10W R479 1-218-981-11 RES-CHIP 220K 5% 1/10W R482 1-218-949-11 RES-CHIP 470 5% 1/10W R483 1-218-945-11 RES-CHIP 220 5% 1/10W R484 1-218-977-11 RES-CHIP 100K 5% 1/10W R488 1-218-977-11 RES-CHIP 100K 5% 1/10W R493 1-218-941-11 RES-CHIP 100 5% 1/10W R494 1-218-941-11 RES-CHIP 100 5% 1/10W R495 1-218-941-11 RES-CHIP 100 5% 1/10W R496 1-218-977-11 RES-CHIP 100K 5% 1/10W R498 1-218-961-11 RES-CHIP 4.7K 5% 1/10W R499 1-218-969-11 RES-CHIP 22K 5% 1/10W R601 1-218-969-11 RES-CHIP 22K 5% 1/10W R602 1-218-985-11 RES-CHIP 470K 5% 1/10W R603 1-218-973-11 RES-CHIP 47K 5% 1/10W R604 1-218-989-11 RES-CHIP 1M 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 33 D-EJ985 R605 1-218-990-11 SHORT CHIP 0 R606 1-218-969-11 RES-CHIP 22K 5% 1/10W R607 1-218-969-11 RES-CHIP 22K 5% 1/10W R608 1-218-969-11 RES-CHIP 22K 5% 1/10W R609 1-218-969-11 RES-CHIP 22K 5% 1/10W R610 1-218-957-11 RES-CHIP 2.2K 5% 1/10W R611 1-218-957-11 RES-CHIP 2.2K 5% 1/10W R612 1-218-965-11 RES-CHIP 10K 5% 1/10W R613 1-218-981-11 RES-CHIP 220K 5% 1/10W R614 1-218-977-11 RES-CHIP 100K 5% 1/10W R615 1-218-977-11 RES-CHIP 100K 5% 1/10W R618 1-218-965-11 RES-CHIP 10K 5% 1/10W R619 1-218-973-11 RES-CHIP 47K 5% 1/10W R620 1-208-935-11 METAL CHIP 100K 0.5% 1/10W R621 1-208-935-11 METAL CHIP 100K 0.5% 1/10W R623 1-218-933-11 RES-CHIP 22 5% 1/10W R625 1-218-949-11 RES-CHIP 470 5% 1/10W R626 1-218-965-11 RES-CHIP 10K 5% 1/10W R627 1-218-941-11 RES-CHIP 100 5% 1/10W R628 1-218-949-11 RES-CHIP 470 5% 1/10W R629 1-218-949-11 RES-CHIP 470 5% 1/10W R630 1-218-990-11 SHORT CHIP 0 R631 1-218-949-11 RES-CHIP 470 5% 1/10W R632 1-218-949-11 RES-CHIP 470 5% 1/10W R635 1-218-937-11 RES-CHIP 47 5% 1/10W R801 1-218-977-11 RES-CHIP 100K 5% 1/10W R802 1-218-977-11 RES-CHIP 100K 5% 1/10W R803 1-218-941-11 RES-CHIP 100 5% 1/10W R804 1-218-965-11 RES-CHIP 10K 5% 1/10W R805 1-218-989-11 RES-CHIP 1M 5% 1/10W R806 1-218-965-11 RES-CHIP 10K 5% 1/10W R807 1-218-953-11 RES-CHIP 1K 5% 1/10W R808 1-218-953-11 RES-CHIP 1K 5% 1/10W R811 1-218-965-11 RES-CHIP 10K 5% 1/10W R813 1-218-977-11 RES-CHIP 100K 5% 1/10W R814 1-208-707-11 METAL CHIP 10K 0.5% 1/10W R815 1-218-953-11 RES-CHIP 1K 5% 1/10W R816 1-218-961-11 RES-CHIP 4.7K 5% 1/10W R817 1-218-957-11 RES-CHIP 2.2K 5% 1/10W R818 1-218-973-11 RES-CHIP 47K 5% 1/10W R819 1-218-973-11 RES-CHIP 47K 5% 1/10W R820 1-218-989-11 RES-CHIP 1M 5% 1/10W R821 1-208-715-11 METAL CHIP 22K 0.5% 1/10W R891 1-218-957-11 RES-CHIP 2.2K 5% 1/10W R892 1-216-864-11 SHORT CHIP 0 R901 1-218-965-11 RES-CHIP 10K 5% 1/10W R902 1-208-959-11 RES-CHIP 1M 0.5% 1/10W < SWITCH > S801 1-762-078-11 SWITCH, SLIDE (HOLD) S802 1-762-078-11 SWITCH, SLIDE (AVLS) S803 1-762-078-11 SWITCH, SLIDE (G-PROTECTION) S804 1-762-805-41 SWITCH, PUSH (1 KEY) (CD LID OPEN DETECT) S805 1-771-248-11 SWITCH, TACTILE (CHARGE, x) S806 1-786-407-21 SWITCH, PUSH (3 DIRECTION) (BLACK) (. >, N X) (for SILVER) S806 1-786-407-41 SWITCH, PUSH (3 DIRECTION) (GRAY) (. >, N X) (for BLUE, RED) S808 1-771-248-11 SWITCH, TACTILE (VOL +) S809 1-771-248-11 SWITCH, TACTILE (VOL –) < THERMISTOR > TH401 1-804-616-21 THERMISTOR, POSITIVE < VARISTOR > VDR102 1-801-923-11 VARISTOR, CHIP VDR202 1-801-923-11 VARISTOR, CHIP VDR302 1-801-862-11 VARISTOR, CHIP VDR303 1-801-862-11 VARISTOR, CHIP VDR401 1-801-923-11 VARISTOR, CHIP VDR403 1-801-862-11 VARISTOR, CHIP VDR499 1-801-862-11 VARISTOR, CHIP VDR608 1-801-862-11 VARISTOR, CHIP VDR609 1-801-862-11 VARISTOR, CHIP VDR801 1-801-862-11 VARISTOR, CHIP VDR802 1-801-923-11 VARISTOR, CHIP VDR803 1-801-862-11 VARISTOR, CHIP < VIBRATOR > X601 1-795-003-21 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************ MISCELLANEOUS ************** 58 X-3382-242-1 WIRE ASSY, LEAD 0102 X-3380-950-1 OPTICAL PICK-UP (DAX-25E) M901 A-3174-850-A MOTOR ASSY, SLED M902 A-3174-848-A MOTOR ASSY, TURN TABLE (SPINDLE) R410 1-218-989-11 RES-CHIP 1M 5% 1/16W ************************************************************ MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 34 D-EJ985 ACCESSORIES *********** 1-477-464-11 REMOTE COMMANDER (RM-MC32EL) 1-477-496-11 ADAPTOR, AC (AC-ES455K) (JE) 1-477-497-11 ADAPTOR, AC (AC-ES455K) (KR) 1-477-499-11 ADAPTOR, AC (AC-ES455K) (CH) 1-477-500-11 ADAPTOR, AC (AC-ES455K) (AEP, E, EE) 1-477-501-11 ADAPTOR, AC (AC-ES455K) (UK, HK) 1-477-502-11 ADAPTOR, AC (AC-ES455K) (CND) 1-477-502-21 ADAPTOR, AC (AC-ES455K) (US) 1-477-503-11 ADAPTOR, AC (AC-ES455K) (AUS) 1-569-007-12 ADAPTOR, CONVERSION 2P (JE) 1-756-120-22 BATTERY, NICKEL HYDROGEN (NH-14WM (A)) (EXCEPT US, CND) 1-756-120-31 BATTERY, NICKEL HYDROGEN (NH-14WM (A)) (US, CND) 1-756-222-12 STAND, CHARGE (BCA-WM50) 1-756-294-11 EXTERNAL BATTERY CASE (EXCEPT AEP, E) 3-008-521-01 CASE, CHARGE 3-021-018-01 LABEL, FRANCE (AEP, UK) 3-235-292-02 POUCH, CARRYING 3-245-826-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, TRADITIONAL CHINESE, KOREAN) (JE) 3-245-826-11 MANUAL, INSTRUCTION (SPANISH) (AEP) 3-245-826-21 MANUAL, INSTRUCTION (ENGLISH) (CND, AEP, UK, EE, AUS, JE) 3-245-826-31 MANUAL, INSTRUCTION (FRENCH) (CND, AEP) 3-245-826-41 MANUAL, INSTRUCTION (DUTCH) (AEP) 3-245-826-51 MANUAL, INSTRUCTION (SWEDISH) (AEP) 3-245-826-61 MANUAL, INSTRUCTION (PORTUGUESE) (AEP) 3-245-826-71 MANUAL, INSTRUCTION (GERMAN) (AEP) 3-245-826-81 MANUAL, INSTRUCTION (ITALIAN) (AEP) 3-245-826-91 MANUAL, INSTRUCTION (FINNISH) (AEP) 3-245-827-12 MANUAL, INSTRUCTION (TRADITIONAL CHINESE) (HK, JE) 3-245-827-21 MANUAL, INSTRUCTION (ENGLISH) (E, HK, CH) 3-245-827-32 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE) (E, CH, JE) 3-245-828-12 MANUAL, INSTRUCTION (RUSSIAN) (EE) 3-245-828-21 MANUAL, INSTRUCTION (CZECH) (EE) 3-245-828-31 MANUAL, INSTRUCTION (HUNGARIAN) (EE) 3-245-828-41 MANUAL, INSTRUCTION (POLISH) (EE) 3-245-828-51 MANUAL, INSTRUCTION (SLOVAKIAN) (EE) 3-245-828-61 MANUAL, INSTRUCTION (KOREAN) (KR, JE) 3-245-828-71 MANUAL, INSTRUCTION (ENGLISH) (US) 3-252-648-01 CLIP (REMOTE CONTROL) (for REMOTE COMMANDER) 8-954-007-91 RECEIVER, EAR MDR-027SP/1 SET (US) 8-954-008-90 RECEIVER, EAR MDR-E808SP/C SET (EXCEPT US) Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 D-EJ985 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-EJ985 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2002.10 New 1.1 2003.01 Addition of US, Canadian, AEP, East European and Australian models www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
