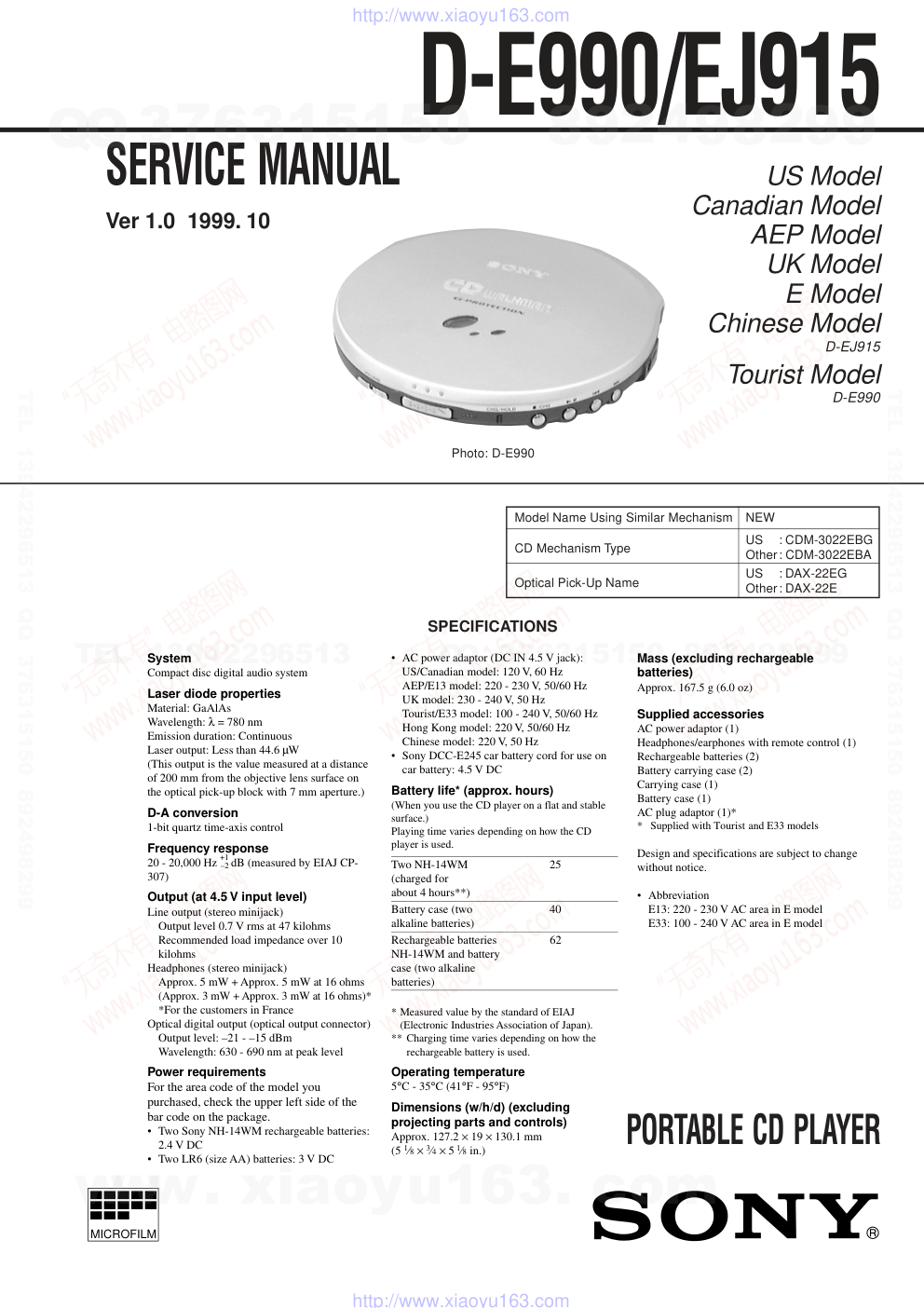

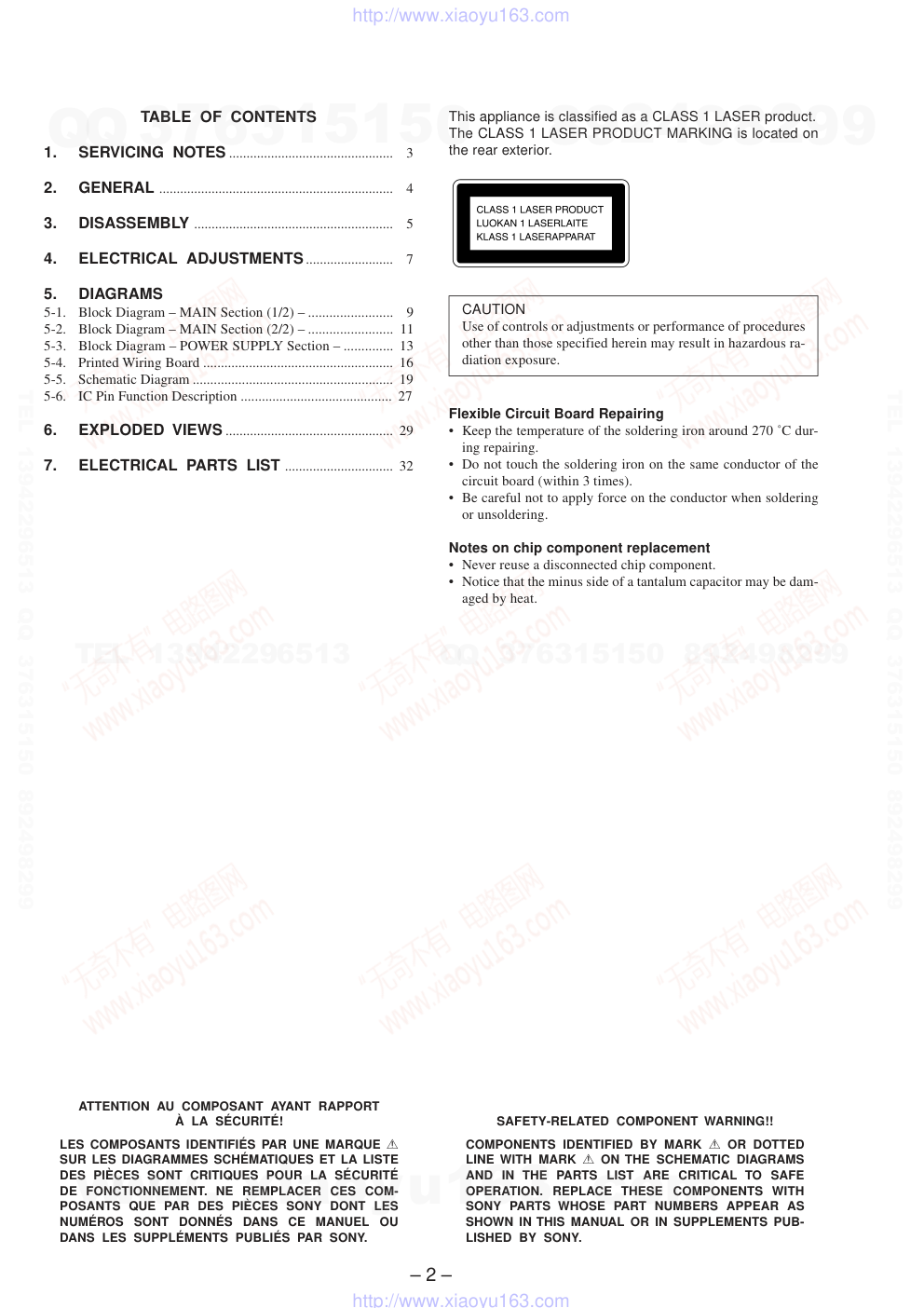

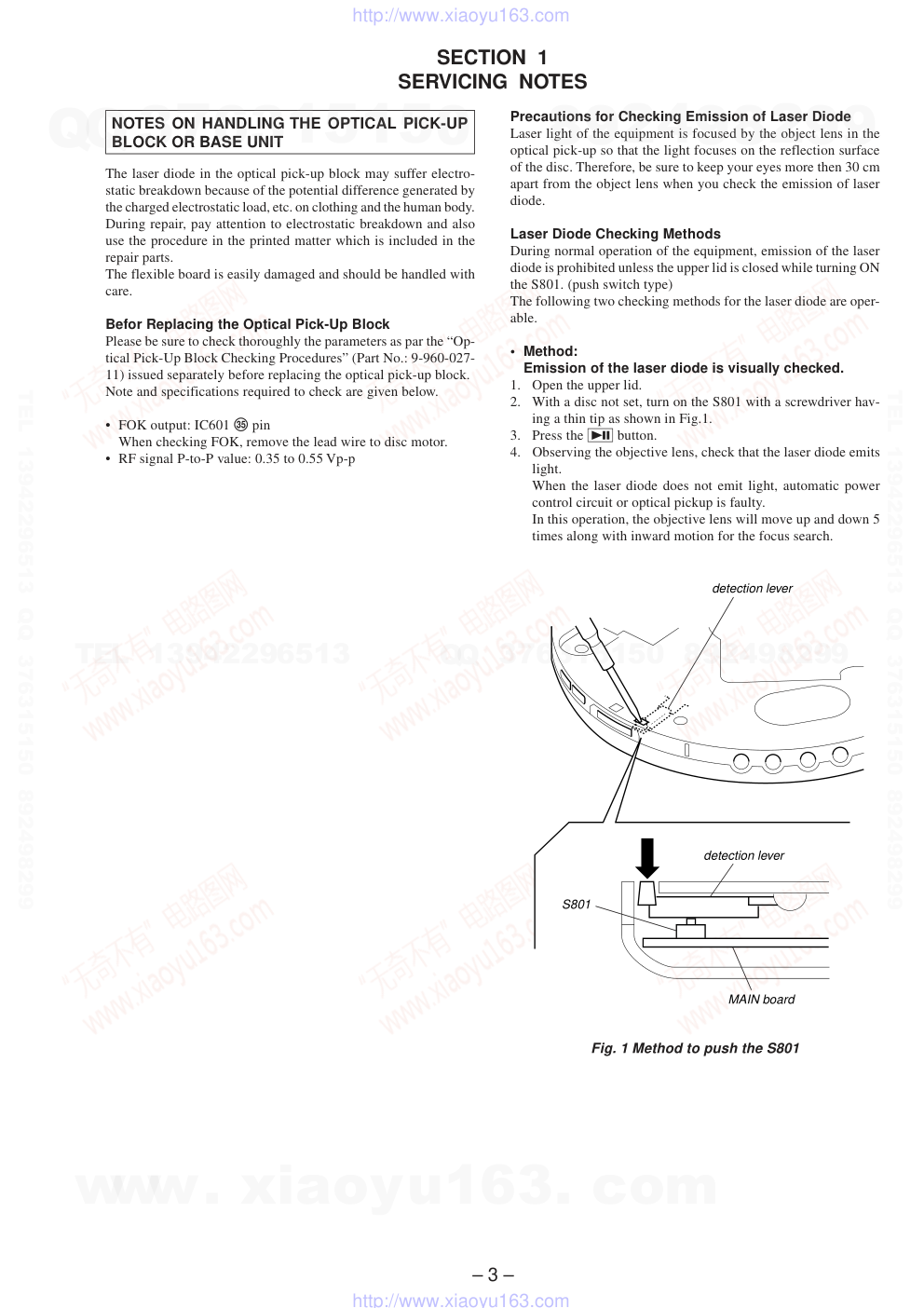

MICROFILM SERVICE MANUAL SPECIFICATIONS System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20,000 Hz +1 –2 dB (measured by EIAJ CP- 307) Output (at 4.5 V input level) Line output (stereo minijack) Output level 0.7 V rms at 47 kilohms Recommended load impedance over 10 kilohms Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 ohms (Approx. 3 mW + Approx. 3 mW at 16 ohms)* *For the customers in France Optical digital output (optical output connector) Output level: –21 - –15 dBm Wavelength: 630 - 690 nm at peak level Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two Sony NH-14WM rechargeable batteries: 2.4 V DC • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): model: US/Canadian 120 V, 60 Hz AEP/E13 model: 220 - 230 V, 50/60 Hz UK model: 230 - 240 V, 50 Hz Tourist/E33 model: 100 - 240 V, 50/60 Hz Hong Kong model: 220 V, 50/60 Hz Chinese model: 220 V, 50 Hz • Sony DCC-E245 car battery cord for use on car battery: 4.5 V DC Battery life* (approx. hours) (When you use the CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. Two NH-14WM 25 (charged for about 4 hours**) Battery case (two 40 alkaline batteries) Rechargeable batteries 62 NH-14WM and battery case (two alkaline batteries) * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). ** Charging time varies depending on how the rechargeable battery is used. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. 127.2 × 19 × 130.1 mm (5 1⁄8 × 3⁄4 × 5 1⁄8 in.) Mass (excluding rechargeable batteries) Approx. 167.5 g (6.0 oz) Supplied accessories AC power adaptor (1) Headphones/earphones with remote control (1) Rechargeable batteries (2) Battery carrying case (2) Carrying case (1) Battery case (1) AC plug adaptor (1)* * Supplied with Tourist and E33 models Design and specifications are subject to change without notice. • Abbreviation E13: 220 - 230 V AC area in E model E33: 100 - 240 V AC area in E model PORTABLE CD PLAYER D-E990/EJ915 Photo: D-E990 US Model Canadian Model AEP Model UK Model E Model Chinese Model D-EJ915 Tourist Model D-E990 Model Name Using Similar Mechanism NEW CD Mechanism Type US : CDM-3022EBG Other: CDM-3022EBA Optical Pick-Up Name US : DAX-22EG Other: DAX-22E Ver 1.0 1999. 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY ......................................................... 5 4. ELECTRICAL ADJUSTMENTS ......................... 7 5. DIAGRAMS 5-1. Block Diagram – MAIN Section (1/2) – ........................ 9 5-2. Block Diagram – MAIN Section (2/2) – ........................ 11 5-3. Block Diagram – POWER SUPPLY Section – .............. 13 5-4. Printed Wiring Board ...................................................... 16 5-5. Schematic Diagram ......................................................... 19 5-6. IC Pin Function Description ........................................... 27 6. EXPLODED VIEWS ................................................ 29 7. ELECTRICAL PARTS LIST ............................... 32 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Befor Replacing the Optical Pick-Up Block Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value: 0.35 to 0.55 Vp-p Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are oper- able. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver hav- ing a thin tip as shown in Fig.1. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S801 detection lever detection lever MAIN board S801 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 2 GENERAL This section is extracted from instruction manual. 4 Getting started Locating the Controls For details, see pages in parentheses. CD player (front) CD player (inside) qa x (stop) /CHG (charge) button (pages 7, 14, 17) q; u (play/pause) button (page 7, 11) 9 i/REMOTE jack (page 6) 7 AVLS switch (rear) (page 13) 1 EXT BATT (external battery)/ DC IN 4.5 V (external power input) jack (pages 6, 17, 18) 4 VOLUME +/– buttons (page 7) 2 LINE OUT (OPTICAL) jack (page 15) 3 HOLD switch (page 14) 6 CHG (charge)/ HOLD lamp (pages 14, 17) 5 OPEN switch (pages 6) 8 ./> (AMS/search) buttons (pages 7, 10, 11) qs Battery compartment (pages 17) 5 Remote control Note Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players. qf x (stop) button (pages 7, 14) (Front) ql P (play) MODE button (pages 9 - 11) qh Display (pages 8, 10 - 14) wd DISPLAY button (page 12) ws SOUND button (page 13) qg Jog lever u: play/pause (pages 7,11) ./>: AMS/search (pages 7, 10, 11) qj LIGHT button Press to illuminate the display on the remote control for about 5 seconds when using the player on the rechargeable batteries or alkaline batteries. w; RPT (repeat)/ENT (enter) button (pages 9 - 11) (Rear) qk VOLUME +/– tab (page 7) qd HOLD switch (page 14) wa Clip You can turn and change the angle of the clip. Getting started 20 Using the carrying case You can carry your player and its battery case together using the supplied carrying case. Insert them into the proper places in the case as illustrated below. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – UPPER LID ASSY CABINET (UPPER) SUB ASSY Note: Follow the disassembly procedure in the numerical order given. SECTION 3 DISASSEMBLY tweezers 1 two spacers 2 upper lid assy 3 reinforcement 1 screw (B2 × 5) 2 five screws (B2 × 7) 5 two screws (B2 × 3) 6 lug bracket L409 4 cabinet (upper) sub assy 3 claw 3 three claws 3 two claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – INSTALLATION OF MAIN BOARD When installing MAIN board, adjust the S803, 804 and knobs (AVLS, HOLD) S804 MAIN board mechanism deck section S803 knob (AVLS) cabinet (lower) knob (HOLD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SECTION 4 ELECTRICAL ADJUSTMENTS The CD section adjustments are done automatically in this set. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC4.5 V in DC IN jack. (J401) VOLUME button: Minimum AVLS switch : NORM HOLD switch : OFF Checking Location: – MAIN board (Side A) – Focus bias Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test points TP601 (RF) and TP404 (GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) VOLT/DIV : 100 mV (With the 10:1 probe in use) TIME/DIV : 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch- ing. 5. Stop revolving of the disc motor by pressing the x button. oscilloscope (AC range) + – MAIN board TP601 (RF) TP (GND) 2 k Ω RF level 0.35 to 0.55 Vp-p TP601 (RF) TP404 (GND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E990/EJ915 – 9 – – 10 – SECTION 5 DIAGRAMS 5-1. BLOCK DIAGRAM – MAIN Section (1/2) – 05 RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER IC601 DIGITAL OUT LPF SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK SERVO BLOCK MDS MDP SENS SCOR SDTO XTAI XTAO RFAC XSOE R4M XLAT CLOK DOUT XRAS XWE XCAS XOE LOUT1 LOUT2 AMUTE FOK SFDR XRST RFDC B A D0-D3 A0-A10 WDCK WFCK XTAO XTAI E F SRDR TRDR FRDR FFDR TFDR 59 F 62 61 A B 58 71 RFDC RFAC E LASER DIODE OPTICAL PICK-UP BLOCK DAX-22E (EXCEPT US) DAX-22EG (US) (Page 13) (Page 13) (Page 13) A A B RF E F B RF E F PD PD LD LD DETECTOR VCC X601 16.9MHz A B 60 2, 3, 24, 25 9 - 12, 15 - 19, 21, 8 5 4 23 22 D-RAM IC602 DQ1-DQ4 A0-A10 XRAS DOUT XWE XCAS XOE I J K L CONTROLLER, PREDRIVER 46 47 SFDR SRDR 50 51 FFDR FRDR 48 49 39 40 37 38 16 17 31 29 35 33 27 25 TFDR TRDR M901 (SLED) (FOCUS) (TRACKING) FI2 RI2 FI1 RI1 FI3 FI3 FO2 RO2 FO1 RO1 FO3 RO3 FOCUS/TRACKING COIL DRIVER SLED MOTOR DRIVER IC401 (2/2) M 78 83 28 26 30 35 24 25 23 3 26 35 11 44 43 10 12 25 MODE CONTROL ROTATION DETECTOR BEMF SEPARATOR PREDRIVER FEEDBACK PATTERN GENERATOR OR PHASE/PWM DECODER 44 MDS 43 MDP 17 SCOR 42 4 1 3 2 23 24 25 14 16 18 20 45 27 41 22 C176 FOK R4M XIN 42 XHGON 39 HOLD 21 OPEN XSOE WDCK WFCK SDTD SENS CLOK XLAT XSOE GRSCOR FOKI WFCKI SDTD SCOR SDTI SCK XLAT + BUFFER IC403 SYNC 8 9 12 7 RST DATA LTCH CLK OEB PWM POL FG + + U1 V1 W1 COM U V W VG VG SPINDLE MOTOR DRIVER IC402 M902 (SPINDLE) FG DRVLT XSPDOE C HOLD OFF VCPU 2V S801 (OPEN) OPTICAL PICK-UP POWER ON SWITCH Q411 VDD 2V SYSTEM CONTROLLER IC801 (1/3) 79 SDTO SCK E D F G SYNC RST M 2-AXIS DEVICE CPU INTERFACE S804 HOLD 13 21 85 116, 115, 118, 117 109 - 106, 7 - 5, 3 -1, 111 97 104 94 93 113 114 119 120 AMUTE XRST R4M (Page 11) (Page 11) (Page 11) (Page 11) (Page 11) (Page 13) (Page 13) (Page 13) (Page 13) • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) V U W 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E990/EJ915 – 11 – – 12 – 5-2. BLOCK DIAGRAM – MAIN Section (2/2) – 47 76 14 7 9 28 38 19 18 B+ SWITCH Q601 LINE MUTE CONTROL SWITCH Q302 XDOUTON XHPSW SEL AMUTE XRST BEEP AVLS RMKEY KEY SYSTEM CONTROLLER IC801(2/3) D601 D602 VCC 3V (LINE OUT JACK) J301 LINE OUT (OPTICAL) OPTICAL TRANSCEIVER VCPU +2V TSB RMKEY GND J302 i / REMOTE S802 – 809 4 3 2 1 VCPU +2V OFF ON S803 AVLS VCPU 2V IN_L IN_R HEADPHONE AMP IC351 14 ANALOG SWITCH IC302 1 7 2 15 OUT_L OUT_R 8 6 PW_SW MT_SW 19 BEEP 17 PW SW BEEP MT SW 20 6 3 5 TAP802 (TEST) LOUT1 LOUT2 I J K L 31 RMDATI 32 RMDATO 30 RMSCK 34 RMLAT 33 RMRW 78 MICRO COMPUTER INTERFACE REMOTE CONTROL INTERFACE 18 RW 17 XLT 16 SCK 15 19 SO TSB 14 1SI 10 MCLK 11 05 COMMUNICATION FORMAT CONVERTER IC802 M H RSTB D415 (Page 10) DOUT (Page 10) (Page 10) AMUTE (Page 10) XRST (Page 10) (Page 13) R4M RST RESET MUTING Q301 • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E990/EJ915 – 13 – – 14 – – 15 – 5-3. BLOCK DIAGRAM – POWER SUPPLY Section – D-RAM (IC602) 2V LINEAR CONSTANT CURRENT, CONSTANT VOLTAGE CHARGING BATTERY CHARGE CIRCUIT CHARGING BATTERY VOLTAGE DETECTOR CIRCUIT SAWTOOTH WAVEFORM OCCURRENCE CIRCUIT UP SIDE PRE-DRIVER SWITCHING POWER CIRCUIT 2 WAKE UP SWITCH Q409, 413, Q416 LASER VOLTAGE LIMITER Q412 B+ SWITCH Q602 RIPPLE FILTER Q406 CHARGE CONTROL Q402, 407 CHARGE ON SWITCH Q403, 404 EXTERNAL BATTERY SWITCH Q408 B+ SWITCH Q401, 405 SWITCHING Q414 SWITCHING POWER CIRCUIT 1 LENEAR REGULATOR SYSTEM CONTROL, INPUT/OUTPUT VG POWER CIRCUIT LOW VOLTAGE DETECTOR CLOCK 57 51 52 43 44 42 45 63 41 CHG SW RF4 INM4 RF21 RF21 RF2 RF2 VC VC VCP VCP BATM1 INM2 INM2 APCREF APCREF PAPC PA PC MODE2 MODE2 MODE1 MODE1 WAKEUP LATCHC DATA CLOCK DATA CLOCK VLG2O SYNC 14 13 67 8 7 3 12 48 47 15 2 55 59 50 46 49 4 56 11 SDTO SCK PD 13 LD D F G B A H SYNC DTC2D DTC2D DTC1D DTC1D INP1 INP1 RS DC IN V IN RF4 INM4 RS CHGSW V IN DC IN LATCHC WAKEUP VLG1O BATM1 BATM2 CHGMNT CHGMNT VLG2O VLG1O VG L4 9 6 VG L4 RSTB SLPOUT 8 VCC2_ON 46 XPOWLT 15 CHGMNT1 20 DCINMNT 40 EX_BATT 17 BATMNT 6 5 VCC_SWITCHING XLEDDISP 48 XAPC_OFF 4 AGCCON SYSTEM CONTROLLER IC801 (3/3) RSTB RST 05 58 VCC 2V VCPU 2V D408 CHG/HOLD D416 D411 VCC 2V D404 D402 D406 D410 D401 RECHARGEABLE BATTERY NH-14WM 2PCS. 2.4V 3V, SPINDLE MOTOR DRIVER (IC402) 3V, HEADPHONE AMP (IC351) 3V DC IN 4.5V – + J401 (1/2) J401 (2/2) EXT BATT VG VCC 3V CHARGE LOW BATTERY DETECTOR IC404 E C POWER CONTROL IC401 (1/2) (Page 9) (Page 9) (Page 9) (Page 10) (Page 10) (Page 10) (Page 11) (Page 10) Q603 DVDD 1 IC401 qd CLOCK, IC402 9 CLK IC601 wg CLOK, IC801 q; SCK 2 V/DIV, 2 µs/DIV 2 IC601 e; R4M 500 mV/DIV, 200 ns/DIV 3 IC601 rd MDP (CD PLAY) 1 V/DIV, 2 µs/DIV 4 IC601 ua RFAC (CD PLAY) 100 mV/DIV, 500 ns/DIV 5 IC601 ih LRCK 1 V/DIV, 20 µs/DIV 6 IC601 o; BCK 1 V/DIV, 200 ns/DIV 7 IC601 of XTAO 500 mV/DIV, 50 ns/DIV 8 IC801 ul XIN, IC802 q; MCLK 500 mV/DIV, 200 ns/DIV 2.1 Vp-p 1.9 µs 2.1 Vp-p 472 ns 2.1 Vp-p 236 ns 2.1 Vp-p 59 ns 2.1 Vp-p 3.8 µs 2.1 Vp-p 236 ns 350 – 550 mVp-p 2.1 Vp-p 22.6 µs • Waveforms w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E990/EJ915 05 B C D E F G H I J K 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 A – 16 – – 17 – – 18 – 5-4. PRINTED WIRING BOARD • Semiconductor Location Ref. No. Location Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. • MAIN board is multi-layer printed board. However, the patterns of intermediate-layer have not been included in the diagram. D401 H-8 D402 J-6 D403 K-16 D404 I-7 D405 B-5 D406 I-8 D408 J-7 D409 J-17 D410 H-19 D411 I-15 D412 J-16 D413 J-18 D414 I-14 D415 H-18 D416 I-19 D601 D-20 D602 D-20 IC302 C-20 IC351 G-13 IC401 J-16 IC402 J-17 IC403 J-17 IC404 I-14 IC601 D-19 IC602 E-20 IC801 F-19 IC802 H-20 Q301 C-2 Q302 D-20 Q401 H-14 Q402 I-14 Q403 H-8 Q404 H-8 Q405 H-14 Q406 I-5 Q407 I-14 Q408 H-18 Q409 J-16 Q411 C-4 Q412 J-14 Q413 J-16 Q414 H-14 Q416 H-18 Q601 F-20 Q602 J-18 Q603 J-18 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E990/EJ915 – 19 – – 20 – – 21 – – 22 – 5-5. SCHEMATIC DIAGRAM • See page 15 for Waveforms. • See page 23 for IC Block Diagrams. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • U : B+ Line. • Power voltage is dc 4.5 V and fed with regulated dc power supply from DC IN jack (J401). • Voltages and waveforms are dc with respect to ground in playback mode. no mark : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD PLAY (ANALOG OUT) c : CD PLAY (OPTICAL OUT) • Abbreviation FR : French model Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. (US) (EXCEPT US) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – – 24 – – 25 – – 26 – • IC Block Diagrams IC351 TA2120FN (EL) IC402 MPC17H71MTAEL + – + – + – 23 20 19 18 17 16 15 14 13 2 3 4 5 6 7 8 9 10 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW OUT B OUT A BEEP IN BST PW B PW C BST NF ADD OUT RF IN PWC SW OUT B OUT C OUT A PWR GND MIX OUT ALC IN ALC DET ATT SW IN A IN B GND MT TC MT SW PW SW BIAS BIAS IN BST SW BST OUT VCC ADDA ADDB 21 22 PW A ALC ALC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26 29 30 27 28 17 16 MODE CONTROL ROTATION DETECTOR MODE CLOCK REGULATOR HOLD PWM REGULATOR MODE TIME REGULATOR CLOCK DIVIDER STATE MACHINE STARTUP PATTERN GENERATOR PATTERN REGULATOR SEQUENCER CPU INTERFACE SERIAL PORT PARALLEL INTERFACE OPERATION MODE OPERATION MODE REGULATOR TEST MODE REGULATOR PREDRIVER FEEDBACK PATTERN GENERATOR BEMF SEPARATOR OVERFLOW REGULATOR PHASE DELAY REGULATOR FEEDBACK RESISTOR PHASE DECODER PWM DECODER FG SYNC PWM POL TEST RST DATA LTCH CLK VC AGND OEB VDU U PGDUV V VDVW W PGDW VG DGND W1 OE WP VP UP BEMF DETECT V1 U1 COM TST0 TST1 TST2 TST3 NC IC401 MPC17A52ZFTA IC601 CXD3027R 21 22 23 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 71 70 69 68 72 PREDRIVER H BRIDGE ON H BRIDGE ON H BRIDGE ON SYSTEM CONTROL, INPUT/OUTPUT CONTROLLER VG VC VC VC VC VC VC VC VC VC VG VG VG VG VG VG DCIN VC VC VIN VC VG VC VG VIN VIN VC DCIN VG VG D1 (DRV MUTE) 25 26 27 28 24 29 30 31 32 33 34 35 36 37 38 39 40 PREDRIVER CLOCK CONTROLLER 41 42 43 44 50 51 52 53 54 46 45 47 48 49 SWITCHING POWER CIRCUIT 2 SWITCHING POWER CIRCUIT 3 BAND GAP REFERENCE SUB REFERENCE PRE- DRIVER DOWN SIDE PRE-DRIVER DOWN SIDE PRE-DRIVER UP SIDE PRE-DRIVER UP SIDE PRE-DRIVER SAW TOOTH WAVEFORM OCCURRENCE CIRCUIT LINEAR, CONSTANT CURRENT, CONSTANT VOLTAGE CHARGING BATTERY CHARGE CIRCUIT SWITCHING POWER CIRCUIT 1 CHARGING BATTERY VOLTAGE DETECTOR CIRCUIT LINEAR REGULATOR VG POWER CIRCUIT VC 67 66 65 64 63 62 61 60 59 58 57 56 55 LOW VOLTAGE DETECTOR HPI2 HPOUT2 HPOUT1 VHP VD3 VD23 RO2 MGND2 FO2 VD12 RO1 MGND1 FO1 VD1 RO3 FO3 MGND3 HPGND VLG3 RF21 PAPC APCREF VREF L4 RF2 INM2 VG GND SYNC WAKEUP CLOCK DATA LATCHC FI3 RI3 HPI1 FI1 RI1 FI2 RI2 CHGSW RS INM4 RF4 DCIN DCIN VC VCP RSTB MODE1 MODE2 DTC2D DTC1D INM1 RF1 INP1 CHGMNT BATM2 BATM1 VLG1O L1L PGND1 L1H VIN L2H PGND2 L2L VLG2O PGND3 L3 DTC3 RF3 INM3 D2 (H BRIDGE/HEADPHONE) D3 (HPON) ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE A0 – A11 SYSM AMUTE HPL HPM HPR PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI LOCK MDP SDTI SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0 IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 A VDD A GND D VDD AVDD0 IGEN AVSS0 RFDC E F RFDC E F B A VC CLTV XPCK A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI XQCK SCSY SCOR VSS0 SBSO EXCK XRST SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP IC602 MSM51X17400D-10TFSR1 IC802 CXD751-103R ON CHIP VBB GENERATOR TIMING GENERATOR TIMING GENERATOR REFRESH CONTROL CLOCK INTERNAL ADDRESS COUNTER COLUMN ADDRESS BUFFER 11 COLUMN DECODER ROW ADDRESS BUFFER ROW DECODER WORD DRIVER WRITE CLOCK GENERATOR 1 2 3 4 5 6 7 9 8 10 11 12 13 25 26 24 23 22 11 4 4 4 11 5 11 11 18 19 17 16 15 14 20 21 MEMORY CELLS SENS AMPLIFIER I/O SELECTOR OUTPUT BUFFER 4 4 4 6 INPUT BUFFER VCC DQ1 DQ2 XWE XRAS NC A10 A0 A1 A2 A3 VCC DQ4 VSS DQ3 XCAS XOE A9 A8 A7 A6 A5 A4 VSS 2 2 25 26 27 28 29 30 31 32 16 15 14 13 12 11 10 9 BIT SELECT SERIAL PARALLEL CONVERTER TSB SIGNAL ENCODER DECODER 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 PO26 PO27 NC NC VSS2 TSB RW SEL22 SEL20 VSS0 XLT2 SO2 SCK2 REQ SEL21 XLT SCK SO 1SI VDD0 VSS1 RST MCLK BUSY PO25 PO24 PO23 VSS3 VDD1 PO22 PO21 PO20 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – 5-6. IC PIN FUNCTION DESCRIPTION • IC801 (SYSTEM CONTROLLER) TMP88CM22F-1A35 (EXCEPT US), TMP88CM22F-1A42 (US) Pin No. Pin Name I/O Description 1 VSS — Ground terminal 2 IRRMC I Not used (Fixed at “L”) 3 FOKI I Focus OK signal input from the digital servo processor (IC601) “L”: NG, “H”: OK 4 AGCCON O AGC control pulse signal output terminal 5 XLEDDISP O CHG/HOLD LED control signal output terminal 6 VCC SWITCHING O Control signal output terminal for the switching power supply circuit 7 AMUTE O Analog audio muting ON/OFF control signal output terminal “H”: muting ON 8 VCC2 ON O VCC2 voltage control signal output terminal 9 XRST O Reset signal output to the CXD3027R (IC601) “L”: reset 10 SCK O Serial data transfer clock signal output to the CXD3027R (IC601) 11 SDTI I Serial data input from the CXD3027R (IC601) 12 SDTO O Serial data output to the CXD3027R (IC601) 13 SLPOUT O WAKE-UP control signal output terminal (for system standby reset) 14 SEL I Plug-in detection signal input terminal of LINE OUT/OPTICAL OUT 15 CHGMNT1 I Battery charge voltage detection input from the power control (IC401) 16 VCDKEY I Key input terminal Not used (Fixed at “H”) 17 BATMNT I Battery voltage detection signal input terminal 18 KEY I Key input from the S802, S805 to S809 (u, >, ., x, VOLUME +/–) (A/D input) 19 RMKEY I Key input from the headphone with remote commander (A/D input) 20 DCINMNT I DC input voltage detection input terminal (A/D input) and DC input jack use/no use detection input terminal 21 OPEN I CD door open/close detection switch (S801) input terminal The stop status is reset with the falling edge of input signal 22 VREFL I Reference voltage input terminal (0V) for A/D converter 23 VREFH I Reference voltage input terminal (+2V) for A/D converter 24 VDD — Power supply terminal (+2V) 25 SCOR I Sub-code sync (S0+S1) detection signal input from the CXD3027R (IC601) 26 GRSCOR I GRSCOR signal input from the CXD3027R (IC601) 27 FG I FG pulse signal input from the spindle motor driver (IC402) 28 BEEP O Beep sound output to the headphone amplifier (IC351) 29 NC — Not used (open) 30 RMSCK O Communication clock output to the communication format converter (IC802) 31 RMDATI I Communication data bus input of headphone with remote commander from the communication format converter (IC802) 32 RMDATO O Communication data bus output of headphone with remote commander to the communication format converter (IC802) 33 RMRW O Read/write control signal output of headphone with remote commander to the communication format converter (IC802) “L”: read mode, “H”: write mode 34 RMLAT O Serial data latch pulse signal output of headphone with remote commander to the communication format converter (IC802) 35 WFCKI I WFCK signal input from the CXD3027R (IC601) 36 NC — Not used (open) (Only US model: pull up) 37 SL8CM I Not used (Fixed at “H”) 38 AVLS I AVLS (Automatic Volume Limiter System) switch (S803) input terminal “L”: normal mode, “H”: limit mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – Pin No. Pin Name I/O Description 39 HOLD I HOLD switch (S804) input terminal “L”: hold ON, “H”: hold OFF 40 EX BATT I External battery detection signal input terminal 41 XSPDOE O Control signal output to the spindle motor driver (IC402) 42 XOE O Optical pick-up power ON/OFF control signal output terminal “L”: ON 43 XLAT O Serial data latch pulse signal output to the CXD3027R (IC601) 44 XSOE O Serial data output enable signal output terminal 45 DRVLT O Latch signal output to the spindle motor driver (IC402) 46 XPOWLT O Latch signal output to the power control (IC401) 47 XDOUTON O Digital output LED control signal output terminal “L”: ON 48 XAPC OFF O APC mute signal output terminal “L”: mute 49 NC — Not used (open) 50 to 64 SEG14 to SEG0 O Segment drive signal output to the liquid crystal display Not used (open) 65 to 68 COM3 to COM1 O Common drive signal output to the liquid crystal display Not used (open) 69 to 71 V3 to V1 O Bias signal output to the liquid crystal display driver Not used 72, 73 C1, C0 O Capacitor connected terminal for the liquid crystal display driver voltage-up 74 STOP O VCD control stop signal output terminal Not used (Fixed at “L”) 75 TEST I Test terminal for IC (Fixed at “L”) 76 XHPSW O ON/OFF control signal output to the headphone amplifier (IC351) 77 XLIGHT O LCD back light control signal output to the liquid crystal display Not used (Fixed at “L”) 78 RESET I System reset signal input from the power control (IC401) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 79 XIN I System clock input terminal 80 XOUT O System clock input terminal Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – (1) CABINET SECTION-1 SECTION 6 EXPLODED VIEWS Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • Abbreviation CH : Chinese model CND : Canadian model E13 : 220 – 230 V AC area in E model E33 : 100 – 240 V AC area in E model FR : French model G : German model HK : Hong Kong model JE : Tourist model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4952-197-1 CABINET (UPPER) SUB ASSY 2 4-224-036-01 LEVER, DETECTION 3 4-224-035-01 SPRING (OPEN) 4 4-224-031-01 KNOB (OPEN) 5 4-908-792-51 SCREW (B2) 6 4-224-026-01 TERMINAL BOARD (RELAY), BATTERY 7 4-224-044-01 SHEET (UPPER), BATTERY 8 X-4952-199-1 LID ASSY, BATTERY CASE 9 X-4952-434-1 LID ASSY, UPPER (EJ915:AEP, UK, FR, G) 9 X-4952-206-1 LID ASSY, UPPER (E990/EJ915:US, CND, E13, E33, HK, CH) 10 4-224-227-01 SPACER 11 4-908-792-91 SCREW (B2) 12 4-224-032-01 PLATE, CLICK 13 3-318-382-91 SCREW (1.7X2.5), TAPPING 14 4-224-046-01 BRACKET 15 4-908-792-01 SCREW (B2) 16 4-224-029-01 BUTTON (FF) 17 4-224-030-01 BUTTON (PLAY) 18 4-224-028-01 BUTTON (VOL) 19 3-044-608-01 REINFORCEMENT not supplied 1 2 3 4 6 5 7 8 9 10 11 19 12 13 16 14 15 16 17 18 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – (2) CABINET SECTION-2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-224-048-01 FOOT, RUBBER 52 4-224-039-01 CABINET (LOWER) (E990) 52 4-224-039-11 CABINET (LOWER) (EJ915: US, CND, AEP, UK, E33, FR, G) 52 4-224-039-21 CABINET (REAR) (EJ915: E13, HK, CH) 53 4-224-040-01 KNOB (HOLD) 54 4-224-024-01 TERMINAL BOARD (+), BATTERY 55 4-224-025-01 TERMINAL BOARD (-), BATTERY 56 4-224-045-01 SHEET (LOWER), BATTERY 57 4-221-927-11 INSULATOR 58 3-318-201-01 SCREW (B) (1.4X3), TAPPING 59 A-3323-345-A MAIN BOARD, COMPLETE (CND, AEP, UK, E13, E33, G, HK, CH) 59 A-3323-360-A MAIN BOARD, COMPLETE (FR) 59 A-3323-458-A MAIN BOARD, COMPLETE (US) 60 4-984-751-01 KNOB (AVLS) CDM-3022EBA (EXCEPT US) CDM-3022EBG (US) 51 52 53 54 55 56 57 57 57 51 58 59 60 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – (3) MECHANISM DECK SECTION (CDM-3022EBA EXCEPT US) (CDM-3022EBG US) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0101 X-3378-495-1 OPTICAL PICK-UP (DAX-22EG) (US) 0101 X-4952-079-1 OPTICAL PICK-UP (DAX-22E) (EXCEPT US) 102 3-704-197-92 SCREW (M1.4X1.8), LOCKING 103 4-220-645-01 SHAFT, STANDARD 104 4-220-646-01 RACK 105 A-3328-298-A SCREW ASSY, FEED 106 3-338-645-31 WASHER (0.8-2.5) 107 3-686-458-03 SCREW (P1.4X3.5), TAPPING 108 4-220-648-01 GEAR (C) 109 X-4951-688-1 BRACKET ASSY, SLED 110 3-348-998-61 SCREW (M1.4X4), TAPPING, PAN 111 X-4951-687-1 BASE ASSY, SLED M901 A-3328-299-A MOTOR BLOCK ASSY, SLED M902 A-3328-418-A CHASSIS ASSY 102 110 110 106 108 109 111 107 105 101 104 103 M901 M902 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN A-3323-345-A MAIN BOARD, COMPLETE (CND, AEP, UK, E13, E33, G, HK, CH) A-3323-360-A MAIN BOARD, COMPLETE (FR) A-3323-458-A MAIN BOARD, COMPLETE (US) ********************* 4-224-024-01 TERMINAL BOARD (+), BATTERY 4-224-025-01 TERMINAL BOARD (-), BATTERY 4-224-045-01 SHEET (LOWER), BATTERY < CAPACITOR > C101 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C102 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C103 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C104 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C161 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C163 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C201 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C202 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C203 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C204 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C261 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C263 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C301 1-117-720-11 CERAMIC CHIP 4.7uF 10V C304 1-164-156-11 CERAMIC CHIP 0.1uF 25V C306 1-115-156-11 CERAMIC CHIP 1uF 10V C307 1-127-569-11 TANTALUM CHIP 100uF 20% 4V C308 1-164-156-11 CERAMIC CHIP 0.1uF 25V C361 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C362 1-115-156-11 CERAMIC CHIP 1uF 10V C363 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C364 1-115-156-11 CERAMIC CHIP 1uF 10V C365 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C401 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C403 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V C404 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V C405 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V C406 1-164-156-11 CERAMIC CHIP 0.1uF 25V C407 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C408 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C409 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation CH : Chinese model CND : Canadian model E13 : 220 – 230 V AC area in E model E33 : 100 – 240 V AC area in E model FR : French model G : German model HK : Hong Kong model JE : Tourist model C410 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C412 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C413 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C414 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C415 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C416 1-115-156-11 CERAMIC CHIP 1uF 10V C417 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C418 1-164-156-11 CERAMIC CHIP 0.1uF 25V C419 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C420 1-115-156-11 CERAMIC CHIP 1uF 10V C421 1-113-682-11 TANTALUM CHIP 33uF 20% 10V C422 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C423 1-164-156-11 CERAMIC CHIP 0.1uF 25V C424 1-164-156-11 CERAMIC CHIP 0.1uF 25V C425 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C426 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C427 1-115-156-11 CERAMIC CHIP 1uF 10V C428 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C429 1-113-682-11 TANTALUM CHIP 33uF 20% 10V C430 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C431 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C432 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C433 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V C435 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C436 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V C437 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C438 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C442 1-115-156-11 CERAMIC CHIP 1uF 10V C443 1-115-156-11 CERAMIC CHIP 1uF 10V C444 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C445 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C448 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C449 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C450 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C451 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C452 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C453 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C454 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C455 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C456 1-115-156-11 CERAMIC CHIP 1uF 10V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C457 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C458 1-115-156-11 CERAMIC CHIP 1uF 10V C462 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V C602 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C604 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C605 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C606 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C607 1-164-156-11 CERAMIC CHIP 0.1uF 25V C608 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C609 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C611 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C612 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C613 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C614 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C615 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C616 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C617 1-115-156-11 CERAMIC CHIP 1uF 10V C618 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C619 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C620 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C621 1-164-156-11 CERAMIC CHIP 0.1uF 25V C622 1-115-156-11 CERAMIC CHIP 1uF 10V C623 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C624 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C626 1-115-156-11 CERAMIC CHIP 1uF 10V C630 1-164-156-11 CERAMIC CHIP 0.1uF 25V C631 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C801 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C802 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C803 1-117-720-11 CERAMIC CHIP 4.7uF 10V C804 1-165-128-11 CERAMIC CHIP 0.22uF 16V C805 1-165-128-11 CERAMIC CHIP 0.22uF 16V C806 1-165-128-11 CERAMIC CHIP 0.22uF 16V C807 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C808 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-164-156-11 CERAMIC CHIP 0.1uF 25V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C813 1-115-156-11 CERAMIC CHIP 1uF 10V C819 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN501 1-573-922-21 CONNECTOR, FFC/FPC (ZIF) 13P * CN502 1-785-877-21 HOUSING, CONNECTOR 4P CN503 1-784-342-21 HOUSING, CONNECTOR 2P < DIODE > D401 8-719-049-09 DIODE 1SS367-T3SONY D402 8-719-058-24 DIODE RB501V-40TE-17 D403 8-719-977-40 DIODE DTZ13B D404 8-719-049-09 DIODE 1SS367-T3SONY D405 8-719-077-01 DIODE CRS03 (TE85L) D406 8-719-077-01 DIODE CRS03 (TE85L) D408 8-719-078-28 LED SML-010LT-T86 (CHG/HOLD) D409 8-719-049-09 DIODE 1SS367-T3SONY D410 8-719-049-09 DIODE 1SS367-T3SONY D411 8-719-049-09 DIODE 1SS367-T3SONY D412 8-719-049-09 DIODE 1SS367-T3SONY D413 8-719-049-09 DIODE 1SS367-T3SONY D414 8-719-049-09 DIODE 1SS367-T3SONY D415 8-719-049-09 DIODE 1SS367-T3SONY D416 8-719-049-09 DIODE 1SS367-T3SONY D601 8-719-049-09 DIODE 1SS367-T3SONY D602 8-719-049-09 DIODE 1SS367-T3SONY < FERRITE BEAD/RESISTOR > FB101 1-216-864-11 METAL CHIP 0 5% 1/16W FB102 1-216-864-11 METAL CHIP 0 5% 1/16W FB201 1-216-864-11 METAL CHIP 0 5% 1/16W FB202 1-216-864-11 METAL CHIP 0 5% 1/16W FB301 1-216-864-11 METAL CHIP 0 5% 1/16W FB302 1-414-760-21 FERRITE 0uH FB303 1-216-295-00 SHORT 0 FB305 1-216-295-00 SHORT 0 FB401 1-216-864-11 METAL CHIP 0 5% 1/16W FB601 1-500-238-22 FERRITE 0uH FB602 1-216-864-11 METAL CHIP 0 5% 1/16W FB603 1-216-864-11 METAL CHIP 0 5% 1/16W FB801 1-216-864-11 METAL CHIP 0 5% 1/16W < IC > IC302 8-759-488-29 IC TC7W66FU (TE12R) IC351 8-759-522-87 IC TA2120FN (EL) IC401 8-759-655-73 IC MPC17A52ZFTA IC402 8-759-594-58 IC MPC17H71MTAEL IC403 8-759-594-55 IC TC75S57F (TE85R) IC404 8-759-653-10 IC XC61AN2402MR IC601 8-752-398-18 IC CXD3027R IC602 8-759-594-56 IC MSM51X17400D-10TFSR1 IC801 8-759-647-93 IC TMP88CM22F-1A35 (EXCEPT US) IC801 8-759-658-92 IC TMP88CM22F-1A42 (US) IC802 8-752-397-55 IC CXD751-103R < JACK > J301 1-793-659-11 JACK, OPTICAL OUT (LINE OUT (OPTICAL)) J302 1-793-288-21 JACK (i/REMOTE) J401 1-793-156-12 JACK, DC (EXT BATT/DC IN 4.5V) < COIL/RESISTOR > L301 1-216-295-00 SHORT 0 L302 1-216-295-00 SHORT 0 L304 1-216-295-00 SHORT 0 L305 1-216-295-00 SHORT 0 L401 1-414-398-11 INDUCTOR 10uH L402 1-419-189-21 INDUCTOR 150uH L403 1-419-188-21 INDUCTOR 100uH L404 1-414-398-11 INDUCTOR 10uH L405 1-414-404-41 INDUCTOR 100uH L406 1-414-404-41 INDUCTOR 100uH L407 1-414-435-21 INDUCTOR 220uH L408 1-414-404-41 INDUCTOR 100uH L409 1-414-392-41 INDUCTOR 1uH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN L410 1-414-402-11 INDUCTOR 47uH L411 1-414-402-11 INDUCTOR 47uH L412 1-414-392-41 INDUCTOR 1uH L413 1-216-864-11 METAL CHIP 0 5% 1/16W L414 1-216-864-11 METAL CHIP 0 5% 1/16W L415 1-216-295-00 SHORT 0 L601 1-216-864-11 METAL CHIP 0 5% 1/16W L602 1-414-521-11 INDUCTOR CHIP 10uH L603 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q301 8-729-043-90 TRANSISTOR IMX9T110 Q302 8-729-930-00 TRANSISTOR UMD2 Q401 8-729-023-89 FET 2SJ305 (TE85L) Q402 8-729-921-73 TRANSISTOR 2SD1781K-QR Q403 8-729-231-74 TRANSISTOR 2SC4116GL Q404 8-729-921-93 TRANSISTOR 2SB1182F5-QR Q405 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q406 8-729-047-36 FET CPH3303-TL Q407 8-729-028-26 FET 2SK1829 (TE85L) Q408 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q409 8-729-029-10 TRANSISTOR DTC143TUA-T106 Q411 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q412 8-729-230-60 TRANSISTOR 2SA1586-YG Q413 8-729-028-76 TRANSISTOR DTA114YUA-T106 Q414 8-729-231-74 TRANSISTOR 2SC4116-GL Q416 8-729-230-63 TRANSISTOR 2SC4116-YG Q601 8-729-028-86 TRANSISTOR DTA143EUA-T106 Q602 8-729-028-76 TRANSISTOR DTA114YUA-T106 Q603 8-729-907-00 TRANSISTOR DTC114EU < RESISTOR > R101 1-218-875-11 METAL CHIP 15K 0.5% 1/16W R102 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R103 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R104 1-216-831-11 METAL CHIP 6.8K 5% 1/16W (EXCEPT FR) R104 1-216-843-11 METAL CHIP 68K 5% 1/16W (FR) R105 1-216-815-11 METAL CHIP 330 5% 1/16W R106 1-216-813-11 METAL CHIP 220 5% 1/16W R107 1-216-845-11 METAL CHIP 100K 5% 1/16W R108 1-216-821-11 METAL CHIP 1K 5% 1/16W R109 1-216-845-11 METAL CHIP 100K 5% 1/16W R161 1-216-793-11 RES, CHIP 4.7 5% 1/16W R162 1-216-821-11 METAL CHIP 1K 5% 1/16W R201 1-218-875-11 METAL CHIP 15K 0.5% 1/16W R202 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R203 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R204 1-216-831-11 METAL CHIP 6.8K 5% 1/16W (EXCEPT FR) R204 1-216-843-11 METAL CHIP 68K 5% 1/16W (FR) R205 1-216-815-11 METAL CHIP 330 5% 1/16W R206 1-216-813-11 METAL CHIP 220 5% 1/16W R207 1-216-845-11 METAL CHIP 100K 5% 1/16W R208 1-216-821-11 METAL CHIP 1K 5% 1/16W R209 1-216-845-11 METAL CHIP 100K 5% 1/16W R261 1-216-793-11 RES, CHIP 4.7 5% 1/16W R262 1-216-821-11 METAL CHIP 1K 5% 1/16W R301 1-216-851-11 METAL CHIP 330K 5% 1/16W R302 1-216-851-11 METAL CHIP 330K 5% 1/16W R303 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R304 1-216-821-11 METAL CHIP 1K 5% 1/16W R305 1-216-821-11 METAL CHIP 1K 5% 1/16W R308 1-216-807-11 METAL CHIP 68 5% 1/16W R401 1-216-853-11 METAL CHIP 470K 5% 1/16W R402 1-216-841-11 METAL CHIP 47K 5% 1/16W R403 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R404 1-218-888-11 METAL CHIP 51K 0.5% 1/16W R405 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R406 1-218-889-11 METAL CHIP 56K 0.5% 1/16W R407 1-216-839-11 METAL CHIP 33K 5% 1/16W R408 1-216-841-11 METAL CHIP 47K 5% 1/16W R409 1-216-833-11 RES, CHIP 10K 5% 1/16W R410 1-216-833-11 RES, CHIP 10K 5% 1/16W R411 1-216-847-11 METAL CHIP 150K 5% 1/16W R412 1-216-839-11 METAL CHIP 33K 5% 1/16W R414 1-218-917-11 METAL CHIP 820K 0.5% 1/16W R415 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R416 1-216-833-11 RES, CHIP 10K 5% 1/16W R417 1-216-811-11 METAL CHIP 150 5% 1/16W R418 1-216-304-11 METAL CHIP 3.3 5% 1/10W R419 1-216-298-00 METAL CHIP 2.2 5% 1/10W R420 1-216-298-00 METAL CHIP 2.2 5% 1/10W R421 1-216-845-11 METAL CHIP 100K 5% 1/16W R422 1-216-845-11 METAL CHIP 100K 5% 1/16W R423 1-216-857-11 METAL CHIP 1M 5% 1/16W R424 1-216-837-11 METAL CHIP 22K 5% 1/16W R426 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R427 1-216-837-11 METAL CHIP 22K 5% 1/16W R428 1-216-833-11 RES, CHIP 10K 5% 1/16W R429 1-216-864-11 METAL CHIP 0 5% 1/16W R430 1-216-841-11 METAL CHIP 47K 5% 1/16W R433 1-216-839-11 METAL CHIP 33K 5% 1/16W R434 1-216-864-11 METAL CHIP 0 5% 1/16W R436 1-216-864-11 METAL CHIP 0 5% 1/16W R438 1-216-864-11 METAL CHIP 0 5% 1/16W R439 1-216-864-11 METAL CHIP 0 5% 1/16W R440 1-216-864-11 METAL CHIP 0 5% 1/16W R441 1-216-864-11 METAL CHIP 0 5% 1/16W R442 1-216-845-11 METAL CHIP 100K 5% 1/16W R443 1-216-833-11 RES, CHIP 10K 5% 1/16W R444 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R445 1-216-864-11 METAL CHIP 0 5% 1/16W R446 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R447 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R448 1-216-864-11 METAL CHIP 0 5% 1/16W R449 1-216-809-11 METAL CHIP 100 5% 1/16W R450 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R452 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R453 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R454 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R455 1-216-853-11 METAL CHIP 470K 5% 1/16W R457 1-218-883-11 METAL CHIP 33K 0.5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R458 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R459 1-216-809-11 METAL CHIP 100 5% 1/16W R460 1-216-845-11 METAL CHIP 100K 5% 1/16W R461 1-216-841-11 METAL CHIP 47K 5% 1/16W R462 1-216-295-00 SHORT 0 R464 1-216-833-11 RES, CHIP 10K 5% 1/16W R465 1-216-841-11 METAL CHIP 47K 5% 1/16W R466 1-216-857-11 METAL CHIP 1M 5% 1/16W R467 1-216-821-11 METAL CHIP 1K 5% 1/16W R469 1-216-853-11 METAL CHIP 470K 5% 1/16W R470 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R471 1-216-841-11 METAL CHIP 47K 5% 1/16W R474 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R475 1-216-821-11 METAL CHIP 1K 5% 1/16W R476 1-216-851-11 METAL CHIP 330K 5% 1/16W R477 1-216-845-11 METAL CHIP 100K 5% 1/16W R480 1-216-841-11 METAL CHIP 47K 5% 1/16W R481 1-216-857-11 METAL CHIP 1M 5% 1/16W R601 1-216-833-11 RES, CHIP 10K 5% 1/16W R602 1-216-833-11 RES, CHIP 10K 5% 1/16W R603 1-216-839-11 METAL CHIP 33K 5% 1/16W R605 1-216-864-11 METAL CHIP 0 5% 1/16W R606 1-216-851-11 METAL CHIP 330K 5% 1/16W R607 1-216-857-11 METAL CHIP 1M 5% 1/16W R608 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R609 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R610 1-216-833-11 RES, CHIP 10K 5% 1/16W R611 1-216-845-11 METAL CHIP 100K 5% 1/16W R612 1-216-833-11 RES, CHIP 10K 5% 1/16W R613 1-216-864-11 METAL CHIP 0 5% 1/16W R614 1-216-841-11 METAL CHIP 47K 5% 1/16W R615 1-216-837-11 METAL CHIP 22K 5% 1/16W R616 1-216-845-11 METAL CHIP 100K 5% 1/16W R617 1-216-837-11 METAL CHIP 22K 5% 1/16W R618 1-216-845-11 METAL CHIP 100K 5% 1/16W R619 1-216-837-11 METAL CHIP 22K 5% 1/16W R621 1-216-837-11 METAL CHIP 22K 5% 1/16W R623 1-216-837-11 METAL CHIP 22K 5% 1/16W R624 1-216-845-11 METAL CHIP 100K 5% 1/16W R625 1-216-864-11 METAL CHIP 0 5% 1/16W R626 1-216-864-11 METAL CHIP 0 5% 1/16W R627 1-216-864-11 METAL CHIP 0 5% 1/16W R628 1-216-819-11 METAL CHIP 680 5% 1/16W R629 1-216-819-11 METAL CHIP 680 5% 1/16W R630 1-216-805-11 METAL CHIP 47 5% 1/16W R631 1-216-845-11 METAL CHIP 100K 5% 1/16W R632 1-216-845-11 METAL CHIP 100K 5% 1/16W R633 1-216-819-11 METAL CHIP 680 5% 1/16W R634 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R635 1-216-807-11 METAL CHIP 68 5% 1/16W R636 1-216-821-11 METAL CHIP 1K 5% 1/16W R637 1-216-864-11 METAL CHIP 0 5% 1/16W R801 1-216-845-11 METAL CHIP 100K 5% 1/16W R802 1-216-833-11 RES, CHIP 10K 5% 1/16W R804 1-216-809-11 METAL CHIP 100 5% 1/16W R805 1-216-845-11 METAL CHIP 100K 5% 1/16W R806 1-216-864-11 METAL CHIP 0 5% 1/16W R807 1-216-845-11 METAL CHIP 100K 5% 1/16W R808 1-216-845-11 METAL CHIP 100K 5% 1/16W R809 1-216-821-11 METAL CHIP 1K 5% 1/16W R810 1-216-833-11 RES, CHIP 10K 5% 1/16W R811 1-216-837-11 METAL CHIP 22K 5% 1/16W R813 1-216-833-11 RES, CHIP 10K 5% 1/16W R814 1-216-833-11 RES, CHIP 10K 5% 1/16W R815 1-216-864-11 METAL CHIP 0 5% 1/16W R816 1-216-864-11 METAL CHIP 0 5% 1/16W (US) R817 1-216-864-11 METAL CHIP 0 5% 1/16W R818 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R819 1-216-864-11 METAL CHIP 0 5% 1/16W R820 1-216-864-11 METAL CHIP 0 5% 1/16W R821 1-216-864-11 METAL CHIP 0 5% 1/16W R822 1-216-864-11 METAL CHIP 0 5% 1/16W R823 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R824 1-216-864-11 METAL CHIP 0 5% 1/16W R825 1-216-849-11 METAL CHIP 220K 5% 1/16W R826 1-216-864-11 METAL CHIP 0 5% 1/16W R827 1-216-857-11 METAL CHIP 1M 5% 1/16W R828 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R829 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R830 1-216-843-11 METAL CHIP 68K 5% 1/16W R831 1-216-864-11 METAL CHIP 0 5% 1/16W R832 1-216-841-11 METAL CHIP 47K 5% 1/16W R833 1-216-841-11 METAL CHIP 47K 5% 1/16W R834 1-216-821-11 METAL CHIP 1K 5% 1/16W R835 1-216-864-11 METAL CHIP 0 5% 1/16W R836 1-216-864-11 METAL CHIP 0 5% 1/16W R837 1-216-864-11 METAL CHIP 0 5% 1/16W R851 1-218-871-11 METAL CHIP 10K 0.5% 1/16W < SWITCH > S801 1-762-805-41 SWITCH, PUSH (1 KEY) (OPEN) S802 1-771-248-11 SWITCH, TACTILE (u) S803 1-762-078-11 SWITCH, SLIDE (AVLS) S804 1-762-078-11 SWITCH, SLIDE (HOLD) S805 1-771-248-11 SWITCH, TACTILE (.) S806 1-771-248-11 SWITCH, TACTILE (>) S807 1-771-248-11 SWITCH, TACTILE (x) S808 1-771-248-11 SWITCH, TACTILE (VOLUME +) S809 1-771-248-11 SWITCH, TACTILE (VOLUME -) < VARISTOR > VDR101 1-801-923-11 VARISTOR, CHIP VDR102 1-801-862-11 VARISTOR, CHIP VDR201 1-801-923-11 VARISTOR, CHIP VDR202 1-801-862-11 VARISTOR, CHIP VDR301 1-801-923-11 VARISTOR, CHIP VDR302 1-801-923-11 VARISTOR, CHIP VDR303 1-801-862-11 VARISTOR, CHIP < VIBRATOR > X601 1-767-605-11 VIBRATOR, LITHIUM TANTALATE (16.9MHz) ************************************************************** www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MISCELLANEOUS *************** 0101 X-3378-495-1 OPTICAL PICK-UP (DAX-22EG) (US) 0101 X-4952-079-1 OPTICAL PICK-UP (DAX-22E) (EXCEPT US) M901 A-3328-299-A MOTOR BLOCK ASSY, SLED M902 A-3328-418-A CHASSIS ASSY ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-418-608-11 CONTROL UNIT, REMOTE (RM-CD12EL) 0 1-467-195-12 ADAPTOR, AC (AC-E455A) (EJ915: US, CND) 0 1-467-550-24 ADAPTOR, AC (AC-E455A) (E990/EJ915: E33) 0 1-473-115-11 ADAPTOR, AC (AC-E455D) (EJ915: UK) 0 1-473-116-35 ADAPTOR, AC (AC-E455D) (EJ915: AEP, E13, FR, G) 0 1-475-622-13 ADAPTOR, AC (AC-E455) (EJ915: CH) 0 1-475-623-11 ADAPTOR, AC (AC-E455) (EJ915: HK) 1-756-036-11 BATTERY, NICKEL HYDROGEN (E990/EJ915: US) 1-569-007-11 ADAPTOR, CONVERSION 2P (E990/EJ915: E33) 1-756-008-11 CASE, BATTERY (E990/EJ915: US, CND, AEP, UK, E33, FR, G, HK, CH) 1-756-036-11 BATTERY, NICKEL HYDROGEN (EJ915: CND, AEP, UK, E13, E33, FR, G, HK, CH) 3-008-521-01 CASE, BATTERY CHARGE (E990/EJ915: US, CND, AEP, UK, E13, E33, G, HK, CH) 3-008-521-21 CASE, BATTERY CHARGE (EJ915: FR) 3-043-928-11 MANUAL, INSTRUCTION (ENGLISH) (EJ915: US) 3-867-738-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, CHINESE, KOREAN) (E990) 3-867-738-11 MANUAL, INSTRUCTION (SPANISH) (E990/EJ915: AEP, E33) 3-867-738-21 MANUAL, INSTRUCTION (ENGLISH) (E990/EJ915: US, CND, AEP, UK, E33, FR) 3-867-738-31 MANUAL, INSTRUCTION (FRENCH) (E990/EJ915: CND, AEP, FR) 3-867-738-41 MANUAL, INSTRUCTION (DUTCH) (EJ915: AEP) 3-867-738-51 MANUAL, INSTRUCTION (SWEDISH) (EJ915: AEP) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. Sony Corporation Personal Audio Company 9-927-188-11 99J0586-1 Printed in Japan C 1999. 10 Published by General Engineering Dept. D-E990/EJ915 3-867-738-61 MANUAL, INSTRUCTION (PORTUGUESE) (EJ915: AEP) 3-867-738-71 MANUAL, INSTRUCTION (GERMAN) (EJ915: AEP,G) 3-867-738-81 MANUAL, INSTRUCTION (ITALIAN) (EJ915: AEP) 3-867-738-91 MANUAL, INSTRUCTION (FINNISH) (EJ915: AEP) 3-867-739-11 MANUAL, INSTRUCTION (CHINESE) (EJ915: E13,HK) 3-867-739-21 MANUAL, INSTRUCTION (ENGLISH) (EJ915: E13, HK, CH) 3-867-739-31 MANUAL, INSTRUCTION (CHINESE) (EJ915: CH) 3-867-740-11 MANUAL, INSTRUCTION (RUSSIAN) (EJ915: AEP) 3-867-740-21 MANUAL, INSTRUCTION (CZECK) (EJ915: AEP) 3-867-740-31 MANUAL, INSTRUCTION (HUNGARIAN) (EJ915: AEP) 3-867-740-41 MANUAL, INSTRUCTION (POLISH) (EJ915: AEP) 3-867-740-51 MANUAL, INSTRUCTION (SLOVAKIAN) (EJ915: AEP) 3-044-132-01 CASE, CARRYING (US) 4-223-953-01 CASE (MIS), CARRYING (EXCEPT US) 8-953-276-90 HEADPHONE MDR-24SP SET (EJ915: US) 8-953-304-90 RECEIVER MDR-E805SP SET (E990/ EJ915: CND, AEP, UK, E13, E33, FR, G, HK, CH) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
