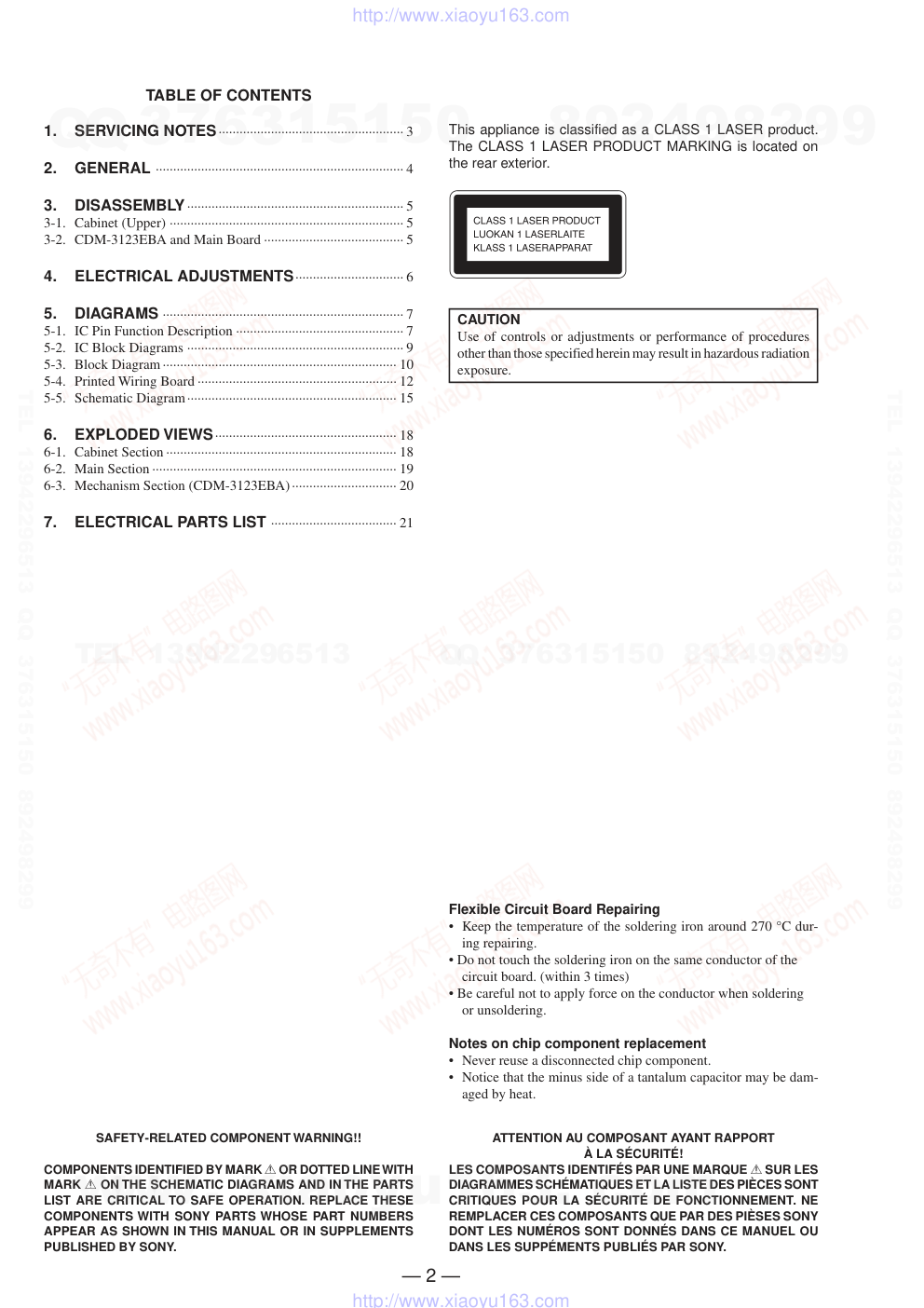

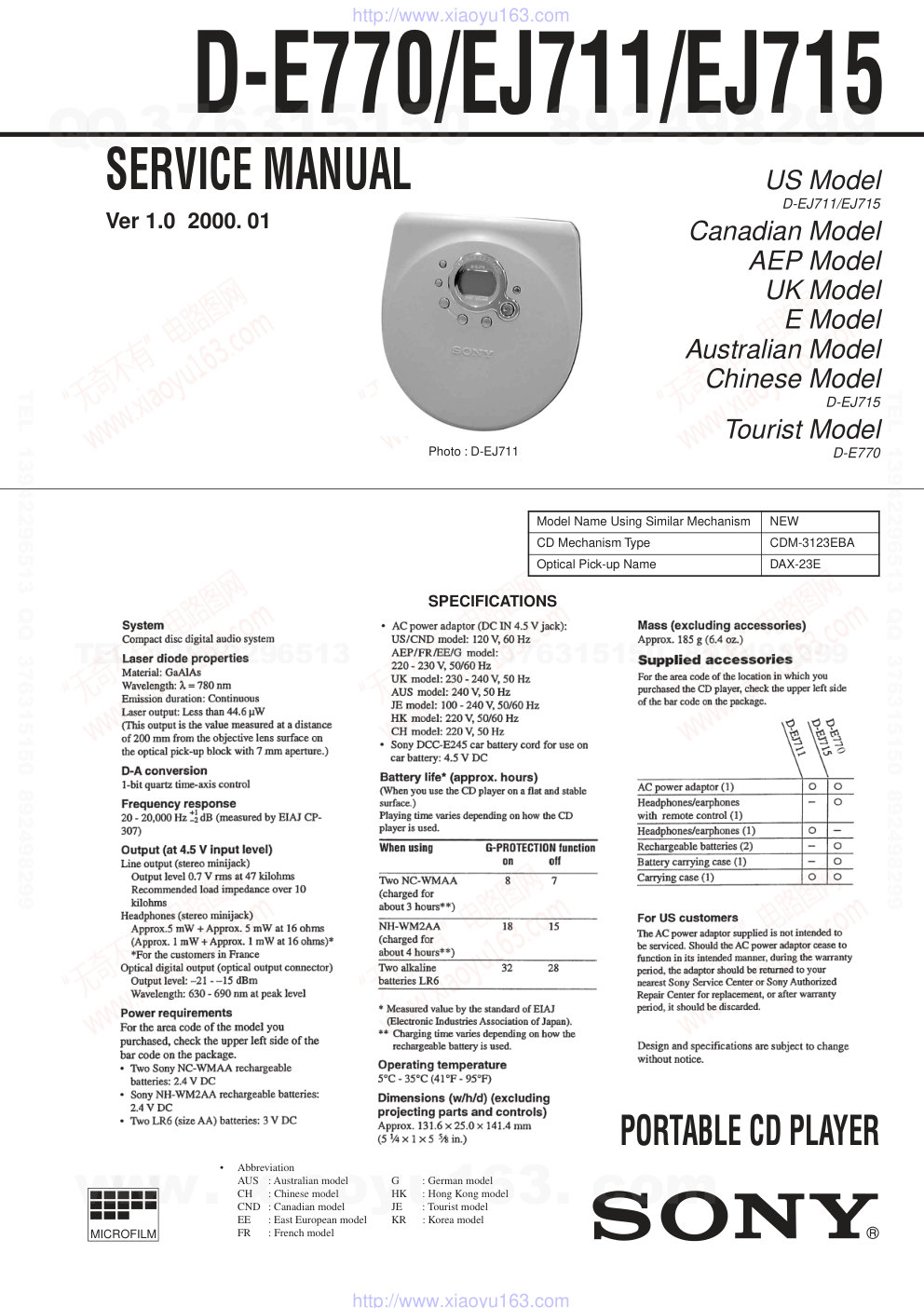

D-E770/EJ711/EJ715 US Model D-EJ711/EJ715 Canadian Model AEP Model UK Model E Model Australian Model Chinese Model D-EJ715 Tourist Model D-E770 SERVICE MANUAL PORTABLE CD PLAYER MICROFILM Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-3123EBA Optical Pick-up Name DAX-23E SPECIFICATIONS Photo : D-EJ711 • Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model EE : East European model FR : French model G : German model HK : Hong Kong model JE : Tourist model KR : Korea model Ver 1.0 2000. 01 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — TABLE OF CONTENTS SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPÉMENTS PUBLIÉS PAR SONY. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board. (within 3 times) • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. 1. SERVICING NOTES····················································· 3 2. GENERAL ······································································· 4 3. DISASSEMBLY ······························································ 5 3-1. Cabinet (Upper) ··································································· 5 3-2. CDM-3123EBA and Main Board ········································ 5 4. ELECTRICAL ADJUSTMENTS······························· 6 5. DIAGRAMS ····································································· 7 5-1. IC Pin Function Description ················································ 7 5-2. IC Block Diagrams ······························································ 9 5-3. Block Diagram ··································································· 10 5-4. Printed Wiring Board ························································· 12 5-5. Schematic Diagram···························································· 15 6. EXPLODED VIEWS···················································· 18 6-1. Cabinet Section ·································································· 18 6-2. Main Section ······································································ 19 6-3. Mechanism Section (CDM-3123EBA)······························ 20 7. ELECTRICAL PARTS LIST ···································· 21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Befor Replacing the Optical Pick-Up Block Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value: 0.35 to 0.65 Vp-p Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are oper- able. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver having a thin tip as shown in Fig.1. Note: Do not push the detection lever strongly, or it may be bent or dam- aged. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 5 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S801 detection lever detection lever S801 main board SECTION 1 SERVICING NOTES www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — SECTION 3 DISASSEMBLY 3-1. CABINET (UPPER) 3-2. CDM-3123EBA AND MAIN BOARD 1 Five screws (2 × 8) 3 Cabinet (upper) (There are 7 claws.) 2 Open the lid, battery case. Three claws Three claws Claw S802 S803 Knob (AVLS) Knob (JOG) Knob (HOLD) 2 Two screws 1 3 CDM-3123EBA 4 Main board (Be careful that S802 and S803 engage with the knob when they are re-assembled.) Note : Follow the disassembly procedure in the numerical order given. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — SECTION 4 ELECTRICAL ADJUSTMENTS The CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC4.5 V in DC IN jack. VOLUME button: Minimum AVLS switch : NORM HOLD switch : OFF Checking Location: – MAIN board (Side A) – Focus bias Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test points TP629 (RF) and TP635(AGND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) VOLT/DIV : 100 mV (With the 10:1 probe in use) TIME/DIV : 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch- ing. 5. Stop revolving of the disc motor by pressing the x button. oscilloscope (AC range) + – MAIN board TP629 (RF) TP635 (AGND) 2 k Ω RF level 0.35 to 0.65 Vp-p TP 629 (RF) TP 635 (AGND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — 5-1. IC PIN FUNCTION DESCRIPTION Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 — 68 I/O — I/O I O O O O O O O I O O I I I I I I I I — — — I I I O O O I O O O I I I/O I I I I O O O O O O O — — Pin Name VSS NC FOK_1 AGCPWM_O NC NC AMUTE_O VCC2ON_O XRST_O SCK_O MSDTI_I MSDTO_O WAKEUP_O AD_SEL AD_CHGMNT AD_KEY2 AD_BATMNT AD_KEY AD_RMKEY AD_DCINMNT WP_OPEN VREFL VREFH VDD SCOR_I GRSCOR_I SPDL-MTR/FG_I BEEP_O NC RMSCK_O RMDATI_I RMDATO_O RMRW_O RMRAT_O WFCK_I COMPON_I SLVCD_I AVLS_I HOLD_I BATDET_I DSP_SEL_I XHGON_I XLAT_O XSOE_O VOL_LT_O XPOWLT_O XDOUTON_O XAPC_OFF_O NC SEG14 — 0 Description Digital GND — FOK input AGC PWM control (f=7.8kHz) XWRE monitor (for debug purpose on) XQOK monitor (for debug purpose on) Analog mute on VCC2 switching System reset Serial clock to CXD3027R Serial input from CXD3027R Serial output to CXD3027R CXD3027R wake up Mode selection Charging monitor Set key detection Battery monitor Lid key detection Remocon key detection DC-in monitor Lid-open detection Analog GND for A/D Analog Vdd for A/D Digital Vcpu SCOR input GRSCOR input WFCK input BEEP sound (2.06kHz, 50% duty) — Serial clock to CXD751 Serial input from CXD751 Serial output to CXD751 CXD751 readwrite selection CXD751 serial data latch — G-protection selection — AVLS selection HOLD selection Bottom cell detection “H”: CXD3027R, “L”: CXD3037R Pick-up Vcc control CXD3027R serial data latch CXD3027R serial data output enable Analog switch on when L/O inserted TB2119F serial data latch Digital out LED control APC mute — LCD segment output • IC801 TMP88CM22F (MICRO COMPUTER) SECTION 5 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — Pin No. 69 70 71 72 73 74 75 76 77 78 79 80 I/O — — — — — I I O O I I O Pin Name V3 V2 V1 C1 C0 STOP TEST SCSY_0 XBACKLIGHT_O RESET_I XIN XOUT Description Charge pump C Charge pump C 0.5Vcpu input Charge pump C Charge pump C STOP mode release signal input 68k pull-down External BB control LCD backlight control MCU reset input Crystal input from CXD3027R No connection www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E770/EJ711/EJ715 5-2. IC BLOCK DIAGRAMS IC351 TA2120FN IC401 TB2119F + – + – + – 23 20 19 18 17 16 15 14 13 2 3 4 5 6 7 8 9 10 11 12 1 24 BIAS BEEP PW SW MT SW ALC DET ATT SW PWC SW OUT B OUT A BEEP IN BST PW B PW C BST NF ADD OUT RF IN PWC SW OUT B OUT C OUT A PWR GND MIX OUT ALC IN ALC DET ATT SW IN A IN B GND MT TC MT SW PW SW BIAS BIAS IN BST SW BST OUT VCC ADDA ADDB 21 22 PW A ALC ALC 1 2 3 4 5 6 7 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 15 14 13 12 11 10 9 HPOUT2 HPOUT3 HPOUT1 APCREF VHP HCND RO4 FO4 RO3 RO2 RO1 FO3 FO2 FO1 FI1 RI1 FI2 RI2 RS RF4 DCIN VCPU VCC1 RSTB DTC2D DTC1D INM1 RF1 BATM2 BATM1 INP1 INM4 CHGSW CHGMNT MGND4 MGND3 MGND2 MGND1 VD34 VD23 VD12 VLGO1 VLGO2 VLG3 L1L L1H L2H L2L L3 PGND1 PGND2 PGND3 VIN INP3 INM3 RF3 RF21 DTC3 PAPC VINDET VREF L4 VG GND SYNC CLOCK DATA LATCH HIPC HPI2 HPI1 FR4 RI3 FI3 PWM4 STNG N.C. WAKE UP RF2 INM2 PWM H/P DRIVER H BRIDGE DRIVER4 H BRIDGE DRIVER3 H BRIDGE DRIVER2 H BRIDGE DRIVER1 CONTROLLER CONTROLLER LEVEL SHIFTER LEVEL SHIFTER CONTROL CHARGE SAW GEN CLK OR OSC BIAS INTERFACE STNBY REFERENCE BANDGAP REFERENCE (VREF) — 9 — — 10 — — 11 — 5-3. BLOCK DIAGRAM OPTICAL PICK-UP BLOCK (DAX-23E) RF A B E F LD VCC GND PD VR FOCUS COIL TRACKING COIL IC401(1/2) MOTOR/COIL DRIVE FO2 36 RO2 34 32 30 28 26 M SLED MOTOR 40 38 M SPINDLE M902 M901 MOTOR F+ F- T+ T- 43 FI2 44 RI2 12 13 14 15 41 SFDR 46 SMDS 44 C176 42 TRDR 49 TFDR 48 FRDR 51 FFDR 50 DIGITAL SIGNAL PROC. D/A CONV. IC601 DIGITAL SERVO 85 D OUT RFAC 71 RFDC 58 A 62 B 61 E 59 97 L OUT1 LINE OUT (OPTICAL) 104 L OUT2 23 SDTO 25 CLOK 24 XLAT 28 XSOE 26 SENS 17 SCOR 35 FOK 21 XRST X601 16.9MHz 30 R4M Q501 AVDD PAPC 78 VLG02 69 42 SRDR 47 7 SYNC FO3 RO3 FI3 RI3 FO4 RO4 FI4 RI4 FO1 RO1 FI1 RI1 C+ C- S+ S- MDP 43 3 1 4 IC402 XTAO 94 XTAI 93 F 60 DIGITAL OUT OPTICAL J301 REMOTE J302 DRY BATTERY SIZE "AA" (IEC DESIGNATION LR6) 2PCS. 3V DC IN 4.5V J401 IC301 109 106 7 . 2 1 . 111 . 9 12 15 . 19 21 . 8 . 24 25 2 3 . . . BATT B+ BATT B- 114 XWE 120 XOE 119 XCAS 113 XRAS XWE 4 XOE 22 XCAS 23 XRAS 5 118 117 116 115 . . . A0 A10 A0 A10 D0 D3 IC602 16M DRAM D0 D3 78 WDCK 83 WFCK IC801 MICON WP OPEN 21 AVLS 38 HOLD 93 COMPON 36 VCPU OPEN OFF ON S801 LIMIT NORM OFF ON AVLS S802 HOLD S803 G-PROTECTION S804 SCK 10 MSDTO 12 XLAT 43 XSOE 44 MSDTI 11 SCOR 25 FOK 3 XIN 79 GRSCOR 26 WFCK 35 XRST 9 XPOWLT 46 SPDL MTR/FG 27 AD KEY 18 10 DATA 9 CLOCK 11 LATCH 13 AMUTE 47 XDOUT ON 14 AD SEL 7 AMUTE 45 VOL LT MUTE CONT Q302 D601 MUTE Q301 6 3 5 2 7 1 BIAS 28 BEEP 19 AD RMKEY L IN 14 R IN 15 8 L OUT IC351 HEADPHONE AMP MUTE 18 BEEP 17 PWRSW 20 6 R OUT 7 VREF +B SW Q601 AVDD TEST TAP801 VCPU 32 RM DATO IC802 TSB SO 15 19 TSB 31 RM DATI SI 14 30 RM SCK SCK 16 34 RM LAT XLT 17 33 RM RW RW 18 MCLK 10 RESET 11 LCD SWITCH UNIT 64 50 68 65 SEG0 SEG14 COM0 COM3 78 RESET XHG ON 42 • Signal Path : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) RECHARGEABLE BATTERY NH-DM2AA 2PCS. 2.4V Q404 REG Q412 Q402 D401 VCPU DC DET Q401,413 Q405 AVDD 48 RF4 51 VCC1 50 VCPU 61 VLGPO 47 INM4 49 DCIN 5 VG 59 BATM2 60 BATM1 65 VIN 80 VIN DET 2 L4 29 VD34 33 VD23 37 VD12 APC REF 79 BATT B- D410 RS 46 CHG SW 45 RSTB 52 Q408 WAKEUP SWITCH. WAKEUP 8 DVDD Q403 SWITCHING Q406,407 8 VCC2 ON 71 L3 13 WAKEUP 4 AGC PWM RF2 3 48 XAPC OFF 40 BAT DET POWER CONTROL IC401(2/2) 1 3 4 IC404 VCPU 20 DC INMNT 16 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ D-E770/EJ711/EJ715 5-4. PRINTED WIRING BOARD Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE A) the parts face are indicated. Ref. No. Location D401 A-8 D404 A-7 D406 C-5 D409 A-5 D410 C-4 D461 C-10 D601 D-3 IC301 E-8 IC351 E-8 IC401 C-7 IC402 C-10 IC404 A-4 IC601 D-2 IC602 D-9 IC801 B-4 IC802 B-4 Q301 E-9 Q302 E-9 Q401 A-7 Q402 A-7 Q403 A-7 Q404 A-7 Q405 D-4 Q406 D-4 Q407 D-4 Q408 D-4 Q412 A-7 Q413 A-5 Q501 C-10 Q601 A-5 • Semiconductor Location 1 2 A B C D E 3 4 5 6 7 8 9 10 11 — 12 — — 13 — — 14 — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E770/EJ711/EJ715 — 15 — — 16 — — 17 — 5-5. SCHEMATIC DIAGRAM • Waveforms Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • U : B+ Line. • Power voltage is dc 4.5 V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground under conditions in service mode. no mark : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD PLAY (ANALOG OUT) c : CD PLAY (OPTICAL OUT) • Abbreviation FR : French model Note : The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Note : Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 1 TP629 (RF) (PLAY MODE) 100 mV/DIV, 200 ns/DIV 2 IC601 od (XTAI) 500 mV/DIV, 20 ns/DIV 3 TP802 (R4M) 1 V/DIV, 100 ns/DIV 350 – 650 mVp-p 2.1 Vp-p 58.8 ns 3.4 Vp-p 237 ns • Refer to page 9 for IC Block Diagrams. • Refer to page 7 for IC Pin Function Description. • TOTAL CURRENT PLAY : 160mA STOP : 50mA FF : 170mA FR : 170mA CXD3027R w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 18 — — 19 — — 20 — 6-1. CABINET SECTION 6-2. MAIN SECTION 6-3. MECHANISM SECTION (CDM-3123EBA) 1 4-222-780-01 RING, COVER (E770/EJ715) 1 4-222-780-21 RING, COVER (EJ711) 2 4-222-778-01 WINDOW (LCD) 3 4-222-790-01 SPRING (POP UP) 4 4-222-775-01 LID, UPPER (WHITE)(E770) 4 4-222-775-11 LID, UPPER (PINK)(E770) 4 4-222-775-21 LID, UPPER (SILVER)(EJ715) 4 4-222-775-31 LID, UPPER (GRAY)(EJ715) 4 4-222-775-41 LID, UPPER (SILVER)(EJ711) 4 4-222-775-51 LID, UPPER (GRAY)(EJ711) 5 4-222-781-01 BUTTON (MODE) 6 4-222-788-01 BUTTON (SEARCH) 7 4-222-787-01 BUTTON (PLAY) 8 1-418-565-11 SWITCH UNIT 9 4-222-789-01 LID, COVER (WHITE)(E770) 9 4-222-789-11 LID, COVER (PINK)(E770) 9 4-222-789-21 LID, COVER (SILVER)(EJ711/EJ715) 9 4-222-789-31 LID, COVER (GRAY)(EJ711/EJ715) 10 3-375-114-31 SCREW 11 A-3328-606-A CABINET FRONT SUB ASSY 12 4-222-792-01 LEVER, DETECTOR 13 4-222-793-01 KNOB(OPEN) 14 4-222-794-01 CLAW, LOCK 15 4-222-791-01 SPRING (OPEN) 16 4-222-764-01 BUTTON (VOLUME) 17 4-982-491-01 SCREW (2 × 8), TAPPING #1 7-627-552-28 SCREW, PRECISION +P 1.7 × 2 51 4-222-765-01 INSULATOR 52 A-3323-357-A MAIN BOARD, COMPLETE (EXCEPT FR) 52 A-3323-358-A MAIN BOARD, COMPLETE (FR) 53 4-222-762-01 KNOB(JOG) 54 4-222-766-01 TERMINAL (+), BATTERY 55 3-375-114-81 SCREW 56 4-993-131-01 KNOB(HOLD) 57 4-224-048-01 FOOT, RUBBER 58 4-222-768-01 TERMINAL (+.−), BATTERY 59 4-222-767-01 TERMINAL (−), BATTERY 60 4-222-769-01 LID, BATTERY CASE 61 4-222-777-01 CABINET (REAR) 62 4-984-751-01 KNOB(AVLS) 101 3-318-203-71 SCREW (B1.7 × 5), TAPPING 102 4-218-820-01 CHASSIS 103 A-3328-628-A SCREW (FEED) ASSY 104 4-218-823-01 GEAR (B) 105 4-964-564-01 SCREW (M1.2 × 1.6) 106 4-218-821-01 COVER, GEAR 107 4-218-825-01 SPRING (SLED) 108 3-895-823-31 SCREW (B1.4 × 2.3), TAPPING 109 4-220-645-01 SHAFT, STANDARD 110 4-223-600-01 RACK 111 4-218-827-01 BRACKET (SHAFT) 112 3-686-458-03 SCREW (P1.4 × 3.5), TAPPING 0113 X-4952-506-1 OPTICAL PICK-UP (DAX-23E) M901 A-3328-627-A MOTOR ASSY, SLED (WITH GEAR) M902 A-3328-759-A MOTOR ASSY, TURN TABLE (SPINDLE) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 6 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts of Color Cabinet’s Color • Abbreviation FR : French model Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 1 2 3 4 5 6 7 11 8 9 10 12 not supplied #1 #1 13 14 15 16 17 51 51 CDM-3123EBA 54 55 58 59 61 62 57 56 60 51 53 52 101 102 111 113 110 108 109 M901 104 105 107 106 101 103 112 M902 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 21 — SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. • Abbreviation AUS : Australian model CH : Chinese model CND : Canadian model EE : East European model FR : French model G : German model HK : Hong Kong model KR : Korea model A-3323-357-A MAIN BOARD, COMPLETE (EXCEPT FR) ********************* A-3323-358-A MAIN BOARD, COMPLETE (FR) ********************* 1-791-471-11 WIRE 4-222-766-01 TERMINAL (+), BATTERY < CAPACITOR > C101 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C102 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V C103 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C151 1-115-156-11 CERAMIC CHIP 1uF 10V C154 1-164-156-11 CERAMIC CHIP 0.1uF 25V C155 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C201 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C202 1-164-217-11 CERAMIC CHIP 150PF 5.00% 50V C203 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C251 1-115-156-11 CERAMIC CHIP 1uF 10V C254 1-164-156-11 CERAMIC CHIP 0.1uF 25V C255 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C301 1-117-720-11 CERAMIC CHIP 4.7uF 10V C302 1-164-156-11 CERAMIC CHIP 0.1uF 25V C312 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C351 1-115-156-11 CERAMIC CHIP 1uF 10V C352 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C353 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C354 1-164-156-11 CERAMIC CHIP 0.1uF 25V C356 1-127-569-91 TANTAL. CHIP 100uF 20% 4V C357 1-164-505-11 CERAMIC CHIP 2.2uF 16V C401 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C402 1-164-505-11 CERAMIC CHIP 2.2uF 16V C403 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C404 1-125-822-11 TANTALUM 10uF 20.00% 10V C405 1-115-156-11 CERAMIC CHIP 1uF 10V C406 1-110-569-11 TANTAL. CHIP 47uF 20.00% 6.3V C407 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C408 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C409 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C410 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C411 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C413 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C414 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C415 1-164-156-11 CERAMIC CHIP 0.1uF 25V C417 1-104-752-11 TANTAL. CHIP 33uF 20.00% 6.3V C418 1-128-705-11 ELECT 0PF 0V C420 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C421 1-110-569-21 TANTAL. CHIP 47uF 20% 4V C422 1-125-838-91 CERAMIC CHIP 2.2uF 10% 6.3V C423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C424 1-165-112-11 CERAMIC CHIP 0.33uF 16V C425 1-115-156-11 CERAMIC CHIP 1uF 10V C426 1-109-982-11 CERAMIC CHIP 1uF 10.00% 10V C427 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C428 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C431 1-104-752-11 TANTAL. CHIP 33uF 20.00% 6.3V C432 1-104-752-11 TANTAL. CHIP 33uF 20.00% 6.3V C433 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C435 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C442 1-115-156-11 CERAMIC CHIP 1uF 10V C451 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C453 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C461 1-107-823-11 CERAMIC CHIP 0.47uF 10.00% 16V C462 1-162-925-11 CERAMIC CHIP 68PF 5.00% 50V C501 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C602 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C603 1-107-826-91 CERAMIC CHIP 0.1uF 10.00% 16V C604 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C607 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C609 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C611 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C612 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C613 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C614 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C615 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C620 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C621 1-163-189-00 CERAMIC CHIP 220PF 5.00% 50V C622 1-164-156-11 CERAMIC CHIP 0.1uF 25V C623 1-115-156-11 CERAMIC CHIP 1uF 10V C624 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C625 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C626 1-104-847-11 TANTAL. CHIP 22uF 20.00% 4V C627 1-164-156-11 CERAMIC CHIP 0.1uF 25V C629 1-164-156-11 CERAMIC CHIP 0.1uF 25V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 22 — C630 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C631 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C632 1-164-156-11 CERAMIC CHIP 0.1uF 25V C634 1-127-569-91 TANTAL. CHIP 100uF 20% 4V C635 1-115-156-11 CERAMIC CHIP 1uF 10V C636 1-164-156-11 CERAMIC CHIP 0.1uF 25V C640 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C801 1-165-128-11 CERAMIC CHIP 0.22uF 16V C802 1-165-128-11 CERAMIC CHIP 0.22uF 16V C803 1-165-128-11 CERAMIC CHIP 0.22uF 16V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C807 1-164-156-11 CERAMIC CHIP 0.1uF 25V C808 1-164-156-11 CERAMIC CHIP 0.1uF 25V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-164-156-11 CERAMIC CHIP 0.1uF 25V C811 1-117-720-11 CERAMIC CHIP 4.7uF 10V C813 1-164-156-11 CERAMIC CHIP 0.1uF 25V C831 1-115-156-11 CERAMIC CHIP 1uF 10V C841 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > * CN501 1-793-627-21 CONNECTOR (SMT) 13P CN502 1-784-342-31 HOUSING, CONNECTOR 2P CN503 1-784-342-21 HOUSING, CONNECTOR 2P CN801 1-766-492-21 CONNECTOR, FFC/FPC (ZIF) 24P < DIODE > D401 8-719-067-42 DIODE MA2H735-(TX).SO D404 8-719-067-42 DIODE MA2H735-(TX).SO D406 8-719-071-87 DIODE MA785-(TX),SO D409 8-719-976-96 DIODE DTZ4.7C D410 8-719-072-70 DIODE MA2ZD14001S0 D461 8-719-072-70 DIODE MA2ZD14001S0 D601 8-719-044-74 DIODE MA792WK-TX < FERRITE BEAD > FB101 1-216-864-11 METAL CHIP 0 5% 1/16W FB111 1-216-864-11 METAL CHIP 0 5% 1/16W FB201 1-216-864-11 METAL CHIP 0 5% 1/16W FB211 1-216-864-11 METAL CHIP 0 5% 1/16W FB301 1-216-864-11 METAL CHIP 0 5% 1/16W FB311 1-216-864-11 METAL CHIP 0 5% 1/16W FB312 1-216-864-11 METAL CHIP 0 5% 1/16W FB602 1-216-864-11 METAL CHIP 0 5% 1/16W FB603 1-216-864-11 METAL CHIP 0 5% 1/16W < IC > IC301 8-759-488-29 IC TC7W66FU(TE12R) IC351 8-759-522-87 IC TA2120FN(EL) IC401 8-759-642-56 IC TB2119F IC402 8-759-651-13 IC NJU7116F (TE2) IC404 8-759-651-13 IC NJU7116F (TE2) IC601 8-752-398-18 IC CXD3027R IC602 8-759-498-44 IC MSM51V4400D-70TSK IC801 8-759-649-82 IC TMP88CM22F-MIR1-2 IC802 8-752-397-55 IC CXD751-103R < JACK > J301 1-793-659-11 JACK, OPTICAL OUT (LINE OUT(OPTICAL)) J302 1-778-368-31 JACK, HEADPHONE (REMOTE) J401 1-778-153-21 JACK,DC(POLARITY UNIFIED TYPE) (DC IN 4.5V) < COIL > L311 1-414-754-11 INDUCTOR 10uH L401 1-419-188-21 INDUCTOR 100uH L402 1-414-754-11 INDUCTOR 10uH L403 1-414-434-11 INDUCTOR 100uH L404 1-414-757-11 INDUCTOR 100uH L405 1-414-757-11 INDUCTOR 100uH L406 1-414-404-11 INDUCTOR 100uH L407 1-414-754-11 INDUCTOR 10uH L408 1-414-404-11 INDUCTOR 100uH L409 1-414-756-11 INDUCTOR 47uH L410 1-414-756-11 INDUCTOR 47uH L411 1-414-392-21 INDUCTOR 1uH L412 1-414-392-21 INDUCTOR 1uH L601 1-412-002-31 INDUCTOR CHIP 4.7uH < TRANSISTOR > Q301 8-729-043-90 TRANSISTOR IMX9T110 Q302 8-729-930-00 TRANSISTOR UMD2 Q401 8-729-050-17 TRANSISTOR 2SA1241-Y Q402 8-729-920-82 TRANSISTOR 2SB1188-QR Q403 8-729-921-73 TRANSISTOR 2SD1781K-QR Q404 8-729-425-41 TRANSISTOR 2SK1374 Q405 8-729-047-36 TRANSISTOR CPH3303-TL Q406 8-729-904-86 TRANSISTOR 2SB1197K-Q Q407 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q408 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q412 8-729-904-86 TRANSISTOR 2SB1197K-Q Q413 8-729-429-44 TRANSISTOR XP1501 Q501 8-729-028-84 TRANSISTOR DTA124TUA-T106 (FR) Q501 8-729-028-74 TRANSISTOR DTA114TUA-T106 (EXCEPT FR) Q601 8-729-028-86 TRANSISTOR DTA143EUA-T106 < RESISTOR > R1 1-216-295-91 SHORT 0 R2 1-216-295-91 SHORT 0 R3 1-216-295-91 SHORT 0 R4 1-216-295-91 SHORT 0 R5 1-216-295-91 SHORT 0 R101 1-216-813-11 METAL CHIP 220 5% 1/16W R102 1-216-835-11 METAL CHIP 15K 5% 1/16W R103 1-216-833-91 RES-CHIP 10K 5% 1/16W R104 1-216-833-91 RES-CHIP 10K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-845-11 METAL CHIP 100K 5% 1/16W R151 1-216-849-11 METAL CHIP 220K 5% 1/16W R152 1-216-837-11 METAL CHIP 22K 5% 1/16W R154 1-216-793-11 RES-CHIP 4.7 5% 1/16W R155 1-216-821-11 METAL CHIP 1K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 23 — R156 1-216-843-11 METAL CHIP 68K 5% 1/16W (FR) R156 1-216-847-11 METAL CHIP 150K 5% 1/16W (EXCEPT FR) R201 1-216-813-11 METAL CHIP 220 5% 1/16W R202 1-216-835-11 METAL CHIP 15K 5% 1/16W R203 1-216-833-91 RES-CHIP 10K 5% 1/16W R204 1-216-833-91 RES-CHIP 10K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-845-11 METAL CHIP 100K 5% 1/16W R251 1-216-853-11 METAL CHIP 470K 5% 1/16W (FR) R251 1-216-849-11 METAL CHIP 220K 5% 1/16W (EXCEPT FR) R252 1-216-837-11 METAL CHIP 22K 5% 1/16W R254 1-216-793-11 RES-CHIP 4.7 5% 1/16W R255 1-216-821-11 METAL CHIP 1K 5% 1/16W R256 1-216-843-11 METAL CHIP 68K 5% 1/16W (FR) R256 1-216-847-11 METAL CHIP 150K 5% 1/16W (EXCEPT FR) R301 1-216-841-11 METAL CHIP 47K 5% 1/16W (FR) R301 1-216-849-11 METAL CHIP 220K 5% 1/16W (EXCEPT FR) R302 1-216-845-11 METAL CHIP 100K 5% 1/16W (FR) R302 1-216-851-11 METAL CHIP 330K 5% 1/16W (EXCEPT FR) R315 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R317 1-216-821-11 METAL CHIP 1K 5% 1/16W R352 1-216-864-11 METAL CHIP 0 5% 1/16W R353 1-216-308-00 METAL CHIP 4.7 5% 1/10W R401 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R402 1-216-833-91 RES-CHIP 10K 5% 1/16W R403 1-216-853-11 METAL CHIP 470K 5% 1/16W R404 1-216-864-11 METAL CHIP 0 5% 1/16W R405 1-216-864-11 METAL CHIP 0 5% 1/16W R406 1-216-864-11 METAL CHIP 0 5% 1/16W R408 1-216-853-11 METAL CHIP 470K 5% 1/16W R409 1-216-849-11 METAL CHIP 220K 5% 1/16W R410 1-216-845-11 METAL CHIP 100K 5% 1/16W R415 1-216-833-91 RES-CHIP 10K 5% 1/16W R416 1-216-857-11 METAL CHIP 1M 5% 1/16W R417 1-216-864-11 METAL CHIP 0 5% 1/16W R418 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R419 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R420 1-216-864-11 METAL CHIP 0 5% 1/16W R421 1-216-857-11 METAL CHIP 1M 5% 1/16W R422 1-216-833-91 RES-CHIP 10K 5% 1/16W R423 1-216-841-11 METAL CHIP 47K 5% 1/16W R424 1-216-833-91 RES-CHIP 10K 5% 1/16W R426 1-216-833-91 RES-CHIP 10K 5% 1/16W R427 1-216-833-91 RES-CHIP 10K 5% 1/16W R429 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R430 1-216-817-11 METAL CHIP 470 5% 1/16W R431 1-216-864-11 METAL CHIP 0 5% 1/16W R432 1-216-857-11 METAL CHIP 1M 5% 1/16W R433 1-216-864-11 METAL CHIP 0 5% 1/16W R434 1-218-899-11 METAL CHIP 150K 0.5% 1/16W R435 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R436 1-216-864-11 METAL CHIP 0 5% 1/16W R438 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R439 1-216-859-11 RES-CHIP 1.5M 5% 1/16W R440 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R441 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R443 1-216-811-11 METAL CHIP 150 5% 1/16W R444 1-216-817-11 METAL CHIP 470 5% 1/16W R445 1-216-864-11 METAL CHIP 0 5% 1/16W R446 1-216-821-11 METAL CHIP 1K 5% 1/16W R447 1-216-304-11 METAL CHIP 3.3 5% 1/10W R448 1-216-298-00 METAL CHIP 2.2 5% 1/10W R449 1-216-298-00 METAL CHIP 2.2 5% 1/10W R450 1-216-845-11 METAL CHIP 100K 5% 1/16W R451 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R452 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R453 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R454 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R455 1-216-839-11 METAL CHIP 33K 5% 1/16W R456 1-216-815-11 METAL CHIP 330 5% 1/16W R461 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R462 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R463 1-216-857-11 METAL CHIP 1M 5% 1/16W R465 1-216-864-11 METAL CHIP 0 5% 1/16W R466 1-216-864-11 METAL CHIP 0 5% 1/16W R471 1-216-864-11 METAL CHIP 0 5% 1/16W R602 1-216-864-11 METAL CHIP 0 5% 1/16W R603 1-216-851-11 METAL CHIP 330K 5% 1/16W R604 1-216-857-11 METAL CHIP 1M 5% 1/16W R605 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R606 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R607 1-216-833-91 RES-CHIP 10K 5% 1/16W R608 1-216-845-11 METAL CHIP 100K 5% 1/16W R609 1-216-833-91 RES-CHIP 10K 5% 1/16W R610 1-216-864-11 METAL CHIP 0 5% 1/16W R611 1-216-837-11 METAL CHIP 22K 5% 1/16W R612 1-216-841-11 METAL CHIP 47K 5% 1/16W R613 1-216-837-11 METAL CHIP 22K 5% 1/16W R614 1-216-845-11 METAL CHIP 100K 5% 1/16W R615 1-216-837-11 METAL CHIP 22K 5% 1/16W R616 1-216-845-11 METAL CHIP 100K 5% 1/16W R617 1-216-837-11 METAL CHIP 22K 5% 1/16W R619 1-216-837-11 METAL CHIP 22K 5% 1/16W R621 1-216-864-11 METAL CHIP 0 5% 1/16W R622 1-216-864-11 METAL CHIP 0 5% 1/16W R623 1-216-864-11 METAL CHIP 0 5% 1/16W R624 1-216-845-11 METAL CHIP 100K 5% 1/16W R625 1-216-833-91 RES-CHIP 10K 5% 1/16W R626 1-216-864-11 METAL CHIP 0 5% 1/16W R627 1-216-864-11 METAL CHIP 0 5% 1/16W R628 1-216-864-11 METAL CHIP 0 5% 1/16W R629 1-216-833-91 RES-CHIP 10K 5% 1/16W R630 1-216-864-11 METAL CHIP 0 5% 1/16W R632 1-216-839-11 METAL CHIP 33K 5% 1/16W R633 1-216-805-11 METAL CHIP 47 5% 1/16W R634 1-216-809-11 METAL CHIP 100 5% 1/16W R636 1-216-864-11 METAL CHIP 0 5% 1/16W R642 1-216-864-11 METAL CHIP 0 5% 1/16W R644 1-216-864-11 METAL CHIP 0 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 24 — R645 1-216-845-11 METAL CHIP 100K 5% 1/16W R646 1-216-845-11 METAL CHIP 100K 5% 1/16W R801 1-216-845-11 METAL CHIP 100K 5% 1/16W R802 1-216-845-11 METAL CHIP 100K 5% 1/16W R803 1-216-843-11 METAL CHIP 68K 5% 1/16W R805 1-216-821-11 METAL CHIP 1K 5% 1/16W R808 1-216-864-11 METAL CHIP 0 5% 1/16W R809 1-216-845-11 METAL CHIP 100K 5% 1/16W R810 1-216-864-11 METAL CHIP 0 5% 1/16W R811 1-216-864-11 METAL CHIP 0 5% 1/16W R812 1-216-864-11 METAL CHIP 0 5% 1/16W R813 1-216-847-11 METAL CHIP 150K 5% 1/16W (FR) R813 1-216-839-11 METAL CHIP 33K 5% 1/16W (EXCEPT FR) R814 1-216-845-11 METAL CHIP 100K 5% 1/16W R816 1-216-864-11 METAL CHIP 0 5% 1/16W R819 1-216-843-11 METAL CHIP 68K 5% 1/16W (FR) R819 1-216-847-11 METAL CHIP 150K 5% 1/16W (EXCEPT FR) R820 1-216-864-11 METAL CHIP 0 5% 1/16W R821 1-216-864-11 METAL CHIP 0 5% 1/16W R823 1-216-833-91 RES-CHIP 10K 5% 1/16W R824 1-216-833-91 RES-CHIP 10K 5% 1/16W R825 1-216-864-11 METAL CHIP 0 5% 1/16W R826 1-216-845-11 METAL CHIP 100K 5% 1/16W R831 1-216-857-11 METAL CHIP 1M 5% 1/16W R832 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R833 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R841 1-216-857-11 METAL CHIP 1M 5% 1/16W R842 1-216-833-91 RES-CHIP 10K 5% 1/16W R845 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R846 1-216-827-11 METAL CHIP 3.3K 5% 1/16W < SWITCH > S801 1-692-366-31 SWITCH, PUSH (1 KEY) (OPEN) S802 1-762-078-11 SWITCH, SLIDE (AVLS) S803 1-762-078-11 SWITCH, SLIDE (HOLD) S804 1-762-078-11 SWITCH, SLIDE (G-PROTECTION) S805 1-572-499-21 SWITCH, TACTIL (VOLUME +) S806 1-572-499-21 SWITCH, TACTIL (VOLUME −) < VARISTOR > VDR101 1-801-862-11 VARISTOR, CHIP VDR111 1-801-862-11 VARISTOR, CHIP VDR201 1-801-862-11 VARISTOR, CHIP VDR211 1-801-862-11 VARISTOR, CHIP VDR311 1-801-862-11 VARISTOR, CHIP VDR312 1-801-862-11 VARISTOR, CHIP VDR313 1-801-862-11 VARISTOR, CHIP < VIBRATOR > X601 1-767-605-11 VIBRATOR, LITHIUM TANTALATE 16.9MHz ************************************************************ MISCELLANEOUS ************** 8 1-418-565-11 SWITCH UNIT 0113 X-4952-506-1 OPTICAL PICK-UP (DAX-23E) M901 A-3328-627-A MOTOR ASSY, SLED (WITH GEAR) M902 A-3328-759-A MOTOR ASSY, TURN TABLE (SPINDLE) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-418-670-11 REMOTE CONTROL UNIT (RM-CD6)(EJ715:US) 1-418-730-11 REMOTE CONTROL UNIT (RM-CD11L) (EXCEPT EJ711/EJ715:US) 0 1-467-007-21 ADAPTOR, AC (AC-E455) (EJ715:AUS) 0 1-467-009-21 ADAPTOR, AC (AC-E455D) (EJ711/EJ715:US,CND) 0 1-467-009-21 ADAPTOR, AC (AC-E455) (EJ715:US,CND) 0 1-467-195-11 ADAPTOR, AC (AC-E455A) (EJ711) 0 1-467-550-11 ADAPTOR, AC (AC-E455A) (E770/EJ715:E33) 0 1-473-115-11 ADAPTOR, AC (AC-E455D) (EJ715:UK) 0 1-473-116-35 ADAPTOR, AC (AC-E455D) (EJ715:AEP,E13,EE,G,FR) 0 1-475-622-11 ADAPTOR, AC (AC-E455) (EJ715:CH) 0 1-475-623-11 ADAPTOR, AC (AC-E455) (EJ715:HK) 0 1-569-007-11 ADAPTOR, CONVERSION 2P (E770/EJ715:E33) 1-756-035-11 BATTERY PACK (NC-WMAA) (E770/EJ715:AUS,CH,E13,E33,HK,KR) 1-756-035-21 BATTERY PACK (NC-WMAA) (EJ715:AEP,UK,EE,G,FR) 1-756-035-31 BATTERY PACK (NC-WMAA) (EJ715:US,CND) 3-046-316-01 CASE, CARRYING (EJ711/EJ715:US) 3-046-317-01 POUCH, CARRYING (E770/EJ715:AUS,CH,E13,E33,HK,KR) 3-046-668-11 MANUAL, INSTRUCTION (ENGLISH) (EJ711/EJ715:US) 3-868-101-11 MANUAL, INSTRUCTION (SPANISH) (E770/EJ715:AEP,E33) 3-868-101-21 MANUAL, INSTRUCTION (ENGLISH) (E770/EJ715:CND,AEP,UK,AUS,E33,EE,FR) 3-868-101-31 MANUAL, INSTRUCTION (FRENCH) (E770/EJ715:CND,AEP,FR) 3-868-101-41 MANUAL, INSTRUCTION (DUTCH) (EJ715:AEP,EE) 3-868-101-51 MANUAL, INSTRUCTION (SWEDISH) (EJ715:AEP) 3-868-101-61 MANUAL, INSTRUCTION (PORTUGUESE) (EJ715:AEP) 3-868-101-71 MANUAL, INSTRUCTION (GERMAN) (EJ715:AEP,G) 3-868-101-81 MANUAL, INSTRUCTION (ITALIAN)(EJ715:AEP) 3-868-101-91 MANUAL, INSTRUCTION (FINNISH)(EJ715:AEP) 3-868-102-11 MANUAL, INSTRUCTION (CHINESE) (EJ715:E13,HK) 3-868-102-21 MANUAL, INSTRUCTION (ENGLISH) (EJ715:CH,E13,HK) 3-868-102-31 MANUAL, INSTRUCTION (CHINESE)(EJ715:CH) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — Ref. No. Part No. Description Remarks 3-868-103-11 MANUAL, INSTRUCTION (RUSSIAN)(EJ715:EE) 3-868-103-21 MANUAL, INSTRUCTION (CZECH)(EJ715:EE) 3-868-103-31 MANUAL, INSTRUCTION (HUNGARIAN) (EJ715:EE) 3-868-103-41 MANUAL, INSTRUCTION (POLISH)(EJ715:EE) 3-868-103-51 MANUAL, INSTRUCTION (SLOVAK)(EJ715:EE) 3-868-103-61 MANUAL, INSTRUCTION (KOREAN)(EJ715:KR) 4-223-953-01 CASE (MIS), CARRYING (EJ715:KR) 4-224-787-01 CASE (MIR), CARRYING (EXCEPT EJ715:KR) 8-953-304-90 RECEIVER MDR-E805SP (EXCEPT EJ711/EJ715:US) 8-953-342-93 HEADPHONE MDR-24 (EJ711) 8-953-774-90 RECEIVER, EAR MDR-G051SP (EJ715:US) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 26 — D-E770/EJ711/EJ715 Sony Corporation Personal Audio Division Company 2000A1686-1 Printed in Japan ©2000.1 Published by General Engineering Dept. 9-927-629-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
