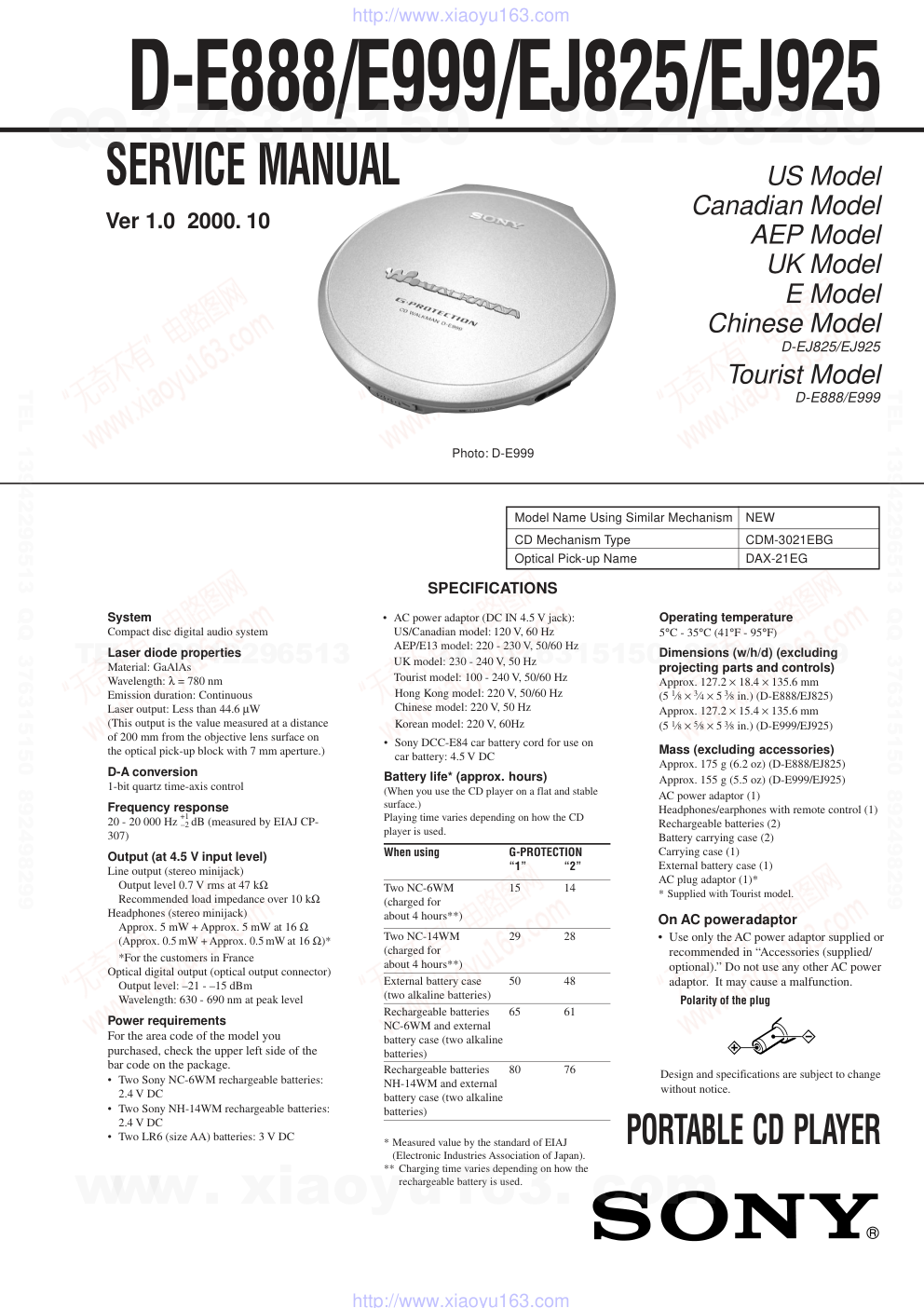

SERVICE MANUAL Ver 1.0 2000. 10 SPECIFICATIONS PORTABLE CD PLAYER D-E888/E999/EJ825/EJ925 Photo: D-E999 US Model Canadian Model AEP Model UK Model E Model Chinese Model D-EJ825/EJ925 Tourist Model D-E888/E999 Model Name Using Similar Mechanism NEW CD Mechanism Type CDM-3021EBG Optical Pick-up Name DAX-21EG System Compact disc digital audio system Laser diode properties Material: GaAlAs Wavelength: λ = 780 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) D-A conversion 1-bit quartz time-axis control Frequency response 20 - 20 000 Hz +1 –2 dB (measured by EIAJ CP- 307) Output (at 4.5 V input level) Line output (stereo minijack) Output level 0.7 V rms at 47 kΩ Recommended load impedance over 10 kΩ Headphones (stereo minijack) Approx. 5 mW + Approx. 5 mW at 16 Ω (Approx. 0.5 mW + Approx. 0.5 mW at 16 Ω)* *For the customers in France Optical digital output (optical output connector) Output level: –21 - –15 dBm Wavelength: 630 - 690 nm at peak level Power requirements For the area code of the model you purchased, check the upper left side of the bar code on the package. • Two Sony NC-6WM rechargeable batteries: 2.4 V DC • Two Sony NH-14WM rechargeable batteries: 2.4 V DC • Two LR6 (size AA) batteries: 3 V DC • AC power adaptor (DC IN 4.5 V jack): US/Canadian model: 120 V, 60 Hz AEP/E13 model: 220 - 230 V, 50/60 Hz UK model: 230 - 240 V, 50 Hz Tourist model: 100 - 240 V, 50/60 Hz Hong Kong model: 220 V, 50/60 Hz Chinese model: 220 V, 50 Hz Korean model: 220 V, 60Hz • Sony DCC-E84 car battery cord for use on car battery: 4.5 V DC Battery life* (approx. hours) (When you use the CD player on a flat and stable surface.) Playing time varies depending on how the CD player is used. When using G-PROTECTION “1” “2” Two NC-6WM 15 14 (charged for about 4 hours**) Two NC-14WM 29 28 (charged for about 4 hours**) External battery case 50 48 (two alkaline batteries) Rechargeable batteries 65 61 NC-6WM and external battery case (two alkaline batteries) Rechargeable batteries 80 76 NH-14WM and external battery case (two alkaline batteries) * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). ** Charging time varies depending on how the rechargeable battery is used. Operating temperature 5°C - 35°C (41°F - 95°F) Dimensions (w/h/d) (excluding projecting parts and controls) Approx. Approx. 127.2 × 15.4 × 135.6 mm 127.2 × 18.4 × 135.6 mm (5 1⁄8 × 3⁄4 × 5 3⁄8 in.) (D-E888/EJ825) (5 1⁄8 × 5⁄8 × 5 3⁄8 in.) (D-E999/EJ925) Mass (excluding accessories) Approx. 175 g (6.2 oz) (D-E888/EJ825) Approx. 155 g (5.5 oz) (D-E999/EJ925) Design and specifications are subject to change without notice. AC power adaptor (1) Headphones/earphones with remote control (1) Rechargeable batteries (2) Battery carrying case (2) Carrying case (1) External battery case (1) AC plug adaptor (1)* * Supplied with Tourist model. On AC power adaptor • Use only the AC power adaptor supplied or recommended in “Accessories (supplied/ optional).” Do not use any other AC power adaptor. It may cause a malfunction. Polarity of the plug www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 6 3. DISASSEMBLY ......................................................... 7 4. ELECTRICAL CHECKING .................................. 11 5. DIAGRAMS 5-1. Block Diagram – MAIN Section (1/2) – ........................ 15 5-2. Block Diagram – MAIN Section (2/2) – ........................ 17 5-3. Block Diagram – POWER SUPPLY Section – .............. 19 5-4. Printed Wiring Board – MAIN Board (Suffix-11) – ...... 21 5-5. Printed Wiring Board – MAIN Board (Suffix-12) – ...... 23 5-6. Schematic Diagram – MAIN Board – ............................ 25 5-7. IC Pin Function Description ........................................... 30 6. EXPLODED VIEWS ................................................ 32 7. ELECTRICAL PARTS LIST ............................... 35 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. 1-678-954-11 or 1-678-954-12 Discrimination of MAIN board – MAIN Board (Component Side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. Before Replacing the Optical Pick-Up Block Please be sure to check thoroughly the parameters as par the “Op- tical Pick-Up Block Checking Procedures” (Part No.: 9-960-027- 11) issued separately before replacing the optical pick-up block. Note and specifications required to check are given below. • FOK output: IC601 eg pin When checking FOK, remove the lead wire to disc motor. • RF signal P-to-P value: 0.4 to 0.6 Vp-p Precautions for Checking Emission of Laser Diode Laser light of the equipment is focused by the object lens in the optical pick-up so that the light focuses on the reflection surface of the disc. Therefore, be sure to keep your eyes more then 30 cm apart from the object lens when you check the emission of laser diode. Laser Diode Checking Methods During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the S801. (push switch type) The following two checking methods for the laser diode are oper- able. • Method: Emission of the laser diode is visually checked. 1. Open the upper lid. 2. With a disc not set, turn on the S801 with a screwdriver having a thin tip as shown in Fig.1. 3. Press the u button. 4. Observing the objective lens, check that the laser diode emits light. When the laser diode does not emit light, automatic power control circuit or optical pickup is faulty. In this operation, the objective lens will move up and down 4 times along with inward motion for the focus search. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig. 1 Method to push the S801 S801 lever, detection lever, detection MAIN board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SERVICE MODE In the Service mode, this set can check the following. 1. Service Mode Setting Method To set the Service mode, perform as follows. 1) Make sure that the Power is not turned on. 2) Check for the following states: Open/close detection switch (S801) ...... OFF Solder bridge at TAP802 (OPEN) ......... OPEN [ALVS] switch (S803) ........................... NORM [HOLD] switch (S804) .......................... OFF [G-PRO] switch (S805)......................... 1 3) Short the solder bridge at the TAP801 (TEST) on the Main board (see Fig. 2). 4) Turn the Power on. 2. Operation in Service Mode When the Service mode is set, the LCD on the remote commander displays the following. Remote commander LCD display 3.Operation of Buttons and Knobs in Service Mode The following operation can be checked by operating the buttons and knobs on the set and remote commander. • u button on the set Focus ON Tracking/Thread servo OFF • x button on the set and remote commander All servos (Focus/Tracking/Thread) OFF • > / . buttons on the set and > / . knobs on remote commander Optical pickup movement (outward or inward) Tracking/Thread servo OFF • [PLAYMODE] button on remote commander (CLV speed becomes 1 to 4 times each time the button is pressed) Tracking/Thread servo ON • [PRT/ENT] buttons on remote commander Tracking gain up mode • [VOL+] / [VOL--] buttons on the set and [VOL+] / [VOL--] knobs on remote commander 2-step volume setting • [SOUND] button on remote commander Servo auto adjustment (In play mode, press this button before pressing the [PLAYMODE] button on remote commander) 4.Service Mode Releasing Method To release the Service mode, perform as follows. 1) Turn the Power off. 2) Open the solder bridge at the TAP801 (TEST) on the Main board. Note: Remove the solder completely. – MAIN Board (Component side) – Microcomputer version display All off All lit 888 %B025 Microcomputer version display VB025 BASS12 Uncertain Fig. 2 TAP801 (TEST) TAP802 (OPEN) S801 (OPEN/CLOSE/ DETECT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 5.Error Rate Check Display The C1 Error Rate Check Display mode becomes active if the following operation is performed during the operation in the normal mode. 1) Make sure that the Power is not turned on. 2) Fix the open/close detection switch (S801) on the Main board with a tape so that the switch is turned on. Or, short the solder bridge at the TAP802 (OPEN) on the Main board (see Fig. 2 on page 4). 3) Turn the Power on, then set the CD to activate the Play mode. 4) Short the solder bridge at the TAP801 (TEST) on the Main board (see Fig. 2 on page 4). 5) Press the [DISPLAY] button on remote commander, and the C1 Error Rate Check Display mode becomes active, and the remote commander LCD displays the following. OK is displayed when the error rate is 0 to 99/7350, or NG is displayed when over 100/7350. The remote commander LCD displays the following when no data is read such as in the skip mode. Note: Press again the [DISPLAY] button on remote commander, and the remote commander LCD displays the time counted down from total time of CD. Press once more the [DISPLAY] button on remote commander, and the remote commander LCD returns to the display of the music being played at present. 6) Turn the Power off. 7) Open the solder bridges at the TAP801 (TEST) and TAP802 (OPEN) on the Main board. Note: Remove the solder completely. --- 00 00 Remote commander LCD display (OK display) --- 11 11 Remote commander LCD display (NG display) --- ---:-- Remote commander LCD display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – SECTION 2 GENERAL This section is extracted from instruction manual. 4 Getting started Locating the controls For details, see pages in parentheses. CD player (front) CD player (inside) 6 x (stop) /CHG (charge) button (pages 8, 16, 19) 5 u (play/pause) button (page 8) 7 i (headphones) jack (page 7) qs AVLS switch (page 15) 1 EXT BATT (external battery)/ DC IN 4.5 V (external power input) jack (pages 7, 19, 21) 3 VOL (volume) +/– buttons (page 8) 2 LINE OUT (OPTICAL) jack (page 17) qd HOLD switch (page 15) 8 CHG (charge)/HOLD lamp (pages 15, 19) 9 OPEN switch (page 7) 4 ./> (AMS/search) buttons (pages 8, 11, 12) q; Battery compartment (pages 19) CD player (rear) qa G-PRO (G- PROTECTION) switch (page 13) 5 Remote control Note Use only the supplied remote control. You cannot operate this CD player with the remote control supplied with other CD players. qh x (stop) button (pages 8, 16) ql PLAY MODE button (pages 10 - 12, 16) qf Display (pages 9, 11 - 15) qk DISPLAY button (pages 13, 14) wf SOUND button (page 14) qg Rotary control N/>: play, AMS/search (pages 8, 11, 12) .: AMS/search (pages 8, 11, 12) VOL +/–: Pull the control in the direction of the arrow, and then turn it toward + or –. (page 8) w; RPT (repeat)/ENT (enter) button (pages 10 - 12) wa HOLD switch (page 15) qj Clip Getting started ws i (headphones) jack (page 7) wd X (pause) button (page 8) 6 Using the carrying case You can carry your player and its battery case together using the supplied carrying case. Insert them into the proper places in the case as illustrated below . www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – CABINET (UPPER) SECTION Note: Follow the disassembly procedure in the numerical order given. SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. Set Cabinet (Upper) Section Cabinet (Upper) Sub Assy, “Lid Sub Assy, Upper” (E888/EJ825 Model) Cabinet (Upper) Sub Assy, “Lid Sub Assy, Upper” (E999/EJ925 Model) Main Board, Optical Pick-Up Section (CDM-3021EBG) Setting The Battery Terminal Board (Relay) Lead Wire And Motor Lead Wires 4 five screws (B2) 5 claw 3 screw (B2) 2 Open the upper lid sub assy. S805 Note on installation cabinet (upper) section: When installing cabinet (upper) section, adjust the S805 and knob (AVLS). knob (AVLS) 1 two screws (B2) 7 spring (open) 5 two claws 6 cabinet (upper) section 5 three claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – CABINET (UPPER) SUB ASSY “LID SUB ASSY, UPPER” (E888/EJ825 MODEL) CABINET (UPPER) SUB ASSY “LID SUB ASSY, UPPER” (E999/EJ925 MODEL) 7 lid sub assy, upper 5 six tapping screws (1.7 × 2.5) 4 cabinet (upper) sub assy 2 Open the upper lid sub assy. 3 6 plate, fulcrum 1 two step screws 5 lid sub assy, upper 4 cabinet (upper) sub assy 2 Open the upper lid sub assy. 1 two step screws 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – MAIN BOARD, OPTICAL PICK-UP SECTION (CDM-3021EBG) 3 terminal board (relay), battery 4 Holding up the optical pick up section a little, remove the adhesive sheet. 1 tapping screw (B) (1.4 × 3) 5 Hold up both the optical pick-up section and the main board at the same time. Note: Be careful to hold them up because the optical pick-up flexible board is still connected to the main board. Note: Do not apply an excessive force when removing an adhesive sheet from the optical pick-up flexible board. Note: When the optical pick-up flexible board is removed, fix it with new adhesive sheets, and when fixing the optical pick-up flexible board, do it with two pieces of adhesive sheets as shown in the figure. 2 saranet cushion S804 S803 knob (HOLD) knob (AV) optical pick-up flexible board optical pick-up flexible board Note on installation MAIN board: When installing MAIN board, adjust the S803, S804 and knob (AV, HOLD). two adhesive sheets q; spacer (MD) 6 cushion 7 connector (CN503) 9 MAIN board 7 connector (CN502) 8 optical pick-up flexible board (CN501) q; spacer (MD) q; spacer (MD) qa optical pick-up section (CDM-3021EBG) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – SETTING THE BATTERY TERMINAL BOARD (RELAY) LEAD WIRE AND MOTOR LEAD WIRES battery terminal board (relay) lead wire Note: Install the battery terminal board (relay) lead wire, aligning with four bosses. Fix them to the position shown in figure using saranet cushion. Note: In routing the motor lead wires, fix them to the position shown in figure using cushion. two bosses two bosses saranet cushion motor lead wires cushion motor lead wires www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – SECTION 4 ELECTRICAL CHECKING The CD section adjustments are done automatically in this set. In case of operation check, confirm that focus bias. Precautions for Check 1. Perform check in the order given. 2. Use YEDS-18 disc (Part No.: 3-702-101-01) unless otherwise indicated. 3. Power supply voltage requirement: DC4.5 V in DC IN jack. (J401) VOLUME button: Minimum AVLS switch : NORM HOLD switch : OFF G-PRO switch : 1 Checking Location: – MAIN board (Component side) – Focus bias Check Condition: • Hold the set in horizontal state. Connection: Procedure: 1. Connect the oscilloscope to the test points TP614 (RF) and TP (GND) on the MAIN board. 2. Set a disc. (YEDS-18) 3. Press the u button. 4. Check the oscilloscope waveform is as shown below. A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. RF Signal reference Waveform (Eye Pattern) VOLT/DIV : 100 mV (With the 10:1 probe in use) TIME/DIV : 500 ns To watch the eye pattern, set the oscilloscope to AC range and increase the vertical sensitivity of the oscilloscope for easy watch- ing. 5. Stop revolving of the disc motor by pressing the x button. oscilloscope (AC range) + – MAIN board TP601 (RF) TP402 (GND) 2 k Ω RF level 0.4 to 0.6 Vp-p ! TP614 (RF) TP (GND) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – SECTION 5 DIAGRAMS • IC BLOCK DIAGRAM IC351 TA2131FL (EL) IC402 MPC17H71MTAEL V REF MT SW BST SW BEEP 19 20 21 22 23 24 18 17 16 15 14 13 PW SW 12 11 10 8 7 BST1 9 BST2 6 5 4 3 2 1 BST AGC PW B PW A ADD MT TC VCC1 INB INA BEEP OUTB BEEP OUTA VCC2 OUTA PWR GND OUTB DET AGC IN BST OUT BST NF2 LPF2 BST NF1 LPF1 VREF VREF IN GND BEEP IN BST SW MT SW PW SW 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 18 19 20 21 22 23 24 25 26 29 30 27 28 17 16 MODE CONTROL ROTATION DETECTOR MODE CLOCK REGULATOR HOLD PWM REGULATOR MODE TIME REGULATOR CLOCK DIVIDER STATE MACHINE STARTUP PATTERN GENERATOR PATTERN REGULATOR SEQUENCER CPU INTERFACE SERIAL PORT PARALLEL INTERFACE OPERATION MODE OPERATION MODE REGULATOR TEST MODE REGULATOR PREDRIVER FEEDBACK PATTERN GENERATOR BEMF SEPARATOR OVERFLOW REGULATOR PHASE DELAY REGULATOR FEEDBACK RESISTOR PHASE DECODER PWM DECODER FG SYNC PWM POL TEST RST DATA LTCH CLK VC AGND OEB VDU U PGDUV V VDVW W PGDW VG DGND W1 OE WP VP UP BEMF DETECT V1 U1 COM TST0 TST1 TST2 TST3 NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – – 14 – IC401 TB2119F IC601 CXD3028R 60 VLGO1 BATM1 59 BATM2 58 CHGMNT 57 INP1 56 RF1 55 INM1 DTC1D DTC2D RSTB VCC1 VCPU DCIN RF4 INM4 RS CHGSW R12 F12 42 R11 41 40 F11 VREF L4 RF2 INM2 VG GND 7 SYNC 8 CLOCK 9 10 DATA WAKE UP 11 LATCH 12 F13 13 R13 NC 14 PWM4 15 FR4 16 HP11 17 HP12 18 STNG 19 20 HPIC F01 39 NGND1 38 R01 37 VD12 36 F02 35 MGND2 34 R02 33 VD23 32 F03 31 MGND3 30 R03 29 VD34 28 F04 27 MGND4 26 R04 25 HPOUT1 24 HGND 23 HPOUT3 22 VHP 21 HPOUT2 LIL PGND1 L1H VIN L2H PGND2 PGND3 L2L VLGO2 L3 VLG3 INM3 RF3 CNP3 DTC3 RF21 PAPC APCREF VIHDET 61 62 63 64 65 66 67 68 69 70 71 72 74 75 73 76 77 78 1 2 3 4 5 6 79 80 LEVEL SHIFTER LEVEL SHIFTER PWM H/P DRIVER H BRIDGE DRIVER 4 H BRIDGE DRIVER 3 H BRIDGE DRIVER 2 H BRIDGE DRIVER 1 CONTROLLER STANDBY REFERENCE BANDGAP REFERENCE (VREF) CLK OR OSC SAW GEN 54 53 52 51 50 49 48 47 46 45 44 CONTROL CHARGE VREF VREF VREF VREF VCPU VREF VCPU VREF VG VCPU 1/2 VREF SAWTOOTH SAWTOOTH SAWTOOTH SAWTOOTH VREF VREF SUB VREF VCC1 VCPU DCIN OEB BIAS INTERFACE CLK R-2 R-1 R-6 D-1 to 4 D-5 S-3 S-1 S-2 R-3 R-4 R-5 R-4 CHGON/OFF 43 VIN CONTROLLER MUTE ERROR CORRECTOR 32K RAM EFM DEMODULATOR SUB CODE PROCESSOR SERVO AUTO SEQUENCER D/A INTERFACE VIBRATION MEMORY CONTROLLER + COMPRESSION EXPANDER DAC SELECTOR DIGITAL OUT ASYMMETRY CORRECTOR DIGITAL PLL DIGITAL CLV CPU INTERFACE OP AMP ANALOG SWITCH SERVO BLOCK SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK A/D CONVERTER SERVO INTERFACE SERVO DSP FOCUS SERVO SLED SERVO TRACKING SERVO CLOCK GENERATOR LPF LPF MIRR DFCT FOK PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR TRACKING PWM GENERATOR 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 XOE A0 – A11 SYSM AMUTE HPL HPM HPR PCMDI LRCKI BCKI AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 A9 A8 A7 DVSS RFAC XTAO XTAI XTSL VCTL VPCO WFCK GFS XUGF MDS C2PO WDCK BIAS ASYI ASYO FILO FILI PCO PWMI LOCK MDP SDTI SCSY SCOR SBSO EXCK SDTO XLAT CLOK SENS XSOE R4M IGEN VDD0 COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL VDD1 C176 MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR FRDR FFDR TRDR TFDR SRDR SFDR SCLK ATSK SSTP COUT FOK DFCT MIRR VSS1 TEST TES1 AVDD0 IGEN AVSS0 RFDC E F 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 104 103 102 101 100 99 98 97 96 95 94 93 92 91 XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 DVDD A0 A1 A2 A3 AVDD2 LOUT2 AIN2 AOUT2 AVSS2 AVSS1 AOUT1 AIN1 LOUT1 AVDD1 XVSS XTAO XTAI XVDD BCKI XOE XCAS D2 D3 D0 D1 XWE XRAS A11 A10 A0 A1 A2 A3 LOUT2 AIN2 AOUT2 AOUT1 AIN1 LOUT1 XVSS XTAO XTAI BCKI COUT MIRR DFCT FOK PWMI LOCK HPR HPM HPL MDP MDS SSTP SFDR SRDR TFDR TRDR FFDR FRDR VSS1 IGEN RFDC E F RFDC E F B A VC CLTV XPCK A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI XQCK SCSY SCOR VSS0 SBSO EXCK XRST SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M A9 A8 A7 DVSS A6 A5 A4 XWRE XRDE XEMP XWIH XQOK AMUTE SDTI SCSY SCOR VSS0 D GND SBSO EXCK SYSM SDTO XLAT CLOK SENS SCLK XSOE ATSK R4M BCK PCMDI PCMD LRCKI LRCK DOUT VDD2 WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL AVDD3 ASYO ASYI BIAS RFAC AVSS3 CLTV PCO FILI FILO VCTL VPCO VC A B BCK PCMDI PCMD LRCKI LRCK DOUT WFCK C2PO GFS XPCK XUGF WDCK VSS2 XTSL ASYO ASYI BIAS RFAC CLTV PCO FILI FILO VCTL VPCO VC A B XCAS D0 – D4 XWE BCK PCMD LRCK DOUT XWRE XRAS XRDE XQOK XWIH XEMP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E888/E999/EJ825/EJ925 – 15 – – 16 – 5-1. BLOCK DIAGRAM – MAIN Section (1/2) – 05 RF AMP, DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, D-RAM CONTROLLER IC601 DIGITAL OUT LPF SIGNAL PROCESSOR BLOCK MEMORY CONTROLLER, BUS BOOST BLOCK SERVO BLOCK MDS MDP SENS SCOR SDTO XTAI XTAO RFAC XSOE R4M XLAT CLOK DOUT XRAS XWE XCAS XOE LOUT LOUT, ROUT HPL, HPR ROUT AMUTE FOK XRST RFDC B A SFDR SRDR FFDR FRDR TFDR TRDR D0-D3 A0-A10 WDCK WFCK XTAO XTAI E F 59 F 62 61 A B 58 71 RFDC RFAC E LASER DIODE OPTICAL PICK-UP BLOCK DAX-21EG (Page 19) (Page 19) (Page 19) A A B RF E F B RF E F PD PD LD LD DETECTOR VCC X601 16.9MHz A B 60 2, 3, 24, 25 9 – 12, 15 – 19, 21, 8 5 4 23 22 D-RAM IC602 DQ1 – DQ4 A0 – A10 XRAS DOUT XWE XCAS XOE I J K L 46 47 SFDR SRDR 50 51 FFDR FRDR 48 49 43 44 41 42 12 13 36 34 40 38 32 30 TFDR TRDR M901 (SLED) (FOCUS) (TRACKING) FI2 RI2 FI1 RI1 FI3 FI3 FO2 RO2 FO1 RO1 FO3 RO3 FOCUS/TRACKING COIL DRIVER SLED MOTOR DRIVER IC401 (1/2) M 78 28 26 30 35 24 25 23 3 26 11 44 43 10 12 25 MODE CONTROL ROTATION DETECTOR BEMF SEPARATOR PREDRIVER FEEDBACK PATTERN GENERATOR OR PHASE/PWM DECODER 44 MDS 43 MDP 17 SCOR 42 4 1 3 2 23 24 25 14 16 18 20 45 27 22 C176 FOK R4M DRVRST 42 XHGON 39 HOLD 21 WPOPEN XSOE WDCK SDTD SENS CLOK XLAT XSOE XIN GRSCOR FOKI MSDTD SCOR MSDTI MSCK XLAT + BUFFER IC403 SYNC 8 9 7 RST DATA LTCH CLK PWM POL FG + + U1 V1 W1 COM U V W VG VG SPINDLE MOTOR DRIVER IC402 M902 (SPINDLE) FG DRVLT C HOLD OFF VCPU 2V S801 (OPEN/CLOSE DETECT) TAP802 (OPEN) VCC1 2V SYSTEM CONTROLLER IC801 (1/3) 41 SDTO SCK E D F G SYNC RST 2-AXIS DEVICE CPU INTERFACE S804 HOLD 13 21 85 116, 115, 118, 117 106 – 109, 7 – 5, 3 – 1, 111 97 104 94 93 113 114 119 120 AMUTE XRST (Page 17) (Page 17) (Page 17) (Page 17) (Page 19) (Page 19) (Page 19) (Page 19) HPL HPR M 38 39 (Page 17) • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) V U W 6 CONTROLLER, H BRIDGE DRIVER BUFFER IC603 SERVO I/F ATSK 29 79 OPTICAL PICK-UP POWER ON SWITCH Q411 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E888/E999/EJ825/EJ925 – 17 – – 18 – – 19 – – 20 – 5-2. BLOCK DIAGRAM – MAIN Section (2/2) – 47 14 7 9 28 38 19 18 36 B+ SWITCH Q601 LINE MUTE CONTROL SWITCH Q302 XDOUTON AD SEL AMUTE XRST BEEP AVLS AD RMKEY AD KEY COMPON SYSTEM CONTROLLER IC801(2/3) D601 VCC2 3V (LINE OUT JACK) J301 LINE OUT (OPTICAL) OPTICAL TRANSCEIVER 32 TSB VCPU 2V TSB RMKEY GND J302 i / (HEAD PHONE) S811 – 816 S811 4 3 2 1 VCPU 2V NORM LIMIT S803 AVLS VCPU 2V IN_L IN_R HEADPHONE AMP IC351 21 22 OUT_L OUT_R BEEP_L BEEP_R 4 2 PW_SW MT_SW 17 BEEP IN 15 PW SW BEEP MT SW 18 TAP801 (TEST) HPL HPR I M K L 78 05 H RSTB D801 (Page 16) J (Page 16) DOUT LOUT ROUT (Page 16) (Page 16) AMUTE (Page 16) XRST (Page 19) RESET MUTING Q301 • SIGNAL PATH : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) VCPU2V 1 2 G-PRO S805 23 24 NX S812 . S813 > S814 x/CHG S815 + S816 – VOL 5-3. BLOCK DIAGRAM – POWER SUPPLY Section – D-RAM (IC602) 2V LINEAR CONSTANT CURRENT, CONSTANT VOLTAGE CHARGING BATTERY CHARGE CIRCUIT CHARGING BATTERY VOLTAGE DETECTOR CIRCUIT PRE-DRIVER SWITCHING POWER CIRCUIT WAKE UP SWITCH Q409 LASER VOLTAGE LIMITER Q406 B+ SWITCH Q602 RIPPLE FILTER Q408 CHARGE CONTROL Q402, 407 CHARGE ON SWITCH Q404 EXTERNAL BATTERY SWITCH Q410 SWITCHING POWER CIRCUIT LENEAR REGULATOR INTERFACE VG POWER CIRCUIT CLK OR OSC 59 47 48 46 49 65 45 CHG SW RF4 INM4 RF21 RF21 RF2 RF2 VCC1 VCPU VLG3 VCPU VCC1 INM2 INM2 APCREF APCREF DTCLD VREF PAPC PA PC WAKEUP LATCH DATA CLOCK DATA CLOCK VLGO2 SYNC 10 9 69 4 3 78 8 52 51 11 18 53 77 57 61 50 79 54 1 72 58 7 SDTO SCK PD 13 LD D F G B A H SYNC DTC2D DTC1D INP1 INP1 RS DC IN V IN RF4 INM4 RS CHGSW V IN DC IN LATCH DTC2D STNG WAKEUP VLGO1 BATM1 BATM2 L3 L3 CHGMNT CHGMNT VLGO2 VLGO1 VLG3 VG L4 5 2 VG L4 BATM1 RSTB SLPOUT 8 VCC2_ON 46 XPOWLT 15 CHGMNT1 20 DCINMNT 40 EX_BATT 17 BATMNT 5 XLEDDISP 48 XAPC_OFF 4 AGCCON SYSTEM CONTROLLER IC801 (3/3) RSTB RST 05 VCC1 2V B+ 3V VCPU 2V VCC2 3V D408 CHG/HOLD D411 D406 D407 D401 RECHARGEABLE BATTERY NH-14WM 2PCS. 2.4V SPINDLE MOTOR DRIVER (IC402) 3V, HEADPHONE AMP (IC351) 3V DC IN 4.5V – + J401 (1/2) J401 (2/2) EXT BATT VG CHARGE E C POWER CONTROL IC401 (2/2) (Page 15) (Page 15) (Page 15) (Page 16) (Page 16) (Page 16) (Page 17) (Page 16) VREF SAW GEN. B+ SWITCH Q401, 405 71 60 B+ SWITCH Q403 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E888/E999/EJ825/EJ925 91 120 31 60 61 TP (GND) TP614 (RF) B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A 05 ! 91 120 31 60 61 TP (GND) TP614 (RF) B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A 05 ! – 21 – – 22 – – 23 – – 24 – 5-4. PRINTED WIRING BOARD – MAIN Board (Suffix-11) – 5-5. PRINTED WIRING BOARD – MAIN Board (Suffix-12) – Note on Printed Wiring Boards (Suffix-11 and -12): • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. • MAIN board is multi-layer printed board. However, the patterns of intermediate-layer have not been included in the diagram. • Semiconductor Location (Suffix-11 and -12) IC602 F-7 IC603 F-6 IC801 H-11 Q301 F-9 Q302 F-9 Q401 I-13 Q402 H-13 Q403 H-12 Q404 H-4 Q405 J-13 Q406 I-2 Q407 G-5 Q408 I-4 Q409 H-15 Q410 G-5 Q411 D-10 Q414 H-14 Q601 F-7 Q602 E-7 Ref. No. Location Ref. No. Location D302 H-10 D401 H-5 D402 H-12 D403 I-12 D404 I-15 D405 I-15 D406 H-4 D407 G-5 D408 I-5 D409 D-6 D410 H-2 D411 I-14 D413 E-6 D601 F-10 D801 I-5 IC351 G-10 IC401 H-13 IC402 D-10 IC403 D-6 IC601 E-10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E888/E999/EJ825/EJ925 – 25 – – 26 – – 27 – – 28 – 5-6. SCHEMATIC DIAGRAM – MAIN Board – • See page 29 for Waveforms. • See page 12 for IC Block Diagrams. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • A : B+ Line. • U : B+ Line. • Total current is measured with CD installed. • Power voltage is dc 4.5 V and fed with regulated dc power supply from DC IN jack (J401). • Voltages and waveforms are dc with respect to ground in playback mode. no mark : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : CD PLAY (ANALOG OUT) c : CD PLAY (OPTICAL OUT) Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com D-E888/E999/EJ825/EJ925 – 29 – – 30 – – 31 – – 32 – 2 IC401 9 CLOCK 1 V/DIV, 20 µs/DIV 3 IC801 q; MSCK 1 V/DIV, 20 µs/DIV 4 IC801 ul XIN 1 V/DIV, 20 ns/DIV 5 IC601 wg CLOK 1 V/DIV, 20 ns/DIV 6 IC601 e; R4M 1 V/DIV, 20 ns/DIV 7 IC601 rd MDP (CD PLAY) 1 V/DIV, 2 µs/DIV 8 IC601 tk RFDC 100 mV/DIV, 500 ns/DIV 2.0 Vp-p 1.9 µs 2.0 Vp-p 236 ns 2.0 Vp-p 1.9 µs 3.8 µs 2.0 Vp-p 2.0 Vp-p 1.9 µs 400 600 mVp-p 2.0 Vp-p 236 ns 2.0 Vp-p 1.9 µs • Waveforms 1 IC402 9 CLK 1 V/DIV, 1 µs/DIV 9 IC601 ua RFAC 100 mV/DIV, 500 ns/DIV q; IC601 od XTAI 1 V/DIV, 20 ns/DIV 400 600 mVp-p 2.1 Vp-p 59.0 ns 5-7. IC PIN FUNCTION DESCRIPTION 15 E888/EJ825 E999/EJ925 15 17 14 13 13 12 11 10 9 6 8 5 4 3 2 1 7 7 16 B C C B B C A A 17 SECTION 6 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-3380-297-1 CABINET (UPPER) SUB ASSY (E999/EJ925) 1 X-3380-248-1 CABINET (UPPER) SUB ASSY (L) (BLUE) (E888/EJ825) 1 X-3380-249-1 CABINET (UPPER) SUB ASSY (W) (WHITE) (E888/EJ825) 1 X-3380-250-1 CABINET (UPPER) SUB ASSY (P) (PINK) (E888/EJ825) 2 3-221-812-01 LEVER, DETECTION 3 4-224-035-01 SPRING (OPEN) 4 4-224-031-01 KNOB (OPEN) 5 4-908-792-01 SCREW (B2) (SILVER) (E999/EJ925) * 5 4-908-792-11 SCREW (B2) (BLACK) (E888/EJ825) 6 3-223-889-01 KNOB (AVLS) (E999/EJ925) 6 3-223-889-11 KNOB (AVLS) (DARK BLUE)... (BLUE) (E888/EJ825) 6 3-223-889-21 KNOB (AVLS) (LIGHT PURPLE)... (WHITE) (E888/EJ825) 6 3-223-889-31 KNOB (AVLS) (PINK)... (PINK) (E888/EJ825) 7 3-223-826-01 SCREW (B2) (SILVER) (E999/EJ925) 7 4-908-792-91 SCREW (B2) (BLACK) (E888/EJ825) 8 3-221-806-01 SCREW, STEP 9 3-221-811-01 CLAW, LOCK (E999/EJ925) 9 3-221-811-11 CLAW, LOCK (E888/EJ825) 10 3-221-814-01 LID, BATTERY CASE (E999/EJ925) 10 3-221-814-11 LID, BATTERY CASE (E888/EJ825) 11 3-221-815-01 SHAFT (BATTERY CASE LID) 12 3-221-810-01 HINGE, BATTERY CASE LID (E999/EJ925) 12 3-221-810-11 HINGE, BATTERY CASE LID (E888/EJ825) 13 3-318-382-91 SCREW (1.7X2.5), TAPPING 14 3-221-869-01 PLATE, FULCRUM (E888/EJ825) 15 X-3380-251-1 LID SUB ASSY, UPPER (E999) 15 X-3380-252-1 LID SUB ASSY, UPPER (L) (BLUE) (E888) 15 X-3380-253-1 LID SUB ASSY, UPPER (W) (WHITE) (E888) 15 X-3380-254-1 LID SUB ASSY, UPPER (P) (PINK) (E888) 15 X-3380-255-1 LID SUB ASSY, UPPER (EJ925) (US, CND, E13, HK, KR, CH) 15 X-3380-256-1 LID SUB ASSY, UPPER (EJ925) (AEP, UK, FR, G, EE) 15 X-3380-257-1 LID SUB ASSY, UPPER (L) (BLUE) (EJ825) (US, CND, E13, HK, KR, CH) 15 X-3380-258-1 LID SUB ASSY, UPPER (W) (WHITE) (EJ825) (US, CND, E13, HK, KR, CH) 15 X-3380-259-1 LID SUB ASSY, UPPER (P) (PINK) (EJ825) (US, CND, E13, HK, KR, CH) 15 X-3380-260-1 LID SUB ASSY, UPPER (L) (BLUE) (EJ825) (AEP, UK, FR, G) 15 X-3380-261-1 LID SUB ASSY, UPPER (W) (WHITE) (EJ825) (AEP, UK, FR, G) 15 X-3380-262-1 LID SUB ASSY, UPPER (P) (PINK) (EJ825) (AEP, UK, FR, G) 16 3-226-920-01 SPRING (FULL OPEN 9) (E999/EJ925) 16 3-226-921-01 SPRING (FULL OPEN 8) (E888/EJ825) 17 3-223-073-01 SPACER (A) (1) CABINET (UPPER) SECTION Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • Abbreviation CH : Chinese model CND : Canadian model E13 : 220 – 230 V AC area in E model EE : East European model • IC801 T5U87-1B68 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 VSS — Ground terminal 2 NC I Not used (open) 3 FOK I Focus OK signal input from the CXD3028R (IC601) “L”: NG, “H”: OK 4 AGCPWM O AGC control pulse signal output to the power control (IC401) 5 LEDDISP O CHG/HOLD LED (D408) ON/OFF control signal output “L”: lit on 6 NC O Not used (open) 7 AMUTE O Analog audio muting ON/OFF control signal output terminal “H”: muting ON 8 VCC2 ON O VCC2 voltage control signal output terminal “H”: ON 9 XRST O Reset signal output to the headphone amp (IC351) and CXD3028R (IC601) “L”: reset 10 MSCK O Serial data transfer clock signal output to the power control (IC401), spindle motor driver (IC402), and CXD3028R (IC601) 11 MSDTI I Serial data input from the CXD3028R (IC601) 12 MSDTO O Serial data output to the power control (IC401), spindle motor driver (IC402), and CXD3028R (IC601) 13 XWAKEUP O Wake-up control signal output (for system standby reset) “L”: Wake 14 AD SEL I Plug-in detection signal input terminal of LINE OUT/OPTICAL OUT (A/D input) 15 AD CHGMNT I Battery charge voltage detection input from the power control (IC401) (A/D input) 16 AD VCDKEY2 I Key input terminal Not used (Fixed at “H”) 17 AD BATMNT I Battery voltage detection signal input terminal 18 AD KEY I Key input from the S811 to S816 (u, ., >, x/CHG, VOLUME +/–) (A/D input) 19 RMKEY I Key input from the headphone with remote commander (A/D input) 20 DCINMNT I DC input voltage detection input terminal (A/D input) and DC input jack use/no use detection input terminal (A/D input) 21 WP OPEN I CD door open/close detection switch (S801) input The stop status is reset with the falling edge of input signal 22 VREFL I Reference voltage input terminal (0V) for A/D converter 23 VREFH I Reference voltage input terminal (+2V) for A/D converter 24 VDD — Power supply terminal (+2V) 25 SCOR I Sub-code sync (S0+S1) detection signal input from the CXD3028R (IC601) 26 GRSCOR I Communication clock signal input from the CXD3028R (IC601) 27 SPDL MIR/FG I FG pulse signal input from the spindle motor driver (IC402) 28 BEEP O Beep sound signal output to the headphone amplifier (IC351) 29 to 31 NC — Not used (open) 32 TSB O Communication data bus output of headphone with remote commander 33 TEXTSKIP I Not used (open) 34 AVOL XAVLS I Not used (open) 35 CD RW SEL I Not used (open) 36 COMPON I G-PRO switch (S805) input “H”: G-PRO 2 37 DJG TU I Not used (open) 38 AVLS I AVLS (Automatic Volume Limiter System) switch (S803) input terminal “L”: normal mode, “H”: limit mode 39 HOLD I HOLD switch (S804) input terminal “L”: hold ON, “H”: hold OFF 40 EX BATT I External battery detection signal input terminal 41 DRVRST O Reset signal output to the spindle motor driver (IC402) 42 XHGON O Optical pick-up power ON/OFF control signal output terminal “L”: ON 43 XLAT O Serial data latch pulse signal output to the CXD3028R (IC601) 44 XSOE O Serial data output enable signal output Pin No. Pin Name I/O Description 45 DRVLT O Latch signal output to the spindle motor driver (IC402) 46 XPOWLT O Latch signal output to the power control (IC401) 47 XDOUTON O Digital output LED control signal output terminal “L”: ON 48 XAPC OFF O APC muting signal output to the power control (IC401) “L”: muting 49 NC — Not used (open) 50 to 64 SEG14 to SEG0 O Segment drive signal output terminal for the display Not used (open) 65 to 68 COM3 to COM0 O Common drive signal output terminal for the display Not used (open) 69 to 71 V3 to V1 O Bias signal output terminal for the display driver Not used 72, 73 C1, C0 O Capacitor connected terminal for the display driver voltage-up (for bias) 74 NC — Not used (fixed at “L”) 75 TEST I Test terminal for internal connection (open in this set) 76 XHPSW O ON/OFF control signal output to the headphone amp “L”: ON Not used (open) 77 XLIGHT O Back light control signal output terminal for the display Not used (open) 78 RESET I System reset signal input from the power control (IC401) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 79 XIN I System clock input from the CXD3028R (IC601) 80 XOUT O System clock output terminal Not used (open) FR : French model G : German model HK : Hong Kong model KR : Korean model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – (2) CABINET (LOWER) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-221-841-01 SPACER (MD) 52 3-831-441-99 CUSHION 53 3-318-201-01 SCREW (B) (1.4X3), TAPPING 54 3-221-816-01 SPRING (GROUND) * 55 A-3323-594-A MAIN BOARD, COMPLETE (EXCEPT FR) * 55 A-3323-595-A MAIN BOARD, COMPLETE (FR) 56 3-222-300-01 TERMINAL BOARD (+), BATTERY 57 3-222-301-01 TERMINAL BOARD (-), BATTERY 58 3-221-818-01 TERMINAL BOARD (RELAY), BATTERY 59 3-221-805-01 CABINET (LOWER) (E999) 59 3-221-805-11 CABINET (LOWER) (EJ925: US, CND, AEP, UK, FR, G, EE, KR, CH) 59 3-221-805-21 CABINET (LOWER) (EJ925: E13, HK) 59 3-223-810-01 CABINET (LOWER) (BLUE) (E888) 59 3-223-810-11 CABINET (LOWER) (WHITE) (E888) 59 3-223-810-21 CABINET (LOWER) (PINK) (E888) 59 3-223-810-31 CABINET (LOWER) (BLUE) (EJ825: US, CND, AEP, UK, FR, G, KR, CH) 59 3-223-810-41 CABINET (LOWER) (WHITE) (EJ825: US, CND, AEP, UK, FR, G, KR, CH) 59 3-223-810-51 CABINET (LOWER) (PINK) (EJ825: US, CND, AEP, UK, FR, G, KR, CH) 59 3-223-810-61 CABINET (LOWER) (BLUE) (EJ825: E13, HK) 59 3-223-810-71 CABINET (LOWER) (WHITE) (EJ825: E13, HK) 59 3-223-810-81 CABINET (LOWER) (PINK) (EJ825: E13, HK) 60 3-221-809-01 KNOB (HOLD) (E999/EJ925) 60 3-221-809-11 KNOB (HOLD) (DARK BLUE)... (BLUE) (E888/EJ825) 60 3-221-809-21 KNOB (HOLD) (LIGHT PURPLE)... (WHITE) (E888/EJ825) 60 3-221-809-31 KNOB (HOLD) (PINK)... (PINK) (E888/EJ825) 61 3-221-819-01 KNOB (AV) (E999/EJ925) 61 3-221-819-11 KNOB (AV) (DARK BLUE)... (BLUE) (E888/EJ825) 61 3-221-819-21 KNOB (AV) (LIGHT PURPLE)... (WHITE) (E888/EJ825) 61 3-221-819-31 KNOB (AV) (PINK)... (PINK) (E888/EJ825) 62 4-224-048-01 FOOT, RUBBER 63 3-221-800-01 HEAT SINK 64 3-223-103-01 SHEET (ELECTROSTATIC) 65 3-223-073-01 SPACER (A) 64 63 62 61 60 59 58 57 56 55 54 53 51 51 65 51 52 CDM-3021EBG not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – (3) OPTICAL PICK-UP SECTION (CDM-3021EBG) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0101 X-3379-432-1 OPTICAL PICK-UP (DAX-21EG) 102 3-704-197-92 SCREW (M1.4X1.8), LOCKING 103 4-220-645-01 SHAFT, STANDARD 104 4-220-646-01 RACK 105 A-3328-298-A SCREW ASSY, FEED 106 3-338-645-31 WASHER (0.8-2.5) 107 3-686-458-03 SCREW (P1.4X3.5), TAPPING 108 4-220-648-01 GEAR (C) 109 X-4951-688-1 BRACKET ASSY, SLED 110 3-348-998-61 SCREW (M1.4X4), TAPPING, PAN 111 X-4951-687-1 BASE ASSY, SLED M901 A-3328-299-A MOTOR BLOCK ASSY, SLED (WITH GEAR) M902 A-3328-418-A CHASSIS ASSY (SPINDLE) (WITH TURN TABLE) 102 110 110 106 108 109 111 107 105 101 104 103 M901 M902 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – SECTION 7 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation CH : Chinese model CND : Canadian model E13 : 220 – 230 V AC area in E model EE : East European model FR : French model G : German model HK : Hong Kong model JE : Tourist model KR : Korean model * A-3323-594-A MAIN BOARD, COMPLETE (EXCEPT FR) * A-3323-595-A MAIN BOARD, COMPLETE (FR) ********************* 3-221-818-01 TERMINAL BOARD (RELAY), BATTERY 3-222-300-01 TERMINAL BOARD (+), BATTERY 3-222-301-01 TERMINAL BOARD (-), BATTERY < CAPACITOR > C101 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C102 1-164-870-11 CERAMIC CHIP 68PF 5% 16V C103 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C104 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C105 1-164-217-11 CERAMIC CHIP 150PF 5% 50V (SUFFIX -12: FR) C105 1-164-935-11 CERAMIC CHIP 470PF 10% 16V (SUFFIX -11, SUFFIX -12: EXCEPT FR) C106 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V C107 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V C161 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C163 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C201 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C202 1-164-870-11 CERAMIC CHIP 68PF 5% 16V C203 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C204 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C205 1-164-217-11 CERAMIC CHIP 150PF 5% 50V (SUFFIX -12: FR) C205 1-164-935-11 CERAMIC CHIP 470PF 10% 16V (SUFFIX -11, SUFFIX -12: EXCEPT FR) C206 1-164-940-11 CERAMIC CHIP 0.0033uF 10% 16V C207 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 16V C261 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C263 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C301 1-117-720-11 CERAMIC CHIP 4.7uF 10V C302 1-115-156-11 CERAMIC CHIP 1uF 10V C303 1-115-156-11 CERAMIC CHIP 1uF 10V C304 1-107-820-11 CERAMIC CHIP 0.1uF 16V C305 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C306 1-115-156-11 CERAMIC CHIP 1uF 10V C307 1-127-569-11 TANTALUM CHIP 100uF 20% 4V C311 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C312 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C401 1-164-156-11 CERAMIC CHIP 0.1uF 25V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C403 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C404 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C405 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V C406 1-164-156-11 CERAMIC CHIP 0.1uF 25V C407 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C408 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C409 1-164-938-11 CERAMIC CHIP 0.0015uF 10% 16V C410 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C411 1-104-752-11 TANTALUM CHIP 33uF 20% 6.3V C412 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C413 1-164-870-11 CERAMIC CHIP 68PF 5% 16V C414 1-125-899-11 TANTALUM CHIP 220uF 20% 4V C415 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C416 1-115-156-11 CERAMIC CHIP 1uF 10V C417 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C418 1-164-156-11 CERAMIC CHIP 0.1uF 25V C420 1-115-156-11 CERAMIC CHIP 1uF 10V C421 1-127-772-11 CERAMIC CHIP 33000PF 10% 10V C422 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C423 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C424 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C425 1-107-820-11 CERAMIC CHIP 0.1uF 16V C426 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C427 1-115-156-11 CERAMIC CHIP 1uF 10V C428 1-164-156-11 CERAMIC CHIP 0.1uF 25V C430 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C431 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C432 1-117-370-11 CERAMIC CHIP 10uF 10V C433 1-107-820-11 CERAMIC CHIP 0.1uF 16V C434 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C435 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C436 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C437 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C438 1-115-156-11 CERAMIC CHIP 1uF 10V C439 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C440 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C441 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C442 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C444 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C445 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C446 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C447 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C448 1-164-870-11 CERAMIC CHIP 68PF 5% 16V C449 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C450 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C451 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C452 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C453 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C454 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C456 1-115-156-11 CERAMIC CHIP 1uF 10V C457 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C459 1-110-569-11 TANTALUM CHIP 47uF 20% 6.3V C463 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C501 1-107-820-11 CERAMIC CHIP 0.1uF 16V C502 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C601 1-107-820-11 CERAMIC CHIP 0.1uF 16V C602 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C604 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C605 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C606 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C607 1-107-820-11 CERAMIC CHIP 0.1uF 16V C608 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C609 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C610 1-164-156-11 CERAMIC CHIP 0.1uF 25V C612 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C613 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C614 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C615 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C616 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C617 1-115-156-11 CERAMIC CHIP 1uF 10V C618 1-164-866-11 CERAMIC CHIP 47PF 5% 16V C619 1-164-854-11 CERAMIC CHIP 15PF 5% 16V C620 1-164-866-11 CERAMIC CHIP 47PF 5% 16V C621 1-107-820-11 CERAMIC CHIP 0.1uF 16V C622 1-115-156-11 CERAMIC CHIP 1uF 10V C623 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C624 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C625 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V (SUFFIX -11) C625 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V (SUFFIX -12) C626 1-115-156-11 CERAMIC CHIP 1uF 10V C627 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C630 1-164-156-11 CERAMIC CHIP 0.1uF 25V C631 1-164-854-11 CERAMIC CHIP 15PF 5% 16V C632 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C633 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C801 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C802 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C803 1-117-720-11 CERAMIC CHIP 4.7uF 10V C804 1-165-128-11 CERAMIC CHIP 0.22uF 16V C805 1-165-128-11 CERAMIC CHIP 0.22uF 16V C806 1-165-128-11 CERAMIC CHIP 0.22uF 16V C807 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C808 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C809 1-107-820-11 CERAMIC CHIP 0.1uF 16V C811 1-107-820-11 CERAMIC CHIP 0.1uF 16V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN501 1-573-922-21 CONNECTOR, FFC/FPC (ZIF) 13P * CN502 1-785-877-21 HOUSING, CONNECTOR 4P CN503 1-784-342-21 HOUSING, CONNECTOR 2P < DIODE > D302 8-719-056-85 DIODE UDZ-TE-17-8.2B D401 8-719-072-70 DIODE MA2ZD14001S0 D402 8-719-073-01 DIODE MA111- (K8).S0 D403 8-719-422-12 DIODE MA8039 D404 8-719-072-70 DIODE MA2ZD14001S0 D405 8-719-077-01 DIODE CRS03 (TE85L) D406 8-719-077-01 DIODE CRS03 (TE85L) D407 8-719-072-70 DIODE MA2ZD14001S0 D408 8-719-074-30 LED CL-190UR-CD-T (CHG/HOLD) D409 8-719-072-70 DIODE MA2ZD14001S0 D410 8-719-073-01 DIODE MA111- (K8).S0 D411 8-719-058-24 DIODE RB501V-40TE-17 D413 8-719-072-70 DIODE MA2ZD14001S0 D601 8-719-988-78 DIODE SB007W03Q D801 8-719-072-70 DIODE MA2ZD14001S0 < FERRITE BEAD > FB101 1-414-760-21 FERRITE FB102 1-414-760-21 FERRITE FB201 1-414-760-21 FERRITE FB202 1-414-760-21 FERRITE FB301 1-414-760-21 FERRITE FB302 1-469-152-11 FERRITE FB401 1-500-451-11 FERRITE FB402 1-500-451-11 FERRITE FB601 1-414-760-21 FERRITE FB602 1-414-760-21 FERRITE < IC > IC351 8-759-598-15 IC TA2131FL-EL IC401 8-759-642-56 IC TB2119F IC402 8-759-594-58 IC MPC17H71MTAEL IC403 8-759-594-55 IC TC75S57F (TE85R) IC601 8-752-409-05 IC CXD3028R IC602 8-759-594-56 IC MSM51X17400D-10TFSR1 IC603 8-759-075-70 IC TA75S393F IC801 8-759-693-85 IC T5U87-1B68 < JACK > J301 1-793-659-11 JACK, OPTICAL OUT (LINE OUT (OPTICAL)) J302 1-793-288-22 JACK (i (HEADPHONE)) J401 1-793-156-21 JACK, DC (EXT BATT/DC IN 4.5V) < COIL/RESISTOR > L301 1-216-295-11 SHORT 0 L302 1-216-295-11 SHORT 0 (SUFFIX -11) L302 1-410-997-22 INDUCTOR 2.2uH (SUFFIX -12) L303 1-410-997-22 INDUCTOR 2.2uH L304 1-410-997-22 INDUCTOR 2.2uH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN L305 1-410-997-22 INDUCTOR 2.2uH L401 1-419-188-21 INDUCTOR 100uH L402 1-414-404-41 INDUCTOR 100uH L403 1-414-434-11 INDUCTOR 100uH L404 1-410-389-31 INDUCTOR CHIP 47uH (SUFFIX -12) L404 1-414-404-41 INDUCTOR 100uH (SUFFIX -11) L405 1-410-389-31 INDUCTOR CHIP 47uH L411 1-414-398-11 INDUCTOR 10uH L413 1-216-295-11 SHORT 0 L414 1-216-295-11 SHORT 0 L415 1-216-295-11 SHORT 0 L416 1-414-404-41 INDUCTOR 100uH L417 1-414-404-41 INDUCTOR 100uH L418 1-414-404-41 INDUCTOR 100uH L601 1-216-864-11 METAL CHIP 0 5% 1/16W L602 1-414-521-11 INDUCTOR 10uH L603 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q301 8-729-043-90 TRANSISTOR IMX9T110 Q302 8-729-930-00 TRANSISTOR UMD2 Q401 8-729-904-86 TRANSISTOR 2SB1197K-Q Q402 8-729-921-73 TRANSISTOR 2SD1781K-QR Q403 8-729-427-74 TRANSISTOR XP4601 Q404 8-729-921-93 TRANSISTOR 2SB1182F5-QR Q405 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q406 8-729-029-13 TRANSISTOR DTC143ZUA-T106 Q407 8-729-028-26 FET 2SK1829 (TE85L) Q408 8-729-047-36 FET CPH3303-TL Q409 8-729-230-63 TRANSISTOR 2SC4116-YG Q410 8-729-029-14 TRANSISTOR DTC144EUA-T106 Q411 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q414 8-729-427-83 TRANSISTOR XP6501 Q601 8-729-028-86 TRANSISTOR DTA143EUA-T106 Q602 8-729-028-76 TRANSISTOR DTA114YUA-T106 < RESISTOR > R101 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R102 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R103 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R105 1-218-947-11 RES-CHIP 330 5% 1/16W R106 1-218-945-11 RES-CHIP 220 5% 1/16W R108 1-218-953-11 RES-CHIP 1K 5% 1/16W R109 1-218-977-11 RES-CHIP 100K 5% 1/16W R110 1-218-965-11 RES-CHIP 10K 5% 1/16W (SUFFIX -11, SUFFIX -12: EXCEPT FR) R110 1-218-971-11 RES-CHIP 33K 5% 1/16W (SUFFIX -12: FR) R111 1-218-953-11 RES-CHIP 1K 5% 1/16W R112 1-218-953-11 RES-CHIP 1K 5% 1/16W R161 1-218-929-11 RES-CHIP 10 5% 1/16W R162 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (SUFFIX -12: FR) R162 1-218-965-11 RES-CHIP 10K 5% 1/16W (SUFFIX -11, SUFFIX -12: EXCEPT FR) R201 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R202 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R203 1-218-879-11 METAL CHIP 22K 0.5% 1/16W R205 1-218-947-11 RES-CHIP 330 5% 1/16W R206 1-218-945-11 RES-CHIP 220 5% 1/16W R208 1-218-953-11 RES-CHIP 1K 5% 1/16W R209 1-218-977-11 RES-CHIP 100K 5% 1/16W R210 1-218-965-11 RES-CHIP 10K 5% 1/16W (SUFFIX -11, SUFFIX -12: EXCEPT FR) R210 1-218-971-11 RES-CHIP 33K 5% 1/16W (SUFFIX -12: FR) R211 1-218-953-11 RES-CHIP 1K 5% 1/16W R212 1-218-953-11 RES-CHIP 1K 5% 1/16W R261 1-218-929-11 RES-CHIP 10 5% 1/16W R262 1-218-961-11 RES-CHIP 4.7K 5% 1/16W (SUFFIX -12: FR) R262 1-218-965-11 RES-CHIP 10K 5% 1/16W (SUFFIX -11, SUFFIX -12: EXCEPT FR) R301 1-218-981-11 RES-CHIP 220K 5% 1/16W (FR) R301 1-218-983-11 RES-CHIP 330K 5% 1/16W (EXCEPT FR) R302 1-218-981-11 RES-CHIP 220K 5% 1/16W (FR) R302 1-218-983-11 RES-CHIP 330K 5% 1/16W (EXCEPT FR) R303 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R304 1-218-953-11 RES-CHIP 1K 5% 1/16W R305 1-218-953-11 RES-CHIP 1K 5% 1/16W R306 1-216-864-11 METAL CHIP 0 5% 1/16W R307 1-216-864-11 METAL CHIP 0 5% 1/16W R308 1-218-939-11 RES-CHIP 68 5% 1/16W R310 1-216-864-11 METAL CHIP 0 5% 1/16W R313 1-216-295-11 SHORT 0 R401 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R402 1-216-821-11 METAL CHIP 1K 5% 1/16W R403 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R404 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R405 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R406 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R407 1-216-817-11 METAL CHIP 470 5% 1/16W R408 1-218-985-11 RES-CHIP 470K 5% 1/16W R409 1-218-965-11 RES-CHIP 10K 5% 1/16W R411 1-216-864-11 METAL CHIP 0 5% 1/16W R414 1-220-804-11 RES-CHIP 2.2M 5% 1/16W R417 1-218-943-11 RES-CHIP 150 5% 1/16W R418 1-216-304-11 METAL CHIP 3.3 5% 1/10W R419 1-216-298-00 METAL CHIP 2.2 5% 1/10W R420 1-216-298-00 METAL CHIP 2.2 5% 1/10W R421 1-218-977-11 RES-CHIP 100K 5% 1/16W R422 1-218-989-11 RES-CHIP 1M 5% 1/16W R427 1-218-977-11 RES-CHIP 100K 5% 1/16W R428 1-218-989-11 RES-CHIP 1M 5% 1/16W R429 1-218-990-11 SHORT 0 R432 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R433 1-218-971-11 RES-CHIP 33K 5% 1/16W R434 1-218-895-11 RES-CHIP 100K 0.5% 1/16W R436 1-218-989-11 RES-CHIP 1M 5% 1/16W R437 1-216-864-11 METAL CHIP 0 5% 1/16W R438 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R439 1-218-969-11 RES-CHIP 22K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R440 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R441 1-218-969-11 RES-CHIP 22K 5% 1/16W R442 1-218-977-11 RES-CHIP 100K 5% 1/16W R443 1-218-969-11 RES-CHIP 22K 5% 1/16W R444 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R445 1-218-987-11 RES-CHIP 680K 5% 1/16W R446 1-218-903-11 METAL CHIP 220K 0.5% 1/16W R448 1-218-990-11 SHORT 0 R450 1-218-977-11 RES-CHIP 100K 5% 1/16W R451 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R452 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R453 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R454 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R456 1-218-985-11 RES-CHIP 470K 5% 1/16W R457 1-218-883-11 METAL CHIP 33K 0.5% 1/16W R458 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R459 1-218-941-11 RES-CHIP 100 5% 1/16W R460 1-218-977-11 RES-CHIP 100K 5% 1/16W R466 1-218-989-11 RES-CHIP 1M 5% 1/16W R467 1-218-953-11 RES-CHIP 1K 5% 1/16W R468 1-218-947-11 RES-CHIP 330 5% 1/16W R470 1-218-985-11 RES-CHIP 470K 5% 1/16W R471 1-218-989-11 RES-CHIP 1M 5% 1/16W R473 1-218-989-11 RES-CHIP 1M 5% 1/16W R474 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R475 1-218-953-11 RES-CHIP 1K 5% 1/16W R476 1-218-989-11 RES-CHIP 1M 5% 1/16W R477 1-218-975-11 RES-CHIP 68K 5% 1/16W R601 1-218-965-11 RES-CHIP 10K 5% 1/16W R602 1-218-965-11 RES-CHIP 10K 5% 1/16W R603 1-218-971-11 RES-CHIP 33K 5% 1/16W R604 1-218-951-11 RES-CHIP 680 5% 1/16W R605 1-218-990-11 SHORT 0 R606 1-218-983-11 RES-CHIP 330K 5% 1/16W R607 1-218-989-11 RES-CHIP 1M 5% 1/16W R608 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R609 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R610 1-218-965-11 RES-CHIP 10K 5% 1/16W R611 1-218-985-11 RES-CHIP 470K 5% 1/16W R612 1-218-990-11 SHORT 0 R613 1-218-965-11 RES-CHIP 10K 5% 1/16W R614 1-218-973-11 RES-CHIP 47K 5% 1/16W R615 1-218-969-11 RES-CHIP 22K 5% 1/16W R616 1-218-977-11 RES-CHIP 100K 5% 1/16W R617 1-218-969-11 RES-CHIP 22K 5% 1/16W R618 1-218-977-11 RES-CHIP 100K 5% 1/16W R619 1-218-969-11 RES-CHIP 22K 5% 1/16W R620 1-218-867-11 METAL CHIP 6.8K 0.5% 1/16W R621 1-218-969-11 RES-CHIP 22K 5% 1/16W R623 1-218-969-11 RES-CHIP 22K 5% 1/16W R624 1-218-977-11 RES-CHIP 100K 5% 1/16W R625 1-218-941-11 RES-CHIP 100 5% 1/16W R626 1-218-990-11 SHORT 0 R627 1-218-990-11 SHORT 0 R629 1-218-887-11 METAL CHIP 47K 0.5% 1/16W R630 1-218-937-11 RES-CHIP 47 5% 1/16W R631 1-218-977-11 RES-CHIP 100K 5% 1/16W R632 1-218-977-11 RES-CHIP 100K 5% 1/16W R633 1-218-899-11 METAL CHIP 150K 0.5% 1/16W R634 1-218-953-11 RES-CHIP 1K 5% 1/16W R635 1-218-939-11 RES-CHIP 68 5% 1/16W R636 1-218-953-11 RES-CHIP 1K 5% 1/16W R637 1-218-977-11 RES-CHIP 100K 5% 1/16W R638 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R639 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R645 1-218-949-11 RES-CHIP 470 5% 1/16W R801 1-218-977-11 RES-CHIP 100K 5% 1/16W R802 1-218-941-11 RES-CHIP 100 5% 1/16W R803 1-218-967-11 RES-CHIP 15K 5% 1/16W R807 1-218-977-11 RES-CHIP 100K 5% 1/16W R808 1-218-977-11 RES-CHIP 100K 5% 1/16W R809 1-218-990-11 SHORT 0 R811 1-218-969-11 RES-CHIP 22K 5% 1/16W (EXCEPT FR) R811 1-218-975-11 RES-CHIP 68K 5% 1/16W (FR) R812 1-218-989-11 RES-CHIP 1M 5% 1/16W R813 1-218-965-11 RES-CHIP 10K 5% 1/16W R814 1-218-965-11 RES-CHIP 10K 5% 1/16W R817 1-218-871-11 METAL CHIP 10K 0.5% 1/16W R818 1-218-953-11 RES-CHIP 1K 5% 1/16W R819 1-218-951-11 RES-CHIP 680 5% 1/16W R820 1-218-951-11 RES-CHIP 680 5% 1/16W R821 1-218-951-11 RES-CHIP 680 5% 1/16W R822 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R823 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R824 1-218-990-11 SHORT 0 R825 1-218-981-11 RES-CHIP 220K 5% 1/16W R826 1-218-973-11 RES-CHIP 47K 5% 1/16W R827 1-218-973-11 RES-CHIP 47K 5% 1/16W R831 1-218-990-11 SHORT 0 R852 1-216-864-11 METAL CHIP 0 5% 1/16W R857 1-218-977-11 RES-CHIP 100K 5% 1/16W (FR) < SWITCH > S801 1-762-805-41 SWITCH, PUSH (1 KEY) (OPEN/CLOSE DETECT) S803 1-762-078-11 SWITCH, SLIDE (AVLS) S804 1-762-078-11 SWITCH, SLIDE (HOLD) S805 1-762-078-11 SWITCH, SLIDE (G-PRO) S811 1-771-248-11 SWITCH, TACTILE (u) S812 1-771-248-11 SWITCH, TACTILE (.) S813 1-771-248-11 SWITCH, TACTILE (>) S814 1-771-248-11 SWITCH, TACTILE (x/CHG) S815 1-771-248-11 SWITCH, TACTILE (+) S816 1-771-248-11 SWITCH, TACTILE (-) < VARISTOR > VDR101 1-801-923-11 VARISTOR, CHIP VDR102 1-801-862-11 VARISTOR, CHIP VDR201 1-801-923-11 VARISTOR, CHIP VDR202 1-801-862-11 VARISTOR, CHIP VDR301 1-801-923-11 VARISTOR, CHIP VDR302 1-801-862-11 VARISTOR, CHIP VDR303 1-801-862-11 VARISTOR, CHIP (SUFFIX -12) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. MAIN VDR401 1-801-862-11 VARISTOR, CHIP VDR402 1-801-862-11 VARISTOR, CHIP < VIBRATOR > X601 1-795-003-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************** MISCELLANEOUS ************** 0101 X-3379-432-1 OPTICAL PICK-UP (DAX-21EG) M901 A-3328-299-A MOTOR BLOCK ASSY, SLED (WITH GEAR) M902 A-3328-418-A CHASSIS ASSY (SPINDLE) (WITH TURN TABLE) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 0 1-467-009-21 ADAPTOR, AC (AC-E455) (US, CND) 0 1-467-550-11 ADAPTOR, AC (AC-E455A) (JE) 0 1-473-115-11 ADAPTOR, AC (AC-E455D) (UK) 0 1-473-116-31 ADAPTOR, AC (AC-E455D) (AEP, E13) 0 1-475-622-11 ADAPTOR, AC (AC-E455) (CH) 0 1-475-623-11 ADAPTOR, AC (AC-E455) (HK) 1-476-210-11 CONTROL UNIT, REMOTE (RM-MC11EL) (E888/E999/EJ825: E13, HK, KR, CH/EJ925) 1-476-211-11 CONTROL UNIT, REMOTE (RM-MC10L) (EJ825: US, CND, AEP, UK, G) 1-476-211-21 CONTROL UNIT, REMOTE (RM-MC10L) (EJ825: FR) 1-528-299-41 BATTERY, NI-CD (NC-6WM) (EJ825: AEP, UK) 1-528-299-51 BATTERY, NI-CD (NC-6WM) (EJ825:US, CND) 1-528-543-22 BATTERY, NI-CD (NC-6WM) (E888/EJ825: E13, HK, CH) 0 1-569-007-11 ADAPTOR, CONVERSION 2P (JE) 1-756-008-21 CASE, BATTERY (EXTERNAL BATTERY CASE) 1-756-036-11 BATTERY, NICKEL HYDROGEN (E999/EJ925) 3-008-521-01 CASE, BATTERY CHARGE (GUM BATTERY CASE) 3-221-695-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, CHINESE, KOREAN) (E999) 3-221-695-11 MANUAL, INSTRUCTION (SPANISH) (E999/EJ925: AEP) 3-221-695-21 MANUAL, INSTRUCTION (ENGLISH) (E999/EJ925: CND, AEP, UK, EE) 3-221-695-31 MANUAL, INSTRUCTION (FRENCH) (E999/EJ925: CND, AEP, FR) 3-221-695-41 MANUAL, INSTRUCTION (DUTCH) (EJ925: AEP, EE) 3-221-695-51 MANUAL, INSTRUCTION (SWEDISH) (EJ925: AEP) 3-221-695-61 MANUAL, INSTRUCTION (PORTUGUESE) (EJ925: AEP) 3-221-695-71 MANUAL, INSTRUCTION (GERMAN) (EJ925: AEP, G) 3-221-695-81 MANUAL, INSTRUCTION (ITALIAN) (EJ925: AEP) 3-221-695-91 MANUAL, INSTRUCTION (FINNISH) (EJ925: AEP) 3-221-698-11 MANUAL, INSTRUCTION (KOREAN) (EJ925: KR) 3-221-698-21 MANUAL, INSTRUCTION (ENGLISH) (EJ925: US) 3-221-699-11 MANUAL, INSTRUCTION (CHINESE) (EJ925: E13, HK) 3-221-699-21 MANUAL, INSTRUCTION (ENGLISH) (EJ925: E13, HK, CH) 3-221-699-31 MANUAL, INSTRUCTION (CHINESE) (EJ925: CH) 3-221-740-11 MANUAL, INSTRUCTION (RUSSIAN) (EJ925: EE) 3-221-740-21 MANUAL, INSTRUCTION (CZECH) (EJ925: EE) 3-221-740-31 MANUAL, INSTRUCTION (HUNGARIAN) (EJ925: EE) 3-221-740-41 MANUAL, INSTRUCTION (POLISH) (EJ925: EE) 3-221-740-51 MANUAL, INSTRUCTION (SLOVAKIAN) (EJ925: EE) 3-221-766-01 MANUAL, INSTRUCTION (JAPANESE, ENGLISH, CHINESE, KOREAN) (E888) 3-221-766-11 MANUAL, INSTRUCTION (SPANISH) (E888/EJ825: AEP) 3-221-766-21 MANUAL, INSTRUCTION (ENGLISH) (E888/EJ825: CND, AEP, UK) 3-221-766-31 MANUAL, INSTRUCTION (FRENCH) (E888/EJ825: CND, AEP, FR) 3-221-766-41 MANUAL, INSTRUCTION (DUTCH) (EJ825: AEP) 3-221-766-51 MANUAL, INSTRUCTION (SWEDISH) (EJ825: AEP) 3-221-766-61 MANUAL, INSTRUCTION (PORTUGUESE) (EJ825: AEP) 3-221-766-71 MANUAL, INSTRUCTION (GERMAN) (EJ825: AEP, G) 3-221-766-81 MANUAL, INSTRUCTION (ITALIAN) (EJ825: AEP) 3-221-766-91 MANUAL, INSTRUCTION (FINNISH) (EJ825: AEP) 3-221-767-11 MANUAL, INSTRUCTION (CHINESE) (EJ825: E13, HK) 3-221-767-21 MANUAL, INSTRUCTION (ENGLISH) (EJ825: E13, HK, CH) 3-221-767-31 MANUAL, INSTRUCTION (CHINESE) (EJ825: CH) 3-223-695-01 CASE, CARRYING (E999/EJ925: EXCEPT US) 3-223-695-11 CASE, CARRYING (E888/EJ825: EXCEPT US) 3-224-017-11 MANUAL, INSTRUCTION (KOREAN) (EJ825: KR) 3-224-017-21 MANUAL, INSTRUCTION (ENGLISH) (EJ825: US) 3-227-013-01 CASE, CARRYING (US) 8-953-276-90 HEADPHONE MDR-24SP (US) 8-953-304-90 RECEIVER MDR-E805SP (EXCEPT US) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – D-E888/E999/EJ825/EJ925 Sony Corporation Audio Entertainment Group 9-873-000-11 2000J0573-1 Printed in Japan C 2000. 10 Published by General Engineering Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
