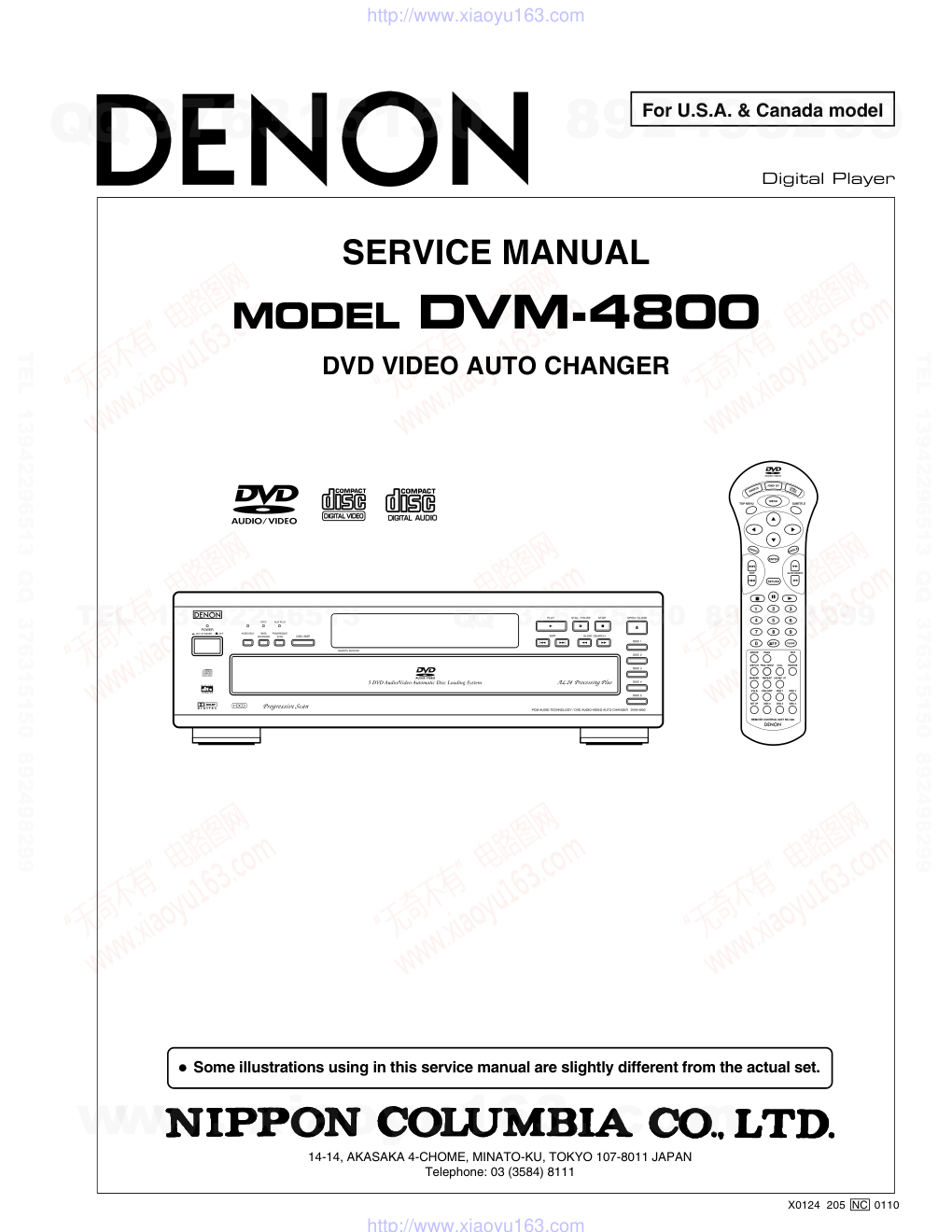

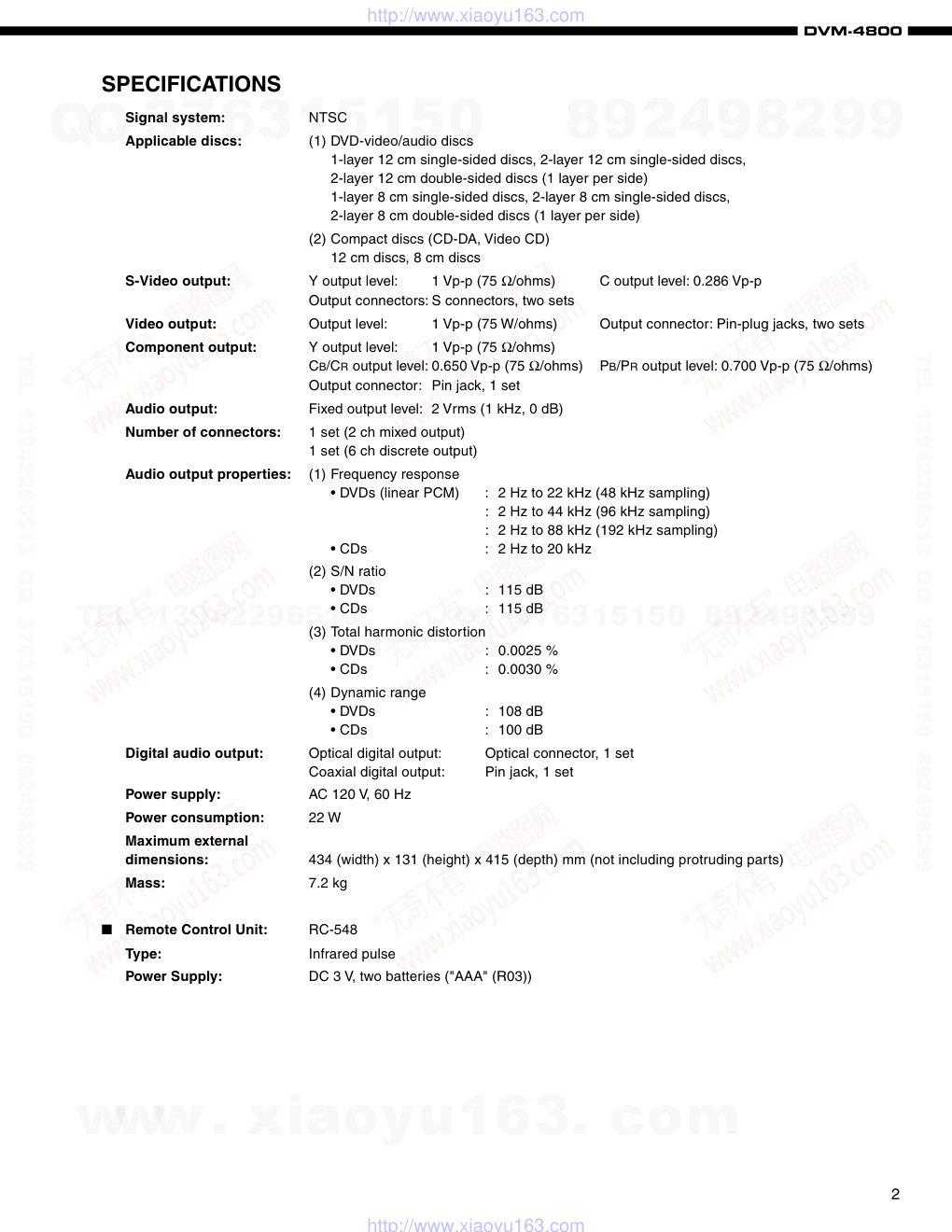

Digital Player SERVICE MANUAL MODEL DVM-4800 DVD VIDEO AUTO CHANGER For U.S.A. & Canada model � Some illustrations using in this service manual are slightly different from the actual set. 14-14, AKASAKA 4-CHOME, MINATO-KU, TOKYO 107-8011 JAPAN Telephone: 03 (3584) 8111 X0124 205 NC 0110 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVM-4800 SPECIFICATIONS Signal system: NTSC Applicable discs: (1) DVD-video/audio discs 1-layer 12 cm single-sided discs, 2-layer 12 cm single-sided discs, 2-layer 12 cm double-sided discs (1 layer per side) 1-layer 8 cm single-sided discs, 2-layer 8 cm single-sided discs, 2-layer 8 cm double-sided discs (1 layer per side) (2) Compact discs (CD-DA, Video CD) 12 cm discs, 8 cm discs S-Video output: Y output level: 1 Vp-p (75 Ω/ohms) C output level: 0.286 Vp-p Output connectors: S connectors, two sets Video output: Output level: 1 Vp-p (75 W/ohms) Output connector: Pin-plug jacks, two sets Component output: Y output level: 1 Vp-p (75 Ω/ohms) CB/CR output level: 0.650 Vp-p (75 Ω/ohms) PB/PR output level: 0.700 Vp-p (75 Ω/ohms) Output connector: Pin jack, 1 set Audio output: Fixed output level: 2 Vrms (1 kHz, 0 dB) Number of connectors: 1 set (2 ch mixed output) 1 set (6 ch discrete output) Audio output properties: (1) Frequency response • DVDs (linear PCM) : 2 Hz to 22 kHz (48 kHz sampling) : 2 Hz to 44 kHz (96 kHz sampling) : 2 Hz to 88 kHz (192 kHz sampling) • CDs : 2 Hz to 20 kHz (2) S/N ratio • DVDs : 115 dB • CDs : 115 dB (3) Total harmonic distortion • DVDs : 0.0025 % • CDs : 0.0030 % (4) Dynamic range • DVDs : 108 dB • CDs : 100 dB Digital audio output: Optical digital output: Optical connector, 1 set Coaxial digital output: Pin jack, 1 set Power supply: AC 120 V, 60 Hz Power consumption: 22 W Maximum external dimensions: 434 (width) x 131 (height) x 415 (depth) mm (not including protruding parts) Mass: 7.2 kg I Remote Control Unit: RC-548 Type: Infrared pulse Power Supply: DC 3 V, two batteries ("AAA" (R03)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DVM-4800 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DVM-4800 1. COUNTERMEASURES AGAINST ELECTROSTATIC DISCHARGE (ESD) The laser diode in the traverse unit (laser pickup) may be damaged by static electricity charged in your cloth or body. Be careful not to damage it by ESD when handling for servicing. 1.1 Grounding for Electrostatic Breakdown Prevention Components using an optical pickup (laser diode) such as DVD players etc. are liable to breakdown by static electricity under the working environment. Perform repair work in the working condition having proper grounding for preventing static electricity. 1.1.1 Work table grounding Put a conductive material (sheet) or steel sheet on the area where the optical pickup is placed and ground the sheet. 1.1.2 Human body grounding Use an anti-static wrist strap to discharge the static electricity from your body. 1.1.3 Handling of optical pickup 1) The optical pickup for spare parts is supplied with its laser diode shorted to ensure quality during transportation. After the parts replacement, return to normal by proper procedures. (refer to the pages related) 2) Do not use a tester or etc. for checking the laser diode since the laser diode may be damaged easily by the voltage of the tester inside battery. Wrist strap (Anti-static bracelet) Iron plate or some metals to conduct electricity 1.2 Handling of Traverse Unit (laser pickup) 1.2.1 Do not apply a strong shock to the traverse unit (laser pickup) since it is made of precise structure. 1.2.2 To prevent the breakdown of the laser diode, install the flexible cable after removing the short pin for preventing a electrical charge. When removing or connecting the short pin, finish the job in as short time as possible. Also, cut out the short land of the flexible cable using nippers and etc. after replacing the optical pickup. Refer to TRAVERSE UNIT DISASSEMBLY” in this manual for the handling of the traverse unit. 1.2.3 Be careful not to apply excessive stress to the flexible board (FPC Board) since it may cause cutting. 1.2.4 Do not turn the variable resistor of the laser power since it is not adjustable. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DVM-4800 2. OPTICAL PICKUP SELF-DIAGNOSIS AND REPLACEMENT PROCEDURE 2.1 Self-diagnosis The optical pickup self-diagnosis function and tilt adjustment check function have been included in this unit. When repairing, use the following procedure for effective Self-diagnosis and tilt adjustment. Be sure to use the self-diagnosis function before replacing the optical pickup when "NO DISC" is displayed. As a guideline, you should replace the optical pickup when the value of the laser drive current is more than 55. Note: Press the power button to turn on the power, and check the value within three minutes before the unit warms up. (Otherwise, the result will be incorrect.) "NO DISC" is displayed, unit does not play smoothly, etc. Check the laser drive current. Value is 70 (DVD), 55 (CD) or less Value is more than 70 (DVD), 55 (CD) Replace the optical pickup (Refer to the section "OPTICAL PICKUP REPLACEMENT PROCEDURE" in this Guide.) Check the laser drive current after replacement. Write the present value into the unit if it is 60 (DVD), 45 (CD) or less. Do the optical pickup tilt adjust- ment. (Refer to the section "TILT ADJUSTMENT" in this Guide.) Use the tilt adjustment check function. Initialize the player. Use the optical pickup self-diagnosis function. Method: With no disc in the player: • Press the "DISPLAY" button on the remote control unit while pressing the "PAUSE" and "OPEN/CLOSE" buttons on the player. [Display content] Factory setting Present value Replace with a new optical pickup if the present value is more than 60 (DVD), 45 (CD). Cause: Damage due to static electricity during replacement. Method: With no disc in the player: • Press the "DISPLAY" button on the remote control unit while pressing the "PAUSE" and "OPEN/CLOSE" buttons on the player. Writing Method: • Press the "PAUSE" button on the remote control unit while pressing the "PAUSE" and "OPEN/CLOSE" buttons on the player. Write the present value into the player if it is 45 or less. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DVM-4800 2.2 Cautions to Be Used Before Replacing the Optical Pickup Unit and Spindle Motor Assembly Before replacing the optical pickup unit and spindle motor assembly, check the total using hours for each of them. The checking method is as follow: Operating state & Key operation Display Using hours of CD laser Press "PAUSE, FWD-SKIP" and "5" on the T1_xxxx_yyyy: total hours are remote control in this order while the unit displayed by 4-digit figures (unit: 10 hours). is stopped yyyy: CD laser Time Using hours of DVD laser Press "PAUSE, FWD-SKIP" and "5" on the T1_xxxx_yyyy: total hours are remote control in this order while the unit displayed by 4-digit figures (unit: 10 hours). is stopped xxxx: DVD laser Time Using hours of SP motor Press "PAUSE, FWD-SKIP" and "6" on the T2_xxxx: total hours are remote control in this order while the unit displayed by 4-digit figures is stopped (unit: 10 hours). Resetting using hours While displaying Timer 1 data, press STOP T1_0000_0000 of CD and DVD lasers and FWD-SKIP buttons on the player, and (Simultaneous resetting) "5" button on the remote control unit Resetting using hours While displaying Timer 2 data, press STOP T2_0000 of the motor and FWD-SKIP buttons on the player, and "6" button on the remote control unit Cautions to be taken when replacing the optical pickup The optical pickup may break down due to the static electricity of human body. Take proper protection measures against static electricity before repairing the parts around the optical pickup. (See the page describing the PREVENTION OF STATIC ELECTRICITY DISCHARGE.) 1. Do not touch the areas around the laser diode and actuator. 2. Do not judge the laser diode with a tester. (The tester will be damaged easily.) 3. It is recommended to use a destaticized soldering iron for short-circuiting or removing the laser diode. (Recommended soldering iron) HAKKO ESD Product. 4. Solder the land of the flexible cable in the optical pickup. Note: • When using a soldering iron which is not destaticized, short-circuit the terminal face of the flexible case with a clip. After that, short-circuit the land. • After the repairing work is completed, remove the solder according to the correct procedure shown in this Technical Guide. Optical pickup unit Flexible cable Ground with a clip. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DVM-4800 3. SELF-DIAGNOSIS FUNCTION AND SERVICE MODES 3.1 Self-diagnosis Function and Service Modes Improving the self-diagnosis function The self-diagnosis function in our DVD player currently in use is improved as follows: The storage capacity is increased. UHF error display The latest error storage function n=1 Jitter/read error display Laser drive current display For DVD UHF error display The latest error storage n=20 Jitter/read error display Focus drive value display laser drive current display For DVD/CD ADSC internal RAM data display Servo process display Total operation time display SP motor Laser (DVD/CD) The focus drive current value can be displayed. The servo learning value stored in the RAM data inside the ADSC (servo controller) IC is displayed. Mainly in the initial starting operation period of the player, a number is allotted to the servo process of each step, and the process of the starting operation can be displayed. The operation times of SP motor and the laser (both for the DVD and CD) can be displayed. Our DVD player currently in use Our new DVD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DVM-4800 3.2 Service mode table Pressing various button combinations on the player and remote control unit can activate the service modes. Item Player mode and Function Display Cancellation button combination method Jitter check In PLAY mode, press Jitter check J_xxx_yyy_zz Press STOP PAUSE and OPEN buttons Jitter rate is measured and displayed. Focus drive value or OPEN button. on the player, and "5" Measurement is repeatedly done in Read error counter button on the remote the cycle of one second. Read error Jitter rate control unit. counter starts from zero upon mode Jitter check mode setting, When target block data failed to be read out, the counter advances Jitter rate is shown in decimal by one increment. When the failure is notation to one place of decimal. caused by minor error, it may be Focus drive value is shown in corrected when retried to enable hexadecimal notation. successful reading. In this case, the counter advances by one. When the error persists even after retry, the counter may jump by two or more. Error code In ** mode, press PAUSE Error code check Error code (play_err) is expressed Cancelled check and OPEN buttons on the The latest error code stored in in the following convention. automatically player, and "0" button on EEPROM is displayed. Error code=0 x DAXX is expressed: ➔ nn UXX 5 seconds later. the remote control unit. Error code=0 x DBXX is expressed: ➔ nn HXX * With pointing of cursor Error code=0 x DXXX is expressed: ➔ nn FXX up and down on diaplay, Error code=0 x 0000 is expressed: ➔ nn F-- panel controller switches * "nn" denotes the serial number the serial number of of history. history and sends out the command accordingly. Initial setting In STOP mode, press Initial setting of laser drive current LDO_034_028 Cancelled of laser drive PAUSE and OPEN buttons lnitial current value for each of DVD CD laser current measurement automatically current on the player, and PAUSE laser and CD laser is separately DVD laser current measurement 5 seconds later. button on the remote saved in EEPROM. Laser current measurement mode control unit. The value denotes the current in decimal notation. The above example shows the initial current is 34mA and 28mA for DVD laser and CD laser respectively when the laser is switched on. DVD laser In STOP mode, press DVD laser drive current measurement LDD_034_032 Cancelled drive current PAUSE and OPEN buttons DVD laser drive current is measured Measured current automatically measurement on the player, and and the result is displayed together Initial current stored in EEPROM 5 seconds later. DISPLAY button on the with the initial value stored in DVD laser current measurement mode remote control unit. EEPROM. After the measurement, DVD laser The value denotes the current in emission is kept on. It is turned off decimal notation. The above when POWER key is switched off. (It example shows the initial current is also turned off when the primary is 34mA and the measured value power is switched off.) is 32mA. ADSC internal In ** mode, press PAUSE ADSC internal RAM data check A_DFA_6901 Press STOP RAM data and OPEN buttons on the ADSC internal RAM data is read out RAM data for specified address or OPEN button. check player, and RETURN and displayed. Address button on the remote Change the address with CLEAR key ADSC internal RAM data check mode control unit. operation to show the data for 11 addresses. The value is shown in hexadecimal notation. The above example shows the data in ADSC address DFAh is 6901h. Servo process In STOP mode, press Servo process display Turn off the display PAUSE and FWD-SKIP The servo process from STOP to primary power. buttons on the player, and ACCESS is displayed. "7" button on the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DVM-4800 Item Player mode and Function Display Cancellation button combination method CD laser drive In STOP mode, press CD laser drive current measurement LDC_028_026 current PAUSE and FWD-SKIP CD laser drive current is measured Measured current measurement buttons on the player, and and the result is displayed together Initial current stored in EEPROM DISPLAY button on the with the initial value stored in CD laser current measurement mode remote control unit. EEPROM. After the measurement, CD laser The value denotes the current in emission is kept on. It is turned off decimal notation when POWER key is switched off. (It The above example shows the is also turned off when the primary initial current is 28mA and the power is switched off.) measured value is 26mA. Version In STOP mode, press Version display srrr_xyzzz Cancelled display PAUSE and OPEN buttons System controller release number automatically on the player, and "7" System controller model number 5 seconds later. button on the remote System controller generation control unit. Panel controller release number Panel controller model number Lighting of In ** mode, press Lighting of display tube Press STOP display tube PAUSE and OPEN buttons or OPEN button. on the player, and "9" button on the remote control unit. Dealer's lock In STOP mode, press Dealer's lock "LOCKED" sign appears when Repeat the STOP button on the The lock is switched ON or OFF. dealer's lock is switched on, or same operation. player, and POWER button When dealer's lock is ON, it prohibits when secondary power key or tray on the remote control unit. switching off of the secondary power opening key is pressed while the and tray opening. lock is on. When the lock is switched, its ON/OFF "UNLOCKED" sign appears when status is stored in EEPROM. dealer's lock is switched off. Initializaition In STOP mode, press Initialization "INITIALIZED" PAUSE, BWD-SKIP and User settings are cancelled and player OPEN buttons on the is initialized to factory setting. player for 3 seconds or longer. Region display In STOP mode, press Region display x_yy_zzz Cancelled PAUSE and OPEN buttons N: NTSC/6: PAL60 automatically on the player, and "6" N: noPAL/P: PAL 5 seconds later. button on the remote Region No. control unit. Item Player mode and Function Display Cancellation button combination method Timer 1 check In STOP mode, press Timer 1 check T1_1234_5678 Cancelled PAUSE and FWD-SKIP Laser operation timer Operation time is Shown to the left is DVD laser time, automatically buttons on the player, and measured separately for DVD laser and to the right CD laser time. 5 seconds later. "5" button on the remote and CD laser. Time is shown in 4 digits of decimal control unit. notation in a unit of 10 hours. "0000" will follow "9999". Timer 1 reset While displaying Timer 1 Timer 1 reset T1_0000_0000 Cancelled data, press STOP and Laser operation timer Operation time automatically FWD-SKIP buttons on the of both DVD laser and CD laser is 5 seconds later. player, and "5" button on reset all at once. the remote control unit. Timer 2 check In STOP mode, press Timer 2 check T2_1234 Cancelled PAUSE and FWD-SKIP Spindle motor operation timer automatically buttons on the player, and Time is shown in 4 digits of decimal 5 seconds later. "6" button on the remote notation in a unit of 10 hours. control unit. "0000" will follow "9999". Timer 2 reset While displaying Timer 2 Timer 2 reset T2_0000 Cancelled data, press STOP and Spindle motor operation timer automatically FWD-SKIP buttons on the 5 seconds later. player, and "6" button on the remote control unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DVM-4800 3.3 Servo Process Flow Servo process that has stopped Starting flow Initial setting Tray control Range of the servo process numbers Processing items Contents of each process Number 00 00 Each initial setting 01 01 TRV initial movement (Restrictions) All processes that are under operation cannot be displayed due to the limit of the processing time. Servo process that is under operation 1 2 0 9 START TRV initial movement 02~08 02 Initial setting in FE system 05 Detecting LD ON HALF 08 Detecting CD LD ON Disc detection 02~08 02 Initial setting in FE system Disc type distinction 10~13 12 Focus ON 13 FBAL adjustment Focus servo 14~15 15 Tracking ON Tracking servo 17 17 Gain adjustment in ADSC focus system Gain learning 18~1A 19 DBAL/equalizer adjustment 1A ID read ID read Specification of the servo process display in the starting flow www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DVM-4800 3.4 Servo Process Display Mode In starting operation of the player, a number is allotted to each servo process so that the operation of each step can be seen. The relation between the process and the displayed number are as follows: Process classification Each processing item Description Process number Initial start process Initial start The process starts after the tray is loaded. (The state 0~40 is changed to "READY" or "PREPARE".) Secondary learning Servos for the DVD-DL 1st layer and the CD-DA double 50~7F speed are learned in this step. Restart process Restart When a user operates in the "READY" state, each servo 80~9F is turned on. Seek process Seek The optical pickup is moved to the disc destination in A0~BF this process. Repair process Recover (Error check) An error is searched in the PLAY/SEEK state. C1~C3 (Attention) An error is recovered following the attention error C4~C6 interrupt from the S-ODC. (Q code read) If any Q code is improperly read, reset and retry. C7~C9 Stop process Stop A servo is controlled in response to the user's operation F0~FF to stop the disc completely. Number allotment to the servo process 3.5 ADSC Internal Ram Data Display The servo learning value in the RAM data inside the servo processor ADSC is displayed. The value is useful for the servo operation/disc quality judge including the OPU. The concrete contents are shown below: Address Contents of display 4B4 Focus gain learning value for DVD-S, DVD-D(L0), CD, and VCD 4BC Focus gain learning value for DVD-D(L1) 4B6 Focus balance learning value for DVD-S, DVD-D(L0), CD, and VCD 4BE Focus balance learning value for DVD-D(L1) 4B5 Tracking gain value for DVD-S, DVD-D(L0), CD, and VCD 4BD Tracking gain value for DVD-D(L1) TB0 Tracking balance value for DVD-S, DVD-D(L0), CD, and VCD TB1 Tracking balance value for DVD-D(L1) DBD DSL offset learning value for DVD-S and DVD-D DBC DSL offset learning value for CD and VCD FC0 Equalizer FC value for DVD-S, DVD-D(L0), CD, and VCD BT0 Equalizer BOOST value for DVD-S, DVD-D(L0), CD, and VCD FC1 Equalizer FC value for DVD-D(L1) BT1 Equalizer BOOST value for DVD-D(L1) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DVM-4800 3.6 Sales demonstration lock function This function prevents discs from being lost when the unit is used for sales demonstrations by disabling the disc eject function. "LOCKED" is displayed on the unit, and ordinary operation is disabled. Setting The sales demonstration lock is set by simultaneously pressing STOP button on the player and POWER button on the remote control unit. Cancellation The lock can be cancelled by the same procedure as used in setting. ("UNLOCKED" is displayed on cancellation. Disconnecting the power cable from power outlet does not cancel the lock.) 3.7 Service Precautions 3.7.1 Recovery after the DVD player is repaired When an FROM or an EEPROM in and on the module P.C.B. has replaced, carry out the recovery disc processing to optimize the drive. Playback the disc above to process the recovery automatically. Recovery disc (Product number: RFKZD5TR001) Note: This unit requires no initialization process carried out after the traditional DVD players were repaired. When the recovery measures are taken, the customer setting will return to the factory setting as same as the procedure described in item of "Initialization" in 2.2 is carried out. Write down the contents of the setting before recovery processing, and reset the player. 3.7.2 Firmware version-up of the DVD player The firmware of the DVD player may be renewed to improve the quality including operationability and playerbility to the substandard discs processing to optimize the drive. The version-up disc has also a recovery function so that you don't need use the recovery disc again. Note: If the AC power supply is shut out during version-up due to a power failure, the version-up is improperly carried out. In such a case, replace the FROM and carry out the version-up again. The product number of the version-up disc will be noticed when it is supplied. 3.7.3 Initialization of DVD Player Initialize the DVD player when replacing CPU and its peripheral parts, and Mother P.W.B., etc. How to Initialize Pressing the "STILL/PAUSE" + "SKIP REW" + "OPEN/CLOSE" buttons at once makes DVD player initialization (factory setting condition). "INITIALIZED" is indicated on the screen and "INITIALIZE" on the display of the main unit. Note When the initialization has been made, the contents of user setting is lost. Therefore, memorize the contents of user setting prior to the initialization and re-set them again after the initialization. 3.7.4 Setting after Repair After finishing the repair work, follow the steps below. Setting Condition At the power on state, 1) Press the "OPEN/CLOSE" button to close the tray. 2) Turn the power off. 3) Unplug the power cord from the wall outlet. Note Do not close the tray manually after disconnecting the power cord from the wall outlet in tray open condition. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DVM-4800 4. DISASSEMBLY (Follow the procedure below in reverse order when reassembling) 4.1 Top Cover Remove 4 screws 1 on both sides and 3 screws 2 on the rear, then detach the Top Cover as shown to the arrow direction. 4.2 Front Panel (1) Remove 8 screws 3 from the top and bottom edges of the Front Panel. (2) Detach the Front Panel to the arrow direction, together with its Inner Panel. 1 1 Top Cover 2 4.3 Mother & Power P.W.B., Stay (1) Remove 12 screws 4 to detach the Mother P.W.B. (2) Remove 4 screws 5 , to detach the Power P.W.B. (3) Remove 4 screws 6 to detach 2 Stays. 3 3 3 Connector Flexible Wire Flexible Wire Front Panel 5 4 6 6 4 4 6 Power P.W.B. Mother P.W.B. Stay 6 5 Stay 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DVM-4800 4.4 Loader Frame Ass'y Remove 2 screws 7 to detach 2 Side Plates, then pull out the Loader Frame in the arrow direction. Note: Draw out the Loader Frame 1 ~ 2 cm and turn the power off, before performing this step. 4.5 DVD Mecha. (1) Remove 5 screws 8 to detach the Rear Panel. (2) Remove 4 screws 9 to detach the Clamp Base. (3) Remove 4 fixed pin � � to detach the DVD Traverse Unit. Side Plate Side Plate 7 7 Loader Frame Rear Panel 8 8 8 9 9 � � Clamp Base DVD Traverse Unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DVM-4800 5. ADJUSTMENT PROCEDURES 5.1. Service Tools and Equipment Application Name Number Tilt adjustment DVD test disc DVDT-S15 or DVDT-S01 Hex wrench Inspection Extension cable (module P.W.B. to mother P.W.B.) JGS0098 Extension cable (module P.W.B. to mother P.W.B.) VUC8026 Extension cable (module P.W.B. to mother P.W.B.) RFKZ0097 Extension cable (module P.W.B. to mother P.W.B.) VUC8026 Others Screw lock RZZ0L01 Grease RFKXGAK152 Oil RFKXGA1280, JZS0648 Confirmation CD test disc PVCD-K06 or any other commercially available disc VCD test disc PVCD-K06 or any other commercially available disc Recovery disc RFKZD5TR001 5.2. Important points in adjustment 5.2.1. Important points in optical adjustment · Before starting optical adjustment, be sure to take anti-static measures. · Optical pickup tilt adjustment is needed after replacement of the following components. 1. Optical pickup unit 2. Spindle motor unit 3. Optical pickup peripheral parts (such as rail) Notes Adjustment is generally unnecessary after replacing other parts of the traverse unit. However, make adjustment if there is a noticeable degradation in picture quality. Optical adjustments cannot be made inside the optical pickup. Adjustment is generally unnecessary after replacing the traverse unit. 5.2.2. Important points in electrical adjustment · Follow the adjustment procedures described in this Manual. 5.3. Storing and Handling Test Discs · Surface precision is vital for DVD test discs. Be sure to store and handle them carefully. 1. Do not place discs directly onto the workbench, etc., after use. 2. Handle discs carefully in order to maintain their flatness. Place them into their case after use and store them vertically. Store discs in a cool place where they are not exposed to direct sunlight or air from air conditioners. 3. Accurate adjustment will not be possible if the disc is warped when placed on a surface made of glass, etc. If this happens, use a new test disc to make optical adjustments. 4. If adjustment is done using a warped disc, the adjustment will be incorrect and some discs will not be playable. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DVM-4800 5.4.1.1. Adjustment procedure 1. While pressing PAUSE and OPEN/CLOSE buttons on the Tangential Adjust Screw Tilt Adjust Screw 2 Tilt Adjust Screw 1 main unit, press "5" on the remote control unit. 2. Confirm that "J_xxx_yyy_zz" is shown on the front display. For your information: "yyy" and "zz" shown to the right have nothing to do with the jitter value. "yyy" is the error counter, while "zz" is the focus drive value. Note: Jitter value appears on the front display. 3. Play test disc T01 (inner periphery). 4. Adjust tangential adjustment screw so that the jitter value is minimized. 5. Play test disc T43 (outer periphery). 6. Adjust tilt adjustment screw 1 so that the jitter value is minimized. 7. Play test disc T43 (outer periphery). 8. Adjust tilt adjustment screw 2 so that the jitter value is minimized. 9. Repeat adjusting tilt adjustment screws 1 and 2 alternately until the jitter value is minimized. 5.4.1.2. Important points 1. Make tangential adjustment first, and then make tilt adjustment. 2. Repeat adjusting two or three times to find the optimum point. 3. Finish the procedure with tilt adjustment. Jitter value depends on the model: 1. If the jitter value changes like B, the optimum point is easy to find. 2. If the jitter value changes like A, set the optimum point near the middle. 5.4.1.3. Check after adjustment Play test disc or any other disc to make sure there is no picture degradation in the inner, middle and outer peripheries, and no audio skipping. After adjustment is finished, lock each adjustment screw in position using screw lock. 5.4.1.4. Procedure for screw lock 1. After adjustment, remove top cover, tray, clamper base and traverse unit in this sequence. 2. Lay the traverse unit upside down, and fix adjustment screw with screw lock. 3. After fixing, reassemble traverse unit, clamper base, tray and top cover. 5.4. Optical adjustment 5.4.1. Optical pickup tilt adjustment Measurement point Adjustment point Mode Disc Tangential adjustment screw Tilt adjustment screw T01 (inner periphery) play T43 (outer periphery) play DVDR-S15 or DVDT-S01 Measuring equipment Adjustment value None (Main unit display for servicing is used.) Adjust to the minimum jitter value. Front Side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DVM-4800 Do this confirmation after replacing a P.W.B. 5.5.1. Video Output (Luminance Signal) Adjustment Measurement Point Adjustment Point Mode Disc Video Output Pin Terminal GND: Chassis VR3225 Playback (Color Bar) DVDT-S20 (title 9) Measuring Device Adjustment Value Oscilloscope 500 mV/div, 10 µs/div 1000 ± 20mV p-p For compatibility of video signal output. 1. Connect the monitor TV to the video output terminal and terminate at 75 Ohms. 2. Play back the color bar part title 9 (DVDT-S20) of the DVD Test Disc title. 3. Adjust the VR3225 so that the luminance signal output is as shown below. Adjustment Value = 1000 20 mV p-p Fig. 5-5-1 Luminance Signal Output 5.5.2. Video Output (Chrominance Signal) Adjustment Measurement Point Adjustment Point Mode Disc Video Output Pin Terminal GND: Chassis VR3221 Playback (Color Bar) DVDT-S20 (title 9) Measuring Device Adjustment Value Oscilloscope 500 mV/div, 10 µs/div 624 ± 12mV p-p For compatibility of video signal output. 1. Connect the monitor TV to the video output terminal and terminate at 75 Ohms. 2. Play back the color bar part title 9 (DVDT-S20) of the DVD Test Disc title. 3. Adjust the VR3221 so that the chrominance (CYAN) signal output is as shown below. Adjustment Value = 624 12 mV p-p Fig. 5-5-2 Chrominance Signal Output 5.5. Electrical Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DVM-4800 5.5.3. Video Output (CB Signal) Adjustment Measurement Point Adjustment Point Mode Disc CB Output Pin Terminal VR3201 Playback (Color Bar) DVDT-S20 (title 9) Measuring Device Adjustment Value Oscilloscope 200 mV/div, 10 µs/div 486 ± 10mV p-p NOTE: CB/CR Output should be 75Ω terminate. For compatibility of video signal output. 1. Connect the monitor TV to the video output terminal and terminate at 75 Ohms. 2. Play back the color bar part title 9 (DVDT-S20) of the DVD Test Disc title. 3. Adjust the VR3201 so that the CB signal output is as shown below. Adjustment Value = 486 10 mV p-p Fig. 5-5-3 CB Signal Output 5.5.4. Progressive Video Output (Y Signal) Adjustment Measurement Point Adjustment Point Mode Disc Progressive Terminal GND: Chassis VR3771 Playback (Color Bar) DVDT-S20 (title 9) Measuring Device Adjustment Value Oscilloscope 200 mV/div, 5 µs/div 1000 ± 20mV p-p NOTE: Progressive Output should be 75Ω terminate. For compatibility of video signal output. 1. Connect the monitor TV to the Y (Progressive) output terminal and terminate at 75 Ohms. 2. Play back the color bar part title 9 (DVDT-S20) of the DVD Test Disc title. 3. Adjust the VR3771 so that the Y (Progressive) signal output is as shown below. Adjustment Value = 1000 20 mV p-p Fig. 5-5-4 Y Signal Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DVM-4800 5.5.5. Progressive Video Output (PB Signal) Adjustment Measurement Point Adjustment Point Mode Disc Progressive Terminal VR3751 Playback (Color Bar) DVDT-S20 (title 9) Measuring Device Adjustment Value Oscilloscope 100 mV/div, 5 µs/div 525 ± 10mV p-p NOTE: Progressive Output should be 75Ω terminate. For compatibility of video signal output. 1. Connect the monitor TV to the video output terminal and terminate at 75 Ohms. 2. Play back the color bar part title 9 (DVDT-S20) of the DVD Test Disc title. 3. Adjust the VR3751 so that the PB signal output is as shown below. Fig. 5-5-5 PB Signal Output 5.5.6. Test Point & Controls Location MODULE P.W.B. (COMPONENT SIDE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DVM-4800 6. ABBREVIATIONS MOVING PICTURE EXPERTS GROUP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DVM-4800 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DVM-4800 7. VOLTAGE CHART Main P.W.B. Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY IC2001 IC2001 IC2001 IC2001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 3.3 3.3 0 3.3 3.3 0 0 0 3.3 3.3 0 3.3 3.3 0 0 1.9 2.1 0 0 0 0 3.3 1.9 2.3 2.2 2.2 2.3 2.4 2.3 2.2 2.4 1.8 0 1.8 1.8 2.2 1.8 0 1.8 IC2501 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.7 1.7 1.7 1.7 1.7 0.1 0 5.0 0 0 1.7 1.7 1.7 1.7 1.7 IC2502 1 2 3 4 5 1.7 1.7 0 0 4.9 0 0 4.9 1.7 1.7 0.1 0 5.0 3.3 0 2.9 2.9 2.9 2.9 4.4 4.4 4.4 4.4 0 3.1 2.9 2.9 2.9 2.9 3.6 4.4 5.9 2.5 0 3.1 37 38 39 40 3.2 3.2 3.2 3.2 2.8 2.8 2.7 2.7 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 0 2.3 2.2 3.0 2.5 3.0 2.6 3.3 3.3 3.3 3.3 0 1.9 2.0 2.7 2.2 2.6 2.6 1.7 2.5 1.4 3.3 0 3.3 3.3 0 3.3 3.3 3.3 3.3 3.3 3.3 57 58 59 60 3.3 1.8 0 0 3.3 1.8 0 0 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 3.2 3.2 3.2 2.0 1.5 0 3.2 0 2.6 2.7 2.6 2.6 1.5 0 3.2 0 3.3 3.3 3.3 3.3 3.3 0 0 3.3 3.3 0 3.3 0 0 0 0 0 77 78 79 80 0 3.3 1.5 1.5 70 71 72 73 74 75 76 61 62 63 64 65 66 67 68 69 3.2 3.3 0 0 1.8 2.0 1.6 1.6 3.2 3.3 3.3 0 2.1 1.0 1.6 2.2 3.3 0 0 1.3 3.3 3.3 0 0 1.8 0 3.3 3.3 0 3.3 1.5 1.5 0 1.8 3.3 3.3 IC2001 97 98 99 100 1.4 1.6 3.3 1.4 90 91 92 93 94 95 96 81 82 83 84 85 86 87 88 89 0 0 0 1.6 0 1.7 1.7 3.3 0 1.6 0 0 0 1.6 0 1.7 1.7 3.3 0 1.6 1.6 0 1.7 1.6 0 0 1.4 1.6 3.3 1.4 1.6 0 1.7 1.6 0 0 IC2001 117 118 119 120 1.7 1.6 1.7 1.7 110 111 112 113 114 115 116 101 102 103 104 105 106 107 108 109 1.4 0 1.5 2.1 2.8 1.7 1.6 1.5 3.3 1.4 0 1.5 2.1 2.8 1.7 1.6 1.5 3.3 1.6 1.6 1.6 2.7 1.7 3.3 0 1.7 1.7 1.6 2.1 2.5 1.7 3.3 1.7 1.6 2.2 0 IC2001 137 138 139 140 3.3 0 3.3 0 130 131 132 133 134 135 136 121 122 123 124 125 126 127 128 129 2.3 1.7 1.7 0 3.3 0 1.2 1.3 1.3 2.1 1.3 1.7 1.7 0 3.3 0 1.4 1.3 1.3 1.3 3.3 3.3 3.3 1.7 0 3.3 3.3 0 3.3 0 3.3 3.3 3.3 1.7 0 3.3 IC2001 157 158 159 160 0 0 0 3.3 150 151 152 153 154 155 156 141 142 143 144 145 146 147 148 149 0 3.3 3.3 0 0 1.6 3.3 3.3 0 0.4 0 3.3 3.3 0 0 1.6 3.3 3.3 0.9 0 3.3 1.8 0 3.3 0 0 0 1.0 0 1.8 0 3.3 0 0 0.9 0.6 IC2001 170 171 172 173 174 175 176 161 162 163 164 165 166 167 168 169 0 3.3 0 0 0 3.3 0 3.3 3.3 0 3.3 0 0.8 0 0.7 0 1.0 3.3 0 0 0 0 3.3 3.3 0 3.3 3.3 3.3 0.8 3.3 0 0 IC2501 21 22 23 24 25 26 27 28 9.2 9.2 1.7 1.6 1.6 1.7 0 9.2 9.2 1.9 1.6 1.6 1.7 3.3 3.1 3.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DVM-4800 Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY IC3001 IC3001 IC3001 IC3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 3.3 0 1.2 0.1 1.8 1.2 0.1 1.0 0 1.2 3.3 3.4 3.3 0 1.7 1.8 3.3 3.4 2.3 3.3 0 1.6 0.1 1.8 1.7 0.1 1.6 0 1.6 3.3 3.4 3.3 0 0 1.8 2.8 3.4 0 0 0 37 38 39 40 1.8 2.3 2.3 3.3 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 0 0 3.3 0 3.4 1.4 3.3 3.3 0 1.5 0 3.3 2.5 2.3 2.4 3.5 2.2 1.8 1.9 1.8 2.1 3.3 3.1 3.3 3.4 1.4 0.2 2.6 1.7 3.3 0 2.1 1.9 2.2 2.7 2.2 57 58 59 60 1.8 3.1 3.2 3.1 1.8 2.6 2.6 2.7 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 3.3 3.3 0 2.2 2.3 2.1 2.9 3.3 1.8 1.7 0 2.0 2.1 1.9 2.8 3.3 3.1 3.1 3.1 2.6 2.8 2.8 3.1 3.1 3.1 2.8 2.8 2.8 0 3.1 0 2.8 IC3061 IC3061 IC3061 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 3.3 2.8 0 2.7 2.8 0 2.7 3.0 3.3 2.6 3.1 2.7 2.8 0 2.9 3.0 3.3 2.7 2.8 0 2.8 3.3 2.5 0 3.2 3.3 3.1 3.3 IC3091 1 2 3 4 5 6 7 8 1.6 1.9 1.9 0 1.5 1.5 2.1 4.8 1.9 1.9 0 1.5 1.5 2.1 4.8 1.6 2.9 1.0 2.8 0 2.8 3.3 2.5 3.3 3.2 3.3 3.1 0 37 38 39 40 3.3 1.7 2.4 0 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 0 0 0 0 0 1.1 3.3 0 1.0 1.1 0 0 0 0.3 1.6 3.3 0 1.4 1.6 1.1 0.3 1.1 1.4 0 0 0 3.3 1.7 1.9 0 1.6 1.4 1.4 0 0 0 50 51 52 53 54 41 42 43 44 45 46 47 48 49 0 2.9 3.3 2.6 2.6 0 2.6 3.0 0 3.3 2.4 2.4 0 2.9 0 2.9 3.3 2.8 2.7 0 2.8 2.8 3.3 2.9 2.9 0 2.2 0 77 78 79 80 1.8 3.3 3.3 3.3 70 71 72 73 74 75 76 61 62 63 64 65 66 67 68 69 3.4 3.1 3.1 0 3.2 3.1 3.2 3.4 3.4 2.8 2.8 0 2.9 2.9 2.9 3.3 0 1.7 3.4 0.5 1.7 3.4 0 0 3.3 0 0 3.3 1.8 1.1 1.0 1.0 0.8 1.6 0.8 0.8 IC3001 97 98 99 100 1.8 0 1.8 1.5 90 91 92 93 94 95 96 81 82 83 84 85 86 87 88 89 3.3 0 1.7 0 3.4 1.6 1.7 1.7 0 0 0.8 0 1.7 0.8 3.3 1.8 1.7 1.7 0 0.8 0 0 1.6 1.7 3.4 0 1.8 0 1.8 1.5 0 0 0 1.7 3.4 0 IC3001 117 118 119 120 3.4 0 0.1 3.0 110 111 112 113 114 115 116 101 102 103 104 105 106 107 108 109 3.4 0 0 0 3.4 1.6 1.8 0 3.3 3.4 0 0.2 0 0 3.3 2.9 0 0 0 3.3 0 0 3.3 0 3.4 1.6 1.8 0 3.3 0 0 3.3 2.9 0 0 0 IC3001 137 138 139 140 0 0 0 0 130 131 132 133 134 135 136 121 122 123 124 125 126 127 128 129 0 3.4 0 0.1 3.4 0 0 0 0 3.3 0 0 0 1.6 0 0 0 0 0 0 0 0 0.1 3.4 0 3.3 0 0 2.9 0 0 0 1.6 0 0 0 IC3001 157 158 159 160 0 2.8 2.9 3.3 150 151 152 153 154 155 156 141 142 143 144 145 146 147 148 149 3.4 0 0 3.3 3.1 1.8 1.3 0.6 0.7 0.7 0 2.0 1.3 0 0.3 0.3 0 2.2 2.9 3.4 0 0 3.3 3.1 1.8 1.3 1.2 1.3 1.3 0 1.6 1.2 3.3 1.1 1.5 3.3 IC3001 170 171 172 173 174 175 176 161 162 163 164 165 166 167 168 169 2.6 2.8 0 2.7 2.7 3.3 3.0 2.8 0 3.1 2.8 3.1 3.3 2.9 0 2.7 1.8 177 178 179 180 3.3 2.9 2.8 2.7 IC3001 190 191 192 193 194 195 196 181 182 183 184 185 186 187 188 189 2.8 0 1.7 1.8 1.7 0 3.4 3.4 2.6 2.8 IC3001 201 202 203 204 205 206 207 208 0 1.8 1.2 0 0 1.1 0 0 1.8 1.4 0 3.3 0 1.5 0 0 0.1 0 1.7 1.8 1.7 0 3.4 3.4 2.2 0.2 1.8 2.5 3.2 3.2 3.3 0 197 198 199 200 3.0 0 3.3 1.5 1.8 1.9 3.2 3.2 3.3 0 3.0 0 3.3 1.3 2.8 0 0 2.7 3.3 3.0 - 0 - 2.6 3.3 2.6 0 0 1.8 3.3 2.6 2.8 - IC3201 IC3201 IC3201 IC3201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.4 0.6 0.7 0.7 2.0 0.3 0.3 1.4 3.3 3.3 1.4 1.3 1.3 1.1 1.6 1.2 1.6 1.2 3.3 3.3 3.3 0 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 IC3261 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1.3 1.5 1.3 1.5 1.5 0 0 0 0 0 1.3 IC3251 1 2 3 4 5 6 4.8 0 4.8 1.3 0 3.3 0 4.8 1.3 0 3.3 4.8 0 1.0 1.2 1.0 1.5 4.8 1.5 1.3 1.5 1.5 0 0 0 0 0 0 1.2 1.4 1.2 1.5 4.8 3.3 3.3 3.3 3.3 3.3 3.3 0 37 38 39 40 0.4 3.3 0 0 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 3.3 0 0 0 3.0 3.0 0 0 1.3 1.6 0 0 0 3.3 0 1.6 0 3.3 3.0 0.5 3.3 0.4 0 0.8 3.3 0 0.6 3.3 0 0 3.0 0 0.5 0.5 0 1.3 57 58 59 60 0 0 0 0 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 0.8 0 3.3 0.8 0 1.6 1.3 1.3 3.2 3.1 0.8 0 3.3 0.8 0 1.6 1.3 1.3 3.2 3.1 3.3 0 0 0 0 3.3 0 0 0 0 3.3 0 0 0 0 3.3 61 62 63 64 0 0 3.3 0 0 3.3 0 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DVM-4800 Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY IC3701 IC3701 IC3701 IC3701 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 3.4 0 3.4 0 0 0 3.4 3.4 3.1 3.4 3.4 0 3.4 0 0 0 3.4 3.4 3.1 3.4 0 2.8 3.3 3.1 0.8 0 0 0 0 0 0 0.6 3.3 3.1 2.8 0 0 0 1.3 1.3 37 38 39 40 0.9 0.6 0.6 3.4 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 0 0 3.3 0 0 0 3.3 2.3 0 1.0 0.6 3.3 2.2 1.9 2.4 1.4 0 0 0 3.4 0 0.9 0.9 1.9 0.6 0.5 0.5 3.3 3.4 3.4 0 1.3 1.3 1.2 1.1 0 57 58 59 60 0 0 3.4 0 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 2.7 0 0 0 0.9 0.5 0.5 0.5 3.4 1.6 3.3 0 0 0 1.2 1.2 1.2 1.2 3.4 1.6 0 0 0 0 3.3 0 0 0 3.4 0 0 0 2.1 0.2 2.0 0.9 77 78 79 80 0 1.7 1.7 1.7 70 71 72 73 74 75 76 61 62 63 64 65 66 67 68 69 1.6 3.4 0 0 3.4 0 3.3 3.3 0 1.6 1.6 3.4 0 0 3.4 0 3.3 3.3 0 1.6 3.4 3.3 1.5 1.7 0.7 0 0 1.7 1.7 1.7 3.4 3.3 0.6 1.7 0.7 0 IC3701 97 98 99 100 0.9 1.4 0 0 90 91 92 93 94 95 96 81 82 83 84 85 86 87 88 89 3.4 1.7 1.6 1.7 1.8 2.2 0 0 3.3 1.1 3.4 1.7 1.6 1.7 2.1 2.2 3.3 0 0 1.1 0.9 2.1 0.9 3.4 2.1 2.1 1.3 1.2 0 0 1.7 2.4 1.3 3.4 2.2 2.3 IC3731 IC3731 IC3731 IC3731 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.4 3.3 1.4 1.2 0 1.2 2.3 3.3 2.6 1.7 1.2 3.3 1.6 1.6 0 1.6 1.9 3.3 2.2 2.2 0 1.9 1.9 3.3 3.3 0 1.9 1.8 0 1.7 3.3 3.3 0 2.2 1.8 0 2.1 0 2.0 2.0 37 38 39 40 0 0 0 0 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 2.8 3.3 0.6 0.6 3.3 3.3 3.3 0 2.2 2.5 3.3 0.6 0.6 3.3 3.3 3.3 0 2.2 0 1.6 1.6 3.3 0 1.6 1.6 0 0 0 0 1.6 1.6 3.3 0 1.6 1.6 0 57 58 59 60 0 1.7 3.3 1.0 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 0 0 0 0 0 0 1.6 1.7 1.7 1.7 0 0 0 0 0 0 1.6 1.7 1.7 1.7 2.1 0 0 0.6 0 3.3 0 1.7 3.3 1.6 2.1 0 1.6 0.6 0 3.3 IC3751 IC3751 IC3751 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 0 0 0.9 0.5 0.5 0.5 3.3 0.1 0.1 3.3 0 0 1.2 1.2 1.2 1.3 2.2 1.3 2.1 IC4201 IC3781 1 2 3 4 5 6 4.8 0 4.8 1.3 0 3.3 4.8 0 4.8 1.3 0 3.3 1 2 3 0 3.3 4.7 0 3.3 4.7 0 3.5 0 0 0 1.8 0.8 1.1 1.8 0 3.5 0 0 0 1.3 1.3 1.3 1.2 0.5 0.2 37 38 39 40 1.7 1.6 1.6 3.2 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 1.2 1.2 1.2 3.3 1.6 0 2.6 3.3 3.1 3.0 0.5 0.5 3.2 3.3 1.6 0 2.6 3.3 3.1 3.0 3.0 0.6 3.3 0.6 0 0.4 1.7 1.6 1.6 3.2 3.0 0.5 3.3 0.6 0 0.7 IC4211 IC4211 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.7 0 1.6 0 1.5 0 3.3 0 0 4.7 1.7 0.8 1.6 0 1.5 0 3.3 0 0 4.7 0 2.3 2.4 0 4.7 2.4 2.3 0 4.7 0 0 2.3 2.4 0 4.7 2.4 2.3 0 4.7 0 21 22 23 24 25 26 27 28 0 3.2 3.3 3.3 0 3.3 2.8 3.3 3.2 0 0 0 3.3 2.8 3.3 0 IC4221 IC4221 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.7 0 1.6 1.9 1.5 3.7 0 4.7 4.7 0 1.7 0.8 1.6 1.9 1.5 3.7 0 4.7 4.7 0 2.3 0 2.3 0 4.7 2.4 0 2.3 0 4.7 2.3 0 2.3 0 4.7 2.4 0 2.3 0 4.7 21 22 23 24 25 26 27 28 0 3.2 0 4.7 4.8 3.3 2.8 3.3 3.2 0 4.7 4.6 3.3 2.8 3.3 4.9 50 51 52 41 42 43 44 45 46 47 48 49 3.3 3.3 0 0.1 0.3 0.6 0.7 0.5 0 0 0 3.3 0 0 0.1 0 0 0.1 0 0 0 0 0.1 0.1 77 78 79 80 0 0 3.3 3.1 70 71 72 73 74 75 76 61 62 63 64 65 66 67 68 69 0 0 0.9 0.9 3.3 0 3.3 0 0 0 1.6 0 1.6 1.6 3.3 0 3.3 1.9 1.7 0 0 0.9 1.7 0 3.3 0 2.2 2.2 3.3 2.4 2.3 0.9 2.2 0 3.3 2.2 IC3731 97 98 99 100 1.4 0.9 0 2.2 90 91 92 93 94 95 96 81 82 83 84 85 86 87 88 89 1.5 0 1.5 1.4 0 0 0 0 0 0 2.2 0 2.9 1.7 0 0 0 0 0 3.3 0 0 0 3.3 0 0 1.6 1.7 0 1.7 3.3 0 0 3.3 0 0 IC3701 117 118 119 120 1.8 1.6 3.0 2.2 110 111 112 113 114 115 116 101 102 103 104 105 106 107 108 109 3.4 1.0 0.9 0.9 0.9 1.6 1.9 1.9 1.8 2.7 3.4 1.2 1.2 1.2 1.2 1.3 2.4 2.6 1.1 2.2 0 1.8 3.4 2.0 2.1 2.0 2.5 2.6 1.9 2.2 0 2.2 3.4 2.8 2.4 2.0 IC3701 137 138 139 140 0 0 0 0 130 131 132 133 134 135 136 121 122 123 124 125 126 127 128 129 1.8 0 1.8 1.8 1.7 1.6 1.6 1.5 2.0 3.4 0 0 0 0 0 0 0 0 0 2.2 0 2.2 2.2 2.4 2.6 2.6 1.7 2.0 3.4 0 0 0 0 0 0 0 IC3701 157 158 159 160 1.6 2.9 2.9 2.9 150 151 152 153 154 155 156 141 142 143 144 145 146 147 148 149 0 0 0 0 0 0.6 0.7 0.6 - 0 0 0 0 0 1.3 1.1 1.2 1.6 0 3.4 0.3 0 3.4 0.3 - 1.6 2.9 2.9 2. 3.4 1.3 0 3.4 1.4 1.2 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DVM-4800 Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY IC4231 IC4231 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.7 0 1.6 1.9 1.5 3.6 0 4.7 4.7 0 1.7 0 1.6 1.9 1.5 3.6 0 4.7 4.7 0 2.3 0 2.4 0 4.7 2.4 0 2.3 0 4.7 2.3 0 2.4 0 4.7 2.4 0 2.3 0 4.7 21 22 23 24 25 26 27 28 0 3.2 0 4.7 4.7 3.3 2.8 3.3 0 3.2 0 4.7 4.7 3.3 2.8 3.3 IC4241 IC4241 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1.7 0 1.6 1.9 1.5 3.6 0 4.7 4.7 0 1.7 0 1.6 1.9 1.5 3.6 0 4.7 IC4261 1 2 3 4 5 6 7 8 0 0 0 0 0 0 0 5.0 4.9 0 4.9 0 0 4.9 4.9 4.9 IC5262 1 2 3 4 5 6 7 8 2.2 2.2 2.2 0 2.2 2.2 2.2 2.2 2.2 2.2 0 2.2 2.2 2.2 4.9 IC5266 1 2 3 4 5 6 7 8 1.7 4.2 0 0 1.1 0 0 0 4.8 0 0 0 0 0 0 4.8 IC5267 1 2 3 4 5 6 7 8 1.7 0 0 0 1.0 0 0 0 1.9 4.9 1.8 0 0 0 0 0 IC6211 1 2 3 4 5 0 0 0 3.3 3.3 0 0 0 3.3 3.3 IC6221 1 2 3 4 5 6 7 8 0 0 0 0 3.0 3.0 0 3.3 0 0 0 0 3.0 3.0 0 3.3 4.9 4.7 0 2.3 0 2.4 0 4.7 2.4 0 2.3 0 4.7 2.3 0 2.4 0 4.7 2.4 0 2.3 0 4.7 21 22 23 24 25 26 27 28 0 3.2 0 4.7 4.7 3.3 2.8 3.3 0 3.2 0 4.7 4.7 3.3 2.8 3.3 IC5201 IC5201 IC5201 IC5201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 0 4.4 0 4.4 0 1.7 1.7 1.7 3.3 0 0.5 3.2 0 4.4 0 1.7 1.7 2.0 3.3 0 3.2 3.3 0 0 1.2 1.7 1.7 1.7 1.7 1.7 3.2 3.3 0 0 1.2 1.7 1.7 1.7 1.7 2.1 37 38 39 40 1.2 0 3.3 0 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 1.7 1.7 2.7 0 1.7 0 2.2 4.8 1.7 1.8 1.7 1.7 2.7 0 1.7 0 2.2 4.8 1.7 1.8 1.8 2.1 1.5 3.3 0 2.1 1.2 0 0 0 1.8 2.1 1.5 3.3 0 2.1 57 58 59 60 2.2 2.2 2.2 2.2 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 1.7 1.6 1.6 1.1 1.7 2.2 2.2 2.2 2.2 2.1 2.5 1.4 1.8 2.2 1.9 2.2 2.2 2.2 2.2 2.1 2.2 2.1 4.8 2.2 2.2 2.3 2.2 2.2 2.2 2.2 2.2 2.1 4.8 2.2 2.2 2.3 IC5263 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 0 1.7 2.2 2.2 2.2 0 0 0 3.3 0 0.2 1.1 1.1 1.7 4.9 0 0 0 0 0 0 0 0 3.3 0 0 2.2 0.1 2.2 2.0 4.9 4.9 61 62 63 64 0 2.2 2.2 0 2.2 2.2 0 0 IC6201 IC6201 IC6201 IC6201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 3.3 3.1 3.3 3.3 3.3 3.3 3.3 3.0 3.3 0 3.3 2.7 3.3 3.3 3.3 3.3 3.3 2.5 0 0 0 3.3 2.1 3.0 3.0 2.8 3.3 3.3 0 0 0 0.1 1.4 2.6 1.7 1.4 3.3 3.3 0 0 37 38 39 40 1.7 0 0 0 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 3.3 3.3 1.5 1.8 3.3 3.0 2.5 3.0 2.2 2.3 3.3 3.3 1.5 1.8 3.3 2.6 2.1 0 0 1.9 2.4 2.2 2.4 2.2 2.2 3.3 1.7 2.0 2.1 1.9 2.4 1.9 2.2 1.8 2.0 3.3 57 58 59 60 3.3 0 0 3.3 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 0 0 0.5 0 0 0 0 0 0 3.3 1.8 1.4 0.5 0 1.4 0 0 0 0 3.0 3.3 3.3 3.3 3.3 3.3 2.1 3.3 0 0 3.3 2.8 3.3 3.0 3.0 1.9 1.1 IC6301 IC6301 IC6301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 2.2 2.2 2.1 2.2 2.4 2.2 2.2 2.5 2.0 2.0 2.2 2.0 1.7 1.7 2.1 1.9 1.9 2.2 1.4 1.4 3.3 3.3 0 3.3 2.0 2.0 2.3 2.3 2.2 3.0 2.6 3.3 0 3.3 3.3 1.3 1.7 1.9 2.2 2.7 37 38 39 40 3.3 3.0 3.1 3.0 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 2.5 3.0 2.8 3.0 3.0 3.0 0 3.0 3.0 3.0 2.1 2.6 2.6 2.5 2.5 2.8 0 2.7 2.7 2.6 3.0 3.1 3.1 3.0 3.1 3.1 3.3 2.7 2.8 2.6 2.6 2.6 2.7 2.7 2.7 2.7 41 42 43 44 45 46 47 48 3.0 3.0 3.1 3.1 3.1 0 3.3 2.0 2.6 2.7 2.8 2.8 2.8 0 3.3 1.9 77 78 79 80 3.3 0.1 0 0 70 71 72 73 74 75 76 61 62 63 64 65 66 67 68 69 0 0 0 0 0 3.3 3.3 3.3 0 0 0 0 0 0 0 3.3 3.3 0 0 2.8 3.3 3.3 3.3 3.3 3.3 3.3 3.3 2.9 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 IC6201 97 98 99 100 3.3 3.3 3.3 3.3 90 91 92 93 94 95 96 81 82 83 84 85 86 87 88 89 3.3 3.3 3.3 3.4 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.4 0.4 0.4 0 1.2 0.4 0.4 3.3 0 3.3 3.3 0 3.3 3.3 3.3 3.3 3.3 0.3 0 3.3 3.3 0 3.3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DVM-4800 Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY Ref No. MODE STOP PLAY IC6501 1 2 3 4 5 0 1.6 0 1.6 3.2 1.6 0 1.6 3.2 0 Q2001 E C B 1.5 2.1 4.8 1.5 2.1 4.8 Q3221 E C B 1.1 0.5 0 1.1 0.5 0 Q3226 E C B 1.0 0.4 0 1.2 0.6 0 Q3231 E C B 1.5 0.8 0 1.5 0.8 0 Q3236 E C B 1.5 0.8 0 Q3761 E C B 1.3 0.6 0 0.6 0 1.3 Q3766 E C B 1.3 0.6 0 1.3 0.6 0 Q3771 E C B 1.2 0.4 0 1.4 0.6 0 Q5211 1 2 3 4.3 4.8 1.7 3.2 3.8 2.2 Q5215 1 2 3 4.4 4.8 1.1 4.4 4.8 1.1 Q5261 E C B 1.1 1.8 4.8 1.1 1.8 4.8 Q6215 E C B 0 0 3.2 0 0 3.2 1.1 1.8 4.8 1.1 1.8 4.8 Q5262 E C B Q5263 E C B 1.6 0.9 0 1.8 1.1 0 Q5264 E C B 0.5 1.1 4.8 0.3 1.1 4.8 Q5271 1 2 3 0 3.3 0 0 3.3 0 QR5221 1 2 3 3.3 3.3 0.4 3.3 0.1 3.3 QR5241 1 2 3 3.3 3.3 0 3.3 0.1 3.3 1.5 0.8 0 IC6531 1 2 3 4 5 0 1.6 0 1.6 3.2 1.6 0 1.6 3.2 0 IC6561 1 2 3 4 5 0 1.6 0 1.6 3.2 1.6 0 1.6 3.2 0 IC6541 1 2 3 4 5 1.5 1.5 1.5 0 1.5 6 7 8 3.2 3.2 3.2 1.5 1.5 0 1.5 3.2 3.2 3.2 1.5 IC6551 1 2 3 4 5 1.5 1.5 1.6 0 1.4 6 7 8 0 0 3.2 1.5 1.6 0 1.4 0 0 3.2 1.5 IC6511 1 2 3 4 5 0 1.6 0 1.6 3.2 1.6 0 1.6 3.2 0 IC6521 1 2 3 4 5 0 1.6 0 1.6 3.2 1.6 0 1.6 3.2 0 IC6571 1 2 3 4 5 0 1.6 0 1.6 3.2 1.6 0 1.6 3.2 0 IC6581 1 2 3 4 5 0 1.6 0 1.6 3.2 1.6 0 1.6 3.2 0 IC6591 1 2 3 4 5 0 1.6 0 1.5 3.2 1.6 0 1.5 3.2 0 IC6801 IC6801 IC6801 IC6801 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 3.4 2.5 1.6 0 0 3.3 0 0 3.1 3.0 3.4 2.5 1.5 0 0 3.3 0 0 2.7 2.7 0 0 3.4 3.1 3.4 0 3.3 3.4 0 0 0 0 2.7 3.4 0 3.3 3.4 0 0 0 37 38 39 40 3.3 0 3.3 3.4 30 31 32 33 34 35 36 21 22 23 24 25 26 27 28 29 3.1 0 3.1 3.4 3.4 3.1 3.2 2.1 3.3 2.5 2.8 0 2.8 3.4 3.4 2.8 2.2 1.6 2.6 2.5 3.2 1.7 3.3 3.4 1.6 0 3.3 0 0.8 3.4 2.0 1.7 1.7 3.4 1.6 0 57 58 59 60 0 0 3.4 1.6 50 51 52 53 54 55 56 41 42 43 44 45 46 47 48 49 3.1 3.3 3.3 0 0 3.4 3.3 0 0 0 0.6 3.3 3.3 0 0 3.4 0.8 0 0 0 1.6 0 0 2.5 1.7 1.7 0 0 3.4 1.6 1.6 0 0 2.5 1.7 1.7 77 78 79 80 0 3.4 0 0 70 71 72 73 74 75 76 61 62 63 64 65 66 67 68 69 3.4 0 0 0 3.4 0 0 0 0 0 3.4 0 0 0 3.4 0 0 0 0 0 3.4 3.4 0 0 0 0 0 3.4 1.4 0 0 0 0 3.3 3.3 3.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DVM-4800 8. SEMICONDUCTORS ����� IC's MN101C35DCA (IC601) 1 P00 ST-BY LED O ST-BY LED 2 P01 R-SPEED O Roulette rotation slow down, H: Down 3 P02 FL DRIVE O FL light off, L: Off 4 P03 CMD O Serial output 5 P04 STATUS I Serial input 6 P05 DSPCLK I Serial clock 7 P06 AUDIO ONLY LED O Audio Only LED 8 VDD 5V  +5V 9 OSC2 XI O Clock 10 OSC1 XO I Clock 11 VSS GND  GND 12 XI GND I Not used 13 XO NC O Not used 14 MMOD GND I Memory mode 15 VREF- GND I A/D reference L 16 PA0 KEYIN0 I A/D key input 17 PA1 KEYIN1 I A/D key input 18 PA2 KEYIN2 I A/D key input 19 PA3 SWOP I Tray open detect, L: Open 20 PA4 SWCL I Tray close detect, L: Close 21 PA5 PA5 I Model set jumper 1 22 PA6 PA6 I Model set jumper 2 23 PA7 PA7 I Model set jumper 3 24 VREF+ 5V I A/D reference H 25 P07 POWERMUT O Power mute, H: Mute 26 P27 /RST I Reset 27 P10 SWDN I Chucking down detect, L: Down 28 P11 SWUP I Chucking up detect, L: Up 29 P12 OPEN O Tray open, H: Open 30 P13 CLOSE O Tray close, H: Close 31 P14 ROULETTE-L O Roulette left-turn, H: Left-turn 32 P15 ROULETTE-R O Roulette right turn, H: Right turn 33 P20 (IRQ0) REM I Remote-control input 34 P21 VSYNC I V-Sync (IRQ) 35 P22 W.REMIN I Wired remote-control input 36 P23 RFF I RFF 37 P24 R.SENS I Roulette sensor, H: detect slit 38 P25 D.SENS I Disc sensor, L: detect disc 39 P30 SDA O I 2C SDA 40 P31 POWER-OFF O Main power control, L: On Pin No. Pin Name Function I/O Symbol � MN101C35DCA Terminal Function 1 25 26 50 51 75 76 100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DVM-4800 Pin No. Pin Name Function I/O Symbol 41 P32 SCV O I2C SCL 42 P50 D.F.2.I I D.F.2 detect 43 P51 DEEMPH O Emphasis control 44 P52 RSTN O Reset output for D.F.1, L: Reset 45 P53 CKDV1 O Master clock switching sig.1 46 P54 CKDV2 O Master clock switching sig.2 47 P67 G17 O FL-DGT 48 P66 G16 O FL-DGT 49 P65 G15 O FL-DGT 50 P64 G14 O FL-DGT 51 P63 G13 O FL-DGT 52 P62 G12 O FL-DGT 53 P61 G11 O FL-DGT 54 P60 G10 O FL-DGT 55 P41 G9 O FL-DGT 56 P40 G8 O FL-DGT 57 P77 G7 O FL-DGT 58 P76 G6 O FL-DGT 59 P75 G5 O FL-DGT 60 P74 G4 O FL-DGT 61 P73 G3 O FL-DGT 62 P72 G2 O FL-DGT 63 P71 G1 O FL-DGT 64 P70 S1 O FL-SEG 65 P87 S2 O FL-SEG 66 P86 S3 O FL-SEG 67 P85 S4 O FL-SEG 68 P84 S5 O FL-SEG 69 P83 S6 O FL-SEG 70 P82 S7 O FL-SEG 71 P81 S8 O FL-SEG 72 P80 S8 O FL-SEG 73 P97 S10 O FL-SEG 74 P96 S11 O FL-SEG 75 P95 S12 O FL-SEG 76 P94 S13 O FL-SEG 77 P93 S14 O FL-SEG 78 P92 S15 O FL-SEG 79 P91 S16 O FL-SEG 80 P90 S17 O FL-SEG 81 PC2 S18 O FL-SEG 82 PC1 S19 O FL-SEG 83 PC0 S20 O FL-SEG 84 PB7 S21 O FL-SEG 85 PB6 S22 O FL-SEG 86 PB5 S23 O FL-SEG 87 PB4 S24 O FL-SEG 88 PB3 S25 O FL-SEG 89 PB2 S26 O FL-SEG 90 PB1 S27 O FL-SEG 91 PB0 S28 O FL-SEG 92 PD7 S29 O FL-SEG 93 PD6 S30 O FL-SEG 94 PD5 S31 O FL-SEG 95 PD4 S32 O FL-SEG 96 PD3 S33 O FL-SEG 97 PD2 S34 O FL-SEG 98 PD1 S35 O FL-SEG 99 PD0 S36 O FL-SEG 100 VPP -29V I -29V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DVM-4800 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 MODD MODB MODA WCKO LRCI BCKO BCKI VCCS GNDS GNDG VCCLQ GNDQ SMUTE DOUT/DOL VCCHQ DOR HMUTE SPI/I2C DEEMP DIN VCCS GNDS SS/HA2 MOSI/HA0 MISO/SDA 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 GNDG NC NC GNDA VCCA NC NC NC NC VCCLQ GNDQ GNDA VCCA NC VCCHQ NC NC NC NC GNDA VCCA NC NC NC NC 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 NC NC NC NC GAIN VCCG ZERO GNDS VCCS HDCD NC VCCHQ GNDQ VCCLQ NC NC GNDG GNDG GNDG GNDG GNDD VCCD GNDG GNDG GNDG 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 SCK/SCL HREQ PINIT RESET NC VCCP PCAP GNDP EXTAL VCCHQ GNDQ VCCLQ GNDG NC NC NC VCCC GNDC NC NC NC NC VCCA GNDA NC Input Data Interface HDCD Detect 2xFs Interpolation Filter Attenuator Deemphasls Interpolation Filter Mute Dither Generator Output Data Interface Control Interface Timing Generator LRCI BCKI DIN EXTAL I2C/SPI MOSI MISO SCK HREQ HMUTE DOL DOR WCKO BCKO DEEMP SMUTE HDCD ZERO GAIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 MODD MODB MODA WCKO LRCI BCKO BCKI VCCS GNDS GNDG VCCLQ GNDQ SMUTE DOUT/DOL VCCHQ DOR HMUTE SPI/I2C DEEMP DIN VCCS GNDS SS/HA2 MOSI/HA0 MISO/SDA 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 GNDG NC NC GNDA VCCA NC NC NC NC VCCLQ GNDQ GNDA VCCA NC VCCHQ NC NC NC NC GNDA VCCA NC NC NC NC 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 SCK/SCL HREQ PINIT RESET NC VCCP PCAP GNDP EXTAL VCCHQ GNDQ VCCLQ GNDG NC NC NC VCCC GNDC NC NC NC NC VCCA GNDA NC 100 99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84 83 82 81 80 79 78 77 76 NC NC NC NC GAIN VCCG ZERO GNDS VCCS HDCD NC VCCHQ GNDQ VCCLQ NC NC GNDG GNDG GNDG GNDG GNDD VCCD GNDG GNDG GNDG Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name PMD200 (IC101) PMD200 Terminal Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DVM-4800 DXP7001AF (IC201) 1 11 12 22 23 33 34 44 � � � � DXP7001AF Terminal Function Pin No. Pin Name I/O Description 1 MDT Ip Microcomputer Interface Data 2 MCK Ip Microcomputer Interface Clock 3 MLEN Ip Microcomputer Interface Latch Enable 4 RSTN Ip Reset Terminal 5 DLRCK Ip Audio Serial Input Data L/R Clock 6 VSS − Ground Terminal 7 DBCK Ip Audio Serial Input Bit Clock 8 DDT Ip Audio Serial Input Data 9 TEST2N Ip Test Setting Terminal 2 (Alpha-processor 1 Output shifts 12-bit.) 10 TEST3N Ip Test Setting Terminal 3 (Alpha-processor 2 Output stops.) 11 TEST4N Ip Test Setting Terminal 4 (Lambda-processor Output stops.) 12 DFBCK Ip Lambda-processor Input Bit Clock 13 DFWCK Ip Lambda-processor Input Word Clock 14 DOL Ip Lambda-processor Input Data L-channel 15 DOR Ip Lambda-processor Input Data R-channel 16 LMOD Ip Lambda-processor Operation Mode Set 17 OMOD1 Ip Output Mode Setting Terminal 1 18 OMOD2 Ip Output Mode Setting Terminal 2 19 INVIN Ip Lambda-processor Input Reversed Polarity Terminal 20 BCKO O Lambda-processor Output Bit Clock 21 WCKO O Lambda-processor Output Word Clock 22 WCKO2 O Lambda-processor Output Word Clock 2 (for Canceling OFFSET on 1DAC Pin No. Pin Name I/O Description 23 −P24L O −/Lambda-processor Lch 24th bit Output *1, *2 24 −P23L O −/Lambda-processor Lch 23rd bit Output *1, *2 25 −P22L O −/Lambda-processor Lch 22nd bit Output *1, *2 26 −P21L O −/Lambda-processor Lch 21st bit Output *1 27 −P20L O −/Lambda-processor Lch 20th bit Output *1 28 VDD − Power Supply Terminal 29 SO2L/P19L O Lambda-processor Lch(−) Output /19 th bit Output *1 30 SO1L O Lambda-processor Lch(+) Output 31 SO1R O Lambda-processor Rch(+) Output 32 SO2R/P19R O Lambda-processor Rch(−) Output/19 th bit Output *1 33 −P20R O −/Lambda-processor Rch 20th bit Output *1 34 −P21R O −/Lambda-processor Rch 21st bit Output *1, *2 35 −P22R O −/Lambda-processor Rch 22nd bit Output *1, *2 36 −P23R O −/Lambda-processor Rch 23rd bit Output *1, *2 37 −P24R O −/Lambda-processor Rch 24th bit Output *1, *2 38 TEST1N Ip Test Terminal 1 (Alpha-processor 1 stops) 39 CKSLN Ip System Clock Select (384fs system / 256fs system) 40 CKDV1 Ip System Clock Divider Select Terminal 1 41 CKDV2 Ip System Clock Divider Select Terminal 2 42 XTI I X-TAL Oscillator Input Terminal 43 XTO O X-TAL Oscillator Output Terminal 44 CKO O Clock Output Terminal (Ip = Input Terminal with pull-up) *1: Outputted on OMOD1=L (18-bit Alternate Output or 20 -bit Parallel Output) *2: Internal Signal is outputted on OMOD1=H (24-bit Alternate Output or 24 -bit Parallel Output) and one of TEST1N, TEST2N, TEST3N or TEST4N is set to L. OMOD1 L H L 18bit Alternate 24bit Alternate OMOD2 H 20bit Parallel 24bit Parallel CKDV1 L H 192fs (CKSLN=H) L 256fs (CKSLN=H) 768fs 192fs (CKSLN=H) CKDV2 H 256fs (CKSLN=H) 384fs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DVM-4800 20 1 10 DATA 1 IN Pin No. I/O BCLK 2 IN NC 3 - -V 4 DGND 5 - 6 - WCLK 7 IN NC 8 - 20BIT 9 IN INVERT 10 IN 11 - BPO DC 12 - NC 13 - I 14 OUT AGND 15 - AGND 16 - SERVO DC 17 - NC 18 - REF DC 19 - 20 - DD - +V DD +V CC OUT -V CC PCM1704U (IC301, 302) Pin Name Description Serial Audio Input Bit Clock Input for Serial Audio Data Input NC (1) Digital Power Supply -5V Digital GND Digital Power Supply +5V Data Latch Accept Input NC (1) INPUT Data Language Select (2) INPUT Data Polarity Select (2) Analog Power Supply +5V Bipotar Offset De-Coupling Capacitor NC (1) Audio Signal Analog Current Output Analog GND Analog GND Servo Amp De-coupling Capacitor NC (1) Band Cap. Reference De-coupling Capacitor Analog Power Supply -5V Remarks) (1) Not connected (Not used) (2) Internal Pull -up CXA1511M (IC252) 1 4 5 8 2 3 4 5 6 7 8 1 IN ABLC C1 C2 GND fo N.C. OUT Vcc Detector & Comparator Integrator 2 23 24 3 4 7 8 9 10 11 12 1 15 16 18 20 21 13 14 6 22 17 2 2 2 2 2 5 19 4th-ORDER FILTER 4th-ORDER FILTER 4th-ORDER FILTER 4th-ORDER FILTER 0.5V 0.5V 0.5V 0.5V 0.75V VCCORGB VCCOCV VCC SWAP CVU MUX MUX MUX MUX UNFILTERD CHANNEL TRANSCONDUCTANCE ERROR AMP SWAP CVF REQUIRED SYNC STRIP TRANSCONDUCTANCE ERROR AMP TRANSCONDUCTANCE ERROR AMP TRANSCONDUCTANCE ERROR AMP TRANSCONDUCTANCE ERROR AMP SYNCIN SYNCIN SYNCOUT CV A/Y2* INF CV B/Y3* INF R A/Y4 IN R B/Y5 IN G A/Y6 IN G B/Y2 IN B A/C1 IN B B/C2 IN A/B MUX *CAN ALSO INPUT SYNC ON GREEN SIGNALS GNDO GND B /C OUT OUT G /Y D OUT OUT R /Y C OUT OUT CV /Y B OUT OUT CV 1/Y A OUT OUT SYNC TIMER SYNC TIMER SWAP MUX ML6247 (IC501) 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 SYNCIN SYNCOUT CV A/Y2 INF CV B/Y3 INF R A/Y4 IN R B/Y5 IN G A/Y6 IN G B/Y7 IN B A/C1 IN B B/C2 IN A/B MUX GND VCC GNDO VCCOCV VCCORGB SWAP CVU SWAP CVF B /C OUT OUT G /Y D OUT OUT R /Y C OUT OUT CV /Y B OUT OUT CV 1/Y A OUT OUT TOP VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DVM-4800 1 16 15 7 6 14 13 8 11 12 4 3 2 1 16 5 10 9 Sync Sepa Sync Det Phase Det Vsync Sepa 32fH VCO 1/32 REG Delay Latch Drive REG OSC S R Q S R Q 8 VIN UVLO Internal Bias PWM Latch INH Latch INH Comp. OCP Comp. OVP TSD 1~4 D S OCP/FB 7,10 9 GND 6 Icon1 1 16 2 3 4 5 6 7 8 15 14 13 12 11 10 9 A/B MUX RINA/YINA GND VCC RINB/YINB GINA/UINA GINB/UINB BINA/VINA SYNC IN DISABLE GNDO ROUT/YOUT VCCO GOUT/UOUT BOUT/VOUT BINB/VINB TOP VIEW 2 MUX MUX 5 12 6 7 MUX 8 9 1 16 15 4 14 3 10 11 13 2 4th-ORDER FILTER A 2 4th-ORDER FILTER B 2 4th-ORDER FILTER C RINA/YINA RINB/YINB GINA/UINA GINB/UINB BINA/VINA BINB/VINB SYNC IN TRANCECONDUCTANCE ERROR AMP TRANCECONDUCTANCE ERROR AMP TRANCECONDUCTANCE ERROR AMP GNDO GND DISABLE VCCO ROUT/YOUT GOUT/UOUT BOUT/VOUT 1 8 2 7 3 6 4 5 VCC ch0 ch1 ADR COM NH GND VEE VCC GND REFFERENCE VOLTAGE 1 2 3 OUT 1 2 3 2 TOP VIEW TOP VIEW TOP VIEW COLLECTOR EMITTER ANODE CATHODE NJM2229S (IC504) STR-L422 (IC901) ML6426 (IC502) TC4W53F (IC406) BA033FP (IC605) BA18BC0FP (IC803) TLP521-1 (IC902) VCC 1 10 A/B MUX FRONT SIDE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DVM-4800 TC74HCU04AF (IC210, 251) TC74HCT04AF (IC301) TC74HCT7007AF (IC103, 202, 203) 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1A 1Y 2A 2Y 3A 3Y GND Vcc 6A 6Y 5A 5Y 4A 4Y 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1A 1Y 2A 2Y 3A 3Y GND Vcc 6A 6Y 5A 5Y 4A 4Y BA15218F (IC408, 409, 410) NJM4558D (IC105) NJM2068MD (IC303, 304, 321, 322, 401, 402, 403, 404, 405) 5 7 8 6 1 2 3 4 – + – + A OUTPUT A -INPUT A +INPUT V- V+ B OUTPUT B -INPUT B +INPUT B QA QB QC QD QE A A B A Q B Q C Q D Q GND 1 2 3 4 5 6 7 H Q G Q F Q CLR CK 14 13 12 11 10 9 8 Vcc H Q G Q F Q E Q Clear Clock 1 2 3 4 5 6 7 8 14 13 12 11 10 9 CD1 Q1 CP1 SD2 CD2 Q2 Q2 CP2 D1 CD1 D1 CP1 SD1 Q1 Q1 GND Vcc CD2 D2 CP2 SD2 Q2 Q2 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1Y 1A 1B 2Y 2A 2B GND Vcc 4Y 4B 4A 3Y 3B 3A Q1 SD1 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1Y 1A 1B 2Y 2A 2B GND Vcc 4Y 4B 4A 3Y 3B 3A SN74LV74ANS (IC215, IC217) SN74LV164ANS (IC205, 214, 218) D2 SN74LV32ANS (IC207) SN74LV86ANS (IC206) SN74LV00APW (IC505) 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1A 1B 1Y 2A 2B 2Y GND Vcc 4B 4A 4Y 3B 3A 3Y SELECT 1A 1B 1Y 2A 2B 2Y GND VCC STROBE 4A 4B 4Y 3A 3B 3Y INPUTS 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 S 3Y 1A 1B 1Y 2A 2B 2Y G 4A 4B 4Y 3A 3B OUTPUT INPUTS OUTPUT INPUTS OUTPUT INPUTS OUTPUT SN74LV157APW (IC219) SN74LV08APW (IC216) 1 2 3 4 5 6 7 14 13 12 11 10 9 8 1A 1B 1Y 2A 2B 2Y GND Vcc 4B 4A 4Y 3B 3A 3Y 74VHC123AMTCX (IC503) 15 1 2 3 4 5 6 7 8 5 16 14 13 12 11 10 9 CLR Q Q CLR 1A 1B 1CLR 1Q 2Q 2Cex1 2Rext/Cext GND Vcc 1Rex/Cext 1Cext 1Q 2Q 2CLR 2B 2A 15 1 2 3 4 5 6 7 8 5 16 14 13 12 11 10 9 A0 A1 A2 Q0 Q1 Q2 Q3 VSS VDD SDA SCL NC Q7 Q6 Q5 Q4 BU2098F (IC102) Q Q I C Bus Contoller 2 Write Buffer Latch Power-On Reset Shift Register 8bit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DVM-4800 PST600C (IC603) NJM7805FA (IC801) NJM7809FA (IC904, 908) BA033T (IC907) OUTPUT GND INPUT FRONT VIEW OUTPUT GND VDD FRONT VIEW NJM7905FA (IC802) NJM7909FA (IC905) OUTPUT INPUT GND FRONT VIEW SE005N (IC903) 1 FRONT VIEW 2 3 1 2 3 GND Vout C PQ070VK01FZ (IC906) VIN ON/OFF COM FRONT VIEW OADJ VOUT GP1U271X (IC604) REMOTE CONTROL SENSOR 1. Vin 2. Vcc 3. GND LED 2 Vcc 1 Vin 3 GND Driver IC 123 OPTICAL GP1F38T2 (JK201) GND Vcc Vout IC PROTECTOR ICP-N25 (IC909, 910) PT491F (Photo Transistor) ON1021 (Photo Interrupter) 2 1 4 3 Anode Cathode Collector Emitter FRONT VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DVM-4800 DIODES (including LED) SEL1210S (Red) SEL1810A (Amber) SELU1E10CXM-002 (Blue) GL-450 C A Anode Cat hode B C E R1 R2 10k 10k B C E R1 R2 2SC2412K 2SC3326 2SD601A KTC2875B DTA114EK DTC114EK DTC124EK DTC144EK DTA114EK DTC114EK DTC124EK DTC144EK R2 R1 DTC124EK 22 kohm DTC114EK 10 kohm 10 kohm 22 kohm DTC144EK 47 kohm 47 kohm FRONT VIEW B C E 1SS355 RB161L-40 2SB562 2SC2878 2SD468 TRANSISTORS TOP VIEW E B C 1 2 3 6 5 4 TOP VIEW 4 Source 3 Gate 1,2,5,6 Drain 1 2 3 4 5 6 D D D D G S HAT2053M 2SD1913 E (Emitter) C (Collector) B (Base) FRONT VIEW B C E 2SB1274 TOP VIEW TOP VIEW RB411DT 1SS270A AG01ZT(V1) AL01ZT(V1) EM01AT(V1) RJ43 LF015-305 RK39 LF-C4 SARS01T(V1) HZS4B-1 TOP VIEW TOP VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DVM-4800 FL DISPLAY 17-BT-14GNK (FL601) (Part No.: 393 8053 003) Grid Assigment Anode Connection 62 1 � � � � 1 2 3 4 5 DVD V CD VR AUDIO VIDEO PROGRESSIVE SCAN REPEAT ALL CD DVD−V−A B ( ) DISCS 1 TITLE CHAP GROUP TRACK A−B 1 RANDOM PROGRAM 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 DISC GROUP TITLE TRACK CHAP PG D.MIX P.PCM MLT.CH V.S.S. ANGLE MPEG DNR 16G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G 14G 15G 17G 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 [13G~1G] 4 5 4 4 1 G 4 3 2 G 4 2 3 G 4 1 4 G 4 0 5 G 3 9 6 G 3 8 7 G 3 7 8 G 3 6 9 G 3 5 3 4 3 3 3 2 3 1 3 0 2 9 2 8 2 7 2 6 2 5 2 4 P 2 3 2 3 P 1 6 2 2 P 1 5 2 1 P 1 4 2 0 P 1 3 1 9 P 1 2 1 8 P 1 1 1 7 P 1 0 1 6 P 9 1 5 P 8 1 4 P 7 1 3 P 6 1 2 P 5 1 1 P 4 1 0 P 3 9 P 2 8 P 1 7 6 5 N P 4 N P 3 2 F 1 NOTE 1) F+, F- Filament 2) NP No pin 3) DL Datum Line 4) 1G Grid - F - N C 4 6 4 7 4 8 4 9 5 0 5 1 5 2 5 3 5 4 5 5 5 6 5 7 5 8 5 9 6 0 6 1 6 2 P 3 0 N P N P F + F + P 2 4 P 2 5 P 2 6 P 2 7 P 2 8 P 2 9 P 3 1 P 3 2 P 3 3 P 3 4 P 3 5 Pin Connection PIN NO. CONNECTION P 3 6 P 2 P 2 P 2 1 2 0 P 1 P 1 P 1 7 9 8 1 6 1 5 1 4 1 3 1 2 1 1 1 0 1 7 G G G G G G G G 17G 16G 15G 14G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31 P32 P33 P34 P35 P36 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 1-1 2-1 3-1 4-1 5-1 1-2 2-2 3-2 4-2 5-2 1-3 2-3 3-3 4-3 5-3 1-4 2-4 3-4 4-4 5-4 1-5 2-5 3-5 4-5 5-5 1-6 2-6 3-6 4-6 5-6 1-7 2-7 3-7 4-7 5-7 − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − −−−−−− −−−−−−−−− − − − − www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com OPTICAL PICK UP UNIT SPINDLE MOTOR DRIVER BA5823 STEPPING MOTOR CLK MN102H60 FOCUS COIL TRACKING COIL LOADING MOTOR LOADING SW ROULETTE MOTOR LOADING DRIVE MN101C35D Loading Control External Control Signal Processing FL Display Control LED Control Key-Input Processing Remote Control Input Processing Clamp Control Roulette Turn Conntrol Disc Detect Roulette Address/Stop-position Loader Stop-position Detect ROULETTE DRIVE DISC SENSOR ROULETTE SENSOR FRONT END PROCESSOR (FEP) AN8703 OPTICAL DISC CONTROLLER FRASH ROM WATER MARK (WM) MN67736 SYSTEM mCOM MAIN CPU FRONT mCOM OPERATION CPU SDRAM CLK D/A CONVERTER PCM1746 DIGITAL FILTER PMD200 DIGITAL FILTER DXP7001AF D/A CONVERTER PCM1704 AMP LOWPASS FILTEER ANALOG OUTPUT MIX LCH ANALOG OUTPUT MIX RCH ANALOG OUTPUT FLCH ANALOG OUTPUT FRCH ANALOG OUTPUT SLCH ANALOG OUTPUT SRCH ANALOG OUTPUT C CH ANALOG OUTPUT SWCH VIDEO S-TERMINAL VIDEO DRIVER MN6427 VIDEO DRIVER AND SELECTOR MN6426 VIDEO COMPOSITE VIDEO COMPONENT DIGITAL OUTPUT OPTICAL DIGITAL OUTPUT COAXIAL WIRED REMOTE I/O LOWPASS FILTEER LOWPASS FILTEER LOWPASS FILTEER LOWPASS FILTEER LOWPASS FILTEER LOWPASS FILTEER LOWPASS FILTEER AMP AMP SELEC TER AMP AMP AMP AMP AMP D/A CONVERTER PCM1704 D/A CONVERTER PCM1746 D/A CONVERTER PCM1746 SGRAM ROM I/P CONVERTER gmVLXA VIDEO DAC ADV7196 FL DISPLAY (with Music Calender) LED (STANDBY) REMOTE CONTROL UNIT (RC-548) REGULATOR TRANS MAIN SWITCHING CIRCUIT SUNABER CIRCUIT RECTIFIER BRIDGE AC LINE FILTER AC IN VOLTAGE DETECTOR NOISE CANCEL XC2S50 VIDEO DAC ADV7190 AV DECODER (AV DEC) MN677531 DIGITAL SERVO CONTROLLER (SODC) MN103S26E 8 7 6 5 4 3 2 1 A B C D E DVM-4800 37 9. BLOCK DIAGRAMS DVM-4800 BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RFC SW MIRRO DET. POFLT 8 TBAL EQ EQ EQ EQ RFDIFO 34 - + ADD ADD AMP ADD ADD ADD HDTYPE 64 AMP LPC AMP Q5271 52 51 47 48 RFINP RFINN LASER DIODE Q5215 LD DRIVE 3 4 VIN10 VIN9 VIN6,8 VIN5,7 54 53 50 49 VIN4 VIN3 VIN2 VIN1 VIN12 VIN11 DSLFLT OPTICAL PICK UP UNIT PHOTO DETECTOR B3 B4 B2 B1 A3 A2 A4 A1 LASER DIODE AMP HEAD Q5211 LD DRIVE 1 2 76 77 6 67 65 IC6201 (CPU) 32 37 60 59 58 57 63 62 (FEP) IC5201 DCRF VFOSHORT TESTSG 46 38 5 + - + - - + - + DCFLT 32 AGCOFST 23 AGCBAL 19 AGCLVL 25 - + VGA EQ CONT. FC CONT. BOOST AGCO 44 45 AGCG CONT. AGC ADJ. VCL. DET. OFTR CONT. LEVEL CONT. LEVEL DET. BDO + - FEN 21 VHALF VREF2 27 29 FBAL + - - + + - PEAK BOTTOM HOLD 43 42 TBAL - + 17 + - DET. PHASE DIFFERENTIAL J-LINE S-LINE 16 JLINE RSCL 15 REG SIF DTRD IDGT STANBY 9 10 11 FEPENB 12 55 RFOUT 35 124 FEPDATA 14 53 FEPCLK 13 54 (ODC/DSC) IC2001 B A ARF 111 31 NARF 110 30 AS 20 119 RFENV 41 120 OFTR BDO FBAL FE TBAL TE ADSCIRQ ODCIRQ NCS 6 39 40 7 22 18 5 2 34 51 52 66 117 65 118 SERVO BLOCK DIAGRAM 8 7 6 5 4 3 2 1 A B C D E DVM-4800 38 SERVO BLOCK DIAGRAM (1/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FG ENB FG FG BIAS1 BIAS2 MUTE CH3 MUTE CH1,2 + - + - B A IC6001-27,28PIN FROM LDIN 24 SW2601 OPOUT 6 VIN3 VIN2 VIN1 TRIN TILT TIL TP IN SW SPDRV DAC1 TRTRV TRSDRV 56 69 71 70 61 68 115 114 67 2 26 9 27 23 3 (ODC/DSC) IC2001 (MOTOR DRIVE) IC2501 CNT MUTE CH4 - + SHIFT LEVEL - + + - + - SHIFT LEVEL - + - + + - SHIFT LEVEL - + + - SHIFT LEVEL - + + - OPIN- 5 OPIN+ 4 SPINDLE MOTOR M2501 TRAVERS MOTOR M2502 (SUB CPU) IC6001 P6002-1PIN FROM TRAY OPEN 37 38 TRAY CLOSE TRAY/MUT TRAY/TRV 47 31 7.2Vp-p(20usec./div.) IC2511-11,12,13,14 RF SIGNAL MOTOR DRIVE SIGNAL TRACKING ERROR SIGNAL FOCUS ERROR SIGNAL MUTE4 LD CNT VO2- VO2+ VO1- VO1+ VO3- VO3+ VO4- VO4+ 20 28 11 12 13 14 18 17 16 15 ACT F- ACT F+ ACT T- ACT T+ OPTICAL PICK UP UNIT ACTUATOR COIL TRACKING COIL FOCUS SERVO BLOCK DIAGRAM 8 7 6 5 4 3 2 1 A B C D E DVM-4800 39 SERVO BLOCK DIAGRAM (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + - SW - + FBAL - + HOLD TBAL - + AMP ADD ADD ADD IC5201(FEP) 22 18 20 41 VIN12 63 VIN11 62 VIN10 54 VIN9 53 VIN8 52 VIN7 51 VIN6 50 VIN5 49 VIN4 60 VIN3 59 VIN2 58 VIN1 57 UNIT PICK UP OPTICAL A B K J I H G F E D C IC6801(WM) HD7 HD6 HD5 HD4 HD3 HD2 HD1 HD0 HA1 NHRE NHWE HA2 HA0 41 37 35 29 28 MDQ15 MDQ14 MDQ13 MDQ12 MDQ11 MDQ10 MDQ9 MDQ8 MDQ7 MDQ6 MDQ5 MDQ4 MDQ3 MDQ2 MDQ1 MDQ0 158 161 164 167 170 173 177 180 181 178 175 171 168 165 162 159 27 26 23 21 17 14 10 9 IC2001(SODC/ODC/DRV) IC3001(AV DECODER) XRD XWR 23 22 HD7 56 HD6 HD5 54 HD0 HD1 HD3 51 50 47 49 HD2 52 HD4 55 HD15 67 HD14 HD13 65 HD8 HD9 HD11 62 60 58 59 HD10 63 HD12 66 STD7 73 STD6 74 75 STD5 STD4 76 STD0 STD1 STD3 78 79 81 80 STD2 CPUDT7 CPUDT6 CPUDT5 CPUDT4 CPUDT3 CPUDT2 CPUDT1 CPUDT0 44 43 42 41 40 39 38 37 36 35 NRD NWR CPUDR17 CPUDR16 CPUDR15 CPUDR14 CPUDR13 CPUDR12 CPUDR11 CPUDR10 CPUDR9 CPUDR8 CPUDR7 CPUDR6 CPUDR5 CPUDR4 CPUDR3 CPUDR2 CPUDR1 CPUDR0 9 10 11 12 13 14 15 16 17 22 23 24 25 26 27 28 29 30 HDD15 HDD14 HDD13 HDD12 HDD11 HDD10 HDD9 HDD8 149 151 158 160 164 166 168 172 AD0 AD1 AD2 AD3 117 118 119 120 VIDEO BLOCK DIAGRAM 8 7 6 5 4 3 2 1 A B C D E DVM-4800 40 VIDEO BLOCK DIAGRAM (1/4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com B A K J I H G F E D C DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 53 51 50 48 47 45 44 42 13 11 10 8 7 5 4 2 IC3061(64M bit SDRAM) A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 UDQM LDQM BA1 A11 CLK ICS IRAS ICAS IWE 39 15 21 35 38 19 18 17 16 20 22 34 32 33 31 30 29 26 25 24 23 (32M bit FLASH ROM) IC6301 IC6201(MAIN CPU) XCE XOE XRESET XWE DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 26 28 12 11 45 43 41 39 36 34 32 30 44 42 40 38 35 33 31 29 XCE NRE NRST NWEL 8 2 82 3 A17 A16 A15 A14 A13 A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 40 39 38 37 36 35 33 32 31 30 29 28 27 26 16 15 14 13 DQMUM DQMLM DQMUE XCSE MCK XCSM XRAS XCAS XWE MA11 MA10 MA9 MA8 MA7 MA6 MA5 MA4 MA3 MA2 MA1 MA0 192 189 190 198 185 199 196 195 193 203 206 201 204 207 3 6 8 10 7 4 2 HA17 HA16 HA15 HA14 HA13 HA12 HA11 HA10 HA9 HA8 HA7 HA6 HA5 HA4 HA3 HA2 HA1 46 45 44 42 41 40 39 38 36 35 34 33 32 30 29 28 27 VD7 VD6 VD5 VD4 VD3 VD2 VD1 VD0 149 148 147 155 154 152 150 153 P O N M J I H G F E D C B A IC3731(RAM) DQ31 DQ30 DQ29 DQ28 DQ27 DQ26 DQ25 DQ24 DQ23 DQ22 DQ21 DQ20 DQ19 DQ18 DQ17 DQ16 DQ15 DQ14 DQ13 DQ12 DQ11 DQ10 DQ9 DQ8 DQ7 DQ6 DQ5 DQ4 DQ3 DQ2 DQ1 DQ0 61 60 84 83 81 80 78 77 75 74 21 20 18 17 13 12 10 9 72 71 69 68 64 63 7 6 4 3 1 100 98 97 SBT4 53 SBO4 56 SBT1 70 SBO1 72 DQM 0/2 DQM 0/2 CLK DSF ICS IRAS ICAS IWE A9 A8 A7 A6 A5 A4 A3 A2 A1 A0 24 23 55 53 28 27 26 25 31 32 33 34 47 48 49 50 51 29 CPUADR21 CPUADR20 CPUADR19 CPUADR18 CPUADR17 CPUADR16 CPUADR15 CPUADR14 CPUADR13 CPUADR12 CPUADR11 CPUADR10 CPUADR9 CPUADR8 CPUADR7 CPUADR6 CPUADR5 CPUADR4 CPUADR3 CPUADR2 CPUADR1 10 9 16 17 48 1 2 3 4 5 6 7 8 18 19 20 21 22 23 24 25 D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0 100 99 98 97 96 95 94 93 91 90 89 88 87 86 85 84 A21 A20 A19 A18 45 44 42 41 VIDEO BLOCK DIAGRAM 8 7 6 5 4 3 2 1 A B C D E DVM-4800 41 VIDEO BLOCK DIAGRAM (2/4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FROM IC6001-39 FROM IC6001-41 A B C D E F G H I J M N O P VD7 VD6 VD5 VD4 VD3 VD2 VD1 VD0 IC3901(NOISE CANSELAR) SBO1 SBT1 27 26 3 4 6 7 10 11 13 19 SDI SCL 158 160 RAMDQ31 RAMDQ30 RAMDQ29 RAMDQ28 RAMDQ27 RAMDQ26 RAMDQ25 RAMDQ24 RAMDQ23 RAMDQ22 RAMDQ21 RAMDQ20 RAMDQ19 RAMDQ18 RAMDQ17 RAMDQ16 RAMDQ15 RAMDQ14 RAMDQ13 RAMDQ12 RAMDQ11 RAMDQ10 RAMDQ9 RAMDQ8 RAMDQ7 RAMDQ6 RAMDQ5 RAMDQ4 RAMDQ3 RAMDQ2 RAMDQ1 RAMDQ0 128 127 126 125 124 123 121 120 119 118 117 116 114 113 112 110 109 108 107 106 105 104 103 102 98 97 95 94 93 92 91 90 DV DCLK HSYNC VSYNC 15 50 9 13 RAM OE RAM CLK RAM DSF RAM CS RAM RAS RAM CAS RAM WE RAMADDR9 RAMADDR8 RAMADDR7 RAMADDR6 RAMADDR5 RAMADDR4 RAMADDR3 RAMADDR2 RAMADDR1 RAMADDR0 73 70 64 74 72 68 67 86 85 84 83 82 80 79 78 76 75 27 26 25 24 22 21 20 19 41 39 38 37 36 35 34 33 GREEN7 GREEN6 GREEN5 GREEN4 GREEN3 GREEN2 GREEN1 GREEN0 UV BLUE7 UV BLUE6 UV BLUE5 UV BLUE4 UV BLUE3 UV BLUE2 UV BLUE1 UV BLUE0 Y RED7 Y RED6 Y RED5 Y RED4 Y RED3 Y RED2 Y RED1 Y RED0 56 55 54 53 48 47 46 45 Y RIN7 Y RIN6 Y RIN5 Y RIN4 Y RIN3 Y RIN2 Y RIN1 Y RIN0 154 153 152 149 148 147 146 145 IC3701(PROGRESSIVE) N M L K J I H G F E 10 10 10 / / / / 10 10 / 10 10 10 / / / COMP RSCT VREF BLOCK DAC CONTROL BLANKING POLATION 2XINTER- MACROVISION CGMS GAMMA CORRECTION AND DELAY AND TESTPATTERN GENERATOR RESET 2I C MPU PORT GENERATOR SYNC GENERATOR TIMING 4:4:4 4:2:2 TO 4:4:4 4:2:2 TO FILTER CONTROL ADAPTIVE AND FILTER CONTROL SHARPNESS DAC 11-bit DAC 11-bit DAC 11-bit Y V U V U Y RTC/TR SCRESET/ CLKOUT CLKIN VREF COMP1 COMP2 RESET2 TTX TTXRQ MATRIX YUV TO YCrCb CSO HSO VSO/CLAMP PAL NTSC HSYNC VSYNC BLANK BLOCK CONTROL DAC BLOCK CONTROL DAC PLL CIRCUIT CONTROL REAL-TIME VIDEO TIMING GENERATOR BLOCK INSERTION TELETEX DEMUX CORRECTION GAMMA AND DNR INTERPOLATOR AND ADD BURST AND CONTROL SATURATION INTERPOLATOR AND ADD SYNC AND CONTROL BRIGHTNESS CHROMA FILTER PROGRAMMABLE FILTER SHARPNESS AND LUMA FILTER PROGRAMMABLE VR3201 48 RESET1 VR3771 SCL SDA 30 31 D B A XVD7 XVD6 XVD5 XVD4 XVD3 XVD2 XVD1 XVD0 87 86 84 83 80 79 76 75 27 DV/CLKOUT CLK IN 25 29 NHSYNC NVSYNC 28 VD7 VD6 VD5 VD4 VD3 VD2 VD1 VD0 8 7 6 5 4 3 2 1 (INTERLACE VIDEO DAC) IC3201 Q3761 32 DAC C AMP Q3766 36 DAC B AMP DAC A Q3771 AMP 34 U9 U8 U7 U6 U5 U4 U3 U2 V9 V8 V7 V6 V5 V4 V3 V2 42 43 44 45 46 47 48 49 23 22 21 20 19 18 17 16 11 10 9 8 7 6 5 4 Y9 Y8 Y7 Y6 Y5 Y4 Y3 Y2 IC3751(PROGRESSIVE VIDEO DAC) VIDEO BLOCK DIAGRAM 8 7 6 5 4 3 2 1 A B C D E DVM-4800 42 VIDEO BLOCK DIAGRAM (3/4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com N M L K J I H G F E DAC D ALSB INTERPOLATOR INTERPOLATOR MULTIPLEXER RESET BLOCK DDS SIN/COS CONTROL CLOSED CAPTIONING AND CGMS/WSS 2 PORT MPU I C BLOCK CONTROL YUV LEVEL AND MATRIX YUV-TO-RGB HUE CONTROL AND MODULATOR + DAC 10-bit DAC 10-bit DAC 10-bit DAC 10-bit DAC 10-bit DAC 10-bit VR3221 VR3225 A B D K3201 Q3226 AMP Q3221 AMP K3265 K3267 31 30 Q3231 AMP AMP Q3236 K3263 DACF DACE DACC DACB DACA 36 37 41 44 45 IC6221(EEP ROM) SDA SCL 5 6 SCL SDA VIDEO BLOCK DIAGRAM TO MOTHER P.W.B. PY PB PR CY CB CR C 43 4 3 2 1 A B C D E DVM-4800 VIDEO BLOCK DIAGRAM (4/4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com IC2001 IC3001/ IC6201/ FROM/TO 27 26 23 21 17 14 10 9 69 DAC SEL192 AMUT 9 AC3H IC6551-5PIN FROM SW CNT SL SR FR FL IC6201 (MAIN CPU) AOUT0 AOUT1 DIGITAL AUDIO AOUT2 EXTCK SRCK LRCK DMIX 92 83 91 90 IC4231 88 87 84 100 53 13 16 1 3 26 22 5 2 27 (AUDIO DAC) 28 IC4241 IC6801 (WM) 19 47 31 54 58 28 16 13 2 5 (AUDIO DAC) 27 26 1 3 22 SBO1 SBT1 STBDAC NRST STBDAC2 55 11 68 57 70 72 IC4221 (AUDIO DAC) 22 26 27 28 16 13 5 3 1 2 (AV DECODER) IC3001 TO MOTHER P.W.B. AMOT AC3H FL FR SL SR CNT SW AUDIO DIGITAL DACCK DMIXOUT LRCK BCK DAC SEL 192 44 4 3 2 1 A B C D E DVM-4800 AUDIO BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 45 10. WIRING DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DVM-4800 11. NOTES ON SCHEMATIC DIAGRAM WARNING Parts marked with this symbol have critical characteristics. Use only replacement parts specified to ensure safety and performance. � Refer to Parts Price List for the parts number of resisters, capacitors, and other electrical components. � How to trace the schematic diagram: This signal is linked to the next schematic diagram FEP. � Be noted that information for various versions is included in this schematic diagram. � The figure 20000 in the parts number is omitted, so add 20000 in actual as follows. (Example: R1001 → R21001) Name of the next schematic diagram Signal name www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FEP SECTION (MODULE P.W.B.(1/10)) SCHEMATIC DIAGRAM (1/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 8 7 6 5 4 3 2 1 A B C D E DVM-4800 47 12. SCHEMATIC DIAGRAMS (1/15) FEP SECTION (MODULE P.W.B. (1/10)) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 8 7 6 5 4 3 2 1 A B C D E DVM-4800 48 SCHEMATIC DIAGRAMS (2/15) SODC SECTION (MODULE P.W.B. (2/10)) SODC SECTION (MODULE P.W.B.(2/10)) SCHEMATIC DIAGRAM (2/15) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AV DECORDER SECTION (MODULE P.W.B.(3/10)) SCHEMATIC DIAGRAM (3/15) 8 7 6 5 4 3 2 1 A B C D E DVM-4800 49 SCHEMATIC DIAGRAMS (3/15) AV DECORDER SECTION (MODULE P.W.B. (3/10)) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 50 SCHEMATIC DIAGRAMS (4/15) NOISE CANCELER SECTION (MODULE P.W.B. (4/10)) NOISE CANCELER SECTION (MODULE P.W.B.(4/10)) SCHEMATIC DIAGRAM (4/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 51 SCHEMATIC DIAGRAMS (5/15) PROGRESSIVE SECTION (MODULE P.W.B. (5/10)) PROGRESSIVE SECTION (MODULE P.W.B.(5/10)) SCHEMATIC DIAGRAM (5/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 52 SCHEMATIC DIAGRAMS (6/15) VIDEO D/A CONVERTER SECTION (MODULE P.W.B. (6/10)) VIDEO D/A CONVERTER SECTION (MODULE P.W.B.(6/10)) SCHEMATIC DIAGRAM (6/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 53 SCHEMATIC DIAGRAMS (7/15) AUDIO D/A CONVERTER SECTION (MODULE P.W.B. (7/10)) AUDIO D/A CONVERTER SECTION (MODULE P.W.B.(7/10)) SCHEMATIC DIAGRAM (7/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 4 3 2 1 A B C D E DVM-4800 SCHEMATIC DIAGRAMS (8/15) WM SECTION (MODULE P.W.B. (8/10)) WM SECTION (MODULE P.W.B.(8/10)) SCHEMATIC DIAGRAM (8/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 55 SCHEMATIC DIAGRAMS (9/15) CLOCK SECTION (MODULE P.W.B. (9/10)) CLOCK SECTION (MODULE P.W.B.(9/10)) SCHEMATIC DIAGRAM (9/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com RFKFRP50G160 8 7 6 5 4 3 2 1 A B C D E DVM-4800 56 SCHEMATIC DIAGRAMS (10/15) CPU SECTION (MODULE P.W.B. (10/10)) CPU SECTION (MODULE P.W.B.(10/10)) SCHEMATIC DIAGRAM (10/15) FEP SECTION SODC SECTION AVDEC SECTION NOICAN SECTION PRG SECTION VD SECTION AD SECTION WM SECTION CLK SECTION CPU SECTION As for each section, see the following pages. Page: 47 Page: 48 Page: 49 Page: 50 Page: 51 Page: 52 Page: 53 Page: 54 Page: 55 Page: 56 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 4 3 2 1 A B C D E DVM-4800 SCHEMATIC DIAGRAMS (11/15) TERMINAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + B LINE - B LINE 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (12/15) 58 SCHEMATIC DIAGRAMS (12/15) GU-3374-1 POWER UNIT NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + B LINE - B LINE 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (12/15) 58 SCHEMATIC DIAGRAMS (12/15) GU-3374-1 POWER UNIT NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 A A B B C C D D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 4 3 2 1 SCHEMATIC DIAGRAMS (12/15) www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 A B C D DVM-4800 www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have Use ONLY replacement parts recommended CAUTION: Before returning the unit to the customer, ma leakage current check or (2) a line to chassi current exceeds 0.5 milliamps, or if the resis of the power card is less than 460kohms, th WARNING DO NOT return the unit to the customer until corrected. www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + B LINE - B LINE E F G H 58 SCHEMATIC DIAGRAMS (12/15) GU-3374-1 POWER UNIT have critical characteristics. ended by the manufacture. er, make sure you make either (1) a chassis resistance check. If the leakage e resistance from chassis to either side ms, the unit is defective. er until the problem is located and www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + B LINE - B LINE 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (13/15) 59 SCHEMATIC DIAGRAMS (13/15) GU-3374-2 DISPLAY UNIT GU-3374-3 LED/KEY UNIT GU-3374-4 ROULETTE UNIT GU-3374-5 OP/CL SW UNIT GU-3374-6 DISC SENSOR UNIT GU-3374-7 UP/DOWN SW UNIT GU-3374-8 ROULETTE I/F UNIT GU-3374-9 P.SW UNIT NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + B LINE - B LINE 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (13/15) 59 SCHEMATIC DIAGRAMS (13/15) GU-3374-2 DISPLAY UNIT GU-3374-3 LED/KEY UNIT GU-3374-4 ROULETTE UNIT GU-3374-5 OP/CL SW UNIT GU-3374-6 DISC SENSOR UNIT GU-3374-7 UP/DOWN SW UNIT GU-3374-8 ROULETTE I/F UNIT GU-3374-9 P.SW UNIT NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 A A B B C C D D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 4 3 2 1 SCHEMATIC DIAGRAMS (13/15) www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 A B C D DVM-4800 www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have Use ONLY replacement parts recommended CAUTION: Before returning the unit to the customer, ma leakage current check or (2) a line to chassi current exceeds 0.5 milliamps, or if the resis of the power card is less than 460kohms, th WARNING DO NOT return the unit to the customer until corrected. www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com + B LINE - B LINE E F G H 59 SCHEMATIC DIAGRAMS (13/15) GU-3374-2 DISPLAY UNIT GU-3374-3 LED/KEY UNIT GU-3374-4 ROULETTE UNIT GU-3374-5 OP/CL SW UNIT GU-3374-6 DISC SENSOR UNIT GU-3374-7 UP/DOWN SW UNIT GU-3374-8 ROULETTE I/F UNIT GU-3374-9 P.SW UNIT have critical characteristics. ended by the manufacture. er, make sure you make either (1) a chassis resistance check. If the leakage e resistance from chassis to either side ms, the unit is defective. er until the problem is located and www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (14/15) 60 SCHEMATIC DIAGRAMS (14/15) GU-3375-1 MOTHER UNIT(1/2) NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 SIGNAL LINE + B LINE - B LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (14/15) 60 SCHEMATIC DIAGRAMS (14/15) GU-3375-1 MOTHER UNIT(1/2) NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 SIGNAL LINE + B LINE - B LINE A A B B C C D D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 4 3 2 1 SCHEMATIC DIAGRAMS (14/15) www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 A B C D DVM-4800 www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have Use ONLY replacement parts recommended CAUTION: Before returning the unit to the customer, ma leakage current check or (2) a line to chassi current exceeds 0.5 milliamps, or if the resis of the power card is less than 460kohms, th WARNING DO NOT return the unit to the customer until corrected. www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com E F G H 60 SCHEMATIC DIAGRAMS (14/15) GU-3375-1 MOTHER UNIT(1/2) have critical characteristics. ended by the manufacture. er, make sure you make either (1) a chassis resistance check. If the leakage e resistance from chassis to either side ms, the unit is defective. er until the problem is located and SIGNAL LINE + B LINE - B LINE www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (15/15) 61 SCHEMATIC DIAGRAMS (15/15) GU-3375-1 MOTHER UNIT(2/2) NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 SIGNAL LINE + B LINE - B LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 5 4 A B C D E F G H 3 2 1 SCHEMATIC DIAGRAMS (15/15) 61 SCHEMATIC DIAGRAMS (15/15) GU-3375-1 MOTHER UNIT(2/2) NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING DO NOT return the unit to the customer until the problem is located and corrected. DVM-4800 SIGNAL LINE + B LINE - B LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 4 3 2 1 SCHEMATIC DIAGRAMS (15/15) www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 10 9 8 7 6 A B C D DVM-4800 www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING Parts marked with this symbol have Use ONLY replacement parts recommended CAUTION: Before returning the unit to the customer, ma leakage current check or (2) a line to chassi current exceeds 0.5 milliamps, or if the resis of the power card is less than 460kohms, th WARNING DO NOT return the unit to the customer until corrected. www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com E F G H 61 SCHEMATIC DIAGRAMS (15/15) GU-3375-1 MOTHER UNIT(2/2) have critical characteristics. ended by the manufacture. er, make sure you make either (1) a chassis resistance check. If the leakage e resistance from chassis to either side ms, the unit is defective. er until the problem is located and SIGNAL LINE + B LINE - B LINE www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 62 13. PRINTED WIRING BOARDS MAIN P.W.B. UNIT Ass'y COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 7 6 5 4 3 2 1 A B C D E DVM-4800 63 FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 7 14 8 1 4 8 5 1 4 8 5 1 4 8 5 5 8 4 1 5 8 4 1 1 4 8 5 1 8 16 9 8 7 14 1 1 2 15 16 1 7 14 8 1 7 14 8 1 1 7 8 14 7 14 8 1 7 14 8 1 7 14 8 1 7 14 8 1 4 8 5 1 1 7 2 6 1 15 3 1 4 8 5 1 7 8 14 1 8 16 9 1 7 14 8 1 2 35 34 1 2 33 32 1 7 14 8 1 7 14 8 1 12 1 13 1 7 14 8 1 25 26 50 51 75 76 100 C B E C B E C B E C B E C B E 8 7 6 5 4 3 2 1 A B C D E DVM-4800 64 GU-3375 MOTHER P.W.B. UNIT Ass'y COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E 1 7 14 8 8 14 7 1 8 14 7 1 11 20 10 1 11 20 10 1 1 11 12 34 33 22 23 44 1 25 26 76 75 50 51 100 1 8 16 9 1 4 8 5 1 4 8 5 1 4 8 5 1 4 8 5 1 4 8 8 1 16 1 9 8 24 1 13 12 5 4 5 1 4 8 5 1 4 8 5 1 4 8 5 8 7 6 5 4 3 2 1 A B C D E DVM-4800 65 FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 9 1 2 32 32 1 2 35 34 1 4 1 3 1 9 1 1 3 1 1 12 1 13 1 2 7 6 4 3 1 2 4 3 8 7 6 5 4 3 2 1 A B C D E DVM-4800 66 GU-3374 DISPLAY P.W.B. UNIT Ass'y COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E C B E 8 7 6 5 4 3 2 1 A B C D E DVM-4800 67 FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 70D 70-1 70-2 Attach asecro-tape to 4 edges marked with . 112 1-1 105 2-1 2-2 105 69 104 66 120 56 53 111 67C 67B 57 58 67A 101 54 62 14 67B 67C 106 55 59 60 14 106 111 66A 1-8 67A 88 89 81A 81D 103 207 81 105 81B 81C 107 1-2 1-3 107 15 20 19 119 29 30 119 24 109 107 103 103 119 106 42 43 41 40 14 12 17 18 110 21 22 23 119 1-7 82 16 111 10 1-12 37A 105A 103 1-9 107 202 201 203 206 84 111 111 39 42A 111 92 116 116 34 35 27 28 26 111 115 25 119 36 79 80 103 111 68 115 204 205 76 105 118 105 105 105 105 5 103 105 121 121 74 91 52 112 106 65 1-4 11 105 7 9 70A 1-5 68 111 11 4 103 7 103 117 106 8 7 6 5 4 3 2 1 A B C D E 14. EXPLODED VIEW DVM-4800 68 Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. WARNING: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DVM-4800 Ref. No. Part No. Part Name Remarks Q'ty 205 461 1109 037 PWB rubber 1 206 001 0212 037 Vinyl wire 1 207 461 1111 009 Earth plate 3 208 203 5268 006 3P connector cord (51021) CW035 1 209 204 6697 006 15P connector cord (51021) CW151 1 SCREWS 101 471 1810 019 Screw 2×3 CPS 2 103 473 7002 021 Screw 3×8 CBTS(S)-B 19 104 473 7007 000 Screw 4×8 CBTS(S)-B 2 105 473 7015 018 Screw 3×8 CBTS(S)-B 22 105A 473 7500 044 Screw 3×8 CBTS(P)-B 2 106 473 7505 007 Screw 2.6×8 CBTS(P)-Z 11 107 473 7505 023 Screw 2.6×10 CBTS(P)-Z 14 110 473 7507 005 Screw 2×8 CBTS(P)-B 3 111 473 7508 017 Screw 3×10 CBTS(P)-B 10 112 473 8007 025 Cup screw 3×8 13 115 473 8044 017 Special screw 2 116 412 4821 006 Fixed pin 3 117 473 8068 006 Special screw 1 118 477 0064 123 Fixing screw 8 119 477 0262 006 Special screw 6 120 477 0262 035 Special screw 1 121 477 0263 005 3P. swelling screw 4 PARTS LIST OF EXPLODED VIEW Ref. No. Part No. Part Name Remarks Q'ty Ref. No. Part No. Part Name Remarks Q'ty 1 GU-3374 Display unit Ass'y 1 1-1 Power unit 1-2 Display unit 1-3 LED/Key unit 1-4 Roulette unit 1-5 Open/Close switch unit 1-7 Up/Down switch unit 1-8 Roulette I/F unit 1-9 Power switch unit 1-12 Disc sensor unit 2 GU-3375 Mother unit Ass'y 1 2-1 Mother unit 2-2 FFC fixed PWB 4 411 1920 606 Chassis 1 5 105 1378 104 Rear panel 1 7 104 0313 015 Foot Ass'y 4 9 449 0113 008 Snap band (SG-110) 2 10 449 0161 607 Mecha. base 1 11 439 0022 309 Side base 2 12 217 0158 000 Loading motor 1 13 203 5062 095 3P PH connector cord CN031 1 14 421 0379 103 Motor pulley 3 15 424 0221 001 Pully gear 1 16 475 1133 015 2 washer-B 1 17 477 0070 078 Washer 2 18 423 0069 011 Belt 1 19 424 0261 003 Helical gear 1 20 433 0639 105 YUSEI base 1 21 424 0266 008 YUSEI gear 2 22 431 0422 002 Lock pin 1 23 463 0922 208 Spring (Y) 1 24 421 0759 008 Mini damper 1 25 424 0263 108 Cam gear 1 26 435 0135 003 Crank 1 27 441 1912 000 Spring hook 1 28 463 0923 003 Spring (C) 1 29 421 0755 002 Loader lock pin 1 30 463 0924 002 Spring (L) 1 31 203 4986 033 3P PH-PH connector cord CN032 1 34 435 0136 206 Slider 1 35 431 0425 009 PU frame 1 36 337 0102 004 DVD Traverse unit 1 37 203 4986 020 3P PH-PH connector cord CN034 1 37A 449 0186 006 Spring plate 1 38 203 4986 033 3P PH-PH cord CN033 39 449 0186 006 Clamp base 1 40 421 0773 000 Spring hook 1 41 421 0775 008 Clamper 1 42 463 0942 000 Clamp SP 1 42A 445 0048 016 Cord holder (L50) 4 43 421 0074 009 Spring holder 1 46 009 0221 006 38P FFC (1.0) CN381 1 47 204 6695 008 12P PH-SAN connector cord CW121 1 48 204 6696 007 13P PH-SAN connector cord CW131 1 52 431 0421 401 Loader frame 1 53 421 0758 009 Roller 4 54 441 1913 106 Gear bracket Ass'y 1 55 217 0172 002 Power motor 1 56 422 0641 009 Shaft 1 57 424 0264 204 Worm gear 1 58 425 0246 102 Holder 2 59 423 0076 004 Belt 1 60 424 0265 009 Helical gear 1 62 475 1157 017 Slit washer t0.5 1 63 203 5062 079 3P PH connector cord CN931 1 64 203 6232 031 4P PH connector cord CN041 1 65 415 0835 008 Motor cover 1 66 421 0776 007 Roulette Ass'y 1 66A 445 8028 009 Cord holder 1 67 009 0211 003 7P FFC cable (1.25) CN071 1 67A 441 1933 005 Roller bracket Ass'y 2 67B 421 0764 006 Roulette roller 2 67C 475 1157 059 Slit washer t0.5 2 68 412 4532 007 Side plate 2 69 411 1318 247 Front angle 1 70-1 441 1909 000 Stay 1 70-2 441 1909 013 Stay 1 70A 441 1942 009 Power bracket 2 70B 203 5215 059 3P VH-VH connector cord CN021 1 70C 445 0033 005 Wire clamp band 2 70D 414 0915 006 Power shield 1 74 206 2188 007 AC cord with connector 1 76 445 0056 008 Cord bush 1 78 204 2812 018 9P PH-SAN connector cord CN091 1 79 461 1109 011 PWB rubber D-Face single side 1 80 461 1109 008 PWB rubber D-Face both sides 1 81 144 2737 011 Front panel 1 81A 143 1073 003 Lens 1 81B 143 1068 005 Window 1 81C 146 2215 319 Inner panel 1 81D 131 9004 013 DENON mark 1 82 009 0194 023 35P FFC cable (1.25) CN351 1 84 009 0194 010 33P FFC cable (1.25) CN331 1 88 113 1689 001 P. switch knob 1 89 461 0598 050 Insulating rubber 3 89A 445 0120 002 Wire clamper (L=165) 1 91 146 2164 020 Loader panel Ass'y 1 92 102 0605 015 Top cover 1 93 513 3685 009 Rating sheet 1 95 513 1381 004 Manufac. date label 1 98 513 3364 003 Transport screw label 1 99 513 3406 107 Label (A) Laser Radiation 1 99A 513 3541 004 Screw label 1 513 3363 004 Caution label 201 221 2123 003 Main unit Ass'y 1 202 461 1109 024 PWB rubber 2 203 414 0939 008 Shield plate 1 204 461 1083 001 FFC pad 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 218 219 217 207 237 201 203 206 203 235 233 Screw lock 235 234 236 206 203 206 204 220 205 236 232 210 216 211 209 211 216 209 213 206 203 216 211 214 215 215 212 216 Grease Grease Grease Grease Oil (2) FG P.W.B. E E INTERMEDIATE P.W.B. TO MODULE P.W.B. 4 3 2 1 A B C D E 15. EXPLODED VIEW OF TRAVERSE MECHANISM UNIT DVM-4800 70 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DVM-4800 PARTS LIST OF TRAVERSE MECHANISM UNIT Ref. No. Part No. Part Name Remarks Q'ty 201 9MR XQ07 42 Spindle motor ass’y 1 203 9MR MS07 12 Fixed pin 3 204 928 0159 002 Intermediate P.C.B. 1 205 928 9019 499 Screw 1 206 928 0151 204 Floating rubber 4 207 9MR DG04 99 Traverse gear(A) 1 209 9MR MC04 15 Adjust spring holder1 2 210 9MR MC04 16 Adjust spring holder2 1 211 9MR ME03 20 Adjust spring 3 212 9MR MM02 34 Traverse drive rack 1 213 9MR MS07 10 Drive shaft 1 214 9MR MS07 11 Guide shaft 1 215 9MR HD17 028 Screw 2 216 9MV HD12 24 Screw 4 217 9MR DG05 00 Traverse gear(B) 1 218 9MR DG05 01 Traverse gear(C) 1 219 9MR ME03 19 Traverse gear spring 1 220 928 0151 301 PCB rubber 1 232 928 0159 109 Optical pick-up 1 233 9MR JB23 08A Interface FPC 1 234 9MR MC04 18 Shaft spring 1 235 9MV HD10 57 Screw 2 236 928 0152 106 Cushion rubber 2 237 9MR EP30 81A FG P.C.B. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 72 DVM-4800 Ref. No. Part No. Part Name Remarks Q'ty PARTS LIST OF PACKING & ACCESSORIES 201 504 0092 060 Stylen paper 1 202 505 0131 076 Cabinet cover 1 203 503 1356 100 Cushion (Front) 1 203A 503 1357 002 Cushion (Rear) 1 204 501 2145 000 Carton case 1 205 505 0038 030 Poly. cover 1 206 511 3789 006 Instruction manual 1 16. PACKING & ACCESSORIES 208 213 203 209 204 205 209 , 213 203A 202 Ref. No. Part No. Part Name Remarks Q'ty 207 515 0867 101 Service station list (EX) 1 208 203 5224 008 3P pin cord 1 209  Battery (R6P,AA) 1 213 399 0745 003 Remote controller RC-548 1 214 513 1389 006 Control card base 1 215 517 1430 012 UPC label 1 216 515 0690 404 DEL warranty home 1 72 72 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DVM-4800 t t t t lllll Resistors Ex.: RN 14K 2E 182 G FR Type Shape Power Resist- Allowable Others and per- ance error formance t t t t s s s s Resistance 1 8 2 ⇒ 1800 ohm = 1.8 kohm Indicates number of zeros after effective number. 2-digit effective number. • Units: ohm 1 R 2 ⇒ 1.2 ohm 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: ohm lllll Capacitors Ex.: CE 04W 1H 2R2 M BP Type Shape Dielectric Capacity Allowable Others and per- strength error formance s s s s s s Capacity (electrolyte only) 2 2 2 ⇒ 2200µF Indicates number of zeros after effective number. 2-digit effective number. • Units: µF. 2 R 2 ⇒ 2.2µF 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: µF. Capacity (except electrolyte) 2 2 2 ⇒ 2200pF=0.0022µF (More than 2) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. 2 2 1 ⇒ 220pF (0 or 1) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. • When the dielectric strength is indicated in AC, "AC" is included after the dieelectric strength value. s s 17. NOTE FOR PARTS LIST l Part indicated with the mark "�" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying. l Ordering part without stating its part number can not be supplied. l Part indicated with the mark " " is not illustrated in the exploded view. l Not including Carbon Film ±5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type RC : Composition 2E : 1/4W G : ±2% NL : Low noise type RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor RN : Metal film 3D : 2W M : ±20% F : Lead wire forming RK : Metal mixture 3F : 3W 3H : 5W CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type electrolytic CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type electrolytic CS : Tantalum electrolytic 1C : 16V J : ±5% HR: Ripple-resistant type CQ : Film 1E : 25V K : ±10% DL : For change and discharge CK : Ceramic 1V : 35V M : ±20% HF : For assuring high requency CC : Ceramic 1H : 50V Z : +80% U : UL part CP : Oil 2A : 100V –20% C : CSA part CM : Mica 2B : 125V P : +100% W : UL-CSA type CF : Metallized 2C : 160V –0% F : Lead wire forming CH : Metallized 2D : 200V C : ±0.25pF 2E : 250V D : ±0.5pF 2H : 500V = : Others 2J : 630V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DVM-4800 18. PARTS LIST OF P.W.B. UNIT ASS'Y MAIN UNIT ASS'Y Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks SEMICONDUCTORS GROUP IC2001 928 0159 808 IC MN103S26EGA IC2501 928 0159 905 IC BA5823FP IC2502 928 0160 004 IC SN74AHC1G66H IC3001 928 0160 101 IC MN677531KA IC3061 928 0160 208 IC MT48LC4M16A2TG-8/75 64M SDRAM IC3091 928 0126 909 IC NJM2115V IC3201 928 0160 305 IC ADV7190 IC3251 928 0160 402 IC PQ1K333M IC3701 928 0160 509 IC GMVLX1A-X IC3731 928 0160 606 IC M54V25632A10 IC3751 928 0160 703 IC ADV7196AKS IC3781 928 0160 800 IC PQ1K333M IC3901 928 0160 907 IC XC2S50 IC3931 928 0161 003 IC XC17S50XLS IC4221,4231 928 0142 501 IC PCM1746 IC4241 928 0142 501 IC PCM1746 IC4261 928 0163 001 IC TC7W32FUTL IC4291 928 0163 108 IC TC7ST04FUTL IC5201 928 0161 100 IC AN8703FH IC5261 928 0161 207 IC NJU7015 IC5262 928 0161 304 IC CLC58021MX IC5263 928 0161 401 IC SN74LV4053APW IC5264 928 0161 508 IC TC7W53FUTL IC5265 928 0160 004 IC SN74AHC1G66H IC5266 928 0161 207 IC NJU7015 IC5267 928 0161 605 IC AHC2G66HDCTR IC6201 928 0161 702 IC MN102H60GFB IC6211 928 0128 208 IC PST596JNR IC6221 928 0161 809 IC BR24C08F IC6301 928 0162 002 IC RFKFRP50G160 U-COM IC6501,6511 928 0128 703 IC AHC1GU04HDCK IC6521,6531 928 0128 703 IC AHC1GU04HDCK IC6541 928 0161 906 IC AHC2G74HDCTR IC6551 928 0162 109 IC AHC2G157HDCT IC6561,6571 928 0128 703 IC AHC1GU04HDCK IC6581,6591 928 0128 703 IC AHC1GU04HDCK IC6801 928 0162 206 IC MN67736WK Q2001 928 0162 303 Transistor 2SD1819ATX Q3221,3226 928 0094 604 Transistor 2SB1218A-R Q3231,3236 928 0094 604 Transistor 2SB1218A-R Q3761,3766 928 0162 400 Transistor 2SA1532-BC Q3771 928 0162 400 Transistor 2SA1532-BC Q5211,5215 928 0072 600 Transistor 2SB1115-T Q5261,5262 928 0162 507 Transistor 2SC3930-BC Q5263 928 0162 400 Transistor 2SA1532-BC Q5264 928 0162 507 Transistor 2SC3930-BC Q5271 928 0162 604 Transistor UN5211 Q6215 928 0158 508 Transistor UN5212-TX QR5221 928 0158 401 Transistor UN2121-TX QR5241 928 0162 701 Transistor UN511M-TX D3251,3781 928 0147 904 Diode MA111-TX D5261 928 0162 808 Diode MA716 D6215 928 0162 905 Diode MA728-TX D6501,6521 928 0110 009 Diode MA304 RESISTORS GROUP K2002,3002 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 K3003,3004 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 K3201,3203 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 K3263,3265 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 K3267,6231 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 K6813 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R2020 Metal film chip 18 kohm 1/16W ERJ3GEYJ183 R2021 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R2022,2023 Metal film chip 7.5 kohm 1/16W ERJ3GEYJ752 R2025,2026 Metal film chip 22 kohm 1/16W ERJ3GEYJ223 R2027,2028 Metal film chip 56 kohm 1/16W ERJ3GEYJ563 R2029,2030 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R2031,2032 Ceramic chip 330pF/50V ECUV1H331JCV R2033 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R2034 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R2035 Metal film chip 2.7 kohm 1/16W ERJ3GEYJ272 R2036 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R2037 Metal film chip 68 kohm 1/16W ERJ3GEYJ683 R2038 Metal film chip 15 kohm 1/16W ERJ3GEYJ153 R2039 Metal film chip 1 Mohm 1/16W ERJ3GEYJ105 R2040,2041 Metal film chip 8.2 kohm 1/16W ERJ3GEYJ822 R2042-2046 Metal film chip 15 kohm 1/16W ERJ3GEYJ153 R2047,2048 Metal film chip 4700 kohm 1/16W ERJ3GEYJ475 R2049 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R2051,2052 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R2053,2054 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R2501-2503 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R2504,2505 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R2506 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R3001 Metal film chip 22 ohm 1/16W ERJ3GEYJ220 R3002 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DVM-4800 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R3006,3007 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R3012 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3013 Metal film chip 680 kohm 1/16W ERJ3GEYJ684 R3014-3016 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R3017 Metal film chip 680 kohm 1/16W ERJ3GEYJ684 R3018 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R3031 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R3061 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R3091,3092 Metal film chip 22 kohm 1/16W ERJ3GEYG223 R3093 Metal film chip 33 kohm 1/16W ERJ3GEYJ333 R3094 Metal film chip 15 kohm 1/16W ERJ3GEYJ153 R3095 Metal film chip 18 kohm 1/16W ERJ3GEYJ183 R3096 Metal film chip 27 kohm 1/16W ERJ3GEYJ273 R3097 Metal film chip 18 kohm 1/16W ERJ3GEYJ183 R3098 Metal film chip 27 kohm 1/16W ERJ3GEYJ273 R3201,3202 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R3203 Metal film chip 820 ohm 1/16W ERJ3GEYJ821 R3204 Metal film chip 220 ohm 1/16W ERJ3GEYJ221 R3205 Metal film chip 200 ohm 1/16W ERJ3RBD201 R3221 Metal film chip 82 ohm 1/16W ERJ3GEYJ820 R3222 Metal film chip 220 ohm 1/16W ERJ3GEYJ221 R3223 Metal film chip 33 ohm 1/16W ERJ3GEYJ330 R3224 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3226 Metal film chip 150 ohm 1/16W ERJ3GEYJ151 R3227 Metal film chip 220 ohm 1/16W ERJ3GEYJ221 R3228 Metal film chip 33 ohm 1/16W ERJ3GEYJ330 R3229 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3231 Metal film chip 220 ohm 1/16W ERJ3RBD221 R3232 Metal film chip 33 ohm 1/16W ERJ3GEYJ330 R3233 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3236 Metal film chip 220 ohm 1/16W ERJ3RBD221 R3237 Metal film chip 33 ohm 1/16W ERJ3GEYJ330 R3238 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3241 Metal film chip 220 ohm 1/16W ERJ3RBD221 R3701 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 R3702 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R3703,3704 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R3731-3733 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 R3738-3740 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 R3751,3752 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R3753 Metal film chip 1.5 kohm 1/16W ERJ3RBD152 R3754,3755 Metal film chip 1 kohm 1/16W ERJ3RBD102 R3761 Metal film chip 220 ohm 1/16W ERJ3RBD221 R3762 Metal film chip 33 ohm 1/16W ERJ3GEYJ330 R3763 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3766 Metal film chip 220 ohm 1/16W ERJ3RBD221 R3767 Metal film chip 33 ohm 1/16W ERJ3GEYJ330 R3768 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3771 Metal film chip 150 ohm 1/16W ERJ3GEYJ151 R3772 Metal film chip 220 ohm 1/16W ERJ3GEYJ221 R3773 Metal film chip 33 ohm 1/16W ERJ3GEYJ330 R3774 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R3901,3902 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R3931 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R4221 Metal film chip 10 ohm 1/16W ERDAS3G100 R4231,4241 Metal film chip 330 ohm 1/16W ERJ3GEYJ331 R4261-4263 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 R4271-4274 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R4291 Metal film chip 150 ohm 1/16W ERJ3GEYJ151 R5211 Metal film chip 2.2 ohm 1/16W ERJ3GEYJ2R2 R5212 928 9019 460 Metal film chip 27 ohm 1/2W ERJ12YJ270 R5213 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R5214 Metal film chip 22 kohm 1/16W ERJ3GEYJ223 R5215 Metal film chip 2.2 ohm 1/16W ERJ3GEYJ2R2 R5216 928 9019 460 Metal film chip 27 ohm 1/2W ERJ12YJ270 R5217 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R5221 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R5231,5232 Metal film chip 8.2 kohm 1/16W ERJ3GEYJ822 R5233 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R5241 Metal film chip 220 ohm 1/16W ERJ3GEYJ221 R5242 Metal film chip 82 kohm 1/16W ERJ3GEYJ823 R5256 Metal film chip 22 kohm 1/16W ERJ3GEYF223 R5257 Metal film chip 1.8 kohm 1/16W ERJ3GEYJ182 R5258 Metal film chip 2.2 kohm 1/16W ERJ3GEYJ222 R5261,5262 Metal film chip 560 ohm 1/16W ERJ3GEYJ561 R5263 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R5264 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 R5265 Metal film chip 100 kohm 1/16W ERJ3GEYJ104 R5266 Metal film chip 56 kohm 1/16W ERJ3GEYJ563 R5267 Metal film chip 330 kohm 1/16W ERJ3GEYJ334 R5268 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R5269 Metal film chip 100 kohm 1/16W ERJ3GEYJ104 R5270 Metal film chip 27 kohm 1/16W ERJ3GEYJ273 R5271,5272 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 R5281,5282 Metal film chip 1 Mohm 1/16W ERJ3GEYJ105 R5284 Metal film chip 56 kohm 1/16W ERJ3GEYJ563 R5286,5287 Metal film chip 68 ohm 1/16W ERJ3GEYJ680 R5288 Metal film chip 5.6 kohm 1/16W ERJ3GEYJ562 R5289 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R5290 Metal film chip 5.6 kohm 1/16W ERJ3GEYJ562 R5291 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R5292 Metal film chip 5.6 kohm 1/16W ERJ3GEYJ562 R5293 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R5294 Metal film chip 5.6 kohm 1/16W ERJ3GEYJ562 R5295 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R5296 Metal film chip 3.3 kohm 1/16W ERJ3GEYJ332 R5297,5299 928 0155 404 Metal film chip 100 ohm 1/16W ERJ3GEYJ101 R5300 Metal film chip 3.3 kohm 1/16W ERJ3GEYJ332 R5301 Metal film chip 56 kohm 1/16W ERJ3GEYJ563 R6201 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R6202,6203 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DVM-4800 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R6205,6206 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 R6207,6208 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R6209 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 R6210 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R6211 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 R6215 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 R6216 Metal film chip 1 kohm 1/16W ERJ3GEYJ102 R6501 Metal film chip 1 Mohm 1/16W ERJ3GEYJ105 R6502 Metal film chip 220 ohm 1/16W ERJ3RBD221 R6503 Metal film chip 100 kohm 1/16W ERJ3GEYJ104 R6521 Metal film chip 1 Mohm 1/16W ERJ3GEYJ105 R6522 Metal film chip 220 ohm 1/16W ERJ3RBD221 R6523 Metal film chip 100 kohm 1/16W ERJ3GEYJ104 R6561 Metal film chip 1 Mohm 1/16W ERJ3GEYJ105 R6562 Metal film chip 330 ohm 1/16W ERJ3RBD331 R6801 Metal film chip 47 kohm 1/16W ERJ3GEYJ473 RA2021 928 9020 019 Resistor-Resistor 1 kohm EXBV4V102J RA2022 928 9019 431 Resistor-Resistor 4.7 kohm EXBV4V472J RA2501 928 9018 102 Resistor-Resistor 47 kohm EXBV8V473J RA3001 928 9020 019 Resistor-Resistor 1 kohm EXBV4V102J RA3002-3008 928 0138 201 Resistor-Resistor 82 ohm EXBV8V820J RA3031-3033 928 0143 403 Resistor-Resistor 0 ohm EXBV4VR000 RA3201,3202 928 9020 006 Resistor-Resistor 10 kohm EXBV8V103J RA3701 928 9019 431 Resistor-Resistor 4.7 kohm EXBV4V472J RA3702 928 9018 131 Resistor-Resistor 10 kohm EXBV4V103J RA3703-3705 928 9020 006 Resistor-Resistor 10 kohm EXBV8V103J RA3751,3752 928 9018 157 Resistor-Resistor 470 ohm EXBV8V471J RA3753 928 9018 160 Resistor-Resistor 470 ohm EXBV4V471J RA3754,3755 928 9018 157 Resistor-Resistor 470 ohm EXBV8V471J RA3756 928 9018 160 Resistor-Resistor 470 ohm EXBV4V471J RA3757,3758 928 9018 157 Resistor-Resistor 470 ohm EXBV8V471J RA3759,3760 928 9018 160 Resistor-Resistor 470 ohm EXBV4V471J RA3901-3904 928 9018 157 Resistor-Resistor 470 ohm EXBV8V471J RA5201 928 9019 457 Resistor-Resistor 100 ohm EXBV8V101J RA6201,6202 928 9018 131 Resistor-Resistor 10 kohm EXBV4V103J RA6203 928 9019 431 Resistor-Resistor 4.7 kohm EXBV4V472J RA6204 928 9018 131 Resistor-Resistor 10 kohm EXBV4V103J RA6205 928 9020 006 Resistor-Resistor 10 kohm EXBV8V103J RA6206 928 9018 115 Resistor-Resistor 47 kohm EXBV4V473J VR3201 928 0096 806 Semi fixed resistor 1 kohm VRV0293B102T VR3221,3225 928 0096 903 Semi fixed resistor 200 ohm VRV0293B201T VR3751 928 0096 806 Semi fixed resistor 1 kohm VRV0293B102T VR3771 928 0096 903 Semi fixed resistor 200 ohm VRV0293B201T CAPACITORS GROUP C2001,2002 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C2003-2018 Ceramic chip 0.1uF/16V ECUX1C104ZFV C2021 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C2022-2025 Ceramic chip 0.1uF/16V ECUX1C104ZFV C2026,2031 Ceramic chip 0.1uF/16V ECUX1C104KBV C2032 Ceramic chip 0.1uF/16V ECUX1C104KBV C2034 Ceramic chip 0.039uF/16V ECUV1C393KBV C2035 Ceramic chip 8200pF/50V ECUV1H822KBV C2036,2038 Ceramic chip 0.1uF/16V ECUX1C104KBV C2039 Ceramic chip 0.01uF/16V ECUV1C103KBV C2040 Ceramic chip 0.001uF/50V ECUX1H102JCV C2041 Metal film chip 10 kohm 1/16W ERJ3GEYJ103 C2042 Metal film chip 560 ohm 1/16W ERJ3GEYJ561 C2043 Ceramic chip 100pF/50V ECUV1H101JCV C2044-2046 Ceramic chip 390pF/50V ECUV1H391JCV C2047 Ceramic chip 0.01uF/16V ECUV1C103KBV C2048 Ceramic chip 0.015uF/16V ECUV1C153KBV C2050 Ceramic chip 0.033uF/16V ECUV1C333KBV C2051 Ceramic chip 68pF/50V ECUV1H680JCV C2052,2053 Ceramic chip 0.1uF/16V ECUX1C104ZFV C2054 Ceramic chip 680pF/50V ECUV1H681JCV C2055 Ceramic chip 6800pF/50V ECUV1H682KBV C2056,2057 Ceramic chip 2700pF/50V ECUV1H272KBV C2058 Ceramic chip 0.001uF/50V ECUX1H102JCV C2059 Ceramic chip 820pF/50V ECUV1H821JCV C2060 Ceramic chip 0.001uF/50V ECUX1H102JCV C2061,2062 Ceramic chip 330pF/50V ECUV1H331JCV C2063-2065 Ceramic chip 0.001uF/50V ECUX1H102JCV C2066-2068 Ceramic chip 4700pF/50V ECUV1H472KBV C2073 Ceramic chip 0.1uF/16V ECUX1C104ZFV C2501 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C2502 928 9020 103 Electrolytic 330uF/6.3V ECEV0JA331 C2503 928 9020 116 Electrolytic 100uF/16V ECEV1CA101W C2504-2508 Ceramic chip 0.1uF/16V ECUX1C104ZFV C2511,2512 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3001,3002 928 9020 103 Electrolytic 330uF/6.3V ECEV0JA331 C3003-3007 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3008,3009 928 9019 198 Ceramic chip 1uF/10V ECUV1A105ZFV C3010-3035 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3036,3037 928 9020 035 Electrolytic 15uF/6V VCE0215B156 C3038,3039 Ceramic chip 1uF/10V ECUZ1A105KBN C3040-3053 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3054 Ceramic chip 22pF/50V ECUV1H220JCV C3061-3067 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3091 Ceramic chip 0.1uF/16V ECUX1C104KBV C3092 Ceramic chip 1uF/6.3V ECUV0J105KBV C3093 Ceramic chip 1uF/10V ECUZ1A105KBN C3094 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3095 928 9020 048 Electrolytic 33uF/6.3V EEVHB0J330 C3096 Ceramic chip 1uF/10V ECUZ1A105KBN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DVM-4800 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks C3201 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3202-3206 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3207 Ceramic chip 0.1uF/16V ECUX1C104KBV C3208,3209 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3210 Ceramic chip 0.1uF/16V ECUX1C104KBV C3211,3212 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3220 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3221,3226 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3231,3236 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3251 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3252 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3253 928 9020 051 Electrolytic 10uF/10V RCST1AY106RC C3254 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3701-3703 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3711-3724 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3731,3732 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3733-3744 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3751 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3752-3755 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3756 Ceramic chip 0.1uF/16V ECUX1C104KBV C3757 928 9020 129 Ceramic chip 1uF/10V ECUZ1A105KBN C3758,3759 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3761,3766 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3770 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3771,3781 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3782 928 9020 051 Electrolytic 10uF/10V RCST1AY106RC C3783 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3901,3902 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C3903-3919 Ceramic chip 0.1uF/16V ECUX1C104ZFV C3931 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4220 928 9020 077 Electrolytic 22uF/10V RCST1AX226RC C4221-4224 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4225-4228 928 9020 051 Electrolytic 10uF/10V RCST1AY106RC C4229 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4230 928 9020 077 Electrolytic 22uF/10V RCST1AX226RC C4231-4234 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4235 928 9020 051 Electrolytic 10uF/10V RCST1AY106RC C4237,4238 928 9020 051 Electrolytic 10uF/10V RCST1AY106RC C4239 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4240 928 9020 077 Electrolytic 22uF/10V RCST1AX226RC C4241-4244 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4245-4248 928 9020 051 Electrolytic 10uF/10V RCST1AY106RC C4249 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4251-4253 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4258,4259 928 9020 080 Electrolytic 47uF/16V RCST1CC476RC C4261 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4262,4263 928 9020 035 Electrolytic 15uF/6V VCE0215B156 C4285 928 9020 035 Electrolytic 15uF/6V VCE0215B156 C4291 Ceramic chip 0.1uF/16V ECUX1C104ZFV C4292 Ceramic chip 39pF/50V ECUV1H390JCV C4336 Electrolytic 0.1uF/50V ECUM1H104ZFN C5201,5202 928 9020 093 Electrolytic 10uF/16V EEVHB1C100 C5203-5205 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5211,5215 928 9020 064 Electrolytic 47uF/6.3V EEVHB0J470 C5221 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5222 928 9020 051 Electrolytic 10uF/10V RCST1AY106RC C5231 Metal film chip 4.7 kohm 1/16W ERJ3GEYJ472 C5232-5234 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5235,5236 Ceramic chip 0.1uF/16V ECUX1C104KBV C5251 Ceramic chip 100pF/50V ECUV1H101JCV C5252 Ceramic chip 0.1uF/16V ECUX1C104KBV C5261 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5262 Ceramic chip 820pF/50V ECUV1H821JCV C5263 Ceramic chip 220pF/50V ECUV1H221JCV C5264 Ceramic chip 820pF/50V ECUV1H821JCV C5271,5272 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5273 Ceramic chip 1800pF/50V ECUV1H182KBV C5274 Ceramic chip 0.1uF/16V ECUX1C104KBV C5281 Ceramic chip 3900pF/50V ECUV1H392KBV C5282 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5283,5284 Ceramic chip 560pF/50V ECUV1H561JCV C5285 Ceramic chip 0.027uF/16V ECUV1C273KBV C5287 Ceramic chip 0.22uF/10V ECUV1A224KBV C5288 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5289 Ceramic chip 0.1uF/16V ECUX1C104KBV C5290-5292 Ceramic chip 0.1uF/16V ECUX1C104KBV C5293-5296 Ceramic chip 0.1uF/16V ECUX1C104ZFV C5297,5298 Ceramic chip 0.047uF/16V ECUV1C473KBV C5299 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6201 928 9020 048 Electrolytic 33uF/6.3V EEVHB0J330 C6202-6206 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6211 Ceramic chip 100pF/50V ECUV1H101JCV C6215 Ceramic chip 0.1uF/16V ECUX1C104KBV C6221 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6251 Ceramic chip 0.01uF/50V ECUV1H103KBV C6252 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C6301,6302 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6501 928 9020 035 Electrolytic 15uF/6V VCE0215B156 C6502,6503 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6504 Ceramic chip 0.001uF/50V ECUX1H102JCV C6505 Ceramic chip 8pF/50V ECUV1H080DCV C6506 928 9020 035 Electrolytic 15uF/6V VCE0215B156 C6511,6521 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6522 Ceramic chip 0.001uF/50V ECUX1H102JCV C6523 Ceramic chip 5pF/50V ECUV1H050DCV C6531,6541 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6551,6561 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6562,6563 Ceramic chip 15pF/50V ECUV1H150JCV C6571,6581 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6591 Ceramic chip 0.1uF/16V ECUX1C104ZFV C6801,6802 928 9020 022 Electrolytic 100uF/6.3V EEVHB0J101 C6803-6814 Ceramic chip 0.22uF/16V ECUX1C224ZFV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DVM-4800 Ref. No. Part No. Part Name Remarks Q’ty Ref. No. Part No. Part Name Remarks Q’ty LB6561,6571 928 0129 401 Chip solid inductor VLP0323A601R 2 LB6572 928 0078 219 Coil VLP0155-T 1 LB6581 928 0129 401 Chip solid inductor VLP0323A601R 1 LB6582 928 0078 219 Coil VLP0155-T 1 LB6591 928 0129 401 Chip solid inductor VLP0323A601R 1 LB6592 928 0078 219 Coil VLP0155-T 1 LB6801,6802 928 0078 303 Coil JALBK2HS470T 2 P4271 928 0159 303 15P Connector(MALE) VJP3904C015 1 P4291 928 0159 400 3P Connector (MALE) K1KA03A00234 1 PS3201 928 0159 507 20P Connector (FEMALE) K1KB20A00101 1 PS4201 928 0159 604 26P Connector (FEMALE) VJS4222C026B 1 PS6201 928 0149 449 10P Connector (FEMALE) VJS2961C010 1 PS6202 928 0144 101 22P Connector (FEMALE) VJS4222C022B 1 PS6251 928 0159 701 14P Connector (FEMALE) VJS4222C014B 1 X6501 9MV SX10 44 Crystal oscillator VSX1044 1 X6521 9MV SX10 45 Crystal oscillator VSX1045 1 X6561 9MV SX09 44 Crystal oscillator VSX0944 1 OTHER PARTS GROUP FL4201 928 0143 607 Filter VLF1491S105T 1 FL6251 928 0143 704 Filter VLF1491S104T 1 FL6252-6256 928 0143 607 Filter VLF1491S105T 5 FP5201 928 0159 206 38P connector K1MN38A00005 1 L2001,2002 928 0148 505 Coil 10uH VLQ0910K100 2 L2021 928 0148 505 Coil 10uH VLQ0910K100 1 L2501 928 9018 186 Metal film chip 0 ohm 1/4W ERJ14Y0R00 1 L3251,3751 928 0138 007 Coil 10uH ELJEA100KF 2 L5201,5202 928 0138 007 Coil 10uH ELJEA100KF 2 L6501 928 0148 709 Coil 22uH VLQ0909J220T 1 LA4201 928 0146 303 Coil - Coil VLP0412A601 1 LA6211,6212 928 0146 303 Coil - Coil VLP0412A601 2 LB3001,3002 928 0078 303 Coil JALBK2HS470T 2 LB3091 928 0129 401 Chip solid inductor VLP0323A601R 1 LB3201-3207 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 7 LB3208-3210 928 0129 401 Chip solid inductor VLP0323A601R 3 LB3213 928 0129 401 Chip solid inductor VLP0323A601R 1 LB3214 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 1 LB3701 928 0078 303 Coil JALBK2HS470T 1 LB3901,3902 928 0078 303 Coil JALBK2HS470T 2 LB4201-4210 928 0129 401 Chip solid inductor VLP0323A601R 10 LB4270-4273 928 0078 219 Coil VLP0155-T 4 LB4274-4280 928 0129 401 Chip solid inductor VLP0323A601R 7 LB4291,4292 928 0129 401 Chip solid inductor VLP0323A601R 2 LB5201,5202 928 0129 401 Chip solid inductor VLP0323A601R 2 LB5203-5207 928 0078 303 Coil JALBK2HS470T 5 LB5208-5210 928 0129 401 Chip solid inductor VLP0323A601R 3 LB5211 928 0078 219 Coil VLP0155-T 1 LB5212-5214 928 0129 401 Chip solid inductor VLP0323A601R 3 LB5215 928 0078 303 Coil JALBK2HS470T 1 LB5216-5219 928 0078 219 Coil VLP0155-T 4 LB5220,5221 928 0129 401 Chip solid inductor VLP0323A601R 2 LB5222,5223 928 0078 219 Coil VLP0155-T 2 LB5224,5225 928 0129 401 Chip solid inductor VLP0323A601R 2 LB5226-5229 9MV LP01 74 Coil VLP0174 4 LB6201 928 0129 401 Chip solid inductor VLP0323A601R 1 LB6202 928 0078 219 Coil VLP0155-T 1 LB6211-6214 928 0129 401 Chip solid inductor VLP0323A601R 4 LB6216-6221 928 0129 401 Chip solid inductor VLP0323A601R 6 LB6501,6511 928 0129 401 Chip solid inductor VLP0323A601R 2 LB6512 928 0078 219 Coil VLP0155-T 1 LB6521,6531 928 0129 401 Chip solid inductor VLP0323A601R 2 LB6532 928 0078 219 Coil VLP0155-T 1 LB6541 928 0129 401 Chip solid inductor VLP0323A601R 1 LB6542 928 0078 219 Coil VLP0155-T 1 LB6551 928 0129 401 Chip solid inductor VLP0323A601R 1 LB6552 928 9018 005 Metal film chip 0 ohm 1/16W ERJ3GEY0R00 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DVM-4800 GU-3375 MOTHER UNIT ASS'Y Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks SEMICONDUCTORS GROUP IC101 262 2974 004 IC PMD200 IC102 262 2975 906 IC BU2098F IC103 262 2376 903 IC TC74HCT7007AF(TP1) IC105 263 0081 002 IC NJM4558D IC201 262 2978 000 IC DXP7001AF IC202,203 262 2376 903 IC TC74HCT7007AF(TP1) IC205 262 2699 907 IC SN74LV164ANS-EL2 IC206 262 2698 908 IC SN74LV86ANS-EL2 IC207 262 2696 900 IC SN74LV32ANS-EL2 IC209 262 1421 901 IC TC74HCT04AF(TAPE1) IC210 262 1205 907 IC TC74HCU04AF(TP1) IC211 262 1421 901 IC TC74HCT04AF(TAPE1) IC214 262 2699 907 IC SN74LV164ANS-EL2 IC215 262 2518 907 IC SN74LV74APW-EL2 IC216 262 2517 908 IC SN74LV08APW-EL2 IC217 262 2518 907 IC SN74LV74APW-EL2 IC218 262 2699 907 IC SN74LV164ANS-EL2 IC219 262 2669 908 IC SN74LV157APW IC251 262 1205 907 IC TC74HCU04AF(TP1) IC252 262 2580 906 IC CXA1511M IC301,302 262 2530 914 IC PCM1704U/2K IC303,304 263 0896 909 IC NJM2068MD-T1 IC321,322 263 0896 909 IC NJM2068MD-T1 IC401-405 263 0896 909 IC NJM2068MD-T1 IC406 262 1793 901 IC TC4W53F IC408-410 263 0615 902 IC BA15218F-DXE2 IC501 262 2829 900 IC ML6427 IC502 262 2976 905 IC ML6426 IC503 262 2861 900 IC 74VHC123AMTCX IC504 263 0682 003 IC NJM2229S IC505 262 2519 906 IC SN74LV00APW-EL2 IC506 263 1082 903 IC TK15420MTL IC601 262 2979 009 IC MN101C35DAG IC602 399 0195 909 Ceramic oscillator EROEC8004T IC603 263 0913 905 IC PST600C TP IC605 263 1079 903 IC BA033FP IC801 263 0809 006 IC NJM7805FA(S) IC802 263 0554 005 IC NJM7905FA IC803 262 2977 904 IC BA18BC0FP-E2 TR102,103 269 0054 901 Transistor DTC144EK TR105 274 0136 012 Transistor 2SD1913 (R/S) TR106 272 0093 010 Transistor 2SB1274 (R/S) TR107 274 0036 905 Transistor 2SD468(C) TR108 272 0025 907 Transistor 2SB562(C) TR109,110 274 0163 904 Transistor 2SD601A TR201 273 0460 905 Transistor KTC2875B TR251 269 0082 902 Transistor DTC114EK TR252 269 0122 901 Transistor DTC144WK TR253 273 0460 905 Transistor KTC2875B TR301-304 273 0460 905 Transistor KTC2875B TR309,310 273 0460 905 Transistor KTC2875B TR351 269 0082 902 Transistor DTC114EK TR401-412 273 0460 905 Transistor KTC2875B TR413 274 0163 904 Transistor 2SD601A TR414 269 0083 901 Transistor DTA114EK TR415-417 269 0082 902 Transistor DTC114EK TR418 274 0163 904 Transistor 2SD601A TR419 269 0083 901 Transistor DTA115EK TR420 269 0119 901 Transistor DTA124EK TR421 269 0082 902 Transistor DTC115EK TR423 269 0083 901 Transistor DTA116EK TR427 269 0082 902 Transistor DTC116EK TR501 274 0163 904 Transistor 2SD601A TR606 269 0082 902 Transistor DTC117EK TR607 269 0122 901 Transistor DTC144WK D352 276 0717 903 Diode 1SS355 D401-404 276 0717 903 Diode 1SS355 D601 276 0717 903 Diode 1SS355 RESISTORS GROUP R102 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R111,112 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R113 244 2052 960 Metal oxide 220 ohm 1W(NB) RS14B3A221JNBST(S) R116-121 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R156 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R161,162 244 2052 960 Metal oxide 220 ohm 1W(NB) RS14B3A221JNBST(S) R163,164 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R165 247 2011 971 Carbon chip 62 kohm 1/16W RM73B--623JT R166 247 2009 970 Carbon chip 9.1 kohm 1/16W RM73B--912JT R167 247 2011 968 Carbon chip 56 kohm 1/16W RM73B--563JT R168 247 2009 970 Carbon chip 9.1 kohm 1/16W RM73B--912JT R169,170 247 2009 941 Carbon chip 6.8 kohm 1/16W RM73B--682JT R172 244 2050 933 Metal oxide 180 ohm 1W(NB) RS14B3A181JNBST(S) R173 247 2010 914 Carbon chip 13 kohm 1/16W RM73B--133JT R175 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R176 244 2051 945 Metal oxide 1 ohm 1W(NB) RS14B3A010JNBST(S) R178 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R179 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DVM-4800 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R180,181 244 2052 960 Metal oxide 220 ohm 1W(NB) RS14B3A221JNBST(S) R182 247 2010 969 Carbon chip 22 kohm 1/16W RM73B--223JT R183 247 2011 955 Carbon chip 51 kohm 1/16W RM73B--513JT R184 247 2011 926 Carbon chip 39 kohm 1/16W RM73B--393JT R185 247 2014 907 Carbon chip 560 kohm 1/16W RM73B--564JT R186,187 247 2011 955 Carbon chip 51 kohm 1/16W RM73B--513JT R189,190 247 2009 967 Carbon chip 8.2 kohm 1/16W RM73B--822JT R191,192 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R193 244 2051 945 Metal oxide 1 ohm 1W(NB) RS14B3A010JNBST(S) R194-196 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R201 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R203 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R204 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R205 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R206 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R213,214 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R217 247 2004 933 Carbon chip 51 ohm 1/16W RM73B--510JT R219 247 2013 940 Carbon chip 330 kohm 1/16W RM73B--334JT R220 247 2006 902 Carbon chip 330 ohm 1/16W RM73B--331JT (1608) R222 247 2006 902 Carbon chip 330 ohm 1/16W RM73B--331JT (1608) R224 247 2007 914 Carbon chip 750 ohm 1/16W RM73B--751JT R225-227 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R228 247 2004 920 Carbon chip 47 ohm 1/16W RM73B--470JT R229 247 2008 900 Carbon chip 1.8 kohm 1/16W RM73B--182JT R230,231 247 2006 902 Carbon chip 330 ohm 1/16W RM73B--331JT (1608) R232 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R233 247 2004 920 Carbon chip 47 ohm 1/16W RM73B--470JT R234-236 247 2006 902 Carbon chip 330 ohm 1/16W RM73B--331JT (1608) R238 247 2004 920 Carbon chip 47 ohm 1/16W RM73B--470JT R239 247 2006 915 Carbon chip 270 ohm 1/16W RM73B--271JT R240 247 2004 920 Carbon chip 47 ohm 1/16W RM73B--470JT R242,243 247 2004 920 Carbon chip 47 ohm 1/16W RM73B--470JT R244 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R245 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R246 247 2004 920 Carbon chip 47 ohm 1/16W RM73B--470JT R247,248 247 2006 902 Carbon chip 330 ohm 1/16W RM73B--331JT (1608) R251 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R252 247 2006 960 Carbon chip 470 ohm 1/16W RM73B--471JT R253 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R254 247 2019 928 Carbon chip 75 ohm 1/16W RM73B--750FT R255 247 2006 960 Carbon chip 470 ohm 1/16W RM73B--471JT R256 244 2052 928 Metal oxide 47 ohm 1W(NB) RS14B3A470JNBST(S) R258 247 2012 996 Carbon chip 200 kohm 1/16W RM73B--204JT R259,260 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R261 247 2019 902 Carbon chip 1 kohm 1/16W RM73B--102FT R262 247 2011 926 Carbon chip 39 kohm 1/16W RM73B--393JT R263 247 2019 902 Carbon chip 1 kohm 1/16W RM73B--102FT R264,265 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R267,268 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R271-279 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R283 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R285,286 247 2006 902 Carbon chip 330 ohm 1/16W RM73B--331JT (1608) R288-290 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R291 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R301-304 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R305-308 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R309,310 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R319,320 247 2013 966 Carbon chip 390 kohm 1/16W RM73B--394JT R321,322 247 2008 939 Carbon chip 2.4 kohm 1/16W RM73B--242JT R323,324 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R327,328 247 2008 913 Carbon chip 2 kohm 1/16W RM73B--202JT R335,336 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R339,340 247 2010 998 Carbon chip 30 kohm 1/16W RM73B--303JT R341,342 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R353,354 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R359,360 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R363,364 247 2007 998 Carbon chip 1.6 kohm 1/16W RM73B--162JT R365,366 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R401,402 247 2012 925 Carbon chip 100 kohm 1/16W RM73B--104JT R403,404 247 2008 984 Carbon chip 3.9 kohm 1/16W RM73B--392JT R405,406 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R407,408 247 2009 967 Carbon chip 8.2 kohm 1/16W RM73B--822JT R409,410 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R411,412 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R413,414 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R415,416 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R417,418 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R419,420 247 2012 925 Carbon chip 100 kohm 1/16W RM73B--104JT R421,422 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R423 247 2010 956 Carbon chip 20 kohm 1/16W RM73B--203JT R424 247 2008 984 Carbon chip 3.9 kohm 1/16W RM73B--392JT R425 247 2012 909 Carbon chip 82 kohm 1/16W RM73B--823JT R426 247 2010 956 Carbon chip 20 kohm 1/16W RM73B--203JT R427,428 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R429,430 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R431,432 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R433,434 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R435,436 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R437,438 247 2012 925 Carbon chip 100 kohm 1/16W RM73B--104JT R439,440 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R441,442 247 2008 984 Carbon chip 3.9 kohm 1/16W RM73B--392JT R443,444 247 2010 956 Carbon chip 20 kohm 1/16W RM73B--203JT R445,446 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R447,448 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R449,450 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R451,452 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R453,454 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R455 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R456 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R457 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R458 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DVM-4800 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks R459 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R461 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R462 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R463 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R464 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R465 247 2010 969 Carbon chip 22 kohm 1/16W RM73B--223JT R466 244 2052 902 Metal oxide 2.7 kohm 1W(NB) RS14B3A272JNBST(S) R468 244 2052 960 Metal oxide 220 ohm 1W(NB) RS14B3A221JNBST(S) R470 247 2010 956 Carbon chip 20 kohm 1/16W RM73B--203JT R471-476 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R480,481 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R482 247 2010 927 Carbon chip 15 kohm 1/16W RM73B--153JT R483-487 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R488,489 247 2010 972 Carbon chip 24 kohm 1/16W RM73B--243JT R490,491 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R492 247 2012 925 Carbon chip 100 kohm 1/16W RM73B--104JT R493 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R501 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R502 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R503 247 2008 900 Carbon chip 1.8 kohm 1/16W RM73B--182JT R504 247 2019 902 Carbon chip 1 kohm 1/16W RM73B--102FT R505,506 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R507,508 247 2019 902 Carbon chip 1 kohm 1/16W RM73B--102FT R509 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R513 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R514 247 2019 928 Carbon chip 75 ohm 1/16W RM73B--750FT R515 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R516,517 247 2019 928 Carbon chip 75 ohm 1/16W RM73B--750FT R518 247 2019 915 Carbon chip 1.5 kohm 1/16W RM73B--152FT R519,520 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R522,523 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R524 247 2019 915 Carbon chip 1.5 kohm 1/16W RM73B--152FT R525 247 2019 928 Carbon chip 75 ohm 1/16W RM73B--750FT R526,527 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R528-533 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R534 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R536-538 247 2019 928 Carbon chip 75 ohm 1/16W RM73B--750FT R539-543 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R546-552 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R553,554 247 2019 928 Carbon chip 75 ohm 1/16W RM73B--750FT R555-557 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R558 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R559,560 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R561 247 2019 915 Carbon chip 1.5 kohm 1/16W RM73B--152FT R567 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R568 247 2014 907 Carbon chip 560 kohm 1/16W RM73B--564JT R569 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R570-572 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R573 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R575 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R576,577 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R579-583 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R601 247 2014 965 Carbon chip 1 Mohm 1/16W RM73B--105JT R602-604 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R605 247 2009 967 Carbon chip 8.2 kohm 1/16W RM73B--822JT R606 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R607 247 2007 969 Carbon chip 1.2 kohm 1/16W RM73B--122JT R608 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R609 247 2008 942 Carbon chip 2.7 kohm 1/16W RM73B--272JT R610 247 2005 987 Carbon chip 220 ohm 1/16W RM73B--221JT R612,613 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R614,615 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R626-674 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R676 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R689-692 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R699 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R702,703 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R711,712 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R715,716 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R719,720 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R723,724 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R727,728 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R731,732 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R802,803 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R807-809 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT CAPACITORS GROUP C101 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C102,103 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C104 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C105,106 256 1058 971 Metalized 0.1uF/50V CF93A1H104JT (JL) C107 255 1265 981 Mylar film 0.027uF/50V CQ93M1H273JT(B) C108 254 4299 919 Electrolytic 22uF/16V CE04W1C220MT(SRE) C109-111 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C113 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C114 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C123 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C126 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C141 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C142 257 0503 925 Ceramic chip 10pF/50V CC73CH1H100DT C143 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C167 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C168 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C169,170 254 4524 930 Electrolytic 0.47uF/50V CE04W1HR47MT SMG/RE3 C171 257 0504 982 Ceramic chip 47pF/50V CC73CH1H470JT C201,202 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C205 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C206 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C207 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 DVM-4800 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks C208 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C209 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C213-215 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C216 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C217 254 4299 964 Electrolytic 47uF/16V CE04W1C470MT(SRE) C218,219 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C223 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C224 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C225 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C226 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C227 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C228 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C237 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C251 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C252 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C253 254 4525 900 Electrolytic 33uF/50V CE04W1H330MT SMG/RE3 C255 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C256 254 4524 985 Electrolytic 10uF/50V CE04W1H100MT SMG/RE3 C257 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C258 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C260 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C261 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C262 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C263 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C264 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C265 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C266 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C267 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C268 254 4524 943 Electrolytic 1uF/50V CE04W1H010MT SMG/RE3 C269 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C271 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C272 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C273 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C274 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C275 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C276 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C277,278 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C279 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C280 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C281 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C282 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C283,284 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C285 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C286 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C287 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C288 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C289 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C301 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C302 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C303 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C304 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C305 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C306 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C307 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C308 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C317,318 254 4299 919 Electrolytic 22uF/16V CE04W1C220MT(SRE) C319,320 254 4302 974 Electrolytic 100uF/10V CE04W1A101MT(SRE) C321-326 254 4299 964 Electrolytic 47uF/16V CE04W1C470MT(SRE) C327,328 257 0509 903 Ceramic chip 820pF/50V CK73B1H821KT C329,330 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C331,332 254 3053 910 Electrolytic 22uF/16V CE04D1C220MBPT(SME) C333,334 257 0507 918 Ceramic chip 180pF/50V CC73CH1H181JT C335,336 257 0508 933 Ceramic chip 560pF/50V CC73CH1H561JT C339,340 257 0508 917 Ceramic chip 470pF/50V CC73CH1H471JT C343,344 254 4525 751 Electrolytic 470uF/50V CE04W1H471MC SMG/RE3 C345,346 254 4541 955 Electrolytic 220uF/25V CE04W1E221MT SMG/RE3 C371,372 257 0503 996 Ceramic chip 20pF/50V CC73CH1H200JT C373,374 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C375,376 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C377,378 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C379,380 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C401,402 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C403,404 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C405,406 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C407,408 254 4538 955 Electrolytic 220uF/16V CE04W1C221MT SMG/RE3 C409,410 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C413,414 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C415,416 254 4299 964 Electrolytic 47uF/16V CE04W1C470MT(SRE) C417,418 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C419,420 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C423,424 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C427,428 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C429,430 254 4299 964 Electrolytic 47uF/16V CE04W1C470MT(SRE) C431,432 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C433,434 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C437,438 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C441,442 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C445 254 4213 937 Electrolytic 100uF/6.3V CE04W0J101MT(SRA) C446 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C447 254 4192 948 Electrolytic 220uF/10V CE04W1A221MT(SRA) C448 254 4538 900 Electrolytic 10uF/16V CE04W1C100MT SMG/RE3 C451 256 1058 942 Metalized 0.056uF/50V CF93A1H563JT (JL) C452 256 1058 984 Metalized 0.12uF/50V CF93A1H124JT (JL) C453 254 4538 900 Electrolytic 10uF/16V CE04W1C100MT SMG/RE3 C457 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C458 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C463,464 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C467,468 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C471,472 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C473 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C474 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DVM-4800 Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks C501,502 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C503-505 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C506 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C509 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C510 257 0508 917 Ceramic chip 470pF/50V CC73CH1H471JT C511,512 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C513 254 4533 934 Electrolytic 220uF/6.3V CE04W0J221MT SMG/RE3 C514-516 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C517,518 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C519 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C520,521 254 4425 709 Electrolytic 2200uF/6.3V CE04W0J222MC(SMG) C524 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C536 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C537 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C538 254 4327 904 Electrolytic 1000uF/6.3V CE04W0J102MT(SMG) C539,540 254 4538 942 Electrolytic 100uF/16V CE04W1C101MT SMG/RE3 C550 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C551 255 1273 986 Mylar film 470pF/50V CQ93M1H471JT(B) C552 255 1265 978 Mylar film 0.022uF/50V CQ93M1H223JT(B) C553 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C554 254 4524 972 Electrolytic 4.7uF/50V CE04W1H4R7MT SMG/RE3 C555 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C556 254 4213 937 Electrolytic 100uF/6.3V CE04W0J101MT (SRA) C557 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C560,561 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C602 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C610 254 4533 918 Electrolytic 47uF/6.3V CE04W0J470MT SMG/RE3 C611 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C620,621 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C622 254 4533 921 Electrolytic 100uF/6.3V CE04W0J101MT SMG/RE3 C624 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C625 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C626 254 4302 974 Electrolytic 100uF/10V CE04W1A101MT(SRE) C627 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C628 254 4524 985 Electrolytic 10uF/50V CE04W1H100MT SMG/RE3 C629 254 4533 934 Electrolytic 220uF/6.3V CE04W0J221MT SMG/RE3 C801 254 4538 955 Electrolytic 220uF/16V CE04W1C221MT SMG/RE3 C802 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C803 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C806,807 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C808,809 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C810,811 254 4193 947 Electrolytic 100uF/16V CE04W1C101MT (SRA) C812,813 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C814,815 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C816,817 254 4538 955 Electrolytic 220uF/16V CE04W1C221MT SMG/RE3 C818 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C819 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C820 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C821 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C822 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C823 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C827,828 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C829,830 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C831,832 254 4525 926 Electrolytic 100uF/50V CE04W1H101MT SMG/RE3 C836 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C837 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C838,839 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C840 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C841 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C844 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C847 254 4533 921 Electrolytic 100uF/6.3V CE04W0J101MT SMG/RE3 C848,849 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C850 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C851 254 4533 934 Electrolytic 220uF/6.3V CE04W0J221MT SMG/RE3 C872 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) OTHER PARTS GROUP Q’ty CW35 203 5268 006 3P connector cord (51021) 1 CW121 204 6695 008 12P PH-SAN connector cord 1 CW131 204 6696 007 13P PH-SAN connector cord 1 CW151 204 6697 006 15P connector cord (51021) 1 CX31 205 0687 031 3P connector base (YEL) L 1 CX32 205 0395 035 3P KR connector base (L) RED 1 CX33 205 0355 033 3P KR connector base (L) 1 CX34 205 0685 033 3P connector base (BLK) L 1 CX71 205 0911 008 7P FFC connector base (R)1 CX141 205 1205 027 14P connector base 1 CX201 205 1205 001 20P connector base 1 CX221 205 1205 030 22P connector base 1 CX261 205 1205 014 26P connector base 1 CX331 205 0770 058 33P FFC base (SIDE) 1 CX351 205 0770 074 35P FFC base (SIDE) 1 FB101-103 235 0130 903 Chip emifil (11A121) 3 FB109-112 235 0130 903 Chip emifil (11A121) 4 FB117 235 0130 903 Chip emifil (11A121) 1 FB149-163 235 0130 903 Chip emifil (11A121) 15 FB217-219 235 0130 903 Chip emifil (11A121) 3 FB251,252 235 0130 903 Chip emifil (11A121) 2 FB401-410 235 0130 903 Chip emifil (11A121) 10 FB416,417 235 0130 903 Chip emifil (11A121) 2 FB514 235 0130 903 Chip emifil (11A121) 1 FB601-608 235 0130 903 Chip emifil (11A121) 8 JK201 269 0177 008 Optical connector GP1F38T2 1 JK202 204 8597 007 1P pin jack 1 JK203,204 204 8612 005 Mini jack 2 JK401 204 8632 001 8P pin jack (AU) 1 JK501 204 8631 002 2P pin jack (AU) 1 JK503 204 8630 003 3P pin jack (AU) 1 JK504 204 8633 000 2P S-terminal (AU) 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DVM-4800 Ref. No. Part No. Part Name Remarks Q’ty L101 235 0060 905 Inductor 2.2uH 1 L501 235 0134 909 Inductor ELESA220KA 1 L503 235 0134 909 Inductor ELESA220KA 1 RL351 214 0203 008 Relay (NA12W-K) 1 ST101,102  Style pin 2 T251 231 8063 009 Pulse trans. 1 GU-3374 DISPLAY UNIT ASS'Y Ref. No. Part No. Part Name Remarks SEMICONDUCTORS GROUP IC604 499 0290 007 IC GP1U271X IC901 265 0111 004 IC STR-L422 IC902 262 0874 009 IC TLP521-1(BL) IC903 263 1113 005 IC SE005N IC904 263 0753 000 IC NJM7809FA(S) IC905 263 0878 008 IC NJM7909FA IC906 263 1132 002 IC PQ070VK01FZ IC907 263 1048 002 IC BA033T IC908 263 0753 000 IC NJM7809FA(S) IC909,910 268 0075 903 IC ICP-N25T TR605 278 0009 002 Photo transistor PT491F TR701-704 269 0082 902 Transistor DTC118EK TR901 272 0093 010 Transistor 2SB1274 (R/S) TR902 269 0082 902 Transistor DTC119EK TR903 272 0093 010 Transistor 2SB1274 (R/S) TR905 269 0083 901 Transistor DTA117EK TR906 269 0082 902 Transistor DTC120EK TR907 275 0106 906 Transistor HAT2053M TR908 274 0136 012 Transistor 2SD1913 (R/S) TR909 274 0036 905 Transistor 2SD468(C) TR910 269 0083 901 Transistor DTA118EK TR913 269 0082 902 Transistor DTC121EK D701-704 276 0717 903 Diode 1SS355 D901-904 276 0729 904 Rectifier diode EM01AT D905 276 0730 906 Fast recovery diode AG01ZT D906 276 0724 909 Diode SARS01T D907-909 276 0730 906 Fast recovery diode AG01ZT D910 276 0725 704 Shottkey barrier diode RK39 D911 276 0726 703 Shottkey barrier diode RJ43 D912 276 0745 904 Shottkey barrier diode RB411DT D913 276 0725 704 Shottkey barrier diode RK39 D914 276 0727 906 Fast recovery diode AL01ZT D919 276 0737 909 Shottkey barrier diode RB161L-40 ZD901 276 0456 905 Zener diode HZS4B-1TD LD701 393 9453 916 LED SEL1810A LD702 393 9576 903 LED SELU1E10CXM LD703 393 9453 916 LED SEL1810A LD704 393 9504 904 LED SEL1210S LD901 278 0010 004 LED GL450 TH901 279 0044 002 Thermistor NTH11D8R0LA NTH11D8R0LA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DVM-4800 Ref. No. Part No. Part Name Remarks RESISTORS GROUP R675 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R676 247 2005 945 Carbon chip 150 ohm 1/16W RM73B--151JT R677 247 2005 961 Carbon chip 180 ohm 1/16W RM73B--181JT R678 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R679 247 2005 945 Carbon chip 150 ohm 1/16W RM73B--151JT R680 247 2005 961 Carbon chip 180 ohm 1/16W RM73B--181JT R681 247 2006 915 Carbon chip 270 ohm 1/16W RM73B--271JT R682 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R683 247 2005 945 Carbon chip 150 ohm 1/16W RM73B--151JT R684 247 2005 961 Carbon chip 180 ohm 1/16W RM73B--181JT R685 247 2006 915 Carbon chip 270 ohm 1/16W RM73B--271JT R686 247 2006 944 Carbon chip 390 ohm 1/16W RM73B--391JT R687 247 2007 901 Carbon chip 680 ohm 1/16W RM73B--681JT R688 247 2007 972 Carbon chip 1.3 kohm 1/16W RM73B--132JT R701 244 2051 929 Metal oxide 820 ohm 1W(NB) RS14B3A821JNBST(S) R702 244 2052 915 Metal oxide 1.8 kohm 1W(NB) RS14B3A182JNBST(S) R703 244 2051 929 Metal oxide 820 ohm 1W(NB) RS14B3A821JNBST(S) R704 244 2052 973 Metal oxide 560 ohm 1W(NB) RS14B3A561JNBST(S) R705 247 2006 944 Carbon chip 390 ohm 1/16W RM73B--391JT R706 247 2007 901 Carbon chip 680 ohm 1/16W RM73B--681JT R707 247 2006 915 Carbon chip 270 ohm 1/16W RM73B--271JT R708 247 2007 972 Carbon chip 1.3 kohm 1/16W RM73B--132JT R901 244 2675 716 Metal oxide 68 kohm 2W(NB) RS14B3D683JNBF(ERG) R902 244 2674 717 Metal oxide 0.33 ohm 2W(NB) RS14B3DR33JNBF(ERX) R905 244 2675 732 Metal oxide 100 kohm 2W(NB) RS14B3D104JNBF(ERG) R906 244 2675 703 Metal oxide 47 ohm 2W(NB) RS14B3D470JNBF(ERG) R913 244 2043 953 Metal oxide 470 ohm 1W(NB) RS14B3A471JNBST(S) R916 244 2043 953 Metal oxide 470 ohm 1W(NB) RS14B3A471JNBST(S) R920 244 2051 929 Metal oxide 820 ohm 1W(NB) RS14B3A821JNBST(S) R929 244 2050 991 Metal oxide 6.8 kohm 1W(NB) RS14B3A682JNBST(S) R935 241 2378 917 Carbon film 200 ohm 1/4W(NB) RD14B2E201JNBST R938 247 2018 916 Carbon chip 1 ohm 1/16W RM73B--010KT CAPACITORS GROUP C612 254 4541 939 Electrolytic 47uF/25V CE04W1E470MT SMG/RE3 C618 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C619 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C691 253 8022 707 Ceramic 0.01 uF/250V(AC) CK45F2EAC103MC C701 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C702 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C901 256 8038 017 Metalized 0.22uF/250V(AC) CF99--2EAC224M C902 256 8038 004 Metalized 0.1uF/250V(AC) CF99--2EAC104M C905 254 4588 701 Electrolytic 100uF/200V CE04W2D101MC(KMG) C906 253 4546 708 Ceramic 470pF/2kV CC45SL3D471JC C907 253 4452 902 Ceramic 470pF/50V CC45SL1H471JT C908 253 9030 963 Ceramic 0.01uF/25V CK45=1E103KT C909 254 4522 945 Electrolytic 47uF/35V CE04W1V470MT SMG/RE3 Ref. No. Part No. Part Name Remarks C910 253 8022 710 Ceramic 0.0022uF/250V(AC) CK45F2EAC222MC C911 253 8028 701 Ceramic 0.0022uF/1kV CK45R3A222KC C912 255 1264 908 Mylar film 1000pF/50V CQ93M1H102JT(B) C914 254 4595 707 Electrolytic 2200uF/6.3V CE04W0J222MC J30(LXV C915 254 4596 706 Electrolytic 1200uF/16V CE04W1C122MC J30(LXJ C916 254 4591 905 Electrolytic 100uF/50V CE04W1H101MT (KMF) C917 254 4596 706 Electrolytic 1200uF/16V CE04W1C122MC J30(LXJ C918 254 4591 905 Electrolytic 100uF/50V CE04W1H101MT (KMF) C919 256 1058 971 Metalized 0.1uF/50V CF93A1H104JT (JL) C920 254 4533 934 Electrolytic 220uF/6.3V CE04W0J221MT SMG/RE3 C922,923 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C925 254 4522 945 Electrolytic 47uF/35V CE04W1V470MT SMG/RE3 C926 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C927 254 4538 942 Electrolytic 100uF/16V CE04W1C101MT SMG/RE3 C928 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C929 254 4538 942 Electrolytic 100uF/16V CE04W1C101MT SMG/RE3 C930 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C931-933 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C934 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C935,936 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C938 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C940-942 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C944-946 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C947 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C948 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C949 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C954 257 0509 990 Ceramic chip 2200pF/50V CK73B1H222KT C959 254 4538 955 Electrolytic 220uF/16V CE04W1C221MT SMG/RE3 C963 254 4524 985 Electrolytic 10uF/50V CE04W1H100MT SMG/RE3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DVM-4800 Ref. No. Part No. Part Name Remarks Q’ty OTHER PARTS GROUP AS906 417 0621 001 Heat sink OSH-1625SP 1 CW91 204 2812 018 9P PH-SAN connector cord 1 CX21 205 0581 056 2P VH connector base 1 CX22 205 0453 003 2P VH connector base (L) 1 CX41 205 0355 046 4P KR connector base (L) 1 CX91 205 0355 091 9P KR connector base (L) 1 CX121 205 0480 021 12P KR connector base (L) 1 CX131 205 0480 034 13P KR connector base (L) 1 CX931 205 0355 033 3P KR connector base (L) 1 CY21 205 0453 016 2P VH connector base (L) 1 CY32 205 0395 035 3P KR connector base (L) RED 1 CY33 205 0355 033 3P KR connector base (L) 1 CY34 205 0685 033 3P connector base (BLK) L 1 CY41 205 0355 046 4P KR connector base (L) 1 CY71 205 0911 008 7P FFC connector base (R) 1 CY331 205 0770 058 33P FFC base (SIDE) 1 CY351 205 0770 074 35P FFC base (SIDE) 1 F901 206 1039 047 FUSE 1.25A 1 FF901 202 0040 909 Fuse clip 1 FH901 202 0040 909 Fuse clip 1 FL601 393 8053 003 FL tube (17-BT-14GNK) 1 L901 235 0141 002 Line filter (PLA10A) 1 L905,906 235 0142 904 Coil LHL08TB220KT 2 L907 235 0142 917 Coil LHL08TB4R7MT 1 PI601 269 0179 006 ON1021(Inter rupter) 1 S601-613 212 0431 900 Tact switch 13 S618 212 1059 006 OP/CL switch 1 S619 212 1072 009 Detect switch (SSCF21) 1 S691 212 1030 009 Power switch (TV-5) 1 S701-704 212 0431 900 Tact switch 4 ST902,903  Style pin 2 T901 233 0616 007 SW transformer 1 461 0862 045 FL spacer (T=5) 2 471 3303 016 Screw 3x6 CBS-Z 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
