SERVICE MANUAL
DVD VIDEO AUTO CHANGER
MODEL DVM1835
TOKYO, JAPAN
Denon Brand Company, D&M Holdings Inc.
X0289V.02 DE/CDM 0605
Some illustrations using in this service manual are
slightly different from the actual set.
●
Please use this service manual with referring to the
operating instructions without fail.
●
For purposes of improvement, specifications and
design are subject to change without notice.
●
● 本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。
● 修理の際は、必ず取扱説明書を参照の上、作業を行っ
てください。
サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。
● 本機の仕様は性能改良のため、予告なく変更すること
があります。
● 補修用性能部品の保有期間は、製造打切後8年です。
注 意
For U.S.A. & Canada model
Pleaserefer tothe
MODIFICATION NOTICE.
Ver. 2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
DVM1835
Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such as
the cabinet, parts, chassis, etc., have cautions indicated on
labels or seals. Be sure to heed these cautions and the cau-
tions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching inter-
nal metal parts when the set is energized could cause
electric shock. Take care to avoid electric shock, by for ex-
ample using an isolating transformer and gloves when
servicing while the set is energized, unplugging the power
cord when replacing parts, etc.
(2)There are high voltage parts inside. Handle with extra care
when the set is energized.
◎ Caution concerning disassembly and assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved
across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire resis-
tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In particu-
lar, for the important safety parts that are marked ! on wiring
diagrams and parts lists, be sure to use the designated parts.
◎Be sure to mount parts and arrange the
wires as they were originally!
For safety reasons, some parts use tape, tubes or other insu-
lating materials, and some parts are mounted away from the
surface of printed circuit boards. Care is also taken with the
positions of the wires inside and clamps are used to keep
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.
◎ Inspect for safety after servicing!
Check that all screws, parts and wires removed or discon-
nected for servicing have been put back in their original posi-
tions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
blades of the power plug, and otherwise check that safety is
ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect the
antenna, plugs, etc., and turn the power switch on. Using a
500V insulation resistance tester, check that the insulation re-
sistance between the terminals of the power plug and the ex-
ternally exposed metal parts (antenna terminal, headphones
terminal, microphone terminal, input terminal, etc.) is 1MΩ or
greater. If it is less, the set must be inspected and repaired.
Concerning important safety parts
Many of the electric and structural parts used in the set have
special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
with higher ratings (rated power and withstand voltage) does
not necessarily guarantee that safety performance will be pre-
served. Parts with safety properties are indicated as shown
below on the wiring diagrams and parts lists is this service
manual. Be sure to replace them with parts with the designat-
ed part number.
(1) Schematic diagrams ... Indicated by the ! mark.
(2) Parts lists ... Indicated by the ! mark.
Using parts other than the designated parts
could result in electric shock, fires or other
dangerous situations.
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.
LASER RADIATION
Do not stare into beam or view directly with optical instruments, class 3A laser product.
CAUTION
CAUTION
サービス、点検時にはつぎのことにご注意願います。
◎注意事項をお守りください！
サービスのとき特に注意を必要とする個所についてはキャ
ビネット、部品、シャーシなどにラベルや捺印で注意事項を
表示しています。これらの注意書きおよび取扱説明書などの
注意事項を必ずお守りください。
◎感電に注意！
(1) このセットは、交流電圧が印加されていますので通電時
に内部金属部に触れると感電することがあります。従っ
て通電サービス時には、絶縁トランスの使用や手袋の着
用、部品交換には、電源プラグを抜くなどして感電にご
注意ください。
(2) 内部には高電圧の部分がありますので、通電時の取扱に
は十分ご注意ください。
◎分解、組み立て作業時のご注意！
板金部品の端面の『バリ』は、部品製造時に充分管理をして
おりますが、板金端面は鋭利となっている箇所が有りますの
で、部品端面に触れたまま指を動かすとまれに怪我をする場
合がありますので十分注意して作業して下さい。手の保護の
ために手袋を着用してください。
◎指定部品の使用！
セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は、使用されていたも
のと同じ特性の部品を使用してください。特に配線図、部品
表に ! 印で指定されている安全上重要な部品は必ず指定の
ものをご使用ください。
◎部品の取付けや配線の引きまわしは、
元どおりに！
安全上、テープやチューブなどの絶縁材料を使用したり、プ
リント基板から浮かして取付けた部品があります。また内部
配線は引きまわしやクランパーによって発熱部品や高圧部
品に接近しないように配慮されていますので、これらは必ず
元どおりにしてください。
◎サービス後は安全点検を！
サービスのために取り外したねじ、部品、配線などが元どお
りになっているか、またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し、外部金属端子部
と、電源プラグの刃の間の絶縁チェックをおこなうなど、安
全性が確保されていることを確認してください。
（絶縁チェックの方法）
電源コンセントから電源プラグを抜き、アンテナやプラグな
どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用
いて、電源プラグのそれぞれの端子と外部露出金属部［アン
テナ端子、ヘッドホン端子マイク端子、入力端子など］との
間で、絶縁抵抗値が１ MΩ 以上であること、この値以下の
ときはセットの点検修理が必要です。
安全上重要な部品について
本機に使用している多くの電気部品、および機構部品は安全
上、特別な特性を持っています。この特性はほとんどの場合、
外観では判別つきにくく、またもとの部品より高い定格（定
格電力、耐圧）を持ったものを使用しても安全性が維持され
るとは、限りません。安全上の特性を持った部品は、この
サービスマニュアルの配線図、部品表につぎのように表示し
ていますので必ず指定されている部品番号のものを使用願
います。
(1) 配線図… ! マークで表示しています。
(2) 部品表… ! マークで表示しています。
指定された部品と異なるものを使用した場合に
は、感電、火災などの危険を生じる恐れがあり
ます。
注 意
注 意
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
DVM1835
SPECIFICATIONS
Notes:
1.
All Items are measured without pre-emphasis unless otherwise specified.
2.
Power supply: AC 120 V, 60 Hz
3.
Load Impedance: 100 kΩ load (Audio Output)
4.
Room Ambient: 5 °C - 40 °C
Item
Conditions
Unit
Nominal
Limit
1. Video Output
75 Ω load
Vpp
1.0
± 0.1
2. Optical Digital Out
dBm
-18
3. Audio (PCM)
3-1. Output Level
1 kHz, 0 dB
Vrms
2.0
3-2. S/N
dB
120
3-3. Freq. Response
DVD
fs = 48 kHz, 20 Hz ~ 22 kHz
dB
± 0.5
CD
fs = 44.1 kHz, 20 Hz ~ 20 kHz
dB
± 0.5
3-4. THD+N
DVD
1 kHz, 0 dB
%
0.003
CD
1 kHz, 0 dB
%
0.003
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
DVM1835

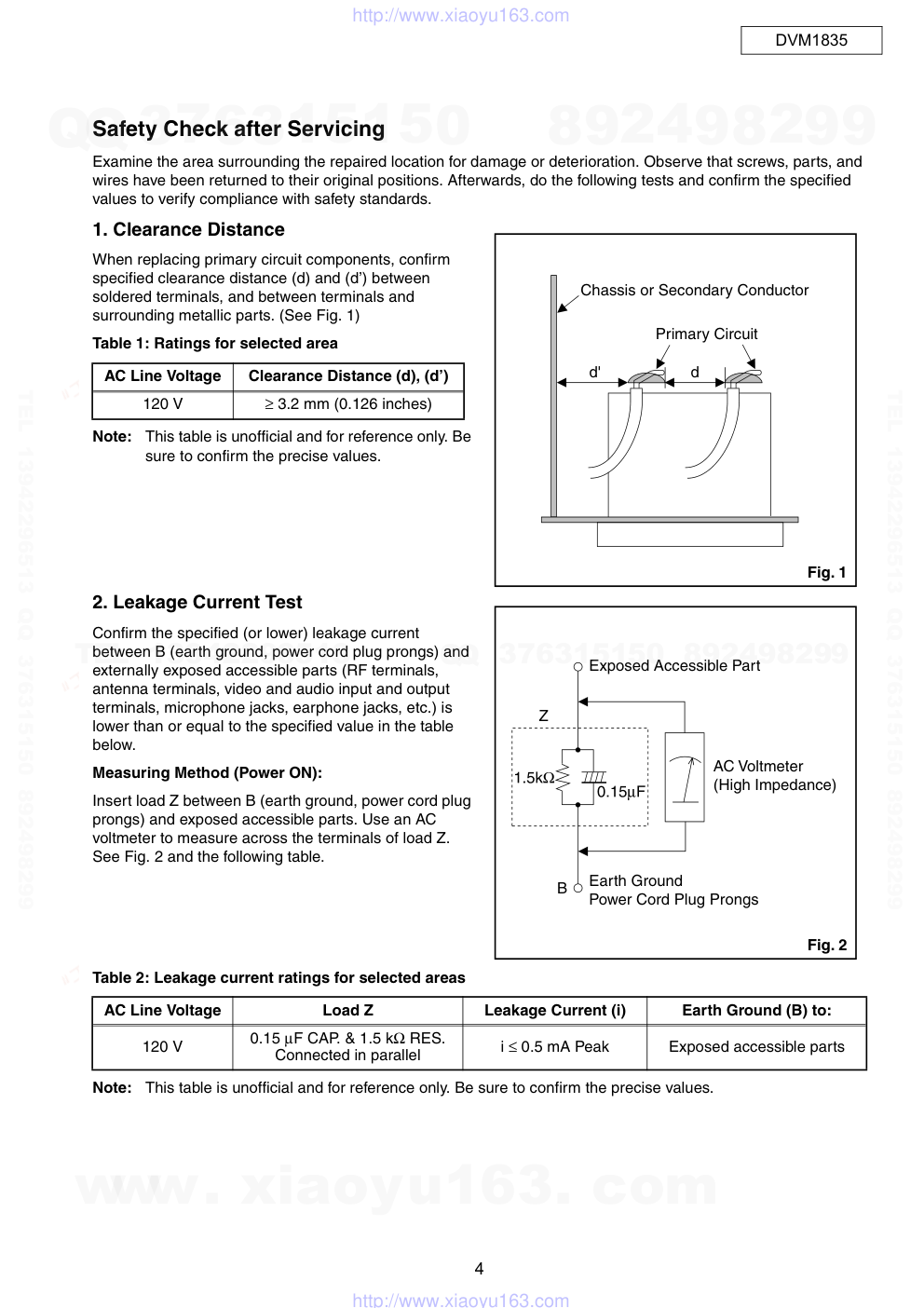

Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note:
This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
Note:
This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage
Clearance Distance (d), (d’)
120 V
≥ 3.2 mm (0.126 inches)
AC Line Voltage
Load Z
Leakage Current (i)
Earth Ground (B) to:
120 V
0.15 µF CAP. & 1.5 kΩ RES.
Connected in parallel
i ≤ 0.5 mA Peak
Exposed accessible parts
Chassis or Secondary Conductor
Primary Circuit
Fig. 1
d'
d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
B
Earth Ground
Power Cord Plug Prongs
Z
Fig. 2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
DVM1835

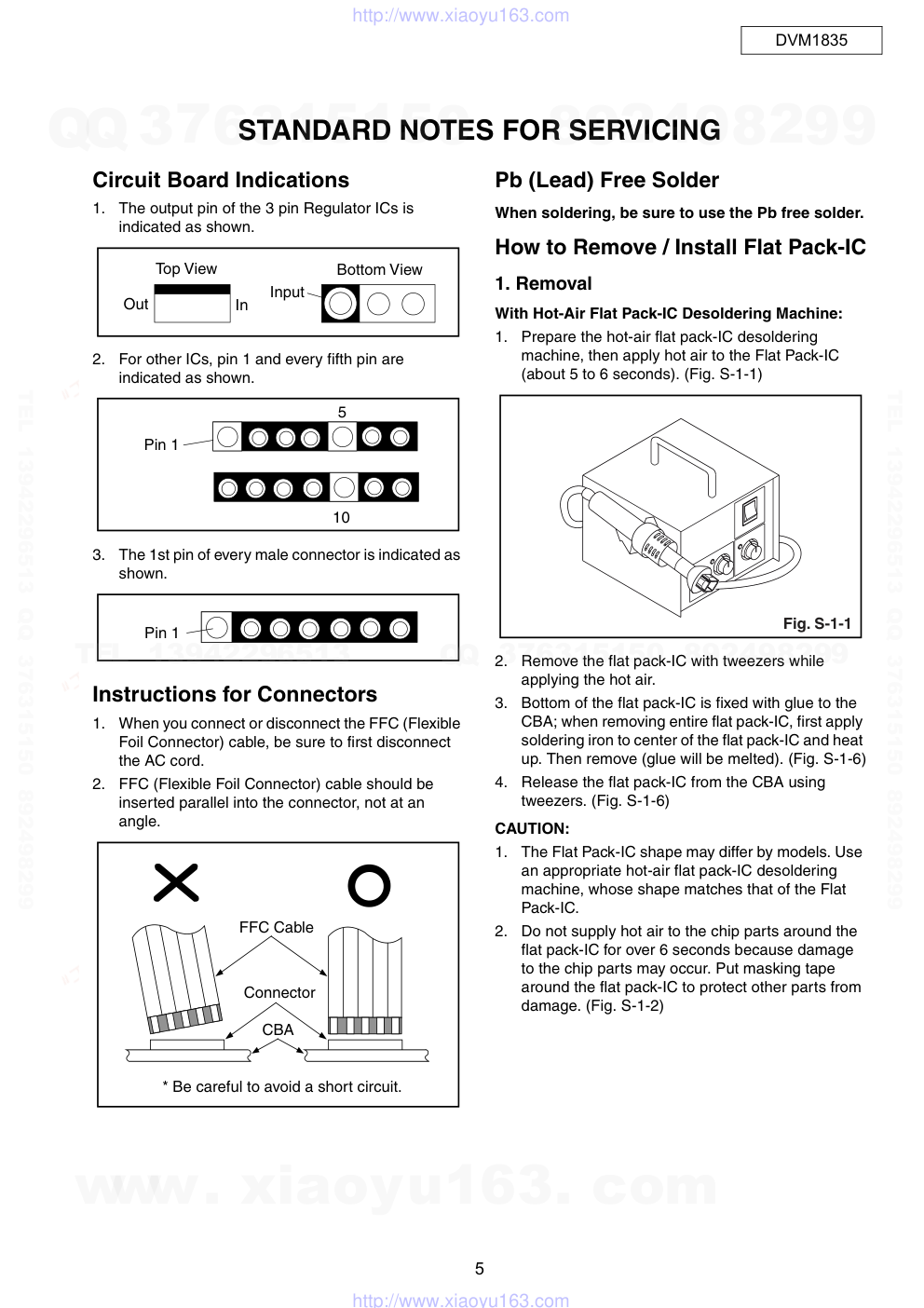

STANDARD NOTES FOR SERVICING
Circuit Board Indications
1.
The output pin of the 3 pin Regulator ICs is
indicated as shown.
2.
For other ICs, pin 1 and every fifth pin are
indicated as shown.
3.
The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1.
When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2.
FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.
How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1.
Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2.
Remove the flat pack-IC with tweezers while
applying the hot air.
3.
Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4.
Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1.
The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2.
Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out
In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
DVM1835
3.
The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1.
Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2.
Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3.
Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4.
Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
DVM1835
With Iron Wire:
1.
Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2.
Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3.
While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4.
Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5.
Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1.
Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2.
The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3.
Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
DVM1835
Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
CBA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
DVM1835

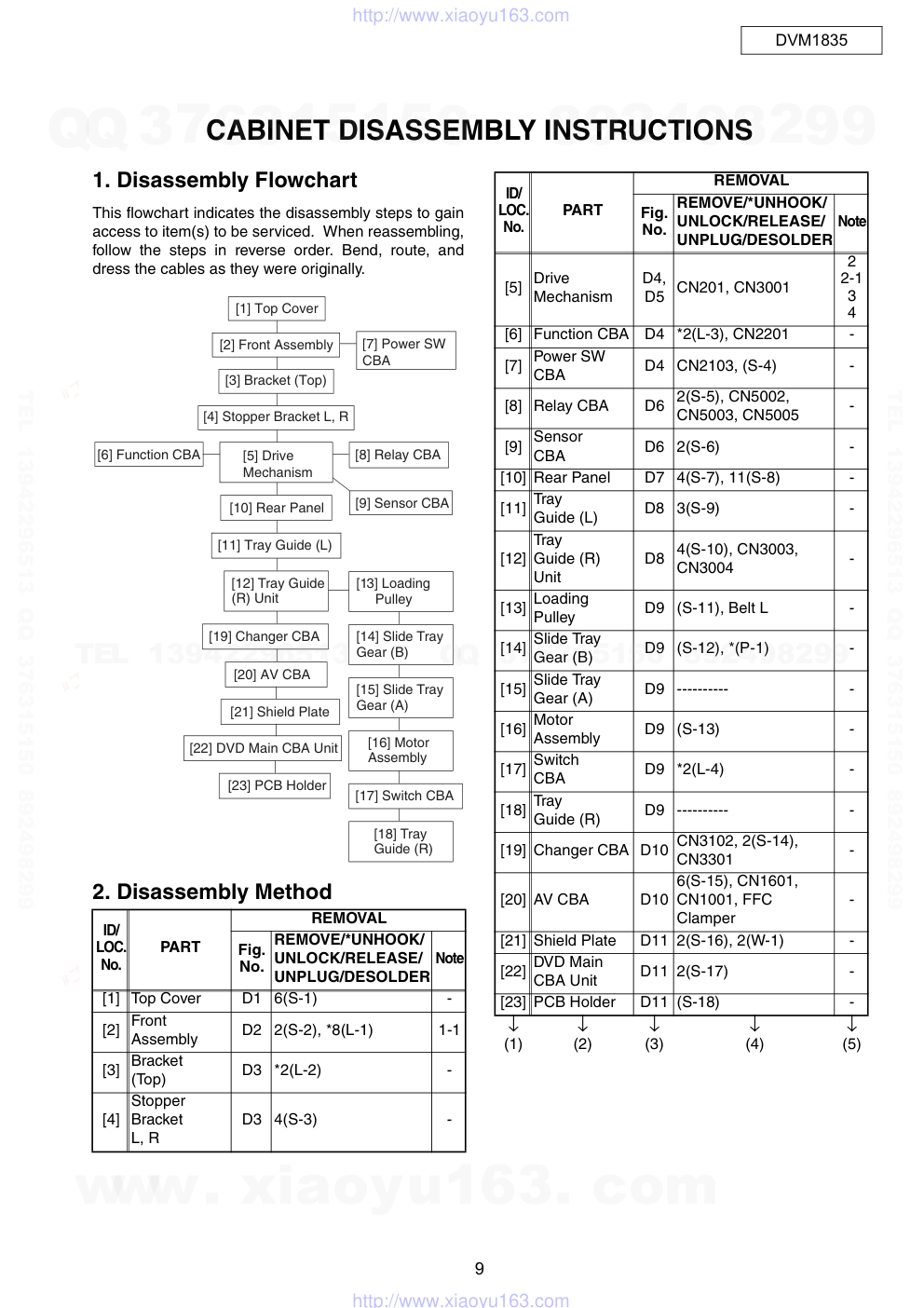

CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
[1] Top Cover
D1
6(S-1)
-
[2] Front
Assembly
D2
2(S-2), *8(L-1)
1-1
[3] Bracket
(Top)
D3
*2(L-2)
-
[4]
Stopper
Bracket
L, R
D3
4(S-3)
-
[1] Top Cover
[2] Front Assembly
[3] Bracket (Top)
[4] Stopper Bracket L, R
[5] Drive
Mechanism
[12] Tray Guide
(R) Unit
[19] Changer CBA
[22] DVD Main CBA Unit
[20] AV CBA
[23] PCB Holder
[13] Loading
Pulley
[8] Relay CBA
[6] Function CBA
[9] Sensor CBA
[14] Slide Tray
Gear (B)
[15] Slide Tray
Gear (A)
[16] Motor
Assembly
[17] Switch CBA
[18] Tray
Guide (R)
[7] Power SW
CBA
[21] Shield Plate
[10] Rear Panel
[11] Tray Guide (L)
[5] Drive
Mechanism
D4,
D5 CN201, CN3001
2
2-1
3
4
[6] Function CBA
D4 *2(L-3), CN2201
-
[7] Power SW
CBA
D4 CN2103, (S-4)
-
[8] Relay CBA
D6 2(S-5), CN5002,
CN5003, CN5005
-
[9] Sensor
CBA
D6 2(S-6)
-
[10] Rear Panel
D7 4(S-7), 11(S-8)
-
[11] Tray
Guide (L)
D8 3(S-9)
-
[12]
Tray
Guide (R)
Unit
D8 4(S-10), CN3003,
CN3004
-
[13] Loading
Pulley
D9 (S-11), Belt L
-
[14] Slide Tray
Gear (B)
D9 (S-12), *(P-1)
-
[15] Slide Tray
Gear (A)
D9 ----------
-
[16] Motor
Assembly
D9 (S-13)
-
[17] Switch
CBA
D9 *2(L-4)
-
[18] Tray
Guide (R)
D9 ----------
-
[19] Changer CBA D10 CN3102, 2(S-14),
CN3301
-
[20] AV CBA
D10
6(S-15), CN1601,
CN1001, FFC
Clamper
-
[21] Shield Plate
D11 2(S-16), 2(W-1)
-
[22] DVD Main
CBA Unit
D11 2(S-17)
-
[23] PCB Holder
D11 (S-18)
-
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
ID/
LOC.
No.
PART
REMOVAL
Fig.
No.
REMOVE/*UNHOOK/
UNLOCK/RELEASE/
UNPLUG/DESOLDER
Note
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
DVM1835

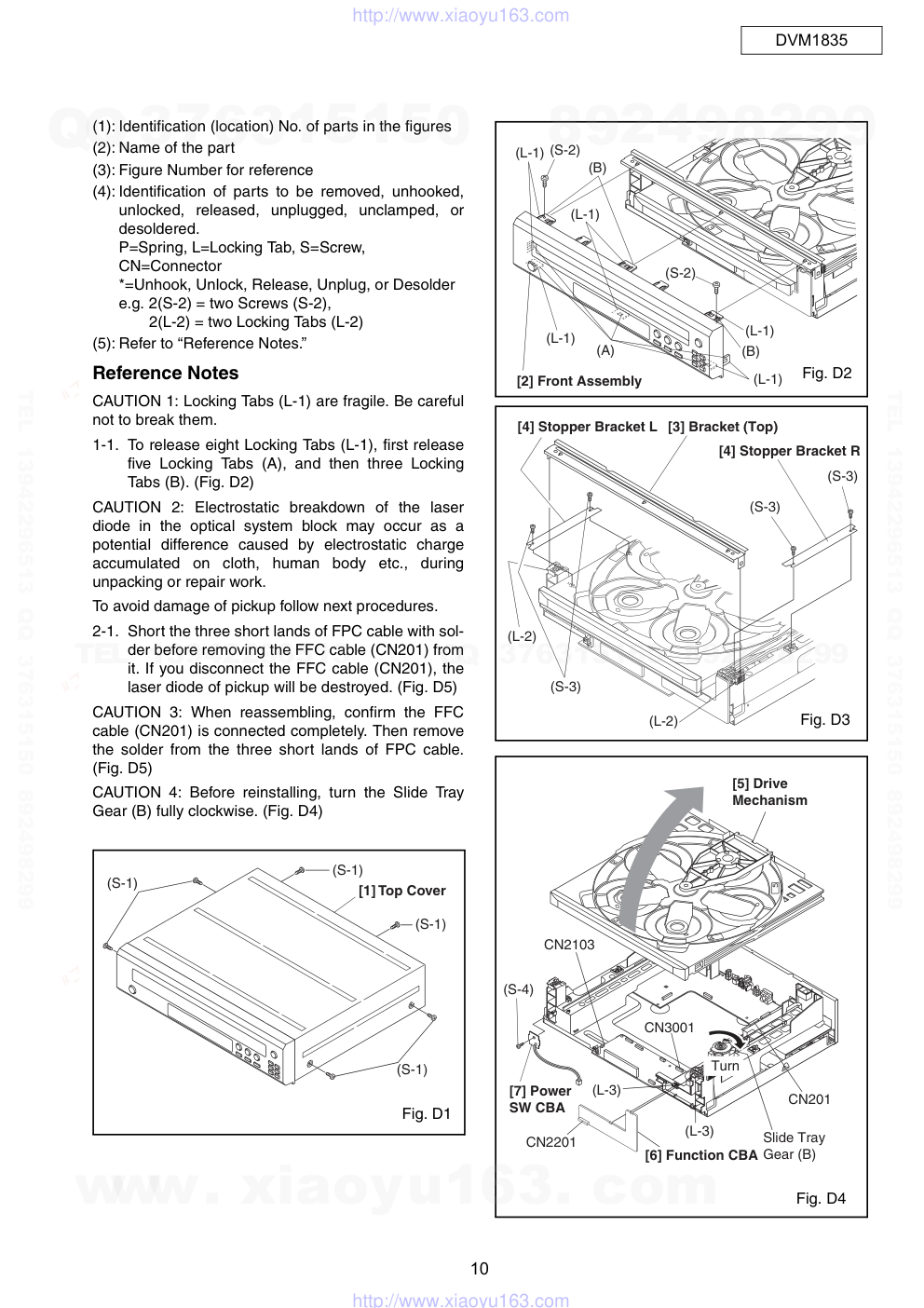

(1): Identification (location) No. of parts in the figures
(2): Name of the part
(3): Figure Number for reference
(4): Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P=Spring, L=Locking Tab, S=Screw,
CN=Connector
*=Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5): Refer to “Reference Notes.”
Reference Notes
CAUTION 1: Locking Tabs (L-1) are fragile. Be careful
not to break them.
1-1. To release eight Locking Tabs (L-1), first release
five Locking Tabs (A), and then three Locking
Tabs (B). (Fig. D2)
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
2-1. Short the three short lands of FPC cable with sol-
der before removing the FFC cable (CN201) from
it. If you disconnect the FFC cable (CN201), the
laser diode of pickup will be destroyed. (Fig. D5)
CAUTION 3: When reassembling, confirm the FFC
cable (CN201) is connected completely. Then remove
the solder from the three short lands of FPC cable.
(Fig. D5)
CAUTION 4: Before reinstalling, turn the Slide Tray
Gear (B) fully clockwise. (Fig. D4)
(S-1)
(S-1)
(S-1)
[1] Top Cover
(S-1)
Fig. D1
[2] Front Assembly
(L-1)
(A)
(B)
(B)
(L-1)
(L-1)
(S-2)
(L-1)
(L-1)
(S-2)
Fig. D2
[3] Bracket (Top)
[4] Stopper Bracket R
[4] Stopper Bracket L
(L-2)
(L-2)
(S-3)
(S-3)
(S-3)
Fig. D3
Slide Tray
Gear (B)
CN201
CN3001
CN2201
[6] Function CBA
(L-3)
(L-3)
(S-4)
[7] Power
SW CBA
CN2103
[5] Drive
Mechanism
Turn
Fig. D4
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
DVM1835
View for B
Pickup Unit
C
B
Short the three short
lands by soldering
View for C
Slide
View for A
OR
Short the three short lands by soldering
Drive Mechanism
A
Fig. D5
[8] Relay
CBA
[9] Sensor CBA
(S-6)
CN5002
CN5005
(S-5)
CN5003
Fig. D6
(S-7)
(S-7)
(S-7)
(S-7)
(S-8)
(S-8)
(S-8)
[10] Rear Panel
Fig. D7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
DVM1835
(S-9)
[12] Tray Guide
(R) Unit
[11] Tray Guide (L)
CN3004
CN3003
(S-10)
Fig. D8
(S-11)
Belt L
[13] Loading
Pulley
[14] Slide Tray Gear (B)
[16] Motor Assembly
[17] Switch CBA
(S-13)
(L-4)
[15] Slide Tray Gear (A)
[18] Tray
Guide (R)
(P-1)
(S-12)
Fig. D9
CN3102
CN3301
[20] AV CBA
[19] Changer CBA
(S-15)
(S-15)
(S-15)
FFC
Clamper
(S-14)
(S-14)
CN1601
CN1001
Fig. D10
(S-16)
(S-17)
(S-16)
(W-1)
(S-18)
[21] Shield Plate
[23] PCB
Holder
[22] DVD
Main CBA
Unit
Fig. D11
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
DVM1835
TROUBLESHOOTING
FLOW CHART NO.2
The fuse blows out.
After servicing, replace the fuse.
Check the presence that the primary component
is leaking or shorted and service it if defective.
Check the presence that the rectifying diode or
circuit is shorted in each rectifying circuit of
secondary side, and service it if defective.
FLOW CHART NO.3
When the output voltage fluctuates.
Yes
No
FLOW CHART NO.4
When buzz sound can be heard in the vicinity of AV circuit.
Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side,
and service it if defective. (D1003, D1006, D1008, D1016, D1030, IC1002, Q1002, Q1004, Q1010, Q1011, Q1014)
Does the photo coupler circuit on the secondary
side operate normally?
Check IC1001, D1012, D1024 and their periphery,
and service it if defective.
Check IC1001, IC1006, D1015 and their
periphery, and service it if defective.
FLOW CHART NO.5
-FL is not outputted.
Is -24V voltage supplied to the anode of D1003?
Check D1003 and periphery circuit, and service it
if defective.
Check if there is any leak or short-circuit
on the loaded circuit, and service it if defective.
Yes
No
FLOW CHART NO.1
The power cannot be turned on.
Is the fuse normal?
Is normal state restored when once unplugged
power cord is plugged again after several seconds?
Is the EV +9V line voltage normal?
Is each voltage of the secondary side normal?
See FLOW CHART No.2
Check if there is any leak or shor-circuiting on the
primary circuit component, and service it if defective.
(Q1001, Q1003, T1001, D1001, D1002, D1004,
D1005, D1011, C1003, C1005)
Check each rectifying circuit of the secondary circuit
and service it if defective.
Yes
Yes
Yes
Is the voltage of 3.3V supplied to pin(1) of IC3001?
Yes
When pressing POWER button (SW2201), is the
voltage of 0V supplied to pin(38) of IC3001?
Yes
Replace IC3001.
Yes
No
No
No
No
Check POWER button (SW2201) and their
periphery, and service it if defective.
No
Check CHG+3.3V line and service it if defective.
See FLOW CHART No.2
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
DVM1835
FLOW CHART NO.7
P-ON+5V is not outputted. (P-ON+9V is outputted normally.)
Is the "H" signal inputted into the base of Q1004?
Replace Q1004.
Check R1068 and D1046, and service it if defective.
Yes
No
FLOW CHART NO.8
P-ON+3.3V is not outputted. (P-ON+9V is outputted normally.)
Is 3.3V voltage supplied to the collector of Q1011?
Replace Q1011 and R1067.
Check D1008, D1015, C1007, C1038, L1007 and
the periphery circuit, and service it if defective.
Yes
No
FLOW CHART NO.9
EV+5V is not outputted.
Is EV+9V outputted normally?
Check Q1014, D1047 and the periphery circuit,
and service it if defective.
Refer to "FLOW CHART NO.6"
Yes
No
FLOW CHART NO.6
P-ON+9V (EV+9V) is not outputted.
Is 9V voltage supplied to the emitter of Q1002?
Is the voltage of base on Q1002 lower than the
voltage of emitter on Q1002 when turning the power on?
Replace Q1002.
Check D1030, C1035, C1048, L1009 and
the periphery circuit, and service it if defective.
Check Q1016 and service it if defective.
Yes
Yes
No
No
FLOW CHART NO.10
EV+1.5V is not outputted.
Is 2.5V voltage supplied to Pin(1) of IC1002?
Is 1.25V voltage supplied to Pin(4) of IC1002?
Replace IC1002.
Replace IC3001.
Check the circuit between Pin(8)
of IC3001 and Pin(4) of IC1002,
and service it if defective.
Check D1006, C1014, C1050, L1008 and the
periphery circuit, and service it if defective.
Is the "L" signal outputted into Pin(8) of IC3001?
Yes
Yes
Yes
No
No
No
FLOW CHART NO.11
EV+3.3V is not outputted.
Is 3.3V voltage supplied to emitter of Q1010?
Is the "L" signal inputted to base of Q1012?
Check Q1010, Q1012, R1087 and R1088, and
service it if defective.
Replace IC3001.
Check the circuit between Pin(8)
of IC3001 and base of Q1012,
and service it if defective.
Check D1008, D1015, C1007, C1038, L1007 and
the periphery circuit, and service it if defective.
Is the "L" signal outputted into Pin(8) of IC3001?
Yes
Yes
Yes
No
No
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
DVM1835
Yes
No
FLOW CHART NO.13
The key operation is not functioning.
Are the contact point and the installation state of the
key switches (SW2201 - 2214) normal?
Is the control voltage normally supplied to pins(38,
39, 40, 41, 42) of IC3001?
Check the switches (SW2201 - 2214)
and their periphery, and service it if defective.
No
Re-install the switches (SW2201 - 2214)
correctly or replace the poor switch.
Replace IC3001.
Yes
Yes
Yes
Yes
Yes
No
No
No
No
FLOW CHART NO.12
The fluorescent display tube does not light up.
Is 3.3V voltage supplied to Pin(6) and
Pin(24) of IC2001?
Is the voltage of approximately -24V to -28V
supplied to Pin(15) of IC2001?
Is there 500kHz oscillation at Pin(26) of IC2001?
Are the filament voltage supplied between
Pins(1, 2) and Pins(34, 35) of the fluorescent
display tube? And the negative voltage applied
between these pins and GND?
Replace the fluorescent display tube.
Check the P-ON+3.3V line and service it if defective.
Check the -FL (-28V) line and service it if defective.
Check R2015, IC2001 and their periphery, and
service it if defective.
Check the EV+3.3V
line, and service
it if defective.
Is the "H" signal inputted
to base of Q1016?
Check D1016, D1017, T1001, and their periphery,
and service it if defective.
Is -17V voltage supplied to collector of Q1005?
No
Yes
Yes
No
Check Q1015, Q1016, D1055, and
their periphery, and service it if defective.
38pin
39pin
40pin
41pin
42pin
KEY1
KEY2
KEY3
KEY4
KEY5
0.00 - 0.50
SW2201
POWER
SW2204
SKIP DOWN
SW2207
DISC-5
SW2210
DISC-3
SW2213
STILL/PAUSE
0.51 - 1.53
SW2202
STOP
SW2205
SKIP UP
SW2208
DISC-4
SW2211
DISC-2
SW2214
EXTRA
CHANGE
1.54 - 2.57
SW2203
PLAY
SW2206
SELECT
SW2209
OPEN/CLOSE
SW2212
DISC-1
-----
2.58 - 3.30
(KEY OFF)
(KEY OFF)
(KEY OFF)
(KEY OFF)
(KEY OFF)
IC3001
Terminal Voltage of Pins (38 - 42) on IC3001
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
DVM1835
FLOW CHART NO.17
[No Disc] indicated. (When the focus error occurs.)
Replace the DVD Main CBA Unit.
No improvement can be found.
Original DVD Main CBA Unit is poor.
Replace the DVD Mechanism.
No
Yes
Yes
FLOW CHART NO.16
The disc tray cannot be opened and closed.
Replace the DVD Main CBA Unit.
Original DVD Main CBA Unit is poor.
Replace the DVD Mechanism.
No improvement can be found.
No
Yes
FLOW CHART NO.15
The disc tray cannot be opened and closed. (It can be done using the remote control unit.)
Is the normal control voltage inputted to Pin(40) of
IC3001?
Refer to "FLOW CHART NO.16"
Replace the "OPEN/CLOSE" button (SW2209).
No
FLOW CHART NO.14
No operation is possible from the remote control unit.
Operation is possible from the DVD, but no
operation is possible from the remote control unit.
Replace the infrared remote control receiver (RM2001).
Or replace the remote control unit.
Check the line between Pin(1) of RM2001 and
Pin(22) of CN1001, and service it if defective.
Is the "L" pulse sent out Pin(1) terminal of receiver
(RM2001) when the infrared remote control is activated?
Is the "L" pulse supplied to the Pin(22) of CN1001?
Replace the DVD Main CBA Unit or DVD Mechanism.
Yes
Yes
Is 5V voltage supplied to the Pin(3) terminal of
the infrared remote control receiver (RM2001)?
Yes
No
Check EV+5V line and service it if defective.
No
No
Yes
Check the line between Pin(1) of RM2001 and
Pin(6) of IC3001, and service it if defective.
Is the "L" pulse supplied to the Pin(6) of IC3001?
Yes
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
DVM1835
FLOW CHART NO.20
Both functions of picture and sound do not operate normally.
Replace the DVD Main CBA Unit.
Replace the DVD Mechanism.
No
Yes
No improvement can be found.
Original DVD Main CBA Unit is poor.
FLOW CHART NO.18
[No Disc] indicated. (When the focus servo is not functioning.)
FLOW CHART NO.19
[No Disc] indicated. (When the laser beam does not light up.)
Replace the DVD Main CBA Unit.
Replace the DVD Mechanism.
No
Yes
Replace the DVD Main CBA Unit.
Replace the DVD Mechanism.
No
Yes
No improvement can be found.
Original DVD Main CBA Unit is poor.
No improvement can be found.
Original DVD Main CBA Unit is poor.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
DVM1835
Is 5V voltage applied to the Pin(1, 24) of IC1402 ?
Replace IC1402.
Check P-ON+5V line and
service it if detective.
Are the video signals outputted to each pin
of IC1402?
Yes
No
Yes
Yes
No
IC1402 18PIN S-Y(I/P)
IC1402 15PIN Pb/Cb
IC1402 13PIN Pr/Cr
IC1402 21PIN CVBS
IC1402 23PIN S-C
Check the periphery of JK1403 from Pins (13, 15,
18) of IC1402 and service it if detective.
Check the periphery of JK1403 from Pin(21) of
IC1402 and service it if detective.
Check the periphery of JK1401 from
Pin (18) of IC1402 and service it if detective.
Check the periphery of JK1401 from
Pin (23) of IC1402 and service it if detective.
Are the video signals outputted to the specific
output terminal?
Are the component video signals outputted to the
VIDEO OUT terminal (JK1403)?
Are the luminance signals outputted to the
S-OUT terminal (JK1401)?
Are the chroma signals outputted to the
S-OUT terminal (JK1401)?
No
No
No
No
Are the composite video signals outputted to
the VIDEO OUT terminal (JK1403)?
FLOW CHART NO.21
Picture does not appear normally.
Set the disc on the disc tray, and playback.
Are the video signals outputted to each pin of
CN1601 on the AV CBA?
Replace the DVD Main CBA Unit or DVD Mechanism.
Check the line between each pin of CN1601 and
each pin of IC1402 on the AV CBA, and service
it if detective.
CN1601 9PIN → IC1402 2PIN S-C
CN1601 7PIN → IC1402 6PIN S-Y(I/P)
CN1601 5PIN → IC1402 9PIN Pb/Cb
CN1601 3PIN → IC1402 11PIN Pr/Cr
Are the video signals shown above inputted into
each pin of IC1402?
Yes
No
No
CN1601 3PIN Pr/Cr
CN1601 5PIN Pb/Cb
CN1601 7PIN S-Y(I/P)
CN1601 9PIN S-C
IC1402 2PIN S-C
IC1402 6PIN S-Y(I/P)
IC1402 9PIN Pb/Cb
IC1402 11PIN Pr/Cr
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
19
DVM1835
FLOW CHART NO.22
Audio is not outputted.
Set the disc on the disc tray, and playback.
Are the analog audio signals outputted to each pin
of CN1601 on AV CBA?
Is the "H" level mute signal outputted to CN1601
on AV CBA ?
CN1601 13PIN AUDIO-L
CN1601 15PIN AUDIO-R
CN1601 12PIN A-MUTE
CN1601 16PIN A-R-MUTE
CN1601 14PIN A-L-MUTE
IC1201 1PIN AUDIO-L
IC1201 7PIN AUDIO-R
IC1201 2PIN AUDIO-L
IC1201 6PIN AUDIO-R
Replace the DVD Main CBA Unit or DVD Mechanism.
Replace the DVD Main CBA Unit or DVD Mechanism.
Replace IC1201.
Check the periphery between Pins(1,7) of IC1201
and JK1201, and service it if defective.
Check each line between each pin of CN1601
and each pin of IC1201 on AV CBA, and service it
if defective.
CN1601 13PIN → IC1201 2PIN AUDIO-L
CN1601 15PIN → IC1201 6PIN AUDIO-R
Are the analog audio signals inputted to each pin
of IC1201.
Are the analog audio signals inputted to each pin
of IC1201?
Are the audio signals outputted to the specific
output terminal?
Are the audio signals outputted to the audio
terminal (JK1201)?
Yes
Yes
Yes
Yes
No
No
No
No
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
DVM1835
FLOW CHART NO.23
Rotary tray does not function.
Is the normal control voltage inputted to pins
(39, 40, 41) of IC3001? For each terminal voltage,
refer to FLOW CHART No.13
Is the voltage of 3.3V supplied to pin(1) of IC3001?
Is the normal control voltage outputted to pins(2,4)
of IC3003?
Check the switches (SW2206 - 2208, 2210 - 2212)
and their periphery, and service it if defective.
Replace IC3001.
Replace Rotary Motor.
Check EV+9V line and
service it if detective.
Check CHG 3.3V line and service it if detective.
Is the normal control voltage outputted to pins
(24, 25) of IC3001?
Is the voltage of 9V supplied to pin(6) of IC3003?
Replace IC3003.
Yes
Yes
Yes
Yes
No
Yes
No
No
No
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
DVM1835
BLOCK DIAGRAMS
System Control / Servo Block Diagram
59
27
7
8
3
15
10
14
26
1
2
3
4
6
23
5
17
18
12
11
14
13
15
16
25
24
FP-STB
54
FP-DIN
55
FP-DOUT
61
REMOTE1
53
FP-CLK
CN401
CN1001
CN3102
REMOTE
SENSOR
KEY SWITCH
RM2001
DVD MAIN CBA UNIT
RELAY CBA
FG CBA
SWITCH CBA
SENSOR CBA
RELAY CBA
IC301 (SERVO DRIVE)
IC451 (CLOCK GENERATOR)
IC3004 (LOADING MOTOR DRIVE)
Q3002
Q3004
Q3005
Q3003
CHANGER
CBA
AV CBA
FUNCTION CBA
CHANGER CBA
IC202
(OP AMP)
12
14
CN301
CN5001
CN5003
DRIVE
CBA
FG
SENSOR
SLED
MOTOR
SPINDLE
MOTOR
ROTARY
MOTOR
Q5101
Q5102
IC101 (MICRO CONTROLLER)
IC3001
(CH MICROPROCESSOR)
+-
+-
+-
+-
+-
+-
+-
SLED
MOTOR
DRIVE
FOCUS
ACTUATOR
DRIVE
1/4
1/4
PLL2
X451
MULTI
PLL
X'TAL
OSC
36.864MHz
OSC
SPINDLE
MOTOR
DRIVE
TRACKING
ACTUATOR
DRIVE
EXT CLOCK
+3.3V
+3.3V
DRIVE
CONTROL
LOGIC
CLK33M
BE CLOCK
172
170
150
FG-IN
SLD
70
SPDL
71
TRACKING
DRIVE
152 FOCUS
DRIVE
66
TO DIGITAL SIGNAL
PROCESS BLOCK
DIAGRAM
FS(+)
FS(-)
TS(+)
TS(-)
TO
VIDEO/ AUDIO
BLOCK DIAGRAM
TO
VIDEO/ AUDIO
BLOCK DIAGRAM
51
50
87
PCM-SCLK
86
ADAC-MD
ADAC-MC
ADAC-ML
A-MUTE
A-MUTE
ADAC-MC
ADAC-ML
ADAC-MD
17
92
FSEL
RESET
68
RESET
IC461
5
4
+3.3V
3
SP(+)
4
SP(-)
8
SL(-)
9
SL(+)
1
3
4
8
9
1
FG-IN
16 FP-STB
16
18 FP-DIN
18
20 FP-DOUT
20
21 FP-CLK
21
22 REMOTE1 22
CN1102
11 FP-STB
11
12 FP-DIN
12
13 FP-DOUT
13
14 FP-CLK
14
16 REMOTE2 16
CN2201
CN2101
2 KEY-1
2
3 KEY-2
3
4 KEY-3
4
POWER
SWITCH CBA
CN2203
CN2103
1 KEY-1
1
2 GND
2
3
STANDBY-LED
3
5 KEY-4
5
6 KEY-5
KEY-1
KEY-2
KEY-3
KEY-4
KEY-5
6
SW2201
D2201
STANDBY
POWER
SW3102 TRAY CLOSE
SW3101
TRAY OPEN
DISC SENSOR
RT SENSOR
3
4
8
9
1
CN3001 CN3301
12
9
13
14
10
12
9
13
14
10
7
12
11
10
6
38
39
40
41
42
23
30
13
4
5
32
CN3101
CN3004
1 ST-CLOSE
1
2 GND
2
CN5101
CN5002
1 D-SENS-A
1
2 RT-SENS-A 2
CN5001
CN3001
8 D-SENS-A
8
6 RT-SENS-A 6
CN5001
CN3001
7 RM2
7
5 RM1
5
CN5001
CN3001
1 CHK-ON
1
3 CHK-OFF
3
3 ST-OPEN
3
M
M
M
LOADING
MOTOR
M
CN5002
RM2
9
RM1
8
CN5002
CHK-ON
6
CHK-OFF
7
GND
5
CN3003
LM+
1
LM-
2
4
2
9
7
1
IC3003 (ROTARY MOTOR DRIVE)
DRIVE
4
2
9
7
1
14
31
24
25
26
Q3006
AMP
AMP
UP/DOWN
SW
CONTROL
LOGIC
ST-OP/CL
FP-RIN
FP-FIN
ST-GAIN
RT-RIN
RT-FIN
RT-GAIN
D-SENS-A
RT-SENS-A
CHK-ON
FP-STB
FP-DIN
FP-DOUT
FP-CLK
REMOTE
STANDBY-LED
34
36
37
35
VFD-STB
VFD-DIN
VFD-DOUT
VFD-CLK
2
28
27
1
VFD-STB
VFD-DIN
VFD-DOUT
VFD-CLK
GRID
SEGMENT
IC2001
FRONT
PANEL
CONTROL
12
7
8
9
10
11
13
14
16
23
17
~
a
b
c
d
e
f
g
h
i
1G
7G
~
FIP
FL2001
TO
VIDEO/ AUDIO
BLOCK DIAGRAM
REMOTE2
REMOTE1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
DVM1835
Digital Signal Process Block Diagram
VIDEO SIGNAL
AUDIO SIGNAL
C 6
D 7
A 8
B 5
F 10
E 2
DVD-LD 14
CD-LD 12
PD-MONI 13
FS(+) 18
FS(-) 19
TS(+) 20
TS(-) 17
CN201
CN201
CN201
IC201
(SW)
IC105 (LATCH)
IC102 (SDRAM)
IC101 (MICRO CONTROLLER)
FS
FS(+)
CD/DVD
FS(-)
TS(+)
TS(-)
TS
PICK-UP
UNIT
RELAY
CBA
DETECTOR
CD/DVD 9
Q251,Q252
CD
DVD
AMP
Q253,Q254
AMP
4
1
3
6
GND(DVD-PD) 15
GND(CD-PD) 16
GND(LD) 11
6
7
8
5
10
2
14
12
13
18
19
20
17
9
15
16
11
TO SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
RF
SIGNAL
PROCESS
CIRCUIT
DVD/CD
FORMATTER
AUDIO
I/F
VIDEO
I/F
NTSC/PAL
ENCODER
DMA
BCU
INST.
ROM
32BIT
CPU
DATA
ROM
INTERRUPT
CONTROLLER
WATCH DOG
TIMER
CPU
I/F
TIMER
DECODER
I/F
CPU
I/F
READ
MEMORY
DATA
ROM
DSP
DECODER
PIXEL
OPERATION
I/O
PROCESSOR
INST.
ROM
DATA
ROM
INST.
ROM
DATA
ROM
INST.
ROM
SERIAL
D/A
GENERAL
I/O
INTERRUPT
CONTROLLER
TIMER
WATCH DOG
TIMER
32BIT CPU
STREAM
I/F
EXTERNAL
MEMORY
I/F
SDRAM
ECC
UMAC
124
125
122
123
128
129
126
127
131
130
135
133
132
134
78
DEBUG
BCU
INST
CACHE
D TYPE
LATCH
DATA
CACHE
D/A
D/A
D/A
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
158
164
Y(I/P)
C
Pr/Cr
Pb/Cb
VIDEO-Y(I/P)
VIDEO-C
VIDEO-Pr/Cr
VIDEO-Pb/Cb
TO VIDEO
/AUDIO
BLOCK
DIAGRAM
181
SPDIF
175
PCM-BCK
176
PCM-DATA3
174
PCM-LRCLK
161
160
EXADT (0-15), EXADR (16-19)
EXADT (0-15), EXADR (16-19)
EXADT (0-7)
EXADT (8-15)
EXADR (0-7)
EXADR (0-15)
EXADR (8-15)
SDRAM DATA(0-31)
SDRAM DATA(0-31)
SDRAM ADDRESS(0-10)
SDRAM ADDRESS(0-10)
2
9
~
12
19
~
210
235
~
IC104 (LATCH)
D TYPE
LATCH
2
9
~
12
19
~
2
13
184
205
247
256
~
~
~
2
13
31
56
74
85
~
~
~
IC103 (FLASH ROM)
FLASH
ROM
29
36
38
45
~
~
DVD MAIN CBA UNIT
24
27
60
66
~
~
EXADT (0-15)
EXADR (16-19)
~
1
9
16
25
48
~
C 6
D 7
A 8
B 5
F 10
E 2
DVD-LD 14
CD-LD 12
PD-MONI 13
FS(+) 18
FS(-) 19
TS(+) 20
TS(-) 17
CN5005
CN5005
CN5005
CN5004
CN5004
CN5004
CD/DVD 9
GND(DVD-PD) 15
GND(CD-PD) 16
GND(LD) 11
I/P-SW
85
I/P-SW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
DVM1835
Video / Audio Block Diagram
IC601 (AUDIO DAC)
7
8
12
11
DIGITAL
AUDIO OUT
JK1202
JK1201
AMP
Q1351
IC1201
Q1203
Q1201
Q1202
+3.3V
(AMP)
CN601
CN1601
13
13
AUDIO-L
15
15
AUDIO-R
14
14
A-L-MUTE
16
16
A-R-MUTE
12
12
A-MUTE
AUDIO-L
OUT
1
2
3
13
14
15
16
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
TO
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
SERIAL
PORT
SERIAL
CONTROL
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
DAC
LPF+AMP L-CH
R-CH
LPF+AMP
DAC
ZERO DETECT
SYSTEM CLOCK
1
2
6
7
5
AUDIO-R
OUT
PCM-BCK
SPDIF
PCM-DATA3
PCM-LRCLK
ADAC-MD
ADAC-MC
ADAC-ML
PCM-SCLK
AV CBA
DVD MAIN CBA UNIT
AUDIO SIGNAL
18
18
SPDIF
A-MUTE
+3.3V
Q1204
WF6
3
WF4
WF5
CN601
9
9
VIDEO-C
7
7
VIDEO-Y(I/P)
5
5
VIDEO-Pb/Cb
3
3
VIDEO-Pr/Cr
VIDEO-C
VIDEO-Y(I/P)
VIDEO-Pb/Cb
VIDEO-Pr/Cr
JK1401
S-VIDEO OUT
CN1601
Y
C
VIDEO-Pb/Cb
OUT
VIDEO-Y
OUT
VIDEO-Pr/Cr
OUT
JK1403
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
VIDEO SIGNAL
WF1
WF2
VREF
WF3
IC1402 (VIDEO DRIVER)
18
4dB
AMP
2dB
AMP
LPF
DRIVER
21
2dB
AMP
DRIVER
4dB
AMP
2dB
AMP
LPF
DRIVER
15
4dB
AMP
2dB
AMP
LPF
DRIVER
9
13
4dB
AMP
2dB
AMP
LPF
MUTE
DRIVER
11
3
6
2
23
SW1401
+5V
PROGRESSIVE
/INTERLACE
IC1204
JK3501
REMOTE
CONTROL-IN
REMOTE
CONTROL-OUT
IC3510
(AMP)
1
7
AMP
BUFFER
Q3503
REMOTE2
REMOTE1
TO SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
VIDEO OUT
(COMPOSITE)
4
3
1
2
1
1
I/P-SW
DIGITAL
AUDIO OUT
(OPTICAL)
I/P-SW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
DVM1835
Power Supply Block Diagram
AC1001
AC CORD
F1001
1A 250V
LINE
FILTER
L1001
D1001, D1002
D1004, D1005
Q1003
Q1008
Q1001
2
4
7
3
4
IC1001
ERROR
VOLTAGE DET
T1001
11
12
13
15
14
16
17
18
IC1006
(SHUNT REGULATOR)
SWITCHING
D1008
D1003
Q1002
Q1016
D1006
RECTIFIER
D1030
RECTIFIER
D1016
RECTIFIER
SWITCHING
CONTROL
LATCH
REG
1
2
6
BRIDGE
RECTIFIER
HOT
AV CBA
CN1001
CN1102
+1.5V
REG.
IC1002
HOT CIRCUIT. BE CAREFUL.
1 EV+1.5V
P-ON+9V
2 EV+1.5V
3 EV+1.5V
4 EV+3.3V
5 EV+3.3V
13 P-ON+5V
14 EV+9V
15 EV+9V
17 P-ON+3.3V
1 F1
2 F2
3 -FL
4 EV+9V
5 EV+5V
6 P-ON+3.3V
7 CHG+3.3V
8 PWSW
P-ON+5V
P-ON+3.3V
Q1005
Q1015
Q1004
Q1010
Q1012
Q1014
Q1011
SCHOTTKY
BARRIER
SCHOTTKY
BARRIER
TO DVD MAIN
CBA UNIT
CN401
TO
CHANGER
CBA CN3102
A V
F
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
DVM1835
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.
Notes:
1.
Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.
2.
All resistance values are indicated in ohms
(K = 103, M = 106).
3.
Resistor wattages are 1/4W or 1/6W unless
otherwise specified.
4.
All capacitance values are indicated in µF
(P = 10-6 µF).
5.
All voltages are DC voltages unless otherwise
specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
DVM1835
LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER
QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.
3. Note:
1.
Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.
2.
To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:
5. How to read converged lines
6. Test Point Information
A V
F
This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.
2
3
1
5.0
(2.5)
5.0
The same voltage for
both PLAY & STOP modes
Indicates that the voltage
is not consistent here.
PLAY mode
STOP mode
(Unit: Volt)
3
2
1
A
B
C
D
1-B1
1-D3
AREA D3
AREA B1
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".
2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
DVM1835
DVD Main 1/3 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
DVM1835
DVD Main 2/3 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
DVM1835
IC101 Voltage Chart
PIN.NO
PLAY
STOP
PIN.NO
PLAY
STOP
PIN.NO
PLAY
STOP
PIN.NO
PLAY
STOP
1
3.3
3.3
33
2.2
2.9
65
0.1
0.1
97
-----
-----
2
~
~
34
~
~
66
1.2
2.5
98
1.6
1.6
3
~
~
35
~
~
67
1.6
1.6
99
0
0
4
0
0
36
~
~
68
3.4
3.4
100
-----
-----
5
~
~
37
~
~
69
0
0
101
1.3
1.3
6
~
~
38
0.3
0.5
70
1.7
1.7
102
-----
-----
7
3.3
3.3
39
0.1
0.1
71
2.4
1.7
103
-----
-----
8
~
~
40
~
~
72
-----
-----
104
3.3
3.3
9
~
~
41
~
~
73
-----
-----
105
0.9
0.9
10
~
~
42
3.3
3.3
74
-----
-----
106
0
0
11
0
0
43
0
0
75
3.4
3.4
107
0.8
0.8
12
~
~
44
~
~
76
-----
-----
108
1.6
1.6
13
~
~
45
~
~
77
-----
-----
109
2.1
2.1
14
3.3
3.3
46
2.0
2.6
78
0.1
0.1
110
2.6
2.6
15
1.5
1.5
47
-----
-----
79
3.3
3.3
111
2.0
2.0
16
0
0
48
-----
-----
80
0
0
112
0.7
0.9
17
3.4
3.4
49
-----
-----
81
3.3
3.3
113
2.1
2.1
18
3.4
3.4
50
3.4
3.4
82
-----
-----
114
1.8
1.8
19
~
~
51
3.4
3.4
83
3.4
3.4
115
1.4
1.4
20
~
~
52
-----
-----
84
-----
-----
116
0.3
0.3
21
~
~
53
3.4
3.4
85
2.4
2.4
117
1.6
1.6
22
~
~
54
3.4
3.4
86
3.4
0.1
118
3.3
3.3
23
3.3
3.3
55
3.3
3.3
87
3.4
3.4
119
0
0
24
0
0
56
3.3
3.3
88
-----
-----
120
1.9
1.9
25
0.4
0.4
57
0
0
89
-----
-----
121
1.9
1.9
26
0.9
0.6
58
0
0
90
-----
-----
122
2.4
2.4
27
~
~
59
3.3
3.3
91
3.3
3.3
123
2.4
2.4
28
~
~
60
3.4
3.4
92
1.7
1.5
124
2.4
2.4
29
3.3
3.3
61
3.1
3.1
93
0
0
125
2.4
2.4
30
0
0
62
-----
-----
94
-----
-----
126
2.0
2.0
31
~
~
63
-----
-----
95
-----
-----
127
2.0
2.0
32
~
~
64
-----
-----
96
-----
-----
128
2.0
2.0
PIN.NO
PLAY
STOP
PIN.NO
PLAY
STOP
PIN.NO
PLAY
STOP
PIN.NO
PLAY
STOP
129
2.0
2.0
161
0.5
0.5
193
~
~
225
1.9
1.9
130
2.2
2.2
162
1.4
1.4
194
0
0
226
3.3
3.3
131
2.3
2.3
163
-----
-----
195
3.3
3.3
227
~
~
132
0.4
0.1
164
0.9
0.9
196
~
~
228
~
~
133
1.2
0.4
165
3.3
3.3
197
~
~
229
~
~
134
0.4
0.1
166
1.5
1.5
198
0
0
230
0
0
135
0.2
0.2
167
0
0
199
~
~
231
-----
-----
136
2.3
2.3
168
2.1
2.1
200
~
~
232
3.3
3.3
137
1.7
1.7
169
0
0
201
~
~
233
3.3
3.3
138
0
0
170
0.8
0.8
202
3.3
3.3
234
1.6
1.6
139
1.7
1.7
171
3.3
3.3
203
~
~
235
~
~
140
1.7
1.7
172
1.6
1.6
204
~
~
236
0
0
141
1.7
1.7
173
-----
-----
205
~
~
237
1.7
1.7
142
1.7
1.7
174
1.8
1.8
206
0
0
238
3.0
3.0
143
0.5
0.5
175
1.7
1.7
207
2.4
3.5
239
3.3
3.3
144
1.6
1.6
176
1.4
0.1
208
2.4
2.1
240
3.3
3.3
145
3.3
3.3
177
0
0
209
3.3
3.3
241
0
0
146
1.8
1.8
178
-----
-----
210
~
~
242
3.2
3.2
147
-----
-----
179
-----
-----
211
0
0
243
2.4
2.1
148
-----
-----
180
-----
-----
212
~
~
244
1.5
1.5
149
3.3
3.3
181
1.7
1.7
213
1.5
1.5
245
0
0
150
1.7
1.7
182
3.3
3.3
214
~
~
246
2.4
2.1
151
0
0
183
0
0
215
0
0
247
~
~
152
1.7
1.7
184
~
~
216
~
~
248
0
0
153
3.3
3.3
185
~
~
217
~
~
249
~
~
154
1.4
1.4
186
1.5
1.5
218
3.3
3.3
250
3.3
3.3
155
0
0
187
~
~
219
~
~
251
~
~
156
2.2
2.2
188
~
~
220
~
~
252
~
~
157
3.3
3.3
189
3.3
3.3
221
0
0
253
~
~
158
0.7
0.7
190
~
~
222
1.5
1.5
254
0
0
159
0
0
191
~
~
223
1.9
1.9
255
~
~
160
0.5
0.5
192
~
~
224
0
0
256
~
~
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
30
DVM1835
DVD Main 3/3 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
DVM1835
AV 1/2 Schematic Diagram
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
DVM1835
AV 2/2 Schematic Diagram
AV 2/2 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
DVM1835
Changer 1/2 , Function , Power Switch & Switch Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
DVM1835
Changer 2/2 Schematic Diagram
7G
5G
3G
1G
4G
6G
2G
a
d
g
c
b
e
f
1
3
2
4
5
DVD
VCD
PBC
STANDBY
A-B
REPEAT
TRK.
CHP.
TITLE
7G
6G
5G
4G
3G
2G
1G
a
b
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
h
i
a
b
a
b
a
b
a
b
a
b
FL2001 MATRIX CHART
STANDBY
TITLE
CHP.
TRK.
CD
V
PBC
DVD
REPEAT
A
-B
1
3
2
4
5
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
DVM1835
Relay , Sensor , Drive , FG & Pick Up Unit Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
DVM1835
WAVEFORMS
WF6
WF1
WF3
WF4
WF5
WF2
Pin 18 of CN1601
Pin 7 of CN1601
C1402 PLUS LEAD
Pin 13 of CN1601
Pin 15 of CN1601
Pin 9 of CN1601
20µs
0.2V
VIDEO-Y
VIDEO-C
0.2V
20µs
VIDEO-CVBS
0.5V
20µs
AUDIO(L)
0.5V
0.5ms
AUDIO(R)
0.5V
0.5ms
SPDIF
1V
0.1µs
NOTE:
Input
DVD: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL)
(WF1~WF6)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
DVM1835
WIRING DIAGRAM
SENSOR CBA
M
LOADING
MOTOR
DVD MAIN CBA UNIT
RELAY CBA
CN701
(NO CONNECTION)
(NO CONNECTION)
GND
1
1
E
2
2
P-ON+5V
3
3
VREF
4
4
B
5
5
C
6
6
D
7
7
A
8
8
CD/DVD
9
9
F
10
10
GND(LD)
11
11
CD-LD
12
12
PD-MONI
13
13
DVD-LD
14
14
GND(DVD-PD) 15
15
GND(CD-PD)
16
16
TS(-)
17
17
FS(+)
18
18
FS(-)
19
19
TS(+)
20
20
CN5004
CN201
W3003
W5001
AC CORD
AUDIO-L
OUT
AUDIO-R
OUT
VIDEO
OUT
VIDEO-Pr/Cr
OUT
VIDEO-Pb/Cb
OUT
VIDEO-Y
OUT
DIGITAL
AUDIO OUT
S-VIDEO
OUT
VIDEO-Pr/Cr
3
3
GND
4
4
GND
6
6
VIDEO-Y(I/P)
7
7
GND
8
8
VIDEO-C
9
9
GND
10
10
GND
11
11
A-MUTE
12
12
AUDIO-L
13
13
A-L-MUTE
14
14
AUDIO-R
15
15
AUDIO+5V
17
17
A-R-MUTE
16
16
SPDIF
18
18
W3005
VIDEO-Pb/Cb
5
5
NU
19
19
FP-DOUT
20
20
FP-CLK
21
21
REMOTE1
22
22
W3006
CN401
CN1001
EV+1.5V
1
1
EV+1.5V
2
2
EV+1.5V
3
3
EV+3.3V
4
4
EV+3.3V
5
5
GND
6
6
GND
7
7
GND
8
8
GND
9
9
GND
10
10
GND
11
11
GND
12
12
P-ON+5V
13
13
EV+9V
14
14
EV+9V
15
15
FP-STB
16
16
P-ON+3.3V
17
17
FP-DIN
18
18
ROTARY
MOTOR
UP/DOWN
SWITCH
CN5002
CN5101
4
GND
3
P-ON+3.3V
2
RT-SENS-A
1
D-SENS-A
FUNCTION CBA
CN2101
CN2201
GND
1
1
KEY-1
2
2
KEY-2
3
3
KEY-3
4
4
KEY-4
5
5
KEY-5
6
6
W2101
CN2103
CN2203
KEY-1
1
1
GND
2
2
STANDBY-LED 3
3
POWER SWITCH CBA
CN3003
2
1
LM(+)
LM(-)
W3001
SWITCH CBA
CN3004
CN3101
ST-CLOSE
1
1
GND
2
2
ST-OPEN
3
3
M
1 T-RESET
2 SDATA
3 EV+3.3V
CN5006
CN5005
1 GND(LD)
2 DVD-LD
3 CD-LD
4 NU
5 GND
6 SCLOCK
1 D-SENS-A
2 RT-SENS-A
3 P-ON+3.3V
4 GND
5 GND
6 CHK-ON
7 CHK-OFF
8 RM1
9 RM2
OPTICAL
AUDIO OUT
PICK UP UNIT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GND
VREF
P-ON+5V
F
E
C
B
D
A
PD-MONI
DVD-LD
GND(LD)
GND(DVD-PD)
TS(+)
FS(-)
FS(+)
TS(-)
GND(CD-PD)
CD-LD
CD/DVD
FS
TS
DETECTOR
11
2
3
5
6
4
7
CN5003
1
2
3
4
NU
TRAY-IN
6
SP(-)
7
SP(+)
8 SL(-)
9 SL(+)
FG-IN
P-ON+3.3V
TRAY-IN
DRIVE CBA
FG
SENSOR
SLED
MOTOR
SPINDLE
MOTOR
W3004
CN5001
CN3001
D-SENS-A
8
8
RT-SENS-A
6
6
P-ON+3.3V
4
4
GND
2
2
CHK-ON
1
1
CHK-OFF
3
3
RM1
5
5
RM2
7
7
SP(-)
9
9
TRAY-IN
11
11
SL(-)
13
13
FG-IN
10
10
SP(+)
12
12
SL(+)
14
14
W3007
CN3301
CN301
SL(-)
8
8
TRAY-IN
6
6
SP(-)
4
4
NU
2
2
FG-IN
1
1
SP(+)
3
3
NU
5
5
GND
7
7
SL(+)
9
9
W3008
CN3102
CN1102
PWSW
8
8
P-ON+3.3V
6
6
EV+9V
4
4
F2
2
2
F1
1
1
-FL
3
3
EV+5V
5
5
CHG+3.3V
7
7
GND
9
9
FP-STB
11
11
FP-DOUT
13
13
GND
10
10
FP-DIN
12
12
FP-CLK
14
14
NU
15
15
REMOTE2
16
16
AV CBA
CHANGER CBA
M
M
GND
5
W5006
W5002
REMOTE
CONTROL-IN
REMOTE
CONTROL-OUT
FG CBA
CN601
CN1601
NU
2
2
I/P-SW
1
1
SLIED TRAY
ASSEMBLY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
DVM1835
FIRMWARE RENEWAL MODE
1. Turn the power on and remove the disc on the tray.
2. To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.
Fig. a appears on the screen and Fig. b appears on
the VFD.
The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3. Load the disc for version up.
4. The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD.
The appearance shown in (*1) of Fig. c is
described as follows:
5. After programming is finished, the tray opens auto-
matically. Fig. e appears on the screen and the
checksum in (*2) of Fig. e appears on the VFD.
(Fig. f)
At this time, no buttons is available.
6. Unplug the AC cord from the AC outlet. Then plug it
again.
7. Turn the power on by pressing [POWER] button
and the tray will close.
8. Press [1], [2], [3], [4], and [DISPLAY] buttons on the
remote control unit in that order.
Fig. g appears on the screen.
9. Press [3] button on the remote control unit.
Fig. h appears on the screen.
10.To exit this mode, press [POWER] button.
F/W Version Up Mode
Please insert a DISC
for F/W Version Up.
EXIT: POWER
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
(*1)
Fig. c Programming Mode Screen
F/W Version Up Mode
VERSION : ********
Reading...
EXIT: POWER
Fig. d VFD in Programming Mode (Example)
Appearance
No.
State
Reading...
Sending files into the memory
Erasing...
Erasing previous version data
Programming...
1
2
3
Writing new version data
(*2)
Fig. e Completed Program Mode Screen
F/W Version Up Mode
VERSION : ********
Completed
SUM : 7abc
Fig. f VFD upon Finishing the Programming Mode (Example)
Fig. g
model: ******
Ver: ****
Region: **
1: VFD TEST
2: TT REPEAT PLAY
3: EEPROM CLEAR
4: MEASUREMENT SERVO
5: DISC READ CHECK
6: MECHA CHECK
7: DISC INFO
8: ERROR RATE
EXIT: POWER
RETURN: -----
Fig. h
model: ******
Ver: ****
Region: **
TEST 3: EEPROM CLEAR
EEPROM CLEAR: OK
EXIT: POWER
RETURN: -----
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
DVM1835
1: R
2: A
3: K
1 2 3
E C B
E C
B
LTV-817(B,C)-F
1
2
4
3
1: Anode
2: Cathode
3: Emitter
4: Collector
KIA431-AT/P
FAN431AZXA
2SA1815-(GR)(TE2 F T)
2SA966-Y(TE6 F M)
KTC3198-Y-AT/P
KTC3205-Y-AT/P
KTA1273-Y-AT/P
DTC114ESA TP
2SA1015-Y(TE2 F T)
KRA110M-AT/P
KTA1266-Y-AT/P
KTA1267-Y-AT/P
KTC3199-GR-AT/P
1 4
8 5
NJM4558D
KIA4558P
CXA1511M-T4
28
15
14
PT6313-S-TP(L)
SC16313G
1
2SK3374
PQ070XF01SZH
1 2 3 4
1: Vin
2: Vo
3: GND
4: Vc
24
13
12
MM1622XJBEG
1
0C-0805T*002
1 2 3
S D G
Note:
A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
1 VCC
2 GND
3 OUT
PT204-6B-12
E
C
1
7
BA6956AN
42
22
21
M38503M2A-070FP
1
1 2 3
5
4
BD4829G-TR
LEAD IDENTIFICATIONS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
DVM1835
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence.
2L021
A16
2L021
2L021
2L021
2L021
2L021
Relay CBA
AV CBA
Canger CBA
Power SW
CBA
Function CBA
Switch CBA
A2
2B6
2B1
2B2
2B6
2B3
2L032
2L051
2L032
W3002
A1X
A15
2L011
2L011
2L011
2L081
2B18
2L051
2L051
1L016
1B12
1B4
1B11
D-3
2L051
2L011
2L103
2L011
W3006
A
G'
G
A'
B'
B
C
C'
D'
E'
E
F
F'
D
1B32
1B31
2L032
2L051
JK3501
JK1403
JK1202
1B1
1L023
1B33
1L017
W2101
W3001
2L033
2L033
2L033
2L033
2L033
2L012
2L012
2L012
A21
2L012
2L041
2L061
2L061
W3003
W3004
W3007
2L041
2L091
2B11
2B12
AC1001
FC1002
W3008
JK1201
JK1401
IC1204
A17
W3005
2B9
2B24
2B9
2B9
2B22
2B21
2B7
2L031
2L031
2B15
2B15
A3
A3
2B10
DVD Main
CBA Unit
2B25
EXPLODED VIEWS
Cabinet 1
See Electrical Parts List
for parts with this mark.
Some Ref. Numbers are
not in sequence.
2L021
A16
2L021
2L021
2L021
2L021
2L021
Relay CBA
AV CBA
Changer CBA
Power SW
CBA
Function CBA
Switch CBA
A2
2B6
2B1
2B2
2B6
2B3
2L032
2L051
2L032
W3002
A1X
A15
2L011
2L011
2L011
2L081
2B18
2L051
2L051
1L016
1B12
1B4
1B11
D-3
2L051
2L011
2L103
2L011
W3006
A
G'
G
A'
B'
B
C
C'
D'
E'
E
F
F'
D
1B32
1B31
2L032
2L051
JK3501
JK1403
JK1202
1L023
1B33
1L017
W2101
W3001
2L033
2L033
2L033
2L033
2L033
2L012
2L012
2L012
A21
2L012
2L041
2L061
2L061
W3003
W3004
W3007
2L041
2L091
2B11
2B12
AC1001
W3008
JK1201
JK1401
IC1204
A17
W3005
SCOTCH TAPE
2B22
2B7
2L031
2L031
2B15
2B15
FC1002
A3
A3
2B10
DVD Main
CBA Unit
2B25
1B1
SCOTCH TAPE
SCOTCH TAPE
SCOTCH TAPE
EXPLODED VIEWS
Cabinet 1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
DVM1835
Cabinet 2
B1-12
B1-38
B1-6
B1-5
B1-11
D-3
B1-13
B1-36
B1-14
B1-16
B1-15
B1-52
B1-21
B1-45
B1-46
B1-19
B1-20
B1-32
B1-9
B1-7
B1-37
B1-8
L1-26
L1-25
L1-5
B1-4
B1-43
B1-24
B1-24
B1-22
B1-2
B1-30
B1-30
B1-1
SW-403
L1-11
L1-11
L1-11
L1-11
L1-11
L1-11
L1-15
L1-11
L1-23
L1-7
L1-10
Mechanism
Holder
Assembly
L1-6
B1-26
L1-6
B1-42
B1-41
B1-3
W5002
W5001
B0-7
L0-2
B0-2
B0-3
PA-1
B0-5
B0-8
B0-9
B0-10
M3002
B0-4
B0-1
B0-6
L0-3
M3001
SW3002
L0-8
B0-2
L0-5
R3001
R3002
L0-3
L0-8
FG CBA
PI3001
F-2
L0-4
Drive CBA
W5006
F-3
F-1
L0-4
B0-8
B0-11
Relay CBA
Sensor CBA
Some Ref.Numbers are
not in sequence.
Cabinet 2
B1-12
B1-38
B1-6
B1-5
B1-11
D-3
B1-13
B1-36
B1-14
B1-16
B1-15
B1-52
B1-21
B1-45
B1-46
B1-19
B1-20
B1-32
B1-9
B1-7
B1-37
B1-8
L1-26
L1-25
L1-5
B1-4
B1-43
B1-24
B1-24
B1-22
B1-2
B1-30
B1-30
B1-1
SW-403
L1-11
L1-11
L1-11
L1-11
L1-11
L1-11
L1-15
L1-11
L1-23
L1-7
L1-10
Mechanism
Holder
Assembly
L1-6
B1-26
L1-6
B1-42
B1-41
B1-3
W5002
W5001
B0-7
L0-2
B0-2
B0-3
PA-1
B0-5
B0-8
B0-9
B0-10
M3002
B0-4
B0-1
B0-6
L0-3
M3001
SW3002
L0-8
B0-2
L0-5
R3001
R3002
L0-3
L0-8
FG CBA
PI3001
F-2
L0-4
Drive CBA
W5006
F-3
F-1
L0-4
B0-8
B0-11
Relay CBA
Sensor CBA
B1-53
Some Ref.Numbers are
not in sequence.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
DVM1835
DVM1835 PARTS LIST OF EXPLODED VIEW
※ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
※ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
Ref. No.
PartNo.
Part Name
Remarks
Q'ty
New
00D 9H2 6000 720
DVD MAIN CBA UNIT
N79DMGUP
1
00D 9H2 6000 721
CHG CBA
1VSA14209
1
CHANGER CBA
-
AV CBA
-
FUNCTION CBA
-
POWER SW CBA
-
SWITCH CBA
-
00D 9H2 6000 487
TRAY CBA
0VSA13569
1
RELAY CBA
-
SENSOR CBA
-
A1X
00D 9H2 6000 713
FRONT ASSEMBLY
1VM222338
1
*
A2
00D 9H2 6000 322
TRAY PANEL ASSEMBLY
0VM414121
1
*
A3
00D 9H2 6000 411
FOOT
0VM406940
2
A15
00D 9H2 6000 412
CHASSIS
0VM101293
1
A16
00D 9H2 6000 734
TOP COVER
0VM203048C
1
A17
00D 9H2 6000 714
REAR PANEL
1VM222337
1
*
A21
-
LABEL SERIAL NO.
-
1
1B1
00D 9H2 6000 424
SLIDE TRAY ASSEMBLY
N79F0GVC
1
1B4
00D 9H2 6000 328
LOADING PULLEY
0VM304636
1
1B11
00D 9H2 6000 329
MOTOR PULLEY
21P7048
1
1B12
00D 9H2 6000 330
BELT L
0RM400160
1
1B31
00D 9H2 6000 331
SLIDE TRAY GEAR(B)
0VM304632
1
1B32
00D 9H2 6000 332
SLIDE TRAY GEAR(A)
0VM304631
1
1B33
00D 9H2 6000 333
TRAY GUIDE SPRING
0VM412360
1
2B1
00D 9H2 6000 333
TRAY GUIDE(L)
0VM000136H
1
2B2
00D 9H2 6000 735
TRAY GUIDE(R)
0VM000137J
1
2B3
00D 9H2 6000 336
BRACKET(TOP)
0VM203160
1
2B6
00D 9H2 6000 337
STOPPER BRACKET
0VM411941
2
2B9
-
WIRE TAPE
0VM404993
3
*
2B10
-
NON WOVEN FABRICS(35*20)
0VM414360
1
*
2B11
00D 9H2 6000 416
HOLDER PCB
0VM204153
1
2B12
00D 9H2 6000 417
SHIELD PLATE
0VM204262
1
2B15
00D 9H2 6000 436
WASHER(D8)
0VM408931
2
2B18
00D 9H2 6000 418
FFC CLAMPER
0VM415656
1
2B22
00D 9H2 6000 438
GASKET(B)
0VM415818
1
2B24
00D 9H2 6000 481
DOUBLE SIDE TAPE
0VM415819
1
2B25
-
RUBBER SHEET
0VM415921
D-3
00D 9H2 6000 715
DC MINI MOTORS M31E-1(R-14 7448)
MMDZB4EMM003
1
*
FC1002
00D 9H2 6000 448
FERRITE CORE BP53RD 065 330 080M
XL05033TU001
1
*
W3002
00D 9H2 6000 429
MOTOR CABLE MOTOR CABLE
WX1E8620-902
1
W3003
00D 9H2 6000 430
20P FFC MAIN TO RELAY
WX1E8620-120
1
W3004
00D 9H2 6000 431
14P FFC CONTROL TO RELAY
WX1E8620-014
1
W3005
00D 9H2 6000 716
WIRE ASSEMBLY FFC 18P 18PIN 45MM
WX1E8625-001
1
*
W3006
00D 9H2 6000 433
22P FFC AV TO MAIN
WX1E8620-022
1
W3007
00D 9H2 6000 434
9P FFC CONTROL TO MAIN
WX1E8620-009
1
W3008
00D 9H2 6000 435
16P FFC AV TO CONTROL
WX1E8620-116
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
DVM1835
SCREWS
1L016
-
SCREW TAP TIGHT WASHER+ P-TIGHT
GCJP3080
1
1L017
-
SCREW P-TIGHT 3X12 WASHER HEAD+
GCJP3120
1
1L023
-
SCREW SEMS M2.6X4 PAN HEAD+
CPJ39040
1
2L011
-
SCREW C-TIGHT M3X6 BIND HEAD+
GBJC3060
7
2L012
-
SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI
GBHC3050
4
2L021
-
SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI
GBHC3050
6
2L031
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
2
2L032
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
4
2L033
-
SCREW B-TIGHT M3X8 BIND HEAD+
GBHB3080
11
2L041
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
2
2L051
-
SCREW S-TIGHT M3X8 BIND HEAD+
GBJS3080
7
2L061
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
2
2L081
-
SCREW S-TIGHT M3X8 BIND HEAD+
GBJS3080
1
2L091
-
SCREW C-TIGHT M3X6 BIND HEAD+
GBJC3060
1
2L103
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
1
Ref. No.
PartNo.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
DVM1835
PACKING
Packing
X10
X22
X5
X2
X4
S2
S10
S2
S1
A22
A30
A30
S3
S5
S3
X1
S4
Unit
X21
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
DVM1835
DMV1835 PARTS LIST OF PACKING & ACCESSORIES
※ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
※ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions..
Ref. No.
PartNo.
Part Name
Remarks
Q'ty
Ne
w
A22
-
BAR CODE LABEL
-
1
A30
-
CONTROL LABEL
-
1
S1
00D 9H2 6000 717
GIFT BOX CARTON
1VM322788
1
*
S2
00D 9H2 6000 317
FRONT PAD
0VM101008A
2
S3
00D 9H2 6000 736
REAR PAD
0VM101007A
2
S4
00D 9H2 6000 688
SET BAG
0DM400731D
1
*
S5
00D 9H2 6000 421
PAD
0VM415718
1
S10
00D 9H2 6000 449
TRAY PAD
0VM415859
1
X1
00D 9H2 6000 718
REMOTE CONTROL UNIT
NA841UD
1
*
X2
-
DRY BATTERY R6P/2S
XB0M451T0001
2
*
X2
-
DRY BATTERY ES-GR6M-C
XB0M571GLP01
2
*
X4
-
ACCESSORY BAG
0VM416059
1
*
X5
00D 9H2 6000 226
AV CORD WPZ0102TM015
WPZ0102TM015
1
X5
00D 9H2 6000 243
AV CORD RCA(M*2)TO RCA(M*2)
WPZ0102LTE01
1
X10
00D 9H2 6000 719
OWNERS MANUAL
1VMN22544
1
*
X21
-
WARRANTY SHEET
1VM322381
1
*
X22
-
SERVICE CENTER SHEET
1VM423684
1
*
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
