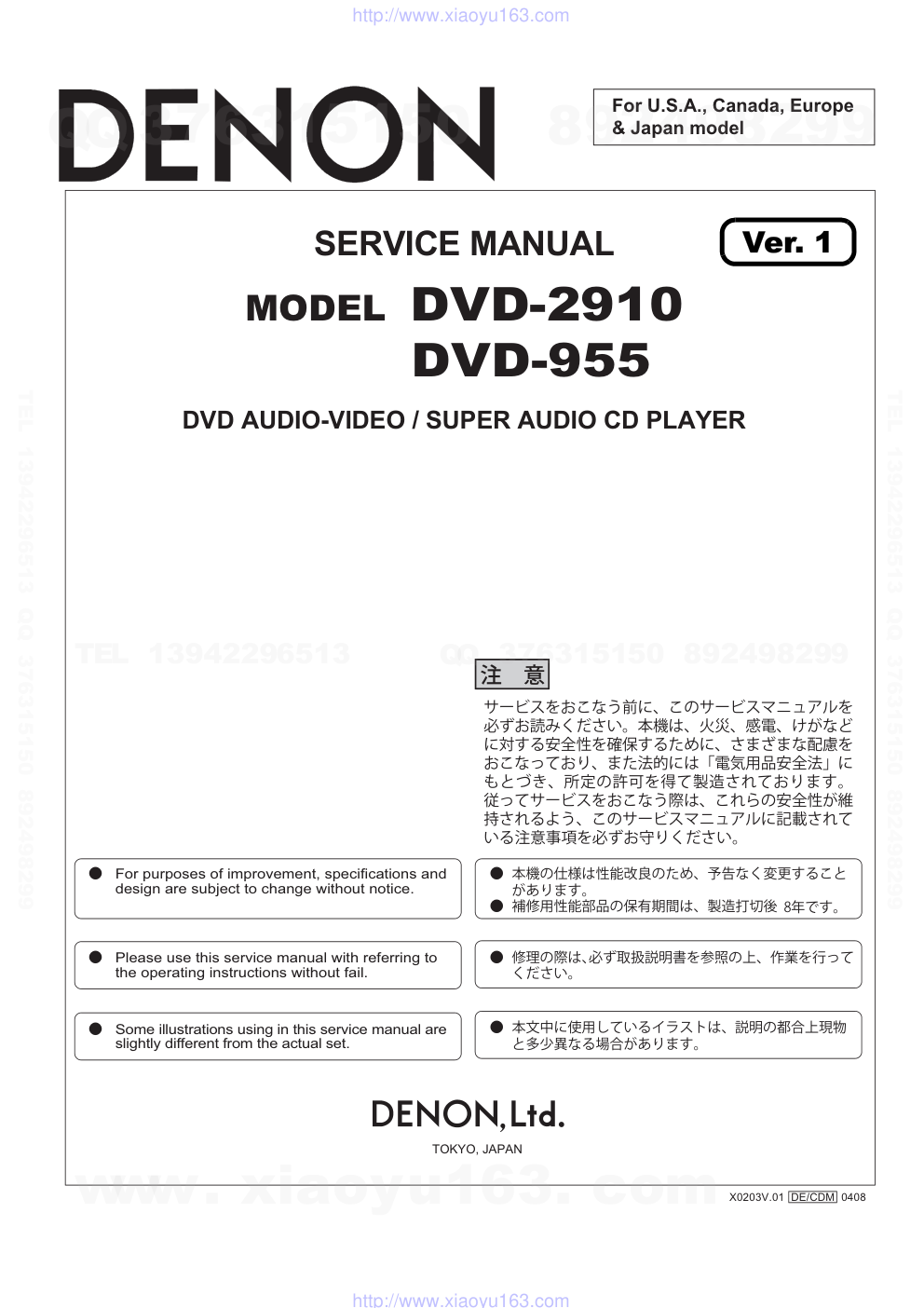

SERVICE MANUAL
MODEL DVD-2910
DVD-955
DVD AUDIO-VIDEO / SUPER AUDIO CD PLAYER
For U.S.A., Canada, Europe
& Japan model
TOKYO, JAPAN
X0203V.01 DE/CDM 0408
注 意
サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。
● 本機の仕様は性能改良のため、予告なく変更すること
があります。
● 補修用性能部品の保有期間は、製造打切後 8年です。
Some illustrations using in this service manual are
slightly different from the actual set.
●
●
Please use this service manual with referring to
the operating instructions without fail.
●
For purposes of improvement, specifications and
design are subject to change without notice.
●
修理の際は､必ず取扱説明書を参照の上、作業を行って
,
ください。
● 本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。
Ver. 1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
2

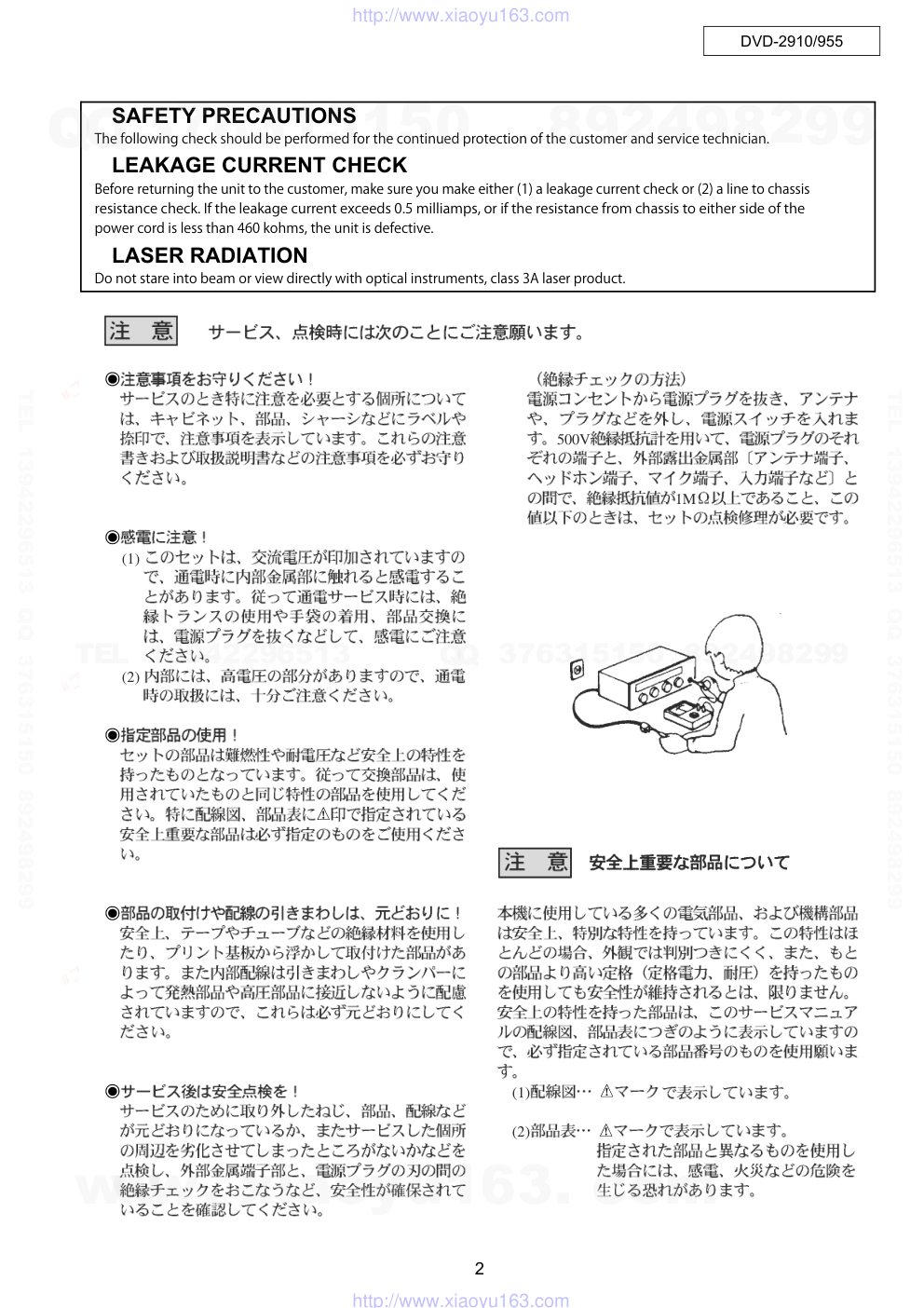

SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
LASER RADIATION
Do not stare into beam or view directly with optical instruments, class 3A laser product.
(1)
(2)
500V
1M
(1)
(2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
DVD-2910/955

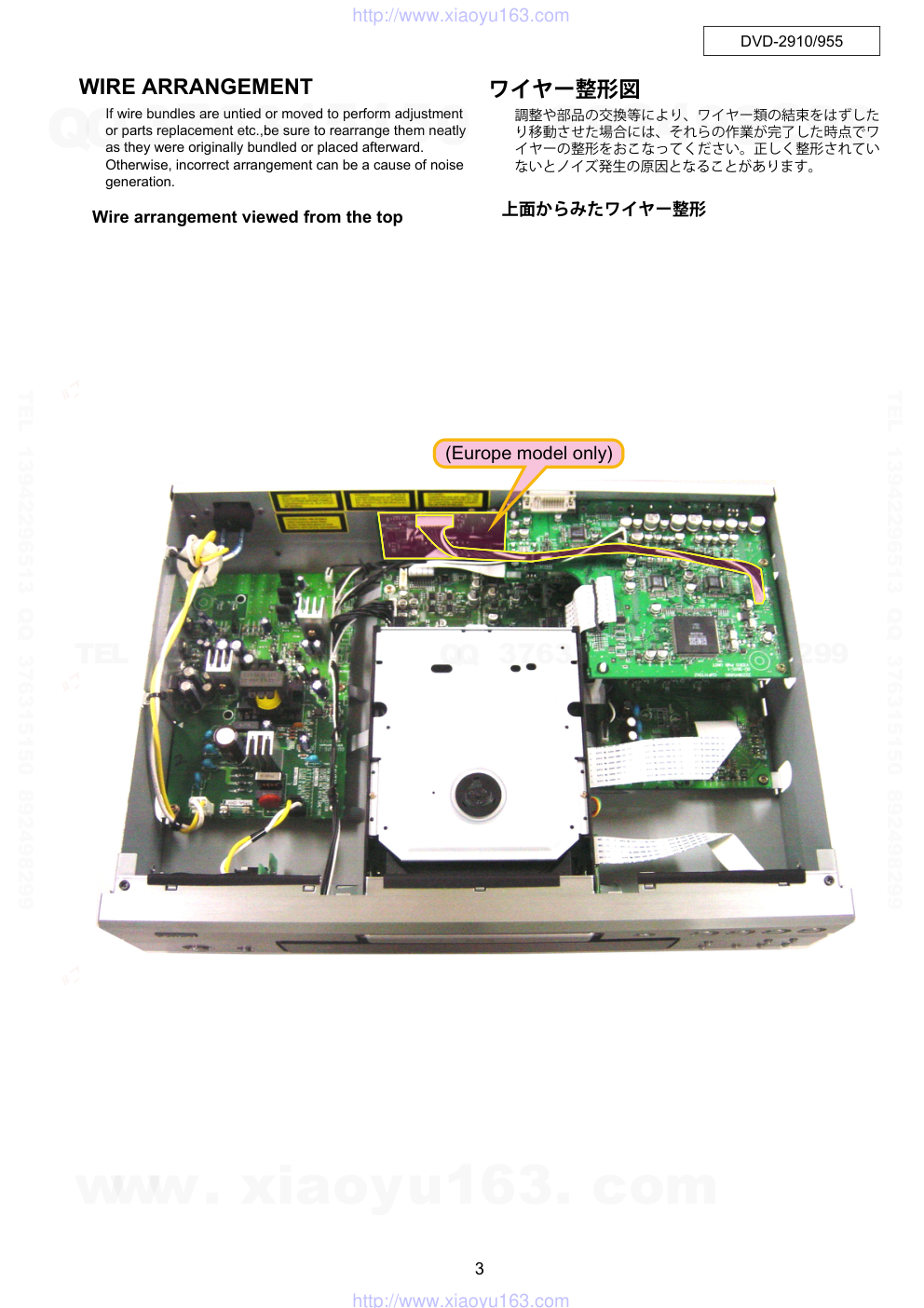

WIRE ARRANGEMENT
If wire bundles are untied or moved to perform adjustment
or parts replacement etc.,be sure to rearrange them neatly
as they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise
generation.
Wire arrangement viewed from the top
ワイヤー整形図
調整や部品の交換等により、ワイヤー類の結束をはずした
り移動させた場合には、それらの作業が完了した時点でワ
イヤーの整形をおこなってください。正しく整形されてい
ないとノイズ発生の原因となることがあります。
上面からみたワイヤー整形
(Europe model only)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
DVD-2910/955

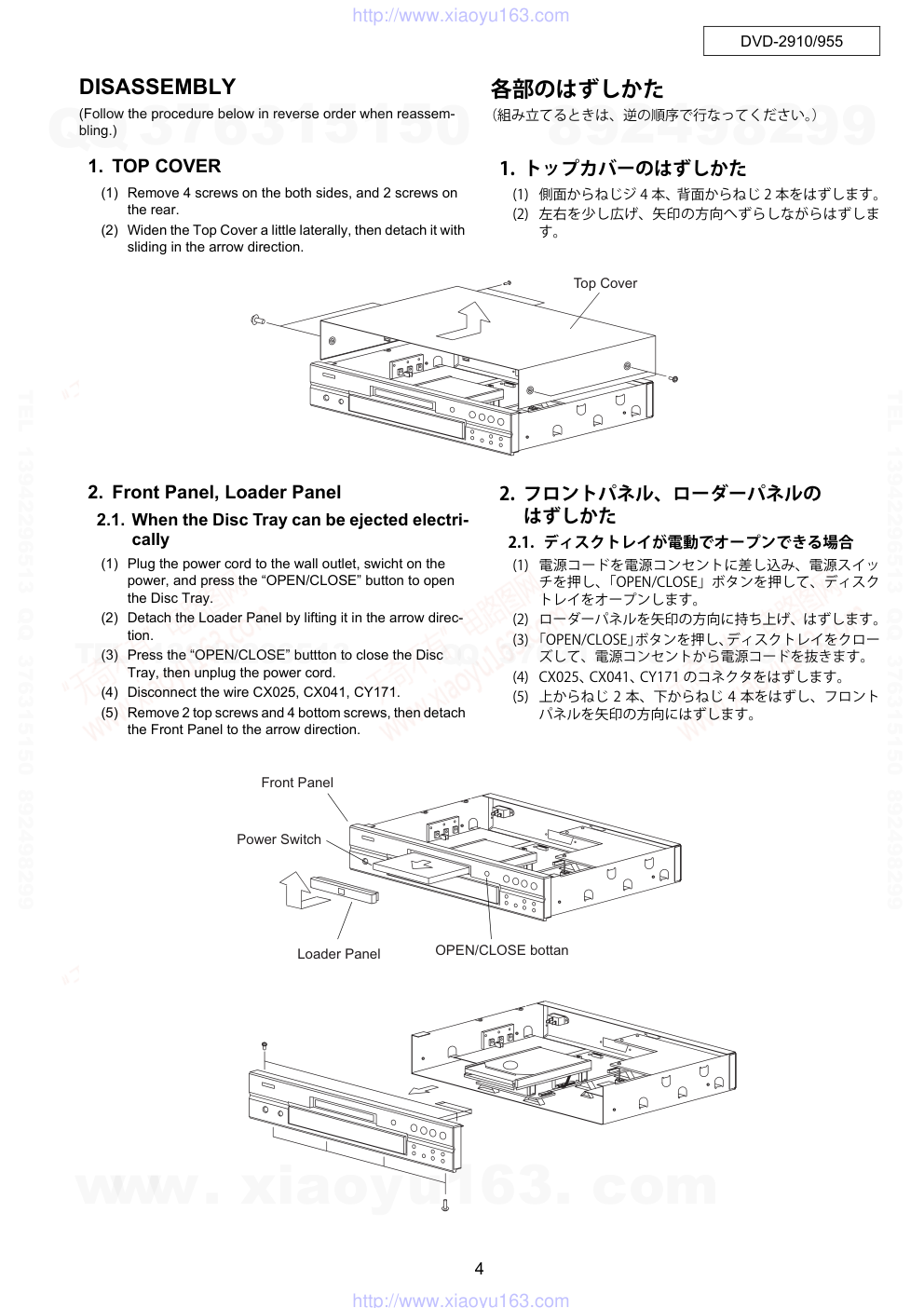

DISASSEMBLY
(Follow the procedure below in reverse order when reassem-
bling.)
1. TOP COVER
(1) Remove 4 screws on the both sides, and 2 screws on
the rear.
(2) Widen the Top Cover a little laterally, then detach it with
sliding in the arrow direction.
各部のはずしかた
（組み立てるときは、逆の順序で行なってください。）
1. トップカバーのはずしかた
(1) 側面からねじジ 4 本、背面からねじ 2 本をはずします。
(2) 左右を少し広げ、矢印の方向へずらしながらはずしま
す。
2. Front Panel, Loader Panel
2.1. When the Disc Tray can be ejected electri-
cally
(1) Plug the power cord to the wall outlet, swicht on the
power, and press the “OPEN/CLOSE” button to open
the Disc Tray.
(2) Detach the Loader Panel by lifting it in the arrow direc-
tion.
(3) Press the “OPEN/CLOSE” buttton to close the Disc
Tray, then unplug the power cord.
(4) Disconnect the wire CX025, CX041, CY171.
(5) Remove 2 top screws and 4 bottom screws, then detach
the Front Panel to the arrow direction.
2. フロントパネル、ローダーパネルの
はずしかた
2.1. ディスクトレイが電動でオープンできる場合
(1) 電源コードを電源コンセントに差し込み、電源スイッ
チを押し、「OPEN/CLOSE」ボタンを押して、ディスク
トレイをオープンします。
(2) ローダーパネルを矢印の方向に持ち上げ、はずします。
(3) 「OPEN/CLOSE」ボタンを押し、ディスクトレイをクロー
ズして、電源コンセントから電源コードを抜きます。
(4) CX025、 CX041、 CY171 のコネクタをはずします。
(5) 上からねじ 2 本、下からねじ 4 本をはずし、フロント
パネルを矢印の方向にはずします。
Top Cover
Loader Panel
Front Panel
Power Switch
OPEN/CLOSE bottan
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
DVD-2910/955
2.2. When the Disc Tray cannot be ejected
electrically
(1) Insert a straight ruler etc., into the left side of the Mecha.
Unit and push the A-part (see Fig.) to open the Disc Tray
manually.
(2) Detach the Loader Panel by lifting it in the arrow direc-
tion.
(3) Push the Disc Tray to close it manually.
(4) Dsiconnect the wire CX025, CX041, CY171.
(5) Remove 2 top screws and 4 bottom screws, then detach
the Front Panel to the arrow direction.
2.2. ディスクトレイが電動でオープンできない場合
(1) メカユニットの左側から定規等を差し込み、A 部を押し
て、ディスクトレイをオープンします。
(2) ローダーパネルを矢印の方向に持ち上げ、はずします。
(3) ディスクトレイを押して、クローズします。
(4) CX025、 CX041、 CY171 のコネクタをはずします。
(5) 上からねじ 2 本、下からねじ 4 本をはずし、フロント
パネルを矢印の方向にはずします。
3. DVD Mecha
(1) Disconnect the wire CX141, CX174, CX271, CX331.
(2) Remove 4 screws on the DVD Mecha. And 2 screws on
the Main P.W.B., then take it off in the arrow direction.
3. DVD メカのはずしかた
(1) CX141、 CX174、 CX271、 CX331 のコネクターをはずし
ます。
(2) DVD メカからねじ 4 本、メイン基板からねじ 2 本をは
ずし、矢印の方向へ DVD メカをはずします。
A-part
A straight ruler etc.
Fig. The left side view of the Mechanism.
A-part
A straight ruler etc.
Fig. The left side view of the Mechanism.
DVD MECHA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
DVD-2910/955
4. Mecha. Unit
(1) Remove 2 screws on the top of the Mecha. Unit, and de-
tach the Guide Clamp Bracket with sliding in the arrow
direction.
(2) Solder the short-circuit on the Traverse Unit. (Refer to
“Traverse Unit Disassembly” on page 8.
(3) Disconnect the wires (CX151, CX241, CX051) connect-
ing with the Main P.W.B.
(4) Turn over the Mecha. Unit/Main P.W.B., assembly, and
remove 2 screws.
4. メカユニットのはずしかた
(1) メカの上からねじ 2 本をはずすし、ガイドクランプブ
ラケットを矢印の方向にずらしながらはずします。
(2) ドライバーメカのショートサーキットを半田付けしま
す。（トラバースユニットのはずしかた 8 ページ参照）
(3) メイン基板と接続しているワイヤ（CX151、 CX241、
CX051) をはずします。
(4) 一体のメカユニット / メイン基板を裏返し、ねじ 2 本
をはずします。
5. VIDEO P.W.B. & HDMI P.W.B.
(1) Disconnect the wire CY051 (CY051, CY121 : E2 only)
(2) Remove 2 screws on the top side and 10 (Japan 12)
screws on the side., then take it off in the arrow direc-
tion.
5. VIDEO P.W.B. と HDMI P.W.B. の
はずしかた
(1) CY051 (CY051、 CY121 : E2 のみ ) のコネクタをはずしま
す。
(2) 上面からねじ 2 本と背面からねじ 10 本（国内のみ 12
本）をはずし、矢印の方向へ VIDEO P.W.B. と HDMI
P.W.B. をはずします。
Guide Clamp Bracket
VIDEO P.W.B.
HDMI P.W.B.
SCART P.W.B.( E2 only )
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
DVD-2910/955
6. AUDIO P.W.B.
(1) Disconnect the wire CY061 (CX053, CY061 : E2 only)
(2) Remove 6 screws on the top sides and 5 screws on the
rear side., then take it off in the arrow direction.
6. AUDIO P.W.B. のはずしかた
(1) CY061 ( CX053、 CY061 : E2のみ)のコネクタをはずしま
す。
(2) 上面からねじ 6 本と背面からねじ 5 本をはずし、矢印
の方向へ AUDIO P.W.B. をはずします。
7. POWER P.W.B. & P.C.B. HOLDER
(1) Disconnect the wire CX024.
(2) Remove 5 screws on the top side and 2 screws on the
side., then take it off in the arrow direction.
(3) P.C.B. HOLDER : take it off in the arrow direction.
7. POWER P.W.B. と P.C.B. HOLDER の
はずしかた
(1) CX024 のコネクタをはずします。
(2) 上面からねじ 5 本と側面からねじ 2 本をはずし、矢印
の方向へ POWER P.W.B. をはずします。
(3) P.C.B. HOLDER を矢印の方向にはずします。
8. REAR PANEL & AC INLET
(1) Remove 3 screws on the bottom side and 2 screws on
the rear side.
(2) AC INLET : Remove 2 screws on the rear side.
8. REAR PANEL & AC INLET のはずしかた
(1) 底面からねじ 3 本と背面からねじ 2 本をはずします。
(2) 背面からねじ 2 本をはずし、AC INLET をはずします。
AUDIO P.W.B.
POWER P.W.B.
P.C.B.HOLDER
REAR PANEL
AC INLET
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
DVD-2910/955

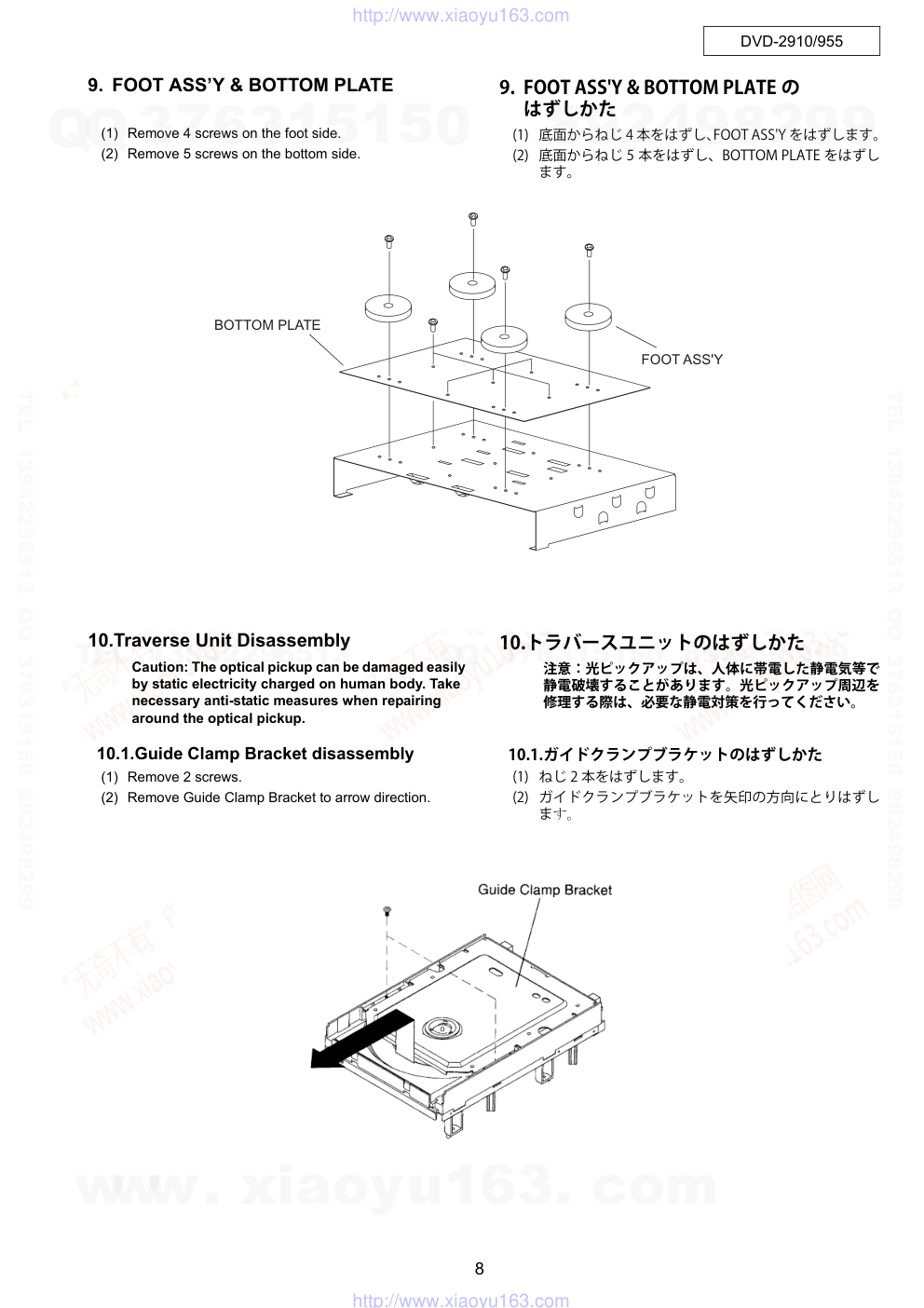

9. FOOT ASS’Y & BOTTOM PLATE
(1) Remove 4 screws on the foot side.
(2) Remove 5 screws on the bottom side.
9. FOOT ASS'Y & BOTTOM PLATE の
はずしかた
(1) 底面からねじ 4 本をはずし、FOOT ASS'Y をはずします。
(2) 底面からねじ 5 本をはずし、BOTTOM PLATE をはずし
ます。
10.Traverse Unit Disassembly
Caution: The optical pickup can be damaged easily
by static electricity charged on human body. Take
necessary anti-static measures when repairing
around the optical pickup.
10.1.Guide Clamp Bracket disassembly
(1) Remove 2 screws.
(2) Remove Guide Clamp Bracket to arrow direction.
10.トラバースユニットのはずしかた
注意：光ピックアップは、人体に帯電した静電気等で
静電破壊することがあります。光ピックアップ周辺を
修理する際は、必要な静電対策を行ってください。
10.1.ガイドクランプブラケットのはずしかた
(1) ねじ 2 本をはずします。
(2) ガイドクランプブラケットを矢印の方向にとりはずし
ます。
BOTTOM PLATE
FOOT ASS'Y
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
DVD-2910/955

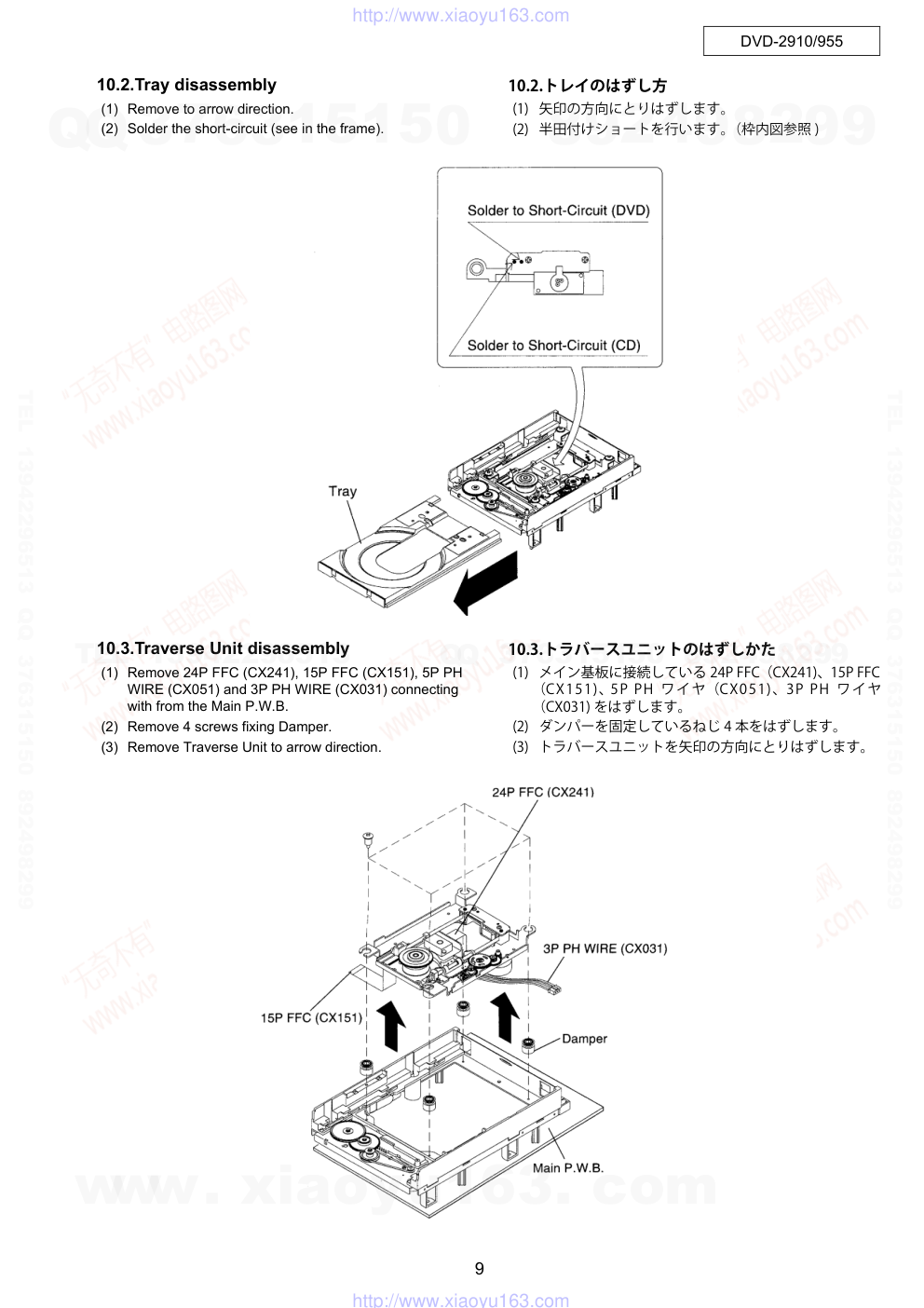

10.2.Tray disassembly
(1) Remove to arrow direction.
(2) Solder the short-circuit (see in the frame).
10.2.トレイのはずし方
(1) 矢印の方向にとりはずします。
(2) 半田付けショートを行います。（枠内図参照 )
10.3.Traverse Unit disassembly
(1) Remove 24P FFC (CX241), 15P FFC (CX151), 5P PH
WIRE (CX051) and 3P PH WIRE (CX031) connecting
with from the Main P.W.B.
(2) Remove 4 screws fixing Damper.
(3) Remove Traverse Unit to arrow direction.
10.3.トラバースユニットのはずしかた
(1) メイン基板に接続している 24P FFC（CX241)、15P FFC
（CX151)、 5P PH ワイヤ（CX051)、3P PH ワイヤ
（CX031) をはずします。
(2) ダンパーを固定しているねじ 4 本をはずします。
(3) トラバースユニットを矢印の方向にとりはずします。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
DVD-2910/955

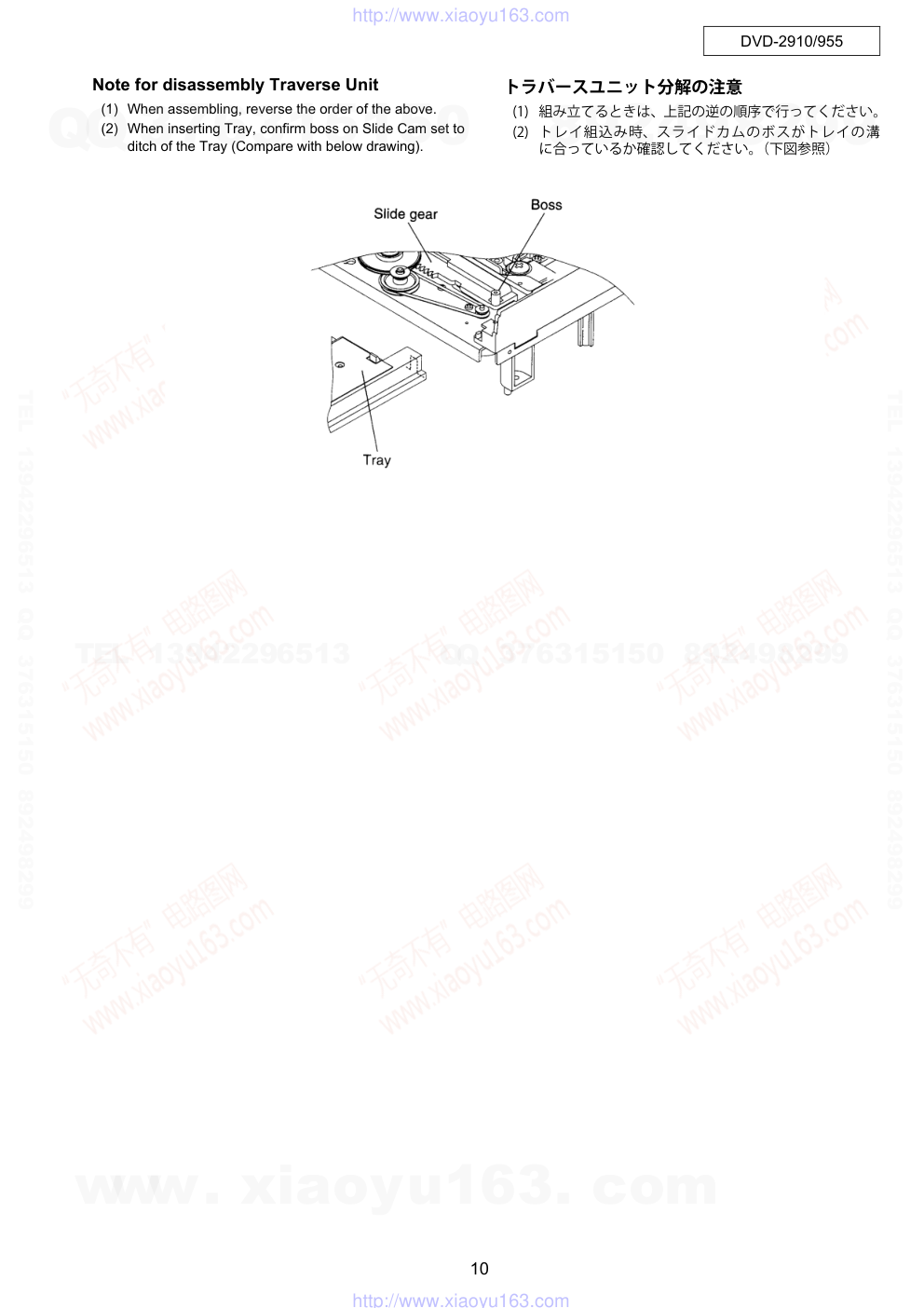

Note for disassembly Traverse Unit
(1) When assembling, reverse the order of the above.
(2) When inserting Tray, confirm boss on Slide Cam set to
ditch of the Tray (Compare with below drawing).
トラバースユニット分解の注意
(1) 組み立てるときは、上記の逆の順序で行ってください。
(2) トレイ組込み時、スライドカムのボスがトレイの溝
に合っているか確認してください。（下図参照）
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
DVD-2910/955
DIAGNOSTICS OF OPTICAL PICKUP
AND REPLACING TRAVERSE UNIT
Make failure diagnostics of the Optical Pickup as follows.
If the laser drive current (Iop) becomes more than 1.5 times of
the initial value, the Optical Pickup should be replaced.
The laser drive current is registered on the seal attached to the
rear of the Mecha.Unit.
In case of replacing the Pickup, change the whole part of the
Traverse Unit.
No mechanical adjustment is necessary after the replace-
ment.
光ピックアップの故障診断とトラバース
ユニットの交換
次の順序で故障診断を行ってください。
レーザー駆動電流 Iop 値が初期値の 1.5 倍以上になっている
場合は光ピックアップ交換の目安となります。
レーザー駆動電流初期値は、メカの後部のシール上に記入さ
れています。
ピックアップ交換の場合は、トラバースユニット単位での交
換となります。メカの調整は不要です。
Example:
DVD 30mA
CD
30mA
例：
Disc no read,unsteady playback, etc.
Laser drive current (Iop) check
HF wave form check
(Refer to WAVE FORMS)
Traverse Unit replacing
(See page 8, 9 for details)
Laser current registering after replacement.
Present value exceeds the ini-
tial value by 1.5 times
Step: Disc playback
Write the measured value on the seal attached to the
Mecha. Unit
* As to the measuring method, refer to page 13.
ディスクを読み込まない
スムーズに再生しない､等
レーザー駆動電流 Iop 値の確認
ＨＦ 波形の確認
（WAVE FORMS 参照）
トラバースユニット交換
（詳細は 8, 9 ページ）
交換後のレーザー電流記入
現在値が初期値の
1.5 倍になっている
手順 ： ディスクを再生
その時の Iop 値をメカ後方のシールの上に重ねて貼る
等で更新する。
* Iop の測定方法は、13 ページ参照。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
DVD-2910/955
1. Label Indication of SACD Mechanism.
2. Note for Handling the Laser Pick-Up
The protection for the damage of laser diode.
If you want to change the optical device unit from any other
units, you must keep the following.
(1) It should be done at the desk already took measures the
static electricity in care of removing the OPU's (Optical
device unit) connector cable.
(2) Workers should be put on the "Earth Band".
(3) It should be done to add the solder to the short land to
prevent the broken Laser diode before removing the 24P
FFC cable.
(4) Don't touch OPU's connector parts carelessly.
3. Replacement of the Laser Pick-up
(Traverse Unit)
Check the Iop (Laser drive current)
If the present Iop (current) value exceeds.+150% of the ini-
tial value, replace the Traverse unit (Laser Pick-up) with a
new one.
4. Iop Measurement Method
When measuring Laser drive current (Iop), playback the
discs (CD,DVD) described below, measure Iop for CD Laser
and DVD Laser by the test point (+5V-A2~ LD (CD), LD
(DVD))on the Main P.W.B.
Test Disc : DVD/DVDT-S01 or commercially available
discs.
: CD/TCD-784 (manufactured by ALMEDIO
INC) or commercially available discs.
Laser current consumption value
ex) DVD ��� mA, CD ��� mA
���������
��DVD ��� mA, CD ��� mA
1. SACD メカのラベル表示
2. レーザーピックアップの取扱注意
レーザーダイオードの破壊防止。
光素子ユニットを交換するときは、以下を遵守してくださ
い。
(1) 光素子ユニットの接続ケーブルをはずすときは、静電対
策を行ったデスク上で作業してください。
(2) 作業者は、リストストラップを使用してください。
(3) レーザーダイオードの破壊防止のため、24P FFC ケーブ
ルをはずす前にランドを半田付けショートしてくださ
い。
(4) 光素子ユニットのコネクタ部に触れないでください。
3. レーザーピックアップ ( トラバースユニッ
ト ) の交換
Iop( レーザー駆動電流）をチェックします。
現在の Iop 値が初期値の 150％を越えている場合、トラバー
スユニット（レーザーピックアップ）を交換してください。
4. Iop の測定方法
レ ー ザ ー 駆 動 電 流 を 測 定 す る 場 合、下 記 の デ ィ ス ク
（CD,DVD) を再生します。
Main 基板上のテストポイント(+5V-A2～LD (CD), LD (DVD))
にて、CD レーザーと DVD レーザーの Iop を測定してくだ
さい。
テストディスク： DVD/DVDT-S01または市販同等ディスク
： CD/TCD-784（ALMEDIO社製）または市販
同等ディスク
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
DVD-2910/955
4.1. DVD レーザー電流測定
(1) オシロスコープをテストポイント +5V-A2 (GND) と
LD (DVD) ( 信号 ) へ接続します。
(2) DVD テストディスクのマルチレイヤートラック 1 を再
生します。
(3) +5V-A2 と LD (DVD) 間の電圧を測定し､次式により Iop
を算出します。
4.2. CD レーザー電流測定
(1) オシロスコープをテストポイント +5V-A2 (GND) と
LD (CD) ( 信号 ) へ接続します。
(2) CD テストディスクのトラック 1 を再生します。
(3) +5V-A2 と LD (CD) 間の電圧を測定し、次式より Iop を
算出します。
LD (DVD)
+5V-A2
Oscilloscope
Iop
測定電圧値
14(抵抗値)
-----------------------------
=
Iop
測定電圧値
11.75(抵抗値)
------------------------------------
=
4.1. DVD Laser current measurement
(1) Connect the oscilloscope to +5V-A2 of test point for
GND side and LD (DVD) of test point for signal side.
(2) Playback the multilayer track 1 of the DVD Test Disc.
(3) Measure the voltage between +5V-A2 and LD (DVD),
calculate Iop by the formula as shown below.
4.2. CD Laser current measurement
(1) Connect the oscilloscope to +5V-A2 of test point for
GND side and LD (CD) of test point for signal side.
(2) Playback the track 1 of the CD Test Disc.
(3) Measure the voltage between +5V-A2 and LD (CD), cal-
culate Iop by the formula as shown below.
LD (DVD)
+5V-A2
Oscilloscope
Iop
Measurement Voltage Value
14 (Resistance value)
-----------------------------------------------------------------------------
=
Iop
Measurement Voltage Value
11.75 (Resistance value)
-----------------------------------------------------------------------------
=
LD(DVD)
LD(CD)
+5V-A2
Main Unit foil side
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
DVD-2910/955
SERVICE MODE
1. Aging Mode
(1) preparation
(a) Equipment used: Any one of DVD Karaoke Disc (con-
taining more than 10 titles).
(b) Unit setting : No spec other than the following procedure
(Aging mode).
At the tray open status, press the “POWER” button to
turn on the power while pressing the “PLAY” and
“OPEN/CLOSE” buttons for DVD operation simulta-
neously.
mark on the FL lights, and the unit is
set to the heat run mode.
(2) procedure
(a) According the above, set to the aging mode.
(b) Set a DVD Karaoke disc to the tray and press the “PLAY”
button once.
mark on the FL blinks, and aging
operation(after playback title-1 and title-10 of the disc,
the tray open/close is made automatically, then playback
the title-1 again) starts. This aging operation continues
automatically until it is stopped or it stops caused by an
error. In case of some error in DVD, the following error
messages are displayed on the FL.
2. Initial Setting Mode
(1) Preparation
(a) Equipment used: None
(b) Unit setting: No spec other than the following procedure
(2) Procedure
(a) Initialize the DVD player when µcom, peripheral parts of
µcom, or Main P.W.B. has been replaced in servicing.
(b) Carry out the following to restore factory setting mode.
At the player stop condition, press 3 buttons for DVD op-
eration(“PLAY”,”OPEN/CLOSE”, and “
SKIP”)
until “INITIALIZE” appears and disappears in the FL.
(“Initialized” appears and disappears on the TV screen.)
(c) All user setting will be lost and its factory setting will be
restored when this initialization is made. Be sure to
memorize your setting for restoring again after the initial-
ization.
No
Error contents
FL display
1
Bad Disc
ERROR 02
2
Focus Error
ERROR 04
3
Read Error
ERROR 03
4
Tracking Error
ERROR 04
5
Tray Error
ERROR 05
6
Navigation Pack Read Error
ERROR 06
7
Cmmunication Error
ERROR 07
サービスモードについて
1. エージングモード
(1) 準備
(a) 使用機器：DVD カラオケディスク（10 タイトル以上
の物）。
(b) 本体設定：下記設定以外規定無。
（エージングモード）
トレイを開けた状態で DVD ユニットの「再生ボタン」
+「開 / 閉ボタン」を同時に押しながら「電源ボタン」
を押してセットの電源を入れると、FL 管の
マー
クが点灯し、ヒートランモードに設定される。
(2) 手順
(a) 上記手順でエージングモードに設定する。
(b) トレイに DVD カラオケディスクを入れ、「再生ボタン」
を 1 回押して、FL 管の
マークが点滅になると、
「ディスクのタイトル 1 とタイトル 10 を再生した後、
トレイを自動で開 / 閉し、再度タイトル 1 の再生を行
う。」エージング動作になります。停止させるか、エ
ラーにて停止するまでこの動作を自動で繰り返します。
DVD 部にエラーが発生した場合は、FL 管に下表のエ
ラーが表示されます。
2. 初期設定モード
(1) 準備
(a) 使用機器：無
(b) 本体設定：下記手順以外規定無。
(2) 手順
(a) サービスにて、マイコンやマイコン周辺部分やメイン
基板を交換した場合は、ＤＶＤ プレーヤーの初期化を
行ってください。
(b) セットの初期化を下記の手順で行い、工場出荷モード
に設定する。
セットが停止状態にて、ＤＶＤ 操作部の「再生ボタ
ン」+「開 / 閉ボタン」+「
( スキップ）ボタン」
の 3 重押しを ＦＬ 管に "INITIALIZE" が表示され消える
まで押します。（ＴＶ 画面には”初期化しました”が
表示され消えます。）
(c) 初期化を行うとお客様が設定した内容が工場出荷状態
に戻りますので、あらかじめ設定内容を控えておき初
期化後に再設定してください。
No.
エラー内容
FL 管表示
1
不良ディスク
ERROR 02
2
フォーカスエラー
ERROR 04
3
リードエラー
ERROR 03
4
トラッキングエラー
ERROR 04
5
トレイエラー
ERROR 05
6
ナビゲーションパックエラー
ERROR 06
7
コマンド通信エラー
ERROR 07
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
DVD-2910/955
3. μ-Com Firm Check Mode
(1) Preparation
(a) Equipment used: None
(b) Unit setting: No spec other than the following procedure.
(2) Procedure
(a) Press the “POWER” button to turn on the power while
pressing the “PLAY” and “OPEN/CLOSE” buttons for
DVD operation simultaneously.
(b) FL all light mode.
This mode is for detecting FL defects. Press “STILL/
PAUSE
” on the remote control unit once to light
all FL segments.
(c) DVD µcom and main unit µcom firm check mode. This
mode is for displaying the status of each µcom em-
ployed.
• DVD µcom firm: Press the “3265” on the remote con-
trol after press the “MENU” button.
• Each time the “MENU” button on the remote control
unit is pressed, µcom firm is displayed one after an-
other.
3. マイコンファームチェックモード
(1) 準備
(a) 使用機器：無
(b) 本体設定：下記手順以外規定無。
(2) 手順
(a) ＤＶＤ 操作部の「再生ボタン」と「開 / 閉ボタン」を
押しながらセットの「電源ボタン」を押し電源を入れ
ます。
(b) ＦＬ 管全点灯モード。
ＦＬ 管の故障判別用のモードで、リモコンの「スティ
ル / ポーズ
ボタン」を押すと ＦＬ 管が全点灯し
ます。
(c) ＤＶＤ マイコン及び本体マイコンのファーム確認モー
ド
搭載されている各マイコンのファーム状態を表示しま
す。
･ ＤＶＤ マイコンのファーム：リモコンのテンキーで
“3265”と入力した後、リモコンの「メニューボタ
ン」を押します。
･ リモコンの「メニューボタン」を押すたびにマイコ
ンファームを次々と表示します。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
DVD-2910/955
TROUBLE SHOOTING
1. GU-3612 MAIN UNIT
1.1. FL TUBE doesn’t light
(1) Check the Set-up process of Syatem µ-COM
Check Power Supply Voltages.
GU-3612 (MAIN UNIT)
• [IC318] : 80, 14
+3.3V_D1, +3.3V_NSW
N.G.
Check Soldering.
• CX141 on MAIN UNIT.
O.K.
Check Oscillation waveform.
GU-3612 (MAIN UNIT)
• [IC318] :
16MHz at 13pin.
N.G.
Check Soldering.
• X302 on MAIN UNIT.
O.K.
Check Power Supply Voltages.
GU-3612 (MAIN UNIT)
• [IC318] :
"H" level at 39pin? "L" level at 7pin and
44pin?
N.G.
Check Soldering.
• IC318 on MAIN UNIT.
O.K.
Check Reset Signal
GU-3612(MAIN UNIT)
• [IC318] :
"H" level at 10pin?
N.G.
Check Soldering.
• IC319 (Reset IC) on MAIN UNIT.
O.K.
Check Data Bus between.
GU-3616-3 (DISPLAY UNIT)
FLD Driver (GU-3614-3 , IC101)
• [VFD_RST] : "H" level?
N.G.
(1) Check soldering of CY171 on MAIN UNIT.
(2) GU-3616-3 is N.G. (No Good).
O.K.
Continue to next step.
Check the Set-up process of B/E �µ-COM.
トラブルシューティング
1. GU-3612 MAIN UNIT
1.1. FL 管点灯せず
(1) システム μ-COM 立ち上がりチェック工程
電源電圧確認
GU-3612 (MAIN UNIT)
･ [IC318] : 80, 14
+3.3V_D1, +3.3V_NSW
N.G.
半田付けを確認
･ MAIN UNIT の CX141
O.K.
発振波形確認
GU-3612 (MAIN UNIT)
･ [IC318] :
16MHz at 13pin.
N.G.
半田付けを確認
･ MAIN UNIT の X302
O.K.
電源電圧確認
GU-3612(MAIN UNIT)
･ [IC318] :
"H" level at 39pin? "L" level at 7pin and 44pin?
N.G.
半田付けを確認
･ MAIN UNIT の IC318
O.K.
RESET 信号の確認
GU-3612(MAIN UNIT)
･ [IC318] :
"H" level at 10pin?
N.G.
半田付けを確認
･ MAIN UNIT の IC319 (Reset IC)
O.K.
データバスの確認
GU-3616-3 (DISPLAY UNIT)
FLD Driver (GU-3616-3, IC101)]
･ [VFD_RST] : "H" level?
N.G.
(1) MAIN UNIT の CY171 の半田付けを確認
(2) GU-3616-3 の不良
O.K.
次のステップへ
(2) B/E μ-COM 立ち上げチェック工程へ
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
DVD-2910/955
(2) Check the Set-up process of B/E µ-COM
Check Power Supply Voltages.
GU-3612 (MAIN UNIT)
• [IC101] :
+3.3V_ESS, +2.0V_ESS O.K.?
N.G.
Check the output level.
[ON/ST] : "H" level?
N.G.
Check Soldering.
• [IC318] : 88pin.
O.K.
Check Clock waveform.
GU-3612 (MAIN UNIT)
• [IC101] :
49, 105, 116pin and 117pin.
27MHz (3.3V), O.K.?
N.G.
Check 27MHz (3.3V) at
10pin of IC113.
N.G.
(1) Check Soldering of
X101.
(2) Check Soldering of
IC113 (SM8701).
O.K.
Check Soldering. Of
R186, R187, R137,
R138 and R153.
Check Reset signal.
GU-3612 (MAIN UNIT)
• [IC101] : (RESET) 24 pin.
"H" level O.K.?
N.G.
Check Soldering.
GU-3612 (MAIN UNIT)
• [IC318] : 81pin.
GU-3612 (MAIN UNIT)
• [IC110]
• R117.
O.K.
Check I2C Signal.
GU-3612 (MAIN UNIT)
• [IC101]:
"H" level at 160pin and 161pin.
N.G.
Check Soldering.
GU-3612 (MAIN UNIT)
• [IC101] and [IC104] [IC116]
O.K.
Check Address, Data Bus be-
tween
GU-3612 (MAIN UNIT)
[1C101] and [IC102] (Flash Rom).
N.G.
Check Soldering at Address, Data
Bus,Control Signal.
GU-3612 (MAIN UNIT)
• [LD0-LD7], [LCS3,LOE]
O.K.
Continue to next step.
Check the Set-up process
of F/E µ-COM.
O.K.
(2) B/E µ-COM 立ち上げチェック工程
電源電圧確認
GU-3612 (MAIN UNIT)
･ [IC101] :
+3.3V_ESS, +2.0V_ESS
N.G.
出力レベル確認
[ON/ST] : "H" level?
N.G.
半田付けを確認
･ [IC318] : 88pin.
O.K.
クロックの波形確認
GU-3612 (MAIN UNIT)
･ [IC101] : 49,105,116pin and 117pin.
27MHz (3.3V)
N.G.
クロックの波形確認
･ [IC113] : 10pin
N.G.
(1) [X101] を確認
(2) 半田付けを確認
･ [IC113] (SM8701).
O.K.
半田付けを確認
･ R186, R187, R137, R138
and R153.
RESET 信号の確認
GU-3612 (MAIN UNIT)
･ [IC101] : (RESET) 24 pin.
"H" level
N.G.
半田付けを確認
GU-3612 (MAIN UNIT)
･ [IC318] : 81pin.
GU-3612 (MAIN UNIT)
･ [IC110]
･ R117.
O.K.
I２C 信号の確認
GU-3612 (MAIN UNIT)
･ [IC101] :
"H" level at 160pin and 161pin.
N.G.
半田付けを確認
GU-3612 (MAIN UNIT)
･ [IC101] and [IC104] [IC116]
O.K.
[1C101] と [IC102] (Flash Rom) 間の
GU-3612(MAIN UNIT)
アドレス、データバスの確認
N.G.
半田付けを確認
GU-3612 (MAIN UNIT)
･ [LD0-LD7], [LCS3, LOE]
O.K.
次のステップへ
(3) F/E μ-COM 立ち上げチェック
工程へ
O.K.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
DVD-2910/955
(3) Check the Set-up process of F/E µ-COM
1.2. Image is not displayed. (Blue-back, DENON wallpaper)
Check Power Supply Voltages.
GU-3612 (MAIN UNIT)
• [IC805] :
+3.3V_D2, +1.8V_D2 O.K.?
+3.3V_A2, +1.8V_A2 O.K.?
N.G.
Check Soldering.
• [IC605] (BA18BCOFP-E2)
• FB706, FB707 and FB711
O.K.
Check Clock waveform.v
GU-3612 (MAIN UNIT)
• [IC805] : 33pin.
33.87MHz (3.3V), O.K.?
N.G.
Check Soldering.
• [IC113] : 12pin
• R191
• [IC607], R692 and R905
O.K.
Check Reset Signal.
GU-3612 (MAIN UNIT)
• [IC805] : (DRVRST)51pin
"H" level O.K.?
N.G.
Check Soldering.
• [IC101] : 145pin
• R907 and R942
O.K.
Check Digital output signal for Video. [1]
GU-3612 (MAIN UNIT)
• [IC101] : PCLKG
• [IC101] : HSYNC, VSYNC
• [IC101] : YUV(0-7)
N.G.
Check Soldering.
• [IC101] : 117pin, [IC607], R187 and R189
• [IC101] : 118, 119pin
• [IC101] : 106-110, 113-115pin, RA106,
RA107
O.K.
Check Digital output signal for Video. [2]
GU-3612 (MAIN UNIT)
• [CX331] : CLKO (21pin)
• [CX331] : HSYNC, VSYNC (11, 10pin)
• [CX331] : PC2-PC9 (23-30pin)
N.G.
Check Soldering.
• [CX331] : 21pin, R211
• [CX331] : 11, 10pin, R218, R219
• [CX331] : 23-30pin, R203-R210
O.K.
Continue to the check process
of GU-3615-1 VIDEO UNIT.
END
(3) F/E µ-COM 立ち上げチェック工程
1.2. 映像出力せず。（ブルーバック、DENON 壁紙）
電源電圧確認
GU-3612 (MAIN UNIT)
･ [IC805] :
+3.3V_D2, +1.8V_D2 O.K.?
+3.3V_A2, +1.8V_A2 O.K.?
N.G.
半田付けを確認
･ [IC605] (BA18BCOFP-E2)
･ FB706, FB707 and FB711
O.K.
クロックの波形確認
GU-3612 (MAIN UNIT)
･ [IC805] : 33pin.
33.87MHz (3.3V), O.K.?
N.G.
半田付けを確認
･ [IC113] : 12pin
･ R191
･ [IC607], R692 and R905
O.K.
RESET 信号の確認
GU-3612 (MAIN UNIT)
･ [IC805] : (DRVRST) 51pin
"H" level O.K.?
N.G.
半田付けを確認
･ [IC101] : 145pin
･ R907 and R942
O.K.
映像用デジタル信号出力確認 [1]
GU-3612 (MAIN UNIT)
･ [IC101] : PCLKG
･ [IC101] : HSYNC, VSYNC
･ [IC101] : YUV (0-7)
N.G.
半田付けを確認
･ [IC101] : 117pin, [IC607], R187 and R189
･ [IC101] : 118, 119pin
･ [IC101] : 106-110, 113-115pin, RA106, RA107
O.K.
映像用デジタル信号出力確認 [2]
GU-3612 (MAIN UNIT)
･ [CX331] : CLKO (21pin)
･ [CX331] : HSYNC, VSYNC (11,10pin)
･ [CX331] : PC2-PC9 (23-30pin)
N.G.
半田付けを確認
･ [CX331] : 21pin, R211
･ [CX331] : 11, 10pin, R218, R219
･ [CX331] : 23-30pin, R203-R210
O.K.
GU-3615-1 VIDEO UNIT チェック工程へ
終了
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
19
DVD-2910/955
1.3. Does not Read Disc
[No Play], [00 00] displayed etc.
(1) Disc does not Rotate.
(2) CD check process
(3) DVD check process
Check the Emission of Pick-up.
GU-3612 (MAIN UNIT)
• Emission of P.U. laser O.K.?
• See attached sheet laser current check.
N.G.
(1) Check Soldering of P.U.
• short-circuit?
(2) Check the circumference soldering of TR801 and
TR802.
(3) Check connector insertion.
• [P.U.] - [GU-3612] FFC (CX241)
(4) Check the soldering [IC802] (CXD1881AR)
(5) Check the soldering [IC803] (FAN8042) and
circumference soldering of [IC803].
O.K.
Check Spindle drive signal.
GU-3612 (MAIN UNIT)
• [DMO] : "H" level?
N.G.
(1) Check soldering of [IC805] : 111-113pin.
(2) Check the circumference soldering of [SPWM1],
[SPWM2] and [FG] signal.
(3) Check the soldering [IC971] (AN8471SA) and
circumference soldering of [IC971].
O.K.
Check the RF signal.
GU-3612 (MAIN UNIT)
• Check the voltage of Test-Point (TP)
TP [RFAC] : about 1.0Vp-p
N.G.
(1) Check the circumference soldering of [IC802]
(2) Check the circumference soldering of [IC805]
O.K.
Check Bus Line.
GU-3612 (MAIN UNIT)
• [IC805] ⇔ [IC804] (16MDRAM)
"L" ⇔ "H" alternate?
N.G.
Check Soldering
• Address, Data Bus, Control Signal.
[BD0-15], [BA0-9], [XLCAS], [XUCAS], [XMOE], [XRAS]
• Check the circumference soldering of [IC804].
O.K.
Check VSTEM communication.
GU-3612 (MAIN UNIT)
• [VDT07_COR], [XHAC_COR],
[XSHD_COR], [DCK_COR],VEFG_COR]
"L" ⇔ "H" alternate?
N.G.
Check Soldering.
• [IC805 ]: 36-49pin
• R952-R964
O.K.
Check Request signal.
GU-3612 (MAIN UNIT)
• Request from [B/E] and [F/E]
[HDRQ_COR] : "L" level?
N.G.
• Check the circumference soldering of [IC601]
O.K.
END
END
END
1.3. ディスク読めず
[No Play], [00 00] 等の表示
(1) ディスク回転せず
(2) CD チェック工程
(3) DVD チェック工程
Pick-up の発光を確認
GU-3612 (MAIN UNIT)
･ P.U. レーザー発光 O.K.?
･ レーザー電流チェック
N.G.
(1) P.U. の半田ショートランドを確認
(2) TR801, TR802 周辺の半田付けを確認
(3) コネクタ接続を確認
･ [P.U.] - [GU-3612] FFC(CX241)
(4) [IC802] とその周辺回路の半田付けを確認
(5) [IC803] とその周辺回路の半田付けを確認
O.K.
スピンドルドライブ信号の確認
GU-3612 (MAIN UNIT)
･ [DMO] : "H" level?
N.G.
(1) [IC805] : 111-113pin の半田付けを確認
(2) [SPWM1], [SPWM2],[FG] 信号ライン周辺の
半田付けを確認
(3) [IC971] とその周辺回路の半田付けを確認
O.K.
RF 信号の確認
GU-3612 (MAIN UNIT)
･ テストポイント (TP) の電圧確認
･ TP [RFAC] : 約 1.0Vp-p
N.G.
(1) [IC802] とその周辺回路の半田付けを確認
(2) [IC805] とその周辺回路の半田付けを確認
O.K.
バスライン確認
GU-3612 (MAIN UNIT)
･ [IC805] ⇔ "H" 切替
N.G.
半田付けを確認
･ アドレス、 データ、 制御信号
[BD0-15]、 [BA0-9]、 [XLCAS]、 [XUCAS]、
[XMOE]、 [XRAS]
･ [IC804] とその周辺回路の半田付けを確認
O.K.
ＶＳＴＥＭ 通信確認
GU-3612 (MAIN UNIT)
･ [VDT0-7_COR], [XHAC_COR],[XSHD_COR],
[DCK_COR], VEFG_COR]
"L" ⇔ "H" 切替
N.G.
半田付けを確認
･ [IC805] : 36-49pin
･ R952-R964
O.K.
リクエスト信号の確認
GU-3612 (MAIN UNIT)
･ [B/E] と [F/E] のリクエスト信号
[HDRQ_COR] : "L" level?
N.G.
･ [IC601] とその周辺回路の半田付けを確認
O.K.
終了
終了
終了
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
DVD-2910/955
(4) SACD check process
Check Power Supply Voltages.
GU-3612 (MAIN UNIT)
• [IC601], [IC602], [IC606] :
+5V_A2, +3.3V_D2, +2.5V_D2 O.K.?
N.G.
Check Soldering.
• [IC604] (BA25BCOFP-E2)
• FB704, FB705
O.K.
Check Oscillation waveform.
GU-3612 (MAIN UNIT)
• [IC601] (EPM3128ATC) : 87pin.
• [IC602] (CXD2753R) : 11pin
33.87MHz (3.3V), O.K.?
N.G.
Check Soldering.
• [IC601] : 87pin, R626, [IC607], R692
• [IC602] : 11pin, R691
O.K.
Check Reset signal.
GU-3612 (MAIN UNIT)
• [IC601] : (XRST_PLD) 89 pin.
• [IC602] : (RST) 9 pin.
"H" level O.K.?
N.G.
Check Soldering.
• [IC806] (TC7S08S), R627
• R664
O.K.
Check Bus Line.
GU-3612 (MAIN UNIT)
• [IC602] ⇔ [IC603] (16MSDRAM)
"L" ⇔ "H" alternate?
N.G.
Check Soldering.
• Address, Data Bus, Control Signal.
[DQ0-7], [D_MA0-11], [DCLK], [DCKE],
[DWE], [DCAS], [DRAS]
• RA601-RA605, R651-R655
O.K.
Check VSTEM communication.
GU-3612 (MAIN UNIT)
• [SD0-7], [XSAC], [XSHD2], [SDCK], [SDEF],
[XSRQ]
"L" ⇔ "H" alternate?
N.G.
Check Soldering.
• [IC601] : 35-37, 44-48, 54, 63, 67-69pin
• [IC602] : 164-176pin
O.K.
Check RF signal for Water Mark.
GU-3612 (MAIN UNIT)
• TP [WM] : about 1.0Vp-p
Check the circumference soldering of
[IC606]
(AD8062) and [IC602] : 126pin
O.K.
END
(4) SACD チェック工程
電源電圧確認
GU-3612 (MAIN UNIT)
･ [IC601], [IC602], [IC606] :
+5V_A2, +3.3V_D2, +2.5V_D2 O.K.?
N.G.
半田付けを確認
･ [IC604] (BA25BCOFP-E2)
･ FB704, FB705
O.K.
クロックの波形確認
GU-3612 (MAIN UNIT)
･ [IC601] (EPM3128ATC) : 87pin.
･ [IC602] (CXD2753R) : 11pin.
33.87MHz (3.3V), O.K.?
N.G.
半田付けを確認
･ [IC601] : 87pin, R626, [IC607], R692
･ [IC602] : 11pin, R691
O.K.
RESET 信号の確認
GU-3612 (MAIN UNIT)
･ [IC601] : (XRST_PLD) 89 pin.
･ [IC602] : (RST) 9 pin.
"H" level O.K.?
N.G.
半田付けを確認
･ [IC806] (TC7S08S), R627
･ R664
O.K.
バスラインの確認
GU-3612 (MAIN UNIT)
･ [IC602] ⇔ [IC603] (16MSDRAM)
"L" ⇔ "H" alternate?
N.G.
半田付けを確認
･ Address, Data Bus, Control Signal.
[DQ0-7], [D_MA0-11], [DCLK], [DCKE], [DWE],
[DCAS], [DRAS]
･ RA601-RA605, R651-R655
O.K.
VSTEM 通信の確認
GU-3612 (MAIN UNIT)
･ [SD0-7], [XSAC], [XSHD2], [SDCK], [SDEF],
[XSRQ]
"L" ⇔ "H" alternate?
N.G.
半田付けを確認
･ [IC601] : 35-37, 44-48, 54, 63, 67-69pin
･ [IC602] : 164-176pin
O.K.
ウォーターマーク用 ＲＦ 信号の確認
GU-3612 (MAIN UNIT)
･ TP[WM] : 約 t 1.0Vp-p
[IC606] (AD8062) 周辺と [IC602] : 126pin の
半田付けを確認
O.K.
終了
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
DVD-2910/955
1.4. No Sound,Noise generated
(1) CD, DVD-VIDEO/AUDIO
Check PCM Digital Audio Data (VSTEM
data) and VSTEM communication.
GU-3612 (MAIN UNIT)
• [IC601] output / [IC101] (ES6138) input :
[BD0-7], [BSDCLK], [SHAK], [BDEF], [BSHD],
[BSREQ]
N.G.
Check Soldering.
• [IC601] : 75-98pin
• [IC101] : 122-128, 131, 132, 142, 144, 149,
150pin
O.K.
Check PCM Digital Audio Data output. [1]
GU-3612 (MAIN UNIT)
• [IC101] output :
[TSD0], [TSD1], [TSD2], [TSD3], [TBCK],
[TWS], [PMCK]
N.G.
Check Soldering.
• [IC101] : 33, 36, 37, 40, 32pin
• R124-R129
• [IC114] (SN74LV74), [IC115] (CY2302)
• R139, R140
O.K.
Check PCM Digital Audio Data output. [2]
GU-3612 (MAIN UNIT)
(1) Audio selector (SN74LVC157) output
/Audio DSP input:
• [PFLR], [PSLR], [PCSW], [PMLR], [PBCK],
[64fs1], [fs1], [PMK]
(2) [IC304, IC305, IC306] : 1pin(DSD_SEL) "L"?
N.G.
• Check the circumference soldering of [IC304],
[IC305] and [IC306].
• Check Soldering.
[IC311]:94, 88, 89, 87, 79, 78, 77, 71,
R389-R391, R397-R399, R388
O.K.
Check Audio DSP [IC311] (ADSP-21266)
GU-3612 (MAIN UNIT)
(1) Power Supply Voltages.
+3.3V_DSP, DSP1.8V
(2) Clock waveform.
142pin : 18.75MHz O.K.?
(3) Reset signal.
[DSPRST] (121pin) : "H"?
(4) Control signal
[DSPSPICS] (122pin), [DSPSPICLK]
(125pin), [DSPMISO] (126pin), [DSPMOSI]
(127pin) [FLAG0] (15pin)
N.G.
(1) Check the circumference soldering of
[TR301], [TR302] and [IC312].
(2) Check the circumference soldering of
[X301].
(3) Check Soldering.
[IC318] : 55pin, R411
(4) Check Soldering.
[IC318] : 1, 100, 98, 99, 58pin, R460
O.K.
Check PCM Digital Audio Data output. [3]
GU-3612 (MAIN UNIT)
(1) Audio DSP (ADSP-21266) output:
• [PFLR], [PSLR], [PCSW],
[TSD3_DSP_OUT], [DFR_OUT]
(2) Audio Selector input/output:
• input : [TSD3_DSP_OUT], [PFLR],
[DFR_OUT]
• output : [PMLR], [FRONT_O], [DFR_OUT].
(3) [IC313] : 1pin "L"?
N.G.
(1) Check Soldering.
[IC311] : 80-82, 86, 57, R394-R396, R370
(2) Check the circumference soldering of
[IC306], and [IC313]
O.K.
Check PCM Digital Audio Data output. [4]
GU-3612 (MAIN UNIT)
• [CX271] :
[FRONT_O], [PSLR], [PCSW], [PMLR],
[PBCK], [PLRCK], [PMK]
• Check Soldering.
[CX271] : 7-12, 14, 16, 18, 19
R493-R502
O.K.
Continue to the check process of
GU-3616-1 AUDIO UNIT.
1.4. 音声出力せず、ノイズ発生
(1) CD, DVD-VIDEO/AUDIO
PCM デジタルオーディオデータ /VSTEM 通
信確認
GU-3612 (MAIN UNIT)
･ [IC601] 出力 / [IC101] (ES6138) 入力 :
[BD0-7], [BSDCLK], [SHAK], [BSDEF], [BSHD],
[BSREQ]
N.G.
半田付けを確認
･ [IC601] : 75-98pin
･ R619-R625, R628-R633
･ [IC101] : 122-128, 131, 132, 142, 144, 149,
150pin
O.K.
PCM デジタルオーディオデータ確認 [1]
GU-3612 (MAIN UNIT)
･ [IC101] 出力 :
[TSD0], [TSD1], [TSD2], [TSD3], [TBCK], [TWS],
[PMCK]
N.G.
半田付けを確認
･ [IC101] : 33, 36, 37, 40, 32pin
･ R124-R129
･ [IC114] (SN74LV74) ,[IC115] (CY2302)
･ R139, R140
O.K.
PCM デジタルオーディオデータ確認 [2]
GU-3612 (MAIN UNIT)
(1) オーディオセレクタ (SN74LVC157) 出力
/ オーディオ DSP 入力
･ [PFLR], [PSLR], [PCSW], [PMLR], [PBCK],
[64fs1], [fs1], [PMK]
(2) [IC304, IC305, IC306] : 1pin (DSD_SEL) "L"?
N.G.
･ [IC304]-[IC306] とその周辺回路の半田付けを確認
･ 半田付けを確認
[IC311] : 94, 88, 89, 87, 79, 78, 77, 71,
R389-R391, R397-R399, R388
O.K.
オーディオ DSP の確認
GU-3612 (MAIN UNIT)
(1) 電源電圧
+3.3V_DSP, DSP1.8V
(2) クロック波形
142pin : 18.75MHz O.K.?
(3) RESET 信号
[DSPRST] (121pin) : "H"?
(4) 制御信号
[DSPSPICS] (122pin), [DSPSPICLK] (125pin),
[DSPMISO] (126pin), [DSPMOSI] (127pin)
[FLAG0] (15pin)
N.G.
(1) [TR301], [TR302], [IC312] とその周辺回路の
半田付けを確認
(2) [X301] とその周辺回路の半田付けを確認
(3) 半田付けを確認
[IC318] : 55pin, R411
(4) 半田付けを確認
[IC318] : 1, 100, 98, 99, 58pin, R460
O.K.
PCM デジタルオーディオデータ確認 [3]
GU-3612 (MAIN UNIT)
(1) オーディオ DSP (ADSP-21266) 出力 :
･ [PFLR], [PSLR], [PCSW], [TSD3_DSP_OUT],
[DFR_OUT]
(2) オーディオセレクタ入出力
･ 入力 : [TSD3_DSP_OUT], [PFLR], [DFR_OUT]
･ 出力 : [PMLR], [FRONT_O], [DFR_OUT]
(3) [IC313] : 1pin "L"?
N.G.
(1) 半田付けを確認
[IC311] : 80-82, 86, 57, R394-R396, R370
(2) [IC306], [IC313] とその周辺回路の半田付けを
確認
O.K.
PCM デジタルオーディオデータ確認 [4]
GU-3612 (MAIN UNIT)
･ [CX271] :
[FRONT_O], [PSLSR], [PCSW], [PMLR], [PBCK],
[PLRCK], [PPMK]
･ 半田付けを確認
[CX271] : 7-12, 14, 16, 18, 19
R493-R502
O.K.
GU-3616-1 AUDIO UNIT のチェック工程へ
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
DVD-2910/955
(2) SACD
Check PCM Digital Audio Data (VSTEM data)
and VSTEM communication.
GU-3612 (MAIN UNIT)
• [IC601] output and [IC602] input:
[SD0-7], [SDCK], [XSAK], [SDEF], [XSHD2],
[XSRQ]
N.G.
Check Soldering.
• [IC601] : 35-37, 44-48, 54, 63, 67-69pin
• [IC602] : 164-176pin
• R606-R613
O.K.
Check DSD Data. [1]
GU-3612 (MAIN UNIT)
• [IC602] output:
[DSARS], [DSALS], [DSASW], [DSAC], [DSAR],
[DSAL], [DSDMIXL], [DSDMIXR], [BCKAO]
N.G.
Check Soldering.
• [IC602] : 76, 74, 71, 69, 66, 64, 60, 56, 55pin
• R671-R679
O.K.
Check DSD Data. [2]
GU-3612 ( MAIN UNIT)
(1) Audio selector (SN74LVC157) output
/Audio DSP input:
• [DSR_IN], [DSL_I], [DSW_IN], [DC_I], [DFR_IN],
[DFL_I], [DML_I], [DMR_I], [DBCK]
(2) [IC304, IC305, IC306] : 1pin (DSD_SEL) "H"?
N.G.
• Check the circumference soldering of
[IC304], [IC305] and [IC306].
• Check Soldering.
[IC311] : 64, 88, 56, 89, 53, 94
R385, R391, R371, R390, R372, R389.
O.K.
Check Audio DSP [IC311] (ADSP-21266)
GU-3612 (MAIN UNIT)
(1) Power Supply Voltages.
+3.3V_DSP, DSP1.8V
(2) Clock waveform.
142pin : 18.75MHz O.K.?
(3) Reset signal.
[DSPRST] (121pin) : "H"?
(4) Control signal
[DSPSPICS] (122pin), [DSPSPICLK] (125pin),
[DSPMISO] (126pin), [DSPMOSI] (127pin)
[FLAG0](15pin)
N.G.
(1) Check the circumference soldering of
[TR301], [TR302] and [IC312].
(2) Check the circumference soldering of
[X301].
(3) Check Soldering.
[IC318] : 55pin, R411
(4) Check Soldering.
[IC318] : 1, 100, 98, 99, 58pin, R460
O.K.
Check DSD Data. [3]
GU-3612 (MAIN UNIT)
Audio DSP (ADSP-21266) output:
• [DFL_O], [DSL_O], [DC_O], [DFR_OUT]
N.G.
(1) Check Soldering.
[IC311] : 80-82, 86, 57, R394-R396, R370
O.K.
Check DSD Data. [4]
GU-3612 (MAIN UNIT)
• [CX271] :
[DSL_O], [DSR_OUT], [FRONT_O], [DFR_OUT],
[DC_O], [DSW_OUT], [DML_I], [DMR_O] ,[DBCK]
• Check Soldering.
[CX271] : 7-12, 14, 16, 18, 19
R493-R502
O.K.
Continue to the check process of
GU-3616-1 AUDIO UNIT.
(2) SACD
SACD デジタルオーディオデータ /VSTEM
通信確認
GU-3612 (MAIN UNIT)
･ [IC601] 出力 / [IC602] 入力 :
[SD0-7], [SDCK], [XSAK], [SDEF], [XSHD2],
[XSRQ]
N.G.
半田付けを確認
･ [IC601] : 35-37, 44-48, 54, 63, 67-69pin
･ [IC602] : 164-176pin
･ R606-R613
O.K.
DSD データ確認 [1]
GU-3612(MAIN UNIT)
･ [IC602] 出力 :
[DSARS], [DSALS], [DSASW], [DSAC], [DSAR],
[DSAL], [DSDMIXL], [DSDMIXR], [BCKAO]
N.G.
半田付けを確認
･ [IC602] : 76, 74, 71, 69, 66, 64, 60, 56, 55pin
･ R671-R679
O.K.
DSD データ確認 [2]
GU-3612 (MAIN UNIT)
(1) オーディオセレクタ (SN74LVC157) 出力
/ オーディオ DSP 入力
･ [DSR_IN], [DSL_I], [DSW_IN], [DC_I],
[DFR_IN], [DFL_I], [DML_I], [DMR_I], [DBCK]
(2) [IC304, IC305, IC306] : 1pin(DSD_SEL) "H"?
N.G.
･ [IC304]-[IC306] とその周辺回路の半田付けを確認
･ 半田付けを確認
[IC311] : 64, 88, 56, 89, 53, 94
･ R385, R391, R371, R390, R372, R389.
O.K.
オーディオDSPの確認 [IC311] (ADSP-21266)
GU-3612 (MAIN UNIT)
(1) 電源電圧
+3.3V_DSP, DSP1.8V
(2) クロック波形
142pin : 18.75MHz O.K.?
(3) RESET 信号
[DSPRST] (121pin) : "H"?
(4) 制御信号
[DSPSPICS] (122pin), [DSPSPICLK] (125pin) ,
[DSPMISO] (126pin), [DSPMOSI] (127pin)
[FLAG0] (15pin)
N.G.
(1) [TR301], [TR302], [IC312] とその周辺回路の
半田付けを確認
(2) [X301] とその周辺回路の半田付けを確認
(3) 半田付けを確認
[IC318] : 55pin, R411
(4) 半田付けを確認
[IC318] : 1, 100, 98, 99, 58pin, R460.
O.K.
DSD データ確認 [3]
GU-3612 (MAIN UNIT)
オーディオ DSP (ADSP-21266) 出力 :
･ [DFL_O], [DSL_O],[DC_O], [DFR_OUT]
N.G.
･ 半田付けを確認
[IC311] : 80-82, 86, 57, R394-R396, R370
O.K.
DSD データ確認 [4]
GU-3612(MAIN UNIT)
･ [CX271] :
[DSL_O], [DSR_OUT], [FRONT_O],
[DFR_OUT], [DC_O], [DSW_OUT], [DML_I],
[DMR_O], [DBCK]
･ 半田付けを確認
[CX271] : 7-12, 14, 16, 18, 19
R493-R502
O.K.
GU-3616-1 AUDIO UNIT のチェック工程へ
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
DVD-2910/955
2. GU-3616-1 AUDIO UNIT
2.1. No Sound,Noise generated
Check Power Supply Voltages.
GU-3616-1 (AUDIO UNIT)
• +3.3V_D1-1, +3.3V_D4-1
+5V_D1-1, +9V_A, -9V_A
N.G.
Check Soldering.
• [CY061]
• R641-R644
O.K.
Check Digital Audio Data
GU-3616-1 (AUDIO UNIT
AUDIO DAC (PCM1791A) input:
(1) MIX L/R ch :
• [PMIX/DSDMIXL], [PLRCK/DSDMIXR],
[PMCK/DSDBCK], [PBCK/DSDGND]
(2) FRONT L/R ch :
• [PFLFR/DSDFL], [PLRCK/DSDFR],
[PMCK/DSDBCK], [PBCK/DSDGND]
(3) CNT./SW. ch :
• [PCSW/DSDC], [PLRCK/DSDSW],
[PMCK/DSDBCK], [PBCK/DSDGND]
(4) SL/SR ch :
• [PSLSR/DSDSL], [PLRCK/DSDSR],
[PMCK/DSDBCK], [PBCK/DSDGND]
N.G.
(1) Check the circumference soldering of [IC301].
(2) Check the circumference soldering of [IC304].
(3) Check the circumference soldering of [IC307].
(4) Check the circumference soldering of [IC310].
• Check the circumference soldering of[CY271].
O.K.
Check Analog Audio Data. [1]
GU-3616-1 (AUDIO UNIT)
AUDIO DAC (PCM1791A) output:
(1) MIX L/R ch :
• [IC301] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
(2) FRONT L/R ch :
• [IC304] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
(3) CNT./SW. ch :
• [IC307] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
(4) SL/SR ch :
• [IC310] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
N.G.
• Check Soldering.
(1) [IC301] : 17, 18, 13, 12pin
(2) [IC304] : 17, 18, 13, 12pin
(3) [IC307] : 17, 18, 13, 12pin
(4) [IC310] : 17, 18, 13, 12pin
O.K.
Check Analog Audio Data. [2]
GU-3616-1 (AUDIO UNIT)
AUDIO Buffer input/output :
(1) MIX L/R ch : [IC302], [IC303]
(2) FRONT L/R ch : [IC305], [IC306]
(3) CNT./SW. ch : [IC308], [IC309]
(4) SL/SR ch : [IC311], IC312]
N.G.
• Check the circumference soldering of
[IC302], [IC303], [IC305], [IC306], [IC308], [IC309],
[IC311], [IC312]
O.K.
Check Mute circuit.
GU-3616-1 (AUDIO UNIT)
• [AMUTE], [EMUTE] : "L"?
/Audio DSP input:
• Zero mute : "L"?
[IC301], [IC304], [IC307], [IC310] : 22, 23pin
N.G.
• Check the circumference soldering of [TR335],
[TR336], [TR338] and [TR339].
• Check the circumference soldering of
[TR340-343], [TR345-348], [TR351-358].
• Check the circumference soldering of [TR303-
308], [TR311-316], [TR320-325], [TR328-333].
• Chec sddering
[IC301 : 22, 23pin], [IC304 : 22, 23pin],
[IC307 : 22, 23pin], [IC310 : 22, 23pin]
O.K.
END
2. GU-3616-1 AUDIO UNIT
2.1. 音声出力せず、ノイズ発生
電源電圧確認
GU-3616-1 (AUDIO UNIT)
･ +3.3V_D1-1, +3.3V_D4-1, +5V_N5W
+5V_D1-1, +9V_A, -9V_A
N.G.
半田付けを確認
･ [CY071]
･ R641-R644
O.K.
デジタルオーディオデータ確認
GU-3616-1 (AUDIO UNIT)
AUDIO DAC (PCM1791A) 入力 :
(1) MIX L/R ch :
･ [PMIX/DSDMIXL], [PLRCK/DSDMIXR],
[PMCK/DSDBCK], [PBCK/DSDGND]
(2) FRONT L/R ch :
･ [PFLFR/DSDFL], [PLRCK/DSDFR],
[PMCK/DSDBCK], [PBCK/DSDGND]
(3) CNT./SW. ch :
･ [PCSW/DSDC], [PLRCK/DSDSW],
[PMCK/DSDBCK], [PBCK/DSDGND]
(4) SL/SR ch :
･ [PSLSR/DSDSL], [PLRCK/DSDSR],
[PMCK/DSDBCK], [PBCK/DSDGND]
N.G.
(1) [IC301] とその周辺回路の半田付けを確認
(2) [IC304] とその周辺回路の半田付けを確認
(3) [IC307] とその周辺回路の半田付けを確認
(4) [IC310] とその周辺回路の半田付けを確認
･ [CY271] とその周辺回路の半田付けを確認
O.K.
アナログオーディオデータ確認 [1]
GU-3616-1 (AUDIO UNIT)
AUDIO DAC (PCM1791A) 出力 :
(1) MIX L/R ch :
･ [IC301] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
(2) FRONT L/R ch :
･ [IC304] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
(3) CNT./SW. ch :
･ [IC307] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
(4) SL/SR ch :
･ [IC310] : [VoutL+], [VoutL-], [VoutR+], [VoutR-]
N.G.
半田付けを確認
(1) [IC301] : 17, 18, 13, 12pin
(2) [IC304] : 17, 18, 13, 12pin
(3) [IC307] : 17, 18, 13, 12pin
(4) [IC310] : 17, 18, 13, 12pin
O.K.
アナログオーディオデータ確認 [2]
GU-3616-1 (AUDIO UNIT)
AUDIO バッファー入出力 :
(1) MIX L/R ch : [IC302], [IC303]
(2) FRONT L/R ch : [IC305], [IC306]
(3) CNT./SW. ch : [IC308], [IC309]
(4) SL/SR ch : [IC311]. IC312]
N.G.
･ [IC302, [IC303], [IC305], [IC306], [IC308], [IC309],
[IC311], [IC312] とその周辺回路の半田付けを確認
O.K.
ミュート回路の確認
GU-3616-1 (AUDIO UNIT)
･ [AMUTE], [EMUTE] : "L"?
/Audio DSP input :
･ Zero mute : "L"?
[IC301], [IC304], [IC307], [IC310] : 22, 23pin
N.G.
･ [TR335],[TR336],[TR338],[TR339]とその周辺回路の
半田付けを確認
･ [TR340-343],[TR345-348],[TR351-358] とその周辺
回路の半田付けを確認
･ [TR303-308],[TR311-316],[TR320-325],[TR328
-333] とその周辺回路の半田付けを確認
･ 半田付けを確認
[IC301 : 22, 23pin], [IC304 : 22, 23pin],
[IC307 : 22, 23pin], [IC310 : 22, 23pin]
O.K.
終了
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
DVD-2910/955
3. GU-3615-1 VIDEO UNIT
(1) Progressive output [Y,Pb,Pr] does not outputed.
Check Power Supply Voltages.
GU-3615-1(VIDEO UNIT)
• +3.3V_D3, +5V_V1, +2.5V_V1, +1.8V_V1
N.G.
Check Soldering.
• [CY051], [IC715], [IC716]
O.K.
Check Digital signal for Video [1].
GU-3615-1 (VIDEO UNIT)
• [IC718](FLI2310)input:
[PC2-9], [HSYNC], [VSYNC], [CLK0]
N.G.
Check Soldering.
• [CY331] : 4-11, 13, 23, 24pin
• RA708, RA709, R794
• [IC718] : 195, 196, 199-205, 207,208pin
• RA723 ,RA724 ,R930, R931
O.K.
Check oscillation waveform.
GU-3615-1 (VIDEO UNIT)
• [IC718] : [XTAL_IN]191pin
13.5MHz (3.3V) O.K.?
N.G.
Check Soldering.
• Circumference of [X731] (13.5MXTAL)
O.K.
Check control signal for [IC718] and [IC701].
GU-3615-1(VIDEO UNIT)
• [SDA],[SCK],[RST_V]
N.G.
Check Soldering.
• [CY331] : 9, 14, 15pin
• [IC718] : 45-47pin, R915-R917
• [IC701] : 21, 22, 33pin, R718, R719, R737
O.K.
Check Digital signal for Video [2].
GU-3615-1 (VIDEO UNIT)
• [IC718]output / [IC701] (ADV7310) input:
[YO0-9], [CO0-9], [P_HSYNC], [P_VSYNC]
[CLK_P/I], [PS_CLK]
N.G.
Check Soldering.
• [IC718] : 144-155, 126-137, 125, 118, 119pin
• R945, R947, R948
• [IC701] : 2-13, 14-18, 23, 24, 26-30, 32pin
• RA701-RA704, RA707, R723, R729
• Circumference of [IC702]
(SN74LVC157APW)
O.K.
Check Video Encoder [1] circuit.
GU-3615-1 (VIDEO UNIT)
• [IC701] :
N.G.
Check the soldering [IC701]and circumfer-
ence soldering of [IC701].
O.K.
Check Video Buffer circuit.
GU-3615-1 (VIDEO UNIT)
• [TR701-TR703] :
• [VR702-VR704]
N.G.
Check the soldering [TR701-TR703] and
circumference soldering of [TR701-TR703].
O.K.
Check Video Driver circuit.
GU-3615-1 (VIDEO UNIT)
• [IC708] (BH7862F)]
N.G.
Check the soldering [IC708] and circumfer-
ence soldering of [IC708].
O.K.
END
3. GU-3615-1 VIDEO UNIT
(1) プログレッシブ映像 [Y,Pb,Pr] 出力せず
電源電圧確認
GU-3615-1 (VIDEO UNIT)
･ +3.3V_D3, +5V_V1, +2.5V_V1, +1.8V_V1
N.G.
半田付けを確認
･ [CY051], [IC715], [IC716]
O.K.
映像用デジタル信号の確認 [1]
GU-3615-1 (VIDEO UNIT)
･ [IC718](FLI2310) 入力 :
[PC2-9], [HSYNC], [VSYNC], [CLK0]
N.G.
半田付けを確認
･ [CY331] : 4-11, 13, 23, 24pin
･ RA708, RA709, R794
･ [IC718] : 195, 196, 199-205, 207, 208pin
･ RA723, RA724, R930, R931
O.K.
発振波形確認
GU-3615-1 (VIDEO UNIT)
･ [IC718] : [XTAL_IN] 191pin
13.5MHz (3.3V) O.K.?
N.G.
半田付けを確認
･ [X731] (13.5MXTAL) 周辺回路
O.K.
[IC718] と [IC701] 制御信号の確認
GU-3615-1 (VIDEO UNIT)
･ [SDA], [SCK], [RST_V]
N.G.
半田付けを確認
･ [CY331] : 9, 14, 15pin
･ [IC718] : 45-47pin, R915-R917
･ [IC701] : 21, 22, 33pin, R718, R719, R737
O.K.
映像用デジタル信号の確認 [2]
GU-3615-1 (VIDEO UNIT)
･ [IC718] 出力 / [IC701] (ADV7310) 入力 :
[YO0-9], [CO0-9], [P_HSYNC], [P_VSYNC]
[CLK_P/I], [PS_CLK]
N.G.
半田付けを確認
･ [IC718] : 144-155, 126-137, 125, 118, 119pin
･ R945, R947, R948
･ [IC701] : 2-13, 14-18, 23, 24, 26-30, 32pin
･ RA701-RA704, RA707, R723, R729
･ [IC702] (SN74LVC157APW) 周辺回路
O.K.
ビデオエンコーダー [1] 回路の確認
GU-3615-1 (VIDEO UNIT)
･ [IC701]
N.G.
[IC701] とその周辺回路の半田付けを確認
O.K.
ビデオバッファー回路の確認
GU-3615-1 (VIDEO UNIT)
･ [TR701-TR703]
･ [VR702-VR704]
N.G.
[TR701-TR703] とその周辺回路の半田付けを
確認
O.K.
ビデオドライバー回路の確認
GU-3615-1 (VIDEO UNIT)
･ [IC708] (BH7862F)
N.G.
[IC708] とその周辺回路の半田付けを確認
O.K.
終了
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
DVD-2910/955
(2) Progressive output [Y,Pb,Pr] does not outputed.
(3) Interlace output [V-OUT, S-OUT] does not outputed.
Check Digital signal for Video [3].
GU-3615-1 (VIDEO UNIT)
• [IC701]input:
[PC2-9], [HSYNC], [VSYNC], [CLK0]
N.G.
Check Soldering.
• [IC701] : 53-55, 58-62, 49, 50pin
• RA705, RA706, R726, R728
O.K.
Check control signal for [IC710] (ADV7310).
GU-3615-1 (VIDEO UNIT)
• [SDA], [SCK], [RST_V]
N.G.
Check Soldering.
• [IC701] : 21, 22, 33pin, R839, R840, R858
O.K.
Check Digital signal for Video [4].
GU-3615-1 (VIDEO UNIT)
• [IC710]input :
[PC2-9], [HSYNC], [VSYNC], [CLK0]
N.G.
Check Soldering.
• [IC710] : 53-55, 58-62, 49, 50pin
• RA714, RA715, R847, R852, R853
O.K.
Check Video Encoder [2] circuit.
GU-3615-1 (VIDEO UNIT)
• [IC710]
N.G.
Check the soldering [IC710]
and circumference soldering of [IC710].
O.K.
Check Video Buffer circuit.
GU-3615-1 (VIDEO UNIT)
• [TR713], [TR714]
• [VR709], [VR710]
N.G.
Check the soldering [TR713], [TR714] and
circumference soldering of [TR713],
[TR714].
O.K.
Check Video Driver circuit.
GU-3615-1 (VIDEO UNIT)
• [IC708] (BH7862F)
N.G.
Check the soldering [IC708]
and circumference soldering of [IC708].
O.K.
END
END
(2) インターレース映像 [Y,Cb,Cr] 出力せず
(3) インターレース映像 [V-OUT, S-OUT] 出力せず
映像用デジタル信号の確認 [3]
GU-3615-1 (VIDEO UNIT)
･ [IC701]input :
[PC2-9], [HSYNC], [VSYNC], [CLK0]
N.G.
半田付けを確認
･ [IC701] : 53-55, 58-62, 49, 50pin
･ RA705, RA706, R726, R728
O.K.
[IC710] (ADV7310) 制御信号の確認
GU-3615-1 (VIDEO UNIT)
･ [SDA], [SCK], [RST_V]
N.G.
半田付けを確認
･ [IC701] : 21, 22, 33pin, R839, R840, R858
O.K.
映像用デジタル信号の確認 [4]
GU-3615-1 (VIDEO UNIT)
･ [IC710] input
[PC2-9], [HSYNC], [VSYNC], [CLK0]
N.G.
半田付けを確認
･ [IC710] : 53-55, 58-62, 49, 50pin
･ RA714, RA715, R847, R852, R853
O.K.
ビデオエンコーダー [2] 回路の確認
GU-3615-1 (VIDEO UNIT)
･ [IC710]
N.G.
[IC710] とその周辺回路の半田付けを確認
O.K.
ビデオバッファー回路の確認
GU-3615-1 (VIDEO UNIT)
･ [TR713], [TR714]
･ [VR709], [VR710]
N.G.
[TR713-TR714] とその周辺回路の半田付けを
確認
O.K.
ビデオドライバー回路の確認
GU-3615-1 (VIDEO UNIT)
･ [IC708] (BH7862F)
N.G.
[IC708] とその周辺回路の半田付けを確認
O.K.
終了
終了
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
DVD-2910/955
ELECTRICAL ADJUSTMENT FOR VIDEO
1. SETTING
(1) Connect the monitor TV to the video output terminal.
(2) Connect the oscilloscope to the Y-signal and C-signal of
S-VIDEO output terminal and each terminate at 75
Ohms.
(3) Connect the oscilloscope to the Y-signal, PB-signal and
PR-signal of Component video output terminal and each
terminate at 75 Ohms.
※ Use the 75 Ohms resistance must be 1%
(4) DVD test disc : DVDT-S01
2. BEFORE ADJUSTMENT
2.1. Setting the Oscilloscope as below.
(1) PB/PR
(a) TIME/DIV : 20μS
(b) VOLT/DIV : 100mV
(Use the probe : x10 )
(2) Y/C
(a) TIME/DIV : 20μS
(b) VOLT/DIV : 50mV
(Use the probe : x10 )
Power on. Power Supply
USA & Canada
:
120V
Europe
:
230V
Japan
:
100V
2.2. Preparation
(1) power on.
(2) Push [OPEN/CLOSE] button, then open the Disc Tray.
(3) Set DVD test disc (DVDT-S01) on the Disc Tray, and
then push [CLOSE] button.
(4) FL display appear “STOP”, push [PLAY] button to play-
back DVD.
(5) Push the [DISPLAY] button of remote control unit and
then appear the ON-Screen Display (GUI) on the monitor
TV.
(6) Push the [+10] and [2] button, select title 12 of DVD.
(7) Push the [ENTER] button, playback title 12. (color bar
75%)
ビデオ回路の調整
1. セッティング手順
(1) セットのVIDEO OUT 端子にテレビモニターを接続する。
(2) セットの S2 VIDEO OUT 端子から Y 信号と C 信号をそ
れぞれオシロスコープ（終端抵抗：75Ω）に接続する。
(3) セットの COMPONENT VIDEO OUT の端子（Y/PB/PR）
をそれぞれオシロスコープ（終端抵抗：75Ω）に接続
する。
※ 75Ω 抵抗は 1％品を使用する事。
(4) DVD テストディスク：DVDT-S01 を用意する。
2. 調整のまえに
2.1. オシロスコープを下記に設定する。
(1) PB/PR
(a) TIME/DIV : 20μS
(b) VOLT/DIV : 100mV
（プローブ x10 使用）
(2) Y/C
(a) TIME/DIV : 20μS
(b) VOLT/DIV : 50mV
（プローブ x10 使用）
電源電圧 ：100V
2.2. 準備手順
(1) セットの AC コードをコンセントへ挿入し、セットの電
源を ON する。
(2) セットの「OPEN/CLOSE」ボタンを押しトレイを開き、
トレイ上に DVD テストディスク（DVDT-S1）をセット
後、「CLOSE」ボタンを押す。
(3) セット表示管上に "STOP" が表示されてから、PLAY ボ
タンを押し、ディスクを再生する。
(4) リモコンの DISPLAY ボタンを押しグラフィカル・ユー
ザー・インターフェイス (GUI) 画面を出す。
(5) 番号ボタンの [+10][2] ボタンを押し、Title 12 を選択す
る。
(6) 「ENTER」ボタンを押し、Title 12 を再生する（75％カ
ラーバー信号）。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
DVD-2910/955
2.3. Procedure
(1) Adjust the signal of S-VIDEO out by the wave of oscillo-
scope.
(a) Target, Y-signal
Point
:
VR709
Adjustment Value
:
1000 ± 20mV
Waveform
(b) Target, C-signal
Point
:
VR710
Adjustment Value
:
286 ± 5mV
Waveform
(2) Adjust the signal of COMPONENT OUT by the wave of
oscilloscope.
(a) Target, Y-signal
Point
:
VR702
Adjustment Value
:
1000 ± 20mV
Waveform
(b) Target, PB-signal
Point
:
VR703
Adjustment Value
:
*525 ± 10mV
Waveform
Y-signal of S-VIDEO out
Y
C-signal of S-VIDEO out
C
Y-signal
Y
PB-signal
PB
2.3. 手順
(1) セットの S2 VIDEO OUT の信号レベルをオシロスコープ
上の波高値で調整する。
(a) Y 信号レベル
調整個所
：VR709
調整値
： 1000 ± 20mV
波形
(b) C 信号レベル
調整個所
：VR710
調整値
： 286 ± 5ｍV
波形
(2) COMPONENT OUT の信号レベルをオシロスコープ上の
波高値で調整する。
(a) Y 信号レベル
調整個所
：VR702
調整値
： 1000 ± 20ｍV
波形
(b) PB 信号レベル
調整個所
：VR703
調整値
：525 ± 10ｍV
波形
S2 VIDEO OUT の Y 信号レベル
Y
C
S2 VIDEO OUT の C 信号レベル
Y
プログレッシブの Y 信号レベル
PB
PB 信号レベル
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
DVD-2910/955
(c) Target, PR-signal
Point
:
VR704
Adjustment Value
:
*525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model
PR-signal
PR
(c) PR 信号レベル
調整個所
：VR704
調整値
： 525 ± 10ｍV
波形
PR- 信号レベル
PR
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
DVD-2910/955
BLOCK DIAGRAM
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
30
SEMICONDUCTORS / 半導体一覧表
Only major IC's are shown, general IC's etc. are omitted to list.
主な半導体を記載しています。汎用の半導体等は記載を省略しています。
● IC's
CXD1885Q(IC805)
Top View
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
DVDD33
DVDD18
VMCHG
TDO
TCK
TDI
TMS
TRST
GIO19
GIO18
GIO17
GIO16
GIO15
GIO14
GIO13
DVSS
GIO12
GIO11
GIO10
GIO9
GIO8
DVDD18
GIO7
GIO6
GIO5
GIO4
DVDD33
GIO3
GIO2
GIO1
GIO0
MODSEL2
DVSS
MODSEL1
MODSEL0
TEST15
TEST14
TEST13
TEST12
TEST11
TEST10
TEST9
TEST8
TEST7
TEST6
TEST5
TEST4
TEST3
TEST2
TEST1
TEST0
RD8
DVDD33
DVDD33
DRVTX
DRVRX
DRVCLK
DRVRDY
C2PO
DADT
DOTK
LRCK
BCK
EXVCO
EXPLDT
CSL
SI
SO
SCLKH
RFOKGH
HFD
MIRRORH
DTC
AVSS
ATC
HF
TLC0
TLC1
IREF
AVDD33
JMREF
JMOUT
CHG
VFBC
AVDD18
VCOI
LPF1
LPF2
RC
AVSS
AVSS
AD0
AD1
AD2
AVDD33
AD3
AD4
AD5
AD6
AD7
AD8
AD9
VREFH
VREFL
AVDD18
ALCR
MSEL0
MSEL1
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
TESTSEL
MD0
MD1
MD2
MD3
MD4
MD5
DVSS
MD6
MD7
MALE
MCS
MWR
DVDD33
MRD
MRDY
MINT
SYSCK
DVDD18
XI
XO
DVSS
VDT7
VDT6
DVSS
VDT5
VDT4
VDT3
VDT2
VDT1
VDT0
HDRQ
XHAC
VEFG
XSHD
DCK
DRVIRQ
DRVRST
DVDD18
DVDD18
RD9
RD10
RD11
RD12
RD13
RD14
RD15
RD0
RD1
RD2
RD3
RD4
RD5
DVSS
RD6
RD7
XMWR
XRAS
RA0
DVDD18
RA1
RA2
RA3
RA4
DVDD33
RA5
RA6
RA7
RA8
RA9
DVSS
RA10
RA11
XMOE
XUCAS
XLCAS
GPWM5
GPWM4
GPWM3
GPWM2
GPWM1
GPWM0
SPWM2
SPWM1
FG
AVSS
DA3 (SLED2_TILT)
DA2 (FSCON)
DA1 (SLED)
DA0 (TSCON)
AVDD33
DRAM I/F
PWM.FG
D/A
A/D
Data PLL/Data Slicer
ASP S-I/O, Defect etc
Audio D/A
VSTEM I/F
VSTEM I/F
Clock
B/E MCU I/F
JTAG
Test/Monitor Pin
General Port
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
DVD-2910/955
Block Diagram
Functions (A/D : Analog/Digital, PU : Pull-up, PD : Pull-down, SMT=Schumitt )
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
1
DVDD33
P
VDD & GND
Digital 3.3V Power for I/O.
2
ALCR
I
D
MCU I/F
Chip select input. (L: Reset)
*
*
3
MSEL0
I
D
MCU I/F
MCU I/F mode select 0.
*
4
MSEL1
I
D
MCU I/F
MCU I/F mode select 1.
*
5
MA0
I/O
D
MCU I/F
MCU Adress input 0 / data I/O 0 .
*
6
MA1
I/O
D
MCU I/F
MCU Adress input 1 / data I/O 1.
*
7
MA2
I/O
D
MCU I/F
MCU Adress input 2 / data I/O 2.
*
8
MA3
I/O
D
MCU I/F
MCU Adress input 3 / data I/O 3.
*
9
MA4
I/O
D
MCU I/F
MCU Adress input 4 / data I/O 4.
*
10
MA5
I/O
D
MCU I/F
MCU Adress input 5 / data I/O 5.
*
11
MA6
I/O
D
MCU I/F
MCU Adress input 6 / data I/O 6.
*
12
MA7
I/O
D
MCU I/F
MCU Adress input 7 / data I/O 7.
*
13
MA8
I
D
MCU I/F
MCU Adress input 8 .
*
14
TESTSEL
I
D
MCU I/F
TEST Select input.
*
15
MD0
I/O
D
MCU I/F
MCU data I/O 0 .
*
16
MD1
I/O
D
MCU I/F
MCU data I/O 1.
*
17
MD2
I/O
D
MCU I/F
MCU data I/O 2.
*
18
MD3
I/O
D
MCU I/F
MCU data I/O 3.
*
19
MD4
I/O
D
MCU I/F
MCU data I/O 4.
*
20
MD5
I/O
D
MCU I/F
MCU data I/O 5.
*
21
DVSS
P
VDD & GND
Digital Ground.
22
MD6
I/O
D
MCU I/F
MCU data I/O 6.
*
23
MD7
I/O
D
MCU I/F
MCU data I/O 7 .
*
24
MALE
I
D
MCU I/F
MCU Adress latch signal input.
*
25
MCS
I
D
MCU I/F
MCU Chip Select signal input.
*
26
MWR
I
D
MCU I/F
MCU Write strobe signal.
*
27
DVDD33
P
VDD & GND
digital 3.3V Power. (for I/O )
28
MRD
I
D
MCU I/F
MCU Read Strobe signal.
*
29
MRDY
O
D
MCU I/F
MCU Ready signal. (L: Wait)
30
MINT
O
D
MCU I/F
MCU Interrupt signal. (L: Interrupt request)
HFD
Video
VSTEM
Serial
Command
Audio
MCU
Servo
control
X'tal
HF
ASP
PWM
ATC
JTAG
Mecha
control
Servo
singnal
BCA
Data
Slicer
DVD
Demodulation
CD-DSP (DDCD)
Data-PLL
VSTEM
Serial I/F
ASP Serial I/F
Spindle
TZC
GIO
A/D
ICU
Timer
Peri. CLK
ICU
MCU I/F
MPEG I/F
EDC
ECC Core
16/4M DRAM
Audio I/F
CD-ROM
Header Dec.
Memory
manager
D/A
PWM
CMD/
RSP
reg.
TC
DSP
ROM/RAM
RAM
DSP CLK/Mode
Data
Direction
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
DVD-2910/955
31
SYSCK
O
D
Clock
Clock Monitor output.
32
DVDD18
P
VDD & GND
Digital 1.8V Power. (Internal logic system power)
33
XI
I
D
Clock
Crystal oscillation input.
34
XO
O
D
Clock
Crystal oscillation output.
35
DVSS
P
VDD & GND
Digital Ground.
36
VDT7
O
D
VSTEM A/V
MPEG data output 7.
37
VTD6
O
D
VSTEM A/V
MPEG data output 6.
38
DVSS
P
VDD & GND
Digital Ground.
39
VDT5
O
D
VSTEM A/V
MPEG data output 5.
40
VDT4
O
D
VSTEM A/V
MPEG data output 4.
41
VDT3
O
D
VSTEM A/V
MPEG data output 3.
42
VDT2
O
D
VSTEM A/V
MPEG data output 2.
43
VDT1
O
D
VSTEM A/V
MPEG data output 1.
44
VDT0
O
D
VSTEM A/V
MPEG data output 0.
45
HDRQ
I
D
VSTEM A/V
MPEG data Request input.
*
46
XHAC
O
D
VSTEM A/V
Data Valid output.
47
VEFG
O
D
VSTEM A/V
ECC Error-sector Flag output. (L: error sector)
48
XSHD
O
D
VSTEM A/V
DVD Sector Head Flag output.
49
DCK
O
D
VSTEM A/V
Data Strobe output.
50
DRVIRQ
O
D
VSTEM Command
Interrupt Request output for Host. (L: interruption is demanded)
51
DRVRST
I
D
VSTEM Command
Drive H/W Reset input. (L: reset)
*
*
52
DVDD18
P
VDD & GND
Digital 1.8V power for Internal logic system.
53
DVDD33
P
VDD & GND
Digital 3.3V Power for I/O.
54
DRVTX
O
D
VSTEM Command
Transmitting serial data output to Host.
55
DRVRX
I
D
VSTEM Command
Reception serial data input from Host.
56
DRVCLK
I
D
VSTEM Command
Clock input from Host.
*
57
DRVRDY
O
D
VSTEM Command
Drive Ready signal output. (L: ready)
58
C2PO
O
D
Audio I/F
CD-DSP C2 Pointer output.
59
DADT
O
D
Audio I/F
Audio serial data output.
60
DOTX
O
D
Audio I/F
Digital audio output.
61
LRCK
O
D
Audio I/F
L/R Clock output.
62
BCK
O
D
Audio I/F
Audio Bit Clock output.
63
EXVCO
I
D
TEST/Monitor
External Channel clock input.
64
EXPLDT
I
D
TEST/Monitor
External RF data input. (Logic level)
65
CSL
O
D
ASP I/F
SIO for RF signal processing LSI control. Latch signal output.
66
SI
I
D
ASP I/F
SIO for RF signal processing LSI control. Serial data input.
67
SO
O
D
ASP I/F
SIO for RF signal processing LSI control. Serial data output.
68
SCLKH
O
D
ASP I/F
SIO for RF signal processing LSI control. Serial clock output.
69
RFOKGH
I
D
ASP I/F
RF O.K. Signal input.
*
70
HFD
I
D
ASP I/F
RF lack Signal input.
*
71
MIRRORH
I
D
ASP I/F
Mirror detected signal input.(H: Mirror detected)
*
72
DTC
I
D
ASP I/F
Track cross signal input. (Logic level input)
*
73
AVSS
P
VDD & GND
Analog Ground.
74
ATC
I
A
Data PLL
Track Cross signal input. (Analog level input)
75
HF
I
A
Data PLL
RF signal input.
76
TLC0
O
A
Data PLL
Asymmetry Charge-pump output 0.
77
TLC1
O
A
Data PLL
Asymmetry Charge-pump output 1
78
IREF
I
A
Data PLL
Reference current setting terminal for Asymmetry Circuit.
79
AVDD33
P
VDD & GND
Analog 3.3V Power.
80
JMREF
I
A
Data PLL
Reference current setting terminal for Jitter Monitor
81
JMOUT
O
A
Data PLL
Jitter Monitor output.
82
CHG
I
A
Data PLL
Reference current setting terminal for data PLL.
83
VFBC
I
A
Data PLL
VCO offset frequency setting terminal for data PLL.
84
AVDD18
P
VDD & GND
Analog 1.8V Power.
85
VCOI
I
A
Data PLL
VCO Control voltage input terminal for data PLL.
86
LPF1
O
A
Data PLL
VCO Loop-filter connection terminal 1 for data PLL.
87
LPF2
O
A
Data PLL
VCO Loop-filter connection terminal 2 for data PLL
88
RC
I
A
Data PLL
VCO gain setting terminal for data PLL.
89
AVSS
P
VDD & GND
Analog Ground.
90
AVSS
P
VDD & GND
Analog Ground.
91
AD0
I
A
ADC
AD0 Input.
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
DVD-2910/955
92
AD1
I
A
ADC
AD1 Input.
93
AD2
I
A
ADC
AD2 Input.
94
AVDD33
P
VDD & GND
Analog 3.3V Power.
95
AD3
I
A
ADC
AD3 Input.
96
AD4
I
A
ADC
AD4 Input.
97
AD5
I
A
ADC
AD5 Input.
98
AD6
I
A
ADC
AD6 Input.
99
AD7
I
A
ADC
AD7 Input.
100
AD8
I
A
ADC
AD8 Input.
101
AD9
I
A
ADC
AD9 Input.
102
VREFH
I/O
A
ADC
Max Reference Voltage input for ADC.
(Internal Reference Voltage mode, it will be an output state)
103
VREFL
I/O
A
ADC
Min Reference Voltage input for ADC.
(Internal Reference Voltage mode, it will be an output state)
104
AVDD18
P
VDD & GND
Analog 1.8V Power.
105
AVDD33
P
VDD & GND
Analog 3.3V Power.
106
DA0 (TSCON)
O
A
DAC
DA0 output. (Track Servo output)
107
DA1 (SLED)
O
A
DAC
DA1 output. (Sled Servo output)
108
DA2 (FSCON)
O
A
DAC
DA2 output. (Forcus Servo output)
109
DA3 (SLED2_
TILT)
O
A
DAC
DA3 output. (Sled Servo / Tilt Servo output)
110
AVSS
P
VDD & GND
Analog Ground
111
FG
I
D
SPM
FG signal input.
*
112
SPWM1
O
D
SPM
Spindle motor PWM output 1.
113
SPWM2
O
D
SPM
Spindle motor PWM output 2.
114
GPWM0
O
D
General PWM
Multi-purpose PWM output 0.
115
GPWM1
O
D
General PWM
Multi-purpose PWM output 1.
116
GPWM2
O
D
General PWM
Multi-purpose PWM output 2.
117
GPWM3
O
D
General PWM
Multi-purpose PWM output 3.
118
GPWM4
O
D
General PWM
Multi-purpose PWM output 4.
119
GPWM5
O
D
General PWM
Multi-purpose PWM output 5.
120
XLCAS
O
D
DRAM I/F
DRAM LCAS output. (Low-Byte row address strobe output)
121
XUCAS
O
D
DRAM I/F
DRAM UCAS output. (Upper-Byte row address strobe output)
122
XMOE
O
D
DRAM I/F
DRAM output enable.
123
RA11
O
D
DRAM I/F
DRAM address output terminal 11.
124
RA10
O
D
DRAM I/F
DRAM address output terminal 10.
125
DVSS
P
VDD & GND
Digital Ground.
126
RA9
O
D
DRAM I/F
DRAM address output terminal 9.
127
RA8
O
D
DRAM I/F
DRAM address output terminal 8.
128
RA7
O
D
DRAM I/F
DRAM address output terminal 7.
129
RA6
O
D
DRAM I/F
DRAM address output terminal 6.
130
RA5
O
D
DRAM I/F
DRAM address output terminal 5.
131
DVDD33
P
VDD & GND
Digital 3.3V Power. (for I/O)
132
RA4
O
D
DRAM I/F
DRAM address output terminal 4.
133
RA3
O
D
DRAM I/F
DRAM address output terminal 3.
134
RA2
O
D
DRAM I/F
DRAM address output terminal 2.
135
RA1
O
D
DRAM I/F
DRAM address output terminal 1.
136
DVDD18
P
VDD & GND
Digital 1.8V Power. (for Internal Logic power)
137
RA0
O
D
DRAM I/F
DRAM address output terminal 0.
138
XRAS
O
D
DRAM I/F
DRAM RAS output. (Column address strobe output)
139
XMWR
O
D
DRAM I/F
DRAM Write enable.
140
RD7
I/O
D
DRAM I/F
DRAM data input/output terminal 7.
*
141
RD6
I/O
D
DRAM I/F
DRAM data input/output terminal 6.
*
142
DVSS
P
VDD & GND
Digital Ground.
143
RD5
I/O
D
DRAM I/F
DRAM data input/output terminal 5.
*
144
RD4
I/O
D
DRAM I/F
DRAM data input/output terminal 4.
*
145
RD3
I/O
D
DRAM I/F
DRAM data input/output terminal 3.
*
146
RD2
I/O
D
DRAM I/F
DRAM data input/output terminal 2.
*
147
RD1
I/O
D
DRAM I/F
DRAM data input/output terminal 1.
*
148
RD0
I/O
D
DRAM I/F
DRAM data input/output terminal 0.
*
149
RD15
I/O
D
DRAM I/F
DRAM data input/output terminal 15.
*
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
DVD-2910/955
150
RD14
I/O
D
DRAM I/F
DRAM data input/output terminal 14.
*
151
RD13
I/O
D
DRAM I/F
DRAM data input/output terminal 13.
*
152
RD12
I/O
D
DRAM I/F
DRAM data input/output terminal 12.
*
153
RD11
I/O
D
DRAM I/F
DRAM data input/output terminal 11.
*
154
RD10
I/O
D
DRAM I/F
DRAM data input/output terminal 10.
*
155
RD9
I/O
D
DRAM I/F
DRAM data input/output terminal 9.
*
156
DVDD18
P
VDD & GND
Digital 1.8V Power. (for internal Logic system)
157
DVDD33
P
VDD & GND
Digital 3.3V power for I/O.
158
RD8
I/O
D
DRAM I/F
DRAM data input/output terminal 8.
*
159
TEST0
O
D
TEST/Monitor
TEST I/O 0.
160
TEST1
O
D
TEST/Monitor
TEST I/O 1.
161
TEST2
O
D
TEST/Monitor
TEST I/O 2.
162
TEST3
O
D
TEST/Monitor
TEST I/O 3.
163
TEST4
O
D
TEST/Monitor
TEST I/O 4.
164
TEST5
O
D
TEST/Monitor
TEST I/O 5.
165
TEST6
O
D
TEST/Monitor
TEST I/O 6.
166
TEST7
O
D
TEST/Monitor
TEST I/O 7.
167
TEST8
O
D
TEST/Monitor
TEST I/O 8.
168
TEST9
O
D
TEST/Monitor
TEST I/O 9.
169
TEST10
O
D
TEST/Monitor
TEST I/O 10.
170
TEST11
O
D
TEST/Monitor
TEST I/O 11.
171
TEST12
O
D
TEST/Monitor
TEST I/O 12.
172
TEST13
O
D
TEST/Monitor
TEST I/O 13.
173
TEST14
O
D
TEST/Monitor
TEST I/O 14.
174
TEST15
O
D
TEST/Monitor
TEST I/O 15.
175
MODSEL0
I
D
TEST/Monitor
TEST mode select 0. (GND, under normal conditions)
176
MODSEL1
I
D
TEST/Monitor
TEST mode select 1. (GND, under normal conditions)
177
DVSS
P
VDD & GND
Digital Ground.
178
MODSEL2
I
D
TEST/Monitor
TEST mode select 2. (GND, under normal conditions)
179
GIO0
I/O
D
Multi-purpose
Multi-purpose port 0.
*
*
180
GIO1
I/O
D
Multi-purpose
Multi-purpose port 1.
*
*
181
GIO2
I/O
D
Multi-purpose
Multi-purpose port 2.
*
*
182
GIO3
I/O
D
Multi-purpose
Multi-purpose port 3.
*
*
183
DVDD33
P
VDD & GND
Digital 3.3V Power for I/O.
184
GIO4
I/O
D
General Port
Multi-purpose port 4.
*
*
185
GIO5
I/O
D
General Port
Multi-purpose port 5.
*
*
186
GIO6
I/O
D
General Port
Multi-purpose port 6.
*
*
187
GIO7
I/O
D
General Port
Multi-purpose port 7.
*
*
188
DVDD18
P
VDD & GND
Digital 1.8V Power for I/O. (for internal Logic system)
189
GIO8
I/O
D
General Port
Multi-purpose port 8.
*
*
190
GIO9
I/O
D
General Port
Multi-purpose port 9.
*
*
*
191
GIO10
I/O
D
General Port
Multi-purpose port 10.
*
*
192
GIO11
I/O
D
General Port
Multi-purpose port 11.
*
*
193
GIO12
I/O
D
General Port
Multi-purpose port 12.
*
*
*
194
DVSS
P
VDD & GND
Digital Ground.
195
GIO13
I/O
D
Multi-purpose
Multi-purpose port 13.
*
*
*
196
GIO14
I/O
D
General Port
Multi-purpose port 14.
*
*
*
197
GIO15
I/O
D
General Port
Multi-purpose port 15.
*
*
*
198
GIO16
I/O
D
General Port
Multi-purpose port 16.
*
*
199
GIO17
I/O
D
General Port
Multi-purpose port 17.
*
*
200
GIO18
I/O
D
General Port
Multi-purpose port 18.
*
*
201
GIO19
I/O
D
General Port
Multi-purpose port 19.
*
*
202
TRST
I
D
JTAG I/F
JTAG Reset input.
*
*
203
TMS
I
D
JTAG I/F
JTAG Mode Select input.
*
*
204
TDI
I
D
JTAG I/F
JTAG Data Input.
*
*
205
TCK
I
D
JTAG I/F
JTAG Clock input.
*
206
TDO
O
D
JTAG I/F
JTAG Data output.
207
VMCHG
I
D
MCU I/F
VSTEM / external MCU access selection terminal of system set-
ting register for DSP. (L: VSTEM, H: external MCU)
208
DVDD18
P
VDD & GND
Digital 1.8V power for internal Logic system.
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
DVD-2910/955
ES6138F (IC101)
PINOUT DIAGRAM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
LCS1#
LOE#
LD0
VSS
LCS3#
LCS2#
I2CDATA/AUX[0]
LA21
LA20
RESET#
VEE
TSD3
HIOCS16#/CAMCLK/AUX3[4]
HA1/AUX4[3]
VSS
HA0/AUX4[2]
HWR#/DCI_CLK/AUX4[5]
HRD#/DCI_ACK#/AUX4[6]
HD4/DCI4/AUX1[4]
HD5/DCI5/AUX1[5]
HD6/DCI6/AUX1[6]/VFD_DOUT
HD2/DCI2/AUX1[2]
HD3/DCI3/AUX1[3]
VEE
VCC
DB8
VCC
DB5
DB9
DCS0#
VCC
VSS
TSD0/SEL_PLL0
TSD1/SEL_PLL1
TDMFS
TDMCLK
TDMDR
TDMTSC#
TWS/SEL_PLL2
VEE
LA4
LA5
LA6
LA7
LA8
LA9
VSS
VCC
LA10
LA11
LA12
LA13
LA14
LA15
LA16
VSS
VEE
LA17
LA18
LA19
TDMDX/RSEL
VSS
TSD2
SEL_PLL3/SPDIF_OUT
SPDIF_IN
VSS
MCLK
TBCK
VEE
VEE
AVSS
VSS
DQM
RSD
RWS
RBCK
NC
XIN
XOUT
AVEE
DSCK
VSS
DB15
DB13
DB11
DB1
VSS
DMBS1
DRAS#
DOE#/DSCK_EN
VEE
DMA9
DMA7
VSS
DMA5
DMA3
VEE
DCS1#
DB14
DB12
DB10
DB0
VEE
DMBS0
DWE#
DCAS#
VSS
DMA8
DMA6
VEE
DMA4
DMA2
VSS
DB7
DB6
VSS
DB4
DB3
DB2
DMA11
DMA10
DMA1
DMA0
HCS3FX#/AUX3[6]
HCS1FX#/AUX3[7]
VSS
HIORDY/AUX3[3]
VSS
HD13/AUX2[5]/SP
HD12/AUX2[4]/C2PO
HD11/AUX2[3]//IRQ
HD10/AUX2[2]
HD9/AUX2[1]
HD8/DCI_FDS#/AUX2[0]/VFD_CLK
VSS
HIRQ/DCI_ERR#/AUX4[7]
HRST#/AUX3[5]
HRRQ#/AUX4[0]
HWRQ#/DCI_REQ#/AUX4[1]
HD15/AUX2[7]/IR
HD14/AUX2[6]
VCC
HD7/DCI7/AUX1[7]/VFD_DIN
HD1/DCI1/AUX1[1]
HD0/DCI0/AUX1[0]
VCC
VSS
HSYNC#/CAMIN7/AUX3[0]
PCLK2XSCN/CAMIN4
YUV7/FDAC/CAMIN3
YUV6/VDAC
PCLKQSCN/CAMIN5/AUX3[2]
VSYNC#/CAMIN6/AUX3[1]
YUV5/YDAC
ADVSS
ADVEE
YUV4/RSET
YUV3/COMP
YUV2/CDAC
YUV1/VREF
YUV0/CAMIN2/UDAC
DCLK
VEE
AUX[7]
AUX[6]
VEE
LD1
LD2
LA3
LD12
VEE
HA2/AUX4[4]
VEE
VEE
LD3
LD5
LD9
LD13
LWRHL#
CAMIN1
I2C_CLK/AUX[1]
AUX[3]/IOR#
LD4
LD6
LD10
LD14
VSS
LA0
AUX[2]/IOW#
AUX[4]
VEE
LD7
LD11
LD15
VEE
LA1
VSS
AUX[5]
VSS
LD8
VSS
LWRLL#
CAMIN0
LA2
VSS
VCC
LCS0#
VSS
ES6138F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
DVD-2910/955
ES6138F Pin Description
Name
Pin Numbers
I/O
Definition
VEE
1,18, 27, 59, 68, 75,
92, 99, 104, 130,
148, 157, 159, 164,
183, 193, 201
P
I/O power supply.
LA[21:0]
2:7, 10:16, 19:23,
204:207
O
RISC port address bus.
VSS
8, 17, 26, 34, 43,
60, 67, 76, 84, 91,
98, 103, 120, 129,
138, 147, 156, 163,
171, 177, 184, 192,
200, 208
G
Ground.
VCC
9, 35, 44, 83, 121,
139, 172
P
Core power supply.
RESET#
24
I
Reset input (active-low).
TDMDX
25
O
TDM transmit data output.
RSEL
I
LCS3 ROM Boot Data Width Select. Strapped to VCC or ground via 4.7-kΩ
resistor; read only during reset.
TDMDR
28
I
TDM receive data input.
TDMCLK
29
I
TDM clock input.
TDMFS
30
I
TDM frame sync input.
TDMTSC#
31
O
TDM output enable (active-low).
TWS
32
O
Audio transmit frame sync output.
SEL_PLL2
I
System and DSCK output clock frequency selection is made at the rising edge of
RESET#. The matrix below lists the available clock frequencies and their
respective PLL bit settings. Strapped to VCC or ground via 4.7-kΩ resistor; read
only during reset.
RSEL
Selection
0
16-bit ROM
1
8-bit ROM
SEL_PLL2
SEL_PLL1
SEL_PLL0
PLL Settings
0
0
0
DCLK × 4.5
0
0
1
DCLK × 5.0
0
1
0
Bypass
0
1
1
DCLK × 4.0
1
0
0
DCLK × 4.25
1
0
1
DCLK × 4.75
1
1
0
DCLK × 5.5
1
1
1
DCLK × 6.0
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
DVD-2910/955
TSD0
33
O
Audio transmit serial data port 0.
SEL_PLL0
I
Refer to the description and matrix for SEL_PLL2 pin 32.
TSD1
36
O
Audio transmit serial data port 1.
SEL_PLL1
I
Refer to the description and matrix for SEL_PLL2 pin 32.
TSD2
37
O
Audio transmit serial data output 2.
TSD3
38
O
Audio transmit serial data output 3.
NC
48
—
No connect pins. Leave open.
MCLK
39
I/O
Audio master clock for audio DAC.
TBCK
40
O
Audio transmit bit clock.
SEL_PLL3
41
I
Clock source select. Strapped to VCC or ground via 4.7-kΩ resistor; read only
during reset.
SPDIF_OUT
O
S/PDIF output.
SPDIF_IN
42
I
S/PDIF input.
RSD
45
I
Audio receive serial data.
RWS
46
I
Audio receive frame sync.
RBCK
47
I
Audio receive bit clock.
XIN
49
I
27-MHz crystal input.
XOUT
50
O
27-MHz crystal output.
AVEE
51
P
Analog power for PLL.
AVSS
52
G
Analog ground for PLL.
DMA[11:0]
53:58, 61:66
O
DRAM address bus.
DCAS#
69
O
DRAM column address strobe.
DOE#
70
O
DRAM output enable (active-low).
DSCK_EN
O
DRAM clock enable.
DWE#
71
O
DRAM write enable (active-low).
DRAS#
72
O
DRAM row address strobe (active-low).
DMBS0
73
O
DRAM bank select 0.
DMBS1
74
O
DRAM bank select 1.
DB[15:0]
77:82, 85:90, 93:96
I/O
DRAM data bus.
DCS[1:0]#
97,100
O
DRAM chip select (active-low).
DQM
101
O
Data input/output mask.
ES6138F Pin Description (Continued)
Name
Pin Numbers
I/O
Definition
SEL_PLL3
Clock Source
0
Crystal oscillator
1
DCLK input
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
DVD-2910/955
DSCK
102
O
Output clock to DRAM.
DCLK
105
I
Clock input to PLL.
YUV0
106
O
YUV pixel 2 output data.
CAMIN2
I
Camera YUV 2.
UDAC
O
Video DAC output.
F: CVBS/chroma signal for simultaneous mode.
Y: Luma component for YUV and Y/C processing.
C: Chrominance signal for Y/C processing.
U: Chrominance component signal for YUV mode.
V: Chrominance component signal for YUV mode.
YUV1
107
O
YUV pixel 1 output data.
VREF
I
Internal voltage reference to video DAC. Bypass to ground with 0.1-µF capacitor.
YUV2
108
O
YUV pixel 2 output data.
CDAC
O
Video DAC output. Refer to description and matrix for UDAC pin 106.
YUV3
109
O
YUV pixel 3 output data.
COMP
I
Compensation input. Bypass to ADVEE with 0.1-µF capacitor.
YUV4
110
O
YUV pixel 4 output data.
RSET
I
DAC current adjustment resistor input.
ADVEE
111
P
Analog power for video DAC.
ES6138F Pin Description (Continued)
Name
Pin Numbers
I/O
Definition
Pin
115
114
113
108
106
Value
F DAC
V DAC
Y DAC
C DAC
U DAC
0
CVBS/Chroma
CVBS1
Y
C
N/A
1
CVBS/Chroma
CVBS1
Y
C
CVBS2
2
CVBS/Chroma
N/A
Y
C
N/A
3
CVBS/Chroma
CVBS1
N/A
N/A
CVBS2
4
CVBS/Chroma
CVBS1
N/A
N/A
N/A
5
CVBS/Chroma
CVBS1
Y
Pb
Pr
6
CVBS/Chroma
N/A
Y
Pb
Pr
7
N/A
SYNC
G
B
R
8
CVBS/Chroma
Chroma
Y
Pb
Pr
9
CVBS
CVBS1
G
B
R
10
CVBS
CVBS1
G
R
B
11
N/A
SYNC
G
R
B
12
CVBS/Chroma
N/A
Y
Pr
Pb
13
CVBS/Chroma
CVBS1
Y
Pr
Pb
14
Chroma
Y
G
R
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
DVD-2910/955
ADVSS
112
G
Analog ground for video DAC.
YUV5
113
O
YUV pixel 5 output data.
YDAC
O
Video DAC output. Refer to description and matrix for UDAC pin 106.
YUV6
114
O
YUV pixel 6 output data.
VDAC
O
Video DAC output. Refer to description and matrix for UDAC pin 106.
YUV7
115
O
YUV pixel 7 output data.
FDAC
O
Video DAC output. Refer to description and matrix for UDAC pin 106.
CAMIN3
I
Camera YUV 3.
PCLK2XSCN
116
I/O
27-MHz video output pixel clock.
CAMIN4
I
Camera YUV 4.
PCLKQSCN
117
O
13.5-MHz video output pixel clock.
CAMIN5
I
Camera YUV 5.
AUX3[2]
I/O
Aux3 data I/O.
VSYNC#
118
I/O
Vertical sync (active-low).
CAMIN6
I
Camera YUV 6.
AUX3[1]
I/O
Aux3 data I/O.
HSYNC#
119
I/O
Horizontal sync (active-low).
CAMIN7
I
Camera YUV 7.
AUX3[0]
I/O
Aux3 data I/O.
HD[5:0]
122:127
I/O
Host data bus lines 5:0.
DCI[5:0]
I/O
DVD channel data I/O.
AUX1[5:0]
I/O
Aux1 data I/O.
HD6
128
I/O
Host data bus line 6.
DCI6
I/O
DVD channel data I/O.
AUX1[6]
I/O
Aux1 data I/O.
VFD_DOUT
I
VFD data output.
HD7
131
I/O
Host data bus line 7.
DCI7
I/O
DVD channel data I/O.
AUX1[7]
I/O
Aux1 data I/O.
VFD_DIN
I
VFD data input.
HD8
132
I/O
Host data bus line 8.
DCI_FDS#
I/O
DVD input sector start (active-low).
AUX2[0]
I/O
Aux2 data I/O.
VFD_CLK
I
VFD clock input.
ES6138F Pin Description (Continued)
Name
Pin Numbers
I/O
Definition
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
DVD-2910/955
HD9
133
I/O
Host data bus line 9.
AUX2[1]
I/O
Aux2 data I/O.
HD10
134
I/O
Host data bus line 10.
AUX2[2]
I/O
Aux2 data I/O.
HD11
135
I/O
Host data bus line 11.
AUX2[3]
I/O
Aux2 data I/O.
IRQ
O
IRQ.
HD12
136
I/O
Host data bus line 12.
AUX2[4]
I/O
Aux2 data I/O.
C2PO
I
C2PO error correction flag from CD-ROM.
HD13
137
I/O
Host data bus line 13.
AUX2[5]
I/O
Aux2 data I/O.
SP
I
16550 UART serial port input.
HD14
140
I/O
Host data bus line 14.
AUX2[6]
I/O
Aux2 data I/O.
HD15
141
I/O
Host data bus line 15.
AUX2[7]
I/O
Aux2 data I/O.
IR
I
IR remote control input.
HWRQ#
142
O
Host write request (active-low).
DCI_REQ#
O
DVD control interface request (active-low).
AUX4[1]
I/O
Aux4 data I/O.
HRRQ#
143
O
Host read request (active-low).
AUX4[0]
I/O
Aux4 data I/O.
HIRQ
144
I/O
Host interrupt.
DCI_ERR#
I/O
DVD channel data error (active-low).
AUX4[7]
I/O
Aux4 data I/O.
HRST#
145
O
Host reset (active-low).
AUX3[5]
I/O
Aux3 data I/O.
HIORDY
146
I
Host I/O ready.
AUX3[3]
I/O
Aux3 data I/O.
HWR#
149
I/O
Host write (active-low).
DCI_CLK
I/O
DVD channel data clock.
AUX4[5]
I/O
Aux4 data I/O.
ES6138F Pin Description (Continued)
Name
Pin Numbers
I/O
Definition
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
DVD-2910/955
HRD#
150
O
Host read (active-low).
DCI_ACK#
O
DVD channel data valid (active-low).
AUX4[6]
I/O
Aux4 data I/O.
HIOCS16#
151
I
Device 16-bit data transfer (active-low).
CAMCLK
I
Camera port pixel clock input.
AUX3[4]
I/O
Aux3 data I/O.
HCS1FX#
152
O
Host select 1 (active-low).
AUX3[7]
I/O
Aux3 data I/O.
HCS3FX#
153
O
Host select 3 (active-low).
AUX3[6]
I/O
Aux3 data I/O.
HA[2:0]
154, 155, 158
I/O
Host address bus.
AUX4[4:2]
I/O
Aux4 data I/Os.
AUX[0]
160
I/O
Auxiliary port 0 (open collector).
I2CDATA
I/O
I2C data I/O.
AUX[1]
161
I/O
Auxiliary port 1 (open collector).
I2C_CLK
I/O
I2C clock I/O.
AUX[2]
162
I/O
Auxiliary port.
IOW#
O
I/O write strobe (LCS1) (active-low).
AUX[3]
165
I/O
Auxiliary port.
IOR#
O
I/O read strobe (LCS1) (active-low).
AUX[6:4]
166:168
I/O
Auxiliary ports.
AUX[7]
169
I/O
Auxiliary port.
LOE#
170
O
RISC port output enable (active-low).
LCS[3:0]#
173:176
O
RISC port chip select (active-low).
LD[15:0]
178:182,
185:191,194:197
I/O
RISC port data bus.
LWRLL#
198
O
RISC port low-byte write enable (active-low).
LWRHL#
199
O
RISC port high-byte write enable (active-low).
CAMIN0
202
I
Camera YUV 0.
CAMIN1
203
I
Camera YUV 1.
ES6138F Pin Description (Continued)
Name
Pin Numbers
I/O
Definition
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
DVD-2910/955
FLI2310 (IC718)
Block Diagrams
Input Processor
with Auto Sync
and auto Adjust
Noise Reducer,
Deinterlacer, Frame
Rate Converter and
SDRAM interface
Port 2
8-bit
656 Input
Port 1
8/16/24-bit
RGB/YCrCb
Input
Clock
Generation
PLLs
2Mx32
SDRAM
(external)
Vertical and
Horizontal
Scalers
Vertical and
Horizontal
Enhancers
Output
Processor
16/20/24-bit
RBG/YCrCb
Digital Outputs
Pin Diagram
1 5 5
1 5 0
1 4 5
1 4 0
1 3 5
1 3 0
1 2 5
1 2 0
1 1 5
1 1 0
1 0 5
1
5
1 0
1 5
2 0
2 5
3 0
3 5
4 0
4 5
5 0
5 5
6 5
6 0
1 0 0
9 5
9 0
8 5
8 0
7 5
7 0
2 0 5
1 9 5
2 0 0
1 6 0
1 6 5
1 7 0
1 7 5
1 8 0
1 8 5
1 9 0
HSYNC1_PORT1
VDD1
B/Cb/D1_0
VSS
IN_CLK1_PORT1
FIELD ID1_PORT1
VSYNC1_PORT1
HSYNC2_PORT1
IN_CLK2_PORT1
FIELD ID2_PORT1
VSYNC2_PORT1
B/Cb/D1_6
B/Cb/D1_5
B/Cb/D1_4
B/Cb/D1_3
B/Cb/D1_2
B/Cb/D1_1
B/Cb/D1_7
VDDcore1
VSScore
R/Cr/Cb Cr_0
R/Cr/Cb Cr_6
R/Cr/Cb Cr_5
R/Cr/Cb Cr_4
R/Cr/Cb Cr_3
R/Cr/Cb Cr_2
R/Cr/Cb Cr_1
R/Cr/Cb Cr_7
VDD2
VSS
G/Y/Y_0
G/Y/Y_1
G/Y/Y_6
G/Y/Y_5
G/Y/Y_4
G/Y/Y_3
G/Y/Y_2
G/Y/Y_7
VDDcore2
VSScore
IN_SEL
TEST
DEV_ADDR1
DEV_ADDR0
SCLK
SDATA
RESET_N
VDD3
VSS
SDRAM DATA(0)
SDRAM DATA(2)
SDRAM DATA(1)
SDRAM DATA(3)
SDRAM DATA(10)
SDRAM DATA(9)
SDRAM DATA(8)
SDRAM DATA(7)
SDRAM DATA(6)
SDRAM DATA(5)
SDRAM DATA(4)
SDRAM DATA(17)
SDRAM DATA(16)
SDRAM DATA(15)
SDRAM DATA(14)
SDRAM DATA(12)
SDRAM DATA(13)
SDRAM DATA(11)
VDD4
VSS
VDDcore3
VSScore
SDRAM DATA(20)
SDRAM DATA(19)
SDRAM DATA(18)
SDRAM DATA(31)
SDRAM DATA(30)
SDRAM DATA(29)
SDRAM DATA(28)
SDRAM DATA(26)
SDRAM DATA(27)
SDRAM DATA(25)
SDRAM DATA(24)
SDRAM DATA(23)
SDRAM DATA(21)
SDRAM DATA(22)
VDDcore4
VSScore
VSS
VDD5
TEST IN
SDRAM ADDR(10)
SDRAM ADDR(5)
SDRAM ADDR(4)
SDRAM ADDR(3)
SDRAM ADDR(6)
SDRAM ADDR(7)
SDRAM ADDR(8)
SDRAM ADDR(9)
VDDcore5
VSScore
SDRAM ADDR(0)
SDRAM ADDR(1)
SDRAM ADDR(2)
SDRAM WEN
B/U/Pb_OUT_7
VDDcore7
VSScore
R/V/Pr_OUT_7
VDD8
VSS
G/Y/Y_OUT_7
G/Y/Y_OUT_1
G/Y/Y_OUT_2
G/Y/Y_OUT_3
G/Y/Y_OUT_4
G/Y/Y_OUT_5
G/Y/Y_OUT_6
G/Y/Y_OUT_0
R/V/Pr_OUT_0
R/V/Pr_OUT_1
R/V/Pr_OUT_2
R/V/Pr_OUT_3
R/V/Pr_OUT_4
R/V/Pr_OUT_5
R/V/Pr_OUT_6
B/U/Pb_OUT_0
B/U/Pb_OUT_1
B/U/Pb_OUT_2
B/U/Pb_OUT_3
B/U/Pb_OUT_4
B/U/Pb_OUT_5
B/U/Pb_OUT_6
VSS
VDD7
CLKOUT
VSScore
VDDcore6
TEST OUT1
CTLOUT4
CTLOUT0
CTLOUT1
CTLOUT2
CTLOUT3
TEST OUT0
TEST3
SDRAM CLKIN
SDRAM CLKOUT
VSS
VDD6
SDRAM DQM
SDRAM CASN
SDRAM BA1
SDRAM BA0
SDRAM CSN
SDRAM RASN
OE
PLL_PVDD
PLL_PVSS
AVSS_PLL_BE1
AVDD_PLL_BE1
AVSS_PLL_SDI
AVSS_PLL_FE
AVSS_PLL_BE2
AVDD_PLL_FE
AVDD_PLL_SDI
AVDD_PLL_BE2
R_VSS
R_VDD1.8
R_VSS
Reserved
Reserved
Reserved
R_VDD
R_VDD
R_VDD
R_VSS
R_VSS
R_VSS
Reserved
Reserved
Reserved
R_VSS
R_VDD
R_VSS
R_VSS
R_VDD
R_VDD
TEST0
TEST1
TEST2
XTAL IN
XTAL OUT
VDD9
VSS
HSYNC_PORT2
IN_CLK_PORT2
FIELD ID_PORT2
VSYNC_PORT2
VSScore
VDDcore8
D1_IN_0
D1_IN_7
D1_IN_6
D1_IN_5
D1_IN_4
D1_IN_3
D1_IN_2
D1_IN_1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
DVD-2910/955
Pin details
Pin
No Pin Name
I/O Type
Voltage
Tolerance
Drive
Pull up/
Pulldown Description
1
HSYNC1_PORT1
Input
5v
Horizontal sync or reference -CTL1 of Port 1
2
VSYNC1_PORT1
Input
5v
Vertical sync or reference -CTL1 of Port 1
3
FIELD ID1_PORT1
Input
5v
Odd/Even Field identification -CTL1 of Port 1
4
IN_CLK1_PORT1
Input
5v
Data Clock input -CTL1 of Port 1
5
HSYNC2_PORT1
Input
5v
Horizontal sync or reference –CTL2 of Port 1
6
VSYNC2_PORT1
Input
5v
Vertical sync or reference –CTL2 of Port 1
7
FIELD ID2_PORT1
Input
5v
Odd/Even Field identification –CTL2 of Port 1
8
VDD1
Power
3.3 V - Power pin for IO
9
VSS
Ground
Ground
10
IN_CLK2_PORT1
Input
5v
Data Clock input –CTL2 of Port 1
11
B/Cb/D1_0
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
12
B/Cb/D1_1
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
13
B/Cb/D1_2
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
14
B/Cb/D1_3
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
15
B/Cb/D1_4
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
16
VDDcore1
Power
1.8 V - Power pin for core
17
VSScore
Ground
Ground
18
B/Cb/D1_5
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
19
B/Cb/D1_6
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
20
B/Cb/D1_7
Input
5v
Port 1 – Digital video input (Blue/Cb/D1)
21
R/Cr/Cb Cr_0
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
22
R/Cr/Cb Cr_1
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
23
R/Cr/Cb Cr_2
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
24
R/Cr/Cb Cr_3
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
25
R/Cr/Cb Cr_4
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
26
R/Cr/Cb Cr_5
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
27
R/Cr/Cb Cr_6
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
28
R/Cr/Cb Cr_7
Input
5v
Port 1 – Digital video input (Red/Cr/CrCb)
29
G/Y/Y_0
Input
5v
Port 1 – Digital video input (Green/Y)
30
VDD2
Power
3.3 V - Power pin for IO
31
VSS
Ground
Ground
32
G/Y/Y_1
Input
5v
Port 1 – Digital video input (Green/Y)
33
G/Y/Y_2
Input
5v
Port 1 – Digital video input (Green/Y)
34
G/Y/Y_3
Input
5v
Port 1 – Digital video input (Green/Y)
35
G/Y/Y_4
Input
5v
Port 1 – Digital video input (Green/Y)
36
VDDcore2
Power
1.8 V - Power pin for core
37
VSScore
Ground
Ground
38
G/Y/Y_5
Input
5v
Port 1 – Digital video input (Green/Y)
39
G/Y/Y_6
Input
5v
Port 1 – Digital video input (Green/Y)
40
G/Y/Y_7
Input
5v
Port 1 – Digital video input (Green/Y)
41
IN_SEL
Output
5v
8 mA
Output to select external video mux
42 TEST
Input
5v
Connect to Ground
43
DEV_ADDR1
Input
5v
Device address setting 1
44
DEV_ADDR0
Input
5v
Device address setting 0
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
DVD-2910/955
Pin
No Pin Name
I/O Type
Voltage
Tolerance
Drive
Pull up/
Pulldown Description
45 SCLK
I/O
5v
8 mA
2-wire serial control bus clock
46 SDATA
I/O
5v
8 mA
2-wire serial control bus data
47 RESET_N
Input
5v
PU
Reset
48 VDD3
Power
3.3 V – Power pin for IO
49 VSScore
Ground
Ground
50 SDRAM DATA(0)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
51 SDRAM DATA(1)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
52 SDRAM DATA(2)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
53 SDRAM DATA(3)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
54 SDRAM DATA(4)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
55 SDRAM DATA(5)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
56 SDRAM DATA(6)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
57 SDRAM DATA(7)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
58 SDRAM DATA(8)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
59 SDRAM DATA(9)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
60 SDRAM DATA(10)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
61 SDRAM DATA(11)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
62 VDD4
Power
3.3 V – Power pin for IO
63 VSS
Ground
Ground
64 SDRAM DATA(12)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
65 SDRAM DATA(13)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
66 SDRAM DATA(14)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
67 SDRAM DATA(15)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
68 VDDcore3
Power
1.8 V - Power pin for core
69 VSScore
Ground
Ground
70 SDRAM DATA(16)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
71 SDRAM DATA(17)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
72 SDRAM DATA(18)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
73 SDRAM DATA(19)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
74 SDRAM DATA(20)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
75 SDRAM DATA(21)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
76 SDRAM DATA(22)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
77 SDRAM DATA(23)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
78 SDRAM DATA(24)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
79 SDRAM DATA(25)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
80 VDDcore4
Power
1.8 V – Power pin for core
81 VSScore
Ground
Ground
82 SDRAM DATA(26)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
83 SDRAM DATA(27)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
84 SDRAM DATA(28)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
85 SDRAM DATA(29)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
86 SDRAM DATA(30)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
87 SDRAM DATA(31)
Tristate I/O
5v
4 mA
PD
SDRAM data bus *
88 VDD5
Power
3.3 V – Power pin for IO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
DVD-2910/955
Pin
No Pin Name
I/O Type
Voltage
Tolerance
Drive
Pull up/
Pulldown Description
89 VSS
Ground
Ground
90 TEST IN
Input
5V
Test input-Connect to ground
91 SDRAM ADDR(10)
Tristate O/P
5v
8 mA
SDRAM address bus *
92 SDRAM ADDR(9)
Tristate O/P
5v
8 mA
SDRAM address bus *
93 SDRAM ADDR(8)
Tristate O/P
5v
8 mA
SDRAM address bus *
94 SDRAM ADDR(7)
Tristate O/P
5v
8 mA
SDRAM address bus *
95 SDRAM ADDR(6)
Tristate O/P
5v
8 mA
SDRAM address bus *
96 VDDcore5
Power
1.8 V – Power pin for core
97 VSScore
Ground
Ground
98 SDRAM ADDR(5)
Tristate O/P
5v
8 mA
SDRAM address bus *
99 SDRAM ADDR(4)
Tristate O/P
5v
8 mA
SDRAM address bus *
100 SDRAM ADDR(3)
Tristate O/P
5v
8 mA
SDRAM address bus *
101 SDRAM ADDR(2)
Tristate O/P
5v
8 mA
SDRAM address bus *
102 SDRAM ADDR(1)
Tristate O/P
5v
8 mA
SDRAM address bus *
103 SDRAM ADDR(0)
Tristate O/P
5v
8 mA
SDRAM address bus *
104 SDRAM WEN
Tristate O/P
5v
8 mA
SDRAM write enable *
105 SDRAM RASN
Tristate O/P
5v
8 mA
SDRAM row address select *
106 SDRAM CASN
Tristate O/P
5v
8 mA
SDRAM column address select *
107 SDRAM BA1
Tristate O/P
5v
8 mA
SDRAM bank select 1*
108 SDRAM BA0
Tristate O/P
5v
8 mA
SDRAM bank select 0*
109 SDRAM CSN
Tristate O/P
5v
4 mA
SDRAM CS *
110 SDRAM DQM
Tristate O/P
5v
8 mA
SDRAM DQM *
111 SDRAM CLKOUT
Output
5v
12 mA
Clock out to SDRAM *
112 VDD6
Power
3.3 V - Power pin for IO
113 VSS
Ground
Ground
114 SDRAM CLKIN
Input
5v
Trace delayed SDRAM Clock in
115 TEST3
Input
Test input – Connect to ground
116 TEST OUT0
Output
Test output – leave open
117 TEST OUT1 / Interrupt
Out
Output
Interrupt Output
118 CTLOUT0
Tristate O/P
5v
8 mA
Control signal output selectable as HSync1/
CSync/HRef/Monitor coast
119 CTLOUT1
Tristate O/P
5v
8 mA
Control signal output selectable as
VSync1/CRef/VRef/Film Indicator
120 CTLOUT2
Tristate O/P
5v
8 mA
Control signal output selectable as Monitor
coast/HRef/VDD_en / HSync2
121 CTLOUT3
Tristate O/P
5v
8 mA
Control signal output selectable as Film
Indicator/VRef/backlight_en/VSync2
122 CTLOUT4
Tristate O/P
5v
8 mA
Control signal output selectable as CRef/Field
ID/CSync/Monitor coast
123 VDDcore6
Power
1.8 V - Power pin for core
124 VSScore
Ground
Ground
125 CLKOUT
Tristate O/P
5v
12 mA
Output data rate clock
126 B/U/Pb_OUT_0
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
127 B/U/Pb_OUT_1
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
DVD-2910/955
Pin
No Pin Name
I/O Type
Voltage
Tolerance
Drive
Pull up/
Pulldown Description
128 VDD7
Power
3.3 V – Power pin for IO
129 VSS
Ground
Ground
130 B/U/Pb_OUT_2
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
131 B/U/Pb_OUT_3
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
132 B/U/Pb_OUT_4
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
133 B/U/Pb_OUT_5
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
134 B/U/Pb_OUT_6
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
135 B/U/Pb_OUT_7
Tristate O/P
5v
8 mA
Digital video output – Blue/U/Pb
136 R/V/Pr_OUT_0
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
137 R/V/Pr_OUT_1
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
138 VDDcore7
Power
1.8 V – Power pin for core
139 VSScore
Ground
Ground
140 R/V/Pr_OUT_2
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
141 R/V/Pr_OUT_3
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
142 R/V/Pr_OUT_4
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
143 R/V/Pr_OUT_5
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
144 R/V/Pr_OUT_6
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
145 R/V/Pr_OUT_7
Tristate O/P
5v
8 mA
Digital video output – Red/V/Pr
146 VDD8
Power
3.3 V – Power pin for IO
147 VSS
Ground
Ground
148 G/Y/Y_OUT_0
Tristate O/P
5v
8 mA
Digital video output – Green/Y
149 G/Y/Y_OUT_1
Tristate O/P
5v
8 mA
Digital video output – Green/Y
150 G/Y/Y_OUT_2
Tristate O/P
5v
8 mA
Digital video output – Green/Y
151 G/Y/Y_OUT_3
Tristate O/P
5v
8 mA
Digital video output – Green/Y
152 G/Y/Y_OUT_4
Tristate O/P
5v
8 mA
Digital video output – Green/Y
153 G/Y/Y_OUT_5
Tristate O/P
5v
8 mA
Digital video output – Green/Y
154 G/Y/Y_OUT_6
Tristate O/P
5v
8 mA
Digital video output – Green/Y
155 G/Y/Y_OUT_7
Tristate O/P
5v
8 mA
Digital video output – Green/Y
156 OE
Input
5v
Output data enable for Digital video output
157 PLL_PVDD
Power
1.8 V – Power pin for PLL pads
158 PLL_PVSS
Ground
Ground for PLL pads
159 AVSS_PLL_BE1
Ground
PLL Ground
160 AVDD_PLL_BE1
Power
1.8 V – Power pin for PLL
161 AVDD_PLL_BE2
Power
1.8 V – Power pin for PLL
162 AVSS_PLL_BE2
Ground
PLL Ground
163 AVSS_PLL_SDI
Ground
PLL Ground
164 AVDD_PLL_SDI
Power
1.8 V – Power pin for PLL
165 AVDD_PLL_FE
Power
1.8 V – Power pin for PLL
166 AVSS_PLL_FE
Ground
PLL Ground
167 DAC_PVSS
Ground
Ground for DAC pads
168 DAC_VDD
Power
1.8 V – Digital power pin for DAC
169 DAC_VSS
Ground
DAC digital Ground
170 DAC_BOUT
Output
34 mA
Analog B/U output
171 DAC_AVDDB
Power
3.3 V – Analog power pin for B channel
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
DVD-2910/955
Pin
No Pin Name
I/O Type
Voltage
Tolerance
Drive
Pull up/
Pulldown Description
172 DAC_AVSSB
Ground
Analog Ground for B channel
173 DAC_GOUT
Output
34 mA
Analog G/Y output
174 DAC_AVDDG
Power
3.3 V – Analog power pin for G channel
175 DAC_AVSSG
Ground
Analog Ground for G channel
176 DAC_ROUT
Output
34 mA
Analog R/V output
177 DAC_AVDDR
Power
3.3 V – Analog power pin for R channel
178 DAC_AVSSR
Ground
Analog Ground for R channel
179 DAC_COMP
Output
Compensation for video DACs
180 DAC_RSET
Output
Current setting resistor for video DACs
181 DAC_VREFOUT
Output
1.28 V Internally generated voltage reference for
video DACs
182 DAC_VREFIN
Input
External Voltage reference for video DACs
183 DAC_AVDD
Power
3.3 V – Analog power pin for DAC
184 DAC_AVSS
Ground
Analog Ground for DAC
185 DAC_GR_AVSS
Ground
Ground for DAC Guard ring
186 DAC_GR_AVDD
Power
3.3 V – Power pin for DAC Guard ring
187 DAC_PVDD
Power
3.3 V –Power pin for DAC pads
188 TEST0
Input
5v
Test pin – connect to ground
189 TEST1
Input
5v
Test pin – connect to ground
190 TEST2
Input
5v
Test pin – connect to ground
191 XTAL IN
Input
External parallel crystal oscillator
192 XTAL OUT
Output
External parallel crystal oscillator
193 VDD9
Power
3.3 V - Power pin for IO
194 VSS
Ground
Ground
195 IN_CLK_PORT 2
Input
5v
4 mA
Port 2 - Data Clock input
196 D1_IN_0
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
197 VDDcore8
Power
1.8 V – Power pin for core
198 VSScore
Ground
Ground
199 D1_IN_1
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
200 D1_IN_2
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
201 D1_IN_3
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
202 D1_IN_4
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
203 D1_IN_5
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
204 D1_IN_6
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
205 D1_IN_7
Input
5v
4 mA
Port 2 - ITU-R BT656 digital data input
206 FIELD ID_PORT 2
Input
5v
4 mA
Port 2 - Odd/Even Field identification
207 VSYNC_ PORT 2
Input
5v
4 mA
Port 2 - Vertical sync or reference
208 HSYNC_PORT 2
Input
5v
4 mA
Port 2 - Horizontal sync or reference
Note:
* - The connection of these pins depends on the type of external SDRAM used.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
DVD-2910/955
CXD2753R (IC602)
Pin Assignment
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
DVD-2910/955
Terminal Functions
Pin Name
I/O
Functions
1
VSC
-
It fixed to ground.( for Core)
2
XMSLAT
I
Latch input for µCOM serial communication.
3
MSCK
I
Shift clock input for µCOM serial communication.
4
MSDATI
I
Data input for µCOM serial communication.
5
VDC
-
+2.5V Power for Core.
6
MSDATO
O
Data output for µCOM serial communication. “Hi-Z” potential except the output mode.
7
MSREADY
O
Completion flag of output preparation for µCOM serial communication. “L” is outputted at the time of
completion.
8
XMSDOE
O
Output enable pin for µCOM serial communication. “L” is outputted at the time of MSDATO mode.
9
XRST
I
Reset pin. The whole IC is reset by at the time of “L” potential.
10
SMUTE
Ipd
Soft Mute. Soft mute of the audio output is carried out at the time of “H” potential.
It releases at the time of “L” potential.
11
MCKI
I
Master Clock input.
12
VSIO
-
It fixed to Ground. Ground for I/O.
13
EXCKO1
O
External output Clock 1.
14
EXCKO2
O
External output Clock 2.
15
LRCK
O
44.1kHz, 1Fs Clock output.
16
FRAME
O
Frame signal output.
17
VDIO
-
+3.3V Power for I/O.
18
MNT0
O
Monitor output.
19
MNT1
O
Monitor output.
20
MNT2
O
Monitor output.
21
MNT3
O
Monitor output.
22
TESTO
O
Output terminal for a Test. (open)
23
TESTO
O
Output terminal for a Test.(open)
24
TESTO
O
Output terminal for a Test.(open)
25
TESTO
O
Output terminal for a Test.(open)
26
TCK
I
Clock input for a Test. It fixed to “L” potential.
27
TDI
Ipu
Input pin(pull-up) for a Test.(open)
28
VSC
-
It fixed to Ground. Ground for CORE.
29
TDO
O
Output for a Test.(open).
30
TMS
Ipu
Input pin(pull-up) for a Test.(open)
31
TRST
Ipu
Reset pin(pull-up) for a Test. Input the Power-on reset signal or fixed to “L” potential.
32
TEST1
I
Test input pin. It fixed to “L” potential.
33
TEST2
I
Test input pin. It fixed to “L” potential.
34
TEST3
I
Test input pin. It fixed to “L” potential.
35
VDC
-
+2.5V Power for CORE.
36
TESTO
O
Out put for TEST. It fixed to open.
37
XBIT
O
DST monitor.
38
SUPDT0
O
Supplementary data output. (LSB)
39
SUPDT1
O
Supplementary data output.
40
SUPDT2
O
Supplementary data output.
41
SUPDT3
O
Supplementary data output.
42
VSIO
-
Ground for I/O.
43
SUPDT4
O
Supplementary data output.
44
SUPDT5
O
Supplementary data output.
45
VDIO
-
+3.3V Power for I/O.
46
SUPDT6
O
Supplementary data output.
47
SUPDT7
O
Supplementary data output. (MSB)
48
XSUPAK
O
Supplementary data Acknowledge output terminal.
49
VSC
-
Ground for CORE.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
50
DVD-2910/955
50
TESTO
O
Output for TEST. (open)
51
TESTI
I
Input for TEST. It fixed to “L” potential.
52
TESTI
I
Input for TEST. It fixed to “L” potential.
53
TESTO
O
Output for TEST. (open)
54
VDC
-
+2.5V Power for CORE.
55
DSADML
O
DSD Data output terminal for Lch Down Mix.
56
DSADMR
O
DSD Data output terminal for Rch Down Mix.
57
BCKASL
I
I/O selection terminal of the Bit clock for DSD data output. L=input (Slave), H=output (Master)
58
VSDSD
-
Ground terminal for DSD data output.
59
BCKAI
I
Bit clock input terminal for DSD data output.
Input a Bit clock into this terminal at the time of BCKASL=”L” potential.
60
BCKAO
O
Bit clock output terminal for DSD data output.
Bit clock output from this terminal at the time of BCKASL=”H” potential.
61
PHREFI
I
Reference phase signal input terminal for DSD output phase modulation.
62
PHREFO
O
Reference phase signal output terminal for DSD output phase modulation.
63
ZDFL
O
Lch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
64
DSAL
O
DSD data output terminal for Lch speaker.
65
ZDFR
O
Rch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
66
DSAR
O
DSD data output terminal for Rch speaker.
67
VDDSD
-
+3.3V Power for DSD data output.
68
ZDFC
O
Cch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
69
DSAC
O
DSD data output terminal for Cch speaker.
70
ZDFLFE
O
LFEch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
71
DSASW
O
DSD data output terminal for SWch speaker.
72
VSDSD
-
Ground for DSD data output.
73
ZDFLS
O
LSch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
74
DSALS
O
DSD data output terminal for LSch speaker.
75
ZDFRS
O
RSch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
76
DSARS
O
DSD data output terminal for RSch speaker.
77
VDDSD
O
+3.3V Power for DSD data output.
78
IOUT0
O
Data output terminal 0 for IEEE1394 link chip I/F.
79
IOUT1
O
Data output terminal 1 for IEEE1394 link chip I/F.
80
VSC
-
Ground for CORE.
81
IOUT2
O
Data output terminal 2 for IEEE1394 link chip I/F.
82
IOUT3
O
Data output terminal 3 for IEEE1394 link chip I/F.
83
VDC
-
+2.5V Power for CORE.
84
IOUT4
O
Data output terminal 4 for IEEE1394 link chip I/F.
85
IOUT5
O
Data output terminal 5 for IEEE1394 link chip I/F.
86
VSIO
-
Ground for I/O.
87
IANCO
O
Transmission information data output terminal for IEEE1394 link chip I/F.
88
IFULL
I
Data transmission hold request signal input terminal for IEEE1394 link chip I/F.
89
IEMPTY
I
High speed transmission request signal input terminal for IEEE1394 link chip I/F.
90
VDIO
-
+3.3V Power for I/O.
91
IFRM
O
Frame reference signal output terminal for IEEE1394 link chip I/F.
92
IOUTE
O
Enable signal output terminal for IEEE1394 link chip I/F.
93
IBCK
O
Data transmission clock output terminal for IEEE1394 link chip I/F.
94
VSC
-
Ground for CORE.
95
TESTI
I
TEST input terminal. It fixed to “H” potential.
Pin Name
I/O
Functions
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
51
DVD-2910/955
96
TESTI
I
TEST input terminal. It fixed to “L” potential.
97
TESTI
Ipu
TEST input terminal. It fixed to “H” potential.
98
TESTO
O
TEST output terminal. (open)
99
VDC
-
+2.5V Power for CORE.
100
TESTI
I
TEST input terminal. It fixed to “L” potential.
101
TESTI
I
TEST input terminal. It fixed to “L” potential.
102
TESTI
I
TEST input terminal. It fixed to “L” potential.
103
TESTI
I
TEST input terminal. It fixed to “L” potential.
104
TESTI
I
TEST input terminal. It fixed to “L” potential.
105
TESTI
I
TEST input terminal. It fixed to “L” potential.
106
VSIO
-
Ground for I/O.
107
TESTI
I
TEST input terminal. It fixed to “L” potential.
108
TESTI
I
TEST input terminal. It fixed to “L” potential.
109
TESTI
I
TEST input terminal. It fixed to “L” potential.
110
VDIO
-
+3.3V Power for I/O.
111
WAD0
I
External A/D data input terminal(LSB) for PSP physical disc mark detection.
112
WAD1
I
External A/D data input terminal for PSP physical disc mark detection.
113
WAD2
I
External A/D data input terminal for PSP physical disc mark detection.
114
WAD3
I
External A/D data input terminal for PSP physical disc mark detection.
115
VSIO
-
Ground for I/O.
116
VSC
-
Ground for CORE.
117
WAD4
I
External A/D data input terminal for PSP physical disc mark detection.
118
WAD5
I
External A/D data input terminal for PSP physical disc mark detection.
119
WAD6
I
External A/D data input terminal for PSP physical disc mark detection.
120
WAD7
I
External A/D data input terminal(MSB) for PSP physical disc mark detection.
121
VDC
-
+2.5V Powe for CORE.
122
TESTI
I
TEST input terminal. It fixed to “L” potential.
123
WCK
I
Operation clock for PSP physical disc mark detection.
124
WAVDD
-
+2.5V Power. A/D Power supply for PSP physical disc mark detection.
125
WAVDD
-
+2.5V Power. A/D Power supply for PSP physical disc mark detection.
126
WARFI
Ai
Analog RF signal input terminal for PSP physical disc mark detection.
127
WAVRB
Ai
A/D bottom reference terminal for PSP physical disc mark detection.
128
WAVSS
-
A/D Ground terminal for PSP physical disc mark detection.
129
WAVSS
-
A/D Ground terminal for PSP physical disc mark detection.
130
VSIO
-
Ground for I/O.
131
DQ7
I/O
SDRAM data input/output terminal. (MSB)
132
DQ6
I/O
SDRAM data input/output terminal.
133
DQ5
I/O
SDRAM data input/output terminal.
134
DQ4
I/O
SDRAM data input/output terminal.
135
VDIO
-
+3.3V Power for I/O.
136
DQ3
I/O
SDRAM data input/output terminal.
137
DQ2
I/O
SDRAM data input/output terminal.
138
DQ1
I/O
SDRAM data input/output terminal.
139
DQ0
I/O
SDRAM data input/output terminal. (LSB)
140
VSIO
-
Ground for I/O.
141
DCLK
O
Clock output terminal for SDRAM.
142
DCKE
O
Clock enable output terminal for SDRAM.
143
XWE
O
Write enable output terminal for SDRAM.
144
XCAS
O
Colomn address strobe output terminal for SDRAM.
145
XRAS
O
Row address strobe output terminal for SDRAM.
146
VDIO
-
+3.3V Power for I/O.
147
TESTO
O
Output terminal for TEST. (open)
Pin Name
I/O
Functions
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
52
DVD-2910/955
Ipu: Pull-up input Ipd: Pull-down input Ai: Analog input
148
A11
O
Address output terminal for SDRAM. (MSB)
149
A10
O
Address output terminal for SDRAM.
150
VSC
-
Ground for CORE.
151
A9
O
Address output terminal for SDRAM.
152
A8
O
Address output terminal for SDRAM.
153
VDC
-
+2.5V Power for CORE.
154
A7
O
Address output terminal for SDRAM.
155
A6
O
Address output terminal for SDRAM.
156
A5
O
Address output terminal for SDRAM.
157
A4
O
Address output terminal for SDRAM.
158
VSIO
-
Ground for I/O.
159
A3
O
Address output terminal for SDRAM.
160
A2
O
Address output terminal for SDRAM.
161
A1
O
Address output terminal for SDRAM.
162
A0
O
Address output terminal for SDRAM. (LSB)
163
VDIO
-
+3.3V Power for I/O.
164
XSRQ
O
Output terminal of the Data Request signal inputted a front-end processor.
165
XSHD
I
Input terminal of the header Flag outputted from a front-end processor.
166
SDCK
I
Input terminal of the data conveyance Clock outputted from a front-end processor.
167
XASK
I
Input terminal of the data valid Flag outputted from a front-end processor.
168
SDEF
I
Input terminal of the error Flag outputted from a front-end processor.
169
SD0
I
Input terminal of the stream Data outputted from a front-end processor.
170
SD1
I
Input terminal of the stream Data outputted from a front-end processor.
171
SD2
I
Input terminal of the stream Data outputted from a front-end processor.
172
SD3
I
Input terminal of the stream Data outputted from a front-end processor.
173
SD4
I
Input terminal of the stream Data outputted from a front-end processor.
174
SD5
I
Input terminal of the stream Data outputted from a front-end processor.
175
SD6
I
Input terminal of the stream Data outputted from a front-end processor.
176
SD7
I
Input terminal of the stream Data outputted from a front-end processor.
Pin Name
I/O
Functions
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
53
DVD-2910/955
ADSP-21266SKSTZ1B-DVD (IC311)
Terminal Function
1
3 6
37
73
72
108
144
109
TOP VIEW
PIN 1 INDICATOR
Pin Name
LQFP
Pin #
Pin Name
LQFP
Pin #
Pin Name
LQFP
Pin #
Pin Name
LQFP
Pin #
VDDINT
1
VDDINT
37
VDDEXT
73
GND
109
CLKCFG0
2
GND
38
GND
74
VDDINT
110
CLKCFG1
3
RD
39
VDDINT
75
GND
111
BOOTCFG0
4
ALE
40
GND
76
VDDINT
112
BOOTCFG1
5
AD15
41
DAI_P10 (SD2B)
77
GND
113
GND
6
AD14
42
DAI_P11 (SD3A)
78
VDDINT
114
VDDEXT
7
AD13
43
DAI_P12 (SD3B)
79
GND
115
GND
8
GND
44
DAI_P13 (SCLK23)
80
VDDEXT
116
VDDINT
9
VDDEXT
45
DAI_P14 (SFS23)
81
GND
117
GND
10
AD12
46
DAI_P15 (SD4A)
82
VDDINT
118
VDDINT
11
VDDINT
47
VDDINT
83
GND
119
GND
12
GND
48
GND
84
VDDINT
120
VDDINT
13
AD11
49
GND
85
RESET
121
GND
14
AD10
50
DAI_P16 (SD4B)
86
SPIDS
122
FLAG0
15
AD9
51
DAI_P17 (SD5A)
87
GND
123
FLAG1
16
AD8
52
DAI_P18 (SD5B)
88
VDDINT
124
AD7
17
DAI_P1 (SD0A)
53
DAI_P19 (SCLK45)
89
SPICLK
125
GND
18
VDDINT
54
VDDINT
90
MISO
126
VDDINT
19
GND
55
GND
91
MOSI
127
GND
20
DAI_P2 (SD0B)
56
GND
92
GND
128
VDDEXT
21
DAI_P3 (SCLK0)
57
VDDEXT
93
VDDINT
129
GND
22
GND
58
DAI_P20 (SFS45)
94
VDDEXT
130
VDDINT
23
VDDEXT
59
GND
95
AVDD
131
AD6
24
VDDINT
60
VDDINT
96
AVSS
132
AD5
25
GND
61
FLAG2
97
GND
133
AD4
26
DAI_P4 (SFS0)
62
FLAG3
98
CLKOUT
134
VDDINT
27
DAI_P5 (SD1A)
63
VDDINT
99
EMU
135
GND
28
DAI_P6 (SD1B)
64
GND
100
TDO
136
AD3
29
DAI_P7 (SCLK1)
65
VDDINT
101
TDI
137
AD2
30
VDDINT
66
GND
102
TRST
138
VDDEXT
31
GND
67
VDDINT
103
TCK
139
GND
32
VDDINT
68
GND
104
TMS
140
AD1
33
GND
69
VDDINT
105
GND
141
AD0
34
DAI_P8 (SFS1)
70
GND
106
CLKIN
142
WR
35
DAI_P9 (SD2A)
71
VDDINT
107
XTAL
143
VDDINT
36
VDDINT
72
VDDINT
108
VDDEXT
144
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
54
DVD-2910/955
M30620FCPGP(2910) (IC318)
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
P10/D8
P11/D9
P12/D10
P13/D11
P14/D12
VREF
AVSS
VCC
XIN
XOUT
VSS
RESET
CNVss
P87/XCIN
P86/XCOUT
BYTE
P20/A0(/D0/-)
P21/A1(/D1/D0)
P22/A2(/D2/D1)
P23/A3(/D3/D2)
P24/A4(/D4/D3)
P25/A5(/D5/D4)
P26/A6(/D6/D5)
P27/A7(/D7/D6)
P30/A8(/-/D7)
P31/A9
P32/A10
P33/A11
P34/A12
P35/A13
P36/A14
P37/A15
P40/A16
P41/A17
P42/A18
P43/A19
P74/TA2OUT/W
P76/TA3OUT
P56/ALE
P77/TA3IN
P55/HOLD
P54/HLDA
P53/BCLK
P52/RD
Vcc
Vss
P57/RDY/CLKOUT
P45/CS1
P46/CS2
P47/CS3
AVcc
P63/TXD0
P65/CLK1
P66/RxD1
P67/TXD1
P61/CLK0
P62/RxD0
P100/AN0
P101/AN1
P102/AN2
P103/AN3
P93/DA0/TB3IN
P94/DA1/TB4IN
P95/ANEX0/CLK4
P96/ANEX1/SOUT4
P91/TB1IN/SIN3
P92/TB2IN/SOUT3
P81/TA4IN/U
P80/TA4OUT/U
P60/CTS0/RTS0
P64/CTS1/RTS1/CLKS1
P82/INT0
P83/INT1
P85/NMI
P97/ADTRG/SIN4
P44/CS0
P50/WRL/WR
P51/WRH/BHE
P90/TB0IN/CLK3
P84/INT2
P72/CLK2/TA1OUT/V
P71/RxD2/SCL/TA0IN/TB5IN (Note)
P70/TXD2/SDA/TA0OUT (Note)
P75/TA2IN/W
P73/CTS2/RTS2/TA1IN/V
P15/D13/INT3
P16/D14/INT4
P17/D15/INT5
P107/AN7/KI3
P106/AN6/KI2
P105/AN5/KI1
P104/AN4/KI0
Note: P70 and P71 are N channel open-drain output pin.
P07/AN07/D7
P06/AN06/D6
P05/AN05/D5
P04/AN04/D4
P03/AN03/D3
P02/AN02/D2
P01/AN01/D1
P00/AN00/D0
PIN CONFIGURATION (top view)
M16C/62N Group
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
55
DVD-2910/955
PIN Description
PIN NAME
SYMBOL
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
1
TB4IN
DSPSPICS
O
DSP CONTROL TERMINAL
2
P93
V-CS
VFD CONTROL SIGNAL(CS) / H=NEGATE , L=ASSERT
3
SOUT3
V-DATA
VFD CONTROL SIGNAL(DATA)
4
SIN3
ROM CONT 1
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
NOT USED
5
CLK3
V-CLK
VFD CONTROL SIGNAL(CLK)
6
BYTE
BUS WIDTH
SEL
I
EXT DATA BUS WIDTH SELECT L=16bit (width) H=8bit (width)
7
CNVss
CNVss
I
MODE SELECT SIGNAL
SINGLE CHIP MODE=Vss CONNECTION, MICRO PROSECER MODE=Vcc CONNECTION
8
P87
OPEN 8
OPEN 9
OPEN 32
OPEN 33
OPEN 34
OPEN 35
OPEN 36
OPEN 37
OPEN 38
OPEN 45
OPEN 46
OPEN 47
OPEN 48
OPEN 49
OPEN 50
OPEN 40
9
P86
10
RESET-
RESET
I
RESET INPUT/ H=NEGATE , L=ASSERT *RESET IC OUT = OPEN DRAIN
11
XOUT
CLOCK OUT
O
X'TAL CONNECTION
12
VSS
I
IMPRESS: 0V
13
XIN
CLOCK IN
I
Ext. CLOCK / Xin=INPUT, Xout=OPEN
14
VCC
I
IMPRESS: 2.4-3.6V
15
NMI
MN TERMINAL
NON USABLE : Ext. +3.3V
16
INT2-
OP_CS
BE CONTROL SIGNAL(CS) / H=NEGATE , L=ASSERT
17
INT1-
W.REM
WIRED REMOTE INPUT
18
INT0-
REMO
REMOTE INPUT
19
P81
20
TA4OUT
OPN_DRV
TRAY CONTROL SIGNAL1
21
P77
LD CONT
PICK UP LASER ON/OFF CONTROL OUTPUT H=DVD L=CD
22
TA3OUT
CLS_DRV
TRAY CONTROL SIGNAL2
CLS_DRV
TRAY CONTROL SIGNAL2
23
TA2IN
DFRESET
INTERRUPT INPUT FOR BE / H=NEGATE , L=ASSERT
24
P74
+1.8V_ON/OFF
+1.8V POWER CONTROL SIGNAL FOR DSP / H=ON , L=OFF
25
RTS2-
PANEL_REQ
BE CONTROL SIGNAL(REQ) / H=ASSERT , L=NEGATE
26
CLK2
OP_CLK
BE CONTROL SIGNAL(CLK)
27
RXD2
OP_DI
BE CONTROL SIGNAL(DI)
28
TXD2
OP_DO
BE CONTROL SIGNAL(DO)
29
TXD1
TXD232
TXD
30
RXD1
RXD232
RXD
31
CLK1
CLK1
CLOCK MODE SELECT
32
RTS1
33
TXD0
34
RXD0
35
CLK0
36
P60
37
P57
38
P56
39
FRASH_EPM
FRASH_EPM
INTERNAL FLASH CONTROL SIGNAL1 / H=NOMAL , L=BOOT
40
P54
41
P53
DSD_SEL
AUDIO STATUS SELECT SIGNAL6
42
P52
FILM_ON
VIDEO STATUS SELECT SIGNAL
43
P51
EMUTE
MUTE CONTROL SIGNAL / H=MUTE ON , L=MUTE OFF
44
FRASH_HCE
FRASH_HCE
INTERNAL FLASH CONTROL SIGNAL1 / H=BOOT , L=NOMAL
45
P47
46
P46
47
P45
48
P44
49
P43
50
P42
PIN No
FUNCTION
DESCRIPTION
POWER INPUT 1
POWER INPUT 2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
56
DVD-2910/955
PIN NAME
SYMBOL
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
51
P41
52
P40
SW_HGAIN
SUB WOOFER HGAIN
53
P37
BUSYEPROM
DSP CONTROL (SPARE)
54
P36
VPP
NORMAL: "H" FLASH WRITING FOR DSP: "L"
55
P35
DSP_RST
DSP RESET OUTPUT TERMINAL (RESET: "L")
56
P34
ROMRST
MEMORY RESET FOR DSP (RESET: "L")
57
P33
DSPOSCON
XTAL CONTROL PORT FOR DSP H=ON, L=OFF
58
P32
FLUG 0A
E2ROM CHIP SELECT CONTROL FOR DSP
59
P31
FLUG 1A
NOT USED
60
VCC
POWER INPUT 3
POWER INPUT 4
I
IMPRESS: 2.4-3.6V
61
P30
FLUG 2A
FLUG 3A
DSP CHECK FLAG (FLAG 2A) Normal="L"
62
VSS
IMPRESS: 0V
63
P27
I/O
Special Flag for ROM update (ADSP 21061L-A: FLAG 3A)
64
P26
+3.3V_ON/OFF
I/O
I/O
I/O
H=ON, L=OFF
65
P25
I/O
66
P24
I/O
67
P23
HD_2ch/Mch
HD_ON/OFF
I/O
HDMI CONTROL 2ch (Low)/Mch (High)
68
P22
I/O
HDMI CONTROL ON (Low)/OFF (High)
69
P21
I/O
70
P20
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
71
P17
P_DED
POWER CHECK SPARE TERMINAL
72
P16
ROM_CONT2
NOT USED
73
INT3
DENON_BUS_INT
DENON INTERRUPT DETECTION PORT
74
P14
75
P13
76
P12
G_LED
POWER INDICATOR LED (Green) CONTROL L: ON/H: OFF
77
P11
HD_HOKEN1
HD_HOKEN2
HDMI CONTROL
78
P10
HDMI CONTROL
79
P07
PLL_RST
RESET OUTPUT FOR PLL_IC / H=NEGATE , L=ASSERT
80
P06
PDET
POWER DETECT SIGNAL / H=ON , L=OFF
81
P05
RST
RESET OUTPUT FOR PERIPHERAL DEVICE / H=NEGATE , L=ASSERT
82
P04
BE_ON
BE STATUS DETECT SIGNAL / H=ACTIVE , L=STANBY
83
P03
84
P02
85
P01
CL_SW
CLOSE_SW DETECT SIGNAL / H=NOT CLOSE , L=CLOSE
86
P00
OP_SW
OPEN_SW DETECT SIGNAL / H=NOT OPEN , L=OPEN
87
P107
R_LED
POWER INDICATOR LED (Red) CONTROL L: ON/H: OFF
88
P106
ON/ST
POWER ON/OFF CONTROL SIGNAL / H=POWER_ON , L=STANBY
89
AN5
90
AN4
91
AN3
REG
REGION DETECT SIGNAL
92
AN2
KEY2
KEY SCAN 2
93
AN1
KEY1
KEY SCAN 1
94
AVSS
ANA POWER1
I
POWER INPUT TERMINAL FOR A-D CONVERTER Vss CONNECTION
POWER INPUT TERMINAL FOR A-D CONVERTER Vcc CONNECTION
95
AN0
KEY0
KEY SCAN 0
96
VREF
REFERENCE
I
REFERENCE VOLTAGE INPUT TERMINAL FOR A-D CONVERTER
97
AVCC
ANA POWER2
I
98
SIN4
DSPMISO
DSP CONTROL TERMINAL
DSP CONTROL TERMINAL
DSP CONTROL TERMINAL
99
SOUT4
DSPMOSI
100
CLK4
DSPSPICLK
PIN No
FUNCTION
DESCRIPTION
NOT USED
OPEN 51
NOT USED
OPEN 65
NOT USED
OPEN 66
NOT USED
OPEN 69
NOT USED
OPEN 70
NOT USED
OPEN 75
NOT USED
OPEN 74
NOT USED
OPEN 84
NOT USED
OPEN 83
NOT USED
OPEN 90
NOT USED
OPEN 89
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
57
DVD-2910/955
K4S643232E (SY: IC717)
VDD
DQ0
VDDQ
DQ1
DQ2
VSSQ
DQ3
DQ4
VDDQ
DQ5
DQ6
VSSQ
DQ7
N.C
VDD
DQM0
WE
CAS
RAS
CS
N.C
BA0
BA1
A10/AP
A0
A1
A2
DQM2
VDD
N.C
DQ16
VSSQ
DQ17
DQ18
VDDQ
DQ19
DQ20
VSSQ
DQ21
DQ22
VDDQ
DQ23
VDD
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
VSS
DQ15
VSSQ
DQ14
DQ13
VDDQ
DQ12
DQ11
VSSQ
DQ10
DQ9
VDDQ
DQ8
N.C
VSS
DQM1
N.C
N.C
CLK
CKE
A9
A8
A7
A6
A5
A4
A3
DQM3
VSS
N.C
DQ31
VDDQ
DQ30
DQ29
VSSQ
DQ28
DQ27
VDDQ
DQ26
DQ25
VSSQ
DQ24
VSS
PIN CONFIGURATION
BLOCK DIAGRAM
Bank Select
Data Input Register
512K x 32
512K x 32
Sense AMP
Output Buffer
I/O Control
Column Decoder
Latency & Burst Length
Programming Register
Address Register
Row Buffer
Refresh Counter
Row Decoder
Col. Buffer
LRAS
LCBR
LCKE
LRAS
LCBR
LWE
LDQM
CLK
CKE
CS
RAS
CAS
WE
DQM
LWE
LDQM
DQi
CLK
ADD
LCAS
LWCBR
512K x 32
512K x 32
Timing Register
PIN FUNCTION DESCRIPTION
Pin
Name
Input Function
CLK
System clock
Active on the positive going edge to sample all inputs.
CS
Chip select
Disables or enables device operation by masking or enabling all inputs except
CLK, CKE and DQM.
CKE
Clock enable
Masks system clock to freeze operation from the next clock cycle.
CKE should be enabled at least one cycle prior to new command.
Disables input buffers for power down mode.
A0 ~ A10
Address
Row/column addresses are multiplexed on the same pins.
Row address : RA0 ~ RA10, Column address : CA0 ~ CA7
BA0,1
Bank select address
Selects bank to be activated during row address latch time.
Selects bank for read/write during column address latch time.
RAS
Row address strobe
Latches row addresses on the positive going edge of the CLK with RAS low.
Enables row access & precharge.
CAS
Column address strobe
Latches column addresses on the positive going edge of the CLK with CAS low.
Enables column access.
WE
Write enable
Enables write operation and row precharge.
Latches data in starting from CAS, WE active.
DQM0 ~ 3
Data input/output mask
Makes data output Hi-Z, tSHZ after the clock and masks the output.
Blocks data input when DQM active.
DQ0 ~ 31
Data input/output
Data inputs/outputs are multiplexed on the same pins.
VDD/VSS
Power supply/ground
Power and ground for the input buffers and the core logic.
VDDQ/VSSQ
Data output power/ground
Isolated power supply and ground for the output buffers to provide improved noise
immunity.
NC
No Connection
This pin is recommended to be left No connection on the device.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
58
DVD-2910/955
ADV7310 (IC701,710)
1
VDD_IO
P
Digital power supply.
2~9, 12, 13
Y9-0
I
10-Bit Progressive scan/ HDTV input port for Y data.
10, 56
VDD
P
Digital power supply.
11, 57
DGND
G
Digital Ground
14~18, 26~30
C9-0
I
10-Bit Progressive scan/ HDTV input port for CrCb color data in 4:2:2 input mode.
When this input pin is brought low, the ADV7300 interfaces over the SPI port and uses this
19
SPI/I2C
I
input as part of the 4 wire SPI interface. When this input pin is tied high [VDD_IO], the ADV7300
interfaces over the I2C port.
20
ALSB_SO
I/O
Multifunctional pin.
21
SDA_CLKSP
I/O
Multifunctional pin.
22
SCLK_SI
I
Multifunctional input.
23
P_HSYNC
I
Video Horizontal Sync Control Signal for HD sync in simultaneous SD/HD mode
and HD only mode.
24
P_VSYNC
I
Video Vertical Sync Control Signal for HD sync in simultaneous SD/HD mode
and HD only mode.
25
P_BLANK
I
Video Blanking Control Signal for HD sync in simultaneous SD/HD mode and HD only mode.
31
RTC_SCR_TR
I
Multifunctional input.
32
CLKIN_A
I
Pixel Clock Input for HD only or SD only modes.
33
RESET
I
This input resets the on-chip timing generator and sets the ADV7300 into Default Register
setting. Reset is an active low signal.
34
EXT_LF
I
External Loop filter for the internal PLL.
35, 47
RSET1,2
I
A1520 Ohms resistor must be connected from this pin to AGND and is used to control the
amplitudes of the DAC outputs.
36,45
COMP
O
Compensation Pin for DACs.
37
DAC F
O
In SD only mode: Chroma/RED/V analog output.
In HD only mode and simultaneus HD/SD: Pb/ BLUE (HD) analog output.
38
DAC E
O
In SD only mode: Luma/BLUE/U analog output.
In HD only mode and simultaneus HD/SD: Pr/ RED (HD) analog output.
39
DAC D
O
In SD only mode: CVBS/GREEN/Y analog output.
In HD only mode and simultaneus HD/SD:Y/ GREEN (HD) analog output.
40
AGND
G
Analog Ground
41
VAA
P
Analog power supply.
42
DAC C
O
Chroma/ RED/ V SD analog output.
43
DAC B
O
Luma/ BLUE/ U SD analog output.
44
DAC A
O
CVBS/ GREEN/ Y SD analog output.
46
VREF
I/O
Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235V).
48
S_BLANK
I/O
Video Blanking Control Signal for SD.
49
S_VSYNC
I/O
Video Vertical Sync Control Signal for SD.
50
S_HSYNC
I/O
Video Horizontal Control Signal for SD.
51~55, 58~62
S9-S0
I
10-Bit Standard Definition input port. Or Progressive Scan/ HDTV input port for
Cr [Red/V] color data in 4:4:4 input mode.
63
CLKIN_B
I
Pixel Clock Input.
64
GND_IO
G
Digital Ground
Function
I/O
Pin No.
Pin Name
ADV7300 (MA: IC706)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
VDD_IO
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
VDD
DGND
Y8
Y9
C0
C1
C2
C3
C4
ALSB_SO
SDA_CLKSP
SCLK_SI
P_BLANK
C5
C6
C7
C8
C9
RTC_SCR_TR
CLKIN_A
VREF
COMP1
DAC A
DAC B
DAC C
VAA
AGND
DAC D
DAC E
DAC F
COMP2
R
EXT_LF
SET 2
R SET 1
GND_IO
CLKIN_B
S9
S8
S7
S6
S5
DGND
VDD
S4
S3
S2
S1
S0
SPI/I2C
P_HSYNC
P_VSYNC
RESET
S_BLANK
S_VSYNC
S_HSYNC
TOP VIEW
ADV7310 Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
59
DVD-2910/955
SiI 170B ( IC721)
Pin Diagram
Pin Diagram
VCC
DE
VREF
HSYNC
VSYNC
CTL3
NC
NC
HTPLG
PD#
MSEN
VCC
ISEL/RST#
SDAS
SCLS
GND
PGND1
PVCC1
EXT_SWING
AGND
TXC-
TXC+
AVCC
TX0-
TX0+
AGND
TX1-
TX1+
AVCC
TX2-
TX2+
VCC
RESERVED
GND
D23
D22
D21
D20
D19
D18
D17
D16
D15
D14
D13
D12
PGND2
PVCC2
D11
D10
D9
D8
D7
D6
IDCK-
IDCK+
D5
D4
D3
D2
D1
D0
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
SiI 170B
64-Pin LQFP
(Top View)
AGND
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
60
DVD-2910/955
Pin Descriptions
Input Pins
Pin Name
Pin #
Type
Description
D23-D12
See Pin
Diagram
In
Upper 12 bits of 24-bit pixel bus. Mode controlled by configuration register bit:
When BSEL = HIGH, this bus inputs the top half of the 24-bit pixel bus.
When BSEL = LOW, these bits are not used to input pixel data.
D11–D0
See Pin
Diagram
In
Bottom half of 24-bit pixel bus / 12-bit pixel bus input. Mode controlled by
configuration register bit:
When BSEL = HIGH, this bus inputs the bottom half of the 24-bit pixel bus.
When BSEL = LOW, this bus inputs ½ a pixel (12-bits) at every latch edge (both
falling and/or rising) of the clock.
IDCK+
57
In
Input Data Clock +. This clock is used for all input modes.
IDCK-
56
In
Input Data Clock –. This clock is only used in 12-bit mode when dual edge
clocking is turned off (DSEL = LOW). It is used to provide the ODD latching edges
for multi-phased clocking. If (BSEL = HIGH) or (DSEL = HIGH) this pin is unused
and should be tied to GND.
DE
2
In
Data enable. This signal is high when input pixel data is valid to the transmitter
and low otherwise.
HSYNC
4
In
Horizontal Sync input control signal.
VSYNC
5
In
Vertical Sync input control signal.
Input Voltage Reference Pin
Pin Name
Pin #
Type
Description
VREF
3
Analog
In
Must be tied to 3.3V.
Power Management Pin
Pin Name
Pin #
Type
Description
PD#
10
In
Power Down (active LOW). A HIGH level (3.3V) indicates normal operation and a
LOW level (GND) indicates power down mode.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
61
DVD-2910/955
Differential Signal Data Pins
Pin Name
Pin #
Type
Description
TX0+
TX0-
TX1+
TX1-
TX2+
TX2-
25
24
28
27
31
30
Analog
Analog
Analog
Analog
Analog
Analog
TMDS Low Voltage Differential Signal output data pairs.
These pins are tri-stated when PD# is asserted.
TXC+
TXC-
22
21
Analog
Analog
TMDS Low Voltage Differential Signal output clock pairs.
These pins are tri-stated when PD# is asserted.
EXT_SWING
19
Analog
Voltage Swing Adjust. A resistor should tie this pin to AVCC. This resistor
determines the amplitude of the voltage swing. A 510 ohm resistor is
recommended for remote display applications. For notebook computers, 680 ohm
is recommended.
Configuration/Programming Pins
Pin Name
Pin #
Type
Description
MSEN
11
Out
Monitor Sense. This pin is an open collector output. The output is programmable
through the I2C interface (see I2C register definitions). An external 5K pull-up
resistor is required on this pin.
RESERVED
34
In
This pin is reserved.
NC
7,8
NC
These pins are not electrically connected inside the package.
Control Pins
These control pins allow configuration of the transmitter through the slave I2C port, which is required by HDCP.
Pin Name
Pin #
Type
Description
ISEL/RST#
13
In
I2C Interface Select. If HIGH, then the I2C interface is active.
SCLS
15
In
DDC I2C Clock.
SDAS
14
In/Out
DDC I2C Data.
CTL3
6
In
External CTL3.
HTPLG
9
In
Monitor Charge Input. This pin is used to connect to the DVI Hot Plug pin to detect
the presence of an attached monitor.
Power and Ground Pins
Pin Name
Pin #
Type
Description
VCC
1,12,33
Power
Digital VCC. Connect to 3.3V supply.
GND
16,35,64
Ground
Digital GND.
AVCC
23,29
Power
Analog VCC. Connect to 3.3V supply.
AGND
20,26,32
Ground
Analog GND.
PVCC1
18
Power
Primary PLL Analog VCC. Connect to regulated 3.3V supply.
PVCC2
49
Power
Filter PLL Analog VCC. Connect to regulated 3.3V supply.
PGND1
17
Ground
PLL Analog GND.
PGND2
48
Ground
PLL Analog GND.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
62
DVD-2910/955
CXD1881AR (IC802)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
CXD1881AR
RX
MEV
VNA
FNN
FNP
DIP
DIN
BYP
RFAC
VPA
AIP
AIN
ATON
ATOP
RFSIN
RFDC
MEVO
MIN
MLPF
MB
MP
MIRR
LDON
VNB
CDPD
DVDPD
COLD
DVDLD
VC
VPB
CD_E
CD_F
SDEN
SDATA
SCLK
V33
LCP
LCN
MNTR
CE
FE
TE
PI
V25
V125
TPH
DFT
LINK
DVDRFP
DVDRFN
A2
B2
C2
D2
CP
CN
D
C
B
A
CD_D
CD_C
CD_B
CD_A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
63
DVD-2910/955
DVDRFP
DVDRFN
RFSIN
ATOP
ATON
AIN
AIP
FNP
DIN
DIP
RFAC
FNN
MUX
INPUT
BIAS
ATT
63
A
12
CD_A
16
B
11
CD_B
15
C
10
CD_C
14
D
CD_D
13
CD_E
18
CD_F
17
2
9
A2
3
1
SIGR b3
INPUT
SEL
RFCR b7-6
INPUT IMP
SEL
2
RFCR b5-4
INPUT IMP SEL
2
2
4
SIGR b7-4
ATT
62
61
60
59
AGC
FCCR b7-0
FBCR b6-0
PROGRAMMABLE
EQUALIZER
FILTER
DIFFERENTIATOR
AGCO
53
52
SSOUT
TENV
Clamp
& Env
Level
DAC
CAR b3-2
SIGDET
2
CAR b1-0
Env/Clamp
FULL WAVE
RECTIFIER
CGR b1
OUTPUT INHIBIT
55
54
57
56
AGC
CHARGE
PUMP
AGC HOLD
RFCR b3
B+D
A+C
A+D
B+C
MUX
D
C
B
A
GCA
GCA
GCA
GCA
GCA
GCA
GCA
GCA
W/LPF
W/LPF
W/LPF
W/LPF
SUM
Amp.
SIGR b2-0
12dB is added
@ high gain mode
(CDR b5=1)
12dB is added
@ high gain mode
(CDR b5=1)
6dB is added
@ high gain mode
(CDR b5=1)
3
3
4
RFCR b2-0
RFCR b2-0
TRCR2 b6-4
DPD EQ
TRCR2 b3-0
3B
PDCR b3
CD/DVD
GCA +/-4dB
Offset
cancel
LPF
GCA
70kHz
+/-6dB, 4bit
0-+8dB, 4bit
CTCR b3-0
CO Gain
+/-4dB
4
4
4
FOCR b7-4
FS Gain
CCR b4-0
FE offset
5
Offset
cancel
LPF
70kHz
PIOR b4-0
PI offset
FOCR b3-0
FO Gain
CER b4-0
CE offset
CFR b7-5
TR Gain
CBR b3-2
5
TOPHLD
CTCR b7
BCA DET
COMP
CBR b1-0
Pll
SEL
SEL
BYP
49
RX
40
FE
38
PI
35
TPH
34
DFT
RFDC
DAC
2
Buff
61
CE
41
MNTR
TOPHLD
TOPHLD
Offset
cancel
GCA
GCA
4D
SUM
MON
SEL
PI
FE
TE
CE
V25
V125
V25/3
42
LCP
44
LCN
43
TE
CP
LPF
ATT
Pol sel.
buff (Ð12dB)
3
3
CFR b2-0
CE-ATT
CFR b3
CEPOL
+3dB
RESUM
GCA
GCA
GCA
7
CN
8
Offset
cancel
LPF
GCA
SUB
MUX
TE
RST
39
V125
36
V25
37
VC
20
SDEN
48
SDATA
47
SCLK
46
V33
45
TRCR b5-0
TR offset
6
CEFDB
CDR b3
PDCR b3
CD/DVD
TRCR2 b7
CP/CN
Low lmp
EQ
B2
4
C2
5
D2
CDPD
6
GCA
TRCR b6
DPD COMP HYS ON
GCA
GCA
PHASE
DETECTOR
PHASE
DETECTOR
EQ
EQ
EQ
3
3
VC
Comp.
V25/2
for TE, FE & CE output ref.
VC
VCI for servo input
SERIAL PORT
REGISTER
V33 for output buff
MIRR
27
LINK
VPA
58
VPB
19
VNA
51
VNB
25
33
MB
29
MP
28
MLPF
30
MIN
31
MEVO
32
MEV
CDR b7
LINKEN
CCR b7
DISK DET
CONTROL
Signals
To each block
MUX
Btm Env
Btm clamp
& clip
MUX
MUX
Vref
CGR b5-4
Gain
MUX
Offset
MUX
MUX
BTM ENV
BTM HLD
TOP ENV
TOP HLD
MRCR b7-0
droop rate
control
Pll
AGCO
BENV
50
DVDLD
21
CDLD
22
LDON
26
Dual APC
24
DVDPD
23
CCR b5
APC SEL
DVD/CD
CDR b4
LD H/L
ATT
HOLDEN
CDR b6
2
4
CAR b7-4
TE MASK SEL
2
PIOR b7-5
3
GCA
ATT
CGR b0
OUTPUT INHIBIT
SIGR b2-0
12dB is added
@ high gain mode
(CDR b5=1)
CDR b5
High Gain
2
CTCR b5-4
MEVO SEL
CHR b7-6
Mirr Defect
Comp ATT
MRCR b6-4
Mirr Comp
ATT Level
2
3
V25/3
CDR b2
for PI output ref.
AGC BTM ENV
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
64
DVD-2910/955
Power Supply Pins
Input Pins
Output Pins
Name
I/O
Function
VPA
-
Power for RF and serial port
VPB
-
Power for servo
VNA
-
GND for RF and serial port
VNB
-
GND for servo
V33
-
Power for output buffer
V25
-
Reference Power for servo output
Name
I/O
Function
DVDRFP,DVDRFN
I
RF signal input
RFSIN
I
RF signal input
AIP,AIN
I
AGC amp. input
DIP,DIN
I
Analog input for RF single buffer
A,B,C,D
I
Photo detector interface input
A2,B2,C2,D2
I
Photo detector interface input
CD_A,B,C,D
I
CD photo detector interface input
CD_E,F
I
CD photo detector interface input
MIN
I
RF signal input for mirror
DVDPD
I
APC input
CDPD
I
APC input
LDON
I
APC input ON/OFF (L:Open)
I
Link signal input (L:Open)
O
Mirror monitor output
Name
I/O
Function
ATOP,ATON
O
Differential attenuator output
FNP,FNN
O
Differential normal output
RFAC
O
Single end normal output
RFDC
O
RF signal output
FE
O
Focus error signal output
TE
O
Tracking error signal output
CE
O
Center error signal output
MEVO
O
RFDDC bottom envelope output
DFT
O
Defect output
MIRR
O
Mirror detected output
PI
O
Pull-in signal output
DVDLD
O
APC output
CDLD
O
APC output
MNTR
O
Monitor output
LINK
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
65
DVD-2910/955
Analog Pins
Serial Port Pins
Name
I/O
Function
BYP
-
RF AGC integration capacitor connecting terminal
CP
-
Differential phase tracking LPF terminal
CN
-
Differential phase tracking LPF terminal
LCP
-
Lens shift offset cancel LPF terminal
LCN
-
Lens shift offset cancel LPF terminal
MP
-
MIRR top hold terminal
MB
-
MIRR bottom hold terminal
MEV
-
RFDC bottom envelope terminal
MLPF
-
Mirror LPF terminal
TPH
-
PI top hold terminal
VC
-
Reference voltage output
V125
-
Reference voltage output
RX
-
Reference resistor input
Name
I/O
Function
SDEN
I
Serial data enable
SDATA
I/O
Serial data
SCLK
I
Serial clock
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
66
DVD-2910/955
W986416 (IC103)
W986416DH (MA: IC103)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
25
24
23
22
VCC
VCCQ
DQ0
VSSQ
DQ2
VSSQ
DQ6
VCCQ
DQ4
BS0
BS1
A10/AP
A0
DQ1
DQ5
VCC
LDQM
Vcc
WE
CAS
RAS
CS
DQ7
DQ3
26
27
A1
A2
VSS
VssQ
DQ15
VCCQ
DQ13
VCCQ
DQ9
VSSQ
DQ11
A9
A8
A7
A6
A5
DQ14
DQ10
VSS
NC
UDQM
CLK
CKE
NC
A11
DQ8
DQ12
A4
Vss
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
30
31
32
33
29
28
A3
1, 14, 27
VCC
Power (+3.3V)
Power for input buffers and logic circuit inside DRAM.
2, 4, 5, 7, 8, 10,
11, 13, 42, 44,
DQ0-DQ15
Data Input/Output
Multiplexed pins for data output and input.
45, 47, 48, 50,
51, 53
3, 9, 43, 49
VCCQ
Power (+3.3V) for I/O buffer
Separated power from VCC, to improve DQ noise immunity.
6, 12, 46, 52
VSSQ
Ground for I/O buffer
Separated ground from VSS, to improve DQ noise immunity.
16
WE
Write Enable
Referred to RAS.
17
CAS
Column Address Strobe
Referred to RAS.
18
RAS
Row Address Strobe
Command input. When sampled at the rising edge of the clock RAS, CAS
and WE define the operation to be executed.
19
CS
Chip Select
Disable or enable the command decoder. When command decoder is
disabled, new command is ignored and previous operation continues.
20, 21
BS0, BS1
Bank Select
Select bank to activate during row address latch time, or bank to read/write
during address latch time.
23~26, 22
Multiplexed pins for row and column address. Row address: A0-A11.
29~35
A0-A11
Address
Column address: A0-A7. A10 is sampled during a precharge command to
determine if all banks are to be precharged or bank selected by BS0, BS1.
28, 41, 54
VSS
Ground
Ground for input buffers and logic circuit inside DRAM.
36, 40
NC
No Connection
No Connection
37
CKE
Clock Enable
CKE controls the clock activation and deactivation.When CKE is low,
Power Down mode, Suspend mode, or Self Refresh mode is entered.
38
CLK
Clock Inputs
System clock used to sample inputs on the rising edge of clock.
The output buffer is placed at Hi-Z (with latency of 2) when DQM is sampled
39, 15
UDQM, LDQM Input/Output mask
high in read cycle. In write cycle, sampling DQM high will block the write
operation with zero latency.
Description
Function
Pin No.
Pin Name
Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
67
DVD-2910/955
16M SDRAM (MA: IC402)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
43
44
45
46
47
48
49
50
A9
VDD
DQ1
DQ0
DQ3
DQ2
DQ7
DQ6
DQ5
DQ4
A0
A1
A2
A3
VDD
VSSQ
VSSQ
LDQM
WE
CAS
RAS
CS
BA
A10/AP
VSS
N.C
CKE
CLK
UDQM
N.C/RFU
VSSQ
DQ10
DQ11
VDDQ
VSSQ
DQ14
DQ15
VSS
DQ13
DQ12
VDDQ
DQ9
DQ8
A8
A7
A6
A5
A4
VDDQ
VDDQ
16M SDRAM (TSOP)-8 (DM: IC103, 104)
K4S161622D-TC80
W981616AH-8
Terminal Function
1
VDD
Power Supply/Ground
Power and ground for the input buffer and the core logic
2
DQ0
Data Input/Output
Data input/output are mutiplexed on the same pin
3
DQ1
Data Input/Output
Data input/output are mutiplexed on the same pin
4
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
5
DQ2
Data Input/Output
Data input/output are mutiplexed on the same pin
6
DQ3
Data Input/Output
Data input/output are mutiplexed on the same pin
7
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
8
DQ4
Data Input/Output
Data input/output are mutiplexed on the same pin
9
DQ5
Data Input/Output
Data input/output are mutiplexed on the same pin
10
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
11
DQ6
Data Input/Output
Data input/output are multiplexed on the same pin
12
DQ7
Data Input/Output
Data input/output are multiplexed on the same pin
13
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
14
L DQM
Data Input/Output Mask
Blocks data input when active
15
WE
Write Enable
Enables write operation and row precharge
16
CAS
Column Address Strobe
Latches column address on the positive going edge of the CLK at low
17
RAS
Row Address Strobe
Latches row address on the positive going edge of the CLK at low
18
CS
Chip Select
Disables or enables device operation by masking or enabling all
inputs except CLK, CKE, and LDQM
19
BA
Bank Select Address
Selects bank to be activated during row address latch time
20
A10/AP
Address
Row/column addresses are multiplexed on the same pin
21
A0
Address
Row/column addresses are multiplexed on the same pin
22
A1
Address
Row/column addresses are multiplexed on the same pin
23
A2
Address
Row/column addresses are multiplexed on the same pin
24
A3
Address
Row/column addresses are multiplexed on the same pin
25
VDD
Power Supply/Ground
Power and ground for the input buffer and the core logic
26
VSS
Power Supply/Ground
Power and ground for the input buffer and the core logic
27
A4
Address
Row/column addresses are multiplexed on the same pin
28
A5
Address
Row/column addresses are multiplexed on the same pin
29
A6
Address
Row/column addresses are multiplexed on the same pin
30
A7
Address
Row/column addresses are multiplexed on the same pin
31
A8
Address
Row/column addresses are multiplexed on the same pin
32
A9
Address
Row/column addresses are multiplexed on the same pin
33
N. C
No Connection
No connect pin
34
CKE
Clock Enable
Masks system clock to freeze operation from the next clock cycle
35
CLK
System Clock
Active on the positive going edge to sample all inputs
36
U DQM
Data Input/Output Mask
Blocks data input when active
37
N. C/RFU
NC/Reserved
No connect pin
38
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
39
DQ8
Data Input/Output
Data input/output are multiplexed on the same pin
40
DQ9
Data Input/Output
Data input/output are multiplexed on the same pin
41
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
42
DQ10
Data Input/Output
Data input/output are multiplexed on the same pin
43
DQ11
Data Input/Output
Data input/output are multiplexed on the same pin
44
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
45
DQ12
Data Input/Output
Data input/output are multiplexed on the same pin
46
DQ13
Data Input/Output
Data input/output are multiplexed on the same pin
47
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
48
DQ14
Data Input/Output
Data input/output are multiplexed on the same pin
49
DQ15
Data Input/Output
Data input/output are multiplexed on the same pin
50
VSS
Power Supply/Ground
Power and ground for the input buffer and the core logic
Pin Name
Function
Pin No.
Symbol
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
68
DVD-2910/955
FAN8042 (IC803)
Pin Assignments
1
2
3
4
5
6
7
8
9
10
11
12
36
35
34
33
32
31
30
29
28
27
26
25
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
FAN8042
IN1+
IN1-
OUT1
IN2+
IN2-
GND
GND
OUT2
IN3+
IN3-
OUT3
IN4+
IN4-
OUT4
CTL
FWD
REV
GND
GND
SGND
MUTE123
TSD-M
PVCC2
DO5-
MUTE4
DO5+
DO4-
DO4+
DO3-
DO3+
GND
GND
DO2-
DO2+
DO1-
DO1+
PVCC1
PS
OPOUT2
OPIN2-
OPIN2+
GND
GND
VREF
SVCC
OPOUT1
OPIN1-
OPIN1+
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
69
DVD-2910/955
Block Diagram
40K
10 K
Note.
+
+
40K
10K
Pref
DO+
DO-
Detailed circuit of the output power amp
10K
10K
40K
40K
Pref1 is almost PVCC1 / 2
Pref2 is almost PVCC2 / 2
From input opamp
Vref
36
35
34
33
32
30
29
28
27
26
25
DO5+
DO4-
DO3-
DO3+
DO2-
DO2+
31
DO4+
1
2
3
4
5
7
8
9
10
11
12
OUT4
IN4-
IN4+
OUT3
IN3-
OUT2
IN2-
IN2+
OUT1
IN1-
6
IN3+
37
38
39
40
41
43
44
45
46
47
48
IN1+
OPIN1+
OPIN1-
OPOUT1
SVCC
VREF
OPIN2-
OPOUT2
PS
PVCC1
DO1+
42
OPIN2+
24
23
22
21
20
18
17
16
15
14
13
CTL
FWD REV
GND
TSD-M PVCC2
MUTE123
19
DO5-
DO1-
POWER
SAVE
MUTE123
MUTE4
TSD-M
40K
40K
40K
40K
10K
10K
10K
10K
40K
40K
40K
40K
10K
10K
10K
10 K
40K
40K
40K
40K
10K
10K
10K
10K
40K
40K
40K
40K
10K
10K
10K
10K
D
D
M
S
C
+
S
W
GND
GND
GND
SGND
MUTE4
GND
GND
GND
GND
-
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
70
DVD-2910/955
Pin Number
Pin Name
I/O
Pin Function Descrition
1
IN1+
I
CH1 op-amp input (+)
2
IN1-
I
CH1 op-amp input (-)
3
OUT1
O
CH1 op-amp output
4
IN2+
I
CH2 op-amp input (+)
5
IN2-
I
CH2 op-amp input (-)
6
GND
-
Ground
7
GND
-
Ground
8
OUT2
O
CH2 op-amp output
9
IN3+
I
CH3 op-amp input (+)
10
IN3-
I
CH3 op-amp input (-)
11
OUT3
O
CH3 op-amp output
12
IN4+
I
CH4 op-amp input (+)
13
IN4-
I
CH4 op-amp input (-)
14
OUT4
O
CH4 op-amp output
15
CTL
I
CH5 motor speed control
16
FWD
I
CH5 forward input
17
REV
I
CH5 reverse input
18
GND
-
Ground
19
GND
-
Ground
20
SGND
-
Signal Ground
21
MUTE123
I
Mute for CH1,2,3
22
MUTE4
I
Mute for CH4
23
TSD-M
O
TSD monitor
24
PVCC2
-
Power supply voltage 2 (For CH4,CH5)
25
DO5-
O
CH5 drive output (-)
26
DO5+
O
CH5 drive output (+)
27
DO4-
O
CH4 drive output (-)
28
DO4+
O
CH4 drive output (+)
29
DO3-
O
CH3 drive output (-)
30
GND
-
Ground
31
GND
-
Ground
32
DO3+
O
CH3 drive output (+)
33
DO2-
O
CH2 drive output (-)
34
DO2+
O
CH2 drive output (+)
35
DO1-
O
CH1 drive output (-)
36
DO1+
O
CH1 drive output (+)
37
PVCC1
-
Power supply voltage 1 (FOR CH1 CH2,CH3)
38
PS
I
Power save
39
OPOUT2
O
Normal op-amp2 output
40
OPIN2-
I
Normal op-amp2 input (-)
41
OPIN2+
I
Normal op-amp2 input (+)
42
GND
-
Ground
43
GND
-
Ground
44
VREF
I
Bias voltage input
45
SVCC
-
Signal & OPAMPs supply voltage
46
OPOUT1
O
Normal op-amp1 output
47
OPIN1-
I
Normal op-amp1 input (-)
48
OPIN1+
I
Normal op-amp1 input (+)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
71
DVD-2910/955
M29W160EB70N6 (IC102)
LH28F160BJE-BTL90 (IC317)
A0-A19
Address Inputs
DQ0-DQ15
Data Inputs/Outpus
DE#
Chip Enable
RP#
Reset
OE#
Output Enable
WE#
Write Enable
WP#
Wraite Protect
BYTE#
Byte Enable
BY/BY#
Ready/Busy
VCCW
Block Erase, Full chip Erase, Word/Byte Write & Lock Bit set up Voltage
VCC
Supply Vootage
GND
Ground
NC
Not Connected
DQ3
DQ9
DQ2
A6
DQ0
W
A3
RB
DQ6
A8
A9
DQ13
A17
A10
DQ14
A2
DQ12
DQ10
DQ15A–1
VCC
DQ4
DQ5
A7
DQ7
NC
NC
AI06850
M29W160ET
M29W160EB
12
1
13
24
25
36
37
48
DQ8
NC
A19
A1
A18
A4
A5
DQ1
DQ11
G
A12
A13
A16
A11
BYTE
A15
A14
VSS
E
A0
RP
VSS
A0-A19
Address Inputs
DQ0-DQ7
Data Inputs/Outputs
DQ8-DQ14
Data Inputs/Outputs
DQ15A–1
Data Input/Output or Address Input
E
Chip Enable
G
Output Enable
W
Write Enable
RP
Reset/Block Temporary Unprotect
RB
Ready/Busy Output
BYTE
Byte/Word Organization Select
VCC
Supply Voltage
VSS
Ground
NC
Not Connected Internally
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
72
DVD-2910/955
M11L16161SA (IC804)
AN8471SA (IC971)
��������
10
1
Vcc
I/O0
I/O1
I/O2
I/O3
Vcc
I/O4
I/O5
I/O6
I/O7
NC
NC
NC
WE
RAS
NC
NC
A0
A1
A2
A3
Vcc
Vss
I/O15
I/O14
I/O13
I/O12
Vss
I/O11
I/O10
I/O9
I/O8
NC
NC
CASL
OE
A9
A8
A7
A6
A5
A4
Vss
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
CASH
PIN DESCRIPTIONS
PIN NO.
PIN NAME
TYPE
DESCRIPTION
A0~A9
Address Input
Row Address:A0~A9
Column Address:A0~A9
Input
RAS
Row Address Strobe
Input
CASH
Column Address Strobe/Upper Byte Control
Input
CASL
Column Address Strobe/Lower Byte Control
Input
WE
Write Enable
Input
OE
Output Enable
Input
Vcc
Power,(5V or 3.3V)
Supply
Vss
Ground
Ground
NC
No Connect
-
2~5,7~10,
I/O0~I/O15
Data Input/Output
Input/Output
11,12,13,16,17,
1,6,22
33,34
23,39,44
21,24
15
38,40
31
32
30
35
43
14
18
29
～
～
～
～
20
10
7
6
5
4
3
2
1
8
9
30
11
18
16
15
14
13
12
32
31
19
27
28
24
25
21
22
23
26
17
FG2
FG
H1H
H1L
H2H
H2L
H3H
H3L
VHB
EC
ECR
BMS
START
GND
CS1
CS2
A32
A31
A22
A21
A12
A11
VM2
VM1
VLP
VPUMP
BC1
BC2
BC3
BC4
VDD
Hall
Bias
X5
CSOUT
SRESET
PWMOUT
VCL
VT
OSC
Hall Amp
Matrix
Pre-Driver
Start/Stop
Logic Circuit
Booster
Thermal
Protect
Divider
3ø Bridge
Direction
SW
1
VHB
Hall bias pin
2
H3L
Hall element 3 input (-)
3
H3H
Hall element 3 input (+)
4
H2L
Hall element 2 input (-)
5
H2H
Hall element 2 input (+)
6
H1L
Hall element 1 input (-)
7
H1H
Hall element 1 input (+)
8
EC
Torque command input pin
9
ECR
Torque command ref. input pin
10
FG1
FG signal lout put pin (0.C)
11
START
Start/Stop switching pin
12
VPUMP
Booster pin
13
BC1
Booster cap. connecting pin 1
14
BC2
Torque command input pin 2
15
BC3
Torque command input pin 3
16
BC4
Torque command input pin 4
17
GND
GND pin
18
VDD
Power pin
19
VM2
Motor power pin 2
20
FG2
3x FG signal output pin (0.C)
21
A31
Drive output 3
22
A32
Drive output 3
23
CS2
Current detect pin 2
24
A21
Drive output 2
25
A22
Drive output 2
26
CS1
Current detect pin 1
27
A11
Drive output 1
28
A12
Drive output 1
29
NC
N.C.
30
BMS
Brake mode switching pin
31
VM1
Motor power pin 1
32
VLP
Pre-driver lower power
1
16
32
17
Pin Name
Function
Pin No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
73
DVD-2910/955
BH7862F (IC708)
COUT
TEST
TEST
MIXOUT
MIXFB
GND
YTRAP
PYOUT
PYFB
GND
PbOUT
N.C.
PrOUT
01
CTRAP
02
MUTE1
MUTE1
03
20k
1.5-6M
BPF
20k
6M
LPF
6M
LPF
6dB
75ohm
6dB
6dB
75ohm
20k
6M
LPF
12M
LPF
CLAMP
CLAMP
CIN
04
GND
05
YIN
06
VCC
07
GND
08
PYIN
09
GND
10
PYTRAP
11
VCC
12
PbIN
13
GND
14
PrIN
15
MUTE2
MUTE2
16
PrTRAP
32
31
30
29
28
27
GND
26
YOUT
25
YFB
24
GND
23
22
21
20
19
18
17
75ohm
6dB
75ohm
6dB
75ohm
6dB
75ohm
1
CTRAP
10
PYTRAP
Pin for LC resonation
16
PrTRAP
27
YTRAP
2
MUTE1
Mute control pin, L: C, MIX, Y simultaneous mute
3
CIN
12
PbIN
Signal input pin, chroma signal & color-difference signal
14
PrIN
4, 7, 9, 13, 20, 23, 26, 28
GND
GND pin
5
YIN
Signal input pin, luminance signal
8
PYIN
6
VCC
Power supply for C, MIX, Y
11
Power supply for PY, Pb, Pr
15
MUTE2
Mute control pin, L: PY, Pb, Pr simultaneous mute
17
PrOUT
Signal output pin, color-difference signal
19
PbOUT
18
N.C.
21
PYFB
Signal output pin, luminance signal (progressive)
22
PYOUT
24
YFB
Signal output pin, luminance signal (interlace)
25
YOUT
29
MIXFB
Signal output pin, Y/C MIX signal
30
MIXOUT
31
TEST
TEST pin
32
COUT
Signal output pin, chroma signal
Description
Pin No.
Port
BH7862F Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
74
DVD-2910/955
PCM1796 (IC301, 304, 307, 310)
PIN ASSIGNMENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
LRCK
BCK
DATA
MUTE
SCK
RST
VDD
DGND
AGNDF
VCCR
AGNDR
VOUTR−
VOUTR+
VCOM
MS
MC
MDI
MDO
MSEL
ZEROL
ZEROR
VCCF
VCCL
AGNDL
VOUTL−
VOUTL+
AGNDC
VCCC
PCM1791A
(TOP VIEW)
Terminal Functions
TERMINAL
I/O
DESCRIPTIONS
NAME
PIN
I/O
DESCRIPTIONS
AGNDC
16
−
Analog ground (internal bias and current DAC)
AGNDF
9
−
Analog ground (DACFF)
AGNDL
19
−
Analog ground (L-channel I/V)
AGNDR
11
−
Analog ground (R-channel I/V)
BCK
2
I
Bit clock input (1)
DATA
3
I
Serial audio data input (1)
DGND
8
−
Digital ground
LRCK
1
I
Left and right clock (fS) input (1)
MC
27
I
Mode control clock input (1)
MDI
26
I/O
Mode control data input (2)
MDO
25
O
Mode control readback data output (3)
MS
28
I/O
Mode control chip select input (4)
MSEL
24
I
I2C/SPI select (1)
MUTE
4
I
Analog output mute control (1)
RST
6
I
Reset (1)
SCK
5
I
System clock input (1)
VCCC
15
−
Analog power supply (internal bias and current DAC), 5 V
VCCF
21
−
Analog power supply (DACFF), 5 V
VCCL
20
−
Analog power supply (L-channel I/V), 5 V
VCCR
10
−
Analog power supply (R-channel I/V), 5 V
VCOM
14
−
Internal bias decoupling pin
VDD
7
−
Digital power supply, 3.3 V
VOUTL+
17
O
L-channel analog voltage output +
VOUTL–
18
O
L-channel analog voltage output –
VOUTR+
13
O
R-channel analog voltage output +
VOUTR–
12
O
R-channel analog voltage output –
ZEROL
23
O
Zero flag for L-channel
ZEROR
22
O
Zero flag for R-channel
(1) Schmitt-trigger input, 5-V tolerant
(2) Schmitt-trigger input and output. 5-V tolerant input. In I2C mode, this pin becomes an open-drain 3-state output; otherwise, this pin is a CMOS
output.
(3) 3-state output
(4) Schmitt-trigger input and output. 5-V tolerant input and CMOS output
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
75
DVD-2910/955
SM8701BM (IC113)
FUNCTIONAL BLOCK DIAGRAM
Power Supply
RST
SCK
Advanced
Segment
DAC
Modulator
VOUTL+
VOUTL−
Bias
and
Vref
VCCF
VDD
AGNDR
VCCR
AGNDL
AGNDF
D/S and Filter
�8
Oversampling
Digital
Filter
and
Function
Control
Audio
Data Input
I/F
LRCK
BCK
DATA
MDO
MDI
MC
MS
AGNDC
VCCC
DGND
Current
Segment
DAC
and
I/V Buffer
VCOM
Function
Control
I/F
Zero
Detect
ZEROL
ZEROR
System
Clock
Manager
MSEL
MUTE
VCCL
VOUTR−
VOUTR+
D/S and Filter
Current
Segment
DAC
and
I/V Buffer
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
MLEN/R2
P/S
VDD
GND
XTO
XTI
GNDP
VDDP
VDD3
MO
MCK/R1
MDT/R0
RSTN
SO3
VDDO
GNDO
SO2
SO4
SO1
MON
14
13
12
11
Control signal input.
1
MLEN/R2
Ip1 In serial mode: latch enable signal
In parallel mode: sampling rate select signal
2
P/S
Ip1 Mode select signal.
LOW: serial mode, HIGH: parallel mode
3
VDD
5V supply (Digital block)
4
GND
Ground (Digital block)
5
XTO
O
Reference signal crystal oscillator element connection
6
XTI
I
Reference signal crystal oscillator element connection
or external clock input
7
GNDP
Ground (PLL block)
8
VDDP
5V supply (PLL block)
9
VDD3
3.3V supply (output buffer)
10
MO
O
27 MHz fixed-frequency output
11
MON
O
27 MHz fixed-frequency output (inverted)
12
SO1
O
33.8688 MHz fixed-frequency output
13
SO4
O
768fs output
14
SO2
O
256fs output
15
GNDO
Ground (output buffer)
16
VDDO
3.3V supply (output buffer)
17
SO3
O
384fs output
18
RSTN
Ip2 LOW-level reset input
Control signal input.
19
MDT/R0
Ip1 In serial mode: control data input signal
In parallel mode: sampling frequency select signal
Control signal input.
20
MCK/R1
Ip1 In serial mode: clock signal
In parallel mode: sampling frequency select signal
Pin Name
Function
Pin No.
I/O
SM8701BM Terminal Function
Note: 1. Schmitt trigger input with pull-down resistor
2. Schmitt trigger input with pull-up resistor
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
76
DVD-2910/955
CY2302 (IC115)
Configuration Options
FBIN
FS0
FS1
OUT1
OUT2
OUT1
0
0
2 X REF
REF
OUT1
1
0
4 X REF
2 X REF
OUT1
0
1
REF
REF/2
OUT1
1
1
8 X REF
4 X REF
OUT2
0
0
4 X REF
2 X REF
OUT2
1
0
8 X REF
4 X REF
OUT2
0
1
2 X REF
REF
OUT2
1
1
16 X REF
8 X REF
Block Diagram
÷Q
FS0
FS1
Reference
FBIN
Phase
Detector
Charge
Pump
Loop
Filter
VCO
÷2
Output
Buffer
OUT1
OUT2
Output
Buffer
External feedback connection to
OUT1 or OUT2, not both
Input
IN
OUT2
VDD
OUT1
FS1
8
7
6
5
FBIN
IN
GND
FS0
1
2
3
4
Pin Configuration
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
77
DVD-2910/955
BR24L32F-W (IC104)
�Block diagram
1
A0
A1
2
A2
3
GND
4
VCC
8
WP
7
6
SCL
SDA
5
32kbit EEPROM array
Control logic
High voltage generator
Vcc level detect
12bit
8bit
ACK
STOP
START
Address
decoder
Slave word
address register
12bits
Data
register
�Pin configuration
BR24L32F-W
VCC
A0
WP
A1
SCL
A2
SDA
GND
1
2
3
4
5
6
7
8
�Pin name
Write protect input
Power supply
Function
Ground (0V)
Slave address set
Serial clock input
SDA
VCC
A0, A1, A2
Pin name
GND
WP
SCL
I / O
−
−
IN
IN
IN
IN / OUT
Slave and word address,
serial data input, serial data output
∗ An open drain output requires a pull-up resistor.
∗
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
78
DVD-2910/955
TOP245Y (IC901)
BD4730G (IC319)
Tab Internally
Connected to
SOURCE Pin
1 C
3 X
2 L
5 F
4 S
7 D
PI-2639-060600
SHUTDOWN/
AUTO-RESTART
PWM
COMPARATOR
CLOCK
SAW
HALF
FREQ.
CONTROLLED
TURN-ON
GATE DRIVER
CURRENT LIMIT
COMPARATOR
INTERNAL UV
COMPARATOR
INTERNAL
SUPPLY
5.8 V
4.8 V
SOURCE (S)
S
R
Q
DMAX
STOP
SOFT-
START
-
+
CONTROL (C)
LINE-SENSE (L)
EXTERNAL
CURRENT LIMIT (X)
FREQUENCY (F)
-
+
5.8 V
1 V
IFB
RE
ZC
VC
+
-
LEADING
EDGE
BLANKING
÷ 8
1
HYSTERETIC
THERMAL
SHUTDOWN
SHUNT REGULATOR/
ERROR AMPLIFIER
+
-
DRAIN (D)
ON/OFF
SOFT
START
DCMAX
VBG
DCMAX
VBG + VT
0
OV/UV
VI (LIMIT)
CURRENT
LIMIT
ADJUST
LINE
SENSE
SOFT START
LIGHT LOAD
FREQUENCY
REDUCTION
STOP LOGIC
OSCILLATOR WITH JITTER
5
4
1
2
3
TOP
VIEW
VCC
VOUT
GND
µCOM RESET
Vref
5
4
3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
79
DVD-2910/955
TA76432FC (IC902)
PC123 (IC909)
COLLECTOR
EMITTER
ANODE
CATHODE
TOP VIEW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
80
DVD-2910/955
● FL TUBE (15-BT-97GNK)
IEEE1394 DVI 720P 1080i
F V G
PROGRESSIVE
1 A-B
AUDIO VCD
SUPER DVD
GROUP TITLE
TRACK
CHAP
ANGLE
D.MIX
PROG
RAND
TOTAL
SING
REM
HDCD
WMA MP3 HDMI 480P 576P
MPEG JPEG
L.PCMP.PCM
DIGITAL
LFE
R
SR
C
S
L
SL
(2G~14G)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
81
DVD-2910/955
PRINTED WIRING BORDS
GU-3612 MAIN PWB P.W.B. UNIT ASS’Y
COMPONENT SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
82
DVD-2910/955
GU-3612 MAIN PWB P.W.B. UNIT ASS’Y
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
83
DVD-2910/955
GU-3615 VODEO P.W.B. UNIT ASS’Y
COMPONENT SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
84
DVD-2910/955
GU-3615 VODEO P.W.B. UNIT ASS’Y
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
85
DVD-2910/955
GU-3616 AUDIO/POWER P.W.B. UNIT ASS’Y
COMPONENT SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
86
DVD-2910/955
GU-3616 AUDIO/POWER P.W.B. UNIT ASS’Y
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
87
NOTE FOR PARTS LIST
5%
1/4W
1/16W
s
s
s
s
s
s
s
s
s
s
s
s
RD :
2B : 1/8 W
F :
±1%
P
:
RC :
2E : 1/4 W
G :
±2%
NL :
RS
:
2H : 1/2 W
J :
±5%
NB :
RW :
3A : 1
W
K :
±10%
FR :
RN :
3D : 2
W
M :
±20%
F
:
RK :
3F
: 3
W
3H : 5
W
RN
14K
2E
182
G
FR
∗
18
2
�
1800
=1.8k
0
2
1R
2
�
1.2
1
2
R
CE
04W
1H
2R2
M
BP
CE
:
0J
: 6.3 V
F
: ±1%
HS :
CA :
1A : 10
V
G : ±2%
BP :
CS
:
1C : 16
V
J
: ±5%
HR :
CQ :
1E : 25
V
K : ±10%
DL :
CK :
1V : 35
V
M : ±20%
HF :
CC :
1H : 50
V
Z
: +80%
U
:
UL
CP
:
2A : 100 V
−20%
C
:
CSA
CM :
2B : 125 V
P
: +100%
W
:
UL-CSA
CF
:
2C : 160 V
− 0%
F
:
CH :
2D : 200 V
C : ±0.25pF
2E : 250 V
D : ±0.5pF
2H : 500 V
=
:
2J
: 630 V
∗
22
2
�
2200µF
0
2
µF
22
2
�
2200pF=0.0022µF
0
2
pF
pF
22
1
�
220pF
2
(0
2
)
0
(0
0
1
)
2R
2
�
2.2µF
1
2
R
µF
AC
RD : Carbon
2B : 1/8W
F
: ±1%
P
: Pulse-resistant type
RC : Composition
2E : 1/4W
G
: ±2%
NL : Low noise type
RS : Metal oxide film
2H : 1/2W
J
: ±5%
NB : Non-burning type
RW : Winding
3A : 1W
K
: ±10%
FR : Fuse-resistor
RN : Metal film
3D : 2W
M
: ±20%
F
: Lead wire forming
RK : Metal mixture
3F : 3W
3H : 5W
CE : Aluminum foil
0J
: 6.3V
F
: ±1%
HS : High stability type
electrolytic
CA : Aluminum solid
1A : 10V
G : ±2%
BP : Non-polar type
electrolytic
CS : Tantalum electrolytic
1C : 16V
J
: ±5%
HR : Ripple-resistant type
CQ : Film
1E : 25V
K : ±10%
DL : For change and discharge
CK : Ceramic
1V : 35V
M : ±20%
HF : For assuring high
requency
CC : Ceramic
1H : 50V
Z
: +80%
U
: UL part
CP : Oil
2A : 100V
–20%
C
: CSA part
CM : Mica
2B : 125V
P : +100%
W : UL-CSA type
CF : Metallized
2C : 160V
–0%
F
: Lead wire forming
CH : Metallized
2D : 200V
C : ±0.25pF
2E : 250V
D : ±0.5pF
2H : 500V
=
: Others
2J
: 630V
l
Part indicated with the mark "�" are not always in stock and possibly to
take a long period of time for supplying, or in some case supplying of
part may be refused.
l
When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
supplying.
l
Ordering part without stating its part number can not be supplied.
l
Part indicated with the mark "
" is not illustrated in the exploded view.
l
Not including Carbon Film Resister ±5%, 1/4W Type in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
l
Not including Carbon Chip Resister 1/16W Type in the P.W.Board parts
list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol
have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
lllll Resistors
Ex.:
RN
14K
2E
182
G
FR
Type Shape
Power Resist- Allowable Others
and per-
ance
error
formance
] Resistance
1 8
2
⇒
1800 ohm = 1.8 kohm
Indicates number of zeros after effective number.
2-digit effective number.
• Units: ohm
1 R
2
⇒
1.2 ohm
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: ohm
lllll Capacitors
Ex.:
CE
04W
1H
2R2
M
BP
Type
Shape
Dielectric Capacity Allowable Others
and per- strength
error
formance
] Capacity (electrolyte only)
2 2
2
⇒
2200µF
Indicates number of zeros after effective number.
2-digit effective number.
• Units: µF.
2 R
2
⇒
2.2µF
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: µF.
] Capacity (except electrolyte)
2 2
2
⇒
2200pF=0.0022µF
(More than 2)
Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
2 2
1
⇒
220pF
(0 or 1)
Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric
strength value.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
88
PARTS LIST OF P.W.B. UNIT
※ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
Note: The symbols in the column "Remarks" indicate the following destinations.
E3: U.S.A. & Canada model
E3: U.S.A. & Canada model (DVD-955)
E2: Europe model
JP: Japan model
MAIN PWB P.W.B.UNIT ASS’Y
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
SEMICONDUCTORS GROUP
IC101
00D 262 3252 000
ES6138F(SC) +REF
IC102
00D GEN 6720 -2
FE/ BE ROM SUB ASS'Y
IC103
00D 262 3119 004
W986416DH-7 +C
IC104
00D 262 3402 902
BR24L32F-WE2 +C
IC105
00D 262 2801 902
SN74AHCT273PW-EL2 +C
IC106-108
00D 262 3242 900
SN74LV273APW-EL2 +REF
IC109, 110
00D 262 2391 904
TC7W32F(TE12L) +C
IC111
00D 263 1110 901
PQ070XZ01ZP +C
IC113
00D 262 3052 909
SM8701BM +C
IC114
00D 262 2518 907
SN74LV74APW-EL2 +C
IC115
00D 262 3261 907
CY2302 +REF
IC116
00D 262 3304 903
TC7WH14FU(TE12L) +REF
IC301-303
00D 262 2518 907
SN74LV74APW-EL2 +C
IC304-306
00D 262 3277 904
SN74LVC157APW-EL2 +C
IC308
00D 262 3277 904
SN74LVC157APW-EL2 +C
IC309
00D 262 2518 907
SN74LV74APW-EL2 +C
IC311
00D 262 3349 007
ADSP21266SKSTZ1B-D
IC312
00D 263 1205 900
PQ012FZ01ZP +C
IC313
00D 262 3277 904
SN74LVC157APW-EL2 +C
IC315, 316
00D 262 2642 909
SN74LV573APW-EL2 +REF
IC317
00D GEN 6770
ROM ASS'Y 21266-1
LH28F160BJE-BTL90 +C
IC318
00D 262 3377 008
M30622F8PGP(2910)
IC319
00D 262 3082 924
BD4730G-TR
IC321
00D 262 3277 904
SN74LVC157APW-EL2 +C
IC322
00D 262 3114 902
S-24C01BFJ-TB
IC601
00D 262 3282 009
EPM3128ATC100-10 +REF
IC602
00D 262 3217 003
CXD2753R +C
IC603
00D 262 2875 006
16M SDRAM(TSOP)-7/8 +C
IC604
00D 262 2977 917
BA25BC0FP-E2
IC605
00D 262 2977 904
BA18BC0FP-E2 +C
IC606
00D 262 3195 905
AD8062-SO8 +C
IC607
00D 262 2515 900
SN74LV04APW-EL2 +C
IC802
00D 262 3219 001
CXD1881AR +C
IC803
00D 262 3221 002
FAN8042 +C
IC804
00D 262 3210 000
M11L16161SA-45T +REF
IC805
00D 262 3218 002
CXD1885Q +C
IC806
00D 262 1782 909
TC7S08FTE85L +C
IC971
00D 263 1109 909
AN8471SA +C
TR301
00D 272 0161 900
2SB1412TL(PQR) +C
TR302
00D 269 0082 902
DTC114EKT96 +C
TR303
00D 269 0184 907
KRA102S-RTK +C
TR304
00D 269 0082 902
DTC114EKT96 +C
TR305
00D 269 0083 901
DTA114EKT96 +C
TR306
00D 269 0082 902
DTC114EKT96 +C
TR307
00D 269 0083 901
DTA114EKT96 +C
TR801, 802
00D 272 0160 901
2SB1132T100Q +C
TR803
00D 269 0082 902
DTC114EKT96 +C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
89
TR804
00D 269 0047 905
DTA143EK-T96 +C
D101
00D 276 0717 903
1SS355 TE-17 +C
D301
00D 276 0750 902
RB521S-30TE61 +REF
D302
00D 276 0717 903
1SS355 TE-17 +C
D701, 702
00D 276 0717 903
1SS355 TE-17 +C
D801, 802
00D 276 0717 903
1SS355 TE-17 +C
D803, 804
00D 276 0750 902
RB521S-30TE61 +REF
RESISTORS GROUP
R215,2 16
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
RA101-104
00D 247 9002 912
MNR14=682JEOAB +C
RA106, 107
00D 247 9002 909
MNR14=330JE0AB +C
RA601-605
00D 247 9003 908
MNR14=220JE0AB +C
RA801-807
00D 247 9007 904
MNR14=101JE0 +C
RA808-812
00D 247 9007 917
MNR14=103JE0 +C
CAPACITORS GROUP
C101
00D 257 0511 904
CK73F1H103ZT +1608
C102
00D 257 0512 903
CK73F1E104ZT +1608
C103
00D 257 0509 929
CK73B1H102KT +1608
C104
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C105-111
00D 257 0512 903
CK73F1E104ZT +1608
C112
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C121, 122
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C123
00D 257 0512 903
CK73F1E104ZT +1608
C124
00D 257 0511 904
CK73F1H103ZT +1608
C125
00D 257 0512 903
CK73F1E104ZT +1608
C126
00D 257 0511 904
CK73F1H103ZT +1608
C127, 128
00D 257 0512 903
CK73F1E104ZT +1608
C130
00D 257 0512 903
CK73F1E104ZT +1608
C132
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C133
00D 257 0512 903
CK73F1E104ZT +1608
C134
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C135-141
00D 257 0512 903
CK73F1E104ZT +1608
C142
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C143
00D 257 0511 904
CK73F1H103ZT +1608
C144
00D 257 0509 929
CK73B1H102KT +1608
C145
00D 257 0512 903
CK73F1E104ZT +1608
C146
00D 257 0501 901
CK73B1H103KT (1608) +1608
C151-155
00D 257 0512 903
CK73F1E104ZT +1608
C156
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C157, 158
00D 257 0512 903
CK73F1E104ZT +1608
C160-164
00D 257 0512 903
CK73F1E104ZT +1608
C171, 172
00D 257 0502 997
CC73CH1H7R0DT +1608
C173
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C174
00D 257 0512 903
CK73F1E104ZT +1608
C175
00D 257 0511 904
CK73F1H103ZT +1608
C176
00D 257 0512 903
CK73F1E104ZT +1608
C177
00D 257 0509 929
CK73B1H102KT +1608
C178
00D 257 0512 903
CK73F1E104ZT +1608
C179
00D 257 0509 929
CK73B1H102KT +1608
C180, 181
00D 257 0511 904
CK73F1H103ZT +1608
C182
00D 257 0509 929
CK73B1H102KT +1608
C183
00D 257 0512 903
CK73F1E104ZT +1608
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
90
C184
00D 257 0506 951
CC73CH1H101JT +1608
C185
00D 257 0512 903
CK73F1E104ZT +1608
C201, 202
00D 257 0512 903
CK73F1E104ZT +1608
C203
00D 257 0511 904
CK73F1H103ZT +1608
C204
00D 257 0512 903
CK73F1E104ZT +1608
C205
00D 257 0509 929
CK73B1H102KT +1608
C206
00D 257 0511 904
CK73F1H103ZT +1608
C207
00D 257 0512 903
CK73F1E104ZT +1608
C208
00D 257 0509 929
CK73B1H102KT +1608
C209
00D 257 0511 904
CK73F1H103ZT +1608
C210
00D 257 0512 903
CK73F1E104ZT +1608
C211
00D 257 0509 929
CK73B1H102KT +1608
C212
00D 257 0511 904
CK73F1H103ZT +1608
C213
00D 257 0512 903
CK73F1E104ZT +1608
C214
00D 257 0509 929
CK73B1H102KT +1608
C231
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C232, 233
00D 257 0512 903
CK73F1E104ZT +1608
C234
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C235
00D 257 0512 903
CK73F1E104ZT +1608
C236
00D 257 0511 904
CK73F1H103ZT +1608
C237
00D 257 0512 903
CK73F1E104ZT +1608
C238
00D 257 0511 904
CK73F1H103ZT +1608
C241
00D 257 0512 903
CK73F1E104ZT +1608
C242
00D 257 0511 904
CK73F1H103ZT +1608
C251, 252
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C253-256
00D 257 0512 903
CK73F1E104ZT +1608
C257
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C259, 260
00D 257 0512 903
CK73F1E104ZT +1608
C301
00D 257 0511 904
CK73F1H103ZT +1608
C302
00D 257 0509 929
CK73B1H102KT +1608
C303
00D 257 0511 904
CK73F1H103ZT +1608
C304
00D 257 0509 929
CK73B1H102KT +1608
C305
00D 257 0511 904
CK73F1H103ZT +1608
C306
00D 257 0509 929
CK73B1H102KT +1608
C307
00D 257 0511 904
CK73F1H103ZT +1608
C308
00D 257 0509 929
CK73B1H102KT +1608
C309
00D 257 0511 904
CK73F1H103ZT +1608
C310
00D 257 0509 929
CK73B1H102KT +1608
C311
00D 257 0511 904
CK73F1H103ZT +1608
C312
00D 257 0509 929
CK73B1H102KT +1608
C313
00D 257 0512 903
CK73F1E104ZT +1608
C315
00D 257 0511 904
CK73F1H103ZT +1608
C316
00D 257 0509 929
CK73B1H102KT +1608
C317
00D 257 0511 904
CK73F1H103ZT +1608
C318
00D 257 0509 929
CK73B1H102KT +1608
C319
00D 257 0512 903
CK73F1E104ZT +1608
C320
00D 257 0509 929
CK73B1H102KT +1608
C321
00D 257 4012 920
CE67C1C470MT (RV2) +REF
C322
00D 257 4013 903
CE67C0J471MT (RV) +REF
C327
00D 257 0509 929
CK73B1H102KT +1608
C328
00D 257 0512 903
CK73F1E104ZT +1608
C329
00D 257 0503 941
CC73CH1H120JT +1608
C330
00D 257 0509 929
CK73B1H102KT +1608
C331
00D 257 0512 903
CK73F1E104ZT +1608
C332
00D 257 0503 941
CC73CH1H120JT +1608
C333
00D 257 4013 903
CE67C0J471MT (RV) +REF
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
91
C334
00D 257 0509 929
CK73B1H102KT +1608
C335
00D 257 0512 903
CK73F1E104ZT +1608
C336
00D 257 0509 929
CK73B1H102KT +1608
C337, 338
00D 257 0512 903
CK73F1E104ZT +1608
C339
00D 257 0509 929
CK73B1H102KT +1608
C340
00D 257 0512 903
CK73F1E104ZT +1608
C341
00D 257 0509 929
CK73B1H102KT +1608
C342
00D 257 0512 903
CK73F1E104ZT +1608
C343
00D 257 0509 929
CK73B1H102KT +1608
C344
00D 257 0512 903
CK73F1E104ZT +1608
C345
00D 257 0509 929
CK73B1H102KT +1608
C346
00D 257 0512 903
CK73F1E104ZT +1608
C347
00D 257 0509 929
CK73B1H102KT +1608
C348
00D 257 0512 903
CK73F1E104ZT +1608
C349
00D 257 0509 929
CK73B1H102KT +1608
C350, 351
00D 257 4013 903
CE67C0J471MT (RV) +REF
C352
00D 257 0512 903
CK73F1E104ZT +1608
C353
00D 257 0509 929
CK73B1H102KT +1608
C354
00D 257 0512 903
CK73F1E104ZT +1608
C355, 356
00D 257 0509 929
CK73B1H102KT +1608
C357
00D 257 0512 903
CK73F1E104ZT +1608
C358
00D 257 0509 929
CK73B1H102KT +1608
C359
00D 257 0512 903
CK73F1E104ZT +1608
C360
00D 257 0509 929
CK73B1H102KT +1608
C361
00D 257 0512 903
CK73F1E104ZT +1608
C362
00D 257 0511 904
CK73F1H103ZT +1608
C363
00D 257 0509 929
CK73B1H102KT +1608
C364
00D 257 0512 903
CK73F1E104ZT +1608
C365
00D 257 0509 929
CK73B1H102KT +1608
C366
00D 257 0512 903
CK73F1E104ZT +1608
C367
00D 257 0509 929
CK73B1H102KT +1608
C368
00D 257 0512 903
CK73F1E104ZT +1608
C369, 370
00D 257 0509 929
CK73B1H102KT +1608
C371
00D 257 0512 903
CK73F1E104ZT +1608
C372
00D 257 4012 920
CE67C1C470MT (RV2) +REF
C373
00D 257 0509 929
CK73B1H102KT +1608
C374, 375
00D 257 0512 903
CK73F1E104ZT +1608
C376
00D 257 0509 929
CK73B1H102KT +1608
C377
00D 257 0512 903
CK73F1E104ZT +1608
C378
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C379
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C380
00D 257 0512 903
CK73F1E104ZT +1608
C381
00D 257 0509 929
CK73B1H102KT +1608
C382
00D 257 0512 903
CK73F1E104ZT +1608
C383, 384
00D 257 0509 929
CK73B1H102KT +1608
C387, 388
00D 257 0512 903
CK73F1E104ZT +1608
C390
00D 257 0512 903
CK73F1E104ZT +1608
C394
00D 257 0509 929
CK73B1H102KT +1608
C395
00D 257 0511 904
CK73F1H103ZT +1608
C396
00D 257 0509 929
CK73B1H102KT +1608
C397
00D 257 0512 903
CK73F1E104ZT +1608
C601
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C602-609
00D 257 0512 903
CK73F1E104ZT +1608
C611
00D 257 0512 903
CK73F1E104ZT +1608
C613
00D 257 0501 901
CK73B1H103KT (1608) +1608
C614
00D 257 0509 929
CK73B1H102KT +1608
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
92
C615
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C616-621
00D 257 0512 903
CK73F1E104ZT +1608
C622
00D 257 0501 901
CK73B1H103KT (1608) +1608
C623
00D 257 0509 929
CK73B1H102KT +1608
C624-629
00D 257 0512 903
CK73F1E104ZT +1608
C631-639
00D 257 0512 903
CK73F1E104ZT +1608
C640, 641
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C642-645
00D 257 0512 903
CK73F1E104ZT +1608
C646
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C647
00D 257 0512 903
CK73F1E104ZT +1608
C648
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C649
00D 257 0512 903
CK73F1E104ZT +1608
C650
00D 257 0501 901
CK73B1H103KT (1608) +1608
C651-653
00D 257 0509 929
CK73B1H102KT +1608
C654
00D 257 0501 901
CK73B1H103KT (1608) +1608
C655, 656
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C657, 658
00D 257 0512 903
CK73F1E104ZT +1608
C659, 660
00D 257 0502 942
CC73CH1H2R0CT +1608
C661
00D 257 0509 929
CK73B1H102KT +1608
C662
00D 257 0501 901
CK73B1H103KT (1608) +1608
C663
00D 257 0509 929
CK73B1H102KT +1608
C664
00D 257 0501 901
CK73B1H103KT (1608) +1608
C666
00D 257 0501 901
CK73B1H103KT (1608) +1608
C701
00D 257 4012 933
CE67C1C101MT (RV2) +REF
C702
00D 257 0512 903
CK73F1E104ZT +1608
C703
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C704
00D 257 0512 903
CK73F1E104ZT +1608
C705
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C706
00D 257 0512 903
CK73F1E104ZT +1608
C707
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C708
00D 257 0512 903
CK73F1E104ZT +1608
C709
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C710
00D 257 0512 903
CK73F1E104ZT +1608
C713
00D 257 0512 903
CK73F1E104ZT +1608
C714
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C715
00D 257 0512 903
CK73F1E104ZT +1608
C721
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C722
00D 257 0512 903
CK73F1E104ZT +1608
C723
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C724
00D 257 2010 937
CS77B1A220MT +C
C725
00D 257 0512 903
CK73F1E104ZT +1608
C726
00D 257 2010 937
CS77B1A220MT +C
C727
00D 257 0511 904
CK73F1H103ZT +1608
C801
00D 257 0511 904
CK73F1H103ZT +1608
C803
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C807
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C808-810
00D 257 0511 904
CK73F1H103ZT +1608
C814, 815
00D 257 0510 934
CK73B1H472KT +1608
C816-819
00D 257 0509 990
CK73B1H222KT +1608
C820-823
00D 257 0504 908
CC73CH1H220JT +1608
C824
00D 257 0507 976
CC73CH1H331JT +1608
C825, 826
00D 257 0511 904
CK73F1H103ZT +1608
C827
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C828
00D 257 4012 920
CE67C1C470MT (RV2) +REF
C829
00D 257 0509 929
CK73B1H102KT +1608
C830
00D 257 4012 920
CE67C1C470MT (RV2) +REF
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
93
C831
00D 257 0509 929
CK73B1H102KT +1608
C832, 833
00D 257 0501 901
CK73B1H103KT (1608) +1608
C834
00D 257 0506 993
CC73CH1H151JT +1608
C835-838
00D 257 0520 911
CK73B1A224KT +1608
C839
00D 257 0516 954
CK73B1E104KT +1608
C840
00D 257 0501 901
CK73B1H103KT (1608) +1608
C841, 842
00D 257 0511 904
CK73F1H103ZT +1608
C843
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C844
00D 257 0516 941
CK73B1E473KT +1608
C845
00D 257 0511 904
CK73F1H103ZT +1608
C846, 847
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C848
00D 257 0516 954
CK73B1E104KT +1608
C850
00D 257 0509 929
CK73B1H102KT +1608
C851-856
00D 257 0516 954
CK73B1E104KT +1608
C858
00D 257 0509 929
CK73B1H102KT +1608
C872
00D 257 0511 904
CK73F1H103ZT +1608
C873, 874
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C875, 876
00D 257 0511 904
CK73F1H103ZT +1608
C878
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C879
00D 257 0511 904
CK73F1H103ZT +1608
C880
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C881
00D 257 0511 904
CK73F1H103ZT +1608
C882-884
00D 257 0510 950
CK73B1H682KT +1608
C885, 886
00D 257 0506 951
CC73CH1H101JT +1608
C887
00D 257 0509 929
CK73B1H102KT +1608
C888
00D 257 0501 901
CK73B1H103KT (1608) +1608
C889, 890
00D 257 0511 904
CK73F1H103ZT +1608
C891, 892
00D 257 0508 917
CC73CH1H471JT +1608
C893
00D 257 0511 904
CK73F1H103ZT +1608
C894
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C895
00D 257 0511 904
CK73F1H103ZT +1608
C896
00D 257 0508 917
CC73CH1H471JT +1608
C901-908
00D 257 0511 904
CK73F1H103ZT +1608
C909
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C910, 911
00D 257 0516 954
CK73B1E104KT +1608
C912
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C913
00D 257 0516 954
CK73B1E104KT +1608
C914
00D 257 0511 904
CK73F1H103ZT +1608
C917-919
00D 257 0511 904
CK73F1H103ZT +1608
C921
00D 257 0511 904
CK73F1H103ZT +1608
C922, 923
00D 257 0516 909
CK73B1E223KT +1608
C924
00D 257 0506 951
CC73CH1H101JT +1608
C925
00D 257 0511 904
CK73F1H103ZT +1608
C926
00D 257 0512 903
CK73F1E104ZT +1608
C927
00D 257 0516 954
CK73B1E104KT +1608
C928
00D 257 0511 904
CK73F1H103ZT +1608
C929
00D 257 0508 917
CC73CH1H471JT +1608
C930
00D 257 0516 954
CK73B1E104KT +1608
C931
00D 257 0520 908
CK73B1A154KT +1608
C932
00D 257 0508 917
CC73CH1H471JT +1608
C933
00D 257 0516 954
CK73B1E104KT +1608
C934
00D 257 0520 908
CK73B1A154KT +1608
C935
00D 257 0507 976
CC73CH1H331JT +1608
C937
00D 257 0507 976
CC73CH1H331JT +1608
C938, 939
00D 257 0511 904
CK73F1H103ZT +1608
C940, 941
00D 257 0512 903
CK73F1E104ZT +1608
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
94
C942
00D 257 0511 904
CK73F1H103ZT +1608
C944
00D 257 4013 903
CE67C0J471MT (RV) +REF
C945
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C946
00D 257 0516 941
CK73B1E473KT +1608
C950
00D 257 0516 954
CK73B1E104KT +1608
C974, 975
00D 257 0516 954
CK73B1E104KT +1608
C977
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C979
00D 257 0512 903
CK73F1E104ZT +1608
C980
00D 257 4012 933
CE67C1C101MT (RV2) +REF
C981
00D 257 0501 901
CK73B1H103KT (1608) +1608
C982
00D 257 0509 929
CK73B1H102KT +1608
OTHERS PARTS GROUP
CX051
00D 205 0863 952
5P PH CON.BASE(L) +REF
CX052
00D 205 1072 920
5P PH CON BASE(TAPE) +REF
CX061
00D 205 0792 968
6P ZH-ZRCON.BASE(L)T +REF
CX141
00D 205 1072 991
14P PH CON.BASE(TAPE +REF
CX151
00D 205 1224 901
15P FFC BASE(P=1.0)L +REF
CX174
00D 205 1170 903
17P FFC BASE(FMNBMTT +REF
CX241
00D 205 1264 903
24P FFC BASE(P=0.5)L +REF
CX271
00D 205 1174 925
27P FFC BASE(FMNSMT) +REF
CX331
00D 205 1170 945
33P FFC BASE(FMNBMTT +C
CY171
00D 205 1174 909
17P FFC BASE(FMNSMT) +REF
FB101
00D 235 0136 907
FBMJ1608HS280NT +1608
FB301-308
00D 247 2018 903
RM73B--0R0KT +1608
FB701-709
00D 235 0136 907
FBMJ1608HS280NT +1608
FB711
00D 235 0136 907
FBMJ1608HS280NT +1608
FB801-803
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
R186,187
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
R203-211
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
R215,216
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
R218-222
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
R223-225
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
R307,308
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
R310
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
S303
00D 212 4807 909
TACT SW(SKQDAA) +REF
ST003
00D 205 0452 017
STYLE PIN
X101
00D 399 0619 906
X'TAL(27MHZ) +REF
X301
00D 399 0957 901
X'TAL(18.75MHZ)
X302
00D 399 0887 903
CSTCE16MOV53-R0 +2125
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
95
VIDEO P.W.B. UNIT ASS’Y
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
SEMICONDUCTORS GROUP
IC101
00D 262 3265 903
LM1117MPX-1.8 +C
IC102
00D 262 2977 933
BA50BC0FP-E2
IC104
00D 262 3364 008
SII9030
IC701
00D 262 3237 009
ADV7310 +C
IC702
00D 262 3277 904
SN74LVC157APW-EL2 +C
IC708
00D 263 1158 905
BH7862F +C
IC710
00D 262 3237 009
ADV7310 +C
IC711
00D 263 1158 905
BH7862F +C
for E2
IC715
00D 262 2977 917
BA25BC0FP-E2
IC716
00D 262 2977 904
BA18BC0FP-E2 +C
IC717
00D 262 2916 004
64M SDRAM(TSOP)
IC718
00D 262 3239 007
FLI2310-BC/BD +C
IC721
00D 262 3302 015
SII170BCLG64 +REF
IC722
00D 262 1782 909
TC7S08FTE85L +C
IC723
00D 262 3046 902
TC7WH157FU +C
IC851
00D 262 1793 901
TC4W53F +C
for E2
IC852
00D 263 1115 906
NJM2267M (TE2)
for E2
IC853
00D 262 0707 901
TC4053BF (TAPE) +C
for E2
IC854
00D 262 2534 907
BA7660FS-E2 +C
for E2
TR101
00D 269 0082 902
DTC114EKT96 +C
TR102
00D 273 0460 905
KTC2875B-RTK +C
TR103, 104
00D 269 0082 902
DTC114EKT96 +C
TR105, 106
00D 273 0460 905
KTC2875B-RTK +C
TR107
00D 275 0110 905
HN1K02FU-TE85L +C
TR701-703
00D 271 0293 901
2SA1022-B +C
TR704
00D 272 0125 904
2SB709A +C
for JP
TR705
00D 274 0163 904
2SD601A +C
for JP
TR706
00D 272 0125 904
2SB709A +C
for JP
TR707
00D 274 0163 904
2SD601A +C
for JP
TR710-712
00D 272 0125 904
2SB709A +C
for E2
TR713, 714
00D 271 0293 901
2SA1022-B +C
TR721
00D 273 0460 905
KTC2875B-RTK +C
TR722, 723
00D 269 0082 902
DTC114EKT96 +C
TR724, 725
00D 273 0460 905
KTC2875B-RTK +C
TR726
00D 275 0110 905
HN1K02FU-TE85L +C
TR851-854
00D 269 0082 902
DTC114EKT96 +C
for E2
TR855
00D 269 0083 901
DTA114EKT96 +C
for E2
D101
00D 276 0717 903
1SS355 TE-17 +C
D102
00D 276 0750 902
RB521S-30TE61 +REF
D103, 104
00D 276 0717 903
1SS355 TE-17 +C
D705, 706
00D 276 0717 903
1SS355 TE-17 +C
D708
00D 276 0750 902
RB521S-30TE61 +REF
D709
00D 276 0717 903
1SS355 TE-17 +C
RESISTORS GROUP
RA101-106
00D 247 9002 909
MNR14=330JE0AB +C
RA701-707
00D 247 9002 909
MNR14=330JE0AB +C
RA708, 709
00D 247 9007 920
MNR14=0R0JE0
RA710-716
00D 247 9002 909
MNR14=330JE0AB +C
RA717-722
00D 247 9007 917
MNR14=103JE0 +C
RA723-731
00D 247 9002 909
MNR14=330JE0AB +C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
96
VR702-704
00D 211 6148 906
V03PB471MT(RH03ADCS) +REF
VR709, 710
00D 211 6148 906
V03PB471MT(RH03ADCS) +REF
CAPACITORS GROUP
C100
00D 257 0512 903
CK73F1E104ZT +1608
C101
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C102
00D 257 4012 920
CE67C1C470MT (RV2) +REF
C103-106
00D 257 0512 903
CK73F1E104ZT +1608
C107-109
00D 257 4012 920
CE67C1C470MT (RV2) +REF
C110, 111
00D 257 0512 903
CK73F1E104ZT +1608
C112, 113
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C114, 115
00D 257 0512 903
CK73F1E104ZT +1608
C120
00D 257 0512 903
CK73F1E104ZT +1608
C124
00D 257 0512 903
CK73F1E104ZT +1608
C125
00D 257 0509 929
CK73B1H102KT +1608
C126
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C128
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C129
00D 257 0512 903
CK73F1E104ZT +1608
C130, 131
00D 257 0509 929
CK73B1H102KT +1608
C133
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C134
00D 257 0512 903
CK73F1E104ZT +1608
C135
00D 257 0509 929
CK73B1H102KT +1608
C136
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C137
00D 257 0512 903
CK73F1E104ZT +1608
C138-141
00D 257 0509 929
CK73B1H102KT +1608
C142
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C143, 144
00D 257 0512 903
CK73F1E104ZT +1608
C145-147
00D 257 0509 929
CK73B1H102KT +1608
C148-151
00D 257 0516 954
CHIP C
C152
00D 257 2010 937
CS77B1A220MT +C
C701
00D 257 0512 903
CK73F1E104ZT +1608
C702
00D 257 0501 901
CK73B1H103KT (1608) +1608
C703, 704
00D 257 0509 929
CK73B1H102KT +1608
C705
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C706
00D 257 0512 903
CK73F1E104ZT +1608
C707-710
00D 247 2018 903
RM73B--0R0KT +1608
C716
00D 257 0512 903
CK73F1E104ZT +1608
C717
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C718, 719
00D 257 0506 951
CC73CH1H101JT +1608
C720
00D 257 0512 903
CK73F1E104ZT +1608
C724
00D 257 0511 904
CK73F1H103ZT +1608
C725, 726
00D 257 0512 903
CK73F1E104ZT +1608
C728
00D 257 0509 903
CK73B1H821KT +1608
C729
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C730
00D 257 0512 903
CK73F1E104ZT +1608
C731
00D 257 0510 921
CK73B1H392KT +1608
C759-761
00D 257 0512 903
CK73F1E104ZT +1608
C762
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C765
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C766
00D 257 0516 954
CK73B1E104KT +1608
C767
00D 254 4660 946
CE67C1H010MT (RV2B55 +REF
C768, 769
00D 254 4655 922
CE67C0J470MT (RV2) +REF
C771
00D 257 0512 903
CK73F1E104ZT +1608
C772
00D 254 4660 946
CE67C1H010MT (RV2B55 +REF
C774
00D 257 0516 954
CK73B1E104KT +1608
C775, 776
00D 254 4655 951
CE67C0J331MT (RV) +REF
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
97
C777
00D 254 4655 977
CE67C0J102MT (RV) +REF
C778
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C779
00D 254 4655 977
CE67C0J102MT (RV) +REF
C780
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C781
00D 254 4655 977
CE67C0J102MT (RV) +REF
C782
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C795
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C796, 797
00D 257 0512 903
CK73F1E104ZT +1608
C798
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C804
00D 257 0511 904
CK73F1H103ZT +1608
C805, 806
00D 257 0512 903
CK73F1E104ZT +1608
C808
00D 257 0509 903
CK73B1H821KT +1608
C809
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C810
00D 257 0512 903
CK73F1E104ZT +1608
C811
00D 257 0510 921
CK73B1H392KT +1608
C812-814
00D 257 0512 903
CK73F1E104ZT +1608
for E2
C815, 816
00D 257 0512 903
CK73F1E104ZT +1608
C817
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C818
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
C819
00D 254 4660 946
CE67C1H010MT (RV2B55 +REF
for E2
C821, 822
00D 254 4655 922
CE67C0J470MT (RV2) +REF
for E2
C823
00D 257 0512 903
CK73F1E104ZT +1608
for E2
C828
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
C829
00D 254 4655 951
CE67C0J331MT (RV) +REF
for E2
C831
00D 254 4655 951
CE67C0J331MT (RV) +REF
for E2
C837
00D 254 4655 977
CE67C0J102MT (RV) +REF
for E2
C841
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
C842, 843
00D 257 0512 903
CK73F1E104ZT +1608
C846-850
00D 257 0512 903
CK73F1E104ZT +1608
C852
00D 257 0512 903
CK73F1E104ZT +1608
C853
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C854
00D 257 0512 903
CK73F1E104ZT +1608
C855
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C856
00D 257 0501 901
CK73B1H103KT (1608) +1608
C858
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C859
00D 257 0512 903
CK73F1E104ZT +1608
C860
00D 257 0511 904
CK73F1H103ZT +1608
C861-863
00D 257 0512 903
CK73F1E104ZT +1608
C864
00D 257 0511 904
CK73F1H103ZT +1608
C865, 866
00D 257 0512 903
CK73F1E104ZT +1608
C867
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C868
00D 257 2010 937
CS77B1A220MT +C
C869
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C870
00D 257 0512 903
CK73F1E104ZT +1608
C871
00D 257 0511 904
CK73F1H103ZT +1608
C872-878
00D 257 0512 903
CK73F1E104ZT +1608
C879, 880
00D 257 0503 983
CC73CH1H180JT +1608
C881-889
00D 257 0512 903
CK73F1E104ZT +1608
C890, 891
00D 257 4011 905
CE67C0J101MT (RV2) +REF
C892
00D 257 0512 903
CK73F1E104ZT +1608
C893
00D 257 0511 904
CK73F1H103ZT +1608
C894
00D 257 0509 929
CK73B1H102KT +1608
C895, 896
00D 257 0512 903
CK73F1E104ZT +1608
C900
00D 257 0512 903
CK73F1E104ZT +1608
C902
00D 257 0509 929
CK73B1H102KT +1608
C903
00D 257 0512 903
CK73F1E104ZT +1608
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
98
C905
00D 257 4012 920
CE67C1C470MT (RV2) +REF
C906
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C908
00D 257 0512 903
CK73F1E104ZT +1608
C910
00D 257 4012 917
CE67C1C220MT (RV2) +REF
C911
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C912
00D 257 0512 903
CK73F1E104ZT +1608
C913, 914
00D 257 0509 929
CK73B1H102KT +1608
C920
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C922
00D 257 0512 903
CK73F1E104ZT +1608
C923
00D 257 0509 929
CK73B1H102KT +1608
C925, 926
00D 257 0512 903
CK73F1E104ZT +1608
C927
00D 257 0509 929
CK73B1H102KT +1608
C928
00D 257 4012 904
CE67C1C100MT (RV2B55 +REF
C929, 930
00D 257 0512 903
CK73F1E104ZT +1608
C931-933
00D 257 0509 929
CK73B1H102KT +1608
C934-937
00D 257 0512 903
CK73F1E104ZT +1608
C938
00D 257 2010 924
CS77B1A470MT +C
C939
00D 257 0512 903
CK73F1E104ZT +1608
CC101
00D 257 0512 903
CK73F1E104ZT +1608
CC851, 852
00D 257 0506 951
CC73CH1H101JT +1608
for E2
CC853
00D 257 4012 920
CE67C1C470MT (RV2) +REF
for E2
CC854, 855
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
CC856-859
00D 257 0512 903
CK73F1E104ZT +1608
for E2
CC860, 861
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
CC862
00D 257 0512 903
CK73F1E104ZT +1608
for E2
CC863
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
CC864, 865
00D 257 0512 903
CK73F1E104ZT +1608
for E2
CC866-868
00D 257 4012 920
CE67C1C470MT (RV2) +REF
for E2
CC869
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
CC870
00D 257 4012 917
CE67C1C220MT (RV2) +REF
for E2
CC871
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
CC872
00D 257 4012 917
CE67C1C220MT (RV2) +REF
for E2
CC873
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
CC874
00D 257 4012 917
CE67C1C220MT (RV2) +REF
for E2
CC875
00D 257 0512 903
CK73F1E104ZT +1608
for E2
CC876
00D 257 4011 905
CE67C0J101MT (RV2) +REF
for E2
CC877, 878
00D 257 0512 903
CK73F1E104ZT +1608
for E2
CC879
00D 257 0511 904
CK73F1H103ZT +1608
for E2
CC880
00D 257 0509 929
CK73B1H102KT +1608
for E2
CC890
00D 257 0512 903
CK73F1E104ZT +1608
for E2
CC891
00D 257 0511 904
CK73F1H103ZT +1608
for E2
CC892
00D 257 0509 929
CK73B1H102KT +1608
for E2
CC896, 897
00D 257 0512 903
CK73F1E104ZT +1608
for E2
OTHERS PARTS GROUP
CX121
00D 205 0375 026
12P CONN.BASE(KR-PH)
for E2
CX401
00D 205 1319 900
40P CONN.(AXN340C130
CY051
00D 205 0343 058
5P CONN.BASE(KR-PH)
CY053
00D 205 0343 058
5P CONN.BASE(KR-PH)
for E2
CY121
00D 205 0480 021
12P KR CON BASE(L)
for E2
CY174
00D 205 1170 903
17P FFC BASE(FMNBMTT +REF
CY331
00D 205 1170 945
33P FFC BASE(FMNBMTT +C
CY401
00D 205 1320 902
40P CONN.(AXN440C130
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
99
FB104-110
00D 247 2018 903
RM73B--0R0KT +1608
FB111
00D 247 2003 989
RM73B--330JT +1608
FB706
00D 247 2018 903
RM73B--0R0KT +1608
FB851-856
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
for E2
JK101
00D 205 1302 001
19P HDMI CONNECTOR
JK702
00D 204 8677 011
4P PIN JACK(V/Y/B/R)
JK703
00D 205 1272 005
1P S-TERMINAL
JK704
00D 204 6670 007
D CONNECTOR
for JP
JK707
00D 205 1303 000
24P DVI CONNECTOR
JK851
00D 204 6649 009
RGB CONNECTOR
for E2
L101-103
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
L702, 703
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
L705, 706
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
L711-713
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
L714
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
for E2
L716, 717
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
L719-722
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
L851-853
00D 235 0125 905
INDUCTOR(FLC32C220K)+3216
for E2
ST701
00D 205 0452 017
STYLE PIN
ST703
00D 205 0452 017
STYLE PIN
W101, 102
00D 205 1306 007
M3 SCREW TERMINAL
W501, 502
00D 205 1306 007
M3 SCREW TERMINAL
W701
00D 431 0441 009
SCART SHIELD PLATE
for E2
X731
00D 399 0864 900
X'TAL(13.5MHZ) +REF
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
100
AUDIO/POWER P.W.B. UNIT ASS’Y
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
SEMICONDUCTORS GROUP
IC101
00D 262 3228 908
M66005AFP +C
IC102
00D 499 0306 001
GP1UE271XK
IC301
00D 262 3332 904
PCM1791ADBR +REF
IC302
00D 263 0896 909
NJM2068MD-TE1 +C
IC303
00D 263 0896 909
NJM2068MD-TE1 +C
for E3, E2, DVD-955
IC303
00D 263 1074 908
OP275GSR +C
for JP
IC304
00D 262 3332 904
PCM1791ADBR +REF
IC305, 306
00D 263 0896 909
NJM2068MD-TE1 +C
IC307
00D 262 3332 904
PCM1791ADBR +REF
IC308, 309
00D 263 0896 909
NJM2068MD-TE1 +C
IC310
00D 262 3332 904
PCM1791ADBR +REF
IC311, 312
00D 263 0896 909
NJM2068MD-TE1 +C
IC313, 314
00D 262 2669 908
SN74LV157APW +C
IC315
00D 262 3077 900
TC74VHCU04FT +REF
IC316
00D 262 2580 906
CXA1511M +C
IC319
00D 269 0222 005
GP1FA52HTZ0F
IC901
00D 265 0122 006
TOP245Y
for E3, JP, DVD-955
IC901
00D 265 0121 007
TOP244Y
for E2
IC902
00D 263 1206 909
TA76432FC(TE85L) +C
IC904
00D 263 1100 005
KIA7805API
IC907
00D 263 1100 063
KIA7809API
IC908
00D 263 1100 050
KIA7808API
IC909
00D 262 3047 008
PC123 Y-22
TR102, 103
00D 271 0102 937
2SA1015(GR/Y)TPE2
TR303-308
00D 273 0460 905
KTC2875B-RTK +C
TR311-316
00D 273 0460 905
KTC2875B-RTK +C
TR319-325
00D 273 0460 905
KTC2875B-RTK +C
TR328-333
00D 273 0460 905
KTC2875B-RTK +C
TR334
00D 269 0171 907
IMD3A-T108 +C
TR335
00D 273 0426 907
2SC2412KLNT146 +C
TR336
00D 269 0083 901
DTA114EKT96 +C
TR337
00D 269 0082 902
DTC114EKT96 +C
TR338
00D 269 0119 901
DTA124EKT96(TAPE) +C
TR339
00D 269 0082 902
DTC114EKT96 +C
TR340-344
00D 269 0119 901
DTA124EKT96(TAPE) +C
TR345-348
00D 269 0082 902
DTC114EKT96 +C
TR349
00D 273 0426 907
2SC2412KLNT146 +C
TR350
00D 269 0082 902
DTC114EKT96 +C
TR351-354
00D 269 0119 901
DTA124EKT96(TAPE) +C
TR355-358
00D 269 0082 902
DTC114EKT96 +C
TR361-364
00D 273 0460 905
KTC2875B-RTK +C
for E2
TR901
00D 271 0102 937
2SA1015(GR/Y)TPE2
TR902
00D 274 0036 905
2SD468(C)TF
TR904
00D 274 0036 905
2SD468(C)TF
TR905
00D 269 0083 901
DTA114EKT96 +C
TR907
00D 269 0083 901
DTA114EKT96 +C
TR908
00D 275 0106 906
HAT2053M(TAPE) +C
TR909, 910
00D 269 0082 902
DTC114EKT96 +C
TR911
00D 272 0083 004
2SB1185(E/F)
D103
00D 276 0717 903
1SS355 TE-17 +C
D106
00D 276 0717 903
1SS355 TE-17 +C
D301, 302
00D 276 0717 903
1SS355 TE-17 +C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
101
D304, 305
00D 276 0717 903
1SS355 TE-17 +C
D901-904
00D 276 0729 904
EM01AT (V1)
D905
00D 276 0401 905
1SS133T77 (TAPE)
D906
00D 276 0813 001
AP01C
D908
00D 276 0803 008
FMB-G19L
D909
00D 276 0730 906
AG01ZT (V1)
D910
00D 276 0803 008
FMB-G19L
D911
00D 276 0730 906
AG01ZT (V1)
D912-917
00D 276 0401 905
1SS133T77 (TAPE)
ZD902
00D 276 0760 921
MTZJ4.3B T77
LD103
00D 393 9645 009
SML1216W(D)
TH901
00D 279 0044 002
NTH11D8R0LA
RESISTORS GROUP
R568
00D 244 2052 928
RS14B3A470JNBST(S)
R595
00D 244 2052 915
RS14B3A182JNBST(S)
R605-608
00D 244 2051 929
RS14B3A821JNBST(S)
R611
00D 244 2051 929
RS14B3A821JNBST(S)
R625-628
00D 244 2051 929
RS14B3A821JNBST(S)
R909
00D 244 2675 729
RS14B3D224JNBF (ERG)
R920
00D 244 2052 973
RS14B3A561JNBST(S)
R923
00D 244 2052 944
RS14B3A152JNBST(S)
R925
00D 244 2050 991
RS14B3A682JNBST(S)
R928
00D 244 2043 908
RS14B3A681JNBST(S)
R942, 943
00D 241 2313 985
RD14B2E4R7JFRST
R945
00D 244 2055 912
RS14B3AR47JNBST(S)
CAPACITORS GROUP
C101-103
00D 257 0501 901
CK73B1H103KT (1608) +1608
C105
00D 257 0506 951
CC73CH1H101JT +1608
C106
00D 254 4299 964
CE04W1C470MT(SRE)
C108
00D 257 0501 901
CK73B1H103KT (1608) +1608
C109-111
00D 257 0512 903
CK73F1E104ZT +1608
C119
00D 257 0511 904
CK73F1H103ZT +1608
C120
00D 257 0509 929
CK73B1H102KT +1608
C301
00D 257 0511 904
CK73F1H103ZT +1608
C302
00D 254 4313 921
CE04W1H220MT(ASF)
C303
00D 257 0512 903
CK73F1E104ZT +1608
C304-306
00D 257 0511 904
CK73F1H103ZT +1608
for E3, E2, DVD-955
C307
00D 254 4313 921
CE04W1H220MT(ASF)
C308
00D 257 0512 903
CK73F1E104ZT +1608
for E3, E2, DVD-955
C309
00D 254 4313 963
CE04W1H010MT(ASF)
C311, 312
00D 255 4256 955
CQ93P2A103JT(NH2)
C313, 314
00D 257 0512 903
CK73F1E104ZT +1608
C317, 318
00D 257 3011 948
CF73=1H222JT(ECHUB5)+2125
C319
00D 257 0512 903
CK73F1E104ZT +1608
C320,321
00D 254 4313 950
CE04W1H101MT(ASF)
C322
00D 257 0512 903
CK73F1E104ZT +1608
C323
00D 255 4256 955
CQ93P2A103JT(NH2)
C324
00D 254 4558 702
CE04W1H101MC(RFS)
C325
00D 255 4256 955
CQ93P2A103JT(NH2)
C326
00D 254 4558 702
CE04W1H101MC(RFS)
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
102
C327, 328
00D 255 4253 932
CQ93P2A471JT(NH2)
for E3, E2, DVD-955
C329
00D 257 0511 904
CK73F1H103ZT +1608
C330
00D 254 4313 921
CE04W1H220MT(ASF)
C331
00D 257 0512 903
CK73F1E104ZT +1608
C332-334
00D 257 0511 904
CK73F1H103ZT +1608
for E3, E2, DVD-955
C335
00D 254 4313 921
CE04W1H220MT(ASF)
C336
00D 257 0512 903
CK73F1E104ZT +1608
for E3, E2, DVD-955
C337
00D 254 4313 963
CE04W1H010MT(ASF)
C339, 340
00D 255 4256 955
CQ93P2A103JT(NH2)
C341, 342
00D 257 0512 903
CK73F1E104ZT +1608
C345, 346
00D 257 3011 948
CF73=1H222JT(ECHUB5)+2125
C347
00D 257 0512 903
CK73F1E104ZT +1608
C348, 349
00D 254 4313 950
CE04W1H101MT(ASF)
C350
00D 257 0512 903
CK73F1E104ZT +1608
C351, 352
00D 254 4313 950
CE04W1H101MT(ASF)
C353, 354
00D 255 4253 932
CQ93P2A471JT(NH2)
for E3, E2, DVD-955
C355
00D 257 0511 904
CK73F1H103ZT +1608
C356
00D 254 4538 913
CE04W1C220MT SMG/RE3
C357
00D 257 0512 903
CK73F1E104ZT +1608
C358-360
00D 257 0511 904
CK73F1H103ZT +1608
for E3, E2, DVD-955
C361
00D 254 4538 913
CE04W1C220MT SMG/RE3
C362
00D 257 0512 903
CK73F1E104ZT +1608
for E3, E2, DVD-955
C363
00D 254 4524 943
CE04W1H010MT SMG/RE3
C365, 366
00D 255 4256 955
CQ93P2A103JT(NH2)
C367, 368
00D 257 0512 903
CK73F1E104ZT +1608
C371
00D 257 3011 948
CF73=1H222JT(ECHUB5)+2125
C372
00D 257 0506 951
CC73CH1H101JT +1608
C373
00D 254 4598 908
CE04W1H220MTBP(ASF)
C374
00D 257 0512 903
CK73F1E104ZT +1608
C375, 376
00D 254 4313 950
CE04W1H101MT(ASF)
C377
00D 257 0512 903
CK73F1E104ZT +1608
C378, 379
00D 254 4313 950
CE04W1H101MT(ASF)
C380, 381
00D 257 0509 990
CK73B1H222KT +1608
C382
00D 257 0511 904
CK73F1H103ZT +1608
C383
00D 254 4538 913
CE04W1C220MT SMG/RE3
C384
00D 257 0512 903
CK73F1E104ZT +1608
C385-387
00D 257 0511 904
CK73F1H103ZT +1608
for E3, E2, DVD-955
C388
00D 254 4538 913
CE04W1C220MT SMG/RE3
C389
00D 257 0512 903
CK73F1E104ZT +1608
for E3, E2, DVD-955
C390
00D 254 4524 943
CE04W1H010MT SMG/RE3
C392, 393
00D 255 4256 955
CQ93P2A103JT(NH2)
C394, 395
00D 257 0512 903
CK73F1E104ZT +1608
C398, 399
00D 257 3011 948
CF73=1H222JT(ECHUB5)+2125
C400
00D 257 0512 903
CK73F1E104ZT +1608
C401, 402
00D 254 4313 950
CE04W1H101MT(ASF)
C403
00D 257 0512 903
CK73F1E104ZT +1608
C404, 405
00D 254 4313 950
CE04W1H101MT(ASF)
C406, 407
00D 257 0509 990
CK73B1H222KT +1608
C408
00D 255 4256 955
CQ93P2A103JT(NH2)
C409
00D 254 4313 950
CE04W1H101MT(ASF)
C410
00D 255 4256 955
CQ93P2A103JT(NH2)
C411
00D 254 4313 950
CE04W1H101MT(ASF)
for E3, E2, DVD-955
C412
00D 257 0501 901
CK73B1H103KT (1608) +1608
C413
00D 257 0516 954
CK73B1E104KT +1608
C416
00D 257 0501 901
CK73B1H103KT (1608) +1608
C417
00D 257 0516 954
CK73B1E104KT +1608
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
103
C418
00D 255 4256 955
CQ93P2A103JT(NH2)
C419
00D 254 4313 950
CE04W1H101MT(ASF)
C420
00D 257 0506 951
CC73CH1H101JT +1608
C421
00D 257 0501 901
CK73B1H103KT (1608) +1608
C426
00D 247 2018 903
RM73B--0R0KT +1608
C429
00D 257 0509 929
CK73B1H102KT +1608
C430
00D 254 4538 939
CE04W1C470MT SMG/RE3
C431
00D 257 0501 901
CK73B1H103KT (1608) +1608
C432
00D 257 0512 903
CK73F1E104ZT +1608
C433
00D 254 4524 943
CE04W1H010MT SMG/RE3
C435
00D 257 0511 904
CK73F1H103ZT +1608
C437
00D 257 0512 903
CK73F1E104ZT +1608
C439
00D 257 0501 901
CK73B1H103KT (1608) +1608
C440
00D 254 4538 955
CE04W1C221MT SMG/RE3
C441
00D 257 0501 901
CK73B1H103KT (1608) +1608
C442, 443
00D 257 0509 929
CK73B1H102KT +1608
C444
00D 254 4538 900
CE04W1C100MT SMG/RE3
C446, 447
00D 257 0501 901
CK73B1H103KT (1608) +1608
C452
00D 254 4524 943
CE04W1H010MT SMG/RE3
C454
00D 257 0501 901
CK73B1H103KT (1608) +1608
C455
00D 254 4313 950
CE04W1H101MT(ASF)
C458
00D 257 0501 901
CK73B1H103KT (1608) +1608
C459
00D 257 0509 929
CK73B1H102KT +1608
C460, 461
00D 257 0508 917
CC73CH1H471JT +1608
for E2
C462-477
00D 257 0508 933
CC73CH1H561JT +1608
C482
00D 247 2018 903
RM73B--0R0KT +1608
C485, 486
00D 247 2018 903
RM73B--0R0KT +1608
C489, 490
00D 247 2018 903
RM73B--0R0KT +1608
C493, 494
00D 247 2018 903
RM73B--0R0KT +1608
C495
00D 257 0511 904
CK73F1H103ZT +1608
C496
00D 257 0512 903
CK73F1E104ZT +1608
C497
00D 257 0511 904
CK73F1H103ZT +1608
C498
00D 257 0512 903
CK73F1E104ZT +1608
C499-504
00D 247 2018 903
RM73B--0R0KT +1608
C900
00D 253 8022 707
CK45F2EAC103MC
C901
00D 256 8038 004
CF99--2EAC104M
C902
00D 253 8029 713
CK45F2EAC471KC(KX)
C903
00D 254 4533 950
CE04W0J471MT SMG/RE3
C904
00D 257 0512 903
CK73F1E104ZT +1608
C905
00D 254 4533 950
CE04W0J471MT SMG/RE3
C906
00D 257 0512 903
CK73F1E104ZT +1608
C907
00D 254 4524 943
CE04W1H010MT SMG/RE3
C909
00D 254 4588 701
CE04W2D101MC(KMG)
for E3, JP, DVD-955
C909
00D 254 4589 700
CE04W2G470MC (KMG)
for E2
C912
00D 254 4522 945
CE04W1V470MT SMG/RE3
C913
00D 253 9031 920
CK45=1E104KT
C914
00D 256 8038 004
CF99--2EAC104M
C916, 917
00D 254 4653 908
CE04W1V151MT(KY)H11
C918
00D 254 4652 705
CE04W1A222MC(KY)J30
C919
00D 254 4654 907
CE04W1H220MT(KY)E11
C920
00D 254 4651 900
CE04W0J331MT(KY)E11
C921
00D 253 9031 920
CK45=1E104KT
C922
00D 254 4542 705
CE04W1E471MC SMG/RE3
C923
00D 254 4538 955
CE04W1C221MT SMG/RE3
C924
00D 257 0512 903
CK73F1E104ZT +1608
C925
00D 254 4522 945
CE04W1V470MT SMG/RE3
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
104
C927
00D 254 4538 900
CE04W1C100MT SMG/RE3
C928-930
00D 257 0512 903
CK73F1E104ZT +1608
C931
00D 254 4538 900
CE04W1C100MT SMG/RE3
C932
00D 257 0512 903
CK73F1E104ZT +1608
C933
00D 254 4538 900
CE04W1C100MT SMG/RE3
for E3, E2, DVD-955
C933
00D 254 4313 950
CE04W1H101MT(ASF)
for JP
C935, 936
00D 257 0512 903
CK73F1E104ZT +1608
C937
00D 257 0509 929
CK73B1H102KT +1608
C938-942
00D 257 0512 903
CK73F1E104ZT +1608
C944-947
00D 257 0512 903
CK73F1E104ZT +1608
C948
00D 257 0511 920
CK73F1H473ZT +1608
C949, 950
00D 253 8029 713
CK45F2EAC471KC(KX)
C951
00D 254 4653 908
CE04W1V151MT(KY)H11
C952
00D 254 4652 705
CE04W1A222MC(KY)J30
C953
00D 254 4651 900
CE04W0J331MT(KY)E11
C954, 955
00D 253 8029 713
CK45F2EAC471KC(KX)
C956
00D 257 0512 903
CK73F1E104ZT +1608
C957
00D 254 4538 900
CE04W1C100MT SMG/RE3
for E3, E2, DVD-955
C957
00D 254 4313 950
CE04W1H101MT(ASF)
for JP
C958
00D 254 4538 900
CE04W1C100MT SMG/RE3
C959
00D 254 4538 900
CE04W1C100MT SMG/RE3
for E3, E2, DVD-955
C959
00D 254 4313 950
CE04W1H101MT(ASF)
for JP
C960
00D 254 4536 957
CE04W1A471MT SMG/RE3
C961
00D 254 4542 705
CE04W1E471MC SMG/RE3
C963
00D 254 4525 913
CE04W1H470MT SMG/RE3
C964
00D 254 4327 904
CE04W0J102MT(SMG)
OTHERS PARTS GROUP
CX024
00D 205 0581 001
2P VH CONNECTOR BASE
CX025
00D 205 0581 056
2P VH CONNECTOR BASE
CX041
00D 205 0343 045
4P CONN.BASE(KR-PH)
CX051
00D 205 0343 058
5P CONN.BASE(KR-PH)
CX052
00D 205 0355 059
5P KR CON BASE(L)
CX053
00D 205 0343 058
5P CONN.BASE(KR-PH)
for E2
CX071
00D 205 0343 074
7P CONN.BASE(KR-PH)
CX141
00D 205 0375 042
14P CONN.BASE(KR-PH)
CX171
00D 205 1006 080
17P FFC BASE(P=1)
CY025
00D 205 0581 056
2P VH CONNECTOR BASE
CY041
00D 205 0343 045
4P CONN.BASE(KR-PH)
CY052
00D 205 0343 058
5P CONN.BASE(KR-PH)
CY071
00D 205 0343 074
7P CONN.BASE(KR-PH)
CY271
00D 205 1100 083
27P FFC BASE (P=1)
F901
00D 206 1072 033
FUSE 2A
for E3, JP, DVD-955
F901
00D 206 1087 073
FUSE (ET1.6A)
for E2
FB301-304
00D 247 2018 903
RM73B--0R0KT +1608
FB305
00D 235 0130 903
CHIP EMIFIL(11A121) +1608
FF901
00D 202 0040 909
FUSE CLIP (TAPE)
FH901
00D 202 0040 909
FUSE CLIP (TAPE)
FL101
00D 393 8078 004
FL TUBE(15-BT-97GNK)
FL101
00D 461 1200 004
FL SPACER
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
105
JK301, 302
00D 204 8682 006
YKC21-3885N(4PJACKAU
JK303
00D 204 8674 001
2P MINI JACK(ST)
JK305
00D 204 8648 008
1P PIN JACK(F-GNDAU)
L901
00D 235 0157 009
PLA10AN7720R7D2B
L902-904
00D 235 0142 917
COIL LHL08TB4R7MT
L905
00D 209 0008 146
JUMPER (L=5)
S101-106
00D 212 5611 903
TACT SWITCH(TAPE H5)
S108-110
00D 212 5611 903
TACT SWITCH(TAPE H5)
S113-116
00D 212 5611 903
TACT SWITCH(TAPE H5)
S900
00D 212 1030 009
POWER SWITCH (TV-5)
ST301-304
00D 205 0452 017
STYLE PIN
T901
00D 233 0673 008
SW TRANS (100/120)
for E3, JP, DVD-955
T901
00D 233 0672 009
SW TRANS(230)
for E2
W301
00D 001 0247 002
1P WIRE
for JP
W308
00D 203 0544 013
1P SIN CORD ASS'Y
W309
00D 001 0247 002
1P WIRE
for JP
W902
00D 205 1306 007
M3 SCREW TERMINAL
AS901
00D4170476081
RADIATOR
AS903
00D4170476081
RADIATOR
AS908
00D 417 0476 081
RADIATOR
00D 471 3304 015
3X8 CBS-Z
00D 513 3827 074
FUSE LABEL
for E2, for F901
00D 513 3827 087
FUSE LABEL
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
106
EXPLODED VIEW
Europe model only
※
※ Europe model only
Japan model only
※
102
101
6
5
4
31
102
9
29
27
28
102
107
28
106
2-2
106
10
105
101
1
101
113
102
24
11
108
113
33
111
19
112
18
20
110
111
2-4
15
102
13
21
22
14
103
26
25
23
30
16
2-3
17
2-5
2-1
101
102
104
12
109
3-2
101
3-1
111
104
103
8
32
32
3-3
7
Parts marked with this symbol
have critical
characteristics.
Use ONLY replacement parts recommended by the
manufacturer.
WARNING:
Parts List
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
107
PARTS LIST OF EXPLODED VIEW
※ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
Note: The symbols in the column "Remarks" indicate the following destinations.
E3: U.S.A. & Canada model
E3: U.S.A. & Canada model (DVD-955)
E2: Europe model
JP: Japan model
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
1
00D GU- 3612
MAIN UNIT
1
*
2
00D GU- 3616
AUDIO UNIT
for E3
1
*
2
00D GU- 3616 A
AUDIO UNIT
for E2
1
*
2
00D GU- 3616 B
AUDIO UNIT
for JP
1
*
2-1
AUDIO UNIT
2-2
POWER UNIT
2-3
DISPLAY UNIT
2-4
P.SW MAIN UNIT
2-5
P.SW SUB UNIT
3
00D GU- 3615
VIDEO UNIT
for E3
1
*
3
00D GU- 3615 A
VIDEO UNIT
for E2
1
*
3
00D GU- 3615 B
VIDEO UNIT
for JP
1
*
3
00D GU- 3615 D
VIDEO UNIT
for DVD-955
1
*
3-1
VIDEO UNIT
3-2
HDMI UNIT
1
*
3-3
SCART UNIT
for E2
1
*
4
00D 411 2053 103
CHASSIS
1
*
5
00D 411 2056 100
BOTTOM PLATE
1
*
6
00D 104 0335 006
FOOT ASS'Y
4
*
7
00D 105 1456 107
REAR PANEL
for E3
1
*
7
00D 105 1456 110
REAR PANEL
for E2
1
*
7
00D 105 1456 123
REAR PANEL
for JP
1
*
7
00D 105 1456 136
REAR PANEL
for DVD-955
1
*
★
8
00D 203 3995 009
AC INLET (2P)
1
9
00D 415 9016 064
P.C.B HOLDER
1
10
00D 417 0657 004
HEAT PLATE
1
*
11
00D 337 0133 002
DVD MECHA (TD-5HP-D8)
1
*
12
00D 412 2404 043
PWB HOLDER (WLS-13)
2
13
00D 144 2884 207
FRONT PANEL
for E3, E2 black model
1
*
13
00D 144 2884 210
FRONT PANEL
for E3, E2 silver model
1
*
13
00D 144 2884 223
FRONT PANEL
for JP gold model
1
*
13
00D 144 2884 236
FRONT PANEL
for 955 silver model
1
*
14
00D 131 0158 007
DENON BADGE
for E3, E2 black model
1
14
00D 131 0158 010
DENON BADGE
for JP gold model
1
14
00D 131 0158 023
DENON BADGE
for E3, E2 silver model
1
15
00D 146 2357 002
INNER PANEL
for E3, E2 black model
1
*
15
00D 146 2357 015
INNER PANEL
for E3, E2 silver model
1
*
15
00D 146 2357 028
INNER PANEL
for JP gold model
1
*
16
00D 143 1189 007
POWER LENS
1
17
00D 113 1992 109
P.KNOB ASS'Y (SUB)
for E3, E2 black model
1
17
00D 113 1992 112
P.KNOB ASS'Y (SUB)
for E3, E2 silver model
1
17
00D 113 1992 125
P.KNOB ASS'Y (SUB)
for JP gold model
1
18
00D 461 1189 002
BLIND CUSHION
1
*
19
00D 431 0439 008
BLIND
1
*
20
00D 463 0958 007
SPRING
2
21
00D 143 1196 003
WINDOW
1
*
22
00D 113 1994 107
P.KNOB ASS'Y (MAIN)
for E3, E2 black model
1
22
00D 113 1994 110
P.KNOB ASS'Y (MAIN)
for E3, E2 silver model
1
22
00D 113 1994 123
P.KNOB ASS'Y (MAIN)
for JP gold model
1
23
00D 461 0501 005
RUBBER SHEET
3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
108
24
00D 102 0669 006
TOP COVER
for E3, E2 black model
1
*
24
00D 102 0669 019
TOP COVER
for E3, E2 silver model
1
*
24
00D 102 0669 022
TOP COVER
for JP gold model
1
*
25
00D 146 2358 001
LOADER PANEL
for E3, E2 black model
1
*
25
00D 146 2358 014
LOADER PANEL
for E3, E2 silver model
1
*
25
00D 146 2358 027
LOADER PANEL
for JP gold model
1
*
26
00D 135 0072 004
DVD A/V PLATE
for E3, E2 silver model
1
*
26
00D 135 0072 017
DVD A/V PLATE
for JP gold model
1
*
26
00D 135 0072 020
DVD A/V PLATE
for E3, E2 black model
1
*
27
00D 342 0027 000
FERITE CORE
1
★
28
00D 445 0033 005
WIRE CLAMP BAND
3
29
00D 129 0214 003
BASS RUBBER (L)
1
30
00D 461 1208 006
EMI G. (SHSG015100)
1
31
00D 461 1209 005
EMI G. (SHSG050100)
1
32
00D 129 0256 016
CLOTH TAPE
3
33
00D 129 0256 003
CLOTH TAPE
1
WIRES
★
00D 009 0186 002
24P FFC
CX241-PU
1
★
00D 009 0249 017
17P FFC (1.0)
CX171-CY171
1
*
★
00D 009 0249 020
27P FFC (1.0)
CX271-CY271
1
*
★
00D 009 0249 033
33P FFC (1.0)
CX331-CY331
1
*
★
00D 009 0249 046
17P FFC (1.0)
CX174-CY174
1
*
★
00D 203 5337 005
3P VH-VH CON. CORD
CX025-CY025
1
*
★
00D 203 5338 017
3P VH CON. CORD
CX024-AC INLET (2P)
1
*
★
00D 203 6611 018
4P PH-PH CONN. CORD
CX041-CY041
1
*
★
00D 203 8546 000
5P PH-PH CONN. CORD
CX051-CY051
1
*
★
00D 203 8546 013
5P PH-PH CONN. CORD
for E2 CX053-CY053
1
*
★
00D 203 8547 009
5P PH-PH CONN. CORD
CX052-CY052
1
*
★
00D 204 0585 004
6P PH-PH CONN. CORD
CX061-CY061
1
*
★
00D 204 6772 002
12P PH-PH CONN. CORD
for E2 CX121-CY121
1
*
★
00D 204 6773 001
14P PH-PH CONN. CORD
CX141-CY141
1
*
★
00D 513 1581 011
SERIAL NO. SHEET
1
★
00D 513 1381 004
MANUFAC. DATE LABEL
1
SCREWS
101
00D 473 7002 018
3X8 CBTS(S)-Z
19
102
00D 473 7015 005
3X6 CBTS(S)-B
16
103
00D 473 7003 017
3X8 CFTS(S)-B
4
104
00D 477 0064 123
FIXING SCREW
8
105
00D 471 3304 015
3X8 CBS-Z
3
106
00D 471 2305 015
3X10 CFS
3
107
00D 473 7506 019
2X6 CBTS(P)-Z
2
108
00D 473 7001 048
2.6X8 CBTS(S)-Z
4
109
00D 471 9012 013
3X6 CBS-Z (BLACK)
5
110
00D 473 8044 004
SPECIAL SCREW
2
111
00D 473 7500 044
3X8 CBTS(P)-B
10
112
00D 473 7511 004
3X10 CFTS(P)-Z
2
113
00D 477 0263 005
3P. SWELLING SCREW
4
113
00D 477 0263 018
3P. SWELLING SCREW
for silver model and JP gold model
4
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
109
DVD-2910/955
EXPLODED VIEW OF DVD MECHANISM
14
2
15
8
12
7
5
1
11
6
9
10
3
50
21
21
24
24
16
23
17
25
20
19
24
24
24
18
26
26
23
42
39
44
43
28
43
29
35
40
37
38
34
33
30
32
32
72
47
46
47
31
53
50
36
23
49
27B
27A
41
49
49
51
51
49
48
27
22
54
52
52
63
64
4
68
70
71
Parts List
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
110
PARTS LIST OF DVD MECHANISM UNIT
3370133002 DVD MECHA (TD-5HP-D8)
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
1
9KC 1A01 7
MAIN CHASSIS ASS'Y
1
2
9KA 7P08 5
CLAMPER BRACKET
1
3
9KC 4P007F
GUIDE CLAMP BRACKET
1
4
9KC 2A00 3
LOADING MOTOR ASS'Y
1
5
9KC 2G02 9
LOADING GEAR
1
6
9KB 9G03 0
LOADING GEAR 2ND
1
7
9KB 9G03 1
LOADING GEAR 3RD
1
8
9KA 2G41 7
SUB CHASSIS-L
1
9
9KA 2G41 8
SUB CHASSIS-R
1
10
9KA 2G399C
TRAY
1
11
9KC 1G00 3
SLIDE-CAM
1
12
9KC 1G00 4
TRAVERSE ARM
1
14
9KA 7G20 2
CLAMPER H
1
15
9KA 7G20 3
CLAMPER L
1
16
9KB 9G01 5
LOADING BELT
1
17
9KC 1P01 4
SWITCH P.W.B.
1
18
9KC 2G04 3
5P PH WIRE
1
19
9KS 01W2 04
SWITCH ESE22MH21
1
20
9KS 01W2 05
SWITCH ESE22MH23
1
21
9KP 26C6 25
POLY.SLIT WASHER 2.6X6X0.25C
3
22
445 8004 007
WIRE CLAMPER
1
23
9KS 17N0 22
PRECISION SCREW 1.7X2.2 TYPE3
2
24
9KB 26BK 06
SCREW 2.6X6 CBTS(B)-Z
6
25
9KS 20TK 33
PRECISION SCREW 2X3(S) TYPE3
1
26
9KB 20PK 06
SCREW 2X6 CBTS(P)-Z
2
27A
9KC 2A06 3B
TRAVERSE MECHA (FEED) ASS'Y
Assembled part
1
27B
9KC 2A06 4B
TRAVERSE MECHA ASS'Y
Assembled part
1
23
-
PRECISION SCREW 1.7X2.2 TYPE3
3
27
-
PU CHASSIS ASS'Y
1
28
-
SHAFT HOLDER L
1
29
-
SHAFT HOLDER R
1
30
-
SHAFT TILT BASE
1
31
-
SHAFT TILT PLATE
1
32
-
TILT SPRING
2
33
-
MAIN SHAFT
1
34
-
SUB SHAFT
1
35
-
PU RACK GEAR
1
37
-
PICK UP HOP-1200R
1
38
-
PU SPRING
1
39
-
SHAFT SPRING
1
40
-
RACK GEAR SPRING
1
42
-
T/T MOTOR ASS'Y
1
43
-
SCREW 2.6X6 CBTS(S)-Z
2
44
-
SCREW 2.6X4 CBTS(S)-Z
1
46
-
SCREW 2.6X15 CFTS(S)-Z
2
47
-
SCREW 3X4 BSS
2
48
-
SCREW 3X8 BSS (A)
1
63
-
PRECISION SCREW 1.7X5 TYPE3
1
23
-
PRECISION SCREW 1.7X2.2 TYPE3
2
36
-
FEED GEAR 2ND ASS'Y
1
41
-
FEED MOTOR ASS'Y
1
50
-
POLY.SLIT WASHER 2.1X4X0.25C
2
53
-
FEED GEAR 3RD
1
49
9KC 1G04 3
DAMPER
4
51
-
SPECIAL SCREW (FRONT)
2
52
-
SPECIAL SCREW (REAR)
2
54
9KB 7P02 4
TRAY-SPRING-VXF
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
111
64
9KC 1G04 2
RUBBER CUSHION
2
68
-
TAPE W10X45 (NITTO NO.156)
1
70
9KC 2G07 6
CUSHION L
6X3Xt4
1
71
9KC 2G07 7
CUSHION R
6X3Xt2
1
72
009 0186 002
24P FFC CABLE
1
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
112
DVD-2910/955
POINTS OF GREASING
54
Apply 12.5mm half-ball approx.
Main
Chassis
Main Chassis
*As for greasing to the R rail
groove and groove's side edge,
apply grease to the outer face
"intentionally".
(Not only running a brush into
the groove, use it with pressing
to the outer face consciously.)
After attaching cushions, apply Cemedine
575 to the joint parts of the cushions and
tabs (both sides, left and right) from the tab's
back side. (0.1mg each x 4)
After applying , check especially for the front 3 ribs outer side
in order not to be insufficient greasing.
When greasing each rib, apply to
the rib's left, right, and top faces
properly with running a brush on both sides
of the rib.
With Cemedine 575, glue 3 joint parts of Clamper-L
and H hooks. (0.05mg each x 3)
Froil KG 423
After attaching plate spring,
apply to the TRAY side of
the plate spring.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
113
PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
※ 本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
Note: The symbols in the column "Remarks" indicate the following destinations.
E3: U.S.A. & Canada model
E3: U.S.A. & Canada model (DVD-955)
E2: Europe model
JP: Japan model
Ref. No.
Part No.
Part Name
Remaeks
Q'ty
New
201
00D 505 0033 043
POLY COVER
2
202
00D 511 4192 003
INST. MANUAL
for E3, DVD-955
1
*
202
00D 511 4240 007
INST. MANUAL
for E2
1
*
202
00D 511 4239 005
INST. MANUAL
for JP
1
*
203
00D 515 0921 306
S.S.LIST(EX)
1
204
00D 206 2226 008
AC CORD
for E3, DVD-955
1
*
204
00D 206 2215 006
AC CORD
for E2
1
204
00D 206 2222 002
AC CORD SET
for JP
1
205
00D 203 5224 008
3P PIN CORD
1
206
00D 399 0955 000
RC-985
1
*
207
00D 394 0051 006
BATTERY (UM-3) ASS'Y
1
208
00D 505 0312 028
CABINET COVER
1
209
00D 503 1485 000
CUSHION
2
*
210
00D 501 2259 006
CARTON CASE
for E2,E3
1
*
210
00D 501 2259 019
CARTON CASE
for JP
1
*
210
00D 501 2259 022
CARTON CASE
for DVD-955
1
*
211
00D 504 0332 007
PROTECT SHEET
212
00D 515 0944 105
WARRANTY (HOME)
for E3, DVD-955
1
213
00D 515 0971 000
NOTICE SHEET
1
*
★
00D 515 0919 004
GUARANTEE CARD (S)
for JP
1
209
212
212
208
206
213
209
210
203
201
,
207
205
204
201
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
114
★
-
CONT. CARD (L)
1
★
00D 517 1488 006
UPC LABEL
for E3 Black model
1
*
★
00D 517 1488 019
UPC LABEL
for E3 Silver model
1
*
★
00D 517 1488 022
UPC LABEL
for DVD-955
1
*
★
00D 517 1489 005
E2 POS LABEL
for E2 Black model
1
*
★
00D 517 1489 018
E2 POS LABEL
for E2 Silver model
1
*
★
00D 517 1490 007
POS LABEL
for JP
1
*
★
00D 513 3579 005
REGION LABEL (NO.1)
for E3
2
★
00D 513 3579 018
REGION LABEL (NO.2)
for E2
2
★
00D 513 9111 056
COLOR LABEL
for E3,E2, DVD-955 Silver model
2
★
-
S.NO.SHEET
for JP
1
Ref. No.
Part No.
Part Name
Remaeks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
115
DVD-2910/955
MEASURING METHOD AND WAVEFORMS
To check the waveforms on the Main P.W.B., the GND (-)
probe of the oscilloscope to “Vref” point.
(Except for lnner SW, TRVSW)
Measuring Disc: DVD/DVDT-S01 or TDV-520A
CD/TCD-784
(It is better to use wires for extending between the probe and
test points.)
• When watching the HF waveform, use the extending wire
as short as possible.
• When HF waveform is noisy or cannot discriminate the
eye-pattern, replace the Traverse Unit after measuring
the lop.
• ① ~ ⑰ points have the certain test points shown below.
NOTES
GU-3612 MAIN P.W.B. UNIT FOIL SIDE
8
5
4
9
10
3
13
12
7
14
15
11
17
16
6
2
1
各部の波形と測定方法
メイン基板の波形チェックを行うためにはオシロスコープ
の GND(-) プローブを "Vref" ポイントに接続します。
測定ディスク：DVD/DVDT-S01 or TDV-520A
CD/TCD-784
（テストポイントとプローブ間に延長ワイヤを使用するの
がより良い方法です。）
･ ＨＦ 波形を観測する場合、できるだけ短い延長ワイヤを
使用してください。
･ ＨＦ 波形がノイズで不明瞭、またはアイパターンが識別
不能の場合は Iop 測定後にトラバースユニットを交換し
てください。
･ ポイント①～⑰は、下図のように特定テストポイント付
きです。
注 意
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
116
WAVEFORMS
●GU-3612 MAIN P.W.B.
DVD PLAY
CD PLAY
DISC DETECT (CD)
DVD PLAY (INNER)
CD PLAY (INNER)
DISC DETECT (DVD)
SEARCH TO OUTER CHAPTER (INNER OUTER)
①RFAC
①RFAC
②FE
③FSCON
④F+
⑤F-
②FE
③FSCON
④F+
⑤F-
⑥TE
⑦TSCON
⑧T+
⑨T-
⑥TE
⑦TSCON
⑧T+
⑨T-
⑥TE
⑬SLED
⑭SL+
⑮SL-
③FSCON
②FE
⑯PI
⑰MIRR
③FSCON
②FE
⑯PI
⑰MIRR
⑩DMO
VC16
⑪FG
⑫A3
⑩DMO
⑪FG
⑫A3
Disc: TDV-520A
CD PLAY
Disc: TCD-784
DVD LOADING PLAY
CD LOADING PLAY
DVD PLAY
VC16
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
DVD-2910/955
117
●GU-3615-1 VIDEO P.W.B.
V6
V7
V8
V1
V2
V3
V4
V5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
118
DVD-2910/955
NOTE FOR SCHEMATIC DIAGRAM
1. WARNING:
Parts marked with this symbol
have critical characteris-
tics.
Use ONLY replacement parts recommended by the manu-
facturer.
2. CAUTION:
Before returning the unit to the customer, make sure you
make either (1) a leakage current check or (2) a line to chas-
sis resistance check. If the leakage current exceeds 0.5 mil-
liamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
3. WARNING:
DO NOT return the unit to the customer until the problem is
located and corrected.
4. NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM
M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD.
P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASURED AT
NO SIGNAL INPUT CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.
配線図について
注）
(1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を示す。
(2) 指定なきコンデンサーの値は µF、ｐ は ｐF を示す。
(3) 各部の電圧は無信号の値を示す。
(4) この配線図は基本配線図です。改良等のため変更するこ
とがありますのでご了承ください。
印の部品は安全を維持するために重要な部品です。
従って交換時は必ず指定の部品を使用してください。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
SIGNAL LINE
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (1/13)
DVD-2910/955
119
SCHEMATIC DIAGRAMS (1/13)
GU-3612 MAIN UNIT (1/4)
9
12
16
17
13
15
1
2
14
10
8
4
5
6
11
7
3
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
SIGNAL LINE
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (2/13)
DVD-2910/955
120
SCHEMATIC DIAGRAMS (2/13)
GU-3612 MAIN UNIT (2/4)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
SIGNAL LINE
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (3/13)
DVD-2910/955
121
SCHEMATIC DIAGRAMS (3/13)
GU-3612 MAIN UNIT (3/4)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
SIGNAL LINE
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (4/13)
DVD-2910/955
122
SCHEMATIC DIAGRAMS (4/13)
GU-3612 MAIN UNIT (4/4)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (5/13)
DVD-2910/955
123
SCHEMATIC DIAGRAMS (5/13)
GU-3615-1 VIDEO UNIT (1/4)
V5
V4
V3
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (6/13)
DVD-2910/955
124
SCHEMATIC DIAGRAMS (6/13)
GU-3615-1 VIDEO UNIT (2/4)
V1
V2
V8
V6
V7
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (7/13)
DVD-2910/955
125
SCHEMATIC DIAGRAMS (7/13)
GU-3615-1 VIDEO UNIT (3/4)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (8/13)
DVD-2910/955
126
SCHEMATIC DIAGRAMS (8/13)
GU-3615-1 VIDEO UNIT (4/4)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (9/13)
DVD-2910/955
127
SCHEMATIC DIAGRAMS (9/13)
GU-3615-2 HDMI UNIT
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
SIGNAL LINE
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (10/13)
DVD-2910/955
128
SCHEMATIC DIAGRAMS (10/13)
GU-3616-1 AUDIO UNIT
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (11/13)
DVD-2910/955
129
SCHEMATIC DIAGRAMS (11/13)
GU-3616-2 POWER UNIT
GU-3616-4 P.SW MAIN
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (12/13)
DVD-2910/955
130
SCHEMATIC DIAGRAMS (12/13)
GU-3616-3 DISPLAY UNIT
GU-3616-5 P.SW SUB UNIT
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
SCHEMATIC DIAGRAMS (13/13)
DVD-2910/955
131
SCHEMATIC DIAGRAMS (13/13)
GU-3615-3 SCAR UNIT
(Europe model only)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
立即购买
下载本素材需消耗 50 积分
无法下载？立即反馈
标签：
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
