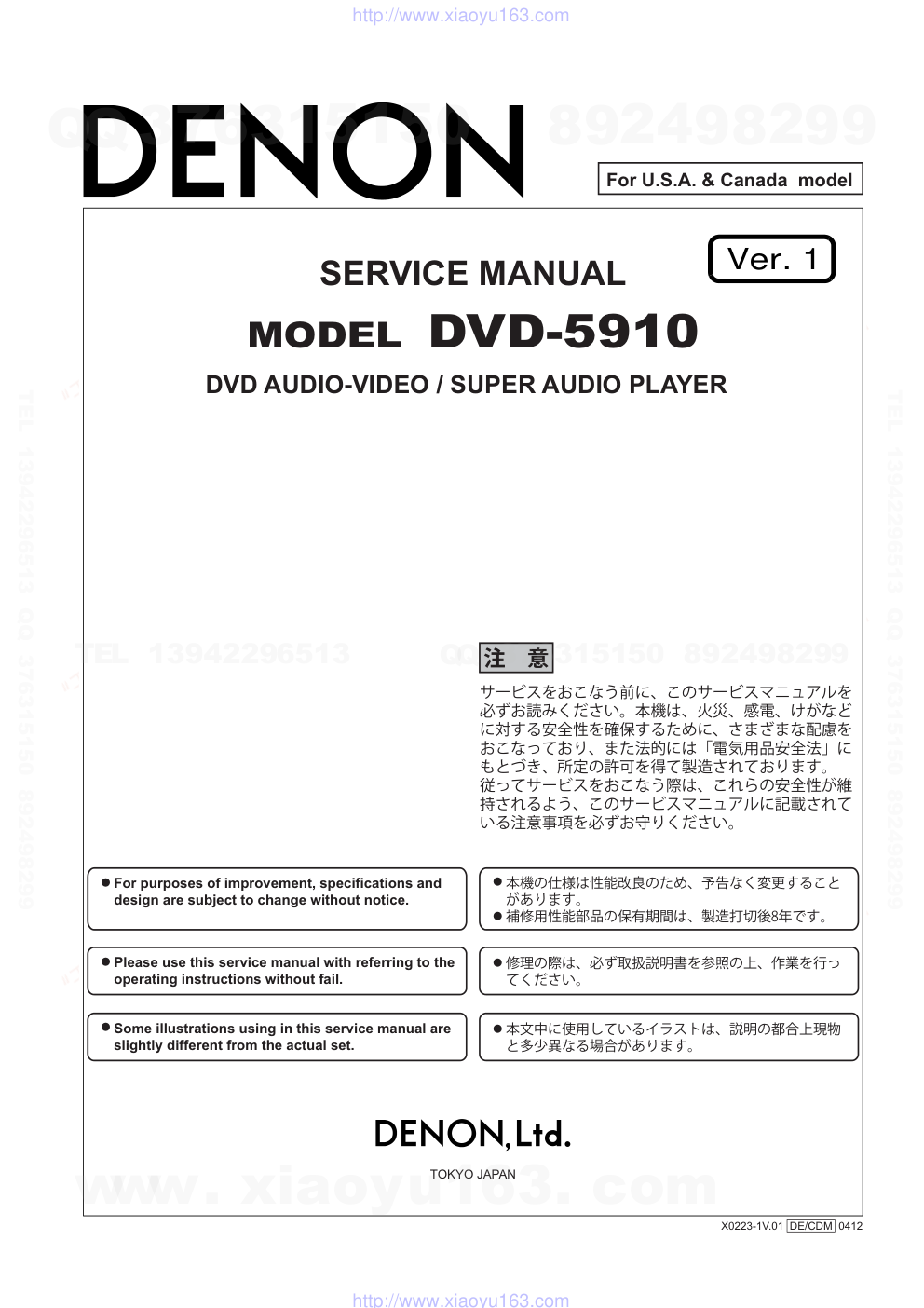

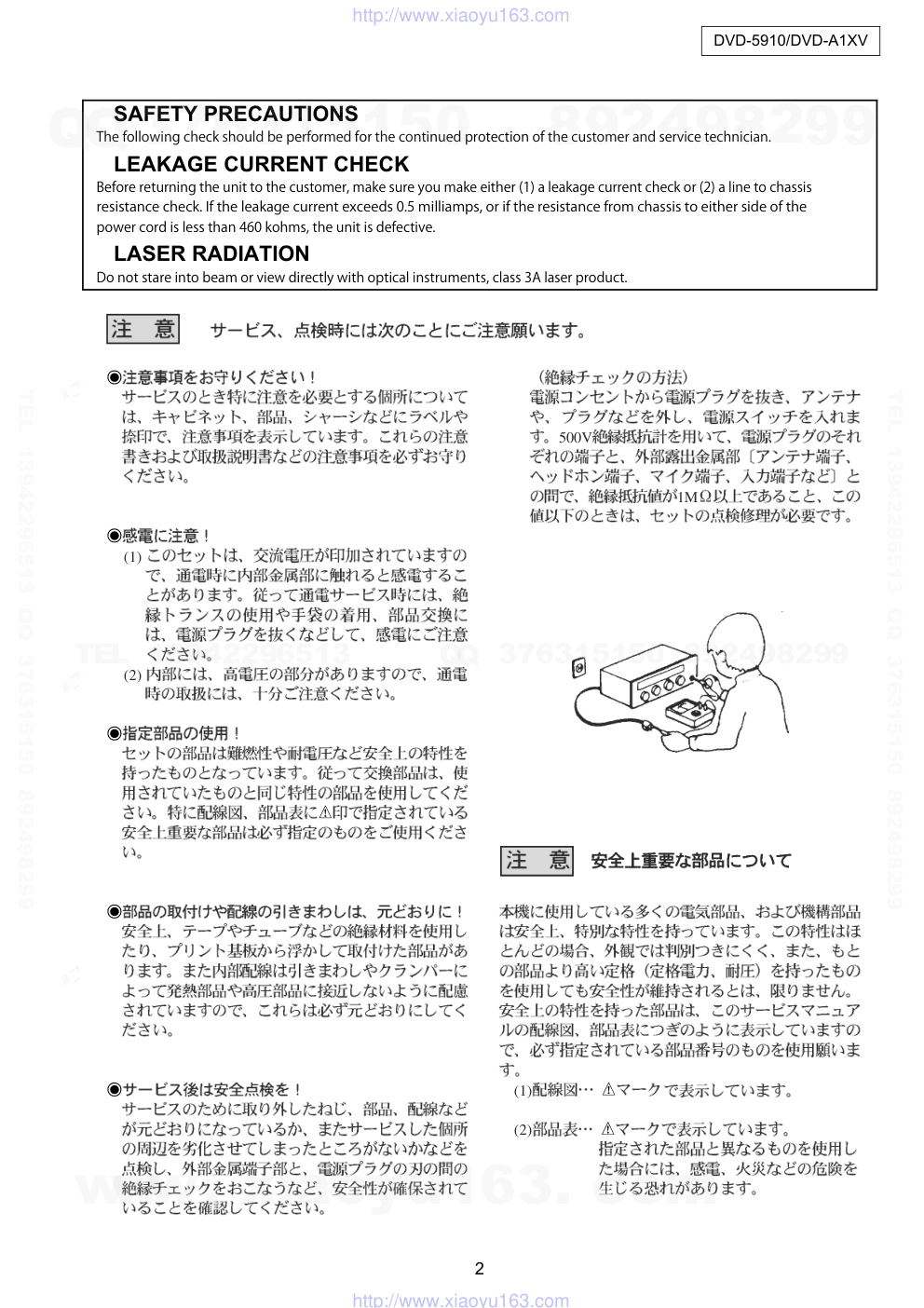

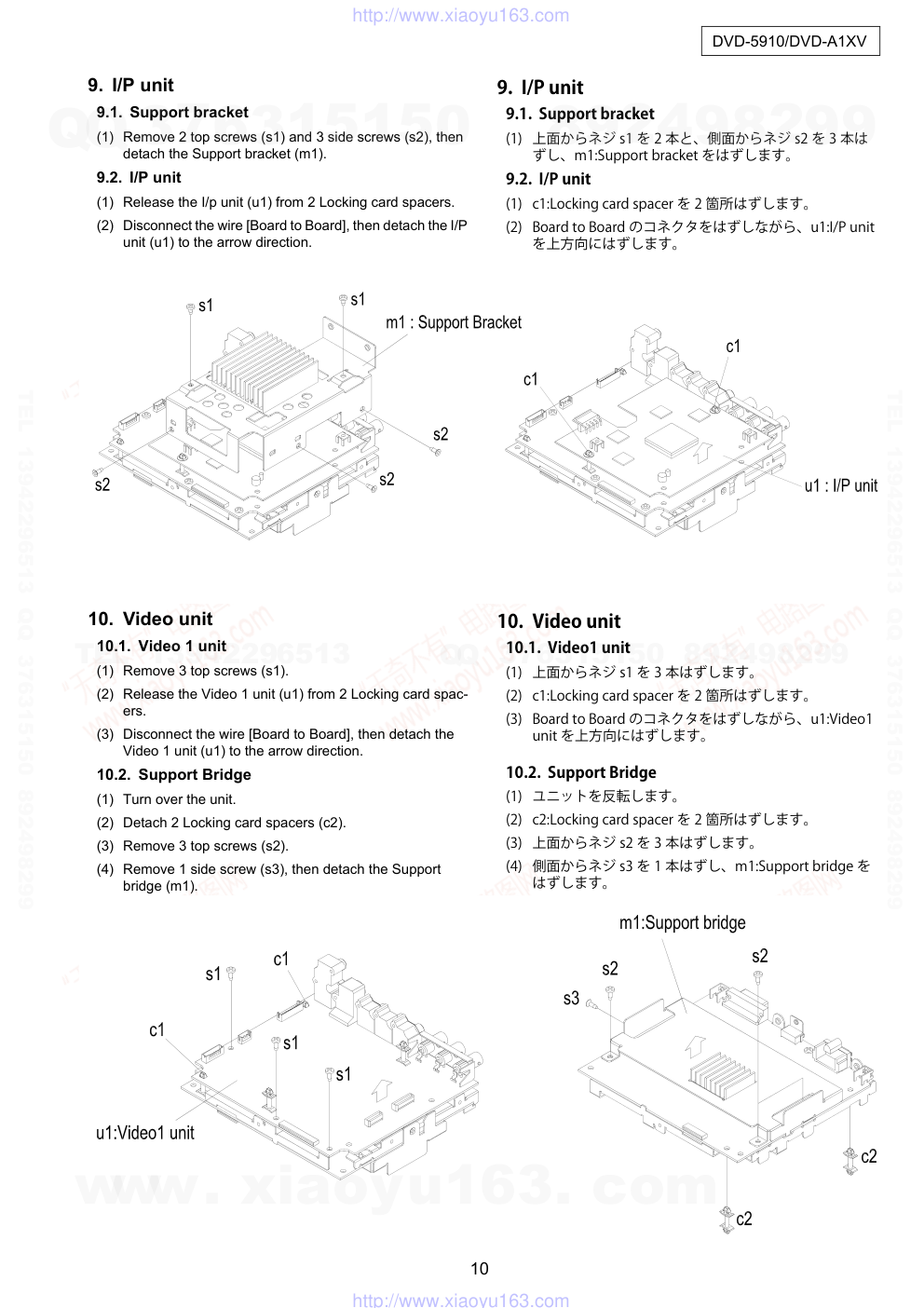

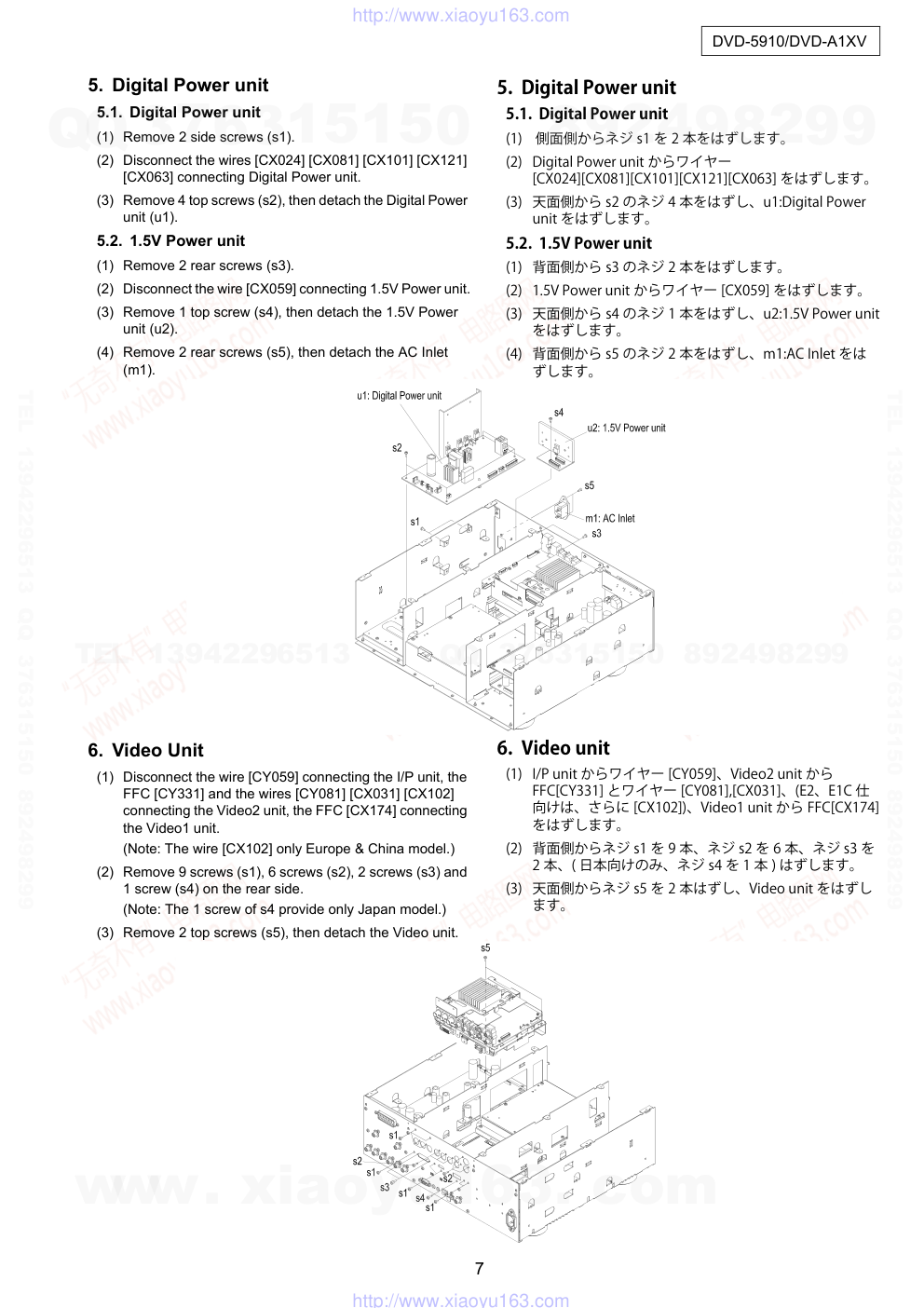

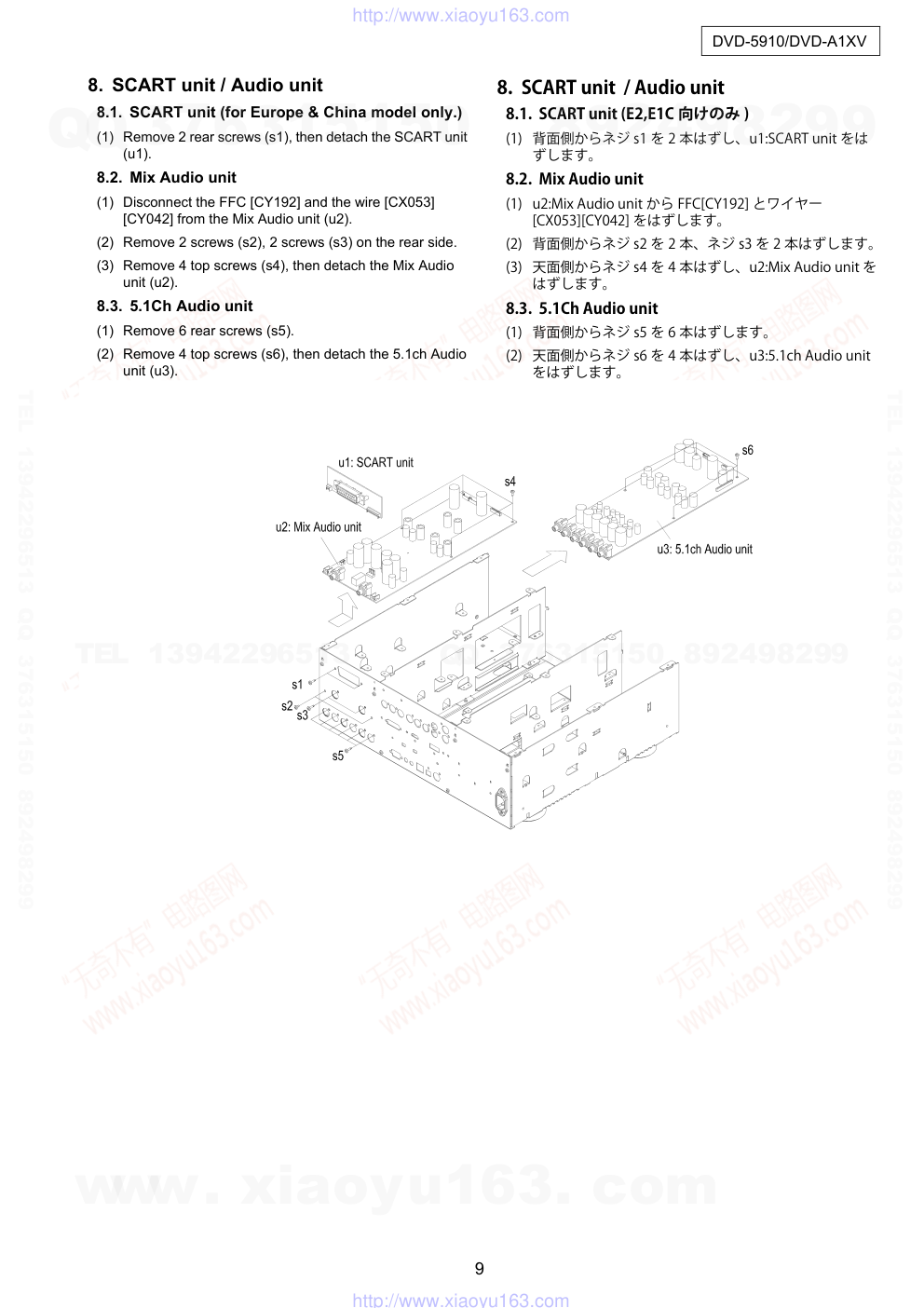

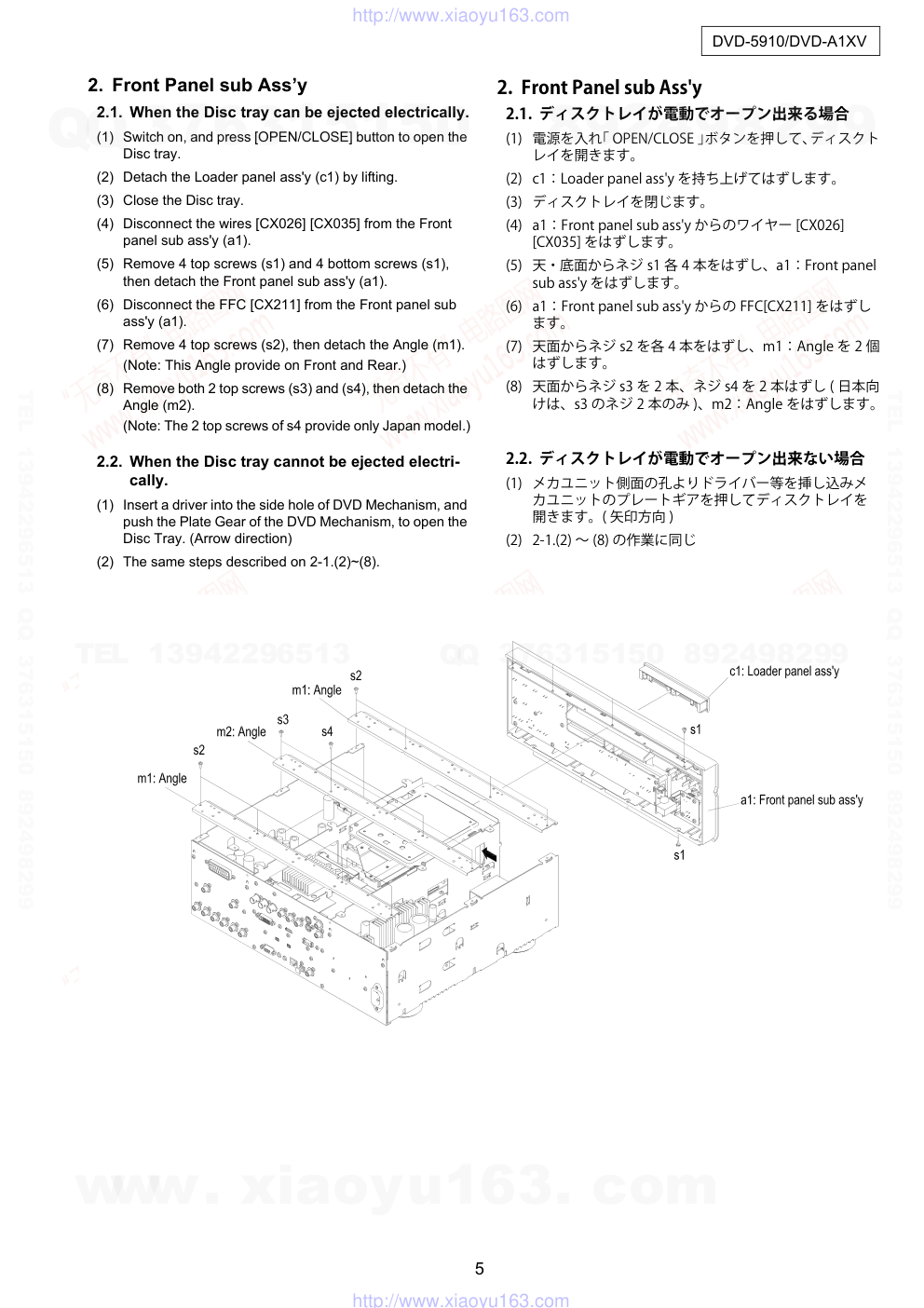

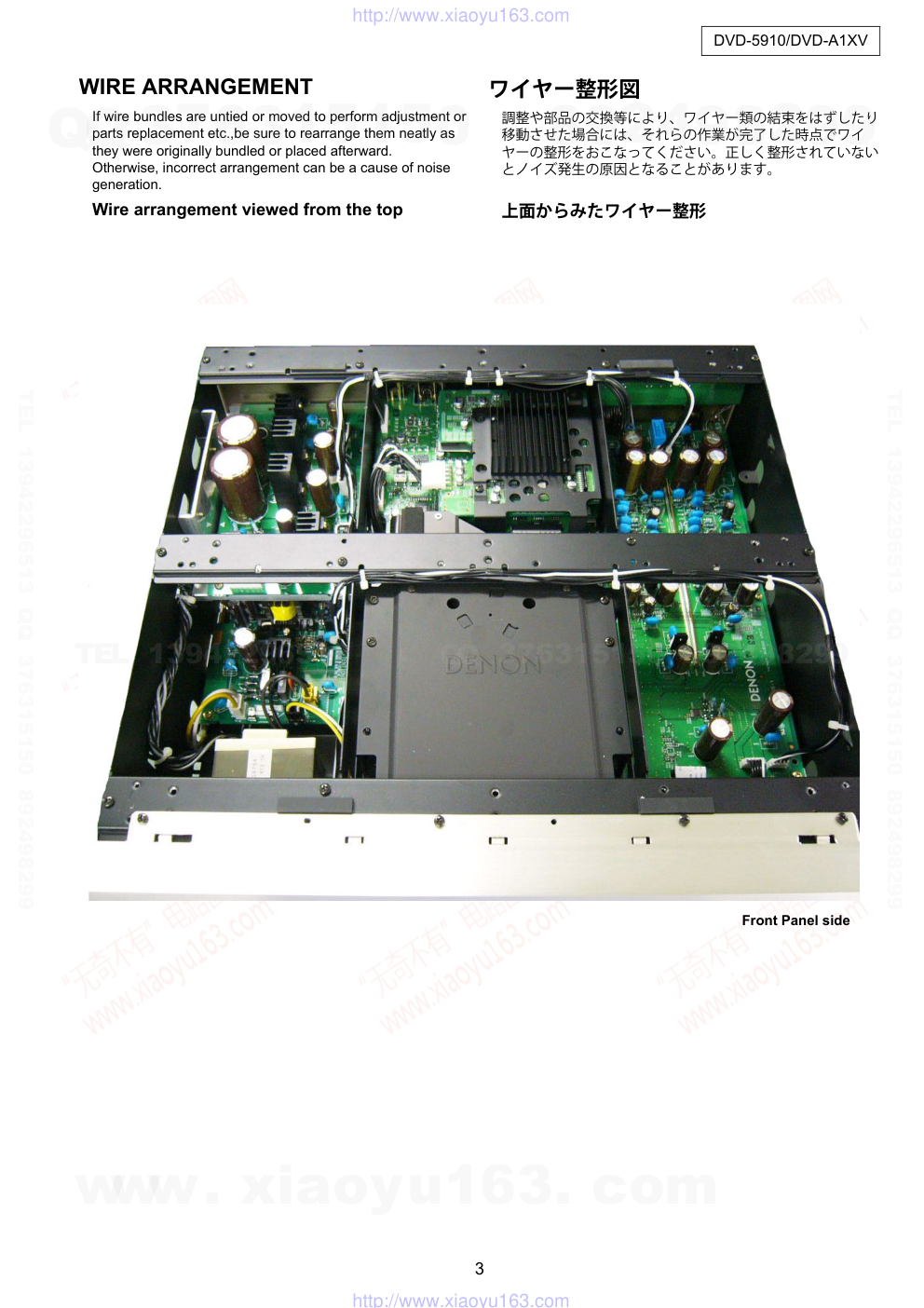

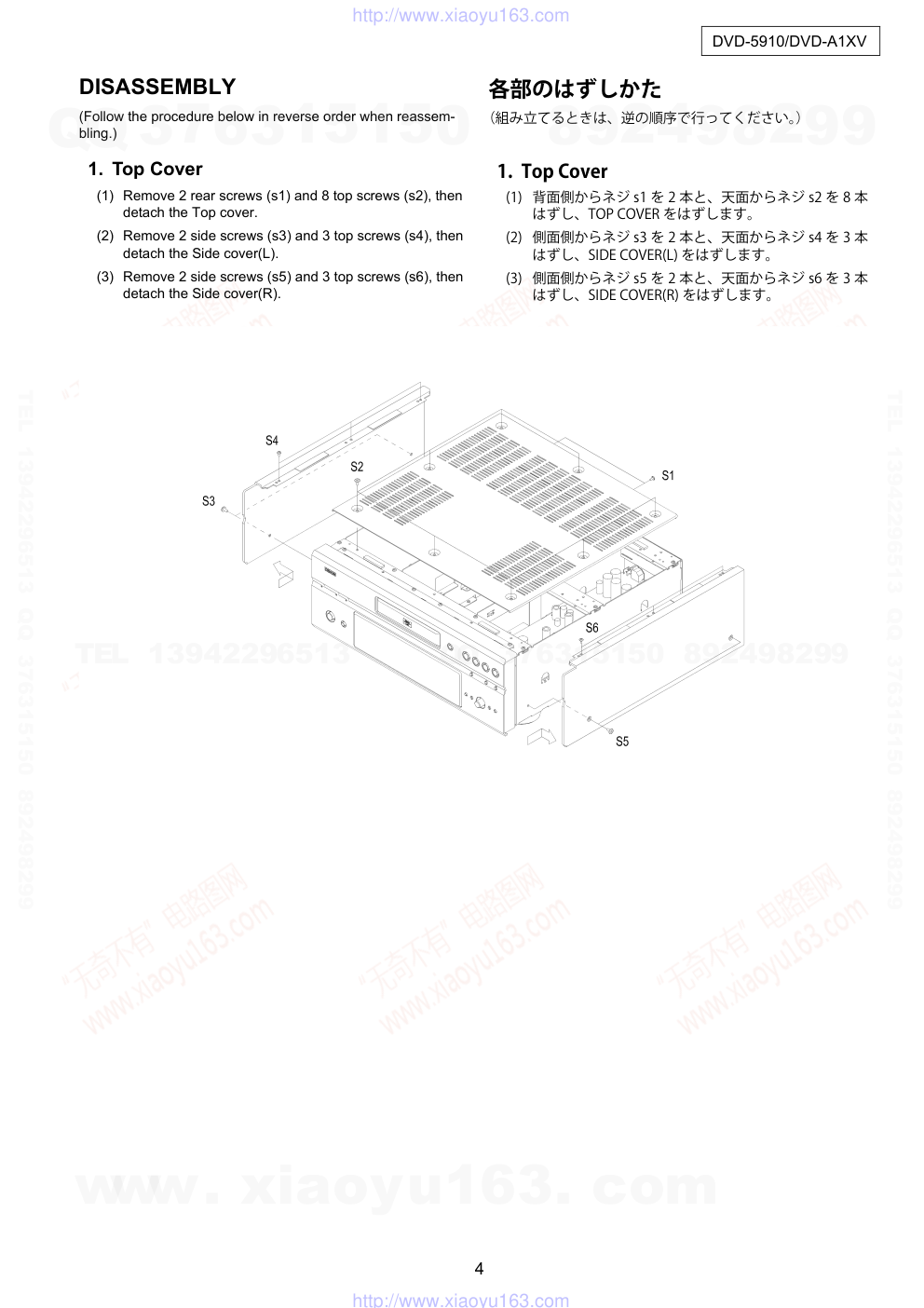

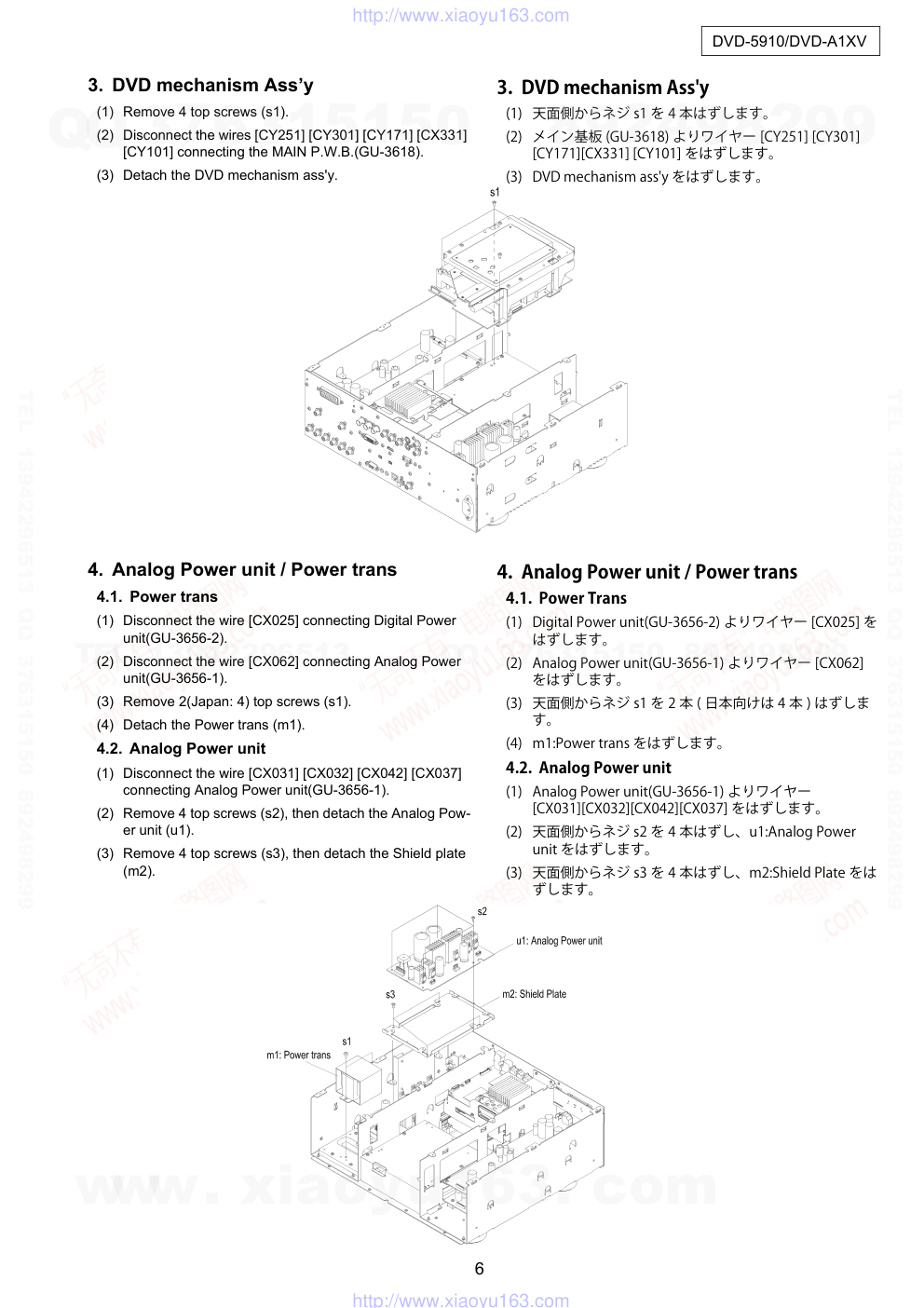

SERVICE MANUAL DVD AUDIO-VIDEO / SUPER AUDIO PLAYER MODEL DVD-5910 For U.S.A. & Canada model TOKYO JAPAN X0223-1V.01 DE/CDM 0412 Some illustrations using in this service manual are slightly different from the actual set. ● Please use this service manual with referring to the operating instructions without fail. ● For purposes of improvement, specifications and design are subject to change without notice. ● ●　本文中に使用しているイラストは、説明の都合上現物 　　と多少異なる場合があります。 ●　修理の際は、必ず取扱説明書を参照の上、作業を行っ 　　てください。 サービスをおこなう前に、このサービスマニュアルを 必ずお読みください。本機は、火災、感電、けがなど に対する安全性を確保するために、さまざまな配慮を おこなっており、また法的には「電気用品安全法」に もとづき、所定の許可を得て製造されております。 従ってサービスをおこなう際は、これらの安全性が維 持されるよう、このサービスマニュアルに記載されて いる注意事項を必ずお守りください。 ●　本機の仕様は性能改良のため、予告なく変更すること 　　があります。 ●　補修用性能部品の保有期間は、製造打切後8年です。 注　意 Ver. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVD-5910/DVD-A1XV SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. LASER RADIATION Do not stare into beam or view directly with optical instruments, class 3A laser product. (1) (2) 500V 1M (1) (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DVD-5910/DVD-A1XV WIRE ARRANGEMENT If wire bundles are untied or moved to perform adjustment or parts replacement etc.,be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation. Wire arrangement viewed from the top ワイヤー整形図 調整や部品の交換等により、ワイヤー類の結束をはずしたり 移動させた場合には、それらの作業が完了した時点でワイ ヤーの整形をおこなってください。正しく整形されていない とノイズ発生の原因となることがあります。 上面からみたワイヤー整形 Front Panel side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DVD-5910/DVD-A1XV DISASSEMBLY (Follow the procedure below in reverse order when reassem- bling.) 1. Top Cover (1) Remove 2 rear screws (s1) and 8 top screws (s2), then detach the Top cover. (2) Remove 2 side screws (s3) and 3 top screws (s4), then detach the Side cover(L). (3) Remove 2 side screws (s5) and 3 top screws (s6), then detach the Side cover(R). 各部のはずしかた （組み立てるときは、逆の順序で行ってください。） 1. Top Cover (1) 背面側からネジ s1 を 2 本と、天面からネジ s2 を 8 本 はずし、TOP COVER をはずします。 (2) 側面側からネジ s3 を 2 本と、天面からネジ s4 を 3 本 はずし、SIDE COVER(L) をはずします。 (3) 側面側からネジ s5 を 2 本と、天面からネジ s6 を 3 本 はずし、SIDE COVER(R) をはずします。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DVD-5910/DVD-A1XV 2. Front Panel sub Ass’y 2.1. When the Disc tray can be ejected electrically. (1) Switch on, and press [OPEN/CLOSE] button to open the Disc tray. (2) Detach the Loader panel ass'y (c1) by lifting. (3) Close the Disc tray. (4) Disconnect the wires [CX026] [CX035] from the Front panel sub ass'y (a1). (5) Remove 4 top screws (s1) and 4 bottom screws (s1), then detach the Front panel sub ass'y (a1). (6) Disconnect the FFC [CX211] from the Front panel sub ass'y (a1). (7) Remove 4 top screws (s2), then detach the Angle (m1). (Note: This Angle provide on Front and Rear.) (8) Remove both 2 top screws (s3) and (s4), then detach the Angle (m2). (Note: The 2 top screws of s4 provide only Japan model.) 2.2. When the Disc tray cannot be ejected electri- cally. (1) Insert a driver into the side hole of DVD Mechanism, and push the Plate Gear of the DVD Mechanism, to open the Disc Tray. (Arrow direction) (2) The same steps described on 2-1.(2)~(8). 2. Front Panel sub Ass'y 2.1. ディスクトレイが電動でオープン出来る場合 (1) 電源を入れ｢ OPEN/CLOSE ｣ボタンを押して、ディスクト レイを開きます。 (2) c1：Loader panel ass'y を持ち上げてはずします。 (3) ディスクトレイを閉じます。 (4) a1：Front panel sub ass'y からのワイヤー [CX026] [CX035] をはずします。 (5) 天・底面からネジ s1 各 4 本をはずし、a1：Front panel sub ass'y をはずします。 (6) a1：Front panel sub ass'y からの FFC[CX211] をはずし ます。 (7) 天面からネジ s2 を各 4 本をはずし、m1：Angle を 2 個 はずします。 (8) 天面からネジ s3 を 2 本、ネジ s4 を 2 本はずし ( 日本向 けは、s3 のネジ 2 本のみ )、m2：Angle をはずします。 2.2. ディスクトレイが電動でオープン出来ない場合 (1) メカユニット側面の孔よりドライバー等を挿し込みメ カユニットのプレートギアを押してディスクトレイを 開きます。( 矢印方向 ) (2) 2-1.(2) ～ (8) の作業に同じ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DVD-5910/DVD-A1XV 3. DVD mechanism Ass’y (1) Remove 4 top screws (s1). (2) Disconnect the wires [CY251] [CY301] [CY171] [CX331] [CY101] connecting the MAIN P.W.B.(GU-3618). (3) Detach the DVD mechanism ass'y. 4. Analog Power unit / Power trans 4.1. Power trans (1) Disconnect the wire [CX025] connecting Digital Power unit(GU-3656-2). (2) Disconnect the wire [CX062] connecting Analog Power unit(GU-3656-1). (3) Remove 2(Japan: 4) top screws (s1). (4) Detach the Power trans (m1). 4.2. Analog Power unit (1) Disconnect the wire [CX031] [CX032] [CX042] [CX037] connecting Analog Power unit(GU-3656-1). (2) Remove 4 top screws (s2), then detach the Analog Pow- er unit (u1). (3) Remove 4 top screws (s3), then detach the Shield plate (m2). 3. DVD mechanism Ass'y (1) 天面側からネジ s1 を 4 本はずします。 (2) メイン基板 (GU-3618) よりワイヤー [CY251] [CY301] [CY171][CX331] [CY101] をはずします。 (3) DVD mechanism ass'y をはずします。 4. Analog Power unit / Power trans 4.1. Power Trans (1) Digital Power unit(GU-3656-2) よりワイヤー [CX025] を はずします。 (2) Analog Power unit(GU-3656-1) よりワイヤー [CX062] をはずします。 (3) 天面側からネジ s1 を 2 本 ( 日本向けは 4 本 ) はずしま す。 (4) m1:Power trans をはずします。 4.2. Analog Power unit (1) Analog Power unit(GU-3656-1) よりワイヤー [CX031][CX032][CX042][CX037] をはずします。 (2) 天面側からネジ s2 を 4 本はずし、u1:Analog Power unit をはずします。 (3) 天面側からネジ s3 を 4 本はずし、m2:Shield Plate をは ずします。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DVD-5910/DVD-A1XV 5. Digital Power unit 5.1. Digital Power unit (1) Remove 2 side screws (s1). (2) Disconnect the wires [CX024] [CX081] [CX101] [CX121] [CX063] connecting Digital Power unit. (3) Remove 4 top screws (s2), then detach the Digital Power unit (u1). 5.2. 1.5V Power unit (1) Remove 2 rear screws (s3). (2) Disconnect the wire [CX059] connecting 1.5V Power unit. (3) Remove 1 top screw (s4), then detach the 1.5V Power unit (u2). (4) Remove 2 rear screws (s5), then detach the AC Inlet (m1). 6. Video Unit (1) Disconnect the wire [CY059] connecting the I/P unit, the FFC [CY331] and the wires [CY081] [CX031] [CX102] connecting the Video2 unit, the FFC [CX174] connecting the Video1 unit. (Note: The wire [CX102] only Europe & China model.) (2) Remove 9 screws (s1), 6 screws (s2), 2 screws (s3) and 1 screw (s4) on the rear side. (Note: The 1 screw of s4 provide only Japan model.) (3) Remove 2 top screws (s5), then detach the Video unit. 5. Digital Power unit 5.1. Digital Power unit (1) 側面側からネジ s1 を 2 本をはずします。 (2) Digital Power unit からワイヤー [CX024][CX081][CX101][CX121][CX063] をはずします。 (3) 天面側から s2 のネジ 4 本をはずし、u1:Digital Power unit をはずします。 5.2. 1.5V Power unit (1) 背面側から s3 のネジ 2 本をはずします。 (2) 1.5V Power unit からワイヤー [CX059] をはずします。 (3) 天面側から s4 のネジ 1 本をはずし、u2:1.5V Power unit をはずします。 (4) 背面側から s5 のネジ 2 本をはずし、m1:AC Inlet をは ずします。 6. Video unit (1) I/P unit からワイヤー [CY059]、Video2 unit から FFC[CY331] とワイヤー [CY081],[CX031]、(E2、E1C 仕 向けは、さらに [CX102])、Video1 unit から FFC[CX174] をはずします。 (2) 背面側からネジ s1 を 9 本、ネジ s2 を 6 本、ネジ s3 を 2 本、( 日本向けのみ、ネジ s4 を 1 本 ) はずします。 (3) 天面側からネジ s5 を 2 本はずし、Video unit をはずし ます。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DVD-5910/DVD-A1XV 7. IEEE1394 unit / System unit 7.1. IEEE1394 unit (1) Disconnect the FFCs [CY191] [CY173] from the IEEE1394 unit. (2) Remove 2 rear screws (s1) and 1 side screw (s2). (3) Remove Locking Card Spacer, then detach the IEEE1394 unit. 7.2. System unit (1) Remove 2 top screws (s3), then detach the EMC Angle (m1). (This EMC Angle provide only U.S.A. & Canada model.) (2) Remove 4 top screws (s4), then detach the Mecha Base (m2). (3) Remove 2 screws (s5), 2 screws (s6) on the rear side. (4) Remove 6 top screws (s7), then detach the System unit. 7. IEEE1394 unit / System unit 7.1. IEEE1394 unit (1) IEEE1394 unit から FFC[CY191][CY173] をはずします。 (2) 背面側からネジ s1 を 2 本、天面側からネジ s2 を 1 本 はずします。 (3) Locking Card Spacer をはずし、IEEE1394 unit をはずし ます。 7.2. System unit (1) 天面側からネジ s3 を 2 本はずし、m1:EMC Angle をは ずします。(EMC Angle は E3 向けのみ付いています。) (2) 天面側からネジ s4 を 4 本はずし、m2:Mecha Base をは ずします。 (3) 背面側からネジ s5 を 2 本、ネジ s6 を 2 本はずします。 (4) 天面側からネジ s7 を 6 本はずし、System unit をはず します。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DVD-5910/DVD-A1XV 8. SCART unit / Audio unit 8.1. SCART unit (for Europe & China model only.) (1) Remove 2 rear screws (s1), then detach the SCART unit (u1). 8.2. Mix Audio unit (1) Disconnect the FFC [CY192] and the wire [CX053] [CY042] from the Mix Audio unit (u2). (2) Remove 2 screws (s2), 2 screws (s3) on the rear side. (3) Remove 4 top screws (s4), then detach the Mix Audio unit (u2). 8.3. 5.1Ch Audio unit (1) Remove 6 rear screws (s5). (2) Remove 4 top screws (s6), then detach the 5.1ch Audio unit (u3). 8. SCART unit / Audio unit 8.1. SCART unit (E2,E1C 向けのみ ) (1) 背面側からネジ s1 を 2 本はずし、u1:SCART unit をは ずします。 8.2. Mix Audio unit (1) u2:Mix Audio unit から FFC[CY192] とワイヤー [CX053][CY042] をはずします。 (2) 背面側からネジ s2 を 2 本、ネジ s3 を 2 本はずします。 (3) 天面側からネジ s4 を 4 本はずし、u2:Mix Audio unit を はずします。 8.3. 5.1Ch Audio unit (1) 背面側からネジ s5 を 6 本はずします。 (2) 天面側からネジ s6 を 4 本はずし、u3:5.1ch Audio unit をはずします。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DVD-5910/DVD-A1XV 9. I/P unit 9.1. Support bracket (1) Remove 2 top screws (s1) and 3 side screws (s2), then detach the Support bracket (m1). 9.2. I/P unit (1) Release the I/p unit (u1) from 2 Locking card spacers. (2) Disconnect the wire [Board to Board], then detach the I/P unit (u1) to the arrow direction. 10. Video unit 10.1. Video 1 unit (1) Remove 3 top screws (s1). (2) Release the Video 1 unit (u1) from 2 Locking card spac- ers. (3) Disconnect the wire [Board to Board], then detach the Video 1 unit (u1) to the arrow direction. 10.2. Support Bridge (1) Turn over the unit. (2) Detach 2 Locking card spacers (c2). (3) Remove 3 top screws (s2). (4) Remove 1 side screw (s3), then detach the Support bridge (m1). 9. I/P unit 9.1. Support bracket (1) 上面からネジ s1 を 2 本と、側面からネジ s2 を 3 本は ずし、m1:Support bracket をはずします。 9.2. I/P unit (1) c1:Locking card spacer を 2 箇所はずします。 (2) Board to Board のコネクタをはずしながら、u1:I/P unit を上方向にはずします。 10. Video unit 10.1. Video1 unit (1) 上面からネジ s1 を 3 本はずします。 (2) c1:Locking card spacer を 2 箇所はずします。 (3) Board to Board のコネクタをはずしながら、u1:Video1 unit を上方向にはずします。 10.2. Support Bridge (1) ユニットを反転します。 (2) c2:Locking card spacer を 2 箇所はずします。 (3) 上面からネジ s2 を 3 本はずします。 (4) 側面からネジ s3 を 1 本はずし、m1:Support bridge を はずします。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DVD-5910/DVD-A1XV Iop Measurement (Judging for Traverse Unit Replacement) As to deciding whether optical pickup is defect or not (for replacing traverse unit), follow the steps below. 1. Judging Step (1) Disc play abnormal Problems such as disc no read, unsteady playback, etc. (2) Laser drive current (Iop) check. Check Iop according to the measuring method described in step 2 below. If the checked value is 1.5 times or more than the initial Iop indicated on the rear of mechanism unit, the traverse unit should be replaced. (3) Replacing traverse unit Referring to “How to Replace Traverse Unit”, replace the traverse unit. No mechanism adjustment is required as the whole unit is replaced with a new one. 2. Iop Measuring Method (1) DVD laser drive current measurement • Playback the title-1/chapter-1 of DVDT-S01 or commercially available DVD disc. • Connect an oscilloscope to the test point above and measure the voltage. • DVD laser drive current is calculated by: Iop = Measured Voltage Value / 14 (Resistance Value) (2) CD laser drive current measurement • Playback the track-1 of TCD-784 or commercially available CD disc. • Connect an oscilloscope to the test point above and measure the voltage. • CD laser drive current is calculated by: Iop = Measured Voltage Value / 12 (Resistance Value) Laser current initial value on the rear of mechanism DVD mA CD mA DVD laser drive current measuring points [DVD] Iop silk point [CD] Iop silk point GU-3618 P.W.B. (foil side) CD laser drive current measuring points Iop 測定（トラバースユニット交換判定） 光ピックアップの故障（トラバースユニットの交換）判定は、下記の手順でおこなってください。 1. 判定手順 (1) ディスク再生不具合 ディスクを読み込まない、スムーズに再生しない等の不具合発生 (2) レーザー駆動電流（Iop）の確認 下記、2 項の Iop 測定方法に従い電流値を確認する。 メカ背面のレーザー電流初期値の 1.5 倍以上になっている場合は、 トラバースユニット交換の目安となります。 (3) トラバースユニット交換 「トラバースユニットのはずしかた」を参照して、トラバースユニットを 交換します。 トラバースユニット単位での交換となりますので、メカ部の調整は不要です。 2. Iop の測定方法 (1) DVD レーザー駆動電流の測定 ･DVDT-S01 または市販の DVD ディスクのタイトル 1・チャプター 1 を再生します。 ･上記テストポイントをオシロスコープに接続し、電圧値を測定します。 ･DVD レーザー駆動電流値　=　「測定した電圧値」/「14（合成抵抗値）」 (2) CD レーザー駆動電流の測定 ･TCD-784 または同等市販 CD ディスクのトラック 1 を再生します。 ･上記テストポイントをオシロスコープに接続し、電圧値を測定します。 ･CD レーザー駆動電流値　=　「測定した電圧値」/「12（合成抵抗値）」 Laser current initial value on the rear of mechanism DVD mA CD mA DVD laser drive current measuring points [DVD] Iop silk point [CD] Iop silk point GU-3618 P.W.B. (foil side) CD laser drive current measuring points w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DVD-5910/DVD-A1XV Diagnostics of Optical Pickup and Replacing Traverse Unit 1. Note for Handling the Laser Pick-up The protection for the damage of laser diode. If you want to change the optical device unit from any other units, you must keep the following. (1) It should be done at the desk already took measures the static electricity in care of removing the OPU’s (Optical deice unit) connector cable. (2) Workers should be put on the “Earth Band”. (3) It should be done to add the solder to the short land to prevent the broken Laser diode before removing the 24P FFC cable. (4) Don’t touch OPU’s connector parts carelessly. 2. Optical Pick-up Diagnostics and Replacement When repairing, carry out failure diagnostics by following the procedure described below. If the present value of the laser drive current is 150% up to initial value, it is the point of the pickup replacement. In case of the pickup replacement, replace the Traverse Unit with no adjustment. The initial value is indicated on the label on back side of Mecha. NO DISC indicated, Playback not smooth, etc. • Laser drive current check • HF signal check Traverse Unit replacement (refer to page 13) Laser drive current check after replacement. If the present value is less than 80mA, write on the new label by hand, put on the new label over the old label. Present value: 150% up to initial value ※ If the present value exceeds 80mA,replace the Traverse Unit with a new one. Cause : Damaged electrostatically when replaced. 光ピックアップ取扱注意と交換 1. 光ピックアップの取扱注意 レーザーダイオードの破壊防止。 光素子ユニットを交換するときは、以下を遵守してください。 (1) 光素子ユニットの接続ケーブルをはずすときは、静電対策を行ったデスクの上で作業をしてください。 (2) 作業者はリストストラップを使用してください。 (3) レーザーダイオードの破壊防止のため、24P FFC ケーブルをはずす前にランドを半田付けショートしてください。 (4) 光素子ユニットのコネクタ部に触れないでください。 2. トラバースユニットの交換 交換時、以下の手順で故障診断をおこなってください。 ･レーザー駆動電流の現在値が初期値の 150% 以上なら、ピックアップを交換してください。 ピックアップ交換の場合はトラバースユニットを交換し、調整は不要です。初期値はメカの後部のラベルに表示されています。 現在値：初期値の 150% 以上 ※ 現在値が 80mA 以上なら、再度トラバースユニットを交換してください。 原因： 交換時、静電破壊された。 "NO DISC" 表示、再生不良等 ･レーザー駆動電流チェック ･HF 信号チェック トラバースユニット交換 (13 ページ参照） 交換後、レーザー駆動電流をチェックします。 現在値が 80mA 以下なら新ラベル上へ手書きし、 旧ラベルの上に貼りつけます。 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DVD-5910/DVD-A1XV How to Replace Traverse Unit 1. Preparing for Replacement (1) Removing Clamp Base Damper Remove 4 pcs of 2.6mm machine screw (a), and detach the Clamp Base Damper upward. (2) Removing Clamp Base Remove 6 pcs of 3mm P-tight screw (b), and detach the Clamp Base upward. (3) Ejecting Loader Through the left rectangular hole of the Mechanism Unit, push the slider with a ruler or driver unit the Traverse portion lowers and the Loader comes out a little. (4) Removing Loader • Remove 2 pcs of 3mm P-tight screw (c) on the Loader Holder left. • Remove 2 pcs of 3mm P-tight screw (d) on the Loader Holder right, then pull up the Bearing Plate. • Fully pull out the Loader forward, and lift up to take it out. (5) Shorting Pickup To protect the Pickup from static electricity, short-circuit 2 posi- tions as shown in figure. (6) Removing Main P.W.B. Ass’y Remove 4 pcs of 3mm P-tight screw (e), and detach the Main P.W.B. Ass’y downward. 2. Replacing Traverse Unit (1) Removing Wires • CX241: 24P-FFC for Pickup • CX151: 15P-FFC for Spindle • CX031: 3P-PH wire for PU Side (2) Removing Traverse Unit Remove 4 pcs of special screw (f) and dampers, then take out the Traverse Unit upward. (3) Mounting Traverse Unit Mount the Traverse Unit following the reverse order. A (a) (b) (c) (d) (4) (e) (3) Clamp Base Damper Clamp Base Bearing Plate Loader Holder Main P.W.B. Ass’y Solder to short-circuit (CD) Solder to short-circuit (DVD) Short-circuit with solder (enlarged fig. A) (f) Traverse Unit Damper トラバースユニットの交換方法 1. トラバースユニット交換準備 (1) クランプベースダンパーのはずしかた 2.6mm マシンネジ (a) 4 本をずして、クランプベースダンパー を上へはずします。 (2) クランプベースのはずしかた 3mmP タイトネジ (b) 6 本をはずして、クランプベースを上へ はずします。 (3) ローダーを開く メカユニットの左側角孔より、スライダーを定規やドライバー でトラバース部が下がってローダーが少し開くまで押します。 (4) ローダーのはずしかた ･ローダー左のホルダー部より 3mmP タイトネジ (c) 2 本をは ずします。 ･ローダー右側より 3mmP タイトネジ (d) 2 本をはずし、ベア リングプレートを上へはずします。 ･ローダーを前面へ引き出し、止まった所で上へはずします。 (5) ピックアップのショート トラバースユニットのピックアップの静電保護のため、2 箇所 ショートします。 （ショート箇所は、右図参照） (6) メイン基板 ASS'Y のはずしかた 3mmP タイトネジ (e) 4 本をはずし、基板を下へはずします。 2. トラバースユニットの交換 (1) トラバースユニットのワイヤーをはずす ･CX241：ピック用 24P-FFC ･CX151：スピンドル用 15P-FFC ･CX031：PU スライド用 3P-PH ワイヤー (2) トラバースユニットをはずす 特殊ネジ (f) 4 本とダンパー4 個をはずし、トラバースユニット を上にはずします。 (3) トラバースユニットの取り付け 逆の手順で、トラバースユニットを取り付けます。 A (a) (b) (c) (d) (4) (e) (3) クランプベースダンパー クランプベース ベアリングプレート ローダー ホルダー メイン基板 Ass'y 半田ショート部 (CD) 半田ショート部 (DVD) 半田ショート拡大図 (f) トラバースユニット ダンパー w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DVD-5910/DVD-A1XV 3. Installing Loader (1) Inserting Loader Set and push the Loader to the arrow direction until it stops. When installing the Loader, move Plate Gear to right before- hand so as that the boss of the Plate Gear fits in the backside groove of the Loader. (See figure right) (2) Fixing Loader Fix the Loader with each 2 screws (c) and (d). 4. Assembly (1) (1) Assembling Main P.W.B. Ass’y Fix the Main P.W.B. Ass’y with 4 pcs of 3mm P-tight screw (e). (2) Removing Pickup-short Solder After connecting 24P-FFC of the Pickup with P.W.B., remove solder from 2 shorted positions. (3) Temporary Positioning Clamp Base To protect your eyes from laser light, put the Clamp Base tem- porarily. (4) Positioning up Traverse Unit Connect the following wires of the Mechanism Unit, and operate it. • CX141: 14P-PH wire for power • CX131: 13P-FFC wire from Display P.W.B. Turn on the power to the unit, and press “OPEN/CLOSE” button to close the Loader. The Traverse Unit rises up. (display: 0h00m00s) Pull out Loader forward, and life up to take it out. (d) (c) Plate Gear Groove Boss Bearing Plate Loader (e) Clamp Base Main P.W.B. Ass’y 3. ローダーの組み立て (1) ローダーの挿入 ローダーを矢印の方向へ止まるまで押しこみます。 ローダーを組み込み時、プレートギアのボスがトレイ裏面の 溝に合うようにプレートギアを右側へ寄せておきます。 （右図参照） (2) ローダーの取り付け (c)、(d) のネジ各 2 本を取り付けます。 4. 組み立て（1） (1) メイン基板 ASS'Y の取り付け 3mm P タイトネジ (e) 4 本で基板を取り付けます。 (2) ピックアップのショートをはずす ピックアップの 24PFFC を基板へ接続後、2 箇所のショートを はずします。 (3) クランプベースの仮置き レーザーから目を保護するため、クランプベースを仮置きし ます。 (4) トラバースユニットをアップする メカユニットの下記ワイヤーを接続し、メカを動作させます。 ･CX141：電源用の 14P-PH ワイヤー接続 ･CX131：ディスプレイ基板からの 13P-FFC ワイヤー接続 セットの電源を入れ、ローダー開閉ボタンで、CLOSE させます。 トラバースユニットがアップします。 (0h00m00s：表示） ローダーを前後に引き出し、止まったところで上へはずしま す。 (d) (c) プレートギア 溝部 ボス ベアリングプレート ローダー (e) クランプベース メイン基板 Ass'y w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DVD-5910/DVD-A1XV 5. Assembly (2) (1) Attaching Tape to Clamp Base Damper Attach acetate cloth tape to 3 projections of the Clamp Base Damper backside. (2) Assembling Clamp Base Set the Clamp Base Damper with positioning for clamper by 3 projections. Fix the Clamp Base with 6 pcs of 3mm -tight screw (b). 6. Assembly (3) (1) Detaching Tape from Clamp Base Damper Detach acetate cloth tape from 3 projections of the Clamp Base Damper backside. (2) Assembling Clamp Base Damper Set the Clamp Base Damper to the Clamp Base contrary to the direction set in step above. Fix the Clamp Base Damper with 4 pcs of 3mm S-tight screw (a). (b) Acetate Cloth Tape Clamp Base Damper Clamp Base Damper Clamp Base (a) Clamp Base Damper 5. 組み立て（2） (1) クランプベースダンパーへのアセクロ貼り付け クランプベースダンパー裏面の突起 3 箇所へアセテートクロ ステープを貼り付けます。 (2) クランプベースの取り付け クランプベースダンパーを挿入し、3 箇所の突起でクランパー の位置決めをおこないます。3mmP タイトネジ (b) 6 本で、ク ランプベースを取り付けます。 6. 組み立て（3） (1) クランプベースダンパーからアセクロをはがす クランプベースダンパー裏面の突起 3 箇所からアセテートク ロステープをはがします。 (2) クランプダンパーベースの取り付け クランプベースダンパーを、クランプベースに先程と反対向 きに挿入します。3mmS タイトネジ (a) 4 本で、クランプベー スダンパーを取り付けます。 (b) アセテートクロステープ クランプベースダンパー クランプベースダンパー クランプベース (a) クランプベースダンパー w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DVD-5910/DVD-A1XV SERVICE MODE 1. Aging Mode (1) preparation (a) Equipment used: Any one of DVD Karaoke Disc (con- taining more than 10 titles). (b) Unit setting : No spec other than the following procedure (Aging mode). At the tray open status, press the “POWER” button to turn on the power while pressing the “PLAY” and “OPEN/CLOSE” buttons for DVD operation simulta- neously. mark on the FL lights, and the unit is set to the heat run mode. (2) procedure (a) According the above, set to the aging mode. (b) Set a DVD Karaoke disc to the tray and press the “PLAY” button once. mark on the FL blinks, and aging operation(after playback title-1 and title-10 of the disc, the tray open/close is made automatically, then playback the title-1 again) starts. This aging operation continues automatically until it is stopped or it stops caused by an error. In case of some error in DVD, the following error messages are displayed on the FL. 2. Initial Setting Mode (1) Preparation (a) Equipment used: None (b) Unit setting: No spec other than the following procedure (2) Procedure (a) Initialize the DVD player when µcom, peripheral parts of µcom, or Main P.W.B. has been replaced in servicing. (b) Carry out the following to restore factory setting mode. At the player stop condition, press 3 buttons for DVD op- eration(“PLAY”,”OPEN/CLOSE”, and “ SKIP”) until “INITIALIZE” appears and disappears in the FL. (“Initialized” appears and disappears on the TV screen.) (c) All user setting will be lost and its factory setting will be restored when this initialization is made. Be sure to memorize your setting for restoring again after the initial- ization. No Error contents FL display 1 Bad Disc ERROR 02 2 Focus Error ERROR 04 3 Read Error ERROR 03 4 Tracking Error ERROR 04 5 Tray Error ERROR 05 6 Navigation Pack Read Error ERROR 06 7 Cmmunication Error ERROR07 サービスモードについて 1. エージングモード (1) 準備 (a) 使用機器：DVD カラオケディスク（10 タイトル以上 の物）。 (b) 本体設定：下記設定以外規定無。 （エージングモード） トレイを開けた状態で DVD ユニットの「再生ボタン」 +「開 / 閉ボタン」を同時に押しながら「電源ボタン」 を押してセットの電源を入れると、FL 管の マー クが点灯し、ヒートランモードに設定されます。 (2) 手順 (a) 上記手順でエージングモードに設定する。 (b) トレイに DVD カラオケディスクを入れ、「再生ボタン」 を 1 回押して、FL 管の マークが点滅になると、 「ディスクのタイトル 1 とタイトル 10 を再生した後、ト レイを自動で開 / 閉し、再度タイトル 1 の再生を行う。」 エージング動作になります。停止させるか、エラーにて 停止するまでこの動作を自動で繰り返します。DVD 部 にエラーが発生した場合は、FL 管に下表のエラーが表 示されます。 2. 初期設定モード (1) 準備 (a) 使用機器：無 (b) 本体設定：下記手順以外規定無。 (2) 手順 (a) サービスにて、マイコンやマイコン周辺部分やメイン 基板を交換した場合は、ＤＶＤ プレーヤーの初期化を 行ってください。 (b) セットの初期化を下記の手順で行い、工場出荷モード に設定する。 セットが停止状態にて、ＤＶＤ 操作部の「再生ボタン」 +「開 / 閉ボタン」+「 ( スキップ）ボタン」の 3 重押しを ＦＬ 管に "INITIALIZE" が表示され消えるまで 押します。（ＴＶ 画面には”初期化しました”が表示さ れ消えます。） (c) 初期化を行うとお客様が設定した内容が工場出荷状態 に戻りますので、あらかじめ設定内容を控えておき初 期化後に再設定してください。 No. エラー内容 FL 管表示 1 不良ディスク ERROR 02 2 フォーカスエラー ERROR 04 3 リードエラー ERROR 03 4 トラッキングエラー ERROR 04 5 トレイエラー ERROR 05 6 ナビゲーションパックエラー ERROR 06 7 コマンド通信エラー ERROR 07 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DVD-5910/DVD-A1XV 3. µcom Firm Check Mode (1) Preparation (a) Equipment used: None (b) Unit setting: No spec other than the following procedure. (2) Procedure (a) Press the “POWER” button to turn on the power while pressing the “PLAY” and “OPEN/CLOSE” buttons for DVD operation simultaneously. (b) FL all light mode. This mode is for detecting FL defects. Press “STILL/ PAUSE ” on the remote control unit once to light all FL segments. (c) DVD µcom and main unit µcom firm check mode. This mode is for displaying the status of each µcom em- ployed. • Push remote countroller “3265” • DVD µcom firm: Press the “MENU” button . • Each time the “MENU” button on the remote control unit is pressed, µcom firm is displayed one after anoth- er. B/E µcom ESS 6780 MAKE DAY MAKE DAY C10 Drive µcom DRV 030 825 SYSTEM µcom SYSTEM 6867 Scaler SCALER 0A02 DSP DSP 6790 IEEE 1394 C 20041028 3. マイコンファームチェックモード (1) 準備 (a) 使用機器：無 (b) 本体設定：下記手順以外規定無。 (2) 手順 (a) ＤＶＤ 操作部の「再生ボタン」と「開 / 閉ボタン」を 押しながらセットの「電源ボタン」を押し電源を入れ ます。 (b) ＦＬ 管全点灯モード。 ＦＬ 管の故障判別用のモードで、リモコンの「スティ ル / ポーズ ボタン」を押すと ＦＬ 管が全点灯し ます。 (c) ＤＶＤ マイコン及び本体マイコンのファーム確認モー ド 搭載されている各マイコンのファーム状態を表示しま す。 ･数字キーで「3265」と入力します。 ･ＤＶＤ マイコンのファーム：リモコンの「メニュー ボタン」を押します。 ･リモコンの「メニューボタン」を押すたびにマイコン ファームを次々と表示します。 B/E マイコン ESS 6780 作成日 MAKE DAY C10 ドライブマイコン DRV 030 825 システムマイコン SYSTEM 6867 スケーラー SCALER 0A02 DSP DSP 6790 IEEE 1394 C 20041028 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DVD-5910/DVD-A1XV TROUBLE SHOOTING 1. GU-3618 (MAIN UNIT), GU-3653-1 (SYSTEM UNIT) 1.1. FL TUBE dosen't light (1) Check the Set-up process of System μ-COM Check Power Supply Voltages. GU-3653-1(SYSTEM UNIT) • [IC104]:D1,D4 • +3.3V_D1,+3.3V_NSW N.G. Check Soldering. • CY121 on SYSTEM UNIT. O.K. Check Oscillation waveform. GU-3653-1(SYSTEM UNIT) • [IC104]: 16MHz at 13pin. N.G. Check Soldering. • X101 on SYSTEM UNIT. O.K. Check Power Supply Voltages. GU-3653-1(SYSTEM UNIT) • [IC104]: "H"level at 39pin?"L"level at 7pin and 44pin? N.G. Check Soldering. • IC104 on SYSTEM UNIT. O.K. Check Reset Signal GU-3653-1(SYSTEM UNIT) • [IC104]: "H"level at 10pin? N.G. Check Soldering. • IC103(Reset IC) on SYSTEM UNIT. O.K. Check Data Bus between GU-3656-3(DISPLAY UNIT) FLD Driver(GU-3656-3(IC101) • [VFD_RST]:"H"level? N.G. (1) Check soldering of CY211 on SYSTEM UNIT. (2) GU-3656-3 is N.G.(No Good). O.K. Continue to next step. Check the Set-up process of B/E µ-COM. トラブルシューティング 1. GU-3618 (MAIN UNIT) , GU-3653-1 (SYSTEM UNIT) 1.1. FL 管点灯せず (1) システム μ-COM 立ち上がりチェック工程 電源電圧確認 GU-3653-1(SYSTEM UNIT) ･ [IC104]:D1,D4 +3.3V_D1,+3.3V_NSW N.G. 半田付けを確認 ･ SYSTEM UNIT の CY121 O.K. 発振波形確認 GU-3653-1(SYSTEM UNIT) ･ [IC104]: 16MHz at 13pin. N.G. 半田付けを確認 ･ SYSTEM UNIT の X101 O.K. 電源電圧確認 GU-3653-1(SYSTEM UNIT) ･ [IC104]: "H"level at 39pin?"L"level at 7pin and 44pin? N.G. 半田付けを確認 ･ SYSTEM UNIT の IC104 O.K. RESET 信号の確認 GU-3653-1(SYSTEM UNIT) ･ [IC104]: "H" level at 10pin? N.G. 半田付けを確認 ･ SYSTEM UNIT の IC103(Reset IC) O.K. データバスの確認 GU-3656-3(DISPLAY UNIT) FLD Driver(GU-3656-3(IC101)] ･ [VFD_RST]:"H"level? N.G. (1) SYSTEM UNIT の CY211 の半田付けを確認 (2) GU-3653-3 の不良 O.K. 次のステップへ (2) B/E μ-COM　立ち上げチェック工程へ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DVD-5910/DVD-A1XV (2) Check the Set-up process of B/E μ-COM Check Power Supply Voltages. GU-3618(MAIN UNIT) • [IC108]:D1,D4 +3.3V_ESS,+2.0V_ESS O.K.? N.G. Check the output level. [ON/ST] : "H" level? N.G. Check Soldering. GU-3653-1(SYSTEM UNIT) • [IC104]:88pin. O.K. Check Clock waveform. GU-3618(MAIN UNIT) • [IC108]:49,108,116pin and 117pin. 27MHz (3.3V), O.K.? N.G. Check 27MHz (3.3V) at 10pin of IC106. N.G. (1) Check Soldering of X101. (2) Check Soldering of IC105 (SM8701). O.K. Check Soldering. Of R114,R115 and R154. Check Reset signal. GU-3618(MAIN UNIT) • [IC108]:(RESET)24 pin. "H" level O.K.? N.G. Check Soldering. GU-3653-1(SYSTEM UNIT) • [IC104]:81pin. GU-3618(MAIN UNIT) • [IC117]:5pin and 6pin. • FB127 and R138. O.K. Check I2C Signal. GU-3618(MAIN UNIT) • [IC108]: "H" level at 160pin and 161pin. N.G. Check Soldering. GU-3618(MAIN UNIT) • [IC108] and [IC116] • R185,R186,R757,FB173 and FB174. O.K. Check Address, Data Bus between GU-3618(MAIN PWB) [1C108]and[IC104](Flash Rom). N.G. Check Soldering at Address, Data Bus,Control Signal. GU-3618(MAIN UNIT) • [LD0-LD7],[LCS3,LOE] O.K. Continue to next step. Check the Set-up process of F/E µ-COM. O.K. (2) B/E μ-COM　立ち上げチェック工程 電源電圧確認 GU-3618(MAIN UNIT) ･ [IC108]:D1,D4 +3.3V_ESS, +2.0V_ESS N.G. 出力レベル確認 [ON/ST] : "H" level? N.G. 半田付けを確認 GU-3653-1(SYSTEM UNIT) ･ [IC104]:88pin. O.K. クロックの波形確認 GU-3618(MAIN UNIT) ･ [IC108]:49,108,116pin and 117pin. 27MHz (3.3V) N.G. クロックの波形確認 ･ [IC106]:10pin N.G. (1) [X101] を確認 (2) 半田付けを確認 ･ [IC105](SM8701). O.K. 半田付けを確認 ･ R114,R115 and R154. RESET 信号の確認 GU-3618(MAIN UNIT) ･ [IC108]:(RESET)24 pin. "H" level N.G. 半田付けを確認 GU-3653-1(SYSTEM UNIT) ･ [IC104]:81pin. GU-3618(MAIN UNIT) ･ [IC117]:5pin and 6pin. ･ FB127 and R138. O.K. I２C 信号の確認 GU-3618(MAIN UNIT) ･ [IC108]: "H" level at 160pin and 161pin. N.G. 半田付けを確認 GU-3618(MAIN UNIT) ･ [IC108] and [IC116] ･ R185,R186,R757,FB173 and FB174. O.K. [1C108]と[IC104](Flash Rom)間の GU-3618(MAIN UNIT) アドレス、データバスの確認 N.G. 半田付けを確認 GU-3618(MAIN UNIT) ･ [LD0-LD7],[LCS3,LOE] O.K. 次のステップへ (3) F/E μ-COM　立ち上げチェック工程へ O.K. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DVD-5910/DVD-A1XV (3) Check the Set-up process of F/E μ-COM 1.2. Image is not displayed. (Blue-back, DENON wallpaper) Check Power Supply Voltages. GU-3618(MAIN UNIT) • [IC507]: +3.3V_D2,+1.8V_D2 O.K.? +3.3V_A2, +1.8V_A2 O.K.? N.G. Check Soldering. • [IC951] • FB953,FB960 and FB967 O.K. Check Clock waveform. GU-3618(MAIN UNIT) • [IC507]:33pin. 33.87MHz (3.3V), O.K.? N.G. Check Soldering. • [IC106]:12pin • R147 • [IC404],R440 and R623 O.K. Check Reset Signal. GU-3618(MAIN UNIT) • [IC507]:(DRVRST)51pin "H" level O.K.? N.G. Check Soldering. • [IC108]:145pin • R618 and R628 O.K. Check Digital output signal for Video. [1] GU-3618(MAIN UNIT) • [IC108]:PCLKG • [IC108]:HSYNC,VSYNC • [IC108]:YUV(0-7) N.G. Check Soldering. • [IC108]:117pin,[IC105],R115 and R120 • [IC108]:118,119pin • [IC108]:106-110,113-115pin,RA108,RA109 O.K. Check Digital output signal for Video. [2] GU-3618(MAIN UNIT) • [CX331]:CLKO(13pin) • [CX331]:HSYNC,VSYNC(23,24pin) • [CX331]:PC2-PC9(4-11pin) N.G. Check Soldering. • [CX331]:13pin,R703,FB111 • [CX331]:23,24pin,FB116,FB117 • [CX331]:4-11pin,FB103-110.RA703,RA704 O.K. Continue to the check process of GU-3654-1 VIDEO UNIT. END (3) F/E μ-COM 立ち上げチェック工程 1.2. 映像出力せず。（ブルーバック、DENON 壁紙） 電源電圧確認 GU-3618(MAIN UNIT) ･ [IC507]: +3.3V_D2, +1.8V_D2 O.K.? +3.3V_A2, +1.8V_A2 O.K.? N.G. 半田付けを確認 ･ [IC951] ･ FB953,FB960 and FB967 O.K. クロックの波形確認 GU-3618(MAIN UNIT) ･ [IC507]:33pin. 33.87MHz (3.3V), O.K.? N.G. 半田付けを確認 ･ [IC106]:12pin ･ R147 ･ [IC404],R440 and R623 O.K. RESET 信号の確認 GU-3618(MAIN UNIT) ･ [IC507]:(DRVRST)51pin "H" level O.K.? N.G. 半田付けを確認 ･ [IC108]:145pin ･ R618 and R628 O.K. 映像用デジタル信号出力確認 [1] GU-3618(MAIN UNIT) ･ [IC108]:PCLKG ･ [IC108]:HSYNC,VSYNC ･ [IC108]:YUV(0-7) N.G. 半田付けを確認 ･ [IC108]:117pin,[IC105],R115 and R120 ･ [IC108]:118,119pin ･ [IC108]:106-110,113-115pin,RA108,RA109 O.K. 映像用デジタル信号出力確認 [2] GU-3618(MAIN UNIT) ･ [CX331]:CLKO(13pin) ･ [CX331]:HSYNC,VSYNC(23,24pin) ･ [CX331]:PC2-PC9(4-11pin) N.G. 半田付けを確認 ･ [CX331]:13pin,R703,FB111 ･ [CX331]:23,24pin,FB116,FB117 ･ [CX331]:4-11pin,FB103-110.RA703,RA704 O.K. GU-3654-1 VIDEO UNIT チェック工程へ 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DVD-5910/DVD-A1XV 1.3. Does not Read Disc [No Play], [00 00] displayed etc. (1) Disc does not Rotate. (2) CD check process (3) DVD check process Check the Emission of Pick-up. GU-3618(MAIN UNIT) • Emission of P.U. laser O.K.? • See attached sheet laser current check. N.G. (1) Check Soldering of P.U. • short-circuit? (2) Check the circumference soldering of TR501 and TR502. (3) Check connector insertion. • [P.U.] - [GU-3618] FFC(CX241) (4) Check the soldering [IC502](CXD1881AR) and circumference soldering of [IC502]. (5) Check the soldering [IC503](FAN8042) and circumference soldering of [IC503]. O.K. Check Spindle drive signal. GU-3618(MAIN UNIT) • [DMO] : "H" level? N.G. (1) Check soldering of [IC507]:111-113pin. (2) Check the circumference soldering of [SPWM1],[SPWM2] and [FG] signal. (3) Check the soldering [IC501](AN8471SA) and circumference soldering of [IC501]. O.K. Check the RF signal. GU-3618(MAIN UNIT) • Check the voltage of Test-Point(TP) TP[RFAC]:about 1.0Vp-p N.G. (1) Check the circumference soldering of [IC502] (2) Check the circumference soldering of [IC507] O.K. Check Bus Line. GU-3618(MAIN UNIT) • [IC507] ⇔ [IC505](16MDRAM) "L" ⇔ "H" alternate? N.G. Check Soldering • Address,Data Bus,Control Signal. [BD0-15],[BA0-9],[XLCAS],[XUCAS],[XMOE],[XRAS] • Check the circumference soldering of [IC505] O.K. Check VSTEM communication. GU-3618(MAIN UNIT) • [VDT07_COR],[XHAC_COR],[XSHD_COR], [DCK_COR],VEFG_COR] "L" ⇔ "H" alternate? N.G. Check Soldering. • [IC507]:36-49pin • R638-R650 O.K. Check Request signal. GU-3618(MAIN UNIT) • Request from [B/E] and [F/E] [HDRQ_COR]:"L"level? N.G. • Check the circumference soldering of [IC401] O.K. END END END 1.3. ディスク読めず [No Play], [00 00] 等の表示 (1) ディスク回転せず (2) CD チェック工程 (3) DVD チェック工程 Pick-up の発光を確認 GU-3618(MAIN UNIT) ･ P.U. レーザー発光 O.K.? ･ レーザー電流チェック N.G. (1) P.U. の半田ショートランドを確認 (2) TR501,TR502 周辺の半田付けを確認 (3) コネクタ接続を確認 ･ [P.U.] - [GU-3618] FFC(CX241) (4) [IC502] とその周辺回路の半田付けを確認 (5) [IC503] とその周辺回路の半田付けを確認 O.K. スピンドルドライブ信号の確認 GU-3618(MAIN UNIT) ･ [DMO] : "H" level? N.G. (1) [IC507]:111-113pin の半田付けを確認 (2) [SPWM1],[SPWM2],[FG] 信号ライン周辺の 半田付けを確認 (3) [IC501] とその周辺回路の半田付けを確認 O.K. RF 信号の確認 GU-3618(MAIN UNIT) ･ テストポイント (TP) の電圧確認 TP [RFAC] : 約 1.0Vp-p N.G. (1) [IC502] とその周辺回路の半田付けを確認 (2) [IC507] とその周辺回路の半田付けを確認 O.K. バスライン確認 GU-3618(MAIN UNIT) ･ [IC507] ⇔ [IC505](16MDRAM) "L" ⇔ "H" 切替 N.G. 半田付けを確認 ･ アドレス、 データ、 制御信号 [BD0-15]、 [BA0-9]、 [XLCAS]、 [XUCAS]、 [XMOE]、 [XRAS] ･ [IC505] とその周辺回路の半田付けを確認 O.K. ＶＳＴＥＭ 通信確認 GU-3618(MAIN UNIT) ･ [VDT0-7_COR], [XHAC_COR],[XSHD_COR], [DCK_COR], VEFG_COR] "L" ⇔ "H" 切替 N.G. 半田付けを確認 ･ [IC507]:36-49pin ･ R638-R650 O.K. リクエスト信号の確認 GU-3618(MAIN UNIT) ･ [B/E] と [F/E] のリクエスト信号 [HDRQ_COR] : "L" level? N.G. ･ [IC401] とその周辺回路の半田付けを確認 O.K. 終了 終了 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DVD-5910/DVD-A1XV (4) SACD check process Check Power Supply Voltages. GU-3618(MAIN UNIT) • [IC401],[IC403],[IC405]: +5V_A2, +3.3V_D2, +2.5V_D2 O.K.? N.G. Check Soldering. • [IC950] • FB952,FB956 O.K. Check Clock waveform. GU-3618(MAIN UNIT) • [IC401](EPM3128ATC):87pin. • [IC405](CXD2753R):11pin. 33.87MHz (3.3V), O.K.? N.G. Check Soldering. • [IC401]:87pin,R498,[IC404],R440 • [IC405]:11pin,R439,[IC404] O.K. Check Reset signal. GU-3618(MAIN UNIT) • [IC401]:(XRST_PLD)89 pin. • [IC405]:(RST)9 pin. "H" level O.K.? N.G. Check Soldering. • [IC508],R413 • R463 O.K. Check Bus Line. GU-3618(MAIN UNIT) • [IC405] ⇔ [IC402](16MSDRAM) "L" ⇔ "H" alternate? N.G. Check Soldering. • Address, Data Bus, Control Signal. [DQ0-7], [D_MA0-11], [DCLK], [DCKE], [DWE], [DCAS], [DRAS] • RA401-RA405,R445-R449 O.K. Check VSTEM communication. GU-3618(MAIN UNIT) • [SD0-7], [XSAC], [XSHD2], [SDCK], [SDEF], [XSRQ] "L" ⇔ "H" alternate? N.G. Check Soldering. • [IC401]:35-37,44-48,54,63,67-69pin • [IC405]:164-176pin O.K. Check RF signal for Water Mark. GU-3618(MAIN UNIT) • TP [WM] : about 1.0Vp-p N.G. Check the circumference soldering of [IC403] (AD8062) and [IC405]:126pin O.K. END (4) SACD チェック工程 電源電圧確認 GU-3618(MAIN UNIT) ･ [IC401],[IC403],[IC405]: +5V_A2, +3.3V_D2, +2.5V_D2 O.K.? N.G. 半田付けを確認 ･ [IC950] ･ FB952,FB956 O.K. クロックの波形確認 GU-3618(MAIN UNIT) ･ [IC401](EPM3128ATC):87pin. ･ [IC405](CXD2753R):11pin. 33.87MHz (3.3V), O.K.? N.G. 半田付けを確認 ･ [IC401]:87pin,R498,[IC404],R440 ･ [IC405]:11pin,R439,[IC404] O.K. RESET 信号の確認 GU-3618(MAIN UNIT) ･ [IC401]:(XRST_PLD)89 pin. ･ [IC405]:(RST)9 pin. "H" level O.K.? N.G. 半田付けを確認 ･ [IC508],R413 ･ R463 O.K. バスラインの確認 GU-3618(MAIN UNIT) ･ [IC405] ⇔ [IC402](16MSDRAM) "L" ⇔ "H" alternate? N.G. 半田付けを確認 ･ Address, Data Bus, Control Signal. [DQ0-7], [D_MA0-11], [DCLK], [DCKE], [DWE], [DCAS], [DRAS] ･ RA401-RA405,R445-R449 O.K. VSTEM 通信の確認 GU-3618(MAIN UNIT) ･ [SD0-7], [XSAC], [XSHD2], [SDCK], [SDEF], [XSRQ] "L" ⇔ "H" alternate? N.G. 半田付けを確認 ･ [IC401]:35-37,44-48,54,63,67-69pin ･ [IC405]:164-176pin O.K. ウォーターマーク用 ＲＦ 信号の確認 GU-3618(MAIN UNIT) ･ TP[WM] : 約 t 1.0Vp-p N.G. [IC403](AD8062) 周辺と [IC405]:126pin の 半田付けを確認 O.K. 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DVD-5910/DVD-A1XV 1.4. No Sound,Noise generated (1) CD, DVD-VIDEO/AUDIO Check PCM Digital Audio Data (VSTEM data) and VSTEM communication. GU-3618(MAIN UNIT) • [IC401]output and [IC108](ES6138)input: [BD0-7], [BSDCLK], [SHAK],[BDEF],[BSHD],[BSREQ] "L" ⇔ "H" alternate? N.G. Check Soldering. • [IC401]:75-98pin • R401-R412,R494 • [IC108]:122-128,131,132,142,144,149,150pin O.K. Check PCM Digital Audio Data output. [1] GU-3618(MAIN UNIT) • [IC108]output and [IC801](SM5819A)input: [TSD0-2],[TBCK],[TWS],[PMCK] N.G. Check Soldering. • [IC108]:33,36,37,40,32pin • R129-R132,R134 • [IC801]:29,31-35pin • [IC110].R150,R157,R173 O.K. Check PCM Digital Audio Data output. [2] GU-3618(MAIN UNIT) • [IC801]output: [TSD0-2.],[TBCK.],[TWS.],[PMCK.] • [IC801]:4pin(SELEXT)"H"? N.G. Check Soldering. • [IC801]:17,19-23pin • R806-R811 • [IC801]:4pin,[IC115]:12pin O.K. Check PCM Digital Audio Data output.[3] GU-3618(MAIN UNIT) • Audio selector input/output: [PDATA0-2],[PBCK],[PLRCK],[PMCK] • [IC124,IC125]:1pin(DSD_SEL)"L"? N.G. • Check the circumference soldering of [IC124] and [ic125] O.K. Continue to the check process of GU-3653-1 SYSTEM UNIT/GU-3655-1 AUDIO UNIT. 1.4. 音声出力せず、ノイズ発生 (1) CD, DVD-VIDEO/AUDIO PCM デジタルオーディオデータ /VSTEM 通信確認 GU-3618(MAIN UNIT) ･ [IC401] 出力 / [IC108](ES6138) 入力 : [BD0-7], [BSDCLK], [SHAK], [BSDEF], [BSHD],[BSREQ] "L" ⇔ "H" 切替 ? N.G. 半田付けを確認 ･ [IC401]:75-98pin ･ R401-R412,R494 ･ [IC108]:122-128,131,132,142,144,149,150pin O.K. PCM デジタルオーディオデータ確認 [1] GU-3618(MAIN UNIT) ･ [IC108] 出力 / [IC801](SM5819A) 入力 : [TSD0-2],[TBCK],[TWS],[PMCK] N.G. 半田付けを確認 ･ [IC108]:33,36,37,40,32pin ･ R129-R132,R134 ･ [IC801]:29,31-35pin ･ [IC110].R150,R157,R173 O.K. PCM デジタルオーディオデータ確認 [2] GU-3618(MAIN UNIT) ･ [IC801] 出力 : [TSD0-2.],[TBCK.],[TWS.],[PMCK.] ･ [IC801]:4pin(SELEXT)"H"? N.G. 半田付けを確認 ･ [IC801]:17,19-23pin ･ R806-R811 ･ [IC801]:4pin,[IC115]:12pin O.K. PCM デジタルオーディオデータ確認 [3] GU-3618(MAIN UNIT) ･ オーディオセレクタ入出力 [PDATA0-2],[PBCK],[PLRCK],[PMCK] ･ [IC124,IC125]:1pin(DSD_SEL)"L"? N.G. ･ [IC124] と [IC125] とその周辺回路の半田付けを 確認 O.K. GU-3653-1 SYSTEM UNIT/GU-3655-1 AUDIO UNIT のチェック工程へ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DVD-5910/DVD-A1XV (2) SACD : SOURCE DIRECT ON MODE (3) SACD : SOURCE DIRECT OFF MODE Check SACD Digital Audio Data(VSTEM data) and VSTEM communication. GU-3618(MAIN UNIT) • [IC401]output and [IC405]input: [SD0-7],[SDCK],[XSAK],[SDEF],[XSHD2],[XSRQ] N.G. Check Soldering. • [IC401]:35-37,44-48,54,63,67-69pin • [IC405]:164-176pin • R414-426 O.K. Check DSD Data. [1] GU-3618(MAIN UNIT) • [IC405]output:[DSARS],[DSALS],[DSASW],[DSAC], [DSAR],[DSAL],[BCKAO],[DSAMR],[DSADML],[EXCK01] N.G. Check Soldering. • [IC405]:76,74,71,69,66,64,60,56,55pin • R464-R473 O.K. Check DSD Data. [2] GU-3618(MAIN UNIT) • Audio selector input/output: [DSDFL],[DSDFR],[DSDSW],[DSDC],[DSDSL],[DSDSR],[DSDBCK] • [IC119,IC120]:1pin(SEL_1394)"L"? N.G. • Check the circumference soldering of [IC119]and [IC120] O.K. Check DSD Data.[3] GU-3618(MAIN UNIT) • Audio selector input/output: [DSDFL],[DSDFR],[DSDSW],[DSDC],[DSDSL],[DSDSR],[DSDBCK] • [IC124,IC125]:1pin(DSD_SEL)"H"? N.G. • Check the circumference soldering of [IC124]and [IC125] O.K. Continue to the check process of GU-3653-1 SYSTEM UNIT/GU-3655-1 AUDIO UNIT. Check SACD Digital Audio Data(VSTEM data) and VSTEM communication. GU-3618(MAIN UNIT) • [IC401]output and [IC405]input: [SD0-7],[SDCK],[XSAK],[SDEF],[XSHD2],[XSRQ] N.G. Check Soldering. • [IC401]:35-37,44-48,54,63,67-69pin • [IC405]:164-176pin • R414-426 O.K. Check DSD Data. [1] GU-3618(MAIN UNIT) • [IC405]output/[IC801]input: [DSARS.],[DSALS.],[DSASW.],[DSAC.],[DSAR.],[DSAL.], [BCAO.],[EXCK01.] N.G. Check Soldering. • [IC405]:76,74,71,69,66,64,60,56,55,13pin • R486-R493 • [IC801]:27,38-44pin O.K. Check DSD Data. [2] GU-3618(MAIN UNIT) • [IC801]output: [TSD0-2.],[TWS.],[TBCK.],[PMCK.] • [IC801]:4pin(SELEXT)"L"? N.G. Check Soldering. • [IC801]:17,19-23pin • R806-R811 • [IC801]:4pin,[IC115]:12pin O.K. Check DSD Data.[3] GU-3618(MAIN UNIT) • Audio selector input/output: [PDATA0-2],[PBCK],[PLRCK],[PMCK] • [IC124,IC125]:1pin(DSD_SEL)"L"? N.G. • Check the circumference soldering of [IC124]and [IC125] O.K. Continue to the check process of GU-3653-1 SYSTEM UNIT/GU-3655-1 AUDIO UNIT. (2) SACD : SOURCE DIRECT ON MODE 時 (3) SACD : SOURCE DIRECT ON MODE 時 SACD デジタルオーディオデータ /VSTEM 通信確認 GU-3618(MAIN UNIT) ･ [IC401] 出力 / [IC405] 入力 : [SD0-7],[SDCK],[XSAK],[SDEF],[XSHD2],[XSRQ] N.G. 半田付けを確認 ･ [IC401]:35-37,44-48,54,63,67-69pin ･ [IC405]:164-176pin ･ R414-426 O.K. DSD データ確認 [1] GU-3618(MAIN UNIT) ･ [IC405] 出力 :[DSARS],[DSALS],[DSASW],[DSAC],[DSAR],[DSAL], [BCKAO],[DSAMR],[DSADML],[EXCK01] N.G. 半田付けを確認 ･ [IC405]:76,74,71,69,66,64,60,56,55pin ･ R464-R473 O.K. DSD データ確認 [2] GU-3618(MAIN UNIT) ･ オーディオセレクタ入出力 [DSDFL],[DSDFR],[DSDSW],[DSDC],[DSDSL],[DSDSR],[DSDBCK] ･ [IC119,IC120]:1pin(SEL_1394)"L"? N.G. ･ [IC119] と [IC120] とその周辺回路の 半田付けを確認 O.K. DSD データ確認 [3] GU-3618(MAIN UNIT) ･ オーディオセレクタ入出力 [DSDFL],[DSDFR],[DSDSW],[DSDC],[DSDSL],[DSDSR],[DSDBCK] ･ [IC124,IC125]:1pin(DSD_SEL)"H"? N.G. ･ [IC124] と [IC125] とその周辺回路の 半田付けを確認 O.K. GU-3653-1 SYSTEM UNIT/GU-3655-1 AUDIO UNIT のチェック工程へ SACD デジタルオーディオデータ /VSTEM 通信確認 GU-3618(MAIN UNIT) ･ [IC401] 出力 / [IC405] 入力 : [SD0-7],[SDCK],[XSAK],[SDEF],[XSHD2],[XSRQ] N.G. 半田付けを確認 ･ [IC401]:35-37,44-48,54,63,67-69pin ･ [IC405]:164-176pin ･ R414-426 O.K. DSD データ確認 [1] GU-3618(MAIN UNIT) ･ [IC405]output/[IC801]input: [DSARS.],[DSALS.],[DSASW.],[DSAC.],[DSAR.],[DSAL.],[BCKAO.],[EXCK01.] N.G. 半田付けを確認 ･ [IC405]:76,74,71,69,66,64,60,56,55,13pin ･ R486-R493 ･ [IC801]:27,38-44pin O.K. DSD データ確認 [2] GU-3618(MAIN UNIT) ･ [IC801]output: [TSD0-2.],[TWS.],[TBCK.],[PMCK.] ･ [IC801]:4pin(SELEXT)"L"? N.G. 半田付けを確認 ･ [IC801]:17,19-23pin ･ R806-R811 ･ [IC801]:4pin,[IC115]:12pin O.K. DSD データ確認 [3] GU-3618(MAIN UNIT) ･ オーディオセレクタ入出力 [PDATA0-2],[PBCK],[PLRCK],[PMCK] ･ [IC124,IC125]:1pin(DSD_SEL)"L"? N.G. ･ [IC124] と [IC125] とその周辺回路の 半田付けを確認 O.K. GU-3653-1 SYSTEM UNIT/GU-3655-1 AUDIO UNIT のチェック工程へ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DVD-5910/DVD-A1XV 2. GU-3653-1 (SYSTEM UNIT)/GU-3655 (AUDIO UNIT) (1) CD,DVD-VIDEO/AUDIO,(SACD-SOURCE DIRECT OFF) Check connection Mecha UNIT GU-3653-1(SYSTEM UNIT) • [CX301]output signal N.G. Check Soldering, FFC cable • [CX301] • [CY301]:GU-3618 • FFC cable, insert condition O.K. Check input signal : IC105 GU-3653-1(SYSTEM UNIT) • [IC105](EPM3128ATC100) 75(256fs),79(512fs),90(BCK),92(LRCK),93(TSD0: FFL/FR), 94(TSD1 : FSL/SR),96(TSD2 : FC/SW), 97(TSD3 : MIXL/MIXR : without SACD)pin check N.G. Check Soldering. • FB101~107,IC107 O.K. Check output signal : IC105 GU-3653-1(SYSTEM UNIT) • [IC105](EPM3128ATC100) 21(BCK),22(LRCK),10(FL/FR),12(C/SW), 13(SL/SR),14(MIXL/MIXR : without SACD) N.G. Check Soldering. • 84pin : 1394-H • 85pin : Fs=192/176.4-H other Fs-L • 87pin : L • 88pin : D.L.-H O.K. Check DSP operation Check Firm version on DSP • “0000” indicate is N.G. (refer page 17.) N.G. Check Soldering. GU-3653-1(SYSTEM UNIT) • [IC305]:(DSP RESET)121pin "H" Level OK? "H" ⇔ "L" : N.G. • [IC305] to [IC306] Signal • [IC105] to [IC305] Signal • [IC306]:(FLASH ROM for DSP) O.K. Check DATA Signal -1 GU-3653-1(SYSTEM UNIT) • [IC105](EPM3128ATC100) • [IC305](DSP) : input N.G. Check Soldering. • R158,159,169,170,164,165 O.K. Check DATA Signal -2 GU-3653-1(SYSTEM UNIT) • [IC305](DSP) : output 86(FL/FR),82(C/SW),81(SL/SR),80(MIXL/MIXR)pin Each output pin Level "H": NG O.K. Check DATA Signal -3 GU-3653-1(SYSTEM UNIT) • [IC305](DSP) : output • [IC105](EPM3128ATC100) : input N.G. Check Soldering. • R366,372,373,374 O.K. N.G. 2. GU-3653-1 (SYSTEM UNIT)/GU-3655 (AUDIO UNIT) (1) CD,DVD-VIDEO/AUDIO,(SACD-SOURCE DIRECT OFF) メカユニットとの接続確認 GU-3653-1(SYSTEM UNIT) ･ [CX301] 出力信号の確認 N.G. 半田付け、FFC ケーブルを確認 ･ [CX301] ･ [CY302]:GU-3618 ･ FFC ケーブル、挿入状態の確認 O.K. IC105 の入力信号の確認 GU-3653-1(SYSTEM UNIT) ･ [IC105](EPM3128ATC100) 75(256fs), 79(512fs), 90(BCK), 92(LRCK), 93(TSD0：FL/FR), 94(TSD1：SL/SR), 96(TSD2：C/SW), 97(TSD3：MIXL/MIXR：without SACD)pin check N.G. 半田付けを確認 ･ FB101 ～ 107, IC107 O.K. IC105 の出力信号の確認 GU-3653-1(SYSTEM UNIT) ･ [IC105](EPM3128ATC100) 21(BCK), 22(LRCK), 10(FL/FR),12(C/SW), 13(SL/SR),14(MIXL/MIXR：without SACD) N.G. 半田付けを確認 ･ 84pin：1394-Ｈ ･ 85pin：Fs=192/176.4-H　other Fs-Ｌ ･ 87pin：Ｌ ･ 88pin：D.L.-Ｈ O.K. DSP 動作の確認 マイコンファームチェックモードで DSP のバージョンを確認 ･ "0000" 表示は N.G. （page 17　参照） N.G. 半田付けを確認 GU-3613-1(SYSTEM UNIT) ･ [IC305]:(DSP RESET)121pin "H" Level OK? "H" ⇔ "L"：N.G. ･ [IC305],[IC306] の接続確認 ･ [IC105],[IC305] の接続確認 ･ [IC306]:(FLASH ROM for DSP) の確認 O.K. データ確認 -1 GU-3653-1(SYSTEM UNIT) ･ [IC105](EPM3128ATC100) ･ [IC305](DSP)：input N.G. 半田付けを確認 ･ Ｒ158,159,169,170,164,165 の確認 O.K. データ確認 -2 GU-3653-1(SYSTEM UNIT) ･ [IC305](DSP)：output 86(FL/FR),82(C/SW）,81(SL/SR),80(MIXL/MIXR）pin の確認 各出力信号が "H" になっていないか O.K. データ確認 -3 GU-3653-1(SYSTEM UNIT) ･ [IC305](DSP)：output ･ [IC105](EPM3128ATC100)：input N.G. 半田付けを確認 ･ Ｒ366,372,373,374 の確認 O.K. N.G. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DVD-5910/DVD-A1XV Check DATA Signal -4 GU-3653-1(SYSTEM UNIT) • [IC105](EPM3128ATC100) : output to Advanced AL24(MIXL/R) 50~55pin • [IC502](EP1C12Q240C6) : input 11,28,200,203,206pin • [IC502](EP1C12Q240C6) : output to DAC(MIXL/R) 95,99,101,104pin • [IC105](EPM3128ATC100) : output to DAC(FL/FR/C/SW) 44~49,54,55pin GU-3655-1(AUDIO UNIT) • [IC401,501](DAC for MIXL / MIXR) : input 4~7pin(WCK,DATA-MIXL / -MIXR,BCK,MCK) ----IC401,501:mono DAC MODE GU-3655-2(AUDIO UNIT) • [IC701](DAC for FL/FR) [IC801](DAC for S/SW),[IC901](DAC for SL/SR) : input 4~7pin(LRCK=1fs,DATA,BCK=64fs,MCK=256fs) ----IC701,801,901:stereo DAC MODE N.G. Check Soldering. • CX332,CY332(Connection to 5.1ch AUDIO UNIT) (GU-3653-1 to GU-3655-2) • CX192,CY192(Connection to MIXch AUDIO UNIT) (GU-3655-1 to GU-3655-2) • CX173,CX191(Connection to 1394 PWB) (GU-3653-1 to GU-3517) O.K. Check DAC output GU-3655(AUDIO UNIT) • [IC401][IC501][IC701][IC801][IC901]:output N.G. Check Soldering. / Check Supply Voltages. • [IC401][IC501][IC701][IC801][IC901] 10~14pin(control line) O.K. Check OP AMP output GU-3655(AUDIO UNIT) • [IC403]~[IC406],[IC503~IC506],[IC702~IC705], [IC802~IC805],[IC902~IC905]:output:7pin N.G. Check Soldering. Check Power Supply Voltages. • [IC403]~[IC406],[IC503~IC506], [IC702~IC705],[IC802~IC805], [IC902~IC905]:output:7pin O.K. Check AUDIO OUT GU-3655(AUDIO UNIT) • Check OUTPUT terminal (Each channels) N.G. Check Soldering. • MUTE circuit : MUTE TR(TR402~TR403,TR502,TR503, TR703~708,TR803~808,TR903~908) TR-BASE terminal : about -9V (at MUTE off) • Check Soldering. Output Jack O.K. END データ確認 -4 GU-3653-1(SYSTEM UNIT) ･ [IC105](EPM3128ATC100)：output to Advanced AL24(MIXL/R) 50 ～ 55pin ･ [IC502](EP1C12Q240C6)：input 11,28,200,203,206pin ･ [IC502](EP1C12Q240C6)：output to DAC(MIXL/R) 95,99,101,104pin ･ [IC105](EPM3128ATC100)：output to DAC(FL/FR/C/SW) 44 ～ 49,54,55pin GU-3655-1(AUDIO UNIT) ･ [IC401,501](DAC for MIXL / MIXR) : input 4 ～ 7pin(WCK,DATA-MIXL / -MIXR,BCK,MCK ----IC401,501:mono DAC MODE GU-3655-2(AUDIO UNIT) ･ [IC701](DAC for FL/FR) [IC801](DAC for S/SW),[IC901](DAC for SL/SR) : input 4 ～ 7pin(LRCK=1fs,DATA,BCK=64fs,MCK=256fs） ----IC701,801,901:stereo DAC MODE N.G. 半田付けを確認 ･ CX332,CY332(Connection to 5.1ch AUDIO UNIT) (GU-3653-1 to GU-3655-2) ･ CX192,CY192(Connection to MIXch AUDIO UNIT) (GU-3655-1 to GU-3655-2) ･ CX173,CX191(Connection to 1394 PWB） (GU-3653-1 to GU-3517) O.K. DAC 出力確認 GU-3655（AUDIO UNIT) ･ [IC401][IC501][IC701][IC801][IC901]:output N.G. 半田付けを確認 / 電源を確認 ･ [IC401][IC501][IC701][IC801][IC901] 10 ～ 14pin（control line) O.K. OP AMP 出力確認 GU-3655（AUDIO UNIT) ･ [IC403] ～ [IC406],[IC503 ～ IC506],[IC702 ～ IC705], [IC802 ～ IC805],[IC902 ～ IC905]:output:7pin N.G. 半田付けを確認 ･ [IC403] ～ [IC406],[IC503 ～ IC506], [IC702 ～ IC705],[IC802 ～ IC805], [IC902 ～ IC905]:output:7pin O.K. 出力端子の確認 GU-3655（AUDIO UNIT) ･ 各 ch の OUTPUT 端子からの出力信号を確認する N.G. 半田付けを確認 ･ MUTE circuit：MUTE TR(TR402、TR403, TR502,TR503,TR703 ～ 708, TR803 ～ 808,TR903 ～ 908) TR-BASE terminal：about -9V (at MUTE off) ･ Check Soldering. Output Jack O.K. 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DVD-5910/DVD-A1XV (2) SACD-SOURCE DIRECT ON Check connection Mecha UNIT GU-3653-1(SYSTEM UNIT) • [CX301]output signal N.G. Check Soldering, FFC cable • [CX301] • [CY302]:GU-3618 • FFC cable, insert condition O.K. Check input signal : IC105 GU-3653-1(SYSTEM UNIT) • [IC105](EPM3128ATC100) 75(256fs),79(512fs),90(BCK),92(LRCK),93(TSD0 : FL/FR), 94(TSD1 : SL/SR),96(TSD2 : C/SW) N.G. Check Soldering. • FB101~107, IC107 O.K. Check output signal : IC105 GU-3653-1(SYSTEM UNIT) • [IC105](EPM3128ATC100) 21(BCK),22(LRCK),10(FL/FR),12(C/SW), 13(SL/SR),14(MIXL/MIXR : without SACD) N.G. Check Soldering. • FB101~107, IC107 O.K. Check DSP operation Refer (1) CD,DVD-VIDEO/AUDIO,(SACD-SOURCE DIRECT OFF) N.G. O.K. Check DATA Signal -1 GU-3653-1(SYSTEM UNIT) • [IC305](DSP) : output 86(FL),82(C),81(SL),57(FR),62(SW),70(SR) • [IC105](EPM3128ATC100) : input N.G. Check Soldering. • R366,372,373,385,384,402 O.K. Check DATA Signal -2 GU-3653-1(SYSTEM UNIT) • [IC105](EPM3128ATC100) : output to Advanced AL24(MIXL/R) 50~55pin • [IC502](EP1C12Q240C6) : input 11,28,200,203,206pin • [IC502](EP1C12Q240C6) : output to DAC(MIXL/R) 95,99,101,104pin • [IC105](EPM3128ATC100) : output to DAC(FL/FR/C/SW) 44~49,54,55pin GU-3655-1(AUDIO UNIT) • [IC401,501](DAC for MIXL / MIXR) : input 4~7pin(GND,DATA-MIXL or -MIXR,GND,BCK=64fs) ----IC401,501:mono DAC MODE GU-3655-2(AUDIO UNIT) • [IC701](DAC for FL/FR) [IC801](DAC for S/SW),[IC901](DAC for SL/SR) : input 4~7pin(DATA-1,DATA-2,BCK="L",MCK=64fs) ----IC701,801,901:stereo DAC MODE N.G. Check Soldering. • CX332,CY332(Connection to 5.1ch AUDIO UNIT) (GU-3653-1 to GU-3655-2) • CX192,CY192(Connection to MIXch AUDIO UNIT) (GU-3655-1 to GU-3655-2) • CX173,CX191(Connection to 1394 PWB) (GU-3653-1 to GU-3517) O.K. Check DAC output ~ Refer (1) CD,DVD-VIDEO/AUDIO,(SACD-SOURCE DIRECT OFF) O.K. END (2) SACD-SOURCE DIRECT ON メカユニットとの接続確認 GU-3653-1(SYSTEM UNIT) ･ [CX301] 出力信号の確認 N.G. 半田付け、FFC ケーブルを確認 ･ [CX301] ･ [CY302]:GU-3618 ･ FFC ケーブル、挿入状態の確認 O.K. IC105 の入力信号の確認 GU-3653-1(SYSTEM UNIT) ･ [IC105](EPM3128ATC100) 75(256fs), 79(512fs), 90(BCK), 92(LRCK), 93(TSD0：FL/FR), 94(TSD1：SL/SR),96(TSD2：C/SW） N.G. 半田付けを確認 ･ FB101 ～ 107、IC107 O.K. IC105 の出力信号の確認 GU-3653-1(SYSTEM UNIT) ･ [IC105](EPM3128ATC100) 21(BCK), 22(LRCK), 10(FL/FR), 12(C/SW), 13(SL/SR), 14(MIXL/MIXR：without SACD) N.G. 半田付けを確認 ･ FB101 ～ 107、IC107 O.K. DSP 動作の確認 (1) CD,DVD-VIDEO/AUDIO,(SACD-SOURCE DIRECT OFF) 参照 O.K. データ確認 -1 GU-3653-1(SYSTEM UNIT) ･ [IC305](DSP)：output 86(FL),82(C）,81(SL),57(FR),62(SW),70(SR) ･ [IC105](EPM3128ATC100)：input N.G. 半田付けを確認 ･ R366,372,373,385,384,402 O.K. データ確認 -2 GU-3653-1(SYSTEM UNIT) ･ [IC105](EPM3128ATC100)：output to Advanced AL24(MIXL/R) 50 ～ 55pin ･ [IC502](EP1C12Q240C6)：input 11,28,200,203,206pin ･ [IC502](EP1C12Q240C6)：output to DAC(MIXL/R) 95,99,101,104pin ･ [IC105](EPM3128ATC100)：output to DAC(FL/FR/C/SW) 44 ～ 49,54,55pin GU-3655-1(AUDIO UNIT) ･ [IC401,501](DAC for MIXL / MIXR) : input 4 ～ 7pin(GND,DATA-MIXL or -MIXR,GND,BCK=64fs ----IC401,501:mono DAC MODE GU-3655-2(AUDIO UNIT) ･ [IC701](DAC for FL/FR) [IC801](DAC for S/SW),[IC901](DAC for SL/SR) : input 4 ～ 7pin(DATA-1,DATA-2,BCK="L",MCK=64fs） ----IC701,801,901:stereo DAC MODE N.G. 半田付けを確認 ･ CX332,CY332(Connection to 5.1ch AUDIO UNIT) (GU-3653-1 to GU-3655-2) ･ CX192,CY192（Connection to MIXch AUDIO UNIT） (GU-3655-1 to GU-3655-2) ･ CX173,CX191（Connection to 1394 PWB) (GU-3653-1 to GU-3517) O.K. DAC 出力確認～ (1) CD,DVD-VIDEO/AUDIO,(SACD-SOURCE DIRECT OFF) 参照 O.K. 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DVD-5910/DVD-A1XV 3. GU-3654-1 (VIDEO UNIT) (1) Interlace output [Y,Cb,Cr] does not outputed.. Check Power Supply Voltages. GU-3654-1(VIDEO UNIT) • Digital Power Supply Voltages. +5V_D1,+3.3V_D1, +2.5V_D1 • Analog Power Supply Voltages. +5V_V1,-5V_V1 N.G. Check Soldering. • [CY081],[IC108] • Circumference of [IC108](BA25BCOFP-E2) • [CY031] O.K. Check Digital signal for Video[1]. GU-3654-1(VIDEO UNIT) • Video Encoder [IC201](ADV7314)input: [YUV0~7],[I_VSYNC],[I_HSYNC],[SEL_CLK] N.G. Check Soldering. • [CY331]:23-30,10,11,21pin • Circumference of [IC101],[IC102] (SN74LVC245APW) • Circumference of [IC106](SN74LVC157APW) • Circumference of [IC201] O.K. Check control signal for Video Encoder [IC201]. GU-3654-1(VIDEO UNIT) • [SDA1],[SCK1],[RST_V] N.G. Check Soldering. • [CY331]:14,15,9pin • Circumference of [IC201] O.K. Check Video Encoder circuit. GU-3654-1(VIDEO UNIT) • [IC201]: N.G. Check the soldering [IC201] and circumference soldering of [IC201]. O.K. Check Video Buffer circuit. GU-3654-1(VIDEO UNIT) • Yi:[VR101],[TR201] • Cb:[VR102],[TR202] • Cr:[VR103],[TR203] N.G. Check the soldering [VR101~103],[TR201~203] and circumference soldering of [VR101~103], [TR201~203]. O.K. Check Video Filter and Amp. circuit. GU-3654-1(VIDEO UNIT) • Yi:[LF101],[TR204],[IC202] • Cb:[LF102],[TR205],[IC203] • Cr:[LF102],[TR206],[IC204] N.G. Check the soldering [LF101~102],[TR204~206],[IC202~204] and circumference soldering of [LF101~102],[TR204~TR206],[IC202~204]. O.K. Check Clamp circuit. GU-3654-1(VIDEO UNIT) • [IC104](TC74HC123AF),[IC105](TC4W53F) • [TR103].[TR104] • [TR207~209] N.G. Check the soldering [IC104],[IC105],[TR103],[TR104],[TR207~209] and circumference soldering of [IC104],[IC105],[TR103],[TR104],[TR207~209] O.K. Check Video Output. GU-3654-1(VIDEO UNIT) • Output Terminal:[JK101],[JK105~107]. N.G. Check the soldering [JK101],[JK105~107] and circumference soldering of [JIK101],[JK105Å`JK107]. O.K. END 3. GU-3654-1 (VIDEO UNIT) (1) インターレース映像 [Y,Cb,Cr] 出力せず 電源電圧確認 GU-3654-1(VIDEO UNIT) ･ デジタル電源 +5V_D1,+3.3V_D1, +2.5V_D1 ･ アナログ電源 +5V_V1,-5V_V1 N.G. 半田付けを確認 ･ [CY081],[IC108] ･ [IC108](BA25BCOFP-E2) 周辺回路 ･ [CY031] O.K. 映像用デジタル信号の確認 [1] GU-3654-1(VIDEO UNIT) ･ ビデオエンコーダーﾞ [IC201](ADV7314) 入力 : [YUV0 ～ 7],[I_VSYNC],[I_HSYNC],[SEL_CLK] N.G. 半田付けを確認 ･ [CY331]:23-30,10,11,21pin ･ [IC101],[IC102] 周辺回路 (SN74LVC245APW) ･ [IC106](SN74LVC157APW) 周辺回路 ･ [IC201] 周辺回路 O.K. [IC201] 制御信号の確認 GU-3654-1(VIDEO UNIT) ･ [SDA1],[SCK1],[RST_V] N.G. 半田付けを確認 ･ [CY331]:14,15,9pin ･ [IC201] 周辺回路 O.K. ビデオエンコーダー回路の確認 GU-3654-1(VIDEO UNIT) ･ [IC201]: N.G. [IC201] とその周辺回路の半田付けを確認 O.K. ビデオバッファー回路の確認 GU-3654-1(VIDEO UNIT) ･ Yi:[VR101],[TR201] ･ Cb:[VR102],[TR202] ･ Cr:[VR103],[TR203] N.G. [VR101 ～ 103],[TR201 ～ 203] とその周辺回路の 半田付けを確認 O.K. ビデオフィルター及びアンプ回路の確認 GU-3654-1(VIDEO UNIT) ･ Yi:[LF101],[TR204],[IC202] ･ Cb:[LF102],[TR205],[IC203] ･ Cr:[LF102],[TR206],[IC204] N.G. [LF101 ～ 102],[TR204 ～ 206],[IC202 ～ IC204] とその周辺回路の半田付けを確認 O.K. クランプ回路の確認 GU-3654-1(VIDEO UNIT) ･ [IC104](TC74HC123AF),[IC105](TC4W53F) ･ [TR103].[TR104] ･ [TR207 ～ 209] N.G. [IC104],[IC105],[TR103],[TR104],[TR207～209]と その周辺回路の半田付けを確認 O.K. ビデオ出力端子の確認 GU-3654-1(VIDEO UNIT) ･ 出力端子 :[JK101],[JK105 ～ 107]. N.G. [JK101],[JK105 ～ 107] とその周辺回路の半田 付けを確認 O.K. 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DVD-5910/DVD-A1XV (2) Interlace output [V-OUT,S-OUT] does not outputed. Check Digital signal for Video[1]. GU-3654-1(VIDEO UNIT) • Video Encoder [IC401](ADV7314)input: [YUV0~7],[I_VSYNC],[I_HSYNC],[SEL_CLK] N.G. Check Soldering. • Circumference of [IC401] O.K. Check control signal for Video Encoder [IC401]. GU-3654-1(VIDEO UNIT) • [SDA1],[SCK1],[RST_V] N.G. Check Soldering. • Circumference of [IC401] O.K. Check Video Encoder circuit. GU-3654-1(VIDEO UNIT) • [IC401]: N.G. Check the soldering [IC401] and circumference soldering of [IC401]. O.K. Check Video Buffer circuit. GU-3654-1(VIDEO UNIT) • Y:[VR401],[TR401] • C:[VR402],[TR402] N.G. Check the soldering [VR401],[VR402],[TR401],[TR402] and circumference soldering of [VR401],[VR402],[TR401],[TR402]. O.K. Check Video Filter and Amp. circuit. GU-3654-1(VIDEO UNIT) • Y:[LF103],[TR403],[IC402],[IC404] • C:[LF104],[TR404],[IC405] • V:[IC402],[IC403] N.G. Check the soldering [LF103~104],[TR403~404],[IC402~405] and circumference soldering of [LF103~104],[TR403~TR404],[IC402~405]. O.K. Check Clamp circuit. GU-3654-1(VIDEO UNIT) • [TR405],[TR406] N.G. Check the soldering ,[TR405],[TR406], and circumference soldering of [TR405],[TR406]. O.K. Check Video Output. GU-3654-1(VIDEO UNIT) • Output Terminal:[JK103],[JK104]. N.G. Check the soldering [JK103],[JK104] and circumference soldering of [JIK103],[JK104]. O.K. END (2) インターレース映像 [V-OUT,S-OUT] 出力せず 映像用デジタル信号の確認 [1] GU-3654-1(VIDEO UNIT) ･ ビデオエンコーダーﾞ [IC401](ADV7314) 入力 : [YUV0 ～ 7],[I_VSYNC],[I_HSYNC],[SEL_CLK] N.G. 半田付けを確認 ･ [IC401] とその周辺回路 O.K. [IC401] 制御信号の確認 GU-3654-1(VIDEO UNIT) ･ [SDA1],[SCK1],[RST_V] N.G. 半田付けを確認 ･ [IC401] とその周辺回路 O.K. ビデオエンコーダー回路の確認 GU-3654-1(VIDEO UNIT) ･ [IC401]: N.G. [IC401] とその周辺回路の半田付けを確認 O.K. ビデオバッファー回路の確認 GU-3654-1(VIDEO UNIT) ･ Y:[VR401],[TR401] ･ C:[VR402],[TR402] N.G. [VR401],[VR402],[TR401],[TR402] とその周辺回路の半田付けを確認 O.K. ビデオフィルター及びアンプ回路の確認 GU-3654-1(VIDEO UNIT) ･ Y:[LF103],[TR403],[IC402],[IC404] ･ C:[LF104],[TR404],[IC405] ･ V:[IC402],[IC403] N.G. [LF103 ～ 104],[TR403 ～ 404],[IC402 ～ 405] とその周辺回路の半田付けを確認 O.K. クランプ回路の確認 GU-3654-1(VIDEO UNIT) ･ [TR405],[TR406] N.G. [TR405],[IC406] とその周辺回路の半田付けを確認 O.K. ビデオ出力端子の確認 GU-3654-1(VIDEO UNIT) ･ Output Terminal:[JK103],[JK104]. N.G. [JK103],[JK104] とその周辺回路の半田付けを確認 O.K. 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DVD-5910/DVD-A1XV 4. GU-3654-1 (VIDEO UNIT)/GU-3657(IP UNIT) (1) Progressive output [Y,Pb,Pr] does not outputed. Check Power Supply Voltages[2]. GU-3657(IP UNIT) • +3.3V_D2,+2.5V_D3, +1.5V_D1, • VTT(+1.25V) • MAVREFR1~2,MBVREFR1~2 (+1.25V) • VPLL_AVDD,SPLL_AVDD,MPLL_AVDD,SIMD_AVDD N.G. Check Soldering. • [CY059],[CY301] • Circumference of [IC803](LP2995M) • R146~R151,C130,C131,C180,C181 • FB101~FB104,C168~C175 O.K. Check oscillation waveform. GU-3657(IP UNIT) • [IC101](sxT2-100):[REFCLKA],[REFCLKB] Check point:[R152],[R153]:66.666MHz OK? • [IC101](sxT2-100):[PCICLK] Check point:[R142]:33.333MHz OK? • [IC701~704](EM6A9320BI-4M):[ACK] Check point:[R767]:250MHz OK? N.G. Check Soldering. • Circumference of [X101](66.666MXTAL) • Circumference of [IC101] • Circumference of [IC701~704] O.K. Check control signal for I/P Convertor [IC101]. GU-3657(IP UNIT) • [RESETN],[IICO_DAT],[IICO_CLK] N.G. Check Soldering. • [CY301] • Circumference of [IC103](TC7W241FU) O.K. Check Digital signal for Video[2]. GU-3654-1(VIDEO UNIT) • [IC107],[IC101](SN74LVC243APW)output: [YUV0P~7P],[I_VSYNC_P],[I_HSYNC_P],[I_CLK_P] N.G. Check Soldering. • Circumference of [IC101],[IC107] (SN74LVC245APW) • [CX403] O.K. Check Digital signal for Video[3]. GU-3657(IP UNIT) • I/P Convertor [IC101](sxT2-100)input: [YUV0~7],[I_VSYNC],[I_HSYNC],[I_CLK] N.G. Check Soldering. • [CY403] • [RA101],[RA102],[R101~104],[R109~112] O.K. Check Digital output for Progressive Video[1]. GU-3657(IP UNIT) • [IC101]output: [YP0~9],[CP0~9],[P_VSYNC],[P_HSYNC], [P_DE],[VOACLK] N.G. Check Soldering. • Circumference of [IC101] • [RA105~8],[R113~120] • [CY403] O.K. Check Digital output for Progressive Video[2]. GU-3654-1(VIDEO UNIT) • Video Encoder [IC201](ADV7314)input: [Y0~9],[C0~9],[P_VSYNC],[P_HSYNC], [C_REF],[SEL_CLK] N.G. Check Soldering. • [CX403] • Circumference of [IC106](SN74LVC157APW) • Circumference of [IC201] O.K. Check Clamp circuit. GU-3654-1(VIDEO UNIT) • [IC103],[TR101],[TR102]. N.G. Check the soldering [IC103],[TR101],[TR102] and circumference soldering [IC103],[TR101],[TR102] O.K. END 4. GU-3654-1 (VIDEO UNIT)/GU-3657(IP UNIT) (1) プログレッシブ映像 [Y,Pb,Pr] 出力せず 電源電圧確認 [2] GU-3657(IP UNIT) ･ +3.3V_D2,+2.5V_D3, +1.5V_D1, ･ VTT(+1.25V) ･ MAVREFR1 ～ 2,MBVREFR1 ～ 2 (+1.25V) ･ VPLL_AVDD,SPLL_AVDD,MPLL_AVDD,SIMD_AVDD N.G. 半田付けを確認 ･ [CY059],[CY301] ･ [IC803](LP2995M) 周辺回路 ･ R146 ～ R151,C130,C131,C180,C181 ･ FB101 ～ FB104,C168 ～ C175 O.K. 発振波形確認 GU-3657(IP UNIT) ･ [IC101](sxT2-100):[REFCLKA],[REFCLKB] Check point:[R152],[R153]:66.666MHz OK? ･ [IC101](sxT2-100):[PCICLK] Check point:[R142]:33.333MHz OK? ･ [IC701 ～ 704](EM6A9320BI-4M):[ACK] Check point:[R767]:250MHz OK? N.G. 半田付けを確認 ･ [X101](66.666MXTAL) 周辺回路 ･ [IC101] 周辺回路 ･ [IC701 ～ 704] 周辺回路 O.K. I/P コンバータ [IC101] 制御信号の確認 GU-3657(IP UNIT) ･ [RESETN],[IICO_DAT],[IICO_CLK] N.G. 半田付けを確認 ･ [CY301] ･ [IC103](TC7W241FU) 周辺回路 O.K. 映像用デジタル信号の確認 [2] GU-3654-1(VIDEO UNIT) ･ [IC107],[IC101](SN74LVC243APW)output: [YUV0P ～ 7P],[I_VSYNC_P],[I_HSYNC_P],[I_CLK_P] N.G. 半田付けを確認 ･ [IC101],[IC107] 周辺回路 ･ [CX403] O.K. 映像用デジタル信号の確認 [3] GU-3657(IP UNIT) ･ I/P Convertor [IC101](sxT2-100)input: [YUV0 ～ 7],[I_VSYNC],[I_HSYNC],[I_CLK] N.G. 半田付けを確認 ･ [CY403] ･ [RA101],[RA102],[R101 ～ 104],[R109 ～ 112] O.K. プログレッシブ映像用デジタル信号の確認 [1] GU-3657(IP UNIT) ･ [IC101]output: [YP0 ～ 9],[CP0 ～ 9],[P_VSYNC],[P_HSYNC],[P_DE],[VOACLK] N.G. 半田付けを確認 ･ [IC101] 周辺回路 ･ [RA105 ～ 8],[R113 ～ 120] ･ [CY403] O.K. プログレッシブ映像用デジタル信号の確認 [2] GU-3654-1(VIDEO UNIT) ･ Video Encoder [IC201](ADV7314)input: [Y0 ～ 9],[C0 ～ 9],[P_VSYNC],[P_HSYNC],[C_REF],[SEL_CLK] N.G. 半田付けを確認 ･ [CX403] ･ [IC106](SN74LVC157APW) 周辺回路 ･ [IC201] 周辺回路 O.K. クランプ回路の確認 GU-3654-1(VIDEO UNIT) ･ [IC103],[TR101],[TR102]. N.G. [IC103],[TR101],[TR102] とその周辺回路の 半田付けを確認 O.K. 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DVD-5910/DVD-A1XV 5. GU-3656-2 (DIGITAL POWER UNIT) . Check FUSE Condition FUSE (F901) OPEN? N.G. Check Primary Parts and Soldering. • [D901~D904],[IC901],[C909] O.K. (Open) Check +3.3V_NSW Output • Voltage Check 3.3V DC (non-swiched) Voltage is O.K.? (CX121 6pin Output) N.G. Check Soldering. • [IC902]: ALL pin (TA76432FC) • [IC909]: ALL pin (PC123-Y) • [D907]: (FMJ-2303) O.K. Check +3.3V Output • Voltage Check 3.3V DC (swiched) Voltage is O.K.? (CW101 9pin Output) N.G. Check Parts and Soldering. • [TR908]: (HAT2053) O.K. Check +12V_M1 Output • Voltage Check 10V~12V DC is O.K.? (about) (CW101 2pin Output) N.G. Check Parts and Soldering. • [TR911]: (2SB1268) and Ather Cirquits O.K. Check -32V_M1 Output • Voltage Check -32V DC is O.K.? (about) (CX035 1pin Output) N.G. Check Parts Condition • [R976]: (2.2Ω) O.K. N.G Check Parts and Soldering. • [TR913]: (2SB1185) • [D906]: (MTZJ36B) O.K. Repare These Parts (May be broken) • [IC101]: (M66005) GU-3656-3 (DISPLAY UNIT) • [R976]: (2.2Ω) Check +2.5V Output • Voltage Check 2.5V DC is O.K.? (CX063 1pin Output) N.G. Check Parts and Soldering. • [TR906]: (2SC5370) • [IC907]: (TA76432FC) O.K. Check +1.5V Output • Voltage Check 1.5V DC is O.K.? (CX059 3pin Output) N.G. Check Parts and Soldering. • [TR912]: (2SC5370) • [IC910]: (TA76432FC) O.K. Check -12V_M1 Output • Voltage Check -11V ~ -14V DC is O.K.? (about) (CW101 2pin Output) N.G. Check Parts and Soldering. • [TR902]: (2SD1904) O.K. END 5. GU-3656-2 (DIGITAL POWER UNIT) ヒューズは切れているか？ FUSE (F901) N.G. 一次側の回路部品の故障 ･ [D901 ～ D904],[IC901],[C909] 他 O.K. 切れている +3.3V NSW 出力電圧は正常か？ ･ (CX121 6pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [IC902]: 全てのピン (TA76432FC) ･ [IC909]: 全てのピン (PC123-Y) ･ [D907]: (FMJ-2303) O.K. +3.3V 出力電圧は正常か？ ･ (CW101 9pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR908]: (HAT2053) O.K. +12V M1 出力電圧は正常か？ ･ (CW101 2pin 出力 ) 約 10V ～ 12V となっているか？ N.G. 以下の部品の状態・半田付けチェック ･ [TR911]: (2SB1268) ･ その他この出力の負荷となる回路 O.K. -32V M1 出力電圧は正常か？ ･ (CX035 1PIN 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [R976]: (2.2Ω) O.K. N.G. 以下の部品の状態・半田付けチェック ･ [TR913]: (2SB1185) ･ [D906]: (MTZJ36B) O.K. 以下の部品が壊れているため、交換が必要 ･ [IC101]: (M66005) GU-3656-3(DISPLAY UINT) ･ [R976]: (2.2Ω) +2.5V 出力電圧は正常か？ ･ (CX063 1pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR906]: (2SC5370) ･ [IC907]: (TA76432FC) ･ その他この出力の負荷となる回路 O.K. +1.5V 出力電圧は正常か？ ･ (CX059 3pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR912]: (2SC5370) ･ [IC910]: (TA76432FC) ･ その他この出力の負荷となる回路 O.K. -12V 出力電圧は正常か？ ･ (CW101 2pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR902]: (2SD1904) ･ その他この出力の負荷となる回路 O.K. 終了 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 AVR-5805/AVC-A1XV ELECTRICAL ADJUSTMENT FOR VIDEO 1. SETTING (1) Connect the monitor TV to the video output terminal. (2) Connect the oscilloscope to the Y-signal and C-signal of S-VIDEO output terminal and each terminate at 75 Ohms. (3) Connect the oscilloscope to the Y-signal, PB-signal and PR-signal of Component video output terminal and each terminate at 75 Ohms. ※ Use the 75 Ohms resistance must be 1% (4) DVD test disc : DVDT-S01 2. BEFORE ADJUSTMENT 2.1. Setting the Oscilloscope as below. (1) PB/PR (a) TIME/DIV : 20μs (b) VOLT/DIV : 100mV (Use the probe : x10 ) (2) Y/C (a) TIME/DIV : 20μs (b) VOLT/DIV : 50mV (Use the probe : x10 ) Power on. Power Supply USA & Canada : 120V Europe : 230V Japan : 100V 2.2. Preparation (1) Power on. (2) Push [OPEN/CLOSE] button, then open the Disc Tray. (3) Set DVD test disc (DVDT-S01) on the Disc Tray, and then push [CLOSE] button. (4) FL display appear "STOP", push [PLAY] button to play- back DVD. (5) Push the [DISPLAY] button of remote control unit and then appear the ON-Screen Display (GUI) on the monitor TV. (6) Push the [+10] and [2] button, select Title 12 of DVD. (7) Push the [ENTER] button, playback Title 12. (color bar 75%) ビデオ回路の調整 1. セッティング手順 (1) セットの VIDEO OUT 端子にテレビモニターを接続しま す。 (2) セットの S2 VIDEO OUT 端子から Y 信号と C 信号をそれ ぞれオシロスコープ（終端抵抗：75Ω）に接続します。 (3) セットの COMPONENT VIDEO OUT の端子（Y/PB/PR）を それぞれオシロスコープ（終端抵抗：75Ω）に接続しま す。 ※　75Ω 抵抗は 1％品を使用する事。 (4) DVD テストディスク：DVDT-S01 を用意します。 2. 調整のまえに 2.1. オシロスコープを下記に設定 (1) PB/PR (a) TIME/DIV : 20μs (b) VOLT/DIV : 100mV （プローブ x10 使用） (2) Y/C (a) TIME/DIV : 20μs (b) VOLT/DIV : 50mV （プローブ x10 使用） 電源電圧 ： 100V 2.2. 準備手順 (1) セットの AC コードをコンセントに挿入し、セットの電 源を ON します。 (2) セットの「OPEN/CLOSE」ボタンを押しトレイを開き、 トレイ上に DVD テストディスク（DVDT-S01）をセット 後、「CLOSE」ボタンを押します。 (3) セット表示管上に "STOP" が表示されてから、「PLAY」ボ タンを押し、ディスクを再生します。 (4) リモコンの「DISPLAY」ボタンを押しグラフィカル・ ユーザー・インターフェイス（GUI）画面を出します。 (5) 番号ボタンの「+10」 「2」ボタンを押し、Title12 を選 択します。 (6) 「ENTER」ボタンを押し、Title12 を再生します。 （75% カラーバー信号） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 AVR-5805/AVC-A1XV 2.3. Procedure (1) Adjust the signal of S-VIDEO OUT by the wave of oscil- loscope. (a) Target, Y-signal Point : VR104 Adjustment Value : 1000 ± 20mV Waveform (b) Target, C-signal Point : VR105 Adjustment Value : *286 ± 5mV Waveform *300 ± 5mV for Europe model (2) Adjust the signal of COMPONENT OUT by the wave of oscilloscope. (a) Target, Y-signal Point : VR101 Adjustment Value : 1000 ± 20mV Waveform (b) Target, PB-signal Point : VR102 Adjustment Value : *525 ± 10mV Waveform Y Y-signal of S-VIDEO OUT C C-signal of S-VIDEO OUT Y Y-signal PB PB-signal 2.3. 手順 (1) セットの S2 VIDEO OUT の信号レベルをオシロスコープ 上の波高値で調整します。 (a) Y 信号レベル 調整個所 ： VR104 調整値 ： 1000 ± 20mV 波形 (b) C 信号レベル 調整個所 ： VR105 調整値 ： 286 ± 5ｍV 波形 (2) COMPONENT OUT の信号レベルをオシロスコープ上の 波高値で調整します。 (a) Y 信号レベル 調整個所 ： VR101 調整値 ： 1000 ± 20ｍV 波形 (b) PB 信号レベル 調整個所 ： VR102 調整値 ： 525 ± 10ｍV 波形 Y S2 VIDEO OUT の Y 信号レベル C S2 VIDEO OUT の C 信号レベル Y プログレッシブの Y 信号レベル PB PB 信号レベル www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 AVR-5805/AVC-A1XV (c) Target, PR-signal Point : VR103 Adjustment Value : *525 ± 10mV Waveform *486 ± 10mV for U.S.A. & Canada model PR PR-signal (c) PR/CR 信号レベル 調整個所 ： VR103 調整値 ： 525 ± 10ｍV 波形 PR PR 信号レベル www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DVD-5910/DVD-A1XV BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DVD-5910/DVD-A1XV SEMICONDUCTORS / 半導体一覧表 Only major IC's are shown, general IC's etc. are omitted to list. 主な半導体を記載しています。汎用の半導体等は記載を省略しています。 ● IC's Note: Abbreviation ahead of IC No. indicates the name of P.W.B., etc. 注 ) : IC No. の前の記号は、基板の名称を表します。 MA: Main P.W.B. IE : IEEE1394 P.W.B. VI: VIDEO P.W.B. PO: POWER P.W.B. SY: System P.W.B. AP: Audio/Power P.W.B. IP: IP P.W.B. CXD1885Q(MA:IC507) Top View 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 DVDD33 DVDD18 VMCHG TDO TCK TDI TMS TRST GIO19 GIO18 GIO17 GIO16 GIO15 GIO14 GIO13 DVSS GIO12 GIO11 GIO10 GIO9 GIO8 DVDD18 GIO7 GIO6 GIO5 GIO4 DVDD33 GIO3 GIO2 GIO1 GIO0 MODSEL2 DVSS MODSEL1 MODSEL0 TEST15 TEST14 TEST13 TEST12 TEST11 TEST10 TEST9 TEST8 TEST7 TEST6 TEST5 TEST4 TEST3 TEST2 TEST1 TEST0 RD8 DVDD33 DVDD33 DRVTX DRVRX DRVCLK DRVRDY C2PO DADT DOTK LRCK BCK EXVCO EXPLDT CSL SI SO SCLKH RFOKGH HFD MIRRORH DTC AVSS ATC HF TLC0 TLC1 IREF AVDD33 JMREF JMOUT CHG VFBC AVDD18 VCOI LPF1 LPF2 RC AVSS AVSS AD0 AD1 AD2 AVDD33 AD3 AD4 AD5 AD6 AD7 AD8 AD9 VREFH VREFL AVDD18 ALCR MSEL0 MSEL1 MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 TESTSEL MD0 MD1 MD2 MD3 MD4 MD5 DVSS MD6 MD7 MALE MCS MWR DVDD33 MRD MRDY MINT SYSCK DVDD18 XI XO DVSS VDT7 VDT6 DVSS VDT5 VDT4 VDT3 VDT2 VDT1 VDT0 HDRQ XHAC VEFG XSHD DCK DRVIRQ DRVRST DVDD18 DVDD18 RD9 RD10 RD11 RD12 RD13 RD14 RD15 RD0 RD1 RD2 RD3 RD4 RD5 DVSS RD6 RD7 XMWR XRAS RA0 DVDD18 RA1 RA2 RA3 RA4 DVDD33 RA5 RA6 RA7 RA8 RA9 DVSS RA10 RA11 XMOE XUCAS XLCAS GPWM5 GPWM4 GPWM3 GPWM2 GPWM1 GPWM0 SPWM2 SPWM1 FG AVSS DA3 (SLED2_TILT) DA2 (FSCON) DA1 (SLED) DA0 (TSCON) AVDD33 DRAM I/F PWM.FG D/A A/D Data PLL/Data Slicer ASP S-I/O, Defect etc Audio D/A VSTEM I/F VSTEM I/F Clock B/E MCU I/F JTAG Test/Monitor Pin General Port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DVD-5910/DVD-A1XV Block Diagram Functions (A/D : Analog/Digital, PU : Pull-up, PD : Pull-down, SMT=Schumitt ) No. Terminal Name I/O A/D Classification Function PU PD SMT 1 DVDD33 P VDD & GND Digital 3.3V Power for I/O. 2 ALCR I D MCU I/F Chip select input. (L: Reset) * * 3 MSEL0 I D MCU I/F MCU I/F mode select 0. * 4 MSEL1 I D MCU I/F MCU I/F mode select 1. * 5 MA0 I/O D MCU I/F MCU Adress input 0 / data I/O 0 . * 6 MA1 I/O D MCU I/F MCU Adress input 1 / data I/O 1. * 7 MA2 I/O D MCU I/F MCU Adress input 2 / data I/O 2. * 8 MA3 I/O D MCU I/F MCU Adress input 3 / data I/O 3. * 9 MA4 I/O D MCU I/F MCU Adress input 4 / data I/O 4. * 10 MA5 I/O D MCU I/F MCU Adress input 5 / data I/O 5. * 11 MA6 I/O D MCU I/F MCU Adress input 6 / data I/O 6. * 12 MA7 I/O D MCU I/F MCU Adress input 7 / data I/O 7. * 13 MA8 I D MCU I/F MCU Adress input 8 . * 14 TESTSEL I D MCU I/F TEST Select input. * 15 MD0 I/O D MCU I/F MCU data I/O 0 . * 16 MD1 I/O D MCU I/F MCU data I/O 1. * 17 MD2 I/O D MCU I/F MCU data I/O 2. * 18 MD3 I/O D MCU I/F MCU data I/O 3. * 19 MD4 I/O D MCU I/F MCU data I/O 4. * 20 MD5 I/O D MCU I/F MCU data I/O 5. * 21 DVSS P VDD & GND Digital Ground. 22 MD6 I/O D MCU I/F MCU data I/O 6. * 23 MD7 I/O D MCU I/F MCU data I/O 7 . * 24 MALE I D MCU I/F MCU Adress latch signal input. * 25 MCS I D MCU I/F MCU Chip Select signal input. * 26 MWR I D MCU I/F MCU Write strobe signal. * 27 DVDD33 P VDD & GND digital 3.3V Power. (for I/O ) 28 MRD I D MCU I/F MCU Read Strobe signal. * 29 MRDY O D MCU I/F MCU Ready signal. (L: Wait) 30 MINT O D MCU I/F MCU Interrupt signal. (L: Interrupt request) HFD Video VSTEM Serial Command Audio MCU Servo control X'tal HF ASP PWM ATC JTAG Mecha control Servo singnal BCA Data Slicer DVD Demodulation CD-DSP (DDCD) Data-PLL VSTEM Serial I/F ASP Serial I/F Spindle TZC GIO A/D ICU Timer Peri. CLK ICU MCU I/F MPEG I/F EDC ECC Core 16/4M DRAM Audio I/F CD-ROM Header Dec. Memory manager D/A PWM CMD/ RSP reg. TC DSP ROM/RAM RAM DSP CLK/Mode Data Direction www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DVD-5910/DVD-A1XV 31 SYSCK O D Clock Clock Monitor output. 32 DVDD18 P VDD & GND Digital 1.8V Power. (Internal logic system power) 33 XI I D Clock Crystal oscillation input. 34 XO O D Clock Crystal oscillation output. 35 DVSS P VDD & GND Digital Ground. 36 VDT7 O D VSTEM A/V MPEG data output 7. 37 VTD6 O D VSTEM A/V MPEG data output 6. 38 DVSS P VDD & GND Digital Ground. 39 VDT5 O D VSTEM A/V MPEG data output 5. 40 VDT4 O D VSTEM A/V MPEG data output 4. 41 VDT3 O D VSTEM A/V MPEG data output 3. 42 VDT2 O D VSTEM A/V MPEG data output 2. 43 VDT1 O D VSTEM A/V MPEG data output 1. 44 VDT0 O D VSTEM A/V MPEG data output 0. 45 HDRQ I D VSTEM A/V MPEG data Request input. * 46 XHAC O D VSTEM A/V Data Valid output. 47 VEFG O D VSTEM A/V ECC Error-sector Flag output. (L: error sector) 48 XSHD O D VSTEM A/V DVD Sector Head Flag output. 49 DCK O D VSTEM A/V Data Strobe output. 50 DRVIRQ O D VSTEM Command Interrupt Request output for Host. (L: interruption is demanded) 51 DRVRST I D VSTEM Command Drive H/W Reset input. (L: reset) * * 52 DVDD18 P VDD & GND Digital 1.8V power for Internal logic system. 53 DVDD33 P VDD & GND Digital 3.3V Power for I/O. 54 DRVTX O D VSTEM Command Transmitting serial data output to Host. 55 DRVRX I D VSTEM Command Reception serial data input from Host. 56 DRVCLK I D VSTEM Command Clock input from Host. * 57 DRVRDY O D VSTEM Command Drive Ready signal output. (L: ready) 58 C2PO O D Audio I/F CD-DSP C2 Pointer output. 59 DADT O D Audio I/F Audio serial data output. 60 DOTX O D Audio I/F Digital audio output. 61 LRCK O D Audio I/F L/R Clock output. 62 BCK O D Audio I/F Audio Bit Clock output. 63 EXVCO I D TEST/Monitor External Channel clock input. 64 EXPLDT I D TEST/Monitor External RF data input. (Logic level) 65 CSL O D ASP I/F SIO for RF signal processing LSI control. Latch signal output. 66 SI I D ASP I/F SIO for RF signal processing LSI control. Serial data input. 67 SO O D ASP I/F SIO for RF signal processing LSI control. Serial data output. 68 SCLKH O D ASP I/F SIO for RF signal processing LSI control. Serial clock output. 69 RFOKGH I D ASP I/F RF O.K. Signal input. * 70 HFD I D ASP I/F RF lack Signal input. * 71 MIRRORH I D ASP I/F Mirror detected signal input.(H: Mirror detected) * 72 DTC I D ASP I/F Track cross signal input. (Logic level input) * 73 AVSS P VDD & GND Analog Ground. 74 ATC I A Data PLL Track Cross signal input. (Analog level input) 75 HF I A Data PLL RF signal input. 76 TLC0 O A Data PLL Asymmetry Charge-pump output 0. 77 TLC1 O A Data PLL Asymmetry Charge-pump output 1 78 IREF I A Data PLL Reference current setting terminal for Asymmetry Circuit. 79 AVDD33 P VDD & GND Analog 3.3V Power. 80 JMREF I A Data PLL Reference current setting terminal for Jitter Monitor 81 JMOUT O A Data PLL Jitter Monitor output. 82 CHG I A Data PLL Reference current setting terminal for data PLL. 83 VFBC I A Data PLL VCO offset frequency setting terminal for data PLL. 84 AVDD18 P VDD & GND Analog 1.8V Power. 85 VCOI I A Data PLL VCO Control voltage input terminal for data PLL. 86 LPF1 O A Data PLL VCO Loop-filter connection terminal 1 for data PLL. 87 LPF2 O A Data PLL VCO Loop-filter connection terminal 2 for data PLL 88 RC I A Data PLL VCO gain setting terminal for data PLL. 89 AVSS P VDD & GND Analog Ground. 90 AVSS P VDD & GND Analog Ground. 91 AD0 I A ADC AD0 Input. No. Terminal Name I/O A/D Classification Function PU PD SMT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DVD-5910/DVD-A1XV 92 AD1 I A ADC AD1 Input. 93 AD2 I A ADC AD2 Input. 94 AVDD33 P VDD & GND Analog 3.3V Power. 95 AD3 I A ADC AD3 Input. 96 AD4 I A ADC AD4 Input. 97 AD5 I A ADC AD5 Input. 98 AD6 I A ADC AD6 Input. 99 AD7 I A ADC AD7 Input. 100 AD8 I A ADC AD8 Input. 101 AD9 I A ADC AD9 Input. 102 VREFH I/O A ADC Max Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 103 VREFL I/O A ADC Min Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 104 AVDD18 P VDD & GND Analog 1.8V Power. 105 AVDD33 P VDD & GND Analog 3.3V Power. 106 DA0 (TSCON) O A DAC DA0 output. (Track Servo output) 107 DA1 (SLED) O A DAC DA1 output. (Sled Servo output) 108 DA2 (FSCON) O A DAC DA2 output. (Forcus Servo output) 109 DA3 (SLED2_ TILT) O A DAC DA3 output. (Sled Servo / Tilt Servo output) 110 AVSS P VDD & GND Analog Ground 111 FG I D SPM FG signal input. * 112 SPWM1 O D SPM Spindle motor PWM output 1. 113 SPWM2 O D SPM Spindle motor PWM output 2. 114 GPWM0 O D General PWM Multi-purpose PWM output 0. 115 GPWM1 O D General PWM Multi-purpose PWM output 1. 116 GPWM2 O D General PWM Multi-purpose PWM output 2. 117 GPWM3 O D General PWM Multi-purpose PWM output 3. 118 GPWM4 O D General PWM Multi-purpose PWM output 4. 119 GPWM5 O D General PWM Multi-purpose PWM output 5. 120 XLCAS O D DRAM I/F DRAM LCAS output. (Low-Byte row address strobe output) 121 XUCAS O D DRAM I/F DRAM UCAS output. (Upper-Byte row address strobe output) 122 XMOE O D DRAM I/F DRAM output enable. 123 RA11 O D DRAM I/F DRAM address output terminal 11. 124 RA10 O D DRAM I/F DRAM address output terminal 10. 125 DVSS P VDD & GND Digital Ground. 126 RA9 O D DRAM I/F DRAM address output terminal 9. 127 RA8 O D DRAM I/F DRAM address output terminal 8. 128 RA7 O D DRAM I/F DRAM address output terminal 7. 129 RA6 O D DRAM I/F DRAM address output terminal 6. 130 RA5 O D DRAM I/F DRAM address output terminal 5. 131 DVDD33 P VDD & GND Digital 3.3V Power. (for I/O) 132 RA4 O D DRAM I/F DRAM address output terminal 4. 133 RA3 O D DRAM I/F DRAM address output terminal 3. 134 RA2 O D DRAM I/F DRAM address output terminal 2. 135 RA1 O D DRAM I/F DRAM address output terminal 1. 136 DVDD18 P VDD & GND Digital 1.8V Power. (for Internal Logic power) 137 RA0 O D DRAM I/F DRAM address output terminal 0. 138 XRAS O D DRAM I/F DRAM RAS output. (Column address strobe output) 139 XMWR O D DRAM I/F DRAM Write enable. 140 RD7 I/O D DRAM I/F DRAM data input/output terminal 7. * 141 RD6 I/O D DRAM I/F DRAM data input/output terminal 6. * 142 DVSS P VDD & GND Digital Ground. 143 RD5 I/O D DRAM I/F DRAM data input/output terminal 5. * 144 RD4 I/O D DRAM I/F DRAM data input/output terminal 4. * 145 RD3 I/O D DRAM I/F DRAM data input/output terminal 3. * 146 RD2 I/O D DRAM I/F DRAM data input/output terminal 2. * 147 RD1 I/O D DRAM I/F DRAM data input/output terminal 1. * 148 RD0 I/O D DRAM I/F DRAM data input/output terminal 0. * 149 RD15 I/O D DRAM I/F DRAM data input/output terminal 15. * No. Terminal Name I/O A/D Classification Function PU PD SMT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DVD-5910/DVD-A1XV 150 RD14 I/O D DRAM I/F DRAM data input/output terminal 14. * 151 RD13 I/O D DRAM I/F DRAM data input/output terminal 13. * 152 RD12 I/O D DRAM I/F DRAM data input/output terminal 12. * 153 RD11 I/O D DRAM I/F DRAM data input/output terminal 11. * 154 RD10 I/O D DRAM I/F DRAM data input/output terminal 10. * 155 RD9 I/O D DRAM I/F DRAM data input/output terminal 9. * 156 DVDD18 P VDD & GND Digital 1.8V Power. (for internal Logic system) 157 DVDD33 P VDD & GND Digital 3.3V power for I/O. 158 RD8 I/O D DRAM I/F DRAM data input/output terminal 8. * 159 TEST0 O D TEST/Monitor TEST I/O 0. 160 TEST1 O D TEST/Monitor TEST I/O 1. 161 TEST2 O D TEST/Monitor TEST I/O 2. 162 TEST3 O D TEST/Monitor TEST I/O 3. 163 TEST4 O D TEST/Monitor TEST I/O 4. 164 TEST5 O D TEST/Monitor TEST I/O 5. 165 TEST6 O D TEST/Monitor TEST I/O 6. 166 TEST7 O D TEST/Monitor TEST I/O 7. 167 TEST8 O D TEST/Monitor TEST I/O 8. 168 TEST9 O D TEST/Monitor TEST I/O 9. 169 TEST10 O D TEST/Monitor TEST I/O 10. 170 TEST11 O D TEST/Monitor TEST I/O 11. 171 TEST12 O D TEST/Monitor TEST I/O 12. 172 TEST13 O D TEST/Monitor TEST I/O 13. 173 TEST14 O D TEST/Monitor TEST I/O 14. 174 TEST15 O D TEST/Monitor TEST I/O 15. 175 MODSEL0 I D TEST/Monitor TEST mode select 0. (GND, under normal conditions) 176 MODSEL1 I D TEST/Monitor TEST mode select 1. (GND, under normal conditions) 177 DVSS P VDD & GND Digital Ground. 178 MODSEL2 I D TEST/Monitor TEST mode select 2. (GND, under normal conditions) 179 GIO0 I/O D Multi-purpose Multi-purpose port 0. * * 180 GIO1 I/O D Multi-purpose Multi-purpose port 1. * * 181 GIO2 I/O D Multi-purpose Multi-purpose port 2. * * 182 GIO3 I/O D Multi-purpose Multi-purpose port 3. * * 183 DVDD33 P VDD & GND Digital 3.3V Power for I/O. 184 GIO4 I/O D General Port Multi-purpose port 4. * * 185 GIO5 I/O D General Port Multi-purpose port 5. * * 186 GIO6 I/O D General Port Multi-purpose port 6. * * 187 GIO7 I/O D General Port Multi-purpose port 7. * * 188 DVDD18 P VDD & GND Digital 1.8V Power for I/O. (for internal Logic system) 189 GIO8 I/O D General Port Multi-purpose port 8. * * 190 GIO9 I/O D General Port Multi-purpose port 9. * * * 191 GIO10 I/O D General Port Multi-purpose port 10. * * 192 GIO11 I/O D General Port Multi-purpose port 11. * * 193 GIO12 I/O D General Port Multi-purpose port 12. * * * 194 DVSS P VDD & GND Digital Ground. 195 GIO13 I/O D Multi-purpose Multi-purpose port 13. * * * 196 GIO14 I/O D General Port Multi-purpose port 14. * * * 197 GIO15 I/O D General Port Multi-purpose port 15. * * * 198 GIO16 I/O D General Port Multi-purpose port 16. * * 199 GIO17 I/O D General Port Multi-purpose port 17. * * 200 GIO18 I/O D General Port Multi-purpose port 18. * * 201 GIO19 I/O D General Port Multi-purpose port 19. * * 202 TRST I D JTAG I/F JTAG Reset input. * * 203 TMS I D JTAG I/F JTAG Mode Select input. * * 204 TDI I D JTAG I/F JTAG Data Input. * * 205 TCK I D JTAG I/F JTAG Clock input. * 206 TDO O D JTAG I/F JTAG Data output. 207 VMCHG I D MCU I/F VSTEM / external MCU access selection terminal of system set- ting register for DSP. (L: VSTEM, H: external MCU) 208 DVDD18 P VDD & GND Digital 1.8V power for internal Logic system. No. Terminal Name I/O A/D Classification Function PU PD SMT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DVD-5910/DVD-A1XV ES6138F (MA: IC108) PINOUT DIAGRAM 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 LCS1# LOE# LD0 VSS LCS3# LCS2# I2CDATA/AUX[0] LA21 LA20 RESET# VEE TSD3 HIOCS16#/CAMCLK/AUX3[4] HA1/AUX4[3] VSS HA0/AUX4[2] HWR#/DCI_CLK/AUX4[5] HRD#/DCI_ACK#/AUX4[6] HD4/DCI4/AUX1[4] HD5/DCI5/AUX1[5] HD6/DCI6/AUX1[6]/VFD_DOUT HD2/DCI2/AUX1[2] HD3/DCI3/AUX1[3] VEE VCC DB8 VCC DB5 DB9 DCS0# VCC VSS TSD0/SEL_PLL0 TSD1/SEL_PLL1 TDMFS TDMCLK TDMDR TDMTSC# TWS/SEL_PLL2 VEE LA4 LA5 LA6 LA7 LA8 LA9 VSS VCC LA10 LA11 LA12 LA13 LA14 LA15 LA16 VSS VEE LA17 LA18 LA19 TDMDX/RSEL VSS TSD2 SEL_PLL3/SPDIF_OUT SPDIF_IN VSS MCLK TBCK VEE VEE AVSS VSS DQM RSD RWS RBCK NC XIN XOUT AVEE DSCK VSS DB15 DB13 DB11 DB1 VSS DMBS1 DRAS# DOE#/DSCK_EN VEE DMA9 DMA7 VSS DMA5 DMA3 VEE DCS1# DB14 DB12 DB10 DB0 VEE DMBS0 DWE# DCAS# VSS DMA8 DMA6 VEE DMA4 DMA2 VSS DB7 DB6 VSS DB4 DB3 DB2 DMA11 DMA10 DMA1 DMA0 HCS3FX#/AUX3[6] HCS1FX#/AUX3[7] VSS HIORDY/AUX3[3] VSS HD13/AUX2[5]/SP HD12/AUX2[4]/C2PO HD11/AUX2[3]//IRQ HD10/AUX2[2] HD9/AUX2[1] HD8/DCI_FDS#/AUX2[0]/VFD_CLK VSS HIRQ/DCI_ERR#/AUX4[7] HRST#/AUX3[5] HRRQ#/AUX4[0] HWRQ#/DCI_REQ#/AUX4[1] HD15/AUX2[7]/IR HD14/AUX2[6] VCC HD7/DCI7/AUX1[7]/VFD_DIN HD1/DCI1/AUX1[1] HD0/DCI0/AUX1[0] VCC VSS HSYNC#/CAMIN7/AUX3[0] PCLK2XSCN/CAMIN4 YUV7/FDAC/CAMIN3 YUV6/VDAC PCLKQSCN/CAMIN5/AUX3[2] VSYNC#/CAMIN6/AUX3[1] YUV5/YDAC ADVSS ADVEE YUV4/RSET YUV3/COMP YUV2/CDAC YUV1/VREF YUV0/CAMIN2/UDAC DCLK VEE AUX[7] AUX[6] VEE LD1 LD2 LA3 LD12 VEE HA2/AUX4[4] VEE VEE LD3 LD5 LD9 LD13 LWRHL# CAMIN1 I2C_CLK/AUX[1] AUX[3]/IOR# LD4 LD6 LD10 LD14 VSS LA0 AUX[2]/IOW# AUX[4] VEE LD7 LD11 LD15 VEE LA1 VSS AUX[5] VSS LD8 VSS LWRLL# CAMIN0 LA2 VSS VCC LCS0# VSS ES6138F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DVD-5910/DVD-A1XV ES6138F Pin Description Name Pin Numbers I/O Definition VEE 1,18, 27, 59, 68, 75, 92, 99, 104, 130, 148, 157, 159, 164, 183, 193, 201 P I/O power supply. LA[21:0] 2:7, 10:16, 19:23, 204:207 O RISC port address bus. VSS 8, 17, 26, 34, 43, 60, 67, 76, 84, 91, 98, 103, 120, 129, 138, 147, 156, 163, 171, 177, 184, 192, 200, 208 G Ground. VCC 9, 35, 44, 83, 121, 139, 172 P Core power supply. RESET# 24 I Reset input (active-low). TDMDX 25 O TDM transmit data output. RSEL I LCS3 ROM Boot Data Width Select. Strapped to VCC or ground via 4.7-kΩ resistor; read only during reset. TDMDR 28 I TDM receive data input. TDMCLK 29 I TDM clock input. TDMFS 30 I TDM frame sync input. TDMTSC# 31 O TDM output enable (active-low). TWS 32 O Audio transmit frame sync output. SEL_PLL2 I System and DSCK output clock frequency selection is made at the rising edge of RESET#. The matrix below lists the available clock frequencies and their respective PLL bit settings. Strapped to VCC or ground via 4.7-kΩ resistor; read only during reset. RSEL Selection 0 16-bit ROM 1 8-bit ROM SEL_PLL2 SEL_PLL1 SEL_PLL0 PLL Settings 0 0 0 DCLK × 4.5 0 0 1 DCLK × 5.0 0 1 0 Bypass 0 1 1 DCLK × 4.0 1 0 0 DCLK × 4.25 1 0 1 DCLK × 4.75 1 1 0 DCLK × 5.5 1 1 1 DCLK × 6.0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DVD-5910/DVD-A1XV TSD0 33 O Audio transmit serial data port 0. SEL_PLL0 I Refer to the description and matrix for SEL_PLL2 pin 32. TSD1 36 O Audio transmit serial data port 1. SEL_PLL1 I Refer to the description and matrix for SEL_PLL2 pin 32. TSD2 37 O Audio transmit serial data output 2. TSD3 38 O Audio transmit serial data output 3. NC 48 — No connect pins. Leave open. MCLK 39 I/O Audio master clock for audio DAC. TBCK 40 O Audio transmit bit clock. SEL_PLL3 41 I Clock source select. Strapped to VCC or ground via 4.7-kΩ resistor; read only during reset. SPDIF_OUT O S/PDIF output. SPDIF_IN 42 I S/PDIF input. RSD 45 I Audio receive serial data. RWS 46 I Audio receive frame sync. RBCK 47 I Audio receive bit clock. XIN 49 I 27-MHz crystal input. XOUT 50 O 27-MHz crystal output. AVEE 51 P Analog power for PLL. AVSS 52 G Analog ground for PLL. DMA[11:0] 53:58, 61:66 O DRAM address bus. DCAS# 69 O DRAM column address strobe. DOE# 70 O DRAM output enable (active-low). DSCK_EN O DRAM clock enable. DWE# 71 O DRAM write enable (active-low). DRAS# 72 O DRAM row address strobe (active-low). DMBS0 73 O DRAM bank select 0. DMBS1 74 O DRAM bank select 1. DB[15:0] 77:82, 85:90, 93:96 I/O DRAM data bus. DCS[1:0]# 97,100 O DRAM chip select (active-low). DQM 101 O Data input/output mask. ES6138F Pin Description (Continued) Name Pin Numbers I/O Definition SEL_PLL3 Clock Source 0 Crystal oscillator 1 DCLK input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DVD-5910/DVD-A1XV DSCK 102 O Output clock to DRAM. DCLK 105 I Clock input to PLL. YUV0 106 O YUV pixel 2 output data. CAMIN2 I Camera YUV 2. UDAC O Video DAC output. F: CVBS/chroma signal for simultaneous mode. Y: Luma component for YUV and Y/C processing. C: Chrominance signal for Y/C processing. U: Chrominance component signal for YUV mode. V: Chrominance component signal for YUV mode. YUV1 107 O YUV pixel 1 output data. VREF I Internal voltage reference to video DAC. Bypass to ground with 0.1-µF capacitor. YUV2 108 O YUV pixel 2 output data. CDAC O Video DAC output. Refer to description and matrix for UDAC pin 106. YUV3 109 O YUV pixel 3 output data. COMP I Compensation input. Bypass to ADVEE with 0.1-µF capacitor. YUV4 110 O YUV pixel 4 output data. RSET I DAC current adjustment resistor input. ADVEE 111 P Analog power for video DAC. ES6138F Pin Description (Continued) Name Pin Numbers I/O Definition Pin 115 114 113 108 106 Value F DAC V DAC Y DAC C DAC U DAC 0 CVBS/Chroma CVBS1 Y C N/A 1 CVBS/Chroma CVBS1 Y C CVBS2 2 CVBS/Chroma N/A Y C N/A 3 CVBS/Chroma CVBS1 N/A N/A CVBS2 4 CVBS/Chroma CVBS1 N/A N/A N/A 5 CVBS/Chroma CVBS1 Y Pb Pr 6 CVBS/Chroma N/A Y Pb Pr 7 N/A SYNC G B R 8 CVBS/Chroma Chroma Y Pb Pr 9 CVBS CVBS1 G B R 10 CVBS CVBS1 G R B 11 N/A SYNC G R B 12 CVBS/Chroma N/A Y Pr Pb 13 CVBS/Chroma CVBS1 Y Pr Pb 14 Chroma Y G R B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DVD-5910/DVD-A1XV ADVSS 112 G Analog ground for video DAC. YUV5 113 O YUV pixel 5 output data. YDAC O Video DAC output. Refer to description and matrix for UDAC pin 106. YUV6 114 O YUV pixel 6 output data. VDAC O Video DAC output. Refer to description and matrix for UDAC pin 106. YUV7 115 O YUV pixel 7 output data. FDAC O Video DAC output. Refer to description and matrix for UDAC pin 106. CAMIN3 I Camera YUV 3. PCLK2XSCN 116 I/O 27-MHz video output pixel clock. CAMIN4 I Camera YUV 4. PCLKQSCN 117 O 13.5-MHz video output pixel clock. CAMIN5 I Camera YUV 5. AUX3[2] I/O Aux3 data I/O. VSYNC# 118 I/O Vertical sync (active-low). CAMIN6 I Camera YUV 6. AUX3[1] I/O Aux3 data I/O. HSYNC# 119 I/O Horizontal sync (active-low). CAMIN7 I Camera YUV 7. AUX3[0] I/O Aux3 data I/O. HD[5:0] 122:127 I/O Host data bus lines 5:0. DCI[5:0] I/O DVD channel data I/O. AUX1[5:0] I/O Aux1 data I/O. HD6 128 I/O Host data bus line 6. DCI6 I/O DVD channel data I/O. AUX1[6] I/O Aux1 data I/O. VFD_DOUT I VFD data output. HD7 131 I/O Host data bus line 7. DCI7 I/O DVD channel data I/O. AUX1[7] I/O Aux1 data I/O. VFD_DIN I VFD data input. HD8 132 I/O Host data bus line 8. DCI_FDS# I/O DVD input sector start (active-low). AUX2[0] I/O Aux2 data I/O. VFD_CLK I VFD clock input. ES6138F Pin Description (Continued) Name Pin Numbers I/O Definition www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DVD-5910/DVD-A1XV CXD2753R (MA: IC405) ( ) Pin Assignment Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DVD-5910/DVD-A1XV PIN Description Pin Name I/O Functions 1 VSC - It fixed to ground.( for Core) 2 XMSLAT I Latch input for µCOM serial communication. 3 MSCK I Shift clock input for µCOM serial communication. 4 MSDATI I Data input for µCOM serial communication. 5 VDC - +2.5V Power for Core. 6 MSDATO O Data output for µCOM serial communication. “Hi-Z” potential except the output mode. 7 MSREADY O Completion flag of output preparation for µCOM serial communication. “L” is outputted at the time of completion. 8 XMSDOE O Output enable pin for µCOM serial communication. “L” is outputted at the time of MSDATO mode. 9 XRST I Reset pin. The whole IC is reset by at the time of “L” potential. 10 SMUTE Ipd Soft Mute. Soft mute of the audio output is carried out at the time of “H” potential. It releases at the time of “L” potential. 11 MCKI I Master Clock input. 12 VSIO - It fixed to Ground. Ground for I/O. 13 EXCKO1 O External output Clock 1. 14 EXCKO2 O External output Clock 2. 15 LRCK O 44.1kHz, 1Fs Clock output. 16 FRAME O Frame signal output. 17 VDIO - +3.3V Power for I/O. 18 MNT0 O Monitor output. 19 MNT1 O Monitor output. 20 MNT2 O Monitor output. 21 MNT3 O Monitor output. 22 TESTO O Output terminal for a Test. (open) 23 TESTO O Output terminal for a Test.(open) 24 TESTO O Output terminal for a Test.(open) 25 TESTO O Output terminal for a Test.(open) 26 TCK I Clock input for a Test. It fixed to “L” potential. 27 TDI Ipu Input pin(pull-up) for a Test.(open) 28 VSC - It fixed to Ground. Ground for CORE. 29 TDO O Output for a Test.(open). 30 TMS Ipu Input pin(pull-up) for a Test.(open) 31 TRST Ipu Reset pin(pull-up) for a Test. Input the Power-on reset signal or fixed to “L” potential. 32 TEST1 I Test input pin. It fixed to “L” potential. 33 TEST2 I Test input pin. It fixed to “L” potential. 34 TEST3 I Test input pin. It fixed to “L” potential. 35 VDC - +2.5V Power for CORE. 36 TESTO O Out put for TEST. It fixed to open. 37 XBIT O DST monitor. 38 SUPDT0 O Supplementary data output. (LSB) 39 SUPDT1 O Supplementary data output. 40 SUPDT2 O Supplementary data output. 41 SUPDT3 O Supplementary data output. 42 VSIO - Ground for I/O. 43 SUPDT4 O Supplementary data output. 44 SUPDT5 O Supplementary data output. 45 VDIO - +3.3V Power for I/O. 46 SUPDT6 O Supplementary data output. 47 SUPDT7 O Supplementary data output. (MSB) 48 XSUPAK O Supplementary data Acknowledge output terminal. 49 VSC - Ground for CORE. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DVD-5910/DVD-A1XV 50 TESTO O Output for TEST. (open) 51 TESTI I Input for TEST. It fixed to “L” potential. 52 TESTI I Input for TEST. It fixed to “L” potential. 53 TESTO O Output for TEST. (open) 54 VDC - +2.5V Power for CORE. 55 DSADML O DSD Data output terminal for Lch Down Mix. 56 DSADMR O DSD Data output terminal for Rch Down Mix. 57 BCKASL I I/O selection terminal of the Bit clock for DSD data output. L=input (Slave), H=output (Master) 58 VSDSD - Ground terminal for DSD data output. 59 BCKAI I Bit clock input terminal for DSD data output. Input a Bit clock into this terminal at the time of BCKASL=”L” potential. 60 BCKAO O Bit clock output terminal for DSD data output. Bit clock output from this terminal at the time of BCKASL=”H” potential. 61 PHREFI I Reference phase signal input terminal for DSD output phase modulation. 62 PHREFO O Reference phase signal output terminal for DSD output phase modulation. 63 ZDFL O Lch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 64 DSAL O DSD data output terminal for Lch speaker. 65 ZDFR O Rch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 66 DSAR O DSD data output terminal for Rch speaker. 67 VDDSD - +3.3V Power for DSD data output. 68 ZDFC O Cch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 69 DSAC O DSD data output terminal for Cch speaker. 70 ZDFLFE O LFEch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 71 DSASW O DSD data output terminal for SWch speaker. 72 VSDSD - Ground for DSD data output. 73 ZDFLS O LSch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 74 DSALS O DSD data output terminal for LSch speaker. 75 ZDFRS O RSch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 76 DSARS O DSD data output terminal for RSch speaker. 77 VDDSD O +3.3V Power for DSD data output. 78 IOUT0 O Data output terminal 0 for IEEE1394 link chip I/F. 79 IOUT1 O Data output terminal 1 for IEEE1394 link chip I/F. 80 VSC - Ground for CORE. 81 IOUT2 O Data output terminal 2 for IEEE1394 link chip I/F. 82 IOUT3 O Data output terminal 3 for IEEE1394 link chip I/F. 83 VDC - +2.5V Power for CORE. 84 IOUT4 O Data output terminal 4 for IEEE1394 link chip I/F. 85 IOUT5 O Data output terminal 5 for IEEE1394 link chip I/F. 86 VSIO - Ground for I/O. 87 IANCO O Transmission information data output terminal for IEEE1394 link chip I/F. 88 IFULL I Data transmission hold request signal input terminal for IEEE1394 link chip I/F. 89 IEMPTY I High speed transmission request signal input terminal for IEEE1394 link chip I/F. 90 VDIO - +3.3V Power for I/O. 91 IFRM O Frame reference signal output terminal for IEEE1394 link chip I/F. 92 IOUTE O Enable signal output terminal for IEEE1394 link chip I/F. 93 IBCK O Data transmission clock output terminal for IEEE1394 link chip I/F. 94 VSC - Ground for CORE. 95 TESTI I TEST input terminal. It fixed to “H” potential. Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DVD-5910/DVD-A1XV 96 TESTI I TEST input terminal. It fixed to “L” potential. 97 TESTI Ipu TEST input terminal. It fixed to “H” potential. 98 TESTO O TEST output terminal. (open) 99 VDC - +2.5V Power for CORE. 100 TESTI I TEST input terminal. It fixed to “L” potential. 101 TESTI I TEST input terminal. It fixed to “L” potential. 102 TESTI I TEST input terminal. It fixed to “L” potential. 103 TESTI I TEST input terminal. It fixed to “L” potential. 104 TESTI I TEST input terminal. It fixed to “L” potential. 105 TESTI I TEST input terminal. It fixed to “L” potential. 106 VSIO - Ground for I/O. 107 TESTI I TEST input terminal. It fixed to “L” potential. 108 TESTI I TEST input terminal. It fixed to “L” potential. 109 TESTI I TEST input terminal. It fixed to “L” potential. 110 VDIO - +3.3V Power for I/O. 111 WAD0 I External A/D data input terminal(LSB) for PSP physical disc mark detection. 112 WAD1 I External A/D data input terminal for PSP physical disc mark detection. 113 WAD2 I External A/D data input terminal for PSP physical disc mark detection. 114 WAD3 I External A/D data input terminal for PSP physical disc mark detection. 115 VSIO - Ground for I/O. 116 VSC - Ground for CORE. 117 WAD4 I External A/D data input terminal for PSP physical disc mark detection. 118 WAD5 I External A/D data input terminal for PSP physical disc mark detection. 119 WAD6 I External A/D data input terminal for PSP physical disc mark detection. 120 WAD7 I External A/D data input terminal(MSB) for PSP physical disc mark detection. 121 VDC - +2.5V Powe for CORE. 122 TESTI I TEST input terminal. It fixed to “L” potential. 123 WCK I Operation clock for PSP physical disc mark detection. 124 WAVDD - +2.5V Power. A/D Power supply for PSP physical disc mark detection. 125 WAVDD - +2.5V Power. A/D Power supply for PSP physical disc mark detection. 126 WARFI Ai Analog RF signal input terminal for PSP physical disc mark detection. 127 WAVRB Ai A/D bottom reference terminal for PSP physical disc mark detection. 128 WAVSS - A/D Ground terminal for PSP physical disc mark detection. 129 WAVSS - A/D Ground terminal for PSP physical disc mark detection. 130 VSIO - Ground for I/O. 131 DQ7 I/O SDRAM data input/output terminal. (MSB) 132 DQ6 I/O SDRAM data input/output terminal. 133 DQ5 I/O SDRAM data input/output terminal. 134 DQ4 I/O SDRAM data input/output terminal. 135 VDIO - +3.3V Power for I/O. 136 DQ3 I/O SDRAM data input/output terminal. 137 DQ2 I/O SDRAM data input/output terminal. 138 DQ1 I/O SDRAM data input/output terminal. 139 DQ0 I/O SDRAM data input/output terminal. (LSB) 140 VSIO - Ground for I/O. 141 DCLK O Clock output terminal for SDRAM. 142 DCKE O Clock enable output terminal for SDRAM. 143 XWE O Write enable output terminal for SDRAM. 144 XCAS O Colomn address strobe output terminal for SDRAM. 145 XRAS O Row address strobe output terminal for SDRAM. 146 VDIO - +3.3V Power for I/O. 147 TESTO O Output terminal for TEST. (open) Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DVD-5910/DVD-A1XV Ipu: Pull-up input Ipd: Pull-down input Ai: Analog input 148 A11 O Address output terminal for SDRAM. (MSB) 149 A10 O Address output terminal for SDRAM. 150 VSC - Ground for CORE. 151 A9 O Address output terminal for SDRAM. 152 A8 O Address output terminal for SDRAM. 153 VDC - +2.5V Power for CORE. 154 A7 O Address output terminal for SDRAM. 155 A6 O Address output terminal for SDRAM. 156 A5 O Address output terminal for SDRAM. 157 A4 O Address output terminal for SDRAM. 158 VSIO - Ground for I/O. 159 A3 O Address output terminal for SDRAM. 160 A2 O Address output terminal for SDRAM. 161 A1 O Address output terminal for SDRAM. 162 A0 O Address output terminal for SDRAM. (LSB) 163 VDIO - +3.3V Power for I/O. 164 XSRQ O Output terminal of the Data Request signal inputted a front-end processor. 165 XSHD I Input terminal of the header Flag outputted from a front-end processor. 166 SDCK I Input terminal of the data conveyance Clock outputted from a front-end processor. 167 XASK I Input terminal of the data valid Flag outputted from a front-end processor. 168 SDEF I Input terminal of the error Flag outputted from a front-end processor. 169 SD0 I Input terminal of the stream Data outputted from a front-end processor. 170 SD1 I Input terminal of the stream Data outputted from a front-end processor. 171 SD2 I Input terminal of the stream Data outputted from a front-end processor. 172 SD3 I Input terminal of the stream Data outputted from a front-end processor. 173 SD4 I Input terminal of the stream Data outputted from a front-end processor. 174 SD5 I Input terminal of the stream Data outputted from a front-end processor. 175 SD6 I Input terminal of the stream Data outputted from a front-end processor. 176 SD7 I Input terminal of the stream Data outputted from a front-end processor. Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DVD-5910/DVD-A1XV ADSP-21266SKSTZ1B-DVD (SY: IC305) Terminal Function 1 3 6 37 73 72 108 144 109 TOP VIEW PIN 1 INDICATOR Pin Name LQFP Pin # Pin Name LQFP Pin # Pin Name LQFP Pin # Pin Name LQFP Pin # VDDINT 1 VDDINT 37 VDDEXT 73 GND 109 CLKCFG0 2 GND 38 GND 74 VDDINT 110 CLKCFG1 3 RD 39 VDDINT 75 GND 111 BOOTCFG0 4 ALE 40 GND 76 VDDINT 112 BOOTCFG1 5 AD15 41 DAI_P10 (SD2B) 77 GND 113 GND 6 AD14 42 DAI_P11 (SD3A) 78 VDDINT 114 VDDEXT 7 AD13 43 DAI_P12 (SD3B) 79 GND 115 GND 8 GND 44 DAI_P13 (SCLK23) 80 VDDEXT 116 VDDINT 9 VDDEXT 45 DAI_P14 (SFS23) 81 GND 117 GND 10 AD12 46 DAI_P15 (SD4A) 82 VDDINT 118 VDDINT 11 VDDINT 47 VDDINT 83 GND 119 GND 12 GND 48 GND 84 VDDINT 120 VDDINT 13 AD11 49 GND 85 RESET 121 GND 14 AD10 50 DAI_P16 (SD4B) 86 SPIDS 122 FLAG0 15 AD9 51 DAI_P17 (SD5A) 87 GND 123 FLAG1 16 AD8 52 DAI_P18 (SD5B) 88 VDDINT 124 AD7 17 DAI_P1 (SD0A) 53 DAI_P19 (SCLK45) 89 SPICLK 125 GND 18 VDDINT 54 VDDINT 90 MISO 126 VDDINT 19 GND 55 GND 91 MOSI 127 GND 20 DAI_P2 (SD0B) 56 GND 92 GND 128 VDDEXT 21 DAI_P3 (SCLK0) 57 VDDEXT 93 VDDINT 129 GND 22 GND 58 DAI_P20 (SFS45) 94 VDDEXT 130 VDDINT 23 VDDEXT 59 GND 95 AVDD 131 AD6 24 VDDINT 60 VDDINT 96 AVSS 132 AD5 25 GND 61 FLAG2 97 GND 133 AD4 26 DAI_P4 (SFS0) 62 FLAG3 98 CLKOUT 134 VDDINT 27 DAI_P5 (SD1A) 63 VDDINT 99 EMU 135 GND 28 DAI_P6 (SD1B) 64 GND 100 TDO 136 AD3 29 DAI_P7 (SCLK1) 65 VDDINT 101 TDI 137 AD2 30 VDDINT 66 GND 102 TRST 138 VDDEXT 31 GND 67 VDDINT 103 TCK 139 GND 32 VDDINT 68 GND 104 TMS 140 AD1 33 GND 69 VDDINT 105 GND 141 AD0 34 DAI_P8 (SFS1) 70 GND 106 CLKIN 142 WR 35 DAI_P9 (SD2A) 71 VDDINT 107 XTAL 143 VDDINT 36 VDDINT 72 VDDINT 108 VDDEXT 144 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DVD-5910/DVD-A1XV M30620FCPGP(5910) (SY: IC104) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 P12/D10 P13/D11 P14/D12 VREF AVSS VCC XIN XOUT VSS RESET CNVss P87/XCIN P86/XCOUT BYTE P2 P17/NEWALTEST2 0/A0(/D0/-) P21/A1(/D1/D0) P22/A2(/D2/D1) P23/A3(/D3/D2) P24/A4(/D4/D3) P25/A5(/D5/D4) P26/A6(/D6/D5) P27/A7(/D7/D6) P30/OPEN P37/RSV P81/NEWALTEST5 P11/NEWALTEST3 P10/NEWALTEST4 P33/NEWALTEST1 P31/A9 P32/A10 P34/A12 P35/A13 P36/A14 P40/A16 P41/A17 P42/A18 P43/A19 P74/TA2OUT/W P76/TA3OUT P56/ALE P77/TA3IN P55/HOLD P54/HLDA P53/BCLK P52/RD Vcc Vss P57/RDY/CLKOUT P45/CS1 P46/CS2 P47/CS3 AVcc P63/TXD0 P65/CLK1 P66/RxD1 P67/TXD1 P61/CLK0 P62/RxD0 P100/AN0 P101/AN1 P102/AN2 P103/AN3 P93/DA0/TB3IN P94/DA1/TB4IN P95/ANEX0/CLK4 P96/ANEX1/SOUT4 P91/TB1IN/SIN3 P92/TB2IN/SOUT3 P80/TA4OUT/U P60/CTS0/RTS0 P64/CTS1/RTS1/CLKS1 P82/INT0 P83/INT1 P85/NMI P97/ADTRG/SIN4 P44/CS0 P50/WRL/WR P51/WRH/BHE P90/TB0IN/CLK3 P84/INT2 P72/CLK2/TA1OUT/V P71/RxD2/SCL/TA0IN/TB5IN (Note) P70/TXD2/SDA/TA0OUT (Note) P75/TA2IN/W P73/CTS2/RTS2/TA1IN/V P15/D13/INT3 P16/D14/INT4 P107/AN7/KI3 P106/AN6/KI2 P105/AN5/KI1 P104/AN4/KI0 P07/AN07/D7 P06/AN06/D6 P05/AN05/D5 P04/AN04/D4 P03/AN03/D3 P02/AN02/D2 P01/AN01/D1 P00/AN00/D0 PIN CONFIGURATION (top view) M16C/62N Group www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DVD-5910/DVD-A1XV PIN Description PIN NAME SYMBOL I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O 1 TB4IN DSPSPICS O DSP CONTROL SIGNAL 2 P93 V-CS VFD CONTROL SIGNAL(CS) /　H=NEGATE , L=ASSERT 3 SOUT3 V-DATA VFD CONTROL SIGNAL(DATA) 4 SIN3 ROM CONT 1 NOT USED 5 CLK3 V-CLK VFD CONTROL SIGNAL(CLK) 6 BYTE BUS WIDTH SEL I EXT DATA BUS WIDTH SELECT L=16bit (width) H=8bit (width) 7 CNVss CNVss I MODE SELECT SIGNAL SINGLE CHIP MODE=Vss CONNECTION, MICRO PROSECER MODE=Vcc CONNECTION 8 P87 NCS_1394 1394 CONTROL SIGNAL(CS) / H=NEGATE , L=ASSERT 9 P86 48_96 AUDIO STATUS SELECT SIGNAL1 10 RESET- RESET I RESET INPUT/ H=NEGATE , L=ASSERT　　*RESET IC OUT = OPEN DRAIN 11 XOUT CLOCK OUT O X'TAL CONNECTION 12 VSS GND I IMPRESS: 0V 13 XIN CLOCK IN I X'TAL CONNECTION 14 VCC VCC I IMPRESS: 2.4-3.6V 15 NMI MN TERMINAL NON USABLE 16 INT2- OP_CS BE CONTROL SIGNAL(CS) / H=NEGATE , L=ASSERT 17 INT1- W.REM WIRED REMOTE INPUT 18 INT0- REMO REMOTE INPUT 19 P81 NEWALTEST5 NEW ALPHA CONTROL SIGNAL 5 20 TA4OUT OPN_DRV TRAY CONTROL SIGNAL1 21 P77 LD CONT PICK UP LASER ON/OFF CONTROL OUTPUT H=DVD L=CD 22 TA3OUT CLS_DRV TRAY CONTROL SIGNAL2 23 TA2IN DFRESET INTERRUPT INPUT FOR BE /　H=NEGATE , L=ASSERT 24 P74 +1.8V_ON/OFF +1.8V POWER CONTROL SIGNAL FOR DSP / H=ON , L=OFF 25 RTS2- PANEL_REQ BE CONTROL SIGNAL(REQ) /　H=ASSERT , L=NEGATE 26 CLK2 OP_CLK BE CONTROL SIGNAL(CLK) 27 RXD2 OP_DI BE CONTROL SIGNAL(DI) 28 TXD2 OP_DO BE CONTROL SIGNAL(DO) 29 TXD1 SYSTXD TXD 30 RXD1 SYSRXD RXD 31 CLK1 CLK1 CLOCK MODE SELECT 32 RTS1 1394_RST RESET OUTPUT FOR 1394 / H=NEGATE , L=ASSERT 33 TXD0 TXD1394 1394 CONTROL SIGNAL(DO) 34 RXD0 RXD1394 1394 CONTROL SIGNAL(DI) 35 CLK0 CLK1394 1394 CONTROL SIGNAL(CLK) 36 P60 SEL_1394 AUDIO STATUS SELECT SIGNAL2 37 P57 EXTMIXIN AUDIO STATUS SELECT SIGNAL3 38 P56 192_OTHER AUDIO STATUS SELECT SIGNAL4 39 FRASH_EPM FRASH_EPM INTERNAL FLASH CONTROL SIGNAL1 /　H=NOMAL , L=BOOT 40 P54 D.L.ON AUDIO STATUS SELECT SIGNAL5 41 P53 DSD_SEL AUDIO STATUS SELECT SIGNAL6 42 P52 FILM_ON VIDEO STATUS SELECT SIGNAL 43 P51 EMUTE MUTE CONTROL SIGNAL / H=MUTE ON , L=MUTE OFF 44 FRASH_HCE FRASH_HCE INTERNAL FLASH CONTROL SIGNAL1 / H=BOOT , L=NOMAL 45 P47 DIR_CLK DIR CONTROL SIGNAL(CLK) 46 P46 DIR_DI DIR CONTROL SIGNAL(DI) 47 P45 DIR_DO DIR CONTROL SIGNAL(DO) 48 P44 DIR_CS DIR CONTROL SIGNAL(CS) 49 P43 ERROR ERROR DETECT SIGNAL 50 P42 CFLUG CH STATUS DETECT SIGNAL PIN No FUNCTION DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DVD-5910/DVD-A1XV PIN NAME SYMBOL I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O 51 P41 EXT_INT SPDIF OUTPUT CONTROL H=EXT IN, L=INT 52 P40 SW_HGAIN SUB WOOFER HGAIN 53 P37 RSV NEW ALPHA CONTROL SIGNAL RESENED 54 P36 VPP NORMAL: "H" FLASH WRITING FOR DSP: "L" 55 P35 DSP_RST DSP RESET OUTPUT TERMINAL (RESET: "L") 56 P34 ROMRST MEMORY RESET FOR DSP (RESET: "L") 57 P33 NEW ALTEST 1 NEW ALPHA CONTROL SIGNAL 1 58 P32 FLUG 0A E2ROM CHIP SELECT CONTROL FOR DSP 59 P31 FLUG 1A NOT USED 60 VCC POWER INPUT 3 POWER INPUT 4 I IMPRESS: 2.4-3.6V 61 P30 OPEN FLUG 3A NOT USED 62 VSS IMPRESS: 0V 63 P27 I/O Special Flag for ROM update (ADSP 21266SKST: FLAG 3A) 64 P26 +3.3V_ON/OFF I/O I/O I/O H=ON, L=OFF 65 P25 232CONT1 232CONT2 I/O 232C/1394 COMMUNICATION PATHWAY SWITCHING OUTPUT 1 232C/1394 COMMUNICATION PATHWAY SWITCHING OUTPUT 2 66 P24 I/O 67 P23 HD_2ch/Mch HD_ON/OFF I/O HDMI CONTROL 2ch (Low)/Mch (High) 68 P22 I/O HDMI CONTROL ON (Low)/OFF (High) 69 P21 LED1 I/O LED CONTROL (AL24) LED CONTROL (D.L.) 70 P20 LED2 I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O 71 P17 NEW ALTEST 2 NEW ALPHA CONTROL SIGNAL 2 72 P16 ROM_CONT 2 NOT USED 73 INT3 INTERRUPT IEEE 1394 INTERRUPT DETECTION PORT 74 P14 LED3 LED4 LED CONTROL (DVD) LED CONTROL (SACD) 75 P13 76 P12 G_LED POWER INDICATOR LED (Green) CONTROL L: ON/H: OFF 77 P11 NEW ALTEST 3 NEW ALTEST 4 EW ALPHA CONTROL SIGNAL 3 78 P10 EW ALPHA CONTROL SIGNAL 4 79 P07 PLL_RST RESET OUTPUT FOR PLL_IC / H=NEGATE , L=ASSERT 80 P06 PDET POWER DETECT SIGNAL /　H=ON , L=OFF 81 P05 RST RESET OUTPUT FOR PERIPHERAL DEVICE / H=NEGATE , L=ASSERT 82 P04 BE_ON BE STATUS DETECT SIGNAL /　H=ACTIVE , L=STANBY 83 P03 1394_ON/OFF +3.3V' POWER ON/OFF CONTROL SIGNAL FOR 1394 / H=ON , L=OFF 84 P02 1394_YOBI 1394 SPARE TERMINAL 85 P01 CL_SW CLOSE_SW DETECT SIGNAL /　H=NOT CLOSE , L=CLOSE 86 P00 OP_SW OPEN_SW DETECT SIGNAL /　H=NOT OPEN , L=OPEN 87 P107 R_LED POWER INDICATOR LED (Red) CONTROL L: ON/H: OFF 88 P106 ON/ST POWER ON/OFF CONTROL SIGNAL /　H=POWER_ON , L=STANBY 89 AN5 JOG1 JOG SELECT 90 AN4 JOG2 JOG SELECT 91 AN3 REG REGION DETECT SIGNAL 92 AN2 KEY2 KEY SCAN 2 93 AN1 KEY1 KEY SCAN 1 94 AVSS ANA POWER I POWER INPUT TERMINAL FOR A-D CONVERTER Vss CONNECTION POWER INPUT TERMINAL FOR A-D CONVERTER Vcc CONNECTION 95 AN0 KEY0 KEY SCAN 0 96 VREF REFERENCE I REFERENCE VOLTAGE INPUT TERMINAL FOR A-D CONVERTER 97 AVCC ANA POWER I 98 SIN4 DSPMISO DSP CONTROL TERMINAL DSP CONTROL TERMINAL DSP CONTROL TERMINAL 99 SOUT4 DSPMOSI 100 CLK4 DSPSPICLK PIN No FUNCTION DESCRIPTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DVD-5910/DVD-A1XV K4S643232E (VI: IC502, 503) VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 N.C VDD DQM0 WE CAS RAS CS N.C BA0 BA1 A10/AP A0 A1 A2 DQM2 VDD N.C DQ16 VSSQ DQ17 DQ18 VDDQ DQ19 DQ20 VSSQ DQ21 DQ22 VDDQ DQ23 VDD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 N.C VSS DQM1 N.C N.C CLK CKE A9 A8 A7 A6 A5 A4 A3 DQM3 VSS N.C DQ31 VDDQ DQ30 DQ29 VSSQ DQ28 DQ27 VDDQ DQ26 DQ25 VSSQ DQ24 VSS PIN CONFIGURATION BLOCK DIAGRAM Bank Select Data Input Register 512K x 32 512K x 32 Sense AMP Output Buffer I/O Control Column Decoder Latency & Burst Length Programming Register Address Register Row Buffer Refresh Counter Row Decoder Col. Buffer LRAS LCBR LCKE LRAS LCBR LWE LDQM CLK CKE CS RAS CAS WE DQM LWE LDQM DQi CLK ADD LCAS LWCBR 512K x 32 512K x 32 Timing Register PIN FUNCTION DESCRIPTION Pin Name Input Function CLK System clock Active on the positive going edge to sample all inputs. CS Chip select Disables or enables device operation by masking or enabling all inputs except CLK, CKE and DQM. CKE Clock enable Masks system clock to freeze operation from the next clock cycle. CKE should be enabled at least one cycle prior to new command. Disables input buffers for power down mode. A0 ~ A10 Address Row/column addresses are multiplexed on the same pins. Row address : RA0 ~ RA10, Column address : CA0 ~ CA7 BA0,1 Bank select address Selects bank to be activated during row address latch time. Selects bank for read/write during column address latch time. RAS Row address strobe Latches row addresses on the positive going edge of the CLK with RAS low. Enables row access & precharge. CAS Column address strobe Latches column addresses on the positive going edge of the CLK with CAS low. Enables column access. WE Write enable Enables write operation and row precharge. Latches data in starting from CAS, WE active. DQM0 ~ 3 Data input/output mask Makes data output Hi-Z, tSHZ after the clock and masks the output. Blocks data input when DQM active. DQ0 ~ 31 Data input/output Data inputs/outputs are multiplexed on the same pins. VDD/VSS Power supply/ground Power and ground for the input buffers and the core logic. VDDQ/VSSQ Data output power/ground Isolated power supply and ground for the output buffers to provide improved noise immunity. NC No Connection This pin is recommended to be left No connection on the device. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DVD-5910/DVD-A1XV ADV7314/7324 (VI: IC201, 401) 1 VDD_IO P Digital power supply. 2~9, 12, 13 Y9-0 I 10-Bit Progressive scan/ HDTV input port for Y data. 10, 56 VDD P Digital power supply. 11, 57 DGND G Digital Ground 14~18, 26~30 C9-0 I 10-Bit Progressive scan/ HDTV input port for CrCb color data in 4:2:2 input mode. When this input pin is brought low, the ADV7300 interfaces over the SPI port and uses this 19 SPI/I2C I input as part of the 4 wire SPI interface. When this input pin is tied high [VDD_IO], the ADV7300 interfaces over the I2C port. 20 ALSB_SO I/O Multifunctional pin. 21 SDA_CLKSP I/O Multifunctional pin. 22 SCLK_SI I Multifunctional input. 23 P_HSYNC I Video Horizontal Sync Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 24 P_VSYNC I Video Vertical Sync Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 25 P_BLANK I Video Blanking Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 31 RTC_SCR_TR I Multifunctional input. 32 CLKIN_A I Pixel Clock Input for HD only or SD only modes. 33 RESET I This input resets the on-chip timing generator and sets the ADV7300 into Default Register setting. Reset is an active low signal. 34 EXT_LF I External Loop filter for the internal PLL. 35, 47 RSET1,2 I A1520 Ohms resistor must be connected from this pin to AGND and is used to control the amplitudes of the DAC outputs. 36,45 COMP O Compensation Pin for DACs. 37 DAC F O In SD only mode: Chroma/RED/V analog output. In HD only mode and simultaneus HD/SD: Pb/ BLUE (HD) analog output. 38 DAC E O In SD only mode: Luma/BLUE/U analog output. In HD only mode and simultaneus HD/SD: Pr/ RED (HD) analog output. 39 DAC D O In SD only mode: CVBS/GREEN/Y analog output. In HD only mode and simultaneus HD/SD:Y/ GREEN (HD) analog output. 40 AGND G Analog Ground 41 VAA P Analog power supply. 42 DAC C O Chroma/ RED/ V SD analog output. 43 DAC B O Luma/ BLUE/ U SD analog output. 44 DAC A O CVBS/ GREEN/ Y SD analog output. 46 VREF I/O Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235V). 48 S_BLANK I/O Video Blanking Control Signal for SD. 49 S_VSYNC I/O Video Vertical Sync Control Signal for SD. 50 S_HSYNC I/O Video Horizontal Control Signal for SD. 51~55, 58~62 S9-S0 I 10-Bit Standard Definition input port. Or Progressive Scan/ HDTV input port for Cr [Red/V] color data in 4:4:4 input mode. 63 CLKIN_B I Pixel Clock Input. 64 GND_IO G Digital Ground Function I/O Pin No. Pin Name 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 VDD_IO Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 VDD DGND Y8 Y9 C0 C1 C2 C3 C4 ALSB_SO SDA_CLKSP SCLK_SI P_BLANK C5 C6 C7 C8 C9 RTC_SCR_TR CLKIN_A VREF COMP1 DAC A DAC B DAC C VAA AGND DAC D DAC E DAC F COMP2 R EXT_LF SET 2 R SET 1 GND_IO CLKIN_B S9 S8 S7 S6 S5 DGND VDD S4 S3 S2 S1 S0 SPI/I2C P_HSYNC P_VSYNC RESET S_BLANK S_VSYNC S_HSYNC TOP VIEW ADV7314/7324 Terminal Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DVD-5910/DVD-A1XV CXD1881BR (MA: IC502) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 CXD1881BR RX MEV VNA FNN FNP DIP DIN BYP RFAC VPA AIP AIN ATON ATOP RFSIN RFDC MEVO MIN MLPF MB MP MIRR LDON VNB CDPD DVDPD COLD DVDLD VC VPB CD_E CD_F SDEN SDATA SCLK V33 LCP LCN MNTR CE FE TE PI V25 V125 TPH DFT LINK DVDRFP DVDRFN A2 B2 C2 D2 CP CN D C B A CD_D CD_C CD_B CD_A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DVD-5910/DVD-A1XV DVDRFP DVDRFN RFSIN ATOP ATON AIN AIP FNP DIN DIP RFAC FNN MUX INPUT BIAS ATT 63 A 12 CD_A 16 B 11 CD_B 15 C 10 CD_C 14 D CD_D 13 CD_E 18 CD_F 17 2 9 A2 3 1 SIGR b3 INPUT SEL RFCR b7-6 INPUT IMP SEL 2 RFCR b5-4 INPUT IMP SEL 2 2 4 SIGR b7-4 ATT 62 61 60 59 AGC FCCR b7-0 FBCR b6-0 PROGRAMMABLE EQUALIZER FILTER DIFFERENTIATOR AGCO 53 52 SSOUT TENV Clamp & Env Level DAC CAR b3-2 SIGDET 2 CAR b1-0 Env/Clamp FULL WAVE RECTIFIER CGR b1 OUTPUT INHIBIT 55 54 57 56 AGC CHARGE PUMP AGC HOLD RFCR b3 B+D A+C A+D B+C MUX D C B A GCA GCA GCA GCA GCA GCA GCA GCA W/LPF W/LPF W/LPF W/LPF SUM Amp. SIGR b2-0 12dB is added @ high gain mode (CDR b5=1) 12dB is added @ high gain mode (CDR b5=1) 6dB is added @ high gain mode (CDR b5=1) 3 3 4 RFCR b2-0 RFCR b2-0 TRCR2 b6-4 DPD EQ TRCR2 b3-0 3B PDCR b3 CD/DVD GCA +/-4dB Offset cancel LPF GCA 70kHz +/-6dB, 4bit 0-+8dB, 4bit CTCR b3-0 CO Gain +/-4dB 4 4 4 FOCR b7-4 FS Gain CCR b4-0 FE offset 5 Offset cancel LPF 70kHz PIOR b4-0 PI offset FOCR b3-0 FO Gain CER b4-0 CE offset CFR b7-5 TR Gain CBR b3-2 5 TOPHLD CTCR b7 BCA DET COMP CBR b1-0 Pll SEL SEL BYP 49 RX 40 FE 38 PI 35 TPH 34 DFT RFDC DAC 2 Buff 61 CE 41 MNTR TOPHLD TOPHLD Offset cancel GCA GCA 4D SUM MON SEL PI FE TE CE V25 V125 V25/3 42 LCP 44 LCN 43 TE CP LPF ATT Pol sel. buff (Ð12dB) 3 3 CFR b2-0 CE-ATT CFR b3 CEPOL +3dB RESUM GCA GCA GCA 7 CN 8 Offset cancel LPF GCA SUB MUX TE RST 39 V125 36 V25 37 VC 20 SDEN 48 SDATA 47 SCLK 46 V33 45 TRCR b5-0 TR offset 6 CEFDB CDR b3 PDCR b3 CD/DVD TRCR2 b7 CP/CN Low lmp EQ B2 4 C2 5 D2 CDPD 6 GCA TRCR b6 DPD COMP HYS ON GCA GCA PHASE DETECTOR PHASE DETECTOR EQ EQ EQ 3 3 VC Comp. V25/2 for TE, FE & CE output ref. VC VCI for servo input SERIAL PORT REGISTER V33 for output buff MIRR 27 LINK VPA 58 VPB 19 VNA 51 VNB 25 33 MB 29 MP 28 MLPF 30 MIN 31 MEVO 32 MEV CDR b7 LINKEN CCR b7 DISK DET CONTROL Signals To each block MUX Btm Env Btm clamp & clip MUX MUX Vref CGR b5-4 Gain MUX Offset MUX MUX BTM ENV BTM HLD TOP ENV TOP HLD MRCR b7-0 droop rate control Pll AGCO BENV 50 DVDLD 21 CDLD 22 LDON 26 Dual APC 24 DVDPD 23 CCR b5 APC SEL DVD/CD CDR b4 LD H/L ATT HOLDEN CDR b6 2 4 CAR b7-4 TE MASK SEL 2 PIOR b7-5 3 GCA ATT CGR b0 OUTPUT INHIBIT SIGR b2-0 12dB is added @ high gain mode (CDR b5=1) CDR b5 High Gain 2 CTCR b5-4 MEVO SEL CHR b7-6 Mirr Defect Comp ATT MRCR b6-4 Mirr Comp ATT Level 2 3 V25/3 CDR b2 for PI output ref. AGC BTM ENV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DVD-5910/DVD-A1XV Terminal Function Power Supply Pins Input Pins Output Pins Name I/O Function VPA - Power for RF and serial port VPB - Power for servo VNA - GND for RF and serial port VNB - GND for servo V33 - Power for output buffer V25 - Reference Power for servo output Name I/O Function DVDRFP,DVDRFN I RF signal input RFSIN I RF signal input AIP,AIN I AGC amp. input DIP,DIN I Analog input for RF single buffer A,B,C,D I Photo detector interface input A2,B2,C2,D2 I Photo detector interface input CD_A,B,C,D I CD photo detector interface input CD_E,F I CD photo detector interface input MIN I RF signal input for mirror DVDPD I APC input CDPD I APC input LDON I APC input ON/OFF (L:Open) I Link signal input (L:Open) O Mirror monitor output Name I/O Function ATOP,ATON O Differential attenuator output FNP,FNN O Differential normal output RFAC O Single end normal output RFDC O RF signal output FE O Focus error signal output TE O Tracking error signal output CE O Center error signal output MEVO O RFDDC bottom envelope output DFT O Defect output MIRR O Mirror detected output PI O Pull-in signal output DVDLD O APC output CDLD O APC output MNTR O Monitor output LINK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DVD-5910/DVD-A1XV Analog Pins Serial Port Pins Name I/O Function BYP - RF AGC integration capacitor connecting terminal CP - Differential phase tracking LPF terminal CN - Differential phase tracking LPF terminal LCP - Lens shift offset cancel LPF terminal LCN - Lens shift offset cancel LPF terminal MP - MIRR top hold terminal MB - MIRR bottom hold terminal MEV - RFDC bottom envelope terminal MLPF - Mirror LPF terminal TPH - PI top hold terminal VC - Reference voltage output V125 - Reference voltage output RX - Reference resistor input Name I/O Function SDEN I Serial data enable SDATA I/O Serial data SCLK I Serial clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DVD-5910/DVD-A1XV K4S641632H (MA: IC114) W986416DH (MA: IC103) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 25 24 23 22 VCC VCCQ DQ0 VSSQ DQ2 VSSQ DQ6 VCCQ DQ4 BS0 BS1 A10/AP A0 DQ1 DQ5 VCC LDQM Vcc WE CAS RAS CS DQ7 DQ3 26 27 A1 A2 VSS VssQ DQ15 VCCQ DQ13 VCCQ DQ9 VSSQ DQ11 A9 A8 A7 A6 A5 DQ14 DQ10 VSS NC UDQM CLK CKE NC A11 DQ8 DQ12 A4 Vss 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 30 31 32 33 29 28 A3 1, 14, 27 VCC Power (+3.3V) Power for input buffers and logic circuit inside DRAM. 2, 4, 5, 7, 8, 10, 11, 13, 42, 44, DQ0-DQ15 Data Input/Output Multiplexed pins for data output and input. 45, 47, 48, 50, 51, 53 3, 9, 43, 49 VCCQ Power (+3.3V) for I/O buffer Separated power from VCC, to improve DQ noise immunity. 6, 12, 46, 52 VSSQ Ground for I/O buffer Separated ground from VSS, to improve DQ noise immunity. 16 WE Write Enable Referred to RAS. 17 CAS Column Address Strobe Referred to RAS. 18 RAS Row Address Strobe Command input. When sampled at the rising edge of the clock RAS, CAS and WE define the operation to be executed. 19 CS Chip Select Disable or enable the command decoder. When command decoder is disabled, new command is ignored and previous operation continues. 20, 21 BS0, BS1 Bank Select Select bank to activate during row address latch time, or bank to read/write during address latch time. 23~26, 22 Multiplexed pins for row and column address. Row address: A0-A11. 29~35 A0-A11 Address Column address: A0-A7. A10 is sampled during a precharge command to determine if all banks are to be precharged or bank selected by BS0, BS1. 28, 41, 54 VSS Ground Ground for input buffers and logic circuit inside DRAM. 36, 40 NC No Connection No Connection 37 CKE Clock Enable CKE controls the clock activation and deactivation.When CKE is low, Power Down mode, Suspend mode, or Self Refresh mode is entered. 38 CLK Clock Inputs System clock used to sample inputs on the rising edge of clock. The output buffer is placed at Hi-Z (with latency of 2) when DQM is sampled 39, 15 UDQM, LDQM Input/Output mask high in read cycle. In write cycle, sampling DQM high will block the write operation with zero latency. Description Function Pin No. Pin Name Terminal Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DVD-5910/DVD-A1XV 16M SDRAM (MA: IC402) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 43 44 45 46 47 48 49 50 A9 VDD DQ1 DQ0 DQ3 DQ2 DQ7 DQ6 DQ5 DQ4 A0 A1 A2 A3 VDD VSSQ VSSQ LDQM WE CAS RAS CS BA A10/AP VSS N.C CKE CLK UDQM N.C/RFU VSSQ DQ10 DQ11 VDDQ VSSQ DQ14 DQ15 VSS DQ13 DQ12 VDDQ DQ9 DQ8 A8 A7 A6 A5 A4 VDDQ VDDQ 16M SDRAM (TSOP)-8 (DM: IC103, 104) K4S161622D-TC80 W981616AH-8 Terminal Function 1 VDD Power Supply/Ground Power and ground for the input buffer and the core logic 2 DQ0 Data Input/Output Data input/output are mutiplexed on the same pin 3 DQ1 Data Input/Output Data input/output are mutiplexed on the same pin 4 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 5 DQ2 Data Input/Output Data input/output are mutiplexed on the same pin 6 DQ3 Data Input/Output Data input/output are mutiplexed on the same pin 7 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 8 DQ4 Data Input/Output Data input/output are mutiplexed on the same pin 9 DQ5 Data Input/Output Data input/output are mutiplexed on the same pin 10 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 11 DQ6 Data Input/Output Data input/output are multiplexed on the same pin 12 DQ7 Data Input/Output Data input/output are multiplexed on the same pin 13 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 14 L DQM Data Input/Output Mask Blocks data input when active 15 WE Write Enable Enables write operation and row precharge 16 CAS Column Address Strobe Latches column address on the positive going edge of the CLK at low 17 RAS Row Address Strobe Latches row address on the positive going edge of the CLK at low 18 CS Chip Select Disables or enables device operation by masking or enabling all inputs except CLK, CKE, and LDQM 19 BA Bank Select Address Selects bank to be activated during row address latch time 20 A10/AP Address Row/column addresses are multiplexed on the same pin 21 A0 Address Row/column addresses are multiplexed on the same pin 22 A1 Address Row/column addresses are multiplexed on the same pin 23 A2 Address Row/column addresses are multiplexed on the same pin 24 A3 Address Row/column addresses are multiplexed on the same pin 25 VDD Power Supply/Ground Power and ground for the input buffer and the core logic 26 VSS Power Supply/Ground Power and ground for the input buffer and the core logic 27 A4 Address Row/column addresses are multiplexed on the same pin 28 A5 Address Row/column addresses are multiplexed on the same pin 29 A6 Address Row/column addresses are multiplexed on the same pin 30 A7 Address Row/column addresses are multiplexed on the same pin 31 A8 Address Row/column addresses are multiplexed on the same pin 32 A9 Address Row/column addresses are multiplexed on the same pin 33 N. C No Connection No connect pin 34 CKE Clock Enable Masks system clock to freeze operation from the next clock cycle 35 CLK System Clock Active on the positive going edge to sample all inputs 36 U DQM Data Input/Output Mask Blocks data input when active 37 N. C/RFU NC/Reserved No connect pin 38 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 39 DQ8 Data Input/Output Data input/output are multiplexed on the same pin 40 DQ9 Data Input/Output Data input/output are multiplexed on the same pin 41 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 42 DQ10 Data Input/Output Data input/output are multiplexed on the same pin 43 DQ11 Data Input/Output Data input/output are multiplexed on the same pin 44 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 45 DQ12 Data Input/Output Data input/output are multiplexed on the same pin 46 DQ13 Data Input/Output Data input/output are multiplexed on the same pin 47 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 48 DQ14 Data Input/Output Data input/output are multiplexed on the same pin 49 DQ15 Data Input/Output Data input/output are multiplexed on the same pin 50 VSS Power Supply/Ground Power and ground for the input buffer and the core logic Pin Name Function Pin No. Symbol www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DVD-5910/DVD-A1XV FAN8042 (MA: IC503) Pin Assignments 1 2 3 4 5 6 7 8 9 10 11 12 36 35 34 33 32 31 30 29 28 27 26 25 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 FAN8042 IN1+ IN1- OUT1 IN2+ IN2- GND GND OUT2 IN3+ IN3- OUT3 IN4+ IN4- OUT4 CTL FWD REV GND GND SGND MUTE123 TSD-M PVCC2 DO5- MUTE4 DO5+ DO4- DO4+ DO3- DO3+ GND GND DO2- DO2+ DO1- DO1+ PVCC1 PS OPOUT2 OPIN2- OPIN2+ GND GND VREF SVCC OPOUT1 OPIN1- OPIN1+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DVD-5910/DVD-A1XV Block Diagram 40K 10 K Note. + + 40K 10K Pref DO+ DO- Detailed circuit of the output power amp 10K 10K 40K 40K Pref1 is almost PVCC1 / 2 Pref2 is almost PVCC2 / 2 From input opamp Vref 36 35 34 33 32 30 29 28 27 26 25 DO5+ DO4- DO3- DO3+ DO2- DO2+ 31 DO4+ 1 2 3 4 5 7 8 9 10 11 12 OUT4 IN4- IN4+ OUT3 IN3- OUT2 IN2- IN2+ OUT1 IN1- 6 IN3+ 37 38 39 40 41 43 44 45 46 47 48 IN1+ OPIN1+ OPIN1- OPOUT1 SVCC VREF OPIN2- OPOUT2 PS PVCC1 DO1+ 42 OPIN2+ 24 23 22 21 20 18 17 16 15 14 13 CTL FWD REV GND TSD-M PVCC2 MUTE123 19 DO5- DO1- POWER SAVE MUTE123 MUTE4 TSD-M 40K 40K 40K 40K 10K 10K 10K 10K 40K 40K 40K 40K 10K 10K 10K 10 K 40K 40K 40K 40K 10K 10K 10K 10K 40K 40K 40K 40K 10K 10K 10K 10K D D M S C + S W GND GND GND SGND MUTE4 GND GND GND GND - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DVD-5910/DVD-A1XV Pin Definitions Pin Number Pin Name I/O Pin Function Descrition 1 IN1+ I CH1 op-amp input (+) 2 IN1- I CH1 op-amp input (-) 3 OUT1 O CH1 op-amp output 4 IN2+ I CH2 op-amp input (+) 5 IN2- I CH2 op-amp input (-) 6 GND - Ground 7 GND - Ground 8 OUT2 O CH2 op-amp output 9 IN3+ I CH3 op-amp input (+) 10 IN3- I CH3 op-amp input (-) 11 OUT3 O CH3 op-amp output 12 IN4+ I CH4 op-amp input (+) 13 IN4- I CH4 op-amp input (-) 14 OUT4 O CH4 op-amp output 15 CTL I CH5 motor speed control 16 FWD I CH5 forward input 17 REV I CH5 reverse input 18 GND - Ground 19 GND - Ground 20 SGND - Signal Ground 21 MUTE123 I Mute for CH1,2,3 22 MUTE4 I Mute for CH4 23 TSD-M O TSD monitor 24 PVCC2 - Power supply voltage 2 (For CH4,CH5) 25 DO5- O CH5 drive output (-) 26 DO5+ O CH5 drive output (+) 27 DO4- O CH4 drive output (-) 28 DO4+ O CH4 drive output (+) 29 DO3- O CH3 drive output (-) 30 GND - Ground 31 GND - Ground 32 DO3+ O CH3 drive output (+) 33 DO2- O CH2 drive output (-) 34 DO2+ O CH2 drive output (+) 35 DO1- O CH1 drive output (-) 36 DO1+ O CH1 drive output (+) 37 PVCC1 - Power supply voltage 1 (FOR CH1 CH2,CH3) 38 PS I Power save 39 OPOUT2 O Normal op-amp2 output 40 OPIN2- I Normal op-amp2 input (-) 41 OPIN2+ I Normal op-amp2 input (+) 42 GND - Ground 43 GND - Ground 44 VREF I Bias voltage input 45 SVCC - Signal & OPAMPs supply voltage 46 OPOUT1 O Normal op-amp1 output 47 OPIN1- I Normal op-amp1 input (-) 48 OPIN1+ I Normal op-amp1 input (+) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DVD-5910/DVD-A1XV MBM29LV160BE90TN (MA: IC401 IE: IC104) LH28F160BJE-BTL90 (SY: IC306) A0-A19 Address Inputs DQ0-DQ15 Data Inputs/Outpus DE# Chip Enable RP# Reset OE# Output Enable WE# Write Enable WP# Wraite Protect BYTE# Byte Enable BY/BY# Ready/Busy VCCW Block Erase, Full chip Erase, Word/Byte Write & Lock Bit set up Voltage VCC Supply Vootage GND Ground NC Not Connected DQ3 DQ9 DQ2 A6 DQ0 W A3 RB DQ6 A8 A9 DQ13 A17 A10 DQ14 A2 DQ12 DQ10 DQ15A–1 VCC DQ4 DQ5 A7 DQ7 NC NC AI06850 M29W160ET M29W160EB 12 1 13 24 25 36 37 48 DQ8 NC A19 A1 A18 A4 A5 DQ1 DQ11 G A12 A13 A16 A11 BYTE A15 A14 VSS E A0 RP VSS A0-A19 Address Inputs DQ0-DQ7 Data Inputs/Outputs DQ8-DQ14 Data Inputs/Outputs DQ15A–1 Data Input/Output or Address Input E Chip Enable G Output Enable W Write Enable RP Reset/Block Temporary Unprotect RB Ready/Busy Output BYTE Byte/Word Organization Select VCC Supply Voltage VSS Ground NC Not Connected Internally www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DVD-5910/DVD-A1XV LC89057W (SY: IC309) LC89057W Terminal Function Function Pin No. Pin Name 1 RXOUT O Input bi-phase select data output terminal 2 RX0 I TTL compatible digital data input terminal 3 RX1 I Coaxial compatible amp built-in digital data input terminal 4 RX2 I TTL compatible digital data input terminal 5 RX3 I TTL compatible digital data input terminal 6 DGND — Digital GND 7 DVDD — Digital power 8 RX4 I TTL compatible digital data input terminal 9 RX5/VI I TTL compatible digital data/Validity flag input terminal for modulation 10 RX6/UI I TTL compatible digital data/User data input terminal for modulation 11 DVDD — Digital power for PLL 12 DGND — Digital GND for PLL 13 LPF O PLL loop filter connecting terminal 14 AVDD — Analog power for PLL 15 AGND — Analog GND for PLL 16 RMCK O RMCK clock output terminal (256fs, 512fs, XIN, VCO) 17 RBCK O/I RBCK clock in/output terminal (64fs) 18 DGND — Digital GND 19 DVDD — Digital power 20 RLRCK O/I RLRCK clock in/output terminal (fs) 21 RDATA O Serial audio data output terminal 22 SBCK O SBCK clock output terminal (32fs, 64fs, 128fs) 23 SLRCK O SLRCK clock output terminal (fs/2, fs, 2fs) 24 SDIN I Serial audio data input terminal 25 DGND — Digital GND 26 DVDD — Digital power 27 XMCK O Osc. amp output terminal I/O 36 RERR 1 RXOUT 35 INT 2 RX0 34 CKST 3 RX1 33 AUDIO/VO 4 RX2 32 EMPHA/UO 5 RX3 31 DGND 6 DGND 30 DVDD 7 DVDD 29 XIN 8 RX4 28 XOUT 9 RX5/VI 27 XMCK 10 RX6/UI 26 DVDD 11 DVDD 25 DGND 12 DGND 24 SDIN 37 DO 23 SLRCK 38 DI 22 SBCK 39 CE 21 RDATA 40 CL 20 RLRCK 41 XMODE 19 DVDD 42 DGND 18 DGND 43 DVDD 17 RBCK 44 TMCK/PIO0 16 RMCK 45 TBCK/PIO1 15 AGND 46 TLRCK/PIO2 14 AVDD 47 TDATA/PIO3 13 LPF 48 TXO/PIOEN TOP VIEW 1 RXOUT 32 EMPHA/UO 33 AUDIO/VO 35 INT 40 CL 39 CE 38 DI 28 XOUT 29 XIN 27 XMCK 34 CKST 41 XMODE Input Selector 2 RX0 3 RX1 4 RX2 5 RX3 8 RX4 9 RX5/VI 10 RX6/UI 37 DO 36 RERR 21 RDATA 24 SDIN 16 RMCK 17 RBCK 20 RLRCK 22 SBCK 23 SLRCK 13 LPF 44 TMCK/PIO0 45 TBCK/PIO1 46 TLRCK/PIO2 47 TDATA/PIO3 48 TXO/PIOEN Clock Selector C bit, U bit PLL Demodulation & Lock Detect Microcontroller I/F Data Selector I/N Modulation or Parallel Port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DVD-5910/DVD-A1XV Function Pin No. Pin Name I/O * For latch-up countermeasure, perform each power supply ON/OFF in the same timing. 28 XOUT O X’tal osc. connecting output terminal 29 XIN I X’tal osc. connection, external clock input terminal (24.576MHz or 12.288MHz) 30 DVDD — Digital power 31 DGND — Digital GND 32 EMPHA/UO I/O Emphasis information/U-data output/Chip address setting terminal 33 AUDIO/VO I/O Non-PCM detect/V-flag output/ Chip address setting terminal 34 CKST I/O Clock switch transition period output/Demodulation master or slave function switching terminal 35 INT I/O Interrupt output for ∝com (Interrupt factor selectable)/Modulation or general I/O switching terminal 36 RERR O PLL lock error, data error flag output 37 DO O ∝com I/F, read out data output terminal (3-state) 38 DI I ∝com I/F, write data input terminal 39 CE I ∝com I/F, chip enable input terminal 40 CL I ∝com I/F, clock input terminal 41 XMODE I System reset input terminal 42 DGND — Digital GND 43 DVDD — Digital power 44 TMCK/PIO0 I/O 256fs system clock input for modulation/General I/O in/output terminal 45 TBCK/PIO1 I/O 64fs bit clock input for modulation/General I/O in/output terminal 46 TLRCK/PIO2 I/O fs clock input for modulation/General I/O in/output terminal 47 TDATA/PIO3 I/O Serial audio data input for modulation/General I/O in/output terminal 48 TXO/PIOEN O/I Modulation data output/ General I/O enable input terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DVD-5910/DVD-A1XV SM5819A (MA: IC801) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 VDDL SEL1FS SEL4FS DSGAIN XMTPCM VDDH TEST1 SELEXT VSS TEST2 TEST3 TOUT1 VDDL DIRPCK FMTPCM VSS MCKOUT VDDH PBCK PLRCK POSLR POCSW POFLR VSS VDDL MCK TOUT2 VSS EXIMCK VDDH EXIBCK EXILRCK EXISLR EXICSW EXIFLR VSS VDDL DSBCK DSIFL DSIFR DSICT DSISW DSISL DSISR DIRDSCK SYNC INIT VSS Pin Assignment BLOCK DIAGRAM DSIFL DSIFR DSICT DSISL DSISR DSISW DSGAIN SEL1FS SEL4FS XMTPCM EXIFLR EXISLR FIR FILTER and DOWN SAMPLING UNIT PCM MUTE ROM 24bit 720word (fs 240w) (2fs 240w) (4fs 240w) EXICSW INT/EXT. DATA SELECT FMTPCM POFLR POSLR POCSW INT/EXT. CLOCK SELECT CLOCK GENERATOR and TIMING CONTROL SELEXT PBCK PLRCK MCKOUT SYNC INIT DIRDSCK DSBCK MCK (Internal Clocks) DIRPCK TEST1 TEST2 TEST3 TOUT2 TEST CONTROL TOUT1 EXILRCK EXIBCK EXIMCK PCM I/F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DVD-5910/DVD-A1XV PIN DESCRIPTION No. Name I/O Property1 Input voltage Description 1 VDDL − − 2.5V Core power supply 2 SEL1FS I PD 3.3V PCM output rate select 1 L: 2fs/4fs, H: fs 3 SEL4FS I PD 3.3V PCM output rate select 2 L: 2fs, H: 4fs 4 SELEXT I PD 3.3V fs/2fs/4fs output and external data output select L: fs/2fs/4fs data, H: external data (EXI**) 5 DSGAIN I PD 3.3V DSD signal gain setting L: 100% modulation = 0dB, H: 50% modulation = 0dB 6 XMTPCM I PD 3.3V PCM output mute control input L: Mute ON, H: Mute OFF 7 VDDH − − 3.3V I/O power supply 8 TEST1 I PD 3.3V Test input 1 (must be open or tie LOW for normal operation) 9 TEST2 I PD 3.3V Test input 2 (must be open or tie LOW for normal operation) 10 TEST3 I PD 3.3V Test input 3 (must be open or tie LOW for normal operation) 11 TOUT1 O − − Test output 1 12 VSS − − − Ground 13 VDDL − − 2.5V Core power supply 14 DIRPCK I PD 3.3V PCM output PBCK/PLRCK I/O select L: Output (master mode), H: Input (slave mode) 15 FMTPCM I PD 3.3V PCM output format select L: MSB-first left-justified 32-bit, H: IIS 32-bit 16 VSS − − − Ground 17 MCKOUT O 12mA − System clock output (selected by SELEXT) 18 VDDH − − 3.3V I/O power supply 19 PBCK I/O S, 6mA 3.3V PCM output BCK bit clock 20 PLRCK I/O S, 6mA 3.3V PCM output LRCK word clock 21 POSLR O 2mA − PCM data output: surround left/right-channel 22 POCSW O 2mA − PCM data output: center/subwoofer channel 23 POFLR O 2mA − PCM data output: front left/right-channel 24 VSS − − − Ground 25 VDDL − − 2.5V Core power supply 26 TOUT2 O − − Test output 2 27 MCK I − 3.3V Master clock input: 512fs (22.5792MHz, fs = 44.1kHz) 28 VSS − − − Ground 29 EXIMCK I − 3.3V External system clock input 30 VDDH − − 3.3V I/O power supply 31 EXIBCK I S 3.3V External PCM data BCK bit clock input 32 EXILRCK I S 3.3V External PCM data LRCK word clock input 33 EXISLR I − 3.3V External PCM data input: surround left/right-channel 34 EXICSW I − 3.3V External PCM data input: center/subwoofer channel 35 EXIFLR I − 3.3V External PCM data input: front left/right-channel 36 VSS − − − Ground 37 VDDL − − 2.5V Core power supply 38 DSBCK I/O S, 6mA 3.3V DSD data input bit clock. Controlled by DIRDSCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DVD-5910/DVD-A1XV 39 DSIFL I − 3.3V DSD data input: front left-channel 40 DSIFR I − 3.3V DSD data input: front right-channel 41 DSICT I − 3.3V DSD data input: center channel 42 DSISW I − 3.3V DSD data input: subwoofer channel 43 DSISL I − 3.3V DSD data input: surround left-channel 44 DSISR I − 3.3V DSD data input: surround right-channel 45 DIRDSCK I PD 3.3V DSBCK I/O select L: input (slave), H: output (master) 46 SYNC I S, PU 3.3V Forced synchronization input (active-HIGH edge) 47 INIT I S, PU 3.3V Initialization input: Active-LOW, Resync on “L” → “H” 48 VSS − − − Ground 1. S = Schmitt, PU = pull-up resistor, PD = pull-down resistor, mA = output current No. Name I/O Property1 Input voltage Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 DVD-5910/DVD-A1XV IC61LV25616 (IE: IC402) /AS7C34098A-10TCN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 A0 A2 A1 CE A4 A3 I/O0 I/O1 I/O2 I/O3 I/O4 I/O5 I/O6 I/O7 WE GND A6 A7 A8 A9 A5 VCC A17 A15 A16 LB UB OE I/O15 I/O14 I/O13 I/O12 I/O11 I/O10 I/O9 I/O8 NC VCC A13 A12 A11 A10 A14 GND 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 25 26 23 24 27 A0~A17 Address Inputs I/O0-I/O15 Data Inputs/Outputs CE Chip Enable Input OE Write Enable Input LB Lower-byte Control (I/O0-I/O7) UB Upper-byte Control (I/O8-I/O15) No Connection WE Output Enable Input NC VCC Power GND Ground Pin Name Symbol Pin Description DECODER Block Diagram A0-A17 VCC CE OE WE UB LB GND I/O0-I/O7 Lower Byte I/O8-I/O15 Upper Byte COLUMN I/O I/O DATA CIRCUIT CONTROL CIRCUIT 256K × 16 MEMORY ARRAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DVD-5910/DVD-A1XV M11L16161SA (MA: IC505) AN8471SA (MA: IC501) �� �������� 10 1 Vcc I/O0 I/O1 I/O2 I/O3 Vcc I/O4 I/O5 I/O6 I/O7 NC NC NC WE RAS NC NC A0 A1 A2 A3 Vcc Vss I/O15 I/O14 I/O13 I/O12 Vss I/O11 I/O10 I/O9 I/O8 NC NC CASL OE A9 A8 A7 A6 A5 A4 Vss 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 CASH PIN DESCRIPTIONS PIN NO. PIN NAME TYPE DESCRIPTION A0~A9 Address Input Row Address:A0~A9 Column Address:A0~A9 Input RAS Row Address Strobe Input CASH Column Address Strobe/Upper Byte Control Input CASL Column Address Strobe/Lower Byte Control Input WE Write Enable Input OE Output Enable Input Vcc Power,(5V or 3.3V) Supply Vss Ground Ground NC No Connect - 2~5,7~10, I/O0~I/O15 Data Input/Output Input/Output 11,12,13,16,17, 1,6,22 33,34 23,39,44 21,24 15 38,40 31 32 30 35 43 14 18 29 ～ ～ ～ ～ 20 10 7 6 5 4 3 2 1 8 9 30 11 18 16 15 14 13 12 32 31 19 27 28 24 25 21 22 23 26 17 FG2 FG H1H H1L H2H H2L H3H H3L VHB EC ECR BMS START GND CS1 CS2 A32 A31 A22 A21 A12 A11 VM2 VM1 VLP VPUMP BC1 BC2 BC3 BC4 VDD Hall Bias X5 CSOUT SRESET PWMOUT VCL VT OSC Hall Amp Matrix Pre-Driver Start/Stop Logic Circuit Booster Thermal Protect Divider 3ø Bridge Direction SW 1 VHB Hall bias pin 2 H3L Hall element 3 input (-) 3 H3H Hall element 3 input (+) 4 H2L Hall element 2 input (-) 5 H2H Hall element 2 input (+) 6 H1L Hall element 1 input (-) 7 H1H Hall element 1 input (+) 8 EC Torque command input pin 9 ECR Torque command ref. input pin 10 FG1 FG signal lout put pin (0.C) 11 START Start/Stop switching pin 12 VPUMP Booster pin 13 BC1 Booster cap. connecting pin 1 14 BC2 Torque command input pin 2 15 BC3 Torque command input pin 3 16 BC4 Torque command input pin 4 17 GND GND pin 18 VDD Power pin 19 VM2 Motor power pin 2 20 FG2 3x FG signal output pin (0.C) 21 A31 Drive output 3 22 A32 Drive output 3 23 CS2 Current detect pin 2 24 A21 Drive output 2 25 A22 Drive output 2 26 CS1 Current detect pin 1 27 A11 Drive output 1 28 A12 Drive output 1 29 NC N.C. 30 BMS Brake mode switching pin 31 VM1 Motor power pin 1 32 VLP Pre-driver lower power 1 16 32 17 Pin Name Function Pin No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DVD-5910/DVD-A1XV SM8701BM (MA: IC106) CY2302 (IE: IC110, 505 SY: IC107) 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 MLEN/R2 P/S VDD GND XTO XTI GNDP VDDP VDD3 MO MCK/R1 MDT/R0 RSTN SO3 VDDO GNDO SO2 SO4 SO1 MON 14 13 12 11 Control signal input. 1 MLEN/R2 Ip1 In serial mode: latch enable signal In parallel mode: sampling rate select signal 2 P/S Ip1 Mode select signal. LOW: serial mode, HIGH: parallel mode 3 VDD  5V supply (Digital block) 4 GND  Ground (Digital block) 5 XTO O Reference signal crystal oscillator element connection 6 XTI I Reference signal crystal oscillator element connection or external clock input 7 GNDP  Ground (PLL block) 8 VDDP  5V supply (PLL block) 9 VDD3  3.3V supply (output buffer) 10 MO O 27 MHz fixed-frequency output 11 MON O 27 MHz fixed-frequency output (inverted) 12 SO1 O 33.8688 MHz fixed-frequency output 13 SO4 O 768fs output 14 SO2 O 256fs output 15 GNDO  Ground (output buffer) 16 VDDO  3.3V supply (output buffer) 17 SO3 O 384fs output 18 RSTN Ip2 LOW-level reset input Control signal input. 19 MDT/R0 Ip1 In serial mode: control data input signal In parallel mode: sampling frequency select signal Control signal input. 20 MCK/R1 Ip1 In serial mode: clock signal In parallel mode: sampling frequency select signal Pin Name Function Pin No. I/O SM8701BM Terminal Function Note: 1. Schmitt trigger input with pull-down resistor 2. Schmitt trigger input with pull-up resistor Configuration Options FBIN FS0 FS1 OUT1 OUT2 OUT1 0 0 2 X REF REF OUT1 1 0 4 X REF 2 X REF OUT1 0 1 REF REF/2 OUT1 1 1 8 X REF 4 X REF OUT2 0 0 4 X REF 2 X REF OUT2 1 0 8 X REF 4 X REF OUT2 0 1 2 X REF REF OUT2 1 1 16 X REF 8 X REF Block Diagram ÷Q FS0 FS1 Reference FBIN Phase Detector Charge Pump Loop Filter VCO ÷2 Output Buffer OUT1 OUT2 Output Buffer External feedback connection to OUT1 or OUT2, not both Input IN OUT2 VDD OUT1 FS1 8 7 6 5 FBIN IN GND FS0 1 2 3 4 Pin Configuration www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DVD-5910/DVD-A1XV BR24L32F-W (MA: IC116) Block diagram 1 A0 A1 2 A2 3 GND 4 VCC 8 WP 7 6 SCL SDA 5 32kbit EEPROM array Control logic High voltage generator Vcc level detect 12bit 8bit ACK STOP START Address decoder Slave word address register 12bits Data register Pin configuration BR24L32F-W VCC A0 WP A1 SCL A2 SDA GND 1 2 3 4 5 6 7 8 Pin name Write protect input Power supply Function Ground (0V) Slave address set Serial clock input SDA VCC A0, A1, A2 Pin name GND WP SCL I / O IN IN IN IN / OUT Slave and word address, serial data input, serial data output An open drain output requires a pull-up resistor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DVD-5910/DVD-A1XV TOP247Y (PO: IC901) BD4730G (SY: 103) RN5VD30AA (IE: IC206) RN5VD15AA (IE: IC203) Tab Internally Connected to SOURCE Pin 1 C 3 X 2 L 5 F 4 S 7 D SHUTDOWN/ AUTO-RESTART PWM COMPARATOR CLOCK SAW HALF FREQ. CONTROLLED TURN-ON GATE DRIVER CURRENT LIMIT COMPARATOR INTERNAL UV COMPARATOR INTERNAL SUPPLY 5.8 V 4.8 V SOURCE (S) S R Q DMAX STOP SOFT- START - + CONTROL (C) LINE-SENSE (L) EXTERNAL CURRENT LIMIT (X) FREQUENCY (F) - + 5.8 V 1 V IFB RE ZC VC + - LEADING EDGE BLANKING ÷ 8 1 HYSTERETIC THERMAL SHUTDOWN SHUNT REGULATOR/ ERROR AMPLIFIER + - DRAIN (D) ON/OFF SOFT START DCMAX VBG DCMAX VBG + VT 0 OV/UV VI (LIMIT) CURRENT LIMIT ADJUST LINE SENSE SOFT START LIGHT LOAD FREQUENCY REDUCTION STOP LOGIC OSCILLATOR WITH JITTER 5 4 1 2 3 TOP VIEW VCC VOUT GND COM RESET Vref 5 4 3 Block diagram (mark side) 5 4 3 2 1 Vref 2 1 3 5 VDD CD GND OUT RD Block Diagram GND VDD OUT NC CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DVD-5910/DVD-A1XV TA76432FC (PO: IC902) LM1117MPX-1.8 (IE: IC205) Block Diagram Connection Diagrams www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DVD-5910/DVD-A1XV ● FL TUBE (15-BT-97GNK) (PO: FL101) IEEE1394 DVI 720P 1080i F V G PROGRESSIVE 1 A-B AUDIO VCD SUPER DVD GROUP TITLE TRACK CHAP ANGLE D.MIX PROG RAND TOTAL SING REM HDCD WMA MP3 HDMI 480P 576P MPEG JPEG L.PCMP.PCM DIGITAL LFE R SR C S L SL (2G~14G) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DVD-5910/DVD-A1XV PRINTED WIRING BOARDS GU-3517 IEEE1394 P.W.B. UNIT COMPONENT SIDE FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DVD-5910/DVD-A1XV GU-3618 MAIN P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DVD-5910/DVD-A1XV FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 DVD-5910/DVD-A1XV GU-3653 SYSTEM P.W.B. UNIT COMPONENT SIDE FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DVD-5910/DVD-A1XV GU-3654 VIDEO P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DVD-5910/DVD-A1XV FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DVD-5910/DVD-A1XV GU-3655 AUDIO P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DVD-5910/DVD-A1XV FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DVD-5910/DVD-A1XV GU-3656 POWER/DISPLAY P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 DVD-5910/DVD-A1XV FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 DVD-5910/DVD-A1XV GU-3657 IP P.W.B. UNIT COMPONENT SIDE FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 DVD-5910/DVD-A1XV NOTE FOR PARTS LIST 5% 1/4W 1/16W s s s s s s s s s s s s RD : 2B : 1/8 W F : ±1% P : RC : 2E : 1/4 W G : ±2% NL : RS : 2H : 1/2 W J : ±5% NB : RW : 3A : 1 W K : ±10% FR : RN : 3D : 2 W M : ±20% F : RK : 3F : 3 W 3H : 5 W RN 14K 2E 182 G FR ∗ 18 2 � 1800 =1.8k 0 2 1R 2 � 1.2 1 2 R CE 04W 1H 2R2 M BP CE : 0J : 6.3 V F : ±1% HS : CA : 1A : 10 V G : ±2% BP : CS : 1C : 16 V J : ±5% HR : CQ : 1E : 25 V K : ±10% DL : CK : 1V : 35 V M : ±20% HF : CC : 1H : 50 V Z : +80% U : UL CP : 2A : 100 V −20% C : CSA CM : 2B : 125 V P : +100% W : UL-CSA CF : 2C : 160 V − 0% F : CH : 2D : 200 V C : ±0.25pF 2E : 250 V D : ±0.5pF 2H : 500 V = : 2J : 630 V ∗ 22 2 � 2200µF 0 2 µF 22 2 � 2200pF=0.0022µF 0 2 pF pF 22 1 � 220pF 2 (0 2 ) 0 (0 0 1 ) 2R 2 � 2.2µF 1 2 R µF AC RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type RC : Composition 2E : 1/4W G : ±2% NL : Low noise type RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor RN : Metal film 3D : 2W M : ±20% F : Lead wire forming RK : Metal mixture 3F : 3W 3H : 5W CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type electrolytic CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type electrolytic CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type CQ : Film 1E : 25V K : ±10% DL : For change and discharge CK : Ceramic 1V : 35V M : ±20% HF : For assuring high requency CC : Ceramic 1H : 50V Z : +80% U : UL part CP : Oil 2A : 100V –20% C : CSA part CM : Mica 2B : 125V P : +100% W : UL-CSA type CF : Metallized 2C : 160V –0% F : Lead wire forming CH : Metallized 2D : 200V C : ±0.25pF 2E : 250V D : ±0.5pF 2H : 500V = : Others 2J : 630V l Part indicated with the mark "�" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis- supplying. l Ordering part without stating its part number can not be supplied. l Part indicated with the mark " " is not illustrated in the exploded view. l Not including Carbon Film Resister ±5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) l Not including Carbon Chip Resister 1/16W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. lllll Resistors Ex.: RN 14K 2E 182 G FR Type Shape Power Resist- Allowable Others and per- ance error formance ] Resistance 1 8 2 ⇒ 1800 ohm = 1.8 kohm Indicates number of zeros after effective number. 2-digit effective number. • Units: ohm 1 R 2 ⇒ 1.2 ohm 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: ohm lllll Capacitors Ex.: CE 04W 1H 2R2 M BP Type Shape Dielectric Capacity Allowable Others and per- strength error formance ] Capacity (electrolyte only) 2 2 2 ⇒ 2200µF Indicates number of zeros after effective number. 2-digit effective number. • Units: µF. 2 R 2 ⇒ 2.2µF 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: µF. ] Capacity (except electrolyte) 2 2 2 ⇒ 2200pF=0.0022µF (More than 2) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. 2 2 1 ⇒ 220pF (0 or 1) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. • When the dielectric strength is indicated in AC, "AC" is included after the dieelectric strength value. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 DVD-5910/DVD-A1XV PARTS LIST OF P.W.B. UNIT ASS’Y ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 00DGU-3517D IEEE1394 P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC103 00D 262 3268 900 SN74LVC00APW-EL2 IC104 00D 262 3269 909 SN74LVC125APW-EL2 IC108 00D 262 3260 908 FCX0-03(24.576M/30) +REF IC110 00D 262 3261 907 CY2302 +REF IC111 00D 262 3274 004 TSB41AB2 +REF IC201 00D 262 3262 003 DM1000 IC202 00D 262 3268 900 SN74LVC00APW-EL2 IC203 00D 262 3264 904 RN5VD15AA +C IC204 00D 262 3272 909 SN74LVC1G08DBV +C IC205 00D 262 3265 903 LM1117MPX-1.8 +C IC206 00D 262 3263 905 RN5VD30AA +C IC207 00D 262 3273 908 SN74LV4051APW-EL2 IC401 00D GEN 6781 1394 ROM SUB ASS'Y MBM29LV160BE90TN IC402 00D 262 3266 009 IC61LV25616-10T IC501 00D 262 2518 907 SN74LV74APW-EL2 +C IC503 00D 262 3268 900 SN74LVC00APW-EL2 IC504 00D 262 3277 904 SN74LVC157APW-EL2 +C IC505 00D 262 3261 907 CY2302 +REF IC507 00D 262 3277 904 SN74LVC157APW-EL2 +C IC509 00D 262 3268 900 SN74LVC00APW-EL2 IC510,511 00D 262 3276 905 SN74LVC1GU04DBV +C IC512 00D 263 0686 902 BA10358FT TR501,502 00D 269 0083 901 DTA114EKT96 +C D103 00D 276 0750 902 RB521S-30TE61 +REF D203 00D 276 0717 903 1SS355 TE-17 +C D501-504 00D 276 0795 909 HVU363A +C RESISTORS GROUP R187 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 R526 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 R550 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 R584 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 CAPACITORS GROUP C104 00D 257 0509 929 CK73B1H102KT +1608 C105 00D 257 0516 954 CK73B1E104KT +1608 C119 00D 257 0513 902 CK73F1A105ZT +1608 C120 00D 257 0507 934 CC73CH1H221JT +1608 C122 00D 257 0507 934 CC73CH1H221JT +1608 C123 00D 257 0513 902 CK73F1A105ZT +1608 C124 00D 257 0504 982 CC73CH1H470JT +1608 C125 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C126 00D 257 0516 954 CK73B1E104KT +1608 C127 00D 257 0509 929 CK73B1H102KT +1608 C128 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 DVD-5910/DVD-A1XV C129,130 00D 257 0516 954 CK73B1E104KT +1608 C131 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C132 00D 257 0509 929 CK73B1H102KT +1608 C133 00D 257 0516 954 CK73B1E104KT +1608 C134,135 00D 257 0509 929 CK73B1H102KT +1608 C136 00D 257 0516 954 CK73B1E104KT +1608 C137 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C138 00D 257 0516 954 CK73B1E104KT +1608 C140 00D 257 0516 954 CK73B1E104KT +1608 C141 00D 257 0509 929 CK73B1H102KT +1608 C142 00D 257 0516 954 CK73B1E104KT +1608 C143 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C158 00D 257 0516 954 CK73B1E104KT +1608 C159 00D 257 0509 929 CK73B1H102KT +1608 C161-163 00D 257 0509 929 CK73B1H102KT +1608 C164 00D 257 0516 954 CK73B1E104KT +1608 C165 00D 257 0509 929 CK73B1H102KT +1608 C166 00D 257 0516 954 CK73B1E104KT +1608 C168 00D 257 0509 929 CK73B1H102KT +1608 C169 00D 257 0516 954 CK73B1E104KT +1608 C173 00D 257 0504 982 CC73CH1H470JT +1608 C174 00D 257 0509 929 CK73B1H102KT +1608 C175 00D 257 0516 954 CK73B1E104KT +1608 C201,202 00D 257 0509 929 CK73B1H102KT +1608 C203 00D 257 0516 954 CK73B1E104KT +1608 C204 00D 257 0509 929 CK73B1H102KT +1608 C205,206 00D 257 0516 954 CK73B1E104KT +1608 C207-209 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C211 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C213 00D 257 0516 954 CK73B1E104KT +1608 C214 00D 257 0509 929 CK73B1H102KT +1608 C217 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C218 00D 257 0516 954 CK73B1E104KT +1608 C219,220 00D 257 0509 929 CK73B1H102KT +1608 C221 00D 257 0516 954 CK73B1E104KT +1608 C222 00D 254 4655 906 CE67C0J220MT (RV2) +REF C223 00D 257 0509 929 CK73B1H102KT +1608 C224 00D 257 0516 954 CK73B1E104KT +1608 C225 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C226 00D 257 0509 929 CK73B1H102KT +1608 C227 00D 257 0516 954 CK73B1E104KT +1608 C228,229 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C230 00D 257 0516 954 CK73B1E104KT +1608 C231 00D 257 0509 929 CK73B1H102KT +1608 C232 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C233-235 00D 257 0509 929 CK73B1H102KT +1608 C236 00D 257 0516 954 CK73B1E104KT +1608 C237 00D 257 0509 929 CK73B1H102KT +1608 C238 00D 257 0516 954 CK73B1E104KT +1608 C239 00D 257 0509 929 CK73B1H102KT +1608 C240,241 00D 257 0506 951 CC73CH1H101JT +1608 C242 00D 257 0516 954 CK73B1E104KT +1608 C243 00D 257 0509 929 CK73B1H102KT +1608 C244 00D 257 0516 954 CK73B1E104KT +1608 C245 00D 257 0509 929 CK73B1H102KT +1608 C246 00D 257 0516 954 CK73B1E104KT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 DVD-5910/DVD-A1XV C248 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C401,402 00D 257 0516 954 CK73B1E104KT +1608 C403,404 00D 257 0509 929 CK73B1H102KT +1608 C405 00D 257 0516 954 CK73B1E104KT +1608 C406 00D 257 0509 929 CK73B1H102KT +1608 C407 00D 257 0516 954 CK73B1E104KT +1608 C501 00D 257 0509 929 CK73B1H102KT +1608 C502 00D 257 0516 954 CK73B1E104KT +1608 C505 00D 257 0509 929 CK73B1H102KT +1608 C506 00D 257 0516 954 CK73B1E104KT +1608 C507 00D 257 0509 929 CK73B1H102KT +1608 C508 00D 257 0516 954 CK73B1E104KT +1608 C509 00D 257 0509 929 CK73B1H102KT +1608 C510 00D 257 0516 954 CK73B1E104KT +1608 C511 00D 257 0509 929 CK73B1H102KT +1608 C512 00D 257 0516 954 CK73B1E104KT +1608 C513 00D 257 0509 929 CK73B1H102KT +1608 C514 00D 257 0516 954 CK73B1E104KT +1608 C515 00D 257 0509 929 CK73B1H102KT +1608 C516,517 00D 257 0516 954 CK73B1E104KT +1608 C518 00D 257 0509 929 CK73B1H102KT +1608 C521 00D 257 0511 904 CK73F1H103ZT +1608 C522 00D 257 0509 929 CK73B1H102KT +1608 C523 00D 257 0511 904 CK73F1H103ZT +1608 C524 00D 257 0509 929 CK73B1H102KT +1608 C525 00D 257 0516 954 CK73B1E104KT +1608 C526 00D 257 0509 929 CK73B1H102KT +1608 C527 00D 257 0516 954 CK73B1E104KT +1608 C528 00D 257 0509 929 CK73B1H102KT +1608 C529 00D 257 0516 954 CK73B1E104KT +1608 C530 00D 257 0509 929 CK73B1H102KT +1608 C535 00D 257 0516 954 CK73B1E104KT +1608 C536 00D 257 4012 917 CE67C1C220MT (RV2) +REF C537 00D 257 0516 954 CK73B1E104KT +1608 C538,539 00D 257 0509 929 CK73B1H102KT +1608 C540 00D 257 0516 954 CK73B1E104KT +1608 C541,542 00D 257 0509 929 CK73B1H102KT +1608 C543 00D 257 0516 954 CK73B1E104KT +1608 C544,545 00D 257 0509 929 CK73B1H102KT +1608 C546 00D 257 0516 954 CK73B1E104KT +1608 C547 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C554 00D 257 0509 929 CK73B1H102KT +1608 C555 00D 257 0516 954 CK73B1E104KT +1608 C558,559 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF OTHERS PARTS GROUP CN201 00D 205 0343 074 7P CONN.BASE(KR-PH) CY173 00D 205 1170 903 17P FFC BASE(FMNBMTT +REF CY191 00D 205 1170 916 19P FFC BASE(FMNBMTT +REF FB101,102 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB503 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125 FB504-516 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 DVD-5910/DVD-A1XV FB517 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125 FB518-523 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB524 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125 FB525,526 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 JK101,102 00D 205 1269 005 4P IEEE1394 JACK(H) L101-104 00D 235 0168 904 DLP31SN221SL2 +C S201 00D 212 4807 909 TACT SW(SKQDAA) +REF SY101-108 00D 276 0797 907 PGB0010603NR +C W101,102 00D 205 1034 007 M3 SCREW TERMINAL X501 00D 399 0911 905 X TAL(24.5760 FCX03) +REF X502 00D 399 0910 906 X TAL(22.5792 FCX03) +REF Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 DVD-5910/DVD-A1XV 00DGU-3618D MAIN P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3046 902 TC7WH157FU +C IC104 00D GEN 6780 FE/BE ROM SUB ASS Y MBM29LV160BE90TN IC105 00D 262 3304 903 TC7WH14FU(TE12L) +REF IC106 00D 262 3052 909 SM8701BM +C IC107 00D 262 2801 902 SN74AHCT273PW-EL2 +C IC108 00D 262 3252 000 ES6138F(SC) +REF IC110 00D 262 3046 902 TC7WH157FU +C IC111 00D 262 2391 904 TC7W32F(TE12L) +C IC112,113 00D 262 3242 900 SN74LV273APW-EL2 +REF IC114 00D 262 3378 007 K4S641632H-UC(L)75 IC115 00D 262 3242 900 SN74LV273APW-EL2 +REF IC116 00D 262 3402 902 BR24L32F-WE2 +C IC117 00D 262 3269 909 SN74LVC125APW-EL2 IC119,120 00D 262 2669 908 SN74LV157APW +C IC122 00D 262 2517 908 SN74LV08APW-EL2 +REF IC123-125 00D 262 2669 908 SN74LV157APW +C IC127 00D 262 3304 903 TC7WH14FU(TE12L) +REF IC401 00D 262 3282 009 EMP3128ATC100-10(HARMONY-8LI) IC402 00D 262 2875 006 16M SDRAM(TSOP)-7/8 +C IC403 00D 262 3195 905 AD8062-SO8 +C IC404 00D 262 2515 900 SN74LV04APW-EL2 +C IC405 00D 262 3217 003 CXD2753R +C IC501 00D 263 1109 909 AN8471SA +C IC502 00D 262 3219 001 CXD1881AR/BR +C IC503 00D 262 3221 002 FAN8042 +C IC504 00D 263 0615 902 BA15218F-DXE2 +C IC505 00D 262 3210 000 M11L16161SA-45T +REF IC507 00D 262 3218 002 CXD1885Q +C IC508 00D 262 1782 909 TC7S08FTE85L +C IC801 00D 262 3291 003 SM5819A +C IC901 00D 263 1110 901 PQ070XZ01ZP +C IC950 00D 262 2977 917 BA25BC0FP-E2 IC951 00D 262 2977 904 BA18BC0FP-E2 +C TR101 00D 269 0082 902 DTC114EKT96 +C TR501,502 00D 272 0160 901 2SB1132T100Q +C TR503 00D 274 0208 005 2SD1904(R/S) TR504 00D 272 0170 001 2SB1268(R/S) D501,502 00D 276 0717 903 1SS355 TE-17 +C D901,902 00D 276 0717 903 1SS355 TE-17 +C D950,951 00D 276 0717 903 1SS355 TE-17 +C RESISTORS GROUP R580 00D 244 2051 945 RS14B3A010JNBST(S) R583,584 00D 244 2052 960 RS14B3A221JNBST(S) R585 00D 244 2050 904 RS14B3A220JNBST(S) RA101-104 00D 247 9002 912 MNR14=682JEOAB +C RA108,109 00D 247 9002 909 MNR14=330JE0AB +C RA401-405 00D 247 9003 908 MNR14=220JE0AB +C RA501-507 00D 247 9007 904 MNR14=101JE0 +C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 DVD-5910/DVD-A1XV RA508-512 00D 247 9007 917 MNR14=103JE0 +C RA703,704 00D 247 9007 920 MNR14=0R0JE0 CAPACITORS GROUP C101 00D 257 0512 903 CK73F1E104ZT +1608 C102 00D 257 0511 904 CK73F1H103ZT +1608 C103 00D 257 0512 903 CK73F1E104ZT +1608 C104 00D 257 0509 929 CK73B1H102KT +1608 C107 00D 257 0511 904 CK73F1H103ZT +1608 C108 00D 257 0512 903 CK73F1E104ZT +1608 C110 00D 257 0511 904 CK73F1H103ZT +1608 C111 00D 257 0512 903 CK73F1E104ZT +1608 C112 00D 257 0503 912 CC73CH1H9R0DT +1608 C115 00D 257 4011 905 CE67C0J101MT (RV2) +REF C116 00D 257 0509 929 CK73B1H102KT +1608 C117 00D 257 0512 903 CK73F1E104ZT +1608 C118 00D 257 0503 912 CC73CH1H9R0DT +1608 C119 00D 257 4011 905 CE67C0J101MT (RV2) +REF C120,121 00D 257 0512 903 CK73F1E104ZT +1608 C122 00D 257 0511 904 CK73F1H103ZT +1608 C123 00D 257 0506 951 CC73CH1H101JT +1608 C126 00D 257 0512 903 CK73F1E104ZT +1608 C129 00D 257 0509 929 CK73B1H102KT +1608 C130,131 00D 257 4011 905 CE67C0J101MT (RV2) +REF C132 00D 257 0512 903 CK73F1E104ZT +1608 C133 00D 257 0511 904 CK73F1H103ZT +1608 C134-138 00D 257 0512 903 CK73F1E104ZT +1608 C139 00D 257 4011 905 CE67C0J101MT (RV2) +REF C140 00D 257 0511 904 CK73F1H103ZT +1608 C141 00D 257 0512 903 CK73F1E104ZT +1608 C142 00D 257 0509 929 CK73B1H102KT +1608 C143 00D 257 0512 903 CK73F1E104ZT +1608 C144 00D 257 0509 929 CK73B1H102KT +1608 C145 00D 257 0512 903 CK73F1E104ZT +1608 C150 00D 257 0511 904 CK73F1H103ZT +1608 C151 00D 257 0512 903 CK73F1E104ZT +1608 C156 00D 257 0511 904 CK73F1H103ZT +1608 C157-160 00D 257 0512 903 CK73F1E104ZT +1608 C161 00D 257 0509 929 CK73B1H102KT +1608 C162-167 00D 257 0512 903 CK73F1E104ZT +1608 C168 00D 257 0511 904 CK73F1H103ZT +1608 C169-173 00D 257 0512 903 CK73F1E104ZT +1608 C174 00D 257 0509 929 CK73B1H102KT +1608 C175,176 00D 257 0512 903 CK73F1E104ZT +1608 C177 00D 257 4011 905 CE67C0J101MT (RV2) +REF C178-181 00D 257 0512 903 CK73F1E104ZT +1608 C182 00D 257 4011 905 CE67C0J101MT (RV2) +REF C183,184 00D 257 0512 903 CK73F1E104ZT +1608 C185 00D 257 0511 904 CK73F1H103ZT +1608 C186 00D 257 4011 905 CE67C0J101MT (RV2) +REF C187-192 00D 257 0512 903 CK73F1E104ZT +1608 C193 00D 257 0509 929 CK73B1H102KT +1608 C194 00D 257 0512 903 CK73F1E104ZT +1608 C197 00D 257 0512 903 CK73F1E104ZT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 DVD-5910/DVD-A1XV C199 00D 257 0503 941 CC73CH1H120JT +1608 C200 00D 257 0512 903 CK73F1E104ZT +1608 C201 00D 257 0503 967 CC73CH1H150JT +1608 C202 00D 257 0509 929 CK73B1H102KT +1608 C203 00D 257 0501 901 CK73B1H103KT (1608) +1608 C204 00D 257 0509 929 CK73B1H102KT +1608 C205 00D 257 0501 901 CK73B1H103KT (1608) +1608 C206 00D 257 0509 929 CK73B1H102KT +1608 C207,208 00D 257 0512 903 CK73F1E104ZT +1608 C209 00D 257 0501 901 CK73B1H103KT (1608) +1608 C210 00D 257 0509 929 CK73B1H102KT +1608 C211 00D 257 0501 901 CK73B1H103KT (1608) +1608 C212 00D 257 0509 929 CK73B1H102KT +1608 C213 00D 257 0501 901 CK73B1H103KT (1608) +1608 C214 00D 257 0509 929 CK73B1H102KT +1608 C215 00D 257 0512 903 CK73F1E104ZT +1608 C216 00D 257 0511 904 CK73F1H103ZT +1608 C217 00D 257 0512 903 CK73F1E104ZT +1608 C218 00D 257 0511 904 CK73F1H103ZT +1608 C401-407 00D 257 0512 903 CK73F1E104ZT +1608 C409 00D 257 0512 903 CK73F1E104ZT +1608 C410 00D 257 4011 905 CE67C0J101MT (RV2) +REF C411 00D 257 0512 903 CK73F1E104ZT +1608 C416-418 00D 257 0512 903 CK73F1E104ZT +1608 C426 00D 257 0501 901 CK73B1H103KT (1608) +1608 C427 00D 257 4011 905 CE67C0J101MT (RV2) +REF C428 00D 257 0512 903 CK73F1E104ZT +1608 C429,430 00D 257 4012 917 CE67C1C220MT (RV2) +REF C431-434 00D 257 0512 903 CK73F1E104ZT +1608 C435,436 00D 257 0502 942 CC73CH1H2R0CT +1608 C437-442 00D 257 0512 903 CK73F1E104ZT +1608 C443 00D 257 4012 917 CE67C1C220MT (RV2) +REF C444,445 00D 257 0512 903 CK73F1E104ZT +1608 C446 00D 257 4012 917 CE67C1C220MT (RV2) +REF C448-453 00D 257 0512 903 CK73F1E104ZT +1608 C454 00D 257 4011 905 CE67C0J101MT (RV2) +REF C455-461 00D 257 0512 903 CK73F1E104ZT +1608 C462 00D 257 4011 905 CE67C0J101MT (RV2) +REF C501 00D 257 0511 904 CK73F1H103ZT +1608 C503 00D 257 0511 904 CK73F1H103ZT +1608 C505 00D 257 4012 917 CE67C1C220MT (RV2) +REF C511 00D 257 4012 917 CE67C1C220MT (RV2) +REF C512,513 00D 257 0511 904 CK73F1H103ZT +1608 C517-520 00D 257 0509 990 CK73B1H222KT +1608 C521-524 00D 257 0504 908 CC73CH1H220JT +1608 C525,526 00D 257 0510 934 CK73B1H472KT +1608 C527 00D 257 0507 976 CC73CH1H331JT +1608 C528,529 00D 257 0511 904 CK73F1H103ZT +1608 C530 00D 257 4011 905 CE67C0J101MT (RV2) +REF C531,532 00D 257 0516 954 CK73B1E104KT +1608 C533 00D 257 4012 917 CE67C1C220MT (RV2) +REF C534 00D 257 4012 920 CE67C1C470MT (RV2) +REF C535 00D 257 0509 929 CK73B1H102KT +1608 C536 00D 257 4012 920 CE67C1C470MT (RV2) +REF C537 00D 257 0509 929 CK73B1H102KT +1608 C538 00D 257 0516 954 CK73B1E104KT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 DVD-5910/DVD-A1XV C539 00D 257 0501 901 CK73B1H103KT (1608) +1608 C540 00D 257 4012 933 CE67C1C101MT (RV2) +REF C541,542 00D 257 0516 954 CK73B1E104KT +1608 C543 00D 257 0509 929 CK73B1H102KT +1608 C544-546 00D 257 0516 954 CK73B1E104KT +1608 C547 00D 257 0501 901 CK73B1H103KT (1608) +1608 C548 00D 257 0516 954 CK73B1E104KT +1608 C549 00D 257 0501 901 CK73B1H103KT (1608) +1608 C550 00D 257 0506 993 CC73CH1H151JT +1608 C551 00D 257 0509 929 CK73B1H102KT +1608 C552,553 00D 257 0511 904 CK73F1H103ZT +1608 C554 00D 257 0520 911 CK73B1A224KT +1608 C555 00D 257 4012 917 CE67C1C220MT (RV2) +REF C556,557 00D 257 0520 911 CK73B1A224KT +1608 C558 00D 254 4655 906 CE67C0J220MT (RV2) +REF C559 00D 257 0520 911 CK73B1A224KT +1608 C560 00D 257 0516 941 CK73B1E473KT +1608 C561 00D 257 0501 901 CK73B1H103KT (1608) +1608 C562,563 00D 257 0516 954 CK73B1E104KT +1608 C564 00D 257 4012 917 CE67C1C220MT (RV2) +REF C565-567 00D 257 0511 904 CK73F1H103ZT +1608 C568 00D 254 4655 906 CE67C0J220MT (RV2) +REF C569,570 00D 257 0511 904 CK73F1H103ZT +1608 C571 00D 257 4012 917 CE67C1C220MT (RV2) +REF C572 00D 257 0511 904 CK73F1H103ZT +1608 C573,574 00D 254 4655 906 CE67C0J220MT (RV2) +REF C575 00D 257 0511 904 CK73F1H103ZT +1608 C576 00D 257 0509 929 CK73B1H102KT +1608 C577,578 00D 257 0506 951 CC73CH1H101JT +1608 C579-581 00D 257 0510 950 CK73B1H682KT +1608 C582 00D 257 0511 904 CK73F1H103ZT +1608 C583 00D 257 0508 917 CC73CH1H471JT +1608 C584 00D 257 0516 941 CK73B1E473KT +1608 C585 00D 257 0507 976 CC73CH1H331JT +1608 C586-588 00D 257 0511 904 CK73F1H103ZT +1608 C589 00D 257 0507 976 CC73CH1H331JT +1608 C590 00D 257 4013 903 CE67C0J471MT (RV) +REF C591 00D 257 4012 917 CE67C1C220MT (RV2) +REF C593-595 00D 257 0511 904 CK73F1H103ZT +1608 C596 00D 257 0516 954 CK73B1E104KT +1608 C597 00D 257 0511 904 CK73F1H103ZT +1608 C601 00D 257 0508 917 CC73CH1H471JT +1608 C603 00D 257 0508 917 CC73CH1H471JT +1608 C604 00D 257 0516 954 CK73B1E104KT +1608 C605-607 00D 257 0511 904 CK73F1H103ZT +1608 C608 00D 257 0506 951 CC73CH1H101JT +1608 C609 00D 257 0511 904 CK73F1H103ZT +1608 C610,611 00D 257 0516 909 CK73B1E223KT +1608 C612 00D 257 0508 917 CC73CH1H471JT +1608 C613 00D 257 0511 904 CK73F1H103ZT +1608 C614 00D 257 0508 917 CC73CH1H471JT +1608 C615 00D 257 0511 904 CK73F1H103ZT +1608 C616,617 00D 257 0516 954 CK73B1E104KT +1608 C618 00D 257 4011 905 CE67C0J101MT (RV2) +REF C619-625 00D 257 0511 904 CK73F1H103ZT +1608 C627 00D 257 0516 954 CK73B1E104KT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 DVD-5910/DVD-A1XV C628 00D 254 4655 906 CE67C0J220MT (RV2) +REF C629,630 00D 257 0516 954 CK73B1E104KT +1608 C631 00D 254 4655 906 CE67C0J220MT (RV2) +REF C634-636 00D 257 0516 954 CK73B1E104KT +1608 C637,638 00D 257 0520 908 CK73B1A154KT +1608 C640,641 00D 257 0512 903 CK73F1E104ZT +1608 C644 00D 257 0512 903 CK73F1E104ZT +1608 C801 00D 257 0501 901 CK73B1H103KT (1608) +1608 C802 00D 257 0509 929 CK73B1H102KT +1608 C803 00D 257 0501 901 CK73B1H103KT (1608) +1608 C804,805 00D 257 0509 929 CK73B1H102KT +1608 C806 00D 257 0501 901 CK73B1H103KT (1608) +1608 C807 00D 257 0509 929 CK73B1H102KT +1608 C808 00D 257 0501 901 CK73B1H103KT (1608) +1608 C809 00D 257 0516 954 CK73B1E104KT +1608 C810 00D 257 0509 929 CK73B1H102KT +1608 C811,812 00D 257 0501 901 CK73B1H103KT (1608) +1608 C813 00D 257 0509 929 CK73B1H102KT +1608 C816 00D 257 0509 929 CK73B1H102KT +1608 C901 00D 257 4011 905 CE67C0J101MT (RV2) +REF C902,903 00D 257 0512 903 CK73F1E104ZT +1608 C904 00D 257 4011 905 CE67C0J101MT (RV2) +REF C905 00D 257 0512 903 CK73F1E104ZT +1608 C906 00D 257 4011 905 CE67C0J101MT (RV2) +REF C907-909 00D 257 0512 903 CK73F1E104ZT +1608 C910-912 00D 257 4011 905 CE67C0J101MT (RV2) +REF C913 00D 257 0512 903 CK73F1E104ZT +1608 C916 00D 257 4011 905 CE67C0J101MT (RV2) +REF C917 00D 257 0512 903 CK73F1E104ZT +1608 C918 00D 257 0511 904 CK73F1H103ZT +1608 C920 00D 257 0512 903 CK73F1E104ZT +1608 C923 00D 257 0512 903 CK73F1E104ZT +1608 C924 00D 257 0511 904 CK73F1H103ZT +1608 C929 00D 257 0512 903 CK73F1E104ZT +1608 C930 00D 257 0511 904 CK73F1H103ZT +1608 C931 00D 257 0512 903 CK73F1E104ZT +1608 C932 00D 257 0511 904 CK73F1H103ZT +1608 C949 00D 257 2010 937 CS77B1A220MT +C C950 00D 254 4655 906 CE67C0J220MT (RV2) +REF C951 00D 257 0512 903 CK73F1E104ZT +1608 C952 00D 257 4011 905 CE67C0J101MT (RV2) +REF C953 00D 257 0512 903 CK73F1E104ZT +1608 C954 00D 257 2010 937 CS77B1A220MT +C C955 00D 257 0511 904 CK73F1H103ZT +1608 C956 00D 257 4012 933 CE67C1C101MT (RV2) +REF C957-959 00D 257 4011 905 CE67C0J101MT (RV2) +REF C960-963 00D 257 0512 903 CK73F1E104ZT +1608 C964,965 00D 254 4655 906 CE67C0J220MT (RV2) +REF C966 00D 257 0512 903 CK73F1E104ZT +1608 C967 00D 254 4655 906 CE67C0J220MT (RV2) +REF C968-971 00D 257 0512 903 CK73F1E104ZT +1608 C972 00D 257 0511 904 CK73F1H103ZT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 DVD-5910/DVD-A1XV OTHERS PARTS GROUP CX051 00D 205 0355 059 5P KR CON BASE(L) CX061 00D 205 0792 968 6P ZH-ZRCON.BASE(L)T +REF CX151 00D 205 1224 901 15P FFC BASE(P=1.0)L +REF CX241 00D 205 1264 903 24P FFC BASE(P=0.5)L +REF CX331 00D 205 1174 970 33P FFC BASE(FMNSMT) +C CY101 00D 205 0480 005 10P KR CON BASE(L) CY171 00D 205 1170 903 17P FFC BASE(FMNBMTT +REF CY251 00D 205 1174 983 25P FFC BASE(FMNSMT) +REF CY301 00D 205 1174 941 30P FFC BASE(FMNSMT) +REF FB101,102 00D 247 2018 903 RM73B--0R0KT +1608 FB103-110 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB111 00D 247 2003 989 RM73B--330JT +1608 FB112-114 00D 247 2018 903 RM73B--0R0KT +1608 FB116,117 00D 247 2003 989 RM73B--330JT +1608 FB118-140 00D 247 2018 903 RM73B--0R0KT +1608 FB142-153 00D 247 2018 903 RM73B--0R0KT +1608 FB154 00D 247 2003 989 RM73B--330JT +1608 FB155 00D 247 2018 903 RM73B--0R0KT +1608 FB157-172 00D 247 2018 903 RM73B--0R0KT +1608 FB173,174 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB175,176 00D 247 2018 903 RM73B--0R0KT +1608 FB501-503 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB901 00D 235 0136 907 FBMJ1608HS280NT +1608 FB950-960 00D 235 0136 907 FBMJ1608HS280NT +1608 L901 00D 235 0048 901 EMI FILTER (103)TP X101 00D 399 0619 906 X TAL(27MHZ) +REF 00D 414 0963 003 EARTH PLATE Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 DVD-5910/DVD-A1XV 00DGU-3653 SYSTEM P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3114 902 S-24C01BFJ-TB IC103 00D 262 3082 924 BD4730G-TR IC104 00D 262 3486 009 M30620FCPGP(5910) IC105 00D 262 3376 106 EPM3128ATC100-10-771 IC107 00D 262 3261 907 CY2302 +REF IC301 00D 263 1205 900 PQ012FZ01ZP +C IC302,303 00D 262 2642 909 SN74LV573APW-EL2 +REF IC305 00D 262 3349 007 ADSP21266SKSTZ1B-D IC306 00D GEN 6790 ROM ASS'Y 21266-1 LH28F160BJE-BTL90 +C IC308 00D 262 3380 008 AK4101AVQ IC309 00D 262 3066 102 LC89057W-VF4-E(AC) +REF IC310 00D 262 3277 904 SN74LVC157APW-EL2 +C IC311 00D 262 2580 906 CXA1511M +C IC312 00D 262 2114 903 UPD4721GS-GJG +C IC313 00D 262 3120 909 SN65LVDS31PW +REF IC314 00D 262 3125 904 SN65LVDS179DGK-EL2 +REF IC315 00D 269 0211 003 GP1FA553TZ IC501 00D GEN 6791 ROM ASS'Y NEWALPHA-0 EPCS4S18 IC502 00D 262 3476 006 EP1C12Q240C6N-AD24 IC504 00D 262 3261 907 CY2302 +REF TR101 00D 269 0082 902 DTC114EKT96 +C TR102,103 00D 269 0083 901 DTA114EKT96 +C TR104,105 00D 269 0082 902 DTC114EKT96 +C TR106 00D 272 0161 900 2SB1412TL(PQR) +C TR107 00D 269 0082 902 DTC114EKT96 +C TR108 00D 272 0161 900 2SB1412TL(PQR) +C TR111 00D 269 0054 901 DTC144EKT96 +C TR112,113 00D 269 0055 900 DTA144EKT96 +C TR301 00D 269 0083 901 DTA114EKT96 +C TR302 00D 273 0426 907 2SC2412KLNT146 +C D102 00D 276 0717 903 1SS355 TE-17 +C D301 00D 276 0750 902 RB521S-30TE61 +REF CAPACITORS GROUP C101,102 00D 257 0512 903 CK73F1E104ZT +1608 C103 00D 257 0509 929 CK73B1H102KT +1608 C104 00D 257 0512 903 CK73F1E104ZT +1608 C107 00D 257 4011 905 CE67C0J101MT (RV2) +REF C108 00D 257 4012 917 CE67C1C220MT (RV2) +REF C111,112 00D 257 0512 903 CK73F1E104ZT +1608 C113,114 00D 257 0509 929 CK73B1H102KT +1608 C115-117 00D 257 0501 901 CK73B1H103KT (1608) +1608 C118-120 00D 257 0509 929 CK73B1H102KT +1608 C121 00D 257 0512 903 CK73F1E104ZT +1608 C122 00D 257 0501 901 CK73B1H103KT (1608) +1608 C123-125 00D 257 0512 903 CK73F1E104ZT +1608 C126 00D 257 0501 901 CK73B1H103KT (1608) +1608 C127 00D 257 4011 905 CE67C0J101MT (RV2) +REF C128 00D 257 0501 901 CK73B1H103KT (1608) +1608 C129-132 00D 257 0512 903 CK73F1E104ZT +1608 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 DVD-5910/DVD-A1XV C133 00D 257 0501 901 CK73B1H103KT (1608) +1608 C134 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C135 00D 257 0512 903 CK73F1E104ZT +1608 C136 00D 257 4013 903 CE67C0J471MT (RV) +REF C137-139 00D 257 0512 903 CK73F1E104ZT +1608 C142 00D 257 0509 929 CK73B1H102KT +1608 C143 00D 257 0501 901 CK73B1H103KT (1608) +1608 C144,145 00D 257 0512 903 CK73F1E104ZT +1608 C146 00D 257 0501 901 CK73B1H103KT (1608) +1608 C147-149 00D 257 0512 903 CK73F1E104ZT +1608 C150 00D 257 0501 901 CK73B1H103KT (1608) +1608 C151 00D 257 0512 903 CK73F1E104ZT +1608 C152 00D 257 0501 901 CK73B1H103KT (1608) +1608 C153-158 00D 257 0512 903 CK73F1E104ZT +1608 C159 00D 257 4011 905 CE67C0J101MT (RV2) +REF C160,161 00D 257 0512 903 CK73F1E104ZT +1608 C162,163 00D 257 0509 929 CK73B1H102KT +1608 C164 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C165,166 00D 257 4013 903 CE67C0J471MT (RV) +REF C167 00D 257 4011 905 CE67C0J101MT (RV2) +REF C168 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C169 00D 257 4013 903 CE67C0J471MT (RV) +REF C171 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C172 00D 257 0512 903 CK73F1E104ZT +1608 C173 00D 254 4658 958 CE67C1E101MT (RV) +REF C175 00D 257 4013 903 CE67C0J471MT (RV) +REF C176 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C301 00D 257 0512 903 CK73F1E104ZT +1608 C302 00D 257 0509 929 CK73B1H102KT +1608 C303 00D 257 4012 920 CE67C1C470MT (RV2) +REF C304,305 00D 257 0509 929 CK73B1H102KT +1608 C306 00D 257 0512 903 CK73F1E104ZT +1608 C311 00D 257 0512 903 CK73F1E104ZT +1608 C312 00D 257 0509 929 CK73B1H102KT +1608 C313 00D 257 0512 903 CK73F1E104ZT +1608 C314 00D 257 0509 929 CK73B1H102KT +1608 C315 00D 257 4013 903 CE67C0J471MT (RV) +REF C316 00D 257 0509 929 CK73B1H102KT +1608 C317 00D 257 0512 903 CK73F1E104ZT +1608 C318 00D 257 0509 929 CK73B1H102KT +1608 C319 00D 257 0512 903 CK73F1E104ZT +1608 C320 00D 257 0509 929 CK73B1H102KT +1608 C321,322 00D 257 0512 903 CK73F1E104ZT +1608 C323 00D 257 0503 967 CC73CH1H150JT +1608 C324,325 00D 257 0509 929 CK73B1H102KT +1608 C326 00D 257 0512 903 CK73F1E104ZT +1608 C327 00D 257 0503 983 CC73CH1H180JT +1608 C328 00D 257 4013 903 CE67C0J471MT (RV) +REF C329 00D 257 0512 903 CK73F1E104ZT +1608 C330,331 00D 257 0509 929 CK73B1H102KT +1608 C332,333 00D 257 0512 903 CK73F1E104ZT +1608 C334,335 00D 257 0509 929 CK73B1H102KT +1608 C336,337 00D 257 0512 903 CK73F1E104ZT +1608 C338,339 00D 257 0509 929 CK73B1H102KT +1608 C340 00D 257 0512 903 CK73F1E104ZT +1608 C341 00D 257 4012 920 CE67C1C470MT (RV2) +REF Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 DVD-5910/DVD-A1XV C342 00D 257 4013 903 CE67C0J471MT (RV) +REF C343 00D 257 0509 929 CK73B1H102KT +1608 C344 00D 257 0512 903 CK73F1E104ZT +1608 C345 00D 257 4013 903 CE67C0J471MT (RV) +REF C346 00D 257 0512 903 CK73F1E104ZT +1608 C347 00D 257 0509 929 CK73B1H102KT +1608 C348 00D 257 0512 903 CK73F1E104ZT +1608 C349 00D 257 0509 929 CK73B1H102KT +1608 C350 00D 257 0512 903 CK73F1E104ZT +1608 C351 00D 257 0509 929 CK73B1H102KT +1608 C352 00D 257 0512 903 CK73F1E104ZT +1608 C353 00D 257 0509 929 CK73B1H102KT +1608 C354 00D 257 0512 903 CK73F1E104ZT +1608 C355 00D 257 0509 929 CK73B1H102KT +1608 C356 00D 257 0511 904 CK73F1H103ZT +1608 C357 00D 257 0509 929 CK73B1H102KT +1608 C358 00D 257 0511 904 CK73F1H103ZT +1608 C359 00D 257 0509 929 CK73B1H102KT +1608 C360 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C362 00D 257 3015 944 CF73=1C683JT(ECHUB5)+3225 C364 00D 257 0511 904 CK73F1H103ZT +1608 C365 00D 254 4658 958 CE67C1E101MT (RV) +REF C366 00D 257 0509 929 CK73B1H102KT +1608 C367 00D 257 0512 903 CK73F1E104ZT +1608 C368 00D 257 0511 904 CK73F1H103ZT +1608 C369 00D 257 0512 903 CK73F1E104ZT +1608 C370 00D 257 0509 929 CK73B1H102KT +1608 C371 00D 257 0501 901 CK73B1H103KT (1608) +1608 C372 00D 257 0509 929 CK73B1H102KT +1608 C373 00D 257 0511 904 CK73F1H103ZT +1608 C374 00D 257 0512 903 CK73F1E104ZT +1608 C375 00D 257 0509 929 CK73B1H102KT +1608 C376 00D 257 0512 903 CK73F1E104ZT +1608 C377 00D 257 0511 904 CK73F1H103ZT +1608 C378 00D 257 0509 929 CK73B1H102KT +1608 C379 00D 257 0502 955 CC73CH1H3R0CT +1608 C380 00D 257 0509 929 CK73B1H102KT +1608 C381 00D 257 0502 955 CC73CH1H3R0CT +1608 C382-384 00D 257 0512 903 CK73F1E104ZT +1608 C385 00D 257 0501 901 CK73B1H103KT (1608) +1608 C386 00D 257 0509 929 CK73B1H102KT +1608 C387 00D 257 0506 951 CC73CH1H101JT +1608 C388 00D 257 0501 901 CK73B1H103KT (1608) +1608 C389 00D 257 0512 903 CK73F1E104ZT +1608 C390 00D 257 0509 929 CK73B1H102KT +1608 C391 00D 257 0501 901 CK73B1H103KT (1608) +1608 C392 00D 257 0509 929 CK73B1H102KT +1608 C393-395 00D 254 4660 904 CE67C1H0R1MT (RV2B55 +REF C397 00D 257 4011 905 CE67C0J101MT (RV2) +REF C398 00D 257 0512 903 CK73F1E104ZT +1608 C400 00D 254 4660 904 CE67C1H0R1MT (RV2B55 +REF C401 00D 257 4012 920 CE67C1C470MT (RV2) +REF C402 00D 257 0501 901 CK73B1H103KT (1608) +1608 C403 00D 254 4660 904 CE67C1H0R1MT (RV2B55 +REF C404 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C407 00D 257 0516 909 CK73B1E223KT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 DVD-5910/DVD-A1XV C410 00D 257 0516 909 CK73B1E223KT +1608 C414 00D 257 0501 901 CK73B1H103KT (1608) +1608 C415 00D 257 0506 951 CC73CH1H101JT +1608 C417 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C418 00D 257 0509 929 CK73B1H102KT +1608 C419 00D 257 0506 951 CC73CH1H101JT +1608 C420,421 00D 257 0501 901 CK73B1H103KT (1608) +1608 C427 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C501 00D 257 3013 933 CF73=1H104JT(ECHUC9) +C C502 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C503 00D 257 3013 933 CF73=1H104JT(ECHUC9) +C C504 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C505,506 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C507,508 00D 257 0516 954 CK73B1E104KT +1608 C509 00D 257 0509 929 CK73B1H102KT +1608 C510 00D 257 0516 954 CK73B1E104KT +1608 C514 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C515 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C516,517 00D 254 4601 934 CE67W0J101MT(P.CAP) +REF C518 00D 257 0516 954 CK73B1E104KT +1608 C519 00D 257 0501 901 CK73B1H103KT (1608) +1608 C520 00D 257 0516 954 CK73B1E104KT +1608 C521,522 00D 257 0509 929 CK73B1H102KT +1608 C523 00D 257 0516 954 CK73B1E104KT +1608 C524,525 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C526 00D 257 0516 954 CK73B1E104KT +1608 C527 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C528 00D 254 4558 702 CE04W1H101MC(RFS) C529 00D 257 3013 933 CF73=1H104JT(ECHUC9) +C C530 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C531 00D 257 3013 933 CF73=1H104JT(ECHUC9) +C C532 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C533,534 00D 257 0516 954 CK73B1E104KT +1608 C535 00D 257 0509 929 CK73B1H102KT +1608 C536 00D 257 0512 903 CK73F1E104ZT +1608 OTHERS PARTS GROUP CX062 00D 205 0343 061 6P CONN.BASE(KR-PH) CX171 00D 205 1170 903 17P FFC BASE(FMNBMTT +REF CX173,174 00D 205 1170 903 17P FFC BASE(FMNBMTT +REF CX191 00D 205 1170 916 19P FFC BASE(FMNBMTT +REF CX251 00D 205 1170 961 25P FFC BASE(FMNBMTT CX301 00D 205 1170 974 30P FFC BASE(FMNBMTT CX332 00D 205 1170 945 33P FFC BASE(FMNBMTT +C CX901 00D 205 0375 000 10P CON.BASE(KR-PH) CY121 00D 205 0375 026 12P CONN.BASE(KR-PH) CY211 00D 205 1170 958 21P FFC BASE(FMNBMTT +REF FB101 00D 247 2003 989 RM73B--330JT +1608 FB102-111 00D 247 2018 903 RM73B--0R0KT +1608 FB112 00D 247 2003 989 RM73B--330JT +1608 FB113-138 00D 247 2018 903 RM73B--0R0KT +1608 FB139 00D 247 2003 989 RM73B--330JT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 DVD-5910/DVD-A1XV FB140,141 00D 247 2018 903 RM73B--0R0KT +1608 FB142 00D 247 2003 989 RM73B--330JT +1608 FB143,144 00D 247 2018 903 RM73B--0R0KT +1608 FB145 00D 247 2003 989 RM73B--330JT +1608 FB146,147 00D 247 2018 903 RM73B--0R0KT +1608 FB148-164 00D 247 2003 989 RM73B--330JT +1608 FB165-174 00D 247 2018 903 RM73B--0R0KT +1608 FB501,502 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125 JK301 00D 205 1153 001 9P S SUB CONNECTOR JK302,303 00D 204 8612 005 MINI JACK JK306 00D 204 8666 006 1P PIN JACK(BK) JK307 00D 205 1222 000 RJ-45 JACK(GND) S101 00D 212 4807 909 TACT SW(SKQDAA) +REF X101 00D 399 0887 903 CSTCE16MOV53-R0 +2125 X301 00D 399 0957 901 X TAL(18.75MHZ) X302 00D 399 0598 904 X TAL(24.576MHZ) +REF Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 DVD-5910/DVD-A1XV 00DGU-3654 VIDEO P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101,102 00D 262 3301 906 SN74LVC245APW +C IC103,104 00D 262 1348 903 TC74HC123AF(TP1) +C IC105 00D 262 1793 901 TC4W53F +C IC106 00D 262 3277 904 SN74LVC157APW-EL2 +C IC107 00D 262 3301 906 SN74LVC245APW +C IC108 00D 262 2977 917 BA25BC0FP-E2 IC201 00D 262 3481 004 ADV7324 IC202-204 00D 263 1198 907 LT1399CS +REF IC401 00D 262 3481 004 ADV7324 IC402-405 00D 263 1082 903 TK15420MTL +C IC501 00D 262 3462 007 XC3S1000-4FT256C IC502,503 00D 262 3303 001 K4S643232#-TC60 +REF IC506 00D GEN 6869 SCALER ROM SUB ASS’Y XCF04SV020C(5910) IC507 00D 262 3459 900 BA00HC5FP IC508 00D 262 2977 917 BA25BC0FP-E2 IC509 00D 262 3463 909 ICS664-03 IC510 00D 399 0986 901 FCXO-03L(30.000MHZ) IC601,602 00D 262 3364 011 SII9030CTU-7 IC603 00D 262 3046 902 TC7WH157FU +C IC608 00D 262 2977 933 BA50BC0FP-E2 IC609 00D 262 2977 904 BA18BC0FP-E2 +C IC610 00D 262 2977 933 BA50BC0FP-E2 IC701-703 00D 262 3301 906 SN74LVC245APW +C TR101 00D 274 0163 904 2SD601A +C TR102 00D 272 0125 904 2SB709A +C TR103 00D 274 0163 904 2SD601A +C TR104 00D 272 0125 904 2SB709A +C TR201-206 00D 271 0293 901 2SA1022-B +C TR207-209 00D 274 0163 904 2SD601A +C TR401-404 00D 271 0293 901 2SA1022-B +C TR405,406 00D 274 0163 904 2SD601A +C TR601 00D 273 0460 905 KTC2875B-RTK +C TR613 00D 275 0110 905 HN1K02FU-TE85L TR614 00D 273 0460 905 KTC2875B-RTK +C TR626,627 00D 275 0110 905 HN1K02FU-TE85L D101-104 00D 276 0717 903 1SS355 TE-17 +C D106 00D 276 0717 903 1SS355 TE-17 +C D502 00D 276 0717 903 1SS355 TE-17 +C D601 00D 276 0750 902 RB521S-30TE61 +REF D604 00D 276 0750 902 RB521S-30TE61 +REF D605,606 00D 276 0717 903 1SS355 TE-17 +C D607 00D 276 0750 902 RB521S-30TE61 +REF D610-612 00D 276 0717 903 1SS355 TE-17 +C RESISTORS GROUP RA101,102 00D 247 9007 920 MNR14=0R0JE0 RA103,104 00D 247 9002 909 MNR14=330JE0AB +C RA109,110 00D 247 9007 920 MNR14=0R0JE0 RA201-207 00D 247 9002 909 MNR14=330JE0AB +C RA401-407 00D 247 9002 909 MNR14=330JE0AB +C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 DVD-5910/DVD-A1XV RA501-504 00D 247 9002 909 MNR14=330JE0AB +C RA601-612 00D 247 9002 909 MNR14=330JE0AB +C RA613,614 00D 247 9007 920 MNR14=0R0JE0 RA617,618 00D 247 9007 920 MNR14=0R0JE0 VR101-105 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF CAPACITORS GROUP C101 00D 257 0512 903 CK73F1E104ZT +1608 C102 00D 257 0501 901 CK73B1H103KT (1608) +1608 C106 00D 257 4012 917 CE67C1C220MT (RV2) +REF C107-109 00D 257 0512 903 CK73F1E104ZT +1608 C134 00D 257 0507 934 CC73CH1H221JT +1608 C135 00D 257 0512 903 CK73F1E104ZT +1608 C136-138 00D 257 0509 929 CK73B1H102KT +1608 C139 00D 257 0512 903 CK73F1E104ZT +1608 C140,141 00D 257 0509 929 CK73B1H102KT +1608 C142,143 00D 257 0512 903 CK73F1E104ZT +1608 C144 00D 257 4011 905 CE67C0J101MT (RV2) +REF C145 00D 257 0512 903 CK73F1E104ZT +1608 C146 00D 257 2010 937 CS77B1A220MT +C C147 00D 257 0512 903 CK73F1E104ZT +1608 C148 00D 257 4011 905 CE67C0J101MT (RV2) +REF C149 00D 257 0512 903 CK73F1E104ZT +1608 C201 00D 257 4011 905 CE67C0J101MT (RV2) +REF C202 00D 257 0512 903 CK73F1E104ZT +1608 C203 00D 257 4011 905 CE67C0J101MT (RV2) +REF C204 00D 257 0512 903 CK73F1E104ZT +1608 C205 00D 257 4011 905 CE67C0J101MT (RV2) +REF C206 00D 257 0512 903 CK73F1E104ZT +1608 C208,209 00D 257 0512 903 CK73F1E104ZT +1608 C210 00D 257 0509 903 CK73B1H821KT +1608 C211 00D 257 0510 921 CK73B1H392KT +1608 C212 00D 257 0511 904 CK73F1H103ZT +1608 C214,215 00D 257 0506 951 CC73CH1H101JT +1608 C218 00D 257 0512 903 CK73F1E104ZT +1608 C219 00D 257 4011 905 CE67C0J101MT (RV2) +REF C220,221 00D 257 0512 903 CK73F1E104ZT +1608 C225,226 00D 257 0512 903 CK73F1E104ZT +1608 C228 00D 257 0512 903 CK73F1E104ZT +1608 C229 00D 257 4012 920 CE67C1C470MT (RV2) +REF C230 00D 257 0512 903 CK73F1E104ZT +1608 C231 00D 257 4012 920 CE67C1C470MT (RV2) +REF C232 00D 257 4011 905 CE67C0J101MT (RV2) +REF C236,237 00D 257 0512 903 CK73F1E104ZT +1608 C239 00D 257 0512 903 CK73F1E104ZT +1608 C240 00D 257 4012 920 CE67C1C470MT (RV2) +REF C241 00D 257 0512 903 CK73F1E104ZT +1608 C242 00D 257 4012 920 CE67C1C470MT (RV2) +REF C243 00D 257 4011 905 CE67C0J101MT (RV2) +REF C247,248 00D 257 0512 903 CK73F1E104ZT +1608 C250 00D 257 0512 903 CK73F1E104ZT +1608 C251 00D 257 4012 920 CE67C1C470MT (RV2) +REF C252 00D 257 0512 903 CK73F1E104ZT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 DVD-5910/DVD-A1XV C253 00D 257 4012 920 CE67C1C470MT (RV2) +REF C254 00D 257 4011 905 CE67C0J101MT (RV2) +REF C278-287 00D 247 2018 903 RM73B--0R0KT +1608 C401 00D 257 4011 905 CE67C0J101MT (RV2) +REF C402 00D 257 0512 903 CK73F1E104ZT +1608 C403 00D 257 4011 905 CE67C0J101MT (RV2) +REF C404 00D 257 0512 903 CK73F1E104ZT +1608 C405 00D 257 4011 905 CE67C0J101MT (RV2) +REF C406 00D 257 0512 903 CK73F1E104ZT +1608 C408,409 00D 257 0512 903 CK73F1E104ZT +1608 C410 00D 257 0509 903 CK73B1H821KT +1608 C411 00D 257 0510 921 CK73B1H392KT +1608 C412 00D 257 0511 904 CK73F1H103ZT +1608 C418,419 00D 257 0512 903 CK73F1E104ZT +1608 C420 00D 257 0502 971 CC73CH1H5R0CT +1608 C423,424 00D 257 0512 903 CK73F1E104ZT +1608 C426 00D 257 0512 903 CK73F1E104ZT +1608 C427 00D 257 4012 920 CE67C1C470MT (RV2) +REF C428 00D 257 0512 903 CK73F1E104ZT +1608 C429 00D 257 4012 920 CE67C1C470MT (RV2) +REF C430 00D 257 4011 905 CE67C0J101MT (RV2) +REF C432 00D 257 0504 940 CC73CH1H330JT +1608 C433 00D 257 0512 903 CK73F1E104ZT +1608 C434 00D 257 4012 920 CE67C1C470MT (RV2) +REF C435 00D 257 0512 903 CK73F1E104ZT +1608 C436 00D 257 4012 920 CE67C1C470MT (RV2) +REF C437 00D 257 4011 905 CE67C0J101MT (RV2) +REF C438 00D 257 0512 903 CK73F1E104ZT +1608 C439 00D 257 4012 920 CE67C1C470MT (RV2) +REF C440 00D 257 0512 903 CK73F1E104ZT +1608 C441 00D 257 4012 920 CE67C1C470MT (RV2) +REF C445,446 00D 257 0512 903 CK73F1E104ZT +1608 C448,449 00D 257 0501 901 CK73B1H103KT (1608) +1608 C450 00D 257 0512 903 CK73F1E104ZT +1608 C451 00D 257 4012 920 CE67C1C470MT (RV2) +REF C452 00D 257 0512 903 CK73F1E104ZT +1608 C453 00D 257 4012 920 CE67C1C470MT (RV2) +REF C501 00D 257 0511 904 CK73F1H103ZT +1608 C502 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C503 00D 257 0511 904 CK73F1H103ZT +1608 C506 00D 257 0512 903 CK73F1E104ZT +1608 C507 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C508-515 00D 257 0512 903 CK73F1E104ZT +1608 C516 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C517-519 00D 257 0512 903 CK73F1E104ZT +1608 C520 00D 257 0511 904 CK73F1H103ZT +1608 C521-530 00D 257 0512 903 CK73F1E104ZT +1608 C531 00D 257 2010 937 CS77B1A220MT +C C532-535 00D 257 0512 903 CK73F1E104ZT +1608 C536 00D 257 0511 904 CK73F1H103ZT +1608 C537 00D 257 0512 903 CK73F1E104ZT +1608 C538,539 00D 257 0511 904 CK73F1H103ZT +1608 C540 00D 257 2010 924 CS77B1A470MT +C C541-543 00D 257 2010 937 CS77B1A220MT +C C544-546 00D 257 0516 954 CK73B1E104KT +1608 C547 00D 257 0511 904 CK73F1H103ZT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 DVD-5910/DVD-A1XV C548 00D 257 4012 917 CE67C1C220MT (RV2) +REF C549,550 00D 257 0512 903 CK73F1E104ZT +1608 C551,552 00D 257 4012 917 CE67C1C220MT (RV2) +REF C553,554 00D 257 0512 903 CK73F1E104ZT +1608 C555 00D 257 4012 917 CE67C1C220MT (RV2) +REF C557 00D 257 2010 937 CS77B1A220MT +C C558-565 00D 257 0512 903 CK73F1E104ZT +1608 C566 00D 257 4012 917 CE67C1C220MT (RV2) +REF C567-574 00D 257 0512 903 CK73F1E104ZT +1608 C575 00D 257 2010 937 CS77B1A220MT +C C576-589 00D 257 0512 903 CK73F1E104ZT +1608 C591-594 00D 257 0501 901 CK73B1H103KT (1608) +1608 C601 00D 257 0512 903 CK73F1E104ZT +1608 C602 00D 257 0509 929 CK73B1H102KT +1608 C603 00D 257 0512 903 CK73F1E104ZT +1608 C604,605 00D 257 0509 929 CK73B1H102KT +1608 C606 00D 257 0512 903 CK73F1E104ZT +1608 C607,608 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C609,610 00D 257 0512 903 CK73F1E104ZT +1608 C611,612 00D 257 0509 929 CK73B1H102KT +1608 C613 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C614 00D 257 0512 903 CK73F1E104ZT +1608 C615 00D 257 0509 929 CK73B1H102KT +1608 C616 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C617 00D 257 0512 903 CK73F1E104ZT +1608 C618 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C619-622 00D 257 0509 929 CK73B1H102KT +1608 C623 00D 257 0512 903 CK73F1E104ZT +1608 C624 00D 257 0509 929 CK73B1H102KT +1608 C628-631 00D 257 0516 954 CK73B1E104KT +1608 C632 00D 257 4011 905 CE67C0J101MT (RV2) +REF C633,634 00D 257 0512 903 CK73F1E104ZT +1608 C635,636 00D 257 4012 920 CE67C1C470MT (RV2) +REF C637,638 00D 257 0512 903 CK73F1E104ZT +1608 C639 00D 257 4012 920 CE67C1C470MT (RV2) +REF C640 00D 257 2010 937 CS77B1A220MT +C C641 00D 257 4012 920 CE67C1C470MT (RV2) +REF C642 00D 257 0512 903 CK73F1E104ZT +1608 C643 00D 257 4012 917 CE67C1C220MT (RV2) +REF C644 00D 257 0512 903 CK73F1E104ZT +1608 C645 00D 257 4012 917 CE67C1C220MT (RV2) +REF C646,647 00D 257 0512 903 CK73F1E104ZT +1608 C648-652 00D 247 2018 903 RM73B--0R0KT +1608 C654 00D 247 2018 903 RM73B--0R0KT +1608 C656 00D 257 4012 917 CE67C1C220MT (RV2) +REF C657 00D 257 0512 903 CK73F1E104ZT +1608 C658 00D 257 4012 920 CE67C1C470MT (RV2) +REF C659 00D 257 2010 937 CS77B1A220MT +C C661 00D 257 0512 903 CK73F1E104ZT +1608 C662 00D 257 0509 929 CK73B1H102KT +1608 C663 00D 257 0512 903 CK73F1E104ZT +1608 C664,665 00D 257 0509 929 CK73B1H102KT +1608 C666 00D 257 0512 903 CK73F1E104ZT +1608 C667,668 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C669,670 00D 257 0512 903 CK73F1E104ZT +1608 C671,672 00D 257 0509 929 CK73B1H102KT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 DVD-5910/DVD-A1XV C673 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C674 00D 257 0512 903 CK73F1E104ZT +1608 C675 00D 257 0509 929 CK73B1H102KT +1608 C676 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C677 00D 257 0512 903 CK73F1E104ZT +1608 C678 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C679-682 00D 257 0509 929 CK73B1H102KT +1608 C683 00D 257 0512 903 CK73F1E104ZT +1608 C684 00D 257 0509 929 CK73B1H102KT +1608 C686 00D 257 2010 937 CS77B1A220MT +C C691 00D 257 4012 920 CE67C1C470MT (RV2) +REF C692-695 00D 257 0512 903 CK73F1E104ZT +1608 C696 00D 257 4012 917 CE67C1C220MT (RV2) +REF C697 00D 257 0512 903 CK73F1E104ZT +1608 C698 00D 257 4012 920 CE67C1C470MT (RV2) +REF C699 00D 257 0512 903 CK73F1E104ZT +1608 C701-703 00D 257 0512 903 CK73F1E104ZT +1608 C704 00D 257 4012 917 CE67C1C220MT (RV2) +REF C705 00D 257 0511 904 CK73F1H103ZT +1608 C746 00D 257 0512 903 CK73F1E104ZT +1608 C808-813 00D 247 2018 903 RM73B--0R0KT +1608 OTHERS PARTS GROUP CX062 00D 205 0355 062 6P KR CON BASE(L) CX301 00D 205 1226 909 30P CONNECTOR(AXN3)S +REF CX401,402 00D 205 1227 911 40P CONNECTOR(AXN4)H +REF CX403 00D 205 1226 912 40P CONNECTOR(AXN3)S +REF CY031 00D 205 0233 032 3P EH CONNECTOR BASE CY081 00D 205 0343 087 8P CONN.BASE(KR-PH) CY174 00D 205 1174 909 17P FFC BASE(FMNSMT) +REF CY331 00D 205 1174 970 33P FFC BASE(FMNSMT) +C CY401,402 00D 205 1226 912 40P CONNECTOR(AXN3)S +REF FB501,502 00D 235 0136 907 FBMJ1608HS280NT +1608 JK101 00D 205 1270 007 3P BNC JACK(JALCO)AU JK103 00D 204 8549 000 2P PIN JACK(18MM) JK104 00D 204 8633 000 2P S-TERMINAL(AU) JK105-107 00D 204 8666 006 1P PIN JACK(BK) JK405 00D 205 1302 001 19P HDMI CONNECTOR JK602 00D 205 1303 000 24P DVI CONNECTOR L101 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L201 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L203-210 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L401 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L403-410 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L501,502 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L601 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L603-605 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L607,608 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L715 00D 235 0060 934 INDUCTOR(470)ST Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 DVD-5910/DVD-A1XV LF101 00D 261 0163 908 ELB4B591N +REF LF102 00D 261 0162 909 ELB4C582N +REF LF103,104 00D 261 0159 909 ELB4B584 +C W501 00D 205 1034 007 M3 SCREW TERMINAL W802 00D 205 1034 007 M3 SCREW TERMINAL Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 DVD-5910/DVD-A1XV 00DGU-3655 AUDIO P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC301 00D 262 2669 908 SN74LV157APW +C IC401 00D 262 3430 903 PCM1792DBR IC402 00D 263 1048 002 BA033T IC403,404 00D 263 1074 908 OP275GSR +C IC405,406 00D 263 0896 909 NJM2068MD-TE1 +C IC501 00D 262 3430 903 PCM1792DBR IC502 00D 263 1048 002 BA033T IC503,504 00D 263 1074 908 OP275GSR +C IC505,506 00D 263 0896 909 NJM2068MD-TE1 +C IC601 00D 263 1048 002 BA033T IC602,603 00D 262 2669 908 SN74LV157APW +C IC701 00D 262 3430 903 PCM1792DBR IC702-705 00D 263 0896 909 NJM2068MD-TE1 +C IC801 00D 262 3430 903 PCM1792DBR IC802-805 00D 263 0896 909 NJM2068MD-TE1 +C IC901 00D 262 3430 903 PCM1792DBR IC902-905 00D 263 0896 909 NJM2068MD-TE1 +C TR301,302 00D 269 0119 901 DTA124EKT96(TAPE) +C TR303,304 00D 269 0082 902 DTC114EKT96 +C TR305 00D 269 0119 901 DTA124EKT96(TAPE) +C TR306 00D 269 0082 902 DTC114EKT96 +C TR307 00D 269 0083 901 DTA114EKT96 +C TR401 00D 273 0460 905 KTC2875B-RTK +C TR402,403 00D 273 0253 918 2SC2878(A/B)TPE2 TR501 00D 273 0460 905 KTC2875B-RTK +C TR502,503 00D 273 0253 918 2SC2878(A/B)TPE2 TR601 00D 273 0426 907 2SC2412KLNT146 +C TR602 00D 269 0083 901 DTA114EKT96 +C TR603 00D 269 0119 901 DTA124EKT96(TAPE) +C TR604,605 00D 269 0082 902 DTC114EKT96 +C TR606,607 00D 269 0119 901 DTA124EKT96(TAPE) +C TR608,609 00D 269 0082 902 DTC114EKT96 +C TR610 00D 269 0119 901 DTA124EKT96(TAPE) +C TR611 00D 269 0082 902 DTC114EKT96 +C TR612 00D 269 0119 901 DTA124EKT96(TAPE) +C TR613 00D 269 0082 902 DTC114EKT96 +C TR614,615 00D 269 0119 901 DTA124EKT96(TAPE) +C TR616 00D 269 0082 902 DTC114EKT96 +C TR617 00D 269 0119 901 DTA124EKT96(TAPE) +C TR618,619 00D 269 0082 902 DTC114EKT96 +C TR620 00D 269 0119 901 DTA124EKT96(TAPE) +C TR621 00D 269 0082 902 DTC114EKT96 +C TR622 00D 269 0119 901 DTA124EKT96(TAPE) +C TR623 00D 269 0082 902 DTC114EKT96 +C TR701-708 00D 273 0460 905 KTC2875B-RTK +C TR801-808 00D 273 0460 905 KTC2875B-RTK +C TR899 00D 273 0460 905 KTC2875B-RTK +C TR901-908 00D 273 0460 905 KTC2875B-RTK +C D301 00D 276 0401 905 1SS133T77 (TAPE) D302 00D 276 0717 903 1SS355 TE-17 +C D601-604 00D 276 0717 903 1SS355 TE-17 +C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 DVD-5910/DVD-A1XV RESISTORS GROUP R301-303 00D 244 2051 929 RS14B3A821JNBST(S) R305 00D 241 2422 944 RD14B2E102JT(PSNB) R411 00D 241 2424 984 RD14B2E103JT(PSNB) R412-415 00D 241 2421 932 RD14B2E361JT(PSNB) R416,417 00D 241 2422 960 RD14B2E122JT(PSNB) R418,419 00D 241 2421 990 RD14B2E621JT(PSNB) R420,421 00D 241 2422 960 RD14B2E122JT(PSNB) R422,423 00D 241 2421 990 RD14B2E621JT(PSNB) R424,425 00D 241 2420 920 RD14B2E121JT(PSNB) R426,427 00D 241 2421 903 RD14B2E271JT(PSNB) R428,429 00D 241 2419 973 RD14B2E750JT(PSNB) R430,431 00D 241 2421 945 RD14B2E391JT(PSNB) R433 00D 241 2423 901 RD14B2E182JT(PSNB) R435 00D 241 2426 940 RD14B2E473JT(PSNB) R436 00D 241 2423 914 RD14B2E202JT(PSNB) R438 00D 241 2427 923 RD14B2E104JT(PSNB) R440 00D 241 2434 013 RD05A2H151J(RMG) R511 00D 241 2424 984 RD14B2E103JT(PSNB) R512-515 00D 241 2421 932 RD14B2E361JT(PSNB) R516,517 00D 241 2422 960 RD14B2E122JT(PSNB) R518 00D 241 2421 990 RD14B2E621JT(PSNB) R519 00D 241 2422 960 RD14B2E122JT(PSNB) R520,521 00D 241 2421 990 RD14B2E621JT(PSNB) R522 00D 241 2422 960 RD14B2E122JT(PSNB) R523 00D 241 2421 990 RD14B2E621JT(PSNB) R524 00D 241 2420 920 RD14B2E121JT(PSNB) R525 00D 241 2421 903 RD14B2E271JT(PSNB) R526 00D 241 2420 920 RD14B2E121JT(PSNB) R527 00D 241 2421 903 RD14B2E271JT(PSNB) R528 00D 241 2419 973 RD14B2E750JT(PSNB) R529,530 00D 241 2421 945 RD14B2E391JT(PSNB) R531 00D 241 2419 973 RD14B2E750JT(PSNB) R533 00D 241 2423 901 RD14B2E182JT(PSNB) R535 00D 241 2426 940 RD14B2E473JT(PSNB) R536 00D 241 2423 914 RD14B2E202JT(PSNB) R538 00D 241 2427 923 RD14B2E104JT(PSNB) R540 00D 241 2434 013 RD05A2H151J(RMG) R605 00D 244 2051 974 RS14B3A102JNBST(S) R608-613 00D 244 2051 929 RS14B3A821JNBST(S) R616 00D 244 2051 929 RS14B3A821JNBST(S) R618,619 00D 244 2051 929 RS14B3A821JNBST(S) CAPACITORS GROUP C301 00D 255 4256 955 CQ93P2A103JT(NH2) C302 00D 254 4558 728 CE04W1H471MC(RFS) C303 00D 257 0501 901 CK73B1H103KT (1608) +1608 C304 00D 257 0516 954 CK73B1E104KT +1608 C305,306 00D 255 4256 955 CQ93P2A103JT(NH2) C307,308 00D 254 4558 728 CE04W1H471MC(RFS) C309 00D 255 4256 955 CQ93P2A103JT(NH2) C310 00D 254 4558 728 CE04W1H471MC(RFS) C311 00D 257 0516 954 CK73B1E104KT +1608 C312 00D 257 0501 901 CK73B1H103KT (1608) +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 DVD-5910/DVD-A1XV C313 00D 257 0516 954 CK73B1E104KT +1608 C314 00D 257 0501 901 CK73B1H103KT (1608) +1608 C315,316 00D 247 2018 903 RM73B--0R0KT +1608 C319,320 00D 247 2018 903 RM73B--0R0KT +1608 C401 00D 255 4256 955 CQ93P2A103JT(NH2) C402 00D 254 4557 936 CE04W1H100MT(RFS) C403 00D 257 0501 901 CK73B1H103KT (1608) +1608 C404-406 00D 257 0506 951 CC73CH1H101JT +1608 C407 00D 257 0501 901 CK73B1H103KT (1608) +1608 C408 00D 254 4558 702 CE04W1H101MC(RFS) C409 00D 255 4256 955 CQ93P2A103JT(NH2) C410,411 00D 254 4557 952 CE04W1H470MT(RFS) C412 00D 257 0516 954 CK73B1E104KT +1608 C413 00D 257 0501 901 CK73B1H103KT (1608) +1608 C414 00D 254 4558 702 CE04W1H101MC(RFS) C415 00D 257 0516 954 CK73B1E104KT +1608 C416 00D 257 0501 901 CK73B1H103KT (1608) +1608 C420,421 00D 255 4254 973 CQ93P2A182JT(NH2) C422,423 00D 257 0501 901 CK73B1H103KT (1608) +1608 C426,427 00D 255 4254 973 CQ93P2A182JT(NH2) C428 00D 257 0501 901 CK73B1H103KT (1608) +1608 C430 00D 255 4253 974 CQ93P2A681JT(NH2) C431 00D 257 0501 901 CK73B1H103KT (1608) +1608 C432-434 00D 255 4253 974 CQ93P2A681JT(NH2) C435 00D 257 0501 901 CK73B1H103KT (1608) +1608 C436 00D 255 4256 913 CQ93P2A682JT(NH2) C437 00D 255 4257 912 CQ93P2A183JT(NH2) C438,439 00D 255 4254 999 CQ93P2A222JT(NH2) C440 00D 254 4598 908 CE04W1H220MTBP(ASF) C442 00D 257 0501 901 CK73B1H103KT (1608) +1608 C443 00D 255 4250 906 CQ93P2A100JT(NH2) C444 00D 257 0501 901 CK73B1H103KT (1608) +1608 C446 00D 254 4445 705 CE04W1H471MC(ARSG) C449 00D 254 4445 705 CE04W1H471MC(ARSG) C452 00D 255 4254 973 CQ93P2A182JT(NH2) C454 00D 254 4558 702 CE04W1H101MC(RFS) C455,456 00D 255 4256 955 CQ93P2A103JT(NH2) C457,458 00D 257 0516 954 CK73B1E104KT +1608 C501 00D 257 0501 901 CK73B1H103KT (1608) +1608 C502 00D 257 0506 951 CC73CH1H101JT +1608 C503 00D 255 4256 955 CQ93P2A103JT(NH2) C504 00D 257 0506 951 CC73CH1H101JT +1608 C505 00D 254 4557 936 CE04W1H100MT(RFS) C506 00D 257 0506 951 CC73CH1H101JT +1608 C507 00D 257 0501 901 CK73B1H103KT (1608) +1608 C508 00D 254 4558 702 CE04W1H101MC(RFS) C509 00D 255 4256 955 CQ93P2A103JT(NH2) C510,511 00D 254 4557 952 CE04W1H470MT(RFS) C512 00D 257 0516 954 CK73B1E104KT +1608 C513 00D 257 0501 901 CK73B1H103KT (1608) +1608 C514 00D 254 4558 702 CE04W1H101MC(RFS) C515 00D 257 0516 954 CK73B1E104KT +1608 C516 00D 257 0501 901 CK73B1H103KT (1608) +1608 C519,520 00D 255 4254 973 CQ93P2A182JT(NH2) C521,522 00D 257 0501 901 CK73B1H103KT (1608) +1608 C525 00D 255 4254 973 CQ93P2A182JT(NH2) Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 DVD-5910/DVD-A1XV C526 00D 257 0501 901 CK73B1H103KT (1608) +1608 C529 00D 255 4254 973 CQ93P2A182JT(NH2) C530 00D 257 0501 901 CK73B1H103KT (1608) +1608 C531-534 00D 255 4253 974 CQ93P2A681JT(NH2) C535 00D 257 0501 901 CK73B1H103KT (1608) +1608 C536 00D 255 4256 913 CQ93P2A682JT(NH2) C537 00D 255 4257 912 CQ93P2A183JT(NH2) C538,539 00D 255 4254 999 CQ93P2A222JT(NH2) C541 00D 254 4598 908 CE04W1H220MTBP(ASF) C542 00D 257 0501 901 CK73B1H103KT (1608) +1608 C543 00D 255 4250 906 CQ93P2A100JT(NH2) C544 00D 257 0501 901 CK73B1H103KT (1608) +1608 C545 00D 254 4445 705 CE04W1H471MC(ARSG) C549 00D 254 4445 705 CE04W1H471MC(ARSG) C552 00D 255 4254 973 CQ93P2A182JT(NH2) C554 00D 254 4558 702 CE04W1H101MC(RFS) C555,556 00D 255 4256 955 CQ93P2A103JT(NH2) C557,558 00D 257 0516 954 CK73B1E104KT +1608 C601,602 00D 255 4256 955 CQ93P2A103JT(NH2) C605 00D 254 4558 728 CE04W1H471MC(RFS) C606 00D 257 0501 901 CK73B1H103KT (1608) +1608 C607 00D 257 0516 954 CK73B1E104KT +1608 C608 00D 257 0501 901 CK73B1H103KT (1608) +1608 C609 00D 257 0516 954 CK73B1E104KT +1608 C611-613 00D 254 4558 715 CE04W1H221MC(RFS) C614 00D 254 4558 702 CE04W1H101MC(RFS) C615 00D 257 0516 954 CK73B1E104KT +1608 C616 00D 257 0501 901 CK73B1H103KT (1608) +1608 C617,618 00D 247 2018 903 RM73B--0R0KT +1608 C619,620 00D 255 4256 955 CQ93P2A103JT(NH2) C621,622 00D 247 2018 903 RM73B--0R0KT +1608 C701 00D 257 0501 901 CK73B1H103KT (1608) +1608 C703,704 00D 257 0501 901 CK73B1H103KT (1608) +1608 C706 00D 257 0501 901 CK73B1H103KT (1608) +1608 C711-714 00D 255 4254 973 CQ93P2A182JT(NH2) C715,716 00D 255 4256 913 CQ93P2A682JT(NH2) C717,718 00D 255 4257 912 CQ93P2A183JT(NH2) C719-722 00D 255 4254 999 CQ93P2A222JT(NH2) C723,724 00D 254 4598 908 CE04W1H220MTBP(ASF) C725,726 00D 255 4250 906 CQ93P2A100JT(NH2) C727 00D 255 4256 955 CQ93P2A103JT(NH2) C728 00D 254 4313 950 CE04W1H101MT(ASF) C729 00D 255 4256 955 CQ93P2A103JT(NH2) C730 00D 254 4313 950 CE04W1H101MT(ASF) C731 00D 254 4558 715 CE04W1H221MC(RFS) C732,733 00D 255 4256 955 CQ93P2A103JT(NH2) C734 00D 254 4558 715 CE04W1H221MC(RFS) C735,736 00D 255 4253 932 CQ93P2A471JT(NH2) C737 00D 257 0501 901 CK73B1H103KT (1608) +1608 C738-740 00D 257 0506 951 CC73CH1H101JT +1608 C741 00D 254 4557 936 CE04W1H100MT(RFS) C742 00D 255 4256 955 CQ93P2A103JT(NH2) C743 00D 257 0501 901 CK73B1H103KT (1608) +1608 C744 00D 254 4558 702 CE04W1H101MC(RFS) C745 00D 257 0516 954 CK73B1E104KT +1608 C746 00D 257 0501 901 CK73B1H103KT (1608) +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 DVD-5910/DVD-A1XV C747 00D 254 4558 702 CE04W1H101MC(RFS) C748 00D 257 0516 954 CK73B1E104KT +1608 C749 00D 255 4256 955 CQ93P2A103JT(NH2) C750,751 00D 254 4557 952 CE04W1H470MT(RFS) C752-757 00D 257 0516 954 CK73B1E104KT +1608 C801 00D 257 0501 901 CK73B1H103KT (1608) +1608 C803,804 00D 257 0501 901 CK73B1H103KT (1608) +1608 C806 00D 257 0501 901 CK73B1H103KT (1608) +1608 C811,812 00D 255 4254 973 CQ93P2A182JT(NH2) C813,814 00D 255 4254 931 CQ93P2A122JT(NH2) C815,816 00D 255 4256 913 CQ93P2A682JT(NH2) C817,818 00D 255 4257 912 CQ93P2A183JT(NH2) C819-822 00D 255 4254 999 CQ93P2A222JT(NH2) C823,824 00D 254 4598 908 CE04W1H220MTBP(ASF) C825,826 00D 255 4250 906 CQ93P2A100JT(NH2) C827 00D 255 4256 955 CQ93P2A103JT(NH2) C828 00D 254 4313 950 CE04W1H101MT(ASF) C829 00D 255 4256 955 CQ93P2A103JT(NH2) C830 00D 254 4313 950 CE04W1H101MT(ASF) C831 00D 254 4558 715 CE04W1H221MC(RFS) C832,833 00D 255 4256 955 CQ93P2A103JT(NH2) C834 00D 254 4558 715 CE04W1H221MC(RFS) C835,836 00D 255 4253 932 CQ93P2A471JT(NH2) C837 00D 257 0501 901 CK73B1H103KT (1608) +1608 C838-840 00D 257 0506 951 CC73CH1H101JT +1608 C841 00D 254 4557 936 CE04W1H100MT(RFS) C842 00D 255 4256 955 CQ93P2A103JT(NH2) C843 00D 257 0501 901 CK73B1H103KT (1608) +1608 C844 00D 254 4558 702 CE04W1H101MC(RFS) C845 00D 257 0516 954 CK73B1E104KT +1608 C846 00D 257 0501 901 CK73B1H103KT (1608) +1608 C847 00D 254 4558 702 CE04W1H101MC(RFS) C848 00D 257 0516 954 CK73B1E104KT +1608 C849 00D 255 4256 955 CQ93P2A103JT(NH2) C850,851 00D 254 4557 952 CE04W1H470MT(RFS) C852-857 00D 257 0516 954 CK73B1E104KT +1608 C899 00D 254 4598 908 CE04W1H220MTBP(ASF) C901 00D 257 0501 901 CK73B1H103KT (1608) +1608 C903,904 00D 257 0501 901 CK73B1H103KT (1608) +1608 C906 00D 257 0501 901 CK73B1H103KT (1608) +1608 C911-914 00D 255 4254 973 CQ93P2A182JT(NH2) C915,916 00D 255 4256 913 CQ93P2A682JT(NH2) C917,918 00D 255 4257 912 CQ93P2A183JT(NH2) C919-922 00D 255 4254 999 CQ93P2A222JT(NH2) C923,924 00D 254 4598 908 CE04W1H220MTBP(ASF) C925,926 00D 255 4250 906 CQ93P2A100JT(NH2) C927 00D 255 4256 955 CQ93P2A103JT(NH2) C928 00D 254 4313 950 CE04W1H101MT(ASF) C929 00D 255 4256 955 CQ93P2A103JT(NH2) C930 00D 254 4313 950 CE04W1H101MT(ASF) C931 00D 254 4558 715 CE04W1H221MC(RFS) C932,933 00D 255 4256 955 CQ93P2A103JT(NH2) C934 00D 254 4558 715 CE04W1H221MC(RFS) C935,936 00D 255 4253 932 CQ93P2A471JT(NH2) C937 00D 257 0501 901 CK73B1H103KT (1608) +1608 C938-940 00D 257 0506 951 CC73CH1H101JT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 DVD-5910/DVD-A1XV C941 00D 254 4557 936 CE04W1H100MT(RFS) C942 00D 255 4256 955 CQ93P2A103JT(NH2) C943 00D 257 0501 901 CK73B1H103KT (1608) +1608 C944 00D 254 4558 702 CE04W1H101MC(RFS) C945 00D 257 0516 954 CK73B1E104KT +1608 C946 00D 257 0501 901 CK73B1H103KT (1608) +1608 C947 00D 254 4558 702 CE04W1H101MC(RFS) C948 00D 257 0516 954 CK73B1E104KT +1608 C949 00D 255 4256 955 CQ93P2A103JT(NH2) C950,951 00D 254 4557 952 CE04W1H470MT(RFS) C952-957 00D 257 0516 954 CK73B1E104KT +1608 OTHERS PARTS GROUP AS101 00D 009 0185 100 BUS BAR (3P) CW053 00D 203 8560 002 5P EH-SCN CON.CORD CX053 00D 205 0233 058 5P EH CONNECTOR BASE CX192 00D 205 0892 020 19P FFC BASE (P=1) CY032 00D 205 0653 036 3P VH CON.BASE CY042 00D 205 0233 045 4P EH CONNECTOR BASE CY192 00D 205 0892 020 19P FFC BASE (P=1) CY332 00D 205 1334 008 33P-FFC-BASE (P=1) JK401 00D 204 8666 006 1P PIN JACK(BK) JK501 00D 204 8666 006 1P PIN JACK(BK) JK701,702 00D 204 8666 006 1P PIN JACK(BK) JK801,802 00D 204 8666 006 1P PIN JACK(BK) JK901,902 00D 204 8666 006 1P PIN JACK(BK) RL301 00D 214 0127 003 RELAY(RY-12W) W402 00D 205 1034 007 M3 SCREW TERMINAL W502 00D 205 1034 007 M3 SCREW TERMINAL 00D 417 0476 010 RADIATOR 00D 471 3303 016 3X6 CBS-Z Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 DVD-5910/DVD-A1XV 00DGU-3656 POWER/DISPLAY P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3228 908 M66005AFP +C IC102 00D 499 0306 001 GP1UE271XK IC902 00D 263 1206 909 TA76432FC(TE85L) +C IC904 00D 263 1100 005 KIA7805API IC907 00D 263 1206 909 TA76432FC(TE85L) +C IC908 00D 263 1100 050 KIA7808API IC909 00D 262 3047 008 PC123 Y-22 IC910 00D 263 1206 909 TA76432FC(TE85L) +C IC951 00D 263 1100 005 KIA7805API IC952 00D 263 1099 006 KIA7905PI IC953 00D 263 1100 021 KIA7812API IC954 00D 263 1099 022 KIA7912PI IC955 00D 263 1100 050 KIA7808API IC956 00D 263 1100 005 KIA7805API TR101 00D 269 0082 902 DTC114EKT96 +C TR102 00D 271 0308 906 2SA933ASTPS TR103-105 00D 269 0082 902 DTC114EKT96 +C TR106 00D 271 0308 906 2SA933ASTPS TR901 00D 271 0308 906 2SA933ASTPS TR902 00D 274 0208 005 2SD1904(R/S) TR903 00D 273 0303 910 2SC1740S(S)-T TR904 00D 274 0036 905 2SD468(C)TF TR905 00D 269 0083 901 DTA114EKT96 +C TR907 00D 269 0083 901 DTA114EKT96 +C TR908 00D 275 0106 906 HAT2053M(TAPE) +C TR909,910 00D 269 0082 902 DTC114EKT96 +C TR911 00D 272 0170 001 2SB1268(R/S) TR913 00D 272 0083 004 2SB1185(E/F) D101-106 00D 276 0717 903 1SS355 TE-17 +C D901-904 00D 276 0729 904 EM01AT (V1) D908 00D 276 0803 008 FMB-G19L D909 00D 276 0730 906 AG01ZT (V1) D910 00D 276 0803 008 FMB-G19L D911 00D 276 0730 906 AG01ZT (V1) D913-917 00D 276 0401 905 1SS133T77 (TAPE) D919,920 00D 276 0813 001 AP01C D921,922 00D 276 0401 905 1SS133T77 (TAPE) D952 00D 276 0305 001 S4VB20 D953-956 00D 276 0765 900 1SR139-400T-31 ZD902 00D 276 0760 921 MTZJ4.3B T77 ZD906 00D 276 0762 945 MTZJ36B T77 LD101,102 00D 393 9576 903 SELU1E10CXM-002 LD103 00D 393 9645 009 SML1216W(D) LD104,105 00D 393 9576 903 SELU1E10CXM-002 TH901 00D 279 0044 002 NTH11D8R0LA FL101 00D 393 8078 004 FL TUBE(15-BT-97GNK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 DVD-5910/DVD-A1XV RESISTORS GROUP R909 00D 244 2675 729 RS14B3D224JNBF (ERG) R919 00D 241 2315 938 RD14B2E330GFRST R920 00D 244 2052 973 RS14B3A561JNBST(S) R923 00D 244 2043 908 RS14B3A681JNBST(S) R925 00D 244 2050 991 RS14B3A682JNBST(S) R928 00D 244 2052 973 RS14B3A561JNBST(S) R941 00D 244 2043 908 RS14B3A681JNBST(S) R945 00D 244 2055 912 RS14B3AR47JNBST(S) R951 00D 244 2051 974 RS14B3A102JNBST(S) R952 00D 244 2043 940 RS14B3A222JNBST(S) R958,959 00D 244 2052 973 RS14B3A561JNBST(S) R966-968 00D 244 2052 931 RS14B3A391JNBST(S) R978-983 00D 244 2051 945 RS14B3A010JNBST(S) CAPACITORS GROUP C101-103 00D 257 0501 901 CK73B1H103KT (1608) +1608 C105 00D 257 0506 951 CC73CH1H101JT +1608 C106 00D 254 4299 964 CE04W1C470MT(SRE) C108 00D 257 0501 901 CK73B1H103KT (1608) +1608 C109-111 00D 257 0512 903 CK73F1E104ZT +1608 C115-118 00D 257 0501 901 CK73B1H103KT (1608) +1608 C119 00D 257 0511 904 CK73F1H103ZT +1608 C120 00D 257 0509 929 CK73B1H102KT +1608 C896,897 00D 254 4652 705 CE04W1A222MC(KY)J30 C898 00D 254 4313 947 CE04W1H4R7MT(ASF) C899 00D 254 4313 934 CE04W1H470MT(ASF) C900 00D 253 8022 707 CK45F2EAC103MC C901 00D 256 8038 004 CF99--2EAC104M C902 00D 253 8029 713 CK45F2EAC471KC(KX) C903 00D 253 8022 707 CK45F2EAC103MC C904 00D 254 4313 934 CE04W1H470MT(ASF) C905 00D 255 4256 955 CQ93P2A103JT(NH2) C906 00D 257 0511 904 CK73F1H103ZT +1608 C907 00D 254 4313 947 CE04W1H4R7MT(ASF) C908 00D 257 0509 929 CK73B1H102KT +1608 C909 00D 254 4588 714 CE04W2D221MC(KMG) C910 00D 257 0512 903 CK73F1E104ZT +1608 C911 00D 257 0511 904 CK73F1H103ZT +1608 C912 00D 254 4313 934 CE04W1H470MT(ASF) C913 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C914 00D 256 8038 004 CF99--2EAC104M C916,917 00D 254 4653 908 CE04W1V151MT(KY)H11 C918 00D 254 4652 705 CE04W1A222MC(KY)J30 C919 00D 254 4675 902 CE04W2A220MT(KMF) C920 00D 254 4651 900 CE04W0J331MT(KY)E11 C921 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C922 00D 254 4542 705 CE04W1E471MC SMG/RE3 C923 00D 254 4538 955 CE04W1C221MT SMG/RE3 C924 00D 257 0512 903 CK73F1E104ZT +1608 C925 00D 254 4522 945 CE04W1V470MT SMG/RE3 C927 00D 254 4313 934 CE04W1H470MT(ASF) C928,929 00D 257 0512 903 CK73F1E104ZT +1608 C930 00D 257 0511 904 CK73F1H103ZT +1608 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 DVD-5910/DVD-A1XV C931 00D 254 4313 934 CE04W1H470MT(ASF) C932 00D 257 0512 903 CK73F1E104ZT +1608 C933 00D 254 4653 908 CE04W1V151MT(KY)H11 C935 00D 257 0512 903 CK73F1E104ZT +1608 C936 00D 254 4653 908 CE04W1V151MT(KY)H11 C937 00D 257 0509 929 CK73B1H102KT +1608 C938 00D 257 0512 903 CK73F1E104ZT +1608 C939 00D 254 4313 934 CE04W1H470MT(ASF) C940-947 00D 257 0512 903 CK73F1E104ZT +1608 C948 00D 257 0511 920 CK73F1H473ZT +1608 C949,950 00D 253 8029 713 CK45F2EAC471KC(KX) C951 00D 254 4653 908 CE04W1V151MT(KY)H11 C952 00D 254 4652 705 CE04W1A222MC(KY)J30 C953 00D 254 4651 900 CE04W0J331MT(KY)E11 C954,955 00D 253 8029 713 CK45F2EAC471KC(KX) C956 00D 257 0512 903 CK73F1E104ZT +1608 C957,958 00D 254 4313 934 CE04W1H470MT(ASF) C959 00D 254 4652 705 CE04W1A222MC(KY)J30 C960 00D 254 4536 957 CE04W1A471MT SMG/RE3 C961 00D 254 4542 705 CE04W1E471MC SMG/RE3 C962 00D 257 0509 929 CK73B1H102KT +1608 C963 00D 254 4313 934 CE04W1H470MT(ASF) C964 00D 254 4382 716 CE04W1C102MC(ASF) C965 00D 254 4652 705 CE04W1A222MC(KY)J30 C966,967 00D 255 4256 955 CQ93P2A103JT(NH2) C970,971 00D 254 4558 731 CE04W1H332MC(RFS) C972,973 00D 254 4599 703 CE04W1C222MC (KMF) C974 00D 254 4313 934 CE04W1H470MT(ASF) C975,976 00D 257 0511 904 CK73F1H103ZT +1608 C979,980 00D 254 4558 728 CE04W1H471MC(RFS) C981,982 00D 254 4368 947 CE04W1E221MT(ASF) C983,984 00D 255 4256 955 CQ93P2A103JT(NH2) C985,986 00D 257 0509 929 CK73B1H102KT +1608 C987,988 00D 257 0512 903 CK73F1E104ZT +1608 C989 00D 257 0511 904 CK73F1H103ZT +1608 C992 00D 257 0512 903 CK73F1E104ZT +1608 C993 00D 254 4313 947 CE04W1H4R7MT(ASF) C994 00D 254 4652 705 CE04W1A222MC(KY)J30 C995 00D 254 4557 936 CE04W1H100MT(RFS) C996,997 00D 255 4256 955 CQ93P2A103JT(NH2) C998 00D 254 4558 702 CE04W1H101MC(RFS) C999 00D 254 4652 705 CE04W1A222MC(KY)J30 OTHERS PARTS GROUP CW031 00D 203 5359 009 3P EH-SCN CON.CORD CW035 00D 203 5343 015 3P PH-SAN CON.CORD CW052 00D 203 8549 023 5P PH-SAN CON.CORD CW101 00D 204 2973 012 10P PH-SAN CON.CORD CX024 00D 205 0581 001 2P VH CONNECTOR BASE CX025 00D 205 0581 056 2P VH CONNECTOR BASE CX026 00D 205 1093 006 2P VH CONNECTOR BASA CX032 00D 205 0653 036 3P VH CON.BASE CX035 00D 205 0343 032 3P CONN.BASE(KR-PH) Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 DVD-5910/DVD-A1XV CX037 00D 205 0323 036 3P CONNE.BASE(BLK) CX042 00D 205 0233 045 4P EH CONNECTOR BASE CX059 00D 205 0653 052 5P VH CONNECTOR BASE CX062,063 00D 205 0653 065 6P VH CONNECTOR BASE CX081 00D 205 0343 087 8P CONN.BASE(KR-PH) CX121 00D 205 0375 026 12P CONN.BASE(KR-PH) CX211 00D 205 1006 022 21P FFC BASE (P=1) CY025 00D 205 0581 056 2P VH CONNECTOR BASE CY037 00D 205 0323 036 3P CONNE.BASE(BLK) CY052 00D 205 0343 058 5P CONN.BASE(KR-PH) CY063 00D 205 0653 065 6P VH CONNECTOR BASE ! F901 00D 206 1072 033 FUSE 2A FF901 00D 202 0040 909 FUSE CLIP(TAPE) FH901 00D 202 0040 909 FUSE CLIP(TAPE) L901 00D 235 0157 009 PLA10AN7720R7D2B L903,904 00D 235 0142 917 COIL LHL08TB4R7MT RL901 00D 214 0202 009 RELAY DG1U TV-8 S101-106 00D 212 5604 910 TACT SWITCH-TA(ALPS) S108-110 00D 212 5604 910 TACT SWITCH-TA(ALPS) S112 00D 212 0525 007 ROT.ENCODER EC11B20 S113-115 00D 212 5604 910 TACT SWITCH-TA(ALPS) S116 00D 212 5611 903 TACT SWITCH(TAPE H5) ! S900 00D 212 1030 009 POWER SWITCH (TV-5) ST303 00D 205 0452 017 STYLE PIN ST901,902 00D 205 0452 017 STYLE PIN ! T901 00D 233 0686 008 SW TRANS (100/120) W905,906 00D 205 1034 007 M3 SCREW TERMINAL 00D 265 0126 002 TOP247YN 00D 461 0991 026 RUBBER SHEET 00D 417 0476 010 RADIATOR 00D 417 0476 023 RADIATOR 00D 417 0476 036 RADIATOR 00D 471 3303 016 3X6 CBS-Z Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 DVD-5910/DVD-A1XV 00DGU-3657 IP P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3471 001 SXT2-100 IC103 00D 262 2570 903 TC7W241FU(TE12L) IC701-704 00D 262 3479 016 EM6A9320BI-4M IC802 00D GEN 6868 IP ROM SUB ASS Y M29W320BD70N6 IC803 00D 262 3473 902 LP2995M RESISTORS GROUP RA101,102 00D 247 9007 920 MNR14=0R0JE0 RA105-108 00D 247 9007 920 MNR14=0R0JE0 CAPACITORS GROUP C101-118 00D 257 5009 974 CK73F1C104ZT +1005 C119 00D 257 2010 937 CS77B1A220MT +C C120-127 00D 257 5009 974 CK73F1C104ZT +1005 C128 00D 257 4011 905 CE67C0J101MT (RV2) +REF C129 00D 257 5009 974 CK73F1C104ZT +1005 C130,131 00D 257 5009 916 CK73B1C103KT C132-141 00D 257 5009 974 CK73F1C104ZT +1005 C142 00D 257 2010 937 CS77B1A220MT +C C143-166 00D 257 5009 974 CK73F1C104ZT +1005 C167 00D 257 4012 917 CE67C1C220MT (RV2) +REF C168-171 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C172-177 00D 257 5009 974 CK73F1C104ZT +1005 C178,179 00D 257 4011 905 CE67C0J101MT (RV2) +REF C180,181 00D 257 5009 916 CK73B1C103KT C182 00D 257 5009 974 CK73F1C104ZT +1005 C183 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C184,185 00D 257 5009 974 CK73F1C104ZT +1005 C188 00D 257 0506 951 CC73CH1H101JT +1608 C701-709 00D 257 5009 974 CK73F1C104ZT +1005 C710 00D 257 4012 917 CE67C1C220MT (RV2) +REF C711-719 00D 257 5009 974 CK73F1C104ZT +1005 C720 00D 257 4012 917 CE67C1C220MT (RV2) +REF C721-729 00D 257 5009 974 CK73F1C104ZT +1005 C730 00D 257 4012 917 CE67C1C220MT (RV2) +REF C731-739 00D 257 5009 974 CK73F1C104ZT +1005 C740 00D 257 4012 917 CE67C1C220MT (RV2) +REF C741-748 00D 257 5009 916 CK73B1C103KT C749-758 00D 257 5009 974 CK73F1C104ZT +1005 C759 00D 257 2010 911 CS77B1A101MT +C C760 00D 257 2010 937 CS77B1A220MT +C C801 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C802 00D 257 5009 974 CK73F1C104ZT +1005 C805,806 00D 257 5009 916 CK73B1C103KT C807 00D 257 5009 974 CK73F1C104ZT +1005 C808 00D 257 2010 924 CS77B1A470MT +C C809 00D 257 4011 905 CE67C0J101MT (RV2) +REF C810 00D 257 2010 924 CS77B1A470MT +C C811 00D 257 4011 905 CE67C0J101MT (RV2) +REF C909 00D 257 2010 911 CS77B1A101MT +C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 123 DVD-5910/DVD-A1XV C910 00D 257 2010 924 CS77B1A470MT +C C911 00D 257 2010 937 CS77B1A220MT +C C912-946 00D 257 5009 916 CK73B1C103KT OTHERS PARTS GROUP CX171 00D 205 1170 903 17P FFC BASE(FMNBMTT +REF CY059 00D 205 0449 059 5P VH CONNECTOR BASE CY301 00D 205 1227 908 30P CONNECTOR(AXN4)H +REF CY403 00D 205 1227 911 40P CONNECTOR(AXN4)H +REF FB101-105 00D 235 0136 907 FBMJ1608HS280NT +1608 W701,702 00D 205 0864 029 M3 SCREW TERMINAL X101 00D 399 0987 900 FCXO-05(66.666MHz) Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 124 DVD-5910/DVD-A1XV Parts List EXPLODED VIEW w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 125 DVD-5910/DVD-A1XV PARTS LIST OF EXPLODED VIEW ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 Note:The symbols in the column "Remarks" indicate the following destinations. E3: U.S.A. & Canada model JP: Japan model E2: Europe model E1C : China model Ref. No. Part No. Part Name Remarks Q'ty New 1 00DGU-3517D IEEE1394 PWB UNIT ASS'Y for E3 1 1 00DGU-3517E IEEE1394 PWB UNIT ASS'Y for E2,E1C,JP 1 2 00DGU-3618D MAIN PWB UNIT ASS'Y for E3,E2,E1C,JP 1 3 00DGU-3653 SYSTEM PWB UNIT ASS'Y for E3 1 * 3 00DGU-3653A SYSTEM PWB UNIT ASS'Y for E2 1 * 3 00DGU-3653B SYSTEM PWB UNIT ASS'Y for JP 1 * 3 00DGU-3653D SYSTEM PWB UNIT ASS'Y for E1C 1 * 4 00DGU-3654 VIDEO PWB UNIT ASS'Y for E3 1 * 4 00DGU-3654A VIDEO PWB UNIT ASS'Y for E2,E1C 1 * 4 00DGU-3654B VIDEO PWB UNIT ASS'Y for JP 1 * 4-1 VIDEO1 UNIT 4-2 VIDEO2 UNIT 4-3 SCART UNIT for E2,E1C 5 00DGU-3655 AUDIO PWB UNIT ASS'Y for E3 1 * 5 00DGU-3655A AUDIO PWB UNIT ASS'Y for E2,E1C 1 * 5 00DGU-3655B AUDIO PWB UNIT ASS'Y for JP 1 * 5-1 MIXch AUDIO UNIT 5-2 5.1CH AUDIO UNIT 6 00DGU-3656 POWER/DISPLAY PWB UNIT ASS'Y for E3 1 * 6 00DGU-3656A POWER/DISPLAY PWB UNIT ASS'Y for E2,E1C 1 * 6 00DGU-3656B POWER/DISPLAY PWB UNIT ASS'Y for JP 1 * 6-1 ANALOG POWER UNIT 6-2 DIGITAL POWER UNIT 6-3 DISPLAY UNIT 6-4 P.SW UNIT 6-5 POWER/STANDBY UNIT 6-6 1.5V POWER UNIT 7 00DGU-3657 I/P PWB UNIT ASS'Y for E3,E2,E1C,JP 1 * 8 00D 411 2063 009 CENTER CHASSIS Black model 1 * 8 00D 411 2063 012 CENTER CHASSIS P.Silver model 1 * 9 00D 411 2064 105 CHASSIS L Black model 1 * 9 00D 411 2064 118 CHASSIS L P.Silver model 1 * 10 00D 411 2065 104 CHASSIS R Black model 1 * 10 00D 411 2065 117 CHASSIS R P.Silver model 1 * 11 00D 411 2066 006 FRONT CHASSIS Black model 1 * 11 00D 411 2066 019 FRONT CHASSIS P.Silver model 1 * 12 00D 105 1382 022 INSIDE PLATE 2 * 13 00D 105 1382 035 BOTTOM COVER 1 * 14 00D 104 0334 007 FOOT 4 15 00D 461 1217 000 RUBBER PAD 4 * 16 00D 105 1471 108 REAR PANEL (BKE3) for E3 1 * 16 00D 105 1471 111 REAR PANEL (JP) for JP 1 * 16 00D 105 1471 137 REAR PANEL (SPE2) for E2 1 * 16 00D 105 1471 140 REAR PANEL (SPE1C) for E1C 1 * 17 00D 203 3995 009 AC INLET (2P) 1 18 00D 342 0027 000 FERRITE CORE 1 19 00D 445 0048 016 CORD HOLDER (L50) 2 20 00D 274 0209 004 2SC5370 1 21 00D 417 0651 107 HEAT PLATE 1 * 22 00D 417 0667 104 RADIATOR PLATE 1 * 23 00D 263 1100 005 KIA7805API 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 126 DVD-5910/DVD-A1XV 24 00D 263 1211 004 BA00JC5WT 1 25 00D 274 0209 004 2SC5370 1 26 00D 276 0818 006 FMJ-2303 1 27 00D 412 2814 015 CARD SPACER (L=14) 1 * 28 00D 441 1997 009 TRANS PLATE 1 * ! 29 00D 233 6456 119 POWER TRANS(E3) for E3 1 * ! 29 00D 233 0664 017 POWER TRANS(N) for JP 1 * ! 29 00D 233 6457 011 POWER TRANS(E2) for E2,E1C 1 * 30 00D 414 1005 009 SHIELD PLATE 1 * 31 00D 414 1019 008 EARTH PLATE (SYSTEM) 1 * 32 00D 449 0033 007 LOCKING CARD SPACER 1 33 00D 414 0990 005 SHIELD IEEE1394(BOT) 1 34 00D 414 0991 004 SHIELD IEEE1394(TOP) 1 35 00D 414 1006 105 SHIELD PLATE(VIDEO) 1 * 36 00D 417 0682 008 HEAT SHEET (GP1-2.0) 1 * 37 00D 411 2083 005 SUPPORT BRIDGE 1 * 38 00D 417 0678 009 HEAT SINK(PUE36) 1 * 39 00D 417 0682 011 HEAT SHEET (GP1-2.0) 1 * 40 00D 412 2404 043 PWB HOLDER (WLS-13) 4 41 00D 414 1018 009 EARTH PLATE (L-RCA) 11 * 42 00D 414 1029 001 SHIELD SHEET 1 * 43 00D 461 0415 007 RUBBER SHEET 16 44 00D 477 0231 024 4W(S) 4 45 00D 417 0682 024 HEAT SHEET (GP1-2.0) 1 * 46 00D 411 2082 103 SUPPORT BRACKET Black model 1 * 46 00D 411 2082 116 SUPPORT BRACKET P.Silver model 1 * 47 00D 417 0677 000 HEAT SINK(PUG56) 1 * 48 00D 411 2067 102 MECHA BASE 1 * 49 00D FG180-1-DE DVD MECHA UNIT 1 * 50 00D 412 5189 006 ANGLE Black model 3 * 50 00D 412 5189 019 ANGLE P.Silver model 3 * 51 00D 144 2916 104 FRONT PANEL(BKE3) Black model 1 * 51 00D 144 2916 117 FRONT PANEL(SP) P.Silver model 1 * 52 00D 131 0158 007 DENON BADGE Black model 1 52 00D 131 0158 010 DENON BADGE P.Silver model 1 53 00D 143 1213 203 WINDOW Black model 1 * 53 00D 143 1213 216 WINDOW P.Silver model 1 * 54 00D 146 2393 105 INNER PANEL(BK) Black model 1 * 54 00D 146 2393 118 INNER PANEL(SP) P.Silver model 1 * 55 00D 114 0176 000 FUNCTION KNOB CAP Black model 4 * 55 00D 114 0176 013 FUNCTION KNOB CAP P.Silver model 4 * 56 00D 114 0177 009 OPEN/CLOSE KNOB CAP Black model 1 * 56 00D 114 0177 012 OPEN/CLOSE KNOB CAP P.Silver model 1 * 57 00D 113 2010 006 TACT KNOB CAP Black model 7 * 57 00D 113 2010 019 TACT KNOB CAP P.Silver model 7 * 58 00D 143 1207 002 LENS 2 59 00D 143 1208 001 LENS(MINI) 2 60 00D 143 1214 105 DISPLAY SHEET 1 * 61 00D 461 0957 057 RUBBER FOAM 1 62 00D 113 1994 107 P.KNOB ASS Y(MAIN) Black model 1 62 00D 113 1994 149 P.KNOB ASS Y(MAIN) P.Silver model 1 63 00D 143 1189 007 POWER LENS 1 64 00D 113 1992 109 P.KNOB ASS Y(SUB) Black model 1 64 00D 113 1992 138 P.KNOB ASS Y(SUB) P.Silver model 1 65 00D 114 0170 006 KNOB CAP(D12) BK Black model 1 65 00D 114 0170 035 KNOB CAP(D12) SP P.Silver model 1 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 127 DVD-5910/DVD-A1XV 66 00D 112 0957 003 KNOB BUSH(D12) BK Black model 1 * 66 00D 112 0957 016 KNOB BUSH(D12) SP P.Silver model 1 * 67 00D 461 1162 003 BLIND SHEET 1 68 00D 431 0440 000 BLIND 1 69 00D 431 0443 007 BLIND(S) 1 * 70 00D 463 0958 007 SPRING 2 71 00D 129 0253 048 RUBBER SHEET 4 * 72 00D 144 2917 006 SIDE COVER(R)(BK) Black model 1 * 72 00D 144 2917 019 SIDE COVER(R)(SR) P.Silver model 1 * 73 00D 144 2918 005 SIDE COVER(L)(BK) Black model 1 * 73 00D 144 2918 018 SIDE COVER(L)(SR) P.Silver model 1 * 74 00D 461 1131 005 RUBBER FORM for JP,E2,E1C 4 75 00D 102 0652 055 TOP COVER Black model 1 * 75 00D 102 0652 068 TOP COVER P.Silver model 1 * 76 00D 412 5190 008 TOP COVER DAMPER 1 * 77 00D 144 2925 001 LOADER PANEL ASS Y Black model 1 * 77 00D 144 2925 014 LOADER PANEL ASS Y P.Silver model 1 * 78 00D 412 5219 002 EMC ANGLE for E3 1 * 79 00D 412 5220 004 EMC PLATE for E3 1 * 80 00D 445 0033 005 WIRE CLAMP BAND 15 81 00D 513 4019 001 LICENSE LABEL 1 * 82 00D 513 3406 107 LABEL(A) for E3 1 83 00D 513 3463 001 LABEL(LASER) for E2,E1C 1 84 00D 513 2063 004 E2 LASER CAUTION for E2,E1C 1 85 00D 513 4053 009 FUSE LABEL for JP 1 * 85 00D 513 3827 074 FUSE LABEL for E2,E1C 1 * 86 00D 513 4053 012 FUSE LABEL for JP 2 * 86 00D 513 3827 087 FUSE LABEL for E2,E1C 2 * ★　　201 00D 203 5344 014 3P VH CON.CORD AC INLET-DIGITAL POWER(CX024) 1 * ★　　202 00D 203 8557 002 5P VH-VH CON.CORD 1.5V POWER(CX059)-I/P(CY059) 1 * ★　　203 00D 204 6781 006 12P PH-PH CON.CORD DIGITAL POWER(CX121)-SYSTEM(CY121) 1 * ★　　204 00D 203 5296 065 3P PH-PH CON.CORD DIGITAL POWER(CY037)-ANALOG POWER(CX037) 1 * ★　　205 00D 204 2964 018 8P PH-PH CON.CORD DIGITAL POWER(CX081)-VIDEO2(CY081) 1 * ★　　206 00D 204 0594 008 6P VH-VH CON.CORD DIGITAL POWER(CX063)-1.5V POWER(CY063) 1 * ★　　207 00D 203 5358 000 3P VH-VH CON.CORD ANALOG POWER(CX032)-MIXCH AUDIO(CY032) 1 * ★　　208 00D 203 6620 009 4P EH-EH CON.CORD ANALOG POWER(CX042)-MIXCH AUDIO(CY042) 1 * ★　　209 00D 009 0262 065 25P FFC(1.0) SYSTEM(CX251)-MAIN(CY251) 1 * ★　　210 00D 009 0262 078 30P FFC(1.0) SYSTEM(CX301)-MAIN(CY301) 1 * ★　　211 00D 009 0262 007 17P FFC(1.0) SYSTEM(CX171)-MAIN(CY171) 1 * ★　　212 00D 009 0262 081 33P FFC(1.0) SYSTEM(CX332)-5.1CH AUDIO(CY332) 1 * ★　　213 00D 009 0262 010 17P FFC(1.0) SYSTEM(CX174)-VIDEO1(CY174) 1 * ★　　214 00D 009 0262 049 19P FFC(1.0) SYSTEM(CX191)-IEEE1394(CY191) 1 * ★　　215 00D 009 0262 023 17P FFC(1.0) SYSTEM(CX173)-IEEE1394(CY173) 1 * ★　　216 00D 009 0186 015 24P FFC(0.5) PU-MAIN 1 * ★　　217 00D 203 8517 068 5P PH-PH CONN.CORD SLIDE-MAIN 1 * ★　　218 00D 009 0262 081 33P FFC(1.0) MAIN(CX331)-VIDEO2(CY331) 1 * ★　　219 00D 009 0262 036 19P FFC(1.0) MIXCH AUDIO(CX192)-5.1CH AUDIO(CY192) 1 * ★　　220 00D 009 0262 052 21P FFC(1.0) DISPLAY(CX211)-SYSTEM(CY211) 1 * ★　　221 00D 203 5294 041 3P VH-VH CON.CORD POWER SW(CY026)-DIGITAL POWER(CX026) 1 * ★　　222 00D 204 2942 056 10P PH-PH CON.CORD SCART(CX102)-VIDEO(CY102) 1 * ★　　223 00D 461 1220 000 EMIGASKET SHSG040100 ★　　224 00D 461 1221 009 EMIGASKET SHSG030100 ★　　225 00D 414 1010 007 ALUMINUM TAPE Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 128 DVD-5910/DVD-A1XV ★　　226 00D 125 0097 008 BUTYL TAPE(W50 T2) for JP ★　　227 00D 125 0096 009 NITOFLON TAPE(W50) for JP ★　　228 00D 125 0075 004 CHUKOH TAPE for JP ★　　229 00D 513 4025 024 CCC LABEL for E1C 1 SCREWS 100 00D 473 7015 005 3X6 CBTS(S)-B 75 101 00D 473 7006 030 3X12 CBTS (S)-B 16 102 00D 473 7003 017 3X8 CFTS (S)-B 6 103 00D 473 7002 018 3X8 CBTS (S)-Z 45 104 00D 471 3304 015 3X8 CBS-Z 3 105 00D 471 3303 016 3X6 CBS-Z 4 106 00D 473 8034 027 3X8 CBTS(B)-B 2 107 00D 477 0064 123 FIXING SCREW 16 108 - FUZOKUHIN / RC232C HEX BOLT 2 109 00D 471 2303 020 3X6 CFS-B 4 110 - FUZOKUHIN / DVI HEX BOLT 2 111 00D 473 7508 017 3X10 CBTS (P)-B 2 112 00D 473 7500 044 3X8 CBTS (P)-B 16 113 00D 473 8044 004 SPECIAL SCREW 2 114 00D 471 9059 018 SPECIAL SCREW Black model 12 * 114 00D 471 9059 005 SPECIAL SCREW P.Silver model 12 * 115 00D 473 7007 000 4X8 CBTS (S)-B for E3,E2,E1C 2 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 129 DVD-5910/DVD-A1XV 4 53 18 20 26 1 30 29 2 28 57 13 15 14 15 58 15 15 52 32 31 55 56 54 22 21 17 19 3 55 16 55 23 6 55 5 12 51 7 60 14 8 50 10 9 59 EXPLODED VIEW OF DVD MECHANISM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 130 DVD-5910/DVD-A1XV PARTS LIST OF DVD MECHANISM (FG180-1) ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 Ref. No Part No. Part Name Remarks Q'ty New 1 00D 411 1988 101 Mecha chassis 1 2 00D 431 0426 503 Plate gear 1 3 00D 9KA 2A40 3D Gear base sub Ass'y 1 4 00D 441 1952 109 Gear base Ass'y 1 5 00D 9KM 01T1 32 LD Motor 1 6-1 00D 9KA 85P0 05 Detector SW P.W.B. 1 6-2 00D 9KA 85G0 27 2P Connector wire 1 6-3 00D 9KA 82G3 08 2P Connector 1 6-4 00D 9KS 01W1 48 Detector SW 1 7 00D 421 0772 108 Motor pulley 1 8 00D 424 0269 209 Gear C 1 9 00D 424 0268 200 Gear B 2 10 00D 424 0267 201 Gear A 1 11 00D 424 0270 104 Pulley gear 1 12 00D 423 0077 100 Belt 1 13 00D 446 0063 104 Mecha frame 1 14A 00D 9KA 2A50 6A TRAV. Mecha Ass'y with FEED MOTOR 1 14B 00D 9KA 2A55 9A TRAV. Mecha Ass'y without FEED MOTOR 1 15 00D 9KC 2G08 3A Damper-IDLE 4 16 00D 424 0246 109 Loader gear 1 17 00D 431 0427 405 Loader 1 18 00D 461 1131 005 Rubber form 1 19 00D 461 1131 018 Rubber form 1 20 00D 412 4817 104 Loader bracket 1 21 00D 431 0384 001 Slide shaft 1 22 00D 431 0428 006 Holder 1 23 00D 412 4818 006 Bearing plate Ass'y 1 26 00D 203 8517 068 5P PH-PH Connector cord 1 28 00D 412 7820 201 Clamp base 1 29 00D 9KA 7G20 3B Clamper L 1 30 00D 9KA 7P08 5A Clamper T 1 31 00D 9KA 7G20 2D Clamper H 1 32 00D 403 0061 002 Clamp base damper 1 34 00D 513 3436 009 ROM seal 1 SCREWS 50 00D 471 9057 007 Special screw M1.7 2 51 00D 9KM 01T1 32 Screw 2.6X2.5 CBS-NI 2 52 00D 471 3813 001 Screw 2.6X4 CBS-B 4 53 00D 9KH 26P0 08 Screw 2.6X8 CFTS(P) 5 54 00D 473 7511 004 Screw 3X10 CFTS(P)-Z 1 55 00D 473 7508 017 Screw 3X10 CBTS(P)-B 12 56 00D 473 7508 046 Screw 3X16 CBTS(P)-B 2 57 00D 477 0262 006 Special screw 2 58 00D 9KC 1H01 1A SCW-Damper 4 59 00D 9KP 36C6 25 Slit washer 1 60 00D 9KP 26C6 25 Slit washer 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 131 DVD-5910/DVD-A1XV MOLYKOTE EM-30L 0.1mg x 4 points MOLYKOTE EM-30L 0.1mg x 3 points MOLYKOTE EM-30L 0.1mg x 4 points MOLYKOTE EM-30L 0.1mg x 2 points MOLYKOTE EM-30L 0.1mg MOLYKOTE EM-30L 0.1mg MOLYKOTE EM-30L 0.1mg x 3 points MOLYKOTE EM-30L 0.1mg x 3 points MOLYKOTE EM-30L 0.1mg x 2 points POINTS OF GREASING (1/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 132 DVD-5910/DVD-A1XV MOLYKOTE EM-30L 0.3mg MOLYKOTE EM-30L 0.1mg HANARL FL777 0.1mg MOLYKOTE EM-30L 0.1mg HANARL FL777 0.1mg MOLYKOTE EM-30L 0.1mg MOLYKOTE EM-30L 0.1mg x 5 points MOLYKOTE EM-30L 0.1mg x 4 points 40~50mm POINTS OF GREASING (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 133 DVD-5910/DVD-A1XV PACKING VIEW PARTS LIST OF PACKING & ACCESSORIES ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 Note:The symbols in the column "Remarks" indicate the following destinations. E3: U.S.A. & Canada model JP: Japan model E2: Europe model E1C : China model Ref. No. Part No. Part Name Remarks Q'ty New ★　　300 00D 113 1945 004 RJ45 DUST COVER 1 ★　　301 00D 513 4045 004 DOLBY HOLOGRAM LABEL 1 ★　　302 00D 513 4020 003 RATING SHEET(E3) for E3 1 * ★　　302 00D 513 4021 002 RATING SHEET(JP) for JP 1 * ★　　302 00D 513 4023 000 RATING SHEET(SPE2) for E2 1 * ★　　303 00D 513 1381 004 MANUFAC.DATE LABEL for E3 1 ★　　304 00D GEN 6295 -2 MANUFAC.(J)SUB ASS Y for JP 1 ★　　305 00D 513 1581 011 SERIAL NO. SHEET for E1C 1 310 00D 505 0131 076 CABINET COVER 1 311 00D 503 1500 008 CUSHION(BOTTOM) 1 * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 134 DVD-5910/DVD-A1XV 312 00D 503 1501 007 CUSHION(TOP) 1 * 313 00D 501 2272 106 CARTON CASE(5910) for E3 1 * 313 00D 501 2272 119 CARTON CASE(JP) for JP 1 * 313 00D 501 2272 122 CARTON CASE(E2) for E2,E1C 1 * 314 00D 501 2273 008 SUPPORT BOARD 2 * 320 00D 505 8006 019 ENVELOPE 1 321 00D 515 0944 202 WARRANTY (HOME) for E3 1 322 00D 511 4257 003 INST MANUAL(E3) for E3 1 * 322 00D 511 4258 002 INST MANUAL(JP) for JP 1 * 322 00D 511 4259 001 INST MANUAL(E2) for E2 1 * 322 00D 511 4300 002 INST.MANUAL(E1C) for E1C 1 * 323 00D 511 4289 013 INST.MANUAL(E2/CDROM for E2 1 * 324 00D 515 0921 403 S.S.LIST(EX) for E3,E2,E1C 1 325 00D 515 0918 306 SERVICE STATION LIST for JP 1 326 00D 505 8006 019 ENVELOPE 1 327 00D 203 0701 005 1P PIN CORD(VIDEO) 1 328 00D 203 2405 008 2P PIN CORD 1 329 00D 204 2953 003 8P MODULAR CABLE for E3,E2,E1C 1 329 00D 204 2920 007 8P MODULAR CABLE for JP 1 330 00D 203 6597 006 4P IEEE1394 CABLE 1 331 00D 399 0967 001 RC-993 1 * 332 00D 394 0051 019 BATTERY(UM-3)ASS'Y 1 * ! 333 00D 206 2225 009 AC CORD SET(E3) D8.5 for E3 1 ! 333 00D 206 2215 006 AC CORD-E1/10A/INLET for E2 1 ! 333 00D 206 2189 006 AC CORD (E1C) for E1C 1 ! 334 00D 206 2141 002 AC CORD W/CON&PLUG for JP 1 ★　　335 - CONT.CARD(L)SUB ASSY for E3,E2,E1C 1 ★　　336 00D 517 1413 084 UPC LABEL for E3 1 * ★　　336 00D 517 1477 033 POS LABEL for JP 1 * ★　　336 00D 517 1484 039 E2 POS LABEL for E2 1 * ★　　337 00D 515 0919 101 GUARANTEE CARD(S) for JP 1 ★　　338 00D 513 1642 002 NO. SHEET for JP 1 ★　　339 00D 513 9111 030 COLOR LABEL for E2,E1C 2 ★　　340 00D 513 3579 018 REGION LABEL(NO.2) for E2 2 ★　　340 00D 513 3650 047 REGION SEAL(NO.6) for E1C 1 ★　　341 00D 513 4050 002 CARTON LABEL(C) for E1C 1 * Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 135 DVD-5910/DVD-A1XV WIRING DIAGRAM MIXCH AUDIO UNIT 5.1CH AUDIO UNIT POWER SW UNIT GU-3656-4 ANALOG POWER UNIT GU-3656-1 GU-3656-2 DIGITAL POWER UNIT POWER/STANDBY UNIT GU-3656-5 DISPLAY UNIT GU-3656-3 1.5V POWER UNIT GU-3656-6 GU-3657 I/P UNIT MAIN PWB UNIT GU-3618D GU-3517 IEEE1394 UNIT VIDEO1 UNIT GU-3654-1 VIDEO2 UNIT GU-3654-2 GU-3654-3 SCART UNIT GU-3653 SYSTEM UNIT GU-3655-1 GU-3655-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 136 DVD-5910/DVD-A1XV MEASURING METHOD AND WAVEFORMS To check the waveforms on the Main P.W.B., the GND (-)probe of the oscilloscope to “Vref” point. (Except for lnner SW, TRVSW) Measuring Disc: DVD/DVDT-S01 or TDV-520A CD/TCD-784 (It is better to use wires for extending between the probe and test points.) • When watching the HF waveform, use the extending wire as short as possible. • When HF waveform is noisy or cannot discriminate the eye-pattern, replace the Traverse Unit after measuring the lop. • ① ~ ⑰ points have the certain test points shown below. 各部の波形と測定方法 メイン基板の波形チェックを行うためにはオシロスコープ の GND(-) プローブを "Vref" ポイントに接続します。 測定ディスク： DVD/DVDT-S01 or TDV-520A CD/TCD-784 （テストポイントとプローブ間に延長ワイヤを使用するの がより良い方法です。） ･ ＨＦ 波形を観測する場合、できるだけ短い延長ワイヤを 使用してください。 ･ ＨＦ 波形がノイズで不明瞭、またはアイパターンが識別 不能の場合は Iop 測定後にトラバースユニットを交換し てください。 ･ ポイント①～⑰は、下図のように特定テストポイント付 きです。 NOTES 注　意 8 4 5 9 10 12 13 11 14 15 3 17 6 16 2 1 7 GU-3618 Main P.W.B. Unit Foil Side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 137 DVD-5910/DVD-A1XV WAVEFORMS ● GU-3618 MAIN P.W.B. DVD PLAY CD PLAY DISC DETECT (CD) DVD PLAY (INNER) CD PLAY (INNER) DISC DETECT (DVD) SEARCH TO OUTER CHAPTER (INNER OUTER) ①RFAC ①RFAC ②FE ③FSCON ④F+ ⑤F- ②FE ③FSCON ④F+ ⑤F- ⑥TE ⑦TSCON ⑧T+ ⑨T- ⑥TE ⑦TSCON ⑧T+ ⑨T- ⑥TE ⑬SLED ⑭SL+ ⑮SL- ③FSCON ②FE ⑯PI ⑰MIRR ③FSCON ②FE ⑯PI ⑰MIRR ⑩DMO VC16 ⑪FG ⑫A3 ⑩DMO ⑪FG ⑫A3 Disc: TDV-520A CD PLAY Disc: TCD-784 DVD LOADING PLAY CD LOADING PLAY DVD PLAY VC16 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 138 DVD-5910/DVD-A1XV ● GU-3654-1 VIDEO P.W.B. V6 V7 V8 V1 V2 V3 V4 V5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 139 AVR-5805/AVC-A1XV NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufactur- er. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resis- tance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is lo- cated and corrected. NOTICE: ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. ! SIGNAL LINE 配線図について 印の部品は安全を維持するために重要な部品です。 従って交換時は必ず指定の部品を使用してください。 注） (1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を示す。 (2) 指定なきコンデンサーの値は µF、ｐ は ｐF を示す。 (3) 各部の電圧は無信号の値を示す。 (4) この配線図は基本配線図です。改良等のため変更する ことがありますのでご了承ください。 ! SIGNAL LINE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 140 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (1/24) GU-3618D MAIN UNIT (1/4) (For ALL MODEL) SCHEMATIC DIAGRAMS (1/24) GU-3618D MAIN UNIT(1/4) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV 7 8 9 10 11 12 16 17 13 14 15 3 4 5 1 2 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 141 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (2/24) GU-3618D MAIN UNIT (2/4) (For ALL MODEL) SCHEMATIC DIAGRAMS (2/24) GU-3618D MAIN UNIT(2/4) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 142 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (3/24) GU-3618D MAIN UNIT (3/4) (For ALL MODEL) SCHEMATIC DIAGRAMS (3/24) GU-3618D MAIN UNIT(3/4) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 143 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (4/24) GU-3618D MAIN UNIT (4/4) (For ALL MODEL) SCHEMATIC DIAGRAMS (4/24) GU-3618D MAIN UNIT(4/4) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 144 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (5/24) GU-3653 SYSTEM UNIT (1/3) (for E3 MODEL) SCHEMATIC DIAGRAMS (5/24) GU-3653 SYSTEM UNIT (1/3) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 145 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (6/24) GU-3653 SYSTEM UNIT (2/3) (for E3 MODEL) SCHEMATIC DIAGRAMS (6/24) GU-3653 SYSTEM UNIT (2/3) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 146 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (7/24) GU-3653 SYSTEM UNIT (3/3) (for E3 MODEL) SCHEMATIC DIAGRAMS (7/24) GU-3653 SYSTEM UNIT (3/3) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 147 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (8/24) GU-3654 VIDEO UNIT (1/5) GU-3654-1 VIDEO1 UNIT (1/3) (for E3 MODEL) SCHEMATIC DIAGRAMS (8/24) GU-3654 VIDEO UNIT (1/5) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV PROGRESSIVE VIDEO SIGNAL LINE INTERLACE VIDEO SIGNAL LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 148 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (9/24) GU-3654 VIDEO UNIT (2/5) GU-3654-1 VIDEO1 UNIT (2/2) (for E3 MODEL) SCHEMATIC DIAGRAMS (9/24) GU-3654 VIDEO UNIT (2/5) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV INTERLACE VIDEO SIGNAL LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 149 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (10/24) GU-3654 VIDEO UNIT (3/5) GU-3654-2 VIDEO2 UNIT (1/3) (for E3 MODEL) SCHEMATIC DIAGRAMS (10/24) GU-3654 VIDEO UNIT (3/5) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 150 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (11/24) GU-3654 VIDEO UNIT (4/5) GU-3654-2 VIDEO2 UNIT (2/3) (for E3 MODEL) SCHEMATIC DIAGRAMS (11/24) GU-3654 VIDEO UNIT (4/5) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 151 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (12/24) GU-3654 VIDEO UNIT (5/5) GU-3654-2 VIDEO2 UNIT (3/3) (for E3 MODEL) SCHEMATIC DIAGRAMS (12/24) GU-3654 VIDEO UNIT (5/5) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 152 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (13/24) GU-3655 AUDIO UNIT (1/2) GU-3655-1 MIXch AUDIO UNIT (for E3 MODEL) SCHEMATIC DIAGRAMS (13/24) GU-3655 AUDIO UNIT (1/2) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 153 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (14/24) GU-3655 AUDIO UNIT (2/2) GU-3655-2 5.1ch AUDIO UNIT (for E3 MODEL) SCHEMATIC DIAGRAMS (14/24) GU-3655 AUDIO UNIT (2/2) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 154 AVR-1905/785 AVC-1590 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV SCHEMATIC DIAGRAMS (15/24) GU-3656 POWER/DISPLAY UNIT (1/2) GU-3656-1 ANALOG POWER UNIT GU-3656-2 DIGITAL POWER UNIT GU-3656-4 POWER SW UNIT GU-3656-6 1.5V POWER UNIT (for E3 MODEL) SCHEMATIC DIAGRAMS (15/24) GU-3656 POWER/DISPLAY UNIT (1/2) for E3 MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 155 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (16/24) GU-3656 POWER/DISPLAY UNIT (2/2) GU-3656-3 DISPLAY UNIT GU-3656-5 POWER/STANDBY UNIT (for E3 MODEL) SCHEMATIC DIAGRAMS (16/24) GU-3656 POWER/DISPLAY UNIT (2/2) for E3 MODEL 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 156 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (17/24) GU-3657 I/P UNIT (1/2) (for ALL MODEL) SCHEMATIC DIAGRAMS (17/24) GU-3657 I/P UNIT (1/2) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 157 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (18/24) GU-3657 I/P UNIT (2/2) (For ALL MODEL) SCHEMATIC DIAGRAMS (18/24) GU-3657 I/P UNIT (2/2) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 158 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (19/24) GU-3517 IEEE1394 UNIT(1/6) (For ALL MODEL) SCHEMATIC DIAGRAMS (19/24) GU-3517 IEEE1394 UNIT(1/6) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 159 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (20/24) GU-3517 IEEE1394 UNIT (2/6) (For ALL MODEL) SCHEMATIC DIAGRAMS (20/24) GU-3517 IEEE1394 UNIT(2/6) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 160 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (21/24) GU-3517 IEEE1394 UNIT (3/6) (For ALL MODEL) SCHEMATIC DIAGRAMS (21/24) GU-3517 IEEE1394 UNIT (3/6) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 161 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (22/24) GU-3517 IEEE1394 UNIT (4/6) (For ALL MODEL) SCHEMATIC DIAGRAMS (22/24) GU-3517 IEEE1394 UNIT (4/6) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 162 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (23/24) GU-3517 IEEE1394 UNIT (5/6) (For ALL MODEL) SCHEMATIC DIAGRAMS (23/24) GU-3517 IEEE1394 UNIT (5/6) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 163 AVR-1905/785 AVC-1590 SCHEMATIC DIAGRAMS (24/24) GU-3517 IEEE1394 UNIT (6/6) (For ALL MODEL) SCHEMATIC DIAGRAMS (24/24) GU-3517 IEEE1394 UNIT (6/6) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-5910 / DVD-A1XV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
