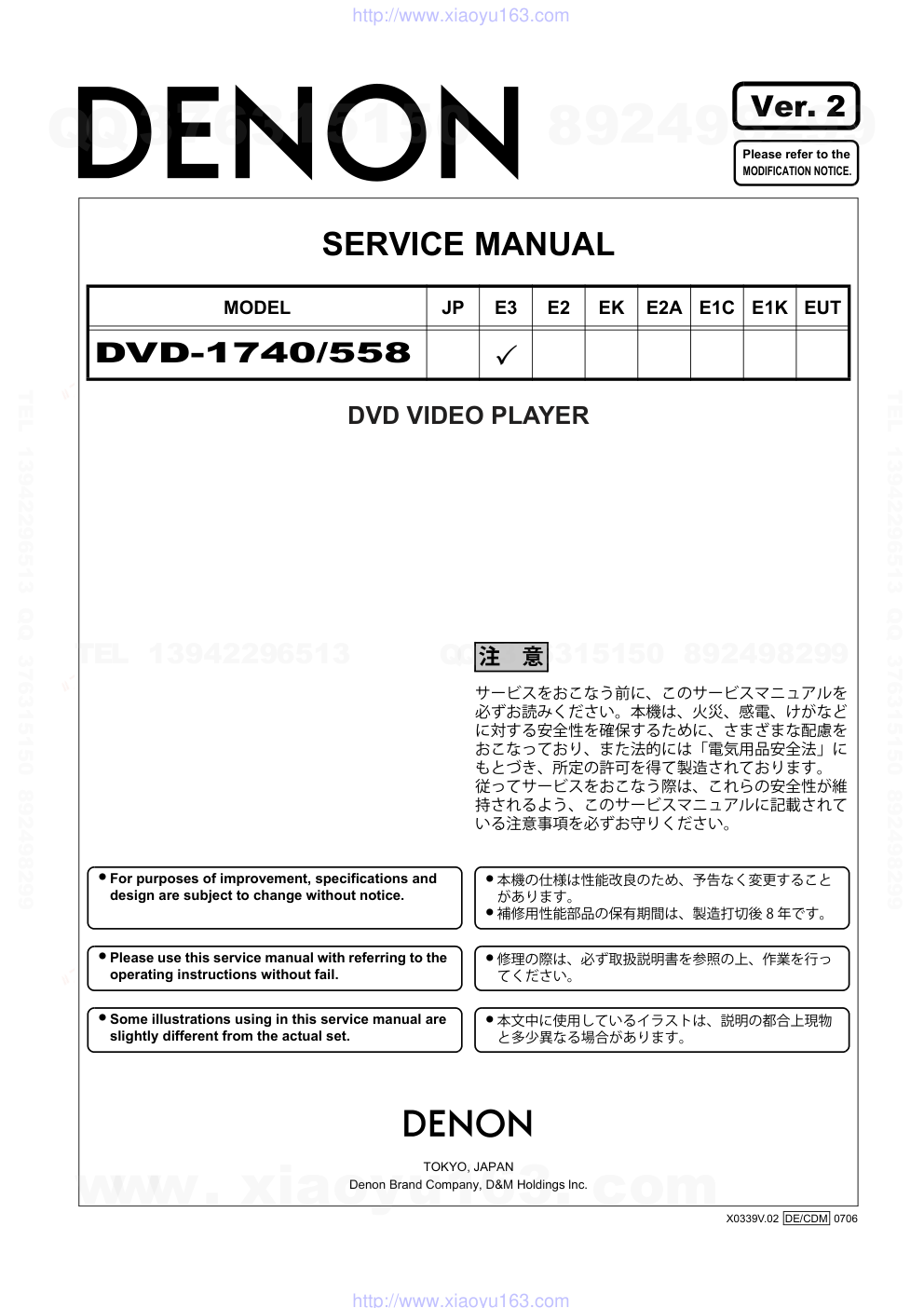

SERVICE MANUAL
DVD VIDEO PLAYER
MODEL
JP
E3
E2
EK
E2A
E1C
E1K
EUT
DVD-1740/558
�
Ver. 2
Please refer to the
MODIFICATION NOTICE.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
DVD-1740/558
Please heed the points listed below during servicing and inspection.
◎ Heed the cautions!
Spots requiring particular attention when servicing, such as
the cabinet, parts, chassis, etc., have cautions indicated on
labels or seals. Be sure to heed these cautions and the cau-
tions indicated in the handling instructions.
◎ Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching inter-
nal metal parts when the set is energized could cause
electric shock. Take care to avoid electric shock, by for ex-
ample using an isolating transformer and gloves when
servicing while the set is energized, unplugging the power
cord when replacing parts, etc.
(2)There are high voltage parts inside. Handle with extra care
when the set is energized.
◎ Caution concerning disassembly and assembly!
Though great care is taken when manufacturing parts from
sheet metal, there may in some rare cases be burrs on the
edges of parts which could cause injury if fingers are moved
across them. Use gloves to protect your hands.
◎ Only use designated parts!
The set's parts have specific safety properties (fire resis-
tance, voltage resistance, etc.). For replacement parts, be
sure to use parts which have the same properties. In particu-
lar, for the important safety parts that are marked ! on wiring
diagrams and parts lists, be sure to use the designated parts.
◎ Be sure to mount parts and arrange the
wires as they were originally!
For safety reasons, some parts use tape, tubes or other insu-
lating materials, and some parts are mounted away from the
surface of printed circuit boards. Care is also taken with the
positions of the wires inside and clamps are used to keep
wires away from heating and high voltage parts, so be sure to
set everything back as it was originally.
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or discon-
nected for servicing have been put back in their original posi-
tions, inspect that no parts around the area that has been
serviced have been negatively affected, conduct an insulation
check on the external metal connectors and between the
blades of the power plug, and otherwise check that safety is
ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect the
antenna, plugs, etc., and turn the power switch on. Using a
500V insulation resistance tester, check that the insulation re-
sistance between the terminals of the power plug and the ex-
ternally exposed metal parts (antenna terminal, headphones
terminal, microphone terminal, input terminal, etc.) is 1MΩ or
greater. If it is less, the set must be inspected and repaired.
Concerning important safety parts
Many of the electric and structural parts used in the set have
special safety properties. In most cases these properties are
difficult to distinguish by sight, and using replacement parts
with higher ratings (rated power and withstand voltage) does
not necessarily guarantee that safety performance will be pre-
served. Parts with safety properties are indicated as shown
below on the wiring diagrams and parts lists is this service
manual. Be sure to replace them with parts with the designat-
ed part number.
(1) Schematic diagrams ... Indicated by the ! mark.
(2) Parts lists ... Indicated by the ! mark.
Using parts other than the designated parts
could result in electric shock, fires or other
dangerous situations.

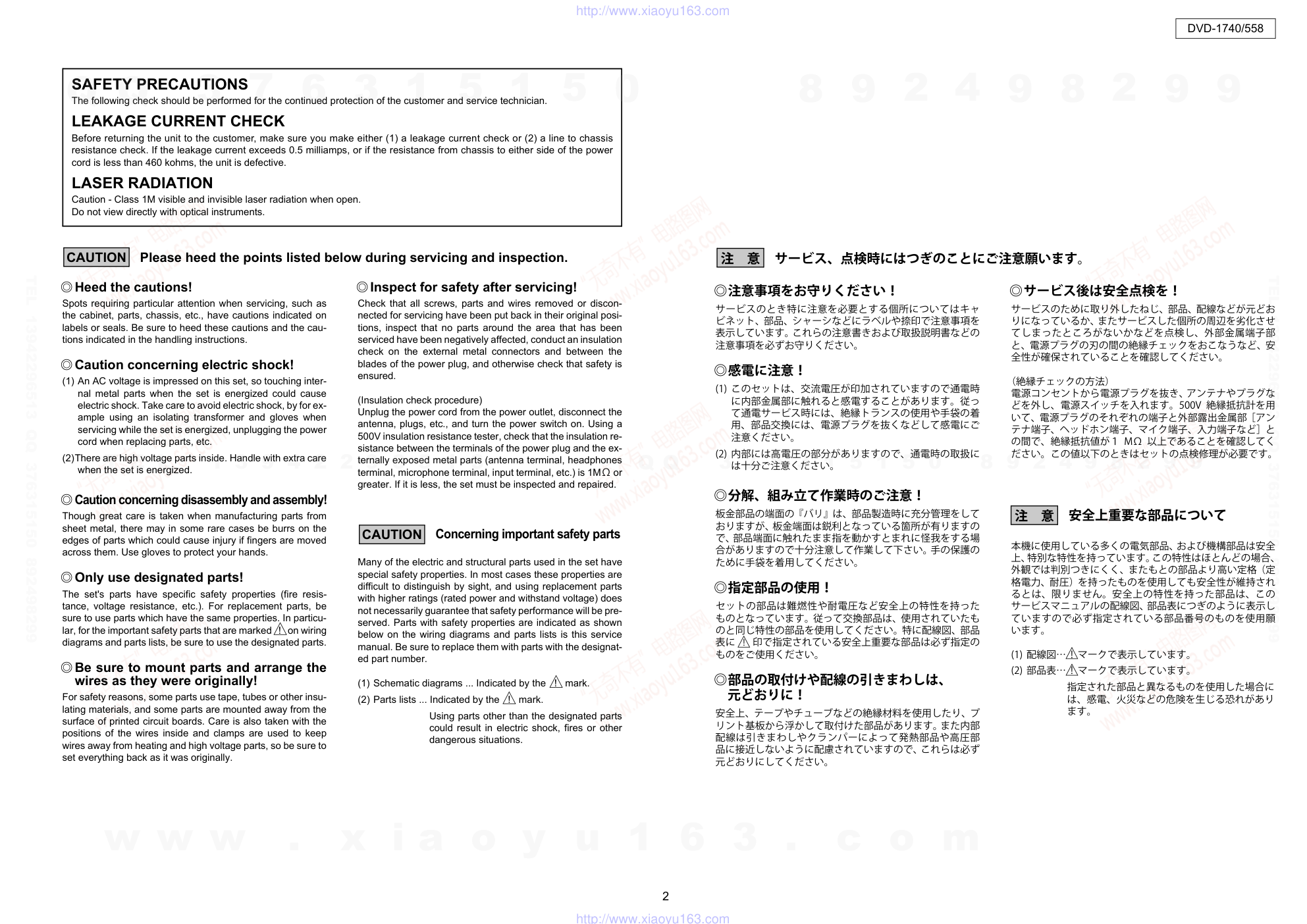

SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power
cord is less than 460 kohms, the unit is defective.
LASER RADIATION
Caution - Class 1M visible and invisible laser radiation when open.
Do not view directly with optical instruments.
CAUTION
CAUTION
サービス、点検時にはつぎのことにご注意願います。
◎注意事項をお守りください！
サービスのとき特に注意を必要とする個所についてはキャ
ビネット、部品、シャーシなどにラベルや捺印で注意事項を
表示しています。これらの注意書きおよび取扱説明書などの
注意事項を必ずお守りください。
◎感電に注意！
(1) このセットは、交流電圧が印加されていますので通電時
に内部金属部に触れると感電することがあります。従っ
て通電サービス時には、絶縁トランスの使用や手袋の着
用、部品交換には、電源プラグを抜くなどして感電にご
注意ください。
(2) 内部には高電圧の部分がありますので、通電時の取扱に
は十分ご注意ください。
◎分解、組み立て作業時のご注意！
板金部品の端面の『バリ』は、部品製造時に充分管理をして
おりますが、板金端面は鋭利となっている箇所が有りますの
で、部品端面に触れたまま指を動かすとまれに怪我をする場
合がありますので十分注意して作業して下さい。手の保護の
ために手袋を着用してください。
◎指定部品の使用！
セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は、使用されていたも
のと同じ特性の部品を使用してください。特に配線図、部品
表に ! 印で指定されている安全上重要な部品は必ず指定の
ものをご使用ください。
◎部品の取付けや配線の引きまわしは、
元どおりに！
安全上、テープやチューブなどの絶縁材料を使用したり、プ
リント基板から浮かして取付けた部品があります。また内部
配線は引きまわしやクランパーによって発熱部品や高圧部
品に接近しないように配慮されていますので、これらは必ず
元どおりにしてください。
◎サービス後は安全点検を！
サービスのために取り外したねじ、部品、配線などが元どお
りになっているか、またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し、外部金属端子部
と、電源プラグの刃の間の絶縁チェックをおこなうなど、安
全性が確保されていることを確認してください。
（絶縁チェックの方法）
電源コンセントから電源プラグを抜き、アンテナやプラグな
どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用
いて、電源プラグのそれぞれの端子と外部露出金属部［アン
テナ端子、ヘッドホン端子、マイク端子、入力端子など］と
の間で、絶縁抵抗値が１ MΩ 以上であることを確認してく
ださい。この値以下のときはセットの点検修理が必要です。
安全上重要な部品について
本機に使用している多くの電気部品、および機構部品は安全
上、特別な特性を持っています。この特性はほとんどの場合、
外観では判別つきにくく、またもとの部品より高い定格（定
格電力、耐圧）を持ったものを使用しても安全性が維持され
るとは、限りません。安全上の特性を持った部品は、この
サービスマニュアルの配線図、部品表につぎのように表示し
ていますので必ず指定されている部品番号のものを使用願
います。
(1) 配線図… ! マークで表示しています。
(2) 部品表… ! マークで表示しています。
指定された部品と異なるものを使用した場合に
は、感電、火災などの危険を生じる恐れがあり
ます。
注 意
注 意
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
DVD-1740/558

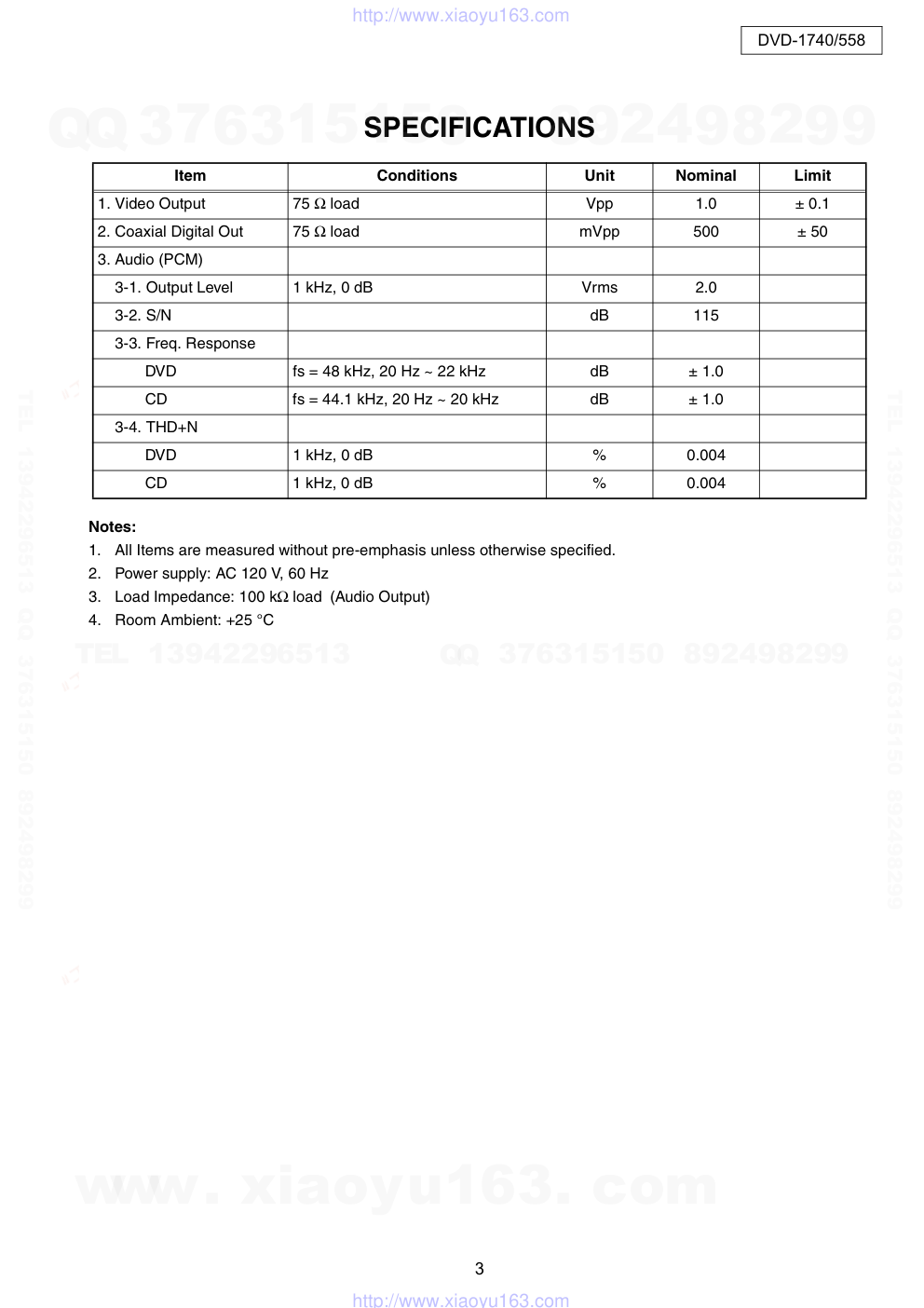

SPECIFICATIONS
Notes:
1.
All Items are measured without pre-emphasis unless otherwise specified.
2.
Power supply: AC 120 V, 60 Hz
3.
Load Impedance: 100 kΩ load (Audio Output)
4.
Room Ambient: +25 °C
Item
Conditions
Unit
Nominal
Limit
1. Video Output
75 Ω load
Vpp
1.0
± 0.1
2. Coaxial Digital Out
75 Ω load
mVpp
500
± 50
3. Audio (PCM)
3-1. Output Level
1 kHz, 0 dB
Vrms
2.0
3-2. S/N
dB
115
3-3. Freq. Response
DVD
fs = 48 kHz, 20 Hz ~ 22 kHz
dB
± 1.0
CD
fs = 44.1 kHz, 20 Hz ~ 20 kHz
dB
± 1.0
3-4. THD+N
DVD
1 kHz, 0 dB
%
0.004
CD
1 kHz, 0 dB
%
0.004
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
DVD-1740/558

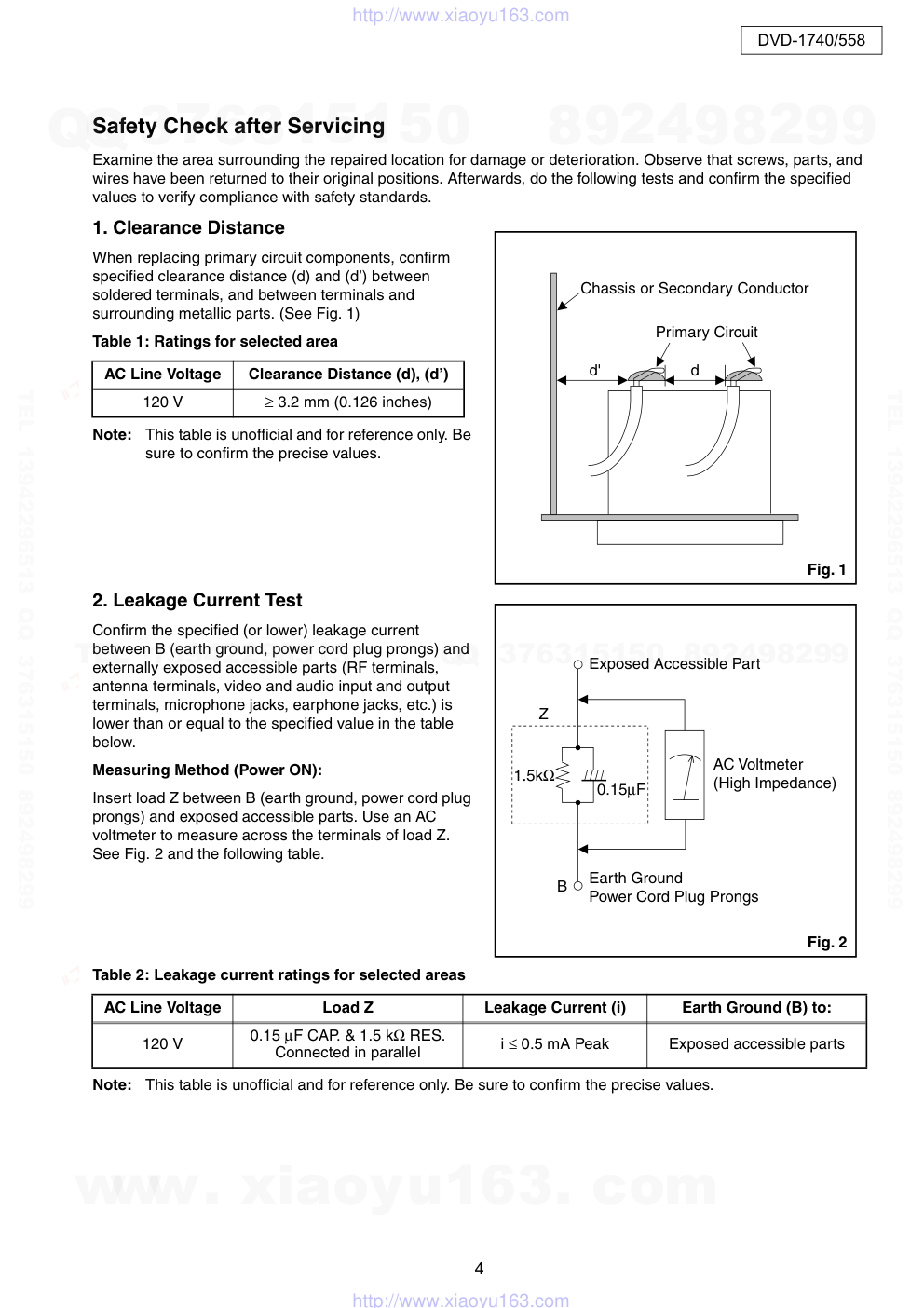

Safety Check after Servicing
Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and
wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified
values to verify compliance with safety standards.
1. Clearance Distance
When replacing primary circuit components, confirm
specified clearance distance (d) and (d’) between
soldered terminals, and between terminals and
surrounding metallic parts. (See Fig. 1)
Table 1: Ratings for selected area
Note:
This table is unofficial and for reference only. Be
sure to confirm the precise values.
2. Leakage Current Test
Confirm the specified (or lower) leakage current
between B (earth ground, power cord plug prongs) and
externally exposed accessible parts (RF terminals,
antenna terminals, video and audio input and output
terminals, microphone jacks, earphone jacks, etc.) is
lower than or equal to the specified value in the table
below.
Measuring Method (Power ON):
Insert load Z between B (earth ground, power cord plug
prongs) and exposed accessible parts. Use an AC
voltmeter to measure across the terminals of load Z.
See Fig. 2 and the following table.
Table 2: Leakage current ratings for selected areas
Note:
This table is unofficial and for reference only. Be sure to confirm the precise values.
AC Line Voltage
Clearance Distance (d), (d’)
120 V
≥ 3.2 mm (0.126 inches)
AC Line Voltage
Load Z
Leakage Current (i)
Earth Ground (B) to:
120 V
0.15 µF CAP. & 1.5 kΩ RES.
Connected in parallel
i ≤ 0.5 mA Peak
Exposed accessible parts
Chassis or Secondary Conductor
Primary Circuit
Fig. 1
d'
d
AC Voltmeter
(High Impedance)
Exposed Accessible Part
B
Earth Ground
Power Cord Plug Prongs
Z
Fig. 2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
DVD-1740/558

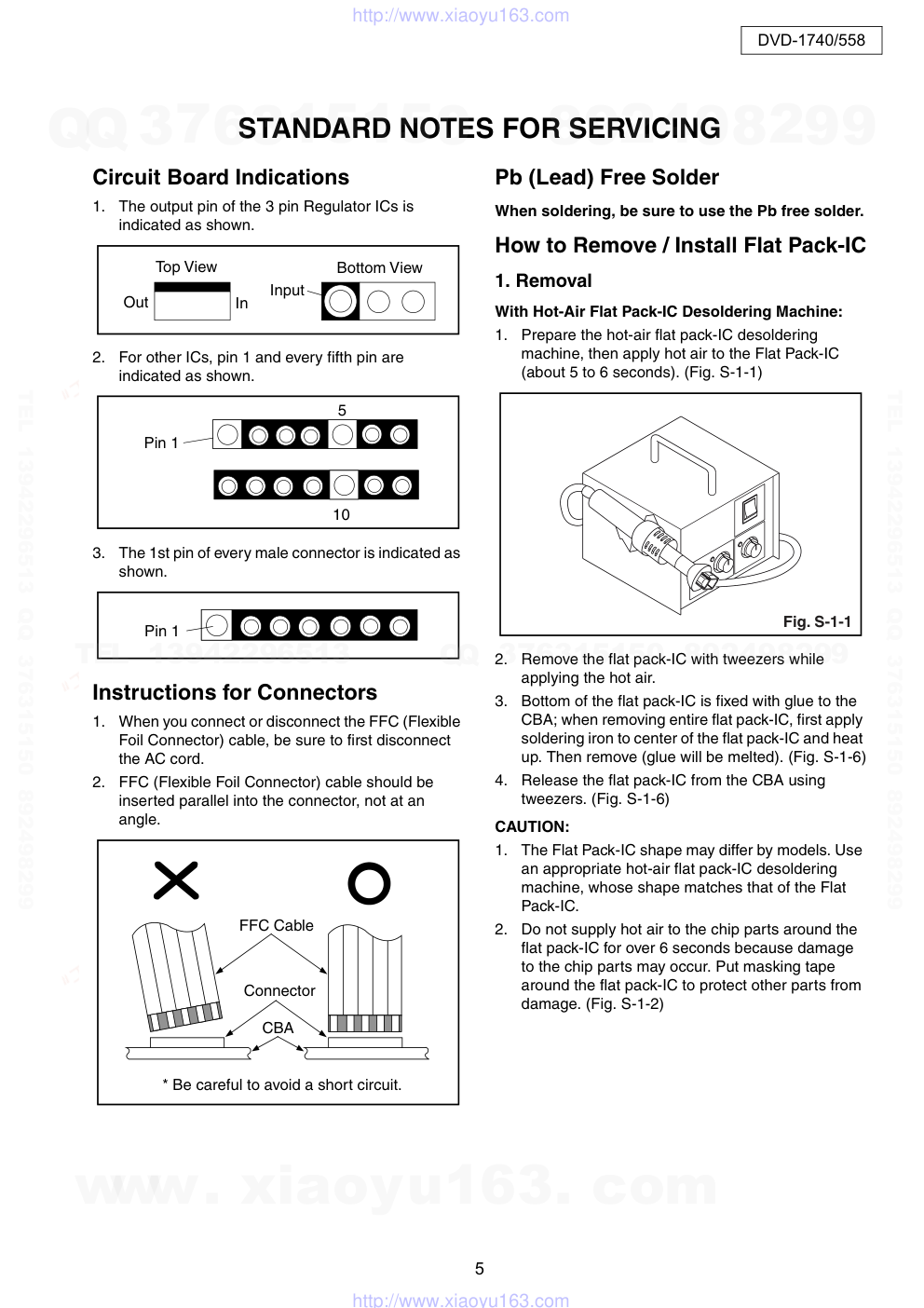

STANDARD NOTES FOR SERVICING
Circuit Board Indications
1.
The output pin of the 3 pin Regulator ICs is
indicated as shown.
2.
For other ICs, pin 1 and every fifth pin are
indicated as shown.
3.
The 1st pin of every male connector is indicated as
shown.
Instructions for Connectors
1.
When you connect or disconnect the FFC (Flexible
Foil Connector) cable, be sure to first disconnect
the AC cord.
2.
FFC (Flexible Foil Connector) cable should be
inserted parallel into the connector, not at an
angle.
Pb (Lead) Free Solder
When soldering, be sure to use the Pb free solder.

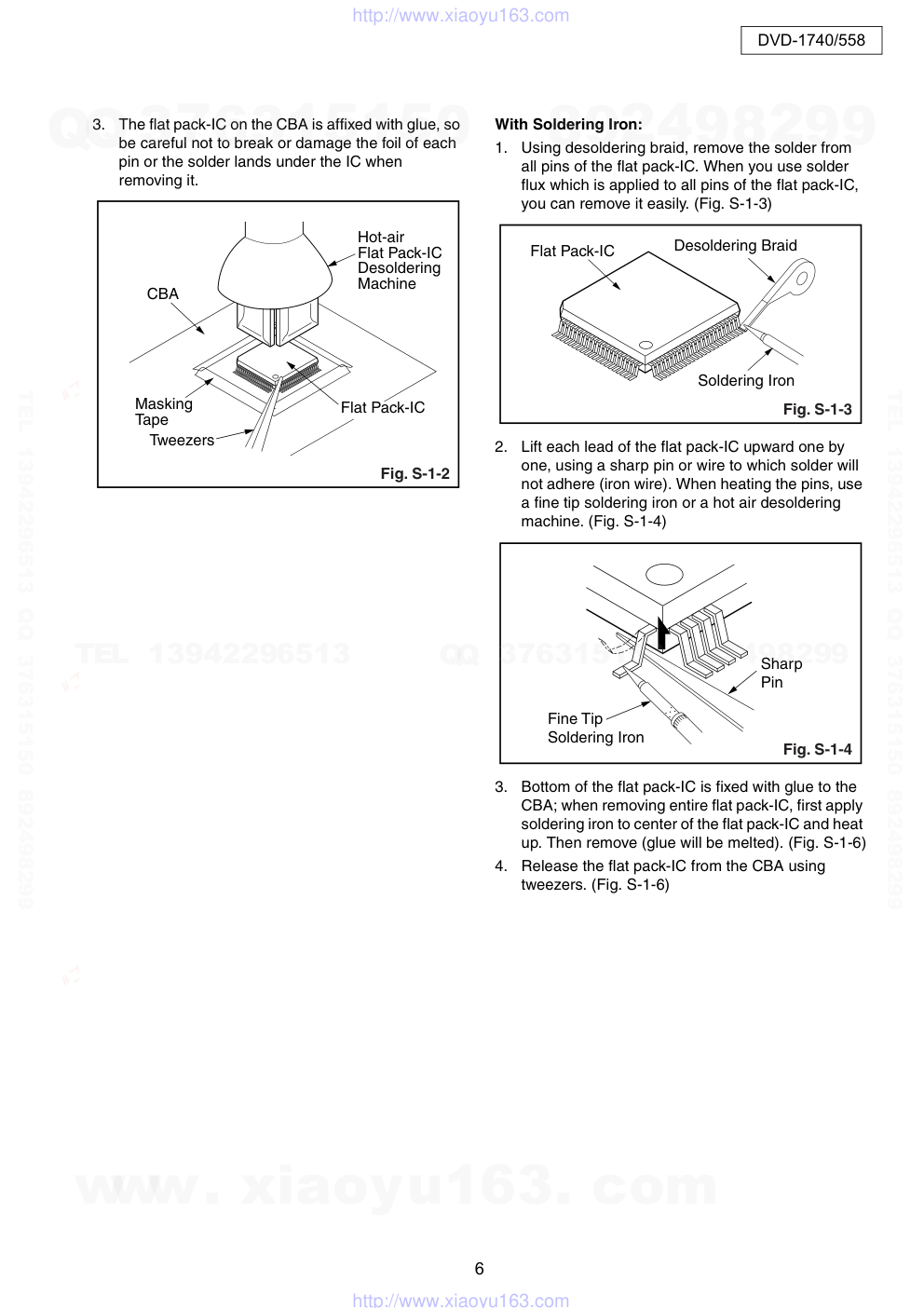

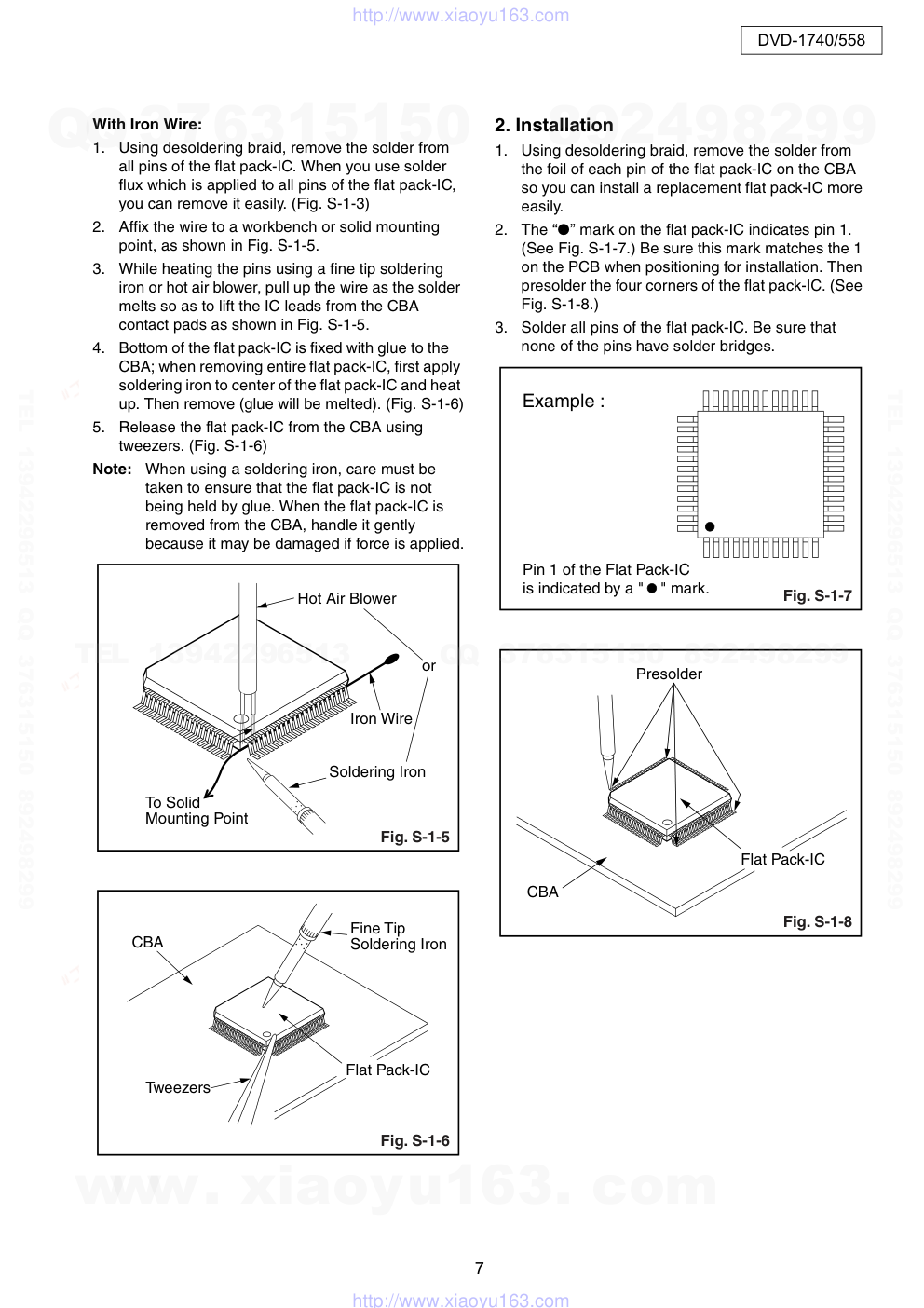

How to Remove / Install Flat Pack-IC
1. Removal
With Hot-Air Flat Pack-IC Desoldering Machine:
1.
Prepare the hot-air flat pack-IC desoldering
machine, then apply hot air to the Flat Pack-IC
(about 5 to 6 seconds). (Fig. S-1-1)
2.
Remove the flat pack-IC with tweezers while
applying the hot air.
3.
Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4.
Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
CAUTION:
1.
The Flat Pack-IC shape may differ by models. Use
an appropriate hot-air flat pack-IC desoldering
machine, whose shape matches that of the Flat
Pack-IC.
2.
Do not supply hot air to the chip parts around the
flat pack-IC for over 6 seconds because damage
to the chip parts may occur. Put masking tape
around the flat pack-IC to protect other parts from
damage. (Fig. S-1-2)
Top View
Out
In
Bottom View
Input
5
10
Pin 1
Pin 1
FFC Cable
Connector
CBA
* Be careful to avoid a short circuit.
Fig. S-1-1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
DVD-1740/558
3.
The flat pack-IC on the CBA is affixed with glue, so
be careful not to break or damage the foil of each
pin or the solder lands under the IC when
removing it.
With Soldering Iron:
1.
Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2.
Lift each lead of the flat pack-IC upward one by
one, using a sharp pin or wire to which solder will
not adhere (iron wire). When heating the pins, use
a fine tip soldering iron or a hot air desoldering
machine. (Fig. S-1-4)
3.
Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
4.
Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Hot-air
Flat Pack-IC
Desoldering
Machine
CBA
Flat Pack-IC
Tweezers
Masking
Tape
Fig. S-1-2
Flat Pack-IC
Desoldering Braid
Soldering Iron
Fig. S-1-3
Fine Tip
Soldering Iron
Sharp
Pin
Fig. S-1-4
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
DVD-1740/558
With Iron Wire:
1.
Using desoldering braid, remove the solder from
all pins of the flat pack-IC. When you use solder
flux which is applied to all pins of the flat pack-IC,
you can remove it easily. (Fig. S-1-3)
2.
Affix the wire to a workbench or solid mounting
point, as shown in Fig. S-1-5.
3.
While heating the pins using a fine tip soldering
iron or hot air blower, pull up the wire as the solder
melts so as to lift the IC leads from the CBA
contact pads as shown in Fig. S-1-5.
4.
Bottom of the flat pack-IC is fixed with glue to the
CBA; when removing entire flat pack-IC, first apply
soldering iron to center of the flat pack-IC and heat
up. Then remove (glue will be melted). (Fig. S-1-6)
5.
Release the flat pack-IC from the CBA using
tweezers. (Fig. S-1-6)
Note: When using a soldering iron, care must be
taken to ensure that the flat pack-IC is not
being held by glue. When the flat pack-IC is
removed from the CBA, handle it gently
because it may be damaged if force is applied.
2. Installation
1.
Using desoldering braid, remove the solder from
the foil of each pin of the flat pack-IC on the CBA
so you can install a replacement flat pack-IC more
easily.
2.
The “●” mark on the flat pack-IC indicates pin 1.
(See Fig. S-1-7.) Be sure this mark matches the 1
on the PCB when positioning for installation. Then
presolder the four corners of the flat pack-IC. (See
Fig. S-1-8.)
3.
Solder all pins of the flat pack-IC. Be sure that
none of the pins have solder bridges.
To Solid
Mounting Point
Soldering Iron
Iron Wire
or
Hot Air Blower
Fig. S-1-5
Fine Tip
Soldering Iron
CBA
Flat Pack-IC
Tweezers
Fig. S-1-6
Example :
Pin 1 of the Flat Pack-IC
is indicated by a " " mark.
Fig. S-1-7
Presolder
CBA
Flat Pack-IC
Fig. S-1-8
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
DVD-1740/558

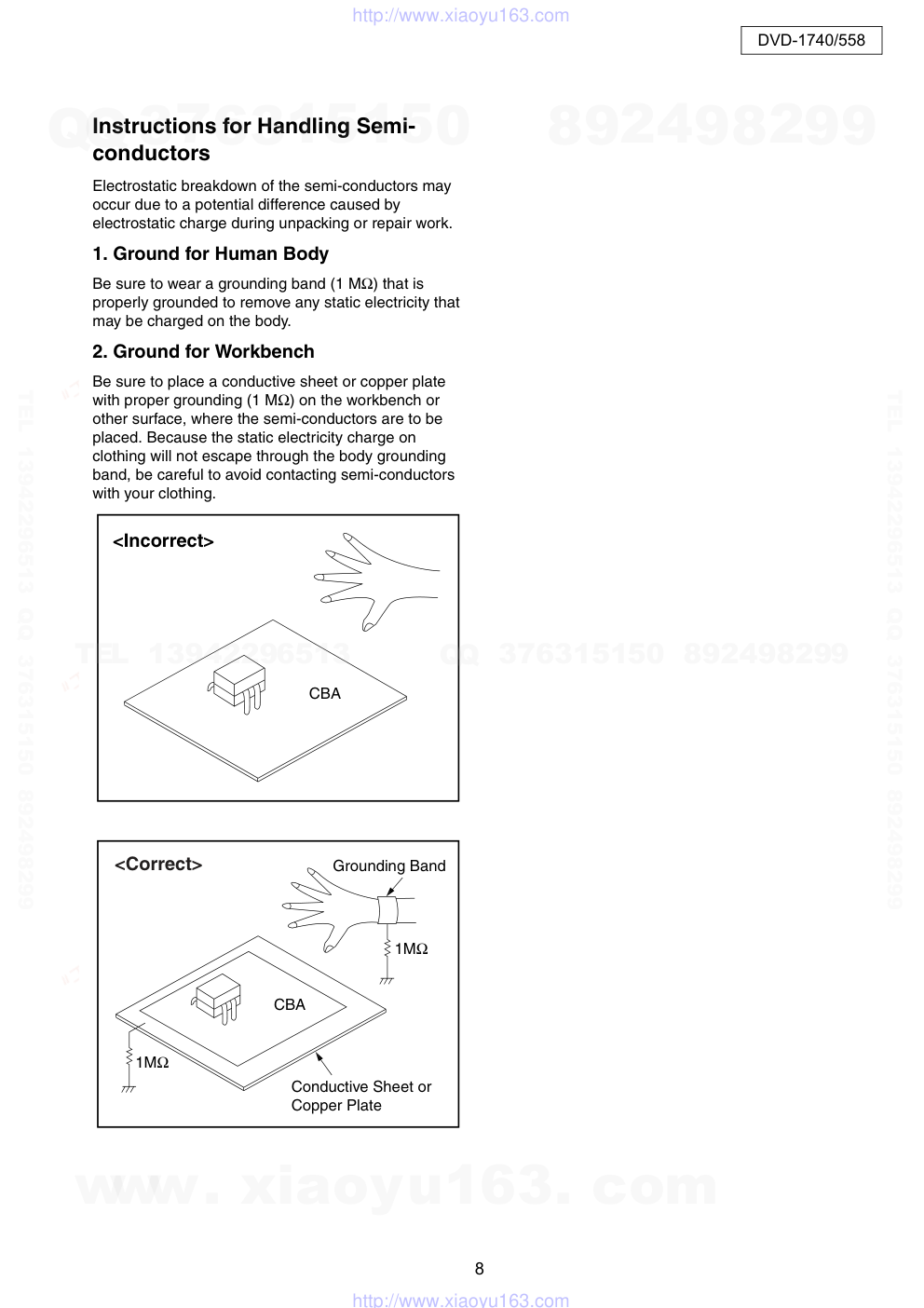

Instructions for Handling Semi-
conductors
Electrostatic breakdown of the semi-conductors may
occur due to a potential difference caused by
electrostatic charge during unpacking or repair work.
1. Ground for Human Body
Be sure to wear a grounding band (1 MΩ) that is
properly grounded to remove any static electricity that
may be charged on the body.
2. Ground for Workbench
Be sure to place a conductive sheet or copper plate
with proper grounding (1 MΩ) on the workbench or
other surface, where the semi-conductors are to be
placed. Because the static electricity charge on
clothing will not escape through the body grounding
band, be careful to avoid contacting semi-conductors
with your clothing.
CBA
Grounding Band
Conductive Sheet or
Copper Plate
1MΩ
1MΩ
CBA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
DVD-1740/558

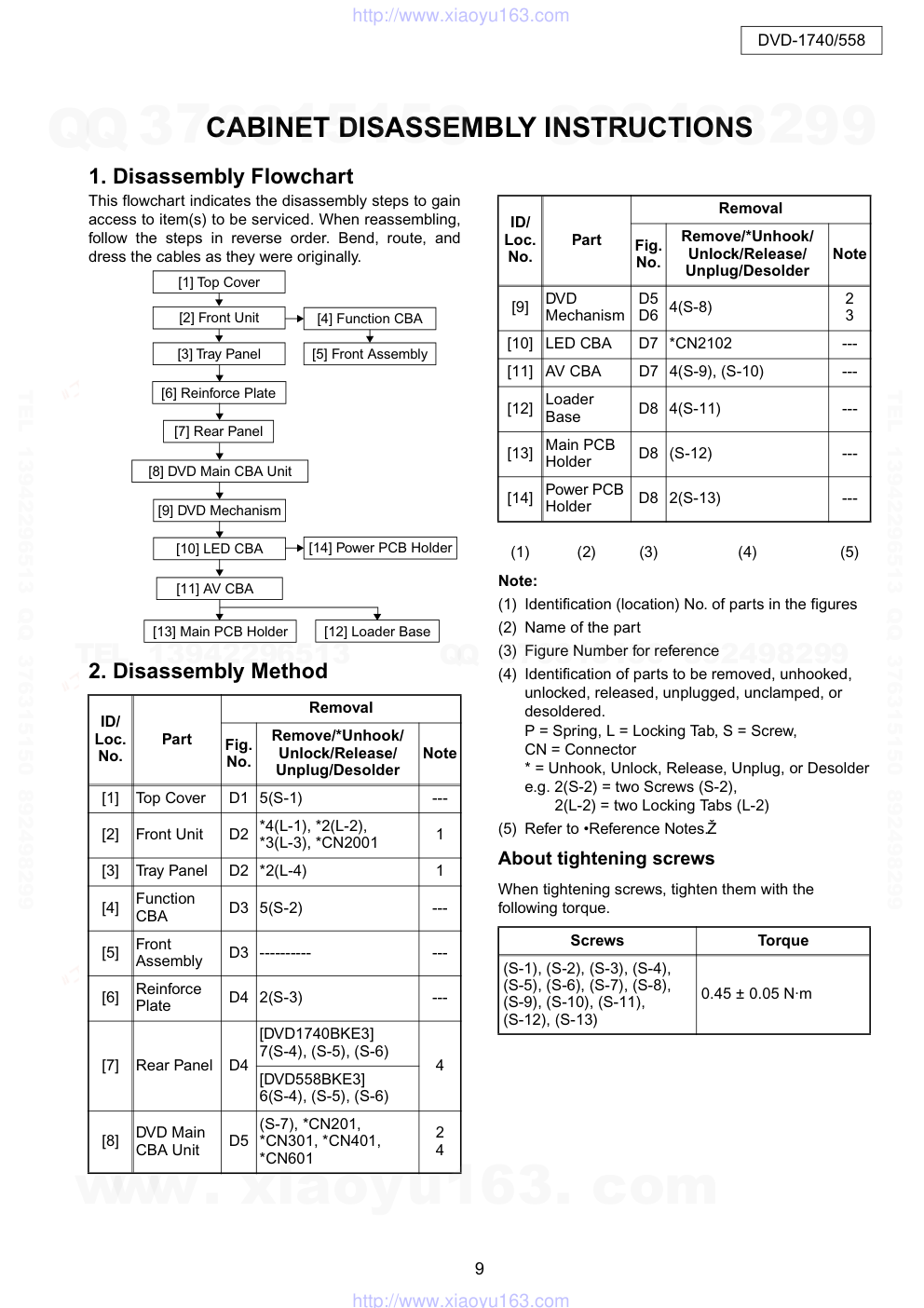

CABINET DISASSEMBLY INSTRUCTIONS
1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to •Reference Notes.Ž
About tightening screws
When tightening screws, tighten them with the
following torque.
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1]
Top Cover
D1 5(S-1)
---
[2]
Front Unit
D2 *4(L-1), *2(L-2),
*3(L-3), *CN2001
1
[3]
Tray Panel
D2 *2(L-4)
1
[4]
Function
CBA
D3 5(S-2)
---
[5]
Front
Assembly
D3 ----------
---
[6]
Reinforce
Plate
D4 2(S-3)
---
[7]
Rear Panel
D4
[DVD1740BKE3]
7(S-4), (S-5), (S-6)
4
[DVD558BKE3]
6(S-4), (S-5), (S-6)
[8]
DVD Main
CBA Unit
D5
(S-7), *CN201,
*CN301, *CN401,
*CN601
2
4
[1] Top Cover
[5] Front Assembly
[2] Front Unit
[3] Tray Panel
[7] Rear Panel
[6] Reinforce Plate
[12] Loader Base
[8] DVD Main CBA Unit
[9] DVD Mechanism
[10] LED CBA
[13] Main PCB Holder
[4] Function CBA
[14] Power PCB Holder
[11] AV CBA
[9]
DVD
Mechanism
D5
D6 4(S-8)
2
3
[10] LED CBA
D7 *CN2102
---
[11] AV CBA
D7 4(S-9), (S-10)
---
[12] Loader
Base
D8 4(S-11)
---
[13] Main PCB
Holder
D8 (S-12)
---
[14] Power PCB
Holder
D8 2(S-13)
---
�
(1)
�
(2)
�
(3)
�
(4)
�
(5)
Screws
Torque
(S-1), (S-2), (S-3), (S-4),
(S-5), (S-6), (S-7), (S-8),
(S-9), (S-10), (S-11),
(S-12), (S-13)
0.45 ± 0.05 N·m
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
DVD-1740/558

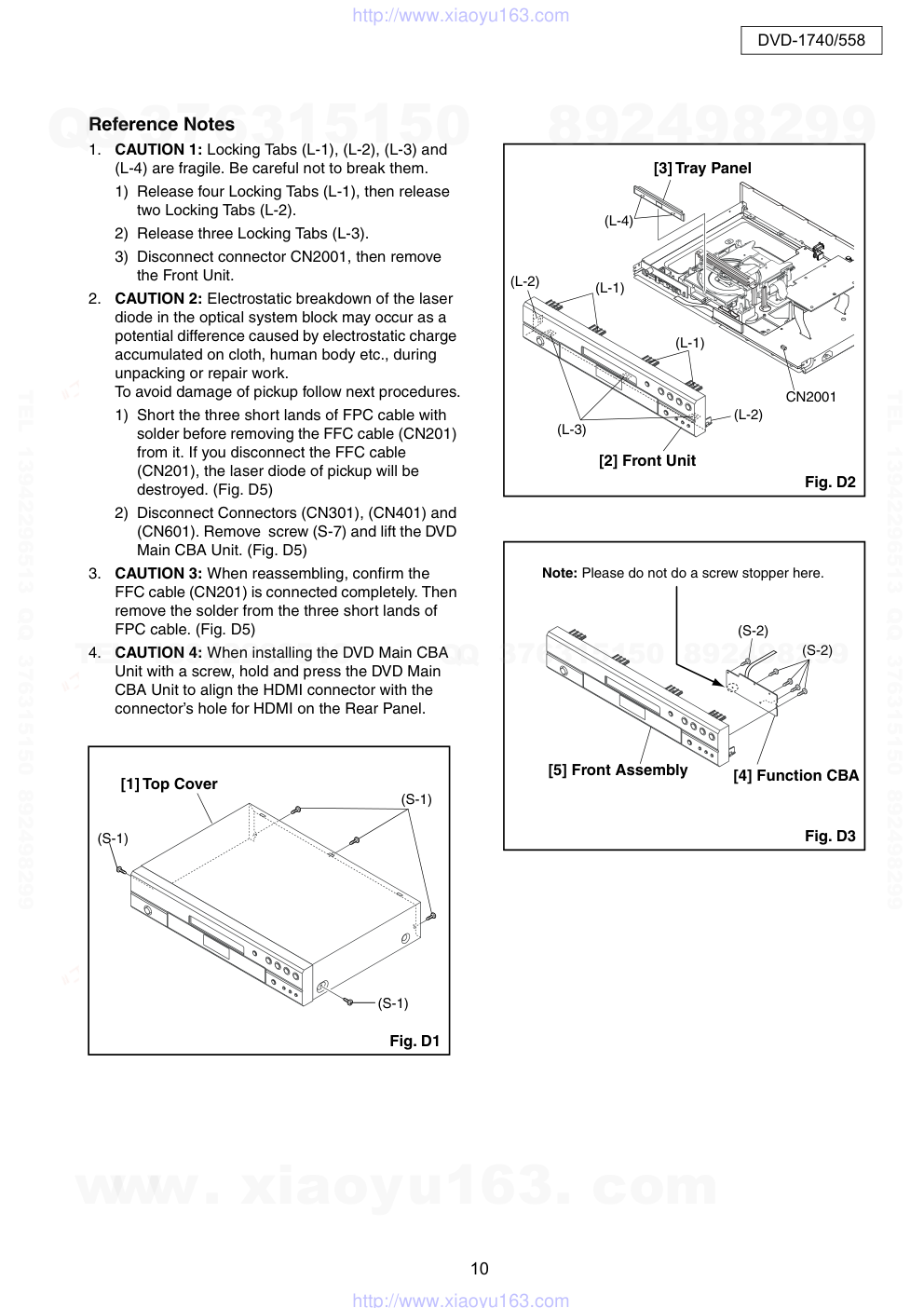

Reference Notes
1.
CAUTION 1: Locking Tabs (L-1), (L-2), (L-3) and
(L-4) are fragile. Be careful not to break them.
1) Release four Locking Tabs (L-1), then release
two Locking Tabs (L-2).
2) Release three Locking Tabs (L-3).
3) Disconnect connector CN2001, then remove
the Front Unit.
2.
CAUTION 2: Electrostatic breakdown of the laser
diode in the optical system block may occur as a
potential difference caused by electrostatic charge
accumulated on cloth, human body etc., during
unpacking or repair work.
To avoid damage of pickup follow next procedures.
1) Short the three short lands of FPC cable with
solder before removing the FFC cable (CN201)
from it. If you disconnect the FFC cable
(CN201), the laser diode of pickup will be
destroyed. (Fig. D5)
2) Disconnect Connectors (CN301), (CN401) and
(CN601). Remove screw (S-7) and lift the DVD
Main CBA Unit. (Fig. D5)
3.
CAUTION 3: When reassembling, confirm the
FFC cable (CN201) is connected completely. Then
remove the solder from the three short lands of
FPC cable. (Fig. D5)
4.
CAUTION 4: When installing the DVD Main CBA
Unit with a screw, hold and press the DVD Main
CBA Unit to align the HDMI connector with the
connector’s hole for HDMI on the Rear Panel.
Fig. D1
[1] Top Cover
(S-1)
(S-1)
(S-1)
[2] Front Unit
[3] Tray Panel
CN2001
(L-1)
(L-4)
Fig. D2
(L-1)
(L-2)
(L-3)
(L-2)
[4] Function CBA
[5] Front Assembly
(S-2)
(S-2)
Fig. D3
Note: Please do not do a screw stopper here.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
DVD-1740/558
[7] Rear Panel
[6] Reinforce Plate
(S-4)
(S-6)
(S-4)
(S-4)
(S-5)
Fig. D4
DVD1740BKE3
only
(S-3)
(S-3)
[8] DVD Main CBA Unit
CN401
CN301
CN201
A
Fig. D5
View for A
Short the three short lands by soldering.
(Either of two places.)
FPC Cable
CN601
(S-7)
Fig. D6
[9] DVD
Mechanism
(S-8)
(S-8)
[11] AV CBA
[10] LED CBA
(S-9)
(S-9)
CN2102
(S-10)
(S-9)
Fig. D7
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
DVD-1740/558
3. How to Eject Manually
1.
Remove the Top Cover.
2.
Rotate the roulette in the direction of the arrow as shown below.
(S-12)
[12] Loader Base
[14] Power
PCB Holder
(S-11)
(S-13)
(S-11)
[13] Main
PCB Holder
Fig. D8
A
View for A
Rotate this roulette in
the direction of the arrow
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
DVD-1740/558
HOW TO INITIALIZE THE DVD PLAYER
To put the program back at the factory-default,
initialize the DVD player using the following procedure.
1.
Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. a appears on the screen.
2.
Press [CLEAR] button on the remote control unit.
Fig. b appears on the screen.
When “OK” appears on the screen, the factory
default will be set.
3.
To exit this mode, press [POWER OFF] button.
LD OPERATING TIME:
It indicates the DVD/CD operating time in Fig. a.
It is accumulated in the flash memory every time the
power is turned off.
To reset the LD OPERATING TIME, overwrite the
FIRMWARE.
Fig. a
"*******" differ depending on the models.
MODEL : *******
Version
: *.**
Region : *
LD OPERATING TIME
TIME(DVD) : *:**
TIME(CD) : *:**
EXIT: POWER
EEPROM CLEAR : CLEAR
"*******" differ depending on the models.
Fig. b
EEPROM CLEAR : OK
EXIT: POWER
EEPROM CLEAR : CLEAR
LD OPERATING TIME
TIME(DVD) : *:**
TIME(CD) : *:**
MODEL : *******
Version
: *.**
Region : *
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
DVD-1740/558
FIRMWARE RENEWAL MODE
1.
Turn the power on and remove the disc on the tray.
2.
To put the DVD player into version up mode, press
[9], [8], [7], [6], and [SEARCH MODE] buttons on
the remote control unit in that order. The tray will
open automatically.
Fig. a appears on the screen and Fig. b appears
on the VFD.
The DVD player can also enter the version up
mode with the tray open. In this case, Fig. a will be
shown on the screen while the tray is open.
3.
Load the disc for version up.
4.
The DVD player enters the F/W version up mode
automatically. Fig. c appears on the screen and
Fig. d appears on the VFD. If you enter the F/W for
different models, “Disc Error” will appear on the
screen, then the tray will open automatically.
The appearance shown in (*1) of Fig. c is
described as follows:
5.
After programming is finished, the tray opens
automatically. Fig. e appears on the screen and
the checksum in (*2) of Fig. e appears on the VFD
(Fig. f).
At this time, no button is available.
6.
Remove the disc on the tray.
7.
Unplug the AC cord from the AC outlet. Then plug
it again.
8.
Turn the power on by pressing the [POWER ON]
button and the tray will close.
9.
Press [1], [2], [3], [4], and [DISPLAY] buttons on
the remote control unit in that order.
Fig. g appears on the screen.
F/W Version Up Mode
Model No : *******
VERSION : *.**
Please insert a DISC
for F/W Version Up.
EXIT: POWER
"*******" differs depending on the models.
Fig. a Version Up Mode Screen
Fig. b VFD in Version Up Mode
VERSION : ************.***
Reading...
F/W Version Up Mode
Model No : *******
VERSION : *.**
Fig. c Programming Mode Screen
"*******" differs depending on the models.
(*1)
Fig. d VFD in Programming Mode (Example)
No.
Appearance
State
1
Reading...
Sending files into the memory
2
Erasing...
Erasing previous version data
3
Programming... Writing new version data
VERSION : ************.***
Completed
SUM : 7ABC
F/W Version Up Mode
Model No : *******
VERSION : *.**
"*******" differs depending on the models.
Fig. e Completed Program Mode Screen
(*2)
Fig. f VFD upon Finishing the Programming Mode (Example)
Fig. g
"*******" differ depending on the models.
MODEL : *******
Version
: *.**
Region : *
LD OPERATING TIME
TIME(DVD) : *:**
TIME(CD) : *:**
EXIT: POWER
EEPROM CLEAR : CLEAR
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
DVD-1740/558
10. Press [CLEAR] button on the remote control unit.
Fig. h appears on the screen.
When “OK” appears on the screen, the factory
default will be set. Then the firmware renewal
mode is complete.
11. To exit this mode, press [POWER OFF] button.
"*******" differ depending on the models.
Fig. h
EEPROM CLEAR : OK
EXIT: POWER
EEPROM CLEAR : CLEAR
LD OPERATING TIME
TIME(DVD) : *:**
TIME(CD) : *:**
MODEL : *******
Version
: *.**
Region : *
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
DVD-1740/558
TRAY LOCK MODE
Tray Lock Mode prevents the tray opening or closing to
prevent disc theft in demo mode.
Enter this mode using the following procedure.
1. Confirm that the TV Monitor is connected.
2. With playback stopped, press [SETUP], [TOP
MENU], [3], [AUDIO], [0] and [SETUP] buttons on
the remote control unit in that order. "TRAY LOCK
ON" will appear in the upper right corner on the
screen.
3. To exit this mode, press [SETUP], [TOP MENU],
[3], [AUDIO], [0] and [SETUP] buttons on the
remote control unit in that order. "TRAY LOCK
OFF" will appear in the upper right corner on the
screen.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
DVD-1740/558
REMOTE LOCK MODE
Note: DVD1740BKE3 only has this mode.
SETTING MENU:
Remote Lock Off Mode:
This mode receives an input signal from the remote
control unit or from the Remote In-Jack on the rear
panel.
Remote Lock On Mode:
This mode dose not receive an input signal from
the remote control unit or from the Remote In-Jack
on the rear panel.
Perform the setting using the following procedure.
1. Press [ON/STANDBY] and [STOP] buttons on the
front panel simultaneously for over 3 seconds to
engage "Remote Lock Mode".
2. Press [STILL/PAUSE] button on the remote control
unit to set to "On" or "Off". When "Remote Lock
On", Fig. a appears on the VFD. "REMOTE LOCK
ON" will appear in the upper right corner on the
screen.
When "Remote Lock Off", Fig. b appears on the
VFD. "REMOTE LOCK OFF" will appear in the
upper right corner on the screen.
a. If [STILL/PAUSE] button is not pressed for 5
seconds or any other button is pressed within 5
seconds, the unit will be released from
"Remote Lock Mode".
b. When initializing, set the Remote Lock Mode
"off".
Fig. a VFD in Remote Lock On Mode
Fig. b VFD in Remote Lock Off Mode
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
DVD-1740/558
TROUBLESHOOTING
FLOW CHART NO.2
The fuse blows out.
After servicing, replace the fuse.
Check the presence that the primary component
is leaking or shorted and service it if defective.
Check the presence that the rectifying diode or
circuit is shorted in each rectifying circuit of
secondary side, and service it if defective.
FLOW CHART NO.3
When the output voltage fluctuates.
Yes
No
FLOW CHART NO.4
When buzz sound can be heard in the vicinity of power circuit.
Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary
side, and service it if defective. (D1003, D1006, D1008, D1010, D1016, D1030, IC1002, Q1002, Q1004, Q1005,
Q1011, Q1014, Q1020, Q1022)
Does the photo coupler circuit on the secondary
side operate normally?
Check IC1001, D1014 and their periphery,
and service it if defective.
Check IC1001, IC1006 and their periphery,
and service it if defective.
FLOW CHART NO.5
-FL is not outputted.
Is approximately -23V voltage supplied to the
anode of D1003?
Check D1003 and periphery circuit, and service it
if defective.
Check if there is any leak or short-circuit
on the loaded circuit, and service it if defective.
Yes
No
FLOW CHART NO.1
The power cannot be turned on.
Is the fuse normal?
Is normal state restored when once unplugged
power cord is plugged again after several seconds?
Is the MICON +3.3V line voltage normal?
See FLOW CHART No.2
Check if there is any leak or short-circuiting on the
primary circuit component, and service it if defective.
(Q1001, T1001, D1001, D1002, D1004, D1005,
D1011, C1003)
Check each rectifying circuit of the secondary circuit
and service it if defective.
Yes
Yes
Yes
No
No
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
19
DVD-1740/558
FLOW CHART NO.7
P-ON+5V is not outputted. (EV+9V is outputted normally.)
Is the "H" signal inputted into the base of Q1004?
Replace Q1004.
Replace Q1014.
Check R1068 and D1046 and service it if defective.
Yes
No
Is the "H" signal inputted into the base of Q1014?
Check D1047, R1069, R1098 and the periphery
circuit, and service it if defective.
Check D1010, C1010, C1011, L1006 and the
periphery circuit, and service it if defective.
No
FLOW CHART NO.8
P-ON+3.3V is not outputted. (P-ON+10V is outputted normally.)
Is 3.3V voltage supplied to the collector of Q1011?
Replace Q1011 or R1067.
Check D1008, C1007, C1038, L1007 and the
periphery circuit, and service it if defective.
Yes
No
FLOW CHART NO.9
EV+5V is not outputted.
Is 6V voltage supplied to the collector of Q1014?
Yes
Yes
No
Check D1006, D1074, C1014 and the periphery
circuit, and service it if defective.
Is 3.3V voltage supplied to the emitter of Q1022?
Yes
No
FLOW CHART NO.10
EV+1.2V is not outputted.
Is 2.5V voltage supplied to Pin(3) of IC1002?
Replace IC1002.
Check Q1012, Q1022 and PW-SW line, and
the periphery circuit, and service it if defective.
Yes
No
FLOW CHART NO.6
P-ON+10V (EV+9V) is not outputted.
Is 11V voltage supplied to the emitter of Q1002?
Is the voltage of base on Q1002 lower than the
voltage of emitter on Q1002 when turning the power on?
Replace Q1002.
Check D1030, D1048, C1035, C1048, L1009 and
the periphery circuit, and service it if defective.
Check Q1016 and PWRCON line and service it if
defective.
Yes
Yes
No
No
FLOW CHART NO.11
EV+3.3V (MICON+3.3V) is not outputted.
Is 3.3V voltage supplied to the collector of Q1020?
Is the voltage of base on Q1020 lower than the
voltage of emitter on Q1020 when turning the power on?
Replace Q1020.
Check D1008, C1007, C1038, L1007 and
the periphery circuit, and service it if defective.
Check Q1012 and PW-SW line, and service it if
defective.
Yes
Yes
No
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
DVD-1740/558
Yes
No
FLOW CHART NO.13
The key operation is not functioning.
Are the contact point and the installation state of the key
switches (SW2101, SW2103-2108, SW2181-2183) normal?
When pressing each switches (SW2101, SW2103-2108,
SW2181-2183), do the voltage of each pin of IC2101
(shown below) increase?
SW2101, 2104, 2105, 2106, 2108: IC2101 31PIN
SW2103, 2107, 2181, 2182, 2183: IC2101 32PIN
Check the switches (SW2101, SW2103-2108,
SW2181-2183) and their periphery, and service it
if detective.
No
Re-install the switches (SW2101, SW2103-2108,
SW2181-2183) correctly or replace the poor switch.
Replace IC2101.
Yes
FLOW CHART NO.14
No operation is possible from the remote control unit.
Operation is possible from the DVD, but no
operation is possible from the remote control unit.
Replace the infrared remote control receiver (RM2001)
or remote control unit.
Is the "L" pulse sent out Pin(1) terminal of receiver
(RM2001) when the infrared remote control is activated?
Is the "L" pulse supplied to the Pin(22) of CN1001?
Replace DVD Main CBA Unit.
Is 5V voltage supplied to Pin(3) terminal of
the infrared remote control receiver (RM2001)?
Yes
No
Check EV+5V line and service it if defective.
No
No
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
FLOW CHART NO.12
The fluorescent display tube does not light up.
Is 3.3V voltage supplied to Pins(6,24) of IC2001?
Is the voltage of approximately -20V supplied to
Pin(15) of IC2001?
Is there 500kHz oscillation at Pin(26) of IC2001?
Are the filament voltage supplied between
Pins(1, 2) and Pins(29, 30) of the fluorescent
display tube? And the negative voltage applied
between these pins and GND?
Replace the fluorescent display tube.
Check the EV+3.3V line and service it if defective.
Check the -FL (-20V) line and service it if defective.
Check R2002, IC2001 and their periphery, and
service it if defective.
Check PWRCON
line, and service
it if defective.
Is the "H" signal inputted
to base of Q1016?
Check D1016, D1017, T1001, and their periphery,
and service it if defective.
Is -14V voltage supplied to collector of Q1005?
No
Yes
Yes
No
Check Q1005, Q1015, Q1016, D1055 and
their periphery, and service it if defective.
Replace IC2101.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
DVD-1740/558
FLOW CHART NO.18
[No Disc] indicated. (When the focus servo is not functioning.)
FLOW CHART NO.19
[No Disc] indicated. (When the laser beam does not light up.)
Replace the DVD Main CBA Unit.
Replace the DVD Mechanism.
No
Yes
Replace the DVD Main CBA Unit.
Replace the DVD Mechanism.
No
Yes
No improvement can be found.
Original DVD Main CBA Unit is poor.
No improvement can be found.
Original DVD Main CBA Unit is poor.
FLOW CHART NO.17
[No Disc] indicated. (When the focus error occurs.)
Replace the DVD Main CBA Unit.
No improvement can be found.
Original DVD Main CBA Unit is poor.
Replace the DVD Mechanism.
No
Yes
Yes
FLOW CHART NO.16
The disc tray cannot be opened and closed.
Replace the DVD Main CBA Unit.
Original DVD Main CBA Unit is poor.
Replace the DVD Mechanism.
No improvement can be found.
No
Yes
FLOW CHART NO.15
The disc tray cannot be opened and closed. (It can be done using the remote control unit.)
Is the normal control voltage inputted to Pin(31) of
IC2101? Refer to "FLOW CHART NO.13"
Refer to "FLOW CHART NO.16"
Replace the "OPEN/CLOSE" switch (SW2108).
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
DVD-1740/558
Is 5V voltage applied to the Pin(4, 12) of IC1402
and Pin(4) of IC1403?
Replace IC1402
or IC1403.
Check P-ON+5V line and
service it if detective.
Are the video signals outputted to each pin
of IC1402 or IC1403?
Yes
No
Yes
Yes
No
IC1402 13PIN S-Y(I/P)
IC1402 11PIN Pb/Cb
IC1402 10PIN Pr/Cr
IC1403 5PIN S-Y(I)
IC1403 6PIN CVBS
IC1403 7PIN S-C
Check the periphery of JK1404 from Pins (10, 11,
13) of IC1402 and service it if detective.
Check the periphery of JK1404 from Pin(6) of
IC1403 and service it if detective.
Check the periphery of JK1401 from
Pin (5) of IC1403 and service it if detective.
Check the periphery of JK1401 from
Pin (7) of IC1403 and service it if detective.
Are the video signals outputted to the specific
output terminal?
Are the component video signals outputted to the
VIDEO OUT terminal (JK1404)?
Are the luminance signals outputted to the
S-OUT terminal (JK1401)?
Are the chroma signals outputted to the
S-OUT terminal (JK1401)?
No
No
No
No
Are the composite video signals outputted to
the VIDEO OUT terminal (JK1404)?
FLOW CHART NO.21
Picture does not appear normally.
Set the disc on the disc tray, and playback.
Are the video signals outputted to each pin of
CN1601 on the AV CBA?
Replace the DVD Main CBA Unit or DVD Mechanism.
Check the line between each pin of CN1601 and
each pin of IC1402 or IC1403 on the AV CBA,
and service it if detective.
CN1601 2PIN → IC1403 3PIN S-Y(I)
CN1601 10PIN → IC1403 1PIN S-C
CN1601 8PIN → IC1402 3PIN S-Y(I/P)
CN1601 6PIN → IC1402 6PIN Pb/Cb
CN1601 4PIN → IC1402 8PIN Pr/Cr
Are the video signals shown above inputted into
each pin of IC1402 or IC1403?
Yes
No
No
CN1601 2PIN S-Y(I)
CN1601 4PIN Pr/Cr
CN1601 6PIN Pb/Cb
CN1601 8PIN S-Y(I/P)
CN1601 10PIN S-C
IC1403 3PIN S-Y(I)
IC1403 1PIN S-C
IC1402 3PIN S-Y(I/P)
IC1402 6PIN Pb/Cb
IC1402 8PIN Pr/Cr
FLOW CHART NO.20
Both functions of picture and sound do not operate normally.
Replace the DVD Main CBA Unit.
Replace the DVD Mechanism.
No
Yes
No improvement can be found.
Original DVD Main CBA Unit is poor.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
DVD-1740/558
FLOW CHART NO.22
Audio is not outputted normally.
Set the disc on the disc tray, and playback.
Are the analog audio signals outputted to each pin
of CN1601 on AV CBA?
Is the "H" level mute signal outputted to CN1601
on AV CBA ?
CN1601 12PIN AUDIO(L)
CN1601 14PIN AUDIO(R)
CN1601 19PIN AUDIO(R)-MUTE
CN1601 13PIN AUDIO(L)-MUTE
IC1201 1PIN AUDIO(L)
IC1201 7PIN AUDIO(R)
IC1201 2PIN AUDIO(L)
IC1201 6PIN AUDIO(R)
Replace the DVD Main CBA Unit or DVD Mechanism.
Replace the DVD Main CBA Unit or DVD Mechanism.
Replace IC1201.
Check the periphery between Pins(1,7) of IC1201
and JK1404, and service it if detective.
Check each line between each pin of CN1601
and each pin of IC1201 on AV CBA, and service it
if detective.
CN1601 12PIN → IC1201 2PIN AUDIO(L)
CN1601 14PIN → IC1201 6PIN AUDIO(R)
Are the analog audio signals inputted to each pin
of IC1201.
Are the analog audio signals outputted to each pin
of IC1201?
Are the audio signals outputted to the specific
output terminal?
Are the audio signals outputted to the audio
terminal (JK1404)?
Yes
Yes
Yes
Yes
No
No
No
No
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
DVD-1740/558
BLOCK DIAGRAMS
System Control / Servo Block Diagram
1 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.
12
7
8
9
10
11
REMOTE
SENSOR
RM2001
JK3501
1G
7G
~
23
17
~
a
b
c
d
e
GRID
FIP
SEGMENT
FL2001
IC2001
(FRONT PANEL CONTROL)
13
14
f
g
h
i
KEY
MATRIX
CN2001
CN2101
REMOCON
-IN
REMOCON
-OUT
AV CBA
FUNCTION CBA
IC3510
7
1
AMP
SW2101
POWER
CN2002
CN2102
D2182
LED CBA
POWER
STANDBY
TO POWER
SUPPLY
BLOCK
DIAGRAM
+5V
D2184 HDMI
57
ADAC-MD
58 ADAC-MC
59 ADAC-ML
ADAC-MC
ADAC-ML
AUDIO-MUTE
ADAC-MD
AUDIO-MUTE
TO AUDIO
BLOCK DIAGRAM
(AMP)
16
12
13
17
21
22
23
24
31
32
6
REMOTE-IN2
POWER-LED
STANDBY-LED
2
2
POWER-LED
3
3
STANDBY-LED
5
5
KEY-2
4
4
HDMI-LED
RESET
IC2102
2
1
+3.3V
RESET
IC2103
1
3
+3.3V
RESET
16
REMOTE-IN1
POWER-DETECT
REMOTE-OUT
PW-SW
PWRCON
KEY-2
KEY-1
1
1
KEY-2
3
3
KEY-1
DRIVE
Q2100
DRIVE
Q2086
IC2101
ENERGY STAR
MICROCONTROLLER
PW-SW
PWRCON
POWER-DETECT
CN401
54
FP-DIN
22
28 FP-DIN
FP-DIN
19
56
FP-STB
24
2 FP-STB
FP-STB
21
53
FP-DOUT
21
27 FP-DOUT
FP-DOUT 18
55
FP-CLK
23
1 FP-CLK
FP-CLK
20
49
REMOTE
25 REMOTE
22
CN1001
HDMI
26 HDMI
23
IC301
(SERVO DRIVE)
CN301
M
SLED
MOTOR
M
SPINDLE
MOTOR
IC101
(MICRO CONTROLLER)
+-
+-
+-
+-
+-
+-
+-
SLED
MOTOR
DRIVE
FOCUS
ACTUATOR
DRIVE
SPINDLE
MOTOR
DRIVE
TRACKING
ACTUATOR
DRIVE
126
TRAY-IN
SLD
67
SPDL
66
TRACKING
DRIVE
127 FOCUS DRIVE
64
FS(+)
FS(-)
TS(+)
TS(-)
TRAY-IN
1
SP(+)
2
SP(-)
6
TRAY-IN
3
GND
4
SL(-)
5
SL(+)
VREF
RESET
70
IC202
(OP AMP)
15
16
14
13
12
11
17
18
23
6
4
5
3
1
2
25
24
27
26
80
80 V-SENSE
121 SP-ROT
+3.3V
14
13
9
8
10
12
6
7
5
124 FD-OFST
123 TD-OFST
DRIVE CBA
DVD MAIN CBA UNIT
TO DIGITAL SIGNAL
PROCESS BLOCK
DIAGRAM
122 SL-ADS
RESET
IC462
1
3
+3.3V
RESET
IC461
2
1
+3.3V
1
+5V
215
8
78
ASPECT
3 ASPECT
3
CN601
CN1601
19 ASPECT
A
Comparison Chart of
Models and Marks
Model
Mark
DVD1740BKE3
DVD558BKE3
A
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
DVD-1740/558
Digital Signal Process Block Diagram
C 16
D 18
A 17
B 15
DVD-LD 8
CD-LD 10
PD-MONI 7
FS(+) 2
FS(-) 3
TS(+) 1
TS(-) 4
CN201
CN201
CN201
IC101 (MICRO CONTROLLER)
FS
FS(+)
CD/DVD
FS(-)
TS(+)
TS(-)
TS
DETECTOR
CD/DVD 19
Q251,Q252
AMP
Q253,Q254
AMP
GND(DVD-PD) 6
GND(CD-PD) 5
GND(LD) 9
RF
SIGNAL
PROCESS
CIRCUIT
DVD/CD
FORMATTER
AUDIO
I/F
VIDEO
I/F
NTSC/PAL
ENCODER
DMA
BCU
INST.
ROM
32BIT
CPU
DATA
RAM
INTERRUPT
CONTROLLER
WATCH DOG
TIMER
CPU
I/F
TIMER
DECODER
I/F
CPU
I/F
READ
MEMORY
DATA
RAM
DSP
DECODER
I/O
PROCESSOR
INST.
ROM
DATA
RAM
INST.
ROM
SERIAL
D/A
GENERAL
I/O
INTERRUPT
CONTROLLER
TIMER
WATCH DOG
TIMER
REMOTE
CONTROL
32BIT CPU
STREAM
I/F
EXTERNAL
MEMORY
I/F
SDRAM
ECC
UMAC
100
115
116
113
114
106
104
105
103
79
GND(DVD-PD)
63
GND(CD-PD)
62
DEBUG
BCU
INST
CACHE
DATA
CACHE
D/A
131
139
Y(I/P)
C
VIDEO-Y(I/P)
VIDEO-C
SDRAM ADDRESS(0-10)
VIDEO SIGNAL
SDRAM DATA(0-15)
PICK-UP
UNIT
TO SYSTEM
CONTROL/SERVO
BLOCK DIAGRAM
DVD MAIN CBA UNIT
TO
VIDEO
/AUDIO
BLOCK
DIAGRAM
TO
VIDEO
/AUDIO
BLOCK
DIAGRAM
IC501 (SDRAM)
SDRAM DATA(0-15)
SDRAM ADDRESS(0-10)
194
209
~
2
13
42
53
~
~
22
26
29
34
~
~
159
178
~
99
98
97
AUDIO SIGNAL
D/A
D/A
129
130
Pr/Cr
Pb/Cb
VIDEO-Pr/Cr
VIDEO-Pb/Cb
EXADT (0-15), EADR (16-19)
FLASH
ROM
~
1
9
16
25
48
~
IC103 (FLASH ROM)
29
36
38
45
~
~
D TYPE
LATCH
IC105 (LATCH)
2
9
~
12
19
~
D TYPE
LATCH
IC104 (LATCH)
2
9
~
12
19
~
EXADT (0-15), EADR (16-19)
EXADT (1-8)
EXADT (0, 9-15)
EADR (1-8)
EADR (0, 9-15)
EADR (0-15)
EADR (16-19)
EXADT (0-15)
YC(0-7)
9
14
17
18
~
~
I2C-SDA
I2C-SCL
I2C-SDA
I2C-SCL
46
47
152
SPDIF
151
PCM-DATA0
149
PCM-BCK
150
PCM-LRCK
148
PCM-SCLK
D/A
138
Y(I)
VIDEO-Y(I)
TO
AUDIO
BLOCK
DIAGRAM
SPDIF
PCM-DATA0
PCM-BCK
PCM-LRCK
PCM-SCLK
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
DVD-1740/558
Video / Audio Block Diagram
AUDIO SIGNAL
VIDEO SIGNAL
CN601
8
8
VIDEO-Y(I/P)
10
10
VIDEO-C
VIDEO-C
VIDEO-Y(I/P)
JK1401
S-VIDEO OUT
CN1601
6
6
VIDEO-Pb/Cb
VIDEO-Pb/Cb
VIDEO-Pr/Cr
4
4
VIDEO-Pr/Cr
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
Y
C
AV CBA
DVD MAIN CBA UNIT
IC1402 (VIDEO DRIVER)
4dB
AMP
2dB
AMP
LPF
DRIVER
11
4dB
AMP
2dB
AMP
LPF
DRIVER
6
10
4dB
AMP
2dB
AMP
LPF
DRIVER
8
3
13
IC1403 (VIDEO DRIVER)
4dB
AMP
2dB
AMP
LPF
DRIVER
2dB
AMP
DRIVER
4dB
AMP
2dB
AMP
LPF
DRIVER
3
1
5
6
7
WF2
WF1
2
2
VIDEO-Y(I)
VIDEO-Y(I)
JK1404
VIDEO OUT
(COMPOSITE)
WF3
VIDEO-Pb/Cb
OUT
VIDEO-Y
OUT
VIDEO-Pr/Cr
OUT
4
3
1
2
TMDS DATA2-
CNF01
HDMI-CONNECTOR
TMDS DATA2+
TMDS DATA1-
TMDS DATA1+
TMDS DATA0-
TMDS DATA0+
TMDS CLOCK+
TMDS CLOCK-
SDA
SCL
HOT PLUG
DETECT
ICF09 (HDMI INTERFACE)
33
41
PCM-SCLK
PCM-LRCK
45
PCM-BCK
38
18
20
14
16
12
10
22
24
120
119
121
6
4
9
7
10
12
3
2
3
6
5
1
15
19
16
PCM-DATA0
113
114
I2C-SCL
I2C-SDA
TO DIGITAL
SIGNAL PROCESS
BLOCK DIAGRAM
IIC
I/F
VIDEO
I/F
DDC
I/F
ICF04
(3.3V<-->5V CONVERTER)
AUDIO
I/F
HDCP
CIPHER/
ENCRYPTOR
TMDS
ENCODER
AV
CONTROLLER
TMDS
TRANSMITTER
YC(0-7)
81
83
~
86
90
~
HPD
QF01, QF03
SWITCHING
43
SPDIF
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
DVD-1740/558
Audio Block Diagram
AMP
Q1351
IC1201
Q1201
Q1202
+10V
(AMP)
CN601
CN1601
12
12
AUDIO(L)
14
14
AUDIO(R)
13
13
AUDIO(L)-MUTE
1
2
6
7
5
PCM-BCK
SPDIF
PCM-DATA0
PCM-LRCK
ADAC-MD
ADAC-MC
ADAC-ML
PCM-SCLK
16
16
SPDIF
19
19
AUDIO(R)-MUTE
+3.3V
Q1204
3
+3.3V
Q1203
WF6
WF4
WF5
AUDIO SIGNAL
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
TO
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
DVD MAIN CBA UNIT
AV CBA
JK1202
IC1204
JK1404
IC601 (AUDIO DAC)
15
14
1
7
6
8
4
3
2
5
AUDIO
SERIAL
PORT
SERIAL
CONTROL
PORT
4X/8X
OVERSAMPLING
DIGITAL FILTER
/FUNCTION
CONTROLLER
ENHANCED
MULTI-LEVEL
DELTA-SIGMA
MODULATOR
DAC
LPF+AMP L-CH
R-CH
LPF+AMP
DAC
ZERO DETECT
SYSTEM CLOCK
MANAGER
AUDIO(L)-
OUT
AUDIO(R)-
OUT
DIGITAL
AUDIO OUT
(COAXIAL)
DIGITAL
AUDIO OUT
(OPTICAL)
TO
DIGITAL
SIGNAL
PROCESS
BLOCK
DIAGRAM
AUDIO-MUTE
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
16
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
DVD-1740/558
Power Supply Block Diagram
IC1006
(SHUNT REGULATOR)
AC1001
AC CORD
F1001
LINE
FILTER
L1001
D1001, D1002
D1004, D1005
2
4
7
3
4
IC1001
ERROR
VOLTAGE DET
T1001
11
12
13
15
14
16
17
18
1
2
6
BRIDGE
RECTIFIER
HOT
HOT CIRCUIT. BE CAREFUL.
D1003
RECTIFIER
D1010
D1016
Q1016
Q1005
Q1011
Q1002
CN1001
-FL
F1
P-ON+10V
EV+3.3V
P-ON+5V
1,2 EV+1.2V
3,4,5 EV+3.3V
8,9
EV+9V
7
P-ON+5V
6
P-ON+3.3V
17
PWRCON
D1030
F2
AV CBA
TO CN401
1A 250V
A V
F
REG
3
1
2
SCHOTTKY
BARRIER
D1006
SW+10V
Q1004
SW+5V
SW+3.3V
SWITCHING
SWITCHING
IC1002
+1.2V REG.
Q1015
SWITCHING
Q1006,Q1007
SWITCHING
(SWITCHING)
2
4
7
1
6
5
8
EN/UV
BP/M
D
S
S
S
S
Q1001
SCHOTTKY
BARRIER
D1008
MICON+3.3V
Q1022
SW+2.5V
RECTIFIER
RECTIFIER
RECTIFIER
Q1020
SW+3.3V
EV+5V
Q1014
SW+5V
Q1012
SWITCHING
TO
SYSTEM
CONTROL
/SERVO
BLOCK
DIAGRAM
PW-SW
PWRCON
POWER-DETECT
EV+1.2V
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
DVD-1740/558
SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS
Standard Notes
WARNING
Many electrical and mechanical parts in this chassis
have special characteristics. These characteristics
often pass unnoticed and the protection afforded by
them cannot necessarily be obtained by using
replacement components rated for higher voltage,
wattage, etc. Replacement parts that have these
special safety characteristics are identified in this
manual and its supplements; electrical components
having such features are identified by the mark “#” in
the schematic diagram and the parts list. Before
replacing any of these components, read the parts list
in this manual carefully. The use of substitute
replacement parts that do not have the same safety
characteristics as specified in the parts list may create
shock, fire, or other hazards.
Notes:
1.
Do not use the part number shown on these
drawings for ordering. The correct part number is
shown in the parts list, and may be slightly
different or amended since these drawings were
prepared.
2.
All resistance values are indicated in ohms
(K = 103, M = 106).
3.
Resistor wattages are 1/4W or 1/6W unless
otherwise specified.
4.
All capacitance values are indicated in µF
(P = 10-6 µF).
5.
All voltages are DC voltages unless otherwise
specified.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
30
DVD-1740/558
LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON
THE FOLLOWING PAGES:
1. CAUTION:
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE
SAME TYPE FUSE.
ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER
QUE DES FUSIBLE DE MÊME TYPE.
RISK OF FIRE-REPLACE FUSE AS MARKED.
2. CAUTION:
Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not
defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components
in the power supply circuit to fail.
3. Note:
1.
Do not use the part number shown on the drawings for ordering. The correct part number is shown in the
parts list, and may be slightly different or amended since the drawings were prepared.
2.
To maintain original function and reliability of repaired units, use only original replacement parts which are
listed with their part numbers in the parts list section of the service manual.
4. Voltage indications for PLAY and STOP mode on the schematics are as shown below:
5. How to read converged lines
6. Test Point Information
A V
F
This symbol means fast operating fuse.
Ce symbole represente un fusible a fusion rapide.
2
3
1
5.0
(2.5)
5.0
The same voltage for
both PLAY & STOP modes
Indicates that the voltage
is not consistent here.
PLAY mode
STOP mode
(Unit: Volt)
3
2
1
A
B
C
D
1-B1
1-D3
AREA D3
AREA B1
1-D3
Distinction Area
Line Number
(1 to 3 digits)
Examples:
1. "1-D3" means that line number "1" goes to the line number
"1" of the area "D3".
2. "1-B1" means that line number "1" goes to the line number
"1" of the area "B1".
: Indicates a test point with a jumper wire across a hole in the PCB.
: Used to indicate a test point with a component lead on foil side.
: Used to indicate a test point with no test pin.
: Used to indicate a test point with a test pin.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
DVD-1740/558
DVD Main 1/4 Schematic Diagram
1 NOTE:
Either IC461 or IC462 is used for DVD MAIN CBA UNIT.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
DVD-1740/558
DVD Main 2/4 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
DVD-1740/558
DVD Main 3/4 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
DVD-1740/558
DVD Main 4/4 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
DVD-1740/558
AV 1/3 Schematic Diagram
CAUTION !
Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit.
If Main Fuse (F1001) is blown , check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.
NOTE:
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.
"Ce symbole reprèsente un fusible à fusion rapide."
CAUTION !
For continued protection against fire hazard,
replace only with the same type fuse.
ATTENTION : Pour une protection continue les risqes
d'Incele n'utiliser que des fusible de même type.
Risk of fire-replace fuse as marked.
"This symbol means fast operating fuse."
A V
F
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
DVD-1740/558
AV 2/3 Schematic Diagram
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
DVD-1740/558
a
d
g
c
b
e
f
h
h
h
h
A
ALL
RPT
SACD
CD
DVD A
TL./GR.
TR./CP.
B
PSCAN
5G
4G
3G
2G
1G
7G
6G
7G
6G
5G
4G
3G
2G
1G
a
b
c
d
e
f
g
c
d
e
f
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
c
d
e
f
g
h
h
h
i
a
b
c
d
e
g
a
b
a
b
a
b
a
b
a
b
c
d
e
f
g
a
b
FL2001 MATRIX CHART
SACD
ALL
DVD
RPT.
CD
A
TL./GR.
TR./CP.
A B
PSCAN
AV 3/3, Function & LED Schematic Diagram
Comparison Chart of
Models and Marks
Model
Mark
DVD1740BKE3
DVD558BKE3
A
B
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
DVD-1740/558
WAVEFORMS
WF6
WF1
WF3
WF4
WF5
WF2
Pin 16 of CN1601
Pin 8 of CN1601
C1402 PLUS LEAD
Pin 12 of CN1601
Pin 14 of CN1601
Pin 10 of CN1601
20µs
0.2V
VIDEO-Y
VIDEO-C
0.2V
20µs
VIDEO-CVBS
0.5V
20µs
AUDIO(L)
0.5V
0.5ms
AUDIO(R)
0.5V
0.5ms
SPDIF
1V
0.1µs
NOTE:
Measuring Disc
DVD: DVDT-S01
CD : TCD-784
Input Signal
VIDEO: 75% COLOR BAR
AUDIO: 1KHz, 0dB
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
DVD-1740/558
WIRING DIAGRAM
CN201
CN301
TRAY-IN
AC CORD
FS
TS
DETECTOR
7
9 11 2
3
6
5
M
SLED
MOTOR
M
SPINDLE
MOTOR
4
AV CBA
DVD MAIN CBA UNIT
LED CBA
CN2102 is soldered
directly to the PCB.
DRIVE CBA
PICK UP UNIT
SP(+) 1
SP(-) 2
GND 3
SL(-) 4
SL(+) 5
TRAY-IN 6
FS(-) 3
TS(-) 4
GND(CD-PD) 5
GND(DVD-PD) 6
PD-MONI 7
DVD-LD 8
TS(+) 1
FS(+) 2
GND 11
NU 12
VREF 13
NU 14
B 15
C 16
GND(LD) 9
CD-LD 10
A 17
D 18
CD/DVD 19
P-ON+5V 20
S-VIDEO
OUT
VIDEO-Y
OUT
VIDEO-Pb/Cb
OUT
VIDEO-Pr/Cr
OUT
VIDEO OUT
(COMPOSITE)
AUDIO(L)-
OUT
AUDIO(R)-
OUT
REMOCON-
IN
REMOCON-
OUT
DIGITAL
AUDIO OUT
(COAXIAL)
DIGITAL
AUDIO OUT
(OPTICAL)
CN2001
CN2101
KEY-2
1
1
GND
2
2
KEY-1
3
3
GND
4
4
FUNCTION CBA
CN2101 is soldered
directly to the PCB.
EV+5V
1
1
POWER-LED
2
2
STANDBY-LED 3
3
HDMI-LED
4
4
KEY-2
5
5
GND
6
6
CN2002
CN2102
EV+1.2V
4
EV+1.2V
5
EV+3.3V
7
EV+3.3V
8
P-ON+3.3V
9
P-ON+5V
10
EV+9V
11
EV+9V
12
GND
13
GND
14
GND
15
GND
16
GND
17
GND
18
GND
19
PWRCON
20
FP-DOUT
21
FP-DIN
22
FP-CLK
23
FP-STB
24
REMOTE
25
HDMI
26
CN401
CN1001
EV+3.3V
6
2
3
5
6
7
1
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
4
(CN1001 is soldered directly to the PCB.)
VIDEO-C
10
10
GND
9
9
VIDEO-Pr/Cr
4
4
GND
5
5
VIDEO-Pb/Cb
6
6
GND
7
7
VIDEO-Y(I/P)
8
8
CN601
AUDIO-GND
15
15
AUDIO-GND
11
11
AUDIO(L)
12
12
AUDIO(L)-MUTE 13
13
AUDIO(R)
14
14
SPDIF
16
16
AUDIO+5V
17
17
AUDIO+5V
18
18
AUDIO(R)-MUTE 19
19
CN1601
(CN1601 is soldered directly to the PCB.)
ASPECT
3
3
VIDEO-Y(I)
2
2
CN702
2 GND
4 EV+3.3V(D)
6 RESET
1 SCLOCK
3 EXTRG0
5 SDATA
7 NU
8 GND
9TRCDATA1
10 NU
11 NU
12 NU
9 NU
13 NU
(NO CONNECTION )
HDMI-CONNECTOR
DVD MECHANISM
A
Comparison Chart of
Models and Marks
Model
Mark
DVD1740BKE3
DVD558BKE3
A
B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
DVD-1740/558
LEAD IDENTIFICATIONS
1
2
3
8
5
4
1
1: R
2: A
3: K
1 2 3
1
2
4
3
1: A
2: K
3: E
4: C
1: GND
2: Vout
3: Vin
E C B
E C
B
1 2 3
Note:
A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
G: Gate
D: Drain
S: Source
KIA4558P/P
UTC4558
MM1636XWRE
CXA1511M-T4
2SA1015-Y(TE2 F T)
2SA966-Y(TE6 F M)
KTA1266-Y-AT/P
2SC5343M Y
2SC5343MG-AT
2SC5344 Y
2SC2120-Y(TE2 F T)
KTC3203-Y-AT/P
2SC1815-(GR,Y)(TE2 F T)
KTA1267-Y-AT/P
KTC3199-(GR,Y)-AT/P
KRA110M-AT/P
2SA1980M Y
KTA1273-Y-AT/P
KRC103M-AT/P
EL817B
EL817C
LTV-817C-F
PS2561A-1(W)
KIA2431AP-AT/P
LD1117SC-R
TLV1117IDCYRG3
UTC1117YA
16
9
8
1
MM1637XVBE
28
15
14
1
PT6313-S-TP(L)
SC16313G
0C-0805T*002
1
2
4
8
7
6
5
TNY277
1
2
3
5
4
PST3229NR
3
1
2
BMR-110529
1
8
9
16
32
25
17
24
M37544G2A-081GP#U0 R
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
DVD-1740/558
EXPLODED VIEW
Cabinet
2L106
2L071
2L041
2L041
2L051
2B2
2B4
2L051
A'
A
2L023
2L023
2L052
2L052
A11
A1X
A13
A12
A13
A15
A17
A21
A16
2L011
2L011
2L011
2L011
2L011
AV CBA
2L106
2L107
JK1401
JK1404
JK1202
IC1204
LED CBA
2B1
F1001
2L041
JK3501
DVD Main CBA Unit
2L021
2L021
2L021
2L105
A2
1B1
2B5
2L101
2B3
2L043
Function CBA
2L102
2B39
2L114
2L114
2B34
2L102
AC1001
CN3002
[A]
Comparison Chart of
Models and Marks
Model
Mark
DVD1740BKE3
DVD558BKE3
A
B
[A]
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
DVD-1740/558
PARTS LIST OF EXPLODED VIEW
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Ref. No.
nsp
Part No.
Part Name
Remark
Q'ty
New
00D 9H2 6000 886
DVD MAIN CBA UNIT
for DVD1740
N7CDCKUP
1
*
00D 9H2 6000 895
DVD MAIN CBA UNIT
for DVD558
N7CDEKUP
1
*
00D 9H2 6000 885
AV ASSEMBLY
for DVD1740
1VSA15948
1
*
00D 9H2 6000 894
AV ASSEMBLY
for DVD558
1VSA15959
1
*
AV CBA
-
FUNCTION CBA
-
LED CBA
-
A1X
00D 9H2 6000 872
FRONT ASSEMBLY
for DVD1740
1VM222965
1
*
A1X
00D 9H2 6000 891
FRONT ASSEMBLY
for DVD558
1VM222964
1
*
A2
00D 9H2 6000 883
TRAY PANEL ASSEMBLY
1VM425445
1
*
A11
00D9H2 6000 566
INSULATOR ASSEMBLY (R)
1VM420732
1
A12
00D9H2 6000 567
INSULATOR ASSEMBLY (L)
1VM420733
1
A13
00D9H2 6000 323
FOOT
0VM406940A
2
A15
00D9H2 6000 611
CHASSIS
1VM120073
1
A16
00D9H2 6000 680
TOP COVER(BLACK)
1VM120074C
1
A17
00D 9H2 6000 871
REAR PANEL
for DVD1740
1VM222920
1
*
A17
00D 9H2 6000 890
REAR PANEL
for DVD558
1VM222922
1
*
A21
-
LABEL SERIAL NO.
-
1
*
1B1
00D9H2 6000 726
DVD MECHA E7 HDMI (F2)
N79F2KVM
1
2B2
-
POWER PCB HOLDER
0VM306801E
1
2B3
-
MAIN PCB HOLDER
1VM322994
1
2B4
00D 9H2 6000 870
LOADER BASE
0VM101367G
1
*
2B5
-
HOLDER F.I.P.
0VM416070
1
*
2B34
00D9H2 6000 769
CUSHION SPACER
1VM422273
2
2B39
00D9H2 6000 770
REINFORCE PLATE
1VM321919
1
CN3002
00D 9H2 6000 896
20P FFC(DVD MECHA to MAIN CBA)
WX1N79F2-304
1
*
SCREWS
2L011
-
SCREW TAP TIGHT M3X5 BIND
HEAD+BLK NI
GBHC3050
5
2L021
-
SCREW P-TIGHT M3*12 BIND+
GBJP3120
4
2L023
-
SCREW C-TIGHT M3X6
0VM412937A
2
2L041
-
SCREW B-TIGHT M3X8 BIND HEAD+
for DVD1740
GBHB3080
7
2L041
-
SCREW B-TIGHT M3X8 BIND HEAD+
for DVD558
GBHB3080
6
2L043
-
SCREW TAP TIGHT M3X5 BIND
HEAD+BLK NI
GBHC3050
1
2L051
-
SCREW S-TIGHT 3X8
0VM413320A
2
2L052
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
5
2L071
-
SCREW TAP TIGHT M3X5 BIND
HEAD+BLK NI
GBHC3050
1
2L101
-
SCREW C-TIGHT M3X6
0VM412937A
1
2L102
-
SCREW C-TIGHT M3X6
0VM412937A
4
2L105
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
1
2L106
-
SCREW C-TIGHT M3X6
0VM412937A
4
2L107
-
SCREW P-TIGHT M3X8 BIND HEAD+
GBJP3080
1
2L114
-
SCREW TAP TIGHT WASHER+ P-TIGHT
GCJP3080
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
DVD-1740/558
Packing
A22
S1
S2
S4
Unit
S2
X10
X5
X8
X2
X4
X12
X21
X1
A30
A30
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
DVD-1740/558
PARTS LIST OF PACKING & ACCESSORIES
＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。
＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.
＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。
＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused.
Ref. No.
nsp
Part No.
Part Name
Remark
Q'ty
New
A22
-
BARCODE LABEL
for DVD1740
-
1
*
A22
-
BARCODE LABEL
for DVD558
-
1
*
A30
-
CONTROL LABEL
for DVD1740
-
2
*
A30
-
CONTROL LABEL
for DVD558
-
2
*
S1
00D 9H2 6000 882
GIFT BOX CARTON
for DVD1740
1VM323921
1
*
S1
00D 9H2 6000 892
GIFT BOX CARTON
for DVD558
1VM323902
1
*
S2
00D9H2 6000 619
STYROFOAM
0VM101298B
1
S4
00D9H2 6000 688
SET BAG
0DM400731D
1
X1
00D9H2 6000 621
REMOTE CONTROL UNIT(RC-1018)
NA831UD
1
X2
-
DRY BATTERY R6UW/2S
XB0M311MS001
2
X2
-
DRY BATTERY ES-GR6M-C
XB0M571GLP01
2
X2
-
DRY BATTERY R6P/2S
XB0M451T0001
2
X4
-
ACCESSORY BAG
0VM416059
1
X5
00D9H2 6000 226
AV CORD WPZ0102TM015
WPZ0102TM015
1
X5
-
AV CORD RCA(M*2)TO RCA(M*2)
WPZ0102LTE01
1
!
X8
00D 9H2 6000 887
AC CORD WITH A GND WIRE UL/CSA/
162/NO/BLACK
WAV0162LW001
1
*
X10
00D 9H2 6000 884
OWNERS MANUAL
for DVD1740
1VMN23654
1
*
X10
00D 9H2 6000 893
OWNERS MANUAL
for DVD558
1VMN23653
1
*
X12
-
SERVICE CENTER SHEET
1VM425536
1
X21
-
WARRANTY SHEET
1VM323507
1
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
