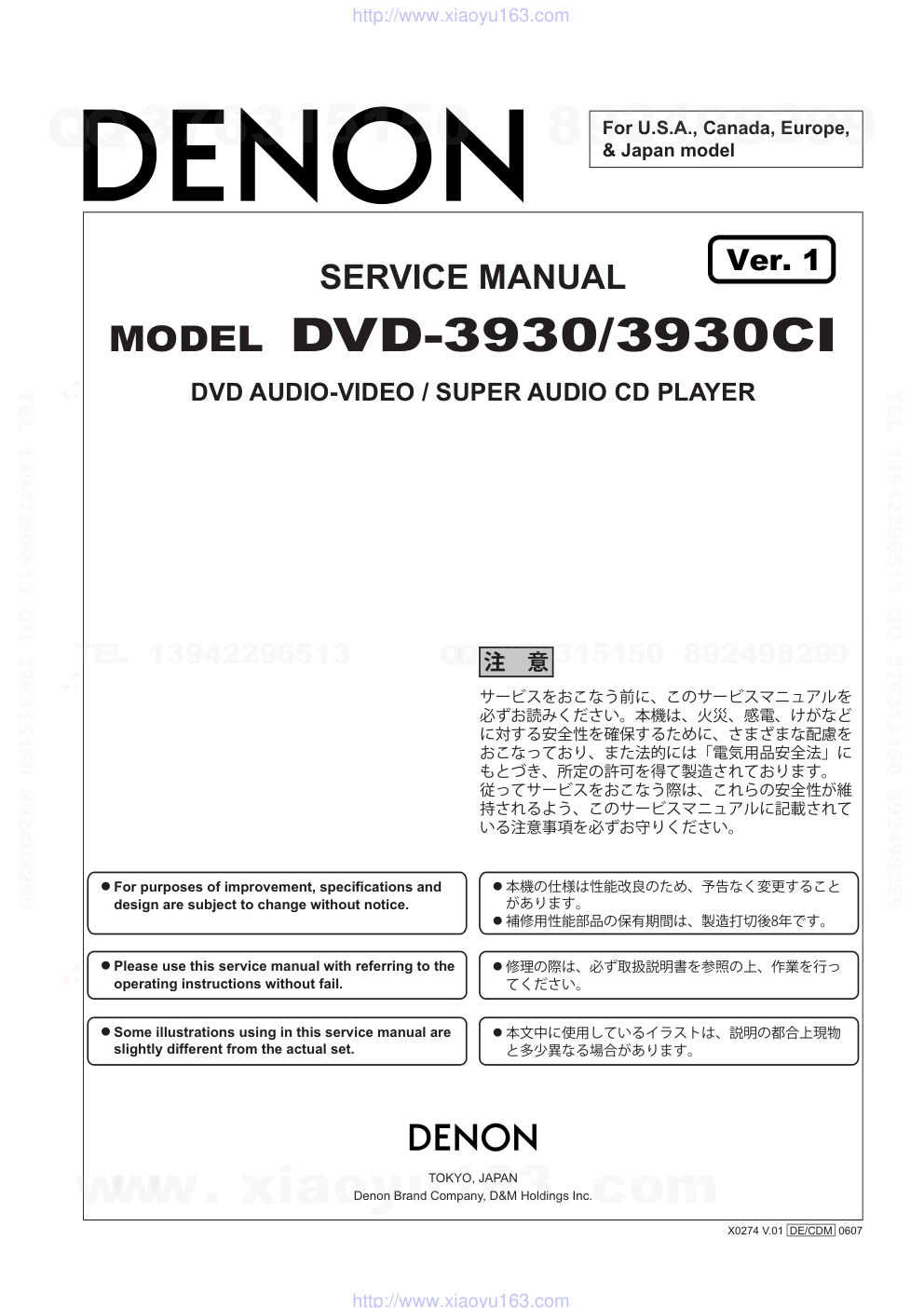

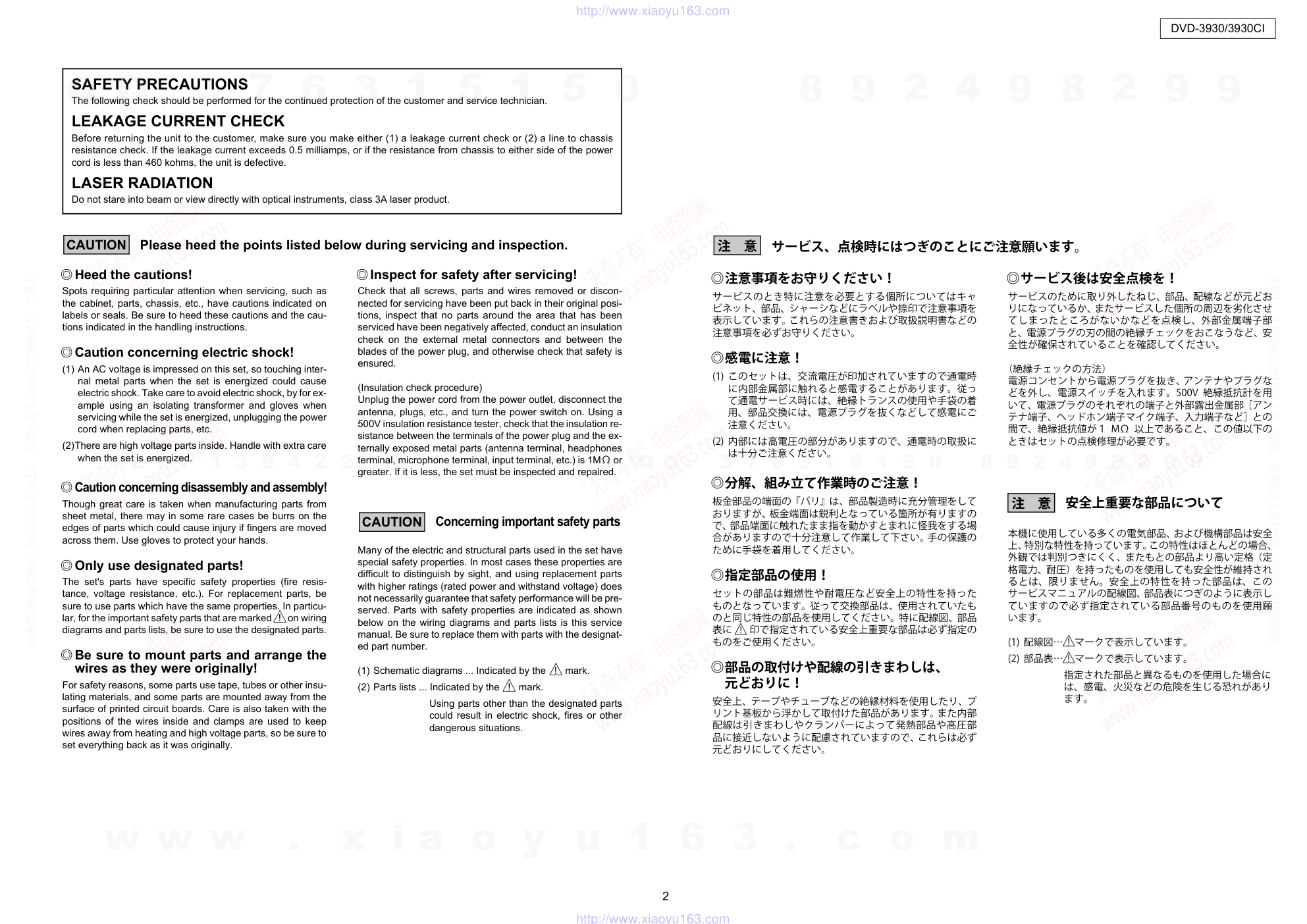

SERVICE MANUAL MODEL DVD-3930/3930CI DVD AUDIO-VIDEO / SUPER AUDIO CD PLAYER For U.S.A., Canada, Europe, & Japan model X0274 V.01 DE/CDM 0607 Some illustrations using in this service manual are slightly different from the actual set. ● Please use this service manual with referring to the operating instructions without fail. ● For purposes of improvement, specifications and design are subject to change without notice. ● ●　本文中に使用しているイラストは、説明の都合上現物 　　と多少異なる場合があります。 ●　修理の際は、必ず取扱説明書を参照の上、作業を行っ 　　てください。 サービスをおこなう前に、このサービスマニュアルを 必ずお読みください。本機は、火災、感電、けがなど に対する安全性を確保するために、さまざまな配慮を おこなっており、また法的には「電気用品安全法」に もとづき、所定の許可を得て製造されております。 従ってサービスをおこなう際は、これらの安全性が維 持されるよう、このサービスマニュアルに記載されて いる注意事項を必ずお守りください。 ●　本機の仕様は性能改良のため、予告なく変更すること 　　があります。 ●　補修用性能部品の保有期間は、製造打切後8年です。 注　意 TOKYO, JAPAN Denon Brand Company, D&M Holdings Inc. Ver. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVD-3930/3930CI Please heed the points listed below during servicing and inspection. ◎ Heed the cautions! Spots requiring particular attention when servicing, such as the cabinet, parts, chassis, etc., have cautions indicated on labels or seals. Be sure to heed these cautions and the cau- tions indicated in the handling instructions. ◎ Caution concerning electric shock! (1) An AC voltage is impressed on this set, so touching inter- nal metal parts when the set is energized could cause electric shock. Take care to avoid electric shock, by for ex- ample using an isolating transformer and gloves when servicing while the set is energized, unplugging the power cord when replacing parts, etc. (2)There are high voltage parts inside. Handle with extra care when the set is energized. ◎ Caution concerning disassembly and assembly! Though great care is taken when manufacturing parts from sheet metal, there may in some rare cases be burrs on the edges of parts which could cause injury if fingers are moved across them. Use gloves to protect your hands. ◎ Only use designated parts! The set's parts have specific safety properties (fire resis- tance, voltage resistance, etc.). For replacement parts, be sure to use parts which have the same properties. In particu- lar, for the important safety parts that are marked ! on wiring diagrams and parts lists, be sure to use the designated parts. ◎ Be sure to mount parts and arrange the wires as they were originally! For safety reasons, some parts use tape, tubes or other insu- lating materials, and some parts are mounted away from the surface of printed circuit boards. Care is also taken with the positions of the wires inside and clamps are used to keep wires away from heating and high voltage parts, so be sure to set everything back as it was originally. ◎Inspect for safety after servicing! Check that all screws, parts and wires removed or discon- nected for servicing have been put back in their original posi- tions, inspect that no parts around the area that has been serviced have been negatively affected, conduct an insulation check on the external metal connectors and between the blades of the power plug, and otherwise check that safety is ensured. (Insulation check procedure) Unplug the power cord from the power outlet, disconnect the antenna, plugs, etc., and turn the power switch on. Using a 500V insulation resistance tester, check that the insulation re- sistance between the terminals of the power plug and the ex- ternally exposed metal parts (antenna terminal, headphones terminal, microphone terminal, input terminal, etc.) is 1MΩ or greater. If it is less, the set must be inspected and repaired. Concerning important safety parts Many of the electric and structural parts used in the set have special safety properties. In most cases these properties are difficult to distinguish by sight, and using replacement parts with higher ratings (rated power and withstand voltage) does not necessarily guarantee that safety performance will be pre- served. Parts with safety properties are indicated as shown below on the wiring diagrams and parts lists is this service manual. Be sure to replace them with parts with the designat- ed part number. (1) Schematic diagrams ... Indicated by the ! mark. (2) Parts lists ... Indicated by the ! mark. Using parts other than the designated parts could result in electric shock, fires or other dangerous situations. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. LASER RADIATION Do not stare into beam or view directly with optical instruments, class 3A laser product. CAUTION CAUTION サービス、点検時にはつぎのことにご注意願います。 ◎注意事項をお守りください！ サービスのとき特に注意を必要とする個所についてはキャ ビネット、部品、シャーシなどにラベルや捺印で注意事項を 表示しています。これらの注意書きおよび取扱説明書などの 注意事項を必ずお守りください。 ◎感電に注意！ (1) このセットは、交流電圧が印加されていますので通電時 に内部金属部に触れると感電することがあります。従っ て通電サービス時には、絶縁トランスの使用や手袋の着 用、部品交換には、電源プラグを抜くなどして感電にご 注意ください。 (2) 内部には高電圧の部分がありますので、通電時の取扱に は十分ご注意ください。 ◎分解、組み立て作業時のご注意！ 板金部品の端面の『バリ』は、部品製造時に充分管理をして おりますが、板金端面は鋭利となっている箇所が有りますの で、部品端面に触れたまま指を動かすとまれに怪我をする場 合がありますので十分注意して作業して下さい。手の保護の ために手袋を着用してください。 ◎指定部品の使用！ セットの部品は難燃性や耐電圧など安全上の特性を持った ものとなっています。従って交換部品は、使用されていたも のと同じ特性の部品を使用してください。特に配線図、部品 表に ! 印で指定されている安全上重要な部品は必ず指定の ものをご使用ください。 ◎部品の取付けや配線の引きまわしは、 元どおりに！ 安全上、テープやチューブなどの絶縁材料を使用したり、プ リント基板から浮かして取付けた部品があります。また内部 配線は引きまわしやクランパーによって発熱部品や高圧部 品に接近しないように配慮されていますので、これらは必ず 元どおりにしてください。 ◎サービス後は安全点検を！ サービスのために取り外したねじ、部品、配線などが元どお りになっているか、またサービスした個所の周辺を劣化させ てしまったところがないかなどを点検し、外部金属端子部 と、電源プラグの刃の間の絶縁チェックをおこなうなど、安 全性が確保されていることを確認してください。 （絶縁チェックの方法） 電源コンセントから電源プラグを抜き、アンテナやプラグな どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用 いて、電源プラグのそれぞれの端子と外部露出金属部［アン テナ端子、ヘッドホン端子マイク端子、入力端子など］との 間で、絶縁抵抗値が１ MΩ 以上であること、この値以下の ときはセットの点検修理が必要です。 安全上重要な部品について 本機に使用している多くの電気部品、および機構部品は安全 上、特別な特性を持っています。この特性はほとんどの場合、 外観では判別つきにくく、またもとの部品より高い定格（定 格電力、耐圧）を持ったものを使用しても安全性が維持され るとは、限りません。安全上の特性を持った部品は、この サービスマニュアルの配線図、部品表につぎのように表示し ていますので必ず指定されている部品番号のものを使用願 います。 (1) 配線図… ! マークで表示しています。 (2) 部品表… ! マークで表示しています。 指定された部品と異なるものを使用した場合に は、感電、火災などの危険を生じる恐れがあり ます。 注　意 注　意 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DVD-3930/3930CI WIRE ARRANGEMENT If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly as they were originally bundled or placed afterward. Otherwise, incorrect arrangement can be a cause of noise generation. Wire arrangement viewed from the top DVD3930CIE3 DVD3930JP DVD3930E2 ワイヤー整形図 調整や部品の交換等により、ワイヤー類の結束をはずしたり移 動させた場合には、それらの作業が完了した時点でワイヤーの 整形をおこなってください。正しく整形されてないとノイズ発 生の原因となることがあります。 上面からみたワイヤー整形 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DVD-3930/3930CI 各部のはずしかた （組み立てるときは、逆の順序でおこなってください。） 分解と廃棄 (1) セットの分解 作業手順 1. ～ 11. 項に従い分解を実施します。 (2) 使用部品の分別 図中の識別記号 (c, ｍ,ｓ,ｐ 等 ) に従い分別する。 (3) 部品の廃棄 各部品は、各自治体の指定廃棄方法に従い廃棄する。 ◆記号付き部品は、分離する事。 No. Part Name Q'ty Material m • 1 Top cover 1 SECC+PVC m • 2 Inner cover 1 SECC m • 3 Mecha side cover 1 SECC m • 4 Heat Plate(Al) 1 A1100P m • 5 Heat Plate(Cu) 1 C1100P m • 6 Trans Base 1 A1100P m • 7 Support bracket ass'y 1 SECC+A6063S m • 8 Chassis & the others 1 SECC m • 9 Spring 1 SUS304 m • 10 Spring 2 SUS304 m • 11 Front panel 1 A6063SS m the othes - - m (Metals) totals 8,532g No. Part Name Q'ty Material s • 1 Screw 3X6 CBTS(S)-B 30 SW s • 2 Screw 4X8 3P SWELLING 9 SW s • 3 Screw 3X8 CFTS(S) 8 SW s • 4 Screw 3X8 CBTS(S)-Z 27 SW s • 5 Screw 3X10 CBTS(P)-B 4 SW s • 6 Screw 3X8 CBTS(P)-B 17 SW s • 7 M3 nut (RS-232C) 2 SW s • 8 Screw 3X10 CFS 5 SW s • 9 Screw 3X10 CBTS(S)-Z 8 SW s • 10 Screw 4X8 CBTS(S)-B 2 SW s • 11 Screw 3X6 CFS 5 SW s • 12 Screw FIXING 17 SW s • 13 Screw 3X6 CPTS(S)-NI 1 SW s • 14 Screw 3X4 CBTS(S)-Z 1 SW s • 15 Screw 3X10 Special(P) 2 SW s the othes - - (E2 model) s (Screws) totals 85g DISASSEMBLY (Follow the procedure bellow in reverse order when reassembling.) Disassembly and abandonment (1) Disassembly of a set It decomposes according to a work procedure 1.~11. clause. (2) Judgment of use parts It classifies according to the discernment signs in a figure (c, m, s, p, etc.). (3) Abandonment of parts Each part article is discarded according to the specification abandonment method of each self-governing body. The parts of ◆ mark show that it shall be remove. No. Part Name Q'ty Material c • 1 Loader Panel ass'y 1 - c • 2 DVD mechanism ass'y 1 - c • 3 Cord Holder 5 - c • 4 Power P.W.B. ass'y 1 - c • 5 Ac inlet 1 - c • 6 Ferrite core & 3P VH wire 1 - c • 7 Power Trans 1 c • 8 FAN & FAN Power P.W.B. ass'y 1 - c • 9 Block of Video P.W.B. 1 - c • 10 M.Support P.W.B. 1 - c • 11 Block of Audio P.W.B. 1 - c • 12 Display P.W.B. ass'y 1 - c • 13 S.Knob sub ass'y 1 - c • 14 P.SW-1 P.W.B. ass'y 1 - c • 15 P.SW-2 P.W.B. ass'y 1 - c • 16 Power knob(SUB) ass'y 1 - c Wire ( the othes ) - - c (Complex) totals 2,481g No. Part Name Q'ty Material p • 1 PCB Support 2 PA6 p • 2 Heat sheet 1 Silicon p • 3 Foot ass'y 4 ABS+CR p • 4 Blind ass'y 1 PVC+PE p • 5 Inner panel 1 ABS p • 6 Part of inner panel 1 ABS p • 7 Lens 3 PMMA p • 8 Knob Guide 1 ABS p • 9 Rubber sheet 2 CR p the othes - - p (Plastics) totals 396g Total Weight 11,500g Recycle Weight 9,013g Abandonment Weight 2,481g The parts of ◆ mark show that it shall be remove at the disassembly and the abandonment Part Name Dimensions Ref.No. Unit No. Q'ty ◆ CE04W2G101MC(KMG) Φ16.0Xh40.0mm C-904 c • 3 Power P.W.B. ass'y (GU-3750-2) 1 ◆ CE04W0J562MC(KY)K35 Φ16.0X31.5mm C-916,C-917,C-919,C-922,C-955 c • 3 Power P.W.B. ass'y (GU-3750-2) 5 ◆ CE04W1E102MC J30(KY) Φ10.0X30.0hmm C-913,C-914 c • 3 Power P.W.B. ass'y (GU-3750-2) 2 ◆ CE04W1H332MC(RFS#5)-T Φ30.0Xh50.0hmm C-854,C-855 c • 3 A.Power P.W.B. ass'y (GU-3731-4) 2 ◆ CE04W1H471MC(RFS#A) Φ16.0Xh35.5mm C-814,C-815 c • 3 A.Power P.W.B. ass'y (GU-3731-4) 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DVD-3930/3930CI 1. Top cover & Inner cover 1.1. トップカバー (1) 背面側から s ･ 1 のねじ 2 本と天･側面から s ･ 2 の ねじ 9 本をはずします。 (2) 左右へ少し広げて m ･ 1：Top cover をはずします。 1.2. インナーカバー (1) 天面から s ･ 3 のねじ 4 本をはずします。 (2) m ･ 2：Inner cover をはずします。 1. Top cover & Inner cover 1.1. Top cover (1) Remove 2 screws (s • 1) on the rear side and 9 screws (s • 2) on the top and the both sides. (2) Widen the Top cover (m • 1) a little laterally, then detach it with sliding. 1.2. Inner cover (1) Remove 4 screws (s • 3) on the top side. (2) Detach Inner cover (m • 2). s • 2 s • 3 s • 1 m • 1: Top cover m • 2: Inner cover s • 2 s • 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DVD-3930/3930CI 2. DVD mechanism ass'y 2.1. ディスクトレイが電動でオープン出来る場合 (1) 電源を入れ｢ OPEN/CLOSE ｣ボタンを押して、ディスクト レイを開きます。 (2) c ･ 1：Loader panel ass'y を持ち上げてはずします。 (3) ディスクトレイを閉じます。 (4) 天面側から s ･ 4 のねじ 4 本と s ･ 5 のねじ 4 本をはずし ます。 側面側から s ･ 1 のねじ 2 本をはずし、m ･ 3：Mecha side cover と ｃ ･ 3：Cord Holder 2 個をはずます。 (5) メイン基板 (GU-3749-1) よりワイヤー [CX131] [CX211] をはずします。 オーディオ ( デジタル ) 基板 (GU-3751-1) からワイヤー [CY221] [CY331] をはずします (6) c ･ 2：DVD mechanism ass'y をはずします。 2.2. ディスクトレイが電動でオープン出来ない場合 (1) 左側面の孔よりドライバー等を挿し込みメカユニット のプレートギアを押してディスクトレイを開きます。 ( 矢印方向 ) (2) 2-1.(2) ～ (6) の作業に同じ。 2. DVD mechanism ass'y 2.1. When the Disc tray can be ejected electrically. (1) Switch on, and press [OPEN/CLOSE] button to open the Disc tray. (2) Detach the Loader panel ass'y (c • 1) by lifting. (3) Close the Disc tray. (4) Remove 4 screws (s • 4) and 4 screws (s • 5) on the top side. Remove 2 side screws (s • 1), then detach the Mecha side cover(m • 3). (5) Disconnect [CX131] [CX211] from the MAIN P.W.B. (GU- 3749-1). Disconect [CY221] [CY331] from the AUDIO (DIGITAL) P.W.B. (GU-3751-1). (6) Take the DVD mechanism ass'y (c • 2) off. 2.2. When the Disc tray cannot be ejected electrically. (1) Insert a driver into the left hole, and push the Plate Gear of the DVD Mechanism, to open the Disc Tray. (Arrow direction) (2) The same steps described on 2-1. (2)~(6). s • 1 c • 3: Cord Holder c • 2: DVD mechanism ass’y c • 1: Loader panel ass’y s • 4 s • 5 s • 4 m • 3: Mecha Side cover s • 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DVD-3930/3930CI 3. Front panel sub ass'y (1) a ･ 1：Front panel sub ass'y からのワイヤー [CX031] [CX025] をはずします。 (2) 天面から s ･ 3 のねじ 2 本と底面から s ･１のねじ 4 本を はずし、a ･ 1：Front panel sub ass'y をはずします。 3. Front panel sub ass'y (1) Disconnect the wire [CX031] [CX025] connecting From the Front panel sub ass'y (a • 1). (2) Remove 2 top screws (s • 3) and 4 bottom screws (s • 1), then detach the Front panel sub ass'y. s •3 s •1 a • 1: Front panel sub ass’y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DVD-3930/3930CI 4. Power P.W.B. ass'y etc. 4.1. 電源基板 ass'y (1) 背面から s ･ 6 のねじ 1 本と s ･ 7 のナット 2 本をはずし ます。 側面から ｓ ･ 8 のねじ 5 本と天面から ｓ ･ 4 のねじ 4 本 をはずします。 (2) ｍ ･ 4：Heat Plate (Al) と ｍ ･ 5：Heat Plate (Cu) をはず します。 (3) c ･ 4：電源基板 ass'y からワイヤー [CX024] [CX025] [CX026] [CX064] [CW071] をはずします。 (4) c ･ 4：電源基板 ass'y をはずします。 電源基板 ass'y の廃棄時は、 C904､C913､C914､C916､C917､C919､C922､C955電解 コンデンサを取外して WEEE 指令に基づく処理の事。 4.2. AC INLET (1) 背面から s ･ 3 のねじ 2 本をはずします。 (2) c・5：AC INLET から STO コネクターをはずします。 (3) c・5：AC INLET をはずします。 4.3. フェライトコア＆ 3P VH ワイヤー (1) シャーシ左側面のクランプバンド3箇所をカットします。 (2) c・6：フェライトコアと 3P VH ワイヤーをはずします。 4.4. 電源トランスとトランスベース (1) 天面から s・10 のねじ 2 本をはずします。 (2) c・7：Power Trans をはずします。 (3) 天面から s・9 のねじ 4 本をはずします。 (4) m・6：Trans Base をはずします。 4. Power P.W.B. ass'y etc. 4.1. Power P.W.B. ass'y (1) Remove 1 screw (s • 6) and 2 nut (s • 7) on the rear side. Remove 5 side screws (s • 8) and 4 top screws(s • 3). (2) Detach the Heat plate (Al) (m • 4) and Heat plate (Cu) (m • 5). (3) Disconnect the wire [CX024] [CX025] [CX026] [CW071] [CX064] connecting Power P.W.B. ass'y (c • 4). (4) Detach the Power P.W.B. ass'y (c • 4). Thing to do abandonment based on WEEE directive de- taching E-Capacitor of C904, C913, C914, C916, C917, C919, C922, C955 when abandoning Power P.W.B. ass'y(c • 4). 4.2. AC INLET (1) Remove 2 rear screws (s • 3). (2) Disconnect the STO terminals from AC inlet (c • 5). (3) Detach the AC inlet (c • 5). 4.3. Ferrite core & 3P VH wire (1) Cut 3 clamper on the left side of the chassis. (2) Detach the Ferrite core & 3P VH wire (c • 6). 4.4. Power Trans & Trans Base (1) Remove 2 top screw (s • 10). (2) Detach the Power Trans (c • 7). (3) Remove 4 top screw (s • 9). (4) Detach the Trans Base (m • 6). ◆ C913, 914:Φ10 x h30.0mm: 1000uF/25V ◆ C916, 917, 919, 922, 955: Φ12.5 x h35.5mm: 5600uF/6.3V c • 4: Power P.W.B. ass’y s • 9 ◆ C904: Φ16 x h40.0mm: 100uF/400V c • 5: AC inlet s • 3 s • 6 s • 7 c • 6: Ferrite core & 3P VH wire p: Clamper s • 8 s • 10 c • 7: Power trans m • 6: Trans Base m • 4: Heat Plate (Al) m • 5: Heat Plate (Cu) s • 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DVD-3930/3930CI 5. Block of Video P.W.B. 5.1. サポート板金 ass'y (1) 背面の s ･ 1 のねじ 2 本、側面の s ･ 1 のねじ 1 本、天面 から s ･ 1 のねじ 2 本と s ･ 11 のねじ 3 本をはずします。 (2) デジタルビデオ基板 ass'y (GU-3752) よりワイヤー [CY131] [CY041 (E2 のみ )] をはずします。 (3) 天面から s ･ 14 のねじをはずし、c ･ 3：コードホルダー をはずします。(E2 モデル ) (4) 2 個の p ･ 1：PCB サポートと天面から s ･ 1 のねじ 2 本を はずし、c ･ 8：FAN ＆ FAN 電源基板をはずします。 (5) m ･ 7：サポート板金 ass'y をはずします。 (6) p ･ 2：ヒートシートをはずします。 5.2. Video 基板ブロック (1) 背面側から s ･ 1 のねじ 6 本、s ･ 12 のねじ 5 本 ( 国内： 6、E2：7) と s ･ 13 のねじ 1 本と天面から s ･ 4 のねじ 4 本をはずします。 (2) c ･ 9 ビデオ基板ブロック (GU-3749-2/GU-3749-3/GU- 3750-6/GU-3750-7/GU-3750-8/GU-3752) をはずします。 (3) c ･ 10：Ｍ サポート基板をはずします。 5. Block of Video P.W.B. 5.1. Support bracket ass'y (1) Remove 2 rear screws (s • 1) and a side screw (s • 1) and 2 top screws (s • 1) and 3 top screws (s • 11). (2) Disconnect [CY131] [CY041 (only E2) ] from the D.Video P.W.B. ass'y (GU-3752). (3) Remove a top screw (s • 14), take the Cord Holder (p • 3) off. ( only E2 ) (4) Remove 2 PCB Support (p • 1) and 2 top screws (s • 1), take the FAN & FAN Power P.W.B. ass'y (c • 7) off. (5) Take the Support bracket ass'y (m • 7) off. (6) Take the Heat sheet (p • 2) off. 5.2. Block of Video P.W.B. (1) Remove 6 screws (s • 1) and 5 (JP: 6, E2: 7) screws (s • 12) and 1 screw (s • 13) on the rear side and 4 screws (s • 4) on the top side. (2) Take the Block of Video P.W.B. (GU-3749-2/GU-3749-3 /GU-3750-6/GU-3750-7/GU-3750-8/GU-3752) (c • 9) off. (3) Detach the M.Support P.W.B. (c • 10) off. m • 7: Support bracket ass’y s • 1 s • 1 c • 10: M. Support P.W.B. c • 9: Block of Video P.W.B. ass’y s • 4 s • 11 s • 13 s • 12 (only Japan) s • 1 s • 1 s • 12 s • 12 (only Europe) p • 2: Heat sheet c • 3: Cord Holder (only Europe) s • 14: (only Europe) c • 3: Cord Holder p • 1: PCB Support c • 8: FAN & FAN Power P.W.B. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DVD-3930/3930CI 6. Bloack of Audio P.W.B. 6.1. オーディオ基板ブロック (1) 背面から s ･ 1 のねじ 4 本と s ･ 12 のねじ 10 本と天面か ら s ･ 4 のねじ 8 本をはずします。 (2) c ･ 11：オーディオ基板ブロックからワイヤー[CY044] をは ずします。 (3) c ･ 11：オーディオ基板ブロックをはずします。 c ･ 11：オーディオ基板ブロックの廃棄時は、 C814 ､ C815 ､ C854 ､ C855 電解コンデンサを取外して WEEE 指令に基づく処理の事。 7. Foot ass'y (1) 底面の s ･ 4 のねじ 4 本をはずします。 (2) p ･ 3：Foot ass'y をはずします。 6. Block of Audio P.W.B. 6.1. Block of AUDIO P.W.B. (1) Remove 4 screws (s • 1) and 10 screws (s • 12) on the rear side and 8 screws (s • 4) on the top side. (2) Disconnect the wire [CY044] connecting Block of AUDIO P.W.B. (c • 11). (3) Detach the Block of AUDIO P.W.B. (c • 11). Thing to do abandonment based on WEEE directive de- taching E-Capacitor of C814, C815, C854, C855 when abandoning Block of AUDIO P.W.B. (c • 11). 7. Foot ass'y (1) Remove 4 bottom screws (s • 4). (2) Take the Foot ass'y (p • 3) off. s • 4 c • 11: Block of Audio P.W.B. s • 1 s • 12 ◆ C854, 855:Φ30.0 x h50.0mm: 3300uF/50V ◆ C814, 815:Φ16.0 x h35.5mm: 470uF/50V s • 4 m • 8: Chassis & Bottom cover & Rear panel p • 3: Foot ass’y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DVD-3930/3930CI 8. Parts on Front panel sub ass'y(a ･ 1) 8.1. ディスプレイ基板 (1) s ･ 6 のねじ 10 本をはずします。 (2) c ･ 12：ディスプレイ基板をはずします。 (3) ワイヤー [CY052] をはずします。 (4) c ･ 13：S. ノブ sub ass'y と m ･ 9 バネをはずします。 8.2. 電源 SW-1 基板 (1) s ･ 6 のねじ 2 本をはずします。 (2) c ･ 14：電源 SW-1 基板をはずします。 8.3. 電源 SW-2 基板 (1) s ･ 6 のねじ 4 本をはずします。 (2) c ･ 15：P.SW-2 基板をはずします。 (3) c ･ 16：電源 2 次側ノブをはずします。 8.4. ブラインド ass'y (1) s ･ 15 のねじ 2 本をはずします。 (2) m ･ 10：バネ 2 個と p ･ 3：ブラインド ass'y をはずしま す。 8.5. インナーパネル (1) 上下各 4 個のフックをはずします。 (2) p ･ 5：インナパネルをはずします。 8.6. フロントパネル (1) p ･ 6：インナーパネルカット部品、3 個の p ･ 7：レンズ、 p ･ 8：ノブガイド、2 個の p ･ 9：ラバーをマイナスドラ イバー等ではずします。 8. Parts on Front panel sub ass'y (a • 1) 8.1. Display P.W.B. ass'y (1) Remove 10 screws (s • 6). (2) Take the Display P.W.B. ass'y (c • 12) off. (3) Disconnect [CY052]. (4) Take the Spring (m • 9) and the S. knob sub ass'y (c • 13) off. 8.2. P. SW-1 P.W.B. ass'y (1) Remove 2 screws (s • 6). (2) Take the P. SW-1 P.W.B. ass'y (c • 14) off. 8.3. P. SW-2 P.W.B. ass'y (1) Remove 4 screws (s • 6). (2) Take the P. SW-2 P.W.B. ass'y (c • 15) off. (3) Take the Power knob (SUB) ass'y (c • 16) off. 8.4. Blind ass'y (1) Remove 2 screws (s • 14). (2) Take the 2 Springs (m • 10) and the Blind ass'y (p • 3) off. 8.5. Inner panel (1) Detach 4 top hooks and 4 rear hooks. (2) Take the Inner panel (p • 5) off. 8.6. Front panel (1) Detach the Part of Inner panel (p • 6), 3 Lens (p • 7), Knob Guide (p • 8) and 2 rubber sheets (p • 9) by minus (-) driv- er or etc. p • 9: Rubber sheet p • 8: Knob Guide m • 10: Front panel p • 6: Part of Inner panel c • 12: Display P.W.B. ass’y s • 6 s • 6 c • 15: P. SW-2 P.W.B. ass’y c • 14: P. SW-1 P.W.B. ass’y c • 16: Power knob (SUB) ass’y p • 5: Inner panel s • 15 c • 13: S. knob sub ass’y m • 9: Spring p • 7: Lens p • 4: Blind ass’y m • 9: Spring s • 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DVD-3930/3930CI DIAGNOSTICS OF OPTICAL PICKUP AND REPLACING TRAVERSE UNIT Make failure diagnostics of the Optical Pickup as follows. If the laser drive current (Iop) becomes more than 1.5 times of the initial value, the Optical Pickup should be replaced. The laser drive current initial value is checked by "Iop checked Method" of next page. In case of replacing the Pickup, change the whole part of the Traverse Unit. No mechanical adjustment is necessary after the replace- ment. 光ピックアップの故障診断とトラバース ユニットの交換 次の順序で故障診断を行ってください。 レーザー駆動電流 Iop 値が初期値の 1.5 倍以上になっている 場合は光ピックアップ交換の目安となります。 レーザー駆動電流初期値は、次ページ "Iop 値の確認方法 " で 確認できます。 ピックアップ交換の場合は、トラバースユニット単位での交 換となります。メカの調整は不要です。 レーザー駆動電流初期値 : Laser drive current initial value: FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ２ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ 1 ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ Disc no read, unsteady playback, etc. Laser drive current (Iop) check HF wave form check (Refer to WAVE FORMS) Traverse Unit replacing Laser current (Iop) memorizing after replacement Present value exceeds the ini- tial value by 1.5 times ディスクを読み込まない スムーズに再生しない､等 レーザー駆動電流 Iop 値の確認 ＨＦ 波形の確認 （WAVE FORMS 参照） トラバースユニット交換 交換後にレーザー電流値の記憶 現在値が初期値の 1.5 倍になっている CD: DVD: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DVD-3930/3930CI 1. Iop checked Method Select the laser ON/OFF (CD/DVD) mode of the test mode, and check the lop value of DVD laser or CD laser. (See page 19 for test mode.) 1.1. DVD laser current check (1) Press the SKIP REV or SKIP FWD button to display the laser current value, and then select T22. (2) Check the current value of Iop (nnnn). ( － : Off, DVD laser, Initial value: mm.mm [mA], Current value: nn.nn [mA]) 1.2. CD Laser current check (1) Press the SKIP REV or SKIP FWD button to display the laser current value, and then select T21. (2) Check the current value of Iop (nnnn). ( － : Off, CD laser, Initial value: mm.mm [mA], Current value: nn.nn [mA]) 2. Note for Handling the Laser Pick-Up The protection for the damage of laser diode. If you want to change the optical device unit from any other units, you must keep the following. (1) It should be done at the desk already took measures the static electricity in care of removing the OPU's (Optical device unit) connector cable. (2) Workers should be put on the "Earth Band". (3) It should be done to add the solder to the short land to prevent the broken Laser diode before removing the 24P FFC cable. (4) Don't touch OPU's connector parts carelessly. 3. Replacement of the Laser Pick-up (Traverse Unit) Check the Iop (Laser drive current) If the present Iop (current) value exceeds.+150% of the ini- tial value, replace the Traverse unit (Laser Pick-up) with a new one. FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ L a s e r O n O f f FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ２ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ 1 ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ 1. Iop 値の確認方法 レーザー駆動電流を確認する場合は、テストモードのレー ザー ON/OFF (CD/DVD) モードを選択して、DVD レーザー または CD レーザーの lop 値を確認します。 （詳細は 19 ページ、テストモード参照） 1.1. DVD レーザー電流確認 (1) レーザー電流値を表示する場合は、SKIP REV, SKIP FWD ボタンを押し、T22 を選択します。 (2) 現在の lop 値 (nnnn) を確認します。 ( －：消灯、ＤVD レーザー、初期値：mm.mm[mA], 現在値：nn.nn [mA]) 1.2. CD レーザー電流確認 (1) レーザー電流値を表示する場合は、SKIP REV, SKIP FWD ボタンを押し、T21 を選択します。 (2) 現在の lop 値 (nnnn) を確認します。 ( －：消灯、ＣＤ レーザー、初期値：mm.mm[mA], 現在値：nn.nn[mA]) 2. レーザーピックアップの取扱注意 レーザーダイオードの破壊防止。 光素子ユニットを交換するときは、以下を遵守してくださ い。 (1) 光素子ユニットの接続ケーブルをはずすときは、静電対 策を行ったデスク上で作業してください。 (2) 作業者は、リストストラップを使用してください。 (3) レーザーダイオードの破壊防止のため、24P FFC ケーブ ルをはずす前にランドを半田付けショートしてくださ い。 (4) 光素子ユニットのコネクタ部に触れないでください。 3. レーザーピックアップ ( トラバースユニッ ト ) の交換 Iop( レーザー駆動電流）をチェックします。 現在の Iop 値が初期値の 150％を越えている場合、トラバー スユニット（レーザーピックアップ）を交換してください。 FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ L a s e r O n O f f FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ２ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ 1 ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DVD-3930/3930CI 4. Rewriting the default value of the laser current To rewrite the default value of the laser current, press the PLAY button for at least 5 seconds while the CD or DVD la- ser current is displayed, then press the SKIP FWD or SKIP REV button to select T23. (For details, see "Iop checked Method" on page 13.) If the PLAY button is pressed while T23 is displayed, the current value is displayed at "mmmm" and stored in the EE- PROM. 5. Resetting the accumulated laser on time To clear the accumulated laser on time, press the PLAY but- ton while the accumulated laser on time is displayed (TB1, TB2 : For details, see "Test Mode" on page 19.) until "＊" ap- pears at the fourth position, then press the SKIP FWD or SKIP REV button to select TB3. If the PLAY button is pressed while TB3 is displayed, the accumulated laser on time of CD and DVD is cleared. When TB1 or TB2 is selected with the SKIP FWD or SKIP REV button, "nnnnnnn" is displayed as 0 so you can check. ( － : Off, Y：1: CD, 2: DVD, nnnnnnn: Hour [h]) FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ 3 ― m m m m ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ B Y ― ― ― n n n n n n n 4. レーザー電流初期値の書き換え方法 レーザー電流の初期値を書き換えるには、CD または DVD レーザー電流が表示されている時に PLAY ボタンを 5 秒以 上押し、次に SKIP FWD ボタンまたは SKIP REV ボタンを押 して T23 を選択します。（詳細は 13 ページ、Iop 値の確認 方法参照） T23 表示時に PLAY ボタンを押と、mmmm 部に現在値を表 示し、EEPROM に保存します。 5. レーザー ＯＮ 累積時間のリセット方法 レーザーＯＮ 累積時間をクリアするには、 レーザーＯＮ 累 積時間表示 (TB1,TB2) の時（詳細は 19 ページ、テストモー ド参照）に PLAY ボタンを 4 桁目に ' ＊ ' が表示されるまで 押し、SKIP REV ボタンまたは SKIP FWD ボタンを押し TB3 を表示させます。 TB3 表示時に PLAY ボタンを押すと、CD 及び DVD レーザー ＯＮ 累積時間をクリアします。 SKIP REV ボタン SKIP FWD ボタンで TB1 または TB2 を選択 すると、 nnnnnnn 部が 0 表示となり確認できます。 ( －：消灯、Y：1: CD, 2: DVD、nnnnnnn：時間 [h]) FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ 3 ― m m m m ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ B Y ― ― ― n n n n n n n www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DVD-3930/3930CI How to Replace Traverse Unit 1. Preparing for Replacement (1) Removing Clamp Base Damper Remove 4 pcs of 2.6mm machine screw (a), and detach the Clamp Base Damper upward. (2) Removing Clamp Base Remove 2 pcs of 3mm P-tight screw (b), and detach the Clamp Base upward. (3) Ejecting Loader Through the left rectangular hole of the Mechanism Unit, push the slider with a ruler or driver unit the Traverse portion lowers and the Loader comes out a little. (4) Removing Loader • Remove 2 pcs of 3mm P-tight screw (c) on the Loader Holder left. • Remove 2 pcs of 3mm P-tight screw (d) on the Loader Holder right, then pull up the Bearing Plate. • Fully pull out the Loader forward, and lift up to take it out. (5) Shorting Pickup To protect the Pickup from static electricity, short-circuit 1 posi- tions as shown in figure. (6) Removing Main P.W.B. Ass’y Remove 3 pcs of 3mm P-tight screw (e), and detach the Main P.W.B. Ass’y downward. 2. Replacing Traverse Unit (1) Removing Wires • CX241: 24P-FFC for Pickup • CX151: 15P-FFC for Spindle • CX051: 5P-PH wire for PU Side (2) Removing Traverse Unit Remove 4 pcs of special screw (f) and dampers, then take out the Traverse Unit upward. (3) Mounting Traverse Unit Mount the Traverse Unit following the reverse order. (a) (b) (b) (c) (d) (4) (3) (e) Clamp Base Damper Clamp Base Bearing Plate Loader Holder Main P.W.B. Ass’y Solder to short-circuit Short-circuit with solder (f) Traverse Unit Damper トラバースユニットの交換方法 1. トラバースユニット交換準備 (1) クランプベースダンパーのはずしかた 2.6mm マシンネジ (a) 4 本をずして、クランプベースダンパー を上へはずします。 (2) クランプベースのはずしかた 3mmP タイトネジ (b) 2 本をはずして、クランプベースを上へ はずします。 (3) ローダーを開く メカユニットの左側角孔より、スライダーを定規やドライバー でトラバース部が下がってローダーが少し開くまで押します。 (4) ローダーのはずしかた ･ローダー左のホルダー部より 3mmP タイトネジ (c) 2 本をは ずします。 ･ローダー右側より 3mmP タイトネジ (d) 2 本をはずし、ベア リングプレートを上へはずします。 ･ローダーを前面へ引き出し、止まった所で上へはずします。 (5) ピックアップのショート トラバースユニットのピックアップの静電保護のため、1 箇所 ショートします。 （ショート箇所は、右図参照） (6) メイン基板 ASS'Y のはずしかた 3mmP タイトネジ (e) 3 本をはずし、基板を下へはずします。 2. トラバースユニットの交換 (1) トラバースユニットのワイヤーをはずす ･CX241：ピック用 24P-FFC ･CX151：スピンドル用 15P-FFC ･CX051：PU スライド用 5P-PH ワイヤー (2) トラバースユニットをはずす 特殊ネジ (f) 4 本とダンパー4 個をはずし、トラバースユニット を上にはずします。 (3) トラバースユニットの取り付け 逆の手順で、トラバースユニットを取り付けます。 (a) (b) (b) (c) (d) (4) (3) (e) クランプベースダンパー クランプベース ベアリングプレート ローダー ホルダー メイン基板 Ass'y 半田ショート部 半田ショート拡大図 (f) トラバースユニット ダンパー w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DVD-3930/3930CI 3. Installing Loader (1) Inserting Loader Set and push the Loader to the arrow direction until it stops. When installing the Loader, move Plate Gear to right before- hand so as that the boss of the Plate Gear fits in the backside groove of the Loader. (See figure right) (2) Fixing Loader Fix the Loader with each 2 screws (c) and (d). 4. Assembly (1) (1) Assembling Main P.W.B. Ass’y Fix the Main P.W.B. Ass’y with 3 pcs of 3mm P-tight screw (e). (2) Removing Pickup-short Solder After connecting 24P-FFC of the Pickup with P.W.B., remove solder from 1 shorted positions. (3) Temporary Positioning Clamp Base To protect your eyes from laser light, put the Clamp Base tem- porarily. (4) Positioning up Traverse Unit Connect the following wires of the Mechanism Unit, and operate it. • CY132: 13P-PH wire for power • CX212: 21P-FFC wire from Display P.W.B. Turn on the power to the unit, and press “OPEN/CLOSE” button to close the Loader. The Traverse Unit rises up. (display: 0h00m00s) Pull out Loader forward, and life up to take it out. (d) (c) Plate Gear Groove Boss Bearing Plate Loader (e) (e) (e) Clamp Base Main P.W.B. Ass’y 3. ローダーの組み立て (1) ローダーの挿入 ローダーを矢印の方向へ止まるまで押しこみます。 ローダーを組み込み時、プレートギアのボスがトレイ裏面の 溝に合うようにプレートギアを右側へ寄せておきます。 （右図参照） (2) ローダーの取り付け (c)、(d) のネジ各 2 本を取り付けます。 4. 組み立て（1） (1) メイン基板 ASS'Y の取り付け 3mm P タイトネジ (e) 3 本で基板を取り付けます。 (2) ピックアップのショートをはずす ピックアップの 24PFFC を基板へ接続後、1 箇所のショートを はずします。 (3) クランプベースの仮置き レーザーから目を保護するため、クランプベースを仮置きし ます。 (4) トラバースユニットをアップする メカユニットの下記ワイヤーを接続し、メカを動作させます。 ･CY132：電源用の 13P-PH ワイヤー接続 ･CX212：ディスプレイ基板からの 21P-FFC ワイヤー接続 セットの電源を入れ、ローダー開閉ボタンで、CLOSE させます。 トラバースユニットがアップします。 (0h00m00s：表示） ローダーを前後に引き出し、止まったところで上へはずしま す。 (d) (c) プレートギア 溝部 ボス ベアリングプレート ローダー (e) (e) (e) クランプベース メイン基板 Ass'y w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DVD-3930/3930CI 5. Assembly (2) (1) Attaching Tape to Clamp Base Damper Attach acetate cloth tape to 3 projections of the Clamp Base Damper backside. (2) Assembling Clamp Base Set the Clamp Base Damper with positioning for clamper by 3 projections. Fix the Clamp Base with 6 pcs of 3mm -tight screw (b). 6. Assembly (3) (1) Detaching Tape from Clamp Base Damper Detach acetate cloth tape from 3 projections of the Clamp Base Damper backside. (2) Assembling Clamp Base Damper Set the Clamp Base Damper to the Clamp Base contrary to the direction set in step above. Fix the Clamp Base Damper with 4 pcs of 3mm S-tight screw (a). (b) Acetate Cloth Tape Clamp Base Damper Clamp Base Damper Clamp Base (a) Clamp Base Damper 5. 組み立て（2） (1) クランプベースダンパーへのアセクロ貼り付け クランプベースダンパー裏面の突起 3 箇所へアセテートクロ ステープを貼り付けます。 (2) クランプベースの取り付け クランプベースダンパーを挿入し、3 箇所の突起でクランパー の位置決めをおこないます。3mmP タイトネジ (b) 6 本で、ク ランプベースを取り付けます。 6. 組み立て（3） (1) クランプベースダンパーからアセクロをはがす クランプベースダンパー裏面の突起 3 箇所からアセテートク ロステープをはがします。 (2) クランプダンパーベースの取り付け クランプベースダンパーを、クランプベースに先程と反対向 きに挿入します。3mmS タイトネジ (a) 4 本で、クランプベー スダンパーを取り付けます。 (b) アセテートクロステープ クランプベースダンパー クランプベースダンパー クランプベース (a) クランプベースダンパー w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DVD-3930/3930CI SERVICE MODE 1. Aging Mode (1) preparation (a) Equipment used: Any one of DVD Karaoke Disc (containing more than 10 titles). (b) Unit setting : No spec other than the following procedure (Aging mode). At the tray open status, press the “POWER” button to turn on the power while pressing the “PLAY” and “OPEN/CLOSE” buttons for DVD operation simultaneously. mark on the FL lights, and the unit is set to the heat run mode. (2) procedure (a) According the above, set to the aging mode. (b) Set a DVD Karaoke disc to the tray and press the “PLAY” button once. mark on the FL blinks, and aging operation (after playback title-1 and title-10 of the disc, the tray open/close is made automatically, then playback the title-1 again) starts. This aging operation continues automatically until it is stopped or it stops caused by an error. In case of some error in DVD, the following error messages are displayed on the FL. 2. Initial Setting Mode (1) Preparation (a) Equipment used: None (b) Unit setting: No spec other than the following procedure. (2) Procedure (a) Initialize the DVD player when µcom, peripheral parts of µcom, or Main P.W.B. has been replaced in servicing. (b) Carry out the following to restore factory setting mode. At the player stop condition, press 2 buttons for DVD operation (“PLAY” and “ SKIP FWD”) until “INITIALIZE” appears and disappears in the FL. (“Initialized” appears and disappears on the TV screen.) (c) All user setting will be lost and its factory setting will be restored when this initialization is made. Be sure to memorize your setting for restoring again after the initialization. 3. µcom Firm Check Mode (1) Preparation (a) Equipment used: None (b) Unit setting: No spec other than the following procedure. (2) Procedure (a) Press the “POWER” button to turn on the power while pressing the “PLAY” and “OPEN/CLOSE” buttons for DVD operation si- multaneously. (b) DVD µcom and other µcom firm check mode. This mode is for displaying the status of each µcom employed. ・Push remote contraller “3265”. ・DVD µcom firm: Press the “MENU” button. ・Each time the “MENU” button on the remote control unit is pressed, µcom firm is displayed one after another. Ex.: [BE 8284, MAKE DAY 522, DSP 8250, IP 060621] No. Error contents FL display 1 Tray Error ERROR 01 2 Bad Disc ERROR 02 3 Search Error ERROR 03 4 Read Error ERROR 04 サービスモードについて 1. エージングモード (1) 準備 (a) 使用機器：DVD カラオケディスク（10 タイトル以上の物）。 (b) 本体設定：下記設定以外規定無。 （エージングモード） トレイを開けた状態で DVD ユニットの「PLAY ボタン」+「OPEN/CLOSE ボタン」を同時押ししながら「電源ボタン」を押 してセットの電源を入れると、FL 管の マークが点灯し、ヒートランモードに設定される。 (2) 手順 (a) 上記手順でエージングモードに設定する。 (b) トレイに DVD カラオケディスクを入れ、「PLAY ボタン」を 1 回押して、FL 管の マークが点滅になると、「ディスクの タイトル 1 とタイトル 10 を再生した後、トレイを自動で開 / 閉し、再度タイトル 1 の再生を行う。」エージング動作になり ます。停止させるか、エラーにて停止するまでこの動作を自動で繰り返します。DVD 部にエラーが発生した場合は、FL 管に 下表のエラーが表示されます。 2. 初期設定モード (1) 準備 (a) 使用機器：無 (b) 本体設定：下記手順以外規定無。 (2) 手順 (a) サービスにて、マイコンやマイコン周辺部分やメイン基板を交換した場合は、ＤＶＤ プレーヤーの初期化を行ってくださ い。 (b) セットの初期化を下記の手順で行い、工場出荷モードに設定する。 セットが停止状態にて、ＤＶＤ 操作部の「PLAY ボタン」+「 (SKIP FWD) ボタン」の同時押しを ＦＬ 管に "INITIALIZE" が表示され消えるまで押します。（ＴＶ 画面には”初期化しました”が表示され消えます。） (c) 初期化を行うとお客様が設定した内容が工場出荷状態に戻りますので、あらかじめ設定内容を控えておき初期化後に再設定 してください。 3. マイコンファームチェックモード (1) 準備 (a) 使用機器：無 (b) 本体設定：下記手順以外規定無。 (2) 手順 (a) ＤＶＤ 操作部の「PLAY ボタン」と「OPEN/CLOSE ボタン」を同時押ししながらセットの「電源ボタン」を押し電源を入れ ます。 (b) ＤＶＤ マイコン及びその他マイコンのファーム確認モード。 搭載されている各マイコンのファーム状態を表示します。 ・数字キーで「3265」と入力します。 ・ＤＶＤ マイコンのファーム：リモコンの「メニューボタン」を押します。 ・リモコンのメニューボタンを押すたびにマイコンファームを次々と表示します。 表示例：〔BE 8284 ､ MAKE DAY 522 ､ DSP 8250 ､ IP 060621〕 No. エラー内容 FL 管表示 1 トレイエラー ERROR 01 2 不良ディスク ERROR 02 3 サーチエラー ERROR 03 4 リードエラー ERROR 04 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DVD-3930/3930CI 4. Test mode (1) Entering the test mode To enter the test mode, press the STOP and SKIP FWD buttons simultaneously while in the heat run mode. Basically, enter the test mode while in the stop mode after the disc is loaded. (The heat run mode is entered by pressing the OPEN/CLOSE and PLAY buttons simultaneously to turn on the AC power. When the heat run mode is set, the PLAY and PAUSE indicators light.) Press OPEN/CLOSE + PLAY buttons simultaneously Power turns on Press STOP + SKIP FWD buttons simultaneously PLAY button Test mode Aging mode FL tube display when test mode entered (2) Selecting the mode The following modes are available. (1) FL tube lighting mode : T0 (2) Tray open/close mode : T1 (3) Laser on/off (CD/DVD) mode : T2 (4) Servo adjustment value display mode : T3 (5) Servo properties measurement mode : TA (6) Trace mode (error rate display) : T7 (7) Accumulated laser on time : TB (8) Color bar output mode : TC (9) Monitor terminal setting mode : TD (10) SACD watermark signal quality checking mode : TE (11) Digital video circuitry flash ROM writing mode : TF ① When the SKIP FWD button is pressed after entering the test mode, the display switches in the order: T0, T1, T2, T3, T7, TA, TB, TC, TD, TE, TF, T0 … FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T E S T M O D E FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ０ F L D i s p l a y FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ １ O p e n / C l o s e FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ L a s e r O n O f f FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ３ S e r v o A d j FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ T r a c e M o d e FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ａ F o c ｕ ｓ T r a c k 4. テストモード (1) テストモードの設定 テストモードの設定はヒートランモード時に STOP ボタンと SKIP FWD ボタンを同時押しで行う。 基本的にディスクローディング後の停止状態でテストモードに設定する。 ( ヒートランモードの設定は OPEN/CLOSE ボタンと PLAY ボタンを同時押ししながらセットの電源を入れる。 ヒートランモードになると PLAY インジケータと PAUSE インジケータが点灯する。） OPEN/CLOSE ＋ PLAY ボタンの同時押し 電源 ON STOP ＋ SKIP FWD ボタンの同時押し PLAY ボタン テストモード エージングモード テストモード設定時の FL 管表示 (2) モードの選択 モードには、次のモードがある。 (1) FL 管点灯モード : T0 (2) トレイ OPEN/CLOSE モード : T1 (3) レーザー ON/OFF(CD/DVD) モード : T2 (4) サーボ調整値表示モード : T3 (5) サーボ特性測定モード : TA (6) トレースモード ( エラーレート表示 ) : T7 (7) レーザー ＯＮ 累積時間 : TB (8) カラーバー出力モード : TC (9) モニタ端子設定モード : TD (10) SACD ウォーターマーク信号品質確認モード : TE (11) DIGITAL VIDEO 回路ﾌﾗｯｼｭ ROM 書込みモード : TF ①テストモード中に SKIP FWD ボタンを押すと、T0,T1,T2,T3,T7,TA,TB,TC,TD,TE,TF,T0…の順に表示される。 FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 T E S T M O D E FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ０ F L D i s p l a y FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ １ O p e n / C l o s e FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ L a s e r O n O f f FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ３ S e r v o A d j FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ T r a c e M o d e FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ａ F o c ｕ ｓ T r a c k w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DVD-3930/3930CI ② When the SKIP REV button is pressed, the display switches in the opposite order from ① above, starting from the current position (for example, if currently at TA, it switches as follows: T7, T3, T2, T1, T0, TF, TE, TD, TC, TB …). ¦ ¦ ¦ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｂ L a s e r O n T i m FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｃ C o l o r B a r FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ D M o n i t o r FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｅ S A C D FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ F R S 2 3 2 C S E L FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ T r a c e M o d e FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ３ S e r v o A d j FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ L a s e r O n O f f ② SKIP REV ボタンを押すと現在表示されている点から①の逆順 ( 現在表示されている点が TA であれば、 T7,T3,T2,T1,T0,TF,TE,TD,TC,TB…の順 ) に表示される。 ¦ ¦ ¦ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｂ L a s e r O n T i m FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｃ C o l o r B a r FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ D M o n i t o r FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｅ S A C D FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ F R S 2 3 2 C S E L FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ T r a c e M o d e FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ３ S e r v o A d j FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ L a s e r O n O f f w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DVD-3930/3930CI (3) Setting the mode With the mode selected, press the PLAY button to set that mode. ① In the FL tube lighting mode, the FL tube display turns all on and all off. (When "T0" is displayed, the display switches between all on, all off and "T0" repeatedly each time the PLAY button is pressed.) ( － : Off) ② In the tray open/close mode, tray opening and closing is executed and the number of times the tray has opened and closed is displayed. ( － : Off, n : No. times [DEC]) ③ In the laser on/off (CD/DVD) mode, laser on/off control is executed. Press the SKIP REV or SKIP FWD button to display the laser current (T21, T22, T21..). For the CD laser ( － : Off, CD laser, Stored data: mm.mm [mA], Current value: nn.nn [mA]) For the DVD laser ( － : Off, DVD laser, Stored data: mm.mm [mA], Current value: nn.nn [mA]) ④ In the servo adjustment value display mode (XXX : Selection mode, n : Adjustment value (HEX)) ⑤ In the servo properties measurement mode (Y : 1:Focus, 2:Tracking) ⑥ In the trace mode (error rate display), select the trace of the innermost circumference of 1 layer. (F : When address and error rate not set, F is displayed.) FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ０ ― ― ― ― ― ― ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ １ ― ― ― ― ― ｎ ｎ ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ １ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ２ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ X X X － － － － － ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ A Y ― ― ― ― ― ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ １ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ (3) モードの確定 モードを選択してある状態で PLAY ボタンを押すとモードを確定する。 ① FL 管点灯モードの場合、FL 管の全点灯、全消灯する。(T0 表示時に、PLAY ボタンを押すごとに全点灯、全消灯、T0 表示を繰 り返す。) ( －：消灯 ) ②トレイ OPEN/CLOSE モードの場合、トレイの オープン　クローズを実行し、オープンクローズした回数を表示する。 ( －：消灯、n：回数 [DEC]) ③レーザー ON/OFF(CD/DVD) モードの場合、レーザーの ON/OFF 制御を実行し、レーザー電流を表示する場合は、SKIP REV, SKIP FWD ボタンを押す (T21,T22,T21..)。 CD レーザーの場合 ( －：消灯、ＣＤ レーザー、保存ﾃﾞｰﾀ：mm.mm[mA], 現在値：nn.nn[mA]) DVD レーザーの場合 ( －：消灯、ＤVD レーザー、保存ﾃﾞｰﾀ：mm.mm[mA], 現在値：nn.nn [mA]) ④サーボ調整値表示モード (ＸＸＸ: 選択モード、n: 調整値 (HEX)) ⑤サーボ特性測定モード (Y：１ : フォーカス、２ : トラッキング ) ⑥トレースモード ( エラーレート表示 ) の場合は、１層内周のトレースを選択する。 (Ｆ: アドレス及びエラーレートは未確定時、Ｆ を表示する。) FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ０ ― ― ― ― ― ― ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ １ ― ― ― ― ― ｎ ｎ ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ １ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ２ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ X X X － － － － － ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ A Y ― ― ― ― ― ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ １ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DVD-3930/3930CI ⑦ Displaying the accumulated laser on time (stored in the EEPROM) (Y : 1:CD, 2:DVD, nnnn.n: Time [h]) ⑧ Setting the color bar output (using the video encoder function) (Y : 1: Test pattern off : OFF 2: Test pattern off : ON 3: Reserved (same as Y = 1) ⑨ Setting the test monitor terminal setting (Y : 1: RF signal monitor setting 2: Digital signal monitor setting (MONI 0 and 1) 3: Digital signal monitor setting (MONI 2 and 3) 4: Digital signal monitor setting (MONI 4 and 5) 5: Digital signal monitor setting (MONI 6 and 7) 6: Remaining buffer capacity output setting, ZZ : When Y = 1: 01 to 06, 09, 0A When Y = 2: 06 to 08, 0A, 0B, 0C When Y = 3: 06 to 08, 0A, 0B, 0C When Y = 4: 07 to 0F When Y = 5: 07 to 0F) ⑩ Checking the SACD watermark signal quality (Y : 1: PSP amplitude (Addr = 51h readout) Hexadecimal, displayed as 2-byte data. 2: Monitor setting (Addr = 38h, Data = 06h setting) MNIT2 terminal : Sector Detect Error MNIT1 terminal : PDM Detect MNIT0 terminal : PSP-DATA OK) ⑪ Setting the digital video flash ROM writing mode (switching to the 232C_UART line) (Y : 1: Enable digital video flash ROM writing (232C_SEL : H) 2: Disable digital video flash ROM writing (232C_SEL : L) FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ B Ｙ ― ― ― ｎ ｎ ｎ ｎ ｎ 。 ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｃ Ｙ ― ― ― ― ― ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｄ Ｙ ― Ｚ Ｚ ― ― ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｅ Ｙ ― ― ― ― ― ― ｘ ｘ ｘ ｘ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｆ Ｙ ― ― ― ― ― ― ― ― ― ― ⑦レーザー ＯＮ 累積時間 (EEPROM に記憶 ) を表示する。 (Ｙ：1: CD, 2: DVD、nnnn.n : 時間 [h]) ⑧カラーバー出力設定する。(VIDEO ENCODER 機能を使用 ) (Ｙ：1: Test Pattern : OFF 2: Test Pattern : ON 3: Reserved (Y=1 と同じ ) ⑨モニタ端子設定する。 (Ｙ：1:ＲＦ 信号モニタ設定 , 2:Digital 信号モニタ設定 (MONI0,1), 3:Digital 信号モニタ設定 (MONI2,3), 4:Digital 信号モニタ設定 (MONI4,5), 5:Digital 信号モニタ設定 (MONI6,7), 6: バッファ残容量出力設定 , ＺＺ： Y=1 の時 01 ～ 06,09,0A Y=2 の時 06 ～ 08,0A,0B,0C Y=3 の時 06 ～ 08,0A,0B,0C Y=4 の時 07 ～ 0F Y=5 の時 07 ～ 0F) ⑩ SACD ウォーターマーク信号の品質を確認する。 (Ｙ：1:PSP Amplitude(Addr=51h の読み出し ) 16 進、2 ﾊﾞｲﾄﾃﾞｰﾀとして表示されます。 2: モニタ設定 (Addr=38h,Data=06h 設定 ) MNIT2 端子：Sector Detect Error MNIT1 端子：PDM Detect MNIT0 端子：PSP-DATA OK) ⑪ DIGITAL VIDEO のﾌﾗｯｼｭﾛﾑを書き込みモードに設定する。(232C_UART ﾗｲﾝを切替える ) (Ｙ：1：DIGITAL VIDEO ﾌﾗｯｼｭ書込み可能（232C_SEL：H） 2：DIGITAL VIDEO ﾌﾗｯｼｭ書込み不可（232C_SEL：L） FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ B Ｙ ― ― ― ｎ ｎ ｎ ｎ ｎ 。 ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｃ Ｙ ― ― ― ― ― ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｄ Ｙ ― Ｚ Ｚ ― ― ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｅ Ｙ ― ― ― ― ― ― ｘ ｘ ｘ ｘ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｆ Ｙ ― ― ― ― ― ― ― ― ― ― w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DVD-3930/3930CI (4) Change within the mode Changes within modes are made by pressing the SKIP REV and SKIP FWD buttons while the mode is set. ① In the laser on/off mode (X : Selection mode [1, 2, 4], Y : CD or DVD, Stored data: mm.mm [mA]) ② In the laser on/off (CD/DVD) mode, laser on/off control is executed and the laser current is displayed. For the CD laser ( － : Off, CD laser, Stored data: mm.mm [mA], Current value: nn.nn [mA]) For the DVD laser ( － : Off, DVD laser, mm.mm [mA], nn.nn [mA]) Laser off ＊ The laser turns off when the laser on/off mode is quit. ③ In the servo adjustment value display mode (See "Table 1 - Servo adjustment value display mode details") (XXX : Selection mode, n: Adjustment value (HEX)) ④ In the servo properties measurement mode (Y : 1: Focus properties, 2: Tracking properties) Monitor terminal settings: MONI7 : DIROK MONI6 : DIRCT MONI5 : STKC MONI4 : TKC MONI3 to 0 : BSDA ⑤ In the trace mode (error rate display) (See "Table 3 - Trace mode details") (YY : Selection mode [71 to 94], F: When address and error rate not set, F is displayed.) FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ 2 Ｘ ― Ｙ Ｙ Ｙ ― ― ｍ ｍ ｍ ｍ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ １ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ２ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ４ ― ― ― ― ― ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｘ Ｘ Ｘ ― ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ A Y ― ― ― ― ― ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｙ Ｙ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ (4) モード内での変更 モードを確定してある状態で SKIP REV ボタン又は SKIP FWD ボタンを押すとモード内での変更を行う。 ①レーザー ON/OFF モードの場合 (Ｘ: 選択モード [1,2,4]、Ｙ：CD or DVD、保存ﾃﾞｰﾀ：mm.mm[mA],) ②レーザー ON/OFF(CD/DVD) モードの場合、レーザーの ON/OFF 制御を実行し、レーザー電流を表示する。 CD レーザーの場合 ( －：消灯、ＣＤ レーザー、保存ﾃﾞｰﾀ：mm.mm[mA], 現在値：nn.nn[mA]) DVD レーザーの場合 ( －：消灯、ＤＶＤ レーザー、mm.mm[mA], nn.nn[mA]) ﾚｰｻﾞｰ OFF ＊ﾚｰｻﾞｰ ON/OFF ﾓｰﾄﾞを抜ける場合は、ﾚｰｻﾞｰを OFF する。 ③サーボ調整値表示モードの場合　（表 1 サーボ調整値表示モード詳細 参照） (ＸＸＸ: 選択モード、n: 調整値 (HEX)) ④サーボ特性測定モード （Y：１ : フォーカス特性、２ : トラッキング特性） モニタ端子の設定は、 MONI7：DIROK MONI6：DIRCT MONI5：STKC MONI4：TKC MONI3 ～ 0：BSDA ⑤トレースモード ( エラーレート表示 ) の場合（ 表 3 トレースモード詳細 参照） (ＹＹ: 選択モード [71 ～ 94]、Ｆ: アドレス及びエラーレートは未確定時、Ｆ を表示する。) FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ 2 Ｘ ― Ｙ Ｙ Ｙ ― ― ｍ ｍ ｍ ｍ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ １ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ２ ― ｍ ｍ ｍ ｍ ― ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ２ ４ ― ― ― ― ― ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｘ Ｘ Ｘ ― ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ A Y ― ― ― ― ― ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｙ Ｙ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DVD-3930/3930CI ⑥ In the accumulated laser on time display (Y : 1: CD, 2: DVD, nnnnn.n: Time [h]) To check, select TB1 or TB2 using the SKIP REV and SKIP FWD buttons. ⑦ In the color bar output setting (using the video encoder function) (Y : 1: Test pattern off 2: Test pattern on 3: Reserved (same as Y = 1) (1) When Y = 1 (test pattern off) ① Normal operation performed. SD Mode Register 3 (Address 0x44) bit 6 set to 0. (2) When Y = 2 (test pattern on) ① The video encoder test pattern is output, regardless of whether or not there is a disc. SD Mode Register 3 (Address 0x44) bit 6 set to 1. ② Output setting: Component/Interlace/480i output. (3) Y = 3 (Reserved) : Same as when Y = 1. ⑧ In the monitor terminal setting (Y : 1: RF signal monitor setting (ANAMONI 1 and 2) 2: Digital signal monitor setting (MONI 0 and 1) 3: Digital signal monitor setting (MONI 2 and 3) 4: Digital signal monitor setting (MONI 4 and5) 5: Digital signal monitor setting (MONI 6 and 7) 6: Remaining buffer capacity output setting (DRV2) ZZ : When Y = 1: 01 to 06, 09, 0A When Y = 2: 06 to 08, 0A, 0B, 0C When Y = 3: 06 to 08, 0A, 0B, 0C When Y = 4: 07 to 0F When Y = 5: 07 to 0F) 4th place: During Y selection, " ＊ " displayed at 4th place. 7th place: During ZZ selection, " ＊ " displayed at 7th place. When both Y and ZZ are set, " ＊ " displayed at 4th and 7th places. After selecting Y within the mode using the SKIP REV and SKIP FWD buttons, press the PLAY button once to set. Use the SKIP REV and SKIP FWD buttons to select ZZ within the mode. (When set at Y = 1, press the SKIP FWD button to switch in the order 01, 02, 03, 04, 05, 06, 09, 0A, 0C, 01 …, then press the PLAY button once to set. If the SKIP REV and SKIP FWD buttons are pressed after setting, switches to Y within the mode. When Y = 1 is selected, the previously selected ZZ value is displayed.) The set values are not cleared even when the STOP button is pressed or when the STOP and SKIP FWD buttons are pressed simultaneously. Remaining buffer capacity: PWM output of the remaining data capacity to the DRV2 terminal. (Notes: The remaining buffer capacity is the remaining data capacity, not the remaining free space. Also, the DRV2 terminal is also used for tray driving, so when outputting the remaining buffer capacity, be careful not to drive the tray.) When Y = 2 or 3, if ZZ = 0C is selected, Dfesv (FE stored value) is output to the MONI 1 terminal, Tfesv (TE stored value) is output to the MONI 2 terminal and Dassv (AS stored value) is output to the MONI 3 terminal. FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ B Ｙ ― ― ― ｎ ｎ ｎ ｎ ｎ 。 ｎ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｃ Ｙ ― ― ― ― ― ― ― ― ― ― FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｄ Ｙ ＊ Ｚ Ｚ ＊ ― ― ― ― ― ― ⑥レーザー ＯＮ 累積時間を表示場合 (Ｙ：1: CD, 2: DVD、nnnn.n: 時間 [h]) 確認は、SKIP REV, SKIP FWD で TB1 又は TB2 を選択する。 ⑦カラーバー出力設定する場合 (VIDEO ENCODER 機能を使用 ) (Ｙ：1: Test Pattern : OFF 2: Test Pattern : ON 3: Reserved (Y=1 と同じ ) (1)Y = 1（Test Pattern : OFF）の時 ①通常動作を行う。SD Mode Register 3(Address 0x44) の bit6 を 0 に設定する。 (2)Y = 2（Test Pattern : ON）の時 ①ディスクの有無に関わらず、Video Encoder の Test Pattern を出力する。 SD Mode Register 3(Address 0x44) の bit6 を 1 に設定する。 ②出力設定は Component/Interlace/480i 出力とする。 (3)Y = 3（Reserved）：Y = 1 と同じとする。 ⑧モニタ端子設定する場合 Ｙ：1:ＲＦ 信号モニタ設定 (ANAMONI1,2) 2:Digital 信号モニタ設定 (MONI0,1), 3:Digital 信号モニタ設定 (MONI2,3), 4:Digital 信号モニタ設定 (MONI4,5), 5:Digital 信号モニタ設定 (MONI6,7), 6: バッファ残容量の出力設定 (DRV2) ＺＺ： Y=1 の時 01 ～ 06,09,0A Y=2 の時 06 ～ 08,0A,0B,0C Y=3 の時 06 ～ 08,0A,0B,0C Y=4 の時 07 ～ 0F Y=5 の時 07 ～ 0F 4 桁目：Y 選択中の場合、4 桁目に " ＊ " を表示する。 7 桁目：ZZ 選択中の場合、7 桁目に " ＊ " を表示する。 Y と ZZ の両方確定時は、4 桁目と 7 桁目に " ＊ " を表示する。 モード内の Y を SKIP REV, SKIP FWD ボタンで選択した後、PLAY ボタンを１回押すことで、モード内の ZZ を SKIP REV, SKIP FWD ボタンで選択する。 (Y=1 で確定した場合、SKIP FWD ボタンで 01,02,03,04,05,06,09,0A,0C,01…の順で切換わり PLAY ボタンを１回押すことで確 定する。確定後 SKIP REV,SKIP FWD ボタンを押すとモード内の Y に切換わる。Y=1 を選択した場合、前回設定した ＺＺ 値が 表示される。) STOP ボタン押し、及び STOP ボタンと SKIP FWD ボタンの同時押しした場合でも、設定値はクリアされない。 バッファ残容量の出力は、DRV2 端子にデータの残容量を PWM 出力する。 ( 注：バッファ残容量は、データの残容量。空きサイズではないので注意。また、DRV2 端子は、TRAY 駆動用にも使用して いる為、バッファ残容量を出力する場合は、TRAY が駆動しないよう注意すること。) Y=2 または 3 の時に ZZ=0C が選択された場合は、MONI1 端子に Dfesv(FE 保存値 )、MONI2 端子に Dtesv(TE 保存値 )、 MONI3 端子に Dassv(AS 保存値 ) を出力する。 FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ B Ｙ ― ― ― ｎ ｎ ｎ ｎ ｎ 。 ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｃ Ｙ ― ― ― ― ― ― ― ― ― ― FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｄ Ｙ ＊ Ｚ Ｚ ＊ ― ― ― ― ― ― w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DVD-3930/3930CI (5) Execution of trace mode (error rate display) (See "Table 3 - Trace mode details") Trace will be performed if the PLAY button is pushed after choosing operation. (YY : selection mode [71 to 94], m : address [PBA][HEX], l : error rate [COUNT/SEC] [HEX]) Note: Renewal of data is carried out for every CD:450(x6),188(x2.5) frame and DVD:85ECC block. The mode chosen when selection mode was changed into the trace execution and the PLAY button was pushed is performed from the beginning. When the PLAY button is pushed without changing selection mode, the mode under selection is performed from the beginning. (If the PLAY button is pushed, the address corresponding to the chosen mode will be searched again.) The pause mode is set after tracing is completed. (6) Other operations ① If the STOP button is pressed in any mode other than the tray open/close mode, the set returns to the status it was in when the test mode was entered. If the STOP button is pressed while in the tray open/close mode, operation stops with the number of times the tray has opened and closed displayed. Press the STOP button once more to return to the status set when the test mode was entered. ② Push the OPEN/CLOSE button twice and carry out servo readjustment in OPEN operation → CLOSE operation. (It readjusts with test mode.) OPEN display ↓ CLOSE display ↓ LOADING display ↓ ③ By pressing STOP button and SKIP FWD button simultaneously in the test mode, it returns to heat run mode. FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｙ Ｙ ｍ ｍ ｍ ｍ ｍ ｍ ｌ ｌ ｌ ｌ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ FL Display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ (5) トレースモード ( エラーレート表示 ) の実行（ 表 3 トレースモード詳細 参照） 動作を選択した後、PLAY ボタンを押すとトレースを実行する。 (ＹＹ: 選択モード [71 ～ 94]、ｍ: アドレス [PBA][HEX]、ｌ: エラーレート [COUNT/SEC][HEX]) ( 注 ) CD:450( × 6)、188( × 2.5) フレーム , DVD:85ECC ブロック毎にデータ更新する。 トレース実行中に選択モードを変更し、PLAY ボタンを押すと選択したモードを最初から実行する。 選択モードを変更せずに PLAY ボタンを押した場合も、選択中のモードを最初から実行する。 (PLAY ボタンを押したら、選択しているモードに対応したアドレスを再度サーチする。) トレース終了時は、PAUSE 状態になります。 (6) その他の動作 ①トレイ OPEN/CLOSE モード以外のモード中に STOP ボタンを押すとテストモード投入時の状態に戻る。 トレイ OPEN/CLOSE モード時に STOP ボタンを押すと、オープンクローズ回数表示した状態で動作が停止し、もう一度 STOP ボタンを押すことで、テストモード投入時の状態に戻る。 ② OPEN/CLOSE ボタンを 2 回押して、OPEN 動作→ CLOSE 動作で、サーボ再調整する。 ( テストモードのまま再調整する。) OPEN 表示 ↓ CLOSE 表示 ↓ LOADING 表示 ↓ ③テストモード中に STOP ボタンと SKIP FWD ボタンの同時押し ( 投入時と同じボタン ) で、ヒートランモードに戻る。 FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｙ Ｙ ｍ ｍ ｍ ｍ ｍ ｍ ｌ ｌ ｌ ｌ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DVD-3930/3930CI (7) Test mode detailed table Table 1: Servo adjustment value display mode details TXX Name Meaning Remarks T0 gavine0 L0 layer VIN5VIN6VIN7VIN8 Fep section Gain middle stage, latter stage amplifier setting VIN5 = "C" signal Fep section middle stage and latter stage amplifier set- ting. T1 gavin0 L0 layer VIN9VIN10 Fep section Gain middle stage, latter stage amplifier set- ting VIN9 = "E" signal and VIN10=”F” signal Fep section middle stage and lat- ter stage amplifier setting. T33A offving0 L0 layer VIN7 Fep section latter stage off- set setting VIN7 = "A" signal Fep section latter stage offset setting. T33B offvinf0 L0 layer VIN6 Fep section latter stage off- set setting VIN6 = "B" signal Fep section latter stage offset setting. T33C offvine0 L0 layer VIN5 Fep section latter stage off- set setting VIN5 = "C" signal Fep section latter stage offset setting. T33D offvinh0 L0 layer VIN8 Fep section latter stage off- set setting VIN8 = "D" signal Fep section latter stage offset setting. T33E offvina0 L0 layer VIN9 Fep section latter stage off- set setting VIN9 = "E" signal Fep section latter stage offset setting. T33F offvinb0 L0 layer VIN10 Fep section latter stage offset setting VIN10 = "F" signal Fep section latter stage offset setting. T34 fepadr50 L0 layer high sped servo (DPD) input Fep section Gain initial stage/middle stage/ latter stage amplifier setting VIN1RfF, VIN2RF, VIN3RF and VIN4RF sigmals Fep section amplifier set- ting. ( * Used for DVD and SACD layer) Initial stage amplifier: fixed setting value, not adjusted. (Fixed at FEPadr5 [bit10, bit9]) T35 fbal0 L0 layer focus balance adjustment value 8.8 format (upper 8 bits: integer, lower 8 bits: decimal) FBAL = Adjustment value / 256 FBAL range: 0xFF00 < FBAL < 0x0100 Set value 0xFF00 0xFF80 0x0000 0x0080 0x0100 1+FBAL 0 0.5 1.0 1.5 2 1-FBAL 2 1.5 1.0 0.5 0 For the focus signal : FE = { (VIN5+VIN7) * (1+FBAL) } - { (VIN6+VIN8) * (1-FBAL) } T36 feagc0 L0 layer FE signal AGC value (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjusted so that FE amplitude reaches target of 2.45V. T37 fcga0 L0 layer focus Loop Gain adjustment value 1x for 0x100 [0x200 (2x) set to Typ. (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjustment value 0x200 sets so that gain crossover reaches target. T38 asagc0 L0 layer AS signal AGC value (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjusted so that AS amplitude reaches target of 2.45V. T39 tbal0 CD tracking balance adjustment value 8.8 format (upper 8 bits: integer, lower 8 bits: decimal) TBAL = Adjustment value / 256 TBAL range: 0xFF00 < TBAL < 0x0100 Set value 0xFF00 0xFF80 0x0000 0x0080 0x0100 1+TBAL 0 0.5 1.0 1.5 2 1-TBAL 2 1.5 1.0 0.5 0 For the tracking signal : TE = { VIN9 * (1+TBAL) } - { VIN10 * (1-TBAL) } T40 oftpd0 L0 layer DVD tracking balance adjust- ment value "A" and "C" signals: same phase "B" and "D" signals: same phase With the above conditions: If the phase of B is 90° ahead of the phase of A: 0x20 (+32 LSB) If the phase of B is 90° behind of the phase of A: 0xE0 (-32 LSB) * ± 16 LSB for a phase difference of 45°, 0 LSB for a phase difference of 0°. T41 oftlvll0 L0 layer OFTR detection threshold value For the CD : Signed 7bit ( 0x40 ～ 0x3F ) 0x40 : 0V 0x00 : 1.65V 0x3F : 3.3V ( 3.3V/128 = 25.78[mV]/LSB ) For the DVD : Unsigned 7bit ( 0x00 ～ 0x7F ) 0x00 : 0V 0x40 : 1.65V 0x7F : 3.3V ( 3.3V/128 = 25.78[mV]/LSB ) At tracking off, adjusted so that OFTR signal reaches target of Duty 50%. T42 teagc0 L0 layer TE signal AGC value (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjusted so that TE amplitude reaches target of 2.45V. (7) テストモード詳細一覧表 表 1 サーボ調整値表示モード詳細 ＴXX 名称 意 味 備 考 T0 gavine0 L0 層 VIN5VIN6VIN7VIN8 の Fep 部 Gain 中段、後段 Amp 設定 VIN5 = "C" 信号の Fep 部の中段と後段の Amp 設定 T1 gavin0 L0 層 VIN9VIN10 の Fep 部 Gain 中段、後 段 Amp 設定 VIN9 = "E" 信号 VIN10 = "F" 信号の Fep 部の中段と後段の Amp 設定 T33A offving0 L0 層 VIN7 の Fep 部 後段 Offset 設定 VIN7 = "A" 信号の Fep 部 後段の Offset 設定 T33B offvinf0 L0 層 VIN6 の Fep 部 後段 Offset 設定 VIN6 = "B" 信号の Fep 部 後段の Offset 設定 T33C offvine0 L0 層 VIN5 の Fep 部 後段 Offset 設定 VIN5 = "C" 信号の Fep 部 後段の Offset 設定 T33D offvinh0 L0 層 VIN8 の Fep 部 後段 Offset 設定 VIN8 = "D" 信号の Fep 部 後段の Offset 設定 T33E offvina0 L0 層 VIN9 の Fep 部 後段 Offset 設定 VIN9 = "E" 信号の Fep 部 後段の Offset 設定 T33F offvinb0 L0 層 VIN10 の Fep 部 後段 Offset 設定 VIN10 = "F" 信号の Fep 部 後段の Offset 設定 T34 fepadr50 L0 層 高速 Servo(DPD) 入力の Fep 部 Gain 初段 / 中段 / 後段 Amp 設定 VIN1RF, VIN2RF, VIN3RF, VIN4RF 信号の Fep 部 Amp 設定 （※ DVD、SACD 層の場合使用） 初段 Amp は固定の設定値のため調整されない。 (FEPadr5 [bit10, bit9] 固定 ) T35 fbal0 L0 層フォーカスバランス調整値 8.8Format( 上位 8bit : 整数、下位 8bit 小数 ) で、 FBAL= 調整値 /256 FBAL の範囲は 0xFF00< FBAL<0x0100。 設定値 0xFF00 0xFF80 0x0000 0x0080 0x0100 1+FBAL 0 0.5 1.0 1.5 2 1-FBAL 2 1.5 1.0 0.5 0 フォーカス信号の場合 : FE = { (VIN5+VIN7) * (1+FBAL) } - { (VIN6+VIN8) * (1-FBAL) } T36 feagc0 L0 層 FE 信号の AGC 値 （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） FE の振幅が目標ターゲット 2.45V になる様に調整される。 T37 fcga0 L0 層フォーカス Loop Gain 調整値 0x100 で 1 倍 [0x200(2 倍 ) を Typ に設定する。] （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） 調整値 0x200 で Gain 交点が目標ターゲットになる様に設定している。 T38 asagc0 L0 層 AS 信号の AGC 値 （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） AS の振幅が目標ターゲット 2.45V になる様に調整される。 T39 tbal0 CD トラッキングバランス調整値 8.8Format( 上位 8bit : 整数、下位 8bit 小数 ) で、 TBAL = 調整値 /256 TBAL の範囲は 0xFF00< TBAL <0x0100。 設定値 0xFF00 0xFF80 0x0000 0x0080 0x0100 1+TBAL 0 0.5 1.0 1.5 2 1-TBAL 2 1.5 1.0 0.5 0 CD トラッキング信号の場合 : TE = { VIN9 * (1+TBAL) } - { VIN10 * (1-TBAL) } T40 oftpd0 L0 層 DVD トラッキングバランス調整値 "A" と "C" 信号が同位相 "B" と "D" 信号が同位相 上記の条件の場合、 B が A より位相が 90°進んでいる時 : 0x20 (+32LSB) B が A より位相が 90°遅れている時 : 0xE0 (-32LSB) ※ 位相差 45°の場合 は± 16LSB、位相差 0°の場合は 0LSB。 T41 oftlvll0 L0 層 OFTR 検出閾値 CD の場合： 符号付き 7bit ( 0x40 ～ 0x3F ) 0x40 : 0V 0x00 : 1.65V 0x3F : 3.3V ( 3.3V/128 = 25.78[mV]/LSB ) DVD の場合： 符号無し 7bit ( 0x00 ～ 0x7F ) 0x00 : 0V 0x40 : 1.65V 0x7F : 3.3V ( 3.3V/128 = 25.78[mV]/LSB ) トラッキング Off 状態での OFTR 信号が Duty50% になる様調整される。 T42 teagc0 L0 層 TE 信号の AGC 値 （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） TE の振幅が目標ターゲット 2.45V になる様に調整される。 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DVD-3930/3930CI T43 tkga0 L0 layer tracking Loop Gain adjustment value 1x for 0x100 [0x200 (2x) set to Typ. (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjustment value 0x200 sets so that gain crossover reaches target. T44 bst0 L0 layer RF signal Boost adjustment value Adjustment range : 0x0000 ～ 0x001C 0x0000 : 0dB 0x001C : 14dB (0.5dB/LSB) T45 felvl0 Threshold value at which focus servo turns on (FE signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T46 aslvl0 Threshold value at which focus servo turns on (AS signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T47 aslvl20 Focus servo draw in check value (AS signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T48 fcnglvl0 Focus servo off detection threshold value (AS signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T49 gavin1 L1 layer VIN9VIN10 Fep section Gain middle stage, latter stage amplifier set- ting VIN9 = "E" signal Fep section middle stage and latter stage amplifier set- ting. T50 gavine1 L1 layer VIN5VIN6VIN7VIN8 Fep section Gain middle stage, latter stage amplifier setting VIN5 = "C" signal Fep section middle stage and latter stage amplifier set- ting. T51A offving1 L1 layer VIN7 Fep section latter stage off- set setting VIN7 = "A" signal Fep section latter stage offset setting. T51B offvinf1 L1 layer VIN6 Fep section latter stage off- set setting VIN6 = "B" signal Fep section latter stage offset setting. T51C offvine1 L1 layer VIN5 Fep section latter stage off- set setting VIN5 = "C" signal Fep section latter stage offset setting. T51D offvinh1 L1 layer VIN8 Fep section latter stage off- set setting VIN8 = "D" signal Fep section latter stage offset setting. T51E offvina1 L1 layer VIN9 Fep section latter stage off- set setting VIN9 = "E" signal Fep section latter stage offset setting. T51F offvinb1 L1 layer VIN10 Fep section latter stage offset setting VIN10 = "F" signal Fep section latter stage offset setting. T52 fepadr51 L1 layer high sped servo (DPD) input Fep section Gain initial stage/middle stage/ latter stage amplifier setting VIN1RfF, VIN2RF, VIN3RF and VIN4RF sigmals Fep section amplifier set- ting. ( * Used for DVD and SACD layer) Initial stage amplifier: fixed setting value, not adjusted. (Fixed at FEPadr5 [bit10, bit9]) T53 fbal1 L1 layer focus balance adjustment value 8.8 format (upper 8 bits: integer, lower 8 bits: decimal) FBAL = Adjustment value / 256 FBAL range: 0xFF00 < FBAL < 0x0100 Set value 0xFF00 0xFF80 0x0000 0x0080 0x0100 1+FBAL 0 0.5 1.0 1.5 2 1-FBAL 2 1.5 1.0 0.5 0 For the focus signal : FE = { (VIN5+VIN7) * (1+FBAL) } - { (VIN6+VIN8) * (1-FBAL) } T54 feagc1 L1 layer FE signal AGC value (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjusted so that FE amplitude reaches target of 2.45V. T55 fcga1 L1 layer focus Loop Gain adjustment value 1x for 0x100 [0x200 (2x) set to Typ. (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjustment value 0x200 sets so that gain crossover reaches target. T56 asagc1 L1 layer AS signal AGC value (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjusted so that AS amplitude reaches target of 2.45V. TXX Name Meaning Remarks T43 tkga0 L0 層トラッキング Loop Gain 調整値 0x100 で 1 倍 [0x200(2 倍 ) を Typ に設定する。] （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） 調整値 0x200 で Gain 交点が目標ターゲットになる様に設定している。 T44 bst0 L0 層 RF 信号の Boost 調整値 調整範囲 : 0x0000 ～ 0x001C 0x0000 : 0dB 0x001C : 14dB (0.5dB/LSB) T45 felvl0 フォーカスサーボを On する閾値 (FE 信 号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T46 aslvl0 フォーカスサーボを On する閾値 (AS 信 号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T47 aslvl20 フォーカスサーボ引き込み確認の値 (AS 信号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T48 fcnglvl0 フォーカスサーボ外れ検出の閾値 (AS 信 号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T49 gavin1 L1 層 VIN9VIN10 の Fep 部 Gain 中段、後 段 Amp 設定 VIN9 = "E" 信号の Fep 部の中段と後段の Amp 設定 T50 gavine1 L1 層 VIN5VIN6VIN7VIN8 の Fep 部 Gain 中段、後段 Amp 設定 VIN5 = "C" 信号の Fep 部の中段と後段の Amp 設定 T51A offving1 L1 層 VIN7 の Fep 部 後段 Offset 設定 VIN7 = "A" 信号の Fep 部 後段の Offset 設定 T51B offvinf1 L1 層 VIN6 の Fep 部 後段 Offset 設定 VIN6 = "B" 信号の Fep 部 後段の Offset 設定 T51C offvine1 L1 層 VIN5 の Fep 部 後段 Offset 設定 VIN5 = "C" 信号の Fep 部 後段の Offset 設定 T51D offvinh1 L1 層 VIN8 の Fep 部 後段 Offset 設定 VIN8 = "D" 信号の Fep 部 後段の Offset 設定 T51E offvina1 L1 層 VIN9 の Fep 部 後段 Offset 設定 VIN9 = "E" 信号の Fep 部 後段の Offset 設定 T51F offvinb1 L1 層 VIN10 の Fep 部 後段 Offset 設定 VIN10 = "F" 信号の Fep 部 後段の Offset 設定 T52 fepadr51 L1 層 高速 Servo(DPD) 入力の Fep 部 Gain 初段 / 中段 / 後段 Amp 設定 VIN1RF, VIN2RF, VIN3RF, VIN4RF 信号の Fep 部 Amp 設定 （※ DVD、SACD 層の場合使用） 初段 Amp は固定の設定値のため調整されない。 (FEPadr5 [bit10, bit9] 固定 ) T53 fbal1 L1 層フォーカスバランス調整値 8.8Format( 上位 8bit : 整数、下位 8bit 小数 ) で、 FBAL = 調整値 /256 FBAL の範囲は 0xFF00< FBAL <0x0100。 設定値 0xFF00 0xFF80 0x0000 0x0080 0x0100 1+FBAL 0 0.5 1.0 1.5 2 1-FBAL 2 1.5 1.0 0.5 0 フォーカス信号の場合 : FE = { (VIN5+VIN7) * (1+FBAL) } - { (VIN6+VIN8) * (1-FBAL) } T54 feagc1 L1 層 FE 信号の AGC 値 （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） FE の振幅が目標ターゲット 2.45V になる様調整される。 T55 fcga1 L １層フォーカス Loop Gain 調整値 0x100 で 1 倍 [0x200(2 倍 ) を Typ に設定する ] （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） 調整値 0x200 で Gain 交点が目標ターゲットになる様設定している。 T56 asagc1 L1 層 AS 信号の AGC 値 （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） AS の振幅が目標ターゲット 2.45V になる様調整される。 ＴXX 名称 意 味 備 考 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DVD-3930/3930CI Table 2 : Disc type information (When there are multiple formats, the format played and identified with priority is displayed.) T57 oftpd1 L1 layer DVD tracking balance adjust- ment value "A" and "C" signals: same phase "B" and "D" signals: same phase With the above conditions: If the phase of B is 90° ahead of the phase of A: 0x20 (+32 LSB) If the phase of B is 90° behind of the phase of A: 0xE0 (-32 LSB) * ± 16 LSB for a phase difference of 45°, 0 LSB for a phase difference of 0°. T58 oftlvll1 L1 layer OFTR detection threshold value For the DVD : Unsigned 7bit ( 0x00 ～ 0x7F ) 0x00 : 0V 0x40 : 1.65V 0x7F : 3.3V ( 3.3V/128 = 25.78[mV]/LSB ) At tracking off, adjusted so that OFTR signal reaches target of Duty 50%. T59 teagc1 L1 layer TE signal AGC value (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjusted so that TE amplitude reaches target of 2.45V. T60 tkga1 L1 layer tracking Loop Gain adjustment value 1x for 0x100 [0x200 (2x) set to Typ. (1x for 0x100, 2x for 0x200. Y/0x100 ratio calculation.) Adjustment value 0x200 sets so that gain crossover reaches target. T61 bst1 L1 layer RF signal Boost adjustment value Adjustment range : 0x0000 ～ 0x001C 0x0000 : 0dB 0x001C : 14dB (0.6dB/LSB) T62 felvl1 SACD layer : Threshold value at which focus servo turns on (FE signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T63 aslvl1 SACD layer : Threshold value at which focus servo turns on (AS signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T64 aslvl21 SACD layer : Focus servo draw in check value (AS signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T65 fcnglvl1 SACD layer : Focus servo off detection threshold value (AS signal) 16-bit signed calculation upper (8 bits) / lower (8 bits) : 8-bit signed calculation 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T66 DiscType Disc Type See "Table-2 Disc type information" on page 25. T67 Format Disc Format type See "Table-2 Disc type information" on page 25. Disc Type Contents of fluorescent tube display in servo adjustment value display mode (T66) Format Type Contents of fluorescent tube display in servo adjustment value display mode (T67) NO-DISC NO-DISC Unknown NONE DVD1 layer, +R, +RW DVD1 CD-ROM, Divx CD-ROM DVD2 layer, -DL, +DL DVD2 CD-DA CD-DA DVD-R DVD-R VideoCD VIDEO CD DVD-RW DVD-RW DVD-ROM, Divx DVD-ROM CD, CD-R, CD-RW CD DVD-VIDEO DVD-VIDEO SACD(Single Layer) SACD SING DVD-AUDIO DVD-AUDIO SACD(Dual Layer) SACD DUAL CD-dts CD-dts SACD(Hybrid) SACD HYBR DVD-VR DVD-VR Unknown NONE Mixed mode CD-ROM CD-ROM-DA SACD SACD TXX Name Meaning Remarks 表２ ディスク種別情報 ( フォーマットが混在する場合、優先して再生、認識されるフォーマットを表示します。) T57 oftpd1 L1 層 DVD トラッキングバランス調整値 "A" と "C" 信号が同位相 "B" と "D" 信号が同位相 上記の条件の場合、 B が A より位相が 90°進んでいる時 : 0x20 (+32LSB) B が A より位相が 90°遅れている時 : 0xE0 (-32LSB) ※ 位相差 45°の場合は± 16LSB、位相差 0°の場合は 1LSB。 T58 oftlvll1 L １層 OFTR 検出閾値 DVD 符号無し 7bit ( 0x00 ～ 0x7F ) 0x00 : 0V 0x40 : 1.65V 0x7F : 3.3V ( 3.3V/128 = 25.78[mV]/LSB ) トラッキング Off 状態での OFTR 信号が Duty50% になる様調整される。 T59 teagc1 L1 層 TE 信号の AGC 値 （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） TE の振幅が目標ターゲット 2.45V になる様調整される。 T60 tkga1 L1 層トラッキング Loop Gain 調整値 0x100 で 1 倍 [0x200(2 倍 ) を Typ に設定する ] （0x100 で 1 倍、0x200 で 2 倍。 Y/0x100 の比率計算） 調整値 0x200 で Gain 交点が目標ターゲットになる様設定している。 T61 bst1 L1 層 RF 信号の Boost 調整値 調整範囲 : 0x0000 ～ 0x001C 0x0000 : 0dB 0x001C : 14dB (0.6dB/LSB) T62 felvl1 SACD 層にフォーカスサーボを On する 閾値 (FE 信号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T63 aslvl1 SACD 層にフォーカスサーボを On する 閾値 (AS 信号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T64 aslvl21 SACD 層のフォーカスサーボ引き込み確 認値 (AS 信号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T65 fcnglvl1 SACD 層のフォーカスサーボ外れ検出の 閾値 (AS 信号 ) 16bit 符号付計算 上位 (8bit) / 下位 (8bit) 符号付き 8bit 計算 0x7F** (0x**7F) : 3.3V 0x00** (0x**00) : 1.65V 0x80** (0x**80) : 0V 3.3V/256 = 12.89[mV]/LSB T66 DiscType ディスクのタイプ 表 2 ディスク種別情報参照。 T67 Format ディスクのフォーマットタイプ 表 2 ディスク種別情報参照。 ディスクタイプ サーボ調整値表示モードでの FL 管表示内容（T66） フォーマットタイプ サーボ調整値表示モードでの FL 管表示内容（T67） ディスクなし NO-DISC 不明 NONE DVD1 層、+R、+RW DVD1 CD-ROM、Divx CD-ROM DVD2 層、-DL、+DL DVD2 CD-DA CD-DA DVD-R DVD-R VideoCD VIDEO CD DVD-RW DVD-RW DVD-ROM、Divx DVD-ROM CD、CD-R、CD-RW CD DVD-VIDEO DVD-VIDEO SACD(Single Layer) SACD SING DVD-AUDIO DVD-AUDIO SACD(Dual Layer) SACD DUAL CD-dts CD-dts SACD(Hybrid) SACD HYBR DVD-VR DVD-VR 不明 NONE Mixed mode CD-ROM CD-ROM-DA SACD SACD ＴXX 名称 意 味 備 考 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DVD-3930/3930CI Table 3: Trace mode details YY Contents Contents supplement 71 A display of PO error detection number of the inner circumference of 1-layer and an address. It is invalid at the time of CD operation. 72 A display of PO uncorrectable number of the inner circumference of 1-layer and an address. It is invalid at the time of CD operation. 73 A display of PI error detection number of the inner circumference of 1-layer and an address. CD : C1 error detection number (x2.5) 74 A display of PI uncorrectable number of the inner circumference of 1-layer and an address. CD : C2 uncorrectable error number (x2.5) 75 A display of PO error detection number of the central circumfer- ence of 1-layer and an address. It is invalid at the time of CD operation. 76 A display of PO uncorrectable number of the central circumference of 1-layer and an address. It is invalid at the time of CD operation. 77 A display of PI error detection number of the central circumference of 1-layer and an address. CD : C1 error detection number (x2.5) 78 A display of PI uncorrectable number of the central circumference of 1-layer and an address. CD : C2 uncorrectable error number (x2.5) 79 A display of PO error detection number of the outer circumference of 1-layer and an address. It is invalid at the time of CD operation. 80 A display of PO uncorrectable number of the outer circumference of 1-layer and an address. It is invalid at the time of CD operation. 81 A display of PI error detection number of the outer circumference of 1-layer and an address. CD : C1 error detection number (x2.5) 82 A display of PI uncorrectable number of the outer circumference of 1-layer and an address. CD : C2 uncorrectable error number (x2.5) 83 A display of PO error detection number of the inner circumference of 2-layer and an address. In the case of 1-layer DVD and CD disc, it is invalid. 84 A display of PO uncorrectable number of the inner circumference of 2-layer and an address. In the case of 1-layer DVD and CD disc, it is invalid. 85 A display of PI error detection number of the inner circumference of 2-layer and an address. In the case of 1-layer DVD disc, it is invalid. CD : C1 error detection number (x6) 86 A display of PI uncorrectable number of the inner circumference of 2-layer and an address. In the case of 1-layer DVD disc, it is invalid. CD : C2 uncorrectable error number (x6) 87 A display of PO error detection number of the central circumfer- ence of 2-layer and an address. In the case of 1-layer DVD and CD disc, it is invalid. 88 A display of PO uncorrectable number of the central circumference of 2-layer and an address. In the case of 1-layer DVD and CD disc, it is invalid. 89 A display of PI error detection number of the central circumference of 2-layer and an address. In the case of 1-layer DVD disc, it is invalid. CD : C1 error detection number (x6) 90 A display of PI uncorrectable number of the central circumference of 2-layer and an address. In the case of 1-layer DVD disc, it is invalid. CD : C2 uncorrectable error number (x6) 91 A display of PO error detection number of the outer circumference of 2-layer and an address. In the case of 1-layer DVD and CD disc, it is invalid. 92 A display of PO uncorrectable number of the outer circumference of 2-layer and an address. In the case of 1-layer DVD and CD disc, it is invalid. 93 A display of PI error detection number of the outer circumference of 2-layer and an address. In the case of 1-layer DVD disc, it is invalid. CD : C1 error detection number (x6) 94 A display of PI uncorrectable number of the outer circumference of 2-layer and an address. In the case of 1-layer DVD disc, it is invalid. CD : C2 uncorrectable error number (x6) 表 3 トレースモード詳細 ＹＹ 内容 補足説明 71 1 層内周の PO 誤り検出数とアドレスの表示 CD 時は無効。 72 1 層内周の PO 訂正不可数とアドレスの表示 CD 時は無効。 73 1 層内周の PI 誤り検出数とアドレスの表示 CD 時は C1 誤り検出数。(x2.5) 74 1 層内周の PI 訂正不可数とアドレスの表示 CD 時は C2 訂正不可数。(x2.5) 75 1 層中周の PO 誤り検出数とアドレスの表示 CD 時は無効。 76 1 層中周の PO 訂正不可数とアドレスの表示 CD 時は無効。 77 1 層中周の PI 誤り検出数とアドレスの表示 CD 時は C1 誤り検出数。(x2.5) 78 1 層中周の PI 訂正不可数とアドレスの表示 CD 時は C2 訂正不可数。(x2.5) 79 1 層外周の PO 誤り検出数とアドレスの表示 CD 時は無効。 80 1 層外周の PO 訂正不可数とアドレスの表示 CD 時は無効。 81 1 層外周の PI 誤り検出数とアドレスの表示 CD 時は C1 誤り検出数。(x2.5) 82 1 層外周の PI 訂正不可数とアドレスの表示 CD 時は C2 訂正不可数。(x2.5) 83 2 層内周の PO 誤り検出数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は無効。 84 2 層内周の PO 訂正不可数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は無効。 85 2 層内周の PI 誤り検出数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は C1 誤り検出数。(x6) 86 2 層内周の PI 訂正不可数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は C2 訂正不可数。(x6) 87 2 層中周の PO 誤り検出数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は無効。 88 2 層中周の PO 訂正不可数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は無効。 89 2 層中周の PI 誤り検出数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は C1 誤り検出数。(x6) 90 2 層中周の PI 訂正不可数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は C2 訂正不可数。(x6) 91 2 層外周の PO 誤り検出数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は無効。 92 2 層外周の PO 訂正不可数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は無効。 93 2 層外周の PI 誤り検出数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は C1 誤り検出数。(x6) 94 2 層外周の PI 訂正不可数とアドレスの表示 DVD 1 層ディスクの場合、無効。 CD 時は C2 訂正不可数。(x6) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DVD-3930/3930CI トラブルシューティング 1. GU-3750-2 (DIGITAL POWER UNIT) ヒューズは切れているか？ ･ FUSE (F901) N.G. 一次側の回路部品の故障 ･ [D901 ～ D904] ･ [IC901] ･ [C904] O.K. +3.3V NSW 出力電圧は正常か？ ･ (CW132 4,5pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [IC902] 全てのピン (TA76432S) ･ [IC906] 全てのピン (PC123-Y) ･ [D908] (FMJ-2303) ･ [TR901] (2SA933A) ･ [D906] (1SS133) ･ [C907] (47/50) ･ [C909] (47/50) その他この出力の負荷となる回路 O.K. +3.3V 出力電圧は正常か？ ･ (CW132 3pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR910] (RSS100N03) その他この出力の負荷となる回路 O.K. +12Ｖ 出力電圧は正常か？ ･ ( CW132 1pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR902] (2SB1268) ･ [D910] (FMB-G19L) ･ [IC910] (KIA7812API) その他この出力の負荷となる回路 O.K. -32Ｖ 出力電圧は正常か？ ･ (CX031 1pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [R978] (2.2Ω) ･ [R953] (2.2Ω) ･ [TR904] (2SB1185) ･ [ZD903] (MTZJ36B) ･ [D914] (AG01Z) その他この出力の負荷となる回路 O.K. +2.5V 出力電圧は正常か？ ･ (CX064 2pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR913] (2SC5370) ･ [IC907] (TA76432S) その他この出力の負荷となる回路 O.K. +1.5V 出力電圧は正常か？ ･ (CX064 3,4pin 出力 ) N.G. 以下の部品の状態・半田付けチェック ･ [TR914] (2SC5370) ･ [IC908] (TA76432S) その他この出力の負荷となる回路 O.K. +8V 出力電圧は正常か？ ･ (GU-3793, C803 + 端子 ) N.G. 以下の部品の状態・半田付けチェック ･ [IC801] (KIA7808API) その他この出力の負荷となる回路 O.K. 終了 TROUBLE SHOOTING 1. GU-3750-2 (DIGITAL POWER UNIT) Check FUSE Condition • FUSE (F901) OPEN? N.G. Check Primary Parts and Soldering. • [D901~D904] • [IC901] • [C904] O.K. Check +3.3V_NSW Output • Voltage Check 3.3V DC (non-switched) Voltage is O.K.? (CW132 4,5pin output) N.G. Check Parts and Soldering. • [IC902] ALL pin (TA76432S) • [IC906] ALL pin (PC123-Y) • [D908] (FMJ-2303) • [TR901] (2SA933A) • [D906] (1SS133) • [C907] (47/50) • [C909] (47/50) and Other Circuits O.K. Check +3.3V Output • Voltage Check 3.3V DC (switched) Voltage is O.K.? (CW132 3pin output) N.G. Check Parts and Soldering. • [TR910] (RSS100N03) and Other Circuits O.K. Check +12V Output • Voltage Check 12V DC (switched) Voltage is O.K.? (CW132 1pin output) N.G. Check Parts and Soldering. • [TR902] (2SB1268) • [D910] (FMB-G19L) • [IC910] (KIA7812API) and Other Circuits O.K. Check -32V Output • Voltage Check -32V DC (switched) Voltage is O.K.? (CX031 1pin output) N.G. Check Parts and Soldering. • [R978] (2.2Ω) • [R953] (2.2Ω) • [TR904] (2SB1185) • [ZD903] (MTZJ36B) • [D914] (AG01Z) and Other Circuits O.K. Check +2.5V Output • Voltage Check 2.5V DC (switched) Voltage is O.K.? (CX064 2pin output) N.G. Check Parts and Soldering. • [TR913] (2SC5370) • [IC907] (TA76432S) and Other Circuits O.K. Check +1.5V Output • Voltage Check 1.5V DC (switched) Voltage is O.K.? (CX064 3,4pin output) N.G. Check Parts and Soldering. • [TR914] (2SC5370) • [IC908] (TA76432S) and Other Circuits O.K. Check +8V Output • Voltage Check +8V DC (switched) Voltage is O.K.? (GU-3793, C803 +Terminal) N.G. Check Parts and Soldering. • [IC801] (KIA7808API) and Other Circuits O.K. END (Open) （切れている ) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DVD-3930/3930CI 2. GU-3749-1 (MAIN UNIT) 2.1. FL 管点灯せず (1) システム立ち上がりチェック工程 電源電圧確認 GU-3749-1(MAIN UNIT） ･ [IC157] 69 +3.3V_NSW OK? N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ MAIN UNIT の CY132 O.K. 電源電圧確認 GU-3749-1(MAIN UNIT) ･ [IC157] 83, 102 [IC154] 1 +1.2V_DV3.2, +3.3_A, +3.3_D1 OK? N.G. 出力レベル確認 GU-3749-1(MAIN UNIT) ･ [CY132] 13pin [ON/ST]: "H" level? N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC403] 2pin O.K. 半田付けを確認 GU-3749-1(MAIN UNIT) [IC102](PQ012FZ01ZP) RESET 信号の確認 GU-3749-1(MAIN UNIT) ･ [IC157] "H" level at 84pin? N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC153] (ResetIC), R237 O.K. 発振波形確認 GU-3749-1(MAIN UNIT) ･ [IC157] 162, 163, 186,190pin 27MHz at 162, 163, 186pin 33.87MHz at 190pin N.G. クロックの波形確認 GU-3749-1(MAIN UNIT) ･ [IC154] 7, 15pin N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ MAIN UNIT の X150 ･ [IC154] (SM8707) O.K. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ R271, R273, R274, R264, R292, R294 バスラインの確認 GU-3749-1(MAIN UNIT) ･ [IC157] と [IC155] (Flash Rom) 間の アドレス、データバスの確認 "H" ⇔ "L" 切替 N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [LD0-LD15], [LCS3, LOE] O.K. バスラインの確認 GU-3749-1(MAIN UNIT) ･ [IC157] と [IC156] [IC158] (SDRAM) 間のアドレス、データバスの確認 "H" ⇔ "L" 切替 N.G. 半田付けを確認 ･ アドレス、データ、制御信号 [MDQ0-24], [MA0-9], [NCAS], [NRAS] ･ [IC156] [IC158] と その周辺回路の半田付けを確認 O.K. I２C 信号の確認 GU-3749-1(MAIN UNIT) ･ [IC157] 66, 67 "H" ⇔ "L" 切替 N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC152] と [IC157] O.K. O.K. O.K. 2. GU-3749-1 (MAIN UNIT) 2.1. FL TUBE dosen't light (1) Check the Set-up process of System Check Power Supply Voltages. GU-3749-1(MAIN UNIT) • [IC157] 69 +3.3V_NSW OK? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • MAIN UNIT: CY132 O.K. Check Power Supply Voltages. GU-3749-1(MAIN UNIT) • [IC157] 83, 102 [IC154] 1 +1.2V_DV3.2, +3.3_A, +3.3_D1 OK? N.G. Check the output level. GU-3749-1(MAIN UNIT) • [CY132] 13pin [ON/ST]: "H" level? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC403] 2pin O.K. Check Soldering. GU-3749-1(MAIN UNIT) • [IC102](PQ012FZ01ZP) Check Reset signal. GU-3749-1(MAIN UNIT) • [IC157] "H" level at 84pin? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC153](Reset IC), R237 O.K. Check Oscillation waveform. GU-3749-1(MAIN UNIT) • [IC157] 162, 163, 186, 190pin 27MHz at 162, 163, 183 pin 33.87MHz at 190pin N.G. Check Clock waveform. GU-3749-1(MAIN UNIT) • [IC154] 7, 15pin N.G. Check Soldering. GU-3749-1(MAIN UNIT) • MAIN UNIT: X150 • [IC154](SM8707) O.K. Check Soldering. GU-3749-1(MAIN UNIT) • R271, R273, R274, R253, R264, R292, R294 Check Bus Line. Check Address, Data Bus between GU-3749-1(MAIN UNIT) • [IC157] and [IC155](Flash Rom) "H" ⇔ "L" alternate? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [LD0-LD15], [LCS3, LOE] O.K. Check Bus Line. Check Address, Data Bus between GU-3749-1(MAIN UNIT) • [IC157], [IC156] and [IC158] (SDRAM) "H" ⇔ "L" alternate? N.G. Check Soldering. • Address, Data Bus, Control Signal. [MDQ0-24], [MA0-9], [NCAS], [NRAS] • Check the soldering [IC156] [158]and circumference soldering of [IC156] [158]. O.K. Check I2C Signal. GU-3749-1(MAIN UNIT) • [IC157] "H" ⇔ "L" alternate? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC152] and [IC157] O.K. O.K. O.K. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DVD-3930/3930CI 2.2. 映像出力せず。（ブルーバック、DENON 壁紙） 2.3. ディスク読めず [00 00] 等の表示 (1) ディスク回転せず データバスの確認 GU-3750-1(DISPLAY UNIT) FLD Driver(GU-3750-1), IC101 60pin ･ [VFD_RST]: "H" level? ･ テストモード T0 実行 全点灯 OK? N.G. GU-3749-1(MAIN UNIT) (1) CX211 の半田付けを確認 GU-3750-1(DISPLAY UNIT) (2) GU-3750-1 の不良 O.K. 映像用デジタル信号出力確認 [1] GU-3749-1(MAIN UNIT) ･ [IC154] 4pin: PCLK ･ [IC157] 176 ～ 183pin: YUV(0-7) N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC154]: 4pin, R257, R439 ･ [IC157]: 176-183pin O.K. 映像用デジタル信号出力確認 [2] GU-3749-1(MAIN UNIT) ･ [CX211]: PCLK, 20pin ･ [CX211]: YUV(0-7), 11-18pin N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [CX211]: 20pin, R439 ･ [CX211]: 11-18pin, R283-290 O.K. GU-3749-2(VIDEO UNIT) チェック行程へ Pick-up の発光を確認 GU-3749-1(MAIN UNIT) ･ P.U. レーザー発光 O.K.? ･ テストモード T2 実行 レーザー電流 OK? N.G. (1) P.U. の半田ショートランドを確認 (2) TR150, TR153 周辺の半田付けを確認 (3) コネクタ接続を確認 ･ [P.U.]-[GU-3749] FFC(CX241) (4) [IC157] とその周辺の半田付けを確認 (5) [IC151] とその周辺の半田付けを確認 O.K. スピンドルドライブ信号の確認 GU-3749-1(MAIN UNIT) ･ [SPINDLE]: "H" level? N.G. (1) [IC157] 85, 90pin の半田付けを確認 (2) [SPINDLE] [FGIN] 信号ライン周辺の半田付けを確認 (3) [IC151] とその周辺の半田付けを確認 O.K. 終了 終了 2.2. Image is not displayed. (Blue-back, DENON wallpaper) 2.3. Does not Read Disc [00 00] displayed etc. (1) Disc does not Rotate. Check Data Bus GU-3750-1(DISPLAY UNIT) FLD Driver (GU-3750-1), IC101 60pin • [VFD_RST]: "H" level? • The test mode "T0" is executed. The FL tube display turns all on? N.G. GU-3749-1(MAIN UNIT) (1) Check Soldering of CX211 GU-3750-1(DISPLAY UNIT) (2) GU-3750-1 is N.G. O.K. Check Digital output signal for Video. [1] GU-3749-1(MAIN UNIT) • [IC154] 4pin: PCLK • [IC157] 176~183pin: YUV(0-7) N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC154]: 4pin, R257, R439 • [IC157]: 176-183pin O.K. Check Digital output signal for Video. [2] GU-3749-1(MAIN UNIT) • [CX211]: PCLK, 20pin • [CX211]: YUV(0-7), 11-18pin N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [CX211]: 20pin, R439 • [CX211]: 11-18pin, R283-290 O.K. Continue to the check process of GU-3749-2(VIDEO UNIT) Check the Emission of Pick-up. GU-3749-1(MAIN UNIT) • Emission of P.U. laser O.K.? • The test mode "T2" is executed. Laser current O.K.? N.G. (1) Check Soldering of P.U. • short-circuit? (2) Check the circumference soldering of TR150 and TR153. (3) Check connector insertion. • [P.U.]-[GU-3749] FFC(CX241) (4) Check the soldering [IC157] and circumference soldering of [IC157] (5) Check the soldering [IC151] and circumference soldering of [IC151] O.K. Check Spindle drive. GU-3749-1(MAIN UNIT) • [SPINDLE]: "H" level? N.G. (1) Check soldering of [IC157]:85, 90pin (2) Check the circumference soldering of [SPINDLE], [FGIN] signal. (3) Check the soldering [IC151] and circumference soldering of [IC151] O.K. END END w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DVD-3930/3930CI (2) CD or DVD チェック工程 (3) SACD チェック工程 RF 信号の確認 GU-3749-1(MAIN UNIT) ･ テストポイント (TP) の電圧確認 ･ TP [AMON1] [AMON2]: 差動出力 約 700mVp-p N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC157] とその周辺の半田付けを確認 O.K. 電源電圧確認 GU-3749-1(MAIN UNIT) ･ [IC401] +3.3_D2, +2.5_D2 OK? N.G. 半田付けを確認 ･ GU-3749-1(MAIN UNIT） ･ [IC101](BA25BCOFP-E2) O.K. 発振波形確認 GU-3749-1(MAIN UNIT) ･ [IC401](CXD2753): 11pin 33.87MHz(3.3V) OK? N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC401]: 11pin, R271 O.K. RESET 信号の確認 GU-3749-1(MAIN UNIT) ･［IC401]: 9pin "H" level OK? N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ R422 O.K. バスラインの確認 GU-3749-1(MAIN UNIT) ･ [IC401] と [IC409](SDRAM) 間の アドレス、データバスの確認 "H" ⇔ "L" 切替 N.G. 半田付けを確認 ･ アドレス、データ、制御信号 [DQ0-7], [D_MA0-11], [DCLK], [DCKE], [DWE], [NCAS], [NRAS] ･ R440-459, R404-408 O.K. データラインの確認 GU-3749-1(MAIN UNIT) ･ [SD0-7], [XSAC], [XSHD2], [SDCK], [SDEF], [XSRQ] "H" ⇔ "L" 切替 N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC401]: 164-176pin, R271 ･ [IC414] O.K. ウォーターマーク用信号の確認 GU-3749-1(MAIN UNIT) ･ PSP_MCK, PSP_WAD1-PSP_WAD7 "H" ⇔ "L" 切替 ･ テストモード TE 実行 190 以上？ N.G. 半田付けを確認 GU-3749-1(MAIN UNIT) ･ [IC401]: 1, 23, 117-120, 111-114pin R418, R421, RR406-411 O.K. 終了 終了 (2) CD or DVD check process (3) SACD check process Check the RF signal. GU-3749-1(MAIN UNIT) • Check the voltage of Test-Point (TP)) • TP[mAMON1] [AMON2]: differential output about 700mVp-p N.G. Check Soldering. GU-3749-1(MAIN UNIT) • Check the circumference soldering of [IC157] O.K. Check Power Supply Voltages. GU-3749-1(MAIN UNIT) • [IC401] +3.3_D2, +2.5_D2 OK? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC101](BA25BCOFP-E2) O.K. Check Oscillation waveform. GU-3749-1(MAIN UNIT) • [IC401](CXD2753): 11pin 33.87MHz(3.3V) OK? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC401]: 11pin, R271 O.K. Check Reset signal. GU-3749-1(MAIN UNIT) • [IC401]: 9pin "H" level OK? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • R422 O.K. Check Bus Line. GU-3749-1(MAIN UNIT) Check Address, Data Bus between [IC401] and [IC409](SDRAM) "H" ⇔ "L" alternate? N.G. Check Soldering. • Address, Data Bus, Control Signal. [DQ0-7], [D_MA0-11], [DCLK], [DCKE], [DWE], [DCAS], [DRAS] • R440-459, R404-408 O.K. Check Data Line. GU-3749-1(MAIN UNIT) • [SD0-7], [XSAC], [XSHD2], [SDCK], [SDEF], [XSRQ] "H" ⇔ "L" alternate? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC401]:164-176pin, R271 • [IC414] O.K. Check signal for Water Mark. GU-3749-1(MAIN UNIT) • PSP_MCK, PSP_WAD1-PSP_WAD7 "H" ⇔ "L" alternate? • The test mode "TE" is executed. 190 over? N.G. Check Soldering. GU-3749-1(MAIN UNIT) • [IC401]: 1, 23, 117-120, 111-114pin R418, R421, RR406-411 O.K. END END w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DVD-3930/3930CI 3. GU-3749-2 (VIDEO UNIT) (1) インターレース映像 [Y, Cb, Cr] 出力せず 電源電圧確認 GU-3749-2(VIDEO UNIT) ･ デジタル電源 +5V_V3, +3.3V_D3, +2.5V_V1 N.G. 半田付けを確認 ･ [CY071], [IC500] ･ [IC500] (BA25BCOFP-E2) 周辺回路 O.K. 映像用デジタル信号の確認 [1] GU-3749-2(VIDEO UNIT) ･ ビデオエンコーダー [IC501](ADV7324) 入力 : [YUV0 ～ 7] [CLK_P/I] N.G. 半田付けを確認 ･ [CY211]: 11-18, 20pin ･ [IC501] 周辺回路 ･ [IC503](SN74LVC157APW) 周辺回路 O.K. [IC501] 制御信号の確認 GU-3749-2(VIDEO UNIT) ･ [SDA1], [SCK1], [RST_V] N.G. 半田付けを確認 ･ [CY211]: 1,2,4-7pin ･ [IC501, IC502] 周辺回路 O.K. ビデオエンコーダー回路の確認 GU-3749-2(VIDEO UNIT) ･ [IC501] N.G. [IC501] とその周辺回路の半田付けを確認 O.K. ビデオバッファー回路の確認 GU-3749-2(VIDEO UNIT) ･ Yp/Yi: [TR502] ･ Pb/Cb: [TR503] ･ Pr/Cr: [TR504] N.G. [TR502 ～ 504] とその周辺回路の半田付けを確認 O.K. ビデオバッファー IC 回路の確認 GU-3749-2(VIDEO UNIT) ･ [IC505] N.G. [IC505] とその周辺回路の半田付けを確認 O.K. ビデオ出力端子の確認 GU-3749-2(VIDEO UNIT) ･ 出力端子 : [JK706 ～ 708]. N.G. [JK706 ～ 708] とその周辺回路の半田付けを確認 O.K. 終了 3. GU-3749-2 (VIDEO UNIT) (1) Interlace output [Y, Cb, Cr] does not outputted. Check Power Supply Voltages. GU-3749-2(VIDEO UNIT) • Digital Power Supply Voltages. +5V_V3, +3.3V_D3, +2.5V_V1 N.G. Check Soldering. • [CY071], [IC500] • Circumference of [IC500](BA25BCOFP-E2) O.K. Check Digital signal for Video[1]. GU-3749-2(VIDEO UNIT) • Video Encoder [IC501](ADV7324) input: [YUV0~7] [CLK_P/I] N.G. Check Soldering. • [CY211]: 11-18, 20pin • Circumference of [IC501] • Circumference of [IC503](SN74LVC157APW) O.K. Check control signal for Video Encoder [IC201]. GU-3749-2(VIDEO UNIT) • [SDA1], [SCK1], [RST_V] N.G. Check Soldering. • [CY211]: 1, 2, 4-7pin • Circumference of [IC501, IC502] O.K. Check Video Encoder circuit. GU-3749-2(VIDEO UNIT) • [IC501] N.G. Check the soldering [IC501] and circumference soldering of [IC501] O.K. Check Video Buffer circuit. GU-3749-2(VIDEO UNIT) • Yp/Yi: [TR502] • Pb/Cb: [TR503] • Pr/Cr: [TR504] N.G. Check the soldering [TR502~504] and circumference soldering of [TR502~504] O.K. Check Video Buffer IC circuit. GU-3749-2(VIDEO UNIT) • [IC505] N.G. Check the soldering [IC505] and circumference soldering of [IC505]. O.K. Check Clamp circuit. GU-3749-2(VIDEO UNIT) • Output Terminal: [JK706~708]. N.G. Check the soldering[JK706~708] and circumference soldering of [JK706~708]. O.K. END w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DVD-3930/3930CI (2) インターレース映像 [V-OUT, S-OUT] 出力せず 映像用デジタル信号の確認 [1] GU-3749-2(VIDEO UNIT) ･ ビデオエンコダー [IC550](ADV7324) 入力 : [YUV0 ～ 7] [PCLK] N.G. 半田付けを確認 ･ [IC550] とその周辺回路 O.K. [IC550] 制御信号の確認 GU-3749-2(VIDEO UNIT) ･ [SDA], [SCK], [RST_V] N.G. 半田付けを確認 ･ [IC550] とその周辺回路 O.K. ビデオエンコーダー回路の確認 GU-3749-2(VIDEO UNIT) ･ [IC550] N.G. [IC550] とその周辺回路の半田付けを確認 O.K. ビデオバッファー回路の確認 GU-3749-2(VIDEO UNIT) ･ Y: [TR553] ･ C: [TR554] N.G. [TR553], [TR554] とその周辺回路の半田付けを確認 O.K. ビデオバッファー IC 回路の確認 GU-3749-2(VIDEO UNIT) ･ [IC505] N.G. [IC550] とその周辺回路の半田付けを確認 O.K. ビデオ出力端子の確認 GU-3749-2(VIDEO UNIT) ･ 出力端子 : [JK703], [JK705]. N.G. [JK703], [JK705] とその周辺回路の半田付けを確認 O.K. 終了 (2) Interlace output [V-OUT, S-OUT] does not outputted. Check Digital signal for Video[1]. GU-3749-2(VIDEO UNIT) • Video Encoder [IC505](ADV7324) input: [YUV0~7] [PCLK] N.G. Check Soldering. • Circumference of [IC550] O.K. Check control signal for Video Encoder [IC550]. GU-3749-2(VIDEO UNIT) • [SDA], [SCK], [RST_V] N.G. Check Soldering. • Circumference of [IC550] O.K. Check Video Encoder circuit. GU-3749-2(VIDEO UNIT) • [IC550] N.G. Check the soldering [IC550] and circumference soldering of [IC550]. O.K. Check Video Buffer circuit. GU-3749-2(VIDEO UNIT) • Y: [TR553] • C: [TR554] N.G. Check the soldering [TR553], [TR554] and circumference soldering of [TR553], [TR554]. O.K. Check Video Buffer circuit. GU-3749-2(VIDEO UNIT) • [IC505] N.G. Check the soldering [IC505] and circumference soldering of [IC505]. O.K. Check Video Output. GU-3749-2(VIDEO UNIT) • Output Terminal: [JK703], [JK705]. N.G. Check the soldering [JK703], [JK705] and circumference soldering of [JK703], [JK705]. O.K. END w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DVD-3930/3930CI 4. GU-3749-2 (VIDEO UNIT)/GU-3752(IP UNIT) (1) プログレッシブ映像 [Y, Pb, Pr] 出力せず 電源電圧確認 [2] GU-3752(IP UNIT) ･ +3.3V_D2, +2.5V_D3, +1.5V_D1 ･ VTT(+1.25V) ･ VREF (+1.25V) ･ MVREF1, MVREF2, MVREF3, MVREF4(1.25V) N.G. 半田付けを確認 ･ [CY064], [CY125] ･ [IC803](LP2995M) 周辺回路 ･ R701 ～ 704, 707 ～ 709, 712, C741 ～ 748 ･ R148 ～ 151, C130, 131, 180, 181 O.K. 映像用デジタル信号の確認 [1] GU-3752(IP UNIT) ･ I/P Convertor [IC101](SXT2LF-400)input: [YUV0 ～ 7], [PCLK] N.G. 半田付けを確認 ･ [CY122] ･ [R440 ～ 448] O.K. 発振波形確認 GU-3752(IP UNIT) ･ [IC101](SXT2LF-400): [REFCLKA] Check point: [R152]: 66.666MHz OK? ･ [IC101](SXT2LF-400): [PCICLK] Check point: [R142]: 33MHz OK? ･ [IC701 ～ 704](EM6A9320BI-4MG): [ACK] Check point: [R717]: 250MHz OK? N.G. 半田付けを確認 ･ [X101](66.666MXTAL) 周辺回路 ･ [IC101] 周辺回路 ･ [IC701 ～ 704] 周辺回路 O.K. I/P ｺﾝﾊﾞｰﾀ [IC101] 制御信号の確認 GU-3752(IP UNIT) ･ [RESETN], [IIC0_CLK], [IIC0_DAT] N.G. 半田付けを確認 ･ [CY125] ･ [IC103](TC7W241FU) 周辺回路 O.K. 映像用デジタル信号の確認 [2] GU-3749-2(VIDEO UNIT) ･ [YO_0 ～ YO_9], [CO_0 ～ CO_9], [P_VSYNC_1], [P_HSYNC_1], [C_REF-1], [PS_CLK-1] N.G. 半田付けを確認 ･ [CY123, CY162] O.K. プログレッシブ映像用デジタル信号の確認 [3] GU-3752(IP UNIT) ･ [IC101]output: [YO_0 ～ YO_9], [CO_0 ～ CO_9], [P_VSYNC], [P_HSYNC], [C_REF-1], [H_PS_CLK] N.G. 半田付けを確認 ･ [IC101] 周辺回路 ･ [R113 ～ 116, 117, 118, 120, 269, 449 ～ 456, 459 ～ 464, 468, 469] ･ CX162, CX123 O.K. プログレッシブ映像用デジタル信号の確認 [2] GU-3749-2(VIDEO UNIT) ･ Video Encoder [IC501](ADV7324)input: [YO_0 ～ YO_9], [CO_0 ～ CO_9], [P_VSYNC_1], [P_HSYNC_1], [C_REF-1], [PS_CLK-1] N.G. 半田付けを確認 ･ [CY123, CY162] ･ [IC501] 周辺回路 O.K. ビデオバッファー IC 回路の確認 GU-3749-2(VIDEO UNIT) ･ [IC505] N.G. [IC505] とその周辺回路の半田付けを確認 O.K. 終了 4. GU-3749-2 (VIDEO UNIT)/GU-3752(IP UNIT) (1) Progressive output [Y, Pb, Pr] does not outputted. Check Power Supply Voltages[2]. GU-3752(IP UNIT) • +3.3V_D2, +2.5V_D3, +1.5V_D1 • VTT(+1.25V) • VREF (+1.25V) • MVREF1, MVREF2, MVREF3, MVREF4(1.25V) N.G. Check Soldering. • [CY064], [CY125] • Circumference of [IC803](LP2995M) • R701~704, 707~709, 712, C741~748 • R148~151, C130, 131, 180, 181 O.K. Check Digital signal for Video[1]. GU-3752(IP UNIT) • I/P Convertor [IC101](SXT2LF-400)input: [YUV0~7], [PCLK] N.G. Check Soldering. • [CY122] • [R440~448] O.K. Check oscillation waveform. GU-3752(IP UNIT) • [IC101](SXT2LF-400): [REFCLKA] Check point: [R152]: 66.666MHz OK? • [IC101](SXT2LF-400): [PCICLK] Check point: [R142]: 33MHz OK? • [IC701~704](EM6A9320BI-4MG): [ACK] Check point: [R717]: 250MHz OK? N.G. Check Soldering. • Circumference of [X101](66.666MXTAL) • Circumference of [IC101] • Circumference of [IC701~704] O.K. Check control signal for I/P Convertor [IC101]. GU-3752(IP UNIT) • [RESETN], [IIC0_CLK], [IIC0_DAT] N.G. Check Soldering. • [CY125] • Circumference of [IC103](TC7W241FU) O.K. Check Digital signal for Video[2]. GU-3749-2(VIDEO UNIT) • [YO_0~YO_9], [CO_0~CO_9], [P_VSYNC_1], [P_HSYNC_1], [C_REF-1], [PS_CLK-1] N.G. Check Soldering. • Circumference of [CY123,CY162] O.K. Check Digital output for Progressive Video[3]. GU-3752(IP UNIT) • [IC101]output: [YO_0~YO_9], [CO_0~CO_9], [P_VSYNC], [P_HSYNC], [C_REF-1], [H_PS_CLK] N.G. Check Soldering. • Circumference of [IC101] • [R113~116, 117, 118, 120, 269, 449~456, 459~464, 468, 469] • CX162, CX123 O.K. Check Digital output for Progressive Video[2]. GU-3749-2(VIDEO UNIT) • Video Encoder [IC501](ADV7324)input: [YO_0~YO_9], [CO_0~CO_9], [P_VSYNC_1], [P_HSYNC_1], [C_REF-1], [PS_CLK-1] N.G. Check Soldering. • [CY123, CY162] • Circumference of [IC501] O.K. Check Video Buffer IC circuit. GU-3749-2(VIDEO UNIT) • [IC505] N.G. Check the soldering [IC505] and circumference soldering [IC505] O.K. END w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DVD-3930/3930CI 5. GU-3751-1 (AUDIO (DIGITAL) UNIT)/GU-3751-2/3 (AUDIO/MIX/5.1 UNIT) (1) CD,DVD-VIDEO/AUDIO メカユニットとの接続確認 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [CY331] 出力信号の確認 N.G. 半田付け、FFC ケーブルを確認 ･ [CY331] ･ [CX331]: GU-3749 ･ FFC ケーブル、挿入状態の確認 O.K. IC103 の入力信号の確認 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N) 23(MCK), 87(BCK), 86(LRCK), 84(PDATA0: FL/FR), 82(PDATA1: SL/SR), 81(PSATA2: C/SW), 80(PDATA3: MIXL/MIXR: without SACD) pin check N.G. 半田付けを確認 ･ IC103 O.K. IC103 の出力信号の確認 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N) 151(Rfs), 152(R64fs), 149(Tfs1), 150(T64fs1), 146(Tfs2), 147(T64fs2), 181(FL/FR), 175(SL/SR), 179(C/SW), 173(MIXL/MIXR: without SACD) N.G. 半田付けを確認 ･ IC103 ･ 3.3V O.K. DSP 動作の確認 ファームチェックモードで DSP のバージョンを確認 ･ "0000" 表示は N.G. （page 18 参照） N.G. 半田付けを確認 GU-3651-1(AUDIO (DIGITAL) UNIT) ･ [IC303]: (DSP RESET)14pin ･ [IC303], [IC305] の接続確認 ･ [IC103], [IC303] の接続確認 ･ [IC305]: (FLASH ROM for DSP) の確認 O.K. データ確認 -1 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N) ･ [IC303](DSP): input N.G. 半田付けを確認 ･ R187, 188, 190, 192, 310, 312, 314, 315 の確認 O.K. データ確認 -2 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC303](DSP): output 121(FL/FR), 126(C/SW), 130(SL/SR), 135(MIXL/MIXR） pin の確認 各出力信号が "H" になっていないか O.K. データ確認 -3 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC303](DSP): output ･ [IC103](EP2C8Q208C8N): input N.G. 半田付けを確認 ･ R316, 318, 320, 322 の確認 O.K. N.G. 5. GU-3751-1 (AUDIO (DIGITAL) UNIT)/GU-3751-2/3 (AUDIO/MIX/5.1 UNIT) (1) CD, DVD-VIDEO/AUDIO, (SACD-SOURCE DIRECT OFF) Check connection Mecha UNIT GU-3751-1(AUDIO (DIGITAL) UNIT) • [CY331] output signal N.G. Check Soldering, FFC cable • [CY331] • [CX331]: GU-3749 • FFC cable, insert condition O.K. Check input signal: IC103 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N) 23(MCK), 87(BCK), 86(LRCK), 84(PDATA0: FL/FR), 82(PDATA1: SL/SR), 81(PSATA2: C/SW), 80(PDATA3: MIXL/MIXR: without SACD) pin check N.G. Check Soldering. • IC103 O.K. Check output signal: IC103 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N) 151(Rfs), 152(R64fs), 149(Tfs1), 150(T64fs1), 146(Tfs2), 147(T64fs2), 181(FL/FR), 175(SL/SR), 179(C/SW), 173(MIXL/MIXR: without SACD) N.G. Check Soldering. • IC103 • 3.3V O.K. Check DSP operation Check Firm version on DSP • “0000” indicate is N.G. (refer page 18.) N.G. Check Soldering. GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC303]: (DSP RESET)14pin • [IC303] to [IC305] Signal • [IC103] to [IC303] Signal • [IC305]: (FLASH ROM for DSP) O.K. Check DATA Signal -1 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N) • [IC303](DSP): input N.G. Check Soldering. • R187, 188, 190, 192, 310, 312, 314, 315 O.K. Check DATA Signal -2 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC303](DSP): output 121(FL/FR), 126(C/SW), 130(SL/SR), 135(MIXL/MIXR) pin Each output pin Level "H": NG O.K. Check DATA Signal -3 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC303](DSP): output • [IC103](EP2C8Q208C8N): input N.G. Check Soldering. • R316, 318, 320, 322 O.K. N.G. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DVD-3930/3930CI データ確認 -4 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N): output to DAC(MIXL/MIXR/FL/FR/C/SW/SL/SR) 4 ～ 6, 8, 10 ～ 15, 30, 31, 33pin GU-3751-2(AUDIO/MIX UNIT) ･ [IC702](DAC for MIXL), [IC707](DAC for MIXR) 4 ～ 7pin(WCK=16/8/4fs, BCK=1024/512/256fs, DATA,MCK=1024/512/256fs) * fs=48/96/192 GU-3751-3(AUDIO/5.1 UNIT) ･ [IC401](DAC for FL/FR), [IC406](DAC for C/SW), [IC411](DAC for SL/SR) : input 4 ～ 7pin(LRCK=1fs, BCK=64fs, DATA, MCK=256fs) N.G. 半田付けを確認 ･ CX125, CY125, CX126, CY126, CX127, CY127, CX129, CY129 (GU-3751-1 to GU-3751-2 or GU-3751-3) O.K. DAC 出力確認 GU-3751-2(AUDIO/MIX UNIT) ･ [IC702] [IC707]: output GU-3751-3(AUDIO/5.1 UNIT) ･ [IC401] [IC406] [IC411]: output N.G. 半田付けを確認 / 電源を確認 ･ [IC702] [IC707] 10 ～ 12, 14pin(control line) ･ [IC401] [IC406] [IC411] 10 ～ 12, 14pin(control line) O.K. OP AMP 出力確認 GU-3751-2(AUDIO/MIX UNIT) ･ [IC703] ～ [IC706], [IC708] ～ [IC711] GU-3751-3(AUDIO/5.1 UNIT) ･ [IC402]～[IC405], [IC407]～[IC410], [IC412]～[IC415] N.G. 半田付けを確認 ･ [IC703] ～ [IC706], [IC708] ～ [IC711] POWER C, R ･ [IC402]～[IC405], [IC407]～[IC410], [IC412]～[IC415] POWER C, R O.K. 出力端子の確認 GU-3751-2(AUDIO/MIX UNIT) ･ 各 ch の OUTPUT 端子からの出力信号を確認する GU-3751-3(AUDIO/5.1 UNIT) ･ 各 ch の OUTPUT 端子からの出力信号を確認する N.G. 半田付けを確認 ･ MUTE circuit: MUTE TR (TR709 ～ 712, TR715 ～ 718, TR721,722) TR408 ～ 437 TR-BASE terminal: about -9V (at MUTE off) ･ Check Soldering. Output Jack O.K. 終了 Check DATA Signal -4 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N): output to DAC(MIXL/MIXR/FL/FR/C/SW/SL/SR) 4~6, 8, 10~15, 30, 31, 33pin GU-3751-2(AUDIO/MIX UNIT) • [IC702](DAC for MIXL), [IC707](DAC for MIXR) 4~7pin(WCK=16/8/4fs, BCK=1024/512/256fs, DATA,MCK=1024/512/256fs) * fs=48/96/192 GU-3751-2(AUDIO/5.1 UNIT) • [IC401](DAC for FL/FR), [IC406](DAC for C/SW), [IC411](DAC for SL/SR) : input 4~7pin(LRCK=1fs, BCK=64fs, DATA, MCK=256fs) N.G. Check Soldering. • CX125, CY125, CX126, CY126, CX127, CY127, CX129, CY129 (GU-3751-1 to GU-3751-2 or GU-3751-3) O.K. Check DAC output GU-3751-2(AUDIO/MIX UNIT) • [IC702] [IC707]: output GU-3751-3(AUDIO/5.1 UNIT) • [IC401] [IC406] [IC411]: output N.G. Check Soldering./Check Supply Voltages. • [IC702] [IC707] 10~12, 14pin(control line) • [IC401] [IC406] [IC411] 10~12, 14pin(control line) O.K. Check OP AMP output GU-3751-2(AUDIO/MIX UNIT) • [IC703]~[IC706], [IC708]~[IC711] GU-3751-3(AUDIO/5.1 UNIT) • [IC402]~[IC405], [IC407]~[IC410], [IC412]~[IC415] N.G. Check Soldering./Check Power Supply Voltages. • [IC703]~[IC706], [IC708]~[IC711] POWER C,R • [IC402]~[IC405], [IC407]~[IC410], [IC412]~[IC415] POWER C,R O.K. Check AUDIO OUT GU-3751-2(AUDIO/MIX UNIT) • Check OUTPUT terminal (Each channels) GU-3751-3(AUDIO/5.1 UNIT) • Check OUTPUT terminal (Each channels) N.G. Check Soldering. • MUTE circuit: MUTE TR (TR709~712, TR715~718, TR721,722) TR408~437 TR-BASE terminal: about -9V (at MUTE off) • Check Soldering. Output Jack O.K. END w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DVD-3930/3930CI (2) SACD メカユニットとの接続確認 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [CY331] 出力信号の確認 N.G. 半田付け、FFC ケーブルを確認 ･ [CY331] ･ [CX331]: GU-3749 ･ FFC ケーブル、挿入状態の確認 O.K. IC103 の入力信号の確認 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N) 23(MCK), 87(BCK), 86(DFL), 84(DFR), 82(DC), 81(DSW), 80(DSL), 77(DSR), 76(DMIXL), 75(DMIXR) N.G. 半田付けを確認 ･ IC103 O.K. IC103 の出力信号の確認 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N), 151(Rfs), 152(R64fs), 149(Tfs1), 150(T64fs1), 146(Tfs2), 147(T64fs2), 181(DFL), 180(DFR), 179(DC), 176(DSW), 175(DSL), 173(DSR) N.G. 半田付けを確認 ･ IC103 ･ 3.3V O.K. DSP 動作の確認 (1) CD, DVD-VIDEO/AUDIO 参照 O.K. データ確認 -1 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N) ･ [IC303](DSP): input N.G. 半田付けを確認 ･ R187 ～ 192, R310 ～ 315 の確認 O.K. データ確認 -2 [SOURCE DIRECT: 100kHz]: DSD DIRECT Processing GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC303](DSP): output 121(DFL_O), 122(DFR_O), 126(DC_O), 127(DSW_O) 130(DSL_O), 131(DSR_O)pin の確認 [SOURCE DIRECT: OFF/50kHz]: DSD to PCM Convert Processing ･ 以降 CD, DVD-VIDEO/AUDIO データ確認 -3 参照 N.G. 半田付けを確認 ･ R316 ～ 322 O.K. データ確認 -3 GU-3751-1(AUDIO (DIGITAL) UNIT) ･ [IC103](EP2C8Q208C8N): output to DAC(MIXL/MIXR, FL/FR, C/SW, SL/SR) 4 ～ 6, 8, 10 ～ 15, 30, 31, 33pin GU-3751-2(AUDIO/MIX UNIT)/GU-3751-3(AUDIO/5.1 UNIT) ･ [IC702](DAC for MIXL), [IC707](DAC for MIXR), [IC401](DAC for FL/FR), [IC406](DAC for C/SW), ･ [IC411](DAC for SL/SR): input ･ 4 ～ 7pin(DATA-1, DATA-2, BCK="L", MCK=64fs) N.G. 半田付けを確認 ･ CX125, CY125, CX126, CY126, CX127, CY127, CX129, CY129 (GU-3751-1 to GU-3751-2 or GU-3751-3) O.K. DAC 出力確認～ (1) CD, DVD-VIDEO/AUDIO 参照 O.K. 終了 (2) SACD Check connection Mecha UNIT GU-3751-1(AUDIO (DIGITAL) UNIT) • [CY331] output signal N.G. Check Soldering, FFC cable • [CY331] • [CX331]: GU-3749 • FFC cable, insert condition O.K. Check input signal: IC103 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N) 23(MCK), 87(BCK), 86(DFL), 84(DFR), 82(DC), 81(DSW), 80(DSL), 77(DSR), 76(DMIXL), 75(DMIXR) N.G. Check Soldering. • IC103 O.K. Check output signal: IC103 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N) 151(Rfs), 152(R64fs), 149(Tfs1), 150(T64fs1), 146(Tfs2), 147(T64fs2), 181(DFL), 180(DFR), 179(DC), 176(DSW), 175(DSL), 173(DSR) N.G. Check Soldering. • IC103 • 3.3V O.K. Check DSP operation Refer (1) CD, DVD-VIDEO/AUDIO O.K. Check DATA Signal -1 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N) • [IC303](DSP): input N.G. Check Soldering. • R187~192, R310~315 O.K. Check DATA Signal -2 [SOURCE DIRECT: 100kHz]: DSD DIRECT Processing GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC303](DSP): output 121(DFL_O),122(DFR_O),126(DC_O),127(DSW_O) 130(DSL_O),131(DSR_O)pin [SOURCE DIRECT: OFF/50kHz]: DSD to PCM Convert Processing Refer • CD, DVD-VIDEO/AUDIO Check DATA Signal-3~ N.G. Check Soldering. • R316~322 O.K. Check DATA Signal -3 GU-3751-1(AUDIO (DIGITAL) UNIT) • [IC103](EP2C8Q208C8N): output to DAC(MIXL/MIXR/FL/FR/C/SW/SL/SR) 4~6, 8, 10~15, 30, 31, 33pin GU-3751-2(AUDIO/MIX UNIT) • [IC702](DAC for MIXL), [IC707](DAC for MIXR), [IC401](DAC for FL/FR), [IC406](DAC for C/SW), [IC411](DAC for SL/SR): input 4~7pin(LRCK=1fs, BCK=64fs, DATA,MCK=256fs) N.G. Check Soldering. • CX125, CY125, CX126, CY126, CX127, CY127, CX129, CY129 (GU-3751-1 to GU-3751-2 or GU-3751-3) O.K. Check DAC output ~ Refer • CD, DVD-VIDEO/AUDIO O.K. END w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DVD-3930/3930CI ELECTRICAL ADJUSTMENT FOR VIDEO 1. SETTING (1) Connect the monitor TV to the video output terminal. (2) Connect the oscilloscope to the Y-signal and C-signal of S-VIDEO output terminal and each terminate at 75 Ohms. (3) Connect the oscilloscope to the Y-signal, PB-signal and PR-signal of Component video output terminal and each terminate at 75 Ohms. ※ Use the 75 Ohms resistance must be 1% (4) DVD test disc : DVDT-S01 2. BEFORE ADJUSTMENT 2.1. Setting the Oscilloscope as below. (1) PB/PR (a) TIME/DIV : 20µS (b) VOLT/DIV : 100mV (Use the probe : x10 ) (2) Y/C (a) TIME/DIV : 20µS (b) VOLT/DIV : 50mV (Use the probe : x10 ) Power on. Power Supply U.S.A. & Canada : 120V Europe & Asia : 230V Japan : 100V 2.2. Preparation (1) Power on. (2) Check the Component output signal is progressive. (“PROGRESSIVE” is shown on the FL display) (3) Check the HDMI output is off. (“HDMI” is not shown on the FL display) (4) Push [OPEN/CLOSE] button, then open the Disc Tray. (5) Set DVD test disc (DVDT-S01) on the Disc Tray, and then push [CLOSE] button. (6) FL display appear “STOP”, push [PLAY] button to play- back DVD. (7) Push the [DISPLAY] button of remote control unit and then appear the ON-Screen Display (GUI) on the monitor TV. (8) Push the [+10] and [2] button, select title 12 of DVD. (9) Push the [ENTER] button, playback title 12. (color bar 75%) ビデオ回路の調整 1. セッティング手順 (1) セットの VIDEO OUT 端子にテレビモニターを接続する。 (2) セットの S2 VIDEO OUT 端子から Y 信号と C 信号をそ れぞれオシロスコープ（終端抵抗：75Ω）に接続する。 (3) セットの COMPONENT VIDEO OUT の端子（Y/PB/PR） をそれぞれオシロスコープ（終端抵抗：75Ω）に接続 する。 ※　75Ω 抵抗は 1％品を使用する事。 (4) DVD テストディスク：DVDT-S01 を用意する。 2. 調整のまえに 2.1. オシロスコープを下記に設定する。 (1) PB/PR (a) TIME/DIV : 20μS (b) VOLT/DIV : 100mV （プローブ x10 使用） (2) Y/C (a) TIME/DIV : 20μS (b) VOLT/DIV : 50mV （プローブ x10 使用） 電源電圧 ：100V (Japan) ：120V (U.S.A. & Canada) ：230V (Europe & Asia) 2.2. 準備手順 (1) セットの AC コードをコンセントへ挿入し、セットの電 源を ON する。 (2) セットの COMPONENT VIDEO OUT 端子の出力が PRO- GRESSIVE になっていることを確認する。 (FL 管の "PROGRESSIVE" が点灯していること ) (3) HDMI 出力が OFF になっていることを確認する。 (FL 管の "HDMI" が消灯していること ) (4) セットの「OPEN/CLOSE」ボタンを押しトレイを開き、 トレイ上に DVD テストディスク（DVDT-S01）をセッ ト後、「CLOSE」ボタンを押す。 (5) セット表示管上に "STOP" が表示されてから、PLAY ボ タンを押し、ディスクを再生する。 (6) リモコンの DISPLAY ボタンを押しグラフィカル・ユー ザー・インターフェイス (GUI) 画面を出す。 (7) 番号ボタンの [+10][2] ボタンを押し、Title 12 を選択す る。 (8) 「ENTER」ボタンを押し、Title 12 を再生する（75％カ ラーバー信号）。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DVD-3930/3930CI 3. PROCEDURE (1) Adjust the signal of S-VIDEO out by the wave of oscillo- scope. (a) Target, Y-signal Point : VR551 Adjustment Value : 1000 ± 20mV Waveform (b) Target, C-signal Check Value : 286 ± 10mV Waveform (2) Adjust the signal of COMPONENT OUT (PROGRES- SIVE) by the wave of oscilloscope. (a) Target, Y-signal Point : VR501 Adjustment Value : 1000 ± 20mV Waveform (b) Target, PB-signal Check Value : *525 ± 10mV Waveform Y-signal of S-VIDEO out Y C-signal of S-VIDEO out C Y-signal Y PB-signal PB 3. 手順 (1) セットの S2 VIDEO OUT の信号レベルをオシロスコープ 上の波高値で調整する。 (a) Y 信号レベル 調整個所 ：VR551 調整値 ： 1000 ± 20mV 波形 (b) C 信号レベル 確認 ： 286 ± 10ｍV 波形 (2) COMPONENT OUT (PROGRESSIVE) の信号レベルをオシ ロスコープ上の波高値で調整する。 (a) Y 信号レベル 調整個所 ：VR501 調整値 ： 1000 ± 20ｍV 波形 (b) PB 信号レベル 確認 ：525 ± 10ｍV 波形 S2 VIDEO OUT の Y 信号レベル Y C S2 VIDEO OUT の C 信号レベル Y プログレッシブの Y 信号レベル PB PB 信号レベル www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DVD-3930/3930CI (c) Target, PR-signal Check Value : *525 ± 10mV Waveform * : 486 ± 10mV for U.S.A. & Canada model PR-signal PR (c) PR 信号レベル 調整値 ： 525 ± 10ｍV 波形 PR 信号レベル PR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DVD-3930/3930CI BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DVD-3930/3930CI SEMICONDUCTORS Only major semiconductors are shown, general semiconductors etc. are omitted to list. 主な半導体を記載しています。汎用の半導体は記載を省略しています。 1. IC’s Note : Abbreviation ahead of IC No. indicates the name of P.W.B., etc. 注 ) : IC No. の前の記号は、基板の名称を表します。 MA : MAIN/A. VIDEO P.W.B. PD : POWER/DISPLAY P.W.B. AU : AUDIO P.W.B. DI : DIGITAL VIDEO P.W.B. D708E001RFP250 (AU: IC303) D708E001RFP250 Terminal Function Pin No. Signal Name Type Description 1 VSS - Ground 2 AHCLKX0/AHCLKX2 I/O McASP0 and McASP2 Transmit Master Clock 3 AMUTE0 O McASP0 MUTE Output 4 AMUTE1 O McASP1 MUTE Output 5 AHCLKX1 I/O McASP1 Transmit Master Clock 6 VSS - Ground 7 ACLKX1 I/O McASP1 Transmit Bit Clock 8 CVDD - Core Supply 9 ACLKR1 I/O McASP1 Receive Bit Clock 10 DVDD - I/O Supply 11 AFSX1 I/O McASP1 Transmit Frame Sync (L/R Clock) 12 AFSR1 I/O McASP1 Receive Frame Sync (L/R Clock) 78 EM_A[7] 109 1 108 72 2 107 3 106 4 105 5 104 6 103 7 102 8 101 9 100 10 99 11 98 12 97 13 96 14 95 15 94 16 93 17 92 18 91 19 90 20 89 21 88 22 87 23 86 24 85 25 84 26 83 27 82 28 81 29 80 30 79 31 32 77 33 76 34 75 35 74 36 73 110 71 111 70 112 69 113 68 114 67 115 66 116 65 117 64 118 63 119 62 120 61 121 60 122 59 123 58 124 57 125 56 126 55 127 54 128 53 129 52 130 51 131 50 132 49 133 48 134 47 135 46 136 45 137 44 138 43 139 42 140 41 141 40 142 39 143 38 37 144 VSS AHCLKX0/AHCLKX2 AMUTE0 AMUTE1 AHCLKX1 VSS ACLKX1 CVDD ACLKR1 DVDD AFSX1 AFSR1 VSS RESET VSS CVDD CLKIN VSS TMS CVDD TRST OSCVSS OSCIN OSCOUT OSCVDD VSS PLLHV TDI TDO VSS DVDD EMU[0] CVDD EMU[1] TCK VSS SPI0_CLK/I2C0_SCL SPI0_SCS/I2C1_SCL VSS SPI0_ENA/I2C1_SDA EM_OE DVDD EM_RW CVDD EM_CS[2] VSS EM_RAS EM_CS[0] EM_BA[0] VSS EM_BA[1] EM_A[10] DVDD EM_A[0] CVDD EM_A[1] EM_A[2] VSS EM_A[3] CVDD EM_A[4] EM_A[5] VSS DVDD EM_A[6] VSS CVDD EM_A[8] EM_A[9] EM_A[11] DVDD VSS SPI0_SIMO SPI0_SOMI/I2C0_SDA DVDD AXR0[0] VSS AXR0[1] AXR0[2] AXR0[3] VSS AXR0[4] AXR0[5]/SPI1_SCS AXR0[6]/SPI1_ENA AXR0[7]/SPI1_CLK CVDD VSS DVDD AXR0[8]/AXR1[5]/SPI1_SOMI AXR0[9]/AXR1[4]/SPI1_SIMO CVDD VSS AXR0[10]/AXR1[3] AXR0[11]/AXR1[2] CVDD VSS AXR0[12]/AXR1[1] AXR0[13]/AXR1[0] DVDD AXR0[14]/AXR2[1] AXR0[15]/AXR2[0] ACLKR0 VSS AFSR0 ACLKX0 AHCLKR0/AHCLKR1 AFSX0 VSS EM_CLK EM_CKE VSS DVDD EM_WE_DQM[1] EM_D[8] CVDD EM_D[9] EM_D[10] VSS EM_D[11] DVDD EM_D[12] EM_D[13] CVDD EM_D[14] EM_D[15] VSS CVDD EM_D[0] EM_D[1] DVDD EM_D[2] EM_D[3] VSS EM_D[4] EM_D[5] CVDD EM_D[6] DVDD EM_D[7] VSS EM_WE_DQM[0] EM_WE EM_CAS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DVD-3930/3930CI 13 VSS - Ground 14 RESET I Device reset pin 15 VSS - Ground 16 CVDD - Core Supply 17 CLKIN I Alternate clock input (3.3-V LVCMOS Input) 18 VSS - Ground 19 TMS I Test Mode Select 20 CVDD - Core Supply 21 TRST I Test Reset 22 OSCVSS PWR Oscillator VSS tap point (for filter only) 23 OSCIN I 1.2-V Oscillator Input 24 OSCOUT O 1.2-V Oscillator Output 25 OSCVDD PWR Oscillator 1.2-V VDD tap point (for filter only) 26 VSS - Ground 27 PLLHV PWR PLL 3.3-V Supply Input (requires external filter) 28 TDI I Test Data In 29 TDO OZ Test Data Out 30 VSS - Ground 31 DVDD - I/O Supply 32 EMU[0] I/O Emulation Pin 0 33 CVDD - Core Supply 34 EMU[1] I/O Emulation Pin 1 35 TCK I Test Clock 36 VSS - Ground 37 EM_CAS O SDRAM Column Address Strobe 38 EM_WE O SDRAM Write Enable 39 EM_WE_DQM[0] O Write Enable or Byte Enable for EM_D[7:0] 40 VSS - Ground 41 EM_D[7] I/O EMIF Data Bus [Lower 16 Bits] 42 DVDD - I/O Supply 43 EM_D[6] I/O EMIF Data Bus [Lower 16 Bits] 44 CVDD - Core Supply 45 EM_D[5] I/O EMIF Data Bus [Lower 16 Bits] 46 EM_D[4] I/O EMIF Data Bus [Lower 16 Bits] 47 VSS - Ground 48 EM_D[3] I/O EMIF Data Bus [Lower 16 Bits] 49 EM_D[2] I/O EMIF Data Bus [Lower 16 Bits] 50 DVDD - I/O Supply 51 EM_D[1] I/O EMIF Data Bus [Lower 16 Bits] 52 EM_D[0] I/O EMIF Data Bus [Lower 16 Bits] 53 CVDD - Core Supply 54 VSS - Ground 55 EM_D[15] I/O EMIF Data Bus [Lower 16 Bits] 56 EM_D[14] I/O EMIF Data Bus [Lower 16 Bits] 57 CVDD - Core Supply 58 EM_D[13] I/O EMIF Data Bus [Lower 16 Bits] 59 EM_D[12] I/O EMIF Data Bus [Lower 16 Bits] 60 DVDD - I/O Supply 61 EM_D[11] I/O EMIF Data Bus [Lower 16 Bits] 62 VSS - Ground 63 EM_D[10] I/O EMIF Data Bus [Lower 16 Bits] 64 EM_D[9] I/O EMIF Data Bus [Lower 16 Bits] 65 CVDD - Core Supply 66 EM_D[8] I/O EMIF Data Bus [Lower 16 Bits] 67 EM_WE_DQM[1] O Write Enable or Byte Enable for EM_D[15:8] 68 DVDD - I/O Supply 69 VSS - Ground 70 EM_CLK O SDRAM Clock 71 EM_CKE O SDRAM Clock Enable 72 VSS - Ground 73 DVDD - I/O Supply 74 EM_A[11] O EMIF Address Bus 75 EM_A[9] O EMIF Address Bus 76 EM_A[8] O EMIF Address Bus 77 CVDD - Core Supply 78 VSS - Ground 79 EM_A[7] O EMIF Address Bus Pin No. Signal Name Type Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DVD-3930/3930CI 80 EM_A[6] O EMIF Address Bus 81 DVDD - I/O Supply 82 VSS - Ground 83 EM_A[5] O EMIF Address Bus 84 EM_A[4] O EMIF Address Bus 85 CVDD - Core Supply 86 EM_A[3] O EMIF Address Bus 87 VSS - Ground 88 EM_A[2] O EMIF Address Bus 89 EM_A[1] O EMIF Address Bus 90 CVDD - Core Supply 91 EM_A[0] O EMIF Address Bus 92 DVDD - I/O Supply 93 EM_A[10] O EMIF Address Bus 94 EM_BA[1] O SDRAM Bank Address and Asynchronous Memory Low-Order Address 95 VSS - Ground 96 EM_BA[0] O SDRAM Bank Address and Asynchronous Memory Low-Order Address 97 EM_CS[0] O SDRAM Chip Select 98 EM_RAS O SDRAM Row Address Strobe 99 VSS - Ground 100 EM_CS[2] O Asynchronous Memory Chip Select 101 CVDD - Core Supply 102 EM_RW O Asynchronous Memory Read/not Write 103 DVDD - I/O Supply 104 EM_OE O SDRAM Output Enable 105 SPI0_ENA/I2C1_SDA I/O SPI0 Enable (Ready) or I2C1 Serial Data 106 VSS - Ground 107 SPI0_SCS/I2C1_SCL I/O SPI0 Slave Chip Select or I2C1 Serial Clock 108 SPI0_CLK/I2C0_SCL I/O SPI0 Serial Clock or I2C0 Serial Clock 109 VSS - Ground 110 SPI0_SIMO I/O SPI0 Data Pin Slave In Master Out 111 SPI0_SOMI/I2C0_SDA I/O SPI0 Data Pin Slave Out Master In or I2C0 Serial Data 112 DVDD - I/O Supply 113 AXR0[0] I/O McASP0 Serial Data 0 114 VSS - Ground 115 AXR0[1] I/O McASP0 Serial Data 1 116 AXR0[2] I/O McASP0 Serial Data 2 117 AXR0[3] I/O McASP0 Serial Data 3 118 VSS - Ground 119 AXR0[4] I/O McASP0 Serial Data 4 120 AXR0[5]/SPI1_SCS I/O McASP0 Serial Data 5 or SPI1 Slave Chip Select 121 AXR0[6]/SPI1_ENA I/O McASP0 Serial Data 6 or SPI1 Enable (Ready) 122 AXR0[7]/SPI1_CLK I/O McASP0 Serial Data 7 or SPI1 Serial Clock 123 CVDD - Core Supply 124 VSS - Ground 125 DVDD - I/O Supply 126 AXR0[8]/AXR1[5]/SPI1_SOMI I/O McASP0 Serial Data 8 or McASP1 Serial Data 5 or SPI1 Data Pin Slave Out Master In 127 AXR0[9]/AXR1[4]/SPI1_SIMO I/O McASP0 Serial Data 9 or McASP1 Serial Data 4 or SPI1 Data Pin Slave In Master Out 128 CVDD - Core Supply 129 VSS - Ground 130 AXR0[10]/AXR1[3] I/O McASP0 Serial Data 10 or McASP1 Serial Data 3 131 AXR0[11]/AXR1[2] I/O McASP0 Serial Data 11 or McASP1 Serial Data 2 132 CVDD - Core Supply 133 VSS - Ground 134 AXR0[12]/AXR1[1] I/O McASP0 Serial Data 12 or McASP1 Serial Data 1 135 AXR0[13]/AXR1[0] I/O McASP0 Serial Data 13 or McASP1 Serial Data 0 136 DVDD - I/O Supply 137 AXR0[14]/AXR2[1] I/O McASP0 Serial Data 14 or McASP2 Serial Data 1 138 AXR0[15]/AXR2[0] I/O McASP0 Serial Data 15 or McASP2 Serial Data 0 139 ACLKR0 I/O McASP0 Receive Bit Clock 140 VSS - Ground 141 AFSR0 I/O McASP0 Receive Frame Sync (L/R Clock) 142 ACLKX0 I/O McASP0 Transmit Bit Clock 143 AHCLKR0/AHCLKR1 I/O McASP0 and McASP1 Receive Master Clock 144 AFSX0 I/O McASP0 Transmit Frame Sync (L/R Clock) Pin No. Signal Name Type Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DVD-3930/3930CI MN2DS0009AA (MA: IC157) MN2DS0009AA Terminal Function Pin No. Pin Name Type Symbol Function 1 MDQ18 I/O SDRAM DATA18 SDRAM data 18 2 VSS - GND GND 3 VDD33 - 3.3V I/O supply 4 MDQ28 I/O SDRAM DATA28 SDRAM data 28 5 MDQ19 I/O SDRAM DATA19 SDRAM data 19 6 MDQ27 I/O SDRAM DATA27 SDRAM data 27 7 MDQ20 I/O SDRAM DATA20 SDRAM data 20 8 VDD33 - 3.3V I/O supply 9 VSS - GND GND 10 MDQ26 I/O SDRAM DATA26 SDRAM data 26 11 MDQ21 I/O SDRAM DATA21 SDRAM data 21 12 MDQ25 I/O SDRAM DATA25 SDRAM data 25 13 MDQ22 I/O SDRAM DATA22 SDRAM data 22 14 MDQ24 I/O SDRAM DATA24 SDRAM data 24 15 MDQ23 I/O SDRAM DATA23 SDRAM data 23 16 VSS - GND GND 17 VDD33 - 3.3V I/O supply 18 EXADTO I/O EXT ADRC External memory address 0 / data 0 19 NEXCE O EXT CE External memory chip select 20 NEXOE O EXT OE External memory output enable 21 VSS - GND GND 22 VDD12 - 1.2V Logic supply 23 EXDTO I/O EXT MEMORY DATA0 External memory data 0 24 EXDT8 I/O EXT MEMORY DATA8 External memory data 8 25 EXDT1 I/O EXT MEMORY DATA1 External memory data 1 26 EXDT9 I/O EXT MEMORY DATA9 External memory data 9 27 EXDT2 I/O EXT MEMORY DATA2 External memory data 2 28 EXDT10 I/O EXT MEMORY DATA10 External memory data 10 29 EXDT3 I/O EXT MEMORY DATA3 External memory data 3 30 EXDT11 I/O EXT MEMORY DATA11 External memory data 11 31 EXDT4 I/O EXT MEMORY DATA4 External memory data 4 32 EXDT12 I/O EXT MEMORY DATA12 External memory data 12 33 EXDT5 I/O EXT MEMORY DATA5 External memory data 5 34 VSS - GND GND 35 VDD33 - 3.3V I/O supply 36 EXDT13 I/O EXT MEMORY DATA13 External memory data 13 37 EXDT6 I/O EXT MEMORY DATA6 External memory data 6 38 EXDT14 I/O EXT MEMORY DATA14 External memory data 14 39 EXDT7 I/O EXT MEMORY DATA7 External memory data 7 40 EXDT15 I/O EXT MEMORY DATA15 External memory data 15 41 EXADR161 I/O EXT ADR16 External memory address 16 42 EXADT152 I/O EXT ADT15 External memory address 15 / data 8 43 EXADT142 I/O EXT ADT14 External memory address 14 / data 1 44 VSS - GND GND 45 VDD12 - 1.2V Logic supply 46 EXADT13 I/O EXT ADR13 External memory address 13 / data 9 47 EXADT12 I/O EXT ADR12 External memory address 12 / data 2 48 EXADT11 I/O EXT ADR11 External memory address 11 / data 10 49 EXADT10 I/O EXT ADR10 External memory address 10 / data 3 50 EXADT9 I/O EXT ADR9 External memory address 9 / data 11 51 EXADT8 I/O EXT ADR8 External memory address 8 / data 4 52 VSS - GND GND 53 VDD33 - 3.3V I/O supply 54 EXADR19 I/O EXT ADR19 External memory address 19 55 NEXWE O EXT WE External memory write enable 56 EXADR183 I/O EXT ADR18 External memory address 18 57 EXADR174 I/O EXT ADR17 External memory address 17 58 EXADT7 I/O EXT ADR7 External memory address 7 / data 12 59 EXADT6 I/O EXT ADR6 External memory address 6 / data 5 60 EXADT5 I/O EXT ADR5 External memory address 5 / data 13 61 EXADT4 I/O EXT ADR4 External memory address 4 / data 6 62 EXADT3 I/O EXT ADR3 External memory address 3 / data 14 63 EXADT2 I/O EXT ADR2 External memory address 2 / data 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DVD-3930/3930CI 64 EXADT1 I/O EXT ADR1 External memory address 1 / data 15 65 P0 I/O EXT ADR20 External memory address 20 66 P1 I/O SDA Serial 0 output data 67 P2 I/O SCL Serial 0 clock 68 VSS - GND GND 69 VDD33 - 3.3V I/O supply 70 P3 I/O SYSRXD Serial 1 input data 71 P4 I/O SYSTXD Serial 1 output data 72 P5 I/O REMO/INTST External interrupt 2 73 P6 I/O V-CS Serial 2 input data 74 P7 I/O V-DATA Serial 2 output data 75 P8 I/O V-CLK Serial 2 clock 76 P9 I/O MSDATAI Serial 3 input data 77 P10 I/O MSDATAO Serial 3 output data 78 P11 I/O MSCLK Serial 3 clock 79 P12 I/O CS1 Extension chip select 80 P13 I/O SACD-READY Serial 3 data receipt flag 81 P14 I/O MSLAT Serial 3 data transmit flag 82 VSS - GND GND 83 VDD12 - 1.2V Logic supply 84 NRST I RESET Master reset 85 FG I/O FG-IN System ucom port 21 86 DRV5 I/O CD/DVD System ucom port 15 87 DRV4 I/O IN_SW System ucom port 16 88 DRV3 I/O HFM_ON/OFF System ucom port 17 89 DRV2 I/O TRY_DRV System ucom port 18 90 DRV1 I/O SP_DRV System ucom port 19 91 DRVO I/O SL_DRV System ucom port 20 92 VSS - GND GND 93 VDD33 - 3.3V I/O supply 94 MONl7 I/O PSP-MCK/MONI7 System ucom port 22 95 MONl6 I/O PSP-WAD7/MONI6 System ucom port 23 96 MONl5 I/O PSP-WAD6/MONI5 System ucom port 24 97 MONl4 I/O PSP-WAD5/MONI4 System ucom port 25 98 MONl3 I/O PSP-WAD4/MONI3 System ucom port 26 99 MONl2 I/O PSP-WAD3/MONI2 System ucom port 27 100 MONl1 I/O PSP-WAD2/MONI1 System ucom port 28 101 MONlO I/O PSP-WAD1/MONI0 System ucom port 29 102 AVDDD - 3.3V Analog supply 103 PLF1L1 O PLFIL1 External filter for DRC-VCO 104 AVSSD - GND Analog GND 105 VREFH7 O V-REF-H7 ADC reference voltage for DRC (TOP) 106 VREFL7 O V-REF-L7 ADC reference voltage for DRC (BTM) 107 CCAPA O CCAPA Inline filter for CAPA block 108 AVSSC - GND Analog GND 109 CDATA O CDATA Inline filter for DATA block 110 AVDDG - 3.3V Analog supply 111 ANAMONl1 O TP_ANAMONI1 Internal analog monitor 1 112 ANAMONI2 O TP_ANAMONI2 Internal analog monitor 2 113 RFINN I RFINN External RF input (-) 114 RFINP I RFINP External RF input (+) 115 VINIRF I VIN1RF RF input 1 116 VIN2RF I VIN2RF RF input 2 117 VIN4RF I VIN4RF RF input 4 118 VIN3RF I VIN3RF RF input 3 119 AVDDB - 3.3V Analog supply 120 VREFH5 I V-REF-H5 5 bit AD reference Voltage "H" 121 VREFL5 I V-REF-L5 5 bit AD reference Voltage "L" 122 AVSSB - GND Analog GND 123 LPC1 I LPC1 DVD LPC input 124 LPCO1 O LPCO1 DVD LPC output 125 LPC2 I LPC2 CD LPC input 126 LPCO2 O LPCO2 CD LPC output 127 VREFH O V-REFH Reference Voltage 2.20V output 128 VHALF O V-HALF Reference Voltage 1.65V output 129 VIN10 I VIN10 CD head input Pin No. Pin Name Type Symbol Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DVD-3930/3930CI 130 VIN9 I VIN9 CD head input 131 VIN5 I VIN5 CD head input 132 VIN6 I VIN6 CD head input 133 VIN7 I VIN7 DVD head input 134 VIN8 I VIN8 DVD head input 135 VIN3 I VIN3 DVD head input 136 VIN4 I VIN4 DVD head input 137 VIN2 I VIN2 DVD head input 138 VIN1 I VIN1 DVD head input 139 ADO I KEY0 Servo AD input 0 140 AD1 I KEY1 Servo AD input 1 141 AD2 I IOP_CHECK(CD/DVD) Servo AD input 2 142 AD4 I REG Servo AD input 4 143 AVSSH - GND Analog GND 144 PWM1 O TR_DRV Tracking drive output 145 PWMO O FO_DRV Focus drive output 146 AVDDH - 3.3V Analog supply 147 DAC3OUT O OPEN Cr/R analog video output 148 DAC2OUT O OPEN Cb/B analog video output 149 DAC1OUT O OPEN Y/G analog video output 150 AVDDF - 3.3V Analog supply for VDAC 151 COMP1 I COMP1 Compensation pin for DAC1 152 VREF I VREF Reference Voltage for DAC 153 IREF1 I IREF1 Bias current adjust pin for DAC 154 COMP2 I COMP2 Compensation pin for DAC2 155 AVSSF - GND Analog GND for VDAC 156 DAC4OUT O OPEN Y/Comp analog video output 157 DAC5OUT O OPEN C analog video output 158 AVDDE - 3.3V Analog supply for PLL 159 AVSSE - GND Analog GND for PLL 160 AVDDG - 3.3V Analog supply for PLL 161 AVSSG - GND Analog GND for PLL 162 OSCl I OSC-IN Oscillator input (27MHz) 163 OSCO O OSC-OUT Oscillator output (27MHz) 164 VSS - GND GND 165 VDD12 - 1.2V Logic supply 166 DACCK I/O MCK/SD7 Stream data output 7 167 LRCK O LRCK/SD6 Stream data output 6 168 SRCK O BCK/SD5 Stream data output 5 169 ADOUT3 O MIXLR/SD4 Stream data output 4 170 ADOUT2 I/O DATA2/SD3 Stream data output 3 171 ADOUT1 I/O DATA1/SD2 Stream data output 2 172 ADOUTO I/O DATA0/SD1 Stream data output 1 173 IECOUT O SPDIF/SD0 Stream data output 0 174 VSS - GND GND 175 VDD33 - 3.3V I/O supply 176 VDIO7 I/O YC7 Digital video input/output 7 177 VDIO6 I/O YC6 Digital video input/output 6 178 VDIO5 I/O YC5 Digital video input/output 5 179 VDIO4 I/O YC4 Digital video input/output 4 180 VDI03 I/O YC3 Digital video input/output 3 181 VDIO2 I/O YC2 Digital video input/output 2 182 VDI01 I/O YC1 Digital video input/output 1 183 VDIOO I/O YC0 Digital video input/output 0 184 VDD33 - 3.3V I/O supply 185 VSS - GND GND 186 EXTRG1 I/O CLK27M Video clock output 187 SCLOCK I SCLOCK Input clock for debug 188 SDATA I/O SDATA Input/output data for debug 189 EXTRGO I/O PDETECT/EXTRGO System ucom port 41 190 TRCCLK I/O CLK33M Master clock for External AVDEC 191 TRCDATAO I/O SDEF System ucom port 44 192 TRCDATA1 I/O XSAK System ucom port 45 193 TRCDATA2 I/O SDCK System ucom port 46 194 TRCDATA3 I/O XSHD System ucom port 47 195 TRCST I/O XSRQ System ucom port 48 Pin No. Pin Name Type Symbol Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DVD-3930/3930CI 196 VSS - GND GND 197 VDD33 - 3.3V I/O supply 198 MDQ15 I/O SDRAM DATA15 SDRAM data 15 199 MDQO I/O SDRAM DATA0 SDRAM data 0 200 MDQ14 I/O SDRAM DATA14 SDRAM data 14 201 MDQ1 I/O SDRAM DATA1 SDRAM data 1 202 MDQ13 I/O SDRAM DATA13 SDRAM data 13 203 MDQ2 I/O SDRAM DATA2 SDRAM data 2 204 VDD33 - 3.3V I/O supply 205 VSS - GND GND 206 MDQ12 I/O SDRAM DATA12 SDRAM data 12 207 MDQ3 I/O SDRAM DATA3 SDRAM data 3 208 MDQ11 I/O SDRAM DATA11 SDRAM data 11 209 MDQ4 I/O SDRAM DATA4 SDRAM data 4 210 MDQ10 I/O SDRAM DATA10 SDRAM data 10 211 MDQ5 I/O SDRAM DATA5 SDRAM data 5 212 MDQ9 I/O SDRAM DATA9 SDRAM data 9 213 MDQ6 I/O SDRAM DATA6 SDRAM data 6 214 VDD33 - 3.3V I/O supply 215 VSS - GND GND 216 MDQ8 I/O SDRAM DATA8 SDRAM data 8 217 MDQ7 I/O SDRAM DATA7 SDRAM data 7 218 VDD12 - 1.2V Logic supply 219 DQMO O SDRAM DATA MASK0 SDRAM data mask 0 220 DQM1 O SDRAM DATA MASK1 SDRAM data mask 1 221 NWE O SDRAM WE Write enable for SDRAM 222 VSS - GND GND 223 MCK O SDRAM MCK Output clock for SDRAM 224 VDD33 - 3.3V I/O supply 225 MCKl I SDRAM MCK_RTN Input clock from SDRAM 226 VSS - GND GND 227 NCAS O SDRAM CAS Column address strobe for SDRAM 228 NRAS O SDRAM RAS Row address strobe for SDRAM 229 NCSM O SDRAM CS Chip select for SDRAM 230 MA11 I/O SDRAM ADDRESS11 SDRAM address 11 231 BAO O SDRAM BA0 SDRAM bank address 0 232 MA9 O SDRAM ADDRESS9 SDRAM address 9 233 VSS - GND GND 234 VDD12 - 1.2V Logic supply 235 BA1 O SDRAM BA1 SDRAM bank address 1 236 MA8 O SDRAM ADDRESS8 SDRAM address 8 237 MA10 O SDRAM ADDRESS10 SDRAM address 10 238 VSS - GND GND 239 VDD33 - 3.3V I/O supply 240 MA7 O SDRAM ADDRESS7 SDRAM address 7 241 MAO O SDRAM ADDRESS0 SDRAM address 0 242 MA6 O SDRAM ADDRESS6 SDRAM address 6 243 MA1 O SDRAM ADDRESS1 SDRAM address 1 244 MA5 O SDRAM ADDRESS5 SDRAM address 5 245 MA2 O SDRAM ADDRESS2 SDRAM address 2 246 MA4 O SDRAM ADDRESS4 SDRAM address 4 247 MA3 O SDRAM ADDRESS3 SDRAM address 3 248 VSS - GND GND 249 VDD33 - 3.3V I/O supply 250 DQM2 I/O SDRAM DATA MASK2 SDRAM data mask 2 251 DQM3 I/O SDRAM DATA MASK3 SDRAM data mask 3 252 MDQ31 I/O SDRAM DATA31 SDRAM data 31 253 MDQ16 I/O SDRAM DATA16 SDRAM data 16 254 MDQ30 I/O SDRAM DATA30 SDRAM data 30 255 MDQ17 I/O SDRAM DATA17 SDRAM data 17 256 MDQ29 I/O SDRAM DATA29 SDRAM data 29 Pin No. Pin Name Type Symbol Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DVD-3930/3930CI BD7956FS (MA: IC151) BD7956FS Block diagram 1 27 54 28 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 DVD-3930/3930CI BD7956FS Terminal Function Pin No. Symbol Description 1 LDO- Loading driver negative output 2 LDO+ Loading driver positive output 3 VCC BTL block pre-loading power supply 4 ACTIN1 Actuator driver 1 input 5 ACTIN2 Actuator driver 2 input 6 TJMON Chip temperature monitor terminal 7 BTHC Connection with capacitor for bottom hold 8 SPVM_S Spindle driver power supply 9 PGND1 Spindle driver power ground 1 10 PGND2 Spindle driver power ground 2 11 U Spindle driver output U 12 SPVM1 Spindle driver power supply 1 13 V Spindle driver output V 14 fin fin 15 PGND3 Spindle driver power ground 3 16 W Spindle driver output W 17 SPVM2 Spindle driver power supply 2 18 SPRNF Spindle driver current sense 19 HB Hall bias 20 HU+ Hall amp.U positive input 21 HU- Hall amp.U negative input 22 HV+ Hall amp.V positive input 23 HV- Hall amp.V negative input 24 HW+ Hall amp.W positive input 25 HW- Hall amp.W negative input 26 SPIN Spindle driver control input 27 DGND PWM block pre-ground 28 DVCC PWM block control power supply 29 SLIN1 Sled driver 1 input 30 SLIN2 Sled driver 2 input 31 SLVDD Sled driver MOS pre power supply 32 SLRNF1 Sled driver 1 current sense 33 SLRNF2 Sled driver 2 current sense 34 CTL1 Driver logic control input 1 35 CTL2 Driver logic control input 2 36 SLGND Sled driver power ground 37 SLO2- Sled driver 2 negative output 38 SLO2+ Sled driver 2 positive output 39 SLO1- Sled driver 1 negative output 40 SLO1+ Sled driver 1 positive output 41 fin fin 42 VC Reference voltage input 43 FG Frequency generator output 44 SPCNF Spindle driver filter terminal 45 AGND BTL block power ground 46 LDIN Loading driver input 47 ACTIN3 Actuator driver 3 input 48 AVM Actuator driver power supply 49 ACO3- Actuator driver 3 positive output 50 ACO3+ Actuator driver 3 negative output 51 ACO2- Actuator driver 2 positive output 52 ACO2+ Actuator driver 2 negative output 53 ACO1- Actuator driver 1 positive output 54 ACO1+ Actuator driver 1 negative output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 DVD-3930/3930CI PT6302 (PD: IC101) PT6302 Block diagram PT6302 Terminal Function Pin No. Pin Name I/O Description 9 ~ 39, 8 ~ 5 SG5 to SG35, SG4 to SG1 O Segment Driver Output Pin 40 ~ 55 GR1 to GR16 O Grid Driver Output Pin 56 VEE - Power Supply 57 VSS - Ground Pin 58 OSCI I Oscillator Input Pin 59 OSCO O Oscillator Output Pin 60 RSTB I Reset Input Pin : When this pin is set to "LOW", all functions are initialized. 61 CSB I Chip Select Input Pin : When this pin is set to "High" Level, the serial data transfer is disabled. 62 CLKB I Shift Clock Input Pin : The serial data is shifted at the rising edge of CLKB. 63 DIN I Serial Data Input Pin 64 VDD - Positive Power Supply 1 ~ 2 P1 to P2 O General Purpose Output Pin 3 ~ 4 AD2 to AD1 O Segment Driver Output Pin BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 DVD-3930/3930CI EM6A9320BI-4MG (DI: IC701-704) EM6A9320BI-4MG Terminal Function Symbol Description CK, CK# Differential Clock CKE Clock Enable BA0, BA1 Bank Select A0 -A11 Address Input CS# Chip Select RAS# Row Address Strobe CAS# Column Address Strobe WE# Write Enable DQS0-DQS3 Bidirectional Data Strobe DM0-DM3 Data input Mask DQ0-DQ31 Data I/O VDD Power Supply VSS Ground VDDQ DQ Power VSSQ DQ Ground VREF Reference Voltage for Inputs NC No Connect 12 11 10 9 8 7 6 5 4 3 2 1 M L K J H G F E D C B A DQS0 DM0 DQ4 VDDQ VSSQ DQ3 NC VDDQ DQ6 DQ5 DQ7 VDDQ VSSQ VSSQ VDD VSS DQ2 DQ0 DQ1 VDDQ DQ31 DQ29 VDDQ DQ30 VSSQ VDD VSSQ VSS VDD VSSQ VSS VSSQ DQ28 VSSQ VDDQ NC DM3 DQS3 VDDQ DQ27 VSSQ VSSQ VSS VDD DQ26 DQ25 VDDQ DQ24 DQ17 DQ16 DQ19 DQ18 VDDQ VSSQ VDDQ VSSQ DQS2 DM2 DQ21 DQ20 NC VSSQ VDDQ VSSQ VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSS Thermal VSSQ VDDQ VSSQ VDDQ DQ15 DQ14 DQ13 DQ12 VSSQ NC VSSQ VDDQ DM1 DQS1 DQ11 DQ10 DQ22 DQ23 CAS# WE# VDDQ VSSQ VDD VSS RAS# NC CS# NC NC BA1 BA0 A0 VSS VSS A10 VDD VSS VSS VDD NC A2 A11 A1 A3 A9 A5 A4 A6 VSSQ VDDQ VSS VDD DQ9 DQ8 NC NC NC CK A7 A8/AP CK# NC CKE VREF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 DVD-3930/3930CI EM638165TS (MA: IC156, IC158) EM638165TS Terminal Function LP2995M (DI: IC803) LP2995M Terminal Function MX29LV640BBTC-90 (DI: IC802) MX29LV640BBTC-90 Terminal Function VDD DQ0 VDDQ DQ1 DQ2 VSSQ DQ3 DQ4 VDDQ DQ5 DQ6 VSSQ DQ7 VDD LDQM WE# CAS# RAS# CS# BA0 BA1 A10/AP A0 A1 A2 A3 VDD 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 VSS DQ15 VSSQ DQ14 DQ13 VDDQ DQ12 DQ11 VSSQ DQ10 DQ9 VDDQ DQ8 VSS NC/RFU UDQM CLK CKE NC A11 A9 A8 A7 A6 A5 A4 VSS Symbol Type Description CLE Input Clock CKE Input Clock Enable BA0,BA1 Input Bank Select A0-A11 Input Address Inputs CS# Input Chip Select RAS# Input Row Address Strobe CAS# Input Column Address Strobe WE# Input Write Enable LDQM, UDQM Input Data Input/Output Mask DQ0-DQ15 Input/Output Data I/O NC/RFU - No Connect VDDQ Supply DQ Power VSSQ Supply DQ Ground VDD Supply Power Supply VSS Supply Ground Pin No. Name Function 1 NC No internal connection. Can be used for vias 2 GND Ground 3 VSENSE Feedback pin for regulating VTT 4 VREF Buffered internal reference voltage of VDDQ/2 5 VDDQ Input for internal reference equal to VDDQ/2 6 AVIN Analog input pin 7 PVIN Power input pin 8 VTT Output voltage for connection to termination resistors Symbol Pin Name A0~A21 Address Input Q0~Q14 Data Inputs/Outputs Q15/A-1 Q15(Word mode)/LSB address (Byte mode) CE# Chip Enable Input WE# Write Enable Input OE# Output Enable Input RESET# Hardware Reset Pin, Active Low WP#/ACC Hardware Write Protect/Programming Acceleration Input RY/BY# Read/Busy Output BYTE# Selects 8 bit or 16 bit mode VCC +3.0V single power supply GND Device Ground NC Pin Not Connected Internally www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 DVD-3930/3930CI MX29LV320CBTC-70G (MA: IC155) MX29LV320CBTC-70G Terminal Function SN74LV594APWR (MA: IC502) TA76432S (PD: IC902, 907, 908) 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 QB QC QD QE QF QG QH GND VCC QA SER RCLR RCLK SRCLK SRCLR QH′ A FRONT VIEW A K REF R E F K Symbol Pin Name A0~A20 Address Input Q0~Q14 15 Data Inputs/Outputs Q15/A-1 Q15(Data Input/Output, word mode) A-1(LSB Address Input, byte mode) CE# Chip Enable Input WE# Write Enable Input OE# Output Enable Input BYTE# Word/Byte Selection Input RESET# Hardware Reset Pin, Active Low RY/BY# Read/Busy Output VCC 3.0 volt-only single power supply WP#/ACC Hardware Write Protect/Acceleration Pin GND Device Ground NC Pin Not Connected Internally www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 DVD-3930/3930CI CXD2753R (MA: IC401) Pin Assignment Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 DVD-3930/3930CI Terminal Functions Pin Name I/O Functions 1 VSC - It fixed to ground.( for Core) 2 XMSLAT I Latch input for µCOM serial communication. 3 MSCK I Shift clock input for µCOM serial communication. 4 MSDATI I Data input for µCOM serial communication. 5 VDC - +2.5V Power for Core. 6 MSDATO O Data output for µCOM serial communication. “Hi-Z” potential except the output mode. 7 MSREADY O Completion flag of output preparation for µCOM serial communication. “L” is outputted at the time of completion. 8 XMSDOE O Output enable pin for µCOM serial communication. “L” is outputted at the time of MSDATO mode. 9 XRST I Reset pin. The whole IC is reset by at the time of “L” potential. 10 SMUTE Ipd Soft Mute. Soft mute of the audio output is carried out at the time of “H” potential. It releases at the time of “L” potential. 11 MCKI I Master Clock input. 12 VSIO - It fixed to Ground. Ground for I/O. 13 EXCKO1 O External output Clock 1. 14 EXCKO2 O External output Clock 2. 15 LRCK O 44.1kHz, 1Fs Clock output. 16 FRAME O Frame signal output. 17 VDIO - +3.3V Power for I/O. 18 MNT0 O Monitor output. 19 MNT1 O Monitor output. 20 MNT2 O Monitor output. 21 MNT3 O Monitor output. 22 TESTO O Output terminal for a Test. (open) 23 TESTO O Output terminal for a Test.(open) 24 TESTO O Output terminal for a Test.(open) 25 TESTO O Output terminal for a Test.(open) 26 TCK I Clock input for a Test. It fixed to “L” potential. 27 TDI Ipu Input pin(pull-up) for a Test.(open) 28 VSC - It fixed to Ground. Ground for CORE. 29 TDO O Output for a Test.(open). 30 TMS Ipu Input pin(pull-up) for a Test.(open) 31 TRST Ipu Reset pin(pull-up) for a Test. Input the Power-on reset signal or fixed to “L” potential. 32 TEST1 I Test input pin. It fixed to “L” potential. 33 TEST2 I Test input pin. It fixed to “L” potential. 34 TEST3 I Test input pin. It fixed to “L” potential. 35 VDC - +2.5V Power for CORE. 36 TESTO O Out put for TEST. It fixed to open. 37 XBIT O DST monitor. 38 SUPDT0 O Supplementary data output. (LSB) 39 SUPDT1 O Supplementary data output. 40 SUPDT2 O Supplementary data output. 41 SUPDT3 O Supplementary data output. 42 VSIO - Ground for I/O. 43 SUPDT4 O Supplementary data output. 44 SUPDT5 O Supplementary data output. 45 VDIO - +3.3V Power for I/O. 46 SUPDT6 O Supplementary data output. 47 SUPDT7 O Supplementary data output. (MSB) 48 XSUPAK O Supplementary data Acknowledge output terminal. 49 VSC - Ground for CORE. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 DVD-3930/3930CI 50 TESTO O Output for TEST. (open) 51 TESTI I Input for TEST. It fixed to “L” potential. 52 TESTI I Input for TEST. It fixed to “L” potential. 53 TESTO O Output for TEST. (open) 54 VDC - +2.5V Power for CORE. 55 DSADML O DSD Data output terminal for Lch Down Mix. 56 DSADMR O DSD Data output terminal for Rch Down Mix. 57 BCKASL I I/O selection terminal of the Bit clock for DSD data output. L=input (Slave), H=output (Master) 58 VSDSD - Ground terminal for DSD data output. 59 BCKAI I Bit clock input terminal for DSD data output. Input a Bit clock into this terminal at the time of BCKASL=”L” potential. 60 BCKAO O Bit clock output terminal for DSD data output. Bit clock output from this terminal at the time of BCKASL=”H” potential. 61 PHREFI I Reference phase signal input terminal for DSD output phase modulation. 62 PHREFO O Reference phase signal output terminal for DSD output phase modulation. 63 ZDFL O Lch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 64 DSAL O DSD data output terminal for Lch speaker. 65 ZDFR O Rch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 66 DSAR O DSD data output terminal for Rch speaker. 67 VDDSD - +3.3V Power for DSD data output. 68 ZDFC O Cch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 69 DSAC O DSD data output terminal for Cch speaker. 70 ZDFLFE O LFEch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 71 DSASW O DSD data output terminal for SWch speaker. 72 VSDSD - Ground for DSD data output. 73 ZDFLS O LSch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 74 DSALS O DSD data output terminal for LSch speaker. 75 ZDFRS O RSch zero-data detection flag (at the time of µcom setup). It will be set to “H” if non-sound data continues 300 msecs. 76 DSARS O DSD data output terminal for RSch speaker. 77 VDDSD O +3.3V Power for DSD data output. 78 IOUT0 O Data output terminal 0 for IEEE1394 link chip I/F. 79 IOUT1 O Data output terminal 1 for IEEE1394 link chip I/F. 80 VSC - Ground for CORE. 81 IOUT2 O Data output terminal 2 for IEEE1394 link chip I/F. 82 IOUT3 O Data output terminal 3 for IEEE1394 link chip I/F. 83 VDC - +2.5V Power for CORE. 84 IOUT4 O Data output terminal 4 for IEEE1394 link chip I/F. 85 IOUT5 O Data output terminal 5 for IEEE1394 link chip I/F. 86 VSIO - Ground for I/O. 87 IANCO O Transmission information data output terminal for IEEE1394 link chip I/F. 88 IFULL I Data transmission hold request signal input terminal for IEEE1394 link chip I/F. 89 IEMPTY I High speed transmission request signal input terminal for IEEE1394 link chip I/F. 90 VDIO - +3.3V Power for I/O. 91 IFRM O Frame reference signal output terminal for IEEE1394 link chip I/F. 92 IOUTE O Enable signal output terminal for IEEE1394 link chip I/F. 93 IBCK O Data transmission clock output terminal for IEEE1394 link chip I/F. 94 VSC - Ground for CORE. 95 TESTI I TEST input terminal. It fixed to “H” potential. Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 DVD-3930/3930CI 96 TESTI I TEST input terminal. It fixed to “L” potential. 97 TESTI Ipu TEST input terminal. It fixed to “H” potential. 98 TESTO O TEST output terminal. (open) 99 VDC - +2.5V Power for CORE. 100 TESTI I TEST input terminal. It fixed to “L” potential. 101 TESTI I TEST input terminal. It fixed to “L” potential. 102 TESTI I TEST input terminal. It fixed to “L” potential. 103 TESTI I TEST input terminal. It fixed to “L” potential. 104 TESTI I TEST input terminal. It fixed to “L” potential. 105 TESTI I TEST input terminal. It fixed to “L” potential. 106 VSIO - Ground for I/O. 107 TESTI I TEST input terminal. It fixed to “L” potential. 108 TESTI I TEST input terminal. It fixed to “L” potential. 109 TESTI I TEST input terminal. It fixed to “L” potential. 110 VDIO - +3.3V Power for I/O. 111 WAD0 I External A/D data input terminal(LSB) for PSP physical disc mark detection. 112 WAD1 I External A/D data input terminal for PSP physical disc mark detection. 113 WAD2 I External A/D data input terminal for PSP physical disc mark detection. 114 WAD3 I External A/D data input terminal for PSP physical disc mark detection. 115 VSIO - Ground for I/O. 116 VSC - Ground for CORE. 117 WAD4 I External A/D data input terminal for PSP physical disc mark detection. 118 WAD5 I External A/D data input terminal for PSP physical disc mark detection. 119 WAD6 I External A/D data input terminal for PSP physical disc mark detection. 120 WAD7 I External A/D data input terminal(MSB) for PSP physical disc mark detection. 121 VDC - +2.5V Powe for CORE. 122 TESTI I TEST input terminal. It fixed to “L” potential. 123 WCK I Operation clock for PSP physical disc mark detection. 124 WAVDD - +2.5V Power. A/D Power supply for PSP physical disc mark detection. 125 WAVDD - +2.5V Power. A/D Power supply for PSP physical disc mark detection. 126 WARFI Ai Analog RF signal input terminal for PSP physical disc mark detection. 127 WAVRB Ai A/D bottom reference terminal for PSP physical disc mark detection. 128 WAVSS - A/D Ground terminal for PSP physical disc mark detection. 129 WAVSS - A/D Ground terminal for PSP physical disc mark detection. 130 VSIO - Ground for I/O. 131 DQ7 I/O SDRAM data input/output terminal. (MSB) 132 DQ6 I/O SDRAM data input/output terminal. 133 DQ5 I/O SDRAM data input/output terminal. 134 DQ4 I/O SDRAM data input/output terminal. 135 VDIO - +3.3V Power for I/O. 136 DQ3 I/O SDRAM data input/output terminal. 137 DQ2 I/O SDRAM data input/output terminal. 138 DQ1 I/O SDRAM data input/output terminal. 139 DQ0 I/O SDRAM data input/output terminal. (LSB) 140 VSIO - Ground for I/O. 141 DCLK O Clock output terminal for SDRAM. 142 DCKE O Clock enable output terminal for SDRAM. 143 XWE O Write enable output terminal for SDRAM. 144 XCAS O Colomn address strobe output terminal for SDRAM. 145 XRAS O Row address strobe output terminal for SDRAM. 146 VDIO - +3.3V Power for I/O. 147 TESTO O Output terminal for TEST. (open) Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 DVD-3930/3930CI Ipu: Pull-up input Ipd: Pull-down input Ai: Analog input 148 A11 O Address output terminal for SDRAM. (MSB) 149 A10 O Address output terminal for SDRAM. 150 VSC - Ground for CORE. 151 A9 O Address output terminal for SDRAM. 152 A8 O Address output terminal for SDRAM. 153 VDC - +2.5V Power for CORE. 154 A7 O Address output terminal for SDRAM. 155 A6 O Address output terminal for SDRAM. 156 A5 O Address output terminal for SDRAM. 157 A4 O Address output terminal for SDRAM. 158 VSIO - Ground for I/O. 159 A3 O Address output terminal for SDRAM. 160 A2 O Address output terminal for SDRAM. 161 A1 O Address output terminal for SDRAM. 162 A0 O Address output terminal for SDRAM. (LSB) 163 VDIO - +3.3V Power for I/O. 164 XSRQ O Output terminal of the Data Request signal inputted a front-end processor. 165 XSHD I Input terminal of the header Flag outputted from a front-end processor. 166 SDCK I Input terminal of the data conveyance Clock outputted from a front-end processor. 167 XASK I Input terminal of the data valid Flag outputted from a front-end processor. 168 SDEF I Input terminal of the error Flag outputted from a front-end processor. 169 SD0 I Input terminal of the stream Data outputted from a front-end processor. 170 SD1 I Input terminal of the stream Data outputted from a front-end processor. 171 SD2 I Input terminal of the stream Data outputted from a front-end processor. 172 SD3 I Input terminal of the stream Data outputted from a front-end processor. 173 SD4 I Input terminal of the stream Data outputted from a front-end processor. 174 SD5 I Input terminal of the stream Data outputted from a front-end processor. 175 SD6 I Input terminal of the stream Data outputted from a front-end processor. 176 SD7 I Input terminal of the stream Data outputted from a front-end processor. Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 DVD-3930/3930CI PCM1796DBR (AU: IC401, 406, 411, 702, 707) PCM1796DBR Block Diagram 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 ZEROL ZEROR MSEL LRCK DATA BCK SCK DGND VDD MS MDI MC MDO RST VCC2L AGND3L IOUTL− IOUTL+ AGND2 VCC1 VCOML VCOMR IREF AGND1 IOUTR− IOUTR+ AGND3R VCC2R (TOP VIEW) Power Supply RST SCK Advanced Segment DAC Modulator IOUTL+ IOUTL− IOUTR− Current Segment DAC IOUTR+ Bias and Vref VCOML VCOMR AGND2 VDD VCC1 VCC2L VCC2R AGND1 I/V and Filter �8 Oversampling Digital Filter and Function Control Audio Data Input I/F LRCK BCK DATA MDO MDI MC MS AGND3L AGND3R DGND Current Segment DAC IREF VOUTL I/V and Filter VOUTR Function Control I/F MSEL Zero Detect ZEROL ZEROR System Clock Manager www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DVD-3930/3930CI PCM1796DBR Terminal Function TERMINAL I/O DESCRIPTIONS NAME PIN I/O DESCRIPTIONS AGND1 19 − Analog ground (internal bias) AGND2 24 − Analog ground (internal bias) AGND3L 27 − Analog ground (L-channel DACFF) AGND3R 16 − Analog ground (R-channel DACFF) BCK 6 I Bit clock input(1) DATA 5 I Serial audio data input(1) DGND 8 − Digital ground IOUTL+ 25 O L-channel analog current output+ IOUTL– 26 O L-channel analog current output– IOUTR+ 17 O R-channel analog current output+ IOUTR– 18 O R-channel analog current output– IREF 20 − Output current reference bias pin LRCK 4 I Left and right clock (fS) input(1) MC 12 I Mode control clock input(1) MDI 11 I Mode control data input(1) MDO 13 I/O Mode control readback data output(3) MS 10 I/O Mode control chip-select input(2) MSEL 3 I I2C/SPI select(1) RST 14 I Reset(1) SCK 7 I System clock input(1) VCC1 23 − Analog power supply, 5 V VCC2L 28 − Analog power supply (L-channel DACFF), 5 V VCC2R 15 − Analog power supply (R-channel DACFF), 5 V VCOML 22 − L-channel internal bias decoupling pin VCOMR 21 − R-channel internal bias decoupling pin VDD 9 − Digital power supply, 3.3 V ZEROL 1 I/O Zero flag for L-channel(2) ZEROR 2 I/O Zero flag for R-channel(2) (1) Schmitt-trigger input, 5-V tolerant (2) Schmitt-trigger input and output. 5-V tolerant input and CMOS output (3) Schmitt-trigger input and output. 5-V tolerant input. In I2C mode, this pin becomes an open-drain 3-state output; otherwise, this pin is a CMOS output. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 DVD-3930/3930CI SM8707EV (MA: IC154) Top View Block Diagram Functions Number Name I/O Description 1 VDD1 - Supply 1 for digital block 2 VSS1 - Ground 1 for digital block 3 MO1 O Video system output 1 (27MHz fixed) 4 MO2 O Video system output 2 (27MHz fixed) 5 VDD2 - Supply 2 for analog block 6 VSS2 - Ground 2 for analog block 7 XTI I Crystal oscillator connection or external clock input 8 XTO O Crystal oscillator connection 9 AO1 O Audio system output 1 (384fs/768fs output) FSEL = LOW, fs = 48kHz: 768fs FSEL = HIGH, fs = 44.1kHz: 384fs Audio system output 1 (512fs output) 10 AO2 O Audio system output 1 (512fs output) 11 VSS3 - Ground 3 for digital block 12 VDD3 - Supply 1 for digital block 13 SO1 O Signal processor system output 1 (16.9344MHz fixed) Signal processor system output 1 (33.8688MHz fixed) 14 FSEL I Sampling frequency select FSEL = LOW : fs = 48kHz FSEL = HIGH : fs = 44.1kHz (with internal pull-up resistor, Schmitt-trigger input) Sampling frequency select FSEL = LOW : fs = 48kHz FSEL = HIGH : fs = 44.1kHz (with internal pull-up resistor, Schmitt-trigger input) 15 SO2 O Signal processor system output 2 (33.8688MHz fixed) 16 NC - No connection (leave pin open circuit or connect to VDD) 1 16 8 9 VDD1 VSS1 MO1 MO2 VDD2 VSS2 VT1 XTO NC SO2 FSEL SO1 VDD3 VSS3 AO2 AO1 MO2 XTI XTO X'tal OSC Reference Divider 0 Phase Detector 0 Charge Pump 0 LPF 0 VCO 0 Loop Divider 0 Reference Divider 1 Phase Divider 1 Charge Pump 1 LPF 1 VCO 1 Loop Divider 1 FSEL Control Logic AO1 AO2 SO1 SO2 MO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 DVD-3930/3930CI LC89057W (AU: IC107) LC89057W Terminal Function Function Pin No. Pin Name 1 RXOUT O Input bi-phase select data output terminal 2 RX0 I TTL compatible digital data input terminal 3 RX1 I Coaxial compatible amp built-in digital data input terminal 4 RX2 I TTL compatible digital data input terminal 5 RX3 I TTL compatible digital data input terminal 6 DGND — Digital GND 7 DVDD — Digital power 8 RX4 I TTL compatible digital data input terminal 9 RX5/VI I TTL compatible digital data/Validity flag input terminal for modulation 10 RX6/UI I TTL compatible digital data/User data input terminal for modulation 11 DVDD — Digital power for PLL 12 DGND — Digital GND for PLL 13 LPF O PLL loop filter connecting terminal 14 AVDD — Analog power for PLL 15 AGND — Analog GND for PLL 16 RMCK O RMCK clock output terminal (256fs, 512fs, XIN, VCO) 17 RBCK O/I RBCK clock in/output terminal (64fs) 18 DGND — Digital GND 19 DVDD — Digital power 20 RLRCK O/I RLRCK clock in/output terminal (fs) 21 RDATA O Serial audio data output terminal 22 SBCK O SBCK clock output terminal (32fs, 64fs, 128fs) 23 SLRCK O SLRCK clock output terminal (fs/2, fs, 2fs) 24 SDIN I Serial audio data input terminal 25 DGND — Digital GND 26 DVDD — Digital power 27 XMCK O Osc. amp output terminal I/O 36 RERR 1 RXOUT 35 INT 2 RX0 34 CKST 3 RX1 33 AUDIO/VO 4 RX2 32 EMPHA/UO 5 RX3 31 DGND 6 DGND 30 DVDD 7 DVDD 29 XIN 8 RX4 28 XOUT 9 RX5/VI 27 XMCK 10 RX6/UI 26 DVDD 11 DVDD 25 DGND 12 DGND 24 SDIN 37 DO 23 SLRCK 38 DI 22 SBCK 39 CE 21 RDATA 40 CL 20 RLRCK 41 XMODE 19 DVDD 42 DGND 18 DGND 43 DVDD 17 RBCK 44 TMCK/PIO0 16 RMCK 45 TBCK/PIO1 15 AGND 46 TLRCK/PIO2 14 AVDD 47 TDATA/PIO3 13 LPF 48 TXO/PIOEN TOP VIEW 1 RXOUT 32 EMPHA/UO 33 AUDIO/VO 35 INT 40 CL 39 CE 38 DI 28 XOUT 29 XIN 27 XMCK 34 CKST 41 XMODE Input Selector 2 RX0 3 RX1 4 RX2 5 RX3 8 RX4 9 RX5/VI 10 RX6/UI 37 DO 36 RERR 21 RDATA 24 SDIN 16 RMCK 17 RBCK 20 RLRCK 22 SBCK 23 SLRCK 13 LPF 44 TMCK/PIO0 45 TBCK/PIO1 46 TLRCK/PIO2 47 TDATA/PIO3 48 TXO/PIOEN Clock Selector C bit, U bit PLL Demodulation & Lock Detect Microcontroller I/F Data Selector I/N Modulation or Parallel Port www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 DVD-3930/3930CI BH7868FS (MA: IC505) (MA: IC506 :JP model only) (MA: IC551 :E2 model only) Function Pin No. Pin Name I/O * For latch-up countermeasure, perform each power supply ON/OFF in the same timing. 28 XOUT O X’tal osc. connecting output terminal 29 XIN I X’tal osc. connection, external clock input terminal (24.576MHz or 12.288MHz) 30 DVDD — Digital power 31 DGND — Digital GND 32 EMPHA/UO I/O Emphasis information/U-data output/Chip address setting terminal 33 AUDIO/VO I/O Non-PCM detect/V-flag output/ Chip address setting terminal 34 CKST I/O Clock switch transition period output/Demodulation master or slave function switching terminal 35 INT I/O Interrupt output for µcom (Interrupt factor selectable)/Modulation or general I/O switching terminal 36 RERR O PLL lock error, data error flag output 37 DO O µcom I/F, read out data output terminal (3-state) 38 DI I µcom I/F, write data input terminal 39 CE I µcom I/F, chip enable input terminal 40 CL I µcom I/F, clock input terminal 41 XMODE I System reset input terminal 42 DGND — Digital GND 43 DVDD — Digital power 44 TMCK/PIO0 I/O 256fs system clock input for modulation/General I/O in/output terminal 45 TBCK/PIO1 I/O 64fs bit clock input for modulation/General I/O in/output terminal 46 TLRCK/PIO2 I/O fs clock input for modulation/General I/O in/output terminal 47 TDATA/PIO3 I/O Serial audio data input for modulation/General I/O in/output terminal 48 TXO/PIOEN O/I Modulation data output/ General I/O enable input terminal + Vcc1 S1 S2 C IN MUTE1 CV IN Y IN BIAS Py/G IN GND Pb/B IN MUTE2 Pr/R IN Vcc2 SEL(CV/MIX) SEL(BIAS/CLAMP) COUT S-DC OUT CVOUT CVOUT SAG GND YOUT GND Py/G OUT Pb/B OUT GND Pb/B OUT SAG GND Pr/R OUT Pr/R OUT SAG YOUT SAG Py/G OUT SAG 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 75Ω 75Ω 75Ω 75Ω 75Ω 75Ω 6dB 6dB 6dB 6dB 6dB 6dB Bias Bias Bias Bias Bias Clamp Clamp Clamp 13.5MHz LPF 13.5MHz LPF 13.5MHz LPF 6.75MHz LPF 6.75MHz LPF 6.75MHz LPF S-DC OUT S1/S2 MUTE2 MUTE1 L H L H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 DVD-3930/3930CI ADV7324 (MA: IC501, 550) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 DVD-3930/3930CI TOP247Y (PD: IC901) Tab Internally Connected to SOURCE Pin 1 C 3 X 2 L 5 F 4 S 7 D SHUTDOWN/ AUTO-RESTART PWM COMPARATOR CLOCK SAW HALF FREQ. CONTROLLED TURN-ON GATE DRIVER CURRENT LIMIT COMPARATOR INTERNAL UV COMPARATOR INTERNAL SUPPLY 5.8 V 4.8 V SOURCE (S) S R Q DMAX STOP SOFT- START - + CONTROL (C) LINE-SENSE (L) EXTERNAL CURRENT LIMIT (X) FREQUENCY (F) - + 5.8 V 1 V IFB RE ZC VC + - LEADING EDGE BLANKING ÷ 8 1 HYSTERETIC THERMAL SHUTDOWN SHUNT REGULATOR/ ERROR AMPLIFIER + - DRAIN (D) ON/OFF SOFT START DCMAX VBG DCMAX VBG + VT 0 OV/UV VI (LIMIT) CURRENT LIMIT ADJUST LINE SENSE SOFT START LIGHT LOAD FREQUENCY REDUCTION STOP LOGIC OSCILLATOR WITH JITTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 DVD-3930/3930CI AK4101AVQ (AU: IC106) PQ012FZ01ZP (MA: IC102) PC123 (PD: IC906) (AU: IC104, 306) 44 34 33 23 1 11 12 22 1 PDN I Power down and reset pin 2 MCLK I Master clock input pin 3 SDTI1 I Audio serial data input 1 pin 4 SDTI2 I Audio serial data input 2 pin 5 SDTI3 I Audio serial data input 3 pin 6 SDTI4 I Audio serial data input 4 pin 7 VDD  Power pin, 4.75V ~ 5.25V 8 VSS  Ground pin 9 BICK I/O Audio serial data clock in/out pin 10 LRCK I/O In/out channel clock pin FS0 I Sampling frequency select 0 pin (sync. mode) 11 CSN I Host I/F chip select pin (async. mode) AKMODE I AK4112A mode pin (audio rooting mode) 12 FS1 I Sampling frequency select 1 pin (sync. mode) CDTI I Host I/F data input pin (async. mode) 13 FS2 I Sampling frequency select 2 pin (sync. mode) CCLK I Host I/F bit clock input pin (async. mode) 14 FS3 I Sampling frequency select 3 pin (sync. mode) CDTO O Host I/F data output pin (async. mode) 15 C1 I CH1 status bit input pin 16 C2 I CH2 status bit input pin 17 C3 I CH3 status bit input pin 18 C4 I CH4 status bit input pin 19 ANS I Async./Sync. mode select pin 20 BLS I/O Block start in/out pin 21 CKS0 I Clock mode select 0 pin 22 VSS  Ground pin 23 CKS1 I Clock mode select 1 pin 24 TXN4 O CH4 differential inverted output pin 25 TXP4 O CH4 differential non-inverted output pin 26 TXN3 O CH3 differential inverted output pin 27 TXP3 O CH3 differential non-inverted output pin 28 VDD  Power pin, 4.75V ~ 5.25V 29 VSS  Ground pin 30 TXN2 O CH2 differential inverted output pin 31 TXP2 O CH2 differential non-inverted output pin 32 TXN1 O CH1 differential inverted output pin 33 TXP1 O CH1 differential non-inverted output pin 34 DIF0 I Audio serial I/F select 0 pin 35 VDD  Power pin, 4.75V ~ 5.25V 36 DIF1 I Audio serial I/F select 1 pin 37 DIF2 I Audio serial I/F select 2 pin 38 U1 I CH1 user data bit input pin 39 U2 I CH2 user data bit input pin 40 U3 I CH3 user data bit input pin 41 U4 I CH4 user data bit input pin 42 V12 I CH1&2 validity bit input pin 43 V34 I CH3&4 validity bit input pin 44 TRANS I Audio rooting mode pin (sync. mode) Pin Name Function Pin No. I/O AK4101VQ Terminal Function 1 2 3 4 5 3 1 2 3 4 5 DC input (VIN) Bias input (VB) DC output (VO) ON/OFF input (VC) GND COLLECTOR EMITTER ANODE CATHODE TOP VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 DVD-3930/3930CI 2. TRANSISTORS RSS100N03TB (PD: TR910) HN1K02FU (DI: TR803) 3. DIODE RL10Z (PD: D913) RB551V-30 (PD: D922) 4. LED SML1216W (PD: LD103) 5. OTHERS GP1UE271XKVF (Remote Control Sensor) (PD: IC102) (8) (7) (6) (5) (1) (2) (3) (4) (1) (1) Source (2) Source (3) Source (4) Gate (5) Drain (6) Drain (7) Drain (8) Drain (2) (3) (4) (8) (7) (6) (5) 2 1 Q1 Q2 3 6 5 4 1. Source 1 2. Gate 1 3. Drain 2 4. Source 2 5. Gate 2 6. Drain 1 RED GREEN 1 1 2 3 2 3 GND VCC VOUT B.P.F Integrator VOUT VCC GND Limiter Demodulator Comparator RL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 DVD-3930/3930CI 6. FL DISPLAY FL TUBE (15-BT-97GNK) (PD: FL101) IEEE1394 DVI 720P 1080i F V G PROGRESSIVE 1 A-B AUDIO VCD SUPER DVD GROUP TITLE TRACK CHAP ANGLE D.MIX PROG RAND TOTAL SING REM HDCD WMA MP3 HDMI 480P 576P MPEG JPEG L.PCMP.PCM DIGITAL LFE R SR C S L SL (2G~14G) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 DVD-3930/3930CI PRINTED WIRING BOARDS GU-3749 MAIN/A. VIDEO P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 DVD-3930/3930CI FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 DVD-3930/3930CI GU-3750 POWER/DISPLAY P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 DVD-3930/3930CI FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 DVD-3930/3930CI GU-3751 AUDIO P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 DVD-3930/3930CI FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 DVD-3930/3930CI GU-3752 DIGITAL VIDEO P.W.B. UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 DVD-3930/3930CI GU-3793 FAN POWER P.W.B. UNIT FOIL SIDE COMPONENT SIDE FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 DVD-3930/3930CI NOTE FOR PARTS LIST • Part indicated with the mark "nsp" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. • When ordering of part, clearly indicate "1" and "I" (i) to avoid mis- supplying. • Ordering part without stating its part number can not be supplied. • Part indicated with the mark " ★ " is not illustrated in the exploded view. • Not including General-purpose Carbon Film Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) • Not including General-purpose Carbon Chip Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) WARNING: Parts marked with this symbol ! have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. s s s s s s s s s s s s RD : 2B : 1/8 W F : ±1% P : RC : 2E : 1/4 W G : ±2% NL : RS : 2H : 1/2 W J : ±5% NB : RW : 3A : 1 W K : ±10% FR : RN : 3D : 2 W M : ±20% F : RK : 3F : 3 W 3H : 5 W RN 14K 2E 182 G FR ∗ 18 2 � 1800 =1.8k 0 2 1R 2 � 1.2 1 2 R CE 04W 1H 2R2 M BP CE : 0J : 6.3 V F : ±1% HS : CA : 1A : 10 V G : ±2% BP : CS : 1C : 16 V J : ±5% HR : CQ : 1E : 25 V K : ±10% DL : CK : 1V : 35 V M : ±20% HF : CC : 1H : 50 V Z : +80% U : UL CP : 2A : 100 V −20% C : CSA CM : 2B : 125 V P : +100% W : UL-CSA CF : 2C : 160 V − 0% F : CH : 2D : 200 V C : ±0.25pF 2E : 250 V D : ±0.5pF 2H : 500 V = : 2J : 630 V ∗ 22 2 � 2200µF 0 2 µF 22 2 � 2200pF=0.0022µF 0 2 pF pF 22 1 � 220pF 2 (0 2 ) 0 (0 0 1 ) 2R 2 � 2.2µF 1 2 R µF AC RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type RC : Composition 2E : 1/4W G : ±2% NL : Low noise type RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor RN : Metal film 3D : 2W M : ±20% F : Lead wire forming RK : Metal mixture 3F : 3W 3H : 5W CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type electrolytic CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type electrolytic CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type CQ : Film 1E : 25V K : ±10% DL : For change and discharge CK : Ceramic 1V : 35V M : ±20% HF : For assuring high requency CC : Ceramic 1H : 50V Z : +80% U : UL part CP : Oil 2A : 100V –20% C : CSA part CM : Mica 2B : 125V P : +100% W : UL-CSA type CF : Metallized 2C : 160V –0% F : Lead wire forming CH : Metallized 2D : 200V C : ±0.25pF 2E : 250V D : ±0.5pF 2H : 500V = : Others 2J : 630V lllll Resistors Ex.: RN 14K 2E 182 G FR Type Shape Power Resist- Allowable Others and per- ance error formance ] Resistance 1 8 2 ⇒ 1800 ohm = 1.8 kohm Indicates number of zeros after effective number. 2-digit effective number. • Units: ohm 1 R 2 ⇒ 1.2 ohm 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: ohm lllll Capacitors Ex.: CE 04W 1H 2R2 M BP Type Shape Dielectric Capacity Allowable Others and per- strength error formance ] Capacity (electrolyte only) 2 2 2 ⇒ 2200µF Indicates number of zeros after effective number. 2-digit effective number. • Units: µF. 2 R 2 ⇒ 2.2µF 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: µF. ] Capacity (except electrolyte) 2 2 2 ⇒ 2200pF=0.0022µF (More than 2) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. 2 2 1 ⇒ 220pF (0 or 1) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. • When the dielectric strength is indicated in AC, "AC" is included after the dieelectric strength value. 部品表について １．nsp 印の部品は常時在庫していませんので供給に長時間を要すること があります。 場合によっては、供給をお断りすることがあります。 ２．部品を発注する際は特に数字の " １ " と英字の "Ｉ" との区別をはっき り記入してください。 ３．部品番号を表示していない部品は供給できません。 ４． ! 印の部品は安全上重要な部品です。交換するときは、安全および性 能維持のため必ず指定の部品をご使用ください。 ５．★印のついている部品は分解図中には記載していません。 ６．汎用カーボン抵抗器は記載していません。定数は回路図を参照願いま す。 ７．汎用カーボンチップ抵抗器は記載していません。定数は回路図を参照 願います。 ８．部品表の抵抗器、コンデンサの品名記号の読み方は表を参照してくだ さい。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 DVD-3930/3930CI E3 PARTS LIST OF P.W.B. UNIT (for E3 model) ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 ＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. ＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 ＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. 00DGU-3749 MAIN/A.VIDEO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 2977 917 BA25BC0FP-E2 IC102 00D 263 1205 900 PQ012FZ01ZP +C IC151 00D 262 3591 907 BD7956FS-E2 IC152 00D GEN 8103 EEPROM ROM SUB ASSY BR24L32F-WE2 +C IC153 00D 262 3082 924 BD4730G-TR IC154 00D 262 3216 907 SM8707EV +C IC155 00D GEN 8284 FE/BE ROM SUB ASSY MX29LV320CBTC-70G IC156 00D 262 3594 001 EM638165TS-7G IC157 00D 262 3592 003 MN2DS0009AA IC158 00D 262 3594 001 EM638165TS-7G IC159 00D 262 2517 908 SN74LV08APW-EL2 +REF IC161 00D 262 3601 907 TC7WH157FU(TE12L,F) IC162 00D 263 0989 900 NJM2904M-TE1 +C IC301 00D 263 0673 902 BA10393F-E2 +C IC400 00D 262 2514 901 SN74LV138APW-EL2 +C IC401 00D 262 3217 003 CXD2753R +C IC402 00D 262 2641 900 SN74LV541APW-EL2 +C IC403-406 00D 262 3242 900 SN74LV273APW-EL2 +REF IC408 00D 262 2641 900 SN74LV541APW-EL2 +C IC409 00D 262 2875 006 16M SDRAM(TSOP)-7/8 +C IC410,411 00D 262 2669 908 SN74LV157APW +C IC412-414 00D 262 2517 908 SN74LV08APW-EL2 +REF IC500 00D 262 2977 917 BA25BC0FP-E2 IC501 00D 262 3481 004 ADV7324 IC502 00D 262 3595 903 SN74LV594APWR IC503 00D 262 3277 904 SN74LVC157APW-EL2 +C IC505 00D 262 3365 900 BH7868FS IC550 00D 262 3481 004 ADV7324 TR150 00D 272 0160 901 2SB1132T100Q +C TR153 00D 272 0160 901 2SB1132T100Q +C TR154,155 00D 273 0487 904 2SC2412K_T146R TR156 00D 269 0082 902 DTC114EKT96 +C TR157 00D 275 0109 903 2SK3019-TL TR158 00D 269 0082 902 DTC114EKT96 +C TR159 00D 271 0259 903 2SA1162-GR(TE85L) TR160 00D 269 0082 902 DTC114EKT96 +C TR161 00D 273 0487 904 2SC2412K_T146R TR162 00D 275 0109 903 2SK3019-TL TR163 00D 273 0487 904 2SC2412K_T146R TR164,165 00D 275 0109 903 2SK3019-TL TR166,167 00D 269 0229 901 DTC143TUAT106 TR302 00D 273 0460 905 KTC2875B-RTK +C TR502-504 00D 271 0293 901 2SA1022-B +C TR553,554 00D 271 0293 901 2SA1022-B +C D101,102 00D 276 0401 905 1SS133T77 (TAPE) D152 00D 276 0401 905 1SS133T77 (TAPE) D500 00D 276 0717 903 1SS355 TE-17 +C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 DVD-3930/3930CI E3 RESISTORS GROUP R151 00D 244 2051 945 RS14B3A010JNBST(S) RR301 00D 247 2020 933 RM73B--103FT +1608 RR303 00D 247 2020 933 RM73B--103FT +1608 RR304 00D 247 2028 906 RM73B--302FT +1608 RR316 00D 247 2021 903 RM73B--122FT +1608 RR318-320 00D 247 2021 903 RM73B--122FT +1608 RA500-506 00D 247 9002 909 MNR14=330JE0AB +C RA507,508 00D 247 9007 920 MNR14=0R0JE0 RA550-556 00D 247 9002 909 MNR14=330JE0AB +C VR501 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF VR551 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF CAPACITORS GROUP C101 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C102 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C103 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C105,106 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C107 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C108 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C109 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C111 00D 257 4012 917 CE67C1C220MT (RV2) +REF C112 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C113 00D 257 4011 905 CE67C0J101MT (RV2) +REF C114 00D 257 2015 929 CS77B1A220MT C115 00D 257 4011 905 CE67C0J101MT (RV2) +REF C116 nsp 00D 257 0507 976 CC73CH1H331JT +1608 C117 00D 257 2015 929 CS77B1A220MT C118 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C119,120 00D 257 4011 905 CE67C0J101MT (RV2) +REF C121 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C122 00D 257 4012 917 CE67C1C220MT (RV2) +REF C123 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C124,125 00D 257 4011 905 CE67C0J101MT (RV2) +REF C126,127 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C136,137 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C138 00D 257 4011 905 CE67C0J101MT (RV2) +REF C139,140 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C141 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C148,149 00D 257 2017 901 CS77B0J101MT(SK8) C150 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C151 00D 257 4012 933 CE67C1C101MT (RV2) +REF C152 00D 257 4012 920 CE67C1C470MT (RV2) +REF C155 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C156,157 00D 257 4012 917 CE67C1C220MT (RV2) +REF C160 00D 257 4012 920 CE67C1C470MT (RV2) +REF C163 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C164 00D 257 4012 917 CE67C1C220MT (RV2) +REF C165 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C166 00D 257 4012 920 CE67C1C470MT (RV2) +REF C167 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C170 00D 257 4012 920 CE67C1C470MT (RV2) +REF Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 DVD-3930/3930CI E3 C171 00D 257 4012 917 CE67C1C220MT (RV2) +REF C172 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C174 00D 257 4012 917 CE67C1C220MT (RV2) +REF C175 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C176 00D 257 4012 917 CE67C1C220MT (RV2) +REF C177 nsp 00D 257 0516 954 CK73B1E104KT +1608 C178 nsp 00D 257 0520 908 CK73B1A154KT +1608 C179 nsp 00D 257 0516 954 CK73B1E104KT +1608 C180 nsp 00D 257 0516 925 CK73B1E333KT +1608 C181 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C182 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C183 nsp 00D 257 0501 930 CK73B1H183KT C184,185 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C186 nsp 00D 257 0521 907 CK73B1A105KT +1608 C187-189 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C190 00D 254 4655 922 CE67C0J470MT (RV2) +REF C191-195 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C196 00D 257 2017 901 CS77B0J101MT(SK8) C197 nsp 00D 257 0516 954 CK73B1E104KT +1608 C198,199 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C200 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C201,202 nsp 00D 257 0516 954 CK73B1E104KT +1608 C203 00D 257 4011 905 CE67C0J101MT (RV2) +REF C204 nsp 00D 257 0516 954 CK73B1E104KT +1608 C205-207 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C208 00D 257 4011 905 CE67C0J101MT (RV2) +REF C209 nsp 00D 257 0516 954 CK73B1E104KT +1608 C210 nsp 00D 257 0520 911 CK73B1A224KT +1608 C211 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C212,213 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C214 00D 257 4011 905 CE67C0J101MT (RV2) +REF C215,216 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C217 nsp 00D 257 0509 929 CK73B1H102KT +1608 C218-220 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C221 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C222 nsp 00D 257 0503 967 CC73CH1H150JT +1608 C223-225 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C227 nsp 00D 257 0503 967 CC73CH1H150JT +1608 C228 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C229 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C230-232 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C236,237 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C238,239 nsp 00D 257 0509 929 CK73B1H102KT +1608 C240 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C241 nsp 00D 257 0509 929 CK73B1H102KT +1608 C242-250 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C251 00D 257 4011 905 CE67C0J101MT (RV2) +REF C252-256 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C257 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C258 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C259 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C260,261 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C262 00D 257 4011 905 CE67C0J101MT (RV2) +REF C264-266 nsp 00D 257 0520 911 CK73B1A224KT +1608 C267 nsp 00D 257 0516 954 CK73B1E104KT +1608 C268 00D 257 4011 905 CE67C0J101MT (RV2) +REF C269-272 nsp 00D 257 0512 903 CK73F1E104ZT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 DVD-3930/3930CI E3 C273 00D 257 4011 905 CE67C0J101MT (RV2) +REF C274-277 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C281 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C282 nsp 00D 257 0516 954 CK73B1E104KT +1608 C305 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C396 nsp 00D 257 0509 929 CK73B1H102KT +1608 C397 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C398 nsp 00D 257 0509 929 CK73B1H102KT +1608 C399 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C405 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C406 nsp 00D 257 0509 929 CK73B1H102KT +1608 C407-411 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C412 00D 257 4012 917 CE67C1C220MT (RV2) +REF C414 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C415 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C417 nsp 00D 257 0503 925 CC73CH1H100DT +1608 C418 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C419-421 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C422,423 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C424 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C425 nsp 00D 257 0509 929 CK73B1H102KT +1608 C426,427 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C428 nsp 00D 257 0509 929 CK73B1H102KT +1608 C429,430 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C431 00D 257 4011 905 CE67C0J101MT (RV2) +REF C432-438 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C439 00D 257 4011 905 CE67C0J101MT (RV2) +REF C440 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C441 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C442 nsp 00D 257 0509 929 CK73B1H102KT +1608 C443 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C444 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C445,446 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C447 nsp 00D 257 0509 929 CK73B1H102KT +1608 C448 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C449-454 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C455 00D 257 4011 905 CE67C0J101MT (RV2) +REF C477-479 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C480 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C481 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C482 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C483-488 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C500,501 nsp 00D 257 0509 929 CK73B1H102KT +1608 C502-504 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C505 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C506 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C507,508 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C509 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C511 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C512-514 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C516 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C517 nsp 00D 257 0509 903 CK73B1H821KT +1608 C518 nsp 00D 257 0510 921 CK73B1H392KT +1608 C519-525 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C526,527 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C528 nsp 00D 257 0516 954 CK73B1E104KT +1608 C530-533 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 DVD-3930/3930CI E3 C534 nsp 00D 257 0516 954 CK73B1E104KT +1608 C536 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C553,554 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C556 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C600,601 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C605 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C606,607 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C609 nsp 00D 257 0509 903 CK73B1H821KT +1608 C610 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C611 nsp 00D 257 0510 921 CK73B1H392KT +1608 C615,616 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C624 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C672,673 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C676 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C696 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C900 00D 254 4655 922 CE67C0J470MT (RV2) +REF C901 00D 257 2015 929 CS77B1A220MT C902-906 00D 257 4011 905 CE67C0J101MT (RV2) +REF C907 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C908 00D 254 4655 922 CE67C0J470MT (RV2) +REF C909 00D 257 4011 905 CE67C0J101MT (RV2) +REF C910 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C911 00D 254 4655 922 CE67C0J470MT (RV2) +REF C912 00D 257 4012 917 CE67C1C220MT (RV2) +REF C913 00D 254 4655 977 CE67C0J102MT (RV) +REF C914 00D 257 4011 905 CE67C0J101MT (RV2) +REF C915 00D 254 4655 977 CE67C0J102MT (RV) +REF C916 00D 257 4011 905 CE67C0J101MT (RV2) +REF C917 00D 254 4655 977 CE67C0J102MT (RV) +REF C918 00D 257 4011 905 CE67C0J101MT (RV2) +REF C920 00D 257 4012 917 CE67C1C220MT (RV2) +REF C921 00D 257 4011 905 CE67C0J101MT (RV2) +REF C922 00D 257 4012 917 CE67C1C220MT (RV2) +REF C928 00D 257 4011 905 CE67C0J101MT (RV2) +REF C930-933 00D 257 4011 905 CE67C0J101MT (RV2) +REF C984,985 00D 257 4012 917 CE67C1C220MT (RV2) +REF C986,987 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C988 00D 257 4012 917 CE67C1C220MT (RV2) +REF C990-992 nsp 00D 257 0512 903 CK73F1E104ZT +1608 OTHERS PARTS GROUP AS601,602 - M3-SCREW-TERMINAL08R CX053 nsp 00D 205 0355 059 5P KR CON BASE(L) CX062 nsp 00D 205 1323 064 6P PIN HEADER(9120) CX122 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX125 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX151 nsp 00D 205 1224 930 15P FFC BASE(9616A) CX161 nsp 00D 205 1324 063 16P PIN HEADER(9120) CX211 nsp 00D 205 1346 009 21P 1.25FJ CONN.BASE CX212 nsp 00D 205 1334 011 21P-FFC-BASE(9615A) CX241 nsp 00D 205 1264 916 24P-FFC-BASE(9631SG) CX331 nsp 00D 205 1334 008 33P-FFC-BASE (P=1) CY062 nsp 00D 205 1325 062 6P SOCKET(9120) CY071 nsp 00D 205 0355 075 7P KR CON BASE(L) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 DVD-3930/3930CI E3 CY123 nsp 00D 205 1324 021 12P PIN HEADER(9120) CY132 nsp 00D 205 0480 034 13P KR CON BASE(L) CY162 nsp 00D 205 1324 063 16P PIN HEADER(9120) CY211 00D 205 1345 000 21P 1.25FJ CONN.PLUG FB101 00D 235 0136 907 FBMJ1608HS280NT +1608 FB103-107 00D 235 0136 907 FBMJ1608HS280NT +1608 FB150 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB155,156 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB159-161 nsp 00D 247 2018 903 RM73B--0R0KT +1608 JK703 00D 205 1395 005 1P S-TERMINAL-LF JK705-708 00D 204 8728 009 1P PIN JACK(BK)-LF JK853 00D 205 1332 000 3P BNC CONNECTOR(AU) L150 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L154-156 00D 235 0074 933 INDUCTOR(101)ST L157,158 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L502-504 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L552,553 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 X150 00D 399 0596 003 XTAL(27MHZ) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 DVD-3930/3930CI E3 00DGU-3750 POWER/DISPLAY P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3606 902 PT6302-R-001(L) IC102 00D 262 3602 003 GP1UE271XKVF IC108 00D 269 0222 005 GP1FA52HTZ0F IC901 00D 265 0126 002 TOP247YN IC902 00D 263 1256 904 TA76432S(TPE6,F) IC903 00D 263 1100 005 KIA7805API IC904 00D 262 2580 906 CXA1511M +C IC905 00D 262 2114 903 UPD4721GS-GJG +C IC906 00D 262 3047 008 PC123Y22 IC907,908 00D 263 1256 904 TA76432S(TPE6,F) IC909 00D 262 3277 904 SN74LVC157APW-EL2 +C IC910 00D 263 1100 021 KIA7812API TR101,102 00D 269 0082 902 DTC114EKT96 +C TR103,104 00D 271 0308 906 2SA933ASTPS TR105-111 00D 269 0082 902 DTC114EKT96 +C TR121 00D 273 0487 904 2SC2412K_T146R TR901 00D 271 0308 906 2SA933ASTPS TR902 00D 272 0170 001 2SB1268(R/S) TR904 00D 272 0083 004 2SB1185(E/F) TR905 00D 274 0036 905 2SD468(C)TF TR907 00D 269 0083 901 DTA114EKT96 +C TR908,909 00D 269 0082 902 DTC114EKT96 +C TR910 00D 275 0115 900 RSS100N03TB TR911 00D 269 0055 900 DTA144EKT96 +C TR912 00D 269 0054 901 DTC144EKT96 +C TR913,914 00D 274 0209 004 2SC5370 TR915,916 00D 271 0308 906 2SA933ASTPS TR917 00D 273 0303 910 2SC1740S(S)-T D101-109 00D 276 0401 905 1SS133T77 (TAPE) D901-904 00D 276 0729 904 EM01AT (V1) D906 00D 276 0401 905 1SS133T77 (TAPE) D907 00D 276 0813 001 AP01C D908 00D 276 0818 006 FMJ-2303 D909 00D 276 0401 905 1SS133T77 (TAPE) D910 00D 276 0803 008 FMB-G19L D911 00D 276 0730 906 AG01ZT (V1) D914 00D 276 0730 906 AG01ZT (V1) D915 00D 276 0401 905 1SS133T77 (TAPE) D921 00D 276 0401 905 1SS133T77 (TAPE) D922 00D 276 0842 904 RB551V-30TE-17 * D923-925 00D 276 0401 905 1SS133T77 (TAPE) D926 00D 276 0730 906 AG01ZT (V1) ZD903 00D 276 0762 945 MTZJ36B T77 ZD904 00D 276 0760 921 MTZJ4.3B T77 ZD905 00D 276 0760 947 MTZJ5.1B T77 LD101,102 00D 393 9576 903 SELU1E10CXM-002 LD103 00D 393 9645 009 SML1216W(D) LD104,105 00D 393 9576 903 SELU1E10CXM-002 LD106-108 00D 393 9452 904 SEL1410E(TP2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 DVD-3930/3930CI E3 TH901 00D 279 0044 002 NTH11D8R0LA FL101 00D 393 8078 004 FL TUBE(15-BT-97GNK) RESISTORS GROUP R908 00D 244 2675 729 RS14B3D224JNBF (ERG) R916 00D 247 2023 914 RM73B--103DT(1608) +1608 R917 00D 247 2023 927 RM73B--1652DT(1608) +1608 R918 00D 244 2055 912 RS14B3AR47JNBST(S) R919 00D 244 2681 904 RS14B3A1R5JNBST(S) R926 00D 244 2052 973 RS14B3A561JNBST(S) R929 00D 244 2050 991 RS14B3A682JNBST(S) R930 00D 244 2052 973 RS14B3A561JNBST(S) R938 00D 244 2051 929 RS14B3A821JNBST(S) R940 00D 241 2315 938 RD14B2E330GFRST R955,956 00D 244 2052 973 RS14B3A561JNBST(S) R960,961 00D 247 2023 914 RM73B--103DT(1608) +1608 R962-964 00D 244 2690 908 RS14B3A120JNBST(S) R967 00D 247 2023 930 RM73B--242DT(1608) +1608 R968 00D 247 2023 914 RM73B--103DT(1608) +1608 R969-974 00D 244 2055 912 RS14B3AR47JNBST(S) R982-985 00D 244 2681 904 RS14B3A1R5JNBST(S) R988 00D 244 2055 912 RS14B3AR47JNBST(S) CAPACITORS GROUP C101 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C102 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C103 00D 254 4300 963 CE04W0J101MT(SRE) C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C105 nsp 00D 257 0504 966 CC73CH1H390JT +1608 C106 00D 254 4300 947 CE04W0J470MT(SRE) C107-109 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C111 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C121-124 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C125 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C126 nsp 00D 257 0509 929 CK73B1H102KT +1608 C192 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C194 nsp 00D 254 4524 943 CE04W1H010MT SMG/RE3 C202 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C901 00D 256 8038 004 CF99--2EAC104M C902,903 00D 253 8029 713 CK45F2EAC471KC(KX) C904 00D 254 4588 714 CE04W2D221MC(KMG) C905,906 00D 253 8029 713 CK45F2EAC471KC(KX) C907 nsp 00D 254 4525 913 CE04W1H470MT SMG/RE3 C909 nsp 00D 254 4525 913 CE04W1H470MT SMG/RE3 C910 00D 256 8038 004 CF99--2EAC104M C912 00D 253 8029 713 CK45F2EAC471KC(KX) C913,914 00D 254 4713 709 CE04W1E102MC J30(KY) C916,917 00D 254 4770 700 CE04W0J562MC(KY)K35 C918 00D 254 4675 902 CE04W2A220MT(KMF) C919 00D 254 4770 700 CE04W0J562MC(KY)K35 C920,921 00D 254 4651 900 CE04W0J331MT(KY)E11 C922 00D 254 4770 700 CE04W0J562MC(KY)K35 C923 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 DVD-3930/3930CI E3 C925 00D 254 4536 957 CE04W1A471MT SMG/RE3 C926 00D 254 4542 705 CE04W1E471MC SMG/RE3 C927 00D 254 4536 957 CE04W1A471MT SMG/RE3 C929 nsp 00D 254 4538 955 CE04W1C221MT SMG/RE3 C930 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C931 nsp 00D 257 0511 920 CK73F1H473ZT +1608 C932 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C935,936 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C937 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C938 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C939 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C940 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C941-943 nsp 00D 254 4524 901 CE04W1H0R1MT SMG/RE3 C944 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C945 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C946 nsp 00D 254 4538 939 CE04W1C470MT SMG/RE3 C947 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C948 nsp 00D 254 4524 943 CE04W1H010MT SMG/RE3 C949,950 nsp 00D 254 4524 901 CE04W1H0R1MT SMG/RE3 C952-954 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C955 00D 254 4770 700 CE04W0J562MC(KY)K35 C956 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C958 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C959 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C960 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C961 nsp 00D 257 0506 951 CC73CH1H101JT +1608 ! C962 00D 253 8022 707 CK45F2EAC103MC C963 nsp 00D 257 0509 929 CK73B1H102KT +1608 C964 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C965 nsp 00D 257 0509 929 CK73B1H102KT +1608 C966 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C967 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C968 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C969,970 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C977 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C978 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C980 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C981 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C982,983 nsp 00D 257 0516 954 CK73B1E104KT +1608 C984 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C985 nsp 00D 247 2018 903 RM73B--0R0KT +1608 C989 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C990,991 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 ! C999 00D 253 8022 707 CK45F2EAC103MC OTHERS PARTS GROUP AS901,902 - RADIATOR AS904 - RADIATOR(PUE26) CW031 nsp 00D 203 5343 057 3P PH-SAN CON.CORD CW038 nsp 00D 203 5394 006 3P PH-SAN CON.CORD CW052 nsp 00D 203 8549 010 5P PH-SAN CON.CORD CW071 nsp 00D 204 3008 025 7P PH-SAN CON.CORD CW132 nsp 00D 204 6696 023 13P PH-SAN CON.CORD Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 DVD-3930/3930CI E3 CX024 nsp 00D 205 0581 001 2P VH CONNECTOR BASE CX025 nsp 00D 205 0581 056 2P VH CONNECTOR BASE CX026 nsp 00D 205 1093 006 2P VH CONNECTOR BASA CX031 nsp 00D 205 0343 032 3P CONN.BASE(KR-PH) CX044 nsp 00D 205 0343 045 4P CONN.BASE(KR-PH) CX064 nsp 00D 205 0653 065 6P VH CONNECTOR BASE CX122 nsp 00D 205 0536 027 12P CONNE SOCKET CX123 nsp 00D 205 1326 029 12P SOCKET(9120) CX125 nsp 00D 205 0536 027 12P CONNE SOCKET CX128 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX161,162 nsp 00D 205 1326 061 16P SOCKT(9120) CY025 nsp 00D 205 0581 056 2P VH CONNECTOR BASE CY052 nsp 00D 205 0343 058 5P CONN.BASE(KR-PH) CY061 nsp 00D 205 0536 030 6P CONNE SOCKET CY122 nsp 00D 205 0536 027 12P CONNE SOCKET CY123 nsp 00D 205 1326 029 12P SOCKET(9120) CY125 nsp 00D 205 0536 027 12P CONNE SOCKET CY128 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY161,162 nsp 00D 205 1326 061 16P SOCKT(9120) ! F901 00D 206 1094 037 FUSE(233)T2AL125V FF901 nsp 00D 202 0040 909 FUSE CLIP(TAPE) FH901 nsp 00D 202 0040 909 FUSE CLIP(TAPE) JK102 00D 204 8728 009 1P PIN JACK(BK)-LF JK901 00D 205 1153 001 9P S SUB CONNECTOR JK902 00D 204 8729 008 2P MINI JACK L901 00D 235 0157 009 PLA10AN7720R7D2B L902 00D 235 0142 917 COIL LHL08TB4R7MT L904,905 00D 235 0142 917 COIL LHL08TB4R7MT RL901 00D 214 0202 009 RELAY DG1U TV-8 S101-108 00D 212 5604 910 TACT SWITCH-TA(ALPS) S109 00D 212 5611 903 TACT SWITCH(TAPE H5) S111 00D 212 5604 910 TACT SWITCH-TA(ALPS) S112 00D 212 0525 007 ROT.ENCODER EC11B20 ! S999 00D 212 1030 009 POWER SWITCH (TV-5) ! T901 00D 233 0686 008 SW TRANS (100/120) W101 - 1P LUG-SIN WIRE W104 - M3-SCREW-TERMINAL08R W106 - 1P LUG-SIN WIRE W903,904 - M3-SCREW-TERMINAL08R W906,907 - 1P SIN CORD ASSY nsp 0RD 471 3303 016 3X6 CBS-Z nsp 00D 461 0991 026 RUBBER SHEET Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 DVD-3930/3930CI E3 00DGU-3751 AUDIO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC102 00D 262 2977 917 BA25BC0FP-E2 IC103 00D 262 3588 004 EP2C8Q208C8N IC104 00D 263 1205 900 PQ012FZ01ZP +C IC105 00D 262 3366 912 EPCS1-SI8-C2F6E6 IC106 00D 262 3380 008 AK4101AVQ IC107 00D 262 3449 004 LC89057W-VF4A IC303 00D 262 3589 003 D708E001RFP250 IC305 00D GEN 8250 DSP ROM SUB ASSY MBM29LV160BE90TN IC306 00D 263 1205 900 PQ012FZ01ZP +C IC401 00D 262 3362 903 PCM1796DBR * IC402-405 00D 263 0615 902 BA15218F-DXE2 +C IC406 00D 262 3362 903 PCM1796DBR * IC407-410 00D 263 0615 902 BA15218F-DXE2 +C IC411 00D 262 3362 903 PCM1796DBR * IC412-415 00D 263 0615 902 BA15218F-DXE2 +C IC701 00D 263 0913 905 PST600C TP IC702 00D 262 3362 903 PCM1796DBR * IC703,704 00D 263 0615 902 BA15218F-DXE2 +C IC705,706 00D 263 0896 909 NJM2068MD-TE1 +C IC707 00D 262 3362 903 PCM1796DBR * IC708,709 00D 263 0615 902 BA15218F-DXE2 +C IC710,711 00D 263 0896 909 NJM2068MD-TE1 +C IC801 00D 263 1100 021 KIA7812API IC802 00D 263 1099 022 KIA7912PI TR402,403 00D 269 0119 901 DTA124EKT96(TAPE) +C TR404,405 00D 269 0082 902 DTC114EKT96 +C TR406,407 00D 273 0460 905 KTC2875B-RTK +C TR408-413 00D 269 0119 901 DTA124EKT96(TAPE) +C TR414-419 00D 269 0082 902 DTC114EKT96 +C TR420-442 00D 273 0460 905 KTC2875B-RTK +C TR701 00D 273 0487 904 2SC2412K_T146R TR702 00D 269 0083 901 DTA114EKT96 +C TR703 00D 269 0119 901 DTA124EKT96(TAPE) +C TR704 00D 273 0487 904 2SC2412K_T146R TR705 00D 269 0119 901 DTA124EKT96(TAPE) +C TR706 00D 269 0082 902 DTC114EKT96 +C TR707,708 00D 273 0460 905 KTC2875B-RTK +C TR709 00D 269 0119 901 DTA124EKT96(TAPE) +C TR710 00D 269 0082 902 DTC114EKT96 +C TR711 00D 269 0119 901 DTA124EKT96(TAPE) +C TR712 00D 269 0082 902 DTC114EKT96 +C TR715-718 00D 273 0460 905 KTC2875B-RTK +C TR721,722 00D 273 0460 905 KTC2875B-RTK +C TR723 00D 269 0082 902 DTC114EKT96 +C D101,102 00D 276 0717 903 1SS355 TE-17 +C D301,302 00D 276 0401 905 1SS133T77 (TAPE) D701,702 00D 276 0717 903 1SS355 TE-17 +C D801-804 00D 276 0701 003 S2L20U-4002P7.5 D805,806 00D 276 0723 900 RB721Q-40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 DVD-3930/3930CI E3 RESISTORS GROUP R585-591 00D 241 2465 985 RD14B2E151JT(AMRS) R594 00D 241 2465 985 RD14B2E151JT(AMRS) R597,598 00D 241 2465 985 RD14B2E151JT(AMRS) R602 00D 241 2465 985 RD14B2E151JT(AMRS) R721 00D 244 2052 986 RS14B3A751JNBST(S) R751,752 00D 244 2052 986 RS14B3A751JNBST(S) R768-775 00D 241 2467 954 RD14B2E751JT(AMRS) R851 00D 244 2051 974 RS14B3A102JNBST(S) R852 00D 244 2043 940 RS14B3A222JNBST(S) RR500 00D 241 2465 985 RD14B2E151JT(AMRS) RR733,734 00D 241 2465 985 RD14B2E151JT(AMRS) RR739 00D 241 2465 985 RD14B2E151JT(AMRS) RR742 00D 241 2465 985 RD14B2E151JT(AMRS) CAPACITORS GROUP C101 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C103 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C106 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C107 nsp 00D 257 0509 929 CK73B1H102KT +1608 C108 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C109-115 nsp 00D 257 0509 929 CK73B1H102KT +1608 C116 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C117 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C118,119 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C120 nsp 00D 257 0516 954 CK73B1E104KT +1608 C121,122 nsp 00D 257 0509 929 CK73B1H102KT +1608 C123 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C124-129 nsp 00D 257 0509 929 CK73B1H102KT +1608 C130 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C131 00D 254 4693 939 CE04W1H101MT(RF0) C132 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C133 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C134 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C135 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C136,137 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C138 nsp 00D 257 0509 929 CK73B1H102KT +1608 C139 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C140 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C141,142 nsp 00D 257 0509 929 CK73B1H102KT +1608 C143 nsp 00D 257 0516 954 CK73B1E104KT +1608 C144 nsp 00D 257 0509 929 CK73B1H102KT +1608 C149 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C150 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C151 00D 254 4533 950 CE04W0J471MT SMG/RE3 C152 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C153-158 nsp 00D 257 0509 929 CK73B1H102KT +1608 C159 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C160 nsp 00D 257 0509 929 CK73B1H102KT +1608 C161 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C162 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C163 nsp 00D 257 0516 954 CK73B1E104KT +1608 C164 nsp 00D 257 0509 929 CK73B1H102KT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 DVD-3930/3930CI E3 C165 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C170 nsp 00D 257 0509 929 CK73B1H102KT +1608 C171 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C172 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C173 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C174 nsp 00D 257 0509 929 CK73B1H102KT +1608 C175 nsp 00D 257 0516 954 CK73B1E104KT +1608 C176 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C177 nsp 00D 257 0516 909 CK73B1E223KT +1608 C178 nsp 00D 257 0516 954 CK73B1E104KT +1608 C179,180 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C181 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C182 nsp 00D 257 0509 929 CK73B1H102KT +1608 C183 nsp 00D 257 0502 955 CC73CH1H3R0CT +1608 C184 nsp 00D 257 0509 929 CK73B1H102KT +1608 C185 nsp 00D 257 0502 955 CC73CH1H3R0CT +1608 C186-188 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C189 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C190 nsp 00D 257 0509 929 CK73B1H102KT +1608 C218 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C219 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C220 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C221 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C222 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C223 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C224 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C225 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C226 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C227,228 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C229 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C230 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C231 nsp 00D 257 0509 929 CK73B1H102KT +1608 C232 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C233 00D 257 2015 929 CS77B1A220MT C301 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C302 nsp 00D 257 0509 929 CK73B1H102KT +1608 C303 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C305 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C306 00D 254 4533 950 CE04W0J471MT SMG/RE3 C307 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C308 nsp 00D 257 0509 929 CK73B1H102KT +1608 C309 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C310 nsp 00D 257 0509 929 CK73B1H102KT +1608 C311 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C312,313 nsp 00D 257 0509 929 CK73B1H102KT +1608 C314 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C315 nsp 00D 257 0509 929 CK73B1H102KT +1608 C316 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C317 nsp 00D 257 0509 929 CK73B1H102KT +1608 C318 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C319 00D 254 4533 950 CE04W0J471MT SMG/RE3 C320 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C323 nsp 00D 257 0509 929 CK73B1H102KT +1608 C324 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C327 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C328,329 nsp 00D 257 0503 909 CC73CH1H8R0DT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 DVD-3930/3930CI E3 C330 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C331 nsp 00D 257 0509 929 CK73B1H102KT +1608 C332 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C333 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C334 nsp 00D 257 0509 929 CK73B1H102KT +1608 C335 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C336,337 nsp 00D 257 0509 929 CK73B1H102KT +1608 C338 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C339 nsp 00D 257 0509 929 CK73B1H102KT +1608 C340 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C341 nsp 00D 257 0509 929 CK73B1H102KT +1608 C342 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C343 nsp 00D 257 0509 929 CK73B1H102KT +1608 C344,345 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C346 nsp 00D 257 0509 929 CK73B1H102KT +1608 C347 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C348,349 nsp 00D 257 0509 929 CK73B1H102KT +1608 C350 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C351 nsp 00D 257 0509 929 CK73B1H102KT +1608 C352 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C353 nsp 00D 257 0509 929 CK73B1H102KT +1608 C354 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C357 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C358 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C359 nsp 00D 257 0509 929 CK73B1H102KT +1608 C360 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C361 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C362 nsp 00D 257 0509 929 CK73B1H102KT +1608 C363 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C364 nsp 00D 257 0509 929 CK73B1H102KT +1608 C369 00D 254 4533 950 CE04W0J471MT SMG/RE3 C370 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C371 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C372 nsp 00D 257 0509 929 CK73B1H102KT +1608 C401 nsp 00D 257 0516 954 CK73B1E104KT +1608 C402-404 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C405,406 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C407,408 00D 254 4693 939 CE04W1H101MT(RF0) C409-411 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C412 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C413-416 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C417-420 00D 254 4693 926 CE04W1H470MT(RF0) C421,422 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C423-426 00D 254 4692 901 CE04W1J100MT(RF0) C427-430 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C439-446 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C447-454 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C455-458 00D 257 3006 908 CF73=1C682JT(ECHUB5)+2125 C459-462 00D 257 3014 974 CF73=1C183JT(ECHUB5)+3216 C463-470 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125 C471,472 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C473,474 00D 255 4256 955 CQ93P2A103JT(NH2) C475-482 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C483 00D 255 4256 955 CQ93P2A103JT(NH2) C484-486 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C487-489 00D 254 4692 901 CE04W1J100MT(RF0) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 DVD-3930/3930CI E3 C490 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C491-494 nsp 00D 257 0503 925 CC73CH1H100DT +1608 C495,496 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C497,498 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C499 00D 254 4693 926 CE04W1H470MT(RF0) C503,504 00D 254 4693 942 CE04W1H221MT(RF0) C506 nsp 00D 257 0516 954 CK73B1E104KT +1608 C507 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C703 nsp 00D 257 0516 954 CK73B1E104KT +1608 C704 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C705 nsp 00D 257 0516 954 CK73B1E104KT +1608 C706 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C710 00D 254 4750 704 CE04W1H471MC(RFO) C713 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C714 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C715 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C716 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C717 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C718 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C719 00D 254 4692 901 CE04W1J100MT(RF0) C720 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C721 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C722 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C724 00D 254 4692 901 CE04W1J100MT(RF0) C725 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C726-729 nsp 00D 257 0516 954 CK73B1E104KT +1608 C730 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C731 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C732,733 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C734 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C735 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C736-739 00D 254 4692 901 CE04W1J100MT(RF0) C740-743 00D 254 4693 926 CE04W1H470MT(RF0) C744-747 nsp 00D 257 0516 954 CK73B1E104KT +1608 C748 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C750,751 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C753,754 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C756,757 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C759 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C768-775 00D 255 4254 915 CQ93P2A102JT(NH2) C776-779 00D 255 4253 974 CQ93P2A681JT(NH2) C780 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C781,782 00D 255 4253 974 CQ93P2A681JT(NH2) C783,784 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C785,786 00D 255 4253 974 CQ93P2A681JT(NH2) C787 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C788,789 00D 255 4256 913 CQ93P2A682JT(NH2) C790,791 00D 255 4257 912 CQ93P2A183JT(NH2) C792-795 00D 255 4254 999 CQ93P2A222JT(NH2) C796,797 00D 254 4693 939 CE04W1H101MT(RF0) C798,799 00D 254 3091 901 CE04D1H220MBPT (RBD) C800 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C801 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C802 00D 254 4693 939 CE04W1H101MT(RF0) C803 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C804 nsp 00D 257 0512 903 CK73F1E104ZT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 DVD-3930/3930CI E3 C805 00D 254 4693 939 CE04W1H101MT(RF0) C814,815 00D 254 4703 735 CE04W1H471MC(RFS#A) C816-818 00D 255 4256 955 CQ93P2A103JT(NH2) C851 00D 255 4256 955 CQ93P2A103JT(NH2) C854,855 00D 254 4787 706 CE04W1H332MC(RFS#5) CC401 00D 254 4693 926 CE04W1H470MT(RF0) CC402 nsp 00D 257 0516 954 CK73B1E104KT +1608 CC403,404 00D 254 4692 901 CE04W1J100MT(RF0) CC405,406 nsp 00D 257 0516 954 CK73B1E104KT +1608 CC411-414 nsp 00D 257 0512 903 CK73F1E104ZT +1608 CC415-418 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 CC419,420 00D 257 3012 905 CF73=1H682JT(ECHUB5)+3216 CC421,422 00D 257 3012 950 CF73=1H183JT(ECHUB5) CC423-426 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125 CC427 00D 254 4693 939 CE04W1H101MT(RF0) CC428-431 nsp 00D 257 0512 903 CK73F1E104ZT +1608 CC432 00D 254 4693 939 CE04W1H101MT(RF0) CC433-438 00D 254 3091 901 CE04D1H220MBPT (RBD) CC439,440 nsp 00D 257 0503 925 CC73CH1H100DT +1608 CC441 00D 254 3091 901 CE04D1H220MBPT (RBD) CC442-447 00D 254 4693 939 CE04W1H101MT(RF0) CC448-453 nsp 00D 257 0508 917 CC73CH1H471JT +1608 CC701-704 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 CC705,706 nsp 00D 257 0503 925 CC73CH1H100DT +1608 CC712 00D 255 4256 955 CQ93P2A103JT(NH2) CC714 00D 255 4256 955 CQ93P2A103JT(NH2) CC716 00D 254 4703 706 CE04W1H101MC(RFS#A) CC718 00D 254 4703 706 CE04W1H101MC(RFS#A) CC721,722 00D 255 4253 932 CQ93P2A471JT(NH2) OTHERS PARTS GROUP AS402 - COMMON PLATE(CU 0.8) AS801,802 - RADIATOR AS910 - COMMON PLATE(CU 0.8) CX032 nsp 00D 205 0653 036 3P VH CON.BASE CX061 nsp 00D 205 1386 027 6P BASE(9115B-PT1) CX103 nsp 00D 205 0480 005 10P KR CON BASE(L) CX125-127 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX128 nsp 00D 205 0536 027 12P CONNE SOCKET CX129 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX131 nsp 00D 205 1383 020 13P-FFC-BASE(9615C) CX213 nsp 00D 205 1383 033 21P-FFC-BASE(9615C) CX214 00D 205 1346 009 21P 1.25FJ CONN.BASE CY044 nsp 00D 205 0343 045 4P CONN.BASE(KR-PH) CY125-129 nsp 00D 205 0536 027 12P CONNE SOCKET CY212 nsp 00D 205 1383 033 21P-FFC-BASE(9615C) CY214 00D 205 1345 000 21P 1.25FJ CONN.PLUG CY331 nsp 00D 205 1383 004 33P-FFC-BASE(9615C) FB101,102 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125 FB301 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 DVD-3930/3930CI E3 JK101 00D 205 1222 000 RJ-45 JACK(GND) JK401-406 00D 204 8728 009 1P PIN JACK(BK)-LF JK701,702 00D 204 8666 006 1P PIN JACK(BK) L401,402 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L801,802 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 W101 - M3-SCREW-TERMINAL08R W407 - M3-SCREW-TERMINAL08R W707 - M3-SCREW-TERMINAL08R W711,712 - M3-SCREW-TERMINAL08R W801,802 - M3-SCREW-TERMINAL08R X101 00D 399 1017 002 X-TAL(24.576MHZ) X301 00D 399 0951 004 X'TAL(25MHZ) nsp 0RD 471 3303 016 3X6 CBS-Z Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 DVD-3930/3930CI E3 00DGU-3752 DIGITAL VIDEO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3605 000 sxT2LF-400(Realta) IC103 00D 262 2570 903 TC7W241FU(TE12L) IC701-704 00D 262 3479 003 EM6A9320BI-4MG IC800 00D 262 2977 933 BA50BC0FP-E2 IC802 00D GEN 8134 I/P ROM SUB ASSY MX29LV640BBTC-90 * IC803 00D 262 3473 902 LP2995M * IC806 00D 262 3642 908 LM1117MPX-1.8/NOPB IC807 00D 262 3364 011 SII9030CTU-7 IC809 00D 262 1230 901 TC7S04FTE85L +C IC904 00D 262 3493 908 TC7MBL3245AFK IC906 00D 262 3493 908 TC7MBL3245AFK TR800 00D 273 0460 905 KTC2875B-RTK +C TR803 00D 275 0110 905 HN1K02FU-TE85L D800,801 00D 276 0717 903 1SS355 TE-17 +C D802 00D 276 0750 902 RB521S-30TE61 +REF D804 00D 276 0717 903 1SS355 TE-17 +C RESISTORS GROUP R148-151 00D 247 2020 933 RM73B--103FT +1608 R275 00D 247 2019 928 RM73B--750FT R276 00D 247 2021 932 RM73B--331FT R277 00D 247 2021 945 RM73B--162FT R278 00D 247 2019 928 RM73B--750FT R701-704 00D 247 2020 933 RM73B--103FT +1608 R707-709 00D 247 2020 933 RM73B--103FT +1608 R712 00D 247 2020 933 RM73B--103FT +1608 R717 00D 247 2021 932 RM73B--331FT R718 00D 247 2019 928 RM73B--750FT R721 00D 247 2019 928 RM73B--750FT R724 00D 247 2021 932 RM73B--331FT R725,726 00D 247 2019 928 RM73B--750FT R767,768 00D 247 2021 945 RM73B--162FT R938 00D 247 2025 938 RM73B--391FT R967-970 00D 247 2025 909 RM73B--821FT CAPACITORS GROUP C101-118 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C119 00D 257 2015 929 CS77B1A220MT C120-127 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C128 00D 257 4011 905 CE67C0J101MT (RV2) +REF C129 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C130,131 nsp 00D 257 5009 916 CK73B1C103KT C132-141 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C142 00D 257 2015 929 CS77B1A220MT C143-166 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C167 00D 257 4012 917 CE67C1C220MT (RV2) +REF C168-171 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C172-177 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C178,179 00D 257 4011 905 CE67C0J101MT (RV2) +REF C180,181 nsp 00D 257 5009 916 CK73B1C103KT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 DVD-3930/3930CI E3 C182 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C183 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C184,185 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C188 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C509 00D 257 2015 916 CS77B1A101MT C510 00D 257 2015 932 CS77B1A470MT C511 00D 257 2015 929 CS77B1A220MT C701-709 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C710 00D 257 4012 917 CE67C1C220MT (RV2) +REF C711-719 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C720 00D 257 4012 917 CE67C1C220MT (RV2) +REF C721-729 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C730 00D 257 4012 917 CE67C1C220MT (RV2) +REF C731-739 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C740 00D 257 4012 917 CE67C1C220MT (RV2) +REF C741-748 nsp 00D 257 5009 916 CK73B1C103KT C749-758 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C759 00D 257 2015 916 CS77B1A101MT C760 00D 257 2015 929 CS77B1A220MT C801 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C802 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C804 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C805,806 nsp 00D 257 5009 916 CK73B1C103KT C807 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C808 00D 257 2015 932 CS77B1A470MT C809 00D 257 4011 905 CE67C0J101MT (RV2) +REF C810 00D 257 2015 932 CS77B1A470MT C811 00D 257 4011 905 CE67C0J101MT (RV2) +REF C812-846 nsp 00D 257 5009 916 CK73B1C103KT C900,901 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C903 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C905-909 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C910 nsp 00D 257 5006 993 CK73B1H102KT +1005 C911,912 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C913,914 nsp 00D 257 5006 993 CK73B1H102KT +1005 C915 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C916 nsp 00D 257 5006 993 CK73B1H102KT +1005 C917 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C918-921 nsp 00D 257 5006 993 CK73B1H102KT +1005 C922,923 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C924-926 nsp 00D 257 5006 993 CK73B1H102KT +1005 C935-938 nsp 00D 257 0516 954 CK73B1E104KT +1608 C946,947 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C970,971 00D 257 4012 920 CE67C1C470MT (RV2) +REF C972 00D 257 2015 929 CS77B1A220MT C973,974 00D 254 4655 922 CE67C0J470MT (RV2) +REF C975,976 00D 254 4655 906 CE67C0J220MT (RV2) +REF C977 00D 254 4655 922 CE67C0J470MT (RV2) +REF C978-982 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C983 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C984-993 nsp 00D 257 5003 983 CC73CH1H470JT OTHERS PARTS GROUP CX123 nsp 00D 205 1324 021 12P PIN HEADER(9120) CX162 nsp 00D 205 1324 063 16P PIN HEADER(9120) CX811 nsp 00D 205 1394 006 19P HDMI CONNECTOR Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 DVD-3930/3930CI E3 00DGU-3793 FAN POWER P.W.B. UNIT ASS'Y CY064 nsp 00D 205 0449 062 6P VH CONNECTOR BASE CY122 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY125 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY131 nsp 00D 205 0892 088 13P FFC CON. BASE CY161 nsp 00D 205 1324 063 16P PIN HEADER(9120) FB101-105 00D 235 0136 907 FBMJ1608HS280NT +1608 FB800-806 nsp 00D 247 2018 903 RM73B--0R0KT +1608 FB807 nsp 00D 247 2003 989 RM73B--330JT +1608 L800 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L805,806 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 W701,702 - M3 SCREW TERMINAL W704 - M3 SCREW TERMINAL W800,801 - M3-SCREW-TERMINAL08R X101 00D 399 0987 900 FCXO-05(66.666MHz) Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC801 00D 263 1100 050 KIA7808API D801 00D 276 0401 905 1SS133T77 (TAPE) CAPACITORS GROUP C801 nsp 00D 257 0514 901 CK73F1C334ZT +1608 C802 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C803 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 OTHERS PARTS GROUP CY038 nsp 00D 205 0343 032 3P CONN.BASE(KR-PH) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 DVD-3930/3930CI E2 PARTS LIST OF P.W.B. UNIT (for E2, model) ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 ＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. ＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 ＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. 00DGU-3749A MAIN/A.VIDEO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 2977 917 BA25BC0FP-E2 IC102 00D 263 1205 900 PQ012FZ01ZP +C IC151 00D 262 3591 907 BD7956FS-E2 IC152 00D GEN 8103 EEPROM ROM SUB ASSY BR24L32F-WE2 +C IC153 00D 262 3082 924 BD4730G-TR IC154 00D 262 3216 907 SM8707EV +C IC155 00D GEN 8284 FE/BE ROM SUB ASSY MX29LV320CBTC-70G IC156 00D 262 3594 001 EM638165TS-7G IC157 00D 262 3592 003 MN2DS0009AA IC158 00D 262 3594 001 EM638165TS-7G IC159 00D 262 2517 908 SN74LV08APW-EL2 +REF IC161 00D 262 3601 907 TC7WH157FU(TE12L,F) IC162 00D 263 0989 900 NJM2904M-TE1 +C IC301 00D 263 0673 902 BA10393F-E2 +C IC400 00D 262 2514 901 SN74LV138APW-EL2 +C IC401 00D 262 3217 003 CXD2753R +C IC402 00D 262 2641 900 SN74LV541APW-EL2 +C IC403-406 00D 262 3242 900 SN74LV273APW-EL2 +REF IC408 00D 262 2641 900 SN74LV541APW-EL2 +C IC409 00D 262 2875 006 16M SDRAM(TSOP)-7/8 +C IC410,411 00D 262 2669 908 SN74LV157APW +C IC412-414 00D 262 2517 908 SN74LV08APW-EL2 +REF IC500 00D 262 2977 917 BA25BC0FP-E2 IC501 00D 262 3481 004 ADV7324 IC502 00D 262 3595 903 SN74LV594APWR IC503 00D 262 3277 904 SN74LVC157APW-EL2 +C IC505 00D 262 3365 900 BH7868FS IC507 00D 262 2813 903 SN74AHCT08PW-EL2 +C IC550 00D 262 3481 004 ADV7324 IC551 00D 262 3365 900 BH7868FS IC651 00D 262 1793 901 TC4W53F +C IC652 00D 262 0707 901 TC4053BF (TAPE) +C IC653 00D 263 1115 906 NJM2267M (TE2) IC654 00D 262 2534 907 BA7660FS-E2 +C TR150 00D 272 0160 901 2SB1132T100Q +C TR153 00D 272 0160 901 2SB1132T100Q +C TR154,155 00D 273 0487 904 2SC2412K_T146R TR156 00D 269 0082 902 DTC114EKT96 +C TR157 00D 275 0109 903 2SK3019-TL TR158 00D 269 0082 902 DTC114EKT96 +C TR159 00D 271 0259 903 2SA1162-GR(TE85L) TR160 00D 269 0082 902 DTC114EKT96 +C TR161 00D 273 0487 904 2SC2412K_T146R TR162 00D 275 0109 903 2SK3019-TL TR163 00D 273 0487 904 2SC2412K_T146R TR164,165 00D 275 0109 903 2SK3019-TL TR166,167 00D 269 0229 901 DTC143TUAT106 TR302 00D 273 0460 905 KTC2875B-RTK +C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 DVD-3930/3930CI E2 TR502-504 00D 271 0293 901 2SA1022-B +C TR550-552 00D 272 0125 904 2SB709A +C TR553,554 00D 271 0293 901 2SA1022-B +C TR651,652 00D 269 0082 902 DTC114EKT96 +C TR653 00D 269 0083 901 DTA114EKT96 +C TR654,655 00D 269 0082 902 DTC114EKT96 +C D101,102 00D 276 0401 905 1SS133T77 (TAPE) D152 00D 276 0401 905 1SS133T77 (TAPE) D500 00D 276 0717 903 1SS355 TE-17 +C RESISTORS GROUP R151 00D 244 2051 945 RS14B3A010JNBST(S) RR301 00D 247 2020 933 RM73B--103FT +1608 RR303 00D 247 2020 933 RM73B--103FT +1608 RR304 00D 247 2028 906 RM73B--302FT +1608 RR316 00D 247 2021 903 RM73B--122FT +1608 RR318-320 00D 247 2021 903 RM73B--122FT +1608 RA500-506 00D 247 9002 909 MNR14=330JE0AB +C RA507,508 00D 247 9007 920 MNR14=0R0JE0 RA550-556 00D 247 9002 909 MNR14=330JE0AB +C VR501 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF VR550,551 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF CAPACITORS GROUP C101 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C102 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C103 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C105,106 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C107 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C108 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C109 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C111 00D 257 4012 917 CE67C1C220MT (RV2) +REF C112 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C113 00D 257 4011 905 CE67C0J101MT (RV2) +REF C114 00D 257 2015 929 CS77B1A220MT C115 00D 257 4011 905 CE67C0J101MT (RV2) +REF C116 nsp 00D 257 0507 976 CC73CH1H331JT +1608 C117 00D 257 2015 929 CS77B1A220MT C118 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C119,120 00D 257 4011 905 CE67C0J101MT (RV2) +REF C121 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C122 00D 257 4012 917 CE67C1C220MT (RV2) +REF C123 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C124,125 00D 257 4011 905 CE67C0J101MT (RV2) +REF C126,127 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C136,137 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C138 00D 257 4011 905 CE67C0J101MT (RV2) +REF C139,140 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C141 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C148,149 00D 257 2017 901 CS77B0J101MT(SK8) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 DVD-3930/3930CI E2 C150 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C151 00D 257 4012 933 CE67C1C101MT (RV2) +REF C152 00D 257 4012 920 CE67C1C470MT (RV2) +REF C155 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C156,157 00D 257 4012 917 CE67C1C220MT (RV2) +REF C160 00D 257 4012 920 CE67C1C470MT (RV2) +REF C163 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C164 00D 257 4012 917 CE67C1C220MT (RV2) +REF C165 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C166 00D 257 4012 920 CE67C1C470MT (RV2) +REF C167 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C170 00D 257 4012 920 CE67C1C470MT (RV2) +REF C171 00D 257 4012 917 CE67C1C220MT (RV2) +REF C172 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C174 00D 257 4012 917 CE67C1C220MT (RV2) +REF C175 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C176 00D 257 4012 917 CE67C1C220MT (RV2) +REF C177 nsp 00D 257 0516 954 CK73B1E104KT +1608 C178 nsp 00D 257 0520 908 CK73B1A154KT +1608 C179 nsp 00D 257 0516 954 CK73B1E104KT +1608 C180 nsp 00D 257 0516 925 CK73B1E333KT +1608 C181 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C182 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C183 nsp 00D 257 0501 930 CK73B1H183KT C184,185 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C186 nsp 00D 257 0521 907 CK73B1A105KT +1608 C187-189 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C190 00D 254 4655 922 CE67C0J470MT (RV2) +REF C191-195 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C196 00D 257 2017 901 CS77B0J101MT(SK8) C197 nsp 00D 257 0516 954 CK73B1E104KT +1608 C198,199 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C200 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C201,202 nsp 00D 257 0516 954 CK73B1E104KT +1608 C203 00D 257 4011 905 CE67C0J101MT (RV2) +REF C204 nsp 00D 257 0516 954 CK73B1E104KT +1608 C205-207 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C208 00D 257 4011 905 CE67C0J101MT (RV2) +REF C209 nsp 00D 257 0516 954 CK73B1E104KT +1608 C210 nsp 00D 257 0520 911 CK73B1A224KT +1608 C211 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C212,213 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C214 00D 257 4011 905 CE67C0J101MT (RV2) +REF C215,216 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C217 nsp 00D 257 0509 929 CK73B1H102KT +1608 C218-220 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C221 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C222 nsp 00D 257 0503 967 CC73CH1H150JT +1608 C223-225 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C227 nsp 00D 257 0503 967 CC73CH1H150JT +1608 C228 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C229 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C230-232 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C236,237 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C238,239 nsp 00D 257 0509 929 CK73B1H102KT +1608 C240 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C241 nsp 00D 257 0509 929 CK73B1H102KT +1608 C242-250 nsp 00D 257 0512 903 CK73F1E104ZT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 DVD-3930/3930CI E2 C251 00D 257 4011 905 CE67C0J101MT (RV2) +REF C252-256 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C257 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C258 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C259 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C260,261 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C262 00D 257 4011 905 CE67C0J101MT (RV2) +REF C264-266 nsp 00D 257 0520 911 CK73B1A224KT +1608 C267 nsp 00D 257 0516 954 CK73B1E104KT +1608 C268 00D 257 4011 905 CE67C0J101MT (RV2) +REF C269-272 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C273 00D 257 4011 905 CE67C0J101MT (RV2) +REF C274-277 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C281 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C282 nsp 00D 257 0516 954 CK73B1E104KT +1608 C305 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C396 nsp 00D 257 0509 929 CK73B1H102KT +1608 C397 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C398 nsp 00D 257 0509 929 CK73B1H102KT +1608 C399 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C405 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C406 nsp 00D 257 0509 929 CK73B1H102KT +1608 C407-411 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C412 00D 257 4012 917 CE67C1C220MT (RV2) +REF C414 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C415 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C417 nsp 00D 257 0503 925 CC73CH1H100DT +1608 C418 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C419-421 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C422,423 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C424 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C425 nsp 00D 257 0509 929 CK73B1H102KT +1608 C426,427 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C428 nsp 00D 257 0509 929 CK73B1H102KT +1608 C429,430 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C431 00D 257 4011 905 CE67C0J101MT (RV2) +REF C432-438 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C439 00D 257 4011 905 CE67C0J101MT (RV2) +REF C440 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C441 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C442 nsp 00D 257 0509 929 CK73B1H102KT +1608 C443 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C444 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C445,446 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C447 nsp 00D 257 0509 929 CK73B1H102KT +1608 C448 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C449-454 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C455 00D 257 4011 905 CE67C0J101MT (RV2) +REF C477-479 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C480 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C481 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C482 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C483-488 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C500,501 nsp 00D 257 0509 929 CK73B1H102KT +1608 C502-504 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C505 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C506 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C507,508 nsp 00D 257 0506 951 CC73CH1H101JT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 DVD-3930/3930CI E2 C509 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C511 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C512-514 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C516 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C517 nsp 00D 257 0509 903 CK73B1H821KT +1608 C518 nsp 00D 257 0510 921 CK73B1H392KT +1608 C519-525 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C526,527 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C528 nsp 00D 257 0516 954 CK73B1E104KT +1608 C530-533 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C534 nsp 00D 257 0516 954 CK73B1E104KT +1608 C536 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C553,554 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C556 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C600,601 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C605 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C606,607 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C609 nsp 00D 257 0509 903 CK73B1H821KT +1608 C610 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C611 nsp 00D 257 0510 921 CK73B1H392KT +1608 C612-617 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C618-623 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C624 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C651,652 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C657-660 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C669-673 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C676 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C680 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C681 nsp 00D 257 0509 929 CK73B1H102KT +1608 C696 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C900 00D 254 4655 922 CE67C0J470MT (RV2) +REF C901 00D 257 2015 929 CS77B1A220MT C902-906 00D 257 4011 905 CE67C0J101MT (RV2) +REF C907 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C908 00D 254 4655 922 CE67C0J470MT (RV2) +REF C909 00D 257 4011 905 CE67C0J101MT (RV2) +REF C910 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C911 00D 254 4655 922 CE67C0J470MT (RV2) +REF C912 00D 257 4012 917 CE67C1C220MT (RV2) +REF C913 00D 254 4655 977 CE67C0J102MT (RV) +REF C914 00D 257 4011 905 CE67C0J101MT (RV2) +REF C915 00D 254 4655 977 CE67C0J102MT (RV) +REF C916 00D 257 4011 905 CE67C0J101MT (RV2) +REF C917 00D 254 4655 977 CE67C0J102MT (RV) +REF C918 00D 257 4011 905 CE67C0J101MT (RV2) +REF C920 00D 257 4012 917 CE67C1C220MT (RV2) +REF C921 00D 257 4011 905 CE67C0J101MT (RV2) +REF C922 00D 257 4012 917 CE67C1C220MT (RV2) +REF C928 00D 257 4011 905 CE67C0J101MT (RV2) +REF C930-934 00D 257 4011 905 CE67C0J101MT (RV2) +REF C935-937 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C938 00D 257 4012 917 CE67C1C220MT (RV2) +REF C939 00D 257 4011 905 CE67C0J101MT (RV2) +REF C940 00D 257 4012 917 CE67C1C220MT (RV2) +REF C941 00D 257 4011 905 CE67C0J101MT (RV2) +REF C942 00D 257 4012 917 CE67C1C220MT (RV2) +REF C943 00D 257 4011 905 CE67C0J101MT (RV2) +REF C944 00D 257 4012 917 CE67C1C220MT (RV2) +REF Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 DVD-3930/3930CI E2 C945 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C946,947 00D 257 4011 905 CE67C0J101MT (RV2) +REF C948 00D 257 4012 917 CE67C1C220MT (RV2) +REF C949 00D 257 4011 905 CE67C0J101MT (RV2) +REF C951-954 00D 257 4012 920 CE67C1C470MT (RV2) +REF C955-959 00D 257 4011 905 CE67C0J101MT (RV2) +REF C960 00D 257 4012 917 CE67C1C220MT (RV2) +REF C962 00D 257 4011 905 CE67C0J101MT (RV2) +REF C963 00D 257 4012 917 CE67C1C220MT (RV2) +REF C984,985 00D 257 4012 917 CE67C1C220MT (RV2) +REF C986,987 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C988 00D 257 4012 917 CE67C1C220MT (RV2) +REF C990-992 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C995,996 nsp 00D 257 0512 903 CK73F1E104ZT +1608 OTHERS PARTS GROUP AS601,602 - M3-SCREW-TERMINAL08R CX053 nsp 00D 205 0355 059 5P KR CON BASE(L) CX062 nsp 00D 205 1323 064 6P PIN HEADER(9120) CX122 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX125 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX151 nsp 00D 205 1224 930 15P FFC BASE(9616A) CX161 nsp 00D 205 1324 063 16P PIN HEADER(9120) CX211 nsp 00D 205 1346 009 21P 1.25FJ CONN.BASE CX212 nsp 00D 205 1334 011 21P-FFC-BASE(9615A) CX241 nsp 00D 205 1264 916 24P-FFC-BASE(9631SG) CX331 nsp 00D 205 1334 008 33P-FFC-BASE (P=1) CY062 nsp 00D 205 1325 062 6P SOCKET(9120) CY071 nsp 00D 205 0355 075 7P KR CON BASE(L) CY123 nsp 00D 205 1324 021 12P PIN HEADER(9120) CY132 nsp 00D 205 0480 034 13P KR CON BASE(L) CY162 nsp 00D 205 1324 063 16P PIN HEADER(9120) CY211 00D 205 1345 000 21P 1.25FJ CONN.PLUG FB101 00D 235 0136 907 FBMJ1608HS280NT +1608 FB103-107 00D 235 0136 907 FBMJ1608HS280NT +1608 FB150 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB155,156 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB159-161 nsp 00D 247 2018 903 RM73B--0R0KT +1608 FB652-655 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 JK703 00D 205 1395 005 1P S-TERMINAL-LF JK705-708 00D 204 8728 009 1P PIN JACK(BK)-LF JK853 00D 205 1332 000 3P BNC CONNECTOR(AU) L150 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L154-156 00D 235 0074 933 INDUCTOR(101)ST L157,158 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L502-504 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L552-554 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L652-654 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 X150 00D 399 0596 003 XTAL(27MHZ) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 DVD-3930/3930CI E2 00DGU-3750A POWER/DISPLAY P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3606 902 PT6302-R-001(L) IC102 00D 262 3602 003 GP1UE271XKVF IC108 00D 269 0222 005 GP1FA52HTZ0F IC901 00D 265 0123 005 TOP246YN IC902 00D 263 1256 904 TA76432S(TPE6,F) IC903 00D 263 1100 005 KIA7805API IC904 00D 262 2580 906 CXA1511M +C IC905 00D 262 2114 903 UPD4721GS-GJG +C IC906 00D 262 3047 008 PC123Y22 IC907,908 00D 263 1256 904 TA76432S(TPE6,F) IC909 00D 262 3277 904 SN74LVC157APW-EL2 +C IC910 00D 263 1100 021 KIA7812API TR101,102 00D 269 0082 902 DTC114EKT96 +C TR103,104 00D 271 0308 906 2SA933ASTPS TR105-111 00D 269 0082 902 DTC114EKT96 +C TR121 00D 273 0487 904 2SC2412K_T146R TR901 00D 271 0308 906 2SA933ASTPS TR902 00D 272 0170 001 2SB1268(R/S) TR904 00D 272 0083 004 2SB1185(E/F) TR905 00D 274 0036 905 2SD468(C)TF TR907 00D 269 0083 901 DTA114EKT96 +C TR908,909 00D 269 0082 902 DTC114EKT96 +C TR910 00D 275 0115 900 RSS100N03TB TR911 00D 269 0055 900 DTA144EKT96 +C TR912 00D 269 0054 901 DTC144EKT96 +C TR913,914 00D 274 0209 004 2SC5370 TR915,916 00D 271 0308 906 2SA933ASTPS TR917 00D 273 0303 910 2SC1740S(S)-T D101-109 00D 276 0401 905 1SS133T77 (TAPE) D901-904 00D 276 0729 904 EM01AT (V1) D906 00D 276 0401 905 1SS133T77 (TAPE) D907 00D 276 0813 001 AP01C D908 00D 276 0818 006 FMJ-2303 D909 00D 276 0401 905 1SS133T77 (TAPE) D910 00D 276 0803 008 FMB-G19L D911 00D 276 0730 906 AG01ZT (V1) D914 00D 276 0730 906 AG01ZT (V1) D915 00D 276 0401 905 1SS133T77 (TAPE) D921 00D 276 0401 905 1SS133T77 (TAPE) D922 00D 276 0842 904 RB551V-30TE-17 * D923-925 00D 276 0401 905 1SS133T77 (TAPE) D926 00D 276 0730 906 AG01ZT (V1) ZD903 00D 276 0762 945 MTZJ36B T77 ZD904 00D 276 0760 921 MTZJ4.3B T77 ZD905 00D 276 0760 947 MTZJ5.1B T77 LD101,102 00D 393 9576 903 SELU1E10CXM-002 LD103 00D 393 9645 009 SML1216W(D) LD104,105 00D 393 9576 903 SELU1E10CXM-002 LD106-108 00D 393 9452 904 SEL1410E(TP2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 DVD-3930/3930CI E2 TH901 00D 279 0044 002 NTH11D8R0LA FL101 00D 393 8078 004 FL TUBE(15-BT-97GNK) RESISTORS GROUP R908 00D 244 2675 729 RS14B3D224JNBF (ERG) R916 00D 247 2023 914 RM73B--103DT(1608) +1608 R917 00D 247 2023 927 RM73B--1652DT(1608) +1608 R918 00D 244 2055 912 RS14B3AR47JNBST(S) R919 00D 244 2681 904 RS14B3A1R5JNBST(S) R926 00D 244 2052 973 RS14B3A561JNBST(S) R929 00D 244 2050 991 RS14B3A682JNBST(S) R930 00D 244 2052 973 RS14B3A561JNBST(S) R938 00D 244 2051 929 RS14B3A821JNBST(S) R940 00D 241 2315 938 RD14B2E330GFRST R955,956 00D 244 2052 973 RS14B3A561JNBST(S) R960,961 00D 247 2023 914 RM73B--103DT(1608) +1608 R962-964 00D 244 2690 908 RS14B3A120JNBST(S) R967 00D 247 2023 930 RM73B--242DT(1608) +1608 R968 00D 247 2023 914 RM73B--103DT(1608) +1608 R969-974 00D 244 2055 912 RS14B3AR47JNBST(S) R982-985 00D 244 2681 904 RS14B3A1R5JNBST(S) R988 00D 244 2055 912 RS14B3AR47JNBST(S) CAPACITORS GROUP C101 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C102 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C103 00D 254 4300 963 CE04W0J101MT(SRE) C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C105 nsp 00D 257 0504 966 CC73CH1H390JT +1608 C106 00D 254 4300 947 CE04W0J470MT(SRE) C107-109 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C111 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C121-124 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C125 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C126 nsp 00D 257 0509 929 CK73B1H102KT +1608 C192 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C194 nsp 00D 254 4524 943 CE04W1H010MT SMG/RE3 C202 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C901 00D 256 8038 004 CF99--2EAC104M C902,903 00D 253 8029 713 CK45F2EAC471KC(KX) C904 00D 254 4589 713 CE04W2G101MC(KMG) C905,906 00D 253 8029 713 CK45F2EAC471KC(KX) C907 nsp 00D 254 4525 913 CE04W1H470MT SMG/RE3 C909 nsp 00D 254 4525 913 CE04W1H470MT SMG/RE3 C910 00D 256 8038 004 CF99--2EAC104M C912 00D 253 8029 713 CK45F2EAC471KC(KX) C913,914 00D 254 4713 709 CE04W1E102MC J30(KY) C916,917 00D 254 4770 700 CE04W0J562MC(KY)K35 C918 00D 254 4675 902 CE04W2A220MT(KMF) C919 00D 254 4770 700 CE04W0J562MC(KY)K35 C920,921 00D 254 4651 900 CE04W0J331MT(KY)E11 C922 00D 254 4770 700 CE04W0J562MC(KY)K35 C923 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 DVD-3930/3930CI E2 C925 00D 254 4536 957 CE04W1A471MT SMG/RE3 C926 00D 254 4542 705 CE04W1E471MC SMG/RE3 C927 00D 254 4536 957 CE04W1A471MT SMG/RE3 C929 nsp 00D 254 4538 955 CE04W1C221MT SMG/RE3 C930 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C931 nsp 00D 257 0511 920 CK73F1H473ZT +1608 C932 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C935,936 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C937 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C938 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C939 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C940 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C941-943 nsp 00D 254 4524 901 CE04W1H0R1MT SMG/RE3 C944 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C945 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C946 nsp 00D 254 4538 939 CE04W1C470MT SMG/RE3 C947 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C948 nsp 00D 254 4524 943 CE04W1H010MT SMG/RE3 C949,950 nsp 00D 254 4524 901 CE04W1H0R1MT SMG/RE3 C952-954 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C955 00D 254 4770 700 CE04W0J562MC(KY)K35 C956 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C958 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C959 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C960 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C961 nsp 00D 257 0506 951 CC73CH1H101JT +1608 ! C962 00D 253 8022 707 CK45F2EAC103MC C963 nsp 00D 257 0509 929 CK73B1H102KT +1608 C964 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C965 nsp 00D 257 0509 929 CK73B1H102KT +1608 C966 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C967 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C968 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C969,970 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C977 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C978 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C980 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C981 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C982,983 nsp 00D 257 0516 954 CK73B1E104KT +1608 C984 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C985 nsp 00D 247 2018 903 RM73B--0R0KT +1608 C989 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C990,991 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 ! C999 00D 253 8022 707 CK45F2EAC103MC OTHERS PARTS GROUP AS901,902 - RADIATOR AS904 - RADIATOR(PUE26) CW031 nsp 00D 203 5343 057 3P PH-SAN CON.CORD CW038 nsp 00D 203 5394 006 3P PH-SAN CON.CORD CW052 nsp 00D 203 8549 010 5P PH-SAN CON.CORD CW071 nsp 00D 204 3008 025 7P PH-SAN CON.CORD CW132 nsp 00D 204 6696 023 13P PH-SAN CON.CORD Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 DVD-3930/3930CI E2 CX024 nsp 00D 205 0581 001 2P VH CONNECTOR BASE CX025 nsp 00D 205 0581 056 2P VH CONNECTOR BASE CX026 nsp 00D 205 1093 006 2P VH CONNECTOR BASA CX031 nsp 00D 205 0343 032 3P CONN.BASE(KR-PH) CX044 nsp 00D 205 0343 045 4P CONN.BASE(KR-PH) CX064 nsp 00D 205 0653 065 6P VH CONNECTOR BASE CX122 nsp 00D 205 0536 027 12P CONNE SOCKET CX123 nsp 00D 205 1326 029 12P SOCKET(9120) CX125 nsp 00D 205 0536 027 12P CONNE SOCKET CX128 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX161,162 nsp 00D 205 1326 061 16P SOCKT(9120) CY025 nsp 00D 205 0581 056 2P VH CONNECTOR BASE CY052 nsp 00D 205 0343 058 5P CONN.BASE(KR-PH) CY061 nsp 00D 205 0536 030 6P CONNE SOCKET CY122 nsp 00D 205 0536 027 12P CONNE SOCKET CY123 nsp 00D 205 1326 029 12P SOCKET(9120) CY125 nsp 00D 205 0536 027 12P CONNE SOCKET CY128 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY161,162 nsp 00D 205 1326 061 16P SOCKT(9120) ! F901 00D 206 1087 073 FUSE (ET1.6A) FF901 nsp 00D 202 0040 909 FUSE CLIP(TAPE) FH901 nsp 00D 202 0040 909 FUSE CLIP(TAPE) JK102 00D 204 8728 009 1P PIN JACK(BK)-LF JK901 00D 205 1153 001 9P S SUB CONNECTOR JK902 00D 204 8729 008 2P MINI JACK L901 00D 235 0157 009 PLA10AN7720R7D2B L902 00D 235 0142 917 COIL LHL08TB4R7MT L904,905 00D 235 0142 917 COIL LHL08TB4R7MT RL901 00D 214 0202 009 RELAY DG1U TV-8 S101-108 00D 212 5604 910 TACT SWITCH-TA(ALPS) S109 00D 212 5611 903 TACT SWITCH(TAPE H5) S111 00D 212 5604 910 TACT SWITCH-TA(ALPS) S112 00D 212 0525 007 ROT.ENCODER EC11B20 ! S999 00D 212 1030 009 POWER SWITCH (TV-5) ! T901 00D 233 0687 007 SW TRANS(230) W101 - 1P LUG-SIN WIRE W104 - M3-SCREW-TERMINAL08R W106 - 1P LUG-SIN WIRE W903,904 - M3-SCREW-TERMINAL08R W906,907 - 1P SIN CORD ASSY nsp 0RD 471 3303 016 3X6 CBS-Z nsp 00D 461 0991 026 RUBBER SHEET nsp 00D 513 3827 074 FUSE LABEL for F901 nsp 00D 513 3827 087 FUSE LABEL for F901 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 DVD-3930/3930CI E2 00DGU-3751A AUDIO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC102 00D 262 2977 917 BA25BC0FP-E2 IC103 00D 262 3588 004 EP2C8Q208C8N IC104 00D 263 1205 900 PQ012FZ01ZP +C IC105 00D 262 3366 912 EPCS1-SI8-C2F6E6 IC106 00D 262 3380 008 AK4101AVQ IC107 00D 262 3449 004 LC89057W-VF4A IC303 00D 262 3589 003 D708E001RFP250 IC305 00D GEN 8250 DSP ROM SUB ASSY MBM29LV160BE90TN IC306 00D 263 1205 900 PQ012FZ01ZP +C IC401 00D 262 3362 903 PCM1796DBR * IC402-405 00D 263 0615 902 BA15218F-DXE2 +C IC406 00D 262 3362 903 PCM1796DBR * IC407-410 00D 263 0615 902 BA15218F-DXE2 +C IC411 00D 262 3362 903 PCM1796DBR * IC412-415 00D 263 0615 902 BA15218F-DXE2 +C IC701 00D 263 1262 901 PST600C-T-G IC702 00D 262 3362 903 PCM1796DBR * IC703,704 00D 263 0615 902 BA15218F-DXE2 +C IC705,706 00D 263 0896 909 NJM2068MD-TE1 +C IC707 00D 262 3362 903 PCM1796DBR * IC708,709 00D 263 0615 902 BA15218F-DXE2 +C IC710,711 00D 263 0896 909 NJM2068MD-TE1 +C IC801 00D 263 1100 021 KIA7812API IC802 00D 263 1099 022 KIA7912PI TR402,403 00D 269 0119 901 DTA124EKT96(TAPE) +C TR404,405 00D 269 0082 902 DTC114EKT96 +C TR406,407 00D 273 0460 905 KTC2875B-RTK +C TR408-413 00D 269 0119 901 DTA124EKT96(TAPE) +C TR414-419 00D 269 0082 902 DTC114EKT96 +C TR420-442 00D 273 0460 905 KTC2875B-RTK +C TR701 00D 273 0487 904 2SC2412K_T146R TR702 00D 269 0083 901 DTA114EKT96 +C TR703 00D 269 0119 901 DTA124EKT96(TAPE) +C TR704 00D 273 0487 904 2SC2412K_T146R TR705 00D 269 0119 901 DTA124EKT96(TAPE) +C TR706 00D 269 0082 902 DTC114EKT96 +C TR707,708 00D 273 0460 905 KTC2875B-RTK +C TR709 00D 269 0119 901 DTA124EKT96(TAPE) +C TR710 00D 269 0082 902 DTC114EKT96 +C TR711 00D 269 0119 901 DTA124EKT96(TAPE) +C TR712 00D 269 0082 902 DTC114EKT96 +C TR713-722 00D 273 0460 905 KTC2875B-RTK +C TR723 00D 269 0082 902 DTC114EKT96 +C D101,102 00D 276 0717 903 1SS355 TE-17 +C D301,302 00D 276 0401 905 1SS133T77 (TAPE) D701,702 00D 276 0717 903 1SS355 TE-17 +C D801-804 00D 276 0701 003 S2L20U-4002P7.5 D805,806 00D 276 0723 900 RB721Q-40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 DVD-3930/3930CI E2 RESISTORS GROUP R585-591 00D 241 2465 985 RD14B2E151JT(AMRS) R594 00D 241 2465 985 RD14B2E151JT(AMRS) R597,598 00D 241 2465 985 RD14B2E151JT(AMRS) R602 00D 241 2465 985 RD14B2E151JT(AMRS) R721 00D 244 2052 986 RS14B3A751JNBST(S) R751,752 00D 244 2052 986 RS14B3A751JNBST(S) R768-775 00D 241 2467 954 RD14B2E751JT(AMRS) R851 00D 244 2051 974 RS14B3A102JNBST(S) R852 00D 244 2043 940 RS14B3A222JNBST(S) RR500 00D 241 2465 985 RD14B2E151JT(AMRS) RR733,734 00D 241 2465 985 RD14B2E151JT(AMRS) RR739 00D 241 2465 985 RD14B2E151JT(AMRS) RR742 00D 241 2465 985 RD14B2E151JT(AMRS) CAPACITORS GROUP C101 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C103 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C106 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C107 nsp 00D 257 0509 929 CK73B1H102KT +1608 C108 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C109-115 nsp 00D 257 0509 929 CK73B1H102KT +1608 C116 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C117 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C118,119 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C120 nsp 00D 257 0516 954 CK73B1E104KT +1608 C121,122 nsp 00D 257 0509 929 CK73B1H102KT +1608 C123 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C124-129 nsp 00D 257 0509 929 CK73B1H102KT +1608 C130 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C131 00D 254 4693 939 CE04W1H101MT(RF0) C132 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C133 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C134 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C135 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C136,137 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C138 nsp 00D 257 0509 929 CK73B1H102KT +1608 C139 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C140 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C141,142 nsp 00D 257 0509 929 CK73B1H102KT +1608 C143 nsp 00D 257 0516 954 CK73B1E104KT +1608 C144 nsp 00D 257 0509 929 CK73B1H102KT +1608 C149 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C150 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C151 00D 254 4533 950 CE04W0J471MT SMG/RE3 C152 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C153-158 nsp 00D 257 0509 929 CK73B1H102KT +1608 C159 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C160 nsp 00D 257 0509 929 CK73B1H102KT +1608 C161 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C162 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C163 nsp 00D 257 0516 954 CK73B1E104KT +1608 C164 nsp 00D 257 0509 929 CK73B1H102KT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 DVD-3930/3930CI E2 C165 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C170 nsp 00D 257 0509 929 CK73B1H102KT +1608 C171 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C172 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C173 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C174 nsp 00D 257 0509 929 CK73B1H102KT +1608 C175 nsp 00D 257 0516 954 CK73B1E104KT +1608 C176 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C177 nsp 00D 257 0516 909 CK73B1E223KT +1608 C178 nsp 00D 257 0516 954 CK73B1E104KT +1608 C179,180 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C181 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C182 nsp 00D 257 0509 929 CK73B1H102KT +1608 C183 nsp 00D 257 0502 955 CC73CH1H3R0CT +1608 C184 nsp 00D 257 0509 929 CK73B1H102KT +1608 C185 nsp 00D 257 0502 955 CC73CH1H3R0CT +1608 C186-188 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C189 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C190 nsp 00D 257 0509 929 CK73B1H102KT +1608 C218 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C219 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C220 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C221 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C222 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C223 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C224 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C225 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C226 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C227,228 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C229 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C230 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C231 nsp 00D 257 0509 929 CK73B1H102KT +1608 C232 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C233 00D 257 2015 929 CS77B1A220MT C301 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C302 nsp 00D 257 0509 929 CK73B1H102KT +1608 C303 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C305 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C306 nsp 00D 254 4533 950 CE04W0J471MT SMG/RE3 C307 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C308 nsp 00D 257 0509 929 CK73B1H102KT +1608 C309 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C310 nsp 00D 257 0509 929 CK73B1H102KT +1608 C311 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C312,313 nsp 00D 257 0509 929 CK73B1H102KT +1608 C314 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C315 nsp 00D 257 0509 929 CK73B1H102KT +1608 C316 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C317 nsp 00D 257 0509 929 CK73B1H102KT +1608 C318 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C319 00D 254 4533 950 CE04W0J471MT SMG/RE3 C320 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C323 nsp 00D 257 0509 929 CK73B1H102KT +1608 C324 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C327 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C328,329 nsp 00D 257 0503 909 CC73CH1H8R0DT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 DVD-3930/3930CI E2 C330 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C331 nsp 00D 257 0509 929 CK73B1H102KT +1608 C332 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C333 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C334 nsp 00D 257 0509 929 CK73B1H102KT +1608 C335 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C336,337 nsp 00D 257 0509 929 CK73B1H102KT +1608 C338 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C339 nsp 00D 257 0509 929 CK73B1H102KT +1608 C340 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C341 nsp 00D 257 0509 929 CK73B1H102KT +1608 C342 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C343 nsp 00D 257 0509 929 CK73B1H102KT +1608 C344,345 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C346 nsp 00D 257 0509 929 CK73B1H102KT +1608 C347 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C348,349 nsp 00D 257 0509 929 CK73B1H102KT +1608 C350 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C351 nsp 00D 257 0509 929 CK73B1H102KT +1608 C352 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C353 nsp 00D 257 0509 929 CK73B1H102KT +1608 C354 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C357 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C358 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C359 nsp 00D 257 0509 929 CK73B1H102KT +1608 C360 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C361 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C362 nsp 00D 257 0509 929 CK73B1H102KT +1608 C363 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C364 nsp 00D 257 0509 929 CK73B1H102KT +1608 C369 00D 254 4533 950 CE04W0J471MT SMG/RE3 C370 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C371 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C372 nsp 00D 257 0509 929 CK73B1H102KT +1608 C401 nsp 00D 257 0516 954 CK73B1E104KT +1608 C402-404 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C405,406 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C407,408 00D 254 4693 939 CE04W1H101MT(RF0) C409-411 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C412 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C413-416 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C417-420 00D 254 4693 926 CE04W1H470MT(RF0) C421,422 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C423-426 00D 254 4692 901 CE04W1J100MT(RF0) C427-430 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C439-446 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C447-454 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C455-458 00D 257 3006 908 CF73=1C682JT(ECHUB5)+2125 C459-462 00D 257 3014 974 CF73=1C183JT(ECHUB5)+3216 C463-470 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125 C471,472 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C473,474 00D 255 4256 955 CQ93P2A103JT(NH2) C475-482 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C483 00D 255 4256 955 CQ93P2A103JT(NH2) C484-486 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C487-489 00D 254 4692 901 CE04W1J100MT(RF0) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 DVD-3930/3930CI E2 C490 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C491-494 nsp 00D 257 0503 925 CC73CH1H100DT +1608 C495,496 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C497,498 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C499 00D 254 4693 926 CE04W1H470MT(RF0) C503,504 00D 254 4693 942 CE04W1H221MT(RF0) C506 nsp 00D 257 0516 954 CK73B1E104KT +1608 C507 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C703 nsp 00D 257 0516 954 CK73B1E104KT +1608 C704 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C705 nsp 00D 257 0516 954 CK73B1E104KT +1608 C706 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C710 00D 254 4750 704 CE04W1H471MC(RFO) C713 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C714 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C715 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C716 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C717 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C718 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C719 00D 254 4692 901 CE04W1J100MT(RF0) C720 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C721 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C722 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C724 00D 254 4692 901 CE04W1J100MT(RF0) C725 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C726-729 nsp 00D 257 0516 954 CK73B1E104KT +1608 C730 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C731 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C732,733 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C734 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C735 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C736-739 00D 254 4692 901 CE04W1J100MT(RF0) C740-743 00D 254 4693 926 CE04W1H470MT(RF0) C744-747 nsp 00D 257 0516 954 CK73B1E104KT +1608 C748 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C750,751 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C753,754 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C756,757 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C759 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C768-775 00D 255 4254 915 CQ93P2A102JT(NH2) C776-779 00D 255 4253 974 CQ93P2A681JT(NH2) C780 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C781,782 00D 255 4253 974 CQ93P2A681JT(NH2) C783,784 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C785,786 00D 255 4253 974 CQ93P2A681JT(NH2) C787 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C788,789 00D 255 4256 913 CQ93P2A682JT(NH2) C790,791 00D 255 4257 912 CQ93P2A183JT(NH2) C792-795 00D 255 4254 999 CQ93P2A222JT(NH2) C796,797 00D 254 4693 939 CE04W1H101MT(RF0) C798,799 00D 254 3091 901 CE04D1H220MBPT (RBD) C800 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C801 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C802 00D 254 4693 939 CE04W1H101MT(RF0) C803 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C804 nsp 00D 257 0512 903 CK73F1E104ZT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 DVD-3930/3930CI E2 C805 00D 254 4693 939 CE04W1H101MT(RF0) C814,815 00D 254 4703 735 CE04W1H471MC(RFS#A) C816-818 00D 255 4256 955 CQ93P2A103JT(NH2) C851 00D 255 4256 955 CQ93P2A103JT(NH2) C854,855 00D 254 4787 706 CE04W1H332MC(RFS#5) CC401 00D 254 4693 926 CE04W1H470MT(RF0) CC402 nsp 00D 257 0516 954 CK73B1E104KT +1608 CC403,404 00D 254 4692 901 CE04W1J100MT(RF0) CC405,406 nsp 00D 257 0516 954 CK73B1E104KT +1608 CC411-414 nsp 00D 257 0512 903 CK73F1E104ZT +1608 CC415-418 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 CC419,420 00D 257 3012 905 CF73=1H682JT(ECHUB5)+3216 CC421,422 00D 257 3012 950 CF73=1H183JT(ECHUB5) CC423-426 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125 CC427 00D 254 4693 939 CE04W1H101MT(RF0) CC428-431 nsp 00D 257 0512 903 CK73F1E104ZT +1608 CC432 00D 254 4693 939 CE04W1H101MT(RF0) CC433-438 00D 254 3091 901 CE04D1H220MBPT (RBD) CC439,440 nsp 00D 257 0503 925 CC73CH1H100DT +1608 CC441 00D 254 3091 901 CE04D1H220MBPT (RBD) CC442-447 00D 254 4693 939 CE04W1H101MT(RF0) CC448-453 nsp 00D 257 0508 917 CC73CH1H471JT +1608 CC701-704 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 CC705,706 nsp 00D 257 0503 925 CC73CH1H100DT +1608 CC712 00D 255 4256 955 CQ93P2A103JT(NH2) CC714 00D 255 4256 955 CQ93P2A103JT(NH2) CC716 00D 254 4703 706 CE04W1H101MC(RFS#A) CC718 00D 254 4703 706 CE04W1H101MC(RFS#A) CC719,720 nsp 00D 257 0508 917 CC73CH1H471JT +1608 CC721,722 00D 255 4253 932 CQ93P2A471JT(NH2) OTHERS PARTS GROUP AS402 - COMMON PLATE(CU 0.8) AS801,802 - RADIATOR AS910 - COMMON PLATE(CU 0.8) CW041 nsp 00D 203 6621 011 4P PH-SAN CON.CORD CX032 nsp 00D 205 0653 036 3P VH CON.BASE CX061 nsp 00D 205 1386 027 6P BASE(9115B-PT1) CX103 nsp 00D 205 0480 005 10P KR CON BASE(L) CX125-127 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX128 nsp 00D 205 0536 027 12P CONNE SOCKET CX129 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX131 nsp 00D 205 1383 020 13P-FFC-BASE(9615C) CX213 nsp 00D 205 1383 033 21P-FFC-BASE(9615C) CX214 00D 205 1346 009 21P 1.25FJ CONN.BASE CY044 nsp 00D 205 0343 045 4P CONN.BASE(KR-PH) CY125-129 nsp 00D 205 0536 027 12P CONNE SOCKET CY212 nsp 00D 205 1383 033 21P-FFC-BASE(9615C) CY214 00D 205 1345 000 21P 1.25FJ CONN.PLUG CY331 nsp 00D 205 1383 004 33P-FFC-BASE(9615C) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 DVD-3930/3930CI E2 FB101,102 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125 FB301 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 JK101 00D 205 1222 000 RJ-45 JACK(GND) JK401-406 00D 204 8728 009 1P PIN JACK(BK)-LF JK701,702 00D 204 8666 006 1P PIN JACK(BK) L401,402 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L801,802 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 W101 - M3-SCREW-TERMINAL08R W407 - M3-SCREW-TERMINAL08R W707 - M3-SCREW-TERMINAL08R W711,712 - M3-SCREW-TERMINAL08R W801,802 - M3-SCREW-TERMINAL08R X101 00D 399 1017 002 X-TAL(24.576MHZ) X301 00D 399 0951 004 X'TAL(25MHZ) nsp 0RD 471 3303 016 3X6 CBS-Z Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 DVD-3930/3930CI E2 00DGU-3752A DIGITAL VIDEO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3605 000 sxT2LF-400(Realta) IC103 00D 262 2570 903 TC7W241FU(TE12L) IC701-704 00D 262 3479 003 EM6A9320BI-4MG IC800 00D 262 2977 933 BA50BC0FP-E2 IC802 00D GEN 8134 I/P ROM SUB ASSY MX29LV640BBTC-90 * IC803 00D 262 3473 902 LP2995M * IC806 00D 262 3642 908 LM1117MPX-1.8/NOPB IC807 00D 262 3364 011 SII9030CTU-7 IC809 00D 262 1230 901 TC7S04FTE85L +C IC904 00D 262 3493 908 TC7MBL3245AFK IC906 00D 262 3493 908 TC7MBL3245AFK TR800 00D 273 0460 905 KTC2875B-RTK +C TR803 00D 275 0110 905 HN1K02FU-TE85L D800,801 00D 276 0717 903 1SS355 TE-17 +C D802 00D 276 0750 902 RB521S-30TE61 +REF D804 00D 276 0717 903 1SS355 TE-17 +C RESISTORS GROUP R148-151 00D 247 2020 933 RM73B--103FT +1608 R275 00D 247 2019 928 RM73B--750FT R276 00D 247 2021 932 RM73B--331FT R277 00D 247 2021 945 RM73B--162FT R278 00D 247 2019 928 RM73B--750FT R701-704 00D 247 2020 933 RM73B--103FT +1608 R707-709 00D 247 2020 933 RM73B--103FT +1608 R712 00D 247 2020 933 RM73B--103FT +1608 R717 00D 247 2021 932 RM73B--331FT R718 00D 247 2019 928 RM73B--750FT R721 00D 247 2019 928 RM73B--750FT R724 00D 247 2021 932 RM73B--331FT R725,726 00D 247 2019 928 RM73B--750FT R767,768 00D 247 2021 945 RM73B--162FT R938 00D 247 2025 938 RM73B--391FT R967-970 00D 247 2025 909 RM73B--821FT CAPACITORS GROUP C101-118 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C119 00D 257 2015 929 CS77B1A220MT C120-127 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C128 00D 257 4011 905 CE67C0J101MT (RV2) +REF C129 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C130,131 nsp 00D 257 5009 916 CK73B1C103KT C132-141 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C142 00D 257 2015 929 CS77B1A220MT C143-166 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C167 00D 257 4012 917 CE67C1C220MT (RV2) +REF C168-171 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C172-177 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C178,179 00D 257 4011 905 CE67C0J101MT (RV2) +REF C180,181 nsp 00D 257 5009 916 CK73B1C103KT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 DVD-3930/3930CI E2 C182 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C183 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C184,185 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C188 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C509 00D 257 2015 916 CS77B1A101MT C510 00D 257 2015 932 CS77B1A470MT C511 00D 257 2015 929 CS77B1A220MT C701-709 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C710 00D 257 4012 917 CE67C1C220MT (RV2) +REF C711-719 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C720 00D 257 4012 917 CE67C1C220MT (RV2) +REF C721-729 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C730 00D 257 4012 917 CE67C1C220MT (RV2) +REF C731-739 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C740 00D 257 4012 917 CE67C1C220MT (RV2) +REF C741-748 nsp 00D 257 5009 916 CK73B1C103KT C749-758 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C759 00D 257 2015 916 CS77B1A101MT C760 00D 257 2015 929 CS77B1A220MT C801 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C802 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C804 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C805,806 nsp 00D 257 5009 916 CK73B1C103KT C807 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C808 00D 257 2015 932 CS77B1A470MT C809 00D 257 4011 905 CE67C0J101MT (RV2) +REF C810 00D 257 2015 932 CS77B1A470MT C811 00D 257 4011 905 CE67C0J101MT (RV2) +REF C812-846 nsp 00D 257 5009 916 CK73B1C103KT C900,901 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C903 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C905-909 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C910 nsp 00D 257 5006 993 CK73B1H102KT +1005 C911,912 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C913,914 nsp 00D 257 5006 993 CK73B1H102KT +1005 C915 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C916 nsp 00D 257 5006 993 CK73B1H102KT +1005 C917 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C918-921 nsp 00D 257 5006 993 CK73B1H102KT +1005 C922,923 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C924-926 nsp 00D 257 5006 993 CK73B1H102KT +1005 C928,929 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C930,931 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C932 nsp 00D 257 5006 993 CK73B1H102KT +1005 C933 nsp 00D 257 5009 916 CK73B1C103KT C934 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C935-938 nsp 00D 257 0516 954 CK73B1E104KT +1608 C946,947 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C970,971 00D 257 4012 920 CE67C1C470MT (RV2) +REF C972 00D 257 2015 929 CS77B1A220MT C973,974 00D 254 4655 922 CE67C0J470MT (RV2) +REF C975,976 00D 254 4655 906 CE67C0J220MT (RV2) +REF C977 00D 254 4655 922 CE67C0J470MT (RV2) +REF C978-982 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C983 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C984-993 nsp 00D 257 5003 983 CC73CH1H470JT Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 DVD-3930/3930CI E2 00DGU-3793 FAN POWER P.W.B. UNIT ASS'Y OTHERS PARTS GROUP CX123 nsp 00D 205 1324 021 12P PIN HEADER(9120) CX162 nsp 00D 205 1324 063 16P PIN HEADER(9120) CX811 nsp 00D 205 1394 006 19P HDMI CONNECTOR CY041 nsp 00D 205 0343 045 4P CONN.BASE(KR-PH) CY064 nsp 00D 205 0449 062 6P VH CONNECTOR BASE CY122 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY125 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY131 nsp 00D 205 0892 088 13P FFC CON. BASE CY161 nsp 00D 205 1324 063 16P PIN HEADER(9120) FB101-105 00D 235 0136 907 FBMJ1608HS280NT +1608 FB800-806 nsp 00D 247 2018 903 RM73B--0R0KT +1608 FB807 nsp 00D 247 2003 989 RM73B--330JT +1608 FB808,809 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 JK851 00D 204 6793 007 RGB CONN(YKF41-5044) L800 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L803 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L805,806 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 W701,702 - M3 SCREW TERMINAL W704 - M3 SCREW TERMINAL W800,801 - M3-SCREW-TERMINAL08R X101 00D 399 0987 900 FCXO-05(66.666MHz) Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC801 00D 263 1100 050 KIA7808API D801 00D 276 0401 905 1SS133T77 (TAPE) CAPACITORS GROUP C801 nsp 00D 257 0514 901 CK73F1C334ZT +1608 C802 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C803 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 OTHERS PARTS GROUP CY038 nsp 00D 205 0343 032 3P CONN.BASE(KR-PH) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 DVD-3930/3930CI JP PARTS LIST OF P.W.B. UNIT (for JP model) ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 ＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. ＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 ＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. 00DGU-3749B MAIN/A.VIDEO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 2977 917 BA25BC0FP-E2 IC102 00D 263 1205 900 PQ012FZ01ZP +C IC151 00D 262 3591 907 BD7956FS-E2 IC152 00D GEN 8103 EEPROM ROM SUB ASSY BR24L32F-WE2 +C IC153 00D 262 3082 924 BD4730G-TR IC154 00D 262 3216 907 SM8707EV +C IC155 00D GEN 8284 -SP FE/BE ROM SUB ASSY MX29LV320CBTC-70G IC156 00D 262 3594 001 EM638165TS-7G IC157 00D 262 3592 003 MN2DS0009AA IC158 00D 262 3594 001 EM638165TS-7G IC159 00D 262 2517 908 SN74LV08APW-EL2 +REF IC161 00D 262 3601 907 TC7WH157FU(TE12L,F) IC162 00D 263 0989 900 NJM2904M-TE1 +C IC301 00D 263 0673 902 BA10393F-E2 +C IC400 00D 262 2514 901 SN74LV138APW-EL2 +C IC401 00D 262 3217 003 CXD2753R +C IC402 00D 262 2641 900 SN74LV541APW-EL2 +C IC403-406 00D 262 3242 900 SN74LV273APW-EL2 +REF IC408 00D 262 2641 900 SN74LV541APW-EL2 +C IC409 00D 262 2875 006 16M SDRAM(TSOP)-7/8 +C IC410,411 00D 262 2669 908 SN74LV157APW +C IC412-414 00D 262 2517 908 SN74LV08APW-EL2 +REF IC500 00D 262 2977 917 BA25BC0FP-E2 IC501 00D 262 3481 004 ADV7324 IC502 00D 262 3595 903 SN74LV594APWR IC503 00D 262 3277 904 SN74LVC157APW-EL2 +C IC505,506 00D 262 3365 900 BH7868FS IC507 00D 262 2813 903 SN74AHCT08PW-EL2 +C IC550 00D 262 3481 004 ADV7324 TR150 00D 272 0160 901 2SB1132T100Q +C TR153 00D 272 0160 901 2SB1132T100Q +C TR154,155 00D 273 0487 904 2SC2412K_T146R TR156 00D 269 0082 902 DTC114EKT96 +C TR157 00D 275 0109 903 2SK3019-TL TR158 00D 269 0082 902 DTC114EKT96 +C TR159 00D 271 0259 903 2SA1162-GR(TE85L) TR160 00D 269 0082 902 DTC114EKT96 +C TR161 00D 273 0487 904 2SC2412K_T146R TR162 00D 275 0109 903 2SK3019-TL TR163 00D 273 0487 904 2SC2412K_T146R TR164,165 00D 275 0109 903 2SK3019-TL TR166,167 00D 269 0229 901 DTC143TUAT106 TR302 00D 273 0460 905 KTC2875B-RTK +C TR500,501 00D 274 0163 904 2SD601A +C TR502-504 00D 271 0293 901 2SA1022-B +C TR505,506 00D 272 0125 904 2SB709A +C TR553,554 00D 271 0293 901 2SA1022-B +C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 DVD-3930/3930CI JP D101,102 00D 276 0401 905 1SS133T77 (TAPE) D152 00D 276 0401 905 1SS133T77 (TAPE) D500 00D 276 0717 903 1SS355 TE-17 +C RESISTORS GROUP R151 00D 244 2051 945 RS14B3A010JNBST(S) RR301 00D 247 2020 933 RM73B--103FT +1608 RR303 00D 247 2020 933 RM73B--103FT +1608 RR304 00D 247 2028 906 RM73B--302FT +1608 RR316 00D 247 2021 903 RM73B--122FT +1608 RR318-320 00D 247 2021 903 RM73B--122FT +1608 RA500-506 00D 247 9002 909 MNR14=330JE0AB +C RA507,508 00D 247 9007 920 MNR14=0R0JE0 RA550-556 00D 247 9002 909 MNR14=330JE0AB +C VR501 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF VR551 00D 211 6148 906 V03PB471MT(RH03ADCS) +REF CAPACITORS GROUP C101 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C102 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C103 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C105,106 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C107 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C108 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C109 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C111 00D 257 4012 917 CE67C1C220MT (RV2) +REF C112 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C113 00D 257 4011 905 CE67C0J101MT (RV2) +REF C114 00D 257 2015 929 CS77B1A220MT C115 00D 257 4011 905 CE67C0J101MT (RV2) +REF C116 nsp 00D 257 0507 976 CC73CH1H331JT +1608 C117 00D 257 2015 929 CS77B1A220MT C118 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C119,120 00D 257 4011 905 CE67C0J101MT (RV2) +REF C121 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C122 00D 257 4012 917 CE67C1C220MT (RV2) +REF C123 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C124,125 00D 257 4011 905 CE67C0J101MT (RV2) +REF C126,127 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C136,137 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C138 00D 257 4011 905 CE67C0J101MT (RV2) +REF C139,140 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C141 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C148,149 00D 257 2017 901 CS77B0J101MT(SK8) C150 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C151 00D 257 4012 933 CE67C1C101MT (RV2) +REF C152 00D 257 4012 920 CE67C1C470MT (RV2) +REF C155 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C156,157 00D 257 4012 917 CE67C1C220MT (RV2) +REF C160 00D 257 4012 920 CE67C1C470MT (RV2) +REF Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 123 DVD-3930/3930CI JP C163 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C164 00D 257 4012 917 CE67C1C220MT (RV2) +REF C165 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C166 00D 257 4012 920 CE67C1C470MT (RV2) +REF C167 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C170 00D 257 4012 920 CE67C1C470MT (RV2) +REF C171 00D 257 4012 917 CE67C1C220MT (RV2) +REF C172 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C174 00D 257 4012 917 CE67C1C220MT (RV2) +REF C175 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C176 00D 257 4012 917 CE67C1C220MT (RV2) +REF C177 nsp 00D 257 0516 954 CK73B1E104KT +1608 C178 nsp 00D 257 0520 908 CK73B1A154KT +1608 C179 nsp 00D 257 0516 954 CK73B1E104KT +1608 C180 nsp 00D 257 0516 925 CK73B1E333KT +1608 C181 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C182 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C183 nsp 00D 257 0501 930 CK73B1H183KT C184,185 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C186 nsp 00D 257 0521 907 CK73B1A105KT +1608 C187-189 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C190 00D 254 4655 922 CE67C0J470MT (RV2) +REF C191-195 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C196 00D 257 2017 901 CS77B0J101MT(SK8) C197 nsp 00D 257 0516 954 CK73B1E104KT +1608 C198,199 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C200 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C201,202 nsp 00D 257 0516 954 CK73B1E104KT +1608 C203 00D 257 4011 905 CE67C0J101MT (RV2) +REF C204 nsp 00D 257 0516 954 CK73B1E104KT +1608 C205-207 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C208 00D 257 4011 905 CE67C0J101MT (RV2) +REF C209 nsp 00D 257 0516 954 CK73B1E104KT +1608 C210 nsp 00D 257 0520 911 CK73B1A224KT +1608 C211 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C212,213 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C214 00D 257 4011 905 CE67C0J101MT (RV2) +REF C215,216 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C217 nsp 00D 257 0509 929 CK73B1H102KT +1608 C218-220 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C221 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C222 nsp 00D 257 0503 967 CC73CH1H150JT +1608 C223-225 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C227 nsp 00D 257 0503 967 CC73CH1H150JT +1608 C228 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C229 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C230-232 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C236,237 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C238,239 nsp 00D 257 0509 929 CK73B1H102KT +1608 C240 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C241 nsp 00D 257 0509 929 CK73B1H102KT +1608 C242-250 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C251 00D 257 4011 905 CE67C0J101MT (RV2) +REF C252-256 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C257 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C258 nsp 00D 257 0512 903 CK73F1E104ZT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 124 DVD-3930/3930CI JP C259 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C260,261 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C262 00D 257 4011 905 CE67C0J101MT (RV2) +REF C264-266 nsp 00D 257 0520 911 CK73B1A224KT +1608 C267 nsp 00D 257 0516 954 CK73B1E104KT +1608 C268 00D 257 4011 905 CE67C0J101MT (RV2) +REF C269-272 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C273 00D 257 4011 905 CE67C0J101MT (RV2) +REF C274-277 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C281 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C282 nsp 00D 257 0516 954 CK73B1E104KT +1608 C305 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C396 nsp 00D 257 0509 929 CK73B1H102KT +1608 C397 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C398 nsp 00D 257 0509 929 CK73B1H102KT +1608 C399 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C405 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C406 nsp 00D 257 0509 929 CK73B1H102KT +1608 C407-411 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C412 00D 257 4012 917 CE67C1C220MT (RV2) +REF C414 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C415 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C417 nsp 00D 257 0503 925 CC73CH1H100DT +1608 C418 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C419-421 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C422,423 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C424 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C425 nsp 00D 257 0509 929 CK73B1H102KT +1608 C426,427 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C428 nsp 00D 257 0509 929 CK73B1H102KT +1608 C429,430 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C431 00D 257 4011 905 CE67C0J101MT (RV2) +REF C432-438 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C439 00D 257 4011 905 CE67C0J101MT (RV2) +REF C440 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C441 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C442 nsp 00D 257 0509 929 CK73B1H102KT +1608 C443 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C444 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C445,446 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C447 nsp 00D 257 0509 929 CK73B1H102KT +1608 C448 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C449-454 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C455 00D 257 4011 905 CE67C0J101MT (RV2) +REF C477-479 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C480 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C481 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C482 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C483-488 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C500,501 nsp 00D 257 0509 929 CK73B1H102KT +1608 C502-504 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C505 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C506 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C507,508 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C509 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C511 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 125 DVD-3930/3930CI JP C512-514 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C516 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C517 nsp 00D 257 0509 903 CK73B1H821KT +1608 C518 nsp 00D 257 0510 921 CK73B1H392KT +1608 C519-525 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C526,527 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C528 nsp 00D 257 0516 954 CK73B1E104KT +1608 C530-533 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C534 nsp 00D 257 0516 954 CK73B1E104KT +1608 C536 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C544 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C546 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C549 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C550 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C551 nsp 00D 257 0516 954 CK73B1E104KT +1608 C552 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C553,554 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C555 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C556 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C559 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C600,601 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C605 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C606,607 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C609 nsp 00D 257 0509 903 CK73B1H821KT +1608 C610 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C611 nsp 00D 257 0510 921 CK73B1H392KT +1608 C615,616 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C624 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C672,673 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C676 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C696 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C900 00D 254 4655 922 CE67C0J470MT (RV2) +REF C901 00D 257 2015 929 CS77B1A220MT C902-906 00D 257 4011 905 CE67C0J101MT (RV2) +REF C907 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C908 00D 254 4655 922 CE67C0J470MT (RV2) +REF C909 00D 257 4011 905 CE67C0J101MT (RV2) +REF C910 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C911 00D 254 4655 922 CE67C0J470MT (RV2) +REF C912 00D 257 4012 917 CE67C1C220MT (RV2) +REF C913 00D 254 4655 977 CE67C0J102MT (RV) +REF C914 00D 257 4011 905 CE67C0J101MT (RV2) +REF C915 00D 254 4655 977 CE67C0J102MT (RV) +REF C916 00D 257 4011 905 CE67C0J101MT (RV2) +REF C917 00D 254 4655 977 CE67C0J102MT (RV) +REF C918,919 00D 257 4011 905 CE67C0J101MT (RV2) +REF C920 00D 257 4012 917 CE67C1C220MT (RV2) +REF C921 00D 257 4011 905 CE67C0J101MT (RV2) +REF C922 00D 257 4012 917 CE67C1C220MT (RV2) +REF C923 00D 254 4660 946 CE67C1H010MT (RV2B55 +REF C924,925 00D 254 4655 922 CE67C0J470MT (RV2) +REF C926 00D 254 4655 977 CE67C0J102MT (RV) +REF C927,928 00D 257 4011 905 CE67C0J101MT (RV2) +REF C929 00D 257 4012 917 CE67C1C220MT (RV2) +REF C930-933 00D 257 4011 905 CE67C0J101MT (RV2) +REF C950 00D 257 4012 917 CE67C1C220MT (RV2) +REF Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 126 DVD-3930/3930CI JP C980 00D 257 4011 905 CE67C0J101MT (RV2) +REF C982 00D 257 4012 917 CE67C1C220MT (RV2) +REF C983 00D 257 4011 905 CE67C0J101MT (RV2) +REF C984,985 00D 257 4012 917 CE67C1C220MT (RV2) +REF C986,987 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C988 00D 257 4012 917 CE67C1C220MT (RV2) +REF C990-992 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C995,996 nsp 00D 257 0512 903 CK73F1E104ZT +1608 OTHERS PARTS GROUP AS601,602 - M3-SCREW-TERMINAL08R CX053 nsp 00D 205 0355 059 5P KR CON BASE(L) CX062 nsp 00D 205 1323 064 6P PIN HEADER(9120) CX122 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX125 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX151 nsp 00D 205 1224 930 15P FFC BASE(9616A) CX161 nsp 00D 205 1324 063 16P PIN HEADER(9120) CX211 00D 205 1346 009 21P 1.25FJ CONN.BASE CX212 nsp 00D 205 1334 011 21P-FFC-BASE(9615A) CX241 nsp 00D 205 1264 916 24P-FFC-BASE(9631SG) CX331 nsp 00D 205 1334 008 33P-FFC-BASE (P=1) CY062 nsp 00D 205 1325 062 6P SOCKET(9120) CY071 nsp 00D 205 0355 075 7P KR CON BASE(L) CY123 nsp 00D 205 1324 021 12P PIN HEADER(9120) CY132 nsp 00D 205 0480 034 13P KR CON BASE(L) CY162 nsp 00D 205 1324 063 16P PIN HEADER(9120) CY211 00D 205 1345 000 21P 1.25FJ CONN.PLUG FB101 00D 235 0136 907 FBMJ1608HS280NT +1608 FB103-107 00D 235 0136 907 FBMJ1608HS280NT +1608 FB150 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB155,156 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 FB159-161 nsp 00D 247 2018 903 RM73B--0R0KT +1608 JK703 00D 205 1395 005 1P S-TERMINAL-LF JK704 00D 204 6755 003 D-CONNECTOR(AU) JK705-708 00D 204 8728 009 1P PIN JACK(BK)-LF JK853 00D 205 1332 000 3P BNC CONNECTOR(AU) L150 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L154-156 00D 235 0074 933 INDUCTOR(101)ST L157,158 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L502-505 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L552,553 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 X150 00D 399 0596 003 XTAL(27MHZ) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 127 DVD-3930/3930CI JP 00DGU-3750B POWER/DISPLAY P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3606 902 PT6302-R-001(L) IC102 00D 262 3602 003 GP1UE271XKVF IC108 00D 269 0222 005 GP1FA52HTZ0F IC901 00D 265 0126 002 TOP247YN IC902 00D 263 1256 904 TA76432S(TPE6,F) IC903 00D 263 1100 005 KIA7805API IC904 00D 262 2580 906 CXA1511M +C IC905 00D 262 2114 903 UPD4721GS-GJG +C IC906 00D 262 3047 008 PC123Y22 IC907,908 00D 263 1256 904 TA76432S(TPE6,F) IC909 00D 262 3277 904 SN74LVC157APW-EL2 +C IC910 00D 263 1100 021 KIA7812API TR101,102 00D 269 0082 902 DTC114EKT96 +C TR103,104 00D 271 0308 906 2SA933ASTPS TR105-111 00D 269 0082 902 DTC114EKT96 +C TR121 00D 273 0487 904 2SC2412K_T146R TR901 00D 271 0308 906 2SA933ASTPS TR902 00D 272 0170 001 2SB1268(R/S) TR904 00D 272 0083 004 2SB1185(E/F) TR905 00D 274 0036 905 2SD468(C)TF TR907 00D 269 0083 901 DTA114EKT96 +C TR908,909 00D 269 0082 902 DTC114EKT96 +C TR910 00D 275 0115 900 RSS100N03TB TR911 00D 269 0055 900 DTA144EKT96 +C TR912 00D 269 0054 901 DTC144EKT96 +C TR913,914 00D 274 0209 004 2SC5370 TR915,916 00D 271 0308 906 2SA933ASTPS TR917 00D 273 0303 910 2SC1740S(S)-T D101-109 00D 276 0401 905 1SS133T77 (TAPE) D901-904 00D 276 0729 904 EM01AT (V1) D906 00D 276 0401 905 1SS133T77 (TAPE) D907 00D 276 0813 001 AP01C D908 00D 276 0818 006 FMJ-2303 D909 00D 276 0401 905 1SS133T77 (TAPE) D910 00D 276 0803 008 FMB-G19L D911 00D 276 0730 906 AG01ZT (V1) D914 00D 276 0730 906 AG01ZT (V1) D915 00D 276 0401 905 1SS133T77 (TAPE) D921 00D 276 0401 905 1SS133T77 (TAPE) D922 00D 276 0842 904 RB551V-30TE-17 * D923-925 00D 276 0401 905 1SS133T77 (TAPE) D926 00D 276 0730 906 AG01ZT (V1) ZD903 00D 276 0762 945 MTZJ36B T77 ZD904 00D 276 0760 921 MTZJ4.3B T77 ZD905 00D 276 0760 947 MTZJ5.1B T77 LD101,102 00D 393 9576 903 SELU1E10CXM-002 LD103 00D 393 9645 009 SML1216W(D) LD104,105 00D 393 9576 903 SELU1E10CXM-002 LD106-108 00D 393 9452 904 SEL1410E(TP2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 128 DVD-3930/3930CI JP TH901 00D 279 0044 002 NTH11D8R0LA FL101 00D 393 8078 004 FL TUBE(15-BT-97GNK) RESISTORS GROUP R908 00D 244 2675 729 RS14B3D224JNBF (ERG) R916 00D 247 2023 914 RM73B--103DT(1608) +1608 R917 00D 247 2023 927 RM73B--1652DT(1608) +1608 R918 00D 244 2055 912 RS14B3AR47JNBST(S) R919 00D 244 2681 904 RS14B3A1R5JNBST(S) R926 00D 244 2052 973 RS14B3A561JNBST(S) R929 00D 244 2050 991 RS14B3A682JNBST(S) R930 00D 244 2052 973 RS14B3A561JNBST(S) R938 00D 244 2051 929 RS14B3A821JNBST(S) R940 00D 241 2315 938 RD14B2E330GFRST R955,956 00D 244 2052 973 RS14B3A561JNBST(S) R960,961 00D 247 2023 914 RM73B--103DT(1608) +1608 R962-964 00D 244 2690 908 RS14B3A120JNBST(S) R967 00D 247 2023 930 RM73B--242DT(1608) +1608 R968 00D 247 2023 914 RM73B--103DT(1608) +1608 R969-974 00D 244 2055 912 RS14B3AR47JNBST(S) R982-985 00D 244 2681 904 RS14B3A1R5JNBST(S) R988 00D 244 2055 912 RS14B3AR47JNBST(S) CAPACITORS GROUP C101 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C102 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C103 00D 254 4300 963 CE04W0J101MT(SRE) C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C105 nsp 00D 257 0504 966 CC73CH1H390JT +1608 C106 00D 254 4300 947 CE04W0J470MT(SRE) C107-109 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C111 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C121-124 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C125 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C126 nsp 00D 257 0509 929 CK73B1H102KT +1608 C192 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C194 nsp 00D 254 4524 943 CE04W1H010MT SMG/RE3 C202 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C901 00D 256 8038 004 CF99--2EAC104M C902,903 00D 253 8029 713 CK45F2EAC471KC(KX) C904 00D 254 4588 714 CE04W2D221MC(KMG) C905,906 00D 253 8029 713 CK45F2EAC471KC(KX) C907 nsp 00D 254 4525 913 CE04W1H470MT SMG/RE3 C909 nsp 00D 254 4525 913 CE04W1H470MT SMG/RE3 C910 00D 256 8038 004 CF99--2EAC104M C912 00D 253 8029 713 CK45F2EAC471KC(KX) C913,914 00D 254 4713 709 CE04W1E102MC J30(KY) C916,917 00D 254 4770 700 CE04W0J562MC(KY)K35 C918 00D 254 4675 902 CE04W2A220MT(KMF) C919 00D 254 4770 700 CE04W0J562MC(KY)K35 C920,921 00D 254 4651 900 CE04W0J331MT(KY)E11 C922 00D 254 4770 700 CE04W0J562MC(KY)K35 C923 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 129 DVD-3930/3930CI JP C925 00D 254 4536 957 CE04W1A471MT SMG/RE3 C926 00D 254 4542 705 CE04W1E471MC SMG/RE3 C927 00D 254 4536 957 CE04W1A471MT SMG/RE3 C929 nsp 00D 254 4538 955 CE04W1C221MT SMG/RE3 C930 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C931 nsp 00D 257 0511 920 CK73F1H473ZT +1608 C932 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C935,936 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C937 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C938 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C939 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C940 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C941-943 nsp 00D 254 4524 901 CE04W1H0R1MT SMG/RE3 C944 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C945 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C946 nsp 00D 254 4538 939 CE04W1C470MT SMG/RE3 C947 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C948 nsp 00D 254 4524 943 CE04W1H010MT SMG/RE3 C949,950 nsp 00D 254 4524 901 CE04W1H0R1MT SMG/RE3 C952-954 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C955 00D 254 4770 700 CE04W0J562MC(KY)K35 C956 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C958 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C959 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C960 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C961 nsp 00D 257 0506 951 CC73CH1H101JT +1608 ! C962 00D 253 8022 707 CK45F2EAC103MC C963 nsp 00D 257 0509 929 CK73B1H102KT +1608 C964 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C965 nsp 00D 257 0509 929 CK73B1H102KT +1608 C966 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C967 00D 254 4693 939 CE04W1H101MT(RF0) C968 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C969,970 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C977 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C978 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C980 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C981 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C982,983 nsp 00D 257 0516 954 CK73B1E104KT +1608 C984 00D 254 4693 939 CE04W1H101MT(RF0) C985 nsp 00D 247 2018 903 RM73B--0R0KT +1608 C989 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C990,991 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 ! C999 00D 253 8022 707 CK45F2EAC103MC OTHERS PARTS GROUP AS901,902 - RADIATOR AS904 - RADIATOR(PUE26) CW031 nsp 00D 203 5343 057 3P PH-SAN CON.CORD CW038 nsp 00D 203 5394 006 3P PH-SAN CON.CORD CW052 nsp 00D 203 8549 010 5P PH-SAN CON.CORD CW071 nsp 00D 204 3008 025 7P PH-SAN CON.CORD CW132 nsp 00D 204 6696 023 13P PH-SAN CON.CORD Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 130 DVD-3930/3930CI JP CX024 nsp 00D 205 0581 001 2P VH CONNECTOR BASE CX025 nsp 00D 205 0581 056 2P VH CONNECTOR BASE CX026 nsp 00D 205 1093 006 2P VH CONNECTOR BASA CX031 nsp 00D 205 0343 032 3P CONN.BASE(KR-PH) CX044 nsp 00D 205 0343 045 4P CONN.BASE(KR-PH) CX064 nsp 00D 205 0653 065 6P VH CONNECTOR BASE CX122 nsp 00D 205 0536 027 12P CONNE SOCKET CX123 nsp 00D 205 1326 029 12P SOCKET(9120) CX125 nsp 00D 205 0536 027 12P CONNE SOCKET CX128 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX161,162 nsp 00D 205 1326 061 16P SOCKT(9120) CY025 nsp 00D 205 0581 056 2P VH CONNECTOR BASE CY052 nsp 00D 205 0343 058 5P CONN.BASE(KR-PH) CY061 nsp 00D 205 0536 030 6P CONNE SOCKET CY122 nsp 00D 205 0536 027 12P CONNE SOCKET CY123 nsp 00D 205 1326 029 12P SOCKET(9120) CY125 nsp 00D 205 0536 027 12P CONNE SOCKET CY128 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY161,162 nsp 00D 205 1326 061 16P SOCKT(9120) ! F901 00D 206 1094 037 FUSE(233)T2AL125V FF901 nsp 00D 202 0040 909 FUSE CLIP(TAPE) FH901 nsp 00D 202 0040 909 FUSE CLIP(TAPE) JK102 00D 204 8728 009 1P PIN JACK(BK)-LF JK901 00D 205 1153 001 9P S SUB CONNECTOR JK902 00D 204 8729 008 2P MINI JACK L901 00D 235 0157 009 PLA10AN7720R7D2B L902 00D 235 0142 917 COIL LHL08TB4R7MT L904,905 00D 235 0142 917 COIL LHL08TB4R7MT RL901 00D 214 0202 009 RELAY DG1U TV-8 S101-108 00D 212 5604 910 TACT SWITCH-TA(ALPS) S109 00D 212 5611 903 TACT SWITCH(TAPE H5) S111 00D 212 5604 910 TACT SWITCH-TA(ALPS) S112 00D 212 0525 007 ROT.ENCODER EC11B20 ! S999 00D 212 1030 009 POWER SWITCH (TV-5) ! T901 00D 233 0686 008 SW TRANS (100/120) W101 - 1P LUG-SIN WIRE W104 - M3-SCREW-TERMINAL08R W106 - 1P LUG-SIN WIRE W903,904 - M3-SCREW-TERMINAL08R W906,907 - 1P SIN CORD ASSY nsp 0RD 471 3303 016 3X6 CBS-Z nsp 00D 461 0991 026 RUBBER SHEET Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 131 DVD-3930/3930CI JP 00DGU-3751B AUDIO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC102 00D 262 2977 917 BA25BC0FP-E2 IC103 00D 262 3588 004 EP2C8Q208C8N IC104 00D 263 1205 900 PQ012FZ01ZP +C IC105 00D 262 3366 912 EPCS1-SI8-C2F6E6 IC106 00D 262 3380 008 AK4101AVQ IC107 00D 262 3449 004 LC89057W-VF4A IC303 00D 262 3589 003 D708E001RFP250 IC305 00D GEN 8250 DSP ROM SUB ASSY MBM29LV160BE90TN IC306 00D 263 1205 900 PQ012FZ01ZP +C IC401 00D 262 3362 903 PCM1796DBR * IC402-405 00D 263 0615 902 BA15218F-DXE2 +C IC406 00D 262 3362 903 PCM1796DBR * IC407-410 00D 263 0615 902 BA15218F-DXE2 +C IC411 00D 262 3362 903 PCM1796DBR * IC412-415 00D 263 0615 902 BA15218F-DXE2 +C IC701 00D 263 0913 905 PST600C TP IC702 00D 262 3362 903 PCM1796DBR * IC703-705 00D 263 0615 902 BA15218F-DXE2 +C IC706 00D 263 1074 908 OP275GSR +C IC707 00D 262 3362 903 PCM1796DBR * IC708-710 00D 263 0615 902 BA15218F-DXE2 +C IC711 00D 263 1074 908 OP275GSR +C IC801 00D 263 1100 021 KIA7812API IC802 00D 263 1099 022 KIA7912PI IC803 00D 263 1100 050 KIA7808API IC804 00D 263 1100 005 KIA7805API TR402,403 00D 269 0119 901 DTA124EKT96(TAPE) +C TR404,405 00D 269 0082 902 DTC114EKT96 +C TR406,407 00D 273 0460 905 KTC2875B-RTK +C TR408-413 00D 269 0119 901 DTA124EKT96(TAPE) +C TR414-419 00D 269 0082 902 DTC114EKT96 +C TR420-442 00D 273 0460 905 KTC2875B-RTK +C TR701 00D 273 0487 904 2SC2412K_T146R TR702 00D 269 0083 901 DTA114EKT96 +C TR703 00D 269 0119 901 DTA124EKT96(TAPE) +C TR704 00D 273 0487 904 2SC2412K_T146R TR705 00D 269 0119 901 DTA124EKT96(TAPE) +C TR706 00D 269 0082 902 DTC114EKT96 +C TR707,708 00D 273 0460 905 KTC2875B-RTK +C TR709 00D 269 0119 901 DTA124EKT96(TAPE) +C TR710 00D 269 0082 902 DTC114EKT96 +C TR711 00D 269 0119 901 DTA124EKT96(TAPE) +C TR712 00D 269 0082 902 DTC114EKT96 +C TR715-718 00D 273 0460 905 KTC2875B-RTK +C TR721,722 00D 273 0460 905 KTC2875B-RTK +C TR723 00D 269 0082 902 DTC114EKT96 +C D101,102 00D 276 0717 903 1SS355 TE-17 +C D301,302 00D 276 0401 905 1SS133T77 (TAPE) D701,702 00D 276 0717 903 1SS355 TE-17 +C D801-804 00D 276 0701 003 S2L20U-4002P7.5 D805,806 00D 276 0723 900 RB721Q-40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 132 DVD-3930/3930CI JP RESISTORS GROUP R585-591 00D 241 2465 985 RD14B2E151JT(AMRS) R594 00D 241 2465 985 RD14B2E151JT(AMRS) R597,598 00D 241 2465 985 RD14B2E151JT(AMRS) R602 00D 241 2465 985 RD14B2E151JT(AMRS) R721 00D 244 2052 986 RS14B3A751JNBST(S) R751,752 00D 244 2052 986 RS14B3A751JNBST(S) R768-775 00D 241 2467 954 RD14B2E751JT(AMRS) R851 00D 244 2051 974 RS14B3A102JNBST(S) R852 00D 244 2043 940 RS14B3A222JNBST(S) RR500 00D 241 2465 985 RD14B2E151JT(AMRS) RR733,734 00D 241 2466 955 RD14B2E301JT(AMRS) RR739 00D 241 2466 955 RD14B2E301JT(AMRS) RR742 00D 241 2466 955 RD14B2E301JT(AMRS) RR755-758 00D 241 2466 955 RD14B2E301JT(AMRS) CAPACITORS GROUP C101 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C103 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C104 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C106 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C107 nsp 00D 257 0509 929 CK73B1H102KT +1608 C108 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C109-115 nsp 00D 257 0509 929 CK73B1H102KT +1608 C116 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C117 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C118,119 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C120 nsp 00D 257 0516 954 CK73B1E104KT +1608 C121,122 nsp 00D 257 0509 929 CK73B1H102KT +1608 C123 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C124-129 nsp 00D 257 0509 929 CK73B1H102KT +1608 C130 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C131 00D 254 4693 939 CE04W1H101MT(RF0) C132 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C133 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C134 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C135 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C136,137 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C138 nsp 00D 257 0509 929 CK73B1H102KT +1608 C139 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C140 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C141,142 nsp 00D 257 0509 929 CK73B1H102KT +1608 C143 nsp 00D 257 0516 954 CK73B1E104KT +1608 C144 nsp 00D 257 0509 929 CK73B1H102KT +1608 C149 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C150 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C151 00D 254 4533 950 CE04W0J471MT SMG/RE3 C152 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C153-158 nsp 00D 257 0509 929 CK73B1H102KT +1608 C159 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C160 nsp 00D 257 0509 929 CK73B1H102KT +1608 C161 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C162 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C163 nsp 00D 257 0516 954 CK73B1E104KT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 133 DVD-3930/3930CI JP C164 nsp 00D 257 0509 929 CK73B1H102KT +1608 C165 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C170 nsp 00D 257 0509 929 CK73B1H102KT +1608 C171 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C172 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C173 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C174 nsp 00D 257 0509 929 CK73B1H102KT +1608 C175 nsp 00D 257 0516 954 CK73B1E104KT +1608 C176 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C177 nsp 00D 257 0516 909 CK73B1E223KT +1608 C178 nsp 00D 257 0516 954 CK73B1E104KT +1608 C179,180 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C181 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C182 nsp 00D 257 0509 929 CK73B1H102KT +1608 C183 nsp 00D 257 0502 955 CC73CH1H3R0CT +1608 C184 nsp 00D 257 0509 929 CK73B1H102KT +1608 C185 nsp 00D 257 0502 955 CC73CH1H3R0CT +1608 C186-188 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C189 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C190 nsp 00D 257 0509 929 CK73B1H102KT +1608 C218 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C219 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C220 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C221 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C222 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C223 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C224 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C225 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C226 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C227,228 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C229 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C230 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C231 nsp 00D 257 0509 929 CK73B1H102KT +1608 C232 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C233 00D 257 2015 929 CS77B1A220MT C301 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C302 nsp 00D 257 0509 929 CK73B1H102KT +1608 C303 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C305 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C306 00D 254 4533 950 CE04W0J471MT SMG/RE3 C307 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C308 nsp 00D 257 0509 929 CK73B1H102KT +1608 C309 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C310 nsp 00D 257 0509 929 CK73B1H102KT +1608 C311 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C312,313 nsp 00D 257 0509 929 CK73B1H102KT +1608 C314 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C315 nsp 00D 257 0509 929 CK73B1H102KT +1608 C316 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C317 nsp 00D 257 0509 929 CK73B1H102KT +1608 C318 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C319 00D 254 4533 950 CE04W0J471MT SMG/RE3 C320 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C323 nsp 00D 257 0509 929 CK73B1H102KT +1608 C324 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C327 nsp 00D 257 0508 917 CC73CH1H471JT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 134 DVD-3930/3930CI JP C328,329 nsp 00D 257 0503 909 CC73CH1H8R0DT +1608 C330 nsp 00D 257 0508 917 CC73CH1H471JT +1608 C331 nsp 00D 257 0509 929 CK73B1H102KT +1608 C332 nsp 00D 254 4533 921 CE04W0J101MT SMG/RE3 C333 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C334 nsp 00D 257 0509 929 CK73B1H102KT +1608 C335 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C336,337 nsp 00D 257 0509 929 CK73B1H102KT +1608 C338 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C339 nsp 00D 257 0509 929 CK73B1H102KT +1608 C340 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C341 nsp 00D 257 0509 929 CK73B1H102KT +1608 C342 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C343 nsp 00D 257 0509 929 CK73B1H102KT +1608 C344,345 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C346 nsp 00D 257 0509 929 CK73B1H102KT +1608 C347 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C348,349 nsp 00D 257 0509 929 CK73B1H102KT +1608 C350 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C351 nsp 00D 257 0509 929 CK73B1H102KT +1608 C352 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C353 nsp 00D 257 0509 929 CK73B1H102KT +1608 C354 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C357 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C358 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C359 nsp 00D 257 0509 929 CK73B1H102KT +1608 C360 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 C361 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C362 nsp 00D 257 0509 929 CK73B1H102KT +1608 C363 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C364 nsp 00D 257 0509 929 CK73B1H102KT +1608 C369 00D 254 4533 950 CE04W0J471MT SMG/RE3 C370 nsp 00D 257 0511 904 CK73F1H103ZT +1608 C371 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C372 nsp 00D 257 0509 929 CK73B1H102KT +1608 C401 nsp 00D 257 0516 954 CK73B1E104KT +1608 C402-404 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C405,406 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C407,408 00D 254 4693 939 CE04W1H101MT(RF0) C409-411 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C412 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C413-416 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C417-420 00D 254 4693 926 CE04W1H470MT(RF0) C421,422 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C423-426 00D 254 4692 901 CE04W1J100MT(RF0) C427-430 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C439-446 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C447-454 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 C455-458 00D 257 3006 908 CF73=1C682JT(ECHUB5)+2125 C459-462 00D 257 3014 974 CF73=1C183JT(ECHUB5)+3216 C463-470 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125 C471,472 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C473,474 00D 255 4256 955 CQ93P2A103JT(NH2) C475-482 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C483 00D 255 4256 955 CQ93P2A103JT(NH2) C484-486 nsp 00D 257 0506 951 CC73CH1H101JT +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 135 DVD-3930/3930CI JP C487-489 00D 254 4692 901 CE04W1J100MT(RF0) C490 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C491-494 nsp 00D 257 0503 925 CC73CH1H100DT +1608 C495,496 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C497,498 00D 257 3006 911 CF73=1C104JT(ECHUB5)+3225 C499 00D 254 4693 926 CE04W1H470MT(RF0) C503,504 00D 254 4580 709 CE04W1H221MC(ROB) C506 nsp 00D 257 0516 954 CK73B1E104KT +1608 C507 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C703 nsp 00D 257 0516 954 CK73B1E104KT +1608 C704 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C705 nsp 00D 257 0516 954 CK73B1E104KT +1608 C706 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C710 00D 254 4750 704 CE04W1H471MC(RFO) C713 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C714 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C715 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C716 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C717 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C718 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C719 00D 254 4693 939 CE04W1H101MT(RF0) C720 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C721 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C722 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C724 00D 254 4693 939 CE04W1H101MT(RF0) C725 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C731 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C734 00D 257 3006 924 CF73=1C103JT(ECHUB5)+2125 C736-739 00D 254 4702 956 CE04W1H100MT(RFS#A) C740-743 00D 254 4693 939 CE04W1H101MT(RF0) C748 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C750,751 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C753,754 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C756,757 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C759 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C768-775 00D 255 4254 915 CQ93P2A102JT(NH2) C776-779 00D 255 4253 974 CQ93P2A681JT(NH2) C780 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C781,782 00D 255 4253 974 CQ93P2A681JT(NH2) C783,784 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C785,786 00D 255 4253 974 CQ93P2A681JT(NH2) C787 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C788,789 00D 255 4256 913 CQ93P2A682JT(NH2) C790,791 00D 255 4257 912 CQ93P2A183JT(NH2) C792-795 00D 255 4254 999 CQ93P2A222JT(NH2) C796,797 00D 254 4580 712 CE04W1H101MC(ROB) C798,799 00D 254 3091 901 CE04D1H220MBPT (RBD) C800 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C801 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C802 00D 254 4693 939 CE04W1H101MT(RF0) C803 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 C804 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C805 00D 254 4693 939 CE04W1H101MT(RF0) C814,815 00D 254 4703 735 CE04W1H471MC(RFS#A) C816-818 00D 255 4256 955 CQ93P2A103JT(NH2) C822 00D 254 4693 939 CE04W1H101MT(RF0) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 136 DVD-3930/3930CI JP C823 00D 255 4256 955 CQ93P2A103JT(NH2) C825 00D 255 4256 955 CQ93P2A103JT(NH2) C826 00D 254 4750 704 CE04W1H471MC(RFO) C851 00D 255 4256 955 CQ93P2A103JT(NH2) C854,855 00D 254 4787 706 CE04W1H332MC(RFS#5) CC401 00D 254 4693 926 CE04W1H470MT(RF0) CC402 nsp 00D 257 0516 954 CK73B1E104KT +1608 CC403,404 00D 254 4692 901 CE04W1J100MT(RF0) CC405,406 nsp 00D 257 0516 954 CK73B1E104KT +1608 CC411-414 nsp 00D 257 0512 903 CK73F1E104ZT +1608 CC415-418 00D 257 3011 919 CF73=1H102JT(ECHUB5)+2125 CC419,420 00D 257 3012 905 CF73=1H682JT(ECHUB5)+3216 CC421,422 00D 257 3012 950 CF73=1H183JT(ECHUB5) CC423-426 00D 257 3011 948 CF73=1H222JT(ECHUB5)+2125 CC427 00D 254 4693 939 CE04W1H101MT(RF0) CC428-431 nsp 00D 257 0512 903 CK73F1E104ZT +1608 CC432 00D 254 4693 939 CE04W1H101MT(RF0) CC433-438 00D 254 3091 901 CE04D1H220MBPT (RBD) CC439,440 nsp 00D 257 0503 925 CC73CH1H100DT +1608 CC441 00D 254 3091 901 CE04D1H220MBPT (RBD) CC442-447 00D 254 4580 709 CE04W1H221MC(ROB) CC448-453 nsp 00D 257 0508 917 CC73CH1H471JT +1608 CC701-704 nsp 00D 257 0501 901 CK73B1H103KT (1608) +1608 CC705,706 nsp 00D 257 0503 925 CC73CH1H100DT +1608 CC711 00D 256 1054 001 CF93B1H105K(GSG) ) CC713 00D 256 1054 001 CF93B1H105K(GSG) ) CC716 00D 254 4703 735 CE04W1H471MC(RFS#A) CC718 00D 254 4703 735 CE04W1H471MC(RFS#A) OTHERS PARTS GROUP AS402 - COMMON PLATE(CU 0.8) AS801,802 - RADIATOR AS803,804 - RADIATOR AS910 - COMMON PLATE(CU 0.8) CX032 nsp 00D 205 0653 036 3P VH CON.BASE CX061 nsp 00D 205 1386 027 6P BASE(9115B-PT1) CX103 nsp 00D 205 0480 005 10P KR CON BASE(L) CX125-127 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX128 nsp 00D 205 0536 027 12P CONNE SOCKET CX129 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CX131 nsp 00D 205 1383 020 13P-FFC-BASE(9615C) CX213 nsp 00D 205 1383 033 21P-FFC-BASE(9615C) CX214 00D 205 1346 009 21P 1.25FJ CONN.BASE CY044 nsp 00D 205 0343 045 4P CONN.BASE(KR-PH) CY125-129 nsp 00D 205 0536 027 12P CONNE SOCKET CY212 nsp 00D 205 1383 033 21P-FFC-BASE(9615C) CY214 00D 205 1345 000 21P 1.25FJ CONN.PLUG CY331 nsp 00D 205 1383 004 33P-FFC-BASE(9615C) FB101,102 00D 235 0147 909 E.FIL(BLM21PG221SN1)+2125 FB301 00D 235 0130 903 CHIP EMIFIL(11A121) +1608 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 137 DVD-3930/3930CI JP JK101 00D 205 1222 000 RJ-45 JACK(GND) JK401-406 00D 204 8728 009 1P PIN JACK(BK)-LF JK701,702 00D 204 8666 006 1P PIN JACK(BK) L402 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L802 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 W101 - M3-SCREW-TERMINAL08R W407 - M3-SCREW-TERMINAL08R W707 - M3-SCREW-TERMINAL08R W711,712 - M3-SCREW-TERMINAL08R W801,802 - M3-SCREW-TERMINAL08R X101 00D 399 1017 002 X-TAL(24.576MHZ) X301 00D 399 0951 004 X'TAL(25MHZ) nsp 0RD 471 3303 016 3X6 CBS-Z - 1P WIRE - 1P WIRE W701-W705, W702-W706 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 138 DVD-3930/3930CI JP 00DGU-3752 DIGITAL VIDEO P.W.B. UNIT ASS'Y Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC101 00D 262 3605 000 sxT2LF-400(Realta) IC103 00D 262 2570 903 TC7W241FU(TE12L) IC701-704 00D 262 3479 003 EM6A9320BI-4MG IC800 00D 262 2977 933 BA50BC0FP-E2 IC802 00D GEN 8134 I/P ROM SUB ASSY MX29LV640BBTC-90 * IC803 00D 262 3473 902 LP2995M * IC806 00D 262 3642 908 LM1117MPX-1.8/NOPB IC807 00D 262 3364 011 SII9030CTU-7 IC809 00D 262 1230 901 TC7S04FTE85L +C IC904 00D 262 3493 908 TC7MBL3245AFK IC906 00D 262 3493 908 TC7MBL3245AFK TR800 00D 273 0460 905 KTC2875B-RTK +C TR803 00D 275 0110 905 HN1K02FU-TE85L D800,801 00D 276 0717 903 1SS355 TE-17 +C D802 00D 276 0750 902 RB521S-30TE61 +REF D804 00D 276 0717 903 1SS355 TE-17 +C RESISTORS GROUP R148-151 00D 247 2020 933 RM73B--103FT +1608 R275 00D 247 2019 928 RM73B--750FT R276 00D 247 2021 932 RM73B--331FT R277 00D 247 2021 945 RM73B--162FT R278 00D 247 2019 928 RM73B--750FT R701-704 00D 247 2020 933 RM73B--103FT +1608 R707-709 00D 247 2020 933 RM73B--103FT +1608 R712 00D 247 2020 933 RM73B--103FT +1608 R717 00D 247 2021 932 RM73B--331FT R718 00D 247 2019 928 RM73B--750FT R721 00D 247 2019 928 RM73B--750FT R724 00D 247 2021 932 RM73B--331FT R725,726 00D 247 2019 928 RM73B--750FT R767,768 00D 247 2021 945 RM73B--162FT R938 00D 247 2025 938 RM73B--391FT R967-970 00D 247 2025 909 RM73B--821FT CAPACITORS GROUP C101-118 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C119 00D 257 2015 929 CS77B1A220MT C120-127 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C128 00D 257 4011 905 CE67C0J101MT (RV2) +REF C129 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C130,131 nsp 00D 257 5009 916 CK73B1C103KT C132-141 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C142 00D 257 2015 929 CS77B1A220MT C143-166 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C167 00D 257 4012 917 CE67C1C220MT (RV2) +REF C168-171 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C172-177 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C178,179 00D 257 4011 905 CE67C0J101MT (RV2) +REF C180,181 nsp 00D 257 5009 916 CK73B1C103KT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 139 DVD-3930/3930CI JP C182 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C183 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C184,185 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C188 nsp 00D 257 0506 951 CC73CH1H101JT +1608 C509 00D 257 2015 916 CS77B1A101MT C510 00D 257 2015 932 CS77B1A470MT C511 00D 257 2015 929 CS77B1A220MT C701-709 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C710 00D 257 4012 917 CE67C1C220MT (RV2) +REF C711-719 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C720 00D 257 4012 917 CE67C1C220MT (RV2) +REF C721-729 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C730 00D 257 4012 917 CE67C1C220MT (RV2) +REF C731-739 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C740 00D 257 4012 917 CE67C1C220MT (RV2) +REF C741-748 nsp 00D 257 5009 916 CK73B1C103KT C749-758 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C759 00D 257 2015 916 CS77B1A101MT C760 00D 257 2015 929 CS77B1A220MT C801 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C802 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C804 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C805,806 nsp 00D 257 5009 916 CK73B1C103KT C807 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C808 00D 257 2015 932 CS77B1A470MT C809 00D 257 4011 905 CE67C0J101MT (RV2) +REF C810 00D 257 2015 932 CS77B1A470MT C811 00D 257 4011 905 CE67C0J101MT (RV2) +REF C812-846 nsp 00D 257 5009 916 CK73B1C103KT C900,901 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C903 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C905-909 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C910 nsp 00D 257 5006 993 CK73B1H102KT +1005 C911,912 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C913,914 nsp 00D 257 5006 993 CK73B1H102KT +1005 C915 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C916 nsp 00D 257 5006 993 CK73B1H102KT +1005 C917 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C918-921 nsp 00D 257 5006 993 CK73B1H102KT +1005 C922,923 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C924-926 nsp 00D 257 5006 993 CK73B1H102KT +1005 C935-938 nsp 00D 257 0516 954 CK73B1E104KT +1608 C946,947 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C970,971 00D 257 4012 920 CE67C1C470MT (RV2) +REF C972 00D 257 2015 929 CS77B1A220MT C973,974 00D 254 4655 922 CE67C0J470MT (RV2) +REF C975,976 00D 254 4655 906 CE67C0J220MT (RV2) +REF C977 00D 254 4655 922 CE67C0J470MT (RV2) +REF C978-982 00D 257 4012 904 CE67C1C100MT (RV2B55 +REF C983 nsp 00D 257 5009 974 CK73F1C104ZT +1005 C984-993 nsp 00D 257 5003 983 CC73CH1H470JT OTHERS PARTS GROUP CX123 nsp 00D 205 1324 021 12P PIN HEADER(9120) CX162 nsp 00D 205 1324 063 16P PIN HEADER(9120) CX811 nsp 00D 205 1394 006 19P HDMI CONNECTOR Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 140 DVD-3930/3930CI JP 00DGU-3793 FAN POWER P.W.B. UNIT ASS'Y CY064 nsp 00D 205 0449 062 6P VH CONNECTOR BASE CY122 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY125 nsp 00D 205 1386 085 12P BASE(9115B-PT1) CY131 nsp 00D 205 0892 088 13P FFC CON. BASE CY161 nsp 00D 205 1324 063 16P PIN HEADER(9120) FB101-105 00D 235 0136 907 FBMJ1608HS280NT +1608 FB800-806 nsp 00D 247 2018 903 RM73B--0R0KT +1608 FB807 nsp 00D 247 2003 989 RM73B--330JT +1608 L800 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 L805,806 00D 235 0125 905 INDUCTOR(FLC32C220K)+3216 W701,702 - M3 SCREW TERMINAL W704 - M3 SCREW TERMINAL W800,801 - M3-SCREW-TERMINAL08R X101 00D 399 0987 900 FCXO-05(66.666MHz) Ref. No. nsp Part No. Part Name Remarks Q'ty New SEMICONDUCTORS GROUP IC801 00D 263 1100 050 KIA7808API D801 00D 276 0401 905 1SS133T77 (TAPE) CAPACITORS GROUP C801 nsp 00D 257 0514 901 CK73F1C334ZT +1608 C802 nsp 00D 257 0512 903 CK73F1E104ZT +1608 C803 nsp 00D 254 4538 900 CE04W1C100MT SMG/RE3 OTHERS PARTS GROUP CY038 nsp 00D 205 0343 032 3P CONN.BASE(KR-PH) Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 141 DVD-3930/3930CI EXPLODED VIEW Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. WARNING: 　印の部分は安全を維持するために重要 な部品です。従って交換時は必ず指定の 部品を使用してください。 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 142 DVD-3930/3930CI PARTS LIST OF EXPLODED VIEW ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 ＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. ＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 ＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. Note: The symbols in the column "Remarks" indicate the following destinations. E3: U.S.A. & Canada model(DVD-3930CI) E2: Europe model JP: Japan model Ref. No. nsp Part No. Part Name Remarks Q'ty New 1 00DGU-3749 MAIN/A.VIDEO UNIT(3930E3) E3 Model 1 * 1 00DGU-3749A MAIN/A.VIDEO UNIT(3930E2) E2 Model 1 * 1 00DGU-3749B MAIN/A.VIDEO UNIT(3930JP) JP Model 1 * 1-1 MAIN UNIT 1-2 VIDEO UNIT 1-3 VIDEO(BNC) OUT UNIT 1-4 M.SUPPORT UNIT 2 - POWER/DISPLAY UNIT(2930E3) E3 Model (00DGU-3750) 1 * 2 - POWER/DISPLAY UNIT(2930E2) E2 Model (00DGU-3750A) 1 * 2 - POWER/DISPLAY UNIT(2930JP) JP Model (00DGU-3750B) 1 * 2-1 DISPLAY UNIT 2-2 D.POWER UNIT 2-3 P.SW UNIT 2-4 A.CONNECT UNIT 2-5 2nd SW UNIT 2-6 V.CONNECT UNIT-1 2-7 V.CONNECT UNIT-2 2-8 V.CONNECT UNIT-3 2-9 DIGITAL OUT UNIT 3 00DGU-3751 AUDIO UNIT(2930E3) E3 Model 1 * 3 00DGU-3751A AUDIO UNIT(2930E2) E2 Model 1 * 3 00DGU-3751B AUDIO UNIT(2930JP) JP Model 1 * 3-1 AUDIO (DIGITAL) UNIT 3-2 AUDIO (2ch) UNIT 3-3 AUDIO (5.1ch) UNIT 3-4 AUDIO (POWER) UNIT 4 00DGU-3752 D.VIDEO UNIT(2930E3/JP) E3,JP Model 1 * 4 00DGU-3752A D.VIDEO UNIT(2930E2) E2 Model 1 * 5 - FAN POWER UNIT (00DGU-3793) 1 * 6 nsp 00D 411 2095 307 CHASSIS(3930) 1 * 7 nsp 00D 105 1382 051 INSIDE PLATE(T0.8) 2 8 nsp 00D 105 1382 022 INSIDE PLATE 1 9 nsp 00D 104 0334 007 FOOT 4 10 nsp 00D 461 1050 005 RUBBER PAD 4 11 nsp 00D 513 8266 009 DANGEROUS MARK 1 12 nsp 00D 412 5303 002 TRANS BASE 1 * ! 13 00D 233 6568 007 POWER TRANS(3930E3) E3 Model 1 * ! 13 00D 233 6569 006 POWER TRANS(3930E2) E2 Model 1 * ! 13 00D 233 0720 003 POWER TRANS(3930JP) JP Model 1 * 14 nsp 00D 105 1662 302 REAR PANEL(3930E3) E3 Model 1 * 14 nsp 00D 105 1662 315 REAR PANEL(3930E2) E2 Model 1 * 14 nsp 00D 105 1662 328 REAR PANEL(3930JP) JP Model 1 * ! 15 00D 203 3995 009 AC INLET (2P) 1 16 nsp 00D 342 0041 002 FERRITE CORE(F5BUFR-25-12-15) 1 17 nsp 00D 461 1248 037 RUBBER SHEET 1 18 nsp 00D 417 0651 204 HEAT PLATE 2 19 nsp 00D 417 0700 003 HEAT PLATE(3930/CU) 1 * 20 nsp 00D 417 0701 002 HEAT PLATE(3930/AL) 1 * 21 FG180-3-DE DVD MECHA UNIT(S65) 1 * www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 143 DVD-3930/3930CI 22 nsp 00D 412 5304 001 MAIN PWB BRACKET(3930) 1 * 23 nsp 00D 461 1248 024 RUBBER SHEET 1 24 nsp 00D 412 5342 005 MECHA SIDE COVER 2 * 25 nsp 00D 513 3406 107 LABEL(A) E3 Model 1 26 nsp 00D 513 3463 001 LABEL(LASER) E2 Model 1 27 nsp 00D 513 2063 004 E2 LASER CAUTION E2 Model 1 28 - HEAT SHEET (GP1-2.0) 1 * 29 nsp 00D 411 2096 209 SUPPORT BRACKET(3930) 1 30 nsp 00D 417 0677 000 HEAT SINK(PUG56) 1 31 nsp 00D 412 5341 006 FAN BRACKET(3930) 1 32 00D 421 0839 009 FAN F410T-12L1C 1 33 nsp 00D 461 1273 002 RUBBER SPACER 1 34 00D 9KA 2A74 3 FRONT PANEL ASS'Y(3930CIBK) Black E3 Model 1 * 34 00D 9KA 2A74 4 FRONT PANEL ASS'Y(3930SR) Silver Model 1 * 34 00D 9KA 2A74 5 FRONT PANEL ASS'Y(3930SP) P.Silver Model 1 * 34 00D 9KA 2A74 6 FRONT PANEL ASS'Y(3930BK) Black E2 Model 1 * 35 00D 131 0158 007 DENON BADGE Black Model 1 35 00D 131 0158 010 DENON BADGE P.Silver Model 1 35 00D 131 0158 023 DENON BADGE Silver Model 1 37 00D 143 1232 006 LENS 3 38 00D 146 2360 303 INNER PANEL(3910/3930BK) Black Model 1 * 38 00D 146 2360 329 INNER PANEL(3910/3930SR) Silver Model 1 * 38 00D 146 2360 345 INNER PANEL(3930SP) P.Silver Model 1 * 39 00D 143 1207 002 LENS 2 40 00D 143 1208 001 LENS(MINI) 2 41 00D 143 1248 003 DISPLAY SHEET(3930) 1 42 00D 143 1249 109 WINDOW(3930BK) Black & P.Silver(JP)Model 1 42 00D 143 1249 112 WINDOW(3930SR) Silver Model 1 42 00D 143 1249 125 WINDOW(3930SP-EX) P.Silver(E2) Model 1 43 00D 113 1994 107 P.KNOB ASSY(MAIN) 00DGEN8140, Black Model 1 43 00D 113 1994 110 P.KNOB ASSY(MAIN) 00DGEN8140-1, Silver Model 1 43 00D 113 1994 149 P.KNOB ASSY(MAIN) 00DGEN8140-2, P.Silver Model 1 44 00D 143 1189 007 POWER LENS 00D1431250004 1 45 00D 113 1992 109 P.KNOB ASSY(SUB) 00DGEN8141, Black Model 1 45 00D 113 1992 112 P.KNOB ASSY(SUB) 00DGEN8141-1, Silver Model 1 45 00D 113 1992 138 P.KNOB ASSY(SUB) 00DGEN8141-2, P.Silver Model 1 46 nsp 00D 461 1162 003 BLIND SHEET 1 47 nsp 00D 431 0440 000 BLIND 1 48 nsp 00D 463 0958 007 SPRING 2 49 nsp 00D 129 0253 048 RUBBER SHEET E3 Model 1 50 00D GEN 8142 S.KNOB SUB ASSY(3930BK) Black Model 1 * 50 00D GEN 8142 -1 S.KNOB SUB ASSY(3930SR) Silver Model 1 * 50 00D GEN 8142 -2 S.KNOB SUB ASSY(3930SP) P.Silver Model 1 * 51 nsp 00D 463 0974 007 SPRING 1 * 52 nsp 00D 102 0693 205 INNER COVER(2930&3930) 1 53 nsp 00D 461 1270 034 RUBBER(FOAM) SHEET 1 54 nsp 00D 461 1274 001 PVC SHEET 1 55 nsp 00D 462 0181 004 RUBBER WASHER 1 56 00D 102 0670 231 TOP COVER(3930BK) Black Model 1 * 56 00D 102 0670 244 TOP COVER(3930SR) Silver & P.Silver(E2) Model 1 * 56 00D 102 0670 257 TOP COVER(3930SR_KT) P.Silver(JP) Model 1 * 57 nsp 00D 461 1248 066 RUBBER SHEET 150x110xt0.5 1 * 58 nsp 00D 461 1248 079 RUBBER SHEET 125x25xt0.5 2 * 59 nsp 00D 461 1276 009 RUBBER SHEET 1 * 60 00D GEN 8143 L/P SUB ASSY(3930BK) Black Model 1 * 60 00D GEN 8143 -1 L/P SUB ASSY(3930SR) Silver Model 1 * Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 144 DVD-3930/3930CI 60 00D GEN 8143 -2 L/P SUB ASSY(3930SP) P.Silver Model 1 * 61 - EMIGASKET RFSG100100 30mmx4 4 62 - EMIGASKET RFSG100100 20mmx2 2 63 - EMIGASKET RFSG020070 20mmx4 4 64 - EMIGASKET RFSG003050 10mmx1 1 65 - EMIGASKET RFSG030100 40mmx1 1 66 nsp 00D 342 0032 008 FERRITE CLAMP(RFC-6) 1 67 nsp 00D 342 0042 001 FERRITE CLAMP(TFC16813) 1 * 68 - WIRE CLAMP BAND 10 69 - CORD HOLDER (L50) E3,JP Model 4 69 - CORD HOLDER (L50) E2 Model 5 ★ 70 nsp 00D 513 3827 074 FUSE LABEL E2 Model(F-901), for RATING 1 ★ 71 nsp 00D 513 3827 087 FUSE LABEL E2 Model(F-901), for CAUTION 2 72 nsp 00D 449 0210 024 PWB SPACER(LCBS-10) 2 Wires 100 00D 009 0276 019 24P FFC(0.5) L90 CX241 1 * 101 00D 009 0277 021 21P FFC(1.0) CX221-CY221 1 * 102 00D 009 0278 017 21P FFC(1.0)SOLDER CX222-CY222 1 * 103 00D 009 0286 009 13P FFC(1.0) CX131-CY131 1 * 104 00D 009 0286 012 33P FFC(1.0) CX331-CY331 1 * 105 - 1P LUG WIRE 2 * ! 106 nsp 00D 203 5294 038 3P VH-VH CON.CORD CX025-CY025 1 * ! 107 nsp 00D 203 5344 043 3P VH CON.CORD CX024 1 * 108 - 3P PH CORD CY038 1 * 109 - 4P PH-PH CON.CORD CX044-CY044 1 * 110 - 5P PH-PH CON.CORD CY05 1 * 111 - 6P VH-VH CON.CORD CX064-CY064 1 * Tapes 150 - DOUBLE-FACED ADHESIVE TAPE W5x10 2 150 - DOUBLE-FACED ADHESIVE TAPE W5x15 2 150 - DOUBLE-FACED ADHESIVE TAPE W5x25 2 150 - DOUBLE-FACED ADHESIVE TAPE W5x20 2 150 - DOUBLE-FACED ADHESIVE TAPE W5x60 1 151 - ACETATE CLOTH TAPE W10 2 152 - ALUMINUM TAPE W30x90 1 153 - ALUMINUM TAPE(W=60) W60x100 2 154 - CHUKOH TAPE W25x80 1 155 - BUTYL TAPE(W25 T2) W25x50, JP Model 1 155 - BUTYL TAPE(W25 T2) W25x250, JP Model 2 156 - NITOFLON TAPE(W25) W25x50, JP Model 1 156 - NITOFLON TAPE(W25) W25x250, JP Model 2 157 - ALUMINUM TAPE W30x40 2 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 145 DVD-3930/3930CI Screws 200 nsp 00D 473 7034 002 3X6 CPTS(S)-NI 1 201 nsp 0RD 471 2303 020 3X6 CFS-B 5 202 nsp 0RD 471 2305 015 3X10 CFS 7 203 nsp 0RD 471 3304 015 3X8 CBS-Z 3 204 nsp 0RD 471 8010 100 SPECIAL SCREW 2 205 nsp 0RD 473 7002 018 3X8 CBTS (S)-Z 27 206 nsp 0RD 473 7003 017 3X8 CFTS (S)-B 8 207 nsp 0RD 473 7005 002 3X10 CBTS (S)-Z 8 208 nsp 0RD 473 7005 028 3X14 CBTS(S)Z 2 209 nsp 0RD 473 7007 000 4X8 CBTS (S)-B 2 210 nsp 0RD 473 7015 005 3X6 CBTS(S)-B 30 211 nsp 0RD 473 7015 018 3X8 CBTS (S)-B 11 212 nsp 0RD 473 7500 044 3X8 CBTS (P)-B 17 213 nsp 0RD 473 7508 017 3X10 CBTS (P)-B 4 214 nsp 0RD 473 8044 004 SPECIAL SCREW 2 215 nsp 0RD 477 0064 123 FIXING SCREW E3 Model 15 215 nsp 0RD 477 0064 123 FIXING SCREW E2 Model 17 215 nsp 0RD 477 0064 123 FIXING SCREW JP Model 16 216 nsp 0RD 477 0263 005 3P. SWELLING SCREW Black Model 9 216 nsp 0RD 477 0263 018 3P.SWELLING SCREW Silver & P.Silver Model 9 217 - HEX BO LT for RC232C 2 218 nsp 0RD 473 7005 086 3X4 CBTS (S)-Z E2 Model 1 Ref. No. nsp Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 146 DVD-3930/3930CI EXPLODED VIEW OF DVD MECHANISM UNIT Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. WARNING: 　印の部分は安全を維持するために重要 な部品です。従って交換時は必ず指定の 部品を使用してください。 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 147 DVD-3930/3930CI PARTS LIST OF DVD MECHANISM UNIT (FG180-3) ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 ＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. ＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 ＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. Ref. No. nsp Part No. Part Name Remarks Q'ty New 1 nsp 00D 9KA 2G55 5 MECHA CHASSIS 1 * 2 00D 9KA 2G56 2 PLATE GEAR 1 3 00D 9KA 2A40 3 GEAR BASE SUB ASS'Y 1 3-1 nsp 00D 9KA 2A40 1 GEAR BASE ASS'Y 1 3-2 00D 9KM 01T1 32 MT RF500TB14415 1 3-3 - MOTOR PCB FG70 D9P139 1 3-4 nsp 00D 9KA 2G92 1 CNW2 FG70 1 3-5 nsp 00D 9KB DZ25 W3 M2.6x2.5 BIND-CR3 2 3-6 nsp 00D 9KE CEL0 77 S5B-PH RED(LF)(SN) 1 3-7 00D 9KS 01W1 48 OP/CL SW SSS-12 1 3-8 00D 9KA 2G55 9 MOTOR PULLEY 1 3-9 00D 9KA 2G56 0 PULLEY GEAR 1 3-10 00D 9KA 2G55 6 GEAR A 1 3-11 00D 9KA 2G55 7 GEAR B 2 3-12 00D 9KA 2G55 8 GEAR C 1 3-13 00D 9KA 2G56 3 BELT 1 3-14 nsp 00D 9KP 26C6 25 PSW2.6x6x0.25C 1 3-15 nsp 00D 9KP 36C6 25 PSW3.6x6x0.25C 1 3-16 nsp 00D 9KA 2H06 6 SPECIAL SCREW M1.7-(W)CR3 2 4 nsp 00D 9KA 2G56 1 MECHA FRAME 1 * 5 nsp 00D 9KA 2H08 8 M3x10 SPECAIL SCREW-CR3 2 6 00D 9KC 2G08 3 DAMPER-IDLE 4 7 00D 9KC 1H01 2 SCR-DAMPER-CR3 4 8 00D 9KA 4G01 3 LOADER GEAR 1 9 00D 9KA 2A40 4 LOADER SUB ASS'Y 1 * 10 nsp 00D 9KB EP16 K3 M3x16 BIND P-TIGHT-BLACK-CR3 2 11 00D 9KA 2A40 2 BEARING BKT ASS'Y 1 12-1 nsp 00D 9KA 2A73 9 CLAMP BASE ASS'Y 1 * 12-5 nsp 00D 9KM 0K05 9 CLAMP BASE DAMPER-LOGO 1 12-6 nsp 00D 9KB DZ04 K3 M2.6x4 BIND BLACK-CR3 4 13 nsp 00D 9KA 2H08 9 M3x10 BIND P-TIGHT(B)CR3 12 14 00D 009 0276 019 24P FFC(0.5)L90 1 15 00D 9KA 2A69 2 TRAVERSE MECHA ASS'Y 1 * 40 nsp 00D 9KA 2G95 0 5P PH-PH CONN.CORD 1 41 nsp 00D 9KD 9P13 8 PORON-SHEET(EL-20) 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 148 DVD-3930/3930CI POINTS OF GREASING (1/2) DENON MOLYKOTE EM-30L 0.1mg x 4 points MOLYKOTE EM-30L 0.1mg x 3 points MOLYKOTE EM-30L 0.1mg x 4 points MOLYKOTE EM-30L 0.1mg x 2 points MOLYKOTE EM-30L 0.1mg MOLYKOTE EM-30L 0.1mg MOLYKOTE EM-30L 0.1mg x 3 points MOLYKOTE EM-30L 0.1mg x 3 points MOLYKOTE EM-30L 0.1mg x 2 points w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 149 DVD-3930/3930CI POINTS OF GREASING (2/2) MOLYKOTE EM-30L 0.3mg MOLYKOTE EM-30L 0.1mg HANARL FL777 0.1mg MOLYKOTE EM-30L 0.1mg HANARL FL777 0.1mg MOLYKOTE EM-30L 0.1mg MOLYKOTE EM-30L 0.1mg x 5 points MOLYKOTE EM-30L 0.1mg x 4 points 40~50mm w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 150 DVD-3930/3930CI PACKING VIEW PARTS LIST OF PACKING & ACCESSORIES ＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 ＊ The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. ＊ "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 ＊ Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. Note: The symbols in the column "Remarks" indicate the following destinations. E3 : U.S.A. & Canada model (DVD-3930CI) E2 : Europe model JP : Japan model Ref. No. nsp Part No. Part Name Remarks Q'ty New 310 nsp 00D 505 0131 076 CABINET COVER 1 311 nsp 00D 503 1525 009 CUSHION(DVD3930) 2 * 312 nsp 00D 501 2330 022 CARTON CASE(3930E3) E3 Model 1 * 312 nsp 00D 501 2330 035 CARTON CASE(3930EX) E2 Model 1 * 312 nsp 00D 501 2330 051 CARTON CASE(3930SP) JP Model 1 * 320 nsp 00D 505 0038 043 POLY COVER 1 321 nsp 00D 515 0944 406 WARRANTY (HOME) E3 Model 1 322 00D 511 4467 000 INST.MANUAL(3930E3) E3 Model 1 * 322 00D 511 4531 004 INST.MANUAL(3930E2) E2 Model 1 * 322 00D 511 4532 003 INST.MANUAL(3930JP) JP Model 1 * 323 nsp 00D 515 0921 607 S.S.LIST(EX) E3,E2 Model 1 323 nsp 00D 515 0918 500 SERVICE STATION LIST JP Model 1 330 nsp 00D 505 0038 043 POLY COVER 1 331 00D 399 1059 002 REMOCON(RC1038) 1 * ! 332 00D 206 2225 009 AC CORD SET(E3) D8.5 E3 Model 1 ! 332 00D 206 2203 005 AC CORD SET (E2) E2 Model 1 ! 332 00D 206 2222 002 AC CORD SET(J) D8.0 JP Model 1 333 00D 203 5224 008 3P PIN CORD E3,JP Model 1 333 00D 203 5392 008 3P PIN CORD(RoHS) E2 Model 1 * 334 00D 204 3006 001 8P MODULAR CABLE 1 335 - BATTERY(UM-3)ASS'Y 1 340 - CONT.CARD(L)SUB ASSY E3,E2 Model 1 341 nsp 00D 515 0919 208 GUARANTEE CARD(S) JP Model 1 342 nsp 00D 517 1512 024 UPC LABEL(3930CIKE3) E3 Model 1 * 342 nsp 00D 517 1521 028 E2 POS LABEL(3930BKE2) Black E2 Model 1 * 342 nsp 00D 517 1521 002 E2 POS LABEL(3930SRE2) Silver E2 Model 1 * 342 nsp 00D 517 1521 015 E2 POS LABEL(3930SPE2) Premium Silver E2 Model 1 * 342 nsp 00D 517 1477 075 POS LABEL(3930SP) JP Model 1 * 343 nsp 00D 513 4162 000 CI STICKER E3 Model 2 344 nsp 00D 513 9111 030 COLOR LABEL Premium Silver Model 2 344 nsp 00D 513 9111 056 COLOR LABEL Silver Model 2 345 - S.NO.SHEET SUB ASS'Y JP Model 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 151 DVD-3930/3930CI WIRING DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 152 DVD-3930/3930CI MEASURING METHOD AND WAVEFORMS To check the waveforms on the Main P.W.B., the GND (-) probe of the oscilloscope to “Vref” point. (Except for lnner SW, TRVSW) Measuring Disc: DVD/DVDT-S01 or TDV-520A CD/TCD-784 (It is better to use wires for extending between the probe and test points.) • When watching the HF waveform, use the extending wire as short as possible. • When HF waveform is noisy or cannot discriminate the eye-pattern, replace the Traverse Unit after measuring the lop. • ① ~ ⑰ points have the certain test points shown below. 各部の波形と測定方法 メイン基板の波形チェックを行うためにはオシロスコープ の GND(-) プローブを "Vref" ポイントに接続します。 測定ディスク： DVD/DVDT-S01 or TDV-520A CD/TCD-784 （テストポイントとプローブ間に延長ワイヤを使用するの がより良い方法です。） ･ ＨＦ 波形を観測する場合、できるだけ短い延長ワイヤを 使用してください。 ･ ＨＦ 波形がノイズで不明瞭、またはアイパターンが識別 不能の場合は Iop 測定後にトラバースユニットを交換し てください。 ･ ポイント①～⑰は、下図のように特定テストポイント付 きです。 NOTES 注　意 7 1 4 14 15 16 17 9 10 11 16 8 12 6 3 2 13 5 GU-3749-1 Main P.W.B. Unit : Foil Side ＊ Reference voltage of AMON1 ⑮ is GNDA ⑰ , and reference voltage of other point is VC ⑯ . ＊ AMON1 ⑮の基準電圧は GNDA ⑰で、他のポイントの基準電圧は VC ⑯です。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 153 DVD-3930/3930CI WAVEFORMS GU-3749-1 MAIN P.W.B. DVD PLAY Disc: TDV-520A CD PLAY DVD PLAY (INNER) CD PLAY (INNER) SEARCH (INNER OUTER) ⑮AMON1 ①FOO ②F+ ③F- ④TRO ⑤T+ ⑥T- ⑫SLED ⑬SLED+ ⑭SLED- ⑦SPINDLE ⑧FG ⑨DA1 ⑮AMON1 ①FOO ②F+ ③F- ④TRO ⑤T+ ⑥T- ⑫SLED ⑬SLED+ ⑭SLED- ⑦SPINDLE ⑧FG ⑨DA1 CD PLAY Disc: TCD-784 DVD LOADING PLAY DVRF waveform DVRF waveform CD LOADING PLAY DVD PLAY SEARCH (INNER OUTER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 154 DVD-3930/3930CI GU-3749-2 VIDEO P.W.B. V6 V7 V8 V1 V2 V3 V4 V5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 155 DVD-3930/3930CI NOTE FOR SCHEMATIC DIAGRAM WARNING: Parts marked with this symbol ! have critical characteristics. Use ONLY replacement parts recommended by the manufactur- er. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resis- tance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is lo- cated and corrected. NOTICE: ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. 配線図について ! 印の部品は安全を維持するために重要な部品です。 従って交換時は必ず指定の部品を使用してください。 注） (1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を示す。 (2) 指定なきコンデンサーの値は µF、ｐ は ｐF を示す。 (3) 各部の電圧は無信号の値を示す。 (4) この配線図は基本配線図です。改良等のため変更する ことがありますのでご了承ください。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SIGNAL LINE 1 8 12 9 10 11 7 13 14 4 16 5 3 2 6 17 15 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (1/20) SCHEMATIC DIAGRAMS (1/20) GU-3749-1 MAIN UNIT (1/2) DVD-3930/3930CI w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SIGNAL LINE 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (2/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (2/20) GU-3749-1 MAIN UNIT (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PROGRESSIVE VIDEO SIGNAL LINE INTERLACE VIDEO SIGNAL LINE V3 V4 V5 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (3/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (3/20) GU-3749-2 VIDEO UNIT (1/2) GU-3749-3 BNC UNIT (for E3 model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PROGRESSIVE VIDEO SIGNAL LINE INTERLACE VIDEO SIGNAL LINE V3 V4 V5 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (4/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (4/20) GU-3749-2 VIDEO UNIT (1/2) GU-3749-3 BNC UNIT (for E2 model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com PROGRESSIVE VIDEO SIGNAL LINE INTERLACE VIDEO SIGNAL LINE V3 V4 V5 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (5/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (5/20) GU-3749-2 VIDEO UNIT (1/2) GU-3749-3 BNC UNIT (for JP model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com INTERLACE VIDEO SIGNAL LINE V1 V2 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (6/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (6/20) GU-3749-2 VIDEO UNIT (2/2) (for E3 model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com INTERLACE VIDEO SIGNAL LINE V6 V7 V8 V1 V2 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (7/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (7/20) GU-3749-2 VIDEO UNIT (2/2) (for E2 model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com INTERLACE VIDEO SIGNAL LINE V1 V2 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (8/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (8/20) GU-3749-2 VIDEO UNIT (2/2) (for JP model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (9/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (9/20) GU-3750-1 DISPLAY UNIT GU-3750-4 A.CONNECT UNIT GU-3750-5 2nd SW UNIT GU-3750-9 DIGITAL OUT UNIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (10/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (10/20) GU-3750-2 DIGTAL POWER UNIT GU-3750-3 P.SW UNIT GU-3750-6 V.CONNECT UNIT-1 GU-3750-7 V.CONNECT UNIT-2 GU-3750-8 V.CONNECT UNIT-3 GU-3793 FAN POWER UNIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SIGNAL LINE 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (11/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (11/20) GU-3751-1 AUDIO (DIGITAL) UNIT (1/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SIGNAL LINE 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (12/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (12/20) GU-3751-1 AUDIO (DIGITAL) UNIT (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SIGNAL LINE 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (13/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (13/20) GU-3751-3 AUDIO (5.1) UNIT C503 00D2544693942 CE04W1H221MT(RF0) 00D2544580709 CE04W1H221MC(ROB) 00D2544580709 CE04W1H221MC(ROB) 00D2544580709 CE04W1H221MC(ROB) 00D2544580709 CE04W1H221MC(ROB) 00D2544580709 CE04W1H221MC(ROB) 00D2544580709 CE04W1H221MC(ROB) 00D2544580709 CE04W1H221MC(ROB) 00D2544580709 CE04W1H221MC(ROB) DVD3930JP DVD3939E3/E2 00D2472018903 RM73B--0R0KT +1608 00D2472018903 RM73B--0R0KT +1608 00D2472018903 RM73B--0R0KT +1608 CC442 00D2544693939 CE04W1H101MT(RF0) R613 OPEN - R614 OPEN - R615 OPEN - OPEN - CC447 00D2544693939 CE04W1H101MT(RF0) CC446 00D2544693939 CE04W1H101MT(RF0) CC445 00D2544693939 CE04W1H101MT(RF0) CC444 00D2544693939 CE04W1H101MT(RF0) CC443 00D2544693939 CE04W1H101MT(RF0) C504 00D2544693942 CE04W1H221MT(RF0) L401 00D2350125905 INDUCTOR(FLC32C220K)+3216 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (14/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (14/20) GU-3751-3 AUDIO (MIX) UNIT (for E3, E2 model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (15/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (15/20) GU-3751-3 AUDIO (MIX) UNIT (for JP model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (16/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (16/20) GU-3751-5 AUDIO (POWER) UNIT 00D2544693939 CE04W1H101MT(RF0) 00D2544750704 CE04W1H471MC(RFO) 00D2631100050 KIA7808API 00D2631100005 KIA7805API 00D2554256955 CQ93P2A103JT(NH2) 00D2554256955 CQ93P2A103JT(NH2) DVD3930JP DVD3939E3/E2 00D2472018903 RM73B--0R0KT +1608 00D4170476010 RADIATOR 00D4170476010 RADIATOR 00D2472018903 RM73B--0R0KT +1608 00D2472018903 RM73B--0R0KT +1608 C822 OPEN - AS804 OPEN - AS803 OPEN - R811 OPEN - R810 OPEN - R809 OPEN - IC804 OPEN - IC803 OPEN - C826 OPEN - C825 OPEN - C823 OPEN - w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (17/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (17/20) GU-3752 DIGITAL VIDEO UNIT (1/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (18/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (18/20) GU-3752 DIGITAL VIDEO UNIT (2/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (19/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (19/20) GU-3752 DIGITAL VIDEO UNIT (3/3) (for E3, JP model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SIGNAL LINE 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H SCHEMATIC DIAGRAMS (20/20) DVD-3930/3930CI SCHEMATIC DIAGRAMS (20/20) GU-3752 DIGITAL VIDEO UNIT (3/3) (for E2 model) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
