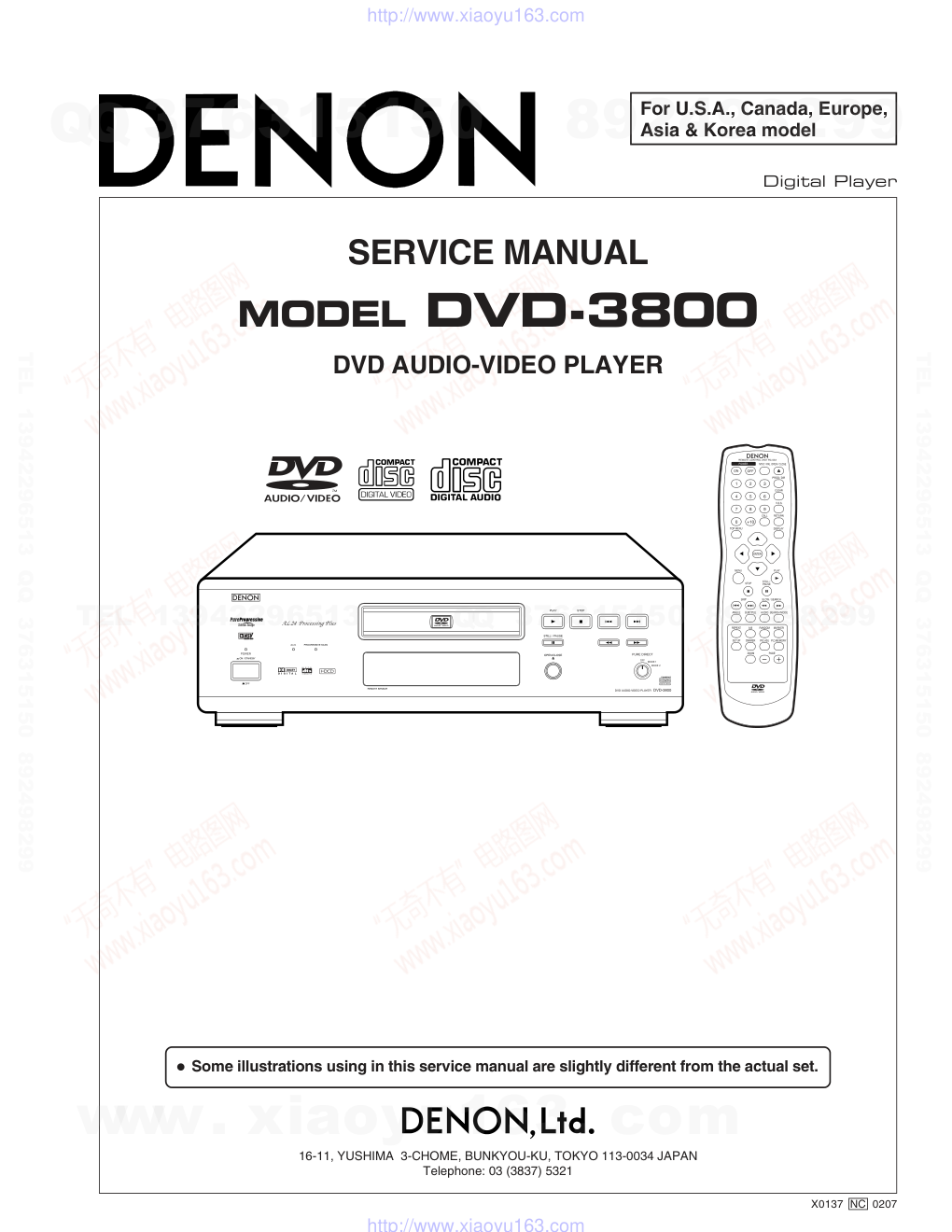

'Digital Player
SERVICE MANUAL
MODEL DVD-3800
DVD AUDIO-VIDEO PLAYER
� Some illustrations using in this service manual are slightly different from the actual set.
16-11, YUSHIMA  3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
Telephone: 03 (3837) 5321
For U.S.A., Canada, Europe,
Asia & Korea model
   X0137  NC  0207
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
2
DVD-3800
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.

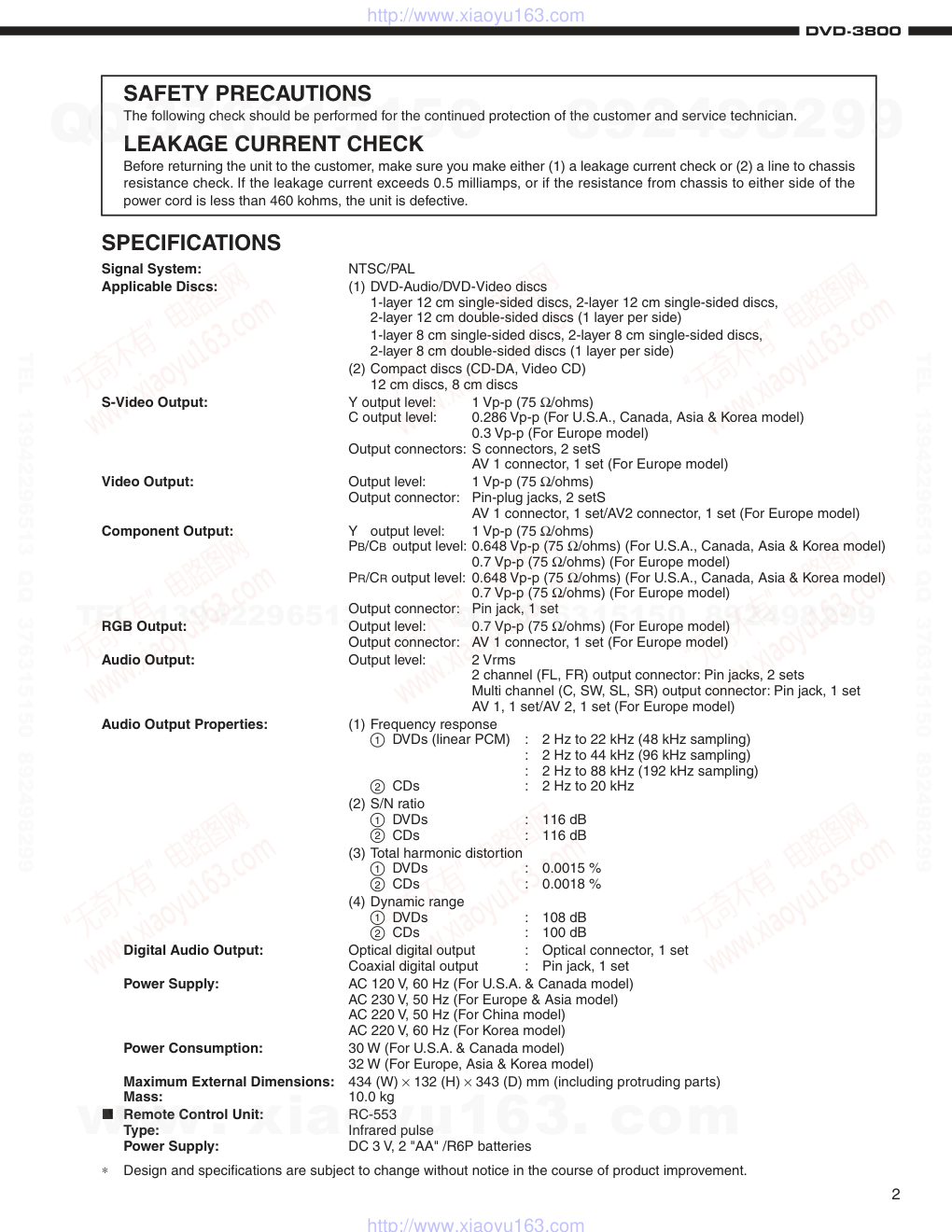

SPECIFICATIONS
Signal System:
NTSC/PAL
Applicable Discs:
(1) DVD-Audio/DVD-Video discs
1-layer 12 cm single-sided discs, 2-layer 12 cm single-sided discs,
2-layer 12 cm double-sided discs (1 layer per side)
1-layer 8 cm single-sided discs, 2-layer 8 cm single-sided discs,
2-layer 8 cm double-sided discs (1 layer per side)
(2) Compact discs (CD-DA, Video CD)
12 cm discs, 8 cm discs
S-Video Output:
Y output level:
1 Vp-p (75 Ω/ohms)
C output level:
0.286 Vp-p (For U.S.A., Canada, Asia & Korea model)
0.3 Vp-p (For Europe model)
Output connectors: S connectors, 2 setS
AV 1 connector, 1 set (For Europe model)
Video Output:
Output level:
1 Vp-p (75 Ω/ohms)
Output connector:
Pin-plug jacks, 2 setS
AV 1 connector, 1 set/AV2 connector, 1 set (For Europe model)
Component Output:
Y
output level:
1 Vp-p (75 Ω/ohms)
PB/CB output level: 0.648 Vp-p (75 Ω/ohms) (For U.S.A., Canada, Asia & Korea model)
0.7 Vp-p (75 Ω/ohms) (For Europe model)
PR/CR output level: 0.648 Vp-p (75 Ω/ohms) (For U.S.A., Canada, Asia & Korea model)
0.7 Vp-p (75 Ω/ohms) (For Europe model)
Output connector:
Pin jack, 1 set
RGB Output:
Output level:
0.7 Vp-p (75 Ω/ohms) (For Europe model)
Output connector:
AV 1 connector, 1 set (For Europe model)
Audio Output:
Output level:
2 Vrms
2 channel (FL, FR) output connector: Pin jacks, 2 sets
Multi channel (C, SW, SL, SR) output connector: Pin jack, 1 set
AV 1, 1 set/AV 2, 1 set (For Europe model)
Audio Output Properties:
(1) Frequency response
1
DVDs (linear PCM)
:
2 Hz to 22 kHz (48 kHz sampling)
:
2 Hz to 44 kHz (96 kHz sampling)
:
2 Hz to 88 kHz (192 kHz sampling)
2
CDs
:
2 Hz to 20 kHz
(2) S/N ratio
1
DVDs
:
116 dB
2
CDs
:
116 dB
(3) Total harmonic distortion
1
DVDs
:
0.0015 %
2
CDs
:
0.0018 %
(4) Dynamic range
1
DVDs
:
108 dB
2
CDs
:
100 dB
Digital Audio Output:
Optical digital output
:
Optical connector, 1 set
Coaxial digital output
:
Pin jack, 1 set
Power Supply:
AC 120 V, 60 Hz (For U.S.A. & Canada model)
AC 230 V, 50 Hz (For Europe & Asia model)
AC 220 V, 50 Hz (For China model)
AC 220 V, 60 Hz (For Korea model)
Power Consumption:
30 W (For U.S.A. & Canada model)
32 W (For Europe, Asia & Korea model)
Maximum External Dimensions:
434 (W) × 132 (H) × 343 (D) mm (including protruding parts)
Mass:
10.0 kg
� Remote Control Unit:
RC-553
Type:
Infrared pulse
Power Supply:
DC 3 V, 2 "AA" /R6P batteries
∗
Design and specifications are subject to change without notice in the course of product improvement.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
3
DVD-3800
Laser current initial value
DVD
mA
CD
mA
1
1
1
24
1
1
1
1
1
1
15
1
1
20
21
40
4
5
8
1
6
7
17
18
28
29
39
40
16
17
32
7
8
14
11
12
24
25
36
37
48
25
26
50
51
75
76
100
20
21
40
20
21
40
41
60
61
80
14
15
28
DVD laser drive current measuring points
Nearby C532
CD laser drive current measuring points
[CD] IOP silk point
GU-3389 P.W.B. (foil side)
(1) DVD laser current measurement
• Playback the title 1/chapter 1 of DVD test disc (DVDT-S01) or the equivalent.
• Connect the oscilloscope to the above mentioned point.
• DVD laser current = Measured Voltage Value / 39 (Resistance Value)
(2) CD laser current measurement
• Playback the track 1 of CD test disc (TCD-784) or the equivalent.
• Connect the oscilloscope to the above mentioned point.
• CD laser current value = Measured Voltage Value / 39 (Resistance Value)

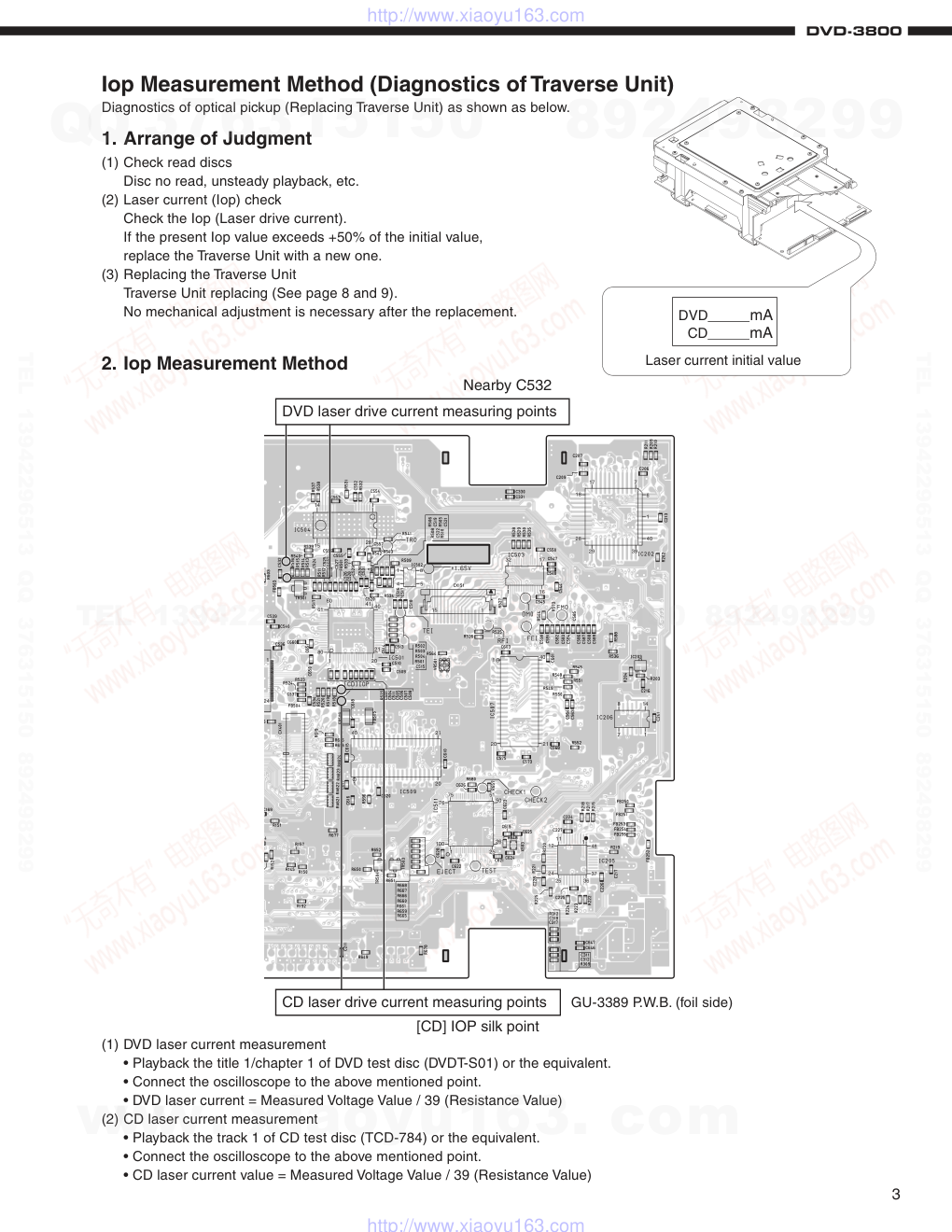

Iop Measurement Method (Diagnostics of Traverse Unit)
Diagnostics of optical pickup (Replacing Traverse Unit) as shown as below.
1. Arrange of Judgment
(1) Check read discs
Disc no read, unsteady playback, etc.
(2) Laser current (Iop) check
Check the Iop (Laser drive current).
If the present Iop value exceeds +50% of the initial value,
replace the Traverse Unit with a new one.
(3) Replacing the Traverse Unit
Traverse Unit replacing (See page 8 and 9).
No mechanical adjustment is necessary after the replacement.
2. Iop Measurement Method
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
4
DVD-3800
Note for Handling the Laser Pick-up
The protection for the damage of laser diode.
If you want to change the optical device unit from any other units, you must keep the following.
(1) It should be done at the desk already took measures the static electricity in care of removing the OPU\'s
(Optical device unit) connector cable.
(2) Workers should be put on the "Earth Band".
(3) It shold be done to add the solder to the short land to prevent the broken Laser diode before removing the
24P FFC cable.
(4) Don\'t touch OPU\'s connector parts carelessly.

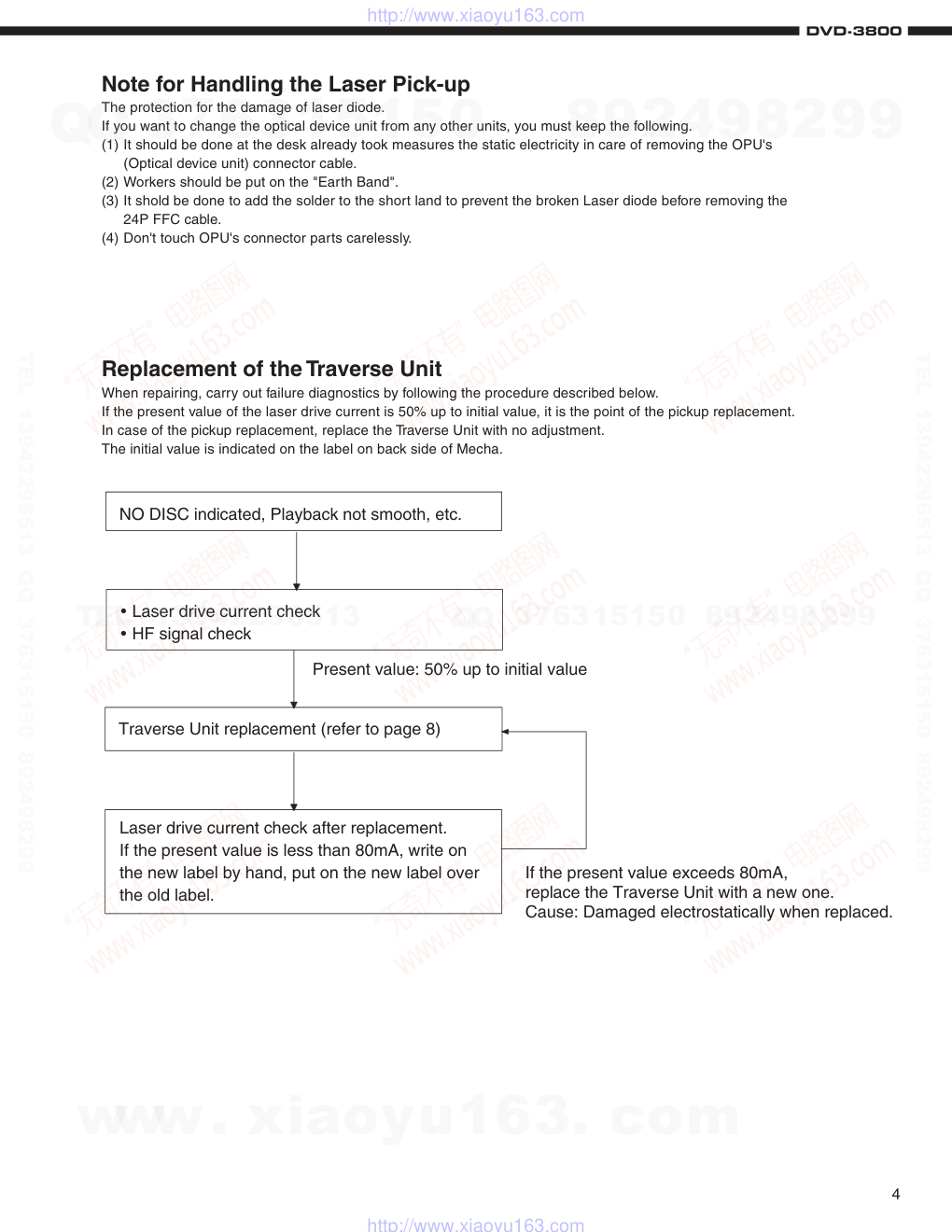

Replacement of the Traverse Unit
When repairing, carry out failure diagnostics by following the procedure described below.
If the present value of the laser drive current is 50% up to initial value, it is the point of the pickup replacement.
In case of the pickup replacement, replace the Traverse Unit with no adjustment.
The initial value is indicated on the label on back side of Mecha.
NO DISC indicated, Playback not smooth, etc.
�  Laser drive current check
�  HF signal check
Traverse Unit replacement (refer to page 8)
Present value: 50% up to initial value
Laser drive current check after replacement.
If the present value is less than 80mA, write on
the new label by hand, put on the new label over
the old label.
If the present value exceeds 80mA,
replace the Traverse Unit with a new one.
Cause: Damaged electrostatically when replaced.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
5
DVD-3800

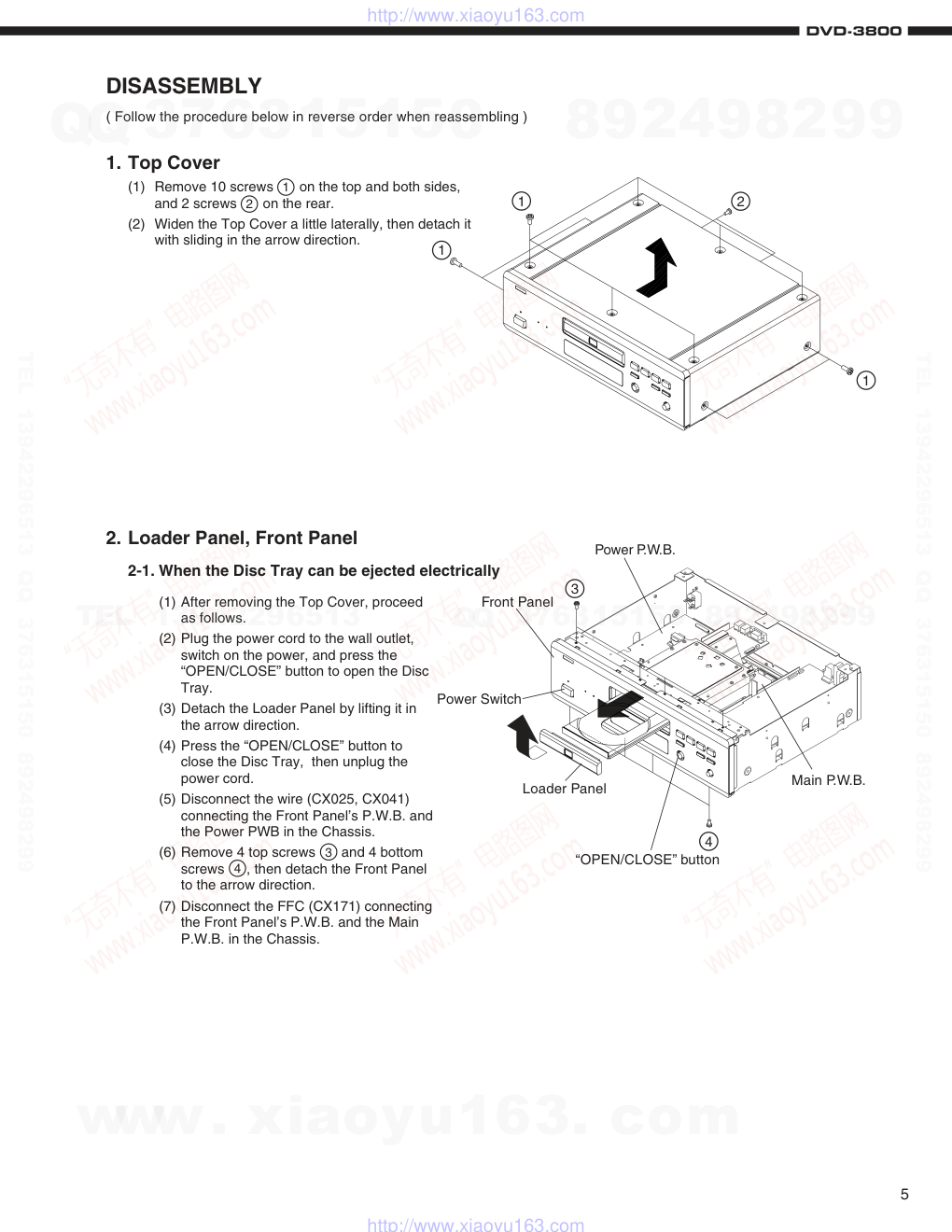

DISASSEMBLY
( Follow the procedure below in reverse order when reassembling )
1. Top Cover
(1) Remove 10 screws 1  on the top and both sides,
and 2 screws 2  on the rear.
(2) Widen the Top Cover a little laterally, then detach it
with sliding in the arrow direction.
1
1
2
1
2. Loader Panel, Front Panel
2-1. When the Disc Tray can be ejected electrically
(1) After removing the Top Cover, proceed
as follows.
(2) Plug the power cord to the wall outlet,
switch on the power, and press the
“OPEN/CLOSE” button to open the Disc
Tray.
(3) Detach the Loader Panel by lifting it in
the arrow direction.
(4) Press the “OPEN/CLOSE” button to
close the Disc Tray,  then unplug the
power cord.
(5) Disconnect the wire (CX025, CX041)
connecting the Front Panel’s P.W.B. and
the Power PWB in the Chassis.
(6) Remove 4 top screws 3  and 4 bottom
screws 4 , then detach the Front Panel
to the arrow direction.
(7) Disconnect the FFC (CX171) connecting
the Front Panel’s P.W.B. and the Main
P.W.B. in the Chassis.
4
3
Power P.W.B.
Front Panel
Main P.W.B.
“OPEN/CLOSE” button
Loader Panel
Power Switch
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
6
DVD-3800

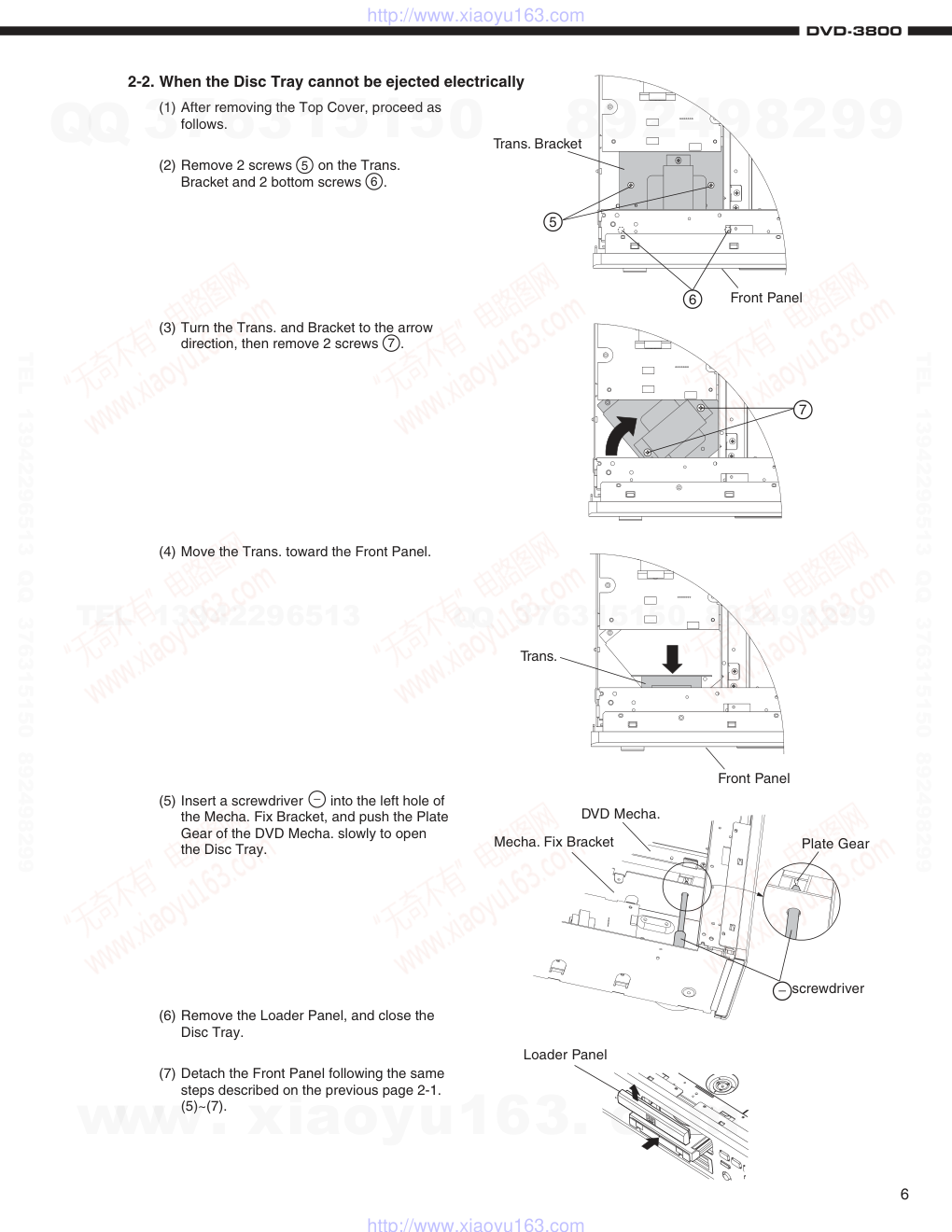

2-2. When the Disc Tray cannot be ejected electrically
(1) After removing the Top Cover, proceed as
follows.
(2) Remove 2 screws 5  on the Trans.
Bracket and 2 bottom screws 6 .
(3) Turn the Trans. and Bracket to the arrow
direction, then remove 2 screws 7 .
(4) Move the Trans. toward the Front Panel.
(5) Insert a screwdriver
 into the left hole of
the Mecha. Fix Bracket, and push the Plate
Gear of the DVD Mecha. slowly to open
the Disc Tray.
(6) Remove the Loader Panel, and close the
Disc Tray.
(7) Detach the Front Panel following the same
steps described on the previous page 2-1.
(5)~(7).
5
6
Trans. Bracket
7
Trans.
screwdriver
Front Panel
Front Panel
DVD Mecha.
Loader Panel
Mecha. Fix Bracket
Plate Gear
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
7
DVD-3800

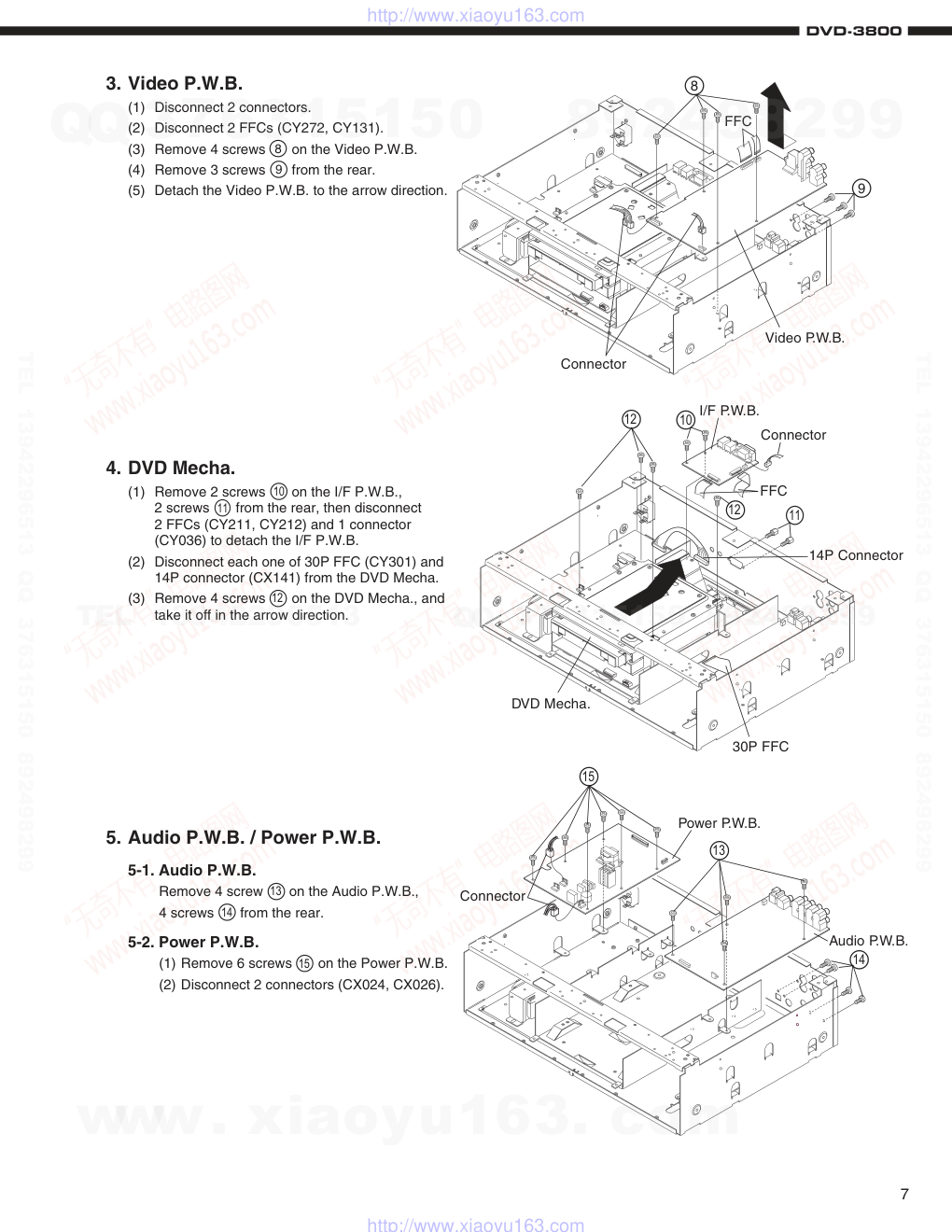

3. Video P.W.B.
(1) Disconnect 2 connectors.
(2) Disconnect 2 FFCs (CY272, CY131).
(3) Remove 4 screws 8  on the Video P.W.B.
(4) Remove 3 screws 9  from the rear.
(5) Detach the Video P.W.B. to the arrow direction.
5. Audio P.W.B. / Power P.W.B.
5-1. Audio P.W.B.
Remove 4 screw � �  on the Audio P.W.B.,
4 screws � �  from the rear.
5-2. Power P.W.B.
(1) Remove 6 screws � �  on the Power P.W.B.
(2) Disconnect 2 connectors (CX024, CX026).
4. DVD Mecha.
(1) Remove 2 screws � �  on the I/F P.W.B.,
2 screws � �  from the rear, then disconnect
2 FFCs (CY211, CY212) and 1 connector
(CY036) to detach the I/F P.W.B.
(2) Disconnect each one of 30P FFC (CY301) and
14P connector (CX141) from the DVD Mecha.
(3) Remove 4 screws � �  on the DVD Mecha., and
take it off in the arrow direction.
9
8
Video P.W.B.
Connector
FFC
� �
� �
� �
� �
I/F P.W.B.
Connector
FFC
14P Connector
30P FFC
DVD Mecha.
� �
� �
� �
Connector
Power P.W.B.
Audio P.W.B.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
8
DVD-3800
A
Solder to short-circuit (CD)
Solder to short-circuit (DVD)
Short-circuit with solder (enlarged fig. A)
(a)
(b)
(c)
(d)
(e)
Clamp Base Damper
Clamp Base
Holder
Loader
Bearing Plate
Main P.W.B. Ass\'y
(f)
Damper
Traverse Unit
(3)

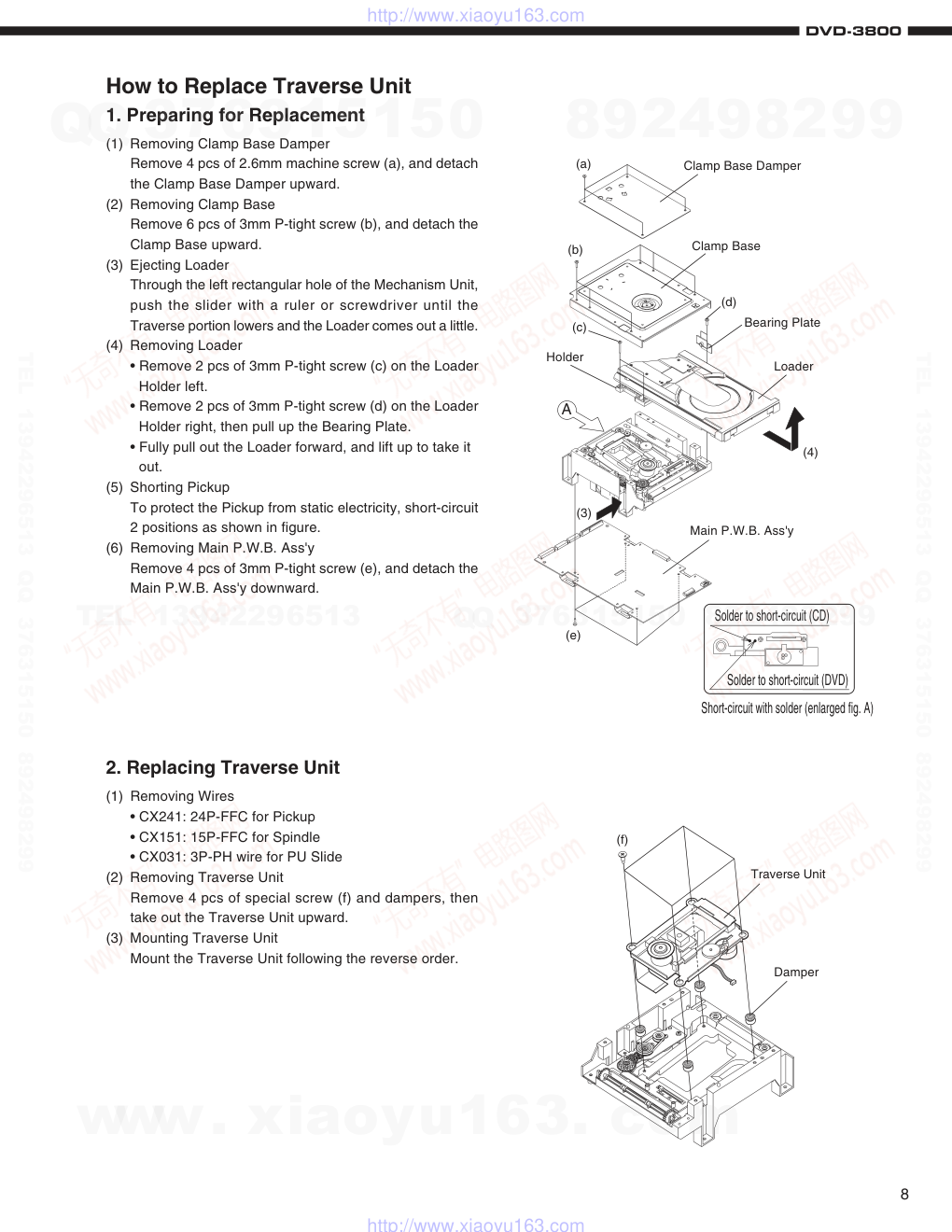

2. Replacing Traverse Unit
(1) Removing Wires
• CX241: 24P-FFC for Pickup
• CX151: 15P-FFC for Spindle
• CX031: 3P-PH wire for PU Slide
(2) Removing Traverse Unit
Remove 4 pcs of special screw (f) and dampers, then
take out the Traverse Unit upward.
(3) Mounting Traverse Unit
Mount the Traverse Unit following the reverse order.
1. Preparing for Replacement
(1) Removing Clamp Base Damper
Remove 4 pcs of 2.6mm machine screw (a), and detach
the Clamp Base Damper upward.
(2) Removing Clamp Base
Remove 6 pcs of 3mm P-tight screw (b), and detach the
Clamp Base upward.
(3) Ejecting Loader
Through the left rectangular hole of the Mechanism Unit,
push the slider with a ruler or screwdriver until the
Traverse portion lowers and the Loader comes out a little.
(4) Removing Loader
• Remove 2 pcs of 3mm P-tight screw (c) on the Loader
Holder left.
• Remove 2 pcs of 3mm P-tight screw (d) on the Loader
Holder right, then pull up the Bearing Plate.
• Fully pull out the Loader forward, and lift up to take it
out.
(5) Shorting Pickup
To protect the Pickup from static electricity, short-circuit
2 positions as shown in figure.
(6) Removing Main P.W.B. Ass\'y
Remove 4 pcs of 3mm P-tight screw (e), and detach the
Main P.W.B. Ass\'y downward.
How to Replace Traverse Unit
(4)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
9
DVD-3800
(d)
(c)
Loader
Bearing Plate
Plate Gear
Boss
Groove
(e)
Clamp Base
Main P.W.B. Ass\'y
4. Assembly (1)
(1) Assembling Main P.W.B. Ass\'y
Fix the Main P.W.B. Ass\'y with 6 pcs of 3mm P-tight
screw (e).
(2) Removing Pickup-short Solder
After connecting 24P-FFC of the Pickup with P.W.B.,
remove solder from 2 shorted positions.
(3) Temporary Positioning Clamp Base
To protect your eyes from laser light, put the Clamp Base
temporarily. (At this moment, be sure to make chucking
the Clamper and Turn-table securly.)
(4) Positioning up Traverse Unit
Connect the following wires of the Mechanism Unit, and
operate it.
• CX141: 14P-PH wire for power
• CX131: 13P-FFC wire from Display P.W.B.
Turn on the power to the unit, and press "OPEN/CLOSE"
button to close the Loader.
The Traverse Unit rises up. (display: 0h00m00s)

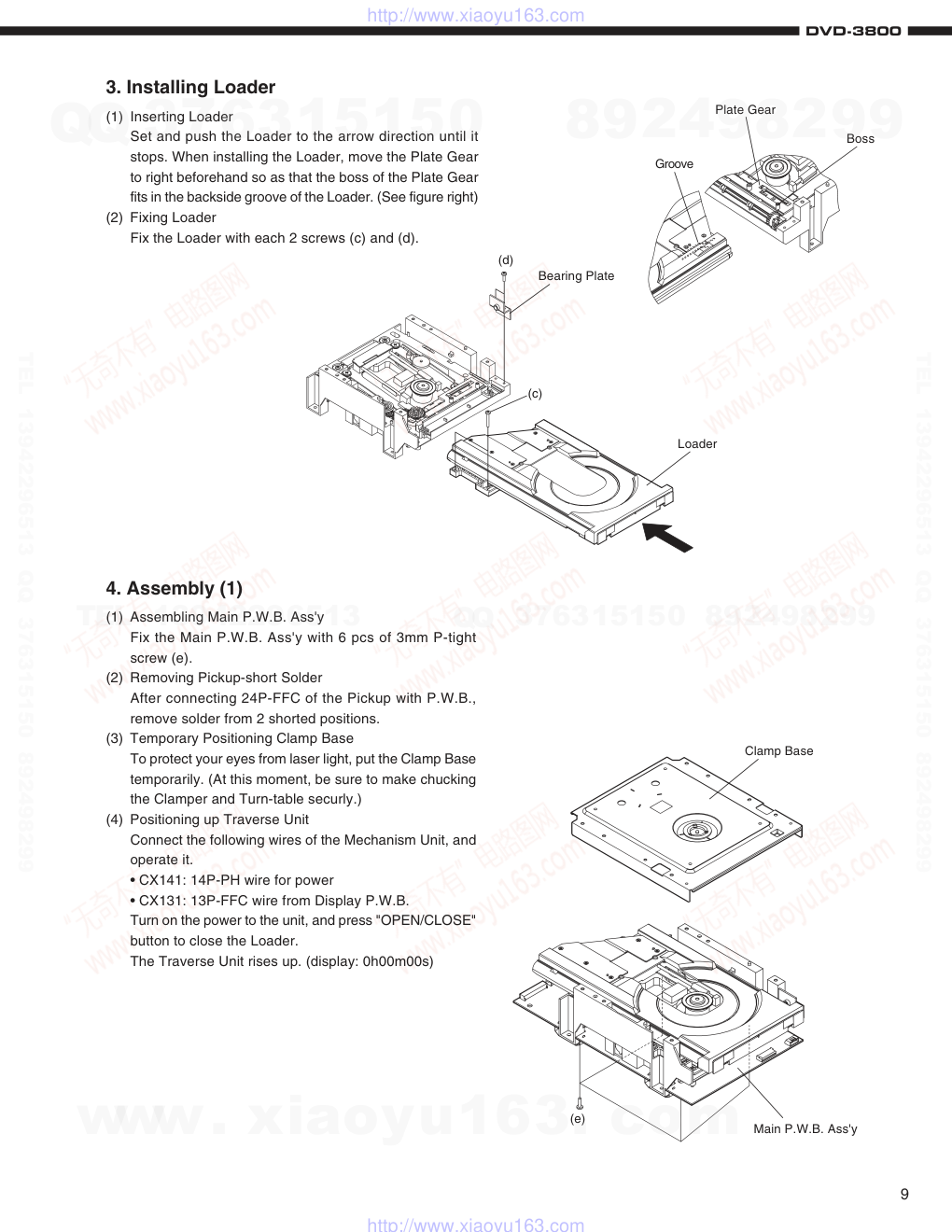

3. Installing Loader
(1) Inserting Loader
Set and push the Loader to the arrow direction until it
stops. When installing the Loader, move the Plate Gear
to right beforehand so as that the boss of the Plate Gear
fits in the backside groove of the Loader. (See figure right)
(2) Fixing Loader
Fix the Loader with each 2 screws (c) and (d).
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
10
DVD-3800

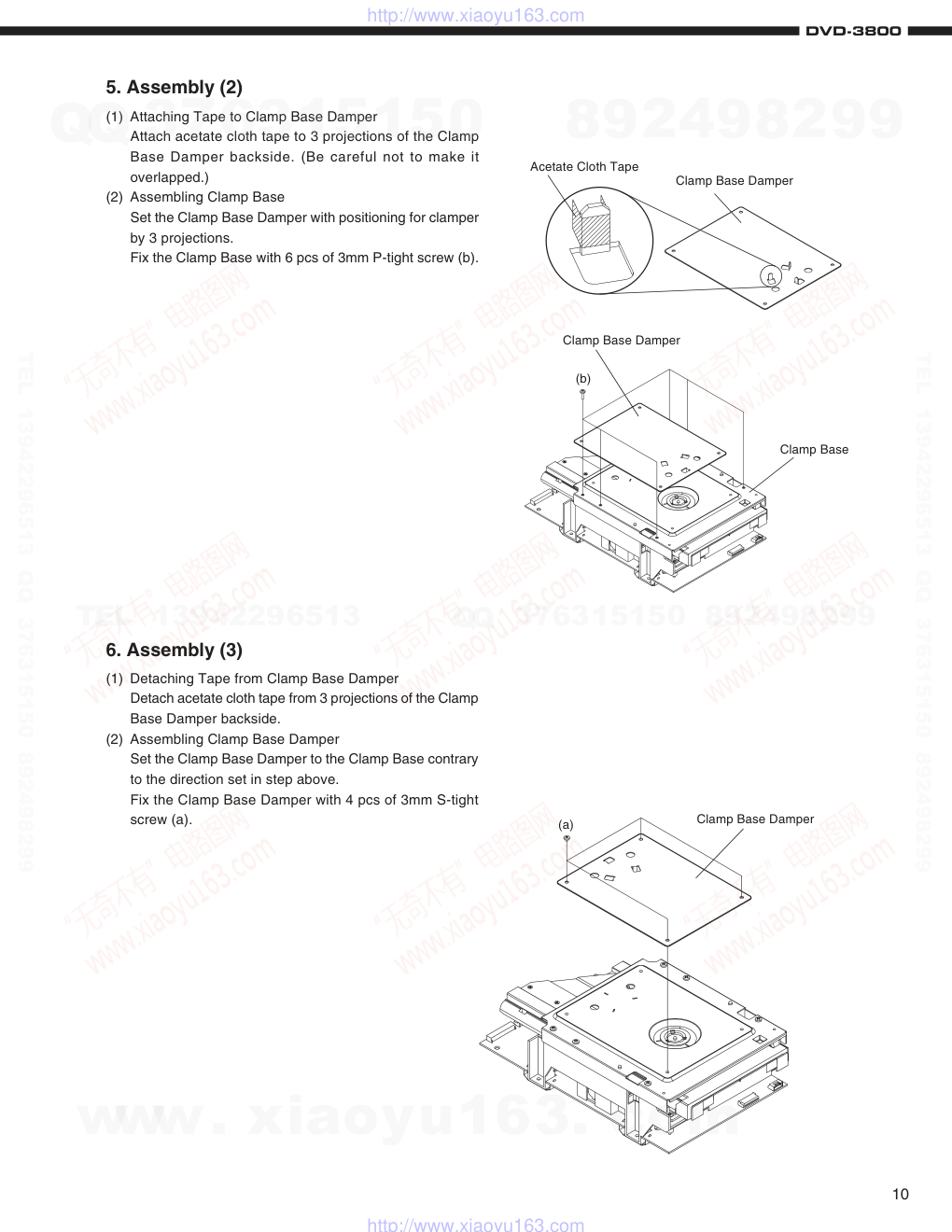

6. Assembly (3)
(1) Detaching Tape from Clamp Base Damper
Detach acetate cloth tape from 3 projections of the Clamp
Base Damper backside.
(2) Assembling Clamp Base Damper
Set the Clamp Base Damper to the Clamp Base contrary
to the direction set in step above.
Fix the Clamp Base Damper with 4 pcs of 3mm S-tight
screw (a).
(b)
(a)
Clamp Base Damper
Clamp Base
Clamp Base Damper
Acetate Cloth Tape
Clamp Base Damper
5. Assembly (2)
(1) Attaching Tape to Clamp Base Damper
Attach acetate cloth tape to 3 projections of the Clamp
Base Damper backside. (Be careful not to make it
overlapped.)
(2) Assembling Clamp Base
Set the Clamp Base Damper with positioning for clamper
by 3 projections.
Fix the Clamp Base with 6 pcs of 3mm P-tight screw (b).
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
11
DVD-3800
No.
Error contents
Error code
FL display
1
During tray work, it doesn’t end within the time specified.
045300
ERROR 01
2
No spindle work during playback.
040990
ERROR 02
3
Out of focus during playback, search, or pause.
031100
ERROR 04
4
No data read when spin up.
031100
ERROR 04
5
No data read when playback.
031100
ERROR 04
6
Cannot read TOC within the time specified.
025700
ERROR 05
7
No sub-code read
025700
ERROR 05
8
No response from DVD drive more than 10 sec.
0B4000
ERROR 06
9
Error not specified (other than above).
---
ERROR 07
Service Mode
1. Aging Mode
(1) Preparation
(a) Equipment used: Any one of DVD Karaoke Disc (containing more than 10 titles), CD/Video CD (Ver1.0: None
playback control), or No-menu DVD. (Setting varies according to the disc used.)
(b) Unit setting: No spec other than the following procedure (Aging mode)
At the tray open status, press the "POWER" button to turn on the power while pressing the "PLAY" and
"OPEN/CLOSE" buttons for DVD operation simultaneously.
 mark on the FL lights, and the unit is set to the heat
run mode.
(2) Procedure
(a) According the above, set to the aging mode.
(b) Set a DVD Karaoke disc to the tray and press the "PLAY" button once.
 mark on the FL blinks, and aging peration
(after playback title-1 and title-10 of the disc, the tray open/close is made automatically, then playback the title-1
again) starts. This aging operation continues automatically until it is stopped or it stops caused by an error.
(c) When using other than a DVD Karaoke disc, aging operation (after playback all titles of the disc, the tray open/close
is made automatically, then playback all titles again) starts by pressing the "PLAY" button once, and
 mark on
the FL lights. The aging operation continues automatically until it is stopped or it stops caused by an error. In case
of some error in DVD, the tray opens and the following error messages are displayed on the FL.
2. Initial Setting Mode
(1) Preparation
(a) Equipment used: None
(b) Unit setting: No spec other than the following procedure
(2) Procedure
(a) Initialize the DVD player when µcom, peripheral parts of µcom, or Main P.W.B. has been replaced in servicing.
(b) Carry out the following to restore factory setting mode. At the player stop condition, press 3 buttons for DVD peration
("PLAY", "OPEN/CLOSE", and "
 SKIP") until "INITIALIZE" appears and disappears in the FL.
("Initialized" appears and disappears on the TV screen.)
(c) All user setting will be lost and its factory setting will be restored when this initialization is made. Be sure to
memorize your setting for restoring again after the initialization.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
12
DVD-3800
3. P.W.B. Check Mode
(1) Preparation
(a) Equipment used: None
(b) Unit setting: No spec other than the following procedure
(2) Procedure
(a) Press the "POWER" button to turn on the power while pressing the "PLAY" and "OPEN/CLOSE" buttons for DVD
operation simultaneously.
(b) FL all light/extinguish mode.
This mode is for detecting FL defects. Press "STILL/PAUSE( )"on the remote control unit once to light all FL
segments, and press it once again to extinguish them.
(c) DVD µcom and main unit µcom firm check mode.
This mode is for displaying the status of each µcom employed.
• DVD µcom firm: Press the "MENU" button. Each time the "MENU" button is pressed,  µcom firm is displayed one
 after another.
Ex.: [DRV_6067, ESS_6094, PANEL 6093]
Set Serial No. (lower 5 digits)
Bus Manager
Drive �com
ESS �com
Panel �com
1
00001~
V.52
Ver. 6067
(Display) 6067
Ver. 6094
(Display) 6094
Ver. 6093
(Display) 6093
2
　
　
3
　
　
4
　
　
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
13
DVD-3800
1. No power
(FL tube doesn\'t light.)
Check connector insertion.
� Switching power (GU-3439-1):
[CX024, CX025, CX026, CY041,
CX141]
� Main PWB (GU-3389):
[CX031, CX131, CX141, CX171,
CX272]
Re-insert the connector.
When replacing µcom, µcom
peripheral parts, or Main PWB,
perform initializing of DVD player.
Check switching power (GU-3439-1)
voltages.
� [CX141]: 14P PH for Main PWB:
5 , � � +5V, � � (3.3V)
Replace the switching power
unit (GU-3439-1).
(1) Check reset signal (3V) at 67pin of
IC601 on DISP PWB.
(2) Check 4.3MHz at 65pin of IC601.
(1) Check R681, R602 solderring.
(2) After checking X601 and IC601
soldering, change X601.
If still NG after changing, replace
IC601.
Check switching power (GU-3439-1)
voltages.
� [CX041]: 4P PH for Main PWB:
1 +3.6V
Check soldering of IC201 on Main PWB
(GU-3389).
Check after replacing IC201 on Main
PWB (GU-3389).
Check switching power (GU-3439-1)
voltages.
� [CX141]: 14P PH for Main PWB:
1 +12V 2 -12V 3 +5V
9 3.3V � � +5V � � +3.3V
� [CX041]: 4P PH for DISP PWB:
1 ON/ST(3.6V) 2 -24V 3 -29V 4 -32V
Replace the switching power unit
(GU-3439-1).
A
No
No
No
No
No
No
Perform operation check after
changing Main PWB (GU-3389) with
a perfect one.
There is something wrong in Main PWB
(GU-3389).
→ Check 27MHz output of IC101 (49)
pin/XIN, (105) pin/CLK, and (116) pin/
PCLK2X on Main PWB.
Check soldering of IC108, IC110 and
IC116 on Main PWB (GU-3389), then
change IC101 if it\'s NG. Change IC111 if
it\'s still NG.
No
No
Note: When switching power unit is repairable, refer to the waveforms and voltages shown in Schematic Diagram.
TROUBLESHOOTING
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
14
DVD-3800
There is something wrong in Main PWB
(GU-3389).
→ Check if CLOCK and DATA signals of
ICBUS are output on IC101 (160) pin/
AUX0, (161) pin/AUX1 when the power
is on.
Check soldering of IC106, IC703, IC706
and IC101 on Main PWB (GU-3389),
and change IC101 if it\'s NG. Change
IC106, then IC703 and IC706 if it\'s still
NG. Finally, change IC601 on Video
PWB (GU-3438-2) if still NG.
Check soldering of IC101 (208 pins) on
Main PWB (GU-3389).
→ Perform re-soldering.
Caused by Main PWB (GU-3389).
→Check 20MHz output on IC703(10) pin.
Caused by Main PWB (GU-3389).
→Check 27MHz input on IC706 (32) pin.
No
No
Check soldering of IC703 and X701, and
replace if NG.
No
Check soldering of IC706, and replace
if NG.
Check RESET
5V output of IC511 (30)
pin on Main PWB.
Check soldering of R637 and IC101
(145) pin on Main PWB.
→ Perform re-soldering.
Check Laser drive current/HF wave form.
Criterion: Iop is less than 1.5 times of its
initial value.
No
Replace Traverse Unit.
Write Iop after replacing the unit.
A
There is something wrong in Main PWB
(GU-3389).
→ Check 11MHz input of IC101 (39) pin/
MCLK.
Check IC109→IC113→IC112→IC111
(see Schematic Diagram) on Main PWB
(GU-3389).
No
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
15
DVD-3800
No
2. No power
(Both FL tube & LED don\'t light.)
Check connector insertion.
� Switching power (GU-3439-1):
[CX024, CY025, CX028, CY141,
CX041]
� Main PWB (GU-3389):
[CX141, CX171]
Re-insert the connector.
Check switching power voltages.
� [CY141]: 14P PH for Main PWB:
� � +5V(NSW) � � +3.3V(NSW)
No
Replace the switching power unit.
Check Main PWB voltages.
� [CX171]:
1 pin: +5V check
(CX141 � � →CX171 1  break check)
� � pin: +3.3V check
(CX141 � � →CX171 2  break check),
etc.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
16
DVD-3800
Setting the Oscilloscope as bellow.
1 PB / CB / PR / CR
(a) TIME / DIV
: 2 µS
(b) VOLT / DIV
: 100 mV
(use the probe : ×10)
2 Y / C
(a) TIME / DIV
:2 µS
(b) VOLT / DIV
:50 mV
(use the probe : ×10)
Power on. Power Supply
U.S.A.& Canada : 120 V
Asia
: 230 V
China
: 220 V
Europe
: 230 V
1. Power on.
2. Set the [SOURCE] selector knob : DVD.
3. Push [OPEN/CLOSE] button, then open the Disc Tray.
4. Set DVD test disc (DVDT-S01) on the Disc Tray, and then push [CLOSE] button.
5. FL display appear "STOP", push [PLAY] button to playback DVD.
6. Set the Video output to INTERLACED by remote control unit. (Push the
[SETUP] button, set to the mode of VIDEO SETUP.)
7. Push the [DISPLAY] button of remote control unit and then appear the ON-
Screen Display (GUI) on the monitor TV.
8. Push the [12] button, select title 12 of DVD.
9. Push the [SELECT] button, playback title 12. (color bar 75%)
Adjust the signal of S2 video out by the
wave of Oscilloscope.
1  Y-signal
Adjust the signal of S2 video out by the
wave of Oscilloscope.
2  C-signal
Adjust the signal of Component video out.
1  CB-signal
Point : VR602
Adjustment Value : 1000 ±20 mV
Point : VR603
Adjustment Value : 286 ±5 mV
Point : VR601
Adjustment Value : *525 ±10 mV
Adjustment
Point & Adjustment Value
Wave
Y-signal of S2 video out
C-signal of S2 video out
PB-signal
Y
C
PB
Electrical Adjustment for Video
SETTING
1. Connect the monitor TV to the video output 1 terminal.
2. Connect the Oscilloscope to the Y-signal and C-signal of S2 video output terminal and each terminate at 75 Ohms.
3. Connect the Oscilloscope to the PB-signal , CB-signal and Y-signal of Component video output terminal and each
terminate at 75 Ohms.
Use the 75 Ohms resistance must be 1%
4. DVD test disc : DVDT-S01
ADJUSTMENT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
17
DVD-3800
Adjust the signal of Component video out
2  Y-signal
Set the Video output to PROGRESSIVE by
remote control unit. (Push the [SETUP]
button, set to the mode of VIDEO SETUP.)
1  Y-signal
Set the Video output to PROGRESSIVE by
remote control unit.
(Push the [SETUP] button, set to the mode
of VIDEO SETUP.)
2  PB-signal
Set the Video output to PROGRESSIVE by
remote control unit.
(Push the [SETUP] button, set to the mode
of VIDEO SETUP.)
3  PR-signal
Point: VR604
Adjustment Value: 1000 ±20mV
Point: VR710
Adjustment Value: 1000 ±20mV
Point: VR709
Adjustment Value: *525 ±10mV
Point: VR708
Adjustment Value: *525 ±10mV
Adjustment
Point & Adjustment Value
Wave
Y-signal
PB-signal
PR-signal
Y
PB
Y
PR
*: 486 ±10mV for U.S.A. & Canada model
Y-signal
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
18
DVD-3800
4
3
2
1
5
6
7
8
D
C
B
A
E
DVD DRIVE
MECHA UNIT
[FG-180]
ACT/MOTOR
DRIVER
ATAPI INTERFACE
DVD DECODER
[TC9469BF]
DRIVE CONTROL
µ-COM
[TMP95FY64F]
FRONTEND
PROCESSOR
[TA1293F]
DISC SERVO
PROCESSOR
[TA1293F]
DRAM
DRAM
< FRONT END >
DVD  PROCESSOR
[ES6038]
64M SDRAM
16M FLASH ROM
E2PROM
I/O
EXPAN
PLL
27MHz
OSC
33MHz
OSC
< BACK END >
DIGITAL
POWER
UNIT
64M SDRAM
ANALOG
POWER
UNIT
POWER
TRANS
I/P  µCOM
[PIC18LC242]
I/P CONVERTER
[SiI504]
FPGA
XC2530
PROM
VIDEO ENCODER
[ADV7190]
VIDEO ENCODER
[ADV7300]
VR &
FILTER
VR &
FILTER
< VIDEO BLOCK >
MONO MULTI
MONO MULTI
SELECTOR
CLAMP &
DRIVER
CLAMP &
DRIVER
525I/625I
525P
DAC
[PCM1738]
DAC
[PCM1738]
FLASH
ROM
ALPHA
PROCESSOR
[DXP7001]
BASS
MANAGEMENT.
DSP
[ADSPMEL322]
12MHz
OSC
FILTER&
AMP
FILTER&
AMP
FILTER&
AMP
FILTER&
AMP
FILTER&
AMP
FILTER&
AMP
RESET
FLT
KEY
ROT SW.
REM
WIRED REM
FLASH
ROM
RS-232C
LED
< PANEL CONTROL >
PANEL CONTROL
µ-COM
[MN102H460B]
FL DRIVER
[ML9207]
SPDIF
SW
S L
C
S R
F L
F R
[PCM1738]
DAC
< AUDIO BLOCK >
BLOCK DIAGRAM
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
19
DVD-3800
to Driver
Digital
IN
Analog
Out
from
RF-Amp.
(RF signal)
from
RF-Amp.
(servo signal)
ADC
Digital
Servo
DSP
Output
I/F
1bit DAC
for CD-DA
Clock
PLL
RF Signal
Process
Sync
ECC
Output
I/F
PLL
MPU I/F
1Mbit
DRAM
Data Out
MPU
SEMICONDUCTORS
����� IC’s
Note:
Indications before IC numbers denote P.W.B. name.
AV:
AUDIO/VIDEO P.W.B.
MA:
MAIN P.W.B.
PD:
POWER/DISPLAY P.W.B.
SC:
SCART P.W.B.
TC9453F (MA: IC505)
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
LPFN
LPFO
PVREF
VCOREF
VCOF
PVDD
SLCO1
TESM9
TEST2
RFCD
RFDVD
AVDD
RFCT
RFZ1
TEZ1
AWIN
AVSS
FE1
TE1
RFSB
RFRP
AVSS
TESM10
EXTAD
VREF
FOO
TRO
AVDD
AWCTL
FMO
DMO
TEBC
FEBC
DPDC
EQBC
ANMON
/DFCT
VRCK
VSS3
SCD
SCL
SCB
FGIN
NC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
NC
NC
DVSS
RO
DVDD
DVR
LO
DVSS
XVSS
XI
XO
XVDD
TESM0
TESM1
TESM2
VDD3
VSS3
VPFC
TEST0
VLPF1
VLPF0
VSS3
MON0
MON1
MON2
MON3
MON4
MON5
MON6
MON7
MON8
MON9
VDD3
NC
NC
TEST1
FLGA
FLGB
VSS3
/RST
/MA
/MRD
/MWR
/MCE
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
BA8
BA7
BA6
BA5
BA4
VSS5
BA3
BA2
BA1
BA0
VDD3
TESM4
DIGI
TESM3
VDD5
PDCK
/PDRQ
/PSYC
PD8
PD7
PD6
PD5
VSS3
PD4
PD3
PD2
PD1
VSS5
PD0
VDD3
VMCK
SMCK
NC
NC
VDD5
MD7
MD6
MD5
MD4
MD3
MD2
MD1
MD0
/MINT
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
PDON2
PDOP2
PDON1
PDOP1
PESP
PVSS
PESV
PPW
CFC2
CFC1
VSS3
TESM8
TESM7
TESM6
TESM5
PLCK
VDD3
NC
NC
BD15
BD14
BD13
VSS5
BD12
BD11
BD10
BD9
VSS3
BD8
BD7
BD6
BD5
BD4
BD3
BD2
BD1
BD0
VDD5
/BWU
/BWL
/BCAS
/BRAS
/BOE
VDD3
44
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
20
DVD-3800
1
NC

2
NC

3
DVSS
GND for DAC
4
RO
O
R-ch output signal, Analog output pin
5
DVDD
Power for DAC
6
DVR
O
Amp ref. signal output, Analog input pin
7
LO
O
L-ch output signal, Analog output pin
8
DVSS
GND for DAC
9
XVSS
GND for oscillator
10
XI
I
X’tal osc. input, Analog input pin
11
XO
O
X’tal osc. output, Analog output pin
12
XVDD
Power for oscillator
13
TESM0
Test pin, Connect to GND
14
TESM1
Test pin, Open
15
TESM2
Test pin, Connect to VDD3
16
VDD3
3.3V digital power
17
VSS3
3.3V digital GND
18
VPFC
O
Clock PLL block phase/freq. comparator out, Analog output pin
19
TEST0
I
Test mode pin, Connect to VDD3
20
VLPFI
I
VCO block filter input for clock PLL, Analog input pin
21
VLPFO
O
VCO block filter output for clock PLL, Analog output pin
22
VSS3
3.3V digital GND
23
MON0
O
Test monitor
24
MON1
O
Test monitor
25
MON2
O
Test monitor
26
MON3
O
Test monitor
27
MON4
O
Test monitor
28
MON5
O
Test monitor
29
MON6
O
Test monitor
30
MON7
O
Test monitor
31
MON8
O
Test monitor
32
MON9
O
Test monitor
33
VDD3
3.3V digital power
34
NC

35
NC

36
TEST1
I
Test mode pin, Connect to VDD3
37
FLGA
I/O Universal I/O or flag monitor
38
FLGB
I/O Universal I/O or flag monitor
39
VSS3
3.3V digital GND
40
/RST
I
Reset pin, Pull-up resister built-in
41
/MA
I
µcom address enable signal, Fail-safe pin
42
/MRD
I
µcom data read signal, Fail-safe pin
43
/MWR
I
µcom data write signal, Fail-safe pin
44
/MCE
I
µcom chip enable signal, Fail-safe pin
45
/MINT
O
µcom interrupt signal, Open drain pin
46
MD0
O
µcom data bus
47
MD1
O
µcom data bus
48
MD2
O
µcom data bus
49
MD3
O
µcom data bus
50
MD4
O
µcom data bus
51
MD5
O
µcom data bus
52
MD6
O
µcom data bus
53
MD7
O
µcom data bus
54
VDD5
Power for 5V
55
NC

56
NC

57
SMCK
O
22M block clock output
58
VMCK
O
Data output block (signal processing system) clock output
Pin Name
Function
Pin No.
I/O
TC9453F Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
21
DVD-3800
59
VDD3
3.3V digital power
60
PD0
O
DVD/CD data output
61
VSS5
GND for 5V
62
PD1
O
DVD/CD data output
63
PD2
O
DVD/CD data output
64
PD3
O
DVD/CD data output
65
PD4
O
DVD/CD data output
66
VSS3
3.3V digital GND
67
PD5
O
DVD/CD data output
68
PD6
O
DVD/CD data output
69
PD7
O
DVD/CD data output
70
PD8
O
DVD/CD data output
71
/PSYC
O
DVD data sector sync signal
72
/PDRQ
O
DVD data transfer block
73
PDCK
O
DVD data transfer clock
74
VDD5
Power for 5V
75
TESM3
Test pin, Connect to VSS5
76
DIGI
I
1bit DAC digital-in input
77
TESM4
Test pin, Connect to VSS5
78
VDD3
3.3V digital power
79
BA0
O
External RAM address output
80
BA1
O
External RAM address output
81
BA2
O
External RAM address output
82
BA3
O
External RAM address output
83
VSS5
GND for 5V
84
BA4
O
External RAM address output
85
BA5
O
External RAM address output
86
BA6
O
External RAM address output
87
BA7
O
External RAM address output
88
BA8
O
External RAM address output
89
VDD3
3.3V digital power
90
/BOE
O
External RAM/OE signal
91
/BRAS
O
External RAM/RAS signal
92
/BCAS
O
External RAM/CAS signal
93
/BWL
O
External RAM Lower/WE signal
94
/BWU
O
External RAM Upper/WE signal
95
VDD5
Power for 5V
96
BD0
I/O External RAM data in/output
97
BD1
I/O External RAM data in/output
98
BD2
I/O External RAM data in/output
99
BD3
I/O External RAM data in/output
100
BD4
I/O External RAM data in/output
101
BD5
I/O External RAM data in/output
102
BD6
I/O External RAM data in/output
103
BD7
I/O External RAM data in/output
104
BD8
I/O External RAM data in/output
105
VSS3
3.3V digital GND
106
BD9
I/O External RAM data in/output
107
BD10
I/O External RAM data in/output
108
BD11
I/O External RAM data in/output
109
BD12
I/O External RAM data in/output
110
VSS5
GND for 5V
111
BD13
I/O External RAM data in/output
112
BD14
I/O External RAM data in/output
113
BD15
I/O External RAM data in/output
114
NC

115
NC

116
VDD3
3.3V digital power
117
PLCK
I/O PLL block clock in/output
Pin Name
Function
Pin No.
I/O
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
22
DVD-3800
118
TESM5
Test pin, Connect to GND
119
TESM6
Test pin, Connect to GND
120
TESM7
Test pin, Open
121
TESM8
Test pin, Open
122
VSS3
3.3V digital GND
123
CFC1
O
VCO frequency control signal, Analog output pin
124
CFC2
O
VCO frequency control signal, Analog output pin
125
PPW
O
Phase comparator offset adj. V out, Analog output pin
126
PESV
I
Phase comparator offset adj. sig. in, Analog input pin
127
PVSS
GND for 3.3V PLL block
128
PESP
O
Phase comparator offset adj. sig. out, Analog output pin
129
PDOP1
O
DVD/CD phase control sig. (positive), Analog output pin
130
PDON1
O
DVD/CD phase control sig. (negative), Analog output pin
131
PDOP2
O
DVD/CD phase control sig. (positive), Analog output pin
132
PDON2
O
DVD/CD phase control sig. (negative), Analog output pin
133
LPFN
I
Data PLL low pass filter inverted input, Analog input pin
134
LPFO
O
Data PLL low pass filter output, Analog output pin
135
PVREF
Ref. V for data PLL block
136
VCOREF
I
VCO reference, Analog input pin
137
VCOF
I
VCO auto-adj. filter out, Analog input pin
138
PVDD
Power for 3.3V PLL block
139
SLCO1
O
Data slice 6bitDAC out, Analog output pin
140
TESM9
Test pin, Open
141
TEST2
I
Test mode pin, Connect to VDD3
142
RFCD
I
CD RF signal input, Analog input pin
143
RFDVD
I
DVD RF signal input, Analog input pin
144
AVDD
Power for 3.3V analog block
145
RFCT
I
RFRP center V input (zero-cross intake), Analog input pin
146
RFZI
I
RFRP signal input (zero-cross intake), Analog input pin
147
TEZI
I
Tracking error signal input (zero-cross intake), Analog input pin
148
AWIN
I
Active wide PLL control signal input, Analog input pin
149
AVSS
GND for 3.3V analog block
150
FEI
I
Focus error signal input, Analog input pin
151
TEI
I
Tracking error signal input, Analog input pin
152
RFSB
I
RF level or sub beam signal add input, Analog input pin
153
RFRP
I
RFRP signal input, Analog input pin
154
SAVSS
GND for 3.3V analog block
155
TESM10
Test pin, Connect to VREF
156
EXTAD
I
Universal outside ADC input, Analog input pin
157
VREF
Ref. V (1.65V) for analog block
158
FOO
O
Focus EQ output, Analog output pin
159
TRO
O
Tracking EQ output, Analog output pin
160
AVDD
Power for 3.3V analog block
161
AWCTL
O
Active wide PLL control output, Analog output pin
162
FMO
O
Focus EQ output, Analog output pin
163
DMO
O
Disc EQ output, Analog output pin
164
TEBC
O
Tracking balance control signal, Analog output pin
165
FEBC
O
Focus balance control signal, Analog output pin
166
DPDC
O
DPD error signal pit depth adj. signal, Analog output pin
167
EQBC
O
RF wide boost adj. signal, Analog output pin
168
ANMON
O
Universal PWM output, Analog output pin
169
/DFCT
O
Black dot detect signal
170
VRCK
O
RF EQ characteristic control clock
171
VSS3
3.3V digital GND
172
SCD
O
Head amp serial data
173
SCL
O
Head amp serial data latch pulse
174
SCB
O
Head amp serial data clock
175
FGIN
I
Disc FG signal input (w/ self-bias circuit), Feedback R/Analog input pin
176
NC

Pin Name
Function
Pin No.
I/O
* Pin names begin with “/” are active “L” terminals.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
23
DVD-3800
Buffer
DRAM 256kw/128kw/64kw
(4Mbit/2Mbit/1Mbit)
BD15-0
/BWU./BWL
/BOE
/RAS./CAS
BA8-0
SEDVD
PSYCN.PDROM
PDCK
PDA8
PDA(7:0)
/RST
Gnd
Vdd
TEST2-0
XI
XO
Clock
AUTH
MD7-0
/MWR./WRD
/MCE
MA6-0
/MINT
(M-IF)
ASYC
M-FIFO
(8B � � 3ch)
AV-IF
H-FIFO
(64B)
ECC
SUB-IF
SBDa
SBQa
CD-IF &
DVD-IF
HSYC
Da
Daf
HEDda
(H-IF)
CSEL
/PDIAG./DASP
IORDY
HDRQ
/HDAK
/IOCS16
HD15-0
/HRD./HWR
/HCS3./HCS1
HA2-0
INTRQ
DIGO
AZCK
ABCK.ACHCK
ADO
Buffer
Address
BSYC
Input
IF
Convert
H Interrupt
TC9469BF
M Interrupt
M Address
3
8
30
3
8
3
7
3
8
8
8
16
16
16
64
64
8
16
64
8
16
9
5
2
16
2
2
9
3
16
� com
Driver
Correc-
tion
Input
Selecter
TC9469BF (MA: IC508)
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
VDD
HD7
HD8
HD6
HD9
HD5
HD10
VSS
HD4
HD11
HD3
HD12
HD2
HD13
HD1
HD14
HD0
VDD
VSS
HD15
HDRQ
/HWR
VSShr
/HRD
VSS24
IORDY
VDD24
VSS
/HDAK
INTRO
/IOCS16
HA1
/PDIAG
HA0
VDD
(NC)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
(NC)
VSS
A2
/HCS1
/HCS3
/DASP
CSEL
VSS
VDD
BD15
BD14
BD13
BD12
BD11
BD10
BD9
BD8
VDD
VSS
BD4
BD5
BD7
BD6
BD3
BD2
BD1
BD0
VSS
/BWU(/BWE)
/BWL(/CASL)
/CAS(/CASU)
/RAS
/BOE
BA8
VDD
(NC)
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
(NC)
(NC)
VSS
(LRCK)PDA0
(BCK)PDA1
(DA1)PDA2
(C2P1)PDA3
(CLCK)PDA4
VSS
(SB01)PDA5
(SFSY)PDA6
(SBSY)PDA7
PDA8
PSYCN
PDRQN
PDCK
(NC)
DIGO
VDDck
X0
X1
VSSck
TEST2
TEST1
TEST0
BA3
BA1
BA2
VSS
BA0
BA4
BA5
BA6
BA7
VSS
(NC)
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
(NC)
VSS
VSS
VDD
/RST
ESTOUT
/MINT
/MWR
VSS
/WRD
/WCE
MA6
MA5
MA4
MA3
MA2
MA1
MA0
VDD
VSS
MD7
MD6
MD5
MD4
MD3
MD2
MD1
MD0
VSS
SEDVD
VDD
ACHCK
AD0
ABCK
AZCK
(NC)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
24
DVD-3800
1
NC
 
2
VSS
 GND pin
3
HA2
I
Host address 2 input: IDE sig. DA2, TTL level input, pull-up R built-in
4
/HCS1
I
Chip select 1 input: IDE sig. /CS1FX, TTL level input, pull-up R built-in
5
HCS3
I
Chip select 3 input: IDE sig. /CS3FX, TTL level input, pull-up R built-in
6
/DASP
I/O Drive active in/output: IDE sig. /DASP, TTL level input, open drain out, pull-up R built-in
7
CSEL
I
Cable select pin: IDE sig. CSEL
8
VSS
 GND pin
9
VDD
 Power pin
10
BD15
I/O Buffer RAM data in/output, at low power: output
11
BD14
I/O Buffer RAM data in/output, at low power: output
12
BD13
I/O Buffer RAM data in/output, at low power: output
13
BD12
I/O Buffer RAM data in/output, at low power: output
14
BD11
I/O Buffer RAM data in/output, at low power: output
15
BD10
I/O Buffer RAM data in/output, at low power: output
16
BD9
I/O Buffer RAM data in/output, at low power: output
17
BD8
I/O Buffer RAM data in/output, at low power: output
18
VDD
 Power pin
19
VSS
 GND pin
20
BD4
I/O Buffer RAM data in/output, at low power: output
21
BD5
I/O Buffer RAM data in/output, at low power: output
22
BD7
I/O Buffer RAM data in/output, at low power: output
23
BD6
I/O Buffer RAM data in/output, at low power: output
24
BD3
I/O Buffer RAM data in/output, at low power: output
25
BD2
I/O Buffer RAM data in/output, at low power: output
26
BD1
I/O Buffer RAM data in/output, at low power: output
27
BD0
I/O Buffer RAM data in/output, at low power: output
28
VSS
 GND pin
29
/BWU
O
For write enable bit (for /BWE sig.), at low power: H
30
/BWL
O
For /CAS signal lower 8bit (for /CASL sig.), at low power: H
31
/CAS
O
For /CAS signal upper 8bit (for /CASU sig.), at low power: H
32
/RAS
O
RAS signal output, at low power: H
33
/BOE
O
Output enable, at low power: H
34
BA8
O
Buffer address output
35
VDD
 Power pin
36
NC
 
37
NC
 
38
VSS
 GND pin
39
BA7
O
Buffer address output
40
BA6
O
Buffer address output
41
BA5
O
Buffer address output
42
BA4
O
Buffer address output
43
BA0
O
Buffer address output
44
VSS
 GND pin
45
BA2
O
GND pin
46
BA1
O
GND pin
47
BA3
O
Buffer address output
48
TEST0
I
Test pin, Fixed to “L”
49
TEST1
I
Test pin, Fixed to “L”
50
TEST2
I
Test pin, Fixed to “L”
51
VSSck
GND pin (for clock system)
52
XI
I
Master clock in/output, feedback R built-in
53
XO
O
Master clock in/output, feedback R built-in
54
VDDck
Power pin (for clock system)
55
DIGO
O
Digital out pin
56
NC
 
57
PDCK
I
Data read clock input
58
PDRQN
I
Data effective flag input
Pin Name
Function
Pin No.
I/O
TC9469BF Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
25
DVD-3800
59
PSYCN
I
Sync signal input
60
PDA8
I
Parallel data 8 input
61
PDA7
I
Parallel data 7 input
62
PDA6
I
Parallel data 6 input
63
PDA5
I
Parallel data 5 input
64
VSS
 GND pin
65
PDA4
I
Parallel data 4 input
66
PDA3
I
Parallel data 3 input
67
PDA2
I
Parallel data 2 input
68
PDA1
I
Parallel data 1 input
69
PDA0
I
Parallel data 0 input
70
VSS
 GND pin
71
NC
 
72
NC
 
73
NC
 
74
AZCK
I
Ref. clock input for audio playback
75
ABCK
O
Bit clock (BCK) output for audio playback
76
ADO
O
Data output for audio playback
77
ACHCK
O
Channel clock (LRCK) output for audio playback
78
VDD
 Power pin
79
SEDVD
I
Input IF select
80
VSS
 GND pin
81
MD0
I/O µcom data in/output, tri-state output
82
MD1
I/O µcom data in/output, tri-state output
83
MD2
I/O µcom data in/output, tri-state output
84
MD3
I/O µcom data in/output, tri-state output
85
MD4
I/O µcom data in/output, tri-state output
86
MD5
I/O µcom data in/output, tri-state output
87
MD6
I/O µcom data in/output, tri-state output
88
MD7
I/O µcom data in/output, tri-state output
89
VSS
 GND pin
90
VDD
 Power pin
91
MA0
I
µcom address input
92
MA1
I
µcom address input
93
MA2
I
µcom address input
94
MA3
I
µcom address input
95
MA4
I
µcom address input
96
MA5
I
µcom address input
97
MA6
I
µcom address input
98
/MCE
I
Chip enable signal input
99
/MRD
 µcom chip read signal input
100
VSS
 GND pin
101
/MWR
I
µcom write signal input
102
/MINT
O
µcom interrupt signal output, open drain, pull-up R built-in
103
TESTOUT
O
Output for test, leave it open
104
/RST
I
Hardware reset input (CMOS level), pull-up R built-in
105
VDD
 Power pin
106
VSS
 GND pin
107
VSS
 GND pin
108
NC
 
109
VDD
 Power pin
110
HD7
I/O
111
HD8
I/O
112
HD6
I/O
113
HD9
I/O Host data in/output (HD[0:15]:IDE sig. DD[0:15]), TTL level, tri-state out, pull-up R built-in
114
HD5
I/O
115
HD10
I/O
116
VSS
 GND pin
Pin Name
Function
Pin No.
I/O
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
26
DVD-3800
117
HD4
I/O
118
HD11
I/O
119
HD3
I/O
120
HD12
I/O
121
HD2
I/O Host data in/output (HD[0:15]:IDE sig. DD[0:15]), TTL level, tri-state out, pull-up R built-in
122
HD13
I/O
123
HD1
I/O
124
HD14
I/O
125
HD0
I/O
126
VDD
 Power pin
127
VSS
 GND pin
128
HD15
I/O Host data in/output (HD[0:15]:IDE sig. DD[0:15])
129
HDRQ
O
Data request output: IDE sig. DMARQ, tri-state out, drive-ability 12mA
130
/HWR
I
Host write signal input: IDE sig. /DIOW, TTL level, pull-up R built-in
131
VSShr
 GND pin (for /HR)
132
/HRD
I
Host read signal input: IDE sig. /DIOR, TTL level, pull-up R built-in
133
VSS24
 GND pin (for IORDY)
134
IORDY
O
IO transfer ready output: IDE sig. IORDY, tri-state out, drive-ability 24mA
135
VDD24
 Power pin (for IORDY)
136
VSS
 GND pin
137
/HDAK
I
Data acknowledge input: IDE sig. /DMACK, TTL level, pull-up R built-in
138
INTRQ
O
Interrupt signal output: IDE sig. INTRQ, tri-state out, drive-ability 12mA
139
/IOCS16
O
Data bit wide select output: IDE sig. /IOCS16, open drain, pull-up R built-in
140
HA1
I
Host address 1 input: IDE sig. DA1, TTL level, pull-up R built-in
141
/PDIAG
I/O Post diagnostic in/output: IDE sig. /PDIAG, TTL level, tri-state out, pull-up R built-in
142
HA0
I
Host address 0 input: IDE sig. DA0, TTL level, pull-up R built-in
143
VDD
 Power pin
144
NC
 
Pin Name
Function
Pin No.
I/O
* Pin names begin with “/” PSYNCN, and PDRQN are active “L” terminals.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
23
22
A15
A13
A14
A10
A11
RESET
WE
A19
A8
A4
A3
A2
A1
A12
NC
NC
RY/BY
A18
A17
A7
A6
A5
NC
A9
A16
GND
BYTE
Q14
Q7
VCC
Q4
Q5
Q13
OE
GND
CE
A0
Q15/A-1
Q12
Q3
Q10
Q2
Q9
Q1
Q8
Q0
Q11
Q6
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
25
26
27
SYMBOL
PIN NAME
A0~A19
Address Input
Q0~Q14
Data Input/Output
Q15/A-1
Q15 (Word mode)/LSB addr (Byte mode)
CE
Chip Enable Input
WE
Write Enable Input
BYTE
Word/Byte Selection input
RESET
Hardware Reset Pin/Sector Protect Unlock
OE
Output Enable Input
RY/BY
Ready/Busy Output
VCC
Power Supply Pin (2.7V~3.6V)
GND
Ground Pin
MX29LV160BTC-90 (MA: IC102)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
27
DVD-3800
TMP95FY64F (MA: IC511)
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
P33/A11
P32/A10
P31/A9
P30/A8
P47/A7
P46/A6
P45/A5
P44/A4
P43/A3
P42/A2
P41/A1
P40/A0
P50/RD
P51/WR
P52/HWR
(GND)VSS
PA0/AN0
PA1/AN1
PA2/AN2
PA3/AN3/ADTRG
PA4/AN4
PA5/AN5
PA6/AN6
PA7/AN7
VREFH
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
P05/D5
P04/D4
P03/D3
P02/D2
P01/D1
P00/D0
VCC
P96/TOA/TOB
P95/TIB/INT8
P94/TIA/INT7
P93/TO9
P92/TO8
P91/TI9/INT6
P90/TI8/INT5
P75/TO7/INT4
P74/TO5
P73/TI4/INT3
P72/TO3/INT2
P71/TO1
P70/TI0/INT1
RESET
EA
X2
X1
VSS(GND)
P34/A12
P35/A13
P36/A14
P37/A15
P20/A16
P21/A17
P22/A18
P23/A19
P24/A20
P25/A21
P26/A22
P27/A23
VCC
VSS(GND)
AM8/16
P17/D15
P16/D14
P15/D13
P14/D12
P13/D11
P12/D10
P11/D9
P10/D8
P07/D7
P06/D6
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
VREFL
AVSS
AVCC
DAOUT0
DAOUT1
NMI
P53/BUSRQ
P54/BUSAK
P55/WAIT
P56/INTO
P57/SCLK2/CTS2
P80/TxD0
P81/RxD1
P82/SCLK0/CTS0
P83/TxD1
P84/RxD1
P85/SCLK1/CTS1
P86/TxD2
P87/RxD2
P60/CS0
P61CS1
P62/CS2
P62/CS3
CLK
VCC
Pin Name
Function
Pin No.
Symbol
TMP95FY64F Terminal Function
1
VREFL
VREFL
I
Ref. V input (L) for A/D converter
2
AVSS
AVSS

GND
3
AVCC
AVCC

Power
4
DAOUT0
DAOUT0
O
D/A output 0
5
DAOUT1
DAOUT1
O
D/A output 1
6
NMI
NMI
I
Non-maskable interrupt request pin
7
P53
STBN
O
TA8493F/BA5952FP standby pin
8
P54
AMUTE
O
Not used
9
P55
Not used
10
INT0
DSPINT
I
Interrupt input from TC9453F
11
P57
RSTN
O
Reset output of TC9453F
12
P80
Not used
13
P81
Not used
14
P82
TEST
I
Not used
15
P83
Not used
16
P84
TMM+
O
Loading motor control pin
17
P85
TMM-
O
Loading motor control pin
18
P86

O
Not used
19
P87

I
Not used
20
CS0
DECCSN
O
TC9469BF chip select
21
CS1
DSPCSN
O
TC9453F chip select
22
P62
Not used
23
P63
Not used
24
CLK
Not used
25
VCC
VCC

Power
26
VSS
VSS

GND
27
X1
X1
I
X’tal connection
28
X2
X2
O
X’tal connection
29
EA
EA
I
Power
30
RESET
RESET
I
Reset input pin
31
INT1
DECINT
I
Interrupt input from TC9469BF
32
P71
Not used
33
P72
Not used
I/O
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
28
DVD-3800
34
INT3
FG
I
FG signal input from TA8493F
35
P74
BRKN
O
Brake signal output to TA8493F
36
P75
Not used
37
INT5
SLIDE_PULSE
I
Pulse counter input of slide
38
P91
P-LOW
O
PLL filter switching output
39
P92
PLLD
Not used
40
P93
P-HIGH
O
PLL filter switching output
41

INT7
Not used
42
P95
Not used
43
P96
PLLB
Not used
44
VCC
VCC

Power
45
D0
MD0
I/O Data bus
46
D1
MD1
I/O Data bus
47
D2
MD2
I/O Data bus
48
D3
MD3
I/O Data bus
49
D4
MD4
I/O Data bus
50
D5
MD5
I/O Data bus
51
D6
MD6
I/O Data bus
52
D7
MD7
I/O Data bus
53
D8
T22
Not used
54
D9
T9
Not used
55
D10
T10
Not used
56
D11
T11
Not used
57
D12
T12
Not used
58
D13
T13
Not used
59
D14
T14
Not used
60
D15
T15
Not used
61
AM8/16
AM8/16
I
Pull-up
62
VSS
VSS

GND
63
VCC
VCC

Power
64
P27
BUSY
O
Busy output
65
P26

O
Not used
66
P25

O
Not used
67
P24
Not used
68
P23
Not used
69
P22
Not used
70
P21
Not used
71
A16
Not used
72
A15
Not used
73
A14
Not used
74
A13
Not used
75
A12
Not used
76
A11
Not used
77
A10
Not used
78
A9
Not used
79
A8
MA8
O
Address bus
80
A7
Not used
81
A6
MA6
O
Address bus
82
A5
MA5
O
Address bus
83
A4
MA4
O
Address bus
84
A3
MA3
O
Address bus
85
A2
MA2
O
Address bus
86
A1
MA1
O
Address bus
87
A0
MA0
O
Address bus
88
RD
RDN
O
Strobe signal output for read
89
WR
WRN
O
Strobe signal output for write
90
P52
Not used
91
VSS
VSS

Power
92
PA0
MASTER
I
Pull-down
93
PA1
SLAVE
I
Pull-up
94
PA2
CSEL
I
Pull-up
95
PA3
CLOS
I
Loader close SW input pin
96
PA4
OPEN
I
Loader open SW input pin
97
PA5
INSWN
I
Pickup inner SW input pin
98
AN6
+1.65V
I
Analog input pin
99
PA7
EJECT
I
Not used
100
VREFH
VREFH
I
Ref. V input (H) for A/D converter
Pin Name
Function
Pin No.
Symbol
I/O
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
29
DVD-3800
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
P1TN
P1TP
P1FN
P1FP
LDP1
GNDR
P1DI
P1CI
P1BI
P1AI
LDP2
P2AI
P2BI
P2CI
P2DI
GNDS
P2FP
P2FN
P2TP
P2TN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GNDP
LDO2
MDI2
NC
NC
VrA
Vrfi
VrD
Vdd
DPAC
DPBD
DPD1
DPD2
SCB
SCL
SCD
VRCK
NC
NC
VCKF
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
DFTN
NC
NC
NC
NC
NC
FEO
TEO
NC
LVL
NC
NC
NC
VccS
RFSW
NC
NC
NC
NC
VccP
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
LDO1
MDI1
EQF
EQB
RFDC
GND2
EQD
NC
Vcc2
VccO
PSC
FEB
TEB
DPDB
VccR
RFO
RPP
RPB
RPO
RPZ
TA1293F (MA: IC501)
Pin Name
Function
Pin No.
I/O
TA1293F Terminal Function
1
GNDP
GND pin
2
LDO2
O
Drive pin
3
MDI2
I
Monitor pin
4
NC
Used connecting with VrA
5
NC
Used connecting with VrA
6
VrA
O
Analog VREF
7
Vrfi
Filter capacity for reference
8
VrD
O
Digital VREF, outputs 1/2 of Vdd
9
Vdd
I
Power pin, connect Vdd of servo IC
10
DPAC
DPD AC coupling capacity 1
11
DPBD
DPD AC coupling capacity 2
12
DPD1
DPD integral capacity 1
13
DPD2
DPD integral capacity 2
14
SCB
I
Control line (bit clock)
15
SCL
I
Control line (latch signal)
16
SCD
I
Control line (serial data)
17
VRCK
I
Ref. clock input
18
NC
Used connecting with GND
19
NC
Used connecting with GND
20
VCKF
Capacity for adjusting time constant
21
VccP
Power pin
22
NC
Used in open
23
NC
Used in open
24
NC
Used in open
25
NC
Used connecting with GND
26
RFSW
I
RFO control pin, outputs signal after EQ at L
27
VccS
Power pin
28
NC
Used in open
29
NC
Used connecting with VrA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
30
DVD-3800
30
NC
Used connecting with VrA
31
LVL
O
Servo addition output
32
NC
Used in open
33
TEO
O
TE output
34
FEO
O
TE output
35
NC
Used connecting with VrA
36
NC
Used connecting with VrA
37
NC
Used connecting with VrA
38
NC
Used connecting with VrA
39
NC
Used connecting with VrA
40
DFTN
I
DPD defect, L: DPD out = Mute
41
RPZ
O
RF ripple center output
42
RPO
O
RF ripple output
43
RPB
O
Bottom of RF ripple
44
RPP
O
Peak of RF ripple
45
RFO
O
Equivalent RF output
46
VccR
Power pin (RF)
47
DPDB
I
Pit depth adjustment
48
TEB
I
TE balance
49
FEB
I
FE balance
50
PSC
I
VRCK divide on/off, H: divide off
51
VccO
Power pin
52
Vcc2
Power pin
53
NC
Connect with VrD, or GND via C
54
EQD
I
Group delay correction
55
GND2
GND pin
56
RFDC
DC feedback capacity
57
EQB
I
Boost adjustment
58
EQF
I
Frequency adjustment
59
MDI1
I
Monitor input
60
LDO1
O
Drive output
61
P1TN
I
TE(-) input (DVD)
62
P1TP
I
TE(+) input (DVD)
63
P1FN
I
FE(-) input (DVD)
64
P1FP
I
FE(+) input (DVD)
65
LDP1
I
APC polarity 1, positive when connected to Vcc
66
GNDR
GND pin
67
P1DI
I
D input (DVD)
68
P1CI
I
C input (DVD)
69
P1BI
I
B input (DVD)
70
P1AI
I
A input (DVD)
71
LDP2
I
APC polarity 2, positive when connected to Vcc
72
P2AI
I
A input (CD)
73
P2BI
I
B input (CD)
74
P2CI
I
C input (CD)
75
P2DI
I
D input (CD)
76
GNDS
GND pin
77
P2FP
I
FE(+) input (CD)
78
P2FN
I
FE(-) input (CD)
79
P2TP
I
TE(+) input (CD)
80
P2TN
I
TE(-) input (CD)
Pin Name
Function
Pin No.
I/O
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
31
DVD-3800
Function
I/O
Pin No.
Pin Name
SiI504CM208 Terminal Function
2, 41, 51, 56,
99, 106, 146,
VDDCore
Pwr
1.8V Core Power.
160, 168, 199,
205
3, 40, 47, 50,
55, 100, 102,
GNDCore
Pwr
Digital Ground for Core Power.
107, 150, 162,
167, 206
4
LCDPwrEn
Out
LCD Power Enable
5
CBlank
Out
Composite Blank
6
CSync
Out
Composite Sync
7
VSync
Out
Vertical Sync
8
HSync
Out
Horizontal Sync
9~14, 17~20
Blue_Cb[9:0]
Out
Blue Data (RGB output mode); Cb Data (YCrCb output mode)
15, 21, 33, 61,
66, 72, 79, 85,
93, 114, 118,
GNDIO
Pwr
Digital Ground for I/O Power.
121, 126, 131,
144, 183, 190,
198
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
62
61
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
RSVD
VDDCore
GNDCore
LCDPwrEn
CBIank
CSync
VSync
HSync
Blue_Cb0
Blue_Cb1
Blue_Cb2
Blue_Cb3
Blue_Cb4
Blue_Cb5
GNDIO
VDDIO
Blue_Cb6
Blue_Cb7
Blue_Cb8
Blue_Cb9
GNDIO
Green_Y0
Green_Y1
Green_Y2
Green_Y3
VDDIO
Green_Y4
Green_Y5
Green_Y6
Green_Y7
Green_Y8
Green_Y9
GNDIO
Red_Cr0
Red_Cr1
Red_Cr2
Red_Cr3
Red_Cr4
Red_Cr5
GNDCore
VDDCore
Red_Cr6
Red_Cr7
Red_Cr8
Red_Cr9
VidOutClk
GNDCore
BypPLLClk48M
Clk48M
GNDCore
VDDCore
ExtRefSel
RSVD
GNDCore
VDDCore
MemAddr3
MemAddr2
MemAddr1
MemAddr0
GNDIO
MemAddr4
MemAddr5
MemAddr6
MemAddr7
GNDIO
MemAddr8
MemAddr9
MemAddr10
MemAddr11
RSVD
GNDIO
VDDIO
VDDIO
RAS
CAS
WE
DQM
GNDIO
MemData7
MemData6
MemData5
MemData4
MemData3
GNDIO
MemData2
MemData1
MemData0
VDDIO
PuPdDis
MemData8
MemData9
GNDIO
MemData10
MemData11
MemData12
MemData13
MemData14
GNDCore
MemClk
VDDCore
GNDCore
RSVD
HostAddr5
HostAddr4
HostAddr3
HostAddr2
HostAddr1
HostAddr0
GNDCore
HostCS
HostRd_SDA
HostWr_SCL
VDDCore
VidlnClk
GNDIO
VidlnData9
VidlnData8
VidlnData7
VidlnData6
VidlnData5
VidlnData4
VidlnData3
VidlnData2
VDDIO
ExtRefXtalIOut
ExtRefXtalIn
VDDIO
GNDIO
MemData16
MemData17
MemData18
MemData19
GNDIO
MemData20
MemData21
MemData22
MemData23
GNDIO
MemData31
MemData30
GNDIO
VDDIO
MemData29
MemData28
GNDIO
MemData27
MemData26
MemData25
MemData24
MemData15
BypPLLMemClk
GNDCore
VDDCore
RSVD
AVDD
ARTN
GNDCore
VDDCore
Clk54_72M
BypPLLClk54_72M
Test1
Test0
Reset
VDDCore
GNDIO
SCKIn
WSIn
SDIn
VDDIO
SCKOut
WSOut
SDOut
GNDIO
VDDIO
MemAddr12
DeintDone
DetVideo
Det22PD
Det32PD
GNDIO
VDDIO
HostData0
HostData1
HostData2
HostData3
HostData4
HostData5
HostData6\\HS
HostData7\\VS
RSVD
HostData8\\VidlnData12
HostData9\\VidlnData13
HostData10\\VidlnData14
HostData11\\VidlnData15
VDDCore
GNDCore
HostData12\\VidlnData16
HostData13\\VidlnData17
HostData14\\VidlnData18
HostData15\\VidlnData19
GNDCore
HostClk
VDDCore
HostMode
HostAddr7
HostAddr6
TOP VIEW
RSVD
RSVD
SiI504CM208 (MA: IC701)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
32
DVD-3800
16, 26, 73, 74,
89, 117, 132,
VDDIO
Pwr
3.3V I/O Power.
135, 182, 189,
194
22~25, 27~32
Green_Y[9:0]
Out
Green Data (RGB output mode); Y Data (YCrCb output mode)
34~39, 42~45
Red_Cr[9:0]
Out
Red Data (RGB output mode); Cr Data (YCrCb output mode)
46
VidOutClk
Out
Video Output Clock, 36, 27 or 24 MHZ
48
BypPLLClk48M
In
Bypass PLL for Clk48M.
49
Clk48M
InOut 48 MHz Clock.
52
ExtRefSel
In
External APLL Reference Select.
57~60, 62~65,
67~70, 188
MemAddr[12:0]
InOut SDRAM Address when an output. Configuration at reset when an input.
75
RAS
Out
SDRAM Row Address Strobe.
76
CAS
Out
SDRAM Column Address Strobe.
77
WE
Out
SDRAM Write Enable.
78
DQM
Out
SDRAM Data Mask.
80~84, 86~88,
91, 92, 94~98,
109, 110~113,
MemData[31:0]
InOut SDRAM Data.
115, 116, 119,
120, 122~125,
127~130
90
PuPdDis
In
Internal pullup and pulldown disable test function.
101
MemClk
InOut SDRAM Clock.
108
BypPLLMemClk
In
Bypass PLL for MemClk.
133
ExtRefXtalIn
In
External APLL Reference Crystal/oscillator Input.
134
ExtRefXtalOut
Out
External APLL Reference Crystal Output.
136~143
VidlnData[9:2]
In
Multiplexed Video Input Data; Y Video Input Data.
145
VidlnClk
In
Video Input Clock, 27.0 MHz
147
HostWr_SCL
In
186-Compatible Write when HostMode=0. Serial Clock when HostMode=1.
148
HostRd_SDA
InOut 186-Compatible Read when HostMode=0. Serial Data when HostMode=1.
149
HostCS
In
186-Compatible Chip Select when HostMode=0.
When HostMode=1, must be tied to VDD or pulled up to VDD.
151~158
HostAddr[7:0]
In
186-Compatible Address when HostMode=0. No connect when HostMode=1.
159
HostMode
In
Serial Host Interface when HostMode=1. 186-compatible host interface when HostMode=0.
161
HostClk
InOut 186-Compatible Clock when HostMode=0. No connect when HostMode=1.
163~166,
HostData[15:8]
169~172
(VidInData[19:2])
InOut 186-Compatible Data when HostMode=0. Chroma video input data when HostMode=1.
174
HostData[7](VS)
InOut 186-Compatible Data when HostMode=0. Vertical sync input when HostMode=1.
175
HostData[6](HS)
InOut 186-Compatible Data when HostMode=0. Horizontal sync input when HostMode=1.
176~181
HostData[5:0]
InOut 186-Compatible Data when HostMode=0. No connect when HostMode=1.
184
Det32PD
Out
3:2 Pulldown Sequence Detected.
185
Det22PD
Out
2:2 Pulldown Sequence Detected.
186
DetVideo
Out
Interlaced Video Sequence Detected.
187
DeintDone
Out
Deinterlace processing complete for current field period.
191
SDOut
Out
Serial Digital Audio Output Data.
192
WSOut
Out
Serial Digital Audio Output Word Select.
193
SCKOut
Out
Serial Digital Audio Output Clock.
195
SDIn
In
Serial Digital Audio Input Data.
196
WSIn
In
Serial Digital Audio Input Word Select.
197
SCKIn
In
Serial Digital Audio Input Clock.
200
Reset
In
Hardware Reset.
201, 202
Test[1:0]
In
Production hardware test support.
203
BypPLLClk54_72M
In
Bypass PLL for Clk54_72M.
204
Clk54_72M
InOut 54 or 72 MHz Clock.
207
ARTN
Pwr
Analog Return for PLLs.
208
AVDD
Pwr
1.8V Analog Power for PLL.
Function
I/O
Pin No.
Pin Name
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
33
DVD-3800
1
VDD_IO
P
Digital power supply.
2~9, 12, 13
Y9-0
I
10-Bit Progressive scan/ HDTV input port for Y data.
10, 56
VDD
P
Digital power supply.
11, 57
DGND
G
Digital Ground
14~18, 26~30
C9-0
I
10-Bit Progressive scan/ HDTV input port for CrCb color data in 4:2:2 input mode.
When this input pin is brought low, the ADV7300 interfaces over the SPI port and uses this
19
SPI/I2C
I
input as part of the 4 wire SPI interface. When this input pin is tied high [VDD_IO], the ADV7300
interfaces over the I2C port.
20
ALSB_SO
I/O
Multifunctional pin.
21
SDA_CLKSP
I/O
Multifunctional pin.
22
SCLK_SI
I
Multifunctional input.
23
P_HSYNC
I
Video Horizontal Sync Control Signal for HD sync in simultaneous SD/HD mode
and HD only mode.
24
P_VSYNC
I
Video Vertical Sync Control Signal for HD sync in simultaneous SD/HD mode
and HD only mode.
25
P_BLANK
I
Video Blanking Control Signal for HD sync in simultaneous SD/HD mode and HD only mode.
31
RTC_SCR_TR
I
Multifunctional input.
32
CLKIN_A
I
Pixel Clock Input for HD only or SD only modes.
33
RESET
I
This input resets the on-chip timing generator and sets the ADV7300 into Default Register
setting. Reset is an active low signal.
34
EXT_LF
I
External Loop filter for the internal PLL.
35, 47
RSET1,2
I
A1520 Ohms resistor must be connected from this pin to AGND and is used to control the
amplitudes of the DAC outputs.
36,45
COMP
O
Compensation Pin for DACs.
37
DAC F
O
In SD only mode: Chroma/RED/V analog output.
In HD only mode and simultaneus HD/SD: Pb/ BLUE (HD) analog output.
38
DAC E
O
In SD only mode: Luma/BLUE/U analog output.
In HD only mode and simultaneus HD/SD: Pr/ RED (HD) analog output.
39
DAC D
O
In SD only mode: CVBS/GREEN/Y analog output.
In HD only mode and simultaneus HD/SD: Y/ GREEN (HD) analog output.
40
AGND
G
Analog Ground
41
VAA
P
Analog power supply.
42
DAC C
O
Chroma/ RED/ V SD analog output.
43
DAC B
O
Luma/ BLUE/ U SD analog output.
44
DAC A
O
CVBS/ GREEN/ Y SD analog output.
46
VREF
I/O
Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235V).
48
S_BLANK
I/O
Video Blanking Control Signal for SD.
49
S_VSYNC
I/O
Video Vertical Sync Control Signal for SD.
50
S_HSYNC
I/O
Video Horizontal Control Signal for SD.
51~55, 58~62
S9-S0
I
10-Bit Standard Definition input port. Or Progressive Scan/ HDTV input port for
Cr [Red/V] color data in 4:4:4 input mode.
63
CLKIN_B
I
Pixel Clock Input.
64
GND_IO
G
Digital Ground
Function
I/O
Pin No.
Pin Name
ADV7300 (MA: IC706)
ADV7300 Terminal Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
VDD_IO
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
VDD
DGND
Y8
Y9
C0
C1
C2
C3
C4
ALSB_SO
SDA_CLKSP
SCLK_SI
P_BLANK
C5
C6
C7
C8
C9
RTC_SCR_TR
CLKIN_A
VREF
COMP1
DAC A
DAC B
DAC C
VAA
AGND
DAC D
DAC E
DAC F
COMP2
R
EXT_LF
SET 2
R SET 1
GND_IO
CLKIN_B
S9
S8
S7
S6
S5
DGND
VDD
S4
S3
S2
S1
S0
SPI/I2C
P_HSYNC
P_VSYNC
RESET
S_BLANK
S_VSYNC
S_HSYNC
TOP VIEW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
34
DVD-3800
1
MCLR
I
Master Clear (Reset) input. This pin is an active low RESET to the device.
2
RA0
I/O
Digital I/O.
3
RA1
I/O
Digital I/O.
4
RA2
I/O
Digital I/O.
5
RA3
I/O
Digital I/O.
6
RA4
I/O
Digital I/O. Open drain when configured as output.
7
RA5
I/O
Digital I/O.
8
VSS
P
Ground reference for logic and I/O pins.
9
OSC1
I
Oscillator crystal input or external clock source input.
ST buffer when configured in RC mode. CMOS otherwise.
10
OSC2
O
Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode.
11
RC0
I/O
Digital I/O.
12
RC1
I/O
Digital I/O.
13
RC2
I/O
Digital I/O.
14
RC3
I/O
Digital I/O.
15
RC4
I/O
Digital I/O.
16
RC5
I/O
Digital I/O.
17
RC6
I/O
Digital I/O.
18
RC7
I/O
Digital I/O.
19
VSS
P
Ground reference for logic and I/O pins.
20
VDD
P
Positive supply for logic and I/O pins.
21
INT0
I
External Interrupt 0.
22
RB1
I/O
Digital I/O.
23
RB2
I/O
Digital I/O.
24
RB3
I/O
Digital I/O.
25
RB4
I/O
Digital I/O. Interrupt-on-change pin.
26
RB5
I/O
Digital I/O. Interrupt-on-change pin.
27
RB6
I/O
Digital I/O. Interrupt-on-change pin. ICSP programming clock.
28
RB7
I/O
Digital I/O. Interrupt-on-change pin. ICSP programming data.
Description
I/O
Pin No.
Pin Name
Legend:
O=Output
I=Input
P=Power
PIC18LC242-I/SO (MA: IC703)
RA1
RA0
RA4
RA3
RC1
RC0
OSC1
VSS
RA2
OSC2
RC3
RC2
RA5
RB7
RB5
RB6
RB2
RB3
RC6
RC7
VDD
INT0
RB4
VSS
RC4
RC5
RB1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
MCLR
TOP VIEW
PIC18LC242-I/SO Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
35
DVD-3800
Function
I/O
Pin No.
Pin Name
ES6038 Terminal Function
1, 18, 27, 59,
68, 75, 92, 99,
104, 130, 148, VEE
I
I/O power supply.
157, 159, 164,
183, 193, 201
8, 17, 26, 34,
43, 52, 60, 67,
76, 84, 91, 98,
103, 112, 120, VSS
I
Ground.
129, 138, 147,
156, 163, 171,
177, 184, 192,
200, 208
23:19, 16:10,
7:2, 207:204
LA[21:0]
O
Device address output.
9, 35, 44, 83,
121, 139, 172
VCC
I
Core power supply.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
VEE
LA4
LA5
LA6
LA7
LA8
LA9
VSS
VCC
LA10
LA11
LA12
LA13
LA14
LA15
LA16
VSS
VEE
LA17
LA18
LA19
LA20
LA21
RESET#
TDMDX
VSS
VEE
TDMDR
TDMCLK
TDMFS
TDMTSC#
TWS/SEL_PLL2
TSD0/SEL_PLL0
VSS
VCC
TSD1/SEL_PLL1
TSD2
TSD3
MCLK
TBCK
SPDIF/PLL3
NC
VSS
VCC
RSD
RWS
RBCK
NC
XIN
XOUT
AVEE
VSS
DMA0
DMA1
DMA2
DMA3
DMA4
DMA5
VEE
VSS
DMA6
DMA7
DMA8
DMA9
DMA10
DMA11
VSS
VEE
DCAS#
DSCK_EN
DWE#
DRAS#
DMBS0
DMBS1
VEE
VSS
DB0
DB1
DB2
DB3
DB4
DB5
VCC
VSS
DB6
DB7
DB8
DB9
DB10
DB11
VSS
VEE
DB12
DB13
DB14
DB15
DCS1#
VSS
VEE
DCS0#
DQM
DSCK
VSS
VEE
VSS
HA1
HA0
HCS3FX#
HCS1FX#
HIOCS16#
HRD#
HWR#
VEE
VSS
HIORDY
HRST#
HIRQ
HRDQ#
HWRQ#
HD15
HD14
VCC
VSS
HD13
HD12
HD11
HD10
HD9
HD8
HD7
VEE
VSS
HD6
HD5
HD4
HD3
HD2
HD1
HD0
VCC
VSS
HSYNC#
VSYNC#
PCLKQSCN
PCLK2XSCN
YUV7
YUV6
YUV5
VSS
ADVEE
YUV4
YUV3
YUV2
YUV1
YUV0
DCLK
VSS
LA3
LA2
LA1
LA0
CAMIN1
CAMIN0
VEE
VSS
LWRHL#
LWRLL#
LD15
LD14
LD13
LD12
VEE
VSS
LD11
LD10
LD9
LD8
LD7
LD6
LD5
VSS
VEE
LD4
LD3
LD2
LD1
LD0
VSS
LCS3#
LCS2#
LCS1#
LCS0#
VCC
VSS
LOE#
AUX[7]
AUX[6]
AUX[5]
AUX[4]
AUX[3]
VEE
VSS
AUX[2]
AUX[1]
AUX[0]
VEE
HA2
VEE
ES6038 (MA: IC101)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
36
DVD-3800
24
RESET#
I
Reset input, active low.
25
TDMDX
O
TDM transmit data.
28
TDMDR
I
TDM receive data.
29
TDMCLK
I
TDM clock input.
30
TDMFS
I
TDM frame sync.
31
TDMTSC#
O
TDM output enable.
TWS
O
Audio transmit frame sync.
SEL_PLL2
I
System and DSCK output clock frequency selection is made at the rising edge of RESET#.
The matrix below lists the available clock frequencies and their respective PLL bit settings.
SEL_PLL2
SEL_PLL1
SEL_PLL0
Clock Type
0
0
0
VCO off.
0
0
1
DCLK
32
0
1
0
Bypass mode
0
1
1
DCLK x 2
1
0
0
DCLK x 4.5
1
0
1
DCLK x 3
1
1
0
DCLK x 3.5z
1
1
1
DCLK x 4
33
TSD0
O
Audio transmit serial data port 0.
SEL_PLL0
I
Refer to the description and matrix for SEL_PLL2 pin 32.
36
TSD1
O
Audio transmit serial data port 1.
SEL_PLL1
I
Refer to the description and matrix for SEL_PLL2 pin 32.
37
TSD[2]
O
Audio transmit serial data output 2.
38
TSD[3]
O
Audio transmit serial data output 3.
39
MCLK
I/O
Audio master clock for audio DAC.
40
TBCK
O
Audio transmit bit clock.
SPDIF
O
S/PDIF output.
SEL_PLL3
I
Clock source select.
41
    SEL_PLL3
 Clock Source
0
 Crystal oscillator
1
 DCLK input
42,48
NC
No connect pins. Leave open.
45
RSD
I
Audio receive serial data.
46
RWS
I
Audio receive frame sync.
47
RBCK
I
Audio receive bit clock.
49
XIN
I
Crystal input.
50
XOUT
O
Crystal output.
51
AVEE
I
Analog power for PLL.
66:61, 58:53
DMA[11:0]
O
DRAM address bus [11:0]
69
DCAS#
O
DRAM column address strobe,
70
DSCK_EN
O
DRAM clock enable.
71
DWE#
O
DRAM write enable.
72
DRAS#
O
DRAM row address strobe.
73
DMBS0
O
SDRAM bank select 0.
74
DMBS1
O
SDRAM bank select 1.
96:93, 90:85,
82:77
DB[15:0]
I/O
DRAM data bus [15:0]
97, 100
DCS[1:0]#
O
SDRAM chip select [1:0]
101
DQM
O
Data input/output mask.
102
DSCK
O
Output clock to SDRAM.
105
DCLK
I
27 MHz clock input to PLL.
106
YUV0
O
YUV0 pixel output data.
107
YUV1
O
YUV1 pixel output data.
108
YUV2
O
YUV2 pixel output data.
109
YUV3
O
YUV3 pixel output data.
110
YUV4
O
YUV4 pixel output data.
111
ADVEE
I
Analog power for video DAC.
113
YUV5
O
YUV5 pixel output data.
Function
I/O
Pin No.
Pin Name
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
37
DVD-3800
114
YUV6
O
YUV6 pixel output data.
115
YUV7
O
YUV7 pixel output data.
116
PCLK2XSCN
I/O
27 MHz video output pixel clock.
117
PCLKQSCN
O
13.5 MHz video output pixel clock.
118
VSYNC#
I/O
Vertical sync, active low.
119
HSYNC#
I/O
Horizontal sync, active low.
127:122
HD[5:0]
I/O
Host data I/O [5:0].
128
HD[6]
I/O
Host data I/O [6].
131
HD[7]
I/O
Host data I/O [7].
132
HD[8]
I/O
Host data bus 8.
133
HD[9]
I/O
Host data bus line 9.
134
HD[10]
I/O
Host data bus line 10.
135
HD[11]
I/O
Host data bus line 11.
136
HD[12]
I/O
Host data bus line 12.
137
HD[13]
I/O
Host data bus line 13.
140
HD[14]
I/O
Host data bus line 14.
141
HD[15]
I/O
Host data bus line 15.
142
HWRQ#
O
Host write request.
143
HRRQ#
O
Host read request.
144
HIRQ
I/O
Host interrupt.
145
HRST#
O
Host reset.
146
HIORDY
I
Host I/O ready.
149
HWR#
I/O
Host write.
150
HRD#
O
Host read.
151
HIOCS16#
I
Device16-bit data transfer.
152
HCS1FX#
O
Host select 1.
153
HCS3FX#
O
Host select 3.
158, 155:154
HA[2:0]
I/O
Host address bus.
160
AUX[1:0]
I/O
Auxiliary ports 1:0.
162
AUX[2]
I/O
Auxiliary ports 2.
165
AUX[3]
I/O
Auxiliary ports 3.
169:166
AUX[7:3]
I/O
Auxiliary ports 7:3.
170
LOE#
O
Device output enable.
176:173
LCS[3:0]#
O
Chip select [3:0].
197:194,
191:185,
LD[15:0]
I/O
EPROM device data bus.
182:178
198
LWRLL#
O
Device low-byte write enable.
199
LWRHL#
O
Device high-byte write enable.
202
CAMIN0
I
Camera YUV 0.
203
CAMIN1
I
Camera YUV 1.
Function
I/O
Pin No.
Pin Name
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
38
DVD-3800
TOP VIEW
P46,A22, CS0
P47,A23, CS1
P00,AD0,D0
P01,AD1,D1
P02,AD2,D2
P03,AD3,D3
VDD
VSS
P04,AD4,D4
P05,AD5,D5
P06,AD6,D6
P07,AD7,D7
P10,AD8,D8
P11,AD9,D9
P12,AD10,D10
PD0,RTP0
PD1,RTP1
P13,AD11,D11
P14,AD12,D12
P15,AD13,D13
P16,AD14,D14
P17,AD15,D15
MODE0
MODE1
MODE2
PC3,TM10O,TM7I,TM21IR
PC2,TM8O,TM6I
PC1,TM6O,TM11I
VDD
OSCI
OSCO
VSS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
127
125
123
121
119
117
115
113
128
126
124
122
120
118
116
114
111
109
107
105
103
101
99
97
112
110
108
106
104
102
100
98
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
P52, RE
P51, WEH,WE
P50, WEL
PC7,NBRACK
PC6,NBREQ
P97,AN15,TM20IB
P96,AN14,TM15O,TM19IB
P95,AN13,TM13O,TM2I
P94,AN12,TM11O,TM4I
AVDD
VREFH
P93,AN11
P92,AN10
P91,AN9
P90,AN8
PD5,RTP5
PD4,RTP4
P87,AN7
P86,AN6
P85,AN5
P84,AN4
P83,AN3
P82,AN2
P81,AN1
P80,AN0
VREFL
AVSS
VSS
VDD
PB5,SBT3,SCL3
PB4,SBO3,SDA3
PB3,SBI3
34
36
38
40
42
44
46
48
33
35
37
39
41
43
45
47
50
52
54
56
58
60
62
64
49
51
53
55
57
59
61
63
P57,/DUMX,BOSC
PC5,NMI
RST
PC0,TM4O,TM10I
P76,TM19IOA
P60,IRQ0
P61,IRQ1,TM3I
P62,IRQ2,TM16IA
P63,IRQ3,TM16IB
P64,IRQ4,TM17IA
P65,IRQ5,TM18IA
P66,IRQ6
P67,IRQ7, EXTDK
P70,TM16OA
P71,TM16OB,WDOUT
PD2,RTP2
PD3,RTP3
VDD
P77,TM20IOA
P72,TM17OA
P73,TM17OB,STOP
P74,TM18OA
P75,TM18IOB,TM21ID
PA0,SBI0
PA1,SBO0
PA2,SBT0
PA3,SBI1
PA4,SBO1,SDA1
PA5,SBT1,SCL1
PB0,SBI2,TM16IC
PB1,SBO2,TM17IC
PB2,SBT2,TM18IC
P45,A21
P44,A20
P43,A19
P42,A18
P41,A17
P40,A16
P37,A15
P36,A14
PC4,TM12O,TM8I,TM21IA
VDD(VPP)
P35,A13
P34,A12
P33,A11
P32,A10
P31,A9
PD7,RTP7
PD6,RTP6
P30,A8
P27,A7, KI7,TMI17B
P26,A6, KI6
P25,A5, KI5
P24,A4, KI4
P23,A3, KI3
P22,A2, KI2
P21,A1, KI1
P20,A0, KI0
P56, CS3, UCAS,BIBT2
P55, CAS, LCAS,BIBT1
P54, RAS, RFSH
VSS
VDD
P53, CS2,ALE
MN102H460B (MA: IC201)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
39
DVD-3800
ADSPMEL322 (MA: IC207)
TOP VIEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
108
107
106
105
104
103
102
101
100
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
D13
VDDEXT
D12
D11
D10
D9
D8
D7
D6
D5
GND
XTAL
CLKIN
VDDEXT
CLKOUT
GND
D4
VDDINT
D3
D2
D1
D0
RD
WR
ACK
MS3
VDDEXT
MS2
MS1
MS0
IOMS
BMS
BR
BG
BGH
A21
D14
D15
HAD0
HAD1
GND
HAD2
HAD3
HAD4
HAD5
HAD6
HAD7
HAD8
VDDEXT
HAD9
HAD10
GND
HAD11
HAD12
VDDINT
HAD13
HAD14
HAD15
HA16
HACK_P
VDDEXT
HACK
HCMS
HCIOMS
GND
HALE
HRD
HWR
GND
PF0
PF1
PF2
A20
A19
A18
GND
A17
A16
A15
A14
VDDEXT
A13
A12
A11
A10
A9
GND
A8
A7
A6
VDDEXT
A5
A4
A3
A2
A1
A0
OPMODE
VDDINT
EMU
GND
TRST
TCK
GND
TMS
TDI
TDO
RESET
PF3
PF4
PF5
VDDEXT
PF6
PF7
TMR0
TMR1
TMR2
DT2
TCLK2
TFS2
DR2
RCLK2
RFS2
RXD
TXD
GND
GND
DT0
TCLK0
VDDINT
TFS0
DR0
RCLK0
RFS0
VDDEXT
DT1
TCLK1
TFS1
DR1
RCLK1
RFS1
BMODE0
BMODE1
BYPASS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
40
DVD-3800
XC2S30-5VQ100C (MA: IC711)
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
GND
TMS
YDATA<7>
YDATA<6>
YDATA<5>
YDATA<4>
YDATA<3>
YDATA<2>
YDATA<1>
YDATA<0>
GND
VCCO
NC
VCCINT
CDATA<9>
CDATA<8>
CDATA<7>
CDATA<6>
CDATA<5>
CDATA<4>
CDATA<3>
CDATA<2>
M1
GND
M0
CCLK
NC
DIN
YOUT<7>
YOUT<8>
YOUT<9>
COUT<0>
COUT<1>
COUT<2>
COUT<3>
COUT<4>
GND
VCCO
DELAYHSYNC
VCCINT
DELAYVSYNC
DELAYBLANK
NC
COUT<5>
COUT<6>
COUT<7>
COUT<8>
COUT<9>
INIT-
NC
VCCO
NC(TDO)
GND
NC(TDI)
YOUT<6>
YOUT<5>
YOUT<4>
YOUT<3>
YOUT<2>
VCCINT
YOUT<1>
YOUT<0>
NC
GND
VCCO
CLOCK
VCCINT
BYPASS
VCCINT
GRAYBITS<0>
GRAYBITS<1>
YDATA<9>
YDATA<8>
NC(TCK)
VCCO
VCCO
DONE
GND
NC
NC
NC
NC
NC
VCCINT
RESET
BLANK
NC
GND
VCCO
NC
VCCINT
VSYNC
VCCINT
HSYNC
CDATA<0>
CDATA<1>
NC
NC
M2
VCCO
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
41
DVD-3800
W986416DH (MA: IC103)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
25
24
23
22
VCC
VCCQ
DQ0
VSSQ
DQ2
VSSQ
DQ6
VCCQ
DQ4
BS0
BS1
A10/AP
A0
DQ1
DQ5
VCC
LDQM
Vcc
WE
CAS
RAS
CS
DQ7
DQ3
26
27
A1
A2
VSS
VssQ
DQ15
VCCQ
DQ13
VCCQ
DQ9
VSSQ
DQ11
A9
A8
A7
A6
A5
DQ14
DQ10
VSS
NC
UDQM
CLK
CKE
NC
A11
DQ8
DQ12
A4
Vss
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
30
31
32
33
29
28
A3
1, 14, 27
VCC
Power (+3.3V)
Power for input buffers and logic circuit inside DRAM.
2, 4, 5, 7, 8, 10,
11, 13, 42, 44,
DQ0-DQ15
Data Input/Output
Multiplexed pins for data output and input.
45, 47, 48, 50,
51, 53
3, 9, 43, 49
VCCQ
Power (+3.3V) for I/O buffer
Separated power from VCC, to improve DQ noise immunity.
6, 12, 46, 52
VSSQ
Ground for I/O buffer
Separated ground from VSS, to improve DQ noise immunity.
16
WE
Write Enable
Referred to RAS.
17
CAS
Column Address Strobe
Referred to RAS.
18
RAS
Row Address Strobe
Command input. When sampled at the rising edge of the clock RAS, CAS
and WE define the operation to be executed.
19
CS
Chip Select
Disable or enable the command decoder. When command decoder is
disabled, new command is ignored and previous operation continues.
20, 21
BS0, BS1
Bank Select
Select bank to activate during row address latch time, or bank to read/write
during address latch time.
23~26, 22
Multiplexed pins for row and column address. Row address: A0-A11.
29~35
A0-A11
Address
Column address: A0-A7. A10 is sampled during a precharge command to
determine if all banks are to be precharged or bank selected by BS0, BS1.
28, 41, 54
VSS
Ground
Ground for input buffers and logic circuit inside DRAM.
36, 40
NC
No Connection
No Connection
37
CKE
Clock Enable
CKE controls the clock activation and deactivation. When CKE is low,
Power Down mode, Suspend mode, or Self Refresh mode is entered.
38
CLK
Clock Inputs
System clock used to sample inputs on the rising edge of clock.
The output buffer is placed at Hi-Z (with latency of 2) when DQM is sampled
39, 15
UDQM, LDQM Input/Output mask
high in read cycle. In write cycle, sampling DQM high will block the write
operation with zero latency.
Description
Function
Pin No.
Pin Name
W986416DH Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
42
DVD-3800
Function
I/O
Pin No.
Pin Name
ADV7190 Terminal Function
1~16
P0-P15
I
8-Bit or 16-Bit 4:2:2 Multiplexed YCrCb Pixel Port. The LSB of the input data is set up on Pin P0.
17, 25, 29, 38,
43, 54, 63
VAA
P
Analog Power Supply (3.3V to 5V).
18, 24, 26, 33,
39, 42, 55, 64
AGND
G
Analog Ground.
19
HSYNC
I/O
HSYNC (Modes 1, 2, and 3) Control Signal. This pin may be configured to be an output
(Master Mode) or an input (Slave Mode) and accept Sync Signals.
20
VSYNC
I/O
VSYNC Control Signal. This pin may be configured as an output (Master Mode) or as an input
(Slave Mode) and accept VSYNC as a Control Signal.
21
BLANK
I/O
Video Blanking Control Signal. This signal is optional. For further information see Vertical
Blanking Data Insertion and BLANK Input section.
22
ALSB
I
TTL Address Input. This signal sets up the LSB of the MPU address.
23
TTXREQ
O
Teletext Data Request Output Signal, used to control teletext data transfer.
27
CLKIN
I
TTL Clock Input. Requires a stable 27 MHz reference clock for standard operation. Alternatively,
a 24.5454 MHz (NTSC) or 29.5 MHz (PAL) can be used for square pixel operation.
28
CLKOUT
O
Clock Output Pin.
30
SCL
I
MPU Port Serial Interface Clock Input.
31
SDA
I/O
MPU Port Serial Data Input/Output.
32
SCRESET/RTC/TR
I
Multifunctional Input: Real-Time Control (RTC) Input, Timing Reset Input,
Subcarrier Reset Input.
34
RSET2
I
A 1200 ohm resistor connected from this pin to ground is used to control full-scale amplitudes of
the Video Signals from DACs D, E, and F.
35
COMP 2
O
Compensation Pin for DACs D, E, and F. Connect a 0.1µF Capacitor from COMP2 to VAA.
36
DAC F
O
S-Video C/V/RED Analog Output. This DAC is capable of providing 4.33 mA output.
37
DAC E
O
S-Video Y/U/BLUE Analog Output. This DAC is capable of providing 4.33 mA output.
40
DAC D
O
Composite/Y/GREEN Analog Output. This DAC is capable of providing 4.33 mA output.
41
DAC C
O
S-Video C/V/RED Analog Output. This DAC is capable of providing 4.33 mA output.
44
DAC B
O
S-Video Y/U/BLUE Analog Output. This DAC is capable of providing 4.33 mA output.
45
DAC A
O
Composite/Y/GREEN Analog Output. This DAC is capable of providing 4.33 mA output.
46
COMP 1
O
Compensation Pin for DACs A, B, and C. Connect a 0.1µF Capacitor from COMP1 to VAA.
47
VREF
I/O
Voltage Reference Input for DACs or Voltage Reference Output (1.235V). An external VREF
cannot be used in 4x oversampling mode.
48
RSET1
I
A 1200 ohm resistor connected from this pin to ground is used to control full-scale amplitudes of
the Video Signals from DACs A, B, and C.
49
RESET
I
The input resets the on-chip timing generator and sets the ADV7190/ADV7191 into default
mode. See Appendix 8 for Default Register Settings.
50
CSO_HSO
O
Dual function CSO or HSO Output Sync Signal at TTL Level.
51
VSO/CLAMP
I/O
Multifunction Pin. VSO Output Sync Signal at TTL level. CLAMP TTL Output Signals can be
used to drive external circuitry to enable clamping of all Video Signals.
52
PAL_NTSC
I
Input signal to select PAL or NTSC mode of operation, pin set to Logic 1 selects PAL.
53, 57~62
NC
No Connect.
56
TTX
I
Teletext Data Input Pin.
ADV7190 (AV: IC601)
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
RESET
CSO_HSO
VSO/CLAMP
PAL_NTSC
NC
VAA
AGND
TTX
NC
NC
NC
NC
NC
NC
VAA
AGND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
P0
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
SCRESET/TRC/TR
SDA
SCL
VAA
CLKOUT
CLKIN
AGND
VAA
AGND
TTXREQ
ALSB
BLANK
VSYNC
HSYNC
AGND
VAA
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
RSET1
VREF
COMP 1
DAC A
DAC B
VAA
AGND
DAC C
DAC D
AGND
VAA
DAC E
DAC F
COMP 2
RSET2
AGND
TOP VIEW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
43
DVD-3800
DXP7001AF (AV: IC201)
1
11
12
22
23
33
34
44
DXP7001AF Terminal Function
Pin
No.
Pin Name
I/O
Description
1
MDT
Ip
Microcomputer Interface Data
2
MCK
Ip
Microcomputer Interface Clock
3
MLEN
Ip
Microcomputer Interface Latch Enable
4
RSTN
Ip
Reset Terminal
5
DLRCK
Ip
Audio Serial Input Data L/R Clock
6
VSS
�
Ground Terminal
7
DBCK
Ip
Audio Serial Input Bit Clock
8
DDT
Ip
Audio Serial Input Data
9
TEST2N
Ip
Test Setting Terminal 2 (Alpha-processor 1
Output shifts 12-bit.)
10
TEST3N
Ip
Test Setting Terminal 3 (Alpha-processor 2
Output stops.)
11
TEST4N
Ip
Test Setting Terminal 4 (Lambda-processor
Output stops.)
12
DFBCK
Ip
Lambda-processor Input Bit Clock
13
DFWCK
Ip
Lambda-processor Input Word Clock
14
DOL
Ip
Lambda-processor Input Data L-channel
15
DOR
Ip
Lambda-processor Input Data R-channel
16
LMOD
Ip
Lambda-processor Operation Mode Set
17
OMOD1
Ip
Output Mode Setting Terminal 1
18
OMOD2
Ip
Output Mode Setting Terminal 2
19
INVIN
Ip
Lambda-processor Input Reversed
Polarity Terminal
20
BCKO
O
Lambda-processor Output Bit Clock
21
WCKO
O
Lambda-processor Output Word Clock
22
WCKO2
O
Lambda-processor Output Word Clock 2
(for Canceling OFFSET on 1DAC
Pin
No.
Pin Name
I/O
Description
23
�P24L
O
�/Lambda-processor Lch 24th bit Output *1, *2
24
�P23L
O
�/Lambda-processor Lch 23rd bit Output *1, *2
25
�P22L
O
�/Lambda-processor Lch 22nd bit Output *1, *2
26
�P21L
O
�/Lambda-processor Lch 21st bit Output *1
27
�P20L
O
�/Lambda-processor Lch 20th bit Output *1
28
VDD
�
Power Supply Terminal
29
SO2L/P19L
O
Lambda-processor Lch(�) Output /19
th bit
Output *1
30
SO1L
O
Lambda-processor Lch(+) Output
31
SO1R
O
Lambda-processor Rch(+) Output
32
SO2R/P19R
O
Lambda-processor Rch(�) Output/19
th bit
Output *1
33
�P20R
O
�/Lambda-processor Rch 20th bit Output *1
34
�P21R
O
�/Lambda-processor Rch 21st bit Output *1, *2
35
�P22R
O
�/Lambda-processor Rch 22nd bit Output *1, *2
36
�P23R
O
�/Lambda-processor Rch 23rd bit Output *1, *2
37
�P24R
O
�/Lambda-processor Rch 24th bit Output *1, *2
38
TEST1N
Ip
Test Terminal 1 (Alpha-processor 1 stops)
39
CKSLN
Ip
System Clock Select (384fs system /
256fs system)
40
CKDV1
Ip
System Clock Divider Select Terminal 1
41
CKDV2
Ip
System Clock Divider Select Terminal 2
42
XTI
I
X-TAL Oscillator Input Terminal
43
XTO
O
X-TAL Oscillator Output Terminal
44
CKO
O
Clock Output Terminal
 (Ip = Input Terminal with pull-up)
*1: Outputted on OMOD1=L (18-bit Alternate Output or 20
-bit Parallel Output)
*2: Internal Signal is outputted on OMOD1=H (24-bit Alternate Output or 24
-bit Parallel Output) and one of TEST1N, TEST2N, TEST3N
or TEST4N is set to L.
OMOD1
L
H
L
18bit
Alternate
24bit
Alternate
OMOD2
H
20bit
Parallel
24bit
Parallel
CKDV1
L
H
192fs (CKSLN=H)
L
256fs (CKSLN=H)
768fs
192fs (CKSLN=H)
CKDV2
H
256fs (CKSLN=H)
384fs
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
44
DVD-3800
PCM1738-1 (AV: IC206, 209, 212)
20
10
7
6
5
4
3
2
1
8
9
30
11
18
16
15
14
13
12
32
31
19
27
28
24
25
21
22
23
26
17
FG2
FG
H1H
H1L
H2H
H2L
H3H
H3L
VHB
EC
ECR
BMS
START
GND
CS1
CS2
A32
A31
A22
A21
A12
A11
VM2
VM1
VLP
VPUMP
BC1
BC2
BC3
BC4
VDD
Hall
Bias
X5
CSOUT
SRESET
PWMOUT
VCL
VT
OSC
Hall Amp
Matrix
Pre-Driver
Start/Stop
Logic Circuit
Booster
Thermal
Protect
Divider
3ø Bridge
Direction
SW
AN8471SA (MA: IC503)
1
VHB
Hall bias pin
2
H3L
Hall element 3 input (-)
3
H3H
Hall element 3 input (+)
4
H2L
Hall element 2 input (-)
5
H2H
Hall element 2 input (+)
6
H1L
Hall element 1 input (-)
7
H1H
Hall element 1 input (+)
8
EC
Torque command input pin
9
ECR
Torque command ref. input pin
10
FG1
FG signal lout put pin (0.C)
11
START
Start/Stop switching pin
12
VPUMP
Booster pin
13
BC1
Booster cap. connecting pin 1
14
BC2
Torque command input pin 2
15
BC3
Torque command input pin 3
16
BC4
Torque command input pin 4
17
GND
GND pin
18
VDD
Power pin
19
VM2
Motor power pin 2
20
FG2
3x FG signal output pin (0.C)
21
A31
Drive output 3
22
A32
Drive output 3
23
CS2
Current detect pin 2
24
A21
Drive output 2
25
A22
Drive output 2
26
CS1
Current detect pin 1
27
A11
Drive output 1
28
A12
Drive output 1
29
NC
N.C.
30
BMS
Brake mode switching pin
31
VM1
Motor power pin 1
32
VLP
Pre-driver lower power
1
16
32
17
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
RST
ZEROL
ZEROR
LRCK
DATA
BCK
SCKI
DGND
VDD
SCKO
MDO
MDI
MC
CS
VCC3
AGND2
IOUTL�
IOUTL+
VCC2
VCC1
VCOM3
IREF
VCOM2
VCOM1
AGND1
IOUTR+
IOUTR�
MUTE
1
RST
I
Reset (1)
2
ZEROL
O
Zero-flag for Lch
3
ZEROR
O
Zero-flag for Rch
Normal mode: L/R clock (fs) input (1)
4
LRCK
I
Ext. DF mode: WDCK clock input
DSD mode: GND connection
5
DATA
I
Normal mode: Serial audio data input (1)
Ext. DF & DSD mode: Lch audio data input
6
BCK
I
Normal mode: Bit clock input (1)
DSD mode: GND connection
7
SCKI
I
Normal mode: System clock input (1)
DSD mode: BCK (64fs) clock input
8
DGND

Digital GND
9
VDD

Digital power +3.3V
10
SCKO
O
System clock output
11
MDO
O
Function control register serial data output (2)
12
MDI
I
Function control register serial data input (1)
13
MC
I
Function control register shift clock (1)
14
CS
I
Mode control chip select and latch signal (1)
15
MUTE
I
Normal mode: Analog output mute control (1)
Ext. DF & DSD mode: Rch audio data input
16
LOUTR−
O
Rch analog current output (−)
17
LOUTR+
O
Rch analog current output (+)
18
AGND1

Analog GND
19
VCOM1

Internal bias de-coupling pin
20
VCOM2

Common mode voltage of I/V
21
IREF

Output current reference bias pin
22
VCOM3

Internal bias de-coupling pin
23
VCC1

Analog power +5.0V
24
VCC2

Analog power +5.0V
25
IOUTL+
O
Lch analog current output (+)
26
IOUTL−
O
Lch analog current output (−)
27
AGND2

Analog GND
28
VCC3

Analog power +5.0V
Pin Name
Function
Pin No.
I/O
PCM1738-1 Terminal Function
Note:  (1) Schmitt trigger input, 5V input possible (2) Tri-state output
Pin Name
Function
Pin No.
AN8471SA Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
45
DVD-3800
SM8701BM (MA: IC109)
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
MLEN/R2
P/S
VDD
GND
XTO
XTI
GNDP
VDDP
VDD3
MO
MCK/R1
MDT/R0
RSTN
SO3
VDDO
GNDO
SO2
SO4
SO1
MON
14
13
12
11
Control signal input.
1
MLEN/R2
Ip1 In serial mode: latch enable signal
In parallel mode: sampling rate select signal
2
P/S
Ip1 Mode select signal.
LOW: serial mode, HIGH: parallel mode
3
VDD

5V supply (Digital block)
4
GND

Ground (Digital block)
5
XTO
O
Reference signal crystal oscillator element connection
6
XTI
I
Reference signal crystal oscillator element connection
or external clock input
7
GNDP

Ground (PLL block)
8
VDDP

5V supply (PLL block)
9
VDD3

3.3V supply (output buffer)
10
MO
O
27 MHz fixed-frequency output
11
MON
O
27 MHz fixed-frequency output (inverted)
12
SO1
O
33.8688 MHz fixed-frequency output
13
SO4
O
768fs output
14
SO2
O
256fs output
15
GNDO

Ground (output buffer)
16
VDDO

3.3V supply (output buffer)
17
SO3
O
384fs output
18
RSTN
Ip2 LOW-level reset input
Control signal input.
19
MDT/R0
Ip1 In serial mode: control data input signal
In parallel mode: sampling frequency select signal
Control signal input.
20
MCK/R1
Ip1 In serial mode: clock signal
In parallel mode: sampling frequency select signal
Pin Name
Function
Pin No.
I/O
SM8701BM Terminal Function
Note: 1. Schmitt trigger input with pull-down resistor
2. Schmitt trigger input with pull-up resistor
64M SDRAM (MA: IC702)
W986432AH
25~27, 60~66, 24
A0-A10
Address for row and column
22, 23
BS0, BS1
Bank Select to activate during row
address latch time
2, 4, 5, 7, 8, 10, 11 ,13,
31, 33, 34, 36, 37, 39,
40, 42, 45, 47, 48, 50,
DQ0-DQ31
Data Input / Output pins for data
51, 53, 54, 56, 74, 76,
77, 79, 80, 82, 83, 85
20
CS
Chip Selec to disable or enable the
command decoder
19
RAS
Row Address Strobe
18
CAS
Column Address Strobe
17
WE
Write Enable
16, 28, 59, 71
DQM0-DQM3 Input / Out put Mask
68
CLK
Clock Inputs
67
CKE
Clock Enable
1, 15, 29, 43
VCC
Power (+3.3V)
44, 58, 72, 86
VSS
Ground
3, 9, 35, 41, 49, 55,
VCCQ
Power (+3.3V) for I/O Buffer
75, 81
6, 12, 32, 38, 46, 52,
VSSQ
Ground for I/O Buffer
78, 84
14, 21, 30, 57, 69,
NC
No Connection
70, 73
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
25
24
23
22
VCC
VCCQ
DQ0
VSSQ
DQ2
VSSQ
DQ6
VCCQ
DQ4
NC
BS0
BS1
A10/AP
A0
DQ1
DQ5
NC
VCC
DQM0
WE
CAS
RAS
CS
DQ7
DQ3
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
A1
DQM2
A2
DQ16
NC
DQ20
DQ19
DQ18
DQ17
VCC
VCCQ
DQ21
DQ22
VCCQ
DQ23
VCC
VSSQ
VSSQ
VSS
VCCQ
DQ15
VCCQ
DQ13
VCCQ
DQ9
VSSQ
DQ11
A9
A8
A7
A6
A5
DQ14
DQ10
NC
VSS
DQM1
NC
NC
CLK
CKE
DQ8
DQ12
A4
DQM3
A3
DQ31
NC
DQ27
DQ28
DQ29
DQ30
VSS
VSSQ
DQ26
DQ25
VSSQ
DQ24
VSS
VCCQ
VCCQ
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
62
63
64
65
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
Pin Name
Function
Pin No.
W986432AH Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
46
DVD-3800
ML9207-01 (PD: IC101)
3~37
SEG1~35
O
FL display anode drive output pin
39~62
COM1~24
O
FL display grid drive output pin
1,2, 79, 80
AD1~4
O
FL display anode drive output pin
72~75
P1~4
O
General port output pin
71
VDD
VDD-GND: Power supply for logic block
38, 78
VDISP1~2

VDISP-VFL: Power supply for FL display drive
64
GND
For VDD and VDISP, apply from same power source
63, 76
VFL1~2
70
DA
I
Serial data input pin (positive logic)
69
CP
I
Shift clock input pin
68
CS
I
Chip select input pin
67
RESET
I
Reset input pin
65
OSC0
I
Pin for self-oscillation
66
OSC1
O
Pin Name
Function
Pin No.
I/O
ML9207-01 Terminal Function
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
COM23
COM24
VFL1
GND
OSC0
OSC1
RESET
CS
CP
DA
VDD
P1
P2
P3
P4
VFL2
NC
VDISP2
AD1
AD2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AD3
AD4
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
COM2
COM1
VDISP1
SEG35
SEG34
SEG33
SEG32
SEG31
SEG30
SEG29
SEG28
SEG27
SEG26
SEG25
SEG24
SEG23
SEG22
SEG21
SEG20
SEG19
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
COM22
COM21
COM20
COM19
COM18
COM17
COM16
COM15
COM14
COM13
COM12
COM11
COM10
COM9
COM8
COM7
COM6
COM5
COM4
COM3
28
27
26
25
24
23
22
21
20
19
18
17
16
15
1
2
3
4
5
�
7
�
9
10
11
12
13
14
MUTE
BIAS
VINTK
CTKerr1
CTKerr2
VINLD
PreGND
PVcc2
VNFTK
PGND
VOLD-
VOLD+
VOTK-
VOTK+
VINFC
CFCErr1
CFCErr2
VINSL+
VINSL-
VOSL
VNFFC
PreVcc
PVcc1
PGND
VOSL-
VOSL+
VOFC-
VOFC+
Terminal Function
Pin
No.
Name
Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
CFCerr1
CFCerr2
VINSL+
VINSL-
VOSL
VNFFC
PreVcc
PVcc1
PGND
VOSL-
VOSL+
VOFC-
VOFC+
Focus driver input
Cap.connecting pin for error amp filter
Cap.connecting pin for error amp filter
Op.amp input (+) for sled driver
Op.amp input (-) for sled driver
Op.amp output for sled driver
Focus driver feedback pin
Pre Vcc
Power Vcc of sled driver
Power GND of sled driver
Sled driver output(-)
Sled driver output(+)
Focus driver output(-)
Focus driver output(+)
15
16
17
18
19
20
21
22
23
24
25
26
27
28
VOTK+
VOTK-
VOLD+
PGND
VNFTK
PVcc1
PreGND
VINLD
CTKerr2
CTKerr1
VINTK
BIAS
Tracking driver output(+)
Tracking driver output(-)
Loading driver output(+)
Loading driver output(-)
Power GND
Tracking driver feedback pin
Power GND
Pre GND
Loading driver input
Cap.connecting pin for error amp filter
Cap.connecting pin for error amp filter
Tracking driver input
Bias input
Mute control pin
Pin
No.
Name
Function
VINFC
VOLD-
MUTE
BA5952AFP (MA: IC504)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
47
DVD-3800
SN74AHCT273PW
(MA: IC104, 105, 114)
S-24C02BFJ-TB (MA: IC106)
Truth Table
Input
Function
Output
D
CK
Q
CLR
L
H
H
H
X
L
H
X
L
L
H
Qn
X
Clear
�
�
No change
X: Don\'t Care
Terminal Function
Name
Function
A0
A1
A2
GND
SDA
TEST/WP
Address input
GND
Serial data input/output
Test, connect to GND
Pin No.
1
2
3
4
5
6
7
8
SCL
Vcc
Address input
Address input
Serial clock input
Power supply
1
2
3
4
8
7
6
5
A0
A1
NC
GND
Vcc
TEST/WP
SCL
SDA
1
2
3
4
5
6
7
8
10
9
20
19
18
17
16
15
14
13
12
11
CLR
Q1
D1
D2
Q2
Q3
D3
D4
Q4
GND
Vcc
Q8
D8
D7
Q7
Q6
D6
D5
Q5
CK
VCC
VCC
GND
A4
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
I/O0
I/O1
I/O2
I/O3
VCC
I/O4
I/O5
I/O6
I/O7
NC
NC
WE
RAS
NC
A0
A1
A2
I/O15
I/O14
I/O13
I/O12
GND
I/O11
I/O10
I/O9
I/O8
NC
LCAS
UCAS
OE
A8
A7
A6
A5
A3
Name
A0-A8
Function
I/O0-15
Address Inputs
Data Inputs/Outputs
WE
Write Enable
Output Enable
Row Address Strobe
Upper Column Address Strobe
OE
RAS
UCAS
LCAS
Lower Column Address Strobe
Vcc
Power
GND
Ground
NC
No Connection
Terminal Function
4M DRAM (SOJ)-35 (IC507, 509)
   IS41C16256
   M11B416256A
COM
NH
VEE
VCC
ch0
ch1
GND
ADR
TC4W53F (SC: IC855)
(Europe model only)
1
2
3
4
5
6
7
8
AT49LV1025 (MA: IC202)
7
8
9
10
11
12
13
14
15
16
17
39
38
37
36
35
34
33
32
31
30
29
18
19
20
21
22
23
24
25
26
27
6
5
4
3
2
1
44
43
42
41
40
I/O12
I/O11
I/O10
I/O9
I/O8
GND
NC
I/O7
I/O6
I/O5
I/O4
I/O3
I/O2
I/O 0
OE
NC
A2
A3
A4
A11
A10
A9
GND
NC
A8
A7
A6
A5
A12
I/O 13
I/O 14
I/O 15
CE
NC
NC
VCC
WE
NC
A15
A14
I/O1
A0
A1
A13
28
Pin Name
A0-A15
Function
Address Inputs
CE
Chip Enable
Output Enable
OE
NC
No Connection
Terminal Function
I/O0-I/O15
Data Inputs/Outputs
WE
Write Enable
TC74VHC157A (MA: IC113)
1
2
3
4
5
6
7
8
SELECT
1A
1B
1Y
2A
2B
2Y
GND
Vcc
ST
4A
4B
4Y
3A
3B
3Y
16
15
14
13
12
11
10
9
INPUTS
OUTPUTS
SELECT
A
B
ST
H
L
L
L
X
L
L
H
X
X
X
L
X: Don\'t Care
Y
L
L
H
L
X
L
H
X
L
H
H
H
X
TOP VIEW
1
3
5
Vref
Vcc
CTL
OUT
BA033LBSG (AV: IC205, 208, 211)
1
3
TOP
VIEW
2
5
4
2
GND
4
C
Over current protection
Over temperature protection
Terminal Function
Name
Function
GND
CTL
C
OUT
Ripple Improve
Output
Pin No.
1
2
3
4
5
Vcc
Ground
Power Save
Power
1
2
3
4
8
7
6
5
1A
1B
2Y
GND
Vcc
1Y
2B
2A
TC7W32F (MA: IC107)
MN1382-S (MA: IC203)
1
2
3
OUT
VDD
VSS
TOP VIEW
1
2
3
4
8
7
6
5
1A
3Y
2A
GND
Vcc
1Y
3A
2Y
TC7W14F (MA: IC111, 115, 116)
TOP VIEW
Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
48
DVD-3800
A11
A9
A8
A13
A14
A17
WE
VCC
RESET
A16
OE
A10
CE
I/O7
I/O6
I/O5
I/O4
I/O3
GND
I/O2
AT49LV002-70TC (MA: IC210)
1
2
3
4
5
6
7
8
10
9
32
31
30
29
28
27
26
25
24
23
A15
A12
A7
A6
A5
A4
I/O1
I/O0
A0
A1
A2
A3
11
12
13
14
16
15
22
21
20
19
18
17
XC17S30AV08C (MA: IC712)
1
2
3
4
8
7
6
5
DATA
CLK
RESET/OE
CE
VCC
VCC
NC
GND
TC7WH157FU (MA: IC112)
1
2
3
4
8
7
6
5
A
B
Y
GND
VCC
ST
SELECT
Y
COLLECTOR
EMITTER
ANODE
CATHODE
TOP VIEW
PC123 (PD: IC902)
1
2
3
4
8
7
6
5
1A
3Y
2A
GND
Vcc
1Y
3A
2Y
TC7WU04F (MA: IC108, 110)
NJM2267M (SC: IC852)
(Europe model only)
1
2
3
4
5
6
7
8
GND
VSAG1
VOUT1
V+
VSAG2
VOUT2
VIN2
VIN1
TOP VIEW
STR-F6674 (PD: IC901)
3
2
1
4
5
Vin
Start
Reg.
O.V.P
DRV.REC=8.6V
Latch
T.S.D
DRV
Rg1
47ohm
Source
OCP/FB
Vth1=0.73±0.05V
OCP/FB comp.
Vth2=1.3~1.6V
Tth(min)=1� S
INH comp.
Iconst trm.
Drain
GND
TOFF=50� S typ.
4700pF
OSC
+
+
1.35mA
Rg2:
STR-F6632   360ohm
STR-F6672   180ohm
Rg2
O.C.P./F.B.
D
FRONT
VIEW
VIN
GND
S
BA15218F (MA: IC510)
NJM2068DD (AV: IC407, 408)
NJM2068MD (AV: IC301~308, 401~406)
NJM4558M (MA: IC502)
TK15420MTL (AV: IC701~707, 803, 804)
1
2
3
4
5
6
7
8
 OUT1
OUT2
+
1ch+
�
�
VCC
2ch
-IN1
+IN1
VEE
-IN2
+IN2
1
2
3
REFFERENCE
VOLTAGE
Vcc
GND
OUT
BA033FP (MA: IC302, 512)
BA18BC0FP (MA: IC710)
PQ070XZ01Z (MA: IC301, 303, 304, 709)
1
3
2
TOP
VIEW
123
3
TOP
VIEW
45
1
3
4
5
GND
DC output
(VO)
Output voltage
adjustment (VADJ)
Specific IC
2
DC input
(VIN)
On/Off control
(VO)
SE005N (PD: IC903)
1
FRONT
VIEW
2 3
1
2
3
GND
Vout
C
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
49
DVD-3800
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1A
1Y
2A
2Y
3A
3Y
GND
Vcc
6A
6Y
5A
5Y
4A
4Y
SN74LV04APW (MA: IC208, 213)
TC74HCT04AF (AV: IC219, 506)
TC74HCU04AF (AV: IC216)
BA7660FS (SC: IC856)
(Europe model only)
GND
MUTE
INA
GND
INB
GND
N.C.
INC
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VCC
OUTA1
OUTA2
OUTB1
OUTB2
N.C.
OUTC1
OUTC2
6dB
Y1 1
2
3
4
5
6
7
14
13
12
11
10
9
8
15
16
Y0
Z1
Z
Z0
Inhibit
VEE
GND
VCC
Y
X
X1
X0
A
B
C
Y1
Y0
Z1
Z
Z0
Inhibit
Y
X
X1
X0
A
B
C
TC4053BF (AV: IC801, 802)
                   (SC: IC851~854, 858)
                   (Europe model only)
PQ1CG21H2FZ (PD: IC905)
VIN
VOUT
COM
FRONT
VIEW
OADJ
ON/OFF
TC74HCT7007AF (MA: IC206, 209)
1
2
3
4
5
6
7
14
13
12
11
10
9
8
1A
1Y
2A
2Y
3A
3Y
GND
Vcc
6A
6Y
5A
5Y
4A
4Y
SN74LV74APW (AV: IC215)
2Q
2Q
2PR
2CK
2D
2CLR
8
9
10
11
12
13
14 VCC
CK
PR
CLR
D
Q
Q
CK
CLR
PR
D
Q
Q
TC74VHC123AF (AV: IC602, 708)
15
1
2
3
4
5
6
7
8
5
16
14
13
12
11
10
9
CLR
Q
Q
CLR
1A
1B
1CLR
1Q
2Q
2Cx
2Rx/Cx
GND
Vcc
1Rx/Cx
1Cx
1Q
2Q
2CLR
2B
2A
Q
Q
BA033T (PD: IC904)
NJM7805FA(S) (AV: IC204, 207,
                                      210, 951)
NJM7812FA(S) (AV: IC953)
FRONT
VIEW
Input
GND
Output
NJM7905FA (AV: IC952)
NJM7912FA (AV: IC954)
FRONT
VIEW
Common
Input
Output
GND
1Q
1Q
1PR
1CK
1D
7
6
5
4
3
2
1
1CLR
SELECT
1A
1B
1Y
2A
2B
2Y
GND
VCC
STROBE
4A
4B
4Y
3A
3B
3Y
INPUTS
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
S
3Y
1A
1B
1Y
2A
2B
2Y
G
4A
4B
4Y
3A
3B
OUTPUT
INPUTS
OUTPUT
INPUTS
OUTPUT
INPUTS
OUTPUT
SN74LV157APW (AV: IC214)
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
VDD
C1+
VCC
C1-
C5+
C5-
DIN1
DIN2
ROUT1
ROUT2
C4+
GND
C4-
VSS
STBY
VCHA
DOUT1
DOUT2
RIN1
RIN2
14
13
12
11
� PD4721GS (PD: IC511)
300ohm
5.5kohm
5.5kohm
1
2
3
4
5
6
7
14
13
12
11
10
9
8
IN/OUT1
OUT/IN1
CONT2
VDD
CONT1
IN/OUT4
OUT/IN4
IN/OUT2
OUT/IN2
CONT3
VSS
CONT4
OUT/IN3
IN/OUT3
74VHC4066MTC (MA: IC506)
75ohm
6dB
75ohm
6dB
75ohm
300ohm
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
50
DVD-3800
�
 OTHERS
GP1UM271XK (Remote Control Sensor)
(PD: IC103)
GND
VCC VOUT
Head
Amp
BPF
Integrator
TOP VIEW
VOUT
VCC
GND
Limiter
Amp
Detector &
Comparator
Hysteresis
Comparator
1
4
5
8
2
3
4
5
6
7
8
1
IN
ABLC
C1
C2 GND fo N.C.
OUT Vcc
Detector &
Comparator
Integrator
TOP
VIEW
CXA1511M (PD: IC510)
Head
Amp
Limiter
Amp
BPF
BEF
Hysteresis
Comparator
VIN
VCC
GND
VCC
VIN
GND
DRIVE
IC
FRONT VIEW
LED
�
 OPTICAL
Output
GP1FA551TZ (AV: JK503)
RL
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
51
DVD-3800
�
 TRANSISTORS
2SA1022
2SA1036K (Europe model only)
2SB709A
2SC2411K (Europe model only)
2SC2412K
2SD601A
KTC2875B
DTA114EK
DTA124EK
DTC114EK
DTC124TK (Europe model only)
DTC143EK
DTC143TK
DTC144EK (Europe model only)
DTC144TK (Europe model only)
B
C
E
R1
R2
B
C
E
R1
R2
DTA114EK
DTA124EK
DTC114EK
DTC124TK
DTC143EK
DTC143TK
DTC144EK
DTC144TK
2SC1740S
2SD468
TOP
VIEW
E
B
C
DTA114EK
DTA124EK
R1
10kohm
R2
22kohm
10kohm
22kohm
FRONT
VIEW
B
C
E
TOP
VIEW
E
B
C
C
2SB1260
�
 DIODES (Including LED)
TOP VIEW
1SS355
RB161L-40
1
2
3
6
5
4
TOP VIEW
4           Source
3           Gate
1,2,5,6  Drain
1 2
3
4
5 6
D D D D
G
S
HAT2053M
2SB1266
2SB1274
2SD1902
FRONT
VIEW
E
C
B
DTC114EK
R1
10kohm
R2
10kohm
DTC143EK
4.7kohm
DTC124TK
22kohm
1SR139-400
AG01ZT(V1)
AL01ZT(V1)
EM01AT(V1)
RJ43 LF015-305
RK39 LF-C4
SARS01T(V1)
HZS4C-1
TOP VIEW
TOP VIEW
SEL1210S (Red)
SELU1E10CXM-002 (Blue)
4
TOP
VIEW
5
6
3
2
1
(4)
(5)
(6)
(3)
(2)
(1)
R1
R2
DTr1
DTr2
R2
R1
10k
10k
10k
10k
MA152WK
(Europe model only)
TOP VIEW
TOP VIEW
MA152A
(Europe model only)
RB411D
TOP VIEW
SEL2810A (Amber)
TOP VIEW
SIDE VIEW
TOP VIEW
S4VB20
TOP VIEW
DTC143TK
4.7kohm
4.7kohm
DTC144TK
47kohm
DTC144EK
47kohm
47kohm
IMD3A
TOP VIEW
UDZS12B
UDZS13B
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
52
DVD-3800
PIN NO.
CONNECTION

1
F
-

2
N
X

3
N
P

4
N
P

5
P
1

6
P
2

7
P
3

8
P
4

9
P
5
1
0
P
6
1
1
P
7
1
2
P
8
1
3
P
9
1
4
P
1
0
1
5
P
1
1
1
6
P
1
2
1
7
P
1
3
1
8
P
1
4
1
9
P
1
5
2
0
P
1
6
2
1
P
1
7
2
2
P
1
8
2
3
P
1
9
2
4
P
2
0
2
5
P
2
1
2
6
P
2
2
2
7
P
2
3
2
8
P
2
4
2
9
P
2
5
3
0
P
2
6
3
1
P
2
7
3
2
P
2
8
3
3
P
2
9
3
4
P
3
0
3
5
P
3
1
3
6
P
3
2
3
7
P
3
3
3
8
P
3
4
3
9
P
3
5
4
0
N
C
N
C
N
C
N
C
N
C
N
C
4
1
4
2
4
3
4
4
4
5
4
6
1
7
G
4
7
1
6
G
4
8
1
5
G
4
9
1
4
G
5
0
1
3
G
PIN NO.
CONNECTION
5
1
1
2
G
5
2
1
1
G
5
3
1
0
G
5
4

9
G
5
5
8
G
5
6
7
G
5
7
6
G
5
8
5
G
5
9
4
G
6
0
3
G
6
1
2
G
6
2
1
G
6
3
N
P
6
4
N
P
6
5
N
X
6
6
F
+
1-1
1-2
1-3
1-4
1-5
1-6
1-7
2-1
2-2
2-3
2-4
2-5
2-6
2-7
3-1
3-2
3-3
3-4
3-5
3-6
3-7
4-1
4-2
4-3
4-4
4-5
4-6
4-7
5-1
5-2
5-3
5-4
5-5
5-6
5-7
[13G~1G]
13G
12G 11G 10G
9G
8G
7G
6G
5G
4G
3G
2G
1G
16G
15G
14G
1
66
P1
17G
16G
15G
14G
13G~1G
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
17G
16G
15G
14G
13G~1G
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
P31
P32
P33
P34
P35
PIN CONNECTION
GRID ASSIGNMENT
ANODE CONNECTION
NOTE 1) F-,F+ ----------  Filament
2) NP -------------  No pin
3) NX -------------  No extend pin
4) DL  ------------  Datum line
5) 1G~17G -----  Grid
6) Visual Field -- Upper 22.6° min.
7) NC ------------  No connection
(NC pin should be electorically open on the PC board)
1-1
2-1
3-1
4-1
5-1
1-2
2-2
3-2
4-2
5-2
1-3
2-3
3-3
4-3
5-3
1-4
2-4
3-4
4-4
5-4
1-5
2-5
3-5
4-5
5-5
1-6
2-6
3-6
4-6
5-6
1-7
2-7
3-7
4-7
5-7
COLOR ILLUMINATION
Reddish Orange ----- Above pattern         part
Green ------------------ Other
FL DISPLAY 17-ST-04GNK (FL101)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
1
1
7
8
14
1
1
1
1
1
7
8
14
36
37
72
73
108
109
144
25
26
50
51
75
76
100
36
37
72
73
108
109
144
44
45
88
89
132
133
176
32
33
64
65
96
97
128
7
8
14
1
1 4
5
8
1
10
11
20
1
10
11
20
1
10
11
20
1
8
9
16
1
10
11
20
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
1
43
44
86
4
5
8
1
14
15
28
1
4
5
8
1
6
1
17
1
5
1
6
1
1
30
3
26
27
1
2
2
1
12
13
1
1
1
21
21
14
COMPONENT SIDE
PRINTED WIRING BOARD
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
53
GU-3389A MAIN P.W.B. UNIT Ass\'y
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
1
1
1
1
1
1
1
1
1
24
25
48
52
53
104
105
156
157
208
4
5
8
1
4
5
8
16
17
32
27
28
54
8
9
16
16
17
32
33
48
49
64
1
5
25
26
50
51
75
76
100
1
5
1
1
1
1
24
1
1
1
1
1
1
15
1
1
20
21
40
4
5
8
1
6
7
17
18
28
29
39
40
16
17
32
7
8
14
11
12
24
25
36
37
48
25
26
50
51
75
76
100
20
21
40
20
21
40
41
60
61
80
14
15
28
5
52
53
104
105
156
157
208
FOIL SIDE
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
54
GU-3389A MAIN P.W.B. UNIT Ass\'y
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
1
7
8
14
1
7
8
14
1
2
30
29
1
3
1
1
1
7
8
14
1
7
8
14
8
9
14
11
12
22
23
33
34
44
1
14
15
28
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
14
15
28
1
14
15
28
1
7
8
9
1
3
1
5
1
2
1
2
12
13
27
26
1
4
5
8
1
4
5
8
1
16
9
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
4
5
8
1
16
17
32
33
48
49
64
1
10
1
1
3
6
COMPONENT SIDE
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
55
GU-3438 AUDIO/VIDEO P.W.B. UNIT Ass\'y
GU-3438-1 AUDIO P.W.B.
GU-3438-2 VIDEO P.W.B.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
FOIL SIDE
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
56
GU-3438 AUDIO/VIDEO P.W.B. UNIT Ass\'y
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
1
4
1
1
2
1
1
2
2
20
21
1
3
14
1
2
1
2
20
21
COMPONENT SIDE
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
57
GU-3439 POWER/DISPLAY P.W.B. UNIT Ass\'y
GU-3439-2 DISPLAY P.W.B.
GU-3439-3 LED P.W.B.
GU-3439-5 P.SW P.W.B.
GU-3439-6 I/F P.W.B.
GU-3439-6 SW P.W.B.
GU-3439-1 DIGI. POWER P.W.B.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
1
10
11
20
1
4
5
8
1
20
21
40
41
60
61
80
FOIL SIDE
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
58
GU-3439 POWER/DISPLAY P.W.B. UNIT Ass\'y
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
1
10
1
4
5
8
1
4
5
8
1
8
9
16
1
8
9
16
1
8
9
16
1
8
9
16
1
8
9
16
1
8
9
16
COMPONENT SIDE
FOIL SIDE
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
59
GU-3442 SCART P.W.B. UNIT Ass\'y (Europe model only)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
60
DVD-3800
t
t
t
t
lllll Resistors
Ex.:
RN
14K
2E
182
G
FR
Type Shape
Power Resist- Allowable Others
and per-
ance
error
formance
t
t
t
t
s
s
s
s
 Resistance
1    8
2
⇒
1800 ohm = 1.8 kohm
Indicates number of zeros after effective number.
2-digit effective number.
• Units: ohm
1    R
2
⇒
1.2 ohm
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: ohm
lllll Capacitors
Ex.:
CE
04W
1H
2R2
M
BP
Type
Shape
Dielectric Capacity Allowable Others
and per- strength
error
formance
s
s
s
s
s
s
 Capacity (electrolyte only)
2    2
2
⇒
2200µF
Indicates number of zeros after effective number.
2-digit effective number.
• Units: µF.
2    R
2
⇒
2.2µF
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: µF.
 Capacity (except electrolyte)
2    2
2
⇒
2200pF=0.0022µF
(More than 2)
Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
2    2
1
⇒
220pF
(0 or 1)
Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
• When the dielectric strength is  indicated in AC, "AC" is included after the dieelectric
strength value.
s
s
NOTE FOR PARTS LIST
l Part indicated with the mark "�" are not always in stock and possibly to take a long period of time for supplying, or in
some case supplying of part may be refused.
l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying.
l Ordering part without stating its part number can not be supplied.
l Part indicated with the mark " " is not illustrated in the exploded view.
l Not including Carbon Film ±5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol

 have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
RD : Carbon
2B : 1/8W
F
: ±1%
P
: Pulse-resistant type
RC : Composition
2E : 1/4W
G
: ±2%
NL : Low noise type
RS : Metal oxide film
2H : 1/2W
J
: ±5%
NB : Non-burning type
RW : Winding
3A : 1W
K
: ±10%
FR : Fuse-resistor
RN : Metal film
3D : 2W
M
: ±20%
F
: Lead wire forming
RK : Metal mixture
3F : 3W
3H : 5W
CE : Aluminum foil
0J : 6.3V
F : ±1%
HS : High stability type
electrolytic
CA : Aluminum solid
1A : 10V
G : ±2%
BP : Non-polar type
electrolytic
CS : Tantalum electrolytic
1C : 16V
J : ±5%
HR: Ripple-resistant type
CQ : Film
1E : 25V
K : ±10%
DL : For change and discharge
CK : Ceramic
1V : 35V
M : ±20%
HF : For assuring high
requency
CC : Ceramic
1H : 50V
Z : +80%
U
: UL part
CP : Oil
2A : 100V
–20%
C
: CSA part
CM : Mica
2B : 125V
P : +100%
W : UL-CSA type
CF : Metallized
2C : 160V
–0%
F
: Lead wire forming
CH : Metallized
2D : 200V
C : ±0.25pF
2E : 250V
D : ±0.5pF
2H : 500V
= : Others
2J : 630V
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
61
DVD-3800
PARTS LIST OF P.W.B. UNIT ASS\'Y
GU-3389A MAIN P.W.B. UNIT
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
SEMICONDUCTORS GROUP
IC101
262 3051 007 IC  ES6038
IC102
GEN 6094
ROM sub Ass’y
MX29LV160BTC-90
IC103
262 3119 004 IC  W986416DH-7
IC104,105
262 2801 902 IC  SN74AHCT273PW-EL2
IC106
262 3053 908 IC  S-24C02BFJ-TB
IC107
262 2391 904 IC  TC7W32F(TE12L)
IC108
262 1953 903 IC  TC7WU04F
IC109
262 3052 909 IC  SM8701BM
IC110
262 1953 903 IC  TC7WU04F
IC111
262 2104 900 IC  TC7W14F
IC112
262 3046 902 IC  TC7WH157FU
IC113
262 3129 900 IC  TC74VHC157AF-EL
IC114
262 2801 902 IC  SN74AHCT273PW-EL2
IC115,116
262 2104 900 IC  TC7W14F
IC201
262 3054 004 IC  MN102H460B
IC202
GEN 6093
ROM sub Ass’y
AT49LV1025-70JC
IC203
262 1647 905 IC  MN1382-S(TX)
IC206
262 2376 903 IC  TC74HCT7007AF(TP1)
IC207
262 3121 005 IC  ADSPMEL322
IC208
262 2515 900 IC  SN74LV04APW-EL2
IC209
262 2376 903 IC  TC74HCT7007AF(TP1)
IC210
GEN 6074
Bass M.ROM sub Ass’y
AT49LV002-70TC
IC301
263 1110 901 IC  PQ070XZ01ZP
IC302
263 1079 903 IC  BA033FP
IC303,304
263 1110 901 IC  PQ070XZ01ZP
IC501
262 2802 008 IC  TA1293F
IC502
263 0425 901 IC  NJM4558M (TAPE)
IC503
263 1109 909 IC  AN8471SA
IC504
263 1080 905 IC  BA5952AFP
IC505
262 2803 007 IC  TC9453F
IC506
262 2892 908 IC  74VHC4066MTC
IC507
262 2877 907 IC  4M DRAM(SOJ)-35
IC508
262 2798 002 IC  TC9469BF
IC509
262 2877 907 IC  4M DRAM(SOJ)-35
IC510
263 0615 902 IC  BA15218F-DXE2
IC511
GEN 6100
DRV ROM sub Ass’y
TMP95FY64F
IC512
263 1079 903 IC  BA033FP
IC701
262 3058 000 IC  SII504CM208
IC702
262 2916 004 IC  64M SDRAM(TSOP)
IC703
262 3059 902 IC  PIC18LC242-I/SO TAPE
IC706
262 3050 008 IC  ADV7300
IC708
262 1348 903 IC  TC74HC123AF(TP1)
IC709
263 1110 901 IC  PQ070XZ01ZP
IC710
262 2977 904 IC  BA18BC0FP-E2
IC711
262 3126 000 IC  XC2S30-5VQ100C
IC712
262 3127 009 IC  XC17S30AV08C(SQZ)
TR501,502
272 0156 902 Transistor  2SB1260-Q
TR503-505
269 0091 906 Transistor  DTC143TKT96
TR506
274 0154 007 Transistor  2SD1902(R,S)
TR507
272 0110 003 Transistor  2SB1266(R,S)
TR509
269 0171 907 Transistor  IMD3A-T108
TR707
271 0293 901 Transistor  2SA1022-B
TR708,709
272 0125 904 Transistor  2SB709A
D201
276 0717 903 Diode  1SS355 TE-17
D301-303
276 0717 903 Diode  1SS355 TE-17
D501,502
276 0717 903 Diode  1SS355 TE-17
D701
276 0717 903 Diode  1SS355 TE-17
RESISTORS GROUP
R101
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R102-105
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R106
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R107,108
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R109
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R111
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R113
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R116-118
247 2009 941 Carbon chip 6.8 kohm 1/16W
RM73B--682JT
R119
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R120-125
247 2009 941 Carbon chip 6.8 kohm 1/16W
RM73B--682JT
R126
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R127-130
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R131
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R132
247 2006 944 Carbon chip 390 ohm 1/16W
RM73B--391JT
R133
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R135-137
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R143
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R144
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R145,146
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R147,148
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R150,151
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R152-155
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R157
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R158
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R159
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R160
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R163
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R164
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R166,167
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R169-174
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R177-179
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R180-185
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R186,187
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R189-191
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
Note : The symbols in the column “Remarks” indicate the following destinations.
E3 : U.S.A. & Canada model
E2 : Europe model
E1 : Asia model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
62
DVD-3800
R201
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R202
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R203
247 2008 984 Carbon chip 3.9 kohm 1/16W
RM73B--392JT
R205
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R207
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R209
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R211
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R231
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R233,234
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R235
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R236
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R237
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R238-242
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R243
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R244,245
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R247,248
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R250,251
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R253
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R254-264
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R266
247 2007 969 Carbon chip 1.2 kohm 1/16W
RM73B--122JT
R301
247 2007 972 Carbon chip 1.3 kohm 1/16W
RM73B--132JT
R302
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R303
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R304
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R305-307
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R308
247 2010 927 Carbon chip 15 kohm 1/16W
RM73B--153JT
R309-313
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R501
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R502
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R503
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R504
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R505,506
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R507
247 2012 925 Carbon chip 100 kohm 1/16W RM73B--104JT
R508
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R510
247 2012 925 Carbon chip 100 kohm 1/16W RM73B--104JT
R511,512
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R513,514
247 2005 958 Carbon chip 160 ohm 1/16W
RM73B--161JT
R515,516
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R517
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R518,519
247 2005 958 Carbon chip 160 ohm 1/16W
RM73B--161JT
R520,521
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R522
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R523
247 2004 988 Carbon chip 82 ohm 1/16W
RM73B--820JT
R524
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R525
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R526,527
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R528-530
247 2018 916 Carbon chip 1 ohm 1/16W
RM73B--010KT
R531
247 2010 972 Carbon chip 24 kohm 1/16W
RM73B--243JT
R532,533
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R534
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
R535
247 2018 916 Carbon chip 1 ohm 1/16W
RM73B--010KT
R536
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R537-540
247 2018 916 Carbon chip 1 ohm 1/16W
RM73B--010KT
R541,542
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R543-545
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R546
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R547
247 2006 902 Carbon chip 330 ohm 1/16W
RM73B--331JT (1608)
R548
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R549
247 2013 982 Carbon chip 470 kohm 1/16W RM73B--474JT
R550
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R551,552
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R553-557
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R558
247 2012 996 Carbon chip 200 kohm 1/16W RM73B--204JT
R559
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R560
247 2009 941 Carbon chip 6.8 kohm 1/16W
RM73B--682JT
R561,562
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R563
247 2010 985 Carbon chip 27 kohm 1/16W
RM73B--273JT
R564
247 2011 968 Carbon chip 56 kohm 1/16W
RM73B--563JT
R565,566
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R568
247 2013 924 Carbon chip 270 kohm 1/16W RM73B--274JT
R571
247 2012 970 Carbon chip 160 kohm 1/16W RM73B--164JT
R573
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R574
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R575
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R576
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R577
247 2010 998 Carbon chip 30 kohm 1/16W
RM73B--303JT
R578
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R579-585
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R586
247 2008 968 Carbon chip 3.3 kohm 1/16W
RM73B--332JT
R587
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R589-594
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R596
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R604
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R613-617
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R618
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R619,620
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R625,626
247 2012 941 Carbon chip 120 kohm 1/16W RM73B--124JT
R627
247 2009 954 Carbon chip 7.5 kohm 1/16W
RM73B--752JT
R628
247 2010 927 Carbon chip 15 kohm 1/16W
RM73B--153JT
R629
247 2011 997 Carbon chip 75 kohm 1/16W
RM73B--753JT
R630
247 2010 914 Carbon chip 13 kohm 1/16W
RM73B--133JT
R631
244 2050 904 Metal oxide 22 ohm 1W(NB)
RS14B3A220JNBST(S)
R632
244 2052 960 Metal oxide 220 ohm 1W(NB) RS14B3A221JNBST(S)
R633
244 2051 945 Metal oxide 1 ohm 1W(NB)
RS14B3A010JNBST(S)
R634
244 2052 960 Metal oxide 220 ohm 1W(NB) RS14B3A221JNBST(S)
R637
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R638
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R640
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R648
247 2011 900 Carbon chip 33 kohm 1/16W
RM73B--333JT
R649
247 2005 961 Carbon chip 180 ohm 1/16W
RM73B--181JT
R650
247 2010 969 Carbon chip 22 kohm 1/16W
RM73B--223JT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
63
DVD-3800
R651-653
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R656-664
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R668
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R671-674
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R675
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R679
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R680
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R681-685
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R686
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R702-704
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R705
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R709
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R710
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R712
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R713
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R714,715
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R716
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R722-724
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R733
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R734
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R735
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R736,737
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R738-741
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R743,744
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R745
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R746,747
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R748
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R749
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R750
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R751,752
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R753
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R754,755
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R757
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R759-762
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R766-768
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R769
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R770
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R771
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R774
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R777,778
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R783
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R784
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R785
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R786
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R787
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R788
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R789
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R790
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R791
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R794
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R795
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
R796
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R798
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R799
247 2007 985 Carbon chip 1.5 kohm 1/16W
RM73B--152JT
R800-802
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R815,816
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R821,822
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R823
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R827
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R828
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R832-834
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R838
247 2007 985 Carbon chip 1.5 kohm 1/16W
RM73B--152JT
R839-841
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R844
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R845
247 2007 901 Carbon chip 680 ohm 1/16W
RM73B--681JT
R846
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R847-850
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R851
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R860-862
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R863
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R880,881
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
RA101-103
247 9002 909 Chip network 33 ohm 1/16W
MNR14=330JE0AB
RA104
247 9002 912 Chip network 6.8 kohm 1/16W MNR14=682JEOAB
RA105,106
247 9002 909 Chip network 33 ohm 1/16W
MNR14=330JE0AB
RA107-109
247 9002 912 Chip network 6.8 kohm 1/16W MNR14=682JEOAB
RA597-600
247 9002 909 Chip network 33 ohm 1/16W
MNR14=330JE0AB
RA621-624
247 9002 912 Chip network 6.8 kohm 1/16W MNR14=682JEOAB
RA642,643
247 9002 912 Chip network 6.8 kohm 1/16W MNR14=682JEOAB
RA701-704
247 9002 909 Chip network 33 ohm 1/16W
MNR14=330JE0AB
RA710-715
247 9002 909 Chip network 33 ohm 1/16W
MNR14=330JE0AB
VR708-710
211 6148 906 Semi fixed resistor 470 ohm
V03PB471MT(RH03ADCS)
CAPACITORS GROUP
C101
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C102
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C103
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C104
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C105,106
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C108-110
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C111
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C112-122
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C123
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C124
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C125
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C126-131
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C132
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
64
DVD-3800
C133
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C134
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C135-141
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C142
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C143
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C144
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C145
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C146
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C147
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C148
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C149
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C150,151
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C152
257 0502 997 Ceramic chip 7pF/50V
CC73CH1H7R0DT
C153
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C154
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C155
257 0502 997 Ceramic chip 7pF/50V
CC73CH1H7R0DT
C156
254 4465 918 Electrolytic 47uF/16V
CE67C1C470MT
C159
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C160,161
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C162
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C163
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C164
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C165
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C166,167
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C168
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C169
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C170
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C171
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C172
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C173
257 0503 967 Ceramic chip 15pF/50V
CC73CH1H150JT
C174
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C175
257 0503 941 Ceramic chip 12pF/50V
CC73CH1H120JT
C176
254 4465 918 Electrolytic 47uF/16V
CE67C1C470MT
C177
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C178,179
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C180
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C181
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C201
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C202-207
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C208
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C209
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C210
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C211
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C212
257 0503 967 Ceramic chip 15pF/50V
CC73CH1H150JT
C213
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C214
257 0503 967 Ceramic chip 15pF/50V
CC73CH1H150JT
C215
254 4465 918 Electrolytic 47uF/16V
CE67C1C470MT
C216
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C229,230
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C231-233
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C234,235
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
C241,242
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C243
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C244
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C245-253
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C254
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C255,256
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C257
257 0504 924 Ceramic chip 27pF/50V
CC73CH1H270JT
C258
257 0504 940 Ceramic chip 33pF/50V
CC73CH1H330JT
C259-261
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C301
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C302,303
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C304
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C305,306
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C307
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C326-329
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C501
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C503
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C504-506
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C507,508
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C509
257 0503 925 Ceramic chip 10pF/50V
CC73CH1H100DT
C510
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C511
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C512
257 2010 937 Electrolytic 22uF/10V
CS77B1A220MT
C513,514
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C515-517
257 0507 976 Ceramic chip 330pF/50V
CC73CH1H331JT
C519
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C522
257 0503 925 Ceramic chip 10pF/50V
CC73CH1H100DT
C523
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C524
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C526
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C527
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C528,529
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C530,531
257 0510 934 Ceramic chip 4700pF/50V
CK73B1H472KT
C532
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C533
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C534
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C535
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C536,537
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C538
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C539,540
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C544,545
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C546
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C547
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C548
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C549
257 4010 906 Electrolytic 100uF/16V
CE67C1C101MT
C550
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C552
257 0516 909 Ceramic chip 0.022uF/25V
CK73B1E223KT
C553
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C554
257 0506 977 Ceramic chip 120pF/50V
CC73CH1H121JT
C555,556
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
65
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
C557
257 0506 977 Ceramic chip 120pF/50V
CC73CH1H121JT
C560
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C562
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C563
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C564
257 0501 927 Ceramic chip 0.015uF/50V
CK73B1H153KT
C565-569
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C570
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C571-573
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C574
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C575-577
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C578
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C579
257 0510 918 Ceramic chip 3300pF/50V
CK73B1H332KT
C580
257 0501 927 Ceramic chip 0.015uF/50V
CK73B1H153KT
C582-589
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C590,591
257 0507 976 Ceramic chip 330pF/50V
CC73CH1H331JT
C592
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C593
257 0510 950 Ceramic chip 6800pF/50V
CK73B1H682KT
C594
257 0509 945 Ceramic chip 1200pF/50V
CK73B1H122KT
C595
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C596
257 0506 951 Ceramic chip 100pF/50V
CC73CH1H101JT
C597
257 0509 990 Ceramic chip 2200pF/50V
CK73B1H222KT
C598
257 0509 945 Ceramic chip 1200pF/50V
CK73B1H122KT
C599-601
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C602
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C603-606
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C609-618
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C619
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C620-623
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C626-628
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C629
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C630-633
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C634
257 4010 906 Electrolytic 100uF/16V
CE67C1C101MT
C635,636
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C637
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C639
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C640
257 2010 937 Electrolytic 22uF/10V
CS77B1A220MT
C641
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C650
257 0506 951 Ceramic chip 100pF/50V
CC73CH1H101JT
C660-662
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C664
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C701
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C702
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C703
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C704-710
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C711
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C712,713
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C714
254 4533 921 Electrolytic 100uF/6.3V
CE04W0J101MT SMG/RE3
C715
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C716-720
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C721
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C722-730
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C731
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C732-735
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C736
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C737,738
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C741,742
257 0502 942 Ceramic chip 2pF/50V
CC73CH1H2R0CT
C743
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C744
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C745-748
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C750
254 4465 905 Electrolytic 22uF/16V
CE67C1C220MT
C751,752
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C756-758
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C759
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C760
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C761
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C762,763
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C766,767
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C768-770
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C772
257 0507 934 Ceramic chip 220pF/50V
CC73CH1H221JT
C773
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C774,775
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C776
257 0510 921 Ceramic chip 3900pF/50V
CK73B1H392KT
C777
257 0509 903 Ceramic chip 820pF/50V
CK73B1H821KT
C778
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C779
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C782
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C783,784
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C785
254 4464 906 Electrolytic 100uF/6.3V
CE67C0J101MT
C786
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C797
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
66
DVD-3800
GU-3438 AUDIO/VIDEO P.W.B. UNIT
Ref. No.
Part No.
Part Name
Remarks
OTHER PARTS GROUP
CX031
205 0863 936 3P PH connector base (L)
1
CX051
205 0863 952 5P PH connector base (L)
1
CX061
205 1072 946 6P PH connector base
1
CX131
205 1170 932 13P FFC base (FMNBMTT)
1
CX141
205 1172 943 14P PH connector base (L)
1
CX151
205 1149 905 15P FFC base (52207)
1
CX171
205 1174 909 17P FFC base (FMNSMT)
1
CX211,212
205 1174 938 21P FFC base (FMNSMT)
2
CX241
205 1152 905 24P FFC base (FLZ-SM1)
1
CX272
205 1170 929 27P FFC base (FMNBMTT)
1
CY301
205 1174 941 30P FFC base (FMNSMT)
1
FB201-210
235 0130 903 Chip emifil (11A121)
10
FB211-216
247 2018 903 Carbon chip 0 ohm 1/16W
6
FB217-219
235 0130 903 Chip emifil (11A121)
3
FB225
235 0130 903 Chip emifil (11A121)
1
FB229
235 0130 903 Chip emifil (11A121)
1
FB233,234
235 0130 903 Chip emifil (11A121)
2
FB236-255
235 0130 903 Chip emifil (11A121)
20
FB501
235 0136 907 Beads inductor
FBMJ1608HS280NT
1
FB502-504
235 0130 903 Chip emifil (11A121)
3
FB505,506
235 0138 905 Beads inductor
FBMH3216MH501NT
2
FB507-509
235 0136 907 Beads inductor
FBMJ1608HS280NT
3
FB703,704
247 2018 903 Carbon chip 0 ohm 1/16W
2
FB705-708
235 0130 903 Chip emifil (11A121)
4
FB716-720
235 0130 903 Chip emifil (11A121)
5
FB721
247 2018 903 Carbon chip 0 ohm 1/16W
1
FB722,723
235 0130 903 Chip emifil (11A121)
2
FB724,725
247 2018 903 Carbon chip 0 ohm 1/16W
2
FB726-733
235 0130 903 Chip emifil (11A121)
8
L302
235 0048 901 Chip emifil
1
L704,705
235 0125 905 Inductor 22uH
2
L710,711
235 0125 905 Inductor 22uH
2
W702
203 0515 039 1P SIN connector cord
1
X101
399 0619 906 Crystal  27 MHz
1
X103
399 0807 909 Crystal  33.333 MHz
1
X201
399 0698 901 Ceramic  25.00 MHz
1
X202
399 0806 900 Crystal  12.288 MHz
1
X501
399 0697 902 Ceramic  22.57 MHz
1
X502
399 0699 900 Ceramic  50.00 MHz
1
X503
399 0698 901 Ceramic  25.00 MHz
1
X701
399 0706 903 Ceramic  20.00 MHz
1
001 0130 041 1P wire
3
461 0415 007 Rubber sheet
3
Ref. No.
Part No.
Part Name
Remarks
Q\'ty
SEMICONDUCTORS GROUP
IC201
262 2978 000 IC  DXP7001AF
IC204
263 0809 006 IC  NJM7805FA(S)
IC205
263 1136 901 IC  BA033LBSG-TR
IC206
262 3072 905 IC  PCM1738-1
IC207
263 0809 006 IC  NJM7805FA(S)
IC208
263 1136 901 IC  BA033LBSG-TR
IC209
262 3072 905 IC  PCM1738-1
IC210
263 0809 006 IC  NJM7805FA(S)
IC211
263 1136 901 IC  BA033LBSG-TR
IC212
262 3072 905 IC  PCM1738-1
IC213
262 2515 900 IC  SN74LV04APW-EL2
IC214
262 2669 908 IC  SN74LV157APW
IC215
262 2518 907 IC  SN74LV74APW-EL2
IC216
262 1205 907 IC  TC74HCU04AF(TP1)
IC219
262 1421 901 IC  TC74HCT04AF(TAPE1)
IC301-308
263 0896 909 IC  NJM2068MD-T1
IC401-406
263 0896 909 IC  NJM2068MD-T1
IC407,408
263 0609 002 IC  NJM2068DDC
IC506
262 1421 901 IC  TC74HCT04AF(TAPE1)
IC601
262 3093 007 IC  ADV7190
IC602
262 1348 903 IC  TC74HC123AF(TP1)
IC701-707
263 1082 903 IC  TK15420MTL
IC801,802
262 0707 901 IC  TC4053BF (TAPE)
for E2
IC803,804
263 1082 903 IC  TK15420MTL
for E2
IC951
263 0809 006 IC  NJM7805FA(S)
IC952
263 0554 005 IC  NJM7905FA
IC953
263 0801 004 IC  NJM7812FA(S)
IC954
263 0641 002 IC  NJM7912FA
TR217
273 0384 900 Transistor  2SC2412KT96(S)
TR218
269 0083 901 Transistor  DTA114EKT96
TR219
269 0119 901
Transistor  DTA124EKT96(TAPE)
TR220
269 0082 902 Transistor  DTC114EKT96
TR226,227
269 0082 902 Transistor  DTC114EKT96
TR305-308
273 0460 905 Transistor  KTC2875B-RTK
TR401-410
273 0460 905 Transistor  KTC2875B-RTK
TR411
269 0119 901
Transistor  DTA124EKT96(TAPE)
TR412
269 0082 902 Transistor  DTC114EKT96
TR413-420
273 0460 905 Transistor  KTC2875B-RTK
TR421-424
273 0460 905 Transistor  KTC2875B-RTK
for E2
TR425
269 0119 901
Transistor  DTA124EKT96(TAPE)
TR426
269 0082 902 Transistor  DTC114EKT96
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
67
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
TR601
274 0163 904 Transistor  2SD601A
TR602
272 0125 904 Transistor  2SB709A
TR603
274 0163 904 Transistor  2SD601A
TR604
272 0125 904 Transistor  2SB709A
TR605
271 0293 901 Transistor  2SA1022-B
TR606
272 0125 904 Transistor  2SB709A
TR607
271 0293 901 Transistor  2SA1022-B
TR608,609
272 0125 904 Transistor  2SB709A
TR633
273 0460 905 Transistor  KTC2875B-RTK
TR701-705
272 0125 904 Transistor  2SB709A
TR706
271 0293 901 Transistor  2SA1022-B
TR707,708
272 0125 904 Transistor  2SB709A
TR709,710
274 0163 904 Transistor  2SD601A
TR715-717
274 0163 904 Transistor  2SD601A
TR801,802
269 0048 904 Transistor  DTC143EK-T96
TR807,808
274 0163 904 Transistor  2SD601A
for E2
D202,203
276 0717 903 Diode  1SS355 TE-17
D206,207
276 0717 903 Diode  1SS355 TE-17
D601-604
276 0717 903 Diode  1SS355 TE-17
D801,802
276 0717 903 Diode  1SS355 TE-17
D952
276 0305 001 Diode  S4VB20
D953-956
276 0765 900
Diode  1SR139-400
RESISTORS GROUP
R202
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R203-207
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R208-211
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R215
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R219
247 2013 940 Carbon chip 330 kohm 1/16W RM73B--334JT
R221
247 2004 933 Carbon chip 51 ohm 1/16W
RM73B--510JT
R222
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R223
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R224
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R226
247 2006 902 Carbon chip 330 ohm 1/16W
RM73B--331JT (1608)
R227,228
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R230-234
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R235
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R238
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R239,240
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R241
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R242
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R243
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R244
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R245,246
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R248
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R252
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R254
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R255
247 2010 930 Carbon chip 16 kohm 1/16W
RM73B--163JT
R261
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R263
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R264
247 2010 930 Carbon chip 16 kohm 1/16W
RM73B--163JT
R270
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R272
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R273
247 2010 930 Carbon chip 16 kohm 1/16W
RM73B--163JT
R276
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R278
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R279
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R281
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R285-287
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R288,289
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R290
244 2051 974 Metal oxide 1 kohm 1W(NB)
RS14B3A102JNBST(S)
R292
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R293,294
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R295
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R297
247 2004 991 Carbon chip 91 ohm 1/16W
RM73B--910JT
R298-300
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R301
247 2007 930 Carbon chip 910 ohm 1/16W
RM73B--911JT
R302
247 2006 999 Carbon chip 620 ohm 1/16W
RM73B--621JT
R303
247 2007 930 Carbon chip 910 ohm 1/16W
RM73B--911JT
R304-316
247 2006 999 Carbon chip 620 ohm 1/16W
RM73B--621JT
R317-320
247 2008 913 Carbon chip 2 kohm 1/16W
RM73B--202JT
R321-336
247 2006 999 Carbon chip 620 ohm 1/16W
RM73B--621JT
R337,338
247 2008 913 Carbon chip 2 kohm 1/16W
RM73B--202JT
R342
247 2004 920 Carbon chip 47 ohm 1/16W
RM73B--470JT
R345,346
247 2008 913 Carbon chip 2 kohm 1/16W
RM73B--202JT
R349-352
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R439,440
241 2420 946 Carbon film 150 ohm 1/4W
RD14B2E151JT(PSNB)
R441,442
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
R443,444
241 2420 946 Carbon film 150 ohm 1/4W
RD14B2E151JT(PSNB)
R445,446
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
R453,454
241 2420 946 Carbon film 150 ohm 1/4W
RD14B2E151JT(PSNB)
R455,456
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
R457,458
241 2420 946 Carbon film 150 ohm 1/4W
RD14B2E151JT(PSNB)
R459,460
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
R461
244 2051 932 Metal oxide 3.3 kohm 1W(NB) RS14B3A332JNBST(S)
R462
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R465,466
247 2010 998 Carbon chip 30 kohm 1/16W
RM73B--303JT
R467,468
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R469,470
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
R471,472
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R473,474
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
R475,476
247 2010 998 Carbon chip 30 kohm 1/16W
RM73B--303JT
R477,478
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R479,480
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
R481,482
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R483,484
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
68
DVD-3800
R487,488
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT, for E2
R491,492
247 2008 942 Carbon chip 2.7 kohm 1/16W
RM73B--272JT, for E2
R493
244 2051 932 Metal oxide 3.3 kohm 1W(NB) RS14B3A332JNBST(S)
R494
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R495-500
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R517
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT
R518
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R519
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R520
247 2004 975 Carbon chip 75 ohm 1/16W
RM73B--750JT
R522
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R601,602
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R603,604
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R606,607
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R608,609
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--330JT
R610,611
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R612-615
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R621
247 2007 969 Carbon chip 1.2 kohm 1/16W
RM73B--122JT
R623
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R624
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R627,628
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R630
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R632
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R633,634
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R635-637
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R638,639
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R640-642
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R643
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R644
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R645
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R646
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R647
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R648
247 2008 913 Carbon chip 2 kohm 1/16W
RM73B--202JT
R649
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R650
247 2005 987 Carbon chip 220 ohm 1/16W
RM73B--221JT
R651-655
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R659,660
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R661-665
247 2003 989 Carbon chip 33 ohm 1/16W
RM73B--103JT
R666-670
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R701
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R702
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R703
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R704
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R705
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R706
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R707
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R708
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R709
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R710
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R711
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R712
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R713
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R716,717
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R718,719
247 2007 927 Carbon chip 820 ohm 1/16W
RM73B--821JT
R720
247 2005 974 Carbon chip 200 ohm 1/16W
RM73B--201JT
R723
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R724
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R725
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R726
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R727
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R728
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R729
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R730,731
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R732
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R733
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R734
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R735
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R736
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R737
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R738
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R739
247 2006 986 Carbon chip 560 ohm 1/16W
RM73B--561JT
R740
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R741
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R742
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R743
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R746
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R747,748
247 2008 926 Carbon chip 2.2 kohm 1/16W
RM73B--222JT
R749
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R750
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R751,752
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R753
247 2005 974 Carbon chip 200 ohm 1/16W
RM73B--201JT
R755
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R756
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R757,758
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R760
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R761
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R762,763
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R764
247 2004 962 Carbon chip 68 ohm 1/16W
RM73B--680JT
R765,766
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R782
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R785,786
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R787,788
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R789
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R790
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R791-793
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R794,795
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R796
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R797
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R798,799
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R803,804
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT, for E2
R806
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT, for E2
R808
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT, for E2
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
69
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
C248,249
254 4313 921 Electrolytic 22uF/50V
CE04W1H220MT(ASF)
C250
257 3006 924 Metalized chip 0.01uF/16V
CF73=1C103JT(ECHUB5)
C251
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C253,254
254 4313 798 Electrolytic 220uF/50V
CE04W1H221MC(ASF)
C256
254 4313 934 Electrolytic 47uF/50V
CE04W1H470MT(ASF)
C257
254 4313 921 Electrolytic 22uF/50V
CE04W1H220MT(ASF)
C258
257 3012 921 Metalized chip 0.01uF/50V
CF73=1H103JT(ECHUB5)
C259,260
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C261,262
254 4313 921 Electrolytic 22uF/50V
CE04W1H220MT(ASF)
C263
257 3006 924 Metalized chip 0.01uF/16V
CF73=1C103JT(ECHUB5)
C264
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C266,267
254 4313 798 Electrolytic 220uF/50V
CE04W1H221MC(ASF)
C269
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C270
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C271
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C272
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C273
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C274
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C275
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C276
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C277,278
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C279,280
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C281
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C282
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C283
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C293
254 4319 750 Electrolytic 470uF/25V
CE04W1E471MC(ASF)
C301
255 4232 940 Mylar film 1800pF/100V
CQ93P2A182JT(NH)
C302
255 4237 903 Mylar film 2700pF/100V
CQ93P2A272JT(NH)
C303
255 4232 940 Mylar film 1800pF/100V
CQ93P2A182JT(NH)
C304
255 4237 903 Mylar film 2700pF/100V
CQ93P2A272JT(NH)
C305,306
255 4232 953 Mylar film 4700pF/100V
CQ93P2A472JT(NH)
C307-310
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C311-314
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C315-318
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
C319-322
255 4237 903 Mylar film 2700pF/100V
CQ93P2A272JT(NH)
C323,324
255 4232 953 Mylar film 4700pF/100V
CQ93P2A472JT(NH)
C325-328
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C329-332
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C333-336
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
C341-344
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C349-352
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C353-356
254 4598 908 Electrolytic 22uF/50V
CE04W1H220MTBP(ASF)
C357-360
257 0503 925 Ceramic chip 10pF/50V
CC73CH1H100DT
C407-410
255 4232 940 Mylar film 1800pF/100V
CQ93P2A182JT(NH)
C411-414
255 4235 918 Mylar film 100pF/100V
CQ93P2A101JT(NH)
C415-418
257 3011 948 Metalized chip 2200pF/50V
CF73=1H222JT(ECHUB5)
C419,420
255 4237 945 Mylar film 1200pF/100V
CQ93P2A122JT(NH)
C421,422
254 4598 908 Electrolytic 22uF/50V
CE04W1H220MTBP(ASF)
C423,424
257 0503 925 Ceramic chip 10pF/50V
CC73CH1H100DT
C425,426
254 4347 751 Electrolytic 2.2uF/50V
CE04W1H2R2MC(ARSA)
R811,812
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R813,814
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT
R815
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R816-819
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R820-825
247 2004 975 Carbon chip 75 ohm 1/16W
RM73B--750JT
R826-839
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R840-842
247 2004 975 Carbon chip 75 ohm 1/16W
RM73B--750JT
R843-849
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R867
247 2014 965 Carbon chip 1 Mohm 1/16W
RM73B--105JT, for E2
R868,869
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT, for E2
R870
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT, for E2
R871-874
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT, for E2
R876,877
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT, for E2
R878,879
247 2007 969 Carbon chip 1.2 kohm 1/16W
RM73B--122JT
R881,882
247 2005 974 Carbon chip 200 ohm 1/16W
RM73B--201JT, for E2
R951
244 2051 974 Metal oxide 1 kohm 1W(NB)
RS14B3A102JNBST(S)
R952
244 2043 940 Metal oxide 2.2 kohm 1W(NB) RS14B3A222JNBST(S)
RA601-604
247 9002 909 Chip network 33 ohm 1/16W
MNR14=330JE0AB
VR601
211 6138 903 Semi fixed resistor 1 kohm
V03PB102MT(RH03ADC)
VR602-604
211 6148 906 Semi fixed resistor 470 ohm
V03PB471MT(RH03ADCS)
CAPACITORS GROUP
C200
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C201,202
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C203
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C204
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C205
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C206,207
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C208
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C209
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C210
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C211
253 4536 925 Ceramic 12pF/50V
CC45SL1H120JT(DD-3)
C212-214
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C215
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C216-218
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
C219,220
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C221,222
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C230
254 4313 934 Electrolytic 47uF/50V
CE04W1H470MT(ASF)
C231
254 4313 921 Electrolytic 22uF/50V
CE04W1H220MT(ASF)
C232
257 3012 921 Metalized chip 0.01uF/50V
CF73=1H103JT(ECHUB5)
C233,234
255 4235 934 Mylar film 0.01uF/100V
CQ93P2A103JT(NH)
C235,236
254 4313 921 Electrolytic 22uF/50V
CE04W1H220MT(ASF)
C237
255 4235 934 Mylar film 0.01uF/100V
CQ93P2A103JT(NH)
C238
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C240,241
254 4313 798 Electrolytic 220uF/50V
CE04W1H221MC(ASF)
C243
254 4313 934 Electrolytic 47uF/50V
CE04W1H470MT(ASF)
C244
254 4313 921 Electrolytic 22uF/50V
CE04W1H220MT(ASF)
C245
257 3012 921 Metalized chip 0.01uF/50V
CF73=1H103JT(ECHUB5)
C246,247
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
70
DVD-3800
C427,428
254 4356 713 Electrolytic 100uF/50V
CE04W1H101MC(ARS)
C431,432
255 4235 934 Mylar film 0.01uF/100V
CQ93P2A103JT(NH)
C433,434
254 4347 751 Electrolytic 2.2uF/50V
CE04W1H2R2MC(ARSA)
C435,436
254 4356 713 Electrolytic 100uF/50V
CE04W1H101MC(ARS)
C437,438
255 4235 989 Mylar film 470pF/100V
CQ93P2A471JT(NH)
C439,440
254 4347 751 Electrolytic 2.2uF/50V
CE04W1H2R2MC(ARSA)
C441,442
254 4356 713 Electrolytic 100uF/50V
CE04W1H101MC(ARS)
C445,446
255 4235 934 Mylar film 0.01uF/100V
CQ93P2A103JT(NH)
C447,448
254 4347 751 Electrolytic 2.2uF/50V
CE04W1H2R2MC(ARSA)
C449,450
254 4356 713 Electrolytic 100uF/50V
CE04W1H101MC(ARS)
C451,452
255 4235 989 Mylar film 470pF/100V
CQ93P2A471JT(NH)
C467-470
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
C473,474
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
C475,476
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C477,478
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
C479-481
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C482
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C483,484
257 0508 933 Ceramic chip 560pF/50V
CC73CH1H561JT, for E2
C485,486
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C524
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C525
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C526
254 4525 900 Electrolytic 33uF/50V
CE04W1H330MT SMG/RE3
C527
254 4524 985 Electrolytic 10uF/50V
CE04W1H100MT SMG/RE3
C528
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C533
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C534
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C535
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C536
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C537
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C538
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C601
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C602
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C605-608
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C609
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C610-614
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C615
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C616-618
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C619-622
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C623,624
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C625-629
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C630
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C631
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C632
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C701
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C704
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C705
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C706
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C709
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C710
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C711
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C714
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C715
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C717
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C720
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C723
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C724
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C727
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C730
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C731
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C732
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C735
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C738
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C739
254 4533 934 Electrolytic 220uF/6.3V
CE04W0J221MT SMG/RE3
C741
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C742
254 4538 939 Electrolytic 47uF/16V
CE04W1C470MT SMG/RE3
C743
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C744
254 4538 939 Electrolytic 47uF/16V
CE04W1C470MT SMG/RE3
C745
254 4533 921 Electrolytic 100uF/6.3V
CE04W0J101MT SMG/RE3
C747
257 0504 940 Ceramic chip 33pF/50V
CC73CH1H330JT
C748
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C749
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C750
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C751
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C752
254 4533 921 Electrolytic 100uF/6.3V
CE04W0J101MT SMG/RE3
C753
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C754
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C755
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C756
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C757
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C758
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C759
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C760
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C761,762
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C764
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C765
254 4538 939 Electrolytic 47uF/16V
CE04W1C470MT SMG/RE3
C766
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C767
254 4538 939 Electrolytic 47uF/16V
CE04W1C470MT SMG/RE3
C768
254 4533 921 Electrolytic 100uF/6.3V
CE04W0J101MT SMG/RE3
C769
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C770
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C771,772
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C773
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C774
254 4538 900 Electrolytic 10uF/16V
CE04W1C100MT SMG/RE3
C775
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C776
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C777
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
C778
254 4538 900 Electrolytic 10uF/16V
CE04W1C100MT SMG/RE3
C781-786
257 0504 982 Ceramic chip 47pF/50V
CC73CH1H470JT
C791-793
257 0504 982 Ceramic chip 47pF/50V
CC73CH1H470JT
C802-805
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT, for E2
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
71
DVD-3800
C807,808
254 4538 900 Electrolytic 10uF/16V
CE04W1C100MT SMG/RE3
for E2
C809
254 4538 939 Electrolytic 47uF/16V
CE04W1C470MT SMG/RE3
for E2
C810
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT, for E2
C811
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
for E2
C812,813
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT, for E2
C814
254 4538 939 Electrolytic 47uF/16V
CE04W1C470MT SMG/RE3
 for E2
C815
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT, for E2
C816
254 4538 913 Electrolytic 22uF/16V
CE04W1C220MT SMG/RE3
for E2
C820
257 0503 925 Ceramic chip 10pF/50V
CC73CH1H100DT
C823
257 0503 925 Ceramic chip 10pF/50V
CC73CH1H100DT
C825
254 4533 950 Electrolytic 470uF/6.3V
CE04W0J471MT SMG/RE3
for E2
C956
255 4235 934 Mylar film 0.01uF/100V
CQ93P2A103JT(NH)
C957
254 4599 703 Electrolytic 2200uF/16V
CE04W1C222MC (KMF)
C960
254 4599 703 Electrolytic 2200uF/16V
CE04W1C222MC (KMF)
C961
255 4235 934 Mylar film 0.01uF/100V
CQ93P2A103JT(NH)
C963
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C965
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C966
254 4368 947 Electrolytic 220uF/25V
CE04W1E221MT(ASF)
C968
254 4368 947 Electrolytic 220uF/25V
CE04W1E221MT(ASF)
C969,970
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C972,973
254 4543 704 Electrolytic 3300uF/50V
CE04W1H332MC(ARS)
C976,977
254 4356 742 Electrolytic 470uF/50V
CE04W1H471(ARS)
C980
255 4235 934 Mylar film 0.01uF/100V
CQ93P2A103JT(NH)
C983
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C984
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C985
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C986
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C987
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C989,990
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C991
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C992
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C993
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C994
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
Ref. No.
Part No.
Part Name
Remarks
OTHER PARTS GROUP
AS909,910
417 0476 010 Radiator
2
CX032
205 0653 036 3P VH connector base
1
CX036
205 0343 032 3P connector base (KR-PH)
1
CX062
205 0653 065 6P VH connector base
1
CX102
205 0375 000 10P connector base (KR-PH)
for E2
1
CX301
205 0892 075 30P FFC base (P=1)
1
CY032
205 0653 036 3P VH connector base
1
CY052
205 0343 058 5P connector base (KR-PH)
for E2
1
CY131
205 0892 088 13P FFC base
1
CY272
205 1100 083 27P FFC base (P=1)
1
FB201
235 0130 903 Chip emifil (11A121)
1
FB202-207
247 2018 903 Carbon chip 0 ohm 1/16W
6
FB208,209
235 0130 903 Chip emifil (11A121)
2
FB406,407
235 0130 903 Chip emifil (11A121)
2
FB511,512
235 0130 903 Chip emifil (11A121)
2
JK401
204 8632 014 8P pin jack (AU)
1
JK503
269 0187 001
Optical connector  GP1FA551TZ
1
JK505
204 8618 009 1P pin jack (AU)
1
JK701
204 8631 002 2P pin jack (AU)
1
JK702
204 8620 000 3P pin jack (AU)
1
JK704
204 8633 000 2P S-terminal (AU)
1
L601,602
235 0070 911 Inductor 22uH
2
L603
235 0125 905 Inductor 22uH
1
L604
235 0070 911 Inductor 22uH
1
L701-706
235 0070 911 Inductor 22uH
6
L707
235 0060 934 Inductor 47uH
1
LF701-703
261 0159 909 Filter  ELB4B584
3
LF705
261 0159 909 Filter  ELB4B584
1
LF706
261 0160 901 Filter  ELB4C572
1
LF804
261 0160 901 Filter  ELB4C572
1
RL701,702
214 0211 906 Relay  (EB2-5NU-L1)
2
T501
231 8063 009 Pulse trans.
1
001 0112 043 Vinyl wire
1
001 0130 041 1P wire
for E2
1
412 2160 015 Common plate
2
461 0415 007 Rubber sheet
17
471 3303 016 Screw 3x6 CBS-Z
2
Ref. No.
Part No.
Part Name
Remarks
Q\'ty
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
72
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
GU-3439 POWER/DISPLAY P.W.B. UNIT
SEMICONDUCTORS GROUP
IC101
262 3048 007 IC  ML9207-01GP
IC103
499 0303 004
Remote sensor  GP1UM271XK
IC510
262 2580 906 IC  CXA1511M
IC511
262 2114 903 IC  UPD4721GS-GJG
IC901
265 0112 003 IC  STR-F6674
IC902
262 3047 008 IC  PC123 Y-22
IC903
263 1113 005 IC  SE005N
IC904
263 1048 002 IC  BA033T
IC905
263 1114 004 IC  PQ1CG21H2FZ
TR101
269 0171 907 Transistor  IMD3A-T108
TR102,103
269 0082 902 Transistor  DTC114EKT96
TR501
269 0171 907 Transistor  IMD3A-T108
TR902
269 0082 902 Transistor  DTC114EKT96
TR903
272 0093 010 Transistor  2SB1274 (R/S)
TR904
273 0303 910 Transistor  2SC1740S(S)-T
TR905
269 0083 901 Transistor  DTA114EKT96
TR906
269 0082 902 Transistor  DTC114EKT96
TR907
275 0106 906 Transistor  HAT2053M(TAPE)
TR908,909
274 0036 905 Transistor  2SD468(C)TF
TR910,911
269 0083 901 Transistor  DTA114EKT96
TR912
274 0036 905 Transistor  2SD468(C)TF
D102-104
276 0717 903 Diode  1SS355 TE-17
D901-904
276 0729 904 Diode  EM01AT (V1)
D905
276 0730 906 Diode  AG01ZT (V1)
D906
276 0724 909 Diode  SARS01T (V1)
D907-909
276 0730 906 Diode  AG01ZT (V1)
D910
276 0725 704 Diode  RK39 LF-C4
D911
276 0726 703 Diode  RJ43 LF015-305
D912
276 0745 904 Diode  RB411DT146
D913,914
276 0727 906 Diode  AL01ZT (V1)
D916
276 0717 903 Diode  1SS355 TE-17
D917
276 0737 909 Diode  RB161L-40 (TAPE)
D922,923
276 0717 903 Diode  1SS355 TE-17
ZD901
276 0457 904 Zener diode  HZS4C-1TD
LD101
393 9623 908 LED  SEL2810A(TP7)
Amber
LD102
393 9576 903 LED  SELU1E10CXM-002
Blue
LD103
393 9504 904 LED  SEL1210S(TP7)
Red
TH901
279 0044 002 Thermistor  NTH11D8R0LA
RESISTORS GROUP
R101
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R102
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R103
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R104
247 2005 961 Carbon chip 180 ohm 1/16W
RM73B--181JT
R105
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R106
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R107
247 2005 961 Carbon chip 180 ohm 1/16W
RM73B--181JT
R108
247 2006 915 Carbon chip 270 ohm 1/16W
RM73B--271JT
R109
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R110
247 2009 967 Carbon chip 8.2 kohm 1/16W
RM73B--822JT
R116
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R118
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R120-122
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R175
244 2051 929 Metal oxide 820 ohm 1W(NB) RM73B--102JT
R176
244 2052 915 Metal oxide 1.8 kohm 1W(NB) RM73B--470JT
R177
244 2055 996 Metal oxide 1.2 kohm 1W(NB) RS14B3A122JNBST(S)
R178
247 2005 961 Carbon chip 180 ohm 1/16W
RM73B--181JT
R179
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R180
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R181
247 2008 984 Carbon chip 3.9 kohm 1/16W
RM73B--392JT
R529
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R534
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R542
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R544
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R545
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R546
247 2012 996 Carbon chip 200 kohm 1/16W RM73B--204JT
R547
244 2052 928 Metal oxide 47 ohm 1W(NB)
RS14B3A470JNBST(S)
R549-551
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R552
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R553
247 2011 926 Carbon chip 39 kohm 1/16W
RM73B--393JT
R554
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R555-557
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R559
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R561
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R563
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R572-574
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R578
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R580
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT, for E3
R581
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT, for E1
R582,583
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT, for E2,E1
R584
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT, for E2,E1
R585
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT, for E3,E2
R586,587
247 2011 942 Carbon chip 47 kohm 1/16W
RM73B--473JT, for E3
R901
244 2675 716 Metal oxide 68 kohm 2W(NB) RS14B3D683JNBF (ERG)
R902
244 2671 956 Metal oxide 0.47 ohm 2W(NB) RS14B3DR47JNBST(S)
R905
244 2675 729 Metal oxide 220 kohm 2W(NB) RS14B3D224JNBF (ERG)
R906
244 2675 703 Metal oxide 47 ohm 2W(NB)
RS14B3D470JNBF (ERG)
R913
244 2043 953 Metal oxide 470 ohm 1W(NB) RS14B3A471JNBST(S)
R920
244 2051 974 Metal oxide 1 kohm 1W(NB)
RS14B3A102JNBST(S)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
73
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
Ref. No.
Part No.
Part Name
Remarks
C905
254 4589 700 Electrolytic 47uF/400V
CE04W2G470MC (KMG)
for E2,E1
C905
254 4589 713 Electrolytic 100uF/400V
CE04W2G101MC(KMG)
for E3
C906
253 4546 711 Ceramic 220pF/2000V
CC45SL3D221JC
C907
253 4452 902 Ceramic 470pF/50V
CC45SL1H471JT
C908
253 9030 963 Ceramic 0.01uF/25V
CK45=1E103KT
C909
254 4522 945 Electrolytic 47uF/35V
CE04W1V470MT SMG/RE3
C910
253 8029 700 Ceramic 2200pF/250V(AC)
CK45F2EAC222MC (KX)
C911
253 8028 701 Ceramic 2200pF/1000V
CK45R3A222KC
C912
255 1249 923 Mylar film 680pF/50V
CQ93M1H681JT (B)
C913
254 4356 713 Electrolytic 100uF/50V
CE04W1H101MC(ARS)
C914
254 4592 700 Electrolytic 2200uF/6.3V
CE04W0J222MC K20(LXV
C915
254 4593 709 Electrolytic 1200uF/16V
CE04W1C122MC K20(LXJ
C916
254 4591 905 Electrolytic 100uF/50V
CE04W1H101MT (KMF)
C917
254 4593 709 Electrolytic 1200uF/16V
CE04W1C122MC K20(LXJ
C918
254 4591 905 Electrolytic 100uF/50V
CE04W1H101MT (KMF)
C919
256 1058 971 Metalized 0.1uF/50V
CF93A1H104JT (JL)
C920
254 4368 947 Electrolytic 220uF/25V
CE04W1E221MT(ASF)
C921
254 4524 985 Electrolytic 10uF/50V
CE04W1H100MT SMG/RE3
C922
253 8022 707 Ceramic 0.01uF/250V(AC)
CK45F2EAC103MC
C923
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C924
254 4538 942 Electrolytic 100uF/16V
CE04W1C101MT SMG/RE3
C925
254 4522 945 Electrolytic 47uF/35V
CE04W1V470MT SMG/RE3
C926
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C927
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C928
254 4585 908 Electrolytic 470uF/6.3V
CE04W0J471MT(LXV)
C929
254 4533 921 Electrolytic 100uF/6.3V
CE04W0J101MT SMG/RE3
C932,933
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C935
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C936
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C938
257 0512 903 Ceramic chip 0.1uF/25V
RM73B—103JT
C941
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C942
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C945,946
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C947
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C948
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C949
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C950
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
C964
254 4313 950 Electrolytic 100uF/50V
CE04W1H101MT(ASF)
R932
244 2052 999 Metal oxide 10 kohm 1W(NB) RS14B3A103JNBST(S)
R937
244 2064 929 Metal oxide 3.3 ohm 1W(NB)
RS14B3A3R3JNBST(S)
R991
247 2006 902 Carbon chip 330 ohm 1/16W
RM73B--331JT (1608)
R992
247 2018 916 Carbon chip 1 ohm 1/16W
RM73B--010KT
CAPACITORS GROUP
C101,102
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C106,107
257 0502 971 Ceramic chip 5pF/50V
CC73CH1H5R0CT
C108,109
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C110
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C111
254 4299 964 Electrolytic 47uF/16V
CE04W1C470MT(SRE)
C113
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C114
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C115
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C116,117
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C118
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C119
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C120
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C121
253 8022 707 Ceramic 0.01uF/250V(AC)
CK45F2EAC103MC
C122
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C501
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C502
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C503
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C504
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C505
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C507
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C508
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C509
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C510
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C511
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C566
257 0506 951 Ceramic chip 100pF/50V
CC73CH1H101JT
C567
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C568
254 4538 939 Electrolytic 47uF/16V
CE04W1C470MT SMG/RE3
C569
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C570
254 4524 943 Electrolytic 1uF/50V
CE04W1H010MT SMG/RE3
C571
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C573
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C574
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C575
257 0501 901 Ceramic chip 0.01uF/50V
CK73B1H103KT (1608)
C576-578
254 4524 901 Electrolytic 0.1uF/50V
CE04W1H0R1MT SMG/RE3
C579
254 4533 921 Electrolytic 100uF/6.3V
CE04W0J101MT SMG/RE3
C580
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C581,582
254 4524 901 Electrolytic 0.1uF/50V
CE04W1H0R1MT SMG/RE3
C585,586
257 0506 951 Ceramic chip 100pF/50V
CC73CH1H101JT
C588
257 0506 951 Ceramic chip 100pF/50V
CC73CH1H101JT
C589,590
257 0511 917 Ceramic chip 0.022uF/50V
CK73F1H223ZT
C591
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C592-594
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C901
256 8038 017 Metalized 0.22uF/250V
CF99--2EAC224M
C902
256 8038 004 Metalized 0.1uF/250V
CF99--2EAC104M
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
74
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
Q’ty
Ref. No.
Part No.
Part Name
Remarks
Q’ty
X101
399 0151 008 Crystal    4.332 MHz
1
203 5299 004 3P PH connector cord
for E2
1
415 0299 000 Condenser cover
for C121
1
417 0631 004 Heat sink
1
417 0632 003 Heat sink
1
461 1125 118 FL spacer
4
471 3305 027 Screw 3x10 CBS-B
1
473 7005 002 Screw 3x10 CBTS(S)-Z
1
OTHER PARTS GROUP
AS902
417 0610 009 Heat sink
1
CW041
203 6589 001 4P PH-SAN connector cord
1
CX024
205 0581 001 2P VH connector base
1
CX025
205 0581 056 2P VH connector base
1
CX026
205 1093 006 2P VH connector base
1
CX035
205 0355 033 3P KR connector base (L)
1
CX041
205 0343 045 4P connector base (KR-PH)
1
CY025
205 0581 056 2P VH connector base
1
CY035
205 0355 033 3P KR connector base (L)
1
CY036
205 0343 032 3P connector base (KR-PH)
1
CY141
205 0375 042 14P connector base (KR-PH)
1
CY171
205 1006 080 17P FFC base (P=1)
1
CY211,212
205 1006 022 21P FFC base (P=1)
2
F951
206 1087 002 Fuse ET0.63A
for E3
1
206 1015 058 Fuse 1.6A
for E2,E1
1
FB503-507
235 0130 903 Chip emifil (11A121)
5
FB519
235 0130 903 Chip emifil (11A121)
1
FB523-530
235 0130 903 Chip emifil (11A121)
8
FB753-756
235 0130 903 Chip emifil (11A121)
4
FF901
202 0040 909 Fuse clip
1
FH901
202 0040 909 Fuse clip
1
FL101
393 8060 009 FLT (17-ST-04GNK)
1
JK507,508
204 8612 005 Mini jack
2
JK509
205 1153 001 9P S SUB connector
1
L901
235 0141 002 Line filter (PLA10A)
1
L902
235 0142 917 Inductor 4.7uH
1
L903
239 8019 002 Line filter coil
1
L904
235 0140 906 Inductor 100uH
1
L907
235 0142 917 Inductor 4.7uH
1
L909
235 0142 917 Inductor 4.7uH
1
RL901
214 0202 009 Relay DG1U TV-8
1
S101-106
212 5604 910 Tact switch
6
S107
212 0389 007 Rotary switch
1
S108,109
212 5604 910 Tact switch
2
S120
212 1030 009 Power switch (TV-5)
1
ST901-903
205 0452 017 Style pin
3
T901
233 6403 007 Switching trans. (WIDE)
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
75
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
GU-3442 SCART P.W.B. UNIT
Ref. No.
Part No.
Part Name
Remarks
SEMICONDUCTORS GROUP
IC851-854
262 0707 901 IC  TC4053BF (TAPE)
IC855
262 1793 901 IC  TC4W53F
IC856
262 2534 907 IC  BA7660FS-E2
IC857
263 1115 906 IC  NJM2267M (T1)
IC858
262 0707 901 IC  TC4053BF (TAPE)
TR851,852
269 0054 901 Transistor  DTC144EKT96
TR853
269 0085 909 Transistor  DTC144TKT96
TR854,855
269 0054 901 Transistor  DTC144EKT96
TR856
269 0123 900 Transistor  DTC124TKT146
TR857
269 0119 901
Transistor  DTA124EKT96(TAPE)
TR858
269 0123 900 Transistor  DTC124TKT146
TR859
269 0119 901
Transistor  DTA124EKT96(TAPE)
TR860
271 0260 905
Transistor  2SA1036KT146(S/R)
TR861
273 0437 909 Transistor  2SC2411K-T146
TR862-864
269 0054 901 Transistor  DTC144EKT96
TR865
273 0437 909 Transistor  2SC2411K-T146
TR866
271 0260 905
Transistor  2SA1036KT146(S/R)
TR867
269 0054 901 Transistor  DTC144EKT96
TR868
271 0260 905
Transistor  2SA1036KT146(S/R)
TR869
273 0437 909 Transistor  2SC2411K-T146
TR870
269 0054 901 Transistor  DTC144EKT96
TR871
271 0260 905
Transistor  2SA1036KT146(S/R)
TR872
272 0125 904 Transistor  2SB709A
TR873
273 0437 909 Transistor  2SC2411K-T146
TR874
272 0125 904 Transistor  2SB709A
D851
276 0679 902 Diode  MA152A(TAPE)
D852
276 0628 908 Diode  MA152WK
D853
276 0679 902 Diode  MA152A(TAPE)
ZD851
276 0683 969 Diode  UDZS12B-TE17
ZD852
276 0683 972 Diode  UDZS13B-TE17
RESISTORS GROUP
R801-804
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R807
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R831
247 2007 943 Carbon chip 1 kohm 1/16W
RM73B--102JT
R832
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R833
247 2009 983 Carbon chip 10 kohm 1/16W
RM73B--103JT
R834,835
247 2008 968 Carbon chip 3.3 kohm 1/16W
RM73B--332JT
R836
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R837
247 2008 900 Carbon chip 1.8 kohm 1/16W
RM73B--182JT
R838
247 2008 968 Carbon chip 3.3 kohm 1/16W
RM73B--332JT
R839
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R840
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R841,842
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R843-847
247 2004 975 Carbon chip 75 ohm 1/16W
RM73B--750JT
R848,849
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R850
247 2008 968 Carbon chip 3.3 kohm 1/16W
RM73B--332JT
R851,852
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R853
247 2006 960 Carbon chip 470 ohm 1/16W
RM73B--471JT
R854,855
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R856
247 2005 958 Carbon chip 160 ohm 1/16W
RM73B--161JT
R857,858
247 2004 975 Carbon chip 75 ohm 1/16W
RM73B--750JT
R859,860
247 2006 902 Carbon chip 330 ohm 1/16W
RM73B--331JT (1608)
R861
247 2005 929 Carbon chip 120 ohm 1/16W
RM73B--121JT
R862
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R863
247 2005 903 Carbon chip 100 ohm 1/16W
RM73B--101JT
R864
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--151JT
R865
247 2005 929 Carbon chip 120 ohm 1/16W
RM73B--121JT
R866
247 2005 945 Carbon chip 150 ohm 1/16W
RM73B--102JT
R867
247 2011 900 Carbon chip 33 kohm 1/16W
RM73B--470JT
R868
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R869
247 2011 900 Carbon chip 33 kohm 1/16W
RM73B--333JT
R870
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R871
247 2011 900 Carbon chip 33 kohm 1/16W
RM73B--333JT
R872
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R873-875
247 2004 975 Carbon chip 75 ohm 1/16W
RM73B--750JT
R876
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R877,878
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R883
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R884
247 2008 968 Carbon chip 3.3 kohm 1/16W
RM73B--332JT
R885,886
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R887
247 2009 925 Carbon chip 5.6 kohm 1/16W
RM73B--562JT
R888-891
247 2008 968 Carbon chip 3.3 kohm 1/16W
RM73B--332JT
R892
247 2004 962 Carbon chip 68 ohm 1/16W
RM73B--680JT
R893,894
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
R895,896
247 2009 909 Carbon chip 4.7 kohm 1/16W
RM73B--472JT (1608)
R897-899
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
CAPACITORS GROUP
C801,802
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
C809
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C810
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C811
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C831
254 4299 964 Electrolytic 47uF/16V
CE04W1C470MT(SRE)
C832,833
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C834,835
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C836,837
257 0508 917 Ceramic chip 470pF/50V
CC73CH1H471JT
C838,839
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C841-844
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C845,846
257 0508 917 Ceramic chip 470pF/50V
CC73CH1H471JT
C847,848
257 0506 951 Ceramic chip 100pF/50V
CC73CH1H101JT
C851,852
257 0506 951 Ceramic chip 100pF/50V
CC73CH1H101JT
C853
254 4299 964 Electrolytic 47uF/16V
CE04W1C470MT(SRE)
C854,855
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C856-859
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C860,861
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C862
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C863
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C864,865
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C866-868
254 4299 964 Electrolytic 47uF/16V
CE04W1C470MT(SRE)
Note: Addition for Europe model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
76
DVD-3800
Ref. No.
Part No.
Part Name
Remarks
C869
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C870
254 4299 919 Electrolytic 22uF/16V
CE04W1C220MT(SRE)
C871
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C872
254 4299 919 Electrolytic 22uF/16V
CE04W1C220MT(SRE)
C873
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C874
254 4299 919 Electrolytic 22uF/16V
CE04W1C220MT(SRE)
C875
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C876
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
C877,878
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C879
257 0511 904 Ceramic chip 0.01uF/50V
CK73F1H103ZT
C880
257 0509 929 Ceramic chip 1000pF/50V
CK73B1H102KT
C890,891
247 2018 903 Carbon chip 0 ohm 1/16W
RM73B--0R0KT
C896,897
257 0512 903 Ceramic chip 0.1uF/25V
CK73F1E104ZT
C898,899
254 4300 963 Electrolytic 100uF/6.3V
CE04W0J101MT(SRE)
OTHER PARTS GROUP
Q\'ty
CX031
205 0355 033 3P KR connector base (L)
1
CX052
205 0355 059 5P KR connector base (L)
1
CY102
205 0480 005 10P KR connector base (L)
1
FB801-816
235 0130 903 Chip emifil (11A121)
16
FB851-862
235 0130 903 Chip emifil (11A121)
12
JK851,852
204 6649 009 RGB connector
2
L851
235 0070 911 Inductor 22uH
1
W801,802
414 0903 005 SCART shield plate
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
40
106
50
42
47
43
107
3-2
107
49
41
48
115
106
39
46
105
103
26
103
3-1
26
103
28
55
103
5
56
23
103
22
105
18
24
103
31
16
30
3-6
106
13
12
104
106
52
114
112
9
19
(for Europe, Asia &
Korea model)
25
38
103
51
107
3-5
107
44
3-3
8
103
4
2-2
35
103
2-1
103
29
27
103
112
112
6
113
113
53
11
33
32
54
113
106
113
103
17
113
103
1
10
103
103
10
103
103
103
3-4
45
(Europe model only)
EXPLODED VIEW
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
77
Parts marked with this symbol              have critical
characteristics.
Use ONLY replacement parts recommended by the
manufacturer.
WARNING:
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
78
DVD-3800
PARTS LIST OF EXPLODED VIEW
Ref. No.
Part No.
Part Name
Remarks
 Q\'ty
Ref. No.
Part No.
Part Name
Remarks
 Q\'ty
1
GU- 3389 A
Main P.W.B. unit
1
2
GU- 3438
Audio/Video P.W.B. unit Ass’y for E3
1
2
GU- 3438 D
Audio/Video P.W.B. unit Ass’y for E2
1
2
GU- 3438 E
Audio/Video P.W.B. unit Ass’y for E1, E1K
1
2-1

Audio P.W.B. unit
2-2

Video P.W.B. unit
3
GU- 3439
Power/Display P.W.B. unit Ass’y for E3
1
3
GU- 3439 D
Power/Display P.W.B. unit Ass’y for E2
1
3
GU- 3439 E
Power/Display P.W.B. unit Ass’y for E1, E1K
1
3-1

Digital power P.W.B. unit
3-2

Display P.W.B. unit
3-3

LED P.W.B. unit
3-4

Select P.W.B. unit
3-5

Power switch P.W.B. unit
3-6

I/F P.W.B. unit
4
GU- 3442
SCART P.W.B. unit
for E2
1
5
GEN 5903
FG-180 DVD mecha. sub Ass’y
1
6
411 1961 102 Chassis
1
7
513 3363 004 Caution label
for E3
1
8
105 1402 009 Bottom cover
1
9
441 1963 004 Trans. bracket
1
10
104 0313 015 Foot
4
11
105 1401 000 Rear panel
for E3
1
11
105 1401 026 Rear panel
for E2
1
11
105 1401 039 Rear panel
for E1
1
11
105 1401 042 Rear panel
for E1K
1
12
203 3994 000 AC inlet
for E3
1
203 3995 009 AC inlet
for E2, E1, E1K
1
13
203 5293 013 3P VH connector cord
CW024
1
14
342 0032 011 Ferrite clamp (RFC-9)
1
15
445 0033 005 Wire clamp band
1
16
417 0634 001 Heat sink
2
17
417 0636 009 Heat sheet
2
18
412 4927 201 Mech. fix bracket
1
19
461 1137 009 Spacer
for E2,E1, E1K
1
20
513 3827 016 Fuse label
for E2,E1, E1K
2
21
513 3827 003 Fuse label
for E2,E1, E1K
1
22
461 1136 013 Spacer
2
23
461 1125 121 FL spacer
1
24
412 2197 046 Card stand (H=18)
2
25
233 6404 006 Power trans.
for E3
1
233 6406 004 Power trans.
for E2,E1, E1K
1
26
445 0048 016 Cord holder (L50)
5
27
203 5295 008 3P VH-VH connector cord
CW032
1
28
204 6741 004 14P PH-PH connector cord CW141
1
29
009 0235 047 30P FFC (1.0)
CW301
1
30
009 0235 021 21P FFC (1.0)
CW211
1
31
009 0235 034 21P FFC (1.0)
CW212
1
32
009 0235 005 27P FFC (1.0)
CW272
1
33
009 0235 018 13P FFC (1.0)
CW131
1
34
513 3406 107 Label (A)
for E3
1
34
513 3463 001 Label (Laser)
for E2,E1, E1K
1
34
513 2065 002 E2 laser caution
for E2
1
Note : The symbols in the column “Remarks” indicate the following destinations.
E3 : U.S.A. & Canada model
E2 : Europe model
E1 : Asia model
E1K : Korea model
35
203 5296 010 3P PH-PH connector cord
CW036
1
36
203 8532 001 5P PH-PH connector cord
CW052 for E2
1
37
204 2942 001 10P PH-PH connector cord CW102 for E2
1
38
412 4944 006 Front angle
1
39
144 2750 263 Front panel
for Black model
1
39
144 2750 276 Front panel
for Gold model
1
40
131 9004 013 DENON mark
for Black model
1
40
131 9004 068 DENON mark
for Gold model
1
41
143 1145 009 Window
1
42
143 1110 005 Lens
3
43
146 2225 309 Inner panel
for Black model
1
43
146 2225 312 Inner panel
for Gold model
1
44
203 5296 007 3P PH-PH connector cord
CW035
1
45
009 0234 006 17P FFC (1.0)
CW171
1
46
203 5294 009 3P VH-VH connector cord
CW025
1
47
113 1886 008 Power switch knob
for Black model
1
47
113 1886 011 Power switch knob
for Gold model
1
48
112 0855 024 Volume knob (B)
for Black model
1
48
112 0855 037 Volume knob (B)
for Gold model
1
49
461 1109 011 PWB rubber
2
50
129 0253 048 Rubber sheet
2
51
461 1131 005 Rubber foam
2
52
461 1131 018 Rubber foam
1
53
102 0644 005 Top cover
for Black model
1
53
102 0644 018 Top cover
for Gold model
1
54
105 1403 008 Top cover damper
1
55
146 2282 009 Loader panel
for Black model
1
55
146 2282 012 Loader panel
for Gold model
1
56
135 0067 006 DVD-A plate
for Black model
1
56
135 0067 019 DVD-A plate
for Gold model
1
57
513 3747 002 Rating sheet
for E3
1
57
513 3798 006 Rating sheet
for E2
1
57
513 3842 004 Rating sheet
for E1
1
57
513 3886 003 Rating sheet
for E1K
1
58
513 3437 008 Label C
for E1
1
59
513 1381 004 Manufac. date label
for E3
1
SCREWS
103
473 7002 018 Screw 3x8 CBTS(S)-Z
52
104
473 7003 017 Screw 3x8 CFTS (S)-B
2
105
473 7007 000 Screw 4x8 CBTS(S)-B
4
106
473 7015 005 Screw 3x6 CBTS (S)-B
15
107
473 7500 044 Screw 3x8 CBTS(P)-B
14
112
477 0064 123 Fixing screw
for E3, E1, E1K
8
112
477 0064 123 Fixing screw
for E2
12
113
477 0263 005 3P. swelling screw
for Black model
10
113
477 0263 018 3P. swelling screw
for Gold model
10
114

Special screw
Attachment for 9P
2
S SUB connector
115

9 SP nut
Attachment for Rotary switch
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
4
53
18
20
26
27
55
1
30
29
2
24
25
28
57
13
15
14
15
58
15
15
52
32
31
55
56
54
22
21
17
19
3
55
16
55
23
6
55
5
12
51
7
60
14
8
50
10
9
59
EXPLODED VIEW OF DVD MECHANISM
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
79
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
80
DVD-3800
PARTS LIST OF DVD MECHANISM
Ref. No.
Part No.
Part Name
Remarks
 Q\'ty
1
411 1988 101 Mecha chassis
1
2
431 0426 503 Plate gear
1
3
9KA 2A40 3D Gear base sub ass\'y
1
4
441 1952 109 Gear base ass\'y
1
5
9KM 01T1 32
LD Motor
1
6-1
9KA 85P0 05
Detector SW P.W.B.
1
6-2
9KA 85G0 27
2P Connector wire
1
6-3
9KA 82G3 08
2P Connector
1
6-4
9KS 01W1 48 Detector SW
1
7
421 0772 108 Motor pully
1
8
424 0269 209 Gear C
1
9
424 0268 200 Gear B
2
10
424 0267 201 Gear A
1
11
424 0270 104 Pulley gear
1
12
423 0077 100 Belt
1
13
446 0063 007 Mecha frame
1
14
9KC 2A07 4A TRAV. Mecha
1
15
9KC 2G08 3A Damper-IDLE
4
16
424 0246 109 Loader gear
1
17
431 0427 405 Loader
1
18
461 1131 005 Rubber form
1
19
461 1131 018 Rubber form
1
20
412 4817 104 Loader bracket
1
21
431 0384 001 Slide shaft
1
22
431 0428 006 Holder
1
23
412 4818 006 Bearing plate Ass\'y
1
24
GU- 3389
Main P.W.B. unit
1
25
009 0186 015 24P FFC cable (0.5)
1
26
203 8517 068 5P PH-PH Connector cord
1
27
414 0963 003 Earth plate
4
28
412 4820 201 Clamp base
1
29
9KA 7G20 3B Clamper L
1
30
9KA 7P08 5A
Clamper T
1
31
9KA 7G20 2D Clamper H
1
32
403 0061 002 Clamp base damper
1
34
513 3436 009 ROM seal
1
SCREWS
50
471 9057 007 Special screw M1.7
2
51
9KM 01T1 32
Screw 2.6x2.5CBS-NI
2
52
471 3813 001 Screw 2.6x4 CBS-B
4
53
9KH 26P0 08
Screw 2.6x8CFTS(P)
5
54
473 7511 004 Screw 3x10 CFTS (P)-Z
1
55
473 7508 017 Screw 3x10 CBTS (P)-B
16
56
473 7508 046 Screw 3x16 CBTS (P)-B
2
57
477 0262 006 Special screw
2
58
9KC 1H01 1A SCW-Damper
4
59
9KP 36C6 25
Slit washer
1
60
9KP 26C6 25
Slit washer
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
MOLYKOTE EM-30L
0.1mg x 4 points
MOLYKOTE EM-30L
0.1mg x 3 points
MOLYKOTE EM-30L
0.1mg x 4 points
MOLYKOTE EM-30L
0.1mg x 4 points
MOLYKOTE EM-30L
0.1mg
MOLYKOTE EM-30L
0.1mg
MOLYKOTE EM-30L
0.1mg x 3 points
MOLYKOTE EM-30L
0.1mg x 3 points
MOLYKOTE EM-30L
0.1mg x 4 points
POINTS OF GREASING (1/2)
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
81
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
MOLYKOTE EM-30L
0.3mg
MOLYKOTE EM-30L
0.1mg
HANARL UD777
0.1mg
MOLYKOTE EM-30L
0.1mg
HANARL FL777
0.1mg
MOLYKOTE EM-30L
0.1mg
MOLYKOTE EM-30L
0.1mg x 5 points
MOLYKOTE EM-30L
0.1mg x 4 points
40~50mm
POINTS OF GREASING (2/2)
8
7
6
5
4
3
2
1
A
B
C
D
E
DVD-3800
82
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
83
DVD-3800
PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
Ref. No.
Part No.
Part Name
Remarks
 Q\'ty
Ref. No.
Part No.
Part Name
Remarks
 Q\'ty
201
505 0038 043 Poly. cover
1
202
511 3877 002 Instruction manual
for E3
1
511 3897 008 Instruction manual
for E2
1
511 3898 007 Instruction manual
for E1
1
511 3957 003 Instruction manual
for E1K
1
203
511 3928 100 Correction sheet
for E3
1
511 3934 000 Correction sheet
for E2
1
204
515 0921 005 Service station list (EX)
1
205
206 2202 006 AC cord set
for E3
1
206 2203 005 AC cord set
for E2,E1
1
206 2210 001 AC cord
for E1K
1
206
203 5224 008 3P pin cord
1
207
399 0795 008 Remote controller  RC-553
1
208

Battery (AA/R6P)
209
505 0312 028 Cabinet cover
1
210
503 1374 001 Cushion
2
211
503 1440 003 Bottom cushion
2
212
501 2172 002 Carton case
for E3, E2
1
501 2172 028 Carton case
for E1, E1K
1
213

Control card
214

UPC label
for E3

POS label
for E2 Black model

POS label
for E2 Gold model
215
513 3579 005 Region label
for E3
2
513 3579 018 Region label
for E2
2
217
513 9111 001 Color label (gold)
for Gold model
2
218
513 3580 007 Carton label (CHINA)
for E1, E1K
1
219
515 0690 404 DEL warranty home
for E3
1
Note : The symbols in the column “Remarks” indicate the following destinations.
E3 : U.S.A. & Canada model
E2 : Europe model
E1 : Asia model
E1K: Korea model
210
211
211
210
201
209
208
212
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
84
DVD-3800
4
3
2
1
5
6
7
8
D
C
B
A
E
WIRING DIAGRAM
2P VH
2P VH
AC IN
GU-3439-4
SELECT UNIT
30P FFC
3P PH
17P FFC
13P FFC
CX212
CX141
CX211
CX272
CX131
CY301
CX171
CX035
CY035
CW041
CY171
DVD DRIVE MECHA
UNIT [FG-180]
GU-3389-1
MAIN UNIT
CX241
24P FFC
CX151
15P FFC
CX051
5 P PH
CX031
3P PH
GU-3439-2 DISPLAY UNIT
GU-3439-3
LED UNIT
GU-3442-1
SCART UNIT
(E2 MODEL ONLY)
14P PH
21P FFC
27P FFC
3P PH
21P FFC
3P PH
10P PH
CY212
CY211
CY036
CX052
CX031
CX102
CY272
CY102
GU-3439-6
INTERFACE UNIT
5P PH
3P VH
CY131
CY032
CX062
CX036
CX301
CX032
CY052
GU-3438-1
AUDIO UNIT
GU-3438-2
VIDEO UNIT
2P VH
6P VH
4P PH
AC IN
CX024
CX025
CY025
CX026
(CW033)
CY141
CX041
GU-3439-1
DIGI.POWER UNIT
POWER
TRANS
OUTPUT
GU-3439-5
P.SW UNIT
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
85
DVD-3800
MEASURING METHOD AND WAVEFORMS
To check the waveforms on the Servo P.W.B., the GND (
) probe of the oscilloscope to
Vref
point.
(Except for Inner SW, TRVSW)
* For � �  ~ � � , connect the GND (−) probe to "GND".
 NOTES
Measuring Disc:
DVD/DVDT-S01 or TDV-520A
CD/TCD-784
(It is better to use wires for extending between the probe and test points.)
� When watching the HF waveform, use the extending wire as short as possible.
� When HF waveform is noisy or cannot discriminate the eye-pattern, replace the Traverse Unit after measuring the Iop.
�
1  ~ � �  points have the certain test points shown below.
05
56
17
32
1
1
1
1
24
1
1
1
1
1
1
15
1
1
20
21
40
4
5
8
1
6
7
17
18
28
29
39
40
16
17
32
7
8
14
11
12
24
25
36
37
48
25
26
50
51
75
76
100
20
21
40
20
21
40
41
60
61
80
14
15
28
9
8
5
4
14
15
3
12
7
10
13
11
6
1
16
20
19
18
17
2
Main P.W.B. Unit Foil Side
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
86
DVD-3800
Disc
DVDT-S01
Disc
TCD-784A
V = 0.5 V/div
V = 0.5 V/div
(DVD/CD)   LOADING
 PLAY
DVD PLAY
CD PLAY
Vref
Vref
2  FEI
3  FOO
4  FO+
5  FO−
6  TEI
7  TRO
8  TR+
9  TR−
6  TEI
7  TRO
8  TR+
9  TR−
DVD PLAY (INNER)
CD PLAY (INNER)
SERCH TO OUTER CHAPTER
POWER ON (INNER SWITCH ON)
LOADER  OPEN
 CLOSE
OPEN
CLOSE
� �  DMO
� �  FG
� �  A3
� �  DMO
� �  FG
� �  A3
6  TEI
� �  FMO
� �  FM−
� �  FM+
� �  INSWN
� �  FMO
� �  FM+
� �  OUT
� �  OPEN
� �  CLOSE
� �  LOADING+
DVD PLAY
CD PLAY
(INNER
 OUTER)
WAVEFORMS
����� GU-3389-1 MAIN P.W.B.
1  HF (RFI)
1  HF (RFI)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
87
DVD-3800
����� GU-3438-1 AUDIO P.W.B.
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
88
DVD-3800
P1
P2
����� GU-3389-1 MAIN P.W.B.
P3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
89
DVD-3800
P9
P10
P11
P12
P13
P14
P15
P16
75ohm terminate
75ohm terminate
75ohm terminate
����� GU-3438-2 VIDEO P.W.B.
P4
P5
P6
P7
P8
����� GU-3442 SCART P.W.B.
  ( P14 ~ P16 : Europe model only)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
90
DVD-3800
����� GU-3439-1 DIGITAL POWER  P.W.B.
3439- A
3439- B
3439- C
3439- D
3439- E
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
12
10
19
18
16
11
20
17
13
1
2
8
5
7
3
9
6
4
15
14
For the Waveforms marked with numbers      ~     , refer to page 86 (WAVEFORMS).
20
1
91
SCHEMATIC DIAGRAMS (1/8)
GU-3389A-1 MAIN UNIT(1/3)
SCHEMATIC DIAGRAMS (1/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
12
10
19
18
16
11
20
17
13
1
2
8
5
7
3
9
6
4
15
14
For the Waveforms marked with numbers      ~     , refer to page 86 (WAVEFORMS).
20
1
91
SCHEMATIC DIAGRAMS (1/8)
GU-3389A-1 MAIN UNIT(1/3)
SCHEMATIC DIAGRAMS (1/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
11
13
1
2
5
6
4
15
14
SCHEMATIC DIAGRAMS (1/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
8
7
3
9
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
12
10
19
18
16
20
17
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
For the Waveforms marked with numbers      ~     , refer to page 86 (WAVEFORMS).
20
1
91
SCHEMATIC DIAGRAMS (1/8)
GU-3389A-1 MAIN UNIT(1/3)
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
B LINE
_+
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
92
SCHEMATIC DIAGRAMS (2/8)
GU-3389A-1 MAIN UNIT(2/3)
SCHEMATIC DIAGRAMS (2/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
92
SCHEMATIC DIAGRAMS (2/8)
GU-3389A-1 MAIN UNIT(2/3)
SCHEMATIC DIAGRAMS (2/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
SCHEMATIC DIAGRAMS (2/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
SIG
B
_+
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
92
SCHEMATIC DIAGRAMS (2/8)
GU-3389A-1 MAIN UNIT(2/3)
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
B LINE
_+
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P1
P2
P3
P1
P3
For the Waveforms marked with numbers      ~     ,
refer to page 88 (WAVEFORMS).
93
SCHEMATIC DIAGRAMS (3/8)
GU-3389A-1 MAIN UNIT(3/3)
SCHEMATIC DIAGRAMS (3/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P1
P2
P3
P1
P3
For the Waveforms marked with numbers      ~     ,
refer to page 88 (WAVEFORMS).
93
SCHEMATIC DIAGRAMS (3/8)
GU-3389A-1 MAIN UNIT(3/3)
SCHEMATIC DIAGRAMS (3/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
SCHEMATIC DIAGRAMS (3/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P1
P2
P3
P1
P3
For the Waveforms marked with numbers      ~     ,
refer to page 88 (WAVEFORMS).
93
SCHEMATIC DIAGRAMS (3/8)
GU-3389A-1 MAIN UNIT(3/3)
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
B LINE
_+
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A1
A5
A6
A8
A7
A5
A9
A2
A3
A4
A10
A11
A5
A9
A10
A11
A12
A13
A12
A12
A12
A14
A12
For the Waveforms marked with numbers      ~       , refer to page 87 (WAVEFORMS).
A1
A14
94
SCHEMATIC DIAGRAMS (4/8)
GU-3438-1 AUDIO UNIT
SCHEMATIC DIAGRAMS (4/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A1
A5
A6
A8
A7
A5
A9
A2
A3
A4
A10
A11
A5
A9
A10
A11
A12
A13
A12
A12
A12
A14
A12
For the Waveforms marked with numbers      ~       , refer to page 87 (WAVEFORMS).
A1
A14
94
SCHEMATIC DIAGRAMS (4/8)
GU-3438-1 AUDIO UNIT
SCHEMATIC DIAGRAMS (4/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A1
A2
A3
A4
SCHEMATIC DIAGRAMS (4/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A5
A6
A8
A7
A12
A13
A12
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A14
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHO
NOTICE.
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A5
A9
A10
A11
A5
A9
A10
A11
A12
A12
A12
For the Waveforms marked with numbers      ~       , refer to page 87 (WAVEFORMS).
A1
A14
94
SCHEMATIC DIAGRAMS (4/8)
GU-3438-1 AUDIO UNIT
E
F
G
H
,000,000 OHM
RO-MICRO FARAD
MO SIGNAL INPUT
HOUT PRIOR
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
B LINE
_+
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P4
P5
P6
P7
P8
P9
P10
P12 Progre only
P13 Progre only
Progre only
P11
P4
P13
For the Waveforms marked with numbers      ~       ,
refer to page 89 (WAVEFORMS).
95
SCHEMATIC DIAGRAMS (5/8)
GU-3438-2 VIDEO UNIT
SCHEMATIC DIAGRAMS (5/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P4
P5
P6
P7
P8
P9
P10
P12 Progre only
P13 Progre only
Progre only
P11
P4
P13
For the Waveforms marked with numbers      ~       ,
refer to page 89 (WAVEFORMS).
95
SCHEMATIC DIAGRAMS (5/8)
GU-3438-2 VIDEO UNIT
SCHEMATIC DIAGRAMS (5/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P4
P5
P6
P7
SCHEMATIC DIAGRAMS (5/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P9
P10
P12 Progre only
P13 Progre only
Progre only
P11
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P8
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P4
P13
For the Waveforms marked with numbers      ~       ,
refer to page 89 (WAVEFORMS).
95
SCHEMATIC DIAGRAMS (5/8)
GU-3438-2 VIDEO UNIT
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
B LINE
_+
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A
3439-
E
3439-
D
3439-
C
3439-
B
3439-
POWER ON : +3.2VDC
St-by : 0VDC
POWER ON : +5VDC
St-by : +0VDC
POWER ON/
St-by : +5VDC
+3.6VDC
+18VDC
GND for
Primary circuit
A
3439-
E
3439-
For the Waveforms marked with numbers              ~              , refer to page 90 (WAVEFORMS).
96
SCHEMATIC DIAGRAMS (6/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
SCHEMATIC DIAGRAMS (6/8)
GU-3439-1 DIGI. POWER UNIT
GU-3439-6 I/F UNIT
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A
3439-
E
3439-
D
3439-
C
3439-
B
3439-
POWER ON : +3.2VDC
St-by : 0VDC
POWER ON : +5VDC
St-by : +0VDC
POWER ON/
St-by : +5VDC
+3.6VDC
+18VDC
GND for
Primary circuit
A
3439-
E
3439-
For the Waveforms marked with numbers              ~              , refer to page 90 (WAVEFORMS).
96
SCHEMATIC DIAGRAMS (6/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
SCHEMATIC DIAGRAMS (6/8)
GU-3439-1 DIGI. POWER UNIT
GU-3439-6 I/F UNIT
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
E
3439-
D
3439-
C
3439-
+18VDC
GND for
Primary circuit
SCHEMATIC DIAGRAMS (6/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
A
3439-
B
3439-
POWER ON : +3.2VDC
DC
POWER ON : +5VDC
St-by : +0VDC
POWER ON/
St-by : +5VDC
+3.6VDC
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
St-by : 0VDC
A
3439-
E
3439-
For the Waveforms marked with numbers              ~              , refer to page 90 (WAVEFORMS).
96
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
B LINE
_+
SCHEMATIC DIAGRAMS (6/8)
GU-3439-1 DIGI. POWER UNIT
GU-3439-6 I/F UNIT
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
97
SCHEMATIC DIAGRAMS (7/8)
GU-3439-2 DISPLAY UNIT
GU-3439-3 LED UNIT
GU-3439-4 SW UNIT
GU-3439-5 P.SW UNIT
SCHEMATIC DIAGRAMS (7/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
97
SCHEMATIC DIAGRAMS (7/8)
GU-3439-2 DISPLAY UNIT
GU-3439-3 LED UNIT
GU-3439-4 SW UNIT
GU-3439-5 P.SW UNIT
SCHEMATIC DIAGRAMS (7/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
SCHEMATIC DIAGRAMS (7/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x ia o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
NOTICE
ALL RESISTANCE VALUE
ALL CAPACITANCE VALU
EACH VOLTAGE AND CU
CONDITION.
CIRCUIT AND PARTS AR
NOTICE.
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
97
SCHEMATIC DIAGRAMS (7/8)
GU-3439-2 DISPLAY UNIT
GU-3439-3 LED UNIT
GU-3439-4 SW UNIT
GU-3439-5 P.SW UNIT
E
F
G
H
 VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
 VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
ND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
TS ARE SUBJECT TO CHANGE WITHOUT PRIOR
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
B LINE
_+
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P16
P15
P14
P16
P14
For the Waveforms marked with numbers        ~       , refer to page 89 (WAVEFORMS).
98
SCHEMATIC DIAGRAMS (8/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
SCHEMATIC DIAGRAMS (8/8)
GU-3442-1 SCART UNIT (Europe model only)
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P16
P15
P14
P16
P14
For the Waveforms marked with numbers        ~       , refer to page 89 (WAVEFORMS).
98
SCHEMATIC DIAGRAMS (8/8)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
SIGNAL LINE
DVD-3800
B LINE
_+
SCHEMATIC DIAGRAMS (8/8)
GU-3442-1 SCART UNIT (Europe model only)
A
A
B
B
C
C
D
D
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
SCHEMATIC DIAGRAMS (8/8)
1
2
3
4
5
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
6
7
8
9
10
11
A
B
C
D
DVD-3800
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
NOTICE
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT
CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.
WARNING:
Parts marked with this symbol             have critical characteristics.
Use ONLY replacement parts recommended by the manufacture.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a
leakage current check or (2) a line to chassis resistance check. If the leakage
current exceeds 0.5 milliamps, or if the resistance from chassis to either side
of the power card is less than 460kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and
corrected.
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
P16
P15
P14
P16
P14
For the Waveforms marked with numbers        ~       , refer to page 89 (WAVEFORMS).
98
E
F
G
H
SIGNAL LINE
B LINE
_+
SCHEMATIC DIAGRAMS (8/8)
GU-3442-1 SCART UNIT (Europe model only)
www . x i a o y u 1 6 3 . c o m
QQ 3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/85202dc0a4f373b.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62543',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-0',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/387818deef422.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62544',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-1',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/0049cd18bf293ed.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62545',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-2',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/b3bdff3f2f136.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62546',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-3',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/4ef41199d549748.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62547',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-4',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/996d6192b014a.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62548',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-5',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-5',
  ),
  6 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/21d87526776441c.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62549',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-6',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-6',
  ),
  7 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/bac49ad190e9295.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62550',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-7',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-7',
  ),
  8 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/4cbb3b832a26789.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62551',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-8',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-8',
  ),
  9 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/59e47955970ef3a.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '62552',
    'title' => '天龙DENON DVD-3800 DVD播放器电路图-9',
    'description' => '天龙DENON DVD-3800 DVD播放器电路图-9',
  ),
)

'1680565302'

'1680565302'

'{"file":["62543","62544","62545","62546","62547","62548","62549","62550","62551","62552"],"title":["\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-0","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-1","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-2","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-3","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-4","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-5","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-6","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-7","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-8","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-9"],"description":["\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-0","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-1","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-2","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-3","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-4","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-5","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-6","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-7","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-8","\\u5929\\u9f99DENON DVD-3800 DVD\\u64ad\\u653e\\u5668\\u7535\\u8def\\u56fe-9"]}'

'天龙,DENON, ,DVD,-,3800, ,DVD,播放,播放器,电路,电路图'

array (
  '天龙' => '/index.php?s=wenku&c=search&keyword=%E5%A4%A9%E9%BE%99',
  'DENON' => '/index.php?s=wenku&c=search&keyword=DENON',
  'DVD' => '/index.php?s=wenku&c=search&keyword=DVD',
  '-' => '/index.php?s=wenku&c=search&keyword=-',
  3800 => '/index.php?s=wenku&c=search&keyword=3800',
  '播放' => '/index.php?s=wenku&c=search&keyword=%E6%92%AD%E6%94%BE',
  '播放器' => '/index.php?s=wenku&c=search&keyword=%E6%92%AD%E6%94%BE%E5%99%A8',
  '电路' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF',
  '电路图' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF%E5%9B%BE',
)

array (
)

array (
  'id' => '14304',
  'catid' => '8',
  'title' => '天龙DENON DVD-310 DVD播放器电路图',
  'thumb' => '62532',
  'keywords' => '天龙,DENON, ,DVD,-,310, ,DVD,播放,播放器,电路,电路图',
  'description' => '',
  'hits' => '0',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a14304.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680565208',
  'updatetime' => '1680565208',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '62531',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '14306',
  'catid' => '8',
  'title' => '天龙DENON DVD-3800BDCIE3 DVD播放器电路图',
  'thumb' => '62554',
  'keywords' => '天龙,DENON, ,DVD,-,3800BDCIE3, ,DVD,播放,播放器,电路,电路图',
  'description' => '',
  'hits' => '1',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a14306.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680565404',
  'updatetime' => '1680565404',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '62553',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'天龙DENON DVD-3800 DVD播放器电路图_电子电工_行业资料_文汇知识网'

'天龙,DENON, ,DVD,-,3800, ,DVD,播放,播放器,电路,电路图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=14305&page=[page]'

''

'http://www.wenhuiw.com/wenku/a14305.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '14305',
  'm' => 'index',
)
