SERVICE MANUAL
MODEL
DVD-2900
DVD AUDIO-VIDEO / SUPER AUDIO CD PLAYER
For U.S.A., Canada, Europe
& Japan model
16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN
Telephone: 03 (3837) 5321
X0168V.02 DE/CDM 0304
注 意
サービスをおこなう前に、このサービスマニュアルを
必ずお読みください。本機は、火災、感電、けがなど
に対する安全性を確保するために、さまざまな配慮を
おこなっており、また法的には「電気用品安全法」に
もとづき、所定の許可を得て製造されております。
従ってサービスをおこなう際は、これらの安全性が維
持されるよう、このサービスマニュアルに記載されて
いる注意事項を必ずお守りください。
● 本機の仕様は性能改良のため、予告なく変更すること
があります。
● 補修用性能部品の保有期間は、製造打切後 8年です。
Some illustrations using in this service manual are
slightly different from the actual set.
●
●
Please use this service manual with referring to
the operating instructions without fail.
●
For purposes of improvement, specifications and
design are subject to change without notice.
●
修理の際は､必ず取扱説明書を参照の上、作業を行って
,
ください。
● 本文中に使用しているイラストは、説明の都合上現物
と多少異なる場合があります。
Ver. 2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
2
DVD-2900
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
LASER RADIATION
Do not stare into beam or view directly with optical instruments, class 3A laser product.
(1)
(2)
500V
1M
(1)
(2)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
3
DVD-2900
DISASSEMBLY
(Follow the procedure below in reverse order when reassem-
bling.)
1.Top Cover
(1) Remove 10 screws on the top and both sides, and 2
screws on the rear.
(2) Widen the Top Cover a little laterally, then detach it with
sliding in the arrow direction.
2.Loader Panel, Front Panel
2.1. When the Disc Tray can be ejected electrically
(1) After removing the Top Cover, proceed as follows.
(2) Plug the power cord to the wall outlet, switch on the pow-
er, and press the “OPEN/CLOSE” button to open the
Disc Tray.
(3) Detach the Loader Panel by lifting it in the arrow direc-
tion.
(4) Press the “OPEN/CLOSE” button to close the Disc Tray,
then unplug the power cord.
(5) Disconnect the wire (CX025, CX061) connecting the
Front Panel’s P.W.B. and the power PWB in the Chassis.
(6) Remove 4 top screws and 4 bottom screws, then detach
the Front Panel to the arrow direction.
(7) Disconnect the FFC (CX171) connecting the Front Pan-
el’s P.W.B. and the main P.W.B. in the Chassis.
各部のはずしかた
（組み立てるときは、逆の順序で行ってください。）
1.トップカバーのはずしかた
(1) 側面及び上面からねじ 10 本、後ろからねじ 2 本をはず
します。
(2) 左右に少し広げ、矢印の方向にずらしながら、はずし
ます。
2.フロントパネル、ローダーパネルのはずし
かた
2.1. ディスクトレイが電動でオープンできる場合
(1) トップカバーをはずした状態で作業します。
(2) 電源コードを電源コンセントに差し込み、電源スイッ
チを押し、「OPEN/CLOSE」ボタンを押して、ディスク
トレイをオープンします。
(3) ローダーパネルを矢印の方向に持ち上げ、はずします。
(4) 「OPEN/CLOSE」ボタンを押し、ディスクトレイをク
ローズして、電源コンセントから電源コードを抜きま
す。
(5) フロントパネル内の基板と本体側電源基板を接続シテ
イルワイヤー (CX025,CX061) をはずします。
(6) 上からねじ４本、下からねじ４本をはずし、フロント
パネルを矢印の方向にはずします。
(7) フロントパネル内の基板と本体側メイン基板を接続し
ている FFC（CX171）をはずします。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
4
DVD-2900
2.2. When the Disc Tray cannot be ejected electri-
cally
(1) After removing the Top Cover, proceed as follows.
(2) Insert a screwdriver(-) into the left hole of the Mecha. Fix
Bracket, and push the Plate Gear of the DVD Mecha.
slowly to open the Disc Tray.
(3) Remove the Loader Panel, and close the Disc Tray.
(4) Detach the Front Panel following the same steps de-
scribed on the previous page 1.2.1. (5) - (7).
3.Video P.W.B.
(1) Disconnect 33P FFC (CY331) and 5P connector (CY053).
(2) Remove 2 screws on the Video P.W.B.
(3) Remove 2 screws from the rear.
(4) Detach the Video P.W.B. to the arrow direction.
2.2. ディスクトレイが電動でオープンできない場合
(1) トップカバーをはずした状態で作業します。
(2) メカフィクスブラケットの左側の穴に（－）ドライ
バーをいれ、プレートギアをゆっくり押してディスク
トレイを開きます。
(3) ローダーパネルをはずし、ディスクトレイを閉じます。
(4) 前項 1.2.1. の（5）～（7）と同様に、フロントパネル
をはずします。
3.ビデオ基板のはずしかた
(1)
33P FFC（CY331) と 5P コネクター（CY053) をはずします。
(2) 基板からねじ 2 本をはずします。
(3) リア側からねじ 4 本をはずします。
(4) ビデオ基板を矢印の方向へはずします。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
5
DVD-2900
4.DVD Mecha.
(1) Disconnect 27P FFC (CY271) and 13P FFC (CY131)
from the Main P.W.B..
(2) Disconnect 12P connector (CY121) from Power P.W.B..
(3) Remove 4 screws on the DVD Mecha and 2 screws on
the Main P.W.B., then take it off in the arrow direction.
5.Audio P.W.B./Power P.W.B.
5.1. Audio P.W.B.
(1) Disconnect 4P connector (CY041).
(2) Remove 5 screws on the Audio P.W.B., 4 screws from
the rear.
5.2. Power P.W.B.
(1) Remove 5 screws on the Power P.W.B..
(2) Disconnect 2P connector (CX024)
4.DVD メカのはずしかた
(1) メイン基板からの 13P FFC（CY131) をはずします。
(2) パワー基板からの 12P コネクター（CY121) をはずし
ます。
(3) DVD メカからねじ 4 本、メイン基板からねじ 2 本をは
ずし、矢印の方向へ DVD メカをはずします。
5.オーディオ基板 / パワー基板のはずしかた
5.1. オーディオ基板
(1) 4P コネクター（CY041) をはずします。
(2) オーディオ基板からねじ 5 本とリア側からねじ 4 本を
はずします。
5.2. パワー基板
(1) パワー基板からねじ 5 本をはずします。
(2) コネクター（CX024）をはずします。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
6
DVD-2900

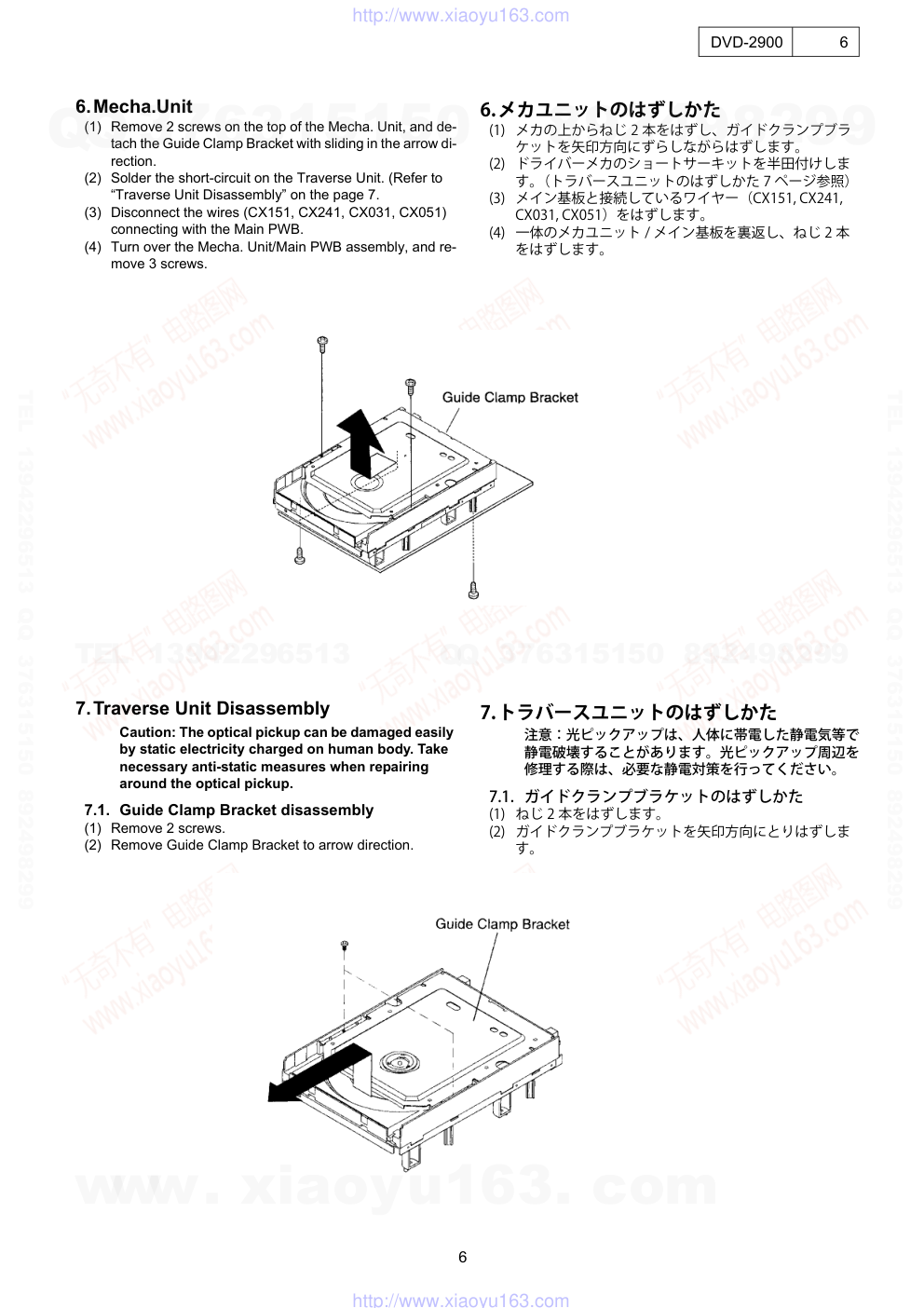

6.Mecha.Unit
(1) Remove 2 screws on the top of the Mecha. Unit, and de-
tach the Guide Clamp Bracket with sliding in the arrow di-
rection.
(2) Solder the short-circuit on the Traverse Unit. (Refer to
“Traverse Unit Disassembly” on the page 7.
(3) Disconnect the wires (CX151, CX241, CX031, CX051)
connecting with the Main PWB.
(4) Turn over the Mecha. Unit/Main PWB assembly, and re-
move 3 screws.
7.Traverse Unit Disassembly
Caution: The optical pickup can be damaged easily
by static electricity charged on human body. Take
necessary anti-static measures when repairing
around the optical pickup.
7.1. Guide Clamp Bracket disassembly
(1) Remove 2 screws.
(2) Remove Guide Clamp Bracket to arrow direction.
6.メカユニットのはずしかた
(1) メカの上からねじ 2 本をはずし、ガイドクランプブラ
ケットを矢印方向にずらしながらはずします。
(2) ドライバーメカのショートサーキットを半田付けしま
す。（トラバースユニットのはずしかた 7 ページ参照）
(3) メイン基板と接続しているワイヤー（CX151, CX241,
CX031, CX051）をはずします。
(4) 一体のメカユニット / メイン基板を裏返し、ねじ 2 本
をはずします。
7.トラバースユニットのはずしかた
注意：光ピックアップは、人体に帯電した静電気等で
静電破壊することがあります。光ピックアップ周辺を
修理する際は、必要な静電対策を行ってください。
7.1. ガイドクランプブラケットのはずしかた
(1) ねじ 2 本をはずします。
(2) ガイドクランプブラケットを矢印方向にとりはずしま
す。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
7
DVD-2900
7.2. Tray disassembly
(1) Remove to arrow direction.
(2) Solder the short-circuit (see in the frame).
7.3. Traverse Unit disassembly
(1) Remove 24P FFC (CX241), 15P FFC (CX151), 5P PH
WIRE (CX051) and 3P PH WIRE (CX031) connecting
with from the Main P.W.B..
(2) Remove 4 screws fixing Damper.
(3) Remove Traverse Unit to arrow direction.
7.2. トレイのはずしかた
(1) 矢印方向にとりはずします。
(2) 半田付けショートを行います。（枠内図参照 )
7.3. トラバースユニットのはずしかた
(1) メイン基板に接続している 24P FFC（CX241)、15P FFC
（CX151),5P PH ワイヤ（CX051)、3P PH ワイヤ
（CX031) をはずします。
(2) ダンパーを固定しているねじ 4 本をはずします。
(3) トラバースユニットを矢印方向にとりはずします。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
8
DVD-2900
Note for disassembly Traverse Unit
(1) When assembling, reverse the order of the above.
(2) When inserting Tray, confirm boss on Slide Cam set to
ditch of the Tray (Compare with below drawing).
トラバースユニット分解の注意
(1) 組み立てるときは、上記の逆の順序で行ってください。
(2) トレイ組込み時、スライドカムのボスがトレイの溝に
合っているか確認してください。（下図参照）
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
9
DVD-2900
DIAGNOSTICS OF OPTICAL PICKUP
AND REPLACING TRAVERSE UNIT
Make failure diagnostics of the Optical Pickup as follows.
If the laser drive current becomes more than 1.5 times of the
initial value, the Optical Pickup should be replaced.
The laser drive current is registered on the seal attached to
the rear of the Mecha.Unit.
In case of replacing the Pickup, change the whole part of the
Traverse Unit.
No mechanical adjustment is necessary after the replace-
ment.
光ピックアップの故障診断とトラバース
ユニットの交換
次の順序で故障診断を行ってください。
レーザー駆動電流が初期値の 1.5 倍以上になっている場合は
光ピックアップ交換の目安となります。
レーザーの電流初期値は、メカの後部のシール上に記入され
ています。
ピックアップ交換の場合は、トラバースユニット単位での交
換となります。メカの調整は不要です。
Disc no read,unsteady playback, etc.
Laser drive current check
HF wave form check
(Refer to page 109)
Traverse Unit replacing
(See page 7 for details)
Laser current registering after replacement.
Present value exceeds the ini-
tial value by 1.5 times
Step: Disc playback
Write the measured value on the seal attached to the
Mecha. Unit
*As to the measuring method, refer to page 10,11.
Example:
DVD 30mA
CD 30mA
例：
ディスクを読み込まない
スムーズに再生しない､等
レーザー駆動電流の確認
ＨＦ 波形の確認
（109 ページ参照）
トラバースユニット交換
（詳細は 7 ページ）
交換後のレーザー電流記入
現在値が初期値の
1.5 倍になっている
手順 ：ディスクを再生
その時の Iop 値をメカ後方のシールの上に重ねて貼る
等で更新する。
*Iop の測定方法は、10,11 ページ参照。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
10
DVD-2900
1. Label Indication of DVD Mechanism.
2. Note for Handling the Laser Pick-Up
the protection for the damage of laser diode.
If you want to change the optical device unit from any other
units, you must keep the following.
(1) It should be done at the desk already took measures the
static electricity in care of removing the OPU's (Optical
device unit) connector cable.
(2) Workers should be put on the "Earth Band".
(3) It should be done to add the solder to the short land to
prevent the broken Laser diode before removing the 24P
FFC cable.
(4) Don't touch OPU's connector parts carelessly.
3. Replacement of the Laser Pick-up
(Traverse Unit)
Check the Iop(Laser drive current)
If the present Iop (current) value exceeds.+50% of the ini-
tial value, replace the Traverse unit(Laser Pick-up) with a
new one.
4. Iop Measurement Method
When measuring Laser drive current (Iop), playback the
discs (CD,DVD) described below, measure Iop for CD
Laser and DVD Laser by the test point (+5V-A2 --
LD(CD),LD(DVD))on the Main P.W.B.
Test Disc :DVD/DVDT-S01 or commercially available discs.
:CD/TCD-784 (manufactured by ALMEDIO INC)
or commercially available discs.
1.DVD メカのラベル表示
2.レーザーピックアップの取扱注意
レーザーダイオードの破壊防止。
光素子ユニットを交換するときは、以下を遵守してくださ
い。
(1) 光素子ユニットの接続ケーブルをはずすときは、静電対
策を行ったデスク上で作業してください。
(2) 作業者は、リストストラップを使用してください。
(3) レーザーダイオードの破壊防止のため、24P FFC ケーブ
ルをはずす前にランドを半田付けショートしてくださ
い。
(4) 光素子ユニットのコネクタ部に触れないでください。
3.レーザーピックアップ ( トラバースユニッ
ト ) の交換
Iop( レーザー駆動電流）をチェックします。
現在の Iop 値が初期値の 50％を越えている場合、トラ
バースユニット（レーザーピックアップ）を交換してく
ださい。
4.Iop の測定方法
レーザー駆動電流を測定する場合、下記のディスク
（CD,DVD) を再生します。
Main基板上のテストポイント(+5V-A2～LD(CD),LD(DVD))
にて、CD レーザーと DVD レーザーの Iop を測定してく
ださい。
テストディスク：DVD/DVDT-S01 または市販同等ディス
ク
：CD/TCD-784（ALMEDIO 社製）または
市販同等ディスク
Laser current consumption value
ex) DVD ＊＊＊ mA, CD ＊＊＊ mA
レーザー駆動電流値
例）DVD ＊＊＊ mA, CD ＊＊＊ mA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
11
DVD-2900
4.1. DVD Laser current measurement
(1) Connect the oscilloscope to +5V-A2 of test point for GND
side and LD(DVD) of test point for signal side.
(2) Playback the title 1 / chapter 1 of the DVD Test Disc.
(3) Measure the voltage between +5V-A2 and LD(DVD), cal-
culate Iop by the formula as shown below.
4.2. CD Laser current measurement
(1) Connect the oscilloscope to +5V-A2 of test point for GND
side and LD(CD) of test point for signal side.
(2) Playback the track 1 of the CD Test Disc.
(3) Measure the voltage between +5V-A2 and LD(CD), calcu-
late Iop by the formula as shown below.
LD(DVD)
+5V-A2
Oscilloscope
Iop
Measurement Voltage Value
14 (Resistance value)
-----------------------------------------------------------------------------
=
Iop
Measurement Voltage Value
11.75 (Resistance value)
-----------------------------------------------------------------------------
=
4.1. DVD レーザー電流測定
(1) オシロスコープをテストポイント
+5V-A2(GND)
と
LD(DVD)( 信号 ) へ接続します。
(2) DVD テストディスクのタイトル 1・チャプター 1 を再生
します。
(3) +5V-A2とLD(DVD)間の電圧を測定し､次式によりIopを
算出します。
4.2. CD レーザー電流測定
(1) オシロスコープをテストポイント
+5V-A2(GND) と
LD(CD)( 信号 ) へ接続します。
(2) CD テストディスクのトラック 1 を再生します。
(3) +5V-A2 と LD(CD) 間の電圧を測定し、次式より Iop を算
出します。
LD(DVD)
+5V-A2
Oscilloscope
Iop
測定電圧値
14(抵抗値)
-----------------------------
=
Iop
測定電圧値
11.75(抵抗値)
------------------------------------
=
LD(DVD)
LD(CD)
+5V-A2
Main Unit foil side
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
12
DVD-2900
5. Optical Pick-up Diagnostics and Replace-
ment
When repairing, carry out failure diagnostics by following the
procedure described below.
If the present value of the laser drive current is 50% up to ini-
tial value, it is the point of the pickup replacement.
In case of the pickup replacement, replace the Traverse Unit
with no adjustment.
The initial value is indicated on the label on back side of
Mecha.
If the present value exceeds 80mA, replace the Traverse Unit
a new one.
Cause: Damaged electrostatically when replaced.
NO DISC indicated, Playback not smooth,etc.
Laser drive current check
HF signal check
Traverse Unit replacement
(refer to page 6)
Laser drive current check after replacement.
If the present value is less than 80mA, write on
the new label by hand, put on the new label over
the old label.
Present value：
50% up to initial value
5.光ピックアップ診断と交換
交換時､以下の手順で故障診断を行ってください。
レーザー駆動電流の現在値が初期値の 50％以上なら、
ピックアップを交換すべきです。
ピックアップ交換の場合はトラバースユニットを交換し、
調整は不要です。
初期値は、メカ後部のラベルに表示されています。
現在値が 80mA 以上なら、再度トラバースユニットを交換し
てください。
原因 ：交換時、静電破壊された。
”NO DISC ”表示、再生不良等
レーザー駆動電流のチェック
ＨＦ 信号チェック
トラバースユニット交換
（ 6 ページ参照）
交換後、レーザー駆動電流をチェックします。
現在値が80mA以下なら新ラベル上へ手書きし、
旧ラベルの上に貼り付けます。
現在値：
初期値の 50％以上
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
13
DVD-2900
SERVICE MODE
1. Aging Mode
(1) preparation
(a) Equipment used: Any one of DVD Karaoke Disc (contain-
ing more than 10 titles).
(b) Unit setting : No spec other than the following procedure
(Aging mode).
At the tray open status, press the “POWER” button to
turn on the power while pressing the “PLAY” and
“OPEN/CLOSE” buttons for DVD operation simulta-
neously.
mark on the FL lights, and the unit is set
to the heat run mode.
(2) procedure
(a) According the above, set to the aging mode.
(b) Set a DVD Karaoke disc to the tray and press the “PLAY”
button twice.
mark on the FL blinks, and aging
operation(after playback title-1 and title-10 of the disc,
the tray open/close is made automatically, then playback
the title-1 again) starts. This aging operation continues
automatically until it is stopped or it stops caused by an
error.In case of some error in DVD, the following error
messages are displayed on the FL.
2. Initial Setting Mode
(1) Preparation
(a) Equipment used: None
(b) Unit setting: No spec other than the following procedure
(2) Procedure
(a) Initialize the DVD player when µcom, peripheral parts of
µcom, or Main P.W.B. has been replaced in servicing.
(b) Carry out the following to restore factory setting mode. At
the player stop condition, press 3 buttons for DVD oper-
ation(“PLAY”,”OPEN/CLOSE”, and “
SKIP”) until
“INITIALIZE” appears and disappears in the FL.
(“Initialized” appears and disappears on the TV screen.)
(c) All user setting will be lost and its factory setting will be
restored when this initialization is made. Be sure to mem-
orize your setting for restoring again after the initializa-
tion.
No
Error contents
FL display
1
Bad Disc
ERROR 02
2
Focus Error
ERROR 02
3
Read Error
ERROR 02
4
Tracking Error
ERROR 04
5
Tray Error
ERROR 05
6
Navigation Pack Read Error
ERROR 06
サービスモードについて
1.エージングモード
(1) 準備
(a) 使用機器：DVD カラオケディスク（10 タイトル以上
の物）。
(b) 本体設定：下記設定以外規定無。
（エージングモード）
トレイを開けた状態で DVD ユニットの「再生ボタン」
+「開 / 閉ボタン」を同時に押しながら「電源ボタン」
を押してセットの電源を入れると、FL 管の
マー
クが点灯し、ヒートランモードに設定される。
(2) 手順
(a) 上記手順でエージングモードに設定する。
(b) トレイに DVD カラオケディスクを入れ、「再生ボタン」
を 2 回押して、FL 管の
マークが点滅になると、
「ディスクのタイトル 1 とタイトル 10 を再生した後、
トレイを自動で開 / 閉し、再度タイトル 1 の再生を行
う。」エージング動作になります。停止させるか、エ
ラーにて停止するまでこの動作を自動で繰り返します。
DVD 部にエラーが発生した場合は、FL 管に下表のエ
ラーが表示されます。
2.初期設定モード
(1) 準備
(a) 使用機器：無
(b) 本体設定：下記手順以外規定無。
(2) 手順
(a) サービスにて、マイコンやマイコン周辺部分やメイン
基板を交換した場合は、ＤＶＤ プレーヤーの初期化を
行ってください。
(b) セットの初期化を下記の手順で行い、工場出荷モード
に設定する。
セットが停止状態にて、ＤＶＤ 操作部の「再生ボタ
ン」+「開 / 閉ボタン」+「
( スキップ）ボタン」
の 3 重押しを ＦＬ 管に "INITIALIZE" が表示され消える
まで押します。（ＴＶ 画面には”初期化しました”が
表示され消えます。）
(c) 初期化を行うとお客様が設定した内容が工場出荷状態
に戻りますので、あらかじめ設定内容を控えておき初
期化後に再設定してください。
No.
エラー内容
FL 管表示
1
不良ディスク
ERROR 02
2
フォーカスエラー
ERROR 02
3
リードエラー
ERROR 02
4
トラッキングエラー
ERROR 04
5
トレイエラー
ERROR 05
6
ナビゲーションパックエラー
ERROR 06
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
14
DVD-2900
3. μ-Com Firm Check Mode
(1) Preparation
(a) Equipment used: None
(b) Unit setting: No spec other than the following procedure.
(2) Procedure
(a) Press the “POWER” button to turn on the power while
pressing the “PLAY” and “OPEN/CLOSE” buttons for
DVD operation simultaneously.
(b) FL all light mode.
This mode is for detecting FL defects. Press “STILL/
PAUSE
” on the remote control unit once to light
all FL segments.
(c) DVD µcom and main unit µcom firm check mode. This
mode is for displaying the status of each µcom em-
ployed.
• DVD µcom firm: Press the “MENU” button or
,
button.
• Each time the “MENU” button or
,
but-
ton on the remote control unit is pressed, µcom firm
is displayed one after another.
Ex.: [DRV 030307, B/E 6237,PANEL 6236]
Set Serial No.
(lower 5 digits)
Drive µcom
B/E µcom
Panel µcom
1
00001-
Ver.030307
(Display)
030307
Ver.6237
(Display)
6237
Ver.6236
(Display)
6236
2
3
4
3.マイコンファームチェックモード
(1) 準備
(a) 使用機器：無
(b) 本体設定：下記手順以外規定無。
(2) 手順
(a) ＤＶＤ 操作部の「再生ボタン」と「開 / 閉ボタン」を
押しながらセットの「電源ボタン」を押し電源を入れ
ます。
(b) ＦＬ 管全点灯モード。
ＦＬ 管の故障判別用のモードで、リモコンの「スティ
ル / ポーズ
ボタン」を押すと ＦＬ 管が全点灯し
ます。
(c) ＤＶＤ マイコン及び本体マイコンのファーム確認モー
ド
搭載されている各マイコンのファーム状態を表示しま
す。
･ ＤＶＤ マイコンのファーム：リモコンの「メニューボタ
ン」または
、
ボタンを押します。
･ リモコンのメニューボタンまたは
、
ボタン
を押すたびにマイコンファームを次々と表示します。
表示例：〔DRV 030307 ､ B/E 6237 ､ PANEL 6236〕
セットのシ
リアル番号
( 下 5 桁 )
ドライブマイコン
B/Eマイコン
パネルマイコン
1
00001 ～
Ver.030307
( 表示 )030307
Ver.6237
( 表示 )6237
Ver.6236
( 表示 )6236
2
3
4
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
15
DVD-2900
4. Setting up the test mode
(1) Setting up
• In order to set up the test mode, you press STOP button
and REV button simultaneously in the heat-run mode.Fun-
damentaly, you can set up the test mode at the stop state
after disc loading. (Heat-run mode is set up by pressing
PLAY button,holding OPEN/CLOSE button. If it becomes
heat run mode, PLAY indicator and PAUSE indicator will
light up.)
LOADING display
↓
(2) Mode Select
• There are two, servo adjustment value display mode and
trace mode (error rate display), in the mode.
(a) If the REV button or the FWD button is pushed in the test
mode, it will become servo adjustment value display
mode.
(b) If the REV button or the FWD button is pushed again, it
will become the trace mode (error rate display).
(3) Mode decision
• The mode will be decided if the PLAY button is pushed in
the state where the mode is chosen.
(a) In the case of servo adjustment value display mode, a
focus offset adjustment value is displayed.
(n:adjustment value)
(b) In the case of trace mode (error rate display), trace of
the circumference in one layer is chosen.
(F: An address and an error rate display F at the time of undecided.)
(4) Change within the mode
• If the REV button or the FWD button is pushed in the state
where the mode is decided, a change within the mode will
be made.
(a) In the case of servo adjustment value display mode (re-
fer to table 1 servo adjustment value display mode de-
tails)
(XX:selection mode [31--62] n:adjustment value)
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
T
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
３
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
７
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
３
１
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
７
１
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
Ｘ
Ｘ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
4. テストモード
(1) テストモードへの投入
･ テストモードへの投入はヒートランモード時に
STOP
キーと REV キーを 2 重押しすることで行う。基本的に
ディスクローディング後の停止状態でテストモードに
投入する。( ヒートランモードへの投入は OPEN/CLOSE
キーと PLAY キーを 2 重押しすることで行う。ヒートラ
ンモードになると PLAY インジケータと PAUSE インジ
ケータが点灯する。）
LOADING 表示
↓
(2) モードの選択
･ モードには、サーボ調整値表示モードとトレースモード
( エラーレート表示 ) の 2 つがある。
(a) テストモード投入後に REV キー又は FWD キーを押す
と、サーボ調整値表示モードになる。
(b) 再度 REV キー又は FWD キーを押すとトレースモード
( エラーレート表示 ) になる。
(3) モードの確定
･ モードを選択してある状態で PLAY キーを押すとモード
を確定する。
(a) サーボ調整値表示モードの場合は、フォーカスオフ
セット調整値を表示する。
(n: 調整値 )
(b) トレースモード ( エラーレート表示 ) の場合は、１層
内周のトレースを選択する。
(Ｆ: アドレス及びエラーレートは未確定時、Ｆ を表示する。)
(4) モード内での変更
･ モードを確定してある状態で REV キー又は FWD キーを
押すとモード内での変更を行う。
(a) サーボ調整値表示モードの場合（ 表１サーボ調整値表
示モード詳細 参照）
(ＸＸ: 選択モード [31 ～ 62]、n: 調整値 )
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
T
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
３
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
７
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
３
１
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
７
１
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
Ｘ
Ｘ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
ｎ
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
16
DVD-2900
(b) In the case of trace mode (error rate display) (refer to ta-
ble 2 trace mode details)
(YY: select mode [71--94] ,F: address and an error rate display F at the
time of undecided)
(5) Execution of trace mode (error rate display)
(refer to table 2 trace mode details)
• Trace will be performed if the PLAY button is pushed after
choosing operation.
(YY:select mode[71--94],m:address[PBA][HEX],
l:error rate[COUNT/SEC][HEX])
(Note) Renewal of data is carried out for every CD:300 frame and
DVD:85ECC block.
• The mode chosen when selection mode was changed into
the trace execution and the PLAY button was pushed is
performed from the beginning.When the PLAY button is
pushed without changing selection mode, the mode under
selection is performed from the beginning.(If the PLAY
button is pushed, the address corresponding to the cho-
sen mode will be searched again.)
(6) Other operation
(a) If the STOP button is pushed into servo adjustment val-
ue display mode and trace mode (error rate display), it
will return to the state at the time of a test mode injection.
(b) Push the OPEN/CLOSE button twice and carry out ser-
vo readjustment in OPEN operation ->CLOSE opera-
tion.
(It readjusts with test mode.)
OPEN display
↓
CLOSE display
↓
LOADING display
↓
(c) By pressing STOP button and REV button simulta-
neously in the test mode, it returns to heat-run mode.
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
Ｙ
Ｙ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
Ｙ
Ｙ
ｍ
ｍ
ｍ
ｍ
ｍ
ｍ
ｌ
ｌ
ｌ
ｌ
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
FL display (The display part of 13 digits)
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
(b) トレースモード ( エラーレート表示 ) の場合（ 表 2 ト
レースモード詳細 参照）
(ＹＹ: 選択モード [71 ～ 94]、Ｆ: アドレス及びエラーレートは未確定
時、Ｆ を表示する。)
(5) トレースモード ( エラーレート表示 ) の実行（
表 2 トレースモード詳細 参照）
･ 動作を選択した後、PLAY キーを押すとトレースを実行
する。
(ＹＹ: 選択モード [71 ～ 94]、ｍ: アドレス [PBA][HEX]、
ｌ: エラーレート [COUNT/SEC][HEX])
( 注 )CD:300 フレーム ,DVD:85ECC ブロック毎にデータ
更新する。
･ トレース実行中に選択モードを変更し、PLAY キーを押
すと選択したモードを最初から実行する。選択モードを
変更せずに PLAY キーを押した場合も、選択中のモード
を最初から実行する。
（PLAY キーを押したら、選択しているモードに対
応したアドレスを再度サーチする。)
(6) その他の動作
(a) サーボ調整値表示モード、トレースモード ( エラー
レート表示 ) 中に STOP キーを押すとテストモード投
入時の状態に戻る。
(b) OPEN/CLOSE キーを 2 回押して、OPEN 動作→ CLOSE
動作で、サーボ再調整する。
( テストモードのまま再調整する。)
OPEN 表示
↓
CLOSE 表示
↓
LOADING 表示
↓
(c) テストモード中に STOP キーと REV キーの 2 重押し
( 投入時と同じキー ) で、ヒートランモードに戻る。
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
Ｙ
Ｙ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
Ｆ
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
Ｙ
Ｙ
ｍ
ｍ
ｍ
ｍ
ｍ
ｍ
ｌ
ｌ
ｌ
ｌ
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
FL 管の表示 (13 桁の表示部 )
1
2
3
4
5
6
7
8
9
10
11
12
13
Ｔ
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
17
DVD-2900
(7) Test mode detailed table
Table 1: servo adjustment value display mode details
ＸＸ
Contents
Contents
suppleme
nt
Contents explanation
31
RFP FE Offset
layer 0
PI of CXD1881AR An offset value and
FE An offset value is displayed.
Pi offset is shown in higher rank
1Byte.
FE offset is shown in low rank 1Byte.
32
RFP
TE
Bal
Gain
layer 0
TE balance gain value of CXD1881AR
is displayed.
33
RFP TE Output
Gain
layer 0
TE output gain value of CXD1881AR is
displayed.
34
RFP TE Offset
layer 0
TE offset value of CXD1881AR is
displayed.
35
DSP TE Offset
layer 0
TE offset value inside CXD1885Q is
displayed.
36
Fcs Bias
layer 0
The
focus
bias
value
inside
CXD1885Q is displayed.
37
Fcs AGC
layer 0
The inside focus gain (setting 0x2000
to
1)
value
of
CXD1885Q
is
displayed.。
Therefore, 0x1FF2 and in the case of
0x2012, it is as follows.
0x1FF2(8178) / 0x2000(8192) =
0.998291015625(fold)
0x2012(8210) / 0x2000(8192) =
1.002197265625(fold)
Notes: The inside of ( ) is a decimal
system equivalent.
38
Trk AGC
layer 0
The inside tracking gain (setting
0x2000 to 1) value of CXD1885Q is
displayed.。
Therefore, 0x1FF2 and in the case of
0x2012, it is as follows.
0x1FF2(8178) / 0x2000(8192) =
0.998291015625(fold)
0x2012(8210) / 0x2000(8192) =
1.002197265625(fold)
Notes: The inside of ( ) is a decimal
system equivalent
39
Pi Offset
layer 0
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
40
FE Offset
layer 0
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
41
SE Offset
layer 0
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
42
RFP FE Offset
layer 1
PI of CXD1881AR An offset value and
FE An offset value is displayed.
Pi offset is shown in higher rank
1Byte.
FE offset is shown in low rank 1Byte.
43
RFP
TE
Bal
Gain
layer 1
TE balance gain value of CXD1881AR
is displayed.
44
RFP TE Output
Gain
layer 1
TE output gain value of CXD1881AR is
displayed.
45
RFP TE Offset
layer 1
TE offset value of CXD1881AR is
displayed.
46
DSP TE Offset
layer 1
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
47
Fcs Bias
layer 1
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
(7) テストモード詳細一覧表
表 1 サーボ調整値表示モード詳細
ＸＸ
内容
内容補足
内容説明
31
RFP FE Offset
レイヤ 0
CXD1881AR の PI オフセット値と FE
オフセット値を表示。
上位 1Byte に Pi オフセットを示す。
下位 1Byte に FE オフセットを示す。
32
RFP
TE
Bal
Gain
レイヤ 0
CXD1881ARのTE バランスゲイン値を
表示す。
33
RFP TE Output
Gain
レイヤ 0
CXD1881ARのTE 出力ゲイン値を表示
す。
34
RFP TE Offset
レイヤ 0
CXD1881AR の TE オフセット値を表
示。
35
DSP TE Offset
レイヤ 0
CXD1885Q 内部の TE オフセット値を
表示。
36
Fcs Bias
レイヤ 0
CXD1885Q 内部のフォーカスバイア
ス値を表示。
37
Fcs AGC
レイヤ 0
CXD1885Q
内部フォーカスゲイン
(0x2000 を 1 として ) 値を表示。
0x1FF2 や 0x2012 の場合、以下のよ
うになる。
0x1FF2(8178) / 0x2000(8192) =
0.998291015625( 倍 )
0x2012(8210) / 0x2000(8192) =
1.002197265625( 倍 )
注 :( ) 内は 10 進換算値
38
Trk AGC
レイヤ 0
CXD1885Q内部トラッキングゲイン(0
x2000 を 1 として ) 値を表示。
0x1FF2 や 0x2012 の場合、以下のよ
うになる。
0x1FF2(8178) / 0x2000(8192) =
0.998291015625( 倍 )
0x2012(8210) / 0x2000(8192) =
1.002197265625( 倍 )
注 :( ) 内は 10 進換算値
39
Pi Offset
レイヤ 0
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
40
FE Offset
レイヤ 0
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
41
SE Offset
レイヤ 0
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
42
RFP FE Offset
レイヤ 1
CXD1881AR の PI オフセット値と FE
オフセット値を表示。
上位 1Byte に Pi オフセットを示す。
下位 1Byte に FE オフセットを示す。
43
RFP
TE
Bal
Gain
レイヤ 1
CXD1881ARのTE バランスゲイン値を
表示。
44
RFP TE Output
Gain
レイヤ 1
CXD1881AR の TE 出力ゲイン値を表
示。
45
RFP TE Offset
レイヤ 1
CXD1881AR の TE オフセット値を表
示。
46
DSP TE Offset
レイヤ 1
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
47
Fcs Bias
レイヤ 1
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
18
DVD-2900
48
Fcs AGC
layer 1
The inside focus gain (setting 0x2000
to 1) value of CXD1885Q is displayed.
Therefore, 0x1FF2 and in the case of
0x2012, it is as follows.
0x1FF2(8178) / 0x2000(8192) =
0.998291015625(fold)
0x2012(8210) / 0x2000(8192) =
1.002197265625(fold)
Notes: The inside of ( ) is a decimal
system equivalent.
49
Trk AGC
layer 1
The inside tracking gain (setting
0x2000 to 1) value of CXD1885Q is
displayed.
Therefore, 0x1FF2 and in the case of
0x2012, it is as follows.
0x1FF2(8178) / 0x2000(8192) =
0.998291015625(fold)
0x2012(8210) / 0x2000(8192) =
1.002197265625(fold)
Notes: The inside of ( ) is a decimal
system equivalent
50
Pi Offset
layer 1
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
51
FE Offset
layer 1
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
52
SE Offset
layer 1
It is the parameter calculated inside
CXD1885Q.
The value displayed on a set serves as
the number of complement of 2 of
2Bytes(es) doubled 256.
A voltage value is 6.25mV per bit.
53
PO error
detection
number
Error rate
It is invalid at the time of CD
operation.
54
PO uncorrect-
able error
number
Error Rate
It is invalid at the time of CD
operation.
55
PI error detec-
tion number
Error Rate
CD : C1 error detection number
56
PI
uncorrect-
able
error
number
Error Rate
CD : C2 uncorrectable error number
57
Mirr Count
Disc
dis-
criminant
They are the contents at the time of
disk distinction.
Please
refer
to
"Table
3
Disc
distinction information" about the
contents of a value.
58
Mirr Width
Disc
dis-
criminant
They are the contents at the time of
disk distinction.
Please
refer
to
"Table
3
Disc
distinction information" about the
contents of a value.
59
FZC Count
Disc
dis-
criminant
They are the contents at the time of
disk distinction.
Please
refer
to
"Table
3
Disc
distinction information" about the
contents of a value.
60
Pi Level
Disc
dis-
criminant
They are the contents at the time of
disk distinction.
Please
refer
to
"Table
3
Disc
distinction information" about the
contents of a value.
61
Disc Type
Disc Type
They are the contents at the time of
disk type.
Please
refer
to
"Table
4
Disc
classification information" about the
contents of a value.
62
PO error
detection
number and
address
Error rate
PO error detection number is invalid
at the time of CD operation.
48
Fcs AGC
レイヤ 1
CXD1885Q
内部フォーカスゲイン
(0x2000 を 1 として ) 値を表示。
0x1FF2 や 0x2012 の場合、以下のよ
うになる。
0x1FF2(8178) / 0x2000(8192) =
0.998291015625( 倍 )
0x2012(8210) / 0x2000(8192) =
1.002197265625( 倍 )
注 :( ) 内は 10 進換算値
49
Trk AGC
レイヤ 1
CXD1885Q 内部トラッキングゲイン
(0x2000 を 1 として ) 値を表示。
0x1FF2 や 0x2012 の場合、以下のよ
うになる。
0x1FF2(8178) / 0x2000(8192) =
0.998291015625( 倍 )
0x2012(8210) / 0x2000(8192) =
1.002197265625( 倍 )
注 :( ) 内は 10 進換算値
50
Pi Offset
レイヤ 1
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
51
FE Offset
レイヤ 1
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
52
SE Offset
レイヤ 1
CXD1885Q
内部で計算されるパラ
メータ。
セットに表示される値は、256 倍され
た 2Bytes の 2 の補数となる。
電圧値は 1bit あたり 6.25mV。
53
PO 誤り検出数
エ
ラ
ー
レート
CD 時は無効。
54
PO 訂正不可数
エ
ラ
ー
レート
CD 時は無効。
55
PI 誤り検出数
エ
ラ
ー
レート
CD 時は C1 誤り検出数。
56
PI 訂正不可数
エ
ラ
ー
レート
CD 時は C2 訂正不可数。
57
Mirr Count
デ ィ ス ク
判別
ディスク判別時の内容。
値の内容は「表３ディスク判別情報」
を参照。
58
Mirr Width
デ ィ ス ク
判別
ディスク判別時の内容。
値の内容は「表３ディスク判別情報」
参照。
59
FZC Count
デ ィ ス ク
判別
ディスク判別時の内容。
値の内容は「表３ディスク判別情報」
参照。
60
Pi Level
デ ィ ス ク
判別
ディスク判別時の内容。
値の内容は「表３ディスク判別情報」
参照。
61
Disc Type
デ ィ ス ク
種別
ディスク種別の内容。
値の内容は「表４ディスク種別情報」
参照。
62
PO 誤り検出数
とアドレス
エラー
レート
CD 時は PO 誤り検出数は無効。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
19
19
DVD-2900
Table 2: trace mode details
ＹＹ
Contents
Contents supplement
71
A display of PO error detection
number of the inner circumfer-
ence of 1-layer and an address.
It is invalid at the time of CD
operation.
72
A display of PO uncorrectable
number of the inner circumfer-
ence of 1-layer and an address.
It is invalid at the time of CD
operation.
73
A display of PI error detection
number of the inner circumfer-
ence of 1-layer and an address.
CD : C1 error detection number
74
A display of PI uncorrectable
number of the inner circumfer-
ence of 1-layer and an address.
CD : C2 uncorrectable error
number
75
A display of PO error detection
number of the central circumfer-
ence of 1-layer and an address.
It is invalid at the time of CD
operation.
76
A display of PO uncorrectable
number of the central circumfer-
ence of 1-layer and an address.
It is invalid at the time of CD
operation.
77
A display of PI error detection
number of the central circumfer-
ence of 1-layer and an address.
CD : C1 error detection number
78
A display of PI uncorrectable
number of the central circumfer-
ence of 1-layer and an address.
CD : C2 uncorrectable error
number
79
A display of PO error detection
number of the outer circumfer-
ence of 1-layer and an address.
It is invalid at the time of CD
operation.
80
A display of PO uncorrectable
number of the outer circumfer-
ence of 1-layer and an address.
It is invalid at the time of CD
operation.
81
A display of PI error detection
number of the outer circumfer-
ence of 1-layer and an address.
CD : C1 error detection number
82
A display of PI uncorrectable
number of the outer circumfer-
ence of 1-layer and an address.
CD : C2 uncorrectable error
number
83
A display of PO error detection
number of the inner circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
84
A display of PO uncorrectable
number of the inner circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
85
A display of PI error detection
number of the inner circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
86
A display of PI uncorrectable
number of the inner circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
87
A display of PO error detection
number of the central circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
88
A display of PO uncorrectable
number of the central circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
89
A display of PI error detection
number of the central circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
90
A display of PI uncorrectable
number of the central circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
91
A display of PO error detection
number of the outer circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
92
A display of PO uncorrectable
number of the outer circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
93
A display of PI error detection
number of the outer circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
94
A display of PI uncorrectable
number of the outer circumfer-
ence of 2-layer and an address.
In the case of 1-layer disc, it is
invalid.
表 2 トレースモード詳細
ＹＹ
内容
補足説明
71
1 層内周の PO 誤り検出数とアド
レスの表示
CD 時は無効。
72
1 層内周の PO 訂正不可数とアド
レスの表示
CD 時は無効。
73
1層内周のPI誤り検出数とアドレ
スの表示
CD 時は C1 誤り検出数。
74
1層内周のPI訂正不可数とアドレ
スの表示
CD 時は C2 訂正不可数。
75
1 層中周の PO 誤り検出数とアド
レスの表示
CD 時は無効。
76
1 層中周の PO 訂正不可数とアド
レスの表示
CD 時は無効。
77
1層中周のPI誤り検出数とアドレ
スの表示
CD 時は C1 誤り検出数。
78
1層中周のPI訂正不可数とアドレ
スの表示
CD 時は C2 訂正不可数。
79
1 層外周の PO 誤り検出数とアド
レスの表示
CD 時は無効。
80
1 層外周の PO 訂正不可数とアド
レスの表示
CD 時は無効。
81
1層外周のPI誤り検出数とアドレ
スの表示
CD 時は C1 誤り検出数。
82
1層外周のPI訂正不可数とアドレ
スの表示
CD 時は C2 訂正不可数。
83
2 層内周の PO 誤り検出数とアド
レスの表示
1 層ディスクの場合、無効。
84
2 層内周の PO 訂正不可数とアド
レスの表示
1 層ディスクの場合、無効。
85
2層内周のPI誤り検出数とアドレ
スの表示
1 層ディスクの場合、無効。
86
2層内周のPI訂正不可数とアドレ
スの表示
1 層ディスクの場合、無効。
87
2 層中周の PO 誤り検出数とアド
レスの表示
1 層ディスクの場合、無効。
88
2 層中周の PO 訂正不可数とアド
レスの表示
1 層ディスクの場合、無効。
89
2層中周のPI誤り検出数とアドレ
スの表示
1 層ディスクの場合、無効。
90
2層中周のPI訂正不可数とアドレ
スの表示
1 層ディスクの場合、無効。
91
2 層外周の PO 誤り検出数とアド
レスの表示
1 層ディスクの場合、無効。
92
2 層外周の PO 訂正不可数とアド
レスの表示
1 層ディスクの場合、無効。
93
2層外周のPI誤り検出数とアドレ
スの表示
1 層ディスクの場合、無効。
94
2層外周のPI訂正不可数とアドレ
スの表示
1 層ディスクの場合、無効。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
20
DVD-2900
Table 3:Disc distinction information
PI level Formula：PI level (V) = Measured value × 1.6 ÷ 256
"-" : Invalid
Table 4: Disc classification information
Mirr Count
Mirr Width
FZC Count
PI Level
No Disc
Except 2
and 3
-
-
-
CD High
reflection
2
More than
0x8ED
-
More than
0x99
CD Low
reflection
2
More than
0x8ED
-
Less than
0x98
DVD High
reflection
2
Less than
0x8ED
1
More than
0x81
DVDLow
reflection
2
Less than
0x8ED
1
Less than
0x80
DVD 2-layer
2
Less than
0x8ED
2
-
SACD Hybrid
3
-
-
-
Disc Type
Media
0x00
No Disc
0x01
Unknown Disc
0x04
DVD Single Low reflection
0x05
DVD Dual Parallel Low reflection
0x06
DVD Dual Opposite Low reflection
0x08
CDDA Low reflection
0x0A
VCD Low reflection
0x44
DVD Single High reflection
0x48
CDDA High reflection
0x4A
VCD High reflection
0x8F
SACD Hybrid Disc
表３ ディスク判別情報
PI level 計算式：PI level (V) = 測定値× 1.6 ÷ 256
"-" は無効
表４ ディスク種別情報
Mirr Count
Mirr Width
FZC Count
PI Level
No Disc
2 と 3 以外
-
-
-
CD 高反射
2
0x8ED 以上
-
0x99 以上
CD 低反射
2
0x8ED 以上
-
0x98 以下
DVD 高反射
2
0x8ED 以下
1
0x81 以上
DVD 低反射
2
0x8ED 以下
1
0x80 以下
DVD 2 層
2
0x8ED 以下
2
-
SACD Hybrid
3
-
-
-
Disc Type
Media
0x00
No Disc
0x01
Unknown Disc
0x04
DVD Single 低反射
0x05
DVD Dual Parallel 低反射
0x06
DVD Dual Opposite 低反射
0x08
CDDA 低反射
0x0A
VCD 低反射
0x44
DVD Single 高反射
0x48
CDDA 高反射
0x4A
VCD 高反射
0x8F
SACD Hybrid Disc
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
21
DVD-2900
TROUBLE SHOOTING
1. GU-3494 MAIN PWB
1.1.
FL TUBE doesn’t light
(1) Check the Set-up process of Panel µ-COM
Check Power Supply Voltages.
• [IC301]:D1,D4
+3.3V_D1, +3.3V_D4
Check Oscillation Waveform.
• [IC301]:
25MHz at 31pin.
Check soldering.
• X301 on MAIN PWB.
Check Reset Signal.
• [IC301]:
“H” level at 35pin?
Check Data Bus between
IC301 and IC302(Flash ROM):
• Does the level change at FD(0--15)
Pins of IC301
Check soldering.
• IC303(Reset IC) on MAIN PWB.
(1)Check soldering of CX171.
(2)GU-3496 is N.G.(No Good).
Check soldering.
• CY121 on MAIN PWB.
Continue to next step.
Check the Set-up process of B/E µ-COM.
Check Data Bus between
FLD Driver(GU-3496 [IC101])
• [RST]: “H” level?
Check soldering.(short-circuit,open)
• FD(0--15), PA(1--16), PWE, PCE, POE,
O.K.
N.G.
O.K.
O.K.
O.K.
O.K.
N.G.
N.G.
N.G.
N.G.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
22
DVD-2900
(2) Check the Set-up process of B/E µ-COM.
Check Reset signal.
• [IC102]:(MC-TRST) 15 pin.
“H” level O.K.?
Check Power Supply Voltages.
• [IC102]:
+3.3V_D1, +2.5V_D1 O.K.?
Check Clock waveform.
• [IC102]:18 pin.
27MHz (3.3V), O.K.?
Check Power Supply Voltages.
• [IC101]:
+3.3V_D1, +1.8V_D1 O.K.?
Check Clock waveform.
• [IC101]:106 pin.
27MHz (3.3V), O.K.?
Check Clock waveform.
• [IC101]:172 pin.
24.576MHz (3.3V), O.K.?
Check Address,Data Bus between
[IC102] and [IC103](Flash Rom).
Continue to next step.
Check the Set-up process of F/E µ-COM.
Check the output level.
[ON/ST]:”H” level?
Check soldering.
• [IC301]: 55pin.
Check 27MHz(3.3V) at
4pin of IC105.
Check the circumference
soldering.
• [FB108, FB109]
(1)Check soldering of X101.
(2)Check soldering of IC105
(SM8707).
O.K.
N.G.
N.G.
O.K.
Check soldering of R168
and R153.
O.K.
N.G.
N.G.
O.K.
Check soldering
• [IC301]: 37pin.
• R310 and R311.
Check soldering
• [IC105]: 3pin.
• R170, R101.
Check soldering
• [IC117] and [IC118]
• [FB101] and [FB102].
Check soldering
• [IC105]: 9pin.
• R174, R133.
Check soldering at Address,Data Bus.
• [MCD0--MCD14], [MCA11--MCA30]
O.K.
O.K.
O.K.
O.K.
N.G.
N.G.
N.G.
N.G.
O.K.
N.G.
[IC101] Reset Check.
O.K.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
23
DVD-2900
(3) Check the Set-up process of F/E µ-COM.
1.2.
Image is not displayed. (Blue-back, DENON wallpaper)
Check Reset signal.
• [IC502]:(DRVRST) 51 pin.
“H” level O.K.?
Check Power Supply Voltages.
• [IC502]:
+3.3V_D2, +1.8V_D2 O.K.?
+3.3V_A2, +1.8V_A2 O.K.?
Check Clock waveform.
• [IC502]:33 pin.
33.87MHz (3.3V), O.K.?
O.K.
Check soldering
• [IC114], [IC115]
• FB405 and FB408.
O.K.
N.G.
Check soldering
• [IC102]: 108pin.
• R129, R635 and R570.
END
N.G.
N.G.
Check soldering
• [IC105]: 15pin.
• R171.
• [IC405], R697 and R574
O.K.
Check Digital input signal for Video.
• [GU-3497]: YUV(0--7), VCLK
O.K.
N.G.
Check soldering
• [CX331]
Check Digital output signal for Video.
• [IC101]: PXD(0--7), VCLK
Continues to the Check process of GU-3497 VIDEO P.W.B..
N.G.
Check soldering
• [IC101]: 183--192pin.
• RA101, RA102, R125 and R126.
O.K.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
24
DVD-2900
1.3.
Does not Read Disc
[No PLAY], [00 00] displayed etc.
(1) Disc does not Rotate.
(2) CD check process
(3) DVD check process
Check Spindle drive signal.
• [DMO]: “H” level?
O.K.
N.G.
Check soldering
• [IC502]: 111--113pin check.
• R599, R601, R666--R669
• [IC505]
Check the Emission of Pick-up.
• Emission of PU laser O.K.?
* See attached sheet laser current check
(Page 10,11)
END
N.G.
(1)Check soldering of P.U.
• short-circuit?
(2)Check the circumference soldering of TR501
and TR502.
(3)Check connector insertion
• [P.U.] -- [GU3494] FFC(CX241)
(4)Check soldering.
• [IC501], CXD1881AR
(5)Check soldering.
• [IC508]: FAN8042
O.K.
O.K.
Check the RF signal.
Check the voltage of Test-Point(TP)
• TP [RFAC]: about 1Vp-p.
N.G.
Check soldering
• [IC501]: circumference soldering check.
• [IC502]: 65--110pin check.
Check Connection.
• [IC502]--[IC503](16MDRAM)
“L”--”H” alternate?
Check soldering
• [BD(0-15)], [BA(0-9)], [XLCOS], [XUCAS]
[XMOE], [XRAS], [XMWR].
• [IC502], [IC503]
END
N.G.
O.K.
O.K.
N.G.
Check soldering
• [IC502]: 36--49pin
• R621--R633
• R401--411.
Check soldering
• [IC404]
END
N.G.
Check VSTEM. (communication)
• VDT(0--7)_COR,
• XHAC_COR, VEFG_COR,
• XSHD_COR, DCK_COR
“L”--”H” alternate?
Check Request Signal
• Request From [B/E] to [F/E]
[HDRQ_COR]: “L” level?
O.K.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
25
DVD-2900
(4) SACD check process
O.K.
N.G.
Check soldering
• [IC404]
• R437--R449.
Check RF signal for Water Mark.
• TP [WM]: about 1Vp-p.
Check soldering
• [IC401]: 141--162pin.
• [IC402]
END
N.G.
Check Bus Line.
Between IC401 and IC402(16MSDRAM)
“L”-”H” level alternate?
Check communication.
• [VSTEM]: communication
“L”--”H” level alternate?
Check soldering
• [IC403]: Circumference soldering check
N.G.
O.K.
O.K.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
26
DVD-2900
1.4.
No sound, Noise generated
(1) CD
(2) SACD
O.K.
Check CD digital Audio data output.
• [CDLRCK], [CDBCLK], [CDDIN], [DOTX]
N.G.
Check soldering
• [IC502]: 58--62pin check.
• R641--R644
Check digital Audio data output.
• [IC101]: [DATA1], [LRCK], [BCK],
[DOUT0]
Check Audio select output.
• [DAD0],[DAWS], [DABCK], [MCLK]
Continues to the Check process of GU-3495 AUDIO P.W.B..
O.K.
O.K.
Check soldering
• [IC101]: 159--170pin check.
• R134--R142
Check soldering
• [IC204]--[IC207]
• [CX271]
• [IC106] [IC107]
N.G.
N.G.
O.K.
Check DSD data output.
• [IC401]: [DSARS], [DSALS], [DSASW],
[DSAC], [DSAR], [DSAL], [BCKAO]
N.G.
Check soldering
• [IC401]: 60--76pin check.
• R450--R456
Check audio select output.
• [DAD1], [DAD2], [DAD0], [DAWS],
[DABCK], [MCLK]
Continues to the Check process of GU-3495 AUDIO P.W.B..
O.K.
(1)Check soldering
• [IC204]-- [IC207]
• CX271
(2)Check [IC204,205]
• DSD/PCM ① pin ”H”
N.G.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
27
DVD-2900
(3) DVD-VIDEO / AUDIO
2. GU-3495 AUDIO P.W.B.
2.1.
No sound or Noise generated at audio output terminal.
(1) Check Audio Output terminal, then Input pin of ICs.
(2) Check MUTE Circuit and Transistors.
2.2.
Does not output Digital output signal(DOUT).
O.K.
Check DVD digital data output.
• [IC101]: [DATA(1--3)], [LRCK], [BCK]
N.G.
Check soldering
• [IC101]: 159--170pin check.
• [IC201]: 46--71pin check.
Check Bus-manager output.
• [IC201]: [MELD(0--2)], [MELWS],
[MELBCK]
Check audio select output.
[DAD0-2)], [DAWS], [DABCK], [MCLK]
Continues to the Check process of GU-3495 AUDIO P.W.B..
(1)Check power supply voltage.
• [IC201]: +3.3V_D1, +2.5V_D1
(2)Check clock oscillation.
• [IC201]: (X103) 12.288MHz O.K.?
(3)Check control signal
• [IC201]: [DSPRST], [HDIN], [HDOUT], [HCLK],
[INTRPT], [HCS] O.K.?
(4)Check communication.
• [IC201]--[IC202](P-ROM)
(5)Check soldering.
• [IC203]
N.G.
O.K.
O.K.
N.G.
Check soldering
• [IC204]--[IC207]
• [CX271]
• FL, FR
IC206 Audio input check
See attached sheet waveform (Page 115 ①～④ )
CNT,SW
IC209 Audio input check
• SL, SR
IC212 Audio input check
• Check MUTE circuit
Check Transistors
(TR217--TR220, TR211--TR226)
Check belows
[IC201], [IC202]
[T201]
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
28
DVD-2900
3. GU-3497 VIDEO PWB
(1) Progressive output does not outputed.
(2) Interlace output does not outputed.
Check Power Supply Voltages.
+3.3V_D3, +5V_D1, ± 5V_V1
+3.3V_V2, +2.5V_V1, +1.8V_D3
Check Oscillation circuit.
• [IC-703]: (MC504) Set-up
20MHz Oscillation.
RESET “H”?
Check soldering.
• [X701]
Check soldering.
• [IC704]
Check soldering.
• [CY331]
• [IC712] -- [IC714]
O.K.
O.K.
N.G.
N.G.
Check IC701.
RESET “H”?
O.K.
Check IC704.
RESET “H”?
O.K.
N.G.
Check IC601.
RESET “H”?
O.K.
Check soldering.
• [IC601]
Check soldering.
• [IC701]
N.G.
N.G.
Check IC704.
RESET “H”?
N.G.
Check soldering.
• [IC704]
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
29
DVD-2900
ELECTRICAL ADJUSTMENT FOR VIDEO
1. SETTING
(1) Connect the monitor TV to the video output terminal.
(2) Connect the oscilloscope to the Y-signal and C-signal of
S-VIDEO output terminal and each terminate at 75
Ohms.
(3) Connect the oscilloscope to the Y-signal, PB-signal and
PR-signal of Component video output terminal and each
terminate at 75 Ohms.
※ Use the 75 Ohms resistance must be 1%
(4) DVD test disc : DVDT-S01
2. BEFORE ADJUSTMENT
2.1. Setting the Oscilloscope as below.
(1) PB/PR
(a) TIME/DIV : 2μS
(b) VOLT/DIV : 100mV
(Use the probe : x10 )
(2) Y/C
(a) TIME/DIV : 2μS
(b) VOLT/DIV : 50mV
(Use the probe : x10 )
Power on. Power Supply
USA & Canada
:
120V
Europe
:
230V
Japan
:
100V
2.2. Preparation
(1) power on.
(2) Set the [SOURCE] selector knob : DVD
(3) Push [OPEN/CLOSE] button, then open the Disc Tray.
(4) Set DVD test disc (DVDT-S01) on the Disc Tray, and
then push [CLOSE] button.
(5) FL display appear “STOP”, push [PLAY] button to play-
back DVD.
(6) Set the Video output to INTERLACED by remote control
unit.
(Push the [SETUP] button, set to the mode of
VIDEO SETUP.)
(7) Push the [DISPLAY] button of remote control unit and
then appear the ON-Screen Display (GUI) on the monitor
TV.
(8) Push the [12] button, select title 12 of DVD.
(9) Push the [ENTER] button, playback title 12. (color bar
75%)
ビデオ回路の調整
1. セッティング手順
(1)
セットの VIDEO OUT 端子にテレビモニターを接続す
る。
(2)
セットの S2 VIDEO OUT 端子から Y 信号と C 信号をそれ
ぞれオシロスコープ（終端抵抗：75Ω）に接続する。
(3)
セットの COMPONENT VIDEO OUT の各端子（Y/PB/PR）
をそれぞれオシロスコープ（終端抵抗：75Ω）に接続す
る。
※ 75Ω 抵抗は 1％品を使用する事。
(4)
DVD テストディスク：DVDT-S01 を用意する。
2. 調整のまえに
2.1. オシロスコープを下記に設定する。
(1) PB/PR/
(a) TIME/DIV : 2μS
(b) VOLT/DIV : 100mV
（プローブ x10 使用）
(2) Y
(a) TIME/DIV : 2μS
(b) VOLT/DIV : 50mV
（プローブ x10 使用）
電源電圧 ：100V
2.2. 準備手順
(1)
セットの AC コードをコンセントへ挿入し、セットの電
源を ON する。
(2)
セットの「OPEN/CLOSE」ボタンを押しトレイを開き、
トレイ上に DVD テストディスク（DVDT-S1）をセット
後、「CLOSE] ボタンを押す。
(3)
セット表示管上に "STOP" が表示されてから、PLAY ボ
タンを押し、ディスクを再生する。
(4)
リモコンで VIDEO 出力をインターレースモードに設定
する。
(5)
リモコンの DISPLAY ボタンを押しグラフィカル・ユー
ザー・インターフェイス (GUI) 画面を出す。
(6)
番号ボタンの「12」ボタンを押し、Title 12 を選択する。
(7) 「ENTER」ボタンを押し、Title 12 を再生する（75％カ
ラーバー信号）。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
30
30
DVD-2900
2.3. Procedure
(1) Adjust the signal of S-VIDEO out by the wave of oscillo-
scope.
(a) Target, Y-signal
Point
:
VR704
Adjustment Value
:
1000 ± 20mV
Waveform
(b) Target, C-signal
Point
:
VR705
Adjustment Value
:
286 ± 5mV
Waveform
(2) Set the Video output to PROGRESSIVE by remote con-
trol unit. (Push the [SETUP] button, set to the mode of
VIDEO SETUP.)
(a) Target, Y-signal
Point
:
VR701
Adjustment Value
:
1000 ± 20mV
Waveform
(b) Target, PB-signal
Point
:
VR702
Adjustment Value
:
*525 ± 10mV
Waveform
Y-signal of S-VIDEO out
Y
C-signal of S-VIDEO out
C
Y-signal
Y
PB-signal
PB
2.3. 手順
(1)
セットの S2 VIDEO OUT の信号レベルをオシロスコープ
上の波高値で調整する。
(a) Y 信号レベル
調整個所
：VR704
調整値
： 1000 ± 20mV
波形
(b) C 信号レベル
調整個所
：VR705
調整値
： 286 ± 5ｍV
波形
(2)
リモコンで VIDEO 出力をプログレッシブモードに設定
する。
(a) Y 信号レベル
調整個所
：VR701
調整値
： 1000 ± 20ｍV
波形
(b) PB 信号レベル
調整個所
：VR702
調整値
：525 ± 10ｍV
波形
S2 VIDEO OUT の Y 信号レベル
Y
C
S2 VIDEO OUT の C 信号レベル
Y
プログレッシブの Y 信号レベル
PB
PB 信号レベル
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
31
DVD-2900
(c) Target, PR-signal
Point
:
VR703
Adjustment Value
:
*525 ± 10mV
Waveform
* : 486 ± 10mV for U.S.A. & Canada model
PR-signal
PR
(c) PR 信号レベル
調整個所
：VR703
調整値
： 525 ± 10ｍV
波形
PR- 信号レベル
PR
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
32
DVD-2900
BLOCK DIAGRAM
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
33
DVD-2900
SEMICONDUCTORS
Only major semiconductors are shown, general semiconductors etc. are omitted to list.
主な半導体を記載しています。汎用の半導体は記載を省略しています。
1. IC’s
Note: Abbreviation ahead of IC No. indicates the name of P.W.B., etc.
注 ):
IC No. の前の記号は、基板の名称を表します。
MA: Main P.W.B.
AU: Audio P.W.B.
PD: Power/Display P.W.B.
VI: Video P.W.B.
SC: Scart P.W.B. (for Europe model)
CXD1885Q (MA: IC502)
Top View
1
2
3
4
5
6
7
8
9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
DVDD33
DVDD18
VMCHG
TDO
TCK
TDI
TMS
TRST
GIO19
GIO18
GIO17
GIO16
GIO15
GIO14
GIO13
DVSS
GIO12
GIO11
GIO10
GIO9
GIO8
DVDD18
GIO7
GIO6
GIO5
GIO4
DVDD33
GIO3
GIO2
GIO1
GIO0
MODSEL2
DVSS
MODSEL1
MODSEL0
TEST15
TEST14
TEST13
TEST12
TEST11
TEST10
TEST9
TEST8
TEST7
TEST6
TEST5
TEST4
TEST3
TEST2
TEST1
TEST0
RD8
DVDD33
DVDD33
DRVTX
DRVRX
DRVCLK
DRVRDY
C2PO
DADT
DOTK
LRCK
BCK
EXVCO
EXPLDT
CSL
SI
SO
SCLKH
RFOKGH
HFD
MIRRORH
DTC
AVSS
ATC
HF
TLC0
TLC1
IREF
AVDD33
JMREF
JMOUT
CHG
VFBC
AVDD18
VCOI
LPF1
LPF2
RC
AVSS
AVSS
AD0
AD1
AD2
AVDD33
AD3
AD4
AD5
AD6
AD7
AD8
AD9
VREFH
VREFL
AVDD18
ALCR
MSEL0
MSEL1
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
MA8
TESTSEL
MD0
MD1
MD2
MD3
MD4
MD5
DVSS
MD6
MD7
MALE
MCS
MWR
DVDD33
MRD
MRDY
MINT
SYSCK
DVDD18
XI
XO
DVSS
VDT7
VDT6
DVSS
VDT5
VDT4
VDT3
VDT2
VDT1
VDT0
HDRQ
XHAC
VEFG
XSHD
DCK
DRVIRQ
DRVRST
DVDD18
DVDD18
RD9
RD10
RD11
RD12
RD13
RD14
RD15
RD0
RD1
RD2
RD3
RD4
RD5
DVSS
RD6
RD7
XMWR
XRAS
RA0
DVDD18
RA1
RA2
RA3
RA4
DVDD33
RA5
RA6
RA7
RA8
RA9
DVSS
RA10
RA11
XMOE
XUCAS
XLCAS
GPWM5
GPWM4
GPWM3
GPWM2
GPWM1
GPWM0
SPWM2
SPWM1
FG
AVSS
DA3 (SLED2_TILT)
DA2 (FSCON)
DA1 (SLED)
DA0 (TSCON)
AVDD33
DRAM I/F
PWM.FG
D/A
A/D
Data PLL/Data Slicer
ASP S-I/O, Defect etc
Audio D/A
VSTEM I/F
VSTEM I/F
Clock
B/E MCU I/F
JTAG
Test/Monitor Pin
General Port
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
34
DVD-2900
Block Diagram
Functions (A/D : Analog/Digital, PU : Pull-up, PD : Pull-down, SMT=Schumitt )
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
1
DVDD33
P
VDD & GND
Digital 3.3V Power for I/O.
2
ALCR
I
D
MCU I/F
Chip select input. (L: Reset)
*
*
3
MSEL0
I
D
MCU I/F
MCU I/F mode select 0.
*
4
MSEL1
I
D
MCU I/F
MCU I/F mode select 1.
*
5
MA0
I/O
D
MCU I/F
MCU Adress input 0 / data I/O 0 .
*
6
MA1
I/O
D
MCU I/F
MCU Adress input 1 / data I/O 1.
*
7
MA2
I/O
D
MCU I/F
MCU Adress input 2 / data I/O 2.
*
8
MA3
I/O
D
MCU I/F
MCU Adress input 3 / data I/O 3.
*
9
MA4
I/O
D
MCU I/F
MCU Adress input 4 / data I/O 4.
*
10
MA5
I/O
D
MCU I/F
MCU Adress input 5 / data I/O 5.
*
11
MA6
I/O
D
MCU I/F
MCU Adress input 6 / data I/O 6.
*
12
MA7
I/O
D
MCU I/F
MCU Adress input 7 / data I/O 7.
*
13
MA8
I
D
MCU I/F
MCU Adress input 8 .
*
14
TESTSEL
I
D
MCU I/F
TEST Select input.
*
15
MD0
I/O
D
MCU I/F
MCU data I/O 0 .
*
16
MD1
I/O
D
MCU I/F
MCU data I/O 1.
*
17
MD2
I/O
D
MCU I/F
MCU data I/O 2.
*
18
MD3
I/O
D
MCU I/F
MCU data I/O 3.
*
19
MD4
I/O
D
MCU I/F
MCU data I/O 4.
*
20
MD5
I/O
D
MCU I/F
MCU data I/O 5.
*
21
DVSS
P
VDD & GND
Digital Ground.
22
MD6
I/O
D
MCU I/F
MCU data I/O 6.
*
23
MD7
I/O
D
MCU I/F
MCU data I/O 7 .
*
24
MALE
I
D
MCU I/F
MCU Adress latch signal input.
*
25
MCS
I
D
MCU I/F
MCU Chip Select signal input.
*
26
MWR
I
D
MCU I/F
MCU Write strobe signal.
*
27
DVDD33
P
VDD & GND
digital 3.3V Power. (for I/O )
28
MRD
I
D
MCU I/F
MCU Read Strobe signal.
*
29
MRDY
O
D
MCU I/F
MCU Ready signal. (L: Wait)
30
MINT
O
D
MCU I/F
MCU Interrupt signal. (L: Interrupt request)
HFD
Video
VSTEM
Serial
Command
Audio
MCU
Servo
control
X'tal
HF
ASP
PWM
ATC
JTAG
Mecha
control
Servo
singnal
BCA
Data
Slicer
DVD
Demodulation
CD-DSP (DDCD)
Data-PLL
VSTEM
Serial I/F
ASP Serial I/F
Spindle
TZC
GIO
A/D
ICU
Timer
Peri. CLK
ICU
MCU I/F
MPEG I/F
EDC
ECC Core
16/4M DRAM
Audio I/F
CD-ROM
Header Dec.
Memory
manager
D/A
PWM
CMD/
RSP
reg.
TC
DSP
ROM/RAM
RAM
DSP CLK/Mode
Data
Direction
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
35
DVD-2900
31
SYSCK
O
D
Clock
Clock Monitor output.
32
DVDD18
P
VDD & GND
Digital 1.8V Power. (Internal logic system power)
33
XI
I
D
Clock
Crystal oscillation input.
34
XO
O
D
Clock
Crystal oscillation output.
35
DVSS
P
VDD & GND
Digital Ground.
36
VDT7
O
D
VSTEM A/V
MPEG data output 7.
37
VTD6
O
D
VSTEM A/V
MPEG data output 6.
38
DVSS
P
VDD & GND
Digital Ground.
39
VDT5
O
D
VSTEM A/V
MPEG data output 5.
40
VDT4
O
D
VSTEM A/V
MPEG data output 4.
41
VDT3
O
D
VSTEM A/V
MPEG data output 3.
42
VDT2
O
D
VSTEM A/V
MPEG data output 2.
43
VDT1
O
D
VSTEM A/V
MPEG data output 1.
44
VDT0
O
D
VSTEM A/V
MPEG data output 0.
45
HDRQ
I
D
VSTEM A/V
MPEG data Request input.
*
46
XHAC
O
D
VSTEM A/V
Data Valid output.
47
VEFG
O
D
VSTEM A/V
ECC Error-sector Flag output. (L: error sector)
48
XSHD
O
D
VSTEM A/V
DVD Sector Head Flag output.
49
DCK
O
D
VSTEM A/V
Data Strobe output.
50
DRVIRQ
O
D
VSTEM Command
Interrupt Request output for Host. (L: interruption is demanded)
51
DRVRST
I
D
VSTEM Command
Drive H/W Reset input. (L: reset)
*
*
52
DVDD18
P
VDD & GND
Digital 1.8V power for Internal logic system.
53
DVDD33
P
VDD & GND
Digital 3.3V Power for I/O.
54
DRVTX
O
D
VSTEM Command
Transmitting serial data output to Host.
55
DRVRX
I
D
VSTEM Command
Reception serial data input from Host.
56
DRVCLK
I
D
VSTEM Command
Clock input from Host.
*
57
DRVRDY
O
D
VSTEM Command
Drive Ready signal output. (L: ready)
58
C2PO
O
D
Audio I/F
CD-DSP C2 Pointer output.
59
DADT
O
D
Audio I/F
Audio serial data output.
60
DOTX
O
D
Audio I/F
Digital audio output.
61
LRCK
O
D
Audio I/F
L/R Clock output.
62
BCK
O
D
Audio I/F
Audio Bit Clock output.
63
EXVCO
I
D
TEST/Monitor
External Channel clock input.
64
EXPLDT
I
D
TEST/Monitor
External RF data input. (Logic level)
65
CSL
O
D
ASP I/F
SIO for RF signal processing LSI control. Latch signal output.
66
SI
I
D
ASP I/F
SIO for RF signal processing LSI control. Serial data input.
67
SO
O
D
ASP I/F
SIO for RF signal processing LSI control. Serial data output.
68
SCLKH
O
D
ASP I/F
SIO for RF signal processing LSI control. Serial clock output.
69
RFOKGH
I
D
ASP I/F
RF O.K. Signal input.
*
70
HFD
I
D
ASP I/F
RF lack Signal input.
*
71
MIRRORH
I
D
ASP I/F
Mirror detected signal input.(H: Mirror detected)
*
72
DTC
I
D
ASP I/F
Track cross signal input. (Logic level input)
*
73
AVSS
P
VDD & GND
Analog Ground.
74
ATC
I
A
Data PLL
Track Cross signal input. (Analog level input)
75
HF
I
A
Data PLL
RF signal input.
76
TLC0
O
A
Data PLL
Asymmetry Charge-pump output 0.
77
TLC1
O
A
Data PLL
Asymmetry Charge-pump output 1
78
IREF
I
A
Data PLL
Reference current setting terminal for Asymmetry Circuit.
79
AVDD33
P
VDD & GND
Analog 3.3V Power.
80
JMREF
I
A
Data PLL
Reference current setting terminal for Jitter Monitor
81
JMOUT
O
A
Data PLL
Jitter Monitor output.
82
CHG
I
A
Data PLL
Reference current setting terminal for data PLL.
83
VFBC
I
A
Data PLL
VCO offset frequency setting terminal for data PLL.
84
AVDD18
P
VDD & GND
Analog 1.8V Power.
85
VCOI
I
A
Data PLL
VCO Control voltage input terminal for data PLL.
86
LPF1
O
A
Data PLL
VCO Loop-filter connection terminal 1 for data PLL.
87
LPF2
O
A
Data PLL
VCO Loop-filter connection terminal 2 for data PLL
88
RC
I
A
Data PLL
VCO gain setting terminal for data PLL.
89
AVSS
P
VDD & GND
Analog Ground.
90
AVSS
P
VDD & GND
Analog Ground.
91
AD0
I
A
ADC
AD0 Input.
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
36
DVD-2900
92
AD1
I
A
ADC
AD1 Input.
93
AD2
I
A
ADC
AD2 Input.
94
AVDD33
P
VDD & GND
Analog 3.3V Power.
95
AD3
I
A
ADC
AD3 Input.
96
AD4
I
A
ADC
AD4 Input.
97
AD5
I
A
ADC
AD5 Input.
98
AD6
I
A
ADC
AD6 Input.
99
AD7
I
A
ADC
AD7 Input.
100
AD8
I
A
ADC
AD8 Input.
101
AD9
I
A
ADC
AD9 Input.
102
VREFH
I/O
A
ADC
Max Reference Voltage input for ADC.
(Internal Reference Voltage mode, it will be an output state)
103
VREFL
I/O
A
ADC
Min Reference Voltage input for ADC.
(Internal Reference Voltage mode, it will be an output state)
104
AVDD18
P
VDD & GND
Analog 1.8V Power.
105
AVDD33
P
VDD & GND
Analog 3.3V Power.
106
DA0 (TSCON)
O
A
DAC
DA0 output. (Track Servo output)
107
DA1 (SLED)
O
A
DAC
DA1 output. (Sled Servo output)
108
DA2 (FSCON)
O
A
DAC
DA2 output. (Forcus Servo output)
109
DA3 (SLED2_
TILT)
O
A
DAC
DA3 output. (Sled Servo / Tilt Servo output)
110
AVSS
P
VDD & GND
Analog Ground
111
FG
I
D
SPM
FG signal input.
*
112
SPWM1
O
D
SPM
Spindle motor PWM output 1.
113
SPWM2
O
D
SPM
Spindle motor PWM output 2.
114
GPWM0
O
D
General PWM
Multi-purpose PWM output 0.
115
GPWM1
O
D
General PWM
Multi-purpose PWM output 1.
116
GPWM2
O
D
General PWM
Multi-purpose PWM output 2.
117
GPWM3
O
D
General PWM
Multi-purpose PWM output 3.
118
GPWM4
O
D
General PWM
Multi-purpose PWM output 4.
119
GPWM5
O
D
General PWM
Multi-purpose PWM output 5.
120
XLCAS
O
D
DRAM I/F
DRAM LCAS output. (Low-Byte row address strobe output)
121
XUCAS
O
D
DRAM I/F
DRAM UCAS output. (Upper-Byte row address strobe output)
122
XMOE
O
D
DRAM I/F
DRAM output enable.
123
RA11
O
D
DRAM I/F
DRAM address output terminal 11.
124
RA10
O
D
DRAM I/F
DRAM address output terminal 10.
125
DVSS
P
VDD & GND
Digital Ground.
126
RA9
O
D
DRAM I/F
DRAM address output terminal 9.
127
RA8
O
D
DRAM I/F
DRAM address output terminal 8.
128
RA7
O
D
DRAM I/F
DRAM address output terminal 7.
129
RA6
O
D
DRAM I/F
DRAM address output terminal 6.
130
RA5
O
D
DRAM I/F
DRAM address output terminal 5.
131
DVDD33
P
VDD & GND
Digital 3.3V Power. (for I/O)
132
RA4
O
D
DRAM I/F
DRAM address output terminal 4.
133
RA3
O
D
DRAM I/F
DRAM address output terminal 3.
134
RA2
O
D
DRAM I/F
DRAM address output terminal 2.
135
RA1
O
D
DRAM I/F
DRAM address output terminal 1.
136
DVDD18
P
VDD & GND
Digital 1.8V Power. (for Internal Logic power)
137
RA0
O
D
DRAM I/F
DRAM address output terminal 0.
138
XRAS
O
D
DRAM I/F
DRAM RAS output. (Column address strobe output)
139
XMWR
O
D
DRAM I/F
DRAM Write enable.
140
RD7
I/O
D
DRAM I/F
DRAM data input/output terminal 7.
*
141
RD6
I/O
D
DRAM I/F
DRAM data input/output terminal 6.
*
142
DVSS
P
VDD & GND
Digital Ground.
143
RD5
I/O
D
DRAM I/F
DRAM data input/output terminal 5.
*
144
RD4
I/O
D
DRAM I/F
DRAM data input/output terminal 4.
*
145
RD3
I/O
D
DRAM I/F
DRAM data input/output terminal 3.
*
146
RD2
I/O
D
DRAM I/F
DRAM data input/output terminal 2.
*
147
RD1
I/O
D
DRAM I/F
DRAM data input/output terminal 1.
*
148
RD0
I/O
D
DRAM I/F
DRAM data input/output terminal 0.
*
149
RD15
I/O
D
DRAM I/F
DRAM data input/output terminal 15.
*
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
37
DVD-2900
150
RD14
I/O
D
DRAM I/F
DRAM data input/output terminal 14.
*
151
RD13
I/O
D
DRAM I/F
DRAM data input/output terminal 13.
*
152
RD12
I/O
D
DRAM I/F
DRAM data input/output terminal 12.
*
153
RD11
I/O
D
DRAM I/F
DRAM data input/output terminal 11.
*
154
RD10
I/O
D
DRAM I/F
DRAM data input/output terminal 10.
*
155
RD9
I/O
D
DRAM I/F
DRAM data input/output terminal 9.
*
156
DVDD18
P
VDD & GND
Digital 1.8V Power. (for internal Logic system)
157
DVDD33
P
VDD & GND
Digital 3.3V power for I/O.
158
RD8
I/O
D
DRAM I/F
DRAM data input/output terminal 8.
*
159
TEST0
O
D
TEST/Monitor
TEST I/O 0.
160
TEST1
O
D
TEST/Monitor
TEST I/O 1.
161
TEST2
O
D
TEST/Monitor
TEST I/O 2.
162
TEST3
O
D
TEST/Monitor
TEST I/O 3.
163
TEST4
O
D
TEST/Monitor
TEST I/O 4.
164
TEST5
O
D
TEST/Monitor
TEST I/O 5.
165
TEST6
O
D
TEST/Monitor
TEST I/O 6.
166
TEST7
O
D
TEST/Monitor
TEST I/O 7.
167
TEST8
O
D
TEST/Monitor
TEST I/O 8.
168
TEST9
O
D
TEST/Monitor
TEST I/O 9.
169
TEST10
O
D
TEST/Monitor
TEST I/O 10.
170
TEST11
O
D
TEST/Monitor
TEST I/O 11.
171
TEST12
O
D
TEST/Monitor
TEST I/O 12.
172
TEST13
O
D
TEST/Monitor
TEST I/O 13.
173
TEST14
O
D
TEST/Monitor
TEST I/O 14.
174
TEST15
O
D
TEST/Monitor
TEST I/O 15.
175
MODSEL0
I
D
TEST/Monitor
TEST mode select 0. (GND, under normal conditions)
176
MODSEL1
I
D
TEST/Monitor
TEST mode select 1. (GND, under normal conditions)
177
DVSS
P
VDD & GND
Digital Ground.
178
MODSEL2
I
D
TEST/Monitor
TEST mode select 2. (GND, under normal conditions)
179
GIO0
I/O
D
Multi-purpose
Multi-purpose port 0.
*
*
180
GIO1
I/O
D
Multi-purpose
Multi-purpose port 1.
*
*
181
GIO2
I/O
D
Multi-purpose
Multi-purpose port 2.
*
*
182
GIO3
I/O
D
Multi-purpose
Multi-purpose port 3.
*
*
183
DVDD33
P
VDD & GND
Digital 3.3V Power for I/O.
184
GIO4
I/O
D
General Port
Multi-purpose port 4.
*
*
185
GIO5
I/O
D
General Port
Multi-purpose port 5.
*
*
186
GIO6
I/O
D
General Port
Multi-purpose port 6.
*
*
187
GIO7
I/O
D
General Port
Multi-purpose port 7.
*
*
188
DVDD18
P
VDD & GND
Digital 1.8V Power for I/O. (for internal Logic system)
189
GIO8
I/O
D
General Port
Multi-purpose port 8.
*
*
190
GIO9
I/O
D
General Port
Multi-purpose port 9.
*
*
*
191
GIO10
I/O
D
General Port
Multi-purpose port 10.
*
*
192
GIO11
I/O
D
General Port
Multi-purpose port 11.
*
*
193
GIO12
I/O
D
General Port
Multi-purpose port 12.
*
*
*
194
DVSS
P
VDD & GND
Digital Ground.
195
GIO13
I/O
D
Multi-purpose
Multi-purpose port 13.
*
*
*
196
GIO14
I/O
D
General Port
Multi-purpose port 14.
*
*
*
197
GIO15
I/O
D
General Port
Multi-purpose port 15.
*
*
*
198
GIO16
I/O
D
General Port
Multi-purpose port 16.
*
*
199
GIO17
I/O
D
General Port
Multi-purpose port 17.
*
*
200
GIO18
I/O
D
General Port
Multi-purpose port 18.
*
*
201
GIO19
I/O
D
General Port
Multi-purpose port 19.
*
*
202
TRST
I
D
JTAG I/F
JTAG Reset input.
*
*
203
TMS
I
D
JTAG I/F
JTAG Mode Select input.
*
*
204
TDI
I
D
JTAG I/F
JTAG Data Input.
*
*
205
TCK
I
D
JTAG I/F
JTAG Clock input.
*
206
TDO
O
D
JTAG I/F
JTAG Data output.
207
VMCHG
I
D
MCU I/F
VSTEM / external MCU access selection terminal of system set-
ting register for DSP. (L: VSTEM, H: external MCU)
208
DVDD18
P
VDD & GND
Digital 1.8V power for internal Logic system.
No.
Terminal Name
I/O
A/D
Classification
Function
PU
PD
SMT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
38
DVD-2900
M65776BFP (MA:IC101)
Top View
156
104
208
52
1
157
53
105
#M65776BFP
xxxxxx
JAPAN
(●)TruSurround
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
39
DVD-2900
Pin Assignment
NC: NO Connection
TO: Tri-State Output
AO: Analog Output
AI: Analog Input
No
Name
I/O
No
Name
I/O
No
Name
I/O
No
Name
I/O
1 GND
-
53 MA[3]
O
105 CLKO
O
157 PDR[8]
O
2 BCLK
I
54 MA[4]
O
106 CLKIN
I
158 PDR[9]
O
3 BDEN
I
55 MA[2]
O
107 AVDD18
-
159 LRCLK
O
4 BDREQ
O
56 VDD18
-
108 AGND18
-
160 CDLRCK
I
5 BSECH
I
57 VDD33
-
109 NCO
NC
161 CDBCK
I
6 HD[0]
I/O
58 MA[5]
O
110 NCO
NC
162 CDDATA
I
7 HD[1]
I/O
59 MA[1]
O
111 NCO
NC
163 CDDIN
I
8 HD[2]
I/O
60 MA[6]
O
112 GND
-
164 AO0
O
9 HD[3]
I/O
61 MA[0]
O
113 AVDD33
-
165 GND
-
10 HD[4]
I/O
62 MA[7]
O
114 DAOUTB
AO
166 AO1
O
11 HD[5]
I/O
63 MA[10]
O
115 AVRI
AI
167 AO2
O
12 VDD18
-
64 GND
-
116 PAB
AO
168 AOD
O
13 VDD33
-
65 MA[8]
O
117 IREF
AI
169 AAD
O
14 HD[6]
I/O
66 MBA[1]
O
118 BIAS2
AI
170 DOUT0
O
15 HD[7]
I/O
67 MA[9]
O
119 PAY
AO
171 DOUT1
O
16 HD[8]
I/O
68 MBA[0]
O
120 BIAS1
AI
172 ACLKI
I
17 HD[9]
I/O
69 MA[11]
O
121 AVDD33
-
173 DACCLK
O
18 HD[10]
I/O
70 DCS
O
122 PAR
AO
174 VDD18
-
19 HD[11]
I/O
71 VDD18
-
123 AVDD33
-
175 VDD33
-
20 GND
-
72 VDD33
-
124 AGND33
-
176 DOCLK
O
21 HD[12]
I/O
73 DCS2
O
125 GND
-
177 PWD
TO
22 HD[13]
I/O
74 DCS3
O
126 NC0
NC
178 CSYNC
I
23 HD[14]
I/O
75 DCS4
O
127 NCO
NC
179 OSDKEY
O
24 HD[15]
I/O
76 DCS5
O
128 NCO
NC
180 VSYNC
O
25 HA[0]
I
77 RAS
O
129 NCO
NC
181 HSYNC
O
26 HA[1]
I
78 CAS
O
130 NCO
NC
182 PXCLKP
O
27 VDD18
-
79 MCLK
O
131 NCO
NC
183 PXCLK
O
28 VDD33
-
80 DWE
O
132 NCO
NC
184 PD[0]
O
29 HA[2]
I
81 GND
-
133 NCO
NC
185 PD[1]
O
30 HA[3]
I
82 DQMU
O
134 VDD18
-
186 PD[2]
O
31 HA[4]
I
83 DQML
O
135 VDD33
-
187 GND
-
32 HA[5]
I
84 MD[7]
I/O
136 NCO
NC
188 PD[3]
O
33 HA[6]
I
85 MD[8]
I/O
137 NCO
NC
189 PD[4]
O
34 HA[7]
I
86 MD[6]
I/O
138 NCO
NC
190 PD[5]
O
35 GND
-
87 MD[9]
I/O
139 NCO
NC
191 PD[6]
O
36 HA[8]
I
88 VDD18
-
140 NCO
NC
192 PD[7]
O
37 HA[9]
I
89 VDD33
-
141 NCO
NC
193 RESET
I
38 HA[10]
I
90 MD[5]
I/O
142 NCO
NC
194 HMODE[0]
I
39 HA[11]
I
91 MD[10]
I/O
143 NCO
NC
195 HMODE[1]
I
40 CS
I
92 MD[4]
I/O
144 NCO
NC
196 TEST[0]
I
41 RE
I
93 MD[11]
I/O
145 GND
-
197 TEST[1]
I
42 VDD18
-
94 MD[3]
I/O
146 NCO
NC
198 VDD18
-
43 VDD33
-
95 MD[12]
I/O
147 NCO
NC
199 VDD33
-
44 WE
I
96 GND
-
148 NCO
NC
200 TEST[2]
I
45 BHE
I
97 MD[2]
I/O
149 NCO
NC
201 BD[0]
I
46 RDY
TO
98 MD[13]
I/O
150 NCO
NC
202 BD[1]
I
47 INT1
O
99 MD[1]
I/O
151 NCO
NC
203 BD[2]
I
48 INT2
O
100 MD[14]
I/O
152 NCO
NC
204 BD[3]
I
49 INT3
O
101 MD[0]
I/O
153 NCO
NC
205 BD[4]
I
50 GND
-
102 MD[15]
I/O
154 NCO
NC
206 BD[5]
I
51 DREQ
O
103 VDD18
-
155 VDD18
-
207 BD[6]
I
52 DACK
I
104 VDD33
-
156 VDD33
-
208 BD[7]
I
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
40
DVD-2900
Functions (Bit stream input interface / SDRAM interface)
Functions (Video output interface)
Functions (Audio output interface)
PIN Name
I/O
Functions
BD[7:0]
I
Bit Stream data input.
BCLK
I
Strobe Signal from BD.
BDEN
I
The validity of the data extracted from BD is checked.
BDREQ
O
Data Request signal.
BSECH
I
Directs whether the data of BD is the head byte of a selector.
MD[15:0]
I/O
Data bus line with SDRAM
MA[11:0]
O
SDRAM Address bus line
MBA[1:0]
O
SDRAM Bank select line.
DCS
O
SDRAM Chip select.
DCS2
O
SDRAM Chip select.
DCS3
O
SDRAM Chip select.
DCS4
O
SDRAM Chip select.
DCS5
O
SDRAM Chip select.
RAS
O
SDRAM RAS (Row Address Strobe) control.
CAS
O
SDRAM CAS (Column Address Strobe) control.
DQMU
O
SDRAM DQM control.
DQML
O
SDRAM DQM control.
DWE
O
SDRAM WE control.
MCLK
O
SDRAM operation clock.
PIN Name
I/O
Functions
PXCLK
O
Pixel Clock, 27 MHz.
PXCLKP
O
Pixel Clock, 54 MHz.
PD[7:0]
O
Digital Pixel Data.
CSYNC
I
Composite SYNC signal input.
OSDKEY
O
OSD Key flag output.
PWD
O
Phase detecter output for external synchronous operation.
HSYNC
O
Horizontal SYNC output.
VSYNC
O
Vertical SYNC output.
PIN Name
I/O
Functions
A00
O
Serial PCM data for DAC.
A01
O
Serial PCM data for DAC.
A02
O
Serial PCM data for DAC.
A0D
O
Serial PCM data for DAC.
AAD
O
Ancillary data output.
DOCLK
O
PCM bit Clock.
LRCLK
O
Channel Clock output for PCM audio data.
DACCLK
O
Over-sampling Clock for DAC.
CDBCK
I
PCM Bit Clock inputted from CDDSP.
CDLRCK
I
L/R Clock inputted from CDDSP.
CDDIN
I
PCM audio data inputted from CDDSP.
CDATA
I
Digital audio interface input.
DOUT0
O
Digital audio interface output.
DOUT1
O
Digital audio interface output
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
41
DVD-2900
Functions (Host interface)
Video DAC
System service
Pin Name
I/O
Functions
HD[15:0]
I/O
Data I/O.
HA[11:0]
I
Address input.
BHE
I
Byte High Enable input.
RE
I
Read Enable input.
WE
I
Write Enable input.
CS
I
Chip Select input.
RDY
O
Acknowledge signal which shows that read-out or the writing of data was completed.
INTR
INT2
INT3
O
Interruption request signal over external CPU from M65776AFP.
“L” is outputted at the time of interruption generating and “H” is outputted when other.
DREQ
O
DMA request signal for bit map transmission.
DACK
I
DMA acknowledge signal for bit map transmission.
HMODE[1:0]
I
Host interface operation mode setting.
HMODE[2]
I
It fixed to “L” potential..
Pin Name
I/O
Functions
IREF
I
Reference current input.
AVRI
I
Reference voltage input.
BIAS1
I
Bias voltage for the source of current.
BIAS2
I
Bias voltage for the source of current.
PAY
O
Analog current output.(for Y)
PAB
O
Analog current output.(for Pb)
PAC
O
Analog current output.(for Pr)
DAOUTB
O
It fixed to Analog Ground..
AVDD33
Power
+3.3V Analog Power supply.
AGND33
Power
Analog Ground.
Pin Name
I/O
Functions
CLKIN
I
27 MHz, system Clock input.
CLKO
O
27 MHz, Clock output.
ACLKI
I
Audio Clock input.
RESET
I
Hardware Reset.
TEST[2:0]
I
It fixed to “L” potential.
VDD18
Power
+1.8 V Power for internal.
VDD33
Power
+3.3 V Power for external interface.
GND
Power
Ground.
AVDD18
Power
+1.8 V Power for internal PLL.
AGND18
Power
It fixed to Ground. Ground for internal PLL.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
42
DVD-2900
Sil504CM208 (VI: IC701)
Top View
Function
I/O
Pin No.
Pin Name
SiI504CM208 Terminal Function
2, 41, 51, 56,
99, 106, 146,
VDDCore
Pwr
1.8V Core Power.
160, 168, 199,
205
3, 40, 47, 50,
55, 100, 102,
GNDCore
Pwr
Digital Ground for Core Power.
107, 150, 162,
167, 206
4
LCDPwrEn
Out
LCD Power Enable
5
CBlank
Out
Composite Blank
6
CSync
Out
Composite Sync
7
VSync
Out
Vertical Sync
8
HSync
Out
Horizontal Sync
9~14, 17~20
Blue_Cb[9:0]
Out
Blue Data (RGB output mode); Cb Data (YCrCb output mode)
15, 21, 33, 61,
66, 72, 79, 85,
93, 114, 118,
GNDIO
Pwr
Digital Ground for I/O Power.
121, 126, 131,
144, 183, 190,
198
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
62
61
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140
139
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
183
182
181
180
179
178
177
176
175
174
173
172
171
170
169
168
167
166
165
164
163
162
161
160
159
158
157
RSVD
VDDCore
GNDCore
LCDPwrEn
CBIank
CSync
VSync
HSync
Blue_Cb0
Blue_Cb1
Blue_Cb2
Blue_Cb3
Blue_Cb4
Blue_Cb5
GNDIO
VDDIO
Blue_Cb6
Blue_Cb7
Blue_Cb8
Blue_Cb9
GNDIO
Green_Y0
Green_Y1
Green_Y2
Green_Y3
VDDIO
Green_Y4
Green_Y5
Green_Y6
Green_Y7
Green_Y8
Green_Y9
GNDIO
Red_Cr0
Red_Cr1
Red_Cr2
Red_Cr3
Red_Cr4
Red_Cr5
GNDCore
VDDCore
Red_Cr6
Red_Cr7
Red_Cr8
Red_Cr9
VidOutClk
GNDCore
BypPLLClk48M
Clk48M
GNDCore
VDDCore
ExtRefSel
RSVD
GNDCore
VDDCore
MemAddr3
MemAddr2
MemAddr1
MemAddr0
GNDIO
MemAddr4
MemAddr5
MemAddr6
MemAddr7
GNDIO
MemAddr8
MemAddr9
MemAddr10
MemAddr11
RSVD
GNDIO
VDDIO
VDDIO
RAS
CAS
WE
DQM
GNDIO
MemData7
MemData6
MemData5
MemData4
MemData3
GNDIO
MemData2
MemData1
MemData0
VDDIO
PuPdDis
MemData8
MemData9
GNDIO
MemData10
MemData11
MemData12
MemData13
MemData14
GNDCore
MemClk
VDDCore
GNDCore
RSVD
HostAddr5
HostAddr4
HostAddr3
HostAddr2
HostAddr1
HostAddr0
GNDCore
HostCS
HostRd_SDA
HostWr_SCL
VDDCore
VidlnClk
GNDIO
VidlnData9
VidlnData8
VidlnData7
VidlnData6
VidlnData5
VidlnData4
VidlnData3
VidlnData2
VDDIO
ExtRefXtalIOut
ExtRefXtalIn
VDDIO
GNDIO
MemData16
MemData17
MemData18
MemData19
GNDIO
MemData20
MemData21
MemData22
MemData23
GNDIO
MemData31
MemData30
GNDIO
VDDIO
MemData29
MemData28
GNDIO
MemData27
MemData26
MemData25
MemData24
MemData15
BypPLLMemClk
GNDCore
VDDCore
RSVD
AVDD
ARTN
GNDCore
VDDCore
Clk54_72M
BypPLLClk54_72M
Test1
Test0
Reset
VDDCore
GNDIO
SCKIn
WSIn
SDIn
VDDIO
SCKOut
WSOut
SDOut
GNDIO
VDDIO
MemAddr12
DeintDone
DetVideo
Det22PD
Det32PD
GNDIO
VDDIO
HostData0
HostData1
HostData2
HostData3
HostData4
HostData5
HostData6\HS
HostData7\VS
RSVD
HostData8\VidlnData12
HostData9\VidlnData13
HostData10\VidlnData14
HostData11\VidlnData15
VDDCore
GNDCore
HostData12\VidlnData16
HostData13\VidlnData17
HostData14\VidlnData18
HostData15\VidlnData19
GNDCore
HostClk
VDDCore
HostMode
HostAddr7
HostAddr6
TOP VIEW
RSVD
RSVD
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
43
DVD-2900
16, 26, 73, 74,
89, 117, 132,
VDDIO
Pwr
3.3V I/O Power.
135, 182, 189,
194
22~25, 27~32
Green_Y[9:0]
Out
Green Data (RGB output mode);Y Data (YCrCb output mode)
34~39, 42~45
Red_Cr[9:0]
Out
Red Data (RGB output mode); Cr Data (YCrCb output mode)
46
VidOutClk
Out
Video Output Clock, 36, 27 or 24 MHZ
48
BypPLLClk48M
In
Bypass PLL for Clk48M.
49
Clk48M
InOut 48 MHz Clock.
52
ExtRefSel
In
External APLL Reference Select.
57~60, 62~65,
67~70, 188
MemAddr[12:0]
InOut SDRAM Address when an output. Configuration at reset when an input.
75
RAS
Out
SDRAM Row Address Strobe.
76
CAS
Out
SDRAM Column Address Strobe.
77
WE
Out
SDRAM Write Enable.
78
DQM
Out
SDRAM Data Mask.
80~84, 86~88,
91, 92, 94~98,
109, 110~113,
MemData[31:0]
InOut SDRAM Data.
115, 116, 119,
120, 122~125,
127~130
90
PuPdDis
In
Internal pullup and pulldown disable test function.
101
MemClk
InOut SDRAM Clock.
108
BypPLLMemClk
In
Bypass PLL for MemClk.
133
ExtRefXtalIn
In
External APLL Reference Crystal/oscillator Input.
134
ExtRefXtalOut
Out
External APLL Reference Crystal Output.
136~143
VidlnData[9:2]
In
Multiplexed Video Input Data;Y Video Input Data.
145
VidlnClk
In
Video Input Clock, 27.0 MHz
147
HostWr_SCL
In
186-Compatible Write when HostMode=0. Serial Clock when HostMode=1.
148
HostRd_SDA
InOut 186-Compatible Read when HostMode=0. Serial Data when HostMode=1.
149
HostCS
In
186-Compatible Chip Select when HostMode=0.
When HostMode=1, must be tied to VDD or pulled up to VDD.
151~158
HostAddr[7:0]
In
186-Compatible Address when HostMode=0. No connect when HostMode=1.
159
HostMode
In
Serial Host Interface when HostMode=1. 186-compatible host interface when HostMode=0.
161
HostClk
InOut 186-Compatible Clock when HostMode=0. No connect when HostMode=1.
163~166,
HostData[15:8]
169~172
(VidInData[19:2])
InOut 186-Compatible Data when HostMode=0. Chroma video input data when HostMode=1.
174
HostData[7](VS)
InOut 186-Compatible Data when HostMode=0. Vertical sync input when HostMode=1.
175
HostData[6](HS)
InOut 186-Compatible Data when HostMode=0. Horizontal sync input when HostMode=1.
176~181
HostData[5:0]
InOut 186-Compatible Data when HostMode=0. No connect when HostMode=1.
184
Det32PD
Out
3:2 Pulldown Sequence Detected.
185
Det22PD
Out
2:2 Pulldown Sequence Detected.
186
DetVideo
Out
Interlaced Video Sequence Detected.
187
DeintDone
Out
Deinterlace processing complete for current field period.
191
SDOut
Out
Serial Digital Audio Output Data.
192
WSOut
Out
Serial Digital Audio Output Word Select.
193
SCKOut
Out
Serial Digital Audio Output Clock.
195
SDIn
In
Serial Digital Audio Input Data.
196
WSIn
In
Serial Digital Audio Input Word Select.
197
SCKIn
In
Serial Digital Audio Input Clock.
200
Reset
In
Hardware Reset.
201, 202
Test[1:0]
In
Production hardware test support.
203
BypPLLClk54_72M
In
Bypass PLL for Clk54_72M.
204
Clk54_72M
InOut 54 or 72 MHz Clock.
207
ARTN
Pwr
Analog Return for PLLs.
208
AVDD
Pwr
1.8V Analog Power for PLL.
Function
I/O
Pin No.
Pin Name
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
44
DVD-2900
CXD-2753R (MA: IC401)
Pin Assignment
Block Diagram
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
45
DVD-2900
Terminal Functions
Pin Name
I/O
Functions
1
VSC
-
It fixed to ground.( for Core)
2
XMSLAT
I
Latch input for µCOM serial communication.
3
MSCK
I
Shift clock input for µCOM serial communication.
4
MSDATI
I
Data input for µCOM serial communication.
5
VDC
-
+2.5V Power for Core.
6
MSDATO
O
Data output for µCOM serial communication. “Hi-Z” potential except the output mode.
7
MSREADY
O
Completion flag of output preparation for µCOM serial communication. “L” is outputted at the time of
completion.
8
XMSDOE
O
Output enable pin for µCOM serial communication. “L” is outputted at the time of MSDATO mode.
9
XRST
I
Reset pin. The whole IC is reset by at the time of “L” potential.
10
SMUTE
Ipd
Soft Mute. Soft mute of the audio output is carried out at the time of “H” potential.
It releases at the time of “L” potential.
11
MCKI
I
Master Clock input.
12
VSIO
-
It fixed to Ground. Ground for I/O.
13
EXCKO1
O
External output Clock 1.
14
EXCKO2
O
External output Clock 2.
15
LRCK
O
44.1kHz, 1Fs Clock output.
16
FRAME
O
Frame signal output.
17
VDIO
-
+3.3V Power for I/O.
18
MNT0
O
Monitor output.
19
MNT1
O
Monitor output.
20
MNT2
O
Monitor output.
21
MNT3
O
Monitor output.
22
TESTO
O
Output terminal for a Test. (open)
23
TESTO
O
Output terminal for a Test.(open)
24
TESTO
O
Output terminal for a Test.(open)
25
TESTO
O
Output terminal for a Test.(open)
26
TCK
I
Clock input for a Test. It fixed to “L” potential.
27
TDI
Ipu
Input pin(pull-up) for a Test.(open)
28
VSC
-
It fixed to Ground. Ground for CORE.
29
TDO
O
Output for a Test.(open).
30
TMS
Ipu
Input pin(pull-up) for a Test.(open)
31
TRST
Ipu
Reset pin(pull-up) for a Test. Input the Power-on reset signal or fixed to “L” potential.
32
TEST1
I
Test input pin. It fixed to “L” potential.
33
TEST2
I
Test input pin. It fixed to “L” potential.
34
TEST3
I
Test input pin. It fixed to “L” potential.
35
VDC
-
+2.5V Power for CORE.
36
TESTO
O
Out put for TEST. It fixed to open.
37
XBIT
O
DST monitor.
38
SUPDT0
O
Supplementary data output. (LSB)
39
SUPDT1
O
Supplementary data output.
40
SUPDT2
O
Supplementary data output.
41
SUPDT3
O
Supplementary data output.
42
VSIO
-
Ground for I/O.
43
SUPDT4
O
Supplementary data output.
44
SUPDT5
O
Supplementary data output.
45
VDIO
-
+3.3V Power for I/O.
46
SUPDT6
O
Supplementary data output.
47
SUPDT7
O
Supplementary data output. (MSB)
48
XSUPAK
O
Supplementary data Acknowledge output terminal.
49
VSC
-
Ground for CORE.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
46
DVD-2900
50
TESTO
O
Output for TEST. (open)
51
TESTI
I
Input for TEST. It fixed to “L” potential.
52
TESTI
I
Input for TEST. It fixed to “L” potential.
53
TESTO
O
Output for TEST. (open)
54
VDC
-
+2.5V Power for CORE.
55
DSADML
O
DSD Data output terminal for Lch Down Mix.
56
DSADMR
O
DSD Data output terminal for Rch Down Mix.
57
BCKASL
I
I/O selection terminal of the Bit clock for DSD data output. L=input (Slave), H=output (Master)
58
VSDSD
-
Ground terminal for DSD data output.
59
BCKAI
I
Bit clock input terminal for DSD data output.
Input a Bit clock into this terminal at the time of BCKASL=”L” potential.
60
BCKAO
O
Bit clock output terminal for DSD data output.
Bit clock output from this terminal at the time of BCKASL=”H” potential.
61
PHREFI
I
Reference phase signal input terminal for DSD output phase modulation.
62
PHREFO
O
Reference phase signal output terminal for DSD output phase modulation.
63
ZDFL
O
Lch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
64
DSAL
O
DSD data output terminal for Lch speaker.
65
ZDFR
O
Rch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
66
DSAR
O
DSD data output terminal for Rch speaker.
67
VDDSD
-
+3.3V Power for DSD data output.
68
ZDFC
O
Cch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
69
DSAC
O
DSD data output terminal for Cch speaker.
70
ZDFLFE
O
LFEch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
71
DSASW
O
DSD data output terminal for SWch speaker.
72
VSDSD
-
Ground for DSD data output.
73
ZDFLS
O
LSch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
74
DSALS
O
DSD data output terminal for LSch speaker.
75
ZDFRS
O
RSch zero-data detection flag (at the time of µcom setup).
It will be set to “H” if non-sound data continues 300 msecs.
76
DSARS
O
DSD data output terminal for RSch speaker.
77
VDDSD
O
+3.3V Power for DSD data output.
78
IOUT0
O
Data output terminal 0 for IEEE1394 link chip I/F.
79
IOUT1
O
Data output terminal 1 for IEEE1394 link chip I/F.
80
VSC
-
Ground for CORE.
81
IOUT2
O
Data output terminal 2 for IEEE1394 link chip I/F.
82
IOUT3
O
Data output terminal 3 for IEEE1394 link chip I/F.
83
VDC
-
+2.5V Power for CORE.
84
IOUT4
O
Data output terminal 4 for IEEE1394 link chip I/F.
85
IOUT5
O
Data output terminal 5 for IEEE1394 link chip I/F.
86
VSIO
-
Ground for I/O.
87
IANCO
O
Transmission information data output terminal for IEEE1394 link chip I/F.
88
IFULL
I
Data transmission hold request signal input terminal for IEEE1394 link chip I/F.
89
IEMPTY
I
High speed transmission request signal input terminal for IEEE1394 link chip I/F.
90
VDIO
-
+3.3V Power for I/O.
91
IFRM
O
Frame reference signal output terminal for IEEE1394 link chip I/F.
92
IOUTE
O
Enable signal output terminal for IEEE1394 link chip I/F.
93
IBCK
O
Data transmission clock output terminal for IEEE1394 link chip I/F.
94
VSC
-
Ground for CORE.
95
TESTI
I
TEST input terminal. It fixed to “H” potential.
Pin Name
I/O
Functions
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
47
DVD-2900
96
TESTI
I
TEST input terminal. It fixed to “L” potential.
97
TESTI
Ipu
TEST input terminal. It fixed to “H” potential.
98
TESTO
O
TEST output terminal. (open)
99
VDC
-
+2.5V Power for CORE.
100
TESTI
I
TEST input terminal. It fixed to “L” potential.
101
TESTI
I
TEST input terminal. It fixed to “L” potential.
102
TESTI
I
TEST input terminal. It fixed to “L” potential.
103
TESTI
I
TEST input terminal. It fixed to “L” potential.
104
TESTI
I
TEST input terminal. It fixed to “L” potential.
105
TESTI
I
TEST input terminal. It fixed to “L” potential.
106
VSIO
-
Ground for I/O.
107
TESTI
I
TEST input terminal. It fixed to “L” potential.
108
TESTI
I
TEST input terminal. It fixed to “L” potential.
109
TESTI
I
TEST input terminal. It fixed to “L” potential.
110
VDIO
-
+3.3V Power for I/O.
111
WAD0
I
External A/D data input terminal(LSB) for PSP physical disc mark detection.
112
WAD1
I
External A/D data input terminal for PSP physical disc mark detection.
113
WAD2
I
External A/D data input terminal for PSP physical disc mark detection.
114
WAD3
I
External A/D data input terminal for PSP physical disc mark detection.
115
VSIO
-
Ground for I/O.
116
VSC
-
Ground for CORE.
117
WAD4
I
External A/D data input terminal for PSP physical disc mark detection.
118
WAD5
I
External A/D data input terminal for PSP physical disc mark detection.
119
WAD6
I
External A/D data input terminal for PSP physical disc mark detection.
120
WAD7
I
External A/D data input terminal(MSB) for PSP physical disc mark detection.
121
VDC
-
+2.5V Powe for CORE.
122
TESTI
I
TEST input terminal. It fixed to “L” potential.
123
WCK
I
Operation clock for PSP physical disc mark detection.
124
WAVDD
-
+2.5V Power. A/D Power supply for PSP physical disc mark detection.
125
WAVDD
-
+2.5V Power. A/D Power supply for PSP physical disc mark detection.
126
WARFI
Ai
Analog RF signal input terminal for PSP physical disc mark detection.
127
WAVRB
Ai
A/D bottom reference terminal for PSP physical disc mark detection.
128
WAVSS
-
A/D Ground terminal for PSP physical disc mark detection.
129
WAVSS
-
A/D Ground terminal for PSP physical disc mark detection.
130
VSIO
-
Ground for I/O.
131
DQ7
I/O
SDRAM data input/output terminal. (MSB)
132
DQ6
I/O
SDRAM data input/output terminal.
133
DQ5
I/O
SDRAM data input/output terminal.
134
DQ4
I/O
SDRAM data input/output terminal.
135
VDIO
-
+3.3V Power for I/O.
136
DQ3
I/O
SDRAM data input/output terminal.
137
DQ2
I/O
SDRAM data input/output terminal.
138
DQ1
I/O
SDRAM data input/output terminal.
139
DQ0
I/O
SDRAM data input/output terminal. (LSB)
140
VSIO
-
Ground for I/O.
141
DCLK
O
Clock output terminal for SDRAM.
142
DCKE
O
Clock enable output terminal for SDRAM.
143
XWE
O
Write enable output terminal for SDRAM.
144
XCAS
O
Colomn address strobe output terminal for SDRAM.
145
XRAS
O
Row address strobe output terminal for SDRAM.
146
VDIO
-
+3.3V Power for I/O.
147
TESTO
O
Output terminal for TEST. (open)
Pin Name
I/O
Functions
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
48
DVD-2900
Ipu: Pull-up input Ipd: Pull-down input Ai: Analog input
148
A11
O
Address output terminal for SDRAM. (MSB)
149
A10
O
Address output terminal for SDRAM.
150
VSC
-
Ground for CORE.
151
A9
O
Address output terminal for SDRAM.
152
A8
O
Address output terminal for SDRAM.
153
VDC
-
+2.5V Power for CORE.
154
A7
O
Address output terminal for SDRAM.
155
A6
O
Address output terminal for SDRAM.
156
A5
O
Address output terminal for SDRAM.
157
A4
O
Address output terminal for SDRAM.
158
VSIO
-
Ground for I/O.
159
A3
O
Address output terminal for SDRAM.
160
A2
O
Address output terminal for SDRAM.
161
A1
O
Address output terminal for SDRAM.
162
A0
O
Address output terminal for SDRAM. (LSB)
163
VDIO
-
+3.3V Power for I/O.
164
XSRQ
O
Output terminal of the Data Request signal inputted a front-end processor.
165
XSHD
I
Input terminal of the header Flag outputted from a front-end processor.
166
SDCK
I
Input terminal of the data conveyance Clock outputted from a front-end processor.
167
XASK
I
Input terminal of the data valid Flag outputted from a front-end processor.
168
SDEF
I
Input terminal of the error Flag outputted from a front-end processor.
169
SD0
I
Input terminal of the stream Data outputted from a front-end processor.
170
SD1
I
Input terminal of the stream Data outputted from a front-end processor.
171
SD2
I
Input terminal of the stream Data outputted from a front-end processor.
172
SD3
I
Input terminal of the stream Data outputted from a front-end processor.
173
SD4
I
Input terminal of the stream Data outputted from a front-end processor.
174
SD5
I
Input terminal of the stream Data outputted from a front-end processor.
175
SD6
I
Input terminal of the stream Data outputted from a front-end processor.
176
SD7
I
Input terminal of the stream Data outputted from a front-end processor.
Pin Name
I/O
Functions
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
49
DVD-2900
M32102S6FP (MA: IC102)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
50
50
DVD-2900
64M SDRAM (VI: IC702)
(
)
W986432AH
25~27, 60~66, 24
A0-A10
Address for row and column
22, 23
BS0, BS1
Bank Select to activate during row
address latch time
2, 4, 5, 7, 8, 10, 11 ,13,
31, 33, 34, 36, 37, 39,
40, 42, 45, 47, 48, 50,
DQ0-DQ31
Data Input / Output pins for data
51, 53, 54, 56, 74, 76,
77, 79, 80, 82, 83, 85
20
CS
Chip Selec to disable or enable the
command decoder
19
RAS
Row Address Strobe
18
CAS
Column Address Strobe
17
WE
Write Enable
16, 28, 59, 71
DQM0-DQM3 Input / Out put Mask
68
CLK
Clock Inputs
67
CKE
Clock Enable
1, 15, 29, 43
VCC
Power (+3.3V)
44, 58, 72, 86
VSS
Ground
3, 9, 35, 41, 49, 55,
VCCQ
Power (+3.3V) for I/O Buffer
75, 81
6, 12, 32, 38, 46, 52,
VSSQ
Ground for I/O Buffer
78, 84
14, 21, 30, 57, 69,
NC
No Connection
70, 73
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
25
24
23
22
VCC
VCCQ
DQ0
VSSQ
DQ2
VSSQ
DQ6
VCCQ
DQ4
NC
BS0
BS1
A10/AP
A0
DQ1
DQ5
NC
VCC
DQM0
WE
CAS
RAS
CS
DQ7
DQ3
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
A1
DQM2
A2
DQ16
NC
DQ20
DQ19
DQ18
DQ17
VCC
VCCQ
DQ21
DQ22
VCCQ
DQ23
VCC
VSSQ
VSSQ
VSS
VCCQ
DQ15
VCCQ
DQ13
VCCQ
DQ9
VSSQ
DQ11
A9
A8
A7
A6
A5
DQ14
DQ10
NC
VSS
DQM1
NC
NC
CLK
CKE
DQ8
DQ12
A4
DQM3
A3
DQ31
NC
DQ27
DQ28
DQ29
DQ30
VSS
VSSQ
DQ26
DQ25
VSSQ
DQ24
VSS
VCCQ
VCCQ
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
62
63
64
65
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
Pin Name
Function
Pin No.
W986432AH Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
51
51
DVD-2900
ML9207-01 (PD: IC101)
ML9207-01 (PD: IC101)
3~37
SEG1~35
O
FL display anode drive output pin
39~62
COM1~24
O
FL display grid drive output pin
1,2, 79, 80
AD1~4
O
FL display anode drive output pin
72~75
P1~4
O
General port output pin
71
VDD
VDD-GND: Power supply for logic block
38, 78
VDISP1~2
VDISP-VFL: Power supply for FL display drive
64
GND
For VDD and VDISP, apply from same power source
63, 76
VFL1~2
70
DA
I
Serial data input pin (positive logic)
69
CP
I
Shift clock input pin
68
CS
I
Chip select input pin
67
RESET
I
Reset input pin
65
OSC0
I
Pin for self-oscillation
66
OSC1
O
Pin Name
Function
Pin No.
I/O
ML9207-01 Terminal Function
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
COM23
COM24
VFL1
GND
OSC0
OSC1
RESET
CS
CP
DA
VDD
P1
P2
P3
P4
VFL2
NC
VDISP2
AD1
AD2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
AD3
AD4
SEG1
SEG2
SEG3
SEG4
SEG5
SEG6
SEG7
SEG8
SEG9
SEG10
SEG11
SEG12
SEG13
SEG14
SEG15
SEG16
SEG17
SEG18
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
COM2
COM1
VDISP1
SEG35
SEG34
SEG33
SEG32
SEG31
SEG30
SEG29
SEG28
SEG27
SEG26
SEG25
SEG24
SEG23
SEG22
SEG21
SEG20
SEG19
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
COM22
COM21
COM20
COM19
COM18
COM17
COM16
COM15
COM14
COM13
COM12
COM11
COM10
COM9
COM8
COM7
COM6
COM5
COM4
COM3
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
52
52
DVD-2900
ADV7190 (VI: IC705) For Europe model
Function
I/O
Pin No.
Pin Name
ADV7190 Terminal Function
1~16
P0-P15
I
8-Bit or 16-Bit 4:2:2 Multiplexed YCrCb Pixel Port. The LSB of the input data is set up on Pin P0.
17, 25, 29, 38,
43, 54, 63
VAA
P
Analog Power Supply (3.3V to 5V).
18, 24, 26, 33,
39, 42, 55, 64
AGND
G
Analog Ground.
19
HSYNC
I/O
HSYNC (Modes 1, 2, and 3) Control Signal. This pin may be configured to be an output
(Master Mode) or an input (Slave Mode) and accept Sync Signals.
20
VSYNC
I/O
VSYNC Control Signal. This pin may be configured as an output (Master Mode) or as an input
(Slave Mode) and accept VSYNC as a Control Signal.
21
BLANK
I/O
Video Blanking Control Signal. This signal is optional. For further information see Vertical
Blanking Data Insertion and BLANK Input section.
22
ALSB
I
TTL Address Input. This signal sets up the LSB of the MPU address.
23
TTXREQ
O
Teletext Data Request Output Signal, used to control teletext data transfer.
27
CLKIN
I
TTL Clock Input. Requires a stable 27 MHz reference clock for standard operation. Alternatively,
a 24.5454 MHz (NTSC) or 29.5 MHz (PAL) can be used for square pixel operation.
28
CLKOUT
O
Clock Output Pin.
30
SCL
I
MPU Port Serial Interface Clock Input.
31
SDA
I/O
MPU Port Serial Data Input/Output.
32
SCRESET/RTC/TR
I
Multifunctional Input: Real-Time Control (RTC) Input, Timing Reset Input,
Subcarrier Reset Input.
34
RSET2
I
A 1200 ohm resistor connected from this pin to ground is used to control full-scale amplitudes of
the Video Signals from DACs D, E, and F.
35
COMP 2
O
Compensation Pin for DACs D, E, and F. Connect a 0.1μF Capacitor from COMP2 toVAA.
36
DAC F
O
S-Video C/V/RED Analog Output. This DAC is capable of providing 4.33 mA output.
37
DAC E
O
S-Video Y/U/BLUE Analog Output. This DAC is capable of providing 4.33 mA output.
40
DAC D
O
Composite/Y/GREEN Analog Output. This DAC is capable of providing 4.33 mA output.
41
DAC C
O
S-Video C/V/RED Analog Output. This DAC is capable of providing 4.33 mA output.
44
DAC B
O
S-Video Y/U/BLUE Analog Output. This DAC is capable of providing 4.33 mA output.
45
DAC A
O
Composite/Y/GREEN Analog Output. This DAC is capable of providing 4.33 mA output.
46
COMP 1
O
Compensation Pin for DACs A, B, and C. Connect a 0.1μF Capacitor from COMP1 toVAA.
47
VREF
I/O
Voltage Reference Input for DACs or Voltage Reference Output (1.235V). An external VREF
cannot be used in 4x oversampling mode.
48
RSET1
I
A 1200 ohm resistor connected from this pin to ground is used to control full-scale amplitudes of
the Video Signals from DACs A, B, and C.
49
RESET
I
The input resets the on-chip timing generator and sets the ADV7190/ADV7191 into default
mode. See Appendix 8 for Default Register Settings.
50
CSO_HSO
O
Dual function CSO or HSO Output Sync Signal at TTL Level.
51
VSO/CLAMP
I/O
Multifunction Pin. VSO Output Sync Signal at TTL level. CLAMP TTL Output Signals can be
used to drive external circuitry to enable clamping of all Video Signals.
52
PAL_NTSC
I
Input signal to select PAL or NTSC mode of operation, pin set to Logic 1 selects PAL.
53, 57~62
NC
No Connect.
56
TTX
I
Teletext Data Input Pin.
ADV7190 (AV: IC601)
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
RESET
CSO_HSO
VSO/CLAMP
PAL_NTSC
NC
VAA
AGND
TTX
NC
NC
NC
NC
NC
NC
VAA
AGND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
P0
P1
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
SCRESET/TRC/TR
SDA
SCL
VAA
CLKOUT
CLKIN
AGND
VAA
AGND
TTXREQ
ALSB
BLANK
VSYNC
HSYNC
AGND
VAA
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
RSET1
VREF
COMP 1
DAC A
DAC B
VAA
AGND
DAC C
DAC D
AGND
VAA
DAC E
DAC F
COMP 2
RSET2
AGND
TOP VIEW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
53
53
DVD-2900
ADV7300 (VI: IC704)
1
VDD_IO
P
Digital power supply.
2~9, 12, 13
Y9-0
I
10-Bit Progressive scan/ HDTV input port for Y data.
10, 56
VDD
P
Digital power supply.
11, 57
DGND
G
Digital Ground
14~18, 26~30
C9-0
I
10-Bit Progressive scan/ HDTV input port for CrCb color data in 4:2:2 input mode.
When this input pin is brought low, the ADV7300 interfaces over the SPI port and uses this
19
SPI/I2C
I
input as part of the 4 wire SPI interface. When this input pin is tied high [VDD_IO], the ADV7300
interfaces over the I2C port.
20
ALSB_SO
I/O
Multifunctional pin.
21
SDA_CLKSP
I/O
Multifunctional pin.
22
SCLK_SI
I
Multifunctional input.
23
P_HSYNC
I
Video Horizontal Sync Control Signal for HD sync in simultaneous SD/HD mode
and HD only mode.
24
P_VSYNC
I
Video Vertical Sync Control Signal for HD sync in simultaneous SD/HD mode
and HD only mode.
25
P_BLANK
I
Video Blanking Control Signal for HD sync in simultaneous SD/HD mode and HD only mode.
31
RTC_SCR_TR
I
Multifunctional input.
32
CLKIN_A
I
Pixel Clock Input for HD only or SD only modes.
33
RESET
I
This input resets the on-chip timing generator and sets the ADV7300 into Default Register
setting. Reset is an active low signal.
34
EXT_LF
I
External Loop filter for the internal PLL.
35, 47
RSET1,2
I
A1520 Ohms resistor must be connected from this pin to AGND and is used to control the
amplitudes of the DAC outputs.
36,45
COMP
O
Compensation Pin for DACs.
37
DAC F
O
In SD only mode: Chroma/RED/V analog output.
In HD only mode and simultaneus HD/SD: Pb/ BLUE (HD) analog output.
38
DAC E
O
In SD only mode: Luma/BLUE/U analog output.
In HD only mode and simultaneus HD/SD: Pr/ RED (HD) analog output.
39
DAC D
O
In SD only mode: CVBS/GREEN/Y analog output.
In HD only mode and simultaneus HD/SD:Y/ GREEN (HD) analog output.
40
AGND
G
Analog Ground
41
VAA
P
Analog power supply.
42
DAC C
O
Chroma/ RED/ V SD analog output.
43
DAC B
O
Luma/ BLUE/ U SD analog output.
44
DAC A
O
CVBS/ GREEN/ Y SD analog output.
46
VREF
I/O
Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235V).
48
S_BLANK
I/O
Video Blanking Control Signal for SD.
49
S_VSYNC
I/O
Video Vertical Sync Control Signal for SD.
50
S_HSYNC
I/O
Video Horizontal Control Signal for SD.
51~55, 58~62
S9-S0
I
10-Bit Standard Definition input port. Or Progressive Scan/ HDTV input port for
Cr [Red/V] color data in 4:4:4 input mode.
63
CLKIN_B
I
Pixel Clock Input.
64
GND_IO
G
Digital Ground
Function
I/O
Pin No.
Pin Name
ADV7300 (MA: IC706)
ADV7300 Terminal Function
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
VDD_IO
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
VDD
DGND
Y8
Y9
C0
C1
C2
C3
C4
ALSB_SO
SDA_CLKSP
SCLK_SI
P_BLANK
C5
C6
C7
C8
C9
RTC_SCR_TR
CLKIN_A
VREF
COMP1
DAC A
DAC B
DAC C
VAA
AGND
DAC D
DAC E
DAC F
COMP2
R
EXT_LF
SET 2
R SET 1
GND_IO
CLKIN_B
S9
S8
S7
S6
S5
DGND
VDD
S4
S3
S2
S1
S0
SPI/I2C
P_HSYNC
P_VSYNC
RESET
S_BLANK
S_VSYNC
S_HSYNC
TOP VIEW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
54
54
DVD-2900
CXD1881AR (MA: IC501)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
CXD1881AR
RX
MEV
VNA
FNN
FNP
DIP
DIN
BYP
RFAC
VPA
AIP
AIN
ATON
ATOP
RFSIN
RFDC
MEVO
MIN
MLPF
MB
MP
MIRR
LDON
VNB
CDPD
DVDPD
COLD
DVDLD
VC
VPB
CD_E
CD_F
SDEN
SDATA
SCLK
V33
LCP
LCN
MNTR
CE
FE
TE
PI
V25
V125
TPH
DFT
LINK
DVDRFP
DVDRFN
A2
B2
C2
D2
CP
CN
D
C
B
A
CD_D
CD_C
CD_B
CD_A
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
55
55
DVD-2900
Block Diagram
DVDRFP
DVDRFN
RFSIN
ATOP
ATON
AIN
AIP
FNP
DIN
DIP
RFAC
FNN
MUX
INPUT
BIAS
ATT
63
A
12
CD_A
16
B
11
CD_B
15
C
10
CD_C
14
D
CD_D
13
CD_E
18
CD_F
17
2
9
A2
3
1
SIGR b3
INPUT
SEL
RFCR b7-6
INPUT IMP
SEL
2
RFCR b5-4
INPUT IMP SEL
2
2
4
SIGR b7-4
ATT
62
61
60
59
AGC
FCCR b7-0
FBCR b6-0
PROGRAMMABLE
EQUALIZER
FILTER
DIFFERENTIATOR
AGCO
53
52
SSOUT
TENV
Clamp
& Env
Level
DAC
CAR b3-2
SIGDET
2
CAR b1-0
Env/Clamp
FULL WAVE
RECTIFIER
CGR b1
OUTPUT INHIBIT
55
54
57
56
AGC
CHARGE
PUMP
AGC HOLD
RFCR b3
B+D
A+C
A+D
B+C
MUX
D
C
B
A
GCA
GCA
GCA
GCA
GCA
GCA
GCA
GCA
W/LPF
W/LPF
W/LPF
W/LPF
SUM
Amp.
SIGR b2-0
12dB is added
@ high gain mode
(CDR b5=1)
12dB is added
@ high gain mode
(CDR b5=1)
6dB is added
@ high gain mode
(CDR b5=1)
3
3
4
RFCR b2-0
RFCR b2-0
TRCR2 b6-4
DPD EQ
TRCR2 b3-0
3B
PDCR b3
CD/DVD
GCA +/-4dB
Offset
cancel
LPF
GCA
70kHz
+/-6dB, 4bit
0-+8dB, 4bit
CTCR b3-0
CO Gain
+/-4dB
4
4
4
FOCR b7-4
FS Gain
CCR b4-0
FE offset
5
Offset
cancel
LPF
70kHz
PIOR b4-0
PI offset
FOCR b3-0
FO Gain
CER b4-0
CE offset
CFR b7-5
TR Gain
CBR b3-2
5
TOPHLD
CTCR b7
BCA DET
COMP
CBR b1-0
Pll
SEL
SEL
BYP
49
RX
40
FE
38
PI
35
TPH
34
DFT
RFDC
DAC
2
Buff
61
CE
41
MNTR
TOPHLD
TOPHLD
Offset
cancel
GCA
GCA
4D
SUM
MON
SEL
PI
FE
TE
CE
V25
V125
V25/3
42
LCP
44
LCN
43
TE
CP
LPF
ATT
Pol sel.
buff (Ð12dB)
3
3
CFR b2-0
CE-ATT
CFR b3
CEPOL
+3dB
RESUM
GCA
GCA
GCA
7
CN
8
Offset
cancel
LPF
GCA
SUB
MUX
TE
RST
39
V125
36
V25
37
VC
20
SDEN
48
SDATA
47
SCLK
46
V33
45
TRCR b5-0
TR offset
6
CEFDB
CDR b3
PDCR b3
CD/DVD
TRCR2 b7
CP/CN
Low lmp
EQ
B2
4
C2
5
D2
CDPD
6
GCA
TRCR b6
DPD COMP HYS ON
GCA
GCA
PHASE
DETECTOR
PHASE
DETECTOR
EQ
EQ
EQ
3
3
VC
Comp.
V25/2
for TE, FE & CE output ref.
VC
VCI for servo input
SERIAL PORT
REGISTER
V33 for output buff
MIRR
27
LINK
VPA
58
VPB
19
VNA
51
VNB
25
33
MB
29
MP
28
MLPF
30
MIN
31
MEVO
32
MEV
CDR b7
LINKEN
CCR b7
DISK DET
CONTROL
Signals
To each block
MUX
Btm Env
Btm clamp
& clip
MUX
MUX
Vref
CGR b5-4
Gain
MUX
Offset
MUX
MUX
BTM ENV
BTM HLD
TOP ENV
TOP HLD
MRCR b7-0
droop rate
control
Pll
AGCO
BENV
50
DVDLD
21
CDLD
22
LDON
26
Dual APC
24
DVDPD
23
CCR b5
APC SEL
DVD/CD
CDR b4
LD H/L
ATT
HOLDEN
CDR b6
2
4
CAR b7-4
TE MASK SEL
2
PIOR b7-5
3
GCA
ATT
CGR b0
OUTPUT INHIBIT
SIGR b2-0
12dB is added
@ high gain mode
(CDR b5=1)
CDR b5
High Gain
2
CTCR b5-4
MEVO SEL
CHR b7-6
Mirr Defect
Comp ATT
MRCR b6-4
Mirr Comp
ATT Level
2
3
V25/3
CDR b2
for PI output ref.
AGC BTM ENV
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
56
56
DVD-2900
Terminal Function
Power Supply Pins
Input Pins
Output Pins
Name
I/O
Function
VPA
-
Power for RF and serial port
VPB
-
Power for servo
VNA
-
GND for RF and serial port
VNB
-
GND for servo
V33
-
Power for output buffer
V25
-
Reference Power for servo output
Name
I/O
Function
DVDRFP,DVDRFN
I
RF signal input
RFSIN
I
RF signal input
AIP,AIN
I
AGC amp. input
DIP,DIN
I
Analog input for RF single buffer
A,B,C,D
I
Photo detector interface input
A2,B2,C2,D2
I
Photo detector interface input
CD_A,B,C,D
I
CD photo detector interface input
CD_E,F
I
CD photo detector interface input
MIN
I
RF signal input for mirror
DVDPD
I
APC input
CDPD
I
APC input
LDON
I
APC input ON/OFF (L:Open)
I
Link signal input (L:Open)
O
Mirror monitor output
Name
I/O
Function
ATOP,ATON
O
Differential attenuator output
FNP,FNN
O
Differential normal output
RFAC
O
Single end normal output
RFDC
O
RF signal output
FE
O
Focus error signal output
TE
O
Tracking error signal output
CE
O
Center error signal output
MEVO
O
RFDDC bottom envelope output
DFT
O
Defect output
MIRR
O
Mirror detected output
PI
O
Pull-in signal output
DVDLD
O
APC output
CDLD
O
APC output
MNTR
O
Monitor output
LINK
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
57
57
DVD-2900
Analog Pins
Serial Port Pins
Name
I/O
Function
BYP
-
RF AGC integration capacitor connecting terminal
CP
-
Differential phase tracking LPF terminal
CN
-
Differential phase tracking LPF terminal
LCP
-
Lens shift offset cancel LPF terminal
LCN
-
Lens shift offset cancel LPF terminal
MP
-
MIRR top hold terminal
MB
-
MIRR bottom hold terminal
MEV
-
RFDC bottom envelope terminal
MLPF
-
Mirror LPF terminal
TPH
-
PI top hold terminal
VC
-
Reference voltage output
V125
-
Reference voltage output
RX
-
Reference resistor input
Name
I/O
Function
SDEN
I
Serial data enable
SDATA
I/O
Serial data
SCLK
I
Serial clock
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
58
58
DVD-2900
W986416DH (MA: IC104)
W986416DH (MA: IC103)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
25
24
23
22
VCC
VCCQ
DQ0
VSSQ
DQ2
VSSQ
DQ6
VCCQ
DQ4
BS0
BS1
A10/AP
A0
DQ1
DQ5
VCC
LDQM
Vcc
WE
CAS
RAS
CS
DQ7
DQ3
26
27
A1
A2
VSS
VssQ
DQ15
VCCQ
DQ13
VCCQ
DQ9
VSSQ
DQ11
A9
A8
A7
A6
A5
DQ14
DQ10
VSS
NC
UDQM
CLK
CKE
NC
A11
DQ8
DQ12
A4
Vss
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
30
31
32
33
29
28
A3
1, 14, 27
VCC
Power (+3.3V)
Power for input buffers and logic circuit inside DRAM.
2, 4, 5, 7, 8, 10,
11, 13, 42, 44,
DQ0-DQ15
Data Input/Output
Multiplexed pins for data output and input.
45, 47, 48, 50,
51, 53
3, 9, 43, 49
VCCQ
Power (+3.3V) for I/O buffer
Separated power from VCC, to improve DQ noise immunity.
6, 12, 46, 52
VSSQ
Ground for I/O buffer
Separated ground from VSS, to improve DQ noise immunity.
16
WE
Write Enable
Referred to RAS.
17
CAS
Column Address Strobe
Referred to RAS.
18
RAS
Row Address Strobe
Command input. When sampled at the rising edge of the clock RAS, CAS
and WE define the operation to be executed.
19
CS
Chip Select
Disable or enable the command decoder. When command decoder is
disabled, new command is ignored and previous operation continues.
20, 21
BS0, BS1
Bank Select
Select bank to activate during row address latch time, or bank to read/write
during address latch time.
23~26, 22
Multiplexed pins for row and column address. Row address: A0-A11.
29~35
A0-A11
Address
Column address: A0-A7. A10 is sampled during a precharge command to
determine if all banks are to be precharged or bank selected by BS0, BS1.
28, 41, 54
VSS
Ground
Ground for input buffers and logic circuit inside DRAM.
36, 40
NC
No Connection
No Connection
37
CKE
Clock Enable
CKE controls the clock activation and deactivation.When CKE is low,
Power Down mode, Suspend mode, or Self Refresh mode is entered.
38
CLK
Clock Inputs
System clock used to sample inputs on the rising edge of clock.
The output buffer is placed at Hi-Z (with latency of 2) when DQM is sampled
39, 15
UDQM, LDQM Input/Output mask
high in read cycle. In write cycle, sampling DQM high will block the write
operation with zero latency.
Description
Function
Pin No.
Pin Name
W986416DH Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
59
59
DVD-2900
16MSDRAM (TOSP)-8 (MA: IC402)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
43
44
45
46
47
48
49
50
A9
VDD
DQ1
DQ0
DQ3
DQ2
DQ7
DQ6
DQ5
DQ4
A0
A1
A2
A3
VDD
VSSQ
VSSQ
LDQM
WE
CAS
RAS
CS
BA
A10/AP
VSS
N.C
CKE
CLK
UDQM
N.C/RFU
VSSQ
DQ10
DQ11
VDDQ
VSSQ
DQ14
DQ15
VSS
DQ13
DQ12
VDDQ
DQ9
DQ8
A8
A7
A6
A5
A4
VDDQ
VDDQ
16M SDRAM (TSOP)-8 (DM: IC103, 104)
K4S161622D-TC80
W981616AH-8
Terminal Function
1
VDD
Power Supply/Ground
Power and ground for the input buffer and the core logic
2
DQ0
Data Input/Output
Data input/output are mutiplexed on the same pin
3
DQ1
Data Input/Output
Data input/output are mutiplexed on the same pin
4
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
5
DQ2
Data Input/Output
Data input/output are mutiplexed on the same pin
6
DQ3
Data Input/Output
Data input/output are mutiplexed on the same pin
7
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
8
DQ4
Data Input/Output
Data input/output are mutiplexed on the same pin
9
DQ5
Data Input/Output
Data input/output are mutiplexed on the same pin
10
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
11
DQ6
Data Input/Output
Data input/output are multiplexed on the same pin
12
DQ7
Data Input/Output
Data input/output are multiplexed on the same pin
13
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
14
L DQM
Data Input/Output Mask
Blocks data input when active
15
WE
Write Enable
Enables write operation and row precharge
16
CAS
Column Address Strobe
Latches column address on the positive going edge of the CLK at low
17
RAS
Row Address Strobe
Latches row address on the positive going edge of the CLK at low
18
CS
Chip Select
Disables or enables device operation by masking or enabling all
inputs except CLK, CKE, and LDQM
19
BA
Bank Select Address
Selects bank to be activated during row address latch time
20
A10/AP
Address
Row/column addresses are multiplexed on the same pin
21
A0
Address
Row/column addresses are multiplexed on the same pin
22
A1
Address
Row/column addresses are multiplexed on the same pin
23
A2
Address
Row/column addresses are multiplexed on the same pin
24
A3
Address
Row/column addresses are multiplexed on the same pin
25
VDD
Power Supply/Ground
Power and ground for the input buffer and the core logic
26
VSS
Power Supply/Ground
Power and ground for the input buffer and the core logic
27
A4
Address
Row/column addresses are multiplexed on the same pin
28
A5
Address
Row/column addresses are multiplexed on the same pin
29
A6
Address
Row/column addresses are multiplexed on the same pin
30
A7
Address
Row/column addresses are multiplexed on the same pin
31
A8
Address
Row/column addresses are multiplexed on the same pin
32
A9
Address
Row/column addresses are multiplexed on the same pin
33
N. C
No Connection
No connect pin
34
CKE
Clock Enable
Masks system clock to freeze operation from the next clock cycle
35
CLK
System Clock
Active on the positive going edge to sample all inputs
36
U DQM
Data Input/Output Mask
Blocks data input when active
37
N. C/RFU
NC/Reserved
No connect pin
38
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
39
DQ8
Data Input/Output
Data input/output are multiplexed on the same pin
40
DQ9
Data Input/Output
Data input/output are multiplexed on the same pin
41
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
42
DQ10
Data Input/Output
Data input/output are multiplexed on the same pin
43
DQ11
Data Input/Output
Data input/output are multiplexed on the same pin
44
VDDQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
45
DQ12
Data Input/Output
Data input/output are multiplexed on the same pin
46
DQ13
Data Input/Output
Data input/output are multiplexed on the same pin
47
VSSQ
Data Output Power/Ground
Isolated power supply and ground for the output buffer
48
DQ14
Data Input/Output
Data input/output are multiplexed on the same pin
49
DQ15
Data Input/Output
Data input/output are multiplexed on the same pin
50
VSS
Power Supply/Ground
Power and ground for the input buffer and the core logic
Pin Name
Function
Pin No.
Symbol
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
60
60
DVD-2900
FAN8042 (MA: IC508)
Pin Assignments
1
2
3
4
5
6
7
8
9
10
11
12
36
35
34
33
32
31
30
29
28
27
26
25
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
FAN8042
IN1+
IN1-
OUT1
IN2+
IN2-
GND
GND
OUT2
IN3+
IN3-
OUT3
IN4+
IN4-
OUT4
CTL
FWD
REV
GND
GND
SGND
MUTE123
TSD-M
PVCC2
DO5-
MUTE4
DO5+
DO4-
DO4+
DO3-
DO3+
GND
GND
DO2-
DO2+
DO1-
DO1+
PVCC1
PS
OPOUT2
OPIN2-
OPIN2+
GND
GND
VREF
SVCC
OPOUT1
OPIN1-
OPIN1+
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
61
61
DVD-2900
Pin Definitions
Pin Number
Pin Name
I/O
Pin Function Descrition
1
IN1+
I
CH1 op-amp input (+)
2
IN1-
I
CH1 op-amp input (-)
3
OUT1
O
CH1 op-amp output
4
IN2+
I
CH2 op-amp input (+)
5
IN2-
I
CH2 op-amp input (-)
6
GND
-
Ground
7
GND
-
Ground
8
OUT2
O
CH2 op-amp output
9
IN3+
I
CH3 op-amp input (+)
10
IN3-
I
CH3 op-amp input (-)
11
OUT3
O
CH3 op-amp output
12
IN4+
I
CH4 op-amp input (+)
13
IN4-
I
CH4 op-amp input (-)
14
OUT4
O
CH4 op-amp output
15
CTL
I
CH5 motor speed control
16
FWD
I
CH5 forward input
17
REV
I
CH5 reverse input
18
GND
-
Ground
19
GND
-
Ground
20
SGND
-
Signal Ground
21
MUTE123
I
Mute for CH1,2,3
22
MUTE4
I
Mute for CH4
23
TSD-M
O
TSD monitor
24
PVCC2
-
Power supply voltage 2 (For CH4,CH5)
25
DO5-
O
CH5 drive output (-)
26
DO5+
O
CH5 drive output (+)
27
DO4-
O
CH4 drive output (-)
28
DO4+
O
CH4 drive output (+)
29
DO3-
O
CH3 drive output (-)
30
GND
-
Ground
31
GND
-
Ground
32
DO3+
O
CH3 drive output (+)
33
DO2-
O
CH2 drive output (-)
34
DO2+
O
CH2 drive output (+)
35
DO1-
O
CH1 drive output (-)
36
DO1+
O
CH1 drive output (+)
37
PVCC1
-
Power supply voltage 1 (FOR CH1 CH2,CH3)
38
PS
I
Power save
39
OPOUT2
O
Normal op-amp2 output
40
OPIN2-
I
Normal op-amp2 input (-)
41
OPIN2+
I
Normal op-amp2 input (+)
42
GND
-
Ground
43
GND
-
Ground
44
VREF
I
Bias voltage input
45
SVCC
-
Signal & OPAMPs supply voltage
46
OPOUT1
O
Normal op-amp1 output
47
OPIN1-
I
Normal op-amp1 input (-)
48
OPIN1+
I
Normal op-amp1 input (+)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
62
62
DVD-2900
Block Diagram
40K
10 K
Note.
+
+
40K
10K
Pref
DO+
DO-
Detailed circuit of the output power amp
10K
10K
40K
40K
Pref1 is almost PVCC1 / 2
Pref2 is almost PVCC2 / 2
From input opamp
Vref
36
35
34
33
32
30
29
28
27
26
25
DO5+
DO4-
DO3-
DO3+
DO2-
DO2+
31
DO4+
1
2
3
4
5
7
8
9
10
11
12
OUT4
IN4-
IN4+
OUT3
IN3-
OUT2
IN2-
IN2+
OUT1
IN1-
6
IN3+
37
38
39
40
41
43
44
45
46
47
48
IN1+
OPIN1+
OPIN1-
OPOUT1
SVCC
VREF
OPIN2-
OPOUT2
PS
PVCC1
DO1+
42
OPIN2+
24
23
22
21
20
18
17
16
15
14
13
CTL
FWD REV
GND
TSD-M PVCC2
MUTE123
19
DO5-
DO1-
POWER
SAVE
MUTE123
MUTE4
TSD-M
40K
40K
40K
40K
10K
10K
10K
10K
40K
40K
40K
40K
10K
10K
10K
10 K
40K
40K
40K
40K
10K
10K
10K
10K
40K
40K
40K
40K
10K
10K
10K
10K
D
D
M
S
C
+
S
W
GND
GND
GND
SGND
MUTE4
GND
GND
GND
GND
-
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
63
63
DVD-2900
MX29LV160BTC-90 (MA: IC103)
AT49LV1025 (MA: IC302)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
24
23
22
A15
A13
A14
A10
A11
RESET
WE
A19
A8
A4
A3
A2
A1
A12
NC
NC
RY/BY
A18
A17
A7
A6
A5
NC
A9
A16
GND
BYTE
Q14
Q7
VCC
Q4
Q5
Q13
OE
GND
CE
A0
Q15/A-1
Q12
Q3
Q10
Q2
Q9
Q1
Q8
Q0
Q11
Q6
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
25
26
27
(
)
A0~A19
Address Input
Q0~Q14
Data Input/Output
Q15/A-1
Q15 (Word mode)/LSB addr (Byte mode)
CE
Chip Enable Input
WE
Write Enable Input
BYTE
Word/Byte Selection input
RESET
Hardware Reset Pin/Sector Protect Unlock
OE
Output Enable Input
RY/BY
Ready/Busy Output
VCC
Power Supply Pin (2.7V~3.6V)
GND
Ground Pin
Pin Name
Symbol
Pin Description
7
8
9
10
11
12
13
14
15
16
17
39
38
37
36
35
34
33
32
31
30
29
18
19
20
21
22
23
24
25
26
27
6
5
4
3
2
1
44
43
42
41
40
I/O12
I/O11
I/O10
I/O9
I/O8
GND
NC
I/O7
I/O6
I/O5
I/O4
I/O3
I/O2
I/O 0
OE
NC
A2
A3
A4
A11
A10
A9
GND
NC
A8
A7
A6
A5
A12
I/O 13
I/O 14
I/O 15
CE
NC
NC
VCC
WE
NC
A15
A14
I/O1
A0
A1
A13
28
Pin Name
A0-A15
Function
Address Inputs
CE
Chip Enable
Output Enable
OE
NC
No Connection
Terminal Function
I/O0-I/O15
Data Inputs/Outputs
WE
Write Enable
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
64
64
DVD-2900
M11L16161SA (MA: IC503)
��
��������
PIN DESCRIPTIONS
10
1
Vcc
I/O0
I/O1
I/O2
I/O3
Vcc
I/O4
I/O5
I/O6
I/O7
NC
NC
NC
WE
RAS
NC
NC
A0
A1
A2
A3
Vcc
Vss
I/O15
I/O14
I/O13
I/O12
Vss
I/O11
I/O10
I/O9
I/O8
NC
NC
CASL
CASR
OE
A9
A8
A7
A6
A5
A4
Vss
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
21
22
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
PIN NO.
PIN NAME
TYPE
DESCRIPTION
(SOJ Package)
17~20,23~28
A0~A9
Address Input
Row Address:A0~A9
Column Address:A0~A9
Input
14
RAS
Row Address Strobe
Input
30
CASH
Column Address Strobe/Upper Byte Control
Input
31
CASL
Column Address Strobe/Lower Byte Control
Input
13
WE
Write Enable
Input
29
OE
Output Enable
Input
1,6,21
Vcc
Power,(5V or 3.3V)
Supply
22,37,42
Vss
Ground
Ground
11,12,15,16,32
NC
No Connect
-
2~5,7~10,
33~36,38~41
I/O0~I/O15
Data Input/Output
Input/Output
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
65
65
DVD-2900
AN8471SA (MA: IC505)
20
10
7
6
5
4
3
2
1
8
9
30
11
18
16
15
14
13
12
32
31
19
27
28
24
25
21
22
23
26
17
FG2
FG
H1H
H1L
H2H
H2L
H3H
H3L
VHB
EC
ECR
BMS
START
GND
CS1
CS2
A32
A31
A22
A21
A12
A11
VM2
VM1
VLP
VPUMP
BC1
BC2
BC3
BC4
VDD
Hall
Bias
X5
CSOUT
SRESET
PWMOUT
VCL
VT
OSC
Hall Amp
Matrix
Pre-Driver
Start/Stop
Logic Circuit
Booster
Thermal
Protect
Divider
3ø Bridge
Direction
SW
1
VHB
Hall bias pin
2
H3L
Hall element 3 input (-)
3
H3H
Hall element 3 input (+)
4
H2L
Hall element 2 input (-)
5
H2H
Hall element 2 input (+)
6
H1L
Hall element 1 input (-)
7
H1H
Hall element 1 input (+)
8
EC
Torque command input pin
9
ECR
Torque command ref. input pin
10
FG1
FG signal lout put pin (0.C)
11
START
Start/Stop switching pin
12
VPUMP
Booster pin
13
BC1
Booster cap. connecting pin 1
14
BC2
Torque command input pin 2
15
BC3
Torque command input pin 3
16
BC4
Torque command input pin 4
17
GND
GND pin
18
VDD
Power pin
19
VM2
Motor power pin 2
20
FG2
3x FG signal output pin (0.C)
21
A31
Drive output 3
22
A32
Drive output 3
23
CS2
Current detect pin 2
24
A21
Drive output 2
25
A22
Drive output 2
26
CS1
Current detect pin 1
27
A11
Drive output 1
28
A12
Drive output 1
29
NC
N.C.
30
BMS
Brake mode switching pin
31
VM1
Motor power pin 1
32
VLP
Pre-driver lower power
1
16
32
17
Pin Name
Function
Pin No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
66
66
DVD-2900
DSD1790DBR (AU: IC206, 209, 212)
Block Diagram
20
15
16
17
18
19
9
14
13
12
11
10
8
7
6
5
4
3
2
1
DSDL
DSDR
DBCK
PLRCK
PDATA
PBCK
SCK
DGND
VDD
MS
MDI
MC
MDO
RST
21
22
23
24
25
26
27
28
VCC2L
AGND3L
IOUTL–
IOUTL+
AGND2
VCC1
VCOML
VCOMR
IREF
AGND1
IOUTR–
IOUTR+
AGND3R
VCC2R
MDI
MC
Bias
&
Vref
Current
Segment
DAC
DBCK
PBCK
DSDL
SCK
RST
MS
IOUTL+
IOUTL–
MDO
Current
Segment
DAC
Advanced
Segmented
DAC
Modulator
8
Oversampling
Digital
Filter
&
Function
Control
I/V & Filter
Function
Control
I/F
System Clock Manager
Audio
Data input
I/F
PDATA
Power Supply
DGND
AGND3L
VDD
VCC1
VCC2R
AGND2
AGND1
DSDR
PLRCK
VCC2L
VOUTL
IOUTR+
IOUTR–
I/V & Filter
VOUTR
VCOML
IREF
VCOMR
AGND3R
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
67
67
DVD-2900
Terminal Function
PIN
I/O
DSDL
1
I/O
L-channel audio data input for DSD and external DF modes‡
PCM mode zero flag for L-channel by ZERO output mode select
DSDR
2
I/O
R-channel audio data input for DSD and external DF modes‡
PCM mode zero flag for R-channel by ZERO output mode select
DBCK
3
I
Bit clock input for external DF and DSD modes†
PLRCK
4
I
Left and right clock (fS) input for normal operation.
WDCK clock input for external DF mode.
Connected to GND for DSD mode†
PDATA
5
I
Serial audio data input for normal operation†
TER M INAL
NAME
DESCRIPTIONS
DGND
8
-
Digital ground
VDD
9
-
Digital power supply, +3.3 V
MS
10
I/O
Chip select for mode control‡
MDI
11
I
Mode control data input†
MC
12
I
Mode control clock input†
MDO
13
I/O
Mode control read back data output‡
RST
14
I
Reset†
VCC2R
15
-
Analog power supply (R-channel DACFF), +5.0 V
AGND3R
16
-
Analog ground (R-channel DACFF)
IOUTR+
17
O
R-channel analog current output +
IOUTR–
18
O
R-channel analog current output –
AGND1
19
-
Analog ground (internal bias)
IREF
20
-
Output current reference bias pin
VCOMR
21
-
R-channel Internal bias de-coupling pin
VCOML
22
-
R-channel Internal bias de-coupling pin
VCC1
23
-
Analog power supply, +5.0 V
AGND2
24
-
Analog ground (internal bias)
IOUTL+
25
O
L-channel analog current output +
IOUTL–
26
O
L-channel analog current output –
AGND3L
27
-
Analog ground (L-channel DACFF)
VCC2L
28
-
Analog power supply (L-channel DACFF), +5.0 V
† Schmitt trigger input, 5 V tolerant.
‡ Schmitt trigger input and output, 3.3 V.
PBCK
6
I
Bit clock input. Connected GND for DSD mode†
SCK
7
I
System clock input†
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
68
68
DVD-2900
PIC18LC242-I/SO (VI: IC703)
1
MCLR
I
Master Clear (Reset) input. This pin is an active low RESET to the device.
2
RA0
I/O
Digital I/O.
3
RA1
I/O
Digital I/O.
4
RA2
I/O
Digital I/O.
5
RA3
I/O
Digital I/O.
6
RA4
I/O
Digital I/O. Open drain when configured as output.
7
RA5
I/O
Digital I/O.
8
VSS
P
Ground reference for logic and I/O pins.
9
OSC1
I
Oscillator crystal input or external clock source input.
ST buffer when configured in RC mode. CMOS otherwise.
10
OSC2
O
Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode.
11
RC0
I/O
Digital I/O.
12
RC1
I/O
Digital I/O.
13
RC2
I/O
Digital I/O.
14
RC3
I/O
Digital I/O.
15
RC4
I/O
Digital I/O.
16
RC5
I/O
Digital I/O.
17
RC6
I/O
Digital I/O.
18
RC7
I/O
Digital I/O.
19
VSS
P
Ground reference for logic and I/O pins.
20
VDD
P
Positive supply for logic and I/O pins.
21
INT0
I
External Interrupt 0.
22
RB1
I/O
Digital I/O.
23
RB2
I/O
Digital I/O.
24
RB3
I/O
Digital I/O.
25
RB4
I/O
Digital I/O. Interrupt-on-change pin.
26
RB5
I/O
Digital I/O. Interrupt-on-change pin.
27
RB6
I/O
Digital I/O. Interrupt-on-change pin. ICSP programming clock.
28
RB7
I/O
Digital I/O. Interrupt-on-change pin. ICSP programming data.
Description
I/O
Pin No.
Pin Name
Legend:
O=Output
I=Input
P=Power
RA1
RA0
RA4
RA3
RC1
RC0
OSC1
VSS
RA2
OSC2
RC3
RC2
RA5
RB7
RB5
RB6
RB2
RB3
RC6
RC7
VDD
INT0
RB4
VSS
RC4
RC5
RB1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
MCLR
TOP VIEW
PIC18LC242-I/SO Terminal Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
69
69
DVD-2900
BH7860FP (VI: IC706, 707) IC707 for Europe model
Functions
Pin No.
Pin Name
Functions
1,13,15,20
CTRAP
CbTRAP
CrTRAP
YTRAP
LC oscilation terminal
2
MUTE
Mute control. If MUTE is set to “L”, five channels will be muted simultaneously.
3,9,11
CIN
CbIN
CrIN
Signal input.
Croma signal. Color difference signal. The bias type input terminal.
Input impedance: 20kohms.
4,10,17,21
GND
It fixed to ground.
5
YIN
Siganal input.
Input terminal of a luminance signal. Di clamp input .
6,8
VCC
VCC of 6 and 8 pins does not connected inside. Use it by connectin externally
C, MIX and Y connect with Vcc of 6 pin. Cb and Cr connect with VCC of 8 pin.
12
SEL
C/CbCr select.
Cb and Cr are turned off if SEL is set to “L”.
14,16
CrOUT
CbOUT
Signal outout.
Color difference signal output.
18,19
YFB
YOUT
Signal outout.
Luminance signal output.
22,23
MIXFB
MIXOUT
Signal outout.
Y/C MIX signal output.
24
TEST
TEST terminal. Useally, please short-circuit with GND.
25
COUT
Signal output. Chroma output terminal.
COUT
TEST
TEST
MUTE
MIXOUT
MIXFB
GND
YTRAP
YOUT
YFB
GND
CbOUT
CbTRAP
CrOUT
01
CRRAP
02
MUTE
03
20k
1.5-6M
BPF
20k
3M
LPF
3M
LPF
6dB
75ohm
6dB
6dB
75ohm
20k
6M
LPF
CLAMP
CIN
04
GND
05
YIN
06
VCC
07
N.C.
N.C.
08
VCC
09
CbIN
10
GND
11
CrIN
12
SEL
SEL C/Cbcr
13
CrTRAP
25
24
23
22
21
20
19
18
17
16
15
14
75ohm
6dB
75ohm
6dB
75ohm
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
70
70
DVD-2900
SM8707EV (MA: IC105)
Top View
Block Diagram
Functions
Number
Name
I/O
Description
1
VDD1
-
Supply 1 for digital block
2
VSS1
-
Ground 1 for digital block
3
MO1
O
Video system output 1 (27MHz fixed)
4
MO2
O
Video system output 2 (27MHz fixed)
5
VDD2
-
Supply 2 for analog block
6
VSS2
-
Ground 2 for analog block
7
XTI
I
Crystal oscillator connection or external clock input
8
XTO
O
Crystal oscillator connection
9
AO1
O
Audio system output 1 (384fs/768fs output)
FSEL = LOW, fs = 48kHz: 768fs
FSEL = HIGH, fs = 44.1kHz: 384fs
Audio system output 1 (512fs output)
10
AO2
O
Audio system output 1 (512fs output)
11
VSS3
-
Ground 3 for digital block
12
VDD3
-
Supply 1 for digital block
13
SO1
O
Signal processor system output 1 (16.9344MHz fixed)
Signal processor system output 1 (33.8688MHz fixed)
14
FSEL
I
Sampling frequency select
FSEL = LOW : fs = 48kHz
FSEL = HIGH : fs = 44.1kHz
(with internal pull-up resistor, Schmitt-trigger input)
Sampling frequency select
FSEL = LOW : fs = 48kHz
FSEL = HIGH : fs = 44.1kHz
(with internal pull-up resistor, Schmitt-trigger input)
15
SO2
O
Signal processor system output 2 (33.8688MHz fixed)
16
NC
-
No connection (leave pin open circuit or connect to VDD)
1
16
8
9
VDD1
VSS1
MO1
MO2
VDD2
VSS2
VT1
XTO
NC
SO2
FSEL
SO1
VDD3
VSS3
AO2
AO1
MO2
XTI
XTO
X'tal
OSC
Reference
Divider 0
Phase
Detector 0
Charge
Pump 0
LPF 0
VCO 0
Loop
Divider 0
Reference
Divider 1
Phase
Divider 1
Charge
Pump 1
LPF 1
VCO 1
Loop
Divider 1
FSEL
Control
Logic
AO1
AO2
SO1
SO2
MO1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
71
71
DVD-2900
µPD4721GS (PD: IC511)
Top View
STR-F6674 (PD: IC901)
PC123 (PD: IC902)
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
VDD
C1+
VCC
C1-
C5+
C5-
DIN1
DIN2
ROUT1
ROUT2
C4+
GND
C4-
VSS
STBY
VCHA
DOUT1
DOUT2
RIN1
RIN2
14
13
12
11
�
(
)
300ohm
5.5kohm
5.5kohm
300ohm
3
2
1
4
5
Vin
Start
Reg.
O.V.P
DRV.REC=8.6V
Latch
T.S.D
DRV
Rg1
47ohm
Source
OCP/FB
Vth1=0.73±0.05V
OCP/FB comp.
Vth2=1.3~1.6V
Tth(min)=1� S
INH comp.
Iconst trm.
Drain
GND
TOFF=50� S typ.
4700pF
OSC
+
+
1.35mA
Rg2:
STR-F6632 360ohm
STR-F6672 180ohm
Rg2
O.C.P./F.B.
D
FRONT
VIEW
VIN
GND
S
COLLECTOR
EMITTER
ANODE
CATHODE
TOP VIEW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
72
72
DVD-2900
2. TRANSISTORS
3. DIODE
DTA114EK
DTA124EK
DTC114EK
B
C
E
R1
R2
B
C
E
R1
R2
DTA114EK
DTA124EK
DTC114EK
TOP
VIEW
E
B
C
DTA114EK
DTA124EK
R1
10kohm
R2
22kohm
10kohm
22kohm
1
2
3
6
5
4
TOP VIEW
4
Source
3
Gate
1,2,5,6 Drain
3
4
G
S
HAT2053M
DTC114EK
R1
10kohm
R2
10kohm
4
5
6
TOP
VIEW
3
2
1
(4)
(5)
(6)
(3)
(2)
(1)
R1
R2
DTr1
DTr2
R2
R1
10k
10k
10k
10k
IMD3A
6D
1D 2D 5D
FMB-2204
FRONT
VIEW
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
73
73
DVD-2900
4. FL DISPLAY 17-ST-04GNK (FL101)
PIN NO.
CONNECTION
1
F
-
2
N
X
3
N
P
4
N
P
5
P
1
6
P
2
7
P
3
8
P
4
9
P
5
1
0
P
6
1
1
P
7
1
2
P
8
1
3
P
9
1
4
P
1
0
1
5
P
1
1
1
6
P
1
2
1
7
P
1
3
1
8
P
1
4
1
9
P
1
5
2
0
P
1
6
2
1
P
1
7
2
2
P
1
8
2
3
P
1
9
2
4
P
2
0
2
5
P
2
1
2
6
P
2
2
2
7
P
2
3
2
8
P
2
4
2
9
P
2
5
3
0
P
2
6
3
1
P
2
7
3
2
P
2
8
3
3
P
2
9
3
4
P
3
0
3
5
P
3
1
3
6
P
3
2
3
7
P
3
3
3
8
P
3
4
3
9
P
3
5
4
0
N
C
N
C
N
C
N
C
N
C
N
C
4
1
4
2
4
3
4
4
4
5
4
6
1
7
G
4
7
1
6
G
4
8
1
5
G
4
9
1
4
G
5
0
1
3
G
PIN NO.
CONNECTION
5
1
1
2
G
5
2
1
1
G
5
3
1
0
G
5
4
9
G
5
5
8
G
5
6
7
G
5
7
6
G
5
8
5
G
5
9
4
G
6
0
3
G
6
1
2
G
6
2
1
G
6
3
N
P
6
4
N
P
6
5
N
X
6
6
F
+
1-1
1-2
1-3
1-4
1-5
1-6
1-7
2-1
2-2
2-3
2-4
2-5
2-6
2-7
3-1
3-2
3-3
3-4
3-5
3-6
3-7
4-1
4-2
4-3
4-4
4-5
4-6
4-7
5-1
5-2
5-3
5-4
5-5
5-6
5-7
[13G~1G]
13G
12G 11G 10G
9G
8G
7G
6G
5G
4G
3G
2G
1G
16G
15G
14G
1
66
P1
17G
16G
15G
14G
13G~1G
P2
P3
P4
P5
P6
P7
P8
P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
17G
16G
15G
14G
13G~1G
P20
P21
P22
P23
P24
P25
P26
P27
P28
P29
P30
P31
P32
P33
P34
P35
PIN CONNECTION
GRID ASSIGNMENT
ANODE CONNECTION
NOTE 1) F-,F+ ---------- Filament
2) NP ------------- No pin
3) NX ------------- No extend pin
4) DL ------------ Datum line
5) 1G~17G ----- Grid
6) Visual Field -- Upper 22.6 min.
7) NC ------------ No connection
(NC pin should be electorically open on the PC board)
1-1
2-1
3-1
4-1
5-1
1-2
2-2
3-2
4-2
5-2
1-3
2-3
3-3
4-3
5-3
1-4
2-4
3-4
4-4
5-4
1-5
2-5
3-5
4-5
5-5
1-6
2-6
3-6
4-6
5-6
1-7
2-7
3-7
4-7
5-7
COLOR ILLUMINATION
Reddish Orange ----- Above pattern
part
Green ------------------ Other
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
74
74
DVD-2900
PRINTED WIRING BOARD
GU-3494 MAIN P.W.B. UNIT
COMPONENT SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
75
75
DVD-2900
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
76
76
DVD-2900
GU-3495 AUDIO P.W.B. UNIT
COMPONENT SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
77
77
DVD-2900
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
78
78
DVD-2900
GU-3496 POWER/DISPLAY P.W.B. UNIT
COMPONENT SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
79
79
DVD-2900
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
80
80
DVD-2900
GU-3497 VIDEO P.W.B. UNIT
COMPONENT SIDE
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
81
81
DVD-2900
GU-3343 SCART P.W.B. UNIT (Europe model only)
COMPONENT SIDE
FOIL SIDE
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
82
82
DVD-2900
NOTE FOR PARTS LIST
5%
1/4W
1/16W
s
s
s
s
s
s
s
s
s
s
s
s
RD :
2B : 1/8 W
F :
±1%
P
:
RC :
2E : 1/4 W
G :
±2%
NL :
RS
:
2H : 1/2 W
J :
±5%
NB :
RW :
3A : 1
W
K :
±10%
FR :
RN :
3D : 2
W
M :
±20%
F
:
RK :
3F
: 3
W
3H : 5
W
RN
14K
2E
182
G
FR
∗
18
2
�
1800
=1.8k
0
2
1R
2
�
1.2
1
2
R
CE
04W
1H
2R2
M
BP
CE
:
0J
: 6.3 V
F
: ±1%
HS :
CA :
1A : 10
V
G : ±2%
BP :
CS
:
1C : 16
V
J
: ±5%
HR :
CQ :
1E : 25
V
K : ±10%
DL :
CK :
1V : 35
V
M : ±20%
HF :
CC :
1H : 50
V
Z
: +80%
U
:
UL
CP
:
2A : 100 V
−20%
C
:
CSA
CM :
2B : 125 V
P
: +100%
W
:
UL-CSA
CF
:
2C : 160 V
− 0%
F
:
CH :
2D : 200 V
C : ±0.25pF
2E : 250 V
D : ±0.5pF
2H : 500 V
=
:
2J
: 630 V
∗
22
2
�
2200µF
0
2
µF
22
2
�
2200pF=0.0022µF
0
2
pF
pF
22
1
�
220pF
2
(0
2
)
0
(0
0
1
)
2R
2
�
2.2µF
1
2
R
µF
AC
RD : Carbon
2B : 1/8W
F
: ±1%
P
: Pulse-resistant type
RC : Composition
2E : 1/4W
G
: ±2%
NL : Low noise type
RS : Metal oxide film
2H : 1/2W
J
: ±5%
NB : Non-burning type
RW : Winding
3A : 1W
K
: ±10%
FR : Fuse-resistor
RN : Metal film
3D : 2W
M
: ±20%
F
: Lead wire forming
RK : Metal mixture
3F : 3W
3H : 5W
CE : Aluminum foil
0J
: 6.3V
F
: ±1%
HS : High stability type
electrolytic
CA : Aluminum solid
1A : 10V
G : ±2%
BP : Non-polar type
electrolytic
CS : Tantalum electrolytic
1C : 16V
J
: ±5%
HR : Ripple-resistant type
CQ : Film
1E : 25V
K : ±10%
DL : For change and discharge
CK : Ceramic
1V : 35V
M : ±20%
HF : For assuring high
requency
CC : Ceramic
1H : 50V
Z
: +80%
U
: UL part
CP : Oil
2A : 100V
–20%
C
: CSA part
CM : Mica
2B : 125V
P : +100%
W : UL-CSA type
CF : Metallized
2C : 160V
–0%
F
: Lead wire forming
CH : Metallized
2D : 200V
C : ±0.25pF
2E : 250V
D : ±0.5pF
2H : 500V
=
: Others
2J
: 630V
l
Part indicated with the mark "�" are not always in stock and possibly to
take a long period of time for supplying, or in some case supplying of
part may be refused.
l
When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-
supplying.
l
Ordering part without stating its part number can not be supplied.
l
Part indicated with the mark "
" is not illustrated in the exploded view.
l
Not including Carbon Film Resister ±5%, 1/4W Type in the P.W.Board
parts list. (Refer to the Schematic Diagram for those parts.)
l
Not including Carbon Chip Resister 1/16W Type in the P.W.Board parts
list. (Refer to the Schematic Diagram for those parts.)
WARNING:
Parts marked with this symbol
have critical characteristics.
Use ONLY replacement parts recommended by the manufacturer.
lllll Resistors
Ex.:
RN
14K
2E
182
G
FR
Type Shape
Power Resist- Allowable Others
and per-
ance
error
formance
] Resistance
1 8
2
⇒
1800 ohm = 1.8 kohm
Indicates number of zeros after effective number.
2-digit effective number.
• Units: ohm
1 R
2
⇒
1.2 ohm
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: ohm
lllll Capacitors
Ex.:
CE
04W
1H
2R2
M
BP
Type
Shape
Dielectric Capacity Allowable Others
and per- strength
error
formance
] Capacity (electrolyte only)
2 2
2
⇒
2200µF
Indicates number of zeros after effective number.
2-digit effective number.
• Units: µF.
2 R
2
⇒
2.2µF
1-digit effective number.
2-digit effective number, decimal point indicated by R.
• Units: µF.
] Capacity (except electrolyte)
2 2
2
⇒
2200pF=0.0022µF
(More than 2)
Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
2 2
1
⇒
220pF
(0 or 1)
Indicates number of zeros after effective number.
2-digit effective number.
• Units: pF.
• When the dielectric strength is indicated in AC, "AC" is included after the dieelectric
strength value.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
83
83
DVD-2900
PARTS LIST OF P.W.B. UNIT ASS’Y
GU-3494 MAIN UNIT
Ref. No.
Part No.
Part Name
Remarks
New
SEMICONDUCTORS GROUP
IC101
262 3257 005
M65776BFP
*
IC102
262 3215 005
M32102S6FP
*
IC103
GEN 6237
ROM SUB ASS'Y(MIT)
MX29LV160BTC-90
*
IC104
262 3119 004
W986416DH-7
IC105
262 3216 907
SM8707EV
*
IC106
262 2518 907
SN74LV74APW-EL2
IC107
262 3046 902
TC7WH157FU
IC108
262 2514 901
SN74LV138APW-EL2
IC109
262 2778 909
SN74LV273ANS
IC112
262 1738 908
TC7SU04F (TAPE)
IC113
262 3053 908
S-24C02BFJ-TB
IC114
263 1079 903
BA033FP
IC115
262 2977 904
BA18BC0FP-E2
IC116
263 1110 901
PQ070XZ01ZP
IC117
263 1079 903
BA033FP
IC118
262 2977 904
BA18BC0FP-E2
IC201
262 3121 005
ADSPMEL322
IC202
GEN 6243
BASS M.ROM SUB ASS'Y
AT49LV002-70TC
*
IC203
262 2959 906
SN74LV244APW
IC204-206
262 3129 900
TC74VHC157AF-EL
IC207
262 3198 902
TC74VHC157FT-EL
IC301
262 3054 004
MN102H460B
IC302
GEN 6236
ROM SUB ASS'Y(PANEL)
AT49LV1025-70JC
*
IC303
262 2452 908
MN1382-R(TX)
IC401
262 3217 003
CXD2753R
*
IC402
262 2875 006
16M SDRAM(TSOP)-7/8
IC403
262 3195 905
AD8062-SO8
*
IC404
262 3236 000
EPM3064A
*
IC405
262 2515 900
SN74LV04APW-EL2
IC406
262 2570 903
TC7W241FU(TE12L)
IC501
262 3219 001
CXD1881AR
*
IC502
262 3218 002
CXD1885Q
*
IC503
262 3210 000
M11L16161SA-45T
IC505
263 1109 909
AN8471SA
IC507
262 1782 909
TC7S08FTE85L
IC508
262 3221 002
FAN8042
*
TR501,502
272 0160 901
2SB1132T100Q
TR503
273 0384 900
2SC2412KT96(S)
D101-105
276 0717 903
1SS355 TE-17
D301
276 0717 903
1SS355 TE-17
D501,502
276 0711 909
MA152WA
RESISTORS GROUP
RA101-111
247 9003 908
MNR14=220JE0AB
RA112-115
247 9007 917
MNR14=103JE0
RA401-405
247 9003 908
MNR14=220JE0AB
RA503,504
247 9007 904
MNR14=101JE0
RA506-509
247 9007 904
MNR14=101JE0
RA523
247 9007 904
MNR14=101JE0
RA524-528
247 9007 917
MNR14=103JE0
Note : The symbols in the column “Remarks” indicate the following destinations.
E3 : U.S.A. & Canada model
E2 : Europe model
JP : Japan model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
84
84
DVD-2900
CAPACITORS GROUP
C103,104
254 4464 906
CE67C0J101MT
C105,106
257 0511 904
CK73F1H103ZT
C107
257 0512 903
CK73F1E104ZT
C108,109
257 0511 904
CK73F1H103ZT
C110,111
257 0512 903
CK73F1E104ZT
C112
257 0511 904
CK73F1H103ZT
C113
257 0512 903
CK73F1E104ZT
C114
257 0511 904
CK73F1H103ZT
C117
257 0512 903
CK73F1E104ZT
C118,119
254 4465 905
CE67C1C220MT
C120,121
257 0512 903
CK73F1E104ZT
C122,123
257 0511 904
CK73F1H103ZT
C124
257 0512 903
CK73F1E104ZT
C125,126
257 0511 904
CK73F1H103ZT
C127-134
257 0512 903
CK73F1E104ZT
C136-138
257 0512 903
CK73F1E104ZT
C139
254 4464 906
CE67C0J101MT
C140-143
257 0512 903
CK73F1E104ZT
C145,146
257 0512 903
CK73F1E104ZT
C147
254 4465 905
CE67C1C220MT
C151,152
257 0511 904
CK73F1H103ZT
C153,154
254 4464 906
CE67C0J101MT
C155-160
257 0512 903
CK73F1E104ZT
C161
257 0511 904
CK73F1H103ZT
C162
257 0512 903
CK73F1E104ZT
C164
257 0512 903
CK73F1E104ZT
C165
257 0506 951
CC73CH1H101JT
C166
257 0512 903
CK73F1E104ZT
C168-171
257 0512 903
CK73F1E104ZT
C172
257 0509 929
CK73B1H102KT
C173-176
257 0512 903
CK73F1E104ZT
C177,178
257 0502 997
CC73CH1H7R0DT
C179
257 0512 903
CK73F1E104ZT
C180
254 4464 906
CE67C0J101MT
C181
257 0512 903
CK73F1E104ZT
C182
257 0509 929
CK73B1H102KT
C183
257 0512 903
CK73F1E104ZT
C184
254 4465 905
CE67C1C220MT
C185
257 0512 903
CK73F1E104ZT
C186
257 0509 929
CK73B1H102KT
C189-192
257 0512 903
CK73F1E104ZT
C194,195
257 0512 903
CK73F1E104ZT
C196
257 0511 904
CK73F1H103ZT
C197-200
257 0512 903
CK73F1E104ZT
C202
254 4465 905
CE67C1C220MT
C203,204
257 0512 903
CK73F1E104ZT
C205
254 4465 905
CE67C1C220MT
C206,207
257 0512 903
CK73F1E104ZT
C208
257 0504 924
CC73CH1H270JT
C209
257 0504 940
CC73CH1H330JT
C210
257 0511 904
CK73F1H103ZT
C211
257 0509 929
CK73B1H102KT
C212
257 0511 904
CK73F1H103ZT
C213
257 0509 929
CK73B1H102KT
C214
257 0511 904
CK73F1H103ZT
C215
257 0509 929
CK73B1H102KT
C216
257 0512 903
CK73F1E104ZT
C217
257 0509 929
CK73B1H102KT
C218
257 0512 903
CK73F1E104ZT
C219
257 0509 929
CK73B1H102KT
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
85
85
DVD-2900
C220,221
254 4465 905
CE67C1C220MT
C222-225
257 0512 903
CK73F1E104ZT
C226
257 0509 929
CK73B1H102KT
C227
257 0512 903
CK73F1E104ZT
C228
257 0509 929
CK73B1H102KT
C230-232
254 4464 906
CE67C0J101MT
C234,235
257 0512 903
CK73F1E104ZT
C236
254 4465 905
CE67C1C220MT
C237
257 0512 903
CK73F1E104ZT
C240
257 0512 903
CK73F1E104ZT
C241
257 0509 929
CK73B1H102KT
C242
257 0512 903
CK73F1E104ZT
C243
257 0509 929
CK73B1H102KT
C244
257 0512 903
CK73F1E104ZT
C245
254 4464 906
CE67C0J101MT
C246
254 4465 905
CE67C1C220MT
C247,248
257 0511 904
CK73F1H103ZT
C249
257 0512 903
CK73F1E104ZT
C250
257 0509 929
CK73B1H102KT
C251
257 0512 903
CK73F1E104ZT
C252
257 0509 929
CK73B1H102KT
C253
257 0512 903
CK73F1E104ZT
C254,255
254 4465 905
CE67C1C220MT
C257
257 0512 903
CK73F1E104ZT
C258
257 0509 929
CK73B1H102KT
C259
257 0511 904
CK73F1H103ZT
C260,261
257 0512 903
CK73F1E104ZT
C301,302
257 0512 903
CK73F1E104ZT
C304,305
257 0512 903
CK73F1E104ZT
C306
254 4464 906
CE67C0J101MT
C307-310
257 0512 903
CK73F1E104ZT
C311
257 0503 967
CC73CH1H150JT
C312
257 0512 903
CK73F1E104ZT
C313
257 0503 967
CC73CH1H150JT
C314
257 0509 929
CK73B1H102KT
C315,316
257 0512 903
CK73F1E104ZT
C317
257 0509 929
CK73B1H102KT
C318-320
257 0511 904
CK73F1H103ZT
C321
254 4464 906
CE67C0J101MT
C322
257 0511 904
CK73F1H103ZT
C323
254 4465 918
CE67C1C470MT
C401-403
257 0512 903
CK73F1E104ZT
C404
254 4464 906
CE67C0J101MT
C405
257 0512 903
CK73F1E104ZT
C406
257 0501 901
CK73B1H103KT (1608)
C407,408
257 0512 903
CK73F1E104ZT
C409,410
254 4465 905
CE67C1C220MT
C411,412
257 0512 903
CK73F1E104ZT
C413,414
257 0502 942
CC73CH1H2R0CT
C415-419
257 0512 903
CK73F1E104ZT
C420
254 4465 905
CE67C1C220MT
C421,422
257 0512 903
CK73F1E104ZT
C423
254 4465 905
CE67C1C220MT
C424-429
257 0512 903
CK73F1E104ZT
C430
254 4464 906
CE67C0J101MT
C431-440
257 0512 903
CK73F1E104ZT
C441
254 4464 906
CE67C0J101MT
C442
257 0512 903
CK73F1E104ZT
C443
257 4010 906
CE67C1C101MT
C444,445
254 4464 906
CE67C0J101MT
C447
254 4464 906
CE67C0J101MT
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
86
86
DVD-2900
C448-450
257 0512 903
CK73F1E104ZT
C452
257 0512 903
CK73F1E104ZT
C453,454
254 4465 905
CE67C1C220MT
C455
257 0512 903
CK73F1E104ZT
C456
254 4465 905
CE67C1C220MT
C457-460
257 0512 903
CK73F1E104ZT
C461
254 4464 906
CE67C0J101MT
C466
257 0511 904
CK73F1H103ZT
C501
254 4465 905
CE67C1C220MT
C502,503
257 0511 904
CK73F1H103ZT
C510
254 4465 905
CE67C1C220MT
C511,512
257 0511 904
CK73F1H103ZT
C513-516
257 0509 990
CK73B1H222KT
C517-520
257 0504 908
CC73CH1H220JT
C521
257 0516 954
CK73B1E104KT
C522,523
257 0510 934
CK73B1H472KT
C524
257 0507 976
CC73CH1H331JT
C525,526
257 0511 904
CK73F1H103ZT
C527
254 4465 905
CE67C1C220MT
C528
254 4465 918
CE67C1C470MT
C529
257 0509 929
CK73B1H102KT
C530
254 4465 918
CE67C1C470MT
C531
257 0509 929
CK73B1H102KT
C532-535
257 0516 954
CK73B1E104KT
C536
257 0501 901
CK73B1H103KT (1608)
C537
257 0516 954
CK73B1E104KT
C538
257 0501 901
CK73B1H103KT (1608)
C539
257 0506 993
CC73CH1H151JT
C540
257 0509 929
CK73B1H102KT
C545
254 4464 906
CE67C0J101MT
C546,547
257 0512 903
CK73F1E104ZT
C548
257 0511 904
CK73F1H103ZT
C549
257 4010 906
CE67C1C101MT
C550
257 0512 903
CK73F1E104ZT
C551-553
257 0520 911
CK73B1A224KT
C554
257 0516 954
CK73B1E104KT
C555,556
257 0512 903
CK73F1E104ZT
C558
257 0520 911
CK73B1A224KT
C559
257 0512 903
CK73F1E104ZT
C560
254 4465 905
CE67C1C220MT
C561
257 0501 901
CK73B1H103KT (1608)
C562
257 0516 941
CK73B1E473KT
C563,564
257 0511 904
CK73F1H103ZT
C565
254 4465 905
CE67C1C220MT
C566
257 0511 904
CK73F1H103ZT
C567
254 4465 905
CE67C1C220MT
C568
257 0511 904
CK73F1H103ZT
C569
257 0508 917
CC73CH1H471JT
C570
254 4464 919
CE67C0J471MT
C571
254 4465 905
CE67C1C220MT
C572-576
257 0511 904
CK73F1H103ZT
C578
257 0511 904
CK73F1H103ZT
C580
257 0511 904
CK73F1H103ZT
C581
257 0516 941
CK73B1E473KT
C582-584
257 0511 904
CK73F1H103ZT
C585,586
257 0508 917
CC73CH1H471JT
C587
257 0511 904
CK73F1H103ZT
C588
257 0507 976
CC73CH1H331JT
C589
257 0520 908
CK73B1A154KT
*
C590
254 4464 906
CE67C0J101MT
C591
257 0507 976
CC73CH1H331JT
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
87
87
DVD-2900
C592
257 0508 917
CC73CH1H471JT
C593
257 0520 908
CK73B1A154KT
*
C594
257 0508 917
CC73CH1H471JT
C595
257 0516 954
CK73B1E104KT
C596
257 0511 904
CK73F1H103ZT
C597
257 0506 951
CC73CH1H101JT
C598,599
257 0516 909
CK73B1E223KT
C600-606
257 0511 904
CK73F1H103ZT
C607
257 0512 903
CK73F1E104ZT
C608,609
254 4465 905
CE67C1C220MT
C612
257 0512 903
CK73F1E104ZT
C615
257 0509 929
CK73B1H102KT
C616,617
257 0512 903
CK73F1E104ZT
C618
254 4465 905
CE67C1C220MT
C619,620
257 0511 904
CK73F1H103ZT
C621
254 4465 905
CE67C1C220MT
C622-625
257 0511 904
CK73F1H103ZT
C629,630
254 4465 905
CE67C1C220MT
C631,632
257 0510 950
CK73B1H682KT
C633
257 0509 929
CK73B1H102KT
C634,635
257 0506 951
CC73CH1H101JT
C636
257 0501 901
CK73B1H103KT (1608)
C637
257 0511 904
CK73F1H103ZT
C639
257 0510 950
CK73B1H682KT
OTHER PARTS GROUP
CX039
205 0863 936
3P PH CON.BASE(L)
CX052
205 0863 952
5P PH CON.BASE(L)
CX131
205 1170 932
13P FFC BASE(FMNBMTT
CX151
205 1149 905
15P FFC BASE(52207)
CX171
205 1174 909
17P FFC BASE(FMNSMT)
CX241
205 1152 905
24P FFC BASE(FLZ-SM1
CX271
205 1174 925
27P FFC BASE(FMNSMT)
*
CX331
205 1170 945
33P FFC BASE(FMNBMTT
*
CY121
205 0895 917
12P PH CON. BASE(T)
*
FB101-104
235 0130 903
CHIP EMIFIL(11A121)
FB108,109
235 0130 903
CHIP EMIFIL(11A121)
FB110-128
247 2018 903
RM73B--0R0KT
FB301-318
247 2018 903
RM73B--0R0KT
FB401-403
235 0136 907
FBMJ1608HS280NT
FB405-408
235 0136 907
FBMJ1608HS280NT
FB501-503
235 0130 903
CHIP EMIFIL(11A121)
L101
235 0048 901
EMI FILTER (103)TP
X101
399 0619 906
X'TAL(27MHZ)
X103
399 0806 900
X'TAL(12.288 FCX03)
X301
399 0698 901
CSACW2500MX01
473 7506 019
2X6 CBTS (P)-Z
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
88
88
DVD-2900
GU-3495 AUDIO UNIT
Ref. No.
Part No.
Part Name
Remarks
New
SEMICONDUCTORS GROUP
IC201
262 1421 901
TC74HCT04AF(TAPE1)
IC202
269 0187 001
GP1FA551TZ
IC203,204
263 0896 909
NJM2068MD-TE1
IC205
263 1048 002
BA033T
IC206
262 3229 907
DSD1790DBR
IC207,208
263 0896 909
NJM2068MD-TE1
IC209
262 3229 907
DSD1790DBR
IC210,211
263 0896 909
NJM2068MD-TE1
IC212
262 3229 907
DSD1790DBR
IC213
263 0896 909
NJM2068MD-TE1
IC215
263 0896 909
NJM2068MD-TE1
IC216,217
263 0990 009
OP275GP
IC218,219
263 0615 902
BA15218F-DXE2
IC220
263 0896 909
NJM2068MD-TE1
IC221
263 0809 006
NJM7805FA(S)
IC222
263 0896 909
NJM2068MD-TE1
TR201
269 0119 901
DTA124EKT96(TAPE)
TR202
269 0082 902
DTC114EKT96
TR205,206
273 0460 905
KTC2875B-RTK
for E2
TR207-214
273 0460 905
KTC2875B-RTK
TR215,216
273 0460 905
KTC2875B-RTK
for E2
TR217
273 0426 907
2SC2412KLNT146
TR218
269 0083 901
DTA114EKT96
TR219
269 0119 901
DTA124EKT96(TAPE)
TR220
269 0082 902
DTC114EKT96
TR221-228
273 0460 905
KTC2875B-RTK
TR231-236
273 0460 905
KTC2875B-RTK
D201
276 0432 903
1SS270A TE (TAPE)
D202,203
276 0717 903
1SS355 TE-17
D206,207
276 0717 903
1SS355 TE-17
RESISTORS
GROUP
R290
244 2052 915
RS14B3A182JNBST(S)
R295
241 2423 927
RD14B2E222JT(PSNB)
CAPACITORS GROUP
C201
257 0512 903
CK73F1E104ZT
C202
257 0511 904
CK73F1H103ZT
C203
257 0512 903
CK73F1E104ZT
C204
257 0511 904
CK73F1H103ZT
C205
257 0512 903
CK73F1E104ZT
C206
257 0511 904
CK73F1H103ZT
C207
257 0512 903
CK73F1E104ZT
C209
257 0509 929
CK73B1H102KT
C210
257 0512 903
CK73F1E104ZT
C211
257 0511 904
CK73F1H103ZT
C212
257 0509 929
CK73B1H102KT
C213
257 0512 903
CK73F1E104ZT
C214,215
257 0509 929
CK73B1H102KT
C216
257 0512 903
CK73F1E104ZT
C217
254 4525 900
CE04W1H330MT SMG/RE3
C218,219
257 0014 935
CK73F1E104ZT
C220,221
254 4382 910
CE04W1C221MT(ASF)
C223
257 0512 903
CK73F1E104ZT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
89
89
DVD-2900
C224
254 4524 985
CE04W1H100MT SMG/RE3
C225
257 0509 929
CK73B1H102KT
C226
257 0501 901
CK73B1H103KT (1608)
C228
257 0512 903
CK73F1E104ZT
C229
257 0509 929
CK73B1H102KT
C232
257 0512 903
CK73F1E104ZT
C233
257 0509 929
CK73B1H102KT
C234
254 4452 701
CE04W1C471MC(ASF)
C235-237
257 0512 903
CK73F1E104ZT
C239-241
257 0501 901
CK73B1H103KT (1608)
C243-247
254 4313 921
CE04W1H220MT(ASF)
C248-250
257 0501 901
CK73B1H103KT (1608)
C251
257 0511 904
CK73F1H103ZT
C253
257 0511 904
CK73F1H103ZT
C255
257 0511 904
CK73F1H103ZT
C258,259
254 4313 921
CE04W1H220MT(ASF)
C260-262
257 0512 903
CK73F1E104ZT
C277-284
257 0512 903
CK73F1E104ZT
C285-288
255 4254 973
CQ93P2A182JT(NH2)
C289-292
257 0512 903
CK73F1E104ZT
C293,294
257 3011 948
CF73=1H222JT(ECHUB5)
C295-300
257 3011 951
CF73=1H272JT(ECHUB5)
C301-304
255 4252 959
CQ93P2A221JT(NH2)
C305-308
257 3014 929
CF73=1C472JT(ECHUB5)
C309-316
257 3011 919
CF73=1H102JT(ECHUB5)
C317-320
257 0509 990
CK73B1H222KT
C321,322
254 4313 950
CE04W1H101MT(ASF)
C323-330
257 0512 903
CK73F1E104ZT
C331,332
254 4313 950
CE04W1H101MT(ASF)
C337,338
255 4254 931
CQ93P2A122JT(NH2)
C340
254 4313 921
CE04W1H220MT(ASF)
C341,342
255 4254 973
CQ93P2A182JT(NH2)
C343-346
257 0512 903
CK73F1E104ZT
C349
254 4558 702
CE04W1H101MC(RFS)
for E3,E2
C349
254 4445 750
CE04W1H101MC(ARSG)
for JP
C351
257 3011 919
CF73=1H102JT(ECHUB5)
C354
254 4558 702
CE04W1H101MC(RFS)
for E3,E2
C354
254 4445 750
CE04W1H101MC(ARSG)
for JP
C355
254 4347 751
CE04W1H2R2MC(ARSA)
for E3,E2
C357
254 4347 751
CE04W1H2R2MC(ARSA)
for E3,E2
C359,360
255 4256 955
CQ93P2A103JT(NH2)
C361-364
254 4313 950
CE04W1H101MT(ASF)
C365
254 4347 751
CE04W1H2R2MC(ARSA)
for E3,E2
C367
254 4347 751
CE04W1H2R2MC(ARSA)
for E3,E2
C369,370
257 0508 933
CC73CH1H561JT
for E2
C371-374
255 4253 932
CQ93P2A471JT(NH2)
C375-378
257 0509 929
CK73B1H102KT
C379
257 0512 903
CK73F1E104ZT
C380
257 0509 929
CK73B1H102KT
C381
257 0501 901
CK73B1H103KT (1608)
C382
257 0512 903
CK73F1E104ZT
C383,384
257 3011 919
CF73=1H102JT(ECHUB5)
C388
257 0511 904
CK73F1H103ZT
for E3,JP
C389
257 0512 903
CK73F1E104ZT
for E3,JP
C392,393
254 4615 700
CE04W1H220MBPC(ARS)
C394-397
254 4598 908
CE04W1H220MTBP(ASF)
C398
257 3011 919
CF73=1H102JT(ECHUB5)
C399
254 4445 750
CE04W1H101MC(ARSG)
for E3,E2
C399
254 4644 700
CE04W1H101MC(RGO)
for JP
C401
254 4313 921
CE04W1H220MT(ASF)
C402
257 0512 903
CK73F1E104ZT
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
90
90
DVD-2900
C403
254 4313 921
CE04W1H220MT(ASF)
C404
254 4313 950
CE04W1H101MT(ASF)
for E3,E2
C404
254 4558 702
CE04W1H101MC(RFS)
for JP
C405
254 4313 921
CE04W1H220MT(ASF)
C407
254 4313 921
CE04W1H220MT(ASF)
C409,410
254 4313 921
CE04W1H220MT(ASF)
C421,422
254 4558 715
CE04W1H221MC(RFS)
for E3,E2
C421,422
254 4445 035
CE04W1H221M(ARSG)
for JP
OTHER PARTS GROUP
CX054
205 0343 058
5P CONN.BASE(KR-PH)
for E2
CY041
205 0343 045
4P CONN.BASE(KR-PH)
CY271
205 1100 083
27P FFC BASE (P=1)
FB201-203
235 0130 903
CHIP EMIFIL(11A121)
FB204-208
247 2018 903
RM73B--0R0KT
for E3,JP
FB209,210
247 2018 903
RM73B--0R0KT
for E3,JP
FB209,210
235 0130 903
CHIP EMIFIL(11A121)
for E2
FB213
247 2018 903
RM73B--0R0KT
FB215
247 2018 903
RM73B--0R0KT
FB217
247 2018 903
RM73B--0R0KT
JK201
204 8618 009
1P PIN JACK(AU)
JK202
204 8668 004
8P PIN JACK (AU)
*
ST701
205 0452 017
STYLE PIN
T201
231 8063 009
PULSE TRANS
203 0469 033
1P CONTACT ASS'Y
203 0717 002
1P SIN-SIN WIRE
417 0476 010
RADIATOR
471 3303 016
3X6 CBS-Z
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
91
91
DVD-2900
GU-3496 POWER/DISP. UNIT
Ref. No.
Part No.
Part Name
Remarks
New
SEMICONDUCTORS GROUP
IC101
262 3048 007
ML9207-01GP
IC103
499 0303 004
GP1UM271XK
IC510
262 2580 906
CXA1511M
IC511
262 2114 903
UPD4721GS-GJG
IC901
265 0112 003
STR-F6674
IC902
262 3047 008
PC123 Y-22
IC903
263 1113 005
SE005N
IC904
263 1048 002
BA033T
IC905
263 1114 004
PQ1CG21H2FZ
IC906
263 0809 006
NJM7805FA(S)
IC908
263 0554 005
NJM7905FA
IC909
263 0810 008
NJM7808FA(S)
IC912
263 0753 000
NJM7809FA(S)
IC913
263 0878 008
NJM7909FA
TR101
269 0171 907
IMD3A-T108
TR102,103
269 0082 902
DTC114EKT96
TR501
269 0171 907
IMD3A-T108
TR902
269 0082 902
DTC114EKT96
TR903
272 0093 010
2SB1274 (R/S)
TR905
269 0083 901
DTA114EKT96
TR906
269 0082 902
DTC114EKT96
TR907
275 0106 906
HAT2053M(TAPE)
TR908,909
274 0036 905
2SD468(C)TF
TR910,911
269 0083 901
DTA114EKT96
TR912
274 0036 905
2SD468(C)TF
D102-104
276 0717 903
1SS355 TE-17
D901-904
276 0729 904
EM01AT (V1)
D905
276 0730 906
AG01ZT (V1)
D906
276 0724 909
SARS01T (V1)
D907-909
276 0730 906
AG01ZT (V1)
D910
276 0725 704
RK39 LF-C4
D911
276 0783 005
FMB-2204
*
D912
276 0745 904
RB411DT146
D913,914
276 0727 906
AL01ZT (V1)
D915,916
276 0717 903
1SS355 TE-17
D917,959
276 0737 939
RB161L-40
D918
276 0717 903
1SS355 TE-17
D923,924
276 0717 903
1SS355 TE-17
D957,958
276 0717 903
1SS355 TE-17
ZD901
276 0457 904
HZS4C-1TD
LD101
393 9623 908
SEL2810A(TP7)
Amber
LD102
393 9576 903
SELU1E10CXM-002
Blue
LD103
393 9504 904
SEL1210S(TP7)
Red
!
TH901
279 0044 002
NTH11D8R0LA
RESISTORS GROUP
R547
244 2052 928
RS14B3A470JNBST(S)
R901
244 2675 716
RS14B3D683JNBF (ERG)
R902
244 2671 956
RS14B3DR47JNBST(S)
R905
244 2675 729
RS14B3D224JNBF (ERG)
R906
244 2675 703
RS14B3D470JNBF (ERG)
R913
244 2043 953
RS14B3A471JNBST(S)
R920
241 2423 927
RD14B2E222JT(PSNB)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
92
92
DVD-2900
R932
244 2052 999
RS14B3A103JNBST(S)
R937
244 2064 929
RS14B3A3R3JNBST(S)
CAPACITORS GROUP
C101,102
257 0512 903
CK73F1E104ZT
C106,107
257 0502 971
CC73CH1H5R0CT
C108,109
257 0512 903
CK73F1E104ZT
C110
257 0509 929
CK73B1H102KT
C111
254 4299 964
CE04W1C470MT(SRE)
C113
257 0509 929
CK73B1H102KT
C114
257 0511 904
CK73F1H103ZT
C115
257 0509 929
CK73B1H102KT
C116,117
257 0511 904
CK73F1H103ZT
C118
257 0509 929
CK73B1H102KT
C119
257 0512 903
CK73F1E104ZT
C120
257 0509 929
CK73B1H102KT
!
C121
253 8022 707
CK45F2EAC103MC
C122
257 0509 929
CK73B1H102KT
C501
257 0511 904
CK73F1H103ZT
C502
257 0509 929
CK73B1H102KT
C505
257 0512 903
CK73F1E104ZT
C509
257 0512 903
CK73F1E104ZT
C510
257 0509 929
CK73B1H102KT
C511
257 0511 904
CK73F1H103ZT
C566
257 0506 951
CC73CH1H101JT
C567
257 0501 901
CK73B1H103KT (1608)
C568
254 4538 939
CE04W1C470MT SMG/RE3
C569
257 0501 901
CK73B1H103KT (1608)
C570
254 4524 943
CE04W1H010MT SMG/RE3
C571
257 0501 901
CK73B1H103KT (1608)
C573
257 0501 901
CK73B1H103KT (1608)
C574
257 0509 929
CK73B1H102KT
C575
257 0501 901
CK73B1H103KT (1608)
C576-578
254 4524 901
CE04W1H0R1MT SMG/RE3
C579
254 4313 934
CE04W1H470MT(ASF)
C580
257 0512 903
CK73F1E104ZT
C581,582
254 4524 901
CE04W1H0R1MT SMG/RE3
C585,586
257 0506 951
CC73CH1H101JT
C588
257 0506 951
CC73CH1H101JT
C589,590
257 0511 917
CK73F1H223ZT
C593,594
257 0511 904
CK73F1H103ZT
!
C901
256 8038 017
CF99--2EAC224M
!
C902
256 8038 004
CF99--2EAC104M
C905
254 4589 713
CE04W2G101MC(KMG)
for E3,JP
C905
254 4589 700
CE04W2G470MC (KMG)
for E2
C906
253 4546 711
CC45SL3D221JC
C907
253 4452 902
CC45SL1H471JT
C908
253 9030 963
CK45=1E103KT
C909
254 4313 934
CE04W1H470MT(ASF)
!
C910
253 8029 700
CK45F2EAC222MC (KX)
C911
253 8028 701
CK45R3A222KC
C912
255 1249 923
CQ93M1H681JT (B)
C913
254 4533 921
CE04W0J101MT SMG/RE3
for E3,E2
C913
254 4313 950
CE04W1H101MT(ASF)
for JP
C914
254 4592 700
CE04W0J222MC K20(LXV
C915
254 4593 709
CE04W1C122MC K20(LXJ
C916
254 4591 905
CE04W1H101MT (KMF)
C917
254 4593 709
CE04W1C122MC K20(LXJ
C918
254 4591 905
CE04W1H101MT (KMF)
C919
256 1058 971
CF93A1H104JT (JL)
C920,950
254 4538 955
CE04W1C221MT SMG/RE3
for E3,E2
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
93
93
DVD-2900
C920,950
254 4313 798
CE04W1H221MC (ASF)
for JP
C921
254 4533 921
CE04W0J101MT SMG/RE3
C922,923
257 0512 903
CK73F1E104ZT
C924
254 4538 942
CE04W1C101MT SMG/RE3
C925
254 4313 934
CE04W1H470MT(ASF)
C926
257 0512 903
CK73F1E104ZT
C927
257 0511 904
CK73F1H103ZT
C928
254 4585 908
CE04W0J471MT(LXV)
C929
254 4533 921
CE04W0J101MT SMG/RE3
C930-932
257 0512 903
CK73F1E104ZT
C934
254 4368 934
CE04W1E101MT(ASF)
C935
257 0512 903
CK73F1E104ZT
C936
254 4538 942
CE04W1C101MT SMG/RE3
C937
254 4368 934
CE04W1E101MT(ASF)
C938
257 0512 903
CK73F1E104ZT
C939
254 4368 934
CE04W1E101MT(ASF)
C941
257 0511 904
CK73F1H103ZT
C942-946
257 0512 903
CK73F1E104ZT
C947
257 0511 904
CK73F1H103ZT
C948
257 0512 903
CK73F1E104ZT
C949
257 0511 904
CK73F1H103ZT
C951
257 0512 903
CK73F1E104ZT
C954,955
257 0512 903
CK73F1E104ZT
C958,959
254 4382 910
CE04W1C221MT(ASF)
C964
254 4538 942
CE04W1C101MT SMG/RE3
for E3,E2
C964
254 4313 950
CE04W1H101MT(ASF)
for JP
C983,984
257 0512 903
CK73F1E104ZT
OTHER PARTS GROUP
CW035
203 5312 004
3P PH-SAN CON.CORD
CX024
205 0581 001
2P VH CONNECTOR BASE
CX025
205 0581 056
2P VH CONNECTOR BASE
CX035
205 0355 033
3P KR CON BASE(L)
CX041
205 0343 045
4P CONN.BASE(KR-PH)
CX051
205 0343 058
5P CONN.BASE(KR-PH)
CX061
205 0343 061
6P CONN.BASE(KR-PH)
CX121
205 0375 026
12P CONN.BASE(KR-PH)
CY025
205 0581 056
2P VH CONNECTOR BASE
CY061
205 0343 061
6P CONN.BASE(KR-PH)
CY131
205 0892 088
13P FFC CON. BASE
CY171
205 1006 080
17P FFC BASE(P=1)
!
F951
206 1087 015
FUSE (ET1A)
for E3,JP
*
!
F951
206 1087 073
FUSE (ET1.6A)
for E2
*
FB519
235 0130 903
CHIP EMIFIL(11A121)
FB527-530
235 0130 903
CHIP EMIFIL(11A121)
FB753-756
235 0130 903
CHIP EMIFIL(11A121)
FF901
202 0040 909
FUSE CLIP (TAPE)
FH901
202 0040 909
FUSE CLIP (TAPE)
FL101
393 8060 009
FL TUBE(17-ST-04GNK)
JK507,508
204 8612 005
MINI JACK
JK509
205 1153 001
9P S SUB CONNECTOR
!
L901
235 0141 002
LINE FILTER (PLA10A)
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
94
94
DVD-2900
L902
235 0142 917
COIL LHL08TB4R7MT
L904
235 0140 906
COIL LHL10TB101KT
L907-909
235 0142 917
COIL LHL08TB4R7MT
S101-106
212 5604 910
TACT SWITCH-TA(ALPS)
S107
212 0389 007
ROTARY SW(1-3)
S108-110
212 5604 910
TACT SWITCH-TA(ALPS)
!
S120
212 1030 009
POWER SWITCH (TV-5)
ST901
205 0452 017
STYLE PIN
ST903
205 0452 017
STYLE PIN
!
T901
233 6403 007
SW TRANSFORMER(WIDE)
X101
399 0151 008
X-TAL(4.332MHZ)
417 0476 010
RADIATOR
417 0592 004
HEAT SINK
417 0610 009
HEAT SINK(OSH-2430)
461 1125 118
FL SPACER
471 3303 016
3X6 CBS-Z
471 3305 027
3X10 CBS
513 3827 003
FUSE LABEL
for E2
001 0101 025
VINYL WIRE
for E2
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
95
95
DVD-2900
GU-3497 VIDEO UNIT
Ref. No.
Part No.
Part Name
Remarks
New
SEMICONDUCTORS GROUP
IC601
262 3126 000
XC2S30-5VQ100C
IC602
262 3127 009
XC17S30AV08C(SQZ)
IC603
262 1348 903
TC74HC123AF(TP1)
IC604
262 2519 906
SN74LV00APW-EL2
IC605
262 1793 901
TC4W53F
for E2
IC701
262 3058 000
SII504CM208
IC702
262 2916 004
64M SDRAM(TSOP)
IC703
262 3059 902
PIC18LC242-I/SO TAPE
IC704
262 3050 008
ADV7300
IC705
262 3093 007
ADV7190
for E2
IC706
262 3020 902
BH7860FP-E2
IC707
262 3020 902
BH7860FP-E2
for E2
IC708-710
263 1082 903
TK15420MTL
IC711
262 1348 903
TC74HC123AF(TP1)
IC712
263 1110 901
PQ070XZ01ZP
IC713
263 1079 903
BA033FP
IC714
262 2977 904
BA18BC0FP-E2
IC715
263 1079 903
BA033FP
for E2
TR701,702
271 0293 901
2SA1022-B
TR703
274 0163 904
2SD601A
TR704,705
272 0125 904
2SB709A
TR706
274 0163 904
2SD601A
TR707,708
272 0125 904
2SB709A
TR709,710
274 0163 904
2SD601A
TR711,712
271 0293 901
2SA1022-B
TR713
272 0125 904
2SB709A
TR714-716
272 0125 904
2SB709A
for E2
TR719
272 0125 904
2SB709A
for JP
TR720
274 0163 904
2SD601A
for JP
TR721
272 0125 904
2SB709A
for JP
TR722
274 0163 904
2SD601A
for JP
TR723-725
269 0082 902
DTC114EKT96
for E2,JP
TR726-728
269 0083 901
DTA114EKT96
for E2,JP
D701-703
276 0717 903
1SS355 TE-17
RESISTORS GROUP
RA601-604
247 9002 909
MNR14=330JE0AB
RA701-708
247 9002 909
MNR14=330JE0AB
RA709-712
247 9002 909
MNR14=330JE0AB
for E2
VR701-706
211 6148 906
V03PB471MT(RH03ADCS)
VR708
211 6138 903
V03PB102MT(RH03ADC)
for E2
CAPACITORS GROUP
C601,602
257 0512 903
CK73F1E104ZT
C603
254 4465 905
CE67C1C220MT
C604-609
257 0512 903
CK73F1E104ZT
C611-613
257 0512 903
CK73F1E104ZT
C614
254 4465 905
CE67C1C220MT
C615-617
257 0512 903
CK73F1E104ZT
C618,619
257 0509 929
CK73B1H102KT
C620,621
257 0512 903
CK73F1E104ZT
C622,623
257 0512 903
CK73F1E104ZT
for E2
C701-707
257 0512 903
CK73F1E104ZT
C708
257 0511 904
CK73F1H103ZT
C709
257 0512 903
CK73F1E104ZT
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
96
96
DVD-2900
C710
254 4465 905
CE67C1C220MT
C711
257 0511 904
CK73F1H103ZT
C712
254 4464 906
CE67C0J101MT
C713-715
257 0512 903
CK73F1E104ZT
C717-721
257 0512 903
CK73F1E104ZT
C723,724
257 0512 903
CK73F1E104ZT
C725,726
254 4464 906
CE67C0J101MT
C727
257 0512 903
CK73F1E104ZT
C728
254 4464 906
CE67C0J101MT
C729-738
257 0512 903
CK73F1E104ZT
C739
254 4464 906
CE67C0J101MT
C742
257 0511 904
CK73F1H103ZT
C743
257 0512 903
CK73F1E104ZT
C745,746
254 4464 906
CE67C0J101MT
C747,748
257 0512 903
CK73F1E104ZT
C749
254 4464 906
CE67C0J101MT
C750
257 0512 903
CK73F1E104ZT
C752
257 0511 904
CK73F1H103ZT
C753
257 0512 903
CK73F1E104ZT
C755,756
257 0512 903
CK73F1E104ZT
C758
257 0509 903
CK73B1H821KT
C759
257 0512 903
CK73F1E104ZT
C760
254 4464 906
CE67C0J101MT
C761
257 0510 921
CK73B1H392KT
C762
257 0502 971
CC73CH1H5R0CT
C765,766
257 0512 903
CK73F1E104ZT
C768,769
257 0512 903
CK73F1E104ZT
C770-772
254 4464 906
CE67C0J101MT
C775
257 0503 925
CC73CH1H100DT
C776,777
257 0512 903
CK73F1E104ZT
C779,780
257 0512 903
CK73F1E104ZT
C781,782
254 4465 905
CE67C1C220MT
C783
254 4572 908
CE67C1C100MT(MV-B)
C787,788
257 0512 903
CK73F1E104ZT
C790,791
257 0512 903
CK73F1E104ZT
C792,793
254 4465 905
CE67C1C220MT
C794
254 4572 908
CE67C1C100MT(MV-B)
C795,796
257 0512 903
CK73F1E104ZT
C797,798
254 4464 906
CE67C0J101MT
C799,800
257 0512 903
CK73F1E104ZT
C801
254 4464 906
CE67C0J101MT
C802
257 0507 934
CC73CH1H221JT
C803
257 0512 903
CK73F1E104ZT
C804,805
257 0509 929
CK73B1H102KT
C806,807
257 0512 903
CK73F1E104ZT
C808
254 4464 906
CE67C0J101MT
C809,810
257 0512 903
CK73F1E104ZT
for E2
C811,812
254 4464 906
CE67C0J101MT
for E2
C813-815
257 0512 903
CK73F1E104ZT
for E2
C816
254 4465 905
CE67C1C220MT
for E2
C817
257 0512 903
CK73F1E104ZT
for E2
C818
254 4465 905
CE67C1C220MT
for E2
C819
257 0512 903
CK73F1E104ZT
for E2
C820
257 0511 904
CK73F1H103ZT
for E2
C823-827
257 0512 903
CK73F1E104ZT
for E2
C828,829
257 0512 903
CK73F1E104ZT
C830-832
257 0512 903
CK73F1E104ZT
for E2
C833
254 4464 906
CE67C0J101MT
C834
257 0501 901
CK73B1H103KT (1608)
C835
254 4465 918
CE67C1C470MT
C836
254 4465 918
CE67C1C470MT
for E2
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
97
97
DVD-2900
C837,838
257 0511 904
CK73F1H103ZT
C839
254 4464 906
CE67C0J101MT
C840
257 0512 903
CK73F1E104ZT
C841
257 0506 951
CC73CH1H101JT
C843
257 0501 901
CK73B1H103KT (1608)
C844
254 4327 904
CE04W0J102MT(SMG)
C845
254 4464 906
CE67C0J101MT
C846
254 4327 904
CE04W0J102MT(SMG)
C847
254 4464 906
CE67C0J101MT
C848
254 4533 950
CE04W0J471MT SMG/RE3
for E2
C850-852
254 4465 918
CE67C1C470MT
for E2
C853,854
257 0511 904
CK73F1H103ZT
for E2
C855
254 4464 906
CE67C0J101MT
for E2
C856
257 0512 903
CK73F1E104ZT
for E2
C857
257 0506 951
CC73CH1H101JT
for E2
C861,862
254 4533 950
CE04W0J471MT SMG/RE3
for E2
C863
257 0512 903
CK73F1E104ZT
C864
257 0511 904
CK73F1H103ZT
C865
257 0509 929
CK73B1H102KT
C866
254 4464 906
CE67C0J101MT
for E2
C867,868
257 0512 903
CK73F1E104ZT
C869
257 0511 904
CK73F1H103ZT
C870
257 0509 929
CK73B1H102KT
C875-879
257 0512 903
CK73F1E104ZT
OTHER PARTS GROUP
CY053
205 0895 904
5P KR-PH CON BASE(T)
CY101
205 0884 054
10P CON.BASE TUC-P
for E2
CY331
205 1170 945
33P FFC BASE(FMNBMTT
*
JK701
204 8670 005
1P/S-TERMINAL
*
JK702
204 8669 003
3P PIN JACK
*
JK703
204 6670 007
D CONNECTOR
for JP
L704,705
235 0125 905
INDUCTOR(FLC32C220K)
L710
235 0125 905
INDUCTOR(FLC32C220K)
L712
235 0149 907
LK1608R68K-T
L713
235 0125 905
INDUCTOR(FLC32C220K)
for E2
L715
235 0149 907
LK1608R68K-T
for E2
LF701
261 0161 900
ELB4B590N
LF702
261 0160 901
ELB4C572
ST101,102
205 0452 017
STYLE PIN
X702
399 0832 903
CSTCG20MOV51-R0
Ref. No.
Part No.
Part Name
Remarks
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
98
98
DVD-2900
GU-3343 SCART PWB UNIT
Ref. No.
Part No.
Part Name
Remarks
New
SEMICONDUCTORS GROUP
IC851
262 1793 901
TC4W53F
IC852
263 1115 906
NJM2267M (TE2)
IC853
262 0707 901
TC4053BF (TAPE)
IC854
262 2534 907
BA7660FS-E2
TR851-854
269 0082 902
DTC114EKT96
TR855
269 0083 901
DTA114EKT96
CAPACITORS GROUP
C851,852
257 0506 951
CC73CH1H101JT
C853
254 4299 964
CE04W1C470MT(SRE)
C854,855
254 4300 963
CE04W0J101MT(SRE)
C856-859
257 0512 903
CK73F1E104ZT
C860,861
254 4300 963
CE04W0J101MT(SRE)
C862
257 0512 903
CK73F1E104ZT
C863
254 4300 963
CE04W0J101MT(SRE)
C864,865
257 0512 903
CK73F1E104ZT
C866-868
254 4299 964
CE04W1C470MT(SRE)
C869
254 4300 963
CE04W0J101MT(SRE)
C870
254 4299 919
CE04W1C220MT(SRE)
C871
254 4300 963
CE04W0J101MT(SRE)
C872
254 4299 919
CE04W1C220MT(SRE)
C873
254 4300 963
CE04W0J101MT(SRE)
C874
254 4299 919
CE04W1C220MT(SRE)
C875
257 0512 903
CK73F1E104ZT
C876
254 4300 963
CE04W0J101MT(SRE)
C877,878
257 0512 903
CK73F1E104ZT
C879
257 0511 904
CK73F1H103ZT
C880
257 0509 929
CK73B1H102KT
C884-887
247 2018 903
RM73B--0R0KT
C890-892
247 2018 903
RM73B--0R0KT
C896,897
257 0512 903
CK73F1E104ZT
-
254 4538 955
CE04W1C221MT SMG/RE3
OTHER PARTS GROUP
CX052
205 0395 051
5P CONN.BASE(RED)L
CX101
205 0885 053
10P CON.SOCKET TUC-P
FB851-856
235 0130 903
CHIP EMIFIL(11A121)
JK851
204 6649 009
RGB CONNECTOR
L851
235 0070 911
INDUCTOR(220)ST
W701
414 0903 005
SCART SHIELD PLATE
001 0231 005
1P WIRE
001 0231 018
1P WIRE
461 0415 007
RUBBER SHEET
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
99
99
DVD-2900
40
40A
106
50
42
47
43
107
3-2
107
41
48
115
106
108
39
46
103
106
19
18
106
106
3-1
37
26
28
27
36
55
56
103
33
3-7
106
13
12
104
106
114
107
38
103
107
3-4
107
3-5
8
5
4
27
36
103
2
103
29
103
107
107
6
113
113
53
11
32
113
106
113
113
10
103
103
10
103
103
103
3-6
45
(Europe model only)
16
1
101
Parts marked with this symbol
have critical
characteristics.
Use ONLY replacement parts recommended by the
manufacturer.
WARNING:
EXPLODED VIEW
Parts List
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
100
100
DVD-2900
PARTS LIST OF EXPLODED VIEW
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
1
GU- 3494
MAIN UNIT
1
*
2
GU- 3495
AUDIO UNIT
for E3
1
*
2
GU- 3495 A
AUDIO UNIT
for E2
1
*
2
GU- 3495 B
AUDIO UNIT
for JP
1
*
3
GU- 3496
POWER/DISP. UNIT
for E3
1
*
3
GU- 3496 A
POWER/DISP. UNIT
for E2
1
*
3
GU- 3496 B
POWER/DISP. UNIT
for JP
1
*
3-1
-
POWER UNIT
3-2
-
DISPLAY UNIT
3-4
-
POWER SW. UNIT
3-5
-
LED UNIT
3-6
-
SELECT UNIT
3-7
-
I/F UNIT
4
GU- 3497
VIDEO UNIT
for E3
1
*
4
GU- 3497 A
VIDEO UNIT A (E2)
for E2
1
*
4
GU- 3497 B
VIDEO UNIT B (N)
for JP
1
*
5
GU- 3343
SCART PWB UNIT
for E2
1
6
411 1961 102
CHASSIS
1
8
105 1402 009
BOTTOM COVER
1
10
104 0313 015
FOOT ASS'Y
for E3,E2
4
10
104 0173 226
FOOT ASS'Y
for JP
4
11
105 1424 100
REAR PANEL
for E3
1
*
11
105 1424 126
REAR PANEL
for E2
1
*
11
105 1424 139
REAR PANEL
for JP
1
*
!
12
203 3994 000
AC INLET (3P)
for E3,JP
1
!
12
203 3995 009
AC INLET (2P)
for E2
1
13
203 5293 013
3P VH CON.CORD
1
★
14
342 0032 011
FERRITE CLAMP(RFC-9)
1
★
15
445 0033 005
WIRE CLAMP BAND
1
16
337 0118 001
DVD MECHA(TD-5HP-D3)
1
*
18
411 2026 004
MECHA FIX BRACKET
1
*
19
445 0099 007
EDGING (EDS-1208U)
1
26
445 0048 016
CORD HOLDER (L50)
1
★
27
203 6493 032
4P PH-PH CONN.CORD
1
*
28
204 6610 012
12P PH-PH CORD
1
*
29
009 0226 069
27P FFC (1.0)
1
*
32
009 0226 056
33P FFC (1.0)
1
*
33
009 0226 072
13P FFC (1.0)
1
*
★
34
513 3406 107
LABEL (A)
for E3
1
★
34
513 3463 001
LABEL(LASER)
for E2
1
★
35
513 2065 002
E2 LASER CAUTION
for E2
1
36
203 8489 015
5P PH-PH CON.CORD
1
*
37
412 2814 015
CARD SPACER (L=14)
1
38
412 4944 006
FRONT ANGLE
1
39
144 2830 109
FRONT PANEL
for Black model
1
*
39
144 2830 112
FRONT PANEL
for Gold model
1
*
40
131 9004 013
DENON MARK
for Black model
1
40
131 9004 068
DENON MARK
for Gold model
1
40A
135 0068 018
SACD PLATE
for Black model
1
*
40A
135 0068 021
SACD PLATE
for Gold model
1
*
41
143 1145 009
WINDOW
1
42
143 1110 005
LENS
3
43
146 2225 503
INNER PANEL
for Black model
1
*
43
146 2225 516
INNER PANEL
for Gold model
1
*
★
43A
461 1156 006
INNER PANEL PLATE
1
*
★
44
204 0572 004
6P PH-PH CON.CORD
1
*
45
009 0226 085
17P FFC (1.0)
1
*
46
203 5313 003
3P VH-VH CON.CORD
1
*
Note :
The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model
E2 : Europe model
JP : Japan model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
101
101
DVD-2900
47
113 1886 008
P.SW KNOB
for Black model
1
47
113 1886 011
P.SW KNOB
for Gold model
1
48
112 0855 024
VOL KNOB(B)
for Black model
1
48
112 0855 037
VOL KNOB(B)
for Gold model
1
50
129 0253 048
RUBBER SHEET
2
53
102 0644 005
TOP COVER
for Black model
1
53
102 0644 018
TOP COVER
for Gold model
1
55
146 2309 005
LOADER PANEL
for Black model
1
*
55
146 2309 018
LOADER PANEL
for Gold model
1
*
56
135 0065 008
DVD A/VIDEO PLATE
for Black model
1
56
135 0065 011
DVD A/VIDEO PLATE
for Gold model
1
★
57
513 3747 015
RATING SHEET
for E3
1
*
★
57
513 3798 019
RATING SHEET(E2)
for E2
1
*
★
57
513 3800 017
RATING SHEET(DOM)
for JP
1
*
★
59
513 1381 004
MANUFAC.DATE LABEL
for E3,JP
1
SCREWS
101
473 7001 048
2.6X8 CBTS (S)-Z
4
103
473 7002 018
3X8 CBTS (S)-Z
20
104
473 7003 017
3X8 CFTS (S)-B
2
106
473 7015 005
3X6 CBTS(S)-B
28
107
473 7500 044
3X8 CBTS (P)-B
for E3,JP
20
107
473 7500 044
3X8 CBTS (P)-B
for E2
22
★
110
473 7512 003
3X8 CFTS (P)-B
for JP
2
113
477 0263 005
3P. SWELLING SCREW
for Black model
10
113
477 0263 018
3P.SWELLING SCREW
for Gold model
10
114
-
SPECIAL SCREW
Attachment for D connector
2
115
-
9 SP NUT
Attachment for Rotary switch
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
102
102
DVD-2900
14
2
15
8
12
7
5
1
11
6
9
10
3
50
21
21
24
24
16
23
17
25
20
19
24
24
24
18
26
62
60
61
60
61
26
23
42
39
44
43
28
43
29
35
40
37
38
34
33
30
32
32
47
46
47
31
53
50
36
23
49
27B
27A
41
49
49
51
51
49
48
27
22
54
52
52
63
64
4
68
70
71
Parts List
EXPLODED VIEW OF DVD MECHANISM
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
103
103
DVD-2900
PARTS LIST OF DVD MECHANISM UNIT
3370118001 DVD MECHA (TD-5HP-D3)
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
1
9KC 1A01 7
MAIN CHASSIS ASS'Y
1
2
9KA 7P08 5
CLAMPER BRACKET
1
3
9KA 2P84 1
GUIDE CLAMP BRACKET
1
*
4
9KC 2A00 3
LOADING MOTOR ASS'Y
1
5
9KC 2G02 9
LOADING GEAR
1
6
9KB 9G03 0
LOADING GEAR 2ND
1
7
9KB 9G03 1
LOADING GEAR 3RD
1
8
9KA 2G41 7
SUB CHASSIS-L
1
9
9KA 2G41 8
SUB CHASSIS-R
1
10
9KA 2G53 2
TRAY
1
11
9KC 1G00 3
SLIDE-CAM
1
12
9KC 1G00 4
TRAVERSE ARM
1
14
9KA 7G20 2
CLAMPER H
1
15
9KA 7G20 3
CLAMPER L
1
16
9KB 9G01 5
LOADING BELT
1
17
9KC 1P01 4
SWITCH P.W.B.
1
18
9KC 2G04 3
5P PH WIRE
1
19
9KS 01W2 04
SWITCH ESE22MH21
1
20
9KS 01W2 05
SWITCH ESE22MH23
1
21
9KP 26C6 25
POLY.SLIT WASHER 2.6X6X0.25C
3
22
445 8004 007
WIRE CLAMPER
1
23
9KS 17N0 22
PRECISION SCREW 1.7X2.2 TYPE3
2
24
9KB 26BK 06
SCREW 2.6X6 CBTS(B)-Z
6
25
9KS 20TK 33
PRECISION SCREW 2X3(S) TYPE3
1
26
9KB 20PK 06
SCREW 2X6 CBTS(P)-Z
2
27A
9KC 2A06 3B
TRAVERSE MECHA (FEED) ASS'Y
Assembled part
1
27B
9KC 2A06 4B
TRAVERSE MECHA ASS'Y
Assembled part
1
23
-
PRECISION SCREW 1.7X2.2 TYPE3
3
27
-
PU CHASSIS ASS'Y
1
28
-
SHAFT HOLDER L
1
29
-
SHAFT HOLDER R
1
30
-
SHAFT TILT BASE
1
31
-
SHAFT TILT PLATE
1
32
-
TILT SPRING
2
33
-
MAIN SHAFT
1
34
-
SUB SHAFT
1
35
-
PU RACK GEAR
1
37
-
PICK UP HOP-1200R
1
38
-
PU SPRING
1
39
-
SHAFT SPRING
1
40
-
RACK GEAR SPRING
1
42
-
T/T MOTOR ASS'Y
1
43
-
SCREW 2.6X6 CBTS(S)-Z
2
44
-
SCREW 2.6X4 CBTS(S)-Z
1
46
-
SCREW 2.6X15 CFTS(S)-Z
2
47
-
SCREW 3X4 BSS
2
48
-
SCREW 3X8 BSS (A)
1
63
-
PRECISION SCREW 1.7X5 TYPE3
1
23
-
PRECISION SCREW 1.7X2.2 TYPE3
2
36
-
FEED GEAR 2ND ASS'Y
1
41
-
FEED MOTOR ASS'Y
1
50
-
POLY.SLIT WASHER 2.1X4X0.25C
2
53
-
FEED GEAR 3RD
1
49
9KC 1G04 3
DAMPER
4
Note : The symbols in the column “Remarks” indicate the following destinations.
E3 : U.S.A. & Canada model
E2 : Europe model
JP : Japan model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
104
104
DVD-2900
51
-
SPECIAL SCREW (FRONT)
2
52
-
SPECIAL SCREW (REAR)
2
54
9KB 7P02 4
TRAY-SPRING-VXF
1
60
9KC 2P03 1
PLATE-RE-2HPC
2
61
9KC 2P03 2
WF-PLATE-RE-2HPC
2
62
9KS 20P1 04
PRECISION SCREW 2X4(P) TYPE1
2
64
9KC 1G04 2
RUBBER CUSHION
2
68
-
TAPE W10X45 (NITTO NO.156)
1
70
9KC 2G07 6
CUSHION L
6X3Xt4
1
71
9KC 2G07 7
CUSHION R
6X3Xt2
1
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
105
105
DVD-2900
62
60
61
60
61
54
Apply
12.5mm half-ball approx.
Main
Chassis
Main Chassis
*As for greasing to the R rail
groove and groove's side edge,
apply grease to the outer face
"intentionally".
(Not only running a brush into
the groove, use it with pressing
to the outer face consciously.)
After attaching cushions, apply Cemedine
575 to the joint parts of the cushions and
tabs (both sides, left and right) from the tab's
back side. (0.1mg each x 4)
After applying , check especially for the front 3 ribs outer side
in order not to be insufficient greasing.
When greasing each rib, apply to
the rib's left, right, and top faces
properly with running a brush on both sides
of the rib.
With Cemedine 575, glue 3 joint parts of Clamper-L
and H hooks. (0.05mg each x 3)
Froil KG
423
After attaching plate spring,
apply to the TRAY side of
the plate spring.
POINTS OF GREASING
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
106
106
DVD-2900
PACKING VIEW
PARTS LIST OF PACKING & ACCESSORIES
210
210
201
209
208
212
Ref. No.
Part No.
Part Name
Remarks
Q'ty
New
201
505 0038 043
POLY COVER
1
202
511 3994 008
INST. MANUAL
for E3
1
*
202
511 4008 003
INST. MANUAL(8)
for E2
1
*
202
511 4007 004
INST. MANUAL(DOM)
for JP
1
*
204
515 0921 209
S.S.LIST(EX)
for E3,E2
1
204
515 0918 005
SERVICE STATION LIST
for JP
1
!
205
206 2202 006
AC CORD SET (E3)
for E3
1
!
205
206 2203 005
AC CORD SET (E2)
for E2
1
!
205
206 2213 008
AC CORD SET
for JP
1
206
203 5224 008
3P PIN CORD
1
207
399 0860 001
REMOTE CONTROLLER RC-934
1
*
208
-
BATTERY(UM-3)ASS'Y
1
209
505 0312 028
CABINET COVER
1
210
503 1444 009
CUSHION
2
212
501 2172 031
CARTON CASE
for E3,E2
1
*
212
501 2172 044
CARTON CASE
for JP
1
*
★
213
-
CONT.CARD(L)SUB ASS'Y
for E3,E2
1
★
214
-
UPC LABEL
for E3
1
*
★
214
-
E2 POS LABEL
for E2 Black model
1
*
★
214
-
E2 POS LABEL
for E2 Gold model
1
*
★
214
517 1477 004
POS LABEL
for JP
1
*
★
215
513 3579 005
REGION LABEL(NO.1)
for E3
2
★
215
513 3579 018
REGION LABEL(NO.2)
for E2,JP
2
★
217
513 9111 001
COLOR LABEL (GOLD)
for E2 Gold model
2
★
219
515 0944 008
WARRANTY (HOME)
for E3
1
★
219
515 0919 004
GUARANTEE CARD(S)
for JP
1
Note :
The symbols in the column "Remarks" indicate the following destinations.
E3 : U.S.A. & Canada model
E2 : Europe model
JP : Japan model
梱包図
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
107
107
DVD-2900
WIRING DIAGRAM
GU-3496-1
POWER UNIT
GU-3496-7
I/F PWB UNIT
CX041
4P PH
CX121
12P PH
CX025
2P VH
CX061
6P PH
CX024
2P VH
CX039
3P PH
AC IN
CX051
5P PH
CY131
13P FFC
CX052
5P PH
CX101
10P TUCP
CY101
10P
TUCP
CY053
5P PH
CX054
5P PH
CY041
4P PH
CX131
13P FFC
CX241
24P FFC
CX171
17P FFC
CX271
27P FFC
CY271
27P FFC
CX331
33P FFC
CY331
33P FFC
CY171
17P FFC
CX151
15P FFC
CX052
5P PH
CY121
12P PH
CY061
6P PH
CX035
3P PH
PWR
SW
CW035
3P SAN
CY025
2P VH
DVD DRIVE
MECHA. UNIT
GU-3496-4
P. SW UNIT
LED UNIT
GU-3496-5
GU-3494 MAIN PWB UNIT
GU-3496-2 DISPLAY UNIT
GU-3497
VIDEO PWB UNIT
GU-3495
AUDIO PWB UNIT
GU-3343
SCART PWB UNIT
(E2 MODEL ONLY)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
108
108
DVD-2900
MEASURING METHOD AND WAVEFORMS
To check the waveforms on the Main P.W.B., the GND (-)
probe of the oscilloscope to “Vref” point.
Measuring Disc: DVD/DVDT-S01 or TDV-520A
CD/TCD-784
(It is better to use wires for extending between the probe and
test points.)
• When watching the HF waveform, use the extending wire
as short as possible.
• When HF waveform is noisy or cannot discriminate the
eye-pattern, replace the Traverse Unit after measuring the
lop.
• ① ~ ⑰ points have the certain test points shown below.
NOTES
GU-3494 Main P.W.B. Unit Foil Side
8
4
5
9
VC16
(Vref)
10
12
13
11
14
15
3
17
6
16
2
1
7
各部の波形と測定方法
メイン基板の波形チェックを行うためにはオシロスコープ
の GND(-) プローブを "Vref" ポイントに接続します。
測定ディスク： DVD/DVDT-S01 or TDV-520A
CD/TCD-784
（テストポイントとプローブ間に延長ワイヤを使用するの
がより良い方法です。）
･ ＨＦ 波形を観測する場合、できるだけ短い延長ワイヤを
使用してください。
･ ＨＦ 波形がノイズで不明瞭、またはアイパターンが識別
不能の場合は Iop 測定後にトラバースユニットを交換し
てください。
･ ポイント①～⑰は、下図のように特定テストポイント付
きです。
注 意
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
109
109
DVD-2900
WAVEFORMS
● GU-3494 MAIN P.W.B.
DVD PLAY
CD PLAY
DISC DETECT (CD)
DVD PLAY (INNER)
CD PLAY (INNER)
DISC DETECT (DVD)
SEARCH TO OUTER CHAPTER (INNER
OUTER)
①RFAC
①RFAC
②FE
③FSCON
④F+
⑤F-
②FE
③FSCON
④F+
⑤F-
⑥TE
⑦TSCON
⑧T+
⑨T-
⑥TE
⑦TSCON
⑧T+
⑨T-
⑥TE
⑬SLED
⑭SLD+
⑮SLD-
③FSCON
②FE
⑯PI
⑰MIRR
③FSCON
②FE
⑯PI
⑰MIRR
⑩DMO
VC16
⑪FG
⑫A3
⑩DMO
⑪FG
⑫A3
Disc: TDV-520A
CD PLAY
Disc: TCD-784
DVD LOADING
PLAY
CD LOADING
PLAY
DVD PLAY
VC16
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
110
110
DVD-2900
● GU-3496-1 POWER P.W.B.
● GU-3497 VIDEO P.W.B.
A
B
C
D
E
V6
V7
V8
V1
V2
V3
V4
V5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
111
111
DVD-2900
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol ! have critical charac-
teristics.
Use ONLY replacement parts recommended by the
manufacturer.
CAUTION:
Before returning the unit to the customer, make sure you
make either (1) a leakage current check or (2) a line to
chassis resistance check. If the leakage current exceeds
0.5 milliamps, or if the resistance from chassis to either
side of the power cord is less than 460 kohms, the unit is
defective.
WARNING:
DO NOT return the unit to the customer until the prob-
lem is located and corrected.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM
M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD.
P=MICRO-MICRO FARAD
EACH VOLTAGE AND CURRENT ARE MEASURED AT
NO SIGNAL INPUT CONDITION.
CIRCUIT AND PARTS ARE SUBJECT TO CHANGE
WITHOUT PRIOR NOTICE.
配線図について
注）
(1) 指定なき抵抗値は Ω、ｋ は ｋΩ、M は MΩ を
示す。
(2) 指定なきコンデンサーの値は µF、ｐ は ｐF を
示す。
(3) 各部の電圧は無信号の値を示す。
(4) この配線図は基本配線図です。改良等のため変
更することがありますのでご了承ください。
! 印の部品は安全を維持するために重要な部品です。
従って交換時は必ず指定の部品を使用してください。
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
2
3
4
5
7
8
9
10
11
13
16
17
6
14
15
12
112
SCHEMATIC DIAGRAMS (1/9)
GU-3494 MAIN UNIT(1/3)
SCHEMATIC DIAGRAMS (1/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
DVD-2900
112
COMMON SIGNAL (VIDEO/AUDIO(PCM))
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
113
SCHEMATIC DIAGRAMS (2/9)
GU-3494 MAIN UNIT(2/3)
SCHEMATIC DIAGRAMS (2/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
DVD-2900
113
AUDIO SIGNAL (DSD)
COMMON SIGNAL (VIDEO/AUDIO(PCM))
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
114
SCHEMATIC DIAGRAMS (3/9)
GU-3494 MAIN UNIT(3/3)
SCHEMATIC DIAGRAMS (3/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
DVD-2900
114
AUDIO SIGNAL (DSD)
AUDIO SIGNAL (PCM)
VIDEO SIGNAL
COMMON SIGNAL (VIDEO/AUDIO(PCM))
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
1
3
5
1
2
3
4
4
2
5
(DSD PLAY)
115
SCHEMATIC DIAGRAMS (4/9)
GU-3495 AUDIO UNIT
SCHEMATIC DIAGRAMS (4/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
AUDIO SIGNAL (PCM)
DVD-2900
115
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
A
B
C
D
E
116
SCHEMATIC DIAGRAMS (5/9)
GU-3496-1 POWER UNIT
GU-3496-7 I/F UNIT
SCHEMATIC DIAGRAMS (5/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
DVD-2900
116
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
117
SCHEMATIC DIAGRAMS (6/9)
GU-3496-2 DISPLAY UNIT
GU-3496-4 P. SW UNIT
GU-3496-5 LED UNIT
GU-3496-6 SW UNIT
SCHEMATIC DIAGRAMS (6/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
DVD-2900
117
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
V1
V2
V5
V4
V3
118
SCHEMATIC DIAGRAMS (7/9)
GU-3497 VIDEO PWB UNIT(1/2)
SCHEMATIC DIAGRAMS (7/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
DVD-2900
118
VIDEO SIGNAL
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
V6
V7
V8
119
SCHEMATIC DIAGRAMS (8/9)
GU-3497 VIDEO PWB UNIT(2/2)
SCHEMATIC DIAGRAMS (8/9)
1
2
3
4
5
6
7
8
9
10
11
A
B
C
D
E
F
G
H
DVD-2900
119
VIDEO SIGNAL
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
7
6
5
4
3
2
1
A
B
C
D
E
120
SCHEMATIC DIAGRAMS (9/9)
DVD-2900
120
SCHEMATIC DIAGRAMS (9/9)
GU-3343-1 SCART UNIT (Europe model only)
VIDEO SIGNAL
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
