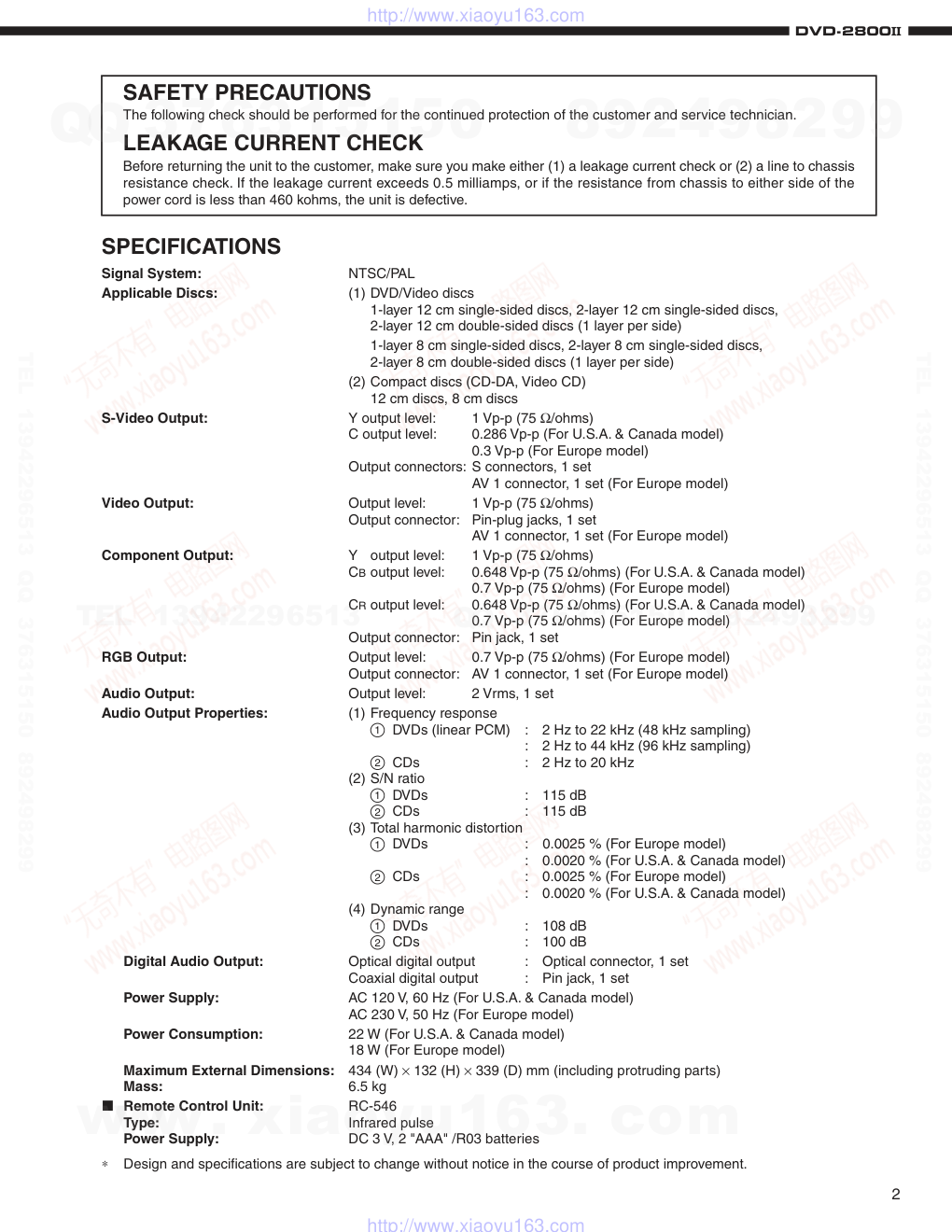

Digital Player SERVICE MANUAL MODEL DVD-2800II DVD VIDEO PLAYER � Some illustrations using in this service manual are slightly different from the actual set. 16-11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034 JAPAN Telephone: 03 (3837) 5321 For U.S.A., Canada & Europe model This service manual is composed of only pages whose contents are different from those for the model DVD-2800. For servicing, refer to the previously issued service manual of DVD-2800 (X0111) at the same time. X0143 NC 0205 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVD-2800II SPECIFICATIONS Signal System: NTSC/PAL Applicable Discs: (1) DVD/Video discs 1-layer 12 cm single-sided discs, 2-layer 12 cm single-sided discs, 2-layer 12 cm double-sided discs (1 layer per side) 1-layer 8 cm single-sided discs, 2-layer 8 cm single-sided discs, 2-layer 8 cm double-sided discs (1 layer per side) (2) Compact discs (CD-DA, Video CD) 12 cm discs, 8 cm discs S-Video Output: Y output level: 1 Vp-p (75 Ω/ohms) C output level: 0.286 Vp-p (For U.S.A. & Canada model) 0.3 Vp-p (For Europe model) Output connectors: S connectors, 1 set AV 1 connector, 1 set (For Europe model) Video Output: Output level: 1 Vp-p (75 Ω/ohms) Output connector: Pin-plug jacks, 1 set AV 1 connector, 1 set (For Europe model) Component Output: Y output level: 1 Vp-p (75 Ω/ohms) CB output level: 0.648 Vp-p (75 Ω/ohms) (For U.S.A. & Canada model) 0.7 Vp-p (75 Ω/ohms) (For Europe model) CR output level: 0.648 Vp-p (75 Ω/ohms) (For U.S.A. & Canada model) 0.7 Vp-p (75 Ω/ohms) (For Europe model) Output connector: Pin jack, 1 set RGB Output: Output level: 0.7 Vp-p (75 Ω/ohms) (For Europe model) Output connector: AV 1 connector, 1 set (For Europe model) Audio Output: Output level: 2 Vrms, 1 set Audio Output Properties: (1) Frequency response 1 DVDs (linear PCM) : 2 Hz to 22 kHz (48 kHz sampling) : 2 Hz to 44 kHz (96 kHz sampling) 2 CDs : 2 Hz to 20 kHz (2) S/N ratio 1 DVDs : 115 dB 2 CDs : 115 dB (3) Total harmonic distortion 1 DVDs : 0.0025 % (For Europe model) : 0.0020 % (For U.S.A. & Canada model) 2 CDs : 0.0025 % (For Europe model) : 0.0020 % (For U.S.A. & Canada model) (4) Dynamic range 1 DVDs : 108 dB 2 CDs : 100 dB Digital Audio Output: Optical digital output : Optical connector, 1 set Coaxial digital output : Pin jack, 1 set Power Supply: AC 120 V, 60 Hz (For U.S.A. & Canada model) AC 230 V, 50 Hz (For Europe model) Power Consumption: 22 W (For U.S.A. & Canada model) 18 W (For Europe model) Maximum External Dimensions: 434 (W) × 132 (H) × 339 (D) mm (including protruding parts) Mass: 6.5 kg � Remote Control Unit: RC-546 Type: Infrared pulse Power Supply: DC 3 V, 2 "AAA" /R03 batteries ∗ Design and specifications are subject to change without notice in the course of product improvement. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 4 3 2 1 BLOCK DIAGRAMS 5 6 7 8 D C B A E DVD-2800II DVD DRIVE MECHA UNIT FRONTEND PROCESSOR [TA1293F] 4ch MOTOR DRIVER [BA5952FP] SPINDLE MOTOR DRIVER [AN8471] 4M DRAM 4M DRAM DISC SERVO PROCESSOR [TC9453F] ATAPI INTERFACE DVD DECODER [TC9469BF] DRIVE CONTROL � -COM [TMP95CW64F] POWER SWITCHING UNIT GU-3340-2 +3.7V REG. +3.3V[D1]REG. [TC7WT125] DVD PROCESSOR [ES4408] 16M SDRAM x2 8M FLASH ROM [HY29F080T] E2PROM [S24C01B] I/O EXPANDER [HCT273] 27MHz OSC BUFFER AMP VIDEO ENCODER [ADV7172] FRONT � -COM & FL DRIVER [MN101C35D] RESET [MN1382] REMO CON KEY FLT [HNV-13SM10] LED 24P FFC 15P FFC 5P PH 3P PH +5V[USW] +5V[V] +5V[D1] GND[D1] GND[V] +5V[A] GND[A] +12V[A] -12V[A] +12V[M] +5V[D2] GND[D2] +3.3V[D3] GND[A] -12V[A] +12V[A] VEE FL+ FL- 96k,DEEM,/DFRES TSDO,TWS,TBCK,MCLK SPDIF PROG/INT /RST YVU0~7 27M HSYNC,VSYNC SDA,SCL VIDCNTL1,2,RGB-H +5V[V] G/Y B/Cb R/Cr Y C HSYNC VSYNC 8 LD8~15 /RST HRESET DMO,TRD DMO DATA CS,CLK ON/ST PDET (+5V[D]) /DFRES /RST /RST I C BUS 2 DISP PWB UNIT GU-3341 AUDIO PWB UNIT GU-3340-1 MAIN PWB UNIT GU-3333 VIDEO PWB UNIT GU-3441 VIDEO PWB UNIT GU-3441 AUDIO PWB UNIT GU-3340-1 DVD-2800II Block Diagram (1/2) PRE AMP CXA1511M W. REM UNIT GU-3341-4 IN OUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 4 3 2 1 5 6 7 8 D C B A E DVD-2800II MAIN PWB UNIT GU-3333 Y C G/Y B/CB R/CR MAIN PWB UNIT GU-3333 HSYNC,YSYNC 27M YUV0~7 /RST SDA,SCL I C 2 8 I C 2 YCBCR /RGB HSYNC(P) VSYNC(P) PR CR PB CB Yp Yi R/CR B/CB G/Y C Y V OPTICAL OUT COAXIAL OUT AUDIO OUT VIDEO OUT Y OUT PB/CB OUT PR/CR OUT MAIN PWB UNIT GU-3333 VIDEO PWB UNIT GU-3441 AUDIO PWB UNIT GU-3340-1 OPTICAL PULSE TRANS AUDIO AMP AUDIO AMP AUDIO DAC [AD1854K] VIDEO FILTER & DRIVER II [ML6427] VIDEO FILTER & DRIVER I [ML6427] I/P CONTROL � COM [PIC18LC242] 64M SD-RAM 72M OSC I/P CONVERTER [SiI504] VIDEO DAC [ADV7300] I/V & BUFFER I/V & BUFFER I/V & BUFFER Y FILTER PB FILTER PR FILTER VR & BUFFER VR & BUFFER VR & BUFFER DRIVER DRIVER DRIVER VIDEO SELECTOR (RELAY) VIDEO SELECTOR (RELAY) VIDEO SELECTOR (RELAY) S-VIDEO OUT DVD-2800II Block Diagram (2/2) +2.5V REG. +1.8V REG. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DVD-2800II Function I/O Pin No. Pin Name SiI504CM208 Terminal Function 2, 41, 51, 56, 99, 106, 146, VDDCore Pwr 1.8V Core Power. 160, 168, 199, 205 3, 40, 47, 50, 55, 100, 102, GNDCore Pwr Digital Ground for Core Power. 107, 150, 162, 167, 206 4 LCDPwrEn Out LCD Power Enable 5 CBlank Out Composite Blank 6 CSync Out Composite Sync 7 VSync Out Vertical Sync 8 HSync Out Horizontal Sync 9~14, 17~20 Blue_Cb[9:0] Out Blue Data (RGB output mode); Cb Data (YCrCb output mode) 15, 21, 33, 61, 66, 72, 79, 85, 93, 114, 118, GNDIO Pwr Digital Ground for I/O Power. 121, 126, 131, 144, 183, 190, 198 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 62 61 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 RSVD VDDCore GNDCore LCDPwrEn CBIank CSync VSync HSync Blue_Cb0 Blue_Cb1 Blue_Cb2 Blue_Cb3 Blue_Cb4 Blue_Cb5 GNDIO VDDIO Blue_Cb6 Blue_Cb7 Blue_Cb8 Blue_Cb9 GNDIO Green_Y0 Green_Y1 Green_Y2 Green_Y3 VDDIO Green_Y4 Green_Y5 Green_Y6 Green_Y7 Green_Y8 Green_Y9 GNDIO Red_Cr0 Red_Cr1 Red_Cr2 Red_Cr3 Red_Cr4 Red_Cr5 GNDCore VDDCore Red_Cr6 Red_Cr7 Red_Cr8 Red_Cr9 VidOutClk GNDCore BypPLLClk48M Clk48M GNDCore VDDCore ExtRefSel RSVD GNDCore VDDCore MemAddr3 MemAddr2 MemAddr1 MemAddr0 GNDIO MemAddr4 MemAddr5 MemAddr6 MemAddr7 GNDIO MemAddr8 MemAddr9 MemAddr10 MemAddr11 RSVD GNDIO VDDIO VDDIO RAS CAS WE DQM GNDIO MemData7 MemData6 MemData5 MemData4 MemData3 GNDIO MemData2 MemData1 MemData0 VDDIO PuPdDis MemData8 MemData9 GNDIO MemData10 MemData11 MemData12 MemData13 MemData14 GNDCore MemClk VDDCore GNDCore RSVD HostAddr5 HostAddr4 HostAddr3 HostAddr2 HostAddr1 HostAddr0 GNDCore HostCS HostRd_SDA HostWr_SCL VDDCore VidlnClk GNDIO VidlnData9 VidlnData8 VidlnData7 VidlnData6 VidlnData5 VidlnData4 VidlnData3 VidlnData2 VDDIO ExtRefXtalIOut ExtRefXtalIn VDDIO GNDIO MemData16 MemData17 MemData18 MemData19 GNDIO MemData20 MemData21 MemData22 MemData23 GNDIO MemData31 MemData30 GNDIO VDDIO MemData29 MemData28 GNDIO MemData27 MemData26 MemData25 MemData24 MemData15 BypPLLMemClk GNDCore VDDCore RSVD AVDD ARTN GNDCore VDDCore Clk54_72M BypPLLClk54_72M Test1 Test0 Reset VDDCore GNDIO SCKIn WSIn SDIn VDDIO SCKOut WSOut SDOut GNDIO VDDIO MemAddr12 DeintDone DetVideo Det22PD Det32PD GNDIO VDDIO HostData0 HostData1 HostData2 HostData3 HostData4 HostData5 HostData6\HS HostData7\VS RSVD HostData8\VidlnData12 HostData9\VidlnData13 HostData10\VidlnData14 HostData11\VidlnData15 VDDCore GNDCore HostData12\VidlnData16 HostData13\VidlnData17 HostData14\VidlnData18 HostData15\VidlnData19 GNDCore HostClk VDDCore HostMode HostAddr7 HostAddr6 TOP VIEW RSVD RSVD SEMICONDUCTORS ����� IC’s SiI504CM208 (IC701) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DVD-2800II 16, 26, 73, 74, 89, 117, 132, VDDIO Pwr 3.3V I/O Power. 135, 182, 189, 194 22~25, 27~32 Green_Y[9:0] Out Green Data (RGB output mode); Y Data (YCrCb output mode) 34~39, 42~45 Red_Cr[9:0] Out Red Data (RGB output mode); Cr Data (YCrCb output mode) 46 VidOutClk Out Video Output Clock, 36, 27 or 24 MHZ 48 BypPLLClk48M In Bypass PLL for Clk48M. 49 Clk48M InOut 48 MHz Clock. 52 ExtRefSel In External APLL Reference Select. 57~60, 62~65, 67~70, 188 MemAddr[12:0] InOut SDRAM Address when an output. Configuration at reset when an input. 75 RAS Out SDRAM Row Address Strobe. 76 CAS Out SDRAM Column Address Strobe. 77 WE Out SDRAM Write Enable. 78 DQM Out SDRAM Data Mask. 80~84, 86~88, 91, 92, 94~98, 109, 110~113, MemData[31:0] InOut SDRAM Data. 115, 116, 119, 120, 122~125, 127~130 90 PuPdDis In Internal pullup and pulldown disable test function. 101 MemClk InOut SDRAM Clock. 108 BypPLLMemClk In Bypass PLL for MemClk. 133 ExtRefXtalIn In External APLL Reference Crystal/oscillator Input. 134 ExtRefXtalOut Out External APLL Reference Crystal Output. 136~143 VidlnData[9:2] In Multiplexed Video Input Data; Y Video Input Data. 145 VidlnClk In Video Input Clock, 27.0 MHz 147 HostWr_SCL In 186-Compatible Write when HostMode=0. Serial Clock when HostMode=1. 148 HostRd_SDA InOut 186-Compatible Read when HostMode=0. Serial Data when HostMode=1. 149 HostCS In 186-Compatible Chip Select when HostMode=0. When HostMode=1, must be tied to VDD or pulled up to VDD. 151~158 HostAddr[7:0] In 186-Compatible Address when HostMode=0. No connect when HostMode=1. 159 HostMode In Serial Host Interface when HostMode=1. 186-compatible host interface when HostMode=0. 161 HostClk InOut 186-Compatible Clock when HostMode=0. No connect when HostMode=1. 163~166, HostData[15:8] 169~172 (VidInData[19:2]) InOut 186-Compatible Data when HostMode=0. Chroma video input data when HostMode=1. 174 HostData[7](VS) InOut 186-Compatible Data when HostMode=0. Vertical sync input when HostMode=1. 175 HostData[6](HS) InOut 186-Compatible Data when HostMode=0. Horizontal sync input when HostMode=1. 176~181 HostData[5:0] InOut 186-Compatible Data when HostMode=0. No connect when HostMode=1. 184 Det32PD Out 3:2 Pulldown Sequence Detected. 185 Det22PD Out 2:2 Pulldown Sequence Detected. 186 DetVideo Out Interlaced Video Sequence Detected. 187 DeintDone Out Deinterlace processing complete for current field period. 191 SDOut Out Serial Digital Audio Output Data. 192 WSOut Out Serial Digital Audio Output Word Select. 193 SCKOut Out Serial Digital Audio Output Clock. 195 SDIn In Serial Digital Audio Input Data. 196 WSIn In Serial Digital Audio Input Word Select. 197 SCKIn In Serial Digital Audio Input Clock. 200 Reset In Hardware Reset. 201, 202 Test[1:0] In Production hardware test support. 203 BypPLLClk54_72M In Bypass PLL for Clk54_72M. 204 Clk54_72M InOut 54 or 72 MHz Clock. 207 ARTN Pwr Analog Return for PLLs. 208 AVDD Pwr 1.8V Analog Power for PLL. Function I/O Pin No. Pin Name www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DVD-2800II 1 VDD_IO P Digital power supply. 2~9, 12, 13 Y9-0 I 10-Bit Progressive scan/ HDTV input port for Y data. 10, 56 VDD P Digital power supply. 11, 57 DGND G Digital Ground 14~18, 26~30 C9-0 I 10-Bit Progressive scan/ HDTV input port for CrCb color data in 4:2:2 input mode. When this input pin is brought low, the ADV7300 interfaces over the SPI port and uses this 19 SPI/I2C I input as part of the 4 wire SPI interface. When this input pin is tied high [VDD_IO], the ADV7300 interfaces over the I2C port. 20 ALSB_SO I/O Multifunctional pin. 21 SDA_CLKSP I/O Multifunctional pin. 22 SCLK_SI I Multifunctional input. 23 P_HSYNC I Video Horizontal Sync Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 24 P_VSYNC I Video Vertical Sync Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 25 P_BLANK I Video Blanking Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 31 RTC_SCR_TR I Multifunctional input. 32 CLKIN_A I Pixel Clock Input for HD only or SD only modes. 33 RESET I This input resets the on-chip timing generator and sets the ADV7300 into Default Register setting. Reset is an active low signal. 34 EXT_LF I External Loop filter for the internal PLL. 35, 47 RSET1,2 I A1520 Ohms resistor must be connected from this pin to AGND and is used to control the amplitudes of the DAC outputs. 36,45 COMP O Compensation Pin for DACs. 37 DAC F O In SD only mode: Chroma/RED/V analog output. In HD only mode and simultaneus HD/SD: Pb/ BLUE (HD) analog output. 38 DAC E O In SD only mode: Luma/BLUE/U analog output. In HD only mode and simultaneus HD/SD: Pr/ RED (HD) analog output. 39 DAC D O In SD only mode: CVBS/GREEN/Y analog output. In HD only mode and simultaneus HD/SD: Y/ GREEN (HD) analog output. 40 AGND G Analog Ground 41 VAA P Analog power supply. 42 DAC C O Chroma/ RED/ V SD analog output. 43 DAC B O Luma/ BLUE/ U SD analog output. 44 DAC A O CVBS/ GREEN/ Y SD analog output. 46 VREF I/O Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235V). 48 S_BLANK I/O Video Blanking Control Signal for SD. 49 S_VSYNC I/O Video Vertical Sync Control Signal for SD. 50 S_HSYNC I/O Video Horizontal Control Signal for SD. 51~55, 58~62 S9-S0 I 10-Bit Standard Definition input port. Or Progressive Scan/ HDTV input port for Cr [Red/V] color data in 4:4:4 input mode. 63 CLKIN_B I Pixel Clock Input. 64 GND_IO G Digital Ground Function I/O Pin No. Pin Name ADV7300 (IC706) ADV7300 Terminal Function 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 VDD_IO Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 VDD DGND Y8 Y9 C0 C1 C2 C3 C4 ALSB_SO SDA_CLKSP SCLK_SI P_BLANK C5 C6 C7 C8 C9 RTC_SCR_TR CLKIN_A VREF COMP1 DAC A DAC B DAC C VAA AGND DAC D DAC E DAC F COMP2 R EXT_LF SET 2 R SET 1 GND_IO CLKIN_B S9 S8 S7 S6 S5 DGND VDD S4 S3 S2 S1 S0 SPI/I2C P_HSYNC P_VSYNC RESET S_BLANK S_VSYNC S_HSYNC TOP VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DVD-2800II 1 MCLR I Master Clear (Reset) input. This pin is an active low RESET to the device. 2 RA0 I/O Digital I/O. 3 RA1 I/O Digital I/O. 4 RA2 I/O Digital I/O. 5 RA3 I/O Digital I/O. 6 RA4 I/O Digital I/O. Open drain when configured as output. 7 RA5 I/O Digital I/O. 8 VSS P Ground reference for logic and I/O pins. 9 OSC1 I Oscillator crystal input or external clock source input. ST buffer when configured in RC mode. CMOS otherwise. 10 OSC2 O Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode. 11 RC0 I/O Digital I/O. 12 RC1 I/O Digital I/O. 13 RC2 I/O Digital I/O. 14 RC3 I/O Digital I/O. 15 RC4 I/O Digital I/O. 16 RC5 I/O Digital I/O. 17 RC6 I/O Digital I/O. 18 RC7 I/O Digital I/O. 19 VSS P Ground reference for logic and I/O pins. 20 VDD P Positive supply for logic and I/O pins. 21 INT0 I External Interrupt 0. 22 RB1 I/O Digital I/O. 23 RB2 I/O Digital I/O. 24 RB3 I/O Digital I/O. 25 RB4 I/O Digital I/O. Interrupt-on-change pin. 26 RB5 I/O Digital I/O. Interrupt-on-change pin. 27 RB6 I/O Digital I/O. Interrupt-on-change pin. ICSP programming clock. 28 RB7 I/O Digital I/O. Interrupt-on-change pin. ICSP programming data. Description I/O Pin No. Pin Name Legend: O=Output I=Input P=Power PIC18LC242-I/SO (IC703) RA1 RA0 RA4 RA3 RC1 RC0 OSC1 VSS RA2 OSC2 RC3 RC2 RA5 RB7 RB5 RB6 RB2 RB3 RC6 RC7 VDD INT0 RB4 VSS RC4 RC5 RB1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 MCLR TOP VIEW PIC18LC242-I/SO Terminal Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DVD-2800II E B C B C E 47kohm / � 47kohm / � TOP VIEW 1 4 5 8 2 3 4 5 6 7 8 1 IN ABLC C1 C2 GND fo N.C. OUT Vcc Detector & Comparator Integrator TOP VIEW TC7W14F (IC707) 1 2 3 4 8 7 6 5 1A 3Y 2A GND Vcc 1Y 3A 2Y BA18BC0FP (IC710) 1 2 3 REFERENCE VOLTAGE Vcc GND OUT 1 3 2 TOP VIEW ����� TRANSISTORS DTA144EK ����� DIODES UDZS5.1B TOP VIEW CXA1511M (IC510) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 4 1 3 1 3 1 4 1 2 1 9 1 3 1 25 26 50 51 75 76 100 1 4 5 8 8 7 6 5 4 3 2 1 A B C D E 10 DISPLAY P.W.B. UNIT COMPONENT SIDE FOIL SIDE DVD-2800II PRINTED WIRING BOARDS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 10 1 4 8 5 1 4 1 1 2 3 4 5 43 86 44 8 5 1 1 1 12 13 24 1 12 13 24 16 14 28 15 17 1 3 2 32 33 48 49 64 1 52 53 104 105 155 156 208 8 7 6 5 4 3 2 1 A B C D E 11 VIDEO P.W.B. UNIT COMPONENT SIDE FOIL SIDE DVD-2800II w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DVD-2800II t t t t lllll Resistors Ex.: RN 14K 2E 182 G FR Type Shape Power Resist- Allowable Others and per- ance error formance t t t t s s s s Resistance 1 8 2 ⇒ 1800 ohm = 1.8 kohm Indicates number of zeros after effective number. 2-digit effective number. • Units: ohm 1 R 2 ⇒ 1.2 ohm 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: ohm lllll Capacitors Ex.: CE 04W 1H 2R2 M BP Type Shape Dielectric Capacity Allowable Others and per- strength error formance s s s s s s Capacity (electrolyte only) 2 2 2 ⇒ 2200µF Indicates number of zeros after effective number. 2-digit effective number. • Units: µF. 2 R 2 ⇒ 2.2µF 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: µF. Capacity (except electrolyte) 2 2 2 ⇒ 2200pF=0.0022µF (More than 2) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. 2 2 1 ⇒ 220pF (0 or 1) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. • When the dielectric strength is indicated in AC, "AC" is included after the dieelectric strength value. s s NOTE FOR PARTS LIST l Part indicated with the mark "�" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying. l Ordering part without stating its part number can not be supplied. l Part indicated with the mark " " is not illustrated in the exploded view. l Not including Carbon Film ±5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type RC : Composition 2E : 1/4W G : ±2% NL : Low noise type RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor RN : Metal film 3D : 2W M : ±20% F : Lead wire forming RK : Metal mixture 3F : 3W 3H : 5W CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type electrolytic CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type electrolytic CS : Tantalum electrolytic 1C : 16V J : ±5% HR: Ripple-resistant type CQ : Film 1E : 25V K : ±10% DL : For change and discharge CK : Ceramic 1V : 35V M : ±20% HF : For assuring high requency CC : Ceramic 1H : 50V Z : +80% U : UL part CP : Oil 2A : 100V –20% C : CSA part CM : Mica 2B : 125V P : +100% W : UL-CSA type CF : Metallized 2C : 160V –0% F : Lead wire forming CH : Metallized 2D : 200V C : ±0.25pF 2E : 250V D : ±0.5pF 2H : 500V = : Others 2J : 630V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DVD-2800II PARTS LIST OF P.W.B. UNIT ASS'Y GU-3441 VIDEO P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Ref. No. Part No. Part Name Remarks SEMICONDUCTORS GROUP IC701 262 3058 000 IC SiI504CM208 IC702 262 2916 004 IC 64M SDRAM(TSOP) IC703 262 3059 902 IC PIC18LC242-I/SO TAPE IC706 262 3050 008 IC ADV7300 IC707 262 2104 900 IC TC7W14F IC709 263 1110 901 IC PQ070XZ01ZP IC710 262 2977 904 IC BA18BC0FP-E2 IC758 263 1106 902 IC AD8055AR IC760 263 1107 901 IC AD8056AR IC763,764 262 2829 900 IC ML6427 TR751,752 272 0125 904 Transistor 2SB709A TR753 274 0163 904 Transistor 2SD601A TR754-756 272 0125 904 Transistor 2SB709A TR757 274 0163 904 Transistor 2SD601A TR758-760 272 0125 904 Transistor 2SB709A TR761 274 0163 904 Transistor 2SD601A TR762 272 0125 904 Transistor 2SB709A TR763,764 269 0048 904 Transistor DTC143EK-T96 TR765 274 0163 904 Transistor 2SD601A D701 276 0717 903 Diode 1SS355 TE-17 D751,752 276 0717 903 Diode 1SS355 TE-17 ZD701 276 0683 930 Zener diode UDZS5.1B-TE17 RESISTORS GROUP R702-705 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R709 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R710 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R712 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R713 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R714,715 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R721,722 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R723 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R724 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R726 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R727-729 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R731 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R733 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R734 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R735 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R736,737 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R738-741 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R742 247 2014 965 Carbon chip 1 Mohm 1/16W RM73B--105JT R743,744 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R745 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R746,747 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R748 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R749 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R750 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R751 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R752 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R753 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R754,755 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R757 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R759-762 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R763 247 2006 960 Carbon chip 470 ohm 1/16W RM73B--471JT R764 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R765 247 2007 901 Carbon chip 680 ohm 1/16W RM73B--681JT R766-768 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R772-774 247 2005 987 Carbon chip 220 ohm 1/16W RM73B--221JT R776 247 2007 985 Carbon chip 1.5 kohm 1/16W RM73B--152JT R777,778 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R781 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R782,783 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R787 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R790 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R792 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R793 244 2050 933 Metal oxide 180 ohm 1W(NB) RS14B3A181JNBST(S) R794-797 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R813 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R814 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R815 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R816 247 2006 986 Carbon chip 560 ohm 1/16W RM73B--561JT R817 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R818 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R819 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R820 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R821 247 2006 928 Carbon chip 300 ohm 1/16W RM73B--301JT R822 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R823 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R825-827 247 2006 986 Carbon chip 560 ohm 1/16W RM73B--561JT R828 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R829 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R830 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R831 247 2006 986 Carbon chip 560 ohm 1/16W RM73B--561JT R832 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R833 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R835 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT R836 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R837 247 2006 928 Carbon chip 300 ohm 1/16W RM73B--301JT R838 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R839 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R842,843 247 2006 986 Carbon chip 560 ohm 1/16W RM73B--561JT R844 247 2006 931 Carbon chip 360 ohm 1/16W RM73B--361JT R845 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R846 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R847 247 2006 986 Carbon chip 560 ohm 1/16W RM73B--561JT R848 247 2009 983 Carbon chip 10 kohm 1/16W RM73B--103JT R849 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R851 247 2008 926 Carbon chip 2.2 kohm 1/16W RM73B--222JT Note: The symbols in the column “Remarks” indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DVD-2800II Ref. No. Part No. Part Name Remarks C766,767 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C768-770 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C772 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C775 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C776 257 0510 921 Ceramic chip 3900pF/50V CK73B1H392KT C777 257 0509 903 Ceramic chip 820pF/50V CK73B1H821KT C778 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C782 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C783,784 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C785 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C786 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C788 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C791-793 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C794 254 4572 908 Electrolytic 10uF/16V CE67C1C100MT(MV-B) C795 257 0503 925 Ceramic chip 10pF/50V CC73CH1H100DT C797-799 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C800 257 0504 908 Ceramic chip 22pF/50V CC73CH1H220JT C801 257 0503 925 Ceramic chip 10pF/50V CC73CH1H100DT C803,804 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C805 257 0503 925 Ceramic chip 10pF/50V CC73CH1H100DT C806 254 4327 904 Electrolytic 1000uF/6.3V CE04W0J102MT(SMG) C807,808 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C809 257 0508 917 Ceramic chip 470pF/50V CC73CH1H471JT C810 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C811,812 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C813 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C814 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C815 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C816,817 254 4327 904 Electrolytic 1000uF/6.3V CE04W0J102MT(SMG) C818 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C819 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT, For E2 C820 257 0512 903 Ceramic chip 0.1uF/25V CK73B1E104ZT, For E2 C821 254 4533 950 Electrolytic 470uF/6.3V CE04W0J471MT SMG/RE3 C822,823 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C824 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C825 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C827 254 4327 904 Electrolytic 1000uF/6.3V CE04W0J102MT(SMG) C828,829 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C830-833 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, For E3 C830 257 0509 929 Ceramic chip 1000pF/50V CC73B1H102KT, For E2 C831 257 0512 903 Carbon chip 0.1uF/25V CK73F1E104ZT, For E2 C832 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT, For E2 C833 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT, For E2 C844,845 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C846 254 4464 919 Electrolytic 470uF/6.3V CE67C0J471MT C847 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C850 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT Ref. No. Part No. Part Name Remarks R852 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R853 247 2006 928 Carbon chip 300 ohm 1/16W RM73B--301JT R854 247 2003 989 Carbon chip 33 ohm 1/16W RM73B--330JT R855 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R858,859 247 2006 986 Carbon chip 560 ohm 1/16W RM73B--561JT R869 247 2009 909 Carbon chip 4.7 kohm 1/16W RM73B--472JT (1608) R870 247 2008 900 Carbon chip 1.8 kohm 1/16W RM73B--182JT R872 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R873-875 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R876,877 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R878,879 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R880 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R881,882 247 2004 975 Carbon chip 75 ohm 1/16W RM73B--750JT R883 247 2005 958 Carbon chip 160 ohm 1/16W RM73B--161JT R884 247 2005 932 Carbon chip 130 ohm 1/16W RM73B--131JT R885-887 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R895,896 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, For E3 R897-899 247 2005 903 Carbon chip 100 ohm 1/16W RM73B--101JT R900,901 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R902 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, For E3 R906-908 247 2004 975 Carbon chip 75 ohm 1/16W RM73B--750JT R909-911 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R927 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R928-930 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R937 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R939 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, For E2 RA710-715 247 9002 909 Chip network 33 ohm 1/16W MNR14=330JE0AB VR751-753 211 6138 903 Semi fixed resistor 1 kohm V03PB102MT(RH03ADC) CAPACITORS GROUP C701 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C702 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C703 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C704-710 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C711 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C721 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C722-730 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C731 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C732-735 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C736 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C737,738 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C743 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C744 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C752 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C753 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C754 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C760 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C761 254 4464 906 Electrolytic 100uF/6.3V CE67C0J101MT C762,763 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DVD-2800II OTHER PARTS GROUP CY101 205 0884 054 10P connector base (TUC-P) For E2 1 CY171 205 1170 903 17P FFC base (FMNBMTT) 1 CY271 205 1170 929 27P FFC base (FMNBMTT) 1 FB703 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT 1 FB704 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT 1 FB764 235 0049 900 Beads inductor 1 FB765-767 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, For E3 3 FB765-767 235 0143 903 Chip emifil (750SA) For E2 3 JK751 204 8621 009 1P S-terminal (AU) 1 JK753 204 8620 000 3P pin jack (AU) 1 L705 235 0125 905 Inductor 22uH FLC32C220K 1 L711 235 0125 905 Inductor 22uH FLC32C220K 1 L754,755 235 0125 905 Inductor 22uH FLC32C220K 2 L757 235 0125 905 Inductor 22uH FLC32C220K 1 LF751 261 0159 909 Filter ELB4B584 1 LF752 261 0160 901 Filter ELB4C572 1 RL751,752 214 0211 906 Relay (EB2-5S-L1) 2 X701 399 0832 903 Ceramic 20 MHz CSTCG20MOV51-R0 1 414 0840 003 Shield For E3 1 Ref. No. Part No. Part Name Remarks SEMICONDUCTORS GROUP IC510 262 2580 906 IC CXA1511M IC601 262 2890 104 IC MN101C35DAF1 IC602 499 0290 007 Remocon sensor GP1U271X IC603 262 1647 905 IC MN1382-S(TX) TR501 269 0055 900 Transistor DTA144EKT96 TR603-605 269 0048 904 Transistor DTC143EK-T96 TR606 269 0055 900 Transistor DTA144EKT96 D607 276 0558 900 Diode DA204KT146 D608 276 0717 903 Diode 1SS355 TE-17 LD601 393 9506 902 LED SEL4117R(TP3) Red LD602 393 9582 900 LED LNX901CFBDA Blue LD603 393 9453 916 LED SEL1810A(TP7) Orange RESISTORS GROUP R543, 544 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R545 247 2006 960 Carbon chip 470 ohm 1/16W RM73B--471JT R546 247 2012 996 Carbon chip 200 kohm 1/16W RM73B--204JT R547 244 2052 928 Metal oxide 47 ohm 1W(NB) RS14B3A470JNBST(S) R549-551 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R552 247 2019 902 Carbon chip 1 kohm 1/16W RM73B--102FT R553 247 2011 926 Carbon chip 39 kohm 1/16W RM73B--393JT R554 247 2019 902 Carbon chip 1 kohm 1/16W RM73B--102FT R555-557 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R559 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R601 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R602 247 2005 987 Carbon chip 220 ohm 1/16W RM73B--221JT R604,605 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R607 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R608,609 247 2005 945 Carbon chip 150 ohm 1/16W RM73B--151JT R610,611 247 2005 961 Carbon chip 180 ohm 1/16W RM73B--181JT R612 247 2006 915 Carbon chip 270 ohm 1/16W RM73B--271JT R614-616 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT R617 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R624 247 2007 943 Carbon chip 1 kohm 1/16W RM73B--102JT R627 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT, For E3 R629-632 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT, For E2 R632-634 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT, For E3 R653-680 247 2011 942 Carbon chip 47 kohm 1/16W RM73B--473JT R681 247 2014 965 Carbon chip 1 Mohm 1/16W RM73B--105JT R682-684 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT GU-3341 DISPLAY P.W.B. UNIT ASS'Y Ref. No. Part No. Part Name Remarks Q'ty www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DVD-2800II Ref. No. Part No. Part Name Remarks CAPACITORS GROUP C566 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C567 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C568 254 4538 939 Electrolytic 47uF/16V CE04W1C470MT SMG/RE3 C569 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C570 254 4524 943 Electrolytic 1uF/50V CE04W1H010MT SMG/RE3 C571 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C573 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C574 257 0509 929 Ceramic chip 1000pF/50V CK73B1H102KT C575 257 0501 901 Ceramic chip 0.01uF/50V CK73B1H103KT (1608) C591 253 8022 707 Ceramic 0.01uF/250V(AC) CK45F2EAC103MC C601 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C602 254 4302 958 Electrolytic 47uF/10V CE04W1A470MT(SRE) C603 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C604 254 4300 963 Electrolytic 100uF/6.3V CE04W0J101MT(SRE) C605-607 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C614 257 0512 903 Ceramic chip 0.1uF/25V CK73F1E104ZT C616 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT C619-621 257 0506 951 Ceramic chip 100pF/50V CC73CH1H101JT C626 254 4302 958 Electrolytic 47uF/10V CE04W1A470MT(SRE) C627 257 0511 904 Ceramic chip 0.01uF/50V CK73F1H103ZT OTHER PARTS GROUP Q'ty CW031 203 4796 029 3P PH-SAN connector cord 1 CW041 203 6557 004 4P PH-SAN connector cord 1 CW091 204 2887 001 9P PH-SAN connector cord 1 CX032 205 0343 032 3P connector base (KR-PH) 1 CX041 205 0355 046 4P KR connector base (L) 1 CY021 205 0581 056 2P VH connector base 1 CY032 205 0343 032 3P connector base (KR-PH) 1 FL601 393 8051 005 FLT (HNV-13SM10) 1 JK507,508 204 8612 005 Mini jack 2 S601-608 212 0431 900 Tact switch 8 S620 212 1030 009 Power switch (TV-5) 1 X601 399 0195 909 Ceramic resonator EFOEC8004T4 1 205 1034 007 M3 Screw terminal 2 415 0299 000 Condenser cover 1 461 1047 005 Rubber sheet 2 Ref. No. Part No. Part Name Remarks ADDENDUM PARTS LIST OF P.W.B. UNIT ASS'Y GU-3430 AUDIO P.W.B. UNIT ASS'Y Note: Same as DVD-2800 except the following. RESISTORS GROUP R461,462 241 2400 979 Carbon film 8.2 kohm 1/4W RD14B2E822JT(5), Chg. CAPACITORS GROUP C420,421 254 4356 713 Electrolytic 100uF/50V CE04W1H101MC(ARS), Chg. Ref. No. Part No. Part Name Remarks GU-3343 SCART P.W.B. UNIT ASS'Y Note: Same as DVD-2800 except the following. Addition for Europe model RESISTORS GROUP R879,880 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, Add. CAPACITORS GROUP C884-887 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, Add. C890-892 247 2018 903 Carbon chip 0 ohm 1/16W RM73B--0R0KT, Chg. OTHER PARTS GROUP Q'ty W701 414 0903 005 SCART shield plate Add. 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A E B C D A G H I J K H D B C K L L a a a a a a a a b b b b b b b b c c c c d d d d e e e e f f f f M M G F F I J E 90 112 40 40 +10 0 Acetate cloth tape (10~15mm wide): 2 pcs. +-5 +-5 +-5 26 13 17 16 103 23 101 101 101 104 24 39 106 101 7 Fig.T Fig.T 7 104 104 7 104 7 6 6 14 14 104 8 8 107 107 107 107 104 3-2 13A 104 104 11 18 33 15 110 110 110 110 106 110 110 110 106 110 110 105 106 9 106 106 102 106 109 106 10 110 4-4 5-1 3-1 104 104 2-1 104 14A 103 103 108 1-1 108 108 20 19 21 104 104 29 30 4-3 107 4-2 107 28 106 32 25 106 29-1 27 106 106 106 106 32 31 34 106 35 4-1 109 For E2 For E2 For E2 Front side 8 7 6 5 4 3 2 1 A B C D E EXPLODED VIEW DVD-2800II 17 Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. WARNING: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DVD-2800II PARTS LIST OF EXPLODED VIEW Ref. No. Part No. Part Name Remarks Q'ty Ref. No. Part No. Part Name Remarks Q'ty 1 GU- 3333 Main P.W.B. unit Ass’y 1 1-1 — Main P.W.B. unit 2 GU- 3441 Video P.W.B. unit Ass’y For E3 1 2 GU- 3441 D Video P.W.B. unit Ass’y For E2 1 2-1 — Video P.W.B. unit For E3 2-1 — Video P.W.B. unit For E2 3 GU- 3340 Audio P.W.B. unit Ass’y For E3 1 3 GU- 3340 D Audio P.W.B. unit Ass’y For E2 1 3-1 — Audio P.W.B. unit For E3 3-1 — Audio P.W.B. unit For E2 3-2 — Power P.W.B. unit For E3 3-2 — Power P.W.B. unit For E2 4 GU- 3341 Display P.W.B. unit Ass’y For E3 1 4 GU- 3341 D Display P.W.B. unit Ass’y For E2 1 4-1 — Display P.W.B. unit For E3 4-1 — Display P.W.B. unit For E2 4-2 — LED P.W.B. unit For E3 4-2 — LED P.W.B. unit For E2 4-3 — Power switch P.W.B. unit For E3 4-3 — Power switch P.W.B. unit For E2 4-4 — W. REM unit For E3 4-4 — W. REM unit For E2 5 GU- 3343 SCART P.W.B. unit Ass’y For E2 1 5-1 — SCART P.W.B. unit For E2 6 411 1961 102 Chassis 1 7 104 0313 015 Foot Ass’y 4 8 449 0074 079 Locking card spacer 2 9 105 1368 169 Rear panel For E3 1 9 105 1368 172 Rear panel For E2 1 10 203 3994 000 AC inlet (3P) For E3 1 10 203 3995 009 AC inlet (2P) For E2 1 11 203 5017 037 3P VH connector cord 1 12 445 0033 005 Wire clamp band 3 13 412 4724 006 Mecha. fix bracket 1 13A 445 0048 016 Cord holder (L50) 1 14 449 8023 022 Locking support 2 14A 203 5123 099 3P PH-PH connector cord 1 15 203 6493 029 4P PH-PH connector cord 1 16 337 0093 003 DVD drive mecha. unit 1 17 009 0186 002 24P FFC 1 18 204 6678 009 14P PH-PH connector cord 1 19 009 0160 073 17P FFC (1.0) 1 20 009 0160 086 19P FFC (1.0) 1 21 009 0160 099 27P FFC (1.0) 1 22 513 3406 107 Label (A) For E3 1 22 513 3463 001 Label (Laser) For E2 1 22A 513 2065 002 E2 laser caution For E2 1 23 412 4725 102 Mecha. cover 1 24 412 4944 006 Front angle or 412 1318 247 1 25 144 2750 247 Front panel For black model 1 25 144 2750 250 Front panel For gold model 1 26 131 9004 013 DENON mark For black model 1 26 131 9004 068 DENON mark For gold model 1 Note: The symbols in the column “Remarks” indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model 27 143 1109 003 Window 1 28 143 1110 005 Lens 3 29 146 2225 202 Inner panel For black model 1 29 146 2225 215 Inner panel For gold model 1 29-1 — OP/CL knob guide 30 203 5215 091 3P VH-VH connector cord 1 31 113 1886 008 Power switch knob For black model 1 31 113 1886 011 Power switch knob For gold model 1 32 129 0253 048 Rubber sheet 2 33 102 0644 005 Top cover For black model 1 33 102 0644 018 Top cover For gold model 1 34 146 2226 007 Loader panel For black model 1 34 146 2226 010 Loader panel For gold model 1 35 135 0064 009 DVD-V plate For black model 1 35 135 0064 012 DVD-V plate For gold model 1 36 513 3350 033 Rating sheet For E3 1 36 513 3353 030 Rating sheet For E2 1 38 513 1381 004 Manufac. date label For E3 1 39 412 4787 001 Front bracket 1 SCREWS 101 471 3301 018 Screw 3x4 CBS-Z 7 102 471 3303 029 Screw 3x6 CBS-B with notch 2 103 473 7001 048 Screw 2.6x8 CBTS(S)-Z 4 104 473 7002 018 Screw 3x8 CBTS(S)-Z 17 105 473 7003 017 Screw 3x8 CFTS (S)-B 2 106 473 7015 005 Screw 3x6 CBTS (S)-B 17 107 473 7500 044 Screw 3x8 CBTS(P)-B 14 108 473 7506 019 Screw 2x6 CBTS(P)-Z 4 109 477 0064 123 Fixing screw For E3 5 109 477 0064 123 Fixing screw For E2 7 110 477 0263 005 3P. swelling screw For black model 10 110 477 0263 018 3P. swelling screw For gold model 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DVD-2800II PACKING VIEW PARTS LIST OF PACKING & ACCESSORIES Ref. No. Part No. Part Name Remarks Q'ty 201 505 0312 028 Cabinet cover 1 202 503 1374 001 Cushion 2 203 501 2127 057 Carton case 1 204 505 0038 043 Poly. cover 1 205 511 3737 113 Instruction manual For E3 1 205 511 3740 113 Instruction manual For E2 1 206 515 0921 005 Service station list (EX) 1 207 206 2202 006 AC cord set For E3 1 207 206 2203 005 AC cord set For E2 1 208 203 5224 008 3P pin cord 1 209 399 0687 006 Remote controller RC-546 1 210 — Battery (R03x2) 211 — UPC label For E3 211 — POS label For E2 black model 211 — POS label For E2 gold model 212 513 3579 005 Region label (No.1) For E3 2 212 513 3579 018 Region label (No.2) For E2 2 213 513 9111 001 Color label (gold) For gold model 2 215 515 0690 404 DEL warranty home For E3 1 216 502 0937 019 Front spacer 1 217 — Control card Ref. No. Part No. Part Name Remarks Q'ty Note: The symbols in the column “Remarks” indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 4 3 2 1 WIRING DIAGRAM 5 6 7 8 D C B A E DVD-2800II DVD DRIVE MECHA UNIT 24P FFC 15P FFC 3P PH CORD 5P PH CORD CX241 CX151 CX031 CX051 CY141 CX042 GU-3340-2 POWER PWB UNIT CY031 CY141 CX021 14P PH-PH CON CORD 3P PH-SAN CORD 2P VH-VH CORD 4P PH-SAN CORD CY021 GU-3341-3 P.SW UNIT CX041 GU-3341-2 LED UNIT CW031 CW041 CW091 GU-3341-1 KEY/DISP PWB UNIT 4P PH-PH CORD 9P PH-SAN CORD CX091 GU-3333 MAIN PWB UNIT CX271 CX171 CX191 27P FFC 17P FFC CY271 CY171 GU-3441 VIDEO PWB UNIT CY101 GU-3343 SCART PWB UNIT (Europe model only) CX101 5P PH-SAN CORD CX052 CW052 19P FFC CY191 GU-3340-1 AUDIO PWB UNIT CY042 DVD-2800II WIRING DIAGRAM CY032 CX032 GU-3341-4 W. REM UNIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 SCHEMATIC DIAGRAMS (1/2) GU-3441-1 VIDEO P.W.B. UNIT SCHEMATIC DIAGRAMS (1/2) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is located and corrected. DVD-2800II SIGNAL LINE + B LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 SCHEMATIC DIAGRAMS (1/2) GU-3441-1 VIDEO P.W.B. UNIT SCHEMATIC DIAGRAMS (1/2) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is located and corrected. DVD-2800II SIGNAL LINE + B LINE A A B B C C D D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS (1/2) 1 2 3 4 5 www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 7 8 9 10 11 A B C D DVD-2800II www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 SCHEMATIC DIAGRAMS (1/2) GU-3441-1 VIDEO P.W.B. UNIT E F G H NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is located and corrected. SIGNAL LINE + B LINE www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 SCHEMATIC DIAGRAMS (2/2) GU-3341-1 KEY/DISPLAY UNIT SCHEMATIC DIAGRAMS (2/2) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is located and corrected. DVD-2800II + B LINE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 SCHEMATIC DIAGRAMS (2/2) GU-3341-1 KEY/DISPLAY UNIT SCHEMATIC DIAGRAMS (2/2) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is located and corrected. DVD-2800II + B LINE A A B B C C D D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SCHEMATIC DIAGRAMS (2/2) 1 2 3 4 5 6 www . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 7 8 9 10 11 A B C D DVD-2800II www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 SCHEMATIC DIAGRAMS (2/2) GU-3341-1 KEY/DISPLAY UNIT E F G H NOTICE ALL RESISTANCE VALUES IN OHM. k=1,000 OHM M=1,000,000 OHM ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASUERD AT MO SIGNAL INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacture. CAUTION: Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power card is less than 460kohms, the unit is defective. WARNING: DO NOT return the unit to the customer until the problem is located and corrected. + B LINE www . x i a o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
