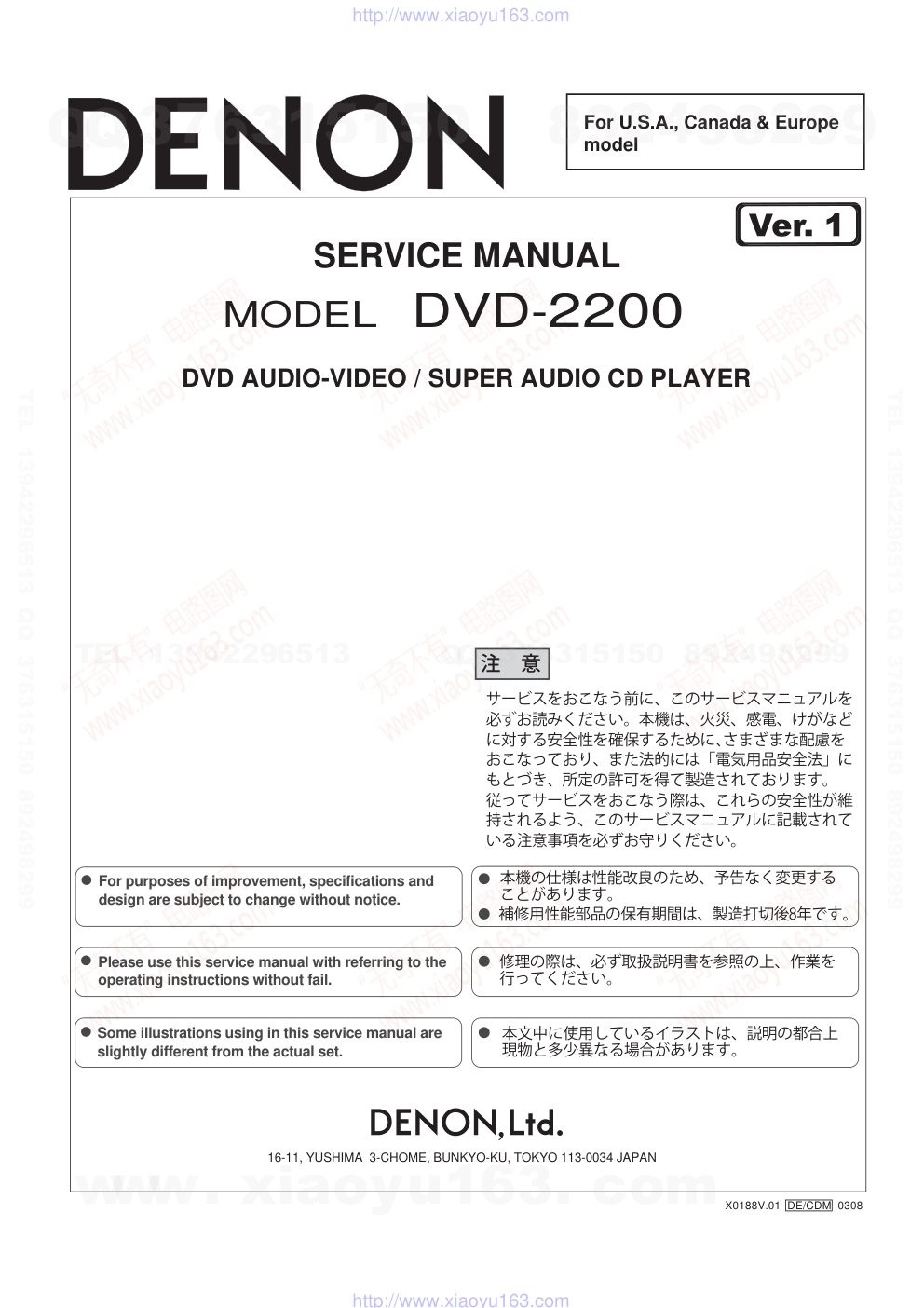

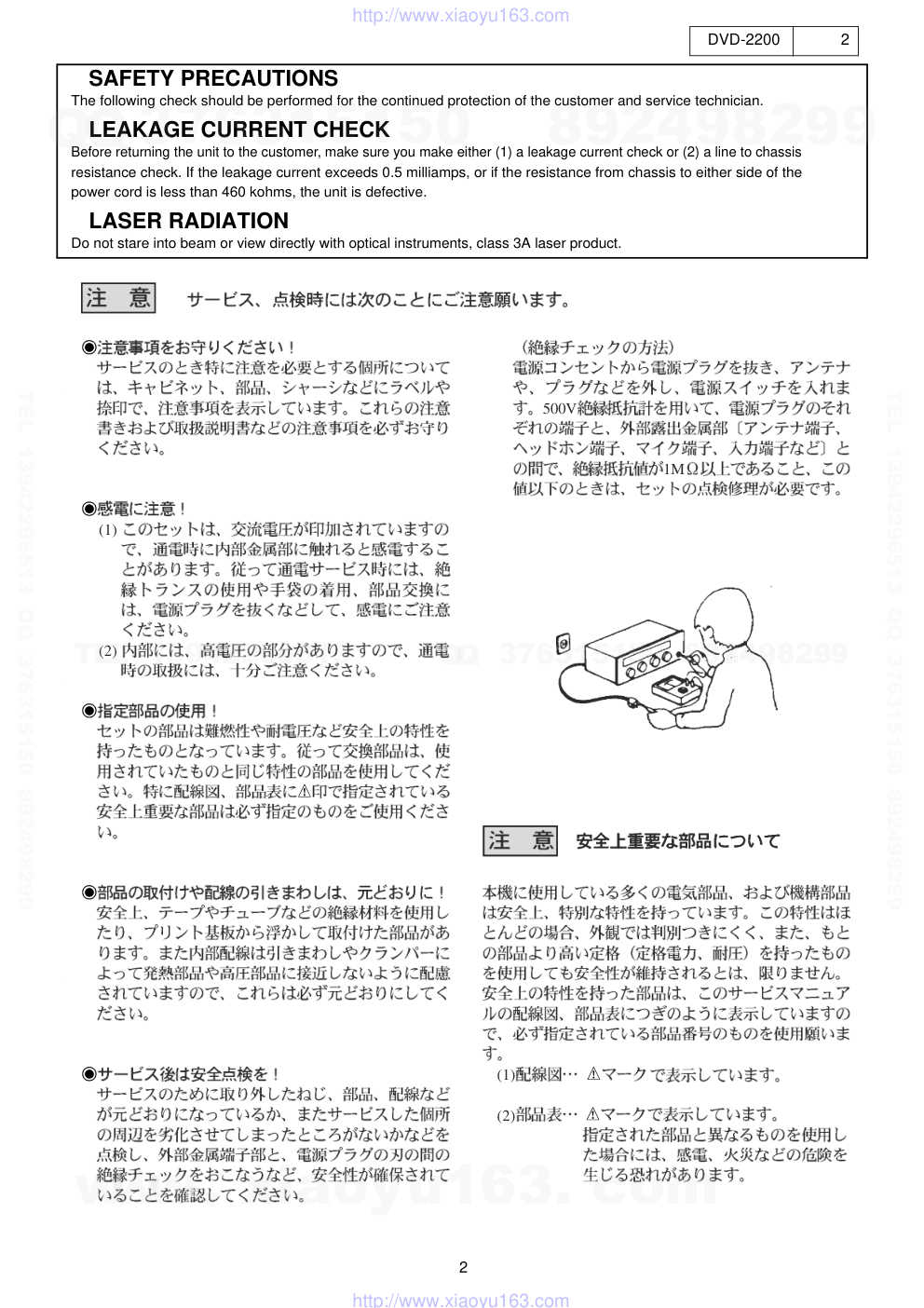

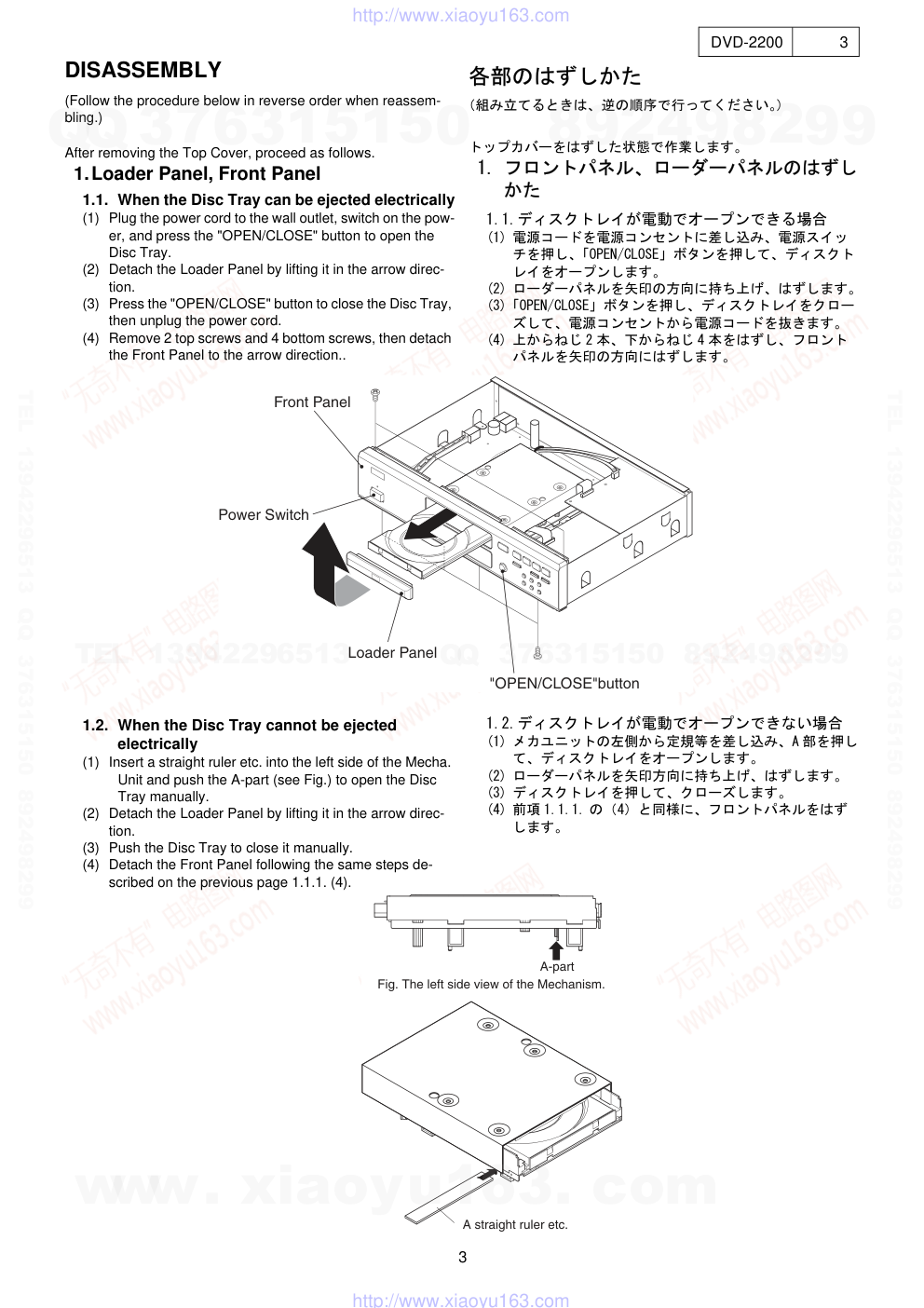

SERVICE MANUAL MODEL DVD-2200 DVD AUDIO-VIDEO / SUPER AUDIO CD PLAYER 16-11, YUSHIMA 3-CHOME, BUNKYO-KU, TOKYO 113-0034 JAPAN X0188V.01 DE/CDM 0308 For U.S.A., Canada & Europe model サービスをおこなう前に、このサービスマニュアルを 必ずお読みください。本機は、火災、感電、けがなど に対する安全性を確保するために､さまざまな配慮を おこなっており、また法的には「電気用品安全法」に もとづき、所定の許可を得て製造されております。 従ってサービスをおこなう際は、これらの安全性が維 持されるよう、このサービスマニュアルに記載されて いる注意事項を必ずお守りください。 本機の仕様は性能改良のため、予告なく変更する ことがあります。 Please use this service manual with referring to the operating instructions without fail. Some illustrations using in this service manual are slightly different from the actual set. 修理の際は、必ず取扱説明書を参照の上、作業を 行ってください。 本文中に使用しているイラストは、説明の都合上 現物と多少異なる場合があります。 補修用性能部品の保有期間は、製造打切後8年です。 注　意 For purposes of improvement, specifications and design are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 2 DVD-2200 SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. LASER RADIATION Do not stare into beam or view directly with optical instruments, class 3A laser product. (1) (2) 500V 1M (1) (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 3 DVD-2200 A-part A straight ruler etc. Fig. The left side view of the Mechanism. DISASSEMBLY (Follow the procedure below in reverse order when reassem- bling.) After removing the Top Cover, proceed as follows. 1.Loader Panel, Front Panel 1.1. When the Disc Tray can be ejected electrically (1) Plug the power cord to the wall outlet, switch on the pow- er, and press the "OPEN/CLOSE" button to open the Disc Tray. (2) Detach the Loader Panel by lifting it in the arrow direc- tion. (3) Press the "OPEN/CLOSE" button to close the Disc Tray, then unplug the power cord. (4) Remove 2 top screws and 4 bottom screws, then detach the Front Panel to the arrow direction.. 1.2. When the Disc Tray cannot be ejected electrically (1) Insert a straight ruler etc. into the left side of the Mecha. Unit and push the A-part (see Fig.) to open the Disc Tray manually. (2) Detach the Loader Panel by lifting it in the arrow direc- tion. (3) Push the Disc Tray to close it manually. (4) Detach the Front Panel following the same steps de- scribed on the previous page 1.1.1. (4). Power Switch Front Panel Loader Panel "OPEN/CLOSE"button 各部のはずしかた （組み立てるときは、逆の順序で行ってください。） トップカバーをはずした状態で作業します。 1. フロントパネル、ローダーパネルのはずし かた 1.1.ディスクトレイが電動でオープンできる場合 (1) 電源コードを電源コンセントに差し込み、電源スイッ チを押し、「OPEN/CLOSE」ボタンを押して、ディスクト レイをオープンします。 (2) ローダーパネルを矢印の方向に持ち上げ、はずします。 (3)「OPEN/CLOSE」ボタンを押し、ディスクトレイをクロー ズして、電源コンセントから電源コードを抜きます。 (4) 上からねじ 2 本、下からねじ 4 本をはずし、フロント パネルを矢印の方向にはずします。 1.2.ディスクトレイが電動でオープンできない場合 (1) メカユニットの左側から定規等を差し込み、A 部を押し て、ディスクトレイをオープンします。 (2) ローダーパネルを矢印方向に持ち上げ、はずします。 (3) ディスクトレイを押して、クローズします。 (4) 前項 1.1.1. の（4）と同様に、フロントパネルをはず します。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 4 DVD-2200 2.DVD Mecha. (1) Remove 4 screws fixing the Mecha. Cover and detach the Mecha. Cover. (2) Remove 4 screws on the DVD Mecha. and 2 screws on the Main P.W.B., then take it off in the arrow direction. 3.Mecha.Unit (1) Remove 2 screws on the top of the Mecha. Unit, and de- tach the Guide Clamp Bracket with sliding in the arrow di- rection. (2) Solder the short-circuit on the Traverse Unit. (Refer to "Traverse Unit Disassembly" on page 5. (3) Disconnect the wires (CX151, CX241, CX031, CX051) connecting with the Main PWB. (4) Turn over the Mecha. Unit/Main PWB assembly, and re- move 3 screws. DVD Mecha. 2. DVD メカのはずしかた (1) メカカバーの取付けねじを 5 本はずし、メカカバーを 取りはずします。 (2) DVD メカからねじ 4 本、メイン基板からねじ 2 本をはず し、矢印の方向へ DVD メカをはずします。 3. メカユニットのはずしかた (1) メカの上からねじ 2 本をはずし、ガイドクランプブラ ケットを矢印方向にずらしながらはずします。 (2) ドライバーメカのショートサーキットを半田付けしま す。（トラバースユニットのはずしかた 5 ページ参照） (3) メイン基板と接続しているワイヤー（CX151, CX241, CX031, CX051）をはずします。 (4) 一体のメカユニット / メイン基板を裏返し、ねじ 2 本 をはずします。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 5 DVD-2200 4.Traverse Unit Disassembly Caution: The optical pickup can be damaged easily by static electricity charged on human body. Take necessary anti-static measures when repairing around the optical pickup. 4.1. Guide Clamp Bracket disassembly (1) Remove 2 screws. (2) Remove Guide Clamp Bracket to arrow direction. 4.2. Tray disassembly (1) Remove to arrow direction. (2) Solder the short-circuit (see in the frame). 4. トラバースユニットのはずしかた 注意：光ピックアップは、人体に帯電した静電気等 で静電破壊することがあります。光ピックアップ周 辺を修理する際は、必要な静電対策を行ってくださ い。 4.1.ガイドクランプブラケットのはずしかた (1) ねじ 2 本をはずします。 (2) ガイドクランプブラケットを矢印方向にとりはずしま す。 4.2.トレイのはずし方 (1) 矢印方向にとりはずします。 (2) 半田付けショートを行います。（枠内図参照 ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 6 DVD-2200 4.3. Traverse Unit disassembly (1) Remove 24P FFC (CX241), 15P FFC (CX151), 5P PH WIRE (CX051) and 3P PH WIRE (CX031) connecting with from the Main P.W.B. (2) Remove 4 screws fixing Damper. (3) Remove Traverse Unit to arrow direction. Note for disassembly Traverse Unit (1) When assembling, reverse the order of the above. (2) When inserting Tray, confirm boss on Slide Cam set to ditch of the Tray (Compare with below drawing). 4.3.トラバースユニットのはずしかた (1) メイン基板に接続している 24P FFC（CX241)、15P FFC （CX151),5P PH ワイヤ（CX051)、3P PH ワイヤ（CX031) をはずします。 (2) ダンパーを固定しているねじ 4 本をはずします。 (3) トラバースユニットを矢印方向にとりはずします。 トラバースユニット分解の注意 (1) 組み立てるときは、上記の逆の順序で行ってください。 (1) トレイ組込み時、スライドカムのボスがトレイの溝に 合っているか確認してください。（下図参照） www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 7 DVD-2200 DIAGNOSTICS OF OPTICAL PICKUP AND REPLACING TRAVERSE UNIT Make failure diagnostics of the Optical Pickup as follows. If the laser drive current becomes more than 1.5 times of the initial value, the Optical Pickup should be replaced. The laser drive current is registered on the seal attached to the rear of the Mecha.Unit. In case of replacing the Pickup, change the whole part of the Traverse Unit. No mechanical adjustment is necessary after the replace- ment. 光ピックアップの故障診断とトラバース ユニットの交換 次の順序で故障診断を行ってください。 レーザー駆動電流が初期値の 1.5 倍以上になっている場合は 光ピックアップ交換の目安となります。 レーザーの電流初期値は、メカの後部のシール上に記入され ています。 ピックアップ交換の場合は、トラバースユニット単位での交 換となります。メカの調整は不要です。 Disc no read,unsteady playback, etc. Laser drive current check HF wave form check (Refer to WAVE FORMS) Traverse Unit replacing (See page 5 for details) Laser current registering after replacement. Present value exceeds the ini- tial value by 1.5 times Step: Disc playback Write the measured value on the seal attached to the Mecha. Unit *As to the measuring method, refer to page 9. Example: DVD 30mA CD 30mA 　　　例： ディスクを読み込まない スムーズに再生しない､等 レーザー駆動電流の確認 ＨＦ 波形の確認 （ WAVE FORMS 参照） トラバースユニット交換 （詳細は 5 ページ） 交換後のレーザー電流記入 現在値が初期値の 1.5 倍になっている 手順　：ディスクを再生 その時の Iop 値をメカ後方のシールの上に重ねて貼る 等で更新する。 *Iop の測定方法は、9 ページ参照。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 DVD-2200 1. Label Indication of DVD Mechanism. 2. Note for Handling the Laser Pick-Up the protection for the damage of laser diode. If you want to change the optical device unit from any other units, you must keep the following. (1) It should be done at the desk already took measures the static electricity in care of removing the OPU's (Optical device unit) connector cable. (2) Workers should be put on the "Earth Band". (3) It should be done to add the solder to the short land to prevent the broken Laser diode before removing the 24P FFC cable. (4) Don't touch OPU's connector parts carelessly. 3. Replacement of the Laser Pick-up (Traverse Unit) Check the Iop(Laser drive current) If the present Iop (current) value exceeds.+50% of the ini- tial value, replace the Traverse unit(Laser Pick-up) with a new one. 4. Iop Measurement Method When measuring Laser drive current (Iop), playback the discs (CD,DVD) described below, measure Iop for CD Laser and DVD Laser by the test point (+5V-A2 --LD(CD), LD(DVD)) on the Main P.W.B. Test Disc :DVD/DVDT-S01 or commercially available discs. :CD/TCD-784 (manufactured by ALMEDIO INC) or commercially available discs. 1.DVD メカのラベル表示 2.レーザーピックアップの取扱注意 レーザーダイオードの破壊防止。 光素子ユニットを交換するときは、以下を遵守してくださ い。 (1)光素子ユニットの接続ケーブルをはずすときは、静電対 策を行ったデスク上で作業してください。 (2)作業者は、リストストラップを使用してください。 (3)レーザーダイオードの破壊防止のため、24P FFC ケーブ ルをはずす前にランドを半田付けショートしてくださ い。 (4)光素子ユニットのコネクタ部に触れないでください。 3.レーザーピックアップ ( トラバースユニッ ト ) の交換 Iop( レーザー駆動電流）をチェックします。 現在の Iop 値が初期値の 50％を越えている場合、トラ バースユニット（レーザーピックアップ）を交換してく ださい。 4.Iop の測定方法 レーザー駆動電流を測定する場合、下記のディスク （CD,DVD) を再生します。 Main 基板上のテストポイント（+5V-A2 ～ LD(CD), LD(DVD)）にて、CD レーザーと DVD レーザーの Iop を測 定してください。 テストディスク：DVD/DVDT-S01 または市販同等ディスク ：CD/TCD-784（ALMEDIO 社製）または市販 同等ディスク Laser current consumption value ex) DVD ＊＊＊ mA, CD ＊＊＊ mA レーザー駆動電流値 例）DVD ＊＊＊ mA, CD ＊＊＊ mA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 DVD-2200 4.1. DVD Laser current measurement (1) Connect the oscilloscope to +5V-A2 of test point for GND side and LD(DVD) of test point for signal side. (2) Playback the title 1 / chapter 1 of the DVD Test Disc. (3) Measure the voltage between +5V-A2 and LD(DVD), cal- culate Iop by the formula as shown below. 4.2. CD Laser current measurement (1) Connect the oscilloscope to +5V-A2 of test point for GND side and LD(CD) of test point for signal side. (2) Playback the track 1 of the CD Test Disc. (3) Measure the voltage between +5V-A2 and LD(CD), calcu- late Iop by the formula as shown below. LD(DVD) +5V-A2 Oscilloscope Iop Measurement Voltage Value 14 (Resistance value) ----------------------------------------------------------------------------- = Iop Measurement Voltage Value 11.75 (Resistance value) ----------------------------------------------------------------------------- = 4.1.DVD レーザー電流測定 (1)オシロスコープをテストポイント +5V-A2(GND) と LD(DVD)( 信号 ) へ接続します。 (2)DVD テストディスクのタイトル 1・チャプター1 を再生し ます。 (3)+5V-A2 と LD(DVD) 間の電圧を測定し､次式により Iop を 算出します。 4.2.CD　レーザー電流測定 (1)オシロスコープをテストポイント +5V-A2(GND)　と LD(CD)( 信号 ) へ接続します。 (2)CD テストディスクのトラック 1 を再生します。 (3)+5V-A2 と LD(CD) 間の電圧を測定し、次式より Iop を算 出します。 LD(DVD) +5V-A2 Oscilloscope Iop 測定電圧値 14(抵抗値) -------------------- = Iop 測定電圧値 11.75(抵抗値) -------------------------- = LD(DVD) LD(CD) +5V-A2 Main Unit foil side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 DVD-2200 SERVICE MODE 1. Aging Mode (1) preparation (a) Equipment used: Any one of DVD Karaoke Disc (contain- ing more than 10 titles). (b) Unit setting : No spec other than the following procedure (Aging mode). At the tray open status, press the "POWER" button to turn on the power while pressing the "PLAY" and "OPEN/CLOSE" buttons for DVD operation simulta- neously. mark on the FL lights, and the unit is set to the heat run mode. (2) procedure (a) According the above, set to the aging mode. (b) Set a DVD Karaoke disc to the tray and press the "PLAY" button twice. mark on the FL blinks, and aging operation(after playback title-1 and title-10 of the disc, the tray open/close is made automatically, then playback the title-1 again) starts. This aging operation continues automatically until it is stopped or it stops caused by an error. In case of some error in DVD, the tray opens and the following error messages are displayed on the FL. 2. Initial Setting Mode (1) Preparation (a) Equipment used: None (b) Unit setting: No spec other than the following procedure (2) Procedure (a) Initialize the DVD player when µcom, peripheral parts of µcom, or Main P.W.B. has been replaced in servicing. (b) Carry out the following to restore factory setting mode. At the player stop condition, press 3 buttons for DVD oper- ation("PLAY", "OPEN/CLOSE", and " SKIP") until "INITIALIZE" appears and disappears in the FL. ("Initialized" appears and disappears on the TV screen.) (c) All user setting will be lost and its factory setting will be restored when this initialization is made. Be sure to mem- orize your setting for restoring again after the initializa- tion. No Error contents FL display 1 Bad Disc ERROR 02 2 Focus Error ERROR 02 3 Read Error ERROR 02 4 Tracking Error ERROR 04 5 Tray Error ERROR 05 6 Navigation Pack Read Error ERROR 06 サービスモードについて 1.エージングモード (1) 準備 (a)使用機器：DVD カラオケディスク（10 タイトル以上の 物）。 (b)本体設定：下記設定以外規定無。 （エージングモード） トレイを開けた状態で DVD ユニットの「再生ボタン」+ 「開 / 閉ボタン」を同時に押しながら「電源ボタン」を 押してセットの電源を入れると、FL 管の マーク が点灯し、ヒートランモードに設定される。 (2) 手順 (a)上記手順でエージングモードに設定する。 (b)トレイに DVD カラオケディスクを入れ、「再生ボタン」 を 2 回押して、FL 管の マークが点滅になると、 「ディスクのタイトル 1 とタイトル 10 を再生した後、 トレイを自動で開 / 閉し、再度タイトル 1 の再生を行 う。」エージング動作になります。停止させるか、エ ラーにて停止するまでこの動作を自動で繰り返します。 DVD 部にエラーが発生した場合は、FL 管に下表のエ ラーが表示されます。 2.初期設定モード (1) 準備 (a)使用機器：無 (b)本体設定：下記手順以外規定無。 (2) 手順 (a)サービスにて、マイコンやマイコン周辺部分やメイン 基板を交換した場合は、ＤＶＤ プレーヤーの初期化を 行ってください。 (b)セットの初期化を下記の手順で行い、工場出荷モード に設定する。 セットが停止状態にて、ＤＶＤ 操作部の「再生ボタ ン」+「開 / 閉ボタン」+「 ( スキップ）ボタン」 の 3 重押しを ＦＬ 管に "INITIALIZE" が表示され消え るまで押します。（ＴＶ 画面には”初期化しました” が表示され消えます。） (c)初期化を行うとお客様が設定した内容が工場出荷状態 に戻りますので、あらかじめ設定内容を控えておき初 期化後に再設定してください。 No. エラー内容 FL 管表示 1 不良ディスク ERROR 02 2 フォーカスエラー ERROR 02 3 リードエラー ERROR 02 4 トラッキングエラー ERROR 04 5 トレイエラー ERROR 05 6 ナビゲーションパックエラー ERROR 06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 DVD-2200 3. μ-Com Firm Check Mode (1) Preparation (a) Equipment used: None (b) Unit setting: No spec other than the following procedure. (2) Procedure (a) Press the "POWER" button to turn on the power while pressing the "PLAY" and "OPEN/CLOSE" buttons for DVD operation simultaneously. (b) FL all light mode. This mode is for detecting FL defects. Press "STILL/ PAUSE " on the remote control unit once to light all FL segments. (c) DVD µcom and main unit µcom firm check mode. This mode is for displaying the status of each µcom em- ployed. • DVD µcom firm: Press the "MENU" button or , button. • Each time the "MENU" button or , bu- ton on the remote control unit is pressed, µcom firm is displayed one after another. Ex.: [DRV_030307, B/E 6500,PANEL 6499] Set Serial No. (lower 5 digits) Drive µcom B/E µcom Panel µcom 1 00001- Ver.030307 (Display) 030307 Ver.6500 (Display) 6500 Ver.6499 (Display) 6499 2 3 4 3.マイコンファームチェックモード (1) 準備 (a)使用機器：無 (b)本体設定：下記手順以外規定無。 (2) 手順 (a)ＤＶＤ 操作部の「再生ボタン」と「開 / 閉ボタン」を 押しながらセットの「電源ボタン」を押し電源を入れ ます。 (b)ＦＬ 管全点灯 / 全消灯モード。 ＦＬ 管の故障判別用のモードで、リモコンの「スティ ル / ポーズ ボタン」を押すと ＦＬ 管が全点灯 します。 (c)ＤＶＤ マイコン及び本体マイコンのファーム確認モー ド 搭載されている各マイコンのファーム状態を表示しま す。 • ＤＶＤ マイコンのファーム：リモコンの「メニューボタ ン」または 、 ボタンを押します。 • リモコンのメニューボタンまたは 、 ボタン を押すたびにマイコンファームを次々と表示します。 表示例：〔DRV 030307 ､ B/E 6500 ､ Panel 6499〕 セットのシ リアル番号 ( 下 5 桁 ) ドライブマイ コン B/E マイコン パネルマイコン 1 00001 ～ Ver.030307 ( 表示 )030307 Ver.6500 ( 表示 ) 6500 Ver.6499 ( 表示 ) 6499 2 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 DVD-2200 4. Setting up the test mode (1) Setting up • In order to set up the test mode, you press STOP button and REV button simultaneously in the heat-run mode.Fun- damentaly, you can set up the test mode at the stop state after disc loading. (Heat-run mode is set up by pressing PLAY button,holding OPEN/CLOSE button. If it becomes heat run mode, PLAY indicator and PAUSE indicator will light up.) LOADING display 　　 ↓ (2) Mode Select • There are two, servo adjustment value display mode and trace mode (error rate display), in the mode. (a) If the REV button or the FWD button is pushed in the test mode, it will become servo adjustment value display mode. (b) If the REV button or the FWD button is pushed again, it will become the trace mode (error rate display). (3) Mode decision • The mode will be decided if the PLAY button is pushed in the state where the mode is chosen. (a) In the case of servo adjustment value display mode, a focus offset adjustment value is displayed. (n:adjustment value) (b) In the case of trace mode (error rate display), trace of the circumference in one layer is chosen. (F: An address and an error rate display F at the time of undecided.) (4) Change within the mode • If the REV button or the FWD button is pushed in the state where the mode is decided, a change within the mode will be made. (a) In the case of servo adjustment value display mode (re- fer to table 1 servo adjustment value display mode de- tails) (XX:selection mode [31--62] n:adjustment value) FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T 3 FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T 7 FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T 3 1 n n n n n n n n n n FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T 7 1 F F F F F F F F F F FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T X X n n n n n n n n n n 4.テストモード (1) テストモードへの投入 • テストモードへの投入はヒートランモード時に STOP キーと REV キーを 2 重押しすることで行う。基本的に ディスクローディング後の停止状態でテストモードに 投入する。( ヒートランモードへの投入は OPEN/CLOSE キーと PLAY キーを 2 重押しすることで行う。ヒートラ ンモードになるとPLAYインジケータとPAUSEインジケー タが点灯する。） LOADING 表示 　　 ↓ (2) モードの選択 • モードには、サーボ調整値表示モードとトレースモード ( エラーレート表示 ) の 2 つがある。 (a)テストモード投入後に REV キー又は FWD キーを押すと、 サーボ調整値表示モードになる。 (b) 再度 REV キー又は FWD キーを押すとトレースモード ( エラーレート表示 ) になる。 (3) モードの確定 • モードを選択してある状態で PLAY キーを押すとモード を確定する。 (a)サーボ調整値表示モードの場合は、フォーカスオフ セット調整値を表示する。 (n: 調整値 ) (b)トレースモード ( エラーレート表示 ) の場合は、１層 内周のトレースを選択する。 (Ｆ: アドレス及びエラーレートは未確定時、Ｆ を表示する。) (4) モード内での変更 • モードを確定してある状態で REV キー又は FWD キーを押 すとモード内での変更を行う。 (a)サーボ調整値表示モードの場合（ 表１サーボ調整値表 示モード詳細 参照） (ＸＸ: 選択モード [31 ～ 62]、n: 調整値 ) FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 T FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ３ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ３ １ ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ ７ １ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｘ Ｘ ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ ｎ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 DVD-2200 (b) In the case of trace mode (error rate display) (refer to ta- ble 2 trace mode details) (YY: select mode [71--94] ,F: address and an error rate display F at the time of undecided) (5) Execution of trace mode (error rate display) (refer to table 2 trace mode details) • Trace will be performed if the PLAY button is pushed after choosing operation. (YY:select mode[71--94],m:address[PBA][HEX], l:error rate[COUNT/SEC][HEX]) (Note) Renewal of data is carried out for every CD:300 frame and DVD:85ECC block. • The mode chosen when selection mode was changed into the trace execution and the PLAY button was pushed is performed from the beginning.When the PLAY button is pushed without changing selection mode, the mode under selection is performed from the beginning.(If the PLAY button is pushed, the address corresponding to the cho- sen mode will be searched again.) (6) Other operation (a) If the STOP button is pushed into servo adjustment val- ue display mode and trace mode (error rate display), it will return to the state at the time of a test mode injection. (b) Push the OPEN/CLOSE button twice and carry out ser- vo readjustment in OPEN operation ->CLOSE opera- tion. (It readjusts with test mode.) OPEN display 　　↓ CLOSE display 　　↓ LOADING display 　　↓ (c) By pressing STOP button and REV button simulta- neously in the test mode, it returns to heat-run mode. FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T Y Y F F F F F F F F F F FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T Y Y m m m m m m l l l l FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T FL display (The display part of 13 digits) 1 2 3 4 5 6 7 8 9 10 11 12 13 T (b) トレースモード ( エラーレート表示 ) の場合（ 表 2 トレースモード詳細 参照） (ＹＹ: 選択モード [71 ～ 94]、Ｆ: アドレス及びエラーレートは未確 定時、Ｆ を表示する。) (5) トレースモード ( エラーレート表示 ) の実行（ 表 2 トレースモード詳細 参照） • 動作を選択した後、PLAY キーを押すとトレースを実行す る。 (ＹＹ: 選択モード [71 ～ 94]、ｍ: アドレス [PBA][HEX]、 ｌ: エラーレート [COUNT/SEC][HEX]) (注)CD:300フレーム,DVD:85ECCブロック毎にデータ更新する。 • トレース実行中に選択モードを変更し、PLAY キーを押す と選択したモードを最初から実行する。選択モードを変 更せずに PLAY キーを押した場合も、選択中のモードを 最初から実行する。 （PLAY キーを押したら、選択しているモードに対応 したアドレスを再度サーチする。) (6) その他の動作 (a)サーボ調整値表示モード、トレースモード ( エラー レート表示 ) 中に STOP キーを押すとテストモード投入 時の状態に戻る。 (b)OPEN/CLOSE キーを 2 回押して、OPEN 動作→ CLOSE 動作 で、サーボ再調整する。 ( テストモードのまま再調整する。) OPEN 表示 　　↓ CLOSE 表示 　　↓ LOADING 表示 　　↓ (c)テストモード中に STOP キーと REV キーの 2 重押し ( 投入時と同じキー ) で、ヒートランモードに戻る。 FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｙ Ｙ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ Ｆ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ Ｙ Ｙ ｍ ｍ ｍ ｍ ｍ ｍ ｌ ｌ ｌ ｌ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ FL 管の表示 (13 桁の表示部 ) 1 2 3 4 5 6 7 8 9 10 11 12 13 Ｔ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 DVD-2200 (7) Test mode detailed table Table 1: servo adjustment value display mode details XX Contents Contents suppleme nt Contents explanation 31 RFP FE Offset layer 0 PI of CXD1881AR An offset value and FE An offset value is displayed. Pi offset is shown in higher rank 1Byte. FE offset is shown in low rank 1Byte. 32 RFP TE Bal Gain layer 0 TE balance gain value of CXD1881AR is displayed. 33 RFP TE Output Gain layer 0 TE output gain value of CXD1881AR is displayed. 34 RFP TE Offset layer 0 TE offset value of CXD1881AR is displayed. 35 DSP TE Offset layer 0 TE offset value inside CXD1885Q is displayed. 36 Fcs Bias layer 0 The focus bias value inside CXD1885Q is displayed. 37 Fcs AGC layer 0 The inside focus gain (setting 0x2000 to 1) value of CXD1885Q is displayed. Therefore, 0x1FF2 and in the case of 0x2012, it is as follows. 0x1FF2(8178) / 0x2000(8192) = 0.998291015625(fold) 0x2012(8210) / 0x2000(8192) = 1.002197265625(fold) Notes: The inside of ( ) is a decimal system equivalent. 38 Trk AGC layer 0 The inside tracking gain (setting 0x2000 to 1) value of CXD1885Q is displayed. Therefore, 0x1FF2 and in the case of 0x2012, it is as follows. 0x1FF2(8178) / 0x2000(8192) = 0.998291015625(fold) 0x2012(8210) / 0x2000(8192) = 1.002197265625(fold) Notes: The inside of ( ) is a decimal system equivalent 39 Pi Offset layer 0 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 40 FE Offset layer 0 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 41 SE Offset layer 0 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 42 RFP FE Offset layer 1 PI of CXD1881AR An offset value and FE An offset value is displayed. Pi offset is shown in higher rank 1Byte. FE offset is shown in low rank 1Byte. 43 RFP TE Bal Gain layer 1 TE balance gain value of CXD1881AR is displayed. 44 RFP TE Output Gain layer 1 TE output gain value of CXD1881AR is displayed. 45 RFP TE Offset layer 1 TE offset value of CXD1881AR is displayed. 46 DSP TE Offset layer 1 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 47 Fcs Bias layer 1 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 48 Fcs AGC layer 1 The inside focus gain (setting 0x2000 to 1) value of CXD1885Q is displayed. Therefore, 0x1FF2 and in the case of 0x2012, it is as follows. 0x1FF2(8178) / 0x2000(8192) = 0.998291015625(fold) 0x2012(8210) / 0x2000(8192) = 1.002197265625(fold) Notes: The inside of ( ) is a decimal system equivalent. (7) テストモード詳細一覧表 表 1 サーボ調整値表示モード詳細 ＸＸ 内容 内容補足 内容説明 31 RFP FE Offset レイヤ 0 CXD1881ARのPI オフセット値とFE オ フセット値を表示。 上位 1Byte に Pi オフセットを示す。 下位 1Byte に FE オフセットを示す。 32 RFP TE Bal Gain レイヤ 0 CXD1881AR の TE バランスゲイン値を 表示す。 33 RFP TE Output Gain レイヤ 0 CXD1881AR の TE 出力ゲイン値を表示 す。 34 RFP TE Offset レイヤ 0 CXD1881AR の TE オフセット値を表示。 35 DSP TE Offset レイヤ 0 CXD1885Q 内部の TE オフセット値を表 示。 36 Fcs Bias レイヤ 0 CXD1885Q 内部のフォーカスバイアス 値を表示。 37 Fcs AGC レイヤ 0 CXD1885Q 内部フォーカスゲイン (0x2000 を 1 として ) 値を表示。 0x1FF2 や 0x2012 の場合、以下のよう になる。 0x1FF2(8178) / 0x2000(8192) = 0.998291015625( 倍 ) 0x2012(8210) / 0x2000(8192) = 1.002197265625( 倍 ) 注 :( ) 内は 10 進換算値 38 Trk AGC レイヤ 0 CXD1885Q 内部トラッキングゲイン (0 x2000 を 1 として ) 値を表示。 　0x1FF2 や 0x2012 の場合、以下のよ うになる。 0x1FF2(8178) / 0x2000(8192) = 0.998291015625( 倍 ) 0x2012(8210) / 0x2000(8192) = 1.002197265625( 倍 ) 注 :( ) 内は 10 進換算値 39 Pi Offset レイヤ 0 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 40 FE Offset レイヤ 0 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 41 SE Offset レイヤ 0 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 42 RFP FE Offset レイヤ 1 CXD1881ARのPI オフセット値とFE オ フセット値を表示。 上位 1Byte に Pi オフセットを示す。 下位 1Byte に FE オフセットを示す。 43 RFP TE Bal Gain レイヤ 1 CXD1881AR の TE バランスゲイン値を 表示。 44 RFP TE Output Gain レイヤ 1 CXD1881AR の TE 出力ゲイン値を表示。 45 RFP TE Offset レイヤ 1 CXD1881AR の TE オフセット値を表示。 46 DSP TE Offset レイヤ 1 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 47 Fcs Bias レイヤ 1 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 48 Fcs AGC レイヤ 1 CXD1885Q 内部フォーカスゲイン (0x2000 を 1 として ) 値を表示。 0x1FF2 や 0x2012 の場合、以下のよう になる。 0x1FF2(8178) / 0x2000(8192) = 0.998291015625( 倍 ) 0x2012(8210) / 0x2000(8192) = 1.002197265625( 倍 ) 注 :( ) 内は 10 進換算値 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 DVD-2200 49 Trk AGC layer 1 The inside tracking gain (setting 0x2000 to 1) value of CXD1885Q is displayed. Therefore, 0x1FF2 and in the case of 0x2012, it is as follows. 0x1FF2(8178) / 0x2000(8192) = 0.998291015625(fold) 0x2012(8210) / 0x2000(8192) = 1.002197265625(fold) Notes: The inside of ( ) is a decimal system equivalent 50 Pi Offset layer 1 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 51 FE Offset layer 1 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 52 SE Offset layer 1 It is the parameter calculated inside CXD1885Q. The value displayed on a set serves as the number of complement of 2 of 2Bytes(es) doubled 256. A voltage value is 6.25mV per bit. 53 PO error detection num- ber Error rate It is invalid at the time of CD operation. 54 PO uncorrect- able error number Error Rate It is invalid at the time of CD operation. 55 PI error detec- tion number Error Rate CD : C1 error detection number 56 PI uncorrect- able error number Error Rate CD : C2 uncorrectable error number 57 Mirr Count Disc dis- criminant They are the contents at the time of disc distinction. Please refer to "Table 3 Disc distinction information" about the contents of a value. 58 Mirr Width Disc dis- criminant They are the contents at the time of disc distinction. Please refer to "Table 3 Disc distinction information" about the contents of a value. 59 FZC Count Disc dis- criminant They are the contents at the time of disc distinction. Please refer to "Table 3 Disc distinction information" about the contents of a value. 60 Pi Level Disc dis- criminant They are the contents at the time of disc distinction. Please refer to "Table 3 Disc distinction information" about the contents of a value. 61 Disc Type Disc Type They are the contents at the time of disc type. Please refer to "Table 4 Disc classification information" about the contents of a value. 62 PO error detection number and address Error rate PO error detection number is invalid at the time of CD operation. 49 Trk AGC レイヤ 1 CXD1885Q 内部トラッキングゲイン (0x2000 を 1 として ) 値を表示。 　0x1FF2 や 0x2012 の場合、以下のよ うになる。 0x1FF2(8178) / 0x2000(8192) = 0.998291015625( 倍 ) 0x2012(8210) / 0x2000(8192) = 1.002197265625( 倍 ) 注 :( ) 内は 10 進換算値 50 Pi Offset レイヤ 1 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 51 FE Offset レイヤ 1 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 52 SE Offset レイヤ 1 CXD1885Q 内部で計算されるパラメー タ。 セットに表示される値は、256 倍され た 2Bytes の 2 の補数となる。 電圧値は 1bit あたり 6.25mV。 53 PO 誤り検出数 エ ラ ー レート CD 時は無効。 54 PO 訂正不可数 エ ラ ー レート CD 時は無効。 55 PI 誤り検出数 エ ラ ー レート CD 時は C1 誤り検出数。 56 PI 訂正不可数 エ ラ ー レート CD 時は C2 訂正不可数。 57 Mirr Count デ ィ ス ク 判別 ディスク判別時の内容。 値の内容は「表３ディスク判別情報」 を参照。 58 Mirr Width デ ィ ス ク 判別 ディスク判別時の内容。 値の内容は「表３ディスク判別情報」 参照。 59 FZC Count デ ィ ス ク 判別 ディスク判別時の内容。 値の内容は「表３ディスク判別情報」 参照。 60 Pi Level デ ィ ス ク 判別 ディスク判別時の内容。 値の内容は「表３ディスク判別情報」 参照。 61 Disc Type デ ィ ス ク 種別 ディスク種別の内容。 値の内容は「表４ディスク種別情報」 参照。 62 PO 誤り検出数 とアドレス エラー レート CD 時は PO 誤り検出数は無効。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 DVD-2200 Table 2: trace mode details YY Contents Contents supplement 71 A display of PO error detection number of the inner circumfer- ence of 1-layer and an address. It is invalid at the time of CD operation. 72 A display of PO uncorrectable number of the inner circumfer- ence of 1-layer and an address. It is invalid at the time of CD operation. 73 A display of PI error detection number of the inner circumfer- ence of 1-layer and an address. CD : C1 error detection number 74 A display of PI uncorrectable number of the inner circumfer- ence of 1-layer and an address. CD : C2 uncorrectable error number 75 A display of PO error detection number of the central circumfer- ence of 1-layer and an address. It is invalid at the time of CD operation. 76 A display of PO uncorrectable number of the central circumfer- ence of 1-layer and an address. It is invalid at the time of CD operation. 77 A display of PI error detection number of the central circumfer- ence of 1-layer and an address. CD : C1 error detection number 78 A display of PI uncorrectable number of the central circumfer- ence of 1-layer and an address. CD : C2 uncorrectable error number 79 A display of PO error detection number of the outer circumfer- ence of 1-layer and an address. It is invalid at the time of CD operation. 80 A display of PO uncorrectable number of the outer circumfer- ence of 1-layer and an address. It is invalid at the time of CD operation. 81 A display of PI error detection number of the outer circumfer- ence of 1-layer and an address. CD : C1 error detection number 82 A display of PI uncorrectable number of the outer circumfer- ence of 1-layer and an address. CD : C2 uncorrectable error number 83 A display of PO error detection number of the inner circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 84 A display of PO uncorrectable number of the inner circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 85 A display of PI error detection number of the inner circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 86 A display of PI uncorrectable number of the inner circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 87 A display of PO error detection number of the central circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 88 A display of PO uncorrectable number of the central circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 89 A display of PI error detection number of the central circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 90 A display of PI uncorrectable number of the central circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 91 A display of PO error detection number of the outer circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 92 A display of PO uncorrectable number of the outer circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 93 A display of PI error detection number of the outer circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 94 A display of PI uncorrectable number of the outer circumfer- ence of 2-layer and an address. In the case of 1-layer disc, it is invalid. 表 2 トレースモード詳細 ＹＹ 内容 補足説明 71 1 層内周の PO 誤り検出数とアド レスの表示 CD 時は無効。 72 1 層内周の PO 訂正不可数とアド レスの表示 CD 時は無効。 73 1 層内周の PI 誤り検出数とアド レスの表示 CD 時は C1 誤り検出数。 74 1 層内周の PI 訂正不可数とアド レスの表示 CD 時は C2 訂正不可数。 75 1 層中周の PO 誤り検出数とアド レスの表示 CD 時は無効。 76 1 層中周の PO 訂正不可数とアド レスの表示 CD 時は無効。 77 1 層中周の PI 誤り検出数とアド レスの表示 CD 時は C1 誤り検出数。 78 1 層中周の PI 訂正不可数とアド レスの表示 CD 時は C2 訂正不可数。 79 1 層外周の PO 誤り検出数とアド レスの表示 CD 時は無効。 80 1 層外周の PO 訂正不可数とアド レスの表示 CD 時は無効。 81 1 層外周の PI 誤り検出数とアド レスの表示 CD 時は C1 誤り検出数。 82 1 層外周の PI 訂正不可数とアド レスの表示 CD 時は C2 訂正不可数。 83 2 層内周の PO 誤り検出数とアド レスの表示 1 層ディスクの場合、無効。 84 2 層内周の PO 訂正不可数とアド レスの表示 1 層ディスクの場合、無効。 85 2 層内周の PI 誤り検出数とアド レスの表示 1 層ディスクの場合、無効。 86 2 層内周の PI 訂正不可数とアド レスの表示 1 層ディスクの場合、無効。 87 2 層中周の PO 誤り検出数とアド レスの表示 1 層ディスクの場合、無効。 88 2 層中周の PO 訂正不可数とアド レスの表示 1 層ディスクの場合、無効。 89 2 層中周の PI 誤り検出数とアド レスの表示 1 層ディスクの場合、無効。 90 2 層中周の PI 訂正不可数とアド レスの表示 1 層ディスクの場合、無効。 91 2 層外周の PO 誤り検出数とアド レスの表示 1 層ディスクの場合、無効。 92 2 層外周の PO 訂正不可数とアド レスの表示 1 層ディスクの場合、無効。 93 2 層外周の PI 誤り検出数とアド レスの表示 1 層ディスクの場合、無効。 94 2 層外周の PI 訂正不可数とアド レスの表示 1 層ディスクの場合、無効。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 DVD-2200 Table 3:Disc distinction information PI level Formula : PI level (V) = Measured value x 1.6 ÷ 256 "-" : Invalid Table 4: Disc classification information Mirr Count Mirr Width FZC Count PI Level No Disc Except 2 and 3 - - - CD High reflec- tion 2 More than 0x8ED - More than 0x99 CD Low reflec- tion 2 More than 0x8ED - Less than 0x98 DVD High reflection 2 Less than 0x8E9 1 More than 0x81 DVDLow reflec- tion 2 Less than 0x8E9 1 Less than 0x80 DVD 2-layer 2 Less than 0x8E9 2 - SACD Hybrid 3 - - - Disc Type Media 0x00 No Disc 0x01 Unknown Disc 0x04 DVD Single Low reflection 0x05 DVD Dual Parallel Low reflection 0x06 DVD Dual Opposite Low reflection 0x08 CDDA Low reflection 0x0A VCD Low reflection 0x44 DVD Single High reflection 0x48 CDDA High reflection 0x4A VCD High reflection 0x8F SACD Hybrid Disc 表３ ディスク判別情報 PI level 計算式：PI level (V) = 測定値× 1.6 ÷ 256 "-" は無効 　表４ ディスク種別情報 Mirr Count Mirr Width FZC Count PI Level No Disc 2 と 3 以外 - - - CD 高反射 2 0x8ED 以上 - 0x99 以上 CD 低反射 2 0x8ED 以上 - 0x98 以下 DVD 高反射 2 0x8E9 以下 1 0x81 以上 DVD 低反射 2 0x8E9 以下 1 0x80 以下 DVD 2 層 2 0x8E9 以下 2 - SACD Hybrid 3 - - - Disc Type Media 0x00 No Disc 0x01 Unknown Disc 0x04 DVD Single 低反射 0x05 DVD Dual Parallel 低反射 0x06 DVD Dual Opposite 低反射 0x08 CDDA 低反射 0x0A VCD 低反射 0x44 DVD Single 高反射 0x48 CDDA 高反射 0x4A VCD 高反射 0x8F SACD Hybrid Disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 DVD-2200 TROUBLE SHOOTING 1. GU-3570 MAIN PWB 1.1. FL TUBE doesnít light (1) Check the Set-up process of Panel µ-COM Check Power Supply Voltages. • [IC301]:D1,D4 +3.3V_D1, +3.3V_D4 Check Oscillation Waveform. • [IC301]: 25MHz at 31pin. Check soldering. • X301 on MAIN PWB. Check Reset Signal. • [IC301]: "H" level at 35pin? Check Data Bus between IC301 and IC302(Flash ROM): • Does the level change at FD(0--15) Pins of IC301 Check soldering. • IC303(Reset IC) on MAIN PWB. (1)Check soldering of CX171. (2)GU-3571-3 is N.G.(No Good). Check soldering. • CY121 on MAIN PWB. Continue to next step. Check the Set-up process of B/E µ-COM. Check Communication between FLD Driver(GU-3571-3 [IC101]) • [RST]: "H" level? Check soldering.(short-circuit,open) • FD(0--15), PA(1--16), PWE, PCE, POE, O.K. N.G. O.K. O.K. O.K. O.K. N.G. N.G. N.G. N.G. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 DVD-2200 (2) Check the Set-up process of B/E µ-COM. Check Reset signal. • [IC102]:(MC-TRST) 15 pin. "H" level O.K.? Check Power Supply Voltages. • [IC102]: +3.3V_D1, +2.5V_D1 O.K.? Check Clock waveform. • [IC102]:18 pin. 27MHz (3.3V), O.K.? Check Power Supply Voltages. • [IC101]: +3.3V_D1, +1.8V_D1 O.K.? Check Clock waveform. • [IC101]:106 pin. 27MHz (3.3V), O.K.? Check Clock waveform. • [IC101]:172 pin. 24.576MHz (3.3V), O.K.? Check Address, Data Bus between [IC102] and [IC103](Flash Rom). Continue to next step. Check the Set-up process of F/E µ-COM. Check the output level. [ON/ST]: "H" level? Check soldering. • [IC301]: 55pin. Check 27MHz(3.3V) at 4pin of IC105. Check the circumference soldering. • [FB108, FB109] (1)Check soldering of X101. (2)Check soldering of IC105 (SM8707). O.K. N.G. N.G. O.K. Check soldering of R168 and R153. O.K. N.G. N.G. O.K. Check soldering • [IC301]: 37pin. • R310 and R311. Check soldering • [IC105]: 3pin. • R170, R101. Check soldering • [IC117] and [IC118] • [FB101] and [FB102]. Check soldering • [IC105]: 9pin. • R174, R133. Check soldering at Address, Data Bus. • [MCD0--MCD14], [MCA11--MCA30] O.K. O.K. O.K. O.K. N.G. N.G. N.G. N.G. O.K. N.G. [IC101] Reset Check. O.K. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 DVD-2200 (3) Check the Set-up process of F/E µ-COM. 1.2. Image is not displayed. (Blue-back, DENON wallpaper) Check Reset signal. • [IC502]:(DRVRST) 51 pin. "H" level O.K.? Check Power Supply Voltages. • [IC502]: +3.3V_D2, +1.8V_D2 O.K.? +3.3V_A2, +1.8V_A2 O.K.? Check Clock waveform. • [IC502]:33 pin. 33.87MHz (3.3V), O.K.? O.K. Check soldering • [IC114], [IC115] • FB405 and FB408. O.K. N.G. Check soldering • [IC102]: 108pin. • R129, R635 and R570. END N.G. N.G. Check soldering • [IC105]: 15pin. • R171. • [IC405], R697 and R574 O.K. Check Digital input signal for Video. • [GU-3572]: YUV(0--7), VCLK O.K. N.G. Check soldering • [CX331] Check Digital output signal for Video. • [IC101]: PXD(0--7), VCLK Continues to the Check process of GU-3572 VIDEO P.W.B.. N.G. Check soldering • [IC101]: 183--192pin. • RA101, RA102, R125 and R126. O.K. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 DVD-2200 1.3. Does not Read Disc [No PLAY], [00 00] displayed etc. (1) Disc does not Rotate. (2) CD check process (3) DVD check process Check Spindle drive signal. • [DMO]: "H" level? O.K. N.G. Check soldering • [IC502]: 111--113pin check. • R599, R601, R666--R669 • [IC505] Check the Emission of Pick-up. • Emission of PU laser O.K.? * See attached sheet laser current check (Page 8,9) END N.G. (1)Check soldering of P.U. • short-circuit? (2)Check the circumference soldering of TR501 and TR502. (3)Check connector insertion • [P.U.] -- [GU3570] FFC(CX241) (4)Check soldering. • [IC501], CXD1881AR (5)Check soldering. • [IC508]: FAN8042 O.K. O.K. Check the RF signal. Check the voltage of Test-Point(TP) • TP [RFAC]: about 1Vp-p. N.G. Check soldering • [IC501]: circumference soldering check. • [IC502]: 65--110pin check. Check connection. • [IC502]--[IC503](16MDRAM) "L"--"H" alternate? Check soldering • [BD(0-15)], [BA(0-9)], [XLCOS], [XUCAS] [XMOE], [XRAS], [XMWR]. • [IC502], [IC503] END N.G. O.K. O.K. N.G. Check soldering • [IC502]: 36--49pin • R621--R633 • R401--411. Check soldering • [IC404] END N.G. Check VSTEM. (communication) • VDT(0--7)_COR, • XHAC_COR, VEFG_COR, • XSHD_COR, DCK_COR "L"--"H" alternate? Check Request Signal • Request From [B/E] to [F/E] [HDRQ_COR]: "L" level? O.K. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 DVD-2200 (4) SACD check process O.K. N.G. Check soldering • [IC404] • R437--R449. Check RF signal for Water Mark. • TP [WM]: about 1Vp-p. Check soldering • [IC401]: 141--162pin. • [IC402] END N.G. Check Bus Line. Between IC401 and IC402(16MSDRAM) "L"-"H" level alternate? Check communication. • [VSTEM]: communication "L"--"H" level alternate? Check soldering • [IC403]: Circumference soldering check N.G. O.K. O.K. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 DVD-2200 1.4. No sound, Noise generated (1) CD (2) SACD O.K. Check CD digital Audio data output. • [CDLRCK], [CDBCLK], [CDDIN], [DOTX] N.G. Check soldering • [IC502]: 58--62pin check. • R641--R644 Check digital Audio data output. • [IC101]: [DATA1], [LRCK], [BCK], [DOUT0] Check Audio select output. • [DAD0],[DAWS], [DABCK], [MCLK] Continues to the Check process of GU-3571-1 AUDIO P.W.B.. O.K. O.K. Check soldering • [IC101]: 159--170pin check. • R134--R142 Check soldering • [IC204]--[IC207] • [CX271] • [IC106] [IC107] N.G. N.G. O.K. Check DSD data output. • [IC401]: [DSARS], [DSALS], [DSASW], [DSAC], [DSAR], [DSAL], [BCKAO] N.G. Check soldering • [IC401]: 60--76pin check. • R450--R456 Check audio select output. • [DAD1], [DAD2], [DAD0], [DAWS], [DABCK], [MCLK] Continues to the Check process of GU-3571-1 AUDIO P.W.B.. O.K. (1) Check soldering • [IC204]-- [IC207] • CX271 (2) Check [IC204, 205] • DSD/PCM ① Pin "H" N.G. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 DVD-2200 (3) DVD-VIDEO / AUDIO 2. GU-3571-1 AUDIO P.W.B. 2.1. No sound or Noise generated at audio output terminal. (1) Check Audio Output terminal, then Input pin of ICs. (2) Check MUTE Circuit and Transistors. 2.2. Does not output Digital output signal(DOUT). O.K. Check DVD digital data output. • [IC101]: [DATA(1--3)], [LRCK], [BCK] N.G. Check soldering • [IC101]: 159--170pin check. • [IC201]: 46--71pin check. Check Bus-manager output. • [IC201]: [MELD(0--2)], [MELWS], [MELBCK] Check audio select output. [DAD0-2)], [DAWS], [DABCK], [MCLK] Continues to the Check process of GU-3571-1 AUDIO P.W.B.. (1)Check power supply voltage. • [IC201]: +3.3V_D1, +2.5V_D1 (2)Check clock oscillation. • [IC201]: (X103) 12.288MHz O.K.? (3)Check control signal • [IC201]: [DSPRST], [HDIN], [HDOUT], [HCLK], [INTRPT], [HCS] O.K.? (4)Check communication. • [IC201]--[IC202](P-ROM) (5)Check soldering. • [IC203] N.G. O.K. O.K. N.G. Check soldering • [IC204]--[IC207] • [CX271] • FL, FR IC301 Audio input check See attached sheet waveform (WAVEFORMS ①~④) • CNT,SW IC302 Audio input check • SL, SR IC303 Audio input check • Check MUTE circuit Check Transistors (TR309--TR326) Check belows [IC201], [IC202] [T201], [JK201] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 DVD-2200 3. GU-3572 VIDEO PWB (1) Progressive output does not outputed. (2) Interlace output does not outputed. Check Power Supply Voltages. +3.3V_D3, +5V_D1, ± 5V_V1 +3.3V_V2, +2.5V_V1, +1.8V_D3 Check Oscillation circuit. • [IC-703]: (MC504) Set-up 20MHz Oscillation. RESET "H"? Check soldering. • [X701] Check soldering. • [IC704] Check soldering. • [CY331] • [IC712] -- [IC714] O.K. O.K. N.G. N.G. Check IC701. RESET "H"? O.K. Check IC704. RESET "H"? O.K. N.G. Check IC601. RESET "H"? O.K. Check soldering. • [IC601] Check soldering. • [IC701] N.G. N.G. Check IC704. RESET "H"? N.G. Check soldering. • [IC704] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 DVD-2200 ELECTRICAL ADJUSTMENT FOR VIDEO 1. SETTING (1) Connect the monitor TV to the video output terminal. (2) Connect the oscilloscope to the Y-signal and C-signal of S-VIDEO output terminal and each terminate at 75 Ohms. (3) Connect the oscilloscope to the Y-signal, PB-signal and PR-signal of Component video output terminal and each terminate at 75 Ohms. ※ Use the 75 Ohms resistance must be 1% (4) DVD test disc : DVDT-S01 2. BEFORE ADJUSTMENT 2.1. Setting the Oscilloscope as below. (1) PB/PR (a) TIME/DIV : 2μS (b) VOLT/DIV : 100mV (Use the probe : x10 ) (2) Y/C (a) TIME/DIV : 2μS (b) VOLT/DIV : 50mV (Use the probe : x10 ) Power on. Power Supply USA & Canada : 120V Europe : 230V Japan : 100V 2.2. Preparation (1) power on. (2) Set the [SOURCE] selector knob : DVD (3) Push [OPEN/CLOSE] button, then open the Disc Tray. (4) Set DVD test disc (DVDT-S01) on the Disc Tray, and then push [CLOSE] button. (5) FL display appear "STOP", push [PLAY] button to play- back DVD. (6) Set the Video output to INTERLACED by remote control unit. (Push the [SETUP] button, set to the mode of VIDEO SETUP.) (7) Push the [DISPLAY] button of remote control unit and then appear the ON-Screen Display (GUI) on the monitor TV. (8) Push the [12] button, select title 12 of DVD. (9) Push the [ENTER] button, playback title 12. (color bar 75%) ビデオ回路の調整 1. セッティング手順 (1) セットの VIDEO OUT 端子にテレビモニターを接続する。 (2) セットの S2 VIDEO OUT 端子から Y 信号と C 信号をそれ ぞれオシロスコープ（終端抵抗：75Ω）に接続する。 (3) セットの COMPONENT VIDEO OUT の各端子（Y/PB/PR）をそ れぞれオシロスコープ（終端抵抗：75Ω）に接続する。 ※　75Ω 抵抗は 1％品を使用する事。 (4) DVD テストディスク：DVDT-S01 を用意する。 2. 調整のまえに 2.1.オシロスコープを下記に設定する。 (1) PB/PR (a)TIME/DIV : 2μS (b)VOLT/DIV : 100mV （プローブ x10 使用） (2) Y/C (a)TIME/DIV : 2μS (b)VOLT/DIV : 50mV （プローブ x10 使用） 電源電圧　：100V 2.2.準備手順 (1) セットの AC コードをコンセントへ挿入し、セットの電 源を ON する。 (2) セットの「OPEN/CLOSE」ボタンを押しトレイを開き、ト レイ上に DVD テストディスク（DVDT-S1）をセット後、 「CLOSE] ボタンを押す。 (3) セット表示管上に "STOP" が表示されてから、PLAY ボタ ンを押し、ディスクを再生する。 (4) リモコンで VIDEO 出力をインターレースモードに設定す る。 (5) リモコンの DISPLAY ボタンを押しグラフィカル・ユー ザー・インターフェイス (GUI) 画面を出す。 (6) 番号ボタンの「12」ボタンを押し、Title 12 を選択す る。 (7) 「ENTER」ボタンを押し、Title 12 を再生する（75％カ ラーバー信号）。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 DVD-2200 2.3. Procedure (1) Adjust the signal of S-VIDEO out by the wave of oscillo- scope. (a) Target, Y-signal Point : VR704 Adjustment Value : 1000 ± 20mV Waveform (b) Target, C-signal Point : VR705 Adjustment Value : 286 ± 5mV Waveform (2) Set the Video output to PROGRESSIVE by remote con- trol unit. (Push the [SETUP] button, set to the mode of VIDEO SETUP.) (a) Target, Y-signal Point : VR701 Adjustment Value : 1000 ± 20mV Waveform (b) Target, PB-signal Point : VR702 Adjustment Value : *525 ± 10mV Waveform Y-signal of S-VIDEO out Y C-signal of S-VIDEO out C Y-signal Y PB-signal PB 2.3.手順 (1) セットの S2 VIDEO OUT の信号レベルをオシロスコープ 上の波高値で調整する。 (a)Y 信号レベル 調整個所 ：VR704 調整値 ： 1000 ± 20mV 波形 (b)C 信号レベル 調整個所 ：VR705 調整値 ： 286 ± 5ｍV 波形 (2) リモコンで VIDEO 出力をプログレッシブモードに設定す る。 (a)Y 信号レベル 調整個所 ：VR701 調整値 ： 1000 ± 20ｍV 波形 (b)PB 信号レベル 調整個所 ：VR702 調整値 ：525 ± 10ｍV 波形 S2 VIDEO OUT の Y 信号レベル Y C S2 VIDEO OUT の C 信号レベル Y プログレッシブの Y 信号レベル PB PB 信号レベル www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 DVD-2200 (c) Target, PR-signal Point : VR703 Adjustment Value : *525 ± 10mV Waveform * : 486 ± 10mV for U.S.A. & Canada model PR-signal PR (c)PR 信号レベル 調整個所 ：VR703 調整値 ： 525 ± 10ｍV 波形 PR- 信号レベル PR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 DVD-2200 BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 DVD-2200 SEMICONDUCTORS Only major semiconductrors are shown, general semiconducors etc. are omitted to list. 主な半導体を記載しています。汎用の半導体は記載を省略しています。 1. ICís Note: Abbreviation ahead of IC No. indicates the name of P.W.B., etc. 注 ): IC No. の前の記号は、基板の名称を表します。 MA: Main P.W.B. AU: Audio/Power/Display P.W.B. VI: Video P.W.B. SC: Scart P.W.B. CXD1885Q (MA: IC502) Top View 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 DVDD33 DVDD18 VMCHG TDO TCK TDI TMS TRST GIO19 GIO18 GIO17 GIO16 GIO15 GIO14 GIO13 DVSS GIO12 GIO11 GIO10 GIO9 GIO8 DVDD18 GIO7 GIO6 GIO5 GIO4 DVDD33 GIO3 GIO2 GIO1 GIO0 MODSEL2 DVSS MODSEL1 MODSEL0 TEST15 TEST14 TEST13 TEST12 TEST11 TEST10 TEST9 TEST8 TEST7 TEST6 TEST5 TEST4 TEST3 TEST2 TEST1 TEST0 RD8 DVDD33 DVDD33 DRVTX DRVRX DRVCLK DRVRDY C2PO DADT DOTK LRCK BCK EXVCO EXPLDT CSL SI SO SCLKH RFOKGH HFD MIRRORH DTC AVSS ATC HF TLC0 TLC1 IREF AVDD33 JMREF JMOUT CHG VFBC AVDD18 VCOI LPF1 LPF2 RC AVSS AVSS AD0 AD1 AD2 AVDD33 AD3 AD4 AD5 AD6 AD7 AD8 AD9 VREFH VREFL AVDD18 ALCR MSEL0 MSEL1 MA0 MA1 MA2 MA3 MA4 MA5 MA6 MA7 MA8 TESTSEL MD0 MD1 MD2 MD3 MD4 MD5 DVSS MD6 MD7 MALE MCS MWR DVDD33 MRD MRDY MINT SYSCK DVDD18 XI XO DVSS VDT7 VDT6 DVSS VDT5 VDT4 VDT3 VDT2 VDT1 VDT0 HDRQ XHAC VEFG XSHD DCK DRVIRQ DRVRST DVDD18 DVDD18 RD9 RD10 RD11 RD12 RD13 RD14 RD15 RD0 RD1 RD2 RD3 RD4 RD5 DVSS RD6 RD7 XMWR XRAS RA0 DVDD18 RA1 RA2 RA3 RA4 DVDD33 RA5 RA6 RA7 RA8 RA9 DVSS RA10 RA11 XMOE XUCAS XLCAS GPWM5 GPWM4 GPWM3 GPWM2 GPWM1 GPWM0 SPWM2 SPWM1 FG AVSS DA3 (SLED2_TILT) DA2 (FSCON) DA1 (SLED) DA0 (TSCON) AVDD33 DRAM I/F PWM.FG D/A A/D Data PLL/Data Slicer ASP S-I/O, Defect etc Audio D/A VSTEM I/F VSTEM I/F Clock B/E MCU I/F JTAG Test/Monitor Pin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 DVD-2200 Block Diagram Functions (A/D : Analog/Digital, PU : Pull-up, PD : Pull-down, SMT=Schumitt ) No. Terminal Name I/O A/D Classification Function PU PD SMT 1 DVDD33 P VDD & GND Digital 3.3V Power for I/O. 2 ALCR I D MCU I/F Chip select input. (L: Reset) * * 3 MSEL0 I D MCU I/F MCU I/F mode select 0. * 4 MSEL1 I D MCU I/F MCU I/F mode select 1. * 5 MA0 I/O D MCU I/F MCU Adress input 0 / data I/O 0 . * 6 MA1 I/O D MCU I/F MCU Adress input 1 / data I/O 1. * 7 MA2 I/O D MCU I/F MCU Adress input 2 / data I/O 2. * 8 MA3 I/O D MCU I/F MCU Adress input 3 / data I/O 3. * 9 MA4 I/O D MCU I/F MCU Adress input 4 / data I/O 4. * 10 MA5 I/O D MCU I/F MCU Adress input 5 / data I/O 5. * 11 MA6 I/O D MCU I/F MCU Adress input 6 / data I/O 6. * 12 MA7 I/O D MCU I/F MCU Adress input 7 / data I/O 7. * 13 MA8 I D MCU I/F MCU Adress input 8 / data I/O 8 . * 14 TESTSEL I D MCU I/F TEST Select input. * 15 MD0 I/O D MCU I/F MCU data I/O 0 . * 16 MD1 I/O D MCU I/F MCU data I/O 1. * 17 MD2 I/O D MCU I/F MCU data I/O 2. * 18 MD3 I/O D MCU I/F MCU data I/O 3. * 19 MD4 I/O D MCU I/F MCU data I/O 4. * 20 MD5 I/O D MCU I/F MCU data I/O 5. * 21 DVSS P VDD & GND Digital Ground. 22 MD6 I/O D MCU I/F MCU data I/O 6. * 23 MD7 I/O D MCU I/F MCU data I/O 7 . * 24 MALE I D MCU I/F MCU Adress latch signal input. * 25 MCS I D MCU I/F MCU Chip Select signal input. * 26 MWR I D MCU I/F MCU Write strobe signal. * 27 DVDD33 P VDD & GND digital 3.3V Power. (for I/O ) 28 MRD I D MCU I/F MCU Read Strobe signal. * 29 MRDY O D MCU I/F MCU Ready signal. (L: Wait) 30 MINT O D MCU I/F MCU Interrupt signal. (L: Interrupt request) 31 SYSCK O D MCU I/F Clock Monitor output. HFD Video VSTEM Serial Command Audio MCU Servo control X'tal HF ASP PWM ATC JTAG Mecha control Servo singnal BCA Data Slicer DVD Demodulation CD-DSP (DDCD) Data-PLL VSTEM Serial I/F ASP Serial I/F Spindle TZC GIO A/D ICU Timer Peri. CLK ICU MCU I/F MPEG I/F EDC ECC Core 16/4M DRAM Audio I/F CD-ROM Header Dec. Memory manager D/A PWM CMD/ RSP reg. TC DSP ROM/RAM RAM Data Direction DSP CLK/Mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 DVD-2200 32 DVDD18 P VDD & GND Digital 1.8V Power. (Internal logic system power) 33 XI I D Clock Crystal oscillation input. 34 XO O D Clock Crystal oscillation output. 35 DVSS P VDD & GND Digital Ground. 36 VDT7 O D VSTEM A/V MPEG data output 7. 37 VTD6 O D VSTEM A/V MPEG data output 6. 38 DVSS P VDD & GND Digital Ground. 39 VDT5 O D VSTEM A/V MPEG data output 5. 40 VDT4 O D VSTEM A/V MPEG data output 4. 41 VDT3 O D VSTEM A/V MPEG data output 3. 42 VDT2 O D VSTEM A/V MPEG data output 2. 43 VDT1 O D VSTEM A/V MPEG data output 1. 44 VDT0 O D VSTEM A/V MPEG data output 0. 45 HDRQ I D VSTEM A/V MPEG data Request input. * 46 XHAC O D VSTEM A/V Data Valid output. 47 VEFG O D VSTEM A/V ECC Error-sector Flag output. (L: error sector) 48 XSHD O D VSTEM A/V DVD Sector Head Flag output. 49 DCK O D VSTEM A/V Data Strobe output. 50 DRVIRQ O D VSTM Commad Interrupt Request output for Host. (L: interruption is demanded) 51 DRVRST I D VSTM Commad Drive H/W Reset input. (L: reset) * * 52 DVDD18 P VDD & GND Digital 1.8V power for Internal logic system. 53 DVDD33 P VDD & GND Digital 3.3V Power for I/O. 54 DRVTX O D VSTM Com- mand Transmitting serial data output to Host. 55 DRVRX I D VSTM Com- mand Reception serial data input from Host. 56 DRVCLK I D VSTM Com- mand Clock input from Host. * 57 DRVRDY O D VSTM Com- mand Drive Ready signal output. (L: ready) 58 C2PO O D Audio I/F CD-DSP C2 Pointer output. 59 DADT O D Audio I/F Audio serial data output. 60 DOTX O D Audio I/F Digital audio output. 61 LRCK O D Audio I/F L/R Clock output. 62 BCK O D Audio I/F Audio Bit Clock output. 63 EXVCO I D TEST/Monitor External Channel clock input. 64 EXPLDT I D TEST/Monitor External RF data input. 65 CSL O D ASP I/F SIO for RF signal processing LSI control. Ratch signal output. 66 SI I D ASP I/F SIO for RF signal processing LSI control. Serial data input. 67 SO O D ASP I/F SIO for RF signal processing LSI control. Serial data output. 68 SCLKH O D ASP I/F SIO for RF signal processing LSI control. Serial clock output. 69 RFOKGH I D ASP I/F RF O.K. Signal input. * 70 HFD I D ASP I/F RF lack Signal input. * 71 MIRRORH I D ASP I/F Mirror detected signal input.(H: Mirror detected) * 72 DTC I D ASP I/F Track cross signal input. (Logic level input) * 73 AVSS P VDD & GND Analog Ground. 74 ATC I A Data PLL Track Cross signal input. (Analog level input) 75 HF I A Data PLL RF signal input. 76 TLC0 O A Data PLL Asymmetry Charge-pump output 0. 77 TLC1 O A Data PLL Asymmetry Charge-pump output 1 78 IREF I A Data PLL Reference current setting terminal for Asymmetry Circuit. 79 AVDD33 P VDD & GND Analog 3.3V Power. 80 JMREF I A Data PLL Reference current setting terminal for Jitter Monitor 81 JMOUT O A Data PLL Jitter Monitor output. 82 CHG I A Data PLL Reference current setting terminal for data PLL. 83 VFBC I A Data PLL VCO offset frequency setting terminal for data PLL. 84 AVDD18 P VDD & GND Analog 1.8V Power. 85 VCOI I A Data PLL VCO Control voltage input terminal for data PLL. 86 LPF1 O A Data PLL VCO Loop-filter connection terminal 1 for data PLL. 87 LPF2 O A Data PLL VCO Loop-filter connection terminal 2 for data PLL 88 RC I A Data PLL VCO gain setting terminal for data PLL. 89 AVSS P VDD & GND Analog Ground. No. Terminal Name I/O A/D Classification Function PU PD SMT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 DVD-2200 90 AVSS P VDD & GND Analog Ground. 91 AD0 I A ADC AD0 Input. 92 AD1 I A ADC AD1 Input. 93 AD2 I A ADC AD2 Input. 94 AVDD33 P VDD & GND Analog 3.3V Power. 95 AD3 I A ADC AD3 Input. 96 AD4 I A ADC AD4 Input. 97 AD5 I A ADC AD5 Input. 98 AD6 I A ADC AD6 Input. 99 AD7 I A ADC AD7 Input. 100 AD8 I A ADC AD8 Input. 101 AD9 I A ADC AD9 Input. 102 VREFH I/O A ADC Max Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 103 VREFL I/O A ADC Min. Reference Voltage input for ADC. (Internal Reference Voltage mode, it will be an output state) 104 AVDD18 P VDD & GND Analog 1.8V Power. 105 AVDD33 P VDD & GND Analog 3.3V Power. 106 DA0 (TSCON) O A DAC DA0 output. (Track Servo output) 107 DA1 (SLED) O A DAC DA1 output. (Sled Servo output) 108 DA2 (FSCON) O A DAC DA2 output. (Focus Servo output) 109 DA3 (SLED2_ TILT) O A DAC DA3 output. (Sled Servo / Tilt Servo output) 110 AVSS P VDD & GND Analog Ground 111 FG I D SPM FG signal input. * 112 SPWM1 O D SPM Spindle motor PWM output 1. 113 SPWM2 O D SPM Spindle motor PWM output 2. 114 GPWM0 O D General PWM Multi-purpose PWM output 0. 115 GPWM1 O D General PWM Multi-purpose PWM output 1. 116 GPWM2 O D General PWM Multi-purpose PWM output 2. 117 GPWM3 O D General PWM Multi-purpose PWM output 3. 118 GPWM4 O D General PWM Multi-purpose PWM output 4. 119 GPWM5 O D General PWM Multi-purpose PWM output 5. 120 XLCAS O D DRAM I/F DRAM LCAS output. (Low-Byte row address strobe output) 121 XUCAS O D DRAM I/F DRAM LCAS output. (Upper-Byte row address strobe output) 122 XMOE O D DRAM I/F DRAM output enable. 123 RA11 O D DRAM I/F DAM address output terminal 11. 124 RA10 O D DRAM I/F DAM address output terminal 10. 125 DVSS P VDD & GND Digital Ground. 126 RA9 O D DRAM I/F DAM address output terminal 9. 127 RA8 O D DRAM I/F DAM address output terminal 8. 128 RA7 O D DRAM I/F DAM address output terminal 7. 129 RA6 O D DRAM I/F DAM address output terminal 6. 130 RA5 O D DRAM I/F DAM address output terminal 5. 131 DVDD33 P VDD & GND Digital 3.3V Power. (for I/O) 132 RA4 O D DRAM I/F DAM address output terminal 4. 133 RA3 O D DRAM I/F DAM address output terminal 3. 134 RA2 O D DRAM I/F DAM address output terminal 2. 135 RA1 O D DRAM I/F DAM address output terminal 1. 136 DVDD18 P VDD & GND Digital 1.8V Power. (for Internal Logic power) 137 RA0 O D DRAM I/F DAM address output terminal 0. 138 XRAS O D DRAM I/F DRAM RAS output. (Column address strobe output) 139 XMWR O D DRAM I/F DRAM Write enable. 140 RD7 I/O D DRAM I/F DRAM data input/output terminal 7. * 141 RD6 I/O D DRAM I/F DRAM data input/output terminal 6. * 142 DVSS P VDD & GND Digital Ground. 143 RD5 I/O D DRAM I/F DRAM data input/output terminal 5. * 144 RD4 I/O D DRAM I/F DRAM data input/output terminal 4. * 145 RD3 I/O D DRAM I/F DRAM data input/output terminal 3. * 146 RD2 I/O D DRAM I/F DRAM data input/output terminal 2. * 147 RD1 I/O D DRAM I/F DRAM data input/output terminal 1. * 148 RD0 I/O D DRAM I/F DRAM data input/output terminal 0. * No. Terminal Name I/O A/D Classification Function PU PD SMT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 DVD-2200 149 RD15 I/O D DRAM I/F DRAM data input/output terminal 15. * 150 RD14 I/O D DRAM I/F DRAM data input/output terminal 14. * 151 RD13 I/O D DRAM I/F DRAM data input/output terminal 13. * 152 RD12 I/O D DRAM I/F DRAM data input/output terminal 12. * 153 RD11 I/O D DRAM I/F DRAM data input/output terminal 11. * 154 RD10 I/O D DRAM I/F DRAM data input/output terminal 10. * 155 RD9 I/O D DRAM I/F DRAM data input/output terminal 9. * 156 DVDD18 P VDD & GND Digital 1.8V Power. (for internal Logic system) 157 DVDD33 P VDD & GND Digital 3.3V power for I/O. 158 RD8 I/O D DRAM I/F DRAM data input/output terminal 8. * 159 TEST0 O D TEST Monitor TEST I/O 0. 160 TEST1 O D TEST Monitor TEST I/O 1. 161 TEST2 O D TEST Monitor TEST I/O 2. 162 TEST3 O D TEST Monitor TEST I/O 3. 163 TEST4 O D TEST Monitor TEST I/O 4. 164 TEST5 O D TEST Monitor TEST I/O 5. 165 TEST6 O D TEST Monitor TEST I/O 6. 166 TEST7 O D TEST Monitor TEST I/O 7. 167 TEST8 O D TEST Monitor TEST I/O 8. 168 TEST9 O D TEST Monitor TEST I/O 9. 169 TEST10 O D TEST Monitor TEST I/O 10. 170 TEST11 O D TEST Monitor TEST I/O 11. 171 TEST12 O D TEST Monitor TEST I/O 12. 172 TEST13 O D TEST Monitor TEST I/O 13. 173 TEST14 O D TEST Monitor TEST I/O 14. 174 TEST15 O D TEST Monitor TEST I/O 15. 175 MODSEL0 I D TEST Monitor TEST mode select 0. (GND, under normal conditions) 176 MODSEL1 I D TEST Monitor TEST mode select 1. (GND, under normal conditions) 177 DVSS P VDD & GND Digital Ground. 178 MODSEL2 I D TEST Monitor TEST mode select 2. (GND, under normal conditions) 179 GIO0 I/O D Multi-purpose Multi-purpose port 0. * * 180 GIO1 I/O D Multi-purpose Multi-purpose port 1. * * 181 GIO2 I/O D Multi-purpose Multi-purpose port 2. * * 182 GIO3 I/O D Multi-purpose Multi-purpose port 3. * * 183 DVDD33 P VDD & GND Digital 3.3V Power for I/O. 184 GIO4 I/O D General Port Multi-purpose port 4. * * 185 GIO5 I/O D General Port Multi-purpose port 5. * * 186 GIO6 I/O D General Port Multi-purpose port 6. * * 187 GIO7 I/O D General Port Multi-purpose port 7. * * 188 DVDD18 P VDD & GND Digital 1.8V Power for I/O. 189 GIO8 I/O D General Port Multi-purpose port 8. * * 190 GIO9 I/O D General Port Multi-purpose port 9. * * * 191 GIO10 I/O D General Port Multi-purpose port 10. * * 192 GIO11 I/O D General Port Multi-purpose port 11. * * 193 GIO12 I/O D General Port Multi-purpose port 12. * * * 194 DVSS P VDD & GND Digital Ground. 195 GIO13 I/O D Multi-purpose Multi-purpose port 13. * * * 196 GIO14 I/O D General Port Multi-purpose port 14. * * * 197 GIO15 I/O D General Port Multi-purpose port 15. * * * 198 GIO16 I/O D General Port Multi-purpose port 16. * * 199 GIO17 I/O D General Port Multi-purpose port 17. * * 200 GIO18 I/O D General Port Multi-purpose port 18. * * 201 GIO19 I/O D General Port Multi-purpose port 19. * * 202 TRST I D JTAG I/F JTAG I/F Reset input. * * 203 TMS I D JTAG I/F JTAG Mode Select input. * * 204 TDI I D JTAG I/F JTAG Data Input. * * 205 TCK I D JTAG I/F JTAG Clock input. * 206 TDO O D JTAG I/F JTAG Data output. 207 VMCHG I D MCU I/F VSTEM / external MCU access selection terminal of system set- ting register for DSP. 208 DVDD18 P VDD & GND Digital 1.8V power for internal Logic system. No. Terminal Name I/O A/D Classification Function PU PD SMT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 DVD-2200 M65776BFP (MA:IC101) Top View 156 104 208 52 1 157 53 105 #M65776BFP xxxxxx JAPAN (●)TruSurround 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 DVD-2200 Pin Assignment No Name I/O No Name I/O No Name I/O No Name I/O 1 GND - 53 MA[3] O 105 CLKO O 157 PDR[8] O 2 BCLK I 54 MA[4] O 106 CLKIN I 158 PDR[9] O 3 BDEN I 55 MA[2] O 107 AVDD18 - 159 LRCLK O 4 BDREQ O 56 VDD18 - 108 AGND18 - 160 CDLRCK I 5 BSECH I 57 VDD33 - 109 NCO NC 161 CDBCK I 6 HD[0] I/O 58 MA[5] O 110 NCO NC 162 CDDATA I 7 HD[1] I/O 59 MA[1] O 111 NCO NC 163 CDDIN I 8 HD[2] I/O 60 MA[6] O 112 GND - 164 AO0 O 9 HD[3] I/O 61 MA[0] O 113 AVDD33 - 165 GND - 10 HD[4] I/O 62 MA[7] O 114 DAOUTB AO 166 AO1 O 11 HD[5] I/O 63 MA[10] O 115 AVRI AI 167 AO2 O 12 VDD18 - 64 GND - 116 PAB AO 168 AOD O 13 VDD33 - 65 MA[8] O 117 IREF AI 169 AAD O 14 HD[6] I/O 66 MBA[1] O 118 BIAS2 AI 170 DOUT0 O 15 HD[7] I/O 67 MA[9] O 119 PAY AO 171 DOUT1 O 16 HD[8] I/O 68 MBA[0] O 120 BIAS1 AI 172 ACLKI I 17 HD[9] I/O 69 MA[11] O 121 AVDD33 - 173 DACCLK O 18 HD[10] I/O 70 DCS O 122 PAR AO 174 VDD18 - 19 HD[11] I/O 71 VDD18 - 123 AVDD33 - 175 VDD33 - 20 GND - 72 VDD33 - 124 AGND33 - 176 DOCLK O 21 HD[12] I/O 73 DCS2 O 125 GND - 177 PWD TO 22 HD[13] I/O 74 DCS3 O 126 NC0 NC 178 CSYNC I 23 HD[14] I/O 75 DCS4 O 127 NCO NC 179 OSDKEY O 24 HD[15] I/O 76 DCS5 O 128 NCO NC 180 VSYNC O 25 HA[0] I 77 RAS O 129 NCO NC 181 HSYNC O 26 HA[1] I 78 CAS O 130 NCO NC 182 PXCLKP O 27 VDD18 - 79 MCLK O 131 NCO NC 183 PXCLK O 28 VDD33 - 80 DWE O 132 NCO NC 184 PD[0] O 29 HA[2] I 81 GND - 133 NCO NC 185 PD[1] O 30 HA[3] I 82 DQMU O 134 VDD18 - 186 PD[2] O 31 HA[4] I 83 DQML O 135 VDD33 - 187 GND - 32 HA[5] I 84 MD[7] I/O 136 NCO NC 188 PD[3] O 33 HA[6] I 85 MD[8] I/O 137 NCO NC 189 PD[4] O 34 HA[7] I 86 MD[6] I/O 138 NCO NC 190 PD[5] O 35 GND - 87 MD[9] I/O 139 NCO NC 191 PD[6] O 36 HA[8] I 88 VDD18 - 140 NCO NC 192 PD[7] O 37 HA[9] I 89 VDD33 - 141 NCO NC 193 RESET I 38 HA[10] I 90 MD[5] I/O 142 NCO NC 194 HMODE[0] I 39 HA[11] I 91 MD[10] I/O 143 NCO NC 195 HMODE[1] I 40 CS I 92 MD[4] I/O 144 NCO NC 196 TEST[0] I 41 RE I 93 MD[11] I/O 145 GND - 197 TEST[1] I 42 VDD18 - 94 MD[3] I/O 146 NCO NC 198 VDD18 - 43 VDD33 - 95 MD[12] I/O 147 NCO NC 199 VDD33 - 44 WE I 96 GND - 148 NCO NC 200 TEST[2] I 45 BHE I 97 MD[2] I/O 149 NCO NC 201 BD[0] I 46 RDY TO 98 MD[13] I/O 150 NCO NC 202 BD[1] I 47 INT1 O 99 MD[1] I/O 151 NCO NC 203 BD[2] I 48 INT2 O 100 MD[14] I/O 152 NCO NC 204 BD[3] I 49 INT3 O 101 MD[0] I/O 153 NCO NC 205 BD[4] I 50 GND - 102 MD[15] I/O 154 NCO NC 206 BD[5] I 51 DREQ O 103 VDD18 - 155 VDD18 - 207 BD[6] I 52 DACK I 104 VDD33 - 156 VDD33 - 208 BD[7] I NC: NO Connection TO: Tri-State Output AO: Analog Output AI: Analog Input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 DVD-2200 Functions (Bit stream interface / SDRAM interfacial Functions (Video output interface) Functions (Audio output interface) PIN Name I/O Functions BD[7:0] I Bit Stream data input. BCLK I Strobe Signal from BD. BDEN I The validity of the data extracted from BD is checked. BDREQ O Data Request signal. BSECH I Directs whether the data of BD is the head byte of a selector. MD[15:0] I/O Data bus line with SDRAM MA[11:0] O SDRAM Address bus line MBA[1:0] O SDRAM Bank select line. DCS O SDRAM Chip select. DCS2 O SDRAM Chip select. DCS3 O SDRAM Chip select. DCS4 O SDRAM Chip select. DCS5 O SDRAM Chip select. RAS O SDRAM RAS (Row Address Strobe) control. CAS O SDRAM CAS (Column Address Strobe) control. DQMU O SDRAM DQM control. DQML O SDRAM DQM control. DWE O SDRAM WE control. MCLK O SDRAM operation clock. PIN Name I/O Functions PXCLK O Pixel Clock, 27 MHz. PXCLKP O Pixel Clock, 54 MHz. PD[7:0] O Digital Pixel Data. CSYNC I Composite SYNC signal input. OSDKEY O OSD Key flag output. PWD O Phase detector output for external synchronous operation. HSYNC O Horizontal SYNC output. VSYNC O Vertical SYNC output. PIN Name I/O Functions A00 O Serial PCM data for DAC. A01 O Serial PCM data for DAC. A02 O Serial PCM data for DAC. A0D O Serial PCM data for DAC. AAD O Ancillary data output. DOCLK O PCM bit Clock. LRCLK O Channel Clock output for audio playback. DACCLK O Over-sampling Clock for DAC. CDBCK I PCM Bit Clock inputted from CDDSP. CDLRCK I L/R Clock inputted from CDDSP. CDDIN I PCM audio data inputted from CDDSP. CDATA I Digital audio interface input. DOUT0 O Digital audio interface output. DOUT1 O Digital audio interface output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 38 DVD-2200 Functions (Host interface) Video DAC System service Pin Name I/O Functions HD[15:0] I/O Data I/O. HA[11:0] I Address input. BHE I Byte High Enable. RE I Read Enable. WE I Write Enable. CS I Chip Select. RDY O Acknowledge signal which shows that read-out or the writing of data was completed. INTR INT2 INT3 O Interruption request signal over external CPU from M65776AFP. "L" is outputted at the time of interruption generating and "H" is outputted when other. DREQ O DMA request signal for bit map transmission. DACK I DMA acknowledge signal for bit map transmission. HMODE[1:0] I Host interface operation mode setting. HMODE[2] I It fixed to "L" potential.. Pin Name I/O Functions IREF I Reference current input. AVRI I Reference voltage input. BIAS1 I Bias voltage for the source of current. BIAS2 I Bias voltage for the source of current. PAY O Analog current output.(for Y) PAB O Analog current output.(for Pb) PAC O Analog current output.(for Pr) DAOUTB O It fixed to Analog Ground.. AVDD33 Power +3.3V Analog Power supply. AGND33 Power Analog Ground. Pin Name I/O Functions CLKIN I 27 MHz, system Clock input. CLKO O 27 MHz, Clock output. ACLKI I Audio Clock input. RESET I Hardware Reset. TEST[2:0] I It fixed to "L" potential. VDD18 Power +1.8 V Power for internal. VDD33 Power +3.3 V Power for internal interface. GND Power Ground. AVDD18 Power +1.8 V Power for internal PLL. AGND18 Power It fixed to Ground. Ground for internal PLL. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 DVD-2200 Sil504CM208 (VC: IC701) Top View Function I/O Pin No. Pin Name SiI504CM208 Terminal Function 2, 41, 51, 56, 99, 106, 146, VDDCore Pwr 1.8V Core Power. 160, 168, 199, 205 3, 40, 47, 50, 55, 100, 102, GNDCore Pwr Digital Ground for Core Power. 107, 150, 162, 167, 206 4 LCDPwrEn Out LCD Power Enable 5 CBlank Out Composite Blank 6 CSync Out Composite Sync 7 VSync Out Vertical Sync 8 HSync Out Horizontal Sync 9~14, 17~20 Blue_Cb[9:0] Out Blue Data (RGB output mode); Cb Data (YCrCb output mode) 15, 21, 33, 61, 66, 72, 79, 85, 93, 114, 118, GNDIO Pwr Digital Ground for I/O Power. 121, 126, 131, 144, 183, 190, 198 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 62 61 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105 208 207 206 205 204 203 202 201 200 199 198 197 196 195 194 193 192 191 190 189 188 187 186 185 184 183 182 181 180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 RSVD VDDCore GNDCore LCDPwrEn CBIank CSync VSync HSync Blue_Cb0 Blue_Cb1 Blue_Cb2 Blue_Cb3 Blue_Cb4 Blue_Cb5 GNDIO VDDIO Blue_Cb6 Blue_Cb7 Blue_Cb8 Blue_Cb9 GNDIO Green_Y0 Green_Y1 Green_Y2 Green_Y3 VDDIO Green_Y4 Green_Y5 Green_Y6 Green_Y7 Green_Y8 Green_Y9 GNDIO Red_Cr0 Red_Cr1 Red_Cr2 Red_Cr3 Red_Cr4 Red_Cr5 GNDCore VDDCore Red_Cr6 Red_Cr7 Red_Cr8 Red_Cr9 VidOutClk GNDCore BypPLLClk48M Clk48M GNDCore VDDCore ExtRefSel RSVD GNDCore VDDCore MemAddr3 MemAddr2 MemAddr1 MemAddr0 GNDIO MemAddr4 MemAddr5 MemAddr6 MemAddr7 GNDIO MemAddr8 MemAddr9 MemAddr10 MemAddr11 RSVD GNDIO VDDIO VDDIO RAS CAS WE DQM GNDIO MemData7 MemData6 MemData5 MemData4 MemData3 GNDIO MemData2 MemData1 MemData0 VDDIO PuPdDis MemData8 MemData9 GNDIO MemData10 MemData11 MemData12 MemData13 MemData14 GNDCore MemClk VDDCore GNDCore RSVD HostAddr5 HostAddr4 HostAddr3 HostAddr2 HostAddr1 HostAddr0 GNDCore HostCS HostRd_SDA HostWr_SCL VDDCore VidlnClk GNDIO VidlnData9 VidlnData8 VidlnData7 VidlnData6 VidlnData5 VidlnData4 VidlnData3 VidlnData2 VDDIO ExtRefXtalIOut ExtRefXtalIn VDDIO GNDIO MemData16 MemData17 MemData18 MemData19 GNDIO MemData20 MemData21 MemData22 MemData23 GNDIO MemData31 MemData30 GNDIO VDDIO MemData29 MemData28 GNDIO MemData27 MemData26 MemData25 MemData24 MemData15 BypPLLMemClk GNDCore VDDCore RSVD AVDD ARTN GNDCore VDDCore Clk54_72M BypPLLClk54_72M Test1 Test0 Reset VDDCore GNDIO SCKIn WSIn SDIn VDDIO SCKOut WSOut SDOut GNDIO VDDIO MemAddr12 DeintDone DetVideo Det22PD Det32PD GNDIO VDDIO HostData0 HostData1 HostData2 HostData3 HostData4 HostData5 HostData6\HS HostData7\VS RSVD HostData8\VidlnData12 HostData9\VidlnData13 HostData10\VidlnData14 HostData11\VidlnData15 VDDCore GNDCore HostData12\VidlnData16 HostData13\VidlnData17 HostData14\VidlnData18 HostData15\VidlnData19 GNDCore HostClk VDDCore HostMode HostAddr7 HostAddr6 TOP VIEW RSVD RSVD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 DVD-2200 16, 26, 73, 74, 89, 117, 132, VDDIO Pwr 3.3V I/O Power. 135, 182, 189, 194 22~25, 27~32 Green_Y[9:0] Out Green Data (RGB output mode);Y Data (YCrCb output mode) 34~39, 42~45 Red_Cr[9:0] Out Red Data (RGB output mode); Cr Data (YCrCb output mode) 46 VidOutClk Out Video Output Clock, 36, 27 or 24 MHZ 48 BypPLLClk48M In Bypass PLL for Clk48M. 49 Clk48M InOut 48 MHz Clock. 52 ExtRefSel In External APLL Reference Select. 57~60, 62~65, 67~70, 188 MemAddr[12:0] InOut SDRAM Address when an output. Configuration at reset when an input. 75 RAS Out SDRAM Row Address Strobe. 76 CAS Out SDRAM Column Address Strobe. 77 WE Out SDRAM Write Enable. 78 DQM Out SDRAM Data Mask. 80~84, 86~88, 91, 92, 94~98, 109, 110~113, MemData[31:0] InOut SDRAM Data. 115, 116, 119, 120, 122~125, 127~130 90 PuPdDis In Internal pullup and pulldown disable test function. 101 MemClk InOut SDRAM Clock. 108 BypPLLMemClk In Bypass PLL for MemClk. 133 ExtRefXtalIn In External APLL Reference Crystal/oscillator Input. 134 ExtRefXtalOut Out External APLL Reference Crystal Output. 136~143 VidlnData[9:2] In Multiplexed Video Input Data;Y Video Input Data. 145 VidlnClk In Video Input Clock, 27.0 MHz 147 HostWr_SCL In 186-Compatible Write when HostMode=0. Serial Clock when HostMode=1. 148 HostRd_SDA InOut 186-Compatible Read when HostMode=0. Serial Data when HostMode=1. 149 HostCS In 186-Compatible Chip Select when HostMode=0. When HostMode=1, must be tied to VDD or pulled up to VDD. 151~158 HostAddr[7:0] In 186-Compatible Address when HostMode=0. No connect when HostMode=1. 159 HostMode In Serial Host Interface when HostMode=1. 186-compatible host interface when HostMode=0. 161 HostClk InOut 186-Compatible Clock when HostMode=0. No connect when HostMode=1. 163~166, HostData[15:8] 169~172 (VidInData[19:2]) InOut 186-Compatible Data when HostMode=0. Chroma video input data when HostMode=1. 174 HostData[7](VS) InOut 186-Compatible Data when HostMode=0. Vertical sync input when HostMode=1. 175 HostData[6](HS) InOut 186-Compatible Data when HostMode=0. Horizontal sync input when HostMode=1. 176~181 HostData[5:0] InOut 186-Compatible Data when HostMode=0. No connect when HostMode=1. 184 Det32PD Out 3:2 Pulldown Sequence Detected. 185 Det22PD Out 2:2 Pulldown Sequence Detected. 186 DetVideo Out Interlaced Video Sequence Detected. 187 DeintDone Out Deinterlace processing complete for current field period. 191 SDOut Out Serial Digital Audio Output Data. 192 WSOut Out Serial Digital Audio Output Word Select. 193 SCKOut Out Serial Digital Audio Output Clock. 195 SDIn In Serial Digital Audio Input Data. 196 WSIn In Serial Digital Audio Input Word Select. 197 SCKIn In Serial Digital Audio Input Clock. 200 Reset In Hardware Reset. 201, 202 Test[1:0] In Production hardware test support. 203 BypPLLClk54_72M In Bypass PLL for Clk54_72M. 204 Clk54_72M InOut 54 or 72 MHz Clock. 207 ARTN Pwr Analog Return for PLLs. 208 AVDD Pwr 1.8V Analog Power for PLL. Function I/O Pin No. Pin Name www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 DVD-2200 CXD2753R (MA: IC401) Pin Assignment Blocks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 DVD-2200 Terminal Functions Pin Name I/O Functions 1 VSC - It fixed to ground.( for Core) 2 XMSLAT I Latch input for µCOM serial communication. 3 MSCK I Shift clock input for µCOM serial communication. 4 MSDATAI I Data input for µCOM serial communication. 5 VDC - +2.5V Power for Core. 6 MSDATAO O Data output for µCOM serial communication. "Hi-Z" potential except the output mode. 7 MSREADY O Completion flag of output preparation for µCOM serial communication. "L" is outputted at the time of completion. 8 XMSDOE O Output enable pin for µCOM serial communication. "L" is outputted at the time of MSDATO mode. 9 XRST I Reset pin. The whole IC is reset by at the time of "H" potential. 10 SMUTE Ipd Soft Mute. Soft mute of the audio output is carried out at the time of "H" potential. It releases at the time of "L" potential. 11 MCKI I Master Clock input. 12 VSIO - It fixed to Ground. Ground for I/O. 13 EXCKO1 O External output Clock 1. 14 EXCKO2 O External output Clock 2. 15 LRCK O 44.1kHz, IFs Clock output. 16 FRAME O Frame signal output. 17 VDIO - +3.3V Power for I/O. 18 MNT0 O Monitor output. 19 MNT1 O Monitor output. 20 MNT2 O Monitor output. 21 MNT3 O Monitor output. 22 TESTO O Output terminal for a Test. (open) 23 TESTO O Output terminal for a Test.(open) 24 TESTO O Output terminal for a Test.(open) 25 TESTO O Output terminal for a Test.(open) 26 TCK I Clock input for a Test. It fixed to "L" potential. 27 TDI Ipu Input pin(pul-loped) for a Test.(open) 28 VSC - It fixed to Ground. Ground for CORE. 29 TDO O Output for a Test.(open). 30 TMS Ipu Input pinl(pull-up) for a Test.(open) 31 TRST Ipu Reset pin(pull-up) fo a Test. Input the Power-on reset signal or fixed to "L" potential. 32 TEST1 O Test input pin. It fixed to "L" potential. 33 TEST2 O Test input pin. It fixed to "L" potential. 34 TEST3 O Test input pin. It fixed to "L" potential. 35 VDC - +2.5V Power for CORE. 36 TESTO O Out put for TEST. It fixed to open. 37 XBIT O DST monitor. 38 SUPDT0 O Supplementary data output. (LSB) 39 SUPDT1 O Supplementary data output. 40 SUPDT2 O Supplementary data output. 41 SUPDT3 O Supplementary data output. 42 VSIO - Ground for I/O. 43 SUPDT4 O Supplementary data output. 44 SUPDT5 O Supplementary data output. 45 VDIO - Power for I/O. 46 SUPDT6 O Supplementary data output. 47 SUPDT7 O Supplementary data output. (MSB) 48 XSUPAK O Supplementary data Acknowledge output terminal. 49 VSC - Ground for CORE. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 DVD-2200 50 TESTO O Output for TEST. (open) 51 TESTI I Input for TEST. It fixed to "L" potential. 52 TESTI I Input for TEST. It fixed to "L" potential. 53 TESTO O Output for TEST. (open) 54 VDC - +2.5V Power for CORE. 55 DSADML O DSD Data output terminal for Lch Down MIx. 56 DSADMR O DSD Data output terminal for Rch Down MIx. 57 BCKASL I I/O selection terminal of the Bit clock for DSD data output. L=input (Slave), H=output (Master) 58 VSDSD - Ground terminal for DSD data output. 59 BCKAI O Bit clock input terminal for DSD data output. Input a Bit clock into this terminal at the time of BCKASL= "L" potential. 60 BCKAO O Bit clock input terminal for DSD data output. Bit clock output from this terminal at the time of BCKASL= "H" potential. 61 PHREFI I Reference phase signal input terminal for DSD output phase modulation. 62 PHREFO O Reference phase signal output terminal for DSD output phase modulation. 63 ZDFL O Lch zero-data detection flag (at the time of µcom setup). It will be set to "H" if non-sound data continues 300 msecs. 64 DSAL O DSD data output terminal for Cch speaker. 65 ZDFR O Rch zero-data detection flag (at the time of µcom setup). It will be set to "H" if non-sound data continues 300 msecs. 66 DSAR O DSD data output terminal for Rch speaker. 67 VDDSD - +3.3V Power for DSD data output. 68 ZDFC O Cch zero-data detection flag (at the time of µcom setup). It will be set to "H" if non-sound data continues 300 msecs. 69 DSAC O DSD data output terminal for Cch speaker. 70 ZDFLFE O Lch zero-data detection flag (at the time of µcom setup). It will be set to "H" if non-sound data continues 300 msecs. 71 DSASW O DSD data output terminal for SWch speaker. 72 VSDSD - Ground for DSD data output. 73 ZDFLS O LSch zero-data detection flag (at the time of µcom setup). It will be set to "H" if non-sound data continues 300 msecs. 74 DSALS O DSD data output terminal for LSch speaker. 75 ZDFRS O RSch zero-data detection flag (at the time of µcom setup). It will be set to "H" if non-sound data continues 300 msecs. 76 DSARS O DSD data output terminal for RSch speaker. 77 VDDSD O +3.3V Power for DSD data output. 78 IOUT0 O Data output terminal 0 for IEEE1394 link chip I/F. 79 IOUT1 O Data output terminal 1 for IEEE1394 link chip I/F. 80 VSC - Ground for CORE. 81 IOUT2 O Data output terminal 2 for IEEE1394 link chip I/F. 82 IOUT3 O Data output terminal 3 for IEEE1394 link chip I/F. 83 VDC - +2.5V Power for CORE. 84 IOUT4 O Data output terminal 4 for IEEE1394 link chip I/F. 85 IOUT5 O Data output terminal 5 for IEEE1394 link chip I/F. 86 VSIO - Ground for I/O. 87 IANCO O Data output terminal 0 for IEEE1394 link chip I/F. 88 IFULL I Data output terminal 0 for IEEE1394 link chip I/F. 89 IEMPTY I Data output terminal 0 for IEEE1394 link chip I/F. 90 VDIO - +3.3V Power for I/O. 91 IFRM O Data output terminal 0 for IEEE1394 link chip I/F. 92 IOUTE O Data output terminal 0 for IEEE1394 link chip I/F. 93 IBCK O Data output terminal 0 for IEEE1394 link chip I/F. 94 VSC - Ground for CORE. 95 TESTI I TEST input terminal. It fixed to "H" potential. Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 DVD-2200 96 TESTI I TEST input terminal. It fixed to "L" potential. 97 TESTI Ipu TEST input terminal. It fixed to "H" potential. 98 TESTO O TEST output terminal. (open) 99 VDC - +2.5V Power for CORE. 100 TESTI I TEST input terminal. It fixed to "L" potential. 101 TESTI I TEST input terminal. It fixed to "L" potential. 102 TESTI I TEST input terminal. It fixed to "L" potential. 103 TESTI I TEST input terminal. It fixed to "L" potential. 104 TESTI I TEST input terminal. It fixed to "L" potential. 105 TESTI I TEST input terminal. It fixed to "L" potential. 106 VSIO - Ground for I/O. 107 TESTI I TEST input terminal. It fixed to "L" potential. 108 TESTI I TEST input terminal. It fixed to "L" potential. 109 TESTI I TEST input terminal. It fixed to "L" potential. 110 VDIO - +3.3V Power for I/O. 111 WAD0 I External A/D data input terminal(LSB) for PSP physical disc mark detection. 112 WAD1 I External A/D data input terminal for PSP physical disc mark detection. 113 WAD2 I External A/D data input terminal for PSP physical disc mark detection. 114 WAD3 I External A/D data input terminal for PSP physical disc mark detection. 115 VSIO - Ground for I/O. 116 VSC - Ground for CORE. 117 WAD4 I External A/D data input terminal for PSP physical disc mark detection. 118 WAD5 I External A/D data input terminal for PSP physical disc mark detection. 119 WAD6 I External A/D data input terminal for PSP physical disc mark detection. 120 WAD7 I External A/D data input terminal(MSB) for PSP physical disc mark detection. 121 VDC - +2.5V Power for CORE. 122 TESTI I TEST input terminal. It fixed to "L" potential. 123 WCK I Operation clock for PSP physical disc mark detection. 124 WAVDD - +2.5V Power. A/D Power supply for PSP physical disc mark detection. 125 WAVDD - +2.5V Power. A/D Power supply for PSP physical disc mark detection. 126 WARFI Ai Analog RF signal input terminal for PSP physical disc mark detection. 127 WAVRB Ai A/D bottom reference terminal for PSP physical disc mark detection. 128 WAVSS - A/D Ground terminal for PSP physical disc mark detection. 129 WSIO - A/D Ground terminal for PSP physical disc mark detection. 130 VSIO - Ground for I/O. 131 DQ7 I/O SDRAM data input/output terminal. (MSB) 132 DQ6 I/O SDRAM data input/output terminal. 133 DQ5 I/O SDRAM data input/output terminal. 134 DQ4 I/O SDRAM data input/output terminal. 135 VDIO - +3.3V Power for I/O. 136 DQ3 I/O SDRAM data input/output terminal. 137 DQ2 I/O SDRAM data input/output terminal. 138 DQ1 I/O SDRAM data input/output terminal. 139 DQ0 I/O SDRAM data input/output terminal. (LSB) 140 VSIO - Ground for I/O. 141 DCLK O Clock output terminal for SDRAM. 142 DCKE O Clock enable output terminal for SDRAM. 143 XWE O Write enable output terminal for SDRAM. 144 XCAS O Column address strobe output terminal for SDRAM. 145 XRAS O Row address strobe output terminal for SDRAM. 146 VDIO - +3.3V Power for I/O. 147 TESTO O Output terminal for TEST. (open) Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 DVD-2200 lpu: Pull-up input lpd: Pull-down input Ai: Analog input 148 A1I O Address output terminal for SDRAM. (MSB) 149 A1O O Address output terminal for SDRAM. 150 VSC - Ground for CORE. 151 A9 O Address output terminal for SDRAM. 152 A8 O Address output terminal for SDRAM. 153 VDC - +2.5V Power for CORE. 154 A7 O Address output terminal for SDRAM. 155 A6 O Address output terminal for SDRAM. 156 A5 O Address output terminal for SDRAM. 157 A4 O Address output terminal for SDRAM. 158 VSIO - Ground for I/O. 159 A3 O Address output terminal for SDRAM. 160 A2 O Address output terminal for SDRAM. 161 A1 O Address output terminal for SDRAM. 162 A0 O Address output terminal for SDRAM. (LSB) 163 VDIO - +3.3V Power for I/O. 164 XSRQ O Output terminal of the Data Request signal inputted a front-end processor. 165 XSHD I Input terminal of the header Flag outputted from a front-end processor. 166 SDCK I Input terminal of the data conveyance Clock outputted from a front-end processor. 167 XASK I Input terminal of the data valid Flag outputted from a front-end processor. 168 SDEF I Input terminal of the error Flag outputted from a front-end processor. 169 SD0 I Input terminal of the stream Data outputted from a front-end processor. 170 SD1 I Input terminal of the stream Data outputted from a front-end processor. 171 SD2 I Input terminal of the stream Data outputted from a front-end processor. 172 SD3 I Input terminal of the stream Data outputted from a front-end processor. 173 SD4 I Input terminal of the stream Data outputted from a front-end processor. 174 SD5 I Input terminal of the stream Data outputted from a front-end processor. 175 SD6 I Input terminal of the stream Data outputted from a front-end processor. 176 SD7 I Input terminal of the stream Data outputted from a front-end processor. Pin Name I/O Functions www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 DVD-2200 M32102S6FP (MA: IC102) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 47 DVD-2200 64M SDRAM (VI: IC401) ( ) W986432AH 25~27, 60~66, 24 A0-A10 Address for row and column 22, 23 BS0, BS1 Bank Select to activate during row address latch time 2, 4, 5, 7, 8, 10, 11 ,13, 31, 33, 34, 36, 37, 39, 40, 42, 45, 47, 48, 50, DQ0-DQ31 Data Input / Output pins for data 51, 53, 54, 56, 74, 76, 77, 79, 80, 82, 83, 85 20 CS Chip Selec to disable or enable the command decoder 19 RAS Row Address Strobe 18 CAS Column Address Strobe 17 WE Write Enable 16, 28, 59, 71 DQM0-DQM3 Input / Out put Mask 68 CLK Clock Inputs 67 CKE Clock Enable 1, 15, 29, 43 VCC Power (+3.3V) 44, 58, 72, 86 VSS Ground 3, 9, 35, 41, 49, 55, VCCQ Power (+3.3V) for I/O Buffer 75, 81 6, 12, 32, 38, 46, 52, VSSQ Ground for I/O Buffer 78, 84 14, 21, 30, 57, 69, NC No Connection 70, 73 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 25 24 23 22 VCC VCCQ DQ0 VSSQ DQ2 VSSQ DQ6 VCCQ DQ4 NC BS0 BS1 A10/AP A0 DQ1 DQ5 NC VCC DQM0 WE CAS RAS CS DQ7 DQ3 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 A1 DQM2 A2 DQ16 NC DQ20 DQ19 DQ18 DQ17 VCC VCCQ DQ21 DQ22 VCCQ DQ23 VCC VSSQ VSSQ VSS VCCQ DQ15 VCCQ DQ13 VCCQ DQ9 VSSQ DQ11 A9 A8 A7 A6 A5 DQ14 DQ10 NC VSS DQM1 NC NC CLK CKE DQ8 DQ12 A4 DQM3 A3 DQ31 NC DQ27 DQ28 DQ29 DQ30 VSS VSSQ DQ26 DQ25 VSSQ DQ24 VSS VCCQ VCCQ 86 85 84 83 82 81 80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 62 63 64 65 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 Pin Name Function Pin No. W986432AH Terminal Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 48 DVD-2200 M66005AFP (AU: IC101) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 49 DVD-2200 ADV7190 (VI: IC705) For Europe model Function I/O Pin No. Pin Name ADV7190 Terminal Function 1~16 P0-P15 I 8-Bit or 16-Bit 4:2:2 Multiplexed YCrCb Pixel Port. The LSB of the input data is set up on Pin P0. 17, 25, 29, 38, 43, 54, 63 VAA P Analog Power Supply (3.3V to 5V). 18, 24, 26, 33, 39, 42, 55, 64 AGND G Analog Ground. 19 HSYNC I/O HSYNC (Modes 1, 2, and 3) Control Signal. This pin may be configured to be an output (Master Mode) or an input (Slave Mode) and accept Sync Signals. 20 VSYNC I/O VSYNC Control Signal. This pin may be configured as an output (Master Mode) or as an input (Slave Mode) and accept VSYNC as a Control Signal. 21 BLANK I/O Video Blanking Control Signal. This signal is optional. For further information see Vertical Blanking Data Insertion and BLANK Input section. 22 ALSB I TTL Address Input. This signal sets up the LSB of the MPU address. 23 TTXREQ O Teletext Data Request Output Signal, used to control teletext data transfer. 27 CLKIN I TTL Clock Input. Requires a stable 27 MHz reference clock for standard operation. Alternatively, a 24.5454 MHz (NTSC) or 29.5 MHz (PAL) can be used for square pixel operation. 28 CLKOUT O Clock Output Pin. 30 SCL I MPU Port Serial Interface Clock Input. 31 SDA I/O MPU Port Serial Data Input/Output. 32 SCRESET/RTC/TR I Multifunctional Input: Real-Time Control (RTC) Input, Timing Reset Input, Subcarrier Reset Input. 34 RSET2 I A 1200 ohm resistor connected from this pin to ground is used to control full-scale amplitudes of the Video Signals from DACs D, E, and F. 35 COMP 2 O Compensation Pin for DACs D, E, and F. Connect a 0.1μF Capacitor from COMP2 toVAA. 36 DAC F O S-Video C/V/RED Analog Output. This DAC is capable of providing 4.33 mA output. 37 DAC E O S-Video Y/U/BLUE Analog Output. This DAC is capable of providing 4.33 mA output. 40 DAC D O Composite/Y/GREEN Analog Output. This DAC is capable of providing 4.33 mA output. 41 DAC C O S-Video C/V/RED Analog Output. This DAC is capable of providing 4.33 mA output. 44 DAC B O S-Video Y/U/BLUE Analog Output. This DAC is capable of providing 4.33 mA output. 45 DAC A O Composite/Y/GREEN Analog Output. This DAC is capable of providing 4.33 mA output. 46 COMP 1 O Compensation Pin for DACs A, B, and C. Connect a 0.1μF Capacitor from COMP1 toVAA. 47 VREF I/O Voltage Reference Input for DACs or Voltage Reference Output (1.235V). An external VREF cannot be used in 4x oversampling mode. 48 RSET1 I A 1200 ohm resistor connected from this pin to ground is used to control full-scale amplitudes of the Video Signals from DACs A, B, and C. 49 RESET I The input resets the on-chip timing generator and sets the ADV7190/ADV7191 into default mode. See Appendix 8 for Default Register Settings. 50 CSO_HSO O Dual function CSO or HSO Output Sync Signal at TTL Level. 51 VSO/CLAMP I/O Multifunction Pin. VSO Output Sync Signal at TTL level. CLAMP TTL Output Signals can be used to drive external circuitry to enable clamping of all Video Signals. 52 PAL_NTSC I Input signal to select PAL or NTSC mode of operation, pin set to Logic 1 selects PAL. 53, 57~62 NC No Connect. 56 TTX I Teletext Data Input Pin. ADV7190 (AV: IC601) 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 RESET CSO_HSO VSO/CLAMP PAL_NTSC NC VAA AGND TTX NC NC NC NC NC NC VAA AGND 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 SCRESET/TRC/TR SDA SCL VAA CLKOUT CLKIN AGND VAA AGND TTXREQ ALSB BLANK VSYNC HSYNC AGND VAA 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 RSET1 VREF COMP 1 DAC A DAC B VAA AGND DAC C DAC D AGND VAA DAC E DAC F COMP 2 RSET2 AGND TOP VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 50 DVD-2200 ADV7300 (VI:IC704) 1 VDD_IO P Digital power supply. 2~9, 12, 13 Y9-0 I 10-Bit Progressive scan/ HDTV input port for Y data. 10, 56 VDD P Digital power supply. 11, 57 DGND G Digital Ground 14~18, 26~30 C9-0 I 10-Bit Progressive scan/ HDTV input port for CrCb color data in 4:2:2 input mode. When this input pin is brought low, the ADV7300 interfaces over the SPI port and uses this 19 SPI/I2C I input as part of the 4 wire SPI interface. When this input pin is tied high [VDD_IO], the ADV7300 interfaces over the I2C port. 20 ALSB_SO I/O Multifunctional pin. 21 SDA_CLKSP I/O Multifunctional pin. 22 SCLK_SI I Multifunctional input. 23 P_HSYNC I Video Horizontal Sync Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 24 P_VSYNC I Video Vertical Sync Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 25 P_BLANK I Video Blanking Control Signal for HD sync in simultaneous SD/HD mode and HD only mode. 31 RTC_SCR_TR I Multifunctional input. 32 CLKIN_A I Pixel Clock Input for HD only or SD only modes. 33 RESET I This input resets the on-chip timing generator and sets the ADV7300 into Default Register setting. Reset is an active low signal. 34 EXT_LF I External Loop filter for the internal PLL. 35, 47 RSET1,2 I A1520 Ohms resistor must be connected from this pin to AGND and is used to control the amplitudes of the DAC outputs. 36,45 COMP O Compensation Pin for DACs. 37 DAC F O In SD only mode: Chroma/RED/V analog output. In HD only mode and simultaneus HD/SD: Pb/ BLUE (HD) analog output. 38 DAC E O In SD only mode: Luma/BLUE/U analog output. In HD only mode and simultaneus HD/SD: Pr/ RED (HD) analog output. 39 DAC D O In SD only mode: CVBS/GREEN/Y analog output. In HD only mode and simultaneus HD/SD:Y/ GREEN (HD) analog output. 40 AGND G Analog Ground 41 VAA P Analog power supply. 42 DAC C O Chroma/ RED/ V SD analog output. 43 DAC B O Luma/ BLUE/ U SD analog output. 44 DAC A O CVBS/ GREEN/ Y SD analog output. 46 VREF I/O Optional External Voltage Reference Input for DACs or Voltage Reference Output (1.235V). 48 S_BLANK I/O Video Blanking Control Signal for SD. 49 S_VSYNC I/O Video Vertical Sync Control Signal for SD. 50 S_HSYNC I/O Video Horizontal Control Signal for SD. 51~55, 58~62 S9-S0 I 10-Bit Standard Definition input port. Or Progressive Scan/ HDTV input port for Cr [Red/V] color data in 4:4:4 input mode. 63 CLKIN_B I Pixel Clock Input. 64 GND_IO G Digital Ground Function I/O Pin No. Pin Name ADV7300 (MA: IC706) ADV7300 Terminal Function 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 VDD_IO Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 VDD DGND Y8 Y9 C0 C1 C2 C3 C4 ALSB_SO SDA_CLKSP SCLK_SI P_BLANK C5 C6 C7 C8 C9 RTC_SCR_TR CLKIN_A VREF COMP1 DAC A DAC B DAC C VAA AGND DAC D DAC E DAC F COMP2 R EXT_LF SET 2 R SET 1 GND_IO CLKIN_B S9 S8 S7 S6 S5 DGND VDD S4 S3 S2 S1 S0 SPI/I2C P_HSYNC P_VSYNC RESET S_BLANK S_VSYNC S_HSYNC TOP VIEW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 51 DVD-2200 CXD1881AR (MA: IC501) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 CXD1881AR RX MEV VNA FNN FNP DIP DIN BYP RFAC VPA AIP AIN ATON ATOP RFSIN RFDC MEVO MIN MLPF MB MP MIRR LDON VNB CDPD DVDPD COLD DVDLD VC VPB CD_E CD_F SDEN SDATA SCLK V33 LCP LCN MNTR CE FE TE PI V25 V125 TPH DFT LINK DVDRFP DVDRFN A2 B2 C2 D2 CP CN D C B A CD_D CD_C CD_B CD_A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 52 DVD-2200 Block Diagram DVDRFP DVDRFN RFSIN ATOP ATON AIN AIP FNP DIN DIP RFAC FNN MUX INPUT BIAS ATT 63 A 12 CD_A 16 B 11 CD_B 15 C 10 CD_C 14 D CD_D 13 CD_E 18 CD_F 17 2 9 A2 3 1 SIGR b3 INPUT SEL RFCR b7-6 INPUT IMP SEL 2 RFCR b5-4 INPUT IMP SEL 2 2 4 SIGR b7-4 ATT 62 61 60 59 AGC FCCR b7-0 FBCR b6-0 PROGRAMMABLE EQUALIZER FILTER DIFFERENTIATOR AGCO 53 52 SSOUT TENV Clamp & Env Level DAC CAR b3-2 SIGDET 2 CAR b1-0 Env/Clamp FULL WAVE RECTIFIER CGR b1 OUTPUT INHIBIT 55 54 57 56 AGC CHARGE PUMP AGC HOLD RFCR b3 B+D A+C A+D B+C MUX D C B A GCA GCA GCA GCA GCA GCA GCA GCA W/LPF W/LPF W/LPF W/LPF SUM Amp. SIGR b2-0 12dB is added @ high gain mode (CDR b5=1) 12dB is added @ high gain mode (CDR b5=1) 6dB is added @ high gain mode (CDR b5=1) 3 3 4 RFCR b2-0 RFCR b2-0 TRCR2 b6-4 DPD EQ TRCR2 b3-0 3B PDCR b3 CD/DVD GCA +/-4dB Offset cancel LPF GCA 70kHz +/-6dB, 4bit 0-+8dB, 4bit CTCR b3-0 CO Gain +/-4dB 4 4 4 FOCR b7-4 FS Gain CCR b4-0 FE offset 5 Offset cancel LPF 70kHz PIOR b4-0 PI offset FOCR b3-0 FO Gain CER b4-0 CE offset CFR b7-5 TR Gain CBR b3-2 5 TOPHLD CTCR b7 BCA DET COMP CBR b1-0 Pll SEL SEL BYP 49 RX 40 FE 38 PI 35 TPH 34 DFT RFDC DAC 2 Buff 61 CE 41 MNTR TOPHLD TOPHLD Offset cancel GCA GCA 4D SUM MON SEL PI FE TE CE V25 V125 V25/3 42 LCP 44 LCN 43 TE CP LPF ATT Pol sel. buff (Ð12dB) 3 3 CFR b2-0 CE-ATT CFR b3 CEPOL +3dB RESUM GCA GCA GCA 7 CN 8 Offset cancel LPF GCA SUB MUX TE RST 39 V125 36 V25 37 VC 20 SDEN 48 SDATA 47 SCLK 46 V33 45 TRCR b5-0 TR offset 6 CEFDB CDR b3 PDCR b3 CD/DVD TRCR2 b7 CP/CN Low lmp EQ B2 4 C2 5 D2 CDPD 6 GCA TRCR b6 DPD COMP HYS ON GCA GCA PHASE DETECTOR PHASE DETECTOR EQ EQ EQ 3 3 VC Comp. V25/2 for TE, FE & CE output ref. VC VCI for servo input SERIAL PORT REGISTER V33 for output buff MIRR 27 LINK VPA 58 VPB 19 VNA 51 VNB 25 33 MB 29 MP 28 MLPF 30 MIN 31 MEVO 32 MEV CDR b7 LINKEN CCR b7 DISK DET CONTROL Signals To each block MUX Btm Env Btm clamp & clip MUX MUX Vref CGR b5-4 Gain MUX Offset MUX MUX BTM ENV BTM HLD TOP ENV TOP HLD MRCR b7-0 droop rate control Pll AGCO BENV 50 DVDLD 21 CDLD 22 LDON 26 Dual APC 24 DVDPD 23 CCR b5 APC SEL DVD/CD CDR b4 LD H/L ATT HOLDEN CDR b6 2 4 CAR b7-4 TE MASK SEL 2 PIOR b7-5 3 GCA ATT CGR b0 OUTPUT INHIBIT SIGR b2-0 12dB is added @ high gain mode (CDR b5=1) CDR b5 High Gain 2 CTCR b5-4 MEVO SEL CHR b7-6 Mirr Defect Comp ATT MRCR b6-4 Mirr Comp ATT Level 2 3 V25/3 CDR b2 for PI output ref. AGC BTM ENV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 53 DVD-2200 Terminal Function Power Supply Pins Input Pins Output Pins Name I/O Function VPA - Power for RF and serial port VPB - Power for servo VNA - GND for RF and serial port VNB - GND for servo V33 - Power for output buffer V25 - Reference Power for servo output Name I/O Function DVDRFP,DVDRFN I RF signal input RFSIN I RF signal input AIP,AIN I AGC amp. input DIP,DIN I Analog input for RF single buffer A,B,C,D I Photo detector interface input A2,B2,C2,D2 I Photo detector interface input CD_A,B,C,D I CD photo detector interface input CD_E,F I CD photo detector interface input MIN I RF signal input for mirror DVDPD I APC input CDPD I APC input LDON I APC input ON/OFF (L:Open) I Link signal input (L:Open) O Mirror monitor output Name I/O Function ATOP,ATON O Differential attenuator output FNP,FNN O Differential normal output RFAC O Single end normal output RFDC O RF signal output FE O Focus error signal output TE O Tracking error signal output CE O Center error signal output MEVO O RFDDC bottom envelope output DFT O Defect output MIRR O Mirror detected output PI O Pull-in signal output DVDLD O APC output CDLD O APC output MNTR O Monitor output LINK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 54 DVD-2200 Analog Pins Serial Port Pins Name I/O Function BYP - RF AGC integration capacitor connecting terminal CP - Differential phase tracking LPF terminal CN - Differential phase tracking LPF terminal LCP - Lens shift offset cancel LPF terminal LCN - Lens shift offset cancel LPF terminal MP - MIRR top hold terminal MB - MIRR bottom hold terminal MEV - RFDC bottom envelope terminal MLPF - Mirror LPF terminal TPH - PI top hold terminal VC - Reference voltage output V125 - Reference voltage output RX - Reference resistor input Name I/O Function SDEN I Serial data enable SDATA I/O Serial data SCLK I Serial clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 55 DVD-2200 W986416DH (MA: IC104) W986416DH (MA: IC103) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 25 24 23 22 VCC VCCQ DQ0 VSSQ DQ2 VSSQ DQ6 VCCQ DQ4 BS0 BS1 A10/AP A0 DQ1 DQ5 VCC LDQM Vcc WE CAS RAS CS DQ7 DQ3 26 27 A1 A2 VSS VssQ DQ15 VCCQ DQ13 VCCQ DQ9 VSSQ DQ11 A9 A8 A7 A6 A5 DQ14 DQ10 VSS NC UDQM CLK CKE NC A11 DQ8 DQ12 A4 Vss 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 30 31 32 33 29 28 A3 1, 14, 27 VCC Power (+3.3V) Power for input buffers and logic circuit inside DRAM. 2, 4, 5, 7, 8, 10, 11, 13, 42, 44, DQ0-DQ15 Data Input/Output Multiplexed pins for data output and input. 45, 47, 48, 50, 51, 53 3, 9, 43, 49 VCCQ Power (+3.3V) for I/O buffer Separated power from VCC, to improve DQ noise immunity. 6, 12, 46, 52 VSSQ Ground for I/O buffer Separated ground from VSS, to improve DQ noise immunity. 16 WE Write Enable Referred to RAS. 17 CAS Column Address Strobe Referred to RAS. 18 RAS Row Address Strobe Command input. When sampled at the rising edge of the clock RAS, CAS and WE define the operation to be executed. 19 CS Chip Select Disable or enable the command decoder. When command decoder is disabled, new command is ignored and previous operation continues. 20, 21 BS0, BS1 Bank Select Select bank to activate during row address latch time, or bank to read/write during address latch time. 23~26, 22 Multiplexed pins for row and column address. Row address: A0-A11. 29~35 A0-A11 Address Column address: A0-A7. A10 is sampled during a precharge command to determine if all banks are to be precharged or bank selected by BS0, BS1. 28, 41, 54 VSS Ground Ground for input buffers and logic circuit inside DRAM. 36, 40 NC No Connection No Connection 37 CKE Clock Enable CKE controls the clock activation and deactivation.When CKE is low, Power Down mode, Suspend mode, or Self Refresh mode is entered. 38 CLK Clock Inputs System clock used to sample inputs on the rising edge of clock. The output buffer is placed at Hi-Z (with latency of 2) when DQM is sampled 39, 15 UDQM, LDQM Input/Output mask high in read cycle. In write cycle, sampling DQM high will block the write operation with zero latency. Description Function Pin No. Pin Name W986416DH Terminal Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 56 DVD-2200 16M SDRAM (TOSP)-8 (MA: IC402) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 43 44 45 46 47 48 49 50 A9 VDD DQ1 DQ0 DQ3 DQ2 DQ7 DQ6 DQ5 DQ4 A0 A1 A2 A3 VDD VSSQ VSSQ LDQM WE CAS RAS CS BA A10/AP VSS N.C CKE CLK UDQM N.C/RFU VSSQ DQ10 DQ11 VDDQ VSSQ DQ14 DQ15 VSS DQ13 DQ12 VDDQ DQ9 DQ8 A8 A7 A6 A5 A4 VDDQ VDDQ 16M SDRAM (TSOP)-8 (DM: IC103, 104) K4S161622D-TC80 W981616AH-8 Terminal Function 1 VDD Power Supply/Ground Power and ground for the input buffer and the core logic 2 DQ0 Data Input/Output Data input/output are mutiplexed on the same pin 3 DQ1 Data Input/Output Data input/output are mutiplexed on the same pin 4 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 5 DQ2 Data Input/Output Data input/output are mutiplexed on the same pin 6 DQ3 Data Input/Output Data input/output are mutiplexed on the same pin 7 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 8 DQ4 Data Input/Output Data input/output are mutiplexed on the same pin 9 DQ5 Data Input/Output Data input/output are mutiplexed on the same pin 10 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 11 DQ6 Data Input/Output Data input/output are multiplexed on the same pin 12 DQ7 Data Input/Output Data input/output are multiplexed on the same pin 13 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 14 L DQM Data Input/Output Mask Blocks data input when active 15 WE Write Enable Enables write operation and row precharge 16 CAS Column Address Strobe Latches column address on the positive going edge of the CLK at low 17 RAS Row Address Strobe Latches row address on the positive going edge of the CLK at low 18 CS Chip Select Disables or enables device operation by masking or enabling all inputs except CLK, CKE, and LDQM 19 BA Bank Select Address Selects bank to be activated during row address latch time 20 A10/AP Address Row/column addresses are multiplexed on the same pin 21 A0 Address Row/column addresses are multiplexed on the same pin 22 A1 Address Row/column addresses are multiplexed on the same pin 23 A2 Address Row/column addresses are multiplexed on the same pin 24 A3 Address Row/column addresses are multiplexed on the same pin 25 VDD Power Supply/Ground Power and ground for the input buffer and the core logic 26 VSS Power Supply/Ground Power and ground for the input buffer and the core logic 27 A4 Address Row/column addresses are multiplexed on the same pin 28 A5 Address Row/column addresses are multiplexed on the same pin 29 A6 Address Row/column addresses are multiplexed on the same pin 30 A7 Address Row/column addresses are multiplexed on the same pin 31 A8 Address Row/column addresses are multiplexed on the same pin 32 A9 Address Row/column addresses are multiplexed on the same pin 33 N. C No Connection No connect pin 34 CKE Clock Enable Masks system clock to freeze operation from the next clock cycle 35 CLK System Clock Active on the positive going edge to sample all inputs 36 U DQM Data Input/Output Mask Blocks data input when active 37 N. C/RFU NC/Reserved No connect pin 38 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 39 DQ8 Data Input/Output Data input/output are multiplexed on the same pin 40 DQ9 Data Input/Output Data input/output are multiplexed on the same pin 41 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 42 DQ10 Data Input/Output Data input/output are multiplexed on the same pin 43 DQ11 Data Input/Output Data input/output are multiplexed on the same pin 44 VDDQ Data Output Power/Ground Isolated power supply and ground for the output buffer 45 DQ12 Data Input/Output Data input/output are multiplexed on the same pin 46 DQ13 Data Input/Output Data input/output are multiplexed on the same pin 47 VSSQ Data Output Power/Ground Isolated power supply and ground for the output buffer 48 DQ14 Data Input/Output Data input/output are multiplexed on the same pin 49 DQ15 Data Input/Output Data input/output are multiplexed on the same pin 50 VSS Power Supply/Ground Power and ground for the input buffer and the core logic Pin Name Function Pin No. Symbol www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 57 DVD-2200 FAN8042 (MA: IC508) Pin Assignments 1 2 3 4 5 6 7 8 9 10 11 12 36 35 34 33 32 31 30 29 28 27 26 25 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 FAN8042 IN1+ IN1- OUT1 IN2+ IN2- GND GND OUT2 IN3+ IN3- OUT3 IN4+ IN4- OUT4 CTL FWD REV GND GND SGND MUTE123 TSD-M PVCC2 DO5- MUTE4 DO5+ DO4- DO4+ DO3- DO3+ GND GND DO2- DO2+ DO1- DO1+ PVCC1 PS OPOUT2 OPIN2- OPIN2+ GND GND VREF SVCC OPOUT1 OPIN1- OPIN1+ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 58 DVD-2200 Pin Definitions Pin Number Pin Name I/O Pin Function Descrition 1 IN1 I CH1 op-amp input ( ) 2 IN1 I CH1 op-amp input ( ) 3 OUT1 O CH1 op-amp output 4 IN2 I CH2 op-amp input ( ) 5 IN2 I CH2 op-amp input ( ) 6 GND - Ground 7 GND - Ground 8 OUT2 O CH2 op-amp output 9 IN3+ I CH3 op-amp input (+) 10 IN3 I CH3 op-amp input ( ) 11 OUT3 O CH3 op-amp output 12 IN4+ I CH4 op-amp input (+) 13 IN4 I CH4 op-amp input ( ) 14 OUT4 O CH4 op-amp output 15 CTL I CH5 motor speed control 16 FWD I CH5 forward input 17 REV I CH5 reverse input 18 GND - Ground 19 GND - Ground 20 SGND - Signal Ground 21 MUTE123 I Mute for CH1,2,3 22 MUTE4 I Mute for CH4 23 TSD-M O TSD monitor 24 PVCC2 - Power supply voltage 2 (For CH4, CH5) 25 DO5- O CH5 drive output (-) 26 DO5+ O CH5 drive output (+) 27 DO4 O CH4 drive ouptut ( ) 28 DO4+ O CH4 drive output (+) 29 DO3 O CH3 drive ouptut ( ) 30 GND - Ground 31 GND - Ground 32 DO3+ O CH3 drive output (+) 33 DO2 O CH2 drive ouptut ( ) 34 DO2+ O CH2 drive output (+) 35 DO1 O CH1 drive ouptut ( ) 36 DO1+ O CH1 drive output (+) 37 PVCC1 - Power supply voltage 1 (FOR CH1, CH2, CH3) 38 PS I Power save 39 OPOUT2 O Normal op-amp2 output 40 OPIN2 I Normal op-amp2 input ( ) 41 OPIN2+ I Normal op-amp2 input (+) 42 GND - Ground 43 GND - Ground 44 VREF I Bias voltage input 45 SVCC - Signal & OPAMPs supply voltage 46 OPOUT1 O Normal op-amp1 output 47 OPIN1 I Normal op-amp1 input ( ) 48 OPIN1+ I Normal op-amp1 input (+) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 59 DVD-2200 Internal Block Diagram 40K 10 K Note. + + 40K 10K Pref DO+ DO- Detailed circuit of the output power amp 10K 10K 40K 40K Pref1 is almost PVCC1 / 2 Pref2 is almost PVCC2 / 2 From input opamp Vref 36 35 34 33 32 30 29 28 27 26 25 DO5+ DO4- DO3- DO3+ DO2- DO2+ 31 DO4+ 1 2 3 4 5 7 8 9 10 11 12 OUT4 IN4- IN4+ OUT3 IN3- OUT2 IN2- IN2+ OUT1 IN1- 6 IN3+ 37 38 39 40 41 43 44 45 46 47 48 IN1+ OPIN1+ OPIN1- OPOUT1 SVCC VREF OPIN2- OPOUT2 PS PVCC1 DO1+ 42 OPIN2+ 24 23 22 21 20 18 17 16 15 14 13 CTL FWD REV GND TSD-M PVCC2 MUTE123 19 DO5- DO1- POWER SAVE MUTE123 MUTE4 TSD-M 40K 40K 40K 40K 10K 10K 10K 10K 40K 40K 40K 40K 10K 10K 10K 10 K 40K 40K 40K 40K 10K 10K 10K 10K 40K 40K 40K 40K 10K 10K 10K 10K D D M S C + S W GND GND GND SGND MUTE4 GND GND GND GND - www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 60 DVD-2200 MX29LV160ABTC-90 (MA: IC103) AT49LV1025 (MA: IC302) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 24 23 22 A15 A13 A14 A10 A11 RESET WE A19 A8 A4 A3 A2 A1 A12 NC NC RY/BY A18 A17 A7 A6 A5 NC A9 A16 GND BYTE Q14 Q7 VCC Q4 Q5 Q13 OE GND CE A0 Q15/A-1 Q12 Q3 Q10 Q2 Q9 Q1 Q8 Q0 Q11 Q6 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 25 26 27 ( ) A0~A19 Address Input Q0~Q14 Data Input/Output Q15/A-1 Q15 (Word mode)/LSB addr (Byte mode) CE Chip Enable Input WE Write Enable Input BYTE Word/Byte Selection input RESET Hardware Reset Pin/Sector Protect Unlock OE Output Enable Input RY/BY Ready/Busy Output VCC Power Supply Pin (2.7V~3.6V) GND Ground Pin Pin Name Symbol Pin Description 7 8 9 10 11 12 13 14 15 16 17 39 38 37 36 35 34 33 32 31 30 29 18 19 20 21 22 23 24 25 26 27 6 5 4 3 2 1 44 43 42 41 40 I/O12 I/O11 I/O10 I/O9 I/O8 GND NC I/O7 I/O6 I/O5 I/O4 I/O3 I/O2 I/O 0 OE NC A2 A3 A4 A11 A10 A9 GND NC A8 A7 A6 A5 A12 I/O 13 I/O 14 I/O 15 CE NC NC VCC WE NC A15 A14 I/O1 A0 A1 A13 28 Pin Name A0-A15 Function Address Inputs CE Chip Enable Output Enable OE NC No Connection Terminal Function I/O0-I/O15 Data Inputs/Outputs WE Write Enable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 61 DVD-2200 M11L16161SA (MA: IC503) PIN DESCRIPTIONS 10 1 Vcc I/O0 I/O1 I/O2 I/O3 Vcc I/O4 I/O5 I/O6 I/O7 NC NC NC WE RAS NC NC A0 A1 A2 A3 Vcc Vss I/O15 I/O14 I/O13 I/O12 Vss I/O11 I/O10 I/O9 I/O8 NC NC CASL CASH OE A9 A8 A7 A6 A5 A4 Vss 2 3 4 5 6 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 PIN NO. PIN NAME TYPE DESCRIPTION 18~21,24~29 A0~A9 Address Input Row Address:A0~A9 Column Address:A0~A9 Input 15 RAS Row Address Strobe Input 31 CASH Column Address Strobe/Upper Byte Control Input 32 CASL Column Address Strobe/Lower Byte Control Input 14 WE Write Enable Input 30 OE Output Enable Input 1,6,22 Vcc Power,(5V or 3.3V) Supply 23,39,44 Vss Ground Ground 11,12,13,16, 17,33,34 NC No Connect - 2~5,7~10, 35~38,40~43 I/O0~I/O15 Data Input/Output Input/Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 62 DVD-2200 AN8471SA (MA: IC505) 20 10 7 6 5 4 3 2 1 8 9 30 11 18 16 15 14 13 12 32 31 19 27 28 24 25 21 22 23 26 17 FG2 FG H1H H1L H2H H2L H3H H3L VHB EC ECR BMS START GND CS1 CS2 A32 A31 A22 A21 A12 A11 VM2 VM1 VLP VPUMP BC1 BC2 BC3 BC4 VDD Hall Bias X5 CSOUT SRESET PWMOUT VCL VT OSC Hall Amp Matrix Pre-Driver Start/Stop Logic Circuit Booster Thermal Protect Divider 3ø Bridge Direction SW ( ) 1 VHB Hall bias pin 2 H3L Hall element 3 input (-) 3 H3H Hall element 3 input (+) 4 H2L Hall element 2 input (-) 5 H2H Hall element 2 input (+) 6 H1L Hall element 1 input (-) 7 H1H Hall element 1 input (+) 8 EC Torque command input pin 9 ECR Torque command ref. input pin 10 FG1 FG signal lout put pin (0.C) 11 START Start/Stop switching pin 12 VPUMP Booster pin 13 BC1 Booster cap. connecting pin 1 14 BC2 Torque command input pin 2 15 BC3 Torque command input pin 3 16 BC4 Torque command input pin 4 17 GND GND pin 18 VDD Power pin 19 VM2 Motor power pin 2 20 FG2 3x FG signal output pin (0.C) 21 A31 Drive output 3 22 A32 Drive output 3 23 CS2 Current detect pin 2 24 A21 Drive output 2 25 A22 Drive output 2 26 CS1 Current detect pin 1 27 A11 Drive output 1 28 A12 Drive output 1 29 NC N.C. 30 BMS Brake mode switching pin 31 VM1 Motor power pin 1 32 VLP Pre-driver lower power 1 16 32 17 Pin Name Function Pin No. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 63 DVD-2200 DSD1791DBR (AU: IC301, 302, 303) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 PLRCK PBCK PDATA DBCK SCK RST VDD DGND AGNDF VCCR AGNDR VOUTR– VOUTR+ VCOM MS MC MDI DSDL DSDR ZEROL ZEROR VCCF VCCL AGNDL VOUTL– VOUTL+ AGNDC VCCC Power Supply DSDL SCK Advanced Segment DAC Modulator VOUTL+ VOUTL– Bias and Vref VCCF VDD AGNDR VCCR AGNDL AGNDF D/S and Filter ×8 Oversampling Digital Filter and Function Control Audio Data Input I/F PLRCK PBCK PDATA MDI MC MS AGNDC VCCC DGND Current Segment DAC and I/V Buffer VCOM Function Control I/F Zero Detect ZEROL ZEROR System Clock Manager DSDR DBCK VCCL VOUTR– VOUTR+ D/S and Filter Current Segment DAC and I/V Buffer RST Block Diagram www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 64 DVD-2200 Terminal Functions TERMINAL I/O NAME PIN I/O DESCRIPTIONS 1 Left and right clock (fs) input for PCM-format operation. WDCK clock input in external DF mode. Connected to ground in DSD mode (1) AGNDF 9 – Analog ground (DACFF) AGNDL 19 – Analog ground (L-channel I/V) AGNDR 11 – Analog ground (R-channel I/V) DBCK 4 I Bit clock input for DSD mode. Connected to ground in PCM mode (1) DGND 8 – Digital ground DSDL 25 I L-channel data input for DSD mode and external DF mode (1) DSDR 24 I R-channel data input for DSD mode and external DF mode (1) MC 27 I Mode control clock input (1) MDI 26 I/O Mode control data input (2) MS 28 I/O Mode control chip select (2) PBCK 2 I I Bit clock input for PCM mode. Connected to GND for DSD mode (1) PDATA 3 I Serial audio data input for PCM mode (1) PLRCK RST 6 I Reset (1) SCK 5 I System clock input (1) VCC C 15 – Analog power supply (internal bias and current DAC), 5 V VCC F 21 – Analog power supply (DACFF), 5 V VCC L 20 – Analog power supply (L-channel I/V), 5 V VCCR 10 – Analog power supply (R-channel I/V), 5 V VCOM 14 – Internal bias decoupling pin VDD 7 – Digital power supply, 3.3V VOUT L+ 17 O L-channel analog voltage output + VOUT L– 18 O L-channel analog voltage output – VOUTR+ 13 O R-channel analog voltage output + VOUTR– 12 O R-channel analog voltage output – ZEROL 23 O Zero flag for L-channel ZEROR 22 O Zero flag for R-channel Notes: (1) Schmitt-trigger input, 5-V tolerant (2) Schmitt-trigger input and output, 5-V tolerant AGNDC 16 – Analog ground (internal bias and current DAC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 65 DVD-2200 PIC18LC242-I/SO (VI: IC703) 1 MCLR I Master Clear (Reset) input. This pin is an active low RESET to the device. 2 RA0 I/O Digital I/O. 3 RA1 I/O Digital I/O. 4 RA2 I/O Digital I/O. 5 RA3 I/O Digital I/O. 6 RA4 I/O Digital I/O. Open drain when configured as output. 7 RA5 I/O Digital I/O. 8 VSS P Ground reference for logic and I/O pins. 9 OSC1 I Oscillator crystal input or external clock source input. ST buffer when configured in RC mode. CMOS otherwise. 10 OSC2 O Oscillator crystal output. Connects to crystal or resonator in Crystal Oscillator mode. 11 RC0 I/O Digital I/O. 12 RC1 I/O Digital I/O. 13 RC2 I/O Digital I/O. 14 RC3 I/O Digital I/O. 15 RC4 I/O Digital I/O. 16 RC5 I/O Digital I/O. 17 RC6 I/O Digital I/O. 18 RC7 I/O Digital I/O. 19 VSS P Ground reference for logic and I/O pins. 20 VDD P Positive supply for logic and I/O pins. 21 INT0 I External Interrupt 0. 22 RB1 I/O Digital I/O. 23 RB2 I/O Digital I/O. 24 RB3 I/O Digital I/O. 25 RB4 I/O Digital I/O. Interrupt-on-change pin. 26 RB5 I/O Digital I/O. Interrupt-on-change pin. 27 RB6 I/O Digital I/O. Interrupt-on-change pin. ICSP programming clock. 28 RB7 I/O Digital I/O. Interrupt-on-change pin. ICSP programming data. Description I/O Pin No. Pin Name Legend: O=Output I=Input P=Power RA1 RA0 RA4 RA3 RC1 RC0 OSC1 VSS RA2 OSC2 RC3 RC2 RA5 RB7 RB5 RB6 RB2 RB3 RC6 RC7 VDD INT0 RB4 VSS RC4 RC5 RB1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 25 24 23 22 21 20 19 18 17 16 15 MCLR TOP VIEW PIC18LC242-I/SO Terminal Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 66 DVD-2200 BH7860FP (VI: IC706, 707) IC707 for Europe model Functions Pin No. Pin Name Functions 1,13,15,20 CTRAP CbTRAP CrTRAP YTRAP LC oscillation terminal 2 MUTE Mute control. If MUTE is set to "L", five channels will be muted simultaneously. 3,9,11 CIN CbIN CrIN Signal input. Chroma signal. The bias type input terminal. Input impedance: 20kohms. 4,10,17,21 GND It fixed to ground. 5 YIN Signal input. Input terminal of a luminance signal. Di clamp input . 6,8 VCC VCC of 6 and 8 pins does not connected inside. Use it by connection externally C, MIX and Y connect with Vcc of 6 pin. Cb and Cr connect with VCC of 8 pin. 12 SEL C/CbCr select. Cb and Cr are turned off if SEL is set to "L" . 14,16 CrOUT CbOUT Signal output. Color difference signal output. 18,19 YFB YOUT Signal output. Luminance signal output. 22,23 MIXFB MIXOUT Signal output. Y/C MIX signal output. 24 TEST TEST terminal. Usually, please short-circuit with GND. 25 COUT Signal output. Chroma output terminal. COUT TEST TEST MUTE MIXOUT MIXFB GND YTRAP YOUT YFB GND CbOUT CbTRAP CrOUT 01 CRRAP 02 MUTE 03 20k 1.5-6M BPF 20k 3M LPF 3M LPF 6dB 75ohm 6dB 6dB 75ohm 20k 6M LPF CLAMP CIN 04 GND 05 YIN 06 VCC 07 N.C. N.C. 08 VCC 09 CbIN 10 GND 11 CrIN 12 SEL SEL C/Cbcr 13 CrTRAP 25 24 23 22 21 20 19 18 17 16 15 14 75ohm 6dB 75ohm 6dB 75ohm www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 67 DVD-2200 SM8707EU (MA: IC105) Functions Number Name I/O Description 1 VDD1 - Supply 1 for digital block 2 VSS1 - Ground 1 for digital block 3 MO1 O Video system output 1 (27MHz fixed) 4 MO2 O Video system output 2 (27MHz fixed) 5 VDD2 - Supply 2 for analog block 6 VSS2 - Ground 2 for analog block 7 XTI I Crystal oscillator connection or external clock input 8 XTO O Crystal oscillator connection 9 AO1 O Audio system output 1 (384fs/768fs output) FSEL = LOW, fs = 48kHz: 768fs FSEL = HIGH, fs = 44.1kHz: 384fs Audio system output 1 (512fs output) 10 AO2 O Audio system output 1 (512fs output) 11 VSS3 - Ground 3 for digital block 12 VDD3 - Supply 1 for digital block 13 SO1 O Signal processor system output 1 (16.9344MHz fixed) Signal processor system output 1 (33.8688MHz fixed) 14 FSEL I Sampling frequency select FSEL = LOW : fs = 48kHz FSEL = HIGH : fs = 44.1kHz (with internal pull-up resistor, Schmidt-trigger input) Sampling frequency select FSEL = LOW : fs = 48kHz FSEL = HIGH : fs = 44.1kHz (with internal pull-up resistor, Schmidt-trigger input) 15 SO2 O Signal processor system output 2 (33.8688MHz fixed) 16 NC - No connection (leave pin open circuit or connect to VDD) Top View Block Diagram 1 16 8 9 VDD1 VSS1 MO1 MO2 VDD2 VSS2 VT1 XTO NC SO2 FSEL SO1 VDD3 VSS3 AO2 AO1 MO2 XTI XTO X'tal OSC Reference Divider 0 Phase Detector 0 Charge Pump 0 LPF 0 VCO 0 Loop Divider 0 Reference Divider 1 Phase Divider 1 Charge Pump 1 LPF 1 VCO 1 Loop Divider 1 FSEL Control Logic AO1 AO2 SO1 SO2 MO1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 68 DVD-2200 STR-F6674 (AU: IC901) PC123 (AU: IC902) 3 2 1 4 5 Vin Start Reg. O.V.P DRV.REC=8.6V Latch T.S.D DRV 20ohm Source OCP/FB Vth1=0.73±0.05V OCP/FB comp. Vth2=1.3~1.6V Tth(min)=1 S INH comp. Iconst trm. Drain GND TOFF=50 S typ. 4700pF OSC + + 1.35mA O.C.P./F.B. D FRONT VIEW VIN GND S COLLECTOR EMITTER ANODE CATHODE TOP VIEW 100ohm 1 2 3 6 5 4 TOP VIEW 4 Source 3 Gate 1,2,5,6 Drain 1 2 3 4 5 6 D D D D G S HAT2053M 4 TOP VIEW 5 6 3 2 1 (4) (5) (6) (3) (2) (1) R1 R2 DTr1 DTr2 R2 R1 10k 10k 10k 10k IMD3A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 69 DVD-2200 FL DISPLAY 15-BT-91GNK (FL101) PIN NO. CONNECTION 1 F + 2 N X 3 N P 4 N P F - N X N P N P 5 P 1 6 P 2 7 P 3 8 P 4 9 P 5 1 0 P 6 1 1 P 7 1 2 P 8 1 3 P 9 1 4 P 1 0 1 5 P 1 1 1 6 P 1 2 1 7 P 1 3 1 8 P 1 4 1 9 P 1 5 2 0 P 1 6 2 1 P 1 7 2 2 P 1 8 2 3 P 1 9 2 4 P 2 0 2 5 P 2 1 2 6 P 2 2 2 7 P 2 3 2 8 P 2 4 2 9 P 2 5 3 0 P 2 6 3 1 P 2 7 3 2 P 2 8 3 3 P 2 9 3 4 P 3 0 3 5 P 3 1 3 6 P 3 2 3 7 P 3 3 3 8 P 3 4 3 9 P 3 5 4 0 N C N C N C 4 1 4 2 4 3 4 4 4 5 4 6 4 7 4 8 1 5 G 4 9 1 4 G 5 0 1 3 G PIN NO. CONNECTION 5 1 1 2 G 5 2 1 1 G 5 3 1 0 G 5 4 9 G 5 5 8 G 5 6 7 G 5 7 6 G 5 8 5 G 5 9 4 G 6 0 3 G 6 1 2 G 6 2 1 G [2G~14G] 1G 2G 3G 4G 5G 6G 7G 8G 9G 10G 11G 12G 13G 14G 15G PIN CONNECTION GRID ASSIGNMENT ANODE CONNECTION NOTE 1) F-,F+ ---------- Filament 2) NP ------------- No pin 4) DL ------------ Datum line 5) 1G~15G ----- Grid 7) NC ------------ No connection (NC pin should be electorically open on the PC board) 1-1 1-2 1-3 1-4 1-5 1-6 1-7 2-1 2-2 2-3 2-4 2-5 2-6 2-7 3-1 3-2 3-3 3-4 3-5 3-6 3-7 4-1 4-2 4-3 4-4 4-5 4-6 4-7 5-1 5-2 5-3 5-4 5-5 5-6 5-7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 70 DVD-2200 GU-3570 MAIN UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 71 DVD-2200 FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 72 DVD-2200 GU-3571 AUDIO/POWER/DISPLAY UNIT COMPONENT SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 73 DVD-2200 FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 74 DVD-2200 GU-3572 VIDEO UNIT COMPONENT SIDE FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 75 DVD-2200 GU-3343 SCART P.W.B. UNIT (Europe model only) COMPONENT SIDE FOIL SIDE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 76 DVD-2200 NOTE FOR PARTS LIST 5% 1/4W 1/16W s s s s s s s s s s s s RD : 2B : 1/8 W F : ±1% P : RC : 2E : 1/4 W G : ±2% NL : RS : 2H : 1/2 W J : ±5% NB : RW : 3A : 1 W K : ±10% FR : RN : 3D : 2 W M : ±20% F : RK : 3F : 3 W 3H : 5 W RN 14K 2E 182 G FR ∗ 18 2 � 1800 =1.8k 0 2 1R 2 � 1.2 1 2 R CE 04W 1H 2R2 M BP CE : 0J : 6.3 V F : ±1% HS : CA : 1A : 10 V G : ±2% BP : CS : 1C : 16 V J : ±5% HR : CQ : 1E : 25 V K : ±10% DL : CK : 1V : 35 V M : ±20% HF : CC : 1H : 50 V Z : +80% U : UL CP : 2A : 100 V −20% C : CSA CM : 2B : 125 V P : +100% W : UL-CSA CF : 2C : 160 V − 0% F : CH : 2D : 200 V C : ±0.25pF 2E : 250 V D : ±0.5pF 2H : 500 V = : 2J : 630 V ∗ 22 2 � 2200µF 0 2 µF 22 2 � 2200pF=0.0022µF 0 2 pF pF 22 1 � 220pF 2 (0 2 ) 0 (0 0 1 ) 2R 2 � 2.2µF 1 2 R µF AC RD : Carbon 2B : 1/8W F : ±1% P : Pulse-resistant type RC : Composition 2E : 1/4W G : ±2% NL : Low noise type RS : Metal oxide film 2H : 1/2W J : ±5% NB : Non-burning type RW : Winding 3A : 1W K : ±10% FR : Fuse-resistor RN : Metal film 3D : 2W M : ±20% F : Lead wire forming RK : Metal mixture 3F : 3W 3H : 5W CE : Aluminum foil 0J : 6.3V F : ±1% HS : High stability type electrolytic CA : Aluminum solid 1A : 10V G : ±2% BP : Non-polar type electrolytic CS : Tantalum electrolytic 1C : 16V J : ±5% HR : Ripple-resistant type CQ : Film 1E : 25V K : ±10% DL : For change and discharge CK : Ceramic 1V : 35V M : ±20% HF : For assuring high requency CC : Ceramic 1H : 50V Z : +80% U : UL part CP : Oil 2A : 100V –20% C : CSA part CM : Mica 2B : 125V P : +100% W : UL-CSA type CF : Metallized 2C : 160V –0% F : Lead wire forming CH : Metallized 2D : 200V C : ±0.25pF 2E : 250V D : ±0.5pF 2H : 500V = : Others 2J : 630V l Part indicated with the mark "�" are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. l When ordering of part, clearly indicate "1" and "I" (i) to avoid mis- supplying. l Ordering part without stating its part number can not be supplied. l Part indicated with the mark " " is not illustrated in the exploded view. l Not including Carbon Film Resister ±5%, 1/4W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) l Not including Carbon Chip Resister 1/16W Type in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.) WARNING: Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. lllll Resistors Ex.: RN 14K 2E 182 G FR Type Shape Power Resist- Allowable Others and per- ance error formance ] Resistance 1 8 2 ⇒ 1800 ohm = 1.8 kohm Indicates number of zeros after effective number. 2-digit effective number. • Units: ohm 1 R 2 ⇒ 1.2 ohm 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: ohm lllll Capacitors Ex.: CE 04W 1H 2R2 M BP Type Shape Dielectric Capacity Allowable Others and per- strength error formance ] Capacity (electrolyte only) 2 2 2 ⇒ 2200µF Indicates number of zeros after effective number. 2-digit effective number. • Units: µF. 2 R 2 ⇒ 2.2µF 1-digit effective number. 2-digit effective number, decimal point indicated by R. • Units: µF. ] Capacity (except electrolyte) 2 2 2 ⇒ 2200pF=0.0022µF (More than 2) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. 2 2 1 ⇒ 220pF (0 or 1) Indicates number of zeros after effective number. 2-digit effective number. • Units: pF. • When the dielectric strength is indicated in AC, "AC" is included after the dieelectric strength value. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 77 DVD-2200 PARTS LIST OF P.W.B. UNIT ASS’Y (FOR U.S.A. & CANADA MODEL) GU-3570 MAIN UNIT Ref. No. Part No. Part Name Remarks New SEMICONDUCTORS GROUP IC101 262 3257 005 M65776BFP IC102 262 3215 005 M32102S6FP IC103 262 3319 008 M29W160DB70N1 IC104 262 3119 004 W986416DH-7 IC105 262 3216 907 SM8707EV IC106 262 2518 907 SN74LV74APW-EL2 IC107 262 3046 902 TC7WH157FU IC108 262 2514 901 SN74LV138APW-EL2 IC109 262 2778 909 SN74LV273ANS IC112 262 1738 908 TC7SU04F (TAPE) IC113 262 3053 908 S-24C02BFJ-TB IC114 263 1079 903 BA033FP IC115 262 2977 904 BA18BC0FP-E2 IC116 263 1110 901 PQ070XZ01ZP IC117 263 1079 903 BA033FP IC118 262 2977 904 BA18BC0FP-E2 IC201 262 3121 005 ADSPMEL322 IC202 262 2964 001 AT49LV002-70TC IC203 262 2959 906 SN74LV244APW IC204-206 262 3129 900 TC74VHC157AF-EL IC207 262 3198 902 TC74VHC157FT-EL IC301 262 3054 004 MN102H460B IC302 262 3055 003 AT49LV1025-70JC IC303 262 2452 908 MN1382-R(TX) IC401 262 3217 003 CXD2753R IC402 262 2875 006 16M SDRAM(TSOP)-7/8 IC403 262 3195 905 AD8062-SO8 IC404 262 3282 009 EPM3128ATC100-10 IC405 262 2515 900 SN74LV04APW-EL2 IC501 262 3219 001 CXD1881AR IC502 262 3218 002 CXD1885Q IC503 262 3210 000 M11L16161SA-45T IC505 263 1109 909 AN8471SA IC507 262 1782 909 TC7S08FTE85L IC508 262 3221 002 FAN8042 TR501,502 272 0160 901 2SB1132T100Q D101-105 276 0717 903 1SS355 TE-17 D301 276 0717 903 1SS355 TE-17 D501,502 276 0711 909 MA152WA RESISTORS GROUP R101 247 2003 947 RM73B--220JT R102 247 2018 903 RM73B--0R0KT R105 247 2009 983 RM73B--103JT R106 247 2009 909 RM73B--472JT (1608) R107 247 2005 903 RM73B--101JT R108 247 2018 903 RM73B--0R0KT R110-113 247 2018 903 RM73B--0R0KT R114 247 2009 983 RM73B--103JT R115,116 247 2018 903 RM73B--0R0KT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 78 DVD-2200 R118 247 2009 983 RM73B--103JT R119 247 2018 903 RM73B--0R0KT R120 247 2009 983 RM73B--103JT R121-123 247 2018 903 RM73B--0R0KT R124 247 2009 983 RM73B--103JT R125 247 2003 989 RM73B--330JT R127,128 247 2018 903 RM73B--0R0KT R129 247 2008 968 RM73B--332JT R130,131 247 2009 983 RM73B--103JT R132 247 2003 989 RM73B--330JT R133 247 2018 903 RM73B--0R0KT R134-137 247 2003 989 RM73B--330JT R138-141 247 2018 903 RM73B--0R0KT R142 247 2003 989 RM73B--330JT R143 247 2018 903 RM73B--0R0KT R144-148 247 2004 920 RM73B--470JT R149,150 247 2008 926 RM73B--222JT R151,152 247 2009 983 RM73B--103JT R153 247 2018 903 RM73B--0R0KT R154 247 2009 983 RM73B--103JT R156 247 2007 943 RM73B--102JT R159 247 2009 983 RM73B--103JT R160-163 247 2004 920 RM73B--470JT R164 247 2009 983 RM73B--103JT R166,167 247 2018 903 RM73B--0R0KT R168 247 2004 920 RM73B--470JT R169 247 2006 960 RM73B--471JT R170 247 2003 947 RM73B--220JT R171 247 2004 920 RM73B--470JT R174 247 2004 920 RM73B--470JT R177 247 2018 903 RM73B--0R0KT R178,179 247 2004 920 RM73B--470JT R180,181 247 2018 903 RM73B--0R0KT R184 247 2004 920 RM73B--470JT R185-192 247 2018 903 RM73B--0R0KT R194-196 247 2018 903 RM73B--0R0KT R197,198 247 2009 983 RM73B--103JT R200,201 247 2009 983 RM73B--103JT R202 247 2018 903 RM73B--0R0KT R203 247 2009 983 RM73B--103JT R205 247 2018 903 RM73B--0R0KT R207 247 2009 983 RM73B--103JT R208 247 2007 943 RM73B--102JT R209-218 247 2009 983 RM73B--103JT R219 247 2018 903 RM73B--0R0KT R220 247 2009 983 RM73B--103JT R221 247 2018 903 RM73B--0R0KT R222-230 247 2009 983 RM73B--103JT R231 247 2014 965 RM73B--105JT R232 247 2007 969 RM73B--122JT R233-236 247 2003 989 RM73B--330JT R237-240 247 2018 903 RM73B--0R0KT R241 247 2003 989 RM73B--330JT R242 247 2018 903 RM73B--0R0KT R243 247 2003 989 RM73B--330JT R248,249 247 2007 943 RM73B--102JT R251-253 247 2018 903 RM73B--0R0KT R255-257 247 2018 903 RM73B--0R0KT R259-261 247 2005 903 RM73B--101JT R262,263 247 2004 920 RM73B--470JT R265 247 2018 903 RM73B--0R0KT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 79 DVD-2200 R266-272 247 2009 983 RM73B--103JT R273-281 247 2018 903 RM73B--0R0KT R282-284 247 2003 947 RM73B--220JT R285 247 2009 983 RM73B--103JT R286 247 2018 903 RM73B--0R0KT R288 247 2018 903 RM73B--0R0KT R289-291 247 2003 989 RM73B--330JT R292-297 247 2009 983 RM73B--103JT R298 247 2011 942 RM73B--473JT R302 247 2009 909 RM73B--472JT (1608) R304 247 2009 909 RM73B--472JT (1608) R306 247 2009 909 RM73B--472JT (1608) R308 247 2003 989 RM73B--330JT R309 247 2004 920 RM73B--470JT R310 247 2018 903 RM73B--0R0KT R311 247 2009 983 RM73B--103JT R312 247 2018 903 RM73B--0R0KT R313 247 2009 967 RM73B--822JT R314 247 2008 984 RM73B--392JT R316 247 2005 987 RM73B--221JT R317 247 2018 903 RM73B--0R0KT R319-324 247 2009 983 RM73B--103JT R401-412 247 2003 947 RM73B--220JT R413 247 2018 903 RM73B--0R0KT R414-422 247 2009 983 RM73B--103JT R423 247 2008 968 RM73B--332JT R424 247 2008 926 RM73B--222JT R425,426 247 2008 913 RM73B--202JT R427-431 247 2003 947 RM73B--220JT R432 247 2018 903 RM73B--0R0KT R433 247 2008 926 RM73B--222JT R434-436 247 2018 903 RM73B--0R0KT R437-449 247 2003 947 RM73B--220JT R450-456 247 2003 989 RM73B--330JT R459-463 247 2009 983 RM73B--103JT R464-467 247 2007 943 RM73B--102JT R468 247 2018 903 RM73B--0R0KT R475,476 247 2018 903 RM73B--0R0KT R501 247 2004 988 RM73B--820JT R502 247 2005 903 RM73B--101JT R505-507 247 2018 903 RM73B--0R0KT R508-515 247 2007 985 RM73B--152JT R516-519 247 2004 946 RM73B--560JT R520-523 247 2004 920 RM73B--470JT R524 247 2012 941 RM73B--124JT R527,528 247 2005 903 RM73B--101JT R534 247 2012 941 RM73B--124JT R536 247 2007 943 RM73B--102JT R542 247 2018 903 RM73B--0R0KT R544 247 2007 943 RM73B--102JT R545 247 2019 960 RM73B--123FT R547-552 247 2018 903 RM73B--0R0KT R553 247 2011 900 RM73B--333JT R554,555 247 2009 983 RM73B--103JT R556 247 2007 943 RM73B--102JT R557 247 2010 969 RM73B--223JT R558 247 2008 900 RM73B--182JT R559 247 2012 925 RM73B--104JT R560 247 2011 942 RM73B--473JT R561 247 2011 984 RM73B--683JT R562 247 2006 960 RM73B--471JT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 80 DVD-2200 R563 247 2012 967 RM73B--154JT R564 247 2011 942 RM73B--473JT R565 247 2011 968 RM73B--563JT R566 247 2009 983 RM73B--103JT R567 247 2003 989 RM73B--330JT R568 247 2009 983 RM73B--103JT R570 247 2018 903 RM73B--0R0KT R574 247 2018 903 RM73B--0R0KT R577 247 2018 903 RM73B--0R0KT R592-595 247 2018 916 RM73B--010KT R601 247 2010 969 RM73B--223JT R603,604 247 2009 983 RM73B--103JT R616-620 247 2018 903 RM73B--0R0KT R621-633 247 2003 947 RM73B--220JT R634 247 2005 903 RM73B--101JT R635 247 2003 989 RM73B--330JT R636 247 2005 903 RM73B--101JT R637,638 247 2003 989 RM73B--330JT R639-641 247 2005 903 RM73B--101JT R642-644 247 2003 989 RM73B--330JT R645-647 247 2009 983 RM73B--103JT R649-655 247 2005 903 RM73B--101JT R656-659 247 2009 983 RM73B--103JT R660-665 247 2018 903 RM73B--0R0KT R666-669 247 2010 969 RM73B--223JT R670 247 2009 912 RM73B--512JT R671-673 247 2011 968 RM73B--563JT R674-676 247 2011 900 RM73B--333JT R677-679 247 2009 983 RM73B--103JT R680-685 247 2018 903 RM73B--0R0KT R686 247 2009 983 RM73B--103JT R687,688 247 2018 903 RM73B--0R0KT R689,690 247 2009 983 RM73B--103JT R691-694 247 2005 903 RM73B--101JT R697,698 247 2003 989 RM73B--330JT R699 247 2010 969 RM73B--223JT RA101-111 247 9003 908 MNR14=220JE0AB RA112-115 247 9007 917 MNR14=103JE0 RA401-405 247 9003 908 MNR14=220JE0AB RA503,504 247 9007 904 MNR14=101JE0 RA506-509 247 9007 904 MNR14=101JE0 RA523 247 9007 904 MNR14=101JE0 RA524-528 247 9007 917 MNR14=103JE0 CAPACITORS GROUP C103,104 257 4011 905 CE67C0J101MT (RV2) C105,106 257 0511 904 CK73F1H103ZT C107 257 0512 903 CK73F1E104ZT C108,109 257 0511 904 CK73F1H103ZT C110,111 257 0512 903 CK73F1E104ZT C112 257 0511 904 CK73F1H103ZT C113 257 0512 903 CK73F1E104ZT C114 257 0511 904 CK73F1H103ZT C117 257 0512 903 CK73F1E104ZT C118,119 257 4012 917 CE67C1C220MT (RV2) C120,121 257 0512 903 CK73F1E104ZT C122,123 257 0511 904 CK73F1H103ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 81 DVD-2200 C124 257 0512 903 CK73F1E104ZT C125,126 257 0511 904 CK73F1H103ZT C127-134 257 0512 903 CK73F1E104ZT C136-138 257 0512 903 CK73F1E104ZT C139 257 4011 905 CE67C0J101MT (RV2) C140-143 257 0512 903 CK73F1E104ZT C145,146 257 0512 903 CK73F1E104ZT C147 257 4012 917 CE67C1C220MT (RV2) C151,152 257 0511 904 CK73F1H103ZT C153,154 257 4011 905 CE67C0J101MT (RV2) C155-160 257 0512 903 CK73F1E104ZT C161 257 0511 904 CK73F1H103ZT C162 257 0512 903 CK73F1E104ZT C164 257 0512 903 CK73F1E104ZT C165 257 0506 951 CC73CH1H101JT C166 257 0512 903 CK73F1E104ZT C168-171 257 0512 903 CK73F1E104ZT C172 257 0509 929 CK73B1H102KT C173-176 257 0512 903 CK73F1E104ZT C177,178 257 0502 997 CC73CH1H7R0DT C179 257 0512 903 CK73F1E104ZT C180 257 4011 905 CE67C0J101MT (RV2) C181 257 0512 903 CK73F1E104ZT C182 257 0509 929 CK73B1H102KT C183 257 0512 903 CK73F1E104ZT C184 257 4012 917 CE67C1C220MT (RV2) C185 257 0512 903 CK73F1E104ZT C186 257 0509 929 CK73B1H102KT C189-192 257 0512 903 CK73F1E104ZT C194,195 257 0512 903 CK73F1E104ZT C196 257 0511 904 CK73F1H103ZT C197-200 257 0512 903 CK73F1E104ZT C202 257 4012 917 CE67C1C220MT (RV2) C203,204 257 0512 903 CK73F1E104ZT C205 257 4012 917 CE67C1C220MT (RV2) C206,207 257 0512 903 CK73F1E104ZT C208 257 0504 924 CC73CH1H270JT C209 257 0504 940 CC73CH1H330JT C210 257 0511 904 CK73F1H103ZT C211 257 0509 929 CK73B1H102KT C212 257 0511 904 CK73F1H103ZT C213 257 0509 929 CK73B1H102KT C214 257 0511 904 CK73F1H103ZT C215 257 0509 929 CK73B1H102KT C216 257 0512 903 CK73F1E104ZT C217 257 0509 929 CK73B1H102KT C218 257 0512 903 CK73F1E104ZT C219 257 0509 929 CK73B1H102KT C220,221 257 4012 917 CE67C1C220MT (RV2) C222-225 257 0512 903 CK73F1E104ZT C226 257 0509 929 CK73B1H102KT C227 257 0512 903 CK73F1E104ZT C228 257 0509 929 CK73B1H102KT C230-232 257 4011 905 CE67C0J101MT (RV2) C234,235 257 0512 903 CK73F1E104ZT C236 257 4012 917 CE67C1C220MT (RV2) C237 257 0512 903 CK73F1E104ZT C240 257 0512 903 CK73F1E104ZT C241 257 0509 929 CK73B1H102KT C242 257 0512 903 CK73F1E104ZT C243 257 0509 929 CK73B1H102KT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 82 DVD-2200 C244 257 0512 903 CK73F1E104ZT C245 257 4011 905 CE67C0J101MT (RV2) C246 257 4012 917 CE67C1C220MT (RV2) C247,248 257 0511 904 CK73F1H103ZT C249 257 0512 903 CK73F1E104ZT C250 257 0509 929 CK73B1H102KT C251 257 0512 903 CK73F1E104ZT C252 257 0509 929 CK73B1H102KT C253 257 0512 903 CK73F1E104ZT C254,255 257 4012 917 CE67C1C220MT (RV2) C256 247 2018 903 RM73B--0R0KT C257 257 0512 903 CK73F1E104ZT C258 257 0509 929 CK73B1H102KT C259 257 0511 904 CK73F1H103ZT C260,261 257 0512 903 CK73F1E104ZT C268 257 0520 908 CK73B1A154KT C301,302 257 0512 903 CK73F1E104ZT C304,305 257 0512 903 CK73F1E104ZT C306 257 4011 905 CE67C0J101MT (RV2) C307-310 257 0512 903 CK73F1E104ZT C311 257 0503 967 CC73CH1H150JT C312 257 0512 903 CK73F1E104ZT C313 257 0503 967 CC73CH1H150JT C314 257 0509 929 CK73B1H102KT C315,316 257 0512 903 CK73F1E104ZT C317 257 0509 929 CK73B1H102KT C318-320 257 0511 904 CK73F1H103ZT C321 257 4011 905 CE67C0J101MT (RV2) C322 257 0511 904 CK73F1H103ZT C323 257 4012 920 CE67C1C470MT (RV2) C401-403 257 0512 903 CK73F1E104ZT C404 257 4011 905 CE67C0J101MT (RV2) C405 257 0512 903 CK73F1E104ZT C406 257 0501 901 CK73B1H103KT (1608) C407,408 257 0512 903 CK73F1E104ZT C409,410 257 4012 917 CE67C1C220MT (RV2) C411,412 257 0512 903 CK73F1E104ZT C413,414 257 0502 942 CC73CH1H2R0CT C415-419 257 0512 903 CK73F1E104ZT C420 257 4012 917 CE67C1C220MT (RV2) C421,422 257 0512 903 CK73F1E104ZT C423 257 4012 917 CE67C1C220MT (RV2) C424-429 257 0512 903 CK73F1E104ZT C430 257 4011 905 CE67C0J101MT (RV2) C431-440 257 0512 903 CK73F1E104ZT C441 257 4011 905 CE67C0J101MT (RV2) C442 257 0512 903 CK73F1E104ZT C443 257 4012 933 CE67C1C101MT (RV2) C444,445 257 4011 905 CE67C0J101MT (RV2) C447 257 4011 905 CE67C0J101MT (RV2) C448-452 257 0512 903 CK73F1E104ZT C453,454 257 4012 917 CE67C1C220MT (RV2) C455 257 0512 903 CK73F1E104ZT C456 257 4012 917 CE67C1C220MT (RV2) C457-460 257 0512 903 CK73F1E104ZT C461 257 4011 905 CE67C0J101MT (RV2) C463-465 257 0512 903 CK73F1E104ZT C501 257 4012 917 CE67C1C220MT (RV2) C502,503 257 0511 904 CK73F1H103ZT C510 257 4012 917 CE67C1C220MT (RV2) C511,512 257 0511 904 CK73F1H103ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 83 DVD-2200 C513-516 257 0509 990 CK73B1H222KT C517-520 257 0504 908 CC73CH1H220JT C521 257 0516 954 CK73B1E104KT C522,523 257 0510 934 CK73B1H472KT C524 257 0507 976 CC73CH1H331JT C525,526 257 0511 904 CK73F1H103ZT C527 257 4012 917 CE67C1C220MT (RV2) C528 257 4012 920 CE67C1C470MT (RV2) C529 257 0509 929 CK73B1H102KT C530 257 4012 920 CE67C1C470MT (RV2) C531 257 0509 929 CK73B1H102KT C532-535 257 0516 954 CK73B1E104KT C536 257 0501 901 CK73B1H103KT (1608) C537 257 0516 954 CK73B1E104KT C538 257 0501 901 CK73B1H103KT (1608) C539 257 0506 993 CC73CH1H151JT C540 257 0509 929 CK73B1H102KT C545 257 4011 905 CE67C0J101MT (RV2) C546,547 257 0512 903 CK73F1E104ZT C548 257 0511 904 CK73F1H103ZT C549 257 4012 933 CE67C1C101MT (RV2) C550 257 0512 903 CK73F1E104ZT C551-553 257 0520 911 CK73B1A224KT C554 257 0516 954 CK73B1E104KT C555,556 257 0512 903 CK73F1E104ZT C558 257 0520 911 CK73B1A224KT C559 257 0512 903 CK73F1E104ZT C560 257 4012 917 CE67C1C220MT (RV2) C561 257 0501 901 CK73B1H103KT (1608) C562 257 0516 941 CK73B1E473KT C563,564 257 0511 904 CK73F1H103ZT C565 257 4012 917 CE67C1C220MT (RV2) C566 257 0511 904 CK73F1H103ZT C567 257 4012 917 CE67C1C220MT (RV2) C568 257 0511 904 CK73F1H103ZT C569 257 0508 917 CC73CH1H471JT C570 257 4013 903 CE67C0J471MT (RV) C571 257 4012 917 CE67C1C220MT (RV2) C572-576 257 0511 904 CK73F1H103ZT C578 257 0511 904 CK73F1H103ZT C580 257 0511 904 CK73F1H103ZT C581 257 0516 941 CK73B1E473KT C582-584 257 0511 904 CK73F1H103ZT C585,586 257 0508 917 CC73CH1H471JT C587 257 0511 904 CK73F1H103ZT C588 257 0507 976 CC73CH1H331JT C589 257 0520 908 CK73B1A154KT C590 257 4011 905 CE67C0J101MT (RV2) C591 257 0507 976 CC73CH1H331JT C592 257 0508 917 CC73CH1H471JT C593 257 0520 908 CK73B1A154KT C594 257 0508 917 CC73CH1H471JT C595 257 0516 954 CK73B1E104KT C596 257 0511 904 CK73F1H103ZT C597 257 0506 951 CC73CH1H101JT C598,599 257 0516 909 CK73B1E223KT C600-606 257 0511 904 CK73F1H103ZT C607 257 0512 903 CK73F1E104ZT C608,609 257 4012 917 CE67C1C220MT (RV2) C612 257 0512 903 CK73F1E104ZT C615 257 0509 929 CK73B1H102KT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 84 DVD-2200 C616,617 257 0512 903 CK73F1E104ZT C618 257 4012 917 CE67C1C220MT (RV2) C619,620 257 0511 904 CK73F1H103ZT C621 257 4012 917 CE67C1C220MT (RV2) C622-625 257 0511 904 CK73F1H103ZT C629,630 257 4012 917 CE67C1C220MT (RV2) C631,632 257 0510 950 CK73B1H682KT C633 257 0509 929 CK73B1H102KT C634,635 257 0506 951 CC73CH1H101JT C636 257 0501 901 CK73B1H103KT (1608) C637 257 0511 904 CK73F1H103ZT C639 257 0510 950 CK73B1H682KT OTHER PARTS GROUP CX52 205 0863 952 5P PH CON.BASE(L) CX61 205 0792 968 6P ZH-ZRCON.BASE(L)T CX131 205 1170 932 13P FFC BASE(FMNBMTT CX151 205 1149 905 15P FFC BASE(52207) CX171 205 1174 909 17P FFC BASE(FMNSMT) CX241 205 1152 905 24P FFC BASE(FLZ-SM1 CX271 205 1174 925 27P FFC BASE(FMNSMT) CX331 205 1170 945 33P FFC BASE(FMNBMTT CY121 205 0895 917 12P PH CON. BASE(T) FB101-104 235 0130 903 CHIP EMIFIL(11A121) FB108,109 235 0130 903 CHIP EMIFIL(11A121) FB110-128 247 2018 903 RM73B--0R0KT FB301-318 247 2018 903 RM73B--0R0KT FB401-403 235 0136 907 FBMJ1608HS280NT FB405-408 235 0136 907 FBMJ1608HS280NT FB501-503 235 0130 903 CHIP EMIFIL(11A121) L101 235 0048 901 EMI FILTER (103)TP X101 399 0619 906 X'TAL(27MHZ) X103 399 0806 900 X'TAL(12.288 FCX03) X301 399 0698 901 CSACW2500MX01 Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 85 DVD-2200 GU-3571 AUDIO/POWER/DISP UNIT Ref. No. Part No. Part Name Remarks New SEMICONDUCTORS GROUP IC101 262 3228 908 M66005AFP IC107 499 0306 001 GP1UE271XK IC201 262 1205 907 TC74HCU04AF(TP1) IC202 262 1738 908 TC7SU04F (TAPE) IC205 263 1048 002 BA033T IC221 263 1100 005 KIA7805API IC301-303 262 3299 908 DSD1791DBR * IC304 263 0896 909 NJM2068MD-TE1 IC306 263 0896 909 NJM2068MD-TE1 IC307 263 0615 902 BA15218F-DXE2 IC308 263 0896 909 NJM2068MD-TE1 IC309 263 0615 902 BA15218F-DXE2 IC310 263 0609 002 NJM2068DDC IC311 263 0615 902 BA15218F-DXE2 IC510 262 2580 906 CXA1511M IC901 265 0112 003 STR-F6674 IC902 262 3047 008 PC123 Y-22 IC903 263 1113 005 SE005N IC904 263 1048 002 BA033T IC906 263 0809 006 NJM7805FA(S) IC908 263 0554 005 NJM7905FA IC909 263 1100 050 KIA7808API * IC912 263 1100 063 KIA7809API * IC913 263 1099 048 KIA7909PI * TR201 269 0119 901 DTA124EKT96(TAPE) TR202 269 0082 902 DTC114EKT96 TR203 269 0119 901 DTA124EKT96(TAPE) TR204 269 0082 902 DTC114EKT96 TR217 273 0426 907 2SC2412KLNT146 TR218 269 0083 901 DTA114EKT96 TR219 269 0119 901 DTA124EKT96(TAPE) TR220 269 0082 902 DTC114EKT96 TR301-306 273 0460 905 KTC2875B-RTK TR309-316 273 0460 905 KTC2875B-RTK TR319-327 273 0460 905 KTC2875B-RTK TR501 269 0171 907 IMD3A-T108 TR902 269 0082 902 DTC114EKT96 TR903 272 0093 010 2SB1274 (R/S) TR904 275 0106 906 HAT2053M(TAPE) TR905 269 0083 901 DTA114EKT96 TR906 269 0082 902 DTC114EKT96 TR907 275 0106 906 HAT2053M(TAPE) TR908,909 274 0036 905 2SD468(C)TF TR910,911 269 0083 901 DTA114EKT96 TR912 274 0036 905 2SD468(C)TF D101 276 0717 903 1SS355 TE-17 D201 276 0432 903 1SS270A TE (TAPE) D202,203 276 0717 903 1SS355 TE-17 D206,207 276 0717 903 1SS355 TE-17 D901-904 276 0729 904 EM01AT (V1) D905 276 0730 906 AG01ZT (V1) D906 276 0724 909 SARS01T (V1) D907-909 276 0730 906 AG01ZT (V1) D910 276 0725 704 RK39 LF-C4 D911 276 0783 005 FMB-2204 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 86 DVD-2200 D912 276 0745 904 RB411DT146 D913,914 276 0727 906 AL01ZT (V1) D915 276 0717 903 1SS355 TE-17 D918 276 0717 903 1SS355 TE-17 D923,924 276 0717 903 1SS355 TE-17 D957,958 276 0717 903 1SS355 TE-17 D959 276 0737 909 RB161L-40 (TAPE) ZD901 276 0457 904 HZS4C-1TD LD101 393 9504 904 SEL1210S(TP7) ! TH901 279 0044 002 NTH11D8R0LA RESISTORS GROUP R102-104 247 2006 902 RM73B--331JT (1608) R105 247 2010 985 RM73B--273JT R107 247 2018 903 RM73B--0R0KT R109 247 2007 943 RM73B--102JT R111,112 247 2007 943 RM73B--102JT R113 247 2005 945 RM73B--151JT R116 247 2008 984 RM73B--392JT R117,118 247 2018 903 RM73B--0R0KT R119 247 2005 961 RM73B--181JT R120,121 247 2005 945 RM73B--151JT R122,123 247 2005 961 RM73B--181JT R124-126 247 2006 915 RM73B--271JT R127 247 2006 944 RM73B--391JT R128 247 2007 901 RM73B--681JT R129 247 2007 969 RM73B--122JT R130 247 2007 943 RM73B--102JT R131 247 2018 903 RM73B--0R0KT R132 247 2009 967 RM73B--822JT R202 247 2018 903 RM73B--0R0KT R203 247 2011 942 RM73B--473JT R204 247 2003 989 RM73B--330JT R205 247 2018 903 RM73B--0R0KT R206 247 2004 975 RM73B--750JT R207-210 247 2018 903 RM73B--0R0KT R211-219 247 2004 920 RM73B--470JT R220 247 2007 943 RM73B--102JT R221 247 2012 967 RM73B--154JT R222 247 2009 983 RM73B--103JT R223 247 2018 903 RM73B--0R0KT R225 244 2052 915 RS14B3A182JNBST(S) R226 247 2004 991 RM73B--910JT R227 247 2018 903 RM73B--0R0KT R229 247 2006 999 RM73B--621JT R301,302 247 2007 943 RM73B--102JT R303 247 2006 999 RM73B--621JT R304 247 2007 943 RM73B--102JT R305 247 2018 903 RM73B--0R0KT R307 247 2018 903 RM73B--0R0KT R309 247 2018 903 RM73B--0R0KT R311 247 2018 903 RM73B--0R0KT R313 247 2018 903 RM73B--0R0KT R315 247 2018 903 RM73B--0R0KT R365,366 247 2007 985 RM73B--152JT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 87 DVD-2200 R367-370 247 2008 913 RM73B--202JT R371-376 247 2011 942 RM73B--473JT R385-388 247 2010 998 RM73B--303JT R401-404 247 2008 942 RM73B--272JT R407,408 247 2008 942 RM73B--272JT R411,412 247 2008 942 RM73B--272JT R421-428 247 2008 942 RM73B--272JT R437 247 2007 943 RM73B--102JT R438 247 2008 926 RM73B--222JT R439 247 2011 942 RM73B--473JT R445 247 2018 903 RM73B--0R0KT R501 247 2009 983 RM73B--103JT R542 247 2007 943 RM73B--102JT R544 247 2007 943 RM73B--102JT R545 247 2006 960 RM73B--471JT R546 247 2012 996 RM73B--204JT R547 244 2052 928 RS14B3A470JNBST(S) R549-551 247 2018 903 RM73B--0R0KT R552 247 2007 943 RM73B--102JT R553 247 2011 926 RM73B--393JT R554 247 2007 943 RM73B--102JT R555-559 247 2018 903 RM73B--0R0KT R580 247 2011 942 RM73B--473JT R585-587 247 2011 942 RM73B--473JT R901 244 2675 716 RS14B3D683JNBF (ERG) R902 244 2671 956 RS14B3DR47JNBST(S) R905 244 2675 729 RS14B3D224JNBF (ERG) R906 244 2675 703 RS14B3D470JNBF (ERG) R913 244 2043 953 RS14B3A471JNBST(S) R932 244 2052 999 RS14B3A103JNBST(S) R937 244 2064 929 RS14B3A3R3JNBST(S) R991 247 2006 902 RM73B--331JT (1608) R992 247 2018 916 RM73B--010KT CAPACITORS GROUP C112 257 0509 929 CK73B1H102KT C113 257 0512 903 CK73F1E104ZT C116 257 0509 929 CK73B1H102KT C117,118 257 0512 903 CK73F1E104ZT C119-121 257 0501 901 CK73B1H103KT (1608) C122 257 0506 951 CC73CH1H101JT C123 257 0501 901 CK73B1H103KT (1608) C201 257 0512 903 CK73F1E104ZT C202 257 0511 904 CK73F1H103ZT C203 257 0512 903 CK73F1E104ZT C204 257 0511 904 CK73F1H103ZT C205 257 0512 903 CK73F1E104ZT C206 257 0511 904 CK73F1H103ZT C207,208 257 0512 903 CK73F1E104ZT C209 257 0509 929 CK73B1H102KT C210 257 0512 903 CK73F1E104ZT C211 257 0511 904 CK73F1H103ZT C212 257 0509 929 CK73B1H102KT C213 257 0512 903 CK73F1E104ZT C214,215 257 0509 929 CK73B1H102KT C216 257 0512 903 CK73F1E104ZT C217 254 4525 900 CE04W1H330MT SMG/RE3 C218,219 257 0512 903 CK73F1E104ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 88 DVD-2200 C220,221 254 4538 942 CE04W1C101MT SMG/RE3 C223 257 0512 903 CK73F1E104ZT C224 254 4524 985 CE04W1H100MT SMG/RE3 C225 257 0509 929 CK73B1H102KT C226 257 0501 901 CK73B1H103KT (1608) C228 257 0512 903 CK73F1E104ZT C229 257 0509 929 CK73B1H102KT C232 257 0512 903 CK73F1E104ZT C233 257 0509 929 CK73B1H102KT C234 254 4538 955 CE04W1C221MT SMG/RE3 C235 257 0512 903 CK73F1E104ZT C236 254 4313 950 CE04W1H101MT(ASF) C242 257 0512 903 CK73F1E104ZT C270 254 4313 950 CE04W1H101MT(ASF) C301 257 0511 904 CK73F1H103ZT C302 254 4313 921 CE04W1H220MT(ASF) C303 257 0511 904 CK73F1H103ZT C304 254 4538 913 CE04W1C220MT SMG/RE3 C305 257 0511 904 CK73F1H103ZT C306 254 4538 913 CE04W1C220MT SMG/RE3 C307-309 257 0512 903 CK73F1E104ZT C310-318 257 0511 904 CK73F1H103ZT C319 254 4313 921 CE04W1H220MT(ASF) C320,321 254 4538 913 CE04W1C220MT SMG/RE3 C322-324 257 0512 903 CK73F1E104ZT C325 254 4313 963 CE04W1H010MT(ASF) C326,327 254 4524 943 CE04W1H010MT SMG/RE3 C331,332 253 1180 921 CK45B1H102KT(DD-3) C333-336 253 1115 909 CK45B1H182KT C338 253 1179 958 CK45B1H271KT(DD-3) C340 253 1179 958 CK45B1H271KT(DD-3) C342 253 1179 990 CK45B1H561KT(DD-3) C344 253 1179 990 CK45B1H561KT(DD-3) C346 253 1179 990 CK45B1H561KT(DD-3) C348 253 1179 990 CK45B1H561KT(DD-3) C349 253 1179 958 CK45B1H271KT(DD-3) C350 253 1179 990 CK45B1H561KT(DD-3) C351 255 4253 958 CQ93P2A561JT(NH2) C352 253 1179 958 CK45B1H271KT(DD-3) C353 253 1179 990 CK45B1H561KT(DD-3) C354 255 4253 958 CQ93P2A561JT(NH2) C355-360 254 4598 908 CE04W1H220MTBP(ASF) C361-363 257 0509 929 CK73B1H102KT C364 255 4232 940 CQ93P2A182JT(NH) C365 257 0509 929 CK73B1H102KT C366 255 4232 940 CQ93P2A182JT(NH) C367-373 257 0512 903 CK73F1E104ZT C374 257 0509 929 CK73B1H102KT C375-378 257 0512 903 CK73F1E104ZT C379 254 4313 950 CE04W1H101MT(ASF) C382 254 4313 950 CE04W1H101MT(ASF) C387,388 257 0512 903 CK73F1E104ZT C389,390 255 4235 934 CQ93P2A103JT(NH) C391-394 254 4313 950 CE04W1H101MT(ASF) C395,396 254 4313 798 CE04W1H221MC(ASF) C397-399 257 0512 903 CK73F1E104ZT C400 254 4598 908 CE04W1H220MTBP(ASF) C401 257 0511 904 CK73F1H103ZT C402 257 0512 903 CK73F1E104ZT C405-408 255 1273 986 CQ93M1H471JT(B) C409-412 257 0509 990 CK73B1H222KT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 89 DVD-2200 C413-416 247 2018 903 RM73B--0R0KT C420,421 254 4313 950 CE04W1H101MT(ASF) C501 257 0511 904 CK73F1H103ZT C502 257 0509 929 CK73B1H102KT C505 257 0512 903 CK73F1E104ZT C509 257 0512 903 CK73F1E104ZT C510 257 0509 929 CK73B1H102KT C511 257 0511 904 CK73F1H103ZT C566 257 0506 951 CC73CH1H101JT C567 257 0501 901 CK73B1H103KT (1608) C568 254 4538 939 CE04W1C470MT SMG/RE3 C569 257 0501 901 CK73B1H103KT (1608) C570 254 4524 943 CE04W1H010MT SMG/RE3 C571 257 0501 901 CK73B1H103KT (1608) C573 257 0501 901 CK73B1H103KT (1608) C574 257 0509 929 CK73B1H102KT C575 257 0501 901 CK73B1H103KT (1608) C593,594 257 0511 904 CK73F1H103ZT ! C901 256 8038 017 CF99--2EAC224M ! C902 256 8038 004 CF99--2EAC104M ! C903 253 8022 707 CK45F2EAC103MC C905 254 4589 713 CE04W2G101MC(KMG) C906 253 4546 711 CC45SL3D221JC C907 253 4452 902 CC45SL1H471JT C908 253 9030 963 CK45=1E103KT C909 254 4522 945 CE04W1V470MT SMG/RE3 ! C910 253 8029 700 CK45F2EAC222MC (KX) C911 253 8028 701 CK45R3A222KC C912 255 1249 923 CQ93M1H681JT (B) C913 254 4533 921 CE04W0J101MT SMG/RE3 C914 254 4592 700 CE04W0J222MC K20(LXV C915 254 4593 709 CE04W1C122MC K20(LXJ C916 254 4591 905 CE04W1H101MT (KMF) C917 254 4593 709 CE04W1C122MC K20(LXJ C918 254 4591 905 CE04W1H101MT (KMF) C919 256 1058 971 CF93A1H104JT (JL) C920 254 4538 955 CE04W1C221MT SMG/RE3 C921 254 4533 921 CE04W0J101MT SMG/RE3 C923 257 0512 903 CK73F1E104ZT C925 254 4522 945 CE04W1V470MT SMG/RE3 C929 254 4533 921 CE04W0J101MT SMG/RE3 C930-932 257 0512 903 CK73F1E104ZT C934 254 4533 921 CE04W0J101MT SMG/RE3 C935 257 0512 903 CK73F1E104ZT C936 254 4538 942 CE04W1C101MT SMG/RE3 C937 254 4533 921 CE04W0J101MT SMG/RE3 C938 257 0512 903 CK73F1E104ZT C939 254 4538 942 CE04W1C101MT SMG/RE3 C940,941 257 0511 904 CK73F1H103ZT C942-945 257 0512 903 CK73F1E104ZT C948 257 0512 903 CK73F1E104ZT C949 257 0511 904 CK73F1H103ZT C950 254 4538 955 CE04W1C221MT SMG/RE3 C951 257 0512 903 CK73F1E104ZT C954-957 257 0512 903 CK73F1E104ZT C958,959 254 4538 942 CE04W1C101MT SMG/RE3 C960 257 0511 904 CK73F1H103ZT C964 254 4538 942 CE04W1C101MT SMG/RE3 C983-985 257 0512 903 CK73F1E104ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 90 DVD-2200 OTHER PARTS GROUP CW31 203 5320 009 3P SAN-SAN CON.CORD * CW55 205 1273 004 5P CON.BASE (9176B) * CW61 204 0579 007 6P PH-SAN CON.CORD * ! CX24 203 2359 002 2P INLET CX41 205 0343 045 4P CONN.BASE(KR-PH) CX51 205 0343 058 5P CONN.BASE(KR-PH) CX55 205 0536 072 5P CONN.SOCKET CX61 205 0343 061 6P CONN.BASE(KR-PH) CX121 205 0375 026 12P CONN.BASE(KR-PH) CY41 205 0343 045 4P CONN.BASE(KR-PH) CY131 205 0892 088 13P FFC CON. BASE CY171 205 1006 080 17P FFC BASE(P=1) CY271 205 1100 083 27P FFC BASE (P=1) ! F951 206 1075 001 FUSE (1A) FB201-203 235 0130 903 CHIP EMIFIL(11A121) FB301-313 247 2018 903 RM73B--0R0KT FB527 235 0130 903 CHIP EMIFIL(11A121) FB753-756 235 0130 903 CHIP EMIFIL(11A121) FF901 202 0040 909 FUSE CLIP (TAPE) FH901 202 0040 909 FUSE CLIP (TAPE) FL101 393 8072 000 FL TUBE(15-BT-91GNK) * JK201 269 0215 009 2P OPT/COAX JACK * JK301 204 8668 004 8P PIN JACK (AU) JK507 204 8674 001 2P MINI JACK(ST) L901 235 0141 002 LINE FILTER (PLA10A) L902 235 0142 917 COIL LHL08TB4R7MT L903 239 8019 002 LINE FILTER COIL L907 235 0142 917 COIL LHL08TB4R7MT L908 235 0142 904 COIL LHL08TB220KT L909 235 0142 917 COIL LHL08TB4R7MT S101-115 212 5604 910 TACT SWITCH-TA(ALPS) ! S901 212 1030 009 POWER SWITCH (TV-5) ST101 205 0452 017 STYLE PIN ST903 205 0452 017 STYLE PIN T201 231 8063 009 PULSE TRANS ! T901 233 6403 007 SW TRANSFORMER(WIDE) W301 203 0717 002 1P SIN-SIN WIRE - 417 0592 004 HEAT SINK 1 - 417 0610 009 HEAT SINK(OSH-2430) 1 - 461 0991 026 RUBBER SHEET 2 - 471 3303 016 3X6 CBS-Z 1 - 471 3305 027 3X10 CBS 1 Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 91 DVD-2200 GU-3572 VIDEO UNIT Ref. No. Part No. Part Name Remarks New SEMICONDUCTORS GROUP IC603 262 1348 903 TC74HC123AF(TP1) IC604 262 2519 906 SN74LV00APW-EL2 IC701 262 3058 000 SII504CM208 IC702 262 2916 004 64M SDRAM(TSOP) IC703 262 3059 902 PIC18LC242-I/SO TAPE IC704 262 3050 008 ADV7300 IC706 262 3020 902 BH7860FP-E2 IC708-710 263 1082 903 TK15420MTL IC711 262 1348 903 TC74HC123AF(TP1) IC712 263 1110 901 PQ070XZ01ZP IC713 263 1079 903 BA033FP IC714 262 2977 904 BA18BC0FP-E2 TR701,702 271 0293 901 2SA1022-B TR703 274 0163 904 2SD601A TR704,705 271 0293 901 2SA1022-B TR706 274 0163 904 2SD601A TR707,708 271 0293 901 2SA1022-B TR709,710 274 0163 904 2SD601A TR711,712 271 0293 901 2SA1022-B TR713 272 0125 904 2SB709A D701-703 276 0717 903 1SS355 TE-17 RESISTORS GROUP R601,602 247 2003 989 RM73B--330JT R603 247 2018 903 RM73B--0R0KT R605 247 2018 903 RM73B--0R0KT R607,608 247 2018 903 RM73B--0R0KT R610-612 247 2018 903 RM73B--0R0KT R613-617 247 2003 989 RM73B--330JT R622-624 247 2018 903 RM73B--0R0KT R627,628 247 2018 903 RM73B--0R0KT R633 247 2009 983 RM73B--103JT R634 247 2018 903 RM73B--0R0KT R635 247 2009 983 RM73B--103JT R636-640 247 2018 903 RM73B--0R0KT R641 247 2008 913 RM73B--202JT R642 247 2007 943 RM73B--102JT R701 247 2007 943 RM73B--102JT R702-705 247 2018 903 RM73B--0R0KT R706,707 247 2003 989 RM73B--330JT R708 247 2009 983 RM73B--103JT R709,710 247 2003 989 RM73B--330JT R714,715 247 2018 903 RM73B--0R0KT R716 247 2003 989 RM73B--330JT R717 247 2018 903 RM73B--0R0KT R718 247 2009 909 RM73B--472JT (1608) R720,721 247 2003 989 RM73B--330JT R722 247 2007 943 RM73B--102JT R723 247 2018 903 RM73B--0R0KT R724 247 2014 965 RM73B--105JT R725 247 2009 909 RM73B--472JT (1608) R726-728 247 2008 926 RM73B--222JT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 92 92 DVD-2200 R729-731 247 2018 903 RM73B--0R0KT R733,734 247 2018 903 RM73B--0R0KT R735 247 2009 909 RM73B--472JT (1608) R736,737 247 2003 989 RM73B--330JT R738,739 247 2009 909 RM73B--472JT (1608) R740 247 2008 926 RM73B--222JT R741,742 247 2018 903 RM73B--0R0KT R743 247 2009 909 RM73B--472JT (1608) R744,745 247 2003 989 RM73B--330JT R746,747 247 2018 903 RM73B--0R0KT R753,754 247 2003 989 RM73B--330JT R755-757 247 2018 903 RM73B--0R0KT R758 247 2003 989 RM73B--330JT R759 247 2009 909 RM73B--472JT (1608) R760 247 2018 903 RM73B--0R0KT R761,762 247 2003 989 RM73B--330JT R763-766 247 2018 903 RM73B--0R0KT R767 247 2003 989 RM73B--330JT R771 247 2018 903 RM73B--0R0KT R773 247 2007 943 RM73B--102JT R774-776 247 2018 903 RM73B--0R0KT R777 247 2005 987 RM73B--221JT R780 247 2007 985 RM73B--152JT R781 247 2006 960 RM73B--471JT R785 247 2007 943 RM73B--102JT R788 247 2007 901 RM73B--681JT R789,790 247 2018 903 RM73B--0R0KT R791,792 247 2005 987 RM73B--221JT R793 247 2003 989 RM73B--330JT R794 247 2007 943 RM73B--102JT R795 247 2006 986 RM73B--561JT R796 247 2009 983 RM73B--103JT R797 247 2005 903 RM73B--101JT R798 247 2008 926 RM73B--222JT R799 247 2018 903 RM73B--0R0KT R803,804 247 2018 903 RM73B--0R0KT R805,806 247 2014 965 RM73B--105JT R807 247 2009 983 RM73B--103JT R808,809 247 2008 913 RM73B--202JT R810,811 247 2005 987 RM73B--221JT R812 247 2003 989 RM73B--330JT R813 247 2007 943 RM73B--102JT R814 247 2006 986 RM73B--561JT R815 247 2009 983 RM73B--103JT R816 247 2005 903 RM73B--101JT R817 247 2008 926 RM73B--222JT R818 247 2018 903 RM73B--0R0KT R822,823 247 2018 903 RM73B--0R0KT R824,825 247 2014 965 RM73B--105JT R826 247 2009 983 RM73B--103JT R827,828 247 2008 913 RM73B--202JT R829,830 247 2005 987 RM73B--221JT R831 247 2003 989 RM73B--330JT R832 247 2007 943 RM73B--102JT R833 247 2006 986 RM73B--561JT R834 247 2009 983 RM73B--103JT R835 247 2005 903 RM73B--101JT R836 247 2008 926 RM73B--222JT R837 247 2018 903 RM73B--0R0KT R841,842 247 2018 903 RM73B--0R0KT R843,844 247 2014 965 RM73B--105JT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 93 93 DVD-2200 R845 247 2009 983 RM73B--103JT R846,847 247 2008 913 RM73B--202JT R850-852 247 2007 943 RM73B--102JT R853,854 247 2018 903 RM73B--0R0KT R855 247 2009 983 RM73B--103JT R856 247 2018 903 RM73B--0R0KT R857 247 2009 983 RM73B--103JT R858 247 2007 985 RM73B--152JT R859,860 247 2009 983 RM73B--103JT R861-863 247 2009 909 RM73B--472JT (1608) R885 247 2018 903 RM73B--0R0KT R906,907 247 2005 903 RM73B--101JT R916,917 247 2003 989 RM73B--330JT R921,922 247 2007 943 RM73B--102JT R926,927 247 2018 903 RM73B--0R0KT R929 247 2018 903 RM73B--0R0KT R935,936 247 2004 975 RM73B--750JT R937 247 2004 962 RM73B--680JT R938-940 247 2018 903 RM73B--0R0KT R947-949 247 2004 975 RM73B--750JT R950-952 247 2018 903 RM73B--0R0KT R984,985 247 2018 903 RM73B--0R0KT R988-993 247 2018 903 RM73B--0R0KT R996,997 247 2009 909 RM73B--472JT (1608) R998 247 2003 989 RM73B--330JT RA601-604 247 9002 909 MNR14=330JE0AB RA605-608 247 9007 920 MNR14=0R0JE0 RA701-708 247 9002 909 MNR14=330JE0AB VR701-705 211 6148 906 V03PB471MT(RH03ADCS) CAPACITORS GROUP C608 257 0512 903 CK73F1E104ZT C616 257 0512 903 CK73F1E104ZT C618,619 257 0509 929 CK73B1H102KT C620,621 257 0512 903 CK73F1E104ZT C701-707 257 0512 903 CK73F1E104ZT C708 257 0511 904 CK73F1H103ZT C709 257 0512 903 CK73F1E104ZT C710 257 4012 917 CE67C1C220MT (RV2) C711 257 0511 904 CK73F1H103ZT C712 257 4011 905 CE67C0J101MT (RV2) C713-715 257 0512 903 CK73F1E104ZT C717-721 257 0512 903 CK73F1E104ZT C723,724 257 0512 903 CK73F1E104ZT C725,726 257 4011 905 CE67C0J101MT (RV2) C727 257 0512 903 CK73F1E104ZT C728 257 4011 905 CE67C0J101MT (RV2) C729-738 257 0512 903 CK73F1E104ZT C739 257 4011 905 CE67C0J101MT (RV2) C742 257 0511 904 CK73F1H103ZT C743 257 0512 903 CK73F1E104ZT C745,746 257 4011 905 CE67C0J101MT (RV2) C747,748 257 0512 903 CK73F1E104ZT C749 257 4011 905 CE67C0J101MT (RV2) C750 257 0512 903 CK73F1E104ZT C752 257 0511 904 CK73F1H103ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 94 94 DVD-2200 C753 257 0512 903 CK73F1E104ZT C755,756 257 0512 903 CK73F1E104ZT C758 257 0509 903 CK73B1H821KT C759 257 0512 903 CK73F1E104ZT C760 257 4011 905 CE67C0J101MT (RV2) C761 257 0510 921 CK73B1H392KT C765,766 257 0512 903 CK73F1E104ZT C768,769 257 0512 903 CK73F1E104ZT C770-772 257 4011 905 CE67C0J101MT (RV2) C776,777 257 0512 903 CK73F1E104ZT C779,780 257 0512 903 CK73F1E104ZT C781,782 257 4012 917 CE67C1C220MT (RV2) C783 257 4012 904 CE67C1C100MT (RV2B55 C787,788 257 0512 903 CK73F1E104ZT C790,791 257 0512 903 CK73F1E104ZT C792,793 257 4012 917 CE67C1C220MT (RV2) C794 257 4012 904 CE67C1C100MT (RV2B55 C795,796 257 0512 903 CK73F1E104ZT C797,798 257 4011 905 CE67C0J101MT (RV2) C799,800 257 0512 903 CK73F1E104ZT C801 257 4011 905 CE67C0J101MT (RV2) C802 257 0507 934 CC73CH1H221JT C803 257 0512 903 CK73F1E104ZT C804,805 257 0509 929 CK73B1H102KT C806,807 257 0512 903 CK73F1E104ZT C808 257 4011 905 CE67C0J101MT (RV2) C813 257 0512 903 CK73F1E104ZT C825 257 0512 903 CK73F1E104ZT C828,829 257 0512 903 CK73F1E104ZT C833 257 4011 905 CE67C0J101MT (RV2) C834 257 0501 901 CK73B1H103KT (1608) C835 257 4012 920 CE67C1C470MT (RV2) C837,838 257 0511 904 CK73F1H103ZT C839 257 4011 905 CE67C0J101MT (RV2) C840 257 0512 903 CK73F1E104ZT C841 257 0504 995 CC73CH1H510JT C843 257 0501 901 CK73B1H103KT (1608) C844 254 4327 904 CE04W0J102MT(SMG) C845 257 4011 905 CE67C0J101MT (RV2) C846 254 4327 904 CE04W0J102MT(SMG) C847 257 4011 905 CE67C0J101MT (RV2) C863 257 0512 903 CK73F1E104ZT C864 257 0511 904 CK73F1H103ZT C865 257 0509 929 CK73B1H102KT C867,868 257 0512 903 CK73F1E104ZT C869 257 0511 904 CK73F1H103ZT C870 257 0509 929 CK73B1H102KT C873 257 0512 903 CK73F1E104ZT C875-879 257 0512 903 CK73F1E104ZT OTHER PARTS GROUP CY53 205 0343 058 5P CONN.BASE(KR-PH) CY331 205 1170 945 33P FFC BASE(FMNBMTT JK701 205 1272 005 1P S-TERMINAL * JK704 204 8677 008 4P PIN JACK(Y/B/R/V) * L704,705 235 0125 905 INDUCTOR(FLC32C220K) Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 95 95 DVD-2200 L710 235 0125 905 INDUCTOR(FLC32C220K) L712 235 0149 907 LK1608R68K-T LF701 261 0163 908 ELB4B591N LF702 261 0162 909 ELB4C582N X702 399 0832 903 CSTCG20MOV51-R0 Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 96 96 DVD-2200 PARTS LIST OF P.W.B. UNIT ASS’Y (FOR EUROPE MODEL) GU-3570 MAIN UNIT Ref. No. Part No. Part Name Remarks New SEMICONDUCTORS GROUP IC101 262 3257 005 M65776BFP IC102 262 3215 005 M32102S6FP IC103 262 3319 008 M29W160DB70N1 IC104 262 3119 004 W986416DH-7 IC105 262 3216 907 SM8707EV IC106 262 2518 907 SN74LV74APW-EL2 IC107 262 3046 902 TC7WH157FU IC108 262 2514 901 SN74LV138APW-EL2 IC109 262 2778 909 SN74LV273ANS IC112 262 1738 908 TC7SU04F (TAPE) IC113 262 3053 908 S-24C02BFJ-TB IC114 263 1079 903 BA033FP IC115 262 2977 904 BA18BC0FP-E2 IC116 263 1110 901 PQ070XZ01ZP IC117 263 1079 903 BA033FP IC118 262 2977 904 BA18BC0FP-E2 IC201 262 3121 005 ADSPMEL322 IC202 262 2964 001 AT49LV002-70TC IC203 262 2959 906 SN74LV244APW IC204-206 262 3129 900 TC74VHC157AF-EL IC207 262 3198 902 TC74VHC157FT-EL IC301 262 3054 004 MN102H460B IC302 262 3055 003 AT49LV1025-70JC IC303 262 2452 908 MN1382-R(TX) IC401 262 3217 003 CXD2753R IC402 262 2875 006 16M SDRAM(TSOP)-7/8 IC403 262 3195 905 AD8062-SO8 IC404 262 3282 009 EPM3128ATC100-10 IC405 262 2515 900 SN74LV04APW-EL2 IC501 262 3219 001 CXD1881AR IC502 262 3218 002 CXD1885Q IC503 262 3210 000 M11L16161SA-45T IC505 263 1109 909 AN8471SA IC507 262 1782 909 TC7S08FTE85L IC508 262 3221 002 FAN8042 TR501,502 272 0160 901 2SB1132T100Q D101-105 276 0717 903 1SS355 TE-17 D301 276 0717 903 1SS355 TE-17 D501,502 276 0711 909 MA152WA RESISTORS GROUP R101 247 2003 947 RM73B--220JT R102 247 2018 903 RM73B--0R0KT R105 247 2009 983 RM73B--103JT R106 247 2009 909 RM73B--472JT (1608) R107 247 2005 903 RM73B--101JT R108 247 2018 903 RM73B--0R0KT R110-113 247 2018 903 RM73B--0R0KT R114 247 2009 983 RM73B--103JT R115,116 247 2018 903 RM73B--0R0KT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 97 97 DVD-2200 R118 247 2009 983 RM73B--103JT R119 247 2018 903 RM73B--0R0KT R120 247 2009 983 RM73B--103JT R121-123 247 2018 903 RM73B--0R0KT R124 247 2009 983 RM73B--103JT R125 247 2003 989 RM73B--330JT R127,128 247 2018 903 RM73B--0R0KT R129 247 2008 968 RM73B--332JT R130,131 247 2009 983 RM73B--103JT R132 247 2003 989 RM73B--330JT R133 247 2018 903 RM73B--0R0KT R134-137 247 2003 989 RM73B--330JT R138-141 247 2018 903 RM73B--0R0KT R142 247 2003 989 RM73B--330JT R143 247 2018 903 RM73B--0R0KT R144-148 247 2004 920 RM73B--470JT R149,150 247 2008 926 RM73B--222JT R151,152 247 2009 983 RM73B--103JT R153 247 2018 903 RM73B--0R0KT R154 247 2009 983 RM73B--103JT R156 247 2007 943 RM73B--102JT R159 247 2009 983 RM73B--103JT R160-163 247 2004 920 RM73B--470JT R164 247 2009 983 RM73B--103JT R166,167 247 2018 903 RM73B--0R0KT R168 247 2004 920 RM73B--470JT R169 247 2006 960 RM73B--471JT R170 247 2003 947 RM73B--220JT R171 247 2004 920 RM73B--470JT R174 247 2004 920 RM73B--470JT R177 247 2018 903 RM73B--0R0KT R178,179 247 2004 920 RM73B--470JT R180,181 247 2018 903 RM73B--0R0KT R184 247 2004 920 RM73B--470JT R185-192 247 2018 903 RM73B--0R0KT R194-196 247 2018 903 RM73B--0R0KT R197,198 247 2009 983 RM73B--103JT R200,201 247 2009 983 RM73B--103JT R202 247 2018 903 RM73B--0R0KT R203 247 2009 983 RM73B--103JT R205 247 2018 903 RM73B--0R0KT R207 247 2009 983 RM73B--103JT R208 247 2007 943 RM73B--102JT R209-218 247 2009 983 RM73B--103JT R219 247 2018 903 RM73B--0R0KT R220 247 2009 983 RM73B--103JT R221 247 2018 903 RM73B--0R0KT R222-230 247 2009 983 RM73B--103JT R231 247 2014 965 RM73B--105JT R232 247 2007 969 RM73B--122JT R233-236 247 2003 989 RM73B--330JT R237-240 247 2018 903 RM73B--0R0KT R241 247 2003 989 RM73B--330JT R242 247 2018 903 RM73B--0R0KT R243 247 2003 989 RM73B--330JT R248,249 247 2007 943 RM73B--102JT R251-253 247 2018 903 RM73B--0R0KT R255-257 247 2018 903 RM73B--0R0KT R259-261 247 2005 903 RM73B--101JT R262,263 247 2004 920 RM73B--470JT R265 247 2018 903 RM73B--0R0KT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 98 98 DVD-2200 R266-272 247 2009 983 RM73B--103JT R273-281 247 2018 903 RM73B--0R0KT R282-284 247 2003 947 RM73B--220JT R285 247 2009 983 RM73B--103JT R286 247 2018 903 RM73B--0R0KT R288 247 2018 903 RM73B--0R0KT R289-291 247 2003 989 RM73B--330JT R292-297 247 2009 983 RM73B--103JT R298 247 2011 942 RM73B--473JT R302 247 2009 909 RM73B--472JT (1608) R304 247 2009 909 RM73B--472JT (1608) R306 247 2009 909 RM73B--472JT (1608) R308 247 2003 989 RM73B--330JT R309 247 2004 920 RM73B--470JT R310 247 2018 903 RM73B--0R0KT R311 247 2009 983 RM73B--103JT R312 247 2018 903 RM73B--0R0KT R313 247 2009 967 RM73B--822JT R314 247 2008 984 RM73B--392JT R316 247 2005 987 RM73B--221JT R317 247 2018 903 RM73B--0R0KT R319-324 247 2009 983 RM73B--103JT R401-412 247 2003 947 RM73B--220JT R413 247 2018 903 RM73B--0R0KT R414-422 247 2009 983 RM73B--103JT R423 247 2008 968 RM73B--332JT R424 247 2008 926 RM73B--222JT R425,426 247 2008 913 RM73B--202JT R427-431 247 2003 947 RM73B--220JT R432 247 2018 903 RM73B--0R0KT R433 247 2008 926 RM73B--222JT R434-436 247 2018 903 RM73B--0R0KT R437-449 247 2003 947 RM73B--220JT R450-456 247 2003 989 RM73B--330JT R459-463 247 2009 983 RM73B--103JT R464-467 247 2007 943 RM73B--102JT R468 247 2018 903 RM73B--0R0KT R475,476 247 2018 903 RM73B--0R0KT R501 247 2004 988 RM73B--820JT R502 247 2005 903 RM73B--101JT R505-507 247 2018 903 RM73B--0R0KT R508-515 247 2007 985 RM73B--152JT R516-519 247 2004 946 RM73B--560JT R520-523 247 2004 920 RM73B--470JT R524 247 2012 941 RM73B--124JT R527,528 247 2005 903 RM73B--101JT R534 247 2012 941 RM73B--124JT R536 247 2007 943 RM73B--102JT R542 247 2018 903 RM73B--0R0KT R544 247 2007 943 RM73B--102JT R545 247 2019 960 RM73B--123FT R547-552 247 2018 903 RM73B--0R0KT R553 247 2011 900 RM73B--333JT R554,555 247 2009 983 RM73B--103JT R556 247 2007 943 RM73B--102JT R557 247 2010 969 RM73B--223JT R558 247 2008 900 RM73B--182JT R559 247 2012 925 RM73B--104JT R560 247 2011 942 RM73B--473JT R561 247 2011 984 RM73B--683JT R562 247 2006 960 RM73B--471JT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 99 99 DVD-2200 R563 247 2012 967 RM73B--154JT R564 247 2011 942 RM73B--473JT R565 247 2011 968 RM73B--563JT R566 247 2009 983 RM73B--103JT R567 247 2003 989 RM73B--330JT R568 247 2009 983 RM73B--103JT R570 247 2018 903 RM73B--0R0KT R574 247 2018 903 RM73B--0R0KT R577 247 2018 903 RM73B--0R0KT R592-595 247 2018 916 RM73B--010KT R601 247 2010 969 RM73B--223JT R603,604 247 2009 983 RM73B--103JT R616-620 247 2018 903 RM73B--0R0KT R621-633 247 2003 947 RM73B--220JT R634 247 2005 903 RM73B--101JT R635 247 2003 989 RM73B--330JT R636 247 2005 903 RM73B--101JT R637,638 247 2003 989 RM73B--330JT R639-641 247 2005 903 RM73B--101JT R642-644 247 2003 989 RM73B--330JT R645-647 247 2009 983 RM73B--103JT R649-655 247 2005 903 RM73B--101JT R656-659 247 2009 983 RM73B--103JT R660-665 247 2018 903 RM73B--0R0KT R666-669 247 2010 969 RM73B--223JT R670 247 2009 912 RM73B--512JT R671-673 247 2011 968 RM73B--563JT R674-676 247 2011 900 RM73B--333JT R677-679 247 2009 983 RM73B--103JT R680-685 247 2018 903 RM73B--0R0KT R686 247 2009 983 RM73B--103JT R687,688 247 2018 903 RM73B--0R0KT R689,690 247 2009 983 RM73B--103JT R691-694 247 2005 903 RM73B--101JT R697,698 247 2003 989 RM73B--330JT R699 247 2010 969 RM73B--223JT RA101-111 247 9003 908 MNR14=220JE0AB RA112-115 247 9007 917 MNR14=103JE0 RA401-405 247 9003 908 MNR14=220JE0AB RA503,504 247 9007 904 MNR14=101JE0 RA506-509 247 9007 904 MNR14=101JE0 RA523 247 9007 904 MNR14=101JE0 RA524-528 247 9007 917 MNR14=103JE0 CAPACITORS GROUP C103,104 257 4011 905 CE67C0J101MT (RV2) C105,106 257 0511 904 CK73F1H103ZT C107 257 0512 903 CK73F1E104ZT C108,109 257 0511 904 CK73F1H103ZT C110,111 257 0512 903 CK73F1E104ZT C112 257 0511 904 CK73F1H103ZT C113 257 0512 903 CK73F1E104ZT C114 257 0511 904 CK73F1H103ZT C117 257 0512 903 CK73F1E104ZT C118,119 257 4012 917 CE67C1C220MT (RV2) C120,121 257 0512 903 CK73F1E104ZT C122,123 257 0511 904 CK73F1H103ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 100 100 DVD-2200 C124 257 0512 903 CK73F1E104ZT C125,126 257 0511 904 CK73F1H103ZT C127-134 257 0512 903 CK73F1E104ZT C136-138 257 0512 903 CK73F1E104ZT C139 257 4011 905 CE67C0J101MT (RV2) C140-143 257 0512 903 CK73F1E104ZT C145,146 257 0512 903 CK73F1E104ZT C147 257 4012 917 CE67C1C220MT (RV2) C151,152 257 0511 904 CK73F1H103ZT C153,154 257 4011 905 CE67C0J101MT (RV2) C155-160 257 0512 903 CK73F1E104ZT C161 257 0511 904 CK73F1H103ZT C162 257 0512 903 CK73F1E104ZT C164 257 0512 903 CK73F1E104ZT C165 257 0506 951 CC73CH1H101JT C166 257 0512 903 CK73F1E104ZT C168-171 257 0512 903 CK73F1E104ZT C172 257 0509 929 CK73B1H102KT C173-176 257 0512 903 CK73F1E104ZT C177,178 257 0502 997 CC73CH1H7R0DT C179 257 0512 903 CK73F1E104ZT C180 257 4011 905 CE67C0J101MT (RV2) C181 257 0512 903 CK73F1E104ZT C182 257 0509 929 CK73B1H102KT C183 257 0512 903 CK73F1E104ZT C184 257 4012 917 CE67C1C220MT (RV2) C185 257 0512 903 CK73F1E104ZT C186 257 0509 929 CK73B1H102KT C189-192 257 0512 903 CK73F1E104ZT C194,195 257 0512 903 CK73F1E104ZT C196 257 0511 904 CK73F1H103ZT C197-200 257 0512 903 CK73F1E104ZT C202 257 4012 917 CE67C1C220MT (RV2) C203,204 257 0512 903 CK73F1E104ZT C205 257 4012 917 CE67C1C220MT (RV2) C206,207 257 0512 903 CK73F1E104ZT C208 257 0504 924 CC73CH1H270JT C209 257 0504 940 CC73CH1H330JT C210 257 0511 904 CK73F1H103ZT C211 257 0509 929 CK73B1H102KT C212 257 0511 904 CK73F1H103ZT C213 257 0509 929 CK73B1H102KT C214 257 0511 904 CK73F1H103ZT C215 257 0509 929 CK73B1H102KT C216 257 0512 903 CK73F1E104ZT C217 257 0509 929 CK73B1H102KT C218 257 0512 903 CK73F1E104ZT C219 257 0509 929 CK73B1H102KT C220,221 257 4012 917 CE67C1C220MT (RV2) C222-225 257 0512 903 CK73F1E104ZT C226 257 0509 929 CK73B1H102KT C227 257 0512 903 CK73F1E104ZT C228 257 0509 929 CK73B1H102KT C230-232 257 4011 905 CE67C0J101MT (RV2) C234,235 257 0512 903 CK73F1E104ZT C236 257 4012 917 CE67C1C220MT (RV2) C237 257 0512 903 CK73F1E104ZT C240 257 0512 903 CK73F1E104ZT C241 257 0509 929 CK73B1H102KT C242 257 0512 903 CK73F1E104ZT C243 257 0509 929 CK73B1H102KT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 101 101 DVD-2200 C244 257 0512 903 CK73F1E104ZT C245 257 4011 905 CE67C0J101MT (RV2) C246 257 4012 917 CE67C1C220MT (RV2) C247,248 257 0511 904 CK73F1H103ZT C249 257 0512 903 CK73F1E104ZT C250 257 0509 929 CK73B1H102KT C251 257 0512 903 CK73F1E104ZT C252 257 0509 929 CK73B1H102KT C253 257 0512 903 CK73F1E104ZT C254,255 257 4012 917 CE67C1C220MT (RV2) C256 247 2018 903 RM73B--0R0KT C257 257 0512 903 CK73F1E104ZT C258 257 0509 929 CK73B1H102KT C259 257 0511 904 CK73F1H103ZT C260,261 257 0512 903 CK73F1E104ZT C268 257 0520 908 CK73B1A154KT C301,302 257 0512 903 CK73F1E104ZT C304,305 257 0512 903 CK73F1E104ZT C306 257 4011 905 CE67C0J101MT (RV2) C307-310 257 0512 903 CK73F1E104ZT C311 257 0503 967 CC73CH1H150JT C312 257 0512 903 CK73F1E104ZT C313 257 0503 967 CC73CH1H150JT C314 257 0509 929 CK73B1H102KT C315,316 257 0512 903 CK73F1E104ZT C317 257 0509 929 CK73B1H102KT C318-320 257 0511 904 CK73F1H103ZT C321 257 4011 905 CE67C0J101MT (RV2) C322 257 0511 904 CK73F1H103ZT C323 257 4012 920 CE67C1C470MT (RV2) C401-403 257 0512 903 CK73F1E104ZT C404 257 4011 905 CE67C0J101MT (RV2) C405 257 0512 903 CK73F1E104ZT C406 257 0501 901 CK73B1H103KT (1608) C407,408 257 0512 903 CK73F1E104ZT C409,410 257 4012 917 CE67C1C220MT (RV2) C411,412 257 0512 903 CK73F1E104ZT C413,414 257 0502 942 CC73CH1H2R0CT C415-419 257 0512 903 CK73F1E104ZT C420 257 4012 917 CE67C1C220MT (RV2) C421,422 257 0512 903 CK73F1E104ZT C423 257 4012 917 CE67C1C220MT (RV2) C424-429 257 0512 903 CK73F1E104ZT C430 257 4011 905 CE67C0J101MT (RV2) C431-440 257 0512 903 CK73F1E104ZT C441 257 4011 905 CE67C0J101MT (RV2) C442 257 0512 903 CK73F1E104ZT C443 257 4012 933 CE67C1C101MT (RV2) C444,445 257 4011 905 CE67C0J101MT (RV2) C447 257 4011 905 CE67C0J101MT (RV2) C448-452 257 0512 903 CK73F1E104ZT C453,454 257 4012 917 CE67C1C220MT (RV2) C455 257 0512 903 CK73F1E104ZT C456 257 4012 917 CE67C1C220MT (RV2) C457-460 257 0512 903 CK73F1E104ZT C461 257 4011 905 CE67C0J101MT (RV2) C463-465 257 0512 903 CK73F1E104ZT C501 257 4012 917 CE67C1C220MT (RV2) C502,503 257 0511 904 CK73F1H103ZT C510 257 4012 917 CE67C1C220MT (RV2) C511,512 257 0511 904 CK73F1H103ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 102 102 DVD-2200 C513-516 257 0509 990 CK73B1H222KT C517-520 257 0504 908 CC73CH1H220JT C521 257 0516 954 CK73B1E104KT C522,523 257 0510 934 CK73B1H472KT C524 257 0507 976 CC73CH1H331JT C525,526 257 0511 904 CK73F1H103ZT C527 257 4012 917 CE67C1C220MT (RV2) C528 257 4012 920 CE67C1C470MT (RV2) C529 257 0509 929 CK73B1H102KT C530 257 4012 920 CE67C1C470MT (RV2) C531 257 0509 929 CK73B1H102KT C532-535 257 0516 954 CK73B1E104KT C536 257 0501 901 CK73B1H103KT (1608) C537 257 0516 954 CK73B1E104KT C538 257 0501 901 CK73B1H103KT (1608) C539 257 0506 993 CC73CH1H151JT C540 257 0509 929 CK73B1H102KT C545 257 4011 905 CE67C0J101MT (RV2) C546,547 257 0512 903 CK73F1E104ZT C548 257 0511 904 CK73F1H103ZT C549 257 4012 933 CE67C1C101MT (RV2) C550 257 0512 903 CK73F1E104ZT C551-553 257 0520 911 CK73B1A224KT C554 257 0516 954 CK73B1E104KT C555,556 257 0512 903 CK73F1E104ZT C558 257 0520 911 CK73B1A224KT C559 257 0512 903 CK73F1E104ZT C560 257 4012 917 CE67C1C220MT (RV2) C561 257 0501 901 CK73B1H103KT (1608) C562 257 0516 941 CK73B1E473KT C563,564 257 0511 904 CK73F1H103ZT C565 257 4012 917 CE67C1C220MT (RV2) C566 257 0511 904 CK73F1H103ZT C567 257 4012 917 CE67C1C220MT (RV2) C568 257 0511 904 CK73F1H103ZT C569 257 0508 917 CC73CH1H471JT C570 257 4013 903 CE67C0J471MT (RV) C571 257 4012 917 CE67C1C220MT (RV2) C572-576 257 0511 904 CK73F1H103ZT C578 257 0511 904 CK73F1H103ZT C580 257 0511 904 CK73F1H103ZT C581 257 0516 941 CK73B1E473KT C582-584 257 0511 904 CK73F1H103ZT C585,586 257 0508 917 CC73CH1H471JT C587 257 0511 904 CK73F1H103ZT C588 257 0507 976 CC73CH1H331JT C589 257 0520 908 CK73B1A154KT C590 257 4011 905 CE67C0J101MT (RV2) C591 257 0507 976 CC73CH1H331JT C592 257 0508 917 CC73CH1H471JT C593 257 0520 908 CK73B1A154KT C594 257 0508 917 CC73CH1H471JT C595 257 0516 954 CK73B1E104KT C596 257 0511 904 CK73F1H103ZT C597 257 0506 951 CC73CH1H101JT C598,599 257 0516 909 CK73B1E223KT C600-606 257 0511 904 CK73F1H103ZT C607 257 0512 903 CK73F1E104ZT C608,609 257 4012 917 CE67C1C220MT (RV2) C612 257 0512 903 CK73F1E104ZT C615 257 0509 929 CK73B1H102KT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 103 103 DVD-2200 C616,617 257 0512 903 CK73F1E104ZT C618 257 4012 917 CE67C1C220MT (RV2) C619,620 257 0511 904 CK73F1H103ZT C621 257 4012 917 CE67C1C220MT (RV2) C622-625 257 0511 904 CK73F1H103ZT C629,630 257 4012 917 CE67C1C220MT (RV2) C631,632 257 0510 950 CK73B1H682KT C633 257 0509 929 CK73B1H102KT C634,635 257 0506 951 CC73CH1H101JT C636 257 0501 901 CK73B1H103KT (1608) C637 257 0511 904 CK73F1H103ZT C639 257 0510 950 CK73B1H682KT OTHER PARTS GROUP CX52 205 0863 952 5P PH CON.BASE(L) CX61 205 0792 968 6P ZH-ZRCON.BASE(L)T CX131 205 1170 932 13P FFC BASE(FMNBMTT CX151 205 1149 905 15P FFC BASE(52207) CX171 205 1174 909 17P FFC BASE(FMNSMT) CX241 205 1152 905 24P FFC BASE(FLZ-SM1 CX271 205 1174 925 27P FFC BASE(FMNSMT) CX331 205 1170 945 33P FFC BASE(FMNBMTT CY121 205 0895 917 12P PH CON. BASE(T) FB101-104 235 0130 903 CHIP EMIFIL(11A121) FB108,109 235 0130 903 CHIP EMIFIL(11A121) FB110-128 247 2018 903 RM73B--0R0KT FB301-318 247 2018 903 RM73B--0R0KT FB401-403 235 0136 907 FBMJ1608HS280NT FB405-408 235 0136 907 FBMJ1608HS280NT FB501-503 235 0130 903 CHIP EMIFIL(11A121) L101 235 0048 901 EMI FILTER (103)TP X101 399 0619 906 X'TAL(27MHZ) X103 399 0806 900 X'TAL(12.288 FCX03) X301 399 0698 901 CSACW2500MX01 Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 104 104 DVD-2200 GU-3571A AUD/POW/DISP UNIT A Ref. No. Part No. Part Name Remarks New SEMICONDUCTORS GROUP IC101 262 3228 908 M66005AFP IC107 499 0306 001 GP1UE271XK IC201 262 1205 907 TC74HCU04AF(TP1) IC202 262 1738 908 TC7SU04F (TAPE) IC205 263 1048 002 BA033T IC221 263 1100 005 KIA7805API IC301-303 262 3299 908 DSD1791DBR * IC304 263 0896 909 NJM2068MD-TE1 IC306 263 0896 909 NJM2068MD-TE1 IC307 263 0615 902 BA15218F-DXE2 IC308 263 0896 909 NJM2068MD-TE1 IC309 263 0615 902 BA15218F-DXE2 IC310 262 2182 003 NE5532AN(PHI) IC311 263 0615 902 BA15218F-DXE2 IC510 262 2580 906 CXA1511M IC901 265 0112 003 STR-F6674 IC902 262 3047 008 PC123 Y-22 IC903 263 1113 005 SE005N IC904 263 1048 002 BA033T IC906 263 0809 006 NJM7805FA(S) IC908 263 0554 005 NJM7905FA IC909 263 1100 050 KIA7808API * IC912 263 1100 063 KIA7809API * IC913 263 1099 048 KIA7909PI * TR201 269 0119 901 DTA124EKT96(TAPE) TR202 269 0082 902 DTC114EKT96 TR203 269 0119 901 DTA124EKT96(TAPE) TR204 269 0082 902 DTC114EKT96 TR217 273 0426 907 2SC2412KLNT146 TR218 269 0083 901 DTA114EKT96 TR219 269 0119 901 DTA124EKT96(TAPE) TR220 269 0082 902 DTC114EKT96 TR301-327 273 0460 905 KTC2875B-RTK TR501 269 0171 907 IMD3A-T108 TR902 269 0082 902 DTC114EKT96 TR903 272 0093 010 2SB1274 (R/S) TR904 275 0106 906 HAT2053M(TAPE) TR905 269 0083 901 DTA114EKT96 TR906 269 0082 902 DTC114EKT96 TR907 275 0106 906 HAT2053M(TAPE) TR908,909 274 0036 905 2SD468(C)TF TR910,911 269 0083 901 DTA114EKT96 TR912 274 0036 905 2SD468(C)TF D101 276 0717 903 1SS355 TE-17 D201 276 0432 903 1SS270A TE (TAPE) D202,203 276 0717 903 1SS355 TE-17 D206,207 276 0717 903 1SS355 TE-17 D901-904 276 0729 904 EM01AT (V1) D905 276 0730 906 AG01ZT (V1) D906 276 0724 909 SARS01T (V1) D907-909 276 0730 906 AG01ZT (V1) D910 276 0725 704 RK39 LF-C4 D911 276 0783 005 FMB-2204 D912 276 0745 904 RB411DT146 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 105 105 DVD-2200 D913,914 276 0727 906 AL01ZT (V1) D915 276 0717 903 1SS355 TE-17 D918 276 0717 903 1SS355 TE-17 D923,924 276 0717 903 1SS355 TE-17 D957,958 276 0717 903 1SS355 TE-17 D959 276 0737 909 RB161L-40 (TAPE) ZD901 276 0457 904 HZS4C-1TD LD101 393 9504 904 SEL1210S(TP7) ! TH901 279 0044 002 NTH11D8R0LA RESISTORS GROUP R102-104 247 2006 902 RM73B--331JT (1608) R105 247 2010 985 RM73B--273JT R107 247 2018 903 RM73B--0R0KT R109 247 2007 943 RM73B--102JT R111,112 247 2007 943 RM73B--102JT R113 247 2005 945 RM73B--151JT R116 247 2008 984 RM73B--392JT R117,118 247 2018 903 RM73B--0R0KT R119 247 2005 961 RM73B--181JT R120,121 247 2005 945 RM73B--151JT R122,123 247 2005 961 RM73B--181JT R124-126 247 2006 915 RM73B--271JT R127 247 2006 944 RM73B--391JT R128 247 2007 901 RM73B--681JT R129 247 2007 969 RM73B--122JT R130 247 2007 943 RM73B--102JT R131 247 2018 903 RM73B--0R0KT R132 247 2009 967 RM73B--822JT R202 247 2018 903 RM73B--0R0KT R203 247 2011 942 RM73B--473JT R204 247 2003 989 RM73B--330JT R205 247 2018 903 RM73B--0R0KT R206 247 2004 975 RM73B--750JT R207-210 247 2018 903 RM73B--0R0KT R211-219 247 2004 920 RM73B--470JT R220 247 2007 943 RM73B--102JT R221 247 2012 967 RM73B--154JT R222 247 2009 983 RM73B--103JT R223 247 2018 903 RM73B--0R0KT R225 244 2052 915 RS14B3A182JNBST(S) R226 247 2004 991 RM73B--910JT R227 247 2018 903 RM73B--0R0KT R229 247 2006 999 RM73B--621JT R301,302 247 2007 943 RM73B--102JT R303 247 2006 999 RM73B--621JT R304 247 2007 943 RM73B--102JT R305 247 2018 903 RM73B--0R0KT R307 247 2018 903 RM73B--0R0KT R309 247 2018 903 RM73B--0R0KT R311 247 2018 903 RM73B--0R0KT R313 247 2018 903 RM73B--0R0KT R315 247 2018 903 RM73B--0R0KT R365,366 247 2007 985 RM73B--152JT R367-370 247 2008 913 RM73B--202JT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 106 DVD-2200 R371-376 247 2011 942 RM73B--473JT R385-388 247 2010 998 RM73B--303JT R389,390 247 2008 942 RM73B--272JT R401-404 247 2008 942 RM73B--272JT R407-412 247 2008 942 RM73B--272JT R421-428 247 2008 942 RM73B--272JT R437 247 2007 943 RM73B--102JT R438 247 2008 926 RM73B--222JT R439 247 2011 942 RM73B--473JT R445 247 2018 903 RM73B--0R0KT R501 247 2009 983 RM73B--103JT R542 247 2007 943 RM73B--102JT R544 247 2007 943 RM73B--102JT R545 247 2006 960 RM73B--471JT R546 247 2012 996 RM73B--204JT R547 244 2052 928 RS14B3A470JNBST(S) R549-551 247 2018 903 RM73B--0R0KT R552 247 2007 943 RM73B--102JT R553 247 2011 926 RM73B--393JT R554 247 2007 943 RM73B--102JT R555-559 247 2018 903 RM73B--0R0KT R582-585 247 2011 942 RM73B--473JT R901 244 2675 716 RS14B3D683JNBF (ERG) R902 244 2671 956 RS14B3DR47JNBST(S) R905 244 2675 729 RS14B3D224JNBF (ERG) R906 244 2675 703 RS14B3D470JNBF (ERG) R913 244 2043 953 RS14B3A471JNBST(S) R932 244 2052 999 RS14B3A103JNBST(S) R937 244 2064 929 RS14B3A3R3JNBST(S) R991 247 2006 902 RM73B--331JT (1608) R992 247 2018 916 RM73B--010KT CAPACITORS GROUP C112 257 0509 929 CK73B1H102KT C113,114 257 0512 903 CK73F1E104ZT C115,116 257 0509 929 CK73B1H102KT C117,118 257 0512 903 CK73F1E104ZT C119-121 257 0501 901 CK73B1H103KT (1608) C122 257 0506 951 CC73CH1H101JT C123 257 0501 901 CK73B1H103KT (1608) C201 257 0512 903 CK73F1E104ZT C202 257 0511 904 CK73F1H103ZT C203 257 0512 903 CK73F1E104ZT C204 257 0511 904 CK73F1H103ZT C205 257 0512 903 CK73F1E104ZT C206 257 0511 904 CK73F1H103ZT C207,208 257 0512 903 CK73F1E104ZT C209 257 0509 929 CK73B1H102KT C210 257 0512 903 CK73F1E104ZT C211 257 0511 904 CK73F1H103ZT C212 257 0509 929 CK73B1H102KT C213 257 0512 903 CK73F1E104ZT C214,215 257 0509 929 CK73B1H102KT C216 257 0512 903 CK73F1E104ZT C217 254 4525 900 CE04W1H330MT SMG/RE3 C218,219 257 0512 903 CK73F1E104ZT C220,221 254 4538 942 CE04W1C101MT SMG/RE3 C223 257 0512 903 CK73F1E104ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 107 107 DVD-2200 C224 254 4524 985 CE04W1H100MT SMG/RE3 C225 257 0509 929 CK73B1H102KT C226 257 0501 901 CK73B1H103KT (1608) C228 257 0512 903 CK73F1E104ZT C229 257 0509 929 CK73B1H102KT C232 257 0512 903 CK73F1E104ZT C233 257 0509 929 CK73B1H102KT C234 254 4538 955 CE04W1C221MT SMG/RE3 C235 257 0512 903 CK73F1E104ZT C236 254 4313 950 CE04W1H101MT(ASF) C242 257 0512 903 CK73F1E104ZT C270 254 4313 950 CE04W1H101MT(ASF) C301 257 0511 904 CK73F1H103ZT C302 254 4313 921 CE04W1H220MT(ASF) C303 257 0511 904 CK73F1H103ZT C304 254 4538 913 CE04W1C220MT SMG/RE3 C305 257 0511 904 CK73F1H103ZT C306 254 4538 913 CE04W1C220MT SMG/RE3 C307-309 257 0512 903 CK73F1E104ZT C310-318 257 0511 904 CK73F1H103ZT C319 254 4313 921 CE04W1H220MT(ASF) C320,321 254 4538 913 CE04W1C220MT SMG/RE3 C322-324 257 0512 903 CK73F1E104ZT C325 254 4313 963 CE04W1H010MT(ASF) C326,327 254 4524 943 CE04W1H010MT SMG/RE3 C331,332 253 1180 921 CK45B1H102KT(DD-3) C333-336 253 1115 909 CK45B1H182KT C338 253 1179 958 CK45B1H271KT(DD-3) C340 253 1179 958 CK45B1H271KT(DD-3) C342 253 1179 990 CK45B1H561KT(DD-3) C344 253 1179 990 CK45B1H561KT(DD-3) C346 253 1179 990 CK45B1H561KT(DD-3) C348 253 1179 990 CK45B1H561KT(DD-3) C349 253 1179 958 CK45B1H271KT(DD-3) C350 253 1179 990 CK45B1H561KT(DD-3) C351 255 4253 958 CQ93P2A561JT(NH2) C352 253 1179 958 CK45B1H271KT(DD-3) C353 253 1179 990 CK45B1H561KT(DD-3) C354 255 4253 958 CQ93P2A561JT(NH2) C355-360 254 4598 908 CE04W1H220MTBP(ASF) C361-363 257 0509 929 CK73B1H102KT C364 255 4232 940 CQ93P2A182JT(NH) C365 257 0509 929 CK73B1H102KT C366 255 4232 940 CQ93P2A182JT(NH) C367-373 257 0512 903 CK73F1E104ZT C374 257 0509 929 CK73B1H102KT C375-378 257 0512 903 CK73F1E104ZT C379 254 4313 950 CE04W1H101MT(ASF) C382 254 4313 950 CE04W1H101MT(ASF) C387,388 257 0512 903 CK73F1E104ZT C389,390 255 4235 934 CQ93P2A103JT(NH) C391-394 254 4313 950 CE04W1H101MT(ASF) C395,396 254 4313 798 CE04W1H221MC(ASF) C397-399 257 0512 903 CK73F1E104ZT C400 254 4598 908 CE04W1H220MTBP(ASF) C401 257 0511 904 CK73F1H103ZT C402 257 0512 903 CK73F1E104ZT C405-408 255 1273 986 CQ93M1H471JT(B) C409-412 257 0509 990 CK73B1H222KT C413-416 247 2018 903 RM73B--0R0KT C420,421 254 4313 950 CE04W1H101MT(ASF) Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 108 108 DVD-2200 C501 257 0511 904 CK73F1H103ZT C502 257 0509 929 CK73B1H102KT C505 257 0512 903 CK73F1E104ZT C509 257 0512 903 CK73F1E104ZT C510 257 0509 929 CK73B1H102KT C511 257 0511 904 CK73F1H103ZT C566 257 0506 951 CC73CH1H101JT C567 257 0501 901 CK73B1H103KT (1608) C568 254 4538 939 CE04W1C470MT SMG/RE3 C569 257 0501 901 CK73B1H103KT (1608) C570 254 4524 943 CE04W1H010MT SMG/RE3 C571 257 0501 901 CK73B1H103KT (1608) C573 257 0501 901 CK73B1H103KT (1608) C574 257 0509 929 CK73B1H102KT C575 257 0501 901 CK73B1H103KT (1608) C593,594 257 0511 904 CK73F1H103ZT ! C901 256 8038 017 CF99--2EAC224M ! C902 256 8038 004 CF99--2EAC104M ! C903 253 8022 707 CK45F2EAC103MC C905 254 4589 700 CE04W2G470MC (KMG) C906 253 4546 711 CC45SL3D221JC C907 253 4452 902 CC45SL1H471JT C908 253 9030 963 CK45=1E103KT C909 254 4522 945 CE04W1V470MT SMG/RE3 ! C910 253 8029 700 CK45F2EAC222MC (KX) C911 253 8028 701 CK45R3A222KC C912 255 1249 923 CQ93M1H681JT (B) C913 254 4533 921 CE04W0J101MT SMG/RE3 C914 254 4592 700 CE04W0J222MC K20(LXV C915 254 4593 709 CE04W1C122MC K20(LXJ C916 254 4591 905 CE04W1H101MT (KMF) C917 254 4593 709 CE04W1C122MC K20(LXJ C918 254 4591 905 CE04W1H101MT (KMF) C919 256 1058 971 CF93A1H104JT (JL) C920 254 4538 955 CE04W1C221MT SMG/RE3 C921 254 4533 921 CE04W0J101MT SMG/RE3 C923 257 0512 903 CK73F1E104ZT C925 254 4522 945 CE04W1V470MT SMG/RE3 C929 254 4533 921 CE04W0J101MT SMG/RE3 C930-932 257 0512 903 CK73F1E104ZT C934 254 4533 921 CE04W0J101MT SMG/RE3 C935 257 0512 903 CK73F1E104ZT C936 254 4538 942 CE04W1C101MT SMG/RE3 C937 254 4533 921 CE04W0J101MT SMG/RE3 C938 257 0512 903 CK73F1E104ZT C939 254 4538 942 CE04W1C101MT SMG/RE3 C940,941 257 0511 904 CK73F1H103ZT C942-945 257 0512 903 CK73F1E104ZT C948 257 0512 903 CK73F1E104ZT C949 257 0511 904 CK73F1H103ZT C950 254 4538 955 CE04W1C221MT SMG/RE3 C951 257 0512 903 CK73F1E104ZT C954-957 257 0512 903 CK73F1E104ZT C958,959 254 4538 942 CE04W1C101MT SMG/RE3 C960 257 0511 904 CK73F1H103ZT C964 254 4538 942 CE04W1C101MT SMG/RE3 C983-985 257 0512 903 CK73F1E104ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 109 109 DVD-2200 OTHER PARTS GROUP CW31 203 5320 009 3P SAN-SAN CON.CORD * CW55 205 1273 004 5P CON.BASE (9176B) * CW61 204 0579 007 6P PH-SAN CON.CORD * ! CX24 203 2349 009 2P INLET CX41 205 0343 045 4P CONN.BASE(KR-PH) CX51 205 0343 058 5P CONN.BASE(KR-PH) CX54 205 0321 054 5P CONNE.BASE (RED) CX55 205 0536 072 5P CONN.SOCKET CX61 205 0343 061 6P CONN.BASE(KR-PH) CX121 205 0375 026 12P CONN.BASE(KR-PH) CY41 205 0343 045 4P CONN.BASE(KR-PH) CY131 205 0892 088 13P FFC CON. BASE CY171 205 1006 080 17P FFC BASE(P=1) CY271 205 1100 083 27P FFC BASE (P=1) ! F951 206 1075 027 FUSE (1.6A) FB201-203 235 0130 903 CHIP EMIFIL(11A121) FB301-306 247 2018 903 RM73B--0R0KT FB312,313 235 0130 903 CHIP EMIFIL(11A121) FB527 235 0130 903 CHIP EMIFIL(11A121) FB753-756 235 0130 903 CHIP EMIFIL(11A121) FF901 202 0040 909 FUSE CLIP (TAPE) FH901 202 0040 909 FUSE CLIP (TAPE) FL101 393 8072 000 FL TUBE(15-BT-91GNK) * JK201 269 0215 009 2P OPT/COAX JACK * JK301 204 8668 004 8P PIN JACK (AU) JK507 204 8674 001 2P MINI JACK(ST) L901 235 0141 002 LINE FILTER (PLA10A) L902 235 0142 917 COIL LHL08TB4R7MT L903 239 8019 002 LINE FILTER COIL L907 235 0142 917 COIL LHL08TB4R7MT L908 235 0142 904 COIL LHL08TB220KT L909 235 0142 917 COIL LHL08TB4R7MT S101-115 212 5604 910 TACT SWITCH-TA(ALPS) ! S901 212 1030 009 POWER SWITCH (TV-5) ST101 205 0452 017 STYLE PIN ST903 205 0452 017 STYLE PIN T201 231 8063 009 PULSE TRANS ! T901 233 6403 007 SW TRANSFORMER(WIDE) W102 203 0526 015 1P CONTACT ASS W301 203 0717 002 1P SIN-SIN WIRE - 415 0866 006 CONDENSER COVER 1 - 417 0592 004 HEAT SINK 1 - 417 0610 009 HEAT SINK(OSH-2430) 1 - 461 0991 026 RUBBER SHEET 2 - 513 3827 003 FUSE LABEL 1 - 471 3303 016 3X6 CBS-Z 1 - 471 3305 027 3X10 CBS 1 Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 110 110 DVD-2200 GU-3572A VIDEO UNIT A Ref. No. Part No. Part Name Remarks New SEMICONDUCTORS GROUP IC603 262 1348 903 TC74HC123AF(TP1) IC604 262 2519 906 SN74LV00APW-EL2 IC605 262 1793 901 TC4W53F IC701 262 3058 000 SII504CM208 IC702 262 2916 004 64M SDRAM(TSOP) IC703 262 3059 902 PIC18LC242-I/SO TAPE IC704 262 3050 008 ADV7300 IC705 262 3093 007 ADV7190 IC706,707 262 3020 902 BH7860FP-E2 IC708-710 263 1082 903 TK15420MTL IC711 262 1348 903 TC74HC123AF(TP1) IC712 263 1110 901 PQ070XZ01ZP IC713 263 1079 903 BA033FP IC714 262 2977 904 BA18BC0FP-E2 IC715 263 1079 903 BA033FP TR701,702 271 0293 901 2SA1022-B TR703 274 0163 904 2SD601A TR704,705 271 0293 901 2SA1022-B TR706 274 0163 904 2SD601A TR707,708 271 0293 901 2SA1022-B TR709,710 274 0163 904 2SD601A TR711,712 271 0293 901 2SA1022-B TR713-716 272 0125 904 2SB709A TR723-725 269 0082 902 DTC114EKT96 TR726-728 269 0083 901 DTA114EKT96 D701-703 276 0717 903 1SS355 TE-17 RESISTORS GROUP R601,602 247 2003 989 RM73B--330JT R603 247 2018 903 RM73B--0R0KT R605 247 2018 903 RM73B--0R0KT R607,608 247 2018 903 RM73B--0R0KT R610-612 247 2018 903 RM73B--0R0KT R613-617 247 2003 989 RM73B--330JT R622-624 247 2018 903 RM73B--0R0KT R625,626 247 2005 987 RM73B--221JT R627-630 247 2018 903 RM73B--0R0KT R633 247 2009 983 RM73B--103JT R634 247 2018 903 RM73B--0R0KT R635 247 2009 983 RM73B--103JT R636-640 247 2018 903 RM73B--0R0KT R641 247 2008 913 RM73B--202JT R642 247 2007 943 RM73B--102JT R650-652 247 2009 909 RM73B--472JT (1608) R668 247 2018 903 RM73B--0R0KT R701 247 2007 943 RM73B--102JT R702-705 247 2018 903 RM73B--0R0KT R706,707 247 2003 989 RM73B--330JT R708 247 2009 983 RM73B--103JT R709,710 247 2003 989 RM73B--330JT R714,715 247 2018 903 RM73B--0R0KT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 111 111 DVD-2200 R716 247 2003 989 RM73B--330JT R717 247 2018 903 RM73B--0R0KT R718 247 2009 909 RM73B--472JT (1608) R720,721 247 2003 989 RM73B--330JT R722 247 2007 943 RM73B--102JT R723 247 2018 903 RM73B--0R0KT R724 247 2014 965 RM73B--105JT R725 247 2009 909 RM73B--472JT (1608) R726-728 247 2008 926 RM73B--222JT R729-731 247 2018 903 RM73B--0R0KT R733,734 247 2018 903 RM73B--0R0KT R735 247 2009 909 RM73B--472JT (1608) R736,737 247 2003 989 RM73B--330JT R738,739 247 2009 909 RM73B--472JT (1608) R740 247 2008 926 RM73B--222JT R741,742 247 2018 903 RM73B--0R0KT R743 247 2009 909 RM73B--472JT (1608) R744,745 247 2003 989 RM73B--330JT R746,747 247 2018 903 RM73B--0R0KT R753,754 247 2003 989 RM73B--330JT R755-757 247 2018 903 RM73B--0R0KT R758 247 2003 989 RM73B--330JT R759 247 2009 909 RM73B--472JT (1608) R760 247 2018 903 RM73B--0R0KT R761,762 247 2003 989 RM73B--330JT R763-766 247 2018 903 RM73B--0R0KT R767 247 2003 989 RM73B--330JT R771 247 2018 903 RM73B--0R0KT R773 247 2007 943 RM73B--102JT R774-776 247 2018 903 RM73B--0R0KT R777 247 2005 987 RM73B--221JT R780 247 2007 985 RM73B--152JT R781 247 2006 960 RM73B--471JT R785 247 2007 943 RM73B--102JT R788 247 2007 901 RM73B--681JT R789,790 247 2018 903 RM73B--0R0KT R791,792 247 2005 987 RM73B--221JT R793 247 2003 989 RM73B--330JT R794 247 2007 943 RM73B--102JT R795 247 2006 986 RM73B--561JT R796 247 2009 983 RM73B--103JT R797 247 2005 903 RM73B--101JT R798 247 2008 926 RM73B--222JT R799 247 2018 903 RM73B--0R0KT R803,804 247 2018 903 RM73B--0R0KT R805,806 247 2014 965 RM73B--105JT R807 247 2009 983 RM73B--103JT R808,809 247 2008 913 RM73B--202JT R810,811 247 2005 987 RM73B--221JT R812 247 2003 989 RM73B--330JT R813 247 2007 943 RM73B--102JT R814 247 2006 986 RM73B--561JT R815 247 2009 983 RM73B--103JT R816 247 2005 903 RM73B--101JT R817 247 2008 926 RM73B--222JT R818 247 2018 903 RM73B--0R0KT R822,823 247 2018 903 RM73B--0R0KT R824,825 247 2014 965 RM73B--105JT R826 247 2009 983 RM73B--103JT R827,828 247 2008 913 RM73B--202JT R829,830 247 2005 987 RM73B--221JT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 112 112 DVD-2200 R831 247 2003 989 RM73B--330JT R832 247 2007 943 RM73B--102JT R833 247 2006 986 RM73B--561JT R834 247 2009 983 RM73B--103JT R835 247 2005 903 RM73B--101JT R836 247 2008 926 RM73B--222JT R837 247 2018 903 RM73B--0R0KT R841,842 247 2018 903 RM73B--0R0KT R843,844 247 2014 965 RM73B--105JT R845 247 2009 983 RM73B--103JT R846,847 247 2008 913 RM73B--202JT R850-852 247 2007 943 RM73B--102JT R853,854 247 2018 903 RM73B--0R0KT R855 247 2009 983 RM73B--103JT R856 247 2018 903 RM73B--0R0KT R857 247 2009 983 RM73B--103JT R858 247 2007 985 RM73B--152JT R859,860 247 2009 983 RM73B--103JT R861-863 247 2009 909 RM73B--472JT (1608) R870,871 247 2018 903 RM73B--0R0KT R872,873 247 2009 909 RM73B--472JT (1608) R877,878 247 2018 903 RM73B--0R0KT R880,881 247 2018 903 RM73B--0R0KT R882,883 247 2003 989 RM73B--330JT R884,885 247 2018 903 RM73B--0R0KT R886 247 2007 943 RM73B--102JT R887-889 247 2018 903 RM73B--0R0KT R890,891 247 2009 909 RM73B--472JT (1608) R892-894 247 2018 903 RM73B--0R0KT R895 247 2007 943 RM73B--102JT R896 247 2005 987 RM73B--221JT R898 247 2005 987 RM73B--221JT R901 247 2005 974 RM73B--201JT R906-910 247 2005 903 RM73B--101JT R914,915 247 2005 903 RM73B--101JT R916-920 247 2003 989 RM73B--330JT R921-925 247 2007 943 RM73B--102JT R926-933 247 2018 903 RM73B--0R0KT R935,936 247 2004 975 RM73B--750JT R937 247 2004 962 RM73B--680JT R938-940 247 2018 903 RM73B--0R0KT R947-949 247 2004 975 RM73B--750JT R950-952 247 2018 903 RM73B--0R0KT R957-961 247 2018 903 RM73B--0R0KT R984,985 247 2018 903 RM73B--0R0KT R988-995 247 2018 903 RM73B--0R0KT R996,997 247 2009 909 RM73B--472JT (1608) R998 247 2003 989 RM73B--330JT RA601-604 247 9002 909 MNR14=330JE0AB RA605-608 247 9007 920 MNR14=0R0JE0 RA701-712 247 9002 909 MNR14=330JE0AB VR701-706 211 6148 906 V03PB471MT(RH03ADCS) VR708 211 6138 903 V03PB102MT(RH03ADC) CAPACITORS GROUP C608 257 0512 903 CK73F1E104ZT Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 113 113 DVD-2200 C616 257 0512 903 CK73F1E104ZT C618,619 257 0509 929 CK73B1H102KT C620-623 257 0512 903 CK73F1E104ZT C701-707 257 0512 903 CK73F1E104ZT C708 257 0511 904 CK73F1H103ZT C709 257 0512 903 CK73F1E104ZT C710 257 4012 917 CE67C1C220MT (RV2) C711 257 0511 904 CK73F1H103ZT C712 257 4011 905 CE67C0J101MT (RV2) C713-715 257 0512 903 CK73F1E104ZT C717-721 257 0512 903 CK73F1E104ZT C723,724 257 0512 903 CK73F1E104ZT C725,726 257 4011 905 CE67C0J101MT (RV2) C727 257 0512 903 CK73F1E104ZT C728 257 4011 905 CE67C0J101MT (RV2) C729-738 257 0512 903 CK73F1E104ZT C739 257 4011 905 CE67C0J101MT (RV2) C742 257 0511 904 CK73F1H103ZT C743 257 0512 903 CK73F1E104ZT C745,746 257 4011 905 CE67C0J101MT (RV2) C747,748 257 0512 903 CK73F1E104ZT C749 257 4011 905 CE67C0J101MT (RV2) C750 257 0512 903 CK73F1E104ZT C752 257 0511 904 CK73F1H103ZT C753 257 0512 903 CK73F1E104ZT C755,756 257 0512 903 CK73F1E104ZT C758 257 0509 903 CK73B1H821KT C759 257 0512 903 CK73F1E104ZT C760 257 4011 905 CE67C0J101MT (RV2) C761 257 0510 921 CK73B1H392KT C765,766 257 0512 903 CK73F1E104ZT C768,769 257 0512 903 CK73F1E104ZT C770-772 257 4011 905 CE67C0J101MT (RV2) C776,777 257 0512 903 CK73F1E104ZT C779,780 257 0512 903 CK73F1E104ZT C781,782 257 4012 917 CE67C1C220MT (RV2) C783 257 4012 904 CE67C1C100MT (RV2B55 C787,788 257 0512 903 CK73F1E104ZT C790,791 257 0512 903 CK73F1E104ZT C792,793 257 4012 917 CE67C1C220MT (RV2) C794 257 4012 904 CE67C1C100MT (RV2B55 C795,796 257 0512 903 CK73F1E104ZT C797,798 257 4011 905 CE67C0J101MT (RV2) C799,800 257 0512 903 CK73F1E104ZT C801 257 4011 905 CE67C0J101MT (RV2) C802 257 0507 934 CC73CH1H221JT C803 257 0512 903 CK73F1E104ZT C804,805 257 0509 929 CK73B1H102KT C806,807 257 0512 903 CK73F1E104ZT C808 257 4011 905 CE67C0J101MT (RV2) C809,810 257 0512 903 CK73F1E104ZT C811,812 257 4011 905 CE67C0J101MT (RV2) C813-815 257 0512 903 CK73F1E104ZT C816 257 4012 917 CE67C1C220MT (RV2) C817 257 0512 903 CK73F1E104ZT C818 257 4012 917 CE67C1C220MT (RV2) C819 257 0512 903 CK73F1E104ZT C820 257 0511 904 CK73F1H103ZT C823-832 257 0512 903 CK73F1E104ZT C833 257 4011 905 CE67C0J101MT (RV2) C834 257 0501 901 CK73B1H103KT (1608) Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 114 114 DVD-2200 C835,836 257 4012 920 CE67C1C470MT (RV2) C837,838 257 0511 904 CK73F1H103ZT C839 257 4011 905 CE67C0J101MT (RV2) C840 257 0512 903 CK73F1E104ZT C841 257 0504 995 CC73CH1H510JT C843 257 0501 901 CK73B1H103KT (1608) C844 254 4327 904 CE04W0J102MT(SMG) C845 257 4011 905 CE67C0J101MT (RV2) C846 254 4327 904 CE04W0J102MT(SMG) C847 257 4011 905 CE67C0J101MT (RV2) C848 254 4533 950 CE04W0J471MT SMG/RE3 C850-852 257 4012 920 CE67C1C470MT (RV2) C853,854 257 0511 904 CK73F1H103ZT C855 257 4011 905 CE67C0J101MT (RV2) C856 257 0512 903 CK73F1E104ZT C857 257 0504 995 CC73CH1H510JT C861,862 254 4533 950 CE04W0J471MT SMG/RE3 C863 257 0512 903 CK73F1E104ZT C864 257 0511 904 CK73F1H103ZT C865 257 0509 929 CK73B1H102KT C866 257 4011 905 CE67C0J101MT (RV2) C867,868 257 0512 903 CK73F1E104ZT C869 257 0511 904 CK73F1H103ZT C870 257 0509 929 CK73B1H102KT C873 257 0512 903 CK73F1E104ZT C875-879 257 0512 903 CK73F1E104ZT OTHER PARTS GROUP CY53 205 0343 058 5P CONN.BASE(KR-PH) CY101 205 0884 054 10P CON.BASE TUC-P CY331 205 1170 945 33P FFC BASE(FMNBMTT JK701 205 1272 005 1P S-TERMINAL * JK704 204 8677 008 4P PIN JACK(Y/B/R/V) * L704,705 235 0125 905 INDUCTOR(FLC32C220K) L710 235 0125 905 INDUCTOR(FLC32C220K) L712 235 0149 907 LK1608R68K-T L713 235 0125 905 INDUCTOR(FLC32C220K) L715 235 0149 907 LK1608R68K-T LF701 261 0163 908 ELB4B591N LF702 261 0162 909 ELB4C582N X702 399 0832 903 CSTCG20MOV51-R0 Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 115 115 DVD-2200 GU-3343A SCART P.W.B.UNIT A Ref. No. Part No. Part Name Remarks New SEMICONDUCTORS GROUP IC851 262 1793 901 TC4W53F IC852 263 1115 906 NJM2267M (TE2) IC853 262 0707 901 TC4053BF (TAPE) IC854 262 2534 907 BA7660FS-E2 TR851-854 269 0082 902 DTC114EKT96 TR855 269 0083 901 DTA114EKT96 RESISTORS GROUP R851,852 247 2007 943 RM73B--102JT R853 247 2006 915 RM73B--271JT R854 247 2006 960 RM73B--471JT R855,856 247 2005 945 RM73B--151JT R857,858 247 2004 975 RM73B--750JT R859,860 247 2006 902 RM73B--331JT (1608) R861-863 247 2005 945 RM73B--151JT R864 247 2005 974 RM73B--201JT R865,866 247 2005 945 RM73B--151JT R867 247 2011 900 RM73B--333JT R868 247 2009 925 RM73B--562JT R869 247 2011 900 RM73B--333JT R870 247 2009 925 RM73B--562JT R871 247 2011 900 RM73B--333JT R872 247 2009 925 RM73B--562JT R873-875 247 2004 975 RM73B--750JT R876 247 2009 909 RM73B--472JT (1608) R877-880 247 2018 903 RM73B--0R0KT R884 247 2004 975 RM73B--750JT CAPACITORS GROUP C851,852 257 0506 951 CC73CH1H101JT C853 254 4299 964 CE04W1C470MT(SRE) C854,855 254 4300 963 CE04W0J101MT(SRE) C856-859 257 0512 903 CK73F1E104ZT C860,861 254 4300 963 CE04W0J101MT(SRE) C862 257 0512 903 CK73F1E104ZT C863 254 4300 963 CE04W0J101MT(SRE) C864,865 257 0512 903 CK73F1E104ZT C866-868 254 4299 964 CE04W1C470MT(SRE) C869 254 4300 963 CE04W0J101MT(SRE) C870 254 4299 919 CE04W1C220MT(SRE) C871 254 4300 963 CE04W0J101MT(SRE) C872 254 4299 919 CE04W1C220MT(SRE) C873 254 4300 963 CE04W0J101MT(SRE) C874 254 4299 919 CE04W1C220MT(SRE) C875 257 0512 903 CK73F1E104ZT C876 254 4300 963 CE04W0J101MT(SRE) C877,878 257 0512 903 CK73F1E104ZT C879 257 0511 904 CK73F1H103ZT C880 257 0509 929 CK73B1H102KT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 116 116 DVD-2200 C884-887 247 2018 903 RM73B--0R0KT C890-892 247 2018 903 RM73B--0R0KT C896,897 257 0512 903 CK73F1E104ZT OTHER PARTS GROUP CX52 205 0395 051 5P CONN.BASE(RED)L CX101 205 0885 053 10P CON.SOCKET TUC-P FB851-856 235 0130 903 CHIP EMIFIL(11A121) JK851 204 6649 009 RGB CONNECTOR L851 235 0070 911 INDUCTOR(220)ST W701 414 0903 005 SCART SHIELD PLATE - 001 0231 005 1P WIRE 1 - 001 0231 018 1P WIRE 1 - 254 4538 955 CE04W1C221MT SMG/RE3 1 - 461 0415 007 RUBBER SHEET 1 Ref. No. Part No. Part Name Remarks New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 117 117 DVD-2200 EXPLODED VIEW 1 2 100 3 101 101 4 5 101 6 7 8 100 102 9 100 100 102 10 11 103 104 100 12 13 100 102 14 15 16 17 18 35 19 20 20 21 22 23 24 24 105 25 26 102 102 27 106 101 28 29 107 30 31 101 108 108 32 33 21 34 102 Europe model only U.S.A & Canada model only Parts marked with this symbol have critical characteristics. Use ONLY replacement parts recommended by the manufacturer. WARNING: w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 118 118 DVD-2200 PARTS LIST OF EXPLODED VIEW ( FOR U.S.A. & CANADA MODEL ) Ref. No. Part No. Part Name Remarks Q'ty New GU-3571 AUDIO/POW/DISP UNIT 1 8 AUDIO UNIT GU-3571-1 1 9 POWER UNIT GU-3571-2 1 25 DISPLAY UNIT GU-3571-3 1 26 KEY UNIT GU-3571-4 1 27 LED UNIT GU-3571-5 1 11 GU-3570 MAIN UNIT 1 13 GU-3572 VIDEO UNIT 1 1 411 2039 208 CHASSIS 1 * 2 104 0313 015 FOOT ASS'Y 4 3 105 1441 109 REAR PAENL 1 * 4 411 2040 103 MECHA.FIX BRACKET 1 * 5 449 0212 006 RUBBER WASHER 6 6 415 9016 064 P.C.B HOLDER 1 7 449 0050 064 CARD SPACER 1 10 337 0123 009 DVD MECHA(TD-5HP-D1) 1 * 12 445 0048 016 CORD HOLDER (L50) 1 14 113 1850 018 TACT KNOB (6P) 1 15 113 1974 211 P.SW.LEVER ASS'Y 1 * 16 144 2855 016 FRONT PANEL ASS'Y 1 * 17 131 0158 007 DENON BADGE 1 18 143 1178 102 WINDOW 1 * 19 143 1110 005 LENS 1 20 146 2328 316 INNER PANEL 1 * 21 113 1972 116 FUNCTION KNOB 1 * 22 461 1164 001 BLIND CUSHION 1 * 23 431 0437 000 BLIND 1 * 24 463 0958 007 SPRING 2 * 28 461 0501 005 RUBBER SHEET 3 29 412 5065 007 MECHA COVER 1 * 30 102 0635 140 TOP COVER 1 * 31 461 1168 023 RUBBER SHEET 1 32 146 2329 001 LOADER PANEL 1 * 33 135 0065 008 DVD A/VIDEO PLATE 1 35 414 0595 031 EARTH PLATE 1 * ★ 204 6610 012 12P PH-PH CORD CX121 1 ★ 009 0226 098 13P FFC (1.0) CX131 1 * ★ 009 0226 069 27P FFC (1.0) CX271 1 ★ 009 0226 056 33P FFC (1.0) CX331 1 ★ 203 8489 031 5P PH-PH CON CORD CX51 1 * ★ 203 6493 045 4P PH-PH CONN.CORD CX41 1 * ★ 445 0033 005 WIRE CLAMP BAND 1 ★ 009 0226 085 17P FFC (1.0) CX171 1 * ★ 513 1581 011 SERIAL NO. SHEET 1 ★ 513 1381 004 MANUFAC.DATE LABEL 1 SCREWS 100 473 7002 018 3X8 CBTS (S)-Z 22 101 473 7015 005 3X6 CBTS(S)-B 17 102 473 7500 044 3X8 CBTS (P)-B 15 103 473 7506 019 2X6 CBTS (P)-Z 2 104 473 7001 048 2.6X8 CBTS (S)-Z 4 105 473 8044 004 SPECIAL SCREW 2 * 106 473 7003 017 3X8 CFTS (S)-B 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 119 DVD-2200 107 471 3301 018 3X4 CBS-Z 5 108 477 0263 005 3P. SWELLING SCREW 4 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 120 DVD-2200 PARTS LIST OF EXPLODED VIEW ( FOR EUROPE MODEL ) Ref. No. Part No. Part Name Remarks Q'ty New GU-3571A AUD/POW/DISP UNIT A 1 8 AUDIO UNIT GU-3571-1 1 9 POWER UNIT GU-3571-2 1 25 DISPLAY UNIT GU-3571-3 1 26 KEY UNIT GU-3571-4 1 27 LED UNIT GU-3571-5 1 11 GU-3570 MAIN UNIT 1 13 GU-3572A VIDEO UNIT A 1 34 GU-3343A SCART PWB UNIT A 1 1 411 2039 208 CHASSIS 1 * 2 104 0313 015 FOOT ASS'Y Gold & Black models 4 2 104 0313 028 FOOT ASS'Y Silver model 4 3 105 1441 112 REAR PANEL Gold & Black models 1 * 3 105 1441 015 REAR PANEL Silver model 1 * 4 411 2040 103 MECHA.FIX BRACKET 1 * 5 449 0212 006 RUBBER WASHER 6 6 415 9016 064 P.C.B HOLDER 1 7 449 0050 064 CARD SPACER 1 10 337 0123 009 DVD MECHA(TD-5HP-D1) 1 * 12 445 0048 016 CORD HOLDER (L50) 1 14 113 1850 005 TACT KNOB (6P) Gold model 1 14 113 1850 018 TACT KNOB (6P) Black model 1 14 113 1850 021 TACT KNOB (6P) Silver model 1 * 15 113 1974 208 P.SW.LEVER ASS'Y Gold model 1 * 15 113 1974 211 P.SW.LEVER ASS'Y Black model 1 * 15 113 1974 224 P.SW.LEVER ASS'Y Silver model 1 * 16 144 2855 003 FRONT PANEL ASS'Y Gold model 1 * 16 144 2855 016 FRONT PANEL ASS'Y Black model 1 * 16 144 2855 029 FRONT PANEL ASS'Y Silver model 1 * 17 131 0158 010 DENON BADGE Gold model 1 17 131 0158 007 DENON BADGE Black model 1 17 131 0158 023 DENON BADGE Silver model 1 18 143 1178 102 WINDOW 1 * 19 143 1110 005 LENS 1 20 146 2328 303 INNER PANEL Gold model 1 * 20 146 2328 316 INNER PANEL Black model 1 * 20 146 2328 329 INNER PANEL Silver model 1 * 21 113 1972 103 FUNCTION KNOB Gold model 1 * 21 113 1972 116 FUNCTION KNOB Black model 1 * 21 113 1972 129 FUNCTION KNOB Silver model 1 * 22 461 1164 001 BLIND CUSHION 1 * 23 431 0437 000 BLIND 1 * 24 463 0958 007 SPRING 2 * 28 461 0501 005 RUBBER SHEET 3 29 412 5065 007 MECHA COVER 1 * 30 102 0635 137 TOP COVER Gold model 1 * 30 102 0635 140 TOP COVER Black model 1 * 30 102 0635 153 TOP COVER Silver model 1 * 31 461 1168 023 RUBBER SHEET 1 32 146 2329 014 LOADER PANEL Gold model 1 * 32 146 2329 001 LOADER PANEL Black model 1 * 32 146 2329 027 LOADER PANEL Silver model 1 * 33 135 0065 011 DVD A/VIDEO PLATE Gold model 1 33 135 0065 008 DVD A/VIDEO PLATE Black model 1 33 135 0065 024 DVD A/VIDEO PLATE Silver model 1 * ★ 513 3463 001 LABEL(LASER) 1 ★ 513 2065 002 E2 LASER CAUTION 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 121 121 DVD-2200 ★ 204 6610 012 12P PH-PH CORD CX121 1 ★ 009 0226 098 13P FFC (1.0) CX131 1 * ★ 009 0226 069 27P FFC (1.0) CX271 1 ★ 009 0226 056 33P FFC (1.0) CX331 1 ★ 203 8489 031 5P PH-PH CON CORD CX51 1 * ★ 203 6493 045 4P PH-PH CONN.CORD CX41 1 * ★ 445 0033 005 WIRE CLAMP BAND 1 ★ 203 8489 044 5P PH-PH CON CORD CX54 1 * ★ 009 0226 085 17P FFC (1.0) CX171 1 * ★ 513 1581 011 SERIAL NO. SHEET 1 SCREWS 100 473 7002 018 3X8 CBTS (S)-Z 22 101 473 7015 005 3X6 CBTS(S)-B 17 102 473 7500 044 3X8 CBTS (P)-B 17 103 473 7506 019 2X6 CBTS (P)-Z 2 104 473 7001 048 2.6X8 CBTS (S)-Z 4 105 473 8044 004 SPECIAL SCREW 2 * 106 473 7003 017 3X8 CFTS (S)-B 2 107 471 3301 018 3X4 CBS-Z 5 108 477 0263 018 3P.SWELLING SCREW Gold & Silver models 4 108 477 0263 005 3P. SWELLING SCREW Black model 4 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 122 122 DVD-2200 EXPLODED VIEW OF DVD MECHANISM 14 2 15 8 12 7 5 1 11 6 9 10 3 50 21 21 24 24 16 23 17 25 20 19 24 24 24 18 26 26 23 42 39 44 43 28 43 29 35 40 37 38 34 33 30 32 32 47 46 47 31 53 50 36 23 49 27B 27A 41 49 49 51 51 49 48 27 22 54 52 52 63 64 4 68 70 71 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 123 123 DVD-2200 PARTS LIST OF DVD MECHANISM UNIT 3370123009 DVD MECHA (TD-5HP-D5) Ref. No. Part No. Part Name Remarks Q'ty New 1 9KC 1A01 7 MAIN CHASSIS ASS'Y 1 2 9KA 7P08 5 CLAMPER BRACKET 1 3 9KC 4P007F GUIDE CLAMP BRACKET 1 4 9KC 2A00 3 LOADING MOTOR ASS'Y 1 5 9KC 2G02 9 LOADING GEAR 1 6 9KB 9G03 0 LOADING GEAR 2ND 1 7 9KB 9G03 1 LOADING GEAR 3RD 1 8 9KA 2G41 7 SUB CHASSIS-L 1 9 9KA 2G41 8 SUB CHASSIS-R 1 10 9KA 2G399C TRAY 1 11 9KC 1G00 3 SLIDE-CAM 1 12 9KC 1G00 4 TRAVERSE ARM 1 14 9KA 7G20 2 CLAMPER H 1 15 9KA 7G20 3 CLAMPER L 1 16 9KB 9G01 5 LOADING BELT 1 17 9KC 1P01 4 SWITCH P.W.B. 1 18 9KC 2G04 3 5P PH WIRE 1 19 9KS 01W2 04 SWITCH ESE22MH21 1 20 9KS 01W2 05 SWITCH ESE22MH23 1 21 9KP 26C6 25 POLY.SLIT WASHER 2.6X6X0.25C 3 22 445 8004 007 WIRE CLAMPER 1 23 9KS 17N0 22 PRECISION SCREW 1.7X2.2 TYPE3 2 24 9KB 26BK 06 SCREW 2.6X6 CBTS(B)-Z 6 25 9KS 20TK 33 PRECISION SCREW 2X3(S) TYPE3 1 26 9KB 20PK 06 SCREW 2X6 CBTS(P)-Z 2 27A 9KC 2A06 3B TRAVERSE MECHA (FEED) ASS'Y Assembled part 1 27B 9KC 2A06 4B TRAVERSE MECHA ASS'Y Assembled part 1 23 - PRECISION SCREW 1.7X2.2 TYPE3 3 27 - PU CHASSIS ASS'Y 1 28 - SHAFT HOLDER L 1 29 - SHAFT HOLDER R 1 30 - SHAFT TILT BASE 1 31 - SHAFT TILT PLATE 1 32 - TILT SPRING 2 33 - MAIN SHAFT 1 34 - SUB SHAFT 1 35 - PU RACK GEAR 1 37 - PICK UP HOP-1200R 1 38 - PU SPRING 1 39 - SHAFT SPRING 1 40 - RACK GEAR SPRING 1 42 - T/T MOTOR ASS'Y 1 43 - SCREW 2.6X6 CBTS(S)-Z 2 44 - SCREW 2.6X4 CBTS(S)-Z 1 46 - SCREW 2.6X15 CFTS(S)-Z 2 47 - SCREW 3X4 BSS 2 48 - SCREW 3X8 BSS (A) 1 63 - PRECISION SCREW 1.7X5 TYPE3 1 23 - PRECISION SCREW 1.7X2.2 TYPE3 2 36 - FEED GEAR 2ND ASS'Y 1 41 - FEED MOTOR ASS'Y 1 50 - POLY.SLIT WASHER 2.1X4X0.25C 2 53 - FEED GEAR 3RD 1 49 9KC 1G04 3 DAMPER 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 124 124 DVD-2200 51 - SPECIAL SCREW (FRONT) 2 52 - SPECIAL SCREW (REAR) 2 54 9KB 7P02 4 TRAY-SPRING-VXF 1 64 9KC 1G04 2 RUBBER CUSHION 2 68 - TAPE W10X45 (NITTO NO.156) 1 70 9KC 2G07 6 CUSHION L 6X3Xt4 1 71 9KC 2G07 7 CUSHION R 6X3Xt2 1 Ref. No. Part No. Part Name Remarks Q'ty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 125 125 DVD-2200 54 Apply 12.5mm half-ball approx. Main Chassis Main Chassis *As for greasing to the R rail groove and groove's side edge, apply grease to the outer face "intentionally". (Not only running a brush into the groove, use it with pressing to the outer face consciously.) After attaching cushions, apply Cemedine 575 to the joint parts of the cushions and tabs (both sides, left and right) from the tab's back side. (0.1mg each x 4) After applying , check especially for the front 3 ribs outer side in order not to be insufficient greasing. When greasing each rib, apply to the rib's left, right, and top faces properly with running a brush on both sides of the rib. With Cemedine 575, glue 3 joint parts of Clamper-L and H hooks. (0.05mg each x 3) Froil KG 423 After attaching plate spring, apply to the TRAY side of the plate spring. POINTS OF GREASING w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 126 126 DVD-2200 PACKING VIEW PARTS LIST OF PACKING & ACCESSORIES Ref. No. Part No. Part Name Remarks Q'ty New 201 505 0038 043 POLY COVER 1 202 511 4096 002 INST. MANUAL E3 1 * 202 511 4097 001 INST. MANUAL(7) E2 1 * 204 515 0921 209 S.S.LIST(EX) 1 ! 205 206 2216 102 AC INLET N/I E3 E3 1 ! 205 206 2217 004 AC CONN WITH PLUG E2 1 206 203 5224 008 3P PIN CORD 1 207 399 0902 008 RC-962 1 * 208 - BATTERY(UM-3)ASS'Y 1 209 505 0312 028 CABINET COVER 1 210 503 1472 000 CUSHION 2 * 212 501 2250 005 CARTON CASE 1 * ★ - CONT.CARD(L) 1 ★ - UPC LABEL E3 1 * ★ - E2 POS LABEL E2 Gold model 1 * ★ - E2 POS LABEL E2 Black model 1 * ★ - E2 POS LABEL E2 Silver model 1 * ★ 513 3579 005 REGION LABEL(NO.1) E3 2 ★ 513 3579 018 REGION LABEL(NO.2) E2 2 ★ 515 0944 008 WARRANTY (HOME) E3 1 ★ 513 9111 001 COLOR LABEL (GOLD) E2 Gold model 2 ★ 513 9111 056 COLOR LABEL E2 Silver model 2 210 210 201 209 208 212 Note : The symbols in the column “Remarks” indicate the following destinations. E3 : U.S.A. & Canada model E2 : Europe modell www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 127 DVD-2200 WIRING DIAGRAM � � � � � � � � � � � � � � GU-3570� � � � MAIN�PWB�UNIT ��������������� ���� GU-3343 SCART�PWB�UNIT (E2�MODEL�ONLY) GU-3571-2 � POWER�UNIT � � � � � � � � � � � � � � � � � GU-�3571-3� � � � � DISPLAY�UNIT CW031 3P�SAN LED�UNIT GU-3571-5 AC�IN�LET 　CX024 CX054 5P�PH GU-3572 VIDEO�PWB�UNIT CY271 27P�FFC CX061 6P�PH CZ031 3P�SAN CX241 24P�FFC CX151 15P�FFC CX052 5P�PH CW061 6P�SAN CX101 10P�TUCP CY171 17P�FFC CX171 17P�FFC GU-3571-1 AUDIO�PWB�UNIT CY101 10P�TUCP CY121 12P�PH CX121 12P�PH CX052 5P�PH CX271 27P�FFC CX051 5P�PH CY053 5P�PH CY131 13P�FFC CX131 13P�FFC CX331 33P�FFC CY331 33P�FFC CX041 4P�PH CY041 4P�PH Key�UNIT GU-3571-4 CW055 IMSA-9176B-5L P.SW CX055 IMSA-9110S-5L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 128 DVD-2200 MEASURING METHOD AND WAVEFORMS To check the waveforms on the Main P.W.B., the GND (-) probe of the oscilloscope to "Vref" point. NOTICE: Measuring Disc: DVD/DVDT-S01 TDV-520A CD/TCD-784 (It is better to use wires for extending between the probe and test points.) • When watching the HF waveform, use the extending wire as short as possible. • When HF waveform is noisy or cannot discriminate the eye- pattern, replace the Traverse Unit after measuring the top. • ① ~ ⑰ points have the certain test points shown below. GU-3570 Main P.W.B. Unit Foil Side 8 10 VC16 (Vref) 3 13 7 12 14 15 11 17 16 6 2 1 5 9 4 各部の波形と測定方法 メイン基板の波形チェックを行なうためにはオシロスコープ の GND(-)　プローブを "Vref"　ポイントに接続します 注） 測定ディスク：DVD/DVDT-S01 TDV-520A CD/TCD-784 （テストポイントとプローブ間に延長ワイヤを使用するのが より良い方法です。） •HF 波形を観測する場合、できるだけ短い延長ワイヤを使用し てください。 •HF 波形がノイズで不明瞭、またはアイパターンが識別不能の 場合は lop 測定後にトラバースユニットを交換してください。 •ポイントは①～⑰は、下図のように特定テストポイント付き です。 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 129 DVD-2200 WAVEFORMS DVD PLAY CD PLAY DISC DETECT (CD) DVD PLAY (INNER) CD PLAY (INNER) DISC DETECT (DVD) SEARCH TO OUTER CHAPTER (INNER OUTER) RFAC RFAC FE FSCON F+ F- FE FSCON F+ F- TE TSCON T+ T- TE TSCON T+ T- TE SLED SLD+ SLD- FSCON FE PI MIRR FSCON FE PI MIRR DMO VC16 FG A3 DMO FG A3 Disc: TDV-520A CD PLAY Disc: TCD-784 DVD LOADING PLAY CD LOADING PLAY DVD PLAY VC16 GU-3570 MAIN P.W.B. � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 130 DVD-2200 A V1 V2 V3 V4 V8 V7 V6 V5 C D E GU-3571-2 POWER P.W.B GU-3572 VIDEO P.W.B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com COMMON SIGNAL (VIDEO/AUDIO(PCM)) 1 16 17 13 15 8 9 14 5 4 7 3 6 2 12 10 11 131 SCHEMATIC DIAGRAMS (1/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 131 SCHEMATIC DIAGRAMS (1/8) GU-3570-1 MAIN UNIT (1/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com COMMON SIGNAL (VIDEO/AUDIO(PCM) AUDIO SIGNAL(DSD) 132 SCHEMATIC DIAGRAMS (2/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 132 SCHEMATIC DIAGRAMS (2/8) GU-3570-1 MAIN UNIT (2/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com COMMON SIGNAL (VIDEO/AUDIO(PCM) AUDIO SIGNAL(DSD) VIDEO SIGNAL AUDIO SIGNAL(PCM) 133 SCHEMATIC DIAGRAMS (3/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 133 SCHEMATIC DIAGRAMS (3/8) GU-3570-1 MAIN UNIT (3/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AUDIO SIGNAL(PCM) 5 2 3 4 1 134 SCHEMATIC DIAGRAMS (4/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 134 SCHEMATIC DIAGRAMS (4/8) GU-3571-1 AUDIO UNIT 5 1 2 3 4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A D C E 135 SCHEMATIC DIAGRAMS (5/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 135 SCHEMATIC DIAGRAMS (5/8) GU-3571-2 POWER UNIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 136 SCHEMATIC DIAGRAMS (6/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 136 SCHEMATIC DIAGRAMS (6/8) GU-3571-3 DISPLAY UNIT GU-3571-4 KEY UNIT GU-3571-5 LED UNIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VIDEO SIGNAL V1 V2 V3 V4 V5 137 SCHEMATIC DIAGRAMS (7/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 137 SCHEMATIC DIAGRAMS (7/8) GU-3572-1 VIDEO UNIT (1/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VIDEO SIGNAL V8 V7 V6 138 SCHEMATIC DIAGRAMS (8/8) (FOR U.S.A & CANADA MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 138 SCHEMATIC DIAGRAMS (8/8) GU-3572-1 VIDEO UNIT (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com COMMON SIGNAL (VIDEO/AUDIO(PCM)) 1 16 17 13 15 8 9 14 5 4 7 3 6 2 12 10 11 139 SCHEMATIC DIAGRAMS (1/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 139 SCHEMATIC DIAGRAMS (1/9) GU-3570-1 MAIN UNIT (1/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com COMMON SIGNAL (VIDEO/AUDIO(PCM) AUDIO SIGNAL (DSD) 140 SCHEMATIC DIAGRAMS (2/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 140 SCHEMATIC DIAGRAMS (2/9) GU-3570-1 MAIN UNIT (2/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com COMMON SIGNAL (VIDEO/AUDIO(PCM) AUDIO SIGNAL(DSD) VIDEO SIGNAL AUDIO SIGNAL(PCM) 141 SCHEMATIC DIAGRAMS (3/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 141 SCHEMATIC DIAGRAMS (3/9) GU-3570-1 MAIN UNIT (3/3) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com AUDIO SIGNAL(PCM) 5 2 3 4 1 142 SCHEMATIC DIAGRAMS (4/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 142 SCHEMATIC DIAGRAMS (4/9) GU-3571-1 AUDIO UNIT 5 1 2 3 4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com A D C E A 143 SCHEMATIC DIAGRAMS (5/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 143 SCHEMATIC DIAGRAMS (5/9) GU-3571-2 POWER UNIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 144 SCHEMATIC DIAGRAMS (6/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 144 SCHEMATIC DIAGRAMS (6/9) GU-3571-3 DISPLAY UNIT GU-3571-4 KEY UNIT GU-3571-5 LED UNIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VIDEO SIGNAL V1 V2 V3 V4 V5 145 SCHEMATIC DIAGRAMS (7/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 145 SCHEMATIC DIAGRAMS (7/9) GU-3572-1 VIDEO UNIT (1/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VIDEO SIGNAL V8 V7 V6 146 SCHEMATIC DIAGRAMS (8/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 146 SCHEMATIC DIAGRAMS (8/9) GU-3572-1 VIDEO UNIT (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com VIDEO SIGNAL 147 SCHEMATIC DIAGRAMS (9/9) (FOR EUROPE MODEL) 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H DVD-2200 147 SCHEMATIC DIAGRAMS (9/9) GU-3343-1 SCART UNIT (Europe model only) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
