天龙DENON DVD-1930 DVD播放器电路图

分类:电子电工 日期: 点击:0

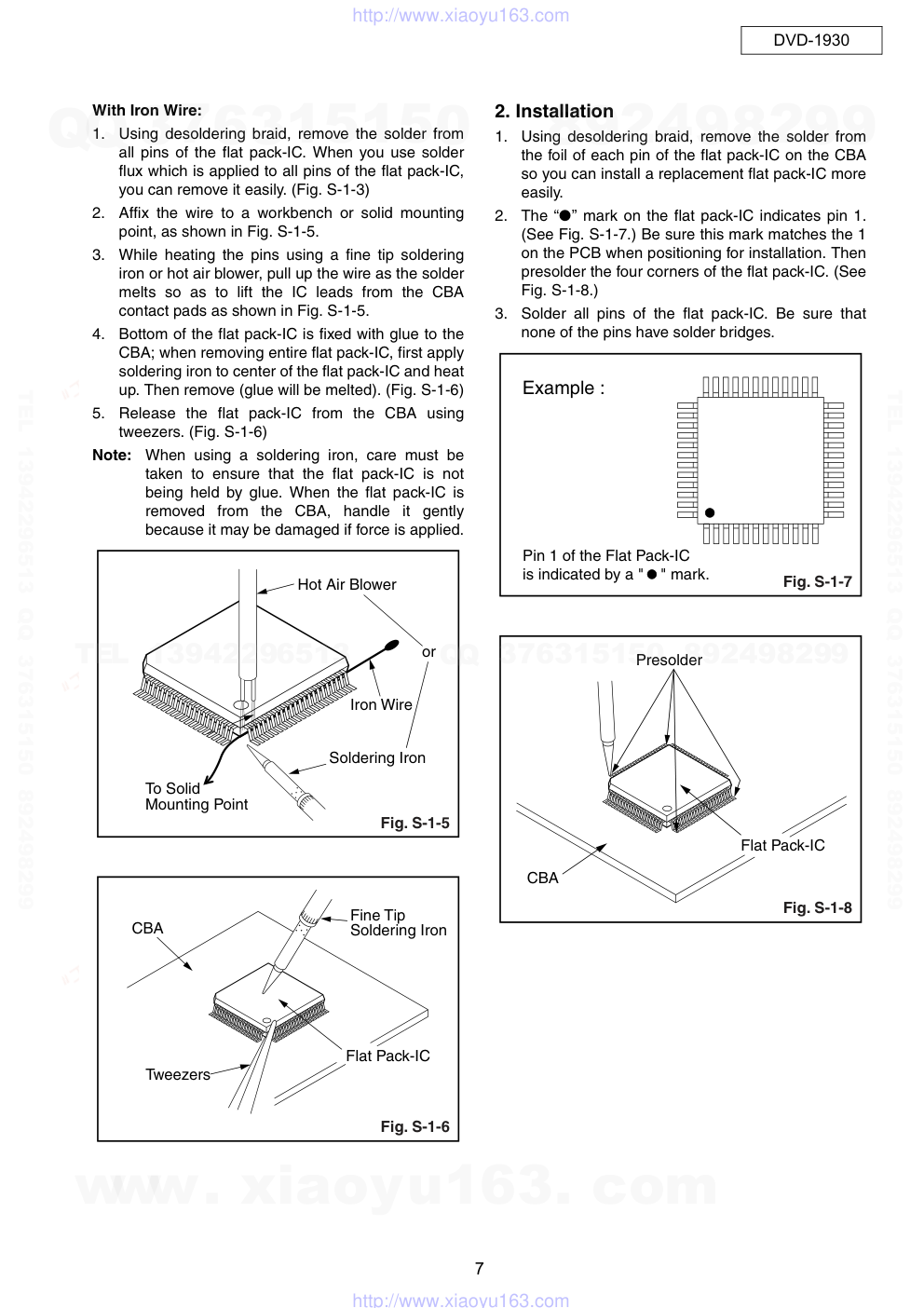

天龙DENON DVD-1930 DVD播放器电路图-0 天龙DENON DVD-1930 DVD播放器电路图-1 天龙DENON DVD-1930 DVD播放器电路图-2 天龙DENON DVD-1930 DVD播放器电路图-3 天龙DENON DVD-1930 DVD播放器电路图-4 天龙DENON DVD-1930 DVD播放器电路图-5 天龙DENON DVD-1930 DVD播放器电路图-6 天龙DENON DVD-1930 DVD播放器电路图-7 天龙DENON DVD-1930 DVD播放器电路图-8 天龙DENON DVD-1930 DVD播放器电路图-9

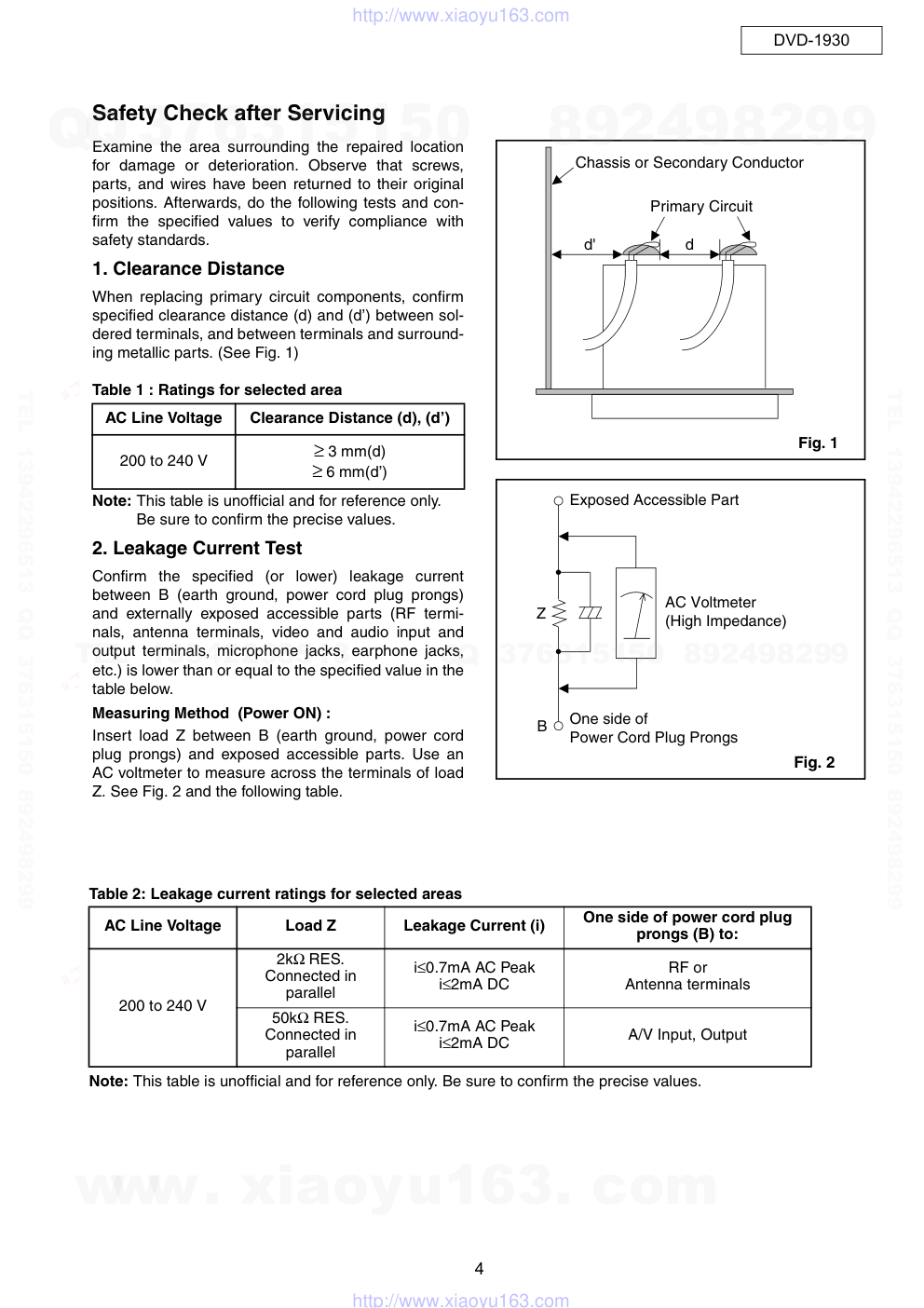

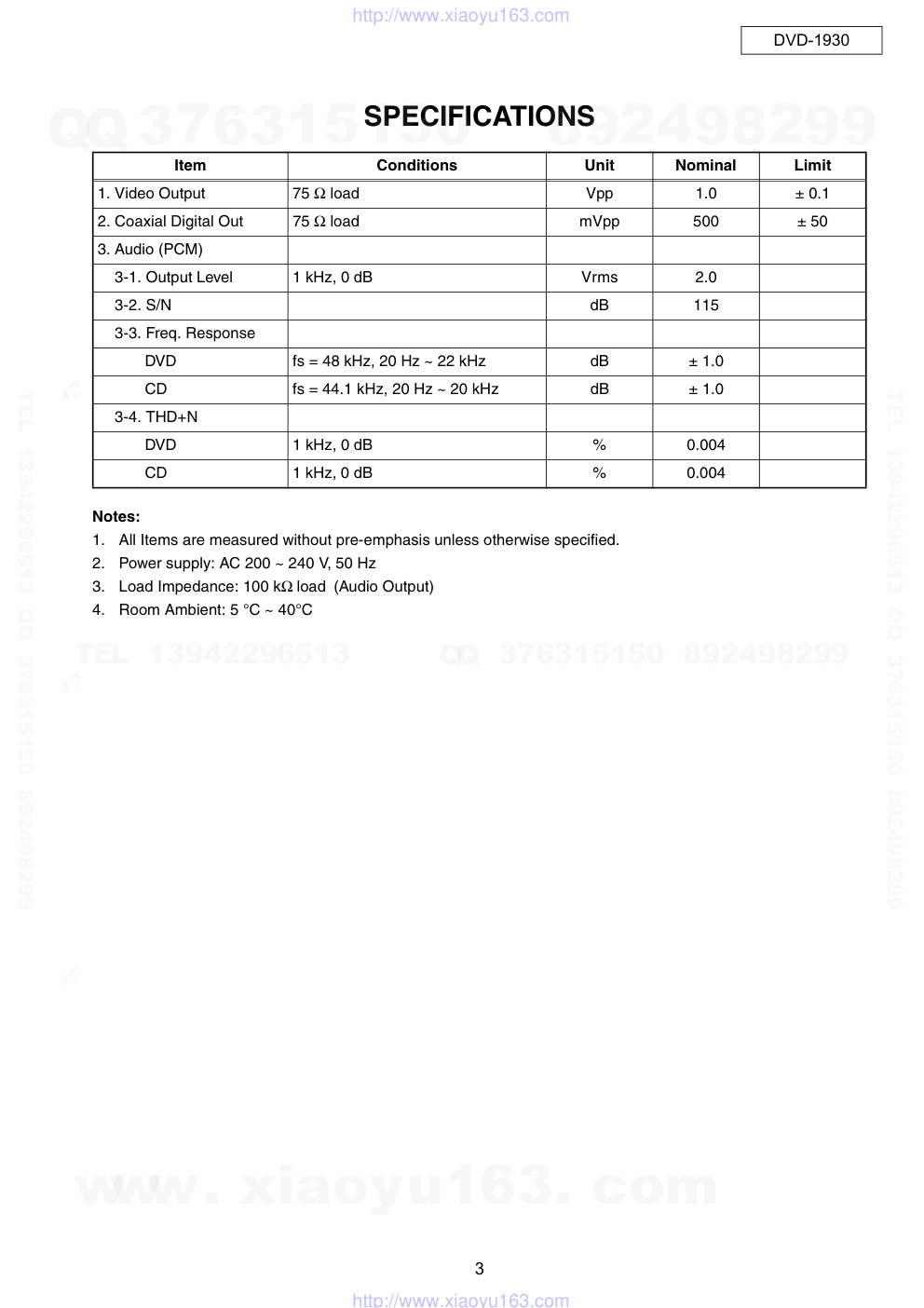

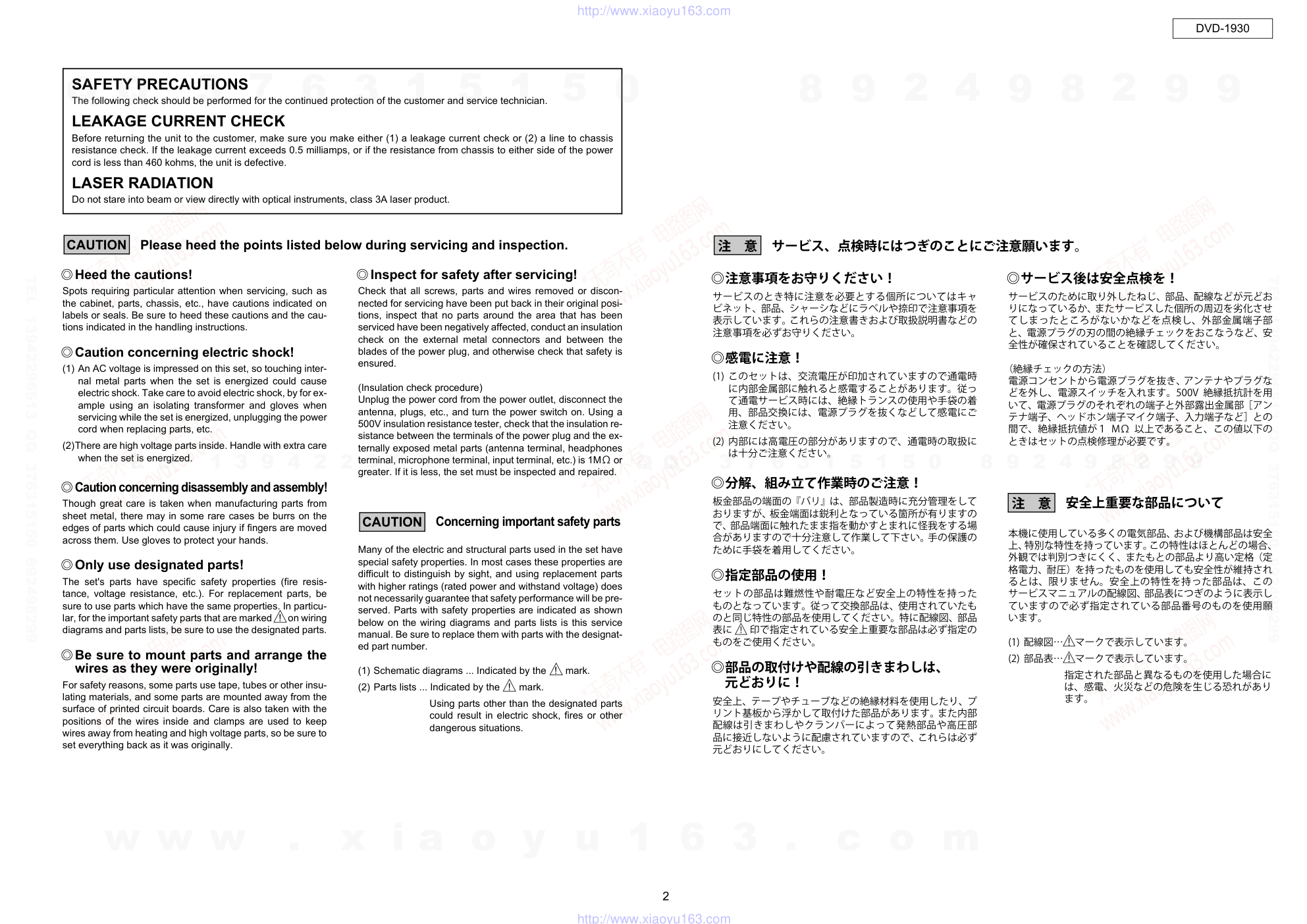

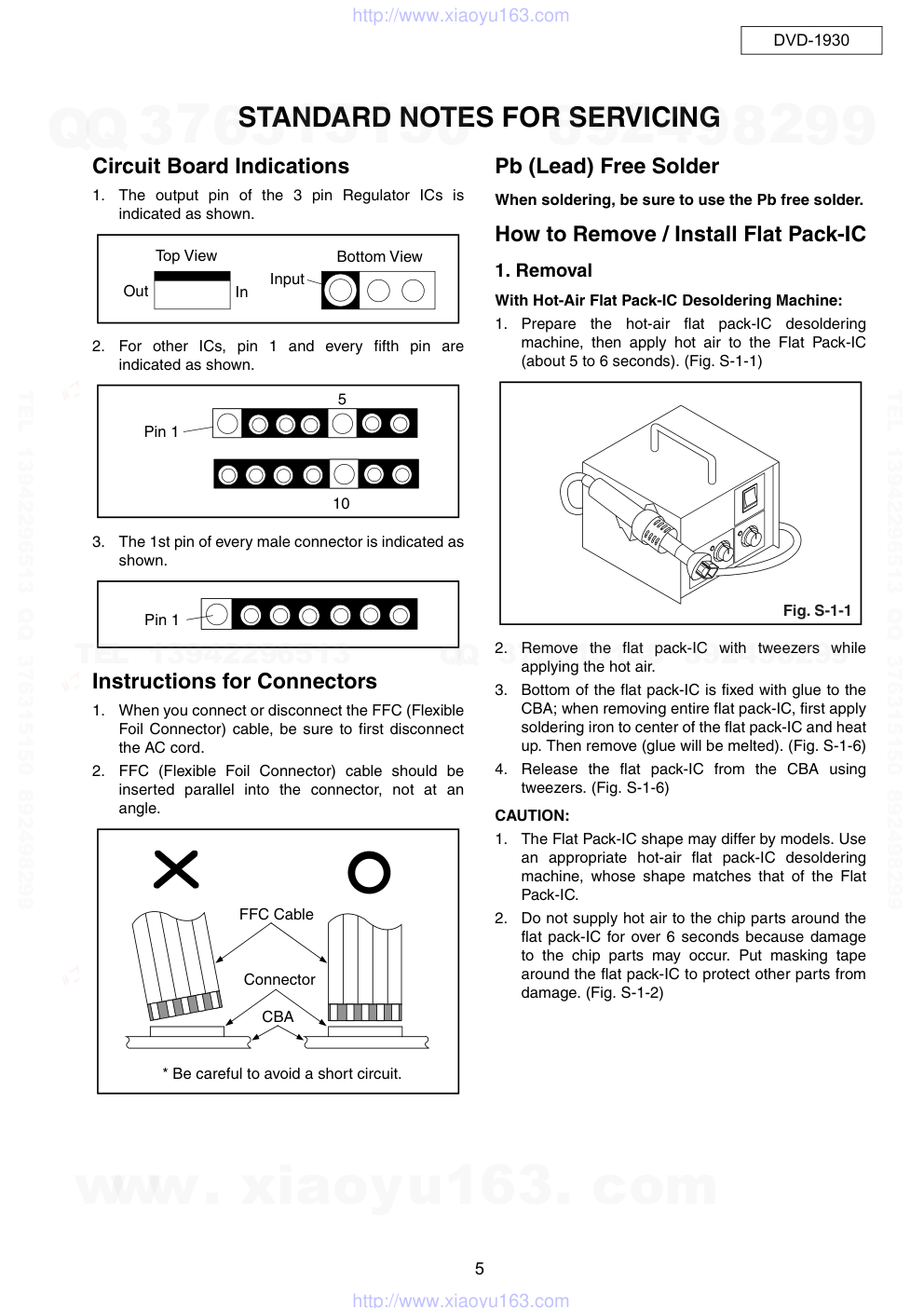

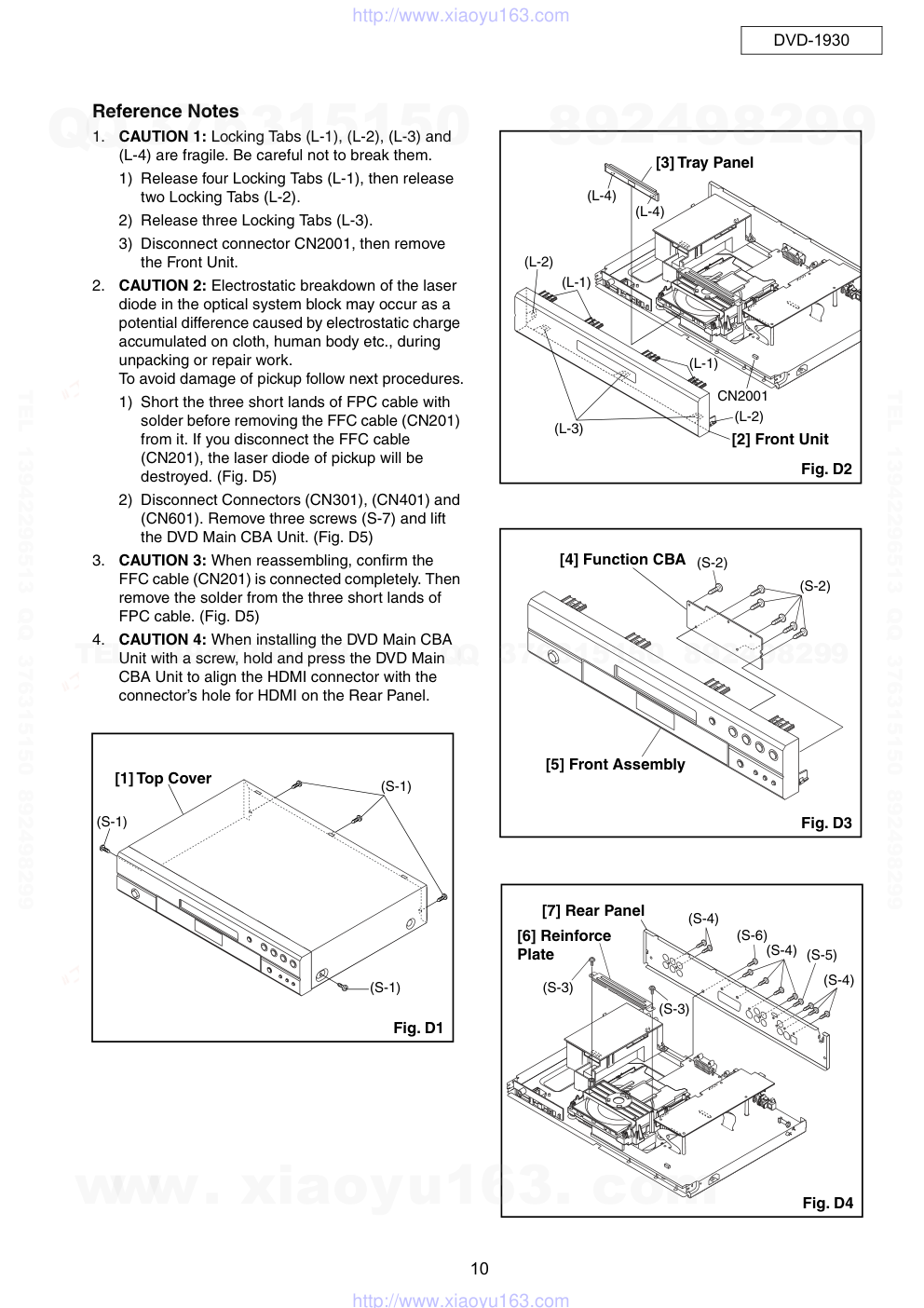

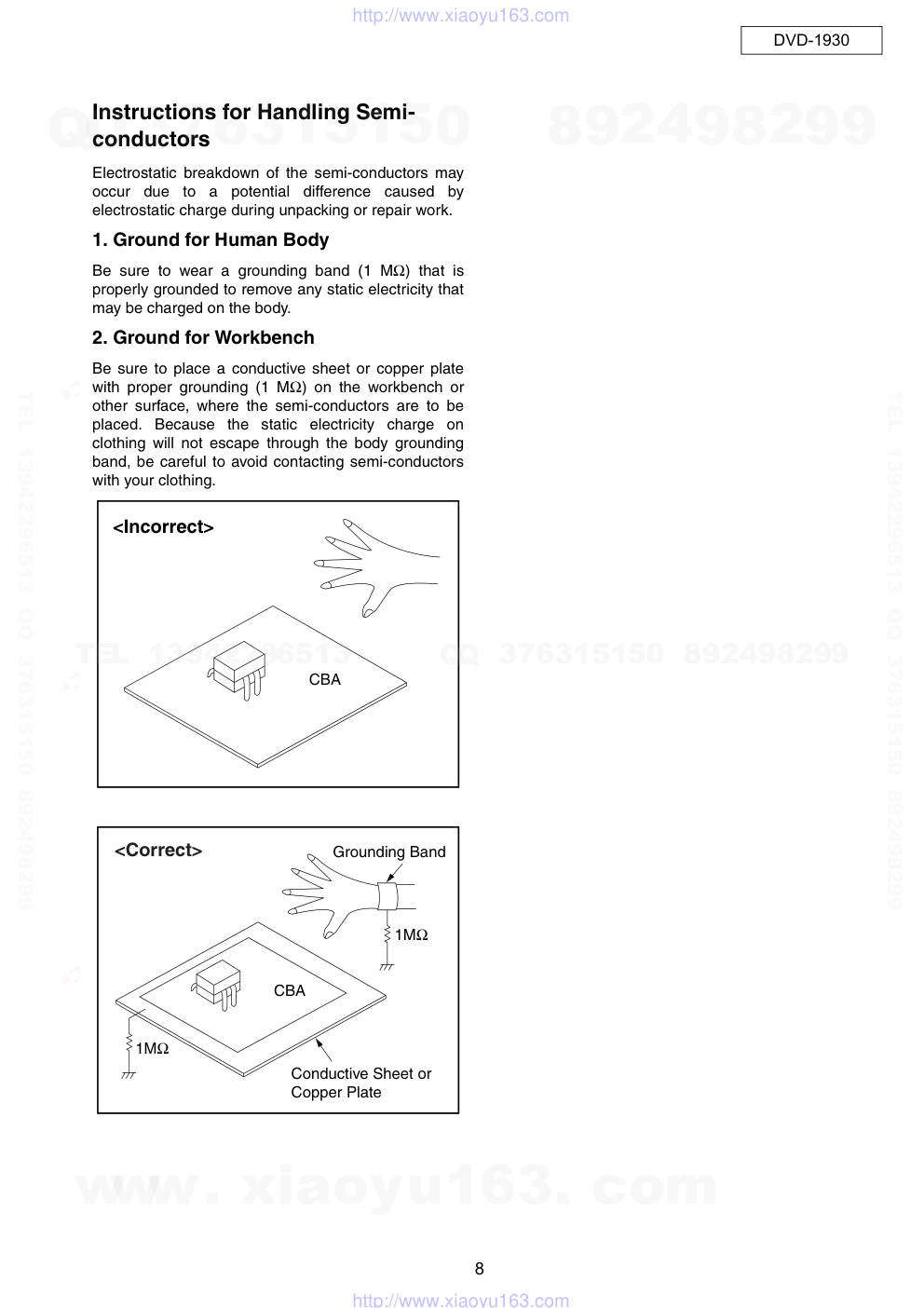

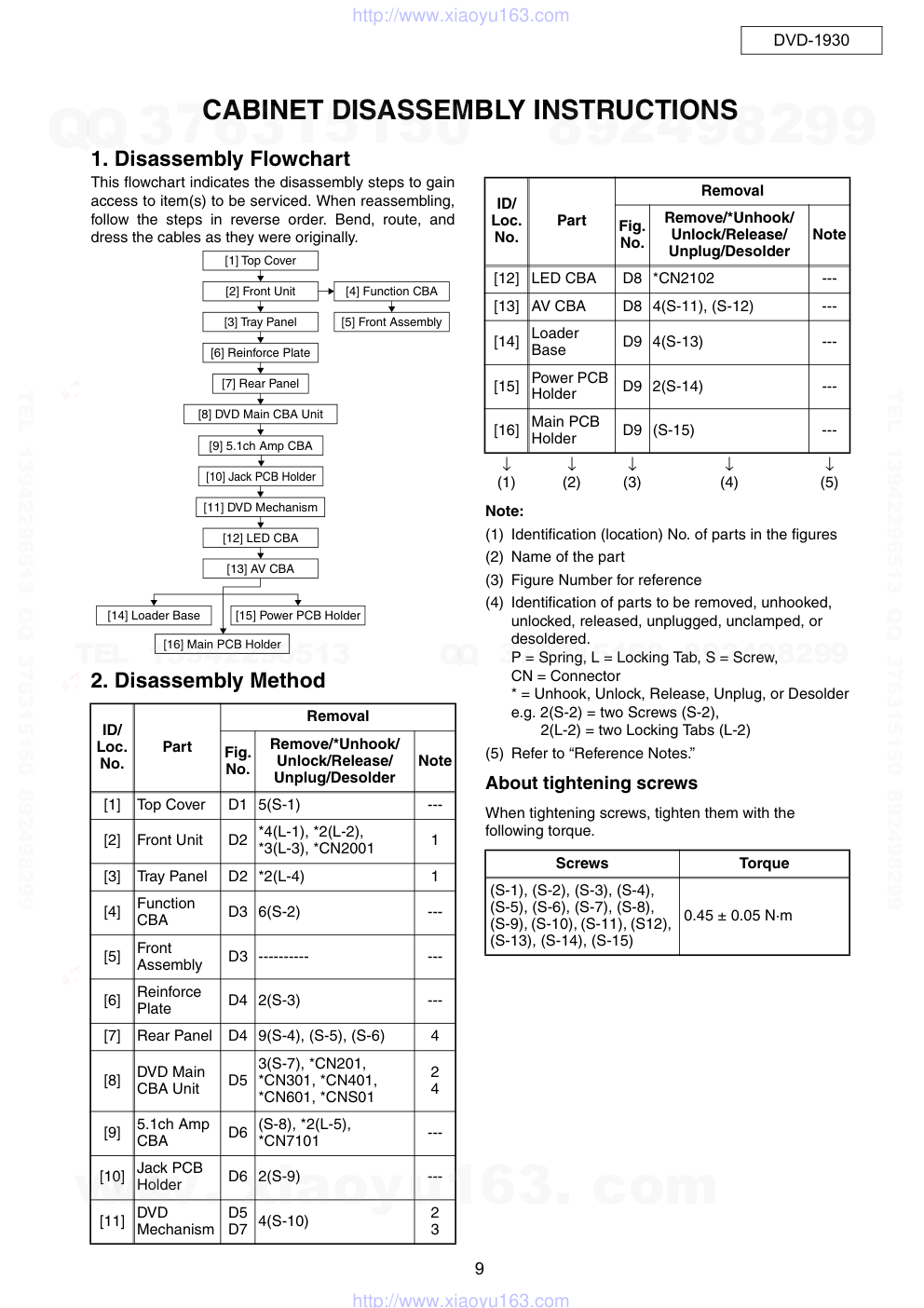

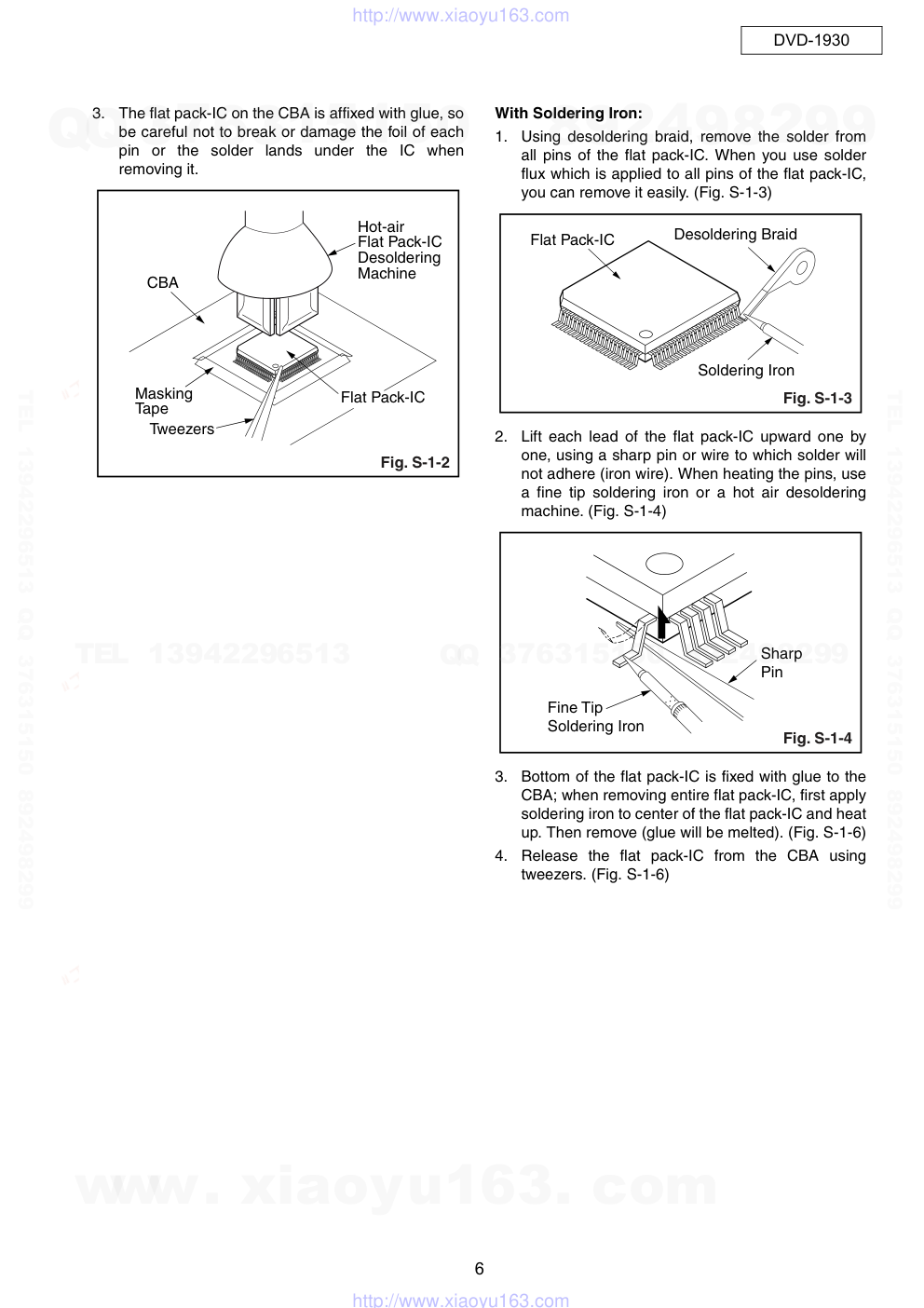

SERVICE MANUAL DVD AUDIO-VIDEO / SUPER AUDIO CD PLAYER MODEL DVD-1930 TOKYO, JAPAN Denon Brand Company, D&M Holdings Inc. X0316V.02 DE/CDM 0610 Some illustrations using in this service manual are slightly different from the actual set. ● Please use this service manual with referring to the operating instructions without fail. ● For purposes of improvement, specifications and design are subject to change without notice. ● ● 本文中に使用しているイラストは、説明の都合上現物   と多少異なる場合があります。 ● 修理の際は、必ず取扱説明書を参照の上、作業を行っ   てください。 サービスをおこなう前に、このサービスマニュアルを 必ずお読みください。本機は、火災、感電、けがなど に対する安全性を確保するために、さまざまな配慮を おこなっており、また法的には「電気用品安全法」に もとづき、所定の許可を得て製造されております。 従ってサービスをおこなう際は、これらの安全性が維 持されるよう、このサービスマニュアルに記載されて いる注意事項を必ずお守りください。 ● 本機の仕様は性能改良のため、予告なく変更すること   があります。 ● 補修用性能部品の保有期間は、製造打切後8年です。 注 意 For Europe model Pleaserefer tothe MODIFICATION NOTICE. Ver. 2 Please refer to the MODIFICATION NOTICE. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVD-1930 Please heed the points listed below during servicing and inspection. ◎Heed the cautions! Spots requiring particular attention when servicing, such as the cabinet, parts, chassis, etc., have cautions indicated on labels or seals. Be sure to heed these cautions and the cau- tions indicated in the handling instructions. ◎Caution concerning electric shock! (1) An AC voltage is impressed on this set, so touching inter- nal metal parts when the set is energized could cause electric shock. Take care to avoid electric shock, by for ex- ample using an isolating transformer and gloves when servicing while the set is energized, unplugging the power cord when replacing parts, etc. (2)There are high voltage parts inside. Handle with extra care when the set is energized. ◎ Caution concerning disassembly and assembly! Though great care is taken when manufacturing parts from sheet metal, there may in some rare cases be burrs on the edges of parts which could cause injury if fingers are moved across them. Use gloves to protect your hands. ◎Only use designated parts! The set's parts have specific safety properties (fire resis- tance, voltage resistance, etc.). For replacement parts, be sure to use parts which have the same properties. In particu- lar, for the important safety parts that are marked ! on wiring diagrams and parts lists, be sure to use the designated parts. ◎Be sure to mount parts and arrange the wires as they were originally! For safety reasons, some parts use tape, tubes or other insu- lating materials, and some parts are mounted away from the surface of printed circuit boards. Care is also taken with the positions of the wires inside and clamps are used to keep wires away from heating and high voltage parts, so be sure to set everything back as it was originally. ◎ Inspect for safety after servicing! Check that all screws, parts and wires removed or discon- nected for servicing have been put back in their original posi- tions, inspect that no parts around the area that has been serviced have been negatively affected, conduct an insulation check on the external metal connectors and between the blades of the power plug, and otherwise check that safety is ensured. (Insulation check procedure) Unplug the power cord from the power outlet, disconnect the antenna, plugs, etc., and turn the power switch on. Using a 500V insulation resistance tester, check that the insulation re- sistance between the terminals of the power plug and the ex- ternally exposed metal parts (antenna terminal, headphones terminal, microphone terminal, input terminal, etc.) is 1MΩ or greater. If it is less, the set must be inspected and repaired. Concerning important safety parts Many of the electric and structural parts used in the set have special safety properties. In most cases these properties are difficult to distinguish by sight, and using replacement parts with higher ratings (rated power and withstand voltage) does not necessarily guarantee that safety performance will be pre- served. Parts with safety properties are indicated as shown below on the wiring diagrams and parts lists is this service manual. Be sure to replace them with parts with the designat- ed part number. (1) Schematic diagrams ... Indicated by the ! mark. (2) Parts lists ... Indicated by the ! mark. Using parts other than the designated parts could result in electric shock, fires or other dangerous situations. SAFETY PRECAUTIONS The following check should be performed for the continued protection of the customer and service technician. LEAKAGE CURRENT CHECK Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective. LASER RADIATION Do not stare into beam or view directly with optical instruments, class 3A laser product. CAUTION CAUTION サービス、点検時にはつぎのことにご注意願います。 ◎注意事項をお守りください! サービスのとき特に注意を必要とする個所についてはキャ ビネット、部品、シャーシなどにラベルや捺印で注意事項を 表示しています。これらの注意書きおよび取扱説明書などの 注意事項を必ずお守りください。 ◎感電に注意! (1) このセットは、交流電圧が印加されていますので通電時 に内部金属部に触れると感電することがあります。従っ て通電サービス時には、絶縁トランスの使用や手袋の着 用、部品交換には、電源プラグを抜くなどして感電にご 注意ください。 (2) 内部には高電圧の部分がありますので、通電時の取扱に は十分ご注意ください。 ◎分解、組み立て作業時のご注意! 板金部品の端面の『バリ』は、部品製造時に充分管理をして おりますが、板金端面は鋭利となっている箇所が有りますの で、部品端面に触れたまま指を動かすとまれに怪我をする場 合がありますので十分注意して作業して下さい。手の保護の ために手袋を着用してください。 ◎指定部品の使用! セットの部品は難燃性や耐電圧など安全上の特性を持った ものとなっています。従って交換部品は、使用されていたも のと同じ特性の部品を使用してください。特に配線図、部品 表に ! 印で指定されている安全上重要な部品は必ず指定の ものをご使用ください。 ◎部品の取付けや配線の引きまわしは、 元どおりに! 安全上、テープやチューブなどの絶縁材料を使用したり、プ リント基板から浮かして取付けた部品があります。また内部 配線は引きまわしやクランパーによって発熱部品や高圧部 品に接近しないように配慮されていますので、これらは必ず 元どおりにしてください。 ◎サービス後は安全点検を! サービスのために取り外したねじ、部品、配線などが元どお りになっているか、またサービスした個所の周辺を劣化させ てしまったところがないかなどを点検し、外部金属端子部 と、電源プラグの刃の間の絶縁チェックをおこなうなど、安 全性が確保されていることを確認してください。 (絶縁チェックの方法) 電源コンセントから電源プラグを抜き、アンテナやプラグな どを外し、電源スイッチを入れます。500V 絶縁抵抗計を用 いて、電源プラグのそれぞれの端子と外部露出金属部[アン テナ端子、ヘッドホン端子マイク端子、入力端子など]との 間で、絶縁抵抗値が1 MΩ 以上であること、この値以下の ときはセットの点検修理が必要です。 安全上重要な部品について 本機に使用している多くの電気部品、および機構部品は安全 上、特別な特性を持っています。この特性はほとんどの場合、 外観では判別つきにくく、またもとの部品より高い定格(定 格電力、耐圧)を持ったものを使用しても安全性が維持され るとは、限りません。安全上の特性を持った部品は、この サービスマニュアルの配線図、部品表につぎのように表示し ていますので必ず指定されている部品番号のものを使用願 います。 (1) 配線図… ! マークで表示しています。 (2) 部品表… ! マークで表示しています。 指定された部品と異なるものを使用した場合に は、感電、火災などの危険を生じる恐れがあり ます。 注 意 注 意 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DVD-1930 SPECIFICATIONS Notes: 1. All Items are measured without pre-emphasis unless otherwise specified. 2. Power supply: AC 200 ~ 240 V, 50 Hz 3. Load Impedance: 100 kΩ load (Audio Output) 4. Room Ambient: 5 °C ~ 40°C Item Conditions Unit Nominal Limit 1. Video Output 75 Ω load Vpp 1.0 ± 0.1 2. Coaxial Digital Out 75 Ω load mVpp 500 ± 50 3. Audio (PCM) 3-1. Output Level 1 kHz, 0 dB Vrms 2.0 3-2. S/N dB 115 3-3. Freq. Response DVD fs = 48 kHz, 20 Hz ~ 22 kHz dB ± 1.0 CD fs = 44.1 kHz, 20 Hz ~ 20 kHz dB ± 1.0 3-4. THD+N DVD 1 kHz, 0 dB % 0.004 CD 1 kHz, 0 dB % 0.004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DVD-1930 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and con- firm the specified values to verify compliance with safety standards. 1. Clearance Distance When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between sol- dered terminals, and between terminals and surround- ing metallic parts. (See Fig. 1) Table 1 : Ratings for selected area Note: This table is unofficial and for reference only. Be sure to confirm the precise values. 2. Leakage Current Test Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF termi- nals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below. Measuring Method (Power ON) : Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table. AC Line Voltage Clearance Distance (d), (d’) 200 to 240 V ≥ 3 mm(d) ≥ 6 mm(d’) Fig. 1 Chassis or Secondary Conductor Primary Circuit d' d AC Voltmeter (High Impedance) Exposed Accessible Part B One side of Power Cord Plug Prongs Z Fig. 2 Table 2: Leakage current ratings for selected areas Note: This table is unofficial and for reference only. Be sure to confirm the precise values. AC Line Voltage Load Z Leakage Current (i) One side of power cord plug prongs (B) to: 200 to 240 V 2kΩ RES. Connected in parallel i≤0.7mA AC Peak i≤2mA DC RF or Antenna terminals 50kΩ RES. Connected in parallel i≤0.7mA AC Peak i≤2mA DC A/V Input, Output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DVD-1930 STANDARD NOTES FOR SERVICING Circuit Board Indications 1. The output pin of the 3 pin Regulator ICs is indicated as shown. 2. For other ICs, pin 1 and every fifth pin are indicated as shown. 3. The 1st pin of every male connector is indicated as shown. Instructions for Connectors 1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord. 2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle. Pb (Lead) Free Solder When soldering, be sure to use the Pb free solder. How to Remove / Install Flat Pack-IC 1. Removal With Hot-Air Flat Pack-IC Desoldering Machine: 1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1) 2. Remove the flat pack-IC with tweezers while applying the hot air. 3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) CAUTION: 1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC. 2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2) Top View Out In Bottom View Input 5 10 Pin 1 Pin 1 FFC Cable Connector CBA * Be careful to avoid a short circuit. Fig. S-1-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DVD-1930 3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it. With Soldering Iron: 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) 2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4) 3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) Hot-air Flat Pack-IC Desoldering Machine CBA Flat Pack-IC Tweezers Masking Tape Fig. S-1-2 Flat Pack-IC Desoldering Braid Soldering Iron Fig. S-1-3 Fine Tip Soldering Iron Sharp Pin Fig. S-1-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DVD-1930 With Iron Wire: 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) 2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5. 3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5. 4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) Note: When using a soldering iron, care must be taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied. 2. Installation 1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily. 2. The “●” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.) 3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges. To Solid Mounting Point Soldering Iron Iron Wire or Hot Air Blower Fig. S-1-5 Fine Tip Soldering Iron CBA Flat Pack-IC Tweezers Fig. S-1-6 Example : Pin 1 of the Flat Pack-IC is indicated by a " " mark. Fig. S-1-7 Presolder CBA Flat Pack-IC Fig. S-1-8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DVD-1930 Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body. 2. Ground for Workbench Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing. CBA Grounding Band Conductive Sheet or Copper Plate 1MΩ 1MΩ CBA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DVD-1930 CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally. 2. Disassembly Method Note: (1) Identification (location) No. of parts in the figures (2) Name of the part (3) Figure Number for reference (4) Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2) (5) Refer to “Reference Notes.” About tightening screws When tightening screws, tighten them with the following torque. ID/ Loc. No. Part Removal Fig. No. Remove/*Unhook/ Unlock/Release/ Unplug/Desolder Note [1] Top Cover D1 5(S-1) --- [2] Front Unit D2 *4(L-1), *2(L-2), *3(L-3), *CN2001 1 [3] Tray Panel D2 *2(L-4) 1 [4] Function CBA D3 6(S-2) --- [5] Front Assembly D3 ---------- --- [6] Reinforce Plate D4 2(S-3) --- [7] Rear Panel D4 9(S-4), (S-5), (S-6) 4 [8] DVD Main CBA Unit D5 3(S-7), *CN201, *CN301, *CN401, *CN601, *CNS01 2 4 [9] 5.1ch Amp CBA D6 (S-8), *2(L-5), *CN7101 --- [10] Jack PCB Holder D6 2(S-9) --- [11] DVD Mechanism D5 D7 4(S-10) 2 3 [1] Top Cover [5] Front Assembly [2] Front Unit [3] Tray Panel [6] Reinforce Plate [7] Rear Panel [14] Loader Base [16] Main PCB Holder [8] DVD Main CBA Unit [11] DVD Mechanism [15] Power PCB Holder [12] LED CBA [4] Function CBA [9] 5.1ch Amp CBA [10] Jack PCB Holder [13] AV CBA [12] LED CBA D8 *CN2102 --- [13] AV CBA D8 4(S-11), (S-12) --- [14] Loader Base D9 4(S-13) --- [15] Power PCB Holder D9 2(S-14) --- [16] Main PCB Holder D9 (S-15) --- ↓ (1) ↓ (2) ↓ (3) ↓ (4) ↓ (5) Screws Torque (S-1), (S-2), (S-3), (S-4), (S-5), (S-6), (S-7), (S-8), (S-9), (S-10), (S-11), (S12), (S-13), (S-14), (S-15) 0.45 ± 0.05 N·m ID/ Loc. No. Part Removal Fig. No. Remove/*Unhook/ Unlock/Release/ Unplug/Desolder Note www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DVD-1930 Reference Notes 1. CAUTION 1: Locking Tabs (L-1), (L-2), (L-3) and (L-4) are fragile. Be careful not to break them. 1) Release four Locking Tabs (L-1), then release two Locking Tabs (L-2). 2) Release three Locking Tabs (L-3). 3) Disconnect connector CN2001, then remove the Front Unit. 2. CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge accumulated on cloth, human body etc., during unpacking or repair work. To avoid damage of pickup follow next procedures. 1) Short the three short lands of FPC cable with solder before removing the FFC cable (CN201) from it. If you disconnect the FFC cable (CN201), the laser diode of pickup will be destroyed. (Fig. D5) 2) Disconnect Connectors (CN301), (CN401) and (CN601). Remove three screws (S-7) and lift the DVD Main CBA Unit. (Fig. D5) 3. CAUTION 3: When reassembling, confirm the FFC cable (CN201) is connected completely. Then remove the solder from the three short lands of FPC cable. (Fig. D5) 4. CAUTION 4: When installing the DVD Main CBA Unit with a screw, hold and press the DVD Main CBA Unit to align the HDMI connector with the connector’s hole for HDMI on the Rear Panel. Fig. D1 [1] Top Cover (S-1) (S-1) (S-1) [2] Front Unit [3] Tray Panel CN2001 (L-1) (L-1) (L-2) (L-2) (L-4) (L-4) (L-3) Fig. D2 [4] Function CBA [5] Front Assembly (S-2) (S-2) Fig. D3 [6] Reinforce Plate (S-3) (S-3) [7] Rear Panel (S-6) (S-4) (S-4) (S-5) (S-4) Fig. D4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DVD-1930 (S-7) (S-7) [8] DVD Main CBA Unit CN401 CN301 A Fig. D5 CN201 CN601 (S-7) CNS01 Short the three short lands by soldering. (Either of two places.) View for A FPC Cable (S-8) (S-9) [10] Jack PCB Holder [9] 5.1ch Amp CBA (L-5) Fig. D6 CN7101 Fig. D7 [11] DVD Mechanism (S-10) [13] AV CBA [12] LED CBA (S-11) (S-11) (S-12) CN2102 Fig. D8 (S-11) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DVD-1930 3. How to Eject Manually 1. Remove the Top Cover. 2. Rotate the roulette in the direction of the arrow as shown below. [14] Loader Base [16] Main PCB Holder (S-13) Fig. D9 (S-13) (S-15) [15] Power PCB Holder (S-14) A View for A Rotate this roulette in the direction of the arrow www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DVD-1930 HOW TO INITIALIZE THE DVD PLAYER To put the program back at the factory-default, initialize the DVD player as the following procedure. 1. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. a appears on the screen. 2. Press [CLEAR] button on the remote control unit. Fig. b appears on the screen. When “OK” appears on the screen, the factory default will be set. Then the firmware renewal mode is complete. 3. To exit this mode, press [POWER OFF] button. MODEL : ******* Version : *.** Region : * EXIT: POWER EEPROM CLEAR : CLEAR Fig. a "*******" differ depending on the models. MODEL : ******* Version : *.** Region : * EEPROM CLEAR : OK EXIT: POWER EEPROM CLEAR : CLEAR "*******" differ depending on the models. Fig. b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DVD-1930 FIRMWARE RENEWAL MODE 1. Turn the power on and remove the disc on the tray. 2. To put the DVD player into version up mode, press [9], [8], [7], [6], and [SEARCH MODE] buttons on the remote control unit in that order. The tray will open automatically. Fig. a appears on the screen and Fig. b appears on the VFD. The DVD player can also enter the version up mode with the tray open. In this case, Fig. a will be shown on the screen while the tray is open. 3. Load the disc for version up. 4. The DVD player enters the F/W version up mode automatically. Fig. c appears on the screen and Fig. d appears on the VFD. If you enter the F/W for different models, “Disc Error” will appear on the screen, then the tray will open automatically. The appearance shown in (*1) of Fig. c is described as follows: 5. After programming is finished, the tray opens automatically. Fig. e appears on the screen and the checksum in (*2) of Fig. e appears on the VFD (Fig. f). At this time, no button is available. 6. Remove the disc on the tray. 7. Unplug the AC cord from the AC outlet. Then plug it again. 8. Turn the power on by pressing the [POWER ON] button and the tray will close. 9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. g appears on the screen. 10. Press [CLEAR] button on the remote control unit. Fig. h appears on the screen. When “OK” appears on the screen, the factory default will be set. Then the firmware renewal mode is complete. 11. To exit this mode, press [POWER OFF] button. No. Appearance State 1 Reading... Sending files into the memory 2 Erasing... Erasing previous version data 3 Programming... Writing new version data F/W Version Up Mode Model No : ******* VERSION : *.** Please insert a DISC for F/W Version Up. EXIT: POWER "*******" differ depending on the models. Fig. a Version Up Mode Screen Fig. b VFD in Version Up Mode VERSION : ************.abd Reading... F/W Version Up Mode Model No : ******* VERSION : *.** Fig. c Programming Mode Screen "*******" differ depending on the models. (*1) Fig. d VFD in Programming Mode (Example) VERSION : ************.abd Completed SUM : 7ABC F/W Version Up Mode Model No : ******* VERSION : *.** "*******" differ depending on the models. Fig. e Completed Program Mode Screen (*2) Fig. f VFD upon Finishing the Programming Mode (Example) MODEL : ******* Version : *.** Region : * EXIT: POWER EEPROM CLEAR : CLEAR Fig. g "*******" differ depending on the models. MODEL : ******* Version : *.** Region : * EEPROM CLEAR : OK EXIT: POWER EEPROM CLEAR : CLEAR "*******" differ depending on the models. Fig. h www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DVD-1930 TROUBLESHOOTING FLOW CHART NO.2 The fuse blows out. After servicing, replace the fuse. Check the presence that the primary component is leaking or shorted and service it if defective. Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective. FLOW CHART NO.3 When the output voltage fluctuates. Yes No FLOW CHART NO.4 When buzz sound can be heard in the vicinity of power circuit. Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side, and service it if defective. (D1003, D1006, D1008, D1016, D1030, IC1003, Q1002, Q1004, Q1005, Q1011, Q1014) Does the photo coupler circuit on the secondary side operate normally? Check IC1001, D1012, D1024 and their periphery, and service it if defective. Check IC1001, IC1006, D1015 and their periphery, and service it if defective. FLOW CHART NO.1 The power cannot be turned on. Is the fuse normal? Is normal state restored when once unplugged power cord is plugged again after several seconds? Is the EV +3.3V line voltage normal? See FLOW CHART No.2 Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (Q1003, Q1001, Q1008, T1001, D1001, D1002, D1004, D1005, D1011, C1003, C1005) Check each rectifying circuit of the secondary circuit and service it if defective. Yes Yes Yes No No No Is approximately -23V voltage supplied to the anode of D1003? Check D1003 and periphery circuit, and service it if defective. Check if there is any leak or short-circuit on the loaded circuit, and service it if defective. No FLOW CHART NO.5 -FL is not outputted. Is F1(-14V) outputted normally? Refer to "FLOW CHART NO.11" Yes Is approximately -20V voltage outputted to the collector of Q1013? Check Q1013 and periphery circuit, and service it if defective. No Yes No Yes www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DVD-1930 FLOW CHART NO.7 P-ON+5V is not outputted. (EV+11V is outputted normally.) Is the "H" signal inputted into the base of Q1004? Replace Q1004. Check R1068 and D1046, and service it if defective. Yes No FLOW CHART NO.8 P-ON+3.3V is not outputted. (P-ON+11V is outputted normally.) Is 3.3V voltage supplied to the collector of Q1011? Replace Q1011 or R1066 or R1067. Check D1008, C1007, C1038, L1007 and the periphery circuit, and service it if defective. Yes No FLOW CHART NO.9 EV+5V is not outputted. Is EV+11V outputted normally? Refer to "FLOW CHART NO.6" Yes No FLOW CHART NO.10 EV+1.2V is not outputted. Is 2.5V voltage supplied to Pin(3) of IC1003? Replace IC1003. Check D1006, C1014 and the periphery circuit, and service it if defective. Yes No FLOW CHART NO.6 P-ON+11V (EV+11V) is not outputted. Is 11V voltage supplied to the emitter of Q1002? Is the voltage of base on Q1002 lower than the voltage of emitter on Q1002 when turning the power on? Replace Q1002. Check D1030, D1048, C1035, C1048, L1009 and the periphery circuit, and service it if defective. Check Q1016 and PWRCON line and service it if defective. Yes Yes No No Is the "H" signal inputted into the base of Q1014? Yes Replace Q1014. Check D1047, R1069, R1098 and the periphery circuit, and service it if defective. No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DVD-1930 Yes Yes Yes Yes No No No No FLOW CHART NO.11 The fluorescent display tube does not light up. Is 3.3V voltage supplied to Pins(6,24) of IC2001? Is the voltage of approximately -20V supplied to Pin(15) of IC2001? Is there 500kHz oscillation at Pin(26) of IC2001? Are the filament voltage supplied between Pins(1, 2) and Pins(29, 30) of the fluorescent display tube? And the negative voltage applied between these pins and GND? Replace the fluorescent display tube. Check the EV+3.3V line and service it if defective. Check the -FL (-20V) line and service it if defective. Check R2002, IC2001 and their periphery, and service it if defective. Check PWRCON line, and service it if defective. Is the "H" signal inputted to base of Q1016? Check D1016, D1017, T1001, and their periphery, and service it if defective. Is -14V voltage supplied to collector of Q1005? No Yes Yes No Check Q1015, Q1016, D1055 and their periphery, and service it if defective. Yes No FLOW CHART NO.12 The key operation is not functioning. Are the contact point and the installation state of the key switches (SW2101, SW2103-2108, SW2181-2183) normal? When pressing each switches (SW2101, SW2103-2108, SW2181-2183), do the voltage of each pin of IC2001 (shown below) increase? SW2103, 2104, 2106, 2107, 2182: IC2001 3PIN SW2101, 2105, 2108, 2181, 2183: IC2001 4PIN Check the switches (SW2101, SW2103-2108, SW2181-2183) and their periphery, and service it if detective. No Re-install the switches (SW2101, SW2103-2108, SW2181-2183) correctly or replace the poor switch. Replace IC2001. Yes FLOW CHART NO.13 No operation is possible from the remote control unit. Operation is possible from the DVD, but no operation is possible from the remote control unit. Replace the infrared remote control receiver (RM2001) or replace the remote control unit. Check the line between Pin(1) terminal of receiver (RM2001) and Pin(26) of CN1001, and service it if defective. Is the "L" pulse sent out Pin(1) terminal of receiver (RM2001) when the infrared remote control is activated? Is the "L" pulse supplied to the Pin(26) of CN1001? Replace DVD Main CBA Unit. Is 5V voltage supplied to Pin(3) terminal of the infrared remote control receiver (RM2001)? Yes No Check EV+5V line and service it if defective. No No Yes Yes www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DVD-1930 FLOW CHART NO.17 [No Disc] indicated. (When the focus servo is not functioning.) FLOW CHART NO.18 [No Disc] indicated. (When the laser beam does not light up.) Replace the DVD Main CBA Unit. Replace the DVD Mechanism. No Yes Replace the DVD Main CBA Unit. Replace the DVD Mechanism. No Yes No improvement can be found. Original DVD Main CBA Unit is poor. No improvement can be found. Original DVD Main CBA Unit is poor. FLOW CHART NO.16 [No Disc] indicated. (When the focus error occurs.) Replace the DVD Main CBA Unit. No improvement can be found. Original DVD Main CBA Unit is poor. Replace the DVD Mechanism. No Yes Yes FLOW CHART NO.15 The disc tray cannot be opened and closed. Replace the DVD Main CBA Unit. Original DVD Main CBA Unit is poor. Replace the DVD Mechanism. No improvement can be found. No Yes FLOW CHART NO.14 The disc tray cannot be opened and closed. (It can be done using the remote control unit.) Is the normal control voltage inputted to Pin(4) of IC2001? Refer to "FLOW CHART NO.12" Refer to "FLOW CHART NO.15" Replace the "OPEN/CLOSE" button (SW2108). No FLOW CHART NO.19 Both functions of picture and sound do not operate normally. Replace the DVD Main CBA Unit. Replace the DVD Mechanism. No Yes No improvement can be found. Original DVD Main CBA Unit is poor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DVD-1930 Is 5V voltage applied to the pin(4, 12) of IC1402, IC1405 and pin (4) of IC1401? Replace IC1401, IC1402, IC1405. Check P-ON+5V line and service it if detective. Are the video signals outputted to each pin of IC1401, IC1402, IC1405? Yes No Yes Yes No Check the periphery of JK1407 from Pin (6) of IC1401 and service it if detective. Check the periphery of JK1405 from Pins (10, 11, 13) of IC1402 and service it if detective. Check the periphery of JK1401 from Pin (5) of IC1401 and service it if detective. Check the periphery of JK1401 from Pin (7) of IC1401 and service it if detective. Are the video signals outputted to the specific output terminal? Are the composite video signals outputted to the VIDEO OUT terminal (JK1407)? Are the luminance signals outputted to the S-VIDEO OUT terminal (JK1401)? Are the chroma signals outputted to the S-VIDEO OUT terminal (JK1401)? No No No No Are the R, G, B signals outputted to the RGB OUT terminal (JK1405)? Check the periphery of JK1407 from Pins (10, 11, 13) of IC1405 and service it if detective. No Are the Y, Cb/Pb, Cr/Pr signals outputted to the COMPONENT OUT terminal (JK1407)? FLOW CHART NO.20 Picture does not appear normally. Set the disc on the disc tray, and playback. Are the video signals outputted to each pin of CN1601 on the AV CBA? Replace the DVD Main CBA Unit or DVD Mechanism. Check the line between each pin of CN1601 and each pin of IC1401, IC1402, IC1405 on the AV CBA, and service it if detective. CN1601 1PIN → IC1401 3PIN CN1601 10PIN → IC1401 1PIN CN1601 4PIN → IC1403 4PIN IC1403 5PIN → IC1402 8PIN IC1403 3PIN → IC1405 8PIN CN1601 6PIN → IC1403 15PIN IC1403 2PIN → IC1402 6PIN IC1403 1PIN → IC1405 6PIN CN1601 8PIN → IC1403 14PIN IC1403 12PIN → IC1402 3PIN IC1403 13PIN → IC1405 3PIN Are the video signals shown above inputted into each pin of IC1401, IC1402, IC1405? Yes No No CN1601 1PIN S-Y CN1601 4PIN Cr/Pr, R CN1601 6PIN Cb/Pb, B CN1601 8PIN Y, G CN1601 10PIN S-C S-VIDEO OUT, VIDEO OUT is NG. IC1401 3PIN S-Y IC1401 1PIN S-C RGB OUT is NG. IC1402 8PIN R IC1402 3PIN G IC1402 6PIN B Y, Cb/Pb, Cr/Pr is NG. IC1405 3PIN Y IC1405 6PIN Cb/Pb IC1405 8PIN Cr/Pr S-VIDEO OUT, VIDEO OUT is NG. IC1401 5PIN S-Y IC1401 7PIN S-C IC1401 6PIN CVBS RGB OUT is NG. IC1402 10PIN R IC1402 13PIN G IC1402 11PIN B Y, Cb/Pb, Cr/Pr is NG. IC1405 13PIN Y IC1405 11PIN Cb/Pb IC1405 10PIN Cr/Pr www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DVD-1930 FLOW CHART NO.21 Audio is not outputted normally. Set the disc on the disc tray, and playback. Are the analog audio signals outputted to each pin of CN1601 on AV CBA? Is the "H" level mute signal outputted to CN1601 on AV CBA ? CN1601 12PIN AUDIO(L) CN1601 14PIN AUDIO(R) CN1601 13PIN AUDIO(L)-MUTE CN1601 19PIN AUDIO(R)-MUTE IC1201 1PIN AUDIO(L) IC1201 7PIN AUDIO(R) IC1201 2PIN AUDIO(L) IC1201 6PIN AUDIO(R) Replace IC1201. Check the periphery between Pins(1,7) of IC1201, JK1201 and JK1405, and service it if detective. Check each line between each pin of CN1601 and each pin of IC1201 on AV CBA, and service it if detective. CN1601 12PIN → IC1201 2PIN AUDIO(L) CN1601 14PIN → IC1201 6PIN AUDIO(R) Are the analog audio signals inputted to each pin of IC1201. Are the analog audio signals outputted to each pin of IC1201? Are the audio signals outputted to the specific output terminal? Are the audio signals outputted to the audio terminal (JK1201 and JK1405)? Yes Yes Yes Yes No No No No No Replace the DVD Main CBA Unit or DVD Mechanism. Replace the DVD Main CBA Unit or DVD Mechanism. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DVD-1930 FLOW CHART NO.22 Audio is not outputted. (JK7101) Set the disc (with 5.1ch Audio) on the disc tray, and playback. Are the analog audio signals outputted to each pin of CN7102 on 5.1ch Amp CBA. CN7102 15PIN FRONT(L) CN7102 13PIN FRONT(R) CN7102 11PIN SURROUND(L) CN7102 9PIN SURROUND(R) CN7102 7PIN CENTER CN7102 5PIN SUBWOOFER IC7301 2, 6PIN FRONT(L/R) IC7401 2, 6PIN SURROUND(L/R) IC7501 2, 6PIN CENTER/SUBWOOFER Replace the DVD Main CBA or DVD Mechanism. Replace ICs (IC7301, IC7401 or IC7501). Check each line between each pin of CN7102 and each pin of IC7301,IC7401 and IC7501 and service it if defective. CN7102 15,13PIN → IC7301 2,6PIN FRONT(L/R) CN7102 11,9PIN → IC7401 2,6PIN SURROUND(L/R) CN7102 7,5PIN → IC7501 2,6PIN CENTER/SUBWOOFER Are the analog audio signals inputted to each pin of IC7301, IC7401 and IC7501. Are the analog audio signals outputted to each pin of IC7301, IC7401 and IC7501. IC7301 1,7PIN FRONT(L/R) IC7401 1,7PIN SURROUND(L/R) IC7501 1,7PIN CENTER/SUBWOOFER Yes Yes No No No Check each line and service it if defective. No Replace the DVD Main CBA Unit. No Yes Do the mute signals of CN7102 on 5.1ch Amp CBA become to "H" level? FRONT(L) → CN7102 14PIN FRONT(R) → CN7102 12PIN SURROUND(L) → CN7102 10PIN SURROUND(R) → CN7102 8PIN CENTER → CN7102 6PIN SUBWOOFER → CN7102 4PIN Yes Is the analog audio signal of each line outputted to each terminal of JK7101 (as shown below) ? IC7301 1PIN → JK7101 FRONT(L) IC7301 7PIN → JK7101 FRONT(R) IC7401 1PIN → JK7101 SURROUND(L) IC7401 7PIN → JK7101 SURROUND(R) IC7501 1PIN → JK7101 CENTER IC7501 7PIN → JK7101 SUBWOOFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DVD-1930 BLOCK DIAGRAMS System Control / Servo Block Diagram 1 NOTE: Either IC461 or IC462 is used for DVD MAIN CBA UNIT. 12 7 8 9 10 11 REMOTE SENSOR RM2001 1G 7G ~ 23 17 ~ a/KEY-1 b/KEY-2 c/KEY-3 d/KEY-4 e K1 K2 GRID FIP SEGMENT FL2001 IC2001 (FRONT PANEL CONTROL) 13 14 16 3 4 f/KEY-6 g h i KEY MATRIX SW2101 +5V POWER CN2001 CN2101 KEY-1 6 6 KEY-2 4 4 KEY-3 5 5 KEY-4 7 7 CN2002 CN2102 Q2086 KEY-2 5 5 K2 6 6 HDMI-LED 7 7 K2 2 2 K1 3 3 AV CBA FUNCTION CBA LED CBA KEY-6 1 1 D2184 HDMI 28 FP-DIN FP-DIN 23 2 FP-STB FP-STB 25 1 FP-CLK FP-CLK 24 REMOTE 26 HDMI 27 27 FP-DOUT FP-DOUT 22 CN1001 D2182 POWER-LED 2 2 STANDBY-LED 3 3 POWER INV-POWCON TO POWER SUPPLY BLOCK DIAGRAM Q2088 Q2089 STANDBY +5V CN401 74 FP-DIN 21 12 FP-STB 22 73 FP-DOUT 23 75 FP-CLK 24 72 REMOTE 25 253 HDMI 26 IC301 (SERVO DRIVE) CN301 M SLED MOTOR M SPINDLE MOTOR IC101 (MICRO CONTROLLER) +- +- +- +- +- +- +- SLED MOTOR DRIVE FOCUS ACTUATOR DRIVE SPINDLE MOTOR DRIVE TRACKING ACTUATOR DRIVE 144 TRAY-IN SLD 91 SPDL 90 TRACKING DRIVE 145 FOCUS DRIVE 89 FS(+) FS(-) TS(+) TS(-) 77 ADAC-MD 78 ADAC-MC 79 ADAC-ML ADAC-MC ADAC-ML M-MUTE 254 AUDIO-MUTE ADAC-MD AUDIO-MUTE 256 M-MUTE TRAY-IN 1 SP(+) 2 SP(-) 6 TRAY-IN 3 GND 4 SL(-) 5 SL(+) VREF RESET 84 RESET IC461 2 1 +3.3V IC202 (OP AMP) 15 16 14 13 12 11 17 18 23 6 4 5 3 1 2 25 24 27 26 87 SL-AMP 139 SP-ROT 1 2 6 7 5 3 13 14 12 142 FD-OFST 141 TD-OFST DRIVE CBA DVD MAIN CBA UNIT TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM ADAC-MD ADAC-MC TO SACD BLOCK DIAGRAM 140 SL-ADS RESET IC462 1 3 +3.3V 1 +3.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DVD-1930 Digital Signal Process Block Diagram C 16 D 18 A 17 B 15 DVD-LD 8 CD-LD 10 PD-MONI 7 FS(+) 2 FS(-) 3 TS(+) 1 TS(-) 4 CN201 CN201 CN201 IC201 (SW) IC501 (SDRAM) IC101 (MICRO CONTROLLER) FS FS(+) SCK1 CD/DVD FSEL CLK33M FS(-) TS(+) TS(-) TS DETECTOR CD/DVD 19 Q251,Q252 CD DVD AMP Q253,Q254 AMP 4 1 3 6 GND(DVD-PD) 6 GND(CD-PD) 5 GND(LD) 9 RF SIGNAL PROCESS CIRCUIT DVD/CD FORMATTER AUDIO I/F VIDEO I/F DMA BCU INST. ROM 32BIT CPU DATA RAM INTERRUPT CONTROLLER WATCH DOG TIMER CPU I/F TIMER DECODER I/F CPU I/F READ MEMORY DATA RAM DSP DECODER I/O PROCESSOR INST. ROM DATA RAM INST. ROM SERIAL GENERAL I/O INTERRUPT CONTROLLER TIMER WATCH DOG TIMER REMOTE CONTROL 32BIT CPU STREAM I/F EXTERNAL MEMORY I/F SDRAM ECC UMAC 117 118 116 115 133 134 131 132 126 124 125 123 86 DEBUG BCU INST RAM DATA RAM I2C-SDA I2C-SCL I2C-SDA I2C-SCL YC(0-7) 173 SD0/SPDIF 172 SD1 171 SD2 170 SD3 169 SD4 168 SD5 167 SD6 SD0/SPDIF SD1 SD2 SD3 SD4 SD5 SD6 166 SD7 194 XSHD 192 XSAK 193 SDCK XSHD XSAK SDCK 255 SACD-RESET 195 XSRQ 191 SDEF SACD-RESET XSRQ SDEF PSP-WCK SACD-READY SACD-DATA PSP-WCK SACD-READY SACD-DATA SACD-LATCH SACD-LATCH SACD SACD SDRAM DATA(0-15) SDRAM ADDRESS(0-11) SDRAM ADDRESS(0-11) 230 247 ~ 198 217 ~ 2 13 42 53 ~ ~ VIDEO SIGNAL 22 26 29 35 ~ ~ SDRAM DATA(0-15) PICK-UP UNIT TO SYSTEM CONTROL/SERVO BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM 27MHz OSC 27MHz CLOCK X'TAL OSC CLK GENE. X101 DVD MAIN CBA UNIT TO VIDEO /AUDIO BLOCK DIAGRAM TO VIDEO BLOCK DIAGRAM TO SACD BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM FDQ (0-15) FADR (0-20) FLASH ROM 29 36 38 45 ~ ~ FDQ (0-15) FADR (0-20) ~ 1 10 16 25 48 ~ 163 162 15 ICS03 10 14 7 15 CLOCK-PULSE 3 190 TO VIDEO /AUDIO BLOCK DIAGRAM IC103 (FLASH ROM) (CLOCK GENERATOR) 66 67 186 CLK27M 176 183 ~ 6 81 76 80 94 AUDIO SIGNAL 9 13 SCK2 CLK33M TO SACD BLOCK DIAGRAM ASPECT I/P-SW ASPECT I/P-SW 252 TO VIDEO /AUDIO BLOCK DIAGRAM 13 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DVD-1930 Video / Audio Block Diagram R(0-7) ICF02 (SDRAM) SDRAM 91 103 ~ 2 13 31 56 74 85 ~ ~ ~ 24 27 60 66 ~ ~ 50 87 ~ ICF01 (DIGITAL VIDEO CONVERTER) ICF11 (HDTV VIDEO ENCODER) SDRAM DATA(0-31) SDRAM ADDRESS(0-10) NOISE REDUCER, DEINTERLACER,FRAME RATE CONVERTER AND SDRAM INTERFACE INPUT PROCESOR WITH AUTO SYNC AND AUTO ADJUST 196 CLOCK GENERATION PLLS OUTPUT PROCESSOR WITH SYNC GENERATION AND DIGTAL ANALOG CONVERTERS VERTICAL AND HORIZONTAL ENHANCERS VERTICAL AND HORIZONTAL SCALERS YC(0-7) YC(0-7) YC(0-7) 199 205 ~ YC(0-7) 140 145 ~ 148 155 ~ 136 137 130 135 ~ 126 127 49 56 ~ 57 58 ~ 61 65 ~ 75 79 ~ 68 70 ~ VIDEO DATA CAPTURE BLOCK AUDIO DATA CAPTURE BLOCK B(0-7) G(0-7) R(0-7) B(0-7) G(0-7) R(0-7) G(0-7) 119 V-SYNC 118 H-SYNC V-SYNC H-SYNC 122 HDMI-DE 125 VCLK 2 1 66 80 XOR MASK PANEL LINK TRANSMITTER D/A TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM DVD MAIN CBA UNIT TO AUDIO BLOCK DIAGRAM HDCP ENCRYPTION ENGINE HDCP KEYS EEPROM REGISTERS AND CONFIGURATION T.M.D.S DATA2- CNF01 3 1 6 4 HDMI-CONNECTOR T.M.D.S DATA2+ 9 7 10 12 T.M.D.S DATA1- T.M.D.S DATA1+ T.M.D.S DATA0- T.M.D.S DATA0+ T.M.D.S CLOCK+ T.M.D.S CLOCK- 35 36 32 33 29 30 27 26 ICF09 (HDMI INTERFACE) 6 5 2 3 ICF04 (3.3V<-->5V CONVERTER) 16 15 DDC DATA DDC CLOCK I2C SLAVE 19 20 45 46 I2C-SCL I2C-SDA I2C-SCL I2C-SDA I2C-SCL I2C-SDA TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM 19 18 67 43 44 HPD QF01 +3.3V HOT PLUG DETECT ICF06 1 2 5 (FLIP FLOP) F/F 3 191 XTAL-IN CLOCK-PULSE 195 CLOCK-PULSE SPDIF PCM-DATA3 PCM-DATA2 PCM-DATA1 PCM-DATA0 PCM-LRCK PCM-BCK SCK2 TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM 5 7 8 9 10 11 12 6 I2C-SCL I2C-SDA 39 38 37 23 24 22 21 32 63 D/A D/A HDTV VIDEO ENCODER DEMUX PLL 53-55, 58-62 4-9, 12,13 16-18, 26-30 B(0-7) R(0-7) R(0,1) G(0-7) B(2-7) G(0-7) B(2-7)/R(0,1) B(0-7) G(0-7) SDRAM DATA(0-31) SDRAM ADDRESS(0-10) D/A 43 D/A 42 VIDEO-Y/G(I/P) VIDEO-C VIDEO-Pb/B VIDEO-Pr/R VIDEO-Y(I) TO VIDEO BLOCK DIAGRAM VIDEO SIGNAL AUDIO SIGNAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DVD-1930 Video Block Diagram VIDEO SIGNAL AV CBA DVD MAIN CBA UNIT 8 8 VIDEO-Y/G(I/P) 10 10 VIDEO-C 6 6 VIDEO-Pb/B 4 4 VIDEO-Pr/R VIDEO-Y/G(I/P) VIDEO-C VIDEO-Pb/B VIDEO-Pr/R JK1401 S-VIDEO OUT Y C I/P-SW WF1 WF3 IC1405 (VIDEO DRIVER) IC1403 (SWITCHING) RGB CPN RGB CPN RGB CPN 2dB AMP LPF DRIVER 11 4dB AMP 4dB AMP 4dB AMP 2dB AMP LPF DRIVER 6 10 4dB AMP 2dB AMP LPF DRIVER 8 3 13 IC1402 (VIDEO DRIVER) 4dB AMP 2dB AMP LPF DRIVER 11 SW CTL. Q1501 2dB AMP LPF DRIVER 6 10 4dB AMP 2dB AMP LPF DRIVER 8 3 13 IC1401 (VIDEO DRIVER) 4dB AMP 2dB AMP LPF DRIVER 2dB AMP DRIVER 4dB AMP 2dB AMP LPF DRIVER 3 1 5 6 7 1 1 VIDEO-Y(I) CN601 CN1601 CN601 CN1601 VIDEO-Y(I) WF2 TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO VIDEO / AUDIO BLOCK DIAGRAM VIDEO OUT (COMPOSITE) VIDEO OUT (COMPOSITE) VIDEO-Cb/Pb OUT VIDEO-Y OUT VIDEO-G VIDEO-B VIDEO-R VIDEO-Cr/Pr OUT JK1407 14 15 4 13 12 1 2 3 5 9 10 11 JK1405 19 11 7 15 2 2 I/P-SW 3 3 ASPECT 8 ASPECT SWITCHING Q1521,Q1522 ASPECT 4 3 1 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DVD-1930 Audio Block Diagram ICS02 (AUDIO DAC) JK1202 BUFFER MUTE-ON Q1351 IC1201 Q1201 Q1202 (AMP) AUDIO(L)- OUT FUNCTION CONTROL ENHANCED MULTI-LEVEL DELTA-SIGMA MODULATOR AUDIO(R)- OUT ADAC-MD SACD-RESET ADAC-MC ADAC-ML 11 8 7 DAC LPF+AMP R-CH AUDIO(R)-MUTE A-MUTE2 SPDIF PCM-DATA3 PCM-DATA2 PCM-DATA1 PCM-DATA0 PCM-LRCK PCM-BCK 12 DAC LPF+AMP L-CH 30 DAC LPF+AMP R-CH 31 DAC LPF+AMP L-CH 28 DAC LPF+AMP R-CH 29 DAC LPF+AMP L-CH 9 DAC LPF+AMP R-CH 10 DAC LPF+AMP L-CH Q1204 PCM I/F DSD-CLK DSD-MXL DSD-MXR DSD-FL DSD-FR DSD-C DSD-SW DSD-LS DSD-RS SD6 SD5 SD2 SD3 SD1 SD4 PCM FILTER (X8 DF) IC1204 AV CBA 5.1CH AMP CBA DVD MAIN CBA UNIT JK1201 DIGITAL AUDIO OUT OPTICAL COAXIAL CN601 CN1601 12 12 AUDIO(L) 14 14 AUDIO(R) 19 19 AUDIO(R)-MUTE 16 16 SPDIF CNS01 CN7102 19 13 FRONT-AUDIO(R) 17 11 SURROUND(L) 15 9 SURROUND(R) 13 7 CENTER 21 15 FRONT-AUDIO(L) 11 5 SUB WOOFER 18 12 AUDIO(R)-MUTE 16 10 SURROUND(L)-MUTE 14 8 SURROUND(R)-MUTE 12 6 CENTER-MUTE 20 14 AUDIO(L)-MUTE 10 4 SUB WOOFER-MUTE 22 16 AUDIO-MUTE2 9 3 AUDIO-MUTE 8 2 M-MUTE MUTE-ON 1 7 2 3 6 5 MUTE-ON IC7301 Q7307 Q7308 (AMP) FRONT(L)- OUT FRONT(R)- OUT Q7302 JK7101 Q7301 MUTE-ON 1 7 2 6 Q7351 Q7352 MUTE-ON IC7401 Q7403 Q7404 (AMP) SURROUND(L) -OUT SURROUND(R) -OUT Q7402 Q7401 MUTE-ON 1 7 2 6 MUTE-ON IC7501 Q7503 Q7504 (AMP) CENTER OUT SUB WOOFER OUT Q7502 Q7501 MUTE-ON 1 7 2 6 DSD FILTER (X8 DF) 51 50 49 48 47 46 37 38 39 40 41 42 43 44 45 2 3 SYSTEM CLOCK 33 4 ICS10 1 2 4 ICS11 1 2 4 ICS07 2 1 4 SD0/SPDIF SACD SCK1 TO SACD BLOCK DIAGRAM TO SACD BLOCK DIAGRAM TO SACD BLOCK DIAGRAM TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM TO VIDEO/AUDIO BLOCK DIAGRAM TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM 36 SACD-RESET TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM AUDIO-MUTE M-MUTE AUDIO(L)-MUTE AUDIO(R)-MUTE SURROUND(L)-MUTE SURROUND(R)-MUTE CENTER-MUTE SUB WOOFER-MUTE DSD I/F Q7451 Q7452 Q7551 Q7552 (AND GATE) (AND GATE) (AND GATE) Q1203 13 13 AUDIO(L)-MUTE WF4 WF6 WF5 6 AUDIO(L)-MUTE AUDIO SIGNAL +5V 1 AUDIO(R)- OUT 3 AUDIO(L)- OUT JK1405 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DVD-1930 SACD Block Diagram ICS01 (SACD MULTI CHANNEL SIGNAL PROCESS) ICS12 (SD-RAM) 60 63 65 68 70 73 75 64 66 69 71 74 76 STREAM MANAGER XSHD XSRQ SDCK SDEF SACD-RESET SACD-RESET WCK ADDRESS (0-11) DATA (0-7) SACD-READY SACD-LATCH SACD-DATA XSRQ SDEF SACD-RESET PSP-WCK SACD-READY SACD-LATCH SACD-DATA TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM SDCK DSD FADE DSD SIGNAL PROCESS DSD OUTPUT I/F ADDRESS BUS DATA BUS DST DECODER 6 2 7 123 9 31 168 XSAK 167 166 164 165 173 174 175 176 169 170 171 172 11 PCM-SCLK 148,149,151,152, 154-157,159-162 131-134, 136-139 19-24, 27-32 2,3,5,6, 8,9,11,12 55 56 ADAC-MD ADAC-MC ADAC-MD ADAC-MC 3 4 CLK33M TO SYSTEM CONTROL/SERVO BLOCK DIAGRAM SURROUND(R)-MUTE SURROUND(R)-MUTE SURROUND(L)-MUTE SURROUND(L)-MUTE SUB WOOFER-MUTE SUB WOOFER-MUTE CENTER-MUTE CENTER-MUTE AUDIO(L)-MUTE AUDIO(R)-MUTE AUDIO(L)-MUTE AUDIO(R)-MUTE DSD-CLK DSD-MXL DSD-MXR DSD-FL DSD-FR DSD-C DSD-SW DSD-LS DSD-RS DVD MAIN CBA UNIT XSHD XSAK SD0/SPDIF SD1 SD2 SD3 SD5 SD4 SD6 SD7 SACD-RESET AUDIO SIGNAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 DVD-2900 Power Supply Block Diagram CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. IC1006 (SHUNT REGULATOR) REG AC1001 AC CORD F1001 LINE FILTER L1001 D1001, D1002 D1004, D1005 Q1003 Q1001 1 3 4 3 4 IC1001 ERROR VOLTAGE DET T1001 6 7 8 10 9 11 12 13 SWITCHING SWITCHING CONTROL 1 2 5 BRIDGE RECTIFIER HOT HOT CIRCUIT. BE CAREFUL. D1003 RECTIFIER D1030 RECTIFIER D1016 RECTIFIER Q1016 TO SYSTEM CONTROL/SERVO BLOCK DIAGRAM INV-POWCON Q1005 Q1011 Q1015 Q1002 CN1001 Q1004 -FL EV+5V F1 P-ON+11V EV+3.3V P-ON+5V 5,6 EV+1.2V 7,8,9 EV+3.3V 12,13 EV+11V 11 P-ON+5V 2,3,4,10 P-ON+3.3V 21 PWRCON +1.2V REG. IC1003 D1006 SCHOTTKY BARRIER SCHOTTKY BARRIER D1008 F2 AV CBA TO CN401 Q1008 LATCH T1.6A L 250V Q1014 2 Q1013 Q1021 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 DVD-2900 SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark “!” in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards. Notes: 1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared. 2. All resistance values are indicated in ohms (K = 103, M = 106). 3. Resistor wattages are 1/4W or 1/6W unless otherwise specified. 4. All capacitance values are indicated in µF (P = 10-6 µF). 5. All voltages are DC voltages unless otherwise specified. 6. Electrical parts such as capacitors, connectors, diodes, IC’s, transistors, resistors, switches, and fuses are identified by four digits. The first two digits are not shown for each component. In each block of the diagram, there is a note such as shown below to indicate these abbreviated two digits. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 DVD-2900 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. 3. Note: 1. Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared. 2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual. 4. Voltage indications for PLAY and STOP mode on the schematics are as shown below: 5. How to read converged lines 6. Test Point Information 2 3 1 5.0 (2.5) 5.0 The same voltage for both PLAY & STOP modes Indicates that the voltage is not consistent here. PLAY mode STOP mode (Unit: Volt) 3 2 1 A B C D 1-B1 1-D3 AREA D3 AREA B1 1-D3 Distinction Area Line Number (1 to 3 digits) Examples: 1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3". 2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1". : Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DVD-1930 DVD Main 1/7 Schematic Diagram 1 NOTE: Either IC461 or IC462 is used for DVD MAIN CBA UNIT. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DVD-1930 DVD Main 2/7 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DVD-1930 IC101 Voltage Chart PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP 1 3.4 3.4 33 ~ ~ 65 ----- ----- 97 0.1 0.1 2 0 0 34 0 0 66 3.4 3.4 98 0.1 0.1 3 3.5 3.5 35 3.5 3.5 67 3.4 3.4 99 0.1 0.1 4 ----- ----- 36 ~ ~ 68 0 0 100 0.1 0.1 5 3.4 3.4 37 ~ ~ 69 3.5 3.5 101 0.1 0.1 6 3.4 3.4 38 ~ ~ 70 ----- ----- 102 3.5 3.5 7 3.4 3.4 39 ~ ~ 71 ----- ----- 103 0.9 0.8 8 3.5 3.5 40 ~ ~ 72 3.2 3.2 104 0 0 9 0 0 41 ~ ~ 73 3.5 3.5 105 2.4 2.4 10 ----- ----- 42 ~ ~ 74 3.4 3.4 106 1.9 1.9 11 3.4 3.4 43 ~ ~ 75 3.4 3.4 107 0.4 0.3 12 2.8 2.8 44 0 0 76 3.4 3.4 108 0 0 13 3.5 3.5 45 1.3 1.3 77 3.4 3.4 109 1.7 1.7 14 0 0 46 ~ ~ 78 3.4 3.4 110 3.5 3.5 15 3.4 3.4 47 ~ ~ 79 3.6 3.4 111 ----- ----- 16 0 0 48 ~ ~ 80 3.4 3.4 112 ----- ----- 17 3.5 3.5 49 ~ ~ 81 3.4 3.4 113 1.9 1.9 18 ~ ~ 50 ~ ~ 82 0 0 114 1.9 1.9 19 2.7 2.9 51 ~ ~ 83 1.3 1.3 115 1.7 1.7 20 2.5 2.8 52 0 0 84 3.3 3.3 116 1.7 1.7 21 0 0 53 3.5 3.5 85 ----- ----- 117 1.7 1.7 22 1.3 1.3 54 ~ ~ 86 0.1 0.1 118 1.7 1.7 23 ~ ~ 55 3.4 3.4 87 0 0 119 3.5 3.5 24 ~ ~ 56 ~ ~ 88 3.3 0 120 2.0 2.0 25 ~ ~ 57 ~ ~ 89 3.4 3.5 121 1.5 1.5 26 ~ ~ 58 ~ ~ 90 2.3 1.8 122 0 0 27 ~ ~ 59 ~ ~ 91 1.7 1.8 123 0.3 0.1 28 ~ ~ 60 ~ ~ 92 0 0 124 0.5 0 29 ~ ~ 61 ~ ~ 93 3.5 3.5 125 0.3 0.1 30 ~ ~ 62 ~ ~ 94 2.6 2.6 126 0 0 31 ~ ~ 63 ~ ~ 95 0.1 0.1 127 2.3 2.3 32 ~ ~ 64 ~ ~ 96 0.1 0.1 128 1.7 1.7 PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP 129 2.3 2.3 161 0 0 193 0.1 0.1 225 1.7 1.7 130 2.3 2.3 162 1.7 1.7 194 0.1 0.1 226 0 0 131 2.3 2.3 163 1.7 1.7 195 0.1 0.1 227 3.2 3.2 132 2.4 2.3 164 0 0 196 0 0 228 3.2 3.2 133 2.4 2.4 165 1.3 1.3 197 3.5 3.5 229 3.1 3.1 134 2.4 2.4 166 1.5 1.5 198 ~ ~ 230 ~ ~ 135 2.3 2.3 167 1.7 1.7 199 ~ ~ 231 2.7 2.7 136 2.3 2.3 168 1.6 1.6 200 ~ ~ 232 0 ~ 137 2.3 2.3 169 1.3 1.3 201 ~ ~ 233 0 0 138 2.3 2.3 170 0.1 0.1 202 ~ ~ 234 1.3 1.3 139 2.1 1.7 171 0.1 0.1 203 ~ ~ 235 1.5 1.5 140 1.7 1.7 172 1.3 1.3 204 3.5 3.5 236 ~ ~ 141 1.7 1.7 173 1.7 1.7 205 0 0 237 ~ ~ 142 1.7 1.7 174 0 0 206 ~ ~ 238 0 0 143 0 0 175 3.5 3.5 207 ~ ~ 239 3.5 3.5 144 1.7 1.7 176 ~ ~ 208 ~ ~ 240 ~ ~ 145 1.7 1.7 177 ~ ~ 209 ~ ~ 241 ~ ~ 146 3.5 3.5 178 ~ ~ 210 ~ ~ 242 ~ ~ 147 ----- ----- 179 ~ ~ 211 ~ ~ 243 ~ ~ 148 ----- ----- 180 ~ ~ 212 ~ ~ 244 ~ ~ 149 ----- ----- 181 ~ ~ 213 ~ ~ 245 ~ ~ 150 3.5 3.5 182 ~ ~ 214 3.5 3.5 246 ~ ~ 151 ----- ----- 183 ~ ~ 215 0 0 247 ~ ~ 152 0 0 184 3.5 3.5 216 ~ ~ 248 0 0 153 ----- ----- 185 0 0 217 ~ ~ 249 3.5 3.5 154 ----- ----- 186 1.5 1.5 218 1.3 1.3 250 ----- ----- 155 0 0 187 ----- ----- 219 2.6 2.6 251 ----- ----- 156 ----- ----- 188 ----- ----- 220 2.8 2.8 252 3.3 3.3 157 ----- ----- 189 ----- ----- 221 3.2 3.2 253 0 0 158 3.5 3.5 190 1.6 1.6 222 0 0 254 3.5 0.1 159 0 0 191 0.1 0.1 223 1.6 1.6 255 3.4 3.4 160 3.5 3.5 192 0.1 0.1 224 3.5 3.5 256 3.3 0.8 ~ : Voltage is not consistent ----- : Not used Unit : Volts w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DVD-1930 DVD Main 3/7 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DVD-1930 DVD Main 4/7 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DVD-1930 DVD Main 5/7 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DVD-1930 DVD Main 6/7 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DVD-1930 DVD Main 7/7 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DVD-1930 AV 1/3 Schematic Diagram CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DVD-1930 AV 2/3 Schematic Diagram 2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DVD-1930 AV 3/3, LED & Function Schematic Diagram 7G 6G 5G 4G 3G 2G 1G a b c d e f g c d e f f g c d e f g c d e f g c d e f g c d e f g h h h i a b c d e g a b a b a b a b a b c d e f g a b FL2001 MATRIX CHART SACD ALL DVD RPT. CD A TL./GR. TR./CP. A B PSCAN a d g c b e f h h h h A ALL RPT SACD CD DVD A TL./GR. TR./CP. B PSCAN 5G 4G 3G 2G 1G 7G 6G w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DVD-1930 5.1ch Amp Schematic Diagram 2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DVD-1930 WAVEFORMS WF6 WF1 WF3 WF4 WF5 WF2 Pin 16 of CN1601 Pin 8 of CN1601 C1402 PLUS LEAD Pin 12 of CN1601 Pin 14 of CN1601 Pin 10 of CN1601 20µs 0.2V VIDEO-Y VIDEO-C 0.2V 20µs VIDEO-CVBS 0.5V 20µs AUDIO(L) 0.5V 0.5ms AUDIO(R) 0.5V 0.5ms 0.5ms SPDIF 1V 0.1µs NOTE: Input DVD: COLOR BAR SIGNAL (WITH 1KHz AUDIO SIGNAL) (WF1~WF6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 DVD-1930 WIRING DIAGRAM CN201 CN301 TRAY-IN EV+1.2V 4 EV+1.2V 5 EV+3.3V 7 EV+3.3V 8 P-ON+3.3V 9 P-ON+3.3V 3 P-ON+5V 10 EV+11V 11 EV+11V 12 GND 13 GND 14 GND 15 GND 16 GND 17 GND 18 GND 19 PWRCON 20 FP-DOUT 21 FP-DIN 22 FP-CLK 23 FP-STB 24 REMOTE 25 HDMI 26 CN401 CN1001 CN2001 CN2101 VIDEO-C 10 10 GND 9 9 VIDEO-Pr/R 4 4 GND 5 5 VIDEO-Pb/B 6 6 GND 7 7 VIDEO-Y/G(I/P) 8 8 CN601 AC CORD FRONT(R)- OUT FRONT(L)- OUT SURROUND(R)- OUT SURROUND(L)- OUT CENTER OUT SUB WOOFER OUT S-VIDEO OUT EV+3.3V 6 6 7 9 10 11 5 4 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 8 KEY-6 1 1 K2 2 2 K1 3 3 KEY-2 4 4 KEY-3 5 5 CN1301 CN7101 CNS01 CN7102 GND 3 3 AUDIO+3.3V 4 4 GND 1 1 GND 2 2 AUDIO+5V 5 5 AUDIO+10V 6 6 AUDIO+10V 7 7 AUDIO-MUTE 3 9 SUB WOOFER-MUTE 4 10 GND 1 7 M-MUTE 2 8 SUB WOOFER 5 11 CENTER-MUTE 6 12 CENTER 7 13 SURROUND(L)-MUTE 10 16 SURROUND(L) 11 17 SURROUND(R)-MUTE 8 14 SURROUND(R) 9 15 AUDIO(R)-MUTE 12 18 FRONT-AUDIO(R) 13 19 AUDIO(L)-MUTE 14 20 FRONT-AUDIO(L) 15 21 AUDIO-MUTE2 16 22 KEY-1 6 6 KEY-4 7 7 AUDIO-GND 15 15 AUDIO-GND 11 11 AUDIO(L) 12 12 AUDIO(L)-MUTE 13 13 AUDIO(R) 14 14 FS TS DETECTOR 7 9 11 2 3 6 5 M SLED MOTOR M SPINDLE MOTOR SPDIF 16 16 AUDIO+5V 17 17 AUDIO+5V 18 18 AUDIO(R)-MUTE 19 19 4 CN2002 CN2102 EV+5V 1 1 POWER-LED 2 2 STANDBY-LED 3 3 GND 4 4 KEY-2 5 5 K2 6 6 HDMI-LED 7 7 GND 3 SL(-) 4 SL(+) 5 TRAY-IN 6 FS(-) 3 TS(-) 4 GND(CD-PD) 5 GND(DVD-PD) 6 PD-MONI 7 DVD-LD 8 TS(+) 1 FS(+) 2 GND 11 NU 12 VREF 13 NU 14 B 15 C 16 GND(LD) 9 CD-LD 10 A 17 D 18 CD/DVD 19 P-ON+5V 20 SP(+) 1 SP(-) 2 LED CBA CN2102 is soldered directly to the PCB. AV CBA (CN1001 is soldered directly to the PCB.) CN1601 (CN1601 is soldered directly to the PCB.) DVD MAIN CBA UNIT DRIVE CBA PICK UP UNIT 5.1CH AMP CBA FUNCTION CBA CN2101 is soldered directly to the PCB. VIDEO-Y OUT VIDEO-Cb/Pb OUT VIDEO-Cr/Pr OUT DVD MECHANISM VIDEO OUT (COMPOSITE) AUDIO(L)- OUT AUDIO(R)- OUT DIGITAL AUDIO OUT (COAXIAL) DIGITAL AUDIO OUT (OPTICAL) HDMI-CONNECTOR P-ON+3.3V 2 3 P-ON+3.3V 1 2 ASPECT 3 3 I/P-SW 2 2 VIDEO-Y(I) 1 1 RGB OUT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 DVD-1930 LEAD IDENTIFICATIONS 1 2 3 8 5 4 1 1: R 2: A 3: K 1 2 3 1 2 4 3 1: A 2: K 3: E 4: C 1: GND 2: Vout 3: Vin E C B E C B 1 2 3 G D S 1 8 16 9 E C B B C E Note: A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference G: Gate D: Drain S: Source KIA4558P/P UTC4558 MM1636XWRE NJM4580M-TE1 2SA1015-Y(TE2 F T) 2SA966-Y(TE6 F M) KTA1266-Y-AT/P KTA1273-Y-AT/P KRC103M-AT/P KTC3205-Y-AT/P 2SC1815-(GR,Y)(TE2 F T) KTA1267-Y-AT/P KTC3199-(GR,Y)-AT/P KRA105M-AT/P KRA110M-AT/P EL817B EL817C LTV-817C-F PS2561A-1(W) KIA2431AP-AT/P TL432A-TA LD1117V UZ1086L-ADJ 16 9 8 1 MM1637XVBE 28 15 14 1 PT6313-S-TP(L) SC16313G GP1FA513TZ0F 2SK3566 CD74HC4053PWR MM74HC4053MTCX TC74LVX4053FT(EL) 2SD2144S KTD882 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 DVD-1930 EXPLODED VIEWS Cabinet A16 2L011 2L011 2L011 2L011 2L011 2L106 JK1202 IC1204 2L106 2L021 2L021 2L107 2L071 2L041 2B2 2L051 A' A 2L023 2L052 2L052 A11 A13 A12 A13 A15 A17 A2 2B1 AC1001 2L041 2B4 2L102 2L102 2L023 A1X 2L041 A21 2L043 2L105 2L105 2L021 1B1 2L051 2B3 2B39 2L101 2L109 2L108 2B6 AV CBA 2B5 JK1401 JK1407 JK1201 LED CBA F1001 2L041 See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence. Function CBA DVD Main CBA Unit 5.1ch Amp CBA 2B34 2L114 2L114 2B21 2L021 JK1405 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 DVD-1930 DVD-1930 PARTS LIST OF EXPLODED VIEW *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 * The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. * "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 * Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. Note: The symbols in the column "Remarks" indicate the following destinations. BK : DVD1930BKE2 model SR : DVD1930SRE2 model Ref. No. nsp Part No. Part Name Remark Q'ty New 00D 9H2 6000 784 DVD MAIN CBA UNIT N79D5KEP 1 * 00D 9H2 6000 767 5.1CH CBA 1VSA13235 1 00D 9H2 6000 785 AV ASSEMBLY 1VSA15110 1 * AV CBA - FUNCTION CBA - LED CBA - A1X 00D 9H2 6000 777 FRONT ASSEMBLY 1VM222723 for BK 1 * A1X 00D 9H2 6000 778 FRONT ASSEMBLY 1VM222724 for SR 1 * A2 00D 9H2 6000 645 TRAY PANEL ASSEMBLY 1VM422186 for BK 1 A2 00D 9H2 6000 646 TRAY PANEL ASSEMBLY 1VM422188 for SR 1 A11 00D 9H2 6000 566 INSULATOR ASSEMBLY (R) 1VM420732 1 A12 00D 9H2 6000 567 INSULATOR ASSEMBLY (L) 1VM420733 1 A13 00D 9H2 6000 323 FOOT 0VM406940A 2 A15 00D 9H2 6000 611 CHASSIS 1VM120073 1 A16 00D 9H2 6000 680 TOP COVER(BLACK) 1VM120074C for BK 1 A16 00D 9H2 6000 613 TOP COVER(SILVER) 1VM320865 for SR 1 A17 00D 9H2 6000 779 REAR PANEL 1VM222501 1 * A21 LABEL SERIAL NO. - 1 1B1 00D 9H2 6000 755 DVD MECHA E7 (D) N79D0KVM 1 2B2 - POWER PCB HOLDER 0VM306801E 1 2B3 00D 9H2 6000 756 MAIN PCB HOLDER 1VM320650 1 2B4 00D 9H2 6000 780 LOADER BASE 0VM101367G 1 * 2B5 - FIP SUPPORT ASSEMBLY 1VM424564 1 2B6 00D 9H2 6000 757 JACK PCB HOLDER 0VM101376E 1 2B21 - LASER CAUTION LABEL - 1 2B34 00D 9H2 6000 769 CUSHION SPACER 1VM422273 2 2B39 00D 9H2 6000 770 REINFORCE PLATE 1VM321919 1 SCREWS 2L011 - SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI GBHC3050 for BK 5 2L011 - SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050 for SR 5 2L021 - SCREW P-TIGHT M3*12 BIND+ GBJP3120 4 2L023 - SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060 2 2L041 - SCREW B-TIGHT M3X8 BIND HEAD+ GBHB3080 9 2L043 - SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI GBHC3050 1 2L051 - SCREW C-TIGHT M3X8 BIND HEAD+ GBJC3080 2 2L052 - SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 6 2L071 - SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI GBHC3050 1 2L101 - SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060 1 2L102 - SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060 4 2L105 - SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 3 2L106 - SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060 4 2L107 - SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 1 2L108 - SCREW C-TIGHT M3X6 BIND HEAD+ GBJC3060 2 2L109 - SCREW P-TIGHT M3X8 BIND HEAD+ GBJP3080 1 2L114 - SCREW TAP TIGHT WASHER+ P-TIGHT GCJP3080 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 DVD-1930 Packing A22 S1 S2 S4 Unit S2 X10 X5 X2 X4 X12 X1 A30 A30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 DVD-1930 DVD-1930 PARTS LIST OF PACKING & ACCESSORIES *本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。 * The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions. * "nsp" 印の部品は常時在庫していませんので供給に長時間を要することがあります。場合によっては、供給をお断りする場合があります。 * Part indicated with the mark “nsp” are not always in stock and possibly to take a long period of time for supplying, or in some case supplying of part may be refused. Note: The symbols in the column "Remarks" indicate the following destinations. BK : DVD1930BKE2 model SR : DVD1930SRE2 model Ref. No. nsp Part No. Part Name Remark Q'ty New A22 BAR CODE LABEL - for BK 1 A22 BAR CODE LABEL - for SR 1 A30 CONTROL LABEL - for BK 2 A30 CONTROL LABEL - for SR 2 S1 00D 9H2 6000 781 GIFT BOX CARTON 1VM323343 for BK 1 * S1 00D 9H2 6000 782 GIFT BOX CARTON 1VM323344 for SR 1 * S2 00D 9H2 6000 619 STYROFOAM 0VM101298B 1 S4 00D 9H2 6000 693 SET BAG 0DM400731D 1 X1 00D 9H2 6000 653 REMOTE CONTROL UNIT NA834UD 1 X2 - DRY BATTERY R6UW/2S XB0M311MS001 2 X2 - DRY BATTERY ES-GR6M-C XB0M571GLP01 2 X2 - DRY BATTERY R6P/2S XB0M451T0001 2 X4 - ACCESSORY BAG 0VM416059 1 X5 00D 9H2 6000 226 AV CORD WPZ0102TM015 WPZ0102TM015 1 X5 00D 9H2 6000 762 AV CORD RCA(M*2)TO RCA(M*2) WPZ0102LTE01 1 X10 00D 9H2 6000 783 OWNERS MANUAL 1VMN23183 1 * X12 - SERVICE CENTER SHEET 1VM423684 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 DVD-1930 DOCUMENTS FOR WEEE Details of Recycle parts ※ You have to remove the parts that marked "WEEE Mark ◆ " when the recycling processing. Ref. No. WEEE Mark Part Name Material Q'ty ◆ DVD MAIN CBA UNIT Complex 1 ◆ 5.1CH CBA Complex 1 AV ASSEMBLY ◆ AV CBA Complex 1 ◆ FUNCTION CBA Complex 1 ◆ LED CBA Complex 1 A1X FRONT ASSEMBLY FRONT PANEL PS 1 FRONT COVER AL 1 EARTH PLATE (TOP) STEEL 2 EARTH PLATE STEEL 2 MODE BUTTON PS 1 DISPLAY WINDOW PMMA 1 ◆ POWER BUTTON ABS+AL 1 LED LENS PMMA 1 BRAND BADGE AL 1 A2 TRAY PANEL ASSEMBLY PS 1 A11 INSULATOR ASSEMBLY (R) PS+URETHANE 1 A12 INSULATOR ASSEMBLY (L) PS+URETHANE 1 A13 FOOT URETHANE 2 A15 CHASSIS STEEL 1 A16 TOP COVER STEEL+PAINT 1 A17 REAR PANEL STEEL 1 1B1 ◆ DVD MECHA E7 HDMI (F2) Complex 1 2B2 POWER PCB HOLDER PS 1 2B3 MAIN PCB HOLDER PS 1 2B4 LOADER BASE PS 1 2B5 FIP SUPPORT ASSEMBLY 1 FIP SUPPORT PS 1 2B6 JACK PCB HOLDER PS 1 AC1001 ◆ AC CORD Complex 1 C5 ◆ ELECTROLYTIC CAPACITOR Complex 1 2B34 CUSHION SPACER URETHANE 2 2B39 REINFORCE PLATE E6A60UD STEEL 1 SCREWS 2L011 SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI STEEL 5 2L011 SCREW C-TIGHT M3X5 BIND HEAD + STEEL 5 2L021 SCREW P-TIGHT M3*12 BIND+ STEEL 4 2L023 SCREW C-TIGHT M3X6 BIND HEAD+ STEEL 2 2L041 SCREW B-TIGHT M3X8 BIND HEAD+ STEEL 9 2L043 SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI STEEL 1 2L051 SCREW C-TIGHT M3X8 BIND HEAD+ STEEL 2 2L052 SCREW P-TIGHT M3X8 BIND HEAD+ STEEL 6 2L071 SCREW TAP TIGHT M3X5 BIND HEAD+BLK NI STEEL 1 2L101 SCREW C-TIGHT M3X6 BIND HEAD+ STEEL 1 2L102 SCREW C-TIGHT M3X6 BIND HEAD+ STEEL 4 2L105 SCREW P-TIGHT M3X8 BIND HEAD+ STEEL 3 2L106 SCREW C-TIGHT M3X6 BIND HEAD+ STEEL 4 2L107 SCREW P-TIGHT M3X8 BIND HEAD+ STEEL 1 2L108 SCREW C-TIGHT M3X6 BIND HEAD+ STEEL 2 2L109 SCREW P-TIGHT M3X8 BIND HEAD+ STEEL 1 2L114 SCREW TAP TIGHT WASHER+ P-TIGHT STEEL 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 DVD-1930 Exploded view A16 2L011 2L011 2L011 2L011 2L011 2L106 JK1202 IC1204 2L106 2L021 2L021 2L107 2L071 2L041 2B2 2L051 A' A 2L023 2L052 2L052 A11 A13 A12 A13 A15 A17 A2 2B1 AC1001 2L041 2B4 2L102 2L102 2L023 A1X 2L041 A21 2L043 2L105 2L105 2L021 1B1 2L051 2B3 2B39 2L101 2L109 2L108 2B6 AV CBA 2B5 JK1401 JK1407 JK1201 LED CBA F1001 2L041 See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence. Function CBA DVD Main CBA Unit 5.1ch Amp CBA 2B34 2L114 2L114 2B21 2L021 JK1405 EARTH PLATE(TOP) EARTH PLATE(TOP) EARTH PLATE EARTH PLATE DISPLAY WINDOW FRONT PANEL FRONT COVER POWER BUTTON C5 Cabinet You have to remove the parts that marked “WEEE Mark ◆ “ when the recycling processing. (Europe model only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
