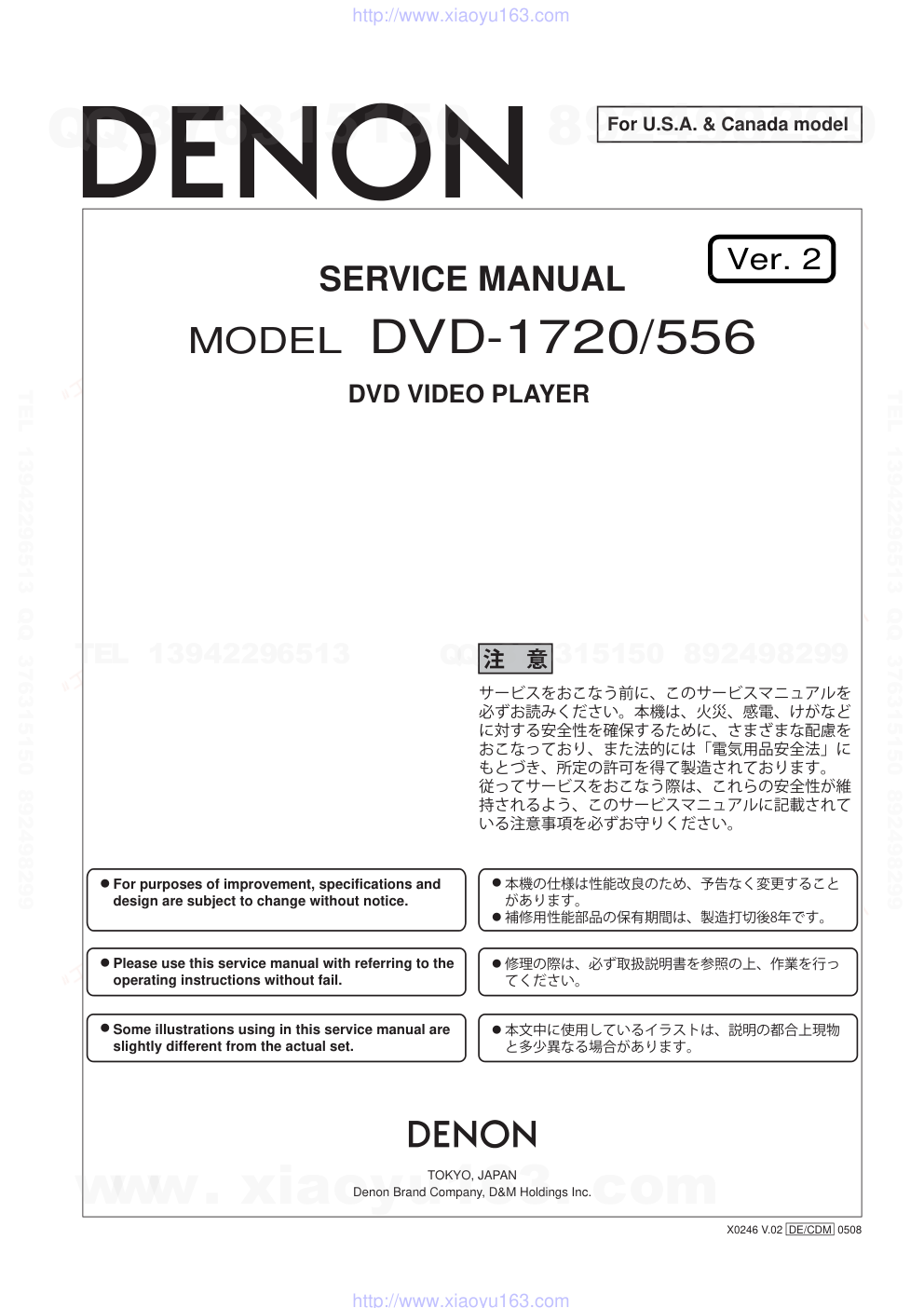

SERVICE MANUAL DVD VIDEO PLAYER MODEL DVD-1720/556 TOKYO, JAPAN Denon Brand Company, D&M Holdings Inc. Some illustrations using in this service manual are slightly different from the actual set. ● Please use this service manual with referring to the operating instructions without fail. ● For purposes of improvement, specifications and design are subject to change without notice. ● ●　本文中に使用しているイラストは、説明の都合上現物 　　と多少異なる場合があります。 ●　修理の際は、必ず取扱説明書を参照の上、作業を行っ 　　てください。 サービスをおこなう前に、このサービスマニュアルを 必ずお読みください。本機は、火災、感電、けがなど に対する安全性を確保するために、さまざまな配慮を おこなっており、また法的には「電気用品安全法」に もとづき、所定の許可を得て製造されております。 従ってサービスをおこなう際は、これらの安全性が維 持されるよう、このサービスマニュアルに記載されて いる注意事項を必ずお守りください。 ●　本機の仕様は性能改良のため、予告なく変更すること 　　があります。 ●　補修用性能部品の保有期間は、製造打切後8年です。 注　意 X0246 V.02 DE/CDM 0508 For U.S.A. & Canada model Ver. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVD-1720/556 TABLE OF CONTENTS SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 LASER BEAM SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 IMPORTANT SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 STANDARD NOTES FOR SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 CABINET DISASSEMBLY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 HOW TO INITIALIZE THE DVD PLAYER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 FIRMWARE RENEWAL MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 BLOCK DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 SCHEMATIC DIAGRAMS / CBA'S AND TEST POINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 WAVEFORMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 WIRING DIAGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 LEAD IDENTIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 EXPLODED VIEWS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 MECHANICAL PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DVD-1720/556 SPECIFICATIONS Notes: 1. All Items are measured without pre-emphasis unless otherwise specified. 2. Power supply: AC 120 V, 60 Hz 3. Ambient Temperature: +25 °C Item Conditions Unit Nominal Limit 1. Video Output 75 Ω load Vpp 1.0 ± 0.1 2. Coaxial Digital Out 75 Ω load mVpp 500 ± 50 3. Audio (PCM) 3-1. Output Level 1 kHz, 0 dB, 47k Ω load Vrms 2.0 3-2. S/N 47k Ω load dB 115 3-3. Freq. Response DVD fs = 48 kHz ± 0.5 dB, 47k Ω load Hz 20 ~ 22 k CD fs = 44.1 kHz ± 0.5 dB, 47k Ω load Hz 20 ~ 20 k 3-4. THD+N DVD, CD 1 kHz, 0 dB, 47k Ω load % 0.004 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DVD-1720/556 LASER BEAM SAFETY PRECAUTIONS This DVD player uses a pickup that emits a laser beam. The laser beam is emitted from the location shown in the figure. When checking the laser diode, be sure to keep your eyes at least 30 cm away from the pickup lens when the diode is turned on. Do not look directly at the laser beam. CAUTION: Use of controls and adjustments, or doing procedures other than those specified herein, may result in hazardous radiation exposure. Location: Top of DVD mechanism. Do not look directly at the laser beam coming from the pickup or allow it to strike against your skin. Drive Mechanism Assembly Laser Beam Radiation Laser Pickup Turntable LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM. CAUTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DVD-1720/556 IMPORTANT SAFETY PRECAUTIONS Product Safety Notice Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced. Precautions during Servicing A. Parts identified by the ! symbol are critical for safety. Replace only with part number specified. B. In addition to safety, other parts and assemblies are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements. Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc. C. Use specified internal wiring. Note especially: 1) Wires covered with PVC tubing 2) Double insulated wires 3) High voltage leads D. Use specified insulating materials for hazardous live parts. Note especially: 1) Insulation tape 2) PVC tubing 3) Spacers 4) Insulators for transistors E. When replacing AC primary side components (transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering. F. Observe that the wires do not contact heat producing parts (heat sinks, oxide metal film resistors, fusible resistors, etc.). G. Check that replaced wires do not contact sharp edges or pointed parts. H. When a power cord has been replaced, check that 5 - 6 kg of force in any direction will not loosen it. I. Also check areas surrounding repaired locations. J. Be careful that foreign objects (screws, solder droplets, etc.) do not remain inside the set. K. Crimp type wire connector The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards. Replacement procedure 1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector. (Discard it.) 2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors. 3) Align the lengths of the wires to be connected. Insert the wires fully into the connector. 4) Use a crimping tool to crimp the metal sleeve at its center. Be sure to crimp fully to the complete closure of the tool. L. When connecting or disconnecting the internal connectors, first, disconnect the AC plug from the AC outlet. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DVD-1720/556 Safety Check after Servicing Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards. 1. Clearance Distance When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1) Table 1: Ratings for selected area Note: This table is unofficial and for reference only. Be sure to confirm the precise values. 2. Leakage Current Test Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below. Measuring Method (Power ON): Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table. Table 2: Leakage current ratings for selected areas Note: This table is unofficial and for reference only. Be sure to confirm the precise values. AC Line Voltage Clearance Distance (d), (d’) 120 V ≥ 3.2 mm (0.126 inches) AC Line Voltage Load Z Leakage Current (i) Earth Ground (B) to: 120 V 0.15 µF CAP. & 1.5 kΩ RES. Connected in parallel i ≤ 0.5 mA Peak Exposed accessible parts Chassis or Secondary Conductor d d' Primary Circuit Terminals Fig. 1 AC Voltmeter (High Impedance) Exposed Accessible Part B Earth Ground Power Cord Plug Prongs Z Fig. 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DVD-1720/556 STANDARD NOTES FOR SERVICING Circuit Board Indications 1. The output pin of the 3 pin Regulator ICs is indicated as shown. 2. For other ICs, pin 1 and every fifth pin are indicated as shown. 3. The 1st pin of every male connector is indicated as shown. Instructions for Connectors 1. When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord. 2. FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle. Pb (Lead) Free Solder When soldering, be sure to use the Pb free solder. How to Remove / Install Flat Pack-IC 1. Removal With Hot-Air Flat Pack-IC Desoldering Machine: 1. Prepare the hot-air flat pack-IC desoldering machine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1) 2. Remove the flat pack-IC with tweezers while applying the hot air. 3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) CAUTION: 1. The Flat Pack-IC shape may differ by models. Use an appropriate hot-air flat pack-IC desoldering machine, whose shape matches that of the Flat Pack-IC. 2. Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2) Top View Out In Bottom View Input 5 10 Pin 1 Pin 1 FFC Cable Connector CBA * Be careful to avoid a short circuit. Fig. S-1-1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DVD-1720/556 3. The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it. With Soldering Iron: 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) 2. Lift each lead of the flat pack-IC upward one by one, using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4) 3. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 4. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) Hot-air Flat Pack-IC Desoldering Machine CBA Flat Pack-IC Tweezers Masking Tape Fig. S-1-2 Flat Pack-IC Desoldering Braid Soldering Iron Fig. S-1-3 Fine Tip Soldering Iron Sharp Pin Fig. S-1-4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DVD-1720/556 With Iron Wire: 1. Using desoldering braid, remove the solder from all pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3) 2. Affix the wire to a workbench or solid mounting point, as shown in Fig. S-1-5. 3. While heating the pins using a fine tip soldering iron or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5. 4. Bottom of the flat pack-IC is fixed with glue to the CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6) 5. Release the flat pack-IC from the CBA using tweezers. (Fig. S-1-6) Note: When using a soldering iron, care must be taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied. 2. Installation 1. Using desoldering braid, remove the solder from the foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily. 2. The “ ● ” mark on the flat pack-IC indicates pin 1. (See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then presolder the four corners of the flat pack-IC. (See Fig. S-1-8.) 3. Solder all pins of the flat pack-IC. Be sure that none of the pins have solder bridges. To Solid Mounting Point Soldering Iron Iron Wire or Hot Air Blower Fig. S-1-5 Fine Tip Soldering Iron CBA Flat Pack-IC Tweezers Fig. S-1-6 Example : Pin 1 of the Flat Pack-IC is indicated by a " " mark. Fig. S-1-7 Presolder CBA Flat Pack-IC Fig. S-1-8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DVD-1720/556 Instructions for Handling Semi- conductors Electrostatic breakdown of the semi-conductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work. 1. Ground for Human Body Be sure to wear a grounding band (1 MΩ) that is properly grounded to remove any static electricity that may be charged on the body. 2. Ground for Workbench Be sure to place a conductive sheet or copper plate with proper grounding (1 MΩ) on the workbench or other surface, where the semi-conductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semi-conductors with your clothing. CBA Grounding Band Conductive Sheet or Copper Plate 1MΩ 1MΩ CBA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DVD-1720/556 CABINET DISASSEMBLY INSTRUCTIONS 1. Disassembly Flowchart This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally. 2. Disassembly Method Note: (1) Identification (location) No. of parts in the figures (2) Name of the part (3) Figure Number for reference (4) Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered. P = Spring, L = Locking Tab, S = Screw, CN = Connector * = Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2) (5) Refer to “Reference Notes.” About tightening screws When tightening screws, tighten them with the following torque. ID/ Loc. No. Part Removal Fig. No. Remove/*Unhook/ Unlock/Release/ Unplug/Desolder Note [1] Top Cover D1 5(S-1) --- [2] Front Unit D2 *2(L-1), *2(L-2), *3(L-3), *CN2001 1 [3] Tray Panel D2 *2(L-4) 1 [4] Function CBA D3 6(S-2) --- [5] Front Assembly D3 ---------- --- [6] Rear Panel D4 [DVD1720BKE3/ DVD1720SRE3] 6(S-3), (S-4) --- [DVD556SRE3] 5(S-3), (S-4) [7] DVD Main CBA Unit D5 (S-5A), (S-5B), *CN201, *CN301, *CN401, *CN601 2 [8] DVD Mechanism D5 D6 4(S-6) 2 3 [9] LED CBA D7 *CN2102 --- [10] AV CBA D7 4(S-7), (S-8) --- [11] Loader Base D8 4(S-9) --- [1] Top Cover [5] Front Assembly [2] Front Unit [3] Tray Panel [6] Rear Panel [11] Loader Base [7] DVD Main CBA Unit [8] DVD Mechanism [12] Power PCB Holder [9] LED CBA [4] Function CBA [10] AV CBA [12] Power PCB Holder D8 2(S-10) --- ↓ (1) ↓ (2) ↓ (3) ↓ (4) ↓ (5) Screws Torque (S-1), (S-2), (S-3), (S-4), (S-5A), (S-6), (S-7), (S-8), (S-9), (S-10) 0.45 ± 0.05 N·m (S-5B) 0.38 ± 0.04 N·m ID/ Loc. No. Part Removal Fig. No. Remove/*Unhook/ Unlock/Release/ Unplug/Desolder Note www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DVD-1720/556 Reference Notes 1. CAUTION 1: Locking Tabs (L-1), (L-2), (L-3) and (L-4) are fragile. Be careful not to break them. 1) Release two Locking Tabs (L-1), then release two Locking Tabs (L-2). 2) Release three Locking Tabs (L-3). 3) Disconnect connector CN2001 and remove the Front Assembly. 2. CAUTION 2: Electrostatic breakdown of the laser diode in the optical system block may occur as a potential difference caused by electrostatic charge accumulated on cloth, human body etc., during unpacking or repair work. To avoid damage of pickup follow next procedures. 1) Short the three short lands of FPC cable with solder before removing the FFC cable (CN201) from it. If you disconnect the FFC cable (CN201), the laser diode of pickup will be destroyed. (Fig. D5) 2) Disconnect Connectors (CN301), (CN401) and (CN601). Remove two Screws (S-5A) and (S-5B) and lift the DVD Main CBA Unit. (Fig. D5) 3. CAUTION 3: When reassembling, confirm the FFC cable (CN201) is connected completely. Then remove the solder from the three short lands of FPC cable. (Fig. D5) Fig. D1 [1] Top Cover (S-1) (S-1) (S-1) [2] Front Unit [3] Tray Panel CN2001 (L-1) (L-1) (L-2) (L-2) (L-4) (L-4) (L-3) Fig. D2 [4] Function CBA [5] Front Assembly (S-2) (S-2) Fig. D3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 DVD-1720/556 DVD1720BKE3/ DVD1720SRE3 only [6] Rear Panel (S-4) (S-3) (S-3) Fig. D4 (S-5A) (S-5B) [7] DVD Main CBA Unit CN201 CN301 CN401 CN601 A Fig. D5 View for A Short the three short lands by soldering. (Either of two places.) Connector Fig. D6 [8] DVD Mechanism (S-6) (S-6) [10] AV CBA [9] LED CBA (S-7) (S-7) (S-8) CN2102 Fig. D7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 DVD-1720/556 3. How to Eject Manually 1. Remove the Top Cover. 2. Rotate the roulette in the direction of the arrow as shown below. [11] Loader Base (S-9) Fig. D8 (S-9) [12] Power PCB Holder (S-10) A View for A Rotate this roulette in the direction of the arrow www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 DVD-1720/556 HOW TO INITIALIZE THE DVD PLAYER To put the program back at the factory-default, initialize the DVD player as the following procedure. 1. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. a appears on the screen. 2. Press [CLEAR] button on the remote control unit. Fig. b appears on the screen. When “OK” appears on the screen, the factory default will be set. 3. To exit this mode, press [POWER OFF] button. MODEL : ******* Version : *.** Region : * EXIT: POWER EEPROM CLEAR : CLEAR Fig. a "*******" differ depending on the models. MODEL : ******* Version : *.** Region : * EEPROM CLEAR : OK EXIT: POWER EEPROM CLEAR : CLEAR "*******" differ depending on the models. Fig. b www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 DVD-1720/556 FIRMWARE RENEWAL MODE 1. Turn the power on and remove the disc on the tray. 2. To put the DVD player into version up mode, press [9], [8], [7], [6], and [SEARCH MODE] buttons on the remote control unit in that order. The tray will open automatically. Fig. a appears on the screen and Fig. b appears on the VFD. The DVD player can also enter the version up mode with the tray open. In this case, Fig. a will be shown on the screen while the tray is open. 3. Load the disc for version up. 4. The DVD player enters the F/W version up mode automatically. Fig. c appears on the screen and Fig. d appears on the VFD. If you enter the F/W for different models, “Disc Error” will appear on the screen, then the tray will open automatically. The appearance shown in (*1) of Fig. c is described as follows: 5. After programming is finished, the tray opens automatically. Fig. e appears on the screen and the checksum in (*2) of Fig. e appears on the VFD (Fig. f). At this time, no button is available. 6. Remove the disc on the tray. 7. Unplug the AC cord from the AC outlet. Then plug it again. 8. Turn the power on by pressing the [POWER ON] button and the tray will close. 9. Press [1], [2], [3], [4], and [DISPLAY] buttons on the remote control unit in that order. Fig. g appears on the screen. No. Appearance State 1 Reading... Sending files into the memory 2 Erasing... Erasing previous version data 3 Programming... Writing new version data F/W Version Up Mode Model No : ******* VERSION : *.** Please insert a DISC for F/W Version Up. EXIT: POWER "*******" differ depending on the models. Fig. a Version Up Mode Screen Fig. b VFD in Version Up Mode VERSION : ************.ab6 Reading... F/W Version Up Mode Model No : ******* VERSION : *.** Fig. c Programming Mode Screen "*******" differ depending on the models. (*1) Fig. d VFD in Programming Mode (Example) VERSION : ************.ab6 Completed SUM : 7ABC F/W Version Up Mode Model No : ******* VERSION : *.** "*******" differ depending on the models. Fig. e Completed Program Mode Screen (*2) Fig. f VFD upon Finishing the Programming Mode (Example) MODEL : ******* Version : *.** Region : * EXIT: POWER EEPROM CLEAR : CLEAR Fig. g "*******" differ depending on the models. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 DVD-1720/556 10. Press [CLEAR] button on the remote control unit. Fig. h appears on the screen. When “OK” appears on the screen, the factory default will be set. Then the firmware renewal mode is complete. 11. To exit this mode, press [POWER OFF] button. MODEL : ******* Version : *.** Region : * EEPROM CLEAR : OK EXIT: POWER EEPROM CLEAR : CLEAR "*******" differ depending on the models. Fig. h www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 DVD-1720/556 TROUBLESHOOTING FLOW CHART NO.2 The fuse blows out. After servicing, replace the fuse. Check the presence that the primary component is leaking or shorted and service it if defective. Check the presence that the rectifying diode or circuit is shorted in each rectifying circuit of secondary side, and service it if defective. FLOW CHART NO.3 When the output voltage fluctuates. Yes No FLOW CHART NO.4 When buzz sound can be heard in the vicinity of power circuit. Check if there is any short-circuit on the rectifying diode and the circuit in each rectifying circuit of the secondary side, and service it if defective. (D1003, D1006, D1008, D1016, D1030, IC1002, Q1002, Q1004, Q1005, Q1011, Q1014) Does the photo coupler circuit on the secondary side operate normally? Check IC1001, D1012, D1024 and their periphery, and service it if defective. Check IC1001, IC1006, D1048 and their periphery, and service it if defective. FLOW CHART NO.5 -FL is not outputted. Is approximately -23V voltage supplied to the anode of D1003? Check D1003 and periphery circuit, and service it if defective. Check if there is any leak or short-circuit on the loaded circuit, and service it if defective. Yes No FLOW CHART NO.1 The power cannot be turned on. Is the fuse normal? Is normal state restored when once unplugged power cord is plugged again after several seconds? Is the EV +3.3V line voltage normal? See FLOW CHART No.2 Check if there is any leak or short-circuiting on the primary circuit component, and service it if defective. (Q1031, Q1003, Q1008, T1001, D1001, D1002, D1004, D1005, D1011, C1003, C1005) Check each rectifying circuit of the secondary circuit and service it if defective. Yes Yes Yes No No No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 DVD-1720/556 FLOW CHART NO.7 P-ON+5V is not outputted. (EV+11V is outputted normally.) Is the "H" signal inputted into the base of Q1004? Replace Q1004. Replace Q1014. Check R1068 and D1046, and service it if defective. Yes No Is the "H" signal inputted into the base of Q1014? Check D1047, R1069, R1098 and the periphery circuit, and service it if defective. No FLOW CHART NO.8 P-ON+3.3V is not outputted. (P-ON+10V is outputted normally.) Is 3.3V voltage supplied to the collector of Q1011? Replace Q1011 or R1067. Check D1008, C1007, C1038, L1007, and the periphery circuit, and service it if defective. Yes No FLOW CHART NO.9 EV+5V is not outputted. Is EV+11V outputted normally? Refer to "FLOW CHART NO.6" Yes Yes No FLOW CHART NO.10 EV+1.2V is not outputted. Is 2.5V voltage supplied to Pin(3) of IC1002? Replace IC1002. Check D1006, C1014 and the periphery circuit, and service it if defective. Yes No FLOW CHART NO.6 P-ON+10V (EV+11V) is not outputted. Is 11V voltage supplied to the emitter of Q1002? Is the voltage of base on Q1002 lower than the voltage of emitter on Q1002 when turning the power on? Replace Q1002. Check D1030, D1048, C1035, C1048, L1009, and the periphery circuit, and service it if defective. Check Q1016 and PWRCON line and service it if defective. Yes Yes No No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DVD-1720/556 Yes No FLOW CHART NO.12 The key operation is not functioning. Are the contact point and the installation state of the key switches (SW2101, SW2103-2108, SW2181-2183) normal? When pressing each switches (SW2101, SW2103-2108, SW2181-2183), do the voltage of each pin of IC2001 (shown below) increase? SW2103, 2104, 2106, 2107, 2182: IC2001 3PIN SW2101, 2105, 2108, 2181, 2183: IC2001 4PIN Check the switches (SW2101, SW2103-2108, SW2181-2183) and their periphery, and service it if detective. No Re-install the switches (SW2101, SW2103-2108, SW2181-2183) correctly or replace the poor switch. Replace IC2001. Yes FLOW CHART NO.13 No operation is possible from the remote control unit. Operation is possible from the DVD, but no operation is possible from the remote control unit. Replace the infrared remote control receiver (RM2001) or replace the remote control unit. Check the line between Pin(1) terminal of receiver (RM2001) and Pin(25) of CN1001, and service it if defective. Is the "L" pulse sent out Pin(1) terminal of receiver (RM2001) when the infrared remote control is activated? Is the "L" pulse supplied to the Pin(25) of CN1001? Replace DVD Main CBA Unit. Is 5V voltage supplied to Pin(3) terminal of the infrared remote control receiver (RM2001)? Yes No Check EV+5V line and service it if defective. No No Yes Yes Yes Yes Yes Yes No No No No FLOW CHART NO.11 The fluorescent display tube does not light up. Is 3.3V voltage supplied to Pins(6,24) of IC2001? Is the voltage of approximately -20V supplied to Pin(15) of IC2001? Is there 500kHz oscillation at Pin(26) of IC2001? Are the filament voltage supplied between Pins(1, 2) and Pins(29, 30) of the fluorescent display tube? And the negative voltage applied between these pins and GND? Replace the fluorescent display tube. Check the EV+3.3V line and service it if defective. Check the -FL (-20V) line and service it if defective. Check R2002, IC2001 and their periphery, and service it if defective. Check PWRCON line, and service it if defective. Is the "H" signal inputted to base of Q1016? Check D1016, D1017, T1001, and their periphery, and service it if defective. Is -14V voltage supplied to collector of Q1005? No Yes Yes No Check Q1015, Q1016, D1055, and their periphery, and service it if defective. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DVD-1720/556 FLOW CHART NO.17 [No Disc] indicated. (When the focus servo is not functioning.) FLOW CHART NO.18 [No Disc] indicated. (When the laser beam does not light up.) Replace the DVD Main CBA Unit. Replace the DVD Mechanism. No Yes Replace the DVD Main CBA Unit. Replace the DVD Mechanism. No Yes No improvement can be found. Original DVD Main CBA Unit is poor. No improvement can be found. Original DVD Main CBA Unit is poor. FLOW CHART NO.16 [No Disc] indicated. (When the focus error occurs.) Replace the DVD Main CBA Unit. No improvement can be found. Original DVD Main CBA Unit is poor. Replace the DVD Mechanism. No Yes Yes FLOW CHART NO.15 The disc tray cannot be opened and closed. Replace the DVD Main CBA Unit. Original DVD Main CBA Unit is poor. Replace the DVD Mechanism. No improvement can be found. No Yes FLOW CHART NO.14 The disc tray cannot be opened and closed. (It can be done using the remote control unit.) Is the normal control voltage inputted to Pin(4) of IC2001? Refer to "FLOW CHART NO.12" Refer to "FLOW CHART NO.15" Replace the "OPEN/CLOSE" button (SW2108). No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DVD-1720/556 Is 5V voltage applied to the Pin(1, 24) of IC1402 and Pin(4) of IC1403? Replace IC1402 or IC1403. Check P-ON+5V line and service it if detective. Are the video signals outputted to each pin of IC1402 or IC1403? Yes No Yes Yes No IC1402 18PIN S-Y(I/P) IC1402 15PIN Cb/Pb IC1402 13PIN Cr/Pr IC1403 5PIN S-Y(I) IC1403 6PIN CVBS IC1403 7PIN S-C Check the periphery of JK1404 from Pins (13, 15, 18) of IC1402 and service it if detective. Check the periphery of JK1404 from Pin(6) of IC1403 and service it if detective. Check the periphery of JK1401 from Pin (5) of IC1403 and service it if detective. Check the periphery of JK1401 from Pin (7) of IC1403 and service it if detective. Are the video signals outputted to the specific output terminal? Are the component video signals outputted to the VIDEO OUT terminal (JK1404)? Are the luminance signals outputted to the S-OUT terminal (JK1401)? Are the chroma signals outputted to the S-OUT terminal (JK1401)? No No No No Are the composite video signals outputted to the VIDEO OUT terminal (JK1404)? FLOW CHART NO.20 Picture does not appear normally. Set the disc on the disc tray, and playback. Are the video signals outputted to each pin of CN1601 on the AV CBA? Replace the DVD Main CBA Unit or DVD Mechanism. Check the line between each pin of CN1601 and each pin of IC1402 or IC1403 on the AV CBA, and service it if detective. CN1601 3PIN → IC1403 3PIN S-Y(I) CN1601 10PIN → IC1403 1PIN S-C CN1601 8PIN → IC1402 6PIN S-Y(I/P) CN1601 6PIN → IC1402 9PIN Cb/Pb CN1601 4PIN → IC1402 11PIN Cr/Pr Are the video signals shown above inputted into each pin of IC1402 or IC1403? Yes No No CN1601 3PIN S-Y(I) CN1601 4PIN Cr/Pr CN1601 6PIN Cb/Pb CN1601 8PIN S-Y(I/P) CN1601 10PIN S-C IC1403 3PIN S-Y(I) IC1403 1PIN S-C IC1402 6PIN S-Y(I/P) IC1402 9PIN Cb/Pb IC1402 11PIN Cr/Pr FLOW CHART NO.19 Both functions of picture and sound do not operate normally. Replace the DVD Main CBA Unit. Replace the DVD Mechanism. No Yes No improvement can be found. Original DVD Main CBA Unit is poor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DVD-1720/556 FLOW CHART NO.21 Audio is not outputted normally. Set the disc on the disc tray, and playback. Are the analog audio signals outputted to each pin of CN1601 on AV CBA? Is the "H" level mute signal outputted to CN1601 on AV CBA ? CN1601 13PIN AUDIO(L) CN1601 15PIN AUDIO(R) CN1601 14PIN AUDIO(R)-MUTE CN1601 19PIN AUDIO(L)-MUTE IC1201 1PIN AUDIO(L) IC1201 7PIN AUDIO(R) IC1201 2PIN AUDIO(L) IC1201 6PIN AUDIO(R) Replace the DVD Main CBA Unit or DVD Mechanism. Replace the DVD Main CBA Unit or DVD Mechanism. Replace IC1201. Check the periphery between Pins(1,7) of IC1201 and JK1404, and service it if detective. Check each line between each pin of CN1601 and each pin of IC1201 on AV CBA, and service it if detective. CN1601 13PIN → IC1201 2PIN AUDIO(L) CN1601 15PIN → IC1201 6PIN AUDIO(R) Are the analog audio signals inputted to each pin of IC1201. Are the analog audio signals outputted to each pin of IC1201? Are the audio signals outputted to the specific output terminal? Are the audio signals outputted to the audio terminal (JK1404)? Yes Yes Yes Yes No No No No No www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DVD-1720/556 BLOCK DIAGRAMS System Control / Servo Block Diagram CN401 CN1001 12 7 8 9 10 11 REMOTE SENSOR RM2001 JK3501 1G 7G ~ 23 17 ~ a/KEY-1 b/KEY-2 c/KEY-3 d/KEY-4 e K1 K2 GRID FIP SEGMENT FL2001 IC2001 (FRONT PANEL CONTROL) 13 14 16 3 4 f/KEY-6 g h i KEY MATRIX CN2001 CN2101 KEY-1 6 8 KEY-2 4 6 KEY-3 5 7 KEY-4 7 9 K2 2 4 K1 3 5 KEY-6 1 3 REMOCON -IN REMOCON -OUT 60 FP-DIN 20 28 FP-DIN FP-DIN 22 82 FP-STB 21 2 FP-STB FP-STB 23 61 FP-DOUT 22 27 FP-DOUT FP-DOUT 24 59 FP-CLK 19 1 FP-CLK FP-CLK 21 67 REMOTE 23 REMOTE 25 AV CBA FUNCTION CBA IC3510 7 1 AMP SW2101 POWER CN2002 CN2102 D2182 POWER-LED 2 2 STANDBY-LED 3 3 KEY-2 5 5 K2 6 6 LED CBA POWER STANDBY INV-POWCON +5V TO POWER SUPPLY BLOCK DIAGRAM Q2088 Q2089 IC301 (SERVO DRIVE) CN301 M SLED MOTOR M SPINDLE MOTOR IC101 (MICRO CONTROLLER) +- +- +- +- +- +- +- SLED MOTOR DRIVE FOCUS ACTUATOR DRIVE SPINDLE MOTOR DRIVE TRACKING ACTUATOR DRIVE 147 TRAY-IN SLD 75 SPDL 76 TRACKING DRIVE 148 FOCUS DRIVE 66 FS(+) FS(-) TS(+) TS(-) 57 ADAC-MD 56 ADAC-MC 86 ADAC-ML ADAC-MC ADAC-ML PCM-SCLK 88 AUDIO-MUTE ADAC-MD AUDIO-MUTE 163 PCM-SCLK TRAY-IN 3 SP(+) 4 SP(-) 5 TRAY-IN 6 GND 7 SL(-) 8 SL(+) VREF RESET 73 RESET IC462 1 3 +3.3V IC202 (OP AMP) 15 16 14 13 12 11 17 18 23 6 4 5 3 1 2 25 24 27 26 81 SL-AMP 143 SP-ROT +3.3V 146 FD-OFST 139 TD-OFST RESET IC461 2 1 +3.3V DRIVE CBA DVD MAIN CBA UNIT TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO AUDIO BLOCK DIAGRAM (AMP) 1 2 6 7 5 3 13 14 12 �1 140 SL-ADS DVD1720BKE3, DVD1720SRE3 1 NOTE: Either IC461 or IC462 is used for DVD MAIN CBA UNIT. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DVD-1720/556 Digital Signal Process Block Diagram C 16 D 18 A 17 B 15 E 14 F 12 DVD-LD 8 CD-LD 10 PD-MONI 7 CN201 CN201 CN201 IC201 (SW) IC503 (SDRAM) IC101 (MICRO CONTROLLER) FS FS(+) CD/DVD FS(-) TS(+) TS(-) TS DETECTOR CD/DVD 19 Q251,Q252 CD DVD AMP Q253,Q254 AMP 4 1 3 6 GND(DVD-PD) 6 GND(CD-PD) 5 GND(LD) 9 RF SIGNAL PROCESS CIRCUIT DVD/CD FORMATTER AUDIO I/F VIDEO I/F NTSC/PAL ENCODER DMA BCU INST. ROM 32BIT CPU DATA RAM INTERRUPT CONTROLLER WATCH DOG TIMER CPU I/F TIMER DECODER I/F CPU I/F READ MEMORY DATA RAM DSP DECODER I/O PROCESSOR INST. ROM DATA RAM INST. ROM SERIAL D/A GENERAL I/O INTERRUPT CONTROLLER TIMER WATCH DOG TIMER REMOTE CONTROL 32BIT CPU STREAM I/F EXTERNAL MEMORY I/F SDRAM ECC UMAC 114 115 116 117 132 131 134 133 129 130 126 124 125 123 83 DEBUG BCU INST. CACHE DATA CACHE D/A D/A D/A 149 158 Y(I/P) C Cr/Pr Cb/Pb VIDEO-Y(I/P) VIDEO-C VIDEO-Cr/Pr VIDEO-Cb/Pb 177 SPDIF 170 PCM-BCK 171 PCM-DATA 169 PCM-LRCLK 152 151 23~51 SDRAM DATA(0-15) SDRAM ADDRESS(0-11) SDRAM ADDRESS(0-11) 217 238 ~ 1 18 252 256 ~ ~ 2 13 42 53 ~ ~ IC103 (FLASH ROM) FLASH ROM 29 36 38 45 ~ ~ DATA(VIDEO/AUDIO) SIGNAL VIDEO SIGNAL DATA(AUDIO) SIGNAL 22 26 29 35 ~ ~ EXT MEMORY DATA (0-15) ~ 1 9 16 25 48 ~ 192~212 EXT ADR (0-19) SDRAM DATA(0-15) FS(+) 2 FS(-) 3 TS(+) 1 TS(-) 4 D/A Y(I) VIDEO-Y(I) 156 TO SYSTEM CONTROL/SERVO BLOCK DIAGRAM DVD MAIN CBA UNIT PICK-UP UNIT TO VIDEO /AUDIO BLOCK DIAGRAM TO VIDEO /AUDIO BLOCK DIAGRAM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DVD-1720/556 Video / Audio Block Diagram IC601 (AUDIO DAC) 15 14 16 JK1404 IC1201 Q1201 Q1202 +5V (AMP) CN601 CN1601 13 13 AUDIO(L) 15 15 AUDIO(R) 14 14 AUDIO(R)-MUTE AUDIO(L)- OUT 7 6 8 4 3 2 5 AUDIO SERIAL PORT SERIAL CONTROL PORT 4X/8X OVERSAMPLING DIGITAL FILTER /FUNCTION CONTROLLER ENHANCED MULTI-LEVEL DELTA-SIGMA MODULATOR DAC LPF+AMP L-CH R-CH LPF+AMP DAC SYSTEM CLOCK MANAGER 1 2 7 5 AUDIO(R)- OUT PCM-BCK SPDIF PCM-DATA PCM-LRCLK ADAC-MD ADAC-MC ADAC-ML PCM-SCLK 18 18 SPDIF AUDIO-MUTE +3.3V Q1204 3 3 3 VIDEO-Y(I) 6 6 VIDEO-Cb/Pb 4 4 VIDEO-Cr/Pr VIDEO-Y(I/P) VIDEO-C VIDEO-Cb/Pb VIDEO-Cr/Pr JK1401 S-VIDEO OUT 3 4 2 1 Y C CN601 CN1601 AUDIO SIGNAL DATA(AUDIO) SIGNAL VIDEO SIGNAL 6 AMP Q1351 JK1202 DIGITAL AUDIO OUT (COAXIAL) IC1402 (VIDEO DRIVER) 4dB AMP 2dB AMP LPF DRIVER 15 4dB AMP 2dB AMP LPF DRIVER 9 13 4dB AMP 2dB AMP LPF DRIVER 11 6 18 IC1403 (VIDEO DRIVER) 4dB AMP 2dB AMP LPF DRIVER 2dB AMP DRIVER 4dB AMP 2dB AMP LPF DRIVER 3 1 5 6 7 8 8 VIDEO-Y(I/P) 10 10 VIDEO-C VIDEO-Y(I) WF2 WF1 VIDEO OUT (COMPOSITE) WF3 WF6 WF4 WF5 IC1204 DIGITAL AUDIO OUT (OPTICAL) VIDEO-Cb/Pb OUT VIDEO-Y OUT VIDEO-Cr/Pr OUT JK1404 AV CBA TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM TO SYSTEM CONTROL /SERVO BLOCK DIAGRAM TO DIGITAL SIGNAL PROCESS BLOCK DIAGRAM DVD MAIN CBA UNIT ZERO DETECT 1 19 19 AUDIO(L)-MUTE +3.3V Q1203 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DVD-1720/556 Power Supply Block Diagram IC1006 (SHUNT REGULATOR) AC1001 AC CORD F1001 LINE FILTER L1001 D1001, D1002 D1004, D1005 Q1003 2 4 7 3 4 IC1001 ERROR VOLTAGE DET T1001 11 12 13 15 14 16 17 18 SWITCHING SWITCHING CONTROL 1 2 6 BRIDGE RECTIFIER HOT HOT CIRCUIT. BE CAREFUL. D1003 RECTIFIER D1030 RECTIFIER D1016 RECTIFIER Q1016 Q1005 Q1011 Q1015 Q1002 CN1001 Q1004 -FL EV+5V F1 P-ON+10V EV+3.3V P-ON+5V 4,5 EV+1.2V 6,7,8 EV+3.3V 11,12 EV+11V 10 P-ON+5V 9 P-ON+3.3V 20 PWRCON D1006 SCHOTTKY BARRIER SCHOTTKY BARRIER D1008 F2 AV CBA TO CN401 Q1031 1A 250V 3 +1.2V REG. IC1002 3 1 2 A V F REG 3 1 2 Q1008 LATCH Q1014 CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. "Ce symbole reprèsente un fusible à fusion rapide." CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. ATTENTION : Pour une protection continue les risqes d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked. "This symbol means fast operating fuse." A V F NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 DVD-1720/556 SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS Standard Notes WARNING Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these spe- cial safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark " ! " in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards. Notes: 1. Do not use the part number shown on these draw- ings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared. 2. All resistance values are indicated in ohms (K=103, M=106). 3. Resistor wattages are 1/4W or 1/6W unless other- wise specified. 4. All capacitance values are indicated in µF (P=10-6 µF). 5. All voltages are DC voltages unless otherwise specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 DVD-1720/556 LIST OF CAUTION, NOTES, AND SYMBOLS USED IN THE SCHEMATIC DIAGRAMS ON THE FOLLOWING PAGES: 1. CAUTION: FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE. ATTENTION: POUR UNE PROTECTION CONTINUE LES RISQES D'INCELE N'UTILISER QUE DES FUSIBLE DE MÊME TYPE. RISK OF FIRE-REPLACE FUSE AS MARKED. 2. CAUTION: Fixed Voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown, first check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. 3. Note: (1) Do not use the part number shown on the drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since the drawings were prepared. (2) To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual. 4. Voltage indications for PLAY and STOP mode on the schematics are as shown below: 5. How to read converged lines 6. Test Point Information A V F This symbol means fast operating fuse. Ce symbole represente un fusible a fusion rapide. 2 3 1 5.0 (2.5) 5.0 The same voltage for both PLAY & STOP modes Indicates that the voltage is not consistent here. PLAY mode STOP mode (Unit: Volt) 1-D3 Distinction Area Line Number (1 to 3 digits) Examples: 1. "1-D3" means that line number "1" goes to the line number "1" of the area "D3". 2. "1-B1" means that line number "1" goes to the line number "1" of the area "B1". 3 2 1 A B C D 1-B1 1-D3 AREA D3 AREA B1 : Indicates a test point with a jumper wire across a hole in the PCB. : Used to indicate a test point with a component lead on foil side. : Used to indicate a test point with no test pin. : Used to indicate a test point with a test pin. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 DVD-1720/556 DVD Main 1/3 Schematic Diagram 1 NOTE: Either IC461 or IC462 is used for DVD MAIN CBA UNIT. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 DVD-1720/556 DVD Main 2/3 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 DVD-1720/556 IC101 Voltage Chart PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP PIN.NO PLAY STOP 1 ~ ~ 33 ~ ~ 65 ----- ----- 97 ----- ----- 129 2.3 2.3 161 3.4 3.4 193 ~ ~ 225 3.4 3.4 2 ~ ~ 34 3.4 3.4 66 3.4 3.5 98 3.4 3.4 130 2.3 2.3 162 0 0 194 ~ ~ 226 ~ ~ 3 0 0 35 0 0 67 3.2 3.2 99 0.9 0.8 131 2.3 2.3 163 1.8 1.8 195 ~ ~ 227 ~ ~ 4 ~ ~ 36 ~ ~ 68 ----- ----- 100 0 0 132 2.4 2.3 164 0 0 196 3.4 3.4 228 ~ ~ 5 ~ ~ 37 ~ ~ 69 3.4 3.4 101 2.4 2.4 133 2.4 2.4 165 1.7 1.8 197 ~ ~ 229 0 0 6 3.4 3.4 38 0.4 0.3 70 3.4 3.4 102 2.2 2.2 134 2.4 2.4 166 1.7 1.7 198 ~ ~ 230 ~ ~ 7 ~ ~ 39 ~ ~ 71 ----- ----- 103 1.9 1.9 135 2.3 2.3 167 3.4 3.4 199 ~ ~ 231 3.4 3.4 8 ~ ~ 40 ~ ~ 72 1.4 2.7 104 0.4 0.3 136 2.3 2.3 168 0 0 200 ~ ~ 232 1.3 1.6 9 0 0 41 ~ ~ 73 3.5 3.5 105 0 0 137 2.3 2.3 169 1.8 1.8 201 0 0 233 ~ ~ 10 ~ ~ 42 ~ ~ 74 0 0 106 1.7 1.7 138 2.3 2.3 170 1.7 1.7 202 3.4 3.4 234 1.9 2.3 11 ~ ~ 43 ~ ~ 75 1.7 1.8 107 3.4 3.4 139 1.7 1.7 171 1.3 0.1 203 ~ ~ 235 0 0 12 3.4 3.4 44 1.3 1.3 76 2.3 1.8 108 ----- ----- 140 1.7 1.7 172 1.3 1.3 204 ~ ~ 236 1.3 1.3 13 ~ ~ 45 ~ ~ 77 ----- ----- 109 ----- ----- 141 3.4 3.4 173 0 0 205 0 0 237 ~ ~ 14 ~ ~ 46 ~ ~ 78 ----- ----- 110 1.9 1.9 142 1.3 1.3 174 ----- ----- 206 ~ ~ 238 ~ ~ 15 ~ ~ 47 ~ ~ 79 ----- ----- 111 1.9 1.9 143 2.1 1.7 175 ----- ----- 207 ~ ~ 239 3.4 3.4 16 0 0 48 3.4 3.4 80 3.4 0 112 1.7 1.7 144 2.2 2.2 176 ----- ----- 208 ~ ~ 240 3.4 3.3 17 ~ ~ 49 0 0 81 0.1 0.1 113 1.7 1.7 145 0 0 177 1.8 1.7 209 3.4 3.4 241 1.9 1.9 18 ~ ~ 50 ~ ~ 82 2.8 2.8 114 1.7 1.7 146 1.7 1.7 178 3.4 3.5 210 ~ ~ 242 0 0 19 3.4 3.4 51 ~ ~ 83 0.1 0.1 115 1.7 1.7 147 1.8 1.7 179 0 0 211 ~ ~ 243 1.9 1.9 20 0 0 52 0.8 0.8 84 3.4 3.4 116 1.7 1.7 148 1.7 1.7 180 ----- ----- 212 ~ ~ 244 3.4 3.3 21 ----- ----- 53 ----- ----- 85 0.1 0.1 117 1.7 1.7 149 0.6 0.5 181 ----- ----- 213 0 0 245 3.4 3.4 22 3.4 3.4 54 ----- ----- 86 3.6 3.4 118 3.4 3.4 150 3.4 3.4 182 ----- ----- 214 ----- ----- 246 3.4 3.4 23 ~ ~ 55 ----- ----- 87 0 0 119 2.0 2.0 151 0.5 0.5 183 ----- ----- 215 ----- ----- 247 0 0 24 ~ ~ 56 3.4 3.4 88 3.5 0.1 120 1.7 1.7 152 0.5 0.5 184 ----- ----- 216 3.4 3.4 248 3.3 3.4 25 ~ ~ 57 3.5 3.5 89 1.3 1.3 121 1.5 1.5 153 1.4 1.3 185 ----- ----- 217 ~ ~ 249 3.2 3.0 26 1.3 1.3 58 3.4 3.4 90 ----- ----- 122 0 0 154 1.4 1.3 186 ----- ----- 218 0 0 250 0 0 27 ~ ~ 59 3.4 3.4 91 ----- ----- 123 0.3 0.1 155 2.4 2.4 187 ----- ----- 219 1.3 1.3 251 3.2 3.0 28 3.4 3.4 60 3.4 3.4 92 ----- ----- 124 1.1 0.1 156 0.5 0.5 188 ----- ----- 220 ~ ~ 252 ~ ~ 29 0 0 61 3.5 3.5 93 0 0 125 0.3 0.1 157 0 0 189 ----- ----- 221 ~ ~ 253 0 0 30 ~ ~ 62 3.4 3.4 94 ----- ----- 126 0.1 0.1 158 0.9 0.9 190 3.4 3.5 222 0 0 254 ~ ~ 31 ~ ~ 63 0 0 95 ----- ----- 127 2.3 2.3 159 3.4 3.4 191 0 0 223 ~ ~ 255 3.4 3.4 32 ~ ~ 64 0 0 96 ----- ----- 128 1.7 1.7 160 0 0 192 ~ ~ 224 ~ ~ 256 ~ ~ ~ : Voltage is not consistent ----- : Not used Unit : Volts w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 DVD-1720/556 DVD Main 3/3 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 DVD-1720/556 AV 1/3 Schematic Diagram CAUTION ! Fixed voltage (or Auto voltage selectable) power supply circuit is used in this unit. If Main Fuse (F1001) is blown , check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail. NOTE: The voltage for parts in hot circuit is measured using hot GND as a common terminal. "Ce symbole reprèsente un fusible à fusion rapide." CAUTION ! For continued protection against fire hazard, replace only with the same type fuse. ATTENTION : Pour une protection continue les risqes d'Incele n'utiliser que des fusible de même type. Risk of fire-replace fuse as marked. "This symbol means fast operating fuse." A V F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 DVD-1720/556 AV 2/3 Schematic Diagram w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 DVD-1720/556 AV 3/3, Function & LED Schematic Diagram 5G 4G 3G 2G 1G 7G 6G a d g c b e f f i i REPEAT TITLE GROUP VCR CHP REC SACD TRK A ALL B PSCAN DVD PM HDVCD A 7G 6G 5G 4G 3G 2G 1G a b c d e f g c d e f f g c d e f g c d e f g c d e f g c d e f g h i i a b a b a b a b a b FL2001 MATRIX CHART REPEAT TITLE GROUP VCR CHP REC SACD TRK ALL B PSCAN DVD P M HD V CD A A w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 DVD-1720/556 WAVEFORMS WF6 WF1 WF3 WF4 WF5 WF2 NOTE: Input CD: 1kHz PLAY (WF4~WF6) DVD: POWER ON (STOP) MODE (WF1~WF3) Pin 18 of CN1601 Pin 8 of CN1601 C1402 PLUS LEAD Pin 13 of CN1601 Pin 15 of CN1601 Pin 10 of CN1601 20µs 0.1V VIDEO-Y VIDEO-C 0.1V 20µs VIDEO-CVBS 0.5V 20µs AUDIO(L) 1V 0.5ms AUDIO(R) 1V 0.5ms SPDIF 1V 0.1µs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 DVD-1720/556 WIRING DIAGRAM CN201 CN301 TRAY-IN CN2001 CN2101 KEY-6 1 3 K2 2 4 K1 3 5 KEY-2 4 6 KEY-3 5 7 KEY-1 6 8 KEY-4 7 9 FS TS DETECTOR 7 9 11 2 3 6 5 M SLED MOTOR M SPINDLE MOTOR 4 AV CBA FUNCTION CBA DVD MAIN CBA UNIT CN2101 is soldered directly to the PCB. CN2002 CN2102 NU 1 1 POWER-LED 2 2 STANDBY-LED 3 3 GND 4 4 KEY-2 5 5 K2 6 6 LED CBA CN2102 is soldered directly to the PCB. DRIVE CBA PICK UP UNIT SP(+) 3 SP(-) 4 TRAY-IN 5 GND 6 SL(-) 7 SL(+) 8 FS(-) 3 TS(-) 4 GND(CD-PD) 5 GND(DVD-PD) 6 PD-MONI 7 DVD-LD 8 TS(+) 1 FS(+) 2 GND 11 F 12 VREF 13 E 14 B 15 C 16 GND(LD) 9 CD-LD 10 A 17 D 18 CD/DVD 19 P-ON+5V 20 AUDIO(L)- OUT AUDIO(R)- OUT VIDEO OUT (COMPOSITE) DIGITAL AUDIO OUT (COAXIAL) S-VIDEO OUT VIDEO-Y OUT VIDEO-Cb/Pb OUT VIDEO-Cr/Pr OUT DIGITAL AUDIO OUT (OPTICAL) EV+1.2V 2 4 EV+1.2V 3 5 EV+3.3V 5 7 EV+3.3V 6 8 P-ON+3.3V 7 9 P-ON+5V 8 10 EV+11V 9 11 EV+11V 10 12 GND 11 13 GND 12 14 GND 13 15 GND 14 16 GND 15 17 GND 16 18 GND 17 19 PWRCON 18 20 FP-CLK 19 21 FP-DIN 20 22 FP-STB 21 23 FP-DOUT 22 24 REMOTE 23 25 CN401 CN1001 EV+3.3V 4 6 (CN1001 is soldered directly to the PCB.) VIDEO-C 10 10 GND 9 9 VIDEO-Y(I/P) 8 8 CN601 CN1601 AUDIO(R) 15 15 AUDIO-GND 11 11 AUDIO-GND 12 12 AUDIO(L) 13 13 AUDIO(R)-MUTE 14 14 (CN1601 is soldered directly to the PCB.) AUDIO+5V 16 16 AUDIO+5V 17 17 SPDIF 18 18 GND 7 7 VIDEO-Cb/Pb 6 6 GND 5 5 VIDEO-Cr/Pr 4 4 VIDEO-Y(I) 3 3 AUDIO(L)-MUTE 19 19 DVD MECHANISM AC CORD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 DVD-1720/556 LEAD IDENTIFICATIONS 28 15 14 1 E C B E C B A K C E K A R 8 5 4 1 1 2 3 1 2 3 24 13 12 1 1: R 2: A 3: K 1: A 2: K 3: E 4: C Note: A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference G: Gate D: Drain S: Source KIA4558P KIA4558P/P RC4580IP UTC4558 MM1636XWRE CXA1511M-T4 PT6313-S-TP(L) SC16313G 2SA1015-Y(TE2 F T) 2SA1015-Y(TPE2) 2SC2120-Y(TE2 F T) 2SC2120-Y(TPE2) 2SC2236-Y-TPE6 C KTA1266(Y) KTA1266-Y-AT/P KTC3203(Y) KTC3203-Y-AT/P KTC3205(Y) KTC3205-Y-AT/P 2SC1815-GR(TE2 F T) 2SC1815-GR(TPE2) KTA1267(Y) KTA1267Y-AT/P KTC3199(GR) KTC3199-GR-AT/P KRA110M-AT/P KRA110M BN1L3Z(P) EL817B EL817C LTV-817B-F LTV-817C-F PS2561A-1(W) FAN431AZXA KIA431-AT GP1FA513TZ LD1117SC-R 1: GND 2: Vout 3: Vin MM1622XJBEG 2SK3498(T6L1FUNANQ) 1 2 3 1: Gate 2: Drain 3: Source www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 DVD-1720/556 EXPLODED VIEWS Cabinet DVD Main CBA Unit 2L071 2L041 2L041 2L105 2L021 2L021 2L021 2L021 2L105 1B1 LED CBA Function CBA AC1001 JK3501 AV CBA 2L051 2B2 2B4 2L051 2L102 A' A A16 2L011 2L011 2L011 2L106 2L106 2L107 2L106 2L102 A12 2L023 2L023 2L052 2L052 A11 A1X A13 A15 A17 F1001 JK1401 JK1404 JK1202 IC1204 2B5 See Electrical Parts List for parts with this mark. Some Ref. Numbers are not in sequence. A2 A21 2L011 2B34 2L011 A13 Comparison Chart of Models and Marks Model Mark DVD1720BKE3 DVD1720SRE3 DVD556SRE3 A B C [A, B] [A, B] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 DVD-1720/556 Packing X10 X2 X4 S2 S2 S4 Unit S1 X12 X1 X5 A30 A22 A30 X21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 DVD-1720/556 PARTS LIST PRODUCT SAFETY NOTE: Products marked with a ! have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing. NOTE: Parts that are not assigned part numbers (---------) are not available. Comparison Chart of Models and Marks Model Mark DVD1720BKE3 A DVD1720SRE3 B DVD556SRE3 C Ref. No. Mark Description Funai Parts No. DENON Parts No. Qty New MECHANICAL PARTS A1X A FRONT ASSEMBLY 1VM220489 00D9H2 6000 628 1 * A1X B FRONT ASSEMBLY 1VM220620 00D9H2 6000 629 1 * A1X C FRONT ASSEMBLY 1VM220658 00D9H2 6000 630 1 * A2 A TRAY PANEL ASSEMBLY 0VM416697A 00D9H2 6000 609 1 A2 B,C TRAY PANEL ASSEMBLY 0VM416698A 00D9H2 6000 610 1 A11 INSULATOR ASSEMBLY (R) 1VM420732 00D9H2 6000 566 1 A12 INSULATOR ASSEMBLY (L) 1VM420733 00D9H2 6000 567 1 A13 FOOT 0VM406940A 00D9H2 6000 323 2 A15 CHASSIS 1VM120073 00D9H2 6000 611 1 A16 A TOP COVER(BLACK) 1VM120074 00D9H2 6000 612 1 A16 B,C TOP COVER(SILVER) 1VM320865 00D9H2 6000 613 1 A17 A,B REAR PANEL 1VM220422 00D9H2 6000 631 1 * A17 C REAR PANEL 1VM220659 00D9H2 6000 632 1 * A21 LABEL SERIAL NO. ---------- - 1 A22 A BAR CODE LABEL ---------- - 1 A22 B BAR CODE LABEL ---------- - 1 A22 C BAR CODE LABEL ---------- - 1 A30 A CONTROL LABEL ---------- - 2 A30 B CONTROL LABEL ---------- - 2 A30 C CONTROL LABEL ---------- - 2 1B1 DVD MECHA N79F0JVM 00D9H2 6000 615 1 2B2 POWER PCB HOLDER 0VM306801C - 1 * 2B4 LOADER BASE 0VM101367E 00D9H2 6000 616 1 2B34 CUSHION SPACER 1VM422273 - 1 * 2L011 A,B SCREW C-TIGHT M3X5 BIND HEAD + GBKC3050 00D9H2 6000 257 5 2L011 C SCREW C-TIGHT M3X5 BIND HEAD + GBCC3050 00D9H2 6000 301 5 2L021 SCREW P-TIGHT 3X12 BIND HEAD+ GBMP3120 00D9H2 6000 517 4 2L023 SCREW C-TIGHT M3X6 BIND HEAD GBMC3060 00D9H2 6000 303 2 2L041 SCREW B-TIGHT M3X8 BIND HEAD + GBKB3080 00D9H2 6000 304 6 2L051 C-TITE SCREW M3*8 BIND GBMC3080 00D9H2 6000 518 2 2L052 P-TIGHT SCREW 3X8 BIND + GBMP3080 00D9H2 6000 240 6 2L071 SCREW C-TIGHT M3X5 BIND HEAD + GBKC3050 00D9H2 6000 301 1 2L102 SCREW C-TIGHT M3X6 BIND HEAD GBMC3060 00D9H2 6000 303 4 2L105 P-TIGHT SCREW 3X8 BIND + GBMP3080 00D9H2 6000 240 2 2L106 SCREW C-TIGHT M3X6 BIND HEAD GBMC3060 00D9H2 6000 303 4 2L107 P-TIGHT SCREW 3X8 BIND + GBMP3080 00D9H2 6000 240 1 S1 A GIFT BOX CARTON 1VM321128 00D9H2 6000 633 1 * S1 B GIFT BOX CARTON 1VM321129 00D9H26 000 634 1 * S1 C GIFT BOX CARTON 1VM321130 00D9H2 6000 635 1 * S2 STYROFOAM 0VM101298B 00D9H2 6000 619 1 S4 SET BAG 0DM400731A 00D9H2 6000 620 1 X1 A,B REMOTE CONTROL UNIT NA831UD 00D9H2 6000 621 1 X1 C REMOTE CONTROL UNIT NA833UD 00D9H2 6000 636 1 * X2 DRY BATTERY R6P/2S XB0M451T0001 - 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 DVD-1720 X2 DRY BATTERY ES-GR6M-C XB0M571GLP01 - 2 X4 ACCESSORY BAG E5795ED 0VM416059 - 1 X5 AV CORD TSCKA-Y/RW100 WPZ0102TM015 00D9H2 6000 226 1 X5 AV CORD RCA(M*2)TO RCA(M*2) WPZ0102LTE01 - 1 X5 AV CORD DC2FN020001 WPZ0102CAB01 - 1 ! X10 A,B OWNERS MANUAL 1VMN21036 00D9H2 6000 637 1 * ! X10 C OWNERS MANUA 1VMN21037 00D9H2 6000 638 1 * X12 SERVICE CENTER SHEET 1VM422133 - 1 X21 WARRANTY SHEET 0VM305871B - 1 DVD MAIN CBA UNIT N79D0JUP 00D9H2 6000 639 1 * A,B AV ASSEMBLY 1VSA12095 00D9H2 6000 640 1 * C AV ASSEMBLY 1VSA12123 00D9H2 6000 641 1 * Consists of the following: AV CBA ---------- FUNCTION CBA ---------- LED CBA ---------- Ref. No. Mark Description Funai Parts No. DENON Parts No. Qty New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
