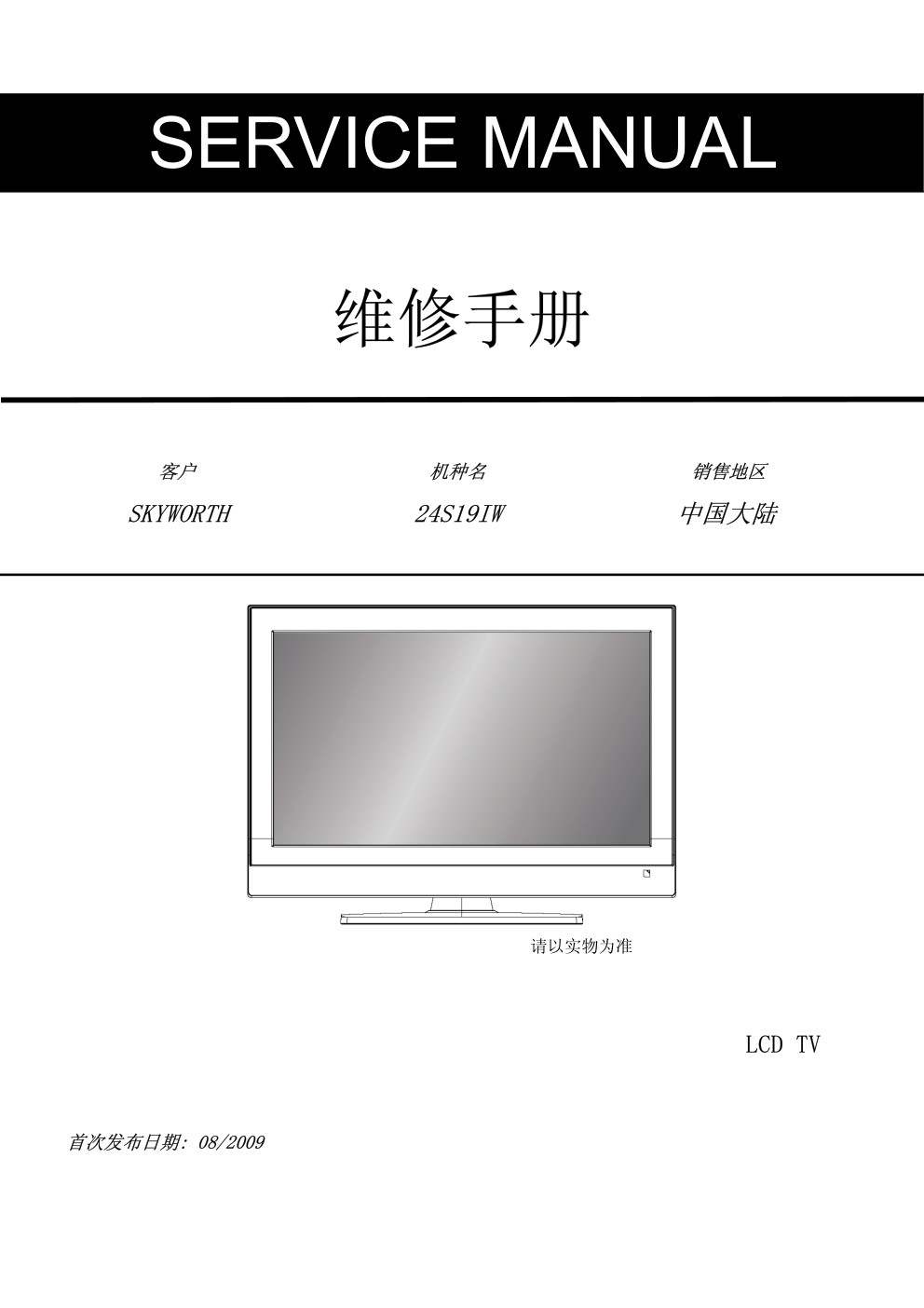

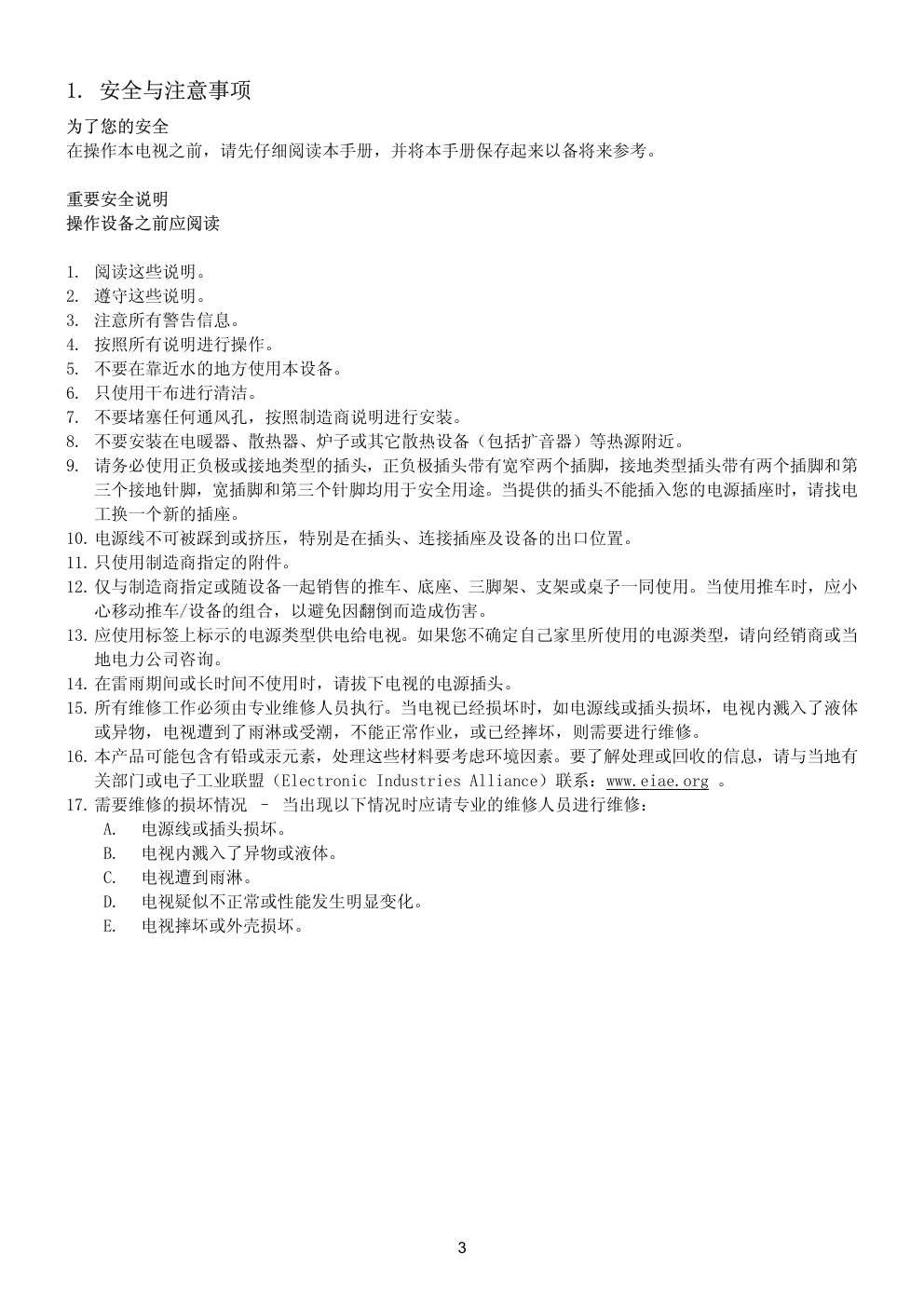

维修手册 客户 机种名 销售地区 SKYWORTH 24S19IW 中国大陆 请以实物为准 LCD TV 首次发布日期: 08/2009 SERVICE MANUAL 2 目录 1. 安全与注意事项-------------------------------------------------------------------03 2. 技术规格-------------------------------------------------------------------------05 3. 操作说明及调整-------------------------------------------------------------------06 4. 故障处理流程---------------------------------------------------------------------14 5. PCB 分布图 -----------------------------------------------------------------------19 6. 线路图---------------------------------------------------------------------------24 7. 电气方框图-----------------------------------------------------------------------38 8. 拆卸流程图-----------------------------------------------------------------------40 9. 爆炸图---------------------------------------------------------------------------44 10. BOM-----------------------------------------------------------------------------45 3 1. 安全与注意事项 为了您的安全 在操作本电视之前，请先仔细阅读本手册，并将本手册保存起来以备将来参考。 重要安全说明 操作设备之前应阅读 1. 阅读这些说明。 2. 遵守这些说明。 3. 注意所有警告信息。 4. 按照所有说明进行操作。 5. 不要在靠近水的地方使用本设备。 6. 只使用干布进行清洁。 7. 不要堵塞任何通风孔，按照制造商说明进行安装。 8. 不要安装在电暖器、散热器、炉子或其它散热设备（包括扩音器）等热源附近。 9. 请务必使用正负极或接地类型的插头，正负极插头带有宽窄两个插脚，接地类型插头带有两个插脚和第 三个接地针脚，宽插脚和第三个针脚均用于安全用途。当提供的插头不能插入您的电源插座时，请找电 工换一个新的插座。 10. 电源线不可被踩到或挤压，特别是在插头、连接插座及设备的出口位置。 11. 只使用制造商指定的附件。 12. 仅与制造商指定或随设备一起销售的推车、底座、三脚架、支架或桌子一同使用。当使用推车时，应小 心移动推车/设备的组合，以避免因翻倒而造成伤害。 13. 应使用标签上标示的电源类型供电给电视。如果您不确定自己家里所使用的电源类型，请向经销商或当 地电力公司咨询。 14. 在雷雨期间或长时间不使用时，请拔下电视的电源插头。 15. 所有维修工作必须由专业维修人员执行。当电视已经损坏时，如电源线或插头损坏，电视内溅入了液体 或异物，电视遭到了雨淋或受潮，不能正常作业，或已经摔坏，则需要进行维修。 16. 本产品可能包含有铅或汞元素，处理这些材料要考虑环境因素。要了解处理或回收的信息，请与当地有 关部门或电子工业联盟（Electronic Industries Alliance）联系：www.eiae.org 。 17. 需要维修的损坏情况 – 当出现以下情况时应请专业的维修人员进行维修： A. 电源线或插头损坏。 B. 电视内溅入了异物或液体。 C. 电视遭到雨淋。 D. 电视疑似不正常或性能发生明显变化。 E. 电视摔坏或外壳损坏。 4 倾斜度/稳定性 – 所有电视在机壳设计倾斜度和稳定性方面都必须符合建议的全球国际标准。 � 请不要在机壳的前面或顶部用强力来检查这些设计标准，这样做可能会使电视翻倒。 � 另外，不要将电子设备/玩具放在机壳上，以免对自己或孩子造成伤害。这些对象可能会意外从电 视机上掉下来，从而造成产品损坏或人身伤害。 18. 墙壁或天花板安装 – 将此设备安装到墙壁或天花板上时，必须遵循制造商的建议。 19. 电力线路 – 室外天线应远离电力线路。 20. 室外天线接地 – 如果外部天线连接到接收器，确定该天线系统已接地，可以提供保护，能防止电涌和 静电聚集。 National Electric Code 的 810 节， ANSI/NFPA No. 70-1984 提供了以下方面的信息：线网正确接 地，天线引入线到天线放电装置的支撑结构接地，接地接头的大小，天线充电装置的位置，接地电极的 连接，以及接地电极的要求。请参阅下图。 按照国家电力法规天线接地的实例 CATV 系统安装者注意：CATV 系统安装者应注意 NEC 的第 820-40 条款，它规定了正确接地的原则，特 别是规定了电缆接地应连接到建筑物的接地系统，并且尽可能靠近天线接入点。 将电源插头连接到墙上插座，请确保电视有电源输入！ 21. 异物和液体进入 – 应特别注意不要使异物或液体通过槽孔进入到机壳内。 5 2. 技术规格 6 3. 操作说明及调整 使用遥控器说明 7 菜单功能 1. 按菜单按钮可以显示菜单。 2. 使用上或下光标可以选择所要调整之功能选项。 3. 使用＞键或“OK”按钮可以进入子菜单或启用或调整所选择之功能。 4. 按“退出”按钮可以退出菜单，按“菜单”按钮可以退出子菜单。 5. 使用＜键可以退出菜单主选项。 信号源菜单 1. 按“信源”按钮选择输入信源：包括电视、视频1、视频2、分量、HDMI、电脑。 2. 按菜单按钮进入OSD主菜单。 ★ 电视模式时可调节项目包括：图像、声音、功能、频道。 ★ 视频1、视频2、分量、HDMI输入时可调节项目包括：图像、声音、功能。 ★ 电脑模式时可调节项目包括：图像、声音、功能、电脑。 图像设置 1. 图像模式: 使用者可选择个人、标准、鲜艳、电影等模式，若使用者选择个人以外之选项,则亮度、对 比度、彩色、色调、清晰度皆不可调。 2. 亮度: 调节画面的背景亮度，一般与对比度配合使用，调整范围是0 到100。 3. 对比度: 调节画面的黑白层次，适当的对比度可使画面清晰明亮，调整范围是0 到100。 4. 彩色: 调节色彩的鲜艳度、饱和度，调整范围是0 到100。（电脑、HDMI模式无该选项） 5. 色调(NTSC 制式可调节): 调节画面的色调，达到颜色正常、调整范围是-50到50。（分量、电脑、HDMI 模式无该选项） 6. 清晰度: 调节画面清晰度，调整范围是0 到100。（电脑、HDMI模式无该选项） 7. 降噪：可以选择关、低、标准、高四种选项，画面出现严重噪点时选择消除噪点的高低，高低选择请用 操作说明 8 户根据实际画面判定，建议有轻微噪点时无需使用。(PC无此功能) 8. 色温: 此选项为用户提供了三种色温选项：标准、暖色、冷色。电脑模式下多“个人”选项，可调节红、 绿、蓝三色。 9. 显示模式: 画面比例16：9和4：3。 声音设置 1. 声音模式: 为设计好供您不同输出声音模式，其中有对白、标准、音乐三种模式为预先设定无法调整高 低音，而个人模式则可以根据自己喜好调整低音、高音、平衡来设定声音输出模式。 2. 低音、高音调整范围是从-10～10。 3. 平衡: 调整范围是从-10～10。从0～10调整时，左声道声音慢慢减小直至消失，当从0～-10调整时，右 声道声音慢慢减小直至消失。 4. SRS环绕声: 选择环绕声效果开/关。 功能设置 1. 语言/Lang: 设定OSD语言功能，提供简体中文、英文二种语言选择。 2. 菜单显示时间: 有10，20，30，40，50，60秒时间可供选择，来设置菜单的显示时间。 3. 睡眠时间: 设定电视自动进入待机状态的时间（电脑模式无该项功能）。当睡眠时间设定完成后，开始 计时。 4. 高级对比度：通过“外部脉宽调制”来检测电视控制器的直方图，有开/关两种选项。 5. 动态对比度：根据整个画面亮度像素为基础制定的“亮度加权”，然后使用“亮度加权”，以调整电视 背光亮度和伽码表，有开/关两种选项。 6. 开机通道：有自动、电视、视频1、视频2、分量、HDMI、电脑等模式选项，开机通道功能为记录上次关 机的模式，下次开机的时候会自动切到菜单中设定的模式。 7. 系统重置：可以将各个调整项目设定内容恢复为出厂预设值。 9 电视设定 以下菜单只有在电视模式才出现： 1. 自动搜台: 用于给用户自动搜索并存储节目功能，按“菜单”键可以退出自动搜台模式。 2. 更新搜台：保留已存储节目并重新开始搜台，按“菜单”键可以退出更新搜台模式。 3. 手动搜台: 按右按钮进入子菜单，如图。 ★ 频道号: 显示当前电视频道号。 ★ 节目名称: 显示当前电视频道名。 ★ 频率: 显示当前电视频道频率。 ★ 彩色制式：显示当前电视信号彩色制式，若发现图像效果不正常，可用此键在电视的彩色制式（PAL、 NTSC）中调整。各个国家和地区采用的彩色制式可能不同，搜台前请确认您所在的地区采用何种制式。我 国内地的彩色制式一般为PAL。 ★ 声音制式: 显示当前电视信号声音制式，若发现声音效果不正常，可用此键在电视的声音制式（DK、 M、BG、I）中调整。各个国家和地区采用的声音制式可能不同，搜台前请确认您所在的地区采用何种制式。 我国内地的声音制式一般为DK。 ★ AFC：可以被设定为开和关，当设定为开时，电视会对电视信号自动侦测，在一定频率范围内当信号 有偏移时会自动调整频道到正确位置。 10 4. 频道列表：按右按钮进入子菜单，如图。 可以按照菜单最下方的指示，对频道列表进行编辑。 电脑设置 以下菜单只有在电脑模式才出现 1. 自动调节: 将电脑画面调整到最佳位置。 2. 水平位置，垂直位置: 调整范围-50～50，手动调整电脑画面位置。 3. 时钟（时序），相位: 调整范围-50～50，手动调整电脑画面。 11 控制面板 连接外部设备 12 主机背板信源接口 13 调整 此机种无需做白平衡调整。 进入工厂模式 1.TV 插电开机，开机完毕后，连续按遥控器上的按键：MENU 1 � 9 � 9 � 9，就会显示出工厂菜单。 2.在 PC 和 COMPONENT mode 下，点击“Auto Color”。 PC mode: TIM = 107; PAT = 42 Component mode: TIM = 311; PAT = 185 以 AOC 工厂菜单为例： 14 4. 故障处理流程 4.1 死机 (LED 灯不亮) NG 无LED指示灯 检测电源线及电源板接口 OK 检测按键板 更换相关元件 OK 检测F901、BD901、C905 NG 更换F901或BD901或C905 检测IC901、Q901 更换IC901或Q901 检测C922，C915及其他相关点位 OK 检测T901 NG 更换T901 NG OK 检测D904、D906 更换D904、D906 NG OK 15 4.2 无画 (LED 橙色) 4.3 无显示（LED 绿灯） NG 更换按键板或遥控器 OK 检测 U701，U703, U707, U708 NG 更换 U701，U703, U707, U708 检测 U405 NG 更换 U405 OK OK 检测按键板及遥控器 检测 I 2C 总线 无画 OK 检测12V供电 检测Panel NG 更换Panel 检测有无背光 OK 检测LVDS接口和线材 OK 检测U405 NG 更换U405 OK 检测Q408 NG 更换Q408 NG NG OK 检测BL-ON/OFF信号 检测PS信号 OK OK 检测电源板 NG NG NG 检测Q708、Q709 更换Q708、Q709 16 4.4 画异 检查 TV 制式 检查 信号源 重接信号源 检查 信号滤波电路 换 滤波电容，电阻 TV 信号 检查 TU201 AV, S-video, Comp，PC信号 检查 LVDS 线 检查 输入 换 LVDS 线 检查 panel 换 panel 画异 NG OK NG OK OK NG 更换 TU201 NG 重调制式 OK 检查U405 OK NG OK NG 更换U405 NG 17 4.5 无声 检测信号源 NG OK 检测输入信号 TV SIF 检测TV制式 重调TV制式 NG 检测TU201 NG 更换TU201 检测U601 OK OK 更换U601 NG 检测U603/U604 OK NG 更换U603/U604 检测喇叭 NG 更换喇叭 检测是否被静音 关闭静音功能 NG 重接信号源 18 4.6 按键板 OSD 不稳定或无法正常工作 按键板连接正常吗？ 接好按键板 按键正常吗？ 更换按键 OK NG 按键板有无故障？ 更换按键板 检查主板 NG OK NG OK 19 5. PCB 分布图 5.1 主板 715G3365M01000004K 20 21 5.2 电源板 715G3465P020HV001M 22 5.3 按键板 715G3303 1 23 5.4 遥控板 715G3540R01000004M 24 6. 线路图 主板 715G3365M01000004K +12V +5V VCC12 VCC5 V33_AUD VCC3 V33_ADC BL_ON1 VCC18 PWR_ON V_IPWM GND GND S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 Q706 AO4449 -7A/-30V GND OUT 2 IN 3 GND 1 U708 AIC1084-18PM BL_ON1 C724 0.1uF 50V + C741 220uF/16V PWR_ON V33_AUD R718 NC GND GND VCC5 GND 5VSB V33_AUD 1 2 FB709 300 OHM C746 NC C706 NC GND C710 NC C709 NC C711 NC GND VIN 3 ADJ 1 VOUT 2 U701AIC1084-33PM C712 NC VCC3 C737 NC V12_ADP C744 NC C745 NC C729 NC VCC8 C747 NC C731 NC C732 NC V33_ADC C736 NC GND VCC3 ADJ/GND 1 OUTPUT 2 INPUT 3 U703 AZ1117D-1.8-E1 FB702 NC 1 1 H7 NC 1 1 H6 NC GND GND 1 2 FB706 300 OHM GND + C703 100uF/16V GND Q703 PMBS3904 + C704 100uF/16V R705 NC R701 330R 1/10W 5% 1 2 ZD701 RLZ9.1B AUDIO MUX / Amplifier 8V VCC8 VCC12 C705 0.1uF/16V VCC8 VCC12 GND 1 1 H4 NC 2008-10-6 GND R702 0 OHM 1/10W GND Q702 AO3407 GND GND VOUT 2 VIN 3 GND 1 U707 Add Thermal Pad OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F A2 4 12 Tuesday , July 21, 2009 715T3365 <称爹> 03.Power GND V33_AUD 5VSB VCC5 5VSB 2008-11-11 GND 2008-12-17 + C701 10uF/16V Add Thermal Pad + C702 10uF/16V 1 2 FB701 300 OHM VCC18_CORE TP402 TP403 E_PAD VCC3 V_IPWM ADC 3.3V AUDIO 3.3V C748 0.001uF 1 1 H5 NC 1 1 V1 NC GND GND C721 0.1uF 50V C726 0.1uF 50V R704 22K OHM 1/16W R710 10K OHM 1/16W C749 0.001uF C735 NC + C734 NC C719 0.1uF 50V Q710 PMBS3904 R729 1K OHM 1/16W C723 NC R713 1K OHM 1/16W + C718 220uF/16V R734 1K OHM 1/16W C720 0.1uF 50V + C722 100uF/16V + C740 220uF/16V C733 NC + C708 100uF/16V Q707 PMBS3904 R717 10K OHM 1/10W C728 0.1uF 50V Q704 PMBS3904 C730 0.1uF 50V Q705 PMBS3904 R709 10K OHM 1/10W 1 1 H1 NC R712 1K OHM 1/16W C713 4.7uF/16V 12V SW 5V TO 3.3V TO 1.8V R727 1K OHM 1/16W 1 2 3 4 5 6 7 8 9 10 11 12 CN701 CONN 33A3802-12B Add Thermal Pad SYS_PW Normal: Low Stand_By: High C739 0.1uF 50V C714 0.1uF 50V C717 0.1uF 50V + C715 470uF/16V + C727 470uF/16V R728 10K OHM 1/10W Q708 PMBS3904 Add Thermal Pad R716 22K OHM 1/16W R726 10K OHM 1/16W C707 0.1uF 50V C738 0.1uF 50V R725 10K OHM 1/10W Q709 PMBS3904 R733 10K OHM 1/10W 1 1 H2 NC + C716 220uF/16V R731 1K OHM 1/16W R720 1K OHM 1/16W R719 10K OHM 1/10W Q711 PMBS3904 C725 4.7uF/16V V33_ADC GND VCC12 GND VCC5 5VSB 5VSB V12_ADP 5VSB GND 5VSB V12_ADP 5VSB 5VSB 5VSB V33_AUD GND GND VCC5 5VSB VCC18 GND GND GND GND GND GND 1 1 H3 NC GND GND GND GND GND POWER_ON 12 PW_ON 12 BL_ON 12 BL_ADJ 11 POWER_ON 12 ADJ(GND) 1 VOUT 2 VIN 3 U705 NC VCC5 R703 NC + C742 220uF/16V 2009-1-22 3.3V StandBy C743 0.1uF 50V SYS_PW Normal: Low Stand_By: High 5V SW 25 HDMIA_5VIN EDID_WP 12 D301 BAT54C R313 0R05 1/10W 5% C304 NC R310 47K 1/16W 5% R309 47K 1/16W 5% Q301 2N7002 Q303 PMBS3904 R305 10K OHM 1/10W R311 NC A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U301 NC R312 0R05 1/10W 5% R306 1K OHM 1/16W R307 27K OHM 1/16W R308 1M 1/10W 5% R302 10K OHM 1/10W VCC3 5VSB 5VSB 5VSB DDCHA_SDA 9 DDCHA_SCL 9 HA_CEC 9 HA5V_DET 11 HDMIA_CEC IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 U304 NC DDCA_SCL HDMIA_5VIN HDMIA_5VIN HDMIA_CEC DDCA_SDA DDCA_SCL DDCA_SDA R317 NC HDMIA_5V_EEPROM HDMIA_5VIN R316 47K 1/16W 5% HDMIA_5VIN 5VSB IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 U302 NC OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F A3 5 12 Tuesday , July 21, 2009 715T3365 <称爹> 04.HDMI DDCA_SCL DDCA_SDA HDMIA_CEC IN1 1 IN2 2 GND 3 IN3 4 IN4 5 OUT4 6 OUT3 7 GND 8 OUT2 9 OUT1 10 U303 NC HA5V_DET 1 2 D302 NC TMDSD0+ 7 TMDSD0- 9 TMDSD1+ 4 TMDSD1- 6 TMDSD2+ 1 TMDSD2- 3 SCL 15 DSHLD1 5 VCC5 18 CSHLD0 11 HPD 19 NC 14 DSHLD0 2 CEC 13 SDA 16 DDC_GND 17 DSHLD2 8 TMDSC+ 10 TMDSC- 12 SHLD_GND1 20 SHLD_GND2 21 SHLD1 22 SHLD2 23 SHLD3 24 SHLD4 25 SHLD5 26 CN301 HDMI 1 2 SP301 Q302 PMBS3904 R303 1K OHM 1/16W 1 2 SP308 1 2 SP303 1 2 SP306 1 2 SP307 1 2 SP302 R304 10K OHM 1/10W 1 2 SP305 1 2 SP304 HPDA 9 RXACLKP_M2 RXA2P_M2 RXA0N_M2 RXA2N_M2 9 RXA1P_M2 9 RXA2P_M2 9 RXA0P_M2 RXA1N_M2 9 RXACLKP_M2 9 RXA0N_M2 9 RXACLKN_M2 9 RXA0P_M2 9 1 2 SP311 DDCA_SDA DDCA_SCL 1 2 SP310 1 2 SP309 HDMIA_CEC 1 2 D303 NC RXA1N_M2 RXA1P_M2 RXA2N_M2 RXACLKN_M2 HDMIA_5VIN HDMIA_HPD 26 1 ADJ/GND OUTPUT 2 INPUT 3 U202 AZ1117D-5.0-E1 IF_AGC RF_AGC R202 NC OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F A3 6 12 Tuesday , July 21, 2009 715T3365 <称爹> 05.TUNER NC 1 NC 2 Vb 3 SCL 4 SDA 5 AS 6 NC 7 NC 8 NC 9 NC 10 IF_SOUND 11 CVBS 12 VS 13 AF_SOUND 14 TH1 15 TH2 16 TH3 17 TH4 18 TU201 M15WPP-2PN-E IFAGC 10 1 R222 NC +5VT Q202 NC +5VT VCC3 1 R215 NC R219 NC R224 NC C213 NC TGND IF_AGC R203 47 OHM 1/2W TSCL TSDA SCL_A_Tuner 12 AS_IF R218 NC R220 NC +5VT TGND SH202 SH205 SH204 SH203 TGND GND SH201 AS_IF R204 0 OHM 1/10W +5VT SIF TUN_AUD ADS RF_AGC R205 47 OHM 1/2W TGND R212 NC Put Near to IC TUN_AUD R206 2.2uH 1 R217 NC ADS 5V for Tuner L208 NC ADCINP 10 ADCINN 10 L206 NC L207 NC C227 NC C239 NC GND C229 NC C234 NC C230 NC IF+OUT IF-OUT Put Near to tuner Put Near to IC C228 NC C240 NC 1 R214 NC SDA_A_Tuner 12 T_CVBS C206 0.1uF 50V R210 56 OHM 1/16W TV_CVBS R208 100 OHM 1/10W TSCL TSDA + C204 100uF/16V SIF C207 220PF50V C202 0.1uF 50V C208 220PF50V C220 NC +5VT Q201 NC R216 NC R213 NC C205 0.1uF 50V R223 NC C212 NC + C203 100uF/16V R221 NC FB202 300 OHM R207 18R OHM 1/16W 5% C215 NC TGND VCC12 TGND TGND TGND TGND TGND GND GND +5VT VCC3 GND TGND +5VT TUN_AUD 10 SIF 10 T_CVBS 9 SDA_A 11 SCL_A 11 RFAGC 10 Add Thermal Pad SH206 IF+OUT SH207 TV_CVBS R237 0R05 1/16W R238 0R05 1/16W IF-OUT 27 VGA_5V VGA_AUL_O 1 2 FB102 80 OHM R102 390 OHM 1/10W GRN BLU RED GRN_GND RED_GND BLU_GND RED GRN VGA_VIN BLU VGA_HIN VGASCL_IN VGASDA_IN Y1_IN C128 NC UART_TX 11 1 2 R108 60 OHM C104 NC VSYNC 1 2 ZD603 NC Y1_IN PR_GND PB_GND Y_GND PR1_IN PB1_IN OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F A3 7 12 Tuesday , July 21, 2009 715T3365 <称爹> 06.VGA/YPbPr Connector 1 2 ZD602 NC C131 NC HSYNC 1 2 R101 60 OHM R105 390 OHM 1/10W C107 NC FB604 100R 1/10W 5% PR1_IN C111 NC PB2_IN FB605 100R 1/10W 5% 1 2 R104 60 OHM R128 0R05 1/10W 5% VGA_HIN VGA_VIN R110 75R R107 75R R114 75R PB_GND Y_GND C121 75R 1 2 D102 RLZ5.6B C127 75R R/G/B : 75 Ohm Trace 9 +5V(DDC) 3 B_OUT 15 DDC SCL 2 G_OUT 14 TTL V-S VGA PIN DEFIINITION 8 B_GND C105 NC C130 75R RED_GND BLU_GND GRN_GND 12 DDC SDA C101 0.047uF 13 TTL H-S 1 2 D113 R118 27K OHM 1/16W 7 G_GND 1 2 D103 1 2 SP106 NC R127 100 OHM 1/10W R111 33R 1/10W 5% C124 4.7uF/16V 4 NC 11 NC 10 GND 1 2 D106 NC 1 2 SP114 NC 6 R_GND C115 10uF/16V 1 6 2 7 3 8 4 9 5 11 12 13 14 15 10 17 16 18 19 CN102 DSUB15-FEM D101 BAT54C 1 2 SP112 R109 390 OHM 1/10W R103 33R 1/10W 5% R121 NC R120 4.7K R132 0R05 1/10W 5% 5 GND 1 2 D115 NC 1 2 D114 NC D133 NC RGB_R1 1 R_OUT 1 2 D112 NC 1 2 D111 NC C116 10uF/16V C108 NC 1 2 SP113 A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U101 NC COM1_AUL_O C125 4.7uF/16V C117 0.22uF R117 27K OHM 1/16W C110 0.047uF 1 2 SP108 NC R112 2.2K OHM 1/10W R106 2.2K OHM 1/10W 1 2 3 CN103 PHONEJACK 1 2 D108 1 2 SP110 NC 1 2 SP102 NC R123 NC 1 2 SP111 NC R124 NC 1 2 SP103 NC C102 100pF 1 2 SP105 NC C106 0.047uF R119 4.7K RGB_G1 COM1_AUL_O 1 2 SP109 NC 1 2 SP104 NC RGB_B1 1 2 D109 NC R125 100 OHM 1/10W 1 2 D104 C112 NC GND GND 5VSB GND 5VSB RAIN 9 SOGAIN 9 BAIN 9 GAIN 9 R135 0R05 1/10W 5% VGA_DDCSDA 9 VGA_DDCSCL 9 COM1_AUL 10 COM1_AUR 10 VGA_AUR 10 HSYNC 9 VSYNC 9 VGA_AUL 10 1 2 D105 RLZ5.6B R113 390 OHM 1/10W COM1_AUR_O EDID_WP 12 R195 20K OHM 1/10W R196 20K OHM 1/10W C122 100PF C103 NC PR2_IN Y2_IN VGA_AUR_O Near to IC YPbPr1 INPUT C109 NC R144 NC VGA_5V R197 NC 2 1 4 3 6 5 8 7 10 9 CN104 JACK UART_RX 11 1 2 FB101 80 OHM R198 NC COM1_AUR_O VGASCL_IN VGASDA_IN VGA_5V_EEPROM PR_GND 28 C160 220pF SC_GND C164 NC C165 NC R175 2.2uH AV_G1 C167 NC C168 NC SVAV_AUL SVAV_AUR Near to IC CVBS signal output SCA1O_R SCA1O_L R178 NC R181 NC C162 NC R177 NC C156 NC 1 2 SP129 R172 NC 1 2 3 Q107 NC 1 2 SP128 NC 1 2 SP130 C157 NC 1 2 FB104 NC Q108 NC C161 NC R173 NC R180 NC 2 1 4 3 6 5 CN106 NC VCC5 GND CVBS_O 9 GND GND C169 NC OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F A3 8 12 Tuesday , July 21, 2009 715T3365 <称爹> 07.SCART SV/AV SC_IN SY_IN SC_IN SC_GND SY_IN AVI/Y1 Audio Input SCA1I_R SCA1I_L C134 NC AVI/Y1 R165 27K 1/16W 5% R182 NC 1 2 SP132 NC C136 4.7uF/16V 1 2 SP127 NC R189 NC 1 2 SP125 NC 1 2 D130 NC R179 56 OHM 1/16W C149 4.7uF/16V R140 100R 1/10W 5% 1 2 D127 NC R187 NC 1 2 D116 NC R183 NC R184 NC R185 NC 2 1 4 3 6 5 CN107B NC 2 1 4 3 6 5 CN101 5105-870-083-98 2 1 4 3 6 5 CN108 5105-875-092-A4 1 2 SP117 NC CVBS & R/L 1 2 D126 NC 1 2 D117 NC 1 2 SP126 NC R142 56 OHM 1/16W C163 NC R139 18R OHM 1/16W 5% R162 27K 1/16W 5% R141 27K 1/16W 5% 1 2 SP131 NC 1 2 SP118 NC C158 0.1uF 50V C166 NC SVAV_AUL CVBS_GND CVBS_IN SVAV_AUR R188 NC 1 2 D118 NC 1 2 D132 NC R176 100R 1/10W 5% 7 8 9 10 11 12 13 G G C Y CN107A NC 1 2 SP115 NC C133 4.7uF/16V C151 4.7uF/16V C132 0.1uF 50V 1 2 D131 NC R174 18R OHM 1/16W 5% GND GND GND GND SCR_AU_L 10 SCR_AU_R 10 SV_C 9 SV_Y 9 SCR_Y 9 SV/AV_AUR 10 CVBS 9 SV/AV_AUL 10 SY_GND CVBS_IN Csync/CVBS/ S-Video(Y) Input CVBS_GND R143 27K 1/16W 5% C135 220pF R138 2.2uH S-video SY_GND R190 NC R186 NC R192 NC R191 NC R193 NC SCA1I_L SCA1I_R SCA1O_L SCA1O_R Audio Output C140 NC Q105 NC R152 NC R158 NC C145 NC Q104 NC 1 2 D120 NC 1 2 D123 NC R153 NC R159 NC SCR_AUOUT_R 10 SCR_AUOUT_L 10 OFF_MUTE 12 OFF_MUTE 12 OFF_MUTE OFF_MUTE C159 NC 29 AVDD18 R315 0 OHM GND V33_ADC VCC18 GND HDMI 3.3V POWER V33ADC1 1 2 3 4 CN302 JST-4-2.0 33A3802-4B VMID GND 1 2 FB301 300 OHM 1 2 FB303 300 OHM C323 0.1uF 50V C329 0.1uF 50V C305 10uF/16V C301 0.01UF25V C324 10uF/16V SCR_Y 8 R318 390 OHM 1/10W C316 10uF/16V C314 0.1uF 50V C306 0.1uF 50V C312 0.1uF 50V C322 10uF/16V C321 0.1uF 50V V33HDMI C318 0.1uF 50V C326 0.1uF 50V C313 0.1uF 50V C328 0.1uF 50V 1 2 FB302 300 OHM C317 0.1uF 50V REXT C307 0.1uF 50V C325 10uF/16V GND GND GND GND GND GND V33HDMI GND VCC18 V33_ADC GND RXACLKN_M2 5 GND GND GND GND RXA0P_M2 5 RXA0N_M2 5 RXACLKP_M2 5 RXA1N_M2 5 RXA1P_M2 5 HPDA 5 HA_CEC 5 RXA2N_M2 5 RXA2P_M2 5 RAIN 7 BAIN 7 T_CVBS 6 GAIN 7 SOGAIN 7 DDCHA_SDA 5 DDCHA_SCL 5 CVBS_O 8 1 2 FB307 300 OHM HSYNC 7 VGA_DDCSCL 7 VGA_DDCSDA 7 VSYNC 7 ADC 3.3V POWER V18_33HDMI PR1 7 PB1 7 Y1 7 SOY1 7 C311 0.1UF16V C320 0.1UF16V AINA1 23 SOG2 27 SOG3 31 AINA5 37 AINB1 24 AINB2 29 AINB3 33 AINB4 38 AINC1 26 AINC2 30 AINC3 34 AINC4 39 AIND1 35 AIND4 40 AOUT1 43 AOUT2 44 EXT_R 13 HDMI_RXA0N 6 HDMI_RXA0P 7 HDMI_RXA1N 8 HDMI_RXA1P 9 HDMI_RXA2N 10 HDMI_RXA2P 11 HDMI_RXACKN 3 HDMI_RXACKP 4 HSYNC 15 VSYNC 16 SOG1 25 AINA2 28 AINA3 32 AIN0_FAD 48 AIN1_FAD 47 AIN2_FAD 46 VMIDS 20 VREF 21 FILT 18 GPIO_52/HPD 170 GPIO_53/CEC 171 GPIO_54/HDMIDDC_SDA 172 GPIO_55/HDMIDDC_SCL 173 GPIO_47/DSUBDDC_SDA/UART_TX1 168 GPIO_48/DSUBDDC_SCL/UART_RX1 169 VSSA_AD(0V) 42 VSSD(0V) 2 VSSD_AL(0V) 174 VSSDP_AD(0V) 17 VDD18(1.8V) 1 VDDA_AL(1.8V) 175 VDDD_AL(1.8V) 176 DVCC(1.8V) 12 AVDD33_RX 5 BVDDA_AD(3.3V) 45 VDDA_AD(3.3V) 41 VDDA_AD(3.3V) 22 VDDD_AD(3.3V) 36 VDDDP_AD(3.3V) 14 VDDP_AD(3.3V) 19 HDMI/ADC U405A HX6201-A 1 2 FB306 300 OHM V33ADC1 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F B 9 12 Friday , July 31, 2009 715T3365 <称爹> 08.M2D HDMI/Analog I/O VGA_DDCSCL VGA_DDCSDA V33ADC V33ADC ADC_VREF SV_Y 8 AVDD18 V33ADC_PLL 1 2 FB305 300 OHM Slave IIC SV_C 8 R314 1K621/10W C319 0.1UF16V C315 0.1UF16V C333 0.1UF16V R301 0 OHM C327 0.1uF 50V C332 0.1uF 50V C331 0.1uF 50V V33HDMI V33ADC_PLL CVBS 8 V18_33HDMI C334 0.1UF16V R319 0 OHM V33ADC_PLL VCC3 C330 100pF 30 R622 47K OHM 1/16W 1 2 3 4 8 7 6 5 RP604 100 KOHM +-5% 1/16W R628 75K 1/10W 5% C650 1UF25V Audio Input MUX C642 1UF25V R631 47K OHM 1/16W C646 1000pF C636 4.7uF/16V C635 4.7uF/16V + C640 1000uF/25V C606 0.1uF 50V 1 2 FB601 300 OHM R637 10K OHM 1/10W C621 0.1uF C625 0.1uF C660 NC VCC_CLAMP VCC_CLAMP GND GND VCC8 GND V33_AUD GND GND GND GND GND GND PW_GND 5VSB C661 0.1uF 50V V12_ADP PW_GND PW_GND GND GND GND 5VM VCC5 GND GND GND 5VM VCC3AD VCC5 GND GND GND SPGND MUX_AUR C663 0.1uF 50V TUN_AUD 6 GND GND VCC5 COM1_AUL 7 COM1_AUR 7 SIF 6 SV/AV_AUR 8 VCC_CLAMP SCR_AU_L 8 SCR_AU_R 8 VGA_AUL 7 SV/AV_AUL 8 VGA_AUR 7 GND STYAMP_MUT 12 EAR_DET AMP_MUT 12 ADCINP 6 ADCINN 6 EAR_DET SCR_AUOUT_L 8 IFAGC 6 RFAGC 6 SCR_AUOUT_R 8 R638 10K OHM 1/10W R606 0 OHM R609 4K7 1/10W 5% 5VSB VRN VRP R610 4K7 1/10W 5% MUX_AUL VREF_ADC VCM_ADC VBG AGSCRT VRP VRN C615 1500pF C664 NC VREFI_PIF SIF_VCMG MUTE_HPHONE 12 SIF_VREFN 1 2 3 4 8 7 6 5 RP602 100 KOHM +-5% 1/16W 2008-11-12 C616 1500pF R608 0 OHM R604 NC SIF1+ SIF1- SW_AMP_LIN R605 NC SIF1- C648 0.1uF 50V SIF1+ ADCINN 77 ADCINP 78 DAC_LSL 71 DAC_LSR 70 LAIN0 50 LAIN1 53 LAIN2 55 LAIN3 57 RAIN0 49 RAIN1 52 RAIN2 54 RAIN3 56 VREF_ADC 59 VCM 60 AGSCRT 61 VBG 62 VRN 63 VRP 64 SCART1L 69 SCART1R 68 SCART2L 67 SCART2R 66 SIF_VCMG 74 SIF_VREFN 75 SIF_VREFP 76 VREF(ForPIFADC) 73 VSSA(0V) 51 GPIO_02/SPDIFI 86 GPIO_03/PIF_AGC 84 GPIO_04/PIF_AMP 85 GPIO_40/SPDIFO 167 AVDD(3.3V)(ForPIFADC) 79 AVDD_DAC(3.3V) 65 VDDA(3.3V) 58 AUDIO U405B HX6201-A R607 NC TUN_AUD GND GND VCC_CLAMP C637 10uF/16V C638 0.1uF 50V R602 0 OHM 1/16W R611 1K 1/16W 5% V33AUD MONO_AUD SW_AMP_LIN SW_AMP_RIN MUX_AUR 1 2 3 4 8 7 6 5 RP601 100 KOHM +-5% 1/16W MONO_AUD MUX_AUL V33AUD R612 1K 1/16W 5% AUDIO 1.8V POWER GND R642 0R05 1/16W C662 NC GND R617 3 OHM 3W R635 10K OHM 1/10W C659 0.1uF 50V + C610 100uF/16V R636 10K OHM 1/10W VCC3AD R639 10K OHM 1/10W OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F C 10 12 Tuesday , July 21, 2009 715T3365 <称爹> 09.M2D Audio 2008-11-07 SIF_VREFP R618 3 OHM 3W GND MUX_AUR SH601 SH603 SH602 MUX_AUL C665 NC 1Y0 12 2Y0 1 1Y1 14 2Y1 5 1Y2 15 2Y2 2 1Y3 11 2Y3 4 S0 10 S1 9 VEE 7 GND 8 /E 6 1Z 13 2Z 3 VCC 16 U601 74HC4052D SIF_VREFN SW_AMP_LIN C666 NC R643 0R05 1/16W AU_S0 12 AU_S1 12 R616 100 OHM 1/10W R615 100 OHM 1/10W Tuner input R620 3 OHM 3W R640 NC R641 NC HEADPHONE R/L OUTPUT SIF_VREFP 1 2 3 Q413 PMBS3906 VCC3 COM1_AUR SW_AMP_RIN SW_AMP_RIN MONO_AUD 1 2 FB606 300 OHM R613 0R05 1/10W 5% USB_AUR USB_AUL R627 100K OHM 1/10W NC 13 PVDD 16 NC 4 CP+ 1 PGND 2 CP- 3 CVSS 5 VSS 6 LOUT 7 VDD 8 ROUT 9 LIN 10 /RSD 11 RIN 12 GND 14 /LSD 15 APA2176A U604 C611 0.1uF 50V C655 1UF25V Q604 PMBS3904 R624 10K OHM 1/10W C654 680P 50V X7R +/-10% R634 5.1K C653 680P 50V X7R +/-10% C601 1000pF R623 47K OHM 1/16W COM1_AUL TP601 R614 0R05 1/10W 5% 1 2 ZD601 RLZ6.8C R619 3 OHM 3W Q603 PMBS3904 C634 0.1uF 50V C657 1UF25V C649 10uF/16V Q602 PMBS3904 1 2 3 4 CN603 CONN 1 7 6 2 3 4 5 CN601 PHONEJACK 1 2 SP601 1 2 SP603 R629 75K 1/10W 5% C623 0.1uF R626 NC C605 0.1uF 50V C631 0.1uF Q605 PMBS3904 C641 0.1uF 50V C645 1UF25V R603 10K OHM 1/10W C622 10uF/16V C617 0.1uF 50V R625 10K OHM 1/10W C644 1UF25V C651 680P 50V X7R +/-10% 1 2 SP604 C602 0.1uF 50V 1 2 3 4 8 7 6 5 RP603 100 KOHM +-5% 1/16W C658 0.1uF 50V C643 1UF25V R621 4.7K OHM 1/16W C620 0.1uF 50V C629 0.1uF C639 0.1uF25V C613 0.1uF 50V TP603 C603 0.1uF 50V C656 0.1uF 50V C604 10uF/16V C627 0.1uF C647 1UF25V R632 10K OHM 1/10W 1 2 FB602 300 OHM R633 10K OHM 1/10W IN1 4 IN2 12 ST_BY 7 S_GND 9 PW_GND 8 NC 5 NC 10 NC 11 OUT1+ 1 OUT1- 2 OUT2+ 15 OUT2- 14 VCC 3 VCC 13 MUTE 6 U603 TDA7297SA R630 47K OHM 1/16W C652 680P 50V X7R +/-10% C609 330NF50V 31 PD1 System PLL 1.8V POWER R438 100Ω 1/10W PD0 1 2 FB408 150OHM SCL_A POWER KEY XTAL_IN IRVCC GND R425 10K OHM 1/10W R422 10K OHM 1/10W TP401 R406 10K OHM 1/10W C403 0.22uF R417 10K OHM 1/10W R403 4.7K OHM 1/16W R420 10K OHM 1/10W 1 2 FB415 300 OHM C421 33pF R423 4.7K OHM 1/10W R416 10K OHM 1/10W C422 33pF R404 10K OHM 1/10W Master IIC SDA_A CS# 1 SO 2 W# 3 GND 4 VCC 8 HOLD# 7 SCK 6 SI 5 U402 MX25L4005AM2C-12G R413 NC SCL_A 1 2 3 4 CN401 JST-4-2.0 33A3802-4B R412 NC C402 0.22uF 1 2 X401 24.576MHz C419 0.1uF 50V IR_D WP GPIO30 C424 10uF/16V 1 2 3 Q414 PMBS3906 1 2 3 Q402 PMBS3906 WP C407 100pF R455 NC R419 10K OHM 1/10W C405 100pF R426 10K OHM 1/10W C418 10uF/16V C408 100pF R418 10K OHM 1/10W VSS 4 VCC 8 SDA 5 SCL 6 E0 1 E1 2 E2 3 WC 7 U404 M24C32-WMN6TP C404 100pF R402 4.7K OHM 1/16W R421 10K OHM 1/10W HA5V_DET 5 1 2 3 Q403 PMBS3906 ADC KEY R424 4.7K OHM 1/10W Q404 PMBS3904 GND GND GND VCC3 VCC3 VCC3 VCC3 GND 5VSB 5VSB GND GND GND GND 5VSB GND GND SDA_A 6 BL_ADJ 4 SCL_A 6 LEDY 12 L_G LEDG 12 MCU_WP 12 UART_TX UART_RX GND UART_RX 7 UART_TX 7 R430 0 OHM 1/16W UART_TX UART_RX R415 NC Check pin order 1 2 3 4 CN405 JST-4-2.54 CN25-4VS R414 NC 5VSB R427 100 OHM 1/10W R428 100 OHM 1/10W C423 10uF/16V XTAL_O L_Y IRDAT GPIO39 MCU_WP C425 10uF/16V VCC3 R405 1K 1/10W 5% RS-232 SCK R407 1K 1/10W 5% 3 1 2 D403 BAV99 L_G 1 2 D401 RLZ5.6B GPIO35 VCC3 SCL_A SDA_A 5VSB R401 0 OHM 1/16W 2008-12-15 VCC18_CORE GND IRDAT 8 AVDD_PL(1.8V) 83 AVSS_PL(0V) 82 PAD_OSCI 81 PAD_OSCO 80 RST_N 90 SARIN0 160 SARIN1 161 SARIN2 162 SARIN3 163 GPIO_00/UART_TX0 87 GPIO_01/UART_RX0 88 GPIO_27/PWM_B/DBLC 150 GPIO_29/PWM_D 151 GPIO_30/SPI_WP 152 GPIO_31/MSDA 153 GPIO_32/MSCL 154 GPIO_33/SPI_SDI 155 GPIO_34/SPI_CSN 156 GPIO_35/SPI_SCK 157 GPIO_36/SPI_SDO 158 GPIO_39/IR_RX 159 TSTMD 89 U405D HX6201-A TSTMD TSTMD USER DATA 1 2 FB402 150OHM C415 100pF C420 100pF V18AUD LED_G LEDG IRVCC IRDAT R441 1M OHM 1/10W L_Y IR_D ADC R454 10K OHM 1/10W PW LEDY R436 1K OHM 1/10W GND SARIN0 SARIN1 SARIN2 LED_Y SDI CSN 1 2 D402 RLZ5.6B GPIO33 PW SDI SDO CSN PD0 SCK SDO GPIO34 GPIO36 R456 5.1K OHM 1/10W LU_SEN ADC 1 2 3 4 5 6 7 8 CN402 CONN PD1 SCL_A OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F A3 11 12 Tuesday , July 21, 2009 715T3365 <称爹> 10.M2D MCU AOC HOTEL UART_RX IRDAT 1 2 SP409 NC SDA_A UART_TX R433 NC R431 NC Q409 NC 1 2 SP400 NC R435 NC R434 NC 2 4 6 8 1 3 5 7 CN403 NC 1 2 SP406 NC 1 2 SP407 NC 1 2 SP408 NC 5VSB GND 5VSB GND GND GND GND GND 1 2 FB403 150OHM RST_N RST_N 1 2 FB405 150OHM R465 10K OHM 1/10W C427 NC V18AUD R432 100R R409 10.2K1/10W R408 10.2K1/10W 1 2 FB406 150OHM 1 2 SP410 NC VCC3 + C410 47uF/16V C406 100pF MCU SDO to EEPROM SDI MCU SDI to EEPROM SDO 1 2 SP411 NC R466 10K OHM 1/10W R460 1KΩ 1/10W 1 2 D404 RLZ5.6B 1 2 FB407 150OHM R429 0 OHM 1/16W C409 100pF 32 TX3AN TX0BP TX0BN TX3AP TXCKAP S 1 S 2 S 3 G 4 D 8 D 7 D 6 D 5 Q406 AO4449 -7A/-30V R410 4.7K OHM 1/16W VCCLV TX0AN TX2AP TX0AP TX1AN TX2AN TX1AP V33LV AU_S1# AU_S0# VCCLV 5VSB SELLVDS TX1AN1 TX3BN1 TX2AN1 TX0BN1 TX2BN1 TX1BN1 TX0AN1 TX3AN1 TXCKAN1 TXCKBN1 VCC5_IN EDID_WP# PN swap for layout GNDLV BL_ON 4 AU_S1# R523 10K OHM 1/10W GND 1 2 FB420 NC GND R556 NC R568 4.7K OHM 1/16W 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CN407 NC Q415 NC R439 NC TX0AN1 SELLVDS TX1AP1 TX1AN1 TX0AP1 C477 10uF/16V TXCKAN1 VCC5_IN TX2AP1 TX2AN1 TX3AP1 TX3AN1 TXCKAP1 R569 4.7K OHM 1/16W C461 1uF/25V C458 0.1uF 50V R566 4.7K OHM 1/16W R565 10K 1/16W 5% 1 2 FB417 300 OHM C464 0.1uF 50V 1 2 FB419 300 OHM C459 1UF25V C453 1UF25V 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 CN404 V33LV VCC18_CORE VCC5_PANEL_IN 1 2 FB416 300 OHM C478 0.1uF 50V PANEL_ON C431 NC Q408 PMBS3904 1 2 FB421 300 OHM Q407 PMBS3904 C465 1uF/25V V12_ADP C470 0.1uF 50V R519 10K OHM 1/10W C452 1UF25V TX1BN GND TX1BP C460 10uF/16V C463 1uF/25V C469 0.1uF 50V C466 0.1uF 50V R570 NC R489 13K OHM 1/10W C456 0.1uF 50V C451 10uF/16V C457 1UF25V C462 0.1uF 50V AU_S0# GND GND GND 5VSB R518 10K OHM 1/10W GND VCC3 GND GND VCC3 GND GND GND SCL_A_Tuner 6 SDA_A_Tuner 6 LEDY 11 POWER_ON 4 LEDG 11 VCC5 C467 0.1uF 50V C468 1uF/25V MCU_WP# EDID_WP# TXCKAN TX1AP1 TX2BP1 TX1BP1 TX3AP1 TXCKAP1 TX2AP1 TX3BP1 TXCKBP1 TX0BP1 TX0AP1 TX1AP1 TX1AP TX0AP1 TX0AP TX2BP1 TX2BP TX1BP1 TX1BP TX3AP1 TX3AP TXCKAP1 TXCKAP TX2AP1 TX2AP AMP_MUT 10 TX1BN1 TX1BN TX1AN1 TX1AN TX3BP1 TX3BP TXCKBP1 TXCKBP TX0BP1 TX0BP TXCKBN1 TXCKBN TX3BN1 TX3BN TX2AN1 TX2AN TX0BN1 TX0BN TX2BN1 TX2BN TX0AN1 TX0AN TX3AN1 TX3AN TXCKAN1 TXCKAN VCC3IO MCU_WP 11 IR_EN MCU_WP# R512 10K OHM 1/10W R559 NC GPIO_18/GVON 91 GPIO_19/GVOFF 92 GPIO_20/OEV/TTL_DE 93 GPIO_21/CPV/TTL_HS 94 GPIO_22/STV1/TTL_VS 95 GPIO_23/POL 96 GPIO_24/FTP 97 GPIO_25/FSTH1/TTL_CLK 98 GPIO_26/BSTH1 99 PI 132 AVSS3V_LV(0V) 103 AVSS3V_LV(0V) 126 GNDK(0V) 165 GNDK(0V) 101 AVDD3V_LV(3.3V) 102 AVDD3V_LV(3.3V) 125 VCC3IO(3.3V) 164 VCCLV(3.3V) 143 VCCK(1.8V) 166 VCCK(1.8V) 127 VCCK(1.8V) 100 VCCK(1.8V) 72 PVDD_LV(1.8V) 114 FRSB0N/LVA2N/ER6 120 FRSB0P/LVA2P/ER7 119 FRSB1N/LVA1N/ER4 122 FRSB1P/LVA1P/ER5 121 FRSB2N/LVA0N/ER2 124 FRSB2P/LVA0P/ER3 123 FRSCLKN/LVB1N 111 FRSCLKP/LVB1P 110 FRSG0N/LVB0N/EG6 113 FRSG0P/LVB0P/EG7 112 FRSG1N/LVA3N/EG4 116 FRSG1P/LVA3P/EG5 115 FRSG2N/LVACKN/EG2 118 FRSG2P/LVACKP/EG3 117 FRSR0N/LVB3N/EB6 105 FRSR0P/LVB3P/EB7 104 FRSR1N/LVBCKN/EB4 107 FRSR1P/LVBCKP/EB5 106 FRSR2N/LVB2N/EB2 109 FRSR2P/LVB2P/EB3 108 BRSB0N/GPO_38 145 BRSB0P/GPO_37 144 BRSB1N/GPO_44 147 BRSB1P/GPO_43 146 BRSB2N/GPO_46 149 BRSB2P/GPO_45 148 BRSCLKN 136 BRSCLKP 135 BRSG0N/GPO_13 138 BRSG0P/GPO_12 137 BRSG1N/GPO_15 140 BRSG1P/GPO_14 139 BRSG2N/GPO_17 142 BRSG2P/GPO_16 141 BRSR0N/GPO_07 129 BRSR0P/GPO_06 128 BRSR1N/GPO_09 131 BRSR1P/GPO_08 130 BRSR2N/GPO_11 134 BRSR2P/GPO_10 133 TTL/RSDS/LVDS U405C HX6201-A STYAMP_MUT 10 AU_S1 10 AU_S0 10 C471 NC PANEL POWER 1>OFF ; 0>ON PI TX3AP1 TX3AN1 GND TXCKAP1 TXCKAN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 CN408 NC Panel Power VCC5_IN SELLVDS TX2AN1 TX2AP1 TX0AP1 TX0AN1 PANEL_ON TX1AP1 TX1AN1 VCC5_IN VCC3IO + C432 NC C433 0.1uF 50V R510 10K OHM 1/10W OFF_MUTE 8 EDID_WP 11 R411 4.7K OHM 1/16W Q411 PMBS3904 Video_SEL 4 C454 0.1uF 50V R509 10K OHM 1/10W Q412 PMBS3904 R437 4.7K OHM 1/16W OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F C 12 12 Tuesday , July 21, 2009 715T3365 <称爹> 11.M2D LVDS PW_ON 4 MUTE_HPHONE 10 R567 120K OHM 1/16W 5% GND C455 0.1uF 50V R526 10K OHM 1/10W R522 10K OHM 1/10W Q410 PMBS3904 GND 5VSB TX3BP TX2BP TX2BN TX3BN TXCKBN TXCKBP 33 R287 NC 1 2 FB223 NC Active low OUT 1 GND 2 FAULT 3 EN 4 IN 5 U711 NC R293 NC 1 2 3 4 5 6 7 8 9 10 CN208 NC R294 NC USB_GND Q217 NC USB_DM R209 NC R211 NC Near to IC Y_IN0 R137 NC PR_IN0 C126 0.047uF R130 NC C120 0.047uF R133 100 OHM 1/10W R131 100 OHM 1/10W R134 NC C129 0.047uF R129 100 OHM 1/10W R136 100 OHM 1/10W GND GND GND SOY1 9 Y1 9 PR1 9 PB1 9 PB_IN0 C123 1000pF USB_DM USB_DP R274 0R05 1/10W 5% R276 0R05 1/10W 5% USB_DP VCC5 GND VCC5 Q216 NC 1 2 ZD201 NC 3 2 4 1 L209 NC VCC5 1 2 ZD202 NC C264 NC FOR EMI C265 NC VBUS 1 2 3 4 6 5 1 2 3 4 CN703 NC C261 NC C260 NC C262 NC R257 NC R258 NC R259 NC Pb_SCALER Pr_SCALER R264 NC Y_SCALER R266 NC R265 NC C252 NC R267 NC Q212 NC R268 NC C256 NC R269 NC VCC5 Q211 NC Q210 NC R271 NC R270 NC R272 NC C257 NC R273 0R05 1/10W 5% PR2_IN PB2_IN V_SEL Low: Channel 2 /YPbPr2 High:Channel 1 /USB R288 NC R289 NC OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 F C 12 12 Tuesday , July 21, 2009 715T3365 <称爹> 11.M2D LVDS USB_AUL USB_AUR 1 2 FB220 NC C250 NC C263 NC Video_SEL C258 NC C259 NC Y2_IN USB_GND PR_IN0 Y_IN0 Y_IN0 PR_IN0 Pb_SCALER Pr_SCALER PB_IN0 Y_SCALER R260 NC PB_IN0 VBUS USB_GND R262 NC R261 NC R263 NC R275 NC R277 NC C249 NC GND R279 NC R278 NC C253 NC C251 NC R280 NC C254 NC R281 NC C255 NC Q213 NC 1 2 FB221 NC DC 9 S2D 13 S1A 2 IN 1 S1B 5 S2A 3 S2B 6 S1C 11 S2C 10 DD 12 S1D 14 /EN 15 DA 4 VCC 16 GND 8 DB 7 U107 NC Q215 NC Q214 NC IR_EN IRDAT R282 NC 1 2 FB222 NC VCC5 1 2 3 4 CN206 NC R283 NC V_SEL R286 NC USB_GND R290 NC R291 NC 5VSB R292 NC GND C266 NC 5VSB C267 NC POWER_ON 5VSB VBUS 34 电源板 715G3465P020HV001M + C922 470uF 25V R938 10K 1/8W C916 0.1uF FB903 BEAD 1 2 Q903 KTD1028 C921 0.001uF C901 0.001uF/250V C929 0.001uF Q901 STP10NK70ZFP ! R909 3.3 OHM 1/4W R903 0R05 1/4W 5% FB901 BEAD 1 2 IC903 PC123X2YFZOF 1 2 4 3 CN901 SOCKET 1 2 R907 10 OHM 1/8W C902 0.001uF/250V D904 SP10100 1 2 3 C931 0.001uF/250V C925 0.1UF/25V R912 22 OHM 1/8W R936 1K 1/4W L903 3.5uH R935 0R05 1/4W 5% FB902 BEAD 1 2 + C905 120uF 450V + C917 1000uF 25V ! R900 680K OHM 1/4W C912 0.022uF/25V + C930 1000uF 16V HS2 HEAT SINK (D904) 1 2 ! 1 A3 2 3 Thursday , April 02, 2009 <称爹> 02.POWER 715G3465-1 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 R902 680K OHM 1/4W R905 8.2K OHM 1/4W R919 0R05 1/4W 5% D901 FR107 R922 200 OHM 1/4W FB907 BEAD 1 2 - + BD901 GBU408 2 1 3 4 +5V C932 0.001uF R925 150R 1/8W + C914 1000uF 16V R941 NC IC901 LD7576A 1 2 3 4 5 6 7 8 RT COMP CS GNDOUT VCC NC HV C919 100N 50V R904 8.2K OHM 1/4W ! ZD901 NC 1 2 R943 470 OHM +-5% 1/4W ! ! FB904 BEAD 1 2 R924 1K 1/4W FB905 BEAD 1 2 HS3 HEAT SINK(D906) 1 2 ! FB906 BEAD 1 2 D909 LL4148 R918 0R05 1/4W 5% C924 220pF R934 0R05 1/4W 5% F903 JUMP HS1 HEAT SINK(Q901) 1 2 +12V ! + C915 470uF 16V L904 3.5uH +5V ZD920 RLZ13B R927 3.6K OHM 1% 1/8W + C908 22uF/50V DIM VAR901 NC R920 0R05 1/4W 5% IC902 KIA431 D902 FR103 F901 FUSE 4.0A/250V ! +12V R914 0.39 OHM +-5% 2WS R930 2.43KOHM +-1% 1/8W R901 680KOHM +-5% 1/4W T901 POWER X'FMR 4 8 5 6 2 3 11 10 12 9 7 C927 0.1uF L902 30mH 1 4 2 3 C920 0.1uF R929 33K OHM 1% 1/8W D906 SP20150R 1 2 3 80TL19T 33 S C903 0.47uF/275V NR901 NTCR CN902 CONN 1 2 3 4 5 6 7 8 9 10 11 R908 100K OHM 2W ! R928 0OHM 1/8W C906 2200pF ON/OFF C923 470pF/25V CN901A NC 1 2 3 + C918 1000uF 25V R940 150 OHM 2W 35 Q806 AM4502C-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D C808 180K 1/10W SST ZD802 RLZ5.6B 1 2 C813 33NF 50V R845 10K 1/10W 5% R843 10K 1/10W 5% CT R824 6.2K 1/10W C816 27PF 6KV R818 75K 1/10W 5% CN801 CONN 1 2 CN804 CONN 1 2 C801 0.047uF ON/OFF C804 1UF 16V C806 1UF16V R806 100R 1/10W 5% D808 BAV70 3 1 2 R827 20K LV1 L802 L 1 2 4 3 R835 20K R817 1M 1/10W 5% R814 NC +12V D803 R832 20K R803 5K1 1/10W L801 L 1 2 4 3 CN802 CONN 1 2 R826 1M 1/10W 5% C810 0.047uF R802 22R 1/8W D801 R808 100R 1/10W 5% C824 27PF 6KV + C812 1000uF 25V C805 0.01uF C815 0.047uF D804 C807 0.01uF PT802 POWER X'FMR 6 2 8 5 1 7 C819 56pF3KV C825 0.01uF LV2 LV3 R833 20K D806 BAV70 3 1 2 C820 56pF3KV CT R840 1M 1/10W 5% C803 NC LV2 C809 560pF50V Q803 RK7002 R804 5K1 1/10W R813 470K 1/8W 5% R838 1M 1/10W 5% R844 10K 1/10W 5% R823 390R 1/10W 1% R842 10K 1/10W 5% D809 BAV99 3 1 2 LV3 LV1 C821 56pF3KV 1 B 1 3 Wednesday , April 01, 2009 <称爹> 03.INVERTER 715G3465-1 OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 R821 1M 1/8W 5% R841 1M 1/10W 5% R816 10K 1/10W 1% R822 20K OHM 1% 1/8W Q802 RK7002 R834 15KOHM +-5% 1/10W Q805 AM4502C-T1-PF 1 2 3 4 8 7 6 5 S G S G D D D D R807 100R 1/10W 5% C822 56pF3KV LV4 R820 10K 1/8W 5% +5V R819 100K 1/10W 5% R825 510R 1/10W SST C802 0.047uF LV4 C814 390P 50V R831 24KOHM +-5% 1/10W R815 NC IC801 OZ9938GN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 DRV1 VDDA TIMER DIM ISEN VSEN OVPT NC1 NC2 ENA LCT SSTCMP CT GNDA DRV2 PGND ZD803 RLZ5.6B 1 2 D805 D802 CN803 CONN 1 2 C823 0.01uF C811 0.1uF D807 BAV70 3 1 2 DIM R839 1M 1/10W 5% R805 100R 1/10W 5% 36 按键板 715G3303 1 SW05 TACT SW FWRD H1.5MM CH+ FUNC_KEY C05 NC CN01 CONN 1 2 3 4 SW02 TACT SW FWRD H1.5MM R07 100 OHM 1% 1/10W VOL- Power ON/OFF C04 NC 77G 607 2 FD PWR-SW R01 20K OHM 1% 1/10W C07 NC C08 NC C06 NC R02 8.2K1/10W 1% VOL+ SW07 TACT SW FWRD H1.5MM MENU C03 NC CH- C02 NC R03 4.32K 1% 1/10W SW01 TACT SW FWRD H1.5MM PWR-SW R08 100R 1/10W 1% SW04 TACT SW FWRD H1.5MM R05 1.8K OHM 1% 1/10W A Custom 2 2 Thursday , January 15, 2009 715G3303 <称爹> 02-Keypad OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 Source Select 33G8032 4F HR FUNC_KEY C01 NC R04 2.74K 1% 1/10W 3V3_STB SW06 TACT SW FWRD H1.5MM SW03 TACT SW FWRD H1.5MM 37 遥控板 715G3540R01000004M GND PIN GND PIN 1 1.0 Custom 2 2 Wednesday , February 25, 2009 715G3540 <称爹> 02-IR&LED OEM MODEL Size Rev Date Sheet of TPV MODEL PCB NAME 称爹 T P V ( Top Victory Electronics Co . , Ltd. ) Key Component 絬 隔 瓜 絪 腹 LED_R R11 15K OHM 1/10W CN01 CONN 1 2 3 4 5 LED_B RED BLUE LED01 LED 1 2 3 4 C02 NC/4.7uF/16V 33T8032 5F HR C01 0.1uF/16V IRRV VCC U01 KSM-2003TN2E 1 2 3 VOUT GND VCC RED BLUE 81T 14 24 EL 38 7. 电气方框图 Himax M2D U405 Himax M2D U405 Himax M2D U405 Himax M2D U405 CN301 HDMI CN104 YPbPr HDMI_RXA0,A1,A2,CLK Himax M2D HDMI/ADC AINA2,AINB2,AINC2,SOG2 CN107 AV&S-VIDEO RX0,RX1,RX2,RXCLK CVBS Y,Pb,Pr Y/C CN102 VGA AINB4,AINC4 AINA5 HSYNC,VSYNC AINA1,AINB1,AINC1 R,B,G,H,V CN105 SCART SC_R,SC_G,SC_B CN101 AV1 CVBS AINC3,AINB3,AIND1 AINA3 EU/CH Option AIN0_FAD,AIN1_FAD FB_BLANK,STATUS HDMI EDID(U301) SDA,SCL TU201 Tuner OR TU202 Tuner AIND4 CVBS Himax M2D MCU ADCINN,ADCINP IF U201 SAWFILTER RF/IF Tuner Option BACK BACK SIDE SCL,SDA BACK BACK BACK U404 EEPROM 24C32 ADC KEY IR RS232 RS232 Hotel Pin P0,P1 IR_DAT PC Audio Himax M2D Audio RS232 RAIN0,LAIN0 AV&S-Video Audio(CN107) CN103 AV1&SCART Option Audio (CN104&CN105) BACK BACK RAIN1,LAIN1 RAIN2,LAIN2 SIDE SIF Tuner U603 AMP TDA7297 MUX_AUL/R COM1_AUL/R MONO_AUD U601 Switch 4052 YPbPr Audio CN603 Connector CN601 Earphone U604 APA2176A U402 SPI EEROM BACK CN404 CN406 LVDS I/O Himax M2D TTL/LVDS/RSDS LVDS BUS PANEL AV Audio Line Out SCART Audio (Option) (CN106&CN105) SCR_AUOUT_L/R LVDS BUS BACK AV Line Out SCART CVBS Out (Option) (CN106&CN105) CVBS_O BACK Backlight On/Off,Brightness 39 POWER_ON PANEL_ON PANEL_ON 5VSB 1084_1.8 U708 5VSB VCC3 1084-33 U701 5VSB AP1117D33 U705 1084_33 U707 VCC5 POWER_ON AO4449 Q706 VCC18_CORE V33ADC / VCCADC / VDDA33 HX6201 U405 AVDD18 / VCCLV HX6202A U405 VCC3 MX25L4005AM2C U402 VCC3AD VCC3IO / V33LV HX6201 U405 VCC18_PLL AP1117D18 U709 V33_AUD V33_ADC 5VSB VCC5 VCC5 MPS2171 U711 PI5V33 U107 VIDEO SWITCH V18AUD / PVDD_LV HX6201 U405 V33AUD HX6201 U405 +12V_SB V18AUD / PVDD_LV V33AUD USB 2.0 HOST V33HDMI / VCCADC / VDDA33 AVDD18 / VCCLV VCC3AD VCC3IO / V33LV A1117D5.0 U202 VCC8 74HC4052 U601 AUDIO SWITCH VCC12 BA17808 U706 POWER_ON AO3407 Q701 V12_ADP M24C02 U301 5VSB +5VT TUNER TU100 AO4449 Q406 PANEL PANEL_VCC AO4449 Q406 M24C32 U404 M24C02- U101 VCC5 VCC5 AP2176 U604 EARPHONE AMP V12_ADP PANEL PANEL_VCC V12_ADP TDA7297 U603 VCC5 VCC5 V18_33HDMI HX6201 U405 V18_33HDMI VCC18 AP1117D18 U703 5mA 160mA 1077mA 822mA 117mA 16mA 39mA 281mA 500mA--1.0A 5VSB VCC5 USB boad power 5V,5V TO 3.3v 5v to 1.8V 400mA 40 8. 拆卸流程图 1.将 TV 放置于干净的平台上,Panel 面朝下,注意不要被尖锐物品刮伤。 2.拆除底座。 3.拆卸后壳。 41 4.释放线材。 5.拆卸主板，电源板。 6.分离前框和 Panel。 42 7.拆卸铁盘。 8.Panel。 43 9.拆卸 IR 板，Speaker，Key Board。 44 9. 爆炸图 45 10. BOM E2C9MANDW4SWNN 点位 料号 描述 备注 001G6021 1 SCREW 036T 600 18127 GP NONWOVEN FABRTC 050G 600 2 HANDLE1 050G 600 3 HANDLE2 052G 1150522 PAPER TAPE 052G 1185 MIDDLE TAPE (Y1200141) 052G 1185 1 BIG TAPE 052G 1186 SMALL TAPE 052G 2191 A PAPER TAPE 089G214A18N YH POWER CORD E09501 095G8018 3DH72 LVDS CABLE 30P-30P 160MM E09501 095G8018 3XH72 LVDS CABLE 30P-30P 160MM 2nd source 098GRABD3NCSWC REMOTE CONTROL FOR 2K9 SKYWORTH 0D1G1730 8120 SCREW 0D1G1730 8120 SCREW 0D1G1730 10120 SCREW 0M1G 130 6120 SCREW M3X6 0M1G 930 8 47 CR3 SCREW 0M1G 940 10 47 CR3 SCREW 0M1G6090 1 SCREW 0Q1G 930 8 47 CR3 SCREW 0Q1G 940 10 47 CR3 SCREW 0Q1G1830 6120 SCREW 705TQ933K01 PLASTIC ASS`Y 0Q1G3130 6120 SCREW A33E0550 GM 1L0100 KEY BUTTON A33E0551 GMD1L0100 KEY COVER 705TQ934K01 BEZEL ASS`Y 001G6021 1 SCREW 036T 600 18109 NONWOVEN FABRTC A34E1447 GMA6L0130 BEZEL TV236W-9AA6-1 Q33E0307 ED 1C0100 IR LENS Q33E0308 2 1C0100 POWER LENS Q36T 600 35 2 GP NONWOVEN FABRIC 705TQ934K02 REAR COVER ASS`Y A34E1448 GM 6L0130 REAR COVER 23.6" P15T8299 1 BKT-VESA 705TQ934K03 STAND ASS'Y A34E1007 GM 1L0100 STAND A34E1056 GM 1L0133 BASE A37T0104013 HINGE AM1G1740 10225 CR3 SCREW Q12G6082 1 FOOT PAD 46 750TVM236H1112N000 PANEL M236H1-L01 C1 NB CMO 756TQ9CB AD030 01 MAIN BOARD-CBPF9A3DQ3 U402 056G1133923 IC MX25L4005AM2C-12G SOP-8 SMTF-U402 100TWHME001D21 MCU ASS'Y-056G1133923 AM1G1740 10225 CR3 SCREW 040G 45762412B CBPC LABEL CN603 033G3802 4B Y W WAFER CN402 033G3802 8B Y W CONNECTOR CN701 033G380212B Y WAFER CN404 033G8027 30 WAFER 30P 2.0MM DIP DUAL ROW R203 061G 208470 64 RST MOFR 47OHM +-5% 1W R205 061G 208470 64 RST MOFR 47OHM +-5% 1W R617 061G153M309 59 RST MOFR 3OHM +-5% 3WS R618 061G153M309 59 RST MOFR 3OHM +-5% 3WS R619 061G153M309 59 RST MOFR 3OHM +-5% 3WS R620 061G153M309 59 RST MOFR 3OHM +-5% 3WS C640 067G 305102 4 105C 1000UF +-20% 25V CN108 088G 78 13934 C RCA JACK 1*3 Y/W/R AV3-8.4-13-1 CN104 088G 78 13942 YG RCA JACK 1*5 G/B/R/W/R RCA-512DF CN101 088G 7813A38C RCA JACK 1*3 Y/W/R V/A CN601 088G 30211K PHONE JACK 5PIN CN103 088T 302A17 YG PHONE JACK 3.5MM 3P V/T GREEN CN102 088T 35315F VC D-SUB 15PIN VERTICAL CONNECTOR 090T 372 2 HEAT SINK X401 093G 2270B H XAT024576FK1H-3OHX AT-49 24.576MHZ TU201 094T PALALL 3L TCL TUNER M15WPP-2PN-E 705TQ956001 U603 ASS'Y U603 056T 616511 ST IC TDA7297SA ST 0M1G1730 10120 SCREW 42A9930016 Q90T0155 3 HEAT SINK FOR U602 C702 067G 305100 3T 10UF 16V C701 067G 305100 3T 10UF 16V C204 067G 305101 3T 100UF 16V 105C C610 067G 305101 3T 100UF 16V 105C C703 067G 305101 3T 100UF 16V 105C C704 067G 305101 3T 100UF 16V 105C C708 067G 305101 3T 100UF 16V 105C C203 067G 305101 3T 100UF 16V 105C C722 067G 305101 3T 100UF 16V 105C C716 067G 305221 3T 220UF/16V C718 067G 305221 3T 220UF/16V C740 067G 305221 3T 220UF/16V C741 067G 305221 3T 220UF/16V C742 067G 305221 3T 220UF/16V C410 067G 305470 3T 47UF +-20% 16V C727 067G 305471 3T 105℃ 470UF +-20% 16V 47 C715 067G 305471 3T 105℃ 470UF +-20% 16V U405 056G 562592 IC HX6201-A09MLAG 1920*1080 LQFP-176 U701 056G 563 7 IC AIC1084-33PMTR-R AIC U703 056G 563 31 IC AZ1117D-1.8-E1 U708 056G 563 34 IC AIC1084-18PMTR-R AIC U707 056G 563 75 G1084-33T43UF TO-252 U202 056G 585 11 IC AZ1117D-5.0-E1 AAC U601 056G 614 1 74HC4052D S016 PHLIPS U404 056G113353A IC M24C32-WMN6T SO-8 ST U402 056G1133923 IC MX25L4005AM2C-12G SOP-8 U604 056T 616516 IC APA2176AQBITRL TQFN3X3-16 Q709 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q710 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q711 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q302 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q303 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q708 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q707 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q705 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q704 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q703 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q605 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q604 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q603 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q404 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q407 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q408 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q410 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q602 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q412 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q411 057G 417 4 PMBS3904/PHILIPS-SMT(04) Q402 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q403 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q413 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q414 057G 417 6 PMBS3906/PHILIPS-SMT(06) Q702 057G 763 5 FET AO3407 -4.1A/-30V SOT-23 Q406 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q706 057G 763 79 FET AO4449 -7A/-30V SOIC-8 Q301 057G 763904 TRA FET 2N7002 SOT-23 PHILIPS RP604 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W RP603 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W RP602 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W RP601 061G 125104 8 RST CHIP AR 8P4R 100 KOHM +-5% 1/16W R643 061G0402000 RST CHIP MAX 0R05 1/16W R642 061G0402000 RST CHIP MAX 0R05 1/16W R602 061G0402000 RST CHIP MAX 0R05 1/16W 48 R430 061G0402000 RST CHIP MAX 0R05 1/16W R429 061G0402000 RST CHIP MAX 0R05 1/16W R401 061G0402000 RST CHIP MAX 0R05 1/16W R319 061G0402000 RST CHIP MAX 0R05 1/16W R315 061G0402000 RST CHIP MAX 0R05 1/16W R301 061G0402000 RST CHIP MAX 0R05 1/16W R238 061G0402000 RST CHIP MAX 0R05 1/16W R237 061G0402000 RST CHIP MAX 0R05 1/16W R731 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R729 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R727 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R720 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R713 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R712 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R612 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R611 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R306 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R303 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R734 061G0402102 RST CHIPR 1 KOHM +-5% 1/16W R710 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R726 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R565 061G0402103 RST CHIPR 10 KOHM +-5% 1/16W R567 061G0402124 RST CHIP 120K 1/16W 5% R207 061G0402180 RST CHIP 18R 1/16W 5% R174 061G0402180 RST CHIP 18R 1/16W 5% R139 061G0402180 RST CHIP 18R 1/16W 5% R704 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R716 061G0402223 RST CHIPR 22 KOHM +-5% 1/16W R307 061G0402273 RST CHIP 27K 1/16W 5% R165 061G0402273 RST CHIP 27K 1/16W 5% R162 061G0402273 RST CHIP 27K 1/16W 5% R143 061G0402273 RST CHIP 27K 1/16W 5% R141 061G0402273 RST CHIP 27K 1/16W 5% R118 061G0402273 RST CHIP 27K 1/16W 5% R117 061G0402273 RST CHIP 27K 1/16W 5% R621 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R569 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R568 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R566 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R437 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R411 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R410 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R403 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R402 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R120 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W R119 061G0402472 RST CHIPR 4.7 KOHM +-5% 1/16W 49 R316 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R631 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R630 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R623 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R622 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R142 061G0402560 RST CHIP 56R 1/16W 5% R179 061G0402560 RST CHIP 56R 1/16W 5% R210 061G0402560 RST CHIP 56R 1/16W 5% R128 061G0603000 RST CHIP MAX 0R05 1/10W R132 061G0603000 RST CHIP MAX 0R05 1/10W R135 061G0603000 RST CHIP MAX 0R05 1/10W R204 061G0603000 RST CHIP MAX 0R05 1/10W R273 061G0603000 RST CHIP MAX 0R05 1/10W R274 061G0603000 RST CHIP MAX 0R05 1/10W R276 061G0603000 RST CHIP MAX 0R05 1/10W R312 061G0603000 RST CHIP MAX 0R05 1/10W R313 061G0603000 RST CHIP MAX 0R05 1/10W R606 061G0603000 RST CHIP MAX 0R05 1/10W R608 061G0603000 RST CHIP MAX 0R05 1/10W R613 061G0603000 RST CHIP MAX 0R05 1/10W R614 061G0603000 RST CHIP MAX 0R05 1/10W R702 061G0603000 RST CHIP MAX 0R05 1/10W R616 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R615 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R438 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R432 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R428 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R427 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R208 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R176 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R140 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R136 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R133 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R131 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R129 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R127 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R125 061G0603101 RST CHIPR 100 OHM +-5% 1/10W FB604 061G0603101 RST CHIPR 100 OHM +-5% 1/10W FB605 061G0603101 RST CHIPR 100 OHM +-5% 1/10W R407 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R405 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R460 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R436 061G0603102 RST CHIPR 1K OHM +-5% 1/10W R422 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R421 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R420 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W 50 R419 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R418 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R417 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R416 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R406 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R404 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R305 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R304 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R302 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R725 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R719 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R717 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R709 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R639 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R638 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R637 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R636 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R635 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R633 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R632 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R625 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R624 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R603 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R526 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R523 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R728 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R425 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R426 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R454 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R465 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R466 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R509 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R510 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R512 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R518 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R519 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R522 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R733 061G0603103 RST CHIPR 10 KOHM +-5% 1/10W R627 061G0603104 RST CHIPR 100 KOHM +-5% 1/10W R441 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R308 061G0603105 RST CHIPR 1M OHM +-5% 1/10W R489 061G0603133 RST CHIPR 13 KOHM +-5% 1/10W R314 061G0603162 1F RST CHIPR 1.62 KOHM +-1% 1/10W R195 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W R196 061G0603203 RST CHIPR 20 KOHM +-5% 1/10W R106 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W 51 R112 061G0603222 RST CHIPR 2.2 KOHM +-5% 1/10W R103 061G0603330 RST CHIPR 33 OHM +-5% 1/10W R111 061G0603330 RST CHIPR 33 OHM +-5% 1/10W R701 061G0603331 RST CHIP 330R 1/10W 5% R318 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R102 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R105 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R109 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R113 061G0603391 RST CHIPR 390 OHM +-5% 1/10W R423 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R424 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R609 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R610 061G0603472 RST CHIPR 4.7K OHM +-5% 1/10W R456 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R634 061G0603512 RST CHIPR 5.1 KOHM +-5% 1/10W R107 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R110 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R114 061G0603750 RST CHIPR 75 OHM +-5% 1/10W R628 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W R629 061G0603753 RST CHIPR 75 KOHM +-5% 1/10W R408 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W R409 061T0603102 2F RST CHIPR 10.2 KOHM +-1% 1/10W C102 065G0402101 32 100PF +-10% 50V X7R C330 065G0402101 32 100PF +-10% 50V X7R C404 065G0402101 32 100PF +-10% 50V X7R C405 065G0402101 32 100PF +-10% 50V X7R C406 065G0402101 32 100PF +-10% 50V X7R C407 065G0402101 32 100PF +-10% 50V X7R C408 065G0402101 32 100PF +-10% 50V X7R C409 065G0402101 32 100PF +-10% 50V X7R C415 065G0402101 32 100PF +-10% 50V X7R C420 065G0402101 32 100PF +-10% 50V X7R C123 065G0402102 32 1000PF +-10% 50V X7R C601 065G0402102 32 1000PF +-10% 50V X7R C646 065G0402102 32 1000PF +-10% 50V X7R C301 065G0402103 22 CHIP 0.01UF 25V X7R C311 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C315 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C320 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C639 065G0402104 27 CAP CHIP 0402 100NF Z 25V Y5V C208 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R C207 065G0402221 32 MLCC 0402 CAP 220PF J 50V X7R C421 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO C422 065G0402330 31 CHIP CAP 0402 33PF J 50V NPO C651 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% C652 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% 52 C653 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% C654 065G040268132K Y CAP CHIP 0402 680P 50V X7R +/-10% C748 065G0603102 31 CHIP 1000PF 50V NPO C749 065G0603102 31 CHIP 1000PF 50V NPO C705 065G0603104 12 CER2 0603 X7R 16V 100N P C329 065G0603104 32 CHIP 0.1UF 50V X7R C331 065G0603104 32 CHIP 0.1UF 50V X7R C332 065G0603104 32 CHIP 0.1UF 50V X7R C419 065G0603104 32 CHIP 0.1UF 50V X7R C433 065G0603104 32 CHIP 0.1UF 50V X7R C454 065G0603104 32 CHIP 0.1UF 50V X7R C455 065G0603104 32 CHIP 0.1UF 50V X7R C456 065G0603104 32 CHIP 0.1UF 50V X7R C458 065G0603104 32 CHIP 0.1UF 50V X7R C462 065G0603104 32 CHIP 0.1UF 50V X7R C464 065G0603104 32 CHIP 0.1UF 50V X7R C466 065G0603104 32 CHIP 0.1UF 50V X7R C467 065G0603104 32 CHIP 0.1UF 50V X7R C469 065G0603104 32 CHIP 0.1UF 50V X7R C470 065G0603104 32 CHIP 0.1UF 50V X7R C478 065G0603104 32 CHIP 0.1UF 50V X7R C658 065G0603104 32 CHIP 0.1UF 50V X7R C605 065G0603104 32 CHIP 0.1UF 50V X7R C606 065G0603104 32 CHIP 0.1UF 50V X7R C611 065G0603104 32 CHIP 0.1UF 50V X7R C613 065G0603104 32 CHIP 0.1UF 50V X7R C617 065G0603104 32 CHIP 0.1UF 50V X7R C620 065G0603104 32 CHIP 0.1UF 50V X7R C621 065G0603104 32 CHIP 0.1UF 50V X7R C623 065G0603104 32 CHIP 0.1UF 50V X7R C625 065G0603104 32 CHIP 0.1UF 50V X7R C627 065G0603104 32 CHIP 0.1UF 50V X7R C629 065G0603104 32 CHIP 0.1UF 50V X7R C631 065G0603104 32 CHIP 0.1UF 50V X7R C634 065G0603104 32 CHIP 0.1UF 50V X7R C638 065G0603104 32 CHIP 0.1UF 50V X7R C641 065G0603104 32 CHIP 0.1UF 50V X7R C648 065G0603104 32 CHIP 0.1UF 50V X7R C656 065G0603104 32 CHIP 0.1UF 50V X7R C603 065G0603104 32 CHIP 0.1UF 50V X7R C659 065G0603104 32 CHIP 0.1UF 50V X7R C661 065G0603104 32 CHIP 0.1UF 50V X7R C663 065G0603104 32 CHIP 0.1UF 50V X7R C707 065G0603104 32 CHIP 0.1UF 50V X7R C714 065G0603104 32 CHIP 0.1UF 50V X7R C717 065G0603104 32 CHIP 0.1UF 50V X7R 53 C719 065G0603104 32 CHIP 0.1UF 50V X7R C720 065G0603104 32 CHIP 0.1UF 50V X7R C721 065G0603104 32 CHIP 0.1UF 50V X7R C724 065G0603104 32 CHIP 0.1UF 50V X7R C726 065G0603104 32 CHIP 0.1UF 50V X7R C728 065G0603104 32 CHIP 0.1UF 50V X7R C730 065G0603104 32 CHIP 0.1UF 50V X7R C738 065G0603104 32 CHIP 0.1UF 50V X7R C739 065G0603104 32 CHIP 0.1UF 50V X7R C743 065G0603104 32 CHIP 0.1UF 50V X7R C602 065G0603104 32 CHIP 0.1UF 50V X7R C328 065G0603104 32 CHIP 0.1UF 50V X7R C132 065G0603104 32 CHIP 0.1UF 50V X7R C158 065G0603104 32 CHIP 0.1UF 50V X7R C202 065G0603104 32 CHIP 0.1UF 50V X7R C205 065G0603104 32 CHIP 0.1UF 50V X7R C206 065G0603104 32 CHIP 0.1UF 50V X7R C306 065G0603104 32 CHIP 0.1UF 50V X7R C307 065G0603104 32 CHIP 0.1UF 50V X7R C312 065G0603104 32 CHIP 0.1UF 50V X7R C327 065G0603104 32 CHIP 0.1UF 50V X7R C326 065G0603104 32 CHIP 0.1UF 50V X7R C323 065G0603104 32 CHIP 0.1UF 50V X7R C321 065G0603104 32 CHIP 0.1UF 50V X7R C318 065G0603104 32 CHIP 0.1UF 50V X7R C317 065G0603104 32 CHIP 0.1UF 50V X7R C314 065G0603104 32 CHIP 0.1UF 50V X7R C313 065G0603104 32 CHIP 0.1UF 50V X7R C657 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C655 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C452 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C453 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C457 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C459 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C642 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C643 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C644 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C645 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C647 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C650 065G060310525K T CAP MLCC 0603 1UF K 25V X5R C135 065G0603221 32 CHIP 220PF 50V X7R C160 065G0603221 32 CHIP 220PF 50V X7R C403 065G0603224 32 CHIP 0.22UF 50V X7R C117 065G0603224 32 CHIP 0.22UF 50V X7R C402 065G0603224 32 CHIP 0.22UF 50V X7R C609 065G060333412K A CAP CHIP 0603 0.33UF K 16V X7R 54 C101 065G0603473 32 CHIP 0.047UF 50V X7R C106 065G0603473 32 CHIP 0.047UF 50V X7R C110 065G0603473 32 CHIP 0.047UF 50V X7R C120 065G0603473 32 CHIP 0.047UF 50V X7R C129 065G0603473 32 CHIP 0.047UF 50V X7R C126 065G0603473 32 CHIP 0.047UF 50V X7R C461 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C463 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C465 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C468 065G0805105 22 CAP CHIP 0805 1UF K 25V X7R C649 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C637 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C622 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C604 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C477 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C460 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C451 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C425 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C424 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C423 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C418 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C325 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C324 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C322 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C316 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C305 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C116 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C115 065G0805106 15 CAP CHIP 0805 10UF K 16V X5R C124 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C125 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C133 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C136 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C149 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C151 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C635 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C636 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C713 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C725 065G080547515T MLCC 0805 CAP 4.7UF 16V X5R C615 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R C616 065T0402152 22 MLCC 0402 CAP 1500PF K 25V X7R FB402 071G 56G151 B BEAD 0805 150 OHM FB403 071G 56G151 B BEAD 0805 150 OHM FB405 071G 56G151 B BEAD 0805 150 OHM FB406 071G 56G151 B BEAD 0805 150 OHM FB407 071G 56G151 B BEAD 0805 150 OHM FB408 071G 56G151 B BEAD 0805 150 OHM 55 FB202 071G 56G301 EA BEAD 300 欧 FB301 071G 56G301 EA BEAD 300 欧 FB303 071G 56G301 EA BEAD 300 欧 FB305 071G 56G301 EA BEAD 300 欧 FB306 071G 56G301 EA BEAD 300 欧 FB307 071G 56G301 EA BEAD 300 欧 FB415 071G 56G301 EA BEAD 300 欧 FB416 071G 56G301 EA BEAD 300 欧 FB417 071G 56G301 EA BEAD 300 欧 FB419 071G 56G301 EA BEAD 300 欧 FB421 071G 56G301 EA BEAD 300 欧 FB601 071G 56G301 EA BEAD 300 欧 FB302 071G 56G301 EA BEAD 300 欧 FB602 071G 56G301 EA BEAD 300 欧 FB606 071G 56G301 EA BEAD 300 欧 FB706 071G 57G301 EA CHIP BEAD FB709 071G 57G301 EA CHIP BEAD R101 071G 59C600 CHIP BEAD 60 OHM 0603 FCM1608CF-600T06 R104 071G 59C600 CHIP BEAD 60 OHM 0603 FCM1608CF-600T06 R108 071G 59C600 CHIP BEAD 60 OHM 0603 FCM1608CF-600T06 FB102 071G 59C800 1HIP BEAD FB101 071G 59C800 1HIP BEAD R206 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE R175 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE R138 073T 6322910M CHIP IND 0603 2.2UH+-10% MICROGATE D101 093G 60230 BAT54C(L43) D403 093G 64 33 DIO SIG SM BAV99 (PHSE)R ZD701 093G 39S 9 T ZENER DIODE RLZ9.1B ROHM D404 093G 39S 24 T RLZ 5.6B LLDS D402 093G 39S 24 T RLZ 5.6B LLDS D401 093G 39S 24 T RLZ 5.6B LLDS ZD601 093G 39S106 T DIODE RLZ6.8C TE-11 500MW/6.8V LL-34 715G3365M01000004K MAIN BOARD PCB D301 093G 60230 BAT54C(L43) R309 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W R310 061G0402473 RST CHIPR 47 KOHM +-5% 1/16W FB701 071G 57G301 EA CHIP BEAD CN301 088G 340 21 VT HDMI HEADER 21P V/T C319 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C333 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R C334 065G0402104 12 CAP CHIP 0402 0.1UF 16V X7R D102 093G 39S 24 T RLZ 5.6B LLDS D105 093G 39S 24 T RLZ 5.6B LLDS C121 061G0603750 RST CHIPR 75 OHM +-5% 1/10W C127 061G0603750 RST CHIPR 75 OHM +-5% 1/10W C130 061G0603750 RST CHIPR 75 OHM +-5% 1/10W 56 C122 065G0603101 22 CAP CHIP 0603 100PF K 25V X7R PWTV8C41MYD6 POWER BOARD 040G 45762412B CBPC LABEL GND 009G6005 1 GROUND TERMINAL CN801 033G8021 2E U INVERT CONNECTOR CN802 033G8021 2E U INVERT CONNECTOR CN803 033G8021 2E U INVERT CONNECTOR CN804 033G8021 2E U INVERT CONNECTOR CN801 033G8021 2E XY CONNECTOR CN802 033G8021 2E XY CONNECTOR CN803 033G8021 2E XY CONNECTOR CN804 033G8021 2E XY CONNECTOR 051G 6 4503 GLUE_RTV IC903 056G 139 3A IC PC123Y22FZ0F NR901 061G 5810T RST NTCR 8 OHM +-20% 4A 13MM THINKING C903 063G107K474 6S CAP X2 0.47UF K 275VAC C822 065G 3J5606ET CAP CER 56PF J 3KV C821 065G 3J5606ET CAP CER 56PF J 3KV C820 065G 3J5606ET CAP CER 56PF J 3KV C819 065G 3J5606ET CAP CER 56PF J 3KV C824 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK C816 065G 6J2706ET CAP CER27PF 5% SL 6KV TDK C931 065G306M1022BM Y1.CAP.001UF 250VAC MURATA C902 065G306M1022BP 1000PF Y1.CAP C901 065G306M1022BP 1000PF Y1.CAP C905 067G 40Z12115A CAP 105C 120UF M 450V C812 067G215C4714HV EC 470UF 25V 10*13 C930 067G215P1023AV CAP 105℃ 1000UF M 16V C914 067G215P1023AV CAP 105℃ 1000UF M 16V C917 067G215P1024AV CAP 105℃ 1000UF M 25V C918 067G215P1024AV CAP 105℃ 1000UF M 25V C915 067G215P4713AV CAP 105℃ 470UF M 16V C922 067G215P4714AV CAP 105℃ 470UF M 25V FB905 071G 55 21 FERRITE BEAD FB902 071G 55 21 FERRITE BEAD FB901 071G 55 21 FERRITE BEAD L801 073G 174 35 HA IND FILTER 200MH+-25% DADON L802 073G 174 35 HA IND FILTER 200MH+-25% DADON L902 073G 174 65 S2 LINE FILTER 30MH MIN L904 073G 253 91 H CHOKE COIL L903 073G 253 91 H CHOKE COIL T901 080GL19T 33 S1 X'FMR 530UH PT802 080TL22T 4 H X'FMR INVERTER 775MH PT802 080TL22T 4 DN X'FMR 775MH TK.2001Y.101 CN901 087G 501 47 S AC SOCKET 2PIN + 2 SCREW HOLE CN901 087G 501 47 DL AC SOCKET 2PIN + 3 SCREW HOLE 57 BD901 093G 5046016A DIODE BRIDGE T4KB80 ZHONGHUAN BD901 093G 50460900 BRIDGE 4A/800V GBU408 LITEON CN902 095G 82011W513 HARNESS 11P(SAN)-12P(PLUG) 200MM 2nd source CN902 095G 82011X513 HARNESS 11P(SAN)-12P(PLUG) 200MM 0Q1G 340 8106 CR3 SCREW 705TQ757019 Q901 ASS'Y 051T 200 1 OIL FOR DISAPPEAR Q901 057G 667 21 STP10NK70ZFP 0M1G1730 8120 SCREW HS1 Q90T6064 5 GP HEATSINK 705TQ793050 D904 ASS'Y 051T 200 1 OIL FOR DISAPPEAR HS2 090T6064 1 GP HEAT SINK D904 093G 60218 SB10100FCT 0M1G1730 8120 SCREW 705TQ951005 OIL FOR DISAPPEAR 705TQ993018 D906 ASS'Y 051T 200 1 OIL FOR DISAPPEAR D906 093G 60522 DIODE MBR10150FCT PANJIT 0M1G1730 8120 SCREW HS3 Q90T0179 1 HEAT SINK 709T3465 QM001 CONSUMPTIVE ASS'Y 055G 2 ALCOHOL Q55G 23525 WELDING FLUX WITHOUT PB Q55G 100625 TIN STICK_LOW ARGENTUM IC901 056G 379128 IC LD7576 GS SOP-8 IC801 056G 608900 IC OZ9938GN-B1 SOIC-16 Q806 057G 600 61 AM4502C-TI-PF S0-8 Q805 057G 600 61 AM4502C-TI-PF S0-8 Q803 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM Q802 057G 759 2 RK7002FD5T116 SOT-23 BY ROHM Q806 057T 600517 AO4616 SOIC-8 Q805 057T 600517 AO4616 SOIC-8 R816 061G06031002FF RST CHIPR 10KOHM +-1% 1/10W FENGHUA R808 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R807 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R805 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R806 061G0603101 JY RST CHIPR 100 OHM +-5% 1/10W YAGEO R845 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R844 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R843 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R842 061G0603103 JF RST CHIPR 10K OHM +-5% 1/10W FENGHUA R819 061G0603104 JT RST CHIP 100K 1/10W 5% TZAI YUAN R817 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN R826 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN R838 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN 58 R839 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN R840 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN R841 061G0603105 JT RST CHIP 1M 1/10W 5% TZAI YUAN C808 061G0603184 JY RST CHIPR 180KOHM 1/10W YAGEO R823 061G06033900FF RST CHIPR 390 OHM +-1% 1/10W FENGHUA R825 061G0603511 JY RST CHIPR 510OHM +-5% 1/10W YAGEO R803 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN R804 061G0603512 JT RST CHIPR 5.1KOHM +-5% 1/10W TZAI YUAN R824 061G06036201FF RST CHIPR 6.2KOHM +-1% 1/10W FENGHUA R818 061G0603753 JY RST CHIPR 75KOHM +-5% 1/10W YAGEO R928 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA RJ802 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA RJ803 061G0805000 JF RST CHIPR 0 OHM +-5% 1/8W FENGHUA R907 061G0805100 JY RST CHIPR 10OHM +- 5% 1/8W YEGAO R924 061G0805102 JT RST CHIPR 1K OHM +- 5% 1/8W TZAI YUAN R820 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R938 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R834 061G0805103 JT RST CHIPR 10K OHM +- 5% 1/8W TZAI YUAN R821 061G0805105 JT RST CHIP 1M 1/8W 5% TZAI YUAN R925 061G0805151 JF RST CHIPR 150 OHM +-5% 1/8W FENGHUA R831 061G08051912FT RST CHIPR 19K1 +-1% 1/8W TZAI YUAN R822 061G08052002FT RST CHIP 20K 1/8W 1% R827 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN R832 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN R833 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN R835 061G0805203 JT RST CHIPR 20K +-5% 1/8W TZAI YUAN R802 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA R912 061G0805220 JF RST CHIPR 22 OHM +-5% 1/8W FENGHUA R930 061G08052431FY RST CHIPR 2.43KOHM +-1% 1/8W YAGEO R929 061G08053302FF RST CHIPR 33KOHM +-1% 1/8W FENGHUA R927 061G08053601FT RST CHIP 3K6 1/8W 1% R943 061G0805471 JY RST CHIPR 470OHM +-5% 1/8W YAGEO R813 061G0805474 JY RST CHIPR 470K +-5% 1/8W YAGEO R903 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R918 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R919 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R920 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R934 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R935 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA RJ801 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA RJ901 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA RJ902 061G1206000 JF RST CHIPR MAX0R05 1/4W FENGHUA R936 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN R922 061G1206201 JW RST CHIPR 200 OHM +-5% 1/4W WALSIN R909 061G1206339 JT RST CHIPR 3.3 OHM +-5% 1/4W TZAI YUAN R900 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN 59 R901 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN R902 061G1206684 JT RST CHIPR 680 KOHM 1/4W TZAI YUAN R905 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA R904 061G1206822 JF RST CHIPR 8.2KOHM +-5% 1/4W FENGHUA C807 065G0603103 12 CHIP 0.01UF 16V X7R C805 065G0603103 12 CHIP 0.01UF 16V X7R C806 065G060310512K T CAP CHIP 0603 1UF K 16V X7R C813 065G0603333 32 CHIP 0.033UF 50V X7R 0603 C815 065G0603473 32 CHIP 0.047UF 50V X7R C810 065G0603473 32 CHIP 0.047UF 50V X7R C932 065G0805102 31 CAP CHIP 0805 1000PF J 50V NPO C825 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R C823 065G0805103 32 CAP CHIP 0805 10NF K 50V X7R C925 065G0805104 22 0.1UF +-10% 25V X7R 080 C927 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C920 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C919 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C916 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C811 065G0805104 32 CAP CHIP 0805 0.1UF K 50V X7R C804 065G080510512K T CAP CHIP 0805 1UF K 16V X7R C924 065G0805221 31 CAP CHIP 0805 220PF J 50V NPO C912 065G0805223 22 CHIP 0.022UF 25V X7R 080 C814 065G0805391 31 CHIP 390PF 50V C923 065G0805471 21 CAP CHIP 0805 470PF J 25V NPO C801 065G0805473 32 CHIP 0.047UF 50V X7R C802 065G0805473 32 CHIP 0.047UF 50V X7R C809 065G080556131G MLCC 0805 560PF G 50V NPO C921 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R C929 065G1206102 72 CAP CHIP 1206 1000PF K 500V X7R D809 093G 64 33 DIO SIG SM BAV99 (PHSE)R D808 093G 64 42 P BAV70 SOT23 BY PAN JIT D807 093G 64 42 P BAV70 SOT23 BY PAN JIT D806 093G 64 42 P BAV70 SOT23 BY PAN JIT D801 093G 6432P LL4148 D909 093G 6432P LL4148 D804 093G 6432P LL4148 D805 093G 6432P LL4148 D803 093G 6432P LL4148 D802 093G 6432P LL4148 ZD802 093G 39S 24 T RLZ 5.6B LLDS ZD803 093G 39S 24 T RLZ 5.6B LLDS ZD920 093G 39S 40 T RLZ 13B LLDS CN901 006G 31500 EYELET IC902 056G 158 12 KIA431A-AT/P TO-92 R908 061G152M10452T RST MOFR 100KOHM +-5% 2WS R940 061G152M15152T RST MOFR 150 OHM +-5% 2WS 60 R914 061G152M39852T RST MOFR 0.39 OHM +-5% 2WS C906 065G 2K222 2T6921 CAP CER 2200PF K 2KV Y5P C908 067G215Y2207KT CAP 105℃ 22UF M 50V KINGNICHI F901 084G 56 4 B FUSE 4A 250V D901 093G 6026T52T RECTIFIER DIODE FR107 D902 093G 6038T52T FR103 F903 095G 90 23 JUMPER WIRE J801 095G 90 23 JUMPER WIRE J802 095G 90 23 JUMPER WIRE J803 095G 90 23 JUMPER WIRE J804 095G 90 23 JUMPER WIRE J805 095G 90 23 JUMPER WIRE J806 095G 90 23 JUMPER WIRE J807 095G 90 23 JUMPER WIRE J808 095G 90 23 JUMPER WIRE J908 095G 90 23 JUMPER WIRE J906 095G 90 23 JUMPER WIRE J905 095G 90 23 JUMPER WIRE J904 095G 90 23 JUMPER WIRE J903 095G 90 23 JUMPER WIRE J902 095G 90 23 JUMPER WIRE J812 095G 90 23 JUMPER WIRE J811 095G 90 23 JUMPER WIRE J810 095G 90 23 JUMPER WIRE J809 095G 90 23 JUMPER WIRE FB904 071G 55 9 T FERRITE BEAD FB903 071G 55 9 T FERRITE BEAD Q903 057G 761 16 TRA KTD1028 KEC F901 084G 56 4W FUSE 4.0A 250V D901 093G110050152T DIODE PR1007 1A/1000V 500NS DO-41 D902 093G 6038P52T PS102R IC902 056G 158 10 T IC AS431AZTR-E1 TO-92 FB906 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8 FB907 071T 55 26 H FERRITE BEAD 3.5*6.0*0.8 FB906 071G 55 26 S FERRITE CORE FB907 071G 55 26 S FERRITE CORE 709T3465 QA001 CONSUMPTIVE ASS'Y E715 715G3465P020HV001M POWER BOARD PCB E715 715G3465P020HV001S POWER BOARD PCB J909 095G 90 23 JUMPER WIRE J910 095G 90 23 JUMPER WIRE RJ903 061G1206000 RST CHIP MAX 0R05 1/4W ZD802 093G 39GA01 T RLZ5.6B ZD803 093G 39GA01 T RLZ5.6B D801 093G 64S522SEM LL4148 D802 093G 64S522SEM LL4148 61 D803 093G 64S522SEM LL4148 D804 093G 64S522SEM LL4148 D805 093G 64S522SEM LL4148 D909 093G 64S522SEM LL4148 D809 093G 6433S DIODE BAV99 SEMTECH D806 093G 64 42 PP BAV70 SOT-23 D807 093G 64 42 PP BAV70 SOT-23 D808 093G 64 42 PP BAV70 SOT-23 Q802 057G 763 62 FET 2N7002K 300MA/60V SOT-23 Q803 057G 763 62 FET 2N7002K 300MA/60V SOT-23 709T3465 QS001 CONSUMPTIVE ASS'Y 052G 2191 A PAPER TAPE 071FPC28201 11 MAGNETIC CORE PC40 EER28L A234 Q11T5005 2 WIRE SADDLE Q40T0002001 2A WARRANTY LABEL Q41T7800001 1A WARRANTY BOOKLET Q44GD038001 1B 23.6 TV SKYWORTH CARTON Q44GD038101 EPS Q44GD038201 EPS Q45G 77 5 PE PACKING (Y1900241) Q45G 99626 35 PE BAG Q45T 99609100 EPE COVER Q50G 4 10 TIE (Y1900221) Q50T 500523 CABLE TIE 041T780062415A CERTIFICATE CARD Q41G24MV001 1A MANUAL Q45G2007M0102A PE BAG FOR MANUAL 040G 58162435A P/N LABEL FOR MANUAL PE BAG Q40G 240001 1A RATING LABEL Q40G0001001 2A CARTON LABEL Q40T0001001 1A SN LABEL 0Q1G 930 8 47 CR3 SCREW Q34E0601 GM 1L0100 IO SIDE COVER Q40G0002001 9A SIDE LABEL 078G 520 1A Y SPEAKER 8 OHM 5.5W 125X32MM E09502 095G8014 8DH26 HARNESS 8P-5P+4P 290MM/350MM E09502 095G8014 8WH26 HARNESS 8P-5P+4P 290MM/350MM 2nd source 705TQ949001 COMSUPTIVE ASS'Y-A4 IRPF9YA5 IR BOARD U01 056T 627 14 2 IC GP18C38BAE CN01 033T8032 5F HR CONN.1.25PITCH R11 061G0603153 RST CHIPR 15KOHM +-5% 1/10W C01 065G0603104 12 CER2 0603 X7R 16V 100N P LED01 081T 14 24 EL CHIP LED BLUE/DARK RED 715G3540R01000004M IR BOARD PCB KEPF9YA3 KEY BOARD 62 CN01 033G8032 4F HR CONNECTOR R08 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W R07 061G0603100 0F RST CHIPR 100 OHM +-1% 1/10W R05 061G0603180 1F RST CHIPR 1.8 KOHM +-1% 1/10W R01 061G0603200 2F RST CHIPR 20 KOHM +-1% 1/10W R03 061G0603432 1F RST CHIP 4.32K 1/10W 1% R02 061G0603820 1F RST CHIPR 8.2 KOHM +-1% 1/10W R04 061T0603274 1F RST CHIPR 2.74 KOHM +-1% 1/10W SW07 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW06 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW05 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW04 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW03 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW02 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL SW01 077G 607 2 FD CHIP TACT SW BY FORWARD SFKQGMA2125T-PL 715G3303 1 KEY BOARD PCB Q15T0499101 MAINFRAME Q36T 600 30 8 NONWOVEN FABRIC Q36T 600 37 23 GP NONWOVEN FABRIC Q36T 600 38 1 NONWOVEN FABRIC Q40G000200110A IO LABEL
