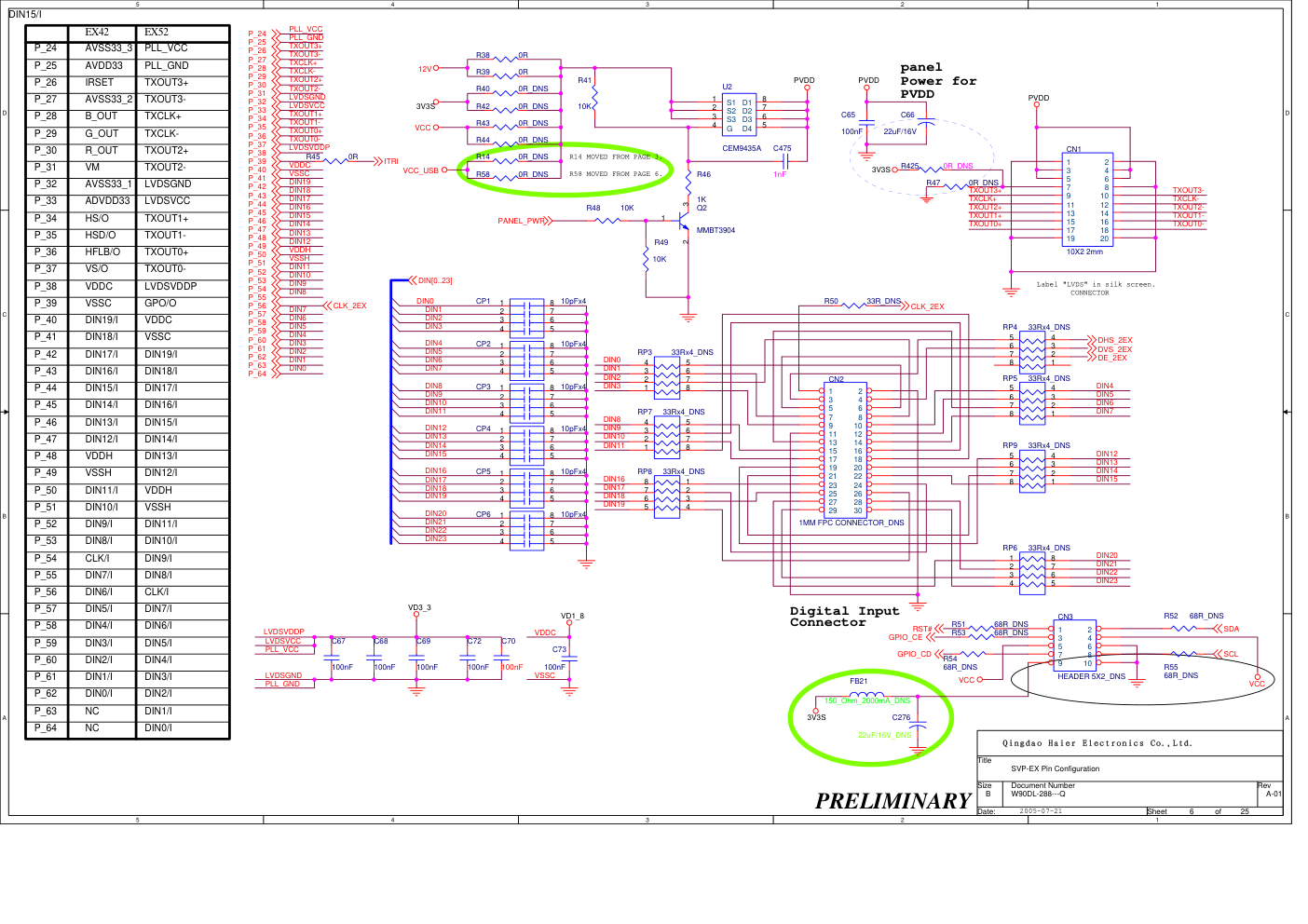

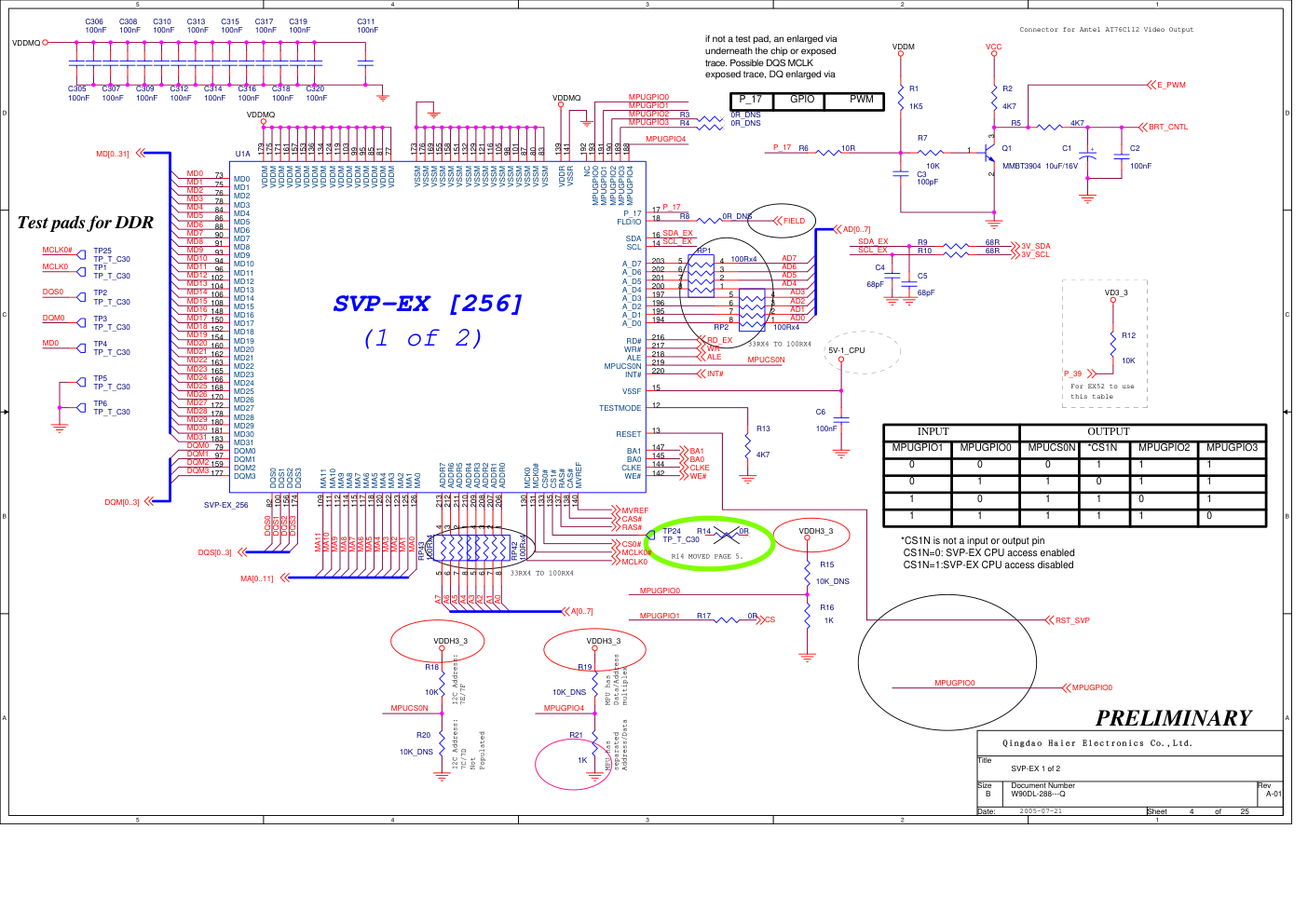

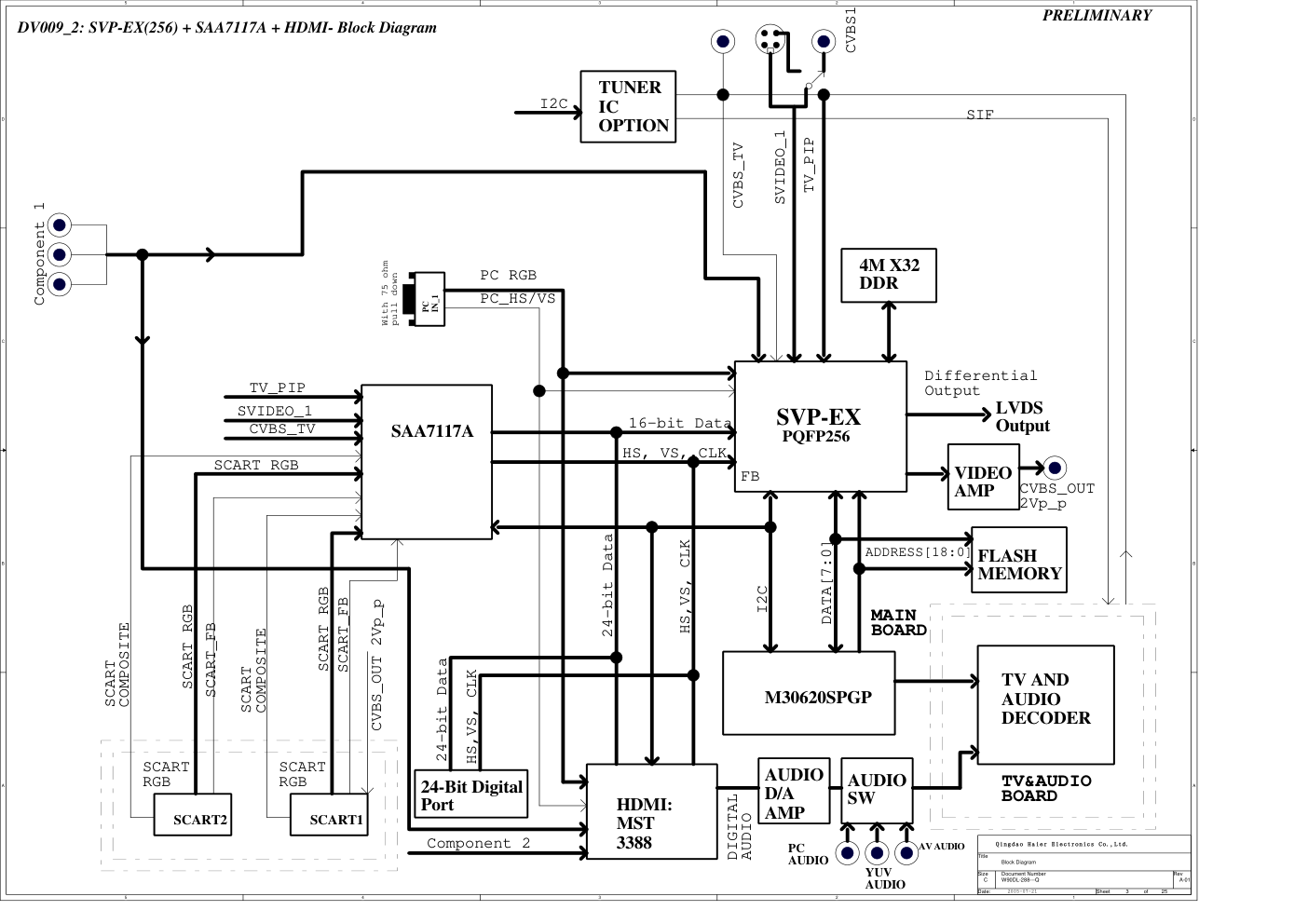

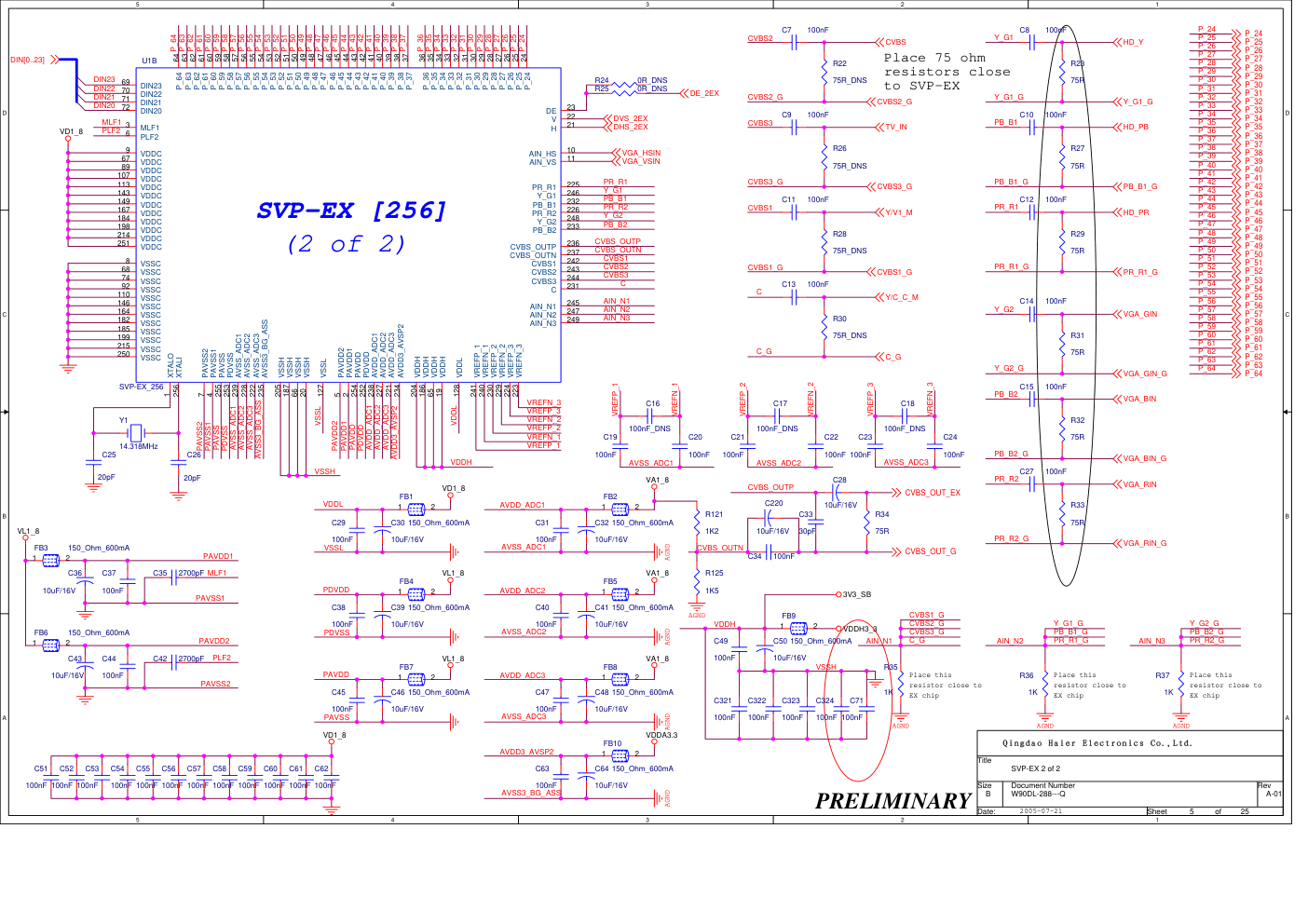

L42A9-AK 原理图 旧底图总号 更改 标记 数量 更改单号 签名 日期 底图总号 拟 制 审 核 W90DL-294---Q 等 级 标 记 第 1 张 共 25 张 日期 签名 标 准 化 批 准 L42A9-AK 原理图 格式（4） 描图 幅面：4 5 4 3 2 1 D D C C B B A A REVISION HISTORY OF 30TR04C LCD TV REFERENCE BOARD REV SIGNATURE DATE DESCRIPTION A-00 PRELIMINARY May 9 2004 Liuchy DRAFT RELEASE June 18 2004 CPU SDA5550M CHANGE TO M30620SPGP video decoder vpc3230d change to SAA7117A DVI CHANGE HDMI Liuchy July 24 2004 add audio input circuit Liuchy A-01 Nov. 16 2004 Liuchy 1.HDMI IC SiI9993 CHANGED TO MST3288 2.SVP_EX PIN18(FIELD I/O) CONNECTED TO MST3288 PIN71. 3.U3 DDRSDRAM PIN52(MCL) ADDED R282 FOR SAMSUNG AND HYUNGAI DDR OPTION. 4.MST3288 ADDED VGA INPUT AND YUV INPUT. 5.CN9 8PINS CHANGED TO 10PINS FOR 4 DIGTAL AUDIOS OUT IN MST3288. 6.U8 ADDED R367,R368,RP45,RP46,R272,R274,R275,R278,R370,R369,R371 FOR COMPATIBILITY OF SAA7117AH AND SAA7119H. 7.SAA7117AH PIN44(CE) INPUT DIVIDED VOLTAGE CIRCUIT BE DELETED. 8.U11 CPU PIN3'S OUT BUFFER BE DELETED. 9.U11 CPU PIN7(CNVss) ADDED R365 PULL UP RESISTER FOR EXTENSE ROM MODE'S SELECTION. 10.ADDED U17 CS4334 FOR COST DOWN OF DIGTAL AUDIO D/A PROCESSOR. 11.DELETED U17 PI5V330 AND YUV INPUT BUFFER. 12.U18,U21 ADDED 7117_CE NET AND RST_#5V NET'S LEVEL FROM +5V TO 3.3V CIRCUIT. 13.ADDED FB31,FB32,CN35 3.3V POWER INPUT CONNECTOR FOR OUTSIDE POWER SUPLY DESIGN OPTION. 14.CPU 90PIN(CE_REMOTE) AND 74PIN(S-VHS/V1#_SW) NET'S definition EXCHANGED. 15.ADDED TUNER IC U31 16.DELETED CN26,CN27 PIN 9,10 OF definition HAVED CHANGED. A-02 1.Added EX52 CVBSOUT R121,R125,C220 2.Chang EX52 PIN186,204,65,19 from VD3.3 to 3.3V_SB and a regulator U32 from 5V_SB to 3.3V_SB. Liuchy Dec. 30 2004 3.SAA7117H DELETED RP26,RP27,RP28,RP29 4.ADDED a regulator U33 from 3.3V to 1.8V TO SAA7117H AND XC2028. 5.R21 10K CHANGED TO 1K. 6.DELETED R284,R285 AND ADDED Y4 CRYSTAL. 7.ADDED FB40 FOR VDDH3_3 NET. 8.C344 VCC NET CHANGED TO AVCC NET. 9.C70,C97,C100,C104,C105,C117,C118,C120 CHANGED FROM 1000pF TO 100nF;C87,C88 CHANGED FROM 4700pF TO 100nF;C91 CHANGED FROM 10nF TO 100nF. C-00 1.Added DC/DC POWER 3.3V +5V(MAIN) AND +5V FOR USB INTERFACE. 2.Added USB POWER CONNECTOR AND YCBCR&CONTROL INTERFACE:CN37, CN38 AND ADDED COMPONENTS: R426,R427,R428,R429,R430,R431,R432,C476,C477,C478,R434,R435 DELETED C333. 3.CN11 6PINS CHANGED TO 8PIN,THIS ADDED VIDEO OUT PIN FOR VIDEO OUT RCA TERMINAL CN40 MOVED TO EXTENDSION BOARD. 4.U4 ADDED USB YCBCR INPUT,MST3288 CHANGED TO MST3388,CN9 5x2 2mm CHANGED TO 4x2 2mm CONNECTOR,deleted RP47 CP8. Jan.13 2005 5.HDMI TERMINAL CHANGED TO DVI TERMINAL,CN34 PIN's definition were changed. 6.ADDED C475,R425,R433,C479,R373. 7.R99 TV_PIP_7117_1 NET WAS DELETED. 8.DELETED D14 FOR CPU +5V POWER. 8.CN15 AND CN16 WERE incorporated to new 12X2 pins connector CN16. 9.CN28 8pins changed to 9pins:added vcc pin for led backlight and added C481. 10.BACKLIGHT CONNECTOR CN29 PIN's definition were changed.ADDED E_PWM NET AND ISEL NET. 11.DELETED +5V POWER SWITCH:U22,C264,C262,R342,R349,R351,Q14. 12.DELETED 3V3S LDO POWER SUPPLY:U24,C274,C275,FB21. 13.DELETED B3V3 LDO POWER SUPPLY:U27,C290,C291,FB26. 14.ADDED DC/DC POWER SUPLY VCC,3V3S,VCC_USB. C-01 Mar.12 2005 1.Added FB21 FOR CN3 POWER 3.3V. 2.Added D18~D29 FOR DVI PROTECTION. 3.Added R211,CN16 24PINS CHANGED TO 26PINS FOR VIDEO2 INTERFACE. 4.DELETED R170,CN6 PIN1 CONNECTED TO 5V_SB NET. 5.CN8,CN10 3PINS PHONEJACK CHANGED TO 5PIN(WITH SWITCH) PHONEJACK. 6.CN7 PHONEJACK CHANGED TO RCA CN40,CN7 JACK. 7.CN10 PHONEJACK AND CN26,CN31 RCA JACKS ARE OPTION TO DVI AUDIO INPUT TERMINALS. 8.C268,R284 ADDED CVBS_OUT NET FOR DC CLAMP. 9.CN12 PIN16 S_VOUT NET CHANGED TO CONNECTED AGND. 10.CN17,CN13,CN14 S/VIDEO1 TERMINALS MOVED TO TV BOARD SO DELETED R264,R266,L9,C226,R269,L10,R265,C225,R267,R268.CN11 8PINS CHANGED TO 8x2PINS WITH ADDED S/VIDEO INPUT PINS TO TV BOARD. 11.CN16 PIN17,19 VCC POWER ADDED L24,C107 FILTER. 12.CN30 WAS DELETED. 13.U7 LM2937IMP-2.5 CHANGED TO LM1117BMPX-2.5,U46 78M05 CHANGED TO AZ1085D-5.0 TO-252. 14.U41,U42,U47 WERE ALL CHANGED TO MP1583. 1.R250,R251,R253,R87,R88,R90 27R-->0R. Jun.20 2005 2.R255,R256,R257,R108,R115,R109 47R-->75R. C-02 May.20 2005 1.DELETED U16 TEA2014. 2.DELETED U8 SAA7117 VIDEO OUT AMPLIFIER. 2005-07-21 W90DL-288---Q A-01 Revision History Qingdao Haier Electronics Co.,Ltd. B 2 25 Title Size Document Number Rev Date: Sheet of 5 4 3 2 1 D D C C B B A A SVP-EX M30620SPGP 4M X32 DDR DV009_2: SVP-EX(256) + SAA7117A + HDMI- Block Diagram PQFP256 TV_PIP FB SVIDEO_1 HS, VS, CLK CVBS_OUT 2Vp_p SCART RGB HS,VS, CLK HS,VS, CLK 24-bit Data 24-Bit Digital Port PRELIMINARY SAA7117A SCART1 SCART RGB SCART COMPOSITE 24-bit Data SCART_FB HDMI: MST 3388 Component 1 With 75 ohm pull down PC RGB PC_HS/VS PC IN_1 16-bit Data CVBS_TV SVIDEO_1 TV_PIP DATA[7:0] I2C ADDRESS[18:0] Differential Output LVDS Output CVBS_TV FLASH MEMORY TUNER IC OPTION TV AND AUDIO DECODER MAIN BOARD TV&AUDIO BOARD VIDEO AMP DIGITAL AUDIO SCART_FB SCART RGB SCART RGB SCART2 SCART COMPOSITE SCART RGB CVBS_OUT 2Vp_p I2C CVBS1 AUDIO D/A AMP AUDIO SW SIF PC AUDIO AV AUDIO YUV AUDIO Component 2 2005-07-21 W90DL-288---Q A-01 Block Diagram Qingdao Haier Electronics Co.,Ltd. C 3 25 Title Size Document Number Rev Date: Sheet of 5 4 3 2 1 D D C C B B A A PRELIMINARY Connector for Amtel AT76C112 Video Output Test pads for DDR PWM GPIO P_17 I2C Address: 7C/7D Not Populated I2C Address: 7E/7F MPU has separated Address/Data MPU has Data/Address multiplex if not a test pad, an enlarged via underneath the chip or exposed trace. Possible DQS MCLK exposed trace, DQ enlarged via OUTPUT MPUGPIO0 MPUCS0N INPUT MPUGPIO1 *CS1N MPUGPIO2 MPUGPIO3 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 *CS1N is not a input or output pin CS1N=0: SVP-EX CPU access enabled CS1N=1:SVP-EX CPU access disabled For EX52 to use this table 33RX4 TO 100RX4 33RX4 TO 100RX4 R14 MOVED PAGE 5. 2005-07-21 W90DL-288---Q A-01 SVP-EX 1 of 2 Qingdao Haier Electronics Co.,Ltd. B 4 25 Title Size Document Number Rev Date: Sheet of MA0 MA4 MA3 MA7 MA6 MA11 MA10 MA2 MA9 MA1 MA5 MA8 DQS3 DQS2 DQS1 DQS0 DQM0 DQM1 DQM2 DQM3 DQS0 DQM0 MCLK0 AD7 AD6 AD5 AD2 AD3 AD4 AD0 AD1 SDA_EX SCL_EX SCL_EX SDA_EX P_17 MPUCS0N MPUCS0N MPUGPIO4 MPUGPIO4 MPUGPIO1 MPUGPIO0 MPUGPIO1 MPUGPIO2 MPUGPIO3 MPUGPIO0 P_17 MD19 MD4 MD1 MD18 MD11 MD30 MD15 MD10 MD9 MD6 MD2 MD28 MD3 MD14 MD5 MD20 MD0 MD25 MD12 MD31 MD13 MD21 MD16 MD24 MD26 MD8 MD17 MD22 MD29 MD23 MD7 MD27 MD0 A0 A7 A3 A2 A1 A6 A4 A5 MPUGPIO0 MCLK0# MD[0..31] MA[0..11] DQS[0..3] DQM[0..3] CAS# RAS# CS0# CLKE BA0 BA1 MVREF MCLK0# MCLK0 A[0..7] AD[0..7] RD_EX WR ALE INT# RST_SVP WE# BRT_CNTL P_39 3V_SDA 3V_SCL CS FIELD MPUGPIO0 E_PWM VDDMQ VDDMQ VDDM VCC VDDH3_3 VDDH3_3 VD3_3 VDDH3_3 VDDMQ 5V-1_CPU R14 0R C6 100nF RP2 100Rx4 1 2 3 4 8 7 6 5 RP1 100Rx4 1 2 3 4 8 7 6 5 R3 0R_DNS C4 68pF R21 1K R17 0R R8 0R_DNS C3 100pF R16 1K C5 68pF R4 0R_DNS TP4 TP_T_C30 RP43 100Rx4 1 2 3 4 8 7 6 5 R19 10K_DNS TP1 TP_T_C30 TP3 TP_T_C30 R10 68R R1 1K5 R20 10K_DNS TP25 TP_T_C30 R15 10K_DNS R6 10R C305 100nF C306 100nF R9 68R TP2 TP_T_C30 C307 100nF C308 100nF C309 100nF + C1 10uF/16V R5 4K7 C310 100nF TP5 TP_T_C30 C312 100nF RP42 100Rx4 1 2 3 4 8 7 6 5 Q1 MMBT3904 1 2 3 C316 100nF R2 4K7 C2 100nF C314 100nF TP24 TP_T_C30 C315 100nF C317 100nF C313 100nF C318 100nF C320 100nF C311 100nF C319 100nF R18 10K SVP-EX [256] (1 of 2) U1A SVP-EX_256 73 75 76 78 84 86 88 90 91 93 94 96 102 104 106 108 148 150 152 154 160 162 163 165 166 168 170 172 178 180 181 183 79 97 159 177 82 100 156 174 109 111 112 114 115 117 118 120 122 123 125 126 130 131 133 135 137 138 140 142 144 145 147 193 191 139 141 179 171 161 153 136 134 124 119 103 95 85 77 173 169 155 151 132 129 121 116 105 101 87 83 81 80 13 12 15 16 14 203 202 201 200 197 196 195 194 216 217 218 219 220 18 17 98 99 157 158 176 175 190 189 188 192 206 207 208 209 210 211 212 213 MD0 MD1 MD2 MD3 MD4 MD5 MD6 MD7 MD8 MD9 MD10 MD11 MD12 MD13 MD14 MD15 MD16 MD17 MD18 MD19 MD20 MD21 MD22 MD23 MD24 MD25 MD26 MD27 MD28 MD29 MD30 MD31 DQM0 DQM1 DQM2 DQM3 DQS0 DQS1 DQS2 DQS3 MA11 MA10 MA9 MA8 MA7 MA6 MA5 MA4 MA3 MA2 MA1 MA0 MCK0 MCK0# CS0# CS1# RAS# CAS# MVREF WE# CLKE BA0 BA1 MPUGPIO0 MPUGPIO1 VDDR VSSR VDDM VDDM VDDM VDDM VDDM VDDM VDDM VDDM VDDM VDDM VDDM VDDM VSSM VSSM VSSM VSSM VSSM VSSM VSSM VSSM VSSM VSSM VSSM VSSM VDDM VSSM RESET TESTMODE V5SF SDA SCL A_D7 A_D6 A_D5 A_D4 A_D3 A_D2 A_D1 A_D0 RD# WR# ALE MPUCS0N INT# FLD/IO P_17 VSSM VDDM VDDM VSSM VSSM VDDM MPUGPIO2 MPUGPIO3 MPUGPIO4 NC ADDR0 ADDR1 ADDR2 ADDR3 ADDR4 ADDR5 ADDR6 ADDR7 TP6 TP_T_C30 R7 10K R13 4K7 R12 10K 5 4 3 2 1 D D C C B B A A PRELIMINARY Place this resistor close to EX chip Place this resistor close to EX chip Place this resistor close to EX chip Place 75 ohm resistors close to SVP-EX 2005-07-21 W90DL-288---Q A-01 SVP-EX 2 of 2 Qingdao Haier Electronics Co.,Ltd. B 5 25 Title Size Document Number Rev Date: Sheet of P_29 P_33 P_48 P_30 P_35 P_37 P_25 P_52 P_45 P_44 P_46 P_39 P_51 P_36 P_40 P_31 P_49 P_26 P_24 P_38 P_28 P_50 P_41 P_27 P_34 P_47 P_32 P_42 P_43 P_53 P_54 P_55 P_56 P_57 P_59 P_58 P_60 P_62 P_61 P_63 P_64 DIN23 DIN22 DIN21 DIN20 CVBS1 CVBS3 CVBS_OUTN AIN_N3 CVBS_OUTP PB_B2 CVBS2 CVBS1 CVBS3 CVBS2 C PR_R1_G PB_B2 PB_B1_G PR_R2 Y_G2 Y_G2_G Y_G1 PR_R1 PR_R2_G PB_B1 Y_G1_G PB_B2_G P_47 P_24 P_32 P_46 P_41 P_39 P_44 P_25 P_45 P_38 P_52 P_35 P_34 P_49 P_26 P_40 P_29 P_51 P_37 P_33 P_27 P_36 P_30 P_50 P_28 P_31 P_48 P_43 P_42 P_55 P_53 P_54 P_58 P_56 P_57 P_61 P_59 P_60 P_64 P_62 P_63 PR_R1_G AIN_N1 CVBS2_G CVBS3_G AIN_N2 PR_R2_G PB_B2_G AIN_N3 Y_G1_G Y_G2_G PB_B1_G CVBS1_G VREFN_1 VREFN_3 VREFP_1 VREFP_3 VREFN_2 VREFP_2 AVSS_ADC1 VREFN_2 VREFP_1 VREFN_3 VREFP_3 VREFN_1 VREFP_2 PAVDD1 PAVDD2 PDVDD AVDD_ADC1 AVDD_ADC2 AVDD_ADC3 PAVDD VDDL VDDH VSSL VSSH PDVDD PAVDD1 PAVDD PLF2 PAVSS1 PAVDD2 VDDL VSSL MLF1 AVDD_ADC3 AVDD_ADC2 AVDD_ADC1 AVSS_ADC1 PAVSS2 PAVSS1 PAVSS PDVSS AVSS_ADC3 AVSS3_BG_ASS AVSS_ADC2 CVBS_OUTP PDVSS PAVSS PAVSS2 PLF2 MLF1 VDDH AVDD3_AVSP2 AVDD3_AVSP2 AVSS3_BG_ASS AVSS_ADC3 AVSS_ADC3 AVSS_ADC2 AVSS_ADC2 AVSS_ADC1 PR_R1 Y_G1 PR_R2 PB_B1 C Y_G2 AIN_N2 CVBS2_G C_G CVBS3_G CVBS1_G AIN_N1 C_G VSSH CVBS_OUTN DIN[0..23] CVBS2_G CVBS1_G CVBS CVBS3_G C_G Y/V1_M Y/C_C_M TV_IN PB_B1_G VGA_BIN_G HD_PB VGA_RIN HD_PR VGA_GIN_G VGA_BIN Y_G1_G VGA_GIN VGA_RIN_G PR_R1_G HD_Y P_50 P_31 P_44 P_40 P_51 P_30 P_37 P_24 P_38 P_34 P_27 P_41 P_28 P_32 P_33 P_26 P_29 P_36 P_49 P_39 P_35 P_48 P_47 P_25 P_46 P_52 P_45 P_43 P_42 P_53 P_55 P_54 P_56 P_58 P_57 P_59 P_61 P_60 P_62 P_64 P_63 CVBS_OUT_G CVBS_OUT_EX VGA_VSIN VGA_HSIN DHS_2EX DVS_2EX DE_2EX VD1_8 AGND AGND AGND VD1_8 AGND AGND VA1_8 VA1_8 VA1_8 AGND VD1_8 VDDH3_3 AGND VDDA3.3 VL1_8 VL1_8 VL1_8 3V3_SB AGND R27 75R C29 100nF C51 100nF C27 100nF C18 100nF_DNS C23 100nF C36 10uF/16V FB7 150_Ohm_600mA 1 2 C31 100nF C9 100nF R30 75R_DNS C43 10uF/16V C40 100nF R24 0R_DNS C16 100nF_DNS C24 100nF C33 30pF FB10 150_Ohm_600mA 1 2 C42 2700pF Y1 14.318MHz C49 100nF R31 75R R37 1K C20 100nF C39 10uF/16V C44 100nF C35 2700pF C321 100nF C54 100nF C322 100nF C323 100nF C34 100nF C32 10uF/16V C28 10uF/16V C324 100nF C26 20pF C45 100nF FB4 150_Ohm_600mA 1 2 R121 1K2 R25 0R_DNS C41 10uF/16V R125 1K5 C30 10uF/16V C15 100nF C71 100nF FB9 150_Ohm_600mA 1 2 R29 75R FB6 150_Ohm_600mA 1 2 R35 1K FB5 150_Ohm_600mA 1 2 C220 10uF/16V R33 75R C13 100nF R36 1K C11 100nF C47 100nF C50 10uF/16V C21 100nF C12 100nF SVP-EX [256] (2 of 2) U1B SVP-EX_256 1 256 255 254 253 252 241 240 239 238 249 248 247 246 245 244 243 242 236 237 235 234 230 229 228 227 232 233 231 224 223 222 221 226 225 215 214 205 204 182 167 164 149 146 143 128 127 113 110 107 92 89 74 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 40 41 9 8 3 6 10 11 7 5 4 2 38 39 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 184 185 186 187 198 199 251 250 XTALO XTALI PAVSS PAVDD PDVSS PDVDD VREFP_1 VREFN_1 AVSS_ADC1 AVDD_ADC1 AIN_N3 Y_G2 AIN_N2 Y_G1 AIN_N1 CVBS3 CVBS2 CVBS1 CVBS_OUTP CVBS_OUTN AVSS3_BG_ASS AVDD3_AVSP2 VREFP_2 VREFN_2 AVSS_ADC2 AVDD_ADC2 PB_B1 PB_B2 C VREFP_3 VREFN_3 AVSS_ADC3 AVDD_ADC3 PR_R2 PR_R1 VSSC VDDC VSSH VDDH VSSC VDDC VSSC VDDC VSSC VDDC VDDL VSSL VDDC VSSC VDDC VSSC VDDC VSSC VDDH VSSH H V DE P_24 P_25 P_26 P_27 P_28 P_29 P_30 P_31 P_32 P_33 P_34 P_35 P_36 P_37 P_40 P_41 VDDC VSSC MLF1 PLF2 AIN_HS AIN_VS PAVSS2 PAVDD2 PAVSS1 PAVDD1 P_38 P_39 P_42 P_43 P_44 P_45 P_46 P_47 P_48 P_49 P_50 P_51 P_52 P_53 P_54 P_55 P_56 P_57 P_58 P_59 P_60 P_61 P_62 P_63 P_64 VDDH VSSH VDDC VSSC DIN23 DIN22 DIN21 DIN20 VDDC VSSC VDDH VSSH VDDC VSSC VDDC VSSC C55 100nF C38 100nF FB2 150_Ohm_600mA 1 2 R28 75R_DNS C7 100nF R32 75R C53 100nF R26 75R_DNS C22 100nF C56 100nF C8 100nF C64 10uF/16V C57 100nF C58 100nF C10 100nF C59 100nF R22 75R_DNS C60 100nF R34 75R FB1 150_Ohm_600mA 1 2 C48 10uF/16V C61 100nF C62 100nF R23 75R C14 100nF C19 100nF FB3 150_Ohm_600mA 1 2 C52 100nF C17 100nF_DNS C37 100nF C46 10uF/16V C63 100nF C25 20pF FB8 150_Ohm_600mA 1 2 5 4 3 2 1 D D C C B B A A PRELIMINARY EX42 EX52 P_24 AVSS33_3 PLL_VCC P_25 AVDD33 PLL_GND P_26 IRSET TXOUT3+ P_27 AVSS33_2 TXOUT3- P_28 B_OUT TXCLK+ P_29 G_OUT TXCLK- P_30 P_31 P_32 P_33 P_34 P_35 P_36 R_OUT TXOUT2+ VM TXOUT2- AVSS33_1 LVDSGND ADVDD33 LVDSVCC HS/O TXOUT1+ HSD/O TXOUT1- HFLB/O TXOUT0+ P_37 P_38 P_39 P_40 P_41 P_42 P_43 P_44 P_45 P_46 VS/O TXOUT0- LVDSVDDP GPO/O VDDC VSSC VDDC VSSC DIN19/I DIN18/I P_47 P_48 P_49 P_50 DIN17/I DIN19/I DIN16/I DIN14/I DIN13/I DIN12/I DIN18/I DIN17/I DIN16/I DIN15/I DIN14/I DIN13/I P_51 P_52 P_53 P_54 P_55 P_56 P_57 P_58 P_59 P_60 P_61 P_62 P_63 P_64 CLK/I DIN7/I DIN6/I DIN5/I DIN4/I DIN3/I DIN2/I DIN1/I DIN0/I DIN15/I DIN15/I CLK/I DIN7/I DIN6/I DIN5/I DIN4/I DIN3/I DIN2/I DIN1/I DIN0/I NC NC DIN8/I DIN9/I DIN11/I DIN10/I VSSH VDDH DIN8/I DIN9/I DIN10/I DIN12/I DIN11/I VSSH VDDH CONNECTOR Label "LVDS" in silk screen. Digital Input Connector panel Power for PVDD R14 MOVED FROM PAGE 3. R58 MOVED FROM PAGE 6. 2005-07-21 W90DL-288---Q A-01 SVP-EX Pin Configuration Qingdao Haier Electronics Co.,Ltd. B 6 25 Title Size Document Number Rev Date: Sheet of VDDC DIN13 TXOUT3+ TXOUT3- TXOUT2- LVDSVDDP TXOUT0+ VSSH TXOUT2+ DIN16 DIN12 LVDSGND TXCLK- TXOUT1- TXCLK+ DIN14 PLL_VCC VSSC TXOUT0- DIN15 PLL_GND VDDH TXOUT1+ LVDSVCC DIN17 DIN18 DIN19 VDDC PLL_VCC LVDSVDDP LVDSVCC TXOUT2- TXCLK+ TXOUT0+ TXOUT3+ TXOUT1+ TXOUT3- TXOUT1- TXOUT2+ TXOUT0- DIN0 DIN1 DIN2 DIN3 TXCLK- DIN1 DIN9 DIN3 DIN6 DIN10 DIN7 DIN2 DIN8 DIN4 DIN11 DIN5 DIN0 DIN23 DIN20 DIN12 DIN15 DIN14 DIN22 DIN13 DIN21 PLL_GND DIN8 DIN9 DIN10 DIN11 DIN5 DIN7 DIN4 VSSC DIN6 LVDSGND DIN21 DIN6 DIN15 DIN22 DIN16 DIN19 DIN18 DIN1 DIN3 DIN18 DIN19 DIN4 DIN14 DIN13 DIN2 DIN7 DIN17 DIN11 DIN20 DIN23 DIN9 DIN8 DIN16 DIN17 DIN5 DIN10 DIN12 DIN0 P_24 P_25 P_30 P_28 P_26 P_27 P_29 P_35 P_33 P_31 P_32 P_34 P_40 P_38 P_36 P_37 P_39 P_48 P_46 P_44 P_45 P_47 P_41 P_51 P_49 P_50 P_52 P_42 P_43 P_58 P_53 P_59 P_54 P_62 P_55 P_60 P_61 P_56 P_57 P_63 P_64 CLK_2EX PANEL_PWR SDA SCL RST# GPIO_CD DIN[0..23] CLK_2EX ITRI GPIO_CE DHS_2EX DVS_2EX DE_2EX VD3_3 VD1_8 PVDD VCC 3V3S 12V PVDD 3V3S VCC PVDD VCC 3V3S VCC_USB RP9 33Rx4_DNS 1 2 3 4 8 7 6 5 R41 10K CP3 10pFx4 1 2 3 4 5 6 7 8 U2 CEM9435A 1 2 3 4 8 7 5 6 S1 S2 S3 G D1 D2 D4 D3 C73 100nF R46 1K C70 100nF R45 0R CP6 10pFx4 1 2 3 4 5 6 7 8 RP4 33Rx4_DNS 1 2 3 4 8 7 6 5 C65 100nF FB21 150_Ohm_2000mA_DNS C276 22uF/16V_DNS C66 22uF/16V R50 33R_DNS CP4 10pFx4 1 2 3 4 5 6 7 8 C72 100nF R47 0R_DNS RP7 33Rx4_DNS 1 2 3 4 8 7 6 5 CN2 1MM FPC CONNECTOR_DNS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 RP3 33Rx4_DNS 1 2 3 4 8 7 6 5 R38 0R CP1 10pFx4 1 2 3 4 5 6 7 8 R39 0R R40 0R_DNS R42 0R_DNS R43 0R_DNS R44 0R_DNS CN3 HEADER 5X2_DNS 1 2 3 4 5 6 7 8 9 10 R58 0R_DNS R14 0R_DNS C68 100nF CN1 10X2 2mm 1 3 5 7 9 11 13 15 17 19 2 4 6 8 10 12 14 16 18 20 CP2 10pFx4 1 2 3 4 5 6 7 8 R49 10K R53 68R_DNS R51 68R_DNS Q2 MMBT3904 1 2 3 R54 68R_DNS C69 100nF CP5 10pFx4 1 2 3 4 5 6 7 8 R55 68R_DNS R52 68R_DNS R425 0R_DNS RP5 33Rx4_DNS 1 2 3 4 8 7 6 5 R48 10K RP6 33Rx4_DNS 1 2 3 4 8 7 6 5 C67 100nF RP8 33Rx4_DNS 1 2 3 4 8 7 6 5 C475 1nF 5 4 3 2 1 D D C C B B A A SDRAM DECOUPLING CAPACITORS PRELIMINARY Test pads for DDR MEMORY DECOUPLING SCHEME DDR_B2 DDR VDDMQ / VDDM de-caps Each MD trace must be equal length. Each DQS trace must be equal length. C90 MOVE PAGE 15. R58 MOVED TO PAGE 5. 2005-07-21 W90DL-288---Q A-01 DDR Qingdao Haier Electronics Co.,Ltd. B 7 25 Title Size Document Number Rev Date: Sheet of DQ20 DQ19 DQ22 DQ21 DQ16 DQ23 DQ17 DQ18 DQ6 DQ3 DQ4 DQ7 DQ5 DQ1 DQ0 DQ2 DQ30 DQ28 DQ31 DQ29 DQ26 DQ27 DQ25 DQ24 DQ14 DQ15 DQ13 DQ10 DQ9 DQ8 DQ11 MD25 MD22 MD11 MD9 MD31 MD23 DQ12 MD29 MD12 MD5 MD20 MD8 MD4 MD27 MD24 MD15 MD13 MD18 MD16 MD1 MD7 MD28 MD6 MD21 MD10 MD26 MD2 MD19 MD17 MD3 MD0 MD14 MD30 DDQS DQS2 DQS3 DQS0 DQS1 CS0# DQM0 MCLK0 RAS# DDQS CAS# DQ23 MCLK0 MA6- DQ9 DQ25 DQ26 MCLK0# MCLK0 DQM3- DQ8 DQ14 DQ27 DQ22 DQ21 DQ15 DQ3 MA11- MA2- DQ30 MA0- MA3- MA9- DQ11 MCLK0# MA4- DQM0- DQM1- DQ10 DQ13 DQ28 DQ31 DQM2- MA5- MA7- MVREF MA1- MA8- DQ17 DQ24 DQ18 DQ12 MA10- DQ29 DQ2 DDQS DQ0 DQ1 DQ4 DQ5 DQ6 DQ7 DQ16 DQ19 DQ20 DQ23 CAS#- MA0- CLKE- RAS#- MA7- MA3- CS0#- BA0- MA2- MA1- MA5- BA1- WE#- MA4- MA6- DQM2- DQM0- DQM3- DQM1- DQM3 DQM0 DQM1 DQM2 MA2 MA8 MA8- MA11- MA9- MA6 MA4 MA9 MA1 MA0 MA10- MA10 MA11 MA7 MA5 MA3 MCLK0# MD[0..31] DQS[0..3] MCLK0# MCLK0 CS0# BA0 RAS# DQM[0..3] CAS# WE# BA1 MVREF CLKE MA[0..11] VDDM VDDMQ VDDMQ VDDMQ VDDM VDDMQ VDDM VDDMQ VDDMQ RP12 33Rx4 1 2 3 4 8 7 6 5 C83 100nF C300 100nF TP13 TP_T_C30 C82 100nF C89 100nF R282 0R RP11 33Rx4 1 2 3 4 8 7 6 5 TP11 TP_T_C30 C80 100nF R62 1K C78 10uF/16V RP37 33Rx4 1 2 3 4 8 7 6 5 R58 15R_DNS C84 100nF TP14 TP_T_C30 R59 15R_DNS C88 100nF R56 51R C79 10uF/16V C87 100nF TP9 TP_T_C30 C299 100nF RP13 33Rx4 1 2 3 4 8 7 6 5 R57 51R C301 100nF 4M X 32 DDR U3 TC59S6432CFT_4 53 55 28 26 27 25 23 56 24 57 31 32 33 34 47 48 49 50 51 45 36 29 30 94 54 87 88 90 43 2 8 14 22 59 67 73 58 15 35 65 97 98 100 1 3 4 6 7 60 61 63 64 68 69 71 72 9 10 12 13 17 18 20 21 74 75 77 78 80 81 83 84 5 11 62 52 70 76 16 46 66 79 96 95 86 99 92 82 19 85 38 39 40 89 41 42 44 91 37 93 CKE CLK CS CAS RAS WE DM0 DM1 DM2 DM3 A0 A1 A2 A3 A4 A5 A6 A7 A8/AP A9 A10 BA0 BA1 DQS CLK NC NC NC NC VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VDDQ VREF VDD VDD VDD DQ0 DQ1 DQ2 DQ3 DQ4 DQ5 DQ6 DQ7 DQ8 DQ9 DQ10 DQ11 DQ12 DQ13 DQ14 DQ15 DQ16 DQ17 DQ18 DQ19 DQ20 DQ21 DQ22 DQ23 DQ24 DQ25 DQ26 DQ27 DQ28 DQ29 DQ30 DQ31 VSSQ VSSQ VSSQ MCL VSSQ VSSQ VSS VSS VSS VDDQ VDD VDDQ VDDQ VSSQ VSSQ VSSQ VSSQ VSS NC NC NC NC NC NC NC DNC A11 NC C303 100nF C75 100nF C81 100nF C90 100nF TP8 TP_T_C30 C85 100nF RP17 33Rx4 1 2 3 4 8 7 6 5 TP26 TP_T_C30 C76 100nF TP16 TP_T_C30 RP38 33Rx4 1 2 3 4 8 7 6 5 RP14 33Rx4 1 2 3 4 8 7 6 5 C86 100nF RP10 33Rx4 1 2 3 4 8 7 6 5 RP36 33Rx4 1 2 3 4 8 7 6 5 TP10 TP_T_C30 C77 10uF/16V C74 100nF R60 15R-->0R RP39 33Rx4 1 2 3 4 8 7 6 5 RP15 33Rx4 1 2 3 4 8 7 6 5 R63 1K TP12 TP_T_C30 C91 100nF TP7 TP_T_C30 R61 15R_DNS RP41 33Rx4 1 2 3 4 8 7 6 5 RP40 33Rx4 1 2 3 4 8 7 6 5 TP15 TP_T_C30 RP16 33Rx4 1 2 3 4 8 7 6 5 5 4 3 2 1 D D C C B B A A PRELIMINARY 8-pin, SOP 6 3 5 I2C Address: 1010 000x 4 1 2 I2C Address: 9E/9F I2C Address: 9C/9D 2005-07-21 2005-07-21 2005-07-21 2005-07-21 W90DL-288---Q A-01 HDMI_IN Qingdao Haier Electronics Co.,Ltd. Custom 8 25 Title Size Document Number Rev Date: Sheet of RX_DDC_SCL RX_DDC_SDA RX_DDC_SCL 3V_SCL RIN4 BIN4 BIN2 BIN7 3V_SDA RIN1 GIN4 GIN5 RIN7 RIN6 RIN5 RIN3 RIN2 RIN0 GIN7 GIN6 GIN3 GIN2 GIN1 GIN0 BIN6 BIN5 BIN3 BIN0 BIN1 3V_SDA 3V_SCL DIN10 DIN12 DIN19 DIN23 DIN7 DIN13 DIN20 DIN18 DIN15 DIN2 DIN17 DIN14 DIN1 DIN3 DIN8 DIN6 DIN4 DIN5 DIN11 DIN22 DIN9 DIN21 DIN16 DIN0 RX0- RX1- RX0+ RX1+ RX2- RX2+ RXC- RXC+ RX_HOTPLUG RX2- RX_DDC_SDA RX0- RX1- RX1+ RXC- RXC+ RX0+ RX2+ IN_5V RX_DDC_SCL IN_5V RX1+ RXC+ IN_5V RX1- RX_DDC_SDA RX2+ RXC- RX0+ RX_HOTPLUG RX_DDC_SCL RX2- RX0- CE_REMOTE_ RX_DDC_SDA RX_HOTPLUG RX_HOTPLUG CE_REMOTE_ CE_REMOTE_ RX1- RX0- RXC- RX1+ RX2- RX2+ RXC+ RX0+ CLK_2EX DVS_2EX DHS_2EX DE_2EX RST_H 3V_SCL 3V_SDA DIN[0..23] RX_INT# SDA SCL IIS_WS IIS_SCK SPDIF MCLK IIS_DATA HD_PB HD_PR HD_Y VGA_BIN VGA_RIN VGA_GIN VGA_VSIN VGA_HSIN FIELD VGA_BIN_G VGA_RIN_G VGA_GIN_G Y_G1_G PR_R1_G PB_B1_G USB_PR USB_Y USB_PB CE_REMOTE VDD2V5 3V3S 5V_SB AVDD_MPLL VDD2V5 3V3S 3V3S 3V3S 3V3S VDD2V5 VDDA3.3 AVDD_AUPLL AVDD_AUPLL VDDA3.3 AVDD_PLL AVDD_PLL VDDA3.3 AVDD_ADC AVDD_ADC AVDD_MPLL AGND VCC 5V_SB VDDA3.3 R304 68R R75 0R_DNS R156 0R_DNS FB27 150_Ohm_2000mA C330 10uF/16V R303 10R CN34 15x1 1.25mm_DNS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C240 1nF C359 47nF C244 47nF R11 0R_DNS R446 75R C111 100nF C351 47nF R279 1K RP24 33Rx4 1 2 3 4 8 7 6 5 R427 68R U6 NDC7002N 1 2 3 4 5 6 G1 S2 G2 D2 S1 D1 R309 10R C355 47nF C476 47nF C246 22pF C357 47nF R290 33R C102 100nF R77 33R_DNS R154 4K7 RP44 33Rx4_DNS 1 2 3 4 8 7 6 5 C120 100nF C247 22pF R70 4K7 RP21 33Rx4 1 2 3 4 8 7 6 5 R298 33R C100 100nF CN9 4x2 2.0mm_DNS 1 3 5 7 2 4 6 8 + + + + + + + + C99 100nF R430 68R R273 1K R64 100R C477 47nF R281 68R Y4 14.318MHz RP18 33Rx4 1 2 3 4 8 7 6 5 U4 MST3288-->MST3388 64 72 86 88 90 97 96 42 43 44 45 46 47 48 49 99 98 75 66 106 123 52 40 54 55 56 57 58 59 60 61 102 101 100 87 74 65 93 103 32 126 29 85 121 39 31 109 115 111 2 3 13 14 117 114 30 5 41 95 112 7 108 35 118 124 110 107 8 9 15 16 125 122 19 18 17 127 10 21 20 23 22 26 25 24 34 11 28 27 116 36 37 38 105 94 12 33 1 128 91 92 104 120 73 53 89 63 84 71 70 68 69 67 51 62 4 113 76 77 78 79 80 81 82 83 119 6 50 VDDP VDDP VDDP VDDP VDDP AUSD0 AUSD1 DATA23 DATA22 DATA21 DATA20 DATA19 DATA18 DATA17 DATA16 AUWS AUSCK VDDC VDDC AVDD_AUPLL AVDD_PLL VDDP VDDP DATA15 DATA14 DATA13 DATA12 DATA11 DATA10 DATA9 DATA8 SPDIFO MCKO AMUTE DGND DGND DGND VDDC VDDP AVDD_MPLL AVDD_ADC AVDD_ADC NC NC DGND MPLL_GND RXB0P RXB2P RXB1N HSYNC0 VSYNC0 HSYNC1 VSYNC1 RXBCKN RXB2N ADC_GND ADC_GND INT AUSD2 RXB1P BIN0N RXB0N RESET RXBCKP DDCBSCL DVI_GND DVI_GND SOGIN0 GIN0P BIN1P BIN1N DDCBSDA PLL_GND GIN1N GIN1P SOGIN1 ADC_GND GIN0N RIN1N RIN1P BIN2N BIN2P GIN2N GIN2P SOGIN2 XIN RIN0P RIN2N RIN2P DVI_GND A0 SCL SDA AUPLL_GND AUSD3 RIN0N XOUT VREFN VREFP DGND DGND DGND REXT DGND DGND DGND NC NC FIELD/GPO VSOUT SOGOUT/DE HSOUT DCK NC NC AVDD_ADC AVDD_DVI DATA7 DATA6 DATA5 DATA4 DATA3 DATA2 DATA1 DATA0 AVDD_DVI BIN0P NC C354 47nF FB28 150_Ohm_600mA 1 2 C329 100nF C348 47nF C92 100nF C121 22uF/16V U5 24C02 8 5 6 4 7 3 2 1 VCC SDA SCL GND VCLK NC2 NC1 NC0 R447 75R C356 47nF R280 33R C228 47nF FB11 150_Ohm_600mA 1 2 CP7 10pFx4_DNS 1 2 3 4 5 6 7 8 C117 100nF R432 68R C347 47nF C229 47nF C113 100nF C478 47nF C350 47nF C237 47nF C112 22uF/16V R286 33R C116 100nF C119 100nF C352 47nF R289 68R R294 68R C238 47nF R305 33R C122 100nF R69 4K7 C349 47nF RP20 33Rx4 1 2 3 4 8 7 6 5 FB29 150_Ohm_2000mA R426 33R->75R R291 68R R429 33R->75R R431 33R->75R R73 0R R83 4K7_DNS R78 1K RP22 33Rx4 1 2 3 4 8 7 6 5 R428 390R->820R RP19 33Rx4 1 2 3 4 8 7 6 5 D27 BAV99 3 1 2 R297 390R R84 4K7 C236 47nF C114 22uF/16V C104 100nF C98 2.2pF_DNS D18 BAV99 3 1 2 R80 4K7 R74 0R D20 BAV99 3 1 2 C93 100nF R299 68R D22 BAV99 3 1 2 RP25 33Rx4_DNS 1 2 3 4 8 7 6 5 D24 BAV99 3 1 2 D26 BAV99 3 1 2 R444 75R R221 10R_DNS D28 BAV99 3 1 2 FB12 150_Ohm_600mA 1 2 C189 100nF_DNS D29 BAV99 3 1 2 R307 10R C103 100nF C97 100nF R81 100R R223 100K_DNS D19 BAV99 3 1 2 R71 0R R67 33R CN4 DVI G1 G2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 C1 C2 C3 C4 C5_2 C5_1 G1 G2 TD2- TD2+ TD24S TD4- TD4+ DDCC DDCD VSYNC TD1- TD1+ TD13S TD3- TD3+ +5V GND HPDET TD0- TD0+ TD05S TD5- TD5+ TDCS TDC+ TDC- RED GREEN BLUE HSYNC AGND AGND R300 10R D21 BAV99 3 1 2 R301 10R D23 BAV99 3 1 2 C118 100nF R68 390R D25 BAV99 3 1 2 C109 10pF R306 10R R308 10R RP23 33Rx4 1 2 3 4 8 7 6 5 R302 10R C96 100nF R79 4K7 C94 10uF/16V C105 100nF D1 BAV70 1 2 3 C115 100nF C227 47nF R158 100K R82 100R R72 0R R445 820R R66 4K7 R85 1K R76 33R_DNS C110 100nF R283 390R C108 10pF R293 33R C101 22uF/16V 5 4 3 2 1 D D C C B B A A PRELIMINARY Option Logic 0 for 24.576MHz Logic 1 for 32.11MHz Logic 0 for slave address 42h/43h and 4Ah/4Bh Logic 1 for slave address 40h/41h and 48h/49h OPTION Option With fundamental quartz.Crystal load = 20 pF.L1 must be deleted,C146,C147 changed from 18pF to 39pF. 2005-07-21 W90DL-288---Q A-01 SAA7117AH Qingdao Haier Electronics Co.,Ltd. Custom 9 25 Title Size Document Number Rev Date: Sheet of AI13 AI33 AI31 LLC1 AI14 VS_VPC DIN9 DIN13 HS_VPC AI42 VS_VPC AI21 AI41 ICLK AI12 DIN6 AI13 AI32 AI42 LLC2 AI21 DVS AI44 DIN5 DIN10 AI11 AI12 DIN2 DIN8 HS_VPC AI41 AI22 DIN14 DIN15 DHS AI34 DIN7 AI23 AI32 AI33 AI22 AI24 LLC2 DIN0 AI31 AI43 AI43 DIN4 DIN12 DIN11 AI34 AI11 AI44 ITRI AI24 AI23 AI14 DIN1 DIN3 DIN0 DIN1 DIN2 DIN3 DIN4 DIN5 DIN6 DIN7 DE DVS XCLK DHS 7117AOUT XCLK ICLK LLC1 7117AOUT 7117AOUT S1_R/C 7117_CE 3V_SDA TV_IN S1_FSW 3V_SCL INT_A S2_Y DVS_2EX Y/C_C DHS_2EX S2_AV ITRI DIN[0..23] RTS0 S1_AV S2_G S1_B S2_R/C RTS1 S2_B CLK_2EX S1_G Y/V1 CVBS_OUT S1_Y S2_FSW TV_PIP_7117_2 DE_2EX P_39 VIDEO2 VIDEO2 VD1_8_2 12V VA1_8 VDDA3.3 VD1_8_2 VDDA1.8 VDDA3.3 VDDA1.8 VDD3.3 VDD3.3 VDD3.3 VD1_8 VDD3.3 VDD3.3 VDD3.3 C127 100nF_DNS TP17 R93 47R_DNS C335 100nF_DNS R370 0R_DNS RP46 33Rx4_DNS 1 2 3 4 8 7 6 5 C128 22nF_DNS R86 27R_DNS C341 100nF_DNS FB13 150_Ohm_2000mA_DNS C161 100nF_DNS C346 100nF_DNS R95 47R_DNS C154 100nF_DNS R109 47R->DNS C144 22nF_DNS R65 2K7_DNS Y2 24.576MHz_DNS L1 4.7uH_DNS R114 100R_DNS C131 22nF->0R_DNS R90 27R->0R_DNS R433 33R_DNS C134 22nF_DNS TP19 R274 0R_DNS C123 22nF_DNS R91 27R->8K2_DNS R104 1K_DNS C141 22nF_DNS C135 22nF_DNS C162 100nF_DNS R101 47R_DNS R275 0R_DNS C338 100nF_DNS C334 100nF_DNS R122 33R_DNS R98 0R_DNS C124 22nF_DNS R111 75R_DNS C339 100nF_DNS R120 10K_DNS R110 1K_DNS R129 33R_DNS C148 1000pF_DNS R278 0R_DNS C140 22nF_DNS R130 1K_DNS C129 22nF_DNS Q3 MMBT3904_DNS 1 2 3 C130 22nF->0R_DNS + C163 10uF/16V_DNS R96 33R_DNS R131 3K9_DNS R117 3R3_DNS R134 10K_DNS R135 4K7_DNS QFP 160Pin SAA7117AH U8_DNS 77 84 85 86 87 89 90 91 92 93 94 97 98 99 100 102 10 7 5 2 6 38 28 20 12 3 4 35 18 15 13 11 14 26 23 21 19 22 34 31 29 27 30 72 74 75 76 155 156 158 83 43 44 41 40 157 37 32 33 24 25 16 17 8 9 46 48 113 112 111 110 109 107 105 103 81 82 121 122 52 53 54 55 56 57 58 60 61 62 139 138 135 134 131 130 128 127 146 143 144 126 140 141 66 68 64 45 59 73 95 114 136 151 50 65 101 106 132 142 39 147 148 149 150 152 49 47 51 63 67 88 96 104 108 129 133 137 145 153 154 78 115 116 123 124 125 1 117 118 159 160 119 120 36 42 79 80 69 70 71 ITRDY ICLK IDQ ITRI IGP0 IGP1 IGPV IGPH IPD7 IPD6 IPD5 IPD4 IPD3 IPD2 IPD1 IPD0 AI44 AI43 AI42 AI41 AI4D VSSA0 VSSA1 VSSA2 VSSA3 AGND VSSA4 AGNDA AI34 AI33 AI32 AI31 AI3D AI24 AI23 AI22 AI21 AI2D AI14 AI13 AI12 AI11 AI1D AMCLK ASCLK ALRCLK AMXCLK XTALI XTALO XTOUT FSW GPIN CE VDDA_A18 VDDA_C18 VDD_XTAL VDDA0 VDDA1 VDDA1A VDDA2 VDDA2A VDDA3 VDDA3A VDDA4 VDDA4A LLC LLC2 HPD0 HPD1 HPD2 HPD3 HPD4 HPD5 HPD6 HPD7 DNC19 DNC20 DNC21 DNC22 DNC23 DNC24 DNC25 DNC26 DNC27 DNC28 DNC29 DNC30 DNC31 DNC32 XPD0 XPD1 XPD2 XPD3 XPD4 XPD5 XPD6 XPD7 XRDY XCLK XDQ XTRI XRV XRH SCL SDA INT_A VDDD1 VDDD3 VDDD5 VDDD6 VDDD9 VDDD11 VDDD13 VDDD2 VDDD4 VDDD7 VDDD8 VDDD10 VDDD12 AOUT TRST# TCK TMS TDO TDI RES# VSSD1 VSSD2 VSSD3 VSSD4 VSSD5 VSSD6 VSSD7 VSSD8 VSSD9 VSSD10 VSSD11 VSSD12 VSSD13 VSS_XTAL DNC0 DNC1 DNC2 DNC3 DNC4 DNC5 DNC6 DNC7 DNC8 DNC9 DNC10 DNC11 DNC12 DNC DNC15 DNC16 DNC17 RTS0 RTS1 RTCO C142 22nF_DNS R132 10R_DNS + C159 47uF/16V_DNS R99 2K7_DNS R124 1K_DNS C146 18pF_DNS R103 47R_DNS R94 8K2_DNS R211 0R R87 27R->0R_DNS C106 100pF_DNS R367 0R_DNS R369 0R_DNS R368 0R_DNS R272 0R_DNS R106 1K_DNS R123 33R_DNS C132 22nF_DNS C138 22nF_DNS R89 4K7_DNS C145 22nF_DNS C136 22nF_DNS C125 100nF_DNS R371 0R_DNS C137 22nF->0R_DNS C147 18pF_DNS C332 100nF_DNS R108 47R->DNS C156 270pF_DNS R105 75R_DNS RP45 33Rx4_DNS 1 2 3 4 8 7 6 5 R100 2K7_DNS C153 100nF_DNS R92 27R->0R_DNS C150 2.2pF C126 100nF_DNS C151 10pF R112 4K7_DNS C143 22nF_DNS C152 10pF R97 0R_DNS R107 47R_DNS R118 4K7_DNS R113 4K7_DNS R119 4K7_DNS C336 100nF_DNS R88 27R->0R_DNS C157 680pF_DNS C149 100nF_DNS R115 47R->DNS + C345 47uF/16V_DNS C340 100nF_DNS R133 33R_DNS C155 100nF_DNS C160 100nF_DNS TP18 C133 22nF_DNS C337 100nF_DNS C139 22nF->0R_DNS R102 10K_DNS R126 100R_DNS C158 2700pF_DNS C331 100nF_DNS 5 4 3 2 1 D D C C B B A A W29C040 USED W29C040 USED Option When use 27C040,use R144 and R140;R145 and R147 are Option. When use W29C040,use R145 and R147;R140 and R144 are Option. W29C040 4 1 2 3 2 1 3 Optional Optional 2005-07-21 W90DL-288---Q A-01 M30620SPGP Qingdao Haier Electronics Co.,Ltd. C 10 25 Title Size Document Number Rev Date: Sheet of PS SDAE E_PAGE SCLE AD6 AD1 AD5 AD2 AD4 AD3 A[0..7] AD0 AD7 RD CPU_RST RXD TXD CPU_RST TXD A6 A18 A8 A15 A4 A17 A6 A3 A14 AD4 AD1 A12 A7 A4 A2 A2 A15 AD5 A1 A3 A8 A17 AD2 A5 A10 A13 AD3 A7 A0 A18 A5 A1 A16 A10 A16 RXD A9 A13 A0 A11 A11 AD0 E_PAGE A[8..18] A12 SCLE SDAE A9 A14 AD7 AD6 AFT AFT_PIP ALE SAW_SW SCL SDA KEY SC_TUNER GPIO_CD WR Mute RD_EX A_SW2 CS VGA_CON A_SW1 RESET_MSP MPUGPIO0 S-VHS/V1#_SW AGC_MUTE PANEL_PWR CE_REMOTE AD[0..7] 7117_CE# D4_LINE1 D4_LINE2 D4_LINE3 D4_CON A_SW1_PIP SAW_SW_PIP A_SW2_PIP GPIO_CF CVBS_SW RXD TXD L/R_SW2 RX_INT# SB_PWR BKLT_CNTL RST_SVP GPIO_CE SD_TUNER LED_G INT_A LED_R L/R_SW1 INT# IR VGA_HS# A[0..7] RST_H 5V-1_CPU 5V-1_CPU 5V-1_CPU 5V_SB 5V-1_CPU 5V-1_CPU 5V_SB 5V_SB 5V-1_CPU 5V_SB 5V-1_CPU 5V-1_CPU 5V-1_CPU 5V-1_CPU 5V-1_CPU 5V-1_CPU 5V-1_CPU 5V-1_CPU R346 0R C298 100nF R166 1K R210 10K R150 100R R201 4K7 CN6 1 2 3 4 5 6 7 8 9 10 R169 100R R208 10K R142 33R TP30 RD TP28 R171 1K R189 100R R157 100R R176 100R TP29 WR R164 1K R181 100K Y3 10MHz R147 33R R146 100R R149 100R R195 100R R203 10K_DNS C174 100pF RP33 33Rx4 1 2 3 4 8 7 6 5 R179 1K R184 100R RP32 33Rx4 1 2 3 4 8 7 6 5 Q5 MMBT3904 1 2 3 C170 1000pF R173 100R C179 100pF R365 4K7 R168 100R R144 33R_DNS R191 100R R205 1K R141 100R R178 4K7 R162 4K7 R177 4K7 R190 100R R198 0R_DNS C178 100pF R138 100R R197 10K R212 100R R148 100R R202 10K R139 100R R155 47K R152 100R R143 33R TP25 AD5 R187 100R R151 100R TP24 AD4 C182 100nF TP26 AD6 C183 100nF R186 1K C166 1000pF C184 100nF R172 100R RP35 33Rx4 1 2 3 4 8 7 6 5 TP23 AD3 R192 100R R175 100R TP27 AD7 U13 24C64 1 2 3 4 5 6 7 8 A0 A1 A2 GND SDA SCL PAGE VCC C181 100nF + C180 100uF/16V R163 4K7 TP22 AD2 R193 100R R206 0R_DNS U11 M30620SPGP 23 31 30 28 2 25 26 27 8 14 15 22 35 1 3 4 6 7 9 10 12 13 17 18 20 21 24 32 33 34 36 37 38 39 40 41 42 43 44 29 5 11 16 19 60 61 71 72 73 74 75 76 77 78 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 70 69 68 67 66 65 64 63 85 84 83 82 81 80 79 95 92 91 90 89 88 87 86 94 93 96 97 98 99 100 62 P7_5/TA2in P6_5/CLK1 P6_6/RXD1 P7_0/SDA2 P9_3/DA0 P7_3/TA1in P7_2/TA1out P7_1/SCL2 P8_7/Xcin Vcc1 P8_5/NIM P7_6/TA3out P6_1/CLK0 P9_4/DA1 P9_2/TB2in P9_1/TB1in BYTE CNVss P8_6/Xcout Reset Vss Xin P8_3/INT1 P8_2/INT0 P8_0/TA4out P7_7/TA3in P7_4/TA2out P6_4/CTS1/RTS1 P6_3/SDA0 P6_2/SCL0 P6_0/CTS0/RTS0 P5_7/RDY P5_6/ALE P5_5/HOLD P5_4/HLDA P5_3/BCLK P5_2/RD P5_1/BHE P5_0/WR P6_7/TXD1 P9_0/TB0in Xout P8_4/INT2 P8_1/TA4in Vcc2 P3_0/A8 P1_7/INT5 P1_6/INT4 P1_5/INT3 P1_4 P1_3 P1_2 P1_1 P1_0 P3_1/A9 P3_2/A10 P3_3/A11 P3_4/A12 P3_5/A13 P3_6/A14 P3_7/A15 P4_0/A16 P4_1/A17 P4_2/A18 P4_3/A19 P4_4/CS0 P4_5/CS1 P4_6/CS2 P4_7/CS3 P2_0/A0/D0 P2_1/A1/D1 P2_2/A2/D2 P2_3/A3/D3 P2_4/A4/D4 P2_5/A5/D5 P2_6/A6/D6 P2_7/A7/D7 P0_1/AN0_1 P0_2/AN0_2 P0_3/AN0_3 P0_4/AN0_4 P0_5/AN0_5 P0_6/AN0_6 P0_7/AN0_7 P10_0/AN0 P10_2/AN2 P10_3/AN3 P10_4/AN4 P10_5/AN5 P10_6/AN6 P10_7/AN7 P0_0/AN0_0 Avss P10_1/AN1 Vref Avcc P9_7/ADTRG P9_6 P9_5 Vss R153 100R R196 10K R165 100R R213 100R R362 100R TP21 AD1 R174 100R R200 100R R182 100R R137 100R R183 100R C169 100pF R199 100R R170 10R RP31 33Rx4 1 2 3 4 8 7 6 5 C175 33pF K1_DNS 1 3 2 4 R136 100R R207 4K7 TP20 AD0 R160 100R R180 10K Q4 MMBT3904 1 2 3 R204 47R RP34 33Rx4 1 2 3 4 8 7 6 5 R159 4K7 C168 100pF C164 100nF R161 100R U10 27C040 12 11 10 9 8 7 27 25 4 5 29 3 6 26 28 23 2 30 31 16 1 32 24 22 21 19 13 14 15 17 18 20 A0 A1 A2 A3 A4 A5 A8 A11 A12 A7 A14 A15 A6 A9 A13 A10 A16 A17 A18 GND VPP VCC OE# CE# Q7 Q5 Q0 Q1 Q2 Q3 Q4 Q6 R140 0R_DNS C167 1000pF C172 15pF RP30 33Rx4 1 2 3 4 8 7 6 5 R185 47K_DNS C176 100nF R194 100R R214 0R C171 100nF R209 10K C165 10uF/16V R167 100R TP31 ALE C173 15pF R188 100R R145 33R U12 LM809 1 2 3 GND RESET# VCC 5 4 3 2 1 D D C C B B A A PRELIMINARY The power and gnd connect to analog part 0 1 YUV AUDIO PC AUDIO 1 DVI AUDIO X,Y L/R_SW2 INPUT 0 0 1 0 L/R_SW1 OUTPUT 1 HDMI AUDIO S_VIDEO L,R in-->DVI L,R in SW1 SW2 EXCHANGED 2005-07-21 W90DL-288---Q A-01 HDMI-DAC&AUDIO INTERFACE Qingdao Haier Electronics Co.,Ltd. B 11 25 Title Size Document Number Rev Date: Sheet of AUDIO_L AUDIO_R AUDIO_R PC_RIN D4_RIN DVI_R_IN HDMI_R PC_LIN D4_LIN DVI_L_IN HDMI_L L/R_SW1 L/R_SW2 HDMI_L HDMI_R PC_RIN PC_LIN D4_RIN DVI_R_IN DVI_L_IN L/R_SW1 D4_LIN AUDIO_L LOUT L/R_SW2 VIDEO_OUT ROUT IIS_SCK IIS_DATA IIS_WS MCLK L/R_SW2 L/R_SW1 2ndIF 16 S_VOUT Y/C_C_M Y/C_C C_G CVBS3_G Y/V1 S-VHS/V1#_SW Y/V1_M AVCC AGND AGND AGND AGND AGND AGND AGND AGND TGND TGND TGND TGND TGND TGND TGND AVCC A5V A5V A5V A5V A5V A5V A5V A5V TGND A5V A5V TGND TGND TGND TGND AGND TGND AGND +5V_SB TGND TGND TGND TGND TGND TGND TGND TGND C328 1nF C207 1uF_DNS C213 1uF_DNS CN7 RCA_WHITE 1 2 3 4 1 2 3 4 R363 10K CN40 RCA_RED 1 2 3 4 1 2 3 4 R224 100K + C198 47uF/16V C201 1uF CN8 PHONEJACK STEREO 4 5 3 1 2 6 C211 100nF L7 10uH L3 10uH R240 270K_DNS C205 1uF C190 10nF L5 10uH C188 10nF L2 10uH C191 10nF FB15 150_Ohm_600mA_DNS 1 2 R230 100K R219 100K FB14 150_Ohm_600mA 1 2 C209 100pF C208 100pF R225 100K C204 100nF_DNS CN10 PHONEJACK STEREO 1 4 5 6 2 3 R241 10K_DNS R245 270K_DNS CN11 8X1 2mm 1 2 3 4 5 6 7 8 L4 10uH + C203 3.3uF/50V_DNS R217 100K R238 470R_DNS R246 10K_DNS CN11 8X2 2mm 1 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 + C206 3.3uF/50V_DNS R243 470R_DNS + C202 10uF/16V_DNS R216 100K R220 100K R226 100K R228 100K R215 100K R218 100K R222 100K R231 100K C210 2700pF_DNS CN26 RCA_RED 1 2 3 4 1 2 3 4 R227 100K + C212 3.3uF/50V_DNS R229 100K CN31 RCA_WHITE 1 2 3 4 1 2 3 4 R233 100K R234 100K R237 100K_DNS R239 100K_DNS R242 100K_DNS R244 100K_DNS C195 10nF U15 74HC4052D 12 14 15 11 1 5 2 4 6 10 9 13 3 16 8 7 X0 X1 X2 X3 Y0 Y1 Y2 Y3 EN A B X Y VDD GND VEE C214 2700pF_DNS CN10 PHONEJACK STEREO 4 5 3 1 2 6 U14 CS4344_DNS 1 2 3 4 5 6 7 8 9 10 SDIN DEM/SCLK LRCK MCLK VQ FILT+ AOUTL GND VA AOUTR C199 100nF_DNS C186 1uF C193 1uF C187 10nF C185 1uF CN8 PHONEJACK STEREO 1 4 5 6 2 3 R232 100K + C200 10uF/16V_DNS C192 1uF CN7 PHONEJACK STEREO 4 5 3 1 2 6 R235 0R_DNS C196 10nF C194 1uF R236 0R_DNS U17 CS4334_DNS 1 2 3 4 5 6 7 8 SDIN DEM/SCLK LRCK MCLK AOUTR GND VA AOUTL L6 10uH C197 1uF 5 4 3 2 1 D D C C B B A A PRELIMINARY SCART In/OUT Connector VIDEO2 TO SVPEX NC For European Model SAA7117 AOUT TO TV BOARD 2005-07-21 W90DL-288---Q A-01 SCART Qingdao Haier Electronics Co.,Ltd. B 12 25 Title Size Document Number Rev Date: Sheet of SCART2_RIN_ SCART_BIN SCART2_VIN_ S2_AV_ST SCART_RIN SCART2_BIN SCART2_FB SCART2_GIN_ SCART_VIN SCART_FB S_AV_ST SCART_GIN 7117_VIDEO/VIDEO2 S_VOUT S1_AV S1_Y S1_FSW S1_G S1_B S2_AV S2_FSW S1_R/C RTS0 RTS1 CVBS_OUT_EX CVBS_SW CVBS_OUT CVBS1_G CVBS S_VOUT S2_G S2_B S2_Y S2_R/C CVBS1_G VIDEO2 CVBS_OUT_EX S_VOUT CVBS AGND AGND AGND AGND AGND AGND VCC 12V AGND 12V AGND AGND AGND 12V AGND 12V 12V AGND R252 100R-->10R R398 470R_DNS C215 330pF_DNS + C223 10uF/16V C222 100nF R248 27R->0R_DNS R400 470R_DNS R259 4K7 R249 1K5 R260 75R_DNS R211 0R R253 27R->0R_DNS U16 TEA2014A 1 2 3 4 5 6 7 8 GND VOUT_1 VIN_2 NC SW VOUT_2 VCC VIN_1 C224 10pF R256 47R->DNS + C275 10uF/16V R261 1K-->470R R130 1K_DNS R250 27R->0R_DNS Q8 MMBT3904 1 2 3 R252 10R_DNS R255 47R->DNS R251 27R->0R_DNS R263 10K_DNS C215 330pF R262 1K R399 22K R258 220R_DNS R261 1K_DNS R398 22K + C275 10uF/16V_DNS Q8 MMBT3904_DNS 1 2 3 C268 100nF Q7 MMBT3904_DNS 1 2 3 R258 10K R259 8K2_DNS Q7 MMBT3904 1 2 3 C224 10pF_DNS CN12 1MM FPC CONNECTOR_DNS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R247 75R R284 100K R254 47R->DNS R263 3K6_DNS C218 100nF C219 100nF R257 47R->DNS L8 3.3uH R400 470R C268 10nF_DNS Q9 MMBT3904_DNS 1 2 3 R260 75R 5 4 3 2 1 D D C C B B A A PRELIMINARY Tuner Connector TO USB INSERT CARD DECODER THESE COMPONENTS TOTAL MOVED TO TV BOARD. 2005-07-21 W90DL-288---Q A-01 I/O_1 Qingdao Haier Electronics Co.,Ltd. B 13 25 Title Size Document Number Rev Date: Sheet of PR_R1_G HD-PR Y_G1_G PB_B1_G HD-PB HD-PB HD-PR HD_PR HD-PR HD-PB HD-Y HD-Y HD-PB HD-PR HD-Y HD-Y HD_Y HD_PB IR_USB P_USB USB_PB USB_PR USB_Y Y_G1_G PB_B1_G PR_R1_G TV_IN SD_TUNER SC_TUNER D4_LINE1 D4_LINE2 D4_LINE3 D4_CON HD_PR HD_Y HD_PB A_SW2 SAW_SW Mute AGC_MUTE A_SW2_PIP A_SW1_PIP AFT AFT_PIP SAW_SW_PIP A_SW1 RESET_MSP GPIO_CF INT_A AFT_PIP USB_PR USB_Y IR_USB USB_PB VIDEO2 CVBS2_G DE_2EX AVCC AGND AGND AGND AGND AGND AGND AGND VDDA3.3 VCC_USB VCC 12V 12V L13 0.56uH/5% CN21 D_TERMINAL_DNS 1 2 3 4 5 6 16 15 13 12 11 10 9 8 7 14 Y GND Cb GND Cr GND G G RL3 P_GND L3 RL2 L2 L1 RL1 PLUG R268 27R C233 75pF->56pF R314 10K_DNS R271 100R R401 100R_DNS R287 OPR-->30pF R277 75R->18pF L14 0.56uH/5% C230 75pF->56pF R313 75R->18pF L9 3.3uH R288 75R->18pF C235 75pF->56pF + C107 100uF/16V FB16 150_Ohm_2000mA_DNS C234 130pF->100pF L24 470uH L11 0.56uH/5% CN18 RCA_RED 1 2 3 4 1 2 3 4 R276 OPR-->30pF CN17 7x1 2mm_DNS 1 2 3 4 5 6 7 CN19 RCA_BLUE 1 2 3 4 1 2 3 4 CN22 RCA_GREEN 1 2 3 4 1 2 3 4 R267 47R C225 330pF R435 1K R266 27R C248 10nF_DNS R265 75R C232 75pF->56pF C249 10nF_DNS CN37 2x1 2.5mm 1 2 C250 10nF_DNS CN38 7x1 2.5mm 1 2 3 4 5 6 7 C231 130pF->100pF CN20 5X1 2mm_DNS 1 2 3 4 5 + C245 100uF/16V_DNS L10 3.3uH L12 0.56uH/5% R270 100R R264 75R C226 330pF R434 4K7 L15 0.56uH/5% 1 2 3 4 CN13 CON_DIN4_SW 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 R316 75R->18pF CN14 RCA_YELLOW 1 2 3 4 1 2 3 4 C241 75pF->56pF R295 OPR-->30pF CN16 13x2 2mm 1 3 5 7 9 11 13 15 17 19 21 23 25 2 4 6 8 10 12 14 16 18 20 22 24 26 L16 0.56uH/5% CN16 12x2 2mm 1 3 5 7 9 11 13 15 17 19 21 23 2 4 6 8 10 12 14 16 18 20 22 24 D2 BAV99_DNS 3 1 2 D3 BAV99_DNS 3 1 2 D4 BAV99_DNS 3 1 2 R269 47R R310 1K_DNS R296 75R->18pF R311 1K_DNS C243 75pF->56pF R312 1K_DNS C242 130pF->100pF C251 10nF_DNS R315 75R->18pF 5 4 3 2 1 D D C C B B A A PRELIMINARY 8-pin, 300mil DIP with socket I2C Address: 1010 000x 2005-07-21 W90DL-288---Q A-01 I/O_2 Qingdao Haier Electronics Co.,Ltd. B 14 25 Title Size Document Number Rev Date: Sheet of VGA_G VGA_B VGA_H VGA_V VGA_SDA_IN VGA_R VGA_SCL_IN VGA_SDA VGA_SCL VGA_SCL_IN VGA_G VGA-TXD VGA-RXD VGA_B VGA_H VGA-CON VGA_SDA_IN VGA-CON VGA-V VGA-H VGA-H VGA-V VGA_V VGA_R VGA_BIN_G VGA_RIN_G VGA_GIN_G VGA_GIN VGA_CON VGA_BIN VGA_RIN VGA_HS VGA_VSIN RXD TXD VGA_HSIN VGA_GIN_G VGA_RIN_G VGA_BIN_G 7117_CE# 7117_CE 5V_SB 5V_SB 5V_SB 5V_SB 5V_SB 5V_SB VDDA3.3 VDDA3.3 R317 100R D11 BAV99 3 1 2 R318 100R D13 BAV99 3 1 2 R324 75R_DNS R328 100R D5 BAV99 3 1 2 C258 100nF FB19 150_Ohm_600mA 1 2 R319 10K R331 10K D8 BAV99 3 1 2 D7 BAV99 3 1 2 D6 BAV99 3 1 2 + C256 10uF/16V D12 BAV70 1 2 3 D9 BAV99 3 1 2 D10 BAV99 3 1 2 CN24 CON 12x1 2.5mm_DNS 1 2 3 4 5 6 7 8 9 10 11 12 C254 100pF R322 0R CN23 DB15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 G G + C255 47uF/16V C253 100pF R321 0R R323 0R R325 75R_DNS 74LVC14 U18 74LVC14 1 2 3 4 5 6 9 8 11 10 13 12 7 14 1A 1Y 2A 2Y 3A 3Y 4A 4Y 5A 5Y 6A 6Y GND VCC R320 100R FB18 150_Ohm_600mA 1 2 C252 10nF C257 100nF R327 100R R326 75R_DNS U19 24LC21A 8 5 6 4 7 3 2 1 VCC SDA SCL GND VCLK NC2 NC1 NC0 R330 10K FB17 150_Ohm_600mA 1 2 R329 33R 5 4 3 2 1 D D C C B B A A PRELIMINARY STANDBY: 0 POWER ON: 1 INPUT POWER BACKLIGHT CONNECTOR MOVED TO PAGE 10. 2005-07-21 W90DL-288---Q A-01 POWER INTERFACE Qingdao Haier Electronics Co.,Ltd. B 15 25 Title Size Document Number Rev Date: Sheet of LED_G# LED_R# LED_R# LED_G# ISEL SB_PWR SCL SDA KEY IR RST# LED_G LED_R VGA_HS VGA_HS# RST_H IR_USB BRT_CNTL E_PWM BKLT_CNTL 12V_SB 12V_SB 5V_SB 5V_SB 12V 5V_SB AGND 5V_SB 5V_SB AGND 3V3S VCC AVCC 12V VCC AGND VCC 12V VCC VCC R337 10K_DNS C266 10uF/16V C259 100nF Q13 MMBT3904_DNS 1 2 3 R344 1K R340 330R->0R R350 10K C95 100uF/16V Q15 MMBT3904 1 2 3 R341 330R->0R C265 47nF + C264 47uF/16V C479 1nF_DNS + C267 47uF/16V F1 FUSE_DNS R339 10K_DNS CN28 9X1 2mm 1 2 3 4 5 6 7 8 9 + C260 47uF/16V R335 100R R332 68R R397 0R_DNS CN27 7X1 2.5mm 1 2 3 4 5 6 7 R333 68R 74LVC14 U21 74HCT14 1 2 3 4 5 6 9 8 11 10 13 12 7 14 1A 1Y 2A 2Y 3A 3Y 4A 4Y 5A 5Y 6A 6Y GND VCC R437 1K C261 100nF R396 0R_DNS C262 100nF CN29 7X1 2mm 1 2 3 4 5 6 7 C269 100nF R352 15K C480 1000pF R394 0R L20 470uH R436 1K + C344 1000uF/10V R338 0R R345 4K7 R353 0R_DNS R334 10K_DNS CN30 3X1 2mm_DNS 1 2 3 R343 0R C268 100nF C263 1000pF U20 CEM9435A_DNS 1 2 3 4 8 7 5 6 S1 S2 S3 G D1 D2 D4 D3 CN25 B4B-PH-K 1 2 3 4 R336 1K_DNS R347 0R_DNS F4 FUSE C481 100nF CN39 2X1 2.5mm 1 2 R348 0R_DNS 5 4 3 2 1 D D C C B B A A PRELIMINARY Vo 2 Vo 1 GND 3 Vi LMS1587CS-ADJ TO-263 Power for DDR Core Logic Power for DDR IO PADS LMS1587CS-3.3 TO-263 1 GND Vo 3 Vi 2 Vo SAA7117 ANALOG 3.3V Power MST3288 2.5V Power SAA7117 3.3V Power Linear equation: Vout=1.25v*(1+R354/R356), R356,R361=110R VOUT=2.5V R356,R361=100R VOUT=2.6V MST3288 3.3V Power Linear condition: 100ohm < (R356) < 200ohm SVP-EX 3.3V Power SAA7117 XC2028 1.8V Power 2005-07-21 W90DL-288---Q A-01 POWER Qingdao Haier Electronics Co.,Ltd. B 16 25 Title Size Document Number Rev Date: Sheet of VCC VDDMQ VDDM VDDM VDDMQ VD1_8 VA1_8 VDDA3.3 VL1_8 AVCC V5V VDD2V5 VCC VDDA3.3 5VDDR 3V3S VD3_3 VDD3.3 B3V3 3V3S B3V3 5V_SB 3V3_SB VD1_8_2 3V3S VD1_8 VDDH3_3 12V 5VDDR VCC_USB R392 220R C273 22uF/16V R393 100R C217 100nF_DNS C459 100nF_DNS R395 0R_DNS C407 100nF C271 100nF C288 22uF/16V C404 22uF/16V U46 78M05_DNS 1 3 4 2 IN OUT C C U28 LMS1587CS-ADJ 2 3 1 TAB OUT IN GND TAB C290 22uF/16V R361 110R C286 22uF/16V R357 0R_DNS C272 100nF U7 LM1117EMPX-2.5 2 3 1 TAB OUT IN GND TAB C295 100nF C280 22uF/16V FB25 150_Ohm_2000mA R358 0R_DNS U7 MIC5209-2.5/LM2937IMP-2.5 1 2 3 IN GND OUT R354 110R C281 100nF FB20 150_Ohm_2000mA C285 100nF U26 LMS1587CS-3.3 2 3 1 TAB OUT IN GND TAB C282 100nF C287 100nF R359 0R_DNS C410 100nF R355 0R_DNS C270 22uF/16V U46 AZ1085D-5.0_DNS TO-252 2 3 1 TAB OUT IN GND TAB FB24 150_Ohm_2000mA C327 100nF R360 110R FB34 150_Ohm_2000mA_DNS C292 22uF/16V C326 22uF/16V U33 LM1117MPX-ADJ/LM1117MPX-1.8_DNS 2 3 1 TAB OUT IN GND TAB C297 100nF C325 22uF/16V C278 22uF/16V R389 100R U23 LMS1587CS-ADJ 2 3 1 TAB OUT IN GND TAB C274 1000uF/10V C277 100nF C283 22uF/16V C411 100nF C177 100nF_DNS U25 LMS1587CS-ADJ 2 3 1 TAB OUT IN GND TAB FB40 150_Ohm_600mA 1 2 C284 22uF/16V R390 220R C90 100nF R391 100R R127 220R_DNS U32 R1111N331A_DNS 1 2 3 5 4 VDD GND CE VOUT NC FB31 150_Ohm_2000mA FB22 150_Ohm_2000mA R388 220R U30 LMS1587CS-ADJ 2 3 1 TAB OUT IN GND TAB C221 470nF_DNS C279 100nF C293 100nF C482 100nF_DNS R356 110R C405 100nF FB32 150_Ohm_2000mA FB23 150_Ohm_2000mA C289 100nF C294 22uF/16V + C406 22uF/16V 1 2 FB30 150_Ohm_2000mA FB26 150_Ohm_2000mA C216 100nF_DNS U29 LMS1587CS-ADJ 2 3 1 TAB OUT IN GND TAB R128 100R_DNS C296 22uF/16V C412 100nF 5 4 3 2 1 D D C C B B A A 1.8V decouping 1 I2C read address = 0xC3 Depend on the power of I2C 3.3V decouping I2C ADDRESS I2C write address = 0xC2 AddrSel AGND & GNDS bright RESET (low active) 0 I2C write address = 0xC8 I2C read address = 0xC9 2005-07-21 W90DL-288---Q A-01 Tuner Qingdao Haier Electronics Co.,Ltd. B 17 25 Title Size Document Number Rev Date: Sheet of GNDX GNDS GNDS GNDS GNDS GNDS 2ndIF TV_PIP_7117_2 SD_TUNER 9,12 SC_TUNER 9,12 7117_CE 8 TV_PIP_7117_2 8 TV_IN 4 2ndIF 10 +3.3VRF +3.3VRF +3.3VRF V5V VDDA3.3 VA1_8 VD1_8_2 VD1_8_2 AGND AGND AGND AGND AGND AGND C395 1nF_DNS C386 100nF_DNS R381 0R_DNS C377 22uF/16V_DNS C389 22uF/16V_DNS C367 1nF_DNS C392 1nF_DNS C376 1nF_DNS L17 390nH_DNS C363 100nF_DNS CN36 RF CONNECTOR_DNS 1 2 3 4 RF GND GND GND R373 0R_DNS C378 100nF_DNS C372 100nF_DNS C380 100nF_DNS C390 1nF_DNS C398 1nF_DNS R378 1K_DNS FB33 150_Ohm_2000mA_DNS C393 15pF_DNS C396 680nF_DNS C368 1nF_DNS C381 100nF_DNS C369 100nF_DNS R384 0R_DNS Y5 32MHz_DNS L19 1uH_DNS C364 100nF_DNS C385 10uF/16V_DNS C373 1nF_DNS C387 10uF/16V_DNS XC2028 U31 XC2028_DNS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 B VDDS IN1 GNDS GNDS ExtChoke GNDS VDDS VDDA VDDA VDDA Vtune NC Vctrl Rext GNDD VDDD VIF NC VDDA SIF NC GNDD VDDD VDDD SCL GNDD SDA X2 GNDX X1 ExtRef AddrSel VDDO TestMode GNDD Reset VI2C VDDD GNDD Vrefp Vrefn Vcm VDDA VDDA VDDA GNDS VDDD VDDS GNDA C391 680nF_DNS C399 1nF_DNS R380 820R_DNS R383 820R_DNS C401 10uF/16V_DNS R375 0R_DNS R386 100R_DNS C365 1nF_DNS R387 100R_DNS R379 470R_DNS C374 1nF_DNS R377 100R_DNS C370 100nF_DNS C384 100nF_DNS C361 100nF_DNS C382 100nF_DNS C383 1nF_DNS C397 15nF_DNS L18 390nH_DNS C402 100pF_DNS R376 100R_DNS C403 100pF_DNS C388 1nF_DNS C394 15pF_DNS R385 3K_DNS C366 1nF_DNS C375 1nF_DNS R382 1K8_DNS C362 100nF_DNS C379 100nF_DNS R374 0R_DNS C371 100nF_DNS C400 1nF_DNS 5 4 3 2 1 D D C C B B A A SOIC8N 2005-07-21 W90DL-288---Q C-00 DC/DC POWER Qingdao Haier Electronics Co.,Ltd. A 18 25 Title Size Document Number Rev Date: Sheet of USB_P_ON/OFF AFT_PIP VCC AGND +12V 3V3S +12V +12V VCC_USB AGND AGND AGND AGND C463 470uF/10V C494 8200pF C457 10nF R439 10K C461 100nF R424 1K_DNS-->27K R423 10K C487 100nF C493 1500pF + C486 470uF/10V C466 10nF C467 220uF/16V C470 100nF C473 100nF D17 SMB340 R441 39K C489 10nF C469 100nF L22 22uH-->10uH C496 5600pF D16 SK34DI 2 1 C460 100nF C464 100nF C474 100nF U47 MP1583 2 6 5 4 3 9 1 8 7 VIN COMP FBK GND OUT TAB BS SS EN R443 12K U41 LM2673S-5.0 TO-263-7 2 5 6 4 1 8 3 7 VIN ILIM FBK GND OUT TAB CB SS + C485 470uF/10V R420 15K C471 470uF/10V + C483 220uF/16V R419 0R->39K C465 100nF C491 1nF C472 470uF/10V C468 220uF/16V D15 SK34DI 2 1 C484 100nF U47 LM2596S-5.0 1 5 4 3 2 6 VIN /ON FBK GND Vout TAB U42 MP1583 2 6 5 4 3 9 1 8 7 VIN COMP FBK GND OUT TAB BS SS EN R421 1K_DNS-->12K C495 100nF C458 220uF/16V L21 22uH-->10uH C488 1nF R422 0R-->47K C497 10pF_DNS C490 1nF C498 10pF_DNS R442 15K U42 LM2673S-3.3 TO-263-7 2 5 6 4 1 8 3 7 VIN ILIM FBK GND OUT TAB CB SS R438 1K C499 10pF_DNS C492 5600pF L23 22uH-->10uH C462 470uF/10V U41 MP1583 2 6 5 4 3 9 1 8 7 VIN COMP FBK GND OUT TAB BS SS EN 5 4 3 2 1 D D C C B B A A UP RIGHT DOWN TV/VGA MENU LEFT POWER 2005-07-21 W90DL-288---Q 1.0 KEY&IR&usb interface Qingdao Haier Electronics Co.,Ltd. B 19 25 Title Size Document Number Rev Date: Sheet of +5VSAFE KEY KEY LED_GRE LED_RED +5V K03 1 3 2 4 K04 1 3 2 4 K05 1 3 2 4 RK12 330R RK11 10K_DNS QK2 MMBT3904_DNS 1 2 3 K06 1 3 2 4 RK13 330R K07 1 3 2 4 RK10 10R_DNS RK8 1K_DNS RK9 10K_DNS CNK1 CON9X1_2mm 1 2 3 4 5 6 7 8 9 CNK4 4x1 2mm 1 2 3 4 DK01 LN142 1 2 3 CNK3 USB CON 1 2 3 4 5 6 __VBUS __D- __D+ __GND GND GND RK07 100R CK01 100nF RK02 2.7K QK1 MMBT3906_DNS 1 2 3 CP01 IR_3 1 2 3 RK06 16K RK14 10R RK05 8.2K RK04 5.6k CNK2 CON3X1_2mm 1 2 3 RK03 3.6K K01 1 3 2 4 K02 1 3 2 4 RK01 2K 5 4 3 2 1 D D C C B B A A To Connect main board CN3 2005-07-21 W90DL-288---Q A-00 LED CONTROL BOARD Qingdao Haier Electronics Co.,Ltd. A 20 25 Title Size Document Number Rev Date: Sheet of SDA SCL SCL SDA LED1 LED3 LED4 LED5 LED6 LED8 LED2 LED7 GPIO_CD RST# GPIO_CE VCC VCC VCC 12V VCC 12V VCC VCC 12V 12V QL8 MMBT2222A 1 2 3 RL18 10K RL26 10K RL19 10K_DNS CL6 100nF QL5 MMBT3904_DNS 1 2 3 RL10 1K RL28 10K RL22 1K RL16 10K + CL1 47uF/16V RL27 1K RL23 10K RL8 10K QL2 MMBT2222A 1 2 3 RL14 10K_DNS QL1 MMBT2222A 1 2 3 RL24 10K + CL5 47uF/16V RL7 10K QL6 MMBT2222A 1 2 3 RL4 1K CL7 10nF_DNS QL4 AO7401_DNS 1 3 2 QL9 MMBT2222A 1 2 3 RL15 10K QL10 MMBT2222A 1 2 3 RL20 10K RL9 1K RL31 10K RL12 10R RL25 47K_DNS RL17 1K CNL1 HEADER 5X2 2mm 1 2 3 4 5 6 7 8 9 10 RL11 10K RL34 10K UL1 PCA9554 1 2 3 14 15 13 4 5 6 7 9 10 11 12 16 8 A0 A1 A2 SCL SDA INT# IO1 IO2 IO3 IO4 IO5 IO6 IO7 IO8 VDD VSS RL29 1K RL21 10K RL3 68R_DNS CNL2 2X1 2mm 1 2 RL1 68R_DNS CL2 100nF RL5 68R RL32 1K RL30 10K RL6 68R CL3 47pF QL3 MMBT2222A 1 2 3 RL2 68R CL4 47pF RL33 10K RL13 0R QL7 MMBT2222A 1 2 3 5 4 3 2 1 D D C C B B A A PRELIMINARY R 1.0 SIGNATURE DRAFT RELEASE Liuchy Jan 13 2005 REVISION HISTORY OF 30TR04C_TV_AUDIO_KEY BOARDS DATE DESCRIPTION REV R 1.1 Mar 21 2005 1.S/VIDEO1 TERMINALS MOVED FROM MAIN BOARD,SO CNA13 8PINS CHANGED TO 8X2PINS. 2.DVI AUDIO TERMINALS MOVED TO MAIN BOARD. 3.CNA3 3PINS CHANGED TO 5PINS,ADDED VIDEO INPUT FOR AV2 TERMINALS. 4.CNA2 12X2PINS CHANGED TO 13X2PINS,ADDED VIDEO2 INPUT FOR AV2 TERMINALS. 5.UA8 operational amplifiers changed from Voltage Followers to Inverting Amplifiers. Liuchy 1.ADDED CNA4 FOR +5V INPUT FROM PDP POWER SUPLAY. R 1.2 Jul 11 2005 Liuchy 2005-07-21 W90DL-288---Q 1.0 Revision History Qingdao Haier Electronics Co.,Ltd. B 21 25 Title Size Document Number Rev Date: Sheet of 5 4 3 2 1 D D C C B B A A M62494 NJU26901 TPA30XX AF/SIF1 VIDEO CONNECTOR TUNER INVERTER_PW&CTL PHONE_VGA/DVI L&R_S-VHS L&R_V1 MSP3450 CTRL SOUND lip INVERTER_PW CON_SPEAKER 2005-07-21 W90DL-288---Q 1.0 BLOCK Qingdao Haier Electronics Co.,Ltd. A 22 25 Title Size Document Number Rev Date: Sheet of 5 4 3 2 1 D D C C B B A A B DIGITAL AUDIO AMUTE INPUT L:SELECT HDMI DIGITAL AUDIO TO MSP3450G AUDIO DATA OUT DELAY,MSP3450G RECEIVED I2S_WS AND I2S_SCK. 3/4 (COUNT[1:0]=01) H:SELECT MSP3450G ANALOG AUDIO DATA OUT DELAY,MSP3450G TRANSMITTED I2S_WS AND I2S_SCK. L H H X TO MAIN BOARD SPDIF OUTPUT 1/4 (COUNT[1:0]=00) Z Delay time = {1/(fs)}*(sampling number + 1) [sec] H 1/2 (COUNT[1:0]=10) 4/4 (COUNT[1:0]=11) TO MAINBOARD OE A L MCLKOUT (VCC +5V) L L DVI L,R in-->S_VIDEO L,R in 2005-07-21 W90DL-288---Q 1.0 TV&TUNER_PHILIP Qingdao Haier Electronics Co.,Ltd. C 23 25 Title Size Document Number Rev Date: Sheet of LinP I2S_SCK S/V1_RIN I2S_WS I2S_DATA_IN2- USB_LIN I2S_DATA_IN OPT_LIN I2S_WS- OPT_RIN PHONE_SW RESET_MSP I2S_SCK- MONO_SR I2S_WS DACM_SUB MC_DATA DG_AUDIO_SEL MB_RIN I2S_DATA_IN2 I2S_WS- I2S_SCK RinP I2S_DATA_IN- PHONE_SW I2S_SCK- Stereo_SR DACA_LOUT I2S_WS- COUNT1 I2S_DATA_OUT I2S_DATA_IN MB_LIN DACA_L MB_LIN I2S_DATA_IN2 COUNT0 MB_RIN I2S_DATA_IN- MC_SCLK I2S_DATA_IN2- COUNT1 DG_AUDIO_SEL DACA_R S/V1_LIN I2S_DATA_OUT I2S_SCK- SC1_ROUT SC1_LOUT S/V1_LIN S/V1_RIN VIDEO_OUT USB_RIN COUNT0 OPT_LIN OPT_RIN DACA_L DACA_R DACA_ROUT SIF2 S-VHS/V1#_SW Y/V1 VIDEO1 Y/V1 Y/V1_M Y/V1_M C-IN1 Y/VIDEO Y-IN1 VIDEO_OUT SC1_LOUT +8V- SC1_ROUT PHONE_SW A_SW1 SIF SAW_SW Mute SIF2 SC_TUNER P_USB RESET_MSP TV_IN TV_A_OUT GPIO_CF SC_TUNER GPIO_CF SD_TUNER PHONE_SW SIF2 RESET_MSP A_SW2 AFT SD_TUNER AGC_MUTE VIDEO2 CVBS2_G Y/V1 CVBS3_G CVBS3_G Y/C_C Y/C_C_M Y/V1_M C_G Y/C_C_M Y/C_C C_G TGND TGND +5VSAFE TGND TGND +5VSAFE TGND +8V TGND +5VSAFE +3V3S TGND TGND TGND TGND TGND TGND TGND +2.5V TGND TGND TGND TGND TGND TGND TGND TGND +8V TGND +3V3S 12V +5VSAFE 12V +5VSAFE +5VSAFE +3V3S +2.5V TGND +8V TGND TGND TGND +8V TGND TGND TGND TGND TGND TGND AGND TGND TGND TGND TGND TGND +5VSAFE +5VSAFE TGND TGND TGND RA39 0R_DNS CA40 470pF RA113 27R RA43 0R_DNS CA33 470nF CA56 470pF CA42 10nF CA34 10nF RA46 22R RA96 2K2 CA23 1nF_DNS CA48 470pF CA57 1500pF CA29 100nF CA59 10nF CNA7 RCA_RED 1 2 3 4 1 2 3 4 CNA8 RCA_YELLOW 1 2 3 4 1 2 3 4 + CA32 100uF/16V RA49 22R RA45 4K7 + CA148 10uF/16V CA135 100nF + CA28 10uF/16V + CA136 10uF/16V LA10 10uH YA1 18.432MHz UA2 SN74LV125/74LVX125_DNS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 OE1 1A 1B OE2 2A 2B GND 3B 3A OE3 4B 4A OE4 VCC RA24 3K3_DNS CA37 47pF LA17 3.3uH CA30 100nF CNA10 4x2 2.0mm_DNS 1 3 5 7 2 4 6 8 + + + + + + + + CA138 1uF RA35 0R_DNS RA47 3K3->220R RA88 10K RA29 10K + CA31 3.3uF/50V CNA6 RCA_WHITE 1 2 3 4 1 2 3 4 RA22 10K CNA9 PHONEJACK STEREO 1 4 5 6 2 3 RA27 10K RA17 2K2_DNS CA139 1uF RA30 10K RA54 2K2->470R CA7 10nF->470pF CNA13 8X1 2mm 1 2 3 4 5 6 7 8 LA2 10uH CA8 10nF->470pF RA98 120K CA55 220pF UA8 LM4558 1 2 3 4 5 6 7 8 OA INA N_INA V- N_INB INB OB V+ RA5 100K CA5 470nF QA1 MMBT3906_DNS 1 2 3 + CA58 10uF/16V CA6 470nF LA11 10uH CA12 10nF->470pF + CA19 10uF/16V_DNS LA9 10uH CA3 10nF->470pF CA13 10nF->470pF + CA60 10uF/16V RA100 1K RA112 47R CA144 330pF RA105 4K7 CNA11 CON2 2X1_2.5MM_DNS 1 2 CA9 1uF_0805 + CA52 10uF/16V LA1 10uH RA111 27R CNA3 3X1 2mm_DNS 1 2 3 LA29 3.3uH RA110 75R CA10 1uF_0805 CA24 470pF_DNS CA50 1nF + CA141 22uF/16V RA104 100K RA106 4K7 CA49 1nF CA20 10nF->470pF RA3 1K->470R FBA1 150_Ohm_2000mA_DNS CA116 1nF RA23 3K3_DNS RA48 3K3->220R CA21 10nF->470pF RA103 100K CNA13 8X2 2mm 1 3 5 7 9 11 13 15 2 4 6 8 10 12 14 16 CA14 470nF RA52 3K3->220R LA18 3.3uH RA38 1M_DNS CA183 330pF CA51 10nF->470pF CA17 470nF DA4 BAV70 1 2 3 RA101 1K RA95 470R RA90 10K UA1 NJU26901 1 2 3 4 5 6 7 8 SDI LRI BCKI VSS COUNT0 COUNT1 SDO VDD RA9 100K RA99 1K CA45 3.3pF LA3 10uH + CA134 220uF/16V CA54 470pF CA133 100nF RA10 100K RA89 10K CA44 3.3pF RA4 1K->470R CA142 10nF->470pF RA94 470R CA122 470pF QA3 MMBT3906 1 2 3 RA7 1K->470R CNA2 13x2 2mm 1 3 5 7 9 11 13 15 17 19 21 23 25 2 4 6 8 10 12 14 16 18 20 22 24 26 RA107 1K->470R CA117 1nF RA8 1K->470R CA121 470pF QA4 MMBT3906 1 2 3 RA15 100K CNA2 12x2 2mm_DNS 1 3 5 7 9 11 13 15 17 19 21 23 2 4 6 8 10 12 14 16 18 20 22 24 RA55 2K2->470R RA87 100K CNA5 3X1 2.5mm 1 2 3 RA16 100K + CA137 220uF/16V CA2 470nF RA109 75R QA5 MMBT3906 1 2 3 RA31 100R RA11 1K->470R CA46 1nF RA177 75R RA86 100K QA2 MMBT3906 1 2 3 RA13 1K->470R FBA3 150_Ohm_2000mA_DNS CA145 330pF CA47 1nF CA143 10nF->470pF RA93 15K RA12 1K_DNS RA25 100K UA11 MSP34XX 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 NC SCL SDA I2S_CL I2S_WS I2S_DA_OUT I2S_DA_IN1 ADR_DA ADR_WS ADR_CL DVSUP DVSUP DVSUP DVSS DVSS DVSS I2S_DA_IN2 NC NC NC RESETQ NC NC DACA_R DACA_L VREF2 DACM_R DACM_L NC DACA_SUB NC NC SC2_OUT_R SC2_OUT_L VREF1 SC1_OUT_R SC1_OUT_L CAPL_A AHVSUP CAPL_M NC NC AHVSS AHVSS AGNDC NC SC4_IN_L SC4_IN_R ASG4 SC3_IN_L SC3_IN_R ASG2 SC2_IN_L SC2_IN_R ASG1 SC1_IN_L SC1_IN_R VREFTOP NC MONO_IN AVSS AVSS NC NC AVSUP AVSUP ANA_IN1+ ANA_IN- ANA_IN2+ TESTEN XTAL_IN XTAL_OUT TP AUD_CL_OUT NC NC D_CTR_I/O_1 D_CTR_I/O_0 ADR_SEL STANDBYQ FBA4 150_Ohm_2000mA_DNS RA26 100K RA14 100K_DNS CA43 100nF_DNS CA11 1nF_DNS RA53 3K3->220R RA18 1K->470R 1 2 3 4 CNA14 CON_DIN4_SW 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 RA6 100K CNA15 RCA_YELLOW 1 2 3 4 1 2 3 4 RA91 10K RA20 1K->470R CA22 470nF CA147 5pF CA16 0.1uF CA53 10nF->470pF LA5 10uH + CA15 10uF/16V LA4 10uH CA146 5pF RA92 15K CA26 470pF RA97 OR LA6 10uH CA27 10nF CA61 470pF RA21 1K RA42 4K7 + CA25 100uF/16V CNA1 RCA_WHITE 1 2 3 4 1 2 3 4 RA28 10K + CA35 10uF/16V RA19 10K RA32 4K7 + CA38 10uF/16V CNA16 RCA_RED 1 2 3 4 1 2 3 4 RA2 75R RA114 47R CA1 470nF RA108 1K->470R TPA1 TP_T_C30 CA39 47pF RA36 3K3 + CA113 470uF/16V CA18 10nF_DNS RA34 3K3 CA4 10nF->470pF RA40 3K3 CNA4 6X1 2mm 1 2 3 4 5 6 RA51 100R RA41 3K3 RA1 100K CNA3 5X1 2mm 1 2 3 4 5 RA33 2K2 RA37 2K2 + CA120 100uF/16V CNA1 DVI L,R in-->S_VIDEO L,R in DNS 1 4 5 6 2 3 CA41 47pF CA36 10nF Stereo_SR LinP RinP MONO_SR 5 4 3 2 1 D D C C B B A A 2005-07-21 W90DL-288---Q 1.0 AUDIO_AMP Qingdao Haier Electronics Co.,Ltd. B 24 25 Title Size Document Number Rev Date: Sheet of LoutN RoutP LoutP LinP RoutP LoutN RinP LoutP Stereo_SR PHONE_SW RoutN RoutN MONO_SR LoutN RoutN RoutP LoutP MUTE PHONE_SW AGND +12V +12V- +12V +8V +12V- +12V- +12V- +12V +8V AGND +12V- CA95 100nF CA102 100nF CA96 470nF LA16 33uH QA8 MMBT3906 1 2 3 RA118 0R_DNS + CA63 10uF/16V CA91 10nF + CA62 2.2uF/50V + CA65 2.2uF/50V CA100 10nF RA117 0R_DNS CA105 100nF + CA79 100uF/16V CA86 100nF QA7 MMBT3904 1 2 3 CA85 0.1uF CA101 100nF CA94 100nF + CA87 1000uF/16V UA4 TPA30XX 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 SD RinN RinP V2P5 LinP LinN AVDDREF VREF VARDIFF IOCHRDY VOL GND BSLN PVCCL PVCCL LoutN LoutN PGNDL PGNDL LoutP LoutP PVCCL PVCCL BSLP VCLPL AGND ROSC COSC AVDD AGND VARoutL VARoutR AVCC MODE MODE_out VCLPR BSRP PVCCR PVCCR RoutP RoutP PGNDR PGNDR RoutN RoutN PVCCR PVCCR BSRN CA97 470nF LA14 33uH CA64 2200pF_DNS + CA76 47uF/16V CA68 2200pF_DNS LA15 33uH CA66 18nF UA5 LM1117EMPX-ADJ 2 3 1 TAB OUT IN GND TAB CA72 470pF CA74 820nF CA75 10nF RA83 100R 1% CA77 470pF CA67 100nF CA69 4700pF RA102 1K CA71 220nF CA73 100nF CA140 100nF CA132 100uF/16V CA84 1uF CA78 100nF RA70 10K RA59 4K7 CA83 1uF RA69 10K CA107 1uF CA82 1uF RA84 560R 1% CA81 1uF RA56 3K-->1K CA109 220pF RA58 3K-->1K CA80 1uF RA74 3K CA110 100nF RA75 1K5 CA92 100uF/16V CA111 100nF RA60 2K RA62 2K RA63 2K CA112 1uF + CA108 10uF/16V QA6 MMBT3904 1 2 3 RA85 120K CNA18 4X1_2MM_DNS 1 2 3 4 CA98 100nF LA13 33uH FBA2 150_Ohm_2000mA_DNS CNA17 6X1_2.5MM 1 2 3 4 5 6 CA93 100nF RA79 910R->560R RA78 1K5 + CA115 2.2uF/50V RA68 100R RA82 100K RA64 4K7 + CA114 2.2uF/50V RA67 10K CNA12 4X1_2.5MM 1 2 3 4 FBA6 BEAD_DNS 1 2 RA77 1K + CA88 10uF/16V RA81 100R RA80 0R_DNS RA76 0R->100R + CA104 10uF/16V RA73 0R_DNS UA3 M62494 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 RIN LIN SRSPR SRSA ROUT SRSNR SRSNL LOUT VCC MUTE MONO STEREO GND PS LPF HPF BPF L+R REFIN REFOUT RA61 4K7 RA71 0R->100R + CA118 10uF/16V + CA103 10uF/16V CA90 10nF RA72 1K-->0R CA99 10nF RA66 1K-->0R CA70 10nF DA1 BAV70 1 2 3 CA89 100nF CA106 100nF LA12 47uH RoutP RinP RoutN LinP LoutP Stereo_SR LoutN MONO_SR 5 4 3 2 1 D D C C B B A A OPT FOR 12V 2005-07-21 W90DL-288---Q 1.0 TUNER Qingdao Haier Electronics Co.,Ltd. A 25 25 Title Size Document Number Rev Date: Sheet of SC_TUNER TV_IN TV_A_OUT SIF SD_TUNER +5V +5V +5V +12V +5VSAFE TGND TGND TGND TGND TGND TGND TGND TGND TGND TGND TGND RT1 470R CT1 470pF + CT6 100uF/16V RT3 22R CT3 100nF RT2 22R FBT2 150_Ohm_2000mA 1 2 + CT9 1000uF/10V UT1 FQ1216 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 NC(AGC) NC(TU) +5V SCL SDA ADD_SEL NC NC NC NC SIF CVBS +5V,IF AF T_GND T_GND T_GND T_GND + CT2 100uF/16V RT9 0R RT10 0R RT5 0R RT11 0R FBT4 BEAD_0_DNS 1 2 RT12 0R LT1 470uH RT13 0R RT14 0R RT15 0R FBT3 150_Ohm_2000mA 1 2 RT16 0R RT4 75R UT2 MC78M05CDT_DNS 1 2 3 IN C OUT CT8 100nF FBT1 BEAD_0 1 2 CT7 470pF
