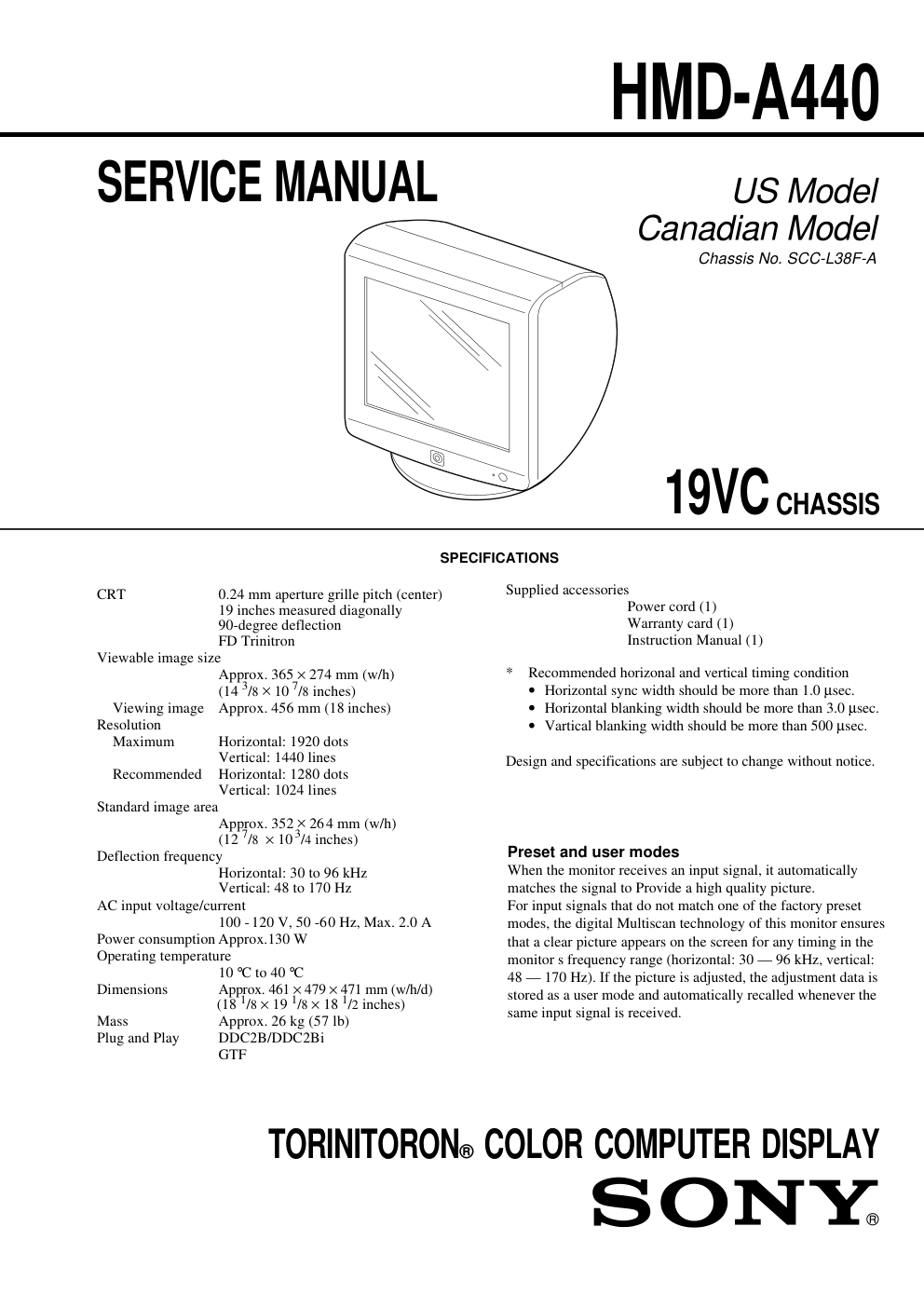

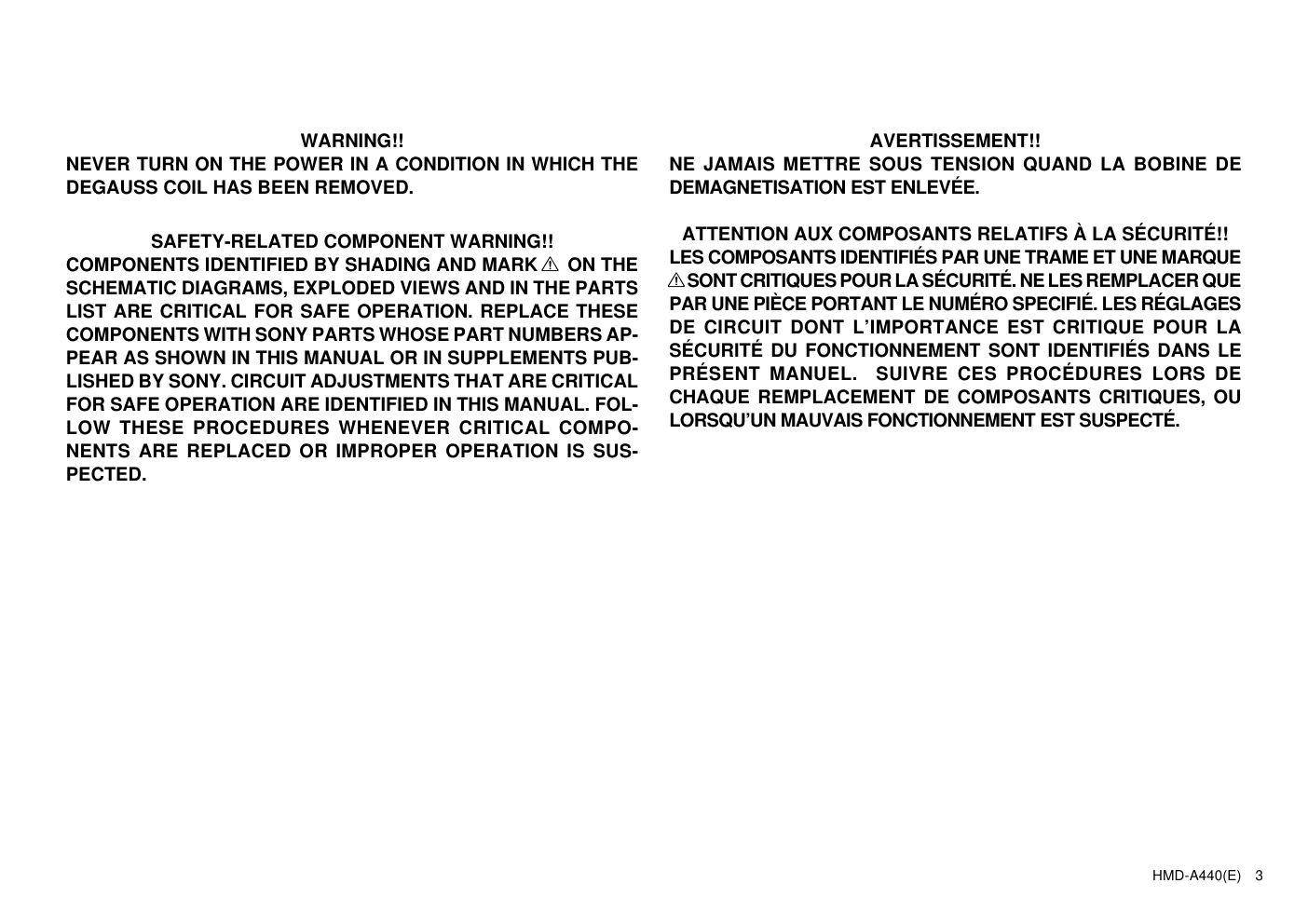

CHASSIS SERVICE MANUAL SPECIFICATIONS HMD-A440 19VC US Model Canadian Model Chassis No. SCC-L38F-A TORINITORON® COLOR COMPUTER DISPLAY × × × × × CRT 0.24 mm aperture grille pitch (center) 19 inches measured diagonally 90-degree deflection FD Trinitron Viewable image size Approx. 365 274 mm (w/h) (14 3/8 10 7/8 inches) Viewing image Approx. 456 mm (18 inches) Resolution Maximum Horizontal: 1920 dots Vertical: 1440 lines Recommended Horizontal: 1280 dots Vertical: 1024 lines Standard image area Approx. 352 264 mm (w/h) (12 7/8 10 3/4 inches) Deflection frequency Horizontal: 30 to 96 kHz Vertical: 48 to 170 Hz AC input voltage/current 100 - 120 V, 50 -60 Hz, Max. 2.0 A Power consumption Approx.130 W Operating temperature 10 °C to 40 °C Dimensions Approx. 461 479 471 mm (w/h/d) × × (18 1/8 19 1/8 18 1/2 inches) Mass Approx. 26 kg (57 lb) Plug and Play DDC2B/DDC2Bi GTF × Supplied accessori * Recommended horizonal and vertical timing condition • Horizontal sync width should be more than 1.0 µsec. • Horizontal blanking width should be more than 3.0 µsec. • Vartical blanking width should be more than 500 µsec. Design and specifications are subject to change without notice. es Power cord (1) Warranty card (1) Instruction Manual (1) Preset and user modes When the monitor receives an input signal, it automatically matches the signal to Provide a high quality picture. For input signals that do not match one of the factory preset modes, the digital Multiscan technology of this monitor ensures that a clear picture appears on the screen for any timing in the monitor s frequency range (horizontal: 30 — 96 kHz, vertical: 48 — 170 Hz). If the picture is adjusted, the adjustment data is stored as a user mode and automatically recalled whenever the same input signal is received. HMD-A440(E) 2 LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital mul- timeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or bat- tery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOMs that are suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) After correcting the original service problem, perform the following safety checks before releasing the set to the customer: 1. Check the area of your repair for unsoldered or poorly-soldered connec- tions. Check the entire board surface for solder splashes and bridges. 2. Check the interboard wiring to ensure that no wires are “pinched” or con- tact high-wattage resistors. 3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators. 4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and rec- ommend their replacement. 5. Look for parts which, though functioning, show obvious signs of deteriora- tion. Point them out to the customer and recommend their replacement. 6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer. 7. Check the B+ and HV to see if they are specified values. Make sure your instruments are accurate; be suspicious of your HV meter if sets always have low HV. 8. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC Leakage. Check leakage as described right. Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC Voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground SAFETY CHECK-OUT HMD-A440(E) 3 WARNING!! NEVER TURN ON THE POWER IN A CONDITION IN WHICH THE DEGAUSS COIL HAS BEEN REMOVED. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY SHADING AND MARK ! ON THE SCHEMATIC DIAGRAMS, EXPLODED VIEWS AND IN THE PARTS LIST ARE CRITICAL FOR SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS AP- PEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CIRCUIT ADJUSTMENTS THAT ARE CRITICAL FOR SAFE OPERATION ARE IDENTIFIED IN THIS MANUAL. FOL- LOW THESE PROCEDURES WHENEVER CRITICAL COMPO- NENTS ARE REPLACED OR IMPROPER OPERATION IS SUS- PECTED. AVERTISSEMENT!! NE JAMAIS METTRE SOUS TENSION QUAND LA BOBINE DE DEMAGNETISATION EST ENLEVÉE. ATTENTION AUX COMPOSANTS RELATIFS À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE TRAME ET UNE MARQUE ! SONT CRITIQUES POUR LA SÉCURITÉ. NE LES REMPLACER QUE PAR UNE PIÈCE PORTANT LE NUMÉRO SPECIFIÉ. LES RÉGLAGES DE CIRCUIT DONT L’IMPORTANCE EST CRITIQUE POUR LA SÉCURITÉ DU FONCTIONNEMENT SONT IDENTIFIÉS DANS LE PRÉSENT MANUEL. SUIVRE CES PROCÉDURES LORS DE CHAQUE REMPLACEMENT DE COMPOSANTS CRITIQUES, OU LORSQU’UN MAUVAIS FONCTIONNEMENT EST SUSPECTÉ. HMD-A440(E) 4 POWER SAVING FUNCTION This monitor meets the power-saving guidelines set by VESA, ENERGY STAR, and NUTEK. If no signal is received by the monitor from your computer, the monitor will automatically reduce power consumption as shown below. * Power mode Power consumption (power) indicator normal operation ≤ 130 W green active off* ≤ 3 W orange power off 0 W (Approx.) off 1 When your computer is in active off mode, MONITOR IS IN POWER SAVE MODE appears on the screen if you press any button on the monitor. After a few seconds, the monitor enters the power saving mode again. HMD-A440(E) 5 DIAGNOSIS Failre Horizontal / Vertical Deflection failure, (Included S-cap) ABL protector HV failure Aging / Self Test Out of scan range Power LED Amber → Off (1.5 sec) (0.5 sec) Amber → Off (0.5 sec) (1.5 sec) Amber → Off (0.5 sec) (0.5 sec) Amber → Off → Green → Off (0.5 sec) (0.5 sec) (0.5 sec) (0.5 sec) Green (OSD indication) Aging Mode (Video Aging) : During Power Save, press MENU button for longer than 2 second. Monitor Information and RGB bar : During Power Save, push CONT+ button for longer than 2 second. ALL White : During Power Save, push CONT- button for longer than 2 second. HMD-A440(E) 6 TIMING SPECIFICATION MODE Primary Mode MODE AT PRODUCTION MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6 MODE 7 MODE 8 MODE 9 RESOLUTION 640 X 480 800 X 600 832 X 624 1280 X 1024 1024 X 768 720 X 400 640 X 480 1600 X 1200 1152 X 870 CLOCK 25.175 MHz 56.250 MHz 57.283 MHz 157.500 MHz 94.500 MHz 28.322 MHz 36.000 MHz 202.500 MHz 100.000 MHz — HORIZONTAL — H-FREQ 31.469 kHz 53.674 kHz 49.725 kHz 91.146 kHz 68.677 kHz 31.469 kHz 43.269 kHz 93.750 kHz 68.681 kHz usec usec usec usec usec usec usec usec usec H. TOTAL 31.778 18.631 20.111 10.971 14.561 31.777 23.111 10.667 14.560 H. BLK 6.356 4.409 5.586 2.844 3.725 6.355 5.333 2.765 3.040 H. FP 0.636 0.569 0.559 0.406 0.508 0.636 1.556 0.316 0.320 H. SYNC 3.813 1.138 1.117 1.016 1.016 3.813 1.556 0.948 1.280 H. BP 1.907 2.702 3.910 1.422 2.201 1.907 2.222 1.501 1.440 H. ACTIV 25.422 14.222 14.524 8.127 10.836 25.422 17.778 7.901 11.520 — VERTICAL — V. FREQ (HZ) 59.940 Hz 85.061 Hz 74.550 Hz 85.024 Hz 84.997 Hz 70.087 Hz 85.008 Hz 75.000 Hz 75.062 Hz lines lines lines lines lines lines lines lines lines V. TOTAL 525 631 667 1072 808 449 509 1250 915 V. BLK 45 31 43 48 40 49 29 50 45 V. FP 10 1 1 1 1 12 1 1 3 V. SYNC 2 3 3 3 3 2 3 3 3 V. BP 33 27 39 44 36 35 25 46 39 V. ACTIV 480 600 624 1024 768 400 480 1200 870 — SYNC — INT(G) NO NO NO NO NO NO NO NO NO EXT (H/V) /POLARITY YES N/N NO P/P YES N/N YES P/P YES P/P YES N/P YES N/N YES P/P YES N/N EXT (CS) /POLARITY NO NO NO NO NO NO NO NO NO INT/NON INT NON INT NON INT NON INT NON INT NON INT NON INT NON INT NON INT NON INT HMD-A440(E) 7 1. DISASSEMBLY 1-1. Cabinet Assembly Removal ................................. 1-1 1-2. A AND D Boards Removal ................................. 1-2 1-3. Service Position ................................................... 1-3 1-4. H1 AND J Boards Removal ................................. 1-4 1-5. Picture Tube Removal ......................................... 1-5 2. SAFETY RELATED ADJUSTMENT ................ 2-1 3. ADJUSTMENTS ...................................................... 3-1 4. DIAGRAMS 4-1. Block Diagrams .................................................... 4-1 4-2. Frame Schematic Diagram.................................... 4-3 4-3. Circuit Boards Location ........................................ 4-4 4-4. Schematic Diagrams and Printed Wiring Boards ................................................................... 4-5 (1) Schematic Diagram of A Board ........................... 4-7 TABLE OF CONTENTS Section Title Page Section Title Page (2) Schematic Diagrams of D (a, b, c, d) Board .............................................................................. 4-9 (3) Schematic Diagram of H Board ........................... 4-14 (4) Schematic Diagram of J Board ............................ 4-16 (5) Schematic Diagram of L Board ........................... 4-17 4-5. Semiconductors .................................................... 4-18 5. EXPLODED VIEWS .............................................. 5-1 5-1. Cabinet ................................................................. 5-2 5-2. Chassis ................................................................. 5-3 5-3. Picture Tube ......................................................... 5-4 5-4. Packing Materials ................................................. 5-5 6. ELECTRICAL PARTS LIST ............................... 6-1 HMD-A440(E) 1-1 SECTION 1 DISASSEMBLY 1-1. CABINET ASSEMBLY REMOVAL 5 Two screws (+BVTP 4x8) 4 Eight screws (+BVTP 4x8) 1 Two screws (+BVTP 4x16) 2 Two screws (+BVTP 4x16) 3 Cabinet Cover cable Release top claws-insert the tip of a flathead screwdriver approximately 0.25" to unlock the crew. Gently lift up and then back to remove the cabinet. Bezel EMI shield Cabinet 6 Release from four claws Base shassis HMD-A440(E) 1-2 1-2. A AND D BOARDS REMOVAL 4 A board 6 D board 3 Cable holder 5 Eight screws (+BVTP 3x8) 1 One screw (+BVTP 3x8) 2 Two screws (+BVTP 3x8) Cable assy HMD-A440(E) 1-3 1-3. SERVICE POSITION D board A board 1 3 2 HMD-A440(E) 1-4 1-4. H1 AND J BOARDS REMOVAL 1 Three screws (+BVTP 3x10) 5 Screw (+BVTP 3x12) 2 Bracket 3 H Board 6 J Board 4 Joystick Cushion Picture tube HMD-A440(E) 1-5 1-5. PICTURE TUBE REMOVAL 6 Stand assy 5 Two screws (+BVTP 4x16) 9 Two extention spring 4 A board 3 CRT shield 9 Degaussing coil !- Neck assembly != Deflection yoke 7 Four screws (Tapping screws 5) 2 Four screws (+BVTP 4x8) 1 Anode cap Cushion 7 Picture tube HMD-A440(E) 1-6 3When one side of the rubber cap is separated from the anode button, the anode-cap can be removed by turning up the rubber cap and pulling up it in the direction of the arrow c. •HOW TO HANDLE AN ANODE-CAP 1Don’t scratch the surface of anode-caps with sharp shaped material! 2Don’t press the rubber hardly not to damage inside of anode- caps! A material fitting called as shatter-hook terminal is built in the rubber. 3Don’t turn the foot of rubber over hardly! The shatter-hook terminal will stick out or damage the rubber. •REMOVAL OF ANODE-CAP NOTE: Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield or carbon painted on the CRT, after removing the anode. •REMOVING PROCEDURES 1Turn up one side of the rubber cap in the direction indicated by the arrow a. 2Using a thumb pull up the rubber cap firmly in the direction indicated by the arrow b. a b c Anode Button HMD-A440(E) 2-1 Part Replaced ([) RV501 SECTION 2 SAFETY RELATED ADJUSTMENT When replacing or repairing the shown below table, the following operational checks must be performed as a safety precaution against X-rays emissions from the unit. * Confirm one minute after turning on the power. • HV Protector Circuit Check Using an external DC Power Supply, apply the voltage shown below between cathode of D517 on D board and GND, and confirm that the HV HOLD DOWN circuite works. (TV Raster disappears) Standard voltage : 35.70 V DC Check Condition • Input voltage : 120 ± 2 V AC • Input signal : Cross hatch (white lines on black) at 69kHz (Primary Mode) • Beam control : CONT, BRT ; minimum "0 " • Beam Current Protector Check An ammeter in series between FBT 11 pin on D board and GND, then, decrease gradually the resistance of the variable resistor from maximum to minimum, and confirm that the Beam Current Protector Circuite works (TV Raster disappears). The current must be within the range shown below. • Standard current : 1.70 mA Check Condition • Input voltage : 120 ± 2 V AC • Input signal : Cross hatch (white lines on black) at 69kHz • Beam control : CONT, BRT ; minimum "0" +0.00 - 0.02 +0.00 - 0.10 HV ADJ HV Regulator Circuit Check HV Protector Circuit Check Beam Current Protector Circuit Check Part Replaced (]) D board IC501, C532, C534, C539, C553, C554, C555, C556, C558, C561, R540, R541, R542, R544, R564, R567, R568, RV501, T501 (FBT) D board IC607, IC901, D515, D517, C540, C542, C544, C951, R510, R543, R547, R549, R552, R595, T501 (FBT) D board IC605,IC607,IC901, C535, C541,R545, R546, R548,R550, R596, R934, T501 (FBT) HMD-A440(E) 2-2 • B+ Voltage Check Standard voltage : 179.0 ± 3.0 V DC Check Condition • Input voltage : 120 V AC Note :Use NF power supply or make sure that distortion factor is 3% or less. • Input signal : Cross hatch (White lines on black) at 68.7 kHz • Beam control : CONT : 255 (max), BRT : 255 (max) HMD-A440(E) 3-1 SECTION 3 ADJUSTMENTS • Landing Rough Adjustment 1. Enter the full white signal. (or the full black dots signal) 2. Set the contrast to “CONT”=MAX. 3. Make the screen monogreen. Note: Off the outputs from R ch and B ch of SG. 4. Reverse the DY, and adjust coarsely the purity magnet so that a green raster positions in the center of screen. 5. Adjust the "H.CENTER" with the H CENTER Switch. (S501 on the D board) 6. Moving the DY forward, adjust so that an entire screen becomes monogreen. 7. Adjust the tilt of DY, and fix lightly with a clamp. Note:“TILT” shall be set at 0 • Landing Fine Adjustment 1. Put the set inside the Helmholtz coil. 2. Set the TLH to the Zero position. 3. Receive the single green signal. 4. Demagnetize the CRT surface with the hand degausser , and perform auto degaussing. 5. Attach the wobbling coil to the designated part of the CRT neck. 6. Attach the sensor of the landing adjustment unit on the CRT surface. 7. Adjust the DY position and purity, and the DY tilt. 8. Fasten DY with screw. Note:Torque 22 ±2kgcm (2.2 ± 0.2 Nm) Perform auto degaussing. Purity Magnet <> L/D control specification ± 3 ± 7.5 ± 3 ± 3 ± 7.5 ± 3 ± 5 ± 7.5 ± 3 Purity magnet position ± 3 HMD-A440(E) 3-2 9. Adjust each top and bottom pins by two wedges and then not swing DY neck right and left. (When fixing DY with wedges, insert wedges completely so that the DY does not shake.) 10. Adjust the top and bottom pins with the TB.PIN VR complettely. And ajust the V.Size simulation. 11. Adjust the V.key (=H.Trapxoid) with the H-Trp VR so that [a] become equol to the [b] 12. If the corner is not within the standards, adjust disc magnet to satisfy L/D adjustment standards. Note: (1) When necessary to paste magnets more than 2 pieces, be careful that the convergence and the distortion would be alterable. (2) Paste within 80 to 120 mm from the DY on the diagonal line of the mag- net. a b c d "a" and "b" must be equal. c d 13. If using the magnet, be sure to demagnetize with the degausser and check. 14. Remove the sensor and wobbling coil. 15. Fix the purity magnet paisted on the DY with the white pen.Fix it with the RTV. • Convergence Rough Adjustment 1. Enter the white crosshatch signal (white lines on black). 2. Adjust roughly the horizontal and vertical convergence at four-pole magnet. 3. Adjust roughly HMC and VMC at six-pole magnet. • Convergence Adjustment < Static convergence > 1. Change the "CONV SW" to 0. 2. Receive the crosshatch of R and B. (on black) 3. Adjust H. STAT and V. STAT with 4 pole magnet. 4. Recieve the white crosshatch signal.(White line on black) 5. Adjust HMC and VMC with the 6 pole magnet. 6. Recieve the crosshatch of R and B. (on black) Note: Adjust H. STAT and V. STAT in the beggining by 4 pole magnet not adjust them by register immediately. HMD-A440(E) 3-3 7. If necessary, the 3-6 procedures. 8. Change the "CONV SW" to 6. then set the following registers to 0. "YBH_T_HI", "TBH_T_LO" "YBH_B_HI", "YBH_B_LO" "VSTAT_T_HI", "VSTAT_T_LO" "VSTAT_B_HI""VSTAT_B_HI" 9. Adjust the H Static and V Static with the register "HSTAT_HI" and "VSTAT_HI". (These registers should be within the limit between -40 and +40.) 10. Insert to TLH correction board and correct H. TILT. 11. Adjust XCV with the XCV volume. 12 Adjust YCH with the YCH volume. 13 Adjust V. TILT with the TLV-VR. 14. If necessary, repeat the 1-13 procedures to get the most suitable conver- gence pattern. 15. Paint lock TLH corection board, neck assy 4, 6 pole magnet and XCV volume. Purity Mg 4-pole Mg 6-pole Mg XCV YCH H-Trap TLH TLV TB, Pin VI 4 Pole 6 Pole [ Neck Assy's Zero Position ] Purity B R R B R B B R R B B R XCV YCH TLV TLH B A A 0.20 mm B MODE All mode 0.24 mm • White Balance Adjustmen Specification (1) 9300K Part of shadow line for the right figure. (2) 5000K Part of shadow line for the right figure. • Convergence Specification VR x = 0.283 y = 0.298 0.005 0.005 x = 0.346 y = 0.359 0.005 0.005 HMD-A440(E) 3-4 Connect the communication cable of the computer to the connector located on the D board. Run the service software and then follow the instruction. IBM AT Computer as a Jig 1-690-391-21 1 A-1500-819-A Interface Unit 2 *The parts above ( ) are necessary for DAS adjustment. 1 3 D-sub (9 Pin [female]) mini Din (8Pin) 4 Pin 3-702-691-01 Connector Attachment 3 To BUS CONNECTOR 4 Pin 4 Pin • Vertical and Horizontal Position and Size Specification • Focus rough adjustment 1. Receive the mE pattern signal. (black characters on green) 2. Adjust the H FOCUS of the screen corner with Fcous VR in the bottom of the FBT. 3. Receive the cross-hatch pattern signal .(green line on black) 4. Adjust the V FOCUS of the center and the y-axis with the FOCUS VR in the top of FBT. A 352 mm B MODE All mode 264 mm a 1.8 mm b 1.8 mm a B A b FBT Focus volume 1 (V) Focus volume 2 (H) G2 VR HMD-A440(E) 4-1 SECTION 4 DIAGRAMS 4-1. BLOCK DIAGRAMS +180V 1 2 3 CN304 NC +80V 4 GND 5 H1 6 +12V 7 GND 8 +5V 9 STBY +5V TO D BOARD CN606 C TO D BOARD CN512 H GND 1 2 3 CN302 BLUE GND 4 GREEN 5 GND 6 RED 1 1.2KV CN301 11 9 8 1 3 5 IC002 VIDEO OUTPUT J001 B OUT G OUT R OUT B IN G IN R IN KB KG KR G2 H 7 9 11 10 27 24 20 IC001 RGB PRI AMP B OUT G OUT R OUT 3 B BKG 4 G BKG 5 R BKG 13 B OSD 14 G OSD 15 R OSD 17 OSD BLK B IN G IN R IN SYNC IN 1 SDA 2 SCL 18 BLK 12 CLAMP 7 8 10 12 15 14 OSD BLK R OSD G OSD 13 B OSD SDA SCL V FLB 5 H FLB 5 4 3 9 8 7 IC004 RGB CUT - OFF AMP IC003 OSD B OUT G OUT R OUT B IN G IN R IN TO D BOARD CN902 D 6 5 4 3 IIC SDA IIC SCL BPCLP INV. Q006 CBLK 2 VR TRC 1 HR TRC 9 8 7 4 10 (VIDEO OUTPUT, OSD) A 7 8 GND CSYNC CN309 30 C.SYNC SIGNAL IN HD15 (PIG-TAIL) 13 14 11 12 15 9 10 7 6 8 3 4 1 2 5 HMD-A440(E) 4-2 1 +5V S2001 KEY MATRIX PB4 X901 24MHz SDA SCL H IN V IN X5 PA5 PA6 RDI CBLK CLP SCL SDA PB7 PB6 RESET DA8 DA6 V IN OOB 10 11 12 13 14 15 16 17 18 1 OUT 2 DA5 TDO OSC OUT OSC IN HSO ITA HFB DA3 PFV PB1 PB3 DA1 DRIVER 7 6 5 4 1 2 4 CTL VCC VADJ 3 VCRL I SENSE IREF DS GND DEM V AUX H OUT H FLY V SAW V SIN V DIV LOCK V DF E/W X902 IC901 CPU IC902 DEF CONTR0L 1 3 4 2 5 6 7 8 HRTRC VRTRC CBLK BPCLP IICSCL GND IISDA CSYNC 1 3 4 2 5 6 7 8 9 +180V CN606 IC602 HEATER OUT NC +80V GND H1 +12V GND +5V SRBY +5V 1 3 4 2 D GND CN902 IC904 RESET RY601 +12V RELAY DRIVE Q601 TH601 F601 S601 TH600 D620 D605 IC604 ERROR AMP D615 IC605 +12V REG IC608 +5V REG D622 D614 D618 D617 D611 D613 IC607 +5V REG D612 LF602 LFT D601 AC RECT IC601 SW REG CONT IC603 POWER SWITCHING Q602 CN600 IC905 EEPROM STBY +5V CN901 STBY +5V RXD TXD 1 3 L 4 3 1 2 G N +180V +80V +12V +5V-4 STBY +5V +5V-4 +12V -15V STBY +5V +15V +80V +180V 2 DGC 2 NC DGC 1 2 1 THP600A CN602 CN601 THP600 G1 1 5 4 NC 6 H DY+ H -DY V-DY CN501 CN510 H DY- 3 NC 2 V DY- 1 V DY+ ROTATION+ CY-DY CN701 ROTATION 1 2 3 ROTATION- CY1+ 4 CY1- 5 CY2+ 6 CY2- 7 CY3+ 8 CY3- 9 CY4+ 10 CY4- 15 48 47 44 45 38 39 46 22 36 37 12 13 CSI 28 54 9 7 8 5 5 7 4 6 6 4 I O I O 5 7 6 13 11 3 1 I O 8 1 2 4 5 9 14 2 DA2 OUT WC AC IN DGC 3 16 18 19 4 32 23 27 26 4 3 29 12 6 4 8 2 8 4 5 2 3 1 5 2 5 1 9 17 14 8 1 5 7 3 3 23 2 8 4 10 27 2 28 24 22 20 19 18 13 14 12 HV 13 16 FV1 15 14 FV2 12 1 6 5 4 16 17 14 2 3 5 4 3 1 2 7 6 9 8 9 8 7 6 2 10 3 1 1 2 4 BUFF Q505 DF AMP Q504 H DRIVE Q501,502 H DRIVE OUT Q511 S-CAP CHANGE Q512-516 H OUT Q507 L503 HOC BUFF - + + + - - - + - + IC501 PWM CONTROL AMP REF RV501 HV ADJ ABL D515 D522 D523 TO PICTURE TUBE FOCUS FOCUS HV REG OUT Q510 CHOPPER Q503 T501 FBT 2 1 7 6 SYNC LOCK Q506 D517 H FLY BUFF Q525 S0-S4 IC502 ROTATION DRIVE IC702 D CONVERGENCE OUT IC701 CONVERGENCE CONTROL IC703 S CONVERGENCE OUT T504 HDT T503 DFT T505 HST BUFF Q521 H REG Q520 S0-S4 H BLK BUFF Q508 H AMP Q903 IC401 V OUT OUT OUT STBY5V OUT B -IN B OUT A -IN A V CONV OUT H CONV OUT H STATIC OUT V STATIC OUT -IN A I OUT A OUT A -IN B I OUT B OUT B FB -IN +IN +IN STBY +IN B +IN A SDA SCL HD IN VS IN V POS IN V REF OUT +IN A +IN B +IN VCC VCC SDA SCL 49 53 PA0 PA4 OVP/OCP Q604 T601 SRT REG SW Q603 CONVERGENCE CONTROL, DEFLECTION, CPU, POWER SUPPLY D TO A BOARD CN306 E TO A BOARD CN304 C TO A BOARD CN309 D (USER CONTROL, LED) H 11 STBY 5V STBY 5V VSD 26 PD3 25 BUFF Q901 +5V +12V 4 10 Q605,612 4 D510 LF506 LCT 7 10 2 5 +12V D505 L508/HLC CHOPPER Q519 L510 HCC 9 TO A BOARD CN301 H NC 4 CN512 1 3 4 2 5 STBY ON CN607 STBY CNT STBY OFF MAIN ON MAIN CNT 1 2 3 4 5 (UP-SW) J CN1002 DGC D526 D528 S501 D520 D521 H.CENTER CN904 3 4 2 5 6 7 8 LCC RF LCC NS DEGAUSS SW STBY 5V GND KEY LED RED LED GRN CN2001 LCC RF LCC NS DEGAUSS SW STBY 5V GND KEY LED RED LED GRN Q2001 D2010 +5V 1 2 STBY ON STBY CNT 1 2 (LCC CONTROL) L CN1002 OUT CTL VCC VADJ IC1001 LCC CONTROL 4 6 9 2 1 THP600A CN1001 THP600 5 LCC COIL CN1608 1 3 4 2 5 6 7 8 D609 S901 POWER SW HMD-A440(E) 4-3 4-2. FRAME SCHEMATIC DIAGRAM AC IN D HV DEFLECTION,CPU, CONVERGENCE CONTROL, POWER SUPPLY B-SS3608-KESSENZU H G1 G2 HG RGB PICTURE TUBE 1 1.2KV 6 5 4 3 2 1 N/C MAIN CNT MAIN ON STBY OFF STBY CNT STBY ON 5 4 3 2 1 MAIN CNT MAIN ON STBY OFF STBY CNT STBY ON CN309 8P 8 7 6 5 4 3 2 1 CSYNC IICSDA GND IICSCL BPCLP CBLK VRTRC HRTRC CN304 9P WHT 9 8 7 6 5 4 3 2 1 STBY 5V +5V GND +12V H1 GND +80V NC +180V CN606 9P WHT 9 8 7 6 5 4 3 2 1 STBY 5V +5V GND +12V H1 GND +80V NC +180V CN902 8P 8 7 6 5 4 3 2 1 CSYNC IICSDA GND IICSCL BPCLP CBLK VRTRC HRTRC J H A CN607 5P CN904 9P 9 8 7 6 5 4 3 2 1 LCC RF LCC NS Degauss SW STBY 5V GND KEY LED RED LED GRN INPUT SEL SW CN2001 8P 8 7 6 5 4 3 2 1 LCC RF LCC NS Degauss SW STBY 5V GND KEY LED RED LED GRN 1 2 3 4 5 6 7 8 9 10 ROTATION+ ROTATION– CY1+ CY1- CY2+ CY2- CY3+ CY3- CY4+ CY4- CN701 10P WHT :S-MICRO ROTATION V DY H DY CN501 6P WHT :VH 1 2 3 4 5 6 V DY+ V DY– NC H DY– NC H DY+ CN602 2P 1 2 TH 600 THP 600A DGC 1 2 3 4 DGC2 NC NC DGC1 CN601 4P CN600 3P 1 2 3 AC L NC AC N 1 2 3 4 D GND STBY 5V RXD TXD CN901 4P S-MICRO TO ECS 1 2 3 4 5 6 B.GND BLUE G.GND GREEN R.GND RED CN901 5P CN302 6P CN301 1P 1 TAB CN307 1P (P-SW) (VIDEO OUTPUT, OSD) (USER CONTROL, LED) L CN608 15P 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 GND GND GND GND GND N.C N.C N.C N.C N.C GND GND GND LCC RF LCC NS CN1003 15P 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 GND GND GND GND GND N.C N.C N.C N.C N.C GND GND GND LCC RF LCC NS (LCC) CN512 1P SIGNAL IN HD-15 (PIG-TAIL) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 LCC CN1001 6P 1 2 3 4 5 6 LCC+ N.C LCC– +15V GND –15V HMD-A440 (E) 4-4 4-3. CIRCUIT BOARDS LOCATION A L D J H HMD-A440 (E) 4-5 Note: • All capacitors are in µF unless otherwise noted. (pF: µµF) Capacitors without voltage indication are all 50 V. • Indication of resistance, which does not have one for rating electrical power, is as follows. Pitch: 5 mm Rating electrical power 1/4 W (CHIP : 1/10 W) • All resistors are in ohms. • : nonflammable resistor. • : fusible resistor. • T :internal component. • : panel designation, and adjustment for repair. • All variable and adjustable resistors have characteristic curve B, unless otherwise noted. • : earth-ground. • : earth-chassis. • The components identified by [ in this basic schematic diagram have been carefully factory-selected for each set in order to satisfy regulations regarding X-ray radiation. Should replacement be required, replace only with the value originally used. • When replacing components identified by ], make the necessary adjustments indicated. (See page 2-1) • When replacing the part in below table, be sure to perform the related adjustment. • All voltages are in V. • Readings are taken with a 10 M digital multimeter. • Readings are taken with a color-bar signal input. • Voltage variations may be noted due to normal production tolerances. • * : Can not be measured. • Circled numbers are waveform references. • : B + bus. • : B – bus. 4-4. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS Note: The components identified by shading and mark ! are critical for safety. Replace only with part number specified. Note: Les composants identifiés par un tramé et une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. • Divided circuit diagram One sheet of D board circuit diagram is divided into three sheets, each having the code D-a to D-c. For example, the destination ab1 on the code D-a sheet is connected to ab1 on the D-b sheet. a b 1 Ref. No. Circuit diagram division code HMD-A440 (E) 4-6 HV Regulator Circuit Check HV Protector Circuit Check Beam Current Protector Circuit Check G D S 2 3 4 5 6 7 8 9 0 qa qs qf qh – 1 G D S G S S D G D Ver.1.6 Transistor (FET) Transistor Transistor Discrete semiconductot (Chip semiconductors that are not actually used are included.) Diode Diode Diode Diode Diode Diode Diode Diode Diode Diode Source Source Anode Anode (NC) (NC) Cathode Anode Cathode Common Cathode Cathode Common Cathode Cathode Common Common Common Common Cathode Anode Base Emitter Collector Base Emitter Collector Drain Gate Gate Drain Device Printed symbol Terminal name Circuit Terminal name of semiconductors in silk screen printed circuit ( ) Anode Anode Anode Cathode Anode Anode Cathode qd Transistor (FET) Transistor (FET) qg Emitter Collector Base Transistor Source Gate Drain Cathode Anode Anode Cathode Anode Anode * Part Replaced ([) RV501 HV ADJ Part Replaced (]) D board IC501, C532, C534, C539, C553, C554, C555, C556, C558, C561, R540, R541, R542, R544, R564, R567, R568, RV501, T501 (FBT) D board IC607, IC901, D515, D517, C540, C542, C544, C951, R510, R543, R547, R549, R552, R595, T501 (FBT) D board IC605, IC607, IC901, C535, C541, R545, R546, R548, R550, R596, R934, T501 (FBT) HMD-A440(E) 4-7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H (1) Schematic Diagram of A Board • A BOARD WAVEFORMS H 0.9 Vp-p (H) 1 0.9 Vp-p (H) 2 3 0.9 Vp-p (H) H 4 3.8 Vp-p (H) 5 3.6 Vp-p (H) 6 3.5 Vp-p (H) 7 49.8 Vp-p (H) 8 49.8 Vp-p (H) 9 49.8 Vp-p (H) 12V 12V 5V STBY5V 12V 12V 5V STBY5V 80V 180V 0.3 3.7 4.5 4.7 3.7 1.3 1.3 0.5 0 0 0 0 0 0 1 2 3 4 5 6 0 0 0 0 2.1 3.3 2.1 2.1 2.9 2.7 2.7 2.8 4.5 4.7 0 0.7 2.1 3.4 2.1 3.4 2.0 3.4 0 68.4 66.7 68.0 4.8 4.8 4.8 7 8 9 54.1 53.3 52.1 79.2 2.1 2.1 2.0 +B R_OUT B_IN G_IN R_IN VCC GND G_OUT B_OUT VSSA SCL SDA SS HFLB VDDA RP VCO VSS R_OSD G_OSD B_OSD OSD_BLK INT VFLB VDD R OSD B OSD G IN R BKG B BKG R IN B IN G OSD CLAMP SYNC IN +5V G BKG G2 SCL SDA VCC R VCC G VCC B S/H B B OUT B GND S/H R R OUT R GND S/H G OSD BLK BLK G OUT G GND C. SYNC B_OUT G_OUT R_OUT R_IN G_IN B_IN GND1 GND2 VCC GND3 VBIAS (PIG-TAIL) HD-IS SIGNAL IN 10 9 8 7 6 5 4 3 2 1 11 12 13 14 15 TO D- BOARD CN902 b d CN606 TO D- BOARD TO D- BOARD CN512 c c CN510 TO D- BOARD (VIDEO OUTPUT,OSD) CSYNC STBY 5V RED R.GND GREEN G.GND BLUE B.GND G1 FROM FBT FROM FBT +5V HRTRC VRTRC A GND BPCLP CBLK IICSDA IICSCL +180V +80V 1.2KV NC GND H1 +12V GND 1 3 4 5 6 7 8 9 10 11 13 KR KR KG KB G2 G2 G1 G3 H H RCV 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 7 8 9 11 1 2 3 4 5 6 1 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 1 C001 C002 C007 C009 C010 C015 C016 C022 C042 C044 C047 C049 C050 C053 C104 C105 C204 C205 C304 C305 CN304 D001 D104 D105 D106 D204 D205 D206 D304 D305 D306 IC004 Q006 R005 R009 R020 R021 R024 R028 R032 R052 R102 R109 R119 R151 R202 R209 R219 R251 R302 R309 R319 R351 SG001 SG002 SG101 SG201 SG301 R002 R004 R003 C011 R033 FB001 FB003 FB004 FB005 FB006 FB009 FB010 FB101 FB201 FB301 L002 C004 C046 C092 IC003 C054 C102 C106 C202 C206 C302 C306 C013 R230 C014 L005 R064 CN307 L007 C036 CN301 FB008 FB016 FB017 IC001 L001 C012 FB102 FB202 FB302 R001 D111 D211 D311 R030 R161 R261 R361 CN302 CN309 C151 C251 C351 R211 IC002 R311 R111 SG003 R206 R048 R106 R306 R107 R207 R307 R218 R330 C112 C212 C312 R130 C003 C018 CN306 R104 R105 R117 R204 R205 R217 R304 R305 R317 J001 R006 R014 R017 R018 R051 R108 R208 R308 C035 1000p 500V B 1000p 500V 470 16V 1000 10V 0.1 25V B:CHIP 0.1 25V B:CHIP 47 25V 47 25V 1000p B:CHIP 100p CH:CHIP 47 25V 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 9P WHT (L TYPE) 1SR139 HSS82 :PROTECTION HSS82 :PROTECTION HSS82 :CLAMP HSS82 :PROTECTION HSS82 :PROTECTION HSS82 :CLAMP HSS82 :PROTECTION HSS82 :PROTECTION HSS82 :CLAMP H8D2957 CUT-OFF AMP 2SC2412K BUFFER 10k :CHIP 2.2k :CHIP 2.2k :CHIP 100k :CHIP 10k :CHIP 47 1/2W :SURGE 47 1/2W :SURGE 47 1/2W :SURGE 0.01 B:CHIP 0.01 B:CHIP 0.01 B:CHIP CXD9620P OSD 0.1 250V :MPS 0.1 250V :MPS 0.1 250V :MPS 0.1 250V :MPS 0.1 250V :MPS 0.1 250V :MPS 0.1 250V :MPS 1000p 10 :CHIP 47 100V JW(15) 1P 180uH 1000p 500V JW(5) CXA2067AS PRE-AMP JW(5.0) 0.1 25V B:CHIP 0 :CHIP 0 :CHIP 0 :CHIP 0 :CHIP 330k 1PS226-115 1PS226-115 1PS226-115 75 75 75 6P 8P 0.47 16V B:CHIP 0.47 16V B:CHIP 0.47 16V B:CHIP 68 1/4W :FPRD LM2415T VIDEO OUTPUT 68 :FPRD 68 :FPRD 0.1 100V 470k :CHIP 470k :CHIP 470k :CHIP 470k :CHIP 470k :CHIP 470k :CHIP 330k :CHIP 1.8k :CHIP 8.2k :CHIP 560 :CHIP 4.7k :RN-CP 2.2M 1W :RN 4.7 :RN-CP 4.7k :RN-CP 1.8k :RN-CP 1.8k :RN-CP 1.8k :RN-CP 150 :CHIP 15pF CH:CHIP 7pF CH:CHIP 2pF CH:CHIP 10000pF E 4.7 250V SMD 0.22UH SMD 0.22 SMD 0.22UH SMD SMD SMD 100 :CHIP 100 100 100 100 :CHIP 100 :CHIP 1M :CHIP 1M :CHIP 1M :CHIP 22uH 47 :CHIP 47 :CHIP 1.0k :CHIP 1k 15k :RN-CP 15k :RN-CP 15k :RN-CP 4700p 2kV +12V +80V +180V +5V STBY+5V 2 3 4 5 6 7 8 9 10 11 12 1 HMD-A440(E) 4-8 — A BOARD — *: Refer to Terminal name of semiconductors in silk screen printed circuit (see page 4-6) A NOTE: The circuit indicated as left contains high voltage of over 600 Vp-p. Care must be paid to prevent an electric shock in inspection or repairing. Video output,OSD 1 2 3 A B C • A BOARD SEMICONDUCTOR LOCATION IC IC001 B-2 IC002 B-1 IC003 B-1 IC004 A-3 TRANSISTOR * Q006 B-1 1 DIODE * D104 A-1 - D105 A-2 - D106 A-2 - D204 A-1 - D205 A-1 - D206 A-2 - D304 A-1 - D305 A-1 - D306 A-2 - HMD-A440(E) 4-9 1 2 3 4 5 6 7 8 9 10 11 12 A B C D E F G 15V -15V 1.0 -3.2 1.1 1 3.2 0 2.2 2.2 2.2 2.2 0 2 0 0.2 0.2 2.4 2.4 2.4 2.4 0 4.8 4.9 4.9 4.9 4.9 4.3 4.8 4.9 4.3 4.2 4.8 4.9 1.1 4.7 4.5 +IN A(X) STBY VCC VEE OUT A(X) -IN A(X) +IN B(Y) -IN B(Y) OUT B(Y) VCC IOUTB OUTB INB- INB+ VEE INA+ INA- OUTA IOUTA V CONV_CLP H CONV_CLP H_CONVOUT V_CONVOUT VPOSIN VREF OUT V_SIN V_STATICOUT H_STATICOUT SDA V_REFIN HD.IN H-AGC_CAP D_VCC SCL D_GND A_VCC H-SAW_CAP B-SS3608-D..-P1 (CONVERGENCE CONTROL) D-a ac10 ab9 abc8 ab7 ab6 ab5 ab4 ab3 ab2 ab1 CONVERGENCE CONTROL S CONVERGENCE OUT D CONVERGENCE OUT 5V REG ROTATION CY-DY CY1+ CY1- CY2+ CY2- CY3+ CY3- CY4+ CY4- ROTATION- ROTATION+ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 C513 C547 C549 C701 C702 C703 C704 C706 C707 C708 C709 C710 C711 C712 C714 C716 C718 C723 C725 C729 C733 CN701 D704 IC701 R558 R559 R560 R562 R563 R566 R705 R706 R707 R708 R709 R710 R711 R712 R716 R718 R719 R720 R727 R728 R731 R733 R735 R737 R741 R743 R745 R747 R753 R721 R724 R730 R755 IC702 IC703 IC502 R739 R704 C713 C715 R703 R717 R729 R713 10 1.0 0.068 :PT 0.1 25V B:CHIP 4.7 0.22 :MPS 220p CH:CHIP 68p CH:CHIP 68p CH:CHIP 0.1 :PT 470 25V 470 25V 0.1 :PT 0.1 :PT 390p CH:CHIP 0.033 25V B 0.033 25V B 0.01 B:CHIP 0.01 B:CHIP 330p B:CHIP 330p B:CHIP 10P S-MICRO CXA8070AP 10k :RN-CP 15k :RN-CP 18k :RN 1.5 :FPRD 15k :RN-CP 15k :RN-CP 2.7k :RN-CP 2.7k :RN-CP 2.2k :RN-CP 2.2k :RN-CP 15k :RN-CP 15k :RN-CP 2.7k :RN-CP 2.2k :RN-CP 0.82 :FPRD 0.82 :FPRD 15k :RN-CP 27 :CHIP 15k :RN-CP STK391-120 0 :CHIP 0 :CHIP 0 :CHIP 2.7k :RN 10k :CHIP 2.2 :CHIP 2.2 :CHIP 15k :RN 100 16V 100 16V 270 :CHIP LA6500P-FA LA6515 22 1W :RS 22 1W :RS 0.56 1W :RS 0.56 1W :RS 33 1W :RS 33 1W :RS 2.2 1W 2.2 1W 100 1W :RS 100 1W :RS 10 1W :RS 1SS119-25TD V-REF YDC XDC XSC YSC YDC XDC XSC YSC V REF V REF V REF 15V 12V -15V 15V -15V STBY 5V A1 A1 A2 A2 A3 A3 A4 A4 A5 A5 A2 (2) Schematic Diagrams of D (a, b, c, d) Board • Divided circuit diagram One sheet of D board circuit diagram is divided into three sheets, each having the code D-a to D-c. For example, the destination ab1 on the code D-a sheet is connected to ab1 on the D-b sheet. a b 1 Ref. No. Circuit diagram division code • D - a BOARD WAVEFORMS 2.8 Vp-p (V) 1 0.25 Vp-p (V) 2 HMD-A440(E) 4-10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H • D - b BOARD WAVEFORMS 2.5 Vp-p (V) 1 0.4 Vp-p (V) 2 3 0.9 Vp-p (V) 4 0.8 Vp-p (H) 5 4.5 Vp-p (H) 6 3.9 Vp-p (H) 7 3.8 Vp-p (H) 3.0 Vp-p (24MHz) 8 4.9 Vp-p (V) 9 0 5.0 Vp-p (V) !¡ 4.5 Vp-p (H) !™ 4.4 Vp-p (H) !£ 4.7 Vp-p (H) !¢ 4.9 Vp-p (H) • Divided circuit diagram One sheet of D board circuit diagram is divided into three sheets, each having the code D-a to D-c. For example, the destination ab1 on the code D-a sheet is connected to ab1 on the D-b sheet. a b 1 Ref. No. Circuit diagram division code 5V STBY5V STBY5V 4 3 2 1 0.4 5.0 4.7 3.6 4.9 10.2 2.4 9.4 5.2 0.4 0.7 4.7 6.1 4.9 4.2 4.9 6.0 4.0 4.5 4.2 4.8 0 4.8 4.8 0.4 5.3 5.3 5.4 11.4 5.0 5.0 5.0 5 8 7 14 13 12 11 10 9 6 4.8 4.9 0.4 4.9 0.4 0.4 4.4 1.0 2.2 2.4 5.0 5.0 4.2 4.6 4.6 4.4 5.0 0.7 4.6 0.5 4.7 5.0 4.8 0 4.2 3.6 4.0 4.8 4.8 0.8 0 5.0 1.9 2.7 5.0 5.0 4.7 0.7 4.0 0 0 0.5 4.7 4.7 0.3 2.7 CPU INVERTER OUT VCC GND SUB NC CSI HSO VSO PD3 PD4 ITA CLP VSI2 VSI1 PFV PB1 PB2 PB3 PB4 PB5 PB6 PB7 VSS2 DA8 DA7 DA6 DA5 DA4 DA3 DA2 DA1 DA0 VDD2 TEST IR PA0 PA1 PA2 PA3 PA4 PA5 PA6 OSCIN OSCOUT TDO RDI SDA SCL PC1 HFB HSI1 VSS NC DDC SDA DDC SCL VDD NC NC NC CBLK RESET WP VCC SCL SDA VSS A2 A1 A0 H.FLY H.GND H.DF V.DF H.AGC V.SIN E/W V.SAW V.AGC V.OSC V.GND SCL SDA LOCK D VCC AFC2 9V VCC H.OUT DELAY CAP R.F/V VCO.FI REF AFC1 H.PH.FI H.IN V.DIV V.IN X5 D.GND CN1001 4-6PIN TO L BOARD TO L BOARD CN1003 CN309 TO A BOARD CN2001 TO H BOARD RESET 5V SW B-SS3608-D..-P2 (DEFLECTION,CPU) b D- ab1 ab2 ab3 ab5 ab6 ab7 ab4 ab9 bc24 DEF CONTROL EEPROM H AMP H DRIVE H DRIVE bc13 bc12 bc11 PROTECT SW 5V REG abc8 bc14 bc15 bc16 bc17 bc18 bd19 bd20 bc22 bc23 :CHIP GND GND GND GND GND GND GND GND -15V GND +15V LCC RF LCC NS LCC RF LCC NS Degauss SW IICSDA IICSCL VRTRC HRTRC VCLK VCC SCL SDA A0 A1 A2 VSS INPUT SEL SW GND VCC INPUT SEL SW /STBY 5V HOST 5V LED GRN LED RED KEY GND STBY 5V POWER SW HOST GND2 CSYNC VSYNC HSYNC GND DDC SCL1 DDC SDA1 HOST GND1 BPCLP CBLK CSYNC GND STBY 5V TXD RXD D GND 1 2 3 4 I O G 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 3 4 5 6 7 8 1 2 3 4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 1 2 3 4 5 6 7 8 9 1 2 3 C626 C627 C628 C902 C905 C906 C908 C910 C911 C912 C913 C914 C915 C916 C917 C918 C921 C922 C923 C924 C925 C926 C928 C929 C930 C931 C933 C935 C936 C939 C940 C941 C947 C949 C951 D404 D507 D903 D918 D920 D924 D936 D937 FB904 IC605 IC608 IC902 IC904 IC908 L901 Q501 Q502 Q903 R504 R594 R633 R910 R912 R913 R931 R934 R950 R957 R958 R969 X901 X902 R936 R937 D901 R982 D904 D902 D905 D906 D907 D908 FB902 Q901 R926 R984 R985 R914 R935 R918 Q612 Q605 R665 R699 R908 R909 R929 R938 R951 R983 R924 R901 R900 R903 R904 R973 R905 R915 R925 R981 R906 D919 C942 C901 C950 CLP1 C909 C938 C944 CN903 D909 D911 D912 D914 D917 D928 D929 D930 D931 D943 IC905 IC906 JW904 L902 R907 R916 R917 R919 R920 R939 R940 R971 R972 C920 C943 C952 R933 CN901 R923 CN902 CN609 CN608 CN904 L903 L904 R911 IC901 220 16V 220 10V 100 25V 470 16V 0.068 :PT 1.0 :MPS 0.01 B:CHIP 0.1 B:CHIP 0.01 B:CHIP 100 16V 0.1 :PT 15pF CH:CHIP 15pF CH:CHIP 22 0.01 B:CHIP 22 470 16V 3.3 470p CH:CHIP 3.3 0.01 B:CHIP 1000 16V 0.01 B:CHIP 4.7 50V 0.01 B:CHIP 470p CH:CHIP 100p :CHIP 0.47 B:CHIP 100p CH:CHIP 100p CH:CHIP 47p CH:CHIP 47p CH:CHIP 0.01 B:CHIP 100 16V 0.01 B:CHIP RB441Q-40T-77 UDZS-TE17-5.1B RB441Q-40T-77 RB441Q-40T-77 PQ12RD08S L7805CV CXA8071CP PST9143NL TC74HCT04AF 100uH 2SC2412 2SA1037 2SC2412 0.47 :FPRD 220 :CHIP 2.2k :RN-CP JW(5) 2SA1037AK 47k :CHIP 68k :CHIP 2SC3311A 3.3k :CHIP 220 470 :CHIP 0 :CHIP JW(5) 47 47 47 47 100 100 100 100 330 470 1k 1k 10k 10k 1k :CHIP 1k :CHIP 1k :CHIP 4.7k :CHIP 4.7k :CHIP 4.7k 4.7k :CHIP 10k :CHIP 1.2k :CHIP 1.5k :CHIP 2.2k :CHIP 2.2k :CHIP 2.2k :CHIP 10000pF B:CHIP 10000pF B:CHIP 100 16V 100 16V 100 16V 10000pF B:CHIP 7P 1PS226-115 1PS226-115 1PS226-115 MA151WK-TX BR24C08F-E2 BR24C08F-E2 5MM 100uH 100 1/2W 15k:CHIP 15k :CHIP 10k :CHIP 2.2k 10k :CHIP 47k :CHIP 2.2k :CHIP 2.2k :CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 0.1 25V B:CHIP 1k 4P WHT :S-MICRO JW(5) 8P 3P 8P STZ6.8N-T146 STZ6.8N-T146 STZ6.8-T146 STZ6.8N-T146 STZ6.8N-T146 24MHz UDZS-TE17-5.6B UDZS-TE17-5.6B UDZSTE-17 5.6B UDZS-TE17-5.6B UDZS-TE17-5.6B UDZS-TE17-5.6B UDZS-TE17-5.6B UDZS-TE17-5.6B MTZJ-7-77-5.6B MA111-TX MA111-TX MA111-TX MA111-TX DTC114EKA 10uH 100uH 1.8k CXD9163P/BBM 100 :CHIP 100 :CHIP 100 :CHIP CSYNC LOCK RESET TXD TXD RXD RXD KEY SCAN ABL HV V-SYNC H-SYNC BPCLAMP V-USYNC V-USYNC V-USYNC H-USYNC H-USYNC H-USYNC V-REF E/W E/W V.SIN V.DF V SAW V SAW LED RED LED GREEN LOCK V-SYNC V FLY ROTATION ABL V RETRC BPCLAMP HLIN POWER SW WP EEP SDA EEP SCL INPUT SEL DCONV SW REMOTE SW DEGAUSS SW C-SYNC HOST GND1 DDC SCL DDC SDA IIC SCL IIC SDA V RTRC H RTRC CBLK KEY ABL KEY H FLY H FLY CBLK H RTRC IIC SDA IIC SCL IIC SDA IIC SCL IIC SCL IIC SDA IIC SCL IIC SDA IIC SDA IIC SCL LOCK H FLY 15V 12V 12V STBY 5V STBY 5V 5V-4 5V-4 12V 5V-4 STBY 5V STBY 5V 15V 15V -15V S2 S1 S0 S3 S4 HMD-A440(E) 4-11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H I • D - c BOARD WAVEFORMS 10.0 Vp-p (H) 1 10.7 Vp-p (H) 2 3 10.7 Vp-p (H) 4 9.8 Vp-p (H) 5 31.2 Vp-p (H) 6 10.6 Vp-p (H) 950 Vp-p (H) 7 81.6 Vp-p (H) 8 9 1.8 Vp-p (V) 0 54.8 Vp-p (V) • Divided circuit diagram One sheet of D board circuit diagram is divided into three sheets, each having the code D-a to D-c. For example, the destination ab1 on the code D-a sheet is connected to ab1 on the D-b sheet. a b 1 Ref. No. Circuit diagram division code 4 5 -14.5 -0.2 6 -0.6 -15V 15V 1.6 13.7 0.2 -13.1 1.6 180V 166.0 173.9 0.1 0.7 0.1 0.7 4.9 5.5 10 9 8 7 0.6 1.2 0.6 40.6 0 38.9 0 5.0 0 0.4 0 0 5.0 3 2 1 177.6 174.6 7.3 5.9 4.5 8.3 4.2 8.9 5.5 4.2 4.2 5.9 5.9 5.2 11.5 6.7 8.2 5.6 4.5 4.2 4.2 ac10 abc8 bc12 bc13 bc11 bc14 bc18 bc22 bc23 bc15 bc17 bc16 bc24 S CAP CHANGE S CAP CHANGE S CAP CHANGE S CAP CHANGE S CAP CHANGE B-SS3608-D..-P3 c (DEFLECTION) D- CN306 TO A BOARD HV ADJ PWM CONTROL HV REG OUT CHOPPER NX-4407 V OUT H REG H RTRC BUFFER H FLY BUFFER H OUT H DRIVE OUT BUFFER H LIN AMP DF AMP BUFFER VDY HDY G1 NC NC SAW GEN2 NON AGC TYPE SAW GEN1 AGC TYPE REF R R R R R R R R R R B4 CP3 CP2 CP1 B3 B2 B1 B4 DP1 V DY+ V DY- H DY- H DY+ S S S 1 1 2 3 4 5 6 7 8 1 2 3 4 5 6 1 2 5 6 10 9 4 HV 11 FV1 1 2 13 16 15 14 FV2 12 6 7 4 5 10 3 8 9 S S S S S 1 2 3 4 5 6 7 1 5 2 3 4 1 2 3 4 5 6 7 8 10 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 S 1 2 3 5 6 7 10 1 4 5 7 8 3 6 1 2 3 4 5 8 C401 C404 C405 C501 C503 C504 C506 C515 C517 C518 C519 C520 C521 C522 C527 C534 C535 C536 C538 C539 C541 C543 C544 C546 C548 C550 C552 C554 C555 C556 C557 C558 C561 C562 C563 C564 C569 C572 C575 C576 C579 D402 D502 D505 D512 D514 D515 D516 D517 D522 D523 D524 D525 D527 FB502 FB504 FB506 IC401 Q503 Q504 Q505 Q510 Q512 Q513 Q519 Q521 Q525 R401 R404 R409 R501 R502 R503 R509 R511 R515 R519 R521 R523 R524 R525 R527 R531 R533 R534 R535 R536 R537 R540 R541 R542 R543 R545 R546 R547 R549 R551 R552 R553 R554 R557 R568 R574 R577 R581 R582 R585 R586 R590 R595 R597 RV501 SG501 C406 C581 Q511 C509 D508 C408 D511 R571 R544 R402 D401 D513 C526 D403 D519 IC501 Q515 Q516 R530 R561 FB503 C553 R564 R538 C583 CN512 R407 R528 Q508 Q514 R587 R599 R584 R589 R408 R505 R583 R567 D504 D509 D518 C403 R508 R573 C402 C502 C510 C514 C531 C559 D501 L507 L508 L513 R412 R513 R522 C407 C410 C542 R520 C508 D506 Q507 C571 R406 R410 R514 C511 C516 C523 C525 C568 R506 R512 R565 T506 T505 Q520 R507 D503 C533 R532 JW92 CN510 C528 C565 D520 D521 D526 D528 FB507 FB508 JW502 L503 R539 R570 R579 S501 T504 R591 R592 R516 CN501 T501 R575 C512 D510 R517 R518 R526 R576 C529 C530 C532 R529 R580 C507 R413 L510 T503 R572 R405 R403 C540 C537 D530 Q506 R588 R666 D532 C566 R510 R550 R596 L501 R548 L502 C524 L506 L505 C573 C574 C545 C567 C577 C582 R556 R578 R668 R670 R569 R598 D531 JW112 1000 25V 1000 25V 0.047 B:CHIP 10 0.01 B:CHIP 330p 500V B 0.01 B:CHIP 0.01 B:CHIP 0.01 :PT 1200p 1.2kV :PP 0.01 B:CHIP 100p 2kV SL 0.01 250V 0.033 100V 0.1 :PT 0.01 B:CHIP 0.01 B:CHIP 0.01 100V 4.7 100p CH:CHIP 0.01 :PT 220p CH:CHIP 0.001 :PT 470 16V 0.01 B:CHIP 0.1 25V B:CHIP 0.1 :PT 220p CH:CHIP 22 1 0.001 B:CHIP 470p B:CHIP 0.47 B:CHIP 0.1 :PT 4.7 250V 33 200V 47p CH:CHIP 22p 2kV SL HSS82 ERA34-10TP1 D2L40 HZT33-02TE HSS83 HSS83 UDZS-TE17-5.1B LA78040 2SJ449 2SA1037 2SK2098 2SK2098 2SC3311A 2SA1037AK 2SC2412K 1.5 :FPRD 5.6k :RN-CP 5.6k :RN-CP 200k :RN-CP 10k :RN-CP 1 :FPRD 1k :FPRD 1k :FPRD 1k :FPRD 1k :FPRD 100 :FPRD 1k :FPRD 4.7 :FPRD 47k :RN-CP 33k :RN-CP 91k :RN-CP 150k :RN-CP 100 3W 33 :FPRD 2.2k :FPRD 22k :RN-CP 100k 0.0068 :PT 2200p 1kV 0.1 B:CHIP 0.01 B:CHIP 6.8k :CHIP 2200p 500V 2SK3332 2SK3332 2200p B:CHIP 33k :RN-CP 270k 1k 1/2W :SURGE 1.0 :MPS 1P :TUB 2SC2412K 2SK2098 1k :RN 1k :RN 33k :RN 56k :RN 56k :RN 56k :RN 56k :RN 56k :RN 62k :RN 200k :RN 220k :RN 220k :RN 100 1k 2.2k 10k 10k 22k 47k 1M 2.2M 1k :CHIP 1k :CHIP 4.7k :CHIP 4.7k :CHIP 10k :CHIP 10k :CHIP 10k :CHIP 10k :CHIP 2.2k :CHIP 2.2k :CHIP 18k :CHIP 220 10 0.22 3W :RS 0.47 100V 0.1 :PT 0.0047 500V :PT 1.2 250V :PP 0.12 250V :PP 0.0047 :PT 5mm HLC 5mm JW(7.5) 47 1W :RS 27 1W :RS 0.1 25V B:CHIP 0.47 25V F:CHIP 10 100 :FPRD 220 35V PG124S15 2SC5682LC 47p 2kV SL 10k :RN-CP 10k :RN-CP 33 :RN 0.22 250V 0.39 250V :PP 0.12 250V :PP 0.047 250V :PP 0.047 250V :PP 120k :RN 2.2 120k :RN LCT HST 2SJ449 1.2k :RN HZT33-02TE 1 2.2 :FPRD JW(10) 1P 0.01 1 JW(5) JW(5) JW(5) 10k 10k 470 1/4W HDT 100 1/2W :RN 120 :RN 120 :RN 6P :WHT 47 1/2W :FPRD 1 B:CHIP 1.1UH 1.1UH 1.1UH 1.1UH uPC6757CS 2SC3941A-QR STP4NB80FP IRFU110 330 1W :RS 82 3W :RS 82 3W :RS 82 3W :RS :FBT MTZJ-T-77-5.6B 1SS119-25TD 1SS119-25TD 1SS119-25TD D3S4M RD12ES-T1B RD12ES-T1B RD12ES-T1B MA111-TX MA111-TX MTZJ-T-77-4.7B 100 16V 0.0022 100V :PT 4300p 1.8kV 4.7 3W :RS 4.7 3W :RS 4.7 :RS 4.7 3W :RS 0.047 400V :PP 0.18 250V :PP 0.047 200V 1.5k :CHIP 10 3W 0.27 400V 3.3 3W :RS HOC HCC DFT JW(5) 1.5 1/4W :RN 1.5 1/4W :RN 0.01 630V 2SA1037AK 470 RB441Q 0.47 16V B:CHIP 6.8k :RN 1k :RN 1k :RN 1k :RN 22uH 22uH 100 200V 2.2 250V HZS182-TE 100 :CHIP MA111-TX 0.047 250V 10mH 4.7mH D1NL40-TA D1NL40-TA D1NL40-TA D1NL40-TA D1NL20U 11DF2N 11DF2N 1SS119 1SS119 0.1 B:CHIP 0.022 B:CHIP 0.01 B:CHIP 2200p B:CHIP 10k :RN-CP 100 1/2W :FPRD 1k RN-CP 4.7k RN-CP 10k :RN-CP 330k :CHIP UDZSTE-176.8B 1SS119TD-25TD ABL E/W E/W V SAW HD V FLY HD LOCK H FLY H RTRC H RTRC H FLY 12V 12V 15V -15V 12V 12V 180V 180V STBY 5V -15V 12V 12V 12V 270V-2 12V 270V-2 12V 8 7 S2 S0 S1 S3 S4 HMD-A440(E) 4-12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H I 0.6 158.4 0 0 3.7 11.9 9.3 8.2 8.2 0 7.2 2.5 2.9 6.3 1.2 VADJ OUT CTL VCC GND bd19 bd20 B-SS3608-D..-P4 (POWER SUPPLY) d D- 5V REG SWITCHING SW REG CONT RELAY SW OVP/OCD HEATER OUT ERROR AMP CN304 TO A BOARD TO AC INLET DGC CN901 TO J BOARD REG SW :CHIP 0 C679 MAIN CNT MAIN ON STBY OFF STBY CNT STBY ON +5V HEATSINK TO Q602 NC NC L N DS VAUX ISENSE DRIVER NC HVS VIN IREF VCTRL NC GND NC DEM OOB STBY 5V +180V THP600A THP600 NC +80V H1 +12V GND DGC1 NC DGC2 GND 1 2 I O G 1 2 3 4 5 4 6 7 9 10 11 5 12 13 15 16 17 18 14 2 1 1 2 3 4 1 2 3 1 2 3 4 5 S 1 2 3 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1 2 4 3 1 2 3 4 C603 C608 C609 C611 C612 C616 C617 C618 C619 C620 C621 C622 C624 C625 C630 C632 C633 C634 C637 C640 C643 C647 C650 C656 C660 CN606 D601 D602 D603 D605 D606 D607 D608 D609 D610 D611 D612 D614 D617 D618 D620 D621 D622 D623 D625 FB601 IC601 IC602 IC607 L602 L604 L606 LF602 Q601 Q603 Q604 R600 R602 R603 R604 R606 R608 R609 R610 R613 R618 R619 R620 R623 R625 R627 R635 R640 R642 R643 R650 R655 R656 R657 RY601 CN602 IC604 Q602 C653 R667 C663 D616 C681 TH601 C601 C682 IC603 R622 C641 C631 D638 R698 C613 R621 JW613 SG601 D613 R605 FH2 CLP5 R611 R612 R607 JR602 R617 R626 JR19 R647 R615 R616 R636 R660 FH1 CLP3 CLP4 C605 R624 R614 R654 TH600 CN607 D615 R648 R697 C604 CN601 CN600 VA601 VA605 VA604 F601 C610 C665 JW614 JW615 D643 R693 C614 R628 R649 T601 C615 1000 25V 220 0.001 250V 680p :CHIP 0.068 250V 0.1 :PT 0.0022 B:CHIP 100p 500V B 47 250V 100 100V 2200 25V 1.0 10V 1000 25V 0.1 :CHIP 4700p :CHIP 220 16V 0.0047 250V E 4700p 250V 470p 500V B 6800p :CHIP 0.1 25V :CHIP 4700p 250V 9P WHT :S-MICRO D4SB60L UF4007G23 UF4007G23 FMC-26UA UF4007G23 D1NS6-TA2 RGP10JPKG23 FMN-G12S RGP10DG23 FMN-G12S UDZ-TE-17-13B TEA1504-N2 BA00AST-V5 BA05T DTC143ESA-TP 2SC3311A 4.7M 1/2W 1.8k :RC 680k 1/2W :RC 470k :RN-CP 3.9k :RN-CP 1k :RN-CP 4.7M 1/2W 220 :RN-CP 33k :RN-CP 68 :RN-CP 2.2k 1/2W 0.47 1/2W 1 :FPRD 390 :RN-CP 82k :RN-CP 68 :RN-CP 2P 2SK2843 0.001 50V B:CHIP 100 3W 47p 2kV 4.7 :CHIP 4.5 220VRMS :POS 47 10V 0.47 25V F:CHIP TLP621D4-Y 470p 250V B 56k :CHIP 270p 2kV 75k :CHIP JW(7.5) BT149G-120-0T384 JW(7.5) 22 0 :CHIP 0 :CHIP 120k :RN 150k :RN 100 22 :CHIP 22 :CHIP 10k :CHIP 680k :CHIP 1.0M :CHIP 2.2k :CHIP 22k :CHIP 33 :RN-CP 5P FMN-G12S 5.6k RN-CP 4P 3P 1.1UH TL1431CZ-AP 22uH 100uH 100uH :LFT DTC114EKA-T146 1 10W 0.33 1W 0.33 1W :RS 1.5k 2W :RS 1.5k 2W :RS 22k 3W :RS 47k 1W :RS 47k 1W :RS MTZJ-18 MTZJ-T-77-18 MTZJ-T-77-12B MTZJ-T-77-12B 1SS119-25TD 1SS119-25TD 1SS119-25TD 1SS119-25TD MTZJ-T-77-4.7B MTZJ-T-77-4.7B 3300 16V 22 25V 22 25V 0.47 275V 0.47 275V 100 16V JW(7.5) 1SS355TE-17 6.3A 250V 470 0.022 B:CHIP 3.9k :RN-CP 1.2k :RN-CP SRT 22000p :CHIP 100 :CHIP DEGAUSS PWR SW 12V 12V 180V 15V 180V -15V STBY 5V 80V 80V 380V-3 5V-4 STBY 5V 3 1 2 1 6 5 4 3 2 1 10V :CHIP 470 450V 0 JW(20) JW(20) 470 400V • Divided circuit diagram One sheet of D board circuit diagram is divided into three sheets, each having the code D-a to D-c. For example, the destination ab1 on the code D-a sheet is connected to ab1 on the D-b sheet. a b 1 Ref. No. Circuit diagram division code HMD-A440(E) 4-13 D511 D-5 - D512 C-4 - D513 C-7 - D514 D-7 - D515 E-7 - D516 D-3 - D517 E-7 - D518 D-2 - D519 C-4 - D522 D-2 - D523 E-3 - D524 D-3 - D525 D-3 - D530 E-4 - D531 E-4 - D601 B-6 - D602 C-6 - D603 C-3 - D605 A-3 - D607 A-4 - D608 A-4 - D609 A-3 - D610 A-4 - D611 B-5 - D612 C-5 - D613 B-5 - D614 B-4 - D616 A-4 - D617 C-4 - D618 C-4 - D619 C-4 - D620 A-4 - D621 C-5 - D622 B-4 - D623 A-4 - D625 A-4 3 D628 A-5 - D629 A-4 - D630 B-5 - D633 B-2 - D634 A-3 - D635 A-2 - D636 A-2 - D638 A-4 - D704 D-4 - D901 E-2 3 D902 E-2 - D903 D-1 - D904 D-2 3 D905 E-2 3 D906 E-2 3 D907 E-2 3 D908 E-2 - D909 E-2 0 D913 E-2 3 D918 E-1 3 D919 D-1 3 D920 D-1 - D924 D-1 3 D928 D-2 0 D929 D-2 0 D930 D-2 0 D936 D-2 3 D937 C-1 3 D938 E-1 - VARIABLE RESISTOR RV501 E-7 — D BOARD — NOTE: The circuit indicated as left contains high voltage of over 600 Vp-p. Care must be paid to prevent an electric shock in inspection or repairing. D • D BOARD SEMICONDUCTOR LOCATION IC IC401 C-3 IC501 C-2 IC502 B-2 IC601 A-4 IC602 B-3 IC603 A-3 IC604 B-3 IC605 B-2 IC607 B-3 IC608 B-2 IC611 B-3 IC701 A-1 IC702 A-1 IC703 B-1 IC901 D-1 IC902 C-1 IC904 D-2 IC905 E-1 IC908 E-1 TRANSISTOR * Q501 D-1 1 Q502 D-2 1 Q503 C-6 - Q504 E-6 - Q505 D-2 1 Q507 E-3 - Q508 D-3 1 Q510 C-6 - Q511 E-3 - Q512 D-5 - Q513 D-5 - Q514 D-5 - Q515 D-5 - Q516 C-5 - Q519 C-4 - Q520 D-3 - Q521 C-4 - Q522 C-1 1 Q524 C-1 1 Q525 D-3 1 Q601 B-2 - Q602 A-4 - Q603 C-5 1 Q604 A-3 - Q605 B-3 1 Q607 A-4 - Q612 C-4 - Q901 D-2 1 Q903 C-1 1 DIODE * D401 C-3 - D402 D-3 - D403 D-3 3 D404 D-1 - D501 D-3 - D502 E-3 - D503 D-6 - D504 C-6 - D505 D-4 - D506 E-4 - D507 E-2 3 D508 D-4 3 D509 C-1 3 D510 D-6 - *: Refer to Terminal name of semiconductors in silk screen printed circuit (see page 4-5) DEFLECTION, CPU, CONVERGENCE CONTROL, POWER SUPPLY 1 2 3 4 5 6 7 A B C D E HMD-A440(E) 4-14 1 2 3 4 5 6 7 8 9 10 A B C D E F (3) Schematic Diagram of H Board b CN904 TO D- BOARD STBY 5V GND KEY LED RED LED GRN MENU UP RIGHT LEFT DOWN 1 2 3 4 5 6 H Degauss SW LCC NS LCC RF B-SS3608-H.. (USER CONTROL,LED) A G 1 2 3 4 5 6 7 8 C2001 D2001 D2003 D2010 D2004 D2002 R2001 R2002 C2002 R2003 R2004 R2005 R2006 S2001 R2007 Q2001 TH2001 R2009 R2010 FB2001 R2008 C2003 R2011 R2012 R2013 C2004 FB2002 CN2001 0.1 :PT SML76755WN 0.001 :B 560 1.5k 3.3k 10k 2SC3311A 10K 39k :RN 5MM 10k 47 16V 10k :RN 20k :RN 10k :RN 47 16V 5MM 8P 2.7k 1.0k 1SS119-25TD 1SS119-25TD 1SS119-25TD 1SS119-25TD 470 1k HMD-A440(E) 4-15 H — H BOARD — USER CONTROL, LED HMD-A440(E) 4-16 1 2 3 4 5 A B C D E F (4) Schematic Diagram of J Board J [ SW ] — J BOARD — d CN607 TO D- BOARD B-SS3608-J.. (P-SW) N/C MAIN MAIN ON CNT ON STBY STBY CNT OFF STBY J 1 2 3 4 5 6 CN901 S901 5P 4 1 6 3 2 5 HMD-A230(E) 4-17 1 2 3 4 5 A B C D E F (5) Schematic Diagram of L Board B-SS3608-L.. TO D- BOARD CN608 b b CN609 TO D- BOARD (LCC) L LCC+ LCC- LCC NS LCC RF +15V GND -15V 1 2 3 4 5 6 7 8 9 10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 1 2 3 4 5 6 C1001 C1003 C1005 FB1001 IC1001 R1001 R1004 R1006 R1008 R1009 R1002 R1003 R1005 C1004 C1007 C1008 R1007 R1010 R1011 CN1001 CN1003 0.1 25V :CHIP 0.1 25V :CHIP 0.1 25V :CHIP 1.1UH LA6515 2.2 :CHIP 2.2 :CHIP 22 1W 2.2 :FPRD 2.2 :FPRD 10k :RN-CP 15k :RN-CP 4.7k :CHIP 47 25V :CHIP 0.1 25V :CHIP 47 25V 2.2 :CHIP 10k :CHIP 10k :CHIP 6P 15P L [ LCC ] — L BOARD — HMD-A440(E) 4-18 LM2415T MARKING SIDE VIEW 1 n PQ12RD8S 1234 PST9143NL 1 n STK391-12 MARKING SIDE VIEW 1 TC74HCT04AF(EL) 1 TOP VIEW n TEA1504-N2 1 TOP VIEW n TLP621D4-Y-LF2Y 1 2 3 4 1 2 3 4 TL1431CZ-AP 1 2 3 4-5. SEMICONDUCTORS BA00AST-V5 LA6500-FA 5 1 BA05T TA7805S BR24C08F-E2 1 TOP VIEW n CXA2067AS CXA8071CP 1 TOP VIEW n CXA8070AP 1 TOP VIEW n CXD9163P/BBM ST72T75/N9B1/BBM 1 TOP VIEW n CXD9620P 1 TOP VIEW n H8D2957 MARKING SIDE VIEW 1 8 pin SOP 30 pin DIP 18 pin DIP 18 pin DIP IRU110 IRU110A S D G LA6510 LA6515 LA78040 7 1 11 pin SIP 11 pin ZIP 5 pin CHIP 14 pin SOP 14 pin SOP 24 pin DIP UPC5021-109 UPC6757CS 1 TOP VIEW n DTC114EK PDTA114EK-116 PDTC114EK-115 2SA1037AK-T146-R 2SC1623-L5L6 E B C DTC143ESA 2SC2785-HFE 2SC3311A-QRSTA E LETTER SIDE C B STP5NA80F1 2SJ449 2SK2098-01MR-F119 2SK2605LBSONY G D S 2SC3941A-Q(TA) E C B 2SC5682-SONY-CA B C E 2SK2843LBS2SONY G S D 10 1 10 1 56 pin DIP 10 pin SIP HMD-A440(E) 4-19 2SK3155-01 G D S BT149G-112-0T38 12 3 1 2 3 DTZ13B DTZ-TT-11-6.8B DTZ6.8B HZU5.6B2TRF MA111-TX PDZ5.6B-115 UDZ-TE-17-5.1B UDZ-TE-17-5.6B 1SS355TE-17 CATHODE ANODE D1NL20U UF4007G23 CATHODE ANODE D1NL40-TA D1NL40-TA2 D1NS6 HSS82-TJ HSS83TD RGP02-20EL-6394 RGP10JPKG23 CATHODE ANODE D2L40-TA D4SB60L ~ ~ + – ~ ~ + – ERC81-004 RH-1A 1SS133T-77 11DF2N-TA2B2 CATHODE ANODE FMC-26UA FMN-G12S CATHODE ANODE FMQ-G5FMS CATHODE ANODE HZS18NTD MTZJ-4.7C MTZJ-T-77-12 RB441Q-40T-77 RD-2ESB1 RD12ES-B2 RD18ESB RD18ES-B2 RD4.7ESB2 RD5.6ESB2 1SR139-400T31 1SS119-25 CATHODE ANODE SML76755WNTP15 CATHODE (RED) ANODE CATHODE (GRN) STZ6.8N-T146 1 2 3 1 2 3 1SS184 1 2 3 1 2 3 1PS226-115 1 2 3 1 2 3 HMD-A230(E) 5-1 SECTION 5 EXPLODED VIEWS • Items with no part number and no description are not stocked because they are seldom required for routine service. • The construction parts of an assembled part are indicated with a collation number in the remark column. • Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. The components identified ! marked are critical for safety. Replace only with the part number specified. Les composants identifiés par la marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. HMD-A440(E) 5-2 REF.NO. PART NO. DESCRIPTION REMARK 5-1. CABINET 1 1-757-472-51 CABLE ASSY (15 DSUB CONNECTOR) 2 X-4039-834-1 SHIELD ASSY, EMI 3 ! 1-251-382-31 INLET, AC 3P (WITH NOISE FILTER) 4 4-052-345-01 SCREW, (3X8) (+K), TAPPING 5 * A-1300-170-A A BOARD, COMPLETE 6 X-4039-831-1 CABINET ASSY 7 4-086-908-01 COVER, CABLE 7 6 2 1 3 4 7-685-647-71 +BVTP 3X10 7-685-663-71 +BVTP 4X16 HMD-A440(E) 5-3 REF.NO. PART NO. DESCRIPTION REMARK 5-2. CHASSIS 7-685-647-71 +BVTP 3X10 51 X-4039-830-4 BEZEL ASSY 52-54 52 4-044-932-31 EMBLEM (NO. 8), SONY 53 4-077-037-02 SPRING, COMPRESSION 54 4-086-076-01 BUTTON, POWER 55 4-086-075-01 BUTTON, MENU 56 * A-1400-278-A H BOARD, COMPLETE 57 * A-1400-279-A J BOARD, COMPLETE 58 4-046-797-01 SCREW (3X12), (+)BVTAP 59 * A-1300-171-A D BOARD, COMPLETE 60 1-900-805-55 WIRE ASSY, FOCUS LEAD 61 * A-1400-282-A L BOARD, COMPLETE 62 X-4039-832-3 STAND ASSY 63,64 63 * 4-060-533-01 CUSHION 64 4-080-252-01 STOPPER 65 4-080-491-01 RING, TILT 7-685-647-79 +BVTP 3X10 7-685-881-09 +BVTP 4X8 51 56 57 58 63 55 54 52 53 60 61 59 62 64 HMD-A440(E) 5-4 REF.NO. PART NO. DESCRIPTION REMARK 5-3. PICTURE TUBE 101 8-734-070-06 CRT 19TKC-R8 102 4-365-808-01 SCREW (5), TAPPING 103 1-251-642-13 CAP ASSY, HIGH-VOLTAGE 104 3-704-372-31 HOLDER, HV CABLE 105 8-451-518-41 DY Y19TKL-M3 106 4-061-573-01 SPRING, TENSION 107 1-419-285-21 COIL, DEGAUSSING 108 1-419-129-51 COIL, LANDING CORRECTION 109 4-041-021-11 HOLDER, DEGAUSSING COIL 110 4-071-175-11 HOLDER, DGC 111 1-452-032-00 MAGNET,DISC 105 106 106 107 108 108 110 111 101 102 103 104 109 HMD-A440(E) 5-5 REF.NO. PART NO. DESCRIPTION REMARK 5-4. PACKING MATERIALS 151 1-790-662-11 CORD SET, POWER 152 1-790-881-11 CORD SET, POWER 153 4-086-970-11 MANUAL, INSTRUCTION 154 * 4-086-601-01 CUSHION, UPPER 155 * 4-041-254-01 BAG, PROTECTION 156 * 4-086-602-01 CUSHION, LOWER 157 * 4-086-600-01 CARTON, INDIVIDUAL 151 152 153 155 156 157 154 HMD-A440(E) 6-1 SECTION 6 ELECTRICAL PARTS LIST NOTE: The components identified by [ in this manual have been carefully factory-selected for each set in order to satisfy regulations regardin X-ray radiation.Should replacement be required, replace only with the value originally used. • All variable and adjustable resistors have characteristic curve B, unless otherwise noted. • Items marked " * " are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. RESISTORS • All resistors are in ohms • F : nonflammable When indicating parts by reference number, please include the board name. Les composants identifiés par la marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified ! marked are critical for safety. Replace only with the part number specified. HMD-A440(E) 6-2 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 1 A CAPACITOR C001 1-162-318-11 CERAMIC 0.001UF 10.00% 500V 2 A CAPACITOR C002 1-162-318-11 CERAMIC 0.001UF 10.00% 500V 3 A CAPACITOR C003 1-102-050-00 CERAMIC 0.01UF 99% 500V 4 A CAPACITOR C004 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 5 A CAPACITOR C007 1-126-935-11 ELECT 470UF 20.00% 16V 6 A CAPACITOR C009 1-126-926-11 ELECT 1000UF 20.00% 10V 7 A CAPACITOR C010 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 8 A CAPACITOR C011 1-106-220-00 MYLAR 0.1UF 10.00% 100V 9 A CAPACITOR C011 1-130-777-00 MYLAR 0.1UF 10% 100V 10 A CAPACITOR C012 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 11 A CAPACITOR C013 1-162-318-11 CERAMIC 0.001UF 10.00% 500V 12 A CAPACITOR C014 1-128-562-11 ELECT 47UF 20.00% 100V 13 A CAPACITOR C015 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 14 A CAPACITOR C016 1-126-947-11 ELECT 47UF 20.00% 35V 15 A CAPACITOR C018 1-107-651-11 ELECT 4.7UF 20.00% 250V 16 A CAPACITOR C022 1-126-947-11 ELECT 47UF 20.00% 35V 17 A CAPACITOR C035 1-115-350-51 CERAMIC 0.0047UF 2KV 18 A CAPACITOR C035 1-162-114-00 CERAMIC 0.0047UF 2KV 19 A CAPACITOR C036 1-162-318-11 CERAMIC 0.001UF 10.00% 500V 20 A CAPACITOR C042 1-163-009-91 CERAMIC CHIP 0.001UF 10.00% 50V 21 A CAPACITOR C044 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V 22 A CAPACITOR C046 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 23 A CAPACITOR C047 1-126-947-11 ELECT 47UF 20.00% 35V 24 A CAPACITOR C049 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 25 A CAPACITOR C050 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 26 A CAPACITOR C053 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 27 A CAPACITOR C054 1-137-528-11 MYLAR 0.1UF 10.00% 250V 28 A CAPACITOR C092 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 29 A CAPACITOR C102 1-137-528-11 MYLAR 0.1UF 10.00% 250V 30 A CAPACITOR C104 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 31 A CAPACITOR C105 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V HMD-A440(E) 6-3 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 32 A CAPACITOR C106 1-137-528-11 MYLAR 0.1UF 10.00% 250V 33 A CAPACITOR C112 1-163-231-11 CERAMIC CHIP 15PF 5.00% 50V 34 A CAPACITOR C151 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V 35 A CAPACITOR C202 1-137-528-11 MYLAR 0.1UF 10.00% 250V 36 A CAPACITOR C204 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 37 A CAPACITOR C205 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 38 A CAPACITOR C206 1-137-528-11 MYLAR 0.1UF 10.00% 250V 39 A CAPACITOR C212 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V 40 A CAPACITOR C251 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V 41 A CAPACITOR C302 1-137-528-11 MYLAR 0.1UF 10.00% 250V 42 A CAPACITOR C304 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 43 A CAPACITOR C305 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 44 A CAPACITOR C306 1-137-528-11 MYLAR 0.1UF 10.00% 250V 45 A CAPACITOR C312 1-163-085-00 CERAMIC CHIP 2PF 0.25PF 50V 46 A CAPACITOR C351 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V 47 A CONNECTOR CN301 1-785-879-11 CONNECTOR, ONE TOUCH 48 A CONNECTOR * CN302 1-815-022-11 PIN, CONNECTOR (WITH PWB) 6P 49 A CONNECTOR * CN304 1-564-524-11 PLUG, CONNECTOR 9P 50 A CONNECTOR CN306 1-506-108-41 PIN, CONNECTOR (TERMINAL PIN) 51 A CONNECTOR CN307 1-695-915-11 TAB (CONTACT) 52 A CONNECTOR * CN309 1-564-523-11 PLUG, CONNECTOR 8P 53 A DIODE D001 8-719-970-02 DIODE 1SR139-400T31 54 A DIODE D104 8-719-970-83 DIODE HSS82-TJ 55 A DIODE D105 8-719-970-83 DIODE HSS82-TJ 56 A DIODE D106 8-719-970-83 DIODE HSS82-TJ 57 A DIODE D111 8-719-062-51 DIODE 1PS226-115 58 A DIODE D204 8-719-970-83 DIODE HSS82-TJ 59 A DIODE D205 8-719-970-83 DIODE HSS82-TJ 60 A DIODE D206 8-719-970-83 DIODE HSS82-TJ 61 A DIODE D211 8-719-062-51 DIODE 1PS226-115 62 A DIODE D304 8-719-970-83 DIODE HSS82-TJ HMD-A440(E) 6-4 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 63 A DIODE D305 8-719-970-83 DIODE HSS82-TJ 64 A DIODE D306 8-719-970-83 DIODE HSS82-TJ 65 A DIODE D311 8-719-062-51 DIODE 1PS226-115 66 A CHIP CONDUCTOR FB001 1-412-911-11 FERRITE 0UH 67 A CHIP CONDUCTOR FB003 1-412-911-11 FERRITE 0UH 68 A CHIP CONDUCTOR FB004 1-412-911-11 FERRITE 0UH 69 A CHIP CONDUCTOR FB005 1-412-911-11 FERRITE 0UH 70 A CHIP CONDUCTOR FB006 1-412-911-11 FERRITE 0UH 71 A CHIP CONDUCTOR FB009 1-412-911-11 FERRITE 0UH 72 A CHIP CONDUCTOR FB010 1-412-911-11 FERRITE 0UH 73 A CHIP CONDUCTOR FB101 1-412-911-11 FERRITE 0UH 74 A CHIP CONDUCTOR FB102 1-216-295-91 SHORT 0 75 A CHIP CONDUCTOR FB201 1-412-911-11 FERRITE 0UH 76 A CHIP CONDUCTOR FB202 1-216-295-91 SHORT 0 77 A CHIP CONDUCTOR FB301 1-412-911-11 FERRITE 0UH 78 A CHIP CONDUCTOR FB302 1-216-295-91 SHORT 0 79 A IC IC001 8-752-094-09 IC CXA2067AS 80 A IC IC002 8-759-596-65 IC LM2415T 81 A IC IC003 8-759-698-56 IC CXD9620P 82 A IC IC004 8-749-016-27 IC H8D2957 83 A SOCKET ! J001 1-451-524-11 SOCKET, CRT 84 A CHIP CONDUCTOR JR2 1-216-296-11 SHORT 0 85 A CHIP CONDUCTOR JR3 1-216-296-11 SHORT 0 86 A CHIP CONDUCTOR JR4 1-216-296-11 SHORT 0 87 A CHIP CONDUCTOR JR5 1-216-296-11 SHORT 0 88 A CHIP CONDUCTOR JR7 1-216-296-11 SHORT 0 89 A CHIP CONDUCTOR JR8 1-216-296-11 SHORT 0 90 A FERRITE BEAD L002 1-412-911-11 FERRITE 0UH 91 A COIL L005 1-412-529-11 INDUCTOR 22UH 92 A COIL L007 1-408-617-31 INDUCTOR 150UH 93 A TRANSISTOR Q006 8-729-120-28 TRANSISTOR 2SC1623-L5L6 HMD-A440(E) 6-5 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 94 A RESISTOR R001 1-216-295-91 SHORT 0 95 A RESISTOR R002 1-216-043-91 RES-CHIP 560 5% 1/10W 96 A RESISTOR R003 1-216-071-00 RES-CHIP 8.2K 5% 1/10W 97 A RESISTOR R004 1-216-055-00 RES-CHIP 1.8K 5% 1/10W 98 A RESISTOR R005 1-216-109-00 RES-CHIP 330K 5% 1/10W 99 A RESISTOR R006 1-216-025-11 RES-CHIP 100 5% 1/10W 100 A RESISTOR R009 1-216-073-91 RES-CHIP 10K 5% 1/10W 101 A RESISTOR R014 1-216-025-11 RES-CHIP 100 5% 1/10W 102 A RESISTOR R017 1-216-025-11 RES-CHIP 100 5% 1/10W 103 A RESISTOR R018 1-216-025-11 RES-CHIP 100 5% 1/10W 104 A RESISTOR R020 1-216-017-91 RES-CHIP 47 5% 1/10W 105 A RESISTOR R021 1-216-017-91 RES-CHIP 47 5% 1/10W 106 A RESISTOR R024 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 107 A RESISTOR R028 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 108 A RESISTOR R030 1-216-049-11 RES-CHIP 1K 5% 1/10W 109 A RESISTOR R032 1-216-097-11 RES-CHIP 100K 5% 1/10W 110 A RESISTOR R033 1-247-891-00 CARBON 330K 5% 1/4W 111 A RESISTOR R048 1-219-398-51 METAL 2.2M 5% 1W 112 A RESISTOR R051 1-216-049-11 RES-CHIP 1K 5% 1/10W 113 A RESISTOR R052 1-216-073-91 RES-CHIP 10K 5% 1/10W 114 A RESISTOR R102 1-216-113-00 RES-CHIP 470K 5% 1/10W 115 A RESISTOR R104 1-469-965-21 INDUCTOR 0UH 116 A RESISTOR R105 1-469-965-21 INDUCTOR 0UH 117 A RESISTOR R106 1-216-667-11 METAL CHIP 4.7K 0.5% 1/10W 118 A RESISTOR R107 1-216-657-11 METAL CHIP 1.8K 0.5% 1/10W 119 A RESISTOR R108 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 120 A RESISTOR R109 1-216-113-00 RES-CHIP 470K 5% 1/10W 121 A RESISTOR R111 1-249-403-11 CARBON 68 5% 1/4W 122 A RESISTOR R117 1-414-137-31 INDUCTOR 0.22UH 123 A RESISTOR R119 1-216-121-11 RES-CHIP 1M 5% 1/10W 124 A RESISTOR R130 1-216-025-11 RES-CHIP 100 5% 1/10W HMD-A440(E) 6-6 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 125 A RESISTOR R151 1-219-742-11 CARBON 47 5% 1/2W 126 A RESISTOR R161 1-215-394-00 METAL 75 1% 1/4W 127 A RESISTOR R202 1-216-113-00 RES-CHIP 470K 5% 1/10W 128 A RESISTOR R204 1-469-965-21 INDUCTOR 0UH 129 A RESISTOR R205 1-469-965-21 INDUCTOR 0UH 130 A RESISTOR R206 1-216-667-11 METAL CHIP 4.7K 0.5% 1/10W 131 A RESISTOR R207 1-216-657-11 METAL CHIP 1.8K 0.5% 1/10W 132 A RESISTOR R208 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 133 A RESISTOR R209 1-216-113-00 RES-CHIP 470K 5% 1/10W 134 A RESISTOR R211 1-249-403-11 CARBON 68 5% 1/4W 135 A RESISTOR R217 1-414-137-31 INDUCTOR 0.22UH 136 A RESISTOR R218 1-216-025-11 RES-CHIP 100 5% 1/10W 137 A RESISTOR R219 1-216-121-11 RES-CHIP 1M 5% 1/10W 138 A RESISTOR R230 1-216-001-00 RES-CHIP 10 5% 1/10W 139 A RESISTOR R251 1-219-742-11 CARBON 47 5% 1/2W 140 A RESISTOR R261 1-215-394-00 METAL 75 1% 1/4W 141 A RESISTOR R302 1-216-113-00 RES-CHIP 470K 5% 1/10W 142 A RESISTOR R304 1-469-965-21 INDUCTOR 0UH 143 A RESISTOR R305 1-469-965-21 INDUCTOR 0UH 144 A RESISTOR R306 1-216-667-11 METAL CHIP 4.7K 0.5% 1/10W 145 A RESISTOR R307 1-216-657-11 METAL CHIP 1.8K 0.5% 1/10W 146 A RESISTOR R308 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 147 A RESISTOR R309 1-216-113-00 RES-CHIP 470K 5% 1/10W 148 A RESISTOR R311 1-249-403-11 CARBON 68 5% 1/4W 149 A RESISTOR R317 1-414-137-31 INDUCTOR 0.22UH 150 A RESISTOR R319 1-216-121-11 RES-CHIP 1M 5% 1/10W 151 A RESISTOR R330 1-216-029-00 RES-CHIP 150 5% 1/10W 152 A RESISTOR R351 1-219-742-11 CARBON 47 5% 1/2W 153 A RESISTOR R361 1-215-394-00 METAL 75 1% 1/4W 154 A SPARK GAP SG001 1-519-422-11 GAP, SPARK 155 A SPARK GAP SG002 1-517-499-21 GAP, SPARK HMD-A440(E) 6-7 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 156 A SPARK GAP SG003 1-517-499-21 GAP, SPARK 157 A SPARK GAP SG101 1-517-499-21 GAP, SPARK 158 A SPARK GAP SG201 1-517-499-21 GAP, SPARK 159 A SPARK GAP SG301 1-517-499-21 GAP, SPARK 160 D CAPACITOR C401 1-126-942-61 ELECT 1000UF 20.00% 25V 161 D CAPACITOR C402 1-137-959-91 MYLAR 0.47UF 5% 100V 162 D CAPACITOR C403 1-107-911-11 ELECT 220UF 20.00% 50V 163 D CAPACITOR C404 1-126-942-61 ELECT 1000UF 20.00% 25V 164 D CAPACITOR C405 1-104-760-11 CERAMIC CHIP 0.047UF 10.00% 50V 165 D CAPACITOR C406 1-130-481-00 MYLAR 0.0068UF 5.00% 50V 166 D CAPACITOR C407 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 167 D CAPACITOR C408 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 168 D CAPACITOR C410 1-164-005-11 CERAMIC CHIP 0.47UF 25V 169 D CAPACITOR C501 1-126-964-11 ELECT 10UF 20.00% 50V 170 D CAPACITOR C502 1-130-495-00 MYLAR 0.1UF 5.00% 50V 171 D CAPACITOR C503 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 172 D CAPACITOR C504 1-102-030-00 CERAMIC 330PF 10.00% 500V 173 D CAPACITOR C506 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 174 D CAPACITOR C507 1-136-916-11 FILM 0.27UF 5.00% 400V 175 D CAPACITOR C508 1-126-949-11 ELECT 220UF 20.00% 35V 176 D CAPACITOR C509 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 177 D CAPACITOR C510 1-136-287-11 FILM 0.0047UF 5.00% 100V 178 D CAPACITOR C511 1-117-663-11 FILM 0.22UF 5.00% 250V 179 D CAPACITOR C512 1-109-982-11 CERAMIC CHIP 1UF 10.00% 10V 180 D CAPACITOR C513 1-128-744-91 ELECT 10UF 20% 50V 181 D CAPACITOR C514 1-115-356-11 FILM 1.2UF 5.00% 250V 182 D CAPACITOR C515 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 183 D CAPACITOR C516 1-117-666-11 FILM 0.39UF 5.00% 250V 184 D CAPACITOR C517 1-137-150-11 FILM 0.01UF 5.00% 100V 185 D CAPACITOR C518 1-137-718-11 FILM 4300PF 3% 1.8KV 186 D CAPACITOR C519 1-117-621-21 FILM 1200PF 3.00% 1.2KV HMD-A440(E) 6-8 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 187 D CAPACITOR C520 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 188 D CAPACITOR C521 1-107-444-11 CERAMIC 100PF 5.00% 2KV 189 D CAPACITOR C522 1-136-684-51 FILM 0.0022UF 2.00% 100V 190 D CAPACITOR C523 1-117-660-21 FILM 0.12UF 5.00% 250V 191 D CAPACITOR C524 1-165-910-51 ELECT 33UF 20% 200V 192 D CAPACITOR C525 1-113-979-51 MYLAR 0.047UF 10.00% 400V 193 D CAPACITOR C526 1-164-646-11 CERAMIC 2200PF 10.00% 500V 194 D CAPACITOR C527 1-137-105-11 FILM 0.01UF 20.00% 250V 195 D CAPACITOR C528 1-107-364-11 MYLAR 0.01UF 10.00% 200V 196 D CAPACITOR C529 1-136-060-00 FILM 0.047UF 5.00% 400V 197 D CAPACITOR C530 1-117-662-11 FILM 0.18UF 5.00% 250V 198 D CAPACITOR C531 1-117-660-21 FILM 0.12UF 5.00% 250V 199 D CAPACITOR C532 1-107-368-11 MYLAR 0.047UF 10.00% 200V 200 D CAPACITOR C533 1-126-960-11 ELECT 1UF 20.00% 50V 201 D CAPACITOR C534 1-137-419-11 MYLAR 0.033UF 10.00% 100V 202 D CAPACITOR C535 1-130-495-00 MYLAR 0.1UF 5.00% 50V 203 D CAPACITOR C536 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 204 D CAPACITOR C537 1-412-911-11 FERRITE 0UH 205 D CAPACITOR C538 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 206 D CAPACITOR C539 1-137-150-11 FILM 0.01UF 5.00% 100V 207 D CAPACITOR C540 1-136-203-11 MYLAR 0.01UF 5.00% 630V 208 D CAPACITOR C541 1-126-963-11 ELECT 4.7UF 20.00% 50V 209 D CAPACITOR C542 1-126-964-11 ELECT 10UF 20.00% 50V 210 D CAPACITOR C543 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V 211 D CAPACITOR C544 1-137-150-11 FILM 0.01UF 5.00% 100V 212 D CAPACITOR C545 1-115-339-11 CERAMIC CHIP 0.1UF 10.00% 50V 213 D CAPACITOR C546 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V 214 D CAPACITOR C547 1-107-902-11 ELECT 1UF 20.00% 50V 215 D CAPACITOR C548 1-130-471-00 MYLAR 0.001UF 5.00% 50V 216 D CAPACITOR C549 1-137-375-11 MYLAR 0.068UF 5.00% 50V 217 D CAPACITOR C550 1-126-935-11 ELECT 470UF 20.00% 16V HMD-A440(E) 6-9 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 218 D CAPACITOR C552 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 219 D CAPACITOR C553 1-164-161-11 CERAMIC CHIP 0.0022UF 10.00% 50V 220 D CAPACITOR C554 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 221 D CAPACITOR C555 1-130-495-00 MYLAR 0.1UF 5.00% 50V 222 D CAPACITOR C556 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V 223 D CAPACITOR C557 1-107-907-11 ELECT 22UF 20.00% 50V 224 D CAPACITOR C558 1-126-960-11 ELECT 1UF 20.00% 50V 225 D CAPACITOR C559 1-136-287-11 FILM 0.0047UF 5.00% 100V 226 D CAPACITOR C561 1-163-009-91 CERAMIC CHIP 0.001UF 10.00% 50V 227 D CAPACITOR C562 1-107-882-91 ELECT 100UF 20.00% 16V 228 D CAPACITOR C562 1-107-882-11 ELECT 100UF 20.00% 16V 229 D CAPACITOR C563 1-163-005-91 CERAMIC CHIP 470PF 10.00% 50V 230 D CAPACITOR C564 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V 231 D CAPACITOR C565 1-136-177-00 FILM 1UF 5.00% 50V 232 D CAPACITOR C566 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V 233 D CAPACITOR C567 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V 234 D CAPACITOR C568 1-113-979-51 MYLAR 0.047UF 10.00% 400V 235 D CAPACITOR C569 1-130-495-00 MYLAR 0.1UF 5.00% 50V 236 D CAPACITOR C571 1-107-974-11 CERAMIC 47PF 5.00% 2KV 237 D CAPACITOR C572 1-107-651-11 ELECT 4.7UF 20.00% 250V 238 D CAPACITOR C573 1-107-649-11 ELECT 2.2UF 20.00% 250V 239 D CAPACITOR C574 1-136-187-11 MYLAR 0.047UF 10.00% 250V 240 D CAPACITOR C575 1-135-843-51 ELECT 33UF 20% 200V 241 D CAPACITOR C576 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V 242 D CAPACITOR C577 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 243 D CAPACITOR C579 1-109-879-11 CERAMIC 22PF 5.00% 2KV 244 D CAPACITOR C581 1-107-782-81 CERAMIC 2200PF 1KV 245 D CAPACITOR C582 1-164-161-11 CERAMIC CHIP 0.0022UF 10.00% 50V 246 D CAPACITOR C583 1-136-177-00 FILM 1UF 5.00% 50V 247 D CAPACITOR C601 1-107-909-11 ELECT 47UF 20.00% 50V 248 D CAPACITOR C603 1-126-942-61 ELECT 1000UF 20.00% 25V HMD-A440(E) 6-10 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 249 D CAPACITOR ! C604 1-104-708-11 MYLAR 0.47UF 20.00% 250V 250 D CAPACITOR ! C605 1-104-708-11 MYLAR 0.47UF 20.00% 250V 251 D CAPACITOR C608 1-104-653-91 ELECT 220UF 20.00% 16V 252 D CAPACITOR C609 1-117-699-11 CERAMIC 0.001UF 99% 250V 253 D CAPACITOR C610 1-113-608-11 ELECT(BLOCK) 470UF 20.00% 400V 254 D CAPACITOR C611 1-163-007-11 CERAMIC CHIP 680PF 10.00% 50V 255 D CAPACITOR C612 1-119-858-11 FILM 0.068UF 5.00% 250V 256 D CAPACITOR C613 1-162-132-00 CERAMIC 270PF 10.00% 2KV 257 D CAPACITOR C614 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V 258 D CAPACITOR C615 1-163-037-11 CERAMIC CHIP 0.022UF 10.00% 50V 259 D CAPACITOR C616 1-107-907-11 ELECT 22UF 20.00% 50V 260 D CAPACITOR C617 1-107-907-11 ELECT 22UF 20.00% 50V 261 D CAPACITOR C618 1-130-495-00 MYLAR 0.1UF 5.00% 50V 262 D CAPACITOR C619 1-164-161-11 CERAMIC CHIP 0.0022UF 10.00% 50V 263 D CAPACITOR C620 1-162-117-00 CERAMIC 100PF 10.00% 500V 264 D CAPACITOR C621 1-135-842-51 ELECT 47UF 20% 250V 265 D CAPACITOR C622 1-128-763-91 ELECT 100UF 20% 100V 266 D CAPACITOR C624 1-107-885-11 ELECT 3300UF 20.00% 16V 267 D CAPACITOR C625 1-126-943-11 ELECT 2200UF 20.00% 25V 268 D CAPACITOR C626 1-104-653-91 ELECT 220UF 20.00% 16V 269 D CAPACITOR C627 1-126-934-11 ELECT 220UF 20.00% 16V 270 D CAPACITOR C628 1-128-526-11 ELECT 100UF 20.00% 25V 271 D CAPACITOR C630 1-109-982-11 CERAMIC CHIP 1UF 10.00% 10V 272 D CAPACITOR ! C631 1-113-910-11 CERAMIC 470PF 10.00% 250V 273 D CAPACITOR C632 1-128-954-11 ELECT 1000UF 20% 25V 274 D CAPACITOR C633 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 275 D CAPACITOR C634 1-163-017-00 CERAMIC CHIP 0.0047UF 10.00% 50V 276 D CAPACITOR C637 1-104-653-91 ELECT 220UF 20.00% 16V 277 D CAPACITOR C640 1-117-703-11 CERAMIC 0.0047UF 99% 250V 278 D CAPACITOR C641 1-107-882-91 ELECT 100UF 20.00% 16V 279 D CAPACITOR C643 1-117-703-11 CERAMIC 0.0047UF 99% 250V HMD-A440(E) 6-11 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 280 D CAPACITOR C647 1-102-228-00 CERAMIC 470PF 10.00% 500V 281 D CAPACITOR C650 1-163-019-00 CERAMIC CHIP 0.0068UF 10.00% 50V 282 D CAPACITOR C653 1-163-009-91 CERAMIC CHIP 0.001UF 10.00% 50V 283 D CAPACITOR C656 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 284 D CAPACITOR ! C660 1-117-703-11 CERAMIC 0.0047UF 99% 250V 285 D CAPACITOR C663 1-107-974-11 CERAMIC 47PF 5.00% 2KV 286 D CAPACITOR C665 1-216-295-91 SHORT 0 287 D CAPACITOR C679 1-216-295-91 SHORT 0 288 D CAPACITOR C681 1-107-905-11 ELECT 4.7UF 20.00% 50V 289 D CAPACITOR C682 1-164-005-11 CERAMIC CHIP 0.47UF 25V 290 D CAPACITOR C701 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 291 D CAPACITOR C702 1-126-963-11 ELECT 4.7UF 20.00% 50V 292 D CAPACITOR C703 1-136-169-00 FILM 0.22UF 5.00% 50V 293 D CAPACITOR C704 1-163-259-91 CERAMIC CHIP 220PF 5.00% 50V 294 D CAPACITOR C706 1-163-247-91 CERAMIC CHIP 68PF 5.00% 50V 295 D CAPACITOR C707 1-163-247-91 CERAMIC CHIP 68PF 5.00% 50V 296 D CAPACITOR C708 1-130-495-00 MYLAR 0.1UF 5.00% 50V 297 D CAPACITOR C709 1-126-941-11 ELECT 470UF 20.00% 25V 298 D CAPACITOR C710 1-126-941-11 ELECT 470UF 20.00% 25V 299 D CAPACITOR C711 1-130-495-00 MYLAR 0.1UF 5.00% 50V 300 D CAPACITOR C712 1-130-495-00 MYLAR 0.1UF 5.00% 50V 301 D CAPACITOR C713 1-126-933-11 ELECT 100UF 20.00% 16V 302 D CAPACITOR C714 1-163-131-00 CERAMIC CHIP 390PF 5.00% 50V 303 D CAPACITOR C715 1-126-933-11 ELECT 100UF 20.00% 16V 304 D CAPACITOR C716 1-163-989-11 CERAMIC CHIP 0.033UF 10.00% 25V 305 D CAPACITOR C718 1-163-989-11 CERAMIC CHIP 0.033UF 10.00% 25V 306 D CAPACITOR C723 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 307 D CAPACITOR C725 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 308 D CAPACITOR C729 1-163-003-11 CERAMIC CHIP 330PF 10.00% 50V 309 D CAPACITOR C733 1-163-003-11 CERAMIC CHIP 330PF 10.00% 50V 310 D CAPACITOR C901 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V HMD-A440(E) 6-12 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 311 D CAPACITOR C902 1-126-935-11 ELECT 470UF 20.00% 16V 312 D CAPACITOR C905 1-137-375-11 MYLAR 0.068UF 5.00% 50V 313 D CAPACITOR C906 1-136-177-00 FILM 1UF 5.00% 50V 314 D CAPACITOR C908 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 315 D CAPACITOR C909 1-126-933-11 ELECT 100UF 20.00% 16V 316 D CAPACITOR C910 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 317 D CAPACITOR C911 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 318 D CAPACITOR C912 1-126-933-11 ELECT 100UF 20.00% 16V 319 D CAPACITOR C913 1-130-495-00 MYLAR 0.1UF 5.00% 50V 320 D CAPACITOR C914 1-163-231-11 CERAMIC CHIP 15PF 5.00% 50V 321 D CAPACITOR C915 1-163-231-11 CERAMIC CHIP 15PF 5.00% 50V 322 D CAPACITOR C916 1-126-965-91 ELECT 22UF 20.00% 50V 323 D CAPACITOR C917 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 324 D CAPACITOR C918 1-126-965-91 ELECT 22UF 20.00% 50V 325 D CAPACITOR C920 1-109-982-11 CERAMIC CHIP 1UF 10.00% 10V 326 D CAPACITOR C921 1-126-935-11 ELECT 470UF 20.00% 16V 327 D CAPACITOR C922 1-107-712-11 ELECT 3.3UF 20.00% 50V 328 D CAPACITOR C923 1-163-133-00 CERAMIC CHIP 470PF 5.00% 50V 329 D CAPACITOR C924 1-126-962-11 ELECT 3.3UF 20.00% 50V 330 D CAPACITOR C925 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 331 D CAPACITOR C926 1-126-767-11 ELECT 1000UF 20.00% 16V 332 D CAPACITOR C928 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 333 D CAPACITOR C929 1-126-963-11 ELECT 4.7UF 20.00% 50V 334 D CAPACITOR C930 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 335 D CAPACITOR C931 1-163-133-00 CERAMIC CHIP 470PF 5.00% 50V 336 D CAPACITOR C933 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V 337 D CAPACITOR C935 1-107-823-11 CERAMIC CHIP 0.47UF 10.00% 16V 338 D CAPACITOR C936 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V 339 D CAPACITOR C938 1-126-933-11 ELECT 100UF 20.00% 16V 340 D CAPACITOR C939 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V 341 D CAPACITOR C940 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V HMD-A440(E) 6-13 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 342 D CAPACITOR C941 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V 343 D CAPACITOR C942 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 344 D CAPACITOR C943 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 345 D CAPACITOR C944 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 346 D CAPACITOR C947 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 347 D CAPACITOR C949 1-126-933-11 ELECT 100UF 20.00% 16V 348 D CAPACITOR C950 1-126-933-11 ELECT 100UF 20.00% 16V 349 D CAPACITOR C951 1-163-021-91 CERAMIC CHIP 0.01UF 10.00% 50V 350 D CAPACITOR C952 1-164-004-11 CERAMIC CHIP 0.1UF 10.00% 25V 351 D CONNECTOR CN501 1-793-239-11 PIN, CONNECTOR (PC BOARD) 6P 352 D CONNECTOR * CN600 1-691-960-71 PIN, CONNECTOR (PC BOARD) 3P 353 D CONNECTOR * CN601 1-580-689-21 PIN, CONNECTOR (PC BOARD) 4P 354 D CONNECTOR * CN602 1-506-371-00 PIN, CONNECTOR 2P 355 D CONNECTOR * CN606 1-564-512-11 PLUG, CONNECTOR 9P 356 D CONNECTOR * CN607 1-564-508-11 PLUG, CONNECTOR 5P 357 D CONNECTOR * CN609 1-564-506-11 PLUG, CONNECTOR 3P 358 D CONNECTOR * CN701 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P 359 D CONNECTOR * CN901 1-508-879-11 BASE POST 4P 360 D CONNECTOR * CN902 1-564-511-11 PLUG, CONNECTOR 8P 361 D CONNECTOR * CN903 1-785-704-21 PIN, CONNECTOR (PC BOARD) 7P 362 D CONNECTOR * CN904 1-564-511-11 PLUG, CONNECTOR 8P 363 D DIODE D401 8-719-052-90 DIODE D1NL40-TA2 364 D DIODE D402 8-719-109-81 DIODE RD4.7ESB2 365 D DIODE D403 8-719-404-50 DIODE MA111-TX 366 D DIODE D404 8-719-050-84 DIODE RB441Q-40T-77 367 D DIODE D501 8-719-110-47 DIODE RD18ESB 368 D DIODE D502 8-719-981-00 DIODE ERC81-004 369 D DIODE D503 8-759-157-40 IC UPC574J 370 D DIODE D504 8-719-110-30 DIODE RD12ESB1 371 D DIODE D505 8-719-063-70 DIODE D1NL20U 372 D DIODE D506 8-719-061-21 DIODE FMQ-G5FMS HMD-A440(E) 6-14 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 373 D DIODE D507 8-719-069-54 DIODE UDZSTE-175.1B 374 D DIODE D508 8-719-404-50 DIODE MA111-TX 375 D DIODE D509 8-719-110-30 DIODE RD12ESB1 376 D DIODE D510 8-719-052-90 DIODE D1NL40-TA2 377 D DIODE D511 8-719-052-90 DIODE D1NL40-TA2 378 D DIODE D512 8-719-911-19 DIODE 1SS119-25 379 D DIODE D513 8-719-052-90 DIODE D1NL40-TA2 380 D DIODE D514 8-719-970-83 DIODE HSS82-TJ 381 D DIODE D515 8-719-018-82 DIODE RGP02-20EL-6394 382 D DIODE D516 8-719-052-86 DIODE D2L40-TA 383 D DIODE D517 8-759-157-40 IC UPC574J 384 D DIODE D518 8-719-110-30 DIODE RD12ESB1 385 D DIODE D519 8-719-109-89 DIODE RD5.6ESB2 386 D DIODE D520 8-719-082-50 DIODE 11DF2N-TA2B2 387 D DIODE D521 8-719-082-50 DIODE 11DF2N-TA2B2 388 D DIODE D522 8-719-911-19 DIODE 1SS119-25 389 D DIODE D523 8-719-911-19 DIODE 1SS119-25 390 D DIODE D524 8-719-051-85 DIODE HSS83TD 391 D DIODE D525 8-719-051-85 DIODE HSS83TD 392 D DIODE D526 8-719-911-19 DIODE 1SS119-25 393 D DIODE D527 8-719-069-54 DIODE UDZSTE-175.1B 394 D DIODE D528 8-719-911-19 DIODE 1SS119-25 395 D DIODE D530 8-719-404-50 DIODE MA111-TX 396 D DIODE D531 8-719-977-12 DIODE DTZ6.8B 397 D DIODE D532 8-719-050-84 DIODE RB441Q-40T-77 398 D DIODE D601 8-719-510-53 DIODE D4SB60L 399 D DIODE D602 8-719-911-19 DIODE 1SS119-25 400 D DIODE D603 8-719-911-19 DIODE 1SS119-25 401 D DIODE D605 8-719-110-31 DIODE RD12ESB2 402 D DIODE D606 8-719-053-19 DIODE UF4007G23 403 D DIODE D607 8-719-053-19 DIODE UF4007G23 HMD-A440(E) 6-15 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 404 D DIODE D608 8-719-110-47 DIODE RD18ESB 405 D DIODE D609 8-719-911-19 DIODE 1SS119-25 406 D DIODE D610 8-719-109-81 DIODE RD4.7ESB2 407 D DIODE D611 8-719-067-68 DIODE FMC-26UA 408 D DIODE D612 8-719-053-19 DIODE UF4007G23 409 D DIODE D613 8-719-083-22 DIODE BT149G-112-OT384 410 D DIODE D614 8-719-032-12 DIODE D1NS6 411 D DIODE D615 8-719-058-38 DIODE FMN-G12S 412 D DIODE D616 8-719-109-81 DIODE RD4.7ESB2 413 D DIODE D617 8-719-947-06 DIODE RGP10JPKG23 414 D DIODE D618 8-719-058-38 DIODE FMN-G12S 415 D DIODE D620 8-719-300-76 DIODE RH-1A 416 D DIODE D621 8-719-911-19 DIODE 1SS119-25 417 D DIODE D622 8-719-058-38 DIODE FMN-G12S 418 D DIODE D623 8-719-110-31 DIODE RD12ESB2 419 D DIODE D625 8-719-977-40 DIODE DTZ13B 420 D DIODE D638 8-719-110-47 DIODE RD18ESB 421 D DIODE D643 8-719-404-50 DIODE MA111-TX 422 D DIODE D704 8-719-911-19 DIODE 1SS119-25 423 D DIODE D901 8-719-047-98 DIODE HZU5.6B2TRF 424 D DIODE D902 8-719-109-89 DIODE RD5.6ESB2 425 D DIODE D903 8-719-050-84 DIODE RB441Q-40T-77 426 D DIODE D904 8-719-047-98 DIODE HZU5.6B2TRF 427 D DIODE D905 8-719-404-50 DIODE MA111-TX 428 D DIODE D906 8-719-404-50 DIODE MA111-TX 429 D DIODE D907 8-719-404-50 DIODE MA111-TX 430 D DIODE D908 8-719-404-50 DIODE MA111-TX 431 D DIODE D909 8-719-067-40 DIODE STZ6.8N-T146 432 D DIODE D911 8-719-062-51 DIODE 1PS226-115 433 D DIODE D912 8-719-047-98 DIODE HZU5.6B2TRF 434 D DIODE D914 8-719-062-51 DIODE 1PS226-115 HMD-A440(E) 6-16 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 435 D DIODE D917 8-719-062-51 DIODE 1PS226-115 436 D DIODE D918 8-719-047-98 DIODE HZU5.6B2TRF 437 D DIODE D919 8-719-047-98 DIODE HZU5.6B2TRF 438 D DIODE D920 8-719-050-84 DIODE RB441Q-40T-77 439 D DIODE D924 8-719-047-98 DIODE HZU5.6B2TRF 440 D DIODE D928 8-719-067-40 DIODE STZ6.8N-T146 441 D DIODE D929 8-719-067-40 DIODE STZ6.8N-T146 442 D DIODE D930 8-719-067-40 DIODE STZ6.8N-T146 443 D DIODE D931 8-719-067-40 DIODE STZ6.8N-T146 444 D DIODE D936 8-719-047-98 DIODE HZU5.6B2TRF 445 D DIODE D937 8-719-047-98 DIODE HZU5.6B2TRF 446 D DIODE D943 8-719-801-78 DIODE 1SS184 447 D FUSE ! F601 1-576-233-11 FUSE (H.B.C.) 448 D CHIP CONDUCTOR FB502 1-412-911-11 FERRITE 0UH 449 D CHIP CONDUCTOR FB503 1-412-911-11 FERRITE 0UH 450 D CHIP CONDUCTOR FB504 1-412-911-11 FERRITE 0UH 451 D CHIP CONDUCTOR FB506 1-412-911-11 FERRITE 0UH 452 D CHIP CONDUCTOR FB601 1-412-911-11 FERRITE 0UH 453 D CHIP CONDUCTOR FB904 1-543-961-22 FERRITE 0UH 454 D CHIP CONDUCTOR FB1001 1-410-397-21 FERRITE 1.1UH 455 D FUSE HOLDER FH1 1-533-223-11 CLIP, FUSE 456 D FUSE HOLDER FH2 1-533-223-11 CLIP, FUSE 457 D IC IC401 8-759-593-28 IC LA78040 458 D IC ! IC501 8-759-478-76 IC UPC5021-109 459 D IC ! IC601 8-759-594-75 IC TEA1504/N2 460 D IC IC602 8-759-592-79 IC BA00AST-V5 461 D IC IC603 8-749-016-35 IC TLP621D4-Y-LF2T 462 D IC IC604 8-759-586-17 IC TL1431CZ-AP 463 D IC IC605 8-759-637-83 IC PQ12RD8S 464 D IC IC607 8-759-450-47 IC BA05T 465 D IC IC608 8-759-231-53 IC L7805CV HMD-A440(E) 6-17 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 466 D IC IC701 8-759-595-52 IC CXA8070AP 467 D IC IC702 8-749-018-54 IC STK391-120 468 D IC IC703 8-759-822-07 IC LA6515 469 D IC IC901 6-801-410-01 IC ST72T751N9B1/BBM 470 D IC IC902 8-759-594-40 IC CXA8071CP 471 D IC IC904 8-759-352-91 IC PST9143NL 472 D IC IC905 8-759-640-41 IC BR24C08F-E2 473 D IC IC906 8-759-640-41 IC BR24C08F-E2 474 D IC IC908 8-759-491-32 IC TC74VHCT04AF(EL) 475 D CHIP CONDUCTOR JR1 1-216-295-91 SHORT 0 476 D CHIP CONDUCTOR JR2 1-216-296-11 SHORT 0 477 D CHIP CONDUCTOR JR3 1-216-296-11 SHORT 0 478 D CHIP CONDUCTOR JR5 1-216-296-11 SHORT 0 479 D CHIP CONDUCTOR JR6 1-216-296-11 SHORT 0 480 D CHIP CONDUCTOR JR7 1-216-295-91 SHORT 0 481 D CHIP CONDUCTOR JR10 1-216-296-11 SHORT 0 482 D CHIP CONDUCTOR JR11 1-216-296-11 SHORT 0 483 D CHIP CONDUCTOR JR12 1-216-296-11 SHORT 0 484 D CHIP CONDUCTOR JR13 1-216-296-11 SHORT 0 485 D CHIP CONDUCTOR JR14 1-216-296-11 SHORT 0 486 D CHIP CONDUCTOR JR15 1-216-296-11 SHORT 0 487 D CHIP CONDUCTOR JR16 1-216-296-11 SHORT 0 488 D CHIP CONDUCTOR JR18 1-216-296-11 SHORT 0 489 D CHIP CONDUCTOR JR19 1-216-295-91 SHORT 0 490 D CHIP CONDUCTOR JR21 1-216-296-11 SHORT 0 491 D CHIP CONDUCTOR JR22 1-216-296-11 SHORT 0 492 D CHIP CONDUCTOR JR28 1-216-295-91 SHORT 0 493 D CHIP CONDUCTOR JR30 1-216-295-91 SHORT 0 494 D CHIP CONDUCTOR JR31 1-216-296-11 SHORT 0 495 D CHIP CONDUCTOR JR32 1-216-295-91 SHORT 0 496 D CHIP CONDUCTOR JR33 1-216-296-11 SHORT 0 HMD-A440(E) 6-18 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 497 D CHIP CONDUCTOR JR34 1-216-296-11 SHORT 0 498 D CHIP CONDUCTOR JR602 1-216-296-11 SHORT 0 499 D DIODE JW112 8-719-911-19 DIODE 1SS119-25 500 D COIL L501 1-406-661-21 INDUCTOR 22UH 501 D COIL L502 1-406-661-21 INDUCTOR 22UH 502 D COIL L503 1-411-594-41 INDUCTOR 5MH 503 D COIL L505 1-414-496-25 INDUCTOR 10MH 504 D COIL L506 1-414-493-41 INDUCTOR 4.7MH 505 D COIL L508 1-419-870-11 COIL, HORIZONTAL LINEARITY 506 D COIL L510 1-428-933-11 COIL, HORIZONTAL CENTERING 507 D COIL L602 1-412-529-11 INDUCTOR 22UH 508 D COIL L604 1-406-665-11 INDUCTOR 100UH 509 D COIL L606 1-406-665-11 INDUCTOR 100UH 510 D COIL L901 1-414-857-11 INDUCTOR 100UH 511 D COIL L902 1-414-857-11 INDUCTOR 100UH 512 D COIL L903 1-414-857-11 INDUCTOR 100UH 513 D COIL L904 1-414-857-11 INDUCTOR 100UH 514 D LINE FILTER LF602 1-429-180-11 TRANSFORMER, LINE FILTER 515 D TRANSISTOR Q501 8-729-120-28 TRANSISTOR 2SC1623-L5L6 516 D TRANSISTOR Q502 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R 517 D TRANSISTOR Q503 8-729-035-54 TRANSISTOR 2SJ449 518 D TRANSISTOR Q504 8-729-031-89 TRANSISTOR 2SC3941A-Q(TA) 519 D TRANSISTOR Q505 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R 520 D TRANSISTOR Q506 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R 521 D TRANSISTOR Q507 8-729-056-66 TRANSISTOR 2SC5682-SONY-CA 522 D TRANSISTOR Q508 8-729-120-28 TRANSISTOR 2SC1623-L5L6 523 D TRANSISTOR Q510 8-729-042-45 TRANSISTOR STP5NA80FI 524 D TRANSISTOR Q511 8-729-042-34 TRANSISTOR IRFU110A 525 D TRANSISTOR Q512 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 526 D TRANSISTOR Q513 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 527 D TRANSISTOR Q514 8-729-043-41 TRANSISTOR 2SK2098-01MR-F119 HMD-A440(E) 6-19 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 528 D TRANSISTOR Q515 8-729-047-72 TRANSISTOR 2SK3155-01 529 D TRANSISTOR Q516 8-729-047-72 TRANSISTOR 2SK3155-01 530 D TRANSISTOR Q519 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA 531 D TRANSISTOR Q520 8-729-035-54 TRANSISTOR 2SJ449 532 D TRANSISTOR Q521 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R 533 D TRANSISTOR Q525 8-729-120-28 TRANSISTOR 2SC1623-L5L6 534 D TRANSISTOR Q601 8-729-029-92 TRANSISTOR DTC143ESA 535 D TRANSISTOR Q602 8-729-048-61 TRANSISTOR 2SK2843LBS2SONY 536 D TRANSISTOR Q603 8-729-900-53 TRANSISTOR DTC114EK 537 D TRANSISTOR Q604 8-729-119-78 TRANSISTOR 2SC2785-HFE 538 D TRANSISTOR Q605 8-729-900-53 TRANSISTOR DTC114EK 539 D TRANSISTOR Q612 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA 540 D TRANSISTOR Q901 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R 541 D TRANSISTOR Q903 8-729-120-28 TRANSISTOR 2SC1623-L5L6 542 D RESISTOR R401 1-249-383-11 CARBON 1.5 5% 1/4W 543 D RESISTOR R402 1-215-866-11 METAL OXIDE 330 5% 1W 544 D RESISTOR R403 1-214-661-21 METAL 1.5 1% 1/4W 545 D RESISTOR R404 1-216-669-11 METAL CHIP 5.6K 0.5% 1/10W 546 D RESISTOR R405 1-214-661-21 METAL 1.5 1% 1/4W 547 D RESISTOR R406 1-216-675-91 METAL CHIP 10K 0.5% 1/10W 548 D RESISTOR R407 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 549 D RESISTOR R408 1-216-073-91 RES-CHIP 10K 5% 1/10W 550 D RESISTOR R409 1-216-669-11 METAL CHIP 5.6K 0.5% 1/10W 551 D RESISTOR R410 1-216-675-91 METAL CHIP 10K 0.5% 1/10W 552 D RESISTOR R413 1-216-395-00 METAL OXIDE 3.3 5% 3W 553 D RESISTOR R501 1-247-807-31 CARBON 100 5% 1/4W 554 D RESISTOR R502 1-218-759-11 METAL CHIP 200K 0.5% 1/10W 555 D RESISTOR R503 1-216-675-91 METAL CHIP 10K 0.5% 1/10W 556 D RESISTOR R504 1-249-377-11 CARBON 0.47 5% 1/4W 557 D RESISTOR R505 1-216-073-91 RES-CHIP 10K 5% 1/10W 558 D RESISTOR R506 1-215-471-00 METAL 120K 1% 1/4W HMD-A440(E) 6-20 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 559 D RESISTOR R507 1-215-423-00 METAL 1.2K 1% 1/4W 560 D RESISTOR R508 1-249-393-11 CARBON 10 5% 1/4W 561 D RESISTOR R509 1-249-433-11 CARBON 22K 5% 1/4W 562 D RESISTOR R510 1-215-441-00 METAL 6.8K 1% 1/4W 563 D RESISTOR R511 1-249-381-11 CARBON 1 5% 1/4W 564 D RESISTOR R512 1-249-385-11 CARBON 2.2 5% 1/4W 565 D RESISTOR R513 1-215-861-00 METAL OXIDE 47 5% 1W 566 D RESISTOR R514 1-215-385-00 METAL 33 1% 1/4W 567 D RESISTOR R515 1-249-417-11 CARBON 1K 5% 1/4W 568 D RESISTOR R516 1-215-399-00 METAL 120 1% 1/4W 569 D RESISTOR R517 1-216-397-11 METAL OXIDE 4.7 5% 3W 570 D RESISTOR R518 1-216-397-11 METAL OXIDE 4.7 5% 3W 571 D RESISTOR R519 1-247-903-00 CARBON 1M 5% 1/4W 572 D RESISTOR R520 1-249-405-11 CARBON 100 5% 1/4W 573 D RESISTOR R521 1-249-417-11 CARBON 1K 5% 1/4W 574 D RESISTOR R522 1-216-423-11 METAL OXIDE 27 5% 1W 575 D RESISTOR R523 1-215-463-00 METAL 56K 1% 1/4W 576 D RESISTOR R524 1-215-463-00 METAL 56K 1% 1/4W 577 D RESISTOR R525 1-249-417-11 CARBON 1K 5% 1/4W 578 D RESISTOR R526 1-216-397-11 METAL OXIDE 4.7 5% 3W 579 D RESISTOR R527 1-249-429-11 CARBON 10K 5% 1/4W 580 D RESISTOR R528 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 581 D RESISTOR R529 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W 582 D RESISTOR R530 1-216-474-11 METAL OXIDE 82 5% 3W 583 D RESISTOR R531 1-216-474-11 METAL OXIDE 82 5% 3W 584 D RESISTOR R532 1-249-385-11 CARBON 2.2 5% 1/4W 585 D RESISTOR R533 1-249-417-11 CARBON 1K 5% 1/4W 586 D RESISTOR R534 1-249-405-11 CARBON 100 5% 1/4W 587 D RESISTOR R535 1-215-463-00 METAL 56K 1% 1/4W 588 D RESISTOR R536 1-249-417-11 CARBON 1K 5% 1/4W 589 D RESISTOR R537 1-215-463-00 METAL 56K 1% 1/4W HMD-A440(E) 6-21 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 590 D RESISTOR R538 1-219-746-11 CARBON 1K 5% 1/2W 591 D RESISTOR R539 1-215-445-00 METAL 10K 1% 1/4W 592 D RESISTOR R540 1-215-476-00 METAL 200K 1% 1/4W 593 D RESISTOR R541 1-215-421-00 METAL 1K 1% 1/4W 594 D RESISTOR R542 1-215-421-00 METAL 1K 1% 1/4W 595 D RESISTOR R543 1-249-389-11 CARBON 4.7 5% 1/4W 596 D RESISTOR R544 1-247-889-00 CARBON 270K 5% 1/4W 597 D RESISTOR R545 1-216-691-11 METAL CHIP 47K 0.5% 1/10W 598 D RESISTOR R546 1-215-457-00 METAL 33K 1% 1/4W 599 D RESISTOR R547 1-215-477-00 METAL 220K 1% 1/4W 600 D RESISTOR R548 1-215-421-00 METAL 1K 1% 1/4W 601 D RESISTOR R549 1-215-464-00 METAL 62K 1% 1/4W 602 D RESISTOR R550 1-215-421-00 METAL 1K 1% 1/4W 603 D RESISTOR R551 1-216-687-11 METAL CHIP 33K 0.5% 1/10W 604 D RESISTOR R552 1-215-463-00 METAL 56K 1% 1/4W 605 D RESISTOR R553 1-216-698-11 METAL CHIP 91K 0.5% 1/10W 606 D RESISTOR R554 1-218-756-11 METAL CHIP 150K 0.5% 1/10W 607 D RESISTOR R556 1-216-675-91 METAL CHIP 10K 0.5% 1/10W 608 D RESISTOR R557 1-216-079-00 RES-CHIP 18K 5% 1/10W 609 D RESISTOR R558 1-216-675-91 METAL CHIP 10K 0.5% 1/10W 610 D RESISTOR R559 1-215-431-00 METAL 2.7K 1% 1/4W 611 D RESISTOR R560 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 612 D RESISTOR R561 1-216-474-11 METAL OXIDE 82 5% 3W 613 D RESISTOR R562 1-215-451-00 METAL 18K 1% 1/4W 614 D RESISTOR R563 1-249-383-11 CARBON 1.5 5% 1/4W 615 D RESISTOR R564 1-216-687-11 METAL CHIP 33K 0.5% 1/10W 616 D RESISTOR R565 1-215-471-00 METAL 120K 1% 1/4W 617 D RESISTOR R566 1-215-859-00 METAL OXIDE 22 5% 1W 618 D RESISTOR R567 1-216-073-91 RES-CHIP 10K 5% 1/10W 619 D RESISTOR R568 1-249-437-11 CARBON 47K 5% 1/4W 620 D RESISTOR R569 1-216-675-91 METAL CHIP 10K 0.5% 1/10W HMD-A440(E) 6-22 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 621 D RESISTOR R570 1-219-749-91 CARBON 10K 5% 1/2W 622 D RESISTOR R571 1-216-069-00 RES-CHIP 6.8K 5% 1/10W 623 D RESISTOR R573 1-216-381-11 METAL OXIDE 0.22 5% 3W 624 D RESISTOR R574 1-249-421-11 CARBON 2.2K 5% 1/4W 625 D RESISTOR R575 1-260-312-11 CARBON 47 5% 1/2W 626 D RESISTOR R576 1-216-397-11 METAL OXIDE 4.7 5% 3W 627 D RESISTOR R577 1-215-911-11 METAL OXIDE 100 5% 3W 628 D RESISTOR R578 1-260-316-51 CARBON 100 5% 1/2W 629 D RESISTOR R579 1-249-413-11 CARBON 470 5% 1/4W 630 D RESISTOR R580 1-215-905-11 METAL OXIDE 10 5% 3W 631 D RESISTOR R581 1-249-429-11 CARBON 10K 5% 1/4W 632 D RESISTOR R582 1-249-399-11 CARBON 33 5% 1/4W 633 D RESISTOR R583 1-216-073-91 RES-CHIP 10K 5% 1/10W 634 D RESISTOR R584 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 635 D RESISTOR R585 1-249-417-11 CARBON 1K 5% 1/4W 636 D RESISTOR R586 1-249-421-11 CARBON 2.2K 5% 1/4W 637 D RESISTOR R587 1-216-049-11 RES-CHIP 1K 5% 1/10W 638 D RESISTOR R588 1-216-025-11 RES-CHIP 100 5% 1/10W 639 D RESISTOR R589 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 640 D RESISTOR R590 1-216-683-11 METAL CHIP 22K 0.5% 1/10W 641 D RESISTOR R591 1-215-397-00 METAL 100 1% 1/4W 642 D RESISTOR R592 1-215-399-00 METAL 120 1% 1/4W 643 D RESISTOR R594 1-216-033-00 RES-CHIP 220 5% 1/10W 644 D RESISTOR R595 1-215-477-00 METAL 220K 1% 1/4W 645 D RESISTOR R596 1-215-421-00 METAL 1K 1% 1/4W 646 D RESISTOR R597 1-259-880-11 CARBON 2.2M 5% 1/4W 647 D RESISTOR R598 1-216-109-00 RES-CHIP 330K 5% 1/10W 648 D RESISTOR R599 1-216-049-11 RES-CHIP 1K 5% 1/10W 649 D RESISTOR ! R600 1-205-998-11 CEMENTED 1 5% 10W 650 D RESISTOR R602 1-219-513-11 CARBON 4.7M 5% 1/2W 651 D RESISTOR R603 1-249-420-11 CARBON 1.8K 5% 1/4W HMD-A440(E) 6-23 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 652 D RESISTOR ! R604 1-219-754-11 CARBON 680K 5% 1/2W 653 D RESISTOR R606 1-218-768-11 METAL CHIP 470K 0.5% 1/10W 654 D RESISTOR R607 1-216-081-00 RES-CHIP 22K 5% 1/10W 655 D RESISTOR R608 1-215-473-00 METAL 150K 1% 1/4W 656 D RESISTOR R609 1-216-665-11 METAL CHIP 3.9K 0.5% 1/10W 657 D RESISTOR R610 1-216-651-11 METAL CHIP 1K 0.5% 1/10W 658 D RESISTOR R611 1-216-009-91 RES-CHIP 22 5% 1/10W 659 D RESISTOR R612 1-247-791-91 CARBON 22 5% 1/4W 660 D RESISTOR R613 1-219-513-11 CARBON 4.7M 5% 1/2W 661 D RESISTOR R614 1-216-343-00 METAL OXIDE 0.33 5% 1W 662 D RESISTOR R615 1-216-117-00 RES-CHIP 680K 5% 1/10W 663 D RESISTOR R616 1-216-121-11 RES-CHIP 1M 5% 1/10W 664 D RESISTOR R617 1-216-025-11 RES-CHIP 100 5% 1/10W 665 D RESISTOR R618 1-216-635-11 METAL CHIP 220 0.5% 1/10W 666 D RESISTOR R619 1-215-893-11 METAL OXIDE 1.5K 5% 2W 667 D RESISTOR R620 1-216-687-11 METAL CHIP 33K 0.5% 1/10W 668 D RESISTOR R621 1-216-094-00 RES-CHIP 75K 5% 1/10W 669 D RESISTOR R622 1-216-009-91 RES-CHIP 22 5% 1/10W 670 D RESISTOR R623 1-216-623-11 METAL CHIP 68 0.5% 1/10W 671 D RESISTOR R624 1-216-615-91 METAL CHIP 33 0.5% 1/10W 672 D RESISTOR R625 1-260-332-51 CARBON 2.2K 5% 1/2W 673 D RESISTOR R626 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 674 D RESISTOR R627 1-260-288-11 CARBON 0.47 5% 1/2W 675 D RESISTOR R628 1-216-665-11 METAL CHIP 3.9K 0.5% 1/10W 676 D RESISTOR R633 1-249-429-11 CARBON 10K 5% 1/4W 677 D RESISTOR R635 1-215-925-11 METAL OXIDE 22K 5% 3W 678 D RESISTOR R636 1-215-879-11 METAL OXIDE 47K 5% 1W 679 D RESISTOR R640 1-249-381-11 CARBON 1 5% 1/4W 680 D RESISTOR R642 1-216-641-11 METAL CHIP 390 0.5% 1/10W 681 D RESISTOR R643 1-216-697-91 METAL CHIP 82K 0.5% 1/10W 682 D RESISTOR R647 1-216-073-91 RES-CHIP 10K 5% 1/10W HMD-A440(E) 6-24 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 683 D RESISTOR R648 1-216-669-11 METAL CHIP 5.6K 0.5% 1/10W 684 D RESISTOR R649 1-216-653-11 METAL CHIP 1.2K 0.5% 1/10W 685 D RESISTOR R650 1-215-471-00 METAL 120K 1% 1/4W 686 D RESISTOR R654 1-216-343-00 METAL OXIDE 0.33 5% 1W 687 D RESISTOR R655 1-247-807-31 CARBON 100 5% 1/4W 688 D RESISTOR R656 1-215-893-11 METAL OXIDE 1.5K 5% 2W 689 D RESISTOR R657 1-216-623-11 METAL CHIP 68 0.5% 1/10W 690 D RESISTOR R660 1-215-879-11 METAL OXIDE 47K 5% 1W 691 D RESISTOR R665 1-216-061-91 RES-CHIP 3.3K 5% 1/10W 692 D RESISTOR R666 1-249-413-11 CARBON 470 5% 1/4W 693 D RESISTOR R667 1-215-911-11 METAL OXIDE 100 5% 3W 694 D RESISTOR R668 1-216-651-11 METAL CHIP 1K 0.5% 1/10W 695 D RESISTOR R670 1-216-667-11 METAL CHIP 4.7K 0.5% 1/10W 696 D RESISTOR R693 1-249-413-11 CARBON 470 5% 1/4W 697 D RESISTOR R698 1-216-091-00 RES-CHIP 56K 5% 1/10W 698 D RESISTOR R699 1-215-865-11 METAL OXIDE 220 5% 1W 699 D RESISTOR R703 1-249-410-11 CARBON 270 5% 1/4W 700 D RESISTOR R704 1-215-449-00 METAL 15K 1% 1/4W 701 D RESISTOR R705 1-215-449-00 METAL 15K 1% 1/4W 702 D RESISTOR R706 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 703 D RESISTOR R707 1-216-661-11 METAL CHIP 2.7K 0.5% 1/10W 704 D RESISTOR R708 1-216-661-11 METAL CHIP 2.7K 0.5% 1/10W 705 D RESISTOR R709 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W 706 D RESISTOR R710 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W 707 D RESISTOR R711 1-216-346-00 METAL OXIDE 0.56 5% 1W 708 D RESISTOR R712 1-215-860-11 METAL OXIDE 33 5% 1W 709 D RESISTOR R713 1-216-346-00 METAL OXIDE 0.56 5% 1W 710 D RESISTOR R716 1-215-860-11 METAL OXIDE 33 5% 1W 711 D RESISTOR R717 1-216-353-00 METAL OXIDE 2.2 5% 1W 712 D RESISTOR R718 1-215-863-11 METAL OXIDE 100 5% 1W 713 D RESISTOR R719 1-216-679-11 METAL CHIP 15K 0.5% 1/10W HMD-A440(E) 6-25 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 714 D RESISTOR R720 1-216-295-91 SHORT 0 715 D RESISTOR R721 1-216-011-00 RES-CHIP 27 5% 1/10W 716 D RESISTOR R724 1-215-859-00 METAL OXIDE 22 5% 1W 717 D RESISTOR R727 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 718 D RESISTOR R728 1-215-863-11 METAL OXIDE 100 5% 1W 719 D RESISTOR R729 1-216-353-00 METAL OXIDE 2.2 5% 1W 720 D RESISTOR R730 1-215-857-71 METAL OXIDE 10 5% 1W 721 D RESISTOR R731 1-216-295-91 SHORT 0 722 D RESISTOR R733 1-216-295-91 SHORT 0 723 D RESISTOR R735 1-216-661-11 METAL CHIP 2.7K 0.5% 1/10W 724 D RESISTOR R737 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W 725 D RESISTOR R739 1-216-073-91 RES-CHIP 10K 5% 1/10W 726 D RESISTOR R741 1-249-380-11 CARBON 0.82 5% 1/4W 727 D RESISTOR R743 1-249-380-11 CARBON 0.82 5% 1/4W 728 D RESISTOR R745 1-216-298-00 RES-CHIP 2.2 5% 1/10W 729 D RESISTOR R747 1-216-298-00 RES-CHIP 2.2 5% 1/10W 730 D RESISTOR R753 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 731 D RESISTOR R755 1-216-679-11 METAL CHIP 15K 0.5% 1/10W 732 D RESISTOR R900 1-216-053-00 RES-CHIP 1.5K 5% 1/10W 733 D RESISTOR R901 1-535-303-00 LEAD, JUMPER (5.0MM) 734 D RESISTOR R903 1-216-049-11 RES-CHIP 1K 5% 1/10W 735 D RESISTOR R904 1-216-049-11 RES-CHIP 1K 5% 1/10W 736 D RESISTOR R905 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 737 D RESISTOR R906 1-216-073-91 RES-CHIP 10K 5% 1/10W 738 D RESISTOR R907 1-260-316-51 CARBON 100 5% 1/2W 739 D RESISTOR R908 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 740 D RESISTOR R909 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 741 D RESISTOR R910 1-249-411-11 CARBON 330 5% 1/4W 742 D RESISTOR R911 1-249-420-11 CARBON 1.8K 5% 1/4W 743 D RESISTOR R912 1-249-417-11 CARBON 1K 5% 1/4W 744 D RESISTOR R913 1-249-401-11 CARBON 47 5% 1/4W HMD-A440(E) 6-26 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 745 D RESISTOR R914 1-249-401-11 CARBON 47 5% 1/4W 746 D RESISTOR R915 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 747 D RESISTOR R916 1-216-077-91 RES-CHIP 15K 5% 1/10W 748 D RESISTOR R917 1-216-077-91 RES-CHIP 15K 5% 1/10W 749 D RESISTOR R918 1-249-417-11 CARBON 1K 5% 1/4W 750 D RESISTOR R919 1-216-073-91 RES-CHIP 10K 5% 1/10W 751 D RESISTOR R920 1-249-421-11 CARBON 2.2K 5% 1/4W 752 D RESISTOR R923 1-535-303-00 LEAD, JUMPER (5.0MM) 753 D RESISTOR R924 1-216-041-00 RES-CHIP 470 5% 1/10W 754 D RESISTOR R925 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 755 D RESISTOR R926 1-216-295-91 SHORT 0 756 D RESISTOR R929 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 757 D RESISTOR R931 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W 758 D RESISTOR R933 1-249-417-11 CARBON 1K 5% 1/4W 759 D RESISTOR R934 1-249-429-11 CARBON 10K 5% 1/4W 760 D RESISTOR R935 1-247-807-31 CARBON 100 5% 1/4W 761 D RESISTOR R936 1-247-807-31 CARBON 100 5% 1/4W 762 D RESISTOR R937 1-247-807-31 CARBON 100 5% 1/4W 763 D RESISTOR R938 1-216-025-11 RES-CHIP 100 5% 1/10W 764 D RESISTOR R939 1-216-073-91 RES-CHIP 10K 5% 1/10W 765 D RESISTOR R940 1-216-089-91 RES-CHIP 47K 5% 1/10W 766 D RESISTOR R950 1-216-051-00 RES-CHIP 1.2K 5% 1/10W 767 D RESISTOR R951 1-216-025-11 RES-CHIP 100 5% 1/10W 768 D RESISTOR R957 1-249-401-11 CARBON 47 5% 1/4W 769 D RESISTOR R958 1-249-401-11 CARBON 47 5% 1/4W 770 D RESISTOR R969 1-247-807-31 CARBON 100 5% 1/4W 771 D RESISTOR R971 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 772 D RESISTOR R972 1-216-057-00 RES-CHIP 2.2K 5% 1/10W 773 D RESISTOR R973 1-216-049-11 RES-CHIP 1K 5% 1/10W 774 D RESISTOR R981 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 775 D RESISTOR R982 1-249-413-11 CARBON 470 5% 1/4W HMD-A440(E) 6-27 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 776 D RESISTOR R983 1-216-025-11 RES-CHIP 100 5% 1/10W 777 D RESISTOR R984 1-216-089-91 RES-CHIP 47K 5% 1/10W 778 D RESISTOR R985 1-216-093-91 RES-CHIP 68K 5% 1/10W 779 D VARIABLE RESISTOR ! RV501 1-241-767-21 RES, ADJ, CERMET 100K (HV ADJ) 780 D RELAY ! RY601 1-755-067-21 RELAY 781 D SWITCH S501 1-692-465-11 SWITCH, SLIDE 782 D SPARK GAP SG501 1-519-422-11 GAP, SPARK 783 D SPARK GAP SG601 1-533-982-21 GAP, SPARK 784 D TRANSFORMER ! T501 8-598-876-00 FBT ASSY NX-4407/VQ 785 D TRANSFORMER T503 1-437-656-11 TRANSFORMER, FERRITE (DFT) 786 D TRANSFORMER T504 1-437-459-11 TRANSFORMER, HORIZONTAL DRIVE 787 D TRANSFORMER T505 1-435-766-11 TRANSFORMER, FERRITE (HST) 788 D TRANSFORMER T506 1-435-765-31 TRANSFORMER, FERRITE (LCT) 789 D TRANSFORMER ! T601 1-437-653-11 TRANSFORMER, CONVERTER 790 D THERMISTOR ! TH600 1-809-260-11 THERMISTOR, POWER 791 D THERMISTOR ! TH601 1-803-540-11 THERMISTOR 792 D VARISTOR ! VA601 1-801-268-51 VARISTOR TNR14V471K660 793 D VARISTOR ! VA604 1-801-268-51 VARISTOR TNR14V471K660 794 D VARISTOR ! VA605 1-801-268-51 VARISTOR TNR14V471K660 795 D CRYSTAL X901 1-767-826-21 VIBRATOR, CRYSTAL (24MHz) 796 D CRYSTAL X902 1-767-933-11 OSCILLATOR, CERAMIC 797 H CAPACITOR C2001 1-130-495-00 MYLAR 0.1UF 5.00% 50V 798 H CAPACITOR C2002 1-102-074-00 CERAMIC 0.001UF 10.00% 50V 799 H CAPACITOR C2003 1-126-947-11 ELECT 47UF 20.00% 35V 800 H CAPACITOR C2004 1-126-947-11 ELECT 47UF 20.00% 35V 801 H CONNECTOR * CN2001 1-564-523-11 PLUG, CONNECTOR 8P 802 H DIODE D2001 8-719-911-19 DIODE 1SS119-25 803 H DIODE D2001 8-719-991-33 DIODE 1SS133T-77 804 H DIODE D2002 8-719-911-19 DIODE 1SS119-25 805 H DIODE D2003 8-719-911-19 DIODE 1SS119-25 806 H DIODE D2004 8-719-911-19 DIODE 1SS119-25 HMD-A440(E) 6-28 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 807 H DIODE D2010 8-719-081-89 DIODE SML76755WNTP15 808 H TRANSISTOR Q2001 8-729-423-33 TRANSISTOR 2SC3311A-QRSTA 809 H RESISTOR R2001 1-249-422-11 CARBON 2.7K 5% 1/4W 810 H RESISTOR R2002 1-243-758-91 CARBON 470 5% 1/4W 811 H RESISTOR R2003 1-249-414-11 CARBON 560 5% 1/4W 812 H RESISTOR R2004 1-243-762-91 CARBON 1K 5% 1/4W 813 H RESISTOR R2005 1-249-419-11 CARBON 1.5K 5% 1/4W 814 H RESISTOR R2006 1-247-843-11 CARBON 3.3K 5% 1/4W 815 H RESISTOR R2007 1-249-429-11 CARBON 10K 5% 1/4W 816 H RESISTOR R2008 1-249-429-11 CARBON 10K 5% 1/4W 817 H RESISTOR R2009 1-243-762-91 CARBON 1K 5% 1/4W 818 H RESISTOR R2010 1-215-459-00 METAL 39K 1% 1/4W 819 H RESISTOR R2011 1-215-445-00 METAL 10K 1% 1/4W 820 H RESISTOR R2012 1-215-452-00 METAL 20K 1% 1/4W 821 H RESISTOR R2013 1-215-445-00 METAL 10K 1% 1/4W 822 H SWITCH S2001 1-771-734-11 SWITCH, TACTILE 823 H THERMISTOR TH2001 1-807-796-11 THERMISTOR 824 J CONNECTOR * CN901 1-564-508-11 PLUG, CONNECTOR 5P 825 J SWITCH S901 1-554-472-00 SWITCH, PUSH (1 KEY) 826 L CAPACITOR C1001 1-163-038-91 CERAMIC CHIP 0.1UF 25V 827 L CAPACITOR C1003 1-163-038-91 CERAMIC CHIP 0.1UF 25V 828 L CAPACITOR C1004 1-126-947-11 ELECT 47UF 20.00% 35V 829 L CAPACITOR C1005 1-163-038-91 CERAMIC CHIP 0.1UF 25V 830 L CAPACITOR C1007 1-163-038-91 CERAMIC CHIP 0.1UF 25V 831 L CAPACITOR C1008 1-126-947-11 ELECT 47UF 20.00% 35V 832 L CONNECTOR * CN1001 1-564-521-11 PLUG, CONNECTOR 6P 833 L CONNECTOR * CN1003 1-816-351-11 PIN, CONNECTOR 834 L IC IC1001 8-759-822-07 IC LA6515 835 L RESISTOR R1001 1-216-298-00 RES-CHIP 2.2 5% 1/10W 836 L RESISTOR R1002 1-216-675-91 METAL CHIP 10K 0.5% 1/10W 837 L RESISTOR R1003 1-216-679-11 METAL CHIP 15K 0.5% 1/10W HMD-A440(E) 6-29 No. # Board Type ! /* Ref.No. Part No. Descrption Remarks-1 Remarks-2 Difference 838 L RESISTOR R1004 1-216-298-00 RES-CHIP 2.2 5% 1/10W 839 L RESISTOR R1005 1-216-065-91 RES-CHIP 4.7K 5% 1/10W 840 L RESISTOR R1006 1-215-859-00 METAL OXIDE 22 5% 1W 841 L RESISTOR R1007 1-216-298-00 RES-CHIP 2.2 5% 1/10W 842 L RESISTOR R1008 1-249-385-11 CARBON 2.2 5% 1/4W 843 L RESISTOR R1009 1-249-385-11 CARBON 2.2 5% 1/4W 844 L RESISTOR R1010 1-216-073-91 RES-CHIP 10K 5% 1/10W 845 L RESISTOR R1011 1-216-073-91 RES-CHIP 10K 5% 1/10W HMD-A440(E) 73 9-978-725-01 English 2002BL08-Data Made in Japan  2002. 2 Sony EMCS Corporation Ichinomiya TEC Customer Service Section No.2 Quality Assurance Dept.
