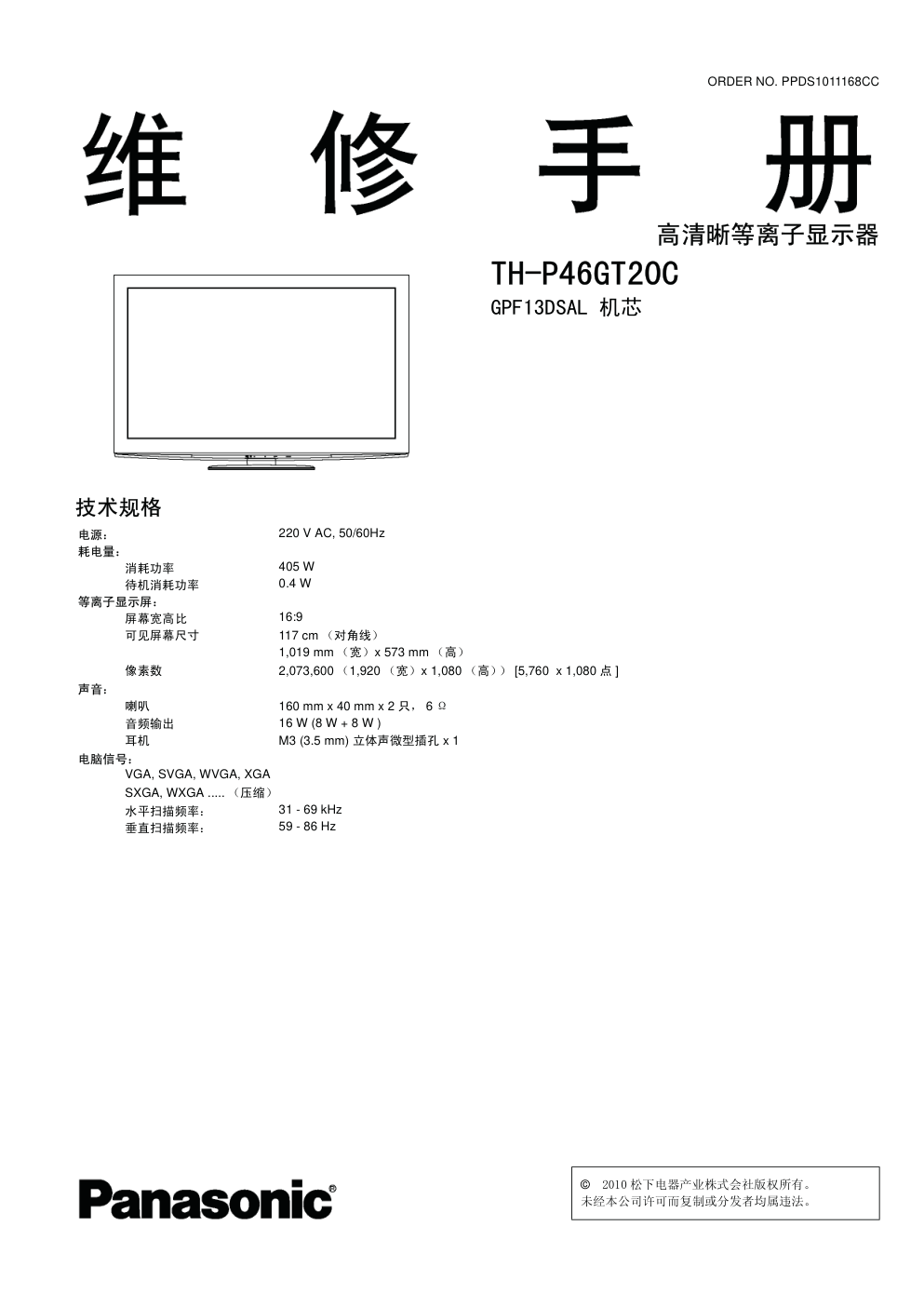

© 2010 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS1011168CC 高清晰等离子显示器 TH-P46GT20C GPF13DSAL 机芯 技术规格 电源： 220 V AC, 50/60Hz 耗电量： 消耗功率 405 W 待机消耗功率 0.4 W 等离子显示屏： 屏幕宽高比 16:9 可见屏幕尺寸 117 cm （对角线） 1,019 mm （宽） x 573 mm （高） 像素数 2,073,600 （1,920 （宽） x 1,080 （高）） [5,760 x 1,080 点 ] 声音： 喇叭 160 mm x 40 mm x 2 只， 6 Ω 音频输出 16 W (8 W + 8 W ) 耳机 M3 (3.5 mm) 立体声微型插孔 x 1 电脑信号： VGA, SVGA, WVGA, XGA SXGA, WXGA ..... （压缩） 水平扫描频率： 31 - 69 kHz 垂直扫描频率： 59 - 86 Hz 2 TH-P46GT20C 接收制式 / 频带名称： 接收频道 VHF 频段 （模拟电视） 2-12 (PAL/SECAM B, K1) 0-12 (PAL B 澳大利亚 ) 1-9 (PAL B 新西兰 ) 1-12 (PAL/SECAM D) 1-12 (NTSC M 日本 ) 2-13 (NTSC M 美国 ) UHF 频段 21-69 (PAL G, H, I/SECAM G, K, K1) 28-69 (PAL B 澳大利亚 ) 13-57 (PAL D, K) 13-62 (NTSC M 日本 ) 14-69 (NTSC M 美国 ) 有线电视 S1-S20 (OSCAR) 1-125 ( 美国有线电视 ) C13-C49 ( 日本 ) S21-S41 (HYPER) Z1-Z37 ( 中国 ) 5A, 9A ( 澳大利亚 ) 天线 - 背部： VHF / UHF 使用环境： 温度 : 0 ° C - 40 ° C 湿度 : 20 % - 80 % 相对湿度 ( 无结露 ) 连接端子： 视频 / 音频输入 1 视频 RCA 针式× 1 1.0 V [p-p] (75 Ω ) 分量视频 Y 1.0 V [p-p] ( 包括同步 ) PB / CB, PR/ CR ± 0.35 V [p-p] 音频 L-R RCA 针式× 2 0.5 V[rms] 视频 / 音频输入 2 视频 RCA 针式× 1 1.0 V [p-p] (75 Ω ) 分量视频 Y 1.0 V [p-p] ( 包括同步 ) PB / CB, PR/ CR ± 0.35 V [p-p] 音频 L-R RCA 针式× 2 0.5 V[rms] 视频 / 音频输入 3 视频 RCA 针式× 1 1.0 V [p-p] (75 Ω ) S 端子 迷你 DIN 4 针 Y:1.0 V [p-p] (75 Ω ) C:0.286 V [p-p] (75 Ω ) 音频 L-R RCA 针式× 2 0.5 V[rms] 视频 / 音频输入 4 视频 RCA 针式× 1 1.0 V [p-p] (75 Ω ) 音频 L-R RCA 针式× 2 0.5 V[rms] 视频输出 视频 RCA 针式× 1 1.0 V [p-p] (75 Ω ) 音频 L-R RCA 针式× 2 0.5 V[rms] ( 高阻抗 ) 其他端子 HDMI1-4 输入 A 型连接器 本机支持 “HDAVI control 5” 功能。 电脑视频输入 高密度 D-SUB 15 针 R/G/B: 0.7 V[p-p] (75 Ω ) HD/VD: TTL 级 2.0-5.0 V[p-p] ( 高阻抗 ) 数字音频输出 PCM ( 脉冲编码调制 ) / 杜比数字 , 光纤 存储卡插槽 SD 卡插槽× 1 USB 1/2 USB 2.0 A 型接口，直流 5 V，最大电流 500 mA LAN 10BASE-T / 100BASE-TX 尺寸 ( 宽×高×厚 ): 1,132 mm x 761 mm x 335 mm ( 包括电视机底座 ) 1,132 mm x 722 mm x 88 mm ( 仅电视机 ) 重量 : 净重 27.0 kg ( 包括电视机底座 ) 净重 24.0 kg ( 仅电视机 ) 执行标准 Q/YXNS35-2010 说明： • 设计和技术规格如有变更，恕不另行通知。以上所示重量和尺寸均为近似值。 • 本设备符合下述所列标准。GB13837-2003,GB17625.1-2003,GB8898-2001 3 TH-P46GT20C 目录 页数 页数 1 安全警告 ---------------------------------------- 5 1.1. 一般准则 ---------------------------------- 5 2 警告--------------------------------------------- 6 2.1. 对静电敏感设备 （ES）的静电放电保护 （ESD）-- 6 2.2. 无铅焊接 （PbF）---------------------------- 7 3 维修指南----------------------------------------- 8 3.1. PCB 板分布 --------------------------------- 8 3.2. 适用信号 ----------------------------------- 9 4 维修模式---------------------------------------- 10 4.1. 怎样进入维修模式 -------------------------- 10 4.2. 选项——镜面显示 -------------------------- 12 4.3. 维修工具模式 ------------------------------ 12 4.4. 旅馆模式 ---------------------------------- 13 4.5. SD 卡拷贝数据 ----------------------------- 14 5 故障检修指南------------------------------------ 17 5.1. 检测 IIC 总线 ------------------------------ 17 5.2. 电源指示灯闪烁间隔表 ---------------------- 18 5.3. 无电源 ------------------------------------ 19 5.4. 无图象 ------------------------------------ 20 5.5. 显示屏局部故障 ---------------------------- 21 6 维修检测工具------------------------------------ 22 6.1. SC 夹具 ----------------------------------- 22 7 拆装指南---------------------------------------- 23 7.1. 取下后盖 ---------------------------------- 23 7.2. 取下 AC 接入口组件 ------------------------- 23 7.3. 取下 P 板 ---------------------------------- 23 7.4. 取下侧端子盖和侧端金属保护板 -------------- 23 7.5. 取下 XH 板 --------------------------------- 24 7.6. 取下调谐器组件 ---------------------------- 24 7.7. 取下 A 板 ---------------------------------- 24 7.8. 取下扬声器 -------------------------------- 25 7.9. 取下 SU 板 --------------------------------- 25 7.10. 取下 SD 板 --------------------------------- 25 7.11. 取下 SC 板 --------------------------------- 25 7.12. 取下 SS2 板 -------------------------------- 26 7.13. 取下 SS 板 --------------------------------- 26 7.14. 取下金属悬挂架和单脚支架 ------------------ 26 7.15. 取下面框安装金属件 ------------------------ 27 7.16. 取下 D 板 ---------------------------------- 27 7.17. 取下 C1 板 --------------------------------- 27 7.18. 取下 C2 板 --------------------------------- 27 7.19. 从面框组件中取出等离子显示屏 -------------- 28 7.20. 取下金属压条 ------------------------------ 28 7.21. 取下 K 板 ---------------------------------- 28 7.22. 取下 V 板 ---------------------------------- 29 7.23. 更换等离子显示屏 -------------------------- 29 8 测量及调整-------------------------------------- 30 8.1. 微调 -------------------------------------- 30 9 方框图 ----------------------------------------- 35 9.1. 主方框图 --------------------------------- 35 9.2. 方框图 （1/5）----------------------------- 36 9.3. 方框图 （2/5）----------------------------- 37 9.4. 方框图 （3/5）----------------------------- 38 9.5. 方框图 （4/5）----------------------------- 39 9.6. 方框图 （5/5）------------------------------40 10 配线连接图 --------------------------------------41 10.1. 注意事项-----------------------------------41 10.2. 配线 （1）----------------------------------41 10.3. 配线 （2）----------------------------------42 10.4. 配线 （3）----------------------------------43 10.5. 配线 （4）----------------------------------44 10.6. 配线 （5）----------------------------------45 11 线路图 ------------------------------------------47 11.1. 线路图注意事项 ----------------------------47 11.2. P 电路板 （1/3）线路图----------------------48 11.3. P 电路板 （2/3）线路图----------------------49 11.4. P 电路板 （3/3）线路图----------------------50 11.5. XH 电路板线路图 ----------------------------51 11.6. A 电路板 （1/26）线路图---------------------52 11.7. A 电路板 （2/26）线路图---------------------53 11.8. A 电路板 （3/26）线路图---------------------54 11.9. A 电路板 （4/26）线路图---------------------55 11.10. A 电路板 （5/26）线路图---------------------56 11.11. A 电路板 （6/26）线路图---------------------57 11.12. A 电路板 （7/26）线路图---------------------58 11.13. A 电路板 （8/26）线路图---------------------59 11.14. A 电路板 （9/26）线路图---------------------60 11.15. A 电路板 （10/26）线路图--------------------61 11.16. A 电路板 （11/26）线路图--------------------62 11.17. A 电路板 （12/26）线路图--------------------63 11.18. A 电路板 （13/26）线路图--------------------64 11.19. A 电路板 （14/26）线路图--------------------65 11.20. A 电路板 （15/26）线路图--------------------66 11.21. A 电路板 （16/26）线路图--------------------67 11.22. A 电路板 （17/26）线路图--------------------68 11.23. A 电路板 （18/26）和 V 电路板线路图----------69 11.24. A 电路板 （19/26）线路图--------------------70 11.25. A 电路板 （20/26）线路图--------------------71 11.26. A 电路板 （21/26）线路图--------------------72 11.27. A 电路板 （22/26）和 K 电路板线路图----------73 11.28. A 电路板 （23/26）线路图--------------------74 11.29. A 电路板 （24/26）线路图--------------------75 11.30. A 电路板 （25/26）线路图--------------------76 11.31. A 电路板 （26/26）线路图--------------------77 11.32. D 电路板 (1/4) 线路图 -----------------------78 11.33. D 电路板 (2/4) 线路图 -----------------------79 11.34. D 电路板 (3/4) 线路图 -----------------------80 11.35. D 电路板 (4/4) 线路图 -----------------------81 11.36. C1 电路板 (1/2) 线路图 ----------------------82 11.37. C1 电路板 (2/2) 线路图 ----------------------83 11.38. C2 电路板 (1/2) 线路图 ----------------------84 11.39. C2 电路板 (2/2) 线路图 ----------------------85 11.40. SC 电路板 (1/4) 线路图 ----------------------86 11.41. SC 电路板 (2/4) 线路图 ----------------------87 11.42. SC 电路板 (3/4) 线路图 ----------------------88 11.43. SC 电路板 (4/4) 线路图 ----------------------89 11.44. SS 电路板 （1/2）线路图---------------------90 11.45. SS 电路板 （2/2）和 SS2 电路板线路图---------91 4 TH-P46GT20C 12 导线图 ----------------------------------------- 92 12.1. P 电路板----------------------------------- 92 12.2. K，V 和 SS2 电路板-------------------------- 95 12.3. XH 电路板---------------------------------- 96 12.4. A 电路板----------------------------------- 97 12.5. D 电路板----------------------------------- 99 12.6. C1 电路板--------------------------------- 101 12.7. C2 电路板--------------------------------- 102 12.8. SC 电路板--------------------------------- 103 12.9. SS 电路板--------------------------------- 105 13 分解图和更换部件清单--------------------------- 107 13.1. 分解图和机械更换部件清单 ----------------- 107 13.2. 更换部件清单 ---------------------------- 112 5 TH-P46GT20C 1 安全警告 1.1. 一般准则 1. 维修时，请勿试图更换设备零件或材料。 2. 维修连接线 （如电缆、柔性电缆或导线）时，即使仅一根或几根导线外皮破损或断裂，也勿试图维修或重新为其连接。应整体 更换连接线。 3. 维修时，请勿扭曲连接插头，应径直插入拔出。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 1.1.1. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1 = 35 V （峰值） U2 = 0.35 V （峰值）； 直流：U1 = 1.0 V 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在设备返回用户手中之前对其进行修理和再检测。 图 1 6 TH-P46GT20C 2 警告 2.1. 对静电敏感设备 （ES）的静电放电保护 （ESD） 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 处理任何半导体组件或是配备有半导体组件的设备之前，应立即接地 （已知） ，去静电。或者戴上市场上出售的抗静电放电腕 带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件聚集静电或组件外露。 3. 仅使用末端接地烙铁来焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。一些不属于防静电 （静电放电保护）的拆焊装置会产生足以损坏静电敏感装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电敏感装置的电荷。 6. 准备即刻安装之前才能拆开静电敏感备换装置的保护性包装。（大多数静电敏感备换装置都是采用铅制包装，通过与传导泡沫、 铝箔或是类似的导体材料一起造成短路）。 7. 拆掉静电敏感备换装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。 注意 确定机芯或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电敏感备换装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电敏感装置的静电 （静电放电））。 7 TH-P46GT20C 2.2. 无铅焊接 （PbF） 注：在元素周期表中，铅的化学符号表示为 Pb。 在下文中，Pb 表示有铅焊料，PbF 则表示无铅焊料。 制造过程中所使用的以及下文中提及的无铅焊料皆为由 (Sn+Ag+Cu) 组成的焊料。 即：锡 （Sn）、银 （Ag）和铜 （Cu）。（其它类型也可使用） 出于环保考虑，本设备制造中采用无铅焊料。尽管有铅焊料也可行，但我们建议在维护时同样采用无铅焊料。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，尽管有铅焊接也可使用。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊料比标准焊料的熔点高。通常情况下，无铅焊料的熔点相对高 50 ～ 70°F (30 ～ 40°C)。 请使用高温电烙铁，并将其温度设定为 700 ± 20°F (370 ± 10°C)。 • 温度过高 （达到大约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须采用有铅焊接，请勿必在焊接前将焊脚或焊料区的无铅焊料彻底清除。如若不能彻底清除，则勿必确保将无铅焊料加热到 熔化状态后再使用有铅焊料。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有多余焊料，防止其流到电路板另一面。( 参见下图 ) 推荐使用的无铅焊料 有几种无铅焊料可供选购。本产品使用的是 Sn+Ag+Cu （锡 + 银 + 铜）组合的焊料。 但也可使用 Sn+Cu （锡＋铜）和 Sn+Zn+Bi （锡＋锌＋铋）组合的焊料。 8 TH-P46GT20C 3 维修指南 3.1. PCB 板分布 电路板名称 功能 电路板名称 功能 P 电源供应 C1 数据驱动 （右下） A DC-DC 转换器，调谐器，扬声器输出，AV 端子 C2 数据驱动 （左下） HDMI 输入，SD 卡，PC 输入，数字信号处理器，PEAKS-LDA2 SC 扫描驱动 格式转换器，等离子 AI 处理器，子场处理器 SS 维持驱动 按键开关，电源开关 SS2 维持输出 （下） K 遥控接收器，电源指示灯， C.A.T.S 感应器，SD 指示灯 SU 扫描输出 V 3D 眼镜发射器 维修时应更换 SU 板 D 格式转换器，等离子 AI，子场处理器 SD 扫描输出 XH 数字调谐器 维修时应更换 SD 板 9 TH-P46GT20C 3.2. 适用信号 10 TH-P46GT20C 4 维修模式 4.1. 怎样进入维修模式 按住主机的 [ 音量 ( - )] 按钮的同时在 2 秒钟内快速按下遥控器上的 [ 显示 ] 按钮三次。 注： 输入 3D 信号时不能进入维修模式。 输入 2D 信号进入维修模式。 4.1.1. 按键命令 按键 [1] ... 主项目 正向选择 按键 [2] ... 主项目 反向选择 按键 [3] ... 子项目 正向选择 按键 [4] ... 子项目 反向选择 按键 [ 红色 ] ... 所有子项目 正向选择 按键 [ 绿色 ] ... 所有子项目 反向选择 按键 [ 音量 ] ... 子项目值 （＋）正方向变化； （-）反方向变化 11 TH-P46GT20C 4.1.2. 调节模式内容 • 数值显示为十六进制。 • 预设值根据型号不同而不同。 • 进入调整模式后，请先记录下每个项目的数值，然后开始调整。 4.1.3. 如何退出 按主机或遥控器的 [ ] 键可关闭电源退出。 12 TH-P46GT20C 4.2. 选项——镜面显示 图象可左右或上下翻转显示。 00: 默认 （图象正常显示）。 01: 图象左右翻转显示。 02: 图象上下翻转显示。 注：出现屏幕显示不良现象 （如：横线或竖线），选择镜面显示选项后，横线和竖线位置移动，可能是由于 A 板或 D 板故障引起的。 4.3. 维修工具模式 4.3.1. 怎样进入 1. 在维修模式中选择 [SRV-TOOL]。 2. 按遥控器的 [ 确定 ] 按钮。 4.3.2. 显示 SOS 历史 SOS 历史 （指示灯闪烁显示的数字）显示。 从左侧开始依次为：最后一次 SOS，倒数第二次，倒数第三次，出厂后第二次，出厂后第一次。 通过 “自检指示和恢复出厂设置”可清除该显示。 4.3.3. 启动时间，打开 / 关闭 按住静音按键三秒钟，高亮位置显示累计开启时间 / 累计开启次数。 时间：累计开启时间 （表示为小时）：分钟 （十进制计） 打开 / 关闭：累计开启次数 （十进制计）。 注：自检或其他命令不会清除此显示。 4.3.4. 退出 1. 把交流电源线从墙面电源插座中拔出或按主机上 [ 电源 ] 按钮关闭电源。 13 TH-P46GT20C 4.4. 旅馆模式 1. 目的 对旅馆限制功能。 2. 使用命令进入旅馆模式设置菜单 为显示旅馆模式设置菜单，请在两秒钟内使用以下命令。 请按下主机上的音量 [ － ] 按钮，并按下遥控器上的 [ 视 频 ] 按钮 （3 次）。 这样，旅馆模式设置菜单显示。 3. 退出旅馆模式设置菜单 从墙面电源插座中拔出交流电源线。 4. 旅馆模式设置菜单说明 项目 功能 旅馆模式 选择旅馆模式开 / 关 初始输入 选择输入信号模式。 每当电源接通时，可设置输入。 选择： AV1/AV2/AV3/AV4/PC/HDMI1/HDMI2/HDMI3/ HDMI4/Media Server/TV/Off • PC：VGA 选项可选 初始 POS 选择节目号码。 选择： Off/0 至 99 • Off：优先上次记忆。 初始音量等级 每当电源接通时，请调节音量。 选择 / 范围： Off/0 至 100 • Off：优先上次记忆。 最大音量等级 设定最大音量。 范围： 0 至 100 键锁定 选择当前按键状态。 选择： Off/SETUP/MENU/ALL • Off：全部有效 • SETUP：仅 F 键无效 （调谐菜单不可选） • MENU：仅 F 键无效 ( 仅音量 / 静音可选 ) • ALL：全部无效 遥控器锁定 选择遥控器按键状态。 选择： Off/SETUP/MENU • Off：全部有效 • SETUP：仅设置菜单无效 • MENU：图像 / 声音 / 设置菜单无效 私人信息 开启电视机并将旅馆模式设定为 [ 开启 ] 时，可 选择保持或重置 VIERA Cast 的私人信息。 选择： 保持 / 重置 • Keep：VIERA Cast 的私人信息被保持 • Reset：VIERA Cast 的私人信息被重置 14 TH-P46GT20C 4.5. SD 卡拷贝数据 4.5.1. 目的 (a) 电路板更换 （更换 A 板时拷贝数据）： 更换 A 板时，A 板的数据可通过 SD 卡拷贝至新的 A 板上。 (b) 旅馆 （用于在旅馆安装多台电视机或其它设备时拷贝数据）： 在旅馆安装多台电视机或其它设备时，主电视机上的数据可通过 SD 卡拷贝至其它电视机。 4.5.2. 准备 在空的 SD 卡上设置 pwd 文件为 （a）或 （b）的启动文件。 1. 将空的 SD 卡插入您的电脑。 2. 右键单击SD卡窗口的空白区域，选择新建，然后选择文本文档，以创建一个新的文件（默认文件名称为New Text Document.txt）。 3. 右键单击新建的文本文档，选择重命名，然后根据以下说明更改 （a）或 （b）的文件名称及扩展名，最后按 ENTER 确认。 文件名： (a) 更换电路板：boardreplace.pwd (b) 旅馆：hotel.pwd 注： 请仅创建一个文件，以免操作出错。 其它任何文件请勿保存在 SD 卡中。 15 TH-P46GT20C 4.5.3. 从电视机拷贝数据至 SD 卡 1. 打开电视机。 2. 将带启动文件 （pwd 文件）的 SD 卡插入 SD 插槽。根据启动文件，屏幕显示将自动出现。 3. 通过遥控器输入 （a）或 （b）的密码。 (a) 更换电路板：2770 (b) 旅馆：4850 数据将由电视机拷贝至 SD 卡。 拷贝过程需大约 2 至 6 分钟。 4. 拷贝完毕后，从电视机上移除 SD 卡。 5. 关闭电视机。 注： SD 卡中将新建以下文件夹，以保存电视中拷贝过来的数据。 (a) 更换电路板：user_setup (b) 旅馆：hotel 16 TH-P46GT20C 4.5.4. 从 SD 卡拷贝数据至电视机 1. 打开电视机。 2. 将载有数据的 SD 卡插入 SD 插槽。根据数据文件夹，屏幕显示将自动出现。 3. 通过遥控器输入 （a）或 （b）的密码。 (a) 更换电路板：2771 (b) 旅馆：4851 数据将由 SD 卡拷贝至电视机。 4. 拷贝完毕后，从电视机上移除 SD 卡。 (a) 更换电路板：拷贝后数据将被删除 （拷贝的数据）。 (b) 旅馆：数据不会被删除且可用于其它电视机。 5. 关闭电视机。 注： 1. 如果电路板出现故障，更换电路板时数据拷贝功能将失效。 2. 数据拷贝功能同样适用于同型号的电视机。 17 TH-P46GT20C 5 故障检修指南 使用自检功能检测整机。 1. 检测 IIC 总线 2. 电源指示灯闪烁次数 5.1. 检测 IIC 总线 5.1.1. 怎样进入 5.1.1.1. 仅自检显示： 进入 TV 接收屏幕，然后按主机 [ 音量 （-）] 按键的同时按下遥控器上的 [ 确定 ] 按键 3 秒钟以上。 5.1.1.2. 自检显示并强制返回出厂设置： 进入 TV 接收屏幕，然后按主机 [ 音量 （-）] 按键的同时按下遥控器上的 [ 菜单 ] 按键 3 秒钟以上。 5.1.2. 屏幕显示 5.1.3. 检测点 如果屏幕显示异常，请确认下面部分。 5.1.4. 退出 把交流电源线从墙面电源插座中拔出或按主机上 [ 电源 ] 按钮关闭电源。 18 TH-P46GT20C 5.2. 电源指示灯闪烁间隔表 1. 主题 电源指示灯闪烁间隔表信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的电源指示灯闪烁次数便可识别出故障部 位。 19 TH-P46GT20C 5.3. 无电源 第一检测点 电源指示灯的无电源指示有以下 2 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。（参见 5.2.） 3. 仅红灯亮。 20 TH-P46GT20C 5.4. 无图象 21 TH-P46GT20C 5.5. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板分布。 图 1 22 TH-P46GT20C 6 维修检测工具 6.1. SC 夹具 目的 当电源指示灯闪烁 7 次时，使用该工具可检测到发生故障的电路板 （SC 或 SU/SD 板）。 SC 夹具： 跳线连接件，连接 SC 板上的连接件 SC50。 部件号： TZSC09187 如何操作： 注意： 检查后，从 SC 板上取下 SC 夹具。 1. 取下 SC 板和 SU/SD 板之间的所有连接件，将 SC 板与 SU/SD 板分离。 注： 如果不取下全部连接件 （如，只取下 SU 板连接件但还与 SD 板连接。SU 板将损坏。）。 2. 连接 SC 夹具与 SC 板左下端的连接件 SC50。 3. 打开 TV/ 显示器，确认 LED 指示灯是否闪烁。 LED 指示灯闪烁： SC 板可能发生故障 LED 指示灯不闪烁 （亮或不亮）： SU/SD 板可能发生故障 4. 检查后，关闭 TV/ 显示器，等待几分钟使其放电。 5. 从 SC 板上取下 SC 夹具。 备注： 该 SC 夹具适用于所有 2010 年等离子电视机。 23 TH-P46GT20C 7 拆装指南 7.1. 取下后盖 1. 参见电路板分布 （第 3 章）。 7.2. 取下 AC 接入口组件 注意： 由于电解电容器放电原因，请等待电源切断一分钟后再取下 P.C.B.。 1. 解开线夹，放出电线。 2. 断开连接件 （P9）。 3. 卸下螺丝 （× 1 ），取下 AC 接入口组件。 7.3. 取下 P 板 注意： 由于电解电容器放电原因，请等待电源切断一分钟后再取下 P.C.B.。 1. 解开线夹，放出电线。 2. 断开连接件 (P2, P6, P7, P9, P11 和 P35)。 3. 卸下螺丝 ( × 9 )，然后取下 P 板。 7.4. 取下侧端子盖和侧端金属保护板 1. 卸下螺丝 ( × 2 , × 1 , × 1 )。 2. 取下侧端子盖。 3. 取下侧端金属保护板。 24 TH-P46GT20C 7.5. 取下 XH 板 1. 解开线夹，放出电线。 2. 断开射频电缆。 3. 断开柔性电缆 XH4。 4. 卸下螺丝 （× 3 ），取下 XH 板组件。 5. 卸下螺丝 （× 4 ），取下 XH 板。 7.6. 取下调谐器组件 1. 取下侧端子盖和侧端金属保护板 （参见 7.4.）。 2. 卸下 XH 板 （参见 7.5.）。 3. 解开线夹，放出电线。 4. 断开连接件 (A1, A6, A7, A11 和 A20)。 5. 断开柔性电缆 (A31 和 A88A)。 6. 卸下螺丝 ( × 2 )，然后取下调谐器组件。 7.7. 取下 A 板 1. 取下调谐器组件 ( 参见 7.6.)。 2. 卸下螺丝 ( × 3 )，然后取下 A 板。 25 TH-P46GT20C 7.8. 取下扬声器 1. 解开线夹，放出电线。 2. 断开扬声器端子。 3. 卸下螺丝 ( 各× 2 )，然后取下扬声器 （左、右）。 7.9. 取下 SU 板 1. 取下连接到 SU 板的柔性电缆 (SU1, SU2, SU3 和 SU4)。 2. 取下柔性电缆 (SU11-SD11) 和桥连接件 (SC41-SU41)。 3. 取下支撑件 ( × 1 )。 4. 卸下螺丝 ( × 2 , × 2 )，并且取下 SU 板。 7.10. 取下 SD 板 1. 取下连接到 SD 板的柔性电缆 (SD1, SD2, SD3 和 SD4)。 2. 取下柔性电缆(SU11-SD11)和桥连接件(SC42-SD42和 SC46- SD46)。 3. 取下支撑件 ( × 1 )。 4. 卸下螺丝 ( × 2 , × 2 )，并且取下 SD 板。 7.11. 取下 SC 板 1. 断开连接件 （SC2）。 2. 断开柔性电缆 （SC20）。 3. 卸下螺丝 （× 7 ），然后取下 SC 板。 26 TH-P46GT20C 7.12. 取下 SS2 板 1. 取下调谐器组件 （参见 7.6）。 2. 断开桥式连接件 （SS21-SS24）和柔性电缆 （SS58）。 3. 卸下螺丝 （× 2 ），然后取下 SS2 板。 7.13. 取下 SS 板 1. 取下调谐器组件 ( 参见 7.6.)。 2. 解开线夹，放出电线。 3. 断开连接件 （SS11 和 SS33）。 4. 断开柔性电缆 （SS61 和 SS64）。 5. 断开桥式连接件 （SS21-SS24）。 6. 卸下螺丝 ( × 6 )，然后取下 SS 板。 7.14. 取下金属悬挂架和单脚支架 1. 从维修台座上取下等离子显示屏，显示屏表面朝下放置于 合适的地方，如盖有软布的工作台。 2. 卸下紧固单脚支架的螺丝 ( × 4 ) ，然后取下单脚支 架。 3. 卸下紧固左右金属悬挂架的螺丝 ( 各× 2 ) ，然后取下 左右金属悬挂架。 27 TH-P46GT20C 7.15. 取下面框安装金属件 1. 取下单脚支架。( 参见 7.14.) 2. 取下紧固面框安装金属件的螺丝 ( × 7 × 14 ) ，然 后取下面框安装金属件 （上、下）。 7.16. 取下 D 板 1. 取下 AC 接入口。（见第 7.2 节） 2. 断开柔性电缆 (D5, D20, D31 和 D32)。 3. 断开连接件 （D25）。 4. 卸下螺丝 ( × 4 )，取下 D 板。 7.17. 取下 C1 板 1. 分别取下金属悬挂架 ( 右 ) 和单脚支架。（参见 7.14.） 2. 取下面框安装金属件 （下）。( 参见 7.15.) 3. 卸下紧固柔性电缆固定器的螺丝 ( × 12 )。 4. 断开柔性电缆 (CB1, CB2, CB3, CB4, CB5, CB6, CB7 和 CB8)。 5. 断开柔性电缆 (C10 和 C11)。 6. 卸下螺丝 ( × 5 )，然后取下 C1 板。 7.18. 取下 C2 板 1. 取下调谐器组件。( 参见 7.6.) 2. 分别取下金属悬挂架 ( 左 ) 和单脚支架。（参见 7.14.） 3. 取下面框安装金属件 （下）。( 参见 7.15.) 4. 卸下紧固柔性电缆固定器的螺丝 ( × 10 )。 5. 断开柔性电缆 (CB9, CB10, CB11, CB12, CB13, CB14 和 CB15)。 6. 断开柔性电缆 (C20 和 C21)。 7. 断开连接件 (C23 和 C25)。 8. 卸下螺丝 ( × 4 )，然后取下 C2 板。 28 TH-P46GT20C 7.19. 从面框组件中取出等离子显示屏 1. 取下紧固面框安装金属件的螺丝 ( × 7 )。 2. 取下紧固等离子显示屏的螺丝 ( × 3 × 8 ) ，然后 取下面框组件。 3. 将面框底部拉出，上提，并从等离子显示屏上取下面框组 件。 7.20. 取下金属压条 1. 取下面框组件。( 参见 7.19.) 2. 卸下螺丝 ( × 4 )。 3. 取下金属压条 （上）。 4. 卸下螺丝 （× 3 ）。 5. 取下金属压条 （下）。 6. 卸下螺丝 （× 4 ）。 7. 取下侧端金属压条 （左、右）。 7.21. 取下 K 板 1. 取下金属压条 （下）。( 参见 7.20.) 2. 卸下螺丝 ( × 1 )。 3. 卸下卡扣 ( × 1 )。 4. 断开连接件 （K1），并从 LED 透光板上取下 K 板。 29 TH-P46GT20C 7.22. 取下 V 板 1. 取下金属压条下 （见第 7.20 节）。 2. 卸下螺丝 ( 各× 1 )。 3. 断开连接器 （各 V1）并且从发射器固定金属上取下 V 板。 7.23. 更换等离子显示屏 注意： 未安装金属悬挂架的新等离子显示屏，其本身很容易损坏。请 待金属悬挂架和单脚支架安装完毕后，再行更换。更换时请握 住金属悬挂架，以免损坏新的等离子显示屏。 1. 请将装有新等离子显示屏的纸箱放置于水平工作台上。 2. 拆开纸箱，先勿将新等离子显示屏取出。装上 C1, C2 板， 连接等离子显示屏和 C1，C2 板之间的柔性电缆，安装柔性 电缆固定器。 3. 将金属悬挂架和单脚支架装在新等离子显示屏上。 4. 握住金属悬挂架，将新等离子显示屏移至维修台。 5. 将面框组件和各个 P.C. 板分别安装到新等离子显示屏上。 30 TH-P46GT20C 8 测量及调整 8.1. 微调 8.1.1. Vsus 选择 注意： 更换等离子显示屏或 A 板后，Vsus 应设置为 LOW （低）或 HIGH （高）。 步骤 1. 进入维修模式的 [VSUS] 主项目，屏幕上将显示 LOW （低）或 HIGH （高）选项。 2. 按 [ 确定 ] 键进入 TEST （测试）阶段。在 TEST （测试）和 CONF 阶段时屏幕显示白信号且无 OSD。按 [5] 键显示 OSD。 3. 按遥控器上的 [ 音量 (-)] 按钮设置为 LOW （低）。 4. 设置为 LOW （低） a. 如果白信号上无明显可见的坏点，按 [3] 按钮进入 CONF 阶段。 b. 如果白信号上有明显可见的坏点，按 [ 音量 (+)] 按钮设置为 HIGH （高）。若坏点减少或消失，按 [3] 按钮进入 CONF 阶段。 5. 在 CONF 阶段按 [ 确定 ] 按钮以保存 LOW （低）或 HIGH （高）设置。 6. 按 [ 电源 ] 按钮退出维修模式。 31 TH-P46GT20C 8.1.2. 副对比度调整 测量工具名称 连接 备注 射频发生器 基带信号发生器 高清信号发生器 步骤 备注 TV 调整 （射频系统） 注： 在调整状态时，你必须将信号模式设置在 90％。 1. 接收射频 PAL 制式 100% 全白信号或者彩条信号，如下所示： 2. 进入维修调整模式。 3. 按 [1] 或 [2] 键，进入调整模式的 [CONTRAST] （对比度）选项。 微调 1. 按遥控器上色彩键的黄色按钮。 2. 副对比度的 OSD （屏显）文字变红。 （内部正在进行自动调整） 3. 副对比度的 OSD （屏显）文字变黑。 4. 完成。 注： AV/HD 输入时，副对比度未经调整。 如需手动选择调整，请参见 [ 其它步骤 ]。 32 TH-P46GT20C 步骤 备注 其它步骤 AV 系统调整 1. 接收 AV1( 或 AV2)PAL 制式 100% 全白信号或彩条信号，如下所示： 2. 进入维修调整模式。 3. 按 [1] 或 [2] 键，进入调整模式的 [CONTRAST] （对比度）选项。 微调 1. 按遥控器上色彩键的黄色按钮。 2. 副对比度的 OSD （屏显）文字变红。 （内部正在进行自动调整） 3. 副对比度的 OSD （屏显）文字变黑。 4. 完成。 步骤 备注 其它步骤 HD 系统调整 1. 1080i 100% 全白或彩条色域下接收分信号，如下所示： 2. 进入维修调整模式。 3. 按 [1] 或 [2] 键，进入调整模式的 [CONTRAST] （对比度）选项。 微调 1. 按遥控器上色彩键的黄色按钮。 2. 副对比度的 OSD （屏显）文字变红。 （内部正在进行自动调整） 3. 副对比度的 OSD （屏显）文字变黑。 4. 完成。 33 TH-P46GT20C 8.1.3. THX 白平衡调整 测量工具名称 连接 备注 W/B 模式 色彩分析仪 ( 美能达 CA-100 或类似产品 ) 显示屏表面 步骤 备注 • 确保前面玻璃最终用于该整机。 • 确保调整前不显示彩色信号。 • 将色彩分析仪放置到色差十分微小的地方。 图像菜单：鲜艳 屏幕宽高比：16:9 微调 备注 1. 进入维修模式。 请使用外部信号或选择 CVBS/YUV （无同步）。 2. 按数字键 [1] 或 [2]，显示 [ WB-ADJ ]。 确认色温为 [COOL] （冷色）。 3. 按数字键 [0]，选择 [ METHOD=01 ]。 4. 按数字键 [5]，显示 [INNER PATTERN] （内部测试图）。 5. 按数字键[3]或 [4]，选择 [ G-CUTOFF ]项目；然后按音量键 [+]或 [-]，将其设置为 [80]。 同时，将 [B-CUTOFF] 和 [R-CUTOFF] 项目设置为 [80]。 6. 将 [G-DRIVE] （绿驱动）设定为 [D0]。 7. 将色彩分析仪的色彩接收器贴在内部测试图的中心位置，然后调节 B drive （蓝驱动）和 R drive（红驱动），直到 x、y 项的数值与表 1 中的 [COLOR TEMP COOL]（色温的冷色项） 相符。 8. 所有 RGB 驱动值增加，最大的 RGB 驱动值可变成 [FF]。 （[ALL-DRIVE] （所有驱动）设置为 [FF]。） 9. 按 [7] 键，设置色彩平衡为 [NORMAL] （正常）。 10. 调整 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 为 [80]。 11. 将 [G-DRIVE] （绿驱动）设定为 [D0]。 12. 调节 B-DRIVE （蓝驱动）和 R-DRIVE （红驱动），直到 INNER PATTERN 的 （内部测试图） x、y 项的数值与表 1 中的 [COLOR TEMP NORMAL] （色温的正常项）相符。 13. 所有 RGB 驱动值增加，最大的 RGB 驱动值可变成 [FF]。 （[ALL-DRIVE] （所有驱动）设置为 [FF]。） 14. 按 [7] 键，设置色彩平衡为 [WARM] （暖色）。 15. 按 [9] 键，将图像菜单设定为 [ 影院 ]。 16. 按数字键 [5]，显示 [THX PATTERN]。 17. 调整 G-CUTOFF、B-CUTOFF 和 R-CUTOFF 为 [80]。 18. 将 [G-DRIVE] （绿驱动）设定为 [D0]。 19. 调节 B-DRIVE （蓝驱动）和 R-DRIVE （驱动），直到 INNER PATTERN （内部测试图）的 x、 y 项的数值与表 1 中的 [COLOR TEMP WARM] （色温的暖色项）相符。 20. 所有 RGB 驱动值增加，最大的 RGB 驱动值可变成 [FF]。 （[ALL-DRIVE] （所有驱动）设置为 [FF]。） METHOD=01 按相同步骤调整 34 TH-P46GT20C 35 TH-P46GT20C 9 方框图 9.1. 主方框图 TH-P46GT20C Main Block Diagram TH-P46GT20C Main Block Diagram HOT (LED:7TIMES) (LED:8TIMES) (LED:6TIMES) COLD (LED:4TIMES) (LED:7TIMES) (LED:4TIMES) (LED:5TIMES) (LED:3TIMES) (LED:2TIMES) (LED:8TIMES) (LED:6TIMES) (LED:9TIMES) SC46 C10 BUFFER SCAN CONTROL Vda Vda SC2 VSUS GEN. VIDEO DATA P35 SS-BOARD SOS DETECT DATA DRIVER SC-BOARD ENERGY RECOVERY SOS DETECT DATA DRIVER POWER SUPPLY VIDEO DATA Vda SC41 SD C21 VIDEO DATA SC DATA DRIVER SD11 SUSTAIN VOLTAGE RECTIFIER C20 SUSTAIN DRIVE VSUS SOS8_SS SC20 C11 PROCESS VOLTAGE RECTIFIER DATA DRIVER DATA DRIVER OUT DATA DRIVER VE GEN. SCAN DRIVE VIDEO DATA POWER FACTOR CONTROL DATA DRIVER SCAN OUT (UPPER) SD42 ENERGY RECOVERY SC-BOARD FLOATING PART SOS DETECT VSUS DATA DRIVER P DATA DRIVER SU41 SD46 SU11 DATA DRIVER (RIGHT) SC42 SU VIDEO DATA VSUS Vda SS SCAN DRIVER VSUS RECTIFIER SS24 P-BOARD SOS DETECT SUSTAIN SOS8_SS SCAN OUT (LOWER) SS21 RECTIFIER STANDBY VOLTAGE RECTIFIER P9 SOS8_SS C1 SOS7_SC2 SUSTAIN CONTROL (LOWER) P2 DATA DRIVER (LEFT) DATA DRIVER AC CORD SS2 DATA DRIVER C23 SUSTAIN CONTROL Vda DATA DRIVER SUSTAIN CONTROL SS33 SCAN DRIVER DATA DRIVER RELAY CONTROL PULSE C2 P11 VSUS DATA DRIVER DATA DRIVER C25 SOS6_SC1 SS11 P+15V P+5V P+5V P+3.3V P+5V P+3.3V P+5V P+15V P+15V P+3.3V,P+5V P+3.3V P+5V P+15V VSCAN GEN. VAD GEN. STB5V ON/OFF CONTROL F15V SW1 TV SUB_ON P7 PS SOS4 A6 SW2 STB5V P6 P25 A7 SOUND15V P+15V F15V STB5V POWER MICOM P+5V P+15V P+5V DET SOS6_SC1 P+3.3V VIDEO DATA SOS8_SS SOS8_SS STB_D3.3V EEPROM P+15V P+3.3V STB3.3V D32 POWER SOS DCDC PD4H P+2.5V P+2.5V SOS7_SC2 SOS7_SC2 LVDS DATA PANEL STB ON SCAN CONTROL SOS6_SC1 D31 P+3.3V DET STB5V DCDC PD4H D P+15V P+3.3V P+3.3V DCDC P+5V P+3.3V P+5V D25 PANEL MAIN ON POWER SOS DCC SOS VIDEO DATA PANEL MPU P+5V DCDC D5 P+1.2V P+5V P+15V DET D20 DCDC PLASMA AI CPG with SS H/V Sync Control Sub Filed Processor Discharge Control P+1.2V STB5V SUSTAIN CONTROL P+15V HOT (LED:7TIMES) (LED:8TIMES) (LED:6TIMES) COLD (LED:4TIMES) (LED:7TIMES) (LED:4TIMES) (LED:5TIMES) (LED:3TIMES) (LED:2TIMES) (LED:8TIMES) (LED:6TIMES) (LED:9TIMES) PANEL SOS PANEL STATUS (LED:10 TIMES) (LED:12 TIMES) (LED:10 TIMES) (LED:3 TIMES) (LED:5 TIMES) (LED:12 TIMES) (LED:10 TIMES) EEPROM PWM MONITOR OUT L/R POWER SWITCH AV4 KEY SCAN STANDBY MPU ON SOUND SOS 100BASE-TX 10BASE-T/ L/R SIF MAIN SW2 SLOT ETHER PHY LVDS DATA A1 USB L/R LAN DATA K1 CLOCK GENE. SUB_ON USB DATA SUB9V/SUB6V/SUB_OP_5V/SUB3.3V/ SUB1.5V/SUB1.2V/FRC3.3V/FRC_D1.05V P+5V HP L/R TUNER MIHO1.2V/FP1.2V V +5V S+15V +5V SOUND+15V FRC P+3.3V USB DATA AV1 HEADPHONE OUT AUDIO AMP V1 VCC SOS NAND FLASH RXD1 TXD1 AV2 P+5V DET R/G/B L SIF SPEAKER(L) A11 V/Y/PB/PR PC LED+5V_2 R DCDC DDR3 DCDC STB+5V DCDC TV SUB_ON EEPROM DCDC MAIN SW1 DCDC L/R DCDC SD CARD DATA V/Y/C MIHO3.3V/FP3.3V LED+5V_1 V P+3.3V DET A7 SUB+3.3V HEADPHONE A20 F+15V AV SW V1 SOUND+15V SUB+5V GenX8 SUB+5V SENSE SLOT SUB+3.3V SENSE A31 MIHO2-3D A6 P7 P6 LAN DATA AV3 SERIAL COMMUNICATION +6V ETHERNET FPGA 2D-3D CPU BUS I/F PWM PEAKS-LDA2 CPU BUS TV SUB_ON SD CARD SD CARD DATA OPTICAL AUDIO OUT V L/R V/Y/PB/PR KEY SWITCH LED_R/G C.A.T.S. SENSOR REMOTE RECEIVER 3D EYEWEAR TRANSMITTER V V 3D EYEWEAR TRANSMITTER K REMOTE RECEIVER C.A.T.S. SENSOR POWER LED SPEAKER(R) LED+6V LED+6V SENSE MIHO+3.3V SENSE MIHO+3.3V MAIN+3.3V SENSE FRC+3.3V SOUND SOS DET CIRCUIT VCC SOS DET F+15V EEPROM DDR2 SERIAL FLASH DIGITAL SIGNAL PROCESSOR A STB+3.3V STB+3.3V DCDC ANALOG_ASIC STB5V DIGITAL TUNER XH HDMI2 TS I/F HDMI4 Parallel_ TS(SAT) 2ND FE HDMI1 XH4 HDMI I/F TMDS DATA RECEIVER HDMI3 TMDS DATA EQ/ SW A88A Tuner OPTICAL AUDIO OUT (LED:10 TIMES) (LED:12 TIMES) (LED:10 TIMES) (LED:3 TIMES) (LED:5 TIMES) (LED:12 TIMES) (LED:10 TIMES) ARARM READY PANEL STB_ON 36 TH-P46GT20C 9.2. 方框图 （1/5） TH-P46GT20C Block (1/5) Diagram TH-P46GT20C Block (1/5) Diagram STB5V SUB5V F15V SUB_AI_3,3V SOUND15V D5602 D5441 D5445 SUB9V D5440 SUB3.3V F15V PA5610 D5442 D2014 SUB1.2V_D STB3.3V Q5603 D5434 D5433 STB3.3V X8002 Q5431 D5431 SUB6V D5439 SUB3.3V D5443 SUB3.3V D5437 SUB3.3V D5432 SUB_AI_3,3V Q5432 SUB9V SUB9V SUB5V SUB1.5V Q5435 SUB5V D5444 DDR1.5V Q5436 D5435 SUB_OP_5V SUB3.3V SUB1.2V_A Q5602 STB5V D5449 SOUND15V DCDC F15V SUB6V DCDC DCDC APWMS L/R IC5604 R IIC1 ANT IN AV1_Y AVDDH 3.3V IIC0 MONITOR OUT V/Y/PB/PR IC5303 SD CARD 4 SUB1.5V PC IN ETHERPHY IC5251 IIC2 3.3V JK3001 SUB AI +3.3V HP_L HD/VD IIC2 SD LED ON L/R D3015 SD LED ON AV1_PB 11 USB 1/2 CLOCK GEN IC5302 IC8701 IIC0 V USB5V ETHERNET IF IIC1 TXD1/RXD1 AV2_PB ETHER 25MHz USB 12MHz LDA27MHz DDR3 33.3MHz LDA2 74.175824MHz VC27A SOS DDR I/F SIF_OUT R_OUT DDC_IIC2 IC8921 HP_R EQUALIZER F15V IC4500 MAIN_SW_2 RX0 RESET JK8700 2 H/V IC8000 MONI_OUT MAIN_SW_1 (SIDE) SOUND SOS & SWITCH MON_L/R F15V AV4_L HDMI IN 4 ON/OFF AV2_Y ETHERPHY PC_HD/VD +5V IIC0 IC8100 AV3_V +5V SUB+5V TV USB I/F SUB3.3V IECOUT VIDEO TMDS DATA CLOCK V +5V 1 L(+) AV4 24.576MHz HDMI_CEC +5V DCDC_EN OPTICAL F15V SUB_OP_5V AV2_RIN 2 STB5V 8 JK4700 3 SUB6V MONI_LOUT SPEAKER_R HEADPHONE 14 3.3V 1 +1.5V L/R IC5250 TV_SUB_ON OUT MONI_ROUT USB AV2_LIN ETHERNET IC2301 V TV_V IC5501 IC8950 12 SUB1.5V SOUND SOS DET AV3S AUDIO IC5290 IC8703 IIC_IF SOUND15V DDC_IIC0 CPU BUS P6 AV2_V B DCDC_EN JK3100 L_OUT IIC_TU SUB1.2V_D HDMI_CEC 5V V/S_Y/S_C TV_L/R CVBS IN1 SUB1.2V_A AV2_PR Q2301 SUB3.3V AV1_RIN VIDEO OUT(SD) V 9V HDMI IN AV3 AV4_R SBI0 SBO0 VD SBI0 SBO0 PC OPTICAL AUDIO OUT HD MON_L/R SUB+9V PA_NRST Y/PR/PB PD_XRST 5 AV3S_C V/Y/PB/PR SPEAKER_L JK8850 DVB_CVBS AUDIO OUT AV1_LIN A7 AV2 F15V DET LVDS_OUT AXO L/R AXI TMDS DATA CLOCK STB5V_SW_ON HP_L/R L/R IC8240,41 TV_L/R 12 AV1_PR 1 G TV_SUB_ON AV3 PEAKS-LDA2 AV3S_Y 8 RX2 AV I/O A 2 DDC_IIC1 9 ABNORMAL OVERVOLTAGE DETECTION +5V MAIN_SW_2 100BASE-TX DDR3 #0,1 R(-) L/R DDC_IIC3 L(-) ETHER_25MHz SIF 10 P7 A6 MONI_VOUT TU2901C SPEAKER ABNORMAL VOLTAGE DROP DETECTION NRST TNR5V V OUT AV1_V 7 SOUND15V 15V LOSDO1 POWER_DET DDC_IIC3 SIF I/F SPEAKER STB5V_SW_ON PWMS POWER_DET IC2952 HDMI_CEC CLOCK MAIN TMDS DATA CLOCK ED0-ED7 VCC 32bit Y/PR/PB JK4702 AV3_LIN HDMI IN 3 3 ARC DDC_IIC0 TUNER R/G/B HDMI IN 2 R(+) DDC_IIC2 SOS JK4701 EEPROM DDC_IIC0 SUB1.2V_A L/R 6 +1.2V AV1 SD DATA:4bit JK4703 HDMI_CEC RX2 JK8301 (SIDE) AV3_RIN L/R OUT AV1 COMP +3.3V HDMI IN 1 AV1 Q4512,13 AVDDH +1.2V ARC OFF A11 SUB1.2V_D 5V NAND FLASH HDMI LVDS DATA 3.3V 7 MAIN_SW_1 TMDS DATA CLOCK AV2 COMP IC3001 AV1/AV2/AV3 IN/OUT +6V AV4_V IC4701 DTV_XRST AV2 IC5470 RX1 AUDIO AMP 8 CPU BUS I/F 9 DDC_SINK_IIC2 ACHIP3.3V HDMI_CEC SD CARD I/F 13 DET0 IC5603 IIC1 DDC_IIC2 JK3707 10BASE-T/ IC5500 DIGITAL SIGNAL PROCESSOR AV SW +3.3V ON POWER SWITCH SW2500 5 HDMI 5V DET2 HDMI 5V DET3 HDMI 5V DET1 HDMI 5V DET0 14 4 TS I/F FPGA_XRST FPGA_CONFIG_DONE FPGA_SDLL LOSDOYM XIRQ7 LOSDO14 DDC_IIC1 DDC_IIC1 VDDSD 1 "H": ON "L": OFF OVER V 37 TH-P46GT20C 9.3. 方框图 （2/5） TH-P46GT20C Block (2/5) Diagram TH-P46GT20C Block (2/5) Diagram (LED:10 TIMES) (LED:12 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) G R PANEL_STBY_ON PANEL_STBY_ON PANEL_SOS PANEL_READY PANEL_SOS PANEL_READY PANEL_STBY_ON STB5V D5470 STB3.3V SUB_AI_3,3V D2521 LED5V_2 STB5V X1100 SUB3.3V Q5475 F15V STB3.3V D5493 STB3.3V SUB_AI_3.3V F15V SUB9V STB3.3V D5448 D5447 SUB3.3V SUB5V X4200 D5436 D2520 LED5V_1 Q5478 SUB9V PA4206 SUB5V MIHO2_3.3V D2502 D2500 MIHO2_1.2V D2501 D2501 MIHO2_3.3V D2502 D2500 LED_6V D5519 D5524 D5490 D5492 D5491 PA5800 SUB5V STB_RST RESET IC1101 FRC 1.8V AI_SENSOR POWER_DET EEPROM Q2850,Q2851 POWER LED STB_RST 6 STB LED(G) 3 TU6700 F GenX8 SW2551 30 REMOTE CONTROL SIGNAL RECEIVER 18 KEY SWITCH 4 27MHz 1.05V HDMI_CEC_PULL_ON AI_SENSOR LED+6V SENSE IC4212 HDMI_CEC MAIN+3.3V SENSE R_LED_ON A REMOTE IN FRC 3.3V IIC0 GENX7_IIC SBI0/SBO0 DCDC_EN LED_SOS SUB6V SUB3.3V SUB3.3V SENSE IF_AGC K SD LED 5V 11 Tuner HQ_XRST IF_AGC 12 IIC0 XH4 10 2 1.8V GENX7_IIC 13 OSDXI IFD_OUT1 SUB3.3V 9 RM2501 14 26 +5V 5 STB LED(G) 3 3.3V FOR FACTORY USE 11 Z-PORT(INPUT) KEYSCAN1 1 DTV_XRST 13 CN0102 DTV_RST SW2550 AI_SENSOR 15 FRC_LVDS DATA 24 IC4207 IC4204 DDC_IIC0-3 2 STB_RST GENX IIC1 A1.05V MPU IC4201 6 STB LED(G) PC2511 G_LED_ON FRC 2.5V MIHO+3.3V SENSE HDMI_CEC TV SUB ON EEPROM TEMP SENSOR TV SUB5V SENSE IC4206 SW_OFF_DET TV SUB ON 3 OSDXO 16 K1 IC1100 AV SOUND SOS IC6706,07 FE SCL AI_SENSOR A1 IIC_TU BUFFER IC4205 IIC0 +1.2V STB+3.3V Parallel_TS IC6705 7 DDR2 20 9 POWER LED 6 1 TS DATA REMOTE RECEIVER 24 DRAM DEMODULATOR SUB3.3V 10MHz IIC1 FRCS_IIC IC6700 29 4 IC6702 SUB3.3V POWER LED(R) CN0101 28 DIGITAL SIGNAL PROCESSOR VOL.UP/CH.UP 8 REMOTE IN FRCS MIHO2_LVDS DATA SW_OFF_DET SUB_AI_3.3V KEY SWITCH IC1000 IIC1 PANEL_IIC2 GENX_IIC SOUND SOS MIIC IIC0 POWER LED(R) 1 SD_LED_ON RMIN LVDS DATA HDMI_5V_DET0-3 SOS SW2554 IC4211 FRC A1.05V SW2553 SD LED 2.5V SD LED DRIVE XIN A88A 7 HDMI_5V_DET0-3 REMOTE IN IIC1 2 X-PORT(OUT 1st) STB_RST STB5V_SW_ON DDC_IIC0-3 TXD/RXD 8 IIC0 3 IFD_OUT2 8 IC6704 DIGITAL TUNER VOLTAGE DETECT 2 SW2552 XH IC6703 2ND FE 9 +2.5V 7 ON/OFF D1.05V IC6701 IIC_TU C.A.T.S. SENSOR VOL.DN/CH.DN FE SDA IC4200 SD LED ON VCC SOS 4 STB3.3V POWER LED(R) XOUT SW_OFF_DET FOR FACTORY USE AI.SENSOR FRC_D 1.05V 5 TXD1/RXD1 SERIAL COMMUNICATION GENX IIC0 LVDS DATA OUT +3.3V IR_L 15 7 D5 4 14 IIC_CLK2 Q5813 FPGA_CONFIG_DONE 27MHz INVERTER +5V IC7001 10 IC5810 XRST IIC2 LED+5V_2 MIHO2 IIC Q5814 X7001 V1 54 8 +1.2V MIHO2 3D IR_L IC5815 A31 IC5805 5 DONE IIC SW IC5813 IC7005 LED+5V_1 RESET +6V IC5809 IC5801 FPGA IIC +5V PANEL_IIC2 8 5 IR_L A20 FPGA 2D-3D IC7004 LVDS DATA IN IC5808 IIC_DATA1 LED DRIVE 1 SERIAL FLASH IIC_DATA2 GENX7_IIC LVDS DATA 16 PANEL STB_ON +3.3V 11 4 IC5800 IC5814 +1.2V IC7006 8 LVDS DATA PROG_B INVERTER MIHO2 IIC +1.2V 1 Q7002 +5V FPGA_SDLL +1.2V IIC_CLK1 19 +3.3V PLL1.2V V1 IC7003 FPGA_XRST READY ALARM PANEL STBY ON MIHO_0UT MIHO_IN TRANSMITTER 3D EYEWEAR V TRANSMITTER 3D EYEWEAR V IIC2 GenX_IIC SEL=H SEL=L Peaks TV-GenX IC5482 STB3.3V REG STB_RESET/MUTE ANALOG ASIC NRST NRST IIC_SW IIC_SW IIC_SW READY ALARM INFRARED TRANSMITTER INFRARED TRANSMITTER 1 STB3.3V (LED:10 TIMES) (LED:12 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) FRC3.3V OVER_V PA8341 TH-P46GT20C Block (2/5) Diagram TH-P46GT20C Block (2/5) Diagram (LED:10 TIMES) (LED:12 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) G R PANEL_STBY_ON PANEL_STBY_ON PANEL_SOS PANEL_READY PANEL_SOS PANEL_READY PANEL_STBY_ON STB5V D5470 STB3.3V SUB_AI_3,3V D2521 LED5V_2 STB5V X1100 SUB3.3V Q5475 F15V STB3.3V D5493 STB3.3V SUB_AI_3.3V F15V SUB9V STB3.3V D5448 D5447 SUB3.3V SUB5V X4200 D5436 D2520 LED5V_1 Q5478 SUB9V PA4206 SUB5V MIHO2_3.3V D2502 D2500 MIHO2_1.2V D2501 D2501 MIHO2_3.3V D2502 D2500 LED_6V D5519 D5524 D5490 D5492 D5491 PA5800 SUB5V STB_RST RESET IC1101 FRC 1.8V AI_SENSOR POWER_DET EEPROM Q2850,Q2851 POWER LED STB_RST 6 STB LED(G) 3 TU6700 F GenX8 SW2551 30 REMOTE CONTROL SIGNAL RECEIVER 18 KEY SWITCH 4 27MHz 1.05V HDMI_CEC_PULL_ON AI_SENSOR LED+6V SENSE IC4212 HDMI_CEC MAIN+3.3V SENSE R_LED_ON A REMOTE IN FRC 3.3V IIC0 GENX7_IIC SBI0/SBO0 DCDC_EN LED_SOS SUB6V SUB3.3V SUB3.3V SENSE IF_AGC K SD LED 5V 11 Tuner HQ_XRST IF_AGC 12 IIC0 XH4 10 2 1.8V GENX7_IIC 13 OSDXI IFD_OUT1 SUB3.3V 9 RM2501 14 26 +5V 5 STB LED(G) 3 3.3V FOR FACTORY USE 11 Z-PORT(INPUT) KEYSCAN1 1 DTV_XRST 13 CN0102 DTV_RST SW2550 AI_SENSOR 15 FRC_LVDS DATA 24 IC4207 IC4204 DDC_IIC0-3 2 STB_RST GENX IIC1 A1.05V MPU IC4201 6 STB LED(G) PC2511 G_LED_ON FRC 2.5V MIHO+3.3V SENSE HDMI_CEC TV SUB ON EEPROM TEMP SENSOR TV SUB5V SENSE IC4206 SW_OFF_DET TV SUB ON 3 OSDXO 16 K1 IC1100 AV SOUND SOS IC6706,07 FE SCL AI_SENSOR A1 IIC_TU BUFFER IC4205 IIC0 +1.2V STB+3.3V Parallel_TS IC6705 7 DDR2 20 9 POWER LED 6 1 TS DATA REMOTE RECEIVER 24 DRAM DEMODULATOR SUB3.3V 10MHz IIC1 FRCS_IIC IC6700 29 4 IC6702 SUB3.3V POWER LED(R) CN0101 28 DIGITAL SIGNAL PROCESSOR VOL.UP/CH.UP 8 REMOTE IN FRCS MIHO2_LVDS DATA SW_OFF_DET SUB_AI_3.3V KEY SWITCH IC1000 IIC1 PANEL_IIC2 GENX_IIC SOUND SOS MIIC IIC0 POWER LED(R) 1 SD_LED_ON RMIN LVDS DATA HDMI_5V_DET0-3 SOS SW2554 IC4211 FRC A1.05V SW2553 SD LED 2.5V SD LED DRIVE XIN A88A 7 HDMI_5V_DET0-3 REMOTE IN IIC1 2 X-PORT(OUT 1st) STB_RST STB5V_SW_ON DDC_IIC0-3 TXD/RXD 8 IIC0 3 IFD_OUT2 8 IC6704 DIGITAL TUNER VOLTAGE DETECT 2 SW2552 XH IC6703 2ND FE 9 +2.5V 7 ON/OFF D1.05V IC6701 IIC_TU C.A.T.S. SENSOR VOL.DN/CH.DN FE SDA IC4200 SD LED ON VCC SOS 4 STB3.3V POWER LED(R) XOUT SW_OFF_DET FOR FACTORY USE AI.SENSOR FRC_D 1.05V 5 TXD1/RXD1 SERIAL COMMUNICATION GENX IIC0 LVDS DATA OUT +3.3V IR_L 15 7 D5 4 14 IIC_CLK2 Q5813 FPGA_CONFIG_DONE 27MHz INVERTER +5V IC7001 10 IC5810 XRST IIC2 LED+5V_2 MIHO2 IIC Q5814 X7001 V1 54 8 +1.2V MIHO2 3D IR_L IC5815 A31 IC5805 5 DONE IIC SW IC5813 IC7005 LED+5V_1 RESET +6V IC5809 IC5801 FPGA IIC +5V PANEL_IIC2 8 5 IR_L A20 FPGA 2D-3D IC7004 LVDS DATA IN IC5808 IIC_DATA1 LED DRIVE 1 SERIAL FLASH IIC_DATA2 GENX7_IIC LVDS DATA 16 PANEL STB_ON +3.3V 11 4 IC5800 IC5814 +1.2V IC7006 8 LVDS DATA PROG_B INVERTER MIHO2 IIC +1.2V 1 Q7002 +5V FPGA_SDLL +1.2V IIC_CLK1 19 +3.3V PLL1.2V V1 IC7003 FPGA_XRST READY ALARM PANEL STBY ON MIHO_0UT MIHO_IN TRANSMITTER 3D EYEWEAR V TRANSMITTER 3D EYEWEAR V IIC2 GenX_IIC SEL=H SEL=L Peaks TV-GenX IC5482 STB3.3V REG STB_RESET/MUTE ANALOG ASIC NRST NRST IIC_SW IIC_SW IIC_SW READY ALARM INFRARED TRANSMITTER INFRARED TRANSMITTER 1 STB3.3V (LED:10 TIMES) (LED:12 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) (LED:10 TIMES) FRC3.3V OVER_V PA8341 38 TH-P46GT20C 9.4. 方框图 （3/5） TH-P46GT20C Block (3/5) Diagram TH-P46GT20C Block (3/5) Diagram (LED:5TIMES) (LED:2TIMES) (LED:9TIMES) (LED:7TIMES) (LED:6TIMES) (LED:3TIMES) (LED:4TIMES) (LED:8TIMES) P+15V X9300 STB3.3V X9000 STB5V P+3.3V P+15V P+5V P+3.3V P+15V P+5V P+3.3V VIDEO DATA 10 BUFFER 2.5V CONTROL DATA X1 X0 VIDEO DATA SCAN CONTROL CONTROL DATA 6 IC9304 DISCHARGE CONTROL 16 UHZ SC20 29 CONTROL DATA 15 P_S1 C21 18 DRVRST_PD4 D31 SUSTAIN CONTROL 68 D20 IC9300 SOS7_SC2 PLASMA AI CPG with SS H/V Sync Control Sub Filed Processor P_S0 63 66 66 C11 SCAN CONTROL P+15V P+5V D32 48 1 SOS8_SS FLASH I/F P+5V ADDR/DATA FLASH MEMORY LVDS DATA SUSTAIN CONTROL P+3.3V VIDEO DATA VIDEO DATA 1.2V P+15V SOS_DCC +3.3V IC9803 IC9800 IC9802 IC9801 P+3.3V 63 +5V 3.3V UHZ P+3.3V 3 SOS6_SC1 30 IC9400,01,02 2.5V +1.2V PD4H P3V_ IIC2 IIC1 1 P_S0 PANEL MPU STB IIC2 9 P+15V POWER ON/OFF SOS8_SS SOS6_SC1 8 10 SOS4_PS IIC2 RESET SOS7_SC2 +3.3V DCC_SOS P+3.3V DET TEMP IC9001 PANEL MAIN ON PANEL MAIN ON DCC_SOS SOS8_SS 5 EEPROM SOS4_PS P_S1 P+5V DET SOS6_SC1 IC9002 STB+3.3V/RESET DC/DC OE D25 P25 IC9003 P3V_ IIC1 7 STB_ IIC1 P_S0 XO P_S1 SOS4_PS 2 P3V_ IIC2 STB_ IIC1 PANEL_MAIN_ON P+15V DET STB5V IC9004 RESET STB3.3V SOS7_SC2 P+15V PANEL STB_ON STB_ IIC2 XI GenX7 BUFFER 46 A31 D5 2 PANEL_STB_ON 45 LVDS DATA 42 41 IIC_DATA1 IIC_CLK1 IIC_CLK2 IIC_DATA2 49 37 48 40 LVDS DATA DRVRST_PD4 OSD I/F OSD I/F OSD I/F OSD I/F PD4H D FOR FACTORY USE D6 P3V_IIC1 STB_IIC2 P3V IIC1 STB IIC2 P3V_ IIC2 P3.3V SENSOR P+5V DET P+3.3V DET P+5V DET P+3.3V DET P+3.3V DET P+5V DET (LED:5TIMES) (LED:2TIMES) (LED:9TIMES) (LED:7TIMES) (LED:6TIMES) (LED:3TIMES) (LED:4TIMES) (LED:8TIMES) 39 TH-P46GT20C 9.5. 方框图 （4/5） TH-P46GT20C Block (4/5) Diagram TH-P46GT20C Block (4/5) Diagram COLD HOT (LED:4TIMES) COLD HOT D251 D504 D402 F201 D552 F501 D351 F601 F602 D401 D551 D403 D705 RF601 +5V D501 A6 4 PFC Vsus Q402 BIAS_PFC F+15V IC201 P35 2 Vsus_Vo TV SUB ON L402 10A 250V F_15V_ON 7 SOUND+15V MAIN SW_ON IC551 STB5V_ ON/OFF 10A 250V IC251 Q408 Q401 5 A7 PC202 PC502 Q503 10 IC202 L601,L602 Q602,Q603 D25 S1 S1 Vda CONTROL P9 BIAS_MAIN MAIN RELAY_ON Q403 STB+5V VR251 IC601 SOUND+15V Q355 9 Q557 1 1 3 L603 STB+5V P+15V Q504 C25 BIAS Q404 IC352 F+15V 2 Q701 15V P+15V S0 Vsus 5A 250V 9 Q601,04,06 P25 LIVE STB+5V Q407 Q702 IC403 7 T201 K605 IC701 PC504 K602 Q502,05,06 F+15V Vda NEUTRAL 5 Q551 1 Vda P11 BIAS_PFC 2 T501 S0 2A 250V P2 2 ALL OFF 1 P7 NEUTRAL ALL OFF 1 P+15V TV SUB ON BIAS_MAIN Vda SS11 AC DET SC2 Vda_Vo S1 P+15V Vsus 1 LIVE 4 Vsus PC501 S0 Vda IC501 P+15V Q203 PC201 AC DET P6 8 7 9 15V_IN 11 D603 L401 VR401 1 BIAS 5V VSET1/VSET2 VSET1/2 Q251,Q252 Vda DET CONT Q405 Q406 FET DRIVER VDET Vda DET Q706 L351 15V_OUT DET P+15V 3 VGH VGL OCP FB VC1 STB5V_ON 8 Q201,Q202 RESONANCE PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER COMPARATOR RESONANCE CONTROL AC CORD FILTER RECTIFIER PHOTO COUPLER PHOTO COUPLER STB ERROR DET CONTROL STB POWER MICOM Vsus ERROR DET DET PANEL_MAIN_ON PANEL_MAIN_ON SOS4_PS SOS4_PS PANEL_MAIN_ON SOS4_PS P POWER SUPPLY RECTIFIER COLD HOT (LED:4TIMES) COLD HOT 40 TH-P46GT20C 9.6. 方框图 （5/5） TH-P46GT20C Block (5/5) Diagram TH-P46GT20C Block (5/5) Diagram D16920 D16721 D16822 TPSC1 TPSOS7 D16280 TPVSUS D16618 D16901 TPVSCN D16820 TPSOS6 D16490 TPVSUS D16480 TPVAD TPSOS8 D16583 D16493 D16728 TPSS1 D16282 D16475 D16473 D16791 D16476 D16821 D16253 D16255 TPVE L16303 SS 64 F16V GEN. Vfo SCAN OUT (LOWER) PHOTO COUPLER 5 Q16102 UML PHOTO IC16490,91 UML Q16885 UML SD 11 IC14901,02,04 6 SS 11 COUPLER USH CEL SS 33 CIS CEL 21 F16V 2 SD1-SD4 F16V LED(G) IC16241 2 SD 42 CPH1 USL CML (SC1) CMH CEL PC16685 OC2 CSL Q16661 SEL Q16490 CLK 1 IPD CIRCUIT IC17202 VOL IC16563 CB5 1 BUFFER 8 SOS6_SC1 7 PANEL SUSTAIN BUFFER Vfo 6 IC17201 CB 14 PC16603 SS 61 SC 42 CRC1 CB4 CB 13 UHZ PLASMA PANEL ERROR DET SC 41 VIDEO DATA A32 Vad+5V SCAN 19 NAND Q16607 SC 50 CB 15 IC16691 Vda ELECTRODE 1 1 SOS7_SC2 SUSTAIN CONTROL CB9 OC1 DRIVER SEL CSL CB1 5 16 SC2 BUFFER CMH CRC2 Q16441 1 IC16920 P35 CERS 8 3 Vda OC2 SUSTAIN CONTROL VFG CSH IC17101 20 D16482 CB 12 SCAN DRIVE IC16581 C10 Q16601 CB 11 C23 Q16876 SS33 TP59,TP60 TP61,TP62 1 +5V A31 CSH/CMH GATE DRIVE CIRCUIT CB7 D16859 SOS8_SS CLK CSL/CML GATE DRIVE CIRCUIT 3 CPH1 VHIZ GEN. VSCN-F CML CB2 7 PHOTO COUPLER VSUS Gen. SS 21 RECOVERY CONNECTOR UEH Q16422 SCAN CONTROL IC14804-06 P2 IC16501 SUSTAIN SC 46 Vsus IC14601-03 VE Gen. SC C11 UEH BUFFER CRC2 PLASMA PANEL IC16471 PLASMA PANEL CRC1 (LOWER) PC16480 59 Q16608 T16471 18 IC16131 C20 SS2 ERROR DET 1 ELECTRODES 6 SC 20 A20 DATA DRIVER (RIGHT) SHUNT REG CONTROL DATA 2 C25 SCAN CONTROL SUSTAIN CONTROL REG. IC16724 SCAN C1 COMPARATOR 21 13 INVERTER COMPARATOR CIS C21 SCAN OUT (UPPER) 2 IC14604-06 20 CSH Q16818 1 2 66 7 VHIZ Q16001 IC16521 7 C2 P+5V 18 6 35 IC16773 4 DATA DRIVER (LEFT) Vda 1 CIRCUIT IC16692 2 SHUNT CERS SEPA PROTECT Q16421 8 CB3 SCAN UHZ 4 1 SIU IC16561,62 CB 10 8 SIU 3 5V_F INVERTER USH IC16771 SOS8_SS IC14801-03 IC16792,93 Q16621 D16041 Vda OC1 Q16051 6 IC16661 2 Q16660 CB6 SU 11 1 CB8 1 BUFFER PC16684 4 13 D16051 DRIVER P11 SOS8_SS 6 1 SS 58 1 7 ERROR DET DRIVER 7 FPC DET LOGIC IC PC16191 IC16151 13 Vsus UMH C23 Q16280 2 SUSTAIN CONTROL 1 1 DRIVER DRIVER VHIZ SCAN ENERGY Q16041 SS 24 DRIVER 7 SU 41 SD 46 SD SS 6 VIDEO DATA Q16002 SU1-SU4 PANEL SCAN CONTROL DATA UMH SUSTAIN DRIVE 2 USL PANEL DRIVER SCNR_PRO 5 PANEL DRIVER Q16101 SU PHOTO COUPLER P+5V P+3.3V P+15V P+5V P+5V P+15V P+3.3V P+15V P+5V P+3.3V P+3.3V P+3.3V Q16647 9 9 15V_F Q16471 CHA SCNR_PRO CHA 2 SC JIG Vscn VFG D16872 CMH PHOTO PC16461 (16V_F) CSH VRH D16871 COUPLER P+15V MID VRL ERROR DET LED(G) IC16251 SHUNT VE GEN. D16316 PHOTO COUPLER REG. PC16301 IC16304 IC16312 PC16722,23 IC16786,87 SHUNT REG VAD GEN. IC16784,85 IPD CIRCUIT IPD CIRCUIT PC16896,97 SHUNT REG VSCN GEN. Q16021 D16462 Q16452 Q16402 Q16403 Q16022 Q16622 (LED:7TIMES) (LED:8TIMES) (LED:6TIMES) 41 TH-P46GT20C 10 配线连接图 10.1. 注意事项 注意： 确认所有柔性电缆正确装配。 并确保它们紧固在连接插座上。 可轻轻拉动柔性电缆以证实是否锁定。 10.2. 配线 （1） 42 TH-P46GT20C 10.3. 配线 （2） 43 TH-P46GT20C 10.4. 配线 （3） 44 TH-P46GT20C 10.5. 配线 （4） 45 TH-P46GT20C 10.6. 配线 （5） 46 TH-P46GT20C 47 TH-P46GT20C 11 线路图 11.1. 线路图注意事项 48 TH-P46GT20C 11.2. P 电路板 （1/3）线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C P-Board (1/3) Schematic Diagram TH-P46GT20C P-Board (1/3) Schematic Diagram ! P-BOARD ETX2MM815EVH (1/3) COLD HOT COLD HOT COLD HOT PFC STB ERROR DET STB CONTROL 49 TH-P46GT20C 11.3. P 电路板 （2/3）线路图 TH-P46GT20C P-Board (2/3) Schematic Diagram TH-P46GT20C P-Board (2/3) Schematic Diagram RESONANCE CONTROL COMPARATOR Vsus ERROR DET Vda Vsus P+15V Vda CONTROL TO C2-BOARD (C25) TO A-BOARD (A6) TO SC-BOARD (SC2) TO SS-BOARD (SS11) COLD HOT COLD HOT ! P-BOARD ETX2MM815EVH (2/3) 12 16 10 14 15 18 13 11 17 50 TH-P46GT20C 11.4. P 电路板 （3/3）线路图 TH-P46GT20C P-Board (3/3) Schematic Diagram TH-P46GT20C P-Board (3/3) Schematic Diagram 25 19 24 23 27 22 26 21 20 ! P-BOARD ETX2MM815EVH (3/3) POWER MICOM TO (D25) D-BOARD TO A-BOARD (A7) 51 TH-P46GT20C 11.5. XH 电路板线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C XH-Board Schematic Diagram TH-P46GT20C XH-Board Schematic Diagram + (FIN) (FIN) TOP IF_Monitor 21 TI_D1 TI_A1 IRQ MDO6 MDO0 TI_D2 MDO0 TI_D3 TI_D6 TI_A10 NTI_CAS MDO4 TI_BA1 TI_A0 TI_BA0 TS_VAL TI_A10 NTI_WE TI_D3 TI_BA1 TI_A11 MDO7 TI_BA0 TI_A9 MDO1 TI_A11 TI_A8 SCL TI_A8 TI_D8 TI_A4 TI_D1 TI_A5 IRQ TS_PSYNC NTI_CAS,NTI_CS,NTI_RAS,NTI_WE,TI_BA[0,1] TI_D10 TI_A6 SDA TS_CLK TI_D12 MDO2 TI_D9 NTI_CAS TI_A7 NTI_CS TI_A7 TI_D11 NTI_WE TI_A3 TI_D7 TI_A5 TI_D10 NTI_RAS TI_A2 NTI_RAS NTI_CS TI_A1 RESET TI_A6 TS_VAL TI_A[0-11] MDO3 TI_D2 TI_D11 IRQ,MDO[0-7],TS_CLK,TS_PSYNC,TS_VAL TI_D9 MDO7 TI_D[0-14] TI_D14 TS_PSYNC SCL_B MDO4 MDO6 TI_A4 TI_D12 MDO5 TI_A3 TI_D4 TI_A9 TI_D5 MDO3 TS_CLK MDO5 TI_D13 TI_D7 SDA_B MDO2 TI_D0 TI_D0 TI_D8 TI_A0 TI_D5 MDO1 TI_D14 TI_D6 TI_D4 TI_A2 TI_D13 C6733 0.1u 16V C6710 0.1u 16V C6701 10u 10V C6715 0.1u 10V C6714 0.1u 16V C6751 0.047u 16V C6700 10u 10V C6738 0.1u 16V C6724 1u 10V C6741 0.1u 10V C6717 0.1u 16V C6744 1u 10V C6743 10u 10V C6731 1000p 50V C6745 0.1u 16V C6723 0.1u 16V C6718 0.1u 16V C6709 0.1u 10V C6747 10u 10V C6753 0.1u 10V C6752 0.047u 16V C6719 0.1u 16V C6704 0.1u 16V C6726 0.1u 10V C6725 0.1u 16V C6729 0.1u 10V C6764 0.1u 16V C6754 0.1u 16V C6722 10u 10V C6705 10u 10V C6703 0.1u 16V C6706 0.1u 16V C6721 0.1u 16V C6730 0.1u 10V C6737 12p 50V C6739 0.1u 10V C6720 0.1u 16V C6755 0.1u 16V C6750 8p 50V C6712 0.1u 16V C6732 0.1u 16V C6740 0.1u 10V C6713 0.1u 16V C6763 0.1u 16V C6728 1u 10V C6749 0.1u 16V C6727 10u 10V C6756 0.1u 16V C6748 0.1u 16V C6736 1u 10V C6746 10u 10V C6734 10u 10V C6735 12p 50V C6742 0.1u 16V C6716 0.1u 16V C6708 0.1u 10V C6707 0.1u 16V C6711 47u 6.3V C0EBD0000221 IC6704 4 OUT 3 Cd 1 GND 2 Vdd C0DBAHF00015 IC6700 1 ON/OFF 2 VSS 3 NC 5 VOUT 4 VIN C0JBAZ002811 IC6706 1 1G 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC C0JBAZ002811 IC6707 1 1G 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC C3ABPY000028 IC6701 1 VDD 2 DQ0 3 VDDQ 4 DQ1 5 DQ2 6 VSSQ 7 DQ3 8 DQ4 9 VDDQ 10 DQ5 11 DQ6 12 VSSQ 13 DQ7 14 VDD 15 DQML 16 WE# 17 CAS# 18 RAS# 19 CS# 20 BA0 21 BA1 22 A10 23 A0 24 A1 25 A2 26 A3 27 VDD 28 VSS 29 A4 30 A5 31 A6 32 A7 33 A8 34 A9 35 A11 36 NC 37 CKE 38 CLK 39 DQMH 40 NC 41 VSS 42 DQ8 43 VDDQ 44 DQ9 45 DQ10 46 VSSQ 47 DQ11 48 DQ12 49 VDDQ 50 DQ13 51 DQ14 52 VSSQ 53 DQ15 54 VSS C1AB00003110 IC6702 1 TI_D4 2 TI_D5 3 TI_D6 4 TI_D7 5 VDD2.5 6 DGND 7 MPEG_D5 8 MPEG_D4 9 RES 10 RES 11 RES 12 RES 13 VDD1.2 14 DGND 15 CLKO 16 RES 17 RES 18 RES 19 VDD2.5 20 DGND 21 BP1 22 BP2 23 RES 24 RES 25 RES 26 RES 27 MPEG_D3 28 MPEG_D2 29 MPEG_D1 30 MPEG_D0 31 RES 32 RES 33 RES 34 RES 35 XTALIN 36 XTALOUT 37 RES 38 RES 39 I9 40 I8 41 PLLVDD1.2 42 PLLGND 43 AVDD2.5 44 AGND 45 I7 46 I6 47 I5 48 I4 49 VDD1.2 50 DGND 51 I3 52 I2 53 I1 54 I0 55 VDD2.5 56 DGND 57 AVDD2.5 58 AGND 59 REXT25 60 RES 61 IP 62 IM 63 RES 64 RES 65 RES 66 RES 67 RES 68 RES 69 VDD2.5 70 DGND 71 RES 72 IFCLK 73 TI_CAS 74 TI_WE 75 TI_RAS 76 TI_CS 77 VDD2.5 78 VDD1.2 79 DGND 80 CE_A0 81 TI_A10 82 TI_A1 83 TI_A2 84 TI_A0 85 VDD2.5 86 DGND 87 TI_A3 88 TI_BA1 89 TI_BA0 90 TI_A9 91 VDD1.2 92 DGND 93 SM 94 IFTEST 95 VDD2.5 96 DGND 97 TI_A4 98 TI_A6 99 AGC 100 RESET 101 SCL 102 SDA 103 TI_A5 104 TI_A7 105 VDD2.5 106 DGND 107 SCLT 108 SDAT 109 TI_A8 110 TI_A11 111 TI_CLK 112 TI_DQM 113 BLKERRN 114 LOCK 115 VDD1.2 116 DGND 117 TI_D8 118 TI_D9 119 TI_D10 120 TI_D11 121 VDD2.5 122 DGND 123 TI_D12 124 TI_D13 125 TI_D14 126 RES 127 VDD1.2 128 DGND 129 BIST 130 TESTCLK 131 TI_D0 132 TI_D1 133 TI_D2 134 TI_D3 135 RES 136 MPEG_SYNC 137 MPEG_VALID 138 MPEG_CLK 139 VDD2.5 140 DGND 141 VDD1.2 142 RES 143 MPEG_D7 144 MPEG_D6 C0DBEHG00006 IC6703 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND(FIN) C0DBEHG00006 IC6705 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND(FIN) *XH4 K1KY30AA0369 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 L6700 J0JJC0000015 L6704 J0JJC0000015 L6703 J0JJC0000015 L6701 J0JHC0000045 L6702 J0JHC0000045 SUB5.6V 1.2V SUB5.6V 2.5V SUB3.3V SUB3.3V 2.5V SUB3.3V 1.2V SUB3.3V TP6705 TP6715 TP6703 TP6719 TP6716 TP6710 TP6704 TP6717 TP6707 TP6714 TP6708 TP6701 TP6702 TP6718 TP6713 TP6712 TP6720 TP6706 TP6709 TP6711 Q6701 B1CBGD000001 Q6702 B1CBGD000001 Q6700 B1CBGD000001 Q6704 B1CBGD000001 Q6703 B1ABCF000010 R6801 EXB28V103JX R6725 EXB28V220JX R6714 EXB28V220JX R6713 EXB28V220JX R6724 EXB28V220JX R6715 EXB28V220JX R6722 EXB28V220JX R6708 EXB28V220JX R6723 EXB28V220JX R6829 EXB2HV103JV *JS6704 R6800 0 R6741 10k R6740 56 R6710 1.2k R6759 4.7k R6736 56 R6761 56 R6762 56 R6748 1M R6786 68k R6745 10k R6797 0 R6788 1k R6768 56 R6733 56 R6707 1.2k R6767 56 R6783 56 R6789 0 R6791 0 R6746 3.3k R6704 22 R6769 4.7k R6709 1.2k R6787 24k R6766 4.7k R6732 56 R6737 56 R6799 0 R6742 12k R6735 56 R6727 10k R6790 24.9k 1% R6730 56 R6764 100 1% *R6802 10k R6793 0 R6794 0 R6795 0 R6796 0 R6771 56 R6772 56 R6773 56 R6774 56 R6775 56 R6776 56 R6777 56 R6778 56 R6779 56 R6780 56 R6781 56 R6782 56 R6756 20k R6752 10k R6760 4.7k R6755 20k R6719 1.2k R6726 10k R6739 56 R6749 10k R6721 10k R6803 22 R6718 0 R6729 56 R6706 1.2k R6738 56 R6770 4.7k R6751 20k 1% R6785 56 R6798 0 R6743 56k 1% R6712 22 R6750 33k 1% R6720 4.7k R6763 100 1% R6734 56 R6765 4.7k R6711 22 R6728 56 R6757 180 R6753 649 1% R6731 56 R6784 56 R6754 1k 1% R6792 0 R6705 22 R6744 12k *TU6700 ENV59S01D8F NC 1 BB 2 RF-AGC_Monitor 3 BT_Monitor 6 SCL 13 SDA 14 IF_AGC 16 +B 17 IFD-out1 19 IFD-out2 20 X6700 H0J304500001 < 16.MDO0 15.MDO1 14.MDO2 12.MDO3 11.MDO4 9.MDO5 8.MDO6 7.MDO7 5.TS_CLK 3.TS_VAL 1.TS_PSYNC 18.SDA 20.SCL 24.SUB5V 22.RESET 23.IRQ 30.SUB3.3V IFN IFP 26.SUB3.3V 28.SUB3.3V 29.SUB3.3V SUFFIX AB 1.2V 5V 2.5V VOLTAGE DETECT DRAM BUFFER BUFFER DEMODULATOR TO A-BOARD (A88A) XH-BOARD TNPA5133AB ! 52 TH-P46GT20C 11.6. A 电路板 （1/26）线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C A-Board (1/26) Schematic Diagram TH-P46GT20C A-Board (1/26) Schematic Diagram S S S S S S S S S S S S S S S S STB3.3V SUB3.3V FRC_3.3V FRC_3.3V MIHO2_3.3V R0930 R0995 R0921 R0996 R0934 R0946 R0929 R0910 R0933 R0922 R0912 R0909 R0911 R0945 TP0919 TP925 TP0920 TP0902 TP0901 TP921 TP923 TP0917 TP0916 TP922 TP0904 TP0918 TP924 TP0903 PD_EVTRG GENX_SCL1 PD_SCL1 PD_SCL2 PD_SCL0 PEAKS_SCL1 PEAKS_SCL2 GENX-EEP_SCL PEAKS-EEP_SCL GENX_SCL0 ADJ-GENX_SCL PD_TDI FRCS_SCL PD_TMS PEAKS_SCL0 FPGA_SCL AV-SW_SCL PD_TRST FE1_SCL PD_TCK TMP-SENS_SCL MIHO2_TCK MIHO2_TDO FRCS_TRST FRCS_TMS AV-SW_SDA ADJ_GENX_SDA PEAKS-EEP_SDA GENX_SDA0 FRCS_TDI PD_SDA0 TMP-SENS_SDA PEAKS_SDA2 FRCS_TDO PD_SDA2 MIHO2_TDI FRCS_SDA PEAKS_SDA1 PD_SDA1 MIHO2_TRST GENX-EEP_SDA FE1_SDA PEAKS_SDA0 MIHO2_TMS FRCS_TCK FPGA_SDA GENX_SDA1 R0907 EXB28V103JX R999 10k R0952 68 R0951 68 R0918 22 R0948 68 R0988 2.7k R0913 22 R0936 22 R0947 68 R0935 22 R0914 22 R998 10k R0916 4.7k R0959 2.2k R0949 68 R0987 10k R0950 68 R0915 4.7k R0908 10k R0917 22 R0955 2.2k R0971 10k R0956 2.2k R996 10k R0993 10k R997 10k R0957 3.3k R0989 2.7k R0958 3.3k R0960 2.2k SUB3.3V R0972 R0973 IIC IC1100 CN0101 Peaks EEP IC8000 GenX8 IC1000 TO 2nd_FE CN0100 AV-SW R2A11014FT TEMP SENSOR MM3285ANRE IC3001 IC1101 A TUNER TU2901C Adjustment Connector AVC31 Development Connector IC8601 GenX EEP 8k IC4200 FRCS FPGA IC7001 TMS TDO TCK MIHO2 TRST TDI JTAG EVTRG TRST TCK TMS IC4200 TDO TDI FRC-S Peaks LDA2 IC5800 A-BOARD TNPH0899DC (1/26) IIC ! TO 20/26 TO 17/26 TO 22/26 TO 13/26 TO 22,26/26 A_TNR_SCL A_TNR_SDA TO 14/26 TO 2/26 TO 6/26 TO 7/26 TO 7/26 TO 23/26 IC8000 TO 19/26 TO 17/26 TO 23/26 TO 7/26 TO 22/26 TO 14,22/26 TO 14/26 53 TH-P46GT20C 11.7. A 电路板 （2/26）线路图 TH-P46GT20C A-Board (2/26) Schematic Diagram TH-P46GT20C A-Board (2/26) Schematic Diagram 12 16 10 14 15 18 13 11 17 TOP S S P FE_MDO2 FE_CH0VAL FE_MDO3 FE_MDO0 FE_CH0CLK FE_MDO6 FE_MDO1 FE_MDO5 FE_MDO7 FE_MDO4 FE_CH0PSYNC FE1_MDO2 FE1_CLK FE1_MDO1 FE1_MDO5 FE_MDO0 FE1_MDO6 FE1_MDO0 FE1_PSYNC FE1_PSYNC FE1_MDO7 FE1_MDO5 FE1_MDO4 FE1_MDO3 FE1_MDO1 FE1_MDO2 FE1_XIRQ FE1_MDO0 FE_MDO4 FE_MDO1 FE_MDO3 FE1_XIRQ FE_MDO7 FE_CH0VAL FE1_CLK FE1_VAL FE_MDO5 FE_CH0CLK FE1_VAL FE1_VAL FE1_MDO3 FE1_MDO4 FE1_MDO7 FE1_MDO6 FE_MDO6 FE_MDO2 FE_CH0PSYNC C8361 16V 0.1u C8362 16V 0.1u C8360 16V 0.1u C8342 10u 10V C8341 10u 10V C8340 10u 25V *A88A K1KY30AA0369 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 *L8343 J0JDC0000002 *L8340 J0JDC0000002 SUB3.3V SUB3.3V SUB6V F15V SUB3.3V VJ8360 VJ8616 VJ8397 *PA8341 J0JDC0000002 TP8342 TP8353 TP8346 TP8343 TP8352 TP8350 TP8344 TP8341 TP8405 TP8348 TP8349 TP8340 TP8351 TP8354 TP8345 TP8406 TP8355 TP8404 TP8347 AA_FE_RST PD_HS0D1 PD_HS0D4 PD_HS0CLK PD_HS0PSYNC PD_HS0D3 PD_HS0D5 PD_HS0VAL PD_HS0D2 PD_HS0D0 AA_XIRQ2 PD_HS0D7 PD_HS0D6 FE1_SDA FE1_SCL *R8346 EXB28V680JX *R8340 EXB2HV680JV *R8476 EXB2HVR000V *JS8388 *JS8391 *JS8392 *JS8375 *JS8389 *JS8390 *JS8374 *JS8371 *JS8373 *JS8372 *JS8377 *R8489 68 *R8342 68 R8511 10k *R8344 68 *R8495 68 *R8343 68 *R8493 68 *R8341 68 *R8494 68 *R8499 68 *R8479 0 *R8488 68 *R8497 68 *R8490 68 *R8482 0 R8396 10k *R8477 0 *R8492 68 *R8496 68 *R8491 68 < HSDIN6 HSVALIN HSDIN3 HSDIN0 HSDIN4 HSDIN1 HSDIN2 HSDIN7 HSBCLKIN HSSYNIN HSDIN5 F15V/SUB3.3V XIRQ MDO4 MDO6 TS_CLK FE_SDA MDO1 MDO3 TS_VAL FE_XRST MDO0 TS_PSYNC GND MDO2 GND MDO7 GND GND GND GND MDO5 FE_SCL FE_XRST / SDRAM_CHK GND SUB3.3V GND SUB6V GND GND F15V/SUB3.3V F15V/SUB3.3V TO XH-BOARD (XH4) TO 1/26 TO 3,6,26/26 ! A-BOARD TNPH0899DC (2/26) Peaks-DEST TO 23/26 TO 4/26 54 TH-P46GT20C 11.8. A 电路板 （3/26）线路图 TH-P46GT20C A-Board (3/26) Schematic Diagram TH-P46GT20C A-Board (3/26) Schematic Diagram 25 19 24 23 27 22 26 21 20 S S S S S S S S S S S S S S P P C8405 16V 0.1u C8403 16V 0.1u C8406 16V 0.1u C8409 16V 0.1u C8404 16V 0.1u C8408 16V 0.1u C8600 50V 1000p SUB5V SUB3.3V SUB3.3V SUB3.3V SUB3.3V SUB3.3V VJ8517 VJUMP1005-S VJ8611 VJ8601 R8825 VJ8610 VJ8615 VJ8605 VJ8604 VJ8606 VJ8609 VJ8608 VJ8600 VJ8613 VJ8612 VJ8514 VJ8513 TP8733 TP8600 AA_XIRQ2 AD_SBI0 PD_XRTS0 PG-DTV_VOUTENB AB_NANDRYBY PG-SD_BOOT_STS PD_VOUTENB AD_SBO0 AA_FE_RST PD_XIRQ9 PD_HSDOUT4 XNFWE NFALE PD_XERE PD_EA5 PD_EA0 AA_EA24 PD_EA24 PD_ERXW XNFWP PD_XNFRE PD_NFCLE PD_XIRQ10 PD_XNFCE PD_XNFWP PD_EA2 XNFRE NFCLE PD_EA1 PD_EA3 PD_EA6 PD_EA4 PD_EA7 PD_SBI0 PD_XECS5 PD_SBO0 PD_NFRYBY PD_XIRQ1 PD_XECS3 PD_XIRQ2 PD_XECS2 PD_XECS4 PD_XIRQ6 PD_XIRQ3 PD_XIRQ4 PD_XIRQ7 PD_XEWE1 AA_XERE PD_NFALE PD_XNFWE PD_XIRQ8 R8660 EXB2HV680JV R8645 68 R8638 10k R8606 10k R8669 10k R8689 68 R8622 68 *R8512 10k R8657 2.2k R8651 10k R8658 2.2k R8739 10k *R8513 10k R8880 10k R8607 68 R8636 68 R8673 10k R8748 10k R8642 68 R8641 68 R8498 68 R8672 10k R8743 10k R8644 68 R8685 2.2k R8649 10k R8691 10k R8610 68 R8600 10k R8661 10k R8652 10k R8893 10k R8692 68 R8470 10k PD_HSBCLKOUT SUB5V_CI PCCD1 PCWAIT CI_OCP XIRQ7 XIRQ6 XIRQ0 XIRQ4 XIRQ10 XIRQ8 NANDRYBY XIRQ1 XIRQ3 XIRQ2 PD4H_OSD_VIN INT_PANEL_CEC (FE_EX_IRQ) (APL_PR_RDY) SUPPORT_CARD FE_IRQ HDMI-MUX_INT FE_XRST / SDRAM_CHK SDBOOT PORT13[0] VOUTENB (APL_GP02_IO) HDMI-RX_IRQ PCCD1 For SUB5V_SENCE A-BOARD TNPH0899DC (3/26) Peaks-DEST ! TO 23/26 TO 23/26 TO 6/26 TO 23/26 TO 23/26 TO 7/26 TO 23/26 TO 7/26 TO 23/26 TO 23/26 TO 20,23/26 TO 23/26 TO 23/26 TO 23/26 TO 2/26 TO 6/26 TO 22/26 TO 2,6,26/26 55 TH-P46GT20C 11.9. A 电路板 （4/26）线路图 28 33 30 35 29 31 32 36 34 TH-P46GT20C A-Board (4/26) Schematic Diagram TH-P46GT20C A-Board (4/26) Schematic Diagram S S C8147 16V 0.1u C8137 16V 0.1u C8138 16V 0.1u C8145 16V 0.1u C8148 10V 1u C8141 16V 0.1u C8136 16V 0.1u C8140 16V 0.1u C8143 16V 0.1u C2077 16V 0.1u C2076 16V 0.1u C2078 10V 1u C8149 10V 1u C8146 16V 0.1u C2079 16V 0.01u C2075 16V 0.1u C8139 16V 0.1u C8142 16V 0.1u C8159 10u 10V C8158 16V 0.1u C8154 16V 0.01u C8157 16V 0.1u C8144 16V 0.1u C8156 50V 0.5p C8741 10V 1u C8742 10V 1u C8160 10V 1u C8151 50V 8p C8150 50V 8p C8155 50V 15p C1ZBZ0003967 IC8100 1 X1 2 S0 3 S1 4 VIN 5 VDD1 6 GND1 7 CLK1 8 CLK2 9 REFOUT 10 CLK3 11 CLK4 12 GND2 13 VDD2 14 S2 15 VDD3 16 X2 L8100 J0JHC0000045 SUB3.3V R8120 R8105 TP8105 TP8109 TP8108 TP8102 TP8101 TP8104 TP8103 TP8107 TP8106 PD_VC27A USB_12M_2 F7 PD_DAAVDD1 PD_VCOMP PD_MVDACOY PA_AXO PA_VREFH1 PA_VREFHSIF PA_BIAS PA_VREFL3 PA_BIAS2 PA_VREFL1 PA_VREF1V5 PA_VREG PA_VREFL0 PA_VREFLSIF PA_VREFL2 PA_VREFH0 PA_VREFH3 PD_MVIREF PA_VREFH2 PD_WAKEUP PD_WUC PD_CK74B PD_CK27B PD_USBXI ETHER_25M USB_12M_2 PA_AXI PD_MVDACOY PD_CK27A PD_IPCK33IN PD_DCK33IN PD_CK74A PD_VVREF PD_PWMD PD_PWMB PD_PWMK PD_PWMA PD_MII_SBO PD_PWMC R8757 160 1% R8110 10k 1% R8759 10k R8116 56 R8114 56 R8117 100k R8103 10k R8115 56 1% R8758 24k R8109 10k R8111 56 R8112 56 R8102 10k R8100 220 1% R8760 24k R8119 10k X8100 H0J270500120 X8002 H0J245500101 DDR Defalt:50Hz CLK GEN A EtherPHY 25MHz LDA2 27MHzA LDA2 74.175824MHz USB 12MHz 27MHz 24.576MHz Achip A-BOARD TNPH0899DC (4/26) ! Peaks-DEST TO 12/26 TO 23/26 TO 23,24/26 TO 23/26 TO 23/26 PEAKS-LDA2 TO 5/26 DEVICE CLK Achip SIF PEAKS-LDA2 TO 23/26 ADC TO 23/26 PEAKS-LDA2 TO 23/26 TO 5,23/26 TO 23/26 TO 23/26 56 TH-P46GT20C 11.10.A 电路板 （5/26）线路图 43 44 40 41 45 37 38 42 39 TH-P46GT20C A-Board (5/26) Schematic Diagram TH-P46GT20C A-Board (5/26) Schematic Diagram + + 2 1 S S P P S PD_MII_RXD2 AP_MDIO AP_MDC AP_MII_TXD3 AP_MII_TXD2 PD_MII_CRS AP_MII_TXD1 PD_MII_COL AP_MII_TXD0 PD_MII_RXER AP_MII_TXEN PD_MII_RXDV PD_MII_RXD3 PD_MII_RXD2 PD_MII_RXD1 PD_MII_RXD0 PD_MII_RXCLK AP_MII_TXEN AP_MDC PD_MII_RXD1 AP_MDIO AP_MII_TXD3 PD_MII_RXD0 AP_MII_TXD2 PD_MII_TXCLK AP_MII_TXD1 PD_MII_TXCLK PD_MDIO_INTL AP_MII_TXD0 PD_MII_RXER PD_MDIO_INTL PD_MII_RXCLK PD_MII_RXDV PD_MII_CRS AP_PHYRSTL PD_MII_COL PD_MII_RXD3 AP_PHYRSTL C8720 16V 0.1u C8712 16V 0.1u C8722 10u 10V C8718 16V 0.1u C8714 50V 100p C8740 10u 10V C8719 16V 0.1u C8721 16V 0.1u C8717 10u 10V C8713 16V 0.1u C8711 10u 10V C8726 10u 10V C8731 16V 0.1u C8727 16V 0.1u C8747 16V 0.1u C8513 16V 0.1u C8512 16V 0.1u C8739 10u 10V C8516 16V 0.01u C8515 10u 10V C8744 220u 6.3V C8728 220u 6.3V FL8702 J0MAB0000140 1 2 3 4 FL8701 J0MAB0000140 1 2 3 4 C0DBZYY00365 IC8701 1 GND 2 IN 3 EN1 4 EN2 5 /OC2 6 OUT2 7 OUT1 8 /OC1 IC8703 C1CB00003239 1 GND 2 GND 3 GND 4 VDDA_1.8 5 VDDA_1.8 6 V1.8_OUT 7 VDDA_3.3 8 VDDA_3.3 9 RX- 10 RX+ 11 TX- 12 TX+ 13 GND 14 XO 15 XI 16 REXT 17 GND 18 MDIO 19 MDC 20 RXD3/PHYAD0 21 RXD2/PHYAD1 22 RXD1/PHYAD2 23 RXD0/DUPLEX 24 GND 25 VDDIO_3.3 26 VDDIO_3.3 27 RXDV/CONFIG2 28 RXC 29 RXER/ISO 30 GND 31 VDD_1.8 32 INTRP 33 TXC 34 TXEN 35 TXD0 36 TXD1 37 GND 38 TXD2 39 TXD3 40 COL/CONFIG0 41 CRS/CONFIG1 42 LED0/MWAYEN 43 LED1/SPEED 44 NC 45 NC 46 NC 47 RST# 48 NC JK8700 K1FY208B0008 Y A-1 A-2 A-3 A-4 B-1 B-2 B-3 B-4 JK8301 K2LC1YYA0005 1 2 3 4 5 6 7 8 L8707 J0JHC0000045 L8706 J0JHC0000045 L8702 J0JHC0000045 L8705 J0JHC0000045 L8708 J0JHC0000045 L8701 J0JHC0000045 T8301 G5BYC0000015 1 2 3 4 5 6 9 10 11 12 8 7 SUB3.3V SUB3.3V SUB3.3V SUB_OP_5V SUB3.3V SUB3.3V R8763 R8746 VJ8500 VJ8501 TP8708 TP8734 TP8707 TP8735 PD_WAKEUP ETHER_25M PD_MDC PD_MII_TXD3 PD_MII_TXD2 PD_USB0RREF PD_MII_TXEN PD_USB0OC PD_MII_TXD0 PD_USB1VBUS PD_MII_TXD1 PD_PHYRSTL PD_MII_RXCLK PD_USB0VBUS PD_MII_RXD1 PD_USB1OC PD_USB1RREF PD_MII_COL PD_MII_CRS PD_MII_RXER PD_MII_RXD3 PD_MII_RXD2 PD_MII_TXCLK PD_MII_RXD0 PD_MII_RXDV PD_WUC PD_USB0DN PD_MDIO_INTL PD_MDIO PD_USB1DP PD_USB0DP PD_USB1DN R8704 56 R8526 49.9 R8732 56 R8382 75 R8525 49.9 R8762 4.7k R8724 56 R8722 56 R8747 10k R8708 56 R8745 4.7k R8728 56 R8733 56 R8703 56 R8709 56 R8726 10k R8384 75 R8524 49.9 R8383 75 R8764 10k R8742 2.7k R8710 56 R8705 56 R8721 56 R8723 56 R8711 4.7k R8712 4.7k R8730 56 R8566 0 R8737 6.49k R8706 56 R8735 10k R8707 56 R8381 75 R8725 56 R8741 2.7k R8527 49.9 R8761 6.2k R8731 56 R8729 56 R8727 10k R8744 6.2k L8512 J0ZZB0000101 1 4 3 2 L8511 J0ZZB0000101 1 4 3 2 L8513 J0ZZB0000101 1 4 3 2 R8734 PEAKS-LDA2 RX+ TX- TX+ RX- TX+ RX+ TX- RX- LAN USB I/F USB1 USB2 PEAKS-LDA2 PEAKS-LDA2 VBUS1 DP1 DM1 GND VBUS0 DM0 GND DP0 USB,ETHERNET ! A-BOARD TNPH0899DC (5/26) USB5V USB_1,2 USB I/F ETHERNET IF ETHERNET 100BASE-TX 10BASE-T/ TO 23/26 TO 23/26 TO 4,23/26 TO 23/26 TO 4/26 57 TH-P46GT20C 11.11.A 电路板 （6/26）线路图 50 48 54 46 51 49 53 47 52 TH-P46GT20C A-Board (6/26) Schematic Diagram TH-P46GT20C A-Board (6/26) Schematic Diagram + PC-CARD D.SW W.P. S S S S P S P AA_ED5 AB_NFALE AD_SDWP AD_SDDAT2 AB_NFCLE AA_ED6 AB_NFCLE AB_XNFCE AA_ED7 AA_ED0 AB_XNFWP AA_ED1 AB_XNFRE AA_ED3 AD_SDDAT1 AA_ED1 AB_NANDRYBY AB_NANDRYBY AA_ED5 AD_SDCD AA_ED4 AB_NFALE AA_ED6 AB_XNFWE AA_ED7 AA_ED3 AD_SDCMD AB_XNFRE AD_SDDAT3 AA_ED2 AD_SDCLK AB_XNFWP AD_SDDAT0 AD_SDCMD AA_ED2 AA_ED0 AA_ED4 AB_XNFCE AB_XNFWE AD_SDCLK AA_ED5 AA_ED1 AA_ED7 AA_ED13 AA_ED3 AA_ED6 AA_ED1 AA_ED14 AA_ED8 AA_ED2 AA_ED12 AA_ED6 AA_ED9 AA_ED2 AA_ED4 AA_ED5 AA_ED7 AA_ED0 AA_ED4 AA_ED11 AA_ED0 AA_ED3 AA_ED15 AA_ED10 PD_ED0 PD_ED1 PD_ED2 PD_ED3 PD_ED4 PD_ED5 PD_ED6 PD_ED7 PD_ED8 PD_ED9 PD_ED10 PD_ED11 PD_ED12 PD_ED13 PD_ED14 PD_ED15 AD_SDCD AD_SDWP AD_SDDAT1 AD_SDDAT0 AD_SDDAT3 AD_SDDAT2 C8950 16V 0.01u C8922 16V 0.1u C8923 16V 0.1u C8861 16V 0.1u C8862 16V 0.01u C8854 16V 0.1u C8853 16V 0.1u C8863 22u 4V C8860 16V 47u TVRR946 *IC8921 1 NC 2 NC 3 NC 4 NC 5 NC 6 NC 7 R/B# 8 RE# 9 CE# 10 NC 11 NC 12 VCC 13 VSS 14 NC 15 NC 16 CLE 17 ALE 18 WE# 19 WP# 20 NC 21 NC 22 NC 23 NC 24 NC 25 NC 26 NC 27 NC 28 NC 29 I/O0 30 I/O1 31 I/O2 32 I/O3 33 NC 34 NC 35 NC 36 VSS 37 VCC 38 NC 39 NC 40 NC 41 I/O4 42 I/O5 43 I/O6 44 I/O7 45 NC 46 NC 47 NC 48 NC *JK8401A K1NA68B00054 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 JK8850 K1NA12E00017 1 2 3 4 5 6 7 8 9 10 11 12 L8920 J0JDC0000002 L8850 J0JHC0000045 SUB3.3V SUB3.3V SUB3.3V VDDSD SUB3.3V SUB_CI_5V SUB_CI_5V SUB3.3V VJ8864 VJ8858 R8668 R8952 R8866 TP8863 TP8855 TP8860 TP8853 TP7003 TP8854 TP8858 TP8859 TP8857 TP8952 TP7004 TP8950 TP8856 TP7002 TP8951 CI_EAA14 CI_IOWR- CI_RESET- CI_EAA11 CI_IORD- CI_WE- CI_DATAINA0 CI_EAA15 CI_DATAINA1 CI_EAA5 CI_EAA7 CI_EAA8 CI_EAA13 CI_PKTSTINA CI_EAA10 CI_CE2- CI_DATAINA6 CI_EAA9 CI_EAA6 CI_REG- CI_DATAINA2 CI_CLKINA CI_EAA2 CI_DATAINA7 CI_EAA3 PD_SDVOLC CI_EAA4 CI_CE1- CI_DATAINA3 CI_DATAINA5 CI_EAA1 CI_DATAINA4 AA_FE_RST CI_EAA12 CI_ENINA CI_OE- CI_MOSTRT CI_MDO2 CI_MOVAL AB_NANDRYBY CI_WAIT- CI_MDO3 CI_MDO6 DISPEN CI_INPACK- CI_MDO4 CI_MDO0 CI_CD1- CI_MDO5 CI_IREQ- CI_MDO7 CI_MCLKO CI_CD2- CI_MDO1 PD_HSDOUT6 PEAKS-EEP_SDA AA_ED5 AA_ED0 PD_ED[0-15] PD_CH0CLK PD_CH1CLK XNFCE CI_DA7 AA_ED4 AA_ED5 XNFWE CI_DA5 CI_DA3 CI_DA2 CI_DA6 AA_ED6 PEAKS-EEP_SCL CI_DA1 CI_DA4 AA_ED1 NFALE PD_SDCD NFCLE CI_DA0 XNFRE AA_ED0 PD_LOSDO10 AA_ED2 AA_ED4 AA_ED7 AA_ED3 XNFWP AA_ED6 AA_ED2 AA_ED1 AA_ED3 AA_ED7 PD_RXD2 PD_SMTSEL0 PD_XCTS0 PD_SDWP PD_SDCMD PD_SDDAT3 PD_SDDAT2 PD_SDDAT1 PD_SDCLK PD_SDDAT0 PD_HSDOUT5 R8918 EXB2HV680JV R8922 EXB2HVR000V R8919 EXB2HV680JV R8882 10k R8861 68 R8873 68 R8950 4.7k R8876 68 R8867 10k R8887 10k R8881 10k R8883 10k R8862 68 R8860 68 R8878 10k R8877 33 R8872 33 R8924 68 R8927 68 R8886 10k R8875 68 R8923 68 R8856 47k R8870 10k R8885 10k R8928 68 R8864 10k R8857 68 R8859 68 R8863 68 R8874 68 R8926 68 R8925 68 R8869 10k R8680 10k R8868 33 R8879 10k R8871 R8888 TVRR575 *IC8950 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC GND SD/IC_CARD GND SDCMD SDCLK SDDAT0 SDDAT1 3.3V SDDAT3 SDDAT2 CI CONNECTOR FLASH NOR & NAND USE EEPROM I2C:0xA0 32kbit (4kByte) SDRAM_CHK Port USE Adress Data Multi PleX TS in for Rec (Reserved) TS in from Apollo (Reserved) TS I/F (Reserved) GND CD2# A3 VPP1 IREQ# MDI4 A12 WAIT# GND USE short Length MDI5 A8 VCC VPP2 CE1# A7 MCLKI A9 A1 OE# RESET A6 A4 A5 A14 A0 MIVAL A13 IOIS16# VS1# REG# A2 A10 VCC A11 WE# CE2# MDI7 MDI6 CD1# MCLKO INPACK# H:3.3V L:1.8V CI SLOT,SD CARD,FLASH MEMORY ! A-BOARD TNPH0899DC (6/26) CI SLOT NAND FLASH TO 1/26 TO 4/26 TO 3/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 3/26 TO 3/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 2,3,26/26 TO 15/26 TO 19,23/26 TO 23/26 58 TH-P46GT20C 11.12.A 电路板 （7/26）线路图 61 60 55 56 58 59 62 63 57 TH-P46GT20C A-Board (7/26) Schematic Diagram TH-P46GT20C A-Board (7/26) Schematic Diagram S S S S S SG-SP_HP_MUTE SG-SOUND_SOS PG-PEAKS_SERIAL_SBO SG-MON_MUTE SG-HPD1 SG-G_LED_ON PG-MAIN_FAN_ON SG-AI_SENSOR SG-FACT SG-DDCSCL1 SG-SOS PG-SD_BOOT_STS SG-DDCSDA2 SG-DDCSDA0 SG-HPD2 PG-HQ_XRST PG-DTV_VOUTENB SG-RMIN PG-FAN_MAX PG-PEAKS_SERIAL_SBI PG-FAN_SOS PG-P5V_DET SG-DDCSDA3 SG-TV_SUB_ON SG-NRST PG-ACTIVE_ANTENNA_DET SG-HDMI_5V_DET0 SG-GENX-EEP_WP SG-HDMI_5V_DET1 SG-DTV_XRST GENX-KEY1 SG-P3.3V_DET SG-HDMI_5V_DET2 SG-DDCSCL2 SG-DDCSCL3 SG-SRQ_GENX SG-HPD3 SG-SRQ_GENX SG-R_LED_ON NG-SW_OFF_DET SG-QLINK1 SG-RF_AFT1 GENX_SDA1 SG-QLINK2 GENX_SDA0 SG-DDCSCL0 SG-HDMI_5V_DET3 GENX_SCL1 SG-DDCSDA1 GENX_SCL0 SG-HPD0 SG-PD4H_PANEL_MAIN_ON SG-SUB3.3V_SENSE SG-HDMI_5V_DET3 RS232C_SBI SG-DDCSCL3 SG-DDCSDA3 SG-HDMI_CEC SG-HDMI_CEC_PU_ON SG-EXTRG0 SG-TRCCLK SG-TRCST SG-TRCD0 SG-TRCD1 SG-SDATA SG-GENX-EEP_WP SG-TV_SUB_ON SG-SP_HP_MUTE SG-MON_MUTE SG-DTV_XRST PG-SD_BOOT_STS NG-SW_OFF_DET PG-DTV_VOUTENB NG-PD4H_XRST PG-FAN_MAX PG-FAN_SOS PG-MAIN_FAN_ON SG-NRST PG-ACTIVE_ANTENNA_ON SG-SCLOCK SG-TRCD2 SG-TRCD3 SG-HPD3 SG-AI_SENSOR GENX_SCL1 SG-HPD0 SG-HPD1 SG-HPD2 SG-R_LED_ON SG-G_LED_ON SG-HDMI_5V_DET0 SG-DDCSDA0 SG-DDCSCL0 SG-DDCSDA1 SG-DDCSCL1 SG-HDMI_5V_DET1 SG-DDCSDA2 SG-DDCSCL2 PG-PEAKS_SERIAL_SBO PG-PEAKS_SERIAL_SBI NG-MAIN3.3V_SENSE GENX_SDA0 GENX_SCL0 SG-HDMI_5V_DET2 GENX-KEY1 SG-FACT SG-RF_AFT1 PG-PANEL_SOS PG-ACTIVE_ANTENNA_DET SG-QLINK2 SG-QLINK1 GENX_SDA1 PG-HQ_XRST SG-PD4H_DRVRST SG-SUB5V_SENSE SG-SUB3.3V_SENSE SG-P3.3V_DET PG-P5V_DET SG-RMIN PG-PD4H_XRST_SYS SG-PD4H_PANEL_MAIN_ON PG-PANEL_VCC_ON SG-SOS SG-SOUND_SOS SG-SRQ_GENX G-GRAB_MODULE_IIC G-CLK74SEL NG-MIHO3.3V_SENSE NG-LED8V_SENSE PG-PD4H_P_ON_OFF PG-SIF_FIL_ON RS232C_SBO RS232C_SBI RS232C_SBO G-GRAB_MODULE_IIC NG-MIHO3.3V_SENSE NG-LED8V_SENSE SG-HDMI_CEC SG-HDMI_CEC_PU_ON SG-SUB5V_SENSE NG-MAIN3.3V_SENSE C1111 1u 10V C1123 1u 10V C1114 16V 0.1u C1107 50V 22p C1104 16V 0.1u C1112 16V 0.1u C1109 1u 10V C1117 16V 0.1u C1102 10u 10V C1106 50V 27p C1103 16V 0.1u C1122 25V 0.01u C1108 16V 0.1u D1107 B0JCCE000008 *IC1101 TVRR567 1 NC 2 NC 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC L1100 J0JYC0000068 LED_6V STB3.3V SUB5V MIHO2_3.3V SUB3.3V STB3.3V STB3.3V FRC_3.3V STB3.3V SUB3.3V STB3.3V R1207 R1197 R1146 R1181 R1179 TP1102 TP1400 TP1107 TP1103 TP1401 TP1108 FACT_SDBOOT SG-SRQ_GENX SG-RMIN SG-AI_SENSOR SG-HDMI_5V_DET1 SG-DDCSCL3 SG-P3.3V_DET SG-HPD1 SG-DDCSCL2 GENX_SCL0 SG-DDCSCL0 PG-FAN_SOS SG-SOUND_SOS SG-DDCSCL1 SG-HPD3 SG-SOS SG-KEY1 SG-HPD0 SG-HDMI_5V_DET3 SG-HPD2 PG-ACTIVE_ANTENNA_DET STB_RST SG-RF_AFT1 PG-P5V_DET GENX_SCL1 RS232C_SBI SG-HDMI_5V_DET0 SG-HDMI_5V_DET2 PG-MAIN_FAN_ON LED-SOS SG-PD4H_PANEL_MAIN_ON SG-G_LED_ON PG-SD_BOOT_STS PG-FAN_MAX G-GRAB_MODULE_IIC SG-TV_SUB_ON SG-DTV_XRST SG-SP_HP_MUTE SG-R_LED_ON PG-HQ_XRST PG-DTV_VOUTENB SG-MON_MUTE RS232C_SBO GENX_SDA0 SG-QLINK2 GENX-EEP_SCL SG-DDCSDA1 SG-DDCSDA2 SG-DDCSDA3 SG-QLINK1 PD_TXD1 NG-SW_OFF_DET PD_RXD1 SG-HDMI_CEC SG-DDCSDA0 GENX-EEP_SDA GENX_SDA1 R1182 27k R1163 1M R1426 20k R1236 47k R1225 10k R1221 7.15k R1237 1k R1425 10k R1423 10k R1243 47k R1209 4.7k R1203 47k R1406 68k R1409 10k R1407 47k R1224 10k R1401 100k R1255 1k R1410 10k R1424 18k R1422 100k R1153 470 R1411 100k X1100 H0J100500035 MN103SH9FPB1 IC1100 1 P41_TMIO1 2 P42_TMIO2 3 P43_TMIO3 4 P44_TMIO4 5 P00 6 P01 7 PF3 8 P03_SBT0B 9 P04_SBO0B 10 PD0_DDCSDA0 11 PD1_DDCSCL0 12 PD2_DDCSDA1 13 PD3_DDCSCL1 14 PF1 15 PD4_DDCSDA2 16 PD5_DDCSCL2 17 P65_USBO2 18 P66_USBI2 19 P26 20 P70_SDA0 21 P71_SCL0 22 VSS 23 PF2 24 IVDD 25 VDD 26 P60_SBO0A 27 P61_SBT0A 28 P62_SBI0A 29 P05_IRQ6 30 P06_IRQ7 31 P07_IRQ8 32 P50_RMIN_IRQ0 33 P20_IRQ1 34 P21_IRQ2 35 P22_IRQ3 36 P23_IRQ4 37 P24_IRQ5 38 P25 39 IVDD 40 VSS 41 P10 42 P11 43 P12 44 P13 45 P14 46 P15 47 P16 48 P17 49 P72_SDA1 50 P73_SCL1 51 P30 52 P31 53 P32 54 P33 55 P34 56 P35 57 P36 58 P37 59 PE0 60 PE3 61 PE4 62 IVDD 63 VDD 64 NTEST 65 VSS 66 OSCXO 67 OSCXI 68 IVDD 69 PE1 70 PE2 71 N.C 72 NRST 73 P02 74 UND 75 UND 76 UND 77 N.C 78 N.C 79 N.C 80 N.C 81 UND 82 UND 83 P40_TMIO0_SYSCLK 84 P80_ADIN0 85 P81_ADIN1 86 P82_ADIN2 87 P83_ADIN3 88 IVDD 89 VSS 90 P84_ADIN4 91 P85_ADIN5 92 P74_CECAVL1B 93 P75_CECAVL1A 94 PF0 95 P76_CEC0 96 PD6_DDCSDA3 97 PD7_DDCSCL3 98 P63_SBO1 99 P64_SBI1 100 PF4 PE2 LVDS/BACKEND P64,SBI1 P20,IRQ1 P12 P63,SBO1 PD6,DDCSDA3 ADV-MODEL P23,IRQ4 P31 P10 P50,RMIN,IRQ0 P71,SCL0 PD1,DDCSCL0 OSCXI P61,SBT0A NBOOT / (N.C.) SDATA / (UND) P65,USBO2 IVDD P44,TMIO4 NRST Peaks-DEST TRCD1 / (NC) PD2,DDCSDA1 P05,IRQ6 PD0,DDCSDA0 P62,SBI0A PD7,DDCSCL3 P85,ADIN5 PE0 P32 VSS IVDD P40,TMIO0,SYSCLK TRCD3 / (UND) P83,ADIN3 ADV_A-MODEL P21,IRQ2 PD4,DDCSDA2 P66,USBI2 P84,ADIN4 P30 Peaks-COMMON Set-MODEL PF0 P80,ADIN0 TRCD2 / (NC) TUNER P16 PF3 IIC TRCST / (N.C.) SCLOCK / (UND) PD3,DDCSCL1 P17 P72,SDA1 OSCXO P43,TMIO3 P70,SDA0 P26 PF1 P37 P11 P25 P07,IRQ8 P36 P33 PE4,VPPEX / (PE4) P24,IRQ5 EXTRG0 / (UND) P35 P06,IRQ7 P41.TMIO1 P00 PE3 PD5,DDCSCL2 P42.TMIO2 Set-PDP 10MHz P15 P73,SCL1 P01 PF4 AVSW-DEST IIC P76,CEC0 STB-RESET-LCD/PDP POWER/PANEL CTRL P34 P82,ADIN2 GenX8 Set-MODEL P74,CECAVL1B P60,SBO0A P13 PE1 P22,IRQ3 PF2 TRCCLK / (N.C.) P02 TRCD0 / (NC) P14 P81,ADIN1 P75,CECAVL1A GenX8 Set-PDP ! A-BOARD TNPH0899DC (7/26) GenX8 MPU TO 1/26 TO 1/26 TO 4/26 TO 22/26 TO 23/26 TO 22/26 TO 8/26 TO 14/26 TO 12/26 TO 10/26 TO 22/26 TO 14/26 TO 21/26 TO 14/26 TO 22/26 TO 15,18/26 TO 22/26 TO 15/26 TO 17/26 TO 18,21/26 EEPROM 59 TH-P46GT20C 11.13.A 电路板 （8/26）线路图 70 64 72 67 66 69 71 65 68 TH-P46GT20C A-Board (8/26) Schematic Diagram TH-P46GT20C A-Board (8/26) Schematic Diagram S S S S S S S S S S S P P P P P S RX2M2 RX2M0 HDMI_CEC HDMI_DDCSCL0S PA_RXCP0 HDMI_DDCSCL3 RX0SP1 PA_RX1M0 SG-HPD2 SG-HDMI_5V_DET3 HDMI_DDCSCL1 RX2P2 HDMI_DDCSDA0S PA_RX0P1 HDMI_DDCSDA3 PA_RX1M1 PA_RXCP1 RX0SP2 PA_RX1P1 HDMI_DDCSDA1 PA_RX0M1 PA_RX1M0 HDMI_DDCSDA3 PA_RX2P0 RXCM0S PA_RX2P2 PA_RXCM2 PA_RX0M2 RX2P0 PA_RX0M0 RX0SP0 RX0SM0 HDMI_DDCSDA2 PA_RX0P0 PA_RX1M2 SG-HPD3 PA_RX1P0 HDMI_CEC PA_RX2M0 HDMI_CEC PA_RXCP1 RX2P1 SG-HDMI_5V_DET0 PA_RXCM0 HDMI_CEC SG-HDMI_5V_DET2 PA_RXCM0 SG-HPD0 SG-HPD0 PA_RX0P2 PA_RX1P1 RXCP0S RX0SM2 HDMI_DDCSCL2 PA_RX0M2 PA_RXCP0 SG-HPD1 PA_RX0P2 SG-HPD3 SG-HPD1 RXCM2 PA_RX1P2 PA_RXCM1 PA_RX2M1 PA_RX1M2 PA_RXCP2 HDMI_CEC PA_RX0P0 PA_RX0M0 RXCP2 PA_RX2P1 PA_RXCM1 PA_RX0M1 SG-HPD2 PA_RX0P1 RX0SM1 RX2M1 HDMI_DDCSCL1 PA_RX1P0 PA_RX2M2 HDMI_DDCSDA1 SG-HDMI_5V_DET1 HDMI_DDCSCL3 PA_RX1P2 PA_RX1M1 PA_RX2P0 PA_RXCP2 PA_RX2M0 RX0SM1 PA_RX2M2 RX0SP0 RXCM0S RX0SP2 PA_RX2M1 RXCP0S RX0SM0 RX0SM2 PA_RXCM2 PA_RX2P2 RX0SP1 PA_RX2P1 DDC_SINK_SDA2 DDC_SINK_SCL2 RX2M0 HDMI_DDCSCL2 RX2M1 HDMI_DDCSDA2 RX2M2 RXCP2 RX2P2 RX2P1 RX2P0 RXCM2 HDMI_DDCSDA0S HDMI_DDCSCL0S DDC_SINK_SDA2 DDC_SINK_SCL2 HDMI_DDCSCL1 SG-HDMI_5V_DET2 SG-HDMI_5V_DET1 HDMI_DDCSDA1 HDMI_DDCSCL2 HDMI_DDCSDA2 HDMI_DDCSCL3 HDMI_DDCSDA3 HDMI_DDCSCL0S HDMI_DDCSDA0S SG-HDMI_5V_DET0 SG-HDMI_5V_DET3 C4731 0.1u 16V C4701 0.1u 16V C4707 0.1u 16V C4702 0.1u 16V C4705 0.1u 16V C4730 0.1u 16V C4708 0.1u 16V C4704 0.1u 16V C4548 6.3V 1u C4718 4.7u 10V 0.1u 16V C4713 C4717 10V 10u C4719 0.1u 16V 0.1u 16V C4715 C4721 16V 0.1u 0.1u 16V C4724 D4704 B0JCCE000008 D4721 B0JCCE000008 D4737 B0JCCE000008 D4772 B0JCCE000008 D4785 B0ECKM000048 D4702 B0ACCJ000048 D4770 B0ACCJ000048 D4735 B0ACCJ000048 D4719 B0ACCJ000048 D4771 DZ2J056M0L D4703 DZ2J056M0L D4736 DZ2J056M0L D4720 DZ2J056M0L C0DBGYY00578 IC4701 1 ON/OFF 2 VSS 3 NC 5 VOUT 4 VIN C1AB00003079 IC4500 1 RXTM 2 SDA_C 3 SCL_C 4 GND 5 CCLKN 6 CCLKP 7 VCC 8 CDT0N 9 CDT0P 10 GND 11 CDT1N 12 CDT1P 13 VCC 14 CDT2N 15 CDT2P 16 GND 17 VCC 18 REXT 19 OPACTRLN 20 CEC_TX 21 SELC 22 SELB 23 SELA 24 GND 25 YDT2P 26 YDT2N 27 VCC 28 YDT1P 29 YDT1N 30 GND 31 YDT0P 32 YDT0N 33 VCC 34 YCLKP 35 YCLKN 36 GND 37 GND 38 SCL_SINK 39 SDA_SINK 40 HPD_SINK 41 CEC_RX 42 OUTDIS 43 VCC 44 HPD_A 45 SDA_A 46 SCL_A 47 GND 48 ACLKN 49 ACLKP 50 VCC 51 ADT0N 52 ADT0P 53 GND 54 ADT1N 55 ADT1P 56 VCC 57 ADT2N 58 ADT2P 59 GND 60 CEC_LINE 61 CVCC 62 HPD_B 63 SDA_B 64 SCL_B 65 GND 66 GND 67 BCLKN 68 BCLKP 69 VCC 70 BDT0N 71 BDT0P 72 GND 73 BDT1N 74 BDT1P 75 VCC 76 BDT2N 77 BDT2P 78 GND 79 VCC 80 HPD_C JK4702 K1FY119D0018 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 JK4701 K1FY119D0018 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 JK4700 K1FY119D0018 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 JK4703 K1FY119E0028 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L4707 J0JYC0000068 L4706 J0JYC0000068 L4704 J0JYC0000068 L4701 J0JYC0000068 L4717 J0JYC0000068 L4712 J0JHC0000045 L4703 J0JYC0000068 L4705 J0JYC0000068 L4700 J0JYC0000068 L4708 J0JYC0000068 L4716 J0JYC0000068 L4702 J0JYC0000068 L4715 J0JYC0000068 SUB5V STB5V STB5V STB5V STB5V VJ4509 VJ4707 VJ4705 VJ4706 VJ4704 VJ4703 VJ4701 VJ4700 VJ4508 VJ4510 VJ4702 R4756 R4758 R4752 R4585 R4754 TP4501 PA_RX1M0 PA_DDCSCL2 PA_RXCP1 SG-HPD0 PA_DDCSCL1 PA_RX2M2 PA_RX1M2 PA_RXCP0 PA_RX0M1 PA_DDCSCL0 PA_RX2P1 PA_RX2M1 SG-HPD2 ARC_2 PA_RXCM0 PA_RX2M0 PA_RXCM2 SG-HPD1 PA_RX0P1 SG-HPD3 PA_RX1P0 PA_RXCM1 PA_RX0P2 PA_RX1P2 PA_RX0M2 PA_RX1P1 PA_RXCP2 PA_RX1M1 PA_RX0M0 SG-DDCSCL3 PA_RX0P0 PA_RX2P2 PA_RX2P0 SG-DDCSCL1 SG-DDCSCL2 SG-DDCSCL0 SG-HDMI_5V_DET2 PD_LOSDO2 SG-HDMI_5V_DET1 PA_DDCSDA0 PA_DDCSDA1 PA_DDCSDA2 SG-DDCSDA2 SG-DDCSDA0 SG-HDMI_CEC PD_XRI0 SG-DDCSDA3 SG-HDMI_5V_DET0 SG-DDCSDA1 SG-HDMI_5V_DET3 Q4704 B1ABCF000231 Q4709 B1ABCF000231 Q4700 B1ABCF000231 Q4702 B1ABCF000231 Q4710 B1ABCF000231 Q4703 B1ABCF000231 Q4701 B1ABCF000231 Q4705 B1ABCF000231 R4733 47k R4748 68 10k R4706 R4728 10k R4707 47k R4722 10k R4794 10k R4743 68 R4763 100k R4734 10k R4742 68 R4703 33 R4739 22 R4775 1k 10k R4792 R4764 100k R4777 68 R4738 47k R4730 47k R4824 47k R4563 10k R4781 68 R4715 10k R4745 68 R4778 1k R4708 10k R4740 68 R4749 68 R4798 47k R4716 33 R4598 1.5k R4771 100k R4732 10k R4717 47k R4751 68 R4735 10k R4793 47k R4711 1k R4709 10k R4796 47k R4724 1k R4729 33 R4783 47k R4721 10k R4785 68 R4795 10k R4720 47k R4741 68 R4702 10k R4750 68 R4597 1.5k R4799 68 R4762 68 R4723 47k R4712 47k R4765 4.7k R4770 100k R4736 47k R4789 33 R4704 47k R4767 100k R4790 47k R4788 10k R4725 47k R4776 68 R4737 1k R4744 68 R4719 10k R4710 47k R4797 1k R4557 D2G D1+ SDA D2+ D0+ CEC Standby-MPU D0+ DDCG +5V D1G HDMI4: HPD0S/DDC0S/DET0S CLK- D0- D1+ CLK- D0G D0+ D2G D2G DDCG HDMI1: HPD2/DDC2/DET2 HDMI IN 4 HPDT N.C. Standby-MPU D1- HDMI2 CLK+ SDA CLKG D2- +5V +5V D0G D1- D1- Peaks-COMMON D2+ CEC SCL D0G CLKG CLK- sLD-STMCECO N.C. D2+ CLK+ D0- D2G CEC DDCG SDA D0+ CLK- N.C. D1+ Peaks-COMMON D2+ Peaks-COMMON DDCG D1G SCL HDMI4 D1+ Standby-MPU N.C. CEC CLKG +5V CLK+ CLK+ CLKG D1G D1- D1G HDMI3 D0- HDMI IN 2 D2- HPDT HDMI IN 1 SDA Standby-MPU HPDT HDMI1 SCL D0G Standby-MPU D2- D2- SCL HDMI2: HPD1/DDC1/DET1 HPDT D0- HDMI IN 3 HDMI_TMDS_SELB PEAKS-COMMON HDMI_TMDS_SELA HDMI3: HPD3/DDC3/DET3 ! A-BOARD TNPH0899DC (8/26) HDMI &SWITCH HDMI EQUALIZER 3.3V (SIDE) TO 7/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 7/26 TO 7/26 TO 7/26 TO 7/26 TO 9/26 60 TH-P46GT20C 11.14.A 电路板 （9/26）线路图 74 79 77 73 78 80 76 81 75 TH-P46GT20C A-Board (9/26) Schematic Diagram TH-P46GT20C A-Board (9/26) Schematic Diagram S S PC_VS PC_VS AVSW_R027PIN_FBOUT/TDET10 PC_HS AVSW_R027PIN_FBOUT/TDET10 PC_HS C4546 6.3V 1u C4662 6.3V 1u C4665 6.3V 1u C4664 6.3V 1u C4660 6.3V 1u C4667 6.3V 1u C4663 6.3V 1u C4661 6.3V 1u C4666 6.3V 1u SUB3.3V SUB3.3V R4674 R4675 MAIN_PR PC_HS MAIN_PB/C PC_VS MAIN_Y/CVBS AVSW_R027PIN_FBOUT/TDET10 PD_IECOUT0 RGB_CVBS PA_R1 PA_HIN PA_VIN PA_G1 PA_R1N PA_V1 PA_V1N ARC_2 PA_FBL1 PA_G1N PA_B1 PA_B1N PD_HSDOUT7 Q4513 DSA200100L Q4512 B1HFCFA00026 R4663 22 R4549 150 R4668 33 R4651 22 R4655 22 R4676 1k R4666 33 R4551 150 R4548 22 R4554 1k R4670 33 R4552 56 R4672 33 R4659 22 R4550 150 R4677 1.2k R4553 10k R4599 47k AVSW RGB_FB RGB_FB PB/C Peaks-Common RGB_CVBS PB/C PR YIN PR YIN ! A-BOARD TNPH0899DC (9/26) AD Buffer TO 23/26 TO 8/26 TO 13/26 TO 12,23/26 TO 23/26 TO 12,13/26 TO 13/26 61 TH-P46GT20C 11.15.A 电路板 （10/26）线路图 84 85 89 82 88 87 86 90 83 TH-P46GT20C A-Board (10/26) Schematic Diagram TH-P46GT20C A-Board (10/26) Schematic Diagram + + Thermal Pad S S PWM_SQ_L- PWM_SQ_R- PWM_SQ_R+ PWM_SQ_L+ C2308 25V 1u C2316 0.1u 50V C2324 25V 1u C2301 16V 0.1u C2335 25V 0.1u C2318 0.1u 50V C2303 25V 10u C2323 0.1u 50V C2315 10u 25V C2068 16V 0.01u C2070 16V 0.01u C2104 50V 10p C2069 16V 0.01u C2325 50V 1000p C2347 50V 0.022u C2321 0.1u 50V C2343 50V 0.022u C2340 50V 0.022u C2322 10u 25V C2345 50V 0.022u C2342 50V 0.022u C2334 50V 0.47u C2338 25V 0.1u C2302 16V 0.1u C2057 10u 10V C2306 25V 1u C2336 25V 0.1u C2055 10u 10V C2311 10u 25V C2346 50V 0.022u C2355 50V 1000p C2067 16V 0.01u C2341 50V 0.022u C2313 50V 1000p C2344 50V 0.022u C2304 25V 1u C2337 50V 0.47u C2320 25V 1u C2307 25V 1u C2073 25V 0.033u C2351 50V 1000p C2339 25V 0.1u C2074 25V 0.033u C2353 50V 1000p C2314 25V 1u C2349 50V 1000p C2305 50V 1000p C2317 25V 1u C2319 10u 25V C2108 10V 1u C2107 10V 1u C2110 16V 0.1u C2071 6.3V 100u C2072 6.3V 100u D2014 B0ACCJ000048 C1AB00003230 IC2301 1 STBY 44 PVD1 2 MUTE 3 SOS 4 NC1 5 NC2 6 NC3 7 NC4 8 PWM_A1 9 PWM_B1 10 NC5 11 NC6 12 NC7 13 GND 14 PWM_B2 15 PWM_A2 16 NC8 17 NC9 18 NC10 19 NC11 20 NC12 21 NC13 22 NC14 23 PVD2 24 PVD2 25 OUT_CH2_P 26 OUT_CH2_P 27 BOOT_CH2_P 28 VDDA2 29 BOOT_CH2_N 30 OUT_CH2_N 31 OUT_CH2_N 32 PGND2 33 PGND2 34 PGND1 35 PGND1 36 OUT_CH1_N 37 OUT_CH1_N 38 BOOT_CH1_N 39 VDDA1 40 BOOT_CH1_P 41 OUT_CH1_P 42 OUT_CH1_P 43 PVD1 A11K1KA04AA0728 1 2 3 4 L2301 J0JHC0000045 L2302 G1C3R0ZA0156 L2303 G1C220MA0416 L2304 G1C220MA0416 L2306 G1C220MA0416 L2305 G1C220MA0416 SUB3.3V SUB3.3V S_15V ACHIP3.3V SUB5V R2065 R2066 TP2008 TP2304 TP2303 TP2302 TP2301 PA_LO1_R HP_MUTE_ PA_LO2_R PA_LO1_L AV_R AMP_MUTE PA_HP1_R1 PD_APWMSLP PD_APWMSLN PD_NSHUTDOWN SIF PD_MUTEB PD_APWMSRN AV_L PD_APWMSRP PA_LO2_L PA_HP1_L1 HP_ROUT PA_SIFINP PA_LO1_R PA_LO2_L PA_LO2_R PA_LIN1_LP HP_LOUT PA_LO1_L SG-SOUND_SOS PA_SIFINN PA_LIN1_RP PA_HP_MUTE Q2253 B1AAFB000002 Q2255 DSC2001S0L Q2254 B1AAFB000002 Q2301 DSA200100L Q2109 DSA200100L Q2101 DSA200100L Q2252 DSA200100L R2302 22 EXB28V220JX R2254 100 R2307 4.7k R2321 3.3 140k 1% R2053 R2139 220 R2264 100 R2310 2.2k R2308 220 R2309 2.2k R2069 10k R2103 22 R2101 3.3k R2263 10k R2110 22 R2259 100 R2318 3.3 R2320 3.3 R2260 10k 140k 1% R2055 R2306 47k R2319 3.3 R2121 680 R2102 4.7k R2258 100 R2070 10k R2107 0 10k R2301 R2104 1.2k R2255 47k R2257 1M R2135 1k R2256 10k MUTE SOS RESET PWM_READY OPERATE OPERATE << Monitor L >> MainHP L << TV R << TV L << Monitor R >> MainHP R R+ L+ R- TO SPEAKER L- TV_L-OUT TV_R-OUT MON_R-OUT MON_L-OUT sLD-STMSBT0 MUTE NORMAL MUTE OPERATE AUDIO AMP ! A-BOARD TNPH0899DC (10/26) AUDIO AMP TO 23/26 TO 23/26 TO 7/26 TO 23/26 TO 23/26 Analog-ASIC TO 23/26 TO 12,14/26 Peaks-COMMON TO 14/26 TO 14/26 TUNER TO 13/26 TO 12/26 TO 12/26 TO 12/26 AVSW 62 TH-P46GT20C 11.16.A 电路板 （11/26）线路图 94 99 97 95 93 98 91 92 96 TH-P46GT20C A-Board (11/26) Schematic Diagram TH-P46GT20C A-Board (11/26) Schematic Diagram DRIVE IC VCC Vin GND AV3 AV3S AV1 AV2 PR PB Y PR V L C R R L Y R L V R V V L MONITOR OUT PB Y SHIELD V R L E_PC_LIN/A_AV1_LIN__TERMINAL PC_VD_TERMINAL A_AV1C_YSW__TERMINAL PC_HD_TERMINAL SUB3.3V PC_B_TERMINAL SIDE_LIN_TERMINAL A_AV3S_Y__TERMINAL JK3001 K1FY315A0008 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 D3015 K7AAAY000006 SIDE_RIN_TERMINAL RCA_AUDIOOUT_R__TERMINAL E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL SIDE_HP_R_TERMINAL E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL *JK3100 K1U932A00005 Y-SW Y G PB PR V L R G Y-SW Y G PB PR V L R G C Y G Y-G C-G G V L R G V L R G E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL E_AV1_VOUT(19P)/A_VOUT__TERMINAL E_YPBPR_PB/A_AV1C_PB__TERMINAL PC_R_TERMINAL E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL *JK3707 K4AK13B00008 a b c d V-SW V V-G L L-G R R-G E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL RCA_AUDIOOUT_L__TERMINAL SIDE_VIN_TERMINAL HP_GND E_AV1_VIN(20P)/A_AV2_V__TERMINAL PC_G_TERMINAL E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL A_AV3S_C__TERMINAL E_PC_RIN/A_AV1_RIN__TERMINAL A_AV1_V__TERMINAL E_YPBPR_Y/A_AV1C_Y__TERMINAL E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL E_AV2_VIN(20P)/A_AV3_V__TERMINAL A_AV2C_YSW__TERMINAL A_AV3S_S__TERMINAL E_YPBPR_PR/A_AV1C_PR__TERMINAL SIDE_HP_L_TERMINAL OPT_SPDIF_TERMINAL < A-BOARD TNPH0899DC (11/26) TO 12/26 TO 12/26 AUDIO OUT ! AVST-MODEL OPTICAL TO 12/26 SIDE TERMINAL TO 12/26 TERMINAL PC IN 63 TH-P46GT20C 11.17.A 电路板 （12/26）线路图 101 100 104 108 102 107 103 106 105 TH-P46GT20C A-Board (12/26) Schematic Diagram TH-P46GT20C A-Board (12/26) Schematic Diagram S S S S S S + S S S S S S S S S + S S S R3226 4.7k R3227 4.7k MONITOROUT_MUTE C3041 10V 1u E_AV2_RIN(_2PIN)/A_AV3_R__TERMINAL C3099 560p 50V 1% R3167 75 C3083 10V 10u C3026 10V 1u E_YPBPR_Y/A_AV1C_Y__TERMINAL RCA_AUDIOOUT_R__TERMINAL R3240 220 C3025 10V 1u C3046 10V 1u C3257 560p 50V AVSW_R007PIN_CVBS3 AVSW_R037PIN_SAGCVBSOUT4 E_AV1_VIN(20P)/A_AV2_V__TERMINAL AVSW_R081PIN_CVBSIN5 JS3009 AVSW_R020PIN_S2DET1 AVSW_R076PIN_FBIN/O1 1% *R3074 75 C3013 50V 560p L3003 J0JYC0000331 *L3023 J0JCC0000287 AVSW_R014PIN_S2DET2 PA_LO2_L R3128 220 E_AV1_GND(AUDIO)(_4P)_TERMINAL 1% *R3187 75 1% *R3072 75 AVSW_R087PIN_PBIN2/B3 *R3201 220 C3011 50V 560p R3019 2.2k AVSW_R063PIN_R3IN A_AV3S_S__TERMINAL Q3000 B1ABCF000231 PC_G_TERMINAL R3025 100k C3047 10V 1u C3070 10V 10u R3222 R3228 R3037 SIDE_LIN_TERMINAL R3229 A_AV1C_YSW__TERMINAL R3117 220 R3030 100 R3231 AVSW_R052PIN_L3OUT C3116 10u 10V C3072 16V 0.1u C3108 10V 10u L3007 J0JYC0000331 C3109 10V 10u 1% R3086 75 *R3101 47k AVSW_R061PIN_R2IN *C3093 10V 10u C3084 10V 10u L3018 J0JCC0000287 Q3001 B1ABCF000231 C3044 10V 1u C3024 10V 1u 1% R3230 75 C3103 100u 10V AVSW_R078PIN_FBIN2/O2 PC_HD_TERMINAL AVSW_R097PIN_PRIN1 AVSW_R078PIN_FBIN2/O2 PC_R_TERMINAL R3005 22k E_AV1_GREEN(11P)/A_AV2C_Y__TERMINAL AVSW_R027PIN_FBOUT/TDET10 R3121 EXB28V221JX *R3103 47k C3008 50V 560p PC_VD_TERMINAL R3001 22k AVSW_R059PIN_R1IN TP3007 AVSW_R099PIN_BIN E_PC_LIN/A_AV1_LIN__TERMINAL C3086 10V 10u R3017 0 AVSW_R095PIN_CYIN1 PC_B_TERMINAL RCA_AUDIOOUT_L__TERMINAL JS3007 C3043 10V 1u R3716 22k AVSW_R058PIN_L1IN R3182 13k 1% *C3098 10V 1u R3118 220 C3049 10V 1u E_AV1_VOUT(19P)/A_VOUT__TERMINAL AVSW_R091PIN_PRIN2/R3 A_AV3S_C__TERMINAL 1% R3085 75 1% R3084 75 AVSW_R071PIN_R7IN AVSW_R070PIN_L7IN TP3022 E_AV1_RED(15PIN)/A_AV2C_PR__TERMINAL C3022 10V 1u PA_LO1_L *L3019 J0JCC0000287 C3091 10V 10u R3002 22k R3038 C3007 50V 560p JS3008 A_AV1_V__TERMINAL 1% *R3078 75 AVSW_R003PIN_RIN E_AV1_LIN(_6PIN)/A_AV2_L__TERMINAL L3028 J0JCC0000287 1% *R3077 75 R3120 330 R3024 100k L3014 J0JYC0000331 AVSW_R051PIN_R3OUT C3115 10u 10V AVSW_R100PIN_VDIN E_YPBPR_PR/A_AV1C_PR__TERMINAL R3094 13k 1% L3006 J0JYC0000331 AVSW_R076PIN_FBIN/O1 AVSW_R019PIN_G1/YIN1 R3290 47k R3003 22k L3030 J0JYC0000331 SIDE_RIN_TERMINAL MAIN_RF_CVBS C3090 10V 10u AVSW_R092PIN_TDET6 *R3147 47k TP3023 SIDE_VIN_TERMINAL PD_IECOUT0 AVSW_R064PIN_L4IN E_AV2_LIN(_6PIN)/A_AV3_L__TERMINAL C3092 10V 10u C3085 10V 10u *R3129 220 *R3154 EXB28V820JX 5 7 E_PC_RIN/A_AV1_RIN__TERMINAL AVSW_R005PIN_CVBSIN4 1% *R3076 75 AVSW_R065PIN_R4IN OPT_SPDIF_TERMINAL C3048 10V 1u AVSW_R090PIN_TDET7 HP_MUTE_ R3116 220 E_AV2_GND(AUDIO)(_4P)_TERMINAL *R3218 0 R3224 AVSW_R062PIN_L3IN AVSW_R038PIN_Y/Y+C/CVBSOUT4 L3017 J0JCC0000287 L3002 J0JYC0000331 C3117 10u 10V AVSW_R023PIN_CVBSIN2 1% *R3075 75 E_YPBPR_PB/A_AV1C_PB__TERMINAL C3010 50V 560p 1% R3232 75 C3039 10V 1u JS3014 JS3010 AVSW_R093PIN_PBIN1 A_AV3S_Y__TERMINAL R3292 1M L3029 J0JYC0000331 C3002 50V 560p E_AV1_RIN(_2PIN)/A_AV2_R__TERMINAL AVSW_R079PIN_CVBSIN6 R3173 EXB28V221JX R3717 22k E_AV2_VIN(20P)/A_AV3_V__TERMINAL JS3013 R3033 JS3012 C3073 10V 10u R3169 100k C3095 10V 100u 1% *R3149 75 C3003 50V 560p AVSW_R089PIN_CYIN2/G3 PA_LO2_R R3004 22k R3021 2.2k AVSW_R043PIN_SAGCVBSOUT3 R3034 R3233 1% R3234 75 AVSW_R044PIN_CVBS/Y+COUT3 AVSW_R016PIN_TDET3 AVSW_R068PIN_L6IN PA_LO1_R AVSW_R060PIN_L2IN L3015 J0JYC0000331 R3000 22k R3235 AVSW_R001PIN_GIN C3144 10V 10u AVSW_R069PIN_R6IN AVSW_R021PIN_B1/CIN1 R3146 330 E_AV1_BLUE(_7PIN)/A_AV2C_PR__TERMINAL L3011 J0JYC0000331 C3071 10V 10u R3291 47k R3192 EXB28V820JX R3189 68 C3114 10u 10V *L3024 J0JCC0000287 C3107 10V 10u L3010 J0JYC0000331 Q3008 DSA200100L A_AV2C_YSW__TERMINAL *L3020 D0GAR00Z0001 0 R3123 EXB28V680JX 8 C3014 50V 560p AVSW_R002PIN_HDIN 1% *R3148 75 *D3050 EZJP0V080GA TO 13/26 A_AV3S E_AV2_SLOW M-OUT A_AV1_YPbPr A_AV2 A_AV1 AVSW-COMMON TO 11/26 A_AV3 TO 10,14/26 TO 14/26 MAIN_TNR_SW2 VIDEO OUT AUDIO IN M-OUT VIDEO AUDIO I/O AUDIOOUT_L R IN A_AV3S_S A-AV3 A_AV3S MAIN_TNR_SW1 L IN VIDEO IN TO 13/26 TO 11/26 TO 13/26 A_AV4 A_AV2_YPbPr AUDIO OUT AVSW-COMMON A-Chip_A TUNER IC3001 A_AV1C_YSW TO 11/26 A_AV1/2_YPbPr A-BOARD TNPH0899DC (12/26) RF A-Chip_A A_AV4 TO 13/26 TO 9,23/26 PC A-AV2 ! IC3001 A_AV2C_YSW VIDEO DET ADV_A-MODEL TO 10/26 ADV_A-DEST TO 10/26 AVSW-COMMON A_AV3S TO 14/26 A_AV1V TO 10/26 IC3001 TUNER TO 11/26 TO 13/26 OPT AUDIOOUT_R HP_LOUT HP_ROUT *L2107 J0ZZB0000097 1 2 3 4 *L2106 J0ZZB0000097 1 2 3 4 HP_LOUT HP_ROUT HP_GND SIDE_HP_L_TERMINAL SIDE_HP_R_TERMINAL HP 64 TH-P46GT20C 11.18.A 电路板 （13/26）线路图 109 117 115 114 110 116 111 113 112 TH-P46GT20C A-Board (13/26) Schematic Diagram TH-P46GT20C A-Board (13/26) Schematic Diagram + S P P PC_HS AV_R PC_HS PC_VS AV_L MAIN_PR MAIN_PB/C AV_L MAIN_Y/CVBS MAIN_PB/C RGB_CVBS AV_R AV-SW_SCL MAIN_Y/CVBS MAIN_PR RGB_CVBS PC_VS AV-SW_SDA C3145 16V 0.1u C3146 10u 10V C3141 16V 0.1u C3140 16V 0.1u C3139 16V 0.1u C3147 10u 10V C3143 16V 0.1u C3138 10V 100u C1AB00003218 IC3001 1 Gin 2 HDin 3 Rin 4 T_DET5 5 CVBSin4 6 T_DET4 7 CVBSin3 8 BG 9 Yin3 10 S2_DET3 11 R2/Cin3 12 GND 13 G2/Yin2 14 S2_DET2 15 B2/Cin2 16 T_DET3 17 CVBSin1 18 T_DET2 19 G1/Yin1 20 S2_DET1 21 B1/Cin1 22 T_DET1 23 CVBSin2 24 VCC5V 25 R1 26 Rtate_out 27 T_DET10/Fbout 28 SDA 29 SCL 30 GND 31 G/CY/CVBSout1 32 HD_out1 33 B/PB/Cout1 34 VD_out1 35 R/Prout1 36 VCC5V 37 SAG_CVBSout4 38 Y/Y+C/CVBSout4 39 S2out 40 SAG_CVBSout5 41 C/Y+C/CVBSout5 42 GND 43 SAG_CVBSout3 44 CVBS/Y+Cout3 45 VCC9V 46 G/CY/Y/CVBSout7 47 O3 48 AU_GND 49 R4out 50 L4out 51 R3out 52 L3out 53 R2out 54 L2out 55 R10in/R1out 56 L10in/L1out 57 AU1/2Vcc 58 L1in 59 R1in 60 L2in 61 R2in 62 L3in 63 R3in 64 L4in 65 R4in 66 L5in 67 R5in 68 L6in 69 R6in 70 L7in 71 R7in 72 L8in 73 R8in 74 L9in 75 R9in 76 FBin1/O1 77 CVBSin7 78 FBin2/O2 79 CVBSin6 80 VCC9V 81 CVBSin5 82 T_DET9 83 Yin4 84 T_DET8 85 Cin4 86 VCC5V 87 PBin2/B3 88 L3_DET2 89 CYin2/G3 90 T_DET7 91 PRin2/R3 92 T_DET6 93 PBin1 94 L3_DET1 95 CYin1 96 HD_VD/FBKMUTE 97 PRin1 98 GND 99 Bin 100 VDin SUB9V_VIDEO SUB5V SUB9V SUB3.3V R3093 R3112 R3113 TP3008 TP3006 TP3021 TP3005 TP3009 TP3004 AVSW_R016PIN_TDET3 AVSW_R081PIN_CVBSIN5 AVSW_R058PIN_L1IN AVSW_R060PIN_L2IN AVSW_R065PIN_R4IN AVSW_R076PIN_FBIN/O1 AVSW_R021PIN_B1/CIN1 AVSW_R092PIN_TDET6 AVSW_R059PIN_R1IN AVSW_R089PIN_CYIN2/G3 AVSW_R078PIN_FBIN2/O2 AVSW_R091PIN_PRIN2/R3 AVSW_R014PIN_S2DET2 AVSW_R020PIN_S2DET1 AVSW_R099PIN_BIN AVSW_R071PIN_R7IN AVSW_R100PIN_VDIN AVSW_R062PIN_L3IN AVSW_R063PIN_R3IN AVSW_R061PIN_R2IN AVSW_R019PIN_G1/YIN1 AVSW_R043PIN_SAGCVBSOUT3 AVSW_R037PIN_SAGCVBSOUT4 AVSW_R097PIN_PRIN1 AVSW_R095PIN_CYIN1 AVSW_R090PIN_TDET7 AVSW_R069PIN_R6IN AVSW_R002PIN_HDIN AVSW_R068PIN_L6IN AVSW_R003PIN_RIN AVSW_R001PIN_GIN AVSW_R087PIN_PBIN2/B3 AVSW_R023PIN_CVBSIN2 AVSW_R007PIN_CVBS3 AVSW_R017PIN_CVBSIN1 AVSW_R079PIN_CVBSIN6 AVSW_R064PIN_L4IN AVSW_R093PIN_PBIN1 AVSW_R005PIN_CVBSIN4 AVSW_R070PIN_L7IN AVSW_R055PIN_R1OUT AVSW_R056PIN_L1OUT AVSW_R054PIN_L2OUT AVSW_R053PIN_R2OUT AVSW_R052PIN_L3OUT AVSW_R051PIN_R3OUT AVSW_R027PIN_FBOUT/TDET10 MAIN_Y/CVBS AVSW_R038PIN_Y/Y+C/CVBSOUT4 PC_VS AV_R MAIN_PB/C AV_L MAIN_PR RGB_CVBS AVSW_R044PIN_CVBS/Y+COUT3 PC_HS AV-SW_SCL AV-SW_SDA R3236 68 R3237 68 AVSW NC-PIN MAIN_PB/C/B MAIN_Y/CVBS/G MAIN_PR/R RGB_CVBS AVSW AV1 RGB/YC AV1 V-IN DVB CVBS-IN AV3 V-IN PC AV1 A-IN AV2 A-OUT AV1 A-OUT YPbPr-IN AV1 V-OUT AUDIO OUT AV2 A-IN AV2 V-OUT AV2 V-IN RF CVBS-IN ASIA AV1 CVBS-IN A-BOARD TNPH0899DC (13/26) ! AV SW TO 9,12/26 TO 12/26 TO 9/26 ADV_V_DEST ADV_A-DEST TO 1/26 IIC2 TO 10/26 TO 12/26 TO 12/26 TO 12/26 65 TH-P46GT20C 11.19.A 电路板 （14/26）线路图 120 121 118 119 126 125 123 122 124 TH-P46GT20C A-Board (14/26) Schematic Diagram TH-P46GT20C A-Board (14/26) Schematic Diagram + IF_Monitor 21 S S + P P STB_RST C2907 16V 0.1u C2911 16V 0.1u C2910 16V 0.1u C2908 16V 0.1u C2905 10V 100u *L2910 J0JCC0000278 *L2909 J0JCC0000278 L2904 J0JCC0000278 ACT5V TNR5V MAIN_RF_CVBS SIF R2918 0 *TU2901C ENG39F02GF NC 1 BB 2 RF-AGC_Monitor 3 NC 5 BT_Monitor 6 +B 10 Video-out 11 SCL 13 SDA 14 AFT_out 15 SW1 16 VB 17 NC 19 SW2 20 NC 8 SIF-OUT 9 C5497 6.3V 1u SG-DTV_XRST C5470 0.01u 16V VJ5452 R5413 100k C5473 25V 0.01u C1ZBZ0003972 IC5482 1 EN_CLKBF 2 CLKOUT 3 SDA1 4 SCL1 5 SDA0 6 SCL0 7 STB5V 8 STB3.3V 9 AMUTE 10 SP_MUTE 11 MUTE_VCC 12 AUDIO_MUTE_IN 13 DTB9V 14 MONITOR_MUTE 15 FB 16 GND 17 FC 18 PGND 19 DRV 20 DTV5VOUT 21 DTV5VIN 22 EN_DCDC 23 CD 24 STB_RST 25 SCL 26 SDA 27 SEL 28 CLKIN R5497 15 R5474 10k SG-MON_MUTE ADJ-GENX_SCL R5471 100 Q5475 DSC2001S0L R5412 27k ADJ_GENX_SDA SG-SP_HP_MUTE STB_5V_SWON D5487 B0JCME000076 C5498 6.3V 1u GENX7_SDA C5512 16V 0.1u IC5470 C0EBM0000026 1 OUT 2 Vdd 3 GND 5 Cd 4 NC SUB3.3V C5474 0.1u 16V HP_MUTE_ PEAKS_SDA2 R5485 100 R5535 10k STB5V R5419 68k PEAKS_SCL2 PD_XRST R5475 12k R5418 100k SUB5V R5155 100 VJ5486 VJUMP1005-S NG-SW_OFF_DET STB3.3V STB_RST D5488 B0ACCJ000048 C5475 0.47u 10V TP5432 GENX7_SCL SUB9V C5471 10V 0.047u SUB3.3V PD_XIRQ5 R5472 47 R5473 47k TP5470 AMP_MUTE R5571 68k SUB5V Q5478 DSC200100L R5470 2.2k R5526 10k R5486 47k PA_NRST SUB3.3V G-GRAB_MODULE_IIC D5470 B0ADEJ000035 C5492 10V 220u F15V L5481 J0JYC0000068 IC2950 C0CBCAG00031 1 VOUT 2 VSS 3 ON/OFF 4 NC 5 VSS 6 VIN PG-ACTIVE_ANTENNA_DET TNR5V L2950 J0JHC0000045 R2961 R2960 10k C2950 1u 10V SUB6V SUB3.3V R2959 R2930 15k FE1.2V C2961 1u 10V TP2951 TP2952 C2951 10V 2.2u C2959 16V 0.1u C0DBGYY00281 IC2952 1 NC 2 VSS 3 CE 5 VOUT 4 VIN < A-BOARD TNPH0899DC (14/26) ! ! TUNER,STB-RESET GENX-DEST POWER OFF DET Peaks-RESET Peaks-COMMON POWER_DET GENX-DEST Peaks-COMMON NRST ADD FOR A-CHIP PANEL Peaks TV-GenX STB-RESET-LCD/PDP STB-RESET-MODEL ADV_A-DEST AVSW-DEST STB-RESET-LCD/PDP GenX-DEST SEL=L SEL=H ANALOG-ASIC RESET TO 23/26 TO 7/26 TO 7/26 TO 7/26 TO 7/26 TO 23/26 TO 1,22/26 TO 15,22/26 TO 1/26 TO 10/26 TO 10,12/26 TO 22/26 TUNER1.2V TNR5V TUNER5V TO 7/26 TO 1/26 TO 12/26 1.2V ACTIVE ANTENNA to ADV to AVSW to GENX TO 12/26 TO 10/26 *L2902 J0JHC0000046 SUB3.3V A-TNR_SCL A-TNR_SDA *Q2903 B1CBHD000002 *Q2904 B1CBHD000002 *R2921 6.8k *R2902 0 *R2905 0 *R2908 6.8k IIC_From_Peaks *C2919 50V 0.01u AVSW_R078PIN_FBIN2/O2 AVSW_R076PIN_FBIN/O1 SG-RF_AFT1 *R2911 220 *R2903 0 *R2906 0 *R2904 0 To 7/26 from ADV MAIN_TNR_SW2 MAIN_TNR_SW1 66 TH-P46GT20C 11.20.A 电路板 （15/26）线路图 135 129 133 128 132 130 127 134 131 TH-P46GT20C A-Board (15/26) Schematic Diagram TH-P46GT20C A-Board (15/26) Schematic Diagram TERM SIDE S A31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 L4225 J0JYD0000033 1 2 3 4 L4224 J0JYD0000033 1 2 3 4 L4221 J0JYD0000033 1 2 3 4 L4223 J0JYD0000033 1 2 3 4 L4220 J0JYD0000033 1 2 3 4 L4222 J0JYD0000033 1 2 3 4 STB5V TP5842 TP4240 TP4239 TP4242 TP4243 TP4244 TP4251 TP4247 TP4248 TP4245 TP4246 TP4238 TP4241 RIGHT_2ND_PIX_TE- RIGHT_1ST_PIX_TA+ RIGHT_2ND_PIX_TCLK- RIGHT_1ST_PIX_TC- RIGHT_2ND_PIX_TCLK+ RIGHT_2ND_PIX_TC- RIGHT_1ST_PIX_TE- RIGHT_2ND_PIX_TB+ RIGHT_1ST_PIX_TD- RIGHT_1ST_PIX_TCLK- RIGHT_2ND_PIX_TA+ RIGHT_2ND_PIX_TD- DISPEN RIGHT_1ST_PIX_TCLK+ RIGHT_2ND_PIX_TA- RIGHT_1ST_PIX_TC+ RIGHT_1ST_PIX_TA- RIGHT_2ND_PIX_TE+ RIGHT_2ND_PIX_TC+ RIGHT_2ND_PIX_TD+ RIGHT_1ST_PIX_TE+ RIGHT_1ST_PIX_TB+ RIGHT_1ST_PIX_TB- RIGHT_2ND_PIX_TB- PG-P5V_DET RIGHT_1ST_PIX_TD+ SG-P3.3V_DET SG-PD4H_PANEL_MAIN_ON IIC_CONT/C_SEL GENX7_SDA GENX7_SCL PANEL_SCL2 AR_RXD_PC AR_TXD_PC PANEL_SDA2 Q4831 DSC2001S0L Q4832 DSC2001S0L R4841 100k R4834 1k R4842 1k R4856 10k R4835 10k R4857 47k R4844 100 R4854 100k R4833 100k R4853 100k R4210 TXD GND GND GND GND GND GND GND GND KEY_SCAN 1st pixel TD+ IIC_CONT IIC_CLK1 RXD 1st pixel TCLK- 2nd pixel TCLK+ 2nd pixel TC+ 2nd pixel TE+ GND GND 1st pixel TA- IIC_DATA1 PANEL_STBY_ON GND 2nd pixel TE- 1st pixel TB- 1st pixel TD- ALARM 2nd pixel TB+ 2nd pixel TA- GND 1st pixel TB+ GND 2nd pixel TD+ 2nd pixel TB- IIC_CLK2 2nd pixel TC- 2nd pixel TA+ 1st pixel TE+ GND 2nd pixel TCLK- GND 2nd pixel TD- 1st pixel TA+ 1st pixel TC- 1st pixel TCLK+ GND 1st pixel TE- GND LVDS_DET 1st pixel TC+ IIC_DATA2 DISPEN READY IIC Peaks-COMMON GenX Set-PDP Set-MODEL Set-MODEL GenX-DEST ! A-BOARD TNPH0899DC (15/26) LVDS-MODEL TO 7/26 TO 6/26 TO 19/26 TO 22/26 TO 22/26 TO 22/26 TO 14,22/26 TO 7,18/26 TO D-BOARD (D5) 67 TH-P46GT20C 11.21.A 电路板 （16/26）线路图 142 141 144 139 143 136 137 138 140 142 141 144 139 143 136 137 138 140 TH-P46GT20C A-Board (16/26) Schematic Diagram TH-P46GT20C A-Board (16/26) Schematic Diagram P FRC_3.3V C4249 16V 0.1u C4312 25V 0.01u C4316 10u 25V C4318 22u 6.3V C4311 0.1u 25V C4240 4.7u 10V C4236 4.7u 10V C4245 16V 0.1u C4241 16V 0.1u C4216 4.7u 10V C4215 3300p 25V C4213 25V 10u C5635 1u 16V C4220 0.1u 16V C4212 10u 25V C4244 22u 6.3V C4242 22u 6.3V C4243 22u 6.3V C4248 50V 470p C4200 1000p 50V C4313 50V 4700p C4314 0.22u 25V D4200 B0JCME000092 IC4212 C0DBAYY00462 1 BOOT 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS C0DBAYY00737 IC4201 1 VO 2 VFB 3 SS 4 GND 5 CER 6 FSEL 7 EN 8 V5FILT 9 VIN 10 VREG5 11 TRIP 12 PGND 13 DRVL 14 SW 15 DRVH 16 VBST C0DBGFF00004 IC4204 1 Vo 2 NC 3 GND 4 Cn Cont 5 Sub 6 Vin 7 L4215 J0JYC0000068 L4205 J0JHC0000045 L4207 G1C3R3Z00005 L4206 G1C100MA0077 L4214 G1C100MA0077 FRC_DDR_1.8V FRC_1.8V F15V FRC_D1.05V R4343 PA4206 K5H4022A0031 TP4236 TP4202 TP4201 TP4211 DCDCEN Q4201 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q4204 DSC200100L R4228 0 R4266 3k R4267 180 R4230 0 R4224 10k R4263 39 R4265 1k R4225 470 R4200 2.2 R4234 47k R4264 5.6k R4235 10k R4223 4.3k R4227 20k L4219 G1C150MA0416 R4269 47k C4201 1u 16V R4208 68k Q4205 DSC200100L R4207 22k R4268 1k FRC_3.3V TV_ON OFF 996mA GenX 1.05V/2.87A ! A-BOARD TNPH0899DC (16/26) FRCS FRC_D1.05V FRC3.3V FRC1.8V TO 21,24/26 68 TH-P46GT20C 11.22.A 电路板 （17/26）线路图 153 147 152 146 148 149 150 151 145 TH-P46GT20C A-Board (17/26) Schematic Diagram TH-P46GT20C A-Board (17/26) Schematic Diagram + S S P F_CH0A5 F_CH0DQS0 F_CH0XCAS F_CH0XDQS1 F_CH0XCS F_CH0DM0 F_CH0DQ2 F_CH0DQ0 F_CH0ODT F_CH0A6 F_CH0XCK F_CH0CK F_CH0DM1 F_CH0A8 F_CH0DQ8 F_CH0BA0 F_CH0XCAS F_CH0DQ12 F_CH0A10 F_CH0BA2 F_CH0A8 F_CH0A3 F_CH0A5 F_CH0A2 F_CH0A11 F_CH0A9 F_CH0CKE F_CH0XRAS F_CH0A12 F_CH0DQ14 F_CH0ODT F_CH0A1 F_CH0A4 F_CH0XCS F_CH0A9 F_CH0DQ5 F_CH0CKE F_CH0DM1 F_CH0A10 F_CH0A6 F_CH0XWE F_CH0DQ15 F_CH0A7 F_CH0XCS F_CH0DQ1 F_CH0A4 F_CH0A11 F_CH0DM0 F_CH0XDQS0 F_CH0DQ11 F_CH0DQ10 F_CH0DQ4 F_CH0XRAS F_CH0A7 F_CH0A2 F_CH0DQ7 F_CH0A12 F_CH0BA1 F_CH0A0 F_CH0A1 F_CH0DQ9 F_CH0XDQS0 F_CH0DQ3 F_CH0A3 F_CH0BA1 F_CH0DQS1 F_CH0BA0 F_CH0CKE F_CH0DQ13 F_CH0A0 F_CH0BA2 F_CH0ODT F_CH0XWE F_CH0DQ6 F_CH0XDQS1 FRC_3.3V F_CH0DQ15 F_CH0DQ0 F_CH0DQ2 F_CH0DQ3 F_CH0DQ4 F_CH0DQ5 F_CH0DQ13 F_CH0DQ12 F_CH0DQ11 F_CH0DQ10 F_CH0DQ9 F_CH0DQ8 F_CH0DQ14 F_CH0DQ1 F_CH0DQS0 F_CH0DQS1 F_CH0DQ6 F_CH0DQ7 F_CH0CK F_CH0XCK C4235 50V 470p C4256 10u 10V C4280 16V 0.1u C4250 16V 0.1u C4273 16V 0.1u C4262 10V 4.7u C4281 16V 0.1u C4298 16V 0.1u C4305 16V 0.1u C4333 16V 0.1u C4299 16V 0.1u C4322 16V 0.1u C4336 16V 0.1u C4286 16V 0.1u C4332 16V 0.1u C4267 16V 0.1u C4274 16V 0.1u C4323 16V 0.1u C4335 16V 0.1u C4269 16V 0.1u C4291 16V 0.1u C4317 16V 0.1u C4268 16V 0.1u C4330 16V 0.1u C4315 16V 0.1u C4308 16V 0.1u C4284 16V 0.1u C4340 16V 0.1u C4300 16V 0.1u C4260 16V 0.1u C4259 16V 0.1u C4266 4.7u 10V C4277 16V 0.1u C4289 16V 0.1u C4331 16V 0.1u C4320 16V 0.1u C4237 10V 1u C4282 16V 0.1u C4294 16V 0.1u C4270 16V 0.1u C4288 16V 0.1u C4257 16V 0.1u C4279 16V 0.1u C4293 16V 0.1u C4307 100p 50V C4254 16V 0.1u C4287 16V 0.1u C4304 16V 0.1u C4253 16V 0.1u C4295 16V 0.1u C4251 16V 0.1u C4278 16V 0.1u C4272 16V 0.1u C4302 16V 0.1u C4303 16V 0.1u C4292 16V 0.1u C4338 16V 0.1u C4337 16V 0.1u C4301 16V 0.1u C4325 10u 10V C4283 16V 0.1u C4290 16V 0.1u C4306 16V 0.1u C4339 16V 0.1u C4258 16V 0.1u C4324 16V 0.1u C4334 16V 0.1u C4252 50V 12p C4348 50V 100p C4255 50V 18p C4271 16V 0.1u C4309 16V 0.1u C4276 16V 0.1u C4297 16V 0.1u C4264 10u 10V C4263 6.3V 1u C4233 22u 6.3V C4234 22u 6.3V C4247 4V 22u C4246 4V 22u C4238 4V 22u C4275 4V 22u C4261 4V 22u C4285 4V 22u C4319 68u 4V IC4200 A1 P_ZA_RX0_P IC4211 A1 VDD IC4211 = C7 VDDQ IC4211 = G7 VDDQ IC4211 = D8 VSSQ IC4211 = E1 VDD IC4211 = K8 CK IC4211 = F2 VSSQ IC4211 = N3 A5 IC4211 = P8 A8 IC4211 = A8 UDQS IC4211 = G8 DQ0 IC4211 = R1 VDD IC4211 = E8 LDQS IC4211 = H7 DQ2 IC4211 = J9 VDD IC4211 = F8 VSSQ IC4211 = J3 VSS IC4211 = A7 VSSQ IC4211 = R7 NC IC4211 = L1 NC IC4211 = L7 CAS IC4211 = H8 VSSQ IC4211 = P9 VSS IC4211 = E3 VSS IC4211 = M7 A2 IC4211 = B7 UDQS IC4211 = M8 A0 IC4211 = M9 VDD IC4211 = L3 BA1 IC4211 = B1 DQ14 IC4211 = N2 A3 IC4211 = R3 NC IC4211 = N1 VSS IC4211 = F3 LDM IC4211 = J1 VDDL IC4211 = N7 A6 IC4211 = P2 A7 IC4211 = C8 DQ8 IC4211 = G1 VDDQ IC4211 = J8 CK IC4211 = R8 NC IC4211 = A3 VSS IC4211 = A9 VDDQ IC4211 = E9 VDDQ IC4211 = P7 A11 IC4200 M1 P_ZB_RX4_P IC4200 N1 SSCL IC4200 G16 VDD105 IC4200 N21 P_YB_TX2_P IC4200 J4 VDDLZ25 IC4200 L3 VSS IC4200 C7 VSS IC4200 F20 VSS IC4200 U21 DRAM_DQ5 IC4200 V20 DRAM_DQ0 IC4200 N7 VSS IC4200 F3 VSS IC4200 AA21 DRAM_DQS0_N IC4200 D12 VDDLX25 IC4200 P13 VDD105 IC4200 T12 VDD18 IC4200 N22 P_YB_TX2_N IC4200 R9 VDD105 IC4200 A19 P_XB_TX0_N IC4200 B14 P_XA_TX1_P IC4200 W5 DRAM_TEST_ANALOG IC4200 AB8 DRAM_A1 IC4200 N15 VSS IC4200 K2 P_ZB_CLK_N IC4200 P21 P_YB_CLK_P IC4200 AA11 DRAM_BA0 IC4200 J21 P_YA_TX3_P IC4200 H19 VDDLY25 IC4200 M15 VSS IC4200 H2 P_ZB_RX1_N IC4200 H20 VSS IC4200 F19 VSS IC4200 U19 VSS IC4200 E3 VSS IC4200 D8 VDD33 IC4200 N11 VSS IC4200 N10 VDD105 IC4200 W21 DRAM_DQ13 IC4200 G22 P_YA_TX2_N IC4200 M7 VSS IC4200 B17 P_XA_TX3_P IC4200 W10 VSS IC4200 A10 GPIO02 IC4200 L16 VSS IC4200 G13 VSS IC4200 J15 VDD105 IC4200 D16 VDDLX25 IC4200 K20 VSS IC4200 R13 VSS IC4200 F22 P_YA_TX1_N IC4200 AA10 DRAM_CK IC4200 J2 P_ZB_RX2_N IC4200 A18 P_XA_TX4_N IC4200 B20 P_XB_TX1_P IC4200 P15 VDD105 IC4200 A12 V IC4200 M3 MSDA IC4200 T21 P_YB_TX4_P IC4200 AB22 DRAM_DQS1 IC4200 L12 VSS IC4200 AB16 DRAM_DQ4 IC4200 B21 P_XB_CLK_P IC4200 M2 P_ZB_RX4_N IC4200 C22 P_XB_TX3_N IC4200 T19 VSS IC4200 R2 GPIO11 IC4200 D9 VSS IC4200 Y19 DRAM_DM1 IC4200 B15 P_XA_TX2_P IC4200 C8 VSS IC4200 J9 VDD105 IC4200 D21 P_XB_TX4_P IC4200 Y14 DRAM_A8 IC4200 E2 P_ZA_RX3_N IC4200 L4 VSS IC4200 A11 GPIO00 IC4200 C13 VSS IC4200 Y3 DRAM_DQS2 IC4200 Y16 DRAM_A12 IC4200 AA19 DRAM_DQ11 IC4200 D2 P_ZA_CLK_N IC4200 K3 VSS IC4200 W22 DRAM_DQ7 IC4200 AB18 DRAM_DQ14 IC4200 M13 VSS IC4200 N16 VSS IC4200 E1 P_ZA_RX3_P IC4200 D6 VSS IC4200 J19 VSS IC4200 T10 VSS105MPLL IC4200 A17 P_XA_TX3_N IC4200 M11 VSS IC4200 N19 VSS IC4200 M22 P_YB_TX1_N IC4200 V21 DRAM_DQ2 IC4200 Y17 DRAM_DQ1 IC4200 W11 VSS IC4200 G12 VSS IC4200 G1 P_ZB_RX0_P IC4200 N20 VSS IC4200 H12 VSS IC4200 N13 VDD105 IC4200 P14 VDD105 IC4200 B5 TDO IC4200 W19 VSS IC4200 J7 VDD105_S IC4200 L10 VSS IC4200 T3 VSS IC4200 E19 VSS IC4200 W12 DRAM_VREF IC4200 L19 VSS IC4200 A5 TMS IC4211 = M3 A1 IC4211 = B2 VSSQ IC4211 = D1 DQ12 IC4211 = H9 DQ5 IC4211 = H2 VSSQ IC4211 = D9 DQ13 IC4211 = K7 RAS IC4211 = G3 VDDQ IC4211 = H3 DQ3 IC4211 = B8 VSSQ IC4211 = D2 VSSQ IC4211 = C1 VDDQ IC4211 = D3 DQ11 IC4211 = E7 VSSQ IC4211 = J2 VREF IC4211 = C2 DQ9 IC4211 = E2 NC IC4211 = J7 VSSDL IC4211 = L2 BA0 IC4211 = G2 DQ1 IC4211 = R2 A12 IC4211 = N8 A4 IC4211 = C3 VDDQ IC4211 = F7 LDQS IC4200 K14 VDD105 IC4200 AB12 DRAM_CS_N IC4200 L11 VSS IC4200 D4 VSS IC4200 L8 VSS IC4200 W9 VSS IC4200 H9 VDD105 IC4200 A21 P_XB_TX2_P IC4200 D1 P_ZA_CLK_P IC4200 W18 VSS IC4200 U1 DRAM_DQ20 IC4200 H22 P_YA_CLK_N IC4200 G20 VSS IC4200 L21 P_YB_TX0_P IC4200 G3 VSS IC4200 D18 VSS IC4200 G10 VSS IC4200 K16 VSS IC4200 K19 VDDLY25PLL IC4200 L22 P_YB_TX0_N IC4200 A7 GPIO08 IC4200 Y6 DRAM_DQ29 IC4200 AA3 DRAM_DQS2_N IC4200 N8 VSS IC4200 N3 MSCL IC4211 = B3 UDM IC4211 = K3 WE IC4200 B9 GPIO03 IC4211 = F9 DQ7 IC4211 = B9 DQ15 IC4211 = F1 DQ6 IC4211 = M2 A10 IC4211 = L8 CS IC4211 = H1 DQ4 IC4211 = K2 CKE IC4211 = P3 A9 IC4200 U20 VSS IC4211 = C9 VDDQ IC4200 D15 VSS IC4200 T13 VDD105DLL IC4211 = K9 ODT IC4200 AA12 DRAM_ODT IC4200 A4 TDI IC4200 M8 VSS IC4211 = G9 VDDQ IC4211 = D7 DQ10 IC4211 = A2 NC IC4200 K7 VSS105_S IC4200 T15 VDD18 IC4200 A3 TRST_N IC4200 B8 GPIO05 IC4200 T16 VDD105 IC4200 P10 VDD105 IC4200 P1 XOUT IC4200 C5 VSS IC4200 R20 VSS IC4200 A20 P_XB_TX1_N IC4200 W17 VSS IC4200 Y11 DRAM_BA1 IC4200 D20 VSS IC4200 A14 P_XA_TX1_N IC4200 A9 GPIO04 IC4200 B6 RESET_N IC4200 W13 VSS IC4200 P8 VDD105 IC4200 A8 GPIO06 IC4200 D3 VSS IC4200 B2 P_ZA_RX1_N IC4200 J12 VSS IC4200 U4 VSS IC4200 AA8 DRAM_A2 IC4200 C18 VSS IC4200 AA14 DRAM_A7 IC4200 E22 P_YA_TX0_N IC4200 C6 VSS IC4200 D10 VSS IC4200 W16 VSS IC4200 U2 VSS IC4200 C15 VSS IC4200 Y5 DRAM_DQ24 IC4200 N14 VDD105 IC4200 L2 P_ZB_RX3_N IC4200 D17 VSS IC4200 AB21 DRAM_DQ10 IC4200 P19 VSS IC4200 C20 VSS IC4200 R8 VDD105 IC4200 AA4 DRAM_DQS3 IC4200 P20 VSS IC4200 AB1 DRAM_DM2 IC4200 AB4 DRAM_DQS3_N IC4200 D19 VSS IC4200 AB10 DRAM_CK_N IC4200 Y10 DRAM_BA2 IC4200 AB6 DRAM_DQ21 IC4200 W3 DRAM_DQ22 IC4200 K10 VDD105 IC4200 AA16 DRAM_A11 IC4200 M21 P_YB_TX1_P IC4200 H14 VDD105 IC4200 Y21 DRAM_DQ15 IC4200 L14 VSS IC4200 H10 VSS IC4200 B22 P_XB_CLK_N IC4200 J11 VSS IC4200 B19 P_XB_TX0_P IC4200 E21 P_YA_TX0_P IC4200 U3 VSS IC4200 J3 VSS IC4200 Y1 DRAM_DQ30 IC4200 G8 VDD105 IC4200 B10 GPIO01 IC4200 R19 VSS IC4200 R4 VDD105PLL IC4200 K21 P_YA_TX4_P IC4200 A22 P_XB_TX2_N IC4200 E4 VSS IC4200 T11 VSS IC4200 A15 P_XA_TX2_N IC4200 P9 VDD105 IC4200 K12 VSS IC4200 AA6 DRAM_DQ23 IC4200 AA15 DRAM_A10 IC4200 G21 P_YA_TX2_P IC4200 L9 VSS IC4200 P12 VSS IC4200 P3 GPIO10 IC4200 M16 VSS IC4200 G7 VDD105 IC4200 AA13 DRAM_WE_N IC4200 J14 VDD105 IC4200 P4 VDD33OSC IC4200 T8 VDD18 IC4200 H7 VDD105 IC4200 A16 P_XA_CLK_N IC4200 R10 VSS IC4200 C2 P_ZA_RX2_N IC4200 W1 DRAM_DQ28 IC4200 M20 VSS IC4200 P16 VDD18 IC4200 J10 VDD105 IC4200 AB2 DRAM_DQ16 IC4200 Y9 DRAM_A3 IC4200 R22 P_YB_TX3_N IC4200 B4 TCLK IC4200 K8 VSS IC4200 AA18 DRAM_DQ9 IC4200 K1 P_ZB_CLK_P IC4200 W15 VSS IC4200 M14 VSS IC4200 A6 TM IC4200 C19 VSS IC4200 C9 VSS IC4200 D11 VSS IC4200 B13 P_XA_TX0_P IC4200 R11 VSS IC4200 W2 DRAM_DQ25 IC4200 V3 DRAM_DQ19 IC4200 B12 H IC4200 AA5 DRAM_DQ31 IC4200 G9 VDD105 IC4200 E20 VSS IC4200 J16 VDD105 IC4200 F1 P_ZA_RX4_P IC4200 D22 P_XB_TX4_N IC4200 B16 P_XA_CLK_P IC4200 D7 VDD33 IC4200 W20 DRAM_DQ8 IC4200 J1 P_ZB_RX2_P IC4200 B18 P_XA_TX4_P IC4200 N2 SSDA IC4200 J22 P_YA_TX3_N IC4200 M10 VSS IC4200 K11 VSS IC4200 J13 VDD105 IC4200 P7 VDD18 IC4200 Y13 DRAM_CAS_N IC4200 R7 VDD105 IC4200 H4 VDDLZ25PLL IC4200 AA22 DRAM_DQS1_N IC4200 D13 VSS IC4200 T20 VSS IC4200 K9 VDD105 IC4200 V4 VSS IC4200 A13 P_XA_TX0_N IC4200 H16 VDD105 IC4200 Y7 DRAM_A6 IC4200 K15 VSS IC4200 AA2 DRAM_DQ18 IC4200 W7 DRAM_TEST_D2 IC4200 G19 VSS IC4200 P2 GPIO09 IC4200 T22 P_YB_TX4_N IC4200 H3 VSS IC4200 B11 PWM IC4200 T14 VDD105 IC4200 W14 VSS IC4200 C1 P_ZA_RX2_P IC4200 P11 VSS IC4200 M9 VSS IC4200 L20 VSS IC4200 K22 P_YA_TX4_N IC4200 Y12 DRAM_CKE IC4200 M12 VSS IC4200 K4 VSS IC4200 H1 P_ZB_RX1_P IC4200 AA7 DRAM_A5 IC4200 G14 VDD105 IC4200 Y8 DRAM_A4 IC4200 R21 P_YB_TX3_P IC4200 M4 VDD33 IC4200 C21 P_XB_TX3_P IC4200 V19 VSS IC4200 AA20 DRAM_DQ3 IC4200 G2 P_ZB_RX0_N IC4200 C17 VSS IC4200 H11 VSS IC4200 AA17 DRAM_DQ6 IC4200 C10 VSS IC4200 D5 VSS IC4200 Y18 DRAM_DQ12 IC4200 N12 VSS IC4200 AB14 DRAM_RAS_N IC4200 Y4 DRAM_DQ26 IC4200 B7 GPIO07 IC4200 C14 VSS IC4200 W6 DRAM_TEST_D1 IC4200 A2 P_ZA_RX0_N IC4200 Y20 DRAM_DM0 IC4200 K13 VDD105 IC4200 W8 VSS IC4200 G11 VSS IC4200 Y2 DRAM_DM3 IC4200 R15 VDD105 IC4200 N9 VDD105 IC4200 D14 VDDLX25PLL IC4200 T4 VSS105PLL IC4200 AA9 DRAM_A0 IC4200 J20 VSS IC4200 R16 VDD105 IC4200 R14 VDD105 IC4200 H15 VDD105 IC4200 H8 VDD105 IC4200 J8 VDD105 IC4200 L13 VSS IC4200 R12 VSS IC4200 AB20 DRAM_DQS0 IC4200 P22 P_YB_CLK_N IC4200 R1 XIN IC4200 C11 VSS IC4200 C16 VSS IC4200 F4 VSS IC4200 U22 VSS IC4200 R3 GPIO12 IC4200 C12 VSS IC4200 M19 VDDLY25 IC4200 L1 P_ZB_RX3_P IC4200 V2 DRAM_DQ17 IC4200 G15 VDD105 IC4200 W4 VSS IC4200 L15 VSS IC4200 T2 VSS IC4200 AA1 DRAM_DQ27 IC4200 F2 P_ZA_RX4_N IC4200 H13 VSS IC4200 L7 VSS IC4200 H21 P_YA_CLK_P IC4200 Y15 DRAM_A9 IC4200 T7 VDD105 IC4200 F21 P_YA_TX1_P IC4200 G4 VSS IC4200 T9 VDD105MPLL IC4200 N4 VSS33OSC IC4200 B1 P_ZA_RX1_P C0DBGYY00892 IC4206 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC4205 TVRR945AB 1 NC 2 E1 3 E2 4 Vss 5 SDA 6 SCL 7 /WC 8 Vcc C0DBGFF00011 IC4207 1 Vo 2 NC 3 GND 4 Cn Cont 5 Sub 6 Vin 7 L4217 J0JHC0000045 L4213 J0JHC0000045 L4209 J0JHC0000045 L4208 J0JHC0000045 L4218 J0JHC0000045 L4211 J0JHC0000045 L4212 J0JHC0000045 L4210 J0JHC0000045 FRC_DDR_1.8V FRC_DDR_1.8V FRC_DDR_1.8V FRC_A1.05V FRC_DDR_1.8V FRC_D1.05V FRC_2.5V FRC_3.3V VJ4229 VJ4228 R4232 TP4209 TP4234 TP4235 TP4208 TP4206 TP4212 TP4210 TP4207 TP4233 FRCS_SCL PG-HQ_XRST PD_XDTR0 MIHO_OUT_TE2P MIHO_OUT_TD1P MIHO_OUT_TCLK1P MIHO_OUT_TCLK2P MIHO_OUT_TD1N MIHO_OUT_TE1N MIHO_OUT_TE1P MIHO_OUT_TCLK2N MIHO_OUT_TB1P MIHO_OUT_TD2N MIHO_OUT_TC1N MIHO_OUT_TC1P MIHO_OUT_TD2P MIHO_OUT_TA1P MIHO_OUT_TE2N MIHO_OUT_TA2N MIHO_OUT_TA1N MIHO_OUT_TA2P MIHO_OUT_TC2N MIHO_OUT_TB2N MIHO_OUT_TB2P MIHO_OUT_TCLK1N MIHO_OUT_TB1N MIHO_OUT_TC2P RXOCN RXECKP RXOCKN RXEBP RXOCP RXOAN RXECN RXEAN RXOBP RXEDN RXEEN RXEBN RXECKN RXODP RXOAP RXEEP RXOBN RXOCKP RXOEN RXOEP RXECP RXEAP RXEDP RXODN FRCS_TDI FRCS_TRST FRCS_TDO FRCS_TCK FRCS_SDA FRCS_TMS R4341 33 R4327 33 R4333 33 R4336 33 22 R4257 R4330 33 R4324 33 R4339 33 R4245 100 R4244 100 R4246 100 R4249 100 R4222 10k R4229 1k R4252 100 R4313 1k R4346 33 R4322 33 R4325 33 R4345 1k R4328 33 R4331 33 R4334 33 R4337 33 R4317 10k R4248 100 22 R4256 R4320 33 R4314 1k R4247 100 68 R4260 R4242 100 R4321 33 R4250 100 R4316 10k 68 R4342 R4347 33 R4323 33 R4344 1k R4326 33 R4329 33 R4332 33 R4335 33 R4338 33 R4258 2.2k R4261 100 R4340 33 R4241 100 R4262 2.2k R4251 100 R4259 2.2k R4318 330 R4315 10k R4243 100 X4200 H0J270500113 27MHz 2nd pixel TD- A15 1st pixel TB- JEIDA 10bit Polymer 1st pixel TA+ FRC_EEPROM_WP Zport(input) 1st pixel TCLK- 2nd pixel TB- TDO 7mA 2nd pixel TCLK+ 1st pixel TC- 13mA 1st pixel TCLK+ TCK TMS 175mA 1st pixel TE+ 2nd pixel TC+ 2nd pixel TA+ 2.87A Xport(Out1st) 2nd pixel TE- 1st pixel TD- A13 1st pixel TC+ 1st pixel TE- A14 CERAMIC 60mA 2nd pixel TC- 2nd pixel TD+ TRST 2nd pixel TCLK- TDI GPIO port 2nd pixel TB+ 1st pixel TD+ 1st pixel TA- 1st pixel TB+ JTAG Yport(Out2nd) 2nd pixel TE+ 2nd pixel TA- 9mA ! A-BOARD TNPH0899DC (17/26) FRCS EEPROM FRC2.5V FRC_A1.05V TO 1/26 TO 1/26 TO 7/26 TO 23/26 TO 18/26 TO 18/26 C1AB00003310 FRCS IC4200 C3ABSG000060 IC4211 DDR2 69 TH-P46GT20C 11.23.A 电路板 （18/26）和 V 电路板线路图 159 161 156 155 160 157 158 154 162 TH-P46GT20C A-Board (18/26) and V-Board Schematic Diagram TH-P46GT20C A-Board (18/26) and V-Board Schematic Diagram S P P P (FIN) S P S P P + S (FIN) S P S + P RXEEN LED-SOS RA_2- IC5800 U3 TB5N VJ5821 MIHO_OUT_TA2P IC5800 B12 RCLK1N RE_1- MIHO_OUT_TCLK1P IC5814 C0ABBA000201 1 A_OUTPUT 2 A-INPUT 3 A+INPUT 4 GND 5 B+INPUT 6 B-INPUT 7 B_OUTPUT 8 V+ C6047 22u 6.3V MIHO_OUT_TCLK2P R5959 24k 1% VJ5806 C6042 25V 10u VJ5807 RE_2+ RXODN LED5V_1 Q5815 DSC200100L IC5800 Y26 CHANGE IC5800 AA3 RD3P 1% R5869 6.8k TP5838 R2501 5.6 IC5800 C12 RD1N TP5808 RXECKN IC5800 R1 TCLK5P RXEAP MIHO_OUT_TC1P IC5800 V3 RB3N IC5800 T3 TB5P R5888 10k RXODP RD_1+ IC5800 AB2 RA4N 1% R5915 6.34k C6039 25V 10u C6045 22u 6.3V RD_2- A20 1 2 3 4 5 6 7 8 9 PA5800 K5H4022A0031 MIHO2_3.3V C6048 22u 6.3V RA_1- LED5V_1 R5957 10 S_15V C6032 6800p 25V LED_6V VJ5800 RA_2+ C6021 0.47u 10V IC5800 Y1 RCLK3P C5985 25V 10u C6022 0.47u 10V ZA2500 K4CC01000001 IC5800 AB1 RA4P MIHO_OUT_TE2N L5823 G1C3R3Z00005 TP5840 R5918 33k 1% RC_2- IC5800 U2 TA5N IC5800 AA1 RE3N IC5800 AA26 IR_R C5803 0.1u 16V 1/2W R5875 3.3 IC5800 N1 TA6P C0DBEJG00001 IC5809 1 CTL 2 Vcc 4 OUT 5 C 3 GND RD_1- IC5800 B9 RC2P RXECN RXEAN IC5800 K1 TE6N IC5800 B8 RCLK2N RXOCKP MIHO_OUT_TB2N 1/2W R5871 4.7 D2500 B3EB00000048 C6003 0.47u 10V C6038 10u 25V RC_1+ L5822 G1C100MA0077 IC5800 R3 TD5N MIHO_OUT_TE1P IC5800 U1 TA5P IC5800 K2 TE6P MIHO_OUT_TA1N C5994 10u 25V C5989 50V 47p IC5800 AE1 RE4N MIHO_OUT_TB1N IC5800 A7 RE2N C6034 1u 16V IC5800 V1 RA3P R5921 33k 1% IC5800 AD1 RCLK4P TP5835 RB_1+ R5914 56k 1% R5955 10 RXEBP RXOEN 1% R5868 22k MIHO_OUT_TB1P R5956 IC5800 AD3 RD4N IC5800 AC3 RB4P MIHO_OUT_TA1P RCLK_2- 1/2W R5872 3.3 TP5832 IC5800 R2 TCLK5N IC5800 W2 RC3P LED_6V IC5800 A13 RC1N IC5800 AD2 RCLK4N C6046 22u 6.3V RXOCN IC5808 C0DBAYY00727 1 GND 2 SW 3 BS 4 EN/SYNC 5 FB 6 PG 7 VCC 8 IN R5950 100k C6043 25V 10u Q5814 B1CFND000005 IC5800 A10 RA2P 1% R5563 6.8k RE_2- C6006 10V 10u IC5800 A8 RCLK2P FP3.3V C6020 0.22u 10V IC5800 C13 RB1P VJ5813 IC5800 C11 RD1P V1 1 2 3 4 C0DBAYY00715 IC5815 1 DRVH1 2 VBST1 3 EN1 4 VO1 5 VFB1 6 GND 7 SS1 8 VFB2 9 VO2 10 EN2 11 VBST2 12 DRVH2 13 SW2 14 DRVL2 15 PGND2 16 TRIP2 17 SS2 18 V5FILT 19 VREG5 20 VIN 21 TRIP1 22 PGND1 23 DRVL1 24 SW1 RXECP LED5V_2 RCLK_2+ RB_1- RXEDP ZA2501 K4CC01000001 VJ5822 IC5800 B10 RA2N MIHO_OUT_TCLK2N IC5800 W3 RB3P RXOBP IC5800 AA24 VESA IC5800 M2 TC6P C6000 1u 16V RXEEP C6033 4.7u 10V IC5800 A11 RE1N RXOEP C5997 0.1u 50V IC5800 B13 RC1P IC5800 A9 RC2N IC5800 T2 TC5P IC5800 AC1 RC4N R5881 100 IC5800 C9 RB2P IC5800 P1 TE5N IC5800 M1 TC6N L5824 G1C2R2M00022 IC5800 W1 RC3N IC5800 N3 TB6N IC5800 C10 RB2N ZA2500 K4CC01000001 IC5800 L2 TCLK6N RXEBN FP3.3V R2500 5.6 MIHO_OUT_TD2P RB_2- L5821 J0JGC0000020 IC5800 P3 TD5P Q5816 DSC200100L IC5800 Y3 RD3N RXECKP VJ2500 Q5822 B1CFRD000048 IC5800 P2 TE5P C5998 1u 16V D5802 B0JCPG000030 C6049 22u 6.3V RD_2+ VJ2500 IC5800 B14 RA1N MIHO_OUT_TB2P TP5809 IC5800 B7 RE2P IC5800 AB3 RB4N 1/2W R5874 4.7 IC5800 C8 RD2N MIHO_OUT_TC2P IC5800 AE2 RE4P C6018 10V 220u IC5800 B11 RE1P IC5800 M3 TB6P Q5823 B1CFRD000048 IC5800 AA2 RE3P VJ5823 MIHO_OUT_TD2N R5880 100 IC5800 AE3 RD4P IC5800 Y2 RCLK3N R5887 10k R5913 100k LED-SOS RCLK_1+ MIHO_OUT_TCLK1N IC5800 L3 TD6N R5953 3.6k 1% RXOCP C6037 0.1u 16V RCLK_1- RC_2+ C6036 0.1u 16V IC5800 A14 RA1P TP5807 MIHO_OUT_TE1N R5911 22 C0CBADB00038 IC5813 4 NC 3 VOUT 1 VSS 2 VIN Q5821 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C0DBEJG00001 IC5810 1 CTL 2 Vcc 4 OUT 5 C 3 GND R5954 1k 1% VJ5820 C5996 0.1u 50V MIHO_OUT_TC2N MIHO2_1.2V RXOAP L5813 G1C100MA0416 LED_6V VJ5801 D2502 B3EB00000048 C6004 0.47u 10V TP5830 C5995 0.1u 50V IC5800 AC2 RC4P R5951 1.1k 1% MIHO_OUT_TA2N RXOBN D2500 B3EB00000048 R5958 C6019 0.22u 10V C6009 10V 10u V1 1 2 3 4 IC5800 C7 RD2P RA_1+ C5988 50V 0.1u C5987 25V 10u ZA2501 K4CC01000001 C6017 10V 220u LED_6V D2501 B3EB00000048 R2500 5.6 IC5800 N2 TA6N RXOAN IC5800 AA25 IR_L SG-PD4H_PANEL_MAIN_ON IC5800 V2 RA3N TP5836 1% R5558 22k VJ5816 FP1.2V Q5813 B1CFND000005 D2502 B3EB00000048 IC5800 K3 TD6P C6044 22u 6.3V C6035 1800p 25V IC5800 A12 RCLK1P TP5837 R5917 150k 1% TP5834 D2501 B3EB00000048 RXOCKN IC5800 T1 TC5N RB_2+ RE_1+ MIHO_OUT_TC1N IC5800 L1 TCLK6P F15V LED5V_2 TP5841 R5960 20k 1% R5919 150k 1% R2501 5.6 RXEDN TP5831 RC_1- IC5800 C14 RB1N TP5833 MIHO_OUT_TD1P MIHO_OUT_TD1N MIHO_OUT_TE2P R5952 1.74k 1% FP1.2V RD_O- RA_E-(MSB) RE_E-(LSB) RE_O-(LSB) RC_E+ RCLK_O- H:ON RCLK_E- RD_E+ RD_O+ RC_O+ RC_E- L:OFF RB_E+ H:ON RCLK_E+ RA_E+(MSB) L:OFF RD_E- RE_O+(LSB) RE_E+(LSB) IR_L LED_7V FP3.3V/1.2V LED_5V_2 LED_5V_1 5V LED DRIVE CONTROL TO 7,21/26 TO 7,21/26 TO 7,15/26 LED_6V IR_L 3D EYEWEAR FPGA->MIHO2 MIHO2->FRC->MIHO2 RB_O+ RA_O-(MSB) RB_E- RC_O- RA_O+(MSB) LED DRIVE CIRCUIT NC RB_O- ! GND RCLK_O+ GND TRANSMITTER NC V-BOARD TXN/V1MAUC TRANSMITTER V-BOARD TXN/V1MAUC ! 3D EYEWEAR LED_7V ! A-BOARD TNPH0899DC (18/26) MIHO2-3D 70 TH-P46GT20C 11.24.A 电路板 （19/26）线路图 171 165 169 167 170 163 166 164 168 TH-P46GT20C A-Board (19/26) Schematic Diagram TH-P46GT20C A-Board (19/26) Schematic Diagram S S S S S S P P P P P P P C5928 0.1u 16V C5936 0.1u 16V C5951 0.1u 16V C5890 10V 1u C5949 1000p 50V C5917 0.1u 16V C5982 1000p 50V C5986 1000p 50V C5947 1000p 50V C5950 0.1u 16V C5927 0.1u 16V C5912 0.1u 16V C5924 0.1u 16V C5969 1000p 50V C5940 0.1u 16V C5920 0.1u 16V C5945 0.1u 16V C5967 1000p 50V C5915 0.1u 16V C5897 1000p 50V C5953 0.1u 16V C5931 0.1u 16V C5946 0.1u 16V C5909 0.1u 16V C5899 4.7u 6.3V C5905 22u 4V C5956 10u 10V C5973 1000p 50V C5944 0.1u 16V C5911 0.1u 16V C5974 1000p 50V C5942 0.1u 16V C5910 0.1u 16V C5913 0.1u 16V C5935 0.1u 16V C5891 10V 1u C5934 0.1u 16V C5916 0.1u 16V C5978 1000p 50V C5964 1000p 50V C5948 0.1u 16V C5932 0.1u 16V C5908 0.1u 16V C5984 0.1u 16V C5939 0.1u 16V C5922 0.1u 16V C5954 0.1u 16V C5943 0.1u 16V C5907 0.1u 16V C5898 1000p 50V C5914 0.1u 16V C5952 0.1u 16V C5930 0.1u 16V C5971 1000p 50V C5918 0.1u 16V C5800 16V 0.1u C5801 50V 10p C5802 50V 10p IC5800 A1 GND IC5800 D10 GND IC5800 T24 TCK IC5800 J2 GND IC5800 AE14 TE2P IC5800 D19 HDBO0 IC5800 E26 HDBIN3 IC5800 A3 GIN0 IC5800 AF8 TA4P IC5800 A17 HDBO5 IC5800 A24 HDGO6 IC5800 AF21 TA1P IC5800 H5 PLL2AGND IC5800 M25 HDRIN3 IC5800 W23 THMODE IC5800 AD4 GND IC5800 L17 GND IC5800 G22 GND IC5800 AE20 TC1P IC5800 AD5 TD4P IC5800 AB5 GND IC5800 B1 BIN7 IC5800 AF17 TA2P IC5800 AF22 GND IC5800 C2 BIN6 IC5800 Y22 GND IC5800 R11 VDD12 IC5800 AC26 XTALIN IC5800 G25 HDBIN8 IC5800 M16 VDD12 IC5800 AF1 GND IC5800 AC22 VDD33 IC5800 M10 VDD12 IC5800 K11 GND IC5800 K25 HDGIN7 IC5800 M13 GND IC5800 D11 GND IC5800 F23 GND IC5800 F2 RIN5 IC5800 L23 GND IC5800 H22 GND IC5800 E19 DGND IC5800 T26 TMS IC5800 N12 GND IC5800 AD15 TD2N IC5800 AD16 TB2P IC5800 AB4 RXVDDQ IC5800 T23 NECTEST2 IC5800 D18 GND IC5800 F25 HDBIN5 IC5800 AF11 TC3N IC5800 W5 RXPLL4AGND IC5800 AF5 TE4N IC5800 E6 GND IC5800 B19 HDBO7 IC5800 D8 RXVDDQ IC5800 AC11 TXVDDQ IC5800 P4 TXVDDQ IC5800 AB23 GND IC5800 E3 BIN0 IC5800 AB24 NRST IC5800 P14 GND IC5800 M22 PLL4AVDD IC5800 AD20 TB1P IC5800 D24 HDENIN IC5800 M12 GND IC5800 AB25 GND IC5800 L22 GND IC5800 D2 BIN3 IC5800 P22 PLL1AVDD IC5800 E1 RIN8 IC5800 T10 GND IC5800 M23 PLL4AGND IC5800 AD8 TB4N IC5800 E25 HDBIN2 IC5800 N24 HDRIN5 IC5800 B15 GND IC5800 H23 GND IC5800 AB15 TXPLL12AGND IC5800 AE17 TA2N IC5800 C23 HDENO IC5800 T5 RXPLL3AGND IC5800 G3 RIN2 IC5800 A18 HDRO2 IC5800 E2 RIN9 IC5800 E12 DVCC IC5800 C20 HDBO2 IC5800 N25 HDRIN6 IC5800 AC23 GND IC5800 AC17 GND IC5800 R4 GND IC5800 H24 HDGIN0 IC5800 AD18 TD1P IC5800 E16 VCP33 IC5800 AB7 GND IC5800 R14 GND IC5800 AB17 VCP33 IC5800 T12 VDD12 IC5800 T4 GND IC5800 B16 HDRO1 IC5800 AF12 TA3P IC5800 E8 RXPLL2AGND IC5800 AE7 TC4P IC5800 A22 HDGO2 IC5800 J23 GND IC5800 R26 GND IC5800 J24 HDGIN3 IC5800 AF7 TC4N IC5800 AE16 TC2P IC5800 U13 VDD12 IC5800 W22 GND IC5800 U25 SCL IC5800 AE11 TC3P IC5800 AB6 VDD33 IC5800 A25 HDVO IC5800 AD12 TB3N IC5800 V26 FLSCK IC5800 E15 DGND IC5800 E18 DGND IC5800 U26 GND IC5800 K17 GND IC5800 L4 GND IC5800 AF18 TE1N IC5800 C18 HDRO4 IC5800 AE26 GND IC5800 AF3 GND IC5800 N11 VDD12 IC5800 F24 HDBIN4 IC5800 AB18 DGND IC5800 H4 GND IC5800 L26 HDRIN1 IC5800 F6 GND IC5800 W24 FLSIO3 IC5800 AE10 TCLK3N IC5800 U23 NECTEST3 IC5800 Y23 TEST IC5800 L24 HDGIN9 IC5800 AB14 VCP33 IC5800 AB19 DGND IC5800 AB11 DVCC IC5800 AF13 GND IC5800 P5 TXPLL56AVDD IC5800 P23 GND IC5800 K15 VDD12 IC5800 N14 GND IC5800 D15 GND IC5800 M5 GND IC5800 K16 GND IC5800 AC18 TXVDDQ IC5800 AB8 TXPLL34AGND IC5800 AD6 TD4N IC5800 N13 GND IC5800 P26 HDCLKIN IC5800 B24 HDGO7 IC5800 C26 GND IC5800 AF19 TCLK1P IC5800 N16 VDD12 IC5800 G1 RIN0 IC5800 AC25 GND IC5800 AF4 GND IC5800 Y5 GND IC5800 E13 DVCC IC5800 L10 GND IC5800 D26 HDBIN0 IC5800 AE5 TE4P IC5800 D25 HDHIN IC5800 AD25 GND IC5800 U16 GND IC5800 N15 GND IC5800 N10 VDD12 IC5800 C19 HDRO6 IC5800 H1 CLKIN IC5800 K24 HDGIN6 IC5800 D6 HIN IC5800 K5 PLL3AGND IC5800 T15 VDD12 IC5800 AF9 TE3N IC5800 E5 GND IC5800 AE12 TA3N IC5800 AD10 TD3N IC5800 F3 RIN6 IC5800 M15 GND IC5800 C16 HDBO4 IC5800 D5 GIN4 IC5800 J25 HDGIN4 IC5800 AE6 TCLK4N IC5800 AA5 GND IC5800 G24 HDBIN7 IC5800 U17 GND IC5800 E21 DVCC IC5800 R13 GND IC5800 B22 HDHO IC5800 L14 VDD12 IC5800 K10 GND IC5800 AF23 GND IC5800 AB26 GND IC5800 R25 TDI IC5800 Y24 TEN IC5800 AA4 GND IC5800 P24 HDRIN8 IC5800 N22 GND IC5800 AA23 TMC2 IC5800 R12 GND IC5800 W26 FLSIO1 IC5800 K23 GND IC5800 N23 GND IC5800 AD21 TB1N IC5800 E9 RXPLL2AVDD IC5800 AE21 TA1N IC5800 AC20 GND IC5800 R23 NECTEST1 IC5800 H2 OSDYS IC5800 AB12 DGND IC5800 AF10 TCLK3P IC5800 K26 HDGIN8 IC5800 M14 GND IC5800 AE8 TA4N IC5800 A21 HDBO3 IC5800 AD17 TB2N IC5800 D23 GND IC5800 L15 VDD12 IC5800 C21 HDGO1 IC5800 T25 TRST IC5800 J26 HDGIN5 IC5800 B25 GND IC5800 AE18 TE1P IC5800 T11 GND IC5800 C4 GIN1 IC5800 AC5 GND IC5800 U15 VDD12 IC5800 AD22 GND IC5800 E10 RXPLL1AVDD IC5800 AE22 GND IC5800 P25 HDRIN9 IC5800 V5 RXPLL4AVDD IC5800 G26 HDBIN9 IC5800 G5 VDD33 IC5800 U4 GND IC5800 G23 HDVIN IC5800 Y4 GND IC5800 P12 GND IC5800 J1 GND IC5800 AF20 TC1N IC5800 F5 VDD33 IC5800 A15 GND IC5800 AB10 DVCC IC5800 AD23 GND IC5800 W25 FLSIO2 IC5800 AA22 GND IC5800 AE24 GND IC5800 P10 VDD12 IC5800 D14 GND IC5800 AD14 TD2P IC5800 L5 PLL3AVDD IC5800 AD13 GND IC5800 AC8 TXVDDQ IC5800 AE15 TCLK2N IC5800 B23 HDGO5 IC5800 AE4 GND IC5800 B6 GIN9 IC5800 F4 RIN7 IC5800 E22 VDD33 IC5800 L11 GND IC5800 AD19 TD1N IC5800 AF15 TCLK2P IC5800 L13 VDD12 IC5800 L16 GND IC5800 T22 GND IC5800 M4 GND IC5800 AC21 GND IC5800 AB9 TXPLL34AVDD IC5800 AD24 GND IC5800 K12 VDD12 IC5800 K14 VDD12 IC5800 AD7 TB4P IC5800 R22 PLL1AGND IC5800 E23 GND IC5800 R17 VDD12 IC5800 AF16 TC2N IC5800 N17 VDD12 IC5800 A26 GND IC5800 U10 GND IC5800 AE23 GND IC5800 A23 HDGO4 IC5800 G4 RIN3 IC5800 K4 TXVDDQ IC5800 J4 TXVDDQ IC5800 R5 GND IC5800 U12 VDD12 IC5800 C17 HDBO6 IC5800 A6 DEIN IC5800 A20 HDRO7 IC5800 A16 HDRO0 IC5800 R24 TDO IC5800 AC13 GND IC5800 U22 VDD33 IC5800 M11 VDD12 IC5800 M17 VDD12 IC5800 H25 HDGIN1 IC5800 P11 VDD12 IC5800 M24 HDRIN2 IC5800 B3 BIN9 IC5800 P17 VDD12 IC5800 J22 VDD33 IC5800 AD9 TD3P IC5800 AC16 GND IC5800 M26 HDRIN4 IC5800 AB22 VDD33 IC5800 A5 GIN7 IC5800 AC10 GND IC5800 L12 VDD12 IC5800 AF24 GND IC5800 A19 HDRO5 IC5800 AD26 XTALOUT IC5800 AB20 DVCC IC5800 AF6 TCLK4P IC5800 B21 HDGO0 IC5800 AB13 DGND IC5800 D12 RXVDDQ IC5800 C1 BIN5 IC5800 F1 RIN4 IC5800 V24 FLSIO0 IC5800 V23 TMC1 IC5800 R16 VDD12 IC5800 V4 RXVDDQ IC5800 AC19 TXVDDQ IC5800 C15 GND IC5800 J3 GND IC5800 D3 BIN4 IC5800 AB21 DVCC IC5800 AF25 XIRQ IC5800 U5 RXPLL3AVDD IC5800 AE13 GND IC5800 C5 GIN5 IC5800 C22 HDGO3 IC5800 B20 HDBO1 IC5800 E24 HDBIN1 IC5800 W4 RXVDDQ IC5800 AF14 TE2N IC5800 U24 SDA IC5800 AC7 TXVDDQ IC5800 T13 VDD12 IC5800 T14 VDD12 IC5800 T16 GND IC5800 D13 RXVDDQ IC5800 AE19 TCLK1N IC5800 D20 GND IC5800 AC9 GND IC5800 E17 VCP33 IC5800 B18 HDRO3 IC5800 D4 GND IC5800 AE9 TE3P IC5800 U11 GND IC5800 P15 GND IC5800 D9 RXVDDQ IC5800 F26 HDBIN6 IC5800 AC15 TXVDDQ IC5800 B2 GND IC5800 E11 RXPLL1AGND IC5800 D21 GND IC5800 Y25 STB IC5800 K22 VDD33 IC5800 N4 TXVDDQ IC5800 AE25 GND IC5800 P13 GND IC5800 E20 DVCC IC5800 AC6 VDD33 IC5800 H3 GND IC5800 B17 HDCLKO IC5800 J5 PLL2AVDD IC5800 C24 GND IC5800 R15 GND IC5800 D7 GND IC5800 AC14 TXVDDQ IC5800 H26 HDGIN2 IC5800 D22 VDD33 IC5800 V22 VDD33 IC5800 D16 VDD33 IC5800 T17 GND IC5800 E14 DGND IC5800 AF2 GND IC5800 P16 VDD12 IC5800 N26 HDRIN7 IC5800 C3 GND IC5800 D17 VDD33 IC5800 C25 GND IC5800 AD11 TB3P IC5800 V25 FLNCS IC5800 U14 VDD12 IC5800 G2 RIN1 IC5800 B4 GIN2 IC5800 N5 TXPLL56AGND IC5800 AC24 GND IC5800 C6 GIN8 IC5800 AF26 GND IC5800 R10 VDD12 IC5800 K13 VDD12 IC5800 E7 GND IC5800 B26 GND IC5800 A2 BIN8 IC5800 F22 GND IC5800 B5 GIN6 IC5800 AB16 TXPLL12AVDD IC5800 A4 GIN3 IC5800 L25 HDRIN0 IC5800 AC12 TXVDDQ IC5800 AC4 RXVDDQ IC5800 E4 BIN1 IC5800 D1 BIN2 C0DBGYY00905 IC5805 4 VDD 3 VOUT 1 CE 2 VSS IC5801 TVRR580AA 1 CS# 2 SO/SIO1 3 WP#/SIO2 4 GND 5 SI/SIO0 6 SCLK 7 NC/SIO3 8 VCC L5802 J0JHC0000045 L5818 J0JHC0000045 L5800 J0JHC0000045 L5804 J0JHC0000045 L5816 J0JHC0000045 L5810 J0JHC0000045 L5803 J0JHC0000045 L5815 J0JHC0000045 L5817 J0JHC0000045 MIHO2_3.3V MIHO2_3.3V MIHO2_3.3V MIHO2_3.3V MIHO2_1.2V R5802 R5803 R5800 R5839 R5801 R5840 VJ5809 VJ5810 VJ5815 VJ5811 VJ5812 VJ5814 VJ5808 TP5839 TP5802 TP5801 TP5800 TP5803 RIGHT_1ST_PIX_TC+ LEFT_2ND_PIX_TB- LEFT_2ND_PIX_TC- RIGHT_2ND_PIX_TCLK+ RIGHT_1ST_PIX_TA- RIGHT_1ST_PIX_TC- LEFT_1ST_PIX_TC+ RIGHT_1ST_PIX_TE+ RIGHT_2ND_PIX_TA+ LEFT_1ST_PIX_TA- RIGHT_2ND_PIX_TB+ LEFT_2ND_PIX_TCLK+ RIGHT_2ND_PIX_TE- LEFT_1ST_PIX_TD+ LEFT_1ST_PIX_TC- RIGHT_1ST_PIX_TA+ LEFT_1ST_PIX_TCLK- LEFT_2ND_PIX_TB+ RIGHT_2ND_PIX_TA- LEFT_2ND_PIX_TCLK- RIGHT_2ND_PIX_TC- LEFT_2ND_PIX_TA+ LEFT_1ST_PIX_TB- LEFT_2ND_PIX_TD+ LEFT_1ST_PIX_TB+ RIGHT_1ST_PIX_TD- LEFT_1ST_PIX_TA+ RIGHT_2ND_PIX_TB- RIGHT_1ST_PIX_TB- LEFT_2ND_PIX_TE+ LEFT_2ND_PIX_TA- LEFT_1ST_PIX_TD- RIGHT_1ST_PIX_TE- RIGHT_2ND_PIX_TD- RIGHT_2ND_PIX_TCLK- RIGHT_2ND_PIX_TE+ LEFT_1ST_PIX_TE- LEFT_1ST_PIX_TE+ RIGHT_2ND_PIX_TD+ LEFT_2ND_PIX_TE- LEFT_2ND_PIX_TD- RIGHT_1ST_PIX_TCLK+ RIGHT_1ST_PIX_TD+ LEFT_1ST_PIX_TCLK+ RIGHT_1ST_PIX_TCLK- RIGHT_1ST_PIX_TB+ RIGHT_2ND_PIX_TC+ LEFT_2ND_PIX_TC+ MIHO2_SCL MIHO2_TDO PD_LOSDO10 FLNCS_FP MIHO2_TDI FLSIO1_FP FLSCL_FP MIHO2_TCK MIHO2_SDA MIHO2_TMS PD_LOSDO0 FLSIO0_FP MIHO2_TRST R5863 22k R5826 47 R5865 22k R5827 0 R5864 22k R5833 470 R5830 47 R5964 4.7k R5965 4.7k R5829 47 R5828 22k X5800 H0J270500120 27MHz NOUSE SERIAL FLASH JTAG X’TAL RESET IIC MIHO2_STB to FRCS from LDA2 from FRCS MIHO2-GND MIHO2-POWER MIHO2->PD4 ! A-BOARD TNPH0899DC (19/26) MIHO2-3D TO 23/26 TO 6,23/26 TO 20/26 TO 15/26 FLASH MEMORY TO 20/26 IC5800 C1AB00003253 MIHO2-3D TO 1/26 71 TH-P46GT20C 11.25.A 电路板 （20/26）线路图 180 174 178 176 179 172 175 173 177 TH-P46GT20C A-Board (20/26) Schematic Diagram TH-P46GT20C A-Board (20/26) Schematic Diagram S S P S S S S S S C7007 16V 0.1u C7026 10V 1u C7010 16V 0.1u C7014 16V 0.1u C7012 16V 0.1u C7081 0.1u 16V C7065 16V 0.1u C7082 16V 0.1u C7001 10u 10V C7066 16V 0.1u C7083 10V 1u C7004 16V 0.1u C7013 16V 0.1u C7073 16V 0.1u C7067 16V 0.1u C7049 10V 1u C7009 16V 0.1u C7002 10V 1u C7011 10V 1u C7037 1000p 50V C7029 16V 0.1u C7069 16V 0.1u C7072 16V 0.1u C7062 10u 10V C7038 10V 1u C7076 16V 0.1u C7008 10V 1u C7079 0.1u 16V C7003 16V 0.1u C7070 16V 0.1u C7071 16V 0.1u C7036 16V 0.022u C7068 16V 0.1u C7006 16V 0.1u C7077 10p 50V C7016 10V 1u C7074 16V 0.1u C7058 16V 0.1u C7063 10V 1u C7043 16V 0.1u C7075 16V 0.1u C7018 16V 0.1u C7005 10V 1u C7064 16V 0.1u C7015 10u 10V C7078 50V 1000p C0EBD0000221 IC7006 4 OUT 3 Cd 1 GND 2 Vdd C0JBAB000722 IC7003 1 NC 2 IN A 3 GND 5 VCC 4 OUT Y C0JBAB000722 IC7005 1 NC 2 IN A 3 GND 5 VCC 4 OUT Y C0JBAZ002301 IC7004 1 OE1 2 A1 3 B2 4 GND 5 A2 6 B1 7 OE2 8 Vcc L7004 J0JYC0000068 L7001 J0JKC0000021 L7005 J0JHC0000045 L7002 J0JYC0000068 VCCAUX VCCO VCCO VCCO VCCO FP1.2V SUB5V VCCAUX FP3.3V TP7009 RCLK_O+ RCLK_2+ PD_XIRQ7 RB_2+ PD_LOSDO14 RA_E+ RD_2- RCLK_E- RE_1- RCLK_E+ RE_O+ RA_2+ RD_1- RA_2- FPGA_SCL RC_1+ RC_O+ RB_1+ RD_O+ RCLK_2- RA_1+ RD_O- RD_E+ RC_2- RB_E- RA_O- RC_2+ RD_1+ RE_1+ FLSCL_FP RA_1- RCLK_O- RE_2- FLSIO0_FP RCLK_1+ RB_2- RD_2+ RE_E+ RD_E- RC_E+ FPGA_SDA RC_1- RC_E- RE_E- RCLK_1- RE_O- FLSIO1_FP RC_O- RB_E+ RB_1- FLNCS_FP RB_O- RA_O+ RB_O+ PD_LOSDOYM RE_2+ RA_E- Q7002 DSC200100L R7020 4.7k R7009 4.7k R7007 4.7k R7017 4.7k R7028 47 1M R7024 R7033 47 R7046 0 1k R7025 X7001 H0J270500120 VCCO MIHO2_SCL R0904 R0903 MIHO2_SDA R7044 47k R7043 10k C7080 12p 50V R7027 R7036 R7037 R7038 R7039 R7042 4.7k R7008 330 R7026 R7010 IC7001 A1 GND IC7001 K1 IO_L40N_M3DQ7_3 IC7001 L16 VCCO_1 IC7001 U10 IO_L52N_2 IC7001 T3 IO_L9N_3 IC7001 M22 IO_L46N_FOE_B_M1DQ3_1 IC7001 F7 IO_L80N_3 IC7001 M18 IO_L71N_1 IC7001 Y8 IO_L47N_2 IC7001 F18 IO_L30P_A21_M1RESET_1 IC7001 G8 NC IC7001 N15 SUSPEND IC7001 U5 VCCO_3 IC7001 N7 IO_L11N_3 IC7001 B1 IO_L60N_3 IC7001 W17 IO_L11N_2 IC7001 L6 IO_L25N_3 IC7001 T19 IO_L74P_AWAKE_1 IC7001 W21 VCCO_1 IC7001 V22 IO_L52N_M1DQ15_1 IC7001 G7 IO_L80P_3 IC7001 U18 VCCO_1 IC7001 A11 IO_L35N_GCLK16_0 IC7001 K16 IO_L21P_1 IC7001 B4 VCCO_0 IC7001 H20 IO_L38P_A5_M1CLK_1 IC7001 E12 NC IC7001 R11 IO_L40P_2 IC7001 R2 VCCO_3 IC7001 D12 NC IC7001 U19 IO_L70P_1 IC7001 G22 IO_L39N_M1ODT_1 IC7001 F12 NC IC7001 M13 VCCINT IC7001 E8 NC IC7001 K14 GND IC7001 Y5 IO_L54P_2 IC7001 AB5 IO_L54N_2 IC7001 F14 NC IC7001 E15 GND IC7001 F16 IO_L10P_1 IC7001 U22 IO_L51N_M1DQ13_1 IC7001 F17 IO_L10N_1 IC7001 Y2 IO_L1P_3 IC7001 L21 VCCO_1 IC7001 AB7 IO_L48N_RDWR_B_VREF_2 IC7001 G17 IO_L9N_1 IC7001 H4 IO_L46P_M3CLK_3 IC7001 K15 VCCAUX IC7001 AA15 VCCO_2 IC7001 U12 IO_L22N_2 IC7001 V15 IO_L13N_D10_2 IC7001 G2 VCCO_3 IC7001 AB20 IO_L3N_MOSI_CSI_B_MISO0_2 IC7001 V11 IO_L42P_2 IC7001 J9 GND IC7001 W3 IO_L2P_3 IC7001 F3 IO_L51N_M3A4_3 IC7001 T2 IO_L34P_M3UDQS_3 IC7001 V5 IO_L63N_2 IC7001 P7 IO_L7N_3 IC7001 AA21 IO_L2P_CMPCLK_2 IC7001 M2 IO_L38P_M3DQ2_3 IC7001 H16 IO_L28P_1 IC7001 E6 IO_L82N_3 IC7001 L22 IO_L45N_A0_M1LDQSN_1 IC7001 A14 IO_L50N_0 IC7001 A19 TDO IC7001 H21 IO_L41P_GCLK9_IRDY1_M1RASN_1 IC7001 AB22 GND IC7001 L2 VCCO_3 IC7001 K17 IO_L36N_A8_M1BA1_1 IC7001 B20 IO_L1N_A24_VREF_1 IC7001 C3 IO_L54P_M3RESET_3 IC7001 AB11 IO_L32N_GCLK28_2 IC7001 H15 VCCAUX IC7001 AA4 IO_L57P_2 IC7001 AA8 IO_L45P_2 IC7001 N21 GND IC7001 B13 GND IC7001 P20 IO_L59N_1 IC7001 P11 VCCINT IC7001 A17 IO_L64N_SCP4_0 IC7001 E11 GND IC7001 H7 GND IC7001 AA22 IO_L1N_M0_CMPMISO_2 IC7001 R1 IO_L35N_M3DQ11_3 IC7001 B9 GND IC7001 B15 VCCO_0 IC7001 T11 IO_L40N_2 IC7001 P16 NC IC7001 J8 VCCINT IC7001 P5 IO_L8N_3 IC7001 Y20 CMPCS_B_2 IC7001 B7 VCCO_0 IC7001 AA9 GND IC7001 M19 IO_L53P_1 IC7001 N10 VCCINT IC7001 D20 IO_L29N_A22_M1A14_1 IC7001 F9 NC IC7001 K21 IO_L44P_A3_M1DQ6_1 IC7001 L4 IO_L42N_GCLK24_M3LDM_3 IC7001 N1 IO_L37N_M3DQ1_3 IC7001 T9 VCCO_2 IC7001 K18 IO_L61N_1 IC7001 Y22 DONE_2 IC7001 D2 IO_L53P_M3CKE_3 IC7001 T4 IO_L9P_3 IC7001 G21 VCCO_1 IC7001 G11 NC IC7001 G3 IO_L48P_M3BA0_3 IC7001 E4 IO_L58N_3 IC7001 K9 VCCINT IC7001 L5 GND IC7001 P21 IO_L48P_HDC_M1DQ8_1 IC7001 F13 NC IC7001 W19 GND IC7001 A18 IO_L65N_SCP2_0 IC7001 D5 IO_L58P_3 IC7001 AA17 GND IC7001 AA20 IO_L3P_D0_DIN_MISO_MISO1_2 IC7001 N13 GND IC7001 D14 IO_L49P_0 IC7001 N4 IO_L26N_3 IC7001 Y6 IO_L53N_2 IC7001 E16 IO_L66P_SCP1_0 IC7001 J5 VCCO_3 IC7001 AB9 IO_L43N_2 IC7001 T1 IO_L34N_M3UDQSN_3 IC7001 U1 IO_L33N_M3DQ13_3 IC7001 A15 IO_L51N_0 IC7001 H13 NC IC7001 D16 VCCAUX IC7001 A20 IO_L20P_1 IC7001 M8 IO_L23N_3 IC7001 E7 GND IC7001 P9 VCCINT IC7001 F10 NC IC7001 W15 IO_L17N_2 IC7001 AA1 PROGRAM_B_2 IC7001 N3 IO_L37P_M3DQ0_3 IC7001 F2 IO_L50P_M3WE_3 IC7001 J17 IO_L36P_A9_M1BA0_1 IC7001 W4 IO_L62P_D5_2 IC7001 T22 IO_L50N_M1UDQSN_1 IC7001 AA6 IO_L49P_D3_2 IC7001 J20 IO_L43P_GCLK5_M1DQ4_1 IC7001 E17 VCCO_0 IC7001 F21 IO_L37P_A7_M1A0_1 IC7001 B11 VCCO_0 IC7001 V20 IO_L70N_1 IC7001 F15 NC IC7001 B10 IO_L34P_GCLK19_0 IC7001 Y11 IO_L32P_GCLK29_2 IC7001 M16 IO_L58P_1 IC7001 Y15 IO_L21P_2 IC7001 V1 IO_L32N_M3DQ15_3 IC7001 N5 VCCO_3 IC7001 R12 VCCAUX IC7001 U13 IO_L12N_D2_MISO3_2 IC7001 F4 VCCO_3 IC7001 K22 IO_L44N_A2_M1DQ7_1 IC7001 R4 IO_L24P_3 IC7001 G16 IO_L9P_1 IC7001 A5 IO_L2N_0 IC7001 A8 IO_L6N_0 IC7001 T6 IO_L65P_INIT_B_2 IC7001 M14 GND IC7001 A22 GND IC7001 M21 IO_L46P_FCS_B_M1DQ2_1 IC7001 D13 NC IC7001 L3 IO_L39P_M3LDQS_3 IC7001 K20 IO_L40P_GCLK11_M1A5_1 IC7001 U14 IO_L12P_D1_MISO2_2 IC7001 AB15 IO_L21N_2 IC7001 P1 IO_L36N_M3DQ9_3 IC7001 R15 IO_L10N_2 IC7001 L8 VCCAUX IC7001 AB12 IO_L31N_GCLK30_D15_2 IC7001 W11 IO_L42N_2 IC7001 R10 VCCAUX IC7001 Y19 IO_L5P_2 IC7001 L7 VCCO_3 IC7001 W2 VCCO_3 IC7001 G10 VCCO_0 IC7001 P4 IO_L24N_3 IC7001 W14 IO_L20P_2 IC7001 AB6 IO_L49N_D4_2 IC7001 R20 IO_L49P_M1DQ10_1 IC7001 R9 IO_L59P_2 IC7001 AB19 IO_L5N_2 IC7001 J19 IO_L38N_A4_M1CLKN_1 IC7001 T5 IO_L65N_CSO_B_2 IC7001 M9 VCCINT IC7001 Y3 IO_L58P_2 IC7001 E14 NC IC7001 E10 NC IC7001 G1 IO_L48N_M3BA1_3 IC7001 J4 IO_L44N_GCLK20_M3A6_3 IC7001 J12 VCCINT IC7001 K3 IO_L44P_GCLK21_M3A5_3 IC7001 L19 IO_L42N_GCLK6_TRDY1_M1LDM_1 IC7001 M12 GND IC7001 U16 IO_L8N_2 IC7001 G5 GND IC7001 B21 IO_L19P_1 IC7001 AB3 IO_L58N_2 IC7001 E9 VCCO_0 IC7001 U11 VCCAUX IC7001 T16 IO_L7P_2 IC7001 Y14 IO_L20N_2 IC7001 AB13 IO_L30N_GCLK0_USERCCLK_2 IC7001 A6 IO_L4N_0 IC7001 F22 IO_L37N_A6_M1A1_1 IC7001 J2 GND IC7001 V17 IO_L11P_2 IC7001 K7 IO_L57P_3 IC7001 A12 IO_L37N_GCLK12_0 IC7001 D3 IO_L81P_3 IC7001 F5 IO_L55N_M3A14_3 IC7001 L13 GND IC7001 E20 IO_L35P_A11_M1A7_1 IC7001 V13 IO_L18P_2 IC7001 H1 IO_L47N_M3A1_3 IC7001 AA3 VCCO_2 IC7001 P15 NC IC7001 AA11 VCCO_2 IC7001 F6 VCCO_3 IC7001 J1 IO_L41N_GCLK26_M3DQ5_3 IC7001 J15 GND IC7001 N20 IO_L47P_FWE_B_M1DQ0_1 IC7001 F8 NC IC7001 C16 IO_L62N_VREF_0 IC7001 M17 IO_L71P_1 IC7001 N9 GND IC7001 R18 GND IC7001 G6 IO_L55P_M3A13_3 IC7001 C12 IO_L36N_GCLK14_0 IC7001 V10 GND IC7001 L17 IO_L61P_1 IC7001 K8 IO_L57N_VREF_3 IC7001 M5 IO_L31P_3 IC7001 J18 VCCO_1 IC7001 U9 IO_L50P_2 IC7001 U2 GND IC7001 E1 IO_L52N_M3A9_3 IC7001 V19 IO_L9P_2 IC7001 N11 GND IC7001 R3 IO_L35P_M3DQ10_3 IC7001 V8 VCCO_2 IC7001 B17 GND IC7001 P13 VCCINT IC7001 L11 GND IC7001 AB4 IO_L57N_2 IC7001 B6 IO_L4P_0 IC7001 L14 VCCINT IC7001 T13 VCCO_2 IC7001 Y21 IO_L1P_CCLK_2 IC7001 R5 GND IC7001 W7 GND IC7001 U21 GND IC7001 M7 IO_L23P_3 IC7001 AB1 GND IC7001 V2 IO_L32P_M3DQ14_3 IC7001 J13 GND IC7001 N14 VCCINT IC7001 AA7 VCCO_2 IC7001 C22 IO_L32N_A16_M1A9_1 IC7001 H11 NC IC7001 T12 IO_L22P_2 IC7001 G19 IO_L33P_A15_M1A10_1 IC7001 W6 IO_L53P_2 IC7001 N17 GND IC7001 AA5 GND IC7001 J7 IO_L59P_3 IC7001 G9 NC IC7001 P3 IO_L26P_3 IC7001 P2 IO_L36P_M3DQ8_3 IC7001 L20 IO_L45P_A1_M1LDQS_1 IC7001 Y12 IO_L29N_GCLK2_2 IC7001 C18 TMS IC7001 C14 IO_L49N_0 IC7001 K10 GND IC7001 E19 VCCO_1 IC7001 G13 NC IC7001 B12 IO_L37P_GCLK13_0 IC7001 J21 GND IC7001 W22 IO_L60N_1 IC7001 J3 IO_L41P_GCLK27_M3DQ4_3 IC7001 L15 IO_L58N_1 IC7001 F20 IO_L33N_A14_M1A4_1 IC7001 W10 IO_L44P_2 IC7001 K6 IO_L45P_M3A3_3 IC7001 T7 IO_L60P_2 IC7001 D19 IO_L29P_A23_M1A13_1 IC7001 N16 IO_L72N_1 IC7001 W16 GND IC7001 W5 VCCO_2 IC7001 P8 IO_L7P_3 IC7001 E22 IO_L35N_A10_M1A2_1 IC7001 J6 IO_L45N_M3ODT_3 IC7001 B5 GND IC7001 A7 IO_L5N_0 IC7001 V16 VCCO_2 IC7001 P12 GND IC7001 M10 GND IC7001 C19 IO_L1P_A25_1 IC7001 C2 VCCO_3 IC7001 M11 VCCINT IC7001 H12 NC IC7001 U8 IO_L51N_2 IC7001 V4 GND IC7001 F1 IO_L50N_M3BA2_3 IC7001 N18 VCCO_1 IC7001 V14 GND IC7001 V6 VCCAUX IC7001 P10 GND IC7001 D18 GND IC7001 A10 IO_L34N_GCLK18_0 IC7001 R16 IO_L10P_2 IC7001 AA12 IO_L31P_GCLK31_D14_2 IC7001 C7 IO_L5P_0 IC7001 C8 IO_L7N_0 IC7001 C15 IO_L51P_0 IC7001 B14 IO_L50P_0 IC7001 K2 IO_L40P_M3DQ6_3 IC7001 P18 IO_L73P_1 IC7001 R6 VCCAUX IC7001 J22 IO_L43N_GCLK4_M1DQ5_1 IC7001 Y10 IO_L44N_2 IC7001 H9 VCCAUX IC7001 R19 IO_L73N_1 IC7001 G20 IO_L39P_M1A3_1 IC7001 Y4 IO_L62N_D6_2 IC7001 Y17 IO_L15P_2 IC7001 B3 IO_L83N_VREF_3 IC7001 H5 IO_L49N_M3A2_3 IC7001 E18 TDI IC7001 E21 GND IC7001 AA10 IO_L41P_2 IC7001 D7 IO_L32P_0 IC7001 H19 IO_L34P_A13_M1WE_1 IC7001 H8 IO_L59N_3 IC7001 J14 VCCINT IC7001 J10 VCCINT IC7001 H3 IO_L46N_M3CLKN_3 IC7001 A4 IO_L1N_VREF_0 IC7001 T18 IO_L4P_2 IC7001 T14 IO_L23P_2 IC7001 Y16 IO_L17P_2 IC7001 T15 IO_L7N_2 IC7001 K11 VCCINT IC7001 N2 GND IC7001 H2 IO_L47P_M3A0_3 IC7001 AB14 IO_L16N_VREF_2 IC7001 U15 IO_L13P_M1_2 IC7001 Y1 IO_L1N_VREF_3 IC7001 R13 IO_L23N_2 IC7001 C17 IO_L64P_SCP5_0 IC7001 G14 VCCO_0 IC7001 E2 GND IC7001 L1 IO_L39N_M3LDQSN_3 IC7001 Y18 IO_L6N_2 IC7001 M15 VCCAUX IC7001 K5 IO_L43P_GCLK23_M3RASN_3 IC7001 V21 IO_L52P_M1DQ14_1 IC7001 C9 IO_L8P_0 IC7001 G4 IO_L51P_M3A10_3 IC7001 D22 IO_L31N_A18_M1A12_1 IC7001 AA19 VCCO_2 IC7001 Y7 IO_L48P_D7_2 IC7001 U3 IO_L33P_M3DQ12_3 IC7001 M6 IO_L25P_3 IC7001 AB17 IO_L15N_2 IC7001 V7 IO_L46N_2 IC7001 C11 IO_L35P_GCLK17_0 IC7001 D8 IO_L32N_0 IC7001 Y13 IO_L30P_GCLK1_D13_2 IC7001 F19 IO_L30N_A20_M1A11_1 IC7001 L18 GND IC7001 L10 VCCINT IC7001 T17 IO_L4N_VREF_2 IC7001 A3 IO_L1P_HSWAPEN_0 IC7001 C13 IO_L38P_0 IC7001 D1 IO_L53N_M3A12_3 IC7001 F11 VCCAUX IC7001 W13 IO_L18N_2 IC7001 C10 IO_L33N_0 IC7001 N6 IO_L11P_3 IC7001 U17 IO_L8P_2 IC7001 G15 TCK IC7001 P6 IO_L8P_3 IC7001 N19 IO_L53N_VREF_1 IC7001 B22 IO_L19N_1 IC7001 A16 IO_L63N_SCP6_0 IC7001 E5 IO_L82P_3 IC7001 W9 IO_L47P_2 IC7001 C1 IO_L54N_M3A11_3 IC7001 M1 IO_L38N_M3DQ3_3 IC7001 R8 IO_L59N_2 IC7001 A9 IO_L8N_VREF_0 IC7001 AB8 IO_L45N_2 IC7001 R21 VCCO_1 IC7001 K4 IO_L43N_GCLK22_IRDY2_M3CASN_3 IC7001 U7 GND IC7001 AB2 IO_L64N_D9_2 IC7001 B16 IO_L63P_SCP7_0 IC7001 K19 IO_L40N_GCLK10_M1A6_1 IC7001 N22 IO_L47N_LDC_M1DQ1_1 IC7001 D17 IO_L66N_SCP0_0 IC7001 P22 IO_L48N_M1DQ9_1 IC7001 H17 IO_L28N_VREF_1 IC7001 D11 IO_L36P_GCLK15_0 IC7001 C5 IO_L2P_0 IC7001 B19 VCCO_0 IC7001 V9 IO_L50N_2 IC7001 P19 IO_L59P_1 IC7001 V3 IO_L10N_3 IC7001 K13 VCCINT IC7001 C6 IO_L3N_0 IC7001 B18 IO_L65P_SCP3_0 IC7001 W20 IO_L60P_1 IC7001 D9 IO_L7P_0 IC7001 H6 IO_L49P_M3A7_3 IC7001 Y9 IO_L43P_2 IC7001 R17 NC IC7001 AB10 IO_L41N_VREF_2 IC7001 L9 GND IC7001 V12 VCCO_2 IC7001 AB16 IO_L19N_2 IC7001 R7 IO_L60N_2 IC7001 D6 IO_L3P_0 IC7001 AA13 GND IC7001 G18 GND IC7001 C21 VCCO_1 IC7001 AA2 IO_L64P_D8_2 IC7001 E3 IO_L52P_M3A8_3 IC7001 D10 IO_L33P_0 IC7001 K12 GND IC7001 M20 IO_L42P_GCLK7_M1UDM_1 IC7001 M4 IO_L31N_VREF_3 IC7001 A2 IO_L83P_3 IC7001 AB21 IO_L2N_CMPMOSI_2 IC7001 U4 IO_L10P_3 IC7001 H22 IO_L41N_GCLK8_M1CASN_1 IC7001 W8 IO_L46P_2 IC7001 R14 VCCINT IC7001 H10 NC IC7001 P14 GND IC7001 R22 IO_L49N_M1DQ11_1 IC7001 G12 VCCAUX IC7001 W18 IO_L6P_2 IC7001 T21 IO_L50P_M1UDQS_1 IC7001 AA14 IO_L16P_2 IC7001 C20 IO_L32P_A17_M1A8_1 IC7001 AA18 IO_L14P_D11_2 IC7001 U20 IO_L51P_M1DQ12_1 IC7001 J16 IO_L21N_1 IC7001 L12 VCCINT IC7001 T8 IO_L51P_2 IC7001 N12 VCCINT IC7001 D4 GND IC7001 W1 IO_L2N_3 IC7001 H18 IO_L34N_A12_M1BA2_1 IC7001 D21 IO_L31P_A19_M1CKE_1 IC7001 E13 VCCO_0 IC7001 U6 IO_L63P_2 IC7001 H14 NC IC7001 P17 IO_L72P_1 IC7001 A21 IO_L20N_1 IC7001 V18 IO_L9N_2 IC7001 T20 IO_L74N_DOUT_BUSY_1 IC7001 AB18 IO_L14N_D12_2 IC7001 C4 IO_L81N_3 IC7001 A13 IO_L38N_VREF_0 IC7001 D15 IO_L62P_0 IC7001 AA16 IO_L19P_2 IC7001 B2 IO_L60P_3 IC7001 M3 IO_L42P_GCLK25_TRDY2_M3UDM_3 IC7001 W12 IO_L29P_GCLK3_2 IC7001 T10 IO_L52P_2 IC7001 B8 IO_L6P_0 IC7001 N8 VCCAUX IC7001 J11 GND RB_2- RCLK_2+ RA_1-(MSB) RE_1-(LSB) RC_1+ RD_2+ FPGA->MIHO2 RD_2- RD_1+ DIN RE_2-(LSB) RCLK_2- RCLK_1- RC_2+ RC_1- RB_1+ RCLK_1+ FPGA_XRST RB_2+ RA_1+(MSB) RD_1- FPGA_SCL Config_JTAG INIT_B FPGA_SDA HSWAPEN=1:Float MOSI DONE N.C pin FPGA_CONFIG_DONE XRST HSWAPEN=0:WeakPullup 27MHz(148MHz) PROG_B CSO_B CCLK RE_E-(LSB) RC_E+ RD_O+ LDA2->FPGA DONE Ready HSWAPEN RD_O- RD_E+ RE_O-(LSB) RCLK_O- RCLK_E- SPI Configuration Mode RC_O+ RC_E- SUSPEND GND RB_E+ CMPCS_B N.C RE_O+(LSB) RE_E+(LSB) RA_O-(MSB) RCLK_E+ RB_O+ RB_E- RA_E+(MSB) RC_O- RD_E- RA_O+(MSB) RB_O- RCLK_O+ RA_E-(MSB) RE_2+(LSB) RE_1+(LSB) RA_2-(MSB) RB_1- RC_2- RA_2+(MSB) FP3D_SDDL NO USE pin ! A-BOARD TNPH0899DC (20/26) FPGA 2D-3D TO 1/26 TO 4,23/26 TO 23/26 TO 18/26 TO 19/26 IIC SW FPGA 2D-3D INVERTER RESET INVERTER IC7001 C1ZBZ0004268 TO 23/26 TO 23/26 TO 19/26 72 TH-P46GT20C 11.26.A 电路板 （21/26）线路图 181 184 182 189 186 183 187 185 188 TH-P46GT20C A-Board (21/26) Schematic Diagram TH-P46GT20C A-Board (21/26) Schematic Diagram Thermal Pad Thermal Pad Thermal Pad P P P P P F15V C5253 25V 1u C5728 10u 10V C5719 10u 10V C5724 0.1u 25V C5726 0.01u 25V C5729 10u 10V C5251 1u 25V C5720 10u 10V C5310 10u 25V C5311 10u 25V C5725 6800p 25V C5650 10V 2.2u C5649 10V 1u C5615 2.2u 10V C5616 0.01u 25V C5651 4.7u 10V C5652 4.7u 6.3V C5312 10u 25V C5314 22u 6.3V C5318 6800p 25V C5313 10u 25V C5319 0.01u 25V C5315 22u 6.3V C5317 0.1u 25V C5293 1u 25V C5294 1u 16V C5255 1u 10V C5301 1000p 50V C5603 1000p 50V C5256 1u 10V D5301 B0JCPG000030 D5605 B0ECKM000048 D5603 B0JCPG000030 D5250 B0ACCJ000048 D5602 DZ2J056M0L C0DBFYY00049 IC5603 1 VIN 2 VSS 3 CE 5 VOUT 4 NC C0DBGYY00578 IC5604 1 ON/OFF 2 VSS 3 NC 5 VOUT 4 VIN C0CBCBC00227 IC5251 1 ON/OFF 2 VSS 3 NC 5 VIN 4 VOUT C0DBGYY00884 IC5290 VOUT 3 2 VSS VIN 1 IC5250 C0DBEYY00123 1 VO 2 FB 3 GND 4 N.C 5 EN 6 N.C 7 N.C 8 VCC FIN IC5302 C0DBAYY00755 1 BOOT 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS Thermal_Pad IC5303 C0DBAYY00755 1 BOOT 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS Thermal_Pad SUB_AI_3.3V SUB3.3V SUB6V F15V SUB_OP_5V F15V SUB9V AVDDH ACHIP3.3V SUB3.3V SUB5V VJ5300 R5311 R5684 R5696 R5310 TP5209 TP5293 TP5292 TP5301 TP5208 TP5291 TP5250 DCDCEN DCDCEN DCDCEN Q5602 DSC2001S0L Q5603 DSC2001S0L R5308 2.2k R5613 47k R5301 2.2 R5255 1k R5307 12k R5612 10k R5682 1.5k R5642 100k R5644 7.5k R5309 5.6k R5315 1k R5643 10k R5724 15 R5603 2.2 R5600 68 R5609 10k R5640 10k R5607 22k R5610 47k R5641 10k R5683 6.2k R5608 68k R5254 5.36k R5312 15 R5681 10k R5253 10k R5611 2.2k L5611 G1C6R8MA0416 L5301 G1C6R8MA0416 D5439 DZ2J068M0L SUB6V R5434 10k R5437 2.2k SUB5V Q5436 DSC200100L D5434 B0ADCJ000100 D5493 B0ADEJ000035 D5441 DZ2J120M0L R5443 220 R5540 4.7k SUB3.3V LED5V_1 R5432 3.3k R5460 4.7k MIHO2_1.2V D5448 DZ2J068M0L R5451 1k LED5V_2 R5431 2.2k TP5508 D5443 DZ2J068M0L R5453 4.7k LED_6V Q5435 DSA200100L D5524 B0ACCJ000048 D5444 DZ2J068M0L D5432 B0ADEJ000035 R5569 4.7k SUB5V D5519 B0BC010A0007 D5435 B0ADCJ000100 R5455 4.7k TP5431 D5490 B0ADCJ000100 R5444 100k R5461 4.7k SUB_OP_5V DCDCEN C5432 16V 0.1u LED-SOS R5533 470 R5445 100k D5445 DZ2J068M0L SUB_OP_5V Q5432 DSC2001S0L R5538 470 SG-SOS SUB1.5V R5462 4.7k D5440 DZ2J120M0L R5435 220 R5527 4.7k SUB1.2V_D D5431 B0ADEJ000035 D5436 B0ADCJ000100 Q5431 DSA200100L D5491 DZ2J068M0L R5439 470 SUB6V D5449 DZ2J068M0L R5452 100k SUB1.2V_A D5433 B0ADCJ000100 STB3.3V D5447 DZ2J068M0L SUB9V R5441 220 R5433 1k FRC_D1.05V R5438 4.7k R5459 4.7k FRC_3.3V SUB9V R5528 4.7k D5442 DZ2J068M0L R5458 4.7k MIHO2_3.3V R5454 4.7k R5456 4.7k C5431 16V 0.1u D5492 DZ2J068M0L D5437 B0ADCJ000100 "H": ON "L": OFF LDA2 DCDC CTL LDA2-DCDC "H": ON "L": OFF 100mA SOS GenX ! A-BOARD TNPH0899DC (21/26) POWER-Peaks SUB6V SUB5V SUB9V SUB_OP_5V ACHIP3.3V AVDDH SUB_AI_3.3V VCC_SOS TO 7/26 TO 7,18/26 TO 16,24/26 TO 16,24/26 TO 16,24/26 TO 16,24/26 73 TH-P46GT20C 11.27.A 电路板 （22/26）和 K 电路板线路图 198 195 192 196 194 197 190 193 191 TH-P46GT20C A-Board (22/26) and K-Board Schematic Diagram TH-P46GT20C A-Board (22/26) and K-Board Schematic Diagram + + S S S PUSH S S BOTTOM PAD NC G R S VCC GND OUT C1010 25V 1u C2752 25V 0.01u C2759 1u 25V C3752 1000p 50V C1009 16V 0.1u C2753 1u 10V C2758 25V 47u C2760 16V 10u D1009 EZAEG2A50AX D1004 EZAEG2A50AX D1008 EZAEG2A50AX D1005 EZAEG2A50AX D1010 EZAEG2A50AX D1006 EZAEG2A50AX D1007 EZAEG2A50AX D1003 EZJZ0V120JA D1002 EZJZ0V120JA IC1000 C1ZBZ0003775 1 SDA 2 SCL 3 ALERT 4 GND 5 A2 6 A1 7 A0 8 V+ A6 1 2 3 4 5 6 7 8 9 10 11 CN0102 K1KA11A00178 1 2 3 4 5 6 7 8 9 10 11 A1 1 2 3 4 5 6 7 8 9 10 11 A7 1 2 3 4 5 6 7 8 9 10 11 12 13 14 CN0101 K1KA20AA0009 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 STB5V S_15V F15V STB3.3V SUB_AI_3.3V DCDCIN SUB3.3V STB5V R1004 R2751 R2827 PA5610 K5H4022A0031 TP2805 TPS0N TP2810 TP2758 TP1062 TP2751 TP2754 TP0102 TP1053 TP2757 TP0155 TP0101 TP1052 TP0105 TP0107 TP1055 TPF15V TP2804 TP1054 TP2755 TP2811 TP1056 TP0108 TPST5 TP0104 TP2812 TP2753 TP0153 TP0110 TPS15V TPEC0 TP1057 TP2501 TP0106 TPP15V TP2814 TP0109 TP2806 TP2756 TP2752 AD_SBO0 SG-G_LED_ON SG-R_LED_ON PG-MAIN_FAN_ON SG-TV_SUB_ON PG-FAN_MAX SG-AI_SENSOR FACT_SDBOOT PG-FAN_SOS SG-KEY1 SG-RMIN SG-SRQ_GENX AD_SBI0 STB_5V_SWON PANEL_SCL2 ADJ-GENX_SCL TMP-SENS_SDA PEAKS_SCL1 PEAKS_SDA1 PEAKS_SCL0 ADJ_GENX_SDA PEAKS_SDA0 PANEL_SDA2 GENX7_SCL AR_RXD_PC TMP-SENS_SCL GENX7_SDA AR_TXD_PC IIC_CONT/C_SEL R2831 47k R0180 100 R2830 47k R2819 47k R2807 47k 1% R2552 7.15k R2752 180k R2753 1k R1010 10k R2824 100 R2816 47k 1% R2550 14.3k 1% R2553 1.74k 1% R2551 6.65k SW2550 K0H1BA000445 SW2552 K0H1BA000445 SW2553 K0H1BA000445 SW2551 K0H1BA000445 SW2554 K0H1BA000445 SW2500 K0F122A00031 R2512 220k C2521 16V 0.1u Q2512 DSC200100L VJ2512 C2515 50V 0.01u C2511 10V 10u R2516 787 C2510 0.01u 50V R2519 1.96k VJ2511 R2517 22k Q2511 DSC200100L TP2504 TP2501 R2510 47 R2513 22k TP2508 R2511 100k TP2505 K1 1 2 3 4 5 6 7 8 9 10 11 SN2510 B3JB00000078 1 IOUT 4 NC 2 GND 3 VCC 5 GC1 6 GC2 TP2503 D2520 B3AGB0000060 TP2502 Q2510 DSC200100L R2518 47k VJ2510 RM2510 B3RAD0000168 1 2 3 TP2506 R2514 10k R2515 47k +15V_S S_GND S_GND F+15V +15V_S +15V_C S_GND PEAKS_SDA2 (Device Control) (PEAKS E2PROM) STB5V IIC_CONT/SRQ PEAKS_SDA1 GenX8_SDA1 PEAKS_SBO0 (Diag Control) PEAKS_SDA0 NC(LED_R) (Device Control) (PEAKS E2PROM) (Panel Dpr.E2PROM) GenX7_SRQ (Device Control) NC(REMOCON) Panel_SDA GND (Panel Dpr.E2PROM) SD_BOOT_MODE STB5V Panel_RXD (Device Control) (Device Control) NC PEAKS_SBI0 (Diag Control) Panel_TXD (GenX8 Loarder/E2PROM) Panel_SCL PEAKS_SCL0 (Device Control) (GenX8 Loarder/E2PROM) GND GenX8_SCL1 (Panel Dpr.E2PROM) GenX8_SRQ Panel_SDA PEAKS_SCL2 (Panel Dpr.E2PROM) PEAKS_SCL1 NC(D_PDB_MODE) Panel_SCL IIC_CONT NC GND GND NORMAL SOS GND GND SD-LED RMIN STB3.3V R_LED_ON G_LED_ON AI_SENSOR NC ECO_ON GND PS_SOS AC_LOW ALL_OFF PANEL_MAIN_ON STBY5V F_STBY_ON STB_SW Main_SW_1 Main_SW_2 sLD:PEAKS_SCL0 sLD:PEAKS_SDA0 sLD:PEAKS_SDA2 sLD:PEAKS_SCL2 AVC:PEAKS_SCL1 AVC:PEAKS_SDA1 NC(D_PDB_MODE) POWER SW F+15V F+15V KEYSCAN F - + TV AV N.C S0 S1 SUB3.3V GND TO P-BOARD (P6) TO P-BOARD (P7) STB-RESET TO 14/26 TO 7/26 GenX TEMP SENSOR TO 1/26 IIC FOR FACTORY USE FOR FACTORY USE TO 7/26 TO 1,14/26 GenX TO 15/26 TO 15/26 TO 1/26 TO 15/26 TO 14,15/26 TO 4/26 GenX8 TO 1,26/26 PEAKS-DEST TO 7/26 TO 7/26 TO 7/26 GenX TO 7/26 GenX POWER LED C.A.T.S. SENSOR REMOTE RECEIVER K-BOARD TXN/K1LBUC ! A-BOARD TNPH0899DC (22/26) ! Set-PDP 74 TH-P46GT20C 11.28.A 电路板 （23/26）线路图 207 204 201 205 203 206 199 202 200 TH-P46GT20C A-Board (23/26) Schematic Diagram TH-P46GT20C A-Board (23/26) Schematic Diagram PD_ED14 PD_MMDQ17 PD_ED3 PD_MMDQ30 PD_ED0 PD_ED15 PD_MMBA1 PD_MMDQ0 PD_ED5 PD_ED11 PD_MMA0 PD_ED4 PD_MMA5 PD_MMDQ8 PD_MMA4 PD_ED9 PD_MMA13 PD_ED8 PD_ED10 PD_MMA8 PD_MMDQ7 PD_MMDQ9 PD_MMDQ18 PD_MMDQ12 PD_MMA2 PD_MMDQ3 PD_MMDQ20 PD_MMDQ6 PD_MMDQ28 PD_MMDQ21 PD_MMDQ26 PD_MMDQ22 PD_MMDQ5 PD_MMDQ19 PD_MMDQ16 PD_MMA9 PD_MMDQ11 PD_MMDQ31 PD_MMA12 PD_MMDQ23 PD_MMA3 PD_MMDQ15 PD_MMA11 PD_EA24 PD_MMDQ25 PD_MMDQ29 PD_EA5 PD_EA6 PD_MMDQ14 PD_EA2 PD_MMDQ24 PD_MMDQ2 PD_MMA6 PD_EA0 PD_MMA10 PD_MMDQ27 PD_EA1 PD_MMDQ10 PD_EA7 PD_MMDQ1 PD_EA3 PD_ED7 PD_MMA7 PD_MMBA2 PD_EA4 PD_ED13 PD_ED6 PD_MMA1 PD_ED2 PD_ED12 PD_MMBA0 PD_MMDQ4 PD_MMDQ13 PD_ED1 *IC8000 A1 VSS *IC8000 T13 AVDDH *IC8000 AJ30 MMDQ13 *IC8000 A22 XRTS0 *IC8000 M23 VDD33 *IC8000 AC12 FPEN *IC8000 R5 HSDOUT3 *IC8000 A14 HP1_R1 *IC8000 F3 VSS *IC8000 C7 VREFL3 *IC8000 E5 ADCT2 *IC8000 E12 ZEROMUTE1 *IC8000 U17 VDD12 *IC8000 Y23 VDDA *IC8000 U15 VSS *IC8000 R19 VDD12 *IC8000 AB19 VDD12 *IC8000 R31 VDD33 *IC8000 AB14 AVDDPLL12 *IC8000 E14 AVDDHP *IC8000 AE33 MMDQ6 *IC8000 AJ13 IPCK33IN *IC8000 AK18 VSS *IC8000 AN34 MMDQ12 *IC8000 C3 VSS *IC8000 E24 PWMD *IC8000 D13 LO2_L *IC8000 G3 VSS *IC8000 D19 AVSSPWM *IC8000 Y2 VSS *IC8000 AN14 USB0DP *IC8000 E21 XIRQ2 *IC8000 M19 VDD12A *IC8000 L33 TCLK2N *IC8000 AP4 ED11 *IC8000 AM11 CK74B *IC8000 AA3 CH0PSYNC *IC8000 R30 PCCXBE3 *IC8000 F1 RXCP1 *IC8000 AK19 MMDQ25 *IC8000 D2 RX0M1 *IC8000 M34 TD2P *IC8000 AP14 USB0DN *IC8000 AP33 MMXWE *IC8000 AG3 XECS2 *IC8000 Y12 VDD33 *IC8000 AM1 EA0 *IC8000 G1 RX1P0 *IC8000 AB21 VDD12 *IC8000 R2 HSDOUT1 *IC8000 B20 XIRQ4 *IC8000 U4 VSS *IC8000 F7 AVSSV *IC8000 AM33 MMDQ14 *IC8000 T19 VDD12 *IC8000 AC13 VSS *IC8000 AD29 MMVCAL *IC8000 W5 IS0CLK *IC8000 Y17 VSS *IC8000 AL28 MMBA0 *IC8000 F29 VDD33 *IC8000 AN32 MMBA2 *IC8000 V18 VDD12 *IC8000 B34 TA1P *IC8000 M4 DDCSDA1 *IC8000 AJ8 MDC *IC8000 B7 V1N *IC8000 AC15 AVSSPLL12 *IC8000 N3 VSS *IC8000 AN31 VSS *IC8000 AN10 USBXO *IC8000 AK25 MMODT *IC8000 B23 XDCD0 *IC8000 J33 TB2N *IC8000 V22 DTCPOUT *IC8000 B10 VSS *IC8000 R13 AVDDH *IC8000 AJ9 MII_RXD3 *IC8000 AL26 MMXCS1 *IC8000 L6 VDDAVAD *IC8000 AP23 MMDQ17 *IC8000 AM26 VDDIO *IC8000 P19 VDD12A *IC8000 V15 VSS *IC8000 N15 AVSSADA3 *IC8000 AB31 VSS *IC8000 F31 RXD1 *IC8000 C13 LO2_R *IC8000 AE32 VSS *IC8000 Y3 CH1PSYNC *IC8000 F11 VREF1V5 *IC8000 AK7 MII_SBO *IC8000 R23 AVDDPLL3 *IC8000 V20 VSS *IC8000 A27 LOSDO14 *IC8000 R21 VSS *IC8000 N16 VSS *IC8000 AJ2 XEWE0 *IC8000 N31 VSS *IC8000 B17 VVREF *IC8000 U3 HS0D3 *IC8000 F5 ADCT1 *IC8000 AD32 DCK33IN *IC8000 AN3 ED6 *IC8000 E16 TEST_A1 *IC8000 AL20 MMDQ27 *IC8000 R6 HSDOUT4 *IC8000 AG31 MMDQS0 *IC8000 C2 RX0M0 *IC8000 AN29 VDDIO *IC8000 T30 PCCXBE1 *IC8000 P34 PCAD25 *IC8000 AJ4 XERE *IC8000 AN23 MMDQ21 *IC8000 E32 LVVSS *IC8000 K31 PCAD29 *IC8000 F26 LOSDO15 *IC8000 AD5 SDA1 *IC8000 T29 PCCXBE0 *IC8000 AJ10 MII_RXD1 *IC8000 AD6 SCL1 *IC8000 AC33 XIRQ7 *IC8000 B2 RXCM0 *IC8000 D23 VSS *IC8000 B14 HP1_L1 *IC8000 AP6 MII_COL *IC8000 AL17 VDDR *IC8000 V23 VSS *IC8000 M31 VSS *IC8000 D15 AVSSHP *IC8000 B22 XRI0 *IC8000 J1 RX1P2 *IC8000 J2 RX1M2 *IC8000 C4 VREFL0 *IC8000 G7 AVSSV *IC8000 F8 AVSSPLLA *IC8000 B31 TCK *IC8000 AK4 ED8 *IC8000 L2 RX2M0 *IC8000 AM10 VC27B *IC8000 U29 PCXPERR *IC8000 N4 DDCSDA2 *IC8000 F28 LOSDO5 *IC8000 T14 AVDDH *IC8000 M29 PCDEVSEL *IC8000 D6 VREFH2 *IC8000 N21 VSS *IC8000 AN7 MII_TXD3 *IC8000 P4 HSDOUT5 *IC8000 AJ27 MMA12 *IC8000 AM16 VDD12 *IC8000 B30 VDD33 *IC8000 AL13 VDDAUSB1 *IC8000 AP27 MMA8 *IC8000 U30 PCXSERR *IC8000 AM8 MII_TXD1 *IC8000 E1 RX0P2 *IC8000 R20 VSS *IC8000 E28 LOSDO6 *IC8000 AD30 VDDIO *IC8000 AL18 MMDQ31 *IC8000 U13 VSS *IC8000 AL15 VDD12 *IC8000 K5 AVDDV *IC8000 F6 AVSSV *IC8000 AA6 SBI0 *IC8000 D17 MVDACOC *IC8000 AD3 SDVOLC *IC8000 T6 HS0D7 *IC8000 AH2 ESZ1 *IC8000 W21 VSS *IC8000 L4 DDCSDA0 *IC8000 W6 RMCO *IC8000 M20 VSS *IC8000 Y34 PCAD7 *IC8000 AG5 EA24 *IC8000 AB5 SMTSEL0 *IC8000 AL11 CK27A *IC8000 B11 AXI *IC8000 AC5 VDDSD *IC8000 N33 TE2N *IC8000 AB4 VDD33 *IC8000 AP20 VDDIO *IC8000 AJ34 VDDIO *IC8000 AM23 VDDIO *IC8000 AL33 VSS *IC8000 A25 LOSDOYS *IC8000 AH29 MMA9 *IC8000 AM25 MMXCAS *IC8000 AK23 VDDIO *IC8000 E34 TCLK1P *IC8000 T15 AVDDH *IC8000 AF29 MMVREF0 *IC8000 V32 PCAD11 *IC8000 AC3 SMTRST0 *IC8000 R12 AVDDH *IC8000 AL32 MMDQ8 *IC8000 A12 VSS *IC8000 C34 TB1P *IC8000 U19 VDD12 *IC8000 AD34 VDDIOCK *IC8000 Y15 VSS *IC8000 E23 SBI1 *IC8000 AA13 VSS *IC8000 AM3 ED5 *IC8000 V5 HS0D0 *IC8000 T3 HSBCLKOUT *IC8000 W2 IS0VAL *IC8000 C10 AVDDSIF *IC8000 W14 VDD33 *IC8000 A10 VSS *IC8000 F27 LOSDO10 *IC8000 AA4 CH0VAL *IC8000 C26 LOSDOHS *IC8000 T12 AVDDH *IC8000 P17 VDD12A *IC8000 AF6 NFRYBY *IC8000 AJ33 VDDIO *IC8000 J29 LVVDD33 *IC8000 F22 TXD0 *IC8000 R1 HSDOUT0 *IC8000 H31 TXD2 *IC8000 C24 PWMC *IC8000 N20 VSS *IC8000 AB2 SDDAT2 *IC8000 AE2 NFALE *IC8000 AL3 ED4 *IC8000 T17 VDD12 *IC8000 N1 RX2P2 *IC8000 AJ25 MMXRAS *IC8000 AB13 TCPOUT12 *IC8000 F9 T_L1N *IC8000 H2 RX1M1 *IC8000 AM29 MMXRESET *IC8000 B18 APWMWLN *IC8000 P2 HIN *IC8000 V1 HS0VAL *IC8000 E11 AVDDA *IC8000 E4 TMODE0 *IC8000 H34 TA2P *IC8000 U5 HS0D4 *IC8000 C6 VREFL2 *IC8000 B33 TA1N *IC8000 F25 VOUTENB *IC8000 AC19 VDD12 *IC8000 AL22 MMDQ16 *IC8000 R18 VDD12 *IC8000 AG2 XECS1 *IC8000 AK6 WUC *IC8000 C1 RX0P0 *IC8000 AA1 CH0CLK *IC8000 M13 AVDDADA2 *IC8000 AC17 VSS *IC8000 AL31 VDDIO *IC8000 C18 APWMWRP *IC8000 AM14 USB0RREF *IC8000 D18 VSS *IC8000 AN21 MMXDQS2 *IC8000 F19 APWMWRN *IC8000 AP10 USBXI *IC8000 Y30 PCBGT1 *IC8000 J6 AVSSV *IC8000 E7 AVDDPLLV *IC8000 E19 APWMSRP *IC8000 F24 PWMK *IC8000 A28 LOSDO9 *IC8000 AB17 TSTSEL *IC8000 AG29 VSS *IC8000 B24 PWMB *IC8000 AL4 VSS *IC8000 AB23 VDDA *IC8000 AN16 VDD12 *IC8000 AC30 SCL2 *IC8000 AJ21 MMDQS3 *IC8000 AG33 VSS *IC8000 AP2 ED3 *IC8000 N2 RX2M2 *IC8000 AG1 XECS0 *IC8000 AP24 VDDIO *IC8000 G30 LVVSS *IC8000 F2 RXCM1 *IC8000 N29 PCXIRDY *IC8000 AP31 VSS *IC8000 AA23 VDDA *IC8000 M22 VDD33 *IC8000 AL16 VDD12 *IC8000 W15 VSS *IC8000 AJ22 VDDIO *IC8000 N14 AVSSADA1 *IC8000 A9 SIFINP *IC8000 L29 LVVDD33 *IC8000 AN12 USB0VBUS *IC8000 M2 RX2M1 *IC8000 AC31 VSS *IC8000 G4 TMODE1 *IC8000 K3 VSS *IC8000 W32 PCAD8 *IC8000 AK5 ED12 *IC8000 AA16 VSS *IC8000 A16 VSS *IC8000 AM32 VSS *IC8000 D34 TC1P *IC8000 M17 VDD12A *IC8000 V16 VSS *IC8000 Y5 CH1DATA *IC8000 G2 RX1M0 *IC8000 AF34 VSS *IC8000 W22 VSS *IC8000 H1 RX1P1 *IC8000 AM27 VSS *IC8000 E9 T_L1P *IC8000 AN6 MII_CRS *IC8000 AN9 MII_RXER *IC8000 V29 PCIDSELA *IC8000 AJ24 VDDIO *IC8000 P29 PCXFRAME *IC8000 U34 PCAD16 *IC8000 D11 AVDDA *IC8000 AK27 MMA3 *IC8000 F21 XIRQ8 *IC8000 AB6 SMTD0 *IC8000 AH4 ECLK *IC8000 F20 APWMSRN *IC8000 AL5 ED13 *IC8000 AL1 EA2 *IC8000 AE29 VDDIO *IC8000 A6 R1 *IC8000 AA2 VSS *IC8000 U12 VSS *IC8000 AN15 VDD12 *IC8000 B32 TRST *IC8000 AJ23 MMVREF1 *IC8000 R34 PCAD22 *IC8000 AM34 MMDQ10 *IC8000 W30 PCBRQ1 *IC8000 K34 TC2P *IC8000 N30 PCXTRDY *IC8000 AP13 USB1DN *IC8000 F4 FBL1 *IC8000 U21 VSS *IC8000 AJ16 VDD12 *IC8000 H30 RXD2 *IC8000 AA32 PCAD2 *IC8000 AK12 USB1OC *IC8000 M32 LVVSS *IC8000 AA20 VDD12 *IC8000 H4 DDCSCL0 *IC8000 AP29 VDDIO *IC8000 W31 VDD33 *IC8000 AN30 MMCK *IC8000 AL23 MMDQ22 *IC8000 A7 V1 *IC8000 H33 TA2N *IC8000 P15 AVSSV *IC8000 AJ18 MMDQ29 *IC8000 AK26 VSS *IC8000 AL21 VSS *IC8000 AG4 VDDEX *IC8000 W19 VDD12 *IC8000 A11 AXO *IC8000 AH3 ESZ0 *IC8000 Y4 CH1VAL *IC8000 J5 AVDDV *IC8000 C22 XDSR0 *IC8000 F34 TD1P *IC8000 Y1 CH1CLK *IC8000 AF30 VSS *IC8000 C20 NSHUTDOWN *IC8000 AL24 MMDQ18 *IC8000 D9 VREFLSIF *IC8000 V21 VSS *IC8000 T18 VDD12 *IC8000 AP25 MMCKE *IC8000 AM13 VSSAPUSB *IC8000 U22 DPAVDD *IC8000 K6 AVDDV *IC8000 M15 AVDDADA3 *IC8000 D14 AVDDHP *IC8000 K2 RXCM2 *IC8000 D8 T_L0N *IC8000 D30 VDD33 *IC8000 V19 VDD12 *IC8000 C12 ZEROMUTE2 *IC8000 AB16 USB1ATEST *IC8000 AL29 VDDIO *IC8000 AE34 MMDQ7 *IC8000 AD4 SDWP *IC8000 A18 APWMWLP *IC8000 T22 TCPOUT3 *IC8000 AM21 VDDIO *IC8000 J4 DDCSCL1 *IC8000 AJ20 MMDQ24 *IC8000 C11 VSS *IC8000 V14 TESTIOH *IC8000 AP21 MMDQS2 *IC8000 C17 VCOMP *IC8000 Y32 PCAD5 *IC8000 AK10 MII_RXD0 *IC8000 B27 LOSDO13 *IC8000 U23 LVVDD12 *IC8000 E27 LOSDO11 *IC8000 AJ29 VDDIO *IC8000 AL12 VDDPUSB1 *IC8000 T20 VSS *IC8000 L34 TCLK2P *IC8000 A29 LOSDO4 *IC8000 H6 AVSSV *IC8000 AN26 MMBA1 *IC8000 AE3 XNFCE *IC8000 AD2 SDDAT0 *IC8000 AP12 USB0OC *IC8000 F14 AVSSA *IC8000 AK2 EA4 *IC8000 AL34 VSS *IC8000 AL25 VSS *IC8000 G5 ADCT0 *IC8000 AL27 MMA10 *IC8000 AE1 NFCLE *IC8000 AC20 VDDR *IC8000 B19 APWMSLP *IC8000 F16 VSS *IC8000 AK1 EA5 *IC8000 AP3 ED7 *IC8000 C25 LOSDOVS *IC8000 AC6 SDCD *IC8000 AK33 MMDQS1 *IC8000 J31 PCAD31 *IC8000 AA34 PCAD4 *IC8000 AM28 VSS *IC8000 C16 TESTIO *IC8000 AP19 MMDM2 *IC8000 B9 SIFINN *IC8000 AD31 MMRODT *IC8000 AM20 VSS *IC8000 B12 VSS *IC8000 N22 TCPOUT0 *IC8000 P16 VSS *IC8000 U33 PCAD15 *IC8000 W18 VDD12 *IC8000 AM7 VSS *IC8000 M12 AVSSV *IC8000 R32 PCAD20 *IC8000 F30 XIRQ10 *IC8000 AN18 MMDQ30 *IC8000 P20 VSS *IC8000 C27 LOSDO12 *IC8000 AD33 VSS *IC8000 AK21 MMXDQS3 *IC8000 M16 VSS *IC8000 M33 TD2N *IC8000 E17 DAAVDD1 *IC8000 AA5 CH0DATA *IC8000 N19 VDD12A *IC8000 AL2 EA1 *IC8000 AA29 PCIRQ0 *IC8000 C19 APWMSLN *IC8000 AJ7 MII_SBI *IC8000 L3 VSS *IC8000 AF2 XECS4 *IC8000 AC22 VDDR *IC8000 AP16 VDD12 *IC8000 V31 VSS *IC8000 E20 AVDDPWM *IC8000 M30 PCPAR *IC8000 Y33 PCAD6 *IC8000 AH5 EA7 *IC8000 B16 VSS *IC8000 AN20 MMDM3 *IC8000 AM22 MMDQ19 *IC8000 P32 PCAD23 *IC8000 AB30 PCCLKO1 *IC8000 AJ12 USB1VBUS *IC8000 AM19 MMDQ26 *IC8000 AN24 MMDQ23 *IC8000 AJ31 MMDQ9 *IC8000 AK22 VSS *IC8000 N18 VDD12A *IC8000 AA33 PCAD3 *IC8000 A26 LOSDIHS *IC8000 A5 B1 *IC8000 AA15 VSS *IC8000 T4 VSS *IC8000 B5 B1N *IC8000 C8 T_L0P *IC8000 P21 VSS *IC8000 F17 VSS *IC8000 B29 LOSDO3 *IC8000 AL8 MDIO *IC8000 Y21 VDD12 *IC8000 W34 PCAD10 *IC8000 AM4 ED9 *IC8000 AM24 VSS *IC8000 AG32 MMXDQS0 *IC8000 AC34 XNMIRQ *IC8000 W17 VDD12 *IC8000 D10 AVSSSIF *IC8000 AB1 SDDAT3 *IC8000 T33 PCAD18 *IC8000 V4 VDD33 *IC8000 AL30 MMA13 *IC8000 B13 LO1_L *IC8000 A19 MUTEB *IC8000 AM6 PHYRSTL *IC8000 N5 VDDAVAD *IC8000 Y29 PCBGT0 *IC8000 A17 DAAVSS1 *IC8000 AB29 PCCLKO0 *IC8000 D27 VSS *IC8000 E22 RXD0 *IC8000 B26 LOSDIVS *IC8000 R4 XIRQ3 *IC8000 AG34 MMDQ5 *IC8000 F32 LVVSS *IC8000 AJ28 MMA7 *IC8000 C15 LIN1_RP *IC8000 AK20 VDDIO *IC8000 D26 VDDEX *IC8000 AN17 VDDR *IC8000 D33 TC1N *IC8000 U6 HS0D5 *IC8000 M5 VDDAVAD *IC8000 AM9 MDIO_INTL *IC8000 A3 VCMOBGR *IC8000 AB32 PCRST *IC8000 U20 VSS *IC8000 Y19 VDD12 *IC8000 AL7 MII_TXCLK *IC8000 AP1 VSS *IC8000 W13 VDD33 *IC8000 AP18 MMDQ28 *IC8000 AN2 ED2 *IC8000 D4 VREFH0 *IC8000 W3 IS0DATA *IC8000 A34 LVVSS *IC8000 C29 LOSDO2 *IC8000 W23 VSS *IC8000 W4 VDD33 *IC8000 R22 AVSSPLL3 *IC8000 L1 RX2P0 *IC8000 K29 LVVDD33 *IC8000 F18 MVIREF *IC8000 T34 PCAD19 *IC8000 Y18 VDD12 *IC8000 AE31 MMDQ2 *IC8000 T32 PCAD17 *IC8000 M1 RX2P1 *IC8000 H29 LVVDD33 *IC8000 AB12 VSS *IC8000 AM18 VDDIO *IC8000 AK31 MMDQ15 *IC8000 A15 LIN1_LP *IC8000 W33 PCAD9 *IC8000 E3 VSS *IC8000 E25 LOSDICLK *IC8000 V13 SDA *IC8000 AK15 VDD12 *IC8000 P14 AVSSV *IC8000 AJ32 MMDM1 *IC8000 U32 PCAD14 *IC8000 AN28 MMA11 *IC8000 E2 RX0M2 *IC8000 M18 VDD12A *IC8000 AC16 USB0ATEST *IC8000 AK16 VDD12 *IC8000 B25 LOSDOYM *IC8000 R15 AVDDH *IC8000 AK28 VDDIO *IC8000 AP9 MII_RXDV *IC8000 A32 TDI *IC8000 Y13 VDD33 *IC8000 U31 VSS *IC8000 T23 VSS *IC8000 AE4 VDD33 *IC8000 W12 VDD33 *IC8000 AN19 VSS *IC8000 N34 TE2P *IC8000 B21 SCL0 *IC8000 F15 AVSSHP *IC8000 AF3 XECS5 *IC8000 Y14 VDD33 *IC8000 M3 VSS *IC8000 G32 LVVSS *IC8000 K1 RXCP2 *IC8000 V33 PCAD12 *IC8000 D12 ZEROMUTE0 *IC8000 AE6 XNFWP *IC8000 AG6 XRST *IC8000 K33 TC2N *IC8000 AN33 VDDIO *IC8000 AC23 VSS *IC8000 C30 VDD33 *IC8000 R33 PCAD21 *IC8000 E10 HP_MUTE *IC8000 AK24 MMDQ20 *IC8000 U18 VDD12 *IC8000 AA21 VDD12 *IC8000 AP26 MMA4 *IC8000 G33 TE1N *IC8000 V30 PCIDSELB *IC8000 AJ11 CK74A *IC8000 R14 AVDDH *IC8000 AK11 VC27A *IC8000 AJ14 VDDUSB *IC8000 C9 VREFHSIF *IC8000 C21 SDA0 *IC8000 AK8 VDD33 *IC8000 E29 LOSDO0 *IC8000 AK13 VDDAUSB0 *IC8000 F13 AVSSA *IC8000 AK29 MMA5 *IC8000 P5 HSDOUT6 *IC8000 AA17 VSS *IC8000 T1 HSSYNCOUT *IC8000 AL14 VDDPUSB0 *IC8000 B28 LOSDO8 *IC8000 AH31 VDDIO *IC8000 Y6 SBO0 *IC8000 K32 LVVSS *IC8000 AH34 MMDQ3 *IC8000 D29 LOSDO1 *IC8000 C14 AVDDHP *IC8000 T16 VSS *IC8000 AN25 VDDIO *IC8000 B4 G1N *IC8000 N32 LVVSS *IC8000 U2 HS0D2 *IC8000 D22 VDD33 *IC8000 AN5 ED15 *IC8000 AL19 VDDIO *IC8000 AD1 SDDAT1 *IC8000 G29 LVVDD33 *IC8000 A31 TDO *IC8000 AB3 SMTCMD0 *IC8000 B8 BIAS2 *IC8000 D16 TEST_A2 *IC8000 M21 VSS *IC8000 K30 PCAD28 *IC8000 A23 XDTR0 *IC8000 AM17 VDDR *IC8000 AB15 AVDDPLL12 *IC8000 AC2 SDCMD *IC8000 AC4 VSS *IC8000 L32 LVVSS *IC8000 A24 PWMA *IC8000 AM5 ED14 *IC8000 J3 VSS *IC8000 AK3 EA3 *IC8000 G34 TE1P *IC8000 D1 RX0P1 *IC8000 P18 VDD12A *IC8000 AM30 VDDIO *IC8000 AA14 VSS *IC8000 A30 VDD33 *IC8000 AA31 VSS *IC8000 AP8 MII_TXEN *IC8000 AA18 I2CSEL *IC8000 AH32 VSS *IC8000 N23 VDD33 *IC8000 Y20 VDD12 *IC8000 AH33 MMDM0 *IC8000 D24 VSS *IC8000 AP34 VSS *IC8000 C23 SBO1 *IC8000 C32 LVVSS *IC8000 D25 VDDEX *IC8000 A20 XIRQ5 *IC8000 A21 XCTS0 *IC8000 V2 HS0PSYNC *IC8000 D3 VSS *IC8000 B1 RXCP0 *IC8000 Y22 VSS *IC8000 AC21 VDDR *IC8000 AK14 VSSAPUSB *IC8000 L31 PCAD27 *IC8000 AJ5 EA6 *IC8000 P6 HSDOUT7 *IC8000 E15 AVSSHP *IC8000 M14 AVDDADA1 *IC8000 R3 HSDOUT2 *IC8000 AN27 MMA6 *IC8000 AP30 MMXCK *IC8000 AB18 VDD12 *IC8000 D5 VREFH1 *IC8000 AC18 VDD12 *IC8000 E6 AVDD75D *IC8000 Y16 VSS *IC8000 R17 VDD12 *IC8000 AF5 XNFRE *IC8000 T2 HSVALOUT *IC8000 AM12 VSSAPUSB *IC8000 AK30 VSS *IC8000 C5 VREFL1 *IC8000 W20 VDD12 *IC8000 AC29 SDA2 *IC8000 F12 AVDDA *IC8000 L5 VDDAVAD *IC8000 AB33 PCAD0 *IC8000 B15 LIN1_N *IC8000 AB22 VSS *IC8000 AC14 AVSSPLL12 *IC8000 B3 VSS *IC8000 W1 IS0PSYNC *IC8000 F33 TD1N *IC8000 G6 AVSSV *IC8000 A13 LO1_R *IC8000 AL9 VDD33 *IC8000 V17 VDD12 *IC8000 U14 VSS *IC8000 AF31 MMDQ0 *IC8000 P12 AVSSV *IC8000 AJ17 VDDR *IC8000 P33 PCAD24 *IC8000 U16 VSS *IC8000 AC1 SDCLK *IC8000 J34 TB2P *IC8000 AA19 VDD12 *IC8000 AM31 MMA2 *IC8000 J30 PCAD30 *IC8000 AP11 USB1RREF *IC8000 AG30 VDDIO *IC8000 AJ26 MMXCS0 *IC8000 AP15 VDD12 *IC8000 M6 VDDAVAD *IC8000 E33 TCLK1N *IC8000 E18 MVDACOY *IC8000 D32 LVVSS *IC8000 W16 VSS *IC8000 AP7 MII_TXD2 *IC8000 AJ15 VDD12 *IC8000 P22 AVSSPLL0 *IC8000 AP32 MMA0 *IC8000 C33 TB1N *IC8000 F10 VREG *IC8000 D20 IECOUT0 *IC8000 V12 SCL *IC8000 AE5 XNFWE *IC8000 AN22 VSS *IC8000 R16 VSS *IC8000 T21 VSS *IC8000 E26 LOSDOCLK *IC8000 T5 HS0D6 *IC8000 AK34 MMXDQS1 *IC8000 T31 VDD33 *IC8000 AP5 XIRQ1 *IC8000 AL6 MII_RXCLK *IC8000 J32 LVVSS *IC8000 AN1 ED0 *IC8000 H5 AVDDV *IC8000 AL10 CK27B *IC8000 A33 TMS *IC8000 E31 TXD1 *IC8000 N17 VDD12A *IC8000 E13 AVSSA *IC8000 L30 PCAD26 *IC8000 AH6 BOOTSWAP *IC8000 AB34 PCAD1 *IC8000 A4 G1 *IC8000 AN11 VSS *IC8000 AK17 VDDR *IC8000 Y31 VDD33 *IC8000 AF33 MMDQ1 *IC8000 AA30 PCIRQ1 *IC8000 U1 HS0D1 *IC8000 P1 VIN *IC8000 H3 VSS *IC8000 C28 LOSDO7 *IC8000 K4 DDCSCL2 *IC8000 B6 R1N *IC8000 P30 PCXSTOP *IC8000 D21 VDD33 *IC8000 A2 VSS *IC8000 AM15 VDD12 *IC8000 AJ19 VSS *IC8000 D7 VREFH3 *IC8000 E8 AVDDPLLA *IC8000 AF4 VDDEX *IC8000 AK32 VDDIO *IC8000 AM2 ED1 *IC8000 AC32 XIRQ6 *IC8000 G31 LVVSS *IC8000 H32 LVVSS *IC8000 D28 VSS *IC8000 AA22 VSS *IC8000 AE30 MMDQ4 *IC8000 N12 AVSSV *IC8000 E30 VDD33 *IC8000 AA12 VSS *IC8000 AB20 VDD12 *IC8000 P23 AVDDPLL0 *IC8000 AJ6 WAKEUP *IC8000 P31 VSS *IC8000 N6 VDDAVAD *IC8000 AJ1 XEWE1 *IC8000 AN13 USB1DP *IC8000 A8 BIAS *IC8000 AP17 VDDR *IC8000 AF32 VDDIO *IC8000 AJ3 ERXW *IC8000 P3 NRST *IC8000 AF1 XECS3 *IC8000 V3 HS0CLK *IC8000 N13 AVSSADA2 *IC8000 AN8 MII_TXD0 *IC8000 AH1 XEDK *IC8000 V6 XIRQ9 *IC8000 V34 PCAD13 *IC8000 AK9 MII_RXD2 *IC8000 AN4 ED10 *IC8000 P13 AVSSV *IC8000 AP28 MMA1 *IC8000 W29 PCBRQ0 *IC8000 AP22 VSS *IC8000 R29 PCCXBE2 *IC8000 F23 SBT1 *IC8000 C31 EVTRG *IC8000 AH30 MMDQ11 *IC8000 D31 TSTAIO DDR1.5V PA_RX1M0 PD_VDDPUSB PD_VDDUSB PA_VDD12A PA_SIFINP PA_RX2P2 PA_RX1P2 PA_G1N PA_RX1M2 PD_AVDDPLL0_3 PD_CK74A PD_VDD33 PA_AVDD75D_PLLV PA_DDCSCL0 PA_RX2M0 PA_RXCP0 PA_AVDDSIF PD_AVDDPWM PA_NRST PA_DDCSCL1 PA_FBL1 PA_HIN PA_RXCM1 PD_VDDSD PD_CK27A PA_RX1P1 PA_AVDDADA PD_USBXI PD_MII_RXER PD_MII_RXDV PD_TCK PA_VDDAVAD PD_TDI PA_V1N PA_LIN1_RP PD_VDDAUSB PA_RX2P1 PA_RXCM0 PA_B1N PA_AVDDA PA_DDCSCL2 PD_XIRQ3 PD_USB1RREF PD_MMVREF1 PD_DCK33IN PD_VDDR PA_SIFINN PD_MII_CRS PD_CK27B PD_TMS PA_R1 PD_CK74B PA_RXCM2 PD_MII_TXCLK PA_RX0M1 PD_DAAVDD1 PA_RX1P0 PD_WUC PD_USB0OC PD_USB0RREF PD_VDD12 PD_LVVDD12 PD_XIRQ2 PA_RX0M2 PD_MII_RXD1 PA_R1N PD_MMVREF0 PA_RXCP2 PA_RX0P0 PA_B1 PD_NFRYBY PA_RX2M2 PD_LVVDD33 PD_XRST PA_AVDDH PD_AVDDPLL1_2 PA_AVDDPLLA PA_V1 PA_RXCP1 PD_TRST PA_AVDDV PD_IPCK33IN PA_LIN1_LP PD_MII_RXD3 PD_VDD33 PA_RX2M1 PA_RX0P1 PA_RX1M1 PD_MII_RXCLK PA_VIN PD_MII_COL PD_XIRQ1 PA_AVDDV PD_MII_RXD2 PD_VVREF PA_AVDDHP PD_MUTEB PA_G1 PA_RX0M0 PA_RX0P2 PA_RX2P0 PD_VDDA PD_USB1OC PA_AXI PD_VDDIOCK PD_MII_RXD0 PA_HP1_L1 PA_VREFLSIF PA_BIAS2 PD_MII_TXD3 PD_MMDM1 PD_MMVCAL PD_MMODT PA_VREF1V5 PA_VREFL1 PA_LO2_R PD_MMXRAS PA_VREFH3 PD_MMDM0 PD_USB1VBUS PD_MMXCAS PD_EVTRG PD_MMA[0-13] PD_APWMSRP PD_VCOMP PD_MII_TXD2 PA_HP1_R1 PD_MMXCS0 PD_MVIREF PD_VC27A PA_VREFL2 PD_MMXRESET PD_VC27B PD_MMDM3 PA_VREFH0 PA_BIAS PD_MII_TXEN PD_MMCK PA_LO2_L PD_APWMWLN PD_MMDM2 PA_VREG PD_MMXCS1 PD_MVDACOY PD_USB0VBUS PA_VREFHSIF PD_MDC PA_AXO PD_MII_TXD1 PD_WAKEUP PA_VREFL3 PD_MMRODT PD_APWMWLP PD_APWMSRN PA_VREFH2 PD_NSHUTDOWN PD_APWMSLN PD_MMXWE PD_IECOUT0 PD_MMBA[0-2] PA_LO1_L PD_PHYRSTL PD_MMCKE PA_VREFL0 PA_VREFH1 PD_APWMSLP PD_MII_TXD0 PA_LO1_R PD_MMXCK PD_RXD1 PD_MMDQS0 PD_SCL0 PD_ERXW PA_DDCSDA1 PD_SDCLK PD_HSSYNCOUT PD_SMTD0 PD_XIRQ6 PD_SDA2 PD_MMXDQS2 PD_XDTR0 PD_HS0D5 PD_NFCLE PD_SBO0 PD_XIRQ5 PD_MDIO PD_LOSDO0 PD_HSDOUT6 PD_RMCO PD_RXD2 PD_MMDQS3 PD_PWMK PD_XECS2 PD_XIRQ4 PD_HSDOUT3 PD_USB0DN PD_SDDAT2 PD_XNFRE PD_XECS4 PD_HSDOUT0 PD_CH1CLK PD_HSDOUT4 PD_SMTCMD0 PD_SDA1 PD_MMXDQS0 PD_HS0D1 PD_SDCMD PD_PWMA PD_HS0D0 PD_XRTS0 PD_HS0D2 PD_XDSR0 PD_HS0D4 PD_HSDOUT7 PD_HS0CLK PD_SDCD PD_SDVOLC PD_MMDQ[0-31] PD_HSDOUT1 PD_USB1DP PD_SCL2 PD_HS0D6 PD_MMDQS1 PD_SDDAT1 PD_PWMC PD_PWMB PD_MMXDQS3 PD_VOUTENB PD_SDA0 PD_XNFCE PD_XIRQ8 PA_DDCSDA0 PD_HSDOUT2 PD_XECS3 PD_HSDOUT5 PD_HSVALOUT PD_SDDAT0 PD_XNFWP PD_LOSDO2 PD_HS0VAL PD_SDDAT3 PD_PWMD PD_SCL1 PA_DDCSDA2 PD_XCTS0 PD_HS0D7 PD_MMXDQS1 PD_MII_SBI PD_TXD1 PD_MMDQS2 PD_SBI0 PD_XECS5 PD_XIRQ10 PD_XEWE1 PD_SDWP PD_CH0CLK PD_HS0PSYNC PD_LOSDO10 PD_MII_SBO PD_MDIO_INTL PD_USB0DP PD_SMTRST0 PD_USB1DN PD_EA[0-7,24] PD_HS0D3 PD_NFALE PD_XRI0 PD_XNFWE PD_SMTSEL0 PD_LOSDO3 PD_ED[0-15] PD_XERE PA_HP_MUTE PD_XIRQ9 PD_HSBCLKOUT RC_O+ RD_O- RE_E- RCLK_O- RD_E- RE_O+ RC_E- RE_E+ RD_E+ RC_E+ RB_O+ RD_O+ RA_O+ RA_E+ RA_O- RCLK_E+ RB_E- RCLK_O+ RB_O- RCLK_E- RE_O- RC_O- RA_E- RB_E+ PD_XIRQ7 PD_LOSDO14 PD_LOSDOYM TP8601 SERIAL USB LVDS LOSD HSDATA TS IN Achip/Dchip GND SD CARD Dchip Power IC CARD Achip Power AudioOUT ExternalBus PCI_BUS System(Dchip) AV IO HDMI IN Video OUT(SD) System(Achip) Dchip Achip Dchip Achip DDR3 I/F EtherPHY FPGA_XRST PEAKS LDA2 A-BOARD TNPH0899DC (23/26) ! TO 4/26 TO 6/26 TO 4/26 TO 3/26 TO 4/26 TO 4/26 TO 14/26 TO 4/26 TO 4/26 TO 4,20/26 TO 4/26 FPGA_CONFIG_ DONE TO 14/26 TO 1/26 TO 4/26 TO 10/26 TO 3/26 TO 3/26 TO 6/26 TO 4/26 TO 4,24/26 TO 24/26 TO 24/26 TO 24/26 TO 24/26 TO 24/26 TO 24/26 TO 24/26 TO 24/26 TO 4/26 TO 9/26 TO 10/26 TO 4/26 TO 10/26 TO 4/26 TO 9/26 TO 10/26 TO 10/26 TO 8/26 TO 25/26 TO 10/26 TO 4/26 TO 9,12/26 TO 20/26 TO 7/26 TO 4/26 TO 1/26 TO 4/26 TO 6/26 TO 22/26 TO 8/26 TO 17/26 TO 8/26 TO 6/26 TO 3/26 TO 6/26 TO 9/26 TO 3/26 TO 4/26 TO 14/26 TO 4/26 TO 5/26 TO 4,5/26 TO 4,5/26 TO 4/26 TO 5/26 TO 5/26 TO 3/26 TO 6/26 TO 6/26 TO 19/26 TO 3/26 TO 6,19/26 TO 20/26 TO 20/26 IC8000 MN2WS0110C PEAKS-LDA2 75 TH-P46GT20C 11.29.A 电路板 （24/26）线路图 216 213 210 214 212 215 208 211 209 TH-P46GT20C A-Board (24/26) Schematic Diagram TH-P46GT20C A-Board (24/26) Schematic Diagram P S S P P P P S P P S P C8019 16V 0.1u C8122 16V 0.1u C8014 10u 10V C8102 10V 10u C8123 16V 0.1u C8126 16V 0.1u C8065 16V 0.1u C8012 16V 0.1u C8055 16V 0.1u C8092 16V 0.1u C8076 16V 0.1u C8035 16V 0.1u C8008 10u 10V C8111 16V 0.1u C8112 16V 0.1u C8051 10V 1u C8087 16V 0.1u C8119 16V 0.1u C8075 16V 0.1u C8091 16V 0.1u C8062 16V 0.1u C8109 16V 0.1u C8115 16V 0.1u C8067 16V 0.1u C8082 10u 10V C8096 16V 0.1u C8022 16V 0.1u C8033 16V 0.1u C8017 10u 10V C8072 16V 0.1u C8053 16V 0.1u C8129 16V 0.1u C8069 16V 0.1u C8103 10V 10u C8018 16V 0.1u C8034 16V 0.1u C8039 16V 0.1u C8085 10V 10u C8052 16V 0.1u C8066 16V 0.1u C8089 16V 0.1u C8000 10V 10u C8004 16V 0.1u C8101 10V 10u C8100 10V 10u C8094 16V 0.1u C8104 10V 10u C8074 16V 0.1u C8105 10V 10u C8003 10V 10u C8011 16V 0.1u C8005 10V 10u C8084 10V 10u C8120 16V 0.1u C8025 16V 0.1u C8099 10V 10u C8027 10V 1u C8009 10u 10V C8061 10V 10u C8114 16V 0.1u C8068 16V 0.1u C8006 10u 10V C8043 16V 0.1u C8113 16V 0.1u C8078 16V 0.1u C8127 16V 0.1u C8116 16V 0.1u C8088 16V 0.1u C8071 16V 0.1u C8001 10u 10V C8121 16V 0.1u C8070 16V 0.1u C8013 16V 0.1u C8045 10V 1u C8023 16V 0.1u C8079 16V 0.1u C8064 10V 1u C8130 16V 0.1u C8090 16V 0.1u C8117 16V 0.1u C8110 16V 0.1u C8036 10V 1u C8048 16V 0.1u C8021 16V 0.1u C8010 16V 0.1u C8020 16V 0.1u C8131 16V 0.1u C8106 6.3V 4.7u C8083 6.3V 4.7u C8060 6.3V 4.7u C8059 6.3V 4.7u C8058 6.3V 4.7u C8107 6.3V 4.7u C8124 16V 0.01u L8017 J0JHC0000045 L8010 J0JCC0000287 L8000 J0JCC0000287 L8012 J0JCC0000287 L8007 J0JHC0000045 L8013 J0JCC0000287 L8020 J0JCC0000287 L8009 J0JHC0000045 L8001 J0JCC0000287 L8022 J0JHC0000045 L8018 J0JHC0000045 L8006 J0JCC0000287 L8011 J0JHC0000116 L8003 J0JHC0000045 L8024 J0JCC0000287 L8023 J0JHC0000045 L8015 J0JHC0000116 L8008 J0JCC0000287 L8004 J0JKC0000021 L8005 J0JKC0000021 L8016 J0JHC0000116 L8002 J0JCC0000287 L8019 J0JHC0000045 L8021 J0JCC0000287 L8014 J0JCC0000287 SUB1.5V SUB3.3V SUB1.2V_A SUB3.3V SUB3.3V SUB1.2V_D SUB3.3V ACHIP3.3V AVDDH DDR1.5V SUB3.3V SUB1.2V_A PA_AVDD75D_PLLV PA_VDDAVAD PA_AVDDA PD_VDDSD PD_LVVDD33 PD_LVVDD12 PD_VDDPUSB PA_AVDDH PD_VDD33 PD_AVDDPLL1_2 PD_DAAVDD1 PD_VDD12 PD_VDDR PA_AVDDSIF PA_AVDDHP PD_VDDAUSB PD_VDDIOCK PD_AVDDPLL0_3 PA_AVDDPLLA PA_AVDDADA PD_VDDUSB PD_AVDDPWM PA_AVDDV PA_VDD12A PD_VDDA R8000 330 R8031 2.2k C5534 22u 6.3V R5504 1.24k C5537 22u 6.3V Q5502 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 DCDCIN C5508 0.1u 16V R5503 R5510 2k R5520 15k Q5503 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 DCDCIN DCDCEN C5532 22u 6.3V C5517 10u 25V C5504 6800p 25V R5519 SUB1.2V_A C5530 22u 6.3V R5523 24k L5505 G1C100MA0077 Q5504 B1CFRD000048 C5511 0.1u 16V R5518 R5502 SUB3.3V C5536 22u 6.3V C5506 1u 16V L5504 G1C100MA0077 C5501 0.15u 10V R5505 1.24k C5509 0.1u 16V SUB1.2V_D C5528 22u 6.3V C5523 25V 10u R5500 C0DBAYY00715 IC5501 1 DRVH1 2 VBST1 3 EN1 4 VO1 5 VFB1 6 GND 7 SS1 8 VFB2 9 VO2 10 EN2 11 VBST2 12 DRVH2 13 SW2 14 DRVL2 15 PGND2 16 TRIP2 17 SS2 18 V5FILT 19 VREG5 20 VIN 21 TRIP1 22 PGND1 23 DRVL1 24 SW1 R5513 10 R5531 R5508 820 C5519 10u 25V C5500 6800p 25V TP5503 C5502 4.7u 10V C0DBAYY00715 IC5500 1 DRVH1 2 VBST1 3 EN1 4 VO1 5 VFB1 6 GND 7 SS1 8 VFB2 9 VO2 10 EN2 11 VBST2 12 DRVH2 13 SW2 14 DRVL2 15 PGND2 16 TRIP2 17 SS2 18 V5FILT 19 VREG5 20 VIN 21 TRIP1 22 PGND1 23 DRVL1 24 SW1 R5514 10 L5500 G1C2R2M00022 R5506 2.1k R5530 C5503 1u 16V R5521 TP5501 C5529 22u 6.3V L5502 G1C2R2Z00007 Q5500 B1MBDDA00003 S1 G1 S2 G2 D2 D2 D1 D1 C5507 0.039u 10V R5512 10 C5522 25V 10u TP5500 C5526 25V 10u C5531 22u 6.3V Q5501 B1CFRD000048 R5515 10 R5501 R5511 3.6k C5539 22u 6.3V R5522 20k C5520 25V 10u R5507 1.1k R5532 R5509 820 C5505 4.7u 10V C5533 22u 6.3V R5516 L5501 G1C3R3Z00005 C5516 10u 25V C5521 25V 10u C5538 22u 6.3V R5517 10k L5503 G1C3R3Z00004 C5510 0.1u 16V TP5502 SUB1.5V R5529 C5535 22u 6.3V PEAKS-LDA2 Dchip PEAKS-LDA2 Achip 1.5V/2A 3.32V/2A 1.26V/0.7A 1.26V/4A A-BOARD TNPH0899DC (24/26) ! LDA2 Power SUB1.2V_D SUB1.2V_A SUB3.3V SUB1.5V TO 4,23/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 23/26 TO 16,21/26 76 TH-P46GT20C 11.30.A 电路板 （25/26）线路图 225 222 219 223 221 224 217 220 218 TH-P46GT20C A-Board (25/26) Schematic Diagram TH-P46GT20C A-Board (25/26) Schematic Diagram S S S S S S S S S S S S S S S S S S S S S S S S S S AD_MMA7 PD_MMDQ1 PD_MMDQ19 PD_MMA1 AD_MMA9 AD_MMCK AD_MMBA2 PD_MMDQ0 PD_MMDQ18 AD_MMA3 PD_MMDQ15 PD_MMDQ17 PD_MMA4 AD_MMA6 AD_MMA0 PD_MMDQ14 PD_MMDQ16 AD_MMA9 AD_MMXCK AD_MMXCAS PD_MMDQ13 AD_MMBA0 AD_MMA3 AD_MMA1 PD_MMDQ12 PD_MMA12 PD_MMXRESET AD_MMCK PD_MMA5 AD_MMBA0 PD_MMDQ11 PD_MMA7 PD_MMXRESET AD_MMODT AD_MMBA2 AD_MMBA1 PD_MMDQ10 AD_MMXCS1 AD_MMA5 AD_MMXCK AD_MMA2 AD_MMA8 PD_MMDQ9 PD_MMDQ8 AD_MMBA2 AD_MMXCS0 AD_MMXWE PD_MMA9 AD_MMXRAS AD_MMA3 PD_MMXRESET PD_MMA10 AD_MMCK AD_MMA12 AD_MMA13 AD_MMA10 AD_MMBA1 PD_MMA3 AD_MMA13 AD_MMA11 AD_MMA7 AD_MMA9 PD_MMDQ30 AD_MMA13 AD_MMA6 AD_MMA8 AD_MMA8 AD_MMA12 PD_MMDQ31 PD_MMA13 AD_MMA2 AD_MMA0 AD_MMXCAS PD_MMDQ29 AD_MMA7 AD_MMA6 AD_MMA2 PD_MMDQ28 AD_MMA0 AD_MMODT PD_MMDQ27 AD_MMXRAS AD_MMA11 PD_MMA0 AD_MMA5 PD_MMA6 PD_MMDQ26 AD_MMCKE AD_MMA4 AD_MMA4 PD_MMA2 PD_MMDQ7 PD_MMDQ25 AD_MMA4 PD_MMA11 AD_MMA10 PD_MMDQ6 AD_MMA11 PD_MMDQ24 AD_MMA10 AD_MMA1 AD_MMXCK AD_MMBA1 PD_MMDQ5 PD_MMDQ23 AD_MMA5 AD_MMA1 AD_MMXCS1 PD_MMDQ4 PD_MMDQ22 AD_MMBA0 AD_MMXWE AD_MMCKE AD_MMXWE PD_MMDQ3 PD_MMDQ21 AD_MMXRAS AD_MMA12 AD_MMODT AD_MMCKE AD_MMXCS0 PD_MMDQ2 PD_MMDQ20 PD_MMA8 AD_MMXCAS C8286 10V 1u C8259 10V 1u C8263 10V 1u C8256 10V 1u C8272 10u 10V C8277 16V 0.1u C8274 16V 0.1u C8252 10u 10V C8281 10V 1u C8273 10V 1u C8246 10V 1u C8249 16V 0.1u C8243 50V 3p C8247 16V 0.1u C8257 16V 0.1u C8284 10V 1u C8260 16V 0.1u C8267 16V 0.1u C8253 16V 0.1u C8268 16V 0.1u C8241 16V 0.1u C8254 10V 1u C8275 10V 1u C8255 10V 1u C8282 16V 0.1u C8262 16V 0.1u C8250 16V 0.1u C8248 16V 0.1u C8242 16V 0.1u C8240 16V 0.1u C8285 10V 1u IC8240 A1 VDDQ IC8241 A1 VDDQ IC8241 = T8 A8 IC8241 = E1 VSS IC8241 = F7 DQL1 IC8241 = F1 VDDQ IC8240 = K3 /CAS IC8240 = B3 VSS IC8240 = T3 NC IC8241 = B7 /DQSU IC8240 = T8 A8 IC8240 = M7 NC IC8241 = D3 DMU IC8241 = J9 NC IC8241 = R1 VDD IC8240 = J2 VSS IC8241 = G2 DQL6 IC8241 = G9 VSSQ IC8240 = T2 /RESET IC8241 = T9 VSS IC8240 = H8 DQL5 IC8240 = L7 A10(AP) IC8240 = M8 VREFCA IC8240 = H1 VREFDQ IC8241 = L1 NC IC8241 = E9 VDDQ IC8241 = G3 /DQSL IC8241 = H7 DQL7 IC8241 = E3 DQL0 IC8241 = K3 /CAS IC8241 = L7 A10(AP) IC8241 = D8 VSSQ IC8241 = H3 DQL4 IC8241 = R7 A11 IC8241 = K7 /CK IC8241 = N7 A12(/BC) IC8240 = G2 DQL6 IC8241 = K2 VDD IC8240 = H3 DQL4 IC8240 = R8 A6 IC8240 = N1 VDD IC8240 = P8 A4 IC8241 = N1 VDD IC8240 = L8 ZQ IC8240 = R1 VDD IC8241 = B8 DQU6 IC8241 = M9 VSS IC8240 = E3 DQL0 IC8241 = T1 VSS IC8241 = A3 DQU7 IC8241 = L3 /WE IC8241 = R3 A9 IC8240 = L1 NC IC8241 = C1 VDDQ IC8240 = B9 VSSQ IC8240 = M2 BA0 IC8241 = B1 VSSQ IC8241 = E8 VSSQ IC8240 = M3 BA2 IC8241 = R2 A7 IC8241 = L8 ZQ IC8240 = B8 DQU6 IC8241 = H2 VDDQ IC8241 = J3 /RAS IC8241 = L9 NC IC8241 = N9 VDD IC8241 = B2 VDD IC8240 = E8 VSSQ IC8241 = F3 DQSL IC8240 = J9 NC IC8241 = P1 VSS IC8240 = R9 VDD IC8240 = E7 DML IC8241 = H8 DQL5 IC8240 = P2 A5 IC8241 = F9 VSSQ IC8241 = D1 VSSQ IC8241 = P3 A2 IC8240 = F1 VDDQ IC8240 = C9 VDDQ IC8241 = P8 A4 IC8240 = J7 CK IC8241 = C2 DQU3 IC8241 = B9 VSSQ IC8241 = B3 VSS IC8240 = K9 CKE IC8241 = K9 CKE IC8240 = B2 VDD IC8240 = E9 VDDQ IC8241 = F2 DQL2 IC8241 = H9 VDDQ IC8240 = P1 VSS IC8240 = G9 VSSQ IC8240 = D7 DQU0 IC8240 = J8 VSS IC8240 = J3 /RAS IC8240 = L3 /WE IC8240 = N9 VDD IC8240 = N3 A0 IC8241 = J8 VSS IC8240 = B1 VSSQ IC8240 = L2 /CS IC8241 = A7 DQU4 IC8241 = A9 VSS IC8241 = A2 DQU5 IC8240 = C7 DQSU IC8241 = D7 DQU0 IC8241 = J2 VSS IC8241 = G1 VSSQ IC8240 = M1 VSS IC8240 = K2 VDD IC8240 = A9 VSS IC8240 = M9 VSS IC8240 = D1 VSSQ IC8240 = D9 VDD IC8241 = H1 VREFDQ IC8240 = C2 DQU3 IC8240 = A3 DQU7 IC8240 = G7 VDD IC8240 = C3 DQU1 IC8241 = G7 VDD IC8240 = R2 A7 IC8240 = P3 A2 IC8240 = C1 VDDQ IC8240 = F2 DQL2 IC8241 = T2 /RESET IC8240 = E2 VSSQ IC8240 = A7 DQU4 IC8240 = D2 VDDQ IC8240 = T7 NC IC8240 = N8 BA1 IC8240 = F8 DQL3 IC8240 = H7 DQL7 IC8240 = P9 VSS IC8241 = F8 DQL3 IC8241 = K8 VDD IC8241 = R9 VDD IC8241 = P9 VSS IC8240 = F9 VSSQ IC8240 = R3 A9 IC8240 = J1 NC IC8240 = T9 VSS IC8240 = D8 VSSQ IC8241 = N2 A3 IC8241 = M2 BA0 IC8241 = K1 ODT IC8241 = R8 A6 IC8240 = C8 DQU2 IC8240 = K8 VDD IC8241 = C9 VDDQ IC8241 = N3 A0 IC8240 = B7 /DQSU IC8240 = A2 DQU5 IC8240 = E1 VSS IC8240 = H9 VDDQ IC8240 = N7 A12(/BC) IC8241 = T7 NC IC8241 = E7 DML IC8240 = K1 ODT IC8241 = M8 VREFCA IC8241 = P7 A1 IC8241 = J1 NC IC8241 = N8 BA1 IC8240 = F3 DQSL IC8241 = D9 VDD IC8241 = G8 VSS IC8241 = D2 VDDQ IC8240 = G1 VSSQ IC8240 = F7 DQL1 IC8240 = N2 A3 IC8240 = H2 VDDQ IC8241 = C8 DQU2 IC8240 = D3 DMU IC8241 = A8 VDDQ IC8241 = T3 NC IC8240 = G8 VSS IC8240 = L9 NC IC8241 = L2 /CS IC8241 = M1 VSS IC8241 = M3 BA2 IC8241 = C3 DQU1 IC8240 = G3 /DQSL IC8240 = P7 A1 IC8241 = M7 NC IC8240 = R7 A11 IC8241 = J7 CK IC8240 = K7 /CK IC8240 = A8 VDDQ IC8241 = E2 VSSQ IC8241 = P2 A5 IC8240 = T1 VSS DDR1.5V DDR1.5V DDR1.5V DDR1.5V DDR1.5V R8241 R8269 R8259 R8244 R8263 R8245 R8262 R8260 R8275 R8265 R8250 R8252 R8257 R8249 R8266 R8267 R8268 R8258 R8243 R8274 R8261 R8251 R8264 R8248 R8242 R8256 PD_MMDM3 PD_MMXCAS PD_MMXRESET PD_MMXCK PD_MMDM2 PD_MMBA0 PD_MMVCAL PD_MMXCS1 PD_MMXCS0 PD_MMCKE PD_MMXRAS PD_MMA[0-13] PD_MMRODT PD_MMDM1 PD_MMBA2 PD_MMCK PD_MMODT PD_MMBA1 PD_MMXWE PD_MMDM0 PD_MMVREF1 PD_MMVREF0 PD_MMXDQS0 PD_MMDQ[16-31] PD_MMDQS1 PD_MMXDQS2 PD_MMXDQS1 PD_MMDQ[0-15] PD_MMXDQS3 PD_MMDQS0 PD_MMDQS2 R8278 1k R8277 1k R8279 1k R8280 1k R8284 1k R8285 220 R8246 33 R8286 220 R8288 240 R8287 240 R8253 1k R8283 1k R8289 10k R8271 1k R8282 1k R8270 1k R8255 1k R8281 1k R8254 1k R8247 33 R8240 240 R8272 1k IC8241 = C7 DQSU PD_MMDQS3 PEAKS-LDA2 MMCK MMXCK A-BOARD TNPH0899DC (25/26) ! DDR3 1Gbit DDR3 IC8240 C3ABTY000025 IC8241 C3ABTY000025 1Gbit DDR3 TO 23/26 77 TH-P46GT20C 11.31.A 电路板 （26/26）线路图 234 231 228 232 230 233 226 229 227 TH-P46GT20C A-Board (26/26) Schematic Diagram TH-P46GT20C A-Board (26/26) Schematic Diagram S S S *C8310 16V 0.1u *C8300 16V 0.1u *C8321 10V 2.2u *C8309 16V 0.1u *C8317 16V 0.1u *C8322 16V 0.1u *C8311 10u 10V *C8301 16V 0.1u *C8325 50V 56p *C8320 10V 1u *C8303 16V 0.1u *C8308 16V 0.1u *C8316 16V 0.1u *C8305 50V 10p *C8319 16V 0.1u *C8315 16V 0.1u *C8306 16V 0.1u *C8304 50V 10p *C8314 16V 0.1u *C8324 50V 56p *C8318 16V 0.1u C0DBFYY00041 *IC8302 1 VIN 2 VSS 3 CE 5 VOUT 4 NC C1AB00003188 *IC8300 1 GPIO0 2 TSERR 3 TSSYNC 4 TSVALID 5 TSCLK 6 VSS 7 DVDD 8 TSDATA0 9 TSDATA1 10 CVDD 11 VSS 12 TSDATA2 13 TSDATA3 14 TSDATA4 15 TSDATA5 16 TSDATA6 17 TSDATA7 18 VSS 19 DVDD 20 SCL 21 SDA 22 CVDD 23 VSS 24 TESTMODE 25 A0 26 OSCENBN 27 VSS 28 CVDD 29 RESETN 30 OSCMODE 31 PVSS 32 PVDD 33 XVDD 34 XTALO 35 XTALI 36 XVSS 37 AINM 38 AINP 39 AVSS 40 AVDD 41 RFAIN 42 RVDD 43 VSS 44 CVDD 45 TUNERDAT 46 TUNERCLK 47 RFAGC_GPIO1 48 IFAGC *L8300 J0JHC0000045 *L8303 J0JHC0000045 *L8304 J0JHC0000045 *L8302 J0JHC0000045 SUB3.3V FE1.2V SUB3.3V VJ8300 TP8301 PEAKS_SCL0 AA_FE_RST FE0_MDO4 FE0_MDO2 FE_SW FE0_MDO1 IFAGC FE0_MDO5 FE0_MDO3 FE0_MDO7 FE0_VAL IFD1 FE-OUT_SCL FE0_MDO6 FE0_CLK IFD2 FE0_PSYNC FE0_MDO0 PEAKS_SDA0 FE-OUT_SDA *R8300 EXB2HV680JV *R8309 2.2k *R8305 68 *R8304 68 *R8324 560 *R8325 560 *R8326 4.7k *R8302 470 *R8316 0 *R8306 68 *R8310 68 *R8315 0 *R8327 4.7k *R8301 10k *R8303 68 *X8300 H0J410500001 *R8323 *R8322 FE_XRST / SDRAM_CHK DVB-T/C Demodulator 3.3V 2.5V FE_SCL FE_SDA 41.0MHz TUNER A-BOARD TNPH0899DC (26/26) ! OFDM OFDM 2.5V TO 1,14/26 TO 1,22/26 TO 2/26 TO 2/26 TO 14/26 TO 14/26 TO 2,3,6/26 78 TH-P46GT20C 11.32.D 电路板 (1/4) 线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C D-Board (1/4) Schematic Diagram TH-P46GT20C D-Board (1/4) Schematic Diagram (FIN) TERM SIDE SOS6_SC1 SC_CRC1 SC_CEL SC_CML SC_CSL SC-SEL2 SC_CPH1 SC_CSH SC_OC1 SC_CMH SCNRST SC_CRC2 SC_SCCLK SC_OC2 SC_SIU SC_CERS SC_CIS P_ON/OFF OHZ1 PD_SEL2 PD_CPH1 PD_CML PD_CIS PD_CSL PD_CMH PD_CEL SC_CRC3 SC_SEL PD_CRC3 PD_SEL PD_CSH SC_OC1 SC_CRC1 SC_CERS SC_SIU SC_OC2 SC_SCCLK SC_CRC2 SCNRST SC_CPH1 SC_CIS SC_CEL SC_CSH SC_CSL SC_CMH SC_CML SC-SEL2 P_S0 SC_SEL SC_CML2 PD_CML2 SC_CML2 P_S1 PANEL_MAIN_ON SOS7_SC2 SC_UHZ PD_SIU PD_SCCLK PD_CRC2 PD_CRC1 PD_SCNRST PD_OC1 PD_OC2 PD_CERS SOS4_PS SC_CRC3 C9102 10u 25V C9103 25V 0.01u C9100 10u 10V C9101 25V 0.01u C9807 200p 50V C9801 6800p 25V C9825 22u 6.3V C9812 10u 25V C9804 10u 25V C9816 0.1u 25V C9808 47p 50V C9815 22u 6.3V C9108 25V 0.01u C9811 0.047u 16V C9806 100p 50V C9817 10u 10V C9813 10u 25V C9803 4700p 25V C9800 0.1u 25V C9805 10u 25V C9106 10u 25V C9819 10u 10V C9110 16V 0.1u C9400 16V 0.1u C9402 16V 0.1u C9401 16V 0.1u C9827 10u 25V C9830 0.1u 25V C9833 100p 50V C9829 0.047u 16V C9831 3300p 25V C9835 22u 6.3V C9828 10u 25V C9845 200p 50V C9846 200p 50V D9803 B0JCCE000008 D9802 B0JCCE000008 D9800 B0JCPD000026 C0DBAYY00605 IC9800 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C0DBAYY00605 IC9803 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C0DBAYY00605 IC9801 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C0JBAU000010 IC9402 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAU000010 IC9401 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAU000010 IC9400 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0DBEHG00006 IC9802 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND(FIN) D20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 D25 1 2 3 4 5 6 7 8 9 10 L9801 G1C6R8Z00008 L9800 G1C6R8Z00010 L9802 G1C6R8Z00008 P15V P15V P5V P15V P15V P15V P5V P5V P1.2V P15V P5V P3.3V P2.5V P5V STB5V TP9083 TP9092 TP9090 TP9089 TP9094 TP9099 TP9088 TP9082 TP9093 TP9081 TP9084 TP9098 TP9095 TP9100 TP9085 TP9080 TP9196 TP9086 TP9006 TP9096 TP9101 TP9087 TP9091 TP9097 Q9802 B1ABCF000231 Q9800 B1ABCF000231 R9198 EXB38V101JV R9189 EXB38V101JV R9402 EXB38V103JV R9209 EXB2HV470JV R9401 EXB2HV103JV R9208 EXB2HV470JV R9400 EXB2HV103JV R9875 20k R9890 110k R9224 47 R9882 10k R9879 15k R9226 47 R9901 27k R9873 10k R9910 15k R9891 47k R9881 10k R9878 8.2k R9874 27k R9872 3.3k R9900 27k R9884 10k R9909 47k R9247 47 R9111 0 R9877 43k R9908 10k R9880 10k C9809 2200p 50V S1 PANEL_MAIN_ON SOS4_PS GND +15V +15V GND GND STBY5V CIS CEL P5V GND GND CSL CRC2 SOS7_SC2 NC +15V CERS +15V GND CMH GND SOS6_SC1 CRC3 SEL CML GND SEL2 OC2 SCCLK GND UHZ CSH CPH1 SIU CRC1 OC1 GND NC SCNRST S0 GND RSV BUFFER BUFFER BUFFER 2.5V ! DC-DC CONVERTER 1 2 3 4 TO SC-BOARD (SC20) TO P-BOARD (P25) DC-DC CONVERTER 15V->3.3V DC-DC CONVERTER 15V->1.2V DC-DC CONVERTER 15V->5V D-BOARD TXN/D1MJUC (1/4) 79 TH-P46GT20C 11.33.D 电路板 (2/4) 线路图 TH-P46GT20C D-Board (2/4) Schematic Diagram TH-P46GT20C D-Board (2/4) Schematic Diagram 12 16 10 14 15 18 13 11 17 TERM SIDE S RXD_PC STB_SDA02 SOS8 SOS7 OSD_VIN AR_STB_SCL02 NRST SOS8_SS P3V_SDA01 OSD_CKI OSD_HI P3V_SCL01 IIC_CONT RXD_PC SC_UHZ OSD_B OSD_HIN STB_SDA02 REM_IN STB_SCL02 REMOCON PANEL_MAIN_ON SOUT INEXCH STB_SDA01 REM_IN IIC_SW IIC_CONT STB_SCL01 TXD_PC STB_SCL01 LED_G ALARM P3V_SDA02 SCLK NCS P3V_SCL02 OSD_R P_ON/OFF SOS6 OSD_G AR_IIC_CONT SOS7 IIC_CONT SOS8 EEP_WR_CTL SOS6 STB_SDA01 READY AR_TXD_PC LED_R IIC_SW SOS6_SC1 OSD_CLKIN OSD_YS AR_STB_SDA02 STB_SCL02 SOS7_SC2 PANEL_STBY_ON LED_R P3V_SDA01 REMOCON P3V_SCL01 AR_RXD_PC LED_G AR_TXD_PC AR_STB_SDA02 AR_STB_SCL02 AR_RXD_PC RD_O+ RD_O- RCLK_O+ RC_O+ RC_O- RB_O+ RB_O- RB_E- RC_E- RC_E+ RCLK_E- RCLK_E+ RD_E- RD_E+ RE_E- RE_E+ TXD_PC D_UHZ SIN SOS_DCC P_ON/OFF DRVRST STB_SDA02 STB_SCL02 RA_E- RA_O- RE_O+ AR_TXD_PC AR_RXD_PC AR_STB_SCL02 AR_STB_SDA02 P3V_SCL01 P3V_SDA01 AR_IIC_CONT ALARM READY PANEL_STBY_ON DRVMUTE INEXCH RE_O- RB_E+ RCLK_O- RA_E+ RA_O+ NRST SOS4_PS EEP_WR_CTL STB_SCL02 P3V_SDA02 P3V_SCL02 AR_IIC_CONT XRST_SYS STB_SDA02 C9053 16V 0.1u C9061 16V 0.1u C9035 10V 10u C9057 16V 0.1u C9045 16V 0.1u C9036 10V 10u C9034 16V 0.1u C9063 16V 0.1u C9105 50V 100p C9048 16V 0.1u C9033 16V 0.1u C9056 16V 0.1u C9044 10V 4.7u C9037 0.01u 25V C9095 0.1u 16V C9046 16V 0.1u C9047 16V 0.1u C9065 16V 0.1u C9052 16V 0.1u C9055 16V 0.1u C9062 4.7u 10V C9040 16V 0.1u C9054 200p 50V D9110 B0JCGD000002 IC9002 C1ZBZ0004127 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA *IC9001 TVRR866AB 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc C1ZBZ0003983 IC9004 1 Y5 2 Y4 3 Y3 4 Y2 5 Y1 6 RESET 7 CD_OUT 8 STB33V 9 GND 10 DCDC_OE 11 VIN_OR 12 P_SDA1 13 P_SCL1 14 P_SDA2 15 P_SCL2 16 P33V_IN 17 IIC_SW 18 S_SCL2 19 S_SDA2 20 S_SCL1 21 S_SDA1 22 STB33VIN 23 P33V 24 P_ON_OFF 25 STB5V_IN 26 GND 27 CE 28 A1 29 A2 30 A3 31 A4 32 A5 MN103SH8HFT1 IC9003 1 P60_SBO0A 2 P61_SBT0A 3 P62_SBI0A 4 P05_IRQ6 5 P06_IRQ7 6 P07_IRQ8 7 P70_SDA0 8 P71_SCL0 9 P50_RMIN_IRQ0 10 P20 11 P21 12 P22 13 P23 14 IVDD 15 VSS 16 P10 17 P11 18 P12 19 P13 20 P14 21 P15 22 P16 23 EXCLKSEL 24 P72_SDA1 25 P73_SCL1 26 P65_SBT2 27 P66_SBI2 28 P30 29 P31 30 P32 31 P33 32 P34 33 P35 34 P36 35 P37 36 VPPEX_(N.C.) 37 IVDD 38 VDD 39 RONA 40 VSS 41 OSCXO 42 OSCXI 43 IVDD 44 P64_SBI1 45 P63_SBT1 46 NBOOT_(N.C.) 47 NRST 48 NTEST 49 SCLOCK_(UND) 50 SDATA_(UND) 51 ENTRG0_(UND) 52 ENTRG1_(UND) 53 TRCCLK_(UND) 54 TRCST_(UND) 55 TRCD0_(UND) 56 TRCD1_(UND) 57 TRCD2_(UND) 58 TRCD3_(UND) 59 P80_ADIN0 60 P81_ADIN1 61 P82_ADIN2 62 P83_ADIN3 63 IVDD 64 VSS 65 P84_ADIN4 66 P85_ADIN5 67 P86_ADIN6 68 P87_ADIN7 69 P90_ADIN8 70 P91_ADIN9 71 P92_ADIN10 72 P93_ADIN11 73 P74_SDA2 74 P75_SCL2 75 P40_TM0IO 76 P41_TM1IO 77 P42_TM2IO 78 P43_TM3IO 79 P44_TM4IO_SYSCLK 80 P00 81 P01 82 P02 83 P03_SBT0B 84 P04_SBO0B 85 P51_IRQ2 86 P52_IRQ3 87 P53_IRQ4 88 P54_IRQ5 89 PA7_VCLKOUT 90 PA6_HOUT 91 PA5_YSOUT 92 PA4_B00 93 PA3_G00 94 PA2_R00 95 PA1_VSYNC_IRQ1 96 PA0_HSYNC 97 VSS 98 OSDXI 99 IVDD 100 VDD D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 D6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 P3.3V STB5V STB3.3V P3.3V STB3.3V P15V STB3.3V STB5V P3.3V P5V STB3.3V P15V STB3.3V P3.3V VJ9303 TP9203 TP9313 TP9201 TP9200 TP9001 TP9315 TP9002 TP9000 TP9314 TP9204 TP9316 TP9202 R9104 EXB38V101JV R9231 EXB38V101JV R9119 EXB38V470JV R9868 100k R9186 22 R9225 2.7k R9121 100k R9201 10 R9164 10k R9223 2.7k R9166 10k R9107 3.3k R9194 470 R9070 10k R9152 10k R9205 33k R9149 100k R9212 47 R9215 100k R9130 47 R9124 47 R9187 2.7k R9188 2.7k R9154 2.7k R9203 22k R9129 68k R9150 22 R9072 10k R9132 100 R9207 24k R9871 10k R9213 47 R9151 22 R9105 22 R9206 56k R9200 10 R9155 2.7k R9185 22 R9153 10k R9244 100 X9000 H2C1005A0041 10MHz RB_O+ RE_O-(LSB) RE_O+(LSB) GND GND DISPEN RA_E+(MSB) GND RA_O+(MSB) GND GND GND RE_E+(LSB) IIC_CLK2 RXD RB_E+ TXD LVDS_DET BD_EJK RE_E-(LSB) PANEL_STBY_ON RD_O+ ALARM RC_O- RD_O- RC_O+ RD_E- RD_E+ RC_E+ RC_E- SCL2 GND STBY5V LED_G RXD GND TXD REMOCON SDA1 LED_R MAIN_CONF IIC_DATA2 IIC_CLK1 IIC_DATA1 READY RB_O- RA_O-(MSB) RCLK_O- RCLK_E+ IIC_CONT SDA2 RCLK_O+ NC GND NC IIC_INT NC RCLK_E- SCL1 RA_E-(MSB) STBY3.3V RB_E- GND INT_CONF EXCLKSEL NC NC GND GND GND GND GND GND GND GND GND IIC_CONT GND ! PANEL MPU,EEPROM STB+3.3V/RESET PANEL MPU EEPROM TEMP SENSOR 1 2 3 4 11 12 TO A-BOARD (A31) FOR FACTORY USE GenX7 D-BOARD TXN/D1MJUC (2/4) 80 TH-P46GT20C 11.34.D 电路板 (3/4) 线路图 TH-P46GT20C D-Board (3/4) Schematic Diagram TH-P46GT20C D-Board (3/4) Schematic Diagram 25 19 24 23 27 22 26 21 20 TERM SIDE P OSD_VIN DRVCLK2P RCLK_E+ RCLK_O- DRVCLK2N RCLK_E- DD3_1P RC_O+ RB_E+ OSD_HIN DD3_1N RC_E- DD3_2P D-PCD3 RB_O+ RB_E- DD3_2N RC_O- RD_O+ OSD_B DD2_1P RD_E+ OSD_HI D-LED1 DD2_1N RCLK_O+ RC_E+ OSD_CKI D-ODED2 DD2_2P UMH_C DD8_1P DD2_2N RD_O- DRVCLK3P DRVCLK4N DRVCLK1P DRVCLK3N DD7_1P DRVCLK1N DD5_1P DD7_1N DD1_1P D-PCD2 DD5_1N DD7_2P DD1_1N D-ODED1 DRVCLK4P DD7_2N D-PCD1 DD1_2P DD6_1P DD1_2N UEH_C USH_C DD6_1N D-PCD4 DD6_2P OSD_G DRVCLK5P RA_O- D-CLRD2 DD6_2N OSD_CLKIN DRVCLK5N USL/UML2_C RE_O- RB_O- UML_C DD5_2P DD8_1N RE_E+ OSD_YS DD5_2N DD8_2P RA_E- DD4_1P DD8_2N D-CLRD1 RA_O+ RA_E+ DD4_1N D-LED2 DD4_2P RE_E- OSD_R DD4_2N RD_E- RE_O+ PD_CLRD1 PD_LED1 PD_PCD1 PD_PCD2 PD_ODED1 PD_CLRD2 PD_ODED2 PD_PCD4 PD_PCD3 PD_LED2 PD_UMH PD_UML PD_USH PD_USL/UML2 PD_UEH SCLK SOUT NCS SIN PD_SIU PD_SCCLK PD_CERS PD_SEL PD_OC2 PD_CRC1 PD_SCNRST PD_OC1 PD_CIS PD_CML2 PD_CEL PD_CSH PD_CSL PD_CPH1 PD_CMH PD_CML PD_CRC2 PD_CRC3 D_UHZ SOS_DCC DD1_2P DD1_2N DD1_1P DD1_1N DRVCLK1P DRVCLK1N DD2_2P DD2_2N DD2_1P DD2_1N DD3_2P DD3_2N DD3_1P DD3_1N DRVCLK2P DRVCLK2N DD4_2P DD4_2N DD4_1P DD4_1N DD5_2P DD5_2N DD5_1P DD5_1N DRVCLK3P DRVCLK3N DD6_2P DD6_2N DD6_1P DD6_1N DD7_2P DD7_2N DD7_1P DD7_1N DRVCLK4P DRVCLK4N DD8_2P DD8_2N DD8_1P DD8_1N DRVCLK5P DRVCLK5N DD9_2P DD9_2N DD9_1P DD9_1N DRVCLK6P DRVCLK6N DD10_2P DD10_2N DD10_1P DD10_1N DD11_2P DD11_2N DD11_1P DD11_1N DRVCLK7P DRVCLK7N DD12_2P DD12_2N DD12_1P DD12_1N DD13_2P DD13_2N DD13_1P DD13_1N DRVCLK8P DRVCLK8N DD14_2P DD14_2N DD14_1P DD14_1N DD15_2P DD15_2N DD15_1P DD15_1N DRVCLK9P DRVCLK9N D-LED1 D-ODED1 D-PCD1 D-CLRD1 P3V_SDA02 P3V_SCL02 OHZ1 D-PCD2 PD_UEH PD_USL/UML2 PD_USH PD_UML PD_UMH PD_LED2 PD_ODED2 PD_PCD3 PD_PCD4 PD_CLRD2 PD_LED1 PD_ODED1 PD_PCD1 PD_PCD2 PD_CLRD1 DRVRST P_S1 P_S0 PD_SEL2 XRST_SYS DRVMUTE C9303 0.1u 16V C9304 0.1u 16V C9302 50V 18p C9301 50V 18p C9394 0.1u 16V C9300 16V 0.1u IC9300 A19 RXECN IC9300 M30 DCCOP12 IC9300 AF3 LVDRCK2N IC9300 A16 RXEEN IC9300 M2 DCCOP33 IC9300 AJ5 LVDOD7P IC9300 U3 DCCOP40 IC9300 B27 SOS IC9300 R28 DCCOP23 IC9300 B17 RXEDP IC9300 M3 DCCOP35 IC9300 AH6 LVDRCK4N IC9300 AJ25 LVDOD23P IC9300 N2 DCCOSCRST IC9300 L3 DCCOP27 IC9300 AJ13 LVDOD13P IC9300 A28 DCCIDRVRST IC9300 T2 DCCOP2 IC9300 AK19 LVDOD19N IC9300 A12 RXOCKN IC9300 AK18 LVDOD18N IC9300 AJ19 LVDOD19P IC9300 V3 DCCOP11 IC9300 AH26 LVDRCK12N IC9300 B10 RXOEP IC9300 AE2 LVDOD2P IC9300 A11 RXODN IC9300 B13 RXOCP IC9300 R3 DCCIFBK1 IC9300 AG2 LVDOD4P IC9300 B3 EXTFLSO IC9300 A7 SCL IC9300 N1 DCCOP32 IC9300 AH25 LVDRCK11P IC9300 AK4 LVDOD6N IC9300 AK14 LVDOD14N IC9300 C5 FLSIO1 IC9300 AK25 LVDOD23N IC9300 P3 DCCOP41 IC9300 AC2 LVDOD0P IC9300 AF28 LVDRCK13P IC9300 E3 OSDHI IC9300 L1 DCCOP38 IC9300 AH9 LVDRCK5P IC9300 AJ14 LVDOD14P IC9300 Y1 DCCOP16 IC9300 P30 DCCOP21 IC9300 U2 DCCOP4 IC9300 AK6 LVDOD8N IC9300 AH5 LVDRCK3P IC9300 AC3 LVDRCK0N IC9300 B4 FLSIO0 IC9300 AK5 LVDOD7N IC9300 AE29 LVDOD29P IC9300 A6 FLSIO2 IC9300 E1 OSDBI IC9300 AH8 LVDRCK5N IC9300 N29 DCCOP29 IC9300 AJ9 LVDOD11P IC9300 R1 DCCOP9 IC9300 B16 RXEEP IC9300 AH27 LVDRCK12P IC9300 V2 DCCOP1 IC9300 AK17 LVDOD17N IC9300 AH12 LVDRCK6N IC9300 AD1 LVDOD1N IC9300 N3 DCCOP39 IC9300 AC30 LVDOD31N IC9300 AD2 LVDOD1P IC9300 F1 OSDCKI IC9300 B12 RXOCKP IC9300 AJ17 LVDOD17P IC9300 E28 FPDAT0 IC9300 R2 DCCOP5 IC9300 C29 SFLATCHI IC9300 E29 FPDAT1 IC9300 AE1 LVDOD2N IC9300 AD3 LVDRCK1N IC9300 B28 XRSTSYS IC9300 R29 DCCOP37 IC9300 AG29 LVDOD27P IC9300 K30 DCCOP24 IC9300 A29 XRST IC9300 P28 DCCOP25 IC9300 B19 RXECP IC9300 W30 XO IC9300 N28 DCCOP26 IC9300 T1 DCCOP3 IC9300 C30 DCCIDISPEN IC9300 AK16 LVDOD16N IC9300 D30 FPCLK IC9300 AG1 LVDOD4N IC9300 AH29 LVDOD26P IC9300 AH18 LVDRCK9N IC9300 V1 DCCOP8 IC9300 M29 DCCOP13 IC9300 B7 SDA IC9300 P29 DCCOP18 IC9300 V30 XI IC9300 A27 SFRST IC9300 A10 RXOEN IC9300 B5 FLNCS IC9300 AH15 LVDRCK7P IC9300 K2 DCCOP30 IC9300 A21 RXEAN IC9300 AG3 LVDRCK2P IC9300 AK12 LVDOD12N IC9300 AH7 LVDRCK4P IC9300 AH19 LVDRCK9P IC9300 Y3 DCCOP22 IC9300 C4 EXTFLSI IC9300 M1 DCCOP7 IC9300 AJ7 LVDOD9P IC9300 A17 RXEDN IC9300 AJ27 LVDOD25P IC9300 AE28 LVDRCK14N IC9300 AJ26 LVDOD24P IC9300 AF30 LVDOD28N IC9300 P2 DCCOP10 IC9300 AD30 LVDOD30N IC9300 AJ16 LVDOD16P IC9300 AJ4 LVDOD6P IC9300 L2 DCCOP6 IC9300 B11 RXODP IC9300 T3 DCCIFBK2 IC9300 W1 DCCOP36 IC9300 Y2 DCCOP20 IC9300 W2 DCCOP31 IC9300 K1 DCCOP34 IC9300 A3 EXTFLSCK IC9300 AA2 DCCOP17 IC9300 AJ12 LVDOD12P IC9300 AC29 LVDOD31P IC9300 AH2 LVDOD5P IC9300 T30 CKMO IC9300 AJ18 LVDOD18P IC9300 A18 RXECKN IC9300 D2 OSDRI IC9300 AD29 LVDOD30P IC9300 AJ15 LVDOD15P IC9300 A13 RXOCN IC9300 AB28 LVDRCK15P IC9300 AJ23 LVDOD21P IC9300 P1 DCCIFBK0 IC9300 AC4 LVDRCK0P IC9300 L30 DCCOP14 IC9300 B26 SFVRST IC9300 AC28 LVDRCK15N IC9300 B21 RXEAP IC9300 AH1 LVDOD5N IC9300 A4 FLSCK IC9300 E2 OSDYSI IC9300 AA1 DCCOP28 IC9300 C1 OSDCKO IC9300 L29 DCCOP15 IC9300 AG30 LVDOD27N IC9300 AK24 LVDOD22N IC9300 AC1 LVDOD0N IC9300 AE3 LVDRCK1P IC9300 AH16 LVDRCK8N IC9300 AH14 LVDRCK7N IC9300 B20 RXEBP IC9300 B30 DCCIPORT0 IC9300 A5 FLSIO3 IC9300 AE30 LVDOD29N IC9300 AH22 LVDRCK10N IC9300 AJ8 LVDOD10P IC9300 AK15 LVDOD15N IC9300 K29 SFVO IC9300 B15 RXOAP IC9300 A2 EXTFLNCS IC9300 AK27 LVDOD25N IC9300 D1 OSDVO IC9300 AH13 LVDRCK6P IC9300 C2 OSDHO IC9300 AK9 LVDOD11N IC9300 AF2 LVDOD3P IC9300 A15 RXOAN IC9300 AH17 LVDRCK8P IC9300 AH24 LVDRCK11N IC9300 AK26 LVDOD24N IC9300 B18 RXECKP IC9300 B6 SPIHZ IC9300 B14 RXOBP IC9300 A14 RXOBN IC9300 AJ6 LVDOD8P IC9300 AK22 LVDOD20N IC9300 AF1 LVDOD3N IC9300 A20 RXEBN IC9300 AK7 LVDOD9N IC9300 AH23 LVDRCK10P IC9300 U1 DCCOP0 IC9300 D3 OSDGI IC9300 AH30 LVDOD26N IC9300 AJ24 LVDOD22P IC9300 AG28 LVDRCK13N IC9300 N30 DCCOP19 IC9300 AK8 LVDOD10N IC9300 AJ22 LVDOD20P IC9300 AK23 LVDOD21N IC9300 AF29 LVDOD28P IC9300 AH4 LVDRCK3N IC9300 AK13 LVDOD13N IC9300 AD28 LVDRCK14P *IC9304 TVRR947AC 1 CS# 2 SO/SIO1 3 WP#/SIO2 4 GND 5 SI/SIO0 6 SCLK 7 NC/SIO3 8 VCC D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 P3.3V P3.3V P3.3V VJ9902 TP9107 TP9108 TP9105 TP9109 TP9078 TP9110 TP9300 TP9106 TP9301 TP9076 R9609 EXB38V470JV R9610 EXB38V470JV R9611 EXB38V470JV R9608 EXB2HV470JV R9318 47 R9321 1M R9322 47 R9503 10k R9320 1.2k R9319 47 R9323 1k R9316 47 X9300 H0J200500076 20MHz DD7_2+ DD7_1+ DRVCLK5+ DRVCLK5- GND DD1_2+ DD6_2- DRVCLK3- DD2_1- GND DD6_2+ DD4_2+ DD6_1+ CLR1 GND DD1_1- DD5_1+ GND GND GND KEY_SCAN GND GND DD5_2- DD5_2+ DD5_1- DD8_1+ GND DD4_2- DATA_DRIVER DD3_1+ NC DD1_1+ IIC DD3_2+ GND DRVCLK2+ SS_PULSE DRVCLK4+ P3.3V GND P3.3V DRVCLK4- DD2_2+ DD2_1+ DD6_1- ODE1 DD8_1- DRVCLK1- LE1 GND PC2 DRVCLK1+ DD2_2- DD4_1- DD3_2- DD7_1- DD8_2- DD7_2- DD8_2+ DD3_1- LVDS_INPUT DD4_1+ GND GND GND PC1 DRVCLK3+ DRVCLK2- P3.3V DD1_2- GND ! PD4H FLASH MEMORY C1AB00003258 IC9300 PD4H 11 12 21 22 23 TO C1-BOARD (C11) D-BOARD TXN/D1MJUC (3/4) 81 TH-P46GT20C 11.35.D 电路板 (4/4) 线路图 28 33 30 35 29 31 32 36 34 TH-P46GT20C D-Board (4/4) Schematic Diagram TH-P46GT20C D-Board (4/4) Schematic Diagram TERM SIDE P P P P P DD12_1N DD10_1P DRVCLK8P DD15_1P DD11_1N DD14_1P DD14_2N DD15_2N DD10_2N C_5V_DET DD9_1P DD13_1N DRVCLK9P DD14_2P DRVCLK6P DD10_1N DRVCLK7P DD14_1N DD13_2N DD10_2P DRVCLK7N DD15_1N DD12_2P DD12_1P DD9_1N DRVCLK9N DD9_2N DD11_2N DD11_1P DRVCLK6N SOS8_SS DD15_2P DRVCLK8N DD12_2N DD9_2P DD13_1P DD13_2P DRVRST DD11_2P D-ODED2 D-PCD4 D-CLRD2 UMH_C UML_C USH_C USL/UML2_C UEH_C D-PCD3 D-LED2 C9307 0.1u 16V C9308 0.1u 16V C9311 0.1u 16V C9312 10V 10u C9314 10V 10u C9900 25V 0.01u C9313 0.1u 16V C9316 10V 10u C9315 0.1u 16V C9319 0.1u 16V C9322 0.1u 16V C9323 0.1u 16V C9325 0.1u 16V C9327 0.1u 16V C9335 10V 10u C9336 10V 10u C9337 10V 10u C9344 0.1u 16V C9339 0.1u 16V C9340 0.1u 16V C9342 0.1u 16V C9347 1u 6.3V C9349 10u 10V C9351 0.1u 16V C9352 6.3V 1u C9350 0.1u 16V C9356 0.1u 16V C9361 0.1u 16V C9363 0.1u 16V C9371 10V 10u C9372 10V 10u C9373 10V 10u C9374 0.1u 16V C9375 0.1u 16V C9380 0.1u 16V C9383 0.1u 16V C9392 10V 10u C9391 10V 10u IC9300 C1AB00003258 A1 VDD33 IC9300 C15 GND IC9300 N4 SCS_ANA_33 IC9300 E17 SCS_VDD18 IC9300 C21 GND IC9300 N5 SCS_VDD15 IC9300 C17 GND IC9300 AF27 miniLVDS_RI3 IC9300 W26 GND IC9300 E30 SBO0 IC9300 AC27 MLVDS_VDD IC9300 U4 SCS_ANA_35 IC9300 F4 GND IC9300 AG16 MLVDS_VDD IC9300 J28 SCS_ANA_26 IC9300 AJ29 GND IC9300 B23 GND IC9300 J5 VDDC IC9300 H5 VDDC IC9300 B2 VDD33 IC9300 B1 GND IC9300 D5 GND IC9300 D26 GND IC9300 K3 OCKOUT IC9300 R26 SCS_VDD18 IC9300 D15 VTEST0 IC9300 H29 MVIO IC9300 AG20 GND IC9300 AF22 VDDC IC9300 AJ21 SCS_ANA_1 IC9300 C9 GND IC9300 E21 VDDC IC9300 H3 VDD33 IC9300 E27 SCS_ANA_7 IC9300 AF12 GND IC9300 C20 GND IC9300 E13 SCS_VDD18 IC9300 AK11 GND IC9300 AG24 MLVDS_VDD IC9300 G28 SRLF2 IC9300 AB1 VDDC IC9300 E19 LRX_V12 IC9300 AK28 GND IC9300 AD4 MLVDS_VDD IC9300 AF13 SCS_VDD18 IC9300 AH10 SCS_ANA_19 IC9300 C28 GND IC9300 A8 GND IC9300 AB3 VDDC IC9300 G3 SCS_ANA_27 IC9300 D23 VDD33 IC9300 U26 VDDC IC9300 AA29 MLVDS_VDD IC9300 E5 VDD33 IC9300 R4 VDD33 IC9300 AB2 VDDC IC9300 D8 VDD33 IC9300 D21 LRX_V12C_1 IC9300 V26 VDDC IC9300 W28 VDD33 IC9300 AB27 PLLSSDCCCK_AVD IC9300 AA28 MLVDS_VDD IC9300 AC26 VDDC IC9300 L5 GND IC9300 E14 SCS_VDD18 IC9300 W5 GND IC9300 C27 GND IC9300 AA27 PLLSSDCCCK_AVS IC9300 C22 GND IC9300 Y29 SCS_ANA_36 IC9300 AG4 GND IC9300 G4 GND IC9300 A26 SFLATCHO IC9300 F3 SCS_ANA_4 IC9300 AG7 MLVDS_VDD IC9300 U29 SCS_ANA_32 IC9300 K27 GND IC9300 G26 VDDC IC9300 AG22 miniLVDS_MON2 IC9300 AG21 SCS_ANA_20 IC9300 P26 SCS_VDD18 IC9300 H28 VDD33 IC9300 D14 LRX_TXP_0 IC9300 Y27 PLLICK_AVS IC9300 D9 VDD33 IC9300 F29 SBT1 IC9300 M26 SCS_VDD15 IC9300 E26 GND IC9300 AA3 GND IC9300 D10 VDD33 IC9300 AF10 VDDC IC9300 E8 VDDC IC9300 B24 ID1 IC9300 AH3 GND IC9300 G27 SCS_ANA_5 IC9300 AF25 SCS_ANA_18 IC9300 J4 VDD33 IC9300 E18 GND IC9300 G30 SRLF0 IC9300 V29 GND IC9300 AF15 GND IC9300 P4 VDD33 IC9300 C12 GND IC9300 E11 LRX_V12 IC9300 D6 LRX_TXN_1 IC9300 Y4 GND IC9300 K26 GND IC9300 AF8 VDDC IC9300 AK30 GND IC9300 AD5 MLVDS_VDD IC9300 AG11 miniLVDS_MON1 IC9300 AB30 MLVDS_VDD IC9300 F26 GND IC9300 AE27 miniLVDS_MON3 IC9300 AJ3 SCS_ANA_37 IC9300 AF26 GND IC9300 AF20 GND IC9300 AF23 VDDC IC9300 AG15 VTEST1 IC9300 A9 LRX_VDDH IC9300 T29 GND IC9300 AF9 VDDC IC9300 AK20 GND IC9300 AF24 VDDC IC9300 C11 GND IC9300 B22 LRX_VDDH IC9300 W27 PLLICK_AVD IC9300 E4 GND IC9300 J1 GND IC9300 H4 GND IC9300 C3 VDD33 IC9300 C24 SCS_ANA_14 IC9300 D17 VDD33 IC9300 AG5 SCS_ANA_39 IC9300 L28 TMODE1 IC9300 Y28 MLVDS_VDD IC9300 J2 GND IC9300 AK21 SCS_ANA_3 IC9300 AJ11 GND IC9300 E22 VDDC IC9300 AF21 VDDC IC9300 C16 GND IC9300 K4 GND IC9300 G5 VDDC IC9300 M5 GND IC9300 U28 VDD33 IC9300 E20 LRX_V12 IC9300 V5 SCS_VDD18 IC9300 D18 LRX_V12C_2 IC9300 AG18 PLLSSMLCK_AVS IC9300 AJ10 SCS_ANA_17 IC9300 F28 SBO1 IC9300 J29 SVIO IC9300 A23 GND IC9300 AG6 MLVDS_VDD IC9300 B29 GND IC9300 C18 SCS_ANA_13 IC9300 D16 VDD33 IC9300 AB4 VDDC IC9300 A24 ID0 IC9300 AJ1 GND IC9300 AK1 GND IC9300 AG12 miniLVDS_RI1 IC9300 G2 SCS_ANA_29 IC9300 C6 IICSYNC IC9300 H30 MHIO IC9300 R5 SCS_VDD18 IC9300 AK10 SCS_ANA_21 IC9300 E7 VDDC IC9300 C13 GND IC9300 K28 TMODE0 IC9300 AG23 miniLVDS_RI2 IC9300 AG14 MLVDS_VDD IC9300 AF7 MLVDS_VDD IC9300 A30 GND IC9300 AC5 MLVDS_VDD IC9300 L26 SCS_VDD15 IC9300 E24 VDDC IC9300 V28 VDD33 IC9300 T28 GND IC9300 AE26 VDDC IC9300 T27 GND IC9300 AJ2 GND IC9300 E25 GND IC9300 D12 SCS_ANA_11 IC9300 B9 LRX_VDDH IC9300 AH20 GND IC9300 L27 GND IC9300 AG27 GND IC9300 AG25 MLVDS_VDD IC9300 AF6 MLVDS_VDD IC9300 U5 SCS_VDD18 IC9300 AB29 MLVDS_VDD IC9300 D4 VDD33 IC9300 H2 GND IC9300 AG10 SCS_ANA_24 IC9300 C8 SCS_ANA_8 IC9300 AF14 SCS_VDD18 IC9300 AG26 MLVDS_VDD IC9300 AA4 VDDC IC9300 AF18 SCS_ANA_0 IC9300 AF19 SCS_ANA_2 IC9300 J27 VDD33 IC9300 U27 SCS_ANA_34 IC9300 M4 SCS_ANA_31 IC9300 M27 SCS_ANA_28 IC9300 AG8 MLVDS_VDD IC9300 C26 SCS_ANA_10 IC9300 AG13 MLVDS_VDD IC9300 AA30 MLVDS_VDD IC9300 AA26 SCS_ANA_40 IC9300 F2 SCS_ANA_25 IC9300 AA5 VDDC IC9300 Y30 GND IC9300 AB26 VDDC IC9300 AF17 SCS_VDD18 IC9300 AK29 GND IC9300 Y26 SCS_ANA_38 IC9300 AK3 GND IC9300 AF4 GND IC9300 D28 SBI1 IC9300 D20 LRX_V12C_0 IC9300 T5 SCS_VDD18 IC9300 T26 SCS_VDD18 IC9300 C10 GND IC9300 H27 VDD33 IC9300 D19 LRX_V12C_3 IC9300 E9 VDDC IC9300 AG9 MLVDS_VDD IC9300 G1 GND IC9300 A22 LRX_VDDH IC9300 E12 LRX_V12 IC9300 N27 VDD33 IC9300 C14 GND IC9300 AF11 GND IC9300 AG19 PLLSSMLCK_AVD IC9300 AB5 VDDC IC9300 N26 SCS_VDD18 IC9300 T4 GND IC9300 V27 GND IC9300 W4 VDD33 IC9300 K5 VDDC IC9300 D22 GND IC9300 F5 GND IC9300 W3 VDD33 IC9300 P5 SCS_VDD15 IC9300 V4 VDD33 IC9300 D29 SBI0 IC9300 C7 SCS_ANA_23 IC9300 AD26 VDDC IC9300 J3 VDD33 IC9300 AJ20 GND IC9300 AD27 MLVDS_VDD IC9300 J26 VDDC IC9300 B25 TEST IC9300 D13 LRX_TXN_0 IC9300 AF5 GND IC9300 AH21 SCS_ANA_22 IC9300 D7 LRX_TXP_1 IC9300 Y5 GND IC9300 C23 GND IC9300 L4 GND IC9300 U30 GND IC9300 D27 GND IC9300 R27 SCS_ANA_30 IC9300 R30 GND IC9300 AE4 miniLVDS_RI0 IC9300 A25 ID2 IC9300 AH11 GND IC9300 D24 VDD33 IC9300 E16 SCS_VDD18 IC9300 G29 SRLF1 IC9300 W29 GND IC9300 F27 SCS_ANA_9 IC9300 AH28 GND IC9300 AG17 MLVDS_VDD IC9300 D25 VDD33 IC9300 H26 VDDC IC9300 H1 GND IC9300 C25 SCS_ANA_12 IC9300 E23 VDDC IC9300 D11 SCS_ANA_6 IC9300 AE5 miniLVDS_MON0 IC9300 AJ30 GND IC9300 E10 VDDC IC9300 E15 GND IC9300 E6 GND IC9300 AK2 GND IC9300 C19 SCS_ANA_15 IC9300 J30 SHIO IC9300 B8 GND IC9300 M28 DCCIPORT1 IC9300 AF16 SCS_VDD18 IC9300 P27 VDD33 IC9300 F30 SBT0 IC9300 AJ28 SCS_ANA_16 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L9301 J0JHC0000117 L9300 J0JHC0000117 P5V P3.3V P3.3V P1.2V P3.3V P2.5V VJ9301 VJ9901 VJ9300 VJ9302 VJ9900 ZA9001 K4AZ01D00004 TP9913 TP9912 TP9910 TP9010 TP9914 TP9911 Q9900 B1ABCF000231 Q9901 B1ABCF000231 *JS9102 0 R9907 100 R9326 1.6k R9903 4.7k R9905 10k R9904 100k R9327 1.6k R9324 1.6k R9325 1.6k R9906 100k P5V DD15_1- GND LE2 DD13_2- UML DD15_1+ DD9_1- DD12_1- GND DD9_2+ GND DD14_1+ GND UMH DRVCLK7- DRVCLK6- DD11_2- DD12_1+ NC DD15_2+ USL/UML2 DD9_1+ DD13_1+ GND DD12_2- PC3 GND DD12_2+ DD10_2+ DD11_1+ DD10_2- DRVCLK9- DD13_1- DD14_2+ DD10_1- DD11_1- DRVCLK8- USH GND DD9_2- D31 D32 DD15_2- GND PC4 CLR2 GND UEH GND GND DD14_2- DRVCLK8+ DRVCLK7+ P3.3V DRVSOS8 GND 3.3V_DET ODE2 GND NC DD10_1+ GND DD13_2+ DD14_1- DD11_2+ DRVCLK9+ GND DRVCLK6+ GND ! PD4H IC9300 PD4H C1AB00003258 Suffix:AD 21 22 23 TO C2-BOARD (C21) D-BOARD TXN/D1MJUC (4/4) 82 TH-P46GT20C 11.36.C1 电路板 (1/2) 线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C C1-Board (1/2) Schematic Diagram TH-P46GT20C C1-Board (1/2) Schematic Diagram TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_ODE1 AB_PC1 AB_CLR1 AB_LE1 AB_ODE1 AB_PC1 AB_CLR1 AB_LE1 AB_ODE1 AB_PC1 AB_CLR1 AB_LE1 AB_ODE1 AB_PC1 AB_CLR1 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 DD1_2- DD1_2+ DD1_1- DD1_1+ DRVCLK1- DRVCLK1+ DD2_2- DD2_2+ DD2_1- DD2_1+ DRVCLK1- DRVCLK1+ DD3_2- DD3_2+ DD3_1- DD3_1+ DRVCLK2- DRVCLK2+ DD4_2- DD4_2+ DD4_1- DD4_1+ DRVCLK2- DRVCLK2+ DD5_2- DD5_2+ DD5_1- DD5_1+ DRVCLK3- DRVCLK3+ DD6_2- DD6_2+ DD6_1- DD6_1+ DRVCLK3- DRVCLK3+ DD7_2- DD7_2+ DD7_1- DD7_1+ DRVCLK4- DRVCLK4+ DD8_2- DD8_2+ DD8_1- DD8_1+ DRVCLK5- DRVCLK5+ AB_LE1 C17101 250V 0.22u C17123 250V 0.22u C17117 250V 0.22u C17120 250V 0.22u C17109 250V 0.22u C17105 250V 0.22u C17111 250V 0.22u C17115 250V 0.22u 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 VDA C1_3.3V C1_3.3V C1_3.3V VDA VDA C1_3.3V VDA VDA VDA C1_3.3V VDA C1_3.3V C1_3.3V VDA C1_3.3V C17107 10V 1u C17119 10V 1u C17110 10V 1u C17104 10V 1u C17122 10V 1u C17116 10V 1u C17113 10V 1u C17125 10V 1u R17148 150 R17121 1 R17106 1 R17136 1 R17111 1 R17131 1 R17116 1 R17126 1 R17141 1 R17135 200 R17125 200 R17115 200 R17134 100 R17144 100 R17110 200 R17143 100 R17140 100 R17130 200 R17138 100 R17118 100 R17120 200 R17108 100 R17128 100 R17119 100 R17129 100 R17133 100 R17124 100 R17123 100 R17113 100 R17139 100 R17114 100 R17145 100 R17109 100 GND GND VDD1 GND NC VDD2 VDD2 LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 GND NC GND NC GND CLR A2N VDD1 VDD2 VDD2 FXN VDD2 VDD2 GND GND A1P GND GND VDD2 GND GND GND NC VDD2 DM GND GND NC DM NC VDD2 FXP ODE BLK GND TEST VDD2 NC DM GND NC VDD2 FXP GND VDD2 DM GND GND ODE NC GND VDD2 GND GND GND NC LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 BLK GND NC GND VDD2 NC TEST GND CLR A2N GND VDD1 VDD2 VDD2 FXN GND VDD2 VDD1 VDD2 GND GND A1P GND VDD2 NC DM GND NC VDD2 FXP GND VDD2 DM GND GND ODE NC GND VDD2 GND GND GND NC LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 BLK GND NC GND VDD2 NC TEST GND CLR A2N GND VDD1 VDD2 VDD2 FXN GND VDD2 VDD1 VDD2 GND GND A1P GND VDD2 NC DM GND NC VDD2 FXP GND VDD2 DM GND GND ODE NC GND VDD2 GND GND GND NC LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 BLK GND NC GND VDD2 NC TEST GND CLR A2N GND VDD1 VDD2 VDD2 FXN GND VDD2 VDD1 VDD2 GND GND A1P GND GND VDD1 VDD2 VDD2 NC TEST NC VDD2 DM NC FXP A1N VDD2 GND NC A2P GND VDD2 VDD2 GND VDD2 DM GND VDD2 GND DM FXP VDD2 VDD2 GND GND BLK GND GND ODE NC ODE NC GND GND GND VDD2 GND GND NC GND NC GND VDD2 TEST NC A1N VDD2 GND LEN GND VDD2 DM GND GND VDD1 A2P CLR A2N GND GND VDD1 GND GND GND VDD2 GND VDD2 ODE FXP NC NC A2P FXN VDD2 GND GND GND GND GND GND VDD2 VDD2 GND GND VDD1 GND GND A1P NC VDD2 GND BLK GND LEN A1P GND GND A1N A2P NC VDD2 VDD2 GND GND NC VDD2 VDD2 VDD2 DM GND GND GND GND GND VDD2 VDD2 VDD2 VDD2 CLR GND VDD2 BLK A2N NC NC LEN GND NC GND VDD1 GND GND GND NC VDD2 VDD2 VDD2 DM FXN VDD2 GND GND BLK VDD1 GND VDD2 GND GND NC FXN VDD2 GND GND GND VDD2 GND VDD2 GND GND A1P VDD2 NC NC VDD2 GND GND VDD2 NC DM TEST GND DM GND GND NC A1N CLR GND TEST A2N GND VDD1 VDD2 CLR GND GND VDD2 A2N NC VDD2 ODE FXN VDD2 GND VDD2 GND VDD1 VDD2 VDD2 FXP GND LEN GND A1P GND GND NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ CB1 TO DRIVER PANEL DATA CB2 TO DRIVER PANEL DATA CB3 TO DRIVER PANEL DATA TO DRIVER CB4 PANEL DATA TO DRIVER PANEL DATA CB8 CB7 TO DRIVER PANEL DATA PANEL DATA CB6 DRIVER TO PANEL DATA TO DRIVER CB5 1 2 C1-BOARD TXNC111QFK (1/2) ! 83 TH-P46GT20C 11.37.C1 电路板 (2/2) 线路图 TH-P46GT20C C1-Board (2/2) Schematic Diagram TH-P46GT20C C1-Board (2/2) Schematic Diagram 12 16 10 14 15 18 13 11 17 SIDE TERM TERM SIDE AB_LE1 AB_LE2 AB_ODE1 AB_ODE2 AB_PC1 AB_PC2 AB_CLR1 AB_CLR2 DD2_2+ DD8_1+ DD2_2- DD8_1- DD8_2+ DD8_2- DRVCLK4+ DRVCLK4- DD7_1+ DD7_1- DD7_2+ DD7_2- DD6_1+ DD6_1- DD6_2+ DD6_2- DRVCLK3+ DRVCLK3- DD5_1+ DD5_1- DD5_2+ DD5_2- DD4_1+ DRVCLK1+ DD3_1+ DD4_1- DRVCLK1- DD3_1- DD4_2+ DD1_1+ DD3_2+ DD4_2- DD1_1- DD3_2- DRVCLK2+ DD1_2+ DD2_1+ DRVCLK2- DD1_2- DD2_1- AA_PC1_L AA_PC2_L AA_CLR_L AA_PC2_L AA_PC1_L AA_ODE_L AA_LE_L DRVCLK5- DRVCLK5+ AA_ODE_L AA_LE_L AA_CLR_L C17103 16V 0.1u C17141 50V 100p C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 VDA C1_3.3V C1_3.3V C1_3.3V ZA17101 K4CD01000013 ZA17103 K4CD01000013 ZA17104 K4CD01000013 ZA17102 K4CD01000013 R17104 EXB38V470JV R17105 EXB38V470JV R17103 EXB38V681JV ZA17105 K4CD01000013 C0JBAU000043 IC17101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R17146 680 R17151 0 R17150 1k R17101 0 R17152 0 R17147 220k R17153 0 55 1 68 1 C10 C11 1 20 55 1 55 1 55 1 55 1 55 1 55 1 55 1 DD4_2+ DD1_1- GND DD4_1+ DD8_2- DD8_1- DD4_2- DD4_1- GND P3.3V P3.3V P3.3V NC GND DD5_2+ DD5_1+ GND GND GND DD5_2- DD5_1- DD1_2+ DD6_2+ DD6_1+ CLR GND PC1 DRVCLK3+ DRVCLK2- DD1_2- GND DRVCLK5- GND DRVCLK3- GND DRVCLK4+ GND DRVCLK4- DD2_2+ DD2_1+ ODE DRVCLK1- LE GND PC2 DRVCLK1+ DD2_2- DD2_1- GND DD1_1+ DD3_2+ DD7_2+ DD3_1+ DD7_1+ DD7_2- DD7_1- GND DD3_2- GND DRVCLK2+ DD8_2+ DD3_1- DD8_1+ DD6_2- GND DD6_1- GND GND P3.3V P3.3V GND NC GND GND NC Vdat Vdat Vdat NC Vdat GND GND Vdat NC P3.3V_DET GND GND DRVCLK5+ TO C2-BOARD (C20) TO D-BOARD (D31) BUFFER 1 2 C1-BOARD TXNC111QFK (2/2) ! 84 TH-P46GT20C 11.38.C2 电路板 (1/2) 线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C C2-Board (1/2) Schematic Diagram TH-P46GT20C C2-Board (1/2) Schematic Diagram SIDE TERM TERM SIDE AB_ODE3 AB_ODE4 AB_PC3 AB_LE3 AB_LE4 AB_PC4 AB_CLR3 AB_UML AB_UMH AA_UEH AA_UMH AB_UEH AB_USL AB_USH AB_USL AB_UEH AB_UML AB_USH AA_USH DRVCLK7- DD9_1- DD11_2- DD9_2+ DD11_2+ AA_UEH DD9_2- DD11_1+ DD11_1- AA_USL DD9_1+ AA_PC4_R DD10_2+ AA_USH DRVCLK7+ DD13_2- DD10_2- DD13_1- DD10_1- DD12_1+ DRVCLK6+ DD12_2+ DRVCLK6- DRVCLK8- DD12_2- DD13_1+ AA_ODE_R DD12_1- DD13_2+ AA_LE_R DD10_1+ AA_CLR_R DRVCLK8+ AA_PC3_R DD15_2+ DD14_1+ DD15_2- DD14_2+ DD15_1- DD14_2- DD14_1- DRVCLK9- DD15_1+ AA_UML DRVCLK9+ AA_PC3_R AA_PC4_R AB_CLR4 AB_UMH AA_UMH AA_CLR_R 5V_DET AA_ODE_R AA_UML AA_USL AA_LE_R C17202 16V 0.1u C17203 16V 0.1u C17241 50V 100p C0JBAZ002692 IC17202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C25 1 2 3 4 C23 1 2 3 4 5 6 7 8 VDA SS_5V SS_5V SS_5V VDA C2_3.3V C2_3.3V C2_3.3V R17203 EXB38V470JV R17204 EXB38V681JV R17207 EXB38V681JV R17206 EXB38V470JV R17205 EXB38V470JV R17208 EXB38V681JV R17202 EXB38V470JV C0JBAU000043 IC17201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc R17261 0 R17245 680 R17201 220k R17260 0 R17262 0 R17263 0 GND VDA VDA NC UML UMH SOS8_SS GND P5V UEH USL USH DD15_1- DRVCLK7+ GND DD15_2+ PC4 UEH DD11_2- PC3 DD14_2- DRVCLK8+ DD12_1+ GND DD14_1+ CLR GND GND GND DD12_2- P5V_SS GND DD15_1+ DD12_1- DD9_2+ DD14_2+ DD11_1+ DD10_2- DD13_1- DD10_1- DD11_1- DRVCLK8- USH GND DD13_2+ DD11_2+ NC GND DD9_1+ DD13_1+ GND DD12_2+ DD13_2- UML DD9_1- GND GND DRVCLK7- NC DD10_1+ GND DD14_1- DRVCLK9+ DRVCLK6+ DRVSOS8 P3.3V_DET DRVCLK6- GND GND USL DRVCLK9- LE ODE UMH GND GND DD9_2- DD10_2+ DD15_2- GND P3.3V P3.3V GND GND NC GND NC P3.3V_DET VDA GND GND NC VDA VDA GND GND NC VDA VDA P3.3V C2-BOARD TXNC211QFK (1/2) ! TO C1-BOARD (C10) TO D-BOARD (D32) BUFFER BUFFER TO SS-BOARD (SS33) TO P-BOARD (P35) 1 2 85 TH-P46GT20C 11.39.C2 电路板 (2/2) 线路图 TH-P46GT20C C2-Board (2/2) Schematic Diagram TH-P46GT20C C2-Board (2/2) Schematic Diagram 12 16 10 14 15 18 13 11 17 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE DD15_2+ DD11_1- DRVCLK6- DRVCLK6- AB_PC3 AB_PC3 AB_ODE3 DRVCLK7+ DD12_2- DD10_1+ AB_LE3 AB_CLR4 AB_ODE4 AB_ODE4 DRVCLK6+ AB_ODE3 DD12_1+ DRVCLK6+ DD9_1- AB_LE3 AB_PC4 AB_CLR3 DRVCLK9+ DRVCLK9- DD13_1+ DD15_1- AB_PC3 AB_ODE3 DD10_2+ DD10_2- AB_LE3 AB_CLR3 DD14_1- AB_CLR3 AB_CLR4 AB_PC3 DD10_1- DRVCLK7+ AB_ODE3 DRVCLK7- DD12_2+ DD11_1+ DRVCLK7- AB_CLR3 AB_LE3 DD14_2- DD11_2+ DD9_2- AB_PC4 DD13_2+ DRVCLK8+ AB_PC4 AB_CLR4 AB_LE4 DD14_2+ DRVCLK8- DD13_1- DRVCLK8- DD15_1+ AB_ODE4 DD11_2- DD9_2+ DD12_1- DRVCLK8+ DD14_1+ AB_LE4 AB_LE4 DD15_2- DD9_1+ DD13_2- C17205 250V 0.22u C17207 250V 0.22u C17217 250V 0.22u C17219 250V 0.22u C17213 250V 0.22u C17210 250V 0.22u C17223 250V 0.22u 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 VDA VDA VDA VDA VDA VDA VDA C2_3.3V C2_3.3V C2_3.3V C2_3.3V C2_3.3V C2_3.3V C2_3.3V ZA17202 K4CD01000013 ZA17201 K4CD01000013 ZA17204 K4CD01000013 ZA17203 K4CD01000013 C17224 10V 1u C17218 10V 1u C17206 10V 1u C17215 10V 1u C17212 10V 1u C17209 10V 1u C17221 10V 1u R17247 150 R17215 1 R17225 1 R17230 1 R17220 1 R17210 1 R17240 1 R17235 1 R17233 100 R17237 100 R17239 200 R17244 100 R17213 100 R17214 200 R17212 100 R17218 100 R17243 100 R17238 100 R17234 200 R17228 100 R17217 100 R17224 200 R17219 200 R17223 100 R17227 100 R17242 100 R17222 100 R17229 200 R17232 100 8 55 C20 4 1 1 1 20 1 1 5 5 1 5 5 55 1 55 1 55 1 55 1 1 68 C21 FXP VDD2 LEN GND GND VDD1 VDD2 VDD2 NC TEST NC VDD2 DM NC FXP A1N VDD2 GND NC A2P GND VDD2 VDD2 VDD2 GND NC VDD2 FXP DM GND VDD2 A1N VDD2 GND DM FXP VDD2 VDD2 GND GND BLK GND GND ODE NC ODE NC GND GND GND VDD2 GND GND NC GND NC GND VDD2 TEST NC DM A1N VDD2 GND GND LEN VDD2 GND VDD2 GND DM GND GND VDD1 DM A2P CLR VDD2 A2N GND VDD2 GND GND GND BLK VDD1 GND GND GND GND GND VDD2 ODE NC GND VDD2 ODE NC ODE FXP GND NC NC A2P FXN GND VDD2 GND GND GND GND GND VDD1 GND GND GND VDD2 GND VDD2 GND GND VDD1 A1P VDD1 GND GND GND A1P NC VDD2 VDD2 VDD2 GND GND BLK GND BLK GND GND GND LEN NC A1P GND FXN GND A1P A1N VDD2 A2P GND NC GND VDD2 GND VDD2 GND GND NC VDD2 VDD2 GND VDD2 DM GND GND GND VDD2 NC GND GND VDD2 VDD2 VDD2 VDD2 GND GND VDD2 GND GND A1P VDD2 NC VDD2 CLR GND VDD2 BLK VDD2 VDD2 NC A2N NC NC NC LEN TEST VDD2 GND VDD2 NC GND DM GND VDD1 GND GND DM GND GND GND VDD2 NC GND VDD2 DM VDD2 VDD2 VDD2 VDD1 DM GND A2P VDD2 NC FXN CLR VDD2 CLR A1N A2N GND GND GND BLK GND VDD2 GND GND VDD2 BLK TEST VDD1 VDD1 GND GND A2N VDD2 NC GND GND GND NC FXN NC NC VDD2 GND GND GND GND GND LEN VDD2 GND VDD2 VDD2 GND GND A1P VDD2 NC NC GND NC CLR GND VDD2 GND NC GND GND VDD2 GND VDD2 GND NC DM GND TEST TEST VDD1 GND DM NC GND GND A2N FXP GND NC A1N A1N GND CLR NC GND TEST VDD2 GND A2N VDD2 NC GND GND NC VDD1 A2P A2P GND VDD2 VDD2 CLR ODE FXN GND GND GND LEN VDD2 VDD2 A2N NC VDD2 VDD2 VDD2 ODE GND VDD2 FXN VDD2 VDD2 GND VDD2 VDD1 GND VDD2 DM VDD2 GND GND GND VDD1 VDD2 VDD2 GND GND FXN FXP GND GND LEN GND VDD2 GND GND A1P VDD2 GND GND GND NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ C2-BOARD TXNC211QFK (2/2) ! DRIVER PANEL DATA CB9 TO TO DRIVER CB10 PANEL DATA TO DRIVER CB11 PANEL DATA DRIVER CB12 PANEL DATA TO PANEL DATA TO DRIVER CB13 PANEL DATA TO DRIVER CB14 CB15 DRIVER PANEL DATA TO 1 2 86 TH-P46GT20C 11.40.SC 电路板 (1/4) 线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C SC-Board (1/4) Schematic Diagram TH-P46GT20C SC-Board (1/4) Schematic Diagram + + + + TERM SIDE MAIN_STOP0 AA_SIU AA_CLK AA_CERS AA_SEL AA_OC2 AA_SC_FPGANRST AA_OC1 AA_CEL AA_CSH AA_CSL AA_CPH1 AA_CMH AA_CML AA_CML2 AA_CRC2 AA_UHZ AA_CRC1 AA_CIS AA_CRC3 AA_SOS6 5V VSUS C16562 16V 1u C16564 16V 1u C16565 50V 0.01u C16566 50V 0.01u C16582 16V 1u C16593 50V 1000p C16418 1.5u 250V C16581 25V 1u C16561 10V 10u 220V 300u C16791 25V 220u *C16416 220V 300u *C16419 1.5u 250V D16480 B0ACCJ000048 D16790 B0JCME000093 D16822 B0ADCJ000100 D16583 B3ABB0000210 IC16581 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC16563 C0JBAB000916 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC C0JBAU000043 IC16561 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAU000043 IC16562 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc SC20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 SC2 1 3 SOS7_SC2 5V 15V 15V TP19 TP26 TP40 TP5 TP25 TP17 TP23 TP21 TP35 TP9 TP10 TP117 TP99 TP30 TP70 TP39 TP34 TP98 TP97 TP33 TP118 TP18 TP38 TP122 TP109 TP115 TP2 TP82 TP113 TP108 TP107 TP119 TP11 TP20 TP123 TP88 TP114 TP31 TP110 TP24 TP89 TP8 TP32 TP7 TP4 TP37 TP46 TP6 TP16 TP14 TP15 TP72 TP29 TP1 TP106 TP71 TP52 TP28 TP36 TP112 TP120 TP121 TP101 TP22 TP124 TP105 TP116 TP3 TP111 R16564 EXB38V470JV R16566 EXB38V472JV R16570 EXB38V472JV R16562 EXB38V470JV R16561 EXB38V470JV R16579 EXB38V470JV R16567 EXB38V472JV R16563 EXB38V470JV R16568 EXB38V472JV R16565 EXB38V472JV R16591 EXB38V472JV R16476 4.7k R16593 1.4k R16585 1k R16586 2.15k R16588 10k R16587 2.2k R16590 220 R16583 39k R16584 6.8k R16582 39k R16580 5.6k *C16412 SC_FPGANRST CRC1 SEL SIU CLK TPSOS7 TPSOS6 (GREEN LED) NC SEL2 GND CRC3 GND P5V CMH SC_FPGANRST CML CPH1 CSL CSL CSH CSH CML CMH P15V CRC2 CRC3 P5V Vsus GND GND CLK GND SIU SEL CERS CIS CPH1 OC2 SOS6 SOS7 GND NC CEL GND OC1 GND P15V Vsus CRC1 OC1 UHZ GND CERS OC2 Reserve CEL CRC2 SEL2 Reserve VOLTAGE ERROR DET OPERATES AT 151V OR MORE AND 60V OR LESS ! INVERTER BUFFER BUFFER ERROR DET TO D-BOARD (D20) TO P-BOARD (P2) TPVSUS MID 2 1 3 SC-BOARD TXNSC11QFK (1/4) 87 TH-P46GT20C 11.41.SC 电路板 (2/4) 线路图 TH-P46GT20C SC-Board (2/4) Schematic Diagram TH-P46GT20C SC-Board (2/4) Schematic Diagram 12 16 10 14 15 18 13 11 17 SC-BOARD TXNSC11QFK (2/4) + + + AA_CML AA_CSL AA_CMH AA_CSH AA_CML2 15V MIDC VRH VRL C16524 25V 4.7u C16471 630V 1000p *C16461 1000p 630V C16491 630V 1000p C16525 25V 4.7u C16421 630V 5600p *C16481 1000p 630V C16771 16V 1u C16501 25V 1u C16441 50V 3900p C16522 25V 4.7u C16401 5600p 630V *C16633 250V 4u C16504 25V 4.7u C16521 25V 1u C16505 25V 1u C16452 50V 3900p *C16632 250V 4u C16502 25V 4.7u C16534 25V 1u C16503 25V 470u C16796 25V 470u C16523 25V 470u D16522 D1FK60-5073 D16466 B0ACCJ000048 D16411 B0ACCJ000048 D16534 B0ECHR000001 D16451 B0ECKP000055 D16503 B0ECHR000001 D16523 B0ECHR000001 D16536 B0ECHR000001 *D16421 B0FACP000006 *D16462 B0FACP000003 *D16482 B0FACP000003 *D16401 DA3DF50ACSLW *D16402 DA3DF50ACSLW C0ZBZ0001708 IC16521 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001708 IC16501 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC IC16771 C0CBADC00072 VIN 3 2 COM VOUT 1 *L16401 G0CR35K00001 *L16411 G0CR35K00001 15V PC16461 PS9856-2-F3-AX 1 2 3 4 5 6 7 8 TP93 TP90 TP91 TP92 *Q16422 DG3D4020CSRP *Q16403 DG3D5020CSLW *Q16441 B1JAEP000013 *Q16452 B1JAEP000012 *Q16421 DG3D4020CSRP *Q16402 DG3D5020CSLW Q16551 B1HFPFA00001 Q16531 B1HFPFA00001 Q16501 B1HFPFA00001 Q16521 B1HFPFA00001 R16452 5.6 R16410 390 R16411 270 R16517 47k R16512 47k R16466 56k R16533 47k R16467 82k R16522 100 R16416 10k R16465 27k R16421 7.5 R16441 5.6 R16402 7.5 R16506 10 R16422 7.5 75 R16523 R16551 10 R16417 100 R16418 100 R16503 10 R16531 10 R16521 100 R16553 47k R16509 1 75 R16504 R16534 5.6 R16468 82k R16403 7.5 Vad+5V Vad+5V VFG VOL MID MIDF VFG 16V_F Vsus Vsus VAD ! MID 3 1 2 CSL/CML GATE DRIVE CIRCUIT FET DRIVER FET DRIVER CSH/CMH GATE DRIVE CIRCUIT Vad+5V 16V_F Vad+5V VAD 15 16 14 18 17 12 11 13 88 TH-P46GT20C 11.42.SC 电路板 (3/4) 线路图 TH-P46GT20C SC-Board (3/4) Schematic Diagram TH-P46GT20C SC-Board (3/4) Schematic Diagram 25 19 24 23 27 22 26 21 20 + + AA_CERS AA_CPH1 AA_CIS AA_CEL AA_CRC1 AA_CRC2 AA_UHZ C16684 50V 0.1u C16668 50V 220p C16603 630V 1000p C16608 50V 220p C16661 630V 1000p C16692 50V 0.1u C16756 25V 4.7u C16666 50V 82p C16664 50V 82p C16604 630V 1000p C16665 50V 82p C16646 630V 1000p C16662 630V 1000p C16675 50V 390p C16641 2200p 630V C16891 25V 1u C16708 50V 0.1u C16490 16V 1u C16773 25V 1u C16753 25V 4.7u C16602 50V 22p C16645 630V 1000p C16685 50V 0.1u C16755 25V 4.7u C16707 50V 22p C16642 5600p 630V C16691 160V 100u *C16417 220V 300u F2A2T301A004 D16674 B0ECHR000001 D16618 B0ECKP000055 D16669 B0ACCJ000048 D16649 B0ACCJ000048 D16654 B0ACCJ000048 D16673 B0ECHR000001 D16671 B0ACCJ000048 D16490 B0ECKP000055 D16610 B0ACCJ000048 D16702 B0ACCJ000048 D16765 B0ECKP000055 D16653 B0ACCJ000048 D16478 B0ACCJ000048 D16407 B0JCME000093 D16607 B0ACCJ000048 D16902 B0ACCJ000048 D16497 B0ECKP000055 D16652 B0ECKP000055 D16650 B0ACCJ000048 D16491 B0ECKP000055 D16677 B0ADEJ000035 D16422 B0FACP000005 D16494 B0ADCJ000100 D16604 B0ADCJ000100 D16920 B0ADCJ000100 D16901 B0ADCJ000100 D16493 B0ADCJ000100 D16641 B0FBCN000006 D16642 B0FBCN000006 D16648 DZ2J051L0L D16647 DZ2J150M0L D16662 DZ2J150M0L D16645 DZ2J150M0L D16663 DZ2J150M0L D16678 DZ2J15000L D16646 DZ2J150M0L D16605 DZ2J051L0L D16664 DZ2J150M0L D16602 DZ2J150M0L D16651 DZ2J051M0L D16477 DZ2J047L0L D16492 DZ2J047M0L C0DBZYY00352 IC16692 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZMC00006 IC16490 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0JBAB000715 IC16773 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0BBAA000008 IC16491 1 -INPUT 2 GND 3 +INPUT 5 VCC 4 OUTPUT C0JBAC000363 IC16691 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT IC16661 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC16920 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC 15V 15V 5V 5V PC16603 B3PBA0000498 1 2 3 4 PC16684 B3PBA0000496 1 2 3 4 5 6 PC16685 B3PBA0000496 1 2 3 4 5 6 TP104 TP103 TP68 TP67 Q16608 B1CBGD000001 Q16647 B1CBGD000001 Q16818 B1CBGD000001 Q16607 B1CBGD000001 Q16490 B1CBGD000001 *Q16601 B1CERR000042 G D S Q16660 B1CERR000042 Q16921 B1ABCN000007 Q16602 DSC2001Q0L Q16677 DSC2001Q0L Q16606 DSC2001Q0L Q16676 B1ABCF000231 Q16649 B1ABCN000007 Q16920 B1ABCN000007 Q16678 B1ABCF000231 Q16662 DSC2001Q0L Q16645 DSC2001Q0L Q16702 B1ABCF000231 Q16671 B1ABCF000231 Q16668 DSC2001Q0L Q16810 B1ABCF000231 Q16661 B1JAER000010 Q16622 B1JADN000009 Q16621 B1JADN000009 Q16646 DSA2001S0L Q16675 B1ADCN000007 Q16701 B1ADCN000007 Q16603 DSA2001S0L Q16663 DSA2001S0L Q16670 B1ADCN000007 DSA2001S0L Q16801 Q16762 B1HFPFA00001 R16493 6.19k R16649 33 R16617 2.2k R16652 8.2k R16712 1k R16612 47 10 R16765 R16666 22k R16804 1.1k R16678 2k R16745 470k R16747 2.2k R16711 4.7k R16615 1.1k R16899 2.74k R16682 10 R16897 1k R16769 75 R16634 470 R16904 22k R16893 82.5k R16609 2k R16695 1.5k R16717 1k R16667 2k R16776 47 R16663 7.15k R16761 10 R16927 22k 1 R16601 R16660 2.2k R16490 120k R16685 220 R16631 10k R16901 4.7k R16677 2k R16654 47 R16681 10 R16691 56k R16497 47k R16692 1.5k R16892 82.5k R16661 1.2k R16687 27k R16707 3.9k R16922 3.48k R16690 4.7k R16496 47 R16604 330 R16674 2k R16928 4.7k R16665 33 R16891 69.8k R16646 1.18k R16801 22k R16607 6.98k R16926 2.2k R16662 10k R16686 10k R16673 4.7k R16650 100k R16655 10k R16920 10k R16651 2k R16633 22k R16492 120k R16742 47k R16694 56k R16498 10k R16621 220 R16763 47k R16605 1.8k R16699 10k R16645 5.6k R16684 220 R16802 30.9k R16495 750 R16746 47k R16679 10.7k R16900 10k R16898 1.05k R16659 0 R16680 4.7k R16921 1.24k R16668 2k R16648 2k R16656 4.7k R16622 220 R16664 2k R16658 6.34k R16491 120k R16494 2k R16653 1.8k R16688 8.87k R16675 4.7k R16923 10k R16610 100k VOL VFG 16V_F Vsus VAD VAD Vad+5V VSCN_F 16V_F Vad+5V VOL 16V_F ! VFG VOL Vad+5V Vsus 16V_F 13 15 16 14 18 17 11 12 CIRCUIT SEPA PROTECT SEPA PROTECT SHUNT REG COMPARATOR COMPARATOR INVERTER SHUNT REG NAND GATE 16V_F VAD 27 24 22 26 23 21 25 SC-BOARD TXNSC11QFK (3/4) 89 TH-P46GT20C 11.43.SC 电路板 (4/4) 线路图 28 33 30 35 29 31 32 36 34 TH-P46GT20C SC-Board (4/4) Schematic Diagram TH-P46GT20C SC-Board (4/4) Schematic Diagram + + + + + AA_SEL AA_SC_FPGANRST MAIN_STOP0 AA_SOS6 AA_OC2 AA_CLK AA_OC1 AA_SIU VAD C16472 25V 1u C16856 1u 10V C16861 0.1u 16V C16843 50V 0.1u C16724 25V 4.7u C16844 50V 0.1u *C16797 50V 0.1u C16857 0.1u 16V *C16460 630V 820p C16860 1u 10V C16863 50V 0.1u C16862 1u 10V C16864 0.1u 50V C16858 1u 10V C16723 25V 1u C16794 10u 10V C16859 0.1u 50V C16854 50V 0.1u C16795 25V 470u C16793 25V 220u C16813 220V 220u C16721 50V 82u C16842 160V 100u D16719 B0ECKP000055 D16474 B0ACCJ000048 D16711 B0ECHR000001 D16875 B0ACCJ000048 *D16792 B0ACCJ000048 D16720 B0ECKP000055 D16859 B0HCKS000002 D16728 B0ECKP000055 D16476 B0ACCJ000048 D16820 B0ACCJ000048 D16473 B0ACCJ000048 D16713 B0ECHR000001 D16721 B0ECHR000001 D16893 DZ2J056H0L D16710 DZ2J15000L D16871 DZ2J240M0L D16712 DZ2J15000L D16874 DZ2J051M0L D16475 DZ2J051M0L D16825 DZ2J330M0L D16872 DZ2J200M0L D16824 DZ2J330M0L D16791 DZ2J200M0L D16821 DZ2J330M0L C0DBZYY00352 IC16787 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZMC00006 *IC16793 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZYY00352 IC16785 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBEYY00114 IC16471 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0BBAA000008 *IC16792 1 -INPUT 2 GND 3 +INPUT 5 VCC 4 OUTPUT IC16786 MIP3910MSSCF 1 VDD 2 NC 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE IC16784 MIP3910MSSCF 1 VDD 2 NC 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE IC16724 C0CBADE00049 OUT 3 2 COMMON IN 1 SC50 1 2 SC41 1 2 3 4 5 6 7 8 9 SC46 1 2 3 4 5 6 7 8 9 SC42 1 2 3 4 5 6 7 8 9 L16851 L16472 G0ZZ00002183 L16698 G0C681MA0065 T16471 G4DYA0000200 1 NC 3 S2 4 S1 5 NC 6 P2 10 P1 8 PT SCNR_PRO 5V SCNR_PRO CHA 5V SOS7_SC2 CHA 15V PC16723 B3PBA0000498 1 2 3 4 PC16722 B3PBA0000498 1 2 3 4 PC16897 B3PBA0000498 1 2 3 4 PC16480 B3PBA0000498 1 2 3 4 PC16896 B3PBA0000498 1 2 3 4 TP62 TP80 TP59 TP51 TP81 TP61 TP44 TP45 TP95 TP78 TP41 TP79 TP42 TP57 TP96 TP60 TP43 TP58 TP94 TP125 Q16885 B1CFNG000001 Q16816 DSC2001Q0L Q16471 B1ABCF000231 Q16876 B1ABCF000231 Q16815 B1ABCN000007 Q16817 DSC2001Q0L Q16932 DSC2001Q0L Q16931 B1ABCN000007 Q16930 DSC2001Q0L R16721 EXB38V220JV R16755 12k R16471 3.9k R16933 10k *R16799 1k R16752 4.7k R16785 107k R16825 150k R16844 2.4k R16472 2.2k R16873 2.4k R16756 12k R16937 180k R16843 1k R16822 82k *R16919 7.5k R16750 12k R16478 5.6k R16787 33k R16845 68.1k R16786 107k R16719 22 R16829 1k R16832 71.5k R16838 100k R16791 1k R16479 10k R16826 10k *R16820 150k R16789 10k R16772 4.7k R16837 1k *R16818 33k R16473 560 R16849 64.9k R16831 68.1k R16931 2.7 *R16819 150k R16934 6.8k R16773 1k R16932 22k R16935 5.1k R16783 150k R16696 2.2 R16936 2.2k R16846 57.6k R16474 1k R16860 8.2 R16751 150k R16824 33k R16852 470k R16841 4.7k R16774 27k 1 R16929 R16475 4.7k R16823 82k *R16798 2.2k R16870 68k R16827 2.2k R16938 180k R16851 470k R16930 2.7 *R16797 22 R16753 47k ZA16422 TUXJ490 *C16902 4700p 630V ZA16412 TUXJ490 ZA16402 K4CD01000011 ZA16404 K4CD01000011 ZA16421 TUXJ490 ZA16401 K4CD01000011 *C16903 1500p 630V ZA16411 TUXJ490 ZA16407 K4CD01000011 ZA16403 K4CD01000011 = * * TPVSCN VFG TPSC1 VSCN_F VFG VAD 16V_F 15V_F VSCN 5V_F 5V_F 5V_F TPVAD Vfo 5V_F SC46 SC41 SC42 ! VSCN_F 16V_F VFG Vsus VAD 24 22 23 21 27 26 25 VAD GEN. SHUNT REG SHUNT REG 5V_F SHUNT REG VHIZ GEN. COMPARATOR SHUNT REG FOR FACTORY USE TO SD-BOARD (SD42) TO SD-BOARD (SD46) TO SU-BOARD (SU41) VSCN GEN. SC-BOARD TXNSC11QFK (4/4) 90 TH-P46GT20C 11.44.SS 电路板 （1/2）线路图 8 7 C A B 6 E 1 D 2 9 F 4 3 5 TH-P46GT20C SS-Board (1/2) Schematic Diagram TH-P46GT20C SS-Board (1/2) Schematic Diagram + + + AA_SOS8 AA_UMH AA_UML AA_USL AA_USH AA_SOS8 AA_UEH AA_USL 5V AA_USH AA_UML AA_UMH C16092 630V 1000p C16242 16V 1u C16244 10V 10u C16131 25V 4.7u C16133 25V 4.7u C16251 16V 1u C16151 25V 1u C16105 25V 47p C16104 25V 47p C16152 25V 4.7u C16041 50V 3900p C16252 25V 1u C16153 25V 4.7u C16071 630V 1000p C16243 50V 0.01u C16002 630V 5600p C16154 25V 4.7u C16135 25V 1u *C16202 250V 4u *C16014 1.5u 250V *C16203 250V 4u *C16072 630V 1000p *C16091 630V 1000p *C16022 630V 3300p *C16012 220V 300u *C16011 220V 300u C16271 25V 220u D16151 B0ECKP000055 D16152 B0ECKP000055 D16255 B0ACCJ000048 D16131 B0ECKP000055 D16032 B0ACCJ000048 D16153 B0ECKP000055 D16050 B0ECKP000055 *D16001 B0FBCN000005 *D16002 B0FBCN000005 *D16041 B0FACP000004 *D16051 B0FBCN000007 *D16021 B0FCCN000003 *D16022 B0FCCN000003 D16253 B3ABB0000210 D16281 DZ2J051M0L IC16251 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0001707 IC16131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001708 IC16151 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAU000043 IC16241 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc SS11 1 3 4 SS33 1 2 3 4 5 6 7 8 *L16001 G0CR35K00001 *L16011 G0CR35K00001 VSUS VSUS TP17 TP20 TP13 TP40 TP39 TP33 TP38 TP16 TP9 TP19 TP2 TP1 TP10 TP18 TP34 TP5 TP41 TP21 TP6 TP14 TP22 TP7 TP8 Q16251 B1ABCF000231 *Q16051 B1JAEN000011 *Q16022 B1JADN000008 *Q16041 B1JAEN000010 *Q16002 B1JADN000009 *Q16001 B1JADN000009 *Q16021 B1JADN000008 Q16161 B1HFPFA00001 Q16141 B1HFPFA00001 Q16055 B1HFPFA00001 Q16056 B1HFPFA00001 R16242 EXB38V472JV R16241 EXB38V470JV R16159 1 R16155 1 R16132 100 R16143 47k 75 R16134 R16280 2.2k R16183 47k R16163 47k R16031 82k R16041 5.6 R16002 7.5 R16131 100 R16258 10k R16152 100 R16252 39k R16032 82k R16254 6.8k R16033 56k R16022 7.5 R16257 27k R16001 7.5 R16034 27k R16141 10 R16230 47 R16251 1.4k R16021 7.5 R16151 100 R16260 2.2k R16137 1 R16231 4.7k R16161 10 R16171 10 R16051 5.6 R16255 1.2k R16173 47k R16256 1.5k 75 R16154 R16181 10 R16253 39k *C16015 250V F0C2E155A252 (GREEN LED) VSUS GND TPSOS8 - 15V P5V GND UEH USH UML SOS8_SS USL UMH ERROR DET BUFFER ENERGY FET DRIVER RECOVERY ! TO P-BOARD (P11) TO C2-BOARD (C23) FET DRIVER DRIVER VSUS Gen. TPVSUS 3 4 2 1 SS-BOARD TXNSS11FFK (1/2) 91 TH-P46GT20C 11.45.SS 电路板 （2/2）和 SS2 电路板线路图 TH-P46GT20C SS-Board (2/2) Schematic Diagram TH-P46GT20C SS-Board (2/2) Schematic Diagram 12 16 10 14 15 18 13 11 17 + + + TERM SIDE TERM SIDE TERM SIDE AA_UML AA_SOS8 AA_UEH *C16101 2200p 630V C16192 25V 0.1u C16331 250V 1u C16285 0.1u 50V C16319 50V 0.1u C16317 1u 10V C16287 0.1u 50V C16315 1u 10V C16191 25V 4.7u C16286 0.1u 50V C16318 0.1u 50V C16195 25V 1u C16316 0.1u 16V C16280 25V 1u C16193 25V 47u C16328 220u 160V *C16314 220V 300u D16192 B0ACCJ000048 D16280 B0ACCJ000048 D16191 B0ECKP000055 D16101 B0JCME000093 D16317 B0ECKP000055 D16286 B0ACCJ000048 D16316 B0ECKP000055 D16285 B0ADEJ000035 D16282 DZ2J068M0L D16315 DZ2J150M0L D16196 DZ2J200M0L C0DBZMC00006 IC16312 4 REFERENCE 3 CATHODE 1 NC 2 ANODE IC16304 MIP3900MSSCF 1 VDD 2 CL 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE *SS64 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS61 1 2 3 4 5 6 7 8 9 10 11 12 13 SS21 1 2 3 4 5 6 7 L16303 G0C471MA0049 ZA16003 K4CD01000011 ZA16001 K4CD01000011 ZA16002 K4CD01000011 PC16301 B3PBA0000498 1 2 3 4 PC16191 B3PBA0000496 1 2 3 4 5 6 TP36 TP54 TP56 TP51 TP26 TP25 TP29 TP31 TP27 TP24 TP30 TP43 TP42 TP28 Q16101 B1CFRM000008 G D S Q16102 B1CFRM000008 G D S Q16280 B1ABCF000231 Q16191 B1HFPFA00001 R16285 EXB38V623JV R16281 10k R16109 10 R16101 220 R16320 68k R16192 10k R16290 330k R16283 47k R16195 1 R16288 330k R16284 220k R16104 10 R16319 2.49k R16102 220 R16193 75 R16116 47k R16334 4.7k R16282 220 R16289 330k R16330 1k R16103 10 R16191 150 R16335 1k *R16318 68k *R16309 33k *R16307 64.9k R16105 470k R16332 470k SS24 1 2 3 4 5 6 7 SS58 1 2 3 4 5 6 7 8 9 10 11 12 13 = * ! VE GEN. SHUNT REG. TPVe TPSS1 ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL FPC protector 3 4 1 2 SS2-BOARD ! TXNSS21DYUC ELECTRODE SUSTAIN PANEL SS-BOARD TXNSS11FFK (2/2) 92 TH-P46GT20C 12 导线图 12.1. P 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C P-Board ETX2MM815EVH TH-P46GT20C P-Board ETX2MM815EVH P-BOARD (FOIL SIDE) ETX2MM815EVH 93 TH-P46GT20C TH-P46GT20C P-Board PARTS LOCATION TH-P46GT20C P-Board PARTS LOCATION Parts Location P-BOARD (FOIL SIDE) IC201 E-4 IC202 E-3 IC251 C-5 IC352 D-3 IC403 B-3 IC501 F-2 IC551 E-1 IC601 G-4 IC701 C-1 PC201 D-3 PC202 D-3 PC501 E-2 PC502 F-1 PC504 F-1 IC PHOTO COUPLER Q201 D-5 Q202 D-4 Q203 E-3 Q204 E-3 Q251 C-6 Q252 C-6 Q355 D-3 Q401 B-4 Q402 B-3 Q403 B-3 Q404 B-2 Q405 B-2 Q406 C-2 Q407 B-3 Q408 B-3 Q502 G-2 Q503 E-2 Q504 E-3 Q505 G-2 Q506 G-1 Q551 D-2 Q557 D-1 Q558 D-2 Q559 D-2 TRANSISTOR TP5 H-6 TP9 B-4 Q601 F-4 Q602 G-4 Q603 F-4 Q604 F-4 Q605 E-3 Q606 F-3 Q607 E-3 Q701 C-1 Q702 B-1 Q703 C-1 Q704 C-1 Q705 D-2 Q706 B-2 Q707 C-1 Q708 C-2 TEST POINT VR251 C-5 VR401 B-2 VOLUME Parts Location P-BOARD (COMPONENT SIDE) IC201 D-4 IC501 D-2 IC Q201 E-5 Q202 E-4 Q355 F-3 Q401 G-4 Q402 H-3 Q403 H-3 Q551 F-2 Q601 D-4 Q604 D-4 Q606 D-3 TRANSISTOR TP5 B-6 TP9 H-4 TEST POINT VR251 F-5 VR401 H-2 VOLUME P 94 TH-P46GT20C A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C P-Board ETX2MM815EVH TH-P46GT20C P-Board ETX2MM815EVH P-BOARD (COMPONENT SIDE) ETX2MM815EVH 95 TH-P46GT20C 12.2. K，V 和 SS2 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C K-Board TXN/K1LBUC V-Board TXN/V1MAUC SS2-Board TXNSS21DYU TH-P46GT20C K-Board TXN/K1LBUC V-Board TXN/V1MAUC SS2-Board TXNSS21DYU SS2-BOARD (FOIL SIDE) TXNSS21DYUC SS24 1 SS2MM2 SS2MM1 SS2 TNPA4802 SS58 P b F 7 1 2 6 O R D E R N O . 1 1 3 1 3 1 SS24 TNPA4802 1 SS2 SS58 P b F 7 1 6 2 S E E R E V E R S E F O R O R D E R N O . 1 1 3 1 1 3 SS2-BOARD (COMPONENT SIDE) TXNSS21DYUC V K V SS2 D2500 D2501 D2502 D2503 P b F ORDER NO. C2500 C2501 C2502 R2500 R2501 R2502 FL2500 VJ2500 L2500 V1 P b F TNPA5148 V 1 FOR ORDER NO. 1 4 P b F D2500 D2501 D2502 D2503 1 V TNPA5148 SEE REVERSE P b F K-BOARD (FOIL SIDE) TXN/K1LBUC V-BOARD (COMPONENT SIDE) TXN/V1MAUC V-BOARD (FOIL SIDE) TXN/V1MAUC C10 C11 C12 C13 C14 Q10 C15 Q11 Q12 Q13 Q17 C20 C21 C22 D01 D11 D12 R10 D15 R11 R12 R13 R14 R15 R16 R17 R18 R19 D20 R20 R21 R22 R23 R24 R25 R34 K1 SN10 VJ12 RM10 P b F TNPA5114 CRNO. 25 1 K O R D E R N O . 1 8 1 TP06 TP01 TP08 TP05 TP03 TP02 TP04 RM10 P b F K 1 TNPA5114 CRNO.25 S E E R E V E R S E F O R O R D E R N O . K-BOARD (COMPONENT SIDE) TXN/K1LBUC 96 TH-P46GT20C 12.3. XH 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C XH-Board TNPA5133AB TH-P46GT20C XH-Board TNPA5133AB TNPA5133 1 XH TU6701 TU6700 PbF R E V E R S E F O R S U F F I X . S E E IFMONITOR IFDOUT2 IFDOUT1 IFAGC SDA SCL BTMONITOR RFAGCMONITOR BB +BACTIVEANTENNA +B IFMONITOR IFDOUT2 IFDOUT1 IFAGC SDA SCL BTMONITOR RFAGCMONITOR BB +B TNPA5133 B TP6710 C6757 R6702 C6717 TP6717 TP6701 R6795 R6764 R6758 C6750 C6742 TP6720 TP6704 R6710 R6709 C6725 TP6715 R6793 TD001 R6763 R6757 R6707 C6721 TP6714 R6706 TP6705 C6781 C6760 C6752 C6712 C6707 TP6716 R6794 TD002 TP6711 R6767 C6764 C6758 R6703 C6718 TP6718 TP6702 R6796 TD004 C6723 TP6709 R6761 C6762 C6749 C6733 C6716 TP6712 R6762 C6719 TP6707 R6785 C6761 C6748 C6732 C6714 TP6706 R6784 C6782 R6745 C6713 TP6713 R6768 C6759 TP6708 R6752 TP6719 TP6703 C6751 C6738 C6710 TU6701 TU6700 Q6704 IC6700 IC6701 IC6702 IC6703 IC6704 IC6705 IC6706 IC6707 Q6700 Q6701 Q6702 Q6703 AB AC BC BB 1 XH TNPA5133 XH1 XH4 XH2 XH3 BE BD AD TU6701 TU6700 P b F 1 3 4 5 1 27 28 54 1 37 73 109 144 1 5 1 5 1 10 11 20 10 11 20 1 SUFFIX. 1 30 1 30 1 30 1 30 TNPA5133 A C6704 R6803 JS6708 R6788 R6775 R6753 R6748 C6763 R6721 R6715 IC6703 Q6703 R6780 C6776 C6769 R6734 C6737 R6708 C6722 Q6704 ZA6703 R6798 R6782 R6765 R6743 R6737 R6729 C6745 C6711 Q6702 L6704 C6774 C6768 R6732 R6726 C6741 C6736 C6706 L6703 XH2 R6792 R6779 R6756 C6773 C6767 R6731 R6725 R6718 IC6705 C6720 CL6700 ZA6704 R6799 R6783 R6771 C6779 R6744 C6746 C6739 IC6701 C6726 R6829 XH3 R6769 C6780 C6775 R6740 R6733 R6727 R6719 IC6706 C6730 TU6701 C6708 Q6700 L6700 JS6709 R6789 R6776 C6771 R6722 R6716 C6734 XH4 C6778 R6741 R6735 R6728 C6743 IC6707 IC6700 C6709 C6703 R6802 JS6707 R6787 R6774 C6770 C6756 R6714 C6729 C6705 L6701 JS6710 R6790 R6777 R6754 R6749 C6765 R6730 R6723 R6717 IC6704 R6704 C6700 R6800 JS6705 R6772 R6766 R6760 R6746 C6754 R6712 C6728 CL6701 ZA6705 JS6704 R6751 R6738 C6753 C6747 R6711 C6727 Q6701 L6702 XH1 R6791 R6778 R6755 C6772 C6766 R6724 C6740 C6735 R6705 TU6700 C6701 R6801 JS6706 R6786 R6773 R6747 R6739 C6755 R6720 R6713 IC6702 R6700 C6715 X6700 R6797 R6781 R6770 R6759 R6750 R6742 R6736 C6744 C6731 C6724 XH-BOARD (FOIL SIDE) TNPA5133AB XH-BOARD (COMPONENT SIDE) TNPA5133AB XH 97 TH-P46GT20C 12.4. A 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C A-Board TNPH0899DC TH-P46GT20C A-Board TNPH0899DC IC8242 IC1100 IC1101 IC4201 IC8852 IC4204 IC4205 JK8301 IC4206 IC4207 JK3100 IC4212 JK8700 Q4831 Q4832 JK3707 SW2500 Q2903 Q2904 JK2780 TU2901 IC2901 Q5813 Q5814 Q5815 Q5816 IC5603 IC5604 IC8100 IC8101 IC5801 SW2550 IC5805 SW2551 SW2552 SW2553 IC5808 IC8300 SW2554 IC8301 IC8302 IC5813 IC5814 IC5815 IC2950 IC2952 IC8921 IC2780 Q7002 Q4700 Q4701 IC5482 Q4702 Q4703 Q4704 Q4705 IC8950 JK3001 JK3002 IC7004 IC4701 IC7006 Q2252 Q2253 Q2254 Q2255 Q3008 IC5500 IC5501 JK8401A JK3100A IC3001 IC8400 IC8401 CN1102 D3015 AV TV -/ +/ F A 1 TNPH0899 PbF + 1 4 5 8 1 26 51 76 100 1 4 5 8 1 8 9 16 1 4 5 7 1 4 5 7 1 4 5 8 8 2 1 7 1 3 4 5 1 4 5 7 AV2 AV1 AV1 MONITOROUT AV3S AV2 AV3 4 5 8 1 A-1 B-4 A-4 B-1 R L V IFDOUT2 IFAGC VB2 SDA SCL VIDEOOUT VB1 SIFOUT AUDIOOUT BTMONITOR BB +BACTIVEANTENNA IFMONITOR RESET IFDOUT1 RFAGCMONITOR IFDOUT2 IFAGC VB2 SDA SCL VIDEOOUT VB1 SIFOUT AUDIOOUT BTMONITOR RFAGCMONITOR BB +BACTIVEANTENNA IFMONITOR RESET IFDOUT1 IFMONITOR RESET VB2 SDA SCL VIDEOOUT VB1 SIFOUT BTMONITOR BB +BACTIVEANTENNA RFAGCMONITOR IFMONITOR SDA SCL VIDEOOUT SIFOUT BTMONITOR +B SW1 VB SW2 BB AFT RFAGCMONITOR IFMONITOR RESET VB2 SDA SCL VIDEOOUT VB1 SIFOUT BTMONITOR BB +BACTIVEANTENNA RFAGCMONITOR 1 3 4 5 + 1 3 4 5 1 3 4 5 1 8 9 16 1 8 9 16 1 4 5 8 1 4 5 8 1 13 25 37 48 1 3 4 5 3 4 5 1 1 4 5 8 1 12 13 24 S E E R E V E R S E F O R O R D E R N O . 1 3 4 6 1 3 4 5 1 24 25 48 + + 1 10 11 20 1 24 25 48 + 1 14 15 28 1 4 5 8 5 10 15 1 6 11 B21 B20 B1 B2 A2 A1 A21 A20 1 4 5 8 1 3 4 5 1 12 13 24 1 12 13 24 34 33 1 2 68 67 35 36 AUDIOOUT AUDIOIN 1 26 51 100 76 17 33 49 1 64 1 17 33 49 64 1 2 19 20 + L5818 C8260 R0921 C8261 TP8101 R2861 R0922 C8262 TP8102 R2862 C8263 TP8103 R0923 TP5800 R2864 R8430 C8070 C8264 R0924 TP8104 TP5801 C8265 C8071 TP8105 TP5802 C8072 TP8106 TP5803 C8267 TP8107 C5964 R8240 C8268 C8074 TP8108 L5821 R0929 C5965 TP8109 R8241 C8075 C5966 C8076 R8436 TP5807 C5967 C8077 R8437 C1123 R8244 TP5808 C5968 R5558 TP8300 R8438 C8078 R8245 TP5809 C5969 TP8301 L8705 C8079 R8246 L8706 R8247 L8513 R0930 R8248 C8270 R8249 C8271 R3041 IC8242 R3042 C8273 CL2507 D1107 C5970 C8274 C4200 D3048 C5971 C8275 R0935 C8276 C5972 R8442 C8082 R0936 R8636 C8277 C5973 R5563 C8083 R8443 C5974 C8278 C3070 L2950 R8444 C8084 IC1100 C3071 C8279 C8085 R8445 IC1101 C3072 R8252 R8253 C8087 R8447 C3073 C5978 R5950 R8254 C8088 R8448 R3240 R5951 R8255 R8449 TP5431 C8089 TP5432 R5952 R5953 C3078 C8280 R5954 C8281 R8259 R5955 R3245 R8641 R5956 C8282 R8642 C8283 R5957 C8284 C8090 R5958 R5959 C8285 C5981 R8645 C8091 A88A R0945 C5982 C8092 C8286 R0946 R8452 C5983 R0947 C8093 C8287 R8647 R8453 C5984 R0948 C8094 C5985 C8289 R8261 C8095 R0949 C4215 TP2751 C5986 C8096 C4216 TP2752 R8263 C5987 C8097 TP8707 C3083 TP2753 C5988 R5960 R8458 TP8708 C3084 TP2754 C5989 R8265 R5961 R8459 TP2755 C3085 C8099 R5962 C3086 TP2756 R5963 C3087 TP2757 C8290 R5964 R0950 TP5250 C3088 TP2758 C3089 R5965 R8269 C8291 C8292 C8293 C5990 TP5830 C4220 L8920 C5991 TP5831 TP2951 C4221 C8871 C5992 TP5832 TP2952 C8872 TP5833 C5993 C8873 C5994 R8270 TP5834 R8658 R8464 C3090 C8874 TP5835 C5995 R0959 R8271 R8465 R8659 C3091 C8875 TP5836 C5996 R8466 R8272 D4202 C3092 C8876 TP5837 R8273 C5997 R8467 C3093 C8877 R8274 TP5838 R4200 R8468 TP5839 R8275 R8469 R8277 R8278 R0960 C3098 R8279 R8661 TP5840 IC4201 TP5841 TP5842 IC8852 C4233 R8280 IC4204 C4234 R8281 IC4205 JK8301 C4235 R8282 IC4206 C4236 R8283 C4237 IC4207 R8284 TP8340 C4238 R8285 TP8341 R8286 TP8342 R8287 TP8343 R8288 TD8300 C2108 TP8344 JK3100 R8864 R8289 L5481 TP8345 R0971 TP8346 TP8347 R8480 CL3100 C4240 TP8348 C4241 TP8349 VJ4509 IC4212 R1146 TP8733 R8483 TP8734 TP2780 R8484 R8679 TP8735 R8485 TP2781 C4245 C4246 C4247 R8487 TP5470 TP8350 C4248 A88 VJ4510 C4249 TP8351 R4222 CL5432 TP8352 TP8353 CL5433 R4223 R8680 CL5434 TP8354 R4224 JK8700 TP1400 TD8311 CL5435 R4225 TP8355 TP1401 R4801 TD8312 CL5436 TD8313 R4227 CL5437 R3287 R8684 R4228 C4250 R3288 R8491 R4229 C4251 C2312 R8686 R0987 C4253 C4254 R0988 R8495 R8689 R0989 C4831 TD8702 C4256 R8496 C2317 C4257 R8497 C4258 R4230 R3290 R8880 C4259 CL5441 R8499 Q4831 R3291 CL5442 TD8512 R4232 R3292 Q4832 CL5443 R8690 CL5444 R8691 R8885 TP5291 TP5292 R0993 TP5293 C2320 C4260 R8888 R0995 C4261 R8889 R0996 C4262 C4263 C4264 C2901 C4265 C4266 C4267 JK3707 SW2500 C2904 C4268 L4700 C2905 C4269 R8891 L4701 C2906 R8892 L4702 R2302 R8893 Q2903 C2907 L4703 C2908 Q2904 TP8950 L4704 TP8951 R8895 L4705 R2306 TP8952 C4270 R4824 C4271 R4825 C4272 C4273 C2334 C2910 C4274 C2335 R1179 C4275 C2336 C2912 C4276 C2337 C2913 C4277 C2338 C2914 C4278 C2339 C2915 C4279 TP4501 C5603 TP921 R4255 L4715 TP922 R4256 L4716 R1182 TP923 R4257 R4833 L4717 C2340 TP924 R2318 JK2780 R4258 C4280 C8100 R2319 TP925 C2341 R4835 C4281 C8101 TP7002 C2342 C4282 C8102 C2343 TP7003 C4283 C8103 C2344 C5800 TP7004 C4284 C8104 C2345 TP7005 C2921 C4285 C8105 TU2901 TU2901A TP4701 C2346 TP7006 C2922 TP1052 CL2782 C4286 C8106 TU2901B C2347 TP7007 C5803 C2923 C4287 CL2783 TP1053 C8107 TU2901C R2320 TP7008 C2348 R4260 TP1054 C4288 C8108 R2321 TP7009 D2901 TP1055 C4289 R4261 C8109 TU2901E R2322 TP1056 R2323 TP1057 C8300 R2900 R4264 C8301 R4841 R4265 R2902 C8302 R4266 C8303 R4267 C2350 C8304 C4290 R4268 C8110 R2905 C8305 R4269 C4291 R4651 C4679 C8111 TP7012 C2352 C8306 R2906 C4292 C8112 TP7013 C8307 C4293 R1197 C8113 C2354 TP7014 C8308 R2908 C4294 C8114 C8309 IC2901 C4295 R4655 C8115 C2356 TP1062 C4296 C3102 C8116 C4297 C8117 C3103 CN8700 C4298 C3104 C4299 R4659 C8119 Q5813 C3107 Q5814 C8310 C3108 TP2008 Q5815 C8311 C3109 R4851 Q5816 C8312 R4852 C8313 D5603 R4853 C8314 VJ8000 C8120 R4854 C8315 VJ8001 D5605 C8121 R4855 C8316 C8122 R4856 R5603 C8317 R4663 C8123 R4857 C8318 C8124 C8319 C8126 C8127 C8128 C8129 D5802 C8512 R8102 C8513 R8103 IC5603 C8320 IC5604 TP2401 C8321 R2921 C8515 C5635 TP2402 R5802 R2922 C8322 C8516 R2923 C8323 C8517 D8300 C8324 R8108 IC8100 C8518 C8130 C8325 R8109 IC8101 C8519 C8131 C8326 R2926 C8132 C8327 C8133 C2950 R8300 C8328 C8134 IC5801 R8301 C2951 C2952 R8302 R4676 C8136 C6003 R8303 C8137 R4677 C6004 R8304 C8520 SW2550 C8138 C6005 IC5805 R8305 R8111 SW2551 C8139 C6006 D5812 R8306 C2956 R8112 SW2552 C6007 C8717 R8113 SW2553 D5813 C6008 IC5808 IC8300 C2958 C8718 SW2554 C6009 R8309 IC8301 C2959 C8719 IC8302 TPS15V R8117 R8118 JK4700 C8140 R8119 C5649 C8141 JK4701 C8142 JK4702 R3106 D5433 JK4703 C8143 R8310 C8720 R2550 D5434 L8000 R3108 C8144 R8311 C2961 C8721 TP2801 D5435 R2551 L8001 C8145 TP2802 R8506 L8002 C8722 R2552 C8146 L8003 IC5813 R8313 TP2803 R2553 D5437 C8147 R8120 IC5814 TP2804 R8508 VJ8604 C5650 C8148 D5439 R8315 R8509 TP2805 C5651 C8149 IC5815 R8316 TP2806 C5652 VJ8606 L8006 L8007 L8008 C8728 C3139 C6019 VJ8609 TP5301 L8009 C8343 D5440 R5825 R3115 R3116 D5442 R8512 C8922 R3117 R5827 R8513 C8923 R5828 C6020 R8320 R8708 VJ8610 L8010 C8154 TP2810 D5444 R3118 C3140 C6021 R8321 L8011 C8155 R8709 TP2811 TP0101 D5445 C3141 C6022 R8322 L8012 C8156 TP0102 TP2812 C8732 R8516 R5443 R8323 C8157 VJ8613 C8733 L8013 R8324 C8158 R8130 L8014 TP2814 TP0104 C2780 TP5500 C3144 R8325 R8131 C8159 TP0105 C2781 TP5501 C3145 D5449 L8015 R8326 R8132 L8016 TP5502 TP0106 C2782 R8327 C2783 TP5503 TP0107 L8017 L8400 TP0108 C2784 L8018 C8739 TP0109 R3121 L8019 R8712 R3123 C8160 TP5508 R5640 C8161 R5641 R2956 R5642 R2957 R5643 C6030 IC2950 C8740 TP0110 R3128 C3150 R5644 L8020 C3151 R5839 R2959 C8741 L8021 C6031 C6032 IC2952 C8742 L8022 C6033 R5453 L8023 L8024 C6034 C8744 R5454 C6035 R5455 C3155 C6036 R5456 C6037 R5840 R2960 R5458 R5841 R2961 R5459 R8722 C8363 C8170 R8725 C8171 R8726 C8172 C8173 R8727 R1003 C8174 C8368 C8175 C8369 R5461 C8176 TP8400 R8344 TP3004 TP8401 TP3005 TP8402 TP3006 R8922 R8347 R8923 TP8403 L3023 TP3007 D2780 C8370 R8348 TP8404 R1200 R8924 L3024 TP3008 D2781 TP8405 TP3009 R8925 D3339 R1202 TP8406 D2782 R8926 D2783 R8927 R1203 C8950 R2780 C4300 R8928 R2781 C4301 IC8921 R2782 C4302 R2783 C4303 C5497 R1207 C6050 TP8600 C4304 C5498 R3148 R2784 TP0901 R8739 C6051 R2785 R5471 R1209 C4305 TP8601 R3149 TP0902 R2786 C4306 R5472 TP0903 R2787 C4307 R5473 TP0904 R2788 C4308 IC2780 TP3014 TP0905 R2789 C4309 R8355 IC8921-A TP3015 C3752 R8740 R5864 R8744 R3154 R5865 C4311 C4313 C5890 R5868 R8360 C4314 R8748 C5891 R5869 R8361 C4315 TP3021 C5892 C7002 C4316 TPS0N TP3022 C7003 C5893 C4317 TP3023 C5894 C7004 R8364 C4700 C7005 C5895 R8365 C4319 C4701 C7006 Q7002 C5896 TP0916 C4702 C7007 C5897 TP0917 C4703 C7008 C5898 TP0918 Q4700 C5899 R5871 C7009 TP0919 C4705 Q4701 R5872 IC5482 Q4702 Q4703 R5874 R1224 C4320 D5490 C4708 Q4704 R5875 C4321 Q4705 D5492 C4322 R8756 D5493 C4323 R8757 C7010 C4324 TP0920 R8758 C7011 R8371 R8759 C7012 C4326 R8566 R8372 C7013 C4327 R8373 TP0153 C7014 VJ8858 R8374 R8950 R1420 TP0155 R1421 C7016 R8376 R8952 R1423 C7017 R8377 C4713 R5880 C7018 R8760 R5881 R1425 C7019 R8761 R5499 C4715 C4717 R3173 IC8950 C4330 C4718 C4331 JK3001 R8765 C4719 C4332 JK3002 R5887 C4333 C7020 R5888 VJ8864 C4334 R8380 C7021 C4335 R8381 C7022 TP1102 R8382 C4336 C7023 C4337 TP1103 C7024 C4338 C7025 C4339 C4721 C7026 TP1107 C7027 R4313 C7028 R4314 TD8400 D4700 TP1108 C4724 C7029 R4315 D4701 TD8402 D4702 R4317 TD8403 D4703 R4318 R4700 D4704 TD8405 R4701 D4705 TD8406 D4706 R4702 R7007 TD8407 R4703 D4707 C7030 R7008 TD8408 L8850 D4708 R4704 R7009 C7031 R3189 TD8409 R4705 C7032 R4706 C7033 R4707 C7034 IC7004 TD0900 VJ4228 C4348 R4320 R4708 C7035 TD0901 VJ4229 L4205 TPST5 R4709 IC4701 C4731 IC7006 C7036 R4322 C7037 R8397 C7038 R7010 L4208 TD8410 C7039 L4209 TD8411 R3192 TD8412 R4327 TD8413 R7014 TD8414 R4710 C2411 R7015 R4329 TD8415 R4711 R7016 TD8416 R4712 D4717 R4713 C7040 L4210 R4714 C4548 C7041 L4211 D4719 C7042 L4212 R4716 C7043 C2417 L4213 R4717 C7044 R4718 C7045 C2801 L4215 R4719 C7046 R4332 C2802 C7047 C2803 L4217 C7048 L4218 C7049 C2805 D4721 C2806 D4722 C2807 TD8423 D4723 C2420 TD8424 D4724 R4720 C5301 C2809 TP4201 R4721 D4725 TP4202 TD8426 R7027 TP4203 TD8427 TP8853 C7050 TP4204 TP8854 R4724 R7029 C7051 TP4205 TP8855 R4725 C7052 C2426 TP4206 R4726 TP8856 C2427 C7053 TP4207 TP8857 R4727 C2428 C7054 FL2780 TP4208 TP8858 C2429 C7055 FL2781 TP4209 R4341 TP8859 R4729 C7056 C7057 R4343 C7058 R7030 C5500 R4344 C4560 C7059 C5501 R4345 C4561 R4346 C5502 R7033 R4347 C5503 C5504 TP4210 TP8860 D4734 TP4211 C5505 TP8861 R4731 C5506 TP4212 C5507 TP8863 D4737 C4567 C5508 C8000 C5509 C8001 C5316 C7063 C5317 C8003 C7064 C5318 C8004 R4738 C7065 C8005 C5319 C2821 R4739 C7066 C8006 C7067 C7068 R2414 C8008 C5510 C7069 R2415 D2801 C8009 C5511 R7042 D2802 C5512 R7043 D2803 C2440 R7044 R2418 X8100 C5320 R4740 C2441 R2419 X8101 R7045 R2801 R4741 C2442 R7046 X8102 R2802 R4742 C2443 R2803 R4743 C7070 C5900 C8010 R4744 L2301 C7071 D5301 D2809 R2805 C8011 R4745 C5902 C7072 R2806 C8012 C7073 C8013 C2448 C7074 R4748 C5905 C7075 R5301 R4749 C7076 C8016 Q2252 C5907 C8017 Q2253 C5908 X8300 D2810 C8400 C8018 D4750 Q2254 C5909 C8019 C8401 D2811 Q2255 C8402 R5307 C8403 C2450 D5500 C8404 R5308 R4750 R5309 D5501 C8405 R4751 TPP15V D5502 C8406 R4752 TP4233 D5503 R4753 C5910 C8020 TP4234 R2814 R5500 Q3008 R4754 C5911 R2815 C8021 R5501 TP4235 C8409 R4755 C7082 C5912 C8022 TP4236 R2816 R5502 R4756 C5913 TP4237 R5503 C8023 R4757 C5914 C7084 C8024 R5310 TP4238 R5504 R2818 R4758 C5915 R5311 TP4239 R2819 R5505 R4759 C8025 R996 C5916 R5312 R5506 R997 C5917 C8027 R5507 C5918 R998 C8028 R5508 C5724 IC5500 JK8850 R8000 R999 C5919 C8029 IC5501 R5509 C2075 R8001 C2076 C8413 C2077 C8414 CL4200 TP4240 C2078 TP2301 C8415 CL4201 TP4241 C2079 TP2302 CL4202 TP4242 TP2303 TP4243 CL4203 R4763 TP2304 C5920 C8030 CL4204 TP4244 R5510 R4764 D4768 VJ5800 C5921 VJ5801 C8031 CL4205 R5511 TP4245 JK8401A R4765 C5922 R5512 CL4206 TP4246 C5923 C8033 TP4247 R5513 CL4207 R4767 C5924 TP4248 CL4208 R5514 C8034 C5925 R5515 CL4209 C8035 R4769 C8036 C5926 L2902 R5516 C5927 C8037 R5517 C5928 VJ5808 VJ8300 C8038 R5518 C5540 VJ5809 C8039 L2905 TP2501 R5519 C5541 L2906 C5542 D4772 C5543 C3027 D4773 CL4210 D4774 R4770 R2254 C3028 L2909 CL4211 TP4251 C3029 R2255 D4775 R4771 CL4212 R2256 D4776 R2833 CL4213 R2257 C5930 VJ5810 C8040 R5520 JS8360 CL4214 R2258 C5931 VJ5811 JS8361 R5521 R8401 CL4215 JK3100A R4775 R2259 C8042 VJ5812 C5932 R5522 CL4216 R4776 VJ5813 C8043 CL4217 R5523 R4777 C5934 VJ5814 L2910 R8404 CL4218 R5524 JS8364 C3030 C8044 R4778 C8045 C5935 VJ5815 L2911 CL4219 R5525 JS8365 IC3001 R4779 C5936 VJ5816 R5526 TPF15V R8406 C8046 R5527 R8407 C5938 C8048 R5528 R8408 IC8400 R2260 R5911 C5939 R3201 R8409 R5529 IC8401 C8049 CN1102 R5913 R2263 R8600 R5914 C8240 CL4220 R2264 R5915 C8241 D3015 CL4221 R4781 D4785 C3039 C8242 CL4222 R3206 C8243 CL4223 D3017 R3207 C5940 VJ5820 L8100 R5724 R5530 R8410 C8050 L8101 C8051 JS8371 R5531 R8411 D3019 R4785 VJ5821 C5942 VJ5822 L8102 R5532 R8412 JS8372 C8052 R4786 C5943 VJ5823 C8247 R5533 R0907 TP2903 R8607 R8413 JS8373 C8053 R4787 R5534 C5944 R0908 L5800 C8054 R8608 JS8374 R8414 TP5208 C8055 C5945 C8249 R5535 R8415 C3041 VJ8511 TP5209 R4789 C5946 L5802 R5536 R8416 VJ8512 D8802 C8056 L5803 C8057 C5947 VJ8513 C3043 L5804 C5948 R5538 C3044 R8418 C1104 C8058 R5539 R8031 C5949 C8059 C1105 R8419 VJ8516 C3046 C3047 VJ8517 L8300 C8250 C3048 C1108 VJ8518 L8301 VJ8519 C8251 C3049 R5155 FL2402 L8302 C8252 L8303 R0913 C8253 D3027 C5950 L8304 C8254 C8060 R5540 TPEC0 R8420 R0914 D3028 C5951 L8305 C8255 R8615 C8061 R0915 C5952 R2856 C8256 R8616 C8062 R8422 R0916 C5953 C8257 C8063 R8423 R0917 L5810 C5954 C8064 C8258 R8424 C1110 R0918 VJ8520 R4798 C5955 R8619 C8259 C1111 C8065 C5956 C8066 C5957 L5813 C8067 R8427 C8068 C1114 D3030 R3220 L5815 R8429 C8069 L5816 VJ5452 L5817 C1117 A-BOARD (FOIL SIDE) TNPH0899DC A 98 TH-P46GT20C A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C A-Board TNPH0899DC TH-P46GT20C A-Board TNPH0899DC A31 CN4200 IC8240 IC8241 Q4201 Q4204 Q4205 IC4200 JK8301 Q2101 Q2102 JK3100 Q2109 IC4211 Q2301 A1 A88 A6 A7 A8 JK8700 JK3707 SW2500 Q2901 Q2902 Q2905 IC2301 CN5800 Q5602 Q5603 JK2780 TU2901 CN8700 Q5817 Q5818 Q5819 Q5431 Q5432 Q5435 Q5436 Q5820 Q5821 Q5822 Q5823 IC5800 IC5809 JK4700 JK4701 JK4702 JK4703 IC5810 IC8701 IC8703 IC5250 IC5251 Q5475 Q5478 IC1000 CN7001 IC5470 Q7001 IC8360 IC8361 IC8362 IC5290 Q4512 Q4513 Q4709 Q4710 JK3001 JK3002 IC4500 IC7001 IC7002 IC7003 IC7005 CN0101 CN0102 Q5500 IC2401 Q5501 Q5502 Q5503 Q5504 IC2801 Q3000 Q3001 Q3002 Q3003 Q8400 Q3004 Q8401 Q3005 IC5302 IC5303 JK8850 IC8000 JK8401A Q2850 Q2851 JK3100A IC8402 D3015 A11 A12 IC0901 A20 A24 THERMAL PAD THERMAL PAD THERMAL PAD AMM2 AMM3 AMM1 1 TNPH0899 A THERMAL PAD THERMAL PAD PbF 1 55 7 1 1 A 1 A 1 30 A 1 1 2 7 8 MONITOROUT AV1 AV1 AV2 AV3S AV2 AV3 1 A 1 11 30 1 11 1 1 14 1 12 V R L 44 22 23 1 A 6 1 1 30 31 60 A 1 1 5 19 1 19 1 19 1 19 1 1 5 1 A O R D E R N O . 1 4 5 8 1 13 25 37 48 4 5 8 1 1 3 4 5 1 4 5 8 1 6 7 12 6 1 1 3 4 5 1 8 9 16 1 8 9 16 1 8 9 16 1 6 11 5 10 15 A1 A21 B20 B2 B1 A20 A2 B21 1 21 41 61 80 A 1 1 4 5 8 1 2 19 20 1 11 1 1 1 1 1 1 44 22 23 1 + 1 4 5 8 4 5 8 1 4 5 8 1 8 1 9 10 1 A 67 68 33 34 35 36 2 1 AUDIOOUT AUDIOIN 1 3 4 5 A 1 1 4 1 2 1 4 5 8 9 1 1 2 R8620 R3224 R3030 R8621 R3031 R8622 R3226 R2863 R8623 R3227 R3033 R8624 JS8390 R3228 R3034 D3038 R8625 R3229 JS8391 A31 R8431 D3039 C8266 R8626 JS8392 R8432 C8073 R8433 R3037 CN4200 R8434 R3038 C8269 L8701 L5822 R8242 L8702 C1122 R8243 L5823 C3257 R3230 C3064 L5824 L8511 R3231 R8439 C3065 L8512 R3232 L8707 R3233 IC8240 R3234 L8708 R1100 R8825 IC8241 R3235 D3045 R1101 C8272 R3236 R1102 D3046 R5947 R0933 R3237 R1103 R8634 C8080 R8440 R0934 TD4250 R1104 L5251 R8635 C8081 C4201 R8441 TD4251 R1105 TD4252 R1106 TD4253 C8853 R1107 R8250 R8638 TD4254 C8854 R1108 R8251 TD4255 Q4201 C8855 R1109 R8446 TD4256 C8856 TD4257 C8857 Q4204 TD4258 C8858 D3050 R5569 Q4205 TD4259 C8859 R8256 D3052 D1112 R8257 R8258 R8640 PA4206 R8643 R8644 R8450 TD4260 C8860 R5571 A88A TD4261 R8451 C8861 TD4262 C4212 C8862 C4213 TD4263 C8863 R8648 R8260 TD4264 C4214 R8454 R8649 TD4265 R8455 R8262 TD4266 R8456 R8457 TD4267 R8264 TD4268 VJ8360 TD4269 R8266 R8267 R8268 R8650 R0180 L8340 R8651 R0951 VJ5486 R8652 R0952 R8653 L8343 TD4270 R8460 R0955 X7001 TD4271 R8461 R0956 R8656 TD4272 R8462 R8657 TD4273 R8463 R0957 D4200 R0958 FL3001 D4201 FL3002 FL3003 C5998 FL3004 C5999 FL3005 C3095 C3097 R8660 C3099 R8856 R3072 R8857 R4207 R3073 R8858 R8664 R4208 IC4200 R8470 R3074 CL5419 R8665 R8859 R8471 R3075 R8666 R8472 R3076 R8667 R8473 R3077 R3078 R8474 R8668 R8669 JK8301 R3079 C2102 R8476 C2103 R8477 C2104 R8860 R4210 Q2101 C2105 R8861 R8479 C2106 Q2102 R8862 C2107 R8863 JK3100 R8671 R8865 R3081 R8672 R0972 R8866 R3082 R8673 R0973 R8867 R3083 R8868 R3084 VJ4508 C2301 Q2109 IC4211 R8481 R3085 R8869 VJ7001 C2302 R8482 C4242 R3086 C2303 C4243 R3087 C2304 C2110 C4244 VJ4700 C2305 Q2301 A1 VJ4701 R3089 C2306 VJ4702 C2307 VJ4703 C2308 R8488 A88 R8870 VJ4704 C2309 CL5431 R8489 R8871 VJ4705 A6 R8872 VJ4706 A7 R8873 VJ4707 A8 JK8700 R8874 C2119 R8875 R3091 R8876 R3092 VJ8397 R3093 R1153 R8877 C2310 R8878 R8490 R3094 C2311 R8685 CL5439 R8879 C4252 R4806 R8492 C2313 R8687 R4807 R8493 R3097 C2314 R4808 R8494 R3098 C2315 C4255 R4809 C2316 TD5824 C2318 CL5440 R8498 TD5825 C2319 TD8705 R8881 TD5826 R8882 TD5827 R3293 TD8707 R4233 R8883 TD8513 TD5828 R0990 R4810 R4234 TD8514 TD5829 R2101 R4811 R4235 TD8515 R2102 R8886 TD8516 R8692 R2103 R1163 R8887 R2104 C2321 R2105 C2322 R2106 C2323 R2107 JS3007 C2324 TD5830 R2108 JS3008 C2325 TD5831 R2109 JS3009 L7001 L7002 TD5832 C2902 TD5833 C2903 JK3707 L7003 L7004 TD5834 SW2500 L7005 TD5835 Q2901 R4241 R2301 TD5836 Q2902 R4242 TD5837 R4243 TD5838 R8894 R2110 R4244 JS3010 TD5839 Q2905 C2909 R4245 JS3011 R4246 L4706 JS3012 R2307 R4247 R1173 JS3013 L4707 R2308 R4248 L4708 JS3014 R2309 IC2301 R4249 IC4211-A JS3015 JS3016 TD5840 JS3018 TD5841 C2911 JS3019 TD5842 TD5843 CN5800 R2310 TD5844 R4250 C4660 TD5845 R4251 C4661 TD5846 R2312 C2916 R4252 C4662 L4712 TD5847 R2313 C2917 R4253 C4663 TD5848 C2918 JS3020 C4664 R1181 TD5849 R2121 C2919 C4665 Q5602 C4666 Q5603 C4667 JK2780 R4834 X8001 R4259 X8002 TD5850 C2920 C5801 TD5851 TU2901 TU2901A C5802 TD5852 TU2901B TD5853 TU2901C C2924 TD5855 C2349 TU2901E TD5856 D2902 R4262 TD5857 R4263 PA5800 TD5858 VJ5300 R2901 C5615 C5616 R4842 R2903 R2904 PA5610 R4844 C2351 L2401 R2135 L2403 C2353 R2907 L2404 R2138 C3100 TD5861 C2355 C3101 R2909 R2139 TD5862 CN8700 R2140 R2911 C5431 C5432 D5602 Q5817 R2913 Q5818 R2914 R5600 Q5819 R2915 Q5431 Q5432 R2917 R2918 R2919 Q5435 Q5436 C3112 R4666 R5412 R5607 C3113 R4667 R5413 Q5820 R5608 C3114 R8100 R4668 Q5821 R5609 C3115 R8101 R4669 Q5822 C2752 C3116 Q5823 L2803 C2753 C3117 R5800 R2920 R8104 R5418 R5801 R8105 C2755 R5419 R8106 C2756 R5803 R8107 C2757 R2924 R5610 C5250 C2758 R4670 L5301 R5611 C2759 C5251 R4671 R5612 R4672 R2927 R5613 C5253 R4673 IC5800 C6000 R2928 C5254 R4674 C6001 R2929 C5255 C8711 R4675 C5256 C8712 C8713 D5810 R8110 C8714 C2760 D3100 C8715 D5811 C8716 R2930 R8114 L5500 R3100 IC5809 R8115 L5501 R3101 C3129 R8116 L5502 R3102 L5503 R3103 L5504 JK4700 R3104 CL7001 D5431 L5505 R8501 JK4701 CL7002 D5432 R8502 JK4702 CL7003 R8503 JK4703 VJ8600 CL7004 IC5810 CL1050 R8504 C3130 VJ8601 D3301 R5431 C3131 CL1051 R8505 D3302 R5432 D5436 C3132 R8507 R5433 C3133 R5434 L8004 C3134 VJ8605 L8005 R8121 R5435 C8725 R5436 C8726 C6017 D8703 C8727 R5437 C6018 VJ8608 R8700 R5438 C8340 D8704 C3138 R5439 IC8241-A C8729 C8341 D8705 R3112 D8706 C8342 R3113 R8703 R8704 R8510 C8150 C1009 R2751 R8705 D5441 R8511 C8151 FL2301 R5826 R2752 R8706 C8152 R2753 R8707 D5443 C8153 R5440 D5250 C8730 X1100 R5829 R5441 VJ8611 C8731 IC8701 PA8341 R8515 R5442 VJ8612 C3142 C6023 IC8703 D5447 C3143 C6024 C1010 R5444 D5448 R5445 VJ8615 VJ8616 C3146 L3002 R5253 C3147 L3003 R5830 R8710 R5254 C3148 R3120 C5470 L3004 R5831 R8711 R5255 C8351 L8401 C3149 C5471 L3005 R5832 C5472 L3006 R5833 C5473 L3007 C5474 IC5250 C1400 L3008 IC5251 C1401 L3009 C5475 C1403 R8524 C1404 R8525 R5451 R3129 C1405 Q5475 R8526 R5452 C3152 R8527 C8743 C3153 L3010 Q5478 C8745 L3011 C8746 C8747 C6038 C8360 L3014 C6039 R8721 C8361 L3015 D1002 C8362 R8723 D1003 L3017 R8724 R8918 D1004 L3018 R8919 C8365 D1005 L3019 C8366 D1006 D1007 C8367 C5293 C6040 R8728 C5294 D1008 R5460 R1004 R8340 C6041 R8729 R8535 D1009 R8341 C6042 R3716 R8342 R5462 C6043 R3717 R8537 R8343 C6044 IC1000 R8538 D3334 L3020 C6045 L3021 R8539 C6046 CL2026 D3336 R8346 C6047 R8730 D1010 D3338 C6048 R8731 C8371 R8349 T8301 C6049 R8732 C8372 C5492 R8733 C8373 R3143 R1010 L3028 R8734 C8374 X4200 D5470 D5859 L3029 R8735 C8375 R8736 R3146 R8737 R3147 R8738 R8350 R5470 C5499 R8351 R8352 D1402 L3030 R5474 R5475 R1401 CN7001 R8356 R8357 C5888 L3034 R8358 IC5470 R3150 C5889 L3035 R8741 R8742 R1406 R5863 R8743 R1407 R3153 C4310 R8745 R1409 C4312 R8746 R3157 R8747 C7001 R8362 D5487 R8363 D5488 C4318 R1410 L1100 Q7001 R5485 R1411 R5486 R8366 R8367 R1413 R8368 IC8360 C4704 R8369 IC8361 R1221 IC8362 R1416 C4706 C4707 R8754 IC5290 R1225 D5491 R5681 R5682 Q4512 R5683 Q4513 R3167 R8370 R5684 C4325 C8399 Q4709 R3169 C7015 R8375 R1422 R5497 R8378 R1424 Q4710 R8379 R1426 R8762 R3172 R8763 R8764 R3174 JK3001 R1236 JK3002 R1237 R5889 FL8701 R5696 FL8702 R8383 R8384 D7001 R8961 R8385 R8386 R8387 R5890 R8388 IC4500 R7001 R5891 R8389 TD8401 R5892 R7002 R4316 R3182 R5893 R7003 R1243 R5894 C4340 R7004 R5895 FL2759 C4729 R7005 R7006 R5896 R3187 R8390 R3188 IC7001 R8391 D4709 R8392 IC7002 IC7003 R8393 R8394 C4730 IC7005 R8395 R4321 L4206 R8396 L4207 R4323 R4324 D4710 R7011 R4325 D4711 R4326 D4712 R7012 R7013 R3193 D4713 R4328 D4714 R1255 D4715 C2412 D4716 C4546 R7017 C2413 R7018 C2414 R3198 D4718 C2415 R7019 R4715 C2416 C2418 L4214 R4330 R4331 R4333 R7020 D4720 R4334 C4550 L4219 CN0101 R4335 R7021 CN0102 R4336 R7022 R4337 R7023 D2014 R7024 R4338 C2421 R7025 R4339 R7026 R4722 D4726 C2423 R4723 D4727 C2424 R7028 L4220 D4728 L4221 D4729 L4222 L4223 L4224 R4340 R4728 L4225 R2402 R4342 D4730 D4731 D4732 D4733 C5310 Q5500 R4730 R7034 R7035 IC2401 C5311 Q5501 D4735 R7036 C5312 Q5502 R4732 D4736 R7037 C5313 Q5503 R4733 R7038 C2434 C5314 Q5504 R4734 D4738 C7060 C2435 R7039 C5315 D4739 R4735 C7061 C7062 C2436 C8002 R4736 R4737 L2101 L2102 D2417 L2103 R7040 R4548 D4740 R7041 D4741 R4549 C2055 L2106 D4742 L2107 D4743 C2057 D4744 D4745 C5516 D4746 C5517 D4747 X5800 C5518 D4748 R4550 R7049 C5519 D4749 R4551 L2302 R4552 L2303 R2807 R4553 L2304 C8014 R4554 L2305 C2449 C8015 IC2801 L2306 C3002 C7077 C3003 R4557 C7078 C5520 Q3000 C3004 R4558 C7079 C5521 Q3001 C3005 C5522 Q3002 C5523 Q3003 C2067 C3007 C5524 Q8400 C3008 Q3004 C2068 C2451 C5719 Q8401 C5525 C2069 C3009 Q3005 IC5302 C5526 IC5303 C8407 C5527 C7080 D5504 C5528 C8408 C7081 C5529 D5505 D5506 C7083 D5507 R4563 C3010 C8600 C5720 C2070 C0901 C2071 C3011 C8026 C2072 C3012 C5723 C3013 C2073 C8410 C5530 C3014 JK8850 C2074 C5725 R5315 C5531 C8412 C5726 C5532 C5727 C5533 C5728 C5534 C3018 C5729 C5535 C3019 R4761 R4762 C8416 C5536 C8417 C5537 R2053 C5538 TD4200 R2824 C8418 IC8000 X8701 TD4201 C5539 JK8401A D4769 R2055 C8032 TD4202 R2826 TD4203 R2827 L2900 TD4204 C3020 D5519 L2901 TD4205 C3021 VJ5806 TD4206 C3022 VJ5807 L2903 C3023 TD4207 L2904 Q2850 TD4208 C3024 D4770 Q2851 TD4209 D3001 C3025 D4771 C3026 D3003 L2908 R2830 R3000 D3004 R2831 D3005 R3001 R3002 D3006 D3007 R3003 D4777 D5524 TD4210 R3004 D4778 C5549 TD4211 JK3100A R3005 D4779 R2065 D3009 JS8362 TD4212 R3006 R2066 JS8363 TD4213 R3007 R2067 TD4214 VJ8500 R3008 R2068 VJ8501 R3009 R4585 R2069 JS8366 R4586 C8047 JS8367 C5550 JS8368 D3010 D4780 JS8369 D3011 D4781 D4782 IC8402 D3012 D4783 D3013 D4784 R3010 D3014 R3204 R2070 IC8240-A D3015 R3011 R3205 R3012 R0903 R5917 R4783 R3013 R0904 R5918 C8244 JS8370 R4784 A11 C8245 R5919 R3015 C8246 A12 R8606 R3016 R3017 C8248 R4788 R0909 IC0901 JS8375 R3019 C1102 R8417 JS8377 R5537 C1103 R4597 VJ8514 R4598 R5921 L5611 VJ8515 R4599 R5922 C1106 R3213 C1107 R0910 R2850 R8610 R4790 R2851 R3021 C1109 D3025 R0911 R4791 R2852 R0912 R4792 R2853 R4793 A20 R2854 R3024 R3218 R4794 R2855 R8421 R3025 R4795 R4796 R4797 A24 R3028 R4799 R8425 R3029 R8426 C1112 JS8388 R8428 JS8389 D3031 R3222 D3032 A-BOARD (COMPONENT SIDE) TNPH0899DC A 99 TH-P46GT20C 12.5. D 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C D-Board TXN/D1MJUC TH-P46GT20C D-Board TXN/D1MJUC IC001 IC002 Q800 IC004 Q801 Q802 IC400 IC401 IC402 TP100 TP101 TP105 TP106 TP107 TP108 TP109 TP300 TP301 TP110 TP313 TP314 TP315 TP316 TP910 TP911 TP912 TP913 TP914 TP196 TP9000 TP001 TP002 TP006 TP200 TP201 TP202 TP203 TP010 TP204 IC189 TP076 TP078 TP080 TP081 TP082 TP083 TP084 TP085 TP086 TP087 TP088 TP089 TP090 TP091 TP092 TP093 TP094 TP095 TP096 TP097 TP098 TP099 1 TNPA5299 2 3 CR NO.9 1 D P b F 1 4 5 8 1 3 4 6 1 6 1 7 32 1 1 10 11 2 0 1 1 0 1 1 20 1 1 1 2 0 R E V E R S E F O R S U F F I X . S E E 1 1 0 1 1 2 0 TD9062 TD9063 TD9065 TD9066 TD9067 C9400 C9401 C9402 C9403 C9028 C9029 IC9001 C9801 C9802 IC9002 C9032 C9803 C9033 R9200 C9034 Q9800 IC9004 R9201 Q9801 C9035 C9806 C9036 Q9802 C9037 C9807 C9038 C9808 VJ9300 VJ9301 C9039 R9205 C9809 VJ9302 R9206 R9207 VJ9303 R9208 R9209 C9810 C9040 C9811 R9402 R9403 TD9096TD9097 C9047 IC9400 IC9401 R9215 C9049 IC9402 C9050 C9051 C9053 C9824 C9054 C9055 R9609 D9802 C9056 D9803 R9223 C9057 C9829 R9225 R9227 R9610 L9300 VJ9900 VJ9901 L9301 R9611 L9302 C9831 C9832 C9833 C9065 C9068 C9069 TP9100 TP9101 C9070 TP9105 TP9106 TP9107 TP9108 C9845 TP9109 C9846 TP9300 R9244 TP9301 R9247 TP9110 TP9313 TP9314 TP9315 TP9316 C9095 TP9910 TP9911 TP9912 TP9913 TP9914 TD9101 TD9103 TD9104 TD9105 TD9301 R9868 TD9306 R9871 R9872 R9873 R9874 R9875 R9876 R9877 R9878 R9879 R9880 R9881 R9882 R9883 R9884 R9885 TD9900 R9888 TD9901 TD9902 TD9327 TD9328 TD9329 R9890 R9891 TD9330 TD9331 TD9332 R9896 TD9333 TD9911 TD9912 TD9913 TD9914 TD9915 TD9342 TD9343 TD9344 TD9345 TP9196 TD9346 TD9347 TD9348 TD9349 TD9350 TD9351 ZA9001 C9110 C9304 C9307 C9308 C9309 C9310 C9311 C9312 C9313 C9314 C9315 C9316 C9317 C9318 C9319 C9320 C9321 C9322 C9323 C9324 C9325 C9326 C9327 TD9377 C9328 TD9379 C9329 R9111 C9330 TD9380 C9331 TD9381 C9332 TD9382 TD9383 C9333 TD9384 C9334 C9335 C9336 TD9386 R9503 C9337 C9338 C9339 R9121 R9124 C9340 C9341 C9342 C9343 C9344 C9345 R9129 C9346 C9347 C9348 C9349 R9323 R9130 R9324 R9900 R9325 R9901 R9132 R9326 R9327 C9350 C9351 C9352 C9353 R9907 R9908 TP9000 C9354 R9909 TP9001 C9355 TP9002 C9356 C9357 C9358 C9359 TP9006 R9910 TP9200 C9360 TP9201 C9361 C9362 TP9202 C9363 TP9203 C9364 TP9010 TP9204 C9365 R9149 C9366 C9367 C9368 C9369 R9150 R9151 C9370 R9154 R9155 C9371 C9372 C9373 C9374 C9375 C9376 C9377 C9378 C9379 C9380 C9381 C9382 C9383 C9384 C9385 C9386 C9387 C9388 C9389 C9390 C9391 C9392 C9395 C9396 C9397 R9185 R9186 R9187 R9188 R9189 IC9189 R9197 R9198 FL9901 FL9902 TD9022 TD9023 TD9028 TD9029 TP9076 TP9078 TP9080 TP9081 TP9082 TP9083 TP9084 TP9085 TP9086 TD9042 TP9087 TP9088 TD9045 TP9089 TD9046 TD9047 TD9048 TD9049 TP9090 TP9091 TP9092 TP9093 TP9094 TP9095 TD9052 TP9096 TP9097 TP9098 TP9099 TD9058 C9072 C9076 D-BOARD (FOIL SIDE) TXN/D1MJUC D 100 TH-P46GT20C A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C D-Board TXN/D1MJUC TH-P46GT20C D-Board TXN/D1MJUC IC003 IC800 IC801 IC802 IC803 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R245 R246 D5 D6 D20 D25 D31 D32 Q900 Q901 IC300 IC304 P b F 1 D CR NO.9 TNPA5299 HIN VIN AB AC AD AE AF AG 1 26 51 76 100 1 1 1 0 2 0 1 1 1 1 0 2 0 1 1 5 11 10 20 1 S U F F I X . 1 5 5 2 19 1 20 1 3 5 1 1 0 1 6 8 1 6 8 1 A 1 4 8 5 X9300 C9800 IC9003 C9804 C9805 R9203 R9400 R9401 C9041 C9812 C9042 C9813 TD9093 TD9094 C9814 C9044 TD9095 C9045 C9815 R9212 C9816 C9046 C9817 R9213 C9048 C9818 C9819 C9820 C9821 C9822 C9052 R9608 D9800 C9825 C9826 C9827 D9804 C9828 C9058 R9224 D9805 R9226 VJ9902 C9830 IC9800 C9061 IC9801 C9062 IC9802 IC9803 C9063 C9834 C9835 R9231 C9067 R9234 R9235 R9236 R9237 R9238 R9239 R9240 R9241 R9242 R9243 R9245 R9246 C9094 R9070 D5 R9072 D6 TD9100 TD9102 TD9106 R9093 TD9300 R9094 TD9302 TD9303 TD9304 TD9305 TD9307 TD9308 TD9309 TD9310 TD9311 TD9312 TD9313 TD9314 TD9321 TD9322 TD9323 TD9324 TD9325 TD9326 TD9903 TD9904 TD9905 TD9906 TD9907 TD9908 TD9909 TD9528 TD9910 TD9529 C9100 X9000 C9101 C9102 C9103 C9105 C9106 C9108 C9300 D20 C9301 ZA9001 TD9352 C9302 C9303 TD9353TD9354 D25 TD9355 TD9356 TD9357 TD9358 C9114 TD9359 C9117 TD9360 TD9361 D31 D32 TD9362 TD9363 TD9364 TD9365 TD9366 TD9367 TD9368 TD9369 R9103 R9104 TD9370 R9105 TD9371 TD9372 R9107 TD9373 TD9374 C9900 TD9375 TD9376 Q9900 TD9378 D9110 Q9901 IC9300 IC9304 R9119 TD9385 TD9389 R9316 TD9390 R9318 R9319 R9128 TD9395 TD9396 TD9397 R9320 TD9398 R9321 R9322 R9903 R9904 R9905 R9906 L9800 L9801 L9802 R9152 R9153 R9164 R9165 R9166 C9393 C9394 C9398 TD9000 C9399 TD9001 TD9002 TD9003 TD9004 TD9005 TD9006 TD9007 TD9008 TD9009 TD9010 TD9011 TD9012 TD9013 TD9014 TD9015 TD9016 TD9017 R9194 TD9018 TD9019 FL9900 TD9020 TD9021 JS9100 TD9024 JS9101 TD9025 JS9102 JS9103 TD9027 JS9104 JS9105 TD9030 TD9031 TD9032 TD9033 TD9034 TD9036 TD9037 TD9039 TD9040 TD9043 TD9044 TD9054 TD9055 TD9056 TD9057 C9071 C9073 C9074 C9075 D-BOARD (COMPONENT SIDE) TXN/D1MJUC D 101 TH-P46GT20C 12.6. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C C1-Board TXNC111QFK TH-P46GT20C C1-Board TXNC111QFK C104 C105 C106 C107 C108 IC101 C109 C110 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 C123 C124 C125 FL101 ZA101 ZA102 ZA103 ZA104 ZA105 C141 C142 C143 C144 C145 C146 C147 C148 C149 C150 C151 C152 C153 C154 R101 R103 R104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R118 R119 R120 R121 R122 R123 R124 R125 R126 R127 R128 R129 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R150 R151 R152 R153 CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 C10 C11 C101 C102 C103 CR NO.17 TNPA5096 C1 1 PbF 1 10 11 20 1 55 1 55 1 55 1 55 O R D E R N O . 1 20 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 68 1 20 1 68 TNPA5096 1 C1 3 2 1 PbF S E E R E V E R S E F O R O R D E R N O . C1-BOARD (FOIL SIDE) TXNC111QFK C1-BOARD (COMPONENT SIDE) TXNC111QFK C1 102 TH-P46GT20C 12.7. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C C2-Board TXNC211QFK TH-P46GT20C C2-Board TXNC211QFK C20 C21 C23 C25 CB10 CB11 CB12 CB13 CB14 CB15 C201 C202 C203 C204 C205 C206 C207 C208 IC201 C209 IC202 CB9 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 FL202 ZA201 ZA202 ZA203 ZA204 C241 C242 C243 C244 C245 C246 C247 C248 C249 C250 C251 C252 C253 C254 C255 C256 C257 C258 R201 R202 R203 R204 R205 R206 R207 R208 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R247 R260 R261 R262 R263 CR NO.17 TNPA5097 C2 1 PbF 1 20 1 68 1 5 5 1 8 1 4 1 55 1 55 1 68 1 55 O R D E R N O . 1 55 1 5 5 1 55 1 55 1 55 1 55 1 55 1 55 1 10 11 20 1 10 11 20 1 55 1 55 1 20 TNPA5097 1 C2 3 2 1 PbF S E E R E V E R S E F O R O R D E R N O . C2-BOARD (FOIL SIDE) TXNC211QFK C2-BOARD (COMPONENT SIDE) TXNC211QFK C2 103 TH-P46GT20C 12.8. SC 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C SC-Board TXNSC11QFK TH-P46GT20C SC-Board TXNSC11QFK SC41 SC42 TP90 TP91 SC46 TP92 TP93 TP94 TP95 TP96 TP97 TP98 L698 SC50 C563 TP100 TP103 TP104 TP105 C592 TP106 TP107 TP108 T471 TP109 IC784 IC786 TP110 TP111 C791 TP112 C793 TP113 TP114 C795 TP115 C796 TP116 TP117 TP118 TP119 TP120 TP121 TP122 TP123 TP124 TP125 ZA421 ZA422 ZA411 ZA412 C400 C412 C413 C416 C417 C418 R774 C419 C806 C813 C631 C632 C633 Q401 Q402 Q403 D401 Q601 D402 C450 C842 C460 Q421 Q422 Q423 D421 Q621 D422 Q622 Q441 Q442 D441 Q451 Q452 D641 D642 C691 TP1 TP2 TP4 TP5 TP6 TP7 Q660 TP8 Q661 D461 TP9 D462 L400 L401 L411 SC2 D481 D482 TP10 TP11 TP14 TP15 TP16 TP17 TP18 TP19 R838 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 TP40 TP41 TP42 C503 TP43 R860 TP44 TP45 TP51 TP52 TP58 C900 TP59 C901 C902 C903 TP60 L851 TP61 TP62 C523 TP63 TP67 L472 C721 R696 TP70 TP78 TP79 TP80 TP81 TP88 TP89 3 1 CRNo.16 1 SC TNPA5081 2 PbF 2 8 2 8 9 1 2 8 1 2 9 1 P 1 P T P 2 S 2 S 1 8 5 4 1 8 5 4 1 S E E R E V E R S E F O R O R D E R N O . C G E C G E C G E A A K G S D A A K G C E G C E G C E A A K C G E A A K C G E C G E C G E A A K G C E G C E 1 9 A A K A A K G S D C G E A A K A A K 1 3 A A K A A K SC-BOARD (FOIL SIDE) TXNSC11QFK SC 104 TH-P46GT20C A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C SC-Board TXNSC11QFK TH-P46GT20C SC-Board TXNSC11QFK Q701 SC41 SC42 Q702 D503 SC46 TP99 D701 D702 L698 SC50 C753 C754 C755 Q521 C561 C562 C756 C563 D900 C564 C565 D901 D902 C566 C567 D710 D711 IC561 IC562 D712 D713 IC563 IC564 D522 D523 Q531 D719 D720 Q920 Q921 D721 C771 C772 C773 D534 D728 C581 D536 C582 C583 D920 IC771 D921 IC773 Q930 Q931 IC581 Q932 R501 TP101 R502 TP102 R503 R504 Q551 C592 R506 C593 T471 R509 IC784 IC785 IC786 IC787 R511 C791 R512 C793 R707 C794 C795 C796 R516 C797 R517 R900 R901 R904 R711 R712 R521 R522 Q762 R523 R717 R719 R720 R721 R531 R919 D765 R532 R533 R534 R920 R921 R922 R923 R926 R927 R928 ZA421 R929 ZA422 D583 R930 R931 R932 R933 R934 R935 R742 R936 R937 R938 R745 ZA411 R551 ZA412 R746 R552 R747 R553 R750 D790 D791 R751 D792 R752 D793 R753 R560 D794 R754 R561 R755 R562 R756 R563 R564 R565 R566 R567 R568 C400 R569 C401 C402 C403 R761 R762 R763 R570 R765 R769 C602 C603 C604 R579 C412 C413 C608 C416 R772 C417 R773 IC490 C418 R774 R580 C419 IC491 R776 R582 R583 R777 R584 R585 C806 R586 R587 R588 C421 C422 C423 IC691 IC692 R783 R590 R785 R591 R592 R786 R787 C813 R593 R789 R791 ZA401 ZA402 R797 ZA403 R798 ZA404 R799 C631 C632 C827 ZA407 PC603 C633 Q401 C441 Q402 C442 Q403 D401 Q601 C641 C642 D402 Q602 Q603 C450 C645 C451 C646 Q606 C452 C647 Q607 D407 Q608 Q609 Q801 C842 D602 C843 C844 D604 D605 D411 D607 C460 C461 Q421 Q422 Q423 Q810 D610 IC464 C854 Q815 IC465 C661 D421 Q621 C856 Q816 C662 D422 Q622 Q817 C857 C663 C858 C664 Q818 D618 C859 C665 C471 C666 C472 C668 IC661 C860 IC471 C861 C862 C863 C864 PC896 PC897 C675 C481 Q441 C676 Q442 D820 D821 D822 D824 D825 R401 D441 R402 R403 C684 C490 PC461 Q645 C685 C491 Q451 Q646 Q452 Q647 Q649 R601 D641 D642 R604 R410 D645 C691 R605 D451 R411 D646 C692 D647 R607 R414 D648 R415 D649 R609 R416 R417 R418 R419 R801 R802 TP3 D650 R804 R610 C891 IC521 D651 D652 R612 D653 R420 D654 Q660 Q661 R615 R421 D461 Q662 D462 R422 Q663 R617 R423 PC480 Q471 D465 D466 Q668 L400 IC724 R621 L401 D662 R622 D663 D664 R818 Q670 D859 R819 Q671 Q672 Q673 D667 D473 IC920 PC684 D474 D475 D669 Q675 PC685 D476 Q676 D477 Q677 R820 Q678 D478 R822 R823 R824 D670 R825 D671 R631 L411 R826 D672 SC2 R827 D673 R633 D674 R634 D480 R829 R441 D481 R442 D482 Q876 D677 D678 Q490 R831 D871 R832 D872 D874 D875 R837 R838 D490 Q885 R451 R645 D491 PC722 R646 D492 R452 PC723 R647 D493 D494 R648 R649 D497 R841 R843 R844 R650 R845 R651 R846 R652 R653 R654 R849 R655 R656 R657 R658 R659 R465 R466 R467 R468 R851 R852 D893 R660 R661 R662 R663 R664 R471 R665 R472 R666 R473 R667 R668 R474 C501 R475 C502 R476 C503 C504 R860 R478 R479 C505 TP46 R670 IC501 R671 R672 R673 R674 R675 R676 R677 R678 R679 C707 C708 R870 TP57 R873 R680 C900 R681 C901 C902 R682 C903 R684 R490 R491 R685 R492 R686 R687 R493 R688 R494 L851 C521 R495 C522 R496 C523 R497 C524 R498 C525 IC792 IC793 C527 R690 TP68 R691 L472 R692 R694 SC20 R695 C721 R696 C723 C724 TPSOS6 R699 TPSOS7 C533 C534 C535 R891 C536 R892 R893 R897 R898 R899 Q501 TP82 Discharge TPVSUS SCMM2 DIP H.V. DANGER H.V. DANGER TPSC1 H.V. DANGER SC 1 H.V. DANGER SCMM1 CRNo.16 TPVSCN TPVAD A A TNPA5081 PbF 1 2 8 9 1 8 9 2 1 2 3 4 9 1 2 8 1 2 1 10 11 20 1 10 11 20 7 8 14 1 1 3 4 5 1 2 3 4 1 2 3 4 1 3 4 5 1 4 8 5 S2 S1 P1 PT P2 1 2 3 4 1 4 5 8 1 4 5 8 O R D E R N O . 1 3 4 5 G C E G C E G C E A A K G S D A A K 1 2 3 4 C G E C G E C G E 1 3 4 5 1 2 3 4 1 3 4 5 A A K G C E A A K G C E 1 4 5 8 G C E G C E A A K C G E C G E A A K A A K G S D G C E A A K A A K 1 4 5 8 3 1 A A K A A K 1 8 9 1 6 8 9 1 16 1 3 4 5 1 3 5 SC-BOARD (COMPONENT SIDE) TXNSC11QFK SC 105 TH-P46GT20C 12.9. SS 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C SS-Board TXNSS11FFK TH-P46GT20C SS-Board TXNSS11FFK C193 SS11 R309 SS21 L303 SS53 SS55 SS56 VR001 SS61 SS63 SS64 C201 C202 C203 C011 C012 C013 C014 C015 Q001 Q002 Q003 D001 C241 D002 Q021 Q022 Q023 C271 C272 Q041 Q042 D041 D042 Q051 D051 D052 L001 TPVSUS TP2 TP5 TP6 TP7 TP8 TP9 L011 TP10 TP13 TP14 TP16 TP17 TP18 TP19 TP20 TP21 TPSOS8 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP33 TP34 TP36 TP38 TP39 TP40 IC304 TP41 TPVe TPSS1 C314 TP51 TP53 TP54 TP56 C328 C331 PbF SS 1 1 2 3 TNPA5082 CR No.16 4 1 1 7 2 6 1 1 3 1 1 3 1 1 3 1 1 3 S E E R E V E R S E F O R O R D E R N O . 1 1 3 1 1 3 1 1 3 C G E C G E C G E A A K A A K 1 1 3 1 1 3 G C E G C E G C E G C E G C E A A K A A K C G E A A K A A K 1 1 3 1 1 3 8 5 4 1 1 1 3 SS-BOARD (FOIL SIDE) TXNSS11FFK SS 106 TH-P46GT20C A B C D E F G H I 1 2 3 4 5 6 TH-P46GT20C SS-Board TXNSS11FFK TH-P46GT20C SS-Board TXNSS11FFK D315 D316 D317 D131 Q141 R101 R102 R103 R104 C191 R105 C192 C193 SS11 R109 C195 C198 R110 D151 D152 D153 R307 Q161 R309 R116 SS21 R318 R319 SS33 R320 R131 R132 R134 R135 R136 R137 L303 R330 IC241 R332 R334 R141 R335 R142 R143 Q191 SS53 SS55 SS56 R150 R151 D191 R152 D192 R153 R154 R155 D196 VR001 SS61 R159 SS63 SS64 R161 R162 R163 C001 C002 C003 C004 R171 R172 R173 C201 C202 C203 C011 C012 C013 C014 C015 R181 R182 R183 C021 C022 C023 R191 R192 R193 R195 ZA001 ZA002 ZA003 C041 Q001 C042 Q002 Q003 D001 C241 D002 C242 C243 C244 C051 C251 C252 Q021 Q022 Q023 IC251 D021 D022 D023 C071 C072 C271 D032 C272 Q041 Q042 C280 R001 D041 C281 R002 D042 R003 C284 C091 C285 Q051 C286 C092 C287 Q055 Q056 D050 D051 Q251 D052 D054 IC312 D253 R021 D255 R022 R023 L001 IC131 R031 R032 R033 R034 TPSOS8 R230 L011 R231 Q280 R041 R042 D280 R241 D281 R242 D282 D284 D285 R051 D286 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 C101 C103 C104 C105 TPVSUS TPVe TPSS1 R280 IC304 R281 R282 R283 R284 R285 R287 R288 C314 R289 C315 C316 C317 C318 C319 R290 C131 C133 C328 C135 PC301 C331 Q101 Q102 D101 C151 C152 C153 C154 C157 IC151 PC191 DIP S S M M 1 S S M M 2 PbF SS Discharge 1 TNPA5082 CR No.16 1 2 3 4 1 4 2 6 7 1 13 1 1 8 1 1 0 11 20 1 13 1 13 13 1 O R D E R N O . 1 13 1 13 1 13 G C E G C E G C E A A K A A K 13 1 13 1 C G E C G E C G E 8 5 4 1 C G E C G E K A A A K A G C E A A K A A K 13 1 13 1 1 8 9 16 1 8 9 16 1 4 5 8 G S D G S D 16 9 8 1 13 1 SS61 SS63 SS64 SS-BOARD (COMPONENT SIDE) TXNSS11FFK SS 107 TH-P46GT20C 13 分解图和更换部件清单 13.1. 分解图和机械更换部件清单 13.1.1. 分解图 1 108 TH-P46GT20C 13.1.2. 分解图 2 109 TH-P46GT20C 13.1.3. 包装 1 110 TH-P46GT20C 13.1.4. 包装 2 111 TH-P46GT20C 13.1.5. 维修部品表 参考号 部件号 部件名称及说明 数量 备注 ETX2MM815EVH P 线路板 1 1 J0KG00000146 铁氧体磁芯 1 2 K1TWACC00001 绝缘天线 1 3 K2AHYH000033 AC 接入口 1 4 K2CK3YY00025 电源线 1 5 K2YZYY000017 RF 信号隔离器 1 6 L0AA14C00004 喇叭 2 7 MD-46GF13ME6 46FHD13 PDP 屏 1 8 N2QAYB000492 遥控器 1 9 TBLX0206 台座 1 10 TBX3DA00401 电源按钮 1 11 TKU3DX00702 后盖 1 12 TMXX064 电源线夹 A 1 13 TMXX065 电源线夹 B 1 14 TPC3DA03104 包装箱外箱 1 15 TPC3DA03201 包装箱底箱 1 16 TPD3DA0071 顶部衬垫 1 17 TPD3DA0072 底部衬垫 1 18 TPD3DA0074 台座衬垫 1 19 TPDX0035 箱扣 4 20 TPEH344A 整机保护袋 1 21 TPEP026-1 电源线袋 1 22 TQZ3DB029 使用说明书 1 23 TSXL519 FFC(C10-C20/SU11-SD11) 2 24 TSXL736 FFC(D31-C11/D32-C21) 2 25 TSXM056 FFC(D20-SC20) 1 26 TSXM189 FFC(D5-A31) 1 27 TSXM269 FFC(XH4-A88A) 1 TXANZ01MKUC 高频头组件 1 28 TXFBL01LBUC 台座附件组件 1 TXFKR01LQUC 声音反射板组件 2 29 TXFKY01MJUC 面框 1 TXFUX02MJUC 第二高频头组件 1 TXJ/A6MJUC 线束 (A6-P6) 1 TXJ/A7MJUC 线束 (A7-P7) 1 TXJ/K1LYUA 线束 (K1-A1) 1 TXJ/P2LKUU 线束 (SC2-P2) 1 TXJA11LYUA 线束 (A11-SPL/SPR) 1 TXJA20LYUA 线束 (A20-V1/V1) 1 TXJD25LYUJ 线束 (D25-P25) 1 TXJP11LHUU 线束 (P11-SS11) 1 TXJP35LLUU 线束 (P35-C25) 1 TXJS33LLUU 线束 (SS33-C23) 1 TXN/D1MJUC D 线路板 1 TXN/K1LBUC K 线路板 1 TXN/V1MAUC V 线路板 2 TXNC111QFK C1 线路板 1 TXNC211QFK C2 线路板 1 TXNSC11QFK SC 线路板 1 TXNSD1LRUC SD 线路板 1 TXNSS11FFK SS 线路板 1 TXNSS21DYUC SS2 线路板 1 TXNSU1LRUC SU 线路板 1 112 TH-P46GT20C 13.2. 更换部件清单 13.2.1. 更换部件清单注意事项 113 TH-P46GT20C 13.2.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 A1 K1KA11B00092 11P 连接接头 1 A6 K1KA11BA0107 11P 连接接头 1 A7 K1KY14AA0719 14P 连接接头 1 A11 K1KA04AA0728 4P 连接接头 1 A20 K1KY09AA0719 9P 连接接头 1 A31 K1MY55BA0345 55P 连接接头 1 A88A K1KY30AA0369 30P 连接接头 1 C10 K1MN20BA0231 20P 连接接头 1 C11 K1MY68BA0345 68P 连接接头 1 C20 K1MY20BA0345 20P 连接接头 1 C21 K1MY68BA0345 68P 连接接头 1 C23 K1KY08AA0719 8P 连接接头 1 C25 K1KA04BA0107 4P 连接接头 1 C1009 F1G1C104A116 C 0.1UF 16V 1 C1010 F1J1E105A231 C 1 UF 25V 1 C1102 F1J1A106A087 C 10UF, 10V 1 C1103 F1G1C104A116 C 0.1UF 16V 1 C1104 F1G1C104A116 C 0.1UF 16V 1 C1106 F1H1H270A971 C 27PF, 50V 1 C1107 F1G1H220A731 C 22PF, 50V 1 C1108 F1G1C104A116 C 0.1UF 16V 1 C1109 ECJ1VB1A105K C 1UF, 10V 1 C1111 ECJ1VB1A105K C 1UF, 10V 1 C1112 F1G1C104A116 C 0.1UF 16V 1 C1114 F1G1C104A116 C 0.1UF 16V 1 C1117 F1G1C104A116 C 0.1UF 16V 1 C1122 F1G1E103A123 C 0.01UF 25V 1 C1123 ECJ1VB1A105K C 1UF, 10V 1 C2055 F1J1A106A087 C 10UF, 10V 1 C2057 F1J1A106A087 C 10UF, 10V 1 C2067 F1G1C103A116 C 0.01UF 16V 1 C2068 F1G1C103A116 C 0.01UF 16V 1 C2069 F1G1C103A116 C 0.01UF 16V 1 C2070 F1G1C103A116 C 0.01UF 16V 1 C2071 EEEHB0J101UR E 100UF, 6.3V 1 C2072 EEEHB0J101UR E 100UF, 6.3V 1 C2073 F1G1E333A091 C 0.033UF 25V 1 C2074 F1G1E333A091 C 0.033UF 25V 1 C2075 F1G1C104A116 C 0.1UF 16V 1 C2076 F1G1C104A116 C 0.1UF 16V 1 C2077 F1G1C104A116 C 0.1UF 16V 1 C2078 F1G1A105A047 C 1UF 10V 1 C2079 F1G1C103A116 C 0.01UF 16V 1 C2104 F1G1H100A731 C 10PF 50V 1 C2107 F1G1A105A047 C 1UF 10V 1 C2108 F1G1A105A047 C 1UF 10V 1 C2110 F1G1C104A116 C 0.1UF 16V 1 C2301 F1G1C104A116 C 0.1UF 16V 1 C2302 F1G1C104A116 C 0.1UF 16V 1 C2303 F1K1E106A136 C 10UF, 25V 1 C2304 F1J1E105A231 C 1 UF 25V 1 C2305 F1G1H102A730 C 1000PF 50V 1 C2306 F1J1E105A231 C 1 UF 25V 1 C2307 F1J1E105A231 C 1 UF 25V 1 C2308 F1J1E105A231 C 1 UF 25V 1 C2311 F1K1E106A136 C 10UF, 25V 1 C2313 F1G1H102A730 C 1000PF 50V 1 C2314 F1J1E105A231 C 1 UF 25V 1 C2315 F1K1E106A136 C 10UF, 25V 1 C2316 F1H1H104A970 C 0.1UF, 50V 1 C2317 F1J1E105A231 C 1 UF 25V 1 C2318 F1H1H104A970 C 0.1UF, 50V 1 C2319 F1K1E106A136 C 10UF, 25V 1 C2320 F1J1E105A231 C 1 UF 25V 1 C2321 F1H1H104A970 C 0.1UF, 50V 1 C2322 F1K1E106A136 C 10UF, 25V 1 C2323 F1H1H104A970 C 0.1UF, 50V 1 C2324 F1J1E105A231 C 1 UF 25V 1 C2325 F1G1H102A730 C 1000PF 50V 1 C2334 F1J1H474A757 C 0.47UF, 50V 1 C2335 F1H1E104A129 C 0.1 uF 25V 1 C2336 F1H1E104A129 C 0.1 uF 25V 1 C2337 F1J1H474A757 C 0.47UF, 50V 1 C2338 F1H1E104A129 C 0.1 uF 25V 1 C2339 F1H1E104A129 C 0.1 uF 25V 1 C2340 F1H1H223A970 C 0.022UF, 50V 1 C2341 F1H1H223A970 C 0.022UF, 50V 1 C2342 F1H1H223A970 C 0.022UF, 50V 1 C2343 F1H1H223A970 C 0.022UF, 50V 1 C2344 F1H1H223A970 C 0.022UF, 50V 1 C2345 F1H1H223A970 C 0.022UF, 50V 1 C2346 F1H1H223A970 C 0.022UF, 50V 1 C2347 F1H1H223A970 C 0.022UF, 50V 1 C2349 F1G1H102A730 C 1000PF 50V 1 C2351 F1G1H102A730 C 1000PF 50V 1 C2353 F1G1H102A730 C 1000PF 50V 1 C2355 F1G1H102A730 C 1000PF 50V 1 C2510 F1H1H103A970 C 0.01 uF 50 V 1 C2511 F1J1A106A087 C 10UF, 10V 1 C2515 F1H1H103A970 C 0.01 uF 50 V 1 C2521 F1H1C104A143 C 0.1UF, 16V 1 C2752 F1G1E103A123 C 0.01UF 25V 1 C2753 F1G1A105A047 C 1UF 10V 1 C2758 F2H1E470A007 E 47UF, 25V 1 C2759 F1J1E105A231 C 1 UF 25V 1 C2760 F2G1C100A022 E 10UF J 16V 1 C2905 F2H1A101A009 E 100 UF, 10V 1 C2907 F1G1C104A116 C 0.1UF 16V 1 C2908 F1H1C104A143 C 0.1UF, 16V 1 C2910 F1H1C104A143 C 0.1UF, 16V 1 C2911 F1G1C104A116 C 0.1UF 16V 1 C2919 F1H1H103A970 C 0.01 uF 50 V 1 C2950 ECJ1VB1A105K C 1UF, 10V 1 C2951 F1H1A225A051 C 2.2UF, 10V 1 C2959 F1G1C104A116 C 0.1UF 16V 1 C2961 ECJ1VB1A105K C 1UF, 10V 1 C3002 F1G1H561A730 C 560 pF 50 V 1 C3003 F1G1H561A730 C 560 pF 50 V 1 C3007 F1G1H561A730 C 560 pF 50 V 1 C3008 F1G1H561A730 C 560 pF 50 V 1 C3010 F1G1H561A730 C 560 pF 50 V 1 C3011 F1G1H561A730 C 560 pF 50 V 1 C3013 F1G1H561A730 C 560 pF 50 V 1 C3014 F1G1H561A730 C 560 pF 50 V 1 C3022 ECJ1VB1A105K C 1UF, 10V 1 C3024 ECJ1VB1A105K C 1UF, 10V 1 C3025 ECJ1VB1A105K C 1UF, 10V 1 C3026 ECJ1VB1A105K C 1UF, 10V 1 C3039 ECJ1VB1A105K C 1UF, 10V 1 C3041 ECJ1VB1A105K C 1UF, 10V 1 C3043 ECJ1VB1A105K C 1UF, 10V 1 C3044 ECJ1VB1A105K C 1UF, 10V 1 C3046 ECJ1VB1A105K C 1UF, 10V 1 C3047 ECJ1VB1A105K C 1UF, 10V 1 C3048 ECJ1VB1A105K C 1UF, 10V 1 C3049 ECJ1VB1A105K C 1UF, 10V 1 C3070 F1J1A106A087 C 10UF, 10V 1 C3071 F1J1A106A087 C 10UF, 10V 1 C3072 F1G1C104A116 C 0.1UF 16V 1 C3073 F1J1A106A087 C 10UF, 10V 1 C3078 F1J1A106A087 C 10UF, 10V 1 C3083 F1J1A106A087 C 10UF, 10V 1 C3084 F1J1A106A087 C 10UF, 10V 1 C3085 F1J1A106A087 C 10UF, 10V 1 C3086 F1J1A106A087 C 10UF, 10V 1 C3090 F1J1A106A087 C 10UF, 10V 1 C3091 F1J1A106A087 C 10UF, 10V 1 C3092 F1J1A106A087 C 10UF, 10V 1 C3093 F1J1A106A087 C 10UF, 10V 1 C3095 F2H1A101A009 E 100 UF, 10V 1 C3098 ECJ1VB1A105K C 1UF, 10V 1 C3099 F1G1H561A730 C 560 pF 50 V 1 C3103 F2H1A101A009 E 100 UF, 10V 1 C3107 F1J1A106A087 C 10UF, 10V 1 C3108 F1J1A106A087 C 10UF, 10V 1 C3109 F1J1A106A087 C 10UF, 10V 1 C3114 F1J1A106A087 C 10UF, 10V 1 C3115 F1J1A106A087 C 10UF, 10V 1 C3116 F1J1A106A087 C 10UF, 10V 1 C3117 F1J1A106A087 C 10UF, 10V 1 参考号 部件号 部件名称及说明 件数 备注 114 TH-P46GT20C C3138 F2H1A101A009 E 100 UF, 10V 1 C3139 F1G1C104A116 C 0.1UF 16V 1 C3140 F1G1C104A116 C 0.1UF 16V 1 C3141 F1G1C104A116 C 0.1UF 16V 1 C3143 F1G1C104A116 C 0.1UF 16V 1 C3144 F1J1A106A087 C 10UF, 10V 1 C3145 F1G1C104A116 C 0.1UF 16V 1 C3146 F1J1A106A087 C 10UF, 10V 1 C3147 F1J1A106A087 C 10UF, 10V 1 C3257 F1G1H561A730 C 560 pF 50 V 1 C3752 F1J1H102A836 C 1000pF, 50V 1 C4200 F1G1H102A730 C 1000PF 50V 1 C4201 F1H1C105A145 C 1 uF 16 V 1 C4212 F1K1E106A136 C 10UF, 25V 1 C4213 F1K1E106A136 C 10UF, 25V 1 C4215 F1G1E332A123 C 3300pF 25V 1 C4216 F1J1A475A087 C 4.7UF, 10V 1 C4220 F1H1C104A143 C 0.1UF, 16V 1 C4233 F1K0J226A008 C 22UF, 6.3V 1 C4234 F1K0J226A008 C 22UF, 6.3V 1 C4235 F1G1H471A730 C 470PF, 50V 1 C4236 F1J1A475A087 C 4.7UF, 10V 1 C4237 ECJ1VB1A105K C 1UF, 10V 1 C4238 F1J0G226A001 C 22 UF 4 V 1 C4240 F1J1A475A087 C 4.7UF, 10V 1 C4241 F1G1C104A116 C 0.1UF 16V 1 C4242 F1K0J226A008 C 22UF, 6.3V 1 C4243 F1K0J226A008 C 22UF, 6.3V 1 C4244 F1K0J226A008 C 22UF, 6.3V 1 C4245 F1G1C104A116 C 0.1UF 16V 1 C4246 F1J0G226A001 C 22 UF 4 V 1 C4247 F1J0G226A001 C 22 UF 4 V 1 C4248 F1G1H471A730 C 470PF, 50V 1 C4249 F1G1C104A116 C 0.1UF 16V 1 C4250 F1G1C104A116 C 0.1UF 16V 1 C4251 F1G1C104A116 C 0.1UF 16V 1 C4252 F1H1H120A971 C 12PF, 50V 1 C4253 F1G1C104A116 C 0.1UF 16V 1 C4254 F1G1C104A116 C 0.1UF 16V 1 C4255 F1H1H180A971 C 18PF, 50V 1 C4256 F1J1A106A087 C 10UF, 10V 1 C4257 F1G1C104A116 C 0.1UF 16V 1 C4258 F1G1C104A116 C 0.1UF 16V 1 C4259 F1G1C104A116 C 0.1UF 16V 1 C4260 F1G1C104A116 C 0.1UF 16V 1 C4261 F1J0G226A001 C 22 UF 4 V 1 C4262 F1J1A475A087 C 4.7UF, 10V 1 C4263 ECJ1VB0J105K C 1UF, 6.3V 1 C4264 F1J1A106A087 C 10UF, 10V 1 C4266 F1J1A475A087 C 4.7UF, 10V 1 C4267 F1G1C104A116 C 0.1UF 16V 1 C4268 F1G1C104A116 C 0.1UF 16V 1 C4269 F1G1C104A116 C 0.1UF 16V 1 C4270 F1G1C104A116 C 0.1UF 16V 1 C4271 F1G1C104A116 C 0.1UF 16V 1 C4272 F1G1C104A116 C 0.1UF 16V 1 C4273 F1G1C104A116 C 0.1UF 16V 1 C4274 F1G1C104A116 C 0.1UF 16V 1 C4275 F1J0G226A001 C 22 UF 4 V 1 C4276 F1G1C104A116 C 0.1UF 16V 1 C4277 F1G1C104A116 C 0.1UF 16V 1 C4278 F1G1C104A116 C 0.1UF 16V 1 C4279 F1G1C104A116 C 0.1UF 16V 1 C4280 F1G1C104A116 C 0.1UF 16V 1 C4281 F1G1C104A116 C 0.1UF 16V 1 C4282 F1G1C104A116 C 0.1UF 16V 1 C4283 F1G1C104A116 C 0.1UF 16V 1 C4284 F1G1C104A116 C 0.1UF 16V 1 C4285 F1J0G226A001 C 22 UF 4 V 1 C4286 F1G1C104A116 C 0.1UF 16V 1 C4287 F1G1C104A116 C 0.1UF 16V 1 C4288 F1G1C104A116 C 0.1UF 16V 1 C4289 F1G1C104A116 C 0.1UF 16V 1 C4290 F1G1C104A116 C 0.1UF 16V 1 C4291 F1G1C104A116 C 0.1UF 16V 1 C4292 F1G1C104A116 C 0.1UF 16V 1 C4293 F1G1C104A116 C 0.1UF 16V 1 参考号 部件号 部件名称及说明 件数 备注 C4294 F1G1C104A116 C 0.1UF 16V 1 C4295 F1G1C104A116 C 0.1UF 16V 1 C4297 F1G1C104A116 C 0.1UF 16V 1 C4298 F1G1C104A116 C 0.1UF 16V 1 C4299 F1G1C104A116 C 0.1UF 16V 1 C4300 F1G1C104A116 C 0.1UF 16V 1 C4301 F1G1C104A116 C 0.1UF 16V 1 C4302 F1G1C104A116 C 0.1UF 16V 1 C4303 F1G1C104A116 C 0.1UF 16V 1 C4304 F1G1C104A116 C 0.1UF 16V 1 C4305 F1G1C104A116 C 0.1UF 16V 1 C4306 F1G1C104A116 C 0.1UF 16V 1 C4307 F1G1H101A731 C 100PF 50V 1 C4308 F1G1C104A116 C 0.1UF 16V 1 C4309 F1G1C104A116 C 0.1UF 16V 1 C4311 F1H1E104A129 C 0.1 uF 25V 1 C4312 F1G1E103A123 C 0.01UF 25V 1 C4313 F1H1H472A970 C 4700PF, , 50V 1 C4314 F1J1E224A227 C 0.22UF, 25V 1 C4315 F1G1C104A116 C 0.1UF 16V 1 C4316 F1K1E106A136 C 10UF, 25V 1 C4317 F1G1C104A116 C 0.1UF 16V 1 C4318 F1K0J226A008 C 22UF, 6.3V 1 C4319 ECGRL0G680ER C 68UF, J, 4V 1 C4320 F1G1C104A116 C 0.1UF 16V 1 C4322 F1G1C104A116 C 0.1UF 16V 1 C4323 F1G1C104A116 C 0.1UF 16V 1 C4324 F1G1C104A116 C 0.1UF 16V 1 C4325 F1J1A106A087 C 10UF, 10V 1 C4330 F1G1C104A116 C 0.1UF 16V 1 C4331 F1G1C104A116 C 0.1UF 16V 1 C4332 F1G1C104A116 C 0.1UF 16V 1 C4333 F1G1C104A116 C 0.1UF 16V 1 C4334 F1G1C104A116 C 0.1UF 16V 1 C4335 F1G1C104A116 C 0.1UF 16V 1 C4336 F1G1C104A116 C 0.1UF 16V 1 C4337 F1G1C104A116 C 0.1UF 16V 1 C4338 F1G1C104A116 C 0.1UF 16V 1 C4339 F1G1C104A116 C 0.1UF 16V 1 C4340 F1G1C104A116 C 0.1UF 16V 1 C4348 F1G1H101A731 C 100PF 50V 1 C4546 ECJ1VB0J105K C 1UF, 6.3V 1 C4548 ECJ1VB0J105K C 1UF, 6.3V 1 C4660 ECJ1VB0J105K C 1UF, 6.3V 1 C4661 ECJ1VB0J105K C 1UF, 6.3V 1 C4662 ECJ1VB0J105K C 1UF, 6.3V 1 C4663 ECJ1VB0J105K C 1UF, 6.3V 1 C4664 ECJ1VB0J105K C 1UF, 6.3V 1 C4665 ECJ1VB0J105K C 1UF, 6.3V 1 C4666 ECJ1VB0J105K C 1UF, 6.3V 1 C4667 ECJ1VB0J105K C 1UF, 6.3V 1 C4701 F1G1C104A116 C 0.1UF 16V 1 C4702 F1G1C104A116 C 0.1UF 16V 1 C4704 F1G1C104A116 C 0.1UF 16V 1 C4705 F1G1C104A116 C 0.1UF 16V 1 C4707 F1G1C104A116 C 0.1UF 16V 1 C4708 F1G1C104A116 C 0.1UF 16V 1 C4713 F1G1C104A116 C 0.1UF 16V 1 C4715 F1G1C104A116 C 0.1UF 16V 1 C4717 F1J1A106A087 C 10UF, 10V 1 C4718 F1J1A475A087 C 4.7UF, 10V 1 C4719 F1G1C104A116 C 0.1UF 16V 1 C4721 F1G1C104A116 C 0.1UF 16V 1 C4724 F1G1C104A116 C 0.1UF 16V 1 C4730 F1G1C104A116 C 0.1UF 16V 1 C4731 F1G1C104A116 C 0.1UF 16V 1 C5251 F1J1E105A231 C 1 UF 25V 1 C5253 F1J1E105A231 C 1 UF 25V 1 C5255 ECJ1VB1A105K C 1UF, 10V 1 C5256 ECJ1VB1A105K C 1UF, 10V 1 C5293 F1J1E105A231 C 1 UF 25V 1 C5294 F1H1C105A145 C 1 uF 16 V 1 C5301 F1G1H102A730 C 1000PF 50V 1 C5310 F1K1E106A136 C 10UF, 25V 1 C5311 F1K1E106A136 C 10UF, 25V 1 C5312 F1K1E106A136 C 10UF, 25V 1 C5313 F1K1E106A136 C 10UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 115 TH-P46GT20C C5314 F1K0J226A008 C 22UF, 6.3V 1 C5315 F1K0J226A008 C 22UF, 6.3V 1 C5317 F1H1E104A129 C 0.1 uF 25V 1 C5318 F1G1E682A123 C 6800 pF 25 V 1 C5319 F1G1E103A123 C 0.01UF 25V 1 C5431 F1G1C104A116 C 0.1UF 16V 1 C5432 F1G1C104A116 C 0.1UF 16V 1 C5470 F1G1C103A116 C 0.01UF 16V 1 C5471 F1G1A473A053 C0.047UF, 10V 1 C5473 F1G1E103A123 C 0.01UF 25V 1 C5474 F1G1C104A116 C 0.1UF 16V 1 C5475 F1G1A4740003 C 0.47UF, , 10V 1 C5492 F2G1A221A149 E 220UF, 10V 1 C5497 ECJ1VB0J105K C 1UF, 6.3V 1 C5498 ECJ1VB0J105K C 1UF, 6.3V 1 C5500 F1G1E682A123 C 6800 pF 25 V 1 C5501 F1G1A154A053 C 0.15UF, 10V 1 C5502 F1J1A475A087 C 4.7UF, 10V 1 C5503 F1H1C105A145 C 1 uF 16 V 1 C5504 F1G1E682A123 C 6800 pF 25 V 1 C5505 F1J1A475A087 C 4.7UF, 10V 1 C5506 F1H1C105A145 C 1 uF 16 V 1 C5507 F1G1A393A053 C 0.039 uF 10 V 1 C5508 F1H1C104A143 C 0.1UF, 16V 1 C5509 F1H1C104A143 C 0.1UF, 16V 1 C5510 F1H1C104A143 C 0.1UF, 16V 1 C5511 F1H1C104A143 C 0.1UF, 16V 1 C5512 F1G1C104A116 C 0.1UF 16V 1 C5516 F1K1E106A136 C 10UF, 25V 1 C5517 F1K1E106A136 C 10UF, 25V 1 C5519 F1K1E106A136 C 10UF, 25V 1 C5520 F1K1E106A136 C 10UF, 25V 1 C5521 F1K1E106A136 C 10UF, 25V 1 C5522 F1K1E106A136 C 10UF, 25V 1 C5523 F1K1E106A136 C 10UF, 25V 1 C5526 F1K1E106A136 C 10UF, 25V 1 C5528 F1K0J226A008 C 22UF, 6.3V 1 C5529 F1K0J226A008 C 22UF, 6.3V 1 C5530 F1K0J226A008 C 22UF, 6.3V 1 C5531 F1K0J226A008 C 22UF, 6.3V 1 C5532 F1K0J226A008 C 22UF, 6.3V 1 C5533 F1K0J226A008 C 22UF, 6.3V 1 C5534 F1K0J226A008 C 22UF, 6.3V 1 C5535 F1K0J226A008 C 22UF, 6.3V 1 C5536 F1K0J226A008 C 22UF, 6.3V 1 C5537 F1K0J226A008 C 22UF, 6.3V 1 C5538 F1K0J226A008 C 22UF, 6.3V 1 C5539 F1K0J226A008 C 22UF, 6.3V 1 C5603 F1G1H102A730 C 1000PF 50V 1 C5615 F1H1A225A051 C 2.2UF, 10V 1 C5616 F1G1E103A123 C 0.01UF 25V 1 C5635 F1H1C105A145 C 1 uF 16 V 1 C5649 ECJ1VB1A105K C 1UF, 10V 1 C5650 F1H1A225A051 C 2.2UF, 10V 1 C5651 F1J1A475A087 C 4.7UF, 10V 1 C5652 F1H0J475A041 C 4.7UF, 16V 1 C5719 F1J1A106A087 C 10UF, 10V 1 C5720 F1J1A106A087 C 10UF, 10V 1 C5724 F1H1E104A129 C 0.1 uF 25V 1 C5725 F1G1E682A123 C 6800 pF 25 V 1 C5726 F1G1E103A123 C 0.01UF 25V 1 C5728 F1J1A106A087 C 10UF, 10V 1 C5729 F1J1A106A087 C 10UF, 10V 1 C5800 F1G1C104A116 C 0.1UF 16V 1 C5801 F1G1H100A731 C 10PF 50V 1 C5802 F1G1H100A731 C 10PF 50V 1 C5803 F1G1C104A116 C 0.1UF 16V 1 C5890 ECJ1VB1A105K C 1UF, 10V 1 C5891 ECJ1VB1A105K C 1UF, 10V 1 C5897 F1G1H102A730 C 1000PF 50V 1 C5898 F1G1H102A730 C 1000PF 50V 1 C5899 F1H0J475A041 C 4.7UF, 16V 1 C5905 F1J0G226A001 C 22 UF 4 V 1 C5907 F1G1C104A116 C 0.1UF 16V 1 C5908 F1G1C104A116 C 0.1UF 16V 1 C5909 F1G1C104A116 C 0.1UF 16V 1 C5910 F1G1C104A116 C 0.1UF 16V 1 参考号 部件号 部件名称及说明 件数 备注 C5911 F1G1C104A116 C 0.1UF 16V 1 C5912 F1G1C104A116 C 0.1UF 16V 1 C5913 F1G1C104A116 C 0.1UF 16V 1 C5914 F1G1C104A116 C 0.1UF 16V 1 C5915 F1G1C104A116 C 0.1UF 16V 1 C5916 F1G1C104A116 C 0.1UF 16V 1 C5917 F1G1C104A116 C 0.1UF 16V 1 C5918 F1G1C104A116 C 0.1UF 16V 1 C5920 F1G1C104A116 C 0.1UF 16V 1 C5922 F1G1C104A116 C 0.1UF 16V 1 C5924 F1G1C104A116 C 0.1UF 16V 1 C5927 F1G1C104A116 C 0.1UF 16V 1 C5928 F1G1C104A116 C 0.1UF 16V 1 C5930 F1G1C104A116 C 0.1UF 16V 1 C5931 F1G1C104A116 C 0.1UF 16V 1 C5932 F1G1C104A116 C 0.1UF 16V 1 C5934 F1G1C104A116 C 0.1UF 16V 1 C5935 F1G1C104A116 C 0.1UF 16V 1 C5936 F1G1C104A116 C 0.1UF 16V 1 C5939 F1G1C104A116 C 0.1UF 16V 1 C5940 F1G1C104A116 C 0.1UF 16V 1 C5942 F1G1C104A116 C 0.1UF 16V 1 C5943 F1G1C104A116 C 0.1UF 16V 1 C5944 F1G1C104A116 C 0.1UF 16V 1 C5945 F1G1C104A116 C 0.1UF 16V 1 C5946 F1G1C104A116 C 0.1UF 16V 1 C5947 F1G1H102A730 C 1000PF 50V 1 C5948 F1G1C104A116 C 0.1UF 16V 1 C5949 F1G1H102A730 C 1000PF 50V 1 C5950 F1G1C104A116 C 0.1UF 16V 1 C5951 F1G1C104A116 C 0.1UF 16V 1 C5952 F1G1C104A116 C 0.1UF 16V 1 C5953 F1G1C104A116 C 0.1UF 16V 1 C5954 F1G1C104A116 C 0.1UF 16V 1 C5956 F1J1A106A087 C 10UF, 10V 1 C5964 F1G1H102A730 C 1000PF 50V 1 C5967 F1G1H102A730 C 1000PF 50V 1 C5969 F1G1H102A730 C 1000PF 50V 1 C5971 F1G1H102A730 C 1000PF 50V 1 C5973 F1G1H102A730 C 1000PF 50V 1 C5974 F1G1H102A730 C 1000PF 50V 1 C5978 F1G1H102A730 C 1000PF 50V 1 C5982 F1G1H102A730 C 1000PF 50V 1 C5984 F1G1C104A116 C 0.1UF 16V 1 C5985 F1K1E106A136 C 10UF, 25V 1 C5986 F1G1H102A730 C 1000PF 50V 1 C5987 F1K1E106A136 C 10UF, 25V 1 C5988 F1H1H104A970 C 0.1UF, , 50V 1 C5989 F1G1H470A731 C 47PF, 50V 1 C5994 F1K1E106A136 C 10UF, 25V 1 C5995 F1H1H104A970 C 0.1UF, , 50V 1 C5996 F1H1H104A970 C 0.1UF, , 50V 1 C5997 F1H1H104A970 C 0.1UF, , 50V 1 C5998 F1H1C105A145 C 1 uF 16 V 1 C6000 F1H1C105A145 C 1 uF 16 V 1 C6003 F1H1A474A084 C 0.47UF, 10V 1 C6004 F1H1A474A084 C 0.47UF, 10V 1 C6006 F1J1A106A087 C 10UF, 10V 1 C6009 F1J1A106A087 C 10UF, 10V 1 C6017 F2G1A2210024 E 220UF, 10V 1 C6018 F2G1A2210024 E 220UF, 10V 1 C6019 F1G1A2240008 C 0.22UF, 10V 1 C6020 F1G1A2240008 C 0.22UF, 10V 1 C6021 F1H1A474A084 C 0.47UF, 10V 1 C6022 F1H1A474A084 C 0.47UF, 10V 1 C6032 F1G1E682A123 C 6800 pF 25 V 1 C6033 F1J1A475A087 C 4.7UF, 10V 1 C6034 F1H1C105A145 C 1 uF 16 V 1 C6035 F1G1E182A123 C1800PF 25V 1 C6036 F1H1C104A143 C 0.1UF, 16V 1 C6037 F1H1C104A143 C 0.1UF, 16V 1 C6038 F1K1E106A136 C 10UF, 25V 1 C6039 F1K1E106A136 C 10UF, 25V 1 C6042 F1K1E106A136 C 10UF, 25V 1 C6043 F1K1E106A136 C 10UF, 25V 1 C6044 F1K0J226A008 C 22UF, 6.3V 1 C6045 F1K0J226A008 C 22UF, 6.3V 1 参考号 部件号 部件名称及说明 件数 备注 116 TH-P46GT20C C6046 F1K0J226A008 C 22UF, 6.3V 1 C6047 F1K0J226A008 C 22UF, 6.3V 1 C6048 F1K0J226A008 C 22UF, 6.3V 1 C6049 F1K0J226A008 C 22UF, 6.3V 1 C6700 F1J1A106A087 C 10UF, 10V 1 C6701 F1J1A106A087 C 10UF, 10V 1 C6703 F1H1C104A143 C 0.1UF, 16V 1 C6704 F1H1C104A143 C 0.1UF, 16V 1 C6705 F1J1A106A087 C 10UF, 10V 1 C6706 F1H1C104A143 C 0.1UF, 16V 1 C6707 F1H1C104A143 C 0.1UF, 16V 1 C6708 F1G1A104A053 C 0.01UF 10V 1 C6709 F1G1A104A053 C 0.01UF 10V 1 C6710 F1H1C104A143 C 0.1UF, 16V 1 C6711 F2G0J470A019 E 47UF 6.3V 1 C6712 F1H1C104A143 C 0.1UF, 16V 1 C6713 F1H1C104A143 C 0.1UF, 16V 1 C6714 F1H1C104A143 C 0.1UF, 16V 1 C6715 F1G1A104A053 C 0.01UF 10V 1 C6716 F1H1C104A143 C 0.1UF, 16V 1 C6717 F1H1C104A143 C 0.1UF, 16V 1 C6718 F1H1C104A143 C 0.1UF, 16V 1 C6719 F1H1C104A143 C 0.1UF, 16V 1 C6720 F1H1C104A143 C 0.1UF, 16V 1 C6721 F1H1C104A143 C 0.1UF, 16V 1 C6722 F1J1A106A087 C 10UF, 10V 1 C6723 F1H1C104A143 C 0.1UF, 16V 1 C6724 F1G1A105A047 C 1UF 10V 1 C6725 F1H1C104A143 C 0.1UF, 16V 1 C6726 F1G1A104A053 C 0.01UF 10V 1 C6727 F1J1A106A087 C 10UF, 10V 1 C6728 F1G1A105A047 C 1UF 10V 1 C6729 F1G1A104A053 C 0.01UF 10V 1 C6730 F1G1A104A053 C 0.01UF 10V 1 C6731 F1G1H102A730 C 1000PF 50V 1 C6732 F1H1C104A143 C 0.1UF, 16V 1 C6733 F1H1C104A143 C 0.1UF, 16V 1 C6734 F1J1A106A087 C 10UF, 10V 1 C6735 F1G1H120A731 C 12PF, 50V 1 C6736 F1G1A105A047 C 1UF 10V 1 C6737 F1G1H120A731 C 12PF, 50V 1 C6738 F1H1C104A143 C 0.1UF, 16V 1 C6739 F1G1A104A053 C 0.01UF 10V 1 C6740 F1G1A104A053 C 0.01UF 10V 1 C6741 F1G1A104A053 C 0.01UF 10V 1 C6742 F1H1C104A143 C 0.1UF, 16V 1 C6743 F1J1A106A087 C 10UF, 10V 1 C6744 F1G1A105A047 C 1UF 10V 1 C6745 F1H1C104A143 C 0.1UF, 16V 1 C6746 F1J1A106A087 C 10UF, 10V 1 C6747 F1J1A106A087 C 10UF, 10V 1 C6748 F1H1C104A143 C 0.1UF, 16V 1 C6749 F1H1C104A143 C 0.1UF, 16V 1 C6750 F1H1H8R0A972 C 8. PF, 50V 1 C6751 F1H1C473A143 C 0.047UF. 16V 1 C6752 F1H1C473A143 C 0.047UF. 16V 1 C6753 F1G1A104A053 C 0.01UF 10V 1 C6754 F1H1C104A143 C 0.1UF, 16V 1 C6755 F1H1C104A143 C 0.1UF, 16V 1 C6756 F1H1C104A143 C 0.1UF, 16V 1 C6763 F1H1C104A143 C 0.1UF, 16V 1 C6764 F1H1C104A143 C 0.1UF, 16V 1 C7001 F1J1A106A087 C 10UF, 10V 1 C7002 F1G1A105A047 C 1UF 10V 1 C7003 F1G1C104A116 C 0.1UF 16V 1 C7004 F1G1C104A116 C 0.1UF 16V 1 C7005 F1G1A105A047 C 1UF 10V 1 C7006 F1G1C104A116 C 0.1UF 16V 1 C7007 F1G1C104A116 C 0.1UF 16V 1 C7008 F1G1A105A047 C 1UF 10V 1 C7009 F1G1C104A116 C 0.1UF 16V 1 C7010 F1G1C104A116 C 0.1UF 16V 1 C7011 F1G1A105A047 C 1UF 10V 1 C7012 F1G1C104A116 C 0.1UF 16V 1 C7013 F1G1C104A116 C 0.1UF 16V 1 C7014 F1G1C104A116 C 0.1UF 16V 1 C7015 F1J1A106A087 C 10UF, 10V 1 参考号 部件号 部件名称及说明 件数 备注 C7016 F1G1A105A047 C 1UF 10V 1 C7018 F1G1C104A116 C 0.1UF 16V 1 C7026 F1G1A105A047 C 1UF 10V 1 C7029 F1G1C104A116 C 0.1UF 16V 1 C7036 F1G1C223A116 C 0.022UF 16V 1 C7037 F1G1H102A730 C 1000PF 50V 1 C7038 F1G1A105A047 C 1UF 10V 1 C7043 F1G1C104A116 C 0.1UF 16V 1 C7049 F1G1A105A047 C 1UF 10V 1 C7058 F1G1C104A116 C 0.1UF 16V 1 C7062 F1J1A106A087 C 10UF, 10V 1 C7063 F1G1A105A047 C 1UF 10V 1 C7064 F1G1C104A116 C 0.1UF 16V 1 C7065 F1G1C104A116 C 0.1UF 16V 1 C7066 F1G1C104A116 C 0.1UF 16V 1 C7067 F1G1C104A116 C 0.1UF 16V 1 C7068 F1G1C104A116 C 0.1UF 16V 1 C7069 F1G1C104A116 C 0.1UF 16V 1 C7070 F1G1C104A116 C 0.1UF 16V 1 C7071 F1G1C104A116 C 0.1UF 16V 1 C7072 F1G1C104A116 C 0.1UF 16V 1 C7073 F1G1C104A116 C 0.1UF 16V 1 C7074 F1G1C104A116 C 0.1UF 16V 1 C7075 F1G1C104A116 C 0.1UF 16V 1 C7076 F1G1C104A116 C 0.1UF 16V 1 C7077 F1G1H100A731 C 10PF 50V 1 C7078 F1G1H102A730 C 1000PF 50V 1 C7079 F1G1C104A116 C 0.1UF 16V 1 C7080 F1G1H120A731 C 12PF, 50V 1 C7081 F1G1C104A116 C 0.1UF 16V 1 C7082 F1G1C104A116 C 0.1UF 16V 1 C7083 F1G1A105A047 C 1UF 10V 1 C8000 F1J1A106A087 C 10UF, 10V 1 C8001 F1J1A106A087 C 10UF, 10V 1 C8003 F1J1A106A087 C 10UF, 10V 1 C8004 F1G1C104A116 C 0.1UF 16V 1 C8005 F1J1A106A087 C 10UF, 10V 1 C8006 F1J1A106A087 C 10UF, 10V 1 C8008 F1J1A106A087 C 10UF, 10V 1 C8009 F1J1A106A087 C 10UF, 10V 1 C8010 F1G1C104A116 C 0.1UF 16V 1 C8011 F1G1C104A116 C 0.1UF 16V 1 C8012 F1G1C104A116 C 0.1UF 16V 1 C8013 F1G1C104A116 C 0.1UF 16V 1 C8014 F1J1A106A087 C 10UF, 10V 1 C8017 F1J1A106A087 C 10UF, 10V 1 C8018 F1G1C104A116 C 0.1UF 16V 1 C8019 F1G1C104A116 C 0.1UF 16V 1 C8020 F1G1C104A116 C 0.1UF 16V 1 C8021 F1G1C104A116 C 0.1UF 16V 1 C8022 F1G1C104A116 C 0.1UF 16V 1 C8023 F1G1C104A116 C 0.1UF 16V 1 C8025 F1G1C104A116 C 0.1UF 16V 1 C8027 F1G1A105A047 C 1UF 10V 1 C8033 F1G1C104A116 C 0.1UF 16V 1 C8034 F1G1C104A116 C 0.1UF 16V 1 C8035 F1G1C104A116 C 0.1UF 16V 1 C8036 F1G1A105A047 C 1UF 10V 1 C8039 F1G1C104A116 C 0.1UF 16V 1 C8043 F1G1C104A116 C 0.1UF 16V 1 C8045 F1G1A105A047 C 1UF 10V 1 C8048 F1G1C104A116 C 0.1UF 16V 1 C8051 F1G1A105A047 C 1UF 10V 1 C8052 F1G1C104A116 C 0.1UF 16V 1 C8053 F1G1C104A116 C 0.1UF 16V 1 C8055 F1G1C104A116 C 0.1UF 16V 1 C8058 F1H0J475A041 C 4.7UF, 16V 1 C8059 F1H0J475A041 C 4.7UF, 16V 1 C8060 F1H0J475A041 C 4.7UF, 16V 1 C8061 F1J1A106A087 C 10UF, 10V 1 C8062 F1G1C104A116 C 0.1UF 16V 1 C8064 F1G1A105A047 C 1UF 10V 1 C8065 F1G1C104A116 C 0.1UF 16V 1 C8066 F1G1C104A116 C 0.1UF 16V 1 C8067 F1G1C104A116 C 0.1UF 16V 1 C8068 F1G1C104A116 C 0.1UF 16V 1 C8069 F1G1C104A116 C 0.1UF 16V 1 参考号 部件号 部件名称及说明 件数 备注 117 TH-P46GT20C C8070 F1G1C104A116 C 0.1UF 16V 1 C8071 F1G1C104A116 C 0.1UF 16V 1 C8072 F1G1C104A116 C 0.1UF 16V 1 C8074 F1G1C104A116 C 0.1UF 16V 1 C8075 F1G1C104A116 C 0.1UF 16V 1 C8076 F1G1C104A116 C 0.1UF 16V 1 C8078 F1G1C104A116 C 0.1UF 16V 1 C8079 F1G1C104A116 C 0.1UF 16V 1 C8082 F1J1A106A087 C 10UF, 10V 1 C8083 F1H0J475A041 C 4.7UF, 16V 1 C8084 F1J1A106A087 C 10UF, 10V 1 C8085 F1J1A106A087 C 10UF, 10V 1 C8087 F1G1C104A116 C 0.1UF 16V 1 C8088 F1G1C104A116 C 0.1UF 16V 1 C8089 F1G1C104A116 C 0.1UF 16V 1 C8090 F1G1C104A116 C 0.1UF 16V 1 C8091 F1G1C104A116 C 0.1UF 16V 1 C8092 F1G1C104A116 C 0.1UF 16V 1 C8094 F1G1C104A116 C 0.1UF 16V 1 C8096 F1G1C104A116 C 0.1UF 16V 1 C8099 F1J1A106A087 C 10UF, 10V 1 C8100 F1J1A106A087 C 10UF, 10V 1 C8101 F1J1A106A087 C 10UF, 10V 1 C8102 F1J1A106A087 C 10UF, 10V 1 C8103 F1J1A106A087 C 10UF, 10V 1 C8104 F1J1A106A087 C 10UF, 10V 1 C8105 F1J1A106A087 C 10UF, 10V 1 C8106 F1H0J475A041 C 4.7UF, 16V 1 C8107 F1H0J475A041 C 4.7UF, 16V 1 C8109 F1G1C104A116 C 0.1UF 16V 1 C8110 F1G1C104A116 C 0.1UF 16V 1 C8111 F1G1C104A116 C 0.1UF 16V 1 C8112 F1G1C104A116 C 0.1UF 16V 1 C8113 F1G1C104A116 C 0.1UF 16V 1 C8114 F1G1C104A116 C 0.1UF 16V 1 C8115 F1G1C104A116 C 0.1UF 16V 1 C8116 F1G1C104A116 C 0.1UF 16V 1 C8117 F1G1C104A116 C 0.1UF 16V 1 C8119 F1G1C104A116 C 0.1UF 16V 1 C8120 F1G1C104A116 C 0.1UF 16V 1 C8121 F1G1C104A116 C 0.1UF 16V 1 C8122 F1G1C104A116 C 0.1UF 16V 1 C8123 F1G1C104A116 C 0.1UF 16V 1 C8124 F1G1C103A116 C 0.01UF 16V 1 C8126 F1G1C104A116 C 0.1UF 16V 1 C8127 F1G1C104A116 C 0.1UF 16V 1 C8129 F1G1C104A116 C 0.1UF 16V 1 C8130 F1G1C104A116 C 0.1UF 16V 1 C8131 F1G1C104A116 C 0.1UF 16V 1 C8136 F1G1C104A116 C 0.1UF 16V 1 C8137 F1G1C104A116 C 0.1UF 16V 1 C8138 F1G1C104A116 C 0.1UF 16V 1 C8139 F1G1C104A116 C 0.1UF 16V 1 C8140 F1G1C104A116 C 0.1UF 16V 1 C8141 F1G1C104A116 C 0.1UF 16V 1 C8142 F1G1C104A116 C 0.1UF 16V 1 C8143 F1G1C104A116 C 0.1UF 16V 1 C8144 F1G1C104A116 C 0.1UF 16V 1 C8145 F1G1C104A116 C 0.1UF 16V 1 C8146 F1G1C104A116 C 0.1UF 16V 1 C8147 F1G1C104A116 C 0.1UF 16V 1 C8148 F1G1A105A047 C 1UF 10V 1 C8149 F1G1A105A047 C 1UF 10V 1 C8150 F1G1H8R0A732 C 8 PF, 50V 1 C8151 F1G1H8R0A732 C 8 PF, 50V 1 C8154 F1G1C103A116 C 0.01UF 16V 1 C8155 F1G1H150A731 C 15PF, 50V 1 C8156 F1G1HR50A577 C 0.5PF, 50V 1 C8157 F1G1C104A116 C 0.1UF 16V 1 C8158 F1G1C104A116 C 0.1UF 16V 1 C8159 F1J1A106A087 C 10UF, 10V 1 C8160 ECJ1VB1A105K C 1UF, 10V 1 C8240 F1G1C104A116 C 0.1UF 16V 1 C8241 F1G1C104A116 C 0.1UF 16V 1 C8242 F1G1C104A116 C 0.1UF 16V 1 C8243 F1G1H3R0A732 C 3 PF, 50V 1 C8246 F1G1A105A047 C 1UF 10V 1 参考号 部件号 部件名称及说明 件数 备注 C8247 F1G1C104A116 C 0.1UF 16V 1 C8248 F1G1C104A116 C 0.1UF 16V 1 C8249 F1G1C104A116 C 0.1UF 16V 1 C8250 F1G1C104A116 C 0.1UF 16V 1 C8252 F1J1A106A087 C 10UF, 10V 1 C8253 F1G1C104A116 C 0.1UF 16V 1 C8254 F1G1A105A047 C 1UF 10V 1 C8255 F1G1A105A047 C 1UF 10V 1 C8256 F1G1A105A047 C 1UF 10V 1 C8257 F1G1C104A116 C 0.1UF 16V 1 C8259 F1G1A105A047 C 1UF 10V 1 C8260 F1G1C104A116 C 0.1UF 16V 1 C8262 F1G1C104A116 C 0.1UF 16V 1 C8263 F1G1A105A047 C 1UF 10V 1 C8267 F1G1C104A116 C 0.1UF 16V 1 C8268 F1G1C104A116 C 0.1UF 16V 1 C8272 F1J1A106A087 C 10UF, 10V 1 C8273 F1G1A105A047 C 1UF 10V 1 C8274 F1G1C104A116 C 0.1UF 16V 1 C8275 F1G1A105A047 C 1UF 10V 1 C8277 F1G1C104A116 C 0.1UF 16V 1 C8281 F1G1A105A047 C 1UF 10V 1 C8282 F1G1C104A116 C 0.1UF 16V 1 C8284 F1G1A105A047 C 1UF 10V 1 C8285 F1G1A105A047 C 1UF 10V 1 C8286 F1G1A105A047 C 1UF 10V 1 C8340 F1K1E106A136 C 10UF, 25V 1 C8341 F1J1A106A087 C 10UF, 10V 1 C8342 F1J1A106A087 C 10UF, 10V 1 C8360 F1G1C104A116 C 0.1UF 16V 1 C8361 F1G1C104A116 C 0.1UF 16V 1 C8362 F1G1C104A116 C 0.1UF 16V 1 C8403 F1G1C104A116 C 0.1UF 16V 1 C8404 F1G1C104A116 C 0.1UF 16V 1 C8405 F1G1C104A116 C 0.1UF 16V 1 C8406 F1G1C104A116 C 0.1UF 16V 1 C8408 F1G1C104A116 C 0.1UF 16V 1 C8409 F1G1C104A116 C 0.1UF 16V 1 C8512 F1G1C104A116 C 0.1UF 16V 1 C8513 F1G1C104A116 C 0.1UF 16V 1 C8515 F1J1A106A087 C 10UF, 10V 1 C8516 F1G1C103A116 C 0.01UF 16V 1 C8600 F1G1H102A730 C 1000PF 50V 1 C8711 F1J1A106A087 C 10UF, 10V 1 C8712 F1G1C104A116 C 0.1UF 16V 1 C8713 F1G1C104A116 C 0.1UF 16V 1 C8714 F1G1H101A731 C 100PF 50V 1 C8717 F1J1A106A087 C 10UF, 10V 1 C8718 F1G1C104A116 C 0.1UF 16V 1 C8719 F1G1C104A116 C 0.1UF 16V 1 C8720 F1G1C104A116 C 0.1UF 16V 1 C8721 F1G1C104A116 C 0.1UF 16V 1 C8722 F1J1A106A087 C 10UF, 10V 1 C8726 F1J1A106A087 C 10UF, 10V 1 C8727 F1G1C104A116 C 0.1UF 16V 1 C8728 EEEHB0J221UP E 220UF, 6.3V 1 C8731 F1G1C104A116 C 0.1UF 16V 1 C8739 F1J1A106A087 C 10UF, 10V 1 C8740 F1J1A106A087 C 10UF, 10V 1 C8741 F1G1A105A047 C 1UF 10V 1 C8742 F1G1A105A047 C 1UF 10V 1 C8744 EEEHB0J221UP E 220UF, 6.3V 1 C8747 F1G1C104A116 C 0.1UF 16V 1 C8853 F1G1C104A116 C 0.1UF 16V 1 C8854 F1G1C104A116 C 0.1UF 16V 1 C8860 F2G1C470A022 E 47UF, 16V 1 C8861 F1G1C104A116 C 0.1UF 16V 1 C8862 F1G1C103A116 C 0.01UF 16V 1 C8863 F1J0G226A001 C 22 UF 4 V 1 C8922 F1G1C104A116 C 0.1UF 16V 1 C8923 F1G1C104A116 C 0.1UF 16V 1 C8950 F1G1C103A116 C 0.01UF 16V 1 C9033 F1G1C104A116 C 0.1UF 16V 1 C9034 F1G1C104A116 C 0.1UF 16V 1 C9035 F1J1A106A087 C 10UF, 10V 1 C9036 F1J1A106A087 C 10UF, 10V 1 C9037 F1G1E103A123 C 0.01UF 25V 1 参考号 部件号 部件名称及说明 件数 备注 118 TH-P46GT20C C9040 F1G1C104A116 C 0.1UF 16V 1 C9044 F1J1A475A087 C 4.7UF, 10V 1 C9045 F1G1C104A116 C 0.1UF 16V 1 C9046 F1G1C104A116 C 0.1UF 16V 1 C9047 F1G1C104A116 C 0.1UF 16V 1 C9048 F1G1C104A116 C 0.1UF 16V 1 C9052 F1G1C104A116 C 0.1UF 16V 1 C9053 F1G1C104A116 C 0.1UF 16V 1 C9054 F1G1H201A731 C 200 PF, 50V 1 C9055 F1G1C104A116 C 0.1UF 16V 1 C9056 F1G1C104A116 C 0.1UF 16V 1 C9057 F1G1C104A116 C 0.1UF 16V 1 C9061 F1G1C104A116 C 0.1UF 16V 1 C9062 F1J1A475A087 C 4.7UF, 10V 1 C9063 F1G1C104A116 C 0.1UF 16V 1 C9065 F1G1C104A116 C 0.1UF 16V 1 C9095 F1G1C104A116 C 0.1UF 16V 1 C9100 F1J1A106A087 C 10UF, 10V 1 C9101 F1G1E103A123 C 0.01UF 25V 1 C9102 F1K1E106A136 C 10UF, 25V 1 C9103 F1G1E103A123 C 0.01UF 25V 1 C9105 F1G1H101A731 C 100PF 50V 1 C9106 F1K1E106A136 C 10UF, 25V 1 C9108 F1G1E103A123 C 0.01UF 25V 1 C9110 F1G1C104A116 C 0.1UF 16V 1 C9300 F1G1C104A116 C 0.1UF 16V 1 C9301 F1G1H180A731 C 18PF, 50V 1 C9302 F1G1H180A731 C 18PF, 50V 1 C9303 F1G1C104A116 C 0.1UF 16V 1 C9304 F1G1C104A116 C 0.1UF 16V 1 C9307 F1G1C104A116 C 0.1UF 16V 1 C9308 F1G1C104A116 C 0.1UF 16V 1 C9311 F1G1C104A116 C 0.1UF 16V 1 C9312 F1J1A106A087 C 10UF, 10V 1 C9313 F1G1C104A116 C 0.1UF 16V 1 C9314 F1J1A106A087 C 10UF, 10V 1 C9315 F1G1C104A116 C 0.1UF 16V 1 C9316 F1J1A106A087 C 10UF, 10V 1 C9319 F1G1C104A116 C 0.1UF 16V 1 C9322 F1G1C104A116 C 0.1UF 16V 1 C9323 F1G1C104A116 C 0.1UF 16V 1 C9325 F1G1C104A116 C 0.1UF 16V 1 C9327 F1G1C104A116 C 0.1UF 16V 1 C9335 F1J1A106A087 C 10UF, 10V 1 C9336 F1J1A106A087 C 10UF, 10V 1 C9337 F1J1A106A087 C 10UF, 10V 1 C9339 F1G1C104A116 C 0.1UF 16V 1 C9340 F1G1C104A116 C 0.1UF 16V 1 C9342 F1G1C104A116 C 0.1UF 16V 1 C9344 F1G1C104A116 C 0.1UF 16V 1 C9347 ECJ1VB0J105K C 1UF, 6.3V 1 C9349 F1J1A106A087 C 10UF, 10V 1 C9350 F1G1C104A116 C 0.1UF 16V 1 C9351 F1G1C104A116 C 0.1UF 16V 1 C9352 ECJ1VB0J105K C 1UF, 6.3V 1 C9356 F1G1C104A116 C 0.1UF 16V 1 C9361 F1G1C104A116 C 0.1UF 16V 1 C9363 F1G1C104A116 C 0.1UF 16V 1 C9371 F1J1A106A087 C 10UF, 10V 1 C9372 F1J1A106A087 C 10UF, 10V 1 C9373 F1J1A106A087 C 10UF, 10V 1 C9374 F1G1C104A116 C 0.1UF 16V 1 C9375 F1G1C104A116 C 0.1UF 16V 1 C9380 F1G1C104A116 C 0.1UF 16V 1 C9383 F1G1C104A116 C 0.1UF 16V 1 C9391 F1J1A106A087 C 10UF, 10V 1 C9392 F1J1A106A087 C 10UF, 10V 1 C9394 F1G1C104A116 C 0.1UF 16V 1 C9400 F1G1C104A116 C 0.1UF 16V 1 C9401 F1G1C104A116 C 0.1UF 16V 1 C9402 F1G1C104A116 C 0.1UF 16V 1 C9800 F1H1E104A129 C 0.1 uF 25V 1 C9801 F1G1E682A123 C 6800 pF 25 V 1 C9803 F1G1E472A123 C 4700pF 25V 1 C9804 F1K1E106A136 C 10UF, 25V 1 C9805 F1K1E106A136 C 10UF, 25V 1 C9806 F1G1H101A731 C 100PF 50V 1 参考号 部件号 部件名称及说明 件数 备注 C9807 F1G1H201A731 C 200 PF, 50V 1 C9808 F1G1H470A731 C 47PF, 50V 1 C9809 F1G1H222A730 C 2200PF, 50V 1 C9811 F1G1C473A116 C 0.047UF 16V 1 C9812 F1K1E106A136 C 10UF, 25V 1 C9813 F1K1E106A136 C 10UF, 25V 1 C9815 F1K0J226A008 C 22UF, 6.3V 1 C9816 F1H1E104A129 C 0.1 uF 25V 1 C9817 F1J1A106A087 C 10UF, 10V 1 C9819 F1J1A106A087 C 10UF, 10V 1 C9825 F1K0J226A008 C 22UF, 6.3V 1 C9827 F1K1E106A136 C 10UF, 25V 1 C9828 F1K1E106A136 C 10UF, 25V 1 C9829 F1G1C473A116 C 0.047UF 16V 1 C9830 F1H1E104A129 C 0.1 uF 25V 1 C9831 F1G1E332A123 C 3300pF 25V 1 C9833 F1G1H101A731 C 100PF 50V 1 C9835 F1K0J226A008 C 22UF, 6.3V 1 C9845 F1G1H201A731 C 200 PF, 50V 1 C9846 F1G1H201A731 C 200 PF, 50V 1 C9900 F1G1E103A123 C 0.01UF 25V 1 C16002 F1L2J562A022 C 5600PF, 630V 1 C16011 F2A2T301A004 E 300UF, 220V 1 C16012 F2A2T301A004 E 300UF, 220V 1 C16014 F0C2E155A252 C 1.5UF, 250V 1 C16015 F0C2E155A252 C 1.5UF, 250V 1 C16022 F1L2J332A022 C 3300PF, 630V 1 C16041 F1H1H392A970 C 3900PF, 50V 1 C16071 F1L2J1020001 C 1000PF, 630V 1 C16072 F1L2J1020001 C 1000PF, 630V 1 C16074 F1E2J221A002 C 220PF, 630V 1 C16091 F1L2J1020001 C 1000PF, 630V 1 C16092 F1L2J1020001 C 1000PF, 630V 1 C16101 F1L2J222A022 C 2200PF, 630V 1 C16104 F1H1E470A130 C 47PF, 25V 1 C16105 F1H1E470A130 C 47PF, 25V 1 C16131 F1K1E475A134 C 4.7UF 25V 1 C16133 F1K1E475A134 C 4.7UF 25V 1 C16135 F1K1E105A029 C 1UF, 25V 1 C16151 F1K1E105A029 C 1UF, 25V 1 C16152 F1K1E475A134 C 4.7UF 25V 1 C16153 F1K1E475A134 C 4.7UF 25V 1 C16154 F1K1E475A134 C 4.7UF 25V 1 C16191 F1K1E475A134 C 4.7UF 25V 1 C16192 F1H1E104A129 C 0.1 uF 25V 1 C16193 F2A1E4700094 E 47UF, 25V 1 C16195 F1K1E105A029 C 1UF, 25V 1 C16202 F0C2E405A252 C 4UF, 250V 1 C16203 F0C2E405A252 C 4UF, 250V 1 C16242 F1H1C105A145 C 1 uF 16 V 1 C16243 F1H1H103A970 C 0.01 uF 50 V 1 C16244 F1J1A106A087 C 10UF, 10V 1 C16251 F1H1C105A145 C 1 uF 16 V 1 C16252 F1K1E105A029 C 1UF, 25V 1 C16271 EEUFC1E221 E 220UF, 25V 1 C16280 F1K1E105A029 C 1UF, 25V 1 C16285 F1H1H104A970 C 0.1UF, , 50V 1 C16286 F1H1H104A970 C 0.1UF, , 50V 1 C16287 F1H1H104A970 C 0.1UF, , 50V 1 C16314 F2A2T301A004 E 300UF, 220V 1 C16315 ECJ1VB1A105K C 1UF, 10V 1 C16316 F1H1C104A143 C 0.1UF, 16V 1 C16317 ECJ1VB1A105K C 1UF, 10V 1 C16318 F1J1H104A835 C 0.1UF, 50V 1 C16319 F1J1H104A835 C 0.1UF, 50V 1 C16328 F2A2C221A195 E 220UF, 160V 1 C16331 F0C2E105A252 C 1 UF 250 V 1 C16401 F1L2J562A022 C 5600PF, 630V 1 C16412 F2A2T301A004 E 300UF, 220V 1 C16416 F2A2T301A004 E 300UF, 220V 1 C16417 F2A2T301A004 E 300UF, 220V 1 C16418 F0C2E155A252 C 1.5UF, 250V 1 C16419 F0C2E155A252 C 1.5UF, 250V 1 C16421 F1L2J562A022 C 5600PF, 630V 1 C16441 F1H1H392A970 C 3900PF, 50V 1 C16452 F1H1H392A970 C 3900PF, 50V 1 C16460 F1E2J821A002 C 820PF, 630V 1 参考号 部件号 部件名称及说明 件数 备注 119 TH-P46GT20C C16461 F1L2J1020001 C 1000PF, 630V 1 C16471 F1L2J1020001 C 1000PF, 630V 1 C16472 F1K1E105A029 C 1UF, 25V 1 C16481 F1L2J1020001 C 1000PF, 630V 1 C16490 F1H1C105A145 C 1 uF 16 V 1 C16491 F1L2J1020001 C 1000PF, 630V 1 C16501 F1K1E105A029 C 1UF, 25V 1 C16502 F1K1E475A134 C 4.7UF 25V 1 C16503 F2A1E471A102 E 470UF, 25V 1 C16504 F1K1E475A134 C 4.7UF 25V 1 C16505 F1K1E105A029 C 1UF, 25V 1 C16521 F1K1E105A029 C 1UF, 25V 1 C16522 F1K1E475A134 C 4.7UF 25V 1 C16523 F2A1E471A102 E 470UF, 25V 1 C16524 F1K1E475A134 C 4.7UF 25V 1 C16525 F1K1E475A134 C 4.7UF 25V 1 C16534 F1K1E105A029 C 1UF, 25V 1 C16561 F1J1A106A087 C 10UF, 10V 1 C16562 F1H1C105A145 C 1 uF 16 V 1 C16564 F1H1C105A145 C 1 uF 16 V 1 C16565 F1H1H103A970 C 0.01 uF 50 V 1 C16566 F1H1H103A970 C 0.01 uF 50 V 1 C16581 F1K1E105A029 C 1UF, 25V 1 C16582 F1H1C105A145 C 1 uF 16 V 1 C16593 F1H1H102A971 C 1000PF, 50V 1 C16602 F1H1H220A971 C 22PF, 50V 1 C16603 F1K2J102A014 C 1000PF, 630V 1 C16604 F1K2J102A014 C 1000PF, 630V 1 C16608 F1H1H221A971 C 220PF, 50V 1 C16632 F0C2E405A252 C 4UF, 250V 1 C16633 F0C2E405A252 C 4UF, 250V 1 C16642 F1L2J562A022 C 5600PF, 630V 1 C16645 F1K2J102A014 C 1000PF, 630V 1 C16646 F1K2J102A014 C 1000PF, 630V 1 C16661 F1K2J102A038 C 1000PF, 630V 1 C16662 F1K2J102A038 C 1000PF, 630V 1 C16664 F1H1H820A971 C 82PF, 50V 1 C16665 F1H1H820A971 C 82PF, 50V 1 C16666 F1H1H820A971 C 82PF, 50V 1 C16668 F1H1H221A971 C 220PF, 50V 1 C16675 F1H1H391A971 C 390PF, 50V 1 C16684 F1H1H104A970 C 0.1UF, , 50V 1 C16685 F1H1H104A970 C 0.1UF, , 50V 1 C16691 F2A2C101A097 E 100UF, 160V 1 C16692 F1H1H104A970 C 0.1UF, , 50V 1 C16707 F1H1H220A971 C 22PF, 50V 1 C16708 F1H1H104A970 C 0.1UF, , 50V 1 C16721 F2A1H820A115 E 82UF, 50V 1 C16723 F1K1E105A029 C 1UF, 25V 1 C16724 F1K1E475A134 C 4.7UF 25V 1 C16753 F1K1E475A134 C 4.7UF 25V 1 C16755 F1K1E475A134 C 4.7UF 25V 1 C16756 F1K1E475A134 C 4.7UF 25V 1 C16771 F1H1C105A145 C 1 uF 16 V 1 C16773 F1K1E105A029 C 1UF, 25V 1 C16791 EEUFC1E221 E 220UF, 25V 1 C16793 EEUFC1E221 E 220UF, 25V 1 C16794 F1J1A106A087 C 10UF, 10V 1 C16795 F2A1E471A102 E 470UF, 25V 1 C16796 F2A1E471A102 E 470UF, 25V 1 C16797 F1H1H104A970 C 0.1UF, , 50V 1 C16813 F2A2T221A009 E 220UF, 220V 1 C16842 F2A2C101A097 E 100UF, 160V 1 C16843 F1J1H104A835 C 0.1UF, 50V 1 C16844 F1J1H104A835 C 0.1UF, 50V 1 C16854 F1J1H104A835 C 0.1UF, 50V 1 C16856 ECJ1VB1A105K C 1UF, 10V 1 C16857 F1H1C104A143 C 0.1UF, 16V 1 C16858 ECJ1VB1A105K C 1UF, 10V 1 C16859 F1J1H104A835 C 0.1UF, 50V 1 C16860 ECJ1VB1A105K C 1UF, 10V 1 C16861 F1H1C104A143 C 0.1UF, 16V 1 C16862 ECJ1VB1A105K C 1UF, 10V 1 C16863 F1J1H104A835 C 0.1UF, 50V 1 C16864 F1J1H104A835 C 0.1UF, 50V 1 C16891 F1K1E105A029 C 1UF, 25V 1 C16902 F1E2J472A001 C 4700PF, 630V 1 参考号 部件号 部件名称及说明 件数 备注 C16903 F1E2J152A002 C 1500PF, 630V 1 C17101 F1L2E224A028 C 0.22UF, 250V 1 C17103 F1H1C104A143 C 0.1UF, 16V 1 C17104 ECJ1VB1A105K C 1UF, 10V 1 C17105 F1L2E224A028 C 0.22UF, 250V 1 C17107 ECJ1VB1A105K C 1UF, 10V 1 C17109 F1L2E224A028 C 0.22UF, 250V 1 C17110 ECJ1VB1A105K C 1UF, 10V 1 C17111 F1L2E224A028 C 0.22UF, 250V 1 C17113 ECJ1VB1A105K C 1UF, 10V 1 C17115 F1L2E224A028 C 0.22UF, 250V 1 C17116 ECJ1VB1A105K C 1UF, 10V 1 C17117 F1L2E224A028 C 0.22UF, 250V 1 C17119 ECJ1VB1A105K C 1UF, 10V 1 C17120 F1L2E224A028 C 0.22UF, 250V 1 C17122 ECJ1VB1A105K C 1UF, 10V 1 C17123 F1L2E224A028 C 0.22UF, 250V 1 C17125 ECJ1VB1A105K C 1UF, 10V 1 C17141 F1H1H101A971 C 100PF, 50V 1 C17202 F1H1C104A143 C 0.1UF, 16V 1 C17203 F1H1C104A143 C 0.1UF, 16V 1 C17205 F1L2E224A028 C 0.22UF, 250V 1 C17206 ECJ1VB1A105K C 1UF, 10V 1 C17207 F1L2E224A028 C 0.22UF, 250V 1 C17209 ECJ1VB1A105K C 1UF, 10V 1 C17210 F1L2E224A028 C 0.22UF, 250V 1 C17212 ECJ1VB1A105K C 1UF, 10V 1 C17213 F1L2E224A028 C 0.22UF, 250V 1 C17215 ECJ1VB1A105K C 1UF, 10V 1 C17217 F1L2E224A028 C 0.22UF, 250V 1 C17218 ECJ1VB1A105K C 1UF, 10V 1 C17219 F1L2E224A028 C 0.22UF, 250V 1 C17221 ECJ1VB1A105K C 1UF, 10V 1 C17223 F1L2E224A028 C 0.22UF, 250V 1 C17224 ECJ1VB1A105K C 1UF, 10V 1 C17241 F1H1H101A971 C 100PF, 50V 1 CB1 K1MY55B00002 55P 连接接头 1 CB2 K1MY55B00002 55P 连接接头 1 CB3 K1MY55B00002 55P 连接接头 1 CB4 K1MY55B00002 55P 连接接头 1 CB5 K1MY55B00002 55P 连接接头 1 CB6 K1MY55B00002 55P 连接接头 1 CB7 K1MY55B00002 55P 连接接头 1 CB8 K1MY55B00002 55P 连接接头 1 CB9 K1MY55B00002 55P 连接接头 1 CB10 K1MY55B00002 55P 连接接头 1 CB11 K1MY55B00002 55P 连接接头 1 CB12 K1MY55B00002 55P 连接接头 1 CB13 K1MY55B00002 55P 连接接头 1 CB14 K1MY55B00002 55P 连接接头 1 CB15 K1MY55B00002 55P 连接接头 1 CN0101 K1KA20AA0009 20P 连接接头 1 CN0102 K1KA11A00178 11P 连接接头 1 D5 K1MY55BA0345 55P 连接接头 1 D6 K1KA20AA0009 20P 连接接头 1 D20 K1MY35BA0345 35P 连接接头 1 D25 K1KY10AA0719 10P 连接接头 1 D31 K1MY68BA0345 68P 连接接头 1 D32 K1MY68BA0345 68P 连接接头 1 D1002 EZJZ0V120JA 变阻器 1 D1003 EZJZ0V120JA 变阻器 1 D1004 EZAEG2A50AX 静电抑制器 1 D1005 EZAEG2A50AX 静电抑制器 1 D1006 EZAEG2A50AX 静电抑制器 1 D1007 EZAEG2A50AX 静电抑制器 1 D1008 EZAEG2A50AX 静电抑制器 1 D1009 EZAEG2A50AX 静电抑制器 1 D1010 EZAEG2A50AX 静电抑制器 1 D1107 B0JCCE000008 二极管 1 D2014 B0ACCJ000048 二极管 1 D2500 B3EB00000048 LED 2 D2501 B3EB00000048 LED 2 D2502 B3EB00000048 LED 2 D2520 B3AGB0000060 LED 1 参考号 部件号 部件名称及说明 件数 备注 120 TH-P46GT20C D3015 K7AAAY000006 光纤接口 1 D3050 EZJP0V080GA 变阻器 1 D4200 B0JCME000092 二极管 1 D4702 B0ACCJ000048 二极管 1 D4703 DZ2J056M0L 稳压二极管 1 D4704 B0JCCE000008 二极管 1 D4719 B0ACCJ000048 二极管 1 D4720 DZ2J056M0L 稳压二极管 1 D4721 B0JCCE000008 二极管 1 D4735 B0ACCJ000048 二极管 1 D4736 DZ2J056M0L 稳压二极管 1 D4737 B0JCCE000008 二极管 1 D4770 B0ACCJ000048 二极管 1 D4771 DZ2J056M0L 稳压二极管 1 D4772 B0JCCE000008 二极管 1 D4785 B0ECKM000048 二极管 1 D5250 B0ACCJ000048 二极管 1 D5301 B0JCPG000030 二极管 1 D5431 B0ADEJ000035 稳压二极管 1 D5432 B0ADEJ000035 稳压二极管 1 D5433 B0ADCJ000100 二极管 1 D5434 B0ADCJ000100 二极管 1 D5435 B0ADCJ000100 二极管 1 D5436 B0ADCJ000100 二极管 1 D5437 B0ADCJ000100 二极管 1 D5439 DZ2J068M0L 稳压二极管 1 D5440 DZ2J120M0L 稳压二极管 1 D5441 DZ2J120M0L 稳压二极管 1 D5442 DZ2J068M0L 稳压二极管 1 D5443 DZ2J068M0L 稳压二极管 1 D5444 DZ2J068M0L 稳压二极管 1 D5445 DZ2J068M0L 稳压二极管 1 D5447 DZ2J068M0L 稳压二极管 1 D5448 DZ2J068M0L 稳压二极管 1 D5449 DZ2J068M0L 稳压二极管 1 D5470 B0ADEJ000035 稳压二极管 1 D5487 B0JCME000076 二极管 1 D5488 B0ACCJ000048 二极管 1 D5490 B0ADCJ000100 二极管 1 D5491 DZ2J068M0L 稳压二极管 1 D5492 DZ2J068M0L 稳压二极管 1 D5493 B0ADEJ000035 稳压二极管 1 D5519 B0BC010A0007 稳压二极管 1 D5524 B0ACCJ000048 二极管 1 D5602 DZ2J056M0L 稳压二极管 1 D5603 B0JCPG000030 二极管 1 D5605 B0ECKM000048 二极管 1 D5802 B0JCPG000030 二极管 1 D9110 B0JCGD000002 二极管 1 D9800 B0JCPD000026 二极管 1 D9802 B0JCCE000008 二极管 1 D9803 B0JCCE000008 二极管 1 D16001 B0FBCN000005 二极管 1 D16002 B0FBCN000005 二极管 1 D16021 B0FCCN000003 二极管 1 D16022 B0FCCN000003 二极管 1 D16032 B0ACCJ000048 二极管 1 D16041 B0FACP000004 二极管 1 D16050 B0ECKP000055 二极管 1 D16051 B0FBCN000007 二极管 1 D16101 B0JCME000093 二极管 1 D16131 B0ECKP000055 二极管 1 D16151 B0ECKP000055 二极管 1 D16152 B0ECKP000055 二极管 1 D16153 B0ECKP000055 二极管 1 D16191 B0ECKP000055 二极管 1 D16192 B0ACCJ000048 二极管 1 D16196 DZ2J200M0L 稳压二极管 1 D16253 B3ABB0000210 LED 1 D16255 B0ACCJ000048 二极管 1 D16280 B0ACCJ000048 二极管 1 D16281 DZ2J051M0L 稳压二极管 1 D16282 DZ2J068M0L 稳压二极管 1 D16285 B0ADEJ000035 稳压二极管 1 D16286 B0ACCJ000048 二极管 1 D16315 DZ2J150M0L 稳压二极管 1 D16316 B0ECKP000055 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D16317 B0ECKP000055 二极管 1 D16401 DA3DF50ACSLW 稳压二极管 1 D16402 DA3DF50ACSLW 稳压二极管 1 D16407 B0JCME000093 二极管 1 D16411 B0ACCJ000048 二极管 1 D16421 B0FACP000006 二极管 1 D16422 B0FACP000005 二极管 1 D16451 B0ECKP000055 二极管 1 D16462 B0FACP000003 二极管 1 D16466 B0ACCJ000048 二极管 1 D16473 B0ACCJ000048 二极管 1 D16474 B0ACCJ000048 二极管 1 D16475 DZ2J051M0L 稳压二极管 1 D16476 B0ACCJ000048 二极管 1 D16477 DZ2J047L0L 稳压二极管 1 D16478 B0ACCJ000048 二极管 1 D16480 B0ACCJ000048 二极管 1 D16482 B0FACP000003 二极管 1 D16490 B0ECKP000055 二极管 1 D16491 B0ECKP000055 二极管 1 D16492 DZ2J047M0L 稳压二极管 1 D16493 B0ADCJ000100 二极管 1 D16494 B0ADCJ000100 二极管 1 D16497 B0ECKP000055 二极管 1 D16503 B0ECHR000003 二极管 1 D16522 B0ECHR000003 二极管 1 D16523 B0ECHR000003 二极管 1 D16534 B0ECHR000003 二极管 1 D16536 B0ECHR000003 二极管 1 D16583 B3ABB0000210 LED 1 D16602 DZ2J150M0L 稳压二极管 1 D16604 B0ADCJ000100 二极管 1 D16605 DZ2J051L0L 稳压二极管 1 D16607 B0ACCJ000048 二极管 1 D16610 B0ACCJ000048 二极管 1 D16618 B0ECKP000055 二极管 1 D16641 B0FBCN000006 二极管 1 D16642 B0FBCN000006 二极管 1 D16645 DZ2J150M0L 稳压二极管 1 D16646 DZ2J150M0L 稳压二极管 1 D16647 DZ2J150M0L 稳压二极管 1 D16648 DZ2J051L0L 稳压二极管 1 D16649 B0ACCJ000048 二极管 1 D16650 B0ACCJ000048 二极管 1 D16651 DZ2J051M0L 稳压二极管 1 D16652 B0ECKP000055 二极管 1 D16653 B0ACCJ000048 二极管 1 D16654 B0ACCJ000048 二极管 1 D16662 DZ2J150M0L 稳压二极管 1 D16663 DZ2J150M0L 稳压二极管 1 D16664 DZ2J150M0L 稳压二极管 1 D16669 B0ACCJ000048 二极管 1 D16671 B0ACCJ000048 二极管 1 D16673 B0ECHR000003 二极管 1 D16674 B0ECHR000003 二极管 1 D16677 B0ADEJ000035 稳压二极管 1 D16678 DZ2J15000L 稳压二极管 1 D16702 B0ACCJ000048 二极管 1 D16710 DZ2J15000L 稳压二极管 1 D16711 B0ECHR000001 二极管 1 D16712 DZ2J15000L 稳压二极管 1 D16713 B0ECHR000001 二极管 1 D16719 B0ECKP000055 二极管 1 D16720 B0ECKP000055 二极管 1 D16721 B0ECHR000003 二极管 1 D16728 B0ECKP000055 二极管 1 D16765 B0ECKP000055 二极管 1 D16790 B0JCME000093 二极管 1 D16791 DZ2J200M0L 稳压二极管 1 D16792 B0ACCJ000048 二极管 1 D16820 B0ACCJ000048 二极管 1 D16821 DZ2J330M0L 稳压二极管 1 D16822 B0ADCJ000100 二极管 1 D16824 DZ2J330M0L 稳压二极管 1 D16825 DZ2J330M0L 稳压二极管 1 D16859 B0HCKS000002 二极管 1 D16871 DZ2J240M0L 稳压二极管 1 参考号 部件号 部件名称及说明 件数 备注 121 TH-P46GT20C D16872 DZ2J200M0L 稳压二极管 1 D16874 DZ2J051M0L 稳压二极管 1 D16875 B0ACCJ000048 二极管 1 D16893 DZ2J056H0L 稳压二极管 1 D16901 B0ADCJ000100 二极管 1 D16902 B0ACCJ000048 二极管 1 D16920 B0ADCJ000100 二极管 1 FL8701 J0MAB0000140 LC 滤波器 1 FL8702 J0MAB0000140 LC 滤波器 1 IC1000 C1ZBZ0003775 IC 1 IC1100 MN103SH9FPB1 IC 1 IC1101 TVRR567 IC 1 IC2301 C1AB00003230 IC 1 IC2950 C0CBCAG00031 IC 1 IC2952 C0DBGYY00281 IC 1 IC3001 C1AB00003218 IC 1 IC4200 C1AB00003310 IC 1 IC4201 C0DBAYY00737 IC 1 IC4204 C0DBGFF00004 IC 1 IC4205 TVRR945AB IC 1 IC4206 C0DBGYY00892 IC 1 IC4207 C0DBGFF00011 IC 1 IC4211 C3ABSG000060 IC 1 IC4212 C0DBAYY00462 IC 1 IC4500 C1AB00003079 IC 1 IC4701 C0DBGYY00578 IC 1 IC5250 C0DBEYY00123 IC 1 IC5251 C0CBCBC00227 IC 1 IC5290 C0DBGYY00884 IC 1 IC5302 C0DBAYY00755 IC 1 IC5303 C0DBAYY00755 IC 1 IC5470 C0EBM0000026 IC 1 IC5482 C1ZBZ0003972 IC 1 IC5500 C0DBAYY00715 IC 1 IC5501 C0DBAYY00715 IC 1 IC5603 C0DBFYY00049 IC 1 IC5604 C0DBGYY00578 IC 1 IC5800 C1AB00003253 IC 1 IC5801 TVRR580AA IC 1 IC5805 C0DBGYY00905 IC 1 IC5808 C0DBAYY00727 IC 1 IC5809 C0DBEJG00001 IC 1 IC5810 C0DBEJG00001 IC 1 IC5813 C0CBADB00038 IC 1 IC5814 C0ABBA000201 IC 1 IC5815 C0DBAYY00715 IC 1 IC6700 C0DBAHF00015 IC 1 IC6701 C3ABPY000028 IC 1 IC6702 C1AB00003110 IC 1 IC6703 C0DBEHG00006 IC 1 IC6704 C0EBD0000221 IC 1 IC6705 C0DBEHG00006 IC 1 IC6706 C0JBAZ002811 IC 1 IC6707 C0JBAZ002811 IC 1 IC7001 C1ZBZ0004268 IC 1 IC7003 C0JBAB000722 IC 1 IC7004 C0JBAZ002301 IC 1 IC7005 C0JBAB000722 IC 1 IC7006 C0EBD0000221 IC 1 IC8000 MN2WS0110C IC 1 IC8100 C1ZBZ0003967 IC 1 IC8240 C3ABTY000025 IC 1 IC8241 C3ABTY000025 IC 1 IC8701 C0DBZYY00365 IC 1 IC8703 C1CB00003239 IC 1 IC8921 TVRR946 IC 1 PPDS IC8950 TVRR575 IC 1 PPDS IC9001 TVRR866AB IC 1 PPDS IC9002 C1ZBZ0004127 IC 1 IC9003 MN103SH8HFT1 IC 1 IC9004 C1ZBZ0003983 IC 1 IC9300 C1AB00003258 IC 1 IC9304 TVRR947AC IC 1 PPDS IC9400 C0JBAU000010 IC 1 IC9401 C0JBAU000010 IC 1 参考号 部件号 部件名称及说明 件数 备注 IC9402 C0JBAU000010 IC 1 IC9800 C0DBAYY00605 IC 1 IC9801 C0DBAYY00605 IC 1 IC9802 C0DBEHG00006 IC 1 IC9803 C0DBAYY00605 IC 1 IC16131 C0ZBZ0001707 IC 1 IC16151 C0ZBZ0001708 IC 1 IC16241 C0JBAU000088 IC 1 IC16251 C0BBBA000024 IC 1 IC16304 MIP3900MSSCF IC 1 IC16312 C0DBZMC00006 IC 1 IC16471 C0DBEYY00114 IC 1 IC16490 C0DBZMC00006 IC 1 IC16491 C0BBAA000008 线状 IC 1 IC16501 C0ZBZ0001708 IC 1 IC16521 C0ZBZ0001708 IC 1 IC16561 C0JBAU000088 IC 1 IC16562 C0JBAU000088 IC 1 IC16563 C0JBAB000916 IC 1 IC16581 C0BBBA000024 IC 1 IC16661 C0BBBA000024 IC 1 IC16691 C0JBAC000363 IC 1 IC16692 C0DBZYY00352 IC 1 IC16724 C0CBADE00049 IC 1 IC16771 C0CBADC00072 IC 1 IC16773 C0JBAB000715 IC 1 IC16784 MIP3910MSSCF IC 1 IC16785 C0DBZYY00352 IC 1 IC16786 MIP3910MSSCF IC 1 IC16787 C0DBZYY00352 IC 1 IC16792 C0BBAA000008 线状 IC 1 IC16793 C0DBZMC00006 IC 1 IC16920 C0BBBA000024 IC 1 IC17101 C0JBAU000088 IC 1 IC17201 C0JBAU000088 IC 1 IC17202 C0JBAZ002692 IC 1 JK3001 K1FY315A0008 连接接头 1 JK3100 K1U932A00005 连接接头 1 JK3707 K4AK13B00008 端子 1 JK4700 K1FY119D0018 连接接头 1 JK4701 K1FY119D0018 连接接头 1 JK4702 K1FY119D0018 连接接头 1 JK4703 K1FY119E0028 连接接头 1 JK8301 K2LC1YYA0005 插孔 1 JK8700 K1FY208B0008 连接接头 1 JK8850 K1NA12E00017 SD 卡插槽 1 JS6704 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8371 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8372 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8373 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8374 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8375 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8377 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8388 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8389 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8390 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8391 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS8392 D0GAR00Z0001 M 0 OHM, 1/16W 1 JS9102 D0GAR00Z0001 M 0 OHM, 1/16W 1 K1 K1KA08B00270 8P 连接接头 1 L1100 J0JYC0000068 片状电感 1 L2106 J0ZZB0000097 滤波器 1 L2107 J0ZZB0000097 滤波器 1 L2301 J0JHC0000045 片状电感 1 L2302 G1C3R0ZA0156 感应线圈 1 L2303 G1C220MA0416 感应线圈 1 L2304 G1C220MA0416 感应线圈 1 L2305 G1C220MA0416 感应线圈 1 L2306 G1C220MA0416 感应线圈 1 L2902 J0JHC0000046 片状电感 1 L2904 J0JCC0000278 片状电感 1 L2909 J0JCC0000278 片状电感 1 L2910 J0JCC0000278 片状电感 1 参考号 部件号 部件名称及说明 件数 备注 122 TH-P46GT20C L2950 J0JHC0000045 片状电感 1 L3002 J0JYC0000331 片状电感 1 L3003 J0JYC0000331 片状电感 1 L3006 J0JYC0000331 片状电感 1 L3007 J0JYC0000331 片状电感 1 L3010 J0JYC0000331 片状电感 1 L3011 J0JYC0000331 片状电感 1 L3014 J0JYC0000331 片状电感 1 L3015 J0JYC0000331 片状电感 1 L3017 J0JCC0000287 片状电感 1 L3018 J0JCC0000287 片状电感 1 L3019 J0JCC0000287 片状电感 1 L3020 D0GAR00Z0001 M 0 OHM, 1/16W 1 L3023 J0JCC0000287 片状电感 1 L3024 J0JCC0000287 片状电感 1 L3028 J0JCC0000287 片状电感 1 L3029 J0JYC0000331 片状电感 1 L3030 J0JYC0000331 片状电感 1 L4205 J0JHC0000045 片状电感 1 L4206 G1C100MA0077 感应线圈 1 L4207 G1C3R3Z00005 感应线圈 1 L4208 J0JHC0000045 片状电感 1 L4209 J0JHC0000045 片状电感 1 L4210 J0JHC0000045 片状电感 1 L4211 J0JHC0000045 片状电感 1 L4212 J0JHC0000045 片状电感 1 L4213 J0JHC0000045 片状电感 1 L4214 G1C100MA0077 感应线圈 1 L4215 J0JYC0000068 片状电感 1 L4217 J0JHC0000045 片状电感 1 L4218 J0JHC0000045 片状电感 1 L4219 G1C150MA0416 感应线圈 1 L4220 J0JYD0000033 片状电感 1 L4221 J0JYD0000033 片状电感 1 L4222 J0JYD0000033 片状电感 1 L4223 J0JYD0000033 片状电感 1 L4224 J0JYD0000033 片状电感 1 L4225 J0JYD0000033 片状电感 1 L4700 J0JYC0000068 片状电感 1 L4701 J0JYC0000068 片状电感 1 L4702 J0JYC0000068 片状电感 1 L4703 J0JYC0000068 片状电感 1 L4704 J0JYC0000068 片状电感 1 L4705 J0JYC0000068 片状电感 1 L4706 J0JYC0000068 片状电感 1 L4707 J0JYC0000068 片状电感 1 L4708 J0JYC0000068 片状电感 1 L4712 J0JHC0000045 片状电感 1 L4715 J0JYC0000068 片状电感 1 L4716 J0JYC0000068 片状电感 1 L4717 J0JYC0000068 片状电感 1 L5301 G1C6R8MA0416 感应线圈 1 L5481 J0JYC0000068 片状电感 1 L5500 G1C2R2M00022 感应线圈 1 L5501 G1C3R3Z00005 感应线圈 1 L5502 G1C2R2Z00007 感应线圈 1 L5503 G1C3R3Z00004 感应线圈 1 L5504 G1C100MA0077 感应线圈 1 L5505 G1C100MA0077 感应线圈 1 L5611 G1C6R8MA0416 感应线圈 1 L5800 J0JHC0000045 片状电感 1 L5802 J0JHC0000045 片状电感 1 L5803 J0JHC0000045 片状电感 1 L5804 J0JHC0000045 片状电感 1 L5810 J0JHC0000045 片状电感 1 L5813 G1C100MA0416 感应线圈 1 L5815 J0JHC0000045 片状电感 1 L5816 J0JHC0000045 片状电感 1 L5817 J0JHC0000045 片状电感 1 L5818 J0JHC0000045 片状电感 1 L5821 J0JGC0000020 片状电感 1 L5822 G1C100MA0077 感应线圈 1 L5823 G1C3R3Z00005 感应线圈 1 L5824 G1C2R2M00022 感应线圈 1 L6700 J0JJC0000015 片状电感 1 L6701 J0JHC0000045 片状电感 1 L6702 J0JHC0000045 片状电感 1 参考号 部件号 部件名称及说明 件数 备注 L6703 J0JJC0000015 片状电感 1 L6704 J0JJC0000015 片状电感 1 L7001 J0JKC0000021 片状电感 1 L7002 J0JYC0000068 片状电感 1 L7004 J0JYC0000068 片状电感 1 L7005 J0JHC0000045 片状电感 1 L8000 J0JCC0000287 片状电感 1 L8001 J0JCC0000287 片状电感 1 L8002 J0JCC0000287 片状电感 1 L8003 J0JHC0000045 片状电感 1 L8004 J0JKC0000021 片状电感 1 L8005 J0JKC0000021 片状电感 1 L8006 J0JCC0000287 片状电感 1 L8007 J0JHC0000045 片状电感 1 L8008 J0JCC0000287 片状电感 1 L8009 J0JHC0000045 片状电感 1 L8010 J0JCC0000287 片状电感 1 L8011 J0JHC0000116 片状电感 1 L8012 J0JCC0000287 片状电感 1 L8013 J0JCC0000287 片状电感 1 L8014 J0JCC0000287 片状电感 1 L8015 J0JHC0000116 片状电感 1 L8016 J0JHC0000116 片状电感 1 L8017 J0JHC0000045 片状电感 1 L8018 J0JHC0000045 片状电感 1 L8019 J0JHC0000045 片状电感 1 L8020 J0JCC0000287 片状电感 1 L8021 J0JCC0000287 片状电感 1 L8022 J0JHC0000045 片状电感 1 L8023 J0JHC0000045 片状电感 1 L8024 J0JCC0000287 片状电感 1 L8100 J0JHC0000045 片状电感 1 L8340 J0JDC0000002 片状电感 1 L8343 J0JDC0000002 片状电感 1 L8511 J0ZZB0000101 滤波器 1 L8512 J0ZZB0000101 滤波器 1 L8513 J0ZZB0000101 滤波器 1 L8701 J0JHC0000045 片状电感 1 L8702 J0JHC0000045 片状电感 1 L8705 J0JHC0000045 片状电感 1 L8706 J0JHC0000045 片状电感 1 L8707 J0JHC0000045 片状电感 1 L8708 J0JHC0000045 片状电感 1 L8850 J0JHC0000045 片状电感 1 L8920 J0JDC0000002 片状电感 1 L9300 J0JHC0000117 片状电感 1 L9301 J0JHC0000117 片状电感 1 L9800 G1C6R8Z00010 感应线圈 1 L9801 G1C6R8Z00008 感应线圈 1 L9802 G1C6R8Z00008 感应线圈 1 L16001 G0CR35K00001 校正线圈 1 L16011 G0CR35K00001 校正线圈 1 L16303 G0C471MA0049 校正线圈 1 L16401 G0CR35K00001 校正线圈 1 L16411 G0CR35K00001 校正线圈 1 L16472 G0ZZ00002183 校正线圈 1 L16698 G0C681MA0065 校正线圈 1 L16851 G0ZZ00002183 校正线圈 1 PA4206 K5H4022A0031 保险丝 1 PA5610 K5H4022A0031 保险丝 1 PA5800 K5H4022A0031 保险丝 1 PA8341 J0JDC0000002 片状电感 1 PC16191 B3PBA0000496 IC 1 PC16301 B3PBA0000498 IC 1 PC16461 B3PBE0000054 IC 1 PC16480 B3PBA0000498 IC 1 PC16603 B3PBA0000498 IC 1 PC16684 B3PBA0000496 IC 1 PC16685 B3PBA0000496 IC 1 PC16722 B3PBA0000498 IC 1 PC16723 B3PBA0000498 IC 1 PC16896 B3PBA0000498 IC 1 PC16897 B3PBA0000498 IC 1 PCB TNPH0899DC 电路板 A 1 （RTL）PPDS 参考号 部件号 部件名称及说明 件数 备注 123 TH-P46GT20C PCB TNPA5133AB 电路板 XH 1 (RTL) PCB ETX2MM815EVH 电路板 P 1 （RTL）PPDS PCB TXNC111QFK 电路板 C1 1 (RTL) PCB TXNC211QFK 电路板 C2 1 (RTL) PCB TXN/D1MJUC 电路板 D 1 （RTL）PPDS PCB TXNSC11QFK 电路板 SC 1 （RTL）PPDS PCB TXNSD1LRUC 电路板 SD 1 PCB TXNSS11FFK 电路板 SS 1 （RTL）PPDS PCB TXNSS21DYUC 电路板 SS2 1 (RTL) PCB TXNSU1LRUC 电路板 SU 1 PCB TXN/K1LBUC 电路板 K 1 （RTL）PPDS PCB TXN/V1MAUC 电路板 V 2 （RTL）PPDS Q2101 DSA200100L 三极管 1 Q2109 DSA200100L 三极管 1 Q2252 DSA200100L 三极管 1 Q2253 B1AAFB000002 三极管 1 Q2254 B1AAFB000002 三极管 1 Q2255 DSC2001S0L 三极管 1 Q2301 DSA200100L 三极管 1 Q2510 DSC200100L 三极管 1 Q2511 DSC200100L 三极管 1 Q2512 DSC200100L 三极管 1 Q2903 B1CBHD000002 FET 1 Q2904 B1CBHD000002 FET 1 Q3000 B1ABCF000231 三极管 1 Q3001 B1ABCF000231 三极管 1 Q3008 DSA200100L 三极管 1 Q4201 B1MBEDA00015 FET 1 Q4204 DSC200100L 三极管 1 Q4205 DSC200100L 三极管 1 Q4512 B1HFCFA00026 三极管 1 Q4513 DSA200100L 三极管 1 Q4700 B1ABCF000231 三极管 1 Q4701 B1ABCF000231 三极管 1 Q4702 B1ABCF000231 三极管 1 Q4703 B1ABCF000231 三极管 1 Q4704 B1ABCF000231 三极管 1 Q4705 B1ABCF000231 三极管 1 Q4709 B1ABCF000231 三极管 1 Q4710 B1ABCF000231 三极管 1 Q4831 DSC2001S0L 三极管 1 Q4832 DSC2001S0L 三极管 1 Q5431 DSA200100L 三极管 1 Q5432 DSC2001S0L 三极管 1 Q5435 DSA200100L 三极管 1 Q5436 DSC200100L 三极管 1 Q5475 DSC2001S0L 三极管 1 Q5478 DSC200100L 三极管 1 Q5500 B1MBDDA00003 FET 1 Q5501 B1CFRD000048 FET 1 Q5502 B1MBDDA00003 FET 1 Q5503 B1MBEDA00015 FET 1 Q5504 B1CFRD000048 FET 1 Q5602 DSC2001S0L 三极管 1 Q5603 DSC2001S0L 三极管 1 Q5813 B1CFND000005 FET 1 Q5814 B1CFND000005 FET 1 Q5815 DSC200100L 三极管 1 Q5816 DSC200100L 三极管 1 Q5821 B1MBEDA00015 FET 1 Q5822 B1CFRD000048 FET 1 Q5823 B1CFRD000048 FET 1 Q6700 B1CBGD000001 FET 1 Q6701 B1CBGD000001 FET 1 Q6702 B1CBGD000001 FET 1 Q6703 2SD0601ARL 三极管 1 Q6704 B1CBGD000001 FET 1 Q7002 DSC200100L 三极管 1 Q9800 B1ABCF000231 三极管 1 Q9802 B1ABCF000231 三极管 1 Q9900 B1ABCF000231 三极管 1 参考号 部件号 部件名称及说明 件数 备注 Q9901 B1ABCF000231 三极管 1 Q16001 B1JADN000009 三极管 1 Q16002 B1JADN000009 三极管 1 Q16021 B1JADN000008 三极管 1 Q16022 B1JADN000008 三极管 1 Q16041 B1JAEN000010 三极管 1 Q16051 B1JAEN000011 三极管 1 Q16055 B1HFPFA00001 三极管 1 Q16056 B1HFPFA00001 三极管 1 Q16101 B1CFRM000008 FET 1 Q16102 B1CFRM000008 FET 1 Q16141 B1HFPFA00001 三极管 1 Q16161 B1HFPFA00001 三极管 1 Q16191 B1HFPFA00001 三极管 1 Q16251 B1ABCF000231 三极管 1 Q16280 B1ABCF000231 三极管 1 Q16402 DG3D5020CSLW 三极管 1 Q16403 DG3D5020CSLW 三极管 1 Q16421 DG3D4020CSRP 三极管 1 Q16422 DG3D4020CSRP 三极管 1 Q16441 B1JAEP000013 三极管 1 Q16452 B1JAEP000012 三极管 1 Q16471 B1ABCF000231 三极管 1 Q16490 B1CBGD000001 FET 1 Q16501 B1HFPFA00001 三极管 1 Q16521 B1HFPFA00001 三极管 1 Q16531 B1HFPFA00001 三极管 1 Q16551 B1HFPFA00001 三极管 1 Q16601 B1CERR000042 FET 1 Q16602 DSC2001Q0L 三极管 1 Q16603 DSA2001S0L 三极管 1 Q16606 DSC2001Q0L 三极管 1 Q16607 B1CBGD000001 FET 1 Q16608 B1CBGD000001 FET 1 Q16621 B1JADN000009 三极管 1 Q16622 B1JADN000009 三极管 1 Q16645 DSC2001Q0L 三极管 1 Q16646 DSA2001S0L 三极管 1 Q16647 B1CBGD000001 FET 1 Q16649 B1ABCN000007 三极管 1 Q16660 B1CERQ000061 FET 1 Q16661 B1JAER000012 三极管 1 Q16662 DSC2001Q0L 三极管 1 Q16663 DSA2001S0L 三极管 1 Q16668 DSC2001Q0L 三极管 1 Q16670 B1ADCN000007 三极管 1 Q16671 B1ABCF000231 三极管 1 Q16675 B1ADCN000007 三极管 1 Q16676 B1ABCF000231 三极管 1 Q16677 DSC2001Q0L 三极管 1 Q16678 B1ABCF000231 三极管 1 Q16701 B1ADCN000007 三极管 1 Q16702 B1ABCF000231 三极管 1 Q16762 B1HFPFA00001 三极管 1 Q16801 DSA2001S0L 三极管 1 Q16810 B1ABCF000231 三极管 1 Q16815 B1ABCN000007 三极管 1 Q16816 DSC2001Q0L 三极管 1 Q16817 DSC2001Q0L 三极管 1 Q16818 B1CBGD000001 FET 1 Q16876 B1ABCF000231 三极管 1 Q16885 B1CFNG000001 FET 1 Q16920 B1ABCN000007 三极管 1 Q16921 B1ABCN000007 三极管 1 Q16930 DSC2001Q0L 三极管 1 Q16931 B1ABCN000007 三极管 1 Q16932 DSC2001Q0L 三极管 1 R0180 D0GA101JA015 M 100 OHM, J,1/16W 1 R0907 EXB28V103JX M 10KOHM 1/32 W 1 R0908 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R0913 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R0914 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R0915 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R0916 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R0917 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R0918 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 参考号 部件号 部件名称及说明 件数 备注 124 TH-P46GT20C R0935 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R0936 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R0947 D0GA680JA015 M 68 OHM, J,1/16W 1 R0948 D0GA680JA015 M 68 OHM, J,1/16W 1 R0949 D0GA680JA015 M 68 OHM, J,1/16W 1 R0950 D0GA680JA015 M 68 OHM, J,1/16W 1 R0951 D0GA680JA015 M 68 OHM, J,1/16W 1 R0952 D0GA680JA015 M 68 OHM, J,1/16W 1 R0955 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R0956 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R0957 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R0958 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R0959 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R0960 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R0971 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R0987 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R0988 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R0989 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R0993 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R996 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R997 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R998 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R999 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R1010 D0GB103JA057 M 10K OHM J 1/10W 1 R1153 D0GA471JA015 M 470OHM, J,1/16W 1 R1163 D0GA105JA015 M 1M OHM, J,1/16W 1 R1182 D0GA273JA015 M 27K OHM J ,1/16W 1 R1203 D0GA473JA015 M 47KOHM, J,1/16W 1 R1209 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R1221 D1BB7151A055 M7.15KOHM,J.1/10W 1 R1224 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R1225 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R1236 D0GA473JA015 M 47KOHM, J,1/16W 1 R1237 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R1243 D0GA473JA015 M 47KOHM, J,1/16W 1 R1255 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R1401 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R1406 D0GA683JA015 M 68KOHM, J,1/16W 1 R1407 D0GA473JA015 M 47KOHM, J,1/16W 1 R1409 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R1410 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R1411 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R1422 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R1423 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R1424 D0GA183JA015 M 18K OHM J.1/16W 1 R1425 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R1426 D0GA203JA015 M 20K OHM J 1/16W 1 R2053 D1BB1403A055 M 140KOHM,J.1/10W 1 R2055 D1BB1403A055 M 140KOHM,J.1/10W 1 R2069 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R2070 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R2101 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R2102 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2103 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R2104 D0GA122JA015 M 1.2KOHM, J,1/16W 1 R2107 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2110 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R2121 D0GA681JA015 M680 OHM, J,1/16W 1 R2135 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R2139 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R2254 D0GA101JA015 M 100 OHM, J,1/16W 1 R2255 D0GA473JA015 M 47KOHM, J,1/16W 1 R2256 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R2257 D0GA105JA015 M 1M OHM, J,1/16W 1 R2258 D0GA101JA015 M 100 OHM, J,1/16W 1 R2259 D0GA101JA015 M 100 OHM, J,1/16W 1 R2260 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R2263 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R2264 D0GA101JA015 M 100 OHM, J,1/16W 1 R2301 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R2302 EXB28V220J M 22 OHM 1/32 W 1 R2306 D0GA473JA015 M 47KOHM, J,1/16W 1 R2307 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2308 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R2309 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R2310 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R2318 ERJ8GEYJ3R3V M 3.3 OHM, J,1/4W 1 参考号 部件号 部件名称及说明 件数 备注 R2319 ERJ8GEYJ3R3V M 3.3 OHM, J,1/4W 1 R2320 ERJ8GEYJ3R3V M 3.3 OHM, J,1/4W 1 R2321 ERJ8GEYJ3R3V M 3.3 OHM, J,1/4W 1 R2500 D0GZ3R3JA020 M 3.3 OHM,J, 1/2W 2 R2501 D0GZ3R3JA020 M 3.3 OHM,J, 1/2W 2 R2510 ERJ3GEYJ470 M 47 OHM,J,1/10W 1 R2511 D0GB104JA041 M 100KOHM J 1/10W 1 R2512 D0GB224JA041 M 220KOHM,J,1/10W 1 R2513 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R2514 D0GB103JA057 M 10K OHM J 1/10W 1 R2515 D0GB473JA057 M 47KOHM,J,1/10W 1 R2516 D1BB6800A055 M 680 OHM,J.1/10W 1 R2517 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R2518 D0GB473JA057 M 47KOHM,J,1/10W 1 R2519 D1BB1821A055 M1.82KOHM,J.1/10W 1 R2550 ERJ6ENF1432 M14.3KOHM,F.1/8W 1 R2551 ERJ6ENF6651 M6.65KOHM,F.1/8W 1 R2552 ERJ6ENF7151 M7.15KOHM, F.1/8W 1 R2553 ERJ6ENF1741 M1.74KOHM,F.1/8W 1 R2752 D0GA184JA015 M 180KOHM J.1/16W 1 R2753 D0GB102JA041 M 1KOHM,J,1/10W 1 R2807 D0GA473JA015 M 47KOHM, J,1/16W 1 R2816 D0GA473JA015 M 47KOHM, J,1/16W 1 R2819 D0GA473JA015 M 47KOHM, J,1/16W 1 R2824 D0GA101JA015 M 100 OHM, J,1/16W 1 R2830 D0GA473JA015 M 47KOHM, J,1/16W 1 R2831 D0GA473JA015 M 47KOHM, J,1/16W 1 R2902 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2903 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2904 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2905 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2906 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2908 D0GA682JA015 M6.8KOHM, J,1/16W 1 R2911 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R2918 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2921 D0GA682JA015 M6.8KOHM, J,1/16W 1 R2930 D0GA153JA015 M 15K OHM J 1/16W 1 R2960 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R3000 D0GA223JA015 M 22K OHM J 1/16W 1 R3001 D0GA223JA015 M 22K OHM J 1/16W 1 R3002 D0GA223JA015 M 22K OHM J 1/16W 1 R3003 D0GA223JA015 M 22K OHM J 1/16W 1 R3004 D0GA223JA015 M 22K OHM J 1/16W 1 R3005 D0GA223JA015 M 22K OHM J 1/16W 1 R3017 D0GAR00Z0001 M 0 OHM, 1/16W 1 R3019 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R3021 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R3024 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R3025 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R3030 D0GA101JA015 M 100 OHM, J,1/16W 1 R3072 ERJ6RED750 M 75 OHM,.D1/10W 1 R3074 ERJ6RED750 M 75 OHM,.D1/10W 1 R3075 ERJ6RED750 M 75 OHM,.D1/10W 1 R3076 ERJ6RED750 M 75 OHM,.D1/10W 1 R3077 ERJ6RED750 M 75 OHM,.D1/10W 1 R3078 ERJ6RED750 M 75 OHM,.D1/10W 1 R3084 ERJ6RED750 M 75 OHM,.D1/10W 1 R3085 ERJ6RED750 M 75 OHM,.D1/10W 1 R3086 ERJ6RED750 M 75 OHM,.D1/10W 1 R3094 D1BA1302A014 M 13KOHM,J.1/16 W 1 R3101 D0GA473JA015 M 47KOHM, J,1/16W 1 R3103 D0GA473JA015 M 47KOHM, J,1/16W 1 R3116 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3117 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3118 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3120 D0GA331JA015 M 330 OHM, J,1/16W 1 R3121 EXB28V221J M220 OHM 1/32 W 1 R3123 EXB28V680JX M 68 OHM 1/32 W 1 R3128 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3129 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3146 D0GA331JA015 M 330 OHM, J,1/16W 1 R3147 D0GA473JA015 M 47KOHM, J,1/16W 1 R3148 ERJ6RED750 M 75 OHM,.D1/10W 1 R3149 ERJ6RED750 M 75 OHM,.D1/10W 1 R3154 EXB28V820JX M 82 OHM 1/32 W 1 R3167 ERJ6RED750 M 75 OHM,.D1/10W 1 R3169 ERJ2GEJ104 M100KOHM, J,1/16 W 1 参考号 部件号 部件名称及说明 件数 备注 125 TH-P46GT20C R3173 EXB28V221J M220 OHM 1/32 W 1 R3182 D1BA1302A014 M 13KOHM,J.1/16 W 1 R3187 ERJ6RED750 M 75 OHM,.D1/10W 1 R3189 D0GA680JA015 M 68 OHM, J,1/16W 1 R3192 EXB28V820JX M 82 OHM 1/32 W 1 R3201 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3218 D0GAR00Z0001 M 0 OHM, 1/16W 1 R3226 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R3227 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R3230 ERJ6RED750 M 75 OHM,.D1/10W 1 R3232 ERJ6RED750 M 75 OHM,.D1/10W 1 R3234 ERJ6RED750 M 75 OHM,.D1/10W 1 R3236 D0GA680JA015 M 68 OHM, J,1/16W 1 R3237 D0GA680JA015 M 68 OHM, J,1/16W 1 R3240 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3245 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R3290 D0GA473JA015 M 47KOHM, J,1/16W 1 R3291 D0GA473JA015 M 47KOHM, J,1/16W 1 R3292 D0GA105JA015 M 1M OHM, J,1/16W 1 R3716 D0GA223JA015 M 22K OHM J 1/16W 1 R3717 D0GA223JA015 M 22K OHM J 1/16W 1 R4200 D0GA2R2JA014 M 2.2OHM, J,1/16W 1 R4207 D0GA223JA015 M 22K OHM J 1/16W 1 R4208 D0GA683JA015 M 68KOHM, J,1/16W 1 R4222 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4223 D1BB4301A087 M4.3 KOHM,J.1/10W 1 R4224 D1BB1002A087 M 10KOHM,J.1/10W 1 R4225 D1BB4700A055 M 470 OHM,J.1/10W 1 R4227 D1BB2002A055 M 20KOHM,J.1/10W 1 R4228 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4229 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4230 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4234 D0GA473JA015 M 47KOHM, J,1/16W 1 R4235 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4241 D0GA101JA015 M 100 OHM, J,1/16W 1 R4242 D0GA101JA015 M 100 OHM, J,1/16W 1 R4243 D0GA101JA015 M 100 OHM, J,1/16W 1 R4244 D0GA101JA015 M 100 OHM, J,1/16W 1 R4245 D0GA101JA015 M 100 OHM, J,1/16W 1 R4246 D0GA101JA015 M 100 OHM, J,1/16W 1 R4247 D0GA101JA015 M 100 OHM, J,1/16W 1 R4248 D0GA101JA015 M 100 OHM, J,1/16W 1 R4249 D0GA101JA015 M 100 OHM, J,1/16W 1 R4250 D0GA101JA015 M 100 OHM, J,1/16W 1 R4251 D0GA101JA015 M 100 OHM, J,1/16W 1 R4252 D0GA101JA015 M 100 OHM, J,1/16W 1 R4256 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4257 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4258 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R4259 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R4260 D0GA680JA015 M 68 OHM, J,1/16W 1 R4261 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R4262 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R4263 D0GA390JA015 M 39 OHM, J,1/16W 1 R4264 D0GA562JA015 M 5.6KOHM, J,1/16W 1 R4265 D1BB1001A055 M 1KOHM,J. 1/10W 1 R4266 D1BB3001A055 M 3.0KOHM,J.1/10W 1 R4267 D1BB1800A055 M180 OHM,J.1/10W 1 R4268 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4269 D0GA473JA015 M 47KOHM, J,1/16W 1 R4313 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4314 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4315 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4316 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4317 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4318 D0GA331JA015 M 330 OHM, J,1/16W 1 R4320 D0GA330JA015 M 33 OHM, J,1/16W 1 R4321 D0GA330JA015 M 33 OHM, J,1/16W 1 R4322 D0GA330JA015 M 33 OHM, J,1/16W 1 R4323 D0GA330JA015 M 33 OHM, J,1/16W 1 R4324 D0GA330JA015 M 33 OHM, J,1/16W 1 R4325 D0GA330JA015 M 33 OHM, J,1/16W 1 R4326 D0GA330JA015 M 33 OHM, J,1/16W 1 R4327 D0GA330JA015 M 33 OHM, J,1/16W 1 R4328 D0GA330JA015 M 33 OHM, J,1/16W 1 R4329 D0GA330JA015 M 33 OHM, J,1/16W 1 R4330 D0GA330JA015 M 33 OHM, J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R4331 D0GA330JA015 M 33 OHM, J,1/16W 1 R4332 D0GA330JA015 M 33 OHM, J,1/16W 1 R4333 D0GA330JA015 M 33 OHM, J,1/16W 1 R4334 D0GA330JA015 M 33 OHM, J,1/16W 1 R4335 D0GA330JA015 M 33 OHM, J,1/16W 1 R4336 D0GA330JA015 M 33 OHM, J,1/16W 1 R4337 D0GA330JA015 M 33 OHM, J,1/16W 1 R4338 D0GA330JA015 M 33 OHM, J,1/16W 1 R4339 D0GA330JA015 M 33 OHM, J,1/16W 1 R4340 D0GA330JA015 M 33 OHM, J,1/16W 1 R4341 D0GA330JA015 M 33 OHM, J,1/16W 1 R4342 D0GA680JA015 M 68 OHM, J,1/16W 1 R4344 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4345 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4346 D0GA330JA015 M 33 OHM, J,1/16W 1 R4347 D0GA330JA015 M 33 OHM, J,1/16W 1 R4548 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4549 D0GA151JA015 M 150 OHM, J,1/16W 1 R4550 D0GA151JA015 M 150 OHM, J,1/16W 1 R4551 D0GA151JA015 M 150 OHM, J,1/16W 1 R4552 D0GA560JA015 M 56 OHM, J,1/16W 1 R4553 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4554 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4563 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4597 D0GA152JA015 M 1.5KOHM, J,1/16W 1 R4598 D0GA152JA015 M 1.5KOHM, J,1/16W 1 R4599 D0GA473JA015 M 47KOHM, J,1/16W 1 R4651 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4655 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4659 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4663 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4666 D0GA330JA015 M 33 OHM, J,1/16W 1 R4668 D0GA330JA015 M 33 OHM, J,1/16W 1 R4670 D0GA330JA015 M 33 OHM, J,1/16W 1 R4672 D0GA330JA015 M 33 OHM, J,1/16W 1 R4676 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4677 D0GA122JA015 M 1.2KOHM, J,1/16W 1 R4702 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4703 D0GA330JA015 M 33 OHM, J,1/16W 1 R4704 D0GA473JA015 M 47KOHM, J,1/16W 1 R4706 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4707 D0GA473JA015 M 47KOHM, J,1/16W 1 R4708 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4709 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4710 D0GA473JA015 M 47KOHM, J,1/16W 1 R4711 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4712 D0GA473JA015 M 47KOHM, J,1/16W 1 R4715 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4716 D0GA330JA015 M 33 OHM, J,1/16W 1 R4717 D0GA473JA015 M 47KOHM, J,1/16W 1 R4719 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4720 D0GA473JA015 M 47KOHM, J,1/16W 1 R4721 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4722 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4723 D0GA473JA015 M 47KOHM, J,1/16W 1 R4724 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4725 D0GA473JA015 M 47KOHM, J,1/16W 1 R4728 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4729 D0GA330JA015 M 33 OHM, J,1/16W 1 R4730 D0GA473JA015 M 47KOHM, J,1/16W 1 R4732 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4733 D0GA473JA015 M 47KOHM, J,1/16W 1 R4734 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4735 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4736 D0GA473JA015 M 47KOHM, J,1/16W 1 R4737 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4738 D0GA473JA015 M 47KOHM, J,1/16W 1 R4739 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4740 D0GA680JA015 M 68 OHM, J,1/16W 1 R4741 D0GA680JA015 M 68 OHM, J,1/16W 1 R4742 D0GA680JA015 M 68 OHM, J,1/16W 1 R4743 D0GA680JA015 M 68 OHM, J,1/16W 1 R4744 D0GA680JA015 M 68 OHM, J,1/16W 1 R4745 D0GA680JA015 M 68 OHM, J,1/16W 1 R4748 D0GA680JA015 M 68 OHM, J,1/16W 1 R4749 D0GA680JA015 M 68 OHM, J,1/16W 1 R4750 D0GA680JA015 M 68 OHM, J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 126 TH-P46GT20C R4751 D0GA680JA015 M 68 OHM, J,1/16W 1 R4762 D0GA680JA015 M 68 OHM, J,1/16W 1 R4763 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4764 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4765 D1BB4701A055 M 4.7KOHM,J.1/10W 1 R4767 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4770 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4771 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4775 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4776 D0GA680JA015 M 68 OHM, J,1/16W 1 R4777 D0GA680JA015 M 68 OHM, J,1/16W 1 R4778 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4781 D0GA680JA015 M 68 OHM, J,1/16W 1 R4783 D0GA473JA015 M 47KOHM, J,1/16W 1 R4785 D0GA680JA015 M 68 OHM, J,1/16W 1 R4788 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4789 D0GA330JA015 M 33 OHM, J,1/16W 1 R4790 D0GA473JA015 M 47KOHM, J,1/16W 1 R4792 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4793 D0GA473JA015 M 47KOHM, J,1/16W 1 R4794 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4795 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4796 D0GA473JA015 M 47KOHM, J,1/16W 1 R4797 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4798 D0GA473JA015 M 47KOHM, J,1/16W 1 R4799 D0GA680JA015 M 68 OHM, J,1/16W 1 R4824 D0GA473JA015 M 47KOHM, J,1/16W 1 R4833 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4834 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4835 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4841 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4842 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4844 D0GA101JA015 M 100 OHM, J,1/16W 1 R4853 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4854 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4856 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4857 D0GA473JA015 M 47KOHM, J,1/16W 1 R5155 D0GA101JA015 M 100 OHM, J,1/16W 1 R5253 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5254 D1BA5361A014 M5.36KOHM,J.1/16 W 1 R5255 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R5301 D0GA2R2JA014 M 2.2OHM, J,1/16W 1 R5307 D1BB1202A087 M 12KOHM,J.1/10W 1 R5308 D1BB2201A087 M 2.2KOHM,J.1/10W 1 R5309 D1BB5601A055 M 5.6KOHM,J.1/10W 1 R5312 D0GA150JA015 M 15 OHM, J,1/16W 1 R5315 D0GB102JA041 M 1KOHM,J,1/10W 1 R5412 D0GA273JA015 M 27K OHM J ,1/16W 1 R5413 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R5418 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R5419 D0GA683JA015 M 68KOHM, J,1/16W 1 R5431 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R5432 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R5433 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R5434 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5435 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R5437 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R5438 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R5439 ERJ6GEYJ471 M 470 OHM,J,1/8W 1 R5441 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R5443 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R5444 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R5445 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R5451 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R5452 ERJ6GEYJ104V M 100KOHM,J,1/8W 1 R5453 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5454 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5455 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5456 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5458 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5459 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5460 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5461 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5462 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5470 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R5471 D0GA101JA015 M 100 OHM, J,1/16W 1 R5472 D0GA470JA015 M 47 OHM, J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R5473 D0GA473JA015 M 47KOHM, J,1/16W 1 R5474 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5475 D0GA123JA015 M 12K OHM J 1/16W 1 R5485 D0GA101JA015 M 100 OHM, J,1/16W 1 R5486 D0GA473JA015 M 47KOHM, J,1/16W 1 R5497 ERJ6GEYJ150V M 15 OHM,J,1/8W 1 R5504 D1BB1241A087 M1.24KOHM,J.1/10W 1 R5505 D1BB1241A087 M1.24KOHM,J.1/10W 1 R5506 D1BB2101A087 M 2.1KOHM,J.1/10W 1 R5507 D1BB1101A055 M 1.1 KOHM,J.1/10W 1 R5508 D1BB8200A087 M 820 OHM,J.1/10W 1 R5509 D1BB8200A087 M 820 OHM,J.1/10W 1 R5510 D1BB2001A087 M 2KOHM,J.1/10W 1 R5511 D1BB3601A055 M 3.6KOHM,J.1/10W 1 R5512 D0GB100JA041 M 10 OHM J 1/10W 1 R5513 D0GB100JA041 M 10 OHM J 1/10W 1 R5514 D0GB100JA041 M 10 OHM J 1/10W 1 R5515 D0GB100JA041 M 10 OHM J 1/10W 1 R5517 D1BB1002A055 M 10KOHM,J.1/10W 1 R5520 D1BB1502A055 M 15KOHM, J.1/10W 1 R5522 D1BB2002A055 M 20KOHM,J.1/10W 1 R5523 D1BB2402A055 M 24KOHM,J.1/10W 1 R5526 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5527 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5528 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5533 ERJ6GEYJ471 M 470 OHM,J,1/8W 1 R5535 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5538 ERJ6GEYJ471 M 470 OHM,J,1/8W 1 R5540 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5558 D1BA2202A014 M 22KOHM,J.1/16 W 1 R5563 D1BA6801A014 M6.8 KOHM,J.1/16 W 1 R5569 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R5571 D0GA683JA015 M 68KOHM, J,1/16W 1 R5600 D0GA680JA015 M 68 OHM, J,1/16W 1 R5603 D0GA2R2JA014 M 2.2OHM, J,1/16W 1 R5607 D0GA223JA015 M 22K OHM J 1/16W 1 R5608 D0GA683JA015 M 68KOHM, J,1/16W 1 R5609 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5610 D0GA473JA015 M 47KOHM, J,1/16W 1 R5611 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R5612 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5613 D0GA473JA015 M 47KOHM, J,1/16W 1 R5640 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5641 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5642 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R5643 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5644 D0GA752JA015 M7.5KOHM, J,1/16W 1 R5681 D1BB1002A055 M 10KOHM,J.1/10W 1 R5682 D1BB1501A055 M1.50KOHM,J.1/10W 1 R5683 D1BB6201A055 M6.20KOHM,J.1/10W 1 R5724 D0GA150JA015 M 15 OHM, J,1/16W 1 R5826 D0GA470JA015 M 47 OHM, J,1/16W 1 R5827 D0GAR00Z0001 M 0 OHM, 1/16W 1 R5828 D0GA223JA015 M 22K OHM J 1/16W 1 R5829 D0GA470JA015 M 47 OHM, J,1/16W 1 R5830 D0GA470JA015 M 47 OHM, J,1/16W 1 R5833 D0GA471JA015 M 470OHM, J,1/16W 1 R5863 D0GA223JA015 M 22K OHM J 1/16W 1 R5864 D0GA223JA015 M 22K OHM J 1/16W 1 R5865 D0GA223JA015 M 22K OHM J 1/16W 1 R5868 D1BA2202A014 M 22KOHM,J.1/16 W 1 R5869 D1BA6801A014 M6.8 KOHM,J.1/16 W 1 R5871 D0GZ4R7JA020 M 4.7 OHM,J, 1/2W 1 R5872 D0GZ3R3JA020 M 3.3 OHM,J, 1/2W 1 R5874 D0GZ4R7JA020 M 4.7 OHM,J, 1/2W 1 R5875 D0GZ3R3JA020 M 3.3 OHM,J, 1/2W 1 R5880 D0GA101JA015 M 100 OHM, J,1/16W 1 R5881 D0GA101JA015 M 100 OHM, J,1/16W 1 R5887 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5888 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R5911 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R5913 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R5914 D1BB5602A055 M 56KOHM,J.1/10W 1 R5915 D1BB6341A055 M6.34KOHM,J.1/10W 1 R5917 D1BA1503A014 M 150KOHM,J.1/16 W 1 R5918 D1BA3302A014 M 33KOHM,J.1/16 W 1 R5919 D1BA1503A014 M 150KOHM,J.1/16 W 1 参考号 部件号 部件名称及说明 件数 备注 127 TH-P46GT20C R5921 D1BA3302A014 M 33KOHM,J.1/16 W 1 R5950 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R5951 D1BB1101A055 M 1.1 KOHM,J.1/10W 1 R5952 D1BB1741A055 M1.74KOHM,J.1/10W 1 R5953 D1BB3601A055 M 3.6KOHM,J.1/10W 1 R5954 D1BB1001A055 M 1KOHM,J. 1/10W 1 R5955 D0GB100JA041 M 10 OHM J 1/10W 1 R5957 D0GB100JA041 M 10 OHM J 1/10W 1 R5959 D1BB2402A055 M 24KOHM,J.1/10W 1 R5960 D1BB2002A055 M 20KOHM,J.1/10W 1 R5964 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R5965 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6704 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R6705 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R6706 D0GB122JA041 M 1.2KOHM J 1/10W 1 R6707 D0GB122JA041 M 1.2KOHM J 1/10W 1 R6708 EXB28V220J M 22 OHM 1/32 W 1 R6709 D0GB122JA041 M 1.2KOHM J 1/10W 1 R6710 D0GB122JA041 M 1.2KOHM J 1/10W 1 R6711 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R6712 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R6713 EXB28V220J M 22 OHM 1/32 W 1 R6714 EXB28V220J M 22 OHM 1/32 W 1 R6715 EXB28V220J M 22 OHM 1/32 W 1 R6718 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6719 D0GA122JA015 M 1.2KOHM, J,1/16W 1 R6720 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6721 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R6722 EXB28V220J M 22 OHM 1/32 W 1 R6723 EXB28V220J M 22 OHM 1/32 W 1 R6724 EXB28V220J M 22 OHM 1/32 W 1 R6725 EXB28V220J M 22 OHM 1/32 W 1 R6726 D0GB103JA057 M 10K OHM J 1/10W 1 R6727 D0GB103JA057 M 10K OHM J 1/10W 1 R6728 D0GA560JA015 M 56 OHM, J,1/16W 1 R6729 D0GA560JA015 M 56 OHM, J,1/16W 1 R6730 D0GA560JA015 M 56 OHM, J,1/16W 1 R6731 D0GA560JA015 M 56 OHM, J,1/16W 1 R6732 D0GA560JA015 M 56 OHM, J,1/16W 1 R6733 D0GA560JA015 M 56 OHM, J,1/16W 1 R6734 D0GA560JA015 M 56 OHM, J,1/16W 1 R6735 D0GA560JA015 M 56 OHM, J,1/16W 1 R6736 D0GA560JA015 M 56 OHM, J,1/16W 1 R6737 D0GA560JA015 M 56 OHM, J,1/16W 1 R6738 D0GA560JA015 M 56 OHM, J,1/16W 1 R6739 D0GA560JA015 M 56 OHM, J,1/16W 1 R6740 D0GA560JA015 M 56 OHM, J,1/16W 1 R6741 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R6742 D1BA1202A040 M 12KOHM,J.1/16 W 1 R6743 D1BA5602A014 M 56KOHM,J.1/16 W 1 R6744 D1BA1202A040 M 12KOHM,J.1/16 W 1 R6745 D0GB103JA057 M 10K OHM J 1/10W 1 R6746 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R6748 D0GA105JA015 M 1M OHM, J,1/16W 1 R6749 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R6750 D1BA3302A014 M 33KOHM,J.1/16 W 1 R6751 D1BA20020005 M 20KOHM,J.1/16 W 1 R6752 D0GB103JA057 M 10K OHM J 1/10W 1 R6753 D1BA6490A014 M 649 OHM,J.1/16 W 1 R6754 D1BB1001A055 M 1KOHM,J. 1/10W 1 R6755 D0GA203JA015 M 20K OHM J 1/16W 1 R6756 D0GA203JA015 M 20K OHM J 1/16W 1 R6757 D0GB181JA041 M 180 OHM,J,1/10W 1 R6759 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6760 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6761 D0GB560JA041 M 56 OHM,J,1/10W 1 R6762 D0GB560JA041 M 56 OHM,J,1/10W 1 R6763 D1BB1000A055 M 100 OHM,J.1/10W 1 R6764 D1BB1000A055 M 100 OHM,J.1/10W 1 R6765 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6766 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6767 D0GB560JA041 M 56 OHM,J,1/10W 1 R6768 D0GB560JA041 M 56 OHM,J,1/10W 1 R6769 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6770 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R6771 D0GA560JA015 M 56 OHM, J,1/16W 1 R6772 D0GA560JA015 M 56 OHM, J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R6773 D0GA560JA015 M 56 OHM, J,1/16W 1 R6774 D0GA560JA015 M 56 OHM, J,1/16W 1 R6775 D0GA560JA015 M 56 OHM, J,1/16W 1 R6776 D0GA560JA015 M 56 OHM, J,1/16W 1 R6777 D0GA560JA015 M 56 OHM, J,1/16W 1 R6778 D0GA560JA015 M 56 OHM, J,1/16W 1 R6779 D0GA560JA015 M 56 OHM, J,1/16W 1 R6780 D0GA560JA015 M 56 OHM, J,1/16W 1 R6781 D0GA560JA015 M 56 OHM, J,1/16W 1 R6782 D0GA560JA015 M 56 OHM, J,1/16W 1 R6783 D0GB560JA041 M 56 OHM,J,1/10W 1 R6784 D0GB560JA041 M 56 OHM,J,1/10W 1 R6785 D0GB560JA041 M 56 OHM,J,1/10W 1 R6786 D0GA683JA015 M 68KOHM, J,1/16W 1 R6787 D0GA243JA015 M 24K OHM J.1/16W 1 R6788 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R6789 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6790 D1BA2492A014 M24.9KOHM,J.1/16 W 1 R6791 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6792 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6793 D0GBR00Z0002 M 0 OHM J 1/10W 1 R6794 D0GBR00Z0002 M 0 OHM J 1/10W 1 R6795 D0GBR00Z0002 M 0 OHM J 1/10W 1 R6796 D0GBR00Z0002 M 0 OHM J 1/10W 1 R6797 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6798 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6799 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6800 D0GAR00Z0001 M 0 OHM, 1/16W 1 R6801 EXB28V103JX M 10KOHM 1/32 W 1 R6802 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R6803 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R6829 EXB2HV103JV M 10 kOHM 1/16 W 1 R7007 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R7008 D0GA331JA015 M 330 OHM, J,1/16W 1 R7009 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R7017 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R7020 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R7024 D0GA105JA015 M 1M OHM, J,1/16W 1 R7025 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R7028 D0GA470JA015 M 47 OHM, J,1/16W 1 R7033 D0GA470JA015 M 47 OHM, J,1/16W 1 R7042 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R7043 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R7044 D0GA473JA015 M 47KOHM, J,1/16W 1 R7046 D0GAR00Z0001 M 0 OHM, 1/16W 1 R8000 D0GA331JA015 M 330 OHM, J,1/16W 1 R8031 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R8100 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R8102 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8103 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8109 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8110 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8111 D0GA560JA015 M 56 OHM, J,1/16W 1 R8112 D0GA560JA015 M 56 OHM, J,1/16W 1 R8114 D0GA560JA015 M 56 OHM, J,1/16W 1 R8115 D0GA560JA015 M 56 OHM, J,1/16W 1 R8116 D0GA560JA015 M 56 OHM, J,1/16W 1 R8117 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R8119 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8240 D1BA2400A014 M 240 OHM,J.1/16 W 1 R8246 D0GA330JA015 M 33 OHM, J,1/16W 1 R8247 D0GA330JA015 M 33 OHM, J,1/16W 1 R8253 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8254 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8255 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8270 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8271 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8272 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8277 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8278 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8279 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8280 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8281 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8282 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8283 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8284 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R8285 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 参考号 部件号 部件名称及说明 件数 备注 128 TH-P46GT20C R8286 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R8287 D1BA2400A014 M 240 OHM,J.1/16 W 1 R8288 D1BA2400A014 M 240 OHM,J.1/16 W 1 R8289 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8340 EXB2HV680J M 68 OHM 1/16 W 1 R8341 D0GA680JA015 M 68 OHM, J,1/16W 1 R8342 D0GA680JA015 M 68 OHM, J,1/16W 1 R8343 D0GA680JA015 M 68 OHM, J,1/16W 1 R8344 D0GA680JA015 M 68 OHM, J,1/16W 1 R8346 EXB28V680JX M 68 OHM 1/32 W 1 R8381 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8382 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8383 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8384 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8396 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8470 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8476 EXB2HVR000 M 0 OHM 1/16 W 1 R8477 D0GAR00Z0001 M 0 OHM, 1/16W 1 R8479 D0GAR00Z0001 M 0 OHM, 1/16W 1 R8482 D0GAR00Z0001 M 0 OHM, 1/16W 1 R8488 D0GA680JA015 M 68 OHM, J,1/16W 1 R8489 D0GA680JA015 M 68 OHM, J,1/16W 1 R8490 D0GA680JA015 M 68 OHM, J,1/16W 1 R8491 D0GA680JA015 M 68 OHM, J,1/16W 1 R8492 D0GA680JA015 M 68 OHM, J,1/16W 1 R8493 D0GA680JA015 M 68 OHM, J,1/16W 1 R8494 D0GA680JA015 M 68 OHM, J,1/16W 1 R8495 D0GA680JA015 M 68 OHM, J,1/16W 1 R8496 D0GA680JA015 M 68 OHM, J,1/16W 1 R8497 D0GA680JA015 M 68 OHM, J,1/16W 1 R8498 D0GA680JA015 M 68 OHM, J,1/16W 1 R8499 D0GA680JA015 M 68 OHM, J,1/16W 1 R8511 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8512 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8513 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8524 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8525 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8526 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8527 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8566 D0GBR00Z0002 M 0 OHM J 1/10W 1 R8600 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8606 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8607 D0GA680JA015 M 68 OHM, J,1/16W 1 R8610 D0GA680JA015 M 68 OHM, J,1/16W 1 R8622 D0GA680JA015 M 68 OHM, J,1/16W 1 R8636 D0GA680JA015 M 68 OHM, J,1/16W 1 R8638 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8641 D0GA680JA015 M 68 OHM, J,1/16W 1 R8642 D0GA680JA015 M 68 OHM, J,1/16W 1 R8644 D0GA680JA015 M 68 OHM, J,1/16W 1 R8645 D0GA680JA015 M 68 OHM, J,1/16W 1 R8649 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8651 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8652 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8657 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R8658 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R8660 EXB2HV680J M 68 OHM 1/16 W 1 R8661 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8669 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8672 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8673 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8680 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8685 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R8689 D0GA680JA015 M 68 OHM, J,1/16W 1 R8691 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8692 D0GA680JA015 M 68 OHM, J,1/16W 1 R8703 D0GA560JA015 M 56 OHM, J,1/16W 1 R8704 D0GA560JA015 M 56 OHM, J,1/16W 1 R8705 D0GA560JA015 M 56 OHM, J,1/16W 1 R8706 D0GA560JA015 M 56 OHM, J,1/16W 1 R8707 D0GA560JA015 M 56 OHM, J,1/16W 1 R8708 D0GA560JA015 M 56 OHM, J,1/16W 1 R8709 D0GA560JA015 M 56 OHM, J,1/16W 1 R8710 D0GA560JA015 M 56 OHM, J,1/16W 1 R8711 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8712 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8721 D0GA560JA015 M 56 OHM, J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R8722 D0GA560JA015 M 56 OHM, J,1/16W 1 R8723 D0GA560JA015 M 56 OHM, J,1/16W 1 R8724 D0GA560JA015 M 56 OHM, J,1/16W 1 R8725 D0GA560JA015 M 56 OHM, J,1/16W 1 R8726 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8727 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8728 D0GA560JA015 M 56 OHM, J,1/16W 1 R8729 D0GA560JA015 M 56 OHM, J,1/16W 1 R8730 D0GA560JA015 M 56 OHM, J,1/16W 1 R8731 D0GA560JA015 M 56 OHM, J,1/16W 1 R8732 D0GA560JA015 M 56 OHM, J,1/16W 1 R8733 D0GA560JA015 M 56 OHM, J,1/16W 1 R8735 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8737 D1BA6491A014 M6.49KOHM,J.1/16 W 1 R8739 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8741 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R8742 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R8743 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8744 D1BA6201A014 M 6.2KOHM,J.1/16 W 1 R8745 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8747 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8748 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8757 D1BA1600A014 M 160 OHM,J.1/16 W 1 R8758 D1BA2402A014 M 24KOHM,J.1/16 W 1 R8759 D1BA1002A014 M 10KOHM,J. 1/16 W 1 R8760 D1BA2402A014 M 24KOHM,J.1/16 W 1 R8761 D1BA6201A014 M 6.2KOHM,J.1/16 W 1 R8762 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8764 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8856 D0GA473JA015 M 47KOHM, J,1/16W 1 R8857 D0GA680JA015 M 68 OHM, J,1/16W 1 R8859 D0GA680JA015 M 68 OHM, J,1/16W 1 R8860 D0GA680JA015 M 68 OHM, J,1/16W 1 R8861 D0GA680JA015 M 68 OHM, J,1/16W 1 R8862 D0GA680JA015 M 68 OHM, J,1/16W 1 R8863 D0GA680JA015 M 68 OHM, J,1/16W 1 R8864 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8867 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8868 D0GA330JA015 M 33 OHM, J,1/16W 1 R8869 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8870 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8872 D0GA330JA015 M 33 OHM, J,1/16W 1 R8873 D0GA680JA015 M 68 OHM, J,1/16W 1 R8874 D0GA680JA015 M 68 OHM, J,1/16W 1 R8875 D0GA680JA015 M 68 OHM, J,1/16W 1 R8876 D0GA680JA015 M 68 OHM, J,1/16W 1 R8877 D0GA330JA015 M 33 OHM, J,1/16W 1 R8878 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8879 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8880 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8881 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8882 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8883 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8885 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8886 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8887 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8893 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8918 EXB2HV680J M 68 OHM 1/16 W 1 R8919 EXB2HV680J M 68 OHM 1/16 W 1 R8922 EXB2HVR000 M 0 OHM 1/16 W 1 R8923 D0GA680JA015 M 68 OHM, J,1/16W 1 R8924 D0GA680JA015 M 68 OHM, J,1/16W 1 R8925 D0GA680JA015 M 68 OHM, J,1/16W 1 R8926 D0GA680JA015 M 68 OHM, J,1/16W 1 R8927 D0GA680JA015 M 68 OHM, J,1/16W 1 R8928 D0GA680JA015 M 68 OHM, J,1/16W 1 R8950 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8961 D0GA473JA015 M 47KOHM, J,1/16W 1 R9070 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9072 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9104 EXB38V101JV M 100 OHM 1/16 W 1 R9105 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9107 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R9111 D0GAR00Z0001 M 0 OHM, 1/16W 1 R9119 EXB38V470J M 47 OHM 1/16 W 1 R9121 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9124 D0GA470JA015 M 47 OHM, J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 129 TH-P46GT20C R9129 D0GA683JA015 M 68KOHM, J,1/16W 1 R9130 D0GA470JA015 M 47 OHM, J,1/16W 1 R9132 D0GA101JA015 M 100 OHM, J,1/16W 1 R9149 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9150 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9151 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9152 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9153 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9154 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9155 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9164 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9166 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9185 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9186 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9187 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9188 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9189 EXB38V101JV M 100 OHM 1/16 W 1 R9194 D0GA471JA015 M 470OHM, J,1/16W 1 R9198 EXB38V101JV M 100 OHM 1/16 W 1 R9200 D0GA100JA015 M 10 OHM, J,1/16W 1 R9201 D0GA100JA015 M 10 OHM, J,1/16W 1 R9203 D0GA223JA015 M 22K OHM J 1/16W 1 R9205 D0GA333JA015 M 33KOHM,J,1/16W 1 R9206 D0GA563JA015 M 56KOHM, J,1/16W 1 R9207 D0GA243JA015 M 24K OHM J.1/16W 1 R9208 EXB2HV470JV M 47 OHM 1/16 W 1 R9209 EXB2HV470JV M 47 OHM 1/16 W 1 R9212 D0GA470JA015 M 47 OHM, J,1/16W 1 R9213 D0GA470JA015 M 47 OHM, J,1/16W 1 R9215 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9223 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9224 D0GA470JA015 M 47 OHM, J,1/16W 1 R9225 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9226 D0GA470JA015 M 47 OHM, J,1/16W 1 R9231 EXB38V101JV M 100 OHM 1/16 W 1 R9244 D0GA101JA015 M 100 OHM, J,1/16W 1 R9247 D0GA470JA015 M 47 OHM, J,1/16W 1 R9316 D0GA470JA015 M 47 OHM, J,1/16W 1 R9318 D0GA470JA015 M 47 OHM, J,1/16W 1 R9319 D0GA470JA015 M 47 OHM, J,1/16W 1 R9320 D0GA122JA015 M 1.2KOHM, J,1/16W 1 R9321 D0GA105JA015 M 1M OHM, J,1/16W 1 R9322 D0GA470JA015 M 47 OHM, J,1/16W 1 R9323 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R9324 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9325 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9326 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9327 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9400 EXB2HV103JV M 10 kOHM 1/16 W 1 R9401 EXB2HV103JV M 10 kOHM 1/16 W 1 R9402 EXB38V103JV M 10 kOHM 1/16 W 1 R9503 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9608 EXB2HV470JV M 47 OHM 1/16 W 1 R9609 EXB38V470J M 47 OHM 1/16 W 1 R9610 EXB38V470J M 47 OHM 1/16 W 1 R9611 EXB38V470J M 47 OHM 1/16 W 1 R9868 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9871 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9872 D1BB3301A055 M 3.3KOHM,J.1/10W 1 R9873 D1BB1002A055 M 10KOHM,J.1/10W 1 R9874 D1BB2702A055 M 27KOHM,J.1/10W 1 R9875 D1BB2002A055 M 20KOHM,J.1/10W 1 R9877 D1BB4302A055 M 43KOHM,J.1/10W 1 R9878 D1BB8201A055 M 8.2KOHM,J.1/10W 1 R9879 D1BB1502A055 M 15KOHM, J.1/10W 1 R9880 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9881 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9882 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9884 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9890 D1BB11030002 M 110KOHM,J.1/10W 1 R9891 D1BB4702A055 M 47KOHM,J.1/10W 1 R9900 D1BB2702A055 M 27KOHM,J.1/10W 1 R9901 D1BB2702A055 M 27KOHM,J.1/10W 1 R9903 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R9904 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9905 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9906 ERJ2GEJ104 M100KOHM, J,1/16 W 1 参考号 部件号 部件名称及说明 件数 备注 R9907 D0GA101JA015 M 100 OHM, J,1/16W 1 R9908 D1BB1002A055 M 10KOHM,J.1/10W 1 R9909 D1BB4702A055 M 47KOHM,J.1/10W 1 R9910 D1BB1502A055 M 15KOHM, J.1/10W 1 R16001 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16002 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16021 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16022 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16031 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16032 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16033 ERJ6ENF5602 M 56KOHM,F.1/8W 1 R16034 ERJ6ENF2702 M 27KOHM,F.1/8W 1 R16041 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16051 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16101 D0GD221JA059 M 220 OHM,J,1/4W 1 R16102 D0GD221JA059 M 220 OHM,J,1/4W 1 R16103 D0GD100JA059 M 10 OHM,J,1/4W 1 R16104 D0GD100JA059 M 10 OHM,J,1/4W 1 R16105 ERJ8GEYJ474 M470KOHM, J,1/4W 1 R16109 D0GD100JA059 M 10 OHM,J,1/4W 1 R16116 D0GB473JA057 M 47KOHM,J,1/10W 1 R16131 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16132 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16134 D0GD750JA059 M 75 OHM,J,1/4W 1 R16137 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16141 D0GD100JA059 M 10 OHM,J,1/4W 1 R16143 D0GB473JA057 M 47KOHM,J,1/10W 1 R16151 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16152 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16154 D0GD750JA059 M 75 OHM,J,1/4W 1 R16155 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16159 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16161 D0GD100JA059 M 10 OHM,J,1/4W 1 R16163 D0GB473JA057 M 47KOHM,J,1/10W 1 R16171 D0GD100JA059 M 10 OHM,J,1/4W 1 R16173 D0GB473JA057 M 47KOHM,J,1/10W 1 R16181 D0GD100JA059 M 10 OHM,J,1/4W 1 R16183 D0GB473JA057 M 47KOHM,J,1/10W 1 R16191 ERJ6GEYJ151V M 150 OHM,J,1/8W 1 R16192 D0GB103JA057 M 10K OHM J 1/10W 1 R16193 ERJ6GEYJ750 M 75 OHM,J,1/8W 1 R16195 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16230 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16231 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16241 EXB38V470J M 47 OHM 1/16 W 1 R16242 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16251 D1BB1401A055 M 1.4KOHM,J.1/10W 1 R16252 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16253 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16254 ERJ6ENF6801 M 6.8KOHM,F.1/8W 1 R16255 D1BB1201A055 M 1.2KOHM,J.1/10W 1 R16256 D1BB1501A055 M1.50KOHM,J.1/10W 1 R16257 D0GB273JA041 M 27K OHM J 1/10W 1 R16258 D0GB103JA057 M 10K OHM J 1/10W 1 R16260 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16280 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16281 D0GB103JA057 M 10K OHM J 1/10W 1 R16282 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16283 D0GB473JA057 M 47KOHM,J,1/10W 1 R16284 D0GB224JA041 M 220KOHM,J,1/10W 1 R16285 EXB38V623J M 62 kOHM 1/16 W 1 R16288 D0GF334JA047 M 330KOHMJ,1/3W 1 R16289 D0GF334JA047 M 330KOHMJ,1/3W 1 R16290 D0GF334JA047 M 330KOHMJ,1/3W 1 R16307 ERJ6RBD6492 M64.9KOHM,D.1/10W 1 R16309 ERG1FJS333D M 33KOHM, J, 1W 1 R16318 ERJ6RBD683 M 68KOHM,D.1/10W 1 R16319 ERJ6RBD2491 M2.49KOHM,D.1/10W 1 R16320 ERJ14YJ683 M 68KOHM, J. 1/4W 1 R16330 D0GB102JA041 M 1KOHM,J,1/10W 1 R16332 D0GB474JA041 M 470KOHM,J,1/10W 1 R16334 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16335 D0GB102JA041 M 1KOHM,J,1/10W 1 R16402 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16403 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16410 D0GB391JA041 M 390 OHM,J,1/10W 1 R16411 ERJ6ENF2700 M 270 OHM,F.1/8W 1 参考号 部件号 部件名称及说明 件数 备注 130 TH-P46GT20C R16416 D0GB103JA057 M 10K OHM J 1/10W 1 R16417 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16418 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16421 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16422 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16441 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16452 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16465 ERJ6ENF2702 M 27KOHM,F.1/8W 1 R16466 ERJ6ENF5602 M 56KOHM,F.1/8W 1 R16467 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16468 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16471 D0GB392JA041 M 3.9KOHM,J,1/10W 1 R16472 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16473 ERJ6GEYF561 M 560 OHM,J,1/8W 1 R16474 D0GB102JA041 M 1KOHM,J,1/10W 1 R16475 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16476 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16478 D0GB562JA041 M 5.6KOHM,J,1/10W 1 R16479 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R16490 ERJ6RED124 M 120KOHM,D.1/10W 1 R16491 ERJ6RED124 M 120KOHM,D.1/10W 1 R16492 ERJ6RED124 M 120KOHM,D.1/10W 1 R16493 ERJ6RBD6191 M6.19KOHM,D.1/10W 1 R16494 D1BB2001A055 M 2KOHM,J.1/10W 1 R16495 ERJ6ENF7500 M 750 OHM,F.1/8W 1 R16496 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16497 D0GB473JA057 M 47KOHM,J,1/10W 1 R16498 D0GB103JA057 M 10K OHM J 1/10W 1 R16503 D0GD100JA059 M 10 OHM,J,1/4W 1 R16504 D0GD750JA059 M 75 OHM,J,1/4W 1 R16506 D0GD100JA059 M 10 OHM,J,1/4W 1 R16509 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16512 D0GB473JA057 M 47KOHM,J,1/10W 1 R16517 D0GB473JA057 M 47KOHM,J,1/10W 1 R16521 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16522 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16523 D0GD750JA059 M 75 OHM,J,1/4W 1 R16531 D0GD100JA059 M 10 OHM,J,1/4W 1 R16533 D0GB473JA057 M 47KOHM,J,1/10W 1 R16534 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16551 D0GD100JA059 M 10 OHM,J,1/4W 1 R16553 D0GB473JA057 M 47KOHM,J,1/10W 1 R16561 EXB38V470J M 47 OHM 1/16 W 1 R16562 EXB38V470J M 47 OHM 1/16 W 1 R16563 EXB38V470J M 47 OHM 1/16 W 1 R16564 EXB38V470J M 47 OHM 1/16 W 1 R16565 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16566 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16567 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16568 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16570 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16579 EXB38V470J M 47 OHM 1/16 W 1 R16580 D0GB562JA041 M 5.6KOHM,J,1/10W 1 R16582 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16583 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16584 ERJ6ENF6801 M 6.8KOHM,F.1/8W 1 R16585 D1BB1001A055 M 1KOHM,J. 1/10W 1 R16586 D1BB2151A055 M2.15KOHM,J.1/10W 1 R16587 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16588 D0GB103JA057 M 10K OHM J 1/10W 1 R16590 ERJ3GEYJ221 M 220 OHM,J,1/10W 1 R16591 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16593 D1BB1401A055 M 1.4KOHM,J.1/10W 1 R16601 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16604 ERJ6GEYJ331V M 330 OHM J 1/8W 1 R16605 ERJ6GEYG182 M 1.8KOHM,J,1/8W 1 R16607 D1BB6981A055 M6.98KOHM,J.1/10W 1 R16609 D0GF202JA047 M 2KOHM,J,1/3W 1 R16610 D0GB104JA041 M 100KOHM J 1/10W 1 R16612 D0GD470JA059 M 47 OHM,J,1/4W 1 R16615 D1BB1101A055 M 1.1 KOHM,J.1/10W 1 R16617 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16621 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16622 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16631 D0GB103JA057 M 10K OHM J 1/10W 1 R16633 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16634 ERJ6GEYJ471 M 470 OHM,J,1/8W 1 参考号 部件号 部件名称及说明 件数 备注 R16645 D0GB562JA041 M 5.6KOHM,J,1/10W 1 R16646 D1BB1181A055 M 1.18KOHM,J.1/10W 1 R16648 D0GF202JA047 M 2KOHM,J,1/3W 1 R16649 D0GD330JA059 M 33 OHM,F,1/4W 1 R16650 D0GB104JA041 M 100KOHM J 1/10W 1 R16651 D0GF202JA047 M 2KOHM,J,1/3W 1 R16652 ERJ6GEYF822 M 8.2KOHM,J,1/8W 1 R16653 ERJ8GEYJ182 M 1.8KOHM, J,1/4W 1 R16654 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16655 D0GB103JA057 M 10K OHM J 1/10W 1 R16656 ERJ8GEYJ472V M 4.7KOHM, J,1/4W 1 R16658 ERJ3RBD6341 M6.34KOHM,D 1/16W 1 R16659 ERJ6GEY0R00V M 0 OHM 1/8W 1 R16660 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16661 D0GB122JA041 M 1.2KOHM J 1/10W 1 R16662 D1BB1002A087 M 10KOHM,J.1/10W 1 R16663 ERJ6RBD7151 M 7.15KOHM,D.1/10W 1 R16664 D0GF202JA047 M 2KOHM,J,1/3W 1 R16665 D0GD330JA059 M 33 OHM,F,1/4W 1 R16666 D1BB2202A087 M 22KOHM,J.1/10W 1 R16667 D0GF202JA047 M 2KOHM,J,1/3W 1 R16668 D0GF202JA047 M 2KOHM,J,1/3W 1 R16673 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R16674 D0GF202JA047 M 2KOHM,J,1/3W 1 R16675 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16677 D0GF202JA047 M 2KOHM,J,1/3W 1 R16678 D0GF202JA047 M 2KOHM,J,1/3W 1 R16679 ERJ3RBD1072 M10.7KOHM,D 1/16W 1 R16680 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R16681 D0GD100JA059 M 10 OHM,J,1/4W 1 R16682 D0GD100JA059 M 10 OHM,J,1/4W 1 R16684 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16685 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16686 D0GB103JA057 M 10K OHM J 1/10W 1 R16687 D1BB2702A055 M 27KOHM,J.1/10W 1 R16688 D1BB8871A055 M8.87KOHM,J.1/10W 1 R16690 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16691 ERJ8GEYJ563 M 56KOHM, J,1/4W 1 R16692 ERJ6RBD152 M 1.5 kOHM D 1/10 W 1 R16694 ERJ8GEYJ563 M 56KOHM, J,1/4W 1 R16695 ERJ6RBD152 M 1.5 kOHM D 1/10 W 1 R16696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R16699 D0GB103JA057 M 10K OHM J 1/10W 1 R16707 ERJ6GEYG392 M 3.9KOHM,J,1/8W 1 R16711 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16712 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R16717 D0GB102JA041 M 1KOHM,J,1/10W 1 R16719 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R16721 EXB38V220JV M 22 OHM 1/16 W 1 R16742 D0GB473JA057 M 47KOHM,J,1/10W 1 R16745 D0GB474JA041 M 470KOHM,J,1/10W 1 R16746 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R16747 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16750 D0GD123JA059 M 12 kOHM F 1/4 W 1 R16751 D0GD154JA059 M 150KOHM,J,1/4W 1 R16752 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16753 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R16755 D0GD123JA059 M 12 kOHM F 1/4 W 1 R16756 D0GD123JA059 M 12 kOHM F 1/4 W 1 R16761 D0GD100JA059 M 10 OHM,J,1/4W 1 R16763 D0GB473JA057 M 47KOHM,J,1/10W 1 R16765 D0GD100JA059 M 10 OHM,J,1/4W 1 R16769 D0GD750JA059 M 75 OHM,J,1/4W 1 R16772 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16773 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R16774 ERG1SJ273 M 27KOHM, J, 1W 1 R16776 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16783 D0GD154JA059 M 150KOHM,J,1/4W 1 R16785 ERJ6ENF1073 M 107KOHM,F. 1/8W 1 R16786 ERJ6ENF1073 M 107KOHM,F. 1/8W 1 R16787 ERJ6ENF3302 M 33KOHM,F.1/8W 1 R16789 D0GB103JA057 M 10K OHM J 1/10W 1 R16791 D0GB102JA041 M 1KOHM,J,1/10W 1 R16797 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R16798 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16799 D0GB102JA041 M 1KOHM,J,1/10W 1 R16801 ERJ6RBD223V M 22KOHM,D.1/10W 1 参考号 部件号 部件名称及说明 件数 备注 131 TH-P46GT20C R16802 ERJ6RBD3092 M30.9KOHM,D.1/10W 1 R16804 ERJ8GEYJ112 M 1.1KOHM, J,1/4W 1 R16818 D1BB3302A055 M 33KOHM,J.1/10W 1 R16819 ERJ6ENF1503 M 150KOHM.F.1/8W 1 R16820 ERJ6ENF1503 M 150KOHM.F.1/8W 1 R16822 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16823 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16824 ERJ6ENF3302 M 33KOHM,F.1/8W 1 R16825 D0GD154JA059 M 150KOHM,J,1/4W 1 R16826 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R16827 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16829 D0GB102JA041 M 1KOHM,J,1/10W 1 R16831 ERJ6RBD6812 M68.1KOHM,D.1/10W 1 R16832 ERJ6RBD7152 M71.50KOHM,D.1/10W 1 R16837 D0GB102JA041 M 1KOHM,J,1/10W 1 R16838 ERG1FJS104D M 100KOHM, J, 1W 1 R16841 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16843 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R16844 ERA6YEB242 M 2.4KOHM, B 1/10W 1 R16845 ERJ6RBD6812 M68.1KOHM,D.1/10W 1 R16846 ERJ6RBD5762 M57.6KOHM,D.1/10W 1 R16849 ERJ6RBD6492 M64.9KOHM,D.1/10W 1 R16851 D0GB474JA041 M 470KOHM,J,1/10W 1 R16852 D0GB474JA041 M 470KOHM,J,1/10W 1 R16860 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 R16870 ERJ14YJ683 M 68KOHM, J. 1/4W 1 R16873 ERA6YEB242 M 2.4KOHM, B 1/10W 1 R16891 D1BF6982A058 M 69.8KOHM, 1/4W 1 R16892 D1BF8252A058 M82.50KOHM, 1/4W 1 R16893 D1BF8252A058 M82.50KOHM, 1/4W 1 R16897 D1BB1001A055 M 1KOHM,J. 1/10W 1 R16898 D1BB1051A055 M1.05KOHM,J.1/10W 1 R16899 D1BB2741A055 M2.74KOHM,J.1/10W 1 R16900 D0GB103JA057 M 10K OHM J 1/10W 1 R16901 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16904 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16919 D1BB7501A055 M 7.5KOHM,J.1/10W 1 R16920 D0GB103JA057 M 10K OHM J 1/10W 1 R16921 D1BB1241A055 M1.24KOHM,J.1/10W 1 R16922 D1BB3481A055 M3.48KOHM,J.1/10W 1 R16923 D0GB103JA057 M 10K OHM J 1/10W 1 R16926 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16927 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16928 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R16929 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16930 D1BF2R70A021 M 2.7 OHM, 1/4W 1 R16931 D1BF2R70A021 M 2.7 OHM, 1/4W 1 R16932 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16933 D1BB1002A055 M 10KOHM,J.1/10W 1 R16934 D1BB6801A055 M 6.8KOHM,J.1/10W 1 R16935 D0GB512JA041 M 5.1KOHM,J,1/10W 1 R16936 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16937 D0GB184JA041 M 180KOHM J 1/10W 1 R16938 D0GB184JA041 M 180KOHM J 1/10W 1 R17101 ERJ6GEY0R00V M 0 OHM 1/8W 1 R17103 EXB38V681J M 680 OHM 1/16 W 1 R17104 EXB38V470J M 47 OHM 1/16 W 1 R17105 EXB38V470J M 47 OHM 1/16 W 1 R17106 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17108 D0GB101JA041 M 100 OHM,J,1/10W 1 R17109 D0GB101JA041 M 100 OHM,J,1/10W 1 R17110 D0GB201JA041 M 200 OHM,J,1/10W 1 R17111 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17113 D0GB101JA041 M 100 OHM,J,1/10W 1 R17114 D0GB101JA041 M 100 OHM,J,1/10W 1 R17115 D0GB201JA041 M 200 OHM,J,1/10W 1 R17116 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17118 D0GB101JA041 M 100 OHM,J,1/10W 1 R17119 D0GB101JA041 M 100 OHM,J,1/10W 1 R17120 D0GB201JA041 M 200 OHM,J,1/10W 1 R17121 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17123 D0GB101JA041 M 100 OHM,J,1/10W 1 R17124 D0GB101JA041 M 100 OHM,J,1/10W 1 R17125 D0GB201JA041 M 200 OHM,J,1/10W 1 R17126 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17128 D0GB101JA041 M 100 OHM,J,1/10W 1 R17129 D0GB101JA041 M 100 OHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R17130 D0GB201JA041 M 200 OHM,J,1/10W 1 R17131 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17133 D0GB101JA041 M 100 OHM,J,1/10W 1 R17134 D0GB101JA041 M 100 OHM,J,1/10W 1 R17135 D0GB201JA041 M 200 OHM,J,1/10W 1 R17136 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17138 D0GB101JA041 M 100 OHM,J,1/10W 1 R17139 D0GB101JA041 M 100 OHM,J,1/10W 1 R17140 D0GB101JA041 M 100 OHM,J,1/10W 1 R17141 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17143 D0GB101JA041 M 100 OHM,J,1/10W 1 R17144 D0GB101JA041 M 100 OHM,J,1/10W 1 R17145 D0GB101JA041 M 100 OHM,J,1/10W 1 R17146 D0GB681JA041 M 680 OHM,J,1/10W 1 R17147 ERJ6GEYJ224 M 220KOHM,J,1/8W 1 R17148 D0GF151JA047 M 150 OHM,J, 1/3W 1 R17150 D0GB102JA041 M 1KOHM,J,1/10W 1 R17151 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17152 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17153 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17201 ERJ6GEYJ224 M 220KOHM,J,1/8W 1 R17202 EXB38V470J M 47 OHM 1/16 W 1 R17203 EXB38V470J M 47 OHM 1/16 W 1 R17204 EXB38V681J M 680 OHM 1/16 W 1 R17205 EXB38V470J M 47 OHM 1/16 W 1 R17206 EXB38V470J M 47 OHM 1/16 W 1 R17207 EXB38V681J M 680 OHM 1/16 W 1 R17208 EXB38V681J M 680 OHM 1/16 W 1 R17210 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17212 D0GB101JA041 M 100 OHM,J,1/10W 1 R17213 D0GB101JA041 M 100 OHM,J,1/10W 1 R17214 D0GB201JA041 M 200 OHM,J,1/10W 1 R17215 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17217 D0GB101JA041 M 100 OHM,J,1/10W 1 R17218 D0GB101JA041 M 100 OHM,J,1/10W 1 R17219 D0GB201JA041 M 200 OHM,J,1/10W 1 R17220 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17222 D0GB101JA041 M 100 OHM,J,1/10W 1 R17223 D0GB101JA041 M 100 OHM,J,1/10W 1 R17224 D0GB201JA041 M 200 OHM,J,1/10W 1 R17225 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17227 D0GB101JA041 M 100 OHM,J,1/10W 1 R17228 D0GB101JA041 M 100 OHM,J,1/10W 1 R17229 D0GB201JA041 M 200 OHM,J,1/10W 1 R17230 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17232 D0GB101JA041 M 100 OHM,J,1/10W 1 R17233 D0GB101JA041 M 100 OHM,J,1/10W 1 R17234 D0GB201JA041 M 200 OHM,J,1/10W 1 R17235 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17237 D0GB101JA041 M 100 OHM,J,1/10W 1 R17238 D0GB101JA041 M 100 OHM,J,1/10W 1 R17239 D0GB201JA041 M 200 OHM,J,1/10W 1 R17240 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 R17242 D0GB101JA041 M 100 OHM,J,1/10W 1 R17243 D0GB101JA041 M 100 OHM,J,1/10W 1 R17244 D0GB101JA041 M 100 OHM,J,1/10W 1 R17245 D0GB681JA041 M 680 OHM,J,1/10W 1 R17247 D0GF151JA047 M 150 OHM,J, 1/3W 1 R17260 ERJ6GEY0R00V M 0 OHM 1/8W 1 R17261 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17262 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17263 D0GBR00Z0002 M 0 OHM J 1/10W 1 RM2510 B3RAD0000168 遥控接收器 1 SC2 K1KY02B00012 2P 连接接头 1 SC20 K1MY35BA0345 35P 连接接头 1 SC41 K1KA09AA0707 9P 连接接头 1 SC42 K1KA09AA0707 9P 连接接头 1 SC46 K1KA09AA0707 9P 连接接头 1 SC50 K1KA02AA0193 2P 连接接头 1 SN2510 B3JB00000078 IC 1 SS11 K1KY03B00006 3P 连接接头 1 SS21 K1KA07A00170 7P 连接接头 1 SS24 K1KB07AA0087 7P 连接接头 1 参考号 部件号 部件名称及说明 件数 备注 132 TH-P46GT20C SS33 K1KY08AA0719 8P 连接接头 1 SS58 K1MN13B00091 13P 连接接头 1 SS61 K1MN13B00091 13P 连接接头 1 SS64 K1MN13B00091 13P 连接接头 1 SW2500 K0F122A00031 开关 1 SW2550 K0H1BA000445 开关 1 SW2551 K0H1BA000445 开关 1 SW2552 K0H1BA000445 开关 1 SW2553 K0H1BA000445 开关 1 SW2554 K0H1BA000445 开关 1 T8301 G5BYC0000015 变压器 1 T16471 G4DYA0000200 开关变压器 1 TU6700 ENV59S01D8F 调谐器 1 TU2901C ENG39F02GF 调谐器 1 V1 K1KA04A00667 4P 连接接头 2 X1100 H0J100500035 晶振 1 X4200 H0J270500113 晶振 1 X5800 H0J270500120 晶振 1 X6700 H0J304500001 晶振 1 X7001 H0J270500120 晶振 1 X8002 H0J245500101 晶振 1 X8100 H0J270500120 晶振 1 X9000 H2C1005A0041 晶振 1 X9300 H0J200500076 晶振 1 XH4 K1KY30AA0369 30P 连接接头 1 ZA9001 K4AZ01D00004 端子 1 ZA16001 K4CD01000011 AV 端子 1 ZA16002 K4CD01000011 AV 端子 1 ZA16003 K4CD01000011 AV 端子 1 ZA16403 K4CD01000011 AV 端子 1 ZA16404 K4CD01000011 AV 端子 1 ZA16407 K4CD01000011 AV 端子 1 ZA17101 K4CD01000013 AV 端子 1 ZA17102 K4CD01000013 AV 端子 1 ZA17103 K4CD01000013 AV 端子 1 ZA17104 K4CD01000013 AV 端子 1 ZA17105 K4CD01000013 AV 端子 1 ZA17201 K4CD01000013 AV 端子 1 ZA17202 K4CD01000013 AV 端子 1 ZA17203 K4CD01000013 AV 端子 1 ZA17204 K4CD01000013 AV 端子 1 A601 AYRA652MSV8T 放电管 6.5kV 1 C201 ACMEB332K5T 50V 3300p 1 C202 ACDE2R221KP 2kV 220p 1 C203 ACDE2R221KP 2kV 220p 1 C204 ECWH8473HA P 0.033UF 800V 1 C205 ECWH8473HA P 0.033UF 800V 1 C206 ACKX101KYP 250V 100p 1 C207 ACYBB104K5T 50V 0.1 1 C208 ACMBC681J5T 50V 680p 1 C209 ACMEC471J5T 50V 470p 1 C211 ACRZL1H100T 50V 1000P 1 C212 ACRZL1H100T 50V 1000P 1 C213 ACYBB475K2F 25V 4.7PF 1 C214 ACMH1H010T 50V 1P 1 C215 ACMEB333K2T 50V 0.033P 1 C217 ACMEB104K2T 25V 0.1P 1 C218 ACMBB106K1AT 10V 10P 1 C219 ACMEB472K5T 50V 4700p 1 C220 ACMBB106K1AT 10V 10P 1 C221 ACMEB104K5T 50V 0.1P 1 C251 ACMEB104K2T 25V 0.1P 1 C252 ECQV1H224JL P 0.22UF, J, 50V 1 C255 ECQE2473SKF C 0.047U 250V 1 C256 ACCST230821K 230V 820P 1 C352 ACRZL1V561T 35V 560P 1 参考号 部件号 部件名称及说明 件数 备注 C366 ACRZL1V561T 35V 560P 1 C375 ACMAB105K5T 50V 1P 1 C376 ACMEB105K1T 16V 1P 1 C379 ACMBB472K5T 50V 4700p 1 C380 ACMEB333K5T 50V 0.033P 1 C382 ACMEB102K5T 50V 1000p 1 C383 ACMEB105K1T 16V 1P 1 C401 ECQE2104SKF 250V 0.1PF 1 C402 ECQE2104SKF 250V 0.1PF 1 C403 ACKMQ140471H 140V 470P 1 C404 ACRZL1H101T 50V 100P 1 C405 ACMBR222K2ET 250V 2200p 1 C406 ACKZE1K152ZE 80V 1500P 1 C407 ACRR3DD101K7 2kV 100PF 1 C408 ACKMQ1K182ZE 80V 1500P 1 C409 ACMBR222K2ET 250V 2200p 1 C410 ACMEB222K5T 50V 2200p 1 C413 ACMEB103K5T 50V 10p 1 C415 ACMEB104K5T 50V 0.1P 1 C416 ACMEB224K2T 25V 0.22P 1 C418 ACMEB103K5T 50V 10p 1 C419 ACMEB103K5T 50V 10p 1 C420 ACMEB224K2T 25V 0.22P 1 C501 ACLE103KC 0.01PF 1 C503 ACPAG2W470T 450V　47P 1 C505 ACRZL1H220T 50V 22P 1 C506 ACMEB102K5T 50V 1000p 1 C507 ACMEB103K5T 50V 10p 1 C508 ACMBB474K2T 25V 0.47P 1 C509 ACMEB103K5T 50V 10p 1 C510 ACRZL1H100T 50V 1000P 1 C511 ACMEB102K5T 50V 1000p 1 C512 ACMEB103K5T 50V 10p 1 C513 ACMEB102K5T 50V 1000p 1 C514 ACRZL1H221T 50V 220P 1 C515 ACRZL1H220T 50V 22P 1 C516 ACKX221KYP 250V 220p 1 C518 ECQE2223SKF 250V 0.022PF 1 C551 ACRZG1A471T 10V 470P 1 C553 ACMEB474K1T 16V 0.47P 1 C554 ACRZL1E821LT 16V 0.47P 1 C555 ACMBB225K2T 25V 2.2P 1 C556 ACMBB105K2T 25V 1P 1 C557 ACYBB104K5T 50V 0.1 1 C558 ACMEB103K5T 50V 10p 1 C560 ACRZL1E221T 25V 220P 1 C561 ACRZL1H100T 50V 1000P 1 C573 ACDE1R102KP 1kV 1000P 1 C574 ACMEB681K5T 50V 680P 1 C601 ACLEM474XKC 塑料薄膜电容器 (Xcap) 1 C602 ACKX221KYP 250V 220p 1 C603 ACKX221KYP 250V 220p 1 C605 ECWF2W225KA 450V 2.2P 1 C606 ACMEB102K5T 50V 1000p 1 C608 ACMEB222K5T 50V 2200p 1 C609 ACTEB104K5T 50V 0.1P 1 C610 ACMEB224K2T 25V 0.22P 1 C611 ACMEC102J5T 50V 1000p 1 C613 ACMEB103K5T 50V 10p 1 C615 ACMBB225K2T 25V 2.2P 1 C616 ACTEB474K1T 16V 0.47P 1 C617 ACLEM474XKC 塑料薄膜电容器 (Xcap) 1 C620 ACMBB474K2T 25V 0.47P 1 C623 ACKMQ2W331LZ 450V 330P 1 C628 ACMBR225K2T 25V 2.2P 1 C629 ECQV1H334JL 50V 0.33P 1 C630 ACMEC471J5T 50V 470p 1 C631 ACMEB103K5T 50V 10p 1 C632 ACDE3SL680JP 3kV 68p 1 C633 ACDE3SL680JP 3kV 68p 1 C701 ACRZL1A221T 50V 0.1P 1 C702 ACMEB104K5T 50V 0.1P 1 参考号 部件号 部件名称及说明 件数 备注 133 TH-P46GT20C C703 ACMEB104K5T 50V 0.1P 1 C704 ACYBB104K5T 50V 0.1 1 C705 ACYBB104K5T 50V 0.1 1 C706 ACMBC102J5T 50V 1000p 1 C707 ACMEB104K5T 50V 0.1P 1 C708 ACYBB104K5T 50V 0.1 1 C709 ACMEB104K5T 50V 0.1P 1 C710 ACMEB224K1T 16V 0.22P 1 C711 ACMEB223K5T 50V 0.022P 1 C712 ACYBB104K5T 50V 0.1 1 C713 ACMBB225K2T 25V 2.2P 1 C715 ACMEB105K1T 16V 1P 1 CN701 AKB6B-PH-KS 6P 连接接头 1 D201 VDERA83-004T 二极管 1 D202 VDERA83-004T 二极管 1 D203 VDAG01AT 二极管 1 D204 VDAG01AT 二极管 1 D205 VDAG01AT 二极管 1 D206 VD1SS133T 二极管 1 D251 VDD4SBL40 二极管 1 D252 VD1SS133T 二极管 1 D351 VDFMEN210A 二极管 1 D359 VDRK46LF307 二极管 1 D360 VDERA83004T2 二极管 1 D401 VDD4SBL20U 二极管 1 D402 VDAG01AT 二极管 1 D403 VDYG901C3R 二极管 1 D501 VDS1WBA80 二极管 1 D502 VD1SS133T 二极管 1 D503 VXST3D140LM2 二极管 1 D504 VDAG01AT 二极管 1 D505 VDAG01AT 二极管 1 D506 VD1T7GA1 二极管 1 D507 VD1T7GA1 二极管 1 D509 VDAP01CT 二极管 1 D551 VDCB863-12T 二极管 1 D552 VDYG902C3R 二极管 1 D601 VD1SS133T 二极管 1 D602 VD1SS133T 二极管 1 D603 VDD15XB80 二极管 1 D605 VD1SS133T 二极管 1 D606 VDS3V60L1 二极管 1 D607 VDSF10L60U 二极管 1 D608 VDERA83-004T 二极管 1 D701 VDERA83-004T 二极管 1 D702 VDRB721Q40 二极管 1 D703 VDRB721Q40 二极管 1 D704 VDRB721Q40 二极管 1 D705 VD1SS133T 二极管 1 D706 VD1SS355T 二极管 1 D707 VD1SS355T 二极管 1 D708 VD1SS355T 二极管 1 F201 HU216005BEP 保险丝 1 F501 HU5013002PRC 熔丝管 1 F601 HU5013010PRC 熔丝管 1 F602 HU5013010PRC 熔丝管 1 IC201 VIMCZ5203D IC 1 IC202 VINJM2903ME1 IC 1 IC251 VIJM1431AF IC 1 IC352 VISC2628T IC 1 IC403 VISC2603ASKT IC 1 IC501 MIP3E50MY IC 1 IC551 VIJM2380AFE1 IC 1 IC601 VIFA5610NTE1 IC 1 IC701 VISM42N04T IC 1 JQ1 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ2 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ3 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ4 ERJ6GEY0R00V M 0 OHM, 1/8W 1 参考号 部件号 部件名称及说明 件数 备注 JQ5 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ6 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ7 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ8 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ9 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ10 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JQ11 ERJ6GEY0R00V M 0 OHM, 1/8W 1 JR1 ERJ8GEY0R00 M 0 OHM, 1/4W 1 JR2 ERJ8GEY0R00 M 0 OHM, 1/4W 1 JR3 ERJ8GEY0R00 M 0 OHM, 1/4W 1 JR4 ERJ8GEY0R00 M 0 OHM, 1/4W 1 JR5 ERJ8GEY0R00 M 0 OHM, 1/4W 1 JR6 ERJ8GEY0R00 M 0 OHM, 1/4W 1 K602 ALKT329M02 继电器 1 K605 ALKT329M02 继电器 1 L201 AYTSKA170T 铁氧体磁芯 1 L351 AYS1615005Y 扼流线圈 1 L353 EXCELSA35T 扼流磁珠 1 L401 AYCA45VB681K 扼流线圈 1 L402 AYJ231214HY 扼流线圈 1 L501 AYTSKA170T 铁氧体磁芯 1 L601 AYS259027HY 扼流线圈 1 L602 AYS256227HY 扼流线圈 1 L603 ETB42AZ16GAD 变压器 1 P2 AKB2P3S-VH 2P 连接接头 1 P6 AKB11B-PH-KS 11P 连接接头 1 P7 AKB14B-PH-KS 14P 连接接头 1 P9 AKS02B-VT 连接接头 1 P11 AKB3P4S-VH-L 3P 连接接头 1 P25 AKB10B-PH-KS 10P 连接接头 1 P34 AKB3B-PH-KS 3P 连接接头 1 P35 AKB4B-PH-KS 4P 连接接头 1 PC201 VPS2581AL2HE 光电耦合器 1 PC202 VPS2581AL2HE 光电耦合器 1 PC501 VPS2581AL2HE 光电耦合器 1 PC502 VPS2581AL2HE 光电耦合器 1 PC504 VPS2581AL2HE 光电耦合器 1 Q201 VKFMV19N57ES FET 1 Q202 VKFMV19N57ES FET 1 Q203 VQ2PB709ART 三极管 1 Q204 VQ2PD601ART 三极管 1 Q251 2SK3018TL FET 1 Q252 2SK3018TL FET 1 Q355 2SJ651 FET 1 Q401 2SK3607 FET 1 Q402 2SA1776TV2P FET 1 Q403 2SA1776TV2P FET 1 Q404 VQPBSS4350T 三极管 1 Q405 VQ2PD601ART 三极管 1 Q406 2SK3018TL FET 1 Q407 VQPBSS4350T 三极管 1 Q408 VQPBSS5350T 三极管 1 Q502 2SK3018TL FET 1 Q503 VQPBSS4350T 三极管 1 Q504 VQ2PB709ART 三极管 1 Q505 2SK3018TL FET 1 Q506 VQ2PB709ART 三极管 1 Q551 2SJ673 FET 1 Q557 VKRJJ0319DSP FET 1 Q558 2SK3018TL FET 1 Q559 VQ2PB709ART 三极管 1 Q601 VKR6015ANZ FET 1 Q602 VQPBSS4350T 三极管 1 Q603 VQPBSS5350T 三极管 1 Q604 VKR6015ANZ FET 1 参考号 部件号 部件名称及说明 件数 备注 134 TH-P46GT20C Q605 2SK3018TL FET 1 Q606 VKR6015ANZ FET 1 Q607 VQ2PB709ART 三极管 1 Q701 VQ2PB710ARLT 三极管 1 Q702 VQ2PB710ARLT 三极管 1 Q703 VQ2PD601ART 三极管 1 Q704 VQ2PD601ART 三极管 1 Q705 VQ2PD601ART 三极管 1 Q706 VQ2PB709ART 三极管 1 Q707 VQ2PD601ART 三极管 1 Q708 VQ2PD601ART 三极管 1 R201 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R202 ERJ6GEYJ153V M 15KOHM,J,1/8W 1 R203 D0GB103JA057 M 10K OHM J 1/10W 1 R204 D0GB103JA057 M 10K OHM J 1/10W 1 R205 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R206 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R207 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R208 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R209 ERJ3EKF1802 M 18KOHM, 1/10W 1 R210 ERJ6RBD152 M 1.5 kOHM D 1/10 W 1 R211 ERJ3EKF1872 M18.7KOHM, 1/10W 1 R213 ERX1SJ1R0 M 1.0 OHM, J, 1W 1 R214 ERX12SJ5R6J M 5.6 OHM, J,1/2W 1 R215 ERG12SJ680J M 68 OHM, J,1/2W 1 R216 ERG12SJ680J M 68 OHM, J,1/2W 1 R217 ERJ6ENF1800 M 180 OHM,F.1/8W 1 R218 ERJ6ENF1500 M 150 OHM.F.1/8W 1 R219 ARRF5EJ50MB 0.05 OHM, 5W 1 R221 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R222 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R223 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R224 ERJ6ENF3903 M 390KOHM, F. 1/8W 1 R231 ERQ14AJ4R7J F 4.7 OHM, J,1/4W 1 R232 ERJ3EKF1001 M 1KOHM, 1/10W 1 R233 ERJ3EKF1001 M 1KOHM, 1/10W 1 R234 ERJ3EKF1502 M 15KOHM, 1/10W 1 R235 ERJ3EKF1301 M 1.3KOHM, 1/10W 1 R236 ERDS2FJ472 C 4.7KOHM, J,1/4W 1 R237 D0GB473JA057 M 47KOHM,J,1/10W 1 R238 ERJ6RBD152 M 1.5 kOHM D 1/10 W 1 R239 ERDS2FJ103 C 10KOHM, J,1/4W 1 R253 ERJ6GEY0R00V M 0 OHM 1/8W 1 R254 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R256 ERJ6ENF3901 M 3.9KOHM,F.1/8W 1 R257 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R258 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R259 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R260 ERJ6GEYJ202 M 2KOHM,J,1/8W 1 R264 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R265 ERJ6ENF1742 M17.4KOHM,F.1/8W 1 R266 ERJ6ENF7682 M76.8KOHM,F.1/8W 1 R267 ERJ6ENF7682 M76.8KOHM,F.1/8W 1 R268 ERJ6ENF7682 M76.8KOHM,F.1/8W 1 R269 ERJ6ENF7682 M76.8KOHM,F.1/8W 1 R270 ERJ6ENF4992 M49.9KOHM,F.1/8W 1 R271 ERJ6ENF4992 M49.9KOHM,F.1/8W 1 R272 ERJ6ENF4992 M49.9KOHM,F.1/8W 1 R273 ERJ6ENF4992 M49.9KOHM,F.1/8W 1 R274 ERJ6ENF4872 M48.7KOHM,F.1/8W 1 R275 ERJ6ENF9532 M95.3KOHM,F.1/8W 1 R276 D0GB103JA057 M 10K OHM J 1/10W 1 R277 ERJ6ENF1543 M 154KOHM.F.1/8W 1 R278 D0GB103JA057 M 10K OHM J 1/10W 1 R279 D0GB102JA057 M 1KOHM,J,1/10W 1 R280 D0GB102JA057 M 1KOHM,J,1/10W 1 R351 ERJ6ENF1332 M13.3KOHM,F. 1/8W 1 R352 ERJ6ENF1302 M 13KOHM,F. 1/8W 1 R353 ERJ6ENF8661 M8.66KOHM,F.1/8W 1 R354 ERJ6ENF8661 M8.66KOHM,F.1/8W 1 R371 ERJ6RND1802 0.1W 18k 1 R372 ERJ6RND1001 0.1W 1k 1 R389 ERJ3GEYJ104 M 100KOHM,J,1/10W 1 R390 ERJ6GEY0R00V M 0 OHM 1/8W 1 R391 ERJ6GEYJ183V M 18KOHM,J,1/8W 1 R392 ERJ6ENF3921 M3.92KOHM,F.1/8W 1 参考号 部件号 部件名称及说明 件数 备注 R393 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R394 ERJ6ENF1002 M 10KOHM,F. 1/8W 1 R402 ERJ3EKF1002 M 10KOHM, 1/10W 1 R403 ERG12SJ100J M 10 OHM, J,1/2W 1 R404 ERJ6ENF2492 M24.9KOHM,F.1/8W 1 R405 ARRF2EJR10B 250V 2200P 1 R408 ERJ3GEYJ682 M 6.8KOHM,J,1/10W 1 R409 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R411 ERJ6ENF2001V M 2KOHM,F.1/8W 1 R412 ERJ6ENF2001V M 2KOHM,F.1/8W 1 R413 ERJ6ENF2552 M25.5KOHM,F.1/8W 1 R414 ERJ6ENF2492 M24.9KOHM,F.1/8W 1 R416 ERJ3GEYJ333 M 33 KOHM,J,1/10W 1 R417 ERJ6ENF3482 M34.8KOHM,F.1/8W 1 R418 ERJ6ENF3482 M34.8KOHM,F.1/8W 1 R419 D0GB103JA057 M 10K OHM J 1/10W 1 R420 ERJ6ENF1301 M 1.3KOHM,F. 1/8W 1 R421 ERJ6ENF1332 M13.3KOHM,F. 1/8W 1 R422 ERJ6ENF2492 M24.9KOHM,F.1/8W 1 R423 ARSG734K220U 22 OHM, 0.33W 1 R425 ERJ3GEYD153V M 15KOHM,D, 1/10W 1 R426 ERJ3GEYD153V M 15KOHM,D, 1/10W 1 R428 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R429 ERJ3GEYJ470 M 47 OHM,J,1/10W 1 R433 ERJ3EKF82R5 M 82.5 OHM 1/10W 1 R434 ERJ3RED270 M 27 OHM, 1/16W 1 R435 ERJ3EKF1820 M 182 OHM, 1/10W 1 R436 ERJ3RED270 M 27 OHM, 1/16W 1 R437 ERJ3EKF1241 M1.24KOHM, 1/10W 1 R438 ERJ3EKF5621 M5.62KOHM, 1/10W 1 R439 D0GB154JA057 M 150KOHM J 1/10W 1 R440 ERJ14YJ220U M 22 OHM, J,1/4W 1 R441 ARSG734K150U 15 OHM, 0.33W 1 R501 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R502 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R503 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R504 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R505 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R506 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R507 ARRCR6J825M 8.2MOHM, 1W 1 R508 ERJ3EKF1303 M 130KOHM, 1/10W 1 R512 ERJ3GEYJ224 M 220KOHM,J,1/10W 1 R513 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R514 ERJ3EKF1303 M 130KOHM, 1/10W 1 R515 D0GB103JA057 M 10K OHM J 1/10W 1 R516 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R518 ERG12SJ220J M 22 OHM, J,1/2W 1 R519 ERJ3GEYJ224 M 220KOHM,J,1/10W 1 R520 ERDS2FJ121 C 120 OHM, J,1/4W 1 R521 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R522 ERJ6GEYJ180 M 18 OHM,J,1/8W 1 R524 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R525 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R526 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R529 ARR5B100JC2 5W 10 OHM 1 R530 ERJ3GEYJ471 M 470 OHM,J,1/10W 1 R531 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R532 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R533 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R534 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R535 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R536 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R537 ERJ6ENF4123 M 412KOHM,F. 1/8W 1 R538 ERG1DJ334 330k 1W 1 R551 ERJ6GEYJ151V M 150 OHM,J,1/8W 1 R552 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R553 D0GB102JA057 M 1KOHM,J,1/10W 1 R555 ERJ3EKF1072 M10.7KOHM, 1/10W 1 R556 ERJ3EKF1002 M 10KOHM, 1/10W 1 R557 ERJ3EKF7872 M78.7KOHM, 1/10W 1 R558 ERJ6GEYJ124V M 120KOHM,J,1/8W 1 R570 D0GB473JA057 M 47KOHM,J,1/10W 1 R573 ERJ6GEYJ332V M 3.3KOHM J 1/8W 1 R574 ERG2SJ561H M 560 OHM, J, 2W 1 R575 ERG2SJ561H M 560 OHM, J, 2W 1 R576 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R577 ERJ6GEYJ333V M 33KOHM,J,1/8W 1 参考号 部件号 部件名称及说明 件数 备注 135 TH-P46GT20C R578 ERJ6GEYF561 M 560 OHM,J,1/8W 1 R579 ERJ3GEYJ104 M 100KOHM,J,1/10W 1 R580 ERJ3GEYJ104 M 100KOHM,J,1/10W 1 R601 ARRCR5J624M 620M 0.5W 1 R603 ERJ6ENF2703 M 270KOHM,F.1/8W 1 R604 ERJ6ENF2703 M 270KOHM,F.1/8W 1 R605 ERJ6ENF2703 M 270KOHM,F.1/8W 1 R606 ERJ6ENF2703 M 270KOHM,F.1/8W 1 R607 ERJ3EKF3302 M 33KOHM, 1/10W 1 R608 ERJ3EKF1002 M 10KOHM, 1/10W 1 R609 D0GB225JA057 M 2.2MOHM J 1/10W 1 R610 ERJ3GEYJ470 M 47 OHM,J,1/10W 1 R611 ERJ3GEYJ470 M 47 OHM,J,1/10W 1 R612 ERJ6ENF3093 M 309KOHM,F.1/8W 1 R613 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R614 ERJ6ENF3093 M 309KOHM,F.1/8W 1 R615 D0GB103JA057 M 10K OHM J 1/10W 1 R616 ERJ6ENF3093 M 309KOHM,F.1/8W 1 R617 ARRF5EJ75MB 0.075 OHM, 5W 1 R618 ARRF5EJ75MB 0.075 OHM, 5W 1 R619 ERJ6ENF3163 M 316KOHM,F. 1/8W 1 R620 ERJ6ENF3163 M 316KOHM,F. 1/8W 1 R621 ERJ3EKF1652 M16.5KOHM, 1/10W 1 R622 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R623 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R624 ERDS2FJ472 C 4.7KOHM, J,1/4W 1 R625 ERDS2FJ101 C 100 OHM, J,1/4W 1 R626 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R627 ERDS2FJ154 C 150KOHM, J,1/4W 1 R628 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R629 ERG12SJ150J M 15 OHM, J,1/2W 1 R630 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R631 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R634 ERJ6ENF3093 M 309KOHM,F.1/8W 1 R635 ERJ6ENF3093 M 309KOHM,F.1/8W 1 R636 ERJ6ENF3093 M 309KOHM,F.1/8W 1 R637 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R638 ERJ6ENF9312 M93.1KOHM,F. 1/8W 1 R640 ERJ6ENF1692 M16.9KOHM,F.1/8W 1 R641 ERJ6GEYJ151V M 150 OHM,J,1/8W 1 R642 D0GB473JA057 M 47KOHM,J,1/10W 1 R649 ERJ6ENF2703 M 270KOHM,F.1/8W 1 R650 ERJ6ENF2703 M 270KOHM,F.1/8W 1 R651 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R652 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R653 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R654 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R655 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R656 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R657 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R658 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R659 ERDS2FJ472 C 4.7KOHM, J,1/4W 1 R660 ERDS2FJ472 C 4.7KOHM, J,1/4W 1 R661 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R662 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R663 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R664 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R665 D0GB103JA057 M 10K OHM J 1/10W 1 R666 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R667 D0GB181JA057 M 180 OHM,J,1/10W 1 R701 ERJ6GEYJ1R0 M 1 OHM,J,1/8W 1 R702 ERJ3GEYJ221 M 220 OHM,J,1/10W 1 R704 ERJ6ENF4992 M49.9KOHM,F.1/8W 1 R705 ERJ6GEYJ1R0 M 1 OHM,J,1/8W 1 R706 D0GB103JA057 M 10K OHM J 1/10W 1 R707 D0GB103JA057 M 10K OHM J 1/10W 1 R708 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R709 ERDS2FJ102 M 1KOHM,J,1/10W 1 R710 ERJ6GEYJ104V M 100KOHM,J,1/8W 1 R711 ERJ3GEYJ514 M 510KOHM,J,1/10W 1 R712 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R713 ERJ3GEYJ104 M 100KOHM,J,1/10W 1 R714 ERJ6ENF4991 M4.99KOHM,F.1/8W 1 R715 ERJ6ENF4991 M4.99KOHM,F.1/8W 1 R716 ERJ6ENF4991 M4.99KOHM,F.1/8W 1 R717 ERJ6ENF4991 M4.99KOHM,F.1/8W 1 R718 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R720 ERJ3GEYJ561 M 560 OHM,J,1/10W 1 R721 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R722 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R723 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R724 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R725 D0GB103JA057 M 10K OHM J 1/10W 1 R729 D0GB103JA057 M 10K OHM J 1/10W 1 R730 ERJ6GEYJ224 M 220KOHM,J,1/8W 1 R731 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R732 D0GB103JA057 M 10K OHM J 1/10W 1 R733 ERJ3EKF4701 M 4.7KOHM, 1/10W 1 R734 ERJ3EKF5601 M 5.6KOHM, 1/10W 1 R735 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R736 ERJ3GEYJ122 M 1.2KOHM,J,1/10W 1 R737 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R738 D0GB103JA057 M 10K OHM J 1/10W 1 R739 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R740 D0GB103JA057 M 10K OHM J 1/10W 1 R741 D0GB103JA057 M 10K OHM J 1/10W 1 R742 ERDS2FJ103 C 10KOHM, J,1/4W 1 R743 ERJ3GEYJ221 M 220 OHM,J,1/10W 1 R744 D0GB103JA057 M 10K OHM J 1/10W 1 R745 D0GB103JA057 M 10K OHM J 1/10W 1 R746 D0GB103JA057 M 10K OHM J 1/10W 1 R747 D0GB103JA057 M 10K OHM J 1/10W 1 R748 D0GB103JA057 M 10K OHM J 1/10W 1 R749 D0GB103JA057 M 10K OHM J 1/10W 1 R750 D0GB103JA057 M 10K OHM J 1/10W 1 R751 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R752 D0GB103JA057 M 10K OHM J 1/10W 1 R755 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R756 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R757 ARRF5EJR15B 0.15 OHM 5W 1 R758 ER0S2CHF1002 M 10KOHM, F,1/4W 1 R759 ER0S2CHF1002 M 10KOHM, F,1/4W 1 R760 ERJ6GEYG681 M 680 OHM,G,1/8W 1 R761 ERJ6GEYG681 M 680 OHM,G,1/8W 1 RF601 HUA5MC100JP2 热截止电阻 1 T201 ETB42LZ15GAD 变压器 1 T501 ETB29AK1TGAD 变压器 1 TG1 TW-4BS-2L LUG 端子 1 TG2 TW-4BS-2L LUG 端子 1 TG3 TW-4BS-2L LUG 端子 1 TG4 TW-4BS-2L LUG 端子 1 TG5 TW-4BS-2L LUG 端子 1 VR251 EVMAASA00B25 电位器 200KOHMB 1 VR401 EVMAASA00B54 电位器 50KOHMB 1 Z601 ERZVGED751 变阻器 1 Z602 ERZVGAD471 变阻器 1 ZD203 VZMTZJ27DT 稳压二极管 1 ZD204 VZMTZJ27DT 稳压二极管 1 ZD205 VZMTZJ27DT 稳压二极管 1 ZD206 VZMTZJ5.1BT 稳压二极管 1 ZD251 VZMTZJ5.6BT 稳压二极管 1 ZD401 VZMTZJ15CT 稳压二极管 1 ZD402 VZMTZJ10CT 稳压二极管 1 ZD501 VZMTZJ30DT 稳压二极管 1 ZD502 VZMTZJ30DT 稳压二极管 1 ZD503 VZMTZJ30DT 稳压二极管 1 ZD504 VZMTZJ15CT 稳压二极管 1 ZD505 VZMTZJ30DT 稳压二极管 1 ZD506 VZMTZJ18CT 稳压二极管 1 ZD507 VZMTZJ8.2CT 稳压二极管 1 ZD508 VZMTZJ15CT 稳压二极管 1 ZD509 VZMTZJ27DT 稳压二极管 1 ZD554 VZPTZ6.2BT 稳压二极管 1 ZD601 VZMTZJ5.1BT 稳压二极管 1 参考号 部件号 部件名称及说明 件数 备注 136 TH-P46GT20C 12/2010 iPress3306 中国制作 ZD602 VZMTZJ4.7BT 稳压二极管 1 ZD603 VZMTZJ10CT 稳压二极管 1 参考号 部件号 部件名称及说明 件数 备注
