松下TH-65PF12CK等离子显示器（GPF12D机芯）维修手册

分类：电子电工日期：2023-03-24 点击：0

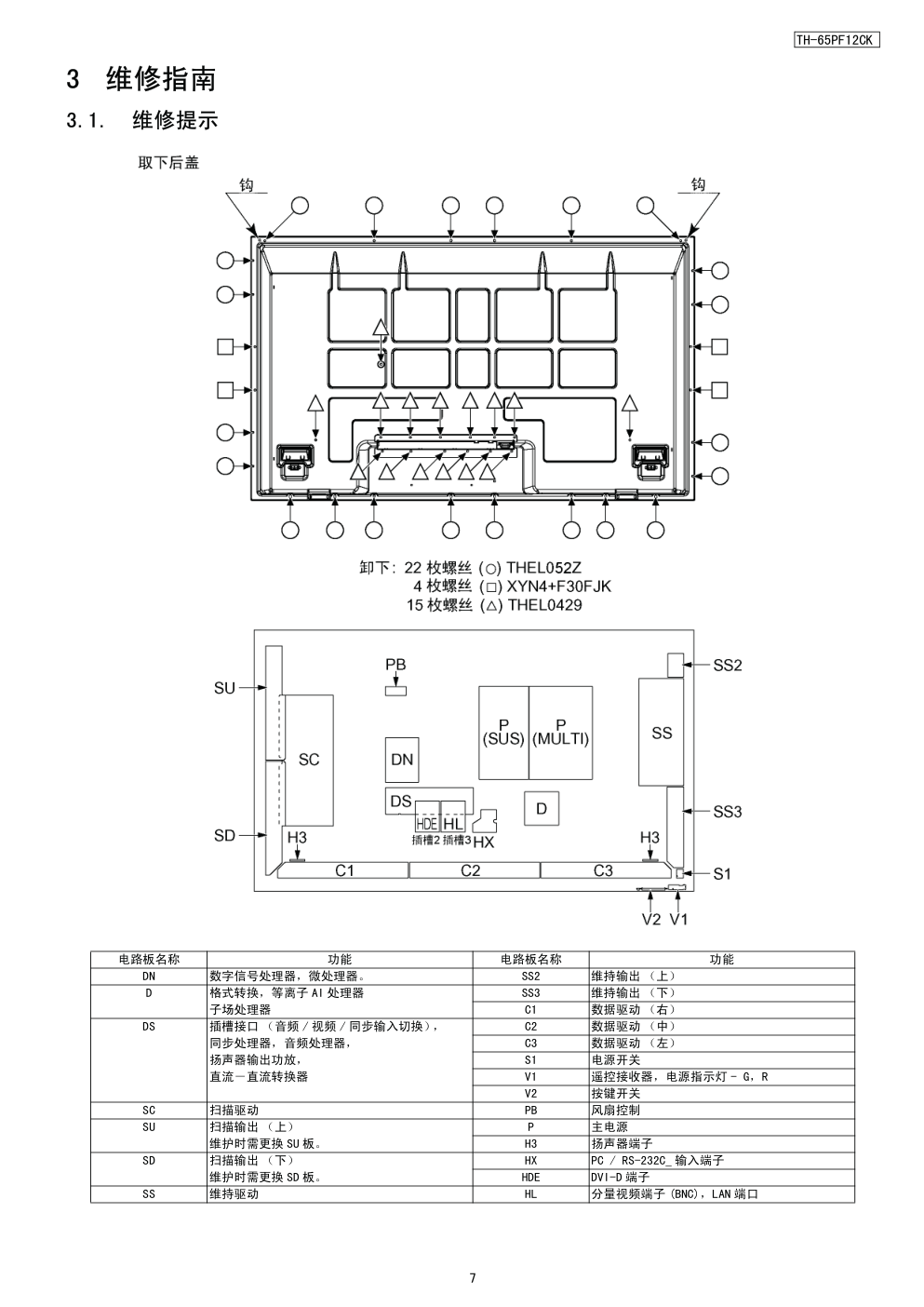

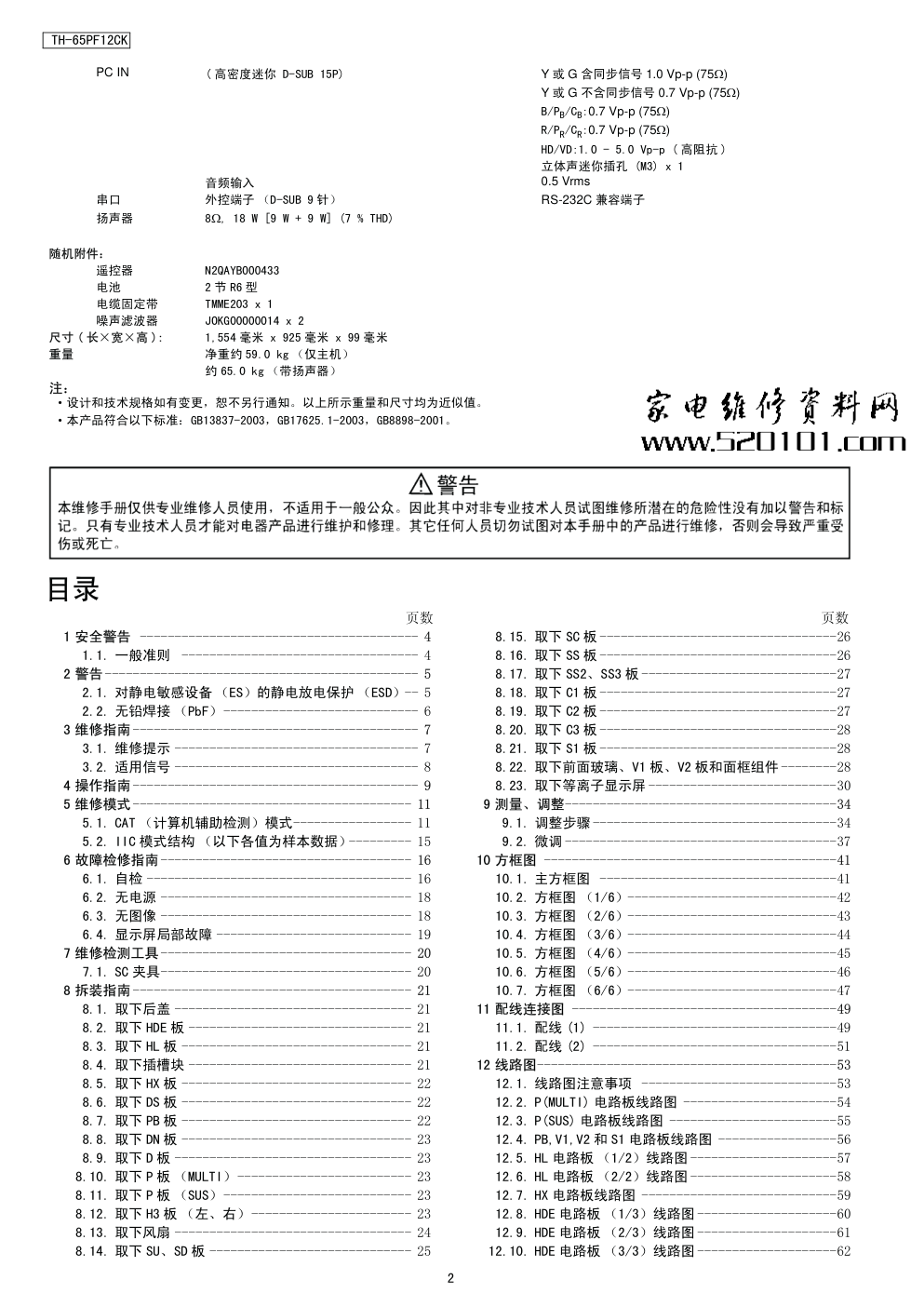

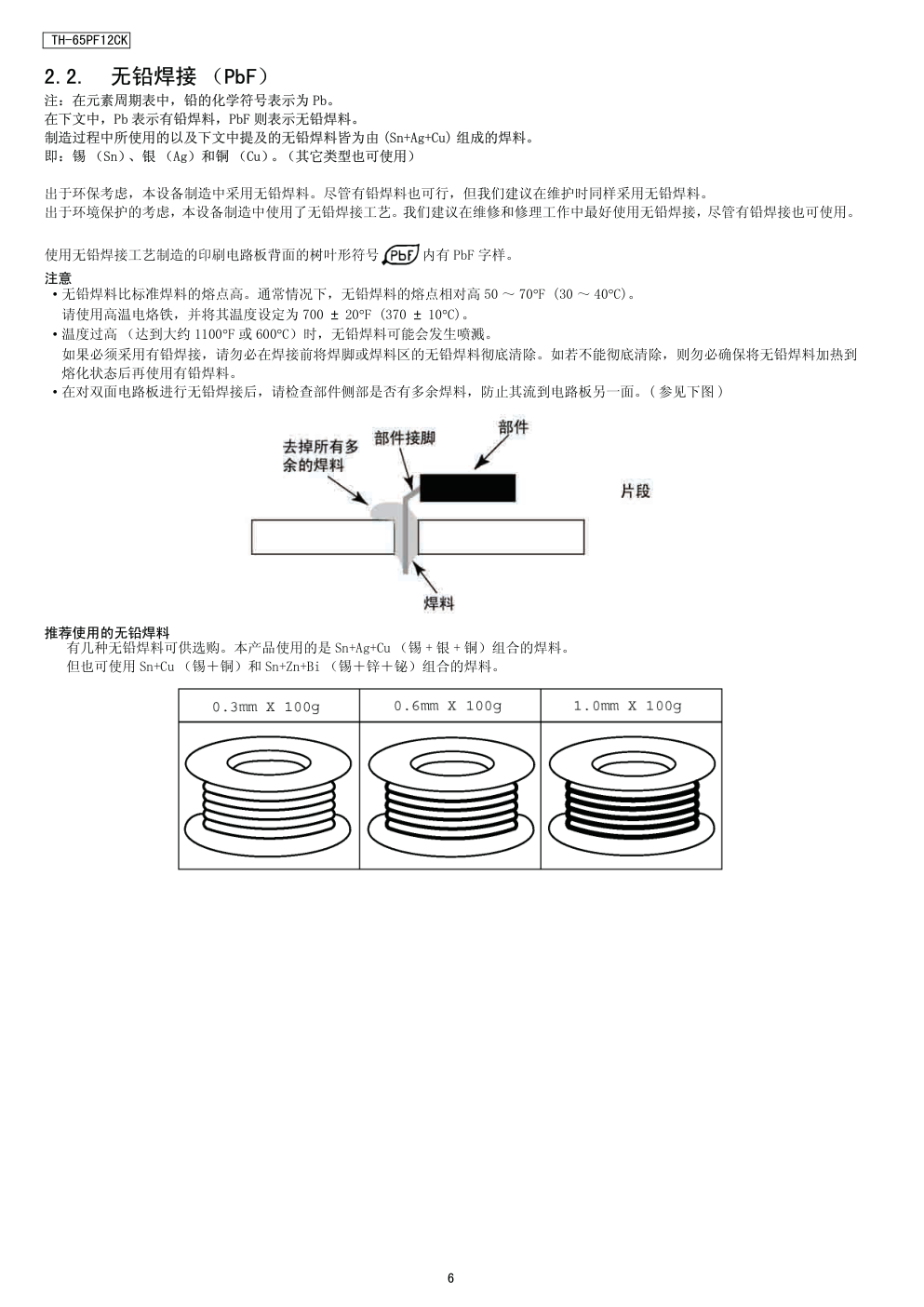

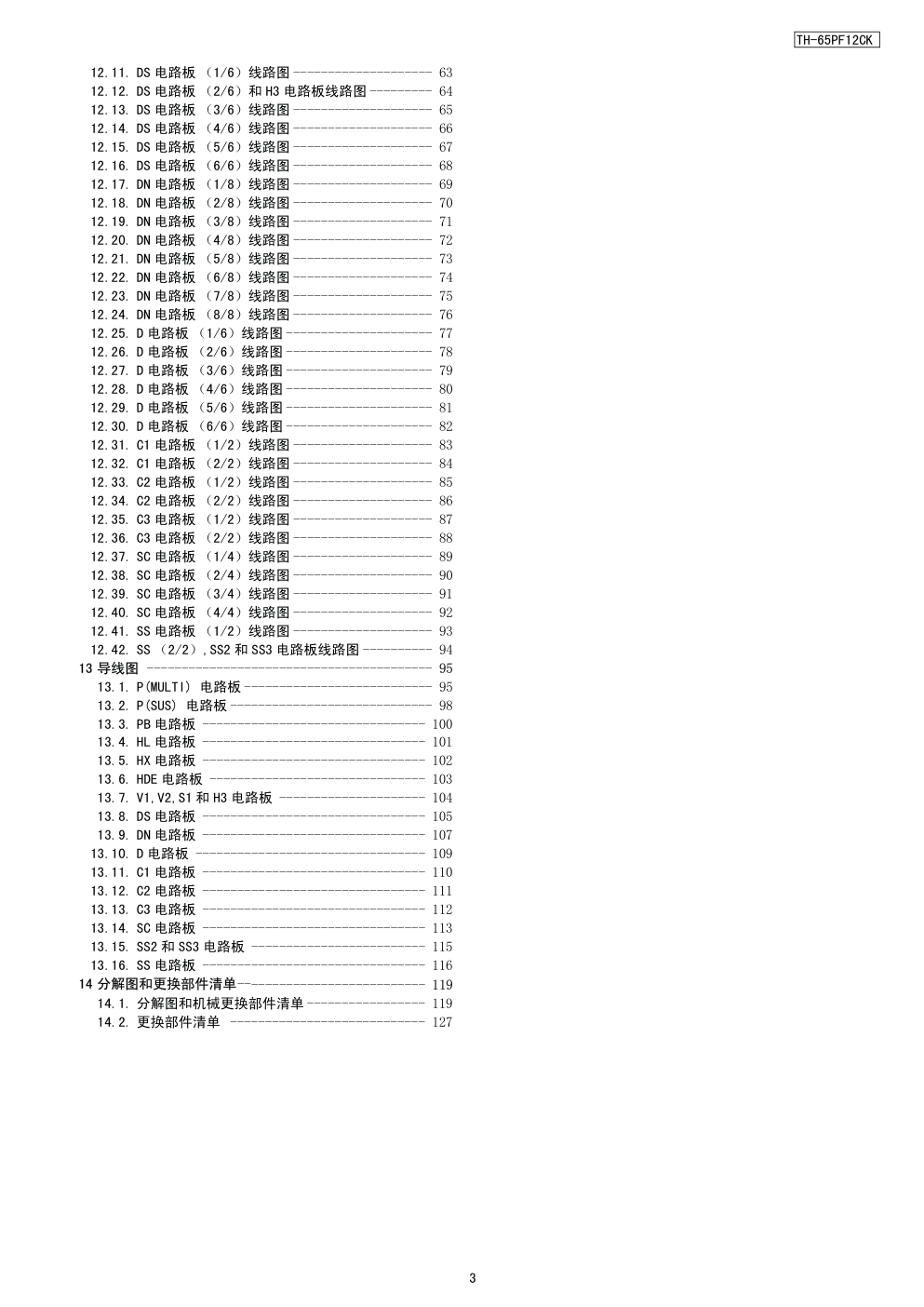

© 2009 松下电器产业株式会社版权所有。未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS0911142CC 高清晰等离子显示器 TH-65PF12CK GPF12D 机芯技术规格电源： 220 V AC, 50/60Hz 功耗：开机状态 695 W 待机状态节能关：1.2 W ；节能开：0.7 W 关机状态 0.4 W 等离子显示屏：驱动方式交流型 65 英寸屏幕宽高比 16:9 屏幕尺寸：（像素数） 1,434 毫米（宽） x 806 毫米（高）x 1,645 毫米（对角线） 2,073,600 （1,920 （宽）x 1,080 （高））[5,760 x 1,080 点 ] 运行条件：温度 0°C - 40°C 湿度 20% - 80% 适用信号：扫描格式 525(480)/60i 60p, 625(575)/50i 50p, 750(720)/60p 50p, 1125(1080)/ 60i 60p 50i 50p 24p 25p 30p 24sF, 1250(1080)/50i PC 信号 VGA, SVGA, XGA, SXGA UXGA ..... （压缩）水平扫描频率：15 - 110kHz 垂直扫描频率：48 - 120Hz 连接端子： DVI-D IN 视频输入 DVI-D 24 Pin x 1 遵守 DVI 1.0 修订版音频输入立体声迷你插孔 (M3) x 1 0.5 Vrms 内容保护兼容 HDCP 的 1.1 LAN RJ45 10BASE-T/100BASE-TX, 兼容 PJLink™ COMPONENT/RGB IN Y/G (BNC) 含同步信号 1.0 Vp-p (75Ω) PB/B(BNC),PR/R(BNC) 0.7 Vp-p (75 Ω ) 音频输入立体声迷你插孔 (M3) x 1 0.5 Vrms 2 TH-65PF12CK 目录页数页数 1 安全警告 ---------------------------------------- 4 1.1. 一般准则 ---------------------------------- 4 2 警告--------------------------------------------- 5 2.1. 对静电敏感设备（ES）的静电放电保护（ESD）-- 5 2.2. 无铅焊接（PbF）---------------------------- 6 3 维修指南----------------------------------------- 7 3.1. 维修提示 ----------------------------------- 7 3.2. 适用信号 ----------------------------------- 8 4 操作指南----------------------------------------- 9 5 维修模式---------------------------------------- 11 5.1. CAT （计算机辅助检测）模式----------------- 11 5.2. IIC 模式结构（以下各值为样本数据）--------- 15 6 故障检修指南------------------------------------ 16 6.1. 自检 -------------------------------------- 16 6.2. 无电源 ------------------------------------ 18 6.3. 无图像 ------------------------------------ 18 6.4. 显示屏局部故障 ---------------------------- 19 7 维修检测工具------------------------------------ 20 7.1. SC 夹具------------------------------------ 20 8 拆装指南---------------------------------------- 21 8.1. 取下后盖 ---------------------------------- 21 8.2. 取下 HDE 板 -------------------------------- 21 8.3. 取下 HL 板 --------------------------------- 21 8.4. 取下插槽块 -------------------------------- 21 8.5. 取下 HX 板 --------------------------------- 22 8.6. 取下 DS 板 --------------------------------- 22 8.7. 取下 PB 板 --------------------------------- 22 8.8. 取下 DN 板 --------------------------------- 23 8.9. 取下 D 板 ---------------------------------- 23 8.10. 取下 P 板（MULTI）------------------------- 23 8.11. 取下 P 板（SUS）--------------------------- 23 8.12. 取下 H3 板（左、右）----------------------- 23 8.13. 取下风扇 ---------------------------------- 24 8.14. 取下 SU、SD 板 ----------------------------- 25 8.15. 取下 SC 板 ----------------------------------26 8.16. 取下 SS 板 ----------------------------------26 8.17. 取下 SS2、SS3 板 ----------------------------27 8.18. 取下 C1 板 ----------------------------------27 8.19. 取下 C2 板 ----------------------------------27 8.20. 取下 C3 板 ----------------------------------28 8.21. 取下 S1 板 ----------------------------------28 8.22. 取下前面玻璃、V1 板、V2 板和面框组件 --------28 8.23. 取下等离子显示屏 ---------------------------30 9 测量、调整---------------------------------------34 9.1. 调整步骤 -----------------------------------34 9.2. 微调 ---------------------------------------37 10 方框图 ------------------------------------------41 10.1. 主方框图 ----------------------------------41 10.2. 方框图（1/6）------------------------------42 10.3. 方框图（2/6）------------------------------43 10.4. 方框图（3/6）------------------------------44 10.5. 方框图（4/6）------------------------------45 10.6. 方框图（5/6）------------------------------46 10.7. 方框图（6/6）------------------------------47 11 配线连接图 --------------------------------------49 11.1. 配线 (1) -----------------------------------49 11.2. 配线 (2) -----------------------------------51 12 线路图-------------------------------------------53 12.1. 线路图注意事项 ----------------------------53 12.2. P(MULTI) 电路板线路图 ----------------------54 12.3. P(SUS) 电路板线路图 ------------------------55 12.4. PB,V1,V2 和 S1 电路板线路图 -----------------56 12.5. HL 电路板（1/2）线路图 ---------------------57 12.6. HL 电路板（2/2）线路图 ---------------------58 12.7. HX 电路板线路图 ----------------------------59 12.8. HDE 电路板（1/3）线路图 --------------------60 12.9. HDE 电路板（2/3）线路图 --------------------61 12.10. HDE 电路板（3/3）线路图 --------------------62 PC IN ( 高密度迷你 D-SUB 15P) Y 或 G 含同步信号 1.0 Vp-p (75Ω) Y 或 G 不含同步信号 0.7 Vp-p (75Ω) B/PB/CB:0.7 Vp-p (75Ω) R/PR/CR:0.7 Vp-p (75Ω) HD/VD:1.0 - 5.0 Vp-p ( 高阻抗 ) 立体声迷你插孔 (M3) x 1 音频输入 0.5 Vrms 串口外控端子（D-SUB 9 针） RS-232C 兼容端子扬声器 8Ω, 18 W [9 W + 9 W] (7 % THD) 随机附件：遥控器 N2QAYB000433 电池 2 节 R6 型电缆固定带 TMME203 x 1 噪声滤波器 JOKG00000014 x 2 尺寸 ( 长×宽×高 ): 1,554 毫米 x 925 毫米 x 99 毫米重量净重约 59.0 kg （仅主机）约 65.0 kg （带扬声器）注： • 设计和技术规格如有变更，恕不另行通知。以上所示重量和尺寸均为近似值。 • 本产品符合以下标准：GB13837-2003，GB17625.1-2003，GB8898-2001。 3 TH-65PF12CK 12.11. DS 电路板（1/6）线路图 -------------------- 63 12.12. DS 电路板（2/6）和 H3 电路板线路图 --------- 64 12.13. DS 电路板（3/6）线路图 -------------------- 65 12.14. DS 电路板（4/6）线路图 -------------------- 66 12.15. DS 电路板（5/6）线路图 -------------------- 67 12.16. DS 电路板（6/6）线路图 -------------------- 68 12.17. DN 电路板（1/8）线路图 -------------------- 69 12.18. DN 电路板（2/8）线路图 -------------------- 70 12.19. DN 电路板（3/8）线路图 -------------------- 71 12.20. DN 电路板（4/8）线路图 -------------------- 72 12.21. DN 电路板（5/8）线路图 -------------------- 73 12.22. DN 电路板（6/8）线路图 -------------------- 74 12.23. DN 电路板（7/8）线路图 -------------------- 75 12.24. DN 电路板（8/8）线路图 -------------------- 76 12.25. D 电路板（1/6）线路图 --------------------- 77 12.26. D 电路板（2/6）线路图 --------------------- 78 12.27. D 电路板（3/6）线路图 --------------------- 79 12.28. D 电路板（4/6）线路图 --------------------- 80 12.29. D 电路板（5/6）线路图 --------------------- 81 12.30. D 电路板（6/6）线路图 --------------------- 82 12.31. C1 电路板（1/2）线路图 -------------------- 83 12.32. C1 电路板（2/2）线路图 -------------------- 84 12.33. C2 电路板（1/2）线路图 -------------------- 85 12.34. C2 电路板（2/2）线路图 -------------------- 86 12.35. C3 电路板（1/2）线路图 -------------------- 87 12.36. C3 电路板（2/2）线路图 -------------------- 88 12.37. SC 电路板（1/4）线路图 -------------------- 89 12.38. SC 电路板（2/4）线路图 -------------------- 90 12.39. SC 电路板（3/4）线路图 -------------------- 91 12.40. SC 电路板（4/4）线路图 -------------------- 92 12.41. SS 电路板（1/2）线路图 -------------------- 93 12.42. SS （2/2）,SS2 和 SS3 电路板线路图 ---------- 94 13 导线图 ----------------------------------------- 95 13.1. P(MULTI) 电路板 --------------------------- 95 13.2. P(SUS) 电路板 ----------------------------- 98 13.3. PB 电路板 -------------------------------- 100 13.4. HL 电路板 -------------------------------- 101 13.5. HX 电路板 -------------------------------- 102 13.6. HDE 电路板 ------------------------------- 103 13.7. V1,V2,S1 和 H3 电路板 --------------------- 104 13.8. DS 电路板 -------------------------------- 105 13.9. DN 电路板 -------------------------------- 107 13.10. D 电路板 --------------------------------- 109 13.11. C1 电路板 -------------------------------- 110 13.12. C2 电路板 -------------------------------- 111 13.13. C3 电路板 -------------------------------- 112 13.14. SC 电路板 -------------------------------- 113 13.15. SS2 和 SS3 电路板 ------------------------- 115 13.16. SS 电路板 -------------------------------- 116 14 分解图和更换部件清单--------------------------- 119 14.1. 分解图和机械更换部件清单 ----------------- 119 14.2. 更换部件清单 ---------------------------- 127 4 TH-65PF12CK 1 安全警告 1.1. 一般准则 1. 维修时，请勿试图更换设备零件或材料。 2. 维修连接线（如电缆、柔性电缆或导线）时，即使仅一根或几根导线外皮破损或断裂，也勿试图维修或重新为其连接。应整体更换连接线。 3. 维修时，请勿扭曲连接插头，应径直插入拔出。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 1.1.1. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地（如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪（Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点（漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值：交流：U1 = 35 V （峰值） U2 = 0.35 V （峰值）；直流：U1 = 1.0 V 注：与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在设备返回用户手中之前对其进行修理和再检测。图 1 5 TH-65PF12CK 2 警告 2.1. 对静电敏感设备（ES）的静电放电保护（ESD）一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电（ESD）所产生的组件损坏。 1. 处理任何半导体组件或是配备有半导体组件的设备之前，应立即接地（已知），去静电。或者戴上市场上出售的抗静电放电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电器组件之后，要将该组件放置于导体表面上（如铝箔），以防组件聚集静电或组件外露。 3. 仅使用末端接地烙铁来焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。一些不属于防静电（静电放电保护）的拆焊装置会产生足以损坏静电敏感装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电敏感装置的电荷。 6. 准备即刻安装之前才能拆开静电敏感备换装置的保护性包装。（大多数静电敏感备换装置都是采用铅制包装，通过与传导泡沫、铝箔或是类似的导体材料一起造成短路）。 7. 拆掉静电敏感备换装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。注意确定机芯或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电敏感备换装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺有地毯的地板上抬起脚，都会产生足以损坏静电敏感装置的静电（静电放电））。 6 TH-65PF12CK 2.2. 无铅焊接（PbF）注：在元素周期表中，铅的化学符号表示为 Pb。在下文中，Pb 表示有铅焊料，PbF 则表示无铅焊料。制造过程中所使用的以及下文中提及的无铅焊料皆为由 (Sn+Ag+Cu) 组成的焊料。即：锡（Sn）、银（Ag）和铜（Cu）。（其它类型也可使用）出于环保考虑，本设备制造中采用无铅焊料。尽管有铅焊料也可行，但我们建议在维护时同样采用无铅焊料。出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，尽管有铅焊接也可使用。使用无铅焊接工艺制造的印刷电路板背面的树叶形符号内有 PbF 字样。注意 • 无铅焊料比标准焊料的熔点高。通常情况下，无铅焊料的熔点相对高 50 ～ 70°F (30 ～ 40°C)。请使用高温电烙铁，并将其温度设定为 700 ± 20°F (370 ± 10°C)。 • 温度过高（达到大约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。如果必须采用有铅焊接，请勿必在焊接前将焊脚或焊料区的无铅焊料彻底清除。如若不能彻底清除，则勿必确保将无铅焊料加热到熔化状态后再使用有铅焊料。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有多余焊料，防止其流到电路板另一面。( 参见下图 ) 推荐使用的无铅焊料有几种无铅焊料可供选购。本产品使用的是 Sn+Ag+Cu （锡 + 银 + 铜）组合的焊料。但也可使用 Sn+Cu （锡＋铜）和 Sn+Zn+Bi （锡＋锌＋铋）组合的焊料。 7 TH-65PF12CK 3 维修指南 3.1. 维修提示电路板名称功能电路板名称功能 DN 数字信号处理器，微处理器。 SS2 维持输出（上） D 格式转换，等离子 AI 处理器 SS3 维持输出（下）子场处理器 C1 数据驱动（右） DS 插槽接口（音频 / 视频 / 同步输入切换）， C2 数据驱动（中）同步处理器，音频处理器， C3 数据驱动（左）扬声器输出功放， S1 电源开关直流－直流转换器 V1 遥控接收器，电源指示灯 - G，R V2 按键开关 SC 扫描驱动 PB 风扇控制 SU 扫描输出（上） P 主电源维护时需更换 SU 板。 H3 扬声器端子 SD 扫描输出（下） HX PC / RS-232C_ 输入端子维护时需更换 SD 板。 HDE DVI-D 端子 SS 维持驱动 HL 分量视频端子 (BNC)，LAN 端口 8 TH-65PF12CK 3.2. 适用信号 9 TH-65PF12CK 4 操作指南 10 TH-65PF12CK GPF12D 系列机型具有被称为选项菜单的特殊功能及操作设置装置。该选项菜单对于有特殊功能要求的客户很有用。该菜单在安装阶段设置。注： “键锁定”，“遥控器自定义标准”或 “遥控 ID”的调整可使主机按键和遥控器同时失效，此时，将所有值都设为 “关”可恢复所有按键功能。或者同时按压主机上的 “音量减”键和遥控器上的 “返回”键并持续 5 秒。这时屏幕上会显示 “SHIPPING”菜单，此菜单消失后锁定解除。 GPF12D 系列的选项菜单选项菜单默认设置内容每周指令定时 -- 设置每周指令定时。屏幕显示开电源接通后没有信号时输入模式显示功能有效 / 无效。初始输入关设置初始输入模式。电源接通后可以进行输入模式选择。初始音量等级关设置初始音量标准。电源接通后可以进行音量调整。最大音量等级关将最大音量设置到所需等级。音量不能超过此限制。输入锁定关将输入模式固定为 AV，分量 /RGB 或 PC。不能通过按选择键来改变输入模式。键锁定关显示器操作键有效 / 无效（输入，菜单，进入和 / 或音量增 / 减）遥控器自定义标准关遥控键无效关：所有遥控键有效。自定义 1：仅待机（开 / 关）、输入、显示，静音开 / 关以及音量调节键有效。自定义 2：仅待机键（开 / 关）有效。自定义 3：所有键都无效。定时关机功能启动定时关机功能打开 / 关闭。初始电源模式正常用来设置当断电恢复或重新插上电源时本机电源模式。 ID 选择 0 将 ID 设置为 0 到 100。遥控 ID 关遥控 ID 功能开 / 关（当遥控 ID 为开时，标准遥控功能不能控制本机。）串行 ID 关串行 ID 功能开 / 关显示器尺寸关显示器上的图象显示尺寸功能开 / 关影院模式白平衡关影院模式白平衡功能开 / 关影院模式增益关影院模式增益功能开 / 关插槽电源关在电源接通时设置插槽电源模式。电源接通时，可选接线端子板可以插入插槽。显示器电源开启延迟关按键打开同时设置的多屏显示时，可以通过设置监视器的电源开启滞后时间来降低用电负荷。分别设置各屏幕的设置。时钟显示关时钟显示功能开 / 关。高级高宽比关设置高级宽高比模式或默认宽高比模式。自动设置手动在图像位置 / 大小菜单中自动调整位置的操作模式。旋转关旋转图象功能开 / 关串行插槽选择插槽 2 选择连接串行口的插槽。注：只能从固定的串行端子设置外部指令。 11 TH-65PF12CK 5 维修模式 5.1. CAT （计算机辅助检测）模式若要退出 CAT 模式，请进入 ID 模式，并关闭主电源。 5.1.1. IIC 模式在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的功能启用键。主题和项目在 “IIC 模式结构”中提及。按遥控器上的返回键可退出 IIC 模式。 12 TH-65PF12CK 5.1.2. CD 模式在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 CD 模式，然后按下遥控器上的静音键 3 秒钟以上。存储数据变更按遥控器上的返回键可退出 CD 模式。 5.1.3. NW 模式注：若要使用网络功能，需对 “网络设置”进行设置，并选定 “Control I/F Select”为 “LAN”。在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的功能启用键。按遥控器上的返回键可退出 NW 模式。 13 TH-65PF12CK 5.1.4. SD 模式在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 SD 模式，然后按下遥控器上的功能启用键。按遥控器上的返回键可退出 SD 模式。 5.1.5. MS 模式在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 MS 模式，然后按下遥控器上的静音键 3 秒钟以上。按遥控器上的返回键可退出 MS 模式。注意：更换 DN 电路板后需设置市场选择。销往地编号默认设置编号销往地编号销往地 0 日本 16 - 1 北美 17 - 2 欧洲 18 中国 3 其它 19 中国（旅馆） 4 英国 20 俄罗斯 5 台湾 21 俄罗斯（旅馆） 6 泰国 22 香港 7 - 23 - 8 日本（旅馆） 24 - 9 北美（旅馆） 25 - 10 欧洲（旅馆） 26 - 11 - 27 - 12 英国（旅馆） 28 中东 / 香港 13 - 29 中东 / 香港（旅馆） 14 泰国（旅馆） 30 澳大利亚 15 - 31 澳大利亚（旅馆）编号销往地 18 中国 14 TH-65PF12CK 5.1.6. ID 模式在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 ID 模式，然后按下遥控器上的静音键 3 秒钟以上。按遥控器上的返回键可退出 ID 模式。 15 TH-65PF12CK 5.2. IIC 模式结构（以下各值为样本数据） 16 TH-65PF12CK 6 故障检修指南 6.1. 自检 6.1.1. 显示说明 1. 自检用于自动检查等离子显示器的总线控制电路。 2. 要进入自检模式，按住显示器下部的音量降低键，同时按下遥控器上的定时关机键，显示屏将会显示。检查 IIC 端口时若发现其不正常或位置不对，则 “- -”将会显示在 “OK”的位置。在 “PTCT”一行的 “01”表示电源指示灯闪烁一次。（参见 6.1.2） “PTCT”一行的 “H09”是故障代码。退出 CAT 模式，请关断电源。注：第一次进入自检模式时，“ PTCT ”一行会在电源指示灯闪烁后出现。 17 TH-65PF12CK 6.1.2. 电源指示灯闪烁间隔表 1. 主题电源指示灯闪烁间隔表信息。 2. 内容当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的电源指示灯闪烁次数便可识别出故障部位。 * 参考 6.1.1 显示说明指示灯闪烁 18 TH-65PF12CK 6.2. 无电源第一检查点电源指示灯的无电源指示有 3 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 6.3. 无图像 19 TH-65PF12CK 6.4. 显示屏局部故障等离子显示器屏幕上可能会出现局部故障。图 1 是各局部区域可能会出现故障的 P.C.B. 印刷电路板。 20 TH-65PF12CK 7 维修检测工具 7.1. SC 夹具目的当电源指示灯闪烁 7 次时，使用该工具可检测到发生故障的电路板（SC，SU 或 SD 板）。 SC 夹具：跳线连接件，连接 SC 板上的连接件 SC50。部件号： TZSC09187 如何操作：注意：检查后，从 SC 板上取下 SC 夹具。 1. 取下 SC 板和 SU/SD 板之间的所有连接件，将 SC 板与 SU 和 SD 板分离。注：务必确保所有的连接件均已取出，否则可能损坏线路板（例如：仅断开与 SU 板相连的连接件而与 SD 板仍然相连，将损坏线路板。） 2. 连接 SC 夹具与 SC 板左下端的连接件 SC50。 3. 打开 TV/ 显示器，确认 LED 指示灯是否闪烁。 LED 指示灯闪烁： SC 板可能发生故障 LED 指示灯不闪烁（亮或不亮）： SU 板或 SD 板可能发生故障 4. 检查后，关闭 TV/ 显示器，等待几分钟使其放电。 5. 从 SC 板上取下 SC 夹具。备注：该 SC 夹具适用于所有 2009 年等离子电视机。 21 TH-65PF12CK 8 拆装指南 • 由于电解电容器放电原因，请在电源切断一分钟后再取下 P.C.B.。 • �,�,�, , 和表示螺丝的位置。 8.1. 取下后盖 1. 卸下螺丝（×22 �,×4 �,×15 �），然后取下后盖。注：安装后盖时 • 首先拧上螺丝（*1, *2）。 8.2. 取下 HDE 板 1. 卸下 4 枚螺丝（A），取下 HDE 端子块。 2. 卸下 4 枚螺丝（B）。 3. 卸下 2 枚螺丝（C），取下 HDE 板。 8.3. 取下 HL 板 1. 卸下 4 枚螺丝（D），取下 HL 端子块。 2. 卸下 4 枚螺丝（E）。 3. 卸下 2 枚螺丝（F），取下 HL 板。 8.4. 取下插槽块 1. 断开连接件（DS2, DS4, DS6, DS7, DS8, DS15）。 2. 取下连接件（DS1, DS3）上的柔线。 3. 卸下 6 枚螺丝，取下插槽块。 22 TH-65PF12CK 8.5. 取下 HX 板 1. 取下 HL 和 HDE 端子块。（参见 “取下 HL、HDE 板”） 2. 卸下 1 枚螺丝（）。 3. 卸下 6 枚螺丝（），取下插槽盒。 4. 断开连接件（HX1）。 5. 卸下 4 枚六角螺丝和 2 枚普通螺丝，取下 HX 板。 8.6. 取下 DS 板 1. 取下插槽盒。（参见 “取下 HX 板”） 2. 断开连接件（DS14）。 3. 卸下 10 枚螺丝，然后取下固定板。 4. 断开连接件（DS2, DS4, DS6, DS7, DS8, DS15）。 5. 取下连接件（DS1, DS3）上的柔线。 6. 卸下 3 枚螺丝，取下 DS 板。 8.7. 取下 PB 板 1. 断开连接件（PB30, PB32, PB33, PB34, PB36, PB37, PB38）。 2. 卸下 3 枚螺丝，取下 PB 板。 23 TH-65PF12CK 8.8. 取下 DN 板 1. 断开连接件（DN3, DN5, DN9）。 2. 取下连接件（DN1, DN2）上的柔线。 3. 卸下 4 枚螺丝，取下 DN 板和固定板。注： DN 板更换后，MS 模式将进行销往地重设。 8.9. 取下 D 板 1. 断开连接件（D3, D5, D25）。 2. 取下连接件（D20, D31, D32）上的柔线。 3. 卸下 3 枚螺丝，取下 D 板。 8.10. 取下 P 板（MULTI） 1. 断开连接件（P6, P7, P9, P25, P34, P35, P52, P53, P55）。 2. 卸下 9 枚螺丝，取下 P 板（MULTI）。 8.11. 取下 P 板（SUS） 1. 断开连接件（P2, P11, P51, P54, P56）。 2. 卸下 6 枚螺丝，取下 P 板（SUS）。 8.12. 取下 H3 板（左、右） 1. 卸下 4 枚螺丝，然后取下扬声器端子块（左，右）。 24 TH-65PF12CK 2. 断开连接件（H37）。 3. 卸下 3 枚螺丝（G），取下 H3 板（左、右）。 8.13. 取下风扇 1. 断开风扇中继连接件。 2. 卸下 16 枚螺丝，取下风扇组件（1, 2, 3, 4）。 3. 卸下 4 枚螺丝，取下风扇（A）。 4. 卸下 4 枚螺丝，取下风扇（B）。 5. 卸下 12 枚螺丝，取下风扇（C, D, E）。 6. 卸下 4 枚螺丝，取下风扇（F）。 25 TH-65PF12CK 7. 按与拆卸相反顺序重新安装风扇。 8. 将风扇海绵粘贴于风扇周围。注：风扇海绵不可重复使用。更换风扇时，请使用新的海绵。 8.14. 取下 SU、SD 板 1. 取下连接件（SU1, SU2, SU3, SU4, SU5, SU11, SD1, SD2, SD3, SD4, SD5, SD11）上的柔线。 2. 断开连接件（SU41, SD42, SD46）。 3. 卸下 6 枚螺丝（）。 4. 卸下 6 枚螺丝（），然后取下 SU 板和 SD 板。注：安装 SU 和 SD 板时 • 首先拧上 6 枚螺丝（）。 26 TH-65PF12CK 8.15. 取下 SC 板 1. 断开风扇中继连接件。 2. 卸下 4 枚螺丝，取下风扇组件（1）。 3. 断开连接件（SU41, SD42, SD46）。 4. 卸下 6 枚螺丝（）。 5. 卸下 6 枚螺丝（）。 6. 将 SU 板和 SD 板向左翻转。注：注意不要损坏 SU、SD 板上的柔线以及 SC 板上的部件。注：安装 SU 和 SD 板时 • 首先拧上 6 枚螺丝（）。 7. 断开连接件（SC2）。 8. 取下连接件（SC20）上的柔线。 9. 卸下 9 枚螺丝，取下 SC 板。 8.16. 取下 SS 板 1. 断开风风扇中继连接件。 2. 卸下 4 枚螺丝，取下风扇组件（4）。 3. 断开连接件（SS02, SS03, SS11,SS33）。 4. 取下连接件（SS53, SS55, SS56）上的柔线。 27 TH-65PF12CK 5. 卸下 6 枚螺丝，取下 SS 板。 8.17. 取下 SS2、SS3 板 1. 断开连接件（SS02, SS03） 2. 取下连接件（SS52, SS57, SS59）上的柔线。 3. 卸下 6 枚螺丝，取下 SS2 和 SS3 板。 8.18. 取下 C1 板 1. 卸下 2 枚螺丝（）。 2. 卸下 1 枚螺丝（）。 3. 卸下 1 枚螺丝（），取下加固压条（右）。 4. 取下连接件（C10）上的柔线。 5. 卸下 10 枚螺丝（），取出连接件（CB1, CB2, CB3, CB4, CB5）的柔线。 6. 卸下 5 枚螺丝（），取下 C1 板。 8.19. 取下 C2 板 1. 取下连接件（C20, C21, C26）上的柔线。 2. 卸下 10 枚螺丝（），取出连接件（CB6, CB7, CB8, CB9, CB10）上的柔线。 3. 卸下 5 枚螺丝（），取下 C2 板。 28 TH-65PF12CK 8.20. 取下 C3 板 1. 卸下 2 枚螺丝（） 2. 卸下 2 枚螺丝（），取下加固压条（左）。 3. 断开连接件（C33, C35）。 4. 取下连接件（C31, C36）上的柔线。 5. 卸下 10 枚螺丝（），取出连接件（CB11, CB12, CB13, CB14, CB15）的柔线。 6. 卸下 5 枚螺丝（），取下 C3 板。 8.21. 取下 S1 板 1. 卸下 2 枚螺丝（H），取下 S1 板组件。 2. 断开连接件（S34）。 3. 卸下 1 枚螺丝（J），然后取下 S1 板和开关连接件。 4. 从 S1 板上取下开关连接件。 8.22. 取下前面玻璃、V1 板、V2 板和面框组件 1. 取下 S1 板组件。（参见 “取下 S1 板”） 2. 断开连接件（DS2, DS15）。 3. 卸下 15 枚螺丝（）。 4. 卸下 3 枚螺丝（）。注：安装等离子显示屏组件时 • 首先拧上 2 枚螺丝（*1）。 5. 将等离子显示屏组件的底部向上抬起（箭头 1 方向）。 6. 滑动并取下等离子显示屏组件（箭头 2 方向）。 8.22.1. 取下前面玻璃 1. 卸下 8 枚螺丝，然后取下后盖固定压条（顶部、底部）。注：安装后盖固定压条时 • 首先拧上 2 枚螺丝（*1）。 29 TH-65PF12CK 2. 卸下 28 枚螺丝，然后取下固定压条（左、右、上、下）。 3. 取下前面玻璃。注：更换前面玻璃时 • 按照上下左右的顺序将专用的海绵沿固定压条粘在前面玻璃上。注： • 海绵是不可回收利用的部件。更换前面玻璃时，请使用新海绵。 8.22.2. 取下 V1、V2 板 1. 卸下 4 枚螺丝，然后取下后盖固定压条（底部）。注：安装后盖固定压条时 • 首先拧上 1 枚螺丝（*1）。 2. 卸下 20 枚螺丝，然后取下固定压条（左、右、下）。 3. 卸下 1 枚螺丝（K）。 4. 断开连接件（V2），取下 V1 板。 5. 松开 3 个卡扣，然后取下电源按钮和电源按钮弹簧。 6. 断开连接件（V15），取下 V2 板。 7. 松开 2 个卡扣，然后从 V2 板上取下 5 键按钮。 30 TH-65PF12CK 8.22.3. 取下面框组件 1. 取下前面玻璃。（参见 “取下前面玻璃”） 2. 取下 V1、V2 板。（参见 “取下 V1、V2 板”） 3. 取下 LED 透光板和遥控受光屏。 4. 更换面框组件。 8.23. 取下等离子显示屏维修时将 C1,C2,C3 板与等离子显示屏相连。 1. 断开风扇中继连接件。 2. 卸下 16 枚螺丝，取下风扇组件（1, 2, 3, 4）。 3. 断开连接件（DN3, DN5, DN9）。 4. 取下连接件（DN1, DN2）上的柔线。 5. 卸下 4 枚螺丝，取下 DN 板和固定板。 6. 卸下 3 枚螺丝，取下 PB 板。 7. 断开连接件（DS2, DS4, DS6, DS7, DS8, DS15）。 8. 卸下 6 枚螺丝，取下插槽块。 9. 断开连接件（P9）。 10. 卸下 3 枚螺丝，取下 AC 接入口组件。 31 TH-65PF12CK 11. 断开连接件（D25）。 12. 取下连接件（C21, C31, SC20）上的柔线。 13. 卸下 3 枚螺丝，取下 D 板。 14. 卸下 4 枚螺丝，然后取下扬声器端子块（左、右）。 15. 取下连接件（SU1, SU2, SU3, SU4, SU5, SU11, SD1, SD2, SD3, SD4, SD5）上的柔线。 16. 断开连接件（SU41, SD42, SD46）。 17. 卸下 6 枚螺丝（）。 18. 卸下 6 枚螺丝（），然后取下 SU 板和 SD 板。注：安装 SU 和 SD 板时 • 首先拧上 6 枚螺丝（）。 19. 断开连接件（SC2）。 20. 卸下 9 枚螺丝，取下 SC 板。 32 TH-65PF12CK 21. 断开连接件（C33, C35, SS02, SS03, SS11）。 22. 取下连接件（SS53, SS55, SS56）上的柔线。 23. 卸下 6 枚螺丝，取下 SS 板。 24. 取下连接件（SS52, SS57, SS59）上的柔线。 25. 卸下 6 枚螺丝，取下 SS2 和 SS3 板。 26. 断开连接件（P34）。 27. 卸下 2 枚螺丝，取下 S1 板组件。 28. 断开连接件（P51, P54, P56）。 29. 卸下 9 枚螺丝，取下 P 板（MULTI）。 33 TH-65PF12CK 30. 卸下 6 枚螺丝，取下 P 板（SUS）及挡板。 31. 取下连接件（C10, C20, C26, C36）上的柔线。 32. 卸下 15 枚螺丝（）。 33. 卸下 3 枚螺丝（）。 34. 将等离子显示屏组件的底部向上抬起（箭头 1 方向）。 35. 滑动并取下等离子显示屏组件（箭头 2 方向）。 36. 卸下 2 枚螺丝（）。 37. 卸下 4 枚螺丝（），取下加固压条（左、右）和加固压条连接金属件（左、右）。注：更换加固压条时 • 卸下 1 枚螺丝。更换加固压条。 38. 从等离子显示屏中取出 4 个垫圈。 39. 更换等离子显示屏。注意： • 在更换等离子显示屏时，请确认垫圈的安装位置。更换新的等离子显示屏后，将垫圈安装在初始位置。 34 TH-65PF12CK 9 测量、调整 9.1. 调整步骤 9.1.1. 驱动器设置 9.1.1.1. 项目 / 准备 1. 通过 IIC 模式设置老炼模式（白模式信号）。 2. 按照以下方式设定图像控制：图像菜单：标准图像： +25 屏幕宽高比：全屏注意 1. 首先进行 Vsus 调整。 2. Vad 调整确认后，再确定 Vscn 电压。当 Vad=-155V 时，Vscn 的电压为 -10V ± 4V。 9.1.1.2. 调整调整驱动器各部分的电压（参照显示屏标牌上的显示屏数据）。用万用表检测或调整以下电压。 * 见显示屏标牌。 35 TH-65PF12CK 9.1.2. 起始脉冲调整 1. 通过 IIC 模式设置老炼模式（白模式信号）。 2. 按照以下方式设定图像控制：图像菜单：标准图像： +25 屏幕宽高比：全屏 3. 连接示波器至 TPSC1，调整 VR16601 为 250V ± 10V。 9.1.3. P.C.B ．（印刷电路板）更换 9.1.3.1. 注意 1. 由于电解电容器放电原因，请等待电源切断一分钟后再取下 P.C.B.。 9.1.3.2. P.C.B. 更换后进行快速调整用万能表调整以下电压。 * 见显示屏标牌。注意：请勿将 Vsus 设置到 Ve 以下，以防损坏 PCB。测试点调整点电平 TPSC1 (SC) VR16601 (SC) 250V ± 10V. 下坡处 100 微秒范围内 P.C.B. 名称测试点电压调整点备注 P 电路板 Vsus TPVSUS (SS) Vsus ± 2V VR251 (P) * SC 电路板 Vad TPVAD (SC) -155V ± 2V VR16600 (SC) Vscn TPVSCN (SC) Vad_base: +145V ± 4V GND_base: -10V ± 6V 固定 Vset TPVSET (SC) 290V ± 9V 固定 SS 电路板 Ve TPVE (SS) Ve ± 2.5V 固定 * D,DS,DN 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡及副亮度 DN 电路板通过 MS 模式设置市场选择号码以纠正目的地。（参见 5.1.5） 36 TH-65PF12CK 9.1.4. 调整电压位置 9.1.5. 测试点位置 37 TH-65PF12CK 9.2. 微调 9.2.1. RGB 白平衡调整仪器名称连接备注 • RGB VGA 60 W/B 模式 • 色彩分析仪 ( 美能达 CA-100 或类似产品 ) PC 输入显示屏表面用户设定：正常（图像菜单：标准 ) 步骤备注 [ 状态 ] • 确保前面板适用于整机。 • 确保调整之前无色彩信号显示。 • 将色彩分析仪放置到色差十分微小的地方。 [ 微调 ] 1. 设置分量 /RGB 输入选择为 RGB。 2. 选择 IIC 模式的 “显示屏白平衡调整”项目。 3. 检查色温是否为 “冷色（高）”。 4. 输出一个白平衡模式。 5. 触摸色彩分析仪上的信号接收器，将亮度调节至中间位置。 6. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使 x、y 项的数值与下表中的 “色温的冷色项（高）”相符。 7. 同步增加 R/G/B 使其最大驱动值变为 FCh。 8. 设置色温为 “正常（中）”。 9. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 项的数值与下表中的 “色温的正常项（中）”。 10. 同步增加 R/G/B 使其最大驱动值变为 FCh。 11. 设置色温为 “暖色（低）”。 12. 将 G 驱动设为 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 项的数值与下表中的 “色温的暖色项（低）”相符。 13. 同步增加 R/G/B 使其最大驱动值变为 FCh。 14. 在 NTSC, PAL 和 DVI 区域复制 R 驱动，G 驱动及 B 驱动的数据。调整目标高亮：x ± 0.003 y ± 0.003 高亮为高亮显示窗中驱动调整的目标数值。因此在白平衡调整之后，它就不再是高亮的目标数值了。图像菜单：标准用户设定：正常屏幕宽高比：全屏（16：9）位置及尺寸：正常 •“7”键：选择色温。 •“9”键：选择图像。 • 高亮区信号振幅 75% • 驱动标准 G：E0h 38 TH-65PF12CK 39 TH-65PF12CK 9.2.2. YUV 白平衡调整仪器名称连接备注 • HD （1125/60i）白平衡模式（分量输出） • 色彩分析仪 ( 美能达 CA-100 或类似产品 ) PC 输入显示屏表面用户设定：正常（图像菜单：标准）步骤备注 [ 状态 ] • 确保前面板适用于整机。 • 确保调整之前无色彩信号显示。 • 将色彩分析仪放置到色差十分微小的地方。 [ 状态 ] 1. 设置分量 /RGB 输入选择为分量。 2. 选择 IIC 模式的 “显示屏白平衡调整”项目。 3. 检查色温是否为 “冷色（高）。” 4. 输出一个白平衡模式。 5. 触摸色彩分析仪上的信号接收器，将亮度调节至中间位置。 6. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使 x、y 项的数值与下表中的 “色温的冷色项（高）”相符。 7. 同步增加 R/G/B 使其最大驱动值变为 FCh。 8. 设置色温为 “正常（中）”。 9. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 项的数值与下表中的 “色温的正常项（中）”。 10. 设置色温为 “暖色（低）”。 11. 将 G 驱动设为 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 项的数值与下表中的 “色温的暖色项（低）”相符。 12. 同步增加 R/G/B 使其最大驱动值变为 FCh。 13. 在 YUV1_525ip, YUV3_625ip 区域复制 R 驱动，G 驱动及 B 驱动的数据。调整目标高亮：x ± 0.003 y ± 0.003 高亮为高亮显示窗中驱动调整的目标数值。因此在白平衡调整之后，它就不再是高亮的目标数值了。图像菜单：标准用户设定：正常屏幕宽高比：全屏（16：9）位置及尺寸：正常 •“7”键：选择色温。 •“9”键：选择图像。 • 高亮区信号振幅 75% • 驱动标准 G：E0h 40 TH-65PF12CK 41 TH-65PF12CK 10 方框图 10.1. 主方框图 TH-65PF12CK Main Block Diagram TH-65PF12CK Main Block Diagram (LED:10TIMES) (LED:2TIMES) (LED:10TIMES) (LED:13TIMES) (LED:11TIMES) (LED:10TIMES) (LED:2TIMES) (LED:11TIMES) (LED:4TIME) COLD (LED:6TIMES) (LED:3TIMES) (LED:7TIMES) COLD HOT (LED:5TIMES) (LED:2TIMES) (LED:8TIMES) (LED:4TIMES) (LED:7TIMES) (LED:6TIMES) (LED:8TIME) Vda +1.2V(P) P7 POWER MICOM AC_DET +3.3V P55 SC2 from SOS6_SC1 +15V(P) STANBY VOLTAGE RECTIFIER CONTROL SIGNAL P54 +5V(P) DET SOS7_SC2 DCDC STANBY POWER COTROLLER POWER FACTOR CONTROL +5V(P) +15V(P) D32 P(MULTI) DATA DRIVER SOS7_SC2 VIDEO DATA +15V(P) DET DCDC +3.3V(P) RESET AC_DET P6 +2.5V(P) (30bit) +5V(STB) DCDC +1.8V(P) MAIN SW2 P51 RELAY +15V(P) ALL OFF +5V(STB) RECTIFIER P25 (STB) EEPROM +15V(SND) +5V(P) +5V(STB) MAIN SW2 DISCHARGE CONTROL SUB-FIELD PROCESSOR PROCESS VOLTAGE COTROLLER PLASMA AI SOS4_PS DCDC +15V(P) D31 D20 +5V(P) +5V(P) RELAY +5V(P) LVDS DATA SOS8_SS P2 SOS8_SS PANEL READY +3.3V(P) to DS6 POWER SUPPLY SOS6_SC1 P34 LVDS RX +3.3V(P) P53 +3.3V(P) P52 SOS8_SS DN3 CPG with SS POWER FACTOR CONTROL +15V(P) FSTB+15V P56 PROCESS VOLTAGE RECTIFIER PANEL MICOM +1.2V +3.3V +15V(FAN) POWER SUPPLY D25 AC CORD P35 PANEL SOS RECTIFIER MAIN SW1 P(SUS) +5V(STB) +1.8V SUSTAIN POWER COTROLLER +5V(STB) +3.3V(P) DET PANEL STB_ON H/V SYNC CONTROL (30bit) from RECTIFIER +3.3V(STB) to DS4 +15V(P) VIDEO DATA SUSTAIN VOLTAGE RECTIFIER RESET D5 P11 FSTB+15V Vda DCDC VSUS P9 SUSTAIN CONTROL +15V(P) +5V(P) DN5 +15V(P) +5V(P) PS SOS4 +2.5V D3 VSUS P-BOARD SOS DETECT SS22 SCAN OUT (LOWER) SS3 SC2 +3.3V(P) SCAN DRIVER SCAN CONTROL BUFFER VIDEO DATA +3.3V(P) DATA DRIVER SC46 VSCAN GEN. +5V(P) VSUS VSUS (UPPER) SS03 SUSTAIN SD42 +15V(P) DATA DRIVER SOS6_SC1 C21 C33 DATA DRIVER C26 VSET GEN. C10 SS2 DATA DRIVER (CENTER) SD11 SS02 DATA DRIVER SC SU11 SU SUSTAIN CONTROL SD46 SS24A +15V(P) SU41 VIDEO DATA (LOWER) DATA DRIVER DATA DRIVER VIDEO DATA DATA DRIVER SOS8_SS Vda C1 VIDEO DATA SOS8_SS SOS8_SS VE GEN. SUSTAIN VSUS GEN. SUSTAIN CONTROL ENERGY RECOVERY DATA DRIVER SS DATA DRIVER (LEFT) SC42 DATA DRIVER Vda SCAN DRIVE SD VIDEO DATA C36 SCAN OUT (UPPER) SCAN DRIVER +5V(P) C31 DATA DRIVER C20 SS-BOARD SOS DETECT CONNECTOR VIDEO DATA +5V(P) CONNECTOR Vda +3.3V,+5V(P) DATA DRIVER Vda C3 SUSTAIN CONTROL C21 C2 SUSTAIN DRIVE SC-BOARD ENERGY RECOVERY SOS DETECT DATA DRIVER +5V(P) DATA DRIVER SC-BOARD FLOATING PART SOS DETECT VAD GEN. DATA DRIVER (RIGHT) SS11 SC41 CONTROL PULSE SS33 C35 DATA DRIVER SC20 DATA DRIVER +3.3V(P) SOS7_SC2 P2 VSUS S1 POWER SW POWER SWITCH MAIN SW1 S34 MAIN SW2 ON D FORMAT CONVERTER, PLASMA AI PROCESSOR (LED:4TIME) COLD (LED:6TIMES) (LED:3TIMES) (LED:7TIMES) COLD HOT (LED:5TIMES) (LED:2TIMES) (LED:8TIMES) (LED:4TIMES) (LED:7TIMES) (LED:6TIMES) (LED:8TIME) from P7 from P6 KEY SWITCH +3.3V(SW) HD/VD-1 +5V(STB) HD/VD_2 DS BOARD SOS TTL CONV. +3.3V(P) +1.8V(P) STB+3.3V SLOT2 FAN SOS D5 to DN3 ASIC OUTA (30bit) +2.5V(P) HD/VD_1 30bit_RGB VIDEO SIGNAL PROCESSOR COMPONENT SELECT Y,PB,PR HD/VD-1 +2.5V +2.5V(P) PANEL STB_ON OSD Y/PB/PR_3 DS7 H3 +3.3V(P) +1.8V SOS +5V L+/- +14V(LAN) H37 FAN_CONT +9V +15V(FAN) EQUALIZER SCW4 SPEAKER R L/R_1 B Y/PB/PR_1 +9V SYNC SIGNAL PROCESSOR +1.2V(P) ASIC OUTB (30bit) TERMINALS SOUND CONTROL Y/PB/PR_3 PANEL READY SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR ALL OFF +15V (SND) DS6 REMOTE IN AUDIO SELECT DDR2 L/R_1 LAN+15V SPEAKER L DN5 +3.3V(STB) DS SOS DET CIRCUIT LVDS IN B SPEAKER +5V(STB) DS1 +5V (STB) +1.2V(P) TTL CONV. FSTB +15V DS12 DS4 +15V (FAN) SPEAKER L/R_2 DS11 STB+5V EVEN 10bit ODD 10bit L/R_2 HDE LED_G DN1 +1.8V L/R_1 +5V(P) Y/PB/PR_1 DS8 +3.3V(P) +3.3V HD/VD_4 LVDS_A REMOTE RECEIVER V1 L/R_4 LVDS IN A +15V(P) R+/- HD,VD +5V(P) R+/- SYNC SIGNAL INVERTER LED_G/LED_R HD/VD_4 DS13 EVEN 10bit ODD 10bit Y/PB/PR_4 +3.3V(STB) V2 ASIC HD,VD TERMINAL +1.8V(P) V2 KEYSCAN KEY SWITCH IIC1 +5V(P) FAN POWER IP CONV. L/R_3 R,B,G +9V(P) R(10bit) G(10bit) B(10bit) +15V(P) H3 H37 R+/- MICOM SP AMP +5V(P) Y/PB/PR_2 +3.3V(P) DS2 HD,VD +9V(P) LED_R PANEL READY LED_R KEYSCAN DN Y/PB/PR_1 L/R_3 TERMINALS DS14 DN BOARD SOS LVDS RX P+15V SOS POWER ON/OFF 30bitx2_ASIC OUT +15V(FAN) F+15V SOS TERMINAL HD/VD Y,PB,PR +3.3V LVDS_B +1.2V HD/VD_3 +5V(STB) RESET L/R_4 STB+5V SCW4 PC PANEL STB_ON A/D_C HX1 +9V LED +3.3V SOS R/G/B 30bit REMOTE RECEIVER/LED Y/PB/PR_4 DVI-D INTERFACE LVDS DATA DS3 P_ON/OFF +14V(LAN) +15V(P) +12V(SND) L+/- +15V(P) DN2 +3.3V(STB) +2.5V SOS PANEL SOS STB+3.3V DIGITAL SIGNAL PROCESSOR SLOT1 PANEL SOS V15 A VIDEO SIGNAL PROCESSOR LVDS RX L,R HX P+5V EEPROM to DS15 +1.2V SOS F+15V DET F+15V_MON SLOT3 LVDS DATA CLKGEN RESET LED_G SLOT1-3 SOS P+5V SOS LVDS_A REMOTE IN L+/- D3 L/R PC/RS232C TERMINAL IN L,R L,R I/F DVI DVI H1 Y,PB,PR L,R VIDEO LAN H1 COMPONENT VIDEO/ LAN TERMINAL HL RXD/TXD LAN/RS232C SIGNAL SELECT RS232C (LED:10TIMES) (LED:2TIMES) (LED:10TIMES) (LED:13TIMES) (LED:11TIMES) (LED:10TIMES) (LED:2TIMES) DS PB38 PB34 +7/12V FAN SOS DET FAN_A-F DN9 PB36 CIRCUIT PB32 PB30 PB FAN CONTROL (LED:11TIMES) 42 TH-65PF12CK 10.2. 方框图（1/6） TH-65PF12CK Block (1/6) Diagram TH-65PF12CK Block (1/6) Diagram TMDS_RX1- DVI_CN_SDA TMDS_RX2- AUDIO_L TMDS_RXC+ AUDIO_R TMDS_RX2+ DVI_CN_SCL TMDS_RX1+ AUDIO_R AUDIO_L TMDS_RX0+ TMDS_RXC- TMDS_RX0- JK3301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 D3011 +5V JK3302 Q3305 D3025 +3.3V Q3304 +5V Q3301 PA3301 X3302 +15V XIN B0-B7 VCC(+3.3V) LVDS_TX1- IC3342 DVI IN 5V<->3.3V TB2+ TD1- USE N.C. CLK7(27MHz) EVEN_G0-G7 A26 DS12 TA2- TC2- FREQ1 LVDS_TX5+ USE B14 GENX_CONTROL_IIC TCK1- +9V B23 TMDS_G TC1- AND TA1 -TE1 LVDS_TX6- SLOT_IIC LVDS_TX3- VCC(+3.3V) OE2 B19 A8 TMDS_G N.C. TMDS_D0- TVLOAD_IIC +1.2V VCC TE1- IC3310 LVDS_TX4- A3 ODD_B0-B7 A5 TB1- TMDS_G CONFIG ROM A9 IC3303 LVDS_TX2- +1.8V TMDS RX0 -RX2 IIC CLOCK2 WR EEPROM TCK1+ DVI_5V_DET IC3320 RGB OUTPUT EVEN_R0-R7 FACTORY 10MHz B0-B7 STB+5V VCC B11 R1PWR5V +3.3V USE NRST Q3303 RESET N.C. LVDS_TXC- H4 DVI I/F RECEIVER TC2+ S2 TD1+ NRST CSDA/CSCL H,V,CK IC3308 B6 TD2+ G0-G7 TA1- B5 A R IC3301 TCK1 LVDS_TX6+ B0-B7 LATCH SDA1 SCL1 STB+5V IC3314 VCC FOR IC3307 B38 TE2+ SCL G0-G7 SDA TE2- EEPROM VCC(+3.3V) B2 VCC(+3.3V) H2 FACTORY VCC N.C. DATA ASD DCLK EVEN_B0-B7 B24 LVDS_TX7+ +5V B0-B7 R0-R7 TMDS_C+ LVDS_TX9- IC3346 H,V,CLK 5V<->3.3V LVDS_TX2+ N.C. VCC(+1.2V) TA1+ LVDS_TX3+ LVDS_TX8+ +15V IIC DATA2 B37 A22 A10 DSCL1/DSA1 +15V TMDS_G IC3312 VOUT GND SDA2 SCL2 TB1+ 1 S1 VCC N_FHD N.C. DVI_CN_SDA/SCL DDCD HPD LVDS_TX0- SDA/ SCL TMDS_D2+ DDCC VCC(+1.8V) L H,V,CK R0-R7 A TMDS_D2- H1 A19 +5V HD/FHD DET TMDS_D1+ AUDIO OUT L A23 SDA/SCL PLUG DET FACTORY IC3343 O_CLK R0-R7 B FOR A7 A21 VCC(+3.3V) CKOUT B39 IC3319 XTAL IN TC1+ +9V B12 B8 TB2- LVDS_TX5- RESET TMDS DECODER A14 A15 B25 FOR AUDIO OUT R X3301 TD2- SLOT_IIC LVDS_TX7- OSCXI A12 IC3345 B21 Q3302 G0-G7 2 WC +9V ODD_G0-G7 3 A13 FPGA HDE TMDS_D0+ VCC 4 +5V G0-G7 SYNCHRONIZATION FREQ0 GENX MPU TMDS_D1- AUDIO IN A4 HSYNC,VSYNC,DOCK SDA/SCL DATA RECOVERY SDA0 SCL0 CLOCK CONTROL LVDS_TX1+ IC3341 LVDS_TX4+ H3 ODD_R0-R7 HPS CLK4 TA2 -TE2 PLL B9 LVDS CONVERTER EPCS_DATA EPCS_ASD EPCD_DCLK TMDS_C- IIC CONTROL(SRQ) B15 LVDS_TX0+ LVDS_TX8- DVI_IIC LVDS_TXC+ TA2+ RESET A2 B DVI-D INTERFACE OSCXO B3 LVDS_TX9+ EDID_WP DVI_5V_DET TE1+ R0-R7 A28 43 TH-65PF12CK 10.3. 方框图（2/6） TH-65PF12CK Block (2/6) Diagram TH-65PF12CK Block (2/6) Diagram (LED:10TIMES) A_OC+/- TX2+/- 3.3V->5V TX4+/- +3.3V HX1 COMPONENT VIDEO/LAN TERMINAL A32 TX0+/- A22 16 IC3303 IIC_CLOCK2 B21 B27 HD SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR S2_2 SLOT1 LAN SERIAL SELECT 8 A36 PR_3 JK3303 B28 EEPROM Y_3 SLOT5V 1 SLOT1_DET A34 TX7+/- USE IIC_DATA3 3V_TXD_LAN A28 B25 REMOTE RECEIVER B40 H1(HDE-BOARD) AUDIO OUT L OVER VOLTAGE SOS 2 RESET LAN14V 100BASE-TX B26 B_OA+/- B14 Q8021-23 KEY SW A34 A14 TXD_PC SDA_S1 TXD_S3 Y/G A36 IC3305 VD UART A21 B11 PB_3 B8 Y/G IIC_CONT1(SRQ) B30 S2 A15 IC3308 IIC_SW_DAC3/DAC4 DS12 B26 12 B21 B40 SOS_S2 VCC +1.8V 3 AUDIO OUT R IIC_DATA4 Q3302 +1.8V 1 COMPONENT VIDEO IN 4 PB/B +1.8V Q3303 2 JK3513 A17 10/100 EtherMAC w/FIFO MII DATA H6 +3.3V LED_R D1550 SLOT_IIC TXD_S1 VCC IIC3 A22 HD_2 5V->3.3V SLOT+9V B3 A40 B6 A_EC+/- RXD_PC CLK B23 A21 B17 3 TXD_S3 IIC_IF 8 5V->3.3V TXC+/- SLOT15V SCL_S2 PLUG DET 2 LAN CONTROL DS13 A2 B23 B27 SDA_S3 B_OB+/- 1 TX5+/- TX9+/- TXD_S2 RESET IC3006 B_ED+/- 15 SDA_S2 A28 IIC_CLOCK3 A_EA+/- TXD_S3 A14 A19 +3.3V A3 TXC+/- B14 B26 5 JK3511 5V<-3.3V KEY_SW IC3316 RS232C B2 SOS B12 RXD0 TXD0 REMOTE_OUT_S1 DS11 VCC 8 V15 B26 TX6+/- FOR 2 B2 SCL_S3 EEPROM FACTORY SPI 13 RXD_S3 3 +9V 13 5 B27 B17 IIC_CONT IIC_DATA2 +9V HX DAC0 SLOT_TXD IC3301 IC3502 A38 B35 TX3+/- 12 B3 IC3009 IIC_CONT PC IN B38 A40 IC3008 PB/B H3 3 JK3301 Y_1 A21 WR RM001 PB/B RESET A34 B19 A13 LAN+14V Y_4 TXD_S2 15 SDA LED_G SLOT3.3V SLOT2 LED_G LAN0 PR_4 A22 TX8+/- VD_2 A_OA+/- B30 SOS SDA/SCL_S2 IIC-CONTROL(SRQ) VD_1 1 1 PB_2 SLOT15V RXD_PC 14 A38 A26 A22 PC_L B_EC+/- B_OE+/- B38 15 PC/RS232C TERMINAL USE LAN1 SLOT3.3V A_OD+/- PR/R 12 FOR RXD_S3 REMOTE PC_G DAC1 14 A10 L_3 IIC_CONT PC_R 13 B_EA+/- SLOT5V Y/G TX1+/- 6 LAN TERMINAL 2 PC AUDIO IN 5V IC3304 SLOT_RXD AUDIO IN SCL_S1 A38 A19 PC_R MII_MDC A26 6 1 TX2+/- A28 SLOT9V A30 R_4 HDMI_L 10BASE-T/ 3.3V_RXD_LAN PC_B DS 14 A7 H4/H5 9 VD_4 B25 A21 RESET SLOT+9V AUDIO IN R 7 V1 STB5V S2_RXD MII_TXD MII_RXD DS2 B8 A32 A8 RXD TX5+/- TXD A26 IIC_CONT2(SRQ) PC-VD R_1 4 PC_HD VCC A40 B37 A8 REMOTE_OUT_S1 A_EB+/- B_OC+/- A12 IC3302 TXD_S3 11 B36 S2 H1 B6 LED_R B9 B12 PB_1 B21 A12 6 LAN DATA FACTORY B25 2 RXD_S1 JK3509 TX9+/- A4 A13 L_1 V2 KEY SWITCH LAN14V B23 B_OD+/- TXD HD REMOTE RECEIVER/LED SHORT SOS RESET B40 A38 IC3315 SLOT IIC A9 A40 5 RESET SERIAL SELECT S2_TXD RXD MII_TXD/ MII_RXD A15 TXD_S1 TXD A_OE+/- A7 DS 15 POWER LED TX4+/- 2 B28 SDA/SCL_S3 A_CLK+/- IIC_CLOCK1 AUDIO_SOS 1 REMOTE_OUT_S2 RXD_S2 B25 EEPROM +5V B24 STB+5V(S) REMOCON TX8+/- IC3314 B31 B35 FACTORY RXD TX7+/- B_EE+/- A2 13 USE B36 REMOTE_OUT_S2 +15V SLOT+9V B24 B27 10 LED_R KEY SWITCH FOR SLOT2_DET PB_4 A34 4 A_OB+/- B15 A36 IC3313 6 A9 V2 HD_4 TXD_S1 IIC_DATA1 Y_2 A4 3 SOS_S1 10 RXD B5 LED_G S2_1 TX1+/- IIC- CONTROL (SRQ) B21 STB5V 12 B_EB+/- NETWORK CONTROLLER 6 14 VD L_2 R_2 SDA/SCL_S1 A30 SPI FLASH MEMORY B_CLK+/- B23 A36 PR/R D8201 D8209 +3.3V IC3153 B15 A28 RXD_S3 B19 JK3302 VCC B9 TX0+/- 5V_RXD_LAN SCL PR_2 A17 L_4 TX3+/- PR/R D8013-15 AUDIO IN L 15 SDA/ SCL A5 5V_TXD_LAN 14 R_3 B40 CONTROL IIC A_ED+/- REMOTE 25MHZ B11 RXD_S3 SLOT9V 10 B24 PLUG DET IIC-CLOCK3 HL IC3002 HDMI_R REMOTE B24 TX6+/- VCC B31 HD_1 IICDATA3 A26 PR_1 25MHZ RXD_S2 B5 A_EE+/- RESET RXD_S1 TXD_PC REMOTE_OUT_S3 B37 RXD_S1 A3 IIC_CLOCK4 A10 IIC SW TXD 1 STB+3.3V A5 DAC1 SOS_S1/S2/S3 LAN0 REMOCON_OUT LAN0 LAN1 LAN14V_ON/OFF LAN1 DAC0 5V_TXD_LAN DAC0 DS_SOS DAC1 Q8201 D8204 STB+5V D8211 D8210 Q8202 R8203 R8202 D8212 3.3V_LAN 5V_STB D8200 +14V_LAN LAN+14V D8203 5V_STB D8213 Q8200 R8200 +3.3V_LAN (LED:10TIMES) DS TH-65PF12CK Block (2/6) Diagram TH-65PF12CK Block (2/6) Diagram (LED:10TIMES) A_OC+/- TX2+/- 3.3V->5V TX4+/- +3.3V HX1 COMPONENT VIDEO/LAN TERMINAL A32 TX0+/- A22 16 IC3303 IIC_CLOCK2 B21 B27 HD SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR S2_2 SLOT1 LAN SERIAL SELECT 8 A36 PR_3 JK3303 B28 EEPROM Y_3 SLOT5V 1 SLOT1_DET A34 TX7+/- USE IIC_DATA3 3V_TXD_LAN A28 B25 REMOTE RECEIVER B40 H1(HDE-BOARD) AUDIO OUT L OVER VOLTAGE SOS 2 RESET LAN14V 100BASE-TX B26 B_OA+/- B14 Q8021-23 KEY SW A34 A14 TXD_PC SDA_S1 TXD_S3 Y/G A36 IC3305 VD UART A21 B11 PB_3 B8 Y/G IIC_CONT1(SRQ) B30 S2 A15 IC3308 IIC_SW_DAC3/DAC4 DS12 B26 12 B21 B40 SOS_S2 VCC +1.8V 3 AUDIO OUT R IIC_DATA4 Q3302 +1.8V 1 COMPONENT VIDEO IN 4 PB/B +1.8V Q3303 2 JK3513 A17 10/100 EtherMAC w/FIFO MII DATA H6 +3.3V LED_R D1550 SLOT_IIC TXD_S1 VCC IIC3 A22 HD_2 5V->3.3V SLOT+9V B3 A40 B6 A_EC+/- RXD_PC CLK B23 A21 B17 3 TXD_S3 IIC_IF 8 5V->3.3V TXC+/- SLOT15V SCL_S2 PLUG DET 2 LAN CONTROL DS13 A2 B23 B27 SDA_S3 B_OB+/- 1 TX5+/- TX9+/- TXD_S2 RESET IC3006 B_ED+/- 15 SDA_S2 A28 IIC_CLOCK3 A_EA+/- TXD_S3 A14 A19 +3.3V A3 TXC+/- B14 B26 5 JK3511 5V<-3.3V KEY_SW IC3316 RS232C B2 SOS B12 RXD0 TXD0 REMOTE_OUT_S1 DS11 VCC 8 V15 B26 TX6+/- FOR 2 B2 SCL_S3 EEPROM FACTORY SPI 13 RXD_S3 3 +9V 13 5 B27 B17 IIC_CONT IIC_DATA2 +9V HX DAC0 SLOT_TXD IC3301 IC3502 A38 B35 TX3+/- 12 B3 IC3009 IIC_CONT PC IN B38 A40 IC3008 PB/B H3 3 JK3301 Y_1 A21 WR RM001 PB/B RESET A34 B19 A13 LAN+14V Y_4 TXD_S2 15 SDA LED_G SLOT3.3V SLOT2 LED_G LAN0 PR_4 A22 TX8+/- VD_2 A_OA+/- B30 SOS SDA/SCL_S2 IIC-CONTROL(SRQ) VD_1 1 1 PB_2 SLOT15V RXD_PC 14 A38 A26 A22 PC_L B_EC+/- B_OE+/- B38 15 PC/RS232C TERMINAL USE LAN1 SLOT3.3V A_OD+/- PR/R 12 FOR RXD_S3 REMOTE PC_G DAC1 14 A10 L_3 IIC_CONT PC_R 13 B_EA+/- SLOT5V Y/G TX1+/- 6 LAN TERMINAL 2 PC AUDIO IN 5V IC3304 SLOT_RXD AUDIO IN SCL_S1 A38 A19 PC_R MII_MDC A26 6 1 TX2+/- A28 SLOT9V A30 R_4 HDMI_L 10BASE-T/ 3.3V_RXD_LAN PC_B DS 14 A7 H4/H5 9 VD_4 B25 A21 RESET SLOT+9V AUDIO IN R 7 V1 STB5V S2_RXD MII_TXD MII_RXD DS2 B8 A32 A8 RXD TX5+/- TXD A26 IIC_CONT2(SRQ) PC-VD R_1 4 PC_HD VCC A40 B37 A8 REMOTE_OUT_S1 A_EB+/- B_OC+/- A12 IC3302 TXD_S3 11 B36 S2 H1 B6 LED_R B9 B12 PB_1 B21 A12 6 LAN DATA FACTORY B25 2 RXD_S1 JK3509 TX9+/- A4 A13 L_1 V2 KEY SWITCH LAN14V B23 B_OD+/- TXD HD REMOTE RECEIVER/LED SHORT SOS RESET B40 A38 IC3315 SLOT IIC A9 A40 5 RESET SERIAL SELECT S2_TXD RXD MII_TXD/ MII_RXD A15 TXD_S1 TXD A_OE+/- A7 DS 15 POWER LED TX4+/- 2 B28 SDA/SCL_S3 A_CLK+/- IIC_CLOCK1 AUDIO_SOS 1 REMOTE_OUT_S2 RXD_S2 B25 EEPROM +5V B24 STB+5V(S) REMOCON TX8+/- IC3314 B31 B35 FACTORY RXD TX7+/- B_EE+/- A2 13 USE B36 REMOTE_OUT_S2 +15V SLOT+9V B24 B27 10 LED_R KEY SWITCH FOR SLOT2_DET PB_4 A34 4 A_OB+/- B15 A36 IC3313 6 A9 V2 HD_4 TXD_S1 IIC_DATA1 Y_2 A4 3 SOS_S1 10 RXD B5 LED_G S2_1 TX1+/- IIC- CONTROL (SRQ) B21 STB5V 12 B_EB+/- NETWORK CONTROLLER 6 14 VD L_2 R_2 SDA/SCL_S1 A30 SPI FLASH MEMORY B_CLK+/- B23 A36 PR/R D8201 D8209 +3.3V IC3153 B15 A28 RXD_S3 B19 JK3302 VCC B9 TX0+/- 5V_RXD_LAN SCL PR_2 A17 L_4 TX3+/- PR/R D8013-15 AUDIO IN L 15 SDA/ SCL A5 5V_TXD_LAN 14 R_3 B40 CONTROL IIC A_ED+/- REMOTE 25MHZ B11 RXD_S3 SLOT9V 10 B24 PLUG DET IIC-CLOCK3 HL IC3002 HDMI_R REMOTE B24 TX6+/- VCC B31 HD_1 IICDATA3 A26 PR_1 25MHZ RXD_S2 B5 A_EE+/- RESET RXD_S1 TXD_PC REMOTE_OUT_S3 B37 RXD_S1 A3 IIC_CLOCK4 A10 IIC SW TXD 1 STB+3.3V A5 DAC1 SOS_S1/S2/S3 LAN0 REMOCON_OUT LAN0 LAN1 LAN14V_ON/OFF LAN1 DAC0 5V_TXD_LAN DAC0 DS_SOS DAC1 Q8201 D8204 STB+5V D8211 D8210 Q8202 R8203 R8202 D8212 3.3V_LAN 5V_STB D8200 +14V_LAN LAN+14V D8203 5V_STB D8213 Q8200 R8200 +3.3V_LAN (LED:10TIMES) DS 44 TH-65PF12CK 10.4. 方框图（3/6） TH-65PF12CK Block (3/6) Diagram TH-65PF12CK Block (3/6) Diagram PR_M STB_ON DAC0 SDA2 SLOT_TXD REMOCON 3.3V_TXD_LAN Y_M DAC1 LED_R 3.3V_RXD_LAN SLOT_RXD SLOT1_DET IIC_SW_DAC3 IIC_CONT DS_SOS PB_M REMOTE_OUT SCL2 LAN1 ALL_OFF IIC_SW_DAC4 SLOT2_DET LAN0 LED_G KEY_SW SCL3 SDA3 SLOT3_DET RESET RESET LAN+14V +15V FSTB+15V STB+5V LAN+14V +5V FAN+15V FAN+15V STB+5V STB+3.3V STB+5V +15V IC8014 IN A_CLK+- TIME CLOCK 4 L_OUT+ SOUND CONTROL 30 VD_M REMOTE_OUT Green VOL DAC0 RXD_PC MAIN IC8005 +9V IIC3 LAN+14V_ON/OFF 34 50 F_STB_ON 7 IC3001 A_CLK+- 1 B_EA+- EE+- IIC3 B/PB_M +15V(SND) R/PR_M LED_G SOUND_MUTE INPUT SELECT VD_2 SP AMP +9V 17 15V_ON/OFF +15V(SND) 3 COMPONENT SELECT HD IIC2 IC801 S_CLOCK2 RXD_LAN OUT+ RTC_INT 9 +1.8V +15V(FAN) Q801 SEPA 2 IC8181 8 L/R 59 52 ALL_OFF 7 46 1 2 47 8 DN2 36 IC3007 LED_R B_CLK+- +15V IIC3 SDA/SCL R OUT- STB+3.3V A G C SPEAKER +3.3V 4 IC804 +5V IIC ON/OFF TXD_PC VCC SYNC SIGNAL INVERTER HD/VD SELECT Q8010,11 D8010 H37 PHASE DPMS_HD 5V->3.3V Q804 L OUT+ PR/PB/Y_3 2 3 DVDD TXD_LAN 36 VCC VCC LPF IC805 3 SLOT3_DET PR/PB/Y_4 3 SP_L- Q805,06 BAL OUT+ 7 IC2303 A_EA+- EE+- S_DATA2 S_DATA3 +15V (SND) +3.3V R_OUT- +15V(SND) +3.3V SP_R- DS6 3 IIC3 12 SLOT1_DET 2 +5V DN1 7 REMOTE 27 35 FSTB+15V_MON S_CLOCK3 A_OA+- OE+- IC3005 SDA/ SCL AMP L/R_4 RS232C 61 R_OUT+ VCC Q8012,12 D8011 SPEAKER R 9 DS1 11 TERMINAL DS7 DS3 IN 57 3 AVDD 48 A_EA+- EE+- IC8018 29 VD_M IC2305 +3.3V FSTB+15V L_OUT- 33 DS4 HD 22 +9V 63 19 H Sync SHIFT HD 18 HD_M 55 IIC2 65 VCC2 5 67 LAN0 8 RXD_TU HD_M HD_4 13 STB+5V IIC_CONT HD_2 DPMS_VD 5 FAN+15V LAN+14V_ ON/OFF OUT- 1 R OUT+ L/R_2 +15V 13 4 FSTB+15V_MON 10 DS8 VD_4 VD Q2372 PR/PB/Y_1 3 DAC1 SP_R+ 39 40 VD_M +9V 38 VD_1 P6 45 OUT- STB_ON 16 14 SLOT2_DET SYNC SIGNAL PROCESSOR P+5V G/Y_M IIC_SW_DAC4 VCC 49 IIC3 Q803 DRIVER PR-M/PB-M/Y-M SEPA 23 R L/R_1 24 33 +15V(SND) HD/VD SELECT PR/PB/Y_2 IC8017 TONE 53 15 TERMINALS VCC1 15V_ON/OFF HD_1 VD_3 SPEAKER L TERMINALS 42 HD_3 L ASPECT DET 6 IIC3 TXD_TU +5V 12 P7 +5V 41 LAN+14V_ON/OFF IC802 54 LAN1 FSTB+15V +1.8V VD Q802 +1.8V VCC +5V VCC SDA/SCL B_OA+- OE+- SYNC SIGNAL PROCESSOR Q8183,84 32 67 43 ALL_OFF 1 Q8019,02 1 TERMINAL RXD_PC H3 MUTE DPMS_HD CVDD 5V<->3.3V +15V B_EA+- EE+- VCC L OUT- FSTB+15V 28 11 VD L/R_3 COMPONENT SELECT +9V SOUND_MUTE B_CLK+- KEY_SW IIC_SW_DAC3 15 H37 H3 V Sync B_OA+- OE+- IC803 AUDIO SOS ALL_OFF SPEAKER DS_SOS S_S1/S2/S3 26 DPMS_VD 5V->3.3V SP_L+ IIC3 1 A_OA+- OE+- SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR IC2300 1 EQUALIZER TXD_PC HD_M VDD RSTB RESET 21 RESET +15V(P) F_STB_ON +5V(STB) IC2415 DS 45 TH-65PF12CK 10.5. 方框图（4/6） TH-65PF12CK Block (4/6) Diagram TH-65PF12CK Block (4/6) Diagram (LED:10TIME) (LED:11TIMES) (LED:2TIME) (LED:13TIME) (LED:10TIME) (LED:2TIMES) (LED:11TIMES) TXD_PC_M LED_R D_TXD 15V_ON/OFF DS_SOS PLLV DPMS_VD PLLH RXD_PC IIC_SW_DAC4 5VTXD_TU READY DAC1 PANEL_STBY_ON VD-M TXD_PC_M RXD_PC READY KEY_INPUT ALARM LED_G PANEL_STBY_ON LED_R FAN_CONT ALL_OFF DPMS_VD 5VRXD_TU RESET HD-M 3.3VRXD_TU 5VTXD_TU LAN+14V_ON/OFF IIC_SW_DAC4 RTC_INT KEY_INPUT 15V_ON/OFF IIC_SW_DAC3 FSTB+15V_MON DAC0 STB_ON LAN+14V_ON/OFF IIC_CONT DPMS_HD SLOT1_DET DAC1 3.3VRXD_TU SLOT2_DET ALARM FAN_SOS D_RXD ALL_OFF SLOT3_DET FAN_SOS RTC_INT 5VRXD_TU DS_SOS DAC0 DPMS_HD IIC_CONT RXD_PC IIC_SW_DAC3 TXD_PC STB_ON LED_G TXD_PC FSTB+15V_MON SOUND_MUTE 3.3V_TXD_LAN 3.3V_RXD_LAN LAN0 LAN1 LAN0 LAN1 3.3V_RXD_LAN 3.3V_TXD_LAN SOUND_MUTE FAN_CONT FAN_ON/OFF FAN_ON/OFF RESET D4001 +3.3V(P) FL4007 +2.5V(P) +5V(FAN) D4033 +3.3V +3.3V(SW) +15V(P) +3.3V(SW) R4145 +3.3V(STB) +3.3V(SW) +15V(P) D4030 +2.5V +3.3V(STB) +1.2V +5V(STB) +3.3V(STB) D4029 D4032 +5V(P) +1.8V +3.3V D4031 +15V(FAN) +1.8V(P) +1.2V(P) STB+5V +5V(P) +15V(P) +3.3V(SW) +3.3V(STB) +3.3V +1.8V +2.5V +1.2V(STB) FL4008 +1.2V(STB) +1.2V +5V(STB) G G G G A_EA+- - EE+- POWER_ON/OFF PI2B0-B9 5V TXD_PC IC4513 PI2R0-R9 SYNC SEPA VD_M IC4201 IC4703 FPGA_LD IIC3 29 A/D FPGA_CLK 31 +3.3V +1.2V +1.2V CLOCK IN Q4012 AD_R0-R9 HD-M/ VD-M 65 SLOT3_DET FSTB+15V_MON SLOT1_DET 2 67 SLOT2_DET 14 45 FOR KEY_INPUT D_RXD +3.3V 52 DDR_SDRAM +1.2V REMOTE_OUT PANEL STBY ON IC4902 DATA 59 IC4011 LVDS 46 DS_SOS R/G/B VSYNC DQ0-DQ15 TXD_TU IIC2 22 RXD_TU TXD_PC TTL +3.3V(STB) LVDS OUT REMOTE IN PARALLEL HS,VS,CLK 36 10bit LVDS Q4010 IC4001 - FLASH MEMORY IIC_SW_DAC4 IC4514 IC4704 VSYNC IIC_SW_DAC3 DDR_SDRAM IC4501 Q4007,13 D3 ASIC OUT A PI1D(10)-(19) REMOTE 8 DN3 HS,VS,CLK CLKM/20MHz SDA2/SCL2 Q4014 8Mbit 43 PANEL SOS HDA,VDA REMOTE_IN ALL_OFF DS BOARD SOS FAN_A-F CLK 5V<-3.3V 1 CLD IC4005 13 4 ASIC CLK 30 D_TXD DN9 OSD DPMS_VD PI1HS,PI1VS [A] +7/12V +1.8V PLL 3 VIDEO SIGNAL PROCESSOR 10bit RGB VIDEO SIGNAL G/Y_M FAN CONT SDA4/SCL4 HD_M FAN CONTROL RE0-9(10bit) - DN5 DPMS_HD Q4003 + SDA/SCL +2.5V RST IN +1.8V SOS PI1D(0)-(29) CLD DAC1 ROUT R/G/B DATA 39 S_CLOCK3 SDA3/SCL3 BOUT 40 2 SCW4 IN 15V_ON/OFF +3.3V PI2G0-G9 FSTB+15V_MON R/G/B Y_M A_EA+- - EE+- IC4903 IIC_SW_DAC4 MCLD 30bit 35 PANEL_STATUS PI2D(0)-(29) DPMS_VD Q4011 IIC_SW_DAC3 PANEL STBY ON DPMS_HD DDR_SDRAM LVDS INTER FACE TTL STB_ON DATA [B] CLOCK IIC CONT +15V(P) LED_G RECEIVER A_OA+- - OE+- PI1D(0)-(9) LVDS INTERFACE PR_M PI1R0-R9 PARALLEL B_CLK+- R/G/B_0-9 15 IC4515 PI1G0-G9 FACTORY + SCW4 MICOM USE +1.8V_AVDD CLP SDA1/SCL1 FOR DAC1 A/D_C 50 FACTORY DAC0 10bit IIC2 LED_R 28 USE +3.3V SOS 26 LVDS RECEIVER & TTL PARALLEL B_OA+- - OE+- PI1D(20)-(29) LED_G +1.8V AVDD IC4501 GOUT +1.8V IC4010 A_CLK+- SCW IN B B_EA+- - EE+- Q4008 IIC2 IC4901 +2.5V SOS A0-A19 FAN_SOS LED_R PANEL_STATUS - IIC3 KEY_INPUT SCW4 IN DN BE0-9(10bit) 33 RXD_TU DIGITAL SIGNAL PROCESSOR PB 47 IC4012 REMOTE IC4702 HSYNC 36 DS3 LAN+14V_ON/OFF ALL_OFF 8 DS1 RXD_PC DN2 P+15V SOS HD_ADA VD_ADA CLPA 27 HS,VS,CLK PI1B0-B9 41 ASIC OUT B RESET 66 33 SCW4 LAN+14V_ON/OFF 4 D_IIC1 15V_ON/OFF ASIC-ARM HD_M/ VD_M RTC_INT S_CLOCK2 54 LSI RESET TEMP SENSOR EEPROM A_CLK+- FPGA_DATAIN 24 FLASH MEMORY 30bit REMOTE_OUT D_TXD 5V->3.3V D_RXD +1.8V_PLL IIC2 5V->3.3V 10 A/D CONVERTER Q4009 DN BOARD SOS DN1 HSYNC/VSYNC/CLAMP S_DATA3 CLOCK GEN D5 2 2088MHz ASIC-ARM +5V(STB) B_EA+- - EE+- DATA +3.3V B_CLK+- +3.3V 4 + IP CONVERTER HSYNC CLK_O 42 PANEL SOS 57 11 DDR2_SDRAM 67 INTERFACE SCW IN A IIC1 P+5V SOS DAC0 SDA/SCL IC4023 MCCLK 37 FAN+15V +1.2V SOS Q4023 MCDATA 34 16 P+15V SOS PB_M CLK5 +2.5V 3.3V AD_B0-B9 SCW4 IC4501 IIC4 AD_H,AD_V IC4004 GE0-9(10bit) POCLK/74.25M 6 AD_G0-G9 10 IIC4 30bitx2_ASIC OUT IIC_CONT D_IIC_DATA2 DN4 D_IIC_DATA1 30bit_RGB VIDEO SIGNAL PROCESSOR 20 21 DN11 IC4007,08 TTL 51 S_DATA2 14 +5V(P) HDA,VDA, CLPA +15V(P) +3.3V HS,VS,CLK STB_ON 23 74.25MHz PI2D(0)-(9) RXD_PC DATA ADDRESS DATA LVDS DATA B_OA+- - OE+- PARALLEL R/PR_M RECEIVER B/PB_M D_IIC2 D_IIC_CLK1 TXD_TU PI2D(10)-(19) A_OA+- - OE+- 3 D_IIC_CLK2 7 RTC_INT PI2D(20)-(29) IC4904 +1.8V FAN+15V 17 56 SOUND_MUTE 3.3V_TXD_LAN 62 61 3.3V_RXD_LAN LAN1 LAN0 19 12 LAN0 LAN1 3.3V_RXD_LAN 3.3V_TXD_LAN SOUND_MUTE STB+5V_MON PI2HS,PI2VS 1 31 4 PB34 PB32 PB36 3 PB38 3 3 1 +9V(FAN) +5V(FAN) FAN-SOS 1 PB30 1 FAN SOS DET CIRCUIT FAN_CONT FAN_ON/OFF 48 RESET R/G/B R/G/B 30bit 30bit H/V H/V CLK CLK SELECTOR OR D4002 (LED:10TIME) (LED:11TIMES) (LED:2TIME) (LED:13TIME) (LED:10TIME) (LED:2TIMES) (LED:11TIMES) 46 TH-65PF12CK 10.6. 方框图（5/6） TH-65PF12CK Block (5/6) Diagram TH-65PF12CK Block (5/6) Diagram (LED:3TIMES) (LED:8TIMES) (LED:2TIMES) (LED:7TIMES) (LED:5TIMES) (LED:4TIMES) (LED:6TIMES) COLD HOT HOT COLD HOT COLD HOT COLD (LED:4TIMES) VDA_DET D206 D402 D352 TP9 PANEL STBY_ON IIC_CLK2 IIC_DATA1 PANEL MAIN ON +15V(P) VDA_DET +15V(P) +5V(STB) POWER SOS +5V(P) +5V(P) IIC_DATA2 PANEL SOS IIC_CLK1 PANEL STATUS D_IIC2 IC9001 +1.2V D_TXD SUSTAIN CONTROL +1.8V D25 10 IC9500 63 DISCHARGE CONTROL BUFFER +15V(P) 14 D_IIC2 FACTORY USE D20 D_RXD DISCHARGE CONTROL +2.5V 1 LVDS DATA CPG with SS 1 IC9303 SOS6_SC1 POWER SOS PANEL MICOM 3 FLASH MEMORY SOS8_SS D 5 LVDS DATA SUB-FIELD PROCESSOR 17 VIDEO DATA 9 C21 IC9805 +5V(P) D_IIC2 READY LVDS RX FOR +3.3V +3.3V 66 PLASMA AI PROCESSOR +15V(P)DET 66 +5V(P)DET D_IIC2 29 DATA DRIVER PD3H POWER SOS 68 63 +3.3V(P) DDR MEMORY IIC PANEL SOS AUX_ON/OFF SUSTAIN CONTROL IC9003 FORMAT CONVERTER, UHZ IC9806 +1.2V PANEL STATUS 68 +3.3V VIDEO/PANEL CONTROL VIDEO DATA PANEL MAIN ON D6 30 GenX7 H/V SYNC CONTROL +3.3V(P)DET RESET +5V(P) IIC IC9004 29 D31 CONTROL DATA 6 RESET CONTROL DATA 30 C31 UHZ SC20 SCAN CONTROL D_IIC1 PANEL_STBY_ON EEPROM D32 +3.3V IIC +3.3V(STB) DDR I/F +1.2V IC9808 15 11 IIC SOS6_SC1 48 +3.3V(P) CONTROL DATA VIDEO DATA STB+3.3V/RESET FLASH I/F PLASMA AI 2 PANEL_MAIN_ON SCAN CONTROL IC9300 SOS7_SC2 +15V(P) VIDEO DATA SOS8_SS POWER ON/OFF +2.5V AUX_ON/OFF D_IIC1 ALARM IC9902,03 +3.3V(P) 12 SOS7_SC2 DN5 31 1 D5 POWER SOS PANEL_MAIN_ON 3 D3 8 11 4 7 2 DN3 10 IC9002 TENP SENSOR IIC3 67 +3.3V(P) IC9807 +1.8V 13 VDA_DET VDA_DET D_IIC3 IIC AC INLET AC CORD K802 4 AC DET Q403 7 Q353 C35 L805 +15V(SND) MC501 ALL_OFF 2 MC801 2 VR251 D254-D257 VR401 NEUTRAL Vda POWER SW 10 7 Vsus_ON 4 ON +15V(P) Vsus D505 IC555 F801 Q401 +5V PFC P25 2 Q551 MC701 PC501 5 6 F802 D501 Vsus_ON K601 MC401 PC401 F201 DS4 IC251 Vsus 2 L603,L605 K801 BIAS2_ON FILTER Vsus MAIN SW2 T501 15V_IN IC301 Vda L601 L602 D806 9 7 IC601 2 IC352 D500 Vda F301 10A 250V Q802-Q803 P52 IC501 STB POWER OUT P55 STB_ON 5A 250V P34 F602 NEUTRAL 1 Q402 P2 P54 SC2 +15V(P) 5V_OUT 1 10A 250V POWER CONTROL Q301,Q302 3 5 P7 Vda_ON P11 +15V(P) Vsus AC DET +5V(P) T201 1 LINE Q611 Vsus_OUT BIAS1_ON LIVE LINE P35 2A 250V 13 Vda OUT Q351 Vda NEUTRAL 11 D601,D602 Vda_ON 5 K803 PC231 5 BIAS2_ON P51 BAIS_ON PC202 PC302 D401 5 P56 FSTB+15V VDATA_DET PC301 Q601-Q604 9 P53 MULTI 5 1 1 PC502 SW061 15V_ON K603 P9 6 +15V(SND) 12 1 4 MAIN SW T301 Q201,Q202 MC451 +5V(P) +15V(P) 8 1 5A 250V Q203 SS11 MULTI_ON 10A 250V IC202 1 7 L802 DS6 P6 STB_OUT 6 AC DET Q801 K602 D506 2 1 10A 250V Q303 3 5V_ON Q502 S34 3 6 PC201 1 1 F601 Q605-Q608 MAIN SW1 +5V(STB) 1 D551 2 F501 FSTB+15V 1 IC201 3 PFC PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER RECTIFIER RECTIFIER RECTIFIER Vsus ERROR DET PHOTO COUPLER PHOTO COUPLER +15V ERROR DET PHOTO COUPLER Vda CONTROL MAIN RELAY-2(H) POWER SOS MAIN RELAY-1(H) PANEL MAIN ON POWER MICOM RUSH RELAY-2(H) RUSH RELAY-1(H) ALL_OFF F_STBY_ON ECO_ON ECO_ON F_STBY_ON STB ERROR DET FILTER Vsus POWER CONTROL S1 POWER SWITCH P(MULTI) POWER SUPPLY POWER SUPPLY P(SUS) RESONANCE COMPARATOR RESONANCE (LED:3TIMES) (LED:8TIMES) (LED:2TIMES) (LED:7TIMES) (LED:5TIMES) (LED:4TIMES) (LED:6TIMES) COLD HOT HOT COLD HOT COLD HOT COLD (LED:4TIMES) TH-65PF12CK Block (5/6) Diagram TH-65PF12CK Block (5/6) Diagram (LED:3TIMES) (LED:8TIMES) (LED:2TIMES) (LED:7TIMES) (LED:5TIMES) (LED:4TIMES) (LED:6TIMES) COLD HOT HOT COLD HOT COLD HOT COLD (LED:4TIMES) VDA_DET D206 D402 D352 TP9 PANEL STBY_ON IIC_CLK2 IIC_DATA1 PANEL MAIN ON +15V(P) VDA_DET +15V(P) +5V(STB) POWER SOS +5V(P) +5V(P) IIC_DATA2 PANEL SOS IIC_CLK1 PANEL STATUS D_IIC2 IC9001 +1.2V D_TXD SUSTAIN CONTROL +1.8V D25 10 IC9500 63 DISCHARGE CONTROL BUFFER +15V(P) 14 D_IIC2 FACTORY USE D20 D_RXD DISCHARGE CONTROL +2.5V 1 LVDS DATA CPG with SS 1 IC9303 SOS6_SC1 POWER SOS PANEL MICOM 3 FLASH MEMORY SOS8_SS D 5 LVDS DATA SUB-FIELD PROCESSOR 17 VIDEO DATA 9 C21 IC9805 +5V(P) D_IIC2 READY LVDS RX FOR +3.3V +3.3V 66 PLASMA AI PROCESSOR +15V(P)DET 66 +5V(P)DET D_IIC2 29 DATA DRIVER PD3H POWER SOS 68 63 +3.3V(P) DDR MEMORY IIC PANEL SOS AUX_ON/OFF SUSTAIN CONTROL IC9003 FORMAT CONVERTER, UHZ IC9806 +1.2V PANEL STATUS 68 +3.3V VIDEO/PANEL CONTROL VIDEO DATA PANEL MAIN ON D6 30 GenX7 H/V SYNC CONTROL +3.3V(P)DET RESET +5V(P) IIC IC9004 29 D31 CONTROL DATA 6 RESET CONTROL DATA 30 C31 UHZ SC20 SCAN CONTROL D_IIC1 PANEL_STBY_ON EEPROM D32 +3.3V IIC +3.3V(STB) DDR I/F +1.2V IC9808 15 11 IIC SOS6_SC1 48 +3.3V(P) CONTROL DATA VIDEO DATA STB+3.3V/RESET FLASH I/F PLASMA AI 2 PANEL_MAIN_ON SCAN CONTROL IC9300 SOS7_SC2 +15V(P) VIDEO DATA SOS8_SS POWER ON/OFF +2.5V AUX_ON/OFF D_IIC1 ALARM IC9902,03 +3.3V(P) 12 SOS7_SC2 DN5 31 1 D5 POWER SOS PANEL_MAIN_ON 3 D3 8 11 4 7 2 DN3 10 IC9002 TENP SENSOR IIC3 67 +3.3V(P) IC9807 +1.8V 13 VDA_DET VDA_DET D_IIC3 IIC AC INLET AC CORD K802 4 AC DET Q403 7 Q353 C35 L805 +15V(SND) MC501 ALL_OFF 2 MC801 2 VR251 D254-D257 VR401 NEUTRAL Vda POWER SW 10 7 Vsus_ON 4 ON +15V(P) Vsus D505 IC555 F801 Q401 +5V PFC P25 2 Q551 MC701 PC501 5 6 F802 D501 Vsus_ON K601 MC401 PC401 F201 DS4 IC251 Vsus 2 L603,L605 K801 BIAS2_ON FILTER Vsus MAIN SW2 T501 15V_IN IC301 Vda L601 L602 D806 9 7 IC601 2 IC352 D500 Vda F301 10A 250V Q802-Q803 P52 IC501 STB POWER OUT P55 STB_ON 5A 250V P34 F602 NEUTRAL 1 Q402 P2 P54 SC2 +15V(P) 5V_OUT 1 10A 250V POWER CONTROL Q301,Q302 3 5 P7 Vda_ON P11 +15V(P) Vsus AC DET +5V(P) T201 1 LINE Q611 Vsus_OUT BIAS1_ON LIVE LINE P35 2A 250V 13 Vda OUT Q351 Vda NEUTRAL 11 D601,D602 Vda_ON 5 K803 PC231 5 BIAS2_ON P51 BAIS_ON PC202 PC302 D401 5 P56 FSTB+15V VDATA_DET PC301 Q601-Q604 9 P53 MULTI 5 1 1 PC502 SW061 15V_ON K603 P9 6 +15V(SND) 12 1 4 MAIN SW T301 Q201,Q202 MC451 +5V(P) +15V(P) 8 1 5A 250V Q203 SS11 MULTI_ON 10A 250V IC202 1 7 L802 DS6 P6 STB_OUT 6 AC DET Q801 K602 D506 2 1 10A 250V Q303 3 5V_ON Q502 S34 3 6 PC201 1 1 F601 Q605-Q608 MAIN SW1 +5V(STB) 1 D551 2 F501 FSTB+15V 1 IC201 3 PFC PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER RECTIFIER RECTIFIER RECTIFIER Vsus ERROR DET PHOTO COUPLER PHOTO COUPLER +15V ERROR DET PHOTO COUPLER Vda CONTROL MAIN RELAY-2(H) POWER SOS MAIN RELAY-1(H) PANEL MAIN ON POWER MICOM RUSH RELAY-2(H) RUSH RELAY-1(H) ALL_OFF F_STBY_ON ECO_ON ECO_ON F_STBY_ON STB ERROR DET FILTER Vsus POWER CONTROL S1 POWER SWITCH P(MULTI) POWER SUPPLY POWER SUPPLY P(SUS) RESONANCE COMPARATOR RESONANCE (LED:3TIMES) (LED:8TIMES) (LED:2TIMES) (LED:7TIMES) (LED:5TIMES) (LED:4TIMES) (LED:6TIMES) COLD HOT HOT COLD HOT COLD HOT COLD (LED:4TIMES) 47 TH-65PF12CK 10.7. 方框图（6/6） TH-65PF12CK Block (6/6) Diagram TH-65PF12CK Block (6/6) Diagram (LED:6TIMES) (LED:7TIMES) (LED:8TIMES) Vda Vsus PC16461 1 CRC2 +3.3V(P) VOLTAGE SU1-SU5 UML +5V(P) 26 IPD CIRCUIT 1 CMH 4 D20 SIU SUSTAIN IPD CIRCUIT SD 42 SHUNT CRC1 2 DRIVER 13 SD (SC1) 9 CLK C33 8 VSET23 VHIZ GEN. 2 SS 57 12 SS 02 12 IC16464,65 6 9 IC14955-58 Q16608 FPC DET BUFFER CSL IC16784 PC16480 2 +3.3V(P) SUSTAIN CONTROL SEL 12 IC16131 IC16788,89 2 CRC2 C36 Q16623 VIDEO DATA 2 D16871 55 IC17201 SS 52 IC16724 CSL/CML GATE DRIVE CIRCUIT 9 6 Q16052 CML 23 IC14961-65 CB 11 59 SCAN +5V(P) 66 12 5 CONTROL DATA VIDEO DATA Vfo INVERTER 13 IC17301 22 4 25 1 Vsus +3.3V(P) Q16490 IC16725 CB5 6 PANEL DRIVER +15V SHUNT SS 22 SS 56 1 41 6 24 SS 53 19 VSCN-F CERS SU 11 VSCN CB8 PHOTO COUPLER 4 VSET23 9 CLK PHOTO COUPLER IC16791 CB1 55 ELECTRODES 4 13 SU 41 SC50 IC16501 8 CML PLASMA PANEL IC16792 IC16793 1 BUFFER IC16312 (INIT-F) VOH SD1-SD5 +3.3V(P) PC16684 SS 24A ERROR DET BUFFER D16859 SUSTAIN CB 10 SCAN CONTROL 1 3 ERROR DET LED(G) UHZ CSH CSH/CMH GATE DRIVE CIRCUIT 23 SC 42 Q16661 CONTROL DATA BUFFER SOS8_SS VE GEN. UMH IC16564 IC16801 VHIZ C3 7 15 FOR FACTORY USE INVERTER SCAN 2 UMH 8 CERS +15V(P) ERROR DET 53 VIDEO DATA 50 DRIVER SCAN OUT (LOWER) UEH IC14905-08 1 27 ELECTRODE 2 UHZ (15V_F) SCAN CONTROL 44 IC16691 DRIVER SC 41 IC14951-54 Q16876 SUSTAIN CONTROL Q16102 VE Gen. ENERGY Q16005 OC2 IC16692 15V_F 4 IC17302 D16043 SD 46 CB 13 Vda C10 Q16280 SIU +5V LOGIC IC D16484 GEN. 2 1 ERROR DET 1 CPH1 VIDEO DATA 51 SC 20 SS SS 33 P11 INVERTER PC16603 +5V 5 Q16406 CEL DROP 3 CSH D32 CEL +3.3V(P) 13 PANEL SUSTAIN C35 RECOVERY (SC2) 3 35 3 13 P2 30 COMPARATOR IC16771 PC16685 28 CB 12 Q16041 8 21 CB3 SEL 9 SS 59 15V_F CMH 1 C33 SCAN D16464 C31 6 VIDEO DATA Q16401 IC14901-04 BUFFER CSL IC16521 SOS7_SC2 CSL D16860 5 IC16786,87 SC2 SHUNT REG 4 DC/DC VSET GEN. DRIVER PHOTO COUPLER 1 Q16042 ERROR DET 2 CPH1 IC16661 SOS8_SS +5V(P) Vda Q16426 C20 SCNR_PRO C2 SC VHIZ F_5V_A Q16601 SC 46 Q16021 SS 03 19 PANEL SCAN VSET23 GEN. PLASMA PANEL +15V(P) SCAN SS33 IC16151 Q16025 SS 55 Q16621 PANEL DRIVER 2 OC1 PHOTO Q16444 Q16451 16V-F UML CB2 SU +5V(P) VIDEO DATA SCAN DRIVE IC16251 SS 11 (VAD) +3.3V(P) Q16101 VSCN GEN. OC1 CONTROL DATA PC16191 CERS OC2 Q16454 Q16001 (UPPER) SOS6_SC1 CB4 DATA DRIVER (RIGHT) CB6 Vda Vda Vad+5V CML IC16241 PLASMA PANEL REG. SCNR_PRO COMPARATOR IC16304 SUSTAIN CONTROL USH SHUNT REG 8 IC16561,62 CIS Q16607 D31 Q16441 1 IC16581 SD 11 IPD CIRCUIT SS3 CONVERTER 1 1 4 1 CB9 3 1 CRC1 Vfo SS2 PC16301 SEPA PROTECT CIRCUIT USH 52 DATA DRIVER (CENTER) IPD CIRCUIT USL 25 IC16773 IC16490,91 CIS 2 8 Vda Q16421 SUSTAIN CONTROL NAND GATE REG. CB7 Vscn 4 CPH2 PHOTO COUPLER CB 14 USL D16461 D16041 13 C26 SCAN OUT (UPPER) VAD UEH PHOTO COUPLER IC16563 C1 CB 15 Q16818 SOS8_SS LED(G) CONNECTOR DRIVER D16481 COUPLER 6 VOL P35 (LOWER) D16053 CONNECTOR +3.3V(P) C21 F_5V_B SUSTAIN DRIVE 1 D16051 VSUS Gen. MAIN_STOP IC16920 1 PANEL DRIVER 5 DATA DRIVER (LEFT) Q16051 DRIVER 1 30 4 D16255 TPVSET D16721 D16821 D16583 VR16600 D16493 D16820 5V D16480 D16253 D16725 TPSC1 TPSS1 D16282 VR16601 TPVSCN VF_GND TPSOS7 D16791 TPVSUS D16280 D16473 TPVE 5V D16901 TPSOS8 TPVSUS TPVAD TPSOS6 (LED:6TIMES) (LED:7TIMES) (LED:8TIMES) 48 TH-65PF12CK 49 TH-65PF12CK 11 配线连接图 11.1. 配线 (1) 50 TH-65PF12CK 51 TH-65PF12CK 11.2. 配线 (2) 52 TH-65PF12CK 53 TH-65PF12CK 12 线路图 12.1. 线路图注意事项 54 TH-65PF12CK 12.2. P(MULTI) 电路板线路图 Vda Vda CONTROL TO DS-BOARD (DS6) TO DS-BOARD (DS4) TO S1-BOARD (S34) TO C3-BOARD (C35) TO D-BOARD (D25) AC IN TO P(SUS)-BOARD (P56) TO P(SUS)-BOARD (P54) TO P(SUS)-BOARD (P51) POWER MICOM STB CONTROL AC DET MULTI CONTROL POWER +5V(P) +15V ERROR DET PFC CONTROL STB ERROR DET COLD HOT COLD HOT COLD HOT COLD HOT COLD HOT TH-65PF12CK P(MULTI)-Board Schematic Diagram TH-65PF12CK P(MULTI)-Board Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A ! P(MULTI)-BOARD ETX2MM774MA 55 TH-65PF12CK 12.3. P(SUS) 电路板线路图 TO SC-BOARD (SC2) TO SS-BOARD (SS11) TO P(MULTI)-BOARD (P55) TO P(MULTI)-BOARD (P52) TO P(MULTI)-BOARD (P53) COMPARATOR Vsus ERROR DET Vsus COLD HOT COLD HOT Vsus POWER CONTROL PFC CONTROL ! P(SUS)-BOARD ETX2MM774MG TH-65PF12CK P(SUS)-Board Schematic Diagram TH-65PF12CK P(SUS)-Board Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 56 TH-65PF12CK 12.4. PB,V1,V2 和 S1 电路板线路图 C862 1u 16V C859 1u 10V D859 MA2J1110GL D853 MA3X152D0L D857 MA3X152D0L D856 MA3X152D0L D855 MA3X152D0L D852 MA3X152D0L D851 MA3X152D0L PB34 1 2 3 PB32 1 2 3 PB38 1 2 3 PB37 1 2 3 PB33 1 2 3 PB36 1 2 3 VJ850 R856 4.7k R852 4.7k R853 4.7k R855 4.7k R857 4.7k R860 0 R851 4.7k PB30 1 2 3 4 FAN_VOLTAGE 5V FAN SOS GND ! PB-BOARD TXNPB11LBC DN-BOARD (DN9) TO TO FAN ! ! P PUSH S34 1 2 3 SW061 K0F162B00002 ! S1-BOARD TXNS111LBC POWER SW VCC GND OUT R G STB3.3V R1554 270 SW1551 EVQPLHA15 D1551 MAZ80330LL R1500 1k SW1553 EVQPLHA15 SW1554 EVQPLHA15 SW1552 EVQPLHA15 R1550 1k L1501 C1530 6.3V 10u R1553 470 D1554 MAZ80330LL L1507 R1511 3k R1512 4.7k L1503 R1510 2.2k L1504 V15 1 2 3 R1552 220k SW1550 EVQPLHA15 RM001 PNA4701M05TV V2 1 2 3 4 5 6 R1513 8.2k L1502 Q1540 2SD0601ASL L1508 L1505 L1506 D1550 LNJ107W5PRW R1551 47 REMOTE RECIEVER F VOL.DOWN VOL.UP GND LED_G LED G OPT LED R TV/VTR DS-BOARD (DS15) GND REMOCON TO LED_R (DS2) KEY_SW TO DS-BOARD (P34) TO P-BOARD STB3.3V STR V1-BOARD TXNV11XBTC V2-BOARD TXNV21XBTC TH-65PF12CK PB, V1, V2 and S1-Board Schematic Diagram TH-65PF12CK PB, V1, V2 and S1-Board Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 57 TH-65PF12CK 12.5. HL 电路板（1/2）线路图 Thermal Pad ETXD0 ECRS ETXEN ERXD2 ETXD3 ETXD1 ERXCK ETXCK ETXD2 ERXER ERXD3 ERXD1 EMDIO EMDIO ERXD0 EMDC EMDC SPI_SI SPI_SCK SPI_SI SPI_SO SPI_SCK SPI_CS SPI_CS SPI_SO SPI_SO ERXD3 ERXD2 ERXD1 ERXD0 ETXCK ECRS EMDC ERXDV ERXCK ERXER ETXD3 ETXD2 ETXD1 ETXD0 ECOL ETXEN ERXDV RXD0 TXD1 RXD1 SPI_SI SPI_CS SPI_SCK EMDIO TXD0 ECOL C3335 1u 10V C3375 6.3V 10u C3327 6.3V 10u C3340 16V 0.1u C3339 6.3V 10u C3332 470p 50V C3329 6.3V 10u C3316 50V 100p C3309 16V 0.1u C3312 10u 6.3V C3310 10u 6.3V C3313 16V 0.1u C3330 2.2u 6.3V C3325 50V 10p C3374 16V 0.1u C3326 50V 10p C3306 10u 6.3V C3314 10u 6.3V C3333 16V 0.1u C3328 16V 0.1u C3317 16V 0.1u C3341 16V 0.1u C3331 16V 0.1u C3336 16V 0.1u C3315 10u 6.3V C3318 16V 0.1u C3342 16V 0.1u C3343 16V 0.1u C3337 16V 0.1u C3338 16V 0.1u C3319 16V 0.1u C3378 25V 0.1u C3304 6.3V 10u C3377 25V 0.1u D3314 MA2J1110GL D3305 B3ABB0000210 D3304 B3ABB0000210 D3301 B3ABB0000210 D3303 B3ABB0000210 D3302 B3ABB0000210 C0EBE0000120 IC3302 1 RST 2 VDD 3 GND 5 Cd 4 NC IC3305 C3FBKY000041 1 CE# 2 SO 3 WP# 4 GND 5 SI 6 SCLK 7 HOLD# 8 VCC C0DBFFD00003 IC3303 1 2 3 4 5 6 7 C1CB00003205 IC3304 1 RESET# 2 TESTEN 3 CFGA0 4 CFGA1 5 TXD0/CFGB1 6 RXD0 7 RTS0#/CFGB0 8 CTS0# 9 LVDD 10 VSS 11 SPI0_MOSI 12 SPI0_MISO 13 SPI0_SS 14 SPI0_SCLK 15 HVDD 16 TXD1/CFGC1 17 RXD1 18 RTS1#/CFGC0 19 CTS1# 20 SPI1_MOSI 21 SPI1_MISO 22 SPI1_SS 23 SPI1_SCLK 24 SCL 25 SDA 26 VSS 27 HVDD 28 MII_CRS 29 MII_COL 30 MII_TXD3 31 MII_TXD2 32 MII_TXD1 33 MII_TXD0 34 MII_TXEN 35 LVDD 36 VSS 37 MII_TXCLK 38 MII_RXER 39 MII_RXCLK 40 MII_RXDV 41 MII_RXD0 42 MII_RXD1 43 MII_RXD2 44 MII_RXD3 45 HVDD 46 MII_MDC 47 MII_MDIO 48 OSCO 49 INT# 50 HWCTRL 51 HCS# 52 HA0 53 VSS 54 LVDD 55 HA1 56 HA2 57 HD0 58 HD1 59 HD2 60 HD3 61 HD4 62 HD5 63 HD6 64 HD7 65 VSS 66 HVDD 67 HD8 68 HD9 69 HD10 70 HD11 71 HD12 72 HD13 73 HD14 74 HD15 75 HRD0# 76 HRD1# 77 HWR0# 78 HWR1# 79 HINT 80 MEM0ALE 81 MCK 82 LVDD 83 VSS 84 HVDD 85 HIFSEL0/LINK 86 HIFSEL1/SPD 87 HIFSEL2/DPLX 88 DCLK 89 HMUX/DPCO 90 HINTPOL/DST0 91 HENDIAN/DST1 92 HSIZE/DST2 93 DSIO 94 OSC_LVDD 95 CLKI 96 CLKO 97 OSC_VSS 98 PLL_VSS 99 VCP 100 PLL_VDD C1CB00002896 IC3301 1 GND 2 VDDPLL_18 3 VDDA_33 4 RX- 5 RX+ 6 TX- 7 TX+ 8 XO 9 XI 10 REXT 11 MDIO 12 MDC 13 RXD3 14 RXD2 15 RXD1 16 RXD0 17 VDDIO_33 18 RXDV 19 RXC 20 RXER 21 INTRP 22 TXC 23 TXEN 24 TXD0 25 TXD1 26 TXD2 27 TXD3 28 COL 29 CRS 30 LED0 31 LED1 32 RST H3 1 2 3 4 5 6 7 L3308 J0JHC0000045 L3303 J0JHC0000045 L3305 J0JHC0000045 L3306 J0JHC0000045 L3307 J0JHC0000045 L3313 J0JHC0000045 L3304 J0JHC0000045 L3302 J0ZZB0000101 1 4 3 2 L3301 J0ZZB0000101 1 4 3 2 T3302 G5BYC0000015 1 2 3 4 5 6 9 10 11 12 8 7 T3301 G5BYC0000015 1 2 3 4 5 6 9 10 11 12 8 7 3.3V_LAN 3.3V_LAN 3.3V_LAN 3.3V_LAN 3.3V_LAN 3.3V_LAN 3.3V_LAN 3.3V_LAN 15V_LAN 3.3V_LAN 3.3V_LAN TP3307 Q3305 2SD0601A0L Q3307 2SD0601A0L Q3306 2SD0601A0L Q3301 2SB0709A0L Q3304 2SB0709A0L R3486 EXB28V220JX 22 R3377 EXB28V220JX 22 R3478 EXB38V473JV 47k R3456 EXB38V473JV 47k R3338 EXB28V220JX R3329 EXB28V220JX R3336 5.6k R3334 7.5k R3344 22 R3371 22 R3447 9.1M R3448 220 R3449 22 R3450 22 R3451 22 R3335 7.5k R3454 22 R3455 22 R3457 10k R3322 22 R3460 0 R3461 0 R3309 75 R3350 10k R3465 10k R3330 22 R3466 0 R3467 10k R3469 0 R3355 10k R3313 6.49k R3372 10k R3373 0 R3376 22 R3375 22 R3409 4.7k R3410 4.7k R3374 10k R3473 0 R3474 22 R3321 220 R3320 220 R3475 10k R3341 220 R3340 220 R3476 10k R3477 10k R3363 22 R3339 220 R3301 33 R3362 22 R3308 75 R3479 0 R3480 0 R3481 0 R3482 0 R3483 0 R3306 33 R3314 75 R3311 0 R3453 22 R3315 0 R3405 0 R3411 0 R3484 0 R3370 22 R3337 100 R3499 33k R3490 49.9 R3491 49.9 R3492 49.9 R3493 49.9 R3316 4.7k R3333 22 R3332 22 R3331 22 R3346 10k R3318 22 R3354 0 R3472 0 R3414 0 R3498 0 R3361 10k R3312 75 R3452 22 R3368 3.3k R3366 3.3k R3360 3.3k R3358 3.3k R3349 3.3k R3351 68k R3470 0 R3327 4.7k X3302 H0J250500091 JK3301 K2LC108B0054 1 2 3 4 5 6 7 8 C3334 16V 0.1u TX+ TX+ RX+ TX- RX- RX- RX+ TX- RESET VSS VSS LVDD LVDD HVDD HVDD CFGA1 MEM0ALE LED NC GND Cn Vo CONT Vin sub High Low CFGA0 CFGA1 High High High Low Low Low HOST EX_MEMORY GPIO,I2S RESERVE GPIO SPI0 High CFGB1 High Low CFGB0 High High Low Low Low SPI0 UART0 UART1 I2S SPI1 High CFGC1 High Low CFGC0 High High Low Low Low FUNCTION SPI1 TX+ RX+ TX- RX- 1.8V LAN CONTROL NETWORK CONTROLLER FUNCTION FUNCTION FLASH MEMORY FOR FACTORY USE 3 4 2 1 LAN TERMINAL ! HL-BOARD TXNHL11LBC (1/2) TH-65PF12CK HL-Board (1/2) Schematic Diagram TH-65PF12CK HL-Board (1/2) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 58 TH-65PF12CK 12.6. HL 电路板（2/2）线路图 + + Y Pb Pr AA_SRQ AA_SDA2 AA_SCL2 9V_SLOT 9V_SLOT 3.3V_LAN AA_SDA2 AB_AUD_L AB_AUD_L AB_AUD_R AB_AUD_R AA_SCL2 AA_SDA2 TXD0 TXD1 RXD0 RXD1 AA_SCL2 AA_SRQ 15V_LAN 5V_STB C3363 16V 0.1u C3360 1u 16V C3373 50V 3900p C3369 10u 25V C3370 10u 16V C3371 25V 0.01u C3367 0.1u 25V C3372 0.1u 25V C3359 1u 16V C3366 0.1u 16V C3352 10V 1u C3358 10V 1u C3364 10V 1u C3376 10V 1u C3362 16V 47u C3368 68u 4V D3312 B0JCPE000004 D3311 B0BC6R600005 D3313 B0BC4R700007 D3310 B0BC4R700007 FL3304 J0HABB000003 1 2 3 4 FL3301 J0HABB000004 1 2 3 4 FL3303 J0HABB000004 1 2 3 4 FL3302 J0HABB000004 1 2 3 4 FL3305 J0HABB000003 1 2 3 4 C0JBAA000419 IC3315 1 A 2 B 3 GND 5 Vcc 4 Y IC3314 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS C3EBGC000055 IC3308 1 NC 2 NC 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3EBGC000055 IC3313 1 NC 2 NC 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C0JBAA000244 IC3316 1 2 3 4 5 6 7 8 9 10 11 12 13 14 JK3303 K1QBB3BB0002 G Y G G G Pb G G G Pr G G JK3302 K2HC1YYB0049 H5 1 2 3 4 5 H6 1 2 3 4 5 6 7 8 9 H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L3312 G1C330MA0363 L3311 ELJPA100KFB 3.3V_LAN 3.3V_LAN 3.3V_LAN 3.3V_LAN 15V_LAN PA3301 K5H4022A0031 TP3306 TP3302 TP3305 TP3301 TP3303 TP3304 Q3303 2SD0601A0L Q3302 2SD0601A0L R3404 EXB38V473JV R3391 22 R3439 22 R3402 22 R3443 10k R3430 22 R3392 5.6k R3419 100 R3445 100k R3426 1k R3427 100 R3401 180k R3471 0 R3407 100 R3406 100 R3438 10k R3441 0 R3446 27k R3400 180k R3423 22 R3408 22 R3428 100 R3487 0 R3488 0 R3489 0 R3434 10k R3418 10k R3403 22 R3415 10k R3416 10k R3433 22 R3432 22 R3417 10k R3440 22 R3425 1k R3393 5.6k R3424 100 R3442 26.1k R3494 10k R3444 4.7 R3496 22 R3468 22 R3390 22 R3431 22 R3422 22 R3463 10k 2 3 1 L R R SDA SCL GND W.P. for Mac EEP SCL SDA GND 3.3V EEP ROM for Mac adrress 3.3V 5V L Y Pb Pr Cut off 220MHz Cut off 220MHz Cut off 220MHz EEP for Mac address VCC GND 3.3V 5V TVRR004 EEPROM FOR FACTORY USE FOR FACTORY USE ! HL-BOARD TXNHL11LBC (2/2) 4 2 3 1 15V 3.3V COMPONENT VIDEO IN M3 AUDIO IN TO (DS13) DS-BOARD TH-65PF12CK HL-Board (2/2) Schematic Diagram TH-65PF12CK HL-Board (2/2) Schematic Diagram 13 16 12 10 14 11 17 18 15 59 TH-65PF12CK 12.7. HX 电路板线路图 PC_R PC_G PC_B PC_HD PC_VD PC_VD PC_B PC_G PC_HD PC_R C3561 1u 16V C3550 50V 0.01u C3551 10u 25V C3552 10u 25V C3405 10u 25V C3406 10u 25V C3562 1u 16V C3524 50V 0.01u C3409 16V 0.1u C3523 10u 25V C3404 16V 0.1u D3512 B0HCMM000014 D3511 B0HCMM000014 D3507 MAZ81600HL D3508 MAZ81600HL D3509 MAZ81600HL D3510 MAZ81600HL D3504 MAZ30560ML IC3502 TVRQ962 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC JK3511 K1FB115BA020 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JK3509 K1FA109B0062 1 2 3 4 5 8 9 6 7 HX1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L3555 ELJPA100KFB L3526 ELJPA100KFB P5V P5V SLOT9V SLOT9V ZA3001 K4ZZ01000206 TP69 TP70 TP68 TP72 TP66 TP65 TP75 TP74 TP71 TP67 TP73 Q3531 2SD0601A0L Q3532 2SD0601A0L R3592 0 R3776 100 R3778 47k R3508 4.7k R3547 100 R3548 100 R3655 33k R3589 47k R3654 68k R3530 180k R3791 100 R3511 100 R3663 1k R3668 100 R3591 0 R3664 1k R3529 180k R3400 10k R3510 100 R3593 0 R3656 68k R3790 100 R3590 56 R3509 4.7k R3777 100 R3585 56 R3586 56 R3653 33k R3672 100 FL3516 J0MAB0000054 1 2 3 4 FL3510 J0MAB0000054 1 2 3 4 FL3511 J0MAB0000054 1 2 3 4 FL3517 J0MAB0000054 1 2 3 4 FL3514 J0MAB0000054 1 2 3 4 FL3515 J0MAB0000054 1 2 3 4 FL3512 J0MAB0000054 1 2 3 4 FL3513 J0MAB0000054 1 2 3 4 JK3513 K2HC1YYB0049 R 2 3 1 L P5V SLOT9V TXD RXD VD HD REMOTE IN CTS RTS PCis DSR RI DDC EEPROM RXD TXD DTR CD GND L R PR/R Y/G PB/B GND GND GND GND AUDIO IN PC IN TO (DS14) DS-BOARD HX-BOARD TNPA4489AD ! TH-65PF12CK HX-Board Schematic Diagram TH-65PF12CK HX-Board Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 60 TH-65PF12CK 12.8. HDE 电路板（1/3）线路图 Thermal Pad MAIN1.8V DOCK DVI_RST DVI_INT DVI_CN_SCL DVI_CN_SDA DVI_INT B0 B1 B2 B3 B4 B5 B6 B7 G0 G1 G2 G3 G4 G5 G6 G7 R0 R1 R2 R3 R4 R5 R6 R7 VSYNC HSYNC DE TMDS_RX0- TMDS_RX0+ TMDS_RX1- TMDS_RX1+ TMDS_RX2- TMDS_RX2+ TMDS_RX2+ TMDS_RX2- TMDS_RX1- TMDS_RX0+ TMDS_RX0- TMDS_RXC- TMDS_RXC+ TMDS_RXC- TMDS_RXC+ FPGA_PWD DVI_CLK LVDS_PWD TVLOAD_SCL DVI_SCL DVI_SDA FPGA_RST FPGA_CLK DVI_5V_DET HPD GENX_CTRL_SDA GENX_CTRL_SCL HPD /PLUG_DET TMDS_RX1+ N_FHD GENX_NBOOT GENX_NBOOT GENX_NBOOT GENX_NBOOT DVI_5V_DET DVI_CN_SDA DVI_CN_SCL DVI_SCL DVI_SDA DVI_RST DVI_CN_SCL DVI_CN_SDA DVI_CN_SCL DVI_CN_SDA TVLOAD_SDA 3.3VTMDS C3353 0.1u 16V C3340 0.1u 16V C3322 1u 10V C3351 0.1u 16V C3362 0.1u 16V C3327 1u 10V C3388 50V 18p C3394 1u 10V C3344 0.1u 16V C3328 0.1u 16V C3335 0.01u 25V C3420 10u 6.3V C3363 2.2u 6.3V C3349 0.1u 16V C3390 16V 0.1u C3393 16V 0.1u C3361 0.1u 16V C3341 0.1u 16V C3357 0.1u 16V C3384 10u 10V C3387 10V 1u C3329 1u 10V C3364 470p 50V C3324 1u 10V C3313 10V 1u C3397 16V 0.1u C3321 1u 10V C3372 1u 10V C3318 10V 1u C3336 0.1u 16V C3330 0.1u 16V C3417 10u 6.3V C3331 0.1u 16V C3334 0.1u 16V C3342 0.1u 16V C3389 50V 15p C3326 1u 10V C3356 1u 10V C3338 6.3V 10u C3423 0.1u 16V C3346 0.1u 16V C3319 0.1u 16V C3392 1u 10V C3360 0.1u 16V C3325 1u 10V C3345 0.1u 16V C3386 16V 0.1u C3323 1u 10V C3358 0.1u 16V C3359 0.1u 16V C3354 0.1u 16V C3332 0.1u 16V C3395 1u 10V C3337 0.1u 16V C3396 16V 0.1u C3355 6.3V 10u C3385 16V 0.1u C3333 0.01u 25V C3339 0.1u 16V C3320 1u 10V C3426 0.1u 16V C3488 0.1u 16V C3495 0.1u 16V C3494 0.1u 16V C3476 16V 0.1u C3498 0.1u 16V C3497 6.3V 10u D3025 B0HCMM000014 D3011 B0HCMM000014 D3010 EZAEG2A50AX D3007 EZAEG2A50AX D3004 EZAEG2A50AX D3008 EZAEG2A50AX D3005 EZAEG2A50AX D3001 EZAEG2A50AX D3003 EZAEG2A50AX D3009 EZAEG2A50AX D3002 EZAEG2A50AX D3308 EZAEG2A50AX D3006 EZAEG2A50AX D3307 MAZ30560ML D3309 MAZ30560ML D3311 MAZ30560ML D3310 MAZ30560ML IC3301 TVRP844 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C0JBAZ002269 IC3303 1 2 3 4 5 6 7 8 C0DBFFD00003 IC3308 1 2 3 4 5 6 7 MNZSFD7GDE1 IC3310 1 P41/TMIO1 2 P42/TMIO2 3 P43/TMIO3 4 P44/TMIO4 5 P00/TMIO5 6 P01 7 P02 8 P03/SBT0B 9 P04/SBO0B 10 P51/IRQ2 11 P52/IRQ3 12 PB2 13 PB3 14 PB4 15 PB5 16 PB6 17 PB7 18 P53/IRQ4 19 P54/IRQ5 20 PA7 21 PA6 22 PA5 23 VSS 24 PA4 25 PA3 26 PA2 27 PA1/IRQ1 28 PA0 29 P45 30 P46 31 IVDD 32 VDD 33 P60/SBO0A 34 P61/SBT0A 35 P62/SBI0A 36 P05/IRQ6 37 P06/IRQ7 38 P07/IRQ8 39 P70/SDA0 40 P71/SCL0 41 N.C. 42 N.C. 43 N.C. 44 N.C. 45 P50/RMIN/IRQ0 46 P20 47 P21 48 P22 49 P23 50 IVDD 51 VSS 52 P10 53 P11 54 P12 55 P13 56 P14 57 P15 58 P16 59 P17 60 N.C. 61 N.C. 62 N.C. 63 P72/SDA1 64 P73/SCL1 65 P76/CEC0 66 P65/SBO2 67 P66/SBI2 68 P30 69 P31 70 P32 71 P33 72 P34 73 P35 74 VPPEX 75 N.C. 76 N.C. 77 N.C. 78 IVDD 79 VDD 80 N.C. 81 RONA 82 VSS 83 OSCXO 84 OSCXI 85 IVDD 86 P24 87 P25 88 P26 89 P27 90 P64/SBI1 91 P63/SBO1 92 NBOOT 93 NRST 94 NTEST 95 SCLOCK 96 SDATA 97 EXTRG0 98 EXTRG1 99 TRCCLK 100 TRCST 101 TRCD0 102 TRCD1 103 TRCD2 104 TRCD3 105 P90 106 P91 107 VSS 108 IVDD 109 P92 110 P93 111 P80/ADIN0 112 P81/ADIN1 113 P82/ADIN2 114 P83/ADIN3 115 P84/ADIN4 116 P85/ADIN5 117 P86/ADIN6 118 P87/ADIN7 119 P74/SDA2/CECAVL1B 120 P75/SCL2/CECAVL1A 121 P36 122 P37 123 P47 124 PB0 125 PB1 126 PC0 127 PC1 128 P40/TMIO0/SYSCLK C1AB00002848 IC3307 1 DE 2 HSYNC 3 VSYNC 4 IOGND 5 IOVCC 6 NC 7 NC 8 NC 9 EVNODD 10 NC 11 NC 12 NC 13 NC 14 NC 15 IOGND 16 IOVCC 17 NC 18 NC 19 NC 20 NC 21 CGND 22 CVCC18 23 CVCC18 24 CGND 25 IOGND 26 IOVCC 27 CSDA 28 CSCL 29 DSDA1 30 DSCL1 31 DSDA0 32 DSCL0 33 R1PWR5V 34 R0PWR5V 35 CVCC18 36 CGND 37 PVCC0 38 AVCC 39 R0XC- 40 R0XC+ 41 AGND 42 AVCC 43 R0X0- 44 R0X0+ 45 AGND 46 AVCC 47 R0X1- 48 R0X1+ 49 AGND 50 AVCC 51 R0X2- 52 R0X2+ 53 AGND 54 TMDSPGND 55 PVCC1 56 RSVD_A 57 AVCC 58 R1XC- 59 R1XC+ 60 AGND 61 AVCC 62 R1X0- 63 R1X0+ 64 AGND 65 AVCC 66 R1X1- 67 R1X1+ 68 AGND 69 AVCC 70 R1X2- 71 R1X2+ 72 AGND 73 CGND 74 CVCC18 75 IOGND 76 IOVCC 77 MUTEOUT 78 SPDIF 79 CVCC18 80 CGND 81 NC 82 NC 83 NC 84 SD0 85 WS 86 SCK 87 NC 88 MCLKOUT 89 IOVCC 90 IOGND 91 CGND 92 CVCC18 93 NC 94 AUDPVCC18 95 AUDPGND 96 XTALOUT 97 XTALIN 98 XTALVCC 99 REGVCC 100 NC 101 RSVDL 102 RESET 103 SCDT 104 INT 105 CVCC18 106 CGND 107 CLK48B 108 IOGND 109 IOVCC 110 Q23 111 Q22 112 Q21 113 Q20 114 CVCC18 115 CGND 116 Q19 117 Q18 118 Q17 119 Q16 120 IOGND 121 ODCK 122 IOVCC 123 Q15 124 Q14 125 Q13 126 Q12 127 CGND 128 CVCC18 129 Q11 130 Q10 131 Q9 132 Q8 133 Q7 134 IOVCC 135 IOGND 136 Q6 137 Q5 138 CGND 139 CVCC18 140 Q4 141 Q3 142 Q2 143 Q1 144 Q0 JK3301 K1FB124B0025 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 H4 1 2 3 4 L3314 J0JHC0000034 L3368 J0JHC0000034 L3311 J0JHC0000075 L3328 J0JHC0000034 L3325 J0JHC0000075 L3357 J0JHC0000075 L3312 J0JHC0000034 L3310 J0JHC0000034 L3364 J0JHC0000034 5V 5V 5V TP3317 TP3347 Q3305 2SK122800L Q3301 2SD0601ASL Q3304 2SD0601ASL R3410 EXB2HV820JV R3406 EXB2HV820JV R3407 EXB2HV820JV R3453 820 R3026 56 R3025 56 R3024 4.7k R3023 4.7k R3022 10k R3399 22 R3349 10k R3380 22 R3431 10k R3459 100 R3544 4.7k R3452 1k R3448 47k R3464 22 R3571 47k R3401 10 R3350 10k R3408 10 R3450 100 R3494 10k R3502 0 R3398 4.7k R3511 47k R3466 22 R3462 10k R3364 4.7k R3509 47k R3463 39 R3469 10k R3507 47k R3470 22 R3461 10k R3495 10k R3481 10k R3493 10k R3500 22 R3499 22 R3573 47k R3449 47k R3540 47k R3404 10 R3454 10k R3479 47k R3451 33 R3491 82 R3492 22 R3496 22 R3377 10k R3503 47k R3394 1.8k R3467 22 R3501 100 R3504 10k R3374 10k R3345 33 R3441 100 R3365 4.7k R3505 47k R3506 47k R3508 47k R3510 4.7k R3512 4.7k R3572 47k R3465 22 R3357 33 R3381 22 R3577 3.3k R3518 1k R3545 4.7k R3346 33 R3356 33 R3578 0 X3302 H0J100500030 X3301 H1A2705B0032 1 OE 2 GND 3 OUT 4 VDD C3414 10u 6.3V C3416 10u 6.3V C3421 0.1u 16V N.C. CONT N.C. TMDS_G TMDS_G TMDS_G sub N.C. N.C. Vo +5V GND DDCD N.C. TMDS_C+ TMDS_G HPS Vin N.C. TMDS_C- DDCC TMDS_D2+ GND Cn NC GenX-EEP_WP 10MHz GND /OE1 B1 A2 Vcc A1 B2 /OE2 5V<=>3.3V TVRP845 TMDS_D1+ TMDS_D0+ TMDS_D2- TMDS_D1- TMDS_D0- - EDID EEPROM TVRP844 27MHz S G D DVI IN DVI I/F RECEIVER MAIN 1.8V FOR FACTORY USE 1 2 3 4 5 6 ! HDE-BOARD TXNHDE1VZTC (1/3) TH-65PF12CK HDE-Board (1/3) Schematic Diagram TH-65PF12CK HDE-Board (1/3) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 61 TH-65PF12CK 12.9. HDE 电路板（2/3）线路图 + (FIN) EPCS_DCLK EPCS_DCLK EPCS_DATA EPCS_DATA EPCS_NCS NCONFIG 3.3VCONFIG VSYNC B0 B1 B2 B3 B4 B5 B6 B7 G0 G1 G2 G3 G4 G5 G6 R0 R1 R3 R4 R5 R6 R7 HSYNC DE R2 G7 DOCK LVDS_BE3 LVDS_GO2 LVDS_CLKIN1 LVDS_DE1 LVDS_VSYNC1 LVDS_HSYNC1 LVDS_BE7 LVDS_BE6 LVDS_BE5 LVDS_BE4 LVDS_BO1 LVDS_BE0 LVDS_BO0 LVDS_GO1 LVDS_GO0 LVDS_RO1 LVDS_RO0 LVDS_BO3 LVDS_GE0 LVDS_BO2 LVDS_GO7 LVDS_GO6 LVDS_GO5 LVDS_GO4 LVDS_GO3 LVDS_RE0 LVDS_BO7 LVDS_BO6 LVDS_BO5 LVDS_BO4 LVDS_GE2 LVDS_RO6 LVDS_BE2 LVDS_GE7 LVDS_RE6 LVDS_RE5 LVDS_RE4 LVDS_RO5 LVDS_RO4 LVDS_GE6 LVDS_GE5 LVDS_RO3 LVDS_RO2 LVDS_GE4 LVDS_GE3 FPGA_RST FPGA_CLK FPGA_PWD GENX_CTRL_SDA GENX_CTRL_SCL LVDS_RE3 LVDS_RE2 LVDS_RO7 LVDS_RE7 LVDS_RE1 LVDS_GE1 LVDS_BE1 N_FHD S/D_SEL 3.3VAnalog EPCS_ASD EPCS_ASD C3403 10u 6.3V C3539 16V 0.1u C3537 16V 0.1u C3405 1u 10V C3411 10u 6.3V C3402 1u 10V C3520 16V 0.1u C3412 0.1u 16V C3545 16V 0.1u C3413 0.1u 16V C3408 0.1u 16V C3422 10u 6.3V C3526 1000p 50V C3432 1000p 50V C3407 16V 0.01u C3445 16V 0.1u C3443 16V 0.1u C3546 16V 0.1u C3538 16V 0.1u C3447 1000p 50V C3528 16V 0.1u C3448 1000p 50V C3547 16V 0.1u C3434 1000p 50V C3444 16V 0.1u C3399 16V 0.1u C3439 1000p 50V C3527 1000p 50V C3404 1u 10V C3415 0.1u 16V C3449 16V 0.1u C3410 10u 6.3V C3431 16V 0.1u C3442 10u 6.3V C3541 16V 0.1u C3522 1000p 50V C3535 16V 0.1u C3424 0.1u 16V C3521 16V 0.1u C3543 16V 0.1u C3418 10u 6.3V C3400 1000p 50V C3460 16V 0.1u C3533 16V 0.1u C3523 1000p 50V C3529 16V 0.1u C3398 0.1u 16V C3531 16V 0.1u C3532 16V 0.1u C3544 16V 0.1u C3534 16V 0.1u C3450 16V 0.1u C3441 16V 0.1u C3446 1000p 50V C3530 16V 0.1u C3440 10u 6.3V C3542 16V 0.1u C3427 16V 0.1u C3455 10u 6.3V C3419 10u 6.3V C3540 16V 0.1u C3536 16V 0.1u C3425 0.1u 16V C3480 10u 6.3V C3406 100u 4V IC3341 A1 GND IC3341 D11 IO IC3341 C16 IO IC3341 J10 VCCINT IC3341 T5 IO IC3341 H1 CLK1 IC3341 M9 GND IC3341 J4 IO IC3341 B11 IO IC3341 P2 IO IC3341 D12 GND_PLL2 IC3341 B2 GND IC3341 A8 IO IC3341 G15 IO IC3341 G5 nCE IC3341 M5 VCCA_PLL1 IC3341 C14 IO IC3341 A6 IO IC3341 E3 IO IC3341 F1 DATA0 IC3341 L7 IO IC3341 R4 IO IC3341 F10 IO IC3341 L5 GND_PLL1 IC3341 D5 IO IC3341 C13 IO IC3341 G7 IO IC3341 E4 IO IC3341 L9 IO IC3341 T3 IO IC3341 H7 VCCINT IC3341 G16 IO IC3341 P12 IO IC3341 T2 VCCIO4 IC3341 P6 IO IC3341 P5 IO IC3341 A14 IO IC3341 H11 IO IC3341 C12 IO IC3341 K11 IO IC3341 J1 CLK3 IC3341 R8 IO IC3341 N13 IO IC3341 L14 IO IC3341 G10 IO IC3341 J11 IO IC3341 L4 IO IC3341 K3 VCCIO1 IC3341 R11 IO IC3341 D6 IO IC3341 K13 IO IC3341 E14 IO IC3341 F4 IO IC3341 G1 TMS IC3341 A4 IO IC3341 A3 IO IC3341 E6 IO IC3341 T8 IO IC3341 P4 IO IC3341 K5 IO IC3341 N8 IO IC3341 N7 IO IC3341 G9 VCCINT IC3341 D9 IO IC3341 T16 GND IC3341 F6 IO IC3341 E8 GND IC3341 K6 IO IC3341 M12 IO IC3341 L15 IO IC3341 D7 IO IC3341 M15 IO IC3341 J12 IO IC3341 A9 IO IC3341 F11 VCCD_PLL2 IC3341 F7 IO IC3341 K15 IO IC3341 G2 TDO IC3341 A16 GND IC3341 K2 IO IC3341 K16 IO IC3341 J5 nCONFIG IC3341 B10 IO IC3341 A12 IO IC3341 B15 GND IC3341 D10 IO IC3341 J9 GND IC3341 A5 IO IC3341 G3 VCCIO1 IC3341 C6 IO IC3341 T1 GND IC3341 T4 IO IC3341 E11 GNDA_PLL2 IC3341 B9 IO IC3341 B3 IO IC3341 K7 IO IC3341 G13 IO IC3341 M14 IO IC3341 H10 VCCINT IC3341 R12 IO IC3341 P13 IO IC3341 N6 IO IC3341 M3 IO IC3341 E10 VCCIO2 IC3341 H9 GND IC3341 D15 IO IC3341 L1 IO IC3341 E15 IO IC3341 R1 VCCIO1 IC3341 P14 IO IC3341 B4 IO IC3341 N2 IO IC3341 H3 GND IC3341 H2 CLK0 IC3341 R3 IO IC3341 C1 IO IC3341 L16 IO IC3341 R15 GND IC3341 D8 IO IC3341 K4 IO IC3341 A15 VCCIO2 IC3341 E9 GND IC3341 P15 IO IC3341 M11 IO IC3341 R5 IO IC3341 P10 VCCIO4 IC3341 F3 IO IC3341 C15 IO IC3341 B5 IO IC3341 P3 IO IC3341 C2 IO IC3341 C8 GND IC3341 C9 GND IC3341 H5 TDI IC3341 N16 IO IC3341 N14 IO IC3341 P1 IO IC3341 T13 IO IC3341 M4 IO IC3341 R14 IO IC3341 D16 IO IC3341 N3 IO IC3341 T12 IO IC3341 A2 VCCIO2 IC3341 G14 VCCIO3 IC3341 C7 VCCIO2 IC3341 E5 IO IC3341 F9 IO IC3341 J6 IO IC3341 N10 IO IC3341 L2 IO IC3341 N12 IO IC3341 H4 DCLK IC3341 K8 VCCINT IC3341 L8 IO IC3341 H14 GND IC3341 M7 VCCIO4 IC3341 B6 IO IC3341 T11 IO IC3341 N11 IO IC3341 D1 IO IC3341 H12 IO IC3341 E7 VCCIO2 IC3341 J16 CLK7 IC3341 G6 IO IC3341 B1 VCCIO1 IC3341 M8 GND IC3341 T15 VCCIO4 IC3341 N1 IO IC3341 E1 IO IC3341 H6 IO IC3341 N9 IO IC3341 T10 IO IC3341 F2 TCK IC3341 B7 IO IC3341 D3 IO IC3341 E16 IO IC3341 J15 CLK6 IC3341 K12 MSEL1 IC3341 J13 MSEL0 IC3341 A10 IO IC3341 F14 IO IC3341 E13 IO IC3341 T7 IO IC3341 L13 CONF_DONE IC3341 J7 VCCINT IC3341 B16 VCCIO3 IC3341 M13 nSTATUS IC3341 P8 GND IC3341 M2 IO IC3341 H16 CLK4 IC3341 N15 IO IC3341 F12 GND_PLL2 IC3341 R9 IO IC3341 A13 IO IC3341 L10 IO IC3341 J14 GND IC3341 E12 VCCA_PLL2 IC3341 B8 IO IC3341 L6 VCCD_PLL1 IC3341 A7 IO IC3341 N5 GND_PLL1 IC3341 M1 IO IC3341 F13 IO IC3341 F5 IO IC3341 K10 IO IC3341 D2 IO IC3341 N4 IO IC3341 C4 IO IC3341 D13 IO IC3341 P16 IO IC3341 F15 IO IC3341 P7 VCCIO4 IC3341 H8 GND IC3341 K14 VCCIO3 IC3341 F8 IO IC3341 L11 IO IC3341 J8 GND IC3341 D4 IO IC3341 C5 IO IC3341 R16 VCCIO3 IC3341 J3 GND IC3341 H15 CLK5 IC3341 L3 IO IC3341 P9 GND IC3341 R13 IO IC3341 B14 IO IC3341 T6 IO IC3341 L12 IO IC3341 B13 IO IC3341 C11 IO IC3341 G11 IO IC3341 A11 IO IC3341 G12 IO IC3341 R10 IO IC3341 T9 IO IC3341 B12 IO IC3341 R6 IO IC3341 M10 VCCIO4 IC3341 E2 IO IC3341 M6 GNDA_PLL1 IC3341 G8 GND IC3341 C10 VCCIO2 IC3341 P11 IO IC3341 D14 IO IC3341 H13 IO IC3341 J2 CLK2 IC3341 C3 IO IC3341 G4 IO IC3341 R7 IO IC3341 K9 GND IC3341 F16 IO IC3341 K1 IO IC3341 R2 GND IC3341 M16 IO IC3341 T14 IO C0EBE0000066 IC3312 1 NC 2 SUB 3 GND 5 Vcc 4 Vout IC3314 TVRP843 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC IC3343 C0ZBZ0001561 1 XIN 2 XOUT 3 VSS 4 SEL 5 CKOUT 6 VDD 7 FREQ0 8 FREQ1 C0DBEHG00006 IC3342 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND(FIN) H2 1 2 3 4 5 6 7 8 9 10 L3343 J0JHC0000075 L3344 J0JHC0000075 L3322 J0JHC0000075 L3370 J0JHC0000075 L3327 J0JHC0000075 L3358 J0JHC0000075 L3329 J0JHC0000075 L3326 J0JHC0000075 3.3VFPGA 3.3VFPGA TP3360 R3423 EXB2HV820JV R3411 EXB2HV820JV R3424 EXB2HV820JV R3425 EXB2HV820JV R3417 EXB2HV820JV R3426 EXB2HV820JV R3427 82 R3474 10k R3471 1k R3438 20k R3647 1k R3521 1k R3484 10k R3487 10k R3488 10k R3429 56 R3433 10k R3428 82 R3646 1k R3649 47 R3651 10 R3475 10k R3476 0 R3477 0 R3490 10k R3515 10k R3519 10k R3418 82 R3422 82 R3486 10k R3641 10k R3473 470 R3644 10k R3483 33 R3439 33k R3400 10k R3485 10k R3517 47 R3489 10k R3472 1k R3478 47 R3482 10k R3650 47 RESET 2.8V open collector TVRP843 nCSO DEV_CLR INIT_DONE FPGA_RST ASDO S2 S1 S0 O_CLK SEL VSS XOUT XIN FREQ1 FREQ0 VDD CKOUT C1ZBZ0003575 DP_CLK DCLK GND CONF_DONE VCC(TRGT) nCONFIG nCE DATAOUT nCS ASDI GND 1.2V SEL TMDS_RX => FPGA TEST_Pin LVDS_OUT FPGA_PWD CLK Pin POWER BLOCK(1.2V/3.3V/GND) GND IC3341 GENX GENX 1.2V(PLL) 1.2V(PLL) 3.3V(I/O) PLL 1.2V GND RESET USE FOR FACTORY 1 2 5 3 6 4 11 12 13 14 ! HDE-BOARD TXNHDE1VZTC(2/3) ALTERA CYCLONE2 (BGA) CPG CONFIG ROM TH-65PF12CK HDE-Board (2/3) Schematic Diagram TH-65PF12CK HDE-Board (2/3) Schematic Diagram 13 16 12 10 14 11 17 18 15 62 TH-65PF12CK 12.10.HDE 电路板（3/3）线路图 + + + + SLOT_SRQ SLOT_SDA SLOT_SCL H_WP SLOT_SDA SLOT_SCL LVDS_TB1+ LVDS_CLKIN1 LVDS_DE1 LVDS_VSYNC1 LVDS_HSYNC1 GENX_CTRL_SDA LVDS_TA1- LVDS_TA1+ LVDS_TC1+ LVDS_TC1- LVDS_TB1- LVDS_TB1+ LVDS_TD1+ LVDS_TE1- LVDS_TE1+ LVDS_TCLK1- LVDS_TE2- LVDS_TE2+ LVDS_TE2+ LVDS_TXD1+ LVDS_TXD1- LVDS_TXD2- LVDS_TXD2+ LVDS_TXE2+ LVDS_TXE2- LVDS_BO4 LVDS_GE2 LVDS_RE7 LVDS_RO7 LVDS_RO6 LVDS_RE6 LVDS_RE5 LVDS_RE4 LVDS_RE3 LVDS_RE2 LVDS_RO5 LVDS_RO4 LVDS_RO3 LVDS_RO2 LVDS_GO3 LVDS_GO4 LVDS_GO5 LVDS_GO6 LVDS_GO7 LVDS_BO2 LVDS_BO3 LVDS_RO0 LVDS_RO1 LVDS_GO0 LVDS_GO1 AUDIO_R AUDIO_L AUDIO_R AUDIO_L LVDS_TE2- LVDS_BE4 LVDS_BE5 LVDS_BE1 LVDS_BE0 LVDS_BE6 LVDS_BE7 LVDS_GE0 LVDS_GE1 LVDS_RE1 LVDS_RE0 LVDS_BE2 LVDS_GE7 LVDS_GE6 LVDS_GE5 LVDS_GE3 LVDS_GE4 /PLUG_DET SLOT_SDA SLOT_SRQ TVLOAD_SCL TVLOAD_SDA SLOT_SCL SLOT_SDA H_WP GENX_NBOOT LVDS_BO5 LVDS_BO6 LVDS_BO7 LVDS_BO0 LVDS_BO1 LVDS_GO2 LVDS_TB1- LVDS_TA1+ LVDS_TA1- LVDS_TCLK1+ LVDS_TC1- LVDS_TC1+ LVDS_TCLK1- LVDS_TCLK1+ LVDS_TE1+ LVDS_TE1- LVDS_TD1+ LVDS_TD1- LVDS_TD1- LVDS_TA2- LVDS_TA2+ LVDS_TC2- LVDS_TC2+ LVDS_TA2- LVDS_TA2+ LVDS_TC2- LVDS_TC2+ LVDS_TD2+ LVDS_TD2- LVDS_TB2- LVDS_TB2+ LVDS_TB2- LVDS_TB2+ LVDS_TD2- LVDS_TD2+ LVDS_TXE2- LVDS_TXE2+ LVDS_TXB2- LVDS_TXB2+ LVDS_TXD2- LVDS_TXD2+ LVDS_TXA2- LVDS_TXA2+ LVDS_TXC2- LVDS_TXC2+ LVDS_TXD1- LVDS_TXD1+ LVDS_TXE1- LVDS_TXE1+ LVDS_TXC1- LVDS_TXC1+ LVDS_TXCLK1- LVDS_TXCLK1+ LVDS_TXA1- LVDS_TXA1+ LVDS_TXB1- LVDS_TXB1+ LVDS_TXB2+ LVDS_TXB2- LVDS_TXC2+ LVDS_TXC2- LVDS_TXB1+ LVDS_TXA1+ LVDS_TXB1- LVDS_TXA1- LVDS_TXCLK1+ LVDS_TXC1+ LVDS_TXC1- LVDS_TXA2+ LVDS_TXA2- LVDS_TXE1+ LVDS_TXE1- LVDS_PWD S/D_SEL LVDS_TXCLK1- LVDS_BE3 SLOT_SCL GENX_CTRL_SCL N_FHD C3473 10V 1u C3485 16V 0.1u C3482 10V 1u C3474 16V 0.1u C3475 16V 0.1u C3468 1000p 50V C3467 0.1u 16V C3466 0.1u 16V C3465 0.1u 16V C3464 0.1u 16V C3463 0.1u 16V C3459 0.1u 16V C3409 10u 25V C3454 0.1u 25V C3435 50V 3900p C3401 10u 10V C3438 25V 0.01u C3436 0.1u 25V C3430 0.1u 16V C3456 1000p 50V C3457 0.1u 16V C3461 1000p 50V C3462 0.1u 16V C3469 1000p 50V C3470 0.1u 16V C3471 1000p 50V C3472 0.1u 16V C3477 1000p 50V C3487 0.1u 16V C3489 1u 16V C3490 1u 16V C3492 50V 0.01u C3478 10u 6.3V C3483 10u 6.3V C3493 10u 6.3V C3428 0.1u 16V C3429 1000p 50V C3451 68u 4V C3491 16V 47u C3486 16V 47u C3479 16V 47u D3301 B0JCPE000004 D3303 B0BC4R700007 D3302 B0BC6R600005 D3304 B0BC4R700007 FL3317 J0MAB0000169 1 2 3 4 FL3318 J0MAB0000169 1 2 3 4 FL3316 J0MAB0000169 1 2 3 4 FL3315 J0MAB0000169 1 2 3 4 FL3314 J0MAB0000169 1 2 3 4 FL3319 J0MAB0000169 1 2 3 4 IC3345 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS C0JBAZ002269 IC3320 1 2 3 4 5 6 7 8 TVRP842 IC3319 1 NC 2 NC 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C0ZBZ0001568 IC3346 1 B26/TD20 2 B27/TD21 3 VCC 4 GND 5 B28/TD22 6 B29/TD23 7 HSYNC1/TD24 8 VSYNC1/TD25 9 DE1/TD26 10 HSYNC2/TE20 11 VSYNC2/TE21 12 DE2/TE22 13 VCC 14 GND 15 CLKIN1 16 CLKIN2 17 CONT11/TE23 18 CONT12/TE24 19 CONT21/TE25 20 CONT22/TE26 21 R/F 22 RS 23 MODE3 24 MAP 25 MODE1 26 MODE0 27 MODE2 28 ASYNC 29 N/C 30 /PDWN 31 PRBS 32 Reserved 33 N/C 34 PGND 35 PVCC 36 PGND 37 LGND 38 TE2+ 39 TE2- 40 TD2+ 41 TD2- 42 LGND 43 LVCC 44 TCLK2+ 45 TCLK2- 46 TC2+ 47 TC2- 48 LGND 49 LVCC 50 TB2+ 51 TB2- 52 TA2+ 53 TA2- 54 LGND 55 LVCC 56 TE1+ 57 TE1- 58 TD1+ 59 TD1- 60 LGND 61 LVCC 62 TCLK1+ 63 TCLK1- 64 TC1+ 65 TC1- 66 LGND 67 LVCC 68 TB1+ 69 TB1- 70 TA1+ 71 TA1- 72 LGND 73 PGND 74 PVCC 75 PGND 76 R10/TA10 77 R11/TA11 78 R12/TA12 79 R13/TA13 80 R14/TA14 81 R15/TA15 82 VCC 83 GND 84 R16/TA16 85 R17/TB10 86 R18/TB11 87 R19/TB12 88 G10/TB13 89 G11/TB14 90 G12/TB15 91 G13/TB16 92 G14/TC10 93 VCC 94 GND 95 G15/TC11 96 G16/TC12 97 G17/TC13 98 G18/TC14 99 G19/TC15 100 B10/TC16 101 B11/TD10 102 B12/TD11 103 B13/TD12 104 VCC 105 GND 106 B14/TD13 107 B15/TD14 108 B16/TD15 109 N/C 110 B17/TD16 111 B18/TE10 112 B19/TE11 113 VCC 114 GND 115 R20/TE12 116 R21/TE13 117 R22/TE14 118 R23/TE15 119 R24/TE16 120 R25/TA20 121 R26/TA21 122 R27/TA22 123 R28/TA23 124 R29/TA24 125 VCC 126 GND 127 G20/TA25 128 G21/TA26 129 G22/TB20 130 G23/TB21 131 G24/TB22 132 G25/TB23 133 G26/TB24 134 G27/TB25 135 G28/TB26 136 G29/TC20 137 VCC 138 GND 139 B20/TC21 140 B21/TC22 141 B22/TC23 142 B23/TC24 143 B24/TC25 144 B25/TC26 JK3302 K2HC103B0105 H3 1 2 3 4 5 6 7 8 9 H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L3362 J0JHC0000034 L3369 J0JHC0000034 L3366 EXC3BB221H L3367 EXC3BB221H L3361 J0JHC0000034 L3363 J0JHC0000034 L3360 G1C330MA0363 5VSTB 5VSTB 9V 9V 5VSTB 5V 5V PA3301 K5H4022A0023 TP3361 TP3362 TP3363 Q3303 2SD0601ASL Q3302 2SD0601ASL R3413 0 R3551 22 R3415 10k R3552 10k R3403 27k R3548 33 R3402 100k R3547 33 R3437 15k R3412 26.1k R3446 100 R3421 0 R3447 15k R3445 180k R3460 100 R3443 1k R3442 100 R3435 180k R3444 100 R3455 33k R3436 100 R3553 10k R3549 10k R3546 100 R3653 0 R3543 33 R3456 100 R3542 33 R3430 10k R3458 10k R3420 4.7 R3550 22 R3440 33k R3457 1k EEPROM (EDID EEPROM) CONFIG ROM Vcc A1 B2 /OE2 GND /OE1 B1 A2 5V 9V TVRP842 5VSTB R L DCDC 15.7V => 3.3V AUDIO LVDS TX 5V<=>3.3V DVI AUDIO IN AVR 3.3V (CONFIG ROM) 11 12 14 13 ! HDE-BOARD TXNHDE1VZTC (3/3) USE FACTORY FOR TO DS-BOARD (DS12) TH-65PF12CK HDE-Board (3/3) Schematic Diagram TH-65PF12CK HDE-Board (3/3) Schematic Diagram 22 25 21 19 23 20 26 27 24 63 TH-65PF12CK 12.11.DS 电路板（1/6）线路图 + + + + + + G G G G G G G G G G G G G G G G P P P P P P P P P 2 ALL_OFF LAN14V_ON/OFF 15V_ON/OFF F15V_MON 15V_ON/OFF F_STB_ON C829 10u 6.3V C844 10V 2.2u C802 10u 25V C836 50V 0.01u C845 10u 6.3V C856 0.1u 25V C8112 16V 0.1u C809 10u 16V C828 50V 0.01u C819 10u 6.3V C818 50V 3900p C855 0.1u 25V C884 10u 25V C8111 16V 0.1u C8101 50V 0.01u C821 10u 6.3V C848 10V 2.2u C837 10u 6.3V C3146 16V 2.2u C857 0.1u 25V C801 10u 16V C839 10u 6.3V C869 10V 2.2u C825 0.1u 25V C803 50V 4700p C805 0.1u 25V C840 10V 2.2u C812 10u 25V C811 10u 6.3V C8109 16V 0.1u C832 16V 0.1u C8113 16V 0.1u C841 10u 6.3V C846 10V 2.2u C852 50V 0.01u C851 1u 16V C850 50V 0.01u C835 1u 16V C833 50V 0.01u C838 10V 2.2u C847 10u 6.3V C843 10u 6.3V C815 0.1u 25V C822 10u 25V C824 50V 3900p C810 50V 0.01u C853 1u 16V C834 10u 6.3V C831 10u 6.3V C894 16V 0.1u C897 16V 0.1u C896 16V 0.1u C895 16V 0.1u C8103 6.3V 47u C8105 16V 470u C3145 16V 47u C8100 16V 47u C8106 6.3V 47u C8107 6.3V 470u D802 B0JCME000037 D801 B0JCME000037 D803 B0JCPE000004 D817 B0BC6R600005 D813 B0BC4R700007 D816 B0BC4R700007 D818 B0BC4R700007 D814 B0BC6R600005 D811 D819 B0BC4R700007 D815 B0BC4R700007 D812 B0BC4R700007 F1J1E104A148 FL3009 1 2 3 F1J1E104A148 FL3005 1 2 3 F1J1E104A148 FL3008 1 2 3 F1J1E104A148 FL3003 1 2 3 F1J1E104A148 FL3011 1 2 3 F1J1E104A148 FL3004 1 2 3 F1J1E104A148 FL3001 1 2 3 F1J1E104A148 FL3000 1 2 3 C0CBCAC00275 IC804 1 VDD 2 GND 3 CE 5 VOUT 4 NC IC803 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS IC801 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS IC802 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS DS4 1 2 3 4 5 6 7 8 9 DS6 1 2 3 4 5 6 7 8 9 10 11 L813 J0JHC0000117 L804 J0JHC0000117 L808 J0JHC0000117 L810 J0JHC0000117 L806 J0JHC0000117 L3140 J0JHC0000117 L805 J0JHC0000117 L811 J0JHC0000117 L809 J0JHC0000117 L807 J0JHC0000117 L803 G1C330MA0363 L802 G1C330MA0363 L801 G1C330MA0363 LAN14V SLOT15V SLOT5V 5V_M P_F15V P_F15V 15V A_5V STB3.3V D_1.8V 15V_2 9V_2 D_3.3V A_3.3V STB5V_S A_1.8V SLOT9V STB5V_S SOUND15V SLOT3.3V FAN15V 15V_2 15V_2 15V_2 VJ803 VJ805 VJ801 VJ808 VJ807 VJ809 VJ802 VJ806 VJ804 Q801 B1DHDC000028 Q803 B1DHDC000028 Q806 2SD0601A0L Q802 2SD0601A0L Q807 2SD0601A0L Q804 2SD0601A0L Q805 2SD0601A0L R823 22k R825 10k R820 6.8k R810 3.3k R845 10k R829 3.3k R844 100 R843 100 R812 10k R821 26.1k R805 49.9k R819 5.1k R3199 10k R807 100k R863 330 R862 330 R858 10k R861 330 R859 3.3k R860 330 R818 100k R815 100k R811 4.7 R804 20k R830 6.8k R840 22k R827 4.7 R822 10k R850 12k R849 10k R851 10k R852 1k R813 45.3k R806 5.62k R802 4.7 R814 10k R2398 0 R848 10k R867 0 L816 J0JHC0000096 L817 J0JHC0000096 L819 J0JHC0000096 L818 J0JHC0000096 L820 J0JHC0000096 L821 J0JHC0000096 G D D S D D G D D S D D S15V GND F15V F15V S15V GND GND GND GND S15V F15V F_STB_ON ECO_ON ALL_OFF STB5V GND GND AC_GOOD NC P15V 15V->9V 15V->5V 15V->3.3V 3.3V->1.8V TO P-BOARD (P7) TO P-BOARD (P6) ! DS-BOARD TNPA4918AB (1/6) 1 TH-65PF12CK DS-Board (1/6) Schematic Diagram TH-65PF12CK DS-Board (1/6) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 64 TH-65PF12CK 12.12.DS 电路板（2/6）和 H3 电路板线路图 TH-65PF12CK DS-Board (2/6) and H3-Board Schematic Diagram TH-65PF12CK DS-Board (2/6) and H3-Board Schematic Diagram 13 16 12 10 14 11 17 18 15 + + + + + + + + + + + NP NP Thermal Pad P P P P P P P AUDIO_SOS AK_R_3 AK_L_3 AL_L_2 AL_R_2 AI_L_1 AI_R_1 AD_L_4 AD_R_4 AA_SDA3 AA_SCL3 SDA2 SCL2 SOUND_MUTE RESET C2378 25V 0.1u C2391 25V0.1u C2401 25V 0.1u C2373 25V 0.1u C3055 1u 16V C2393 1u 16V C2399 25V0.1u C3058 1u 16V C3054 1u 16V C2409 50V 180p C2374 25V 0.1u C2382 25V 0.1u C2420 25V 0.1u C2377 50V 15p C3056 1u 16V C2407 6.3V 10u C2411 10u 16V C2421 25V 0.1u C2384 25V 0.1u C2406 10V 2.2u C3053 1u 16V C3051 1u 16V C2381 25V 0.1u C2408 6.3V 10u C2375 25V 0.1u C2392 1u 16V C2404 50V 0.01u C2379 25V 0.1u C2402 25V 0.1u C3052 1u 16V C2388 25V 0.1u C2396 25V 0.1u C2395 25V 0.1u C3057 1u 16V C3001 50V 0.01u C2410 50V 180p C2405 10V 2.2u C2380 25V 0.1u C2376 50V 15p C2400 25V 0.1u C2398 25V0.1u C2403 25V 0.1u C2428 16V 0.1u C2432 25V0.1u C2444 1u 25V C2437 25V 0.1u C2439 1u 25V C2447 25V 0.1u C2441 10u 16V C2445 16V 2.2u C2438 25V 0.1u C2453 2.2u 10V C2451 50V0.47u C2434 50V 1000p C2413 25V 0.1u C2440 1u 25V C2412 25V0.1u C2429 50V 0.47u C2422 50V 1000p C2449 25V0.1u C2443 1u 25V C2450 25V0.1u C2433 25V 0.1u C2442 1u 16V C2448 10u 25V C2430 2.2u 10V C2436 0.1u 25V C2446 16V 0.027u C2424 10u 6.3V C2423 10u 6.3V C2459 0.1u 25V C2458 0.1u 25V C2452 25V 470u C2390 16V10u C2389 6.3V 47u C2385 6.3V 47u C2394 16V10u C3042 16V 10u C2397 6.3V 47u C2383 6.3V 47u C3043 16V 10u C3004 16V 47u C2431 25V 470u C2387 1u 50V C2386 1u 50V D2400 MAZ8056GML C0JBAA000377 IC2415 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0ABBA000168 IC2305 1 2 3 4 5 6 7 8 C1AB00002530 IC3001 Front1 1 2 Front2 3 Tuner1 4 Tuner2 5 EXT11 6 EXT12 7 EXT21 8 EXT22 9 EXT31 10 EXT32 11 DGND 12 SDA 13 SCL 14 AGND 15 FILTER 16 VRR 17 VCC 18 OUT2 19 OUT1 20 SELECT C1BB00001006 IC2303 1 PLLPWRR 2 PLLGNDR 3 PLLAVDD 4 PLLAVSS 5 PLLDVDD 6 PLLDVSS 7 TEST2 8 TEST3 9 DVSS4 10 DVDD4 11 XVSS 12 XOUT 13 XIN 14 XVDD 15 CVDD4 16 CVSS4 17 TEST0 18 TEST1 19 TEST4 20 TEST5 21 BVSS1 22 BVDD1 23 AVSS4 24 AVDD4 25 AVDD3 26 AVSS3 27 AOUT1 28 EVRINL 29 DAOUTL 30 DAOUTR 31 EVRINR 32 AOUT2 33 AVSS2 34 AVDD2 35 VREF2 36 VREF1 37 INL 38 INR 39 AVSS1 40 AVDD1 41 TEST6 42 XSEL0 43 XSEL1 44 XSEL2 45 CVSS1 46 CVDD1 47 LRCKI 48 BCKI 49 DATAI 50 SCKI 51 DVSS1 52 DVDD1 53 SCK0 54 TEST7 55 DATAO2 56 DATAO1 57 DATAO0 58 BCKO 59 LRCKO 60 CVSS2 61 CVDD2 62 XPDESC 63 PDEN 64 DVSS2 65 DVDD2 66 PWDB 67 RSTB 68 INTB 69 MCUIFSEL 70 CE 71 SCL/CL 72 I2CBUSY/DI 73 SDA/DO 74 DVSS3 75 DVDD3 76 MRREQ 77 GPFLAG 78 EMPF 79 CVSS3 80 CVDD3 C1AB00003105 IC2300 1 IN1 44 IN2 2 PLMT1 3 PLMT2 4 PLMT3 5 PLMT4 6 BSP1P 7 VCCP1P 8 VCCP1P 9 OUT1P 10 OUT1P 11 GNDP1 12 GNDP1 13 OUT1N 14 OUT1N 15 VCCP1N 16 VCCP1N 17 BSP1N 18 WARNING 19 ERROR 20 MUTEX 21 N.C. 22 N.C. 23 OSC 24 MS 25 ROSC 26 TM 27 VHOLD 28 BSP2N 29 VCCP2N 30 VCCP2N 31 OUT2N 32 OUT2N 33 GNDP2 34 GNDP2 35 OUT2P 36 OUT2P 37 VCCP2P 38 VCCP2P 39 BSP2P 40 VCCA 41 FILP 42 FILA 43 GNDA DS8 1 2 3 DS7 1 2 3 L2302 G1C150ZA0202 L2403 G1C101MA0072 L2304 G1C101MA0072 L2402 G1C101MA0072 L2401 G1C101MA0072 L2400 G1C101MA0072 L2301 G1C150ZA0202 L2300 G1C150ZA0202 L3002 G1C100K00020 L3052 G1C150ZA0202 L2303 G1C150ZA0202 SOUND_A15V SOUND15V D_3.3V 9V_2 SOUND_R15V D_3.3V 9V_2 A_3.3V A_3.3V SOUND_L15V SOUND_A15V SOUND_L15V SOUND_R15V A_5V STB5V_S STB3.3V D_1.8V 9V_2 A_1.8V VJ2302 VJ2300 R3233 VJ2303 R3232 R3234 VJ2301 Q2372 2SD0601A0L R2410 100k R2412 2k R2408 100k R3160 0 R2368 56 R2440 10k R2395 10k R2425 0 R2405 10k R2389 10k R2438 28.7k R2439 10k R3161 0 R3051 33 R2453 10k R2435 24k R2454 0 R2415 2k R2451 10k R2409 0 R2422 39k R2413 0 R2432 0 R2434 0 R2397 5.1k R2396 10k R2417 1.2k R2400 22 R2407 10k R2404 10k R2391 10k R2384 47k R2383 4.7k R2416 0 R2419 10k R2423 15k R2393 22 R2367 56 R2304 0 R2387 0 R3107 56 R2452 7.5k R2390 10k R2414 1.2k R3049 10k R2394 10k R2392 10k R2421 39k R3108 56 R2388 0 R2449 0 R2420 15k R2406 10k R2418 10k R2424 0 R2399 22 X2301 H0J184500020 JK8500 K4BC02B00013 H37 1 2 3 JK8500 K4BC02B00013 H37 1 2 3 R2385 15k ADC(D_INPUT) AOUT AIN- AIN+ GND VCC BOUT BIN- BIN+ DAC(D_OUTPUT) L R PRE AMP RESET -R OUT +R OUT -L OUT +L OUT SOUND PROCESSOR AUDIO SW SPEAKER(L) SPEAKER(R) POWER AMP AND ! DS-BOARD TNPA4918AB (2/6) 1 11 13 12 TXAUW011LBC ! H3-BOARD TXAUW011LBC ! H3-BOARD 65 TH-65PF12CK 12.13.DS 电路板（3/6）线路图 TH-65PF12CK DS-Board (3/6) Schematic Diagram TH-65PF12CK DS-Board (3/6) Schematic Diagram 22 25 21 19 23 20 26 27 24 + + AJ_TXD_4 AJ_RXD_4 AJ_RXD4 AJ_TXD4 DS_SOS AJ_TXD11 AJ_RXD13 AJ_RXD12 AJ_RXD1 AJ_RXD11 AJ_DAC0 AJ_DAC1 AJ_TXD13 AJ_TXD12 IIC_SW_DAC3 IIC_SW_DAC4 AC_SDA3 AA_SDA3 AC_SDA3 AC_SCL3 AA_SCL3 AB_SCL3 AC_SCL3 AC_SDA3 AB_SDA3 RTC_INT AC_SDA3 AC_SCL3 LAN14V_ON/OFF AH_SOS IIC_DAT AM_SDA_S3 IIC_SCL AN_SCL_S1 AN_SDA_S1 AM_SCL_S3 AC_SCL3 AUDIO_SOS AJ_TXD1 SW_LAN1 SW_LAN0 AJ_RXD11 5VRXD_LAN AJ_RXD12 AJ_RXD13 AJ_TXD11 AJ_TXD13 AJ_TXD12 5VTXD_LAN 3VRXD_LAN 5VRXD_LAN C8083 16V 0.1u C3040 16V 0.1u C8080 16V 0.1u C8181 50V 15p C8081 16V 0.1u C3009 25V 0.1u C3041 16V 0.1u C8183 16V 0.1u C8182 50V15p C2426 25V 0.1u C8084 16V 1u C8082 16V 0.1u C2455 25V 0.1u C3061 16V 0.1u C8200 6.3V 47u C8185 5.5V 1.5 D8180 MA2J1110GL D8213 MA2J1110GL D8209 MA2J1110GL D8201 MA2J1110GL D8211 MA2J1110GL D8204 MA2J1110GL D2304 MA2J1110GL D8013 B0ACCE000005 D8014 B0ACCE000005 D8015 B0ACCE000005 D829 MAZ8068GML D832 MAZ8062GML D827 MAZ8062GML D831 MAZ8062GML D8210 MAZ8068GML D828 MAZ8062GML D8203 MAZ8100GML D830 MAZ8062GML D8212 MAZ8056GML D8200 MAZ8160GHL C0JBAA000377 IC3009 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC3007 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc IC8181 C1DB00001208 1 2 3 4 5 6 7 8 IC3002 C0JBBR000002 1 1OE 2 S1 3 1B4 4 1B3 5 1B2 6 1B1 7 1A 8 GND 9 2A 10 2B1 11 2B2 12 2B3 13 2B4 14 S0 15 2OE 16 VCC IC3006 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD IC3008 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD C1ZBZ0003985 IC8014 EN 1 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 DOUT2 9 RIN2 10 ROUT2 11 INVALID 12 DIN2 13 DIN1 14 FORCEON 15 ROUT1 16 RIN1 17 DOUT1 18 GND 19 VCC 20 FORCEOFF SLOT5V LAN14V STB5V_S STB5V_S STB5V_S STB3.3V STB3.3V STB5V_S SLOT3.3V STB5V_S STB3.3V 9V_2 STB5V_S SLOT3.3V SLOT9V A_1.8V 5V_M LAN14V STB5V_S STB5V_S Q8184 B1CBHD000002 G D S Q8183 B1CBHD000002 G D S Q8202 2SD0601A0L Q8200 2SD0601A0L Q8201 2SD0601A0L Q8021 2SD0601A0L Q8023 2SD0601A0L Q8022 2SD0601A0L R3197 12k R8107 10k R8110 10k R8204 100k R8115 10k R8111 1.2k R8105 2.2k R8108 4.7k R8114 2.2k R3204 22 R3198 12k R8205 75k R8120 0 R8125 100 R3086 0 R8184 0 R8119 0 R2455 0 R2456 0 R8112 0 R2446 5.6k R2442 0 R2445 5.6k R2443 0 R2447 0 R2444 0 R3095 5.6k R8121 2.7k R3087 0 R8201 47k R8127 100 R3141 47k 0 R3099 R8183 0 R3084 0 R8180 82 R8126 100 R3094 0 R8200 56k R8203 10k R3140 47k R3201 22 R3206 22 R3205 22 R3203 22 R3202 22 R8206 39k R8103 18k R8109 2.2k R8124 100 R8182 100 R3113 10k R3114 10k R2458 10k R245710k R8181 100 R8122 2.7k R3083 0 R3096 5.6k R3085 0 R3135 100 R3125 10k R8202 22k X8181 H0J327200114 SCL SDA VSS /INTRB VDD OSCIN OSCOUT /INTRA S1 S0 PC HI HI LO LO LO LO SLOT3 SLOT2 HI HI SLOT1 SLOT1 A B HI SLOT2 SLOT3 HI LO LO LO LO SDA SCL SLOT1 A B HI SLOT2 SLOT3 HI LO LO LO LO CLOCK IIC SW IIC SW SLOT SERIAL SW LAN SERIAL SW 5V->3.3V RS232C DRIVER ! DS-BOARD TNPA4918AB (3/6) 11 12 13 21 22 23 66 TH-65PF12CK 12.14.DS 电路板（4/6）线路图 TH-65PF12CK DS-Board (4/6) Schematic Diagram TH-65PF12CK DS-Board (4/6) Schematic Diagram 31 34 30 28 32 29 35 36 33 + + + + + AA_SDA3 AG_HD_M AG_VD_M AF_DPMS_HD AF_DPMS_VD AD_VD_4 AF_VD_HX AD_Y_4 AD_PB_4 AD_PR_4 AI_Y_1 AI_PB_1 AI_PR_1 AK_S2_3 AL_S2_2 AI_S2_1 AL_PB_2 AL_Y_2 AL_PR_2 AK_PB_3 AK_Y_3 AK_PR_3 AA_SCL3 AD_HD_4 AK_VD_3 AL_VD_2 AI_VD_1 AD_VD_4 AG_Y_M AG_PB_M AG_PR_M HD-OUT HD+OUT VD+OUT HD-OUT HD+OUT VD+OUT AF_HD_HX AD_HD_4 AF_HD_HX AF_VD_HX AI_HD_1 AL_HD_2 AK_HD_3 V_SYNC_ON/OFF C8073 10V 10u C3106 16V 0.1u C3015 50V 0.01u C301450V 0.01u C8033 50V 1000p C8027 25V 0.1u C3204 16V 0.1u C301350V 0.01u C3112 0.1u 25V C8038 50V 1000p C3101 0.22u 16V C3114 0.1u 25V C3105 16V 0.1u C3019 16V 0.1u C8019 50V 0.01u C3103 0.22u 16V C8070 0.1u 25V C3113 0.1u 25V C8009 16V 1u C3111 0.22u 16V C3143 10V 2.2u C8035 16V 0.1u C301250V 0.01u C3034 0.1u 16V C3108 16V 0.1u C8074 150p 50V C3016 50V 0.01u C8029 50V 0.01u C3115 0.1u 25V C8015 16V 1u C3200 16V 1u C3110 0.22u 16V C3205 16V 0.1u C8045 16V 1u C3017 50V 0.01u C3033 0.1u 16V C3107 16V 0.1u C8013 16V 0.1u C8023 50V 0.01u C8072 10V 10u C8075 1000p 50V C8016 16V 4.7u C8021 10V 0.47u C3035 0.1u 16V C3021 2.2u 10V C3022 2.2u 10V C3023 2.2u 10V C3024 2.2u 10V C3025 2.2u 10V C3030 2.2u 10V C3029 2.2u 10V C3020 2.2u 10V C3028 2.2u 10V C3027 2.2u 10V C3026 2.2u 10V C3031 2.2u 10V C3116 0.22u 16V C3117 0.22u 16V C3118 0.22u 16V C3121 150p 50V C3120 150p 50V C3119 150p 50V C890 50V 0.01u C889 16V 0.1u C888 10u 16V C8085 16V 4.7u C891 10u 6.3V C3134 16V 470u C3135 16V 470u C3018 6.3V 47u C8030 16V 47u C3136 16V 470u D8017 MA2J1110GL D8016 MA2J1110GL D8003 MA2J1110GL D8001 MA2J1110GL D8010 MA3X15300L D8011 MA3X15300L C0JBAB000715 IC8018 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAB000715 IC8017 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y IC805 C0CBCDD00025 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin IC8005 C0JBAB000646 1 2 3 4 5 6 7 8 9 10 11 12 13 14 IC3005 C1AB00003160 1 VCC1 2 YIN4 3 GND 4 PBIN4 5 VCC1 6 NC 7 PRIN4 8 GND 9 YIN3 10 VCC1 11 PBIN3 12 PORT3 13 PORT2 14 PRIN3 15 PORT1 16 PORT0 17 YIN2 18 VCC1 19 PBIN2 20 GND 21 PRIN2 22 VCC1 23 YIN1 24 GND 25 PBIN1 26 VCC1 27 PRIN1 28 GND 29 VDD 30 ADR 31 SDA 32 SCL 33 DGND 34 VIN4 35 VIN3 36 VIN2 37 VIN1 38 GND 39 HIN4 40 HIN3 41 HIN2 42 HIN1 43 VCC2 44 HOUT 45 VOUT 46 VIN 47 VDET 48 HIN 49 HDET 50 VERTADJ 51 VERTIN 52 GND 53 VD+OUT 54 HD-OUT 55 HD+OUT 56 VCC1 57 GCLAMP2 58 GCLAMP1 59 GND 60 YOUT 61 VCC1 62 PBOUT 63 GND 64 PROUT L8005 G1C100K00020 L3050 G1C100K00020 L8003 G1C100K00020 L3051 G1C100K00020 5V_M 5V_S 5V_S 9V_2 9V_2 5V_S 9V_2 STB3.3V 9V_2 5V_M TPJV1 TPJH1 Q8012 2SD0601A0L Q8010 2SD0601A0L Q8019 2SD0601A0L Q8024 2SD0601A0L Q8013 2SB0709A0L Q8011 2SB0709A0L Q8002 2SB0709A0L R3057 56 R8012 0 R8050 2.2k R8039 4.7k 4.7k R3213 R8003 0 R3126 0 R3211 100 R8056 100 R8089 180 R3219 3.3 R3081 56 R8026 22 R3214 4.7k R8054 0 R3068 56 R3048 330k R3058 56 R8057 100 R8067 150 R8004 0 1% R3088 75 R3065 56 R3069 56 1% R3072 75 R8117 0 R3218 3.3 R8060 0 R8096 0 R8048 2.2k R3076 56 1% R3190 75 R3216 3.3 R3210 100 R8065 150 R8055 100 R3064 56 R8118 0 1% R3093 75 1% R8069 1.5k R3230 100 R3078 56 R8009 0 R8011 0 R3080 56 R3231 100 R8097 0 R3066 56 R8002 0 1% R3092 75 R3053 56 R3121 0 1% R3071 75 R3050 56 1% R3089 75 R8098 0 R8051 10k R8029 3k R3077 56 1% R3188 75 4.7k R3215 1% R3075 75 R3054 56 1% R3070 75 R8001 0 1% R3073 75 1% R3090 75 R8035 22k R8031 2.2k R3067 56 1% R3189 75 R8010 0 R8015 100 R8014 100 R8013 100 R3079 56 R3212 4.7k 1% R3074 75 R3102 680 R8037 4.7k R3217 3.3 R8045 2.2k 1% R3091 75 R8025 0 R8116 10k O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC HP VP CH1(6Pin AUTO/ON G) CH0(7Pin VBS) HI A LO ON CH HI LO ON G LO LO No Signal VBS(Sync on Video/CS) HI RGB Sync Signal Lojic Table SYNC_INH HI LO LO AUTO(Separate Sync ON G) AC_CS COMPONENT SELECT HD/VD SELECT SYNC SIGNAL PROCEAAOR 9V->5V SYNC SIGNAL INVERTER DPMS 5V->3.3V DPMS 5V->3.3V HX SYNC IN ! DS-BOARD TNPA4918AB (4/6) 21 23 22 32 31 33 35 34 67 TH-65PF12CK 12.15.DS 电路板（5/6）线路图 + G G G G G G G G G G TERM SIDE AH_SOS AI_PB_1 AI_PR_1 AI_HD_1 AI_VD_1 AI_R_1 AI_L_1 RESET RESET SRQ SRQ AJ_TXD12 AH_SLOT2_DET AJ_RXD11 AJ_TXD11 REMOCON_OUT2 REMOCON_OUT3 REMOCON_OUT2 REMOCON_OUT1 AH_SLOT1_DET AL_HD_2 AL_PR_2 AL_PB_2 AL_Y_2 AL_VD_2 AL_R_2 AL_L_2 REMOCON_OUT1 AH_SOS AI_Y_1 REMOCON_OUT AB_SDA3 AB_SCL3 SDA2 SCL2 A_ED+ A_OE+ A_ED- A_OE- A_OD+ A_CLK+ A_OD- A_CLK- A_OC+ A_EC+ A_OC- A_EC- A_OB+ A_OB- A_EB+ A_EB- A_OA+ A_OA- A_EA+ A_EE+ A_EA- A_EE- B_ED+ B_OE+ B_ED- B_OE- B_OD+ B_CLK+ B_OD- B_CLK- B_OC+ B_EC+ B_OC- B_EC- B_OB+ B_OB- B_EB+ B_EB- B_OA+ B_OA- B_EA+ B_EE+ B_EA- B_EE- DS_SOS AG_VD_M AG_HD_M AF_DPMS_HD AF_DPMS_VD REMOCON REMOCON_OUT 15V_ON/OFF LAN14V_ON/OFF F15V_MON ALL_OFF SOUND_MUTE KEY_SW LED_R LED_G RESET AJ_RXD1 AJ_TXD1 AH_SLOT1_DET AAJ_DAC0 AJ_RXD4 AJ_TXD4 SRQ AH_SLOT2_DET AH_SLOT3_DET IIC_SW_DAC4 IIC_SW_DAC3 IIC_DAT IIC_SCL AN_SCL_S1 AN_SDA_S1 RTC_INT F_STB_ON 3VTXD_LAN 3VRXD_LAN AJ_DAC1 AJ_DAC0 AAJ_DAC1 3V_SW_LAN1 3V_SW_LAN0 3V_SW_LAN0 3V_SW_LAN1 AAJ_DAC1 AAJ_DAC0 SW_LAN0 SW_LAN1 3VTXD_LAN 5VTXD_LAN FFC_DETECT2 FFC_DETECT1 KEY_DET AC_GOOD AG_PR_M AG_Y_M AG_PB_M V_SYNC_ON/OFF AL_S2_2 AJ_RXD12 AI_S2_1 C3206 10u 16V C8115 10u 25V C3153 16V 0.1u C8114 10u 25V C8123 16V 0.1u C3201 10u 6.3V C3207 10u 16V C3202 10u 6.3V C3066 16V 1u C8122 6.3V 47u D3001 MA2J1110GL D3003 MA2J1110GL F1J1E104A148 FL3012 1 2 3 F1J1E104A148 FL3010 1 2 3 F1J1E104A148 FL3014 1 2 3 F1J1E104A148 FL3013 1 2 3 F1J1E104A148 FL3015 1 2 3 C0JBAZ002692 IC3153 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc DS1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 DS11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 DS12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 SLOT9V LAN14V STB5V_S SLOT9V SLOT5V 15V FAN15V SLOT15V LAN14V SLOT15V STB5V_S SLOT3.3V 5V_M STB5V_S STB3.3V STB5V_S SLOT5V SLOT3.3V R3143 100 R8190 0 R3196 100 R3004 100 R8187 56 R3032 100 R3033 100 R3152 0 R3153 0 R8188 56 R3200 100 R3043 100 R3025 100 0 R3118 0 R3120 0 R3116 0 R3115 R3042 0 R3122 0 R3100 0 R3195 100 R8100 0 R8106 0 R8189 0 R3150 100 R3098 2.2k LAN14V PLUG DET CABLE DET SYNC GND REMOTE VD SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G GND GND STB5V SRQ NC(OPEN) IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND AUDIO IN R GND SLOT3.3V SLOT9V GND SLOT5V GND GND SLOT9V GND STB5V SRQ NC(OPEN) SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND S2DETECT PB/B Y/G GND LAN14V CABLE DET SYNC GND REMOTE VD SLOT5V IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND GND LAN14V GND Y/G GND SLOT5V GND GND LAN14V GND NC SLOT9V GND SLOT5V GND NC SLOT15V SLOT15V SLOT15V SLOT15V SLOT3.3V REMOCON OUT/IIC SW SLOT3.3V SOUND MUTE STB5V KEY_DET P15V RTC INT KEY_SW IIC_CONT ALL_OFF B/PB_M DS SOS LED_R GND RESET SDA2 GND /AC_GOOD REMOCON OUT GND HD_M DPMS_HD TXD_TU TXD_PC GND FAN15V SDA3 STB_ON SW_LAN1 SL1_DET AJ_DAC0 RXD_TU P15V R/PR_M VD_M GND GND SCL2 REMOCON GND IIC_SW_DAC3 P5V STB3.3V G/Y_M DPMS_VD LED_G RXD_PC SCL3 TX2- TX0+ TXCG TX0- TX6+ TX5- TX1+ TX2+ TX4- TX8+ TX4+ TXC- TX7+ TX3+ TX1G TX2G TX9+ TX0G TX8- TXC+ ETX_G3 TX9- TX3- ETX_G2 TX3G TX6- ETX_G1 TX1- TX7- TX5+ TX9+ TX2G TX2- TX0+ TX6- TX1G TX1+ TX4- TX0G TX5- TX4+ TX8+ TXC- TX9- TX2+ TX7- TX3G TX7+ TX5+ TXCG ETX_G3 TX3+ ETX_G1 TX1- TX3- TX8- ETX_G2 TX6+ TXC+ TX0- SL2_DET SL3_DET AJ_DAC1 IIC_SW_DAC4 DETECT1 15V_ON/OFF LAN14V_ON/OFF F15V_MON GND GND GND GND GND GND DETECT2 TXD_LAN RXD_LAN GND FAN_CONT FAN15V SW_LAN0 SLOT1 SLOT2 (DN1) DN-BOARD TO 3.3V->5V ! DS-BOARD TNPA4918AB (5/6) 32 31 33 34 35 44 43 45 41 47 46 42 (H1) HDE-BOARD TO TH-65PF12CK DS-Board (5/6) Schematic Diagram TH-65PF12CK DS-Board (5/6) Schematic Diagram 40 43 39 37 41 38 44 45 42 68 TH-65PF12CK 12.16.DS 电路板（6/6）线路图 TH-65PF12CK DS-Board (6/6) Schematic Diagram TH-65PF12CK DS-Board (6/6) Schematic Diagram 49 52 48 46 50 47 53 54 51 TERM SIDE AH_SLOT3_DET AH_SOS AJ_RXD13 AK_Y_3 RESET AK_PB_3 AK_PR_3 AK_HD_3 AK_VD_3 AK_R_3 AK_L_3 SRQ AJ_TXD13 REMOCON_OUT3 AK_S2_3 LED_G LED_R REMOCON A_OA- A_OA+ B_EE- B_EE+ B_ED+ B_ED- B_EC+ B_EC- B_EB+ B_EB- B_EA+ B_EA- B_CLK+ B_CLK- B_OE+ B_OE- B_OD+ B_OD- B_OC+ B_OC- B_OB+ B_OB- B_OA+ B_OA- A_EE+ A_EE- A_ED+ A_ED- A_EC+ A_EC- A_EB+ A_EB- A_EA+ A_EA- A_CLK+ A_CLK- A_OE+ A_OE- A_OD+ A_OD- A_OC+ A_OC- A_OB+ A_OB- AJ_TXD_4 AJ_RXD_4 AD_L_4 AD_R_4 AD_PR_4 AD_Y_4 AD_PB_4 AF_HD_HX AF_VD_HX KEY_SW AM_SDA_S3 AM_SCL_S3 FFC_DETECT4 FFC_DETECT3 C3203 10u 6.3V C3208 10u 16V C842 10u 16V D3004 MA2J1110GL D8181 MAZ8056GML D8185 MAZ8056GML D8184 MAZ8056GML FL8001 J0MAB0000140 1 2 3 4 DS3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 69 70 DS15 1 2 3 DS2 1 2 3 4 5 6 DS14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DS13 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L8102 L8103 L8105 L8106 L8101 L3053 G1C101MA0072 SLOT9V SLOT9V SLOT5V SLOT3.3V STB3.3V 5V_M LAN14V SLOT15V STB5V_S ZA3001 K4CD01000011 ZA3003 K4CD01000013 ZA3002 K4CD01000011 ZA3006 K4CD01000013 ZA3008 K4CD01000011 ZA3007 K4CD01000013 ZA3009 K4CD01000011 ZA3004 K4CD01000013 ZA3005 K4CD01000013 R3059 100 R8129 0 R3144 100 R8102 0 R8104 0 R8191 0 TX3- TX3+ TX1+ TX0G TX0- TX0+ GND LAN14V AUDIO GND TXD AUDIO IN R Y/G Y/G GND PB/B S2DETECT PB/B GND RESET1 PR/R RESET2 PR/R GND HD PWR_STATUS SYNC GND SOS VD REMOTE SYNC GND CABLE DET PLUG DET GND SLOT5V GND SLOT9V SLOT3.3V GND AUDIO IN L RXD AUDIO GND IIC SCL RSVD IIC DAT NC(OPEN) SRQ STB5V GND TX1G TX1- TX2G TX2- TX2+ TX3G TXCG TXC- TXC+ KEY-SW LED_G GND REMOCON LED_R KEY_DET/GND STB3.3V-> GND NC LAN14V GND SLOT9V GND SLOT5V GND GND NC NC NC NC NC NC NC NC NC NC NC NC NC NC NC PR/R RXD GND GND L GND HD Y/G 9V-> 5V-> PB/B TXD R VD GND SLOT15V SLOT15V SLOT3.3V TX4+ TX4- TX3+ TX3- TX2+ TX2- TX1+ TX1- TX0+ TX0- TXC+ TXC- TX9+ TX9- TX8+ TX8- TX7+ TX7- TX6+ TX6- TX5+ TX5- TX4+ TX4- GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND TX6+ GND TX7+ TX1+ TX6- TX9+ TX7- TX8- GND GND GND TXC- TX1- TX8+ TXC+ TX0+ TX0- TX3+ TX2- TX2+ TX5+ GND TX3- TX5- TX9- GND GND DETECT3 DETECT4 DN-BOARD (DN2) TO SLOT3 (HX1) HX-BOARD TO (V15) V2-BOARD TO (V2) V1-BOARD TO ! DS-BOARD TNPA4918AB (6/6) 45 41 43 47 46 44 42 (H1) HL-BOARD TO 69 TH-65PF12CK 12.17.DN 电路板（1/8）线路图 P_ON/OFF TXD_PC UART_SW D_TXD LED_R D_RXD 5VLED_R RXD_PC 3VRXD_TU 5VTXD_TU D_RXD D_TXD 5VRXD_TU 5VNRST 5VLED_G NRST IIC_CONT 3VTXD_TU LED_G TXD_PC_M D_IIC_CONT D_IIC_CLK2 D_IIC_DATA2 D_IIC_CLK1 D_IIC_DATA1 C4052 50V 1000p C4025 50V 3900p C4007 10u 10V C4010 0.1u 25V C4023 0.1u 25V C4006 10u 25V C4014 16V 0.1u C4018 1u 10V C4022 25V 0.01u C4055 16V 0.1u C4053 16V 0.1u C4156 6.3V 2.2u C4020 16V 1u C4045 16V 1u C4040 10u 25V C4013 10u 25V C4011 10u 16V C4039 10u 16V C4044 16V 1u C4019 16V 1u C4042 0.1u 25V C4015 0.1u 25V C4029 10V 10u C4037 16V 0.1u C4033 10u 10V C4034 10u 10V C4030 16V 0.1u C4054 16V 0.1u D4004 B0JCPE000004 D4016 B0JCPE000004 D4001 B0JCME000037 D4005 B0JCPE000004 D4002 B0JCPE000004 D4024 B0ACCE000005 D4027 B0ACCE000005 D4025 B0ACCE000005 D4026 B0ACCE000005 D4008 B0BC4R700007 D4011 B0BC4R700007 D4000 B0BC4R700007 D4007 B0BC5R6A0275 D4012 B0BC5R6A0275 D4018 B0BC5R6A0275 D4050 B0BC5R6A0275 IC4904 C0CBCAG00039 1 VOUT 2 VSS 3 ON/OFF 4 NC 5 VSS 6 VIN IC4903 C0DBAYY00183 1 BS 2 VIN 3 SW 4 GND 5 FB 6 COMP 7 EN 8 SS IC4004 C0JBAZ000851 1 1OE 2 1A 3 1Y 4 2OE 5 2A 6 2Y 7 GND 8 3Y 9 3A 10 3OE 11 4Y 12 4A 13 4OE 14 VCC IC4005 C0JBAA000175 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC IC4901 C0DBAYY00369 1 SW 2 BST 3 VCC 4 GND 5 FB 6 PG 7 EN/SYNC 8 IN IC4902 C0DBAYY00369 1 SW 2 BST 3 VCC 4 GND 5 FB 6 PG 7 EN/SYNC 8 IN DN11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 L4003 J0JHC0000096 L4041 J0JHC0000096 L4040 J0JHC0000096 L4039 J0JHC0000096 L4001 G1C8R2ZA0202 L4002 G1C8R2ZA0202 L4000 G1C330MA0363 15V STB5V 2.5V STB5V STB3.3V 3.3V STB3.3V 3.3V SW_3.3V STB5V STB3.3V STB5V STB3.3V STB1.2V STB3.3V 1.2V STB5V STB3.3V SW_3.3V 1.8V 15V STB5V 2.5V R4542 R4543 R4544 R4540 R4545 R4541 R4691 R4689 R4693 R4692 R4031 R4030 R4002 R4047 R4539 R4034 R4675 R4674 Q4003 B1DHDC000028 Q4001 2SD0601A0L Q4006 2SD0601A0L Q4005 2SD0601A0L Q4004 2SD0601A0L R4065 10k R4050 0 R4063 100 R4061 0 R4044 19.1k R4035 10 R4062 100 R4043 11k R4027 31.6k R4036 100k R4022 51k R4042 100k R4014 100k R4026 100k R4038 150k R4011 10 R4066 10k R4028 10k R4055 10k R4058 100 R4010 4.7 R4019 100k R4008 3.6k R4003 22k R4013 4.7k R4001 0 R4005 10k R4021 10k R4023 5.1k R4069 0 R4054 10k R4070 3.3k R4053 100 R4039 10k R4040 10k R4064 10k R4150 22k R4149 10k R4060 100 R4048 0 R4057 100 R4056 10k R4052 5.6k R4067 3.3k R4068 100 R4059 10k R4020 18k R4025 0 Thermal Pad Thermal Pad P P P P P P P P P P P P P P P P P P ON/OFF SW 3.3V STBY-MAIN SCL1 TDO REMOCON GND SDA2 RXD SCL2 TXD TDI SDA1 TMS LED_G TRST 5V->3.3V IIC_CONT TCK STBY3.3V IIC_INT LED_R STBY5V GND P15V->3.3V P15V->2.5V P15V->1.2V 2.5V->1.8V 3.3V->5V ! DN-BOARD TXNDN11LBC (1/8) 1 2 FACTORY USE FOR TH-65PF12CK DN-Board (1/8) Schematic Diagram TH-65PF12CK DN-Board (1/8) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 70 TH-65PF12CK 12.18.DN 电路板（2/8）线路图 + + 2 G G G G G G (FIN) TERM SIDE TERM SIDE P P P P A_EC- TXD_PC 5VTXD_TU BE_6 B_EA- B_OD- RE_5 GE_7 A_EC+ AD_CLK DN_SOS DS_SOS RE_3 B_OC+ HD_ADA ANF_R_M DPMS_VD B_CLK+ B_OC- BE_3 A_ED- REMOCON B_OB+ GE_3 BE_2 SL3_DET B_CLK- B_OB- RE_0 A_OA+ SL2_DET GE_0 B_OA- B_OD+ GE_9 B_OA+ A_ED+ RE_7 A_OB- AD_FLD 5VLED_G B_OE+ AD_PLLH A_OB+ 3V_SDA3 A_OA- GE_4 AJ_DAC1 15V_SOS A_OC- BE_0 3V_SCL3 A_EE- RE_2 A_OC+ RE_9 ALL_OFF1 BE_8 B_OE- AJ_DAC0 P3V_SDA2 A_OD- GE_1 IIC_SW_DAC4 P3V_SCL2 CLP_A A_OD+ IIC_SW_DAC3 IIC_CONT B_EE+ SL1_DET HD_M BE_7 IIC_CONT A_OE- REMOCON AD_PLLV B_EE- A_EE+ VD_M GE_5 A_OE+ RE_4 BE_4 F15V_MON B_ED+ REMOCON_OUT LAN14V_ON/OFF A_CLK- RE_6 GE_2 B_ED- REM_IN REMOCON_OUT P3V_SCL2 RE_1 5VNRST A_CLK+ GE_6 VD_ADA A_EA+ B_EC+ B_EB+ GE_8 15V_ON/OFF A_EA- A_EB- 5V_SOS BE_1 ANF_G_M B_EC- B_EB- RE_8 BE_5 A_EB+ BE_9 B_EA+ 5VRXD_TU RXD_PC P3V_SDA2 5VLED_R P3V_SDA2 P3V_SCL2 KEY_INPUT KEY_DET RTC_INT SOUND_MUTE STB_ON TXD_LAN RXD_LAN AC_GOOD/VSW SW_LAN1 SW_LAN0 FAN_SOS FAN_CONT1 FAN_ON/OFF FAN_CONT2 DPMS_HD ANF_B_M C4104 16V 0.1u C4058 16V 0.1u C4081 6.3V 10u C4108 16V 0.01u C4093 25V 5600p C4110 16V 0.1u C4069 10u 25V C4067 16V 0.1u C4089 10u 6.3V C4072 10u 6.3V C4087 16V 0.1u C4085 6.3V 10u C4103 6.3V 10u C4116 16V 0.01u C4095 6.3V 10u C4102 16V 0.1u C4117 6.3V 10u C4094 6.3V 10u C4086 16V 0.1u C4106 16V 0.1u C4099 16V 0.01u C4068 10u 25V C4090 16V 0.01u C4105 16V 0.01u C4082 10u 6.3V C4088 6.3V 10u C4111 6.3V 10u C4112 16V 0.1u C4300 16V 0.1u C4109 16V 0.1u C4098 16V 0.1u C4096 16V 0.01u C4091 10u 6.3V C4080 16V 0.1u C4118 16V 0.01u C4083 16V 0.1u C4113 16V 0.1u C4084 50V 1000p C4092 16V 0.056u C4360 16V 0.1u C4157 6.3V 10u C4158 6.3V 10u C4155 6.3V 10u C4153 10u 25V C4306 1u 25V C4154 0.1u 16V C4303 220u 25V C4466 470u 16V D4062 B0JCME000037 D4029 MA2J72800L D4031 B0ACCE000005 D4030 B0ACCE000005 D4033 B0ACCE000005 D4032 B0ACCE000005 FL4005 F1J1E104A148 1 2 3 FL4003 F1J1E104A148 1 2 3 FL4004 F1J1E104A148 1 2 3 FL4000 J0MAB0000175 C0JBAA000377 IC4007 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0CBCAC00275 IC4011 1 VDD 2 GND 3 CE 5 VOUT 4 NC C0JBAA000377 IC4008 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C1ZBZ0003775 IC4010 1 SDA 2 SCL 3 ALERT 4 GND 5 A2 6 A1 7 A0 8 V+ C0DBFFD00003 IC4012 1 2 3 4 5 6 7 C0FBAF000075 IC4001 1 VD 2 BAIN0 3 GND 4 BAIN1 5 VD 6 GAIN0 7 GND 8 SOGIN0 9 VD 10 GAIN1 11 GND 12 SOGIN1 13 VD 14 RAIN0 15 GND 16 RAIN1 17 RST 18 REFLO 19 REFCM 20 REFHI 21 O/E_FIELD 22 VSOUT/A0 23 HSOUT 24 SOGOUT 25 DATACK 26 VDD 27 GND 28 RED<9> 29 RED<8> 30 RED<7> 31 RED<6> 32 RED<5> 33 RED<4> 34 RED<3> 35 RED<2> 36 RED<1> 37 RED<0> 38 VDD 39 GND 40 GND 41 DAVDD 42 GREEN<9> 43 GREEN<8> 44 GREEN<7> 45 GREEN<6> 46 GREEN<5> 47 GREEN<4> 48 GREEN<3> 49 GREEN<2> 50 GREEN<1> 51 GREEN<0> 52 VDD 53 GND 54 BLUE<9> 55 BLUE<8> 56 BLUE<7> 57 BLUE<6> 58 BLUE<5> 59 BLUE<4> 60 BLUE<3> 61 BLUE<2> 62 BLUE<1> 63 BLUE<0> 64 VDD 65 GND 66 SDA 67 SCL 68 HSYNC1 69 VSYNC1 70 HSYNC0 71 VSYNC0 72 EXTCLK/COAST 73 CLAMP 74 PVD 75 GND 76 PVD 77 GND 78 FILT 79 PVD 80 GND C0DBAZG00034 IC4023 1 VCC 2 OUT 4 INV 5 STBY 3 GND DN2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 69 70 DN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 69 70 DN9 1 2 3 4 5 L4005 J0JHC0000096 L4006 J0JHC0000096 L4038 J0JHC0000096 L4037 J0JHC0000096 L4042 J0JHC0000096 L4051 G1C101MA0363 STB3.3V SW_3.3V 1.8V 15V 2.5V P5V STB5V SW_3.3V 1.2V FAN_VOLTAGE FAN15V 1.8V_AVDD STB3.3V SW_3.3V 1.8V_PLLVDD P5V FAN15V FAN_VOLTAGE 15V SW_3.3V P5V STB3.3V SW_3.3V R4134 R4701 R4702 R4722 PA4001 K5H4022A0031 PA4000 K5H4022A0031 TP4025 TP4026 TP4005 TP4030 TP4003 TP4029 TP4000 TP4004 TP4002 Q4023 2SD0601A0L Q4008 2SD0601A0L Q4007 2SD0601A0L Q4012 2SD0601A0L Q4021 2SD0601A0L Q4010 2SD0601A0L Q4009 2SD0601A0L Q4013 2SD0601A0L Q4011 2SD0601A0L Q4014 2SD0601A0L Q4352 2SB0709A0L R4174 EXB28V680JX R4161 EXB2HV680JV R4171 EXB2HV680JV R4165 EXB2HV680JV R4078 10k R4072 6.8k R4083 22k R4098 10k R4081 1k R4148 10k R4309 0 R4311 0 R4319 0 R4077 3.9k R4115 0 R4147 22 R4075 10k R4086 47k R4138 0 R4082 10k R4153 10k R4100 10k R4073 1k R4096 10k R4121 100 R4155 22 R4116 0 R4158 68 R4110 100 R4157 2.2k R4162 75 R4084 47k R4074 1k R4099 330 R4106 100 R4152 10k R4175 47 R4172 4.7k R4109 100 R4080 1k R4139 0 R4105 100 0 R4132 R4094 1k R4123 100 R4156 22 R4107 100 R4088 22k R4079 1k R4146 22 R4164 75 R4108 100 R4114 0 R4122 100 R4178 56 R4093 12k R4154 10k R4112 100 R4133 0 R4125 0 R4144 0 R4145 0 R4160 0 R4090 100 R4097 10k R4715 910 R4714 22k R4177 47 R4140 0 R4713 47k R4113 100 R4092 10k R4717 10.5k R4718 10k R4716 2.7k R4104 0 R4169 75 R4089 100 R4085 47k R4706 470 R4705 10k R4708 10k R4120 0 R4159 68 R4124 100 R4095 10k R4166 0 R4101 5.6k R4176 47 R4102 5.6k R4087 47k R4163 0 R4111 100 R4170 10k B/PB_M G/Y_M GND GND GND GND HD_M R/PR_M GND 15V ALL_OFF1 AJ_DAC0 SCL2 GND RXD_TU TXD_TU SDA2 LED_G LED_R STB_ON SCL3 SL1_DET AJ_DAC1 KEY_SW REMOCON REMOCON OUT GND GND RTC_INT IIC_CONT DS_SOS RXD_PC KEY_DET DPMS_HD 5V RESET IIC_SW_DAC4 GND IIC_SW_DAC3 TXD_PC GND FAN_CONT/AC_GOOD DPMS_VD SOUND_MUTE SL3_DET GND SDA3 FAN15V GND VD_M 15V_ON/OFF LAN14V_ON/OFF 15V STB3.3V STB5V HP VP SL2_DET N.C. N.C. GND GND GND GND F15V_MON GND 5V FAN SOS FAN CONT FAN_VOLTAGE/FAN_on/Off FAN BLOCK TPFAO FAN15V FAN_ON/OFF TPFANG REMOCON SOS (DS1) DS-BOARD TO 5V->3.3V 5V->3.3V TEMP SENSOR 8Bit RGB VIDEO SIGNAL A/D CONVERTER 3.3V->1.8V 3.3V->1.8V ! DN-BOARD TXNDN11LBC (2/8) 1 2 14 13 11 12 TO (DS3) DS-BOARD (PB30) PB-BOARD TO RXD_LAN TXD_LAN SW_LAN0 SW_LAN1 TH-65PF12CK DN-Board (2/8) Schematic Diagram TH-65PF12CK DN-Board (2/8) Schematic Diagram 13 16 12 10 14 11 17 18 15 71 TH-65PF12CK 12.19.DN 电路板（3/8）线路图 A_CLK- 21 RE_9 4B 6 BE_7 B_EE- 22 GE_3 B_OC+ RE_4 A_OE+ 27 RE_0 BE_9 B_ED+ B_OC- 25 GE_4 A_OE- GE_1 CLKM_20MHZ 24 PI1CLK 11B HD_ADA PI2ACT RE_6 NRST B_ED- B_OB+ 26 A_OD+ 10B PI1VS GE_5 RE_3 P3V_SCL2 12B PI2FLD 14B 9 AD_FLD B_EC+ PI1HS B_OB- 15B AD_CLK A_OD- 13B AD_PLLV 17B RE_5 16B 19 B_EC- 1 B_OA+ BE_2 BE_1 A_OC+ 19B 7 BE_4 RE_2 B_EB+ B_OA- 18B 3 PI1ACT PI2HS A_OC- GE_7 BE_3 2B 26B PI1FLD 4 PI2VS BE_0 RE_8 B_EB- A_EE+ 5B 23B 5 A_OB+ 14 BE_6 BE_5 PI2CLK 27B 2 10 B_EA+ A_EE- VD_M 24B A_OB- 13 BE_8 22B B_EA- 11 A_ED+ 18 A_OA+ 21B HD_M 16 29 20B GE_0 28B A_ED- A_EB+ 17 B_CLK+ A_OA- 25B GE_8 29B 12 MCDATA_O A_EC+ A_EB- 15 AD_PLLH B_CLK- MCCLK 8B GE_6 A_EC- A_EA+ VD_ADA MC_LD 8 B_OE+ CLP_A 28 9B 7B RE_7 A_EA- B_OE- 1B GE_9 6B RE_1 A_CLK+ B_OD+ 20 3B P3V_SDA2 23 GE_2 0B B_EE+ B_OD- 0 C4136 6.3V 10u C4133 6.3V 10u C4138 6.3V 10u C4127 16V 0.1u C4130 16V 0.1u C4150 16V 0.1u C4143 16V 0.1u C4120 6.3V 10u C4149 16V 0.1u C4121 6.3V 10u C4129 16V 0.1u C4132 16V 0.1u C4147 4V22u C4142 16V 0.1u C4148 16V 0.1u C4146 16V 0.1u C4131 16V 0.1u C4122 6.3V 10u C4126 16V 0.1u C4123 16V 0.1u C4145 6.3V 10u C4140 16V 0.1u C4151 16V 0.1u C4144 6.3V 10u C4139 16V 0.1u C4135 6.3V 10u C4119 6.3V 10u C4124 16V 0.1u C4128 16V 0.1u C4137 6.3V 10u C4125 16V 0.1u C4141 16V 0.1u C4134 6.3V 10u IC4201 C1AB00002899 A1 GND IC4201 V18 GND IC4201 V13 PI1CLK IC4201 D16 SCL IC4201 A18 GND IC4201 B13 AD_R7 IC4201 P8 VDD_3.3V IC4201 V12 PI1G5 IC4201 V8 PI2B6 IC4201 L4 LVB_RX4- IC4201 A9 AD_G3 IC4201 B2 GND IC4201 C1 GND IC4201 F2 LVB_RX8+ IC4201 F16 LVA_RX3- IC4201 U1 VDD_1.8V IC4201 F6 VDD_1.8V IC4201 B17 GND IC4201 C5 AD_B0 IC4201 F10 VDD_1.8V IC4201 A17 VDD_1.8V IC4201 E9 VDD_3.3V IC4201 T17 PI1R4 IC4201 N7 VDD_3.3V IC4201 R2 PI2R7 IC4201 A8 AD_G0 IC4201 B1 VDD_1.8V IC4201 E10 NC IC4201 N15 LVA_RX8+ IC4201 U8 PI2B8 IC4201 P9 PI2VSB IC4201 L2 LVB_RX0+ IC4201 T5 PI2G7 IC4201 C16 MCCLK IC4201 V9 PI1HSB IC4201 J15 LVA_RXC+ IC4201 G18 LVA_RX0- IC4201 U16 PI1R0 IC4201 N18 LVA_RX9- IC4201 L10 GND IC4201 E16 LPGND IC4201 D15 NRST IC4201 G15 LVA_RX1- IC4201 P7 PI2B1 IC4201 T3 PI2R5 IC4201 P4 PI2G3 IC4201 K4 LVDD_3.3V IC4201 K14 NC IC4201 B11 AD_R1 IC4201 D1 NAND_TEST IC4201 G13 GND IC4201 V5 VDD_3.3V IC4201 D14 AD_H IC4201 H6 VDD_3.3V IC4201 P10 PI1B9 IC4201 M15 NC IC4201 B3 HDA_IN IC4201 D5 AD_B1 IC4201 A12 AD_R4 IC4201 M10 GND IC4201 E12 VDD_3.3V IC4201 B5 HDA_OUT IC4201 A6 AD_B2 IC4201 D11 AD_R3 IC4201 U12 PI1G9 IC4201 P11 VDD_3.3V IC4201 C3 VDA_OUT IC4201 K7 NC IC4201 C17 MCDAT IC4201 J4 LVB_RXC- IC4201 N5 LPGND IC4201 J1 NC IC4201 D6 AD_B5 IC4201 K10 VDD_1.8V IC4201 G3 LVB_RX7+ IC4201 U3 PI2R4 IC4201 E6 NC IC4201 H15 LVDD_3.3V IC4201 K3 NC IC4201 H2 LVB_RX5+ IC4201 G11 GND IC4201 H1 NC IC4201 G4 LVB_RX7- IC4201 M18 LVA_RX7- IC4201 K18 NC IC4201 F3 LVB_RX8- IC4201 A10 AD_G6 IC4201 F1 NC IC4201 D13 AD_R9 IC4201 T8 PI2B9 IC4201 T4 PI2R9 IC4201 M8 GND IC4201 K13 NC IC4201 V15 PI1R1 IC4201 T16 PI1R6 IC4201 J9 VDD_1.8V IC4201 U5 PI2G1 IC4201 J14 NC IC4201 P14 LGND IC4201 N16 LVA_RX8- IC4201 N17 LVA_RX9+ IC4201 H8 GND IC4201 D10 AD_G9 IC4201 E15 NC IC4201 T10 PI1B5 IC4201 A14 VDD_3.3V IC4201 N2 LVB_RX3- IC4201 B4 CLP_OUT IC4201 M12 VDD_3.3V IC4201 F9 LVDS_TEST IC4201 M11 GND IC4201 B7 AD_B7 IC4201 J17 NC IC4201 T9 PI2FLD IC4201 U9 PI1VSB IC4201 B6 AD_B3 IC4201 V4 PI2CLK IC4201 V1 GND IC4201 J18 NC IC4201 F17 LVA_RX2+ IC4201 R10 PI1B4 IC4201 U15 PI1R2 IC4201 N8 VDD_3.3V IC4201 E18 VDD_3.3V IC4201 K5 LGND IC4201 N13 VDD_1.8V IC4201 M17 LVA_RX7+ IC4201 J3 LVB_RXC+ IC4201 T15 PI1R7 IC4201 H17 LVA_RX4+ IC4201 H12 VDD_3.3V IC4201 J2 NC IC4201 P2 PI2R3 IC4201 U13 PI1G2 IC4201 G7 VDD_3.3V IC4201 B16 MCLD IC4201 E7 NC IC4201 F5 VDD_1.8V IC4201 V2 VDD_1.8V IC4201 R13 PI1G8 IC4201 U18 VDD_1.8V IC4201 B9 AD_G4 IC4201 R12 PI1G7 IC4201 E2 LVB_RX9- IC4201 P13 PI1G6 IC4201 C13 AD_R8 IC4201 N3 LGND IC4201 M4 LVB_RX1- IC4201 M5 LVB_RX1+ IC4201 K8 GND IC4201 C10 AD_G8 IC4201 N11 VDD_3.3V IC4201 G14 NC IC4201 H7 NC IC4201 K11 GND IC4201 F11 VDD_3.3V IC4201 L12 NC IC4201 D17 SDA IC4201 P18 VDD_3.3V IC4201 L14 LGND IC4201 A2 VDD_1.8V IC4201 K15 LPVDD_1.8V IC4201 K17 NC IC4201 F8 FPCAP IC4201 R18 PI1R3 IC4201 F13 GND IC4201 N14 NC IC4201 M1 NC IC4201 R9 PI2ACT IC4201 L15 LVA_RX5+ IC4201 E11 NC IC4201 H4 LVDD_1.8V IC4201 B15 VDD_3.3V IC4201 V17 VDD_1.8V IC4201 B14 AD_V IC4201 G12 GND IC4201 G2 LVB_RX6- IC4201 D4 NC IC4201 G5 LGND IC4201 U6 PI2G9 IC4201 A13 VDDP_1.8V IC4201 R7 PI2B2 IC4201 H5 LPVDD_1.8V IC4201 P5 PI2G4 IC4201 K2 NC IC4201 J8 GND IC4201 C8 AD_G2 IC4201 U14 PI1R9 IC4201 K9 GND IC4201 L11 GND IC4201 P16 PI1FLD IC4201 T6 PI2G8 IC4201 L17 LVA_RX6+ IC4201 U17 GND IC4201 K6 NC IC4201 P17 NC IC4201 R1 PI2R0 IC4201 R17 PI1R5 IC4201 G1 LVB_RX6+ IC4201 R14 PI1G4 IC4201 F12 VDD_3.3V IC4201 R6 PI2G2 IC4201 D3 LGND IC4201 C6 AD_B4 IC4201 V11 PI1B6 IC4201 A15 AD_CLK IC4201 R15 PI1G0 IC4201 J12 NC IC4201 J10 GND IC4201 L16 LVA_RX5- IC4201 L8 GND IC4201 C15 CLKM IC4201 R8 PI2B7 IC4201 H11 GND IC4201 P12 PI1B3 IC4201 P3 PI2R8 IC4201 T2 PI2R1 IC4201 L5 LVB_RX4+ IC4201 C9 AD_G5 IC4201 T13 PI1G3 IC4201 F18 LVA_RX2- IC4201 M3 LVB_RX2+ IC4201 E17 LGND IC4201 U11 PI1B0 IC4201 H14 LGND IC4201 B12 AD_R5 IC4201 J11 GND IC4201 K16 LVDD_1.8V IC4201 E3 LVB_RX9+ IC4201 N12 VDD_3.3V IC4201 C12 FPCAP IC4201 D12 AD_R6 IC4201 T11 PI1B2 IC4201 A16 GND IC4201 A11 AD_R0 IC4201 F15 LVA_RX3+ IC4201 M13 VDD_3.3V IC4201 V7 PI2B3 IC4201 H18 NC IC4201 T18 GND IC4201 C14 AD_FLD IC4201 V14 VDD_3.3V IC4201 V6 PI2HSB IC4201 U7 PI2B5 IC4201 M6 VDD_1.8V IC4201 E8 NC IC4201 D2 LVDD_3.3V IC4201 E14 NC IC4201 M9 GND IC4201 H10 VDD_1.8V IC4201 J13 GND IC4201 G6 LPGND IC4201 T7 PI2B4 IC4201 U2 GND IC4201 R3 PI2R2 IC4201 R5 PI2B0 IC4201 L1 NC IC4201 G9 AC_TEST IC4201 C7 AD_B8 IC4201 N6 VDD_1.8V IC4201 E4 NC IC4201 E1 VDD_3.3V IC4201 M2 LVB_RX2- IC4201 B8 AD_G1 IC4201 F14 NC IC4201 H16 LVA_RX4- IC4201 E5 NC IC4201 G17 LVA_RX0+ IC4201 A7 AD_B6 IC4201 L18 LVA_RX6- IC4201 V10 PI1ACT IC4201 K12 GND IC4201 P6 PI2G5 IC4201 J6 GND IC4201 M16 NC IC4201 D8 NC IC4201 L7 GND IC4201 C18 GND IC4201 N10 VDD_3.3V IC4201 J5 NC IC4201 V16 GND IC4201 L13 LPGND IC4201 R11 PI1B7 IC4201 T12 PI1B1 IC4201 P15 LVDD_3.3V IC4201 D18 NC IC4201 P1 VDD_3.3V IC4201 H9 GND IC4201 T1 GND IC4201 V3 GND IC4201 J16 LVA_RXC- IC4201 L6 VDD_3.3V IC4201 H3 LVB_RX5- IC4201 J7 NC IC4201 M14 VDD_1.8V IC4201 G16 LVA_RX1+ IC4201 C4 NC IC4201 A3 GND IC4201 G10 VDD_1.8V IC4201 N1 LVB_RX3+ IC4201 R16 PI1R8 IC4201 B10 AD_G7 IC4201 D9 NC IC4201 K1 NC IC4201 U4 PI2G0 IC4201 D7 AD_B9 IC4201 M7 VDD_3.3V IC4201 E13 NC IC4201 H13 VDD_3.3V IC4201 F4 NC IC4201 A4 VDA_IN IC4201 G8 VDDP_1.8V IC4201 C11 AD_R2 IC4201 A5 VDD_3.3V IC4201 N9 VDD_3.3V IC4201 F7 VDD_3.3V IC4201 N4 PI2G6 IC4201 B18 VDD_1.8V IC4201 U10 PI1B8 IC4201 T14 PI1G1 IC4201 C2 KME_TEST IC4201 L3 LVB_RX0- IC4201 R4 PI2R6 IC4201 L9 VDD_1.8V L4010 J0JHC0000096 L4011 J0JHC0000096 L4014 J0JHC0000096 L4008 J0JHC0000096 L4007 J0JHC0000096 ASIC1.8V 1.8V SW_3.3V ASIC3.3V ASIC1.8V ASIC1.8V ASIC1.8V ASIC3.3V R4216 EXB2HV101JV R4191 EXB2HV101JV R4219 EXB2HV101JV R4220 EXB2HV101JV R4213 EXB2HV101JV R4194 EXB2HV101JV R423047 R4192 100 R4224 100 R4189 100 R4188 100 R422947 R4183 100 R4212 47 R4200 100 R4222 100 R423247 R4240 0 R4193 100 R4205 100 R4180 100 R4238 47 R4209 0 R4198 100 R4203 100 R422647 R4235 47 R4185 100 R4201 100 R4207 100 R4182 100 R422847 R4217 100 R4215 100 R422747 R4204 100 R4195 100 R4196 100 R4186 100 R4184 100 R4580 100 R4239 47 R4206 100 R4211 47 R4221 100 R423147 R4187 100 R4208 0 R4223 100 R423447 R4210 47 R4237 0 R423347 R4214 100 R4199 100 R4218 100 R4202 100 R4181 100 R4241 0 R4197 100 R4190 100 CLKM ASIC CLKM NRST ASIC IIC ASIC ASIC NC ASIC VDE33(3.3V) ASIC GND ASIC VCCINT(1.8V) ASIC from A/D To A/D From DS BOARD ASIC TEST ASIC INPUT from DS ASIC-ARM ASIC to SCW4_INPUT 2 ASIC to SCW4_INPUT 1 ASIC IC4201 ASIC-NC ! DN-BOARD TXNDN11LBC (3/8) 11 13 14 12 22 25 24 23 21 TH-65PF12CK DN-Board (3/8) Schematic Diagram TH-65PF12CK DN-Board (3/8) Schematic Diagram 22 25 21 19 23 20 26 27 24 72 TH-65PF12CK 12.20.DN 电路板（4/8）线路图 MC_LD 3V_SDA3 REM_IN P3V_SCL2 SOUND_MUTE STB_ON UART_SW DN_SOS KEY_DET KEY_INPUT LED_R DRVMUTE 15V_SOS RTC_INT TV_ON/OFF TXD_PC 3V_SDA1 SL3_DET IIC_CONT DPMS_VD P_ON/OFF 3V_SCL1 5V_SOS SL2_DET 3V_SDA3 3V_SDA1 DS_SOS 3V_SCL1 F15V_MON DPMS_HD SL1_DET AJ_DAC1 EEPROM_WP RXD_PC EEPROM_WP MCCLK IIC_CONT MCDATA_O 3VTXD_TU 3V_SCL1 IIC_CONT TXD_PC_M AJ_DAC0 3V_SDA1 RXD_PC P3V_SDA2 ALL_OFF1 NRST 3V_SCL3 IIC_INT IIC_INT 3V_SCL3 P3V_SCL2 P3V_SDA2 IIC_SW_DAC3 READY ALARM 3V_SCL4 3V_SDA4 CLKM_20MHZ 74M_SS LED_G 15V_ON/OFF LAN14V_ON/OFF FAN_SOS RXD_LAN TXD_LAN FAN_CONT1 IIC_SW_DAC4 SW_LAN0 SW_LAN1 FAN_ON/OFF 3VRXD_TU AC_GOOD/VSW C4176 16V 0.1u C4174 16V 0.1u C4165 50V 100p C4173 16V 0.1u C4172 16V 0.1u C4169 50V 1000p C4175 16V 0.1u C4185 16V 0.1u C4168 50V 1000p C4166 16V 1u C4186 16V 4.7u C4171 16V 0.1u C4167 16V 0.1u C4170 16V 0.1u C4361 50V 15p C4459 16V 0.1u C4452 50V 12p C4461 6.3V 10u C4460 16V 0.1u C4457 16V 0.1u C4458 6.3V 10u D4045 MA2J72800L D4044 MAZ303300L D4043 MAZ30360HL IC4501 Y4 SI0 IC4501 Y5 SI2 IC4501 Y6 SI3 IC4501 Y7 SI1 IC4501 C12 GIO[2] IC4501 C11 GIO[8] IC4501 C7 GIO[13] IC4501 C4 GIO[29] IC4501 C2 GIO[34] IC4501 C1 GIO[38] IC4501 W7 JTAGICEENB IC4501 B1 GIO[35] IC4501 B6 GIO[15] IC4501 AE2 SDA3 IC4501 AE1 SDA2 IC4501 D12 GIO[4] IC4501 D4 GIO[33] IC4501 AC1 SDA0 IC4501 AB2 SCL3 IC4501 AB1 SCL2 IC4501 AA7 SO3 IC4501 AA6 SO2 IC4501 AA5 SO1 IC4501 AA4 SO0 IC4501 AA2 SCL1 IC4501 AA1 SCL0 IC4501 A7 GIO[12] IC4501 A6 GIO[14] IC4501 D1 GIO[41] IC4501 F5 GIO[39] IC4501 F3 GIO[40] IC4501 F2 GIO[45] IC4501 F1 GIO[47] IC4501 E1 GIO[44] IC4501 E2 GIO[43] IC4501 E4 GIO[32] IC4501 E11 GIO[11] IC4501 E12 GIO[5] IC4501 D11 GIO[10] IC4501 J9 GIO[30] IC4501 J8 GIO[36] IC4501 J7 GIO[42] IC4501 J5 GIO[53] IC4501 J3 GIO[54] IC4501 J2 GIO[55] IC4501 J1 GIOPUENB IC4501 H12 GIO[6] IC4501 H11 GIO[3] IC4501 H8 GIO[31] IC4501 H7 GIO[37] IC4501 H5 GIO[49] IC4501 H4 GIO[50] IC4501 H2 GIO[51] IC4501 H1 GIO[52] IC4501 G13 GIO[0] IC4501 G12 GIO[9] IC4501 G3 GIO[46] IC4501 G1 GIO[48] IC4501 F13 GIO[1] IC4501 F12 GIO[7] IC4501 AD1 SDA1 IC4501 L8 DPHSB IC4501 L5 INT[1] IC4501 M8 INT[0] IC4501 M7 INT[3] IC4501 M5 DPVSB IC4501 M6 INT[2] IC4501 L30 ADIN[5] IC4501 L28 ADIN[7] IC4501 L29 ADIN[6] IC4501 N30 ADIN[2] IC4501 N29 ADIN[1] IC4501 N28 ADIN[0] IC4501 M28 ADIN[4] IC4501 M30 ADIN[3] IC4501 N5 IFMD[1] IC4501 N6 IFMD[0] IC4501 N7 IRRMIN IC4501 N8 TESTB[2] IC4501 R30 VRL IC4501 R29 VRH IC4501 R28 DAOUT[0] IC4501 P30 DAOUT[1] IC4501 P28 DAOUT[2] IC4501 P27 DAOUT[3] IC4501 P7 TESTB[1] IC4501 P6 TESTB[0] TVRQ808AA IC4703 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC4515 C1ZBZ0003984 1 Xin/CLK 2 S0 3 VDD 4 Vctrl 5 GND 6 VDDOUT 7 VDDOUT 8 Y3 9 Y2 10 GND 11 Y1 12 S2/SCL 13 S1/SDA 14 Xuot DN4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 L4046 J0JHC0000096 L4016 J0JHC0000096 L4050 J0JHC0000096 1.8V STB3.3V SW_3.3V STB3.3V STB5V SW_3.3V SW_3.3V SCW_3.3V STB3.3V STB3.3V STB5V STB3.3V STB3.3V STB3.3V STB3.3V TP4031 TP4008 TP4006 TP4007 TP4009 TP4011 TP4012 TP4014 TP4013 TP4015 TP4010 Q4018 B1CBHD000002 G D S Q4017 2SD0601A0L R4370 EXB38V103JV R4314 EXB38V101JV R4666 10k R4665 10k R4266 2.2k R4257 100 R4353 22 R4359 10k R4352 22 R4346 2.7k R4564 6.8k R4303 10k R4258 100 R4287 100 R4503 6.8k R4664 10k R4294 10k R4302 10k R4318 10k R4280 100 R4293 10k R4349 47 R4330 10k R4281 100 R4340 10k R4259 100 R4324 10k R4271 100 R4278 100 R4267 100 R4363 100 R4304 10k R4348 2.7k R4298 10k R4369 10k R4255 100 R4262 100 R4355 22 R4310 10k R4300 100k R4274 100 R4290 39k R4345 2.7k R4362 100 R4295 3.3k R4670 47 R4341 2.7k R4361 100 R4668 10k R4291 100 R4347 2.7k R4672 22 R4448 47 R4329 10k R4297 10k R4334 10k R4301 100k R4372 10k R4336 100 R4305 10k R4342 2.7k R4256 100 R4354 22 R4260 100 R4335 100 R4367 10k R4272 100 R4344 2.7k R4447 47 R4688 47 R4261 100 R4678 0 R4684 10k R4686 47 R4687 10k R4682 10k R4681 10k R4126 0 R4277 100 R4357 6.8k R4282 100 R4292 10k R4254 100 R4364 2.7k R4306 10k R4371 10k R4338 10k R4658 100 R4660 100 R4315 10k R4333 1k R4709 0 R4279 100 R4275 100 R4270 1k R4289 1k R4263 100 R4179 1k R4343 2.7k R4313 10k R4283 12k R4273 100 R4366 10k R4356 22 R4296 10k R4299 10k R4269 100 R4284 100 R4360 10k X4000 H0J200500076 RXD SDA1 GND SCW4 ARM_TEST SCW SIDE FPGA 3V_SOS AC_SENSE FAN_SOS/INV_SOS 5V_SOS F15V_MON 15V_SOS LED_Red LED_Green STAB_ON LSI_RESET P_ON/OFF2 ALL_OFF IIC_INT IIC_CONT EEPROM_WP TV_ON/OFF DRIVER_MUTE AUDIO_MUTE UART_SW RTC_INT ADIM READY ALARM SCW4 ARM IIC_CONT GND IIC_INT/BOOT SCL1 STB5V SCL3 SDA2 VRL SCW4-EEPROM SCW4 ARM I/O KEY_INPUT SL1_DET SL2_DET SL3_DET DS_SOS 15V_ON/OFF F15V_ON/OFF IIC_SW_DAC3 IIC_SW_DAC4 VRH AJ_DAC0 KEY_DET AC_GOOD P_ON/OFF DPMS_HD DPMS_VD DPMS_SW KILL_SOS FPGA_CLK AJ_DAC1 FPGA_LD FPGA_DATIN DEBUG_in RXD_Tuner RXD_PC TXD_Tuner TXD_PC SDA1 DEBUG_out SCL1 SOS_INH SDA3 RMIN SCL2 SCL3 SDA2 ASIC-ARM SDA4 SCW4 ARM IIC SCL4 SDA3 SCL2 STB3.3V TXD ARM I/O N.C. FPGA2_CLK FPGA2_DATOUT nCONFIG VSW CONF_DONE INIT_DONE FPGA FOR CONFIG STB_SENSE PULL_UP PULL_DOWN STB_SENSE 58FHD :TVRQ807 65FHD :TVRQ808 85FHD :TVRQ809 103FHD :TVRQ810 42FHD :TVRQ811 50FHD :TVRQ812 FAN_CONT CLOCK GEN BUS CONTROL ! DN-BOARD TXNDN11LBC (4/8) SCW4 C1AB00002970 IC4501 22 24 21 23 25 32 33 34 31 LAN_SW1 LAN_SW0 RXD_LAN TXD_LAN FAN_ON/OFF TH-65PF12CK DN-Board (4/8) Schematic Diagram TH-65PF12CK DN-Board (4/8) Schematic Diagram 31 34 30 28 32 29 35 36 33 73 TH-65PF12CK 12.21.DN 电路板（5/8）线路图 + + + G G G G G G AO_A1 TRACEPKT2 AO_A19 AQ_D6 TRACEPKT1 TRACEPKT0 AQ_D8 AO_A16 SCW3_NTRST AO_A2 AO_A17 AQ_D9 SCW3_NTRST AO_A7 AO_A13 RTCK AQ_D10 AO_A6 AO_A14 AQ_D11 SCW3_TDO AO_A5 AQ_D7 AO_A15 AQ_D12 AQ_D0 AO_A3 SCW3_TMS AO_A12 AQ_D13 AO_A4 AO_A11 SCW3_TDI AQ_D1 SCW3_TCK AQ_D14 AQ_D2 TRACESYNC AO_A10 PIPESTAT2 AQ_D15 AQ_D3 PIPESTAT1 AO_A9 PIPESTAT0 AP_CE AQ_D4 AO_A8 AP_WE AQ_D5 AO_A18 AO_A0 AO_A19 TRACECLK AP_OE 74M_SS 74M_SS AO_A16 AQ_D15 AQ_D7 AQ_D14 AQ_D6 AQ_D13 AQ_D5 AQ_D12 AQ_D4 AQ_D11 AQ_D3 AQ_D10 AQ_D2 AQ_D9 AQ_D1 AQ_D8 AQ_D0 AP_OE AP_CE AO_A0 AO_A15 AO_A14 AO_A13 AO_A12 AO_A11 AO_A10 AO_A9 AO_A8 AP_WE AO_A18 AO_A17 AO_A7 AO_A6 AO_A5 AO_A4 AO_A3 AO_A2 AO_A1 TRACEPKT3 C4187 16V 1u C4194 50V 9p C4191 16V 0.1u C4188 16V 0.1u C4193 50V 9p C4189 16V 0.1u C4195 220u 4V C4196 220u 4V C4197 220u 4V FL4007 F1J1E104A148 1 2 3 FL4008 F1J1E104A148 1 2 3 FL4006 F1J1E104A148 1 2 3 IC4501 D14 CS2B IC4501 C19 ADH[12] IC4501 C17 DB[2] IC4501 C16 DB[9] IC4501 C14 CS1B IC4501 C13 SDCASB IC4501 B20 ADL[6] IC4501 B19 ADH[13] IC4501 B18 ADH[20] IC4501 B17 DB[5] IC4501 D16 BUSCLK IC4501 B15 DB[13] IC4501 B13 SDRASB IC4501 B3 GIO[27] IC4501 P5 RTCK IC4501 AK10 XTALIO IC4501 AJ10 XTALIN IC4501 B21 ADL[0] IC4501 B14 CS0B IC4501 D15 DB[14] IC4501 D6 GIO[22] IC4501 AG14 MCLK IC4501 AG13 SYSCLKSELX IC4501 D5 GIO[28] IC4501 AF14 POCLK IC4501 AF13 RSTB IC4501 W6 TRST IC4501 AE15 MCLKSELX IC4501 AE14 POCLKSELX IC4501 AE13 SYSCLK IC4501 B5 GIO[19] IC4501 W5 TCK IC4501 AD14 IPCLK IC4501 A20 ADL[7] IC4501 A19 ADH[15] IC4501 A18 ADH[21] IC4501 A17 DB[6] IC4501 A15 DB[12] IC4501 A14 RDB IC4501 A9 RTCXTALIO IC4501 A8 RTCXTALIN IC4501 A5 GIO[16] IC4501 A4 GIO[21] IC4501 A2 GIO[24] IC4501 D20 ADL[5] IC4501 D17 DB[0] IC4501 D13 SDWEB IC4501 F8 GIO[18] IC4501 E6 GIO[26] IC4501 E7 GIO[17] IC4501 E13 SDCKE IC4501 E15 DB[15] IC4501 E16 DB[7] IC4501 E18 ADH[16] IC4501 E19 ADH[8] IC4501 E20 ADL[2] IC4501 H18 ADH[10] IC4501 H17 DB[4] IC4501 H16 ADH[14] IC4501 H15 DB[8] IC4501 H14 DB[11] IC4501 H13 RDY IC4501 H10 GIO[20] IC4501 H9 GIO[25] IC4501 G19 ADL[3] IC4501 G18 ADH[9] IC4501 G17 ADH[17] IC4501 G16 DB[1] IC4501 G15 WR0B IC4501 G14 CS4B IC4501 F19 ADL[4] IC4501 F18 ADH[11] IC4501 F17 ADH[19] IC4501 F16 DB[3] IC4501 F15 WR1B IC4501 F14 SDCSB IC4501 D18 ADH[18] IC4501 V7 TDO IC4501 V6 TDI IC4501 V5 TMS IC4501 A16 DB[10] IC4501 A21 ADL[1] IC4501 A3 GIO[23] C0EBE0000120 IC4704 1 RST 2 VDD 3 GND 5 Cd 4 NC TVRQ805AC IC4702 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 L4017 J0JHC0000096 STB3.3V STB3.3V D_3.3V SCW_3.3V STB1.2V 2.5V STB3.3V SCW_3.3V SCW_1.2V STB3.3V STB3.3V STB3.3V D_2.5V D_1.2V R4408 EXB38VR000V R4406 EXB38V220JV R4407 EXB38V220JV R4395 EXB38VR000V R4397 EXB38VR000V R4396 EXB38VR000V R4383 EXB38V100JV R4402 EXB38V103JV R4385 EXB2HV100JV R4384 EXB2HV100JV R4379 EXB2HV100JV R4378 EXB2HV100JV R4382 0 R4420 10k R4403 0 R4414 10k R4386 0 R4409 0 R4415 0 R4431 0 R4351 0 R4416 0 R4404 5.6k R4418 10k R4381 0 R4399 0 R4419 10k R4417 10k R4424 10k R4391 10k R4421 10k R4390 10k R4412 0 R4400 22 R4380 0 R4405 0 R4433 330 R4387 10k R4401 22 R4377 0 R4389 0 R4388 10k X4001 H0J360500017 RESET SCW4 POCLK SCW4 CLK RTC CLK SCW4 NON USE CLK SCW4 CLK SELECT SEPARATE POWER SCW4 RST SCW4 FLASHROM/SDRAM I/O SCW4 SYSCLK 16M-FLASH VCC TRACEPKT[3] TRACESYNC TRACECLK PIPESTAT[2] TRACEPKT[1] TRACEPKT[2] TRACEPKT[0] PIPESTAT[1] PIPESTAT[0] TRACEPKT[7] TRACEPKT[6] TRACEPKT[5] TRACEPKT[4] SCW4 ARM_ICE 85/103 :TVRQ806 58/65 :TVRQ805 IC4501 SCW3 C1AB00002902 ! DN-BOARD TXNDN11LBC (5/8) 32 34 31 33 42 41 43 74.25 TH-65PF12CK DN-Board (5/8) Schematic Diagram TH-65PF12CK DN-Board (5/8) Schematic Diagram 40 43 39 37 41 38 44 45 42 74 TH-65PF12CK 12.22.DN 电路板（6/8）线路图 5B 21B 3 14B 4B 20B 4 13B 3B 5 6 22 7 23 8 24 PI2FLD 9 1 9 PI2ACT 18 15 16 PI1CLK 18B 12B 19B 11 PI2CLK 17B 10 29 29B 10B 28 11B 17 2B 12 25 0B 13 26 1B 14 28B 21 27B 20 PI2VS 1 26B PI2HS 27 25B 9B PI1VS 24B 8B 16B PI1HS 23B 7B 15B 22B 6B 2 0 PI1ACT PI1FLD C4261 16V 0.1u C4212 16V 0.1u C4245 16V 0.1u C4225 6.3V 10u C4241 16V 0.1u C4238 6.3V 10u C4268 16V 0.1u C4203 16V 0.1u C4249 16V 0.1u C4213 16V 0.1u C4247 16V 0.1u C4232 16V 0.1u C4222 6.3V 10u C4237 6.3V 10u C4209 16V 0.1u C4267 16V 0.1u C4204 16V 0.1u C4259 16V 0.1u C4214 16V 0.1u C4256 16V 0.1u C4224 6.3V 10u C4236 16V 0.1u C4228 6.3V 10u C4235 16V 0.1u C4227 6.3V 10u C4234 16V 0.1u C4226 6.3V 10u C4280 16V 0.1u C4281 16V 0.1u C4284 16V 0.1u C4283 16V 0.1u C4242 16V 0.1u C4282 16V 0.1u C4271 16V 0.1u C4246 6.3V 10u C4255 6.3V 10u C4263 16V 0.1u C4279 16V 0.1u C4278 16V 0.1u C4254 16V 0.1u C4253 16V 0.1u C4262 16V 0.1u C4289 16V 0.1u C4288 16V 0.1u C4266 16V 0.1u C4291 16V 0.1u C4290 16V 0.1u C4276 16V 0.1u C4272 16V 0.1u C4275 16V 0.1u C4274 16V 0.1u C4277 16V 0.1u C4273 16V 0.1u C4248 16V 0.1u C4298 16V 0.1u C4250 16V 0.1u C4199 6.3V 10u C4269 16V 0.1u C4215 16V 0.1u C4207 16V 0.1u C4200 16V 0.1u C4230 16V 0.1u C4240 16V 0.1u C4257 16V 0.1u C4231 16V 0.1u C4233 16V 0.1u C4223 6.3V 10u C4307 16V 0.1u C4243 16V 0.1u C4211 16V 0.1u C4265 16V 0.1u C4264 6.3V 10u C4202 16V 0.1u C4205 16V 0.1u C4208 16V 0.1u C4297 16V 0.1u C4260 16V 0.1u C4270 16V 0.1u C4251 16V 0.1u C4206 16V 0.1u C4239 16V 0.1u C4216 16V 0.1u C4258 16V 0.1u C4201 16V 0.1u C4198 6.3V 10u C4210 16V 0.1u C4252 16V 0.1u C4308 6.3V 10u C4244 16V 0.1u IC4501 A1 VSS IC4501 U19 VDDC IC4501 W11 VSS IC4501 W28 VDD25 IC4501 Y1 VSS IC4501 Y2 VSS IC4501 Y3 VSS IC4501 Y8 VSS IC4501 Y9 VDE33 IC4501 W10 VDE33 IC4501 Y11 VSS IC4501 Y12 VSS IC4501 W8 VSS IC4501 Y14 VSS IC4501 Y15 VSS IC4501 Y16 VSS IC4501 Y17 VSS IC4501 Y18 VSS IC4501 Y19 VSS IC4501 Y20 VSS IC4501 Y21 VDD25 IC4501 Y22 VDD25 IC4501 Y23 VSS IC4501 Y24 VSS IC4501 Y25 VDD25 IC4501 Y29 VSS IC4501 C29 PI1CLK IC4501 C28 VSS IC4501 C27 PI2D[2] IC4501 C26 VDE33 IC4501 C25 PI2D[9] IC4501 C24 PI2D[17] IC4501 W14 VDDC IC4501 C23 PI2D[21] IC4501 Y10 VDE33 IC4501 W15 VDDC IC4501 C20 VSS IC4501 C18 VDE33 IC4501 C15 VDE33 IC4501 C10 VSS IC4501 C9 VDE33 IC4501 C8 VSS IC4501 C6 VDE33 IC4501 C5 VSS IC4501 C3 VSS IC4501 B30 PI1HSB IC4501 B29 PI2CLK IC4501 B28 PI2FLD IC4501 B27 PI2D[1] IC4501 B26 PI2D[8] IC4501 B25 PI2D[11] IC4501 B24 VSS IC4501 B23 PI2D[22] IC4501 V24 VSS IC4501 B16 VSS IC4501 K22 VDE33 IC4501 B12 VSS IC4501 B11 VSS IC4501 B10 VSS IC4501 B9 RTCXTALVDD IC4501 B8 RTCXTALVSS IC4501 B7 VSS IC4501 C22 VSS IC4501 B4 VDE33 IC4501 B2 VSS IC4501 D7 VSS IC4501 W9 VDE33 IC4501 W12 VDDC IC4501 AK25 VSS IC4501 AK24 VSS IC4501 AK23 VSS IC4501 W17 VDDC IC4501 AK15 VSS IC4501 AK14 PLLVSS4 IC4501 AK13 PLLVSS3 IC4501 W13 VDDC IC4501 AK12 PLLVSS2 IC4501 AK11 XTALVDE33 IC4501 AK9 XTALVSS IC4501 AK8 VSS IC4501 C21 VDE33 IC4501 AJ29 VSS IC4501 AJ26 VDD25 IC4501 AJ22 VSS IC4501 AJ18 VSS IC4501 V27 VSS IC4501 AJ14 PLLVDD4 IC4501 AJ13 PLLVDD3 IC4501 AJ12 PLLVDD2 IC4501 AJ11 VSS IC4501 AJ9 XTALVDD IC4501 B22 PI2D[27] IC4501 Y13 VSS IC4501 V25 VDD25 IC4501 W16 VDDC IC4501 AH20 VDD25 IC4501 K2 VDE33 IC4501 K21 VDE33 IC4501 AH15 VSS IC4501 AH14 VSS IC4501 AH13 VSS IC4501 AH12 VSS IC4501 AH11 VSS IC4501 AH10 VSS IC4501 D30 PI1D[26] IC4501 AH8 VSS IC4501 AH5 VSS IC4501 AH4 VDE33 IC4501 AG28 VSS IC4501 AG27 VDD25 IC4501 AG26 VDD25 IC4501 L20 VSS IC4501 AG19 VSS IC4501 AG16 VDD25 IC4501 AG12 VSS IC4501 AG11 VSS IC4501 AG10 VSS IC4501 AG9 VSS IC4501 AG7 VSS IC4501 U18 VDDC IC4501 AG4 VSS IC4501 AF29 VSS IC4501 AF27 VDD25 IC4501 AF26 VSS IC4501 AF25 VSS IC4501 AF21 VSS IC4501 AF12 VDE33 IC4501 AF11 VDE33 IC4501 AF10 VDE33 IC4501 AF9 VDE33 IC4501 AF6 VDE33 IC4501 AF3 VSS IC4501 AF2 VSS IC4501 K20 VDE33 IC4501 AE30 VSS IC4501 K19 VDE33 IC4501 K18 VDE33 IC4501 D29 PI1D[27] IC4501 AE24 VDD25 IC4501 K28 PI1D[3] IC4501 AE22 VDD25 IC4501 AE18 VDD25 IC4501 K27 VSS IC4501 K26 VSS IC4501 F11 VDE33 IC4501 L19 VSS IC4501 AE12 VDE33 IC4501 AE11 VDE33 IC4501 AE10 VDE33 IC4501 AE9 VDE33 IC4501 AE8 VDE33 IC4501 AE7 VDE33 IC4501 U23 VSS IC4501 AE6 VDE33 IC4501 L18 VSS IC4501 AE3 VSS IC4501 AD30 VSS IC4501 AD28 VSS IC4501 V19 VDDC IC4501 AD24 VSS IC4501 AD23 VSS IC4501 AD21 VSS IC4501 AD18 VSS IC4501 AD17 VREF3 IC4501 AD11 VSS IC4501 AD10 VSS IC4501 AD9 VSS IC4501 W21 VDD25 IC4501 AD7 VSS IC4501 K16 VDE33 IC4501 AD6 VDE33 IC4501 K17 VDE33 IC4501 AD3 VSS IC4501 AD2 I2CVSS IC4501 AH24 VSS IC4501 AC26 VDD25 IC4501 M10 VDE33 IC4501 AC24 VSS IC4501 AC23 VSS IC4501 AC22 VSS IC4501 D10 VDE33 IC4501 AC20 VREF2 IC4501 AC19 VSS IC4501 AC18 VSS IC4501 AC17 VSS IC4501 AC16 VSS IC4501 D3 VSS IC4501 AC15 VSS IC4501 AC14 VSS IC4501 AH9 VSS IC4501 AC11 VSS IC4501 AC10 VSS IC4501 AC9 VSS IC4501 AC8 VSS IC4501 AC7 VSS IC4501 AC6 VDE33 IC4501 AC5 VDE33 IC4501 AC3 VSS IC4501 AC2 I2CVDD IC4501 AB29 VDD25 IC4501 AJ15 VSS IC4501 AB24 VSS IC4501 AB23 VSS IC4501 AB21 VDD25 IC4501 AB20 VDD25 IC4501 AB19 VDD25 IC4501 AB18 VDD25 IC4501 AB17 VDD25 IC4501 AB16 VDD25 IC4501 AB15 VDE33 IC4501 AB14 VDE33 IC4501 AB13 VDE33 IC4501 AB12 VDE33 IC4501 AB11 VDE33 IC4501 AB10 VDE33 IC4501 AB7 VSS IC4501 T25 VDD25 IC4501 V18 VDDC IC4501 AB6 VDE33 IC4501 U17 VDDC IC4501 AH27 VSS IC4501 AB3 VSS IC4501 V16 VDDC IC4501 AJ8 VSS IC4501 D2 VDE33 IC4501 AA24 VSS IC4501 V15 VDDC IC4501 AA22 VDD25 IC4501 C30 PI1VSB IC4501 W20 VSS IC4501 AA20 VDD25 IC4501 AA19 VDD25 IC4501 AA18 VDD25 IC4501 AA17 VDD25 IC4501 W19 VDDC IC4501 AA16 VDD25 IC4501 AA15 VDE33 IC4501 AA13 VDE33 IC4501 AA12 VDE33 IC4501 AA11 VDE33 IC4501 AA10 VDE33 IC4501 AA9 VDE33 IC4501 D9 VSS IC4501 AA8 VSS IC4501 U16 VDDC IC4501 W18 VDDC IC4501 AA3 VSS IC4501 A30 PI2VSB IC4501 A29 PI2HSB IC4501 A28 PI1ACTB IC4501 A27 PI2D[7] IC4501 A26 PI2D[10] IC4501 A25 PI2D[13] IC4501 V12 VDDC IC4501 A24 PI2D[19] IC4501 A23 PI2D[23] IC4501 A22 PI2D[28] IC4501 V13 VDDC IC4501 V23 VSS IC4501 A13 VSS IC4501 A12 PLLVDD5 IC4501 A11 PLLVSS5 IC4501 A10 VSS IC4501 W25 VDD25 IC4501 W24 VSS IC4501 K25 VDE33 IC4501 D8 VDE33 IC4501 N13 VDDC IC4501 D28 PI1D[29] IC4501 D27 VSS IC4501 D26 PI2D[3] IC4501 D24 PI2D[14] IC4501 D25 VSS IC4501 D23 VDE33 IC4501 D22 PI2D[26] IC4501 D21 PI2D[29] IC4501 D19 VDE33 IC4501 T24 VREF0 IC4501 AE25 VDD25 IC4501 U15 VDDC IC4501 F9 VDE33 IC4501 F7 VDE33 IC4501 F6 VDE33 IC4501 F4 VDE33 IC4501 E30 PI1D[20] IC4501 E29 PI1D[22] IC4501 AE17 VDD25 IC4501 E28 PI1D[24] IC4501 E3 VDE33 IC4501 E5 VSS IC4501 E8 VSS IC4501 E9 VSS IC4501 E10 VSS IC4501 E14 VSS IC4501 E21 VSS IC4501 E22 PI2D[20] IC4501 E23 PI2D[16] IC4501 E24 VSS IC4501 E25 PI2D[4] IC4501 AD19 VSS IC4501 J30 PI1D[5] IC4501 J28 VSS IC4501 J27 PI1D[10] IC4501 J26 VSS IC4501 J25 VDE33 IC4501 J24 VSS IC4501 J23 PI1FLD IC4501 J22 PI2D[5] IC4501 J21 VDE33 IC4501 J20 VDE33 IC4501 J19 VDE33 IC4501 J18 VDE33 IC4501 J17 VDE33 IC4501 J16 VDE33 IC4501 J15 VDE33 IC4501 J14 VDE33 IC4501 J13 VDE33 IC4501 J12 VDE33 IC4501 J11 VDE33 IC4501 J10 VDE33 IC4501 J6 VDE33 IC4501 J4 VSS IC4501 H30 PI1D[7] IC4501 H29 PI1D[9] IC4501 H28 PI1D[11] IC4501 H27 VDE33 IC4501 H26 VSS IC4501 H25 VDE33 IC4501 H24 VSS IC4501 H23 PI2D[0] IC4501 H22 PI2D[6] IC4501 H21 PI2D[12] IC4501 H20 PI2D[15] IC4501 H19 PI2D[25] IC4501 H6 VDE33 IC4501 H3 VDE33 IC4501 G30 PI1D[12] IC4501 G29 PI1D[13] IC4501 G28 VSS IC4501 G27 PI1D[19] IC4501 G26 VSS IC4501 G25 VDE33 IC4501 G24 VSS IC4501 G23 VSS IC4501 G22 VSS IC4501 G21 PI2D[18] IC4501 G20 PI2D[24] IC4501 G11 VSS IC4501 G10 VSS IC4501 G9 VSS IC4501 G8 VSS IC4501 G7 VSS IC4501 G6 VDE33 IC4501 G5 VSS IC4501 G4 VSS IC4501 G2 VSS IC4501 F30 PI1D[16] IC4501 F29 PI1D[17] IC4501 F28 PI1D[18] IC4501 F27 VSS IC4501 F26 VSS IC4501 F25 VDE33 IC4501 F24 VDE33 IC4501 F23 VDE33 IC4501 F22 VDE33 IC4501 F21 VDE33 IC4501 F20 VDE33 IC4501 K15 VDE33 IC4501 K14 VDE33 IC4501 K13 VDE33 IC4501 K12 VDE33 IC4501 K10 VDE33 IC4501 K11 VDE33 IC4501 K9 VDE33 IC4501 K8 VSS IC4501 K7 VSS IC4501 K6 VDE33 IC4501 K5 VSS IC4501 K4 VDE33 IC4501 K3 VSS IC4501 AD4 VSS IC4501 AE26 VSS IC4501 AF1 VSS IC4501 K24 PI1D[21] IC4501 K23 VSS IC4501 K30 PI1D[1] IC4501 K29 PI1D[2] IC4501 L17 VSS IC4501 L16 VSS IC4501 L15 VSS IC4501 L14 VSS IC4501 L13 VSS IC4501 L12 VSS IC4501 L11 VSS IC4501 L10 VDE33 IC4501 L9 VDE33 IC4501 L7 VSS IC4501 L6 VDE33 IC4501 M9 VDE33 IC4501 L27 VDE33 IC4501 L26 VSS IC4501 L25 VDE33 IC4501 L24 PI1D[14] IC4501 L23 PI1D[28] IC4501 L22 VDE33 IC4501 L21 VDE33 IC4501 N27 ADC_VSS IC4501 N26 VSS IC4501 N25 VDE33 IC4501 N24 PI1D[0] IC4501 N23 PI1D[23] IC4501 N22 VDE33 IC4501 N21 VDE33 IC4501 N20 VSS IC4501 N19 VDDC IC4501 N18 VDDC IC4501 N17 VDDC IC4501 N16 VDDC IC4501 N15 VDDC IC4501 AC4 VSS IC4501 N14 VDDC IC4501 M11 VSS IC4501 M12 VDDC IC4501 M13 VDDC IC4501 M14 VDDC IC4501 M15 VDDC IC4501 M16 VDDC IC4501 M17 VDDC IC4501 M18 VDDC IC4501 M19 VDDC IC4501 M20 VSS IC4501 M21 VDE33 IC4501 M22 VDE33 IC4501 M23 PI1D[15] IC4501 M24 PI1D[8] IC4501 M25 VDE33 IC4501 M26 VSS IC4501 M27 VSS IC4501 M29 ADC_VDE33 IC4501 N9 VDE33 IC4501 N10 VDE33 IC4501 N11 VSS IC4501 N12 VDDC IC4501 AD5 VDE33 IC4501 AG23 VDD25 IC4501 T23 VSS IC4501 T22 VDD25 IC4501 T21 VDD25 IC4501 T20 VSS IC4501 T19 VDDC IC4501 T18 VDDC IC4501 T17 VDDC IC4501 T16 VDDC IC4501 T15 VDDC IC4501 T14 VDDC IC4501 T13 VDDC IC4501 T12 VDDC IC4501 T11 VSS IC4501 T10 VDE33 IC4501 T9 VDE33 IC4501 T7 VSS IC4501 T6 VDE33 IC4501 T5 VSS IC4501 R27 DAC_VSS IC4501 R26 VSS IC4501 R25 VDE33 IC4501 R24 VSS IC4501 R23 PI1D[25] IC4501 R22 VDD25 IC4501 R21 VDE33 IC4501 R20 VSS IC4501 R19 VDDC IC4501 R18 VDDC IC4501 R17 VDDC IC4501 R16 VDDC IC4501 R15 VDDC IC4501 R14 VDDC IC4501 R13 VDDC IC4501 R12 VDDC IC4501 R11 VSS IC4501 R10 VDE33 IC4501 R9 VDE33 IC4501 R7 VSS IC4501 R6 VDE33 IC4501 R5 VSS IC4501 R4 VDE33 IC4501 R3 VSS IC4501 R2 PLLVDD1 IC4501 R1 PLLVSS1 IC4501 P29 DAC_VDE33 IC4501 P26 VSS IC4501 P25 VDE33 IC4501 P24 VSS IC4501 P23 PI1D[4] IC4501 P22 VDE33 IC4501 P21 VDE33 IC4501 P20 VSS IC4501 P19 VDDC IC4501 P18 VDDC IC4501 P17 VDDC IC4501 P16 VDDC IC4501 P15 VDDC IC4501 P14 VDDC IC4501 P13 VDDC IC4501 P12 VDDC IC4501 P11 VSS IC4501 P10 VDE33 IC4501 P9 VDE33 IC4501 U13 VDDC IC4501 U12 VDDC IC4501 U10 VDE33 IC4501 U11 VSS IC4501 U9 VDE33 IC4501 U7 VSS IC4501 U6 VDE33 IC4501 U5 VSS IC4501 AB5 VDE33 IC4501 F10 VDE33 IC4501 U21 VDD25 IC4501 U20 VSS IC4501 V11 VSS IC4501 V10 VDE33 IC4501 V8 VSS IC4501 V9 VDE33 IC4501 U28 VSS IC4501 AA25 VDD25 IC4501 V22 VDD25 IC4501 V21 VDD25 IC4501 V20 VSS IC4501 AA21 VDD25 IC4501 E27 VDE33 IC4501 V17 VDDC IC4501 AB4 VSS IC4501 AD25 VDD25 IC4501 AA14 VDE33 IC4501 U22 VDD25 IC4501 AD16 VSS IC4501 E17 VSS IC4501 E26 PI2ACTB IC4501 K1 VSS IC4501 U14 VDDC IC4501 J29 PI1D[6] IC4501 W23 VREF1 IC4501 W22 VDD25 IC4501 V14 VDDC IC4501 AD8 VSS L4022 J0JHC0000096 L4048 J0JHC0000096 L4021 J0JHC0000096 L4027 J0JHC0000096 L4024 J0JHC0000096 L4023 J0JHC0000096 L4020 J0JHC0000096 L4047 J0JHC0000096 L4018 J0JHC0000075 L4029 J0JHC0000096 L4025 J0JHC0000096 L4049 J0JHC0000096 D_3.3V SCW_1.2V SCW_3.3V D_1.2V D_2.5V R4439 0 R4444 0 R4644 0 R4434 0 R4438 0 R4435 0 R4436 0 R4440 0 SCW4 GND SCW4 VDDC(1.2V) SCW4 VDE33(3.3V) SCW4 VDE25(2.5V) SCW4_INPUT A from ASIC SCW4_INPUT B from ASIC SCW4 VREF(1.25V) For DDR1 For DDR2 ! DN-BOARD TXNDN11LBC (6/8) 42 43 41 51 52 53 54 TH-65PF12CK DN-Board (6/8) Schematic Diagram TH-65PF12CK DN-Board (6/8) Schematic Diagram 49 52 48 46 50 47 53 54 51 75 TH-65PF12CK 12.23.DN 电路板（7/8）线路图 + + SCW4_DQ44 DDR2_DQ0 SCW4_DQM5 DDR_DQS7 DDR2_DQ18 DDR2_DQ16 SCW4_DQ41 SCW4_DQM7 SCW4_DQS5 DDR2_DQ31 DDR_BA1 DDR_DQM4 DDR2_DQ17 SCW4_DQ32 DDR_DQS5 SCW4_DQ46 SCW4_DQ47 DDR2_DQ30 SCW4_DQM7 DDR2_DQ16 DDR_A1 SCW4_DQS6 DDR2_DQ7 SCW4_DQ46 DDR2_DQ29 SCW4_DQS7 SCW4_DQ33 DDR_A2 DDR2_DQ6 SCW4_DQ49 SCW4_DQ45 DDR2_DQ28 SCW4_DQ63 DDR2_DQ31 SCW4_DQ56 DDR_A11 SCW4_DQ44 DDR2_DQ27 DDR2_DQ5 SCW4_DQ62 SCW4_DQ47 DDR2_DQ30 SCW4_DQM6 DDR_DQM7 DDR_BA0 SCW4_DQ43 DDR2_DQ26 SCW4_DQ61 SCW4_DQM4 DDR2_DQ4 SCW4_DQ63 DDR2_DQ29 DDR_A10 DDR_A0 SCW4_DQM4 SCW4_DQ42 DDR2_DQ25 SCW4_DQ60 SCW4_DQ52 DDR2_DQ3 SCW4_DQ39 DDR2_DQ28 SCW4_DQS4 SCW4_DQ41 DDR2_DQ24 SCW4_DQ59 DDR_DQM5 SCW4_DQ43 DDR_DQS7 DDR_A9 SCW4_DQ54 DDR2_DQ2 SCW4_DQ39 SCW4_DQ40 DDR2_DQ15 DDR2_DQ27 SCW4_DQ58 DDR_A8 DDR_DQM6 SCW4_DQ50 SCW4_DQM5 SCW4_DQ38 DDR2_DQ1 DDR2_DQ14 SCW4_DQ57 DDR2_DQ26 SCW4_DQ53 SCW4_DQ37 SCW4_DQ36 DDR2_DQ13 SCW4_DQ56 DDR2_DQ25 SCW4_DQS7 SCW4_DQ36 DDR2_DQ12 SCW4_DQS4 DDR_A6 DDR_A7 DDR2_DQ24 SCW4_DQ35 DDR2_DQ11 SCW4_DQ60 DDR2_DQ15 DDR_A5 SCW4_DQ34 DDR2_DQ10 SCW4_DQM6 SCW4_DQ33 DDR_DQS6 DDR2_DQ9 DDR2_DQ14 SCW4_DQ35 SCW4_MCLK3B SCW4_DQS6 SCW4_DQ32 SCW4_DQ45 DDR2_DQ8 SCW4_DQS5 DDR_A4 DDR2_DQ11 SCW4_MCLK3 SCW4_DQ55 DDR_DQM4 DDR_DQM5 SCW4_DQ42 DDR_A3 DDR2_DQ13 SCW4_DQ48 DDR2_DQ10 SCW4_DQ54 DDR_DQS4 DDR_DQS5 SCW4_DQ51 DDR2_NCLK SCW4_DQ61 SCW4_DQ53 DDR2_DQ7 DDR2_DQ12 DDR_DQM6 DDR2_DQ9 SCW4_DQ34 SCW4_DQ40 DDR_DQS4 SCW4_DQ52 DDR2_DQ6 DDR_DQS6 DDR2_CLK DDR2_DQ8 SCW4_DQ38 SCW4_DQ51 DDR2_DQ5 DDR2_DQ23 DDR2_NCLK DMCSB DDR2_DQ23 SCW4_DQ62 SCW4_DQ50 DDR2_DQ4 DDR2_DQ22 DDR2_CLK DDR_CAS SCW4_MCLK3 SCW4_DQ58 DDR2_DQ22 SCW4_DQ49 DDR2_DQ3 DDR2_DQ21 DDR_WE SCW4_MCLK3B DDR2_DQ2 SCW4_DQ37 SCW4_DQ48 DDR2_DQ21 DDR2_DQ20 DDR_RAS SCW4_DQ55 DDR2_DQ19 DDR2_DQ20 DDR2_DQ0 DDR_SDCKE DDR2_DQ18 SCW4_DQ59 DDR2_DQ1 DDR2_DQ19 DDR_DQM7 DDR2_DQ17 SCW4_DQ3 DDR_A4 DDR_A11 SCW4_DQ17 SCW4_MCLK1 DDR_DQ26 SCW4_DQ13 SCW4_DQ31 DDR_DQ5 DDR_DQ21 DDR_CLK SCW4_DQS1 DMCSB DDR_A3 DDR_A10 SCW4_DQ15 SCW4_DQ12 DDR_DQ25 SCW4_DQ30 DDR_DQ20 SCW4_A11 DDR_WE DDR_CAS DDR_DQ4 DDR_A2 DDR_DQ5 SCW4_DQM0 DDR_A9 DDR_DQ24 SCW4_DQ11 DDR_DQ19 DDR_CAS SCW4_DQ29 SCW4_A3 SCW4_A10 DDR_WE DDR_DQ3 DDR_A1 DDR_DQ4 SCW4_DQ20 DDR_DQS3 SCW4_DQ10 DDR_DQ18 DDR_RAS SCW4_A2 SCW4_DQ28 DDR_RAS SCW4_A9 DDR_DQ2 DDR_A0 DDR_DQ3 SCW4_DQ11 DDR_A8 DDR_DQM1 DDR_DQ17 DMCSB SCW4_DQ9 SCW4_A1 DDR_SDCKE SCW4_DQ27 SCW4_A8 DDR_DQ2 SCW4_DQ18 DDR_DQ1 DDR_A7 DDR_DQM2 DDR_DQ16 DDR_SDCKE SCW4_A0 SCW4_DQ8 SCW4_DQ26 DDR_DQ1 SCW4_DQ21 DDR_DQ0 DDR_BA1 DDR_DQM3 DDR_A6 SCW4_DQ25 DDR_DQ0 SCW4_DQS3 DDR_BA0 DDR_DQS3 DDR_A5 DDR_DQS1 SCW4_DQ24 SCW4_DQM3 SCW4_BA0 DDR_DQ31 DDR_DQS2 DDR_DQ7 SCW4_DQ14 SCW4_MCLK1B SCW4_MCLK1B DDR_DQ30 DDR_A4 DDR_DQ31 SCW4_DQ1 SCW4_MCS DDR_DQ29 SCW4_MCLK1 SCW4_DQ13 SCW4_DQ24 DDR_DQ15 SCW4_DQM0 SCW4_BA1 DDR_DQ28 SCW4_DQ10 SCW4_DQM2 SCW4_DQM2 DDR_DQ14 SCW4_DQS0 SCW4_MRAS DDR_DQ27 SCW4_DQ19 SCW4_DQ31 SCW4_DQS2 SCW4_DQ7 DDR_A11 DDR_DQ26 DDR_DQ13 SCW4_DQ8 SCW4_DQ7 SCW4_DQ23 SCW4_DQ6 DDR_A10 DDR_DQ25 DDR_DQ12 SCW4_DQ22 DDR_A3 SCW4_DQ22 SCW4_DQ5 DDR_A9 DDR_DQ24 DDR_DQ11 SCW4_DQM1 DDR_DQS0 SCW4_DQ21 SCW4_DQ4 DDR_A8 DDR_DQ15 DDR_DQ10 SCW4_DQ16 DDR_A2 SCW4_DQ20 SCW4_DQ3 DDR_DQ14 SCW4_A0 DDR_DQ9 SCW4_MWR SCW4_DQ29 SCW4_A11 SCW4_DQ2 DDR_DQ13 SCW4_DQ19 SCW4_A1 DDR_DQ8 SCW4_MCAS SCW4_DQ2 SCW4_A10 SCW4_DQ1 DDR_DQ12 SCW4_DQ18 SCW4_A2 SCW4_DQ6 SCW4_MRAS DDR_DQ23 SCW4_A9 SCW4_DQ0 DDR_DQ11 SCW4_DQ17 SCW4_A3 SCW4_DQ30 SCW4_MCS SCW4_A8 DDR_DQ22 DDR_DQM0 DDR_DQ10 SCW4_DQ16 SCW4_A4 SCW4_DQ26 SCW4_A7 SCW4_MCKE DDR_DQ21 DDR_DQS0 DDR_DQ9 DDR_DQM0 SCW4_DQ5 SCW4_A5 SCW4_A6 SCW4_BA1 DDR_DQ7 DDR_DQ8 DDR_DQ20 DDR_BA1 SCW4_DQ23 SCW4_A5 SCW4_A6 DDR_DQ6 SCW4_BA0 DDR_DQM1 DDR_DQ19 SCW4_DQ27 SCW4_A4 SCW4_A7 DDR_DQS1 SCW4_DQ4 DDR_DQ30 SCW4_DQM1 DDR_DQ18 SCW4_DQ12 DDR_A1 DDR_A7 DDR_DQM2 SCW4_DQS0 DDR_DQ29 SCW4_DQS1 DDR_DQ17 SCW4_DQ9 SCW4_MCKE DDR_A0 DDR_DQS2 DDR_A6 SCW4_DQ28 DDR_DQ28 SCW4_DQ15 SCW4_DQ0 SCW4_MWR SCW4_DQM3 DDR_DQ16 DDR_DQM3 DDR_NCLK DDR_DQ23 SCW4_DQ25 DDR_A5 DDR_BA0 SCW4_DQS2 SCW4_MCAS SCW4_DQ14 DDR_DQ27 SCW4_DQS3 DDR_DQ6 DDR_NCLK DDR_CLK DDR_DQ22 SCW4_DQ57 C4327 16V 0.1u C4350 16V 0.1u C4323 16V 0.1u C4324 25V 0.01u C4319 16V 0.1u C4332 6.3V 10u C4333 6.3V 10u C4343 25V 0.01u C4339 25V 0.01u C4320 25V 0.01u C4367 16V 0.1u C4368 25V 0.01u C4338 16V 0.1u C4342 16V 0.1u C4387 25V 0.01u C4335 16V 0.1u C4375 16V 0.1u C4346 16V 0.1u C4371 16V 0.1u C4380 6.3V 10u C4395 25V 0.01u C4376 25V 0.01u C4398 16V 0.1u C4383 16V 0.1u C4372 25V 0.01u C4347 25V 0.01u C4381 6.3V 10u C4328 25V 0.01u C4391 25V 0.01u C4390 16V 0.1u C4394 16V 0.1u C4386 16V 0.1u C4334 56u 4V C4382 56u 4V IC4513 B2 DQS0 IC4514 B2 DQS0 IC4501 W29 MDQM[1] IC4501 W30 MD[11] IC4501 Y26 MD[19] IC4501 W26 MD[12] IC4501 Y28 MD[14] IC4501 Y30 MD[13] IC4513 E13 DQ24 IC4513 K8 VSS IC4513 H3 DM2 IC4513 N6 A1 IC4513 L12 NC IC4501 V28 MD[9] IC4513 G2 DQ19 IC4513 H13 DQS1 IC4501 AK30 MA[7] IC4501 AK29 MA[8] IC4501 AK28 MA[10] IC4513 J13 DQ10 IC4513 C13 DQ27 IC4501 AK26 BA[1] IC4501 AK21 MD[47] IC4501 AK20 MDQM[6] IC4501 AK19 MD[54] IC4501 AK18 MD[57] IC4501 AK17 MD[60] IC4513 F2 DQ17 IC4513 H4 NC IC4513 N7 A3 IC4501 AJ30 MA[6] IC4501 AJ28 MA[9] IC4501 AJ27 MA[11] IC4501 AJ25 MDQM[4] IC4513 L11 VDD IC4501 AJ24 MD[37] IC4501 AJ23 MD[39] IC4501 AJ21 MD[45] IC4501 AJ20 MD[50] IC4501 AJ19 MD[52] IC4501 AJ17 MDQS[7] IC4501 AJ16 MD[62] IC4501 V26 MD[10] IC4513 G3 DQ18 IC4501 W27 MDQS[1] IC4513 C3 VDDQ IC4513 J2 DQ21 IC4501 AH30 MA[4] IC4501 AH28 MRASB IC4501 AH26 BA[0] IC4501 AH25 MD[35] IC4501 AH23 MD[38] IC4501 AH22 MD[42] IC4501 AH21 MD[44] IC4501 Y27 MD[15] IC4501 AH19 MDQS[6] IC4513 J12 DQ11 IC4501 AH18 MD[56] IC4513 B5 DQ3 IC4501 AH17 MD[59] IC4501 AH16 MD[61] IC4513 F8 VSS_Thermal IC4501 AG29 MA[3] IC4513 H5 VSSQ IC4501 AG25 MD[34] IC4501 AG24 MD[36] IC4501 AG22 MD[41] IC4513 J9 VSS_Thermal IC4501 AG21 MDQS[5] IC4501 AG20 MD[49] IC4501 AG18 MD[55] IC4501 AG17 MD[58] IC4501 AG15 MCLKSEL[2] IC4513 L10 VSS IC4513 L7 VDD IC4513 E3 VDDQ IC4501 AF30 MA[0] IC4501 AF28 MA[1] IC4513 G4 VDDQ IC4513 C2 DQ4 IC4501 AF23 MDQS[4] IC4501 AF22 MD[40] IC4501 AF20 MD[48] IC4513 J3 DQ20 IC4513 G8 VSS_Thermal IC4501 AF19 MD[51] IC4501 AF18 MD[53] IC4501 AF17 MCLKO4B IC4501 AF16 MDQM[7] IC4501 AF15 MCLKSEL[1] IC4513 J11 VDDQ IC4513 C11 NC IC4513 B4 VSSQ IC4513 L9 RFU IC4501 AE29 MDQS[3] IC4513 N8 A4 IC4501 AE28 MD[28] IC4513 L4 VDD IC4501 AE23 MD[32] IC4513 K11 VDDQ IC4501 AE21 MCLKO3 IC4501 AE20 MD[43] IC4501 AE19 MD[46] IC4513 M7 A11 IC4501 AE16 MCLKO4 IC4513 G5 VSSQ IC4513 J4 VDDQ IC4513 C10 VDDQ IC4513 B12 DM3 IC4501 AD29 MD[26] IC4501 AD26 MD[29] IC4501 AD22 MCKE IC4501 AD20 MCLKO3B IC4513 M13 NC IC4501 AK27 MA[12] IC4513 J10 VSSQ IC4501 AK22 MDQM[5] IC4501 AH29 MA[5] IC4513 L5 VSS IC4513 K12 DQ9 IC4501 AK16 MD[63] IC4513 E7 VSS IC4513 M6 A2 IC4513 M12 CK IC4501 AC30 MD[20] IC4513 J5 VSSQ IC4501 AC29 MD[22] IC4513 G10 VSSQ IC4501 AC28 MD[24] IC4501 AC27 MD[25] IC4501 AC25 MD[30] IC4513 F7 VSS_Thermal IC4501 AC21 MCASB IC4513 N2 CS IC4513 H8 VSS_Thermal IC4513 C4 NC IC4513 F13 DQ14 IC4513 K3 DQ23 IC4501 AG30 MA[2] IC4513 N10 A7 IC4513 K6 VSS IC4513 K13 DQ8 IC4501 AB30 MDQS[2] IC4501 AB28 MD[21] IC4513 E8 VSS IC4501 AB27 MD[23] IC4501 AB26 MCLKO2 IC4501 AB25 MDQM[3] IC4501 AB22 MWRB IC4513 L3 WE IC4513 C8 VDDQ IC4513 N5 A0 IC4513 F3 DQ16 IC4513 H9 VSS_Thermal IC4501 AA30 MD[16] IC4501 AA26 MCLKO2B IC4513 M9 A5 IC4513 D7 VDD IC4513 M8 A9 IC4513 D8 VDD IC4501 V30 MD[7] IC4501 V29 MD[8] IC4513 D10 VSSQ IC4513 D2 DQ6 IC4501 AF24 MD[33] IC4513 M10 RFU IC4513 F6 VSS_Thermal IC4513 F4 VDDQ IC4513 H12 DM1 IC4513 N11 A8/AP IC4513 D9 VSSQ IC4513 J8 VSS_Thermal IC4513 D6 VSSQ IC4513 F12 DQ15 IC4513 E9 VSSQ IC4513 B11 VSSQ IC4513 L2 CAS IC4513 K10 VSSQ IC4513 N4 BA0 IC4513 B3 DM0 IC4513 M4 NC IC4513 G13 DQ12 IC4513 E2 DQ7 IC4513 B9 DQ29 IC4513 H11 NC IC4513 B6 DQ2 IC4513 M11 CK IC4513 E12 VDDQ IC4513 C5 VDDQ IC4513 N12 CKE IC4513 C7 VDDQ IC4513 K5 VSSQ IC4513 D5 VSSQ IC4513 K9 VSS IC4513 F5 VSSQ IC4513 E10 VSS IC4513 B10 DQ28 IC4513 G6 VSS_Thermal IC4513 D11 VSSQ IC4513 E5 VSS IC4513 H7 VSS_Thermal IC4513 M3 NC IC4513 F11 VDDQ IC4513 L8 VDD IC4513 F9 VSS_Thermal IC4513 K4 VDDQ IC4513 L13 NC IC4513 B13 DQS3 IC4513 J7 VSS_Thermal IC4513 D4 VSSQ IC4513 N13 VREF IC4513 C6 DQ1 IC4513 G12 DQ13 IC4513 E11 VDD IC4513 B8 DQ31 IC4513 G7 VSS_Thermal IC4513 E6 VSSQ IC4513 D12 DQ26 IC4513 D13 DQ25 IC4513 G11 VDDQ IC4513 J6 VSS_Thermal IC4513 M2 RAS IC4513 B7 DQ0 IC4513 K7 VSS IC4513 E4 VDD IC4513 N9 A6 IC4513 F10 VSSQ IC4513 D3 DQ5 IC4513 H6 VSS_Thermal IC4514 H7 VSS_Thermal IC4514 J11 VDDQ IC4514 C5 VDDQ IC4514 H3 DM2 IC4514 K9 VSS IC4514 D9 VSSQ IC4514 B11 VSSQ IC4514 F7 VSS_Thermal IC4514 N4 BA0 IC4514 K6 VSS IC4514 C9 DQ30 IC4514 E2 DQ7 IC4514 G13 DQ12 IC4514 L5 VSS IC4514 E11 VDD IC4514 J10 VSSQ IC4514 K3 DQ23 IC4514 D12 DQ26 IC4514 B12 DM3 IC4514 K4 VDDQ IC4514 C2 DQ4 IC4514 F12 DQ15 IC4514 J2 DQ21 IC4514 L4 VDD IC4514 N12 CKE IC4514 C12 VDDQ IC4514 G10 VSSQ IC4514 H8 VSS_Thermal IC4514 H5 VSSQ IC4514 M12 CK IC4514 K13 DQ8 IC4514 J9 VSS_Thermal IC4514 G11 VDDQ IC4514 J5 VSSQ IC4514 C7 VDDQ IC4514 B8 DQ31 IC4514 J6 VSS_Thermal IC4514 E6 VSSQ IC4514 M7 A11 IC4514 J3 DQ20 IC4514 B3 DM0 IC4514 G9 VSS_Thermal IC4514 E12 VDDQ IC4514 G12 DQ13 IC4514 H9 VSS_Thermal IC4514 E13 DQ24 IC4514 N10 A7 IC4514 D4 VSSQ IC4514 H10 VSSQ IC4514 H13 DQS1 IC4514 M2 RAS IC4514 L7 VDD IC4514 C6 DQ1 IC4514 E7 VSS IC4514 C11 NC IC4514 K2 DQ22 IC4514 D6 VSSQ IC4514 B10 DQ28 IC4514 H4 NC IC4514 G5 VSSQ IC4514 N9 A6 IC4514 F2 DQ17 IC4514 H11 NC IC4514 M9 A5 IC4514 D5 VSSQ IC4514 L8 VDD IC4514 F9 VSS_Thermal IC4514 D8 VDD IC4514 K8 VSS IC4514 B5 DQ3 IC4514 F13 DQ14 IC4514 F11 VDDQ IC4514 F10 VSSQ IC4514 C10 VDDQ IC4514 K10 VSSQ IC4514 M10 RFU IC4514 D3 DQ5 IC4514 D11 VSSQ IC4514 N11 A8/AP IC4514 G4 VDDQ IC4514 M8 A9 IC4514 M11 CK IC4514 L11 VDD IC4514 F8 VSS_Thermal IC4514 N3 NC IC4514 E8 VSS IC4514 K5 VSSQ IC4514 J7 VSS_Thermal IC4514 D13 DQ25 IC4514 F5 VSSQ IC4514 N7 A3 IC4514 J8 VSS_Thermal IC4514 G8 VSS_Thermal IC4514 M5 BA1 IC4514 D10 VSSQ IC4514 F3 DQ16 IC4514 L2 CAS IC4514 E5 VSS IC4514 M4 NC IC4514 L12 NC IC4514 C13 DQ27 IC4514 L13 NC IC4514 C8 VDDQ IC4514 K7 VSS IC4514 N13 VREF IC4514 F4 VDDQ IC4514 N6 A1 IC4514 G2 DQ19 IC4514 M13 NC IC4514 B7 DQ0 IC4514 L9 RFU IC4514 G6 VSS_Thermal IC4514 N8 A4 IC4514 D7 VDD IC4514 H6 VSS_Thermal IC4514 H2 DQS2 IC4514 K12 DQ9 IC4514 B4 VSSQ IC4514 G3 DQ18 IC4514 C4 NC IC4514 N2 CS IC4514 C3 VDDQ IC4514 E4 VDD IC4514 F6 VSS_Thermal IC4514 L6 A10 IC4514 E9 VSSQ IC4514 G7 VSS_Thermal IC4514 J4 VDDQ IC4514 E10 VSS IC4514 B6 DQ2 IC4514 L3 WE IC4514 B13 DQS3 IC4514 J12 DQ11 IC4514 J13 DQ10 IC4514 L10 VSS IC4514 N5 A0 IC4514 M6 A2 IC4514 B9 DQ29 IC4514 D2 DQ6 IC4514 H12 DM1 IC4514 K11 VDDQ IC4514 M3 NC IC4501 AD15 MCLKSEL[0] IC4513 L6 A10 IC4513 C12 VDDQ IC4501 AE27 MD[31] IC4513 C9 DQ30 IC4514 E3 VDDQ IC4501 T30 MD[0] IC4501 T29 MD[1] IC4501 T28 MD[2] IC4501 T27 MD[3] IC4501 T26 MDQM[0] IC4513 M5 BA1 IC4501 U30 MDQS[0] IC4501 U29 MD[4] IC4501 U27 MD[5] IC4501 U26 MD[6] IC4501 U25 MCLKO1B IC4513 H10 VSSQ IC4501 U24 MCLKO1 IC4513 G9 VSS_Thermal IC4513 K2 DQ22 IC4513 H2 DQS2 IC4501 AD27 MD[27] IC4501 AA29 MD[17] IC4501 AA23 MCSB IC4501 AA27 MDQM[2] IC4513 N3 NC IC4501 AA28 MD[18] L4034 J0JHC0000096 L4032 J0JHC0000096 D_3.3V 2.5V 2.5V TP4016 TP4017 R4461 EXB28V330JX R4532 EXB28V330JX R4533 EXB28V330JX R4476 EXB28V330JX R4516 EXB28V330JX R4452 EXB28V330JX R4509 EXB28V330JX R4460 EXB28V330JX R4494 EXB28V220JX R4469 EXB28V330JX R4477 EXB28V330JX R4500 EXB38V103JV R4517 EXB28V330JX R4487 EXB28V220JX R4453 EXB28V330JX R4524 EXB28V330JX R4468 EXB28V330JX R4508 EXB28V330JX R4525 EXB28V330JX R4486 EXB2HV220JV R4482 1k R4534 33 R4454 33 R4498 22 R4497 22 R4463 33 R4462 33 R4496 22 R4535 33 R4519 33 R4481 1k R4479 33 R4470 33 R4510 33 R4538 1k R4537 1k R4511 33 R4526 33 R4548 22 R4549 22 R4527 33 R4518 33 R4478 33 R4499 22 R4471 33 R4495 22 R4455 33 SCW4-DDR Bank select Address input Data I/O SCW4-DDR Bank select Address input Data I/O Data I/O Input mask Data strobe Data I/O Input mask Data strobe POWER FOR DDR DDR GND DDR NC PIN SCW3 C1AB00002902 IC4501 DDR GND DDR NC PIN POWER FOR DDR ! DN-BOARD TXNDN11LBC (7/8) 51 52 53 54 62 61 IC4514 C3ABQJ000055 DDR2 IC4513 DDR C3ABQJ000055 TH-65PF12CK DN-Board (7/8) Schematic Diagram TH-65PF12CK DN-Board (7 /8) Schematic Diagram 58 61 57 55 59 56 62 63 60 76 TH-65PF12CK 12.24.DN 电路板（8/8）线路图 DRVMUTE TV_ON/OFF E_TX_TB- E_TX_TA+ E_TX_TA- O_TX_TB- E_TX_TB+ O_TX_TA- 3V_SDA4 3V_SCL4 DISPEN PANEL_STBY_ON O_TX_TD- O_TX_TD+ O_TX_TE- O_TX_TE+ O_TX_TC- O_TX_TC+ O_TX_CLK- O_TX_CLK+ E_TX_TD- E_TX_TD+ E_TX_TE- E_TX_TE+ E_TX_TC- E_TX_TC+ E_TX_CLK- E_TX_CLK+ E_TX_TA- E_TX_TA+ E_TX_TB- E_TX_TB+ E_TX_TC- E_TX_TC+ E_TX_CLK- E_TX_CLK+ E_TX_TD- E_TX_TD+ E_TX_TE- E_TX_TE+ O_TX_TA- O_TX_TA+ O_TX_TB- O_TX_TB+ O_TX_TC- O_TX_TC+ O_TX_CLK- O_TX_CLK+ O_TX_TE- O_TX_TE+ O_TX_TD- O_TX_TD+ DISPEN PANEL_STBY_ON READY ALARM D_IIC_CONT D_IIC_DATA1 D_IIC_CLK1 D_IIC_DATA2 D_IIC_CLK2 D_RXD D_TXD O_TX_TB+ O_TX_TA+ C4407 16V 0.1u C4406 6.3V 10u 1u 10V C4600 1u 10V C4595 FL4118 J0JAD0000028 1 2 3 4 FL4116 J0JAD0000028 1 2 3 4 FL4117 J0JAD0000028 1 2 3 4 FL4119 J0JAD0000028 1 2 3 4 FL4114 J0JAD0000028 1 2 3 4 FL4115 J0JAD0000028 1 2 3 4 IC4501 AK7 POSYRSTB IC4501 AK6 POD[27] IC4501 AK5 POD[24] IC4501 AK4 POD[21] IC4501 AK3 POD[17] IC4501 AK2 POD[16] IC4501 AK1 POD[13] IC4501 P4 LVDSO1[2] IC4501 AJ6 POD[26] IC4501 AJ5 POD[23] IC4501 AJ4 POD[18] IC4501 AJ3 POCLKO IC4501 AJ1 POD[12] IC4501 AH7 POD[29] IC4501 AH6 POD[25] IC4501 AH3 POD[10] IC4501 AH2 POD[9] IC4501 AH1 POD[7] IC4501 P3 LVDSO1B[2] IC4501 AG8 POD[28] IC4501 AG6 POD[20] IC4501 AG5 POD[14] IC4501 AG3 POD[6] IC4501 AG2 POD[2] IC4501 AG1 POD[1] IC4501 AF8 POD[22] IC4501 AF7 POD[19] IC4501 AF5 POD[11] IC4501 AF4 POD[4] IC4501 AE5 POD[5] IC4501 AE4 POD[0] IC4501 AD12 POVSB IC4501 L3 LVDSBIASNINPUT1 IC4501 AC13 POFLD IC4501 AC12 POHSB IC4501 P2 LVDSO1[0] IC4501 AB9 POD[8] IC4501 AB8 POD[3] IC4501 AJ2 POD[15] IC4501 AJ7 POEXTB IC4501 W3 LVDSO2[0] IC4501 W1 LVDSO2[1] IC4501 L2 LVDSBRES11 IC4501 L1 LVDSBRES12 IC4501 L4 LVDSBIASPINPUT1 IC4501 M4 LVDSO1[5] IC4501 M3 LVDSO1B[5] IC4501 M2 LVDSO1[3] IC4501 M1 LVDSO1B[3] IC4501 P1 LVDSO1B[0] IC4501 N1 LVDSO1B[1] IC4501 N2 LVDSO1[1] IC4501 N3 LVDSO1B[4] IC4501 N4 LVDSO1[4] IC4501 T8 LVDSVDE33 IC4501 T4 LVDSBRES21 IC4501 T3 LVDSBRES22 IC4501 T2 LVDSBIASNINPUT2 IC4501 T1 LVDSBIASPINPUT2 IC4501 R8 LVDSVDE33 IC4501 P8 LVDSVDE33 IC4501 U8 LVDSVDE33 IC4501 U3 LVDSO2[4] IC4501 U4 LVDSO2B[4] IC4501 U2 LVDSO2B[5] IC4501 U1 LVDSO2[5] IC4501 V4 LVDSO2B[2] IC4501 V3 LVDSO2[2] IC4501 V1 LVDSO2[3] IC4501 V2 LVDSO2B[3] IC4501 W2 LVDSO2B[1] IC4501 W4 LVDSO2B[0] IC4501 AD13 POACTB DN3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DN5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L4036 J0JHC0000096 LVDS_3.3V LVDS_3.3V SW_3.3V SCW_3.3V SCW_3.3V ZA4004 K4AZ01D00004 ZA4003 K4AZ01D00004 ZA4002 K4AZ01D00004 ZA4001 K4AZ01D00004 TP4027 TP4028 Q4019 2SD0601A0L Q4020 2SD0601A0L R4571 10k R4643 10k R4642 10k R4566 100 R4550 680 1% R4645 0 R4646 0 R4570 10k R4568 100 R4569 1k R4252 100 R4251 100 R4246 100 R4250 100 R4560 100 1% R4572 10k R4573 10k R4553 33 1% R4245 100 R4552 360 1% R4244 100 R4243 100 R4242 100 R4698 100 1% R4697 100 1% R4249 100 R4248 100 R4247 100 R4253 100 R4554 100 1% R4551 100 1% SCW4 LVDS TERMINATION SCW4 LVDS BIAS LVDS VDE SCW4_LVDS LVDS OUT to PD2M GND E+ LVDS3 E- LVDSCLK E+ LVDS2 E+ LVDS1 O+ LVDSCLK O- LVDS1 GND O- LVDS0 GND E+ LVDS4 LVDS_DET E+ LVDSCLK GND GND O+ LVDS2 O+ LVDS0 E- LVDS2 O- LVDS3 O- LVDS2 E+ LVDS0 E- LVDS1 E- LVDS3 O- LVDSCLK E- LVDS4 GND O+ LVDS4 O+ LVDS3 O- LVDS4 O+ LVDS1 E- LVDS0 IIC_CLK1 IIC_DATA1 TXD RXD PANEL_STBY_ON GND GND ALARM DISPEN IIC_DATA2 IIC_CLK2 READY IIC_CONT GND TPRDY TPALM OCK OUT 74.25MHz ! DN-BOARD TXNDN11LBC (8/8) TO D-BOARD (D3) D-BOARD (D5) TO 61 62 SCW4-(Digital out) TH-65PF12CK DN-Board (8/8) Schematic Diagram TH-65PF12CK DN-Board (8/8) Schematic Diagram 67 70 66 64 68 65 71 72 69 77 TH-65PF12CK 12.25.D 电路板（1/6）线路图 TH-65PF12CK D-Board (1/6) Schematic Diagram TH-65PF12CK D-Board (1/6) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A G G G G G G TERM SIDE VDATA_DET 0V 5.00V 0V 5.00V SOS4_PS 0V 0V 0V 15.00V 15.00V 0V 0V 0V 0V SOS7_SC2 PANEL_MAIN_ON 0V 15.00V 5.00V SOS6_SC1 SC_UHZ STB_SCL01 STB_SDA01 P3V_SCL01 P3V_SDA01 STB_SDA02 STB_SCL02 IIC_SW P_ON/OFF P3V_SCL02 P3V_SDA02 REMOCON REM_IN SC_UHZ FP_UHZ SOS8_SS SOS7_SC2 SOS6_SC1 SOS8 SOS7 SOS6 NRST FP_CQR5 FP_CRC2 FP_CPH2 FP_CEL FP_CSH FP_CSL FP_CPH1 FP_CMH FP_CML FP_CIS FP_OC1 FP_FPGANRST FP_CRC1 FP_OC2 FP_SEL FP_CERS FP_CLK FP_SIU PANEL_STBY_ON C9071 0.1u 25V C9823 10u 25V C9837 10u 10V C9840 25V 0.01u C9846 16V 0.1u C9832 10u 10V C9859 25V 0.01u C9858 10u 25V C9844 25V 0.01u C9845 16V 0.1u C9074 3300p 50V C9078 10u 25V C9072 10u 6.3V C9073 10u 6.3V C9080 200p 50V C9079 10p 50V C9077 10u 25V C9076 0.015u 16V C9069 6800p 25V C9882 200p 50V C9869 10u 25V C9872 10u 25V C9068 10u 6.3V C9067 10u 6.3V C9066 0.1u 25V C9874 100p 50V C9049 16V 0.1u C9050 16V 0.1u C9051 16V 0.1u C9036 10V 10u C9033 16V 0.1u C9037 0.01u 25V C9035 10V 10u C9034 16V 0.1u C9055 16V 0.1u C9863 4700p 25V C9083 10u 6.3V C9087 0.056u 10V C9088 10u 25V C9089 10u 25V C9084 10u 6.3V C9091 200p 50V C9090 47p 50V C9082 0.1u 25V C9085 3300p 50V C9054 200p 50V C9031 16V 0.1u D9800 B0JCPD000026 D9110 B0JCGD000002 0.1u F1J1E104A148 FL9803 0.1u F1J1E104A148 FL9806 0.1u F1J1E104A148 FL9805 C0DBAYY00605 IC9807 BD8632FV-E2 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C0DBAYY00605 IC9806 BD8632FV-E2 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C0DBAYY00605 IC9805 BD8632FV-E2 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C1ZBZ0003983 IC9004 1 Y5 2 Y4 3 Y3 4 Y2 5 Y1 6 RESET 7 CD_OUT 8 STB33V 9 GND 10 DCDC_OE 11 VIN_OR 12 P_SDA1 13 P_SCL1 14 P_SDA2 15 P_SCL2 16 P33V_IN 17 IIC_SW 18 S_SCL2 19 S_SDA2 20 S_SCL1 21 S_SDA1 22 STB33VIN 23 P33V 24 P_ON_OFF 25 STB5V_IN 26 GND 27 CE 28 A1 29 A2 30 A3 31 A4 32 A5 D20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 D25 1 2 3 4 5 6 7 8 9 10 11 12 13 L9001 G1C3R3Z00004 L9002 G1C6R8Z00008 L9802 G1C6R8Z00010 P5V P1.2V P15V P15V P1.8V P5V P3.3V STB5V_M P15V P15V STB3.3V P15V P15V STB3.3V STB5V_M P3.3V TP9862 TP9006 TP9196 R9848 EXB2HV470JV R9849 EXB2HV470JV R9229 47 R9078 10k 1% R9077 3.3k 1% R9132 100 R9089 15k 1% R9115 100 R9088 5.6k 1% R9894 18k 1% R9201 10 R9225 2.7k R9223 2.7k R9121 100k R9145 100 R9079 27k 1% R9868 100k R9228 47 R9872 10k 1% R9142 100 R9120 100 R9081 47k 1% R9092 12k 1% R9893 27k 1% R9110 100 R9080 15k 1% R9091 27k 1% R9200 10 R9202 100 R9129 68k R9871 10k P-BOARD STBY5V GND GND +15V +15V GND GND +5V +5V GND VDATA_DET PANEL_MAIN_ON SOS4_PS P5V SIU CLK GND GND SC_FPGANRST GND UHZ CSH CPH1 CERS SEL OC2 CRC1 OC1 CIS SOS6_SC1 SOS7_SC2 GND CPH2 GND CEL GND CSL GND CMH CML +15V +15V NC GND NC CRC2 CQR5 NC TO SC-BOARD (SC20) TO (P25) 3.3V 1.2V ANALOG ASIC 1.8V ! D-BOARD TXN/D11LBC (1/6) 3 2 1 4 78 TH-65PF12CK 12.26.D 电路板（2/6）线路图 OSD_B 0V AR_STB_SDA02 DRVRST 0V STB_SCL01 SFRST AR_TXD_PC OSD_CLKIN IIC_CONT TCK AR_IIC_CONT STB_SCL02 P_ON/OFF AR_RXD_PC STB_SDA03 LED_G 0V TMS RXD_PC 0V TDO 0V 0V 1.80V 0V 5.00V 0V 0V STB_SDA02 STB_SCL02 OSD_G 15.00V FVSEL AR_RXD_PC SOS4_PS 0V OSD_R AR_STB_SCL02 AR_STB_SDA02 FPGANRST AR_STB_SCL02 0V SOS7 TXD_PC SOS8 LED_R EEP_WR_CTL TRST OSD_VIN TDI 0V MCCLK AR_IIC_CONT IIC_CONT PANEL_MAIN_ON RXD_PC OSD_HIN TXD_PC IIC_SW STB_SDA02 0V 0V 0V STB_SCL02 LED_G 0V 0V 0V EEP_WR_CTL P3V_SCL01 REM_IN NRST P3V_SDA01 AR_TXD_PC 0V STB_SCL03 IIC_CONT 0V STB_SDA02 OSD_YS XI_DONE LED_R 3.30V PROG_M SFVRST SIN REMOCON SOS6 AUX_ON/OFF AUX_ON/OFF AR_IIC_CONT AR_RXD_PC AR_STB_SCL02 AR_STB_SDA02 AR_TXD_PC RA_O+ RCLK_O- INEXCH RB_O+ RE_O+ RA_E- RCLK_E- RE_E+ RA_O- RC_E+ RD_O- RA_E+ RC_O- RD_E+ RE_O- RC_O+ RD_O+ RC_E- RB_E+ RB_O- RCLK_E+ RD_E- RCLK_O+ RE_E- RB_E- P3V_SCL01 P3V_SDA01 ALARM READY PANEL_STBY_ON DRVMUTE OSD_HI OSD_CKI ALARM READY 0V XRST XRST STB_SDA03 STB_SCL03 3.30V STB_SDA01 KEYSCAN_D INEXCH XRST_SYS VDATA_DET 0V C9062 4.7u 10V C9064 16V 0.1u C9065 16V0.1u C9825 50V 100p C9048 16V 0.1u C9045 16V 0.1u C9040 16V 0.1u C9061 16V 0.1u C9056 16V 0.1u C9057 16V 0.1u C9053 16V 0.1u C9044 10V 4.7u C9052 16V 0.1u C9063 16V 0.1u C9047 16V 0.1u C9046 16V 0.1u C9926 10u 10V C9899 10u 10V C9043 16V 0.1u C0CBCAC00365 IC9808 1 ON/OFF 2 VSS 3 NC 5 VIN 4 VOUT IC9002 C1ZBZ0003577 1 SCL 2 GND 3 A1 4 VDD 5 A0 6 SDA IC9001 TVRQ844AA 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC MNZSFH8KPF5 IC9003 1 P60_SBO0A 2 P61_SBT0A 3 P62_SBI0A 4 P05_IRQ6 5 P06_IRQ7 6 P07_IRQ8 7 P70_SDA0 8 P71_SCL0 9 P50_RMIN_IRQ0 10 P20 11 P21 12 P22 13 P23 14 IVDD 15 VSS 16 P10 17 P11 18 P12 19 P13 20 P14 21 P15 22 P16 23 EXCLKSEL 24 P72_SDA1 25 P73_SCL1 26 P65_SBT2 27 P66_SBI2 28 P30 29 P31 30 P32 31 P33 32 P34 33 P35 34 P36 35 P37 36 VPPEX_(N.C.) 37 IVDD 38 VDD 39 RONA 40 VSS 41 OSCXO 42 OSCXI 43 IVDD 44 P64_SBI1 45 P63_SBT1 46 NBOOT_(N.C.) 47 NRST 48 NTEST 49 SCLOCK_(UND) 50 SDATA_(UND) 51 ENTRG0_(UND) 52 ENTRG1_(UND) 53 TRCCLK_(UND) 54 TRCST_(UND) 55 TRCD0_(UND) 56 TRCD1_(UND) 57 TRCD2_(UND) 58 TRCD3_(UND) 59 P80_ADIN0 60 P81_ADIN1 61 P82_ADIN2 62 P83_ADIN3 63 IVDD 64 VSS 65 P84_ADIN4 66 P85_ADIN5 67 P86_ADIN6 68 P87_ADIN7 69 P90_ADIN8 70 P91_ADIN9 71 P92_ADIN10 72 P93_ADIN11 73 P74_SDA2 74 P75_SCL2 75 P40_TM0IO 76 P41_TM1IO 77 P42_TM2IO 78 P43_TM3IO 79 P44_TM4IO_SYSCLK 80 P00 81 P01 82 P02 83 P03_SBT0B 84 P04_SBO0B 85 P51_IRQ2 86 P52_IRQ3 87 P53_IRQ4 88 P54_IRQ5 89 PA7_VCLKOUT 90 PA6_HOUT 91 PA5_YSOUT 92 PA4_B00 93 PA3_G00 94 PA2_R00 95 PA1_VSYNC_IRQ1 96 PA0_HSYNC 97 VSS 98 OSDXI 99 IVDD 100 VDD D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 D6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 STB3.3V P5V P3.3V P2.5V P5V STB5V_M P3.3V P3.3V STB3.3V STB3.3V P15V P3.3V TP9316 TP9314 TP9200 TP9203 TP9000 TP9202 TP9204 TP9201 TP9315 Q9807 2SD0601A0L R9839 EXB38V101JV R9119 EXB38V470JV R9859 EXB38V101JV R9203 22k R9212 47 R9230 100 R9236 100 R9166 10k R9246 100 R9243 100 R9207 24k R9095 10k R9854 100 R9155 2.7k R9186 22 R9206 56k R9072 1k R9185 22 R9151 22 R9239 100 R9897 10k R9073 4.7k R9235 100 R9152 10k R9130 47 R9124 47 R9218 2.7k R9220 22 R9217 2.7k R9219 22 R9150 22 R9070 10k R9215 100k R9154 2.7k R9231 100 R9232 100 R9233 100 R9242 100 R9098 0 R9245 100 R9244 100 R9899 10k R9149 4.7k R9205 33k R9107 3.3k R9241 100 R9213 47 R9237 100 R9238 100 R9240 100 R9234100 R9194 470 R9840 22 R9898 10k R9189 10k R9096 0 R9188 2.7k R9153 10k R9187 2.7k R9071 22k R9164 10k R9214 0 X9000 H2C1005A0041 TP9313 InternalP.D. TXD REMOCON SDA1 LED_R SCL2 TDI TCK GND STBY5V LED_G RXD GND IIC_CONT SDA2 TMS TDO IIC_INT TRST SCL1 STBY3.3V P5V FPGA2.5V IIC_DATA2 IIC_CLK1 IIC_DATA1 READY DISPEN GND GND GND IIC_CLK2 IIC_CONT RXD TXD PANEL_STBY_ON ALARM RC_O- RC_O+ RD_O+ RD_O- RD_E- RD_E+ RC_E+ RC_E- RCLK_E+ GND RCLK_E- RA_E-(MSB) RB_E- GND RA_E+(MSB) GND RE_E+(LSB) RB_E+ LVDS_DET RB_O+ RE_O-(LSB) RE_O+(LSB) GND RA_O+(MSB) GND RB_O- RA_O-(MSB) RCLK_O- GND RCLK_O+ KEY_SCAN RE_E-(LSB) FOR FACTORY USE TO DN-BOARD (DN3) TO DN-BOARD (DN5) TEMP SENSOR EEPROM Gen X7 PANEL MICOM ! D-BOARD TXN/D11LBC (2/6) 2 3 1 4 11 12 13 TH-65PF12CK D-Board (2/6) Schematic Diagram TH-65PF12CK D-Board (2/6) Schematic Diagram 13 16 12 10 14 11 17 18 15 79 TH-65PF12CK 12.27.D 电路板（3/6）线路图 P P P D-PCD4 FR_RMD00 FP_UML L8R_FCCLK D-LED2 L8R_FPDAT0 FR_RMD01 RMA19 DD_PCD2 L8R_TDO FR_RMD15 FR_RMD13 FP_OC1 DD_PCD2 RMA14 SFLATCH RMA04 XI_DONE DD_PCD3 FP_CSL DD_PCD1 SFRST FP_USH L8R_ROMOE P3V_SDA02 RMA20 FP_UML DD_ODED2 UML_C USH_C FVSEL RMA15 FP_USL UMH_C FP_CSH FP_UEH FR_RMD10 RMA05 D-PCD1 RMA06 SFVRST FP_UEH FP_USL RMA09 RMA03 FR_RMD03 L8R_PROG FP_CRC2 DD_LED2 FR_RMD05 P3V_SCL02 FP_FPGANRST FP_UMH DD_CLRD1 L8R_ROMCE DD_ODED1 TCK FP_CMH FP_CERS FP_UMH D-LED1 RMA10 FP_VD FP_CPH1 FP_CEL FR_RMD09 DD_PCD4 FR_RMD12 RMA18 FP_CLK XRST RMA07 RMA01 DD_PCD3 DD_CLRD2 DD_ODED2 D-PCD3 RMA16 FR_RMD02 D-PCD2 FR_RMD04 DD_PCD1 DD_CLRD2 RMA17 DD_LED1 DD_CLRD1 FR_RMD07 FP_USH DD_ODED1 DD_LED1 USL_C FP_SIU FP_HD FP_OC2 L8R_CLKMO L8R_TDO2 RMA08 DD_PCD4 UEH_C FP_CML FR_RMD14 L8R_FPDAT1 FP_CRC1 RMA11 TMS RMA00 D-CLRD1 RMA02 L8R_FPCLK L8R_ROMWE L8R_ROMRST RMA12 D-ODED2 FR_RMD08 DD_LED2 D-CLRD2 D-ODED1 FR_RMD11 FR_RMD06 RMA13 FP_CIS FP_CPH2 FP_UHZ FP_SEL FP_CQR5 RMD00 RMD01 RMD02 RMD03 RMD04 RMD05 RMD06 RMD07 RMD15 RMD14 RMD13 RMD12 RMD11 RMD10 RMD09 RMD08 FR_RMD00 FR_RMD01 FR_RMD02 FR_RMD03 FR_RMD04 FR_RMD05 FR_RMD06 FR_RMD07 FR_RMD15 FR_RMD14 FR_RMD13 FR_RMD12 FR_RMD11 FR_RMD10 FR_RMD09 FR_RMD08 DRVMUTE DRVRST FPGANRST XRST C9889 10V 10u C9469 16V 0.1u C9548 16V 0.1u C9539 16V 0.1u C9541 16V0.1u C9549 16V 0.1u C9543 16V 0.1u C9540 16V0.1u C9547 16V 0.1u C9544 16V 0.1u C9535 16V0.1u C9537 16V 0.1u C9538 16V 0.1u C9545 16V 0.1u C9536 16V 0.1u C9550 16V 0.1u C9542 16V 0.1u C9546 16V 0.1u C9534 16V 0.1u TVRQ846 IC9303 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 A20 11 W 12 RP 13 NC 14 Vpp/WP 15 RB 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 E 27 Vss 28 G 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 Vcc 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15A-1 46 Vss 47 BYTE 48 A16 C1ZBZ0003760 IC9500 1 PROG_B 2 IO_L01P_3 3 IO_L01N_3 4 IO_L02P_3 5 IO_L02N_3/VREF_3 6 VCCINT 7 GND 8 VCCO_3 9 IO_L03P_3/LHCLK0 10 IO_L03N_3/LHCLK1 11 IO_L04P_3/LHCLK2 12 IO_L04N_3/LHCLK3 13 IP 14 GND 15 IO_L05P_3/LHCLK4 16 IO_L05N_3/LHCLK5 17 IO_L06P_3/LHCLK6 18 IO_L06N_3/LHCLK7 19 GND 20 VCCO_3 21 VCCAUX 22 IO_L07P_3 23 IO_L07N_3 24 IO_L01P_2/CSO_B 25 IO_L01N_2/INIT_B 26 IO_L02P_2/DOUT/BUSY 27 IO_L02N_2/MOSI/CSI_B 28 VCCINT 29 GND 30 IP/VREF_2 31 VCCO_2 32 IO_L03P_2/D7/GCLK12 33 IO_L03N_2/D6/GCLK13 34 IO/D5 35 IO_L04P_2/D4/GCLK14 36 IO_L04N_2/D3/GCLK15 37 GND 38 IP_L05P_2/RDWR_B/GCLK0 39 IP_L05N_2/M2/GCLK1 40 IO_L06P_2/D2/GCLK2 41 IO_L06N_2/D1/GCLK3 42 IO/M1 43 IO_L07P_2/M0 44 IO_L07N_2/DIN/D0 45 VCCO_2 46 VCCAUX 47 IO_L08P_2/VS2 48 IO_L08N_2/VS1 49 IO_L09P_2/VS0 50 IO_L09N_2/CCLK 51 DONE 52 GND 53 IO_L01P_1 54 IO_L01N_1 55 VCCO_1 56 VCCINT 57 IO_L02P_1 58 IO_L02N_1 59 GND 60 IO_L03P_1/RHCLK0 61 IO_L03N_1/RHCLK1 62 IO_L04P_1/RHCLK2 63 IO_L04N_1/RHCLK3 64 GND 65 IO_L05P_1/RHCLK4 66 IO_L05N_1/RHCLK5 67 IO_L06P_1/RHCLK6 68 IO_L06N_1/RHCLK7 69 IP/VREF_1 70 IO_L07P_1 71 IO_L07N_1 72 GND 73 VCCO_1 74 VCCAUX 75 TMS 76 TDO 77 TCK 78 IO_L01P_0 79 IO_L01N_0 80 VCCINT 81 GND 82 VCCO_0 83 IO_L02P_0/GCLK4 84 IO_L02N_0/GCLK5 85 IO_L03P_0/GCLK6 86 IO_L03N_0/GCLK7 87 GND 88 IP_L04P_0/GCLK8 89 IP_L04N_0/GCLK9 90 IO_L05P_0/GCLK10 91 IO_L05N_0/GCLK11 92 IO 93 GND 94 IO_L06P_0 95 IO_L06N_0/VREF_0 96 VCCAUX 97 VCCO_0 98 IO_L07P_0 99 IO_L07N_0/HSWAP 100 TDI P3.3V P3.3V P3.3V P3.3V P2.5V P1.2V VJ9009 VJ9011 VJ9010 TP9500 TP9312 VIN TP9311 HIN R9609 EXB2HV470JV R9425 EXB2HV151JV R9608 EXB2HV470JV R9426 EXB2HV151JV R9610 EXB2HV470JV R9618 330 R9400 4.7k R9578 4.7k R9585 10k R9586 47 R9587 47 R9601 68 R9591 10k R9402 47 R9594 10k R9600 68 R9604 10k R9611 68 R9385 4.7k R9592 10k R9616 47 R9588 4.7k SS_PULSE SC_PULSE FPGA PD3H_ROM to PD3/FPGA PROG_B from PD3H DATA_DRIVER to ucom/FPGA/PD3 FPDAT0 DIN TDI TCK TDO SASEL HFSEL MODEL ! D-BOARD TXN/D11LBC (3/6) DISCHAGE CONTROL 11 12 13 21 23 22 24 TH-65PF12CK D-Board (3/6) Schematic Diagram TH-65PF12CK D-Board (3/6) Schematic Diagram 22 25 21 19 23 20 26 27 24 80 TH-65PF12CK 12.28.D 电路板（4/6）线路图 L8R_FCCLK OSD_YS RMA12 P3V_SDA02 L8R_ROMRST MCCLK SFVRST SFVRST FP_HD OSD_CLKIN SFRST SFRST RMD04 PROG_M FVSEL FVSEL RMD03 L8R_FPDAT0 L8R_ROMCE RMD02 L8R_ROMWE RMD01 SFLATCH L8R_ROMOE RCLK_O- L8R_FPDAT1 TMS TMS RMD08 RMA00 RCLK_O+ P3V_SCL02 L8R_FPCLK RMD07 TRST RMD15 RC_O- RE_O+ RMD06 L8R_PROG RMD14 RC_O+ OSD_VIN RA_O+ RMD05 RMD00 RMD13 RD_O- RB_O- RMD12 RD_O+ RMD11 RB_O+ TDO FP_VD OSD_HIN RMD10 RA_O- RMA04 OSD_G RMD09 RMA11 TCK TCK RMA03 OSD_B RMA10 TDI RMA02 OSD_R RMA09 SIN RMA08 L8R_CLKMO RMA01 RMA07 XRST_SYS RMA20 RMA06 XRST RE_O- RMA13 RMA05 RMA14 RMA15 RMA16 RMA17 RMA18 RMA19 D-CLRD1 D-PCD2 D-PCD1 D-ODED1 D-LED1 DD1_2N DD1_2P DD1_1N DD1_1P DRVCLK1N DRVCLK1P DD2_2N DD2_2P DD2_1N DD2_1P DD3_2N DD3_2P DD3_1N DD3_1P DRVCLK2N DRVCLK2P DD4_2N DD4_2P DD4_1N DD4_1P DD5_2N DD5_2P DD5_1N DD5_1P DRVCLK3N DRVCLK3P DD6_2N DD6_2P DD6_1N DD6_1P DD7_2N DD7_2P DD7_1N DD7_1P DRVCLK4N DD8_2N DD8_2P DD8_1N DRVCLK5N DRVCLK5P DD8_1P DRVCLK9P DD15_1N DD15_1P DD15_2N DD15_2P DRVCLK9N DD14_1N DD14_1P DD14_2N DD14_2P DRVCLK8N DRVCLK8P DD13_1N DD13_1P DD13_2N DD13_2P DRVCLK5N DRVCLK5P DD12_1N DD12_1P DD12_2N DD12_2P DRVCLK7N DRVCLK7P DD11_1N DD11_1P DD11_2N DD11_2P DD10_1N DD10_1P DD10_2N DD10_2P DRVCLK6N DRVCLK6P DD9_1N DD9_1P DD9_2N DD9_2P DD8_1N DD8_1P DD8_2N DD8_2P DRVCLK4N DRVCLK4P DD7_1N DD7_1P DD7_2N DD7_2P DD6_1N DD6_1P DD6_2N DD6_2P DRVCLK3N DRVCLK3P DD5_1N DD5_1P DD5_2N DD5_2P DD4_1N DD4_1P DD4_2N DD4_2P DRVCLK2N DRVCLK2P DD3_1N DD3_1P DD3_2N DD3_2P DD2_1N DD2_1P DD2_2N DD2_2P DRVCLK1N DRVCLK1P DD1_1N DD1_1P DD1_2N DD1_2P RC_E+ RD_E+ RB_E- RC_E- RB_E+ RCLK_E- RCLK_E+ RD_E- RE_E- RA_E+ RA_E- RE_E+ OSD_CKI OSD_HI DRVCLK4P KEYSCAN_D C9971 50V 15p C9972 50V 18p IC9300 E26 LVDOD17N IC9300 U2 DOUTDB06 IC9300 F15 LVDOD35P IC9300 B5 DOUTDD15 IC9300 D5 DOUTDC15 IC9300 Y1 DOUTDD03 IC9300 T1 DRVCKD2 IC9300 H30 LVDOD11N IC9300 AH2 ROMWE IC9300 G5 DOUTDD13 IC9300 H33 LVDOD7P IC9300 P4 DOUTDC08 IC9300 G2 DRVCKD7 IC9300 J34 LVDOD6N IC9300 AP15 RXOCKN IC9300 H5 DOUTDB13 IC9300 F27 LVDOD14P IC9300 J1 DOUTDE11 IC9300 F23 LVDOD23P IC9300 R3 DOUTDA08 IC9300 AL19 OSDGI IC9300 AA6 DOUTDD02 IC9300 B24 LVDOD21P IC9300 B26 LVDOD18P IC9300 H2 DOUTDC12 IC9300 W3 DOUTDA05 IC9300 AL5 EXTTRMO0 IC9300 M2 DOUTDD09 IC9300 L1 DRVCKD5 IC9300 B17 LVDOD30P IC9300 AE1 DOUTDA00 IC9300 J2 DOUTDD11 IC9300 AK17 FVSEL IC9300 A29 LVDOD15N IC9300 W5 DOUTDA03 IC9300 L6 DOUTDA09 IC9300 N2 DOUTDB09 IC9300 AA2 DOUTDF02 IC9300 AL1 FPDAT1 IC9300 L4 DOUTDF11 IC9300 V4 DOUTDF04 IC9300 A17 LVDOD30N IC9300 J33 LVDOD6P IC9300 AN11 RXEEP IC9300 T3 DOUTDA07 IC9300 AK19 OSDRI IC9300 AN7 RXEBP IC9300 E11 LVDOD41N IC9300 AG5 TRST IC9300 U5 DOUTDF06 IC9300 T2 DRVCKD3 IC9300 AN12 RXOAP IC9300 AG1 DI3 IC9300 F2 DOUTDA14 IC9300 AL18 OSDVO IC9300 AC2 DOUTDE01 IC9300 AN6 RXEAP IC9300 A23 LVDOD22N IC9300 A20 LVDOD25N IC9300 F26 LVDOD17P IC9300 F34 LVDOD10N IC9300 E9 LVDOD44N IC9300 A9 LVDOD42N IC9300 AK6 SFVRST IC9300 V3 DOUTDE05 IC9300 F20 LVDOD26P IC9300 H34 LVDOD7N IC9300 A25 LVDOD19N IC9300 B23 LVDOD22P IC9300 AP9 RXECKN IC9300 AD1 DOUTDE00 IC9300 B29 LVDOD15P IC9300 AJ20 OSDYSI IC9300 A21 LVDOD24N IC9300 AM2 SFRST IC9300 E23 LVDOD23N IC9300 B12 LVDOD37P IC9300 F1 DOUTDF13 IC9300 R6 DOUTDD05 IC9300 G33 LVDOD9P IC9300 E2 DOUTDD14 IC9300 AJ17 SCL IC9300 M5 DOUTDC10 IC9300 C1 DOUTDB15 IC9300 AP19 XO IC9300 L34 LVDOD4N IC9300 AD6 VI IC9300 K2 DOUTDD10 IC9300 N4 DOUTDE10 IC9300 E24 LVDOD20N IC9300 L5 DOUTDE09 IC9300 F4 DOUTDE14 IC9300 AP17 RXOEN IC9300 AJ19 OSDBI IC9300 F33 LVDOD10P IC9300 Y21 DTCPOUT IC9300 L33 LVDOD4P IC9300 P6 DOUTDF05 IC9300 AN4 EXTTRMI1 IC9300 B19 LVDOD27P IC9300 B16 LVDOD31P IC9300 N29 LVDOD2P IC9300 J3 DOUTDC11 IC9300 M29 LVDOD5P IC9300 B21 LVDOD24P IC9300 K5 DOUTDB12 IC9300 N6 DOUTDC09 IC9300 AH6 PROG IC9300 E33 LVDRCK1P IC9300 N33 LVDOD1P IC9300 P2 DOUTDB08 IC9300 AP13 RXOBN IC9300 K34 LVDRCK0N IC9300 Y3 DOUTDB04 IC9300 AD2 DOUTDF00 IC9300 R1 DOUTDC07 IC9300 A8 LVDOD43N IC9300 AP8 RXECN IC9300 B11 LVDOD39P IC9300 C6 TCPOUT_1 IC9300 AK7 TCPOUT_2 IC9300 AG3 ROMCE IC9300 AL2 FPDAT0 IC9300 E16 LVDOD32N IC9300 AJ8 TESTIO IC9300 AK18 OSDHO IC9300 F16 LVDOD32P IC9300 Y5 DOUTDA04 IC9300 AG6 TMS IC9300 M6 DOUTDE08 IC9300 AN8 RXECP IC9300 J29 LVDOD8P IC9300 E27 LVDOD14N IC9300 B27 LVDRCK3P IC9300 B7 LVDOD45P IC9300 AC6 DOUTDD01 IC9300 AK3 CKMO IC9300 D2 DOUTDA15 IC9300 AE2 DOUTDC00 IC9300 AB2 DOUTDB02 IC9300 E15 LVDOD35N IC9300 U6 DOUTDD06 IC9300 R5 DOUTDE06 IC9300 L2 DRVCKD4 IC9300 E1 DOUTDC14 IC9300 V6 DOUTDE03 IC9300 AH3 ROMRESET IC9300 F8 LVDOD47P IC9300 F24 LVDOD20P IC9300 AJ18 MCCLK IC9300 B14 LVDOD34P IC9300 A14 LVDOD34N IC9300 AF4 DI4 IC9300 A10 LVDOD40N IC9300 B20 LVDOD25P IC9300 AP10 RXEDN IC9300 G1 DOUTDA13 IC9300 J30 LVDOD8N IC9300 AH4 TDO IC9300 AN16 RXODP IC9300 A7 LVDOD45N IC9300 AP4 EXTTRMO1 IC9300 AB1 DOUTDC02 IC9300 N30 LVDOD2N IC9300 M34 LVDOD3N IC9300 A15 LVDOD33N IC9300 A27 LVDRCK3N IC9300 AN9 RXECKP IC9300 AK16 SDA IC9300 AB4 DRVCKD1 IC9300 E8 LVDOD47N IC9300 M4 DOUTDB11 IC9300 A4 OCKOUTD IC9300 P34 LVDOD0N IC9300 U3 DOUTDC06 IC9300 F19 LVDOD29P IC9300 A11 LVDOD39N IC9300 AP20 XI IC9300 W4 DOUTDB05 IC9300 E12 LVDOD38N IC9300 H3 DOUTDA12 IC9300 AK1 XRST IC9300 AM1 SFLATCH IC9300 V5 DOUTDD04 IC9300 AB3 DRVCKD0 IC9300 B15 LVDOD33P IC9300 B31 LVDOD12P IC9300 AJ4 FCCLK IC9300 T5 DOUTDB07 IC9300 B9 LVDOD42P IC9300 W1 DOUTDC04 IC9300 AJ2 TCK IC9300 B8 LVDOD43P IC9300 A18 LVDOD28N IC9300 B30 LVDOD13P IC9300 AP6 RXEAN IC9300 U1 DOUTDA06 IC9300 B6 LVDOD46P IC9300 AL20 OSDHI IC9300 AE5 DI0 IC9300 G4 DOUTDC13 IC9300 AL17 OSDCKO IC9300 AN17 RXOEP IC9300 AN15 RXOCKP IC9300 AN10 RXEDP IC9300 AE4 MASK IC9300 AC1 DOUTDC01 IC9300 AA3 DOUTDB03 IC9300 A5 OCKOUTU IC9300 P3 DOUTDD08 IC9300 AJ5 FPCLK IC9300 AN14 RXOCP IC9300 G34 LVDOD9N IC9300 AP14 RXOCN IC9300 T4 DOUTDF07 IC9300 AF1 HI IC9300 C5 DOUTDF15 IC9300 AB5 DOUTDF01 IC9300 A22 LVDRCK4N IC9300 F12 LVDOD38P IC9300 B25 LVDOD19P IC9300 Y6 DOUTDA02 IC9300 AL3 SFVO IC9300 A32 LVDRCK2N IC9300 H6 DOUTDE13 IC9300 AK20 OSDCKI IC9300 AF3 DI1 IC9300 N34 LVDOD1N IC9300 Y2 DOUTDF03 IC9300 E6 DOUTDE15 IC9300 AD4 DOUTDB00 IC9300 P33 LVDOD0P IC9300 F3 DOUTDB14 IC9300 K1 DOUTDA11 IC9300 A30 LVDOD13N IC9300 J4 DOUTDD12 IC9300 E20 LVDOD26N IC9300 M3 DOUTDF09 IC9300 AP7 RXEBN IC9300 AK2 PRCKO IC9300 F9 LVDOD44P IC9300 H29 LVDOD11P IC9300 AJ3 TDI IC9300 G3 DRVCKD6 IC9300 AN1 PROG_M IC9300 B28 LVDOD16P IC9300 E34 LVDRCK1N IC9300 AE6 DI2 IC9300 B13 LVDOD36P IC9300 AF5 DI5 IC9300 A16 LVDOD31N IC9300 E19 LVDOD29N IC9300 A31 LVDOD12N IC9300 K3 DOUTDB10 IC9300 AM4 EXTTRMI0 IC9300 A28 LVDOD16N IC9300 A19 LVDOD27N IC9300 A6 LVDOD46N IC9300 A24 LVDOD21N IC9300 A12 LVDOD37N IC9300 AP12 RXOAN IC9300 R2 DOUTDE07 IC9300 M33 LVDOD3P IC9300 D1 DOUTDF14 IC9300 AH5 XRSTSYS IC9300 AD3 DOUTDB01 IC9300 B10 LVDOD40P IC9300 AA5 DOUTDC03 IC9300 N1 DOUTDF08 IC9300 P5 DOUTDD07 IC9300 J5 DOUTDE12 IC9300 AC4 DOUTDD00 IC9300 B22 LVDRCK4P IC9300 F11 LVDOD41P IC9300 W2 DOUTDE04 IC9300 AP11 RXEEN IC9300 H4 DOUTDF12 IC9300 AG4 ROMOE IC9300 B32 LVDRCK2P IC9300 B18 LVDOD28P IC9300 N5 DOUTDA10 IC9300 K33 LVDRCK0P IC9300 K6 DOUTDF10 IC9300 V2 DOUTDC05 IC9300 AN13 RXOBP IC9300 A13 LVDOD36N IC9300 AA1 DOUTDE02 IC9300 AF2 CKI IC9300 AP16 RXODN IC9300 AC5 DOUTDA01 IC9300 M30 LVDOD5N IC9300 A26 LVDOD18N D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 P3.3V VJ9301 TP9087 GND TP9086 GND TP9080 EXTTRMO1 TP9085 GND TP9082 EXTTRMI1 TP9078 TP9083 PRCKO TP9088 GND TP9079 EXTTRMO0 TP9077 TP9084 GND TP9081 EXTTRMI0 TP9076 R9977 47 R9968 47 R9211 0 R9966 390 R9989 47 R9967 47 R9987 47 R9988 47 R9983 47 R9598 47 R9970 47 R9975 47 R9969 47 X9900 H0J200500076 LVDS_INPUT IIC to FLASH for LVDS_TX 20MHz(SS) CCLK for FPGA CDAT for FPGA SOUT for ucom SIN for ucom NCS for ucom Low Active DD5_2+ DD5_1+ KEY_SCAN GND GND DD5_2- DD5_1- DD1_2+ DD6_2+ DD6_1+ CLR1 GND PC1 DRVCLK3+ DRVCLK2- DD1_2- GND DRVCLK5+ DRVCLK5- GND DRVCLK3- GND DRVCLK4+ GND DRVCLK4- DD2_2+ DD2_1+ ODE1 DRVCLK1- LE1 GND PC2 DRVCLK1+ DD2_2- DD2_1- GND DD1_1+ DD3_2+ DD7_2+ DD3_1+ DD7_1+ DD7_2- DD7_1- GND DD3_2- GND DRVCLK2+ DD8_2+ DD3_1- DD8_1+ DD6_2- GND DD6_1- GND DD4_2+ DD1_1- GND DD4_1+ DD8_2- DD8_1- DD4_2- DD4_1- GND P5V/P3.3V P5V/P3.3V P5V/P3.3V NC GND FOR 4k2k ! D-BOARD TXN/D11LBC (4/6) TO C2-BOARD (C21) 24 23 22 21 32 33 31 TERM SIDE P IC9300 PD3H MN84528 TH-65PF12CK D-Board (4/6) Schematic Diagram TH-65PF12CK D-Board (4/6) Schematic Diagram 31 34 30 28 32 29 35 36 33 81 TH-65PF12CK 12.29.D 电路板（5/6）线路图 TERM SIDE P P P DRVRST UEH_C USL_C USH_C UML_C UMH_C D-CLRD2 D-PCD4 D-PCD3 D-ODED2 D-LED2 C_5V_DET DRVCLK9N DD12_1P DD15_1N DD10_2P DD14_1N DD10_1N DD14_2P DD13_1N DD9_1P DD10_2N DD15_2N DD14_2N DD14_1P DD11_1N DD15_2P DD11_1P DD9_2N DD15_1P DRVCLK8P DD10_1P DD12_1N DD11_2P DD13_2P DD13_1P DD9_2P DD12_2N DRVCLK8N DRVCLK6N DD11_2N DD9_1N DD12_2P DRVCLK7N DD13_2N DRVCLK7P DRVCLK6P DRVCLK9P 0V 0V 0V SOS8_SS C9980 0.1u 16V C9977 0.1u 16V C9976 0.1u 16V C9973 0.1u 16V C9970 16V 0.1u C9966 10V 10u C9965 0.1u 16V C9923 0.1u 16V C9913 0.1u 16V C9960 10V 10u C9924 0.1u 16V C9950 16V 0.1u C9915 0.1u 16V C9914 0.1u 16V C9925 0.1u 16V C9902 0.1u 16V C9967 0.1u 16V C9956 0.1u 16V C9908 0.1u 16V C9962 10V 10u C9921 0.1u 16V C9949 16V 0.1u C9910 0.1u 16V C9903 0.1u 16V C9968 0.1u 16V C9912 0.1u 16V C9920 0.1u 16V C9907 0.1u 16V C9961 10V 10u C9906 0.1u 16V C9468 25V 0.01u C9905 0.1u 16V C9904 0.1u 16V C9916 0.1u 16V C9909 0.1u 16V C9918 0.1u 16V C9917 0.1u 16V C9958 0.1u 16V C9911 0.1u 16V C9900 0.1u 16V C9922 0.1u 16V C9957 0.1u 16V C9901 0.1u 16V C9954 0.1u 16V C9704 0.1u 16V C9709 0.1u 16V C9714 16V 0.1u C9706 16V 0.1u C9700 0.1u 16V C9703 0.1u 16V C9713 0.1u 16V C9702 0.1u 16V C9701 0.1u 16V C9715 0.1u 16V C9716 0.1u 16V C9142 6.3V 1u C9141 10V 10u C9140 0.1u 16V C9139 10V 10u C9138 0.1u 16V C9136 0.1u 16V C9135 0.1u 16V C9134 0.1u 16V C9124 10V 10u C9123 10V 10u C9115 0.1u 16V C9114 0.1u 16V C9113 0.1u 16V C9112 10V 10u C9111 10V 10u C9102 0.1u 16V C9101 0.1u 16V C9100 0.1u 16V C9143 6.3V 1u C9144 0.1u 16V C9146 6.3V 1u C9147 6.3V 1u C9148 6.3V 1u C9149 6.3V 1u C9150 6.3V 1u C9151 6.3V 1u C9152 6.3V 1u C9153 6.3V 1u C9154 6.3V 1u C9155 6.3V 1u C9156 6.3V 1u C9157 6.3V 1u C9158 6.3V 1u C9159 6.3V 1u C9160 6.3V 1u C9161 6.3V 1u C9162 6.3V 1u C9163 6.3V 1u C9164 6.3V 1u C9165 6.3V 1u C9166 6.3V 1u C9167 6.3V 1u C9168 6.3V 1u C9169 6.3V 1u C9145 6.3V 1u IC9300 A1 VSS IC9300 H1 VDD33 IC9300 T13 VDD12 IC9300 AL16 VSS IC9300 Y29 VDDIO IC9300 F30 VSS IC9300 U30 VSS IC9300 E5 VSS IC9300 E25 MLVVDD33 IC9300 AM18 VSS IC9300 E31 VSS IC9300 E22 MLVVDD33 IC9300 D7 A1AVDD_1 IC9300 AK10 LVVDD33 IC9300 AJ21 VSS IC9300 R30 VDD12 IC9300 F14 MLVVDD33 IC9300 V31 VDDIO IC9300 Y33 VSS IC9300 AK4 OCKIN IC9300 T29 VDD12 IC9300 W13 VDD12 IC9300 AF33 VSS IC9300 V21 VSS IC9300 U29 VSS IC9300 T20 VSS IC9300 R19 VSS IC9300 AC3 VDD33 IC9300 AM15 LVVSS IC9300 D11 MLVVDD33 IC9300 D8 MLVVDD33 IC9300 N17 MLVVDD12 IC9300 AM30 VDDIO IC9300 AB6 VSS IC9300 P31 VDD12 IC9300 U21 VSS IC9300 AK8 WLBI IC9300 AJ14 LVVDD33 IC9300 AL13 LVVSS IC9300 F21 MLVVDD33 IC9300 AL29 VDDIOCK IC9300 D18 MLVVDD33 IC9300 F13 MLVVDD33 IC9300 V13 VDD12 IC9300 N18 MLVVDD12 IC9300 V20 VSS IC9300 AL31 VDDIO IC9300 U15 VSS IC9300 AK9 VDD33 IC9300 C22 MLVVSS IC9300 D12 MLVVDD33 IC9300 AM13 LVVSS IC9300 AK14 LVVDD33 IC9300 G7 VSS IC9300 AP34 VDDIO IC9300 C21 MLVVSS IC9300 W6 VDD33 IC9300 AC29 VDDIO IC9300 AM22 VDDR IC9300 D6 A1AVSS_1 IC9300 D28 MLVVDD33 IC9300 AJ30 VSS IC9300 P18 VDD12 IC9300 AJ22 VDDR IC9300 D4 VSS IC9300 B2 VSS IC9300 F10 MLVVDD33 IC9300 C33 VSS IC9300 D27 MLVVDD33 IC9300 AM3 VSS IC9300 K32 MLVVSS IC9300 N21 VDD12 IC9300 C30 TEST0 IC9300 D16 MLVVDD33 IC9300 U13 VDD12 IC9300 AK13 LVVDD33 IC9300 D9 MLVVDD33 IC9300 E13 MLVVDD33 IC9300 AM27 VSS IC9300 D13 MLVVDD33 IC9300 AA19 VSS IC9300 Y31 VDDIO IC9300 T32 VDD12 IC9300 AA32 VDDIO IC9300 W32 VSS IC9300 AM7 VDD33 IC9300 C31 TEST IC9300 C18 MLVVSS IC9300 D21 MLVVDD33 IC9300 AA18 VSS IC9300 Y15 VSS IC9300 D26 MLVVDD33 IC9300 N22 MLVVDD12 IC9300 AM6 VDD33 IC9300 AP22 VDDR IC9300 Y4 VSS IC9300 AK23 VSS IC9300 Y20 VSS IC9300 AC34 VSS IC9300 C11 MLVVSS IC9300 AM5 VDD33 IC9300 D25 MLVVDD33 IC9300 AK12 LVVDD33 IC9300 R33 VDD12 IC9300 J32 MLVVSS IC9300 AN22 VDDR IC9300 M1 VDD33 IC9300 AA17 VSS IC9300 AB14 LVVDD12 IC9300 E7 VSS IC9300 AL15 LVVSS IC9300 AK25 VSS IC9300 C4 VSS IC9300 AJ33 VSS IC9300 A33 VSS IC9300 AP1 VSS IC9300 U22 VDDA IC9300 AK31 VSS IC9300 T17 VSS IC9300 AJ6 VSS IC9300 B1 VDD33 IC9300 B4 VSS IC9300 AJ15 VSS IC9300 W19 VSS IC9300 R34 VDD12 IC9300 P1 VDD33 IC9300 D31 VSS IC9300 N15 VDD12 IC9300 R13 VSS IC9300 AL21 VSS IC9300 V16 VSS IC9300 W17 VSS IC9300 P14 VSS IC9300 L3 VSS IC9300 AP28 VDDIO IC9300 U14 VDD12 IC9300 T18 VSS IC9300 AL7 A1AVSS_2 IC9300 U33 VSS IC9300 W30 VSS IC9300 D10 MLVVDD33 IC9300 F25 MLVVDD33 IC9300 T16 VSS IC9300 P17 VDD12 IC9300 AA20 VDDR IC9300 AD5 VSS IC9300 AJ10 LVVDD33 IC9300 P30 VDD12 IC9300 AM23 VSS IC9300 AG29 VSS IC9300 Y14 VSS IC9300 E29 MONOUT IC9300 AP32 VSS IC9300 C17 MLVVSS IC9300 P19 VDD12 IC9300 T19 VSS IC9300 V15 VSS IC9300 AM31 VSS IC9300 D33 VSS IC9300 C15 MLVVSS IC9300 AD33 VDDIO IC9300 AN5 VDD33 IC9300 AB19 VSS IC9300 AA13 VSS IC9300 AC32 VSS IC9300 C13 MLVVSS IC9300 AK5 VSS IC9300 G32 MLVVSS IC9300 A3 VSS IC9300 AK22 VDDR IC9300 AL6 A1AVDD_2 IC9300 AB15 VSS IC9300 W22 VSS IC9300 AB31 VSS IC9300 AL11 LVVSS IC9300 AB20 VDDA IC9300 AP21 VSS IC9300 R32 VDD12 IC9300 U4 VSS IC9300 V29 VSS IC9300 AN20 VSS IC9300 AB21 VDDR IC9300 AP29 VSS IC9300 J31 MLVVDD33 IC9300 AM11 LVVSS IC9300 K30 MLVVDD33 IC9300 AM34 VSS IC9300 R22 VDD12 IC9300 AA16 VSS IC9300 AK21 VSS IC9300 P29 VDD12 IC9300 AL22 VDDR IC9300 AJ11 LVVDD33 IC9300 AL14 LVVSS IC9300 N3 VSS IC9300 E4 VDD33 IC9300 D14 MLVVDD33 IC9300 AL8 VDD33 IC9300 E32 MLVVSS IC9300 G31 MLVVDD33 IC9300 C2 VDD33 IC9300 P32 MLVVSS IC9300 V19 VSS IC9300 Y17 VSS IC9300 E18 MLVVDD33 IC9300 P15 VDD12 IC9300 AJ16 IICsync IC9300 C26 MLVVSS IC9300 F5 VDD33 IC9300 AL26 VDDIO IC9300 C20 MLVVSS IC9300 T6 VSS IC9300 T22 VSS IC9300 G29 VSS IC9300 R15 VSS IC9300 C12 MLVVSS IC9300 AM25 VDDIO IC9300 AB33 VDDIO IC9300 F31 MLVVDD33 IC9300 AL4 VSS IC9300 A34 VSS IC9300 W21 DPAVDD IC9300 D22 MLVVDD33 IC9300 L31 MLVVDD33 IC9300 P13 VSS IC9300 AJ26 VSS IC9300 AN18 VSS IC9300 V34 VDDIO IC9300 AA15 VSS IC9300 AK11 LVVDD33 IC9300 AL10 LVVSS IC9300 R4 VSS IC9300 AJ13 LVVDD33 IC9300 V1 VDD33 IC9300 G6 VDD33 IC9300 F28 MLVVDD33 IC9300 D29 MLVVDD33 IC9300 AB16 VSS IC9300 C10 MLVVSS IC9300 R14 VSS IC9300 C25 MLVVSS IC9300 AJ9 VDD33 IC9300 C23 MLVVSS IC9300 C24 MLVVSS IC9300 AN19 VSS IC9300 AF30 VDDIO IC9300 P16 VDD12 IC9300 AN29 VDDIO IC9300 V18 VSS IC9300 AP3 ID0 IC9300 AH32 VDDIO IC9300 T15 VSS IC9300 U20 VSS IC9300 L30 MLVVDD33 IC9300 W16 VSS IC9300 C8 MLVVSS IC9300 T30 VDD12 IC9300 N20 VDD12 IC9300 AN2 VSS IC9300 D15 MLVVDD33 IC9300 Y22 VDDR IC9300 D34 VSS IC9300 AA4 VSS IC9300 V14 VDD12 IC9300 E3 VDD33 IC9300 K29 MLVVDD33 IC9300 F29 VSS IC9300 F17 MLVVDD33 IC9300 N13 VSS IC9300 R17 VSS IC9300 T21 VSS IC9300 AN23 VSS IC9300 AB13 LVVDD12 IC9300 AP5 VDD33 IC9300 AM16 LVVSS IC9300 D17 MLVVDD33 IC9300 M32 MLVVSS IC9300 N32 MLVVSS IC9300 AA21 VSS IC9300 E30 VSS IC9300 T31 VDD12 IC9300 F6 VSS IC9300 D19 MLVVDD33 IC9300 AJ7 VSS IC9300 H32 MLVVSS IC9300 D23 MLVVDD33 IC9300 AL23 VSS IC9300 AP33 VSS IC9300 AD30 VSS IC9300 Y16 VSS IC9300 P20 VDD12 IC9300 U19 VSS IC9300 B33 VSS IC9300 AJ29 VDDIO IC9300 AM32 CK33IN IC9300 C32 VSS IC9300 T14 VDD12 IC9300 T33 VDD12 IC9300 E17 MLVVDD33 IC9300 C34 VSS IC9300 AK33 VDDIO IC9300 U18 VSS IC9300 C7 MLVVSS IC9300 AM17 VSS IC9300 D24 MLVVDD33 IC9300 C29 MLVVSS IC9300 E10 MLVVDD33 IC9300 AA22 VDDA IC9300 F7 VSS IC9300 C14 MLVVSS IC9300 W20 VSS IC9300 AK30 VDDIO IC9300 Y13 VSS IC9300 AM33 FPENF IC9300 AK15 VSS IC9300 AP18 VSS IC9300 N16 MLVVDD12 IC9300 V22 VDDR IC9300 AM20 VSS IC9300 AF6 VDD33 IC9300 AP23 VSS IC9300 M31 MLVVDD33 IC9300 D20 MLVVDD33 IC9300 AF31 VDDIOCK IC9300 AN21 VSS IC9300 G30 MLVVDD33 IC9300 Y18 VSS IC9300 AM9 LVVSS IC9300 AH31 VSS IC9300 AA14 VSS IC9300 F22 MLVVDD33 IC9300 A2 VSS IC9300 AL33 VSS IC9300 C3 VSS IC9300 W14 VDD12 IC9300 AM14 LVVSS IC9300 C27 MLVVSS IC9300 B34 VSS IC9300 AJ1 VSS IC9300 U17 VSS IC9300 H31 MLVVDD33 IC9300 E28 MLVVDD33 IC9300 AM8 LVVSS IC9300 AN24 VDDIO IC9300 AJ23 VSS IC9300 AE31 VSS IC9300 C16 MLVVSS IC9300 AB17 VSS IC9300 K4 VDD33 IC9300 AL24 VSS IC9300 AG32 VSS IC9300 AL32 V_TEST IC9300 D32 VSS IC9300 K31 MLVVDD33 IC9300 N31 MLVVDD33 IC9300 E14 MLVVDD33 IC9300 R29 VDD12 IC9300 AB18 VSS IC9300 L32 MLVVSS IC9300 AL9 LVVSS IC9300 N19 VDD12 IC9300 R18 VSS IC9300 C19 MLVVSS IC9300 E21 MLVVDD33 IC9300 P21 VDD12 IC9300 D3 VDD33 IC9300 AH1 VSS IC9300 D30 TEST1 IC9300 AE32 VDDIO IC9300 AL28 VSS IC9300 T34 VDD12 IC9300 AN33 VSS IC9300 P22 VDD12 IC9300 AM19 VSS IC9300 Y19 VSS IC9300 J6 VDD33 IC9300 F32 MLVVSS IC9300 AG2 VSS IC9300 U16 VSS IC9300 C28 MLVVSS IC9300 W18 VSS IC9300 R21 VDD12 IC9300 AM10 LVVSS IC9300 AJ12 LVVDD33 IC9300 AL12 LVVSS IC9300 AB22 VSS IC9300 C9 MLVVSS IC9300 R31 VDD12 IC9300 F18 MLVVDD33 IC9300 AE3 VSS IC9300 W15 VSS IC9300 AN30 VSS IC9300 N14 VDD12 IC9300 AN26 VSS IC9300 AN3 ID1 IC9300 AA30 VSS IC9300 L29 MLVVDD33 IC9300 AK27 VDDIO IC9300 AM12 LVVSS IC9300 AG34 VDDIO IC9300 V17 VSS IC9300 AM21 VSS IC9300 AK29 VSS IC9300 B3 VSS IC9300 R20 VSS IC9300 AP2 ID2 IC9300 R16 VSS D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L9900 J0JHC0000117 L9904 J0JHC0000117 L9903 J0JHC0000117 L9701 J0JHC0000117 L9700 J0JHC0000117 L9901 J0JHC0000117 P1.8V P1.8V_DDR2 P3.3V P1.2V P5V P3.3V P3.3V VJ9302 VJ9702 TP9010 Q9302 2SD0601A0L Q9301 2SD0601A0L R9391 100k R9116 100 R9369 4.7k R9222 0 R9370 10k R9371 100k VJ9300 PD3H DRVCLK6+ DRVSOS8 5V/3.3V_DET DRVCLK6- GND GND USL P5V/P3.3V DRVCLK9- LE2 ODE2 UMH GND GND DD9_2- DD10_2+ DD15_2- DD15_1- DRVCLK7+ GND DD15_2+ PC4 UEH DD11_2- PC3 DD14_2- DRVCLK8+ DD12_1+ GND DD14_1+ CLR2 GND GND GND DD12_2- P5V_SS GND DD15_1+ DD12_1- DD9_2+ DD14_2+ DD11_1+ DD10_2- DD13_1- DD10_1- DD11_1- DRVCLK8- USH GND DD13_2+ DD11_2+ GND DD9_1+ DD13_1+ GND DD12_2+ DD13_2- UML DD9_1- GND GND DRVCLK7- NC DD10_1+ GND DD14_1- DRVCLK9+ NC ! D-BOARD TXN/D11LBC (5/6) TO C3-BOARD (C31) 33 31 32 IC9300 PD3H MN84528 TH-65PF12CK D-Board (5/6) Schematic Diagram TH-65PF12CK D-Board (5/6) Schematic Diagram 40 43 39 37 41 38 44 45 42 82 TH-65PF12CK 12.30.D 电路板（6/6）线路图 + L8R_DQ29 L8R_DQ13 L8R_DQ30 L8R_DQ5 L8R_DQ23 L8R_DQS3 L8R_DQ28 L8R_DQ25 L8R_DQ7 L8R_DQS2 L8R_DQ12 L8R_DQ11 L8R_DQ22 L8R_DQ14 L8R_DQ24 L8R_DQ21 L8R_DQS0 L8R_DQ10 L8R_DQ3 L8R_DQ1 L8R_DQ31 L8R_DQ18 L8R_DQ19 L8R_DQ9 L8R_DQ27 L8R_DQ4 L8R_DQ16 L8R_DQ15 L8R_DQ0 L8R_DQ20 L8R_DQ17 L8R_DQ8 L8R_DQ6 L8R_DQ26 L8R_DQ2 L8R_DQS1 L8DR_A1 L8R_DQS2 L8R_DQ19 L8DR_A3 L8R_DQ9 L8DR_A8 L8DR_A4 L8DR_A0 L8DR_A4 L8DR_A0 L8R_DQ11 L8DR_XCS0 L8R_DM1 L8R_DQ25 L8DR_CK L8R_DM3 L8DR_BA0 L8R_DQ27 L8R_DQ3 L8R_DQ30 L8DR_A5 L8DR_ODT L8DR_A12 L8DR_A7 L8DR_XCS1 L8R_DQ20 L8DR_A11 L8R_DQS3 L8DR_XWE L8DR_A9 L8DR_BA2 L8R_XDQS3 L8DR_XRAS L8DR_BA1 L8DR_XWE L8DR_A11 L8DR_A9 L8R_DQ5 L8DR_A2 L8DR_XRAS L8DR_A10 L8R_DQ28 L8DR_ODT L8R_DQ23 L8R_DQS0 L8R_DQ31 L8R_DQ16 L8DR_A5 L8R_DQ29 L8R_DQ4 L8R_DQ8 L8DR_A1 L8DR_XCK L8R_XDQS1 L8DR_BA0 L8R_DQ15 L8R_DQ22 L8DR_XCAS L8R_DQ13 L8R_XDQS2 L8R_DQS1 L8R_DQ7 L8DR_BA2 L8DR_CKE L8DR_A6 L8R_DQ1 L8R_DQ26 L8R_DQ24 L8DR_BA1 L8R_DQ17 L8R_DQ12 L8R_DQ6 L8R_DQ10 L8DR_A12 L8DR_A6 L8R_DQ18 L8R_DM0 L8DR_A3 L8R_DQ14 L8DR_A8 L8DR_A10 L8R_DQ2 L8R_XDQS0 L8DR_XCAS L8DR_CKE L8DR_CKE L8R_DM2 L8R_DQ21 L8DR_A2 L8DR_ODT L8R_DQ0 L8DR_A7 L8R_BA2 L8R_XWE L8R_XRAS L8R_XCAS L8R_XCS1 L8R_XCS0 L8R_ODT L8R_CK L8R_XCK L8R_XDQS0 L8R_XDQS1 L8R_XDQS2 L8R_XDQS3 L8R_A5 L8R_A6 L8R_A7 L8R_A12 L8R_XRAS L8R_CKE L8R_XWE L8R_CK L8R_ODT L8R_XCK L8R_BA1 L8R_XCAS L8R_XCS0 L8R_BA2 L8DR_XWE L8DR_BA2 L8DR_XRAS L8DR_XCS1 L8DR_XCS0 L8DR_XCAS L8DR_BA0 L8DR_BA1 L8DR_ODT L8DR_CK L8DR_XCK L8DR_A0 L8DR_A1 L8DR_A2 L8DR_A3 L8DR_A4 L8DR_A5 L8DR_A6 L8DR_A7 L8DR_A8 L8DR_A9 L8DR_A10 L8DR_A11 L8DR_A12 L8R_BA0 L8R_CKE L8R_BA0 L8R_BA1 L8R_A12 L8R_A0 L8R_A1 L8R_A2 L8R_A3 L8R_A4 L8R_A5 L8R_A6 L8R_A7 L8R_A8 L8R_A9 L8R_A10 L8R_A11 L8R_DM2 L8R_DM3 L8R_DM1 L8R_DM0 L8DR_CKE L8R_A4 L8R_A3 L8R_A2 L8R_A1 L8R_A0 L8R_A11 L8R_A10 L8R_A9 L8R_A8 L8R_XCS1 L8DR_CK L8DR_XCK C9953 0.1u 16V C9952 0.1u 16V C9994 16V 0.1u C9995 16V 0.1u C9984 10u 10V C9992 16V 0.1u C9990 16V 0.1u C9991 16V 0.1u C9987 16V 0.1u C9993 16V 0.1u C9997 16V 0.1u C9986 16V 0.1u C9988 16V 0.1u C9985 10u 10V C9996 16V 0.1u C9300 16V 0.1u C9302 16V 0.1u C9303 16V 0.1u C9305 16V 0.1u C9306 16V 0.1u C9310 16V 0.1u C9311 16V 0.1u C9312 16V 0.1u C9313 16V 0.1u C9314 16V 0.1u C9989 68u 4V IC9902 C3ABRY000040 A1 VDD IC9903 C3ABRY000040 A1 VDD IC9903 D2 VSSQ IC9903 C9 VDDQ IC9902 R1 VDD IC9903 L2 BA0 IC9903 F2 VSSQ IC9903 A9 VDDQ IC9903 J7 VSSDL IC9902 J9 VDD IC9903 R3 NC IC9902 L2 BA0 IC9903 H2 VSSQ IC9902 F7 LDQS IC9903 L8 CS IC9903 K2 CKE IC9903 M9 VDD IC9903 N1 VSS IC9902 F3 LDM IC9902 H9 DQ5 IC9903 E9 VDDQ IC9903 H7 DQ2 IC9902 B3 UDM IC9903 P7 A11 IC9902 A3 VSS IC9903 G2 DQ1 IC9902 M9 VDD IC9902 N2 A3 IC9903 K3 WE IC9903 P3 A9 IC9903 R2 A12 IC9902 M7 A2 IC9903 G7 VDDQ IC9902 C7 VDDQ IC9903 F9 DQ7 IC9902 B2 VSSQ IC9902 D9 DQ13 IC9903 N3 A5 IC9902 K2 CKE IC9902 E3 VSS IC9902 N3 A5 IC9902 L3 BA1 IC9902 J2 VREF IC9903 R7 NC IC9902 N8 A4 IC9902 K7 RAS IC9902 R3 NC IC9300 W31 MMDQ0 IC9300 AN27 MMXDQS2 IC9300 AE33 MMA10 IC9903 J1 VDDL IC9300 AD31 MMBA2 IC9903 E8 LDQS IC9902 F1 DQ6 IC9903 M2 A10 IC9902 P3 A9 IC9903 A2 NC IC9902 C9 VDDQ IC9300 AP26 MMDQS3 IC9902 H1 DQ4 IC9903 E2 NC IC9902 F9 DQ7 IC9300 AM26 MMDM3 IC9903 D3 DQ11 IC9902 D7 DQ10 IC9300 AF34 MMA7 IC9903 D8 VSSQ IC9903 R1 VDD IC9902 H3 DQ3 IC9300 AP25 MMDQ27 IC9902 G8 DQ0 IC9903 A3 VSS IC9903 N7 A6 IC9903 L3 BA1 IC9903 L7 CAS IC9903 J8 CK IC9300 Y30 MMVREF0 IC9903 C8 DQ8 IC9300 Y32 MMXDQS0 IC9300 AH29 MMRODT IC9300 AM29 MMDQ18 IC9903 D7 DQ10 IC9300 AD32 MMXWE IC9300 AH30 MMXCAS IC9300 AA33 MMDM1 IC9902 K3 WE IC9300 AC30 MMBA0 IC9903 H9 DQ5 IC9902 H2 VSSQ IC9902 K9 ODT IC9300 AJ32 MMXCS1 IC9300 AG31 MMXCS0 IC9300 AH33 MMXCK IC9902 B7 UDQS IC9300 AN32 MMRDRV IC9300 AP31 MMDQ22 IC9903 P8 A8 IC9300 AN31 MMDQ23 IC9300 AD29 MMA5 IC9300 AB34 MMDQ11 IC9902 G9 VDDQ IC9300 AJ25 MMDQ24 IC9300 AA31 MMDQ9 IC9300 AK26 MMVREF1 IC9300 AE29 MMA12 IC9902 F8 VSSQ IC9300 AG33 MMA9 IC9902 D3 DQ11 IC9300 U31 MMDQ5 IC9902 M8 A0 IC9300 AF32 MMA1 IC9300 AG30 MMXRAS IC9300 AB32 MMDQ10 IC9300 U32 MMDQ7 IC9300 AM28 MMDM2 IC9300 Y34 MMXDQS1 IC9903 P9 VSS IC9902 C1 VDDQ IC9300 AC33 MMDQ15 IC9300 AN34 MMA11 IC9300 W34 MMDM0 IC9300 V32 MMDQ3 IC9300 AC31 MMCKE IC9300 AL27 MMDQ17 IC9300 AB30 MMDQ13 IC9300 AF29 MMODT IC9300 AM24 MMDQ30 IC9300 AJ27 MMDQ20 IC9300 AK34 MMA6 IC9902 R8 NC IC9300 AA34 MMDQS1 IC9300 AK24 MMDQ28 IC9300 U34 MMDQ6 IC9902 C2 DQ9 IC9300 V30 MMDQ4 IC9300 AJ31 MMA0 IC9300 AP27 MMXDQS3 IC9300 AN28 MMDQS2 IC9300 AJ28 MMDQ21 IC9300 AL25 MMDQ25 IC9300 AP24 MMDQ31 IC9300 AL30 MMVCAL IC9300 AJ24 MMDQ29 IC9300 AE34 MMBA1 IC9300 W29 MMDQ1 IC9300 AB29 MMDQ12 IC9300 AK28 MMDQ16 IC9300 AK32 MMA2 IC9300 V33 MMDQ2 IC9300 AP30 MMDQ19 IC9300 AA29 MMDQ8 IC9300 AN25 MMDQ26 IC9903 G9 VDDQ IC9902 F2 VSSQ IC9903 H8 VSSQ IC9902 D2 VSSQ IC9903 G1 VDDQ IC9903 G3 VDDQ IC9903 J9 VDD IC9903 C7 VDDQ IC9903 E1 VDD IC9903 P2 A7 IC9903 B7 UDQS IC9902 N1 VSS IC9902 N7 A6 IC9903 B3 UDM IC9902 B9 DQ15 IC9902 L1 NC IC9902 C8 DQ8 IC9902 A2 NC IC9903 M7 A2 IC9902 B8 VSSQ IC9903 B2 VSSQ IC9903 B1 DQ14 IC9903 L1 NC IC9903 F8 VSSQ IC9902 L7 CAS IC9903 N8 A4 IC9902 J8 CK IC9902 M3 A1 IC9903 D9 DQ13 IC9903 K8 CK IC9902 E8 LDQS IC9902 E7 VSSQ IC9902 G1 VDDQ IC9903 B9 DQ15 IC9903 F1 DQ6 IC9902 K8 CK IC9902 J1 VDDL IC9902 C3 VDDQ IC9903 C2 DQ9 IC9902 J7 VSSDL IC9902 H7 DQ2 IC9902 H8 VSSQ IC9902 A9 VDDQ IC9903 C3 VDDQ IC9902 P8 A8 IC9902 R7 NC IC9902 L8 CS IC9903 H1 DQ4 IC9903 E7 VSSQ IC9902 R2 A12 IC9902 P2 A7 IC9300 AD34 MMDQ14 IC9903 A8 UDQS IC9903 J3 VSS IC9903 M3 A1 IC9903 A7 VSSQ IC9902 D1 DQ12 IC9903 N2 A3 IC9902 E2 NC IC9902 E1 VDD IC9902 A7 VSSQ IC9903 J2 VREF IC9902 D8 VSSQ IC9902 P7 A11 IC9903 B8 VSSQ IC9903 G8 DQ0 IC9902 J3 VSS IC9902 G2 DQ1 IC9902 G7 VDDQ IC9902 E9 VDDQ IC9903 K7 RAS IC9902 M2 A10 IC9903 C1 VDDQ IC9903 F7 LDQS IC9902 P9 VSS IC9903 R8 NC IC9903 F3 LDM IC9903 D1 DQ12 IC9902 B1 DQ14 IC9902 A8 UDQS IC9903 H3 DQ3 IC9903 E3 VSS IC9903 M8 A0 IC9902 G3 VDDQ IC9903 K9 ODT IC9300 AJ34 MMA4 IC9300 AE30 MMA3 IC9300 AL34 MMA8 IC9300 AH34 MMCK IC9300 W33 MMDQS0 P1.8V_DDR2 P1.8V_DDR2 VREF P1.8V_DDR2 ZA9001 K4AZ01D00004 R9083 0 R9085 47 R9406 47 R9407 47 R9408 47 R9409 47 R9413 47 R9414 47 R9415 47 R9416 47 R9417 47 R9418 47 R9419 47 R9420 47 R9421 47 R9422 47 R9087 100 R9399 75 R9404 47 R9403 10k R9411 47 R9424 47 R9401 220 R9996 1k R9405 47 R9999 10k R9412 47 R9410 47 R9998 220 R9423 47 R9084 0 R9997 1k R9398 300 R9086 47 C9081 0.1u 16V DDR-Terminate to DDR DDR2 #1 DDR2 #0 84FBGA 84FBGA ! D-BOARD TXN/D11LBC (6/6) IC9300 PD3H MN84528 DDR2 IC9902,03 C3ABRY000040 TH-65PF12CK D-Board (6/6) Schematic Diagram TH-65PF12CK D-Board (6/6) Schematic Diagram 49 52 48 46 50 47 53 54 51 83 TH-65PF12CK 12.31.C1 电路板（1/2）线路图 TERM SIDE TERM SIDE TERM SIDE AC_PCD1 AC_CLRD1 AC_ODED1 AC_ODED1 AC_LED1 DD2_1+ DRVCLK2+ DD3_2- AC_LED1 DRVCLK2- DD2_1- DRVCLK2+ DD2_2- DRVCLK2- DD2_2+ AC_LED1 AC_ODED1 DD3_1+ AC_PCD1 AC_CLRD1 AC_CLRD1 DD1_2+ DRVCLK1- DD1_1- DD1_1+ AC_PCD1 DD1_2- DD3_1- DD3_2+ DRVCLK1+ C17134 100V 0.33u C17103 10V 1u C17136 100V 0.33u C17102 10V 1u C17101 10V 1u C17132 100V 0.33u 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 C1_P5_3.3V C1_P5_3.3V VDA C1_P5_3.3V VDA VDA ZA17105 K4CD01000013 ZA17101 K4CD01000013 ZA17103 K4CD01000013 ZA17102 K4CD01000013 ZA17104 K4CD01000013 R17116 100 R17112 100 R17121 100 R17123 200 R17122 200 R17114 100 R17113 100 R17134 1 R17131 1 R17136 1 R17199 150 R17115 100 R17111 100 55 1 55 1 55 1 55 1 C10 1 55 1 55 CB1 CB2 CB3 CB4 CB5 ! CB2 CB1 TO PANEL DATA CB3 DRIVER TO TO PANEL DATA PANEL DATA DRIVER DRIVER 1 2 C1-BOARD TNPA4990 (1/2) NC HBLK(ODE) GND LBLK(BLK) GND DM TEST1(GND) NC(GND) NC(GND) GND NC(GND) VDD2 CLK(+) GND VDD2 GND NC VDD2 CLR VDD2 VDD2 VDD2 GND GND NC(GND) VDD2 GND A2(-) A1(-) NC VDD2 VDD2 NC VDD1 GND(TEST) GND LE(LEN) NC A2(+) VDD2 NC GND VDD1 NC(GND) VDD2 GND NC CLK(-) A1(+) GND GND DM VDD2 GND GND NC GND VDD2 GND VDD2 GND A2(-) A1(-) NC VDD2 VDD2 GND NC CLK(-) A1(+) GND GND DM VDD2 GND HBLK(ODE) LBLK(BLK) DM NC(GND) GND VDD2 GND GND VDD2 VDD2 GND NC GND GND TEST1(GND) NC(GND) NC(GND) CLK(+) VDD2 NC CLR VDD2 NC(GND) VDD1 GND(TEST) GND LE(LEN) NC A2(+) VDD2 NC GND VDD1 NC(GND) VDD2 VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) GND NC CLK(-) GND DM GND NC(GND) VDD2 VDD2 GND A2(+) GND LBLK(BLK) NC(GND) VDD2 GND GND TEST1(GND) CLK(+) CLR GND(TEST) NC NC A1(+) GND VDD2 HBLK(ODE) DM GND VDD1 LE(LEN) VDD2 GND VDD1 NC(GND) VDD2 GND VDD2 GND A2(-) A1(-) NC VDD2 VDD2 VDD2 GND NC TH-65PF12CK C1-Board (1/2) Schematic Diagram TH-65PF12CK C1-Board (1/2) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 84 TH-65PF12CK 12.32.C1 电路板（2/2）线路图 TERM SIDE TERM SIDE TERM SIDE DD4_1- AC_ODED1 AC_PCD1 AC_CLRD1 AC_CLRD1 AC_PCD1 AC_ODED1 DD4_2- DRVCLK3+ AC_LED1 DD4_1+ DRVCLK3- DD4_2+ AC_LED1 DRVCLK1- DD1_2+ DD3_2- DRVCLK2+ DD4_2+ DD3_2+ DD3_1+ DD4_1- DD1_1- DD2_2- DD2_1+ DD2_2+ DRVCLK2- DD3_1- DD4_2- DRVCLK1+ DD2_1- DD5_1+ DRVCLK3- DD5_2+ DD5_1- DRVCLK3+ DD5_2- DD4_1+ AB_LED1 AC_ODED1 DRVCLK3- DD5_1- AC_LED1 AC_PCD1 DD5_2- DRVCLK3+ DD5_1+ AC_CLRD1 DD5_2+ AB_PCD1 AB_PCD1 AB_LED1 DD1_2- DD1_1+ AB_CLRD1 AB_CLRD1 AB_ODED1 C17104 10V 1u C17140 100V 0.33u C17138 100V 0.33u C17105 10V 1u C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 C14 1 2 C1_P5_3.3V C1_P5_3.3V C1_P5_3.3V VDA VDA VDA R17142 EXB38V470JV R17104 0 R17118 100 R17120 100 R17117 100 R17124 200 R17125 200 R17126 1k R17140 1 R17138 1 R17127 220k R17105 0 R17119 100 LE1 ODE1 P5V/P3.3V VDA PC1 GND VDA GND VDA NC NC NC CLR1 VDA DRVCLK1+ GND DRVCLK2- DRVCLK2+ GND GND DRVCLK3- DRVCLK3+ GND DD5_1+ DD5_2+ DD5_2- DD5_1- DD4_1+ DD4_2- DD4_2+ DD4_1- DD3_1+ DD3_2- DD3_2+ DD3_1- GND DD2_2+ DD2_1- DD2_1+ DD2_2- DRVCLK1- GND DD1_1+ DD1_2+ DD1_1- DD1_2- GND GND GND GND P5V/P3.3V NC 5V/P3.3V_DET NC KEY ! DRIVER CB4 CB5 TO PANEL DATA PANEL DATA TO C2-BOARD (C20) TO DRIVER 1 2 NC VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND VDD2 GND A1(-) VDD2 GND NC(GND) GND LBLK(BLK) GND GND(TEST) GND DM LE(LEN) VDD1 GND A2(-) NC VDD2 VDD2 GND VDD2 CLK(+) NC VDD2 GND VDD2 NC(GND) VDD2 NC VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND VDD2 GND A1(-) VDD2 GND NC(GND) GND LBLK(BLK) GND GND(TEST) GND DM LE(LEN) VDD1 GND A2(-) NC VDD2 VDD2 GND VDD2 CLK(+) NC VDD2 GND VDD2 NC(GND) VDD2 C1-BOARD TNPA4990 (2/2) TH-65PF12CK C1-Board (2/2) Schematic Diagram TH-65PF12CK C1-Board (2/2) Schematic Diagram 13 16 12 10 14 11 17 18 15 85 TH-65PF12CK 12.33.C2 电路板（1/2）线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_PCD2 DD6_2- AB_CLRD1 DD6_2+ DD6_1- AB_LED1 DRVCLK4- AB_ODED1 DD6_1+ AB_PCD2 DD7_2- AB_CLRD1 DD7_2+ DD7_1- DRVCLK4- AB_ODED1 DD7_1+ AB_PCD2 DD8_2- AB_CLRD1 DD8_2+ DD8_1- AB_LED1 AB_ODED1 DD8_1+ DRVCLK5- DRVCLK5+ DD5_1- DD5_2+ DRVCLK3- DD5_1+ DD2_1- DRVCLK1+ DD4_2- DD3_1- DRVCLK2- DD2_2+ DD2_1+ DD2_2- DD4_2+ DD1_1+ DD4_1- DRVCLK2+ DD3_1+ DD3_2- DD3_2+ DRVCLK1- DD4_1+ DD1_2- DD5_2- DD1_2+ DD1_1- DRVCLK3+ AB_PCD1_C1 AB_ODED1_C1 AB_LED1_C1 AB_LED1 DRVCLK4+ DRVCLK4+ DD5_1+ DD5_1- DD8_1- DRVCLK5+ DD5_2+ DRVCLK5- DD8_2+ DD5_2- DD4_1+ DD4_1- DD8_1+ DD6_2- DRVCLK4+ DD3_1- DD4_2+ DD4_2- DD3_2- DD3_2+ DRVCLK2+ DD2_1+ AA_ODED1 DRVCLK2- DD8_2- DD3_1+ DD2_2- AA_LED1 DRVCLK4- DD2_2+ DD2_1- DRVCLK1+ DD7_1+ DRVCLK1- DD7_1- DD1_2- DD1_1+ DD1_1- DD1_2+ DD7_2+ AA_CLRD1 DD7_2- DD6_1+ AA_PCD2 DD6_1- DRVCLK3+ AA_PCD1 DD6_2+ DRVCLK3- AB_PCD1_C1 AB_ODED1_C1 AB_PCD2 AB_CLRD1 AB_LED1 AB_CLRD1_C1 AB_LED1_C1 AB_CLRD1_C1 AA_LED1 AA_CLRD1 AA_PCD1 AA_ODED1 AA_PCD2 AB_ODED1 C17205 10V 1u C17201 10V 1u C17204 10V 1u C17234 100V 0.33u C17237 100V 0.33u C17238 100V 0.33u C17213 16V 0.1u C17241 50V 100p C0JBAU000073 IC17201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 VDA VDA C2_P5_3.3V C2_P5_3.3V C2_P5_3.3V VDA C2_P5_3.3V C2_P5_3.3V VDA C2_P5_3.3V R17259 EXB38VR000V R17258 EXB38V470JV R17247 EXB38V681JV R17218 100 R17226 680 R17222 200 R17216 100 R17224 100 R17271 0 R17272 0 R17223 200 R17217 100 R17215 100 R17204 0 R17237 1 R17233 1 R17235 1 R17214 100 R17213 100 C17243 50V 100p C17244 50V 100p C17245 50V 100p DRVCLK3+ GND DRVCLK3- GND GND PC1 CLR1 DD4_2- DD4_1- KEY GND DRVCLK4+ DRVCLK4- DD6_2- DD6_1- P5V/P3.3V P5V/P3.3V DD8_2+ DD8_1+ GND DD2_2+ GND DD2_1+ DD7_2- DRVCLK2+ DD7_1- DRVCLK2- DD5_2- DD5_1- DD7_2+ LE1 DD7_1+ PC2 DD2_2- DD2_1- GND ODE1 DD4_2+ DD8_2- DRVCLK1- DD4_1+ DD8_1- P5V/P3.3V NC DD1_1+ DD1_1- GND GND DD3_2+ DRVCLK1+ DD3_1+ DD5_2+ DD5_1+ GND GND DD3_2- GND DD3_1- GND GND GND DD1_2- DD1_2+ DD6_2+ DD6_1+ DRVCLK5+ DRVCLK5- GND ! TO C1-BOARD (C10) DRIVER TO CB6 PANEL DATA CB7 TO PANEL DATA DRIVER CB8 PANEL DATA DRIVER TO BUFFER TO D-BOARD (D31) 1 2 NC VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND VDD2 GND A1(-) VDD2 GND NC(GND) GND LBLK(BLK) GND GND(TEST) GND DM LE(LEN) VDD1 GND A2(-) NC VDD2 VDD2 GND VDD2 CLK(+) NC VDD2 GND VDD2 NC(GND) VDD2 C2-BOARD TNPA4991 (1/2) GND DD4_1- DD3_1+ DD1_1- DD1_2- P5V/P3.3V VDA DD5_1- DD4_1+ GND GND PC1 GND DD2_2+ DD2_1- VDA NC GND GND GND GND DD1_1+ DD1_2+ P5V/P3.3V NC 5V/P3.3V_DET NC KEY GND DD5_1+ DD2_1+ DD2_2- DD4_2- DD4_2+ DD5_2+ DD5_2- NC NC DRVCLK3- DRVCLK3+ DRVCLK1- CLR1 VDA VDA GND DRVCLK1+ GND LE1 ODE1 DD3_2- DD3_2+ DD3_1- GND DRVCLK2- DRVCLK2+ NC VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND VDD2 GND A1(-) VDD2 GND NC(GND) GND LBLK(BLK) GND GND(TEST) GND DM LE(LEN) VDD1 GND A2(-) NC VDD2 VDD2 GND VDD2 CLK(+) NC VDD2 GND VDD2 NC(GND) VDD2 NC VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND VDD2 GND A1(-) VDD2 GND NC(GND) GND LBLK(BLK) GND GND(TEST) GND DM LE(LEN) VDD1 GND A2(-) NC VDD2 VDD2 GND VDD2 CLK(+) NC VDD2 GND VDD2 NC(GND) VDD2 TH-65PF12CK C2-Board (1/2) Schematic Diagram TH-65PF12CK C2-Board (1/2) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 86 TH-65PF12CK 12.34.C2 电路板（2/2）线路图 TERM SIDE TERM SIDE TERM SIDE DD9_1- AB_ODED1 DD9_2+ DD9_2- DD9_1+ DRVCLK6+ DRVCLK6- AB_PCD2 AB_CLRD1 DD10_1+ DD10_2- AB_CLRD1 DD10_2+ AB_ODED1 DD10_1- AB_PCD2 DRVCLK6- DRVCLK6+ AB_LED1 AB_LED1 DRVCLK6- DD9_2- DD9_2+ DD9_1- DD9_1+ DD10_2- DD10_2+ DD10_1- DD10_1+ DRVCLK6+ C17240 100V 0.33u C17206 10V 1u C17231 100V 0.33u C17207 10V 1u C26 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 VDA C2_P5_3.3V C2_P5_3.3V C2_P5_3.3V VDA VDA ZA17204 K4CD01000013 ZA17203 K4CD01000013 ZA17202 K4CD01000013 ZA17201 K4CD01000013 ZA17205 K4CD01000013 R17220 100 R17212 100 R17228 220k R17225 200 R17211 100 R17239 1 R17231 1 R17219 100 R17221 200 1 C21 68 55 1 55 1 C26 1 55 1 55 CB6 CB7 CB8 CB9 CB10 30 1 55 1 55 1 C20 NC DD10_1- VDA VDA NC DD9_1- GND DD10_2- GND P3.3V GND GND P3.3V_DET VDA VDA DD10_1+ DRVCLK6+ GND DD9_2+ NC GND VDA DD10_2+ DD9_2- DRVCLK6- P3.3V DD9_1+ GND GND NC ! CB9 PANEL DATA DRIVER TO PANEL DATA DRIVER TO CB10 TO C3-BOARD (C36) 1 2 NC VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND VDD2 GND A1(-) VDD2 GND NC(GND) GND LBLK(BLK) GND GND(TEST) GND DM LE(LEN) VDD1 GND A2(-) NC VDD2 VDD2 GND VDD2 CLK(+) NC VDD2 GND VDD2 NC(GND) VDD2 NC VDD2 NC GND VDD2 GND NC(GND) NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND VDD2 GND A1(-) VDD2 GND NC(GND) GND LBLK(BLK) GND GND(TEST) GND DM LE(LEN) VDD1 GND A2(-) NC VDD2 VDD2 GND VDD2 CLK(+) NC VDD2 GND VDD2 NC(GND) VDD2 C2-BOARD TNPA4991 (2/2) TH-65PF12CK C2-Board (2/2) Schematic Diagram TH-65PF12CK C2-Board (2/2) Schematic Diagram 13 16 12 10 14 11 17 18 15 87 TH-65PF12CK 12.35.C3 电路板（1/2）线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_USL AB_ODED2_1 DD11_1+ DRVCLK7- DRVCLK7+ DD11_2- AB_PCD3 DD11_2+ DD11_1- DD12_1+ AB_PCD3 DD12_2- DD12_1- AB_LED2_1 AB_ODED2_1 AB_CLRD2_1 DD12_2+ DRVCLK7- DRVCLK7+ AB_CLRD2_1 AB_LED2_1 DD13_1- DD13_2- DD9_2- DD11_1+ DRVCLK8+ DD9_2+ DD10_1+ AA_LED2 AA_CLRD2 DD9_1- DD13_2+ DRVCLK6- AA_ODED2 DRVCLK6+ DD14_2+ DRVCLK9- DD10_2- AA_UML DD12_1- DD10_1- DD11_2+ DD14_1+ DRVCLK7+ DD12_2- AA_PCD3 DD14_1- DD15_1- DD10_2+ DD12_2+ AA_USH DRVCLK7- DRVCLK9+ DD15_2- DD14_2- AA_UEH DD13_1+ AA_USL DRVCLK8- AA_PCD4 DD12_1+ DD9_1+ DD15_2+ DD15_1+ AA_UMH AB_USH AA_USL AA_USH AB_UEH AA_UML AB_UMH AA_UMH AB_UML AB_USL AA_UEH DRVSOS8 DD9_1+ DD9_1- DD9_2+ DRVCLK6+ DD10_1- DD10_1+ DD10_2- DD10_2+ DRVCLK6- DD9_2- DD11_2- AB_PCD3 AB_ODED2_2 AB_PCD4 AB_CLRD2_2 AB_CLRD2_1 AB_ODED2_1 AA_CLRD2 AA_LED2 AA_PCD4 AA_PCD3 AA_ODED2 AB_LED2_2 AB_LED2_1 AB_USH DRVSOS8 AB_UML AB_UEH AB_UMH DD11_1- C17344 50V 100p C17332 100V 0.33u C17311 16V 0.1u C17333 100V 0.33u C17341 50V 100p C17351 16V 0.1u C17301 10V 1u C17345 50V 100p C17304 10V 1u C17343 50V 100p C0JBAZ002692 IC17302 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAU000073 IC17301 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C36 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 C35 1 2 3 4 C33 1 2 3 4 5 6 7 8 9 10 11 12 L17371 J0JGC0000070 L17345 J0JGC0000070 L17351 J0JGC0000070 VDA VDA C3_P5_3.3V SS_5V SS_5V C3_P5_3.3V VDA C3_P5_3.3V SS_5V C3_P5_3.3V C3_P5_3.3V VDA R17348 EXB38V470JV R17349 EXB38V681JV R17347 EXB38V470JV R17345 EXB38V470JV R17346 EXB38V681JV R17350 EXB38V681JV R17351 EXB38V470JV R17334 1 R17353 0 R17313 100 R17372 0 R17323 200 R17311 100 R17312 100 R17314 100 R17326 220k R17322 200 R17352 680 R17331 1 GND VDA VDA NC UML UMH SOS8_SS GND P5V UEH USL USH DD11_1- DRVSOS8 GND DD10_2+ DD10_1+ DRVCLK9- DD14_2- DD13_1- P5V_SS GND GND DD15_1+ DD15_2- GND DRVCLK7+ ODE2 LE2 DD14_2+ DRVCLK8- DD10_2- 5V/3.3V_DET USL UEH DRVCLK6- DD9_2- DD13_2- DRVCLK8+ DRVCLK9+ NC DD14_1+ DRVCLK7- P5V/P3.3V NC GND GND DD11_2+ DD11_1+ DD12_2- DD15_2+ UMH GND GND DD10_1- DD12_2+ DD12_1+ GND GND DD12_1- GND DD9_1+ GND DD13_2+ DD13_1+ DD9_1- DRVCLK6+ DD15_1- GND UML DD14_1- USH PC4 DD9_2+ GND PC3 CLR2 GND GND DD11_2- GND GND GND GND ! 2 1 BUFFER BUFFER DRIVER TO CB12 PANEL DATA DRIVER PANEL DATA TO CB11 TO C2-BOARD (C26) TO D-BOARD (D32) TO P-BOARD (P35) TO SS-BOARD (SS33) C3-BOARD TNPA4992 (1/2) VDA DD10_2+ NC DD10_1- VDA VDA NC GND GND VDA DD10_1+ GND P3.3V_DET VDA DD9_1+ GND GND DD9_2- DRVCLK6- P3.3V DRVCLK6+ GND DD10_2- GND P3.3V NC DD9_1- GND DD9_2+ NC NC VDD2 NC GND VDD2 GND NC(GND) NC(GND) VDD2 NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND GND NC LBLK(BLK) VDD2 GND A2(-) GND DM GND VDD2 LE(LEN) VDD1 VDD2 GND GND GND(TEST) CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND NC VDD2 VDD2 GND VDD2 A1(-) CLK(+) VDD2 GND NC(GND) NC VDD2 NC GND VDD2 GND NC(GND) NC(GND) VDD2 NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND GND NC LBLK(BLK) VDD2 GND A2(-) GND DM GND VDD2 LE(LEN) VDD1 VDD2 GND GND GND(TEST) CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND NC VDD2 VDD2 GND VDD2 A1(-) CLK(+) VDD2 GND NC(GND) TH-65PF12CK C3-Board (1/2) Schematic Diagram TH-65PF12CK C3-Board (1/2) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 88 TH-65PF12CK 12.36.C3 电路板（2/2）线路图 TERM SIDE TERM SIDE TERM SIDE AB_ODED2_1 DD13_1- DD13_1+ AB_PCD3 DD13_2- DD13_2+ DD14_1+ DD14_2- DD14_2+ AB_PCD4 DD14_1- AB_ODED2_2 DD15_1+ DD15_2- AB_ODED2_2 DD15_1- AB_PCD4 DD15_2+ DRVCLK8- DRVCLK8+ DRVCLK8- DRVCLK8+ DRVCLK9- DRVCLK9+ AB_LED2_2 AB_CLRD2_2 AB_CLRD2_2 AB_CLRD2_1 AB_LED2_2 AB_LED2_1 C17352 50V 33p C17338 100V 0.33u C17340 100V 0.33u C17307 10V 1u C17335 100V 0.33u C17305 10V 1u C17306 10V 1u 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 VDA C3_P5_3.3V VDA C3_P5_3.3V C3_P5_3.3V VDA ZA17302 K4CD01000013 ZA17304 K4CD01000013 ZA17303 K4CD01000013 ZA17301 K4CD01000013 ZA17305 K4CD01000013 R17315 100 R17317 100 R17336 1 R17319 100 R17318 100 R17340 1 R17320 100 R17325 200 R17316 100 R17338 1 R17399 150 R17324 200 R17321 100 1 5 5 1 55 1 5 5 1 5 5 1 55 1 CB11 CB12 CB13 CB14 CB15 30 1 C26 1 4 C35 C33 12 1 C31 68 1 ! 1 2 CB13 DRIVER PANEL DATA TO DRIVER TO CB15 PANEL DATA DRIVER TO CB14 PANEL DATA NC VDD2 NC GND VDD2 GND NC(GND) NC(GND) VDD2 NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND GND NC LBLK(BLK) VDD2 GND A2(-) GND DM GND VDD2 LE(LEN) VDD1 VDD2 GND GND GND(TEST) CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND NC VDD2 VDD2 GND VDD2 A1(-) CLK(+) VDD2 GND NC(GND) NC VDD2 NC GND VDD2 GND NC(GND) NC(GND) VDD2 NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND GND NC LBLK(BLK) VDD2 GND A2(-) GND DM GND VDD2 LE(LEN) VDD1 VDD2 GND GND GND(TEST) CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND NC VDD2 VDD2 GND VDD2 A1(-) CLK(+) VDD2 GND NC(GND) NC VDD2 NC GND VDD2 GND NC(GND) NC(GND) VDD2 NC NC(GND) NC DM VDD2 A2(+) NC(GND) TEST1(GND) NC GND GND NC LBLK(BLK) VDD2 GND A2(-) GND DM GND VDD2 LE(LEN) VDD1 VDD2 GND GND GND(TEST) CLK(-) GND VDD2 GND GND CLR A1(+) HBLK(ODE) VDD1 GND NC VDD2 VDD2 GND VDD2 A1(-) CLK(+) VDD2 GND NC(GND) C3-BOARD TNPA4992 (2/2) TH-65PF12CK C3-Board (2/2) Schematic Diagram TH-65PF12CK C3-Board (2/2) Schematic Diagram 13 16 12 10 14 11 17 18 15 89 TH-65PF12CK 12.37.SC 电路板（1/4）线路图 + + + + + + + + + TERM SIDE AA_CML AA_CSL AA_CSH AA_CML2 MAIN_STOP0 AA_SIU AA_CLK AA_CERS AA_SEL AA_OC2 AA_SC_FPGANRST AA_OC1 AA_CPH2 AA_CEL AA_CSH AA_CSL AA_CPH1 AA_CMH AA_CML AA_CML2 AA_CRC1 AA_UHZ AA_CRC2 AA_CIS AA_CMH 15V MIDF 5V C16525 25V 4.7u C16772 25V 4.7u C16521 25V 1u C16536 50V 0.1u C16522 25V 4.7u C16533 50V 0.1u C16566 50V 0.01u C16524 25V 4.7u C16562 16V 1u C16442 50V 3900p C16535 50V 0.1u C16593 50V 1000p C16491 630V 1000p C16582 16V 1u C16441 50V 3900p C16502 25V 4.7u C16501 25V 1u C16581 25V 1u C16471 630V 1000p C16451 50V 3900p C16564 16V 1u C16565 50V 0.01u C16505 25V 1u C16771 16V 1u C16413 1.5u 250V C16443 50V 3900p C16452 50V 3900p C16453 50V 3900p C16454 50V 3900p C16444 50V 3900p C16635 250V 3u C16634 250V 3u C16633 250V 3u C16632 250V 3u C16631 250V 3u C16636 250V 3u C16419 220V 180u 220V 180u C16414 C16523 25V 470u C16411 220V 180u C16410 220V 180u C16415 220V 180u C16563 10V 100u C16503 25V 470u C16408 220V 180u D16411 MA2J11100L D16524 B0ECKP000055 D16480 MA2J11100L D16522 B0ECKP000055 D16523 B0ECKP000055 D16451 B0ECKP000055 D16466 MA2J11100L D16536 B0ECHR000001 D16503 B0ECHR000001 D16464 MA3DF46000LW D16462 MA3DF46000LW D16483 B0FACP000001 D16482 B0FACP000001 D16481 B0FACP000001 D16463 MA3DF46000LW D16461 MA3DF46000LW D16484 B0FACP000001 D16583 B3ABB0000210 C0JBAB000715 IC16464 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAB000715 IC16465 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y IC16581 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC16563 C0JBAB000388 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C0ZBZ0001708 IC16521 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001708 IC16501 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ002692 IC16561 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC16562 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc IC16771 C0CBADC00072 VIN 3 2 COM VOUT 1 SC20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 SC2 1 3 L16405 G0C1R1K00001 L16401 G0C1R1K00001 L16414 G0C1R1K00001 L16402 G0C1R1K00001 L16415 G0C1R1K00001 L16411 G0C1R1K00001 L16413 G0C1R1K00001 L16416 G0C1R1K00001 L16404 G0C1R1K00001 L16403 G0C1R1K00001 15V 15V 5V SOS7_SC2 15V PC16461 B3PBA0000457 1 2 3 4 5 6 7 8 TP32 TP92 TP31 TP35 TP30 TP15 TP39 TP36 TP29 TP9 TP97 TP71 TP88 TP28 TP11 TP40 TP52 TP34 TP3 TP33 TP2 TP10 TP21 TP5 TP24 TP8 TP37 TP72 TP91 TP38 TP14 TP89 TP26 TP70 TP46 TP93 TP23 TP20 TP82 TP22 TP1 TP19 TP18 TP17 TP25 TP7 TP90 TP98 TP4 TP6 TP16 Q16443 2PG0430001TV Q16441 2PG0430001TV Q16451 2PG0430000RP Q16444 2PG0430001TV Q16442 2PG0430001TV Q16452 2PG0430000RP Q16453 2PG0430000RP Q16454 2PG0430000RP Q16532 B1HFPFA00001 Q16531 B1HFPFA00001 Q16552 B1HFPFA00001 Q16551 B1HFPFA00001 R16567 EXB38V472JV R16562 EXB38V470JV R16566 EXB38V472JV R16564 EXB38V470JV R16570 EXB38V472JV R16565 EXB38V472JV R16568 EXB38V472JV R16591 EXB38V472JV R16563 EXB38V470JV R16561 EXB38V470JV R16579 EXB38V470JV R16592 4.7k R16543 47k R16542 10 R16466 56k R16476 4.7k R16538 10 R16587 2.2k R16539 47k R16415 330 R16453 5.6 R16452 5.6 R16553 47k R16582 39k R16544 47k R16502 100 R16501 100 R16509 1 R16441 5.6 R16551 10 R16536 1 R16465 27k R16444 5.6 R16540 47k R16454 5.6 R16451 5.6 R16521 100 R16522 100 R16531 10 R16467 82k R16593 1.4k R16533 47k R16584 6.8k R16588 10k R16532 47k 75 R16523 R16574 150 R16411 270 R16585 1k R16586 2.15k R16468 82k R16590 220 R16442 5.6 R16416 10k R16414 330 R16583 39k R16552 47k R16410 390 75 R16504 R16443 5.6 SC_FPGANRST CRC1 SEL SIU CLK TPSOS7 TPSOS6 (GREEN LED) P5V CMH CML CPH1 CSL CSH CRC2 RSV OC1 CERS OC2 CIS CPH2 CEL BUFFER BUFFER INVERTER ERROR DET INVERTER INVERTER CSH/CMH GATE DRIVE CIRCUIT FET DRIVER Vad+5V FET DRIVER CSL/CML GATE DRIVE CIRCUIT TO P-BOARD (P2) TO D-BOARD (D20) 11 12 6 1 2 9 3 7 8 10 4 5 ! SC-BOARD TNPA4978AB (1/4) NC NC GND RSV SC_FPGANRST CSL CSH CML CMH P15V P5V GND GND CLK GND SIU SEL CERS CIS CPH1 OC2 SOS6 CPH2 SOS7 GND NC CEL GND GND P15V CRC1 OC1 UHZ GND CRC2 GND Vsus TH-65PF12CK SC-Board (1/4) Schematic Diagram TH-65PF12CK SC-Board (1/4) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 90 TH-65PF12CK 12.38.SC 电路板（2/4）线路图 + + AA_UHZ AA_CRC1 AA_CRC2 AA_CIS AA_CEL C16421 630V 5600p C16753 25V 4.7u C16685 50V 0.1u C16401 5600p 630V C16708 50V 0.1u C16773 25V 4.7u C16707 50V 22p C16641 2200p 630V C16891 25V 1u C16666 50V 82p C16692 50V 0.1u C16661 630V 1000p C16662 630V 1000p C16646 630V 1000p C16665 50V 82p C16645 630V 1000p C16664 50V 82p C16668 50V 220p C16675 50V 390p C16690 160V 100u C16691 160V 100u D16674 B0ECHR000001 D16673 B0ECHR000001 D16865 B0ECKP000047 D16654 MA2J11100L D16649 MA2J11100L D16669 MA2J11100L D16407 MA22D3900L D16653 MA2J11100L D16652 B0ECKP000055 D16902 MA2J11100L D16650 MA2J11100L D16671 MA2J11100L D16702 MA2J11100L D16677 MA3X152D0L D16901 MA3X152E0L D16493 MA3X152E0L D16623 B0FBCN000006 D16422 MA3DF40001TV D16622 B0FBCN000006 D16423 MA3DF40001TV D16401 B0FACR000006 D16402 B0FACR000006 D16642 B0FBCN000007 D16621 B0FBCN000006 D16403 B0FACR000006 D16641 B0FBCN000007 D16643 B0FBCN000007 D16421 MA3DF40001TV D16648 MAZ80510LL D16662 MAZ81500ML D16645 MAZ81500ML D16678 MAZ815000L D16663 MAZ81500ML D16646 MAZ81500ML D16716 MAZ80510LL D16664 MAZ81500ML D16647 MAZ81500ML C0DBZMC00006 IC16692 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0JBAB000715 IC16773 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAC000363 IC16691 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT IC16920 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC16661 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC 15V 5V 5V PC16685 B3PBA0000496 1 2 3 4 5 6 TP103 TP104 Q16818 B1CBGD000001 Q16647 B1CBGD000001 Q16608 B1CBGD000001 Q16660 B1CERR000025 Q16671 B1ABCF000231 Q16645 2SD0601AQL Q16920 B1ABCN000007 Q16702 B1ABCF000231 Q16668 2SD0601AQL Q16678 B1ABCF000231 Q16662 2SD0601AQL Q16677 2SD0601AQL Q16676 B1ABCF000231 Q16649 B1ABCN000007 Q16426 B1JADP000004 Q16661 B1JAER000003 Q16422 B1JADP000004 Q16424 B1JADP000004 Q16423 B1JADP000004 Q16403 2PG0110000RP Q16421 B1JADP000004 Q16405 2PG0110000RP Q16406 2PG0110000RP Q16404 2PG0110000RP Q16402 2PG0110000RP Q16401 2PG0110000RP Q16622 B1JADN000006 Q16621 B1JADN000006 Q16623 B1JADN000006 Q16425 B1JADP000004 Q16670 B1ADCN000007 Q16646 2SB0709ASL Q16701 B1ADCN000007 Q16675 B1ADCN000007 Q16663 2SB0709ASL Q16503 B1HFPFA00001 Q16762 B1HFPFA00001 Q16501 B1HFPFA00001 Q16521 B1HFPFA00001 Q16523 B1HFPFA00001 R16717 1k R16664 2k R16424 7.5 R16404 7.5 R16623 220 R16683 10 R16893 47k R16402 7.5 R16660 2.2k R16497 47k R16401 7.5 R16512 47k R16899 2.21k R16762 47k R16691 56k R16690 4.7k R16711 4.7k R16776 47 R16680 4.7k R16673 4.7k R16901 4.7k R16657 10k R16665 33 R16422 7.5 R16926 2.2k R16677 2k R16678 2k R16654 47 R16694 56k R16668 2k R16667 2k R16923 10k R16896 33k R16769 75 R16503 10 R16516 47k R16921 2.61k R16511 47k R16655 10k R16506 10 R16895 47k R16687 27k R16763 47k R16685 220 R16658 6.49k R16692 1.5k R16661 1.2k R16777 10k R16707 3.9k R16406 7.5 R16526 10 R16524 47k R16892 47k R16525 47k R16405 7.5 R16891 47k R16527 47k R16529 10 R16528 47k R16426 7.5 R16425 7.5 R16621 220 R16421 7.5 R16699 10k R16904 22k R16920 10k R16716 1.8k R16922 2k R16897 1.58k R16653 1.8k R16662 10k R16675 4.7k R16679 7.5k R16712 1k R16430 0 R16656 4.7k R16648 2k R16666 22k R16423 7.5 R16622 220 R16663 6.8k R16650 100k R16927 22k R16688 10.7k R16646 1.21k R16407 0 R16412 0 R16427 0 R16649 33 R16898 2.61k R16652 8.2k R16674 2k R16900 10k R16695 1.5k R16682 10 R16681 10 R16517 47k R16403 7.5 R16651 2k R16686 10k R16761 10 R16894 47k VR16601 5k 1 2 3 235k INVERTER COMPARATOR COMPARATOR NAND GATE SHUNT REG 2 1 12 9 5 4 7 6 8 10 11 3 30 21 25 23 29 28 26 22 27 24 ! SC-BOARD TNPA4978AB (2/4) TH-65PF12CK SC-Board (2/4) Schematic Diagram TH-65PF12CK SC-Board (2/4) Schematic Diagram 13 16 12 10 14 11 17 18 15 91 TH-65PF12CK 12.39.SC 电路板（3/4）线路图 + + + + AA_SC_FPGANRST MAIN_STOP0 15V_F AA_CERS AA_CPH1 AA_CERS C16755 25V 4.7u C16684 50V 0.1u C16725 25V 4.7u C16756 25V 4.7u C16602 50V 22p C16608 50V 220p C16472 25V 1u C16603 630V 1000p C16724 25V 4.7u C16604 630V 1000p C16723 25V 4.7u C16490 16V 1u C16796 25V 470u C16791 25V 220u C16795 25V 470u C16721 50V 100u D16491 MA2J11100L D16679 B0ECKP000055 D16610 MA2J11100L D16474 MA2J11100L D16607 MA2J11100L D16476 MA2J11100L D16624 B0ECKP000055 D16725 MA2J11100L D16618 B0ECKP000055 D16765 B0ECHR000001 D16490 B0ECKP000055 D16615 MA2J11100L D16606 B0ECKM000038 D16721 B0ECHR000001 D16473 MA3X152D0L D16616 MA3X152E0L D16604 MA3X152E0L D16625 MAZ82000ML D16791 MAZ82000ML D16605 MAZ80510LL D16475 MAZ80510LL D16492 MAZ80470ML D16602 MAZ81500ML C0DBZMC00006 IC16490 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBEKA00003 IC16471 1 NC 2 A 3 K 5 A 4 REF C0BBAA000008 IC16491 1 -INPUT 2 GND 3 +INPUT 5 VCC 4 OUTPUT N0BF2GB00002 IC16791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 16V_OUTPUT 12 32V_OUTPUT IC16724 C0CBADC00072 VIN 3 2 COM VOUT 1 IC16725 C0CBADC00072 VIN 3 2 COM VOUT 1 SCNR_PRO 15V CHA 5V 5V PC16480 B3PBA0000498 1 2 3 4 PC16603 B3PBA0000498 1 2 3 4 PC16684 B3PBA0000496 1 2 3 4 5 6 TP68 TP67 TP100 TP099 Q16607 B1CBGD000001 Q16490 B1CBGD000001 Q16601 B1CERR000025 G D S Q16471 B1ABCF000231 Q16602 2SD0601AQL Q16606 2SD0601AQL Q16624 2SB0709ASL Q16603 2SB0709ASL R16496 47 R16627 22 R16614 68k R16611 68k R16610 100k R16498 10k R16607 6.98k R16617 2.2k R16472 2.2k R16474 1k R16493 10k R16490 110k R16606 0 R16869 47k R16609 1k R16480 4.7k R16473 560 R16628 47k R16608 1k R16633 22k R16494 2k R16495 680 R16604 330 R16478 5.6k R16615 1.13k R16613 47k R16605 1.8k R16791 1k 0 R16766 R16684 220 1 R16765 R16634 470 R16471 3.9k R16631 10k R16491 120k R16612 47 R16479 10k R16492 110k R16475 4.7k R16616 1 SHUNT REG SEPA PROTECT DC/DC CONVERTER 5V_F_A 5V_F_B SHUNT REG 27 24 21 26 29 23 25 22 30 28 34 39 40 35 33 36 38 32 37 31 41 ! SC-BOARD TNPA4978AB (3/4) TH-65PF12CK SC-Board (3/4) Schematic Diagram TH-65PF12CK SC-Board (3/4) Schematic Diagram 22 25 21 19 23 20 26 27 24 92 TH-65PF12CK 12.40.SC 电路板（4/4）线路图 + + + + + N1 N3 N2 AA_CML AA_CLK AB_VSET23 AA_OC2 AA_OC1 AA_SEL AA_SIU AB_HIZ AA_CSL AB_VSET23 AB_HIZ VAD C16797 50V 0.1u C16814 50V 560p C16821 0.1u 50V C16869 50V 0.1u C16867 1u 10V C16868 1u 10V C16844 50V 0.1u C16866 1u 10V C16823 5600p 630V C16843 50V 0.1u C16858 0.1u 16V C16857 4700p 50V C16856 1u 10V C16861 0.1u 16V C16860 1u 10V C16863 50V 0.1u C16862 1u 10V C16864 0.1u 50V C16699 25V 470u C16842 160V 100u C16822 400V 47u C16813 220V 220u C16417 220V 180u D16478 B0HCKS000002 D16860 B0ECHR000001 D16711 B0ECHR000001 D16859 B0ECHR000001 D16720 B0ECKP000055 D16811 MA2J11100L D16699 B0ECKP000055 D16477 MA2J11100L D16719 B0ECKP000055 D16792 MA2J11100L D16875 MA2J11100L D16715 B0ECKP000055 D16713 B0ECHR000001 D16820 MA3X152E0L D16821 MAZ824000L D16717 MAZ83300ML D16824 MAZ83300ML D16872 MAZ805100L D16825 MAZ83300ML D16712 MAZ815000L D16714 MAZ815000L D16710 MAZ815000L D16874 MAZ805100L D16871 MAZ805100L C0DBZMC00006 IC16793 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZMC00006 IC16801 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZMC00006 IC16787 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZMC00006 IC16789 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0JBAB000715 IC16564 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0BBAA000008 IC16792 1 -INPUT 2 GND 3 +INPUT 5 VCC 4 OUTPUT IC16786 MIP3900MSSCF 1 VDD 2 CL 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE IC16788 MIP3900MSSCF 1 VDD 2 CL 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE MIP9L02MBS IC16784 1 SOURCE 2 BY 3 FB 5 VCC 6 GND 7 V01 8 VOUT 10 DRAIN SC50 1 2 SC42 1 2 3 4 5 6 7 8 9 SC46 1 2 3 4 5 6 7 8 9 SC41 1 2 3 4 5 6 7 8 9 L16851 G0ZZ00002183 L16472 G0ZZ00002183 L16697 G0C102KA0187 L16698 G0C681MA0065 T16699 G4DYA0000179 1 NC 2 4 5 NC 6 NC 7 8 9 10 5V CHA 15V SOS7_SC2 SCNR_PRO ZA16423 TUXJ490 ZA16402 K4CD01000011 ZA16421 TUXJ490 ZA16411 TUXJ490 ZA16401 K4CD01000011 ZA16413 TUXJ490 ZA16403 K4CD01000011 PC16896 B3PBA0000498 1 2 3 4 PC16723 B3PBA0000498 1 2 3 4 PC16722 B3PBA0000498 1 2 3 4 TP59 TP94 TP95 TP51 TP64 TP60 TP43 TP102 TP41 TP81 TP101 TP44 TP79 TP42 TP80 TP62 TP96 TP45 TP84 TP63 TP78 TP83 TP61 Q16817 B1CBGD000001 Q16874 B1CBGD000001 Q16810 B1ABCF000231 Q16882 B1ABCF000231 Q16743 2SD0601A0L Q16815 B1ABCN000007 Q16816 2SD0601AQL Q16876 B1ABCF000231 Q16875 B1ABCF000231 Q16884 2SD0601A0L Q16667 2SB0709A0L B1ADCN000007 Q16801 R16746 47k R16815 2.49k R16804 100k R16833 10k R16847 4.7k R16733 470k R16742 10k R16775 4.7k R16785 100k R16747 10k R16737 205k R16860 8.2 R16753 220k R16734 4.99k R16873 2.49k R16731 100k R16799 1k R16721 22 R16573 22 R16719 22 R16797 22 R16744 127k R16736 187k R16714 47k R16814 19.6k R16826 10k R16789 10k R16820 100k R16786 100k R16750 12k R16755 12k R16806 1k R16745 22k R16715 10k R16877 680 R16818 30.9k R16756 12k R16713 100k R16795 200k R16838 56k R16823 82k R16824 33k R16875 71.5k R16722 22 R16749 10k R16819 100k R16846 60.4k R16845 68.1k R16831 71.5k R16919 11.8k R16841 56k R16796 56k R16778 2.2 R16720 22 R16773 1k R16851 470k R16772 4.7k R16870 68k R16723 22 R16829 1k R16735 187k R16812 1.8k R16802 47k R16696 2.2 R16794 200k R16821 100k R16813 2.2k R16801 38.3k R16783 150k R16752 4.7k R16848 4.7k R16844 1.24k R16825 150k R16751 150k R16787 33k R16798 2.2k R16822 82k VR16600 50k 1 2 3 C16460 630V 3300p C16902 3300p 630V ZA16412 TUXJ490 ZA16422 TUXJ490 TPVSCN SC46 SC41 SC42 5V_F_A TPVSET TPVAD VHIZ:85V TPVSUS SHUNT REG COMPARATOR VHIZ GEN. VAD GEN. VSET GEN. VSCN GEN. SHUNT REG VSET23 GEN. INVERTER SHUNT REG SHUNT REG TO SD-BOARD (SD42) FOR FACTORY USE TO SD-BOARD (SD46) TO SU-BOARD (SU41) 41 32 33 35 36 38 34 40 37 39 31 ! 5V_F_B VAD SC-BOARD TNPA4978AB (4/4) TH-65PF12CK SC-Board (4/4) Schematic Diagram TH-65PF12CK SC-Board (4/4) Schematic Diagram 31 34 30 28 32 29 35 36 33 93 TH-65PF12CK 12.41.SS 电路板（1/2）线路图 + + + + + + + + AA_SOS8 AA_UMH AA_UML AA_USL AA_USH AA_UML AA_USH AA_SOS8 AA_UEH AA_USL AA_UMH C16152 25V 4.7u C16251 16V 1u C16153 25V 4.7u C16092 630V 1000p C16133 25V 4.7u C16135 25V 1u C16003 630V 5600p C16154 25V 4.7u C16023 630V 5600p C16252 25V 1u C16131 25V 4.7u C16243 50V 0.01u C16242 16V 1u C16151 25V 1u C16052 50V 3900p C16042 50V 3900p C16071 630V 1000p C16104 25V 47p C16105 25V 47p C16203 250V 3u C16201 250V 3u C16202 250V 3u C16031 1.5u 250V C16205 250V 3u C16204 250V 3u C16334 50V 100p C16333 50V 100p C16332 50V 100p C16335 50V 100p C16336 50V 100p C16241 10V 100u C16015 220V 180u C16017 220V 180u C16011 220V 180u C16012 220V 180u C16013 220V 180u C16016 220V 180u C16271 25V 330u D16131 B0ECKP000055 D16152 B0ECKP000055 D16032 MA2J11100L D16050 B0ECKP000055 D16151 B0ECKP000055 D16255 MA2J11100L D16153 B0ECKP000055 D16052 B0FBCN000008 D16003 B0FCCN000002 D16002 B0FCCN000002 D16053 B0FBCN000008 D16021 B0FBCN000008 D16051 B0FBCN000008 D16025 B0FBCN000005 D16001 B0FCCN000002 D16041 MA3DF46000LW D16043 MA3DF46000LW D16042 MA3DF46000LW D16253 B3ABB0000210 D16281 MAZ80510LL IC16251 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0001708 IC16151 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAZ002811 IC16241 1G 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G 20 VCC SS11 1 3 4 SS33 1 2 3 4 5 6 7 8 9 10 11 12 L16271 G0ZZ00002183 L16014 G0C1R1K00001 L16002 G0C1R1K00001 L16004 G0C1R1K00001 L16015 G0C1R1K00001 L16013 G0C1R1K00001 L16005 G0C1R1K00001 L16001 G0C1R1K00001 L16011 G0C1R1K00001 L16012 G0C1R1K00001 L16003 G0C1R1K00001 VSUS TP071 TP074 TP070 TP068 TP078 TP077 TP20 TP18 TP2 TP14 TP19 TP21 TP7 TP39 TP13 TP072 TP5 TP37 TP6 TP9 TP35 TP41 TP069 TP1 TP17 TP16 TP38 TP40 TP8 TP33 TP073 TP34 TP22 TP10 Q16251 2SD0601A0L Q16004 B1JADN000007 Q16042 2PG0330001TV Q16023 B1JADN000006 Q16021 B1JADN000006 Q16041 2PG0330001TV Q16002 B1JADN000007 Q16025 B1JADN000006 Q16005 B1JADN000007 Q16003 B1JADN000007 Q16052 2PG0330001TV Q16051 2PG0330001TV Q16001 B1JADN000007 Q16022 B1JADN000006 Q16141 B1HFPFA00001 Q16055 B1HFPFA00001 Q16056 B1HFPFA00001 Q16161 B1HFPFA00001 R16241 EXB38V470JV R16242 EXB38V472JV R16005 7.5 R16182 47k R16161 10 R16022 7.5 R16002 7.5 R16024 7.5 R16252 39k R16025 7.5 R16052 5.6 R16003 7.5 R16004 7.5 R16034 27k R16230 47 R16181 10 R16001 7.5 R16171 10 R16132 100 R16251 1.4k R16260 2.2k R16159 1 R16031 82k R16254 6.8k R16183 47k R16253 39k R16151 100 R16021 7.5 R16152 100 R16137 1 R16256 1.5k R16141 10 R16172 47k R16231 4.7k R16143 47k R16032 82k R16257 27k R16255 1.2k 75 R16134 R16155 1 R16041 5.6 R16131 100 R16173 47k R16051 5.6 75 R16154 R16163 47k R16033 56k R16162 47k R16142 47k R16042 5.6 R16258 10k R16280 2.2k R16023 7.5 Q16024 B1JADN000006 C0ZBZ0001707 IC16131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC (GREEN LED) TPVSUS TPSOS8 FET DRIVER RECOVERY ENERGY BUFFER DRIVER VSUS Gen. FET DRIVER ERROR DET TO P-BOARD (P11) TO C3-BOARD (C33) 1 4 3 2 ! VSUS GND 15V UEH GND UML GND GND P5V UMH USH SOS8_SS GND GND USL SS-BOARD TNPA4979AB (1/2) TH-65PF12CK SS-Board (1/2) Schematic Diagram TH-65PF12CK SS-Board (1/2) Schematic Diagram E B 4 D 7 3 1 C 5 F 2 8 9 6 A 94 TH-65PF12CK 12.42.SS （2/2）,SS2 和 SS3 电路板线路图 + TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE + + + AA_UML AA_SOS8 AA_UEH C16288 0.1u 50V C16289 0.1u 50V C16286 0.1u 50V C16287 0.1u 50V C16280 25V 1u C16191 25V 4.7u C16195 25V 4.7u C16192 25V 0.1u C16315 1u 10V C16317 1u 10V C16318 0.1u 50V C16319 50V 0.1u C16316 0.1u 16V C16331 250V 1u C16285 0.1u 50V C16284 0.1u 50V C16193 25V 47u D16192 MA2J11100L D16101 MA22D3900L D16194 B0ECKP000055 D16195 B0ECKP000055 D16193 B0ECKP000055 D16191 B0ECKP000055 D16317 B0ECKP000055 D16316 B0ECKP000055 D16280 MA2J11100L D16284 MA3X152D0L D16286 MA3X152D0L D16285 MA3X152D0L C0DBZMC00006 IC16312 4 REFERENCE 3 CATHODE 1 NC 2 ANODE IC16304 MIP3900MSSCF 1 VDD 2 CL 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS24A 1 2 3 4 5 6 7 8 9 SS22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 L16222 G0ZZ00002183 L16103 G0ZZ00002183 L16303 G0C471KA0167 ZA16001 K4CD01000011 ZA16002 K4CD01000011 ZA16003 K4CD01000011 PC16301 B3PBA0000498 1 2 3 4 PC16191 B3PBA0000496 1 2 3 4 5 6 TP27 TP36 TP43 TP30 TP56 TP53 TP42 TP28 TP25 TP26 TP29 TP31 TP24 TP55 TP58 TP57 Q16101 2SK4208000RP G D S Q16102 2SK4208001TV G D S Q16280 2SD0601A0L Q16191 B1HFPFA00001 R16286 62k R16285 62k R16194 7.5 R16110 47k R16196 7.5 R16309 33k R16302 33k R16103 10 R16101 220 R16195 1 R16191 150 R16319 2.49k R16290 330k R16318 68k R16109 10 R16193 75 R16320 68k R16104 10 R16192 10k R16294 330k R16284 220k R16292 330k R16281 10k R16293 330k R16116 47k R16105 470k R16335 1k R16313 33k R16102 220 R16330 1k R16317 1.6k R16282 220 R16332 470k R16307 68k R16289 330k R16283 47k R16291 330k R16334 4.7k R16312 33k ZA16017 K4ZZ01000216 D16446 B0FBCN000009 ZA16016 K4ZZ01000216 D16445 B0FBCN000009 SS02 1 2 3 4 5 6 7 8 9 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 C16555 2200p 630V D16444 B0FBCN000009 SS59 1 2 3 4 5 6 7 8 9 10 11 12 13 ZA16013 K4ZZ01000216 ZA16015 K4ZZ01000216 C16554 2700p 630V SS03 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 D16442 B0FBCN000009 C16552 2200p 630V SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 D16282 MAZ80680ML C16328 200u 200V C16329 200u 200V D16315 MAZ81500ML C16032 300u 220V TPSS1 Q6004 D6001 Q6022 Q6021 SS22 D6022 D6002 TPVe D6042 D6041 Q6042 Q6041 Q6051 Q6052 D6052 SS11 SS33 D6053 D6043 Q6002 Q6001 Q6003 D6021 Q6024 Q6023 SS24 SS55 SS53 SS54 SS56 Q6025 D6003 Q6005 D6051 Vsus D6023 D6025 TUCJ5917 (150mm) TUCJ5917 (150mm) TUCJ5915 (120mm) TUCJ5916 (135mm) D6024 Q6101 Q6102 FPC DET SHUNT REG. VE GEN. SS2-BOARD ! TNPA4983 SS3-BOARD ! SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL ELECTRODE 2 3 1 4 ! TNPA4984 SS-BOARD TNPA4979AB (2/2) TH-65PF12CK SS-Board (2/2) and SS2, SS3-Board Schematic Diagram TH-65PF12CK SS-Board (2/2) and SS2, SS3-Boardt Schematic Diagram 13 16 12 10 14 11 17 18 15 95 TH-65PF12CK 13 导线图 13.1. P(MULTI) 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK P(MULTI)-Board ETX2MM774MA TH-65PF12CK P(MULTI)-Board ETX2MM774MA P(MULTI)-BOARD (FOIL SIDE) ETX2MM774MA 96 TH-65PF12CK TH-65PF12CK P(MULTI) PARTS LOCATION TH-65PF12CK P(MULTI) PARTS LOCATION P(MULTI) Parts Location P(MULTI)-BOARD (FOIL SIDE) IC301 IC352 IC501 IC555 G-5 H-5 C-2 E-2 PC301 PC302 PC401 PC501 PC502 H-5 H-5 F-2 E-3 D-2 IC PHOTO COUPLER MC401 MC451 MC501 MC701 MC801 F-2 H-5 D-1 G-1 E-3 MODULE Q301 Q302 Q303 Q351 Q352 Q353 Q354 Q401 Q402 Q403 Q501 Q502 Q551 Q552 Q553 Q554 Q555 Q701 Q801 Q802 Q803 Q804 Q805 G-5 F-5 G-5 H-3 G-3 G-3 H-4 G-2 H-3 H-3 E-3 D-3 F-2 H-6 H-6 E-1 E-1 F-1 D-3 E-3 E-3 E-3 E-3 TRANSISTOR TP1 TP2 TP3 TP4 TP7 TP8 TP9 F-4 E-5 D-3 C-2 H-4 F-2 F-2 TEST POINT VR401 H-3 VOLUME Parts Location P(MULTI)-BOARD (COMPONENT SIDE) IC301 IC501 G-2 C-5 IC MC401 MC451 MC501 MC701 MC801 F-5 H-2 D-6 G-6 E-4 MODULE Q301 Q302 Q351 Q401 Q402 Q403 Q801 G-2 F-2 H-4 G-5 H-4 H-4 D-4 TRANSISTOR TP1 TP2 TP3 TP4 TP7 TP8 TP9 F-3 E-2 C-4 C-5 H-3 F-5 F-5 TEST POINT VR401 H-4 VOLUME 97 TH-65PF12CK A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK P(MULTI)-Board ETX2MM774MA TH-65PF12CK P(MULTI)-Board ETX2MM774MA P(MULTI)-BOARD (COMPONENT SIDE) ETX2MM774MA 98 TH-65PF12CK 13.2. P(SUS) 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK P(SUS)-Board ETX2MM774MG TH-65PF12CK P(SUS)-Board ETX2MM774MG P(SUS) P(SUS)-BOARD (FOIL SIDE) ETX2MM774MG Parts Location P(SUS)-BOARD (FOIL SIDE) IC201 F-1 IC202 G-1 IC251 H-2 IC601 D-4 IC PC201 G-2 PC202 E-4 PC231 E-4 PHOTO COUPLER Q201 F-2 Q202 F-2 Q203 E-3 Q204 G-2 Q207 E-2 Q208 F-2 Q209 F-2 Q210 F-2 Q211 G-2 Q212 G-2 Q601 C-2 Q602 B-2 Q603 C-3 Q604 B-3 Q605 D-3 Q606 E-3 TRANSISTOR TP1 D-2 TP2 D-2 TP5 H-4 TP6 H-4 Q607 D-3 Q608 D-3 Q609 D-4 Q610 D-4 Q611 D-4 TEST POINT VR251 H-2 VOLUME 99 TH-65PF12CK A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK P(SUS)-Board ETX2MM774MG TH-65PF12CK P(SUS)-Board ETX2MM774MG P(SUS) P(SUS)-BOARD (COMPONENT SIDE) ETX2MM774MG Parts Location P(SUS)-BOARD (COMPONENT SIDE) IC201 F-4 IC251 H-3 IC Q201 F-3 Q202 F-3 Q207 E-3 Q208 F-3 Q601 C-3 Q602 B-3 Q603 C-3 Q604 B-3 TRANSISTOR TP1 D-4 TP2 D-3 TP5 H-2 TP6 H-2 TEST POINT VR251 H-3 VOLUME 100 TH-65PF12CK 13.3. PB 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK PB-Board TXNPB11LBC TH-65PF12CK PB-Board TXNPB11LBC R860 C859 C862 D850 D851 D852 D853 D854 D855 D856 D857 D858 D859 VJ850 PB30 PB31 PB32 PB33 PB34 PB35 PB36 PB37 PB38 R850 R851 R852 R853 R854 R855 R856 R857 P b F TNPA4962 1 PB S E E R E V E R S EF O R O R D E R N O . 1 4 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 PB30 PB31 PB32 PB33 PB34 PB35 PB36 PB37 PB38 P b F TNPA4962 1 PB O R D E R N O . 1 4 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 PB PB-BOARD (FOIL SIDE) TXNPB11LBC PB-BOARD (COMPONENT SIDE) TXNPB11LBC 101 TH-65PF12CK 13.4. HL 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK HL-Board TXNHL11LBC TH-65PF12CK HL-Board TXNHL11LBC R418 R419 L303 R420 R421 R422 L307 R423 R424 R425 R426 R427 R428 L313 R442 R443 R445 R446 R464 R465 R470 R472 R473 R474 R475 R476 R477 R484 R486 R487 R488 R489 R499 C302 C304 C305 Q302 Q303 C307 PA301 C310 C312 C313 C316 C320 R306 R307 R500 D310 IC305 D313 C337 IC308 R311 C339 R312 R313 R314 R318 C340 IC313 IC314 IC315 R323 R324 R327 R329 C352 R330 C358 R332 R335 R338 C364 C367 C369 R345 R347 R348 R349 T302 C372 C373 C374 C377 C378 R351 R352 R356 R357 R358 R359 R360 R365 R366 R367 R368 R369 R373 R374 R377 R378 R379 R380 R381 R382 R383 R384 R385 R388 R389 R397 R398 R399 R400 R401 R402 R403 R405 R408 R409 R410 R411 R412 R415 R416 R417 1 TNPA4973 CR NO.3 HL PbF 1 2 3 8 2 1 7 O R D E R N O . B1 B2 A1 A2 A40 A39 B39 B40 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 6 7 12 L301 L302 L304 L305 L306 L308 L309 R429 L310 L311 L312 R430 R431 R432 R433 R434 R435 R436 R437 R438 TP301 R R439 TP302 L TP303 Y Pb TP304 TP305 Pr TP306 3.3V TP307 1.8V R440 R441 R444 R447 R448 R449 R450 R451 R452 R453 R454 R455 R456 R457 R458 R459 R460 R461 R462 R463 R466 R467 R468 R469 R471 JK301 JK302 JK303 R478 R479 R480 R481 R482 R483 R485 R490 R491 R492 R493 R494 R495 R496 R497 R498 C301 C303 Q301 C306 Q304 C308 C309 Q305 Q306 Q307 C311 C314 C315 H1 C317 H3 C318 H4 C319 H5 H6 C321 C322 C323 C324 D301 C325 D302 C326 D303 C327 D304 C328 R301 D305 C329 R308 C330 IC301 R309 C331 IC302 C332 IC303 C333 IC304 C334 D311 C335 IC306 D312 C336 IC307 D314 R310 C338 R315 R316 R317 R319 C341 IC312 C342 C343 C344 C345 C346 IC316 C347 R320 C348 R321 C349 R322 S301 R325 S302 R326 S303 S304 R328 C350 S305 C351 R331 C359 R333 R334 R336 R337 C360 R339 C362 C363 C365 C366 R340 C368 R341 R344 R346 C370 T301 C371 C375 C376 R350 R354 R355 R361 R362 R363 FL301 FL302 FL303 FL304 FL305 R370 R371 R372 R375 R376 R386 R387 R390 R391 R392 R393 X301 X302 R404 R406 R407 R413 R414 1 CR NO.3 TNPA4973 HL Y Pb Pr PbF SPD LINK LINK SPD DPLX 1 6 7 12 THERMAL PAD 1 2 7 8 A1 A2 B1 B2 A39 A40 B39 B40 7 1 1 5 1 5 1 9 1 8 9 16 24 25 1 3 4 5 1 4 5 7 1 25 26 50 51 75 76 100 1 24 25 48 1 24 25 48 1 8 9 16 1 7 8 14 + HL-BOARD (FOIL SIDE) TXNHL11LBC HL-BOARD (COMPONENT SIDE) TXNHL11LBC HL 102 TH-65PF12CK 13.5. HX 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK HX-Board TNPA4489AD TH-65PF12CK HX-Board TNPA4489AD JA1 JA2 JA3 JA4 JA5 JA6 JA7 JA8 JA9 L526 R653 R654 R655 R656 JA10 R663 R664 R668 L555 R672 JK509 JK511 JK513 ZA001 C523 C524 D504 D507 D508 D509 R508 R509 IC502 D510 Q531 Q532 R510 R511 C550 C551 R529 C552 C553 R530 C561 C562 R547 R548 FL510 FL511 FL512 FL513 FL514 FL515 FL516 FL517 R776 R777 R778 R585 R586 R589 R590 R591 R592 R593 R790 R791 HX1 C404 C405 C406 C407 C409 TP65 TP66 TP67 TP68 TP69 TP70 TP71 TP72 TP73 TP74 R400 TP75 3 CRNO. TNPA4489 HX 1 3 2 1 D511 D503 D512 C503 PbF 5 9 6 1 1 5 6 1 0 1 1 1 5 N O . O R D E R S E E R E V E R S E F O R 1 4 5 8 1 5 1 JK509 JK511 JK513 ZA001 J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 HX1 1 HX 3 CRNO. TNPA4489 PbF 6 1 9 5 O R D E R N O . 1 5 1 1 5 HX-BOARD (COMPONENT SIDE) TNPA4489AD HX-BOARD (FOIL SIDE) TNPA4489AD HX 103 TH-65PF12CK 13.6. HDE 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK HDE-Board TXNHDE1VZTC TH-65PF12CK HDE-Board TXNHDE1VZTC TP3317 JK3302 TP3347 TP3360 TP3361 TP3362 TP3363 Q3301 Q3302 Q3303 Q3304 H2 H3 H4 IC3301 IC3307 IC3310 IC3314 IC3319 S3301 S3302 IC3320 H10 IC3341 IC3342 IC3343 IC3345 X3301 TNPA4532 1 HDE 5V 5VSTB 9V JK3301 H1 1.2V 15.7V 3.3V GND TEST TP3327 TP3326 TP3331 P b F + S E E R E V E R S E F O R O R D E R N O. 1 10 1 9 1 4 1 4 5 8 1 36 37 72 73 108 109 144 1 32 33 64 65 96 97 128 1 5 8 4 1 4 5 8 1 4 5 8 1 2 12 11 A 1 1 5 1 4 5 8 1 4 5 8 1 9 17 8 16 24 A1 A2 B1 B2 A39 A40 B39 B40 JK3302 Q3305 IC3303 IC3308 IC3312 IC3346 TNPA4532 1 HDE JK3301 H1 PbF 1 3 2 1 4 5 8 1 4 5 7 1 3 4 5 1 36 37 72 73 108 109 144 1 8 9 16 17 24 B1 B2 A1 A2 A40 A39 B39 B40 O R D E R N O . HDE-BOARD (FOIL SIDE) TXNHDE1VZTC HDE-BOARD (COMPONENT SIDE) TXNHDE1VZTC HDE 104 TH-65PF12CK 13.7. V1,V2,S1 和 H3 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK V1-Board TXNV11XBTC V2-Board TXNV21XBTC S1-Board TXNS111LBC H3-Board TXAUW011LBC TH-65PF12CK V1-Board TXNV11XBTC V2-Board TXNV21XBTC S1-Board TXNS111LBC H3-Board TXAUW011LBC JK8500 H37 L8501 L8502 1 H3 TNPA5040 3 1 O R D E R N O . JK8500 D8500 D8501 D8502 D8503 H37 L8501 L8502 TNPA5040 1 H3 P b F 1 3 S E E R E V E R S E F O R O R D E R N O . SW061 S34 L062 L061 P b F 1 3 R1500 C1530 D1551 R1550 D1554 R1551 R1552 R1553 R1554 L1501 L1502 L1503 L1504 L1505 L1506 RM001 TNPA4355 1 V1 SW061 S34 TNPA4357 S1 1 P b F 1 3 O R D E R N O . Q1540 D1550 V2 PbF T N P A 4 3 5 5 O R D E R N O . 1 6 L1507 L1508 V15 1 3 H3 V2 V1 S1 H3 S1-BOARD (FOIL SIDE) TXNS111LBC S1-BOARD (COMPONENT SIDE) TXNS111LBC V1-BOARD (FOIL SIDE) TXNV11XBTC V1-BOARD (COMPONENT SIDE) TXNV11XBTC V2-BOARD (FOIL SIDE) TXNV21XBTC V2-BOARD (COMPONENT SIDE) TXNV21XBTC H3-BOARD (FOIL SIDE) TXAUW011LBC H3-BOARD (COMPONENT SIDE) TXAUW011LBC 105 TH-65PF12CK 13.8. DS 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK DS-Board TNPA4918AB TH-65PF12CK DS-Board TNPA4918AB C3058 C3059 C8070 C8071 C8072 C8073 C8074 C3060 C8075 R3232 R3233 R3234 R3049 R802 R804 R805 R806 R3051 FL8001 FL3000 FL3001 FL3004 C801 C802 C803 C804 R841 C805 C806 C807 C808 C809 C2503 C810 C2504 Q2501 Q2502 Q2503 DS13 DS14 DS15 C826 R865 C831 C832 D2502 C833 C834 R2504 R2505 R2506 R2507 R2508 R2509 C8100 C8101 R2510 C8104 L2400 L2401 L2402 C855 D801 ZA3002 ZA3004 ZA3007 ZA3009 D811 D812 D813 IC801 R3107 C2383 IC804 C884 R3108 C2386 C2389 C2390 R8129 R2369 C2394 C2396 C2397 R2370 R2371 R2372 L3002 R3123 C8181 C8183 C8185 C8187 DS2 DS6 DS8 DS9 R3160 R3161 D8180 D8181 D8183 R8180 D8184 D8185 R8181 L3052 L3053 R8191 VJ801 VJ802 VJ803 C2411 C2420 C2442 C2443 C2444 L2302 L2303 Q8010 C3001 C2449 Q8011 Q8012 Q8013 C3004 C2450 C2451 C2452 R2436 C3213 D8010 C3214 D8011 C3217 C3218 L801 L804 R2450 IC3001 L8101 L8102 L8103 L8104 L8105 C3042 L8106 C3043 R3210 R3211 R3212 R3213 R3214 R3215 R3218 R3219 C3051 C3052 C3057 THERMAL PAD DIP D D R812 C813 C818 ZA3006 D816 R3025 R8045 R8048 C3061 C3063 R3230 C3064 R8050 R3231 R8051 C3066 R8054 R3041 R8055 R8056 R8057 C8080 R3045 C8082 R3047 C8085 R8060 R8065 R3052 R8067 R3055 R8069 R3056 R3057 R3058 R811 R813 R814 R819 R8077 R3067 R3068 L3140 R3069 R821 R822 FL3003 FL3005 R8081 FL3006 R827 FL3007 FL3008 R829 FL3009 R3073 R3074 R3075 R8089 R3076 R3077 R830 FL3010 TPJV1 FL3011 FL3012 FL3013 FL3014 FL3015 R8094 R3081 R8096 R8097 R3083 R3084 R8098 R8099 R3085 R3086 R3087 R3088 R3089 R843 R844 R845 R3093 R3094 R3095 C811 C812 R3096 R3097 R3098 C814 R3099 R851 R852 C816 C817 DS11 C819 DS12 R858 R859 C820 C821 C822 C823 R860 C824 R861 C825 R862 R863 C827 C828 R864 C829 C830 C836 C8103 C8105 C8106 C8107 C8108 C849 C8109 C851 C8111 C8112 C852 C8113 C853 C8114 C3101 C8115 C856 C857 C3103 C3105 C3106 C3107 C3108 ZA3001 C8122 D802 D803 ZA3003 C8123 C3110 ZA3005 C3111 C3112 C3113 C867 R8100 C3114 ZA3008 C3115 C3117 D814 C3120 D815 D817 D818 D819 R3100 R3102 R8116 R8117 R8118 R8119 IC802 IC803 C885 IC805 C886 D827 C887 L8003 D828 R8120 C888 C3134 L8005 C889 R8121 C3135 R8122 C3136 R8126 R3113 R3115 C891 R3116 D833 R3117 D834 C895 R3119 C3143 R8130 C3145 C3146 R3121 L3006 R3125 R3126 R3127 R3128 R3129 C3153 R3130 R3131 R3132 R3135 R3140 R3141 R3143 R2398 Q8183 Q8184 DS1 DS3 DS4 R3152 DS7 R3153 IC3153 R3165 L3050 L3051 TPJH1 R3191 R3192 VJ804 VJ805 VJ806 VJ807 R3197 R3198 VJ808 R3199 VJ809 C2426 Q8002 C8009 C8200 Q8200 Q8201 Q8202 C8013 C8015 C8016 Q8014 C8019 R2427 C3009 Q8019 C3200 C8021 C3201 C2455 C3202 C8023 C3204 C3205 D8001 D8002 C3206 D8003 Q803 C3207 C8027 Q804 Q8024 C3014 Q805 C8029 C3015 R8001 C3209 R8002 Q806 C3016 R8003 C3017 Q807 C3018 R8004 C3019 D8200 C3210 C8030 R8009 D8201 C3211 C3212 C8033 D8203 R8200 D8204 IC8005 C8035 D8205 R2441 R8201 R2442 D8206 R8202 C3023 R8203 R2443 C8038 C3024 R8204 R2444 R8010 R8011 R2445 D8209 C3025 R8205 R8206 L802 D8016 R2446 C3026 R8012 D3003 D8017 R2447 C3027 L803 R8014 L806 D3009 IC8014 C8045 C3031 IC3002 IC8017 IC8018 IC3005 R3201 R2455 C3036 R3202 R2456 IC3006 L813 R3203 R2457 IC3007 C3037 L814 IC3008 R2458 IC3009 R8029 C3040 C3041 R8031 R8037 R8039 R3026 R3027 TNPA4918 1 DS A A B B C C C2385 C2381 C2387 C2388 C2391 C2395 X8181 IC2300 IC2303 IC2305 C837 C838 C841 L2403 C869 C2373 C2374 C2375 C2376 Q2372 C2377 C2382 C2384 C2398 C2399 R2383 R2384 R2385 R2387 R2389 R2390 R2391 R2397 R2399 C8182 R8182 R8183 R8184 IC8181 C2400 C2401 X2301 C2402 C2403 C2423 C2424 C2428 R2400 C2429 R2401 R2404 R2405 R2406 R2407 C2431 C2432 C2433 C2439 C2440 L2300 IC2415 L2301 L2304 C3208 R2449 L807 L808 R2451 R2452 R2453 R867 L815 E E L816 L817 L818 L819 L820 L821 C815 PbF A1 A2 B1 B2 A39 A40 B39 B40 1 15 3 1 1 22 23 44 1 20 21 41 60 61 80 40 1 4 5 8 1 4 5 8 1 3 4 5 NP NP 6 1 1 11 1 3 1 4 1 4 5 8 1 3 4 5 1 10 11 20 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 A39 A40 B39 B40 B1 B2 O R D E R N O . 1 4 5 8 1 4 5 8 1 4 5 8 1 68 1 68 1 9 1 3 1 10 20 11 1 7 8 14 1 10 11 20 1 8 16 9 1 3 4 5 1 3 4 5 1 16 17 32 33 48 49 64 1 8 9 16 1 4 5 8 1 8 9 16 1 3 4 5 DS DS-BOARD (FOIL SIDE) TNPA4918AB 106 TH-65PF12CK A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK DS-Board TNPA4918AB TH-65PF12CK DS-Board TNPA4918AB R807 R3059 DS13 D2303 R2304 C842 C2372 C2378 C2379 C2380 R2367 R2368 D831 C2392 D832 C2393 D837 D838 R2386 R2388 R2392 R2393 R2394 R2395 R2396 R3144 C8185 DS6 DS8 DS9 C2404 C2405 C2406 C2407 C2408 C2409 C2410 C2412 C2413 C2414 C2415 C2416 C2417 C2418 C2419 VJ2300 C2421 VJ2301 VJ2302 C2422 VJ2303 D2400 C2427 C2430 R2408 R2409 C2434 C2435 C2436 C2437 C2438 R2410 R2411 R2412 R2413 R2414 R2415 R2416 R2417 R2418 R2419 C2441 C2445 C2446 C2447 C2448 R2420 R2421 R2422 R2423 R2424 R2425 R2426 C2453 C2454 C2456 C2457 C3203 C2458 C2459 R2431 R2432 R2433 R2434 R2437 C2460 R2438 R2439 R2440 C3219 R2448 D3004 C3220 D8210 D8211 D8212 D8213 R2459 R3205 R3206 R3207 R3216 R3217 C3053 C3054 C3055 C3056 R2454 R2435 R3032 R3033 R3042 R3043 C8081 C8083 C8084 R3048 R3050 R3053 R3054 R810 R815 R818 R3064 R3065 R3066 R820 R823 R825 R3070 R3071 R3072 R3078 R3079 R3080 R840 R848 R3090 R849 R3091 R3092 R850 DS11 DS12 D2304 C835 C839 C840 C8102 C843 C844 C845 C846 C847 C848 C850 R8101 C3116 R8102 R8103 R8104 C3118 C3119 R8105 R8106 R8107 R8108 R8109 C3121 R8110 R8111 R8112 R8113 R8114 R8115 D829 R8127 R3114 C890 D830 R3118 C894 D835 C896 D836 C897 R8131 R8132 R3120 R3122 R3124 R3133 R3134 DS4 R3150 DS7 R3154 R3155 R3156 R3157 R3158 R3159 R3162 R3164 R3166 R8187 R8188 R8189 R8190 R3188 R3189 R3190 R3195 R3196 C8005 C8007 Q8015 Q3002 Q8021 Q801 C3012 Q8022 Q802 Q8023 C3013 C3020 C3215 C3021 C3022 C3216 D8013 D8014 D3001 D8015 R8013 C3028 L805 C3029 D3005 R8015 D3006 D3007 D3008 R3004 L809 C3030 C3033 C3034 R3200 L810 R8021 L811 C3035 R8023 R3204 R8025 R8026 R8035 TNPA4918 1 2 3 1 DS R8125 R8124 C900 C901 C902 R868 R871 R872 PbF A1 A2 B1 B2 A40 A39 B39 B40 1 11 3 1 1 4 A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 S E E R E V E R S E F O R O R D E R N O . 1 9 3 1 DS DS-BOARD (COMPONENT SIDE) TNPA4918AB 107 TH-65PF12CK 13.9. DN 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK DN-Board TXNDN11LBC TH-65PF12CK DN-Board TXNDN11LBC C002 C003 C006 C007 PA4000 PA001 Q005 Q006 Q007 Q008 Q009 C010 C012 C013 Q010 Q011 C015 Q012 Q013 C401 C019 C402 C405 C600 D001 C026 D002 C027 D004 C028 C029 D005 D006 D008 D009 C222 IC001 C033 C034 R203 C037 C038 R205 R011 R206 D016 D017 R014 IC201 IC010 R400 C040 R401 C042 C043 R403 R404 C044 D020 R406 R407 R020 R214 D024 R408 R215 D025 R021 D026 R022 R217 D027 R218 D028 R026 R027 C050 R028 R411 R029 C051 R412 R413 IC023 R414 D030 R221 D031 R222 R416 D032 R223 D033 R224 R419 D035 R226 D036 D037 R227 R033 D038 R228 R034 R229 R035 D039 R036 R038 R230 R424 D040 R425 D041 R231 C065 D042 R232 R233 D043 D044 R234 R235 D045 C452 R236 R042 R043 R044 R045 C457 C458 C459 R432 R433 R434 C460 R438 C461 R439 R053 C466 R440 R441 D062 R254 C089 R255 R256 R257 R258 R259 R642 R643 R067 R644 C090 C091 R452 R453 R454 R260 R455 C095 R261 FL006 C096 R262 FL007 R263 R070 C098 R265 R266 R074 R075 R078 R460 R461 R462 C296 R463 R273 R468 R469 R275 R276 R662 R470 R664 R471 R668 R280 R476 R477 R283 R478 R284 R479 R093 R287 R670 R288 R094 R289 R672 R677 R678 R290 DN1 R291 DN2 DN3 DN4 DN5 R299 DN9 R697 X4000 X001 C104 ZA001 ZA002 C303 ZA003 ZA004 C112 C306 C116 R103 R104 R105 R106 R107R108 R109 C134 R300 R301 R302 C137 R303 R304 R110 R305 R111 R306 R112 R113 R114 R115 R116 R117 C334 R118 R501 R119 DN11 R502 L4000 L001 L002 L003 R508 R314 R120 IC501 R509 R121 L005 L006 R122 L007 R318 R125 R701 R702 R127 R510 R128 R511 R320 R709 L011 C155 R516 R322 L012 R517 C157 R518 IC704 C158 R519 R326 IC513 IC514 IC515 IC901 IC902 IC903 L020 R330 R524 IC904 C358 R525 C165 R526 C166 R527 C167 R333 R334 C168 R335 R336 R337 R338 R339 C361 R146 R147 C170 C171 R532 DN42 C172 R533 C173 R340 R534 C174 R341 R535 C175 R342 C177 R537 R343 R344 R538 C178R345 C179 R346 R152 R347 R153 R348 R154 R349 R155 R156 C180 R158 C181 R159 C182 C183 C184 R351 R352 R353 R354 R160 R355 C189 R161 L046 R356 R162 R163 R164 R165 C382 R166 R550 R551 R169 C191 R552 C193 R553 L0z50 R554 C194 R555 C195 L051 R556 C196 C197 R171 R173 R174 R176 R177 R178 R179 C398 R564 R180 R181 R182 R183 R184 R378 R185 C595 R379 R186 R188 R189 R380 R381 R382 R383 R384 R385 R192 R193 R387 R195 R196 R197 R198 R392 R393 R394 R396 R397 R398 R399 TNPA4917 CR NO.4 DN 1 A A G E B B F F G E C THERMAL PAD THERMAL PAD C R269 C337 L037 L038 L039 L040 L041 FL4000 P b F 1 20 21 40 41 60 61 80 1 A 1 4 5 8 1 5 O R D E R N O . 1 68 1 68 1 15 1 14 1 31 1 5 + 1 2 19 20 1 A 1 3 4 5 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 13 11 9 7 5 12 10 8 6 4 2 B D F H K M N L J G E C 3 1 7 8 14 4 5 8 1 4 5 8 1 1 4 5 8 1 3 4 6 1 37 2 38 + + DN DN-BOARD (FOIL SIDE) TXNDN11LBC 108 TH-65PF12CK A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK DN-Board TXNDN11LBC TH-65PF12CK DN-Board TXNDN11LBC C001 C004 Q001 Q003 C008 Q004 C009 C200 C201 C202 C203 C204 C205 C011 C206 C207 C208 C014 C209 C400 Q014 C018 Q017 C210 Q018 C211 Q019 C212 C406 C213 C407 C214 C020 C408 C215 C216 C022 C023 D4000 C024 Q020 Q021 C025 Q022 Q023 R4000 R001 R002 D007 R003 R005 C223 C224 C030 R008 C225 C226 C227 C228 R200 D010 IC004 R201 C229 IC005 D011 R202 C036 D012 IC007 R010 R204 IC008 C039 R207 R013 C230 R208 D018 C231 R209 C232 C233 R017 C234 R018 IC011 C235 R019 R402 C236 IC012 C237 C238 R210 C239 R211 C045 D021 R405 D022 R212 D023 R213 R409 R216 R023 C240 C241 R219 R025 D029 C242 C243 C244 R410 C245 C246 C052 C247 C053 R220 C054 C248 R415 C249 C055 C056 R417 C057 R418 D034 C058 R030 C059 R031 C250 C251 C252 C253 R037 R420 C254 C060 R421 C255 R039 C061 R422 C256 C062 C257 R423 C063 C258 C064 C259 R426 R427 C067 R428 R040 C068 R429 C069 D046 D047 R237 C260 R238 D048 D049 R239 C261 C262 C263 R047 R430 C264 C070 R048 R431 C265 C071 R049 C266 C072 C267 C073 C268 R240 D050 C074 D051 C269 R241 R435 C075 C076 R436 R242 C077 R437 R243 C078 R244 R050 C079 R245 R051 C462 R052 R246 C463 R247 C464 C270 R248 R054 C465 C271 R055 R249 C272 R056 C273 C467 R057 C274 C080 R058 C081 C275 R059 C082 C276 C083 C277 R444 C084 C278 R250 R445 C279 C085 R251 R446 C086 R252 R447 C087 R253 R448 R060 C088 R061 R062 R063 C280 R064 C281 R065 C282 R066 C283 C284 R068 R069 R645 C092 R646 C093 FL003 C288 C094 FL004 C289 FL005 C097 R264 FL008 R071 C099 R072 R073 R267 C290 C291 R652 R077 R654 R079 R656 C297 R658 C298 R270 R271 R272 R080 R274 R081 R082 R277 R083 R660 R278 R084 R279 R085 R086 R087 R088 R089 R665 R666 R281 R282 R090 R091 R286 R092 R095 R096 R673 R097 R674 R098 R481 R675 R099 R482 R679 R486 R292 R487 R293 R294 R295 R296 R297 R680 R298 R681 R682 R683 R684 R686 R687 R688 R494 R495 R689 R496 R497 R498 R499 R691 R692 R693 R698 C102 C103 C105 C106 C107 C108 C109 C300 C302 C110 C305 C111 C307 C113 C308 C114 C115 C117 C118 C119 C120 C121 C122 C123 C124 C319 C125 C126 C127 C128 R100 C129 R101R102 C320 C321 C322 C323 C324 C130 C325 C131 C326 C132 C327 C133 C328 C329 C135 C136 C138 C139 R307 R308 C330 R309 C332 C333 R500 C140 C335 C141 C142 R503 C143 R310 C338 C144 C339 C145 R311 C146 R312 C147 R313 C148 R315 C149 R316 R317 R123 C340 L008 R124 C341 R319 L009 C342 R126 R703 C343 R704 C344 C150 R705 C345 C151 R129 R706 C346 C152 C347 C153 R708 C348 L010 C154 C349 R321 IC702 C156 C926 IC703 R323 C927 L014 R130 R324 R325 R132 L016 R327 L017 R133 C350 L018 R134 R710 R329 R713 R714 R138 TP4000 R139 R715 TP002 Q352 R716 C357 TP003 R717 R718 TP004 R719 L021 TP005 R331 L022 TP006 L023 TP007 L024 R140 TP008 C169 L025 TP009 L027 C360 R144 L029 R145 R722 R148 TP010 R149 TP011 TP012 C367 TP013 C368 TP014 C369 TP015 L032 TP016 C176 TP017 L034 R150 R539 L036 C370 C371 C372 C373 R157 C374 R540 C375 R541 C376 R542 C377 R543 C378 R350 R544 TP025 C185 R545 TP026 C186 C187 TP027 R548 C188 TP028 R549 TP029 R357 L047 R358 C380 L048 L049 R359 C381 C383 TP030 TP031 C386 C387 R360 C388 C389 R361 R362 R363 R364 C198 R170 C199 R365 R172 R366 R367 C390 R368 C391 R369 R175 C392 C393 R560 C394 C395 C396 C397 FL114 R370 R371 C399 R565 FL115 R372 R566 FL116 R373 FL117 R374 R568 FL118 R375 FL119 R569 R376 R377 R187 R570 R571 R572 R573 R190 R191 R386 R194 R388 R389 R580 R199 R390 R391 R395 R594 TNPA4917 1 DN CR NO.4 A A B B C336 L042 P b F 1 7 8 14 1 7 8 14 1 3 4 5 1 3 4 5 1 3 4 5 1 4 5 7 S E E R E V E R S E F O R O R D E R N O . 1 24 25 48 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 1 4 5 8 + DN DN-BOARD (COMPONENT SIDE) TXNDN11LBC 109 TH-65PF12CK 13.10.D 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK D-Board TXN/D11LBC TH-65PF12CK D-Board TXN/D11LBC TNPA4971 CR NO.9 1 D 1 2 3 IC002 IC808 TP196 TP006 TP200 TP203 TP010 TP204 TP076 TP077 TP862 TP9000 IC004 SEE REVERSE FOR ORDER NO. Q807 TP202 TP201 TP078 TP500 TP314 TP315 TP316 TP313 P b F 1 3 4 5 1 3 4 6 1 16 17 32 TNPA4971 1 D VIN HIN CR NO.9 IC003 IC805 IC806 IC807 TP311 D3 D6 D25 IC500 IC902 IC903 EXTTRMO0 EXTTRMO1 EXTTRMI0 EXTTRMI1 PRCKO GND GND GND GND GND IC001 IC300 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R245 R246 D20 IC303 Q301 Q302 D31 D32 TP312 D5 P b F O R D E R N O . 1 2 19 20 11 10 20 1 11 10 20 1 11 10 20 1 1 26 51 76 100 1 26 51 76 100 1 A 1 A 1 4 5 8 A 1 1 35 1 24 25 48 1 68 1 6 8 1 13 1 15 1 31 + D D-BOARD (COMPONENT SIDE) TXN/D11LBC D-BOARD (FOIL SIDE) TXN/D11LBC 110 TH-65PF12CK 13.11.C1 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK C1-Board TNPA4990 TH-65PF12CK C1-Board TNPA4990 C104 C105 FL101 C131 C132 C133 C134 C135 C136 C137 C138 C139 ZA101 ZA102 ZA103 ZA104 ZA105 C140 R104 R105 R111 R112 R113 R114 R115 R116 R117 R118 R119 R120 R121 R122 R123 R124 R125 R126 R127 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R142 CB1 CB2 CB3 CB4 CB5 R199 C10 C14 C101 C102 C103 1 C1 TNPA4990 CR NO.17 LEPR2 PbF 1 5 5 1 55 1 55 O R D E R N O . 1 55 1 5 5 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 2 3 2 1 1 C1 TNPA4990 PbF S E E R E V E R S E F O R O R D E R N O . C1 C1-BOARD (COMPONENT SIDE) TNPA4990 C1-BOARD (FOIL SIDE) TNPA4990 111 TH-65PF12CK 13.12.C2 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK C2-Board TNPA4991 TH-65PF12CK C2-Board TNPA4991 C20 C21 R271 R272 C26 C27 R291 R292 IC211 CB10 C201 C204 C205 C206 C207 IC201 CB6 CB7 CB8 CB9 C213 FL201 C231 C232 C233 C234 C235 C236 C237 C238 ZA201 C239 ZA202 ZA203 ZA204 ZA205 C240 C241 C242 C243 C244 C245 C274 C275 C276 R204 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R228 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R247 R258 R259 LEPR2 C2 1 CR NO.17 TNPA4991 PbF 1 55 68 1 1 30 1 4 1 68 1 5 5 1 55 O R D E R N O . 1 3 4 6 1 55 1 55 1 10 11 20 1 5 5 1 5 5 1 5 5 1 55 1 55 1 5 5 1 5 5 C2 TNPA4991 1 1 2 3 PbF S E E R E V E R S E F O R O R D E R N O . C2 C2-BOARD (COMPONENT SIDE) TNPA4991 C2-BOARD (FOIL SIDE) TNPA4991 112 TH-65PF12CK 13.13.C3 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK C3-Board TNPA4992 TH-65PF12CK C3-Board TNPA4992 C301 C304 C305 C306 C307 IC301 C31 IC302 C33 C35 C36 C311 C314 FL300 C331 C332 C333 C334 C335 C336 C337 C338 C339 ZA301 ZA302 ZA303 ZA304 ZA305 C340 C341 C342 C343 C344 C345 C351 C352 C353 CB11 CB12 CB13 CB14 CB15 R311 R312 R313 R314 R315 R316 R317 R318 R319 R320 R321 R322 R323 R324 R325 R326 R331 R332 R333 R334 R335 R336 R337 R338 R339 R340 R345 R346 R347 R348 R349 R350 R351 R352 R353 L345 R372 L351 R399 L371 LEPR2 C3 1 CR NO.17 TNPA4992 PbF 1 55 1 55 1 10 11 20 1 68 10 11 20 1 1 12 1 4 1 30 55 1 O R D E R N O . 1 68 1 55 1 55 1 55 55 1 1 55 1 55 1 55 C3 TNPA4992 1 1 2 3 PbF S E E R E V E R S E F O R O R D E R N O . C3 C3-BOARD (COMPONENT SIDE) TNPA4992 C3-BOARD (FOIL SIDE) TNPA4992 113 TH-65PF12CK 13.14.SC 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK SC-Board TNPA4978AB TH-65PF12CK SC-Board TNPA4978AB SC41 SC42 TP90 TP91 TP92 SC46 TP93 TP94 TP95 TP96 TP97 L697 SC50 L698 L699 C563 TP100 TP101 TP102 TP103 TP104 IC784 IC786 IC788 C791 C795 C796 R713 R731 T699 ZA421 ZA422 ZA423 ZA411 ZA412 ZA413 VR600 VR601 C408 C410 C411 C413 C414 C415 C416 C417 R774 C419 R778 C806 C813 C822 C631 C632 C633 C440 C634 C635 Q401 Q402 C636 Q403 Q404 Q405 Q406 D401 Q601 D402 D403 C450 C842 C460 Q421 Q422 Q423 Q424 Q425 Q426 Q621 D421 Q622 D422 Q623 D423 D621 D622 D623 Q441 Q442 Q443 Q444 D441 Q451 Q452 Q453 Q454 D641 D642 D643 C690 C691 TP1 C699 TP2 TP4 TP5 TP6 TP7 TP8 Q660 D461 Q661 TP9 D462 D463 D464 L401 L402 L403 L404 L405 L406 L407 L411 L412 SC2 L413 L414 D481 L415 L416 D482 D483 TP10 D484 TP11 TP14 TP15 TP17 TP18 TP19 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 TP40 TP41 TP42 C503 TP43 R860 TP44 TP45 TP51 TP52 C900 C901 TP59 C902 C903 TP60 L851 TP61 TP62 C523 TP63 TP64 TP099 TP65 IC791 TP67 L472 C721 R696 TP70 TP78 TP79 TP80 TP81 TP83 TP84 TP88 TP89 1 SC TNPA4978 1 2 CRNo.16 3 TP98 TP16 PbF 1 2 8 9 1 2 8 9 1 2 8 9 1 2 5 6 1 0 1 8 5 4 1 8 5 4 1 6 1 5 1 0 S E E R E V E R S E F O R O R D E R N O . G C E G C E G C E G C E G C E G C E A A K G D S A A K A A K G C E G C E G C E G C E G C E G C E G C E A A K G C E A A K G C E A A K A A K A A K A A K C G E C G E C G E C G E A A K G C E G C E G C E G C E A A K A A K A A K G D S A A K G C E A A K A A K A A K 1 3 A A K A A K A A K A A K 1 1 2 SC SC-BOARD (FOIL SIDE) TNPA4978AB 114 TH-65PF12CK A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK SC-Board TNPA4978AB TH-65PF12CK SC-Board TNPA4978AB SC41 Q701 Q702 SC42 D503 SC46 D701 D702 L697 SC50 L698 L699 C753 C754 Q521 C755 Q522 C562 C756 C563 Q523 C564 C565 D901 D902 C566 D710 C568 D711 IC561 IC562 D712 IC563 D713 IC564 D714 D715 D522 D716 D523 D717 D524 Q531 D719 Q532 Q920 D720 D721 D723 C771 D725 C772 C773 C581 C582 D536 C583 IC771 D921 IC773 IC581 R501 R502 R503 Q743 R504 Q551 R505 Q552 R506 R507 C593 R509 IC784 IC786 IC787 IC788 R511 C791 IC789 R512 R513 R707 R514 C795 R516 C796 R517 C797 R518 R900 R519 R901 R904 R711 R712 R713 R714 R521 R715 Q762 R522 R716 R523 R717 R524 R525 R719 R526 R527 R528 R529 R720 R721 R722 R723 R531 R919 D765 R532 R533 R536 R538 R920 R539 R921 R922 R923 R731 T699 R926 R733 R927 R540 R734 ZA421 R735 R542 ZA422 R736 R543 D583 ZA423 R737 R544 R742 R744 R551 ZA411 R745 R552 ZA412 R746 R553 ZA413 R747 R749 R750 R751 D791 D792 R752 D793 R753 R754 D794 R561 R755 R562 R756 R563 R757 R564 VR600 R758 R565 VR601 R566 R567 R568 C401 C402 C403 C404 R761 C405 R762 C406 R763 C408 R570 R765 R766 R573 R574 R769 C602 C603 C410 C604 C411 R579 C413 C414 C608 C415 C416 R772 C417 R773 IC490 R774 C419 R775 IC491 R582 R776 R583 R777 R584 R778 R585 R779 R586 C806 R587 R588 IC801 C421 C422 C423 C424 C425 IC691 C426 IC692 R783 R590 C811 R785 R591 R592 R786 R593 R787 C813 C814 R789 R791 R794 R795 ZA401 C821 ZA402 R796 C822 ZA403 C823 R797 R798 C631 PC601 R799 C632 C633 C827 PC603 C440 C634 C635 Q401 C441 Q402 C442 C636 C443 Q403 Q404 C444 Q405 Q406 D401 C641 Q601 D402 C642 Q602 C643 D403 Q603 C450 Q604 C451 C645 C452 C646 Q606 C453 D407 Q607 C647 C454 Q608 Q801 C842 D602 C843 D604 C844 D411 D605 D606 D607 C460 D608 Q421 C461 Q422 Q423 Q424 Q425 Q426 Q810 D610 IC464 Q621 IC465 C661 D615 C855 D421 Q815 Q622 C662 C856 D616 Q816 D422 Q623 D423 C857 C663 Q817 C858 Q818 C664 D618 Q624 C471 C665 D619 C472 C666 C668 D811 IC661 C860 D621 C861 IC471 D622 C862 D623 C863 D624 C864 D625 PC896 C866 C867 C868 C481 Q441 C869 C675 Q442 C676 Q443 Q444 D820 D821 D824 D825 R401 D441 R402 R403 R404 C490 C684 C491 PC461 Q451 C685 R405 Q645 Q452 R406 Q646 Q453 R407 Q647 Q454 R408 R409 Q649 D641 D642 R602 D643 R410 C690 R604 D451 R411 R605 C691 D645 R412 C692 R606 D646 R607 D647 R414 R608 D648 R415 D649 R609 R416 C699 R801 R802 TP3 R804 R610 D650 IC521 C891 R611 D652 R612 R806 D653 R613 Q660 D654 R614 R421 D461 R615 Q661 D462 R422 Q662 R616 D463 R423 Q663 R617 R424 D464 PC480 D465 R425 Q471 D466 R426 R427 Q667 R428 Q668 R429 R812 R813 R814 IC724 L401 R621 R815 IC725 R622 L402 D662 R623 L403 D663 L404 R430 R818 D664 Q670 L405 D859 Q671 R819 L406 L407 D473 D667 R627 PC684 IC920 D474 R628 PC685 D669 Q675 D475 Q676 D476 Q677 D477 D860 D478 Q678 R820 R821 R822 R823 D670 R824 L411 D865 R825 R631 D671 L412 SC2 R826 D672 L413 R633 D673 L414 R828 D480 R634 Q874 D674 D481 L415 R441 Q875 R829 L416 D482 R442 Q876 D483 R443 D677 D484 R444 Q490 D678 D679 R831 D871 D872 R833 D874 D875 Q882 R837 Q884 D490 R838 R451 D491 R452 R646 PC722 D492 R453 PC723 D493 R454 R648 R649 R841 R650 R844 R845 R651 R652 R846 R653 R847 R654 R848 R655 R656 R657 R658 R465 D699 R466 R467 R468 R851 R660 R661 R662 R663 R664 R471 R665 R666 R472 R667 R473 R474 R668 C501 R475 C502 R476 C503 C504 R478 R860 C505 R479 C506 TP46 C507 C508 IC501 C509 R673 R674 R480 R675 R869 R677 C510 R678 R679 C707 R870 C708 R873 C900 R680 R681 R875 C901 R682 C902 R683 R877 C903 R684 R490 R685 R491 R492 R686 R687 R493 R688 R494 C521 R495 L851 C522 R496 C523 R497 C524 R498 C525 IC791 C526 IC792 TP66 C527 IC793 C528 R690 TP68 R691 L472 R692 SC20 R694 C721 R695 R696 C723 C724 R699 TPSOS6 C725 TPSOS7 C533 C535 R891 C536 R892 R893 R894 R895 R896 R897 R898 R899 Q501 Q502 TP82 Q503 DIP H.V. DANGER H.V. DANGER H.V. DANGER 58 65 TNPA4978 SC 65 58 1 H.V. DANGER CRNo.16 H.V. DANGER H.V. DANGER TPSC1 TPVSUS Discharge TPVSET TPVAD TPVSCN LEPR2 PbF 1 2 8 9 1 2 1 10 11 20 1 10 11 20 1 7 8 14 1 3 4 5 1 2 3 4 1 2 8 9 2 3 4 1 1 4 5 3 1 4 5 8 1 2 3 4 1 5 6 1 0 1 4 5 8 1 4 5 8 1 2 3 4 1 5 6 1 0 O R D E R N O . 1 3 4 5 C G E C G E C G E C G E C G E C G E A A K D G S A A K A A K G D S 1 2 3 4 C G E C G E C G E C G E C G E C G E 1 3 4 5 C G E 1 4 5 3 A A K 1 2 3 4 C G E A A K C G E A A K 1 4 5 8 A A K 1 3 4 5 A A K A A K G C E 1 2 9 8 G C E G C E G C E A A K C G E C G E C G E C G E A A K A A K A A K D G S A A K C G E A A K A A K A A K 1 4 8 5 3 1 A A K A A K A A K A A K 1 8 9 1 6 1 8 9 16 1 2 1 1 3 4 5 1 3 5 SC SC-BOARD (COMPONENT SIDE) TNPA4978AB 115 TH-65PF12CK 13.15.SS2 和 SS3 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK SS2-Board TNPA4983 SS3-Board TNPA4984 TH-65PF12CK SS2-Board TNPA4983 SS3-Board TNPA4984 C16555 SS02 SS52 ZA16016 ZA16017 D16445 D16446 TNPA4983 1 SS2 LEPR2 P b F 1 9 8 2 1 1 3 S E E R E V E R S E F O R O R D E R N O . A K A A K A 1 1 3 C16555 SS02 SS52 ZA16016 ZA16017 D16445 D16446 1 SS2 TNPA4983 SS2MM1 LEPR2 DIP P b F 2 8 9 1 1 1 3 O R D E R N O . A A K A A K 1 1 3 TNPA4984 1 SS3 SS3MM1 SS3MM2 LEPR2 SS59 C16551 SS03 D16444 SS58 D16443 ZA16013 C16552 D16441 SS57 D16442 ZA16015 C16554 PbF 1 1 3 2 3 2 2 1 2 1 1 3 1 1 3 1 1 3 S E E R E V E R S E F O R O R D E R N O . A K A A K A A K A A K A 1 1 3 1 1 3 SS03 SS57 SS58 SS59 D16441 D16442 D16443 D16444 TNPA4984 1 SS3 LEPR2 DIP ZA16013 ZA16015 C16551 C16552 C16554 PbF 3 2 3 2 2 1 2 1 1 3 1 1 3 1 1 3 O R D E R N O . A A K A A K A A K A A K 1 1 3 1 1 3 SS2 SS3 SS2-BOARD (COMPONENT SIDE) TNPA4983 SS2-BOARD (FOIL SIDE) TNPA4983 SS3-BOARD (COMPONENT SIDE) TNPA4984 SS3-BOARD (FOIL SIDE) TNPA4984 116 TH-65PF12CK 13.16.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK SS-Board TNPA4979AB TH-65PF12CK SS-Board TNPA4979AB C193 SS11 SS22 SS24 L103 L303 SS53 SS54 SS55 SS56 SS22A VR001 SS24A C201 C202 C203 C204 C011 C205 C012 C206 C013 C014 C015 C016 C017 C031 C032 C033 Q001 Q002 Q003 Q004 Q005 C241 Q021 Q022 Q023 Q024 Q025 D021 D022 D024 D025 C271 Q041 Q042 D041 D042 D043 Q051 Q052 D051 D052 D053 L001 L002 L003 L004 L005 TPVSUS TP2 TP5 TP6 TP7 TP8 TP9 L011 L012 L013 L014 L015 L222 TP10 TP13 TP14 TP16 TP17 TP18 TP19 TP20 TP21 TPSOS8 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP33 TP34 TP068 TP069 TP36 TP38 TP39 TP070 TP071 TP072 TP073 IC304 TP40 TP074 TP41 TPVe TPSS1 TP077 TP078 TP51 TP52 TP53 TP54 TP55 TP56 TP57 TP58 C328 L271 C329 C331 Q101 Q102 PbF 1 TNPA4979 SS CRNo.16 3 2 1 LEPR2 4 1 1 2 2 2 23 1 2 14 15 1 1 3 1 1 3 1 13 1 1 3 S E E R E V E R S E F O R O R D E R N O . 1 2 1 4 15 1 2 8 9 C G E C G E C G E C G E C G E 1 1 3 1 1 3 1 13 1 13 G C E G C E G C E G C E G C E A A K A A K A A K A A K C G E C G E A A K A A K A A K C G E C G E A A K A A K A A K 8 5 4 1 G D S G S D 1 1 3 1 1 3 13 1 1 3 SS SS-BOARD (FOIL SIDE) TNPA4979AB 117 TH-65PF12CK A B C D E F G H I 1 2 3 4 5 6 TH-65PF12CK SS-Board TNPA4979AB TH-65PF12CK SS-Board TNPA4979AB D315 D316 D317 D131 D132 Q141 C181 C182 C183 R101 R102 R103 R104 C191 R105 C192 C193 C195 SS11 R109 C198 R302 R110 D151 D152 D153 R307 Q161 R309 R115 R116 SS22 SS24 R310 R311 R312 R313 R317 R318 R319 SS33 R320 L103 R131 R132 R134 R135 R136 R137 L303 R330 IC241 R332 R334 R141 R335 R142 R336 R143 R337 R338 Q191 R339 SS53 SS54 SS55 SS56 R150 D191 R151 SS22A D192 R152 D193 R153 D194 R154 D195 R155 R159 VR001 R161 R162 R163 C001 C002 C003 C004 C005 SS24A R171 R172 R173 C201 C202 C203 C204 C011 C205 C012 C206 C013 C014 C015 C016 C017 R181 R182 R183 C211 C212 C213 C214 C215 C021 C022 C023 C024 C025 R191 R192 R193 R194 C221 R195 C222 R196 C223 C224 C225 C031 C032 C033 ZA001 ZA002 ZA003 C041 Q001 C042 Q002 Q003 Q004 Q005 D001 C241 C242 D002 C243 D003 C244 C051 C052 C055 C056 C251 C252 Q021 Q022 Q023 Q024 IC251 Q025 D021 D022 D023 D024 D025 C071 C072 C271 D032 Q041 Q042 C280 C281 D041 R001 D042 R002 C282 D043 R003 C283 R004 C284 C091 Q051 R005 C285 C092 C286 Q052 C287 C288 C289 Q055 Q056 D050 D051 Q251 D052 D053 IC312 D253 D255 R021 R022 R023 R024 R025 L001 IC131 L002 L003 L004 R031 L005 R032 R033 R034 R230 L011 R231 L012 L013 Q280 L014 R041 L015 R042 D280 D281 R241 D282 R242 D283 D284 D285 R051 D286 R052 L222 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 C101 C102 C103 C104 C105 TP35 TPSOS8 R280 IC304 R281 R282 R283 R284 R285 R286 R287 R288 C315 R289 C316 C317 C318 C319 R290 R291 R292 R293 R294 C131 C133 C328 L271 C135 C329 C331 PC301 C332 C333 C334 Q101 C141 C335 Q102 C336 D101 C151 C152 C153 C154 C157 IC151 PC191 C161 65 58 58 65 SSMM1 TPSS1 TPVe SSMM2 TPVSUS PbF DIP Discharge 1 TNPA4979 SS CRNo.16 LEPR2 4 3 2 1 4 1 1 2 22 23 15 14 2 1 1 1 2 20 11 10 1 1 13 1 13 1 13 1 13 15 14 2 1 O R D E R N O . 2 8 9 1 E C G E C G E C G E C G E C G 13 11 13 1 13 13 1 E G C E G C E G C E G C 8 5 4 1 E G C A A K A A K A A K A A K G C E G C E K A A K A A A K A G C E G C E K A A K A A K A A 9 16 8 1 16 9 8 1 8 5 4 1 D G S G S D 1 13 1 13 16 9 8 1 13 1 13 SS SS-BOARD (COMPONENT SIDE) TNPA4979AB 118 TH-65PF12CK 119 TH-65PF12CK 14 分解图和更换部件清单 14.1. 分解图和机械更换部件清单 14.1.1. 分解图 120 TH-65PF12CK 14.1.2. 面框部件位置及放大图 121 TH-65PF12CK 14.1.3. 电扇部件位置及放大图 122 TH-65PF12CK 14.1.4. 电缆联接 123 TH-65PF12CK 14.1.5. 包装及附件（1） 124 TH-65PF12CK 14.1.6. 包装及附件（2） 125 TH-65PF12CK 14.1.7. 包装及附件（3） 126 TH-65PF12CK 14.1.8. 维修部品表参考号部件号部件名称及说明数量备注 J0KG00000014 噪声滤波器 2 1 K2CK3YY00020 电源线 1 2 L6FAYYYH0095 风扇 6 3 MD65KF12MU1 65FHD12 PDP 模块 1 4 N2QAYB000433 遥控器 1 R6PND/2SP PANASONIC 干电池 2 5 TBXA48003 电源按钮 1 TBXA46603 6 TBXA52203 5 键按钮 1 TBXA46704A 7 TESD039 电源按键弹簧 1 8 TKGA5591 前面玻璃 1 9 TKKC5286 LED 透光板 1 10 TKKC5287 遥控器受光屏 1 11 TKKL5273-1 插槽盖 1 12 TKRA52502A 后盖把手 2 13 TKUX17101A 后盖 1 14 TKYA31705 面框 1 15 TMKG717 风扇海绵 6 TMKG669 16 TMKG839 防尘海绵 ( 上下 ) 2 17 TMKG840 防尘海绵 ( 左右 ) 2 18 TMME203 扎带 1 19 TMMJ068 风扇橡胶 16 20 TMMX183 电源线夹 B 1 21 TMWC019-1 电源按钮托架 1 22 TPCC53302 包装箱本体 1 23 TPCC53401 包装箱底箱 1 24 TPD3DA0052 顶部衬垫 1 25 TPD3DA0053 底部衬垫 1 26 TPDA1676 刹车衬垫 2 27 TPDF1993 附件盒 1 28 TPDF2022 顶盖 1 29 TPDF2225 底盖 2 30 TPDX0007 箱扣 - 小 4 31 TPDX0016 箱扣 4 32 TPDX0035 箱扣（ROHS） 4 33 TPEH370 整机保护袋 1 34 TPEH405 保护片 2 TQD3D18001 保修证 1 35 TQZ3DB010 使用说明书 1 TQZ3DH002 附属片 1 36 TSXL490 FFC(DS1-DN1/DS3-DN2) 2 37 TSXL896 FFC(SC20-D20) 1 38 TSXL897 FFC(D31-C21/D32-C31) 2 39 TXALK011LBC AC 接入口 1 TXAUW011LBC H3 线路板 2 TXAUW021LBC 插槽块组件 1 TXJ/V201LB 线束 (DS2-V2) 1 TXJD2501LB 线束 (D25-P25) 1 TXJDN301LB 线束 (DN3-D3) 1 TXJDN501LB 线束 (DN5-D5) 1 TXJDS41LBU 线束 (DS4-P7) 1 TXJDS61LBU 线束 (DS6-P6) 1 TXJFA11LBU 线束 (PB32-FAN_R) 1 TXJFA21LBU 线束 (PB36-SC_FAN) 1 TXJFA31LBU 线束 (PB33-FAN_L1) 1 TXJFA41LBU 线束 (PB37-FAN_L2) 1 TXJFA51LBU 线束 (PB34-FAN_L3) 1 TXJFA61LBU 线束 (PB38-SS_FAN) 1 TXJPB31KBU 线束 (DN9-PB30) 1 TXJS341LBU 线束 (S34-P34) 1 TXJSPL1LBU 线束 (DS8-H37) 1 TXJSPR1LBU 线束 (DS7-H37) 1 TXJV1501LB 线束 (DS15-V15) 1 TXN/D11LBC D 线路板 1 TXNDN11LBC DN 线路板 1 TXNHDE1VZTC DVI 线路板 1 TXNHL11LBC HL 线路板 1 TXNPB11LBC PB 线路板 1 TXNS111LBC S1 线路板 1 TXNV11XBTC V1 线路板 1 TXNV21XBTC V2 线路板 1 127 TH-65PF12CK 14.2. 更换部件清单 14.2.1. 更换部件清单注意事项 128 TH-65PF12CK 14.2.2. 电器部件更换清单参考号部件号部件名称及说明件数备注 C801 F1K1C1060004 C 0.010UF, 16V 1 C802 F1K1E106A136 C 10UF, Z, 25V 1 C803 F1H1H472A970 C 4700PF, K, 50V 1 C805 F1H1E104A129 C 0.1UF, 25V 1 C809 F1K1C1060004 C 0.010UF, 16V 1 C810 F1H1H103A970 C 0.001UF, K, 50V 1 C811 F1J0J106A020 C 0.010UF, K, 16V 1 C812 F1K1E106A136 C 10UF, Z, 25V 1 C815 F1H1E104A129 C 0.1UF, 25V 1 C818 F1H1H392A970 C 3900PF, K, 50V 1 C819 F1J0J106A020 C 0.010UF, K, 16V 1 C821 F1J0J106A020 C 0.010UF, K, 16V 1 C822 F1K1E106A136 C 10UF, Z, 25V 1 C824 F1H1H392A970 C 3900PF, K, 50V 1 C825 F1H1E104A129 C 0.1UF, 25V 1 C828 F1H1H103A970 C 0.001UF, K, 50V 1 C829 F1J0J106A020 C 0.010UF, K, 16V 1 C831 F1J0J106A020 C 0.010UF, K, 16V 1 C832 F1H1C104A144 C 0.1UF, K, 16V 1 C833 F1H1H103A970 C 0.001UF, K, 50V 1 C834 F1J0J106A020 C 0.010UF, K, 16V 1 C835 F1H1C105A008 C 1UF, K, 16V 1 C836 F1H1H103A970 C 0.001UF, K, 50V 1 C837 F1J0J106A020 C 0.010UF, K, 16V 1 C838 F1H1A225A051 C 22UF, 50V 1 C839 F1J0J106A020 C 0.010UF, K, 16V 1 C840 F1H1A225A051 C 22UF, 50V 1 C841 F1J0J106A020 C 0.010UF, K, 16V 1 C842 F1K1C1060004 C 0.010UF, 16V 1 C843 F1J0J106A020 C 0.010UF, K, 16V 1 C844 F1H1A225A051 C 22UF, 50V 1 C845 F1J0J106A020 C 0.010UF, K, 16V 1 C846 F1H1A225A051 C 22UF, 50V 1 C847 F1J0J106A020 C 0.010UF, K, 16V 1 C848 F1H1A225A051 C 22UF, 50V 1 C850 F1H1H103A970 C 0.001UF, K, 50V 1 C851 F1H1C105A008 C 1UF, K, 16V 1 C852 F1H1H103A970 C 0.001UF, K, 50V 1 C853 F1H1C105A008 C 1UF, K, 16V 1 C855 F1H1E104A129 C 0.1UF, 25V 1 C856 F1H1E104A129 C 0.1UF, 25V 1 C857 F1H1E104A129 C 0.1UF, 25V 1 C859 F1H1A105A019 C 10UF, 50V 1 C862 F1H1C105A008 C 1UF, K, 16V 1 C869 F1H1A225A051 C 22UF, 50V 1 C884 F1K1E106A136 C 10UF, Z, 25V 1 C888 F1K1C1060004 C 0.010UF, 16V 1 C889 F1H1C104A144 C 0.1UF, K, 16V 1 C890 F1H1H103A970 C 0.001UF, K, 50V 1 C891 F1J0J106A020 C 0.010UF, K, 16V 1 C894 F1H1C104A144 C 0.1UF, K, 16V 1 C895 F1H1C104A144 C 0.1UF, K, 16V 1 C896 F1H1C104A144 C 0.1UF, K, 16V 1 C897 F1H1C104A144 C 0.1UF, K, 16V 1 C1530 ECJ3XB0J106M C 10UF, M,6.3V 1 C2373 F1H1E104A129 C 0.1UF, 25V 1 C2374 F1H1E104A129 C 0.1UF, 25V 1 C2375 F1H1E104A129 C 0.1UF, 25V 1 C2376 F1H1H150A971 C 15PF, K, 50V 1 C2377 F1H1H150A971 C 15PF, K, 50V 1 C2378 F1H1E104A129 C 0.1UF, 25V 1 C2379 F1H1E104A129 C 0.1UF, 25V 1 C2380 F1H1E104A129 C 0.1UF, 25V 1 C2381 F1H1E104A129 C 0.1UF, 25V 1 C2382 F1H1E104A129 C 0.1UF, 25V 1 C2383 F2G0J470A019 E 47UF 6.3V 1 C2384 F1H1E104A129 C 0.1UF, 25V 1 C2385 F2G0J470A019 E 47UF 6.3V 1 C2386 EEEHP1H1R0R C 1.0PF, J, 50V 1 C2387 EEEHP1H1R0R C 1.0PF, J, 50V 1 C2388 F1H1E104A129 C 0.1UF, 25V 1 C2389 F2G0J470A019 E 47UF 6.3V 1 C2390 F2G1C100A022 C 10UF J 16V 1 C2391 F1H1E104A129 C 0.1UF, 25V 1 C2392 F1H1C105A008 C 1UF, K, 16V 1 C2393 F1H1C105A008 C 1UF, K, 16V 1 C2394 F2G1C100A022 C 10UF J 16V 1 C2395 F1H1E104A129 C 0.1UF, 25V 1 C2396 F1H1E104A129 C 0.1UF, 25V 1 C2397 F2G0J470A019 E 47UF 6.3V 1 C2398 F1H1E104A129 C 0.1UF, 25V 1 C2399 F1H1E104A129 C 0.1UF, 25V 1 C2400 F1H1E104A129 C 0.1UF, 25V 1 C2401 F1H1E104A129 C 0.1UF, 25V 1 C2402 F1H1E104A129 C 0.1UF, 25V 1 C2403 F1H1E104A129 C 0.1UF, 25V 1 C2404 F1H1H103A970 C 0.001UF, K, 50V 1 C2405 F1H1A225A051 C 22UF, 50V 1 C2406 F1H1A225A051 C 22UF, 50V 1 C2407 F1J0J106A020 C 0.010UF, K, 16V 1 C2408 F1J0J106A020 C 0.010UF, K, 16V 1 C2409 F1H1H181A971 C 180UF, K. 50V 1 C2410 F1H1H181A971 C 180UF, K. 50V 1 C2411 F1K1C1060004 C 0.010UF, 16V 1 C2412 F1H1E104A129 C 0.1UF, 25V 1 C2413 F1H1E104A129 C 0.1UF, 25V 1 C2420 F1H1E104A129 C 0.1UF, 25V 1 C2421 F1H1E104A129 C 0.1UF, 25V 1 C2422 F1H1H102A970 C 1000PF, K, 50V 1 C2423 F1J0J106A020 C 0.010UF, K, 16V 1 C2424 F1J0J106A020 C 0.010UF, K, 16V 1 C2426 F1H1E104A129 C 0.1UF, 25V 1 C2428 F1H1C104A144 C 0.1UF, K, 16V 1 C2429 F1J1H474A757 C 0.47UF, 50V 1 C2430 F1H1A225A051 C 22UF, 50V 1 C2431 F2G1E4710007 E 470UF, 25V 1 C2432 F1H1E104A129 C 0.1UF, 25V 1 C2433 F1H1E104A129 C 0.1UF, 25V 1 C2434 F1H1H102A970 C 1000PF, K, 50V 1 C2436 F1H1E104A129 C 0.1UF, 25V 1 C2437 F1H1E104A129 C 0.1UF, 25V 1 C2438 F1H1E104A129 C 0.1UF, 25V 1 C2439 F1J1E105A171 C 1 UF 25V 1 C2440 F1J1E105A171 C 1 UF 25V 1 C2441 F1K1C1060004 C 0.010UF, 16V 1 C2442 F1H1C105A145 C 0.01UF, K, 16V 1 C2443 F1J1E105A171 C 1 UF 25V 1 C2444 F1J1E105A171 C 1 UF 25V 1 C2445 F1K1C2250005 C　　 2.2UF, 16V 1 C2446 F1H1C273A143 C 0.027UF, K, 16V 1 C2447 F1H1E104A129 C 0.1UF, 25V 1 C2448 F1K1E106A136 C 10UF, Z, 25V 1 C2449 F1H1E104A129 C 0.1UF, 25V 1 C2450 F1H1E104A129 C 0.1UF, 25V 1 C2451 F1J1H474A757 C 0.47UF, 50V 1 C2452 F2G1E4710007 E 470UF, 25V 1 C2453 F1H1A225A051 C 22UF, 50V 1 C2455 F1H1E104A129 C 0.1UF, 25V 1 C2458 F1H1E104A129 C 0.1UF, 25V 1 C2459 F1H1E104A129 C 0.1UF, 25V 1 C3001 F1H1H103A975 C 0.001UF, K, 50V 1 C3004 F2G1C470A022 E 47UF, 16V 1 C3009 F1H1E104A129 C 0.1UF, 25V 1 C3012 F1H1H103A975 C 0.001UF, K, 50V 1 C3013 F1H1H103A975 C 0.001UF, K, 50V 1 C3014 F1H1H103A975 C 0.001UF, K, 50V 1 C3015 F1H1H103A975 C 0.001UF, K, 50V 1 C3016 F1H1H103A975 C 0.001UF, K, 50V 1 C3017 F1H1H103A975 C 0.001UF, K, 50V 1 C3018 F2G0J470A019 E 47UF 6.3V 1 C3019 F1H1C104A144 C 0.1UF, K, 16V 1 C3020 F1H1A225A051 C 22UF, 50V 1 C3021 F1H1A225A051 C 22UF, 50V 1 C3022 F1H1A225A051 C 22UF, 50V 1 C3023 F1H1A225A051 C 22UF, 50V 1 C3024 F1H1A225A051 C 22UF, 50V 1 C3025 F1H1A225A051 C 22UF, 50V 1 C3026 F1H1A225A051 C 22UF, 50V 1 C3027 F1H1A225A051 C 22UF, 50V 1 C3028 F1H1A225A051 C 22UF, 50V 1 C3029 F1H1A225A051 C 22UF, 50V 1 参考号部件号部件名称及说明件数备注 129 TH-65PF12CK C3030 F1H1A225A051 C 22UF, 50V 1 C3031 F1H1A225A051 C 22UF, 50V 1 C3033 F1H1C104A143 C 0.1UF, K, 16V 1 C3034 F1H1C104A143 C 0.1UF, K, 16V 1 C3035 F1H1C104A143 C 0.1UF, K, 16V 1 C3040 F1H1C104A144 C 0.1UF, K, 16V 1 C3041 F1H1C104A144 C 0.1UF, K, 16V 1 C3042 F2G1C100A022 C 10UF J 16V 1 C3043 F2G1C100A022 C 10UF J 16V 1 C3051 F1H1C105A008 C 1UF, K, 16V 1 C3052 F1H1C105A008 C 1UF, K, 16V 1 C3053 F1H1C105A008 C 1UF, K, 16V 1 C3054 F1H1C105A008 C 1UF, K, 16V 1 C3055 F1H1C105A008 C 1UF, K, 16V 1 C3056 F1H1C105A008 C 1UF, K, 16V 1 C3057 F1H1C105A008 C 1UF, K, 16V 1 C3058 F1H1C105A008 C 1UF, K, 16V 1 C3061 F1H1C104A144 C 0.1UF, K, 16V 1 C3066 F1H1C105A008 C 1UF, K, 16V 1 C3101 F1H1C224A143 C 0.22UF, K, 16V 1 C3103 F1H1C224A143 C 0.22UF, K, 16V 1 C3105 F1H1C104A144 C 0.1UF, K, 16V 1 C3106 F1H1C104A144 C 0.1UF, K, 16V 1 C3107 F1H1C104A144 C 0.1UF, K, 16V 1 C3108 F1H1C104A144 C 0.1UF, K, 16V 1 C3110 F1H1C224A143 C 0.22UF, K, 16V 1 C3111 F1H1C224A143 C 0.22UF, K, 16V 1 C3112 F1H1E104A129 C 0.1UF, 25V 1 C3113 F1H1E104A129 C 0.1UF, 25V 1 C3114 F1H1E104A129 C 0.1UF, 25V 1 C3115 F1H1E104A129 C 0.1UF, 25V 1 C3116 F1H1C224A143 C 0.22UF, K, 16V 1 C3117 F1H1C224A143 C 0.22UF, K, 16V 1 C3118 F1H1C224A143 C 0.22UF, K, 16V 1 C3119 F1H1H151A971 C 150UF, K. 50V 1 C3120 F1H1H151A971 C 150UF, K. 50V 1 C3121 F1H1H151A971 C 150UF, K. 50V 1 C3134 EEEHB1C471P C 470PF, J, 16V 1 C3135 EEEHB1C471P C 470PF, J, 16V 1 C3136 EEEHB1C471P C 470PF, J, 16V 1 C3143 F1H1A225A051 C 22UF, 50V 1 C3145 F2G1C470A022 E 47UF, 16V 1 C3146 F1K1C2250005 C　　 2.2UF, 16V 1 C3153 F1H1C104A144 C 0.1UF, K, 16V 1 C3200 F1H1C105A008 C 1UF, K, 16V 1 C3201 F1J0J106A020 C 0.010UF, K, 16V 1 C3202 F1J0J106A020 C 0.010UF, K, 16V 1 C3203 F1J0J106A020 C 0.010UF, K, 16V 1 C3204 F1H1C104A144 C 0.1UF, K, 16V 1 C3205 F1H1C104A144 C 0.1UF, K, 16V 1 C3206 F1K1C1060004 C 0.010UF, 16V 1 C3207 F1K1C1060004 C 0.010UF, 16V 1 C3208 F1K1C1060004 C 0.010UF, 16V 1 C3304 F1J0J106A020 C 0.010UF, K, 16V 1 C3306 F1J0J106A020 C 0.010UF, K, 16V 1 C3309 F1G1C104A116 C 0.10UF, K, 16V 1 C3310 F1J0J106A020 C 0.010UF, K, 16V 1 C3312 F1J0J106A020 C 0.010UF, K, 16V 1 C3313 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3313 F1H1A1050032 C 10UF, 50V 1 (HDE) C3314 F1J0J106A020 C 0.010UF, K, 16V 1 C3315 F1J0J106A020 C 0.010UF, K, 16V 1 C3316 F1G1H101A731 C 100PF, K, 50V 1 C3317 F1G1C104A116 C 0.10UF, K, 16V 1 C3318 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3318 F1H1A1050032 C 10UF, 50V 1 (HDE) C3319 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3319 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3320 F1H1A1050032 C 10UF, 50V 1 C3321 F1H1A1050032 C 10UF, 50V 1 C3322 F1H1A1050032 C 10UF, 50V 1 C3323 F1H1A1050032 C 10UF, 50V 1 C3324 F1H1A1050032 C 10UF, 50V 1 C3325 F1G1H100A731 C 10PF, K, 50V 1 (HL) C3325 F1H1A1050032 C 10UF, 50V 1 (HDE) C3326 F1G1H100A731 C 10PF, K, 50V 1 (HL) C3326 F1H1A1050032 C 10UF, 50V 1 (HDE) 参考号部件号部件名称及说明件数备注 C3327 F1H1A1050032 C 10UF, 50V 1 (HDE) C3327 F1J0J106A020 C 0.010UF, K, 16V 1 (HL) C3328 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3328 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3329 F1H1A1050032 C 10UF, 50V 1 (HDE) C3329 F1J0J106A020 C 0.010UF, K, 16V 1 (HL) C3330 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3330 F1H0J2250008 C 2.2UF, K, 16V 1 (HL) C3331 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3331 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3332 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3332 F1G1H471A731 C 470UF, 50V 1 (HL) C3333 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3333 F1G1E1030005 C 0.01UF, Z, 25V 1 (HDE) C3334 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3334 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3335 ECJ1VB1A105K C 0.01UF, Z, 50V 1 (HL) C3335 F1G1E1030005 C 0.01UF, Z, 25V 1 (HDE) C3336 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3336 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3337 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3337 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3338 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3338 F1J0J1060004 C 0.010UF, K, 16V 1 (HDE) C3339 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3339 F1J0J106A020 C 0.010UF, K, 16V 1 (HL) C3340 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3340 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3341 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3341 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3342 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3342 F1G1C104A116 C 0.10UF, K, 16V 1 (HL) C3343 F1G1C104A116 C 0.10UF, K, 16V 1 C3344 F1G1C104A077 C 0.10UF, K, 16V 1 C3345 F1G1C104A077 C 0.10UF, K, 16V 1 C3346 F1G1C104A077 C 0.10UF, K, 16V 1 C3349 F1G1C104A077 C 0.10UF, K, 16V 1 C3351 F1G1C104A077 C 0.10UF, K, 16V 1 C3352 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3353 F1G1C104A077 C 0.10UF, K, 16V 1 C3354 F1G1C104A077 C 0.10UF, K, 16V 1 C3355 F1J0J1060004 C 0.010UF, K, 16V 1 C3356 F1H1A1050032 C 10UF, 50V 1 C3357 F1G1C104A077 C 0.10UF, K, 16V 1 C3358 ECJ1VB1A105K C 0.01UF, Z, 50V 1 (HL) C3358 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3359 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 (HL) C3359 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3360 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 (HL) C3360 F1G1C104A077 C 0.10UF, K, 16V 1 (HDE) C3361 F1G1C104A077 C 0.10UF, K, 16V 1 C3362 EEEHB1C470P C 47PF, J, 16V 1 C3362 F1G1C104A077 C 0.10UF, K, 16V 1 C3363 F1G1C104A116 C 0.10UF, K, 16V 1 (HDE) C3363 F1H0J2250008 C 2.2UF, K, 16V 1 (HL) C3364 ECJ1VB1A105K C 0.01UF, Z, 50V 1 (HL) C3364 F1H1H471A792 C 470UF, 50V 1 (HDE) C3366 F1G1C104A116 C 0.10UF, K, 16V 1 C3367 F1H1E104A129 C 0.1UF, 25V 1 C3368 ECGRL0G680ER C 68UF, J, 4V 1 C3369 F1K1E106A136 C 10UF, Z, 25V 1 C3370 F1K1C1060004 C 0.010UF, 16V 1 C3371 F1G1E103A123 C 0.010UF, K, 25V 1 C3372 F1H1A1050032 C 10UF, 50V 1 (HDE) C3372 F1H1E104A129 C 0.1UF, 25V 1 (HL) C3373 F1H1H392A970 C 3900PF, K, 50V 1 C3374 F1G1C104A116 C 0.10UF, K, 16V 1 C3375 F1J0J106A020 C 0.010UF, K, 16V 1 C3376 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C3377 F1G1E104A087 C 0.10UF, K, 25V 1 C3378 F1G1E104A087 C 0.10UF, K, 25V 1 C3384 F1J1A106A043 C 0.010UF, K, 10V 1 C3385 F1G1C104A077 C 0.10UF, K, 16V 1 C3386 F1G1C104A077 C 0.10UF, K, 16V 1 C3387 F1H1A1050032 C 10UF, 50V 1 C3388 ECJ1VC1H180J C 18PF, J, 50V 1 C3389 ECJ1VC1H150J C 15PF, J, 50V 1 参考号部件号部件名称及说明件数备注 130 TH-65PF12CK C3390 F1G1C104A077 C 0.10UF, K, 16V 1 C3392 F1H1A1050032 C 10UF, 50V 1 C3393 F1G1C104A077 C 0.10UF, K, 16V 1 C3394 F1H1A1050032 C 10UF, 50V 1 C3395 F1H1A1050032 C 10UF, 50V 1 C3396 F1G1C104A077 C 0.10UF, K, 16V 1 C3397 F1G1C104A077 C 0.10UF, K, 16V 1 C3398 F1G1C104A077 C 0.10UF, K, 16V 1 C3399 F1G1C104A077 C 0.10UF, K, 16V 1 C3400 F1G1H1020008 C 1000UF, 50V 1 C3401 ECJ3YB1A106M C 10UF, M,6.3V 1 C3402 F1H1A1050032 C 10UF, 50V 1 C3403 F1J0J1060004 C 0.010UF, K, 16V 1 C3404 F1H1A1050032 C 10UF, 50V 1 (HDE) C3404 F1J1C104A195 C 0.10UF, Z, 16V 1 (HX) C3405 ECJ3YB1E106M C 10 UF, K, 25V 1 (HX) C3405 F1H1A1050032 C 10UF, 50V 1 (HDE) C3406 ECJ3YB1E106M C 10 UF, K, 25V 1 (HX) C3406 F2G0G101A007 E 100UF 6.3V 1 (HDE) C3407 F1G1C1030008 C 0.010UF, K, 16V 1 C3408 F1G1C104A077 C 0.10UF, K, 16V 1 C3409 ECJ3YB1E106M C 10 UF, K, 25V 1 (HDE) C3409 F1J1C104A195 C 0.10UF, Z, 16V 1 (HX) C3410 F1J0J1060004 C 0.010UF, K, 16V 1 C3411 F1J0J1060004 C 0.010UF, K, 16V 1 C3412 F1G1C104A077 C 0.10UF, K, 16V 1 C3413 F1G1C104A077 C 0.10UF, K, 16V 1 C3414 F1J0J1060004 C 0.010UF, K, 16V 1 C3415 F1G1C104A077 C 0.10UF, K, 16V 1 C3416 F1J0J1060004 C 0.010UF, K, 16V 1 C3417 F1J0J1060004 C 0.010UF, K, 16V 1 C3418 F1J0J1060004 C 0.010UF, K, 16V 1 C3419 F1J0J1060004 C 0.010UF, K, 16V 1 C3420 F1J0J1060004 C 0.010UF, K, 16V 1 C3421 F1G1C104A077 C 0.10UF, K, 16V 1 C3422 F1J0J1060004 C 0.010UF, K, 16V 1 C3423 F1G1C104A077 C 0.10UF, K, 16V 1 C3424 F1G1C104A077 C 0.10UF, K, 16V 1 C3425 F1G1C104A077 C 0.10UF, K, 16V 1 C3426 F1G1C104A077 C 0.10UF, K, 16V 1 C3427 F1G1C104A077 C 0.10UF, K, 16V 1 C3428 F1G1C104A077 C 0.10UF, K, 16V 1 C3429 F1G1H1020008 C 1000UF, 50V 1 C3430 F1G1C104A077 C 0.10UF, K, 16V 1 C3431 F1G1C104A077 C 0.10UF, K, 16V 1 C3432 F1G1H1020008 C 1000UF, 50V 1 C3434 F1G1H1020008 C 1000UF, 50V 1 C3435 F1H1H392A970 C 3900PF, K, 50V 1 C3436 F1H1E104A129 C 0.1UF, 25V 1 C3438 F1G1E103A123 C 0.010UF, K, 25V 1 C3439 F1G1H1020008 C 1000UF, 50V 1 C3440 F1J0J1060004 C 0.010UF, K, 16V 1 C3441 F1G1C104A077 C 0.10UF, K, 16V 1 C3442 F1J0J1060004 C 0.010UF, K, 16V 1 C3443 F1G1C104A077 C 0.10UF, K, 16V 1 C3444 F1G1C104A077 C 0.10UF, K, 16V 1 C3445 F1G1C104A077 C 0.10UF, K, 16V 1 C3446 F1G1H1020008 C 1000UF, 50V 1 C3447 F1G1H1020008 C 1000UF, 50V 1 C3448 F1G1H1020008 C 1000UF, 50V 1 C3449 F1G1C104A077 C 0.10UF, K, 16V 1 C3450 F1G1C104A077 C 0.10UF, K, 16V 1 C3451 ECGRL0G680ER C 68UF, J, 4V 1 C3454 F1H1E104A129 C 0.1UF, 25V 1 C3455 F1J0J1060004 C 0.010UF, K, 16V 1 C3456 F1G1H1020008 C 1000UF, 50V 1 C3457 F1G1C104A077 C 0.10UF, K, 16V 1 C3459 F1G1C104A077 C 0.10UF, K, 16V 1 C3460 F1G1C104A077 C 0.10UF, K, 16V 1 C3461 F1G1H1020008 C 1000UF, 50V 1 C3462 F1G1C104A077 C 0.10UF, K, 16V 1 C3463 F1G1C104A077 C 0.10UF, K, 16V 1 C3464 F1G1C104A077 C 0.10UF, K, 16V 1 C3465 F1G1C104A077 C 0.10UF, K, 16V 1 C3466 F1G1C104A077 C 0.10UF, K, 16V 1 C3467 F1G1C104A077 C 0.10UF, K, 16V 1 C3468 F1G1H1020008 C 1000UF, 50V 1 参考号部件号部件名称及说明件数备注 C3469 F1G1H1020008 C 1000UF, 50V 1 C3470 F1G1C104A077 C 0.10UF, K, 16V 1 C3471 F1G1H1020008 C 1000UF, 50V 1 C3472 F1G1C104A077 C 0.10UF, K, 16V 1 C3473 F1H1A1050032 C 10UF, 50V 1 C3474 F1G1C104A077 C 0.10UF, K, 16V 1 C3475 F1G1C104A077 C 0.10UF, K, 16V 1 C3476 F1G1C104A077 C 0.10UF, K, 16V 1 C3477 F1G1H1020008 C 1000UF, 50V 1 C3478 F1J0J1060004 C 0.010UF, K, 16V 1 C3479 F2G1C470A022 E 47UF, 16V 1 C3480 F1J0J1060004 C 0.010UF, K, 16V 1 C3482 F1H1A1050032 C 10UF, 50V 1 C3483 F1J0J1060004 C 0.010UF, K, 16V 1 C3485 F1G1C104A077 C 0.10UF, K, 16V 1 C3486 F2G1C470A022 E 47UF, 16V 1 C3487 F1G1C104A077 C 0.10UF, K, 16V 1 C3488 F1G1C104A077 C 0.10UF, K, 16V 1 C3489 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 C3490 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 C3491 F2G1C470A022 E 47UF, 16V 1 C3492 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C3493 F1J0J1060004 C 0.010UF, K, 16V 1 C3494 F1G1C104A077 C 0.10UF, K, 16V 1 C3495 F1G1C104A077 C 0.10UF, K, 16V 1 C3497 F1J0J1060004 C 0.010UF, K, 16V 1 C3498 F1G1C104A077 C 0.10UF, K, 16V 1 C3520 F1G1C104A077 C 0.10UF, K, 16V 1 C3521 F1G1C104A077 C 0.10UF, K, 16V 1 C3522 F1G1H1020008 C 1000UF, 50V 1 C3523 ECJ3YB1E106M C 10 UF, K, 25V 1 (HX) C3523 F1G1H1020008 C 1000UF, 50V 1 (HDE) C3524 F1J1H103A838 C 0.01UF, K, 50V 1 C3526 F1G1H1020008 C 1000UF, 50V 1 C3527 F1G1H1020008 C 1000UF, 50V 1 C3528 F1G1C104A077 C 0.10UF, K, 16V 1 C3529 F1G1C104A077 C 0.10UF, K, 16V 1 C3530 F1G1C104A077 C 0.10UF, K, 16V 1 C3531 F1G1C104A077 C 0.10UF, K, 16V 1 C3532 F1G1C104A077 C 0.10UF, K, 16V 1 C3533 F1G1C104A077 C 0.10UF, K, 16V 1 C3534 F1G1C104A077 C 0.10UF, K, 16V 1 C3535 F1G1C104A077 C 0.10UF, K, 16V 1 C3536 F1G1C104A077 C 0.10UF, K, 16V 1 C3537 F1G1C104A077 C 0.10UF, K, 16V 1 C3538 F1G1C104A077 C 0.10UF, K, 16V 1 C3539 F1G1C104A077 C 0.10UF, K, 16V 1 C3540 F1G1C104A077 C 0.10UF, K, 16V 1 C3541 F1G1C104A077 C 0.10UF, K, 16V 1 C3542 F1G1C104A077 C 0.10UF, K, 16V 1 C3543 F1G1C104A077 C 0.10UF, K, 16V 1 C3544 F1G1C104A077 C 0.10UF, K, 16V 1 C3545 F1G1C104A077 C 0.10UF, K, 16V 1 C3546 F1G1C104A077 C 0.10UF, K, 16V 1 C3547 F1G1C104A077 C 0.10UF, K, 16V 1 C3550 F1J1H103A838 C 0.01UF, K, 50V 1 C3551 ECJ3YB1E106M C 10 UF, K, 25V 1 C3552 ECJ3YB1E106M C 10 UF, K, 25V 1 C3561 F1J1C1050030 C 1UF, Z, 16V 1 C3562 F1J1C1050030 C 1UF, Z, 16V 1 C4006 F1K1E106A136 C 10UF, Z, 25V 1 C4007 F1K1A106A021 C 0.010UF, K,6.3V 1 C4010 F1H1E104A129 C 0.1UF, 25V 1 C4011 F1K1C1060004 C 0.010UF, 16V 1 C4013 F1K1E106A136 C 10UF, Z, 25V 1 C4014 F1G1C104A116 C 0.10UF, K, 16V 1 C4015 F1H1E104A129 C 0.1UF, 25V 1 C4018 F1H1A1050032 C 10UF, 50V 1 C4019 F1J1C1050028 C 1.0UF, K, 16V 1 C4020 F1J1C1050030 C 1UF, Z, 16V 1 C4022 F1G1E103A123 C 0.010UF, K, 25V 1 C4023 F1H1E104A129 C 0.1UF, 25V 1 C4025 F1G1H392A571 C 3900UF, 50V 1 C4029 F1J1A106A043 C 0.010UF, K, 10V 1 C4030 F1G1C104A116 C 0.10UF, K, 16V 1 C4033 F1K1A106A021 C 0.010UF, K,6.3V 1 C4034 F1K1A106A021 C 0.010UF, K,6.3V 1 参考号部件号部件名称及说明件数备注 131 TH-65PF12CK C4037 F1G1C104A116 C 0.10UF, K, 16V 1 C4039 F1K1C1060004 C 0.010UF, 16V 1 C4040 F1K1E106A136 C 10UF, Z, 25V 1 C4042 F1H1E104A129 C 0.1UF, 25V 1 C4044 F1J1C1050028 C 1.0UF, K, 16V 1 C4045 F1J1C1050030 C 1UF, Z, 16V 1 C4052 F1G1H102A730 C 1000UF, 50V 1 C4053 F1G1C104A116 C 0.10UF, K, 16V 1 C4054 F1G1C104A116 C 0.10UF, K, 16V 1 C4055 F1G1C104A116 C 0.10UF, K, 16V 1 C4058 F1G1C104A116 C 0.10UF, K, 16V 1 C4067 F1G1C104A116 C 0.10UF, K, 16V 1 C4068 F1K1E106A136 C 10UF, Z, 25V 1 C4069 F1K1E106A136 C 10UF, Z, 25V 1 C4072 F1J0J106A020 C 0.010UF, K, 16V 1 C4080 F1G1C104A116 C 0.10UF, K, 16V 1 C4081 F1J0J106A020 C 0.010UF, K, 16V 1 C4082 F1J0J106A020 C 0.010UF, K, 16V 1 C4083 F1G1C104A116 C 0.10UF, K, 16V 1 C4084 F1G1H102A730 C 1000UF, 50V 1 C4085 F1J0J106A020 C 0.010UF, K, 16V 1 C4086 F1G1C104A116 C 0.10UF, K, 16V 1 C4087 F1G1C104A116 C 0.10UF, K, 16V 1 C4088 F1J0J106A020 C 0.010UF, K, 16V 1 C4089 F1J0J106A020 C 0.010UF, K, 16V 1 C4090 F1H1C103A143 C 0.10UF, 16V 1 C4091 F1J0J106A020 C 0.010UF, K, 16V 1 C4092 F1G1C563A098 C 0.056UF, K, 16V 1 C4093 F1G1E562A086 C 5600UF, Z, 25V 1 C4094 F1J0J106A020 C 0.010UF, K, 16V 1 C4095 F1J0J106A020 C 0.010UF, K, 16V 1 C4096 F1H1C103A143 C 0.10UF, 16V 1 C4098 F1G1C104A116 C 0.10UF, K, 16V 1 C4099 F1H1C103A143 C 0.10UF, 16V 1 C4102 F1G1C104A116 C 0.10UF, K, 16V 1 C4103 F1J0J106A020 C 0.010UF, K, 16V 1 C4104 F1G1C104A116 C 0.10UF, K, 16V 1 C4105 F1H1C103A143 C 0.10UF, 16V 1 C4106 F1G1C104A116 C 0.10UF, K, 16V 1 C4108 F1H1C103A143 C 0.10UF, 16V 1 C4109 F1G1C104A116 C 0.10UF, K, 16V 1 C4110 F1G1C104A116 C 0.10UF, K, 16V 1 C4111 F1J0J106A020 C 0.010UF, K, 16V 1 C4112 F1G1C104A116 C 0.10UF, K, 16V 1 C4113 F1G1C104A116 C 0.10UF, K, 16V 1 C4116 F1H1C103A143 C 0.10UF, 16V 1 C4117 F1J0J106A020 C 0.010UF, K, 16V 1 C4118 F1H1C103A143 C 0.10UF, 16V 1 C4119 F1J0J106A020 C 0.010UF, K, 16V 1 C4120 F1J0J106A020 C 0.010UF, K, 16V 1 C4121 F1J0J106A020 C 0.010UF, K, 16V 1 C4122 F1J0J106A020 C 0.010UF, K, 16V 1 C4123 F1G1C104A116 C 0.10UF, K, 16V 1 C4124 F1G1C104A116 C 0.10UF, K, 16V 1 C4125 F1G1C104A116 C 0.10UF, K, 16V 1 C4126 F1G1C104A116 C 0.10UF, K, 16V 1 C4127 F1G1C104A116 C 0.10UF, K, 16V 1 C4128 F1G1C104A116 C 0.10UF, K, 16V 1 C4129 F1G1C104A116 C 0.10UF, K, 16V 1 C4130 F1G1C104A116 C 0.10UF, K, 16V 1 C4131 F1G1C104A116 C 0.10UF, K, 16V 1 C4132 F1G1C104A116 C 0.10UF, K, 16V 1 C4133 F1J0J106A020 C 0.010UF, K, 16V 1 C4134 F1J0J106A020 C 0.010UF, K, 16V 1 C4135 F1J0J106A020 C 0.010UF, K, 16V 1 C4136 F1J0J106A020 C 0.010UF, K, 16V 1 C4137 F1J0J106A020 C 0.010UF, K, 16V 1 C4138 F1J0J106A020 C 0.010UF, K, 16V 1 C4139 F1G1C104A116 C 0.10UF, K, 16V 1 C4140 F1G1C104A116 C 0.10UF, K, 16V 1 C4141 F1G1C104A116 C 0.10UF, K, 16V 1 C4142 F1G1C104A116 C 0.10UF, K, 16V 1 C4143 F1G1C104A116 C 0.10UF, K, 16V 1 C4144 F1J0J106A020 C 0.010UF, K, 16V 1 C4145 F1J0J106A020 C 0.010UF, K, 16V 1 C4146 F1G1C104A116 C 0.10UF, K, 16V 1 C4147 F1J0G2260001 C 0.001UF, 6.3V 1 参考号部件号部件名称及说明件数备注 C4148 F1G1C104A116 C 0.10UF, K, 16V 1 C4149 F1G1C104A116 C 0.10UF, K, 16V 1 C4150 F1G1C104A116 C 0.10UF, K, 16V 1 C4151 F1G1C104A116 C 0.10UF, K, 16V 1 C4153 F1K1E106A136 C 10UF, Z, 25V 1 C4154 F1G1C104A116 C 0.10UF, K, 16V 1 C4155 F1J0J106A020 C 0.010UF, K, 16V 1 C4156 F1H0J2250008 C 2.2UF, K, 16V 1 C4157 F1J0J106A020 C 0.010UF, K, 16V 1 C4158 F1J0J106A020 C 0.010UF, K, 16V 1 C4165 F1G1H101A731 C 100PF, K, 50V 1 C4166 F1J1C1050030 C 1UF, Z, 16V 1 C4167 F1G1C104A116 C 0.10UF, K, 16V 1 C4168 F1G1H102A730 C 1000UF, 50V 1 C4169 F1G1H102A730 C 1000UF, 50V 1 C4170 F1G1C104A116 C 0.10UF, K, 16V 1 C4171 F1G1C104A116 C 0.10UF, K, 16V 1 C4172 F1G1C104A116 C 0.10UF, K, 16V 1 C4173 F1G1C104A116 C 0.10UF, K, 16V 1 C4174 F1G1C104A116 C 0.10UF, K, 16V 1 C4175 F1G1C104A116 C 0.10UF, K, 16V 1 C4176 F1G1C104A116 C 0.10UF, K, 16V 1 C4185 F1G1C104A116 C 0.10UF, K, 16V 1 C4186 F1J1C475A170 C 4.7UF, K, 16V 1 C4187 F1J1C1050030 C 1UF, Z, 16V 1 C4188 F1G1C104A116 C 0.10UF, K, 16V 1 C4189 F1G1C104A116 C 0.10UF, K, 16V 1 C4191 F1G1C104A116 C 0.10UF, K, 16V 1 C4193 F1G1H9R0A732 C 9UF, 50V 1 C4194 F1G1H9R0A732 C 9UF, 50V 1 C4195 EEEHB0G221P C 220PF, J, 4V 1 C4196 EEEHB0G221P C 220PF, J, 4V 1 C4197 EEEHB0G221P C 220PF, J, 4V 1 C4198 F1J0J106A020 C 0.010UF, K, 16V 1 C4199 F1J0J106A020 C 0.010UF, K, 16V 1 C4200 F1G1C104A085 C 0.10UF, K, 16V 1 C4201 F1G1C104A085 C 0.10UF, K, 16V 1 C4202 F1G1C104A085 C 0.10UF, K, 16V 1 C4203 F1G1C104A085 C 0.10UF, K, 16V 1 C4204 F1G1C104A085 C 0.10UF, K, 16V 1 C4205 F1G1C104A085 C 0.10UF, K, 16V 1 C4206 F1G1C104A085 C 0.10UF, K, 16V 1 C4207 F1G1C104A085 C 0.10UF, K, 16V 1 C4208 F1G1C104A085 C 0.10UF, K, 16V 1 C4209 F1G1C104A085 C 0.10UF, K, 16V 1 C4210 F1G1C104A085 C 0.10UF, K, 16V 1 C4211 F1G1C104A085 C 0.10UF, K, 16V 1 C4212 F1G1C104A085 C 0.10UF, K, 16V 1 C4213 F1G1C104A085 C 0.10UF, K, 16V 1 C4214 F1G1C104A085 C 0.10UF, K, 16V 1 C4215 F1G1C104A085 C 0.10UF, K, 16V 1 C4216 F1G1C104A085 C 0.10UF, K, 16V 1 C4222 F1J0J106A020 C 0.010UF, K, 16V 1 C4223 F1J0J106A020 C 0.010UF, K, 16V 1 C4224 F1J0J106A020 C 0.010UF, K, 16V 1 C4225 F1J0J106A020 C 0.010UF, K, 16V 1 C4226 F1J0J106A020 C 0.010UF, K, 16V 1 C4227 F1J0J106A020 C 0.010UF, K, 16V 1 C4228 F1J0J106A020 C 0.010UF, K, 16V 1 C4230 F1G1C104A085 C 0.10UF, K, 16V 1 C4231 F1G1C104A085 C 0.10UF, K, 16V 1 C4232 F1G1C104A085 C 0.10UF, K, 16V 1 C4233 F1G1C104A085 C 0.10UF, K, 16V 1 C4234 F1G1C104A085 C 0.10UF, K, 16V 1 C4235 F1G1C104A085 C 0.10UF, K, 16V 1 C4236 F1G1C104A085 C 0.10UF, K, 16V 1 C4237 F1J0J106A020 C 0.010UF, K, 16V 1 C4238 F1J0J106A020 C 0.010UF, K, 16V 1 C4239 F1G1C104A085 C 0.10UF, K, 16V 1 C4240 F1G1C104A085 C 0.10UF, K, 16V 1 C4241 F1G1C104A085 C 0.10UF, K, 16V 1 C4242 F1G1C104A085 C 0.10UF, K, 16V 1 C4243 F1G1C104A085 C 0.10UF, K, 16V 1 C4244 F1G1C104A085 C 0.10UF, K, 16V 1 C4245 F1G1C104A085 C 0.10UF, K, 16V 1 C4246 F1J0J106A020 C 0.010UF, K, 16V 1 C4247 F1G1C104A085 C 0.10UF, K, 16V 1 参考号部件号部件名称及说明件数备注 132 TH-65PF12CK C4248 F1G1C104A085 C 0.10UF, K, 16V 1 C4249 F1G1C104A085 C 0.10UF, K, 16V 1 C4250 F1G1C104A085 C 0.10UF, K, 16V 1 C4251 F1G1C104A085 C 0.10UF, K, 16V 1 C4252 F1G1C104A085 C 0.10UF, K, 16V 1 C4253 F1G1C104A085 C 0.10UF, K, 16V 1 C4254 F1G1C104A085 C 0.10UF, K, 16V 1 C4255 F1J0J106A020 C 0.010UF, K, 16V 1 C4256 F1G1C104A085 C 0.10UF, K, 16V 1 C4257 F1G1C104A085 C 0.10UF, K, 16V 1 C4258 F1G1C104A085 C 0.10UF, K, 16V 1 C4259 F1G1C104A085 C 0.10UF, K, 16V 1 C4260 F1G1C104A085 C 0.10UF, K, 16V 1 C4261 F1G1C104A085 C 0.10UF, K, 16V 1 C4262 F1G1C104A085 C 0.10UF, K, 16V 1 C4263 F1G1C104A085 C 0.10UF, K, 16V 1 C4264 F1J0J106A020 C 0.010UF, K, 16V 1 C4265 F1G1C104A085 C 0.10UF, K, 16V 1 C4266 F1G1C104A085 C 0.10UF, K, 16V 1 C4267 F1G1C104A085 C 0.10UF, K, 16V 1 C4268 F1G1C104A085 C 0.10UF, K, 16V 1 C4269 F1G1C104A085 C 0.10UF, K, 16V 1 C4270 F1G1C104A085 C 0.10UF, K, 16V 1 C4271 F1G1C104A085 C 0.10UF, K, 16V 1 C4272 F1G1C104A085 C 0.10UF, K, 16V 1 C4273 F1G1C104A085 C 0.10UF, K, 16V 1 C4274 F1G1C104A085 C 0.10UF, K, 16V 1 C4275 F1G1C104A085 C 0.10UF, K, 16V 1 C4276 F1G1C104A085 C 0.10UF, K, 16V 1 C4277 F1G1C104A085 C 0.10UF, K, 16V 1 C4278 F1G1C104A085 C 0.10UF, K, 16V 1 C4279 F1G1C104A085 C 0.10UF, K, 16V 1 C4280 F1G1C104A085 C 0.10UF, K, 16V 1 C4281 F1G1C104A085 C 0.10UF, K, 16V 1 C4282 F1G1C104A085 C 0.10UF, K, 16V 1 C4283 F1G1C104A085 C 0.10UF, K, 16V 1 C4284 F1G1C104A085 C 0.10UF, K, 16V 1 C4288 F1G1C104A085 C 0.10UF, K, 16V 1 C4289 F1G1C104A085 C 0.10UF, K, 16V 1 C4290 F1G1C104A085 C 0.10UF, K, 16V 1 C4291 F1G1C104A085 C 0.10UF, K, 16V 1 C4297 F1G1C104A085 C 0.10UF, K, 16V 1 C4298 F1G1C104A085 C 0.10UF, K, 16V 1 C4300 F1G1C104A116 C 0.10UF, K, 16V 1 C4303 F2H1E221A007 E 220UF, 25V 1 C4306 ECJ3YF1E105Z C 1.0UF, Z, 25V 1 C4307 F1G1C104A116 C 0.10UF, K, 16V 1 C4308 F1J0J106A020 C 0.010UF, K, 16V 1 C4319 F1G1C104A116 C 0.10UF, K, 16V 1 C4320 F1G1E103A123 C 0.010UF, K, 25V 1 C4323 F1G1C104A116 C 0.10UF, K, 16V 1 C4324 F1G1E103A123 C 0.010UF, K, 25V 1 C4327 F1G1C104A116 C 0.10UF, K, 16V 1 C4328 F1G1E103A123 C 0.010UF, K, 25V 1 C4332 F1J0J106A020 C 0.010UF, K, 16V 1 C4333 F1J0J106A020 C 0.010UF, K, 16V 1 C4334 EEFCD0G560ER C 56UF, K, 4V 1 C4335 F1G1C104A116 C 0.10UF, K, 16V 1 C4338 F1G1C104A116 C 0.10UF, K, 16V 1 C4339 F1G1E103A123 C 0.010UF, K, 25V 1 C4342 F1G1C104A116 C 0.10UF, K, 16V 1 C4343 F1G1E103A123 C 0.010UF, K, 25V 1 C4346 F1G1C104A116 C 0.10UF, K, 16V 1 C4347 F1G1E103A123 C 0.010UF, K, 25V 1 C4350 F1G1C104A116 C 0.10UF, K, 16V 1 C4360 F1G1C104A116 C 0.10UF, K, 16V 1 C4361 F1G1H150A731 C 15UF, 50V 1 C4367 F1G1C104A116 C 0.10UF, K, 16V 1 C4368 F1G1E103A123 C 0.010UF, K, 25V 1 C4371 F1G1C104A116 C 0.10UF, K, 16V 1 C4372 F1G1E103A123 C 0.010UF, K, 25V 1 C4375 F1G1C104A116 C 0.10UF, K, 16V 1 C4376 F1G1E103A123 C 0.010UF, K, 25V 1 C4380 F1J0J106A020 C 0.010UF, K, 16V 1 C4381 F1J0J106A020 C 0.010UF, K, 16V 1 C4382 EEFCD0G560ER C 56UF, K, 4V 1 C4383 F1G1C104A116 C 0.10UF, K, 16V 1 参考号部件号部件名称及说明件数备注 C4386 F1G1C104A116 C 0.10UF, K, 16V 1 C4387 F1G1E103A123 C 0.010UF, K, 25V 1 C4390 F1G1C104A116 C 0.10UF, K, 16V 1 C4391 F1G1E103A123 C 0.010UF, K, 25V 1 C4394 F1G1C104A116 C 0.10UF, K, 16V 1 C4395 F1G1E103A123 C 0.010UF, K, 25V 1 C4398 F1G1C104A116 C 0.10UF, K, 16V 1 C4406 F1J0J106A020 C 0.010UF, K, 16V 1 C4407 F1G1C104A116 C 0.10UF, K, 16V 1 C4452 F1G1H120A731 C 12UF, 50V 1 C4457 F1G1C104A116 C 0.10UF, K, 16V 1 C4458 F1J0J106A020 C 0.010UF, K, 16V 1 C4459 F1G1C104A116 C 0.10UF, K, 16V 1 C4460 F1G1C104A116 C 0.10UF, K, 16V 1 C4461 F1J0J106A020 C 0.010UF, K, 16V 1 C4466 EEEHB1C471P C 470PF, J, 16V 1 C4595 F1H1A1050032 C 10UF, 50V 1 C4600 F1H1A1050032 C 10UF, 50V 1 C8009 F1H1C105A145 C 0.01UF, K, 16V 1 C8013 F1H1C104A144 C 0.1UF, K, 16V 1 C8015 F1H1C105A145 C 0.01UF, K, 16V 1 C8016 F1J1C475A170 C 4.7UF, K, 16V 1 C8019 F1H1H103A970 C 0.001UF, K, 50V 1 C8021 F1H1A474A084 C 0.47UF, 50V 1 C8023 F1H1H103A970 C 0.001UF, K, 50V 1 C8027 F1H1E104A129 C 0.1UF, 25V 1 C8029 F1H1H103A975 C 0.001UF, K, 50V 1 C8030 F2G1C470A022 E 47UF, 16V 1 C8033 F1H1H102A971 C 1000PF, K, 50V 1 C8035 F1H1C104A144 C 0.1UF, K, 16V 1 C8038 F1H1H102A971 C 1000PF, K, 50V 1 C8045 F1H1C105A008 C 1UF, K, 16V 1 C8070 F1H1E104A129 C 0.1UF, 25V 1 C8072 F1J1A106A043 C 0.010UF, K, 10V 1 C8073 F1J1A106A043 C 0.010UF, K, 10V 1 C8074 F1H1H151A971 C 150UF, K. 50V 1 C8075 F1H1H102A971 C 1000PF, K, 50V 1 C8080 F1H1C104A144 C 0.1UF, K, 16V 1 C8081 F1H1C104A144 C 0.1UF, K, 16V 1 C8082 F1H1C104A144 C 0.1UF, K, 16V 1 C8083 F1H1C104A144 C 0.1UF, K, 16V 1 C8084 F1H1C105A008 C 1UF, K, 16V 1 C8085 F1J1C475A170 C 4.7UF, K, 16V 1 C8100 F2G1C470A022 E 47UF, 16V 1 C8101 F1H1H103A975 C 0.001UF, K, 50V 1 C8103 F2G0J470A019 E 47UF 6.3V 1 C8105 EEEHB1C471P C 470PF, J, 16V 1 C8106 F2G0J470A019 E 47UF 6.3V 1 C8107 F2H0J471A010 E 470UF, 6.3V 1 C8109 F1H1C104A144 C 0.1UF, K, 16V 1 C8111 F1H1C104A144 C 0.1UF, K, 16V 1 C8112 F1H1C104A144 C 0.1UF, K, 16V 1 C8113 F1H1C104A144 C 0.1UF, K, 16V 1 C8114 F1K1E106A136 C 10UF, Z, 25V 1 C8115 F1K1E106A136 C 10UF, Z, 25V 1 C8122 F2G0J470A019 E 47UF 6.3V 1 C8123 F1H1C104A144 C 0.1UF, K, 16V 1 C8181 F1H1H150A971 C 15PF, K, 50V 1 C8182 F1H1H150A971 C 15PF, K, 50V 1 C8183 F1H1C104A144 C 0.1UF, K, 16V 1 C8185 EECS5R5H155 E 1.5UF, 5.5V 1 C8200 F2G0J470A019 E 47UF 6.3V 1 C9031 F1G1C104A116 C 0.10UF, K, 16V 1 C9033 F1G1C104A116 C 0.10UF, K, 16V 1 C9034 F1G1C104A116 C 0.10UF, K, 16V 1 C9035 F1J1A106A043 C 0.010UF, K, 10V 1 C9036 F1J1A106A043 C 0.010UF, K, 10V 1 C9037 F1G1E103A123 C 0.010UF, K, 25V 1 C9040 F1G1C104A116 C 0.10UF, K, 16V 1 C9043 F1G1C104A116 C 0.10UF, K, 16V 1 C9044 F1J1A475A039 C 4.7UF, K, 10V 1 C9045 F1G1C104A116 C 0.10UF, K, 16V 1 C9046 F1G1C104A116 C 0.10UF, K, 16V 1 C9047 F1G1C104A116 C 0.10UF, K, 16V 1 C9048 F1G1C104A116 C 0.10UF, K, 16V 1 C9049 F1G1C104A116 C 0.10UF, K, 16V 1 C9050 F1G1C104A116 C 0.10UF, K, 16V 1 参考号部件号部件名称及说明件数备注 133 TH-65PF12CK C9051 F1G1C104A116 C 0.10UF, K, 16V 1 C9052 F1G1C104A116 C 0.10UF, K, 16V 1 C9053 F1G1C104A116 C 0.10UF, K, 16V 1 C9054 F1G1H201A731 C 200 UF, K, 50V 1 C9055 F1G1C104A116 C 0.10UF, K, 16V 1 C9056 F1G1C104A116 C 0.10UF, K, 16V 1 C9057 F1G1C104A116 C 0.10UF, K, 16V 1 C9061 F1G1C104A116 C 0.10UF, K, 16V 1 C9062 F1J1A475A039 C 4.7UF, K, 10V 1 C9063 F1G1C104A116 C 0.10UF, K, 16V 1 C9064 F1G1C104A116 C 0.10UF, K, 16V 1 C9065 F1G1C104A116 C 0.10UF, K, 16V 1 C9066 F1H1E104A129 C 0.1UF, 25V 1 C9067 F1K0J1060020 C 10UF, K,6.3V 1 C9068 F1K0J1060020 C 10UF, K,6.3V 1 C9069 F1G1E682A123 C 6800UF, Z, 25V 1 C9071 F1H1E104A129 C 0.1UF, 25V 1 C9072 F1K0J1060020 C 10UF, K,6.3V 1 C9073 F1K0J1060020 C 10UF, K,6.3V 1 C9074 F1G1H332A730 C 3300UF, 50V 1 C9076 F1G1C153A116 C 0.015UF, K, 16V 1 C9077 F1K1E106A136 C 10UF, Z, 25V 1 C9078 F1K1E106A136 C 10UF, Z, 25V 1 C9079 F1G1H100A731 C 10PF, K, 50V 1 C9080 F1G1H201A731 C 200 UF, K, 50V 1 C9081 F1G1C104A116 C 0.10UF, K, 16V 1 C9082 F1H1E104A129 C 0.1UF, 25V 1 C9083 F1K0J1060020 C 10UF, K,6.3V 1 C9084 F1K0J1060020 C 10UF, K,6.3V 1 C9085 F1G1H332A730 C 3300UF, 50V 1 C9087 F1G1A563A053 C 0.56UF, 10V 1 C9088 F1K1E106A136 C 10UF, Z, 25V 1 C9089 F1K1E106A136 C 10UF, Z, 25V 1 C9090 F1G1H470A731 C 47UF, 50V 1 C9091 F1G1H201A731 C 200 UF, K, 50V 1 C9100 F1G1C104A116 C 0.10UF, K, 16V 1 C9101 F1G1C104A116 C 0.10UF, K, 16V 1 C9102 F1G1C104A116 C 0.10UF, K, 16V 1 C9111 F1J1A106A043 C 0.010UF, K, 10V 1 C9112 F1J1A106A043 C 0.010UF, K, 10V 1 C9113 F1G1C104A116 C 0.10UF, K, 16V 1 C9114 F1G1C104A116 C 0.10UF, K, 16V 1 C9115 F1G1C104A116 C 0.10UF, K, 16V 1 C9123 F1J1A106A043 C 0.010UF, K, 10V 1 C9124 F1J1A106A043 C 0.010UF, K, 10V 1 C9134 F1G1C104A116 C 0.10UF, K, 16V 1 C9135 F1G1C104A116 C 0.10UF, K, 16V 1 C9136 F1G1C104A116 C 0.10UF, K, 16V 1 C9138 F1G1C104A116 C 0.10UF, K, 16V 1 C9139 F1J1A106A043 C 0.010UF, K, 10V 1 C9140 F1G1C104A116 C 0.10UF, K, 16V 1 C9141 F1J1A106A043 C 0.010UF, K, 10V 1 C9142 F1H0J1050012 C 1UF, K, 16V 1 C9143 F1H0J1050012 C 1UF, K, 16V 1 C9144 F1G1C104A116 C 0.10UF, K, 16V 1 C9145 F1H0J1050012 C 1UF, K, 16V 1 C9146 F1H0J1050012 C 1UF, K, 16V 1 C9147 F1H0J1050012 C 1UF, K, 16V 1 C9148 F1H0J1050012 C 1UF, K, 16V 1 C9149 F1H0J1050012 C 1UF, K, 16V 1 C9150 F1H0J1050012 C 1UF, K, 16V 1 C9151 F1H0J1050012 C 1UF, K, 16V 1 C9152 F1H0J1050012 C 1UF, K, 16V 1 C9153 F1H0J1050012 C 1UF, K, 16V 1 C9154 F1H0J1050012 C 1UF, K, 16V 1 C9155 F1H0J1050012 C 1UF, K, 16V 1 C9156 F1H0J1050012 C 1UF, K, 16V 1 C9157 F1H0J1050012 C 1UF, K, 16V 1 C9158 F1H0J1050012 C 1UF, K, 16V 1 C9159 F1H0J1050012 C 1UF, K, 16V 1 C9160 F1H0J1050012 C 1UF, K, 16V 1 C9161 F1H0J1050012 C 1UF, K, 16V 1 C9162 F1H0J1050012 C 1UF, K, 16V 1 C9163 F1H0J1050012 C 1UF, K, 16V 1 C9164 F1H0J1050012 C 1UF, K, 16V 1 C9165 F1H0J1050012 C 1UF, K, 16V 1 C9166 F1H0J1050012 C 1UF, K, 16V 1 参考号部件号部件名称及说明件数备注 C9167 F1H0J1050012 C 1UF, K, 16V 1 C9168 F1H0J1050012 C 1UF, K, 16V 1 C9169 F1H0J1050012 C 1UF, K, 16V 1 C9300 F1G1C104A116 C 0.10UF, K, 16V 1 C9302 F1G1C104A116 C 0.10UF, K, 16V 1 C9303 F1G1C104A116 C 0.10UF, K, 16V 1 C9305 F1G1C104A116 C 0.10UF, K, 16V 1 C9306 F1G1C104A116 C 0.10UF, K, 16V 1 C9310 F1G1C104A116 C 0.10UF, K, 16V 1 C9311 F1G1C104A116 C 0.10UF, K, 16V 1 C9312 F1G1C104A116 C 0.10UF, K, 16V 1 C9313 F1G1C104A116 C 0.10UF, K, 16V 1 C9314 F1G1C104A116 C 0.10UF, K, 16V 1 C9468 F1G1E103A123 C 0.010UF, K, 25V 1 C9469 F1G1C104A116 C 0.10UF, K, 16V 1 C9534 F1G1C104A116 C 0.10UF, K, 16V 1 C9535 F1G1C104A116 C 0.10UF, K, 16V 1 C9536 F1G1C104A116 C 0.10UF, K, 16V 1 C9537 F1G1C104A116 C 0.10UF, K, 16V 1 C9538 F1G1C104A116 C 0.10UF, K, 16V 1 C9539 F1G1C104A116 C 0.10UF, K, 16V 1 C9540 F1G1C104A116 C 0.10UF, K, 16V 1 C9541 F1G1C104A116 C 0.10UF, K, 16V 1 C9542 F1G1C104A116 C 0.10UF, K, 16V 1 C9543 F1G1C104A116 C 0.10UF, K, 16V 1 C9544 F1G1C104A116 C 0.10UF, K, 16V 1 C9545 F1G1C104A116 C 0.10UF, K, 16V 1 C9546 F1G1C104A116 C 0.10UF, K, 16V 1 C9547 F1G1C104A116 C 0.10UF, K, 16V 1 C9548 F1G1C104A116 C 0.10UF, K, 16V 1 C9549 F1G1C104A116 C 0.10UF, K, 16V 1 C9550 F1G1C104A116 C 0.10UF, K, 16V 1 C9700 F1G1C104A116 C 0.10UF, K, 16V 1 C9701 F1G1C104A116 C 0.10UF, K, 16V 1 C9702 F1G1C104A116 C 0.10UF, K, 16V 1 C9703 F1G1C104A116 C 0.10UF, K, 16V 1 C9704 F1G1C104A116 C 0.10UF, K, 16V 1 C9706 F1G1C104A116 C 0.10UF, K, 16V 1 C9709 F1G1C104A116 C 0.10UF, K, 16V 1 C9713 F1G1C104A116 C 0.10UF, K, 16V 1 C9714 F1G1C104A116 C 0.10UF, K, 16V 1 C9715 F1G1C104A116 C 0.10UF, K, 16V 1 C9716 F1G1C104A116 C 0.10UF, K, 16V 1 C9823 F1K1E106A136 C 10UF, Z, 25V 1 C9825 F1G1H101A731 C 100PF, K, 50V 1 C9832 F1J1A106A043 C 0.010UF, K, 10V 1 C9837 F1J1A106A043 C 0.010UF, K, 10V 1 C9840 F1G1E103A123 C 0.010UF, K, 25V 1 C9844 F1G1E103A123 C 0.010UF, K, 25V 1 C9845 F1G1C104A116 C 0.10UF, K, 16V 1 C9846 F1G1C104A116 C 0.10UF, K, 16V 1 C9858 F1K1E106A136 C 10UF, Z, 25V 1 C9859 F1G1E103A123 C 0.010UF, K, 25V 1 C9863 F1G1E472A123 C 4200UF, Z, 25V 1 C9869 F1K1E106A136 C 10UF, Z, 25V 1 C9872 F1K1E106A136 C 10UF, Z, 25V 1 C9874 F1G1H101A731 C 100PF, K, 50V 1 C9882 F1G1H201A731 C 200 UF, K, 50V 1 C9889 F1J1A106A043 C 0.010UF, K, 10V 1 C9899 F1J1A106A043 C 0.010UF, K, 10V 1 C9900 F1G1C104A116 C 0.10UF, K, 16V 1 C9901 F1G1C104A116 C 0.10UF, K, 16V 1 C9902 F1G1C104A116 C 0.10UF, K, 16V 1 C9903 F1G1C104A116 C 0.10UF, K, 16V 1 C9904 F1G1C104A116 C 0.10UF, K, 16V 1 C9905 F1G1C104A116 C 0.10UF, K, 16V 1 C9906 F1G1C104A116 C 0.10UF, K, 16V 1 C9907 F1G1C104A116 C 0.10UF, K, 16V 1 C9908 F1G1C104A116 C 0.10UF, K, 16V 1 C9909 F1G1C104A116 C 0.10UF, K, 16V 1 C9910 F1G1C104A116 C 0.10UF, K, 16V 1 C9911 F1G1C104A116 C 0.10UF, K, 16V 1 C9912 F1G1C104A116 C 0.10UF, K, 16V 1 C9913 F1G1C104A116 C 0.10UF, K, 16V 1 C9914 F1G1C104A116 C 0.10UF, K, 16V 1 C9915 F1G1C104A116 C 0.10UF, K, 16V 1 C9916 F1G1C104A116 C 0.10UF, K, 16V 1 参考号部件号部件名称及说明件数备注 134 TH-65PF12CK C9917 F1G1C104A116 C 0.10UF, K, 16V 1 C9918 F1G1C104A116 C 0.10UF, K, 16V 1 C9920 F1G1C104A116 C 0.10UF, K, 16V 1 C9921 F1G1C104A116 C 0.10UF, K, 16V 1 C9922 F1G1C104A116 C 0.10UF, K, 16V 1 C9923 F1G1C104A116 C 0.10UF, K, 16V 1 C9924 F1G1C104A116 C 0.10UF, K, 16V 1 C9925 F1G1C104A116 C 0.10UF, K, 16V 1 C9926 F1J1A106A043 C 0.010UF, K, 10V 1 C9949 F1G1C104A116 C 0.10UF, K, 16V 1 C9950 F1G1C104A116 C 0.10UF, K, 16V 1 C9952 F1G1C104A116 C 0.10UF, K, 16V 1 C9953 F1G1C104A116 C 0.10UF, K, 16V 1 C9954 F1G1C104A116 C 0.10UF, K, 16V 1 C9956 F1G1C104A116 C 0.10UF, K, 16V 1 C9957 F1G1C104A116 C 0.10UF, K, 16V 1 C9958 F1G1C104A116 C 0.10UF, K, 16V 1 C9960 F1J1A106A043 C 0.010UF, K, 10V 1 C9961 F1J1A106A043 C 0.010UF, K, 10V 1 C9962 F1J1A106A043 C 0.010UF, K, 10V 1 C9965 F1G1C104A116 C 0.10UF, K, 16V 1 C9966 F1J1A106A043 C 0.010UF, K, 10V 1 C9967 F1G1C104A116 C 0.10UF, K, 16V 1 C9968 F1G1C104A116 C 0.10UF, K, 16V 1 C9970 F1G1C104A116 C 0.10UF, K, 16V 1 C9971 F1G1H150A731 C 15UF, 50V 1 C9972 F1G1H180A731 C 18UF, 50V 1 C9973 F1G1C104A116 C 0.10UF, K, 16V 1 C9976 F1G1C104A116 C 0.10UF, K, 16V 1 C9977 F1G1C104A116 C 0.10UF, K, 16V 1 C9980 F1G1C104A116 C 0.10UF, K, 16V 1 C9984 F1J1A106A043 C 0.010UF, K, 10V 1 C9985 F1J1A106A043 C 0.010UF, K, 10V 1 C9986 F1G1C104A116 C 0.10UF, K, 16V 1 C9987 F1G1C104A116 C 0.10UF, K, 16V 1 C9988 F1G1C104A116 C 0.10UF, K, 16V 1 C9989 ECGRL0G680ER C 68UF, J, 4V 1 C9990 F1G1C104A116 C 0.10UF, K, 16V 1 C9991 F1G1C104A116 C 0.10UF, K, 16V 1 C9992 F1G1C104A116 C 0.10UF, K, 16V 1 C9993 F1G1C104A116 C 0.10UF, K, 16V 1 C9994 F1G1C104A116 C 0.10UF, K, 16V 1 C9995 F1G1C104A116 C 0.10UF, K, 16V 1 C9996 F1G1C104A116 C 0.10UF, K, 16V 1 C9997 F1G1C104A116 C 0.10UF, K, 16V 1 D3 K1KA15B00074 15P 连接接头 1 D5 K1KB31BA0064 31P 连接接头 1 D6 K1KA20AA0009 20P 连接接头 1 D20 K1MY35BA0345 35P 连接接头 1 D25 K1KA13B00069 13P 连接接头 1 D31 K1MY68BA0345 68P 连接接头 1 D32 K1MY68BA0345 68P 连接接头 1 D801 B0JCME000037 二极管 1 D802 B0JCME000037 二极管 1 D803 B0JCPE000004 二极管 1 D811 B0BC01100001 稳压二极管 1 D812 B0BC4R700007 稳压二极管 1 D813 B0BC4R700007 稳压二极管 1 D814 B0BC6R600005 稳压二极管 1 D815 B0BC4R700007 稳压二极管 1 D816 B0BC4R700007 稳压二极管 1 D817 B0BC6R600005 稳压二极管 1 D818 B0BC4R700007 稳压二极管 1 D819 B0BC4R700007 稳压二极管 1 D827 MAZ8062GML 稳压二极管 1 D828 MAZ8062GML 稳压二极管 1 D829 MAZ8068GML 稳压二极管 1 D830 MAZ8062GML 稳压二极管 1 D831 MAZ8062GML 稳压二极管 1 D832 MAZ8062GML 稳压二极管 1 D851 MA3X152D0L 二极管 1 D852 MA3X152D0L 二极管 1 D853 MA3X152D0L 二极管 1 D855 MA3X152D0L 二极管 1 D856 MA3X152D0L 二极管 1 D857 MA3X152D0L 二极管 1 参考号部件号部件名称及说明件数备注 D859 MA2J1110GL 二极管 1 D1550 LNJ107W5PRW LED 1 D1551 MAZ80330LL 稳压二极管 1 D1554 MAZ80330LL 稳压二极管 1 D2304 MA2J1110GL 二极管 1 D2400 MAZ8056GML 稳压二极管 1 D3001 EZAEG2A50AX 静电抑制器 1 (HDE) D3001 MA2J1110GL 二极管 1 (DS) D3002 EZAEG2A50AX 静电抑制器 1 D3003 EZAEG2A50AX 静电抑制器 1 (HDE) D3003 MA2J1110GL 二极管 1 (DS) D3004 EZAEG2A50AX 静电抑制器 1 (HDE) D3004 MA2J1110GL 二极管 1 (DS) D3005 EZAEG2A50AX 静电抑制器 1 D3006 EZAEG2A50AX 静电抑制器 1 D3007 EZAEG2A50AX 静电抑制器 1 D3008 EZAEG2A50AX 静电抑制器 1 D3009 EZAEG2A50AX 静电抑制器 1 D3010 EZAEG2A50AX 静电抑制器 1 D3011 B0HCMM000014 二极管 1 D3025 B0HCMM000014 二极管 1 D3301 B0JCPE000004 二极管 1 (HDE) D3301 B3ABB0000210 LED 1 (HL) D3302 B0BC6R600005 稳压二极管 1 (HDE) D3302 B3ABB0000210 LED 1 (HL) D3303 B0BC4R700007 稳压二极管 1 (HDE) D3303 B3ABB0000210 LED 1 (HL) D3304 B0BC4R700007 稳压二极管 1 (HDE) D3304 B3ABB0000210 LED 1 (HL) D3305 B3ABB0000210 LED 1 D3307 MAZ30560ML 稳压二极管 1 D3308 EZAEG2A50AX 静电抑制器 1 D3309 MAZ30560ML 稳压二极管 1 D3310 B0BC4R700007 稳压二极管 1 (HL) D3310 MAZ30560ML 稳压二极管 1 (HDE) D3311 B0BC6R600005 稳压二极管 1 (HL) D3311 MAZ30560ML 稳压二极管 1 (HDE) D3312 B0JCPE000004 二极管 1 D3313 B0BC4R700007 稳压二极管 1 D3314 MA2J1110GL 二极管 1 D3504 MAZ30560ML 稳压二极管 1 D3507 MA8160H 稳压二极管 1 D3508 MA8160H 稳压二极管 1 D3509 MA8160H 稳压二极管 1 D3510 MA8160H 稳压二极管 1 D3511 B0HCMM000014 二极管 1 D3512 B0HCMM000014 二极管 1 D4000 B0BC4R700007 稳压二极管 1 D4001 B0JCME000037 二极管 1 D4002 B0JCPE000004 二极管 1 D4004 B0JCPE000004 二极管 1 D4005 B0JCPE000004 二极管 1 D4007 B0BC5R6A0275 二极管 1 D4008 B0BC4R700007 稳压二极管 1 D4011 B0BC4R700007 稳压二极管 1 D4012 B0BC5R6A0275 二极管 1 D4016 B0JCPE000004 二极管 1 D4018 B0BC5R6A0275 二极管 1 D4024 MA152K 二极管 1 D4025 MA152K 二极管 1 D4026 MA152K 二极管 1 D4027 MA152K 二极管 1 D4029 MA2J72800L 稳压二极管 1 D4030 MA152K 二极管 1 D4031 MA152K 二极管 1 D4032 MA152K 二极管 1 D4033 MA152K 二极管 1 D4043 MA3036H 稳压二极管 1 D4044 MAZ303300L 稳压二极管 1 D4045 MA2J72800L 稳压二极管 1 D4050 B0BC5R6A0275 二极管 1 D4062 B0JCME000037 二极管 1 D8001 MA2J1110GL 二极管 1 D8003 MA2J1110GL 二极管 1 D8010 MA153A 二极管 1 D8011 MA153A 二极管 1 D8013 MA152K 二极管 1 参考号部件号部件名称及说明件数备注 135 TH-65PF12CK D8014 MA152K 二极管 1 D8015 MA152K 二极管 1 D8016 MA2J1110GL 二极管 1 D8017 MA2J1110GL 二极管 1 D8180 MA2J1110GL 二极管 1 D8181 MAZ8056GML 稳压二极管 1 D8184 MAZ8056GML 稳压二极管 1 D8185 MAZ8056GML 稳压二极管 1 D8200 MAZ8160GHL 稳压二极管 1 D8201 MA2J1110GL 二极管 1 D8203 MAZ8100GML 稳压二极管 1 D8204 MA2J1110GL 二极管 1 D8209 MA2J1110GL 二极管 1 D8210 MAZ8068GML 稳压二极管 1 D8211 MA2J1110GL 二极管 1 D8212 MAZ8056GML 稳压二极管 1 D8213 MA2J1110GL 二极管 1 D8500 B0BC03300003 稳压二极管 1 D8501 B0BC03300003 稳压二极管 1 D8502 B0BC03300003 稳压二极管 1 D8503 B0BC03300003 稳压二极管 1 D9110 B0JCGD000002 二极管 1 D9800 B0JCPD000026 二极管 1 DN1 K1MY68BA0345 68P 连接接头 1 DN2 K1MY68BA0345 68P 连接接头 1 DN3 K1KA15A00148 15P 连接接头 1 DN4 K1KA14A00248 14P 连接接头 1 DN5 K1KB31BA0064 31P 连接接头 1 DN9 K1KA05AA0714 5P 连接接头 1 DN11 K1KA20AA0009 20P 连接接头 1 DS1 K1MY68BA0345 68P 连接接头 1 DS2 K1KA06A00508 6P 连接接头 1 DS3 K1MY68BA0345 68P 连接接头 1 DS4 K1KA09AA0193 9P 连接接头 1 DS6 K1KA11AA0194 11P 连接接头 1 DS7 K1KA03AA0190 3P 连接接头 1 DS8 K1KA03AA0190 3P 连接接头 1 DS11 K1KB80B00024 80P 连接接头 1 DS12 K1KB80B00024 80P 连接接头 1 DS13 K1KB80B00024 80P 连接接头 1 DS14 K1KA15A00148 15P 连接接头 1 DS15 K1KA03A00632 3P 连接接头 1 FL3000 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3001 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3003 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3004 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3005 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3008 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3009 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3010 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3011 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3012 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3013 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3014 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3015 F1J1E104A148 C 0.10UF, Z, 25V 1 FL3301 J0HABB000004 LC 滤波器 1 FL3302 J0HABB000004 LC 滤波器 1 FL3303 J0HABB000004 LC 滤波器 1 FL3304 J0HABB000003 LC 滤波器 1 FL3305 J0HABB000003 LC 滤波器 1 FL3314 J0MAB0000169 LC 滤波器 1 FL3315 J0MAB0000169 LC 滤波器 1 FL3316 J0MAB0000169 LC 滤波器 1 FL3317 J0MAB0000169 LC 滤波器 1 FL3318 J0MAB0000169 LC 滤波器 1 FL3319 J0MAB0000169 LC 滤波器 1 FL3510 TAXA0024 LC 滤波器 1 FL3511 TAXA0024 LC 滤波器 1 FL3512 TAXA0024 LC 滤波器 1 FL3513 TAXA0024 LC 滤波器 1 FL3514 TAXA0024 LC 滤波器 1 FL3515 TAXA0024 LC 滤波器 1 FL3516 TAXA0024 LC 滤波器 1 FL3517 TAXA0024 LC 滤波器 1 参考号部件号部件名称及说明件数备注 FL4000 J0MAB0000175 LC 滤波器 1 FL4003 F1J1E104A148 C 0.10UF, Z, 25V 1 FL4004 F1J1E104A148 C 0.10UF, Z, 25V 1 FL4005 F1J1E104A148 C 0.10UF, Z, 25V 1 FL4006 F1J1E104A148 C 0.10UF, Z, 25V 1 FL4007 F1J1E104A148 C 0.10UF, Z, 25V 1 FL4008 F1J1E104A148 C 0.10UF, Z, 25V 1 FL4114 J0JAD0000028 片状电感 1 FL4115 J0JAD0000028 片状电感 1 FL4116 J0JAD0000028 片状电感 1 FL4117 J0JAD0000028 片状电感 1 FL4118 J0JAD0000028 片状电感 1 FL4119 J0JAD0000028 片状电感 1 FL8001 J0MAB0000140 LC 滤波器 1 FL9803 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9805 F1J1E104A148 C 0.10UF, Z, 25V 1 FL9806 F1J1E104A148 C 0.10UF, Z, 25V 1 H1 K1KA80B00037 80P 连接接头 1 H2 K1KA10AA0715 10P 连接接头 1 H3 K1KA07AA0266 7P 连接接头 1 (HL) H3 K1KA09AA0714 9P 连接接头 1 (HDE) H4 K1KA04AA0714 4P 连接接头 1 H5 K1KA05AA0714 5P 连接接头 1 H6 K1KA09AA0714 9P 连接接头 1 H37 K1KA03AA0190 3P 连接接头 1 HX1 K1KA15AA0194 15P 连接接头 1 IC801 C0DBAYY00183 IC 1 IC802 C0DBAYY00183 IC 1 IC803 C0DBAYY00183 IC 1 IC804 C0CBCAC00275 IC 1 IC805 C0CBCDD00025 IC 1 IC2300 C1AB00003105 IC 1 IC2303 C1BB00001006 IC 1 IC2305 C0ABBA000168 IC 1 IC2415 C0JBAA000377 IC 1 IC3001 C1AB00002530 IC 1 IC3002 C0JBBR000002 IC 1 IC3005 C1AB00003160 IC 1 IC3006 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC3007 C0JBAS000215 IC 1 IC3008 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC3009 C0JBAA000377 IC 1 IC3153 C0JBAZ001120 IC 1 IC3301 C1CB00002896 IC 1 (HL) IC3301 TVRP844 IC 1 (HDE) IC3302 C0EBE0000120 IC 1 IC3303 C0DBFFD00003 IC 1 (HL) IC3303 C0JBAZ002269 IC 1 (HDE) IC3304 C1CB00003205 IC 1 IC3305 TVRR003 IC 1 IC3307 C1AB00002848 IC 1 IC3308 C0DBFFD00003 IC 1 (HDE) IC3308 TVRR004 IC 1 (HL) IC3310 TVRP845 IC 1 IC3312 C0EBE0000066 IC 1 IC3313 TVRR005 IC 1 IC3314 C0DBAYY00183 IC 1 (HL) IC3314 TVRP843 IC 1 (HDE) IC3315 C0JBAA000419 IC 1 IC3316 C0JBAA000244 IC 1 IC3319 TVRP842 IC 1 IC3320 C0JBAZ002269 IC 1 IC3341 C1ZBZ0003575 IC 1 IC3342 C0DBEHG00006 IC 1 IC3343 C0ZBZ0001561 IC 1 IC3345 C0DBAYY00183 IC 1 IC3346 C0ZBZ0001568 IC 1 IC3502 TVRQ962 IC 1 IC4001 C0FBAF000075 IC 1 IC4004 C0JBAZ000851 IC 1 IC4005 C0JBAA000175 IC 1 IC4007 C0JBAA000377 IC 1 IC4008 C0JBAA000377 IC 1 IC4010 C1ZBZ0003775 IC 1 参考号部件号部件名称及说明件数备注 136 TH-65PF12CK IC4011 C0CBCAC00275 IC 1 IC4012 C0DBFFD00003 IC 1 IC4023 C0DBAZG00034 IC 1 IC4201 C1AB00002899 IC 1 IC4501 C1AB00002970 IC 1 IC4513 C3ABQJ000055 IC 1 IC4514 C3ABQJ000055 IC 1 IC4515 C1ZBZ0003984 IC 1 IC4702 TVRQ805AC IC 1 IC4703 TVRQ808AA IC 1 IC4704 C0EBE0000120 IC 1 IC4901 C0DBAYY00369 IC 1 IC4902 C0DBAYY00369 IC 1 IC4903 C0DBAYY00183 IC 1 IC4904 C0CBCAG00039 IC 1 IC8005 C0JBAB000646 IC 1 IC8014 C1ZBZ0003985 IC 1 IC8017 C0JBAB000715 IC 1 IC8018 C0JBAB000715 IC 1 IC8181 C1DB00001208 IC 1 IC9001 TVRQ844AA IC 1 IC9002 C1ZBZ0003577 IC 1 IC9003 MNZSFH8KPF5 IC 1 IC9004 C1ZBZ0003983 IC 1 IC9300 MN84528 IC 1 IC9303 TVRQ846 IC 1 IC9500 C1ZBZ0003760 IC 1 IC9805 C0DBAYY00605 IC 1 IC9806 C0DBAYY00605 IC 1 IC9807 C0DBAYY00605 IC 1 IC9808 C0CBCAC00365 IC 1 IC9902 C3ABRY000040 IC 1 IC9903 C3ABRY000040 IC 1 JA1 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA2 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA3 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA4 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA5 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA6 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA7 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA8 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA9 D0GDR00Z0002 M 0 OHM, 1/10W 1 JA10 D0GDR00Z0002 M 0 OHM, 1/10W 1 JK3301 K1FB124B0025 连接接头 1 (HDE) JK3301 K2LC108B0054 插孔 1 (HL) JK3302 K2HC103B0105 插孔 1 (HDE) JK3302 K2HC1YYB0049 插孔 1 (HL) JK3303 K1QBB3BB0002 连接接头 1 JK3509 K1FA109B0062 连接接头 1 JK3511 K1FB115BA020 连接接头 1 JK3513 K2HC1YYB0049 插孔 1 JK8500 K4BC02B00013 AV 端子 1 L061 J0JJC0000015 片状电感 1 L062 J0JJC0000015 片状电感 1 L801 G1C330MA0363 感应线圈 1 L802 G1C330MA0363 感应线圈 1 L803 G1C330MA0363 感应线圈 1 L804 J0JHC0000117 片状电感 1 L805 J0JHC0000117 片状电感 1 L806 J0JHC0000117 片状电感 1 L807 J0JHC0000117 片状电感 1 L808 J0JHC0000117 片状电感 1 L809 J0JHC0000117 片状电感 1 L810 J0JHC0000117 片状电感 1 L811 J0JHC0000117 片状电感 1 L813 J0JHC0000117 片状电感 1 L816 J0JHC0000096 片状电感 1 L817 J0JHC0000096 片状电感 1 L818 J0JHC0000096 片状电感 1 L819 J0JHC0000096 片状电感 1 L820 J0JHC0000096 片状电感 1 L821 J0JHC0000096 片状电感 1 L1501 J0JHC0000078 片状电感 1 L1502 J0JHC0000078 片状电感 1 参考号部件号部件名称及说明件数备注 L1503 J0JHC0000078 片状电感 1 L1504 J0JHC0000078 片状电感 1 L1505 J0JHC0000078 片状电感 1 L1506 J0JHC0000078 片状电感 1 L1507 J0JHC0000078 片状电感 1 L1508 J0JHC0000078 片状电感 1 L2300 G1C150ZA0202 感应线圈 1 L2301 G1C150ZA0202 感应线圈 1 L2302 G1C150ZA0202 感应线圈 1 L2303 G1C150ZA0202 感应线圈 1 L2304 G1C101MA0072 感应线圈 1 L2400 G1C101MA0072 感应线圈 1 L2401 G1C101MA0072 感应线圈 1 L2402 G1C101MA0072 感应线圈 1 L2403 G1C101MA0072 感应线圈 1 L3002 G1C100K00020 感应线圈 1 L3050 G1C100K00020 感应线圈 1 L3051 G1C100K00020 感应线圈 1 L3052 G1C150ZA0202 感应线圈 1 L3053 G1C101MA0072 感应线圈 1 L3140 J0JHC0000117 片状电感 1 L3301 J0ZZB0000101 滤波器 1 L3302 J0ZZB0000101 滤波器 1 L3303 J0JHC0000045 片状电感 1 L3304 J0JHC0000045 片状电感 1 L3305 J0JHC0000045 片状电感 1 L3306 J0JHC0000045 片状电感 1 L3307 J0JHC0000045 片状电感 1 L3308 J0JHC0000045 片状电感 1 L3310 J0JHC0000034 片状电感 1 L3311 ELJPA100KFB 片状电感 1 (HL) L3311 J0JHC0000075 片状电感 1 (HDE) L3312 G1C330MA0363 感应线圈 1 (HL) L3312 J0JHC0000034 片状电感 1 (HDE) L3313 J0JHC0000045 片状电感 1 L3314 J0JHC0000034 片状电感 1 L3322 J0JHC0000075 片状电感 1 L3325 J0JHC0000075 片状电感 1 L3326 J0JHC0000075 片状电感 1 L3327 J0JHC0000075 片状电感 1 L3328 J0JHC0000034 片状电感 1 L3329 J0JHC0000075 片状电感 1 L3343 J0JHC0000075 片状电感 1 L3344 J0JHC0000075 片状电感 1 L3357 J0JHC0000075 片状电感 1 L3358 J0JHC0000075 片状电感 1 L3360 G1C330MA0363 感应线圈 1 L3361 J0JHC0000034 片状电感 1 L3362 J0JHC0000034 片状电感 1 L3363 J0JHC0000034 片状电感 1 L3364 J0JHC0000034 片状电感 1 L3366 EXC3BB221H 磁珠扼流圈 1 L3367 EXC3BB221H 磁珠扼流圈 1 L3368 J0JHC0000034 片状电感 1 L3369 J0JHC0000034 片状电感 1 L3370 J0JHC0000075 片状电感 1 L3526 ELJPA100KFB 片状电感 1 L3555 ELJPA100KFB 片状电感 1 L4000 G1C330MA0363 感应线圈 1 L4001 G1C8R2ZA0202 感应线圈 1 L4002 G1C8R2ZA0202 感应线圈 1 L4003 J0JHC0000096 片状电感 1 L4005 J0JHC0000096 片状电感 1 L4006 J0JHC0000096 片状电感 1 L4007 J0JHC0000096 片状电感 1 L4008 J0JHC0000096 片状电感 1 L4010 J0JHC0000096 片状电感 1 L4011 J0JHC0000096 片状电感 1 L4014 J0JHC0000096 片状电感 1 L4016 J0JHC0000096 片状电感 1 L4017 J0JHC0000096 片状电感 1 L4018 J0JHC0000075 片状电感 1 L4020 J0JHC0000096 片状电感 1 L4021 J0JHC0000096 片状电感 1 L4022 J0JHC0000096 片状电感 1 L4023 J0JHC0000096 片状电感 1 L4024 J0JHC0000096 片状电感 1 参考号部件号部件名称及说明件数备注 137 TH-65PF12CK L4025 J0JHC0000096 片状电感 1 L4027 J0JHC0000096 片状电感 1 L4029 J0JHC0000096 片状电感 1 L4032 J0JHC0000096 片状电感 1 L4034 J0JHC0000096 片状电感 1 L4036 J0JHC0000096 片状电感 1 L4037 J0JHC0000096 片状电感 1 L4038 J0JHC0000096 片状电感 1 L4039 J0JHC0000096 片状电感 1 L4040 J0JHC0000096 片状电感 1 L4041 J0JHC0000096 片状电感 1 L4042 J0JHC0000096 片状电感 1 L4046 J0JHC0000096 片状电感 1 L4047 J0JHC0000096 片状电感 1 L4048 J0JHC0000096 片状电感 1 L4049 J0JHC0000096 片状电感 1 L4050 J0JHC0000096 片状电感 1 L4051 G1C101MA0363 感应线圈 1 L8003 G1C100K00020 感应线圈 1 L8005 G1C100K00020 感应线圈 1 L8101 J0JHC0000117 片状电感 1 L8102 J0JHC0000117 片状电感 1 L8103 J0JHC0000117 片状电感 1 L8105 J0JHC0000117 片状电感 1 L8106 J0JHC0000117 片状电感 1 L9001 G1C3R3Z00004 感应线圈 1 L9002 G1C6R8Z00008 感应线圈 1 L9700 J0JHC0000117 片状电感 1 L9701 J0JHC0000117 片状电感 1 L9802 G1C6R8Z00010 感应线圈 1 L9900 J0JHC0000117 片状电感 1 L9901 J0JHC0000117 片状电感 1 L9903 J0JHC0000117 片状电感 1 L9904 J0JHC0000117 片状电感 1 PA3301 K5H4022A0023 保险丝 1 (HDE) PA3301 K5H4022A0031 保险丝 1 (HL) PA4000 K5H4022A0031 保险丝 1 PA4001 K5H4022A0031 保险丝 1 PB30 K1KA04AA0193 4P 连接接头 1 PB32 K1KA03AA0193 3P 连接接头 1 PB33 K1KA03AA0193 3P 连接接头 1 PB34 K1KA03AA0193 3P 连接接头 1 PB36 K1KA03AA0193 3P 连接接头 1 PB37 K1KA03AA0193 3P 连接接头 1 PB38 K1KA03AA0193 3P 连接接头 1 PCB TXAUW011LBC 电路板 H3 2 （RTL） PCB TNPA4489AD 电路板 HX 1 （RTL） PCB TNPA4918AB 电路板 DS 1 （RTL） PCB TXNHDE1VZTC 电路板 DVI 1 （RTL）PPDS PCB TXNHL11LBC 电路板 HL 1 （RTL）PPDS PCB TXNDN11LBC 电路板 DN 1 （RTL） PCB TXNPB11LBC 电路板 PB 1 （RTL） PCB TXN/D11LBC 电路板 D 1 （RTL） PCB TXNV21XBTC 电路板 V2 1 （RTL） PCB TXNV11XBTC 电路板 V1 1 （RTL） PCB TXNS111LBC 电路板 S1 1 （RTL） Q801 B1DHDC000028 FET 1 Q802 2SD0601ARL 三极管 1 Q803 B1DHDC000028 FET 1 Q804 2SD0601ARL 三极管 1 Q805 2SD0601ARL 三极管 1 Q806 2SD0601ARL 三极管 1 Q807 2SD0601ARL 三极管 1 Q1540 2SD0601ARL 三极管 1 Q2372 2SD0601ARL 三极管 1 Q3301 2SB0709ARL 三极管 1 (HL) Q3301 2SD0601ASL 三极管 1 (HDE) Q3302 2SD0601ARL 三极管 1 (HL) 参考号部件号部件名称及说明件数备注 Q3302 2SD0601ASL 三极管 1 (HDE) Q3303 2SD0601ARL 三极管 1 (HL) Q3303 2SD0601ASL 三极管 1 (HDE) Q3304 2SB0709ARL 三极管 1 (HL) Q3304 2SD0601ASL 三极管 1 (HDE) Q3305 2SD0601ARL 三极管 1 (HL) Q3305 2SK1228 FET 1 (HDE) Q3306 2SD0601ARL 三极管 1 Q3307 2SD0601ARL 三极管 1 Q3531 2SD0601ARL 三极管 1 Q3532 2SD0601ARL 三极管 1 Q4001 2SD0601ARL 三极管 1 Q4003 B1DHDC000028 FET 1 Q4004 2SD0601ARL 三极管 1 Q4005 2SD0601ARL 三极管 1 Q4006 2SD0601ARL 三极管 1 Q4007 2SD0601ARL 三极管 1 Q4008 2SD0601ARL 三极管 1 Q4009 2SD0601ARL 三极管 1 Q4010 2SD0601ARL 三极管 1 Q4011 2SD0601ARL 三极管 1 Q4012 2SD0601ARL 三极管 1 Q4013 2SD0601ARL 三极管 1 Q4014 2SD0601ARL 三极管 1 Q4017 2SD0601ARL 三极管 1 Q4018 B1CBHD000002 FET 1 Q4019 2SD0601ARL 三极管 1 Q4020 2SD0601ARL 三极管 1 Q4021 2SD0601ARL 三极管 1 Q4023 2SD0601ARL 三极管 1 Q4352 2SB0709ARL 三极管 1 Q8002 2SB0709ARL 三极管 1 Q8010 2SD0601ARL 三极管 1 Q8011 2SB0709ARL 三极管 1 Q8012 2SD0601ARL 三极管 1 Q8013 2SB0709ARL 三极管 1 Q8019 2SD0601ARL 三极管 1 Q8021 2SD0601ARL 三极管 1 Q8022 2SD0601ARL 三极管 1 Q8023 2SD0601ARL 三极管 1 Q8024 2SD0601ARL 三极管 1 Q8183 B1CBHD000002 FET 1 Q8184 B1CBHD000002 FET 1 Q8200 2SD0601ARL 三极管 1 Q8201 2SD0601ARL 三极管 1 Q8202 2SD0601ARL 三极管 1 Q9301 2SD0601ARL 三极管 1 Q9302 2SD0601ARL 三极管 1 Q9807 2SD0601ARL 三极管 1 R802 ERJ3GEYJ4R7 M 4.7HM,J,1/16W 1 R804 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 R805 D1BB4992A055 M49.9KOHM, 1/10W 1 R806 D1BB5621A055 M 5.62KOHM, 1/10W 1 R807 D0GB104JA041 M 100KOHM J 1/16W 1 R810 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R811 ERJ3GEYJ4R7 M 4.7HM,J,1/16W 1 R812 D0GB103JA041 M 10K OHM J 1/16W 1 R813 D1BB4532A055 M4.53KOHM, 1/10W 1 R814 D1BB1002A055 M 10KOHM, 1/10W 1 R815 D0GB104JA041 M 100KOHM J 1/16W 1 R818 D0GB104JA041 M 100KOHM J 1/16W 1 R819 ERJ3GEYD512V M 5.1KOHM,J,1/16W 1 R820 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R821 D1BB2612A055 M26.1KOHM, 1/10W 1 R822 D1BB1002A055 M 10KOHM, 1/10W 1 R823 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R825 D0GB103JA041 M 10K OHM J 1/16W 1 R827 ERJ3GEYJ4R7 M 4.7HM,J,1/16W 1 R829 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R830 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R840 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R843 ERJ12YJ101 M 100 OHM,J, 1/2W 1 R844 ERJ12YJ101 M 100 OHM,J, 1/2W 1 R845 D0GB103JA041 M 10K OHM J 1/16W 1 R848 D0GB103JA041 M 10K OHM J 1/16W 1 R849 D0GB103JA041 M 10K OHM J 1/16W 1 参考号部件号部件名称及说明件数备注 138 TH-65PF12CK R850 D0GB123JA057 M 12K OHM J 1/16W 1 R851 D0GB103JA041 M 10K OHM J 1/16W 1 (DS) R851 D0GB472JA041 M 4.7KOHM, J,0.063W 1 (PB) R852 D0GB102JA041 M 1KOHM,J,1/16W 1 (DS) R852 D0GB472JA041 M 4.7KOHM, J,0.063W 1 (PB) R853 D0GB472JA041 M 4.7KOHM, J,0.063W 1 R855 D0GB472JA041 M 4.7KOHM, J,0.063W 1 R856 D0GB472JA041 M 4.7KOHM, J,0.063W 1 R857 D0GB472JA041 M 4.7KOHM, J,0.063W 1 R858 D0GB103JA041 M 10K OHM J 1/16W 1 R859 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R860 D0GD331JA036 M 330 OHM,J,1/10W 1 (DS) R860 D0GDR00Z0002 M 0 OHM, 1/10W 1 (PB) R861 D0GD331JA036 M 330 OHM,J,1/10W 1 R862 D0GD331JA036 M 330 OHM,J,1/10W 1 R863 D0GD331JA036 M 330 OHM,J,1/10W 1 R867 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R1500 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R1510 ERJ3GEYD222V M 2.2KOHM,J,1/16W 1 R1511 ERJ3GEYF302 M 3.0KOHM, 1/16W 1 R1512 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R1513 ERJ3GEYD822V M 8.2KOHM,J,1/16W 1 R1550 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R1551 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1554 ERJ6GEYJ271V M 270 OHM J 1/10W 1 R2304 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2367 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R2368 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R2383 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R2384 D0GB473JA057 M 47KOHM,J,1/16W 1 R2385 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2387 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2388 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2389 D0GB103JA041 M 10K OHM J 1/16W 1 R2390 D0GB103JA041 M 10K OHM J 1/16W 1 R2391 D0GB103JA041 M 10K OHM J 1/16W 1 R2392 D0GB103JA041 M 10K OHM J 1/16W 1 R2393 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2394 D0GB103JA041 M 10K OHM J 1/16W 1 R2395 D0GB103JA041 M 10K OHM J 1/16W 1 R2396 D0GB103JA041 M 10K OHM J 1/16W 1 R2397 ERJ3GEYD512V M 5.1KOHM,J,1/16W 1 R2398 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2399 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2400 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R2404 D0GB103JA041 M 10K OHM J 1/16W 1 R2405 D0GB103JA041 M 10K OHM J 1/16W 1 R2406 D0GB103JA041 M 10K OHM J 1/16W 1 R2407 D0GB103JA041 M 10K OHM J 1/16W 1 R2408 D0GB104JA041 M 100KOHM J 1/16W 1 R2409 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2410 D0GB104JA041 M 100KOHM J 1/16W 1 R2412 D0GB202JA057 M 2KOHM,J,1/16W 1 R2413 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2414 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R2415 D0GB202JA057 M 2KOHM,J,1/16W 1 R2416 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2417 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R2418 D0GB103JA041 M 10K OHM J 1/16W 1 R2419 D0GB103JA041 M 10K OHM J 1/16W 1 R2420 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2421 D0GB393JA041 M 39KOHM,J,1/16W 1 R2422 D0GB393JA041 M 39KOHM,J,1/16W 1 R2423 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2424 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2425 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2432 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2434 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2435 D1BB2402A055 M 24KOHM, 1/10W 1 R2438 D1BB2872A055 M2.87KOHM, 1/10W 1 R2439 D1BB1002A055 M 10KOHM, 1/10W 1 R2440 D1BB1002A055 M 10KOHM, 1/10W 1 R2442 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2443 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2444 D0GBR00Z0002 M 0 OHM J 1/16W 1 参考号部件号部件名称及说明件数备注 R2445 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2446 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R2447 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2449 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2451 D1BB1002A055 M 10KOHM, 1/10W 1 R2452 D1BB7501A055 M7.50KOHM, 1/10W 1 R2453 D1BB1002A055 M 10KOHM, 1/10W 1 R2454 D0GDR00Z0002 M 0 OHM, 1/10W 1 R2455 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2456 D0GBR00Z0002 M 0 OHM J 1/16W 1 R2457 D0GB103JA041 M 10K OHM J 1/16W 1 R2458 D0GB103JA041 M 10K OHM J 1/16W 1 R3004 D0GB101JA041 M 100 OHM,J,1/16W 1 R3022 D0GB103JA057 M 10K OHM J 1/16W 1 R3023 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3024 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3025 D0GB101JA041 M 100 OHM,J,1/16W 1 (DS) R3025 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (HDE) R3026 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3032 D0GB101JA041 M 100 OHM,J,1/16W 1 R3033 D0GB101JA041 M 100 OHM,J,1/16W 1 R3042 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3043 D0GB101JA041 M 100 OHM,J,1/16W 1 R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3049 D0GB103JA041 M 10K OHM J 1/16W 1 R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3051 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3053 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3054 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3057 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3058 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3059 D0GB101JA041 M 100 OHM,J,1/16W 1 R3064 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3065 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3066 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3067 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3068 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3069 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3070 ERJ6RED750 M 75 OHM, 1/10W 1 R3071 ERJ6RED750 M 75 OHM, 1/10W 1 R3072 ERJ6RED750 M 75 OHM, 1/10W 1 R3073 ERJ6RED750 M 75 OHM, 1/10W 1 R3074 ERJ6RED750 M 75 OHM, 1/10W 1 R3075 ERJ6RED750 M 75 OHM, 1/10W 1 R3076 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3077 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3078 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3079 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3080 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3081 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3083 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3084 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3085 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3086 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3087 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3088 ERJ6RED750 M 75 OHM, 1/10W 1 R3089 ERJ6RED750 M 75 OHM, 1/10W 1 R3090 ERJ6RED750 M 75 OHM, 1/10W 1 R3091 ERJ6RED750 M 75 OHM, 1/10W 1 R3092 ERJ6RED750 M 75 OHM, 1/10W 1 R3093 ERJ6RED750 M 75 OHM, 1/10W 1 R3094 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3095 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3096 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3098 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R3099 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3100 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3102 D1BD6800A044 M 680 OHM, 1/10W 1 R3107 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3108 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3113 D0GB103JA041 M 10K OHM J 1/16W 1 R3114 D0GB103JA041 M 10K OHM J 1/16W 1 R3115 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3116 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3118 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3120 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3121 D0GBR00Z0002 M 0 OHM J 1/16W 1 参考号部件号部件名称及说明件数备注 139 TH-65PF12CK R3122 D0GDR00Z0002 M 0 OHM, 1/10W 1 R3125 D0GB103JA041 M 10K OHM J 1/16W 1 R3126 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3135 D0GA101JA015 M 100 OHM, J,0.063W 1 R3140 D0GB473JA057 M 47KOHM,J,1/16W 1 R3141 D0GB473JA057 M 47KOHM,J,1/16W 1 R3143 D0GB101JA041 M 100 OHM,J,1/16W 1 R3144 D0GB101JA041 M 100 OHM,J,1/16W 1 R3150 D0GB101JA041 M 100 OHM,J,1/16W 1 R3152 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3153 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3160 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3161 D0GBR00Z0002 M 0 OHM J 1/16W 1 R3188 ERJ6RED750 M 75 OHM, 1/10W 1 R3189 ERJ6RED750 M 75 OHM, 1/10W 1 R3190 ERJ6RED750 M 75 OHM, 1/10W 1 R3195 D0GB101JA041 M 100 OHM,J,1/16W 1 R3196 D0GB101JA041 M 100 OHM,J,1/16W 1 R3197 D0GB123JA057 M 12K OHM J 1/16W 1 R3198 D0GB123JA057 M 12K OHM J 1/16W 1 R3199 D0GB103JA041 M 10K OHM J 1/16W 1 R3200 D0GB101JA041 M 100 OHM,J,1/16W 1 R3201 D0GB220JA041 M 22 OHM J 1/10W 1 R3202 D0GB220JA041 M 22 OHM J 1/10W 1 R3203 D0GB220JA041 M 22 OHM J 1/10W 1 R3204 D0GB220JA041 M 22 OHM J 1/10W 1 R3205 D0GB220JA041 M 22 OHM J 1/10W 1 R3206 D0GB220JA041 M 22 OHM J 1/10W 1 R3210 D0GB101JA041 M 100 OHM,J,1/16W 1 R3211 D0GB101JA041 M 100 OHM,J,1/16W 1 R3212 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3213 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3214 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3215 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3216 ERJ6GEYJ3R3V M 3.3KOHM,J,1/10W 1 R3217 ERJ6GEYJ3R3V M 3.3KOHM,J,1/10W 1 R3218 ERJ6GEYJ3R3V M 3.3KOHM,J,1/10W 1 R3219 ERJ6GEYJ3R3V M 3.3KOHM,J,1/10W 1 R3230 D0GB101JA041 M 100 OHM,J,1/16W 1 R3231 D0GB101JA041 M 100 OHM,J,1/16W 1 R3301 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3306 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3308 ERJ2RKF75R0 M 75 OHM, , 0.063W 1 R3309 ERJ2RKF75R0 M 75 OHM, , 0.063W 1 R3311 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3312 ERJ2RKF75R0 M 75 OHM, , 0.063W 1 R3313 ERJ3EKF6491V M 6.49KOHM F 1/16W 1 R3314 ERJ2RKF75R0 M 75 OHM, , 0.063W 1 R3315 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3316 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3318 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3320 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3321 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3322 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3327 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3329 EXB28V220J 电阻阵列 1 R3330 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3331 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3332 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3333 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3334 ERJ3EKF7501 M 7.5KOHM, 1/16W 1 R3335 ERJ3EKF7501 M 7.5KOHM, 1/16W 1 R3336 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3337 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3338 EXB28V220J 电阻阵列 1 R3339 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3340 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3341 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3344 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3345 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3346 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3346 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 (HDE) R3349 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3349 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 (HL) R3350 D0GB103JA057 M 10K OHM J 1/16W 1 R3351 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R3354 ERJ3GEY0R00 M 0 OHM, 1/16W 1 参考号部件号部件名称及说明件数备注 R3355 D0GB103JA057 M 10K OHM J 1/16W 1 R3356 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3357 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3358 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3360 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3361 D0GB103JA057 M 10K OHM J 1/16W 1 R3362 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3363 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3364 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3365 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3366 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3368 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3370 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3371 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3372 D0GB103JA057 M 10K OHM J 1/16W 1 R3373 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3374 D0GB103JA057 M 10K OHM J 1/16W 1 R3375 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3376 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3377 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3377 EXB28V220J 电阻阵列 1 (HL) R3380 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3381 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3390 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3391 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3392 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3393 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3394 D0GB182JA057 M 1.8KOHM J 1/16W 1 R3398 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3399 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3400 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3400 D0GD103JA036 M 10KOHM,J,0.25W 1 (HX) R3400 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (HL) R3401 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 (HDE) R3401 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (HL) R3402 D0GB104JA041 M 100KOHM J 1/16W 1 (HDE) R3402 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3403 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3403 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 (HDE) R3404 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 (HDE) R3404 EXB38V473J 电阻阵列 1 (HL) R3405 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3406 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HL) R3406 EXB2HV820JV 电阻阵列 1 (HDE) R3407 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HL) R3407 EXB2HV820JV 电阻阵列 1 (HDE) R3408 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 (HDE) R3408 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3409 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3410 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HL) R3410 EXB2HV820JV 电阻阵列 1 (HDE) R3411 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3411 EXB2HV820JV 电阻阵列 1 (HDE) R3412 D1BB2612A055 M26.1KOHM, 1/10W 1 R3413 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3414 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3415 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3415 D1BB1002A055 M 10KOHM, 1/10W 1 (HDE) R3416 D0GB103JA057 M 10K OHM J 1/16W 1 R3417 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3417 EXB2HV820JV 电阻阵列 1 (HDE) R3418 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3418 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 (HDE) R3419 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3420 ERJ3GEYJ4R7 M 4.7HM,J,1/16W 1 R3421 D0GDR00Z0002 M 0 OHM, 1/10W 1 R3422 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3422 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 (HDE) R3423 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3423 EXB2HV820JV 电阻阵列 1 (HDE) R3424 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HL) R3424 EXB2HV820JV 电阻阵列 1 (HDE) R3425 D0GB102JA057 M 1KOHM,J,1/16W 1 (HL) R3425 EXB2HV820JV 电阻阵列 1 (HDE) R3426 D0GB102JA057 M 1KOHM,J,1/16W 1 (HL) R3426 EXB2HV820JV 电阻阵列 1 (HDE) R3427 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HL) 参考号部件号部件名称及说明件数备注 140 TH-65PF12CK R3427 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 (HDE) R3428 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HL) R3428 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 (HDE) R3429 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3430 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3430 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3431 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3431 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3432 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3433 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3433 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3434 D0GB103JA057 M 10K OHM J 1/16W 1 R3435 D0GB184JA057 M 180KOHM J 1/16W 1 R3436 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3437 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R3438 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3438 ERJ3EKF2002 M 20KOHM, 1/16W 1 (HDE) R3439 ERJ3EKF3302 M 33KOHM, 1/16W 1 (HDE) R3439 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3440 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3440 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HDE) R3441 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HDE) R3441 ERJ6GEY0R00V M 0 OHM J 1/10W 1 (HL) R3442 D1BB2612A055 M26.1KOHM, 1/10W 1 (HL) R3442 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HDE) R3443 D0GB102JA057 M 1KOHM,J,1/16W 1 (HDE) R3443 D1BB1002A055 M 10KOHM, 1/10W 1 (HL) R3444 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HDE) R3444 ERJ3GEYJ4R7 M 4.7HM,J,1/16W 1 (HL) R3445 D0GB184JA057 M 180KOHM J 1/16W 1 (HDE) R3445 ERJ2GEJ104 M 100KOHM, J,0.063W 1 (HL) R3446 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HDE) R3446 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 (HL) R3447 ERJ3GEYD153V M 15KOHM,J,1/16W 1 (HDE) R3447 ERJ6GEYJ915 M 9.1MOHM,J,1/10W 1 (HL) R3448 D0GB473JA057 M 47KOHM,J,1/16W 1 (HDE) R3448 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 (HL) R3449 D0GB473JA057 M 47KOHM,J,1/16W 1 (HDE) R3449 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3450 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HDE) R3450 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3451 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3451 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 (HDE) R3452 D0GB102JA057 M 1KOHM,J,1/16W 1 (HDE) R3452 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3453 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3453 ERJ3GEYJ821 M820 OHM,J,1/16W 1 (HDE) R3454 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3454 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3455 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3455 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HDE) R3456 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HDE) R3456 EXB38V473J 电阻阵列 1 (HL) R3457 D0GB102JA057 M 1KOHM,J,1/16W 1 (HDE) R3457 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3458 D0GB103JA057 M 10K OHM J 1/16W 1 R3459 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3460 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3460 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HDE) R3461 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3461 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3462 D0GB103JA057 M 10K OHM J 1/16W 1 R3463 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3463 ERJ3GEYJ390 M 39 OHM,J,1/16W 1 (HDE) R3464 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3465 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3465 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3466 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3466 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3467 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3467 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3468 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3469 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3469 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3470 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3470 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3471 D0GB102JA057 M 1KOHM,J,1/16W 1 (HDE) 参考号部件号部件名称及说明件数备注 R3471 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3472 D0GB102JA057 M 1KOHM,J,1/16W 1 (HDE) R3472 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3473 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3473 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 (HDE) R3474 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3474 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HL) R3475 D0GB103JA057 M 10K OHM J 1/16W 1 R3476 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3476 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HDE) R3477 D0GB103JA057 M 10K OHM J 1/16W 1 (HL) R3477 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HDE) R3478 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 (HDE) R3478 EXB38V473J 电阻阵列 1 (HL) R3479 D0GB473JA057 M 47KOHM,J,1/16W 1 (HDE) R3479 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3480 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3481 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3481 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3482 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3482 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3483 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3483 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 (HDE) R3484 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3484 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3485 D0GB103JA057 M 10K OHM J 1/16W 1 R3486 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3486 EXB28V220J 电阻阵列 1 (HL) R3487 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3487 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3488 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3488 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3489 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3489 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HL) R3490 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3490 D1BA49R9A014 M 49.9 OHM, 1/10W 1 (HL) R3491 D1BA49R9A014 M 49.9 OHM, 1/10W 1 (HL) R3491 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 (HDE) R3492 D1BA49R9A014 M 49.9 OHM, 1/10W 1 (HL) R3492 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3493 D0GB103JA057 M 10K OHM J 1/16W 1 (HDE) R3493 D1BA49R9A014 M 49.9 OHM, 1/10W 1 (HL) R3494 D0GB103JA057 M 10K OHM J 1/16W 1 R3495 D0GB103JA057 M 10K OHM J 1/16W 1 R3496 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3498 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3499 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HDE) R3499 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HL) R3500 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3501 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3502 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3503 D0GB473JA057 M 47KOHM,J,1/16W 1 R3504 D0GB103JA057 M 10K OHM J 1/16W 1 R3505 D0GB473JA057 M 47KOHM,J,1/16W 1 R3506 D0GB473JA057 M 47KOHM,J,1/16W 1 R3507 D0GB473JA057 M 47KOHM,J,1/16W 1 R3508 D0GB473JA057 M 47KOHM,J,1/16W 1 (HDE) R3508 D0GD472JA036 M 4.7KOHM,J,0.25W 1 (HX) R3509 D0GB473JA057 M 47KOHM,J,1/16W 1 (HDE) R3509 D0GD472JA036 M 4.7KOHM,J,0.25W 1 (HX) R3510 D0GD101JA036 M 100 OHM,J,0.25W 1 (HX) R3510 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HDE) R3511 D0GB473JA057 M 47KOHM,J,1/16W 1 (HDE) R3511 D0GD101JA036 M 100 OHM,J,0.25W 1 (HX) R3512 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3515 D0GB103JA057 M 10K OHM J 1/16W 1 R3517 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3518 D0GB102JA057 M 1KOHM,J,1/16W 1 R3519 D0GB103JA057 M 10K OHM J 1/16W 1 R3521 D0GB102JA057 M 1KOHM,J,1/16W 1 R3529 D0GD184JA036 M 180KOHM,J,1/10W 1 R3530 D0GD184JA036 M 180KOHM,J,1/10W 1 R3540 D0GB473JA057 M 47KOHM,J,1/16W 1 R3542 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3543 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3544 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3545 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 参考号部件号部件名称及说明件数备注 141 TH-65PF12CK R3546 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3547 D0GD101JA036 M 100 OHM,J,0.25W 1 (HX) R3547 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 (HDE) R3548 D0GD101JA036 M 100 OHM,J,0.25W 1 (HX) R3548 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 (HDE) R3549 D0GB103JA057 M 10K OHM J 1/16W 1 R3550 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3551 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R3552 D0GB103JA057 M 10K OHM J 1/16W 1 R3553 D0GB103JA057 M 10K OHM J 1/16W 1 R3571 D0GB473JA057 M 47KOHM,J,1/16W 1 R3572 D0GB473JA057 M 47KOHM,J,1/16W 1 R3573 D0GB473JA057 M 47KOHM,J,1/16W 1 R3577 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R3578 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3585 D0GD560JA036 M 56 OHM,J,1/10W 1 R3586 D0GD560JA036 M 56 OHM,J,1/10W 1 R3589 D0GD473JA036 M 47KOHM,J,1/10W 1 R3590 D0GD560JA036 M 56 OHM,J,1/10W 1 R3591 D0GDR00Z0002 M 0 OHM, 1/10W 1 R3592 D0GDR00Z0002 M 0 OHM, 1/10W 1 R3593 D0GDR00Z0002 M 0 OHM, 1/10W 1 R3641 D0GB103JA057 M 10K OHM J 1/16W 1 R3644 D0GB103JA057 M 10K OHM J 1/16W 1 R3646 D0GB102JA057 M 1KOHM,J,1/16W 1 R3647 D0GB102JA057 M 1KOHM,J,1/16W 1 R3649 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3650 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R3651 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R3653 D0GD333JA036 M 33KOHM,J,1/10W 1 (HX) R3653 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HDE) R3654 D0GD683JA036 M 68KOHM,J,1/10W 1 R3655 D0GD333JA036 M 33KOHM,J,1/10W 1 R3656 D0GD683JA036 M 68KOHM,J,1/10W 1 R3663 D0GD102JA036 M 1.0KOHM,J,0.25W 1 R3664 D0GD102JA036 M 1.0KOHM,J,0.25W 1 R3668 D0GD101JA036 M 100 OHM,J,0.25W 1 R3672 D0GD101JA036 M 100 OHM,J,0.25W 1 R3776 D0GD101JA036 M 100 OHM,J,0.25W 1 R3777 D0GD101JA036 M 100 OHM,J,0.25W 1 R3778 D0GD473JA036 M 47KOHM,J,1/10W 1 R3790 D0GD101JA036 M 100 OHM,J,0.25W 1 R3791 D0GD101JA036 M 100 OHM,J,0.25W 1 R4001 D0YAR0000007 M 0 OHM 1/4W 1 R4003 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4005 D0GA103JA015 M 10KOHM,J,1/16W 1 R4008 ERJ2GEJ362 M 3.6KOHM, J,0.063W 1 R4010 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R4011 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R4013 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4014 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4019 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4020 ERJ2RKF1802 M 18K OHM, J, 2W 1 R4021 ERJ2RKF1002 M 10KOHM, 0.063W 1 R4022 ERJ2GEJ513X M5.12KOHM, J,0.063W 1 R4023 ERJ2GEJ512X M5.12KOHM, J,0.063W 1 R4025 D0GDR00Z0002 M 0 OHM, 1/10W 1 R4026 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4027 ERJ2RKF3162 M31.6K OHM, J, 2W 1 R4028 ERJ2RKF1002 M 10KOHM, 0.063W 1 R4035 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R4036 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4038 ERJ2GEJ154 M 150KOHM, J,0.063W 1 R4039 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4040 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R4042 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4043 ERJ2RKF1102 M 11K OHM, J, 2W 1 R4044 ERJ2RKF1912 M19.1K OHM, J, 2W 1 R4048 D0YAR0000007 M 0 OHM 1/4W 1 R4050 D0YAR0000007 M 0 OHM 1/4W 1 R4052 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R4053 D0GA101JA015 M 100 OHM, J,0.063W 1 R4054 D0GA103JA015 M 10KOHM,J,1/16W 1 R4055 D0GA103JA015 M 10KOHM,J,1/16W 1 R4056 D0GA103JA015 M 10KOHM,J,1/16W 1 R4057 D0GA101JA015 M 100 OHM, J,0.063W 1 R4058 D0GA101JA015 M 100 OHM, J,0.063W 1 参考号部件号部件名称及说明件数备注 R4059 D0GA103JA015 M 10KOHM,J,1/16W 1 R4060 D0GA101JA015 M 100 OHM, J,0.063W 1 R4061 D0YAR0000007 M 0 OHM 1/4W 1 R4062 D0GA101JA015 M 100 OHM, J,0.063W 1 R4063 D0GA101JA015 M 100 OHM, J,0.063W 1 R4064 D0GA103JA015 M 10KOHM,J,1/16W 1 R4065 D0GA103JA015 M 10KOHM,J,1/16W 1 R4066 D0GA103JA015 M 10KOHM,J,1/16W 1 R4067 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R4068 D0GA101JA015 M 100 OHM, J,0.063W 1 R4069 D0YAR0000007 M 0 OHM 1/4W 1 R4070 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R4072 ERJ2RHD682X M 6.8KOHM, J, 2W 1 R4073 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4074 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4075 D0GA103JA015 M 10KOHM,J,1/16W 1 R4077 ERJ2GEJ392 M 3.9KOHM, J,0.063W 1 R4078 D0GA103JA015 M 10KOHM,J,1/16W 1 R4079 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4080 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4081 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4082 D0GA103JA015 M 10KOHM,J,1/16W 1 R4083 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4084 D0GA473JA015 M 47 OHM, J,0.063W 1 R4085 D0GA473JA015 M 47 OHM, J,0.063W 1 R4086 D0GA473JA015 M 47 OHM, J,0.063W 1 R4087 D0GA473JA015 M 47 OHM, J,0.063W 1 R4088 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4089 D0GA101JA015 M 100 OHM, J,0.063W 1 R4090 D0GA101JA015 M 100 OHM, J,0.063W 1 R4092 D0GA103JA015 M 10KOHM,J,1/16W 1 R4093 ERJ2GEJ123 M 12KOHM ,J,0.063W 1 R4094 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4095 D0GA103JA015 M 10KOHM,J,1/16W 1 R4096 D0GA103JA015 M 10KOHM,J,1/16W 1 R4097 D0GA103JA015 M 10KOHM,J,1/16W 1 R4098 D0GA103JA015 M 10KOHM,J,1/16W 1 R4099 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R4100 D0GA103JA015 M 10KOHM,J,1/16W 1 R4101 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R4102 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R4104 D0YAR0000007 M 0 OHM 1/4W 1 R4105 D0GA101JA015 M 100 OHM, J,0.063W 1 R4106 D0GA101JA015 M 100 OHM, J,0.063W 1 R4107 D0GA101JA015 M 100 OHM, J,0.063W 1 R4108 D0GA101JA015 M 100 OHM, J,0.063W 1 R4109 D0GA101JA015 M 100 OHM, J,0.063W 1 R4110 D0GA101JA015 M 100 OHM, J,0.063W 1 R4111 D0GA101JA015 M 100 OHM, J,0.063W 1 R4112 D0GA101JA015 M 100 OHM, J,0.063W 1 R4113 D0GA101JA015 M 100 OHM, J,0.063W 1 R4114 D0YAR0000007 M 0 OHM 1/4W 1 R4115 D0YAR0000007 M 0 OHM 1/4W 1 R4116 D0YAR0000007 M 0 OHM 1/4W 1 R4120 D0YAR0000007 M 0 OHM 1/4W 1 R4121 D0GA101JA015 M 100 OHM, J,0.063W 1 R4122 D0GA101JA015 M 100 OHM, J,0.063W 1 R4123 D0GA101JA015 M 100 OHM, J,0.063W 1 R4124 D0GA101JA015 M 100 OHM, J,0.063W 1 R4125 D0YAR0000007 M 0 OHM 1/4W 1 R4126 D0YAR0000007 M 0 OHM 1/4W 1 R4132 D0YAR0000007 M 0 OHM 1/4W 1 R4133 D0YAR0000007 M 0 OHM 1/4W 1 R4138 D0YAR0000007 M 0 OHM 1/4W 1 R4139 D0YAR0000007 M 0 OHM 1/4W 1 R4140 D0GDR00Z0002 M 0 OHM, 1/10W 1 R4144 D0GDR00Z0002 M 0 OHM, 1/10W 1 R4145 D0GDR00Z0002 M 0 OHM, 1/10W 1 R4146 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4147 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4148 D0GB103JA057 M 10K OHM J 1/16W 1 R4149 D0GA103JA015 M 10KOHM,J,1/16W 1 R4150 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4152 D0GA103JA015 M 10KOHM,J,1/16W 1 R4153 D0GA103JA015 M 10KOHM,J,1/16W 1 R4154 D0GA103JA015 M 10KOHM,J,1/16W 1 R4155 ERJ2GEJ220 M 22 OHM, J,0.063W 1 参考号部件号部件名称及说明件数备注 142 TH-65PF12CK R4156 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4157 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4158 D0GA680JA015 M 47 OHM, J,0.063W 1 R4159 D0GA680JA015 M 47 OHM, J,0.063W 1 R4160 D0YAR0000007 M 0 OHM 1/4W 1 R4161 EXB2HV680J 电阻阵列 1 R4162 ERJ6RED750 M 75 OHM, 1/10W 1 R4163 D0YAR0000007 M 0 OHM 1/4W 1 R4164 ERJ6RED750 M 75 OHM, 1/10W 1 R4165 EXB2HV680J 电阻阵列 1 R4166 D0YAR0000007 M 0 OHM 1/4W 1 R4169 ERJ6RED750 M 75 OHM, 1/10W 1 R4170 D0GA103JA015 M 10KOHM,J,1/16W 1 R4171 EXB2HV680J 电阻阵列 1 R4172 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R4174 EXB28V680JX 电阻阵列 1 R4175 D0GA470JA015 M 47 OHM, J,0.063W 1 R4176 D0GA470JA015 M 47 OHM, J,0.063W 1 R4177 D0GA470JA015 M 47 OHM, J,0.063W 1 R4178 ERJ2GEJ560X M 56 OHM, J,0.063W 1 R4179 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4180 D0GA101JA015 M 100 OHM, J,0.063W 1 R4181 D0GA101JA015 M 100 OHM, J,0.063W 1 R4182 D0GA101JA015 M 100 OHM, J,0.063W 1 R4183 D0GA101JA015 M 100 OHM, J,0.063W 1 R4184 D0GA101JA015 M 100 OHM, J,0.063W 1 R4185 D0GA101JA015 M 100 OHM, J,0.063W 1 R4186 D0GA101JA015 M 100 OHM, J,0.063W 1 R4187 D0GA101JA015 M 100 OHM, J,0.063W 1 R4188 D0GA101JA015 M 100 OHM, J,0.063W 1 R4189 D0GA101JA015 M 100 OHM, J,0.063W 1 R4190 D0GA101JA015 M 100 OHM, J,0.063W 1 R4191 EXB2HV101J 电阻阵列 1 R4192 D0GA101JA015 M 100 OHM, J,0.063W 1 R4193 D0GA101JA015 M 100 OHM, J,0.063W 1 R4194 EXB2HV101J 电阻阵列 1 R4195 D0GA101JA015 M 100 OHM, J,0.063W 1 R4196 D0GA101JA015 M 100 OHM, J,0.063W 1 R4197 D0GA101JA015 M 100 OHM, J,0.063W 1 R4198 D0GA101JA015 M 100 OHM, J,0.063W 1 R4199 D0GA101JA015 M 100 OHM, J,0.063W 1 R4200 D0GA101JA015 M 100 OHM, J,0.063W 1 R4201 D0GA101JA015 M 100 OHM, J,0.063W 1 R4202 D0GA101JA015 M 100 OHM, J,0.063W 1 R4203 D0GA101JA015 M 100 OHM, J,0.063W 1 R4204 D0GA101JA015 M 100 OHM, J,0.063W 1 R4205 D0GA101JA015 M 100 OHM, J,0.063W 1 R4206 D0GA101JA015 M 100 OHM, J,0.063W 1 R4207 D0GA101JA015 M 100 OHM, J,0.063W 1 R4208 D0YAR0000007 M 0 OHM 1/4W 1 R4209 D0YAR0000007 M 0 OHM 1/4W 1 R4210 D0GA470JA015 M 47 OHM, J,0.063W 1 R4211 D0GA470JA015 M 47 OHM, J,0.063W 1 R4212 D0GA470JA015 M 47 OHM, J,0.063W 1 R4213 EXB2HV101J 电阻阵列 1 R4214 D0GA101JA015 M 100 OHM, J,0.063W 1 R4215 D0GA101JA015 M 100 OHM, J,0.063W 1 R4216 EXB2HV101J 电阻阵列 1 R4217 D0GA101JA015 M 100 OHM, J,0.063W 1 R4218 D0GA101JA015 M 100 OHM, J,0.063W 1 R4219 EXB2HV101J 电阻阵列 1 R4220 EXB2HV101J 电阻阵列 1 R4221 D0GA101JA015 M 100 OHM, J,0.063W 1 R4222 D0GA101JA015 M 100 OHM, J,0.063W 1 R4223 D0GA101JA015 M 100 OHM, J,0.063W 1 R4224 D0GA101JA015 M 100 OHM, J,0.063W 1 R4226 D0GA470JA015 M 47 OHM, J,0.063W 1 R4227 D0GA470JA015 M 47 OHM, J,0.063W 1 R4228 D0GA470JA015 M 47 OHM, J,0.063W 1 R4229 D0GA470JA015 M 47 OHM, J,0.063W 1 R4230 D0GA470JA015 M 47 OHM, J,0.063W 1 R4231 D0GA470JA015 M 47 OHM, J,0.063W 1 R4232 D0GA470JA015 M 47 OHM, J,0.063W 1 R4233 D0GA470JA015 M 47 OHM, J,0.063W 1 R4234 D0GA470JA015 M 47 OHM, J,0.063W 1 R4235 D0GA470JA015 M 47 OHM, J,0.063W 1 R4237 D0YAR0000007 M 0 OHM 1/4W 1 参考号部件号部件名称及说明件数备注 R4238 D0GA470JA015 M 47 OHM, J,0.063W 1 R4239 D0GA470JA015 M 47 OHM, J,0.063W 1 R4240 D0YAR0000007 M 0 OHM 1/4W 1 R4241 D0YAR0000007 M 0 OHM 1/4W 1 R4242 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4243 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4244 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4245 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4246 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4247 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4248 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4249 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4250 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4251 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4252 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4253 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R4254 D0GA101JA015 M 100 OHM, J,0.063W 1 R4255 D0GA101JA015 M 100 OHM, J,0.063W 1 R4256 D0GA101JA015 M 100 OHM, J,0.063W 1 R4257 D0GA101JA015 M 100 OHM, J,0.063W 1 R4258 D0GA101JA015 M 100 OHM, J,0.063W 1 R4259 D0GA101JA015 M 100 OHM, J,0.063W 1 R4260 D0GA101JA015 M 100 OHM, J,0.063W 1 R4261 D0GA101JA015 M 100 OHM, J,0.063W 1 R4262 D0GA101JA015 M 100 OHM, J,0.063W 1 R4263 D0GA101JA015 M 100 OHM, J,0.063W 1 R4266 ERJ2GEJ222 M 2.2KOHM, J,0.063W 1 R4267 D0GA101JA015 M 100 OHM, J,0.063W 1 R4269 D0GA101JA015 M 100 OHM, J,0.063W 1 R4270 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4271 D0GA101JA015 M 100 OHM, J,0.063W 1 R4272 D0GA101JA015 M 100 OHM, J,0.063W 1 R4273 D0GA101JA015 M 100 OHM, J,0.063W 1 R4274 D0GA101JA015 M 100 OHM, J,0.063W 1 R4275 D0GA101JA015 M 100 OHM, J,0.063W 1 R4277 D0GA101JA015 M 100 OHM, J,0.063W 1 R4278 D0GA101JA015 M 100 OHM, J,0.063W 1 R4279 D0GA101JA015 M 100 OHM, J,0.063W 1 R4280 D0GA101JA015 M 100 OHM, J,0.063W 1 R4281 D0GA101JA015 M 100 OHM, J,0.063W 1 R4282 D0GA101JA015 M 100 OHM, J,0.063W 1 R4283 ERJ2GEJ123 M 12KOHM ,J,0.063W 1 R4284 D0GA101JA015 M 100 OHM, J,0.063W 1 R4287 D0GA101JA015 M 100 OHM, J,0.063W 1 R4289 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4290 ERJ2GEJ393 M 39KOHM,J,0.063W 1 R4291 D0GA101JA015 M 100 OHM, J,0.063W 1 R4292 D0GA103JA015 M 10KOHM,J,1/16W 1 R4293 D0GA103JA015 M 10KOHM,J,1/16W 1 R4294 D0GA103JA015 M 10KOHM,J,1/16W 1 R4295 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R4296 D0GA103JA015 M 10KOHM,J,1/16W 1 R4297 D0GA103JA015 M 10KOHM,J,1/16W 1 R4298 D0GA103JA015 M 10KOHM,J,1/16W 1 R4299 D0GA103JA015 M 10KOHM,J,1/16W 1 R4300 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4301 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R4302 D0GA103JA015 M 10KOHM,J,1/16W 1 R4303 D0GA103JA015 M 10KOHM,J,1/16W 1 R4304 D0GA103JA015 M 10KOHM,J,1/16W 1 R4305 D0GA103JA015 M 10KOHM,J,1/16W 1 R4306 D0GA103JA015 M 10KOHM,J,1/16W 1 R4309 D0YAR0000007 M 0 OHM 1/4W 1 R4310 D0GA103JA015 M 10KOHM,J,1/16W 1 R4311 D0YAR0000007 M 0 OHM 1/4W 1 R4313 D0GA103JA015 M 10KOHM,J,1/16W 1 R4314 EXB38V101JV 电阻阵列 1 R4315 D0GA103JA015 M 10KOHM,J,1/16W 1 R4318 D0GA103JA015 M 10KOHM,J,1/16W 1 R4319 D0YAR0000007 M 0 OHM 1/4W 1 R4324 D0GA103JA015 M 10KOHM,J,1/16W 1 R4329 D0GA103JA015 M 10KOHM,J,1/16W 1 R4330 D0GA103JA015 M 10KOHM,J,1/16W 1 R4333 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4334 D0GA103JA015 M 10KOHM,J,1/16W 1 R4335 D0GA101JA015 M 100 OHM, J,0.063W 1 R4336 D0GA101JA015 M 100 OHM, J,0.063W 1 参考号部件号部件名称及说明件数备注 143 TH-65PF12CK R4338 D0GA103JA015 M 10KOHM,J,1/16W 1 R4340 D0GA103JA015 M 10KOHM,J,1/16W 1 R4341 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4342 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4343 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4344 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4345 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4346 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4347 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4348 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4349 D0GA470JA015 M 47 OHM, J,0.063W 1 R4351 D0YAR0000007 M 0 OHM 1/4W 1 R4352 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4353 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4354 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4355 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4356 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4357 ERJ2RHD682X M 6.8KOHM, J, 2W 1 R4359 D0GA103JA015 M 10KOHM,J,1/16W 1 R4360 D0GA103JA015 M 10KOHM,J,1/16W 1 R4361 D0GA101JA015 M 100 OHM, J,0.063W 1 R4362 D0GA101JA015 M 100 OHM, J,0.063W 1 R4363 D0GA101JA015 M 100 OHM, J,0.063W 1 R4364 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R4366 D0GA103JA015 M 10KOHM,J,1/16W 1 R4367 D0GA103JA015 M 10KOHM,J,1/16W 1 R4369 D0GA103JA015 M 10KOHM,J,1/16W 1 R4370 EXB38V103JV 电阻阵列 1 R4371 D0GA103JA015 M 10KOHM,J,1/16W 1 R4372 D0GA103JA015 M 10KOHM,J,1/16W 1 R4377 D0YAR0000007 M 0 OHM 1/4W 1 R4378 EXB2HV100JV 电阻阵列 1 R4379 EXB2HV100JV 电阻阵列 1 R4380 D0YAR0000007 M 0 OHM 1/4W 1 R4381 D0YAR0000007 M 0 OHM 1/4W 1 R4382 D0YAR0000007 M 0 OHM 1/4W 1 R4383 EXB38V100J 电阻阵列 1 R4384 EXB2HV100JV 电阻阵列 1 R4385 EXB2HV100JV 电阻阵列 1 R4386 D0YAR0000007 M 0 OHM 1/4W 1 R4387 D0GA103JA015 M 10KOHM,J,1/16W 1 R4388 D0GA103JA015 M 10KOHM,J,1/16W 1 R4389 D0YAR0000007 M 0 OHM 1/4W 1 R4390 D0GA103JA015 M 10KOHM,J,1/16W 1 R4391 D0GA103JA015 M 10KOHM,J,1/16W 1 R4395 EXB38VR000V 电阻阵列 1 R4396 EXB38VR000V 电阻阵列 1 R4397 EXB38VR000V 电阻阵列 1 R4399 D0YAR0000007 M 0 OHM 1/4W 1 R4400 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4401 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4402 EXB38V103JV 电阻阵列 1 R4403 D0YAR0000007 M 0 OHM 1/4W 1 R4404 ERJ2GEJ562 M 5.6KOHM, J,0.063W 1 R4405 D0YAR0000007 M 0 OHM 1/4W 1 R4406 EXB38V220JV 电阻阵列 1 R4407 EXB38V220JV 电阻阵列 1 R4408 EXB38VR000V 电阻阵列 1 R4409 D0YAR0000007 M 0 OHM 1/4W 1 R4412 D0YAR0000007 M 0 OHM 1/4W 1 R4414 D0GA103JA015 M 10KOHM,J,1/16W 1 R4415 D0YAR0000007 M 0 OHM 1/4W 1 R4416 D0YAR0000007 M 0 OHM 1/4W 1 R4417 D0GA103JA015 M 10KOHM,J,1/16W 1 R4418 D0GA103JA015 M 10KOHM,J,1/16W 1 R4419 D0GA103JA015 M 10KOHM,J,1/16W 1 R4420 D0GA103JA015 M 10KOHM,J,1/16W 1 R4421 D0GA103JA015 M 10KOHM,J,1/16W 1 R4424 D0GA103JA015 M 10KOHM,J,1/16W 1 R4431 D0YAR0000007 M 0 OHM 1/4W 1 R4433 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R4434 D0YAR0000007 M 0 OHM 1/4W 1 R4435 D0YAR0000007 M 0 OHM 1/4W 1 R4436 D0YAR0000007 M 0 OHM 1/4W 1 R4438 D0YAR0000007 M 0 OHM 1/4W 1 R4439 D0YAR0000007 M 0 OHM 1/4W 1 R4440 D0YAR0000007 M 0 OHM 1/4W 1 参考号部件号部件名称及说明件数备注 R4444 D0YAR0000007 M 0 OHM 1/4W 1 R4447 D0GA470JA015 M 47 OHM, J,0.063W 1 R4448 D0GA470JA015 M 47 OHM, J,0.063W 1 R4452 EXB28V330J 电阻阵列 1 R4453 EXB28V330J 电阻阵列 1 R4454 ERJ2RKD330 M 33 OHM, J, 2W 1 R4455 ERJ2RKD330 M 33 OHM, J, 2W 1 R4460 EXB28V330J 电阻阵列 1 R4461 EXB28V330J 电阻阵列 1 R4462 ERJ2RKD330 M 33 OHM, J, 2W 1 R4463 ERJ2RKD330 M 33 OHM, J, 2W 1 R4468 EXB28V330J 电阻阵列 1 R4469 EXB28V330J 电阻阵列 1 R4470 ERJ2RKD330 M 33 OHM, J, 2W 1 R4471 ERJ2RKD330 M 33 OHM, J, 2W 1 R4476 EXB28V330J 电阻阵列 1 R4477 EXB28V330J 电阻阵列 1 R4478 ERJ2RKD330 M 33 OHM, J, 2W 1 R4479 ERJ2RKD330 M 33 OHM, J, 2W 1 R4481 ERJ2RKF1001 M 1KOHM, 0.063W 1 R4482 ERJ2RKF1001 M 1KOHM, 0.063W 1 R4486 EXB2HV220JV 电阻阵列 1 R4487 EXB28V220J 电阻阵列 1 R4494 EXB28V220J 电阻阵列 1 R4495 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4496 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4497 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4498 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4499 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4500 EXB38V103JV 电阻阵列 1 R4503 ERJ2RHD682X M 6.8KOHM, J, 2W 1 R4508 EXB28V330J 电阻阵列 1 R4509 EXB28V330J 电阻阵列 1 R4510 ERJ2RKD330 M 33 OHM, J, 2W 1 R4511 ERJ2RKD330 M 33 OHM, J, 2W 1 R4516 EXB28V330J 电阻阵列 1 R4517 EXB28V330J 电阻阵列 1 R4518 ERJ2RKD330 M 33 OHM, J, 2W 1 R4519 ERJ2RKD330 M 33 OHM, J, 2W 1 R4524 EXB28V330J 电阻阵列 1 R4525 EXB28V330J 电阻阵列 1 R4526 ERJ2RKD330 M 33 OHM, J, 2W 1 R4527 ERJ2RKD330 M 33 OHM, J, 2W 1 R4532 EXB28V330J 电阻阵列 1 R4533 EXB28V330J 电阻阵列 1 R4534 ERJ2RKD330 M 33 OHM, J, 2W 1 R4535 ERJ2RKD330 M 33 OHM, J, 2W 1 R4537 ERJ2RKF1001 M 1KOHM, 0.063W 1 R4538 ERJ2RKF1001 M 1KOHM, 0.063W 1 R4548 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4549 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4550 ERJ2RKF6800 M 680 OHM, 0.063W 1 R4551 ERJ2RKF1000 M 100 OHM, 0.063W 1 R4552 D1BB3600A055 M 360 OHM, 1/10W 1 R4553 D1BB33R0A055 M 33 OHM, 1/10W 1 R4554 ERJ2RKF1000 M 100 OHM, 0.063W 1 R4560 ERJ2RKF1000 M 100 OHM, 0.063W 1 R4564 ERJ2RHD682X M 6.8KOHM, J, 2W 1 R4566 D0GA101JA015 M 100 OHM, J,0.063W 1 R4568 D0GA101JA015 M 100 OHM, J,0.063W 1 R4569 ERJ2GEJ102X M 1K OHM J 1/4W 1 R4570 D0GA103JA015 M 10KOHM,J,1/16W 1 R4571 D0GA103JA015 M 10KOHM,J,1/16W 1 R4572 D0GA103JA015 M 10KOHM,J,1/16W 1 R4573 D0GA103JA015 M 10KOHM,J,1/16W 1 R4580 D0GA101JA015 M 100 OHM, J,0.063W 1 R4642 D0GB103JA057 M 10K OHM J 1/16W 1 R4643 D0GB103JA057 M 10K OHM J 1/16W 1 R4644 D0YAR0000007 M 0 OHM 1/4W 1 R4645 D0YAR0000007 M 0 OHM 1/4W 1 R4646 D0YAR0000007 M 0 OHM 1/4W 1 R4658 D0GA101JA015 M 100 OHM, J,0.063W 1 R4660 D0GA101JA015 M 100 OHM, J,0.063W 1 R4664 D0GA103JA015 M 10KOHM,J,1/16W 1 R4665 D0GA103JA015 M 10KOHM,J,1/16W 1 R4666 D0GA103JA015 M 10KOHM,J,1/16W 1 R4668 D0GA103JA015 M 10KOHM,J,1/16W 1 参考号部件号部件名称及说明件数备注 144 TH-65PF12CK R4670 D0GA470JA015 M 47 OHM, J,0.063W 1 R4672 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R4678 D0YAR0000007 M 0 OHM 1/4W 1 R4681 D0GA103JA015 M 10KOHM,J,1/16W 1 R4682 D0GA103JA015 M 10KOHM,J,1/16W 1 R4684 D0GA103JA015 M 10KOHM,J,1/16W 1 R4686 D0GA470JA015 M 47 OHM, J,0.063W 1 R4687 D0GA103JA015 M 10KOHM,J,1/16W 1 R4688 D0GA470JA015 M 47 OHM, J,0.063W 1 R4697 ERJ2RKF1000 M 100 OHM, 0.063W 1 R4698 ERJ2RKF1000 M 100 OHM, 0.063W 1 R4705 D0GA103JA015 M 10KOHM,J,1/16W 1 R4706 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R4708 D0GA103JA015 M 10KOHM,J,1/16W 1 R4709 D0YAR0000007 M 0 OHM 1/4W 1 R4713 D0GA473JA015 M 47 OHM, J,0.063W 1 R4714 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R4715 ERJ2RKF9100 M 910 OHM, 0.063W 1 R4716 ERJ2RKF2701 M 27K OHM, J, 2W 1 R4717 ERJ2RKF1052 M10.5KOHM, 0.063W 1 R4718 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R8001 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8002 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8003 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8004 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8009 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8010 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8011 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8012 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8013 D0GB101JA041 M 100 OHM,J,1/16W 1 R8014 D0GB101JA041 M 100 OHM,J,1/16W 1 R8015 D0GB101JA041 M 100 OHM,J,1/16W 1 R8025 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8026 ERJ3GEYF220 M 22 OHM,J,1/16W 1 R8029 D1BD3001A044 M 3KOHM, 1/10W 1 R8031 D1BD2201A044 M2.20KOHM, 1/10W 1 R8035 D1BD2202A044 M 2.2KOHM, 1/10W 1 R8037 D1BD4701A044 M4.70KOHM, 1/10W 1 R8039 D1BD4701A044 M4.70KOHM, 1/10W 1 R8045 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8051 D0GB103JA041 M 10K OHM J 1/16W 1 R8054 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8055 D0GB101JA041 M 100 OHM,J,1/16W 1 R8056 D0GB101JA041 M 100 OHM,J,1/16W 1 R8057 D0GB101JA041 M 100 OHM,J,1/16W 1 R8060 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8065 D0GB151JA057 M 150 OHM J 1/16W 1 R8067 D0GB151JA057 M 150 OHM J 1/16W 1 R8069 D1BD1501A044 M 1.4KOHM, 1/10W 1 R8089 D0GB181JA057 M 180 OHM,J,1/16W 1 R8096 D0GDR00Z0002 M 0 OHM, 1/10W 1 R8097 D0GDR00Z0002 M 0 OHM, 1/10W 1 R8098 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8100 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8102 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8103 D0GB183JA057 M 18K OHM J 1/16W 1 R8104 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8105 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8106 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8107 D0GB103JA041 M 10K OHM J 1/16W 1 R8108 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R8109 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8110 D0GB103JA041 M 10K OHM J 1/16W 1 R8111 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R8112 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8114 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8115 D0GB103JA041 M 10K OHM J 1/16W 1 R8116 D0GB103JA041 M 10K OHM J 1/16W 1 R8117 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8118 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8119 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8120 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8121 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R8122 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R8124 D0GB101JA041 M 100 OHM,J,1/16W 1 参考号部件号部件名称及说明件数备注 R8125 D0GB101JA041 M 100 OHM,J,1/16W 1 R8126 D0GB101JA041 M 100 OHM,J,1/16W 1 R8127 D0GB101JA041 M 100 OHM,J,1/16W 1 R8129 D0GDR00Z0002 M 0 OHM, 1/10W 1 R8180 ERJ8GEYJ820V M 82 OHM, J,1/8W 1 R8181 D0GB101JA041 M 100 OHM,J,1/16W 1 R8182 D0GB101JA041 M 100 OHM,J,1/16W 1 R8183 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8184 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8187 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R8188 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R8189 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8190 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8191 D0GBR00Z0002 M 0 OHM J 1/16W 1 R8200 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R8201 D0GB473JA057 M 47KOHM,J,1/16W 1 R8202 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8203 D0GB103JA041 M 10K OHM J 1/16W 1 R8204 D0GB104JA041 M 100KOHM J 1/16W 1 R8205 D0GB753JA057 M 75KOHM,J,1/16W 1 R8206 D0GB393JA041 M 39KOHM,J,1/16W 1 R9070 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9071 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9072 ERJ2GEJ102X M 1K OHM J 1/4W 1 R9073 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9077 D1BB3301A055 M 3.3KOHM, 1/16W 1 R9078 D1BB1002A055 M 10KOHM, 1/10W 1 R9079 D1BB2702A055 M 27KOHM, 1/10W 1 R9080 D1BB1502A055 M 15KOHM, 1/10W 1 R9081 D1BB4702A055 M 47KOHM, 1/10W 1 R9083 D0YAR0000007 M 0 OHM 1/4W 1 R9084 D0YAR0000007 M 0 OHM 1/4W 1 R9085 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9086 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9087 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9088 D1BB5601A055 M 5.6KOHM, 1/10W 1 R9089 D1BB1502A055 M 15KOHM, 1/10W 1 R9091 D1BB2702A055 M 27KOHM, 1/10W 1 R9092 D1BB1202A055 M 12KOHM, 1/10W 1 R9095 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9096 D0YAR0000007 M 0 OHM 1/4W 1 R9098 D0YAR0000007 M 0 OHM 1/4W 1 R9107 ERJ2GEJ332 M 3.3KOHM, J,0.063W 1 R9110 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9115 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9116 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9119 EXB38V470J 电阻阵列 1 R9120 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9121 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9124 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9129 ERJ2GEJ683 M 68KOHM, J,0.063W 1 R9130 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9132 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9142 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9145 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9149 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9150 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9151 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9152 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9153 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9154 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9155 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9164 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9166 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9185 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9186 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9187 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9188 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9189 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9194 ERJ2GEJ471 M 470 OHM, J,0.063W 1 R9200 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R9201 ERJ2GEJ100 M 10 OHM, J,0.063W 1 R9202 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9203 ERJ2GEJ223 M 22KOHM, J,0.063W 1 R9205 ERJ2GEJ333 M 33KOHM, J,0.063W 1 R9206 ERJ2GED563X M 56KOHM ,J,0.063W 1 R9207 ERJ2GEJ243 M 24KOHM, J,0.063W 1 参考号部件号部件名称及说明件数备注 145 TH-65PF12CK R9211 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9212 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9213 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9214 D0YAR0000007 M 0 OHM 1/4W 1 R9215 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9217 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9218 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9219 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9220 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9222 D0GDR00Z0002 M 0 OHM, 1/10W 1 R9223 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9225 ERJ2RHD272 M 2.7KOHM, J, 2W 1 R9228 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9229 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9230 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9231 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9232 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9233 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9234 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9235 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9236 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9237 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9238 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9239 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9240 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9241 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9242 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9243 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9244 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9245 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9246 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9369 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9370 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9371 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9385 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9391 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9398 ERJ2GEJ301 M 300 OHM, J,0.063W 1 R9399 ERJ2RKF75R0 M 75 OHM, , 0.063W 1 R9400 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9401 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R9402 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9403 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9404 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9405 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9406 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9407 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9408 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9409 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9410 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9411 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9412 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9413 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9414 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9415 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9416 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9417 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9418 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9419 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9420 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9421 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9422 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9423 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9424 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9425 EXB2HV151J 电阻阵列 1 R9426 EXB2HV151J 电阻阵列 1 R9578 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9585 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9586 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9587 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9588 ERJ2GEJ472 M 4.7KOHM, J,0.063W 1 R9591 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9592 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9594 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9598 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9600 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9601 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9604 ERJ2GEJ103 M 10KOHM, J,0.063W 1 参考号部件号部件名称及说明件数备注 R9608 EXB2HV470JV 电阻阵列 1 R9609 EXB2HV470JV 电阻阵列 1 R9610 EXB2HV470JV 电阻阵列 1 R9611 ERJ2GEJ680 M 68 OHM, J,0.063W 1 R9616 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9618 ERJ2GEJ331 M 330 OHM, J,0.063W 1 R9839 EXB38V101JV 电阻阵列 1 R9840 ERJ2GEJ220 M 22 OHM, J,0.063W 1 R9848 EXB2HV470JV 电阻阵列 1 R9849 EXB2HV470JV 电阻阵列 1 R9854 ERJ2GEJ101 M 100 OHM, J,0.063W 1 R9859 EXB38V101JV 电阻阵列 1 R9868 ERJ2GEJ104 M 100KOHM, J,0.063W 1 R9871 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9872 D1BB1002A055 M 10KOHM, 1/10W 1 R9893 D1BB2702A055 M 27KOHM, 1/10W 1 R9894 D1BB1802A055 M 18KOHM, 1/10W 1 R9897 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9898 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9899 ERJ2GEJ103 M 10KOHM, J,0.063W 1 R9966 ERJ2GEJ391 M 390 OHM, J,0.063W 1 R9967 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9968 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9969 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9970 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9975 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9977 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9983 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9987 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9988 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9989 ERJ2GEJ470 M 47 OHM, J,0.063W 1 R9996 ERJ2RKF1001 M 1KOHM, 0.063W 1 R9997 ERJ2RKF1001 M 1KOHM, 0.063W 1 R9998 ERJ2GEJ221 M 220 OHM, J,0.063W 1 R9999 ERJ2GEJ103 M 10KOHM, J,0.063W 1 RM001 PNA4701M05TV 遥控接收器 1 S34 K1KA03AA0193 3P 连接接头 1 SW061 K0F162B00002 开关 1 SW1550 EVQPLHA15 开关 1 SW1551 EVQPLHA15 开关 1 SW1552 EVQPLHA15 开关 1 SW1553 EVQPLHA15 开关 1 SW1554 EVQPLHA15 开关 1 T3301 G5BYC0000015 变压器 1 T3302 G5BYC0000015 变压器 1 V2 K1KA06BA0047 6P 连接接头 1 V15 K1KA03BA0047 3P 连接接头 1 X2301 H0J184500020 晶体 1 X3301 H1A2705B0032 晶体 1 X3302 H0J100500030 晶体 1 (HDE) X3302 H0J250500091 晶体 1 (HL) X4000 H0J200500076 晶体 1 X4001 H0J360500017 晶体 1 X8181 H0J327200114 晶体 1 X9000 H2C1005A0041 晶体 1 X9900 H0J200500076 晶体 1 ZA3001 K4CD01000011 AV 端子 1 (DS) ZA3001 K4ZZ01000206 端子 1 (HX) ZA3002 K4CD01000011 AV 端子 1 ZA3003 K4CD01000013 AV 端子 1 ZA3004 K4CD01000013 AV 端子 1 ZA3005 K4CD01000013 AV 端子 1 ZA3006 K4CD01000013 AV 端子 1 ZA3007 K4CD01000013 AV 端子 1 ZA3008 K4CD01000011 AV 端子 1 ZA3009 K4CD01000011 AV 端子 1 ZA4001 K4AZ01D00004 端子 1 ZA4002 K4AZ01D00004 端子 1 ZA4003 K4AZ01D00004 端子 1 参考号部件号部件名称及说明件数备注 146 TH-65PF12CK ZA4004 K4AZ01D00004 端子 1 ZA9001 K4AZ01D00004 端子 1 C10 K1MY55BA0345 55P 连接接头 1 C14 K1KA02A00787 2P 连接接头 1 C20 K1MY55BA0345 55P 连接接头 1 C21 K1MY68BA0345 68P 连接接头 1 C26 K1MN30BA0255 30P 连接接头 1 C31 K1MY68BA0345 68P 连接接头 1 C33 K1KA12B00151 12P 连接接头 1 C35 K1KA04BA0107 4P 连接接头 1 C36 K1MN30BA0255 30P 连接接头 1 C16003 F1L2J562A022 C 5600UF, K,6.3V 1 C16011 F2A2T181A007 E 180UF, 220V 1 C16012 F2A2T181A007 E 180UF, 220V 1 C16013 F2A2T181A007 E 180UF, 220V 1 C16015 F2A2T181A007 E 180UF, 220V 1 C16016 F2A2T181A007 E 180UF, 220V 1 C16017 F2A2T181A007 E 180UF, 220V 1 C16023 F1L2J562A022 C 5600UF, K,6.3V 1 C16031 F0C2E155A252 E 0.015UF, 250V 1 C16032 F2A2T301A004 E 300UF, 220V 1 C16042 F1H1H392A970 C 3900PF, K, 50V 1 C16052 F1H1H392A970 C 3900PF, K, 50V 1 C16071 F1L2J1020001 C 1000UF, K,6.3V 1 C16092 F1L2J1020001 C 1000UF, K,6.3V 1 C16104 F1H1E470A130 C 47UF, K, 25V 1 C16105 F1H1E470A130 C 47UF, K, 25V 1 C16131 F1K1E475A134 C 4.7UF, Z, 25V 1 C16133 F1K1E475A134 C 4.7UF, Z, 25V 1 C16135 F1K1E105A029 C 1UF, Z, 25V 1 C16151 F1K1E105A029 C 1UF, Z, 25V 1 C16152 F1K1E475A134 C 4.7UF, Z, 25V 1 C16153 F1K1E475A134 C 4.7UF, Z, 25V 1 C16154 F1K1E475A134 C 4.7UF, Z, 25V 1 C16191 F1K1E475A134 C 4.7UF, Z, 25V 1 C16192 F1H1E104A129 C 0.1UF, 25V 1 C16193 F2A1E4700094 E 47UF, 25V 1 C16195 F1K1E475A134 C 4.7UF, Z, 25V 1 C16201 F0C2E3050001 E 0.030UF, 250V 1 C16202 F0C2E3050001 E 0.030UF, 250V 1 C16203 F0C2E3050001 E 0.030UF, 250V 1 C16204 F0C2E3050001 E 0.030UF, 250V 1 C16205 F0C2E3050001 E 0.030UF, 250V 1 C16241 F2A1A1010115 E 100UF, 10V 1 C16242 F1H1C105A008 C 1UF, K, 16V 1 C16243 F1H1H103A970 C 0.001UF, K, 50V 1 C16251 F1H1C105A008 C 1UF, K, 16V 1 C16252 F1K1E105A029 C 1UF, Z, 25V 1 C16271 F2A1E331B501 E 330UF, 25V 1 C16280 F1K1E105A029 C 1UF, Z, 25V 1 C16284 F1H1H104A970 C 0.1UF, K, 50V 1 C16285 F1H1H104A970 C 0.1UF, K, 50V 1 C16286 F1H1H104A970 C 0.1UF, K, 50V 1 C16287 F1H1H104A970 C 0.1UF, K, 50V 1 C16288 F1H1H104A970 C 0.1UF, K, 50V 1 C16289 F1H1H104A970 C 0.1UF, K, 50V 1 C16315 F1H1A1050032 C 10UF, 50V 1 C16316 F1H1C104A143 C 0.1UF, K, 16V 1 C16317 F1H1A1050032 C 10UF, 50V 1 C16318 F1J1H104A835 C 0.10UF, 50V 1 C16319 F1J1H104A835 C 0.10UF, 50V 1 C16328 F2A2D201A226 E 220UF, 200V 1 C16329 F2A2D201A226 E 220UF, 200V 1 C16331 F0C2E105A252 E 0.010UF, 250V 1 C16332 F1H1H101A971 C 100UF, 50V 1 C16333 F1H1H101A971 C 100UF, 50V 1 C16334 F1H1H101A971 C 100UF, 50V 1 C16335 F1H1H101A971 C 100UF, 50V 1 C16336 F1H1H101A971 C 100UF, 50V 1 C16401 F1L2J562A022 C 5600UF, K,6.3V 1 C16408 F2A2T181A007 E 180UF, 220V 1 C16410 F2A2T181A007 E 180UF, 220V 1 C16411 F2A2T181A007 E 180UF, 220V 1 C16413 F0C2E155A252 E 0.015UF, 250V 1 C16414 F2A2T181A007 E 180UF, 220V 1 C16415 F2A2T181A007 E 180UF, 220V 1 参考号部件号部件名称及说明件数备注 C16417 F2A2T181A007 E 180UF, 220V 1 C16419 F2A2T181A007 E 180UF, 220V 1 C16421 F1L2J562A022 C 5600UF, K,6.3V 1 C16441 F1H1H392A970 C 3900PF, K, 50V 1 C16442 F1H1H392A970 C 3900PF, K, 50V 1 C16443 F1H1H392A970 C 3900PF, K, 50V 1 C16444 F1H1H392A970 C 3900PF, K, 50V 1 C16451 F1H1H392A970 C 3900PF, K, 50V 1 C16452 F1H1H392A970 C 3900PF, K, 50V 1 C16453 F1H1H392A970 C 3900PF, K, 50V 1 C16454 F1H1H392A970 C 3900PF, K, 50V 1 C16460 F1E2J332A002 C 3300PF, 600V 1 C16471 F1L2J1020001 C 1000UF, K,6.3V 1 C16472 F1K1E105A029 C 1UF, Z, 25V 1 C16490 F1H1C105A008 C 1UF, K, 16V 1 C16491 F1L2J1020001 C 1000UF, K,6.3V 1 C16501 F1K1E105A029 C 1UF, Z, 25V 1 C16502 F1K1E475A134 C 4.7UF, Z, 25V 1 C16503 F2A1E471A102 E 470UF, 25V 1 C16505 F1K1E105A029 C 1UF, Z, 25V 1 C16521 F1K1E105A029 C 1UF, Z, 25V 1 C16522 F1K1E475A134 C 4.7UF, Z, 25V 1 C16523 F2A1E471A102 E 470UF, 25V 1 C16524 F1K1E475A134 C 4.7UF, Z, 25V 1 C16525 F1K1E475A134 C 4.7UF, Z, 25V 1 C16533 F1H1H104A970 C 0.1UF, K, 50V 1 C16535 F1H1H104A970 C 0.1UF, K, 50V 1 C16536 F1H1H104A970 C 0.1UF, K, 50V 1 C16552 F1E2J222A002 C 2200PF, 600V 1 C16554 F1E2J272A002 C 2700PF, 600V 1 C16555 F1E2J222A002 C 2200PF, 600V 1 C16562 F1H1C105A008 C 1UF, K, 16V 1 C16563 F2A1A101A106 E 100UF, 10V 1 C16564 F1H1C105A008 C 1UF, K, 16V 1 C16565 F1H1H103A970 C 0.001UF, K, 50V 1 C16566 F1H1H103A970 C 0.001UF, K, 50V 1 C16581 F1K1E105A029 C 1UF, Z, 25V 1 C16582 F1H1C105A008 C 1UF, K, 16V 1 C16593 F1H1H102A971 C 1000PF, K, 50V 1 C16602 F1H1H220A971 C 22PF, K, 50V 1 C16603 F1K2J102A014 C 1000UF, K,6.3V 1 C16604 F1K2J102A014 C 1000UF, K,6.3V 1 C16608 F1H1H221A971 C 220UF, K, 50V 1 C16631 F0C2E3050001 E 0.030UF, 250V 1 C16632 F0C2E3050001 E 0.030UF, 250V 1 C16633 F0C2E3050001 E 0.030UF, 250V 1 C16634 F0C2E3050001 E 0.030UF, 250V 1 C16635 F0C2E3050001 E 0.030UF, 250V 1 C16636 F0C2E3050001 E 0.030UF, 250V 1 C16641 F1K2J222A014 C 2200UF, K,6.3V 1 C16645 F1K2J102A014 C 1000UF, K,6.3V 1 C16646 F1K2J102A014 C 1000UF, K,6.3V 1 C16661 F1K2J102A014 C 1000UF, K,6.3V 1 C16662 F1K2J102A014 C 1000UF, K,6.3V 1 C16664 F1H1H820A971 C 82UF, 50V 1 C16665 F1H1H820A971 C 82UF, 50V 1 C16666 F1H1H820A971 C 82UF, 50V 1 C16668 F1H1H221A971 C 220UF, K, 50V 1 C16675 F1H1H391A971 C 391UF, 50V 1 C16684 F1H1H104A970 C 0.1UF, K, 50V 1 C16685 F1H1H104A970 C 0.1UF, K, 50V 1 C16690 F2A2C101A169 E 1000UF, 160V 1 C16691 F2A2C101A169 E 1000UF, 160V 1 C16692 F1H1H104A970 C 0.1UF, K, 50V 1 C16699 F2A1E471A102 E 470UF, 25V 1 C16707 F1H1H220A971 C 22PF, K, 50V 1 C16708 F1H1H104A970 C 0.1UF, K, 50V 1 C16721 F2A1H101A128 E 100UF, 50V 1 C16723 F1K1E475A134 C 4.7UF, Z, 25V 1 C16724 F1K1E475A134 C 4.7UF, Z, 25V 1 C16725 F1K1E475A134 C 4.7UF, Z, 25V 1 C16753 F1K1E475A134 C 4.7UF, Z, 25V 1 C16755 F1K1E475A134 C 4.7UF, Z, 25V 1 C16756 F1K1E475A134 C 4.7UF, Z, 25V 1 C16771 F1H1C105A008 C 1UF, K, 16V 1 C16772 F1K1E475A134 C 4.7UF, Z, 25V 1 C16773 F1K1E475A134 C 4.7UF, Z, 25V 1 参考号部件号部件名称及说明件数备注 147 TH-65PF12CK C16791 EEUFC1E221 E 220UF, 25V 1 C16795 F2A1E471A102 E 470UF, 25V 1 C16796 F2A1E471A102 E 470UF, 25V 1 C16797 F1H1H104A970 C 0.1UF, K, 50V 1 C16813 F2A2T221A009 E 220UF, 220V 1 C16814 F1H1H561A971 C 560UF, 50V 1 C16821 F1J1H104A835 C 0.10UF, 50V 1 C16822 F2A2G470A187 E 470UF, 400V 1 C16823 F1L2J562A022 C 5600UF, K,6.3V 1 C16842 F2A2C101A169 E 1000UF, 160V 1 C16843 F1J1H104A835 C 0.10UF, 50V 1 C16844 F1J1H104A835 C 0.10UF, 50V 1 C16856 F1H1A1050032 C 10UF, 50V 1 C16857 F1H1H472A970 C 4700PF, K, 50V 1 C16858 F1H1C104A143 C 0.1UF, K, 16V 1 C16860 F1H1A1050032 C 10UF, 50V 1 C16861 F1H1C104A143 C 0.1UF, K, 16V 1 C16862 F1H1A1050032 C 10UF, 50V 1 C16863 F1J1H104A835 C 0.10UF, 50V 1 C16864 F1J1H104A835 C 0.10UF, 50V 1 C16866 F1H1A1050032 C 10UF, 50V 1 C16867 F1H1A1050032 C 10UF, 50V 1 C16868 F1H1A1050032 C 10UF, 50V 1 C16869 F1J1H104A835 C 0.10UF, 50V 1 C16891 F1K1E105A029 C 1UF, Z, 25V 1 C16902 F1E2J332A002 C 3300PF, 600V 1 C17101 F1H1A1050032 C 10UF, 50V 1 C17102 F1H1A1050032 C 10UF, 50V 1 C17103 F1H1A1050032 C 10UF, 50V 1 C17104 F1H1A1050032 C 10UF, 50V 1 C17105 F1H1A1050032 C 10UF, 50V 1 C17132 F1L2A334A031 E 3300UF, 100V 1 C17134 F1L2A334A031 E 3300UF, 100V 1 C17136 F1L2A334A031 E 3300UF, 100V 1 C17138 F1L2A334A031 E 3300UF, 100V 1 C17140 F1L2A334A031 E 3300UF, 100V 1 C17201 F1H1A1050032 C 10UF, 50V 1 C17204 F1H1A1050032 C 10UF, 50V 1 C17205 F1H1A1050032 C 10UF, 50V 1 C17206 F1H1A1050032 C 10UF, 50V 1 C17207 F1H1A1050032 C 10UF, 50V 1 C17213 F1H1C104A143 C 0.1UF, K, 16V 1 C17231 F1L2A334A031 E 3300UF, 100V 1 C17234 F1L2A334A031 E 3300UF, 100V 1 C17237 F1L2A334A031 E 3300UF, 100V 1 C17238 F1L2A334A031 E 3300UF, 100V 1 C17240 F1L2A334A031 E 3300UF, 100V 1 C17241 F1H1H101A971 C 100UF, 50V 1 C17243 F1H1H101A971 C 100UF, 50V 1 C17244 F1H1H101A971 C 100UF, 50V 1 C17245 F1H1H101A971 C 100UF, 50V 1 C17301 F1H1A1050032 C 10UF, 50V 1 C17304 F1H1A1050032 C 10UF, 50V 1 C17305 F1H1A1050032 C 10UF, 50V 1 C17306 F1H1A1050032 C 10UF, 50V 1 C17307 F1H1A1050032 C 10UF, 50V 1 C17311 F1H1C104A143 C 0.1UF, K, 16V 1 C17332 F1L2A334A031 E 3300UF, 100V 1 C17333 F1L2A334A031 E 3300UF, 100V 1 C17335 F1L2A334A031 E 3300UF, 100V 1 C17338 F1L2A334A031 E 3300UF, 100V 1 C17340 F1L2A334A031 E 3300UF, 100V 1 C17341 F1H1H101A971 C 100UF, 50V 1 C17343 F1H1H101A971 C 100UF, 50V 1 C17344 F1H1H101A971 C 100UF, 50V 1 C17345 F1H1H101A971 C 100UF, 50V 1 C17351 F1H1C104A143 C 0.1UF, K, 16V 1 C17352 F1H1H330A971 C 33UF, 50V 1 CB1 K1MY55B00002 55P 连接接头 1 CB2 K1MY55B00002 55P 连接接头 1 CB3 K1MY55B00002 55P 连接接头 1 CB4 K1MY55B00002 55P 连接接头 1 CB5 K1MY55B00002 55P 连接接头 1 CB6 K1MY55B00002 55P 连接接头 1 CB7 K1MY55B00002 55P 连接接头 1 CB8 K1MY55B00002 55P 连接接头 1 参考号部件号部件名称及说明件数备注 CB9 K1MY55B00002 55P 连接接头 1 CB10 K1MY55B00002 55P 连接接头 1 CB11 K1MY55B00002 55P 连接接头 1 CB12 K1MY55B00002 55P 连接接头 1 CB13 K1MY55B00002 55P 连接接头 1 CB14 K1MY55B00002 55P 连接接头 1 CB15 K1MY55B00002 55P 连接接头 1 D16001 B0FCCN000002 二极管 1 D16002 B0FCCN000002 二极管 1 D16003 B0FCCN000002 二极管 1 D16021 B0FBCN000008 二极管 1 D16025 B0FBCN000005 二极管 1 D16032 MA2J1110GL 二极管 1 D16041 MA3DF46000LW 稳压二极管 1 D16042 MA3DF46000LW 稳压二极管 1 D16043 MA3DF46000LW 稳压二极管 1 D16050 B0ECKP000055 二极管 1 D16051 B0FBCN000008 二极管 1 D16052 B0FBCN000008 二极管 1 D16053 B0FBCN000008 二极管 1 D16101 MA22D3900L 二极管 1 D16131 B0ECKP000055 二极管 1 D16151 B0ECKP000055 二极管 1 D16152 B0ECKP000055 二极管 1 D16153 B0ECKP000055 二极管 1 D16191 B0ECKP000055 二极管 1 D16192 MA2J1110GL 二极管 1 D16193 B0ECKP000055 二极管 1 D16194 B0ECKP000055 二极管 1 D16195 B0ECKP000055 二极管 1 D16253 B3ABB0000210 LED 1 D16255 MA2J1110GL 二极管 1 D16280 MA2J1110GL 二极管 1 D16281 MAZ80510LL 稳压二极管 1 D16282 MAZ80680ML 稳压二极管 1 D16284 MA3X152D0L 二极管 1 D16285 MA3X152D0L 二极管 1 D16286 MA3X152D0L 二极管 1 D16315 MAZ8150GML 稳压二极管 1 D16316 B0ECKP000055 二极管 1 D16317 B0ECKP000055 二极管 1 D16401 B0FACR000006 二极管 1 D16402 B0FACR000006 二极管 1 D16403 B0FACR000006 二极管 1 D16407 MA22D3900L 二极管 1 D16411 MA2J1110GL 二极管 1 D16421 MA3DF40001TV 稳压二极管 1 D16422 MA3DF40001TV 稳压二极管 1 D16423 MA3DF40001TV 稳压二极管 1 D16442 B0FBCN000009 二极管 1 D16444 B0FBCN000009 二极管 1 D16445 B0FBCN000009 二极管 1 D16446 B0FBCN000009 二极管 1 D16451 B0ECKP000055 二极管 1 D16461 MA3DF46000LW 稳压二极管 1 D16462 MA3DF46000LW 稳压二极管 1 D16463 MA3DF46000LW 稳压二极管 1 D16464 MA3DF46000LW 稳压二极管 1 D16466 MA2J1110GL 二极管 1 D16473 MA3X152D0L 二极管 1 D16474 MA2J1110GL 二极管 1 D16475 MAZ80510LL 稳压二极管 1 D16476 MA2J1110GL 二极管 1 D16477 MA2J1110GL 二极管 1 D16478 B0HCKS000002 二极管 1 D16480 MA2J1110GL 二极管 1 D16481 B0FACP000001 二极管 1 D16482 B0FACP000001 二极管 1 D16483 B0FACP000001 二极管 1 D16484 B0FACP000001 二极管 1 D16490 B0ECKP000055 二极管 1 D16491 MA2J1110GL 二极管 1 D16492 MAZ8047GML 稳压二极管 1 D16493 MA3X152E0L 稳压二极管 1 D16503 B0ECHR000001 二极管 1 D16522 B0ECKP000055 二极管 1 参考号部件号部件名称及说明件数备注 148 TH-65PF12CK D16523 B0ECKP000055 二极管 1 D16524 B0ECKP000055 二极管 1 D16536 B0ECHR000001 二极管 1 D16583 B3ABB0000210 LED 1 D16602 MAZ8150GML 稳压二极管 1 D16604 MA3X152E0L 稳压二极管 1 D16605 MAZ80510LL 稳压二极管 1 D16606 B0ECKM000038 二极管 1 D16607 MA2J1110GL 二极管 1 D16610 MA2J1110GL 二极管 1 D16615 MA2J1110GL 二极管 1 D16616 MA3X152E0L 稳压二极管 1 D16618 B0ECKP000055 二极管 1 D16621 B0FBCN000006 二极管 1 D16622 B0FBCN000006 二极管 1 D16623 B0FBCN000006 二极管 1 D16624 B0ECKP000055 二极管 1 D16625 MAZ8200GML 稳压二极管 1 D16641 B0FBCN000007 二极管 1 D16642 B0FBCN000007 二极管 1 D16643 B0FBCN000007 二极管 1 D16645 MAZ8150GML 稳压二极管 1 D16646 MAZ8150GML 稳压二极管 1 D16647 MAZ8150GML 稳压二极管 1 D16648 MAZ80510LL 稳压二极管 1 D16649 MA2J1110GL 二极管 1 D16650 MA2J1110GL 二极管 1 D16652 B0ECKP000055 二极管 1 D16653 MA2J1110GL 二极管 1 D16654 MA2J1110GL 二极管 1 D16662 MAZ8150GML 稳压二极管 1 D16663 MAZ8150GML 稳压二极管 1 D16664 MAZ8150GML 稳压二极管 1 D16669 MA2J1110GL 二极管 1 D16671 MA2J1110GL 二极管 1 D16673 B0ECHR000001 二极管 1 D16674 B0ECHR000001 二极管 1 D16677 MA3X152D0L 二极管 1 D16678 MAZ815000L 稳压二极管 1 D16679 B0ECKP000055 二极管 1 D16699 B0ECKP000055 二极管 1 D16702 MA2J1110GL 二极管 1 D16710 MAZ815000L 稳压二极管 1 D16711 B0ECHR000001 二极管 1 D16712 MAZ815000L 稳压二极管 1 D16713 B0ECHR000001 二极管 1 D16714 MAZ815000L 稳压二极管 1 D16715 B0ECKP000055 二极管 1 D16716 MAZ80510LL 稳压二极管 1 D16717 MAZ83300ML 稳压二极管 1 D16719 B0ECKP000055 二极管 1 D16720 B0ECKP000055 二极管 1 D16721 B0ECHR000001 二极管 1 D16725 MA2J1110GL 二极管 1 D16765 B0ECHR000001 二极管 1 D16791 MAZ8200GML 稳压二极管 1 D16792 MA2J1110GL 二极管 1 D16811 MA2J1110GL 二极管 1 D16820 MA3X152E0L 稳压二极管 1 D16821 MAZ824000L 稳压二极管 1 D16824 MAZ83300ML 稳压二极管 1 D16825 MAZ83300ML 稳压二极管 1 D16859 B0ECHR000001 二极管 1 D16860 B0ECHR000001 二极管 1 D16865 B0ECKP000047 二极管 1 D16871 MAZ805100L 稳压二极管 1 D16872 MAZ805100L 稳压二极管 1 D16874 MAZ805100L 稳压二极管 1 D16875 MA2J1110GL 二极管 1 D16901 MA3X152E0L 稳压二极管 1 D16902 MA2J1110GL 二极管 1 IC16131 C0ZBZ0001707 IC 1 IC16151 C0ZBZ0001708 IC 1 IC16241 C0JBAZ002811 IC 1 IC16251 C0BBBA000024 IC 1 IC16304 MIP3900MSSCF IC 1 参考号部件号部件名称及说明件数备注 IC16312 C0DBZMC00006 IC 1 IC16464 C0JBAB000715 IC 1 IC16465 C0JBAB000715 IC 1 IC16471 C0DBEKA00003 IC 1 IC16490 C0DBZMC00006 IC 1 IC16491 NJM2406F 线状 IC * 1 IC16501 C0ZBZ0001708 IC 1 IC16521 C0ZBZ0001708 IC 1 IC16561 C0JBAZ001120 IC 1 IC16562 C0JBAZ001120 IC 1 IC16563 C0JBAB000388 IC 1 IC16564 C0JBAB000715 IC 1 IC16581 C0BBBA000024 IC 1 IC16661 C0BBBA000024 IC 1 IC16691 C0JBAC000363 IC 1 IC16692 C0DBZMC00006 IC 1 IC16724 C0CBADC00072 IC 1 IC16725 C0CBADC00072 IC 1 IC16771 C0CBADC00072 IC 1 IC16773 C0JBAB000715 IC 1 IC16784 MIP9L02MBS IC 1 IC16786 MIP3900MSSCF IC 1 IC16787 C0DBZMC00006 IC 1 IC16788 MIP3900MSSCF IC 1 IC16789 C0DBZMC00006 IC 1 IC16791 N0BF2GB00002 IC 1 IC16792 NJM2406F 线状 IC * 1 IC16793 C0DBZMC00006 IC 1 IC16801 C0DBZMC00006 IC 1 IC16920 C0BBBA000024 IC 1 IC17201 C0JBAU000073 IC 1 IC17301 C0JBAU000073 IC 1 IC17302 C0JBAZ001120 IC 1 L16001 G0C1R1K00001 校正线圈 1 L16002 G0C1R1K00001 校正线圈 1 L16003 G0C1R1K00001 校正线圈 1 L16004 G0C1R1K00001 校正线圈 1 L16005 G0C1R1K00001 校正线圈 1 L16011 G0C1R1K00001 校正线圈 1 L16012 G0C1R1K00001 校正线圈 1 L16013 G0C1R1K00001 校正线圈 1 L16014 G0C1R1K00001 校正线圈 1 L16015 G0C1R1K00001 校正线圈 1 L16103 G0ZZ00002183 校正线圈 1 L16222 G0ZZ00002183 校正线圈 1 L16271 G0ZZ00002183 校正线圈 1 L16303 G0C471KA0167 校正线圈 1 L16401 G0C1R1K00001 校正线圈 1 L16402 G0C1R1K00001 校正线圈 1 L16403 G0C1R1K00001 校正线圈 1 L16404 G0C1R1K00001 校正线圈 1 L16405 G0C1R1K00001 校正线圈 1 L16411 G0C1R1K00001 校正线圈 1 L16413 G0C1R1K00001 校正线圈 1 L16414 G0C1R1K00001 校正线圈 1 L16415 G0C1R1K00001 校正线圈 1 L16416 G0C1R1K00001 校正线圈 1 L16472 G0ZZ00002183 校正线圈 1 L16697 G0C102KA0187 校正线圈 1 L16698 G0C681MA0065 校正线圈 1 L16851 G0ZZ00002183 校正线圈 1 L17345 J0JGC0000070 滤波器 1 L17351 J0JGC0000070 滤波器 1 L17371 J0JGC0000070 滤波器 1 PC16191 B3PBA0000496 IC 1 PC16301 B3PBA0000498 IC 1 PC16461 B3PBA0000457 IC 1 PC16480 B3PBA0000498 IC 1 PC16603 B3PBA0000498 IC 1 PC16684 B3PBA0000496 IC 1 PC16685 B3PBA0000496 IC 1 PC16722 B3PBA0000498 IC 1 PC16723 B3PBA0000498 IC 1 PC16896 B3PBA0000498 IC 1 参考号部件号部件名称及说明件数备注 149 TH-65PF12CK PCB ETX2MM774MA 电路板 P (MULTI) 1 （RTL） PCB ETX2MM774MG 电路板 P (SUS) 1 （RTL） PCB TNPA4990 电路板 C1 1 （RTL） PCB TNPA4991 电路板 C2 1 （RTL） PCB TNPA4992 电路板 C3 1 （RTL） PCB TNPA4978AB 电路板 SC 1 PCB TNPA4982 电路板 SD 1 （RTL） PCB TNPA4979AB 电路板 SS 1 （RTL） PCB TNPA4983 电路板 SS2 1 （RTL） PCB TNPA4984 电路板 SS3 1 （RTL） PCB TNPA4981 电路板 SU 1 Q16001 B1JADN000007 三极管 1 Q16002 B1JADN000007 三极管 1 Q16003 B1JADN000007 三极管 1 Q16004 B1JADN000007 三极管 1 Q16005 B1JADN000007 三极管 1 Q16021 B1JADN000006 三极管 1 Q16022 B1JADN000006 三极管 1 Q16023 B1JADN000006 三极管 1 Q16024 B1JADN000006 三极管 1 Q16025 B1JADN000006 三极管 1 Q16041 2PG0330001TV 三极管 1 Q16042 2PG0330001TV 三极管 1 Q16051 2PG0330001TV 三极管 1 Q16052 2PG0330001TV 三极管 1 Q16055 B1HFPFA00001 三极管 1 Q16056 B1HFPFA00001 三极管 1 Q16101 2SK4208000RP FET 1 Q16102 2SK4208001TV FET 1 Q16141 B1HFPFA00001 三极管 1 Q16161 B1HFPFA00001 三极管 1 Q16191 B1HFPFA00001 三极管 1 Q16251 2SD0601ARL 三极管 1 Q16280 2SD0601ARL 三极管 1 Q16401 2PG0110000RP 三极管 1 Q16402 2PG0110000RP 三极管 1 Q16403 2PG0110000RP 三极管 1 Q16404 2PG0110000RP 三极管 1 Q16405 2PG0110000RP 三极管 1 Q16406 2PG0110000RP 三极管 1 Q16421 B1JADP000004 三极管 1 Q16422 B1JADP000004 三极管 1 Q16423 B1JADP000004 三极管 1 Q16424 B1JADP000004 三极管 1 Q16425 B1JADP000004 三极管 1 Q16426 B1JADP000004 三极管 1 Q16441 2PG0430001TV 三极管 1 Q16442 2PG0430001TV 三极管 1 Q16443 2PG0430001TV 三极管 1 Q16444 2PG0430001TV 三极管 1 Q16451 2PG0430000RP 三极管 1 Q16452 2PG0430000RP 三极管 1 Q16453 2PG0430000RP 三极管 1 Q16454 2PG0430000RP 三极管 1 Q16471 B1ABCF000231 三极管 1 Q16490 B1CBGD000001 FET 1 Q16501 B1HFPFA00001 三极管 1 Q16503 B1HFPFA00001 三极管 1 Q16521 B1HFPFA00001 三极管 1 Q16523 B1HFPFA00001 三极管 1 Q16531 B1HFPFA00001 三极管 1 Q16532 B1HFPFA00001 三极管 1 Q16551 B1HFPFA00001 三极管 1 Q16552 B1HFPFA00001 三极管 1 Q16601 B1CERR000025 FET 1 Q16602 2SD0601AQL 三极管 1 Q16603 2SB0709ASL 三极管 1 Q16606 2SD0601AQL 三极管 1 Q16607 B1CBGD000001 FET 1 Q16608 B1CBGD000001 FET 1 Q16621 B1JADN000006 三极管 1 Q16622 B1JADN000006 三极管 1 参考号部件号部件名称及说明件数备注 Q16623 B1JADN000006 三极管 1 Q16624 2SB0709ASL 三极管 1 Q16645 2SD0601AQL 三极管 1 Q16646 2SB0709ASL 三极管 1 Q16647 B1CBGD000001 FET 1 Q16649 B1ABCN000007 三极管 1 Q16660 B1CERR000025 FET 1 Q16661 B1JAER000003 三极管 1 Q16662 2SD0601AQL 三极管 1 Q16663 2SB0709ASL 三极管 1 Q16667 2SB0709ARL 三极管 1 Q16668 2SD0601AQL 三极管 1 Q16670 B1ADCN000007 三极管 1 Q16671 B1ABCF000231 三极管 1 Q16675 B1ADCN000007 三极管 1 Q16676 B1ABCF000231 三极管 1 Q16677 2SD0601AQL 三极管 1 Q16678 B1ABCF000231 三极管 1 Q16701 B1ADCN000007 三极管 1 Q16702 B1ABCF000231 三极管 1 Q16743 2SD0601ARL 三极管 1 Q16762 B1HFPFA00001 三极管 1 Q16801 B1ADCN000007 三极管 1 Q16810 B1ABCF000231 三极管 1 Q16815 B1ABCN000007 三极管 1 Q16816 2SD0601AQL 三极管 1 Q16817 B1CBGD000001 FET 1 Q16818 B1CBGD000001 FET 1 Q16874 B1CBGD000001 FET 1 Q16875 B1ABCF000231 三极管 1 Q16876 B1ABCF000231 三极管 1 Q16882 B1ABCF000231 三极管 1 Q16884 2SD0601ARL 三极管 1 Q16920 B1ABCN000007 三极管 1 R16001 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16002 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16003 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16004 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16005 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16021 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16022 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16023 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16024 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16025 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16031 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16032 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16033 D1BD5602A044 M 56KOHM, 1/10W 1 R16034 D1BD2702A044 M 27KOHM, 1/10W 1 R16041 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R16042 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R16051 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R16052 D0GF5R6JA047 M 5.6 OHM,J, 0.33W 1 R16101 D0GD221JA059 M 220 OHM,J,1/10W 1 R16102 D0GD221JA059 M 220 OHM,J,1/10W 1 R16103 D0GD100JA059 M 10 OHM,J,0.25W 1 R16104 D0GD100JA059 M 10 OHM,J,0.25W 1 R16105 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R16109 D0GD100JA059 M 10 OHM,J,0.25W 1 R16110 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16116 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16131 D0GD101JA036 M 100 OHM,J,0.25W 1 R16132 D0GD101JA036 M 100 OHM,J,0.25W 1 R16134 D0GD750JA059 M 75 OHM,J,0.25W 1 R16137 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 1 R16141 D0GD100JA059 M 10 OHM,J,0.25W 1 R16142 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16143 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16151 D0GD101JA036 M 100 OHM,J,0.25W 1 R16152 D0GD101JA036 M 100 OHM,J,0.25W 1 R16154 D0GD750JA059 M 75 OHM,J,0.25W 1 R16155 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 1 R16159 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 1 R16161 D0GD100JA059 M 10 OHM,J,0.25W 1 R16162 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16163 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16171 D0GD100JA059 M 10 OHM,J,0.25W 1 参考号部件号部件名称及说明件数备注 150 TH-65PF12CK R16172 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16173 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16181 D0GD100JA059 M 10 OHM,J,0.25W 1 R16182 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16183 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16191 ERJ6GEYJ151V M 150 OHM,J,1/10W 1 R16192 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16193 ERJ6GEYJ750 M 75 OHM,J,1/10W 1 R16194 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16195 D0GF1R0JA047 M 1.0 OHM,J, 0.33W 1 R16196 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R16230 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16231 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16241 EXB38V470J 电阻阵列 1 R16242 EXB38V472JV 电阻阵列 1 R16251 D1BD1401A044 M 1.4KOHM, 1/10W 1 R16252 D1BD3902A044 M 39KOHM, 1/10W 1 R16253 D1BD3902A044 M 39KOHM, 1/10W 1 R16254 D1BD6801A044 M 6.8KOHM, 1/10W 1 R16255 D1BD1201A044 M 1.2KOHM, 1/10W 1 R16256 D1BD1501A044 M 1.4KOHM, 1/10W 1 R16257 ERJ6GEYJ273 M 27KOHM,J,1/10W 1 R16258 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16260 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16280 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16281 D0GD103JA036 M 10KOHM,J,0.25W 1 R16282 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16283 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16284 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16285 EXB38V623J 电阻阵列 1 R16286 EXB38V623J 电阻阵列 1 R16289 D0GF334JA047 M 330KOHM,F,0.33W 1 R16290 D0GF334JA047 M 330KOHM,F,0.33W 1 R16291 D0GF334JA047 M 330KOHM,F,0.33W 1 R16292 D0GF334JA047 M 330KOHM,F,0.33W 1 R16293 D0GF334JA047 M 330KOHM,F,0.33W 1 R16294 D0GF334JA047 M 330KOHM,F,0.33W 1 R16302 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R16307 ERJ6RBD683 M 68KOHM,J,1/10W 1 R16309 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R16312 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R16313 ERJ8GEYJ333 M 33KOHM, J,1/8W 1 R16317 ERJ6RBD162 M 1.6KOHM,J,1/10W 1 R16318 ERJ6RBD683 M 68KOHM,J,1/10W 1 R16319 ERJ6RBD2491 M 2.49KOHM, 1/10W 1 R16320 ERJ14YJ683 M 68KOHM, 1/2W 1 R16330 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16332 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R16334 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16335 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16401 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16402 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16403 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16404 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16405 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16406 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16407 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16410 ERJ6GEYG391 M 390 OHM,F,1/10W 1 R16411 D1BD2700A044 M 270 OHM, 1/10W 1 R16412 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16414 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16415 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16416 D0GD103JA036 M 10KOHM,J,0.25W 1 R16421 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16422 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16423 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16424 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16425 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16426 ERJT08J7R5V M 7.5OHM,J, 0.33W 1 R16427 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16430 D0GBR00Z0002 M 0 OHM J 1/16W 1 R16441 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16442 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16443 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16444 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16451 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16452 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 参考号部件号部件名称及说明件数备注 R16453 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16454 ERJT08J5R6V M 5.6 OHM,F,0.33W 1 R16465 D1BD2702A044 M 27KOHM, 1/10W 1 R16466 D1BD5602A044 M 56KOHM, 1/10W 1 R16467 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16468 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16472 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16473 ERJ6GEYF561 M 560 OHM,F,1/10W 1 R16474 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16475 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16476 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16478 ERJ6GEYJ562V M 5.6KOHM,J,1/10W 1 R16479 D0GD103JA036 M 10KOHM,J,0.25W 1 R16480 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16490 ERJ6RED114 M 110KOHM, 1/10W 1 R16491 ERJ6RED124 M 120KOHM, 1/10W 1 R16492 ERJ6RED114 M 110KOHM, 1/10W 1 R16493 ERJ6RBD103V M 10KOHM,J,1/10W 1 R16494 D1BD2001A044 M 2KOHM, 1/10W 1 R16495 D1BD6800A044 M 680 OHM, 1/10W 1 R16496 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16497 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16498 D0GD103JA036 M 10KOHM,J,0.25W 1 R16501 D0GD101JA036 M 100 OHM,J,0.25W 1 R16502 D0GD101JA036 M 100 OHM,J,0.25W 1 R16503 ERJT06J100V M 10 OHM,F,0.25W 1 R16504 ERJT06J750V M 75 OHM,F,0.25W 1 R16506 ERJT06J100V M 10 OHM,F,0.25W 1 R16509 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16511 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16512 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16516 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16517 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16521 D0GD101JA036 M 100 OHM,J,0.25W 1 R16522 D0GD101JA036 M 100 OHM,J,0.25W 1 R16523 ERJT06J750V M 75 OHM,F,0.25W 1 R16524 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16525 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16526 ERJT06J100V M 10 OHM,F,0.25W 1 R16527 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16528 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16529 ERJT06J100V M 10 OHM,F,0.25W 1 R16531 ERJT06J100V M 10 OHM,F,0.25W 1 R16532 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16533 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16536 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16538 ERJT06J100V M 10 OHM,F,0.25W 1 R16539 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16540 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16542 ERJT06J100V M 10 OHM,F,0.25W 1 R16543 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16544 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16551 ERJT06J100V M 10 OHM,F,0.25W 1 R16552 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16553 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16561 EXB38V470J 电阻阵列 1 R16562 EXB38V470J 电阻阵列 1 R16563 EXB38V470J 电阻阵列 1 R16564 EXB38V470J 电阻阵列 1 R16565 EXB38V472JV 电阻阵列 1 R16566 EXB38V472JV 电阻阵列 1 R16567 EXB38V472JV 电阻阵列 1 R16568 EXB38V472JV 电阻阵列 1 R16570 EXB38V472JV 电阻阵列 1 R16573 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R16574 ERJ6GEYJ151V M 150 OHM,J,1/10W 1 R16579 EXB38V470J 电阻阵列 1 R16582 D1BD3902A044 M 39KOHM, 1/10W 1 R16583 D1BD3902A044 M 39KOHM, 1/10W 1 R16584 D1BD6801A044 M 6.8KOHM, 1/10W 1 R16585 D1BD1001A044 M 1KOHM, 1/10W 1 R16586 D1BD2151A044 M2.15KOHM, 1/10W 1 R16587 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16588 D0GD103JA036 M 10KOHM,J,0.25W 1 R16590 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16591 EXB38V472JV 电阻阵列 1 参考号部件号部件名称及说明件数备注 151 TH-65PF12CK R16592 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16593 D1BD1401A044 M 1.4KOHM, 1/10W 1 R16604 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R16605 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R16606 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16607 D1BD6981A044 M6.98KOHM, 1/10W 1 R16608 ERJT08J102V M 1KOHM,J, 0.33W 1 R16609 ERJT08J102V M 1KOHM,J, 0.33W 1 R16610 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16611 ERJ8GEYJ683 M 68KOHM, J,1/8W 1 R16612 ERJT06J470V M 47 OHM,F,0.25W 1 R16613 ERJ8GEYJ473 M 47KOHM, J,1/8W 1 R16614 ERJ8GEYJ683 M 68KOHM, J,1/8W 1 R16615 D1BD1131A044 M1.13KOHM, 1/10W 1 R16616 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16617 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16621 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16622 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16623 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16627 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R16628 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16631 D0GD103JA036 M 10KOHM,J,0.25W 1 R16633 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16634 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R16646 D1BD1211A044 M1.21KOHM, 1/10W 1 R16648 ERJT08J202V M 2KOHM,J, 0.33W 1 R16649 ERJT06J330V M 33 OHM,F,0.25W 1 R16650 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R16651 ERJT08J202V M 2KOHM,J, 0.33W 1 R16652 ERJ6GEYF822 M 8.2KOHM,F,1/10W 1 R16653 ERJ8GEYJ182 M 1.8KOHM, J,1/8W 1 R16654 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16655 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16656 ERJ8GEYJ472V M 4.7KOHM, J,1/8W 1 R16657 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16658 D1BD6491A044 M6.49KOHM, 1/10W 1 R16660 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16661 ERJ6GEYJ122V M 1.2KOHM,J,1/10W 1 R16662 D1BD1002A044 M10.0KOHM, 1/10W 1 R16663 D1BD6801A044 M 6.8KOHM, 1/10W 1 R16664 ERJT08J202V M 2KOHM,J, 0.33W 1 R16665 ERJT06J330V M 33 OHM,F,0.25W 1 R16666 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16667 ERJT08J202V M 2KOHM,J, 0.33W 1 R16668 ERJT08J202V M 2KOHM,J, 0.33W 1 R16673 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16674 ERJT08J202V M 2KOHM,J, 0.33W 1 R16675 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16677 ERJT08J202V M 2KOHM,J, 0.33W 1 R16678 ERJT08J202V M 2KOHM,J, 0.33W 1 R16679 D1BD7501A044 M 7.5KOHM, 1/10W 1 R16680 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16681 ERJT06J100V M 10 OHM,F,0.25W 1 R16682 ERJT06J100V M 10 OHM,F,0.25W 1 R16683 ERJT06J100V M 10 OHM,F,0.25W 1 R16684 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16685 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R16686 D0GD103JA036 M 10KOHM,J,0.25W 1 R16687 D1BD2702A044 M 27KOHM, 1/10W 1 R16688 D1BD1072A044 M10.7KOHM, 1/10W 1 R16690 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16691 ERJ8GEYJ563 M 56KOHM, J,1/8W 1 R16692 ERJ6RBD152 M 1.5KOHM,J,1/10W 1 R16694 ERJ8GEYJ563 M 56KOHM, J,1/8W 1 R16695 ERJ6RBD152 M 1.5KOHM,J,1/10W 1 R16696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R16699 D0GD103JA036 M 10KOHM,J,0.25W 1 R16707 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R16711 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16712 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16713 ERG1FJS104D M 100KOHM, J, 1W 1 R16714 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16715 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16716 ERJ8GEYJ182 M 1.8KOHM, J,1/8W 1 R16717 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16719 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16720 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 参考号部件号部件名称及说明件数备注 R16721 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16722 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16723 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R16731 ERG2FJS104D M 100KOHM, J, 2W 1 R16733 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R16734 D1BD4991A044 M4.99KOHM, 1/10W 1 R16735 D1BD1873A044 M 187KOHM, 1/10W 1 R16736 D1BD1873A044 M 187KOHM, 1/10W 1 R16737 D1BD2053A044 M 205KOHM, 1/10W 1 R16742 D0GD103JA036 M 10KOHM,J,0.25W 1 R16744 D1BD1273A044 M 127KOHM, 1/10W 1 R16745 D1BD2202A044 M 2.2KOHM, 1/10W 1 R16746 ERJT06J473V M 47KOHM,F,0.25W 1 R16747 ERJT06J103V M 10KOHM,F,0.25W 1 R16749 D0GD103JA036 M 10KOHM,J,0.25W 1 R16750 ERJT06J123 M 12KOHM,F,0.25W 1 R16751 ERJT06J154V M 150KOHM,F,0.25W 1 R16752 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16753 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R16755 ERJT06J123 M 12KOHM,F,0.25W 1 R16756 ERJT06J123 M 12KOHM,F,0.25W 1 R16761 ERJT06J100V M 10 OHM,F,0.25W 1 R16762 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16763 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R16765 ERJT08J1R0V M 1.8OHM,J, 0.33W 1 R16766 D0GDR00Z0002 M 0 OHM, 1/10W 1 R16769 ERJT06J750V M 75 OHM,F,0.25W 1 R16772 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16773 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16775 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16776 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R16777 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16778 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R16783 ERJT06J154V M 150KOHM,F,0.25W 1 R16785 D1BD1003A044 M 100KOHM, 1/10W 1 R16786 D1BD1003A044 M 100KOHM, 1/10W 1 R16787 D1BD3302A044 M 33KOHM, 1/10W 1 R16789 D0GD103JA036 M 10KOHM,J,0.25W 1 R16791 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16794 D1BD2003A044 M 200KOHM, 1/10W 1 R16795 D1BD2003A044 M 200KOHM, 1/10W 1 R16796 D1BD5602A044 M 56KOHM, 1/10W 1 R16797 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R16798 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16799 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16801 D1BD3832A044 M38.3KOHM, 1/10W 1 R16802 D1BD4702A044 M 47KOHM, 1/10W 1 R16804 ERJ8GEYJ104V M 100KOHM, J,1/8W 1 R16806 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16812 ERJ6GEYG182 M 1.8KOHM,J,1/10W 1 R16813 ERJ8GEYJ222V M 2.2KOHM, J,1/8W 1 R16814 D1BD1962A044 M19.6KOHM, 1/10W 1 R16815 D1BD2491A044 M2.49KOHM, 1/10W 1 R16818 D1BD3092A044 M30.9KOHM, 1/10W 1 R16819 D1BD1003A044 M 100KOHM, 1/10W 1 R16820 D1BD1003A044 M 100KOHM, 1/10W 1 R16821 D1BD1003A044 M 100KOHM, 1/10W 1 R16822 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16823 ERJ6ENF8202 M 82KOHM, 1/10W 1 R16824 D1BD3302A044 M 33KOHM, 1/10W 1 R16825 ERJT06J154V M 150KOHM,F,0.25W 1 R16826 D0GD103JA036 M 10KOHM,J,0.25W 1 R16829 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R16831 D1BD7152A044 M71.5KOHM, 1/10W 1 R16833 D0GD103JA036 M 10KOHM,J,0.25W 1 R16838 ERJ14YJ563U M 56KOHM, 1/2W 1 R16841 ERJ14YJ563U M 56KOHM, 1/2W 1 R16844 D1BD1241A044 M1.24KOHM, 1/10W 1 R16845 D1BD6812A044 M68.1KOHM, 1/10W 1 R16846 D1BD6042A044 M60.4KOHM, 1/10W 1 R16847 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16848 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16851 ERJ6GEYJ474 M 470KOHM,J,1/10W 1 R16860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R16869 ERJ8GEYJ473 M 47KOHM, J,1/8W 1 R16870 ERJ14YJ683 M 68KOHM, 1/2W 1 R16873 D1BD2491A044 M2.49KOHM, 1/10W 1 参考号部件号部件名称及说明件数备注 152 TH-65PF12CK R16875 D1BD7152A044 M71.5KOHM, 1/10W 1 R16877 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R16891 D1BD4702A044 M 47KOHM, 1/10W 1 R16892 D1BD4702A044 M 47KOHM, 1/10W 1 R16893 D1BD4702A044 M 47KOHM, 1/10W 1 R16894 D1BD4702A044 M 47KOHM, 1/10W 1 R16895 D1BD4702A044 M 47KOHM, 1/10W 1 R16896 D1BD3302A044 M 33KOHM, 1/10W 1 R16897 D1BD1581A044 M1.58KOHM, 1/10W 1 R16898 D1BD2611A044 M2.61KOHM, 1/10W 1 R16899 D1BD2211A044 M2.21KOHM, 1/10W 1 R16900 D0GD103JA036 M 10KOHM,J,0.25W 1 R16901 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R16904 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R16919 D1BD1182A044 M11.8KOHM, 1/10W 1 R16920 D0GD103JA036 M 10KOHM,J,0.25W 1 R16921 D1BD2611A044 M2.61KOHM, 1/10W 1 R16922 D1BD2001A044 M 2KOHM, 1/10W 1 R16923 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R16926 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R16927 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R17104 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R17105 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R17111 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17112 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17113 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17114 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17115 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17116 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17117 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17118 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17119 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17121 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17122 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17123 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17124 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17125 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17126 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R17127 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17131 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17134 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17136 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17138 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17140 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17142 EXB38V470J 电阻阵列 1 R17199 ERJT08J151V M150 OHM,F,0.33W 1 R17204 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17211 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17212 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17213 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17214 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17215 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17216 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17217 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17218 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17219 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17220 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17221 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17222 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17223 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17224 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17225 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17226 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17228 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17231 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17233 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17235 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17237 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17239 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17247 EXB38V681J 电阻阵列 1 R17258 EXB38V470J 电阻阵列 1 R17259 EXB38VR000V 电阻阵列 1 R17271 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R17272 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R17311 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17312 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 参考号部件号部件名称及说明件数备注 R17313 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17314 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17315 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17316 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17317 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17318 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17319 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17320 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17321 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R17322 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17323 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17324 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17325 ERJ3GEYJ201 M 200 OHM,J,1/16W 1 R17326 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R17331 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17334 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17336 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17338 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17340 ERJT14J1R0U C1.0 OHM, J,1/4W 1 R17345 EXB38V470J 电阻阵列 1 R17346 EXB38V681J 电阻阵列 1 R17347 EXB38V470J 电阻阵列 1 R17348 EXB38V470J 电阻阵列 1 R17349 EXB38V681J 电阻阵列 1 R17350 EXB38V681J 电阻阵列 1 R17351 EXB38V470J 电阻阵列 1 R17352 ERJ3GEYJ681 M 680 OHM,J,1/16W 1 R17353 D0GDR00Z0002 M 0 OHM, 1/10W 1 R17372 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R17399 ERJT08J151V M150 OHM,F,0.33W 1 SC2 K1KY02B00012 2P 连接接头 1 SC20 K1MY35BA0345 35P 连接接头 1 SC41 K1KY09AA0745 9P 连接接头 1 SC42 K1KY09AA0745 9P 连接接头 1 SC46 K1KY09AA0745 9P 连接接头 1 SC50 K1KA02AA0193 2P 连接接头 1 SS02 K1KB09A00047 9P 连接接头 1 SS03 K1KB23A00004 23P 连接接头 1 SS11 K1KY03B00006 3P 连接接头 1 SS22 K1KY23AA0606 23P 连接接头 1 SS33 K1KA12B00151 12P 连接接头 1 SS52 K1MY13BA0343 13P 连接接头 1 SS53 K1MY13BA0343 13P 连接接头 1 SS55 K1MY13BA0343 13P 连接接头 1 SS56 K1MY13BA0343 13P 连接接头 1 SS57 K1MY13BA0343 13P 连接接头 1 SS59 K1MY13BA0343 13P 连接接头 1 SS24A K1KY09AA0606 9P 连接接头 1 T16699 G4DYA0000179 滤波器 1 VR16600 EVMAASA00B54 控制 50KOHMB 1 VR16601 EVMAASA00B53 控制 5KOHMB 1 ZA16001 K4CD01000011 AV 端子 1 ZA16002 K4CD01000011 AV 端子 1 ZA16003 K4CD01000011 AV 端子 1 ZA16013 K4ZZ01000216 端子 1 ZA16015 K4ZZ01000216 端子 1 ZA16016 K4ZZ01000216 端子 1 ZA16017 K4ZZ01000216 端子 1 ZA16401 K4CD01000011 AV 端子 1 ZA16402 K4CD01000011 AV 端子 1 ZA16403 K4CD01000011 AV 端子 1 ZA17101 K4CD01000013 AV 端子 1 ZA17102 K4CD01000013 AV 端子 1 ZA17103 K4CD01000013 AV 端子 1 ZA17104 K4CD01000013 AV 端子 1 ZA17105 K4CD01000013 AV 端子 1 ZA17201 K4CD01000013 AV 端子 1 ZA17202 K4CD01000013 AV 端子 1 ZA17203 K4CD01000013 AV 端子 1 ZA17204 K4CD01000013 AV 端子 1 ZA17205 K4CD01000013 AV 端子 1 ZA17301 K4CD01000013 AV 端子 1 参考号部件号部件名称及说明件数备注 153 TH-65PF12CK ZA17302 K4CD01000013 AV 端子 1 ZA17303 K4CD01000013 AV 端子 1 ZA17304 K4CD01000013 AV 端子 1 ZA17305 K4CD01000013 AV 端子 1 A602 AYRA652MSV8T 放电管 1 C302 ACRR3DD101K7 2kV 100PF 1 C303 ACRR3DD101K7 2kV 100PF 1 C304 ECWH12273HVB 1250V 0.027 1 C305 ECWH12273HVB 1250V 0.027 1 C306 ACYBB475K2F 25V 4.7PF 1 C307 ECJ2XB1H104K C 0.1UF, K, 50V 1 C308 ECJ1VC1H471J C 470PF J 50V 1 C309 ECJ1XC1H102J C 1000PF, J, 50V 1 C310 ACKRG1H010T 50V 1PF 1 C311 ACKZE1H100T 50V 10PF 1 C312 ACKZE1H100T 50V 10PF 1 C313 ECJ1XC1H102J C 1000PF, J, 50V 1 C314 ACMEC222J5T 50V 2200p 1 C315 ECJ1VB1H332K C 3300PF, K, 50V 1 C316 ECKENA101KBR C 100P 250V 1 C317 ACMEB104K5T 陶瓷芯片电容器 1 C351 ACMEB104K5T 陶瓷芯片电容器 1 C352 ACKZE1E182ST 25V 1800PF 1 C353 ACMEB104K5T 陶瓷芯片电容器 1 C354 ECJ2XB1H104K C 0.1UF, K, 50V 1 C355 ECJ2VB1H472K C 0.42PF, K, 50V 1 C356 ECJ1VB1H103K C 0.001UF, K, 50V 1 C357 ACKZE1E471LT 25V 470PF 1 C358 ACKZE1E471LT 25V 470PF 1 C359 ACMBB225K2T 陶瓷芯片电容器 1 C361 ECJ1VB1H222K C 2200PF, K, 50V 1 C362 ACMBB105K2T 陶瓷芯片电容器 1 C401 ECQE2104SKF 250V 0.1PF 1 C402 ECQE2104SKF 250V 0.1PF 1 C403 EETHC2C471HX 160V 470PF 1 C404 ACKZE1H101T 50V 100PF 1 C405 ACKZE1K122ZE 80V 1200 1 C406 ACKZE1K122ZE 80V 1200 1 C408 ACKZE1K122ZE 80V 1200 1 C411 ACMBR222K2ET 250V 2200p 1 C412 ACMBR222K2ET 250V 2200p 1 C413 ECJ1VB1H472K C 4700PF, K, 50V 1 C451 ACKZE1A471 10V 470 1 C500 ACKZE1H221T 50V 220PF 1 C501 ACLE103KC 塑料薄膜电容器 (Xcap) 1 C502 ECJ1VB1H103K C 0.001UF, K, 50V 1 C503 ACKMQ2W560T 450V 56PF 1 C505 ACTBB224K5T 陶瓷芯片电容器 1 C506 ACKZE1H100T 50V 10PF 1 C507 ACKZE1H221T 50V 220PF 1 C508 ACKZE1H220T 50V 22PF 1 C509 ECKENA101KBR C 100P 250V 1 C551 ACKZE1A471T 10V 470 1 C552 ECJ1VB1H103K C 0.001UF, K, 50V 1 C555 ACKZE1H100 50V 10 1 C557 ECQV1473JM2 100V 0.047 1 C558 ECJ2XB1H104K C 0.1UF, K, 50V 1 C559 ACMEB474K1T 陶瓷芯片电容器 1 C601 ACLE224KC 0.22PF 1 C620 ECKENA101KBR C 100P 250V 1 C621 ECKENA101KBR C 100P 250V 1 C632 ACLE224KC 0.22PF 1 C633 ACLE224KC 0.22PF 1 C634 ACLE104KC 0.1PF 1 C701 ACKZE1A471T 10V 470 1 C702 ECJ1VB1H103K C 0.001UF, K, 50V 1 C703 ECJ1VB1H103K C 0.001UF, K, 50V 1 C801 ACLE224KC 0.22PF 1 参考号部件号部件名称及说明件数备注 C802 ECKENA221KBR C 221P 250V 1 C803 ECKENA221KBR C 221P 250V 1 C804 ACLE224KC 0.22PF 1 C805 ACLE224KC 0.22PF 1 C808 ECWF2W105KA 塑料薄膜电容器 (PP) 1 C809 ECQE6472B45 C 4700U 630V 1 C810 ECQE6473RKF P 0.047UF, K,630V 1 C811 ACKZE1H220T 50V 22PF 1 C812 ACKMQ2W351KZ 450V 350 1 C817 ACLE224KC 0.22PF 1 C818 ACLE224KC 0.22PF 1 C819 ACLE334KC 0.22PF 1 C828 ECJ1VB1H103K C 0.001UF, K, 50V 1 C829 ECJ1VB1H102K C 1000PF, K, 50V 1 D301 VDERA83-004T 二极管 1 D302 VDERA83-004T 二极管 1 D303 VDAP01CT 二极管 1 D304 VDAP01CT 二极管 1 D351 VDG865C08R 二极管 1 D352 VDAG01AT 二极管 1 D353 VDG865C08R 二极管 1 D401 VDD6SBN20 二极管 1 D402 VDAG01AT 二极管 1 D403 VDYG901C3R 二极管 1 D451 VDERA83-004T 二极管 1 D500 VDAG01AT 二极管 1 D501 VDS1WBA80 二极管 1 D504 VXST3D82BL3 二极管 1 D505 VDAG01AT 二极管 1 D506 VDAG01AT 二极管 1 D507 VDAP01CT 二极管 1 D508 VDRF101A2S 二极管 1 D551 VDRK39A5 二极管 1 D556 VDRF101A2S 二极管 1 D651 MA165TAKU 二极管 1 D652 MA165TAKU 二极管 1 D702 VDERA83-004T 二极管 1 D801 MA165TAKU 二极管 1 D802 MA165TAKU 二极管 1 D805 VDS3V60L1 二极管 1 D806 VDD15XB80 二极管 1 D807 VDYG982S6R 二极管 1 D809 VDAG01AT 二极管 1 F301 HU216005BEP 保险丝 1 F501 HU215002BEP 保险丝 1 F601 HU215010BEP 保险丝 1 F602 HU215010BEP 保险丝 1 F801 HU215010BEP 保险丝 1 F802 HU215010BEP 保险丝 1 IC301 VIMCZ5203D 集成电路 1 IC352 VIJM1431AF IC 1 IC501 MIP3E30MPSCF IC 1 IC555 VIJM1431AF IC 1 K601 ALKT329C93 继电器 1 K602 ALKT329C93 继电器 1 K603 ALKT329C93 继电器 1 K801 ALKT329C93 继电器 1 K802 ALKT329C93 继电器 1 K803 ALKT329C93 继电器 1 L351 EXCELDR35V 磁珠扼流圈 1 L401 AYLH8TB681K 滤波器扼流圈 1 L402 AYJ2312105Y 5A 120uH 1 L500 EXCELDR35V 磁珠扼流圈 1 参考号部件号部件名称及说明件数备注 154 TH-65PF12CK L501 EXCELSA35T 磁珠扼流圈 1 L502 EXCELDR35V 磁珠扼流圈 1 L503 EXCELDR35V 磁珠扼流圈 1 L551 EXCELDR35V 磁珠扼流圈 1 L552 EXCELDR35V 磁珠扼流圈 1 L601 AYJ3170207Y 7A 7mH 1 L602 AYJ3170207Y 7A 7mH 1 L801 EXCELSA35T 磁珠扼流圈 1 L802 AYP2512305Y 滤波器扼流圈 1 L805 ETB32CZ13GAD 变压器 1 MC401 MDPPSA221 模块 1 MC451 MDPLSD471 模块 1 MC501 MDPTZA101 模块 1 MC701 MDPZDA682 模块 1 MC801 MLLPC103 模块 1 P6 AKB12B-EH-A 12P 连接接头 1 P7 AKB11B-EH-A 11P 连接接头 1 P9 AKB03P-VL 3P 连接接头 1 P25 AKB13B-PH-KS 13P 连接接头 1 P34 AKB3B-PH-KS 3P 连接接头 1 P35 AKB4B-PH-KS 4P 连接接头 1 P52 AKB6P-VH 6P 连接接头 1 P53 AKB2P-VH 2P 连接接头 1 P55 AKB8B-PH-KS 8P 连接接头 1 PC301 VPS2581AL2HE 光电耦合器 1 PC302 VPS2581AL2HE 光电耦合器 1 PC401 VPS2581AL2HE 光电耦合器 1 PC501 VPS2581AL2HE 光电耦合器 1 PC502 VPS2581AL2HE 光电耦合器 1 Q301 VKFMA16N55G FET 1 Q302 VKFMA16N55G FET 1 Q303 2SB709-R-RTX 三极管 1 Q351 2SK3704 FET 1 Q352 2SB709-R-RTX 三极管 1 Q353 2SB709-R-RTX 三极管 1 Q354 2SB709-R-RTX 三极管 1 Q401 2SK3595 FET 1 Q402 2SA17670Q1TV 三极管 1 Q403 2SA17670Q1TV 三极管 1 Q501 2SB709-R-RTX 三极管 1 Q502 2SC5866T 三极管 1 Q551 VKHAT1130R FET 1 Q552 2SB710A-RTX 三极管 1 Q553 2SB710A-RTX 三极管 1 Q554 2SB710A-RTX 三极管 1 Q555 2SB710A-RTX 三极管 1 Q701 2SD0601ARL 三极管 1 Q801 VKTK20J60U FET 1 Q802 2SC5866T 三极管 1 Q803 2SA2094T 三极管 1 Q804 2SB709-R-RTX 三极管 1 Q805 2SD0601ARL 三极管 1 R302 ERQ14AJ4R7J F 4.7 OHM, J,1/4W 1 R303 D0GB103JA057 M 10K OHM J 1/16W 1 R304 D0GB103JA057 M 10K OHM J 1/16W 1 R305 ERX12SJ4R7 M 4.7 OHM, J,1/2W 1 R306 ERX12SJ4R7 M 4.7 OHM, J,1/2W 1 R307 ARRF2EJ30MB 2W 0.03 1 R308 ERJ6GEYJ470V M 47 OHM,J,1/10W 1 R309 ERG12SJ680J M 68 OHM, J,1/2W 1 R310 ERG12SJ220J M 22 OHM, J,1/2W 1 R311 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R312 ERJ3GEYD113V M 11KOHM,J,1/16W 1 R313 ERJ6RBD152 M 1.5KOHM,J,1/10W 1 R314 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R315 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R316 ERJ6ENF3903 M 390KOHM,J,1/10W 1 参考号部件号部件名称及说明件数备注 R317 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R318 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R319 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R320 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R321 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R322 D0GB183JA057 M 18K OHM J 1/16W 1 R323 ERJ6GEYJ153V M 15KOHM,J,1/10W 1 R324 D0GB103JA057 M 10K OHM J 1/16W 1 R351 ERJ6ENF8871 M8.87KOHM, 1/10W 1 R352 ARRF5EJ30MB 金属玻璃釉固定电阻器 1 R353 D0GB102JA057 M 1KOHM,J,1/16W 1 R354 ERJ6GEYG391 M 390 OHM,F,1/10W 1 R355 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R356 ERJ3EKF1002 M 10KOHM, 1/16W 1 R357 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R358 ER0S2THF1182 0.25W 11.8k 1 R359 ERJ6RND5232 0.1W 52.3k 1 R360 ERJ6GEYJ332V M 3.3K OHM J 1/10W 1 R361 ERJ6GEYJ332V M 3.3K OHM J 1/10W 1 R362 ERG12SJ332J M 3.3KOHM, J,1/2W 1 R363 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R364 D0GB103JA057 M 10K OHM J 1/16W 1 R365 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R366 ER0S2THF6981 0.25W 6.98k 1 R367 ERJ6ENF8451 M8.45KOHM, 1/10W 1 R368 ERJ6GEYJ333V M 33KOHM,J,1/10W 1 R369 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R371 ER0S2THF6981 0.25W 6.98k 1 R372 ERJ6RND1151 0.1W 1.15k 1 R374 ERDS2FJ220 C 22 OHM, J,1/4W 1 R375 ARMPC2WR27JS 2W 0.27 1 R376 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R377 ERJ6ENF1182 M11.8KOHM, 1/10W 1 R378 ARMPC2WR33JS 2W 0.33 1 R403 ERG12SJ100J M 10 OHM, J,1/2W 1 R404 ER0S2CKF4992 M49.9KOHM, F,1/4W 1 R405 ARRF5EJ50MB 5W 0.05 1 R409 ERDS2FJ473 C 47KOHM, J,1/4W 1 R411 ER0S2CKF2001 M 2KOHM, F,1/4W 1 R412 ER0S2CKF2001 M 2KOHM, F,1/4W 1 R413 ER0S2THF2492 0.25W 24.9k 1 R417 ER0S2CHF3322 0.25W 33.2k 1 R418 ER0S2CHF3322 0.25W 33.2k 1 R420 ER0S2THF2320 0.25W 232 1 R421 ER0S2CKF1372 M13.7KOHM, F,1/4W 1 R424 ER0S2THF2492 0.25W 24.9k 1 R425 ERJ3EKF1002 M 10KOHM, 1/16W 1 R456 ERJ6ENF1332 M13.3KOHM, 1/10W 1 R501 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R502 ARRCR6J825M 金属玻璃釉固定电阻器 1 R503 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R504 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R505 ERDS2FJ201 C 200 OHM, J,1/4W 1 R506 ARRCR2F1304T 金属玻璃釉固定电阻器 1 R507 ARRCR2F1184T 金属玻璃釉固定电阻器 1 R508 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R509 ARRCR2F1304T 金属玻璃釉固定电阻器 1 R510 ARRCR2F1184T 金属玻璃釉固定电阻器 1 R511 D0GB103JA057 M 10K OHM J 1/16W 1 R512 D0GB473JA057 M 47KOHM,J,1/16W 1 R513 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R514 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R515 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R516 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R517 ARR5B100JC2 5W 10 OHM 1 R518 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R522 ERJ6GEYJ180 M 18 OHM,J,1/10W 1 R551 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R552 D0GB103JA057 M 10K OHM J 1/16W 1 R553 ERJ3GEYJ821 M820 OHM,J,1/16W 1 R554 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R555 ERJ3EKF1052 M10.5KOHM, 1/16W 1 R556 D0GB103JA057 M 10K OHM J 1/16W 1 R557 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R558 ER0S2THD1543 0.25W 154k 1 R559 ER0S2THD1543 0.25W 154k 1 R560 D0GB102JA057 M 1KOHM,J,1/16W 1 参考号部件号部件名称及说明件数备注 155 TH-65PF12CK R561 ERJ6ENF2152 M21.5KOHM, 1/10W 1 R562 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R563 ERJ6GEYJ121V M 120 OHM,J,1/10W 1 R564 ERJ3EKF1002 M 10KOHM, 1/16W 1 R565 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R566 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R567 D0GB473JA057 M 47KOHM,J,1/16W 1 R568 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R569 ERDS2FJ102 M 1KOHM,J,1/10W 1 R570 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R571 D0GB103JA057 M 10K OHM J 1/16W 1 R572 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R573 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R574 D0GB103JA057 M 10K OHM J 1/16W 1 R575 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R576 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R577 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R657 ARRCR5J624M 金属玻璃釉固定电阻器 1 R701 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R702 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R703 D0GB103JA057 M 10K OHM J 1/16W 1 R704 D0GB103JA057 M 10K OHM J 1/16W 1 R706 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R707 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R712 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R713 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R714 ERJ3EKF1002 M 10KOHM, 1/16W 1 R801 ARRCR5J624M 金属玻璃釉固定电阻器 1 R803 ERJ6ENF8062 M80.6KOHM, 1/10W 1 R804 ERJ6ENF8062 M80.6KOHM, 1/10W 1 R805 ERJ6ENF8062 M80.6KOHM, 1/10W 1 R806 ERJ6ENF8062 M80.6KOHM, 1/10W 1 R807 ERDS2FJ273 C 27KOHM, J,1/4W 1 R808 ERDS2FJ273 C 27KOHM, J,1/4W 1 R809 ARRF2EJR10B 金属玻璃釉固定电阻器 1 R810 ARRCR1F4993T 金属玻璃釉固定电阻器 1 R811 ARRCR1F4993T 金属玻璃釉固定电阻器 1 R812 ERG12SJ820J M 82 OHM, J,1/2W 1 R813 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R814 ARRCR1F4993T 金属玻璃釉固定电阻器 1 R815 ARRCR1F5363T 金属玻璃釉固定电阻器 1 R816 ARRCR1F5363T 金属玻璃釉固定电阻器 1 R817 ERDS2FJ334 C 330KOHM, J,1/4W 1 R818 ERDS2FJ101 C 100 OHM, J,1/4W 1 R819 ARRCR1F5363T 金属玻璃釉固定电阻器 1 R820 ERG12SJ150J M 15 OHM, J,1/2W 1 R822 ERDS2FJ154 C 150KOHM, J,1/4W 1 R823 ERJ6ENF8062 M80.6KOHM, 1/10W 1 R824 ERJ6ENF8062 M80.6KOHM, 1/10W 1 R825 ARRF2EJR10B 金属玻璃釉固定电阻器 1 R838 D0GB183JA057 M 18K OHM J 1/16W 1 R839 D0GB103JA057 M 10K OHM J 1/16W 1 R840 D0GB473JA057 M 47KOHM,J,1/16W 1 R841 D0GB103JA057 M 10K OHM J 1/16W 1 R842 ERJ6ENF3303 M 330KOHM, 1/10W 1 RF601 HUY5JA200JP W 20 OHM, J, 5W 1 RF801 HUY5JA200JP W 20 OHM, J, 5W 1 T301 ETB42LZ118AD 变压器 1 T501 ETB25AH138AH 变压器 1 VR401 EVMEASA01B54 可变电阻器 1 Z501 ERZVGAD471 变阻器 1 Z502 ERZVGAD471 变阻器 1 Z601 ERZVGED751 变阻器 1 Z603 ERZVGAD471 变阻器 1 Z801 ERZVGED751 变阻器 1 ZD301 MA4270NMTA 稳压二极管 1 ZD352 MA4150NMTA 稳压二极管 1 ZD353 MA4150NMTA 稳压二极管 1 参考号部件号部件名称及说明件数备注 ZD451 MAZ4068NMF 稳压二极管 1 ZD501 MA4300NMTA 稳压二极管 1 ZD502 MA4300NMTA 稳压二极管 1 ZD503 MA4082NM 稳压二极管 1 ZD504 MA4200NMTA 20V 0.4W 1 ZD701 MA4036H 稳压二极管 1 C201 ECJ1VC1H471J C 470PF J 50V 1 C202 ACDE2R221KP 2kV 220p 1 C203 ACDE2R221KP 2kV 220p 1 C204 ECWH8333HA P 0.033PF, J, 8KV 1 C205 ECWH8333HA P 0.033PF, J, 8KV 1 C206 ECKENA101KBR C 100P 250V 1 C207 ECJ1VB1E333K C 0.033UF, K, 25V 1 C208 ACKRG1H010T 50V 1PF 1 C209 ECJ2XB1H104K C 0.1UF, K, 50V 1 C210 ACMBB475K2T 25V 4.7 1 C211 ACKZE1H100T 50V 10PF 1 C212 ACKZE1H100T 50V 10PF 1 C213 ECJ1XC1H681J C 680PF, J, 50V 1 C214 ECJ1VB1H103K C 0.001UF, K, 50V 1 C215 ECJ1VB1H332K C 3300PF, K, 50V 1 C216 ACMEB104K2T 25V 0.1P 1 C217 ECJ1VB1H472K C 4700PF, K, 50V 1 C218 ACMAB106K2T 25V 10PF 1 C219 ACMAB106K2T 25V 10PF 1 C220 ACMEB104K5T 陶瓷芯片电容器 1 C251 ACMEB104K5T 陶瓷芯片电容器 1 C252 ECQV1H224JL P 0.22UF, J, 50V 1 C254 ECQE2223SKF 250V 0.022PF 1 C255 ECQE2223SKF 250V 0.022PF 1 C256 ACCST220122K 220V 1200 1 C257 ACCST220122K 220V 1200 1 C258 ACCST220122K 220V 1200 1 C602 ACLE224KC 0.22PF 1 C603 ECKENA221KBR C 221P 250V 1 C604 ECKENA221KBR C 221P 250V 1 C606 ECWF2W105KA 450V 1PF 1 C607 ACKZE1H220T 50V 22PF 1 C608 ACMEC222J5T 50V 2200p 1 C609 ACMEC222J5T 50V 2200p 1 C610 ACMEB104K5T 陶瓷芯片电容器 1 C611 ACMEB225KJT 6.3V 2.2 1 C612 ACKMQ2W351KZ 450V 350 1 C613 ACKMQ2W351KZ 450V 350 1 C614 ECJ1VC1H821J C 820PF, J, 50V 1 C615 ECKENA101KBR C 100P 250V 1 C616 ECJ1VB1H102K C 1000PF, K, 50V 1 C617 ACMEB224K2T 陶瓷芯片电容器 1 C618 ACMEB104K5T 陶瓷芯片电容器 1 C619 ACMEB105K2T 25V 1 1 C622 ECJ1XC1H102J C 1000PF, J, 50V 1 C623 ECJ2FB1E224K C 22UF, K, 25V 1 C624 ACKZE1H220 50V 22 1 C625 ECJ1VB1H103K C 0.001UF, K, 50V 1 C629 ECWF2W105KA 450V 1PF 1 C635 ACLE224KC 0.22PF 1 D201 VDERA83-004T 二极管 1 D202 VDERA83-004T 二极管 1 D203 VDAP01CT 二极管 1 D204 VDAP01CT 二极管 1 D205 VDERA83-004T 二极管 1 D206 MA165TAKU 二极管 1 D251 MA165TAKU 二极管 1 D254 MA2DF3100S 二极管 1 D255 MA2DF3100S 二极管 1 D256 MA2DF3100S 二极管 1 D257 MA2DF3100S 二极管 1 D601 VDD15XB80 二极管 1 参考号部件号部件名称及说明件数备注 156 TH-65PF12CK D602 VDD15XB80 二极管 1 D605 VDS3V60L1 二极管 1 D606 VDS3V60L1 二极管 1 D607 VDYG982S6R 二极管 1 D608 VDYG982S6R 二极管 1 F201 HU216005BEP 保险丝 1 IC201 VIMCZ5203D IC 1 IC202 VINJM2903ME1 IC 1 IC251 AN1431TBTA IC 1 IC601 VIR2A20117SP IC 1 L603 ETB42AZ13GAD 滤波器扼流圈 1 L605 ETB42AZ13GAD 滤波器扼流圈 1 P2 AKB2P3S-VH 连接接头 1 P11 AKB3P4S-VH-L 连接接头 1 P51 AKB6P-VH 6P 连接接头 1 P54 AKB2P-VH 2P 连接接头 1 P56 AKB8B-PH-KS 8P 连接接头 1 PC201 VPS2581AL2HE 光电耦合器 1 PC202 VPS2581AL2HE 光电耦合器 1 PC231 VPS2581AL2HE 光电耦合器 1 Q201 VKTK20A60U FET 1 Q202 VKTK20A60U FET 1 Q203 2SB709-R-RTX 三极管 1 Q204 2SD0601ARL 三极管 1 Q601 VKTK20J60U FET 1 Q602 VKTK20J60U FET 1 Q603 VKTK20J60U FET 1 Q604 VKTK20J60U FET 1 Q605 2SC5866T 三极管 1 Q606 2SA2094T 三极管 1 Q607 2SC5866T 三极管 1 Q608 2SA2094T 三极管 1 Q609 2SK3018TL FET 1 Q610 2SB709-R-RTX 三极管 1 Q611 2SC5866T 三极管 1 R201 ERDS2FJ151 C 150 OHM, J,1/4W 1 R202 ERJ6GEYJ151V M 150 OHM,J,1/10W 1 R203 D0GB103JA057 M 10K OHM J 1/16W 1 R204 ERG12SJ680J M 68 OHM, J,1/2W 1 R205 D0GB103JA057 M 10K OHM J 1/16W 1 R206 ERG12SJ680J M 68 OHM, J,1/2W 1 R207 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R208 ARRF2EJ75MB 2W 0.075 1 R209 ERJ6RBD152 M 1.5KOHM,J,1/10W 1 R210 D0GB183JA057 M 18K OHM J 1/16W 1 R211 D0GB103JA057 M 10K OHM J 1/16W 1 R212 ERJ6GEYJ153V M 15KOHM,J,1/10W 1 R213 D0GB103JA057 M 10K OHM J 1/16W 1 R215 ERX12SJ1R0 M 0.1 OHM, J,1/2W 1 R216 ERX12SJ5R6J M 5.6 OHM, J,1/2W 1 R217 ARRF2EJ75MB 2W 0.075 1 R218 ERQ14AJ4R7J F 4.7 OHM, J,1/4W 1 R219 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R220 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R221 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R222 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R223 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R224 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R225 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R226 ERJ6ENF3903 M 390KOHM,J,1/10W 1 R227 ERJ3EKF1001 M 1KOHM, 1/16W 1 R228 ERJ3EKF1001 M 1KOHM, 1/16W 1 R229 ERJ6ENF1502 M 15KOHM, 1/10W 1 R230 ERJ3EKF1371 M 1.37KOHM, 1/16W 1 参考号部件号部件名称及说明件数备注 R231 ERDS2FJ222 C 2.2KOHM, J,1/4W 1 R232 D0GB473JA057 M 47KOHM,J,1/16W 1 R233 ERJ6GEYJ511 M 510 OHM,J,1/10W 1 R249 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R251 ARRCR1F1213T 0.25W 121k 1 R252 ARRCR1F1213T 0.25W 121k 1 R253 ERDS2FJ221 C 220 OHM, J,1/4W 1 R254 ERDS2FJ102 M 1KOHM,J,1/10W 1 R256 ERJ6RND1002 0.1W 10k 1 R257 ERDS2FJ472 C 4.7KOHM, J,1/4W 1 R258 ERDS2FJ472 C 4.7KOHM, J,1/4W 1 R259 ERDS2FJ472 C 4.7KOHM, J,1/4W 1 R263 ERDS2FJ220 C 22 OHM, J,1/4W 1 R264 ERDS2FJ102 M 1KOHM,J,1/10W 1 R265 ERJ6RND1913 0.1W 191k 1 R266 ERJ6RND1693 0.1W 169k 1 R267 ERJ6RND1693 0.1W 169k 1 R268 ERJ6RND1693 0.1W 169k 1 R269 ERJ6RND1693 0.1W 169k 1 R288 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R601 ARRF5EJ10MB 5W 0.01 1 R602 ARRF5EJ10MB 5W 0.01 1 R603 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R604 ERG12SJ680J M 68 OHM, J,1/2W 1 R605 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R606 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R607 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R608 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R610 D0GB154JA057 M 150KOHM J 1/16W 1 R611 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R612 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R613 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R614 ERJ6GEYJ150V M 15 OHM,J,1/10W 1 R616 D0GB154JA057 M 150KOHM J 1/16W 1 R617 ERJ6GEYJ121V M 120 OHM,J,1/10W 1 R618 ERJ6GEYJ121V M 120 OHM,J,1/10W 1 R619 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R620 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R621 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R622 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R623 ERG12SJ680J M 68 OHM, J,1/2W 1 R624 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R625 ERG12SJ680J M 68 OHM, J,1/2W 1 R626 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R627 ERG12SJ680J M 68 OHM, J,1/2W 1 R628 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R630 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R631 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R632 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R633 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R634 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R635 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R636 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R637 ERJ6GEYG823 M 82KOHM,J,1/10W 1 R638 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R639 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R640 ERJ3GEYJ824 M 820KOHM,J,1/16W 1 R641 D0GB103JA057 M 10K OHM J 1/16W 1 R642 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R643 ERJ3EKF4871 M 4.87KOHM, 1/16W 1 R644 ERJ6GEYJ151V M 150 OHM,J,1/10W 1 R645 D0GB473JA057 M 47KOHM,J,1/16W 1 R646 ERDS2FJ221 C 220 OHM, J,1/4W 1 R647 ERDS2FJ221 C 220 OHM, J,1/4W 1 R648 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R649 ERJ6GEYJ472V M 4.7K OHM J 1/10W 1 R653 ERDS2FJ102 M 1KOHM,J,1/10W 1 R654 ERDS2FJ103 C 10KOHM, J,1/4W 1 R655 ERDS2FJ221 C 220 OHM, J,1/4W 1 R656 ERDS2FJ221 C 220 OHM, J,1/4W 1 R658 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R659 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R660 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R661 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R662 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R663 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R664 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 参考号部件号部件名称及说明件数备注 157 TH-65PF12CK 11/2009 iPress2800 中国制作 R665 D0GB103JA057 M 10K OHM J 1/16W 1 R666 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R667 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R668 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R669 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R670 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R671 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R672 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R673 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R674 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R675 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R677 ERJ6ENF9312 M93.1KOHM, 1/10W 1 R678 ERJ6ENF1692 M16.9KOHM, 1/10W 1 R679 ERJ6ENF9312 M93.1KOHM, 1/10W 1 T201 ETB49LM11GAD 变压器 1 VR251 EVMEASA01B55 可变电阻器 1 ZD201 MA4270NMTA 稳压二极管 1 ZD203 MA4270NMTA 稳压二极管 1 ZD204 MA4270NMTA 稳压二极管 1 ZD205 MA4051NM 稳压二极管 1 ZD251 MA4330NMTA 稳压二极管 1 ZD601 MA4100NM 10V 0.4W 1 ZD602 MA4200NMTA 20V 0.4W 1 参考号部件号部件名称及说明件数备注
