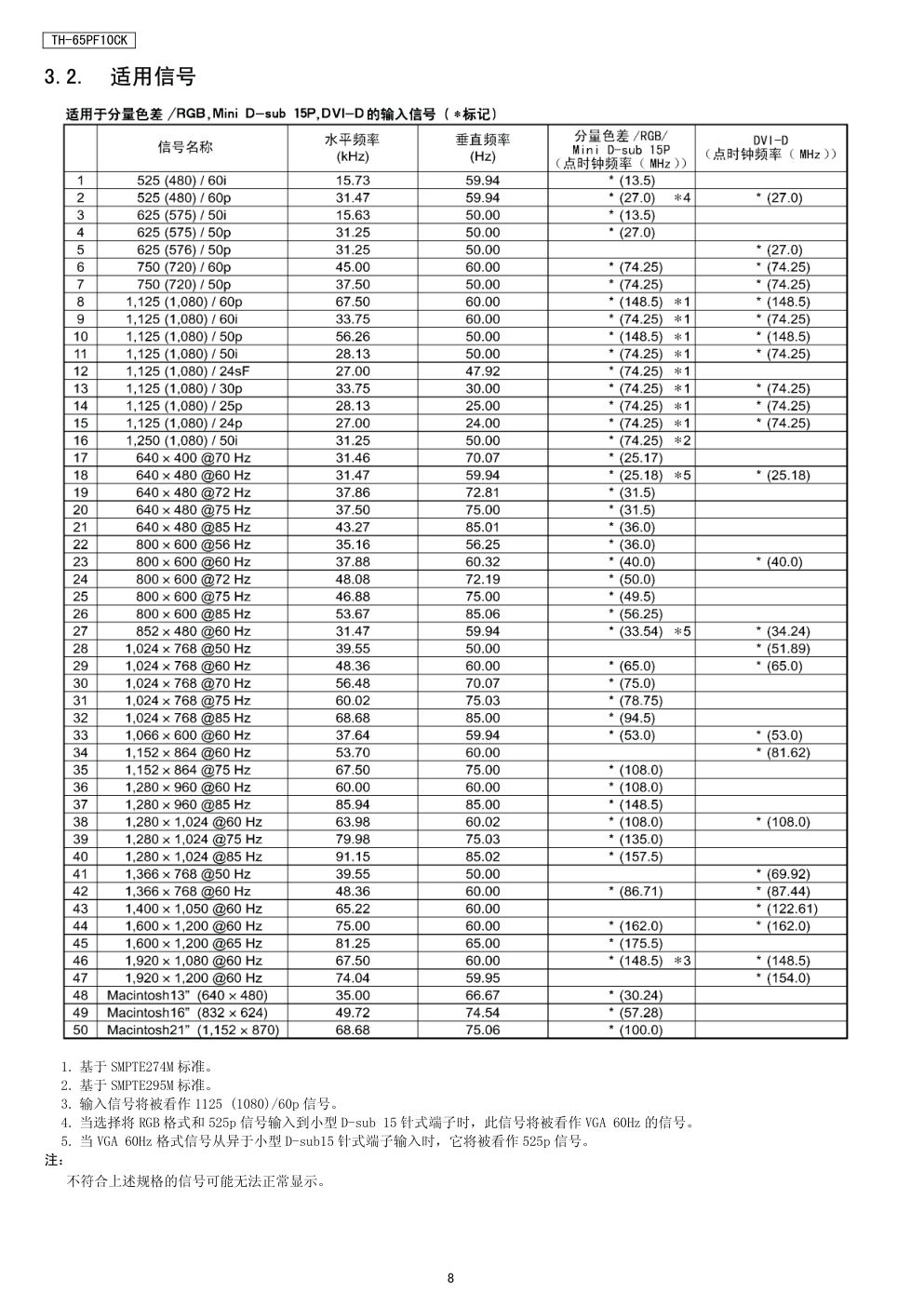

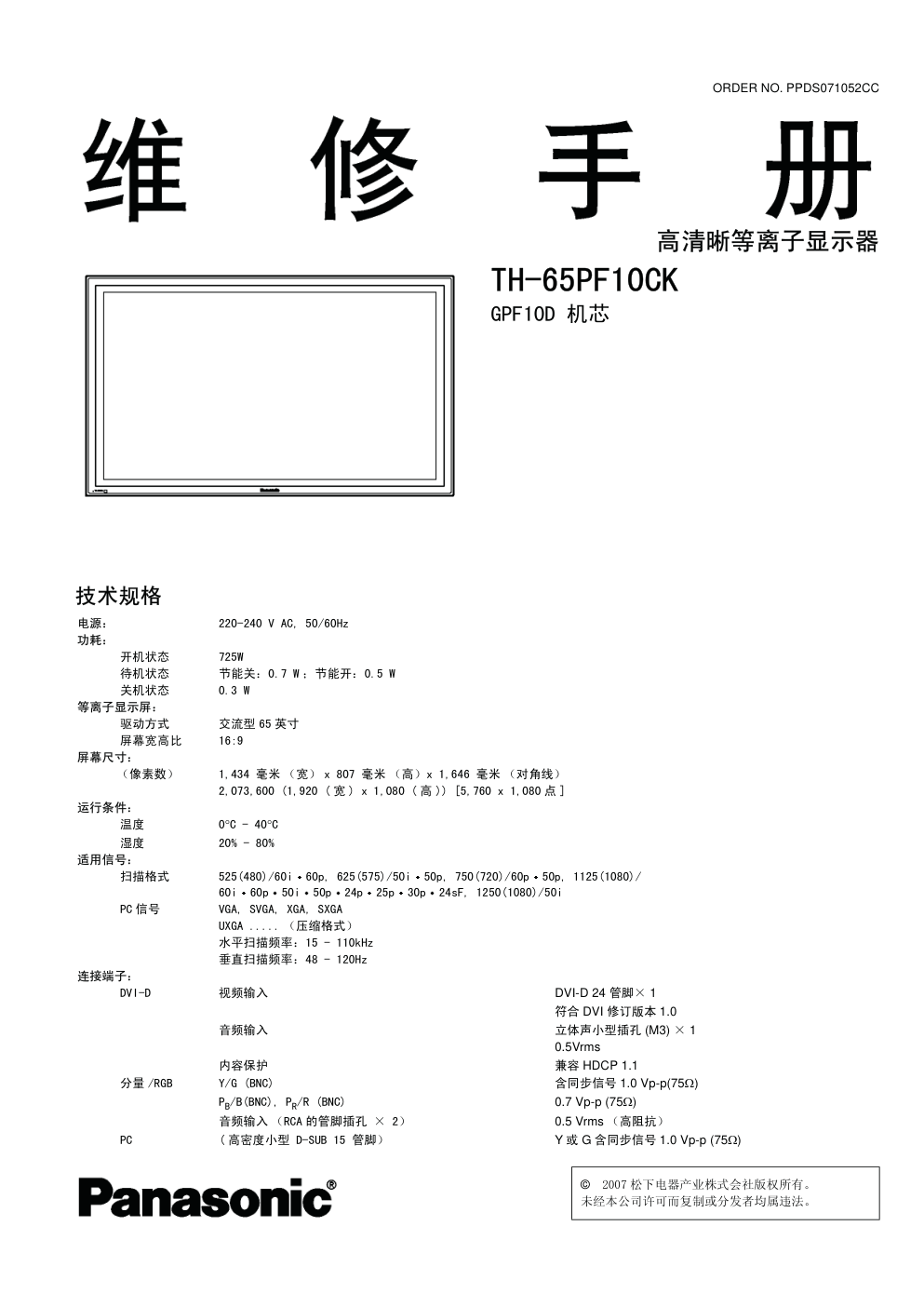

© 2007 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS071052CC 高清晰等离子显示器 TH-65PF10CK GPF10D 机芯 技术规格 电源： 220-240 V AC, 50/60Hz 功耗： 开机状态 725W 待机状态 节能关：0.7 W ；节能开：0.5 W 关机状态 0.3 W 等离子显示屏： 驱动方式 交流型 65 英寸 屏幕宽高比 16:9 屏幕尺寸： （像素数） 1,434 毫米 （宽） x 807 毫米 （高）x 1,646 毫米 （对角线） 2,073,600 (1,920 ( 宽 ) x 1,080 ( 高 )) [5,760 x 1,080 点 ] 运行条件： 温度 0°C - 40°C 湿度 20% - 80% 适用信号： 扫描格式 525(480)/60i 60p, 625(575)/50i 50p, 750(720)/60p 50p, 1125(1080)/ 60i 60p 50i 50p 24p 25p 30p 24sF, 1250(1080)/50i PC 信号 VGA, SVGA, XGA, SXGA UXGA ..... （压缩格式） 水平扫描频率：15 - 110kHz 垂直扫描频率：48 - 120Hz 连接端子： DVI-D 视频输入 DVI-D 24 管脚× 1 符合 DVI 修订版本 1.0 音频输入 立体声小型插孔 (M3) × 1 0.5Vrms 内容保护 兼容 HDCP 1.1 分量 /RGB Y/G (BNC) 含同步信号 1.0 Vp-p(75Ω) PB/B(BNC), PR/R (BNC) 0.7 Vp-p (75Ω) 音频输入 （RCA 的管脚插孔 × 2） 0.5 Vrms （高阻抗） PC ( 高密度小型 D-SUB 15 管脚） Y 或 G 含同步信号 1.0 Vp-p (75Ω) 2 TH-65PF10CK 目录 页数 页数 1 安全警告 ---------------------------------------- 4 1.1. 一般准则 ---------------------------------- 4 2 警告--------------------------------------------- 5 2.1. 对静电灵敏设备 （ES）的静电放电保护 （ESD）-- 5 2.2. 无铅焊接 （PbF）---------------------------- 6 3 维修指南----------------------------------------- 7 3.1. 维修提示 ----------------------------------- 7 3.2. 适用信号 ----------------------------------- 8 4 选项设置----------------------------------------- 9 5 维修模式---------------------------------------- 11 5.1. CAT （计算机辅助检测）模式----------------- 11 5.2. IIC 模式结构 （以下各值为样本数据）--------- 14 6 故障检修---------------------------------------- 15 6.1. 自检 -------------------------------------- 15 6.2. 无电源 ------------------------------------ 17 6.3. 无图像 ------------------------------------ 17 6.4. 显示屏局部故障 ---------------------------- 18 7 拆卸指南---------------------------------------- 19 7.1. 取下后盖 ---------------------------------- 19 7.2. 取下 HA 板 --------------------------------- 19 7.3. 取下 HDD 板 -------------------------------- 19 7.4. 取下 DS 板 --------------------------------- 19 7.5. 取下 HX 板 --------------------------------- 20 7.6. 取下 PB 板 --------------------------------- 20 7.7. 取下 DN 板 --------------------------------- 20 7.8. 取下 D 板 ---------------------------------- 20 7.9. 取下 P 板 ---------------------------------- 21 7.10. 取下 SU，SD 板 ----------------------------- 21 7.11. 取下 SC 板 --------------------------------- 21 7.12. 取下 SS2 和 SS3 板 -------------------------- 22 7.13. 取下 SS 板 --------------------------------- 22 7.14. 取下 H3 板 （左 , 右）----------------------- 22 7.15. 取下 C1, C2, C3, C4, C5，C6 板 ------------- 22 7.16. 取下 S1 板 --------------------------------- 24 7.17. 取下风扇 ---------------------------------- 24 7.18. 取下面框 ---------------------------------- 25 7.19. 取下 V1,V2 板 ------------------------------ 25 7.20. 取下前面玻璃 -------------------------------26 7.21. 取下等离子显示屏 ---------------------------26 8 测量、调整---------------------------------------30 8.1. 调整步骤 -----------------------------------30 8.2. 微调 ---------------------------------------33 9 方框图 ------------------------------------------38 9.1. 主方框图 ----------------------------------38 9.2. P 电路板 (1/2) 方框图 ----------------------39 9.3. P 电路板 (2/2) 方框图 ----------------------40 9.4. PB,V1 和 V2 电路板方框图 --------------------41 9.5. HA 和 HX 电路板方框图 -----------------------42 9.6. HDD 电路板方框图 ---------------------------43 9.7. H3 和 DS 电路板 （1/2）方框图 ---------------44 9.8. DS 电路板 （2/2）方框图 --------------------45 9.9. DN 电路板 （1/2）方框图 --------------------46 9.10. DN 电路板 （2/2）方框图 --------------------47 9.11. D 电路板 （1/2）方框图 ---------------------48 9.12. D 电路板 （2/2）方框图 ---------------------49 9.13. C1, C2, C5 和 C6 电路板方框图 --------------50 9.14. C2, C3, C4 和 C5 电路板方框图 --------------51 9.15. SC 电路板方框图 ----------------------------52 9.16. SU 和 SD 电路板方框图 ----------------------53 9.17. SS，S1，SS2 和 SS3 电路板方框图 -------------54 10 导线布置 ----------------------------------------55 10.1. 导线布置 （1）------------------------------55 10.2. 导线布置 （2）------------------------------56 11 线路图-------------------------------------------57 11.1. 线路图注意事项 ----------------------------57 11.2. P 电路板 （1/2）线路图 ----------------------58 11.3. P 电路板 （2/2）线路图 ----------------------59 11.4. PB, V1 和 V2 电路板线路图 -------------------60 11.5. HA 电路板线路图 ----------------------------61 11.6. HX 电路板线路图 ----------------------------62 11.7. HDD 电路板 (1/2) 线路图 --------------------63 11.8. HDD 电路板 (2/2) 线路图 --------------------64 11.9. H3 和 DS 电路板 (1/3) 线路图 ----------------65 11.10. DS 电路板 (2/3) 线路图 ---------------------66 Y 或 G 不含同步信号 0.7 Vp-p (75Ω) B/PB/CB:0.7 Vp-p(75Ω) R/PR/CR:0.7 Vp-p(75Ω) HD/VD:1.0 - 5.0 Vp-p ( 高阻抗 ) 音频输入 （M3 插孔） 0.5 Vrms 串行口 外控端子 （D-SUB 9 针） RS-232C 兼容端子 扬声器 8Ω,20 W [10 W + 10 W] (10% THD) 随机附件： 遥控器 EUR7636120R 电池 2 节 R6 型 固定扎带 TMME203 x 2 尺寸 ( 长×宽×高 ): 1,554 毫米 x 925 毫米 x 99 毫米 （不含底座） 重量 约 72.0 kg （仅主机） 约 78.0 kg （带扬声器） 注： • 设计和技术规格如有变更，恕不另行通知。以上所示质量和尺寸均为近似值。 • 本产品符合以下 EMC 标准：GB13837-2003, GB17625.1-2003, GB8898-2001。 3 TH-65PF10CK 11.11. DS 电路板 (3/3) 线路图 -------------------- 67 11.12. DN 电路板 （1/9）线路图 ------------------- 68 11.13. DN 电路板 （2/9）线路图 ------------------- 69 11.14. DN 电路板 （3/9）线路图 ------------------- 70 11.15. DN 电路板 （4/9）线路图 ------------------- 71 11.16. DN 电路板 （5/9）线路图 ------------------- 72 11.17. DN 电路板 （6/9）线路图 ------------------- 73 11.18. DN 电路板 （7/9）线路图 ------------------- 74 11.19. DN 电路板 （8/9）线路图 ------------------- 75 11.20. DN 电路板 （9/9）线路图 ------------------- 76 11.21. D 电路板 （1/8）线路图 -------------------- 77 11.22. D 电路板 （2/8）线路图 -------------------- 78 11.23. D 电路板 （3/8）线路图 -------------------- 79 11.24. D 电路板 （4/8）线路图 -------------------- 80 11.25. D 电路板 （5/8）线路图 -------------------- 81 11.26. D 电路板 （6/8）线路图 -------------------- 82 11.27. D 电路板 （7/8）线路图 -------------------- 83 11.28. D 电路板 （8/8）线路图 -------------------- 84 11.29. C1 电路板 （1/2）线路图 ------------------- 85 11.30. C1 电路板 （2/2）线路图 ------------------- 86 11.31. C2 电路板 （1/2）线路图 ------------------- 87 11.32. C2 电路板 （2/2）线路图 ------------------- 88 11.33. C3 电路板 （1/2）线路图 ------------------- 89 11.34. C3 电路板 （2/2）线路图 ------------------- 90 11.35. C4 电路板 （1/2）线路图 ------------------- 91 11.36. C4 电路板 （2/2）线路图 ------------------- 92 11.37. C5 电路板 （1/2）线路图 ------------------- 93 11.38. C5 电路板 （2/2）线路图 ------------------- 94 11.39. C6 电路板 （1/2）线路图 ------------------- 95 11.40. C6 电路板 （2/2）线路图 ------------------- 96 11.41. SC 电路板 （1/4）线路图 ------------------- 97 11.42. SC 电路板 （2/4）线路图 ------------------- 98 11.43. SC 电路板 （3/4）线路图 ------------------- 99 11.44. SC 电路板 （4/4）线路图 ------------------ 100 11.45. SU 电路板 （1/3）线路图 ------------------ 101 11.46. SU 电路板 （2/3）线路图 ------------------ 102 11.47. SU 电路板 （3/3）线路图 ------------------ 103 11.48. SD 电路板 （1/3）线路图 ------------------ 104 11.49. SD 电路板 （2/3）线路图 ------------------ 105 11.50. SD 电路板 （3/3）线路图 ------------------ 106 11.51. S1 电路板和 SS 电路板 (1/2) 线路图 --------- 107 11.52. SS2，SS3 和 SS 电路板 (2/2) 线路图 --------- 108 12 导线图 ---------------------------------------- 109 12.1. P 电路板 --------------------------------- 109 12.2. PB 电路板 -------------------------------- 115 12.3. HA 电路板 -------------------------------- 116 12.4. HX 电路板 -------------------------------- 117 12.5. HDD 电路板 ------------------------------- 118 12.6. S1, H3, V1 和 V2 电路板 ------------------- 120 12.7. DS 电路板 -------------------------------- 121 12.8. DN 电路板 -------------------------------- 123 12.9. D 电路板 --------------------------------- 125 12.10. C1 电路板 -------------------------------- 127 12.11. C2 电路板 -------------------------------- 128 12.12. C3 电路板 -------------------------------- 129 12.13. C4 电路板 -------------------------------- 130 12.14. C5 电路板 -------------------------------- 131 12.15. C6 电路板 -------------------------------- 132 12.16. SC 电路板 -------------------------------- 133 12.17. SU 电路板 -------------------------------- 136 12.18. SD 电路板 -------------------------------- 137 12.19. SS 电路板 -------------------------------- 138 12.20. SS2, SS3 电路板 -------------------------- 141 13 分解图和更换部件清单--------------------------- 142 13.1. 分解图和机械更换部件清单------------------142 13.2. 更换部件清单 -----------------------------149 4 TH-65PF10CK 1 安全警告 1.1. 一般准则 1. 维修时，请勿试图更换设备零件或材料。 2. 维修连接线 （如电缆、柔性电缆或导线）部分时，即使仅一根或几根导线外皮破损或断裂，也勿试图维修或重新为其连接。应 整体更换连接线。 3. 维修时，请勿扭曲连接插头，应径直插入拔出。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 1.1.1. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用分离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件 , 并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1 = 35 V （峰值） U2 = 0.35 V （峰值）； 直流：U1 = 1.0V 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在设备返回用户手中之前对其进行修理和再检测。 图 1 5 TH-65PF10CK 2 警告 2.1. 对静电灵敏设备 （ES）的静电放电保护 （ESD） 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）. 典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 处理任何半导体组件或是配备有半导体组件的设备之前，应立即接地 （已知） ，去静电。或者戴上市场上出售的抗静电放电腕 带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只采用一块接地端烙铁来联结或断开静电灵敏装置。 4. 只采用抗静电联结移动装置。一些不属于“抗静电（静电放电保护）”范围的联结移动装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 准备即刻安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏替代装置都是采用铅制包装，通过与传导泡沫、 铝箔或是类似的导体材料一起造成短路）。 7. 拆掉静电灵敏替代装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。 注意 确定机芯或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 6 TH-65PF10CK 2.2. 无铅焊接 （PbF） 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 制造过程中使用及下文中讨论的无铅焊接皆指 (Sn+Ag+Cu)。 即：锡 （Sn），银 （Ag）和铜 （Cu），但其它种类也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，尽管有铅焊接也可使用。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊接的熔点比标准焊接的高。通常熔点超过 50 ～ 70°F (30 ～ 40°C)。请使用高温电烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 加热过度 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区上的无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔 化之后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用的是 Sn+Ag+Cu （锡＋银＋铜）焊料。但也可使用 Sn+Cu （锡＋铜）和 Sn+Zn+Bi （锡＋锌＋ 铋）焊料。 7 TH-65PF10CK 3 维修指南 3.1. 维修提示 注： • 与插槽电路板配套的延长线可作为维修工具。 ( 部件号：TZSC07040) 电路板名称 功能 电路板名称 功能 D 数据信号处理器， C5 数据驱动 （中下） 格式转换器， C6 数据驱动 （右下） 等离子 AI 处理器 H3 扬声器端子 DS 插槽接口 （音频 / 视频 / 同步输入开关）， S1 电源开关 同步处理器，音频处理器， SS2 维持输出 （上） 扬声器输出功放， SS3 维持输出 （下） 直流－直流转换器 V1 指示灯 （待机 / 开机）和遥控接受器 SS 维持驱动 V2 按键开关 SC 扫描驱动 PB 风扇控制 SU 扫描输出 （上） P 线性滤波器，电源 SD 扫描输出 （下） HX PC/RS-232C C1 数据驱动 （右上） HA BNC 分量视频 C2 数据驱动 （中上） DN 数据信号处理器，微处理器 C3 数据驱动 （左上） HDD DVI-D 端子 C4 数据驱动 （左下） 8 TH-65PF10CK 3.2. 适用信号 1. 基于 SMPTE274M 标准。 2. 基于 SMPTE295M 标准。 3. 输入信号将被看作 1125 (1080)/60p 信号。 4. 当选择将 RGB 格式和 525p 信号输入到小型 D-sub 15 针式端子时，此信号将被看作 VGA 60Hz 的信号。 5. 当 VGA 60Hz 格式信号从异于小型 D-sub15 针式端子输入时，它将被看作 525p 信号。 注： 不符合上述规格的信号可能无法正常显示。 9 TH-65PF10CK 4 选项设置 10 TH-65PF10CK GPF10D 系列机型具有被称为选项菜单的特殊功能及操作设置装置。该选项菜单对于有特殊功能要求的客户很有用。该菜单在安装阶段 设置。 注： 由于对 “键锁定”，“遥控器自定义标准”或 “遥控 ID”的调整使主机按键和遥控器都失灵时可将所有值都设为 “关”，这样所 有按键将重新恢复。 或者同时按压主机上的 “音量减键”和遥控器上的 “返回键”并持续 5 秒。这时屏幕上会显示 “SHIPPING”菜单，此菜单消失后 锁定解除。 GPF10D 系列的选项菜单 选项菜单 默认设置 内容 每周指令定时 --- 定时关机及每周指令定时设置。有效 / 无效。 屏幕显示 开 电源接通后输入模式显示功能有效 / 无效，此时无信号。 初始输入 关 电源接通后设置初始输入模式。电源接通后可以进行输入模式选择。 初始音量等级 关 电源接通后设置初始音量标准。电源接通后可以进行音量调整。 最大音量等级 关 将最大音量设置到所希望的等级。音量不能超过此限制。 输入锁定 关 将输入模式固定为 AV，分量 /RGB 或 PC。不能通过输入选择键来改变输入模式。 键锁定 关 后端操作键有效 / 无效 （输入，菜单，进入和 / 或音量增 / 减） 遥控器自定义标准 关 遥控键无效 关：所有遥控键有效。 自定义 1：只有待机 （开 / 关）、输入、直接输入，状态、环绕、静音开 / 关以及音量调 节键为有效。 自定义 2：只有待机键 （开 / 关）为有效。 自定义 3：所有键都无效 高级 PIP 关 关：设置为正常的双屏显示模式。 开：设置为高级 PIP 模式。 定时关机功能 启动 定时关机功能有效 / 无效。 初始电源模式 正常 用来设置当电源故障后重启或拔出后重新插入时本机电源模式。 ID 选择 0 将 ID 设置为 0 到 100。 遥控 ID 关 遥控 ID 功能开 / 关 （当遥控 ID 为开时，标准遥控功能不能控制本机。） 串行 ID 关 串行 ID 功能 开 / 关 显示尺寸 关 调整屏幕的图像显示尺寸。 开：设置图像显示尺寸为正常图像显示的 95%。 演播室白平衡 关 将暖模式色温设置为 3,200 Kelvin。 演播室增益 关 当图象部分太亮以至于看不清时用来增强对比度以达到较好的视觉效果。 插槽电源 关 在电源接通时设置插槽电源模式。 在电源接通的情况下可选接线端子板可以插入插槽。 显示屏通电延迟 关 按 键打开多显示屏模式同时设置可设置显示屏的通电延迟时间以减少电源负荷，例 如，选择多显示屏模式。分别对各个显示屏进行设置。 V ．安装 关 V ．安装功能开 / 关 （未启用） 旋转 关 图像旋转 180 度 （颠倒）。 串行插槽选择 插槽 1 选择连接串行口的插槽。 注：只能从固定的串行端子设置外部指令。 11 TH-65PF10CK 5 维修模式 5.1. CAT （计算机辅助检测）模式 若要退出 CAT 模式，请进入 ID 模式，并关闭主电源。 5.1.1. IIC 模式 在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的开始键。 主题和项目在 “IIC 模式结构”中提及。 按遥控器上的返回键可退出 IIC 模式。 12 TH-65PF10CK 5.1.2. CD 模式 在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 CD 模式，然后按下遥控器上的静音键 3 秒钟以上。 微处理器软件版本 （IC4002）可通过以下方式升级： 1. 更换新版本 IC。 2. 从装载工具上装入新的软件版本 TZSC07036。 存储数据变更 按遥控器上的返回键可退出 CD 模式。 5.1.3. SD 模式 在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 SD 模式，然后按下遥控器上的开始键。 按遥控器上的返回键可退出 SD 模式。 13 TH-65PF10CK 5.1.4. MS 模式 在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 MS 模式，然后按下遥控器上的静音键 3 秒钟以上。 按遥控器上的返回键可退出 MS 模式。 注意： DN 电路板更换后必须设置市场选择。 销往地号码 默认设置 5.1.5. ID 模式 在 CAT 模式的前页位置处，通过遥控器上的上 / 下键选择 ID 模式，然后按下遥控器上的静音键 3 秒钟以上。 按遥控器上的返回键可退出 ID 模式。 号码 销往地 号码 销往地 0 日本 16 - 1 北美 17 - 2 欧洲 18 中国 3 其它 19 中国 （旅馆） 4 英国 20 俄罗斯 5 台湾 21 俄罗斯 （旅馆） 6 泰国 22 香港 7 - 23 - 8 日本 （旅馆） 24 - 9 北美 （旅馆） 25 - 10 欧洲 （旅馆） 26 - 11 - 27 - 12 英国 （旅馆） 28 中东 / 香港 13 - 29 中东 / 香港 （旅馆） 14 泰国 （旅馆） 30 澳大利亚 15 - 31 澳大利亚 （旅馆） 号码 销往地 18 中国 14 TH-65PF10CK 5.2. IIC 模式结构 （以下各值为样本数据） 15 TH-65PF10CK 6 故障检修 6.1. 自检 6.1.1. 显示说明 1. 自检用于自动检查等离子显示器的总线控制电路。 2. 要进入自检模式，按下本机用户控制器前端的音量降低键， 同时按下遥控器上的关机定时键，显示屏将会显示。 检查 IIC 端口时若发现其不正常或位置不对，则 “ - -”将会显 示在 “OK”的位置。 “PTCT”一行的 “01”表示电源指示灯闪烁 1 次。（参见 6.1.2 节）“PTCT”一行的 “H09”是故障代码。 退出自检模式，请关断电源。 注： 第一次进入自检模式时，“ PTCT ”一行会在电源指示灯闪烁 后出现。 16 TH-65PF10CK 6.1.2. 电源指示灯闪烁间隔表 1. 主题 电源指示灯闪烁间隔表信息。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的电源指示灯闪烁次数便可识别出故障部位。 3. 备注 风扇功能在风扇安装期间有效。 指示灯闪烁 闪烁次数 闪烁间隔 内容和检查点 检测点 1 无特定检测点 - 2 15V SOS P 板 3 3.3V SOS D 板 DN 板 4 电源 SOS P 板 5 5V SOS P 板 D 板 DN 板 DS 板 6 驱动器 SOS1 SC 板 7 驱动器 SOS2 SC 板 SU 板 SD 板 8 驱动器 SOS3 SS 板 9 显示屏配置 SOS D 板 10 端子板 SOS P 板 DS 板 11 风扇 SOS PB 板 风扇 12 DN 配置 SOS DN 板 13 3.3V/2.5V/1.8V DN 板 17 TH-65PF10CK 6.2. 无电源 第一检查点 电源指示灯的无电源指示有 3 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 6.3. 无图像 18 TH-65PF10CK 6.4. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部区域可能会出现故障的 P.C.B. 印刷电路板。 图 1 19 TH-65PF10CK 7 拆卸指南 • 由于电解电容器放电原因，请在电源切断一分钟后再取下 P.C.B.。 • 和 表示螺丝的位置。 7.1. 取下后盖 1. 卸下螺丝 （×22 ◎ ,×8 �,×11 �,×4 �,×4 �），取下后 盖。 7.2. 取下 HA 板 1. 卸下 4 枚螺丝 （A），取下 HA 端子块。 2. 卸下 4 枚螺丝 （B）。 3. 卸下 2 枚螺丝 （C），取下 HA 板。 7.3. 取下 HDD 板 1. 卸下 4 枚螺丝 （D），取下 HDD 端子块。 2. 卸下 4 枚螺丝 （E）。 3. 卸下 2 枚六角螺丝 （F），取下 HDD 板。 7.4. 取下 DS 板 1. 取下 HA,HDD 端子块。 （参见 “取下 HA,HDD 板”部分） 2. 取下连接件 (DS1,DS6) 上的柔线。 3. 断开连接件 (DS2, DS3, DS4, DS7, DS8, DS10, DS14, DS15, DS30)。 4. 卸下 4 枚螺丝，取下插槽盒。 5. 卸下 9 枚螺丝，取下 DS 板和固定板。 20 TH-65PF10CK 7.5. 取下 HX 板 1. 取下 HA,HDD 端子块。 （参见 “取下 HA,HDD 板”部分） 2. 卸下 4 枚螺丝，取下插槽盒。 3. 卸下 HX 板上 4 枚六角螺丝 （G）及 2 枚螺丝，取下 HX 板。 7.6. 取下 PB 板 1. 断开连接件 （PB30, PB31, PB32, PB33, PB34, PB35, PB36, PB38）。 2. 卸下 2 枚螺丝，取下 PB 板。 7.7. 取下 DN 板 1. 取下连接件 (DN1,DN6) 上的柔线。 2. 断开连接件 (DN2, DN3, DN5)。 3. 卸下 4 枚螺丝，取下 DN 板。 7.8. 取下 D 板 1. 取下 PB 板。 （参见 “取下 PB 板”部分） 2. 取下连接件 (DN1,DN6) 上的柔线。 3. 断开连接件 (D3, D5, D20, DN3)。 4. 卸下 5 枚螺丝，取下 DN 板组件。 5. 断开连接件 （D25）。 6. 取下连接件 （D31,D32, D33, D34, D35, D36）上的柔线。 7. 卸下 4 枚螺丝，取下 D 板。 21 TH-65PF10CK 7.9. 取下 P 板 更换 P 板时请同时更换保险丝（F1601, F1602, F1701, F1702）。 因为保险丝不随同 P 板一起维修。 1. 断开连接件(P2, P5, P9, P10, P11, P12, P23, P25, P51, P53, P55)。 2. 卸下 19 枚螺丝，取下 P 板。 7.10. 取下 SU，SD 板 1. 取下连接件 （SU1, SU2, SU3, SU4, SU5, SD1, SD2, SD3, SD4, SD5）上的柔线。 2. 断开连接件 （SU45, SD46)。 3. 卸下 1 枚螺丝 （ ），取下 BC 导板。 4. 卸下 8 枚螺丝 （ ）。 5. 将 SU，SD 板滑到左边，从连接件 （SC41, SC42, SC43, SC44）中将二者取出。 注： 处理连接 SC45-SU45 和 SC46-SD46 的连接件时，务必小 心。（如断开、运输等） 7.11. 取下 SC 板 1. 断开连接件 （SU45, SD46)。 2. 卸下 1 枚螺丝 （ ），取下 BC 导板。 3. 卸下 8 枚螺丝 （ ）。 4. 将 SU，SD 板滑到左边，从连接件 （SC41, SC42, SC43, SC44）中将二者取出。 5. 断开 2 个风扇中继连接器。 6. 卸下 4 枚螺丝，取下风扇组件 （A）。 7. 断开连接件 (SC2, SC20, SC23)。 8. 卸下 11 枚螺丝，将 SC 板沿箭头（A）方向滑动，取下 SC 板。 注： 取下SC 板时请勿损坏其上的部件及SU、SD 板上的柔线。 22 TH-65PF10CK 7.12. 取下 SS2 和 SS3 板 1. 断开连接件 (SS23, SS27)。 2. 取下连接件 (SS51, SS52, SS57, SS58) 上的柔线。 3. 卸下 6 枚螺丝，取下 SS2,SS3 板。 7.13. 取下 SS 板 1. 断开 2 个风扇中继连接器。 2. 卸下 4 枚螺丝，取下风扇组件 （D）。 3. 断开连接件 （SS11, SS12, SS23, SS27, SS34, SS35, SS42, SS44）。 4. 取下连接件 (SS53, SS54, SS55, SS56) 上的柔线。 5. 卸下 11 枚螺丝，将 SS 板沿箭头（B）方向滑动，取下 SS 板。 注： 取下SS板时请勿损坏其上的部件及等离子显示屏上的柔 线。 7.14. 取下 H3 板 （左 , 右） 1. 卸下 4 枚螺丝，取下扬声器端子块 （左，右）。 2. 断开连接件 （H37）。 3. 卸下 3 枚螺丝 （H），取下 H3 板。 7.15. 取下 C1, C2, C3, C4, C5，C6 板 1. 断开 3 个风扇中继连接器。 2. 卸下 8 枚螺丝，取下风扇组件 （B,C）。 3. 卸下 4 枚螺丝 （ ），取下扬声器端子块 （左，右）。 23 TH-65PF10CK 4. 卸下 4 枚螺丝 （ ），取下加固压条 （左，右）。 5. 卸下 16 枚螺丝 （ ），取下连接板 (A), (B), (D), (E)。 6. 卸下 20 枚螺丝 （ ），取下连接板 （C）, （F）。 7.15.1. 取下 C1 板 1. 取下连接件 (C10,C11) 上的柔线。 2. 卸下 10 枚螺丝 （ ），取出连接件 (CA1, CA2, CA3, CA4, CA5) 上的柔线。 3. 卸下 6 枚螺丝 （ ），取下 C1 板。 7.15.2. 取下 C2 板 1. 取下连接件 (C21,C22, C24, C25) 上的柔线。 2. 卸下 10 枚螺丝 （ ），取出连接件 (CA6, CA7, CA8, CA9, CA10) 上的柔线。 3. 卸下 6 枚螺丝 （ ），取下 C2 板。 7.15.3. 取下 C3 板 1. 取下连接件 (C31) 上的柔线。 2. 断开连接件 （C35）。 3. 卸下 10 枚螺丝 （ ），取出连接件 (CA11, CA12, CA13, CA14, CA15) 上的柔线。 4. 卸下 6 枚螺丝 （ ），取下 C3 板。 7.15.4. 取下 C4 板 1. 取下连接件 (C41) 上的柔线。 2. 断开连接件 (C42, C44)。 3. 卸下 10 枚螺丝 （ ），取下连接件 (CB11, CB12, CB13, CB14, CB15) 上的柔线。 4. 卸下 6 枚螺丝 （ ），取下 C4 板。 24 TH-65PF10CK 7.15.5. 取下 C5 板 1. 取下连接件 (C51,C52, C54, C55) 上的柔线。 2. 卸下 10 枚螺丝 （ ） ，取出连接件 (CB6, CB7, CB8, CB9,CB10) 上的柔线。 3. 卸下 6 枚螺丝 （ ），取下 C5 板。 7.15.6. 取下 C6 板 1. 取下连接件 (C60,C61) 上的柔线。 2. 卸下 10 枚螺丝 （ ），取出连接件 (CB1, CB2, CB3, CB4, CB5) 上的柔线。 3. 卸下 6 枚螺丝 （ ），取下 C6 板。 7.16. 取下 S1 板 1. 断开连接件 （SS34）。 2. 卸下 2 枚螺丝 (I), (J)，取下 S1 组件。 3. 断开连接件 （S34）。 4. 卸下 1 枚螺丝 (K)，取下 S1 板。 7.17. 取下风扇 1. 断开 7 个风扇中继连接器。 2. 卸下 16 枚螺丝，取下风扇组件 (A),(B), (C), (D)。 25 TH-65PF10CK 7.17.1. 取下风扇 (A),(B) 1. 卸下 8 枚螺丝，取下风扇 (A)，(B)。 7.17.2. 取下风扇 （C） 1. 卸下 4 枚螺丝，取下风扇 （C）。 7.17.3. 取下风扇 (D),(E) 1. 卸下 8 枚螺丝，取下风扇 (D), (E)。 7.17.4. 取下风扇 (F),(G) 1. 卸下 8 枚螺丝，取下风扇 (F), (G)。 7.17.5. 取下风扇海绵 注： 风扇海绵不可重复使用。 所以更换风扇时，请使用新的海绵。 7.18. 取下面框 1. 取下 S1 组件。（参见 “取下 S1 板”部分） 2. 断开 2 个中继连接件 (DS2, DS15)。 3. 卸下面框的 18 枚螺丝。 4. 将等离子显示屏的底部向上抬起 （箭头 1 方向）。 5. 滑动并取下等离子显示屏 （箭头 2 方向）。 7.19. 取下 V1,V2 板 1. 取下面框。（参见 “取下面框”部分） 2. 卸下 20 枚螺丝，取出固定压条 (A), (B), (D)。 3. 卸下 1 枚螺丝 （L）。 4. 断开连接件 （V2），取下 V1 板。 5. 卸下 V2 板上的操作按钮。 26 TH-65PF10CK 6. 断开连接件 （V15），取下 V2 板。 7.20. 取下前面玻璃 1. 取下面框。（参见 “取下面框”部分） 2. 卸下 28 枚螺丝，取出固定压条 (A),(B),(C),(D)。 3. 取下前面玻璃。 注：更换前面玻璃时 • 沿着固定角的上下右左顺序并将专用的海绵粘在前框玻璃 上。 注： • 海绵是不可回收利用的部件。更换前面玻璃时，请使用新 海绵。 7.21. 取下等离子显示屏 • C1,C2,C3,C4,C5,C6 板随同等离子显示屏一起维修。 1. 断开连接件 （PB30, PB31, PB32, PB33, PB34, PB35, PB36, PB38）。 2. 卸下 2 枚螺丝，取下 PB 板。 3. 卸下 16 枚螺丝，取下风扇组件 (A),(B),(C),(D)。 4. 卸下 4 枚螺丝，取下加固压条 （左，右）。 5. 取下连接件 (DN1,DN6) 上的柔线。 6. 断开连接件 (DN2, DN3, DN5)。 27 TH-65PF10CK 7. 卸下 5 枚螺丝，取下 DN 组件。 8. 断开连接件 (DS2, DS4, DS7, DS8, DS10,DS15)。 9. 卸下 5 枚螺丝，取下插槽块。 10. 卸下 8 枚螺丝 （ ），取下屏蔽板 (A)，(B)。 11. 卸下 8 枚螺丝 （ ），取下电缆支架 (A)，(B)。 12. 断开连接件 (D20, D25)。 13. 取下连接件 (C10, C24, C25, C54, C55, C60) 上的柔线。 14. 卸下 4 枚螺丝，取下 D 板。 15. 断开连接件 (P2, P9, P11, P12, P23, P51, P53, P55)。 16. 卸下 19 枚螺丝，取下 P 板。 17. 卸下 4 枚螺丝，取下扬声器端子块 （左，右）。 18. 卸下 16 枚螺丝 （ ），取下连接板 (A), (B), (D), (E)。 28 TH-65PF10CK 19. 卸下 20 枚螺丝 （ ），取下连接板 （C）, （F）。 20. 取下连接件 （SU1, SU2, SU3, SU4, SU5, SD1, SD2, SD3, SD4, SD5）上的柔线。 21. 断开连接件 （SU45, SD46)。 22. 卸下 1 枚螺丝 （ ），取下 BC 导板。 23. 卸下 8 枚螺丝 （ ），将 SU，SD 板滑到左边，从连接件 (SC41, SC42, SC43, SC44) 中取下 SU，SD 板。 24. 卸下 11 枚螺丝，取下 SC 板。 25. 取下 SS2, SS3 板。 （参见 “取下 SS2, SS3 板”部分） 26. 断开连接件 (C35, C42, C44, SS34)。 27. 取下连接件 (SS53, SS54, SS55, SS56) 上的柔线。 28. 卸下 11 枚螺丝，取下 SS 板。 29. 取下连接件 (C11,C21, C22, C31, C41, C51, C52, C61) 上 的柔线。 30. 卸下 2 枚螺丝 （ ），取下 S1 组件。 29 TH-65PF10CK 31. 卸下 4 枚螺丝 （ ），取下 AC 接入口组件。 32. 卸下面框的 17 枚螺丝。 33. 将等离子显示屏沿箭头 1 的方向抬起并将其沿箭头 2 的方向 拉动，然后取出等离子显示屏。 34. 卸下等离子显示屏上的 4 个垫片和垫圈。 35. 取下等离子显示屏。 注： • 在更换等离子显示屏时，请确认垫片和垫圈的安装位置。 更换新的等离子显示屏后，将垫片和垫圈安装在初始位 置。 30 TH-65PF10CK 8 测量、调整 8.1. 调整步骤 8.1.1. 驱动器设置 8.1.1.1. 项目 / 准备 1. 输入白色信号模式到等离子显示屏视频。 老炼模式：1 2. 如下设定图像调整项目： 图像菜单：标准 色温：正常 图像：25 屏幕宽高比：全屏 8.1.1.2. 调整 参照显示屏标牌上的显示屏数据，调整驱动器各部分的电压。 * 见显示屏标牌。 注意 1. 首先进行 Vsus 电压调整。 2. Vad 电压调整确认后，再确定 Vscn 电压。 当 Vad=-90V 时，Vscn 的电压为 50V ± 4V。 31 TH-65PF10CK 8.1.2. 起始脉冲调整 1. 输入白色信号模式到等离子显示屏视频。 老炼模式：1 2. 如下设定图像调整项目： • 图像菜单：标准 • 色温：正常 • 图像：25 • 屏幕宽高比：全屏 3. 连接示波器至测试点 TPSC1 (T2)，并调整 VR6602 至 160 ± 10 μ Sec。 8.1.3. P.C.B ． （印刷电路板）更换 8.1.3.1. 注意 1. 由于电解电容器放电原因，电源切断一分钟后再取下 P.C.B.。 8.1.3.2. P.C.B. 更换后进行快速调整 * 见显示屏标牌。 注意： 请勿将 Vsus 设置到 Ve 以下，以防损坏 PCB 板。 测试点 调整点 电平 T2 TPSC1 (SC) VR6602 (SC) 160 ± 10μ Sec. P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS Vsus ± 2V VR251(P) * SC 电路板 Vad TPVAD -90V ± 1V VR6600(SC) Vscn TPVSCN Vad + 140V ± 4V 固定 Vset TPVSET 240V ± 7V 固定 SS 电路板 Ve TPVE Ve ± 1V VR6000(SS) * Vda TPVAD 72V + 1V,-3V 固定 D, DS 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡及副亮度调整 DN 电路板 通过 MS 模式设置市场选择号码以纠正销往地。（见 5.1.4 章） 32 TH-65PF10CK 8.1.4. 调整电压位置 8.1.5. 测试点位置 33 TH-65PF10CK 8.2. 微调 8.2.1. RGB 白平衡调整 仪器名称 连接 备注 • RGB VGA W/B 模式 • 色彩分析仪 ( 美能达 CA-100 或类似产品 ) PC 输入 显示屏表面 用户设定：正常 （图像菜单：标准 ) 步骤 备注 • 确保足够老炼。 • 确保最终设置所用到的前面板安装到整机。 • 确认调整之前无色彩信号显示。 • 将色彩分析仪放置到有轻微色差的地方。 1. 将分量 /RGB 输入选择设置为 RGB。 2. 选择 IIC 模式的 “显示屏白平衡调整”项目。 3. 确认色温为 “冷色 （高）”。 4. 输出一个白平衡模式。 5. 将色彩分析仪的信号接受器放至高亮显示窗中心。 6. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使 X，Y 变为下表中的 “色温高”的值。 7. 同步增加 R/G/B 使其最大驱动值变为 FCh。 8. 设置色温为 “正常 （中）”。 9. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 变为下表中的 “色温中”的 值。 10. 同步增加 R/G/B 使其最大驱动值变为 FCh。 11. 设置色温为 “暖色 （低）”。 12. 将 G 驱动设为 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 变为下表中的 “色温低”的 值。 13. 同步增加 R/G/B 使其最大驱动值变为 FCh。 14. 在 NTSC, PAL 和 DVI 区域复制 R 驱动，G 驱动及 B 驱动的数据。 调整目标 高亮：x ± 0.003 y ± 0.003 高亮为高亮显示窗中驱动调整的目标数值。 因此在白平衡调整之后，它就不再是高亮的目标数值了。 图像菜单：标准 图像： 25 屏幕宽高比：全屏 位置及尺寸：正常 • 高亮区信号振幅 75% • 截至标准 G：80h • 驱动标准 G：E0h 34 TH-65PF10CK 35 TH-65PF10CK 8.2.2. HD 白平衡调整 仪器名称 连接 备注 • HD 白平衡模式 （分量输出） • 色彩分析仪 ( 美能达 CA-100 或类似产品 ) PC 输入 显示屏表面 用户设定：正常 （图像菜单：标准） 步骤 备注 • 确保足够老炼。 • 确保最终设置所用到的前面板安装到整机。 • 确认调整之前无色彩信号显示。 • 将色彩分析仪放置到有轻微色差的地方。 1. 将分量 /RGB 输入选择设置为分量。 2. 选择 IIC 模式的 “显示屏白平衡调整”项目。 3. 确认色温为 “冷色 （高）”。 4. 输出一个白平衡模式。 5. 将色彩分析仪的信号接受器放至高亮显示窗中心。 6. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使 X，Y 变为下表中的 “色温高”的值。 7. 同步增加 R/G/B 使其最大驱动值变为 FCh。 8. 设置色温为 “正常 （中）”。 9. 将 G 驱动调至 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 变为下表中的 “色温中”的 值。 10. 同步增加 R/G/B 使其最大驱动值变为 FCh。 11. 设置色温为 “暖色 （低）”。 12. 将 G 驱动设为 E0h，调整 B 驱动及 R 驱动使高亮显示窗的 X，Y 变为下表中的 “色温低”的 值。 13. 同步增加 R/G/B 使其最大驱动值变为 FCh。 14. 在 YUV1_525ip, YUV3_625ip 区域复制 R 驱动，G 驱动及 B 驱动的数据。 调整目标 高亮：x ± 0.003 y ± 0.003 高亮为高亮显示窗中驱动调整的目标数值。 因此在白平衡调整之后，它就不再是高亮的目标数值了。 图像菜单：标准 图像：25 屏幕宽高比：全屏 位置及尺寸：正常 • 高亮区信号振幅 75% • 截至标准 G：80h • 驱动标准 G：E0h 36 TH-65PF10CK 37 TH-65PF10CK 8.2.3. 电源控制调整 仪器名称 连接 备注 • PC (RGB) 信号发生器 （引导器：VGA/No.9 信号） • 功率计 • PC 输入 • 连接调整设备的交流电源至功率计。 在设置菜单下将 “分量 /RGB 输入选择”设为 “RGB”。 步骤 备注 • 调整之前确认设备的老炼时间为 30 分钟以上。 • 电压 220V 50 / 60Hz ( 偏差≤ 1%) • 音量最低，屏幕尺寸为全屏。 • PC 输入和图像菜单为正常动态。 1. 连接设备的交流电源至功率计。 2. 从引导器接受 VGA No.9 信号。 3. 选择 IIC 模式下显示屏 APL/ABL 的 PWRCTL 项目。 4. 调整 PWRCTL，使显示器的功率达到下列值。 将 DAC 从大调至小。 带 OSD 的出厂调整 650+5 / -10W 不带 OSD 的 BUSCON 650+5 / -10W No.9 信号 上半部分：全屏彩条 下半部分：16 级灰度等级 注： 1. 当退出工厂模式时，约有数瓦的功率下 降。 2. 当有 2 个调整点时，将 DAC 调整为较大的 数值。 38 TH-65PF10CK 9 方框图 9.1. 主方框图 COLD HOT SYNC SUSTAIN MCU D.D. 28 DS12 S.R CONTROL C52 PROCESSOR POWER SW C44 C41 D VOLTAGE L D.D. SIGNAL DS3 DATA DRIVER (CENTER) SU STANDBY SC23 P RECTIFIER D36 I/P CONVERSION D.D. HD VDA_75V OSD D.D. H1 A/D CONVERTER PC IN C25 R OUT STBY5V PULSE + SCAN OUT +15V FIFO Vda +12V(s) AUDIO IN 64 H37 DN6 64 P9 CONTROL (DOWN) S.R 64 GENERATOR EEPROM 64 15V PB38 PB36 B ON/OFF C35 S.R C24 POWER SUPPLY D.D. D.D. 64 12V D.D. STB_PS_ON H37 R D.D. 64 R S.R S.R FAN_CONT S.R D.D. DN1 SOUND PROM CONTROL SUB-FIELD P23 PB31 D.D. POWER 64 D.D. SUSTAIN DRIVE VOLTAGE SYNC LINE MEMORY DATA DRIVER(RIGHT) PULSE PLASMA AI 15V RELAY DATA DRIVER(LEFT) +12V DS1 DS7 64 D.D. 15V DN3 FAN DS10 PB H3 VOLTAGE SOS6 S.R STB_PS_ON STB_PS 15V D.D. 64 D34 S.R RECTIFIER DS P10 VDA_75V PB30 SC20 DATA DRIVER(CENTER) DS15 FANx7 AC IN CORRECTOR RS-232C SD P11 VSUS D.D. FILTER +15V +15V D.D. TERMINALS HX1 DS4 SPEAKER /SYNC PROCESSOR C21 AVR Vda /SOUND PROCESSOR LAN+15V CONTROL DISCHARGE CONTROL DS14 D.D. S.R D.D. C10 CONTROL SC PROCESSOR SOUND+15V SLOT INTERFACE D.D. FAN_CONT FLASH PULSE (1.2V)3.3V P25 DN5 SC2 FACTOR D25 28 VDA_75V D5 D.D. PLASMA AI PROCESSOR DS8 CONTROL SCAN OUT MCU C3 PROCESS LVDS RX DS13 VIDEO PROCESSOR VDA CLK DATA DRIVER(LEFT) (UP) S.R PC IN 64 DIG12V RECTIFIER DN CONTROL SIGNAL DC/DC CONVERTER FAN SOS C54 FORMAT CONVERTER SOS8 VDA_75V SYNC PROCESSOR D.D. COMPONENT DS11 DATADRIVER S.R DIGITAL SIGNAL PROCESSOR C22 SYNC PROCESSOR STB5V VD TERMINALS SCAN DRIVE C42 SOS SUSTAIN C51 D.D. D.D. C2 Vda VOLTAGE C11 D33 VOLTAGE SUS 1.5V PC AUDIO IN D32 SPEAKER 64 P2 H3 STB_PS R SPEAKER C61 CONTROL C60 VDA_75V RECTIFIER HX S.R STANDBY MEMORY D35 SIGNAL PROCESSOR VSUS SPEAKER D20 D.D. + C31 SW DS30 S1 5V R PROCESS C6 G C4 DS2 AUDIO SW FLASH 64 D.D. LVDS RX S.R D.D. D.D. +15V SS STB14V S.R S34 SOS7 D.D. HA DDR 64 R 64 S.R VOLTAGE STB3.3V - P12 VDA_75V L D31 L SUSTAIN 64 - LVDS TX C5 SOS RECTIFIER SCAN +5V C1 +12V D.D. S.R VOLTAGE VIDEO SW 64 DATA DRIVER(RIGHT) L S.R C55 DS6 VIDEO IN SCAN CONTROL D.D. S.R P5 D.D. F_STB_14V L OUT SOS8 SS42 SS35 SS11 Vda Vda SS23 SS12 VSUS SS2 SUS SS3 SS44 SS34 SS27 SS25 15V SS21 VOLTAGE ERASE (VE) PULSE SUSTAIN ADDRESS PULSE V2 V1 REMOTE RECEIVER /LED_G,R POWER LED_G REMOTE SENSOR STAND_BY LED_R V2 V15 KEY SCAN KEY SCAN COLD HOT TH-65PF10CK Main Block Diagram TH-65PF10CK Main Block Diagram /HDCP TX DVI DVI TERMINAL H1 RECEIVER R L HDD LVDS IN AUDIO IN DVI-D DVI-D 39 TH-65PF10CK 9.2. P 电路板 (1/2) 方框图 L.F L.F L.F + D1601 F1601 F1602 D1602 L1601 L1602 L1603 R1607 R1605 R1606 R1608 Q1602 G D S Q1603 G D S Q1607 G D S Q1606 G D S D1606 R1635 R1636 R1631 C1620 R1639 R1638 R1637 R1633 R1632 D1605 D1609 ZD1602 F201 R1644 R1642 R1643 R219 R221 R222 R220 Q203 G D S Q204 G D S Q202 G D S Q201 G D S K1601 AC CORD 3 P9 K1602 1 RF1601 3A AC+ AC- +AC -AC L1604 PFC OVP 9 ON/OFF 4 Q1608 Q1609 1 +S OCL 3 (IDET) 7 11 GATE 6 GND Q1604 Q1605 MC1601 PFC MODULE MAIN 7 RUSH 8 RELAY RELAY 6 BIAS-PFC (VCC-OUT) PFC-SUS 15 Q206 Q205 2 VDD V+ 9 I+ SH 24 0V 25 SL GL 12 VCC SG IRS 13 GH BIAS Vsus 5 10 ON/OFF I+ 6 VCO STOP 22 23 1 P1 P2 P2 T201 P1 Zero Voltage Switching Controller MC201 POWER SUPPLY Vsus TO SS11 R278 P11 C255 R260 S1 D251 Vsus R282 R279 R261 Vsus R264 S2 R267 1 D252 R277 S2 P2 R257 R262 T2 R266 S1 VR251 T1 D255 R281 D253 TO SC2 D254 VSUS R280 C256 R268 R254 1 R265 PC201 PC202 PFC ON/OFF Vsus ON/OFF RELAY/ PFC CONTROL MODULE MC202 (18V) VCC 10 VIN (VDET) H:ON L:ON 3 SUS ON/OFF PFC 11 ON/OFF 2 ON/OFF BIAS L:ON 4 P52 1 1 P54 1 VCC-IN 5 TIMING 4 -GND CAP BIAS GND P56 PFC_ON Vs_STOP 7 1 5Vc_OUT 2 6 TO P55 Vs_OUT 8 HV(SUS)_ON STB_IN 5 Q251 AC_N AC_L VSUS_VCC COLD HOT COLD HOT TO P51 TO P53 D1603 D1604 AC INLET POWER SUPPLY 1/2 P (+4.7V) Vsus 178V TH-65PF10CK P-Board (1 of 2) Block Diagram TH-65PF10CK P-Board (1 of 2) Block Diagram 40 TH-65PF10CK 9.3. P 电路板 (2/2) 方框图 L.F L.F + F1702 D1701 L1701 F1701 L1702 R515 R509 L502 R514 F501 R511 R512 R510 L504 D1702 R1708 R1706 Q1702 G D S D1711 R1704 Q1701 G D S R1705 D1705 F301 R1732 R1727 C1715 R1729 R1750 R1761 R1731 R1728 R1733 R1740 R1742 R529 R581 R528 R530 R1741 Q301 G D S Q302 G D S R1751 K1701 K1702 1 P51 3 RF1701 3A DISCHG AC_L 5 1 S1A 16 D502 5 S2A D551 6 2 Source Drain IC501 Control 4 IPD B5 3 P2 B6 20 GND S1B CONTROL Q501 7 B2 P53 1 17 D504 4 P1 T501 VBias D503 B4 Q502 18 DISCHARGE B3 D511 STB+5V B1 GND GND STB+5V AC_N 19 D508 S2B AC DET AC- AC+ D501 PG- STB RECTIFIER (STB) D1703 AC- RECTIFIER AC+ 10 L1703 GND Q1703 Q1704 MC1703 PFC MODULE (VDET) (18V) PFC_15V OVP 4 1 VIN VCC +S OCL 3 (IDET) 7 11 GATE 6 P1 P2 S2 S1 D351 D402 T301 D403 D404 D405 D352 S5 S4B S3 S4A Q303 Q304 MAIN 7 RUSH 8 RELAY 4 RELAY 5 GND TIMING RELAY/ MC502 PFC CONTROL MODULE 6 VCC_OUT Q1707 Q1708 14 VCC-IN 1 PGC_ON/OFF 3 13 Fsw_Low 12 15V_ON/OFF ON/OFF 9 I+ 9 SH 2 GH 6 1 GL 11 Fsw-ON 13 ON/OFF BIAS 12 22 V+ VCC 25 VR351 15V AC_DET 20 15V_OUT PFC_ON 3 25 14 Vda_ON (VDD) 10 MC701 15 Vda_LOW 12 2 15V_IN SUS_STOP BIAS_ON Vda_OUT 22 24 SW_MAIN 5 6 5VC_OUT 21 17 8 11 26 SUS_ON 18 F15V_OUT 9 GND STB_OUT PANEL_ON SUS_OUT ALL_OFF F_STB_ON PS_SOS STB_IN 4 POWER MCU MODULE 7 POWER CONTROL MC601 MODULE MC301 Vda/STB POWER CONTROL MODULE HOT COLD BAIS ON/OFF PC505 PFC ON/OFF PC506 Q1706 Q06 VOUT Q02 Q01 11 10 Vda L401 ZD401 6 D401 MC401 Vda CONTROL MODULE 7 8 IC01 Q04 Q406 Q405 FB 1 PG SG 9 VIN 5 3 2 OCL Q404 VR401 Q03 Q05 L402 1 STB+5V 1 P12 +15V 16 8 4 +15V 7 F STB+15V P25 2 1 TO SC23 10 Vda+75V 17 18 SW_MAIN 4 D358 P+5V +15V PS_SOS P+5V TO DS10 PANEL_ON TO DS4 Vda_Low ALL_OFF P10 7 10 3 +15V 2 1 Vda+75V P+15V F STB+15V F_STB_ON 2 F STB+15V 1 TO SS12 2 13 STB PS 20 +15V 8 P+15V 2 +15V TO D25 +15V P+15V +15V 9 P5 P23 6 P55 STB_IN Vs_OUT 8 HV(SUS)_ON 6 PFC_ON TO P56 1 5Vc_OUT 5 2 Vs_STOP 7 Q553 BIAS_ON/OFF 2 PC507 Vda ON/OFF Q352 Q354 Q353 Q551 Q351 Q552 ZD353 13 F15V_ON 16 15V_ON ZD351 1 STB_ON D554 15V_ON 5VC_ON 19 D555 D556 STB_ON/OFF 5V_ON F STB+15V ON/OFF D355 TO P52 TO P54 AC_N AC_L VSUS_VCC HOT COLD P POWER SUPPLY 2/2 +5V +18V (+15V) (+15V) Vda+72V +15V TH-65PF10CK P-Board (2 of 2) Block Diagram TH-65PF10CK P-Board (2 of 2) Block Diagram 41 TH-65PF10CK 9.4. PB,V1 和 V2 电路板方框图 R854 D855 IC850 R860 D854 R857 Q850 R858 D851 R856 R859 D850 D856 R855 D853 D852 1 5 1 PB 34 3 1 3 2 1 2 3 3 1 2 3 +9V/+7.2V 2 3 1 3 2 2 PB 36 2 1 2 3 3 PB 35 1 2 3 2 1 1 2 PB 38 1 3 1 1 1 3 PB 30 2 3 4 FAN 3 3 4 2 3 1 2 2 1 PB 31 PB 32 PB 33 FAN CONTROL VOLTAGE CONTROL REGULATOR FAN CONTROL FAN SOS LED 11 TIMES SOS BLINKING TIMES: +15V FAN CONT +5V DS30 FAN SOS RELAY RELAY RELAY RELAY RELAY RELAY RELAY PB L6FAYYYH0025 FAN A FAN B L6FAYYYH0050 FAN C FAN F FAN G FAN D FAN E L6FAYYYH0025 L6FAYYYH0025 L6FAYYYH0025 L6FAYYYH0026 L6FAYYYH0050 TH-65PF10CK PB, V1 and V2-Board Block Diagram TH-65PF10CK PB, V1 and V2-Board Block Diagram R G VCC GND OUT R1554 R1511 R1550 R1512 Q1540 D1550 R1500 R1510 SW1551 SW1550 RM001 D1554 SW1553 R1551 SW1552 R1552 R1553 C1530 D1551 SW1554 R1513 6 3 V15 1 LED R REMOTE RECIEVER LED G STB+3.3V REMOTE_IN LED_R LED_G DS2 V2 KEY SWITCH VOL.UP F VOL.DOWN TV/VTR V1 STR DS15 KEY SW LED_G,R 2 1 V2 REMOTE RECEIVER 42 TH-65PF10CK 9.5. HA 和 HX 电路板方框图 Y Pb Pr JK3001 G Y G G G Pb G G G Pr G G IC3002 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC JK3002 AUDIO IN R L Q3001 Y A38 SCL A26 SDA B25 B24 Pb STB5V A36 VIDEO IN COMPONENT TERMINAL BOARD R EEPROM L Pr R AMP Q3002 L AMP A22 H1 A34 A28 HA COMPONENT VIDEO TERMINAL A21 INFORMATION 9V 9V DS13 TH-65PF10CK HA and HX-Board Block Diagram TH-65PF10CK HA and HX-Board Block Diagram JK3513 +9V +5V JK3511 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 +5V JK3509 1 2 3 4 5 8 9 6 7 TXD RXD AMP VD HD HX 5 PC IN/RS232C TERMINAL 6 4 7 5 6 PC G PC B RXD TXD PC Ls PC Rs RS-232C DS14 8 L 10 12 13 WC SDA IC3502 HX1 SCL 14 15 8 1 AMP DDC EEPROM PC IN PC AUDIO IN PC R VCC R 2 5V Q3531 9V Q3532 43 TH-65PF10CK 9.6. HDD 电路板方框图 RX2+ RX1+ RX0+ RX2- RX1- RX0- 81 85 93 86 94 80 90 91 +5V +9V LAN15V +3.3V STB+5V JK3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 55 54 56 53 51 49 50 52 106 3 59 60 62 65 63 64 61 66 31 30 34 35 32 37 33 36 23 26 24 25 22 21 20 27 70 69 73 74 71 77 72 75 11 14 15 13 10 16 12 17 40 41 99 8 47 48 44 46 92 76 96 77 75 74 99 104 121 122 5 9 20 14 120 19 119 55 54 56 53 51 57 58 52 2 27 4 3 60 59 48 47 45 44 46 40 43 38 39 42 41 37 123 124 126 127 128 1 10 11 98 97 86 83 79 78 30 34 63 JK3501 - - + - TMDS + - INTERFACE PANEL AND + DVI RECEIVER/HDCP LATCH SYNCHRONIZATION DATA RECOVERY DECODER IC3101 + DDC+5V B14 TX9+ SLOT SCL TX5+ TX8- SLOT5V B25 B9 PLUGDET DS12 B12 A10 B40 A5 B8 LAN+15V TX2- STB5V TX6+ TX6- B15 TX8+ SLOT9V A2 A22 SLOT3.3V A19 A26 B21 SLOT3.3V B19 A21 TX1- B3 A4 TX4+ H1 B24 TX1+ TX7+ TX0- A17 TX0+ A15 B11 TX3+ A13 B6 TX3- SLOT5V A12 TXC+ B17 AUDIO IN L A40 SLOT9V A3 A9 TXC- B2 A14 TX4- LAN+15V TX2+ TX9- TX5- A8 B39 TX7- A7 A28 B5 AUDIO IN R DVI-D IN SCL SDA 5 6 SCL0 SDA0 3 2 SCL1 7 EEPROM IC3901 6 SDA1 IIC BUS REPEATER IC3902 3 6 5 2 7 B2 B1 A1 A2 /OE2 LEVEL SHIFT IC3102 (3.3V <-> 5V) SCL_HDCP SDA_HDCP LATCH LATCH PLL 8 5 B1 3 B2 (3.3V <-> 5V) 6 VCC IC3105 2 A1 A2 LEVEL SHIFT SCL_EQ SDA_EQ 8 VCC +5V B23 SRQ +5V 15 14 7 11 16 VCC 6 SDA1 SCL1 P6 P3 P2 LEVEL SHIFT IC3103 (3.3V <-> 5V) ODD_G7 ODD_G6 ODD_G5 ODD_G4 ODD_G3 ODD_G0 ODD_G2 ODD_G1 ODD_B7 ODD_B2 ODD_B3 ODD_B0 ODD_B4 ODD_B1 ODD_B6 ODD_B5 ODD_R7 ODD_R2 ODD_R3 ODD_R0 ODD_R4 ODD_R1 ODD_R6 ODD_R5 HSYNC VSYNC DE ODCK +3.3V EVEN_B5 EVEN_B6 EVEN_B0 EVEN_B3 EVEN_B4 EVEN_B7 EVEN_B2 EVEN_B1 EVEN_B6 EVEN_B0 EVEN_B5 EVEN_B2 EVEN_B7 EVEN_B4 EVEN_B3 EVEN_B1 EVEN_G6 EVEN_G0 EVEN_G5 EVEN_G2 EVEN_G7 EVEN_G4 EVEN_G3 EVEN_G1 TXEC6 TXEC5 TCLKIN TXEC4 SCDT PRESET 1 3 5 7 TXOA+ TXOB- TXOC- TXOD+ TXOD- TXOB+ TXOE+ TXOE- TXOC+ TXOA- TCLKOUT- TCLKOUT+ TXEB- TXED+ TXED- TXEB+ TXEA- TXEC- TXEE- TXEC+ TXEA+ TXEE+ 8 TXOD2 TXOD3 TXOB0 TXOB5 TXOA0 TXOD1 TXOA5 TXOD0 TXED1 TXEA5 TXED0 TXEA0 TXEA4 TXED2 TXEB0 TXED3 TXEA6 TXED4 TXED5 TXEC0 TXEC1 TXEC2 TXEC3 TXEB6 TXEB5 TXOB6 TXOB5 TXOC3 TXOC0 TXOD5 TXOD4 TXC- TX5+ TX7+ TX8- TX0- TX0+ TX4- TX3+ TX6+ TX6- TX9- TX3- TX5- TX7- TX1- TXC+ TX8+ TX4+ TX1+ TX9+ TX2+ TX2- ODCK DE HSYNC VSYNC DE ODCK VSYNC HSYNC LVDS TX IC3201 1 2 4 5 7 6 8 9 TXC- TX5+ TX7+ TX8- TX0- TX0+ TX2- TX4- TX3+ TX6+ TX6- TX2+ TX9- TX3- TX5- TX7- TX1- TXC+ TX8+ TX4+ TX1+ TX9+ PWDDNB MODE0 RESRVD ODD_R0-R7 ODD_G0-G7 ODD_B0-B7 EVEN_R0-R7 EVEN_G0-G7 EVEN_B0-B7 +3.3V A23 FHD/SD,HD WP VCC 8 7 Q3100,Q3101 R L DVI-D AUDIO IN Q3511 Q3501 AUDIO_R AUDIO_L AUDIO_L AUDIO_R TMDS_RX2- TMDS_RX2+ TMDS_RX1+ TMDS_RX1- TMDS_RX0+ TMDS_RX0- TMDS_RXC+ TMDS_RXC- DVI_SDA DVI_SCL C_SCL C_SDA SLOT_SCL SLOT_SDA LVDS_PD PRESET SYNC_DET BUFFER IC3906 H0 C_SDA C_SCL SLOT_SDA SLOT_SCL DVI_SCL DVI_SDA STB 5V SRQ DVI_SCL DVI_SDA SCL SDA WP(CONFIG) WP(EDID) STB+5V LVDS_PD FHD:H FHD:H +5V SLOT SDA STB+5V SCL SDA 5 6 EEPROM 7 IC3001 8 WP VCC DVI_SDA DVI_SCL DVI-D TERMINAL HDD TH-65PF10CK HDD-Board Block Diagram TH-65PF10CK HDD-Board Block Diagram 44 TH-65PF10CK 9.7. H3 和 DS 电路板 （1/2）方框图 SOUND15V A_1.8V A_1.8V D_3.3V D_3.3V SOUND15V FAN5V D_1.8V SOUND15V JK8500 JK8500 SOUND15V SLOT5V P5V 5V_M 9V_2 A_5V D_3.3V 9V_2 12V SLOT9V A_5V D_1.8V SLOT3.3V A_3.3V A_3.3V STB3.3V Q2372 VIN 23 L SCL3 SW 4 AMP_STB_SW 17 SCL IC802 TO P5 AMP_ 3 STBY BAL 3 1 SW_B DS7 OUT- 27 VIN 7 AVR 9V 3 VIN 5 2 SP_R- +R OUT IN SDA L OUT SP_R+ TONE 73 7 +15V VCC 2 AVR 1.8V D2303 1 2 22 3 SOUND MUTE 21 17 AVR 3.3V AMP EQUALIZER MUTE SW -L OUT SOUND CONTROL VDD 2 8 SOUND+15V IC2302 SW H37 6 RESET +15V A G C RSTB 7 10W MONO 21 SW_E 37 IC2303 20 SP_L- IIC ON/OFF 4 Q2331 20 VIN OUT+ R 16 SHIFT H3 VCC Q2300 SOUND+15V STBY VIN 15 VIN OUT+ DS8 VCC 15 2 1 IC8100 6 SOUND+15V 16 8 2 DS4 1 6 3 AMP_STB_SW IC2305 3 AVR 5V 10 71 SP_L+ 1 S_DATA3 S_CLOCK3 IC801 IC804 CE BTL AMP L IC803 23 4 R OUT 5 AVR 12V 1 5 3 1 SW_E VCC 3 38 SW 4 5 10 1 H3 32 -R OUT OUT- +15V IN AUDIO L LPF 10W MONO PRE_ 22 SDA3 DS SLOT INTERFACE/SYNC PROCESSOR/SOUND PROCESSOR AUDIO R AMP_ 1 IC3008 8 1 1 +L OUT 1 SW_B SW_OUT 67 SW_OUT PHASE OUT VOL VOUT H37 BTL AMP R PRE_ 2 2 IC2301 VCC 8 H3 TERMINALS SPEAKER H3 TERMINALS SPEAKER R SPEAKER L SPEAKER TH-65PF10CK DS-Board (1 of 2) and H3-Board Block Diagram TH-65PF10CK DS-Board (1 of 2) and H3-Board Block Diagram 45 TH-65PF10CK 9.8. DS 电路板 （2/2）方框图 SCL3 SDA3 VD_2 TXD_PC VD_3 RXD_PC SLOT_TXD HD_2 P_STATUS DET_S1 SLOT_RXD HD_1 REMOTE_OUT TXD_S3 SCL1 LED_G SOS_ALL LED_R L_4 REMOCON RXD_S1 HD_3 IIC_CONT RXD_S2 R_4 KEY_DET KEY_SW RXD_S3 VD_1 IIC_SW LED_R LED_G VD_4 PB_M Y_M TXD_S1 PR_M TXD_S2 DAC1 DPMS_HD IIC_SW DPMS_VD DET_S2 STB_ON DET_S3 HD_4 DAC0 SDA1 RESET SDA3 SCL3 REMOCON KEY_DET 9V_2 LAN15V SLOT5V STBY5V_S 5V STB5V_S 5V_M STB3.3V STBY5V_S STB3.3V +15V LAN15V STB5V_S SLOT9V 5V_M P5V STBY5V_S 9V_2 5V_M 9V_2 9V_2 9V_2 12V SLOT9V 9V_2 STB3.3V P5V SLOT3.3V STB3.3V STB5V_S STB5V LAN15V SLOT9V SLOT3.3V STB5V_S SLOT5V S2_1 A28 S2_1 IIC 23 2 TX5+ PR_4 TXG+ 4 VD_1 PB_3 10 B_OC+ A8 SRQ SCL3 PR_3 Q8012,Q8013 SDA3 42 S2_3 B40 A7 REMOTE L SDA_S1 B_OA- 51 17 A28 A17 SCL_S2 A6 HD/Green IC8181 IC3152 14 50 SLOT+9V TX9+ LAN+15V TX7- TX3+ SCL TXG- TXC+ A_EC- 8 10 HD_2 A_ED- Q8019 TX6+ A10 53 LAN+15V 12 PR_2 TX3- 14 TXC- A_EE+ Y_2 41 Q8184 R TXCG TX4- A_ED+ TX2G B_EE- B_EA- PBout1 TX7+ TX4+ A_EC+ TX6- A SCL3 TX7+ 23 A12 TXG- B15 TXD_PC 11 TXC+ 14 R_4 TXG+ REMOTE B24 B13 2 36 B_CLK- S0/S1 L_4 54 A9 TXC- 16 B30 TXC- TX6- B_CLK+ 30 A40 PR_4 IC3003 A14 TX6+ 31 SOS OUT Y_1 PB_4 B25 SCL3 A_OB+ 33 SDA3 15 A_OB- 6 H 5 69 B36 Q3001 L SYNC_INH 6 1 SLOT+3.3V 3 A26 Q8017 DS3 B31 A30 Q8010,Q8011 B_OB+ Q8016 A22 TX8- 3 A34 RESET 16 B26 B_OE+ VD_2 Q8182 PB_4 B12 SLOT+3.3V SW1 TX9- IIC_SCL B10 TX9+ B30 10 A11 PB_M DS TX3- ETX_G3 HD in CS(M) 30 B24 DPMS_VD B11 TXCG A 6 3 TX9- 8 STB_ON TX7+ 2 9 B26 A26 Q8183 3.3V<=>5V 1 B4 10 B23 B10 B_ED+ SCL_S3 SLOT+9V SDA3 IC8014 A11 TXC- B_EC+ SRQ ETX_G3 A_CLK+ TXG- B23 A_OE+ B_OE- Yout1 EX.I/O(IIC SW) 24 TX9- TX8+ B11 B19 16 TX9+ 29 L IC3002 SOS TX5- A36 B21 SW0 7 VCC 2 TX7- SYNC_INH PR_3 RXD_S1 B5 SRQ B14 TXD_S3 34 5 SCL_S1 DET_S2 TX5+ 36 SDA_S1 SLOT2 TX8- 37 12 SOS PR_2 PRout2 1 48 5 66 A40 HD A_EE- B9 SCL_S3 A_OE- SLOT+3.3V VD_HX 17 47 TXD_S1 9 18 B17 65 PRout1 R_2 Q8181 3.3V<=>5V B_OC- TX6- DET_S1 KEY_SW 57 IIC_SDA Q8002 B_EE+ TX3+ Y_2 CONT. X8181 1 56 8 TX1+ IC3151 36 STB+5V Y_4 26 68 B_EB- 3.3V<=>5V 1 SDA SLOT1 27 VCC TX8+ TX1- SCL3 R1 29 5 SW0 A_OD- B_EB+ 1 8 38 TX8- R2 8 A2 A_OD+ R3 TX4+ SCL_S1 Q8018 RXD_PC L L3 B36 TX0G B27 L OUT1 SLOT_RXD 6 A22 L1 B17 TX0- DAC0 S2_3 A15 L2 A38 DET_S3 1 A1 15 TX3+ 2 10 A19 TX0+ 48 B25 VD_M TX9+ 19 DS A3 35 SOS HD_4 B15 17 PR_1 23 TX4- 1 TX3- H 27 TX4+ SCL 30 TX7- B21 A36 B1 A14 DS11 B_EA+ 15 14 B9 SLOT3 3 ETX_G1 3 B36 SLOT2 VD 3.3V<=>5V IC8009 TX0- TXG+ DS B7 B26 EXT_G2 B2 P_STATUS B35 B23 TX0+ 15 A8 B6 TX4- 1 HD_1 26 B28 DS TX6+ VD_3 B4 6 TX3+ 42 B31 PR_1 A28 24 3 SLOT+9V B8 RESET A5 A13 Y_1 VD_4 B29 4 TX5+ B6 SLOT3 B32 FAN B5 1 4 B3 SDA3 6 18 TX3- Y_4 5 1 9 A12 A32 L 5 6 7 TXC+ R_3 3 VD TX3G 14 B_OD- RXD_S3 B12 S2_2 B_OA+ 9 TX1+ IC3006 HD LAN+15V A10 TX8- PB_1 4 A4 3 A5 TX5- TX1- SDA3 12 TXG+ IC8007 33 TX1G 10 A7 A34 B_OD+ DET_S1 B8 2 TX5- SLOT3 TXG- 18 RXD_S2 16 1 12 R_1 EXT_G2 A6 TX2G B_EC- STB+5V IC8001 8 3.3V<=>5V SDA_S3 21 2 TX1G 9 4 TX6- 39 B28 TX8+ 1 15 A9 17 A36 SLOT+3.3V L_1 B7 2 13 2 38 B30 B35 HD_3 S_DATA3 A2 15 A19 A30 TX1- 13 CS(M) 13 HD_M A17 19 REMOTE OUT TX1+ 3.3V<=>5V 1 IC3007 PB_2 1 9 A_EB- SCL3 38 Yout2 TX1- A38 SCL3 13 TX9- DS6 SDA_S3 A_EB+ AC_CS(M) SCL3 B14 78 2 2 A_EA+ SCL3 TX3G A_OA- B25 Q8200-Q8202 A13 B28 77 A30 S1 A34 TX8+ B19 L_3 B40 7 5V 15 B13 RESET H 5 13 TX0- 7 4 IC3150 TX0+ 30 B SDA3 34 60 16 B3 A_OC+ L SLOT+5V SOS A_EA- 13 A4 TX5+ TX7- DS2 59 TX4+ TX5- SDA TX7+ 14 SDA3 2 A21 15 TX1+ A_OA+ 72 SLOT+5V 5 6 SLOT2 11 46 TX0G 75 PBout2 A_OC- PB_3 13 L TX0- 74 3 DAC1 VCC 71 A1 4 2 11 8 RTC INT 63 5 DS1 22 4 62 SCL3 Y_3 8 1 B_ED- TXC+ S_CLOCK3 4 8 32 SDA3 SW1 32 A_CLK- IC3001 10 3 TX6+ PR_M B27 Y_M 20 A21 IC3004 SLOT1 12 3 B B_OB- LAN+15V Y_3 13 15 21 4 12 IC3005 SDA3 27 44 14 10 3.3V<=>5V 6 6 16 DPMS_HD 16 REMOTE OUT TX0+ OUT2 SDA_S2 PB_2 A32 A15 40 SLOT+9V DS12 A3 SLOT1 4 SLOT+5V DS13 B1 B35 L_2 A38 REMOTE 7 ETX_G1 HD_HX SLOT_TXD CS(M) B24 H S2_2 B2 TXD_S2 A32 B27 TX4- 21 SOS_ALL IC8005 L B31 16 S0 3 PB_1 SLOT+5V 22 A26 Green H1(HDD) H1(HA) SLOT+15V B38 SLOT+15V B37 SLOT 3.3V SLOT 5V SLOT 9V STB 5V SLOT 15V LAN 15V B38 SLOT 15V SLOT+15V SLOT+15V B37 5 2 1 4 3 6 AUDIO L RESET SOUND MUTE AUDIO R TO V15 POWER_ STAT RXD_TV TO V2 REMOCON SDA1 SCL1 FAN_SOS 5V TXD_PC DPMS_HD OPT IIC_CONT TXD_TV RESET STB3.3V STB_ON REMOCON STB3.3V KEY_DET LED_G LED_G SCL3 DPMS_VD SDA3 KEY_SW TO DN3 KEY_SW LED_R RTC_INT RXD_PC SOUND_ MUTE 5V_M STB5V REMOCON_ OUT LED_R 6 20 A40 B40 LAN+15V LAN+15V B17 A19 A17 A22 B21 B19 A21 SLOT+15V B37 SLOT+15V B38 SLOT 15V PR/R RESET IIC_CLOCK RXD POWER_STATUS SLOT3.3V REMOTE SLOT5V TXD SLOT5V VD SLOT3.3V Y/G STB5V CABLE DET PLUG DET PB/B HD IIC_DATA AUDIO IN R SLOT9V S2DETECT SLOT9V SOS SRQ AUDIO IN L LEVEL SHIFT LEVEL SHIFT IIC ON/OFF LEVEL SHIFT LEVEL SHIFT AUDIO SELECT TIME CLOCK 8bit DAC1 CONT. EX.I/O(SLOT DET IIC CONTROL) 8bit DAC0 8bit DAC3 OUTPUT PORT 8bit DAC4 OUTPUT PORT IIC OUTPUT PORT OUTPUT PORT EX I/O(VIDEO/AUDIO SELECT) OUTPUT PORT(SW2) 8bit ADC(SYNC INH(M)) 8bit DAC(FAN CONT) 8bit DAC(CS(M)) OUTPUT PORT(SW1) OUTPUT PORT(SW0) 8bit DAC(LPF(M)) OUTPUT PORT(SW3) IC8016 PC SYNC INVERTER ASPECT DET MAIN COMPONENT SELECT IIC CONT. SUB LEVEL SHIFT LEVEL SHIFT L 5V R/PR_M HD TXD B/PB_M TO PB30 TO P10 FAN_SOS TO DN1 PR/R 15V PB/B LAN15V(F_STBY) HD_M G/Y_M 5V VD_M FAN_CONT VD RXD LAN15V(F_STBY) 9V R Y/G TO HX1 TO DN6 PR/R VD REMOTE HD PLUG DET IIC_DATA SRQ AUDIO IN R RXD Y/G AUDIO IN L SOS PB/B IIC_CLOCK RESET TXD S2 DETECT Y/G VD IIC_CLOCK AUDIO IN L RESET TXD REMOTE SRQ RXD S2 DETECT SOS PB/B HD IIC_DATA AUDIO IN R PLUG DET PR/R LEVEL SHIFT SYNC SWITCH SYNC SELECT PROCESSOR SYNC SIGNAL HD SWITCH IC8003 DRIVER RS232C H Sync V Sync SEPA SEPA SERIAL SELECT INVERTER SYNC SIGNAL DS-BOARD SOS LED BLINKING :10TIMES SLOT INTERFACE DS SOUND PROCESSOR SYNC PROCESSOR TH-65PF10CK DS-Board (2 of 2) Block Diagram TH-65PF10CK DS-Board (2 of 2) Block Diagram 46 TH-65PF10CK 9.9. DN 电路板 （1/2）方框图 VD-M HD-M 3V_SCL3 RXD_PC FAN_SOS IIC_CONT IIC_INT IIC_CONT RXD_PC LED_R 3V_SDA1 5VRXD_TU TXD_PC RTC_INT SOUND_MUTE 3V_SDA1 REMOCON 3V_SDA3 3V_SDA3 3V_SCL1 TXD_PC REMOCON_OUT 5VTXD_TU 3V_SCL3 LED_G 3V_SCL1 KEY_INPUT DPMS_VD NRST DPMS_HD STB_ON POWER_STATUS P3V_SCL2 HD CLP PLLH P3V_SDA2 VD PLLV SDA1 PDB1 REMOCON PBUSY PSTB IIC_INT SDA2 PDB1 SDA1 SCL1 PBLCT SCL2 SCL2 PDB0 PBUSY PSTB RXD SCL1 PDB0 TXD PSLCT IIC_CONT SDA2 IIC_CONT IIC_INT SDA1 SCL1 ALARM READY LED_R LED_G 5VRXD_TU LED_R 5VTXD_TU 3VRXD_TU 3VTXD_TU LED_G NRST UART_SW RXD_PC TXD_PC DISPEN RTC_INT RXD_PC IIC_CONT FAN_SOS ALARM ALLOFF READY TXD_PC IIC_INT UART_SW SOUND_MUTE DPMS_HD POWER_STATUS STB_ON DPMS_VD KEY_INPUT DISPEN PANEL_STBY_ON REMOCON_OUT IIC_CONT REMOCON P3V_SDA2 P3V_SCL2 3V_SCL3 P3V_SCL2 3V_SCL1 3V_SDA1 P3V_SDA2 3V_SDA3 RXD_PC 3V_SDA3 3V_SDA1 TXD_PC IIC_CONT P3V_SDA2 3V_SCL3 IIC_INT 3V_SCL1 P3V_SCL2 NRST OSD-CLKIN OSD_YM OSD_DATA0-15 OSD_YS OSD-HDO OSD-HDIN OSD-VDO 3V_SCL1 3V_SDA1 P3V_SCL2 P3V_SDA2 FLD CLK LED_G LED_R STB+5V STB+3.3V P+5V P+5V 5V_M P+15V STB+5V P+15V STB+5V STB+3.3V STB3.3V Q4010 STB5V Q4009 STB+5V D4006 +2.5V +3.3V P+5V +1.2V D4008 D4007 P+15V Q4007 Q4006 STB+3.3V +3.3V +3.3V +3.3V 2.5V 2.5V STB+1.5V STB+3.3V STB+5V STB+3.3V +3.3V +3.3V +1.2V +3.3V STB+3.3V STB+3.3V STB+3.3V +3.3V 5V_M P+5V +3.3V 21 9 4 63 22 57 55 10 64 30 31 18 19 45 43 6 7 70 42 49 61 58 39 48 60 67 27 28 15 51 16 24 25 33 12 13 52 34 69 40 46 DN6 54 3 66 4 2 6 DN1 8 10 27 9 21 29 10 30 22 23 12 1 14 IIC_BUS 16 DN3 4 18 5 6 19 8 26 36 37 31 33 38 34 IC4609 13 8 11 25 21 17 3 4 SDA SCL R9 42 R G 63 B9 73 Pb/B IN HSYNC 14 23 54 51 B 71 SCL VSYNC VSYNC 67 37 G9 B 22 6 G GE0-9(10bit) 110M 10BIT Pr/R IN HSYNC CLAMP Y/G IN 2 66 R R0 70 SDA ADC 28 G0 B0 IC4606 SDA0B 5 20 6 19 7 8 1 DN 11 21 9 1 7 119 22 12 10 18 2 118 11 19 23 6 2 14 21 12 4 7 2 5 8 16 11 27 DN2 4 1 8 3 26 13 1 14 15 15 SCL0B 16 5V<-3.3V 27 28 IC4008 VCC 4 RXD_TU 42 TXD_TU IC4007 41 NRST NRST VCC 5V->3.3V 5 5V<-3.3V 1 2 6 Q4014 IC4011 35 39 37 122 36 171 25 166 158 26 130 5 38 RXD_PC 30 161 TXD_PC 165 131 1 170 DPMS_HD DPMS_VD 40 140 P+15V SOS P+3.3V SOS +3.3V SOS 139 +1.2V SOS P+5V SOS +2.5V SOS 132 134 Q4004 Q4003 Q4002 P+15V SOS Q4013,Q4012 Q4705 Q4015 Q4016 A OR GATE B Y IC4005 4 1 5V->3.3V HDA/VDA A IC4607,IC4608 B Y HD-M/VD-M 2 5V<-3.3V Q4022, Q4023 IIC_BUS RE0-9(10bit) BE0-9(10bit) 2 OUT IC4605 4 VCC 2 OUT IC4610 4 VCC VDD VDD 121 SDA1 120 SCL1 IIC_BUS SCL2 89 86 88 SCL0A 87 SDA0A SDA2 IIC_BUS 8 1 9 2 SDA1 10 STB+3.3V TXD 11 4 SDA3 5 IIC_INT /BOOT 12 IIC_CONT RXD SCL1 SCL3 SDA2 6 1 4 7 STB+5V SCL2 DN4 CLK- OA- - OE- CLK+ EA- - EE- OA+ - OE+ EA+ - EE+ [A] IC5001 [A] OA- - OE- IC5002 CLK+ [B] CLK- EA+ - EE+ EA- - EE- OA+ - OE+ [B] A_OA0-6,A_OB0-6 A_OC0-6,A_OD0-6 A_OE0-6 A_EE0-6 A_EA0-6,A_EB0-6 A_EC0-6,A_ED0-6 B_OE0-6 B_EA0-6,B_EB0-6 B_EE0-6 B_OA0-6,B_OB0-6 B_EC0-6,B_ED0-6 B_OC0-6,B_OD0-6 LVDS PWDN/EN LVDS CLK LVDS CLK LVDS EVEN LVDS PWDN/EN LVDS IN IC5101 30bit 2_RGB VIDEO SIGNAL PROCESSOR MICOM COMMU IIC CONT MCDATA MCCLK MCLD SCL SDA CBCLK_A CBCLK_B X2CBCLK_A X2CBCLK_B 24 D15 7 A0 D0 65 61 A18 79 57 82 76 46 33 NRST EEPROM_WP 84 HOUTA 110 VSYNC R00 95 69 68 97 HSYNC YSOUT VCLKOUTA 94 YMOUT OSD 90 B04 96 109 104 G05 R04 115 G00 B00 101 92 OSDKXI 168 NRST_FP 34 P_ON/OFF 2 MCLD MCDATA MCCLK 29 43 44 ICHIPS_RST 45 164 ICHIPS_SI IC4001 VDD IIC_BUS IC4004 6 Q4011 EEPROM(128k) IC4003 2 VCC 1 8 5 WC SDA VOUT 7 SCL IC4002 RESET VCC Q4001 LVB_CLK LVB-PWDN,OEN,EEN LVA_CLK LVA-PWDN,OEN,EEN DQ1-DQ15 WE,CE,OE A0-A18 IIC_BUS BE0-9 GE0-9 RE0-9 A0-A18,CE,OE,WE WE OE CE D0-D15 IIC_BUS B_OB- B_OC- A_EA+ A_OA+ A_OA- B_OA- B_EE+ A_OC- B_CLK- B_OD- B_OA+ B_EB- B_CLK+ A_EC- B_ED+ A_ED- B_OC+ B_EC+ B_OB+ A_OB+ A_OD- A_CLK+ B_ED- B_EB+ A_EE+ B_OE+ A_OE+ B_OD+ A_OB- A_EB- B_OE- A_OC+ A_EE- A_CLK- A_OE- A_EA- A_ED+ A_OD+ B_EE- B_EA- B_EA+ A_EB+ A_EC+ B_EC- R G B STB_ON MICOM FLASH MEMRY 16Mbit RESET LVDS ODD LVDS IN LVDS EVEN LVDS ODD CLOCK BUFFER 3 +5V(M) ALL_OFF 29 STB_ON P+5V 30 IN1 IN2 IN3 OUT1 OUT2 OUT3 +1.8V_PLL +1.8V_AVDD 21 25 O/E FIELD DATA CLK AD_B0-B9 AD_G0-G9 AD_R0-R9 CONTROL FLASH MEMORY HDA,VDA HD,VD,CLP PLLH,PLLV AD_H,AD_V HD_ADA,VD_ADA HDA,VDA A/D AD_FLD,AD_CLK CLPA FLD,CLK R/G/B ICHIPS_SS FIFO IC5104 DI0 DI23 DO23 DO0 Y_DI(0) Y_DI(23) Y_DO(0) Y_DO(23) VCC/ VCCQ DI23 C_DO(0) FIFO C_DO(23) VCC/ DO23 DI0 DO0 C_DI(0) C_DI(23) VCCQ IC5105 FPGA1 60bit 2_I-CHIPS OUT OSD_72MHz NRST-FP MCDATA-0 ICHIPS-SI MCCLK ICHIPS-RST ICHIPS-SS P_ON/OFF PANEL STBY_ON VCC VCC [A] [B] DN DIGITAL SIGNAL PROCESSOR/MICOM G/Y-M TO DS6 B/PB-M HD-M R/PR-M VD-M TO DS1 VIDEO BUFFER CLP CLP CLP A/D CONVERTER(MAIN) 10bit_RGB VIDEO SIGNAL SYNC SEPA AVR 1.8VPLLVDD AVR 1.8VAVDD LEVEL CONVERTER DPMS_HD TXD_TU TXD_PC KEY_INPUT RXD_PC IIC_CONT RTC INT SDA3 FAN SOS TO DS3 LED_R RESET REMOCON RXD_TU REMOCON OUT SOUND MUTE LED_G STB3.3V POWER STATUS SCL1 DPMS_VD STB_ON SDA1 SCL3 STB5V 5V PSTB RXD IIC_DATA1 ECO ON STB5V IIC_DATA2 PANEL_ STBY_ON PDB0 IIC_CLK1 TO D3 PDB1 TXD IIC/INT P15V PBUSY IIC_CONT IIC_CLK2 READY DISPEN ALL_OFF PSLCT ALARM STB_ON SOUND_MUTE IIC_INT POWER STATUS IIC_CONT KEY_INPUT READY ALLOFF RTC_INT FAN_SOS DRV_MUTE ALARM UART_SW REMOCON INH TV_ON/OFF RMIN REMOCON OUT LED_R LED_G CONTROL FLASH MEMORY FOR FACTORY USE LEVEL CONVERTER LEVEL CONVERTER RECEIVER LVDS Low Signaling TTL DATA PARALLEL Differential Voltage RECEIVER LVDS Low Signaling TTL DATA PARALLEL Differential Voltage LVDS RX LVDS RX FOR FACTORY USE SDA2 PBLCT SCL1 PDB0 LED_R LED_G P15V PBUSY PDB1 REMOCON RXD IIC_CONT STBY3.3V SCL2 IIC_INT TXD SDA1 PSTB STBY5V SERIAL SWICTH 1 2 3 4 EVEN ODD EVEN ODD TH-65PF10CK DN-Board (1 of 2) Block Diagram TH-65PF10CK DN-Board (1 of 2) Block Diagram P+15V OVER VOLTAGE LED BLINKING 2 TIMES P+3.3V/2.5V/1.8V FAIL VOLTAGE LED BLINKING 13 TIMES P+5V FAIL VOLTAGE LED BLINKING 5 TIMES SLOT POWER PART SOS DET 47 TH-65PF10CK 9.10. DN 电路板 （2/2）方框图 P3V_SDA2 P3V_SCL2 P3V_SDA3 P3V_SCL3 P3V_SDA2 P3V_SCL2 Q4021 Q4020 P+15V +3.3V +3.3V +3.3V +2.5V STB+1.5V STB+3.3V STB+5V +1.2V +3.3V +2.5V G2 OUT2 S2 CTL IC4901 3 17 23 8 OUT1 4 24 26 G2 15 25 P+15V Q4017 P+15V FB1 OUT1-2 15V->3.3V/1.2V 20 VCC S1 19 IC4305 LX D1 D1 15V->2.5V S1 -INC1 P_ON/OFF OUT1-1 D2 VO 24 FB G1 LX1 S2 D2 12 -INC 8 D1 Q4018 +3.3V VCC G1 D2 D2 23 18 VO1 20 7 D1 31 29 23 17 25 21 30 28 20 10bit LVDS 18 TX_OUT0- 26 24 TO D5 DN5 15 E-LVDS2 E-LVDSCLK 10 7 E+LVDS3 E+LVDS2 E-LVDS3 E+LVDS1 9 E+LVDSCLK E-LVDS0 12 5 14 6 1 11 4 10bit LVDS E-LVDS1 E+LVDS4 2 E+LVDS0 E-LVDS4 FPGA_NCONFIG FPGA_NCEO FPGA_DCLK2 FPGA_DATA01 FPGA_NSTATUS FPGA_CONFDONE XIN 1 4 LCLK1 SDAT 7 SCLK IIC_BUS 10 IC5103 8 LCLK2 CBCLK_A X2CBCLK_A 1 X2CBCLK_B 4 XIN 7 SCLK 10 LCLK2 8 IC5102 CBCLK_B LCLK1 SDAT IIC_BUS IC4604 VDD X4002 XT 1 XTN 20 (74.25MHz) CLK7 4 7 CLK1 (2088MHz) (74.25MHz) 9 CLK3 (72MHz) 13 CLK5 OSD_72MHz CLKM_20MHz 74M_SS NRESET CLKM/CLK6 CLKM_20MHz NRST-FP I-CHIPS PORT1 OUT PORT1_HS,_VS,_CLK PI1D(0)-(59) PORT1_FLD,_ACT PI1_HS,_VS,_CLK PI1_FLD,_ACT RGB IN PORT1 PI1HSB,PI1VSB, PI1CLK PI1FLD,PI1ACTB (60bit) I-CHIPS IC5301 DDR_SD-RAM SD-RAM1 DATA ADDRESS POD_0-POD_59 FPGA2 OUT SD RAM2 DATA POHSB,POVSB POFLD,POACTB SO SI SCLKB RSTB MCLK CLK IN CPU I/F DDR_SDRAM1 WE,CAS,RAS A0-A11 DQ1-DQ31 VCC IC5303 VCC WE,CAS,RAS DQ1-DQ31 DDR_SDRAM2 IC5304 +2.5V [EVEN] [ODD] O+LVDSCLK O-LVDSCLK O-LVDS1 O+LVDS4 O-LVDS4 O-LVDS3 O+LVDS1 O+LVDS0 O-LVDS0 O-LVDS2 O+LVDS3 O+LVDS2 FPGA_NCONFIG FPGA_NCEO FPGA_DCLK FPGA_DATA0 FPGA_NSTATUS FPGA_CONFDONE OSD IN OSD_HDO OSD_VDO OSD_YS OSD_YM OSD_CLK OSD-HD OSD_DATA0-15 DQ0-DQ31 PO_VS PO_HS PO_ACT PO_FLD PO_RE0-9 [ODD] [EVEN] PO_GE0-9 PO_BE0-9 PO_GO0-9 PO_BO0-9 PO_RO0-9 I-CHIPS RGB IN IC5603 FPGA2 PO_CLK CLK6 NRST SDA SCL CLK_O VSYNC ROUT BOUT GOUT HSYNC LVDS OUT[ODD] +1.2V +2.5V +3.3V IIC_BUS CLKM_20MHz_F2 PO_CLK_FP2 74M_NON_SS NRST-FP MCDATA-0 ICHIPS-SI MCCLK ICHIPS-RST (60bit) PO_HS,_VS PO_RO0-9,PO_GO0-9,PO_BO0-9 PO_FLD,_ACT PO_RE0-9,PO_GE0-9,PO_BE0-9 (60bit) DC-DC CONVERTER DC-DC CONVERTER VIN STB 1.5V 5 VDD VOUT 4 4 IC4309 VOUT 2 IC4306 STB 3.3V CLOCK BUFFER CPG INTERFACE PI1D(0)-(59) PI1D(0)-(59) PORT2_HS,_VS,_CLK PI2D(0)-(59) (60bit) PI2_HS,_VS,_CLK PI2_FLD,_ACT I-CHIPS PORT2 OUT PI2D(0)-(59) RGB IN PORT2 PI2HSB,PI2VSB, PI2CLK PI2FLD,PI2ACTB PI2D(0)-(59) PORT2_FLD,_ACT (60bit) IC5101 FPGA1 CLK_O VSYNC ROUT HSYNC LVDS OUT[EVEN] BOUT GOUT TX_OUT0+ TX_OUT1- TX_OUT1+ TX_OUT2- TX_OUT2+ TX_OUT3- TX_OUT3+ TX_OUT4+ TX_OUT4- TX_CLK1- TX_CLK1+ G1 D1 S2 D2 D1 G2 D2 S1 TX_CLK2- TX_CLK2+ TX_OUT5- TX_OUT5+ TX_OUT6- TX_OUT6+ TX_OUT7- TX_OUT7+ TX_OUT8+ TX_OUT8- TX_OUT9- TX_OUT9+ CLK DQ0-DQ31 DQM0-DQM3 A0-A11 CLK VDD +3.3V A0-A11 VDD +3.3V DQ0-DQ31 DQM0-DQM3 IC5601 SDRAM1 IC5602 SDRAM2 OUT2-2 OUT2-1 19 LX2 -INC2 16 CTL 12 11 VO2 FB2 Q4019 +1.2V DQ0-DQ31 ADDR0-ADDR11 PLL11_OUT SDRAM_I/F 6 2 5 3 4 1 2OE 2A 2Y 1Y 1A 1OE IC4601 74M_NON_SS CLKM_20MHz_F2 ICHIPS-SS SS ICHIPS-SI MCCLK FPGA_DATA1 FPGA_DATA0 FPGA_DCLK2 FPGA_DCLK FPGA_CONF_OE 74M_SS PO_CLK_FP2 74M_SS 74M_NON_SS VCCK VCC VCC A0-A11 LVDS_DE 16 30bit 2_RGB VIDEO SIGNAL PROCESSOR 60bit 2_I-CHIPS OUT CONFIGURATION CONFIGURATION IP CONVERSION CLOCK BUFFER CLK/SERIAL SELECT LVDS DATA (SERIAL) PARALLEL TTL LVDS DATA (SERIAL) PARALLEL TTL 10bit LVDS OSD VIDEO SIGNAL PROCESSOR 4 1 2 3 DN DIGITAL SIGNAL PROCESSOR/MICOM TH-65PF10CK DN-Board (2 of 2) Block Diagram TH-65PF10CK DN-Board (2 of 2) Block Diagram 48 TH-65PF10CK 9.11. D 电路板 （1/2）方框图 PBUSY SCLK2 LED_R P_SOS PBUSY SDA2 SOS VDA P_CTL SCLK2 P_STATUS CLKM PSLCT RM SCLK2 MAIN TXD PDB1 SDA2 PSLCT VAD SCLK2 MUTE SOS LED_G MUTE TXD IIC/INT PDB1 RM CTL SDA1 SDA2 SCLK1 P_SOS LED_R PBUSY PDB0 SDA1 SDA2 SDA2 SCLK1 IIC/INT IIC_CTL SCLK2 SDA2 SCLK1 IIC/INT IIC_CTL RXD SCLK2 SDA1 RXD PDB0 LED_G MAIN CTL IIC_CTL P_STATUS PDB1 RXD TXD PSTB PSTB P_CTL IIC/INT PSTB PSLCT PRCK D9811 R3134 P+2.5V R9870 R9868 R9220 R9127 R9221 R9871 D9802 R9222 P+1.2V Q9051 P+3.3V D9804 R9205 Q9800 D9807 P+3.3V Q9046 IC9809 IC9806 P+3.3V Q9805 R9206 Q9806 IC9800 IC9007 IC9807 D9020 P+5V P+5V Q9044 Q9803 P+1.2V STB+5V P+1.2V P+15V Q9052 R9869 IC9002 R9203 R9218 Q9801 STB+5V P+15V R9217 X9000 P+15V R9207 Q9053 Q9054 R9141 IC9001 IC9003 D9808 R9219 R9215 P+2.5V IC9011 9 HD,VD 29 NCS HD 16 PBUSY SUS CONTROL S DATA1 P+15V SOS DET 19 16 REMOTE INV. MAIN ON/OFF +3.3V 4 23 (1MB) 7 +3.3V 5 5 O+ LVDS2 23 8 15 HD,VD 15 14 9 G E- LVDS0 RESET 5 TTL 1 STB+3.3V 21 6 E- LVDS3 10bit MCU PROCESSOR 23 16 ASDIO HD,VD 15 O+ LVDSCLK O+ LVDS4 S CLOCK1 TXD DCLK PSLCT O- LVDS1 10 O+ LVDS3 P+2.5V P+15V OVER VOLTAGE LED BLINKING 2 TIMES DRV_MUTE +2.5V 10bit E- LVDS1 VIDEO SIGNAL PROCESSOR O+ LVDS0 ON/OFF 5 73 (64k) P+15V SOS DET RX 12 O+ LVDSCLK P+3.3V S CLOCK1 25 29 PDB0 PARALLE REMOTE IIC_CONT PDB1 TO DN5 E+ LVDS3 O+ LVDS1 TO P25 11 27 PSTB P+1.2V/+1.5V/+2.5V/+3.3V ON/OFF E- LVDS2 DRIVER RESET E+ LVDS2 18 VD 6 P+3.3V BUS SW 1 11 74 LVDS_DET PBUSY Q9401 LVDS_DET O+ LVDS1 R P+1.2V PANEL DRIVER 2 O- LVDSCLK 24 SOS DET RGB P+15V E+ LVDS1 Vda SOS DET DCLK 17 69 O+ LVDS2 29 O+ LVDS3 26 CONT E- LVDSCLK 25 O- LVDS0 26 IIC_INT P+2.5V 20 38 +3.3V 67 ASDIO IIC_CTL E- LVDS4 15 V MUTE 9 P+3.3V P+1.2V DATA CONTROL(U) D3 LED R O- LVDS4 10 TEMP SENSOR 17 PSLCT LED G POWER SOS DET E+ LVDS3 O- LVDS1 RXD 12 39 7 18 9 LED R 13 7 STB+3.3V/RESET 31 1 O- LVDS4 5 OSC 4 O- LVDS2 SYNC SCAN CONTROL 37 STB+5V O- LVDS2 18 18 B D5 18 21 S DATA1 68 P+3.3V SOS DET 2 6 6 14 SCAN POWER_SOS2 +5V 10 STB+3.3V O+ LVDS4 20MHz 72 17 27MHz DATA0 STB+3.3V P+2.5V D6 DRIVER RESET 6 E+ LVDSCLK 24 IIC TO DN2 DATA CONTROL(D) 3 13 DISCHARGE CONTROL 10bit 21 71 2 DRV_MUTE 66 84MHz P+5V ON/OFF RXD 20 1 1 S CLOCK2 E+ LVDS2 P+3.3V P+5V 3 P+3.3V FAIL VOLTAGE LED BLINKING 3 TIMES STB+3.3V O- LVDSCLK STB+3.3V +1.2V E- LVDS1 14 70 DCLK O+ LVDS0 26 12 E+ LVDS4 16 B O- LVDS3 2 50 51 16 6 6 27 TXD P+5V FAIL VOLTAGE LED BLINKING 5 TIMES R S CLOCK2 G 12 11 E- LVDS3 LED G STB+3.3V 3 1 36 4 14 76 ASDIO P+5V SOS DET 10bit 19 P+5V SOS DET DATA 22 Q9010 EEPROM(FPGA) E- LVDS2 1 10 E- LVDS0 NCS P+1.2V/+1.5V/+2.5V/+3.3V 2 IIC/INT HD,VD E- LVDS4 O- LVDS0 7 NCS S DATA2 POWER STATUS E+ LVDS0 15 SCAN ENEGRY RECOVERY_SOS1 STB PDB1 INV DATA0 20 O- LVDS3 LVDS D25 P+3.3V E+ LVDS1 4 E+ LVDS0 E+ LVDS4 28 E+ LVDSCLK 65 PANEL SOS DET DATA0 RESET ON/OFF 20 PSTB LVDS_DET E- LVDSCLK 30 EEPROM 28 8 PANEL POWER PART SOS DET 10bit 10bit S DATA2 PLASMA AI PROCESSOR FORMAT CONVERTER, D P+15V STB+5V F_STB_ON P+5V P+5V PANEL_ON Vda_Low ALL_OFF PS_SOS P+15V ECO_ON PSTB TXD DISPEN IIC_CONT PBUSY IIC_DATA2 PDB1 ECO ON P15V READY STB5V ALL_OFF PSLCT IIC/INT PANEL_STBY_ON IIC_CLK1 PDB0 RXD ALARM IIC_DATA1 IIC_CLK2 F_STB_ON FOR FACTORY USE TH-65PF10CK D-Board (1 of 2) Block Diagram TH-65PF10CK D-Board (1 of 2) Block Diagram IC9500 16 17 18 19 20 21 22 1 3 2 4 5 6 7 8 9 10 11 12 13 14 15 49 TH-65PF10CK 9.12. D 电路板 （2/2）方框图 CL SDA2 CSL SIU CPH PRCK SCSU SDA2 CLKM CML CEL SCL2 PCK CEH CEL2 CSH OCK SCL2 SID CMH CLK D9302 D9300 D9301 P+2.5V D9304 P+5V P+3.3V D9305 P+1.2V D9303 (D16B,D16C,D18A D21C) CLKU1(-) P+5V 61 DATA CONTROL 8bit 1 CLK CLRU1 P+5V 57 19 DATA 14Bit 26 CLKD5(-) U29A +5V DET LEU2 1 50 P+3.3V 26 63 10bit CLKU3(-) UMH 84MHz CLKD1(-) CLKU3(-) 34 P+2.5V NUEL UML IC9200 IC9400 10bit 61 CLKU2(+) 36 42 11 IC9802,IC9803 D17A-D17C 60 25 26 2 DRV_SOS8 39 *DATA DRIVER 8 27 45 D12A-D13C DDR-IO 53 CLKU6(+) IC9602 C24 TO C24 IC9505 43 2 CSH 55 5 CPH 55 39 Q9305 68 CLKU6(+) SCAN CONTORL 13 56 D23C SUSTAIN CONTROL CLRU2 IC9402 U16A D35 U17B +5V DET D11C 13 22 11 68 P+5V 8 PCK 8 38 59 CONTROL 44 56 5 35 D32 41 C60 TO C60 IC9603 (D16A,D17A D17C) D6A-D7C U17A 14 23 52 12 R PCU2 DATA 30Bit 53 ODEU2 7 P+5V D9C DATA CLRD5 61 67 DATA 4Bit I/F 61 48 10bit CLKD7(-) 7 9 DDR-IO PROCESSOR 8 D34 43 59 36 38 D20A SC_SOS2 (U16A U17A) 6 27 P+5V 2 D14A-D14C U14C 35 U20A P+3.3V CLKU3(-) 40 59 SC_SOS1 SID 22 U19C 26 U14B DATA 6bit 5 CLKD0(+) PCU1 10 PCU1 USH PCU2 39.5MHz 66 24 27 D16A Q9304 CEL2 NOISE NR 21 CLKU4(+) 2 54 DDR-DRAM 68 2 67 23 CEL XRST CEH 64 Q9302 10 17 8 DET U26C 9 DATA 13bit P+2.5V 6 39 49 OCK RESET D28B,D28C LED6 30 OCK CONT 46 67 D27C,D28A 34 U29B CONT 13 61 U26B UMH IC9504 10 LED5 U0A 42 24 DET 66 UEH CLKU1(-) 19 CLKU5(-) 37 1 U2A CLKD6(+) 14 D29A-D29C 51 +5V D18A-D19C 13 17 B D31 P+3.3V 38 45 18 CLRD6 5 DATA PROCESS +5V DET 31 PCD6 (D22A D31C) P+5V 9 15 IIC ODED5 D0A-D1C P+2.5V 54 G CLKU2(+) 48 30 16 CML 6 DATA 30Bit IC9304 CLKU5(-) MPEG D15C 33 +5V DET P+5V 50 RST 48 P+5V 32 D15A,D15B 3 DATA 4Bit 20 CLKD0(+) 60 3 DATA 30Bit 12 PCK 9 UEH CLKU7(-) 59 U22A (U17B U21C) 42 CLKU4(+) DATA 4Bit 10 46 D16B,D16C 3.3V->5V 9 D26A-D26C DET 58 CLRD5 CLKU6(+) R U24A 31 +5V 1 14 D21C 5 5 0 47 CLKU2(+) D17A-D17C RESET U21C 30 (U0A U9C) 60MHz LED6 PLL SYNTHESIZER (D0A D9C) B IC9301 C10 TO C10 66 66 52 HD,VD 12 P+5V X9200 30 P+5V CLRU1 D22A 28 U28A 19 10 CLOCK 67 USH +5V ODEU2 CLKD4(+) CLKU1(-) D14A-D14C 37 41 U27C 30 27 U10A D5A-D5C CLKD3(-) TO SC20 USL 33.6MHz 3.3V->5V CLKD6(+) CLKD1(-) 66 10bit DATA 30Bit DATA 14Bit 49 C54 TO C54 ODED6 ODED6 *S/P CONV. 68 41 ODED5 P+5V 28 LEDU1 U4B U12A DATA 14Bit 64 19 CLKD2(+) CLKD2(+) 43 DATA 11 OCK 8 67 59 57 C55 TO C55 50 OCK 35 D33 XRST P+5V SCSU 34 U9C D30A-D31C (U22A U31C) 67 D8A P+2.5V PCK 45 D4B,D4C P+5V 55 33 8 CLKD7(-) 29 31 PDP PANEL SIGNAL PROCESSOR CL D10A (D14A D14C,D15C) P+5V 60 CLKU5(-) +5V 64 59 17 60 VDD 33 DATA C25 TO C25 +5V DET 128Mbit P+5V 2 33.6MHz 32Mbit 59 D24A-D24C 3 PCD5 18 U7A LED5 36 52 63 29 P+5V P+1.2V IC9401 11 50 64 LEDU1 9 31 CMH U17A 45 61 46 31 CLKD4(+) 27 60MHz D27A,D27B 39 D15C,D16A 66 ADR 19 16 37 1 (U14C U15C) 3 CLKU7(-) 51 68 IC9503 D25A-D25C DATA 4Bit 41 20 P+1.2V DET 47 16 60MHz 67 P+5V 2 U15C 34 14 Q9303 P+5V SUB FIELD 61 20MHz 2 8 LEU2 DDR-DRAM G 58 DET CLKD3(-) 64 6 67 10 IIC 3 DATA 14Bit 26 59 +5V DET 10bit U7B BUS SWITCH P+5V U4C 37 3.3V->5V CLRU2 2 FLASH MEMORY 64 DATA CONTROL 6bit 40 2 49 39 U14C D3C,D4A USL 24 CLKU7(-) U31C CSL P+5V 11 CLKU0(+) CLKD5(-) 58 1 36 +5V 53 38 I/F 30 CLKU0(+) P+5V 32 FLASH 43 P+5V 42 HD,VD 68 U23C ODEU1 57 CLKU4(+) 3 P+5V 39 FLASH 32 (D10A D15B) CLK OUT RESET 62 ODEU1 10bit 58 UML 28 CONT 12 DET *SF TABLE CONV. 45 NUEL 51 14 ADR 15 8 32 RESET 23 60 28 9 3 U1C D36 3.3V->5V SIU 11 24 43 U11C 4 55 PCK IC9300 D3A,D3B 67 CLK OUT 20 20 PCD6 21 18 +5V Q9301 39 24 128Mbit 18 30 (U10A U14B) D20 1 PCD5 D2A-D2C 10 CLRD6 19 10 63 58 P+3.3V 56 CLKU0(+) 5 38 21 42 17 PLASMA AI PROCESSOR D FORMAT CONVERTER, LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT PROCESSOR CLOCK *CONTOUR CORRE. PDP PANEL SIGNAL PROCESSOR *S/P CONV. *SF TABLE CONV. SUB FIELD NOISE NR *DATA DRIVER *CONTOUR CORRE. DATA PROCESS MPEG TH-65PF10CK D-Board (2 of 2) Block Diagram TH-65PF10CK D-Board (2 of 2) Block Diagram 16 17 18 19 20 21 22 1 3 2 4 5 6 7 8 9 10 11 12 13 14 15 50 TH-65PF10CK 9.13. C1, C2, C5 和 C6 电路板方框图 VDA_75V VDA_75V VDA_75V P+5V P+5V P+5V R7187 R7186 VDA_75V VDA_75V VDA_75V VDA_75V VDA_75V VDA_75V P+5V VDA_75V R7686 P+5V VDA_75V VDA_75V R7687 VDA_75V R7285 R7286 P+5V P+5V VDA_75V VDA_75V VDA_75V VDA_75V P+5V P+5V R7593 P+5V VDA_75V VDA_75V VDA_75V P+5V VDA_75V R7592 VDA_75V P+5V VCC UC11 IC7207 61 6bit IC7206 DATA LOWER CENTER (FRONT VIEW) BUFFER UA10 P75V VCC DATA DATA DRIVE TO D32 C2 5V_DET UPPER CENTER (FRONT VIEW) 30 5 2 1 6 19 8bit 13 DOUTUB14 DATA 1 P+5V P+5V UB17 DOUTUA12 DATA 3 UC19 1 50 59 6bit C5 BUFFER C24 8bit UA12 UA20-UC21 BUFFER UB14 VCC UA16-UC16 VCC 4bit IC7203 IC7201 UA18-UC19 6bit VCC 6bit UA12-UC13 VCC BUFFER UA17 DOUTUC14 DOUTUA17 8bit 49 DATA DRIVE DATA 67 31,41 6bit UA14 DOUTUB17 DOUTUC11 CA 10 DOUTUC19 P75V DOUTUA10 6bit 6bit DOUTUA20 DOUTUC21 C22 BUFFER UA20 IC7204 UC21 VCC IC7205 BUFFER IC7202 BUFFER CA3 UA26 15 VCC C11 UB26 UC26 BUFFER 6bit IC7102 UA22-UC23 CA2 4bit UA28-UA29 20 C1 VCC UC23 VCC DATA DATA VCC 6bit 6bit CA4 DATA BUFFER UC31 IC7104 CA1 UB29 DATA DRIVE 6bit 6bit 8bit 8bit IC7103 IC7106 8bit BUFFER UA22 6bit IC7105 BUFFER UPPER RIGHT (FRONT VIEW) UA29 UA24 BUFFER 2bit VCC DATA UA30-UC31 6bit 6bit 6bit 6bit 6bit ODEU1 CLRU1 PCU1 UC29 UB29 1 C10 TO D31 17 DOUTUC31 26 DOUTUB29 31,41 27 45 DOUTUA28 DOUTUA29 DOUTUC26 DOUTUB26 55 DOUTUA24 46 DOUTUB26 DOUTUC23 57 63 DOUTUA22 11 10 9 8 CLRU1 PCU1 LEU1 ODEU1 6bit CA5 BUFFER IC7101 6bit VCC 39 CLKU6(+) CLKU7(-) 37 +5V_DET 5 P+5V 3 P+5V 1 CLK71R-73R CLK61R-63R LE1-LE5 6bit UA24-UC25 UB26 2bit 4bit UC26-UC27 CLRU1 ODEU1 LEU1 PCU1 CLK6R NCLK7R CLRU6 IC7606 PCU6 8bit UA22-UC23 UC28 VCC BUFFER 6bit UB28 6bit DA24-DC25 DA27 IC7605 6bit BUFFER 1 2bit VCC 4bit C60 BUFFER CB5 IC7604 5 17 10 54 DOUTDA30 P75V +5V_DET CLRD6 DOUTDB26 15 BUFFER 6bit IC7601 CB3 8 DOUTDC29 ODED6 DOUTDA29 23 6bit CLKD7(-) DA24-DC25 35 CLK61R-63R DOUTDA26 LE1-LE5 P+5V CB4 DATA 1 DOUTDC23 CLRD6 CB1 C61 DB28,DC28 63 DA26-DC26 DOUTDC31 BUFFER 6bit IC7602 DA22-DC23 VCC DB27 C52 CB2 DATA DOUTDA24 DATA DOUTDA22 LED6 11 DOUTDC26 NCLK7R CLK6R 6bit 6bit 6bit ODED6 6bit CLK71R-73R 6bit 33 6bit DC27 P75V CLKD6(+) ODEU6 BUFFER 2bit DA29-DC29 TO D36 PCD6 LED6 P+5V VCC 19 6bit 6bit 8bit 9 8bit PCD6 IC7603 VCC VCC DATA DA30-DC31 4bit DA29-DC29 6 3 LOWER RIGHT (FRONT VIEW) C6 DATA DRIVE DA27,DB27 DC27,DA28 DA30-DC31 UA28 DA26-DC26 6bit 6bit CA6 CA7 6bit 6bit CA8 6bit 6bit CA9 6bit 6bit CLRU2 ODEU2 LEU2 PCU2 10 9 8 CLRU2 PCU2 LEU2 ODEU2 11 CLRU2 ODEU2 LE6-10 PCU2 CLK21L,22L NCLK31L,32L CLK41R,42R NCLK51R,52R 37 39 CLKU5(-) 35 CLKU4(+) CLKU3(-) CLKU2(+) 33 CLK2L CLK4R NCLK5R NCLK3L 6bit UA10-UC11 4bit UC14-UC15 2bit UA14 UB14 UA17 UC17 2bit UB17 BUFFER 9 DOUTDC11 LE6-10 DB16,DC16 21 6bit BUFFER DA10-DC11 DOUTDA12 CB 10 CLKD2(+) 13 IC7503 DA16 67 DB15 NCLK5R C54 DOUTDC19 DC16 NCLK3L 2bit DATA VCC CLRD5 VCC 37 41,31 8bit 8 BUFFER DA17-DC17 CLRD5 DATA 6bit 3 10 DOUTDA20 BUFFER 6bit 49 TO D35 DB16 IC7501 BUFFER 33 ODED5 IC7504 5V_DET 4bit NCLK51R,52R DA14-DC14 PCD5 50 LED5 ODED5 DOUTDC21 11 BUFFER CLK2L ODED2 DA12-DC13 DOUTDA10 CLRD2 CLK21L,22L DOUTDC13 5 NCLK31L,32L DATA CLKD4(+) CLK41R,42R 2 4bit 6bit VCC DA10-DC11 DA20 DA20-DC21 59 VCC PCD2 BUFFER IC7507 CLKD5(-) 1 DC21 19 6bit VCC IC7502 35 6bit 30 6bit P+5V 6bit IC7506 CB6 CB7 DA15,DB15 6bit 6bit 61 CB8 P+5V 6bit DA18-DC19 DOUTDA14 2bit CLK4R 6bit 6bit CB9 DOUTDC14 6bit 6bit DA15 VCC 39 6bit 8bit DA12-DC13 DATA IC7505 DOUTDA18 VCC LED5 CLKD3(-) PCD5 DC15 DA18-DC19 8bit DA14-DC14 DC15,DA16 DATA DA17-DC17 DOUTDB15 DOUTDA15 DOUTDA17 DOUTDC17 DOUTDA16 DOUTDC15 DOUTDC16 DOUTDB16 PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER PANEL DATA DRIVER DOUTU31C DOUTU22A DOUTD22A DOUTD31C DOUTD21C DOUTD10A DOUTU10A DOUTU21C DOUTDC29 DOUTDB28 54 63 DOUTDA28 DOUTDC27 42,41,31 25 TH-65PF10CK C1, C2, C5 and C6-Board Block Diagram TH-65PF10CK C1, C2, C5 and C6-Board Block Diagram 51 TH-65PF10CK 9.14. C2, C3, C4 和 C5 电路板方框图 NCLK1L CLK0L ODEU3 CLRU3 PCU3 LEU3 CLK0L NCLK1L NCLK1L CLK0L LEU3 PCU3 CLRU3 ODEU3 ODEU3 PCU3 CLRU3 LEU3 CLK0L NCLK1L ODED4 CLK0L NCLK1L CLRD4 LED4 PCD4 PCD4 LED4 CLK0L ODED4 CLRD4 LED4 CLK0L CLK0L CLRD4 NCLK1L NCLK1L PCD4 ODED4 NCLK1L VDA75V VDA75V P+5V R7387 R7386 VDA_75V VDA_75V P+5V P+5V VDA_75V VDA_75V VDA_75V VDA_75V P+5V P+5V P+5V P+5V P+5V P+5V VDA_75V P+5V VDA_75V P+5V P+5V VDA_75V P+5V P+5V P+5V VDA_75V VDA_75V VDA75V P+5V P+5V R7490 VDA_75V P+5V VDA75V R7491 P+5V C35 2 1 6bit CA 6bit LE11-LE15 UA8-UC9 VCC IC7301 IC7302 VCC VCC IC7303 VCC IC7304 12 13 CA BUFFER BUFFER BUFFER BUFFER 6bit 6bit 6bit 6bit 6bit PANEL DATA DRIVER C3 DATA DRIVE UPPER LEFT (FRONT VIEW) 80 75 5V_DET CLKU0(+) 67 TO D33 CLKU1(-) P+5V 1 C25 23 4 25 P+5V P+5V P+5V 1 57 3 DATA 6bit UA0 DOUTUC1 35 UC1 63 CLKU0(+) DOUTUA0 33 CLKU1(-) C21 5 5V_DET P75V P75V DATA DRIVE C2 UPPER CENTER (FRONT VIEW) CLRU3 19 ODEU3 18 20 PCU3 21 LEU3 80 1 6 14 C31 77 8bit DATA 8bit DATA UC4-UA7 CLK01L-03L NCLK11L-13L CLRU3 ODEU3 5 Vda 75V 3 4 TO SS35 1 56 58 62 63 61 60 IC7211 VCC BUFFER VCC BUFFER IC7215 VCC BUFFER IC7214 VCC BUFFER IC7213 VCC BUFFER IC7212 CLRU2 ODEU2 LEU2 PCU2 8bit DOUTUA2 DATA UB4 46 55 UA2 DOUTUB4 DOUTUB7 DATA UC9 17 26 UB7 DOUTUC9 8bit DOUTUC4 45 UC4 DOUTUC5 8bit DATA UA7 27 31,41 DOUTUA6 DOUTUA7 DATA 30bit UA0-UC9 DOUTUC9 27 65 DOUTUA0 54 16 Vda 75V Vda 75V Vda 75V Vda 75V 6bit 14 15 CA 6bit 6bit 6bit CA 11 CA 6bit UA0-UC1 DATA UA0-UC1 VCC IC7305 VCC IC7306 BUFFER BUFFER 8bit DATA 6bit UA2-UB4 6bit PCU3 UB7-UC9 6bit UA2-UC3 UA4 UB4 2bit UC4-UC5 4bit 4bit UA6-UA7 UB7 UC7 2bit 2 LED4 VCC 6bit 2bit 6bit CLKU1(-) P+5V P+5V CB 8bit DATA 1 23 6bit 80 25 20 Vda 75V 3 LE11-LE15 BUFFER 75 DA8-DC9 IC7512 67 5 CLRD5 VCC ODED5 IC7401 LED5 DATA DRIVE IC7402 PCD5 80 VCC ODED4 5 C55 IC7403 C41 4 VCC 39 IC7404 CLKD1(-) 6bit 56 C4 DATA 1 DOUTDA0 DOUTDC9 12 DATA 30bit DA0-DC9 DOUTDC9 13 2 16 CB DB4,DC4 77 6 54 CLK01L-03L BUFFER DOUTDA0 BUFFER C51 65 BUFFER 27 BUFFER Vda 75V Vda 75V Vda 75V Vda 75V 6bit 6bit 14 DA6-DC7 6bit 15 3 6bit LOWER LEFT (FRONT VIEW) CB 6bit 5V_DET 6bit 6bit 6bit PANEL DATA DRIVER 6bit 5V_DET CB 11 58 CB P+5V 1 DA0-DC1 DATA DA0-DC1 VCC IC7405 VCC IC7406 4 BUFFER TO SS42 VCC CLRD4 NCLK11L-13L CLKU0(+) 61 CLRD4 C42 DA0-DC1 P75V 21 P75V ODED4 60 67 14 41,31 21 19 62 BUFFER PCD4 18 8bit IC7511 DATA P+5V 6bit VCC DA2-DC2 BUFFER VCC 8bit BUFFER PCD4 37 IC7515 DA8-DC9 VCC DC3 BUFFER DA2-DC2 IC7514 DA4-DC4 VCC DA5 1 BUFFER 4bit TO D34 63 IC7513 CLKD0(+) DB4 C5 DATA DRIVE LOWER CENTER (FRONT VIEW) DA3,DB3 DATA 30bit DA0-DC9 DA2-DC2 DC3 DA4 DA5-DC5 DA8-DC9 DA6-DC7 DB4,DC4 IC7516 BUFFER USH UEH NUEL UML USL UMH VCC UMH NUEL USL USH 11 9 UML UEH 14 13 15 10 (SS_SOS8) 7 DRV_SOS8 DRV_SOS8 74 7 +5V 1 DRV(SS)_SOS8 TO SS44 3 6 5 8 7 UML USL UMH P+5V USH UEL C44 9 NUEL 14 13 UEH 72 71 9 10 USL UML 69 70 12 11 USH 67 UMH 68 UEH,USL,USH UML,UMH,NUEL DA3,DB3 DC3,DA4 DA5-DC5 DA6-DC7 DC4 4bit DA3,DB3 2bit DOUTU9C DOUTU0A DOUTD9C DOUTD0A 4 UEH SUSTAIN DATA DATA 30bit UA0-UC9 DATA 30bit DA0-DC9 TH-65PF10CK C2, C3, C4 and C5-Board Block Diagram TH-65PF10CK C2, C3, C4 and C5-Board Block Diagram 52 TH-65PF10CK 9.15. SC 电路板方框图 + + SID SIU FCLU CPH2 CEL2 PROD CEL CL FCLKD SCSU SIU CPH1 CPH1 CPH2 FCLKU SID CLK CL SCSU PROU CEL2 FCLD FSIU CLK CEL FSID 15V_F +15V R6614 D6478 D6871 R6615 +15V_F +15V +16V_F D6616 R6630 16V_F Q6824 +5V +15V D6619 D6862 D6620 +16V_F D6825 +5V VSET +5V D6610 D6791 T6602 16V_F D6859 D6721 VSUS +16V_F D6585 VSUS D6804 D6583 D6806 +5V +15V_F VR6602 1 2 3 +15V VR6600 1 2 3 D6841 D6860 VSUS D6612 D6480 D6872 D6760 VSET D6826 VR6603 VR6601 A33 1 B40 LIN CL CMH VSCN HO G +5V(SC3) 3 TPVSCN (SC3) FET K A34 FET S FET (+140V) Vf VSET SEPARATE B7 D LED(G) CML SC Q6551-Q6554 L6416 Vf+5V VF_GND HO FET LO PC6760 CL LO AVR B6 GND GND PHOTO FET OUT 90V 2 POWER OSC LO SC44 GND +5V(SC1) DC/DC CONV. REF A13 PC6480 VSET SLOPE FSID CLK VIN K SIU Vf PC6702 (0-200V) 12 Vfo COUPLER Q6421-Q6428 Q6602 Vsus Gen. B30 B13 8 IC6801 9 1 2 3 COUPLER PHOTO VSET SOS DET IN PC6705 9 FSID (Vfo) Vf GND DRIVER Vsus Vf+5V Q6691 (0-305V) VAD SOS 3 A40 GND Vf Vin VF_GND COMPARATOR SC30 PHOTO IC6671 FSIU S Vf+5V VF_GND 2 IN 15 RATOR S Q6581 (SC3) DRIVER IC6721 Vad( 90V) 13 VF_GND FET OUT 6 19 12 VCC 7 2 IC6521 IN 17 GND A30 K Vscn Vfo SOS REF A8 L6401 BUFFER VCC HIN VCC Vf+5V 9 A28 OUT SC G 20 IC6610 (+8V) SC Q6671- Q6675 - DRIVER Vfo A1 IC6471 IC6871 (CBK)DRVRST_0 CEL Vfo BUFFER VCC VF_GND A40 IC6682 Q6680 PHOTO DRIVER VF_GND D TPSCI COUPLER BUFF D VAD Gen.( 90V) TPVSET2 Vfo SOS COUPLER SCSU BUFFER IC6771 G Vf Q6401-Q6408 A29 IC6841 D OUT VSET SOS B1 Q6744 HIN Q6841,Q6842 4 Q6791 L6407 COM (SC1) COMPA- 20 Q6662 BUFF FCLD +5V(SC1) (SC2) IC6472 PC6871 Vscn SOS 1 FCLKU 14 DRIVER IC6581 Q6665 CSL B1 IC6725 AMP IC6724 1 Q6679 Vf+5V D FET S 23 IC6602 45 A36 FET VSCN Gen. FET B29 B28 K A7 +5V(SC1)SOS SC43 G Vscn B31 A10 11 178V 10 S VF_GND CLK TO P23 PC6610 BUFF Q6743 Q6641-Q6649 Q6651-Q6660 IC6791 SID B40 A +5V(SC3) 3 VSET2 Gen. A 4 Q6661 REF 46 5 Q6521-Q6528 7 A1 IC6753 TO D20 LO +5V(SC3) Q6762 Q6763 COUPLER INVERTER FET B34 Q6501-Q6508 ENERGY RECOVERY VSET Gen. R6833- R6836 FET VCC PHOTO AVR TPSOS7 B8 Vf+5V CPH IC6751 13 Vf+5V 8 PHOTO +5V SID COUPLER HO PROD +5V(SC1) FCLU TO P2 SOS7_SC2 LO VF_GND Vf RATOR OUTFET 3 VF_GND VAD CONT 1 A1 B11 BUFF 2 VAD SEPARATE TPVSUS IC6802 6 CEL2 OUTFET HO B10 TPV15V VOUT Vf 11 PROU B40 COM IC6861 +5V GND BUFF Vf PC6704 VAD INIT-F Q6742 Vscn(VAD+140V) COMPA- INVERTER IC6561,6562 6 B12 FET FCLKD PHOTO G 8 +5V 18 VF_GND SC Vfo 5 A31 3 D CSH TPVAD B1 BUFFER K 3 PC6861 ERROR DET 1 1 FCLKD SC42 +15V OUT CML VCC PHOTO LIN S VCC G A12 GND SOS6_SC1 D Vscn Vf+5V TPSC1 SIGNAL WAVE S IC6772 COMPA- BUFFER FCLU B5 AVR IC6501 PHOTO FOR SIU LO D A5 4 A1 PROU FCLKU S +5V(SC1)SOS 5 USE B35 +5V(SC1),+5V(SC3) 1 FET OUT A40 Q6441- Q6444 VSCN SUPERIMEPOSED 2G- A40 CMH COUPLER B1 Vad 90V CEL2 S L6412 2 A6 FSIU D GND (335V) SC SCAN DRIVE 1 COUPLER BUFFER IC6752 Vf PC6703 RATOR A FACTORY VSET2 G Vf B33 AVR IC6803 COUPLER Q6682 IC6601 2 2 OUT Q6451- Q6454 COM Vf IN VSUS TPVSET G + A35 CEL2 IC6821 BUFFER PHOTO BUFFER +5V(SC3)SOS 7 8 VCC VCC IC6774 Q6681 VCC IC6681 FET SC41 P+5V 7 COUPLER A11 +5V Q6622, Q6623, Q6625-27 OUTFET IC6773 FET VAD SLOPE VCC REF GND VCC Vfo R6663 R6858 Q6821,Q6822 FCLD B36 IN PROD Q6601 A PHOTO DRIVER +15V TPSOS6 (Vscn) COUPLER CPH2 PC6701 1 Q6531-Q6534 DRIVER IC6722 Vscn B40 REF Vf OUTFET +5V(SC2) Q6803 CSL SC2 PC6801 CSH Vscn,VAD( 90V),Vfo,VSET A OCP HO VSET R6662 R6661 240V Vscn SOS operates at 156V or more and 78V or less. VSET SOS operates at 156V or less. Vad SOS operates at -76V or more and -121V or less. F16V SOS operates at 21V or more. B A Y B A Y Q6781- Q6784 BUFF INIT-F TO SU45 TO SU41 TO SU42 TO SD46 TO SD44 TO SD43 COLD FLOATING GND COLD LED BLINKING : 7 TIMES LED BLINKING : 6 TIMES SC FLOATING PART SOS DET FLOATING GND ENERGY RECOVERY SOS DET TH-65PF10CK SC-Board Block Diagram TH-65PF10CK SC-Board Block Diagram 53 TH-65PF10CK 9.16. SU 和 SD 电路板方框图 46 S/P FCLKD ELECTRODES VDD GND Vfo 7 VDD S/P Vfo Vf+5V 41 SO VDDH 64 Vscn 50 CL 41 Vf+5V PRO CLK Vf 64 LINE 28 GND SI 53 SD43 28bit CL IC6912 Vf GND SU SCAN OUT (UPPER) SI S/P Vf+5V 540LINE 11 S/P 40 75 64bit SO VDD 40 CLK 108 80 GND PROD VDDH SD5 76 GND 33 VDDH 1 CLK PRO 1 SD 64bit Vf S/P SI Vscn GND 64bit CL SO 34 51 40 PRO SI VDD 13 5 IC6913 9 35 8 LINE 108 VDD VDDH 73 SD4 CLK SD44 CLK 3 PRO CL SCAN IC6914 36 52 PANEL FCLD 74 SD3 1 VDDH IC6910 VDDH Vf PRO VDD S/P IC6911 60 SI SO 10 PRO LINE IC6915 108 SI CLK 16 12 48 CL SO Vf+5V 64bit Vf (LOWER) SD SCAN OUT (LOWER) 64bit 80 Vf CL 1B 1A 1Y IC6920 2B 2A 2Y 3B 3A 3Y 4B 4A 4Y CLK VDD SD1 SO SD2 VDD VDD 64 CLK SO VDDH 44 GND SI GND S/P S/P SI GND 64 SO VDDH CL PRO 64bit LINE CLK 64bit CL PRO IC6917 108 S/P VDDH PRO 20 CL 64bit SO IC6916 LINE IC6918 108 24 4 SI CLK VDD D69 16 SU3 SI 64 D40 2Y D60 SO SU2 48 C45 PRO 4B SI 64bit SU4 CL CLK VDD 4A PRO D31 CL VDD CLK Vfo SU41 VDD 40 4 CLK VDDH 108 CLK 1B SU5 D41 C48 SO D80 GND VDDH VDDH GND 64 CL CL C5 Vscn IC6907 PRO PRO CLK Vf Vf 64 LINE GND VDD VDD 28 D71 SI Vscn GND S/P S/P S/P SI IC6908 GND 45 60 SI GND SU42 SO 28bit VDDH 3Y SO VDD 64bit D28 CLK CL PRO 64bit 44 C1 VDDH Vf IC6940 3 CLK (UPPER) PRO 64bit CL S/P PRO 64bit S/P LINE 1 C80 CLK SCAN SU IC6905 CL 64bit Vf+5V Vf Vf 1A 540LINE 3B 24 D1 SU1 3A VDDH S/P SI D29 IC6909 S/P GND VDDH 2A S/P Vf PRO 1Y IC6902 108 ELECTRODES S/P D68 VDDH PRO VDD 20 GND CL SI SO IC6903 Vfo C41 LINE 7 C40 IC6901 Vf+5V C47 108 VDD SI GND 64bit 5 C8 SO IC6906 4Y 9 D70 PANEL 2B C7 C46 SO LINE 8 CL IC6904 64 64bit LINE VDDH C6 SO 108 108 PROU Vf+5V FCLKU FCLU Vf+5V FSIU TO SC45 TO SC41 TO SC42 TO SC46 TO SC44 TO SC43 TH-65PF10CK SU and SD-Board Block Diagram TH-65PF10CK SU and SD-Board Block Diagram 54 TH-65PF10CK 9.17. SS，S1，SS2 和 SS3 电路板方框图 REF K A PUSH REF K A R6020 D6253 IC6221 G D S 5V G D S R6022 G D S +5V VR6000 1 2 3 G D S SW061 G D S G D S G D S G D S D6255 IC6281 G D S G D S D6221 D6112 D6113 Q6112,Q6114,Q6116 (+5V) IC6151 LIN Q6256,Q6222 Vsus Gen. COMPARATOR USL Ve AVR IC6251 35 Ve Det 1 5 IC6131 TPVDA TO C44 VCC Adj. Q6141- Q6144 USL 7 HIN VCC STB PS USH 9 5 UML UEH UMH VCC UML UEH 3 SS23 8 UEL(NUEL) TO C35 6 TO C42 5 UEL DRV(SS)_SOS8 1 USH Ve:155V SS UML 2 SS Vda75V Vda75V UMH +5V TP15V 4 STB_12V 4 3 Vda75V 44 SS53 VCC 2 IC6241 SS VCC SS58 BUFFER SS25 TPVe Q6101,Q6105,Q6107 SUSTAIN DRIVE SS2 SS3 UMH S1 UEH POWER SW USL FET DRIVER UEL FET DRIVER FET USH OUTPUT UML FET DRIVER BUFFER 1 BUFFER HO SS55 LO IC6211 OUTPUT FET FET S34 LIN OUTPUT SS51 LED(G) FET Q6146- Q6149 SUSTAIN FET VCC PANEL BUFFER ELECTRODE HO OUTPUT TPSS1 Ve2 Gen. SS LO TO P11 Q6171- Q6174 Vsus BUFFER TPSOS8 Q6181,Q6031 Q6183,Q6184 11 IC6191 OUTPUT 1 SS_SOS8 Q6021-Q6024 SS Q6001-Q6004 1 FET DRIVER Q6051-Q6054 4 34 Q6041-Q6044 SS54 3 L6001-L6006,L6008 SS Vda75V L6012-L6015,L6017 STB12V Q6102,Q6106,Q6108 2 1 FET Vda75V 12 OUTPUT VSUS 8 Q6103, Q6104 LIN 10 BUFFER HIN TO P12 HO TPSS1 WAVEFORM Ve2 +15V FET HIN Ve Gen. TPVSUS STB PS OUTPUT VE ENERGY RECOVERY SS FET IN 4 HO 42 1 OUTPUT SS56 Vda75V LO Q6111 Vda75V 3 Vda75V Vda75V 3 Vda75V Vda75V Vda75V SS27 SS57 SS21 SS52 Ve2 Det Q6281, Q6282 BUFFER Ve2 Push-PLL AVR(10V) TPVe2 Q6211, Q6212 BUFFER BUFFER Q6151- Q6154 Q6025-Q6028 Q6005-Q6008 Q6156- Q6159 FET OUTPUT OUTPUT BUFFER FET Q6251 Q6115 BUFFER D6061-D6064 D6067-D6069 D6081-D6086 LED BLINKING : 8 TIMES ENERGY RECOVERY SOS DET TH-65PF10CK SS, S1, SS2 and SS3-Board Block Diagram TH-65PF10CK SS, S1, SS2 and SS3-Board Block Diagram 55 TH-65PF10CK 10 导线布置 10.1. 导线布置 （1） 如图中所示进行布线。 56 TH-65PF10CK 10.2. 导线布置 （2） 如图中所示进行布线。 57 TH-65PF10CK 11 线路图 11.1. 线路图注意事项 58 TH-65PF10CK 11.2. P 电路板 （1/2）线路图 AC_IN P(P-1)-BOARD (P51) TO P(P-1)-BOARD (P53) TO SS-BOARD (SS11) TO SC-BOARD (SC2) TO P(P-1)-BOARD (P55) TO PFC MODULE RELAY/ PFC CONTROL MODULE Vsus POWER SUPPLY TH-65PF10CK P-Board (1 of 2) Schematic Diagram TH-65PF10CK P-Board (1 of 2) Schematic Diagram HOT COLD HOT COLD ! P-BOARD ETXMM631MGH (1/2) 59 TH-65PF10CK 11.3. P 电路板 （2/2）线路图 P(P-2)-BOARD (P52) TO SS-BOARD (SS12) TO SC-BOARD (SC23) TO DS-BOARD (DS4) TO DS-BOARD (DS10) TO D-BOARD (D25) TO P(P-2)-BOARD (P56) TO P(P-2)-BOARD (P54) TO Vda/STB POWER CONTROL MODULE POWER MCU MODULE Vda CONTROL MODULE PFC MODULE RELAY/ PFC CONTROL MODULE POWER CONTROL MODULE HOT COLD HOT COLD HOT COLD HOT COLD TH-65PF10CK P-Board (2 of 2) Schematic Diagram TH-65PF10CK P-Board (2 of 2) Schematic Diagram ! P-BOARD ETXMM631MGH (2/2) 60 TH-65PF10CK 11.4. PB, V1 和 V2 电路板线路图 + + 15V D850 MA2C165001VT R858 1.2k R862 7.5k C852 470u 25V R854 1.2k C850 50V 0.1u Q850 2SC3311ARA R852 47k D854 MA2C165001VT L851 68u C854 16V 470u R853 470 1 2 3 4 5 JS852 T3A205016 D852 MA2C165001VT TPFAN B0JAME000091 D859 R850 4.7k 1 2 3 1 2 3 R863 910 R851 3.3k IC850 C0DAAZG00014 1 Vin 2 Vout 3 COM 4 Oadj 5 ON/OFF 1 2 3 R856 1.2k R855 1.2k 1 2 3 D851 MA2C165001VT D853 MA2C165001VT 1 2 3 R857 1.2k JS851 0 1 2 3 R859 1.2k D855 MA2C165001VT 1 2 3 R860 1.2k D856 MA2C165001VT + M + + C B 3 FAN CONTROL REGULATOR FAN SOS DR15V FAN CONT ! PB-BOARD TNPA3655AE 1 PB 35 E PB 31 6 7 5 PB 33 4 PB 30 8 A 2 D TO FAN 5V GND PB 32 PB 34 PB 36 PB 38 (DS30) DS-BOARD TO TH-65PF10CK PB, V1 and V2-Board Schematic Diagram TH-65PF10CK PB, V1 and V2-Board Schematic Diagram R G STB3.3V R1554 270 SW1551 EVQPLHA15 D1551 MAZ80330LL R1500 1k SW1553 EVQPLHA15 SW1554 EVQPLHA15 SW1552 EVQPLHA15 R1550 1k L1501 C1530 6.3V 10u R1553 470 D1554 MAZ80330LL L1507 R1511 3k R1512 4.7k L1503 R1510 2.2k L1504 V15 1 2 3 R1552 220k SW1550 EVQPLHA15 RM001 PNA4701M05TV VOUT GND VCC V2 1 2 3 4 5 6 R1513 8.2k L1502 Q1540 2SD0601ASL L1508 L1505 L1506 D1550 LNJ107W5PRW R1551 47 REMOTE RECIEVER F VOL.DOWN VOL.UP GND LED_G LED G OPT LED R TV/VTR V2-BOARD TNPA4356 V1-BOARD TNPA4355 DS-BOARD (DS15) GND REMOCON TO LED_R (DS2) KEY_SW TO DS-BOARD STB3.3V 3.3 4.5 0 0 0 0.8 3.2 0 STR 0 61 TH-65PF10CK 11.5. HA 电路板线路图 Y Pb Pr + AA_SDA2 AA_SCL2 RXD TXD CABEL_DET REMOTE SOS PWR_STAT RESET2 AB_AUD_L AB_AUD_R 9V AB_AUD_L AB_AUD_R RESET1 S2_DET 9V AA_SCL2 AA_SDA2 STB5V C3012 16V 0.1u R3026 100 R3007 100 JS3015 ERJ3GEY0R00V L3006 10u JK3001 K1QBB3BB0002 G Y G G G Pb G G G Pr G G R3016 10k JS3001 L3003 J0HABB000004 1 2 3 4 C3007 1u 16V R3018 100 JS3012 ERJ3GEY0R00V TP032 C3011 16V 47u H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3014 10k JS3006 JS3004 JS3013 ERJ3GEY0R00V JS3008 ERJ3GEY0R00V R3036 10k JS3007 ERJ3GEY0R00V R3041 0 R3042 0 R3023 1k JS3016 ERJ3GEY0R00V Q3002 2SD0601A0L JS3005 L3001 J0HABB000004 1 2 3 4 R3025 100 TP036 R3015 10k IC3002 C3EAGC000027 1 A0 2 A1 3 A2 4 VSS 5 SDA 6 SCL 7 WP 8 VCC C3008 1u 16V R3037 10k R3017 10k TP033 R3019 100 JS3003 JS3014 ERJ3GEY0R00V Q3001 2SD0601A0L C3021 10V 1u R3006 100 R3005 180k JS3011 ERJ3GEY0R00V L3002 J0HABB000004 1 2 3 4 L3004 J0HABB000003 1 2 3 4 JS3002 C3022 0.1u 16V TP034 JK3002 K2HA204B0097 R3004 180k R3022 1k L3005 J0HABB000003 1 2 3 4 TP035 PLUG_DET 3.3V 3.3V RSVD RSVD VD HD LAN15V LAN15V AUD_R AUD_L EEPROM TERMINAL BOARD INFORMATION HA-BOARD TNPA2845 ! COMPONENT VIDEO IN AUDIO IN Pr Pb Y TO DS-BOARD (DS13) 6 D E A 5 4 2 3 8 1 7 B C TH-65PF10CK HA-Board Schematic Diagram TH-65PF10CK HA-Board Schematic Diagram 62 TH-65PF10CK 11.6. HX 电路板线路图 AC_VD AC_HD R3655 15k R3592 0 R3510 100 C3562 1u 16V FL3515 J0MAB0000054 1 2 3 4 R3590 56 IC3502 TVRP630 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R3509 4.7k C3552 10u 25V R3400 10k C3524 50V 0.01u R3668 100 R3777 100 FL3514 J0MAB0000054 1 2 3 4 L3526 ELJPA100KFB R3530 180k R3672 100 FL3517 J0MAB0000054 1 2 3 4 C3404 16V 0.1u D3508 MAZ81600HL TP67 TP66 R3654 33k HX1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 D3507 MAZ81600HL R3790 100 R3776 100 C3405 10u 25V TP65 FL3511 J0MAB0000054 1 2 3 4 TP69 JK3509 1 2 3 4 5 8 9 6 7 R3778 47k C3550 50V 0.01u C3551 10u 25V TP71 R3511 100 R3653 15k C3406 10u 25V TP74 R3548 100 TP73 R3529 180k R3585 56 R3656 33k FL3512 J0MAB0000054 1 2 3 4 R3791 100 TP68 C3561 1u 16V R3547 100 TP70 Q3532 2SD0601A0L C3523 10u 25V R3664 1k Q3531 2SD0601A0L R3591 0 L3555 ELJPA100KFB R3508 4.7k FL3510 J0MAB0000054 1 2 3 4 R3593 0 FL3516 J0MAB0000054 1 2 3 4 D3509 MAZ81600HL FL3513 J0MAB0000054 1 2 3 4 TP75 TP72 R3663 1k JK3513 K2HC103B0105 R3589 47k D3504 MAZ30560ML JK3511 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C3409 16V 0.1u D3510 MAZ81600HL R3586 56 5V 9V TXD RXD VD HD TJS8A9880 CTS RTS PCis DSR RI K1FA109B0062 L R RXD TXD DTR CD GND 9V PC Ls PC Rs PC R PC G PC B HX-BOARD TNPA4053AB 8 1 7 B 4 2 3 A 5 6 D E C ! EEPROM DDC PC IN PC AUDIO IN RS-232C TO DS-BOARD (DS14) TH-65PF10CK HX-Board Schematic Diagram TH-65PF10CK HX-Board Schematic Diagram 63 TH-65PF10CK 11.7. HDD 电路板 (1/2) 线路图 + Thermal Pad 5V STAG PIXS TMDS_RX0+ TMDS_RX0- TMDS_RX1- TMDS_RX1+ TMDS_RX2+ TMDS_RX2- TMDS_RXC+ DVI_SDA DVI_SCL TMDS_RXC- ODD_R3 ODD_R1 ODD_R6 ODD_R4 ODD_R2 ODD_R0 ODD_R7 ODD_R5 ODD_G4 ODD_G2 ODD_G3 ODD_G5 ODD_G0 ODD_G6 ODD_G1 ODD_G7 ODD_B5 ODD_B6 ODD_B4 ODD_B0 ODD_B7 ODD_B2 ODD_B1 ODD_B3 AUDIO_R AUDIO_L PWRDN PIXS STAG TMDS_RX2+ TMDS_RX2- TMDS_RX1+ TMDS_RX1- TMDS_RX0+ TMDS_RX0- TMDS_RXC+ TMDS_RXC- EVEN_B0 EVEN_B1 EVEN_B2 EVEN_B3 EVEN_B4 EVEN_B5 EVEN_B6 EVEN_B7 EVEN_G0 EVEN_G1 EVEN_G2 EVEN_G3 EVEN_G4 EVEN_G5 EVEN_G6 EVEN_G7 EVEN_R7 EVEN_R6 EVEN_R5 EVEN_R4 EVEN_R3 EVEN_R2 EVEN_R1 EVEN_R0 PWRDN 3.3V SLOT_B_SDA SLOT_B_SCL DVI_SCL DVI_SDA DVI_SCL DVI_SDA C_SCL C_SDA HJTR OCKINV 7.8V C_SCL C_SDA SLOT_B_SDA SLOT_B_SCL 3.3V 3.3V SCDT 5V 3.3V 3.3V 3.3V 5V 5V 5V R3139 0 Q3101 2SD0601A0L IC3001 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R3122 EXB38V220JV C3110 16V 0.1u C3108 16V 0.1u R3166 22 D3003 EZJZ0V80008B R3178 33 C3141 16V 0.1u C3144 16V 1u D3002 EZJZ0V80008B JS3502 0 D3006 EZJZ0V80008B D3023 MAZ30560ML R3142 33 C3143 16V 0.1u D3005 EZJZ0V80008B JK3001 K1FB124B0025 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 R3131 33 D3011 B0HCMM000014 C3107 16V 0.1u R3513 15k C3112 16V 0.1u R3167 22 R3110 EXB38V220JV Q3511 2SD0601A0L C0JBAZ002269 IC3105 1 2 3 4 5 6 7 8 FL3906 ELKE103FA 1 2 3 R3124 EXB38V220JV R3111 EXB38V220JV R3514 33k R3506 1k C3105 16V 0.1u R3169 4.7k R3023 4.7k C3115 16V 0.1u C3142 16V 1u R3517 100 R3156 33 R3144 33 R3117 33 R3143 33 R3118 33 D3009 EZJZ0V80008B C3111 16V 0.1u C3117 16V 0.1u R3137 33 R3105 0 D3007 EZJZ0V80008B Q3501 2SD0601A0L R3115 33 R3168 4.7k C3932 10u 16V R3133 33 TP3002 R3113 EXB38V220JV R3125 390 R3188 33 C3021 50V 0.01u C3114 16V 0.1u R3132 2.7k R3024 4.7k R3134 2.7k C0JBAZ002269 IC3102 1 2 3 4 5 6 7 8 C3118 16V 1u R3112 EXB38V220JV R3148 4.7k R3160 4.7k L3553 EXC3BB221H L3551 G1C100K00020 R3138 33 R3501 180k FL3907 ELKE103FA 1 2 3 C3501 1u 16V R3515 100 R3155 33 D3001 EZJZ0V80008B C3552 50V 0.01u R3116 33 R3120 EXB38V220JV FL3908 ELKE103FA 1 2 3 R3507 100 D3025 B0HCMM000014 R3109 EXB38V220JV JS3501 0 C3511 1u 16V C3109 16V 0.1u JS3503 0 R3512 100 R3179 33 R3114 33 C3551 16V 47u R3516 1k R3026 56 TP3001 R3001 5.6k R3163 0 C3929 16V 0.1u FL3905 ELKE103FA 1 2 3 R3025 56 R3175 2.7k C3928 10u 16V R3504 33k R3173 2.7k FL3021 ELKE103FA 1 2 3 JK3501 K2HC103B0105 Q3100 2SD0601A0L D3010 EZJZ0V80008B C3931 16V 0.1u R3505 100 L3552 EXC3BB221H R3184 10k C3927 16V 0.1u D3004 EZJZ0V80008B C3934 10u 16V R3108 EXB38V220JV R3136 2.7k R3135 2.7k R3022 10k R3147 4.7k C3116 16V 0.1u TP3007 R3146 4.7k C3930 10u 16V R3183 10k R3153 33 R3186 10k R3182 10k R3121 EXB38V220JV C1AB00002291 IC3101 1 CRESET# 2 PD# 3 SDA_HDCP 4 PIXS/SCDT_IN/SDE_IN 5 GND 6 VCC 7 STAG_OUT/SYNC 8 SCDT 9 PDO# 10 QE0 11 QE1 12 QE2 13 QE3 14 QE4 15 QE5 16 QE6 17 QE7 18 OVCC 19 M_S# 20 QE8 21 QE9 22 QE10 23 QE11 24 QE12 25 QE13 26 QE14 27 QE15 28 OGND 29 OVCC 30 QE16 31 QE17 32 QE18 33 QE19 34 QE20 35 QE21 36 QE22 37 QE23 38 VCC 39 GND 40 SDA_EQ/S_D 41 SCL_EQ/OCK_INV# 42 CTL3 43 OVCC 44 ODCK 45 OGND 46 DE 47 VSYNC 48 HSYNC 49 QO0 50 QO1 51 QO2 52 QO3 53 QO4 54 QO5 55 QO6 56 QO7 57 OVCC 58 OGND 59 QO8 60 QO9 61 QO10 62 QO11 63 QO12 64 QO13 65 QO14 66 QO15 67 VCC 68 GND 69 QO16 70 QO17 71 QO18 72 QO19 73 QO20 74 QO21 75 QO22 76 OGND 77 QO23 78 OVCC 79 AGND 80 RX2+ 81 RX2- 82 AVCC 83 AGND 84 AVCC 85 RX1+ 86 RX1- 87 AGND 88 AVCC 89 AGND 90 RX0+ 91 RX0- 92 AGND 93 RXC+ 94 RXC- 95 AVCC 96 EXT_RES 97 PVCC 98 PGND 99 PRESET 100 SCL_HDCP R3152 0 C3113 16V 0.1u R3119 EXB38V220JV C3106 16V 0.1u R3502 100 R3123 EXB38V220JV C3933 16V 0.1u D3024 MAZ30560ML R3511 180k R3151 0 IC3103 C0JBAZ000801 1 A0 2 A1 3 A2 4 P0 5 P1 6 P2 7 P3 8 GND 9 P4 10 P5 11 P6 12 P7 13 VDAC 14 SCL 1 15 SDA 1 16 VCC D3022 MAZ30560ML R3181 10k D3021 MAZ30560ML R3185 10k D3008 EZJZ0V80008B R3503 15k R3157 4.7k DVI-D IN GND /OE1 B1 A2 Vcc A1 B2 /OE2 DVI RECEIVER WITH HDCP DE->TXEC6 R L GND /OE1 B1 A2 Vcc A1 B2 /OE2 LVDS PD PRESET RESET Digital Core VCC Output VCC Analog VCC PLL Analog VCC V-SYNC H-SYNC TVRP127 8 3 4 D 5 E C A 7 6 B 2 1 DVI-D AUDIO IN LEVEL SHIFT (3.3V <-> 5V) LEVEL SHIFT (3.3V <-> 5V) DVI RECEIVER HDCP EEPROM LEVEL SHIFT (3.3V <-> 5V) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 HDD-BOARD TNPA4052 (1/2) ! TH-65PF10CK HDD-Board (1 of 2) Schematic Diagram TH-65PF10CK HDD-Board (1 of 2) Schematic Diagram 64 TH-65PF10CK 11.8. HDD 电路板 (2/2) 线路图 + + + + EVEN_R0 EVEN_B0 EVEN_B3 EVEN_B4 EVEN_B1 EVEN_B5 EVEN_B6 EVEN_R7 EVEN_G2 EVEN_B2 EVEN_G0 EVEN_G3 EVEN_G4 EVEN_G7 EVEN_G6 EVEN_G5 EVEN_G1 EVEN_R1 EVEN_R2 EVEN_R3 EVEN_R4 EVEN_R5 EVEN_R6 ODD_R0 ODD_R1 ODD_R7 ODD_R6 ODD_R5 ODD_R4 ODD_R3 ODD_R2 ODD_G0 ODD_G1 ODD_G2 ODD_G7 ODD_G6 ODD_G5 ODD_G4 ODD_G3 ODD_B0 ODD_B1 ODD_B3 ODD_B2 ODD_B7 ODD_B6 ODD_B5 ODD_B4 SLOT_SCL SLOT_SDA SLOT_SRQ AUDIO_R AUDIO_L LVDS_TX0+ LVDS_TX0- LVDS_TX1- LVDS_TX1+ LVDS_TX2- LVDS_TX2+ LVDS_TXC- LVDS_TXC+ LVDS_TX3- LVDS_TX3+ SLOT_SCL SLOT_SDA LVDS_TX9+ LVDS_TX9- LVDS_TX8+ LVDS_TX8- LVDS_TX7+ LVDS_TX7- LVDS_TX6+ LVDS_TX6- LVDS_TX5+ LVDS_TX5- LVDS_TX4+ LVDS_TX4- SLOT_SDA SLOT_SCL SLOT_SRQ SLOT_SCL SLOT_SDA DVI_SCL DVI_SDA SLOT_B_SCL LVDS_TX5- LVDS_TX5+ LVDS_TX6- LVDS_TX6+ LVDS_TX7- LVDS_TX7+ LVDS_TX8- LVDS_TX8+ LVDS_TX9- LVDS_TX9+ LVDS_TXC- LVDS_TXC+ LVDS_TX0- LVDS_TX0+ LVDS_TX1- LVDS_TX1+ LVDS_TX2- LVDS_TX2+ LVDS_TX3- LVDS_TX3+ LVDS_TX4- LVDS_TX4+ 3.3V EVEN_B7 SLOT_B_SDA 9V 9V 5V 3.3V 3.3V 3.3V 3.3V 5V 3.3V C0JBAB000671 IC3906 1 2 3 4 5 6 7 8 R3214 0 C3915 16V 0.1u R3221 0 IC3901 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3203 0.1u 16V R3226 0 R3913 0 R3915 0 R3227 0 C3210 16V 0.1u R3907 22 C3205 50V 1000p R3203 10k C3913 10u 16V R3219 0 R3905 10k IC3902 C0JBAZ002344 1 NC 2 SCL0 3 SDA0 4 GND 5 EN 6 SDA1 7 SCL1 8 VCC R3215 0 C3213 50V 1000p C3926 10u 16V C3217 50V 1000p C3904 16V 47u R3211 0 R3217 0 C3214 16V 0.1u R3932 33 H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3218 0 C3211 50V 1000p R3210 0 C3206 16V 0.1u C3912 0.1u 16V R3904 10k R3212 0 R3225 0 R3906 22 C3212 16V 0.1u C3208 16V 0.1u C3207 50V 1000p C3215 50V 1000p R3933 33 FL3901 ELKE103FA 1 2 3 R3902 100 R3213 0 R3222 0 FL3904 ELKE103FA 1 2 3 R3903 10k C3922 10u 16V C3921 16V 0.1u FL3903 ELKE103FA 1 2 3 C3209 50V 1000p R3224 0 C3204 50V 10p R3216 0 C0ZBZ0001411 IC3201 1 TXEC3 2 TXEC4 3 TXEC5 4 TXEC6 5 TXEB0 6 TXEB1 7 TXEB2 8 TXEB3 9 TXEB4 10 TXEB5 11 TXEB6 12 VDDX1 13 VSSX1 14 TXEA0 15 TXEA1 16 TXEA2 17 TXEA3 18 TXEA4 19 TXEA5 20 TXEA6 21 VDDP1 22 VSSP1 23 VSSP0 24 VDDP0 25 VDDT0 26 VSST0 27 TCLKIN 28 VDDI 29 VSSI 30 PWDNB 31 S2CLK 32 S2DAT 33 RFB 34 MODE0 35 VDDL 36 VSSL 37 TXEE+ 38 TXEE- 39 TXED+ 40 TXED- 41 TXEC+ 42 TXEC- 43 TXEB+ 44 TXEB- 45 TXEA+ 46 TXEA- 47 TCLKOUT+ 48 TCLKOUT- 49 VDDL 50 VSSL 51 TXOE+ 52 TXOE- 53 TXOD+ 54 TXOD- 55 TXOC+ 56 TXOC- 57 TXOB+ 58 TXOB- 59 TXOA+ 60 TXOA- 61 VDDL 62 VSSL 63 MODE1 64 RESRVD 65 TXOE0 66 TXOE1 67 TXOE2 68 TXOE3 69 TXOE4 70 TXOE5 71 TXOE6 72 VDDY0 73 VSSY0 74 TXOD0 75 TXOD1 76 TXOD2 77 TXOD3 78 TXOD4 79 TXOD5 80 TXOD6 81 VDDT1 82 VSST1 83 TXOC0 84 TXOC1 85 TXOC2 86 TXOC3 87 TXOC4 88 TXOC5 89 TXOC6 90 VDDY1 91 VSSY1 92 TXOB0 93 TXOB1 94 TXOB2 95 TXOB3 96 TXOB4 97 TXOB5 98 TXOB6 99 TXOA0 100 TXOA1 101 TXOA2 102 TXOA3 103 TXOA4 104 TXOA5 105 TXOA6 106 VDDT2 107 VDDT3 108 VSST2 109 VSST3 110 TXEE0 111 TXEE1 112 TXEE2 113 TXEE3 114 TXEE4 115 TXEE5 116 TXEE6 117 VDDX0 118 VSSX0 119 TXED0 120 TXED1 121 TXED2 122 TXED3 123 TXED4 124 TXED5 125 TXED6 126 TXEC0 127 TXEC1 128 TXEC2 C3216 16V 0.1u FL3902 ELKE103FA 1 2 3 C3925 16V 0.1u C3201 16V 0.1u C3202 50V1000p C3923 16V 0.1u R3223 0 C3911 0.1u 16V TP3003 H0 1 2 3 4 5 6 7 8 9 R3931 10k C3905 0.1u 16V R3901 0 R3935 10k R3228 0 R3911 0 R3202 10k R3220 0 C3902 16V 47u C3924 10u 16V R3209 10k C3901 16V 47u R3229 10k C3903 16V 47u VCC FHD =High SD/HD=Low FHD =High SD/HD=Low 5V STB 5V STB 5V SRQ GND SCL SDA WP(Config) C3EBGC000055 Analog Digital/TX Logic PLL WP(EDID) 11 10 15 9 13 14 8 12 LVDS TX BUFFER EEPROM IIC BUS REPEATER 2 3 4 16 13 10 11 12 18 1 14 5 6 15 7 17 19 8 9 HDD-BOARD TNPA4052 (2/2) ! DS-BOARD (DS12) TO USE FOR FACTORY TH-65PF10CK HDD-Board (2 of 2) Schematic Diagram TH-65PF10CK HDD-Board (2 of 2) Schematic Diagram 65 TH-65PF10CK 11.9. H3 和 DS 电路板 (1/3) 线路图 + + + + + + + + + + + + + + + + + + + + + + + + + + + + NP NP NP NP G G G G G G G G G G G G G G (FIN) Thermal Pad Thermal Pad S3_VD SW1 SW0 AG_HD_M AG_VD_M S3_HD S1_VD S1_HD S2_HD S2_VD HX_HD HX_VD CS(M) SYNC_INH AB_SDA3 AB_SCL3 FAN_SOS FAN_CONT C8015 10V 10u C805 25V 0.1u C2392 1u 16V C844 16V 2.2u C2391 25V 0.1u C2361 50V 1000p C8051 16V 0.1u C8016 16V 4.7u C2411 10u 25V C8019 50V 0.01u C819 16V 2.2u C2395 25V 0.1u C2368 50V 0.1u C847 10u 6.3V C843 10u 25V C8013 16V 0.1u C2393 1u 16V C2375 25V 0.1u C8049 50V 0.01u C869 16V 2.2u C2410 50V 180p C2407 6.3V 10u C816 25V 0.1u C8111 16V 0.1u C2406 6.3V 2.2u C2356 50V 1000p C8033 50V 1000p C838 16V 2.2u C845 10u 25V C2399 25V 0.1u C2351 2.2u 16V C814 50V 4700p C2412 25V 0.1u C2364 50V 0.1u C8101 50V 0.01u C8035 16V 0.1u C856 0.01u 50V C2378 25V 0.1u C8121 25V 2.2u C2402 25V 0.1u C8023 50V 0.01u C2357 50V 1000p C817 25V 2.2u C2373 25V 0.1u C2350 2.2u 16V C829 10u 25V C2376 50V 15p C841 10u 6.3V C2401 25V 0.1u C855 0.01u 50V C809 16V 2.2u C8114 50V 0.01u C2404 50V 0.01u C8113 16V 0.1u C2365 50V 0.1u C833 50V 0.01u C807 2.2u 25V C818 25V 0.1u C2379 25V 0.1u C2388 25V 0.1u C2396 25V 0.1u C8009 6.3V 10u C2380 25V 0.1u C2409 50V 180p C827 25V 2.2u C8003 16V 0.1u C837 10u 6.3V C2384 25V 0.1u C2413 25V 0.1u C2367 25V 2.2u C2408 6.3V 10u C815 25V 0.1u C2381 25V 0.1u C2405 6.3V 2.2u C2377 50V 15p C8027 16V 2.2u C804 50V 4700p C8025 50V 0.01u C8007 50V 100p C8029 50V 0.01u C2400 25V 0.1u C857 0.01u 50V C806 25V 0.1u C846 16V 2.2u C8036 50V 100p C824 50V 0.01u C839 10u 6.3V C823 50V 47p C2366 25V 2.2u C2403 25V 0.1u C2398 25V 0.1u C3146 16V 2.2u C2382 25V 0.1u C867 25V 0.1u C808 25V 0.1u C2374 25V 0.1u C8112 16V 0.1u C8116 50V 0.01u C8038 50V 1000p C832 25V 0.1u C2360 50V1000p C825 25V 0.1u C8021 16V 0.47u C2425 25V 0.1u C2369 50V 0.1u C2420 25V 0.1u C8005 50V 0.01u C828 25V 0.1u C848 16V 2.2u C8045 16V 1u C2385 10V 100u C8030 16V 100u C801 35V 220u C822 25V 470u C2370 50V 10u C2363 25V 470u C2371 50V 10u C2394 50V 10u C835 16V 47u C2354 35V 47u C8120 25V 470u C2390 50V 10u C2352 50V 10u C8100 16V 47u C2397 10V 100u C2353 50V 10u C8107 16V 470u C2355 35V 47u C834 16V 47u C2383 10V 100u C2389 10V 100u C812 25V 470u C811 16V 470u C802 25V 470u C8115 16V 100u C2362 25V 470u C831 47u 16V C821 16V 470u C2358 2.2u 35V C2359 2.2u 35V C2386 1u 50V C2387 1u 50V D802 B0JCME000037 D805 B0JCPE000004 D8001 MA2J11100L D8003 MA2J11100L D810 B0JCPE000004 D809 B0JCPE000004 D803 B0JCME000037 D2302 B0JCME000037 D806 B0JCPE000004 D808 B0JCPE000004 D2301 B0JCME000037 D807 B0JCPE000004 D801 B0JCPD000026 D2303 B0JCME000037 F1J1E1040022 FL3001 1 2 3 F1J1E1040022 FL3005 1 2 3 F1J1E1040022 FL3004 1 2 3 F1J1E1040022 FL3007 1 2 3 F1J1E1040022 FL3008 1 2 3 F1J1E1040022 FL3006 1 2 3 F1J1E1040022 FL3000 1 2 3 C0CBCAC00275 IC804 1 VDD 2 GND 3 CE 5 VOUT 4 NC C0DBAMH00018 IC801 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN C0DBAMH00018 IC803 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN IC8007 C0JBAR000419 1 2 3 4 5 6 7 8 IC8009 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc C0DBAMH00018 IC802 1 VIN 2 SW 3 FB 4 INV 5 SS 6 RT 7 GND 8 PVIN IC3008 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc C0ABBA000168 IC2305 1 2 3 4 5 6 7 8 IC8005 C0JBAB000646 1 2 3 4 5 6 7 8 9 10 11 12 13 14 IC8001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD IC8003 C1AA00000706 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing C1BB00001006 IC2303 1 PLLPWRR 2 PLLGNDR 3 PLLAVDD 4 PLLAVSS 5 PLLDVDD 6 PLLDVSS 7 TEST2 8 TEST3 9 DVSS4 10 DVDD4 11 XVSS 12 XOUT 13 XIN 14 XVDD 15 CVDD4 16 CVSS4 17 TEST0 18 TEST1 19 TEST4 20 TEST5 21 BVSS1 22 BVDD1 23 AVSS4 24 AVDD4 25 AVDD3 26 AVSS3 27 AOUT1 28 EVRINL 29 DAOUTL 30 DAOUTR 31 EVRINR 32 AOUT2 33 AVSS2 34 AVDD2 35 VREF2 36 VREF1 37 INL 38 INR 39 AVSS1 40 AVDD1 41 TEST6 42 XSEL0 43 XSEL1 44 XSEL2 45 CVSS1 46 CVDD1 47 LRCKI 48 BCKI 49 DATAI 50 SCKI 51 DVSS1 52 DVDD1 53 SCK0 54 TEST7 55 DATAO2 56 DATAO1 57 DATAO0 58 BCKO 59 LRCKO 60 CVSS2 61 CVDD2 62 XPDESC 63 PDEN 64 DVSS2 65 DVDD2 66 PWDB 67 RSTB 68 INTB 69 MCUIFSEL 70 CE 71 SCL/CL 72 I2CBUSY/DI 73 SDA/DO 74 DVSS3 75 DVDD3 76 MRREQ 77 GPFLAG 78 EMPF 79 CVSS3 80 CVDD3 C0DBEJG00001 IC8100 1 CTL 2 Vcc 4 OUT 5 C 3 GND C1AB00002534 IC2302 1 HP_IN 2 HP_RippleFilter 3 HP_Standby 4 IN 5 IN_VREF 6 PRE_GND 7 ON_TIME 8 DIAGNOSIS_OUT 9 NC 10 AMP_Standby 11 AMP_RippleFileter 12 Tj_Monitor 13 phase comp. 2 14 phase comp. 1 15 SW_OUT 16 SW_E 17 SW_B 18 SW_GND 19 NC 20 Vcc 21 PRE_Vcc 22 OUT+ 23 OUT- 24 NC 25 POWER_GND 26 NC 27 NC 28 HP_OUT C1AB00002534 IC2301 1 HP_IN 2 HP_RippleFilter 3 HP_Standby 4 IN 5 IN_VREF 6 PRE_GND 7 ON_TIME 8 DIAGNOSIS_OUT 9 NC 10 AMP_Standby 11 AMP_RippleFileter 12 Tj_Monitor 13 phase comp. 2 14 phase comp. 1 15 SW_OUT 16 SW_E 17 SW_B 18 SW_GND 19 NC 20 Vcc 21 PRE_Vcc 22 OUT+ 23 OUT- 24 NC 25 POWER_GND 26 NC 27 NC 28 HP_OUT DS8 1 2 3 DS7 1 2 3 DS30 1 2 3 4 5 DS10 1 2 3 4 5 6 DS4 1 2 3 4 5 6 7 8 9 10 11 L809 J0JHC0000078 L3140 J0JHC0000078 L810 J0JHC0000078 L805 J0JHC0000078 L808 J0JHC0000078 L804 J0JHC0000078 L811 J0JHC0000078 L807 J0JHC0000078 L802 100u L8003 G1C100K00020 L8001 G1C100K00020 L2330 220u L801 100u L8005 G1C100K00020 L803 22u L2331 220u SOUND15V 12V A_3.3V 5V_M LAN15V SOUND15V D_3.3V SLOT5V STB3.3V A_3.3V D_3.3V SOUND15V A_1.8V A_1.8V SLOT3.3V 5V_M 9V_2 FAN5V D_3.3V 12V 15V 5V_M 9V_2 D_1.8V SLOT15V A_3.3V A_5V 5V_M D_1.8V 9V_2 D_3.3V FAN5V P5V SLOT9V ZA3001 K4CD01000013 ZA3003 K4CD01000013 ZA3008 K4CD01000013 ZA3006 K4CD01000013 ZA3009 K4CD01000013 ZA3004 K4CD01000013 ZA3002 K4CD01000013 ZA3005 K4CD01000013 ZA3007 K4CD01000013 TPJV1 TPJH1 Q2372 2SD0601A0L Q2300 B1BBCF000028 Q8002 2SD0601A0L Q2331 B1BBCF000028 JS8094 0 R2386 100k R8098 10k R8060 0 R838 33 R2412 1.2k R8033 100k R2420 15k R8036 150 R804 47k R2387 0 R2388 0 R813 42.2k R8005 10k R8002 100 R8037 4.7k R8041 18k R3163 1k R2417 1.2k R2416 0 R2367 56 R2427 5.6k R2410 0 R821 24.3k R2406 10k R8025 0 R8039 4.7k R2354 1k R2352 10k R828 0 R2395 10k R2414 1.2k R8010 100 R8056 100 R8097 10k R2408 0 R8045 2.2k R2409 0 R2359 2.2 R2384 47k R2391 10k R8012 100 R8067 150 R2419 10k R2368 56 R8047 100 R2393 22 R2413 0 R814 10.5k R8003 100 R2400 22 R2404 10k R2360 2.2 R2390 10k R2383 4.7k R840 3.3k R2361 10k R2353 1k R8051 10k R2394 10k R2411 0 R805 84.5k R8011 100 R2405 10k R2425 0 R8054 0 R8004 100 R8050 2.2k R2351 10k R811 68k R8055 100 R822 10.5k R2392 10k R8017 5.6k R2418 10k R2424 0 R8100 10k R2364 0 R8018 5.6k R830 8.45k R2397 5.1k R2362 10k R8031 2.2k R3134 100k R2366 0 R2422 39k R2423 15k R3125 10k R8093 100 R8001 100 R2398 0 R8035 330 R8065 150 R8026 330 R812 68k R2357 2.2 R8009 100 R2421 39k R8029 3k R2358 2.2 R803 68k R2407 10k R806 10.5k R2389 10k R829 1k R2356 2.2 R2415 1.2k R2355 2.2 R8021 2.2k R2399 22 R819 68k R820 33k R2396 10k R8048 2.2k X2301 H0J184500026 A_5V L8502 G0A2R5H00003 L8501 G0A2R5H00003 H37 1 2 3 JK8500 K4BC02B00013 JK8500 K4BC02B00013 L8501 G0A2R5H00003 L8502 G0A2R5H00003 H37 1 2 3 I0 VCC COM INH SEL I1 VEE GND AOUT AIN- AIN+ GND VCC BOUT BIN- BIN+ M M M M # # # # # # VIDEO CS CS VIDEO SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI LAN15V GND GND GND HD VD O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC HP VP 5V DAC(D_OUTPUT) 5V/0.4A 9V/0.5A 3.3V/1.3A -L OUT +R OUT +L OUT -R OUT GND GND 15V GND GND GND 15V 15V 15V RESET OUT-L OUT-R 15V 15V LAN15V NC GND FAN CONT FAN SOS 15V 5V RESET L R SOUND MUTE SDA SCL 9 A 6 7 8 4 3 2 B C 1 F 5 D E PB-BOARD (PB30) TO TO (P5) P-BOARD P-BOARD (P10) TO AVR 9V AVR 5V AVR 3.3V AVR 12V AVR 1.8V SYNC SELECT SYNC SWITCH SYNC SIGNAL PROCESSOR HD SWITCH IIC ON/OFF SOUND CONTROL EQUALIZER BTL AMP L 10W MONO BTL AMP R 10W MONO SYNC SIGNAL INVERTER 1 2 3 4 5 6 7 8 9 10 DS-BOARD TNPA4385 (1/3) ! H3-BOARD TERMINAL (L) TNPA3003AB (R) TERMINAL ! SPEAKER SPEAKER ! TNPA3003AB H3-BOARD TH-65PF10CK DS-Board (1 of 3) and H3-Board Schematic Diagram TH-65PF10CK DS-Board (1 of 3) and H3-Board Schematic Diagram 66 TH-65PF10CK 11.10.DS 电路板 (2/3) 线路图 + + + + + + + + + G G G G G G AC_SCL3 AC_SDA3 S3_DET SDA_S3 S2_DET AC_SDA3 AC_SCL3 S1_DET AA_SCL3 AA_SDA3 SW1 SOS_ALL SW0 DPMS_HD PRE_HX_HD AA_SDA3 AA_SCL3 AC_SCL3 AC_SDA3 LED_R REMOCON LED_G KEY_SW AA_SDA3 AA_SCL3 PRE_HX_VD DPMS_VD S3_AL S3_AR PRE_HX_HD PRE_HX_VD AUDIO_SOS KEY_DET AC_SCL3 AC_SDA3 HX_RXD HX_TXD SCL_S2 SDA_S2 SCL_S3 SCL_S1 SDA_S1 S1_AR S1_AL S2_PR S2_PB S2_AR S2_AL S3_Y S3_PB S3_PR S3_S S1_S S2_S S2_Y S1_PR S1_PB S1_Y HX_AL HX_AR HX_PR HX_PB HX_Y PRE_HX_HD PRE_HX_VD HX_HD HX_VD CS(M) SYNC_INH AB_SCL3 AB_SDA3 AA_SDA3 AA_SCL3 HX_PB HX_Y HX_PR HX_AR HX_AL AG_Y_M AG_PB_M AG_PR_M AJ_DAC1 AJ_DAC0 FAN_CONT DPMS_HD DPMS_VD AB_SCL3 AB_SDA3 AB_SDA1 AB_SCL1 AB_SCL1 AB_SDA1 STB_ON SOS_ALL AH_SOS STB_ON RTC_INT FAN_SOS LED_G LED_R REMOCON REMOCON_OUT KEY_DET IIC_CONT POWER_STA KEY_SW PC_TXD PC_RXD SLOT_TXD SLOT_RXD STB5V RTC_INT C3035 0.1u 16V C3025 2.2u 16V C840 16V 2.2u C8181 50V 15p C3200 16V 1u C3014 50V 0.01u C3028 2.2u 16V C3040 16V 0.1u C8182 50V 15p C3021 2.2u 16V C3011 25V 0.1u C3056 1u 16V C3036 16V 0.1u C3054 1u 16V C3019 16V 0.1u C3017 50V 0.01u C3058 1u 16V C3020 2.2u 16V C3052 1u 16V C3029 2.2u 16V C3027 2.2u 16V C3024 2.2u 16V C3144 16V 2.2u C8075 1000p 50V C8070 0.1u 25V C3022 2.2u 16V C8123 16V 0.1u C3055 1u 16V C3016 50V 0.01u C8072 10V 10u C002 16V 0.1u C8109 16V 0.1u C8183 16V 0.1u C3034 0.1u 16V C8073 10V 10u C3057 1u 16V C3012 50V 0.01u C3010 25V 0.1u C3015 50V 0.01u C3009 25V 0.1u C3026 2.2u 16V C3031 2.2u 16V C3051 1u 16V C3023 2.2u 16V C3013 50V 0.01u C3033 0.1u 16V C3041 16V 0.1u C3001 50V 0.01u C3030 2.2u 16V C3032 16V 1u C3053 1u 16V C8074 150p 50V C8108 16V 0.1u C8185 5.5V 1.5 C3018 16V 47u C8103 16V 47u C8102 16V 47u C3042 16V 10u C3004 16V 47u C8200 16V 47u C3043 16V 10u C8122 16V 47u D8209 MA2J11100L D8201 MA2J11100L D8180 MA2J11100L D8204 MA2J11100L D8011 MA3X15300L D8010 MA3X15300L D8184 MAZ80560ML D8185 MAZ80560ML D8181 MAZ80560ML D8203 MAZ31000ML D8200 MAZ31600ML F1J1E1040022 FL3003 1 2 3 F1J1E1040022 FL3010 1 2 3 F1J1E1040022 FL3002 1 2 3 IC8181 C1DB00001208 RS5C372A-E2-FB 1 2 3 4 5 6 7 8 IC3007 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc IC8016 C0JBAZ001934 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC IC3002 C0JBBR000002 1 1OE 2 S1 3 1B4 4 1B3 5 1B2 6 1B1 7 1A 8 GND 9 2A 10 2B1 11 2B2 12 2B3 13 2B4 14 S0 15 2OE 16 VCC IC3004 C1AB00000454 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC IC3003 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc C1AB00002530 IC3001 Front1 1 2 Front2 3 Tuner1 4 Tuner2 5 EXT11 6 EXT12 7 EXT21 8 EXT22 9 EXT31 10 EXT32 11 DGND 12 SDA 13 SCL 14 AGND 15 FILTER 16 VRR 17 VCC 18 OUT2 19 OUT1 20 SELECT C1AB00002529 IC3005 1 V+ 2 Pb_IN2 3 GND 4 Pr_IN2 5 GND 6 Y_IN1 7 V+ 8 Pb_IN1 9 V+ 10 Pr_IN1 11 GND 12 PORT3 13 PORT2 14 ADR 15 SCL 16 SDA 17 GND 18 DGND 19 VREF 20 V+ 21 Pr_OUT2 22 PORT1 23 PORT0 24 Pb_OUT2 25 AUX0 26 AUX1 27 Y_OUT2 28 AUX2 29 AUX3 30 Pr_OUT1 31 GND 32 Pb_OUT1 33 GND 34 Y_OUT1 35 V+ 36 Y_IN4 37 V+ Pb_IN4 38 39 GND 40 Pr_IN4 41 V+ 42 Y_IN3 43 GND 44 Pb_IN3 45 V+ 46 Pr_IN3 47 GND 48 Y_IN2 DS15 1 2 3 DS2 1 2 3 4 5 6 7 DS14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DS3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 L8103 J0JHC0000078 L8102 J0JHC0000078 L8108 J0JHC0000078 L8105 J0JHC0000078 L8106 J0JHC0000078 L8107 J0JHC0000078 L8109 J0JHC0000078 L8101 J0JHC0000078 L8104 J0JHC0000078 L3006 G1C100K00020 L3002 G1C100K00020 L3005 G1C100K00020 L3050 G1C100K00020 STB5V_S 9V_2 LAN15V 5V_M STB3.3V STB3.3V STB5V_S 5V_M STB3.3V STB5V_S 9V_2 STB5V_S LAN15V SLOT9V 9V_2 P5V STB5V_S STB3.3V 5V_M 9V_2 P5V 9V_2 STB5V_S STB5V_S Q8181 B1CBHD000002 G D S Q8184 B1CBHD000002 G D S Q8182 B1CBHD000002 G D S Q8183 B1CBHD000002 G D S Q8010 2SD0601A0L Q8016 2SD0601A0L Q8017 2SD0601A0L Q8200 2SD0601A0L Q8019 2SD0601A0L Q8201 2SD0601A0L Q8202 2SD0601A0L Q8012 2SD0601A0L Q8018 2SD0601A0L Q8013 2SB0709A0L Q8011 2SB0709A0L R3041 330 R8120 0 R3150 100 R3102 47 R8183 0 R3092 75 R3054 56 R3038 0 R8180 82 R8187 56 R8201 47k R8189 0 R3103 47 R3118 33 R3078 56 R3053 56 R3116 33 R8188 56 R3034 330 R3218 3.3 R3082 100 R3065 56 R3043 100 R3044 10k R8117 0 R8129 0 R3141 47k R3067 56 R3032 100 R3108 56 4.7k R3213 R3195 10k R3121 75 R3028 10k R3050 56 R3031 0 R3080 56 R3072 75 R3058 56 R3033 100 R3210 100 R3068 56 R3027 10k R8202 22k R3030 0 R3120 33 R3107 56 R3160 0 R3216 3.3 R3037 0 R3026 10k R3049 10k R3219 3.3 R3079 56 R3211 100 R8185 2.7k R8118 0 R8119 0 R3230 100 R3070 75 R3062 100 4.7k R3215 R3198 12k R3066 56 R8205 75k R3069 56 R3075 75 R3196 10k R8122 2.7k R3090 75 R3051 33 R3217 3.3 R3106 10k R3119 1k R8069 2.2k R3101 47 R3212 4.7k R8121 2.7k R8200 56k R3039 330 R8204 100k R3076 56 R3071 75 R8184 0 R3122 75 R8182 100 R8203 10k R3064 56 R3089 75 R8186 2.7k R3088 75 R3029 10k R8190 0 R3161 0 R3057 56 R3104 10k R3123 75 R8206 39k R3105 10k R3093 75 R3077 56 R3073 75 R3046 10k R3045 10k R3197 12k R3214 4.7k R3081 56 R8057 1k R3091 75 R3036 330 R8089 180 R3231 100 R3048 330k R3047 10k R3117 1k R3040 330 R3115 1k R3074 75 R8181 100 R3140 47k R3035 330 R3042 0 X8181 H0J327200114 :FAN_CONT =75ohm :LPF(M) :CS(M) :SYNC_INH(M) SL3_DET= =SL2_DET =SL1_DET =IICSW =IICSW SCL SDA S1 S0 L R 32.768K HI HI LO LO LO LO SLOT3 SLOT2 SLOT1 SDA SCL R GND GND L GND PB/B TXD VD GND PR/R RXD HD Y/G KEY-SW LED_G GND REMOCON LED_R OPT STB3.3V GND NC 5V 9V FAN_SOS GND 5V_M REMOCON LED_R LED_G GND 5V RTC_INT REMOCON_OUT GND RXD_TV GND TXD_TV GND SOUND_MUTE GND STB5V RXD_PC KEY_DET TXD_PC SDA3 SCL3 N.C N.C SDA1 SCL1 GND IIC_CONT STB3.3V POWER_STAT CABLE_DET RESET KEY_SW GND STB_ON DPMS_VD DPMS_HD GND GND GND 10 16 14 18 15 12 17 11 13 EX.I/O(IIC SW) (SLOT DET IIC CONTROL) EX.I/O EX.I/O (VIDEO/AUDIO SELECT) IIC ON/OFF AUDIO SELECT PC SYNC INVERTER TIME CLOCK TO (DN3) DN-BOARD 4 5 2 1 8 6 7 9 10 3 21 22 23 24 25 26 27 28 29 30 COMPONENT SELECT TO HX-BOARD (HX1) TO (V2) V1-BOARD TO (V15) V2-BOARD ! DS-BOARD TNPA4385 (2/3) TH-65PF10CK DS-Board (2 of 3) Schematic Diagram TH-65PF10CK DS-Board (2 of 3) Schematic Diagram 67 TH-65PF10CK 11.11.DS 电路板 (3/3) 线路图 SIDE TERM SIDE TERM HX_TXD HX_RXD PC_RXD PC_TXD S3_AR S3_Y S3_HD S2_PB S2_PR S2_AR S2_VD S2_HD S2_DET S1_AL S1_AR S1_HD S1_PR S1_PB S1_S S1_Y AH_SOS S2_TXD S3_TXD S3_RXD S2_Y S3_PB S3_AL S1_VD SLOT_TXD S1_TXD S1_RXD S1_TXD B_ED+ B_ED- B_CLK+ B_CLK- B_EC+ B_EC- B_EB+ B_EB- B_EA+ B_EA- B_EE- B_EE+ B_OA- B_OB- B_OC+ B_OD- B_OD+ B_OE- B_OE+ A_OD- A_EC+ A_EC- A_OE- A_CLK- A_OB- A_OA+ A_OA- A_OC- A_CLK+ A_EA- A_EE- A_EE+ A_OB+ A_OC+ A_ED+ A_EA+ A_OD+ A_OE+ A_EB- A_EB+ A_OA- A_OB- A_OB+ A_OC- A_OD- A_OD+ A_OE- A_OE+ A_CLK- A_CLK+ A_EA- A_EB- A_EB+ A_EC- A_ED- A_ED+ A_EE- B_OA- B_OB- B_OB+ B_OC- B_OD- B_OD+ B_OE- B_CLK- B_CLK+ B_EA- B_EB- B_EB+ B_EC- B_ED- B_ED+ SCL_S2 SDA_S2 SCL_S3 SDA_S3 S3_PR AH_SOS S3_S S2_TXD S3_TXD A_ED- AJ_DAC1 AJ_DAC0 POWER_STA SDA_S1 SCL_S1 S1_DET AH_SOS REMOCON_OUT IIC_CONT AG_HD_M AG_VD_M AG_PB_M AG_Y_M AG_PR_M S3_RXD S2_RXD S1_RXD SLOT_RXD S2_RXD S3_DET S3_VD B_OA+ B_EE- A_EA+ A_EC+ A_EE+ B_OA+ B_OC+ B_OE+ B_EA+ B_EC+ B_EE+ A_OC+ A_OA+ S2_S C8080 16V 0.1u C8084 16V 1u C3151 16V 0.1u C3150 16V 0.1u C8083 16V 0.1u C8082 16V 0.1u C8081 16V 0.1u C2426 25V 0.1u C3152 16V 0.1u D3004 MA2J11100L D3061 MA2J72800L D3003 MA2J11100L D3001 MA2J11100L C0JBAA000419 IC3151 1 A 2 B 3 GND 5 Vcc 4 Y C0JBAA000419 IC3152 1 A 2 B 3 GND 5 Vcc 4 Y C0JBAA000419 IC3150 1 A 2 B 3 GND 5 Vcc 4 Y IC3006 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD C0ZBZ0001361 IC8014 EN S2_AL B_OB+ B_OC- 1 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 T2OUT 9 R2IN 10 R2OUT 11 INVALID 12 T2IN 13 T1IN 14 FORCEON 15 R1OUT 16 R1IN 17 T1OUT 18 GND 19 VCC 20 FORCEOFF DS1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 DS6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 DS13 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 DS12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 DS11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B18 B20 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 LAN15V SLOT5V SLOT3.3V SLOT5V SLOT9V STB5V_S SLOT15V SLOT9V SLOT3.3V STB5V_S STB5V_S STB5V_S SLOT5V SLOT15V STB5V_S STB3.3V LAN15V STB5V_S SLOT3.3V STB5V_S SLOT15V LAN15V STB5V_S SLOT9V Q3001 2SB0709A0L R3063 100 R3025 100 R3144 100 R3087 0 R3143 100 R8124 100 R3151 100 R3002 1k R3059 100 R3061 0 R3084 0 R8125 100 R3085 0 R3096 5.6k R3004 100 R8126 100 R3095 5.6k R8127 100 R8112 0 R3001 10k R3083 0 R3094 0 R3086 0 R3003 47k B19 B21 B17 SLOT1 A B LO SLOT2 SLOT3 LO LO LO HI HI TX3- TX3+ TX1+ TX0G TX0- TX0+ GND LAN15V AUDIO GND TXD AUDIO IN R Y/G Y/G GND PB/B S2DETECT PB/B GND RESET1 PR/R RESET2 PR/R GND HD PWR_STATUS SYNC GND SOS VD REMOTE SYNC GND CABLE DET PLUG DET GND SLOT5V GND SLOT9V SLOT3.3V GND AUDIO IN L RXD AUDIO GND IIC SCL RSVD IIC DAT SRQ STB5V GND TX1G TX1- TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TXC- TXG- TX2G TX1- TX1G TX0+ TX0- TX0G LAN15V PLUG DET CABLE DET SYNC GND REMOTE VD SOS SYNC GND TXCG TX3G TXG+ PWR_STATUS HD PR/R GND RESET2 PR/R RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G GND GND STB5V SRQ IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND AUDIO IN R GND SLOT3.3V SLOT9V GND SLOT5V TX1+ GND TX3+ TX3- TXC+ GND SLOT9V GND STB5V SRQ SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G LAN15V CABLE DET SYNC GND REMOTE VD SLOT5V IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ GND TX1+ TX0G TX0- TX0+ TX1G TX1- LAN15V GND Y/G Y/G GND SLOT5V GND GND LAN15V GND NC SLOT9V GND SLOT5V GND NC NC NC TX9+ TX9- TX8+ TX8- ETX_G3 TX7+ TX7- TX6+ TX6- ETX_G2 TX5+ TX5- TX4+ TX4- ETX_G1 LAN15V GND SLOT9V GND SLOT5V GND GND TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TXG- TX2G TX1+ TX1- TX1G TX0+ TX0- TX0G TX9- ETX_G3 TX7+ TX5- TX6- TX7- TX5+ TX6+ TX4- ETX_G1 TX8- ETX_G2 TX8+ TX9+ TX4+ GND G/Y_M GND GND B/PB_M VD_M GND GND GND R/PR_M GND GND GND HD_M GND GND GND GND GND GND GND GND GND 23 24 19 25 27 20 26 21 22 TO (DN1) DN-BOARD DN-BOARD (DN6) TO SLOT1 SLOT2 SLOT3 3.3V<=>5V LEVEL SHIFT 3.3V<=>5V LEVEL SHIFT 3.3V<=>5V LEVEL SHIFT RS232C DRIVER SERIAL SELECT 26 23 27 22 29 24 28 21 25 30 ! DS-BOARD TNPA4385 (3/3) TH-65PF10CK DS-Board (3 of 3) Schematic Diagram TH-65PF10CK DS-Board (3 of 3) Schematic Diagram 68 TH-65PF10CK 11.12.DN 电路板 （1/9）线路图 + G G G G G G G G G G SIDE TERM 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 A_EC+ RXD TRCD0 AP_WE AQ_D5 B_EC- OSD_DATA4 3V_SDA3 TRCD1 AQ_D4 OSD_DATA15 AR_IIC_INT B_OE+ D_LED_G 3V_SDA1 OSD_DATA11 TXD_PC D_LED_R 3V_SCL4 B_EE- B_EB- RXD_PC OSD_HDI D_LED_G OSD_YS 3VRXD_TU 3VRXD_TU AAE_MCLD OSD_YM AA_REMOCON KEY_DET 3V_SDA3 B_CLK- AO_A13 15V_SOS TXD_PC AR_IIC_CONT OSD_DATA7 AR_IIC_INT D_PDB1 B_EA+ A_EB- GENX_RST AP_OE D_PSLCT AQ_D8 A_TV_ON/OFF ALARM A_OC+ 3V_SCL3 3.3V_SOS AO_A14 AQ_D3 AO_A16 OSD_DATA6 RXD_PC AQ_D14 A_EA+ A_ED- AA_RTC_INT AQ_D7 KEY_INPUT AO_A17 DRVMUTE SOUND_MUTE D_PBUSY OSD_DATA9 AO_A9 DRVMUTE LED_R 15V_SOS OSD_DATA2 B_ED+ OSD_DATA13 B_ED- OSD_VDO AA_PANEL_STBY_ON D_LED_R D_PSTB OSD_DATA1 AO_A1 RXD_PC TRCD2 OSD_DATA5 D_IIC_INT A_OE+ 5V_SOS B_OB- AQ_D12 AO_A0 AQ_D9 NRST_FP P3V_SCL2 A_OB- AO_A12 3V_SCL1 AQ_D15 TRCD3 RXD OSD_DATA12 OSD_HDO LED_G OSD_DATA3 AQ_D6 AA_DISPEN A_OD- TXD OSD_DATA14 B_OD- AA_CABLE_DET A_EE+ OSD_DATA0 AO_A2 A_CLK- 3V_SCL1 AA_NRST AQ_D13 AH_REM_INH 3.3V_SOS POWER_STAT AQ_D11 OSD_CLK AR_IIC_CONT 3VTXD_TU AA_ALL_OFF1 AQ_D2 5V_SOS 3V_SDA1 P3V_SDA2 P_ON/OFF AO_A6 AO_A7 D_LED_G AO_A5 D_IIC_CLK2 AO_A11 AO_A3 AP_CE EXTRG0 NRST 5VRXD_TU READY P3V_SCL2 AO_A15 AQ_D1 AQ_D10 NRST B_OC+ D_IIC_DATA1 B_OA+ B_EE+ SCLOCK P3V_SDA2 AO_A10 AO_A4 D_IIC_CLK1 OSD_DATA10 SDATA AO_A18 AAE_MCDATA_O TRCST A_TV_ON/OFF AAE_MCCLK D_IIC_CONT UART_SW OSD_DATA8 TXD_PC 3V_SCL3 STB_ON D_LED_R A_OB+ A_OC- A_OD+ A_OE- A_CLK+ A_EA- A_ED+ A_EE- B_OA- B_OB+ B_OC- B_OD+ B_OE- B_CLK+ B_EA- B_EB+ B_EC+ D_IIC_CONT D_IIC_CLK2 D_IIC_DATA2 AA_DISPEN READY ALARM RXD TXD D_IIC_CLK1 D_IIC_DATA1 D_PDB1 D_PSLCT D_PDB0 AA_PANEL_STBY_ON D_PBUSY D_PSTB STB_ON AA_ALL_OFF1 LED_R AQ_D0 ICHIPS_SS ICHIPS_SI OSD_72MHZ AA_FAN_SOS A_OA- A_OA+ ICHIPS_RST LED_G 3VTXD_TU REM_IN AA_REMOCON_OUT AA_REMOCON AR_IIC_CONT AH_REM_OUT EXTRG0 5VTXD_TU A_EC- A_EB+ AA_REMOCON FLASH_DATA_DIR AO_A8 AO_A19 AA_RTC_INT 5VRXD_TU 5VTXD_TU SOUND_MUTE RXD_PC KEY_DET TXD_PC 3V_SDA3 3V_SCL3 3V_SDA1 3V_SCL1 AR_IIC_CONT POWER_STAT AA_CABLE_DET AA_NRST STB_ON DPMS_HD DPMS_VD KEY_INPUT AA_REMOCON_OUT AP_CE2 AH_REM_OUT DPMS_VD DPMS_HD CPLD_CONF_OE FPGA_CONF_OE FPGA2_INIT_DONE M_CONF_DONE M_NSTATUS M_NCONFIG AR_IIC_CONT D_IIC_INT D_IIC_DATA2 D_PDB0 3V_SDA4 UART_SW TXD AA_FAN_SOS AH_REM_INH 3V_SDA4 3V_SCL4 REM_IN 3V_SCL1 3V_SDA1 P_ON/OFF C4034 16V 0.1u C4009 16V 0.1u C4048 16V 2.2u C4016 16V 0.1u C4039 16V 0.1u C4012 16V 0.1u C4017 16V 0.1u C4050 16V 0.1u C4042 50V 100p C4024 50V 1000p C4010 16V 0.1u C4036 50V 15p C4043 16V 0.1u C4064 16V 0.1u C4056 16V 0.1u C4060 50V 0.01u C4022 16V 0.1u C4008 16V 0.1u C4032 16V 1u C4049 16V 4.7u C4018 16V 0.1u C4021 16V 0.1u C4013 16V 0.1u C4035 16V 0.1u C4044 16V 1u C4020 16V 0.1u C4007 16V 0.1u C4051 16V 0.1u C4062 16V 0.1u C4011 16V 0.1u C4059 25V 0.1u C4054 16V 0.1u C4038 50V 1000p C4058 50V 100p C4037 50V 15p C4014 16V 0.1u C4061 10u 25V C4019 16V 0.1u C4033 16V 0.1u C4015 16V 0.1u C4047 100p 50V C4046 16V 0.1u C4055 16V 0.1u C4004 16V 0.1u C4006 6.3V 10u C4063 + C4063 16V 47u C4066 16V 47u D4005 MA2J72800L D4001 MA2J72800L D4022 B0ACCE000005 D4007 B0ACCE000005 D4020 B0ACCE000005 D4008 B0ACCE000005 D4021 B0ACCE000005 D4023 B0ACCE000005 D4006 B0ACCE000005 D4004 MAZ303300L D4010 MAZ30360HL FL4003 F1J1E1040022 1 2 3 FL4001 F1J1E1040022 1 2 3 FL4004 F1J1E1040022 1 2 3 FL4006 F1J1E1040022 1 2 3 FL4005 F1J1E1040022 1 2 3 IC4008 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y C0EBE0000447 IC4004 1 Vout 2 VDD 3 GND 5 N.C. 4 N.C. IC4005 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y IC4011 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc TVRP633 IC4003 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C0JBAZ000856 IC4007 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc MN103SB30RGL IC4001 1 P235 2 P234 3 P233 4 P232 5 P231 6 P230 7 P120/D16 8 P121/D17 9 P122/D18 10 P123/D19 11 P124/D20 12 P125/D21 13 P126/D22 14 P127/D23 15 IVSS 16 IVDD 17 P137/D31 18 P136/D30 19 P135/D29 20 P134/D28 21 P133/D27 22 P132/D26 23 P131/D25 24 P130/D24 25 P213 26 P212 27 P211 28 P210 29 P207 30 P206 31 VSS 32 VDD 33 P205 34 P204 35 P203 36 P202 37 P201 38 P187/SBT2 39 P186/SBI2 40 P185/SBT1/TM910A 41 P184/SBI1 42 P183/SBO1 43 P182/SBT0/TM810A 44 P181/SBI0 45 P180/SBO0 46 P061/A17 47 P060/A16 48 P057/A15 49 P056/A14 50 P055/A13 51 P053/A12 52 P052/A11 53 P051/A10 54 P050/A9 55 IVDD 56 IVSS 57 P064/A20 58 P065/A21 59 P0C0/NWE0 60 P066/A22 61 P063/A19 62 P062/A18 63 P047/A8 64 P046/A7 65 P045/A6 66 VDD 67 IVSS 68 P145/HOUTA 69 P142/VCLKOUTA 70 IVDD 71 PWROUTR 72 RTCXI 73 RTCX0 74 PSCNT 75 NTEST 76 P044/A5 77 P043/A4 78 P042/A3 79 P041/A2 80 P0C1/NRE 81 P0C2/NCS0 82 P200/ZA1 83 VSS 84 NRST 85 VDD 86 P172/SDA2 87 P173/SCL2 88 P170/SDA1 89 P171/SCL1 90 P025/HSYNC 91 IVSS 92 OSDXI 93 IVDD 94 P024/VSYNC/IRQ1 95 P021/YMOUT0/TM810B 96 P020/YSOUT 97 P000/R04 98 P001/R03 99 P002/R02 100 P003/R01 101 P004/R00 102 IVDD 103 IVSS 104 P005/G05 105 P006/G04 106 P007/G03 107 P010/G02 108 P011/G01 109 P023/G00 110 P012/B04 111 P013/B03 112 P014/B02 113 P015/B01 114 IVSS 115 P022/B00/TM910B 116 VDD 117 IVDD 118 P177/SDA0B 119 P176/SCL0B 120 P175/SDA0A 121 P174/SCL0A 122 P030/RMIN/IRQ0 123 PVDD 124 PLLTST 125 PVSS 126 AVDD2 127 AVSS2 128 IVSS 129 AD1N6 130 ADIN7 131 ADIN8 132 ADIN9 133 ADIN10 134 ADIN11 135 P160/ADIN0/TM0IO 136 P161/ADIN1/TM1IO 137 P162/ADIN2/TM2IO 138 P163/ADIN3/TM3IO 139 P240/ADIN4 140 P241/ADIN5 141 P242/CECINA 142 P243/CECINB 143 IVSS 144 OSCXO 145 OSCXI 146 IVDD 147 TRCD3 148 TRCD2 149 TRCD1 150 TRCD0 151 TRCST 152 TRCCLK 153 EXTRG1 154 EXTRG0 155 SDATA 156 SCLOCK 157 P100/NCS2A 158 P101/IRQ2A 159 VDD 160 VSS 161 P102/IRQ3A 162 P103/IRQ4A 163 P104/IRQ5A 164 P105/IRQ6A 165 P106/IRQ7A 166 P107/IRQ8A 167 P117/DPHI0 168 P116/DPVI0 169 P115/DPHI1 170 P114/DPVI1 171 P113 172 P112 173 P111 174 P110 175 P237 176 P236 DN6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 DN4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 DN2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 DN3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 DN11 L4001 J0JHC0000096 L4002 J0JHC0000096 L4004 J0JHC0000096 L4003 J0JHC0000096 P15V STB3.3V P5V STB3.3V 5V_M 3.3V P5V STB3.3V STB3.3V P15V 1.2V STB5V STB3.3V 2.5V STB3.3V P5V STB5V 3.3V STB3.3V STB5V STB5V STB3.3V STB3.3V STB5V 3.3V STB3.3V STB1.5V STB5V STB3.3V P15V 3.3V STB3.3V STB5V STB5V STB5V STB3.3V PA4001 K5H4022A0023 TP4018 TP4002 TP4012 TP4009 TP4005 TP4015 TP4010 TP4008 TP4016 TP4003 TP4007 TP4001 TP4017 TP4014 TP4013 TP4019 TP4006 TP4004 TP4011 Q4001 B1CBHD000002 G D S Q4014 B1CBHD000002 G D S Q4015 B1ABCF000138 Q4004 B1ABCF000138 Q4009 B1ABCF000138 Q4007 B1ABCF000138 Q4012 B1ABCF000138 Q4006 B1ABCF000138 Q4011 B1ABCF000138 Q4013 B1ABCF000138 Q4003 B1ABCF000138 Q4002 B1ABCF000138 Q4010 B1ABCF000138 Q4005 B1ABCF000138 Q4016 B1ABCF000138 R4093 EXB28V103JX R4009 EXB28V103JX R4055 EXB28V100JX R4019 EXB2HV100JV R4021 EXB2HV100JV R4076 EXB2HV470JV R4075 EXB2HV470JV R4049 EXB2HV100JV R4050 EXB2HV100JV R4147 330 R4067 22 R4218 0 R4057 0 R4152 1k R4012 2.7k R4127 100k R4199 0 R4070 0 R4160 10k R4054 10k R4222 22 R4038 100 R4078 2.7k R4181 22k R4190 3.3k R4060 0 R4189 10k R4110 100 R4095 100 R4121 100 R4066 2.7k R4082 0 R4089 100 R4140 47k R4153 1k R4115 10k R4159 10k R4002 0 R4024 10k R4091 10k R4187 10k R4010 2.7k R4111 3.3k R4186 100 R4180 22k R4142 1k R4131 100 R4167 10k R4230 100 R4013 3.3k R4211 100 R4027 10k R4059 0 R4170 0 R4032 10k R4172 10k R4037 10k R4039 100 R4015 100 R4216 0 R4026 10k R4134 10k R4130 0 R4210 100 R4071 0 R4025 100 R4099 10k R4097 1k R4119 100 R4156 10k R4219 0 R4201 10k R4209 100 R4223 22 R4128 10k R4151 6.8k R4144 10k R4065 22 R4150 3.9k R4061 22 R4148 10k R4155 1k R4114 100 R4043 10k R4088 10k R4051 22 R4206 100 R4108 3.3k R4011 10k R4098 12k R4212 100 R4179 1k R4125 10k R4154 12k R4143 47k R4188 3.3k R4053 0 R4035 10k R4004 10k R4149 1k R4162 0 R4184 1k R4145 5.6k R4165 100 R4139 1k R4207 100 R4112 0 R4233 100 R4073 47 R4129 100k R4196 100 R4135 0 R4016 10k R4176 100 R4126 10k R4030 2.7k R4069 0 R4215 0 R4080 2.7k R4056 0 R4122 100 R4113 100 R4183 10k R4018 100 R4087 100 R4132 0 R4052 22 R4136 10k R4090 100 R4166 5.6k R4191 10k R4044 100 R4006 0 R4068 2.7k R4077 47 R4062 2.7k R4440 10k R4117 100 R4202 100 R4228 100 R4175 6.8k R4208 100 R4217 10k R4045 10k R4072 100 R4074 47 R4234 10k R4031 100 R4064 2.7k R4058 0 R4118 10k R4137 47k R4063 22 R4096 100 R4100 0 R4123 10k R4173 10k R4195 0 R4231 0 R4146 5.6k R4014 100 R4177 10k R4214 100 R4041 100 R4138 10k R4193 0 R4008 10 R4229 100 R4226 10k R4023 100 R4141 10k R4081 100 R4133 1k R4086 39k R4116 10k R4094 100 R4017 10 R4124 1k R4192 100 R4213 100 R4197 100 R4198 0 R4079 47 R4200 100 R4020 100 R4084 10k R4047 100 R4048 10k R4224 0 R4194 100 R4083 1k R4232 5.6k X4001 H0J100500030 15V_SOS GND SOS7_SC2 GND SOS6_SC1 SOS4_PS GND GND 3.3V_SOS PANASONIC_MODE FAN_SOS 5V_SOS TXD PSLCT PDB1 SDA3 IIC_CONT SDA2 PBUSY STB5V SDA1 GND STB3.3V IIC_INT/BOOT GND RXD SCL1 SCL3 PANEL_STBY_ON PSTB PDB0 FSTB DISPEN INEXCH ALARM READY STB5V SCL2 ALL_OFF IIC_DATA1 IIC_CONT IIC_CLK2 GND TXD P15V REMOCON STBY5V STBY3.3V RXD IIC_CONT IIC/INT GND SCL1 SDA1 P15V SCL2 P5V SDA2 IIC_DATA2 TXD ECO_ON IIC_CLK1 RXD IIC_INT LED_G PSTB LED_R PDB0 3.3V->5V 5V->3.3V EEPROM_WP PSLCT PDB1 PBUSY SOS8_SS GND For DEBUGER DPMS_HD KEY_SW RESET DPMS_VD STB_ON SCL3 GND SOUND MUTE KEY_DET 5V_M RTC INT GND GND LED_R RXD_TU TXD_TU 5V REMOCON GND N.C. REMOCON OUT SDA3 STB3.3V GND SDA1 GND IIC_CONT STB5V GND N.C. RXD_PC TXD_PC SCL1 LED_G FAN_SOS CABLE_DET POWER_STAT GND GND GND 7 A 3 B 8 D E 9 1 F 5 4 2 C 6 DS-BOARD (DS6) TO (D3) TO D-BOARD LEVEL CONVERTER LEVEL CONVERTER UART SW OR GATE DS-BOARD (DS3) TO FOR USE FACTORY FOR FACTORY USE MICOM RESET 1 2 3 4 5 6 ! DN-BOARD TNPA4304AB (1/9) EEPROM TH-65PF10CK DN-Board (1 of 9) Schematic Diagram TH-65PF10CK DN-Board (1 of 9) Schematic Diagram 69 TH-65PF10CK 11.13.DN 电路板 （2/9）线路图 + + + + (FIN) AO_A18 AO_A5 AO_A2 AP_WE FPGA_TMS AP_OE AO_A11 AQ_D0 AO_A19 AO_A3 AQ_D15 FPGA_TCK AO_A8 AQ_D10 AQ_D13 AQ_D8 CLKM_20MHZ AQ_D12 AQ_D3 AQ_D14 AO_A7 AO_A6 AQ_D5 AQ_D9 AO_A17 AP_CE AO_A15 AQ_D1 AO_A4 AQ_D6 AO_A16 AO_A14 AO_A0 AO_A9 AO_A1 AQ_D7 AO_A12 AO_A13 AQ_D11 AO_A10 AQ_D4 AQ_D2 FPGA_TDI AP_CE2 74M_SS FPGA_CONF_OE FPGA_CONF_OE FPGA_DCLK M_NSTATUS M_CONF_DONE M_NCONFIG FPGA2_INIT_DONE OSD_72MHZ 74M_NON_SS AAE_MCCLK ICHIPS_SI FPGA_NCONFIG FPGA_CONFDONE FPGA_DATA0 FPGA_NSTATUS FPGA_DATA01 FPGA_DCLK2 CLKM_20MHZ_F2 C4085 0.1u 16V C4144 16V 0.1u C4107 16V 0.1u C4122 4.7u 10V C4079 0.1u 25V C4067 16V 1u C4105 10V 1u C4094 0.1u 16V C4109 6.3V 10u C4126 6.3V 10u C4082 10u 25V C4083 10u 25V C4127 16V 0.1u C4149 6.3V 10u C4146 16V 0.1u C4100 50V 68p C4086 0.01u 50V C4078 0.01u 50V C4097 0.1u 16V C4114 10u 25V C4118 0.022u 25V C4088 10p 50V C4102 10u 25V C4140 50V 12p C4112 50V 1000p C4074 10u 25V C4101 50V 1000p C4089 1000p 50V C4148 16V 0.1u C4106 6.3V 10u C4125 16V 0.1u C4108 16V 0.1u C4123 0.1u 16V C4091 4.7u 10V C4147 16V 0.1u C4124 50V 150p C4080 1000p 50V C4084 0.1u 25V C4075 10u 25V C4139 50V 12p C4110 16V 0.1u C4045 16V 0.1u C4145 16V 0.1u C4077 0.01u 50V C4143 16V 0.1u C4111 16V 47u C4098 68u 4V C4092 68u 4V C4103 68u 4V D4026 B0JCPE000004 D4025 B0JCDD000002 D4027 B0JCDD000002 D4028 B0JCPE000004 D4029 B0JCDD000002 D4030 B0JCPE000004 C0CBCAD00016 IC4306 1 Vcont 2 GND 3 Np 5 Vin 4 Vout IC4601 C0JBAZ000851 1 1OE 2 1A 3 1Y 4 2OE 5 2A 6 2Y 7 GND 8 3Y 9 3A 10 3OE 11 4Y 12 4A 13 4OE 14 VCC C1ZBZ0003478 IC4604 XT 1 2 SL0 3 SL1 4 CLK7 5 VDD1 6 VSS1 7 CLK1 8 CLK2 9 CLK3 10 VSS 11 VSS 12 CLK6 13 CLK5 14 CLK4 15 VSS2 16 VDD2 17 SL2 18 STBY 19 VDD3 20 XTN C0DBAYY00273 IC4305 1 GND 2 REFIN 3 VREF 4 CS 5 COVP 6 CUVP 7 PGOOD 8 CTL 9 LSAT 10 ILIM 11 +INC 12 -INC 13 FSW 14 PGND 15 OUT-2 16 VB 17 VCC 18 VBIN 19 LX 20 OUT-1 21 CB 22 RT 23 VO 24 FB C0DBAYY00274 IC4901 1 RT 2 CS1 3 VO1 4 FB1 5 REFIN1 6 ILIM1 7 -INC1 8 -INC2 9 ILIM2 10 FSW 11 FB2 12 VO2 13 CS2 14 GND 15 VREF 16 CTL 17 CB2 18 OUT2-1 19 LX2 20 OUT2-2 21 VB 22 PGND 23 VCC 24 OUT1-2 25 LX1 26 OUT1-1 27 CB1 28 PGOOD 29 CUVP 30 OVP IC4002 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 C0DBEGE00002 IC4309 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND L4008 J0JHC0000096 L4007 G1C1R2MA0248 L4006 G1C2R2MA0248 L4005 G1C2R2MA0248 3.3V 3.3V STB1.5V STB3.3V P15V P15V STB5V 3.3V P15V Q4018 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q4019 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q4017 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 Q4021 B1ABCF000138 Q4020 B1ABCF000138 R4379 47 R4239 33k R4331 1k R4235 100k R4371 10k R4315 10k R4258 16k R4238 39k R4171 5.6k R4297 10k R4320 10k R4237 0 R4278 10k R4353 10k R4277 10k R4168 0 R4295 10k R4251 0 R4281 47 R4261 0 R4381 47 R4287 47 R4369 10k R4267 39k R4416 47 R4279 4.7k R4263 0 R4257 33k R4247 0 R4286 47 R4248 56k R4262 15k R4415 47 R4380 47 R4384 47 R4276 10k R4266 39k R4245 1k R4244 13k R4249 27k R4285 47 R4273 3.9k R4243 51k R4250 100k R4259 1k R4282 47 R4272 43k R4236 0 R4414 47 R4265 27 R4280 10k R4296 10k R4255 43k R4377 10k R4007 0 R4264 51k R4363 0 X4002 H0J200500038 3.3V 3.3V 2.5V STB5V->STB3.3V STB5V->STB1.5V P15V->2.5V ON/OFF_CTL CLK6 39.5SSMHz CLK5 72MHz CPG CLK7 74.25MHz CLK1 20SSMHz CLK2 40MHz CLK3 74.25MHz CLK4 90MHz ON/OFF_CTL DCDC_Conv. LDO TVRP574-2 P15V->3.3V P15V->1.2V 12 18 17 16 13 11 15 10 14 15V->2.5V DC-DC CONVERTER 15V->3.3V DC-DC CONVERTER 15V->1.2V STB 1.5V STB 3.3V 16M FLASH MEMORY CPG 11 12 CLK/SERIAL SELECT ! DN-BOARD TNPA4304AB (2/9) 1 2 3 4 5 6 TH-65PF10CK DN-Board (2 of 9) Schematic Diagram TH-65PF10CK DN-Board (2 of 9) Schematic Diagram 70 TH-65PF10CK 11.14.DN 电路板 （3/9）线路图 + + + + + + + (FIN) (FIN) SIDE TERM AD_PLLH AD_PLLV AD_FLD HD_ADA VD_ADA HDA VDA A_OA5 A_OC4 A_OE5 A_OE4 A_OE3 A_OE2 A_OE1 A_OE0 A_EA6 A_EA5 A_EA4 A_EA3 A_EA2 A_EA1 A_EA0 A_EB6 A_EB5 A_EB4 A_EB3 A_EB2 A_EB1 A_EB0 A_EC6 A_EC5 A_EC4 A_EC3 A_EC2 A_EC1 A_EC0 A_ED6 A_ED5 A_ED4 A_ED3 A_ED2 A_ED1 A_EE6 A_EE5 A_EE4 A_EE3 A_EE2 A_EE1 A_EE0 LVA_CLK A_OE6 A_OD0 AD_CLK RE_5 RE_0 RE_2 RE_4 RE_1 RE_3 RE_7 RE_8 RE_9 GE_9 GE_8 BE_8 BE_3 BE_5 BE_7 GE_0 GE_1 BE_9 GE_2 BE_4 BE_6 GE_3 GE_4 GE_5 GE_6 GE_7 BE_2 BE_1 BE_0 CLP_A A_OC5 A_OA6 A_OC3 A_OB0 A_OB1 A_OB2 A_OB4 A_OD4 A_OB5 A_OD5 A_OB3 A_OD6 A_OA0 A_OC0 A_OA1 A_OC1 A_OA2 A_OC6 A_OA3 A_OC2 A_OA4 A_OB6 A_OD1 A_OD2 A_OD3 A_ED0 B_OE1 B_EB4 B_OC4 B_OA5 B_ED4 B_EE0 B_OE2 B_EB5 B_OC5 B_OA6 B_OD2 B_ED5 B_EE1 B_OE3 B_EB6 B_OC3 B_ED6 B_EE2 B_OE4 B_EA0 B_OB0 B_EC0 B_EE3 B_OE5 B_EA1 B_OD3 B_EC1 B_EE4 B_EA2 B_OD1 B_EC2 B_EE5 B_EA3 B_OB2 B_EC3 B_EE6 B_EA4 B_OB4 B_EC4 B_OD4 B_EA5 B_OB5 B_EC5 B_ED1 B_OD5 B_EA6 B_ED0 B_OB3 B_EC6 B_ED2 B_OD6 B_OE0 B_OA0 B_EB0 B_OC0 B_OA1 B_EB1 B_OC1 B_OA2 B_OB6 B_OD0 B_EB2 B_OC6 B_OA3 B_OE6 B_EB3 B_OA4 B_ED3 LVB_CLK B_OC2 X2CBCLK_A LVA_PWDN P3V_SDA2 P3V_SCL2 A_OA- A_OA+ A_OB- A_OB+ A_OC- A_OC+ A_OD- A_OD+ A_OE- A_OE+ A_CLK- A_CLK+ A_EA- A_EA+ A_EB- A_EB+ A_EC- A_EC+ A_ED- A_ED+ A_EE- A_EE+ B_OA- B_OA+ B_OB- B_OB+ B_OC- B_OC+ B_OD- B_OE- B_OE+ B_CLK- B_CLK+ B_EA- B_EA+ B_EB- B_EB+ B_EC- B_EC+ B_ED- B_ED+ LVB_PWDN LVA_EEN LVA_OEN LVB_OEN LVB_EEN P3V_SCL2 P3V_SDA2 RE_6 B_EE+ B_EE- B_OD+ P3V_SDA2 P3V_SCL2 B_OB1 CBCLK_A X2CBCLK_B 3V_SCL3 3V_SDA3 CBCLK_B C4155 25V 0.1u C5114 6.3V 10u C4185 16V 2.2u C5132 0.01u 16V C5184 6.3V 10u C4192 6.3V 10u C4177 16V 0.1u C5124 6.3V 10u C4171 25V 0.1u C5189 0.01u 16V C5101 0.01u 16V C4193 16V 0.1u C4151 16V 0.1u C5134 6.3V 10u C4156 10u 6.3V C4162 6.3V 10u C4168 16V 0.01u C5109 6.3V 10u C5121 0.01u 16V C4189 16V 0.1u C4179 16V 2.2u C5190 6.3V 10u C4153 25V 0.1u C5123 0.01u 16V C4002 16V 0.01u C4173 25V 0.1u C4180 16V 2.2u C5110 6.3V 10u C4176 16V 0.01u C5186 0.01u 16V C4167 16V 0.01u C5108 6.3V 10u C4001 16V 0.01u C4157 16V 0.01u C4166 16V 0.01u C5128 6.3V 10u C4187 10u 6.3V C4163 16V 0.01u C5107 0.01u 16V C5116 6.3V 10u C5113 6.3V 10u C4175 6.3V 10u C4159 6.3V 10u C4198 6.3V 10u C5126 6.3V 10u C4152 16V 0.1u C5191 6.3V 10u C5117 0.01u 16V C5122 0.01u 16V C5129 6.3V 10u C5185 6.3V 10u C4191 16V 0.1u C4174 25V 0.1u C5131 6.3V 10u C4172 25V 0.1u C5187 0.01u 16V C4170 16V 0.01u C5105 0.01u 16V C5130 0.01u 16V C4197 16V 0.1u C5111 6.3V 10u C5103 0.01u 16V C5115 6.3V 10u C5118 6.3V 10u C4154 25V 0.1u C4169 25V 0.1u C4186 10u 6.3V C5120 0.01u 16V C4161 10u 6.3V C4188 10u 6.3V C4003 16V 0.01u C4158 6.3V 10u C5133 6.3V 10u C5104 0.01u 16V C5106 0.01u 16V C5119 0.01u 16V C5112 6.3V 10u C4165 6.3V 10u C5125 6.3V 10u C4160 16V 0.01u C5127 6.3V 10u C5188 0.01u 16V C4178 16V 2.2u C4164 6.3V 10u C4190 16V 47u C4183 16V 470u C4181 16V 470u C4194 16V 47u C4182 16V 470u C5102 16V 47u C4184 16V 47u IC4607 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y IC4608 C0JBAE000354 1 A 2 B 3 GND 5 VCC 4 Y C0ZBZ0001464 IC5103 1 XIN 2 VDD 3 AVDD 4 SDAT 5 AVSS 6 VSSL 7 LCLK1 8 LCLK2 9 LCLK3 10 SCLK 11 VDDL 12 LCLK4 13 VSS 14 CLK5 15 CLK6 16 XOUT C0ZBZ0001464 IC5102 1 XIN 2 VDD 3 AVDD 4 SDAT 5 AVSS 6 VSSL 7 LCLK1 8 LCLK2 9 LCLK3 10 SCLK 11 VDDL 12 LCLK4 13 VSS 14 CLK5 15 CLK6 16 XOUT C1AB00002661 IC4609 1 REF1 2 VDD 3 SDA 4 SCL 5 VSS 6 TEST 7 ADS 8 IN1 9 NC 10 ISET 11 IN2 12 NC 13 IN3 14 NC 15 GND3 16 NC 17 OUT3 18 VCC3 19 GND2 20 NC 21 OUT2 22 VCC2 23 GND1 24 NC 25 OUT1 26 VCC1 27 REF3 28 REF2 C0ZBZ0001412 IC5001 1 S2DAT 2 S2CLK 3 VDDP1 4 VSSP1 5 VSSP0 6 VDDP0 7 PWDNB 8 RXEE0 9 RXEE1 10 RXEE2 11 RXEE3 12 RXEE4 13 RXEE5 14 RXEE6 15 VSS0 16 VDD0 17 RXED0 18 RXED1 19 RXED2 20 RXED3 21 RXED4 22 RXED5 23 RXED6 24 VSSR0 25 VDDR0 26 RXEC0 27 RXEC1 28 RXEC2 29 RXEC3 30 RXEC4 31 RXEC5 32 VSS1 33 VDD1 34 RXEC6 35 RXEB0 36 RXEB1 37 RXEB2 38 RXEB3 39 RXEB4 40 RXEB5 41 RXEB6 42 VSSR1 43 VDDR1 44 RCLKOUT 45 VSS2 46 VDD2 47 RXEA0 48 RXEA1 49 RXEA2 50 RXEA3 51 RXEA4 52 RXEA5 53 RXEA6 54 VSS3 55 VDD3 56 RXOE0 57 RXOE1 58 RXOE2 59 RXOE3 60 RXOE4 61 RXOE5 62 RXOE6 63 RXOD0 64 VSS4 65 VDD4 66 RXOD1 67 RXOD2 68 RXOD3 69 RXOD4 70 RXOD5 71 RXOD6 72 RXOC0 73 RXOC1 74 RXOC2 75 RXOC3 76 RXOC4 77 RXOC5 78 RXOC6 79 RXOB0 80 RXOB1 81 RXOB2 82 RXOB3 83 RXOB4 84 RXOB5 85 RXOB6 86 VDDR2 87 VSSR2 88 RXOA0 89 RXOA1 90 RXOA2 91 RXOA3 92 RXOA4 93 RXOA5 94 RXOA6 95 VDD5 96 VSS5 97 RESRVD 98 MODE1 99 VSSL 100 VDDL 101 RXOA- 102 RXOA+ 103 RXOB- 104 RXOB+ 105 RXOC- 106 RXOC+ 107 RXOD- 108 RXOD+ 109 RXOE- 110 RXOE+ 111 VSSL 112 VSSL 113 VDDL 114 VDDL 115 RCLKIN- 116 RCLKIN+ 117 RXEA- 118 RXEA+ 119 RXEB- 120 RXEB+ 121 RXEC- 122 RXEC+ 123 RXED- 124 RXED+ 125 RXEE- 126 RXEE+ 127 MODE0 128 RFB C0ZBZ0001412 IC5002 1 S2DAT 2 S2CLK 3 VDDP1 4 VSSP1 5 VSSP0 6 VDDP0 7 PWDNB 8 RXEE0 9 RXEE1 10 RXEE2 11 RXEE3 12 RXEE4 13 RXEE5 14 RXEE6 15 VSS0 16 VDD0 17 RXED0 18 RXED1 19 RXED2 20 RXED3 21 RXED4 22 RXED5 23 RXED6 24 VSSR0 25 VDDR0 26 RXEC0 27 RXEC1 28 RXEC2 29 RXEC3 30 RXEC4 31 RXEC5 32 VSS1 33 VDD1 34 RXEC6 35 RXEB0 36 RXEB1 37 RXEB2 38 RXEB3 39 RXEB4 40 RXEB5 41 RXEB6 42 VSSR1 43 VDDR1 44 RCLKOUT 45 VSS2 46 VDD2 47 RXEA0 48 RXEA1 49 RXEA2 50 RXEA3 51 RXEA4 52 RXEA5 53 RXEA6 54 VSS3 55 VDD3 56 RXOE0 57 RXOE1 58 RXOE2 59 RXOE3 60 RXOE4 61 RXOE5 62 RXOE6 63 RXOD0 64 VSS4 65 VDD4 66 RXOD1 67 RXOD2 68 RXOD3 69 RXOD4 70 RXOD5 71 RXOD6 72 RXOC0 73 RXOC1 74 RXOC2 75 RXOC3 76 RXOC4 77 RXOC5 78 RXOC6 79 RXOB0 80 RXOB1 81 RXOB2 82 RXOB3 83 RXOB4 84 RXOB5 85 RXOB6 86 VDDR2 87 VSSR2 88 RXOA0 89 RXOA1 90 RXOA2 91 RXOA3 92 RXOA4 93 RXOA5 94 RXOA6 95 VDD5 96 VSS5 97 RESRVD 98 MODE1 99 VSSL 100 VDDL 101 RXOA- 102 RXOA+ 103 RXOB- 104 RXOB+ 105 RXOC- 106 RXOC+ 107 RXOD- 108 RXOD+ 109 RXOE- 110 RXOE+ 111 VSSL 112 VSSL 113 VDDL 114 VDDL 115 RCLKIN- 116 RCLKIN+ 117 RXEA- 118 RXEA+ 119 RXEB- 120 RXEB+ 121 RXEC- 122 RXEC+ 123 RXED- 124 RXED+ 125 RXEE- 126 RXEE+ 127 MODE0 128 RFB C0FBAY000031 IC4606 1 VD(1.8V) 2 BAIN0 3 GND 4 BAIN1 5 VD(1.8V) 6 GAIN0 7 GND 8 SOGIN0 9 VD(1.8V) 10 GAIN1 11 GND 12 SOGIN1 13 VD(1.8V) 14 RAIN0 15 GND 16 RAIN1 17 PWRDWN/TRI-ST 18 REFLO 19 NC 20 REFHI 21 O/E FIELD 22 VSOUT/A0 23 HSOUT 24 SOGOUT 25 DATACK 26 VDD(3.3V) 27 GND 28 RED<9> 29 RED<8> 30 RED<7> 31 RED<6> 32 RED<5> 33 RED<4> 34 RED<3> 35 RED<2> 36 RED<1> 37 RED<0> 38 VDD(3.3V) 39 GND 40 GND 41 DAVDD(1.8) 42 GREEN<9> 43 GREEN<8> 44 GREEN<7> 45 GREEN<6> 46 GREEN<5> 47 GREEN<4> 48 GREEN<3> 49 GREEN<2> 50 GREEN<1> 51 GREEN<0> 52 VDD(3.3V) 53 GND 54 BLUE<9> 55 BLUE<8> 56 BLUE<7> 57 BLUE<6> 58 BLUE<5> 59 BLUE<4> 60 BLUE<3> 61 BLUE<2> 62 BLUE<1> 63 BLUE<0> 64 VDD(3.3V) 65 GND 66 SDA 67 SCL 68 HSYNC1 69 VSYNC1 70 HSYNC0 71 VSYNC0 72 EXTCLK/COAST 73 CLAMP 74 PVD(1.8V) 75 GND 76 PVD(1.8V) 77 GND 78 FILT 79 PVD(1.8V) 80 GND C0DBEGE00002 IC4605 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND C0DBEGE00002 IC4610 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND DN1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L5101 J0JHC0000096 L4010 J0JHC0000096 L5104 J0JHC0000096 L5111 J0JHC0000096 L5112 J0JHC0000096 L4009 J0JHC0000096 L5102 J0JHC0000096 L5114 J0JHC0000096 L5103 J0JHC0000096 L5113 J0JHC0000096 3.3V 1.8V_PLLVDD 1.8V_AVDD 3.3V 2.5V 2.5V 3.3V P5V 3.3V P5V 5V_M 3.3V 3.3V P5V 3.3V 3.3V 3.3V Q4023 B1CBHD000002 G D S Q4022 B1CBHD000002 G D S R5143 EXB28V470JX R5119 EXB28V470JX R4360 EXB28V470JX R4359 EXB2HV470JV R5137 EXB2HV470JV R5112 EXB2HV470JV R4362 EXB2HV470JV R5142 EXB2HV470JV R5118 EXB2HV470JV R5141 EXB2HV470JV R5109 EXB2HV470JV R5135 EXB2HV470JV R5110 EXB2HV470JV R5117 EXB2HV470JV R5134 EXB2HV470JV R5108 EXB2HV470JV R5113 EXB2HV470JV R5111 EXB2HV470JV R4356 EXB2HV470JV R5133 EXB2HV470JV R5121 EXB2HV470JV R5136 EXB2HV470JV R5274 10k R5263 100 R4410 0 R5633 0 R5126 100 R4372 0 R4364 47 R4403 0 R4386 0 R5259 100 R5265 100 R4405 30k R4376 0 R4354 75 R4341 100 R5127 100 R4365 47 R4368 10k R4400 30k R5115 47 R4407 22 R5138 47 R5251 100 R5237 0 R5140 47 R4357 47 R4347 75 R5281 10k R4409 0 R4397 75 R4361 47 R5253 100 R4374 0 R4339 1.5k R5130 100 R4387 0 R5114 47 R5269 10k R4401 43k R4385 9.1k R4398 75 R5131 100 R4394 10k R5128 100 0 R4343 R4390 10k R5124 100 R4411 4.7k R5230 0 R5228 47 R5245 100 R4404 43k R4340 100 R4408 22 R4389 0 R4366 47 R4396 75 R5261 100 R4399 0 R4358 47 R5120 0 R5255 100 R5125 100 R5283 10k R5267 10k R4367 10k R5129 100 R5139 47 R5247 100 R5257 100 R5122 100 R4395 10k R4388 0 R5630 47 R4378 1.8k R5249 100 R5123 100 R4344 0 R4352 75 R5116 47 R5279 10k R4370 10k R5132 100 FL4007 J0MAB0000175 10Bit AD VP HP 5V->3.3V 5V->3.3V HD from DS VD from DS HD to FPGA Sync Block VD to FPGA Sync Block B/PB_M GND GND HD_M GND GND VD_M G/Y_M GND GND R/PR_M to FPGA1, FPGA2 GND GND GND GND GND GND GND GND GND 19 22 21 20 25 27 24 26 23 DS-BOARD (DS1) TO LVDS RX LVDS RX CLOCK BUFFER CLOCK BUFFER A/D CONVERTER(MAIN) VIDEO BUFFER AVR 1.8VPLLVDD AVR 1.8VAVDD 12 11 21 22 23 24 ! DN-BOARD TNPA4304AB (3/9) TH-65PF10CK DN-Board (3 of 9) Schematic Diagram TH-65PF10CK DN-Board (3 of 9) Schematic Diagram 71 TH-65PF10CK 11.15.DN 电路板 （4/9）线路图 BE_3 LVB_CLK B_EE3 BE_4 B_EB5 B_OC4 A_EB1 RE_3 LVB_PWDN B_OE3 A_OC3 B_OC5 BE_0 A_EB0 A_OB0 BE_6 B_OE4 B_EB3 AD_PLLH RE_6 FPGA_CONFDONE B_ED5 B_OC6 BE_7 A_OB3 LVB_OEN NRST_FP B_OA2 B_EA3 AD_PLLV A_OB6 CBCLK_A FPGA_TMS GE_9 B_OD4 FPGA_NSTATUS B_EC0 B_EC3 B_EB4 BE_9 B_OE5 B_ED1 FPGA_TCK B_OA4 A_ED4 B_ED3 B_OC3 A_EB2 A_OC0 BE_5 B_OB3 A_OD3 B_OB0 B_OA6 A_OA6 A_OA5 A_ED1 BE_2 A_EE6 FPGA_NCONFIG A_EC5 A_OD2 RE_9 A_OC1 A_EE0 A_EC4 B_OE0 B_EA4 A_EA1 A_EC0 A_OB2 BE_8 VD_ADA A_OC4 A_OE3 A_EC3 A_OE0 B_EC6 A_EB4 B_OB5 B_OB6 A_EB3 RE_7 B_OC0 LVA_PWDN LVA_EEN B_OD5 GE_7 A_OB1 B_EE4 CLP_A P3V_SDA2 RE_2 B_OE6 B_EB0 CLKM_20MHZ B_OE2 B_EB2 B_OC2 B_EA0 P3V_SCL2 B_EC4 A_EA4 A_OA1 A_OE2 AAE_MCLD A_OC5 B_EB1 B_OA3 A_OD1 A_OD4 B_EC2 A_EA2 FPGA_TDI A_OE5 A_EE1 A_EA3 A_ED6 A_ED3 A_OC6 LVA_CLK B_EE2 B_EE6 B_EC5 A_OA2 B_OA5 A_EC1 GE_1 B_EA6 A_EE3 A_ED0 B_OB4 A_OA3 A_EB6 A_OB5 B_ED6 B_OC1 GE_4 B_ED4 B_OD1 HD_ADA B_OD2 AAE_MCDATA_O B_EA2 RE_0 A_EE4 B_ED2 B_EE5 RE_4 B_OA1 GE_6 A_OE4 A_OD0 A_OA0 A_OC2 B_OD0 A_OE1 GE_5 B_ED0 B_EA5 A_EC2 A_EE5 B_OA0 BE_1 B_EB6 B_OD3 B_EE1 A_OE6 A_ED5 GE_3 A_EA5 LVA_OEN A_EC6 A_EB5 RE_5 A_ED2 B_EE0 RE_8 LVB_EEN A_OD5 AAE_MCCLK RE_1 B_EA1 B_OB1 AD_CLK A_EA6 A_OA4 A_EA0 GE_2 GE_8 B_OD6 X2CBCLK_A AD_FLD B_OE1 A_EE2 B_OB2 A_OD6 GE_0 B_EC1 A_OB4 HDA VDA FPGA1_NCEO FPGA_DCLK2 CBCLK_B X2CBCLK_B FPGA_DATA01 C5230 6.3V 10u C5201 16V 0.1u C5237 16V 0.1u C5199 16V 0.1u C5203 16V 0.1u C5238 16V 0.1u C5227 16V 0.1u C5225 16V 0.1u C5226 16V 0.1u C5218 16V 0.1u C5231 6.3V 10u C5207 16V 0.1u C5196 16V 0.1u C5233 16V 0.1u C5239 16V 0.1u C5209 16V 0.1u C5222 16V 0.1u C5200 16V 0.1u C5210 16V 0.1u C5223 16V 0.1u C5194 6.3V 10u C5213 6.3V 10u C5208 16V 0.1u C5229 16V 0.1u C5236 16V 0.1u C5216 6.3V 10u C5215 16V 0.1u C5205 16V 0.1u C5197 16V 0.1u C5220 16V 0.1u C5214 16V 0.1u C5212 16V 0.1u C5217 16V 0.1u C5204 6.3V 10u C5234 16V 0.1u C5224 16V 0.1u C5195 16V 0.1u C5243 16V 0.1u C5244 16V 0.1u C5228 16V 0.1u C5245 50V 8p C5235 16V 0.1u C5192 16V 0.1u C5193 16V 0.1u C5198 6.3V 10u C5202 16V 0.1u C5221 16V 0.1u C5232 16V 0.1u C5240 16V 0.1u C5206 16V 0.1u C5211 16V 0.1u C5219 16V 0.1u C5241 16V 0.1u C5242 16V 0.1u IC5101 A2 GND IC5101 N14 GND IC5101 AD18 GND IC5101 Y9 GND IC5101 B6 - IC5101 P10 VCCINT IC5101 AE10 - IC5101 A10 - IC5101 Y7 VCCD_PLL1 IC5101 AD13 CLK14 IC5101 C26 VCCIO5 IC5101 AA7 -/PLL1_OUTp IC5101 AE13 - IC5101 D11 - IC5101 U14 VCCINT IC5101 F22 VCCIO5 IC5101 P19 GND IC5101 C11 - IC5101 L22 GND IC5101 J3 - IC5101 D5 - IC5101 E19 GND IC5101 AF11 VCCIO8 IC5101 M8 TDI IC5101 AF10 - IC5101 AD9 GND IC5101 AA1 - IC5101 D10 - IC5101 R16 VCCINT IC5101 U11 VCCINT IC5101 L5 GND IC5101 K1 - IC5101 T12 GND IC5101 AA25 - IC5101 N19 GND IC5101 AF17 - IC5101 AF3 VCCIO8 IC5101 A15 GND IC5101 C6 - IC5101 W22 GND IC5101 P11 GND IC5101 AF23 - IC5101 B2 - IC5101 AD7 - IC5101 H22 GND IC5101 P5 VCCIO1 IC5101 N4 nCE IC5101 N17 VCCINT IC5101 AC22 - IC5101 P13 GND IC5101 N1 CLK1 IC5101 D9 - IC5101 AE17 - IC5101 M7 TDO IC5101 F3 - IC5101 L26 VCCIO5 IC5101 AD19 - IC5101 P8 GND IC5101 K14 VCCINT IC5101 G8 VCCA_PLL3 IC5101 F8 GNDA_PLL3 IC5101 J17 - IC5101 N15 GND IC5101 D4 GND IC5101 B4 - IC5101 N13 GND IC5101 E4 GND_PLL3 IC5101 L16 VCCINT IC5101 B26 GND IC5101 A7 - IC5101 V1 - IC5101 T2 - IC5101 N2 CLK0 IC5101 AC8 - IC5101 D12 - IC5101 D6 - IC5101 J13 - IC5101 AE3 - IC5101 H13 GND IC5101 AA8 VCCA_PLL1 IC5101 P4 - IC5101 D2 - IC5101 U2 - IC5101 AA24 - IC5101 Y3 - IC5101 AC7 - IC5101 W3 - IC5101 D13 CLK11 IC5101 A5 - IC5101 E10 - IC5101 C18 GND IC5101 V2 - IC5101 M1 GND IC5101 A16 VCCIO4 IC5101 R22 nSTATUS IC5101 AD24 - IC5101 G2 - IC5101 Y26 - IC5101 P2 CLK2 IC5101 R23 CONF_DONE IC5101 AB13 VCCIO8 IC5101 N21 NC IC5101 R6 - IC5101 H2 - IC5101 C14 GND IC5101 AE8 - IC5101 AE14 CLK12 IC5101 F21 -/PLL2_OUTp IC5101 B5 - IC5101 U13 VCCINT IC5101 P16 GND IC5101 A6 - IC5101 P20 MSEL0 IC5101 AB10 - IC5101 AB25 - IC5101 T4 - IC5101 G20 GND_PLL2 IC5101 E17 VCCIO4 IC5101 AF24 VCCIO7 IC5101 U8 GND IC5101 AE22 - IC5101 E13 VCCIO3 IC5101 M5 - IC5101 V19 VCCIO6 IC5101 AA6 - IC5101 H18 VCCIO4 IC5101 A25 GND IC5101 AF22 - IC5101 V4 - IC5101 AE9 - IC5101 K17 - IC5101 R9 VCCIO1 IC5101 M18 VCCIO5 IC5101 W2 - IC5101 AF2 GND IC5101 M17 VCCINT IC5101 AD6 - IC5101 G18 - IC5101 AA3 - IC5101 N22 VCCIO5 IC5101 C9 - IC5101 U16 VCCINT IC5101 A11 VCCIO3 IC5101 H1 - IC5101 AE4 - IC5101 V3 - IC5101 AF16 VCCIO7 IC5101 M26 GND IC5101 B8 - IC5101 K12 VCCINT IC5101 M6 TCK IC5101 W14 GND IC5101 E21 GND_PLL2 IC5101 AE18 - IC5101 B13 CLK8 IC5101 AD4 - IC5101 P14 GND IC5101 P22 VCCIO6 IC5101 T1 VCCIO1 IC5101 AE25 -/INIT_DONE IC5101 L18 VCCINT IC5101 H3 - IC5101 L15 GND IC5101 AD5 - IC5101 AB17 VCCIO7 IC5101 L11 VCCINT IC5101 L2 - IC5101 R11 VCCINT IC5101 M13 GND IC5101 R5 - IC5101 P25 CLK6 IC5101 AB4 - IC5101 T15 GND IC5101 A4 - IC5101 A20 - IC5101 AB8 - IC5101 M15 GND IC5101 AB9 VCCIO8 IC5101 AB19 GND IC5101 AE26 GND IC5101 E3 ASDO IC5101 T5 GND IC5101 AC1 - IC5101 E5 - IC5101 AD8 - IC5101 K20 GND IC5101 C1 VCCIO2 IC5101 R12 GND IC5101 K15 VCCINT IC5101 F2 - IC5101 AC2 - IC5101 G5 - IC5101 Y24 - IC5101 B14 - IC5101 G7 GND_PLL3 IC5101 C10 - IC5101 H20 VCCD_PLL2 IC5101 K13 VCCINT IC5101 D8 - IC5101 AE19 - IC5101 G1 - IC5101 N16 GND IC5101 H7 VCCD_PLL3 IC5101 A13 CLK9 IC5101 AB26 - IC5101 Y6 GND_PLL1 IC5101 R2 - IC5101 J1 - IC5101 H14 GND IC5101 AD14 GND IC5101 V13 - IC5101 W20 GND_PLL4 IC5101 AF19 - IC5101 AB24 - IC5101 L13 GND IC5101 E7 GND IC5101 AC24 NC IC5101 E11 GND IC5101 L4 - IC5101 N3 DATA0 IC5101 Y19 GNDA_PLL4 IC5101 AB22 VCCIO7 IC5101 AD23 - IC5101 W13 GND IC5101 K11 VCCINT IC5101 V5 - IC5101 R10 VCCINT IC5101 AB1 - IC5101 N5 VCCIO2 IC5101 A12 GND IC5101 N26 CLK5 IC5101 AD11 - IC5101 A22 - IC5101 K3 - IC5101 P15 GND IC5101 N11 GND IC5101 B12 - IC5101 P21 MSEL1 IC5101 P12 GND IC5101 AB2 - IC5101 AC14 - IC5101 Y8 GNDA_PLL1 IC5101 AE6 - IC5101 AA19 VCCA_PLL4 IC5101 D3 nCSO IC5101 AD22 - IC5101 AE11 - IC5101 V15 VCCIO7 IC5101 A3 VCCIO3 IC5101 M10 VCCINT IC5101 U4 - IC5101 T3 - IC5101 U15 VCCINT IC5101 AE2 - IC5101 AA22 VCCIO6 IC5101 Y5 - IC5101 AE7 - IC5101 R13 GND IC5101 L17 VCCINT IC5101 U6 - IC5101 U5 - IC5101 B1 GND IC5101 AF21 - IC5101 AC23 - IC5101 AC13 CLK15 IC5101 AC3 - IC5101 AB16 GND IC5101 AD20 VCCIO7 IC5101 R18 VCCIO6 IC5101 H5 GND IC5101 G3 - IC5101 B11 - IC5101 B7 - IC5101 A21 - IC5101 A17 - IC5101 C12 - IC5101 T13 GND IC5101 K5 - IC5101 W9 VCCIO8 IC5101 M4 - IC5101 K10 VCCINT IC5101 M14 GND IC5101 AD21 - IC5101 R14 GND IC5101 AE1 GND IC5101 J15 VCCIO4 IC5101 F1 - IC5101 D24 GND IC5101 AC10 - IC5101 V14 - IC5101 F4 - IC5101 J12 VCCIO3 IC5101 C20 VCCIO4 IC5101 AF7 - IC5101 V8 VCCIO1 IC5101 D7 - IC5101 W5 GND IC5101 AE12 - IC5101 D22 VCCIO4 IC5101 N7 nCONFIG IC5101 V16 VCCINT IC5101 AB5 VCCIO1 IC5101 J2 - IC5101 AC5 - IC5101 V12 VCCIO8 IC5101 R15 GND IC5101 M2 - IC5101 J4 - IC5101 U3 - IC5101 A24 VCCIO4 IC5101 AE20 - IC5101 AF12 GND IC5101 M11 VCCINT IC5101 AF14 CLK13 IC5101 AA21 GND_PLL4 IC5101 K4 - IC5101 AF4 - IC5101 AE23 - IC5101 Y17 GND IC5101 AF18 - IC5101 T14 GND IC5101 C8 - IC5101 E8 - IC5101 AD26 VCCIO6 IC5101 AE5 - IC5101 N6 DCLK IC5101 U19 GND IC5101 AF9 - IC5101 AA4 - IC5101 E16 GND IC5101 AF13 - IC5101 C7 - IC5101 B10 - IC5101 AD10 - IC5101 AD2 - IC5101 AA5 - IC5101 R3 - IC5101 AA26 - IC5101 N8 GND IC5101 E9 VCCIO3 IC5101 C3 - IC5101 AC12 - IC5101 R4 - IC5101 L8 TMS IC5101 G4 - IC5101 N25 CLK4 IC5101 A19 - IC5101 AE21 - IC5101 AF8 - IC5101 A8 - IC5101 AB6 VCCIO8 IC5101 H19 - IC5101 AF15 GND IC5101 AC21 - IC5101 F5 VCCIO2 IC5101 AD1 VCCIO1 IC5101 AA2 - IC5101 W18 VCCIO7 IC5101 D1 - IC5101 P3 - IC5101 L14 GND IC5101 AD25 - IC5101 AF6 - IC5101 M16 VCCINT IC5101 Y25 - IC5101 AC4 GND IC5101 P1 CLK3 IC5101 AF25 GND IC5101 AD17 - IC5101 AC25 - IC5101 B9 - IC5101 W4 - IC5101 AD3 - IC5101 L3 - IC5101 V6 - IC5101 T11 VCCINT IC5101 C13 CLK10 IC5101 B3 - IC5101 Y4 - IC5101 N12 GND IC5101 M12 GND IC5101 K16 - IC5101 E2 - IC5101 A9 - IC5101 AC9 - IC5101 P26 CLK7 IC5101 AB14 VCCIO7 IC5101 K2 - IC5101 AD12 - IC5101 C2 - IC5101 J19 VCCIO5 IC5101 H4 - IC5101 G19 VCCA_PLL2 IC5101 Y1 - IC5101 AF20 - IC5101 AC6 - IC5101 M9 VCCIO2 IC5101 T16 VCCINT IC5101 AF5 - IC5101 L12 GND IC5101 R21 GND IC5101 M3 - IC5101 E14 VCCIO4 IC5101 N10 VCCINT IC5101 L1 VCCIO2 IC5101 AB11 GND IC5101 R26 GND IC5101 E1 - IC5101 T26 VCCIO6 IC5101 Y20 VCCD_PLL4 IC5101 W7 GND_PLL1 IC5101 A18 - IC5101 F19 GNDA_PLL2 IC5101 AC26 - IC5101 Y2 NC IC5101 C5 - IC5101 W1 - IC5101 AE24 nCEO IC5101 R1 GND IC5101 AB3 - IC5101 U1 - IC5101 AB7 GND IC5101 E6 VCCIO3 IC5101 C4 - IC5101 AC11 - IC5101 H9 VCCIO3 L5110 J0JHC0000096 L5105 J0JHC0000096 L5108 J0JHC0000096 L5106 J0JHC0000096 3.3V 1.2V R5650 47 R5275 0 R5238 0 R5104 0 R5231 10k R5103 0 R5235 47 R5107 0 R5105 0 R5278 0 R5256 0 R5254 0 R5273 0 R5101 0 R5264 0 R5102 0 R5229 10k R5271 47 R5244 0 R5262 0 R5240 0 R5106 0 R5232 10k R5272 0 R5258 47 R5250 0 R5239 0 R5268 0 LVA_OD2 HD_ADA LVA_MODE0 LVB_OC0 LVB_OE2 LVA_MODE1 GND LVB_ED6 LVA_PWDN ASDO VD_ADA LVB_MODE1 LVB_EA6 LVB_OB5 LVA_EE3 LVB_MODE0 VCCIO CLPA LVB_PWDN LVB_EB6 LVB_EC2 LVA_EA2 LVA_EE6 LVB_OC6 LVA_EC3 LVB_OD5 LVA_EC0 LVA_EA5 LVB_EA1 LVB_EE5 HDA LVA_ED3 LVA_EA4 LVA_EE1 LVB_OD2 LVA_EB4 LVB_EC1 LVB_OB6 LVA_ED6 LVB_OE4 LVA_EA0 LVA_EB2 TEST pin LVA_EA3 LVB_EB1 LVB_ED3 LVB_EB3 LVA_OA3 LVB_OB3 LVB_EA2 LVA_EB5 LVA_ED2 TEST0 LVB_OB2 CLKM NRST LVA_EC1 LVA_EA1 LVA_EB0 LVB_EA5 LVA_OC2 LVA_ED5 LVB_OD3 LVB_OD1 LVA_EA6 VDA LVB_OA1 LVB_OE3 LVA_ED0 LVA_EE4 LVB_EA0 LVB_OE0 LVB_EC6 MCLD LVB_EC0 LVB_OD4 MCDATA LVA_EE0 AD_R5 LVB_OB0 LVB_EC3 AD_R6 IIC CLK Buffer AD_B1 LVA_OE1 LVB_EE2 AD_B9 LVB_OC5 AD_R8 LVB_EB5 LVA_EC6 AD_G4 TEST2 LVA_EC2 LVA_OE2 AD_B8 LVA_OE4 LVB_OE6 LVB_OC2 AD_R4 LVB_OE5 LVA_EC5 LVB_OA0 AD_B3 TEST1 LVA_OD4 AD_B7 LVA_OD5 LVB_ED0 AD_G7 LVB_EC5 LVB_EA3 LVA_OA1 AD_B4 LVB_EE0 AD_R7 TEST3 LVA_OC0 AD_G0 LVA_OC4 nCSO LVB_OD0 AD_R9 LVB_OB1 LVB_OB4 LVA_OA4 LVA_EB3 INPUT from LVDS LVB_ED4 LVB_EB4 LVA_OB0 AD_G6 LVB_OD6 LVA_CLK AD_R3 LVA_ED1 LVA_EB6 LVA_ED4 LVA_OD6 LVB_EE6 LVB_CLK LVA_OE3 LVA_OD0 LVA_EB1 LVA_OB6 LVA_OE0 AD_B6 Micom LVB_EE1 LVB_OA3 LVA_OD1 TEST4 LVB_EE4 AD_G3 MCCLK LVA_OE5 LVB_OA6 AD_R1 LVA_OB2 LVA_OC3 LVB_OC4 NRST LVB_ED5 LVA_EE2 LVB_ED1 CBCLK_A LVA_OC1 LVA_OB5 LVB_OA2 AD_G1 From DS LVB_EB2 CLKM AD_B0 LVA_EE5 AD_R2 X2CBCLK_A LVA_OB4 LVB_OA5 AD_G8 LVB_OE1 LVA_OC5 LVA_EC4 AD_B5 LVA_OA2 AD_G2 LVDS PWDNB/EN LVA_OE6 AD_R0 SCL LVB_EC4 AD_G5 LVB_OC3 To A/D LVA_OA5 LVA_OB1 Configuration LVB_OC1 AD_B2 NC LVA_OB3 SDA AD_G9 LVA_OA0 LVA_OD3 AD_V VCCINT LVB_EE3 LVB_EA4 AD_H LVB_ED2 LVA_OC6 LVA_OA6 A/D AD_FLD LVB_OA4 LVB_EB0 AD_CLK PLLI_2 PLLI_1 PLLI_4 TO_PLL2 TO_PLL1 TO_PLL4 PLL pin LVDS_CLK 13.5M -> 27M 37.125M -> 74.25M 74.25M -> 148.5M CBCLK_B X2CBCLK_B 35 29 28 33 36 34 32 31 30 21 22 23 24 31 IC5101 30bit 2_RGB VIDEO SIGNAL PROCESSOR 60bit 2_I-CHIPS OUT FPGA1 C1ZBZ0003614 DN-BOARD TNPA4304AB (4/9) ! TH-65PF10CK DN-Board (4 of 9) Schematic Diagram TH-65PF10CK DN-Board (4 of 9) Schematic Diagram 72 TH-65PF10CK 11.16.DN 电路板 （5/9）线路图 PI2D[44] PI2D[21] Y_SRCK Y_DO14 C_RAD C_DI17 C_DI12 Y_DO1 PI1D[7] Y_DI15 PI2D[23] PI2D[0] PI2D[7] C_DO20 PI1VSB Y_DO16 Y_DO5 C_DI13 PI2D[29] Y_DI5 Y_WAD C_DI11 C_DI3 PI2D[34] Y_DO4 PI2D[39] C_DO21 Y_DO17 Y_DI1 PI2D[46] C_DI19 PI2D[9] Y_IE C_DO10 C_DI15 Y_DI17 PI1D[59] PI1D[36] C_DI2 C_DI14 PI1D[0] Y_RSTW PI2D[50] PI1D[11] C_DO22 Y_DO21 Y_RAD C_DI6 C_DO15 C_DI10 Y_RE PI2D[43] Y_DO2 PI1D[33] C_WAD PI1D[24] C_DO23 PI1D[26] Y_OE Y_DI19 PI2D[57] PI2D[56] PI2D[19] C_DI18 PI1D[41] C_DI8 C_DI0 Y_DI13 Y_DI14 Y_DI16 PI1D[51] Y_DI8 PI1D[12] PI1D[43] PI1D[15] Y_DO20 PI2D[51] PI2D[1] C_DI9 C_DO12 C_DI7 Y_DI2 PI2D[32] C_DI13 Y_DI12 PI1D[29] Y_DI1 Y_DO21 PI2D[22] PI2D[8] PI2FLD C_DO13 PI1D[19] PI2D[40] C_WE PI1D[28] Y_DI15 C_DI5 C_IE C_DO7 PI1D[13] Y_DO10 Y_DO22 Y_DI7 PI1D[31] C_DI14 PI2D[42] PI1D[27] PI1D[23] C_DI19 Y_DO11 Y_DO12 C_DO23 Y_DO23 Y_DI0 Y_DI2 PI1D[9] PI1D[4] C_DO19 Y_RE PI1D[30] PI2D[16] C_DI12 PI2D[25] Y_DO6 C_DO17 Y_DI9 PI1D[34] PI1D[2] PI1D[57] Y_DO2 PI1D[3] C_DO2 Y_DO13 C_DO8 Y_DI9 PI1D[38] Y_DO8 C_DO6 C_DI5 PI1D[16] Y_DO17 PI1D[22] Y_DI10 PI1D[17] C_DI11 Y_DI4 C_RSTR PI1FLD Y_DO10 Y_WE PI2D[53] C_DO6 C_RSTW PI1D[58] PI1D[53] PI2D[54] Y_DI19 Y_DI4 PI2D[58] C_DO18 PI2D[2] PI2D[11] PI1D[46] Y_DO9 C_DI22 PI1D[8] Y_DI18 Y_DO14 PI2D[45] PI2D[38] C_DO18 C_DI16 Y_DI18 Y_DO3 C_DO16 PI2D[14] PI1CLK Y_RSTW PI1D[18] PI2D[35] PI2D[30] Y_DO0 Y_DI3 C_DI3 C_DO4 Y_DI16 PI1D[10] PI2ACTB PI2D[59] PI1D[49] C_OE Y_WE PI2CLK C_DO16 PI2D[52] PI1D[48] Y_DI20 Y_RSTR C_DO1 PI2D[10] C_DO3 Y_DI21 C_WE PI2D[36] Y_DI6 C_DI10 PI2D[55] PI1D[37] C_DI20 Y_DI21 PI1D[35] Y_DI12 PI2D[4] Y_DI17 PI2D[24] Y_DO13 C_SRCK C_DI6 Y_DO5 PI1D[45] Y_DI22 PI1D[39] C_DI9 Y_DO6 Y_DI20 PI1D[56] C_DO5 PI1D[14] C_RE C_DO11 Y_DI11 Y_DI11 Y_DI23 PI1D[54] PI2D[41] Y_DO8 C_DI17 PI1ACTB C_DI2 C_DO8 PI2D[37] Y_DI22 C_DO17 C_DI20 Y_DO12 C_WAD PI1HSB PI1D[6] C_DI1 PI2D[3] PI1D[50] C_DO0 Y_DO19 PI2D[18] C_DI21 C_RSTW Y_DO11 C_IE PI2D[12] PI1D[52] C_DO7 PI1D[40] C_DO14 C_DI21 Y_DO7 C_SWCK C_DI22 C_DI23 C_OE C_DO9 Y_DO16 Y_SWCK PI1D[20] C_DO11 Y_DO4 PI2D[6] PI2D[33] C_DI7 PI2D[15] C_DI23 C_DO14 C_RAD PI2D[27] C_DO21 Y_DI23 PI1D[47] C_DI8 PI2D[26] Y_DO7 PI2D[47] C_DO19 PI1D[42] C_DI1 Y_DO9 PI2D[49] Y_DI5 C_DO12 Y_DO22 Y_RAD C_DO1 Y_DO18 Y_DO3 C_DO22 PI2VSB Y_SRCK PI2HSB C_DO10 Y_RSTR Y_DO1 Y_DO15 PI1D[5] PI2D[13] C_DO5 PI1D[25] C_DI4 C_SRCK Y_WAD Y_DI14 C_DI0 Y_DO20 C_DO2 Y_DI0 C_DO20 PI2D[20] C_DO4 Y_DO0 PI2D[28] Y_DI7 PI2D[17] Y_DI3 C_DO3 PI1D[55] Y_DO15 PI1D[32] Y_DI13 Y_DO19 C_DI4 C_DO0 Y_OE PI2D[5] C_DO9 C_RE Y_DI8 PI1D[44] Y_IE C_DI18 PI2D[31] Y_DO23 PI2D[48] C_DO13 Y_SWCK C_RSTR Y_DI10 C_SWCK C_DI16 PI1D[1] C_DI15 Y_DI6 PI1D[21] C_DO15 Y_DO18 0.1u 10V C5168 0.1u 10V C5160 0.1u 10V C5143 0.1u 10V C5167 0.1u 10V C5155 0.1u 10V C5141 0.1u 10V C5145 0.1u 10V C5151 0.1u 10V C5135 0.1u 10V C5142 0.1u 10V C5175 0.1u 10V C5165 0.1u 10V C5144 0.1u 10V C5179 0.1u 10V C5152 0.1u 10V C5136 0.1u 10V C5153 C5157 6.3V 10u 0.1u 10V C5159 0.1u 10V C5176 0.1u 10V C5150 0.1u 10V C5147 0.1u 10V C5158 0.1u 10V C5163 0.1u 10V C5162 0.1u 10V C5140 0.1u 10V C5164 0.1u 10V C5137 0.1u 10V C5166 0.1u 10V C5173 0.1u 10V C5148 0.1u 10V C5156 0.1u 10V C5138 0.1u 10V C5154 0.1u 10V C5172 C5181 6.3V 10u 0.1u 10V C5182 0.1u 10V C5180 0.1u 10V C5174 0.1u 10V C5171 0.1u 10V C5139 0.1u 10V C5146 0.1u 10V C5169 0.1u 10V C5149 0.1u 10V C5170 0.1u 10V C5178 0.1u 10V C5161 0.1u 10V C5177 IC5101 D23 - IC5101 E24 - IC5101 T24 - IC5101 B18 - IC5101 F24 - IC5101 W23 - IC5101 K19 - IC5101 L6 - IC5101 C15 - IC5101 B17 - IC5101 M25 - IC5101 P7 - IC5101 J25 - IC5101 G12 - IC5101 R25 - IC5101 Y10 - IC5101 L10 - IC5101 J16 - IC5101 R7 - IC5101 V7 - IC5101 J11 - IC5101 T9 - IC5101 D21 - IC5101 F20 - IC5101 K25 - IC5101 G14 - IC5101 F16 - IC5101 U22 - IC5101 Y23 - IC5101 U23 - IC5101 L20 - IC5101 H15 - IC5101 W24 - IC5101 M20 - IC5101 V11 - IC5101 AA18 - IC5101 Y22 - IC5101 U26 - IC5101 C24 - IC5101 T20 - IC5101 K9 - IC5101 V9 - IC5101 V26 - IC5101 G6 - IC5101 U10 - IC5101 N18 - IC5101 H10 - IC5101 K18 - IC5101 B15 - IC5101 G22 - IC5101 F11 - IC5101 K7 - IC5101 F15 - IC5101 V20 IC5101 F23 - IC5101 T25 - IC5101 J9 - IC5101 F13 - IC5101 U18 - IC5101 N23 - IC5101 G10 - IC5101 J7 - IC5101 F10 - IC5101 K22 - IC5101 B22 - IC5101 G21 - IC5101 AA11 - IC5101 AE15 - IC5101 J24 - IC5101 V10 - IC5101 F6 - IC5101 V22 - IC5101 C16 - IC5101 N24 - IC5101 W10 - IC5101 E15 - IC5101 G25 - IC5101 C17 - IC5101 J21 - IC5101 U17 - IC5101 AD16 - IC5101 J22 - IC5101 Y14 - IC5101 H12 - IC5101 T7 - IC5101 T10 - IC5101 L7 - IC5101 W19 - IC5101 W6 - IC5101 Y21 - IC5101 T6 - IC5101 D14 - IC5101 H6 - IC5101 R8 - IC5101 D19 - IC5101 C21 - IC5101 B16 - IC5101 T18 - IC5101 H21 - IC5101 D25 - IC5101 Y16 - IC5101 G17 - IC5101 W11 - IC5101 M23 - IC5101 F14 - IC5101 L23 IC5101 G16 - IC5101 G13 - IC5101 T22 - IC5101 E18 - IC5101 U24 - IC5101 Y18 - IC5101 AA20 - IC5101 G23 - IC5101 L9 - IC5101 AA10 - IC5101 L21 - IC5101 J18 - IC5101 M19 - IC5101 V18 - IC5101 AA16 - IC5101 B24 - IC5101 P24 - IC5101 E26 - IC5101 B25 - IC5101 E22 - IC5101 AB12 - IC5101 V24 - IC5101 J20 - IC5101 E23 - IC5101 U9 - IC5101 F18 - IC5101 K21 - IC5101 J6 - IC5101 AA12 - IC5101 V17 - IC5101 H16 - IC5101 R24 - IC5101 P6 - IC5101 T19 IC5101 T21 - IC5101 W15 - IC5101 K26 - IC5101 AA14 - IC5101 F9 - IC5101 L24 - IC5101 P18 - IC5101 AB21 - IC5101 V23 - IC5101 D26 - IC5101 G24 - IC5101 D15 - IC5101 G15 - IC5101 W16 - IC5101 AE16 - IC5101 F25 - IC5101 AD15 - IC5101 N9 - IC5101 G9 - IC5101 J8 - IC5101 Y11 - IC5101 B21 - IC5101 C23 - IC5101 B19 - IC5101 AA15 - IC5101 K24 - IC5101 A23 - IC5101 AC17 - IC5101 F7 - IC5101 J14 - IC5101 AB23 - IC5101 R17 - IC5101 AB20 - IC5101 L25 - IC5101 J26 - IC5101 H11 - IC5101 R19 - IC5101 T23 - IC5101 N20 - IC5101 U25 - IC5101 AA17 - IC5101 M24 - IC5101 AA23 - IC5101 AA9 - IC5101 R20 IC5101 U7 - IC5101 C25 - IC5101 Y12 - IC5101 AB15 - IC5101 AC18 - IC5101 F26 IC5101 U20 - IC5101 J10 - IC5101 D16 - IC5101 K23 - IC5101 W26 - IC5101 W12 - IC5101 W8 - IC5101 E20 - IC5101 W25 - IC5101 G11 - IC5101 AC15 - IC5101 A14 - IC5101 H8 - IC5101 H24 - IC5101 AC19 - IC5101 T8 - IC5101 Y15 - IC5101 AC16 - IC5101 U12 - IC5101 T17 - IC5101 P9 - IC5101 L19 - IC5101 AA13 - IC5101 M22 - IC5101 C22 - IC5101 G26 - IC5101 D17 - IC5101 AB18 - IC5101 D20 - IC5101 H26 - IC5101 U21 - IC5101 V25 - IC5101 E12 - IC5101 AC20 - IC5101 H25 - IC5101 P17 - IC5101 K8 - IC5101 H23 - IC5101 K6 - IC5101 W21 - IC5101 J5 - IC5101 M21 - IC5101 E25 - IC5101 F12 - IC5101 H17 - IC5101 Y13 - IC5101 B23 - IC5101 J23 - IC5101 F17 - IC5101 W17 - IC5101 P23 - IC5101 V21 - IC5101 B20 - IC5101 C19 - IC5101 D18 - C3ZBN0000027 IC5105 1 DO1 2 VccQ 3 DO2 4 DO3 5 VssQ 6 DO4 7 DO5 8 VccQ 9 DO6 10 DO7 11 VssQ 12 Vss 13 SWCK 14 RSTW 15 Vcc 16 Vss 17 Vcc 18 WE 19 IE 20 WAD 21 Vss 22 VssQ 23 DO8 24 DO9 25 VccQ 26 DO10 27 DO11 28 VssQ 29 DO12 30 DO13 31 VccQ 32 DO14 33 DO15 34 VssQ 35 VccQ 36 Vcc 37 Vss 38 DI8 39 DI9 40 DI10 41 DI11 42 Vcc 43 DI12 44 DI13 45 DI14 46 DI15 47 Vss 48 Vcc 49 Vss 50 Vss 51 DI16 52 DI17 53 DI18 54 DI19 55 Vcc 56 DI20 57 DI21 58 DI22 59 DI23 60 Vss 61 Vcc 62 VccQ 63 VssQ 64 DO16 65 DO17 66 VccQ 67 DO18 68 DO19 69 VssQ 70 DO20 71 DO21 72 VccQ 73 DO22 74 DO23 75 VssQ 76 Vss 77 RAD 78 OE 79 RE 80 Vcc 81 Vss 82 Vcc 83 RSTR 84 SRCK 85 Vss 86 VssQ 87 DO24 88 DO25 89 VccQ 90 DO26 91 DO27 92 VssQ 93 DO28 94 DO29 95 VccQ 96 DO30 97 DO31 98 VssQ 99 VccQ 100 Vcc 101 Vss 102 DI24 103 DI25 104 DI26 105 DI27 106 Vcc 107 DI28 108 DI29 109 DI30 110 DI31 111 Vss 112 Vcc 113 Vss 114 Vss 115 DI0 116 DI1 117 DI2 118 DI3 119 Vcc 120 DI4 121 DI5 122 DI6 123 DI7 124 Vss 125 Vcc 126 VccQ 127 VssQ 128 DO0 C3ZBN0000027 IC5104 1 DO1 2 VccQ 3 DO2 4 DO3 5 VssQ 6 DO4 7 DO5 8 VccQ 9 DO6 10 DO7 11 VssQ 12 Vss 13 SWCK 14 RSTW 15 Vcc 16 Vss 17 Vcc 18 WE 19 IE 20 WAD 21 Vss 22 VssQ 23 DO8 24 DO9 25 VccQ 26 DO10 27 DO11 28 VssQ 29 DO12 30 DO13 31 VccQ 32 DO14 33 DO15 34 VssQ 35 VccQ 36 Vcc 37 Vss 38 DI8 39 DI9 40 DI10 41 DI11 42 Vcc 43 DI12 44 DI13 45 DI14 46 DI15 47 Vss 48 Vcc 49 Vss 50 Vss 51 DI16 52 DI17 53 DI18 54 DI19 55 Vcc 56 DI20 57 DI21 58 DI22 59 DI23 60 Vss 61 Vcc 62 VccQ 63 VssQ 64 DO16 65 DO17 66 VccQ 67 DO18 68 DO19 69 VssQ 70 DO20 71 DO21 72 VccQ 73 DO22 74 DO23 75 VssQ 76 Vss 77 RAD 78 OE 79 RE 80 Vcc 81 Vss 82 Vcc 83 RSTR 84 SRCK 85 Vss 86 VssQ 87 DO24 88 DO25 89 VccQ 90 DO26 91 DO27 92 VssQ 93 DO28 94 DO29 95 VccQ 96 DO30 97 DO31 98 VssQ 99 VccQ 100 Vcc 101 Vss 102 DI24 103 DI25 104 DI26 105 DI27 106 Vcc 107 DI28 108 DI29 109 DI30 110 DI31 111 Vss 112 Vcc 113 Vss 114 Vss 115 DI0 116 DI1 117 DI2 118 DI3 119 Vcc 120 DI4 121 DI5 122 DI6 123 DI7 124 Vss 125 Vcc 126 VccQ 127 VssQ 128 DO0 3.3V 3.3V R5203 EXB28V470JX R5188 EXB28V470JX R5202 EXB2HV470JV R5174 EXB2HV820JV R5200 EXB2HV470JV R5185 EXB2HV470JV R5205 EXB2HV820JV R5201 EXB2HV470JV R5221 EXB2HV680JV R5197 EXB2HV470JV R5183 EXB2HV470JV R5218 EXB2HV820JV R5198 EXB2HV470JV R5206 EXB2HV680JV R5175 EXB2HV820JV R5186 EXB2HV470JV R5187 EXB2HV470JV R5199 EXB2HV470JV R5219 EXB2HV820JV R5217 EXB2HV680JV R5181 EXB2HV470JV R5184 EXB2HV470JV R5220 EXB2HV680JV R5207 EXB2HV680JV R5182 EXB2HV470JV R5196 EXB2HV470JV R5204 EXB2HV820JV R5224 EXB2HV680JV R5223 0 R5208 22 R5160 68 R5210 22 R5156 68 R5161 68 R5214 0 R5162 68 R5194 47 R5180 47 R5195 47 R5225 3.3k R5157 3.3k R5226 3.3k R5153 3.3k R5152 3.3k R5193 47 R5212 68 R5227 3.3k R5179 47 R5178 47 R5159 3.3k R5166 3.3k R5158 3.3k R5191 47 R5147 68 R5155 68 R5154 68 R5171 3.3k R5145 3.3k R5176 47 R5173 3.3k R5164 3.3k R5222 0 R5150 3.3k R5144 3.3k R5167 3.3k R5165 3.3k R5177 47 R5213 68 R5172 3.3k R5146 68 R5149 68 R5168 22 R5192 47 R5148 68 R5216 3.3k R5169 22 R5163 68 R5209 22 R5215 0 R5151 3.3k R5170 22 R5211 68 C_DI[4] Y_DO[15] PI1D[30] PI1D[46] C_DI[5] Y_DI[17] Y_DO[22] PI1D[15] PI2D[16] PI2D[28] PI2D[59] Y_DO[19] PI1D[41] C_RAD Y_SWCK C_DI[14] PI1D[4] C_DI[8] Y_DI[16] Y_DI[18] PI1D[53] C_DI[7] PI2D[2] Y_DO[5] PI2D[34] C_DO[0] C_WE PI1D[16] PI1D[37] Y_DO[6] C_DI[3] C_DI[12] Y_DO[21] PI2D[4] PI1D[26] PI2D[44] C_DI[10] Y_DI[5] PI1D[40] PI1D[5] PI2D[0] Y_DI[13] Y_DO[8] PI2ACTB PI1D[6] Y_DO[14] C_DI[18] PI2D[3] PI1D[7] PI1D[21] PI2D[35] Y_DI[15] C_DO[22] PI1D[14] PI2D[52] Y_RAD PI1FLD C_DO[10] PI1D[43] Y_DI[4] PI2D[49] PI1D[50] Y_DO[4] C_DO[2] PI1D[17] C_DI[0] Y_DI[8] C_DI[19] Y_OE C_RE C_DO[1] PI1CLK Y_DI[6] C_DI[20] PI1D[58] PI2D[8] C_DO[13] Y_DO[23] PI2D[45] PI2D[25] FIFO FPGA C_DO[9] C_DI[11] Y_DI[3] PI1D[1] C_DI[6] PI2D[15] Y_DO[17] PI1D[8] Y_DI[0] PI1D[39] PI2D[13] Y_DI[9] PI1D[38] Y_DO[7] PI1D[11] C_DO[3] PI2D[38] PI2D[21] Y_DO[10] PI1D[34] FIFO PI1D[56] PI2D[51] Y_SRCK C_DO[15] Y_DI[19] C_DI[22] Y_WE C_DO[6] PI1D[10] Y_DI[11] C_DO[4] PI2D[32] PI2D[27] C_DO[8] PI1D[49] FIFO PI2D[43] PI1HSB PI2D[7] FIFO FPGA C_DO[19] PI1D[45] PI2D[10] Y_RSTR C_DI[21] C_DO[12] PI2D[54] Y_DI[7] PI1D[54] C_DO[21] C_DO[20] PI2D[33] Y_DO[9] C_RSTR PI1D[22] Y_DO[16] PI1D[28] C_DO[5] C_DO[23] Y_DO[3] C_DI[13] PI2FLD PI1D[32] PI2D[37] Y_DI[2] C_DI[9] PI1D[27] PI2D[46] PI2D[58] C_DI[17] PI1D[29] PI2D[31] PI1D[24] PI2D[55] C_SRCK Y_DI[22] PI1D[18] PI1D[33] PI2D[9] C_DO[16] Y_WAD PI1D[20] PI1D[36] PI2D[41] PI2D[23] PI2D[42] PI1D[57] Y_DO[13] PI1D[12] PI2D[1] PI2D[53] PI2D[40] PI1D[52] PI2HSB C_DI[16] PI1VSB PI2D[24] PI2D[11] PI2CLK PI1D[47] PI2VSB PI1D[9] FPGA FIFO Y_DI[14] PI2D[5] PI1D[44] PI2D[12] PI1D[2] PI2D[56] PI1ACTB PI1D[51] PI2D[6] PI1D[13] PI2D[18] PI1D[0] PI2D[39] C_DI[2] C_WAD PI1D[48] Y_DO[1] Y_DO[11] C_SWCK Y_DO[20] PI2D[19] PI1D[19] C_DI[15] Y_IE C_DO[18] Y_DI[21] C_DI[23] PI2D[29] Y_DI[23] C_DO[14] PI2D[48] Y_RSTW PI2D[36] C_RSTW Y_DO[2] PI1D[59] PI2D[20] PI2D[47] Y_DO[18] PI1D[25] FPGA FIFO C_DO[11] PI2D[17] PI2D[22] Y_DI[1] FPGA FIFO PI1D[35] FPGA FIFO PI1D[23] Y_DO[12] C_DI[1] Y_DI[10] PI2D[14] Y_DI[12] PI2D[26] PI2D[57] Y_RE PI1D[42] C_DO[17] PI2D[50] Y_DI[20] PI2D[30] PI1D[55] C_OE Y_DO[0] C_DO[7] PI1D[31] C_IE PI1D[3] 42 37 45 41 40 39 38 43 44 41 42 43 31 FIFO FIFO IC5101 C1ZBZ0003614 DN-BOARD TNPA4304AB (5/9) ! 30bit 2_RGB VIDEO SIGNAL PROCESSOR 60bit 2_I-CHIPS OUT FPGA1 TH-65PF10CK DN-Board (5 of 9) Schematic Diagram TH-65PF10CK DN-Board (5 of 9) Schematic Diagram 73 TH-65PF10CK 11.17.DN 电路板 （6/9）线路图 + PI2D[13] PI1D[20] PI2D[49] PI1D[59] PI2D[36] A_DDR_DQ5 A_DDR_DQ27 PI2D[12] PI1D[19] PI1D[54] PI2D[50] PI2D[37] PI2D[11] A_DDR_DQ6 A_DDR_DQ26 PI1D[18] PI2D[51] PI1D[40] PI2D[38] PI1D[53] PI2D[10] A_DDR_DQ7 A_DDR_DQ25 PI1D[17] PI2D[52] PI1D[34] PI1D[35] PI2D[39] PI2D[9] PI1D[16] A_DDR_DQ8 A_DDR_DQ24 PI2D[53] PI1D[33] PI2D[40] PI2D[8] PI1D[15] PI2D[54] A_DDR_DQ9 A_DDR_DQ23 PI2D[41] PI2D[7] PI2D[55] A_DDR_DQ10 A_DDR_DQ22 PI1D[32] PI2D[42] PI1D[13] PI1D[14] PI2D[6] PI1D[42] PI2D[56] A_DDR_DQ11 PI1D[41] PI1D[52] A_DDR_DQ21 MCLK02B PI2D[43] PI1D[12] PI1D[31] PI2D[5] PI2D[57] A_DDR_DQ12 PI1D[11] PI2HSB A_DDR_DQ20 PI1D[36] PI1D[39] PI1D[51] PI2D[4] PI1D[30] PI2D[58] PI2VSB A_DDR_DQ19 PI2D[3] PI2D[59] PI1D[50] PI1D[29] A_DDR_DQ18 PI2D[2] PI2CLK PI1D[38] PI1D[28] A_DDR_DQ17 PI2D[1] PI2ACTB PI1D[9] PI2D[0] A_DDR_DQ16 PI2FLD PI1D[3] MWRB PI1D[49] A_DDR_A11 PI1D[27] PI1D[8] PI2D[20] A_DDR_DQ15 PI1D[48] MCASB A_DDR_A10 PI1D[2] PI2D[21] MRASB A_DDR_A9 PI1D[1] PI2D[22] MCLK02 MCSB A_DDR_A8 PI2D[23] DQS3 PI1D[0] PI1D[7] MCKE PI1D[47] A_DDR_A7 PI2D[24] DQS2 PI1D[10] PI1D[57] PI1D[6] ICHIPS_RST PI1D[58] PI1D[26] A_DDR_BA1 A_DDR_A6 PI2D[25] DQS1 MCLK04B AAE_MCCLK A_DDR_BA0 PI1D[5] PI2D[26] A_DDR_A5 PI1D[25] PI1D[46] PI1CLK DQS0 PI1D[45] PI2D[27] A_DDR_A4 PI1ACTB PI1D[4] DQM3 ICHIPS_SS PI2D[28] A_DDR_A3 PI1FLD A_DDR_DQ14 DQM2 PI2D[29] AAE_MCDATA_O PI1D[37] PI1HSB PI2D[19] A_DDR_A2 A_DDR_DQ13 PI1D[44] PI1D[24] PI2D[30] ICHIPS_SI PI1VSB PI2D[18] A_DDR_A1 PI2D[44] A_DDR_DQ0 DQM0 PI2D[31] PI1D[23] PI2D[17] A_DDR_A0 PI2D[45] A_DDR_DQ1 A_DDR_DQ31 PI2D[32] PI2D[16] PI1D[22] PI2D[46] PI1D[43] A_DDR_DQ2 A_DDR_DQ30 PI2D[33] PI2D[15] PI2D[47] PI1D[21] A_DDR_DQ3 A_DDR_DQ29 PI2D[34] PI2D[14] PI2D[48] PI1D[56] PI2D[35] A_DDR_DQ4 A_DDR_DQ28 PI1D[55] B_DDR_BA1 B_DDR_BA0 B_DDR_A11 B_DDR_A10 B_DDR_A9 B_DDR_A8 B_DDR_A7 B_DDR_A6 B_DDR_A5 B_DDR_A4 B_DDR_A3 B_DDR_A2 B_DDR_A1 B_DDR_A0 B_DDR_DQ22 B_DDR_DQ20 B_DDR_DQ21 B_DDR_DQ17 B_DDR_DQ16 B_DDR_DQ18 B_DDR_DQ19 B_DDR_DQ24 B_DDR_DQ25 B_DDR_DQ26 B_DDR_DQ27 B_DDR_DQ28 B_DDR_DQ29 B_DDR_DQ30 B_DDR_DQ31 B_DDR_DQ9 B_DDR_DQ10 B_DDR_DQ11 B_DDR_DQ13 B_DDR_DQ12 B_DDR_DQ15 B_DDR_DQ2 B_DDR_DQ4 B_DDR_DQ1 B_DDR_DQ0 B_DDR_DQ3 B_DDR_DQ5 B_DDR_DQ6 B_DDR_DQ7 A_DQM3 A_DQM2 A_DQM1 A_DQM0 B_DDR_CLK B_DDR_NCLK A_DQS3 A_DQS2 A_DQS1 A_DQS0 DDR_WE DDR_CAS DDR_RAS DDR_SDCKE DMCSB PO_CLK_FP2 MCLK02B MRASB B_DDR_BA1 B_DDR_DQ23 MCLK02 MCASB A_DDR_BA1 MWRB A_DDR_BA0 B_DDR_DQ19 B_DDR_DQ18 B_DDR_DQ17 A_DDR_DQ14 B_DDR_DQ8 B_DDR_A5 B_DDR_DQ16 A_DDR_DQ15 B_DDR_DQ9 B_DDR_A6 B_DDR_DQ3 A_DDR_DQ27 B_DDR_DQ10 B_DDR_A1 DQS1 A_DDR_DQ30 B_DDR_DQ5 A_DDR_DQ26 B_DDR_DQ11 B_DDR_BA0 A_DDR_DQ3 A_DDR_DQ29 A_DDR_DQ25 B_DDR_DQ6 B_DDR_A4 A_DDR_DQ5 A_DDR_A9 A_DDR_DQ28 DQS3 A_DDR_DQ24 B_DDR_DQ7 A_DDR_DQ6 B_DDR_A2 A_DDR_A5 A_DDR_DQ2 A_DDR_DQ31 B_DDR_DQ2 B_DDR_A3 A_DDR_A6 A_DDR_DQ7 A_DDR_DQ4 DQS0 B_DDR_DQ4 A_DDR_DQ8 A_DDR_A1 A_DDR_DQ1 B_DDR_DQ1 A_DDR_DQ9 A_DDR_A8 B_DDR_DQ26 A_DDR_DQ0 B_DDR_DQ0 DQS2 A_DDR_DQ10 A_DDR_A10 B_DDR_DQ25 A_DDR_DQ19 DDR_SDCKE B_DDR_DQ31 A_DDR_DQ11 A_DDR_A11 B_DDR_DQ24 A_DDR_DQ18 DDR_RAS B_DDR_DQ30 A_DDR_DQ12 A_DDR_A7 B_DDR_DQ12 A_DDR_DQ17 DDR_CAS B_DDR_DQ29 A_DDR_DQ13 A_DDR_A4 B_DDR_DQ13 A_DDR_DQ16 B_DDR_DQ28 A_DDR_A3 B_DDR_DQ14 A_DDR_DQ21 B_DDR_A0 B_DDR_DQ27 A_DDR_A0 B_DDR_DQ15 A_DDR_DQ20 B_DDR_A8 A_DDR_DQ23 B_DDR_A10 A_DDR_DQ22 B_DDR_A11 A_DDR_A2 B_DDR_A7 B_DDR_A9 DDR_WE B_DDR_DQ21 MCKE B_DDR_DQ20 B_DDR_CLK B_DDR_NCLK MCLK04 MCLK04B A_DDR_CLK A_DDR_NCLK DQM0 A_DQM0 DQM1 A_DQM1 DQM2 A_DQM2 DQM3 A_DQM3 DQM1 B_DDR_DQ22 MCLK04 DMCSB MCSB B_DDR_DQ14 B_DDR_DQ8 B_DDR_DQ23 A_DQS1 A_DQS3 A_DQS0 A_DQS2 C5410 16V 0.01u C5415 10V 0.1u C5404 10V 0.1u C5400 10V 0.1u C5413 10V 0.1u C5332 10V 0.1u C5333 10V 0.1u C5394 10V 0.1u C5411 10V 0.1u C5419 10V 0.1u C5331 10V 0.1u C5403 10V 0.1u C5420 16V 0.01u C5408 10V 0.1u C5437 6.3V 10u C5409 10V 0.1u C5402 10V 0.1u C5334 10V 0.1u C5416 16V 0.01u C5406 10V 0.1u C5407 16V 0.01u C5412 16V 0.01u C5401 16V 0.01u C5399 16V 0.01u C5395 16V 0.01u C5396 10V 0.1u C5398 10V 0.1u C5397 16V 0.01u C5386 6.3V 10u C5330 10V 0.1u C5417 10V 0.1u C5405 16V 0.01u C5414 16V 0.01u C5418 16V 0.01u C5393 56u 4V IC5303 C3ABQJ000055 B2 DQS0 IC5301 A1 MA[7] IC5301 AB8 AD[2] IC5301 AC10 WAITB IC5303 F2 DQ17 IC5301 V23 PI1D[8] IC5303 J5 VSSQ IC5303 G12 DQ13 IC5303 D8 VDD IC5301 E24 PI2D[18] IC5301 D2 BA[0] IC5303 G4 VDDQ IC5301 P23 PI1D[35] IC5303 N9 A6 IC5301 P1 MD[9] IC5301 N4 VREF1_Z IC5301 F26 PI1D[56] IC5303 D4 VSSQ IC5301 AD6 AD[6] IC5301 AB25 OSDDT[2] IC5301 AB7 SI IC5301 E5 MA[5] IC5301 D17 PI2ACTB IC5301 U3 VREF0_Z IC5301 B24 PI2D[27] IC5301 V25 PI1D[11] IC5301 D26 PI2D[11] IC5303 H11 NC IC5301 J26 PI1D[45] IC5301 AB11 GIO[3] IC5303 N6 A1 IC5301 AD9 PPEN IC5301 G22 PI2D[36] IC5303 E8 VSS IC5303 N4 BA0 IC5303 K6 VSS IC5303 M5 BA1 IC5301 V1 MD[3] IC5301 AA4 IPCLKSEL[2] IC5301 A22 PI2D[44] IC5301 AB1 TESTB[0] IC5301 F2 MCLKO2B IC5301 AF9 GIO[6] IC5301 R26 PI1D[24] IC5303 D13 DQ25 IC5301 E1 MCLKO2 IC5301 AA25 PI1VSB IC5301 R25 PI1D[25] IC5303 M11 CK IC5301 B1 MA[2] IC5301 C20 PI2D[48] IC5301 B23 PI2D[32] IC5301 AC11 GIO[5] IC5301 M26 PI1D[36] IC5303 F8 VSS_Thermal IC5301 K24 PI1D[52] IC5301 W1 MCLK IC5303 G11 VDDQ IC5303 B4 VSSQ IC5301 AE3 SCLKB IC5303 F10 VSSQ IC5301 U2 MD[5] IC5303 E7 VSS IC5301 P4 MD[12] IC5301 T1 MDQS[1] IC5303 L10 VSS IC5303 C10 VDDQ IC5301 AC5 TDI IC5301 M22 PI2D[1] IC5301 F4 MCKE IC5301 J4 MD[28] IC5303 J2 DQ21 IC5303 F3 DQ16 IC5301 H26 PI1D[50] IC5303 N13 VREF IC5301 F1 MD[31] IC5303 C4 NC IC5301 A23 PI2D[33] IC5303 L3 WE IC5303 J7 VSS_Thermal IC5301 N3 MD[15] IC5301 W4 MCLKSEL[2] IC5301 A25 PI2D[24] IC5301 AB2 TESTB[1] IC5301 K22 PI2D[10] IC5301 F3 MCASB IC5301 J24 PI1D[58] IC5303 C9 DQ30 IC5303 E11 VDD IC5301 G4 MWRB IC5301 K4 MD[24] IC5303 G13 DQ12 IC5301 W23 PI1D[3] IC5301 J25 PI1D[51] IC5303 G10 VSSQ IC5301 U1 MD[6] IC5303 D5 VSSQ IC5301 B25 PI2D[21] IC5301 AD7 DB[3] IC5303 D10 VSSQ IC5303 H10 VSSQ IC5301 AB3 TESTB[3] IC5301 P26 PI1D[29] IC5301 J23 PI2D[9] IC5301 AF3 AD[5] IC5301 AE4 AD[3] IC5301 AA23 OSDDT[1] IC5301 T21 PI1D[21] IC5301 H4 MCLKO3B IC5303 G2 DQ19 IC5303 K10 VSSQ IC5303 F13 DQ14 IC5303 N3 NC IC5301 A24 PI2D[30] IC5301 D23 PI2D[29] IC5301 J2 MDQS[3] IC5303 M9 A5 IC5301 K2 MDQM[2] IC5303 M10 RFU IC5301 U4 MD[4] IC5303 L7 VDD IC5301 W24 PI1D[4] IC5301 A20 PI2D[52] IC5303 D3 DQ5 IC5303 L2 CAS IC5301 M1 MD[16] IC5303 M8 A9 IC5301 K1 MD[22] IC5303 B10 DQ28 IC5301 N1 MD[13] IC5301 M3 MD[18] IC5301 G3 MCLKO3 IC5303 L13 NC IC5301 AE7 REB IC5301 N23 PI1D[39] IC5301 AD2 TESTS[5] IC5301 AE10 GIO[7] IC5303 G5 VSSQ IC5301 M23 PI1D[49] IC5301 AC25 OSDDT[0] IC5303 C8 VDDQ IC5301 L23 PI1D[55] IC5301 A17 PI2VSB IC5301 B17 PI2HSB IC5301 AC2 TESTS[0] IC5301 AC4 TESTS[4] IC5303 B12 DM3 IC5303 M7 A11 IC5301 AB9 DB[1] IC5301 L22 PI2D[2] IC5303 F6 VSS_Thermal IC5303 F9 VSS_Thermal IC5301 AD3 TMS IC5301 H3 MD[29] IC5301 V2 MD[2] IC5301 P3 MD[11] IC5301 AF6 CEB IC5303 E5 VSS IC5303 J6 VSS_Thermal IC5303 B9 DQ29 IC5301 K26 PI1D[41] IC5303 H7 VSS_Thermal IC5301 B20 PI2D[50] IC5301 C25 PI2D[17] IC5301 G2 MD[30] IC5303 H9 VSS_Thermal IC5301 R2 MDQM[1] IC5303 K4 VDDQ IC5303 D9 VSSQ IC5301 T3 MDQM[0] IC5303 F11 VDDQ IC5303 N8 A4 IC5301 AB4 TESTS[2] IC5301 V4 MD[0] IC5303 N7 A3 IC5303 B13 DQS3 IC5303 N11 A8/AP IC5301 D1 MRASB IC5303 K3 DQ23 IC5301 J22 PI2D[22] IC5303 F7 VSS_Thermal IC5301 Y26 PI1D[5] IC5301 T4 MD[7] IC5301 B19 PI2D[55] IC5303 H2 DQS2 IC5301 H2 MD[26] IC5301 E22 PI2D[39] IC5301 AB12 GIO[4] IC5301 F24 PI2D[15] IC5301 AE9 GIO[1] IC5303 D7 VDD IC5301 U24 PI1D[15] IC5301 AD10 GIO[2] IC5303 C6 DQ1 IC5301 A2 MA[11] IC5301 L25 PI1D[43] IC5301 A3 MCLKO1 IC5301 P21 PI1D[42] IC5303 E10 VSS IC5303 L9 RFU IC5303 B3 DM0 IC5301 AD5 AD[1] IC5301 L3 MD[23] IC5301 D22 PI2D[41] IC5301 B4 MCLKO1B IC5301 E25 PI2D[12] IC5301 H1 MDQM[3] IC5303 E3 VDDQ IC5301 E4 VREF2_Z IC5301 L21 PI2D[7] IC5303 D12 DQ26 IC5303 N10 A7 IC5303 J13 DQ10 IC5301 R24 PI1D[26] IC5303 L4 VDD IC5301 AD1 TESTS[1] IC5301 P2 MD[10] IC5301 R23 PI1D[28] IC5301 C5 MA[12] IC5301 F23 PI2D[37] IC5301 D3 MA[1] IC5303 E2 DQ7 IC5301 B2 MA[4] IC5303 C13 DQ27 IC5303 D2 DQ6 IC5303 H8 VSS_Thermal IC5301 T22 PI1D[23] IC5301 B22 PI2D[43] IC5301 N26 PI1D[32] IC5301 AA24 PI1CLK IC5301 AF4 DB[0] IC5303 N12 CKE IC5301 C18 PI2D[58] IC5301 AC8 DB[2] IC5301 A19 PI2D[57] IC5301 C3 MA[8] IC5301 AD8 DB[7] IC5303 M4 NC IC5301 W26 PI1D[7] IC5301 C21 PI2D[45] IC5301 Y23 PI1FLD IC5303 N5 A0 IC5301 AB26 PI1HSB IC5303 L6 A10 IC5301 N25 PI1D[33] IC5303 C2 DQ4 IC5303 J12 DQ11 IC5303 M3 NC IC5301 C2 MA[3] IC5303 G8 VSS_Thermal IC5303 E12 VDDQ IC5301 G23 PI2D[35] IC5301 J1 MDQS[2] IC5303 K7 VSS IC5303 H3 DM2 IC5303 K12 DQ9 IC5301 AC6 SO IC5303 H13 DQS1 IC5303 N2 CS IC5301 D24 PI2D[23] IC5301 L26 PI1D[40] IC5301 AC7 AD[4] IC5301 W25 PI1D[6] IC5301 D25 PI2D[14] IC5301 U23 PI1D[13] IC5301 D21 PI2D[42] IC5303 C11 NC IC5301 AD4 TRST IC5301 H23 PI2D[28] IC5301 AC26 OSDDT[3] IC5303 J11 VDDQ IC5301 V26 PI1D[12] IC5301 G26 PI1D[53] IC5303 C3 VDDQ IC5301 N21 PI1D[54] IC5303 M12 CK IC5301 R21 PI1D[27] IC5303 L11 VDD IC5301 E2 MCSB IC5301 AA2 IPCLKSEL[1] IC5301 D12 VREF3_Z IC5301 AF2 AD[0] IC5303 H4 NC IC5301 W22 PI1D[0] IC5303 F5 VSSQ IC5301 C4 MA[9] IC5301 A21 PI2D[46] IC5303 D11 VSSQ IC5301 B21 PI2D[47] IC5303 J3 DQ20 IC5301 E19 PI2D[51] IC5301 G1 MD[27] IC5301 L1 MD[20] IC5301 A4 MCLKO4B IC5301 AC3 TESTS[3] IC5301 J3 MD[25] IC5303 B7 DQ0 IC5301 K21 PI2D[19] IC5301 M4 MD[19] IC5301 C24 PI2D[25] IC5301 A15 VREF4_Z IC5303 J8 VSS_Thermal IC5301 AA1 IPCLKSEL[0] IC5301 H22 PI2D[34] IC5301 E3 BA[1] IC5303 F4 VDDQ IC5301 L2 MD[21] IC5303 K8 VSS IC5301 R22 PI1D[34] IC5301 AF8 GIO[0] IC5303 E6 VSSQ IC5301 N22 PI1D[59] IC5301 L24 PI1D[47] IC5301 C23 PI2D[31] IC5303 K11 VDDQ IC5301 D19 PI2D[54] IC5301 AE6 DB[4] IC5301 T2 MDQS[0] IC5301 B26 PI2D[16] IC5303 C5 VDDQ IC5301 Y24 PI1D[1] IC5303 G9 VSS_Thermal IC5303 L5 VSS IC5301 K25 PI1D[46] IC5303 L8 VDD IC5303 K2 DQ22 IC5303 D6 VSSQ IC5301 T23 PI1D[22] IC5301 E23 PI2D[26] IC5301 AF1 SSB IC5301 AE8 RSTB IC5301 A18 PI2CLK IC5301 M25 PI1D[38] IC5301 AB24 OSDEN IC5301 U22 PI1D[14] IC5303 H6 VSS_Thermal IC5301 A26 PI2D[20] IC5303 G3 DQ18 IC5301 M24 PI1D[44] IC5301 G25 PI2D[3] IC5303 L12 NC IC5301 G24 PI2D[8] IC5301 AF5 DB[5] IC5301 M2 MD[17] IC5301 K23 PI2D[0] IC5303 G7 VSS_Thermal IC5301 AE5 AD[7] IC5301 AA26 PI1ACTB IC5303 K13 DQ8 IC5303 G6 VSS_Thermal IC5303 C12 VDDQ IC5303 E13 DQ24 IC5301 E26 PI2D[5] IC5301 F25 PI2D[6] IC5301 P22 PI1D[48] IC5303 K5 VSSQ IC5301 N2 MD[14] IC5301 C19 PI2D[53] IC5301 AE2 TDO IC5301 H24 PI2D[4] IC5301 C17 PI2FLD IC5301 B18 PI2D[59] IC5303 J10 VSSQ IC5303 J9 VSS_Thermal IC5301 N24 PI1D[37] IC5303 M2 RAS IC5301 AC9 DB[6] IC5303 B6 DQ2 IC5301 AE1 TCK IC5301 D20 PI2D[49] IC5301 P25 PI1D[30] IC5301 C1 MA[0] IC5301 T26 PI1D[18] IC5301 C26 PI2D[13] IC5303 C7 VDDQ IC5303 F12 DQ15 IC5301 D4 MA[6] IC5303 B8 DQ31 IC5301 C22 PI2D[40] IC5303 B11 VSSQ IC5303 M13 NC IC5301 F22 PI2D[38] IC5301 AB10 WEB IC5303 B5 DQ3 IC5301 Y25 PI1D[2] IC5301 W2 MCLKSEL[0] IC5301 U25 PI1D[16] IC5301 AA3 IPCLK IC5303 J4 VDDQ IC5301 W3 MCLKSEL[1] IC5303 H5 VSSQ IC5303 K9 VSS IC5301 H25 PI1D[57] IC5303 M6 A2 IC5303 H12 DM1 IC5301 B5 MCLKO4 IC5301 R1 MD[8] IC5301 P24 PI1D[31] IC5301 U26 PI1D[17] IC5301 AF7 INTB IC5301 V22 PI1D[9] IC5301 V3 MD[1] IC5301 T25 PI1D[19] IC5301 T24 PI1D[20] IC5301 AC1 TESTB[2] IC5301 V24 PI1D[10] IC5301 B3 MA[10] IC5303 E9 VSSQ IC5301 D18 PI2D[56] IC5303 E4 VDD L5323 J0JHC0000096 2.5V TP5301 R5304 EXB28V100JX R5367 EXB28V100JX R5308 EXB28V100JX R5365 EXB28V100JX R5366 EXB28V100JX R5339 EXB28V103JX R5394 EXB28V100JX R5330 EXB28V272JX R5395 EXB28V100JX R5396 EXB28V100JX R5397 EXB28V100JX R5368 EXB28V100JX R5336 EXB2HV103JV R5337 EXB2HV103JV R5307 EXB2HV100JV R5328 EXB2HV103JV R5342 EXB2HV103JV R5373 10 R5379 10 R5333 10k R5334 10k R5376 10 R5322 10k R5377 10 R5316 10k R5332 0 R5384 10 R5335 10k R5331 0 R5380 10 R5341 10k R5303 0 R5318 10k R5381 10 R5305 10 R5393 10 R5345 910 R5375 10 R5329 10k R5323 10k R5378 10 R5338 10k R5306 10 R5346 1k R5302 10k R5383 10 R5313 10k R5382 10 R5319 10k R5374 10 3.3V RGB IN PORT1(60bit) RGB IN PORT2(60bit) 46 49 50 53 47 51 52 48 54 42 41 43 51 52 53 54 55 I-CHIPS IP CONVERSION IC5301 C1AB00002652 C3ABQJ000055 DDR_SDRAM1 IC5303 ! DN-BOARD TNPA4304AB (6/9) TH-65PF10CK DN-Board (6 of 9) Schematic Diagram TH-65PF10CK DN-Board (6 of 9) Schematic Diagram 74 TH-65PF10CK 11.18.DN 电路板 （7/9）线路图 + PO_BO4 PO_GE6 C_DDR_DQ29 PO_RE4 PO_BO9 PO_FLD C_DDR_DQ14 PO_BE2 PO_BE8 C_DDR_DQ24 PO_GE8 PO_BE1 C_DDR_DQ25 PO_RO3 PO_BE3 C_DDR_DQ15 PO_BE6 PO_BO3 PO_GO3 C_DDR_DQ21 PO_GE9 PO_GE0 PO_GE3 C_DDR_DQ18 PO_BE9 C_DDR_DQ17 PO_BO2 C_DDR_DQ12 C_DDR_DQ19 PO_HS C_DDR_DQ2 PO_RO2 PO_RE3 C_DDR_DQ7 C_DDR_DQ10 PO_GO9 PO_RO4 C_DDR_DQ6 C_DDR_DQ8 C_DDR_DQ5 C_DDR_DQ9 PO_RO6 PO_BE4 C_DDR_DQ11 C_DDR_DQ0 C_DDR_DQ20 PO_RE2 DQS6 PO_GO6 C_DDR_DQ4 C_DDR_DQ13 PO_BO5 PO_BO6 DQS4 PO_RE0 C_DDR_DQ3 C_DDR_DQ22 PO_GE1 DQM4 PO_RE5 C_DDR_DQ1 C_DDR_DQ16 PO_GE4 PO_ACT C_DDR_DQ28 PO_RO1 DQS7 PO_GO2 C_DDR_DQ23 PO_BO0 PO_BO7 C_DDR_DQ30 PO_RO8 PO_RO7 PO_BE7 PO_RO0 DQM6 PO_RO5 PO_BO1 DQS5 PO_BO8 PO_GE7 C_DDR_DQ27 PO_BE5 PO_GO1 PO_GE5 PO_GO7 PO_RE9 PO_RE7 PO_GE2 PO_RE1 PO_RE6 PO_GO5 C_DDR_DQ31 PO_GO4 PO_RE8 C_DDR_DQ26 PO_VS DQM5 PO_GO8 PO_RO9 PO_GO0 DQM7 PO_BE0 D_DDR_DQ12 B_DDR_A4 D_DDR_DQ1 DDR_WE A_DQM6 D_DDR_DQ5 D_DDR_DQ23 D_DDR_DQ21 D_DDR_DQ8 B_DDR_A11 B_DDR_BA1 D_DDR_DQ25 D_DDR_DQ7 B_DDR_BA0 D_DDR_DQ17 D_DDR_DQ3 D_DDR_DQ18 B_DDR_A0 D_DDR_DQ6 D_DDR_DQ14 B_DDR_A10 A_DQM4 A_DQS4 D_DDR_DQ4 DDR_CAS B_DDR_A3 D_DDR_DQ0 A_DQM5 D_DDR_DQ24 A_DQM7 A_DQS7 B_DDR_A9 D_DDR_DQ15 B_DDR_A5 B_DDR_A2 A_DDR_CLK A_DQS5 D_DDR_DQ26 D_DDR_DQ2 B_DDR_A7 D_DDR_DQ16 B_DDR_A1 D_DDR_DQ29 D_DDR_DQ28 D_DDR_DQ22 D_DDR_DQ19 DDR_RAS D_DDR_DQ11 D_DDR_DQ30 D_DDR_DQ20 D_DDR_DQ27 D_DDR_DQ31 D_DDR_DQ10 D_DDR_DQ13 B_DDR_A6 D_DDR_DQ9 B_DDR_A8 A_DQS6 DDR_SDCKE DMCSB PO_CLK_FP2 A_DDR_NCLK D_DDR_DQ26 D_DDR_DQ23 C_DDR_DQ21 C_DDR_DQ25 D_DDR_DQ12 DQS6 C_DDR_DQ28 C_DDR_DQ11 D_DDR_DQ24 DQS4 C_DDR_DQ7 D_DDR_DQ1 C_DDR_DQ20 D_DDR_DQ21 C_DDR_DQ1 D_DDR_DQ22 D_DDR_DQ11 D_DDR_DQ5 D_DDR_DQ27 D_DDR_DQ14 C_DDR_DQ26 C_DDR_DQ24 C_DDR_DQ9 D_DDR_DQ6 D_DDR_DQ28 C_DDR_DQ29 C_DDR_DQ17 A_DQM7 D_DDR_DQ2 D_DDR_DQ13 C_DDR_DQ2 D_DDR_DQ9 D_DDR_DQ20 C_DDR_DQ12 C_DDR_DQ13 C_DDR_DQ8 D_DDR_DQ17 A_DQM6 D_DDR_DQ29 D_DDR_DQ3 DQM7 DQM4 DQS5 D_DDR_DQ8 C_DDR_DQ19 DQM5 C_DDR_DQ3 C_DDR_DQ14 D_DDR_DQ15 A_DQM5 C_DDR_DQ4 D_DDR_DQ19 A_DQM4 D_DDR_DQ18 C_DDR_DQ6 C_DDR_DQ15 D_DDR_DQ16 D_DDR_DQ30 DQM6 C_DDR_DQ22 D_DDR_DQ10 D_DDR_DQ0 C_DDR_DQ27 C_DDR_DQ18 D_DDR_DQ7 D_DDR_DQ25 C_DDR_DQ31 C_DDR_DQ30 C_DDR_DQ0 DQS7 C_DDR_DQ10 D_DDR_DQ31 C_DDR_DQ23 C_DDR_DQ5 C_DDR_DQ16 D_DDR_DQ4 A_DQS5 A_DQS7 A_DQS4 A_DQS6 C5368 16V 0.1u C5358 16V 0.1u C5325 16V 0.01u C5336 16V 0.1u C5300 6.3V 10u C5429 16V 0.1u C5305 16V 0.01u C5311 16V 0.01u C5431 6.3V 10u C5343 16V 0.1u C5385 16V 0.01u C5329 16V 0.01u C5370 16V 0.1u C5363 16V 0.1u C5373 16V 0.1u C5317 10V 0.1u C5306 10V 0.1u C5377 16V 0.01u C5299 6.3V 10u C5319 16V 0.01u C5357 16V 0.1u C5347 16V 0.1u C5365 16V 0.1u C5323 16V 0.01u C5383 16V 0.01u C5326 10V 0.1u C5322 10V 0.1u C5354 16V 0.1u C5432 16V 0.01u C5378 6.3V 10u C5346 16V 0.1u C5376 6.3V 10u C5435 6.3V 10u C5345 16V 0.1u C5338 16V 0.1u C5371 16V 0.1u C5348 16V 0.1u C5342 16V 0.1u C5433 16V 0.1u C5341 16V 0.1u C5430 16V 0.01u C5340 16V 0.1u C5308 10V 0.1u C5380 10V 0.1u C5321 16V 0.01u C5335 16V 0.1u C5364 16V 0.1u C5379 6.3V 10u C5313 10V 0.1u C5353 16V 0.1u C5312 10V 0.1u C5352 16V 0.1u C5339 16V 0.1u C5314 16V 0.01u C5375 16V 0.01u C5436 16V 0.01u C5302 6.3V 10u C5315 10V 0.1u C5362 16V 0.1u C5318 10V 0.1u C5434 16V 0.01u C5366 16V 0.1u C5425 50V 5p C5351 16V 0.1u C5426 50V 5p C5369 16V 0.1u C5316 16V 0.01u C5320 10V 0.1u C5324 10V 0.1u C5301 6.3V 10u C5349 16V 0.1u C5438 6.3V 10u C5361 16V 0.1u C5337 16V 0.1u C5355 16V 0.1u C5382 16V 0.1u C5344 16V 0.1u C5327 16V 0.01u C5367 16V 0.1u C5384 6.3V 10u C5374 16V 0.1u C5328 10V 0.1u C5310 10V 0.1u C5356 16V 0.1u C5350 16V 0.1u C5359 16V 0.1u C5307 16V 0.01u C5439 6.3V 10u C5372 16V 0.1u C5304 10V 0.1u C5360 16V 0.1u C5309 16V 0.01u C5303 56u 4V IC5304 B2 DQS0 IC5301 N13 GND IC5304 D6 VSSQ IC5301 H17 VCC2IO IC5301 AA9 VCCK IC5304 B8 DQ31 IC5301 AC21 POD[51] IC5301 J5 VCCK IC5301 E11 VCCK IC5304 N2 CS IC5301 T11 GND IC5301 H15 VCC2IO IC5301 V10 GND3IO IC5304 C5 VDDQ IC5301 AD17 POD[28] IC5304 E3 VDDQ IC5301 V17 GND3IO IC5301 V18 GND3IO IC5301 L13 GND IC5304 K8 VSS IC5301 M18 GND3IO IC5301 E8 VCCK IC5301 D8 VCCK IC5301 E10 GNDA IC5304 J6 VSS_Thermal IC5304 L3 WE IC5304 L11 VDD IC5304 L10 VSS IC5301 A10 MD[47] IC5301 V14 GND3IO IC5301 L4 VCC12A IC5301 P13 GND IC5304 G9 VSS_Thermal IC5301 AE17 POD[27] IC5304 G12 DQ13 IC5301 AE14 POD[16] IC5301 AC14 POD[13] IC5301 AE20 POD[38] IC5301 R8 VCC2IO IC5304 N7 A3 IC5301 J9 GND2IO IC5301 N12 GND IC5301 M15 GND IC5304 E11 VDD IC5301 T16 GND IC5301 AF10 POD[2] IC5301 AC18 POD[36] IC5301 L19 VCC3IO IC5301 C11 MD[46] IC5301 A11 MD[50] IC5301 D6 VCCK IC5304 H10 VSSQ IC5301 J11 GND2IO IC5301 R19 VCC3IO IC5301 D14 MDQS[6] IC5301 D11 MD[44] IC5301 AD16 POD[24] IC5304 C2 DQ4 IC5301 D15 MD[57] IC5304 G2 DQ19 IC5304 K11 VDDQ IC5301 R18 GND3IO IC5301 AD19 POD[37] IC5301 AE21 POD[42] IC5304 L9 RFU IC5301 W21 VCCK IC5301 A16 MD[63] IC5301 C15 MD[58] IC5301 AD23 POD[54] IC5304 B7 DQ0 IC5301 H9 VCC2IO IC5301 K8 VCC2IO IC5301 AC13 POD[10] IC5301 E7 VCCK IC5301 Y21 VCCK IC5304 K10 VSSQ IC5304 G13 DQ12 IC5301 E17 VCCK IC5304 F13 DQ14 IC5304 F5 VSSQ IC5304 E2 DQ7 IC5301 T12 GND IC5304 M13 NC IC5301 M8 VCC2IO IC5301 E16 VCCK IC5304 M11 CK IC5301 M12 GND IC5301 AF15 POD[18] IC5304 D7 VDD IC5301 N16 GND IC5304 D13 DQ25 IC5301 W11 VCC3IO IC5301 A5 MD[33] IC5301 K5 VCCK IC5304 L7 VDD IC5301 AE23 POD[50] IC5304 F7 VSS_Thermal IC5301 AF12 POD[11] IC5304 H11 NC IC5301 AC15 POD[21] IC5304 G5 VSSQ IC5301 L11 GND IC5304 H9 VSS_Thermal IC5301 R16 GND IC5301 A9 MD[43] IC5301 M11 GND IC5304 G7 VSS_Thermal IC5304 D8 VDD IC5301 W13 VCC3IO IC5301 W14 VCC3IO IC5304 L12 NC IC5301 N14 GND IC5301 R14 GND IC5301 AD14 POD[17] IC5304 J3 DQ20 IC5301 B7 MD[37] IC5301 AE12 POD[7] IC5301 K19 VCC3IO IC5301 Y2 POCLKSEL[0] IC5301 C6 MD[32] IC5301 E9 VCC12A IC5304 M3 NC IC5301 T8 VCC2IO IC5301 A8 MD[40] IC5301 P15 GND IC5304 L6 A10 IC5304 G10 VSSQ IC5301 E12 VCCK IC5301 AE13 POD[12] IC5301 AD24 POD[59] IC5304 E13 DQ24 IC5304 K3 DQ23 IC5301 B13 MD[55] IC5301 W8 VCC3IO IC5301 P8 VCC2IO IC5304 H5 VSSQ IC5301 J21 VCCK IC5301 N15 GND IC5301 B14 MDQM[7] IC5304 C13 DQ27 IC5304 K9 VSS IC5304 J5 VSSQ IC5301 R13 GND IC5301 C9 MDQS[5] IC5301 E14 VCC12A IC5304 B5 DQ3 IC5301 AB23 POEXTB IC5301 AD18 POD[33] IC5301 L16 GND IC5304 B13 DQS3 IC5304 M7 A11 IC5301 AF20 POD[35] IC5301 P11 GND IC5301 C16 MD[61] IC5304 F12 DQ15 IC5301 J8 VCC2IO IC5301 W18 VCC3IO IC5304 C12 VDDQ IC5301 M9 GND2IO IC5301 A13 MDQM[6] IC5301 AC19 POD[40] IC5301 F6 VCCK IC5301 AD11 POD[0] IC5304 M12 CK IC5304 J13 DQ10 IC5304 B12 DM3 IC5304 E5 VSS IC5301 K3 GNDA IC5301 AB19 VCCK IC5301 N8 VCC2IO IC5304 B6 DQ2 IC5301 AF17 POD[26] IC5301 AE16 POD[23] IC5301 A6 MD[36] IC5304 F4 VDDQ IC5301 U18 GND3IO IC5304 E8 VSS IC5304 N4 BA0 IC5304 H12 DM1 IC5301 R12 GND IC5301 AF13 POD[14] IC5304 D12 DQ26 IC5301 H12 VCC2IO IC5301 W5 VCCK IC5301 D9 MDQM[4] IC5301 V15 GND3IO IC5301 E21 GNDA IC5304 L2 CAS IC5301 L14 GND IC5301 B6 MD[34] IC5301 AA10 VCCK IC5301 AB18 VCCK IC5304 K13 DQ8 IC5301 AE22 POD[45] IC5301 P19 VCC3IO IC5304 C9 DQ30 IC5301 AF22 POD[43] IC5301 AB14 POD[9] IC5301 M19 VCC3IO IC5304 L13 NC IC5301 J15 GND2IO IC5301 M14 GND IC5301 V16 GND3IO IC5301 A14 MD[56] IC5304 F6 VSS_Thermal IC5301 P5 VCCK IC5304 D2 DQ6 IC5301 Y5 VCCK IC5301 T15 GND IC5301 AF23 POD[44] IC5304 M10 RFU IC5301 M13 GND IC5304 J12 DQ11 IC5301 W12 VCC3IO IC5304 D3 DQ5 IC5301 W19 VCC3IO IC5301 M21 VCCK IC5304 H8 VSS_Thermal IC5301 D13 MD[51] IC5301 C13 MD[54] IC5304 L4 VDD IC5301 N9 GND2IO IC5301 AD20 POD[41] IC5301 H14 VCC2IO IC5301 W10 VCC3IO IC5301 W16 VCC3IO IC5301 T14 GND IC5301 H18 VCC2IO IC5301 R9 GND2IO IC5304 E10 VSS IC5304 N9 A6 IC5301 T18 GND3IO IC5301 AB16 VCCK IC5301 J17 GND2IO IC5304 C4 NC IC5304 G4 VDDQ IC5304 B3 DM0 IC5304 N13 VREF IC5301 U9 GND3IO IC5301 V19 VCC3IO IC5301 AF14 POD[15] IC5304 J7 VSS_Thermal IC5301 W9 VCC3IO IC5301 D16 MD[60] IC5304 G11 VDDQ IC5304 F11 VDDQ IC5301 V8 VCC3IO IC5301 C7 MD[35] IC5301 AD25 POACTB IC5304 N11 A8/AP IC5301 N19 VCC3IO IC5304 J4 VDDQ IC5301 R5 VCCK IC5301 AB6 VCC12A IC5301 AF21 POD[39] IC5301 P12 GND IC5301 P16 GND IC5301 H10 VCC2IO IC5304 N3 NC IC5304 E6 VSSQ IC5301 A12 MD[53] IC5304 D9 VSSQ IC5301 AF11 POD[6] IC5301 D5 VCCK IC5304 K12 DQ9 IC5301 AD21 POD[47] IC5301 B8 MDQS[4] IC5304 L5 VSS IC5301 J10 GND2IO IC5301 N11 GND IC5301 V21 VCCK IC5301 C10 MD[42] IC5301 C12 MD[49] IC5301 R15 GND IC5301 M16 GND IC5304 N5 A0 IC5304 F2 DQ17 IC5301 AF18 POD[29] IC5301 J16 GND2IO IC5304 H13 DQS1 IC5301 J14 GND2IO IC5301 B15 MD[59] IC5301 E15 GNDA IC5304 F3 DQ16 IC5301 U19 VCC3IO IC5304 D4 VSSQ IC5304 B11 VSSQ IC5301 B16 MD[62] IC5301 Y22 VCC12A IC5301 AE19 POD[34] IC5301 L18 GND3IO IC5301 AE18 POD[30] IC5304 D5 VSSQ IC5304 F9 VSS_Thermal IC5304 G6 VSS_Thermal IC5301 AC16 POD[25] IC5301 AF26 POD[57] IC5301 AF24 POD[48] IC5301 K18 GND3IO IC5301 AD15 POD[20] IC5301 AC20 POD[46] IC5301 AB21 POD[55] IC5304 D10 VSSQ IC5301 W15 VCC3IO IC5301 AC17 POD[31] IC5301 AB15 VCCK IC5304 M5 BA1 IC5304 J2 DQ21 IC5301 Y4 POCLKSEL[2] IC5304 H7 VSS_Thermal IC5301 V13 GND3IO IC5301 AC22 POD[56] IC5301 T9 GND2IO IC5301 N18 GND3IO IC5304 B4 VSSQ IC5304 H3 DM2 IC5301 H13 VCC2IO IC5304 C10 VDDQ IC5301 AE26 POVSB IC5304 E4 VDD IC5304 N12 CKE IC5301 L8 VCC2IO IC5304 J11 VDDQ IC5304 J10 VSSQ IC5301 AF16 POD[22] IC5301 AA21 VCCK IC5301 P14 GND IC5301 V5 VCCK IC5304 J9 VSS_Thermal IC5304 M9 A5 IC5301 AF25 POD[53] IC5301 F8 VCCK IC5301 P18 GND3IO IC5301 A7 MD[39] IC5301 C14 MDQS[7] IC5304 H6 VSS_Thermal IC5304 M8 A9 IC5301 D7 VCCK IC5301 AC12 POD[1] IC5301 AE24 POD[52] IC5304 H4 NC IC5301 B11 MD[48] IC5304 K2 DQ22 IC5301 AC23 POCLKO IC5301 W17 VCC3IO IC5304 N6 A1 IC5304 C6 DQ1 IC5301 E20 VCC12A IC5304 N10 A7 IC5301 T13 GND IC5301 D10 MDQM[5] IC5301 AB22 POHSB IC5301 AE25 POD[58] IC5301 Y3 POCLKSEL[1] IC5301 C8 MD[38] IC5304 L8 VDD IC5304 C7 VDDQ IC5304 D11 VSSQ IC5301 AC24 POFLD IC5304 F10 VSSQ IC5301 F7 VCCK IC5301 AA22 GNDA IC5304 N8 A4 IC5301 E13 VCCK IC5304 F8 VSS_Thermal IC5304 E7 VSS IC5301 V9 GND3IO IC5301 AD22 POD[49] IC5301 L12 GND IC5304 K7 VSS IC5301 L9 GND2IO IC5301 H16 VCC2IO IC5304 J8 VSS_Thermal IC5304 G3 DQ18 IC5301 P9 GND2IO IC5304 G8 VSS_Thermal IC5301 L15 GND IC5304 H2 DQS2 IC5304 C11 NC IC5301 R3 GNDA IC5301 J12 GND2IO IC5301 AB5 GNDA IC5304 E12 VDDQ IC5304 M6 A2 IC5301 AB20 VCCK IC5304 K4 VDDQ IC5301 R4 VCC12A IC5304 C3 VDDQ IC5301 AD12 POD[4] IC5301 AD13 POD[8] IC5301 AD26 POCLK IC5301 B9 MD[41] IC5301 AB13 POD[5] IC5301 Y1 POSSCLK IC5301 E6 VCCK IC5301 T19 VCC3IO IC5301 AB17 VCCK IC5301 AF19 POD[32] IC5301 H11 VCC2IO IC5301 R11 GND IC5304 C8 VDDQ IC5301 U8 VCC3IO IC5301 E18 VCCK IC5304 K6 VSS IC5304 M2 RAS IC5301 AE15 POD[19] IC5301 K9 GND2IO IC5301 B10 MD[45] IC5301 B12 MD[52] IC5301 AE11 POD[3] IC5301 J13 GND2IO IC5301 V11 GND3IO IC5301 V12 GND3IO IC5304 E9 VSSQ IC5304 B10 DQ28 IC5301 J18 GND2IO IC5304 K5 VSSQ IC5304 M4 NC IC5304 B9 DQ29 L5321 J0JHC0000096 L5317 J0JHC0000096 L5303 J0JHC0000096 L5319 J0JHC0000096 L5305 J0JHC0000096 L5311 J0JHC0000096 L5307 J0JHC0000096 1.2V 3.3V 2.5V TP5302 R5400 EXB28V100JX R5401 EXB28V100JX R5399 EXB28V100JX R5398 EXB28V100JX R5371 EXB28V100JX R5372 EXB28V100JX R5369 EXB28V100JX R5370 EXB28V100JX R5355 EXB2HV470JV R5349 EXB2HV470JV R5348 EXB2HV470JV R5352 EXB2HV470JV R5353 EXB2HV470JV R5351 EXB2HV470JV R5350 EXB2HV470JV R5354 EXB2HV470JV R5389 10 R5325 10k R5390 10 R5301 0 R5387 10 R5356 10k R5392 10 R5385 10 R5386 10 R5391 10 R5326 10k R5300 47 R5359 10k R5388 10 R5361 10k VCC GND OUTPUT to FPGA2 OCKIN 74.25MHz OCK OUT 74.25MHz 55 58 59 61 62 56 57 60 63 55 54 51 53 52 61 62 63 C1AB00002652 IP CONVERSION IC5301 I-CHIPS DDR_SDRAM2 IC5304 C3ABQJ000055 VCC DN-BOARD TNPA4304AB (7/9) ! TH-65PF10CK DN-Board (7 of 9) Schematic Diagram TH-65PF10CK DN-Board (7 of 9) Schematic Diagram 75 TH-65PF10CK 11.19.DN 电路板 （8/9）线路图 OSD_DATA9 OSD_DATA4 PO_GE8 FPGA_CONFDONE OSD_DATA6 OSD_DATA10 PO_ACT PO_GO1 OSD_DATA12 PO_FLD PO_HS OSD_DATA11 OSD_VDO FPGA_NSTATUS PO_VS PO_GE1 PO_GO8 OSD_DATA2 PO_GE0 FPGA_TCK OSD_DATA0 PO_GO2 PO_GO3 OSD_DATA13 PO_GE4 PO_GO9 FPGA_TDI PO_GE6 OSD_DATA7 PO_GO5 OSD_DATA8 PO_GE2 OSD_DATA5 FPGA_TMS FPGA_NCONFIG PO_GO4 OSD_DATA1 OSD_DATA15 FPGA1_NCEO PO_GE5 OSD_YS PO_GE7 PO_GO6 PO_GE9 PO_GO7 OSD_DATA14 OSD_DATA3 OSD_YM PO_GO0 PO_GE3 OSD_HDO P3V_SCL2 P3V_SDA2 OSD_HDI OSD_CLK CLKM_20MHZ_F2 74M_NON_SS 74M_SS PO_CLK_FP2 PO_BO0 PO_BO4 PO_BO2 PO_BO5 PO_BO9 PO_BO3 PO_BO7 PO_BO6 PO_BO1 PO_BO8 PO_BE9 PO_BE4 PO_BE1 PO_BE6 PO_BE2 PO_BE8 PO_BE3 PO_BE0 PO_BE7 PO_BE5 PO_RO6 PO_RO4 PO_RO1 PO_RO9 PO_RO2 PO_RO3 PO_RO8 PO_RO7 PO_RO5 PO_RO0 PO_RE7 PO_RE9 PO_RE1 PO_RE0 PO_RE5 PO_RE8 PO_RE6 PO_RE2 PO_RE4 PO_RE3 NRST_FP FPGA2_INIT_DONE FPGA_DCLK FPGA_DATA0 C5639 16V 0.1u C5661 16V 0.1u C5664 50V 8p C5635 16V 0.1u C5630 16V 0.1u C5631 16V 0.1u C5656 16V 0.1u C5690 6.3V 10u C5636 16V 0.1u C5625 16V 0.1u C5651 16V 0.1u C5626 16V 0.1u C5655 16V 0.1u C5645 16V 0.1u C5646 6.3V 10u C5627 16V 0.1u C5633 16V 0.1u C5628 16V 0.1u C5632 16V 0.1u C5654 16V 0.1u C5641 16V 0.1u C5648 6.3V 10u C5640 6.3V 10u C5653 16V 0.1u C5642 16V 0.1u C5650 16V 0.1u C5647 6.3V 10u C5624 16V 0.1u C5643 16V 0.1u C5659 6.3V 10u C5663 6.3V 10u C5660 16V 0.1u C5649 16V 0.1u C5662 16V 0.1u C5637 16V 0.1u C5634 16V 0.1u C5658 6.3V 10u C5638 16V 0.1u C5644 16V 0.1u C5629 16V 0.1u C5652 16V 0.1u C5657 16V 0.1u IC5603 A1 GND IC5603 A6 - IC5603 A22 GND IC5603 B8 - IC5603 D18 GND IC5603 K8 NC IC5603 C11 VCCIO3 IC5603 H10 - IC5603 Y11 VCCIO8 IC5603 P8 - IC5603 G8 - IC5603 U3 - IC5603 H22 NC IC5603 L20 VCCIO5 IC5603 N12 GND IC5603 L15 NC IC5603 A2 VCCIO3 IC5603 U5 GND_PLL1 IC5603 U12 CLK14 IC5603 A4 - IC5603 V2 - IC5603 K1 nCE IC5603 V13 VCCIO7 IC5603 P7 VCCIO1 IC5603 P22 NC IC5603 J14 - IC5603 F17 VCCD_PLL2 IC5603 F9 - IC5603 H11 - IC5603 F1 - IC5603 L1 CLK0 IC5603 C15 GND IC5603 R1 - IC5603 K16 GND IC5603 J7 VCCIO2 IC5603 T13 GND IC5603 K15 NC IC5603 N18 CONF_DONE IC5603 J11 VCCINT IC5603 F15 - IC5603 A7 - IC5603 AA21 GND IC5603 N10 GND IC5603 F6 GND_PLL3 IC5603 Y12 VCCIO7 IC5603 W2 - IC5603 D10 GND IC5603 N13 GND IC5603 M4 GND IC5603 P20 NC IC5603 V5 GND_PLL1 IC5603 P12 VCCINT IC5603 F2 - IC5603 F14 - IC5603 K17 NC IC5603 L8 - IC5603 F19 GND IC5603 E1 - IC5603 F11 - IC5603 M22 CLK6 IC5603 AB2 VCCIO8 IC5603 M21 CLK7 IC5603 E13 VCCIO4 IC5603 V7 GNDA_PLL1 IC5603 M14 VCCINT IC5603 G12 - IC5603 M11 GND IC5603 E2 - IC5603 P3 - IC5603 W18 NC IC5603 W3 - IC5603 H8 - IC5603 L14 VCCINT IC5603 K6 TMS IC5603 L16 NC IC5603 B10 - IC5603 F5 GND_PLL3 IC5603 U11 CLK15 IC5603 K11 GND IC5603 H21 NC IC5603 Y1 - IC5603 P16 VCCIO6 IC5603 T19 VCCIO6 IC5603 G16 - IC5603 G15 - IC5603 J6 NC IC5603 J5 NC IC5603 J3 NC IC5603 M7 NC IC5603 V6 GND IC5603 A5 - IC5603 G10 GND IC5603 R2 - IC5603 N14 VCCINT IC5603 P11 VCCINT IC5603 T17 GND_PLL4 IC5603 C2 - IC5603 T4 VCCIO1 IC5603 G1 NC IC5603 AA2 GND IC5603 Y8 GND IC5603 D8 - IC5603 E16 GNDA_PLL2 IC5603 G2 NC IC5603 J1 - IC5603 Y15 GND IC5603 J4 - IC5603 M8 NC IC5603 K18 NC IC5603 R3 GND IC5603 C3 nCSO IC5603 J10 VCCINT IC5603 C8 GND IC5603 H12 - IC5603 G7 - IC5603 J8 NC IC5603 D7 - IC5603 F10 - IC5603 D3 - IC5603 H3 - IC5603 L9 VCCINT IC5603 E3 - IC5603 Y2 - IC5603 A12 CLK9 IC5603 K2 TCK IC5603 G14 VCCIO4 IC5603 A21 VCCIO4 IC5603 U7 VCCA_PLL1 IC5603 V19 -/INIT_DONE IC5603 P19 NC IC5603 M15 NC IC5603 N7 GND IC5603 V3 GND IC5603 B4 - IC5603 N1 - IC5603 A9 - IC5603 F3 - IC5603 W13 GND IC5603 B22 VCCIO5 IC5603 AA1 VCCIO1 IC5603 R4 NC IC5603 E5 VCCD_PLL3 IC5603 W10 GND IC5603 J16 VCCIO5 IC5603 H14 - IC5603 L17 NC IC5603 AB1 GND IC5603 B11 - IC5603 G9 VCCIO3 IC5603 V16 GNDA_PLL4 IC5603 C13 - IC5603 B2 GND IC5603 N11 GND IC5603 G11 - IC5603 C9 - IC5603 B9 - IC5603 E10 VCCIO3 IC5603 M13 GND IC5603 AA20 - IC5603 K12 GND IC5603 A10 - IC5603 K14 VCCINT IC5603 U16 VCCA_PLL4 IC5603 AB22 GND IC5603 F18 GND_PLL2 IC5603 N20 nSTATUS IC5603 V4 -/PLL1_OUTn IC5603 L2 CLK1 IC5603 L12 GND IC5603 W19 GND IC5603 E6 VCCA_PLL3 IC5603 U6 VCCD_PLL1 IC5603 M12 GND IC5603 M10 GND IC5603 V12 CLK12 IC5603 J2 - IC5603 T3 - IC5603 E9 - IC5603 V10 VCCIO8 IC5603 U2 - IC5603 T2 - IC5603 C6 VCCIO3 IC5603 F13 - IC5603 F12 - IC5603 H13 - IC5603 U1 - IC5603 G6 - IC5603 A3 - IC5603 L5 TDO IC5603 V17 GND IC5603 F7 GNDA_PLL3 IC5603 F4 - IC5603 H20 GND IC5603 D11 - IC5603 M2 CLK3 IC5603 P10 VCCINT IC5603 H7 - IC5603 W17 VCCIO7 IC5603 L10 GND IC5603 D9 - IC5603 E8 - IC5603 J13 VCCINT IC5603 V18 GND_PLL4 IC5603 G5 - IC5603 V1 - IC5603 M17 MSEL0 IC5603 J9 NC IC5603 W20 nCEO IC5603 G13 GND IC5603 M16 NC IC5603 P14 NC IC5603 K9 VCCINT IC5603 N5 NC IC5603 L4 nCONFIG IC5603 P21 NC IC5603 K19 GND IC5603 D2 - IC5603 C12 VCCIO4 IC5603 C7 - IC5603 T10 GND IC5603 B7 - IC5603 D4 - IC5603 K7 GND IC5603 N19 GND IC5603 E4 - IC5603 P1 - IC5603 N17 MSEL1 IC5603 E12 CLK11 IC5603 AB21 VCCIO7 IC5603 AB20 - IC5603 L21 CLK5 IC5603 N8 NC IC5603 L11 GND IC5603 H2 - IC5603 F8 - IC5603 D12 CLK10 IC5603 C5 GND IC5603 N2 - IC5603 E11 - IC5603 U17 VCCD_PLL4 IC5603 H6 - IC5603 M1 CLK2 IC5603 P13 VCCINT IC5603 N16 GND IC5603 C16 - IC5603 W1 - IC5603 B5 - IC5603 K3 GND IC5603 P9 - IC5603 K10 GND IC5603 M9 VCCINT IC5603 K4 DATA0 IC5603 B21 GND IC5603 D1 - IC5603 T9 VCCIO8 IC5603 K13 GND IC5603 B1 VCCIO2 IC5603 D6 - IC5603 L6 DCLK IC5603 D17 VCCIO4 IC5603 C4 ASDO IC5603 E7 - IC5603 B6 - IC5603 AA22 VCCIO6 IC5603 C1 - IC5603 N3 - IC5603 W12 CLK13 IC5603 H5 - IC5603 M3 VCCIO1 IC5603 H4 - IC5603 G3 - IC5603 L7 NC IC5603 W6 VCCIO8 IC5603 T1 - IC5603 D5 -/PLL3_OUTp IC5603 H1 - IC5603 H15 - IC5603 G4 GND IC5603 L13 GND IC5603 B3 - IC5603 P4 NC IC5603 M20 VCCIO6 IC5603 H9 - IC5603 D13 GND IC5603 G19 VCCIO5 IC5603 C10 - IC5603 K5 TDI IC5603 J12 VCCINT IC5603 P2 - IC5603 L3 VCCIO2 IC5603 E17 GND_PLL2 IC5603 T14 VCCIO7 IC5603 T20 GND IC5603 N9 VCCINT IC5603 F16 VCCA_PLL2 IC5603 A8 - L5608 J0JHC0000096 L5612 J0JHC0000096 L5611 J0JHC0000096 L5609 J0JHC0000096 L5605 J0JHC0000096 3.3V 1.2V 2.5V R5708 0 R5714 10k R5601 0 R5631 0 R5710 0 R5716 0 R5715 10k R5604 0 R5602 0 R5699 0 R5655 10k R5608 0 R5632 0 R5717 47 R5790 47 R5713 0 R5634 0 R5607 0 R5656 0 R5709 0 R5627 0 R5603 0 R5640 0 R5626 0 OSD IN Micom Interface VCC_IO GND POD[0] OSD_CLK OSD_HD EVEN OSD_HDO OSD_VDO OSD_YM OSD_YS OSD_DATA15 OSD_DATA14 OSD_DATA13 OSD_DATA12 OSD_DATA11 OSD_DATA10 OSD_DATA9 ODD OSD_DATA8 RGB IN from Ichips OSD_DATA7 OSD_DATA6 OSD_DATA5 OSD_DATA4 OSD_DATA3 OSD_DATA2 OSD_DATA1 OSD_DATA0 PO_VS PO_HS PO_FLD PO_ACT 74M_NON_SS_OUT NON USE CLK FPGA_2 Configuration VCC_INT Connect to LAND NC POD[1] POD[2] POD[3] POD[4] POD[5] POD[6] POD[7] POD[8] POD[9] POD[25] POD[26] POD[27] POD[22] POD[20] POD[21] POD[28] POD[29] POD[23] POD[24] POD[43] POD[46] POD[47] POD[42] POD[40] POD[41] POD[48] POD[45] POD[44] POD[49] POD[53] POD[56] POD[57] POD[52] POD[50] POD[51] POD[58] POD[55] POD[54] POD[59] POD[33] POD[36] POD[37] POD[32] POD[31] POD[38] POD[35] POD[34] POD[39] POD[13] POD[16] POD[17] POD[12] POD[10] POD[11] POD[18] POD[15] POD[14] POD[19] POD[30] NON USE CLKO 74M_SS_IN IIC_CLK_IN 74M_NON_SS_IN 67 70 64 65 68 69 71 72 66 62 63 61 C1ZBZ0003613 IC5603 FPGA2 VIDEO SIGNAL PROCESSOR 10bit LVDS OSD ! DN-BOARD TNPA4304AB (8/9) TH-65PF10CK DN-Board (8 of 9) Schematic Diagram TH-65PF10CK DN-Board (8 of 9) Schematic Diagram 76 TH-65PF10CK 11.20.DN 电路板 （9/9）线路图 TX_OUT4- TX_OUT1+ TX_CLK2+ TX_CLK1- TX_OUT5+ TX_OUT7- TX_OUT9- TX_OUT4+ TX_OUT1- TX_OUT0- TX_CLK1+ TX_OUT8+ TX_OUT6+ TX_CLK2- TX_OUT7+ TX_OUT2- TX_OUT6- TX_OUT0+ TX_OUT3+ TX_OUT5- TX_OUT2+ TX_OUT9+ TX_OUT8- TX_OUT3- TX_OUT0- TX_OUT0+ TX_OUT1- TX_OUT1+ TX_OUT2- TX_OUT2+ TX_OUT3- TX_OUT3+ TX_OUT4- TX_OUT4+ TX_CLK1- TX_CLK1+ TX_CLK2- TX_CLK2+ TX_OUT5- TX_OUT5+ TX_OUT6- TX_OUT6+ TX_OUT7- TX_OUT7+ TX_OUT8- TX_OUT8+ TX_OUT9- TX_OUT9+ SDRAM1_DQ6 SDRAM_ADDR7 SDRAM1_DQM0 SDRAM_BA0 SDRAM1_DQ8 SDRAM1_DQ12 SDRAM1_DQ31 SDRAM1_DQM3 SDRAM_ADDR11 SDRAM1_DQ4 SDRAM_ADDR6 SDRAM1_DQ7 SDRAM_ADDR0 SDRAM1_DQ17 SDRAM_ADDR2 SDRAM_ADDR3 SDRAM1_DQ25 SDRAM1_DQ0 SDRAM_ADDR10 SDRAM_ADDR4 SDRAM1_DQ19 SDRAM1_DQ20 SDRAM1_DQ1 SDRAM1_DQM2 SDRAM1_DQ15 SDRAM1_DQ29 SDRAM1_DQ30 SDRAM_BA1 SDRAM1_DQ27 SDRAM1_NCS SDRAM1_CLK SDRAM1_DQ18 SDRAM_ADDR9 SDRAM1_DQ10 SDRAM1_DQM1 SDRAM1_DQ9 SDRAM1_DQ16 SDRAM1_DQ5 SDRAM_NWE SDRAM1_DQ24 SDRAM_NCAS SDRAM1_DQ3 SDRAM1_DQ26 SDRAM1_DQ21 SDRAM1_DQ11 SDRAM_NRAS SDRAM1_DQ13 SDRAM_ADDR5 SDRAM1_DQ22 SDRAM1_DQ23 SDRAM_ADDR8 SDRAM1_DQ14 SDRAM1_DQ28 SDRAM1_DQ2 SDRAM2_DQ12 SDRAM2_DQ9 SDRAM2_DQ6 SDRAM_ADDR6 SDRAM2_DQ11 SDRAM2_NCS SDRAM_ADDR1 SDRAM2_DQ5 SDRAM_ADDR5 SDRAM2_DQ4 SDRAM_ADDR4 SDRAM2_DQ0 SDRAM2_DQ22 SDRAM_NRAS SDRAM_ADDR2 SDRAM2_DQ1 SDRAM_NWE SDRAM2_DQ13 SDRAM2_DQ16 SDRAM2_DQ29 SDRAM2_DQ25 SDRAM2_DQ10 SDRAM_NCAS SDRAM2_DQ7 SDRAM_ADDR3 SDRAM2_DQM0 SDRAM2_DQ17 SDRAM2_DQ30 SDRAM2_DQ20 SDRAM2_DQM3 SDRAM2_DQ3 SDRAM2_DQ19 SDRAM2_DQ24 SDRAM_ADDR9 SDRAM2_DQ28 SDRAM2_DQ27 SDRAM2_CLK SDRAM_ADDR8 SDRAM2_DQM1 SDRAM2_DQ31 SDRAM2_DQ2 SDRAM_ADDR0 SDRAM_BA0 SDRAM2_DQ18 SDRAM_BA1 SDRAM2_DQM2 SDRAM_ADDR7 SDRAM2_DQ14 SDRAM2_DQ21 SDRAM2_DQ15 SDRAM_ADDR11 SDRAM2_DQ26 SDRAM2_DQ8 SDRAM2_DQ23 SDRAM1_DQ14 SDRAM1_DQ7 SDRAM1_DQ11 SDRAM1_DQ12 SDRAM1_DQ5 SDRAM1_DQ9 SDRAM1_DQ0 SDRAM1_DQ10 SDRAM1_DQ3 SDRAM1_DQ15 SDRAM1_DQ6 SDRAM1_DQ4 SDRAM1_DQ8 SDRAM1_DQ13 SDRAM1_DQ2 SDRAM1_DQ1 SDRAM1_DQ27 SDRAM1_DQ25 SDRAM1_DQ20 SDRAM1_DQ26 SDRAM1_DQ28 SDRAM1_DQ30 SDRAM1_DQ22 SDRAM1_DQ19 SDRAM1_DQ16 SDRAM1_DQ23 SDRAM1_DQ31 SDRAM1_DQ29 SDRAM1_DQ21 SDRAM1_DQ17 SDRAM1_DQ18 SDRAM1_DQ24 SDRAM1_DQM2 SDRAM1_DQM1 SDRAM1_DQM0 SDRAM1_DQM3 SDRAM2_DQ6 SDRAM2_DQ10 SDRAM2_DQ4 SDRAM2_DQ9 SDRAM2_DQ14 SDRAM2_DQ8 SDRAM2_DQ15 SDRAM2_DQ5 SDRAM2_DQ12 SDRAM2_DQ3 SDRAM2_DQ11 SDRAM2_DQ0 SDRAM2_DQ1 SDRAM2_DQ7 SDRAM2_DQ2 SDRAM2_DQ13 SDRAM2_DQ18 SDRAM2_DQ24 SDRAM2_DQ16 SDRAM2_DQ30 SDRAM2_DQ21 SDRAM2_DQ31 SDRAM2_DQ22 SDRAM2_DQ29 SDRAM2_DQ27 SDRAM2_DQ20 SDRAM2_DQ17 SDRAM2_DQ28 SDRAM2_DQ23 SDRAM2_DQ19 SDRAM2_DQ26 SDRAM2_DQ25 SDRAM2_NCS SDRAM2_DQM2 SDRAM2_DQM0 SDRAM2_DQM3 SDRAM2_DQM1 SDRAM1_NCS SDRAM_ADDR1 SDRAM_ADDR10 SDRAM_ADDR8 SDRAM_ADDR3 SDRAM_ADDR5 SDRAM_ADDR11 SDRAM_ADDR1 SDRAM_ADDR2 SDRAM_ADDR0 SDRAM_ADDR9 SDRAM_ADDR6 SDRAM_ADDR7 SDRAM_ADDR4 SDRAM_ADDR10 SDRAM_NRAS SDRAM_NCAS SDRAM_NWE SDRAM_BA0 SDRAM_BA1 SDRAM1_CLK SDRAM2_CLK SDRAM2_CLK C5602 16V 0.1u C5615 16V 0.1u C5603 16V 0.1u C5607 16V 0.1u C5614 16V 0.1u C5605 16V 0.1u C5604 16V 0.1u C5616 16V 0.1u C5611 6.3V 10u C5622 6.3V 10u C5613 16V 0.1u C5618 16V 0.1u C5612 16V 0.1u C5606 16V 0.1u C5609 6.3V 10u C5623 16V 0.1u C5617 16V 0.1u C5620 6.3V 10u IC5601 A1 DQ26 IC5602 A1 DQ26 IC5602 A9 DQ21 IC5601 J3 A9 IC5603 P5 - IC5603 A13 - IC5603 D20 - IC5602 D8 DQ18 IC5602 J3 A9 IC5603 AA8 - IC5601 D9 VDDQ IC5603 N6 - IC5603 B12 CLK8 IC5602 N1 VSSQ IC5603 W14 - IC5602 D3 DQ30 IC5603 E14 - IC5601 H2 A8 IC5602 B7 VDDQ IC5601 R8 DQ0 IC5603 R14 - IC5603 L22 CLK4 IC5603 E18 -/PLL2_OUTn IC5603 Y21 - IC5602 C2 DQ27 IC5602 E7 NC IC5603 G21 - IC5601 C7 DQ22 IC5603 L19 - IC5603 AA16 - IC5603 R18 - IC5602 H8 BA1 IC5601 R3 VSS IC5601 N1 VSSQ IC5602 E1 VDDQ IC5603 A15 - IC5602 K8 /WE IC5603 N15 - IC5603 G17 - IC5602 F3 A3 IC5603 AB6 - IC5601 E7 NC IC5603 C14 - IC5603 V20 - IC5603 AB15 - IC5603 AA12 - IC5602 P1 DQ11 IC5601 A9 DQ21 IC5603 V11 - IC5602 M7 DQ6 IC5601 G7 A10 IC5603 M18 - IC5602 L9 VSSQ IC5601 D3 DQ30 IC5603 C18 - IC5603 AB12 - IC5603 H19 - IC5602 B1 DQ28 IC5603 U13 - IC5603 T11 - IC5601 M1 VSSQ IC5602 R1 DQ13 IC5601 E1 VDDQ IC5602 B9 DQ19 IC5601 L2 DQ8 IC5601 J9 /RAS IC5603 R17 - IC5602 E9 VSSQ IC5602 G1 A4 IC5601 P8 VSSQ IC5603 A11 - IC5603 Y6 - IC5603 T15 - IC5603 W9 - IC5602 N2 DQ12 IC5603 W16 - IC5603 R21 - IC5602 N9 VDDQ IC5602 N8 DQ3 IC5603 Y5 - IC5602 G2 A5 IC5601 B7 VDDQ IC5601 M2 DQ10 IC5601 B9 DQ19 IC5601 C2 DQ27 IC5603 AB9 - IC5601 F9 VDD IC5603 Y17 - IC5603 F21 - IC5603 AB7 - IC5602 R3 VSS IC5601 R9 DQ2 IC5603 R22 - IC5601 F1 VSS IC5601 A8 DQ23 IC5603 R7 - IC5601 K2 NC IC5603 A14 - IC5601 H1 A7 IC5603 D22 - IC5603 B15 - IC5603 C20 - IC5603 W7 - IC5602 J8 /CS IC5603 P18 - IC5603 Y13 - IC5603 AA10 - IC5601 F2 DQM3 IC5603 W15 - IC5603 B19 - IC5603 B16 - IC5603 Y14 - IC5603 R9 - IC5603 N4 - IC5603 T22 - IC5603 Y9 - IC5602 L8 DQ7 IC5602 H3 NC IC5603 U8 - IC5603 K20 - IC5603 P17 - IC5602 H7 NC IC5603 C19 - IC5603 T12 - IC5601 R7 VDD IC5603 U19 - IC5602 F1 VSS IC5601 J8 /CS IC5601 K8 /WE IC5602 M8 DQ5 IC5602 G8 A0 IC5602 K7 /CAS IC5601 G2 A5 IC5602 B8 VSSQ IC5601 K1 DQM1 IC5603 W22 - IC5603 U21 - IC5603 AB4 - IC5603 D19 - IC5603 V15 - IC5603 T6 - IC5601 M9 VDDQ IC5603 U15 - IC5601 K9 DQM0 IC5603 Y10 - IC5603 W11 - IC5601 H8 BA1 IC5603 AA6 - IC5602 M3 DQ9 IC5602 D2 DQ29 IC5603 AA3 - IC5601 L7 VDD IC5602 H9 A11 IC5603 G18 - IC5602 E3 NC IC5602 C8 DQ20 IC5602 D7 DQ17 IC5602 H1 A7 IC5603 Y20 - IC5602 J1 CLK IC5603 P15 - IC5603 AA15 - IC5603 AA19 - IC5602 C3 DQ25 IC5603 AA5 - IC5603 AA11 - IC5602 C9 VDDQ IC5603 U18 - IC5603 AA13 - IC5603 F22 - IC5603 J21 - IC5601 B2 VDDQ IC5603 N22 - IC5603 R11 - IC5603 T5 - IC5601 F8 DQM2 IC5602 G3 A6 IC5602 K9 DQM0 IC5603 Y7 - IC5601 P3 VSSQ IC5602 F8 DQM2 IC5601 A3 VSS IC5601 M8 DQ5 IC5603 A17 - IC5603 J17 - IC5602 J2 CKE IC5603 D14 - IC5602 D9 VDDQ IC5603 B18 - IC5601 E3 NC IC5603 AB14 - IC5603 AB3 - IC5601 P7 VDDQ IC5601 C9 VDDQ IC5601 H9 A11 IC5603 C22 - IC5603 B20 - IC5603 T18 -/PLL4_OUTp IC5603 AA14 - IC5603 H18 - IC5602 A8 DQ23 IC5603 H17 - IC5602 P7 VDDQ IC5602 A2 DQ24 IC5603 AA9 - IC5603 B14 - IC5601 N3 DQ14 IC5602 P8 VSSQ IC5603 AB13 - IC5603 U4 -/PLL1_OUTp IC5602 D1 VSSQ IC5601 N9 VDDQ IC5601 L3 VSS IC5602 M1 VSSQ IC5603 R10 - IC5602 L1 VDDQ IC5603 M5 - IC5602 R8 DQ0 IC5602 L3 VSS IC5603 K21 - IC5603 AB11 - IC5601 B1 DQ28 IC5603 T8 - IC5603 G20 - IC5603 M19 - IC5601 E9 VSSQ IC5601 K7 /CAS IC5601 C1 VSSQ IC5603 M6 - IC5603 AB8 - IC5602 L7 VDD IC5603 D15 - IC5601 P1 DQ11 IC5603 A18 - IC5603 D16 - IC5603 V21 - IC5602 P3 VSSQ IC5602 G7 A10 IC5602 B2 VDDQ IC5602 N3 DQ14 IC5602 K1 DQM1 IC5603 J15 - IC5603 T21 - IC5603 J22 - IC5603 R15 - IC5603 R16 - IC5601 B3 VSSQ IC5601 C8 DQ20 IC5602 C1 VSSQ IC5603 U14 - IC5603 U9 - IC5603 P6 - IC5601 R2 DQ15 IC5601 G8 A0 IC5603 J19 - IC5602 A3 VSS IC5603 Y16 - IC5603 J18 - IC5601 B8 VSSQ IC5602 F2 DQM3 IC5603 K22 - IC5601 D1 VSSQ IC5603 R12 - IC5602 E8 DQ16 IC5601 K3 NC IC5601 G1 A4 IC5603 L18 - IC5603 W5 - IC5602 K3 NC IC5603 R20 - IC5603 W4 - IC5603 R6 - IC5601 F7 A2 IC5603 A20 - IC5603 B17 - IC5603 AB18 - IC5603 E15 - IC5601 E8 DQ16 IC5602 B3 VSSQ IC5601 G9 A1 IC5601 E2 DQ31 IC5601 N7 DQ1 IC5603 R5 - IC5603 B13 - IC5603 R19 - IC5603 E19 -/PLL2_OUTp IC5602 A7 VDD IC5603 H16 - IC5603 C21 - IC5603 V22 - IC5601 D7 DQ17 IC5602 R2 DQ15 IC5602 C7 DQ22 IC5603 V14 - IC5601 R1 DQ13 IC5603 A16 - IC5603 E21 - IC5603 D21 - IC5602 M2 DQ10 IC5602 R7 VDD IC5603 C17 - IC5603 A19 - IC5603 AA4 - IC5603 AA7 - IC5601 H3 NC IC5603 U10 - IC5601 H7 NC IC5602 H2 A8 IC5603 T7 - IC5601 J1 CLK IC5601 M3 DQ9 IC5601 D2 DQ29 IC5603 Y4 - IC5603 T16 - IC5601 P2 VDDQ IC5601 N8 DQ3 IC5603 W21 - IC5601 J2 CKE IC5602 J9 /RAS IC5603 R8 - IC5603 AB10 - IC5603 AA18 - IC5603 E20 - IC5602 F7 A2 IC5601 G3 A6 IC5602 E2 DQ31 IC5603 R13 - IC5601 A7 VDD IC5601 P9 DQ4 IC5601 M7 DQ6 IC5603 Y19 - IC5603 AB19 - IC5601 L1 VDDQ IC5603 F20 - IC5603 J20 - IC5601 L8 DQ7 IC5603 V9 - IC5602 K2 NC IC5603 AA17 - IC5603 AB5 - IC5601 C3 DQ25 IC5603 U20 - IC5603 Y22 - IC5603 U22 - IC5603 AB17 - IC5602 G9 A1 IC5602 F9 VDD IC5603 W8 - IC5603 Y18 - IC5603 V8 - IC5602 P9 DQ4 IC5603 G22 - IC5602 P2 VDDQ IC5602 R9 DQ2 IC5601 J7 BA0 IC5603 AB16 - IC5601 D8 DQ18 IC5601 L9 VSSQ IC5601 A2 DQ24 IC5603 Y3 - IC5601 N2 DQ12 IC5603 E22 - IC5602 N7 DQ1 IC5602 J7 BA0 IC5602 L2 DQ8 IC5603 N21 - IC5602 M9 VDDQ IC5601 F3 A3 DN5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L5604 J0JHC0000096 L5602 J0JHC0000096 3.3V 3.3V R5625 EXB28V470JX R5621 EXB28V470JX R5614 EXB2HV470JV R5618 EXB2HV470JV R5615 EXB2HV470JV R5619 EXB2HV470JV R5616 EXB2HV470JV R5617 EXB2HV470JV R5624 EXB2HV470JV R5613 EXB2HV470JV R5622 EXB2HV470JV R5623 EXB2HV470JV R5610 0 R5681 120 R5628 0 R5678 120 R5698 169 R5697 169 R5703 169 R5704 169 R5609 0 R5711 169 R5676 120 R5701 169 R5664 120 R5663 120 R5673 120 R5679 120 R5712 169 R5629 47 R5674 120 R5667 120 R5620 47 R5668 120 R5682 120 R5665 120 R5680 120 R5675 120 R5649 0 R5659 120 R5662 120 R5707 169 R5706 169 R5661 120 R5648 47 R5670 120 R5669 120 R5671 120 R5705 169 R5666 120 R5672 120 R5685 169 R5677 120 R5660 120 R5702 169 R5647 47 TX_OUT4- E- LVDS4 TX_OUT4+ TX_OUT3- TX_OUT3+ TX_OUT2- TX_OUT2+ TX_OUT1- TX_OUT1+ TX_OUT0- TX_CLK1+ TX_OUT0+ TX_CLK1- TX_CLK2+ TX_CLK2- 74M_SS_OUT GND O- LVDS4 O+ LVDS3 E- LVDSCLK LVDS_DET O+ LVDS1 O- LVDS1 GND GND O+ LVDS2 O+ LVDS0 O- LVDS2 E- LVDS0 LVDS OUT to PD1M E+ LVDS4 GND O- LVDS3 E+ LVDS0 GND E- LVDS2 E+ LVDS3 O+ LVDS4 E- LVDS1 O- LVDSCLK O- LVDS0 TX_OUT9- TX_OUT9+ E+ LVDS2 TX_OUT8- E+ LVDSCLK TX_OUT8+ GND TX_OUT7- TX_OUT7+ E+ LVDS1 LVDS OUT to PD1M TX_OUT6- O+ LVDSCLK TX_OUT6+ TX_OUT5- E- LVDS3 TX_OUT5+ NC VDD DATA INTERFACE GND VDDE GND DATA INTERFACE NC 73 76 77 79 80 74 75 78 81 D-BOARD (D5) TO C3ABQJ000032 SDRAM2 IC5602 IC5601 C3ABQJ000032 SDRAM1 IC5603 OSD FPGA2 C1ZBZ0003613 10bit LVDS VIDEO SIGNAL PROCESSOR ! DN-BOARD TNPA4304AB (9/9) TH-65PF10CK DN-Board (9 of 9) Schematic Diagram TH-65PF10CK DN-Board (9 of 9) Schematic Diagram 77 TH-65PF10CK 11.21.D 电路板 （1/8）线路图 G G G G G G + + G G 18 16 14 12 10 8 6 4 2 20 21 19 17 15 13 11 9 7 5 3 1 + G G G G FP_SCSU ECO_ON SC_CEL PANEL_STBY_ON NCS FP_CEL INEXCH DATA0 RXD_PC FP_DRV_RST_O ALARM FP_CSL SC_SID TXD_PC READY SC_CSH SC_CPH STB_SDA02 SC_CMH AR_IIC_INT SC_CEL STB_SCL02 PANASONIC_MODE PDB1_2 SC_SID PSLCT_2 FP_CML PDB0_2 SC_SCSU SC_CSL FP_CL ALL_OFF ASDIO PBUSY_2 DCLK SC_CLK P3V_SCL1 PSTB_2 SC_SCSU PANEL_MAIN_ON SC_CMH SOS6_SC1 SC_CEL2 FP_CLK SC_CML P3V_SDA1 SC_CSL SOS4_PS FP_CMH SC_CL FP_SIU SC_CL SC_CSH FP_CSH SOS9_CONF ECO_ON FP_CEL2 SC_CPH FP_SID SC_CLK SC_CML SC_CEL2 SC_DRV_RST_O SC_DRV_RST_O FP_CPH ALL_OFF SC_SIU SC_SIU DCDC_ON DRVMUTE TUNER_SUB_ON DCDC_ON P3V_SCL1 AR_IIC_CONT_D4 PSTB PDB1 PSLCT PSLCT_2 LED_R AR_IIC_INT_D2 STB_SCL02_D4 PDB0_2 STB_SDA02_D4 TXD_PC_D4 PDB1_2 PDB0 PBUSY_2 RXD_PC_D4 PBUSY PSTB_2 P3V_SDA1 LED_G REM_IN VDATA_DET TUNER_SUB_ON STB_SCL02_D4 STB_SDA02_D4 TXD_PC_D4 RXD_PC_D4 STBY3.3V_ON AR_IIC_INT_D2 AR_IIC_CONT_D4 AR_IIC_CONT P_ON/OFF SOS7_SC2 CBK C9848 0.1u 25V C9883 8200p 50V R9896 0 L9800 G1C3R0MA0248 C9801 4700p 50V C9805 4.7u 6.3V R9878 39k C9028 6.3V 10u R9198 4.7k C9887 4.7u 6.3V C9809 0.1u 16V C9881 50V 1000p R9815 22k R9897 100k P5V R9807 0 R9891 47k 1% C9969 33p 50V J0HABH000013 FL9806 C9823 10u 25V R9826 100 C9825 50V 100p P3.3V R9830 10k C9884 10p 50V R9813 2.4k R9823 100 P2.5V R9840 22 P5V STB3.3V P15V R9879 20k Q9800 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 LDO_5V C9824 10u 25V J0HABH000013 FL9800 R9842 100 R9825 100 LDO_5V STB3.3V C9971 0.1u 16V R9828 100 D9801 B0JCDD000002 C9885 1000p 50V C9880 50V 1000p R9870 10k R9802 62k D9804 MA3X152K0L P15V R9872 0 R9868 100k STB5V FL9803 J0HABH000012 1 2 3 Q9805 B1ABCF000138 P15V R9201 4.7k C9840 16V 0.1u R9883 0 R9892 15k 1% P15V STB3.3V P15V R9824 100 C0DBAYY00054 IC9807 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9882 0.1u 16V C9802 47p 50V P15V L9810 J0JHC0000045 R9884 100k D9802 MA2J72800L Q9803 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 R9847 EXB2HV222JV C9808 10u 25V D9808 MA3X152K0L R9898 47 C9886 0.1u 16V P15V C9897 8200p 50V C9843 16V 0.1u C9842 16V 1u C9806 68u 4V L9801 G1C2R2MA0241 STB3.3V R9202 4.7k C9847 0.1u 25V C9816 68u 4V FL9804 J0HABH000012 1 2 3 C0DBAYY00054 IC9809 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB C9898 10p 50V R9808 100k D9814 B0JCME000037 R9838 100 D6 C9891 0.1u 16V C9826 16V 0.1u LDO_5V C9970 47p 50V C9807 10u 25V R9843 100 R9803 0 IC9007 TVRP576 1 nCS 2 DATA 3 VCC 4 GND 5 ASDI 6 DCLK 7 VCC 8 VCC C9833 10u 25V P3.3V R9850 47k R9841 0 R9846 EXB2HV222JV R9816 82k STB5V_M C9838 16V 0.1u C9815 68u 4V R9806 39k C9832 10u 16V P5V C9803 4700p 50V R9804 24k R9848 EXB2HV470JV C0DBAHD00011 IC9806 1 VOUT 2 GND 3 CE 5 VDD 4 NC R9814 68k R9871 10k C9818 10u 25V R9839 100 R9849 EXB2HV470JV C9926 0.1u 16V C9899 1000p 50V R9854 100 Q9801 B1MBEDA00015 S1 G1 S2 G2 D2 D2 D1 D1 C9831 10u 16V P15V P5V R9800 13k R9880 36k R9844 100 P1.2V C0JBAZ001120 IC9802 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc J0HABH000013 FL9805 L9802 G1C2R2MA0241 C9841 16V 1u C9817 10u 25V R9801 24k R9831 10k R9099 100 C9029 6.3V 10u R9893 36k Q9100 B1ABCF000138 R9845 5.6k D9800 B0JCME000037 D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R9827 100 P15V C9830 10u 16V R9869 10k C0DBAYY00054 IC9800 1 GND 2 REFIN 3 VREF 4 CS 5 VCC 6 COVP 7 CUVP 8 PGOOD 9 CTL 10 LSAT 11 ILIM 12 +INC 13 -INC 14 N.C. 15 PGND 16 OUT-2 17 VDD 18 LX 19 OUT-1 20 CB 21 VIN 22 RT 23 VO 24 FB D25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9967 4.7u 6.3V C9844 50V 0.01u C9837 10u 16V C9800 0.1u 16V R9810 3k C0JBAZ001120 IC9803 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R9805 30k C9846 16V 0.1u P5V LDO_5V PA9800 K5H4022A0023 STB5V C9896 0.1u 16V D9815 B0JCDD000002 Q9806 B1ABCF000138 D9807 MA3X152K0L C9845 16V 0.1u D9813 B0JCDD000002 D9812 B0JCME000037 D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D9035 MA2J72800L C9804 0.1u 16V FL9807 J0HABH000013 1 2 3 TP9058 R9859 EXB38V101JV SOS7_SC2/ CBK CSH ECO_ON +5V GND CML FAN_CONT CL +5V F_STBY_ON GND GND SID GND FAN_SOS +15V CEL2 +15V SOS4_PS GND STBY5V GND GND GND DRV_RST_O CEL CSL ALL_OFF P5V CLK CPH GND SCSU CMH SIU PANEL_MAIN_ON GND SOS6_SC1 AC_GOOD STBY5V GND P15V STBY3.3V IIC_CONT GND SCL1 SDA1 SCL2 SDA2 TXD RXD IIC_INT LED_G PSTB LED_R PDB0 PSLCT PDB1 PBUSY REMOCON VDATA_DET 15V->2.5V 15V->5V ALARM TUNER_SUB_ON ECO_ON INEXCH RXD STBY5V_F DISPEN PSLCT PANASONIC_MODE/ C_SEL IIC_CLK1 READY P15V IIC_INT GND PDB1 GND IIC_CONT PBUSY IIC_CLK2 TXD IIC_DATA1 IIC_DATA2 PDB0 PSTB GND ALL_OFF P5V GND GND PANEL_STBY_ON (P25) TO ! P-BOARD D-BOARD TNPA3983AX (1/8) DN-BOARD TO (DN2) TO SC-BOARD (SC20) LEVEL CONVERTER FOR USE FACTORY DC-DC CONVERTER DC-DC CONVERTER 15V->1.2V DC-DC CONVERTER 15V->3.3V AVR 5V PROM(FPGA) 1 3 2 E 1 A C 3 B D 4 8 7 6 9 F 5 2 LEVEL CONVERTER TH-65PF10CK D-Board (1 of 8) Schematic Diagram TH-65PF10CK D-Board (1 of 8) Schematic Diagram 78 TH-65PF10CK 11.22.D 电路板 （2/8）线路图 RCLK_E- M_SEL1 LVDSBIT P3V_SCL1 RCLK_E+ SOS9_CONF RA_0+ RA_E- P3V_SDA1 INEXCH ALARM RB_0- RA_E+ STB_SCL01 RB_0+ SOS8_SS EEP_WR_CTL STB_SCL01 M_SEL4 RB_E- SOS4_PS STB_SDA01 XRST XRST M_SEL3 RC_0- AR_IIC_INT PANEL_MAIN_ON RB_E+ STB_SDA01 REM_IN RC_0+ P_ON/OFF RC_E- PANEL_STBY_ON SOS9_CONF RD_0- READY M_SEL3 M_SEL2 LED_R NRST RC_E+ STBY3.3V_ON M_SEL2 PANASONIC_MODE RD_0+ LED_G RD_E- RE_0- RD_E+ TXD_PC RE_0+ RCLK_0- M_SEL4 RE_E- RCLK_0+ LVDS_DET STB_SDA02 P3V_SDA02 P3V_SCL02 STB_SCL02 P3V_SCL02 XRST STB_SCL02 P3V_SDA02 STB_SDA02 RE_E+ RA_0- DRVRST SOS6_SC1 VDATA_DET LVDS_DET DCLK DATA0 ASDIO NCS STB_SCL02 STB_SDA02 FVSEL AR_IIC_CONT AR_IIC_CONT M_SEL1 LVDS_DET C_SEL SOS7_SC2 XRST2 EEP_WR_CTL RXD_PC XRST R9060 100 R9156 10k Q9058 B1CBHD000002 D9110 B0JCGD000002 R9218 10k R9175 10k R9237 10k R9160 0 R9109 10k R9141 100 D9102 B0JCGD000002 STB3.3V R9149 4.7k Q9044 B1ABCF000138 D9105 B0JCGD000002 R9155 5.6k R9221 10k R9204 4.7k R9074 100 R9134 33k C2CBJG000751 IC9003 1 2 3 4 5 6 CNV 7 8 - 9 RESET 10 XOUT 11 VSS 12 XIN 13 VCC 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 IC9011 C0EBF0000431 1 RESET 2 Cd 3 VOUT 4 VDD 5 GND 6 CE R9188 5.6k STB5V R9169 10k STB3.3V R9064 100 R9105 100 D9100 B0JCGD000002 R9066 100 R9203 1k IC9001 TVRP578 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc C9058 6.3V 10u R9206 1k D9019 MAZ303300L R9174 10k C9045 16V 0.1u R9185 22 R9189 10k R9120 100 R9094 10k R9113 10 R9143 100 R9192 0 C9056 16V 0.1u R9067 100 R9178 10k R9062 100 R9101 10k Q9201 B1CBHD000002 R9220 10k D9101 B0JCGD000002 C9053 16V 0.1u R9107 3.3k Q9200 B1CBHD000002 P3.3V C9052 16V 0.1u C9033 16V 0.1u Q9051 B1ABCF000138 X9000 H2D200500011 R9194 0 STB3.3V R9061 100 R9176 10k R9166 10k R9182 1k Q9050 B1ABCF000138 R9165 10k C9050 16V 0.1u C9046 16V 0.1u D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 R9171 39k R9127 68k R9170 39k R9209 10 R9158 10k STB3.3V Q9052 B1ABCF000138 R9205 4.7k Q9054 B1ABCF000138 R9199 2.7k C9039 6.3V 10u R9247 4.7k R9190 10k C9044 16V 0.1u C9048 16V 0.1u D9018 MAZ303300L R9207 1k STB3.3V R9151 22 STB3.3V R9065 100 R9222 10k C9037 0.01u 50V R9248 4.7k C9049 16V 0.1u TP9000 R9121 100k R9187 5.6k R9177 22k R9150 22 R9063 100 R9098 10k R9183 1k R9210 2.7k R9162 10k R9167 100 R9179 1k C9034 16V 0.1u P3.3V R9108 10k STB3.3V R9161 0 R9186 22 R9110 0 D9103 B0JCGD000002 R9148 10k R9145 100 C9051 16V 0.1u C9055 16V 0.1u R9236 0 D9017 MAZ303300L Q9057 B1CBHD000002 C9040 16V 0.1u R9129 68k R9140 0 STB3.3V Q9049 B1ADCE000011 R9159 10k IC9002 C0ZBZ0001330 1 SCL 2 GND 3 ADD1 4 V+ 5 ADD0 6 SDA R9181 1k R9196 10k R9184 1k R9217 10k R9144 100 R9102 100 C9057 16V 0.1u R9193 10k Q9046 B1ABCF000138 R9154 5.6k P15V R9215 12k P5V STB5V_M C9035 6.3V 10u P3.3V D9020 MA2J72800L C9036 6.3V 10u R9180 10k C9047 16V 0.1u Q9053 B1ABCF000138 P3.3V R9096 10k D9106 B0JCGD000002 R9076 100 R9219 10k R9172 39k R9111 22k IIC_CONT NC GND DRIVER_RESET SCLK(for Loader) IIC1_SCL SOS8_SS NC CE(Loader) E+ LVDS2 NC O+ LVDS3 E+ LVDS1 SOS4_PS GND XRST O+ LVDS0 RESET IIC1_SDA BUSY(for Loader) NC AVSS GND NC NC E- LVDS2 FPGA_CE NC SOS7_SC2 NC XOUT REM_IN SOUT(FPGA) GND NC O- LVDS3 NC VREF FVSEL E+ LVDS3 PLL_RST M_SEL2 SIN(FPGA) NC LSI_RST E- LVDS3 M_SEL3 O+ LVDS1 ALARM INEXCH E+ LVDS4 AC_GOOD O- LVDS1 P_ON/OFF GND NC E- LVDS4 LVDS_DET E+ LVDSCLK SOS6_SC1 O+ LVDS2 NC AVCC O- LVDS2 VSS PANEL_MAIN_ON NC E- LVDS0 SOS9_CONF GND SCLK(FPGA) EEP_WR_CTL NC O+ LVDS4 LED_GRN O- LVDS4 IIC_INT E+ LVDS0 M_SEL4 NC(ALL_OFF) IIC2_SCL SOS_INH SOS5_5V XIN NC NC(C_SEL) IIC2_SDA PANASONIC_MODE O- LVDSCLK LVDS_MODE NC NC O+ LVDSCLK VCC E- LVDSCLK NC TXD(Loader) O- LVDS0 LVDS_BIT SOS3_3V READY RXD(Loader) INT_CONF E- LVDS1 LED_RED SOS2_15V CNVSS M_SEL1 NC MAIN_CONF VDATA_DET EEPROM RESET STB 3.3V MICOM TEMPERATURE DIGITAL SENSOR ! 1 2 3 11 12 17 16 14 15 13 16 17 13 11 12 10 14 18 15 TO DN-BOARD (DN5) D-BOARD TNPA3983AX (2/8) TH-65PF10CK D-Board (2 of 8) Schematic Diagram TH-65PF10CK D-Board (2 of 8) Schematic Diagram 79 TH-65PF10CK 11.23.D 电路板 （3/8）线路图 G G L8L_RI4 L8L_GI4 FP_CL L8R_RI6 AA_BYTE L8R_GI3 L8R_GI7 L8L_RI5 SOS9_CONF RD_E+ L8R_RI0 RCLK_0+ L8L_GI5 FP_CSH DD_PCD1 L8R_GI9 TDO_TO_FPGA RC_E+ L8R_GI2 RB_0- L8R_BI0 L8R_BI3 NRST RD_0+ L8L_GI6 L8R_BI8 FP_CLK L8R_BI2 FP_CSL TMS DATA0 RC_0+ SFRST FP_DRV_RST_O RB_E+ L8R_GI1 FP_CEL2 L8R_GI4 L8L_RI6 L8R_GI6 NCS L8R_GI0 RE_E+ RCLK_E+ L8L_GI7 L8L_BI4 FP_SID FP_UEH L8R_RI7 PDB0 LATCH TCK L8L_RI7 L8L_BI5 FVSEL L8L_GI8 L8L_HDI L8L_RI8 PDB1 FP_UML L8R_RI9 L8R_RI5 L8R_GI5 RA_E+ L8R_BI9 L8L_GI9 RE_0+ L8L_BI6 FPDAT1 L8L_RI9 FP_CMH PSTB RB_E- TDI_TO_68_L FP_CPH L8R_RI2 FP_UMH L8L_RI0 RD_E- L8L_BI0 L8R_RI1 L8L_BI7 FP_SCSU L8L_GI0 PBUSY RCLK_E- DD_ODED L8R_RI3 PSLCT L8L_RI1 L8L_BI1 L8L_BI8 RC_0- AA_XWE L8L_GI1 SFVRST RA_0- FP_USH RA_E- RB_0+ ASDIO RE_0- FP_NUEL DRVRST L8L_RI2 L8L_BI9 L8R_BI4 FP_CML L8L_BI2 RD_0- L8L_GI2 L8R_BI1 L8R_BI6 L8R_GI8 L8R_BI5 FP_CEL RC_E- INEXCH L8L_RI3 FP_SIU L8L_BI3 FPCLK L8R_RI8 L8R_RI4 L8L_GI3 L8R_BI7 FP_USL FPDAT0 RE_E- RA_0+ DD_PCD2 LVDSBIT L8L_VDI L8L_DCK L8L_MASK BUS_SW L8R_VDI L8R_HDI L8R_DCK L8R_MASK DD_ODEU DD_PCU1 DD_LEUR DD_PCU2 P3V_SCL02 P3V_SDA02 DRVMUTE FP_URH/CBK FP_URL DMLL DMLR DSHL DSLR DSLL DCLK DMHL DSHR DMHR DD_CLRU DD_LEDR DD_CLRD AA_XCE_L AA_XOE RCLK_0- LVDS_DET DD_LEUL DD_LEDL IC9500 C1ZBZ0003463 A1 GND IC9500 K7 - IC9500 K11 - IC9500 K8 VCCINT IC9500 P2 - IC9500 B15 GND IC9500 C3 ASDO IC9500 B2 GND IC9500 G1 TMS IC9500 N16 - R9543 10k IC9500 J15 - IC9500 P8 GND IC9500 M1 - IC9500 C10 VCCIO2 IC9500 G15 - R9531 47 IC9500 L7 - IC9500 C15 - IC9500 B14 - IC9500 A11 - IC9500 N4 - R9608 EXB2HV470JV R9609 EXB2HV470JV IC9500 P16 - IC9500 R5 - IC9500 E2 - IC9500 F13 - IC9500 D14 - C9526 6.3V 10u IC9500 N3 - IC9500 M5 VCCA_PLL1 IC9500 M10 VCCIO4 P3.3V R9877 10k IC9500 A4 - IC9500 C5 - IC9500 F3 - IC9500 L4 - R9552 47 R9534 EXB38V470JV IC9500 E1 - IC9500 D7 - IC9500 A7 - IC9500 R4 - IC9500 K3 VCCIO1 IC9500 T7 - IC9500 B16 VCCIO3 IC9500 L8 - R9549 10k R9876 10k IC9500 B9 - IC9500 D1 - IC9500 D12 GND_PLL2 L9502 J0JHC0000078 IC9500 T13 - IC9500 R1 VCCIO1 IC9500 A8 - IC9500 L3 - IC9500 C14 - R9550 10k IC9500 A13 - P3.3V IC9500 F12 GND_PLL2 IC9500 F7 - R9560 10k IC9500 H15 - C9523 16V 0.1u IC9500 P4 - L9504 J0JHC0000078 IC9500 F16 - IC9500 K13 - R9525 10k R9532 47 IC9500 M3 - IC9500 T15 VCCIO4 IC9500 E7 VCCIO2 IC9500 P14 - IC9500 P6 - IC9500 M8 GND IC9500 J7 VCCINT IC9500 E13 - IC9500 P13 - C9522 16V 0.1u IC9500 D2 - IC9500 K14 VCCIO3 IC9500 H9 GND IC9500 G14 VCCIO3 IC9500 C16 - IC9500 J16 - IC9500 H10 VCCINT IC9500 K6 - IC9500 A10 - IC9500 E6 - IC9500 A15 VCCIO2 IC9500 E9 GND IC9500 H3 GND IC9500 R3 - IC9500 M9 GND IC9500 J11 - R9542 68 R9536 47 IC9500 R10 - IC9500 B13 - IC9500 K16 - IC9500 L16 - IC9500 B1 VCCIO1 IC9500 J6 - IC9500 D9 - IC9500 H1 - IC9500 E14 - IC9500 L9 - IC9500 T8 - C9519 16V 0.1u IC9500 G16 - IC9500 G13 - C9517 16V 0.1u IC9500 G3 VCCIO1 IC9500 N7 - R9530 10k IC9500 F1 DATAO C9532 50V 100p R9604 0 IC9500 C7 VCCIO2 IC9500 L11 - R9245 100 IC9500 T14 - IC9500 M16 - IC9500 B6 - IC9500 J14 GND IC9500 B11 - IC9500 M2 - IC9500 T11 - IC9500 C12 - IC9500 J8 GND IC9500 M4 - IC9500 D4 - IC9500 F4 nCSO IC9500 T2 VCCIO4 C9559 16V 0.1u IC9500 N15 - IC9500 T3 - C9520 16V 0.1u R9610 EXB2HV470JV IC9500 N5 GND_PLL1 IC9500 N14 nCEO R9535 47 IC9500 R11 - IC9500 F6 - IC9500 P12 - R9615 EXB2HV470JV IC9500 H2 - IC9500 D8 - IC9500 D5 - IC9500 L13 CONF_DONE IC9500 F14 - IC9500 D3 - IC9500 B3 - IC9500 K15 - IC9500 F2 TCK IC9500 T6 - IC9500 R6 - IC9500 M7 VCCIO4 IC9500 C13 - IC9500 H14 GND IC9500 P11 - IC9500 L6 VCCD_PLL1 *R9644 10k IC9500 J9 GND P3.3V IC9500 R9 - FL9504 F1J1E1040022 1 2 3 IC9500 L12 - R9554 47 IC9500 G12 - IC9500 C11 - IC9500 K5 - R9526 0 IC9500 D15 - C9516 16V 0.1u R9611 EXB2HV470JV IC9500 H11 - IC9500 N10 - IC9500 E12 VCCA_PLL2 IC9500 G2 TDO IC9500 K2 - C9524 16V 0.1u IC9500 P7 VCCIO4 IC9500 E5 - R9612 EXB2HV470JV IC9500 L5 GND_PLL1 IC9500 E15 - IC9500 N12 - IC9500 T5 - IC9500 E4 - IC9500 F11 VCCD_PLL2 IC9500 A16 GND IC9500 M13 nSTATUS IC9500 H4 DCLK IC9500 N1 - P3.3V IC9500 N11 - IC9500 T10 - IC9500 K1 - P3.3V IC9500 E10 VCCIO2 *R9647 10k *R9638 10k IC9500 F10 - IC9500 G7 - IC9500 K4 - IC9500 L2 - C9531 6.3V 10u IC9500 G8 GND IC9500 B8 - C9528 16V 0.1u IC9500 M14 - IC9500 D13 - IC9500 B10 - IC9500 A2 VCCIO2 IC9500 F8 - C9525 16V 0.1u IC9500 J13 MSEL0 L9501 J0JHC0000078 IC9500 C8 GND IC9500 H12 - IC9500 R13 - IC9500 B4 - IC9500 M6 GNDA_PLL1 C9527 16V 0.1u IC9500 P15 - IC9500 A5 - IC9500 C1 - IC9500 R14 - R9507 56 IC9500 M12 - IC9500 E3 - IC9500 M11 - R9553 47 IC9500 J5 nCONFIG IC9500 N2 - IC9500 M15 - R9244 100 IC9500 L1 - R9523 10k IC9500 A12 - C9560 16V 0.1u IC9500 B12 - IC9500 D10 - IC9500 R7 - L9505 J0JHC0000078 IC9500 R15 GND IC9500 B7 - R9875 10k IC9500 G9 VCCINT IC9500 P3 - IC9500 P9 GND IC9500 B5 - R9506 22 C9561 16V 0.1u R9544 10k IC9500 T12 - R9630 10k IC9500 N13 INT_DONE R9548 10k IC9500 C9 GND IC9500 L14 - R9533 47 IC9500 N9 - R9614 EXB2HV470JV R9070 47 IC9500 J3 GND IC9500 R16 VCCIO3 IC9500 E11 GNDA_PLL2 IC9500 N6 - IC9500 T16 GND R9613 EXB2HV470JV IC9500 J1 - IC9500 J10 VCCINT R9629 10k IC9500 L10 - IC9500 C4 - IC9500 T1 GND IC9500 F15 - IC9500 E16 - P3.3V IC9500 F5 - IC9500 P5 - IC9500 C6 - IC9500 H6 - IC9500 G5 nCE IC9500 D11 - IC9500 J12 - IC9500 T9 - IC9500 R2 GND IC9500 K10 - IC9500 J4 - IC9500 H8 GND IC9500 K12 MSEL1 IC9500 J2 - IC9500 G11 - IC9500 P1 - IC9500 R8 - IC9500 H13 - IC9500 A6 - IC9500 G10 - IC9500 A3 - P3.3V IC9500 P10 VCCIO4 IC9500 T4 - IC9500 D16 - C9521 16V 0.1u IC9500 K9 GND IC9500 E8 GND IC9500 A9 - IC9500 H7 VCCINT IC9500 L15 - L8L1.2V IC9500 G4 - IC9500 A14 - R9529 10k IC9500 N8 - C9518 16V 0.1u IC9500 H16 - IC9500 G6 - IC9500 H5 TDI IC9500 F9 - IC9500 C2 - IC9500 R12 - R9545 300k IC9500 D6 - P3.3V TP9059 TP9060 TP9061 TP9062 BR[1]/A-1 VCCINT M_BOUT1 FPDATA0 UEH M_BOUT4 K_DONE ODED SID M_BOUT3 M_ROUT4 USH GR[9]/A19 PCU1 SC_PULSE CEL M_BOUT9 UMH M_ROUT7 M_GOUT7 USL DRVRST RESET M_BOUT8 CMH UML MASK_L PCD2 M_VDO_L FPCLK SS_PULSE INEXCH NUEL CML p_db1 BR[5]/DQ3 CSH RR[8]/A8 CONTROL p_db0 OTHER M_ROUT9 BR[0]/A20 p_stb f_nWE CLK BR[8]/DQ6 GR[7]/A17 NRST IIC NC M_BOUT0 SCL M_GOUT5 CL M_BOUT7 M_GOUT9 M_HDO_L TP CLK_INPUT p_slct M_GOUT1 p_busy RR[2]/A2 M_DCKO_L PRCKI M_GOUT0 SDA RR[9]/A9 M_ROUT6 XRST M_BOUT6 RR[0]/A0 GR[2]/A12 LVDS_DET MSEL0 CEL2 RR[4]/A4 JTAG fL_nCE SCSU M_BOUT5 CPH BR[7]/DQ5 SFRST M_ROUT3 RR[3]/A3 PICTURE_OUTPUT(L) GR[0]/A10 BR[2]/DQ0 M_GOUT3 f_nBYTE f_nOE RR[7]/A7 PCU2 RR[5]/A5 CLRD BR[3]/DQ1 LATCH DATA_DRIVER GR[3]/A13 FPDATA1 M_GOUT6 GR[6]/A16 LSI58 Communication BR[6]/DQ4 PCD1 RR[1]/A1 M_BOUT2 LVDS_INPUT M_ROUT2 CSL FPGA BR[4]/DQ2 LEDR GR[8]/A18 CLRU RR[6]/A6 BR[9]/DQ7 FVSEL ODEU SFVRST LEUR SIU M_GOUT2 DRV_RST_O M_ROUT0 M_ROUT5 GR[5]/A15 M_ROUT1 M_ROUT8 CLKM_IN GR[1]/A11 VCCI LVDSbit DRVMUTE GR[4]/A14 GND M_GOUT4 M_GOUT8 MASK_R M_DCKO_R M_HDO_R M_VDO_R XRST BUS_SW PICTURE_OUTPUT(R) /FLASH_CONTROL URH/CBK URL DATA ENERGY RECOVERY MSEL1 MODEL[0] MODEL[1] MODEL[2] DMHR DSHR DSLR DMLR DMHL DSHL DSLL DMLL PRCK84M Nosync LEUL LEDL MODEL SELECTION FREE RUN CLK IC9500 ! 11 13 12 14 15 17 16 27 26 24 23 22 21 25 26 27 19 25 23 24 21 22 20 DISCHARGE CONTROL WB ADJ FLASH CONTROL FPGA CONTROL LVDS SYNC PROCESSING FPGA,ASIC D-BOARD TNPA3983AX (3/8) TH-65PF10CK D-Board (3 of 8) Schematic Diagram TH-65PF10CK D-Board (3 of 8) Schematic Diagram 80 TH-65PF10CK 11.24.D 电路板 （4/8）线路图 G G TERM SIDE FP_UMH FP_NUEL FP_USL FP_UML UMH D_ODEU2 D_ODEU1 USH NUEL UML FP_URL FP_USH USL L8_PCK L8_OCK R8_OCK R8_PCK D_CLRD6 D_CLRD5 D_PCD5 D_PCD6 BUS_SW BUS_SW BUS_SW BUS_SW D_ODED5 D_ODED6 D_LED5 D_LED6 FP_URH/CBK FP_UEH D_LEU1 D_PCU1 D_LEU2 D_PCU2 D_CLRU1 D_CLRU2 DOUTDA29 CLKD6 DOUTDC27 DOUTDB30 DOUTDC23 DOUTDA31 DOUTDC26 CLRD_6 DOUTDB29 DOUTDA27 DOUTDA28 DOUTDB31 5V_DET6 DOUTDB28 DOUTDA25 DOUTDB23 DOUTDA24 DOUTDA22 LED_6 DOUTDC29 DOUTDB22 DOUTDC22 DOUTDC24 DOUTDB26 DOUTDC28 DOUTDB25 DOUTDC25 DOUTDC31 DOUTDB24 DOUTDA30 DOUTDB27 DOUTDC30 CLKD7 DOUTDA23 DOUTDA26 PCD_6 L8R_DA07 L8R_DB11 DOUTDC20 DOUTDA16 DOUTDA18 DOUTDA23 DOUTDB16 L8R_DA15 DOUTDB18 L8R_DB07 L8R_DC11 DOUTDC24 DOUTDA31 DOUTDC18 DOUTDC21 L8R_DB03 DOUTDB31 DOUTDA27 L8R_DC07 L8R_DA10 DOUTDA17 DOUTDB21 DOUTDC31 DOUTDB27 DOUTDB17 5V_DET6 DOUTDA21 DOUTDC17 DOUTDA30 L8R_DA06 DOUTDC27 L8R_DB10 DOUTDC16 L8R_DA01 DOUTDA19 DOUTDB30 5V_SENSE DOUTDA26 L8R_DB01 DOUTDB23 L8R_DC08 DOUTDC30 L8R_DB06 L8R_DC01 DOUTDB26 L8R_DC10 DOUTDC26 DOUTDC23 L8R_DA05 L8R_DB15 DOUTDA29 DOUTDA22 L8R_DA13 L8R_DC06 L8R_DB05 DOUTDB29 DOUTDB22 L8R_DC03 L8R_DC15 DOUTDC29 DOUTDC22 L8R_DB13 L8R_DA09 L8R_DC05 DOUTDA28 L8R_DA02 DOUTDA25 L8R_DA14 DOUTDB28 DOUTDB25 L8R_DA03 L8R_DC13 L8R_DB09 L8R_DA04 L8R_DB02 DOUTDC28 DOUTDC25 L8R_DB14 DOUTDA24 L8R_DA00 L8R_DA12 L8R_DC09 L8R_DB04 L8R_DC02 DOUTDB24 L8R_DC14 L8R_DB00 L8R_DB12 L8R_DA08 L8R_DC04 L8R_DA11 DOUTDA20 DOUTDB19 L8R_DC00 L8R_DC12 L8R_DB08 DOUTDC19 DOUTDB20 L8R_RI5 L8R_RI4 L8R_RI1 L8R_RI6 L8R_RI0 L8R_RI2 L8R_RI7 L8R_RI3 L8R_GI1 L8R_RI8 L8R_GI3 L8R_GI0 L8R_GI4 L8R_GI2 L8R_RI9 L8R_GI8 L8R_BI1 L8R_GI6 L8R_BI0 L8R_GI7 L8R_GI5 L8R_GI9 L8R_BI2 L8R_BI5 L8R_BI3 L8R_BI8 L8R_BI4 L8R_BI6 L8R_BI7 L8R_BI9 L8L_DB15 L8L_UC09 L8L_UA07 L8L_UA09 L8L_UA10 L8L_UC08 L8L_DA14 L8L_UC11 L8L_UC10 L8L_UC07 L8L_UA11 L8L_UA12 L8L_UB06 L8L_UB11 L8L_UC12 L8L_UA08 L8L_UA06 L8L_UC13 L8L_UB10 L8L_UB07 L8L_UB08 L8L_UA15 L8L_UA05 L8L_UC05 L8L_UC06 L8L_DA15 L8L_UB09 L8L_UB12 L8L_DC15 L8L_UB05 DD_PCD1 DD_PCD2 DD_PCU1 DD_PCU2 ODED_6 DD_ODEU DD_LEUR DD_CLRU DD_ODED DD_LEDL DD_CLRD DD_LEUL DD_LEDR URH URL UEH C9557 16V 1u TP9679 P3.3V C9542 16V 0.1u C1ZBZ0003600 IC9200 XT 1 2 SL0 3 SL1 4 CLK9 5 VDD1 6 VSS1 7 CLK1 8 N/C 9 CLK2 10 VSS 11 N/C 12 CLK7 13 CLK6 14 CLK5 15 VSS2 16 VDD2 17 SL2 18 STBY 19 VDD3 20 XTN TP9616 C9554 6.3V 10u TP9585 P5V TP9587 C0JBAZ001120 IC9503 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc TP9442 TP9618 TP9615 TP9547 C9548 16V 0.1u TP9550 C9552 16V 0.1u R9634 47 TP9401 TP9558 R9469 EXB2HV820JV TP9559 R9624 10k P3.3V TP9549 R9631 EXB2HV222JV R9467 EXB2HV820JV D9304 MA3X152K0L R9639 47 C9514 16V 1u TP9574 R9527 EXB2HV222JV P3.3V TP9564 TP9586 R9632 47 P5V R9471 EXB2HV820JV TP9583 Q9304 B1ABCF000138 TP9577 TP9594 X9500 H0J200500038 TP9570 TP9572 C9373 50V 0.01u TP9582 C9546 50V 12p TP9580 TP9588 C9515 16V 1u R9466 EXB2HV820JV TP9576 *R9605 0 R9625 10k TP9617 R9474 4.7k R9468 EXB2HV820JV TP9541 TP9543 TP9553 R9641 47 TP9614 R9497 10k L9503 G1C150KA0038 TP9057 TP9568 R9642 0 R9628 10k TP9592 TP9578 FL9310 J0HABH000013 1 2 3 TP9591 TP9589 TP9579 R9633 47 TP9593 TP9561 TP9581 C0JBAZ001120 IC9504 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ002614 IC9402 1 NC 2 A0 3 A1 4 A2 5 A3 6 A4 7 A5 8 A6 9 A7 10 GND 11 NC 12 A8 13 A9 14 A10 15 A11 16 A12 17 A13 18 A14 19 A15 20 GND 21 NC 22 A16 23 A17 24 A18 25 A19 26 A20 27 A21 28 A22 29 A23 30 GND 31 NC 32 A24 33 A25 34 A26 35 A27 36 A28 37 A29 38 A30 39 A31 40 GND 41 B31 42 B30 43 B29 44 B28 45 B27 46 B26 47 B25 48 B24 49 OE4 50 VCC 51 B23 52 B22 53 B21 54 B20 55 B19 56 B18 57 B17 58 B16 59 OE3 60 VCC 61 B15 62 B14 63 B13 64 B12 65 B11 66 B10 67 B9 68 B8 69 OE2 70 VCC 71 B7 72 B6 73 B5 74 B4 75 B3 76 B2 77 B1 78 B0 79 OE1 80 VCC R9637 47 TP9575 TP9544 P5V C0JBAZ001120 IC9505 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R9496 100k TP9555 TP9619 R9528 EXB2HV222JV TP9584 R9622 0 C9547 50V 12p TP9556 TP9566 R9470 EXB2HV820JV TP9590 D36 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R9428 EXB38V103JV P5V 3.3V->5V 3.3V->5V 20SSMHz 60SSMHz/ 65SSMHz 36.6MHz 84MHz 20MHz 39.5MHz DOUTDB[30] DOUTDA[26] DMHL DOUTDA[23] GND DOUTDA[22] ODED6 DOUTDC[26] DOUTDC[28] DOUTDB[26] DOUTDB[22] NC GND GND GND GND DOUTDC[27] DOUTDB[24] 5V_DET DOUTDB[27] LED6 DOUTDC[30] DOUTDA[25] DSHL GND DMLL DOUTDA[29] GND DOUTDC[24] CLKD6(+) DSHR GND DOUTDC[31] GND DOUTDA[24] GND DOUTDA[28] GND DOUTDB[23] DOUTDC[23] DMHR CLKD7(-) PCD6 DOUTDA[30] DOUTDA[27] DOUTDB[28] CLRD6 DOUTDB[29] DOUTDA[31] DOUTDC[25] GND DOUTDB[31] P5V GND DOUTDC[29] GND GND DSLL DOUTDB[25] GND DMLR GND DSLR DOUTDC[22] GND P5V P5V A13 DQ15/A-1 A20 A11 A16 DQ5 A17 DQ1 A18 A15 A19 A5 A6 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 A17 DQ1 A18 A15 A19 A5 A6 DQ15/A-1 A20 A11 A16 DQ5 A13 DQ6 A1 DQ2 DQ3 DQ0 DQ7 A2 A3 A7 A14 A12 A8 A4 A9 DQ4 A10 A0 NC 3.3V->5V CLOCK GENE. BUS SWITCH LEVEL CONVERTER LEVEL CONVERTER LEVEL CONVERTER ! 26 24 27 25 23 22 21 31 32 35 33 34 32 28 33 29 31 34 30 35 36 (C60) TO C6-BOARD D-BOARD TNPA3983AX (4/8) TH-65PF10CK D-Board (4 of 8) Schematic Diagram TH-65PF10CK D-Board (4 of 8) Schematic Diagram 81 TH-65PF10CK 11.25.D 电路板 （5/8）线路图 L8R_DB01 L8R_BI4 L8R_UC02 L8R_RI0 L8R_BI3 L8R_DQ6 L8R_TEST0 L8R_DQ16 L8R_NSDCLKO L8R_DC04 L8R_DQ5 L8R_UC01 L8R_GI4 L8R_RI8 L8R_GI2 L8R_BA1 L8R_BI6 L8R_DC03 L8R_UC00 L8R_DQ11 L8R_DQS2 L8R_DB00 L8R_RI2 L8R_DB08 L8R_DC02 L8R_DA01 L8R_DQ23 L8R_DQ20 L8R_DQ29 L8R_UA01 L8R_DC01 L8R_DA02 L8R_DA11 L8R_WE L8R_UA02 L8R_DB10 L8R_DQ22 L8R_BI9 L8R_DC00 L8R_TEST1 L8R_GI8 L8R_GI9 L8R_DRVCLKD3 L8R_DA10 L8R_BI1 L8R_DQ2 L8R_A9 L8R_A6 L8R_DQ8 L8R_SDCLKO L8R_DRVCLKD2 L8R_RI7 L8R_BA0 L8R_DQS3 L8R_A2 L8R_DA03 L8R_DRVCLKD1 L8R_RI4 L8R_DQ31 L8R_RI3 L8R_A10 L8R_UB00 L8R_A0 L8R_DRVCLKD0 L8R_DA00 L8R_RI5 L8R_DB06 L8R_DB03 L8R_DQ30 L8R_DRVCLKU3 L8R_A11 L8R_DA05 L8R_DRVCLKU2 L8R_RI1 L8R_BI7 L8R_DA04 L8R_DRVCLKU1 L8R_DQ12 L8R_A4 L8R_GI1 L8R_DRVCLKU0 L8R_DA08 L8R_DQ27 L8R_UB02 L8R_DQ1 L8R_DA06 L8R_BI2 L8R_BI5 L8R_DC11 L8R_BI0 L8R_DQS1 L8R_UB04 L8R_RAS L8R_DQ21 L8R_DC10 L8R_DQ17 L8R_UA03 L8R_CS L8R_DB07 L8R_DQ25 L8R_DB02 L8R_RI9 L8R_DC09 L8R_DQS0 L8R_DQ18 L8R_MASK L8R_DB05 L8R_ID0 L8R_DQ3 L8R_DC08 L8R_A8 L8R_DA09 L8R_UA00 L8R_DQ24 L8R_DQ13 L8R_DC07 TCK L8R_SDIV0 L8R_DQ10 L8R_DB09 L8R_UB03 L8R_DC06 L8R_DQ14 L8R_A3 L8R_DC05 L8R_A5 TMS L8R_A1 L8R_RI6 L8R_DQ15 L8R_GI3 L8R_ID0 L8R_DQ4 L8R_DB04 L8R_DQ28 L8R_DQ7 L8R_GI0 L8R_SDIV1 L8R_GI5 L8R_A7 L8R_GI6 L8R_BI8 L8R_TCKSEL2 L8R_DQ0 L8R_CAS L8R_GI7 L8R_DA07 L8R_DQ9 L8R_UC04 L8R_DQ26 L8R_SDCKE L8R_UB01 L8R_UC03 L8R_DQ19 L8R_DB11 L8R_TEST0 L8R_TCKSEL2 L8R_TEST1 L8R_HDI L8R_VDI TDO_TO_FPGA TDO_TO_68_R L8R_MONOUT1 SFRST SFVRST LATCH P3V_SDA02 P3V_SCL02 L8R_UA04 L8R_UB05 L8R_UB06 L8R_UB07 L8R_UB08 L8R_UB09 L8R_UB10 L8R_UB11 L8R_UA05 L8R_UA06 L8R_UA07 L8R_UA08 L8R_UA09 L8R_UA10 L8R_UA11 L8R_UC05 L8R_UC06 L8R_UC07 L8R_UC08 L8R_UC09 L8R_UC10 L8R_UC11 L8R_DCK R8_OCK TRST L8R_DC15 L8R_UA15 L8R_DA14 L8R_DB15 L8R_UC15 L8R_UB14 L8R_UC13 L8R_UC12 L8R_UC14 L8R_UA14 L8R_UB15 L8R_UA13 L8R_UB12 L8R_DA15 L8R_UA12 L8R_UB13 XRST2 L8R_SDIV0 DOUTDA18 LED_5 DOUTDC18 DOUTDC13 DOUTDC17 DOUTDA21 DOUTDA19 CLRD_5 DOUTDC12 DOUTDA13 DOUTDB21 DOUTDB13 DOUTDC21 DOUTDA15 DOUTDA16 DOUTDB19 CLKD5 CLKD3 DOUTDA12 DOUTDB16 DOUTDC14 DOUTDB15 DOUTDA14 CLKD2 DOUTDC16 DOUTDA17 DOUTDB12 DOUTDA11 DOUTDB14 DOUTDC19 DOUTDC15 DOUTDB17 DOUTDB11 DOUTDB10 PCD_5 DOUTDC11 DOUTDA20 CLKD4 5V_DET5 DOUTDB20 DOUTDC10 DOUTDC20 DOUTDB18 DOUTDA10 CLKD3 L8R_DRVCLKD1 L8R_DRVCLKD3 CLKD6 CLKD2 L8R_DRVCLKD2 L8L_DRVCLKD2 L8L_DRVCLKD3 L8L_DRVCLKD0 CLKD5 L8L_DRVCLKD1 L8R_DRVCLKD0 CLKD1 CLKD4 5V_SENSE CLKD0 5V_DET5 D_PCD6 PCD_5 CLRD_6 D_ODED6 D_CLRD5 ODED_5 D_LED5 D_ODED5 D_LED6 LED_5 LED_6 ODED_6 D_CLRD6 PCD_6 D_PCD5 USL C_UMH UEH C_USH UML C_USL SOS8_SS_C USH C_UEH C_UML NUEL SOS8_SS C_URL URL C_NUEL UMH URH C_URH CLRD_5 CLKD7 L8R_DA12 L8R_DA13 L8R_DB12 L8R_DB13 L8R_DB14 L8R_DC12 L8R_DC13 L8R_DC14 ODED_5 SOS7_DRD R8_PCK L8R_SDIV1 FULL0 IC9400 M2 FULL0 IC9400 AA5 CKE IC9400 A20 DOUTUC04 IC9400 J13 VSS IC9400 L3 ID1 IC9400 M18 VDD12 R9433 2.7k TP9542 R9570 10k IC9400 D20 DOUTUB03 L8L3.3V IC9400 T2 DQ20 L8L3.3V IC9400 MN84521A-A A1 VSS IC9400 C11 DOUTUB15 IC9400 Y12 AVSS_4 TP9629 IC9400 E21 DOUTUA00 R9563 22 IC9400 M19 DOUTDC11 IC9400 M21 DOUTDB10 IC9400 A7 K_TEST IC9400 C12 DOUTUB13 IC9400 AB6 A4 IC9400 W12 AVDD25_4 IC9400 AB1 VSS IC9400 N5 VDD33 IC9400 U3 DQ6 IC9400 K19 DOUTDC14 IC9400 E1 BI0 IC9400 U1 DQS2 IC9400 C15 DOUTUB09 IC9400 D12 DOUTUA13 IC9400 K5 VDD33 TP9456 IC9400 A15 DOUTUA10 IC9400 P2 XRST IC9400 D9 TCKSEL1 IC9400 L5 VDD33 C9469 0.1u 16V IC9400 B10 SFRST IC9400 W1 DQ2 IC9400 U18 VDD33 IC9400 Y8 A1 R9569 100k TP9639 IC9400 G3 BI4 IC9400 Y20 VSS IC9400 V17 VDD33 IC9400 J1 MONOUT2 IC9400 AB16 AVDD33_2 J0HABH000013 FL9502 IC9400 AB5 BA1 IC9400 C19 DOUTUB04 C9448 0.1u 16V IC9400 C10 SFVRST P3.3V IC9400 E15 VDD12 IC9400 G5 VDD12 IC9400 AA2 VSS IC9400 U4 DQ5 IC9400 D7 RI3 IC9400 Y13 DQ14 IC9400 W8 A2 IC9400 AA18 DOUTDB00 IC9400 C20 VSS IC9400 Y18 VSS IC9400 J3 MONOUT0 IC9400 W4 VSS TP9633 C9447 0.1u 16V IC9400 Y10 DQ26 TP9604 IC9400 Y22 VDD33 C9443 0.1u 16V IC9400 J4 ENHMASK IC9400 T4 DQ7 IC9400 N4 TMS IC9400 J19 DOUTDA15 IC9400 H5 VDD12 IC9400 L1 SCL TP9464 VIN IC9400 W17 VSS IC9400 W22 DOUTDC02 IC9400 H20 DRVCLKD1 IC9400 J12 VSS C9449 0.1u 16V IC9400 N10 VSS IC9400 AB15 AVDD33_1 IC9400 A9 FPDAT1 IC9400 AB3 NCK IC9400 D6 RI7 IC9400 N13 VSS IC9400 E12 VDD33 IC9400 AA9 A8 TP9620 R9540 10k R9555 47 IC9400 W16 SDIV1 IC9400 A14 DOUTUA11 IC9400 AA1 VDD25 IC9400 R2 DQ23 IC9400 T20 DOUTDA04 IC9400 R19 DOUTDA05 IC9400 C3 VSS C9458 0.1u 16V IC9400 F2 BI1 IC9400 V12 VDD25 IC9400 V11 VDD25 IC9400 W20 VDD33 IC9400 M4 PCK L8L2.5V IC9400 AA6 A11 IC9400 W19 VSS IC9400 AB20 DOUTDB01 R9481 0 IC9400 Y19 VSS IC9400 AA10 DQ31 IC9400 C9 ROMCE L8L3.3V IC9400 L4 TIIC IC9400 AB8 A7 TP9606 IC9400 J11 VSS IC9400 L10 VSS TP9601 IC9400 L13 VSS IC9400 V7 VDD25 IC9400 E14 VDD33 R9566 22 IC9400 C7 RI0 IC9400 N11 VSS TP9554 P5V IC9400 L21 DOUTDA11 TP9638 IC9400 N9 VSS TP9626 IC9400 W14 DQ13 IC9400 H19 DRVCLKU0 L8L3.3V C9450 0.1u 16V IC9400 P21 DOUTDC08 C9534 6.3V 10u IC9400 AB17 VSS IC9400 W9 A10 IC9400 G22 DRVCLKD0 IC9400 K3 SDA C9536 6.3V 10u IC9400 V19 VDD33 TP9632 R9515 EXB2HV470JV IC9400 N21 DOUTDA08 IC9400 N18 VDD12 IC9400 R5 VDD25 IC9400 W18 VSS IC9400 C8 TEST0 IC9400 E18 VSS IC9400 AA15 AVSS1 IC9400 Y2 VDD25 IC9400 K2 VDI IC9400 E3 GI5 R9567 22 IC9400 N22 DOUTDA09 IC9400 V3 DQ4 TP9630 R9565 22 C9538 6.3V 10u IC9400 E2 GI8 IC9400 B5 RI5 IC9400 B3 GI1 IC9400 N12 VSS Q9305 B1ABCF000138 TP9624 TP9552 IC9400 V22 DOUTDA03 IC9400 F21 DRVCLKU2 IC9400 B19 DOUTUA04 IC9400 D18 DOUTUC05 L8L2.5V IC9400 M12 VSS IC9400 A12 DOUTUB14 IC9400 AA4 VREF IC9400 F3 GI9 IC9400 U5 VDD25 L8L1.2V IC9400 U21 DOUTDB04 IC9400 C6 RI4 IC9400 J5 VDD12 IC9400 M22 DOUTDC10 IC9400 A16 DOUTUA09 IC9400 L18 VDD12 IC9400 M3 FULL1 IC9400 H22 DOUTDA14 IC9400 AA3 CK R9562 22 IC9400 B1 VSS R9539 0 IC9400 P14 VSS IC9400 A13 DOUTUC13 IC9400 B7 TEST1 IC9400 A18 DOUTUB07 C9467 0.1u 16V C9451 0.1u 16V IC9400 L9 VSS IC9400 C1 VDD12 C9539 56u 4V C9512 0.1u 16V IC9400 B16 DOUTUC09 IC9400 N1 TRST IC9400 D5 GI2 IC9400 P19 DOUTDB07 IC9400 B13 DOUTUA12 TP9597 IC9400 K9 VSS TP9457 TP9625 IC9400 W15 TCPOUT IC9400 V20 DOUTDB02 IC9400 L22 DOUTDB11 IC9400 W7 NCS IC9400 Y9 A3 IC9400 K13 VSS IC9400 Y1 DQ0 IC9400 V16 VDD33 IC9400 J14 VSS IC9400 U2 AVSS_1 IC9400 K12 VSS IC9400 Y17 VSS IC9400 F20 DOUTUB00 IC9400 V2 DQ3 IC9400 A21 VSS IC9400 G21 DRVCLKD2 C9513 0.1u 16V IC9400 D4 VSS IC9400 M11 VSS IC9400 AA17 SDIV0 IC9400 J10 VSS R9558 22 IC9400 D21 DOUTUB02 IC9400 G18 VSS IC9400 F18 VSS L8L3.3V IC9400 M20 DOUTDA10 TP9609 IC9400 D17 DOUTUC06 C9462 0.1u 16V IC9400 B22 VSS IC9400 R22 DOUTDC07 TP9637 IC9400 K21 DOUTDC13 IC9400 J9 VSS C9457 0.1u 16V IC9400 B8 TCKSEL2 L8L3.3V IC9400 J18 VDD33 C9446 0.1u 16V IC9400 D19 VSS IC9400 E10 VDD33 IC9400 W13 DQ15 IC9400 C22 DOUTUB01 IC9400 T22 DOUTDC06 IC9400 H18 VDD33 IC9400 AA22 VSS IC9400 V6 AVSS_3 IC9400 L2 ID0 IC9400 M10 VSS TP9546 IC9400 V21 DOUTDC03 J0HABH000013 FL9501 IC9400 AA8 A5 IC9400 V13 VDD12 R9437 2.7k IC9400 V14 VDD12 IC9400 D2 GI4 IC9400 AB12 DQS1 IC9400 AA7 A9 TP9598 IC9400 D14 DOUTUC10 R9561 22 IC9400 A10 SFLATCH IC9400 E8 VDD12 R9568 4.7k IC9400 F6 VSS TP9608 IC9400 M1 TILD IC9400 P22 DOUTDB08 IC9400 AA16 AVSS2 IC9400 W21 VDD33 C9537 6.3V 10u R9438 2.7k IC9400 C18 DOUTUB05 IC9400 D15 DOUTUB08 IC9400 N2 TCK IC9400 C17 DOUTUA06 L8L3.3V IC9400 K4 HDI IC9400 L19 DOUTDB12 IC9400 T5 AVSS_2 IC9400 V9 VSS TP9603 IC9400 R21 DOUTDA06 IC9400 E17 VSS TP9551 IC9400 G1 BI6 IC9400 N3 TDI C9452 0.1u 16V IC9400 H21 DOUTDB15 IC9400 P18 VDD33 C9456 0.1u 16V IC9400 P4 DQ18 IC9400 Y6 NRAS C9460 0.1u 16V IC9400 M13 VSS IC9400 K11 VSS IC9400 L12 VSS IC9400 AA13 DQ11 IC9400 F19 DOUTUA01 TP9557 IC9400 AB2 VSS IC9400 J20 DOUTDC15 IC9400 R3 DQ17 IC9400 D1 GI6 TP9635 IC9400 AA11 DQ30 IC9400 T3 AVDD25_1 TP9596 C9464 0.1u 16V C9535 6.3V 10u IC9400 N19 DOUTDB09 IC9400 E11 VDD33 IC9400 Y15 VSS IC9400 U20 DOUTDB03 TP9628 IC9400 P11 VSS IC9400 B12 DOUTUC14 IC9400 AB7 A6 C9455 0.1u 16V IC9400 AB22 VSS IC9400 M5 VDD33 C9453 0.1u 16V IC9400 N14 VSS IC9400 V15 VDD12 IC9400 AA12 DQS3 IC9400 V8 VDD25 IC9400 J2 MONOUT1 IC9400 D8 OCK IC9400 D16 DOUTUC07 IC9400 P12 VSS IC9400 W11 DQ25 D9305 MA3X152K0L TP9465 HIN IC9400 B18 DOUTUB06 IC9400 B4 RI8 IC9400 D11 DOUTUA15 IC9400 C5 RI9 IC9400 P20 DOUTDA07 IC9400 AB9 VDD25 IC9400 Y16 SDSEL IC9400 W3 VDD25 TP9605 IC9400 E5 VSS IC9400 A6 OCKOUT IC9400 C16 DOUTUC08 IC9400 M14 VSS IC9400 A2 VSS IC9400 B11 DOUTUC15 R9485 1k 1% IC9400 P9 VSS C9465 0.1u 16V IC9400 G2 BI5 IC9400 K20 DOUTDB13 IC9400 A22 VSS IC9400 M9 VSS IC9400 F4 GI7 IC9400 E13 VDD33 IC9400 H2 BI9 IC9400 V5 VSS IC9400 Y4 AVDD25_2 IC9400 K18 VDD33 IC9400 E7 VDD12 TP9612 C9459 0.1u 16V TP9599 TP9548 IC9400 H4 BI7 IC9400 E22 DRVCLKU3 IC9400 E19 DOUTUC03 C9466 0.1u 16V IC9400 G19 DOUTUC00 TP9610 R9564 22 IC9400 R18 VDD33 IC9400 N20 DOUTDC09 IC9400 L11 VSS IC9400 W10 DQ27 IC9400 P1 TDO IC9400 F5 VDD12 IC9400 K1 DCK TP9545 IC9400 C4 GI3 TP9600 IC9400 R4 DQ16 C9445 0.1u 16V IC9400 Y7 A0 TP9634 C9374 50V 0.01u IC9400 U19 DOUTDA02 IC9400 T21 DOUTDB05 TP9627 IC9400 G4 BI2 IC9400 D3 VDD12 C9533 0.1u 16V L8L2.5V IC9400 A5 RI2 IC9400 K22 DOUTDA12 IC9400 W2 DQ1 IC9400 C13 DOUTUB12 IC9400 P5 VDD33 IC9400 AB14 DQ8 IC9400 E6 VSS IC9400 V4 VDD25 IC9400 AB11 DQ28 IC9400 J22 DOUTDA13 IC9400 D22 DOUTUC01 IC9400 C21 DOUTUA02 IC9400 K14 VSS IC9400 B17 DOUTUA07 IC9400 AB13 DQ10 IC9400 V18 VSS IC9400 B15 DOUTUB10 IC9400 AA20 DOUTDA01 IC9400 H3 BI8 IC9400 F1 BI3 IC9400 C14 DOUTUC11 IC9400 Y3 VSS C9442 0.1u 16V IC9400 L20 DOUTDC12 IC9400 A4 RI6 TP9631 IC9400 B20 DOUTUA03 IC9400 B14 DOUTUB11 IC9400 F22 DRVCLKD3 TP9007 IC9400 B9 FPCLK IC9400 A8 TCKSEL0 IC9400 Y14 DQ12 IC9400 Y5 NCAS IC9400 T18 VDD33 C9444 0.1u 16V IC9400 P3 DQ19 TP9636 IC9400 Y11 DQ24 TP9611 IC9400 L14 VSS IC9400 AB21 VSS IC9400 V1 DQS0 IC9400 Y21 VDD33 IC9400 E20 DOUTUC02 IC9400 E4 VDD12 IC9400 R1 DQ22 IC9400 A17 DOUTUA08 IC9400 K10 VSS IC9400 A11 DOUTUA14 IC9400 R20 DOUTDB06 IC9400 T1 DQ21 IC9400 T19 DOUTDC04 C9454 0.1u 16V IC9400 D13 DOUTUC12 FL9311 J0HABH000013 1 2 3 IC9400 A3 GI0 IC9400 P13 VSS C9463 0.1u 16V IC9400 C2 VDD12 R9430 10k IC9400 P10 VSS IC9400 E9 VDD33 IC9400 H1 MUTE TP9602 IC9400 B21 VSS TP9681 C9468 0.1u 16V IC9400 J21 DOUTDB14 C9496 16V 0.1u IC9400 B2 VSS IC9400 B6 RI1 IC9400 E16 VDD12 IC9400 U22 DOUTDC05 IC9400 AA21 VSS IC9400 AB4 BA0 IC9400 D10 FPDAT0 IC9400 V10 VDD25 IC9400 AB18 DOUTDC00 IC9400 A19 DOUTUA05 IC9400 AB19 DOUTDA00 R9484 1k 1% IC9400 AB10 DQ29 TP9607 IC9400 G20 DRVCLKU1 TP9613 IC9400 AA19 DOUTDC01 IC9400 W5 AVDD25_3 TP9595 C9461 0.1u 16V IC9400 AA14 DQ9 IC9400 W6 NWE D35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R9472 EXB38V820JV R9473 EXB38V820JV to DDR to DISCHARGE CONTROL FPGA from FPGA1 IIC from DISCHARGE CONTROL FPGA MN84521A-A Right rromdata[00] rromdata[03] rromdata[01] rromdata[2] rromdata[12] rromdata[15] rromdata[09] rromdata[06] rromdata[05] rromdata[14] rromdata[08] rromdata[11] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromadrs[20] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[01] rromadrs[16] rromadrs[19] rromadrs[04] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[00] rromadrs[-1] 5V_DET GND GND DOUTDB[14] DOUTDB[19] GND P5V DOUTDA[15] NC DOUTDA[12] DOUTDC[16] DOUTDB[18] GND DOUTDA[10] DOUTDC[13] GND GND DOUTDC[12] DOUTDB[11] DOUTDC[15] DOUTDC[19] DOUTDA[21] GND GND DOUTDA[18] DOUTDB[10] DOUTDB[17] GND DOUTDA[17] GND DOUTDB[16] GND LED5 DOUTDB[20] DOUTDC[14] DOUTDC[18] DOUTDC[21] DOUTDB[13] DOUTDC[17] CLKD4(+) DOUTDA[20] CLKD5(-) GND GND DOUTDC[20] DOUTDB[21] DOUTDC[10] P5V DOUTDA[16] GND GND GND DOUTDC[11] DOUTDB[12] CLRD5 DOUTDA[11] P5V CLKD3(-) DOUTDA[19] GND ODED5 PCD5 CLKD2(+) DOUTDA[14] DOUTDA[13] GND DOUTDB[15] DRV_SOS7 IC9400 ! 33 32 35 34 31 45 46 42 43 41 44 42 37 40 43 44 41 45 39 38 FORMAT CONVERTER/RGB PROCESSOR PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER (C54) TO C5-BOARD D-BOARD TNPA3983AX (5/8) G G + G G G G TERM SIDE TH-65PF10CK D-Board (5 of 8) Schematic Diagram TH-65PF10CK D-Board (5 of 8) Schematic Diagram 82 TH-65PF10CK 11.26.D 电路板 （6/8）线路图 G G + TERM SIDE G G TERM SIDE L8R_DQ4 L8R_DQ3 L8R_A4 L8R_DQ21 L8R_DQ17 L8R_DQS1 L8DR_DQ25 L8DR_DQ26 L8DR_A0 L8DR_DQ9 L8R_DQ25 L8R_DQ15 L8DR_DQ14 L8R_WE L8R_A3 L8R_DQ26 L8R_DQ18 L8DR_DQ6 L8R_DQ12 L8DR_DQ29 L8DR_DQ30 L8R_DQ9 L8DR_CKE L8R_DQ10 L8DR_DQ22 L8R_BA0 L8DR_DQS3 L8R_DQS3 L8R_DQ0 L8DR_DQ20 L8R_A2 L8DR_DQ21 L8R_CS L8R_DQ28 L8R_DQ27 L8R_DQ29 L8DR_A5 L8DR_DQ16 L8R_DQ6 L8DR_DQ15 L8R_DQ19 L8DR_DQ1 L8DR_DQ2 L8R_BA1 L8R_DQ22 L8R_CAS L8R_A6 L8DR_A4 L8DR_DQ10 L8R_DQ14 L8DR_A8 L8DR_NRAS L8DR_BA1 L8DR_BA0 L8DR_DQ18 L8R_DQ23 L8R_DQS0 L8DR_A11 L8DR_DQ11 L8DR_NCS L8DR_DQ24 L8DR_DQ31 L8DR_DQ8 L8DR_NCAS L8DR_A3 L8DR_DQ3 L8R_DQ11 L8R_A9 L8R_DQ5 L8R_DQS2 L8R_A11 L8R_A0 L8R_RAS L8DR_A9 L8R_DQ31 L8DR_DQ0 L8R_DQ30 L8DR_A6 L8DR_A10 L8DR_DQ27 L8R_DQ8 L8R_A8 L8DR_DQS1 L8R_SDCLKO L8R_DQ2 L8R_DQ16 L8R_DQ20 L8DR_NWE L8DR_DQ5 L8DR_DQ13 L8DR_A1 L8R_DQ24 L8DR_DQ19 L8R_SDCKE L8R_A7 L8R_DQ13 L8R_A5 L8DR_DQS2 L8DR_DQ7 L8R_DQ1 L8DR_A2 L8DR_DQ28 L8R_A10 L8DR_A7 L8DR_DQ17 L8R_DQ7 L8DR_DQ4 L8DR_DQS0 L8R_A1 L8R_NSDCLKO L8DR_DQ23 L8DR_DQ12 L8L_UC09 L8L_UA09 L8L_UA11 L8L_UA08 L8L_UB11 L8L_UC08 L8L_UA10 L8L_UB09 L8L_UA05 L8L_UB10 L8L_UB05 L8L_UC07 L8L_UC11 AA_XWE L8L_UB07 L8L_UB08 L8L_UA06 L8L_UC06 L8L_UC10 L8L_UA07 L8L_UB06 5V_SENSE L8L_DC15 L8L_UA14 L8L_UC13 L8L_UC12 L8L_UB15 L8L_DA14 L8L_UC15 L8L_UC14 L8L_UA12 L8L_UB13 L8L_UB14 L8L_UB12 L8L_UA13 L8L_DB15 DRVRST 5V_SENSE 5V_DET4 DOUTUA25 L8R_UA11 DOUTUC25 L8R_UA05 L8R_UC13 L8R_UA14 DOUTUB18 L8R_UA02 L8R_UC12 DOUTUB26 L8R_UC10 L8R_UC14 L8R_UB01 L8R_UB09 L8R_UC09 L8R_UC03 DOUTUC18 L8R_UA15 DOUTUC17 L8R_UA00 L8R_UB04 L8R_UB07 L8R_UC11 L8R_UC15 DOUTUA27 L8R_UA04 DOUTUA18 DOUTUA19 L8R_UC00 DOUTUB25 DOUTUC28 DOUTUC29 DOUTUC19 L8R_UB06 L8R_UB03 L8R_UB00 L8R_UC01 L8R_UB15 L8R_UB08 L8R_UB10 DOUTUA17 DOUTUB23 L8R_UB14 DOUTUC21 L8R_UC02 L8R_UA07 DOUTUB29 L8R_UC05 DOUTUA26 DOUTUC27 L8R_UC07 L8R_UB02 L8R_UB11 L8R_UA01 L8R_UA09 L8R_UA13 DOUTUA21 DOUTUB19 L8R_UB05 L8R_UA10 L8R_UB13 L8R_UA08 DOUTUC23 DOUTUB21 L8R_UC04 L8R_UA06 L8R_UA03 L8R_UC06 DOUTUA23 DOUTUB17 L8R_UC08 DOUTUC16 DOUTUB16 DOUTUA16 DOUTUB27 DOUTUA29 DOUTUB28 DOUTUC26 DOUTUB22 5V_DET1 DOUTUC23 DOUTUC25 DOUTUB26 DOUTUA23 DOUTUB31 DOUTUB27 CLKU7 DOUTUC22 DOUTUC30 DOUTUC26 DOUTUA22 DOUTUA28 PCU_1 DOUTUC31 CLKU6 DOUTUB24 DOUTUA26 DOUTUA31 DOUTUC29 DOUTUB29 LEU_1 DOUTUC27 CLRU_1 DOUTUC28 DOUTUA29 DOUTUB23 DOUTUB28 DOUTUB30 DOUTUA30 DOUTUB25 DOUTUA27 DOUTUA25 DOUTUC24 DOUTUA24 DOUTUC20 DOUTUB20 DOUTUA20 DOUTUC22 DOUTUB22 DOUTUA22 DOUTUC24 DOUTUB24 DOUTUA24 DOUTUA28 DOUTUC31 DOUTUB31 DOUTUA31 DOUTUC30 DOUTUB30 DOUTUA30 L8R_UB12 L8R_UA12 L8L_DA13 L8L_DB12 DOUTDC8 DOUTDB0 L8L_DA03 DOUTDA6 L8L_DA04 L8L_DA00 L8L_DC14 DOUTDA10 L8L_DA09 DOUTDC10 L8L_DB13 L8L_DC11 DOUTDB12 DOUTDA1 DOUTDB10 DOUTDB5 DOUTDB1 L8L_DB00 L8L_DC13 DOUTDB7 L8L_DB09 DOUTDA4 L8L_DB04 L8L_DC01 L8L_DC03 L8L_DC07 L8L_DA02 L8L_DA10 L8L_DA08 L8L_DB10 DOUTDC2 DOUTDC1 DOUTDC7 DOUTDC4 L8L_DC08 DOUTDC3 L8L_DA12 L8L_DB02 L8L_DC10 DOUTDB8 DOUTDB9 DOUTDA2 L8L_DA07 DOUTDA7 DOUTDB6 L8L_DB06 L8L_DB07 L8L_DC02 DOUTDA3 L8L_DA06 DOUTDA13 DOUTDA8 DOUTDC15 L8L_DB01 L8L_DC12 L8L_DB08 DOUTDC11 L8L_DB03 DOUTDB15 DOUTDA5 DOUTDC12 L8L_DA05 DOUTDA15 DOUTDA9 L8L_DC05 DOUTDB2 L8L_DC15 L8L_DA01 DOUTDA14 DOUTDB3 L8L_DB11 DOUTDA0 L8L_DB15 DOUTDC5 DOUTDB13 DOUTDB14 L8L_DC04 L8L_DA15 L8L_DB05 DOUTDA11 L8L_DA11 DOUTDC14 L8L_DC00 L8L_DC06 DOUTDC6 DOUTDA12 DOUTDC0 DOUTDC13 DOUTDC9 DOUTDB11 L8L_DC09 DOUTDB4 L8L_DB14 AA_XCE_L AA_XOE L8R_UC14 L8R_UC13 L8R_UA15 L8R_UB13 L8R_DC15 L8R_UA13 L8R_UC12 L8L_DB15 L8R_DA15 L8L_UC13 L8R_UA14 L8L_UB14 L8L_DC15 L8L_DA14 L8L_UB15 L8L_UA14 L8L_UA13 L8L_UC15 L8L_UC12 L8R_UB12 L8R_UB15 L8L_UB12 L8R_UB14 L8R_DA14 L8R_UC15 L8L_UA15 L8L_DA15 L8L_UB13 L8L_UC14 AA_BYTE L8R_UA12 L8L_UA12 AA_XCE_L L8DR_DQ0 L8DR_NCLK L8DR_CLK L8DR_DQS3 L8DR_DQ19 L8DR_DQ17 L8DR_DQ26 L8DR_DQS0 L8DR_DQ29 L8DR_DQ3 L8DR_DQ2 L8DR_DQ24 L8DR_BA1 L8DR_DQ8 L8DR_A10 L8DR_DQ18 L8DR_A6 L8DR_A2 L8DR_DQ4 L8DR_DQ12 L8DR_DQ7 L8DR_A9 L8DR_A8 L8DR_DQ21 L8DR_A7 L8DR_DQS2 L8DR_NWE L8DR_NCAS L8DR_DQ1 L8DR_NCS L8DR_CKE L8DR_A4 L8DR_A5 L8DR_A0 L8DR_NRAS L8DR_DQ23 L8DR_A11 L8DR_DQ6 L8DR_DQ31 L8DR_DQ14 L8DR_A1 L8DR_DQ10 L8DR_DQ27 L8DR_BA0 L8DR_DQ13 L8DR_DQS1 L8DR_DQ20 L8DR_DQ25 L8DR_DQ9 L8DR_DQ30 L8DR_DQ22 L8DR_A3 L8DR_DQ5 L8DR_DQ16 L8DR_DQ28 L8DR_DQ11 L8DR_DQ15 L8L_UA15 L8L_DA14 DOUTDC6 DOUTDC7 DOUTDB9 C_URL C_USL C_UMH DOUTDC5 DOUTDA5 DOUTDC9 DOUTDC0 DOUTDB3 DOUTDA9 DOUTDB1 C_UEH DOUTDC2 DOUTDB2 C_NUEL DOUTDB6 DOUTDC1 DOUTDC3 DOUTDA8 DOUTDA2 DOUTDC4 5V_DET4 C_UML DOUTDA6 DOUTDA7 DOUTDB7 DOUTDA1 CLKD0 DOUTDA4 C_URH CLKD1 DOUTDA0 DOUTDB5 DOUTDC8 DOUTDB8 DOUTDA3 DOUTDB0 DOUTDB4 C_USH ODEU_1 SOS8_SS_C L8R_DB15 L8DR_NCLK L8DR_CLK L8L_DA15 L8L_UC05 F_RST R9416 47 EXB38V470JV IC9401 F12 DQ15 IC9401 C9 DQ30 FL9307 J0HABH000013 1 2 3 IC9401 M3 NC R9462 EXB2HV820JV R9572 EXB2HV820JV R9396 EXB2HV820JV IC9401 G11 VDDQ TP9050 C9085 16V 0.1u TP9469 IC9401 B10 DQ28 C9090 16V 0.1u R9404 EXB2HV470JV 47 IC9401 N12 CKE TP9453 P3.3V R9465 10k TP9402 TP9413 IC9401 C8 VDDQ IC9401 G8 VSS_Thermal IC9401 N2 CS IC9401 E3 VDDQ IC9401 H13 DQS1 IC9401 M13 NC C9108 16V 0.1u IC9401 G7 VSS_Thermal TP9425 TP9458 TP9020 IC9401 E5 VSS TP9008 TP9048 IC9401 L2 CAS TP9041 TP9433 R9652 0 TP9528 IC9401 C7 VDDQ TP9392 TP9030 IC9401 E9 VSSQ C9096 16V 0.1u R9653 EXB2HV103JV 10k IC9401 N7 A3 P3.3V IC9401 G5 VSSQ TP9051 IC9401 L7 VDD R9415 47 EXB38V470JV TP9052 IC9401 B8 DQ31 IC9401 L9 NC TP9019 TP9399 IC9401 B6 DQ2 IC9401 G2 DQ19 IC9401 D11 VSSQ IC9401 K4 VDDQ R9421 47 EXB38V470JV TP9002 IC9401 C5 VDDQ C9608 16V 0.1u IC9401 F11 VDDQ IC9401 J11 VDDQ C9087 16V 0.1u C9088 16V 0.1u IC9401 B9 DQ29 IC9401 D8 VDD IC9401 K12 DQ9 TP9432 IC9401 H4 NC C9097 16V 0.1u IC9401 F3 DQ16 IC9602 C0EBE0000066 1 NC 2 SUB 3 GND 5 Vcc 4 Vout IC9401 L8 VDD TP9448 TP9394 TP9447 TP9406 R9491 47 IC9401 F8 VSS_Thermal R9418 47 EXB38V470JV IC9401 D7 VDD C9095 16V 0.1u R9397 EXB2HV820JV TP9431 TP9415 IC9401 B3 DM0 R9576 EXB2HV820JV IC9401 E10 VSS TVRP109-1 IC9304 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 NC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 VSS 28 OE# 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE# 48 A16 IC9401 M11 CK TP9412 IC9401 E4 VDD C9107 16V 0.1u D9303 MA3X152K0L IC9401 G6 VSS_Thermal R9619 4.7k R9492 47 TP9439 P3.3V C9601 16V 0.1u TP9032 TP9035 IC9401 K3 DQ23 R9123 0 TP9005 Q9306 B1ABCF000138 TP9022 C9098 16V 0.1u IC9401 L4 VDD C9099 16V 0.1u IC9401 F6 VSS_Thermal C9104 16V 0.1u TP9441 C9610 16V 0.1u L8L2.5V R9873 TP9037 TP9040 TP9404 C9103 16V 0.1u IC9401 E8 VSS R9620 4.7k 4.7k C9086 16V 0.1u R9494 47 TP9009 IC9401 C4 NC C9105 16V 0.1u IC9401 J7 VSS_Thermal TP9015 R9122 0 IC9401 L10 VSS TP9056 IC9401 B4 VSSQ IC9401 F9 VSS_Thermal R9493 47 IC9401 C2 DQ4 IC9401 H11 NC TP9427 IC9401 F2 DQ17 IC9401 G9 VSS_Thermal TP9016 IC9401 N4 BA0 C0JBAZ002183 IC9603 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 2A1 14 2A2 15 VCC 16 2A3 17 GND 18 2A4 19 2A5 20 2A6 21 2A7 22 2A8 23 2A9 24 2A10 25 2B10 26 2B9 27 2B8 28 2B7 29 2B6 30 2B5 31 2B4 32 GND 33 2B3 34 2B2 35 2B1 36 1B10 37 1B9 38 1B8 39 1B7 40 1B6 41 GND 42 1B5 43 1B4 44 1B3 45 1B2 46 1B1 47 2OE 48 1OE IC9401 J2 DQ21 IC9401 D2 DQ6 IC9401 F5 VSSQ R9490 47 IC9401 D9 VSSQ C9372 50V 0.01u R9488 33 TP9534 IC9401 G3 DQ18 TP9407 IC9401 E2 DQ7 R9489 47 IC9401 J10 VSSQ IC9401 D10 VSSQ IC9401 C11 NC R9124 0 IC9401 K13 DQ8 TP9454 R9394 EXB2HV820JV R9420 47 EXB38V470JV IC9401 K5 VSSQ R9412 47 EXB38V470JV TP9049 TP9526 TP9034 IC9401 L11 VDD P5V TP9036 R9130 1k 1% TP9409 IC9401 D3 DQ5 TP9467 IC9401 B13 DQS3 TP9530 TP9424 IC9401 K2 DQ22 TP9025 IC9401 M9 A5 IC9401 M12 CK TP9024 IC9401 J6 VSS_Thermal IC9401 H9 VSS_Thermal R9464 100k TP9438 IC9401 B7 DQ0 TP9531 R9607 100k C9093 16V 0.1u IC9401 J9 VSS_Thermal C9111 56u 4V TP9017 TP9527 C9109 16V 0.1u IC9401 F10 VSSQ IC9401 C6 DQ1 TP9455 TP9397 TP9013 IC9401 M5 BA1 R9645 0 IC9401 K11 VDDQ IC9401 F7 VSS_Thermal IC9401 L13 NC IC9401 F13 DQ14 TP9003 IC9401 J5 VSSQ TP9042 IC9401 L5 VSS IC9401 K6 VSS L8L2.5V IC9401 H7 VSS_Thermal C9091 16V 0.1u IC9401 K10 VSSQ IC9401 C3ABQJ000051 B2 DQS0 TP9470 R9419 47 EXB38V470JV IC9401 M2 RAS TP9459 TP9043 D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9401 G10 VSSQ Q9303 B1ABCF000138 C9106 16V 0.1u R9606 100 IC9401 D13 DQ25 IC9401 B5 DQ3 C9609 6.3V 10u TP9026 IC9401 J3 DQ20 IC9401 N13 VREF TP9680 FL9000 J0HABH000013 1 2 3 TP9029 IC9401 J8 VSS_Thermal TP9033 TP9463 R9413 47 EXB38V470JV R9573 EXB2HV820JV IC9401 H12 DM1 IC9401 M10 NC IC9401 E13 DQ24 C9101 16V 0.1u IC9401 J13 DQ10 C9102 16V 0.1u TP9028 IC9401 C12 VDDQ IC9401 K7 VSS IC9401 D5 VSSQ R9575 EXB2HV820JV TP9529 IC9401 D4 VSSQ R9414 47 EXB38V470JV R9393 EXB2HV820JV IC9401 N8 A4 IC9401 E12 VDDQ IC9401 M6 A2 IC9401 E11 VDD IC9401 N9 A6 TP9055 R9577 EXB2HV820JV TP9012 P3.3V IC9401 J12 DQ11 IC9401 E6 VSSQ IC9401 K8 VSS TP9421 C9089 16V 0.1u IC9401 J4 VDDQ R9486 33 IC9401 C10 VDDQ IC9401 K9 VSS R9463 4.7k TP9011 TP9023 IC9401 N3 NC IC9401 G13 DQ12 TP9419 R9571 EXB2HV820JV IC9401 H5 VSSQ IC9401 C3 VDDQ IC9401 M7 A11 TP9006 TP9461 TP9014 TP9010 TP9450 IC9401 F4 VDDQ IC9401 H8 VSS_Thermal R9126 1k 1% R9487 150 IC9401 H6 VSS_Thermal IC9401 H2 DQS2 IC9401 H3 DM2 IC9401 H10 VSSQ TP9429 TP9460 P5V IC9401 D12 DQ26 IC9401 N10 A7 IC9401 C13 DQ27 IC9401 B11 VSSQ IC9401 N11 A8/AP IC9401 B12 DM3 R9417 47 EXB38V470JV IC9401 M8 A9 TP9004 TP9001 TP9039 TP9038 TP9435 TP9418 IC9401 E7 VSS L8L2.5V C9110 16V 0.1u IC9401 N5 A0 TP9018 R9395 EXB2HV820JV R9616 0 C9092 16V 0.1u TP9031 TP9027 IC9401 L3 WE IC9401 N6 A1 IC9401 L12 NC IC9401 M4 NC C9094 16V 0.1u IC9401 D6 VSSQ IC9401 G12 DQ13 R9495 47 TP9021 IC9401 L6 A10 IC9401 G4 VDDQ R9125 0 D34 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 DDR-Terminate NC NC GND DOUTUC[29] NC NC DOUTUB[27] DOUTUB[25] DSHR DOUTUB[24] DOUTUC[26] GND DOUTUA[28] P5V DOUTUB[26] DOUTUA[25] GND DOUTUB[22] 5V_DET P5V DMLR GND GND DOUTUA[26] DOUTUC[23] DOUTUC[31] GND GND DOUTUA[22] DOUTUC[28] DOUTUA[24] GND DOUTUA[31] DOUTUA[29] GND CLKU6(+) CLKU7(-) DOUTUA[23] GND DOUTUC[27] P5V NC DSLR ODEU1 DOUTUB[30] GND DOUTUB[28] DOUTUB[31] GND DOUTUA[30] DOUTUB[29] GND DOUTUC[22] CLRU1 DOUTUB[23] LEU1 GND PCU1 DOUTUC[30] DOUTUA[27] DOUTUC[24] DMHR GND GND DOUTUC[25] GND GND DDR-SDRAM R UMH DOUTDC[3] P5V URH CLKD0(+) GND DOUTDB[6] DOUTDA[8] URL USH P5V DOUTDB[7] DOUTDB[0] NC DOUTDB[1] UEH DOUTDB[9] GND DOUTDB[4] DOUTDC[7] GND DOUTDA[2] GND NC DOUTDC[0] NUEL DOUTDA[5] DOUTDA[6] DOUTDA[9] DOUTDC[8] NC DOUTDB[2] GND DRVSOS8 P5V 5V_DET GND DOUTDB[3] GND DOUTDC[6] DOUTDA[1] DOUTDC[9] GND GND DOUTDC[4] DOUTDB[5] DOUTDC[5] DOUTDA[0] CLKD1(-) DOUTDB[8] DOUTDA[7] USL DOUTDC[1] DOUTDA[3] GND NC GND DOUTDA[4] DOUTDC[2] GND UML GND GND GND GND GND GND NC NC FLASH MEMORY BUS SWITCH IC9401 DDR-SDRAM R RESET ! 45 42 44 43 46 41 55 54 52 53 51 48 53 47 49 51 52 54 46 50 (C10) TO C1-BOARD (C55) TO C5-BOARD D-BOARD TNPA3983AX (6/8) TH-65PF10CK D-Board (6 of 8) Schematic Diagram TH-65PF10CK D-Board (6 of 8) Schematic Diagram 83 TH-65PF10CK 11.27.D 电路板 （7/8）线路图 + G G G G G G G G G G G G TERM SIDE L8L_DQ29 L8L_DQ2 L8L_DB03 L8L_BI9 L8L_A8 L8L_UB08 L8L_DC01 L8L_SDIV0 L8L_DA07 L8L_DQ28 L8L_DQ1 L8L_DB02 L8L_RI0 L8L_A7 L8L_UB09 L8L_DC02 L8L_DA06 L8L_DQ27 L8L_DQ0 L8L_DB01 L8L_RI1 L8L_A6 L8L_UB10 L8L_DC03 L8L_DA05 L8L_DQ26 L8L_DB00 L8L_RI4 L8L_A5 L8L_UB11 L8L_DC04 L8L_DA04 L8L_DQ25 L8L_RI2 L8L_UC11 L8L_A4 L8L_DC05 L8L_DA03 L8L_DQ24 L8L_VDI L8L_RI3 L8L_UC10 L8L_A3 L8L_DC06 L8L_DA02 L8L_DQ23 TMS L8L_HDI L8L_RI5 L8L_UC09 L8L_A2 L8L_DC07 L8L_DA01 L8L_DQ22 L8L_RI6 L8L_UC08 L8L_A1 L8L_DC08 L8L_DA00 L8L_DQ21 TCK L8L_GI0 L8L_RI7 L8L_UC07 L8L_A0 L8L_DC09 L8L_DQ20 L8L_GI1 L8L_RI8 L8L_UC06 L8L_DC10 L8L_DQ19 L8L_GI2 L8L_RI9 L8L_UC05 L8L_DC11 L8L_DQ18 L8L_TCKSEL2 L8L_GI3 L8L_UC04 L8L_DQ17 L8L_GI4 L8L_UC03 L8L_DQ16 L8L_RAS L8L_GI5 L8L_UC02 L8L_DQ15 L8L_GI6 L8L_UC01 L8L_DRVCLKD0 L8L_WE L8L_DQ14 L8L_TEST1 L8L_GI7 L8L_UC00 L8L_UA00 L8L_DRVCLKD1 L8L_DQ13 L8L_TEST0 L8L_GI8 L8L_DRVCLKU1 L8L_UA01 L8L_CS L8L_DQ12 L8L_GI9 L8L_DRVCLKU0 L8L_UA02 L8L_DQ11 L8L_BI0 L8L_CAS L8L_UA03 L8L_DQ10 L8L_DB11 L8L_BI1 L8L_SDCKE L8L_UB00 L8L_UA04 L8L_DQ9 SFRST L8L_DB10 L8L_BI2 L8L_NSDCLKO L8L_UB01 L8L_UA05 L8L_DQS3 L8L_DQ8 SFVRST L8L_DB09 L8L_BI3 L8L_SDCLKO L8L_UB02 L8L_UA06 L8L_DQS2 L8L_DQ7 LATCH L8L_DB08 L8L_BI4 L8L_BA1 L8L_UB03 L8L_UA07 L8L_DQS1 L8L_DQ6 FPCLK L8L_DB07 L8L_BI5 L8L_BA0 L8L_UB04 L8L_UA08 L8L_DA11 L8L_DQS0 L8L_DQ5 FPDAT0 L8L_DB06 L8L_BI6 L8L_A11 L8L_UB05 L8L_UA09 L8L_DA10 L8L_DQ31 L8L_DQ4 FPDAT1 L8L_DB05 L8L_BI7 L8L_A10 L8L_UB06 L8L_UA10 L8L_DA09 L8L_DQ30 L8L_DQ3 L8L_MONOUT1 L8L_DB04 L8L_BI8 L8L_SDIV1 L8L_A9 L8L_UB07 L8L_DC00 L8L_UA11 L8L_DA08 L8L_TEST1 L8L_TCKSEL2 L8L_DRVCLKD3 L8L_DRVCLKD2 L8L_DRVCLKU2 L8L_DRVCLKU3 L8L_MASK XRST AA_XCE_L P3V_SDA02 P3V_SCL02 L8L_DCK L8_PCK L8_OCK FULL0 TRST L8L_UB13 L8L_UC15 L8L_DB15 L8L_UB12 L8L_UA12 L8L_UA13 L8L_UC13 L8L_DC15 L8L_UB14 L8L_UA14 L8L_DA15 L8L_UC12 L8L_UB15 L8L_UA15 L8L_DA14 L8L_UC14 L8L_SDIV0 ODEU_2 CLKU5 5V_SENSE L8R_DRVCLKU1 L8L_DRVCLKU2 L8R_DRVCLKU2 D_ODEU1 L8L_DRVCLKU3 CLKU6 D_CLRU1 5V_SENSE D_PCU1 L8R_DRVCLKU3 CLRU_1 L8L_DRVCLKU0 CLKU7 D_LEU1 5V_DET2 PCU_1 CLKU1 LEU_1 D_ODEU2 L8L_DRVCLKU1 D_LEU2 D_PCU2 D_CLRU2 CLKU3 LEU_2 L8R_DRVCLKU0 PCU_2 CLKU4 CLRU_2 ODEU_1 CLKU0 DOUTUC10 DOUTUA21 DOUTUB10 DOUTUA15 DOUTUC21 DOUTUA19 DOUTUC13 DOUTUB12 CLRU_2 CLKU3 PCU_2 DOUTUB15 DOUTUB21 DOUTUC15 DOUTUB11 CLKU2 DOUTUA13 DOUTUB14 DOUTUA17 DOUTUA18 DOUTUC19 DOUTUB20 DOUTUA10 CLKU4 DOUTUC20 CLKU5 DOUTUA14 DOUTUB13 DOUTUB18 DOUTUB19 DOUTUA20 DOUTUA16 5V_DET2 DOUTUC18 DOUTUC16 DOUTUC14 LEU_2 DOUTUA11 DOUTUC11 DOUTUB16 DOUTUC12 DOUTUA12 DOUTUB17 DOUTUC17 5V_DET1 CLKU2 L8L_DA12 L8L_DA13 L8L_DB12 L8L_DB13 L8L_DB14 L8L_DC12 L8L_DC13 L8L_DC14 L8L_TEST0 ODEU_2 SOS7_DRU TDI_TO_68_L TDO_TO_68_R L8L_SDIV1 IC9300 V14 VDD12 IC9300 K9 VSS IC9300 E14 VDD33 IC9300 G2 BI5 IC9300 F21 DRVCLKU2 IC9300 G20 DRVCLKU1 IC9300 U19 DOUTDA02 C9306 0.1u 16V R9602 0 IC9300 J4 ENHMASK IC9300 Y4 AVDD25_2 IC9300 G5 VDD12 Q9300 B1ABCF000138 IC9300 L11 VSS IC9300 A20 DOUTUC04 IC9300 A7 K_TEST IC9300 K21 DOUTDC13 TP9499 L8L2.5V IC9300 V15 VDD12 IC9300 T18 VDD33 IC9300 K20 DOUTDB13 IC9300 M4 PCK L8L3.3V IC9300 L21 DOUTDA11 IC9300 W16 SDIV1 C9323 0.1u 16V IC9300 F18 VSS TP9426 IC9300 AB17 VSS IC9300 B20 DOUTUA03 IC9300 D13 DOUTUC12 TP9483 IC9300 M20 DOUTDA10 IC9300 Y7 A0 IC9300 V1 DQS0 TP9436 IC9300 T3 AVDD25_1 IC9300 H21 DOUTDB15 IC9300 D21 DOUTUB02 IC9300 C5 RI9 IC9300 M10 VSS R9475 10k IC9300 B5 RI5 IC9300 B12 DOUTUC14 IC9300 J22 DOUTDA13 TP9410 C9365 56u 4V IC9300 W17 VSS IC9300 G3 BI4 IC9300 U21 DOUTDB04 IC9300 W22 DOUTDC02 TP9492 C9324 0.1u 16V C9315 0.1u 16V IC9300 A5 RI2 TP9440 TP9449 TP9414 C9305 0.1u 16V IC9300 C8 TEST0 P3.3V C9319 0.1u 16V R9448 22 IC9300 V18 VSS P3.3V IC9300 B13 DOUTUA12 IC9300 Y21 VDD33 IC9300 AB13 DQ10 IC9300 AB15 AVDD33_1 IC9300 C15 DOUTUB09 P3.3V C9301 0.1u 16V FL9304 J0HABH000013 1 2 3 IC9300 N3 TDI IC9300 B10 SFRST R9399 100k IC9300 V12 VDD25 IC9300 C13 DOUTUB12 IC9300 Y15 VSS IC9300 AB7 A6 IC9300 AB19 DOUTDA00 IC9300 AB6 A4 L8L3.3V IC9300 V11 VDD25 TP9398 TP9444 HIN IC9300 R4 DQ16 IC9300 D6 RI7 IC9300 M22 DOUTDC10 R9580 1k 1% IC9300 C21 DOUTUA02 C9370 50V 0.01u J0HABH000013 FL9305 IC9300 AA5 CKE IC9300 AB10 DQ29 TP9053 IC9300 C1 VDD12 IC9300 Y16 SDSEL IC9300 U18 VDD33 IC9300 L14 VSS R9390 2.7k IC9300 J3 MONOUT0 IC9300 E4 VDD12 IC9300 A3 GI0 L8L3.3V C9360 6.3V 10u TP9506 J0HABH000013 FL9306 IC9300 N10 VSS IC9300 C10 SFVRST TP9478 IC9300 L22 DOUTDB11 C9311 0.1u 16V FL9308 J0HABH000013 1 2 3 IC9300 E18 VSS IC9300 P3 DQ19 IC9300 F1 BI3 IC9300 C17 DOUTUA06 IC9300 J10 VSS IC9300 J1 MONOUT2 FL9302 J0HABH000013 1 2 3 R9449 22 IC9300 D11 DOUTUA15 IC9300 K19 DOUTDC14 IC9300 AB8 A7 IC9300 AA1 VDD25 IC9300 B15 DOUTUB10 C9355 0.1u 16V IC9300 J9 VSS IC9300 AA12 DQS3 IC9300 W11 DQ25 IC9300 D5 GI2 IC9300 W13 DQ15 C9309 0.1u 16V IC9300 K13 VSS IC9300 AA20 DOUTDA01 C9369 50V 0.01u IC9300 AA14 DQ9 IC9300 T19 DOUTDC04 IC9300 P14 VSS IC9300 R20 DOUTDB06 IC9300 AA22 VSS C9368 16V 0.1u TP9504 TP9403 R9445 22 IC9300 V2 DQ3 IC9300 H18 VDD33 TP9443 VIN L8L3.3V IC9300 A14 DOUTUA11 IC9300 B1 VSS IC9300 N5 VDD33 IC9300 AA8 A5 C9316 0.1u 16V IC9300 B7 TEST1 IC9300 R22 DOUTDC07 TP9532 IC9300 N9 VSS IC9300 N21 DOUTDA08 C9304 0.1u 16V IC9300 E21 DOUTUA00 C9313 0.1u 16V IC9300 K14 VSS IC9300 K11 VSS IC9300 J2 MONOUT1 TP9485 TP9408 Q9301 B1ABCF000138 IC9300 AA4 VREF C9303 0.1u 16V IC9300 V3 DQ4 IC9300 M2 FULL0 IC9300 C7 RI0 IC9300 A12 DOUTUB14 IC9300 T4 DQ7 IC9300 T2 DQ20 IC9300 G1 BI6 IC9300 V5 VSS IC9300 AB20 DOUTDB01 R9367 180 IC9300 E9 VDD33 IC9300 U5 VDD25 IC9300 R18 VDD33 IC9300 D20 DOUTUB03 IC9300 Y3 VSS IC9300 T22 DOUTDC06 TP9490 C9321 0.1u 16V IC9300 V9 VSS IC9300 N11 VSS P1.2V C9300 0.1u 16V IC9300 AA16 AVSS2 IC9300 B22 VSS R9581 1k 1% TP9445 IC9300 Y22 VDD33 IC9300 R19 DOUTDA05 IC9300 W12 AVDD25_4 IC9300 A21 VSS P5V IC9300 P13 VSS IC9300 Y9 A3 IC9300 P11 VSS IC9300 Y13 DQ14 IC9300 Y11 DQ24 IC9300 E12 VDD33 IC9300 V17 VDD33 IC9300 W8 A2 TP9405 IC9300 V10 VDD25 IC9300 B2 VSS IC9300 U1 DQS2 IC9300 B18 DOUTUB06 IC9300 K5 VDD33 TP9502 IC9300 P19 DOUTDB07 TP9423 IC9300 B3 GI1 IC9300 M18 VDD12 IC9300 AB14 DQ8 IC9300 U20 DOUTDB03 IC9300 J11 VSS IC9300 Y2 VDD25 IC9300 E5 VSS IC9300 E6 VSS IC9300 H22 DOUTDA14 IC9300 C9 ROMCE IC9300 Y17 VSS C9310 0.1u 16V IC9300 D9 TCKSEL1 IC9300 E3 GI5 IC9300 R1 DQ22 IC9300 K1 DCK C9359 0.1u 16V L8L2.5V IC9300 M19 DOUTDC11 IC9300 AA19 DOUTDC01 IC9300 W6 NWE IC9300 W15 TCPOUT IC9300 E7 VDD12 IC9300 F22 DRVCLKD3 IC9300 F19 DOUTUA01 IC9300 U22 DOUTDC05 IC9300 K2 VDI IC9300 L1 SCL IC9300 B19 DOUTUA04 IC9300 A8 TCKSEL0 IC9300 Y12 AVSS_4 IC9300 D10 FPDAT0 IC9300 J21 DOUTDB14 IC9300 F20 DOUTUB00 IC9300 D15 DOUTUB08 TP9477 IC9300 P20 DOUTDA07 IC9300 C14 DOUTUC11 IC9300 B11 DOUTUC15 TP9416 IC9300 D4 VSS IC9300 AA17 SDIV0 IC9300 W1 DQ2 IC9300 E13 VDD33 IC9300 C6 RI4 TP9479 IC9300 B9 FPCLK IC9300 B21 VSS IC9300 L3 ID1 IC9300 N18 VDD12 IC9300 J13 VSS IC9300 Y10 DQ26 IC9300 F4 GI7 R9574 0 IC9300 A13 DOUTUC13 IC9300 G19 DOUTUC00 TP9533 L8L3.3V IC9300 J14 VSS IC9300 B6 RI1 TP9395 IC9300 Y19 VSS C9356 0.1u 16V IC9300 R5 VDD25 TP9437 IC9300 W20 VDD33 IC9300 A11 DOUTUA14 IC9300 L2 ID0 IC9300 B17 DOUTUA07 IC9300 H1 MUTE TP9480 IC9300 D19 VSS IC9300 T20 DOUTDA04 IC9300 L18 VDD12 TP9422 IC9300 AA2 VSS IC9300 AA15 AVSS1 C9318 0.1u 16V IC9300 C19 DOUTUB04 IC9300 E19 DOUTUC03 IC9300 N19 DOUTDB09 C9363 6.3V 10u IC9300 F5 VDD12 IC9300 Y8 A1 R9400 10k C9312 0.1u 16V IC9300 L19 DOUTDB12 IC9300 K18 VDD33 IC9300 AB4 BA0 C9358 0.1u 16V IC9300 T1 DQ21 TP9428 IC9300 D7 RI3 L8L3.3V IC9300 Y18 VSS IC9300 C3 VSS IC9300 M3 FULL1 IC9300 W18 VSS IC9300 U4 DQ5 C9325 0.1u 16V IC9300 W2 DQ1 IC9300 L13 VSS IC9300 M11 VSS D9301 MA3X152K0L R9444 22 IC9300 V7 VDD25 IC9300 A9 FPDAT1 IC9300 V8 VDD25 IC9300 T5 AVSS_2 IC9300 J5 VDD12 R9451 100k IC9300 C2 VDD12 L8L3.3V IC9300 G18 VSS IC9300 N22 DOUTDA09 IC9300 V21 DOUTDC03 IC9300 A22 VSS R9391 2.7k TP9411 IC9300 AB1 VSS IC9300 B16 DOUTUC09 IC9300 P5 VDD33 IC9300 AA18 DOUTDB00 IC9300 L4 TIIC IC9300 H5 VDD12 IC9300 H2 BI9 IC9300 J18 VDD33 IC9300 AA7 A9 IC9300 W5 AVDD25_3 TP9451 IC9300 A10 SFLATCH IC9300 N2 TCK R9450 4.7k TP9396 IC9300 E20 DOUTUC02 L8L2.5V IC9300 V13 VDD12 IC9300 E2 GI8 IC9300 P2 XRST IC9300 D22 DOUTUC01 IC9300 K12 VSS IC9300 E10 VDD33 R9452 10k R9603 10k IC9300 D2 GI4 P2.5V TP9446 R9447 22 IC9300 E16 VDD12 IC9300 L10 VSS IC9300 AB22 VSS L8L1.2V IC9300 G4 BI2 IC9300 AB18 DOUTDC00 IC9300 W14 DQ13 C9308 0.1u 16V TP9488 TP9400 TP9434 IC9300 AB3 NCK IC9300 R21 DOUTDA06 IC9300 Y5 NCAS R9579 0 R9442 22 IC9300 V22 DOUTDA03 C9322 0.1u 16V IC9300 C12 DOUTUB13 IC9300 T21 DOUTDB05 IC9300 J20 DOUTDC15 IC9300 E1 BI0 IC9300 N20 DOUTDC09 IC9300 E8 VDD12 R9446 22 IC9300 R3 DQ17 IC9300 AB9 VDD25 IC9300 AA13 DQ11 IC9300 Y6 NRAS IC9300 C4 GI3 IC9300 C18 DOUTUB05 IC9300 AB11 DQ28 IC9300 M1 TILD IC9300 U2 AVSS_1 TP9497 IC9300 M21 DOUTDB10 TP9417 IC9300 L12 VSS R9398 4.7k IC9300 L9 VSS IC9300 V6 AVSS_3 IC9300 AA11 DQ30 IC9300 A4 RI6 IC9300 U3 DQ6 C9364 6.3V 10u IC9300 K3 SDA IC9300 H3 BI8 IC9300 D3 VDD12 C9314 0.1u 16V IC9300 M9 VSS IC9300 F3 GI9 IC9300 M12 VSS TP9476 IC9300 W10 DQ27 IC9300 D18 DOUTUC05 TP9420 IC9300 AA21 VSS C9317 0.1u 16V IC9300 F2 BI1 FL9303 J0HABH000013 1 2 3 C9361 6.3V 10u IC9300 E17 VSS IC9300 MN84521A-A A1 VSS IC9300 W19 VSS IC9300 B8 TCKSEL2 IC9300 AA6 A11 C9307 0.1u 16V L8L3.3V C9302 0.1u 16V IC9300 P18 VDD33 IC9300 L5 VDD33 IC9300 D16 DOUTUC07 IC9300 D8 OCK IC9300 V16 VDD33 IC9300 H19 DRVCLKU0 IC9300 A18 DOUTUB07 IC9300 W7 NCS TP9494 IC9300 AB21 VSS IC9300 N4 TMS IC9300 P10 VSS IC9300 P1 TDO IC9300 E15 VDD12 IC9300 M14 VSS IC9300 K22 DOUTDA12 C9320 0.1u 16V C9357 0.1u 16V IC9300 P22 DOUTDB08 D9300 MA3X152K0L IC9300 AB16 AVDD33_2 IC9300 R2 DQ23 IC9300 C16 DOUTUC08 IC9300 V4 VDD25 IC9300 M13 VSS C9362 6.3V 10u IC9300 N14 VSS IC9300 E22 DRVCLKU3 IC9300 A15 DOUTUA10 TP9472 IC9300 A16 DOUTUA09 L8L2.5V IC9300 C11 DOUTUB15 IC9300 H4 BI7 IC9300 N13 VSS IC9300 AA3 CK IC9300 Y14 DQ12 D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9300 P9 VSS IC9300 Y20 VSS IC9300 K10 VSS IC9300 A17 DOUTUA08 IC9300 AA10 DQ31 IC9300 B4 RI8 IC9300 D12 DOUTUA13 TP9486 L8L3.3V IC9300 W3 VDD25 R9443 22 IC9300 P21 DOUTDC08 IC9300 L20 DOUTDC12 IC9300 E11 VDD33 IC9300 V19 VDD33 IC9300 K4 HDI IC9300 A2 VSS IC9300 V20 DOUTDB02 IC9300 W4 VSS IC9300 N12 VSS IC9300 AB12 DQS1 IC9300 AB2 VSS IC9300 A19 DOUTUA05 IC9300 AB5 BA1 IC9300 G21 DRVCLKD2 R9389 2.7k IC9300 C20 VSS IC9300 M5 VDD33 TP9430 IC9300 J19 DOUTDA15 IC9300 N1 TRST IC9300 W9 A10 IC9300 P4 DQ18 IC9300 C22 DOUTUB01 IC9300 D17 DOUTUC06 IC9300 W21 VDD33 IC9300 P12 VSS IC9300 G22 DRVCLKD0 IC9300 Y1 DQ0 IC9300 D1 GI6 L8L1.2V IC9300 D14 DOUTUC10 IC9300 H20 DRVCLKD1 IC9300 J12 VSS TP9393 IC9300 B14 DOUTUB11 IC9300 A6 OCKOUT IC9300 F6 VSS IC9300 AA9 A8 R9409 EXB38V820JV R9410 EXB38V820JV MN84521A-A Left from FPGA1 IIC from DISCHARGE CONTROL FPGA to DDR rromdata[00] rromdata[01] rromdata[02] rromdata[03] rromdata[04] rromdata[07] rromdata[10] rromdata[13] rromdata[05] rromdata[08] rromdata[11] rromdata[14] rromdata[06] rromdata[09] rromdata[12] rromdata[15] rromadrs[00] rromadrs[01] rromadrs[04] rromadrs[07] rromadrs[10] rromadrs[13] rromadrs[16] rromadrs[19] rromadrs[03] rromadrs[06] rromadrs[09] rromadrs[12] rromadrs[15] rromadrs[18] rromadrs[02] rromadrs[05] rromadrs[08] rromadrs[11] rromadrs[14] rromadrs[17] rromadrs[20] DOUTUB[10] DOUTUB[17] GND DOUTUB[16] GND GND DOUTUC[15] P5V GND DOUTUA[16] ODEU2 LEU2 DOUTUC[19] DOUTUC[12] DOUTUA[10] GND GND GND DOUTUA[17] DOUTUA[12] GND CLKU4(+) DOUTUA[11] DOUTUC[10] GND DOUTUB[11] GND DOUTUB[12] DOUTUC[14] DOUTUC[11] DOUTUC[21] DOUTUC[16] DOUTUB[20] DOUTUC[13] DOUTUB[19] CLKU5(-) DOUTUA[14] GND DOUTUA[19] DOUTUC[20] DOUTUA[15] DOUTUB[15] GND GND DOUTUA[20] DOUTUC[18] DOUTUA[18] DOUTUC[17] P5V DOUTUA[13] DOUTUB[21] PCU2 DOUTUB[18] DOUTUB[13] CLRU2 5V_DET CLKU2(+) GND GND GND DOUTUA[21] GND P5V DOUTUB[14] GND NC CLKU3(-) DRV_SOS7 IC9300 ! 54 53 55 52 51 63 62 61 58 60 62 59 56 61 55 63 57 PLASMA AI/SUB FIELD PROCESSOR/DATA DRIVER FORMAT CONVERTER/RGB PROCESSOR (C24) TO C2-BOARD D-BOARD TNPA3983AX (7/8) TH-65PF10CK D-Board (7 of 8) Schematic Diagram TH-65PF10CK D-Board (7 of 8) Schematic Diagram 84 TH-65PF10CK 11.28.D 电路板 （8/8）线路图 + G G TERM SIDE L8DL_DQS3 L8L_SDCKE L8L_DQ28 L8DL_NCAS L8DL_DQ22 L8DL_DQ25 L8DL_NRAS L8DL_DQ31 L8DL_A1 L8L_DQ12 L8DL_DQ11 L8DL_DQ4 L8L_DQS1 L8L_DQ17 L8L_A10 L8L_DQ25 L8L_DQS0 L8DL_A3 L8L_DQ10 L8DL_DQ21 L8L_CS L8L_DQ16 L8DL_DQS0 L8L_DQ24 L8DL_A4 L8DL_DQ9 L8L_DQ22 L8L_A3 L8DL_DQ13 L8L_DQ20 L8L_DQ4 L8L_SDCLKO L8L_BA0 L8L_DQ27 L8L_DQ19 L8L_NSDCLKO L8DL_DQ1 L8L_DQ3 L8L_DQ0 L8DL_DQ19 L8L_A2 L8L_DQ18 L8DL_DQ6 L8L_DQ9 L8DL_NCS L8DL_A7 L8DL_DQS1 L8DL_A6 L8L_DQS3 L8DL_DQ0 L8L_DQ5 L8DL_DQ15 L8DL_A8 L8DL_DQ30 L8DL_DQ8 L8L_A8 L8DL_DQ5 L8L_DQ23 L8DL_DQ24 L8L_BA1 L8DL_DQ14 L8DL_DQ10 L8L_CAS L8DL_A9 L8DL_DQ29 L8DL_BA1 L8L_DQ6 L8DL_CKE L8L_A7 L8DL_A10 L8L_DQ30 L8L_A9 L8L_DQ2 L8DL_DQS2 L8L_DQ21 L8DL_DQ23 L8DL_DQ27 L8L_A4 L8L_DQ29 L8DL_DQ16 L8L_WE L8DL_DQ26 L8L_A6 L8L_DQ15 L8DL_A0 L8L_DQ8 L8DL_DQ3 L8L_A11 L8DL_DQ7 L8DL_A11 L8L_DQ7 L8L_DQ1 L8L_DQS2 L8DL_DQ28 L8DL_DQ12 L8L_DQ13 L8L_A5 L8L_DQ26 L8DL_BA0 L8L_A0 L8DL_A2 L8L_DQ31 L8DL_DQ18 L8L_DQ11 L8L_DQ14 L8DL_DQ2 L8DL_NWE L8DL_A5 L8DL_DQ17 L8L_RAS L8L_A1 L8DL_DQ20 DOUTUA8 DOUTUA13 DOUTUC4 DOUTUA1 L8L_UC09 DOUTUA12 L8L_UA01 DOUTUA4 L8L_UC07 DOUTUC0 DOUTUB0 DOUTUB3 DOUTUB15 DOUTUC3 L8L_UB07 DOUTUC11 DOUTUA15 DOUTUC1 L8L_UC06 DOUTUA2 L8L_UB02 5V_DET3 L8L_UA09 DOUTUB8 DOUTUC14 DOUTUB13 L8L_UB11 L8L_UC11 L8L_UC03 L8L_UB10 DOUTUC9 DOUTUB4 L8L_UC00 L8L_UA02 DOUTUC12 L8L_UA07 DOUTUC10 L8L_UC01 L8L_UC05 DOUTUA11 L8L_UA13 DOUTUB10 L8L_UA10 L8L_UA11 DOUTUA0 DOUTUB6 L8L_UA04 DOUTUB1 L8L_UA00 DOUTUA5 DOUTUB12 DOUTUB14 DOUTUC8 5V_SENSE DOUTUA7 DOUTUC15 L8L_UB05 DOUTUC5 DOUTUA14 DOUTUB9 L8L_UB01 DOUTUA9 DOUTUB7 DOUTUB11 DOUTUC13 DOUTUC7 DOUTUB5 DOUTUA3 L8L_UC02 DOUTUC6 L8L_UB00 DOUTUA10 DOUTUC2 DOUTUA6 L8L_UC08 L8L_UA08 L8L_UB12 L8L_UA12 L8L_UC15 L8L_UB15 L8L_UA15 L8L_UC14 L8L_UB14 L8L_UA14 DOUTUB1 DOUTUA9 DOUTUA8 DOUTUB6 DOUTUB2 DOUTUA1 DOUTUA2 DOUTUC3 DOUTUC8 DOUTUA5 DOUTUB9 DOUTUA7 DOUTUB5 DOUTUB3 DOUTUC7 DOUTUA6 DOUTUA3 DOUTUC5 DOUTUC6 DOUTUC0 CLKU0 DOUTUB7 DOUTUC1 5V_DET3 CLKU1 DOUTUA0 DOUTUC4 DOUTUB4 DOUTUB8 DOUTUB0 DOUTUA4 DOUTUC2 DOUTUC9 DOUTUB2 L8DL_DQ26 L8DL_DQ11 L8DL_DQS2 L8DL_DQ0 L8DL_DQ7 L8DL_DQ12 L8DL_DQ24 L8DL_A1 L8DL_A10 L8DL_A11 L8DL_A9 L8DL_A5 L8DL_A6 L8DL_BA0 L8DL_CLK L8DL_DQ28 L8DL_DQ22 L8DL_DQ23 L8DL_DQ3 L8DL_DQ17 L8DL_DQ21 L8DL_CKE L8DL_DQ25 L8DL_DQ29 L8DL_NWE L8DL_DQ19 L8DL_DQ8 L8DL_DQ1 L8DL_DQ31 L8DL_DQ4 L8DL_DQ18 L8DL_A4 L8DL_DQ20 L8DL_A2 L8DL_DQ30 L8DL_DQ14 L8DL_A3 L8DL_DQS0 L8DL_DQ13 L8DL_DQ5 L8DL_NCLK L8DL_DQ2 L8DL_NCS L8DL_NRAS L8DL_DQ6 L8DL_A7 L8DL_A0 L8DL_BA1 L8DL_NCAS L8DL_DQS1 L8DL_DQ27 L8DL_DQS3 L8DL_DQ9 L8DL_DQ16 L8DL_DQ10 L8DL_A8 L8DL_DQ15 L8L_UC13 L8L_UB13 L8L_UC12 L8L_UC10 L8L_UB09 L8L_UB08 L8L_UB06 L8L_UA06 L8L_UB04 L8L_UC04 L8L_UA05 L8L_UB03 L8L_UA03 L8DL_CLK L8DL_NCLK TP9524 IC9301 H6 VSS_Thermal IC9301 M3 NC R9456 EXB2HV820JV TP9054 IC9301 L4 VDD IC9301 B5 DQ3 IC9301 J12 DQ11 TP9505 IC9301 J13 DQ10 IC9301 B4 VSSQ TP9496 IC9301 K4 VDDQ TP9518 TP9521 IC9301 C2 DQ4 C9066 16V 0.1u TP9484 IC9301 N11 A8/AP IC9301 D6 VSSQ R9118 1k 1% R9597 47 IC9301 L13 NC R9374 47 EXB38V470JV R9589 47 EXB38V470JV IC9301 D12 DQ26 IC9301 H7 VSS_Thermal R9588 47 EXB38V470JV C9069 16V 0.1u IC9301 M13 NC IC9301 B10 DQ28 IC9301 L10 VSS IC9301 G8 VSS_Thermal IC9301 J8 VSS_Thermal R9117 0 IC9301 J6 VSS_Thermal IC9301 D8 VDD ZA9001 K4CD01000011 TP9536 IC9301 F4 VDDQ L8L2.5V C9080 16V 0.1u R9587 47 EXB38V470JV P3.3V IC9301 C7 VDDQ D9302 MA3X152K0L TP9510 IC9301 B7 DQ0 IC9301 L11 VDD C9084 56u 4V R9455 EXB2HV820JV TP9462 R9116 0 IC9301 E11 VDD TP9491 IC9301 B6 DQ2 TP9501 IC9301 H4 NC IC9301 D10 VSSQ IC9301 M10 NC R9461 10k IC9301 B3 DM0 R9459 4.7k IC9301 N9 A6 IC9301 J3 DQ20 IC9301 G3 DQ18 R9371 EXB2HV470JV 47 IC9301 N3 NC IC9301 C3 VDDQ IC9301 D5 VSSQ R9372 47 IC9301 J7 VSS_Thermal R9119 1k 1% R9460 100k R9596 47 IC9301 C3ABQJ000051 B2 DQS0 IC9301 E6 VSSQ TP9507 IC9301 H11 NC TP9515 IC9301 F3 DQ16 R9598 47 IC9301 N8 A4 L8L2.5V IC9301 B8 DQ31 TP9498 Q9302 B1ABCF000138 IC9301 B13 DQS3 IC9301 G7 VSS_Thermal TP9512 R9595 47 EXB38V470JV IC9301 G4 VDDQ IC9301 K7 VSS IC9301 G11 VDDQ IC9301 N6 A1 C9064 16V 0.1u IC9301 C6 DQ1 IC9301 F11 VDDQ TP9481 C9075 16V 0.1u IC9301 G10 VSSQ R9592 47 EXB38V470JV IC9301 B11 VSSQ IC9301 M8 A9 C9071 16V 0.1u TP9471 TP9537 IC9301 F9 VSS_Thermal IC9301 F2 DQ17 C9059 16V 0.1u IC9301 B9 DQ29 C9083 16V 0.1u IC9301 N10 A7 C9063 16V 0.1u IC9301 J10 VSSQ IC9301 H2 DQS2 TP9474 IC9301 E12 VDDQ IC9301 K2 DQ22 C9082 16V 0.1u R9453 EXB2HV820JV IC9301 G6 VSS_Thermal TP9495 C9068 16V 0.1u TP9522 IC9301 C13 DQ27 IC9301 J11 VDDQ IC9301 J2 DQ21 IC9301 M9 A5 FL9309 J0HABH000013 1 2 3 IC9301 D7 VDD IC9301 F6 VSS_Thermal TP9539 IC9301 C10 VDDQ C9078 16V 0.1u IC9301 L5 VSS IC9301 K11 VDDQ TP9538 R9594 47 EXB38V470JV TP9540 R9586 47 IC9301 L9 NC IC9301 C4 NC TP9493 TP9535 TP9468 R9584 33 R9454 EXB2HV820JV R9375 150 IC9301 N13 VREF IC9301 D2 DQ6 IC9301 G5 VSSQ TP9513 R9114 0 IC9301 E4 VDD R9593 47 EXB38V470JV C9079 16V 0.1u IC9301 K12 DQ9 D33 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 IC9301 E9 VSSQ IC9301 G13 DQ12 IC9301 E10 VSS IC9301 H13 DQS1 IC9301 K13 DQ8 IC9301 E2 DQ7 IC9301 F13 DQ14 IC9301 L7 VDD R9585 47 IC9301 H10 VSSQ TP9487 IC9301 M5 BA1 IC9301 E7 VSS R9591 47 EXB38V470JV IC9301 K10 VSSQ IC9301 L6 A10 C9072 16V 0.1u IC9301 C11 NC IC9301 F12 DQ15 IC9301 E13 DQ24 IC9301 J4 VDDQ IC9301 G12 DQ13 IC9301 G9 VSS_Thermal TP9519 IC9301 J9 VSS_Thermal IC9301 E8 VSS C9070 16V 0.1u TP9489 P5V TP9482 IC9301 M6 A2 IC9301 N7 A3 IC9301 K8 VSS R9599 47 TP9511 R9458 EXB2HV820JV TP9523 TP9500 IC9301 N2 CS TP9503 IC9301 L2 CAS TP9514 IC9301 L3 WE C9073 16V 0.1u IC9301 M7 A11 R9373 33 IC9301 C5 VDDQ IC9301 H9 VSS_Thermal IC9301 K3 DQ23 TP9452 IC9301 C12 VDDQ IC9301 D3 DQ5 IC9301 H5 VSSQ IC9301 F10 VSSQ IC9301 D9 VSSQ IC9301 N12 CKE IC9301 G2 DQ19 TP9517 C9076 16V 0.1u C9061 16V 0.1u TP9466 IC9301 H8 VSS_Thermal IC9301 C9 DQ30 IC9301 H3 DM2 TP9520 C9060 16V 0.1u TP9475 C9081 16V 0.1u TP9509 IC9301 H12 DM1 IC9301 D11 VSSQ IC9301 C8 VDDQ IC9301 F7 VSS_Thermal IC9301 M11 CK IC9301 M12 CK C9074 16V 0.1u TP9473 IC9301 J5 VSSQ IC9301 L12 NC R9590 47 EXB38V470JV R9457 EXB2HV820JV TP9516 IC9301 K9 VSS IC9301 F5 VSSQ IC9301 M4 NC IC9301 L8 VDD IC9301 D4 VSSQ L8L2.5V TP9525 C9067 16V 0.1u C9371 50V 0.01u C9062 16V 0.1u IC9301 K5 VSSQ IC9301 N4 BA0 IC9301 N5 A0 C9065 16V 0.1u IC9301 E5 VSS IC9301 E3 VDDQ IC9301 M2 RAS R9115 0 IC9301 F8 VSS_Thermal IC9301 B12 DM3 IC9301 K6 VSS C9077 16V 0.1u TP9508 IC9301 D13 DQ25 DDR-Terminate DOUTUA[3] DOUTUC[3] CLKU1(-) GND DOUTUC[1] NC DOUTUB[6] DSLL DOUTUA[7] GND DOUTUA[2] DOUTUA[6] NC GND P5V GND NC DOUTUA[9] DOUTUB[1] DOUTUC[9] GND GND DOUTUA[5] P5V GND GND GND GND GND GND GND GND DOUTUA[4] DOUTUB[7] NC DSHL NC CLKU0(+) DOUTUC[7] 5V_DET DOUTUC[0] GND DOUTUB[3] P5V GND DOUTUB[5] DOUTUA[0] DOUTUB[8] DOUTUA[1] GND DOUTUB[0] DOUTUB[4] DOUTUC[8] DOUTUA[8] DOUTUC[4] DOUTUB[9] DMLL GND DOUTUC[6] DOUTUC[5] DOUTUC[2] DMHL DOUTUB[2] DDR-SDRAM L NC NC NC NC NC IC9301 DDR-SDRAM L ! 63 61 62 67 69 71 65 68 70 64 72 66 (C25) TO C2-BOARD D-BOARD TNPA3983AX (8/8) TH-65PF10CK D-Board (8 of 8) Schematic Diagram TH-65PF10CK D-Board (8 of 8) Schematic Diagram 85 TH-65PF10CK 11.29.C1 电路板 （1/2）线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE LE1 AB_DUA30 AB_DUB30 AB_DUC30 AB_DUB31 AB_DUC31 AB_PCU1 LE1 AB_DUA30 AB_DUB30 AB_DUC30 AB_DUA31 AB_DUB31 AB_DUC31 AB_PCU1 LE3 AB_DUA26 AB_DUB26 AB_DUC26 AB_DUA27 AB_DUB27 AB_DUC27 AB_PCU1 LE3 AB_DUA26 AB_DUB26 AB_DUC26 AB_DUA27 AB_DUB27 AB_DUC27 AB_PCU1 LE2 AB_DUA28 AB_DUB28 AB_DUC28 AB_DUA29 AB_DUB29 AB_DUC29 AB_PCU1 LE2 AB_DUA28 AB_DUB28 AB_DUC28 AB_DUA29 AB_DUB29 AB_DUC29 AB_PCU1 LE4 AB_DUA24 AB_DUB24 AB_DUC24 AB_DUA25 AB_DUB25 AB_DUC25 AB_PCU1 LE4 AB_DUA24 AB_DUB24 AB_DUC24 AB_DUA25 AB_DUB25 AB_DUC25 AB_PCU1 AB_DUA31 AB_CLK61R AB_NCLK71R AB_CLK61R AB_NCLK71R AB_CLK62R AB_NCLK72R AB_CLK62R AB_NCLK72R AB_CLK63R AB_NCLK73R AB_PCU1 AB_DUA22 AB_PCU1 AB_DUC23 LE5 AB_DUB23 AB_DUC23 AB_DUA23 AB_DUB23 AB_DUC22 AB_DUA23 AB_DUB22 AB_DUC22 AB_DUA22 AB_DUB22 LE5 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_CLRU1 AB_ODEU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 AB_CLRU1 AB_ODEU1 C7150 50V 100p C7186 16V 1u C7173 100V 0.47u D7114 B0HCMM000014 C7187 16V 1u D7112 B0HCMM000014 D7118 B0HCMM000014 C7152 50V 100p VDA_75V R7133 47 C1_5V R7117 47 VDA_75V R7116 47 R7123 47 C7115 100V 0.47u D7117 B0HCMM000014 C7176 16V 1u C7102 16V 1u D7111 B0HCMM000014 C7185 16V 1u D7113 B0HCMM000014 C7184 16V 1u C7111 50V 100p R7134 47 D7119 B0HCMM000014 R7135 47 C1_5V C1_5V R7104 47 D7116 B0HCMM000014 R7140 47 C7125 16V 1u D7120 B0HCMM000014 C1_5V C7110 100V 0.47u C7101 16V 1u C7113 50V 100p R7107 47 VDA_75V C7170 50V 100p C7109 100V 0.47u D7115 B0HCMM000014 C7118 100V 0.47u C7183 16V 1u C1_5V R7124 47 VDA_75V VDA_75V C7126 16V 1u CA2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7101 10k C7107 100V 0.47u C7108 100V 0.47u C7117 100V 0.47u C7116 100V 0.47u C7172 100V 0.47u R7132 6.8 R7114 6.8 R7109 6.8 R7110 6.8 R7113 6.8 R7139 6.8 R7126 6.8 R7128 6.8 R7137 6.8 R7131 6.8 R7127 6.8 R7125 6.8 R7108 6.8 R7112 6.8 R7130 6.8 R7136 6.8 R7115 6.8 R7138 6.8 R7129 6.8 R7111 6.8 VDD2 VDD2 VDD2 VDD2 GND GND GND GND A2 A6 NC A3 NC NC GND DM NC GND GND VDD2 GND NC GND VDD1 GND FX GND GND A3 VDD2 A4 VDD2 VDD2 FS VDD1 VDD2 FDET1 FDET NC BLK NC A1 VDD1 VDD1 BLK FS NC NC NC NC A2 NC FX A6 DM LEN VDD2 A5 VDD2 VDD2 A5 A4 A1 LEN GND GND GND GND VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 VDD2 BLK GND FDET GND FX VDD2 FS VDD2 A4 VDD2 DM VDD1 A5 GND NC VDD2 VDD2 VDD2 NC VDD2 GND A2 GND GND GND A2 A6 FS NC A1 LEN A3 NC NC GND DM NC NC GND GND VDD1 VDD2 GND NC BLK GND A6 VDD1 VDD2 GND FX FDET1 A1 NC VDD2 A4 GND GND VDD2 GND NC NC LEN A5 A3 NC VDD1 BLK GND FDET1 NC VDD1 VDD2 LEN A3 A1 NC NC GND VDD2 GND NC VDD2 DM VDD2 GND A2 VDD2 GND A4 A2 NC GND NC GND VDD2 VDD1 NC A6 FX GND FS LEN NC VDD1 VDD2 GND A5 GND VDD2 FDET A6 NC A4 GND A3 FS NC VDD2 A1 NC GND VDD1 DM FX GND VDD2 NC GND GND VDD2 BLK VDD2 A5 GND 4 8 D B 2 7 3 C 6 F 5 E 1 9 A 2 1 C1-BOARD TNPA4003 (1/2) ! TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TH-65PF10CK C1-Board (1 of 2) Schematic Diagram TH-65PF10CK C1-Board (1 of 2) Schematic Diagram 86 TH-65PF10CK 11.30.C1 电路板 （2/2）线路图 SIDE TERM G G TERM SIDE AB_DUA23 AB_DUC23 AB_DUC22 AB_DUB23 AB_DUB22 AB_DUA22 AB_DUA27 AB_DUC26 AB_DUB26 AB_DUA26 AB_DUC29 AB_DUB29 AB_DUB25 AB_DUA25 AB_DUC24 AB_DUB24 AB_DUA24 AB_DUB28 AB_DUA28 AB_DUC31 AB_DUB31 AB_DUA31 AB_DUC30 AB_NCLK71R AB_CLK62R AB_NCLK72R AB_DUC27 AB_DUB27 AB_DUA29 AB_DUC28 AB_DUB30 AB_DUA30 LE1 LE2 LE3 LE4 AB_PCU1 LE5 AB_CLRU1 AB_ODEU1 AA_DUB22 AA_DUA22 AA_DUC23 AA_DUB23 AA_DUA23 AA_DUC22 AA_ODEU1 AA_CLRU1 AA_PCU1 AA_LEU1 AA_DUA22 AA_DUB22 AA_DUC22 AA_DUA23 AA_DUB23 AA_DUC23 AA_DUA24 AA_DUB24 AA_DUC24 AA_DUA25 AA_DUB25 AA_DUC25 AA_DUA26 AA_DUB26 AA_DUC26 AA_DUA27 AA_DUB27 AA_DUC27 AA_CLK6R AA_NCLK7R AA_DUA28 AA_DUB28 AA_DUC28 AA_DUA29 AA_DUB29 AA_DUC29 AA_DUA30 AA_DUB30 AA_DUC30 AA_DUA31 AA_DUB31 AA_DUC31 AA_CLRU1 AA_PCU1 AA_LEU1 AA_ODEU1 AB_CLK61R AB_DUC25 AA_DUC27 AA_DUC24 AA_DUB27 AA_DUB24 AA_DUC25 AA_DUB25 AA_DUA24 AA_DUA25 AA_DUB29 AA_DUC26 AA_DUB26 AA_DUC28 AA_DUA29 AA_DUC29 AA_DUA26 AA_DUA27 AA_DUA30 AA_DUA31 AA_DUB31 AA_DUC30 AA_DUB30 AA_DUC31 AA_DUA28 AA_DUB28 AA_CLK6R AA_NCLK7R AB_NCLK73R AB_CLK63R C1_5V R7158 EXB38V470JV 47 R7154 EXB38V470JV 47 R7159 EXB38V470JV 47 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7151 EXB38V470JV 47 R7156 EXB38V681JV R7193 EXB38V681JV C1_5V VDA_75V C7130 16V 0.1u C1_5V R7191 EXB38V681JV C7137 16V 0.1u R7143 EXB38V681JV C1_5V R7145 EXB38V681JV R7197 22 J0HABH000013 FL7101 1 2 3 R7148 EXB38V681JV R7149 EXB38V681JV R7153 EXB38V681JV C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7147 47 EXB38V470JV R7195 22 C7136 16V 0.1u R7186 22k C1_5V C7182 16V 0.1u C1_5V R7146 EXB38V470JV 47 R7152 EXB38V681JV R7194 22 R7155 EXB38V470JV 47 R7187 100k R7150 EXB38V470JV 47 R7144 EXB38V681JV C7138 16V 0.1u C7135 16V 0.1u C1_5V R7196 22 R7157 EXB38V470JV 47 R7160 EXB38V470JV 47 C0JBAZ001120 IC7105 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7106 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7104 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7103 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7102 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7101 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7199 22 R7198 22 ZA7104 K4AD01Z00001 ZA7106 K4AD01Z00001 ZA7102 K4AD01Z00001 ZA7103 K4AD01Z00001 ZA7105 K4AD01Z00001 ZA7101 K4AD01Z00001 P75V GND NC R-UP P75V P5V P5V DOUTUB[29] DOUTUA[29] DOUTUA[28] DOUTUC[28] GND DOUTUB[28] DOUTUA[27] DOUTUC[27] GND DOUTUB[27] DOUTUC[26] GND DOUTUB[26] DOUTUA[26] GND DOUTUC[25] GND NC DOUTUB[25] GND DOUTUA[25] NC DOUTUC[24] NC GND NC DOUTUB[24] DOUTUA[24] DOUTUC[23] GND DOUTUA[22] DOUTUC[31] GND DOUTUB[31] DOUTUA[31] GND GND GND NC(DSHR) DOUTUB[23] GND NC(DMLR) DOUTUA[30] DOUTUA[23] CLKU[6](+) NC(DMHR) DOUTUC[30] DOUTUC[22] ODEU1 GND GND DOUTUB[30] DOUTUB[22] GND 5V_DET GND CLRU1 DOUTUC[29] PCU1 GND LEU1 P5V GND GND GND GND GND NC NC NC NC NC NC NC P75V P75V P75V P75V CLKU[7](-) NC(DSLR) NC NC 10 14 12 15 11 13 16 17 18 1 2 ! D-BOARD (D31) TO C2-BOARD (C22) TO BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER C1-BOARD TNPA4003 (2/2) TH-65PF10CK C1-Board (2 of 2) Schematic Diagram TH-65PF10CK C1-Board (2 of 2) Schematic Diagram 87 TH-65PF10CK 11.31.C2 电路板 （1/2）线路图 G G TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE LE6 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 AB_PCU2 LE6 AB_DUA20 AB_DUB20 AB_DUC20 AB_DUA21 AB_DUB21 AB_DUC21 AB_PCU2 LE8 AB_DUA14 AB_DUB14 AB_DUC14 AB_DUA15 AB_DUB15 AB_DUC15 AB_PCU2 AB_DUB17 AB_DUA17 AB_DUC16 AB_DUB16 AB_DUA16 LE8 AB_DUC17 AB_PCU2 LE7 AB_DUB18 AB_DUC18 AB_DUB19 AB_DUC19 AB_DUA18 AB_DUA19 LE7 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUA19 AB_DUB19 AB_DUC19 AB_PCU2 AB_CLK41R AB_NCLK51R AB_CLK42R AB_NCLK52R AB_CLK21L AB_NCLK52R AB_DUB12 AB_DUB13 AB_DUC12 AB_DUA12 AB_PCU2 LE9 AB_DUA13 AB_NCLK31L AB_DUA12 AB_CLK21L AB_PCU2 AB_DUB12 AB_DUC13 LE9 AB_DUB13 AB_DUA13 AB_DUC13 AB_DUC12 AB_ODEU2 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_CLRU2 AB_CLRU2 AB_DUB21 AB_DUA21 AB_DUA20 AB_DUC21 AB_DUC20 AB_DUB20 AB_DUA19 AB_DUB19 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_ODEU2 AB_CLRU2 AB_DUC19 AB_DUA18 AB_DUB18 AB_DUC18 AB_DUB17 AB_DUC17 AA_DUA10 AA_DUB10 AA_DUC10 AA_DUA11 AA_DUB11 AA_DUC11 AA_DUA12 AA_DUB12 AA_DUC12 AA_DUA13 AA_DUB13 AA_DUC13 AA_DUA14 AA_DUB14 AA_DUC14 AA_DUA15 AA_DUB15 AA_DUC15 AA_DUA16 AA_DUB16 AA_DUC16 AA_CLK2L AA_NCLK3L AA_CLK4R AA_NCLK5R AA_DUA17 AA_DUB17 AA_DUC17 AA_DUA18 AA_DUB18 AA_DUA19 AA_DUC18 AA_DUB19 AA_DUC19 AA_DUA20 AA_DUB20 AA_DUC20 AA_DUA21 AA_DUB21 AA_DUC21 AA_CLRU2 AA_PCU2 AA_LEU2 AA_ODEU2 AB_ODEU2 AB_CLRU2 AB_PCU2 LE6 LE7 LE8 LE9 LE10 AA_LEU2 AA_PCU2 AA_CLRU2 AA_ODEU2 AB_DUB16 AB_DUA16 AB_DUC15 AB_DUB15 AB_DUA15 AB_DUC14 AB_DUA17 AB_DUC16 AA_DUB16 AA_DUC16 AB_CLK21L AB_CLK41R AB_NCLK51R AB_NCLK31L AA_DUA21 AA_DUA19 AA_DUB21 AA_DUC21 AA_DUA17 AA_DUA18 AA_DUB17 AA_DUB18 AA_DUC17 AA_DUC18 AA_DUA16 AA_DUC15 AA_DUB15 AA_DUA15 AA_DUC14 AA_DUB19 AA_DUC19 AA_DUC20 AA_DUB20 AA_NCLK5R AA_CLK4R AB_NCLK52R AB_CLK42R AB_CLK22L AB_NCLK32L AA_CLK2L AA_NCLK3L AB_PCU2 AA_DUA20 R7288 22 VDA_75V C7274 16V 1u R7245 47 R7233 EXB38V470JV 47 C7207 16V 1u J0HABH000013 FL7202 1 2 3 R7235 EXB38V681JV 680 C7299 16V 0.1u R7243 47 R7255 47 C2_5V VDA_75V C2_5V C7214 100V 0.47u C7204 16V 1u R7230 EXB38V681JV 680 C7221 50V 100p R7257 EXB38V681JV 680 D7215 B0HCMM000014 R7256 EXB38V681JV 680 C2_5V R7251 EXB38V470JV 47 R7246 EXB38V470JV 47 C24 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7285 100k C7238 50V 100p R7222 EXB38V470JV 47 C7240 50V 100p C2_5V C7208 16V 0.1u D7212 B0HCMM000014 R7211 47 VDA_75V C2_5V C7276 100V 0.47u D7216 B0HCMM000014 R7236 EXB38V681JV 680 R7252 EXB38V470JV 47 C7203 16V 1u D7217 B0HCMM000014 R7229 EXB38V681JV 680 D7211 B0HCMM000014 C7212 16V 1u R7234 47 C7297 16V 0.1u R7231 47 R7232 EXB38V470JV 47 D7218 B0HCMM000014 D7213 B0HCMM000014 R7286 22k C7279 50V 100p C7200 16V 1u R7289 22 C7226 100V 0.47u VDA_75V R7287 22 R7214 47 D7214 B0HCMM000014 R7221 EXB38V470JV 47 R7258 EXB38V681JV 680 C2_5V C2_5V C2_5V C7253 16V 0.1u C7224 16V 1u C7218 100V 0.47u R7213 47 C2_5V R7290 22 C2_5V C7231 16V 0.1u C7205 16V 1u R7247 EXB38V470JV 47 R7276 EXB38V102JV 1k CA6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7203 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7201 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7205 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7202 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7204 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7293 22 R7294 22 R7295 22 R7296 22 C7213 100V 0.47u C7217 100V 0.47u C7222 100V 0.47u C7275 100V 0.47u R7242 6.8 R7203 6.8 R7224 6.8 R7254 6.8 R7253 6.8 R7201 6.8 R7250 6.8 R7200 6.8 R7202 6.8 R7225 6.8 R7226 6.8 R7238 6.8 R7249 6.8 R7237 6.8 R7223 6.8 R7241 6.8 R L L L C-UP CLKU[3](-) GND DOUTUC[20] DOUTUA[10] DOUTUC[14] GND P5V GND DOUTUB[20] DOUTUC[10] DOUTUB[14] DOUTUA[21] GND DOUTUA[14] DOUTUB[21] DOUTUB[10] DOUTUC[12] GND GND DOUTUC[21] DOUTUA[12] DOUTUB[12] GND GND LEU2 DOUTUB[19] DOUTUA[19] DOUTUC[19] DOUTUA[18] DOUTUC[18] GND DOUTUB[18] P5V P5V DOUTUB[17] DOUTUA[17] DOUTUA[16] GND NC DOUTUC[16] PCU2 GND DOUTUB[16] DOUTUA[15] DOUTUC[15] GND DOUTUC[17] DOUTUB[15] CLRU2 DOUTUC[13] GND GND DOUTUB[13] DOUTUA[13] 5V_DET ODEU2 GND NC(DRVSOS7U) DOUTUC[11] GND DOUTUB[11] DOUTUA[20] DOUTUA[11] CLKU[4](+) CLKU[2](+) GND GND CLKU[5](-) NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 E B 3 4 A 1 8 F 9 D C 2 7 6 5 BUFFER BUFFER BUFFER BUFFER BUFFER ! C2-BOARD TNPA4004 (1/2) 1 3 2 D-BOARD (D32) TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PF10CK C2-Board (1 of 2) Schematic Diagram TH-65PF10CK C2-Board (1 of 2) Schematic Diagram 88 TH-65PF10CK 11.32.C2 电路板 （2/2）线路图 SIDE TERM G G SIDE TERM TERM SIDE TERM SIDE AB_DUC11 AB_DUB11 AB_DUA11 AB_DUC10 AB_DUB10 AB_DUA10 AB_DUB10 AB_DUB11 AB_DUC10 AB_DUA10 LE10 AB_DUA11 AB_NCLK32L AB_DUA10 AB_CLK22L AB_PCU2 AB_DUB10 AB_DUC11 LE10 AB_DUB11 AB_DUA11 AB_DUC11 AB_DUC10 AB_ODEU2 AB_ODEU2 AB_CLRU2 AB_CLRU2 AB_DUA12 AB_DUB12 AB_DUC12 AB_DUA13 AB_DUB13 AB_DUC13 AB_DUA14 AB_DUB14 5V_DET AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUA6 AA_DUB6 AA_DUC6 AA_DUA7 AA_DUB7 AA_DUC7 AA_DUA8 AA_DUB8 AA_DUA0 AA_DUB0 AA_DUC0 AA_DUA1 AA_DUB1 AA_DUC1 AA_DUA2 AA_DUB2 AA_DUC2 AA_DUA3 AA_DUB3 AA_DUC3 AA_DUA4 AA_DUB4 AA_DUC4 AA_DUA5 AA_DUB5 AA_DUC5 AA_NCLK1L AA_CLK0L AB_DUC5 AB_DUC4 AB_ODEU3 AB_DUA6 AB_DUA5 AB_DUB6 AB_DUB5 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_DUA8 AB_DUB8 AA_DUC7 AB_DUC8 AB_DUB2 AB_DUA9 AB_DUA2 AB_DUB9 AB_DUC1 AB_DUC9 AB_DUB1 AB_LEU3 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUA0 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_DUA4 AB_DUB4 AB_CLK0L AB_NCLK1L AB_NCLK1L AB_DUC6 AB_DUC3 AB_DUC4 AB_DUC2 AB_DUC1 AB_DUC7 AB_CLK0L AB_PCU3 AB_DUC5 AB_DUC0 AB_DUA0 AB_DUC8 AB_DUC9 5V_DET AB_PCU3 AB_DUB0 AB_DUB1 AB_DUB2 AB_DUB3 AB_DUB4 AB_DUB5 AB_DUB6 AB_DUB7 AB_DUB8 AB_DUB9 AB_LEU3 AB_CLRU3 AA_LEU2 AA_NCLK1L AA_CLK0L AB_CLRU3 AB_ODEU3 AA_DUB13 AA_DUA12 AA_DUC13 AA_DUB12 AA_DUA14 AA_DUA13 AA_DUB14 AA_DUC12 AA_DUC11 AA_DUB11 AA_DUA11 AA_DUB7 AA_DUB9 AA_DUC8 AA_DUB8 AA_DUC9 AA_DUA8 AA_DUA9 AA_DUB6 AA_DUA7 AA_DUB5 AA_DUC6 AA_DUA6 AA_DUC5 AA_DUC2 AA_DUA4 AA_DUA3 AA_DUB3 AA_DUC4 AA_DUA5 AA_DUC3 AA_DUB4 AA_DUC1 AA_DUB2 AA_DUA1 AA_DUC0 AA_DUA2 AA_DUB0 AA_DUA0 AA_DUB1 AA_DUC10 AA_DUA10 AA_DUB10 AA_PCU2 AA_CLRU2 AA_ODEU2 AB_DUA4 AB_DUA2 AB_DUA8 AB_DUA6 AB_DUA5 AB_DUA7 AB_DUA3 AB_DUA9 AB_DUA1 AB_PCU2 R7264 EXB38V470JV 47 C7290 50V 100p C2_5V C7272 16V 0.1u R7212 EXB38V681JV 680 R7260 EXB38V470JV 47 R7240 EXB38V470JV 47 VDA_75V R7270 EXB38V681JV 680 D7220 B0HCMM000014 VDA_75V R7239 EXB38V470JV 47 C7264 16V 0.1u C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C7268 16V 0.1u C2_5V R7259 EXB38V470JV 47 R7228 EXB38V470JV 47 C7287 100V 0.47u R7275 EXB38V681JV 680 C2_5V R7266 EXB38V681JV 680 R7269 EXB38V681JV 680 J0HABH000013 FL7201 1 2 3 C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7209 16V 1u R7292 22 R7274 EXB38V681JV 680 R7208 EXB38V470JV 47 C2_5V D7219 B0HCMM000014 R7263 EXB38V470JV 47 R7209 EXB38V470JV 47 C2_5V R7273 EXB38V681JV 680 C2_5V R7267 EXB38V681JV 680 C25 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7261 EXB38V470JV 47 C2_5V R7217 47 R7272 EXB38V681JV 680 C7216 16V 0.1u R7227 EXB38V470JV 47 R7284 EXB38V102JV 1k C7225 16V 0.1u VDA_75V R7291 22 C7285 16V 1u R7218 47 C7270 16V 0.1u C7266 16V 0.1u R7271 EXB38V681JV 680 C2_5V R7244 EXB38V470JV 47 C2_5V R7210 EXB38V681JV 680 R7262 EXB38V470JV 47 C2_5V R7268 EXB38V681JV 680 R7283 EXB38V681JV 680 C7201 16V 1u R7248 0 CA10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7214 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7213 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7211 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7215 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7206 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7207 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7212 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7286 100V 0.47u ZA7202 K4AD01Z00001 ZA7203 K4AD01Z00001 ZA7205 K4AD01Z00001 ZA7201 K4AD01Z00001 ZA7204 K4AD01Z00001 ZA7206 K4AD01Z00001 R7205 6.8 R7204 6.8 R7206 6.8 R7207 6.8 L-UP L P75V GND NC P75V P75V P75V GND GND DOUTUB[2] GND DOUTUA[3] DOUTUB[1] DOUTUA[1] DOUTUC[1] GND DOUTUA[0] DOUTUB[9] DOUTUA[9] DOUTUC[9] DOUTUA[8] DOUTUC[8] GND DOUTUB[8] GND NC(LEU3) P5V GND P5V GND NC(PCU3) GND GND NC(CLRU3) GND GND 5V_DET CLKU[1](-) DOUTUC[7] DOUTUB[7] DOUTUA[7] DOUTUC[6] GND GND DOUTUB[6] DOUTUA[6] NC(ODEU3) DOUTUC[5] GND CLKU[0](+) DOUTUB[5] DOUTUA[5] NC DOUTUC[4] NC GND NC DOUTUB[4] NC DOUTUA[4] NC NC NC NC GND NC(DSLL) DOUTUC[3] GND DOUTUB[3] DOUTUC[0] GND DOUTUB[0] DOUTUA[2] P5V DOUTUC[2] NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 55:DOUTDA[7] 63:DOUTDA[9] 71:GND 77:P75V 79:P75V 67:5V_DET 65:DOUTDC[9] 73:NC 69:GND 59:DOUTDA[8] 28:DOUTDB[0] 62:GND 72:NC 78:P75V 66:GND 46:GND 48:DOUTDB[5] 8:GND 4:P5V 76:P75V 32:DOUTDB[1] 10:DSLH 54:GND 68:GND 40:DOUTDB[3] 50:GND 52:DOUTDB[6] 38:GND 30:GND 18:ODEU3 74:NC 24:GND 26:GND 60:DOUTDB[8] 70:GND 36:DOUTDB[2] 14:DMLH 80:P75V 12:DSHH 20:PCU3 44:DOUTDB[4] 16:DMHH 58:GND 56:DOUTDB[7] 42:GND 2:P5V 22:GND 6:NC 17:GND 53:DOUTDC[6] 75:P75V 57:DOUTDC[7] 34:GND 64:DOUTDB[9] 13:DMLL 11:DSHL 19:CLRU3 15:DMHL 1:P5V 21:LEU3 5:NC 23:CLKU[0](+) 25:CLKU[1](-) 7:NC 3:P5V 33:DOUTDC[1] 29:DOUTDC[0] 35:DOUTDA[2] 43:DOUTDA[4] 49:DOUTDC[5] 51:DOUTDA[6] 39:DOUTDA[3] 37:DOUTDC[2] 45:DOUTDC[4] 41:DOUTDC[3] 27:DOUTDA[0] 47:DOUTDA[5] 31:DOUTDA[1] 61:DOUTDC[9] P75V P75V NC NC NC NC NC NC NC GND GND GND GND 9:DSLL NC 18 17 14 11 13 16 15 12 10 TO (C11) C1-BOARD C3-BOARD (C31) TO BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER C2-BOARD TNPA4004 (2/2) ! 2 3 1 D-BOARD (D33) TO DRIVER PANEL DATA TO TH-65PF10CK C2-Board (2 of 2) Schematic Diagram TH-65PF10CK C2-Board (2 of 2) Schematic Diagram 89 TH-65PF10CK 11.33.C3 电路板 （1/2）线路图 SIDE TERM TERM SIDE TERM SIDE LE11 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCU3 LE11 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_PCU3 LE12 AB_DUA6 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 LE12 AB_DUA6 AB_DUB6 AB_DUC6 AB_DUA7 AB_DUB7 AB_DUC7 AB_PCU3 AB_DUC9 AB_DUB9 AB_DUA9 AB_DUC8 AB_DUB8 AB_DUA8 AB_CLK01L AB_NCLK11L AB_CLK02L AB_NCLK12L AB_DUC7 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUA6 AB_DUC5 AB_DUB5 AB_DUA5 AB_DUC4 AB_DUB4 AB_DUA4 AB_DUC3 AB_DUB3 AB_DUA3 AB_DUC2 AB_DUB2 AB_DUA2 AB_DUC1 AB_DUB1 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUA0 LE13 LE11 LE12 LE15 LE14 AB_PCU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_CLK02L AB_NCLK12L AA_DUA3 AA_DUC2 AA_DUB2 AA_DUA2 AA_DUB3 AA_DUC3 AA_DUA4 AA_DUB4 AA_DUC5 AA_DUB5 AA_DUA5 AA_DUC4 AA_DUA7 AA_DUC6 AA_DUB6 AA_DUA6 AA_DUB8 AA_DUA8 AA_DUC7 AA_DUB7 AA_DUC9 AA_DUB9 AA_DUA9 AA_DUC8 AA_DUB0 AA_DUA0 AA_DUC1 AA_DUB1 AA_DUA1 AA_DUC0 AA_DUB2 AA_DUC9 AA_PCU3 AA_DUB8 AA_LEU3 AA_DUC1 AA_DUC7 AA_DUB7 AA_DUC6 AA_DUB6 AA_DUC8 AA_DUB1 AA_DUB9 AA_LEU3 AA_DUA9 AA_DUA8 AA_DUA7 AA_DUA6 AA_DUB3 AA_DUC2 AA_DUC0 AA_DUC4 AA_DUB0 AA_DUB4 AA_DUC3 AA_DUA4 AA_DUA3 AA_DUA2 AA_DUA1 AA_DUA0 AA_DUC5 AA_DUB5 AA_DUA5 AA_NCLK1L AA_CLK0L AA_CLRU3 AA_ODEU3 AB_CLK01L AB_NCLK11L AA_ODEU3 AA_CLRU3 AA_PCU3 AA_CLK0L AA_NCLK1L AB_NCLK13L AB_CLK03L AB_PCU3 R7319 EXB38V470JV 47 R7310 EXB38V681JV R7366 47 R7312 EXB38V470JV 47 R7303 EXB38V470JV 47 R7313 EXB38V681JV C7323 50V 100p R7304 EXB38V470JV 47 R7311 EXB38V470JV 47 D7313 B0HCMM000014 R7318 EXB38V681JV 680 C3_5V C3_5V R7386 100k C7316 16V 1u R7322 22 R7305 EXB38V681JV C7382 16V 1u D7314 B0HCMM000014 C3_5V R7320 EXB38V470JV 47 C7315 16V 1u R7324 EXB38V470JV 47 R7302 0 C7304 16V 0.1u R7354 47 VDA_75V C7381 16V 0.1u R7314 EXB38V681JV R7387 22k C7327 100V 0.47u D7312 B0HCMM000014 R7323 EXB38V470JV 47 C7308 16V 0.1u VDA_75V R7309 EXB38V681JV R7307 EXB38V681JV C31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C3_5V C7312 16V 0.1u C7311 16V 0.1u R7316 EXB38V470JV 47 C7325 100V 0.47u R7317 EXB38V681JV 680 R7367 47 R7315 EXB38V470JV 47 C3_5V D7311 B0HCMM000014 C7309 16V 0.1u C7301 16V 1u C3_5V C7383 16V 1u C3_5V R7355 47 R7306 EXB38V681JV C3_5V C7326 50V 100p C3_5V VDA_75V R7398 22 R7399 22 R7321 22 R7308 EXB38V681JV R7385 0 CA11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA12 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7303 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7306 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7302 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7304 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7305 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7301 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7325 22 R7326 22 C7328 100V 0.47u C7324 100V 0.47u ZA7306 K4AD01Z00001 ZA7301 K4AD01Z00001 ZA7302 K4AD01Z00001 ZA7304 K4AD01Z00001 ZA7305 K4AD01Z00001 ZA7303 K4AD01Z00001 R7365 6.8 R7363 6.8 R7361 6.8 R7362 6.8 R7359 6.8 R7360 6.8 R7364 6.8 R7358 6.8 C3_5V NC A4 VDD2 DM VDD1 VDD1 A4 FS DM VDD2 GND FX NC FDET1 VDD2 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 GND A5 GND VDD2 NC BLK GND GND FDET VDD1 GND NC GND A1 A3 A6 NC NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND GND GND NC NC NC A6 VDD1 A1 VDD2 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 37:DOUTDB[4] 21:DOUTDB[8] 71:DSLH 51:GND 50:DOUTDA[1] 32:DOUTDC[5] 75:NC 4:P75V 13:GND 2:P75V 70:DSHL 40:DOUTDC[3] 52:DOUTDC[0] 47:GND 44:DOUTDC[2] 20:DOUTDC[8] 23:GND 39:GND 60:LEU3 3:P75V 53:DOUTDB[0] 13:DMLL 72:DSLL 25:DOUTDB[7] 24:DOUTDC[7] 41:DOUTDB[3] 36:DOUTDC[4] 54:DOUTDA[0] 73:GND 69:DSHH 35:GND 38:DOUTDA[4] 64:GND 26:DOUTDA[7] 15:GND 1:P75V 28:DOUTDC[6] 56:CLKU[1](-) 46:DOUTDA[2] 22:DOUTDA[8] 59:GND 78:P5V 62:CLRU3 19:GND 34:DOUTDA[5] 6:P75V 29:DOUTDB[6] 66:DMHL 45:DOUTDB[2] 61:PCU3 43:GND 42:DOUTDA[3] 14:5V_DET 79:P5V 58:CLKU[0](+) 7:NC 10:GND 63:ODEU3 57:GND 11:GND 49:DOUTDB[1] 27:GND 31:GND 5:P75V 30:DOUTDA[6] 33:DOUTDB[5] 17:DOUTDB[9] 48:DOUTDC[1] 77:P5V 74:NC 16:DOUTDC[9] 55:GND 18:DOUTDA[9] 8:NC 9:NC 12:GND 65:DMHH 67:DMLH 76:NC 80:P5V 7 3 B 5 A C 4 6 8 D E F 2 1 9 1 3 2 4 ! C3-BOARD TNPA4005 (1/2) TO C2-BOARD (C21) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PF10CK C3-Board (1 of 2) Schematic Diagram TH-65PF10CK C3-Board (1 of 2) Schematic Diagram 90 TH-65PF10CK 11.34.C3 电路板 （2/2）线路图 TERM SIDE TERM SIDE TERM SIDE LE13 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 LE13 AB_DUA4 AB_DUB4 AB_DUC4 AB_DUA5 AB_DUB5 AB_DUC5 AB_PCU3 LE14 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 LE14 AB_DUA2 AB_DUB2 AB_DUC2 AB_DUA3 AB_DUB3 AB_DUC3 AB_PCU3 AB_CLK02L AB_NCLK12L AB_CLK03L AB_NCLK13L AB_DUA1 AB_CLK03L AB_DUC0 AB_NCLK13L AB_DUB0 AB_DUA0 LE15 AB_PCU3 AB_DUC1 AB_DUB1 AB_DUA1 AB_DUC0 AB_DUB0 AB_DUC1 AB_DUA0 AB_DUB1 LE15 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_ODEU3 AB_CLRU3 AB_PCU3 AB_PCU3 AB_PCU3 C7369 50V 100p D7316 B0HCMM000014 VDA_75V D7317 B0HCMM000014 C3_5V VDA_75V D7320 B0HCMM000014 C7384 16V 1u C7371 100V 0.47u C7339 16V 1u D7315 B0HCMM000014 C7329 50V 100p C7386 16V 1u R7330 47 R7373 47 C7374 16V 1u C3_5V R7384 47 C7334 100V 0.47u VDA_75V R7374 47 C7385 16V 1u R7383 47 VDA_75V D7318 B0HCMM000014 R7335 47 C3_5V C7333 100V 0.47u D7319 B0HCMM000014 C7351 50V 100p C7340 16V 1u C35 1 2 3 4 5 6 7 8 CA13 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA15 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA14 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7336 10k C7331 100V 0.47u C7332 100V 0.47u C7370 100V 0.47u R7376 6.8 R7334 6.8 R7332 6.8 R7378 6.8 R7381 6.8 R7377 6.8 R7331 6.8 R7380 6.8 R7379 6.8 R7333 6.8 R7382 6.8 R7375 6.8 Vda 75V Vda 75V NC GND FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 FDET VDD2 VDD1 VDD1 DM A1 GND VDD1 VDD2 NC VDD1 GND A4 A1 FS A3 DM A6 VDD2 NC NC GND FX NC FDET1 VDD2 A4 A3 VDD2 A2 VDD2 VDD2 GND NC GND VDD2 GND A2 NC BLK NC LEN VDD2 NC GND GND LEN A5 VDD2 FX VDD2 FS GND GND A5 GND GND GND VDD2 GND NC NC BLK NC GND NC GND A6 GND VDD2 FX NC FS VDD2 GND GND A6 A2 VDD1 LEN A5 GND A4 A1 FS NC A3 DM VDD2 DM NC GND NC GND BLK A6 VDD1 GND VDD1 GND VDD2 VDD2 A1 GND NC FDET VDD1 GND VDD2 NC GND GND FX A5 NC FDET1 VDD2 VDD2 A4 LEN GND A3 VDD2 A2 GND NC VDD2 VDD2 BLK VDD2 GND NC NC NC GND NC GND Vda 75V Vda 75V Vda 75V 10 17 11 14 18 12 16 13 15 3 1 2 4 C3-BOARD TNPA4005 (2/2) ! TO SS-BOARD (SS35) DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PF10CK C3-Board (2 of 2) Schematic Diagram TH-65PF10CK C3-Board (2 of 2) Schematic Diagram 91 TH-65PF10CK 11.35.C4 电路板 （1/2）线路图 SIDE TERM TERM SIDE TERM SIDE AB_NCLK12L AB_CLK02L LE11 LE12 LE13 LE14 LE12 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCD4 LE12 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCD4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 LE11 LE11 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 AB_PCD4 AB_DDB1 AB_DDC1 AB_DDA0 AB_DDB0 AB_DDC0 AB_CLK02L AB_NCLK12L AB_CLK01L AB_NCLK11L UMH NUEL USH UML UEH USL AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDA5 AB_DDB5 AB_DDC5 AB_DDA4 AB_DDB4 AB_DDC4 AB_DDA7 AB_DDB7 AB_DDC7 AB_DDA6 AB_DDB6 AB_DDC6 AB_DDA9 AB_DDB9 AB_DDC9 AB_DDA8 AB_DDB8 AB_DDC8 AB_ODED4 AB_CLRD4 AB_CLRD4 AB_ODED4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 LE15 AB_PCD4 AB_ODED4 AB_CLRD4 DRV_SOS8 URH URL AA_DDB8 AA_DDC8 AA_DDA9 AA_DDB9 AA_DDC9 AA_DDA8 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDB7 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDB0 AA_DDC0 AA_DDA3 AA_DDB3 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDA4 AA_DDA1 DRV_SOS8 AA_DDA0 AA_DDA2 AA_DDA3 AA_DDA8 AA_DDA5 AA_DDA6 USH AA_DDA9 AA_DDA7 UML USL AA_DDB1 AA_DDC0 AA_DDC2 AA_DDC5 AA_DDB4 AA_DDC7 AA_DDC6 AA_DDC8 UMH NUEL URL URH AB_NCLK11L AB_CLK01L AA_CLK0L AA_NCLK1L AB_DDA1 AB_PCD4 AA_CLRD4 AA_ODED4 AA_LED4 AA_PCD4 AB_NCLK13L AB_CLK03L AA_DDB0 AA_DDC3 AA_DDB5 AA_DDB7 AA_DDB8 AA_DDC1 AA_DDB6 AA_DDC9 AA_DDB3 AA_DDC4 AA_DDB2 AA_DDB9 AA_ODED4 UEH AA_LED4 AA_CLRD4 AA_NCLK1L AA_CLK0L AA_PCD4 R7473 EXB38V681JV R7429 EXB38V470JV 47 C7428 50V 100p VDA_75V R7428 EXB38V470JV 47 R7439 EXB38V470JV R7410 0 R7405 0 R7420 EXB38V470JV 47 R7492 EXB38V681JV R7491 100k R7490 22k R7417 EXB38V470JV 47 D7418 B0HCMM000014 C4_5V C7406 16V 0.1u C7412 16V 0.1u C7481 16V 1u R7425 EXB38V470JV 47 R7474 EXB38V681JV R7459 EXB38V681JV C4_5V R7413 0 R7401 0 C7480 16V 0.1u C7482 16V 1u R7457 EXB38V681JV R7421 EXB38V470JV 47 VDA_75V C4_5V R7453 EXB38V681JV R7411 0 R7493 22 R7455 EXB38V681JV D7416 B0HCMM000014 R7407 0 R7438 EXB38V470JV C7426 100V 0.47u R7495 22 C4_5V R7496 22 D7417 B0HCMM000014 C4_5V R7461 47 R7406 0 R7494 22 R7460 47 C7429 50V 100p R7454 EXB38V681JV C7418 16V 1u VDA_75V C7401 16V 1u R7408 0 D7415 B0HCMM000014 C7419 16V 1u R7470 47 C7427 100V 0.47u C4_5V C7413 16V 0.1u C41 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 R7456 EXB38V681JV R7424 EXB38V470JV 47 C4_5V C7415 16V 0.1u R7416 EXB38V470JV 47 C4_5V C4_5V R7412 0 R7471 47 C7414 16V 0.1u R7409 0 R7458 EXB38V681JV C4_5V C42 1 2 3 4 5 6 7 8 VDA_75V C44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7402 0 CB11 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB12 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7404 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7406 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7401 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7402 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7403 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7405 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7497 22 R7498 22 C7424 100V 0.47u C7425 100V 0.47u ZA7403 K4AD01Z00001 ZA7404 K4AD01Z00001 ZA7406 K4AD01Z00001 ZA7405 K4AD01Z00001 ZA7401 K4AD01Z00001 ZA7402 K4AD01Z00001 R7466 6.8 R7463 6.8 R7468 6.8 R7462 6.8 R7464 6.8 R7467 6.8 R7465 6.8 R7469 6.8 DRV_SOS8 NC USH UMH 5V UEL UEH USL URH UML DRV_SOS7 GND URL URL URH GND GND GND NC NC NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 66:GND 42:GND 34:GND 7:DRVSOS8 56:DOUTDB[6] 27:DOUTDA[1] 53:DOUTDC[7] 19:PCD4 55:DOUTDA[6] 38:GND 51:DOUTDA[7] 41:DOUTDC[2] 64:DOUTDB[8] 76:P75V 71:GND 45:DOUTDC[5] 36:DOUTDB[3] 11:USH 52:DOUTDB[7] 13:UMH 54:GND 50:GND 48:DOUTDB[4] 14:NUEL 35:DOUTDA[3] 75:P75V 8:GND 26:GND 62:GND 58:GND 72:NC 6:NC(DRVSOS7) 23:CLKD[1](-) 57:DOUTDC[6] 63:DOUTDA[8] 80:P75V 78:P75V 37:DOUTDC[3] 68:GND 73:NC 1:P5V 25:CLKD[0](+) 49:DOUTDC[4] 65:DOUTDC[8] 60:DOUTDB[9] 18:LED4 47:DOUTDA[4] 29:DOUTDC[1] 43:DOUTDA[5] 32:DOUTDB[0] 46:GND 69:GND 12:UML 21:ODED4 40:DOUTDB[2] 74:NC 59:DOUTDA[9] 16:URH 5:NC 4:P5V 24:GND 67:5V_DET 39:DOUTDA[2] 3:P5V 20:CLRD4 28:DOUTDB[1] 44:DOUTDB[5] 70:GND 9:UEH 2:P5V 33:DOUTDC[0] 79:P75V 77:P75V 15:URL 10:USL 61:DOUTDC[9] 30:GND 17:GND 31:DOUTDA[0] 22:GND Vda 75V Vda 75V NC GND GND Vda 75V Vda 75V Vda 75V ! C4-BOARD TNPA4006 (1/2) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER TO C5-BOARD (C51) (SS42) SS-BOARD TO (SS44) SS-BOARD TO 1 3 2 4 7 3 B 5 A C 4 6 8 D E F 2 1 9 DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PF10CK C4-Board (1 of 2) Schematic Diagram TH-65PF10CK C4-Board (1 of 2) Schematic Diagram 92 TH-65PF10CK 11.36.C4 电路板 （2/2）线路图 TERM SIDE TERM SIDE TERM SIDE LE14 AB_DDC2 AB_PCD4 AB_DDA3 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 LE14 AB_DDB3 AB_DDC3 AB_DDA2 AB_DDB2 AB_DDC2 AB_DDA3 AB_PCD4 LE13 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 LE13 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCD4 AB_CLK02L AB_NCLK12L AB_CLK03L AB_NCLK13L AB_NCLK13L AB_DDB0 AB_DDA0 AB_DDB1 AB_DDC1 LE15 AB_DDB1 AB_DDA1 AB_PCD4 AB_PCD4 AB_DDC0 AB_DDA1 LE15 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_ODED4 AB_CLRD4 AB_CLK03L AB_PCD4 VDA_75V D7420 B0HCMM000014 C4_5V C4_5V C4_5V VDA_75V C7468 100V 0.47u R7488 47 R7478 47 C7472 16V 1u C7475 50V 100p C7453 50V 100p R7422 47 C7440 16V 1u R7477 47 R7487 47 C7484 16V 1u D7419 B0HCMM000014 C7485 16V 1u C7434 100V 0.47u C7433 100V 0.47u C7441 16V 1u R7434 47 VDA_75V C7452 50V 100p C7483 16V 1u D7422 B0HCMM000014 D7423 B0HCMM000014 D7421 B0HCMM000014 D7424 B0HCMM000014 CB14 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB15 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB13 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7472 10k C7432 100V 0.47u C7435 100V 0.47u C7469 100V 0.47u R7479 6.8 R7481 6.8 R7433 6.8 R7431 6.8 R7430 6.8 R7432 6.8 R7480 6.8 R7486 6.8 R7484 6.8 R7485 6.8 R7483 6.8 R7482 6.8 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 C4-BOARD TNPA4006 (2/2) ! 1 3 4 2 10 17 11 14 18 12 16 13 15 DRIVER PANEL DATA TO PANEL DATA TO DRIVER PANEL DATA TO DRIVER TH-65PF10CK C4-Board (2 of 2) Schematic Diagram TH-65PF10CK C4-Board (2 of 2) Schematic Diagram 93 TH-65PF10CK 11.37.C5 电路板 （1/2）线路图 G G SIDE TERM TERM SIDE TERM SIDE TERM SIDE TERM SIDE LE6 AB_DDC20 AB_PCD5 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 LE6 AB_DDC20 AB_DDB20 AB_DDA20 AB_DDC21 AB_DDB21 AB_DDA21 AB_PCD5 AB_DDC17 AB_DDA16 AB_DDB16 AB_DDC16 LE8 LE8 AB_DDC15 AB_PCD5 AB_DDA15 AB_DDB15 AB_CLK41R AB_NCLK51R AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_DDA14 AB_DDB14 AB_DDC14 AB_DDA17 AB_DDB17 AB_CLK42R AB_DDB19 AB_DDA18 AB_DDC19 AB_CLK22L LE10 AB_DDB18 AB_DDC18 AB_DDA19 AB_DDB20 LE9 AB_DDA20 LE8 AB_DDA21 AB_DDC20 AB_DDC21 AB_DDB21 AA_NCLK3L AA_CLK2L AA_DDC10 AA_DDB10 AA_DDA10 AA_DDC11 AA_DDB11 AA_DDA11 AA_DDA13 AA_DDB13 AA_DDC13 AA_DDA12 AA_DDB12 AA_DDC12 AA_DDA15 AA_DDB15 AA_DDC15 AA_DDC14 AA_DDB14 AA_DDA14 AA_DDC16 AA_DDB16 AA_DDA16 AA_DDC17 AA_DDB17 AA_DDA17 AA_DDC18 AA_DDB18 AA_DDA18 AA_DDC19 AA_DDB19 AA_DDA19 AA_DDC20 AA_DDB20 AA_DDA20 AA_DDC21 AA_DDB21 AA_DDA21 AA_NCLK3L AA_CLK2L AA_NCLK5R AA_CLK4R AA_LED5 AA_PCD5 AA_CLRD5 AA_ODED5 AB_DDC16 AB_PCD5 LE6 LE7 AB_CLRD5 AB_ODED5 AA_LED5 AA_PCD5 AA_CLRD5 AA_ODED5 AB_NCLK32L AB_NCLK52R AA_CLK4R AA_NCLK5R AA_DDC21 AA_DDB21 AA_DDC20 AA_DDA21 AA_DDC19 AA_DDA20 AA_DDB20 AA_DDC18 AA_DDA18 AA_DDB18 AA_DDC16 AB_DDB16 AA_DDB16 AA_DDB19 AA_DDA19 AB_CLK21L AB_NCLK31L AB_CLK41R AB_NCLK51R AB_NCLK31L AB_CLK42R AB_PCD5 LE7 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_DDA19 AB_PCD5 AB_CLRD5 AB_NCLK52R AB_ODED5 LE7 AB_DDC18 AB_DDB18 AB_DDA18 AB_DDC19 AB_DDB19 AB_DDA19 AB_PCD5 AB_CLRD5 AB_CLK42R AB_ODED5 R7536 47 C5_5V R7596 22 C7521 16V 1u R7526 EXB38V470JV 47 R7595 22 R7559 47 R7553 47 R7597 22 C7502 16V 1u R7567 EXB38V470JV 47 C5_5V J0HABH000013 FL7501 1 2 3 C7577 16V 0.1u R7549 EXB38V470JV 47 C7541 50V 100p C7520 50V 100p R7528 EXB38V470JV 47 R7565 EXB38V681JV 680 C5_5V C5_5V R7541 EXB38V681JV 680 C7513 16V 0.1u D7513 B0HCMM000014 C7530 16V 0.1u C5_5V C7524 100V 0.47u VDA_75V D7516 B0HCMM000014 VDA_75V VDA_75V C7547 16V 1u R7562 EXB38V470JV 47 C52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C7543 16V 1u C5_5V C7511 16V 1u C5_5V C54 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7542 47 R7558 47 C7575 16V 0.1u VDA_75V D7517 B0HCMM000014 R7593 22k R7563 EXB38V470JV 47 R7560 47 C7516 100V 0.47u C5_5V D7515 B0HCMM000014 C7539 16V 1u R7594 22 R7592 100k D7512 B0HCMM000014 C7507 100V 0.47u D7514 B0HCMM000014 C7522 50V 100p R7564 EXB38V681JV 680 R7561 EXB38V681JV 680 R7529 EXB38V681JV 680 R7570 EXB38V102JV 1k CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB8 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7502 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7503 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7504 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7501 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7001 22 R7002 22 R7004 22 R7003 22 C7517 100V 0.47u C7523 100V 0.47u C7506 100V 0.47u ZA7504 K4AD01Z00001 ZA7503 K4AD01Z00001 ZA7502 K4AD01Z00001 ZA7505 K4AD01Z00001 ZA7501 K4AD01Z00001 ZA7506 K4AD01Z00001 R7546 6.8 R7555 6.8 R7548 6.8 R7545 6.8 1/2W R7538 6.8 R7556 6.8 R7547 6.8 1/2W R7537 6.8 R7554 6.8 1/2W R7540 6.8 1/2W R7539 6.8 R7557 6.8 CB7 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L R GND DOUTDB[20] DOUTDC[21] DOUTDB[21] GND GND DOUTDA[21] DOUTDC[17] DOUTDA[20] DOUTDB[14] DOUTDC[20] GND DOUTDA[14] DOUTDC[19] GND DOUTDA[18] DOUTDC[16] 5V_DET ODED5 DOUTDC[11] DOUTDA[15] DOUTDA[11] DOUTDC[15] P5V GND CLRD5 GND GND NC DOUTDA[16] NC(DRVSOS7) GND CLKD[3](-) DOUTDC[12] CLKD[2](+) GND GND CLKD[5](-) DOUTDC[13] DOUTDB[13] DOUTDA[13] DOUTDA[10] DOUTDC[10] DOUTDB[10] DOUTDB[15] DOUTDB[19] DOUTDB[17] GND DOUTDB[12] DOUTDC[18] DOUTDC[14] DOUTDB[18] DOUTDB[11] DOUTDA[19] PCD5 DOUTDA[17] GND GND DOUTDB[16] P5V CLKD[4](+) DOUTDA[12] P5V LED5 GND GND GND GND NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC NC NC GND NC GND GND GND NC Vda 75V NC Vda 75V NC Vda 75V Vda 75V Vda 75V GND Vda 75V NC GND R R C6-BOARD TO (C61) BUFFER BUFFER BUFFER BUFFER D-BOARD TO (D35) C5-BOARD TNPA4007 (1/2) ! 1 9 2 F 5 E 3 7 8 D 6 B A C 4 4 6 1 5 3 2 DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PF10CK C5-Board (1 of 2) Schematic Diagram TH-65PF10CK C5-Board (1 of 2) Schematic Diagram 94 TH-65PF10CK 11.38.C5 电路板 （2/2）线路图 TERM SIDE G G SIDE TERM TERM SIDE TERM SIDE AB_CLK21L AB_NCLK31L AB_CLK22L AB_NCLK32L AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 AB_ODED5 AB_CLRD5 UML_N UMH_N NUEL_N USH_N USL UEH AB_DDA11 AB_DDB17 AB_DDB13 AB_DDC17 AB_DDC13 AB_DDA12 AB_DDB12 AB_DDA16 AB_DDC12 AB_DDB10 AB_DDC10 AB_DDA17 AB_DDA10 AB_DDC11 AB_DDB14 AB_DDC14 AB_DDB11 AB_DDA13 URL URH NUEL UMH UML USH UEH_N URL_N URH_N USL_N AA_DDC0 AA_DDB0 AA_DDA0 AA_DDC1 AA_DDB1 AA_DDA1 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB3 AA_DDA3 AA_DDA5 AA_DDB5 AA_DDA4 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDC7 AA_DDA6 AA_DDB6 AA_DDC6 AA_DDC8 AA_DDB8 AA_DDA8 AA_DDC9 AA_DDB9 NUEL UMH UML USH USL UEH 5V_DET URH URL AB_DDA15 AB_DDB15 AB_DDC15 AA_NCLK1L AA_CLK0L AB_DDB2 AA_DDB6 AB_DDB9 AB_DDA2 AB_DDA9 AA_DDC6 AA_DDC5 AA_DDB5 AA_DDC2 AB_CLRD4 AA_DDB9 AB_ODED4 AA_DDA5 AA_DDB2 AA_DDC9 AB_DDA1 AB_DDC3 AA_DDB3 AA_DDA2 AA_DDA8 AB_DDB3 AA_DDA3 AB_DDA3 AA_DDC3 AA_DDB8 AB_DDC6 AB_DDC0 AA_DDC0 AB_DDB6 AA_DDA4 AB_DDB0 AB_LED4 AB_DDA6 AB_PCD4 AB_DDA0 AA_DDB0 AB_DDC7 AA_DDC8 AA_DDA6 AB_DDC1 AA_DDB1 AB_DDB7 AA_DDA0 AB_DDB1 AA_DDC7 AB_DDA7 AA_DDA1 AA_DDC1 AB_DDC4 AA_DDB7 AB_DDB4 AB_DDA4 AA_DDA7 AB_DDC5 AB_DDC8 AA_DDC4 AB_DDB5 AB_DDB8 AB_DDA5 AB_DDA8 AA_DDB4 AB_DDC2 AB_DDC9 AB_CLK0L AB_NCLK1L AB_DDA2 AB_DDA6 AB_DDA7 AB_DDA4 AB_DDA9 AB_DDA5 AB_DDA8 AB_DDA3 AB_NCLK1L URL_N AA_ODED5 AA_CLRD5 AA_PCD5 AA_LED5 AB_DDA1 AB_DDA0 AB_DDB1 AB_DDC0 AB_DDC2 AB_DDC5 AB_DDB4 AB_DDC4 AB_DDC8 AB_CLK0L AB_PCD4 AB_LED4 AB_ODED4 NUEL_N USL_N DRV_SOS8 5V_DET AA_NCLK1L AA_CLK0L AB_DDA14 AA_DDA9 DRV_SOS8 AA_DDA9 AA_DDC5 AA_DDB7 AA_DDA17 AA_DDC17 AA_DDB17 AA_DDC15 AA_DDB15 AA_DDA15 AA_DDA14 AA_DDC13 AA_DDB12 AA_DDB14 AA_DDC14 AA_DDA13 AA_DDA12 AA_DDC12 AA_DDB13 AA_DDB10 AA_DDC10 AA_DDC11 AA_DDA11 AA_DDB11 AA_DDA10 AA_DDA16 UML_N AB_DDB0 AB_DDB3 URH_N AB_DDB9 USH_N AB_DDC7 UEH_N AB_CLRD4 AB_DDB2 AB_DDB7 AB_DDB8 AB_DDC1 UMH_N AB_DDC6 AB_DDC3 AB_DDB5 AB_DDB6 AB_DDC9 LE10 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_PCD5 LE10 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_PCD5 AB_DDC12 LE9 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_PCD5 AB_DDA13 AB_DDB13 AB_PCD5 AB_DDA12 AB_DDB12 AB_DDC12 LE9 AB_DDC13 D7518 B0HCMM000014 R7580 EXB38V681JV 680 C7527 16V 0.1u C7566 16V 0.1u R7502 EXB38V470JV 47 C55 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C7572 16V 0.1u C5_5V R7532 EXB38V470JV 47 R7533 EXB38V470JV 47 R7527 EXB38V681JV 680 R7531 EXB38V470JV 47 R7581 EXB38V681JV 680 C7581 16V 1u C7591 50V 100p C7594 100V 0.47u C7578 16V 0.1u R7586 EXB38V681JV VDA_75V R7574 EXB38V470JV 47 C7508 16V 0.1u R7515 47 R7550 EXB38V681JV R7583 EXB38V681JV R7582 EXB38V681JV 680 C5_5V R7504 EXB38V681JV 680 R7520 47 C7570 16V 0.1u R7585 EXB38V681JV C7538 16V 0.1u C5_5V R7505 EXB38V681JV 680 R7572 EXB38V470JV 47 D7521 B0HCMM000014 VDA_75V C5_5V C7583 100V 0.47u C7548 16V 1u R7579 EXB38V681JV 680 R7523 EXB38V470JV 47 C5_5V D7519 B0HCMM000014 C7549 16V 1u C5_5V R7543 EXB38V681JV 680 VDA_75V R7535 EXB38V470JV 47 R7584 EXB38V681JV C5_5V R7577 EXB38V681JV 680 R7507 47 R7576 EXB38V470JV 47 R7578 EXB38V681JV 680 C7592 16V 1u C5_5V R7599 22 C5_5V C5_5V R7512 47 C7580 50V 100p C7519 16V 0.1u J0HABH000013 FL7502 1 2 3 R7571 EXB38V470JV 47 R7534 EXB38V470JV 47 R7525 EXB38V681JV 680 R7524 EXB38V470JV 47 D7520 B0HCMM000014 C51 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 C5_5V R7506 EXB38V470JV 47 R7530 EXB38V470JV 47 C5_5V R7575 EXB38V470JV 47 R7598 22 R7503 EXB38V470JV 47 R7573 EXB38V470JV 47 C5_5V R7587 EXB38V681JV C7568 16V 0.1u R7544 EXB38V102JV 1k C7501 16V 1u R7501 0 CB9 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7511 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7515 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7513 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7506 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7507 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7516 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7512 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7505 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7514 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7593 100V 0.47u C7582 100V 0.47u R7516 6.8 R7510 6.8 R7519 6.8 R7517 6.8 R7511 6.8 R7509 6.8 R7508 6.8 R7518 6.8 CB10 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L L DOUTDB[9] DOUTDA[9] DOUTDB[8] DOUTDA[8] DOUTDC[8] DOUTDC[9] NC DOUTDB[0] DOUTDC[6] USL DOUTDA[5] DOUTDA[1] DOUTDA[0] GND DOUTDB[5] DOUTDA[3] DOUTDB[7] GND DOUTDC[7] DOUTDB[4] GND DOUTDC[1] DOUTDA[4] DOUTDB[3] URL DOUTDC[5] P5V GND GND GND DOUTDB[6] P5V NC P5V DOUTDC[4] URH NUEL UMH USH DOUTDC[0] GND DOUTDA[7] UML DOUTDA[2] DOUTDC[3] GND GND DOUTDA[6] DOUTDC[2] GND UEH DOUTDB[1] DOUTDB[2] 5V_DET NC GND CLKD[1](-) CLKD[0](+) NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 20:DOUTDC[9] 74:DRVSOS8 25:DOUTDB[6] 51:GND 35:GND 12:GND 64:GND 69:UML 50:DOUTDA[0] 42:DOUTDA[2] 78:P5V 61:CLRD4 60:ODED4 41:DOUTDB[2] 10:GND 36:DOUTDC[5] 45:DOUTDB[3] 59:GND 54:DOUTDA[1] 28:DOUTDC[7] 62:PCD4 77:P5V 57:GND 14:5V_DET 40:DOUTDC[2] 17:DOUTDB[8] 5:P75V 15:GND 70:USH 29:DOUTDB[7] 68:UMH 73:GND 55:GND 19:GND 23:GND 67:NUEL 9:NC 46:DOUTDA[3] 75:NC(DRVSOS7) 6:P75V 58:CLKD[1](-) 24:DOUTDC[6] 18:DOUTDA[8] 22:DOUTDA[9] 65:URH 76:NC 1:P75V 3:P75V 44:DOUTDC[3] 13:GND 8:NC 80:P5V 56:CLKD[0](+) 72:UEH 32:DOUTDC[4] 79:P5V 16:DOUTDC[8] 48:DOUTDC[0] 21:DOUTDB[9] 63:LED4 34:DOUTDA[4] 2:P75V 4:P75V 27:GND 31:GND 26:DOUTDA[6] 52:DOUTDC[1] 33:DOUTDB[4] 53:DOUTDB[1] 43:GND 66:URL 38:DOUTDA[5] 37:DOUTDB[5] 30:DOUTDA[7] 71:USL 49:DOUTDB[0] 47:GND 7:NC 39:GND 11:GND DRV_SOS8 NC GND GND GND GND GND GND GND NC TO C4-BOARD (C41) BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER D-BOARD TO (D34) C5-BOARD TNPA4007 (2/2) ! 18 16 17 14 11 10 15 12 13 6 4 1 5 3 2 DRIVER PANEL DATA TO DRIVER PANEL DATA TO TH-65PF10CK C5-Board (2 of 2) Schematic Diagram TH-65PF10CK C5-Board (2 of 2) Schematic Diagram 95 TH-65PF10CK 11.39.C6 电路板 （1/2）线路图 TERM SIDE TERM SIDE AB_DDA29 AB_PCD6 LE2 AB_DDC28 AB_DDB28 AB_DDA28 AB_DDC29 AB_DDB29 AB_DDA29 LE2 AB_DDB29 AB_DDC29 AB_DDA28 AB_DDB28 AB_DDC28 LE1 AB_DDC30 AB_DDB30 AB_DDA30 AB_DDC31 AB_DDB31 AB_DDA31 LE1 AB_DDC30 AB_DDB30 AB_DDA30 AB_DDC31 AB_DDB31 AB_DDA31 AB_PCD6 AB_PCD6 AB_CLK61R AB_NCLK71R AB_CLK61R AB_NCLK71R AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_PCD6 C7666 16V 1u C7667 16V 1u C6_5V C7612 50V 100p C6_5V R7604 47 R7607 47 VDA_75V D7613 B0HCMM000014 C7610 100V 0.47u C7611 50V 100p D7614 B0HCMM000014 D7612 B0HCMM000014 D7611 B0HCMM000014 VDA_75V R7616 47 R7617 47 C7607 100V 0.47u C7602 16V 1u C7601 16V 1u CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7618 10k C7608 100V 0.47u C7609 100V 0.47u ZA7601 K4AD01Z00001 ZA7604 K4AD01Z00001 ZA7606 K4AD01Z00001 ZA7602 K4AD01Z00001 ZA7603 K4AD01Z00001 ZA7605 K4AD01Z00001 R7613 6.8 R7615 6.8 R7612 6.8 R7610 6.8 R7614 6.8 R7608 6.8 R7611 6.8 R7609 6.8 NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 GND NC NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 C6-BOARD TNPA4008 (1/2) ! 2 1 DRIVER PANEL DATA TO DRIVER PANEL DATA TO 7 8 3 2 B 5 6 9 D C 1 E 4 F A TH-65PF10CK C6-Board (1 of 2) Schematic Diagram TH-65PF10CK C6-Board (1 of 2) Schematic Diagram 96 TH-65PF10CK 11.40.C6 电路板 （2/2）线路图 TERM SIDE SIDE TERM G G TERM SIDE TERM SIDE TERM SIDE AB_CLK63R LE1 LE2 LE3 LE4 AB_NCLK73R AB_CLK62R LE4 AB_DDC24 AB_DDB24 AB_DDA24 AB_DDC25 AB_DDB25 AB_DDA25 LE4 AB_DDC24 AB_DDB24 AB_DDA24 AB_DDC25 AB_DDB25 AB_DDA25 LE3 AB_DDC26 AB_DDB26 AB_DDA26 AB_DDC27 AB_DDB27 AB_DDA27 LE3 AB_DDC26 AB_DDB26 AB_DDA26 AB_DDC27 AB_DDB27 AB_DDA27 AB_PCD6 AB_PCD6 AB_DDC31 AB_DDB31 AB_DDA31 AB_DDC30 AB_DDB30 AB_DDA30 AB_CLK62R AB_DDC22 AB_PCD6 LE5 AB_DDA23 AB_DDB23 AB_DDC23 AB_DDA22 AB_PCD6 AB_DDB22 AB_DDA23 AB_DDC22 AB_DDB23 LE5 AB_DDC23 AB_DDA22 AB_DDB22 AB_DDA28 AB_DDB28 AB_DDC28 AB_DDA29 AB_DDB29 AB_DDC29 AB_DDB26 AB_DDC26 AB_DDA27 AB_DDB27 AB_DDA24 AB_DDB24 AB_DDC24 AB_DDA25 AB_DDB25 AB_DDC25 AB_DDA22 AB_DDB22 AB_DDC22 AB_DDA23 AB_DDB23 AB_DDC23 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_ODED6 AB_CLRD6 AB_PCD6 AB_CLRD6 AB_ODED6 LE5 AB_DDA26 AB_DDC27 AB_NCLK72R AB_NCLK72R AB_NCLK73R AB_NCLK72R AA_ODED6 AA_CLRD6 AA_PCD6 AA_LED6 AA_DDC28 AA_DDA31 AA_DDB31 AA_DDC31 AA_DDA30 AA_DDB30 AA_DDC30 AA_DDB28 AA_DDA28 AA_DDC29 AA_DDA29 AA_DDB29 AA_DDB23 AA_DDA23 AA_DDC23 AA_DDA22 AA_DDB22 AA_DDC22 AA_DDB24 AA_DDC24 AA_DDA24 AA_DDC25 AA_DDB25 AA_DDA25 AA_DDC26 AA_DDB26 AA_DDA26 AA_DDC27 AA_DDB27 AA_DDA27 AA_CLK6R AA_NCLK7R AA_LED6 AA_ODED6 AA_PCD6 AA_CLRD6 AB_CLK63R AB_CLK62R AB_PCD6 AA_NCLK7R AA_CLK6R AA_DDB22 AA_DDB23 AA_DDA22 AA_DDC23 AA_DDC22 AA_DDC24 AA_DDC27 AA_DDB25 AA_DDB24 AA_DDA24 AA_DDC25 AA_DDB27 AA_DDA25 AA_DDA26 AA_DDB26 AA_DDC26 AA_DDB29 AA_DDA29 AA_DDA27 AA_DDC28 AA_DDC29 AA_DDB31 AA_DDB30 AA_DDA30 AA_DDC31 AA_DDA31 AA_DDA28 AA_DDB28 AA_DDC30 AB_CLK61R AB_NCLK71R AA_DDA23 AB_PCD6 C7613 50V 100p C7650 50V 100p C7630 16V 0.1u R7646 EXB38V470JV 47 C7654 100V 0.47u R7634 47 R7698 22 C6_5V R7658 EXB38V470JV 47 C7635 16V 0.1u VDA_75V R7665 47 C6_5V D7618 B0HCMM000014 R7696 EXB38V681JV 680 R7697 22 C7669 16V 1u C6_5V R7655 EXB38V470JV 47 R7624 47 R7644 EXB38V681JV 680 C7623 16V 1u C7636 16V 0.1u R7651 EXB38V470JV 47 C6_5V R7633 47 D7615 B0HCMM000014 C7638 16V 0.1u C7617 100V 0.47u R7640 EXB38V681JV 680 D7616 B0HCMM000014 R7638 EXB38V681JV 680 R7603 22 R7699 22 R7648 EXB38V681JV 680 R7647 EXB38V470JV 47 VDA_75V R7641 EXB38V681JV 680 C7624 16V 1u C6_5V D7620 B0HCMM000014 D7617 B0HCMM000014 R7643 EXB38V470JV 47 R7642 EXB38V681JV 680 C7658 16V 1u VDA_75V C7665 16V 0.1u C6_5V C6_5V R7639 EXB38V681JV 680 C7661 50V 100p VDA_75V C60 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 R7654 EXB38V470JV 47 R7650 EXB38V470JV 47 R7687 100k R7645 EXB38V681JV 680 R7637 EXB38V681JV 680 C7618 100V 0.47u C6_5V R7659 EXB38V470JV 47 R7623 47 C7670 16V 1u C61 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C6_5V C7668 16V 1u R7660 47 R7636 EXB38V470JV 47 J0HABH000013 FL7601 1 2 3 D7619 B0HCMM000014 C7637 16V 0.1u R7686 22k C6_5V CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB5 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB4 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C0JBAZ001120 IC7606 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7603 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7602 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7601 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7605 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7604 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7606 22 R7605 22 C7655 100V 0.47u C7616 100V 0.47u C7615 100V 0.47u R7630 6.8 R7627 6.8 R7664 6.8 R7632 6.8 R7626 6.8 R7628 6.8 R7662 6.8 R7625 6.8 R7661 6.8 R7629 6.8 R7631 6.8 R7663 6.8 P75V NC GND DOUTDC[29] GND DOUTDC[25] DOUTDC[30] DOUTDC[31] DOUTDC[27] GND DOUTDB[22] DOUTDA[31] GND DOUTDB[26] NC P5V P5V GND DOUTDB[25] DOUTDB[29] 5V_DET DOUTDA[29] ODED6 GND CLKD[6](+) CLKD[7](-) GND GND GND NC NC NC NC DOUTDC[24] NC GND NC P5V NC(CLK) NC(CLK) GND DOUTDA[28] DOUTDC[26] GND DOUTDB[24] DOUTDB[31] DOUTDC[28] DOUTDA[25] DOUTDB[28] GND GND PCD6 GND GND DOUTDA[27] DOUTDA[22] DOUTDA[26] DOUTDC[22] GND GND LED6 DOUTDA[23] DOUTDB[30] DOUTDA[24] DOUTDB[27] GND DOUTDA[30] DOUTDB[23] DOUTDC[23] CLRD6 P75V NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 NC GND NC NC VDD2 A4 A4 VDD2 VDD1 VDD2 DM VDD1 VDD2 FX FDET NC GND A1 ODE GND DM GND GND GND NC A2 NC A6 NC FS LEN NC ODE A5 A5 GND NC VDD1 VDD2 GND GND VDD2 VDD2 GND CLR VDD1 VDD2 GND A3 VDD2 VDD2 GND CLR LEN FX GND A6 VDD2 A2 A3 FS VDD2 BLK GND GND BLK GND A1 GND GND GND GND GND NC NC NC NC NC NC NC P75V P75V P75V P75V NC C5-BOARD (C52) TO C6-BOARD TNPA4008 (2/2) ! BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER 1 2 TO D-BOARD (D36) DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO 14 13 12 11 15 16 10 17 18 TH-65PF10CK C6-Board (2 of 2) Schematic Diagram TH-65PF10CK C6-Board (2 of 2) Schematic Diagram 97 TH-65PF10CK 11.41.SC 电路板 （1/4）线路图 + + + + + + + + + + + + + + + + AA_SIU AA_SID AC_CPH2 CEL AA_SCSU CPH AA_CL CMH CML DRV_RSTO CEL2 CSL AA_CEL AA_CLK CSH AC_CPH1 AA_DRV_RSTO SOS7_SC2 SOS6_SC1 AA_CEL2 L6486 G0ZZ00002183 1 2 3 L6441 G0ZZ00002183 TP22 Q6554 B1ADRD000001 L6463 G0ZZ00002183 C6561 10V 100u Q6444 2PG0010000RP TP26 L6485 G0ZZ00002183 R6444 7.5 TP2 Q6553 B1ABRD000003 R6561 EXB38V470JV D6451 MA3DF40000LZ TP20 R6455 7.5 L6406 G0CR60KA0118 L6461 G0ZZ00002183 Q6533 B1ABRD000003 L6493 G0ZZ00002183 D6524 MA3DF30000LZ R6454 7.5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C6537 250V 4u R6587 2.2k L6484 G0ZZ00002183 D6485 MA3DF30000LZ R6533 10k Q6532 B1ADRD000001 TP1 L6458 G0ZZ00002183 R6562 EXB38V470JV TP9 C6538 250V 4u 15V L6451 G0ZZ00002183 R6566 EXB38V472JV VSUS D6582 MAZ83300ML R6526 0 TP11 Q6552 B1ADRD000001 R6564 EXB38V470JV R6466 56k R6532 10k TP52 C6416 200V 220u Q6441 2PG0010000RP L6462 G0ZZ00002183 C6415 200V 220u C6414 200V 220u R6443 7.5 L6403 G0CR60KA0118 C6593 50V 1000p R6554 10 C6527 25V 4.7u Q6452 2PG0030000RP C6524 25V 4.7u R6531 10 15V R6542 10 L6602 G0ZZ00002183 R6581 10k R6442 7.5 C6419 200V 220u C6532 250V 4u R6521 100 Q6451 2PG0030000RP C0JBAZ000005 IC6562 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6585 1.5k L6480 G0ZZ00002183 C6592 25V 220u TP24 D6481 MA3DF30000LZ 75 R6523 L6482 G0ZZ00002183 L6474 G0ZZ00002183 L6467 G0ZZ00002183 D6523 B0ECHP000003 L6404 G0CR60KA0118 L6415 G0CR96KA0118 R6584 7.5k R6555 10k L6416 G0CR96KA0118 L6414 G0CR96KA0118 D6466 MA2J11100L D6584 MAZ80510LL TP25 C6429 200V 220u Q6551 B1ABRD000003 L6476 G0ZZ00002183 R6553 10k TP7 C6582 16V 1u R6453 7.5 C6413 200V 220u R6522 100 R6441 7.5 R6567 EXB38V472JV L6457 G0ZZ00002183 L6453 G0ZZ00002183 R6590 220 L6477 G0ZZ00002183 L6497 G0ZZ00002183 L6412 G0CR96KA0118 L6407 G0CR60KA0118 D6486 MA3DF30000LZ C6412 200V 220u TP16 C6566 50V 0.01u C6521 25V 1u D6482 MA3DF30000LZ Q6581 2SD0601A0L L6445 G0ZZ00002183 L6442 G0ZZ00002183 R6468 82k C6418 200V 220u TP27 C6411 200V 220u D6521 B0ECHP000003 Q6442 2PG0010000RP C6563 10V 100u L6487 G0ZZ00002183 L6601 G0ZZ00002183 L6444 G0ZZ00002183 TP13 C6581 25V 1u TP23 L6592 G0ZZ00002183 R6588 10k C6565 50V 0.01u C6431 250V 4u D6491 MA3DF40000LZ C6430 200V 220u R6583 39k D6484 MA3DF30000LZ L6491 G0ZZ00002183 Q6454 2PG0030000RP R6582 39k C6562 16V 1u C6533 250V 4u L6456 G0ZZ00002183 TP8 R6452 7.5 R6586 1.5k TP19 R6556 10k 5V TP14 C6536 250V 4u L6479 G0ZZ00002183 TP12 Q6443 2PG0010000RP L6454 G0ZZ00002183 L6413 G0CR96KA0118 R6509 1 L6495 G0ZZ00002183 L6471 G0ZZ00002183 L6496 G0ZZ00002183 D6583 LNJ301MPUJA R6507 1 L6443 G0ZZ00002183 TP38 R6437 10k TP39 R6525 0 C6525 25V 4.7u TP6 SC2 1 3 TP5 TP15 L6401 G0CR60KA0118 R6451 7.5 C0ZBZ0001324 IC6521 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6420 200V 220u C6534 250V 4u 15V C0JBAZ000005 IC6561 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6568 EXB38V472JV R6565 EXB38V472JV Q6531 B1ABRD000003 D6581 MAZ83300ML IC6581 C0BBBA000022 1 2 3 4 5 6 7 8 L6481 G0ZZ00002183 L6405 G0CR60KA0118 R6467 82k R6591 EXB38V472JV C6417 200V 220u L6468 G0ZZ00002183 L6475 G0ZZ00002183 TP21 L6464 G0ZZ00002183 L6483 G0ZZ00002183 L6492 G0ZZ00002183 D6483 MA3DF30000LZ D6585 MA2J11100L L6455 G0ZZ00002183 L6448 G0ZZ00002183 L6447 G0ZZ00002183 TP18 R6465 27k Q6453 2PG0030000RP L6591 G0ZZ00002183 L6465 G0ZZ00002183 L6446 G0ZZ00002183 R6552 10k L6478 G0ZZ00002183 MAIN_STOP L6402 G0CR60KA0118 C6564 16V 1u TP10 Q6534 B1ADRD000001 D6522 MA3DF30000LZ C6535 250V 4u R6551 10 L6452 G0ZZ00002183 TP4 R6438 10k C6594 25V 220u L6466 G0ZZ00002183 L6498 G0ZZ00002183 C6522 25V 4.7u R6563 EXB38V470JV R6592 4.7k L6488 G0ZZ00002183 TP17 L6494 G0ZZ00002183 SOS7_SC2 D6471 B0HBSN000008 D6472 B0HBSN000008 D6461 B0HBSN000008 D6462 B0HBSN000008 D6463 B0HBSN000008 D6464 B0HBSN000008 D6467 B0HBSN000008 D6468 B0HBSN000008 D6441 B0HBSN000008 = Vsus GND TPVSUS TPSOS7 TPSOS6 GND GND GND GND TP15V +15V GND +15V (GREEN LED) + - + - D-BOARD (D20) TO P-BOARD (P23) TO (P2) TO P-BOARD 5V CLK SIU CL SCSU SID BUFFER BUFFER COMPARATOR FET DRIVER ENERGY RECOVERY A D F 5 2 1 9 4 B C 6 8 E 7 3 4 6 1 5 3 2 ! SC-BOARD TNPA4011 (1/4) SC 23 SC 20 TH-65PF10CK SC-Board (1 of 4) Schematic Diagram TH-65PF10CK SC-Board (1 of 4) Schematic Diagram 98 TH-65PF10CK 11.42.SC 电路板 （2/4）线路图 + AND FLOATING GND COLD FLOATING GND COLD COLD FLOATING GND AB_PROU AB_FSIU AB_FSID AB_FCLU AA_CLK AB_FCLKU AB_FCLKD AA_CL AB_PROD AA_SIU AA_SID AB_FCLD AA_DRV_RSTO Q6408 2PG0010000RP R6541 10k C6701 50V 0.1u Q6522 B1ADNF000006 Q6406 2PG0010000RP R6519 10k R6540 10k R6711 2.2k R6511 10k R6402 7.5 R6423 7.5 R6403 7.5 R6421 7.5 R6520 10k IC6722 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC 5V C6727 16V 1u D6701 MAZ80560HL Q6525 B1ABNF000006 Q6422 2PG0030000RP C6426 630V 5600p 16V_F C6406 630V 2200p D6480 MA2J11100L C6480 50V 0.1u Q6402 2PG0010000RP VSUS R6710 2.2k R6536 10 C6428 630V 2200p R6724 100 C6403 630V 4700p C6704 50V 0.1u C6405 630V 5600p Q6505 B1ABNF000006 D6732 MAZ80560HL R6723 2.2k R6700 470 15V D6726 MAZ80560HL R6712 2.2k 5V_F R6701 470 Q6504 B1ADNF000006 Q6403 2PG0010000RP Q6425 2PG0030000RP C0JBAA000377 IC6472 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C6435 630V 2700p R6475 4.7k R6517 10k Q6508 B1ADNF000006 D6721 B0HCKS000002 15V_F D6731 MAZ80560HL R6406 7.5 Q6428 2PG0030000RP C6427 630V 4700p IC6725 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 R6407 7.5 D6423 MA3DF40000LZ 75 R6504 R6529 47k R6404 7.5 C6724 25V 4.7u C6705 50V 0.1u C6728 50V 1000p C6721 50V 100u R6477 100 D6733 MAZ80560HL 5V Q6427 2PG0030000RP R6501 100 R6427 7.5 R6503 10 R6530 10 Q6421 2PG0030000RP C6424 630V 2700p C6408 630V 2700p Q6426 2PG0030000RP R6538 10k Q6501 B1ABNF000006 Q6401 2PG0010000RP Q6506 B1ADNF000006 R6528 10k R6405 7.5 Q6502 B1ADNF000006 C6723 25V 4.7u R6722 EXB38V220JV D6725 B0ECHP000003 D6723 B0JCME000037 D6421 MA3DF40000LZ IC6724 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 C6702 50V 0.1u R6516 10k D6727 MAZ80560HL R6512 10k D6734 MA2J11100L C6422 630V 5600p R6514 10k R6424 7.5 Q6503 B1ABNF000006 D6422 MA3DF40000LZ D6501 D1FL40-7063 R6428 7.5 15V D6424 MA3DF40000LZ Q6424 2PG0030000RP Q6407 2PG0010000RP PC6701 B3PBA0000233 1 2 3 4 5 6 7 8 R6527 10 SOS7_SC2 R6518 10 R6476 4.7k R6515 10k 5V R6703 470 C6402 630V 2200p R6534 10k R6535 47k IC6721 C0JBAZ000994 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC C6437 630V 4700p Q6423 2PG0030000RP R6721 EXB38V220JV R6425 7.5 R6426 7.5 PC6702 B3PBA0000233 1 2 3 4 5 6 7 8 Q6524 B1ADNF000006 R6506 10 Q6528 B1ADNF000006 C6726 16V 1u Q6521 B1ABNF000006 R6713 2.2k R6513 10 R6539 10 Q6523 B1ABNF000006 D6724 B0JCME000037 R6537 10k C0ZBZ0000895 IC6501 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6425 630V 2200p C6504 25V 4.7u R6508 1 C6502 25V 4.7u R6408 7.5 R6702 470 Q6526 B1ADNF000006 Q6405 2PG0010000RP R6422 7.5 Q6404 2PG0010000RP R6502 100 D6728 MAZ80560HL MAIN_STOP C6725 25V 4.7u C6505 25V 4.7u D6730 MAZ80560HL Q6527 B1ABNF000006 R6401 7.5 Q6507 B1ABNF000006 D6729 MAZ80560HL D6401 B0HBSN000008 D6402 B0HBSN000008 D6403 B0HBSN000008 D6404 B0HBSN000008 D6502 MA3DF30000LZ Vsus Gen. FET DRIVER BUFFER BUFFER +5V(SC1) +5V(SC2) 12 17 10 13 11 15 16 14 18 4 5 3 2 6 1 12 17 18 16 19 14 15 13 20 11 21 ! SC-BOARD TNPA4011 (2/4) TH-65PF10CK SC-Board (2 of 4) Schematic Diagram TH-65PF10CK SC-Board (2 of 4) Schematic Diagram 99 TH-65PF10CK 11.43.SC 电路板 （3/4）线路图 + + + + + + AA_SCSU AA_CEL AC_CPH1 AA_CEL2 AC_CPH2 D6644 B0HCKS000002 D6758 B0ECHP000003 D6667 MA2J11100L PC6704 B3PBA0000234 1 2 3 4 5 D6773 B0HCKS000002 R6865 2.2k PC6760 B3PBA0000223 1 2 3 4 D6663 MAZ83300ML D6478 B0HCKS000002 D6682 B0HCMM000014 C6773 25V 4.7u Q6641 B1DFKM000001 C6692 160V 100u R6619 1.5k R6646 100 15V Q6784 B1ADNF000006 R6783 47 D6760 MA2J11100L Q6681 2SK389500L G D S Q6642 B1DFKM000001 R6604 150 R6615 11k R6684 10 D6613 MA2J11100L D6666 MA2J11100L R6626 220 PC6861 B3PBA0000223 1 2 3 4 R6718 2.2k D6763 MA2J11100L D6684 MA2J11100L 16V_F D6665 MAZ80510LL R6645 100 C6771 16V 1u D6664 MAZ83300ML 15V_F C6603 630V 1000p L6680 G0ZZ00002183 R6661 100k R6667 4.7k R6613 1M R6647 100 R6633 4.7k R6714 2.2k IC6671 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6666 100k R6861 39k D6623 B0HDSM000005 R6672 10k R6617 220k Q6763 B1ADNF000006 R6674 5.6 R6677 5.6 R6651 100 R6664 2.2k C6706 50V 0.1u VSET D6620 B0HCKS000002 C6671 25V 4.7u R6616 15k R6660 220k R6654 100 D6616 MA2J11100L C0JBAA000377 IC6773 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6782 10k C6776 50V 0.1u R6471 3.9k R6644 100 C0JBAA000377 IC6774 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6603 100 R6623 220 R6687 2.2k D6497 MA2J11100L D6820 MA2J11100L R6759 4.7k Q6742 2SD0601A0L D6683 MA2J11100L R6670 100 C6772 25V 4.7u D6612 MA2J11100L R6673 5.6 C0JBAA000377 IC6682 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y R6662 2.7k C6755 50V 0.1u Q6783 B1ABNF000006 R6781 47 C6808 1u 250V R6656 100 C0JBAB000715 IC6753 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R6625 220 R6643 100 R6668 4.7k Q6665 B1ABNF000006 D6610 MAZ81500ML R6631 68k PC6705 B3PBA0000233 1 2 3 4 5 6 7 8 R6622 220 D6625 B0HDSM000005 R6474 1k C6612 25V 1u VSCN_F D6702 MAZ80560HL R6683 150 5V D6761 MA2J11100L C6693 250V 4u Q6658 B1DFKM000001 D6662 MAZ83300ML Q6657 B1DFKM000001 D6627 B0HDSM000005 R6648 100 C0JBAB000715 IC6602 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y R6746 10k D6603 MAZ82400ML Q6661 B1DEET000002 G D S R6690 150 R6696 2.2 R6784 10k R6608 1k R6717 2.2k D6861 MAZ80510LL Q6646 B1DFKM000001 IC6772 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB R6611 1M C6777 50V 0.1u D6611 MA2J11100L PC6610 B3PBA0000223 1 2 3 4 C6775 25V 4.7u R6697 2.2 R6627 220 Q6674 B1DEDS000001 G D S C6604 350V 47u D6601 MAZ82400ML R6605 100k C6753 25V 4.7u Q6781 B1ABNF000006 TP64 Q6671 B1DEDS000001 G D S D6862 MA2J11100L Q6673 B1DEDS000001 G D S R6868 22k R6867 3.9k C6641 1u 250V R6657 100 R6655 100 R6642 100 Q6626 B1DFKM000001 D6771 B0JCME000037 D6607 MA2J11100L D6629 B0HDSM000005 C0DBEKA00003 IC6471 1 NC 2 A 3 K 5 A 4 REF R6652 100 PC6480 B3PBA0000223 1 2 3 4 R6742 10k Q6622 B1DFKM000001 R6760 1.2k R6614 11k C6681 25V 4.7u R6653 100 Q6691 2SK062000L G D S C6862 25V 1u IC6751 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 IC6601 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB D6643 B0JCME000037 5V R6649 100 C6754 35V 56u R6669 100 C6708 50V 0.1u R6747 10k R6688 4.7k Q6762 B1ADNF000006 R6689 10 Q6627 B1DFKM000001 R6682 100 Q6660 B1DFKM000001 R6863 47k PC6703 B3PBA0000233 1 2 3 4 5 6 7 8 R6743 1k Q6649 B1DFKM000001 R6705 470 Q6645 B1DFKM000001 C6861 16V 1u Q6672 B1DEDS000001 G D S C6703 50V 0.1u D6621 B0HDSM000005 C6691 160V 100u R6762 10k C6707 50V 0.1u IC6681 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB SOS7_SC2 R6632 3.9k IC6861 C0BBBA000022 1 2 3 4 5 6 7 8 Q6651 B1DFKM000001 Q6652 B1DFKM000001 D6619 B0HCKS000002 R6685 470 R6708 470 D6642 B0HCKS000002 R6745 4.7k R6472 2.2k Q6682 2SK389500L G D S R6862 47k R6744 10k C6602 25V 4.7u Q6662 2SD0601A0L Q6648 B1DFKM000001 C6606 630V 1000p C6809 160V 100u R6869 4.7k R6691 10k D6477 MA2J11100L R6620 8.2 C6806 160V 100u Q6743 2SD0601A0L R6630 11k C6620 630V 2200p VF_GND VR6602 2k 1 2 3 R6473 560 R6715 2.2k D6661 MA2J11100L SOS7_SC2 IC6610 C0BBBA000022 1 2 3 4 5 6 7 8 R6641 100 R6675 5.6 R6704 470 Q6654 B1DFKM000001 Q6601 B1DEDS000001 G D S R6716 2.2k Q6602 2SD0601A0L IC6771 C0CBADC00089 INPUT 3 2 COMMON OUTPUT 1 5V Q6653 B1DFKM000001 1% R6607 20k R6612 47 C6682 25V 4.7u D6653 B0JCME000037 C6610 50V 0.01u Q6744 2SK062000L G D S D6605 MAZ80510LL Q6623 B1DFKM000001 D6604 MA2J11100L D6752 B0JCME000037 5V C6605 50V 0.1u Q6625 B1DFKM000001 R6609 1k C6662 630V 1000p Q6656 B1DFKM000001 C6863 50V 0.01u Q6782 B1ADNF000006 R6610 100k Q6643 B1DFKM000001 R6659 220k R6756 33 R6755 100 R6763 10 Q6680 B1ADNF000006 D6606 B0HCMM000014 R6761 10 Q6679 B1ABNF000006 R6764 10k R6776 100 D6630 B0HDSM000005 D6641 B0HCKS000002 D6687 MA2J11100L VR6601 5k 1 2 3 D6686 MA2J11100L R6658 100 Q6659 B1DFKM000001 R6775 100 R6679 100 16V_F Q6644 B1DFKM000001 R6777 150 R6707 470 R6676 5.6 R6866 2.2k 1% R6606 1k R6706 470 Q6675 B1DEDS000001 G D S R6864 8.87k R6618 12k R6665 47 Q6655 B1DFKM000001 C6661 630V 1000p C6601 25V 4.7u R6686 10k C6683 50V 0.1u D6602 B0ECHP000003 VSCN_F Q6647 B1DFKM000001 R6671 47 C6752 16V 1u SOS7_SC2 VSET2 IC6752 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB TPVSET TPSC1 - + - + INIT-F INIT-F - - + + COMPARATOR 24 26 23 25 19 20 22 21 27 11 16 18 17 12 14 15 13 19 21 20 31 32 33 34 VAD CONT FET DRIVER FET DRIVER VAD SEPARATE FET DRIVER VSET SEPARATE COMPARATOR FET DRIVER VSET SLOPE FET DRIVER SUPERIMPOSED VSCN ! SC-BOARD TNPA4011 (3/4) AND AND AND COLD FLOATING GND FLOATING GND COLD FLOATING GND COLD FLOATING GND COLD TH-65PF10CK SC-Board (3 of 4) Schematic Diagram TH-65PF10CK SC-Board (3 of 4) Schematic Diagram 100 TH-65PF10CK 11.44.SC 电路板 （4/4）线路图 + + + + REF K A REF K A REF K A + + + + + REF K A + AB_FCLD AB_FCLKD AB_PROD AB_FSIU AB_FSID AB_PROU AB_FCLKU AB_FCLU R6842 43k R6833 51k 16V_F TP049 D6821 MA2J11100L 1 2 3 4 5 6 7 8 9 R6858 1k D6808 B0HCMM000014 C6815 50V 0.1u C6807 50V 470p ZA6402 K4CD01000011 PC6801 B3PBA0000223 1 2 3 4 D6841 B0HCKS000002 1 2 3 4 5 6 7 8 9 TP050 R6811 33k TP048 R6809 10k TP037 SOS7_SC2 R6875 3.3k C6822 350V 47u R6820 0 TP34 D6826 MA2J11100L TP051 Q6842 2SC1473AEA TP50 R6807 1.2 1/2W SC42 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 D6802 B0BC01000044 L6841 J0JJC0000011 C6872 25V 1u C6791 25V 220u 16V_F C6814 35V 150u VR6603 20k 1 2 3 R6801 8.2 R6829 220k R6849 68k R6823 100k R6886 220k R6834 51k R6822 100k R6819 680 R6813 12k TP31 Q6791 2SD0601A0L T6602 ETS28AU389AC 2 P2 3 PT 4 P1 6 V1 7 V2 9 NC 10 S5 12 S3 13 S2 14 NC 15 S1 16 NC 11 S4 VSET R6791 1k R6808 2.7k TP042 C6801 250V 47u VSCN_F D6825 MAZ83300ML R6844 100 PC6871 B3PBA0000223 1 2 3 4 SOS7_SC2 TP28 C6823 50V 0.01u Q6821 2SD1263AP0LB R6839 4.7k TP49 R6825 270k TP036 N0BF1FB00001 IC6791 1 GND 2 GND 3 N.C. 4 VIN 5 VIN 6 N.C. 9 COM 10 COM 11 VOUT 12 VOUT R6826 220k R6879 4.7k R6792 10k TP42 IC6841 C0DBEMB00005 L6801 IC6802 C0DBEMB00005 C6811 50V 0.01u 15V TP32 5V_F Q6822 2SC3063000RL R6832 4.7 1 2 3 4 5 6 7 8 TP35 Q6841 2SD1263AP0LB R6877 3.9k R6876 1.2k 5V R6806 1.2 1/2W D6822 MA2J11100L C6805 50V 1000p R6852 2.49k D6807 B0HCMM000014 R6846 56k 5V_F TP41 IC6801 C0DBEMB00005 R6816 2.2k R6891 3.3k C6795 25V 220u TP052 C6804 250V 10u R6817 5.6k VSUS 15V C6871 16V 1u L6802 J0JJC0000011 TP047 R6878 22k TP29 TP044 TP43 R6836 51k D6823 MA2J11100L R6841 15k D6872 MA2J11100L TP30 C6803 2kV 220p TP046 D6860 B0HCKS000002 R6888 220k 2W R6803 56k TP063 D6810 B0HCMM000014 C6812 25V 4.7u R6851 1.2k ZA6401 K4CD01000011 R6793 100 R6871 39k TP062 R6873 39k L6473 G0ZZ00002183 VR6600 1k 1 2 3 D6809 B0HCMM000014 SC41 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 R6835 51k D6824 MAZ83300ML L6472 G0ZZ00002183 Q6803 2SD0814ARL TP48 5V VSUS TP47 C6845 50V 0.01u R6828 5.23k VSET0 C6841 200V 100u C6842 160V 100u SOS7_SC2 R6850 68k R6810 33k TP53 TP043 SC44 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 D6859 B0ECHP000003 R6887 220k TP33 C6813 160V 100u 16V_F C6802 630V 0.022u R6848 10k D6805 MA2J11100L R6837 56k D6842 MA2J11100L 5V_F IC6821 C0DBEMB00005 R6821 220 Q6824 2SD0601A0L C6873 50V 0.01u TP40 TP045 D6804 B0ECHP000003 TP46 ZA6403 K4CD01000011 D6806 B0ECHP000003 16V_F R6872 39k R6845 62k R6830 220k R6853 100 R6802 68k R6814 5.6k D6871 MAZ80510LL R6812 200k IC6871 C0BBBA000022 1 2 3 4 5 6 7 8 R6831 15k R6824 5.6k R6847 56k R6860 8.2 VSET0 D6843 MA2J11100L C6796 25V 220u R6870 0 R6843 62k C0DAAMH00005 IC6803 1 Drain 2 Source 3 GND 4 Vin 5 OCP/FB R6874 9.53k D6803 B0HCKS000002 D6791 MAZ82000ML VSET2 TP053 R6827 8.2k SC43 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 * * * * m * * TPVSET2:5V TPVAD TPVSCN VSET:240V - - + + AB_FSIU AB_FCLU AB_FCLKU AB_PROU AB_FSID AB_FCLD AB_FCLKD AB_PROD VSET VAD 31 30 35 29 34 28 33 36 32 32 31 34 33 DC/DC CONV. POWER OSC COMPARATOR (SU41) TO SU-BOARD (SU42) TO SU-BOARD TO SU-BOARD (SU45) (SD46) TO SD-BOARD SD-BOARD (SD44) TO SD-BOARD (SD43) TO ! SC-BOARD TNPA4011 (4/4) SC 45 SC 46 VSCN Gen. VAD Gen. VSET2 Gen. SC 30 FLOATING GND COLD FLOATING GND COLD TH-65PF10CK SC-Board (4 of 4) Schematic Diagram TH-65PF10CK SC-Board (4 of 4) Schematic Diagram 101 TH-65PF10CK 11.45.SU 电路板 （1/3）线路图 TERM SIDE AB515 AB516 AB517 AB518 AB519 AB520 AB521 AB522 AB523 AB524 AB525 AB526 AB527 AB528 AB529 AB530 AB531 AB532 AB533 AB534 AB535 AB536 AB537 AB539 AB538 AB540 AC451 AC452 AC453 AC454 AC455 AC456 AC457 AC458 AC459 AC460 AC461 AC462 AC463 AC464 AC465 AC466 AC467 AC468 AC469 AC470 AC471 AC472 AC473 AC475 AC474 AC476 AC478 AC477 AB513 AB514 AC450 AC449 AC512 AC511 AC510 AC509 AC508 AC507 AC506 AC505 AC504 AC503 AC502 AC501 AC500 AC499 AC498 AC497 AC496 AC495 AC494 AC493 AC492 AC491 AC490 AC489 AC488 AC487 AC486 AC485 AC484 AC483 AC482 AC481 AC479 AC480 AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_CLK AA_SI9 AD433 AD435 AD437 AD439 AD441 AD443 AD445 AD447 AD434 AD436 AD438 AD440 AD442 AD444 AD446 AD448 AC450 AC452 AC454 AC456 AC458 AC460 AC462 AC464 AC466 AC468 AC470 AC472 AC474 AC476 AC478 AC480 AC482 AC484 AC486 AC488 AC490 AC492 AC494 AC496 AC498 AC500 AC502 AC504 AC506 AC508 AC510 AC512 AC449 AC451 AC453 AC455 AC457 AC459 AC461 AC463 AC465 AC467 AC469 AC471 AC473 AC475 AC477 AC479 AC481 AC483 AC485 AC487 AC489 AC491 AC493 AC495 AC497 AC499 AC501 AC503 AC505 AC507 AC509 AC511 AB513 AB515 AB517 AB519 AB521 AB523 AB525 AB527 AB529 AB531 AB533 AB535 AB537 AB539 AB514 AB516 AB518 AB520 AB522 AB524 AB526 AB528 AB530 AB532 AB534 AB536 AB538 AB540 AA_SI8 AA_SI9 AA_CL AA_SI1 AA_PRO AA_CLK SU5 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6909 220 C6928 50V 220p C6908 16V 1u AN16071A-VT IC6908 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6909 16V 1u AN16071A-VT IC6909 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6940 50V 0.1u 1 2 3 4 5 6 7 8 9 C6929 50V 220p R6908 220 C6961 50V 1000p IC6940 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc R6920 EXB38V220JV R6922 EXB38V220JV R6921 EXB38V103JV S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 28bit SU-BOARD TNPA4009AC (1/3) ! AND Gate (SC45) SC-BOARD TO Vf Vf Vf Vf5 Vf5 FCL FSI FCLK PRO A 5 F 1 2 C 4 D 7 3 9 6 8 E B 4 6 7 1 5 3 2 To 5th 108pins of SCAN ELECTRODES 45 SU TH-65PF10CK SU-Board (1 of 3) Schematic Diagram TH-65PF10CK SU-Board (1 of 3) Schematic Diagram 102 TH-65PF10CK 11.46.SU 电路板 （2/3）线路图 TERM SIDE TERM SIDE AD387 AD388 AD389 AD390 AD391 AD392 AD393 AD394 AD395 AD396 AD397 AD398 AD399 AD400 AD401 AD402 AD403 AD404 AD405 AD406 AD407 AD408 AD409 AD411 AD410 AD412 AD414 AD413 AE323 AE324 AE325 AE326 AE327 AE328 AE329 AE330 AE331 AE332 AE333 AE334 AE335 AE336 AE337 AE338 AE339 AE340 AE341 AE342 AE343 AE344 AE345 AE347 AE346 AE348 AE350 AE349 AF259 AF260 AF261 AF262 AF263 AF264 AF265 AF266 AF267 AF268 AF269 AF270 AF271 AF272 AF273 AF274 AF275 AF276 AF277 AF278 AF279 AF280 AF281 AF283 AF282 AF284 AF286 AF285 AD386 AD385 AE321 AE322 AF258 AD448 AD447 AD446 AD445 AD444 AD443 AD442 AD441 AD440 AD439 AD438 AD437 AD436 AD435 AD434 AD433 AD432 AD431 AD430 AD429 AD428 AD427 AD426 AD425 AD423 AD424 AD422 AD421 AD420 AD419 AD418 AD417 AD415 AD416 AE384 AE383 AE382 AE381 AE380 AE379 AE378 AE377 AE376 AE375 AE374 AE373 AE372 AE371 AE370 AE369 AE368 AE367 AE366 AE365 AE364 AE363 AE362 AE361 AE360 AE359 AE358 AE357 AE356 AE355 AE354 AE353 AE351 AE352 AF320 AF319 AF318 AF317 AF316 AF315 AF314 AF313 AF312 AF311 AF310 AF309 AF308 AF307 AF306 AF305 AF304 AF303 AF302 AF301 AF300 AF299 AF298 AF297 AF296 AF295 AF294 AF293 AF292 AF291 AF290 AF289 AF287 AF288 AA_SI8 AA_SI7 AA_SI5 AA_SI6 AA_CLK AA_CL AA_CLK AA_CL AA_PRO AA_CLK AA_CL AA_PRO AA_PRO AG217 AG219 AG221 AG223 AG225 AG227 AG229 AG231 AG233 AG235 AG237 AG239 AG241 AG243 AG245 AG247 AG249 AG251 AG253 AG255 AG218 AG220 AG222 AG224 AG226 AG228 AG230 AG232 AG234 AG236 AG238 AG240 AG242 AG244 AG246 AG248 AG250 AG252 AG254 AG256 AF257 AF259 AF261 AF263 AF265 AF267 AF269 AF271 AF273 AF275 AF277 AF279 AF281 AF283 AF285 AF287 AF289 AF291 AF293 AF295 AF297 AF299 AF301 AF303 AF305 AF307 AF309 AF311 AF313 AF315 AF317 AF319 AF258 AF260 AF262 AF264 AF266 AF268 AF270 AF272 AF274 AF276 AF278 AF280 AF282 AF284 AF286 AF288 AF290 AF292 AF294 AF296 AF298 AF300 AF302 AF304 AF306 AF308 AF310 AF312 AF314 AF316 AF318 AF320 AE322 AE324 AE326 AE328 AE330 AE332 AE334 AE336 AE338 AE340 AE342 AE346 AE348 AE350 AE352 AE354 AE356 AE358 AE360 AE362 AE364 AE366 AE368 AE370 AE372 AE374 AE376 AE378 AE380 AE382 AE384 AE344 AE321 AE323 AE325 AE327 AE329 AE331 AE333 AE335 AE337 AE339 AE341 AE343 AE345 AE347 AE349 AE351 AE353 AE355 AE357 AE359 AE361 AE363 AE365 AE367 AE369 AE371 AE373 AE375 AE377 AE379 AE381 AE383 AD385 AD387 AD389 AD391 AD393 AD395 AD397 AD399 AD401 AD403 AD405 AD407 AD409 AD411 AD413 AD415 AD417 AD419 AD421 AD423 AD425 AD427 AD429 AD431 AD386 AD388 AD390 AD392 AD394 AD396 AD398 AD400 AD402 AD404 AD406 AD408 AD410 AD412 AD414 AD416 AD418 AD420 AD422 AD424 AD426 AD428 AD430 AD432 AA_SI6 AA_SI7 AF257 D16 D43 R6938 220k AN16071A-VT IC6907 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D42 D71 D54 D77 R6905 220 D49 SU3 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C6926 50V 220p D23 D69 D58 D1 D72 D26 D29 D27 D62 D28 D51 D79 D47 D22 D3 D56 SU4 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 D34 D35 D12 D39 D37 D80 D41 D68 D6 R6939 220k D36 D14 D18 D73 D11 C6906 16V 1u D21 D60 D2 D55 D31 R6907 220 D48 D78 C6905 16V 1u D52 D50 D64 D15 R6906 220 D65 D20 D24 D8 D66 D45 D30 C6925 50V 220p D61 D4 D53 D40 AN16071A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D13 D57 D32 D46 D9 D76 D70 D74 C6927 50V 220p AN16071A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D38 D67 C6907 16V 1u D19 D25 D10 D17 D7 D63 D75 D59 D33 D44 D5 D6913 B0HDRP000002 DE5LC20U-7061 C6968 250V 0.1u C6969 250V 0.1u C6980 250V 0.1u C6981 250V 0.1u Vscn Vf Vfo 1/8W 1/8W S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit SU-BOARD TNPA4009AC (2/3) COMPONENT SIDE (LOWER) (UPPER) FOIL SIDE 17 13 15 11 16 10 12 18 14 6 1 5 3 7 4 2 11 12 17 18 16 19 14 15 13 To 3rd 108pins of SCAN ELECTRODES To 4th 108pins of SCAN ELECTRODES SU42(Card Edge 80Pin) TO (SC42) SC-BOARD ! TH-65PF10CK SU-Board (2 of 3) Schematic Diagram TH-65PF10CK SU-Board (2 of 3) Schematic Diagram 103 TH-65PF10CK 11.47.SU 电路板 （3/3）线路图 TERM SIDE TERM SIDE AG195 AG196 AG197 AG198 AG199 AG200 AG201 AG202 AG203 AG204 AG205 AG206 AG207 AG208 AG209 AG210 AG211 AG212 AG213 AG214 AG215 AG216 AG217 AG219 AG218 AG220 AG222 AG221 AG193 AG194 AG256 AG255 AG254 AG253 AG252 AG251 AG250 AG249 AG248 AG247 AG246 AG245 AG244 AG243 AG242 AG241 AG240 AG239 AG238 AG237 AG236 AG235 AG234 AG233 AG232 AG231 AG230 AG229 AG228 AG227 AG226 AG225 AG223 AG224 AA_CLK AA_CL AA_PRO AH162 AH185 AH163 AH186 AH164 AH187 AH134 AH165 AH188 AH133 AH166 AH189 AH132 AH167 AH190 AH131 AH144 AH168 AH191 AH143 AH169 AH192 AH142 AH170 AH157 AH141 AH171 AH158 AH140 AH172 AH156 AH139 AH173 AH154 AH138 AH174 AH155 AH175 AH137 AH153 AH176 AH136 AH152 AH177 AH135 AH151 AH178 AH150 AH179 AH149 AH130 AH180 AH148 AH129 AH181 AH147 AH160 AH182 AH146 AH159 AH183 AH145 AH161 AH184 AI98 AI121 AI99 AI122 AI100 AI123 AI70 AI101 AI124 AI69 AI102 AI125 AI68 AI103 AI126 AI67 AI80 AI104 AI127 AI79 AI105 AI128 AI78 AI106 AI93 AI77 AI107 AI94 AI76 AI108 AI92 AI75 AI109 AI90 AI74 AI110 AI91 AI111 AI73 AI89 AI112 AI72 AI88 AI113 AI71 AI87 AI114 AI86 AI115 AI85 AI66 AI116 AI84 AI65 AI117 AI83 AI96 AI118 AI82 AI95 AI119 AI81 AI97 AI120 AJ6 AJ5 AJ4 AJ3 AJ16 AJ15 AJ14 AJ13 AJ12 AJ28 AJ11 AJ26 AJ10 AJ27 AJ9 AJ25 AJ8 AJ24 AJ7 AJ23 AJ22 AJ21 AJ2 AJ20 AJ1 AJ19 AJ18 AJ17 AA_CLK AA_CLK AA_CLK AA_CL AA_CL AA_CL AA_PRO AA_PRO AA_SI3 AA_SI4 AA_SI1 AA_PRO AA_SI2 AJ29 AJ30 AJ31 AJ32 AJ33 AJ34 AJ35 AJ36 AJ37 AJ38 AJ39 AJ40 AJ41 AJ42 AJ43 AJ44 AJ45 AJ46 AJ47 AJ48 AJ49 AJ50 AJ51 AJ52 AJ53 AJ54 AJ55 AJ56 AJ57 AJ58 AJ59 AJ60 AJ61 AJ62 AJ63 AJ64 AJ2 AJ4 AJ6 AJ8 AJ10 AJ12 AJ14 AJ16 AJ18 AJ20 AJ22 AJ24 AJ26 AJ28 AJ30 AJ32 AJ3 AJ5 AJ7 AJ9 AJ11 AJ13 AJ15 AJ17 AJ19 AJ21 AJ23 AJ25 AJ27 AJ29 AJ31 AJ33 AJ35 AJ37 AJ39 AJ41 AJ43 AJ45 AJ47 AJ49 AJ51 AJ53 AJ55 AJ57 AJ59 AJ61 AJ63 AJ34 AJ36 AJ38 AJ40 AJ42 AJ44 AJ46 AJ48 AJ50 AJ52 AJ54 AJ56 AJ58 AJ60 AJ62 AJ64 AI65 AI67 AI69 AI71 AI73 AI75 AI77 AI79 AI81 AI83 AI85 AI87 AI89 AI91 AI93 AI95 AI97 AI99 AI101 AI103 AI105 AI109 AI111 AI113 AI115 AI117 AI119 AI121 AI123 AI125 AI127 AI66 AI68 AI70 AI72 AI74 AI76 AI78 AI80 AI82 AI84 AI86 AI88 AI90 AI92 AI94 AI96 AI98 AI100 AI102 AI104 AI106 AI108 AI110 AI112 AI114 AI116 AI118 AI120 AI122 AI124 AI126 AI128 AI107 AH129 AH131 AH133 AH135 AH137 AH139 AH141 AH143 AH145 AH147 AH149 AH151 AH153 AH155 AH157 AH159 AH161 AH163 AH165 AH167 AH169 AH171 AH173 AH175 AH177 AH179 AH181 AH183 AH185 AH187 AH189 AH191 AH130 AH132 AH134 AH136 AH138 AH140 AH142 AH144 AH146 AH148 AH150 AH152 AH154 AH156 AH158 AH160 AH162 AH164 AH166 AH168 AH170 AH172 AH174 AH176 AH178 AH180 AH182 AH184 AH186 AH188 AH190 AH192 AG193 AG195 AG197 AG199 AG201 AG203 AG205 AG207 AG209 AG211 AG213 AG215 AG194 AG196 AG198 AG200 AG202 AG204 AG206 AG208 AG210 AG212 AG214 AG216 AA_SI2 AA_SI3 AA_SI4 AA_SI5 AJ1 AA_CL AA_CLK AA_SI1 AA_PRO D6902 MAZ80560HL C4 AN16071A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 D6901 MAZ80560HL C16 R6963 220k C6901 16V 1u C42 C47 C39 C45 C68 C62 C20 C64 C56 C63 C6904 16V 1u C3 C21 C18 C76 C34 C44 C17 C19 C57 C61 C8 C12 C6966 250V 0.1u C6924 50V 220p C24 C52 C58 C78 AN16071A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C60 C31 C6922 50V 220p C6903 16V 1u C2 C80 C49 C26 C11 C36 C14 C15 C74 C41 C27 C13 C65 C40 C25 R6902 220 C6923 50V 220p C10 C22 C6965 250V 0.1u C69 C30 R6904 220 C33 C53 C28 R6901 100 R6903 220 C43 C71 C77 AN16071A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C48 C50 C66 C9 AN16071A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C23 C67 C6921 50V 1000p C59 C1 C55 C37 C6902 16V 1u C51 C46 C6964 250V 0.1u C54 C73 C38 C29 C75 C79 SU1 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C7 SU2 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 C6967 250V 0.1u C72 C35 C6 C5 C70 C32 D6910 B0HDRP000002 R6924 EXB38V103JV Vf5 1/8W S/P 64bit PDP SCAN DRIVER S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit SU-BOARD TNPA4009AC (3/3) ! COMPONENT SIDE FOIL SIDE (UPPER) (LOWER) 24 23 25 26 20 19 21 22 27 17 18 16 19 15 13 11 14 12 To 1st 108pins of SCAN ELECTRODES SCAN ELECTRODES To 2nd 108pins of SU41(Card Edge 80Pin) TO (SC41) SC-BOARD TH-65PF10CK SU-Board (3 of 3) Schematic Diagram TH-65PF10CK SU-Board (3 of 3) Schematic Diagram 104 TH-65PF10CK 11.48.SD 电路板 （1/3）线路图 TERM SIDE TERM SIDE AE827 AE828 AE829 AE830 AE831 AE832 AE833 AE834 AE835 AE836 AE837 AE838 AE839 AE840 AE841 AE842 AE843 AE844 AE845 AE846 AE847 AE848 AE849 AE851 AE850 AE852 AE854 AE853 AE825 AE826 AE888 AE888 AE886 AE885 AE884 AE883 AE882 AE881 AE880 AE879 AE878 AE877 AE876 AE875 AE874 AE873 AE872 AE871 AE870 AE869 AE868 AE867 AE866 AE865 AE864 AE863 AE887 AE862 AE861 AE860 AE859 AE858 AE857 AE856 AE855 AD941 AD892 AD907 AD917 AD906 AA_PRO AD890 AD918 AD905 AD889 AD916 AD904 AD919 AD927 AD914 AD903 AD920 AD928 AD923 AD915 AD902 AA_SI16 AD921 AD929 AD924 AD913 AD901 AD922 AD930 AD925 AD900 AD931 AA_CL AD926 AD899 AA_CLK AD898 AD951 AD942 AD897 AD943 AD947 AD944 AD912 AD948 AD932 AD945 AD911 AD949 AD933 AD946 AD910 AD950 AD934 AD909 AD935 AD952 AD952 AD908 AD936 AD937 AD896 AD938 AD895 AD939 AD894 AD940 AD891 AD893 AC1005 AC956 AC971 AC981 AC970 AA_PRO AC954 AC982 AC969 AC953 AC980 AC968 AC983 AC991 AC978 AC967 AC984 AC992 AC987 AC979 AC966 AC985 AC993 AC988 AC977 AC965 AC986 AC994 AC989 AC964 AC995 AA_CL AC990 AC963 AA_CLK AC962 AC1015 AC1006 AC961 AC1007 AC1011 AC1008 AC976 AC1012 AC996 AC1009 AC975 AC1013 AC997 AC1010 AC974 AC1014 AC998 AC973 AC999 AC1016 AC972 AC1000 AC1001 AC960 AC1002 AC959 AC1003 AC958 AC1004 AC955 AC957 AB1069 AA_PRO AB1055 AB1056 AA_SI18 AB1057 AB1058 AB1053 AB1059 AA_CL AB1054 AA_CLK AB1079 AB1070 AB1071 AB1075 AB1072 AB1076 AB1060 AB1073 AB1077 AB1061 AB1074 AB1078 AB1062 AB1063 AB1080 AB1064 AB1065 AB1066 AB1067 AB1068 AA_SI15 AA_SI17 AA_PRO AA_CL AA_CLK AB1052 AB1051 AB1050 AB1049 AB1048 AB1047 AB1046 AB1045 AB1044 AB1043 AB1042 AB1041 AB1040 AB1039 AB1038 AB1037 AB1036 AB1035 AB1034 AB1033 AB1032 AB1031 AB1030 AB1029 AB1028 AB1027 AB1026 AB1025 AB1024 AB1023 AB1022 AB1021 AB1020 AB1019 AB1018 AB1017 AB1080 AB1078 AB1076 AB1074 AB1072 AB1070 AB1068 AB1066 AB1064 AB1062 AB1060 AB1058 AB1056 AB1054 AB1052 AB1050 AB1048 AB1046 AB1044 AB1042 AB1040 AB1038 AB1036 AB1034 AB1032 AB1030 AB1028 AB1026 AB1024 AB1022 AB1020 AB1018 AB1079 AB1077 AB1075 AB1073 AB1071 AB1069 AB1067 AB1065 AB1063 AB1061 AB1059 AB1057 AB1055 AB1053 AB1051 AB1049 AB1047 AB1045 AB1043 AB1041 AB1039 AB1037 AB1035 AB1033 AB1031 AB1029 AB1027 AB1025 AB1023 AB1021 AB1019 AB1017 AC1016 AC1014 AC1012 AC1010 AC1008 AC1006 AC1004 AC1002 AC1000 AC998 AC996 AC994 AC992 AC990 AC988 AC986 AC984 AC982 AC980 AC978 AC976 AC974 AC972 AC970 AC968 AC966 AC964 AC962 AC960 AC958 AC956 AC954 AC1015 AC1013 AC1011 AC1009 AC1007 AC1005 AC1003 AC1001 AC999 AC997 AC995 AC993 AC991 AC989 AC987 AC985 AC983 AC981 AC979 AC977 AC975 AC973 AC971 AC969 AC967 AC965 AC963 AC961 AC959 AC957 AC955 AC953 AD952 AD950 AD948 AD946 AD944 AD942 AD940 AD938 AD936 AD934 AD932 AD930 AD928 AD926 AD924 AD922 AD920 AD918 AD916 AD914 AD912 AD910 AD908 AD906 AD904 AD902 AD900 AD898 AD896 AD894 AD892 AD890 AD951 AD949 AD947 AD945 AD943 AD941 AD939 AD937 AD935 AD933 AD931 AD929 AD927 AD925 AD923 AD921 AD919 AD917 AD915 AD913 AD911 AD909 AD907 AD905 AD903 AD901 AD899 AD897 AD895 AD893 AD891 AD889 AE888 AE886 AE884 AE882 AE880 AE878 AE876 AE874 AE872 AE870 AE868 AE866 AE887 AE885 AE883 AE881 AE879 AE877 AE875 AE873 AE871 AE869 AE867 AE865 AA_CLK AA_SI17 AA_SI16 AA_SI15 AA_SI14 AA_SI18 AA_PRO AA_CL A23 A42 A18 R6948 220k A57 A26 C6916 16V 1u A17 A4 R6916 220 A14 A43 A74 A52 A60 A47 A7 A25 AN16071A-VT IC6915 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A19 A59 A32 A9 A66 A37 A77 A80 A34 D6906 MAZ80560HL A61 A71 A11 A20 C6935 50V 220p A48 A45 A16 A10 A5 A58 AN16071A-VT IC6917 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6938 50V 1000p A22 C6917 16V 1u C6936 50V 220p A8 A62 D6905 MAZ80560HL C6918 16V 1u A70 A38 A64 A63 A49 A46 A51 A29 A15 A6 A67 A33 A3 A40 A76 A41 A24 A36 A75 A53 C6937 50V 220p A65 SD2 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 A56 A78 A73 A28 A50 AN16071A-VT IC6918 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A55 R6915 220 A2 A69 A12 A30 R6917 220 R6918 100 A13 A31 A79 A35 C6915 16V 1u A54 A1 A68 A21 A44 A72 A39 SD1 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 AN16071A-VT IC6916 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A27 D6923 B0HDRP000002 R6954 EXB38V103JV C6978 250V 0.1u C6979 250V 0.1u C6990 250V 0.1u C6991 250V 0.1u 1/8W Vf5 SD-BOARD TNPA4010AC (1/3) S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit SCAN ELECTRODES To 2nd 108pins of To 1st 108pins of SCAN ELECTRODES (SC43) SD43(Card Edge 80Pin) TO SC-BOARD COMPONENT SIDE (LOWER) FOIL SIDE (UPPER) A 6 8 9 7 3 E D 5 F 2 1 C B 4 4 6 7 3 8 2 1 5 9 ! TH-65PF10CK SD-Board (1 of 3) Schematic Diagram TH-65PF10CK SD-Board (1 of 3) Schematic Diagram 105 TH-65PF10CK 11.49.SD 电路板 （2/3）线路图 TERM SIDE TERM SIDE AF763 AF764 AF765 AF766 AF767 AF768 AF769 AF770 AF771 AF772 AF773 AF774 AF775 AF776 AF777 AF778 AF779 AF780 AF781 AF782 AF783 AF784 AF785 AF787 AF786 AF788 AF790 AF789 AG699 AG700 AG701 AG702 AG703 AG704 AG705 AG706 AG707 AG708 AG709 AG710 AG711 AG712 AG713 AG714 AG715 AG716 AG717 AG718 AG719 AG720 AG721 AG723 AG722 AG724 AG726 AH635 AH636 AH637 AH638 AH639 AH640 AH641 AH642 AH643 AH644 AH645 AH646 AH647 AH648 AH649 AH650 AH651 AH652 AH653 AH654 AH655 AH656 AH657 AH659 AH658 AH660 AH662 AH661 AF761 AF762 AG697 AG698 AH633 AH634 AF823 AF822 AF821 AF820 AF819 AF818 AF817 AF816 AF815 AF814 AF813 AF812 AF811 AF810 AF809 AF808 AF807 AF806 AF805 AF804 AF803 AF802 AF801 AF800 AF799 AF798 AF797 AF796 AF795 AF794 AF793 AF792 AF791 AG760 AG759 AG758 AG757 AG756 AG755 AG754 AG753 AG752 AG751 AG750 AG749 AG748 AG747 AG746 AG745 AG744 AG743 AG742 AG741 AG740 AG739 AG738 AG737 AG736 AG735 AG734 AG733 AG732 AG731 AG730 AG729 AG727 AG728 AG725 AH695 AH696 AH693 AH692 AH691 AH690 AH689 AH688 AH687 AH686 AH685 AH684 AH683 AH682 AH681 AH680 AH679 AH678 AH677 AH676 AH675 AH674 AH673 AH672 AH671 AH694 AH670 AH669 AH668 AH667 AH666 AH665 AH663 AH664 AA_SI11 AA_SI12 AA_CLK AA_CL AA_PRO AA_SI14 AA_CLK AA_CL AA_PRO AA_SI13 AA_CLK AA_CL AA_PRO AE864 AE862 AE860 AE858 AE856 AE854 AE852 AE850 AE848 AE846 AE844 AE842 AE840 AE838 AE836 AE834 AE832 AE830 AE828 AE826 AE863 AE861 AE859 AE857 AE855 AE853 AE851 AE849 AE847 AE845 AE843 AE841 AE839 AE837 AE835 AE833 AE831 AE829 AE827 AE825 AF824 AF822 AF820 AF818 AF816 AF814 AF812 AF810 AF808 AF806 AF804 AF802 AF800 AF798 AF796 AF794 AF792 AF790 AF788 AF786 AF784 AF782 AF780 AF778 AF776 AF774 AF772 AF770 AF768 AF766 AF764 AF762 AF823 AF821 AF819 AF817 AF815 AF813 AF811 AF809 AF807 AF805 AF803 AF801 AF799 AF797 AF795 AF793 AF791 AF789 AF787 AF785 AF783 AF781 AF779 AF777 AF775 AF773 AF771 AF769 AF767 AF765 AF763 AF761 AG760 AG758 AG756 AG754 AG752 AG750 AG748 AG746 AG744 AG742 AG740 AG738 AG736 AG734 AG732 AG730 AG728 AG726 AG724 AG722 AG720 AG718 AG716 AG714 AG712 AG710 AG708 AG706 AG704 AG702 AG700 AG698 AG759 AG757 AG755 AG753 AG751 AG749 AG747 AG745 AG743 AG741 AG739 AG737 AG735 AG733 AG731 AG729 AG727 AG725 AG723 AG721 AG719 AG717 AG715 AG713 AG711 AG709 AG707 AG705 AG703 AG701 AG699 AG697 AH696 AH694 AH692 AH690 AH688 AH686 AH684 AH682 AH680 AH678 AH676 AH674 AH672 AH670 AH668 AH666 AH664 AH662 AH660 AH658 AH656 AH654 AH652 AH650 AH695 AH693 AH691 AH689 AH687 AH685 AH683 AH681 AH679 AH677 AH675 AH673 AH671 AH669 AH667 AH665 AH663 AH661 AH659 AH657 AH655 AH653 AH651 AH649 AA_SI13 AA_SI12 AF824 B80 B36 B24 B19 B29 B77 B56 B55 B25 B61 SD4 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B11 R6964 220k B70 B14 B40 B30 B43 B38 B53 B12 B8 C6914 16V 1u B64 B3 B78 SD3 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 B68 B17 AN16071A-VT IC6912 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B72 B60 AN16071A-VT IC6913 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B35 R6949 220k B18 B22 B66 B49 B39 B51 B75 B28 B48 C6934 50V 220p B34 B54 B27 R6913 220 B15 B58 B20 B67 B65 B5 B32 AN16071A-VT IC6914 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 B47 B1 B33 C6974 250V 0.1u B21 B45 B31 C6975 250V 0.1u B73 B13 C6932 50V 220p B4 C6977 250V 0.1u B71 C6912 16V 1u B10 B41 B9 B79 B26 B74 B42 B2 B59 B62 B37 B23 B6 B63 B16 C6933 50V 220p B57 B44 B7 B69 B52 R6914 220 B76 C6913 16V 1u B50 R6912 220 C6976 250V 0.1u B46 D6920 B0HDRP000002 1/8W 1/8W Vfo Vscn Vf SD-BOARD TNPA4010AC (2/3) S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 64bit To 3rd 108pins of SCAN ELECTRODES To 4th 108pins of SCAN ELECTRODES (SC44) SD44(Card Edge 80Pin) TO SC-BOARD (LOWER) COMPONENT SIDE FOIL SIDE (UPPER) 10 18 12 17 13 14 15 11 16 7 8 5 9 4 6 3 2 1 14 15 13 16 11 12 17 TH-65PF10CK SD-Board (2 of 3) Schematic Diagram TH-65PF10CK SD-Board (2 of 3) Schematic Diagram ! 106 TH-65PF10CK 11.50.SD 电路板 （3/3）线路图 TERM SIDE AI571 AI572 AI573 AI574 AI575 AI576 AI577 AI578 AI579 AI580 AI581 AI582 AI583 AI584 AI585 AI586 AI587 AI588 AI589 AI590 AI591 AI592 AI593 AI595 AI594 AI596 AI598 AI597 AI569 AI570 AI632 AI631 AI630 AI629 AI628 AI627 AI626 AI625 AI624 AI623 AI622 AI621 AI620 AI619 AI618 AI617 AI616 AI615 AI614 AI613 AI612 AI611 AI610 AI609 AI608 AI607 AI606 AI605 AI604 AI603 AI602 AI601 AI600 AI599 AJ568 AJ567 AJ566 AJ565 AJ564 AJ563 AJ562 AJ561 AJ560 AJ559 AJ558 AJ557 AJ556 AJ555 AJ554 AJ553 AJ552 AJ551 AJ550 AJ549 AJ548 AJ547 AJ546 AJ545 AJ544 AJ543 AJ542 AJ541 AA_SI10 AA_PRO AA_CLK AA_CLK AA_CL AA_PRO AA_CL AH648 AH644 AH642 AH640 AH638 AH636 AH634 AH646 AH647 AH645 AH643 AH641 AH639 AH637 AH635 AH633 AI632 AI630 AI628 AI626 AI624 AI622 AI620 AI618 AI616 AI614 AI612 AI610 AI608 AI606 AI604 AI602 AI600 AI598 AI596 AI594 AI592 AI590 AI588 AI586 AI584 AI582 AI580 AI578 AI576 AI574 AI572 AI570 AI631 AI629 AI627 AI625 AI623 AI621 AI619 AI617 AI615 AI613 AI611 AI609 AI607 AI605 AI603 AI601 AI599 AI597 AI595 AI593 AI591 AI589 AI587 AI585 AI583 AI581 AI579 AI577 AI575 AI573 AI571 AI569 AJ568 AJ566 AJ564 AJ562 AJ560 AJ558 AJ556 AJ554 AJ552 AJ550 AJ548 AJ546 AJ544 AJ542 AJ567 AJ565 AJ563 AJ561 AJ559 AJ557 AJ555 AJ553 AJ551 AJ549 AJ547 AJ545 AJ543 AJ541 AA_SI11 AA_SI10 AA_CLK AA_PRO AA_SI18 AA_CL AN16071A-VT IC6910 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6970 50V 0.1u 1 2 3 4 5 6 7 8 9 AN16071A-VT IC6911 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 TEST 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD5 B36 B20 B4 A52 A36 A20 A4 B39 B23 B7 A39 A23 A7 B42 B26 B10 A42 A26 A10 B45 B29 B13 A45 A29 A13 B48 B32 B16 A48 A32 A16 B51 B35 B19 B3 A51 A35 A19 A3 B54 B38 B22 B6 A54 A38 A22 A6 B41 B25 B9 A41 A25 A9 B44 B28 B12 A44 A28 A12 B47 B31 B15 A47 A31 A15 B50 B34 B18 B2 A50 A34 A18 B53 A1 B37 B21 B5 A53 A37 A21 A5 B40 B24 B8 A40 A24 A2 A8 B43 B27 B11 A43 A27 A11 B46 B30 B14 A46 A30 A14 B49 B33 B17 B1 A49 A33 A17 B52 R6911 220 C6971 50V 1000p C6911 16V 1u C6930 50V 220p IC6920 C0JBAA000174 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 Vcc R6910 220 C6931 50V 220p C6910 16V 1u R6951 EXB38V220JV R6953 EXB38V220JV R6952 EXB38V103JV SD-BOARD TNPA4010AC (3/3) S/P PDP SCAN DRIVER 64bit S/P PDP SCAN DRIVER 28bit AND Gate To 5th 108pins of SCAN ELECTRODES (SC46) SC-BOARD TO 27 21 22 20 24 23 25 26 19 13 11 12 14 15 16 17 SD 46 ! TH-65PF10CK SD-Board (3 of 3) Schematic Diagram TH-65PF10CK SD-Board (3 of 3) Schematic Diagram 107 TH-65PF10CK 11.51.S1 电路板和 SS 电路板 (1/2) 线路图 + + + + + + + + + + + + + + + + + + + + + + + + + DSLL DMHL DSHL DRV_SOS2 DMLL DMHR 75V D6252 MAZ83300ML R6181 10 1 2 3 4 5 6 7 8 9 10 TP15 C6241 25V 470u C6262 100V 470u C6251 16V 1u L6064 G0ZZ00002183 TP6913 L6074 G0ZZ00002183 R6255 1.2k L6040 G0ZZ00002183 TP10 D6086 MA3DF30000LZ L6004 G0CR60KA0118 TP33 TP8 L6075 G0ZZ00002183 L6001 G0CR60KA0118 Q6174 B1ADRD000001 75 R6154 1 2 3 4 5 6 7 8 L6006 G0CR60KA0118 TP2 C6153 25V 4.7u R6174 10 R6185 10k L6097 G0ZZ00002183 TP1 C6037 25V 4.7u C6031 250V 4u C6263 100V 470u L6090 G0ZZ00002183 D6254 MAZ80510LL D6071 B0HBSN000008 D6068 B0HBSN000008 TP6910 L6091 G0ZZ00002183 D6032 MA2J11100L TP6919 1 3 D6092 B0HBSN000008 C6051 200V 220u C6269 100V 470u R6045 7.5 1% R6033 56k L6088 G0ZZ00002183 L6077 G0ZZ00002183 R6173 10k L6399 J0JJC0000011 C6091 630V 1000p R6159 1 R6253 39k L6164 G0ZZ00002183 R6055 7.5 R6252 39k C6014 200V 220u TP6905 L6081 G0ZZ00002183 1 2 3 4 5 6 7 8 C6020 200V 220u TP18 L6087 G0ZZ00002183 L6003 G0CR60KA0118 TP23 C6273 25V 220u Q6051 2PG0010000RP R6183 10k D6154 MA3DF30000LZ C6052 200V 220u TP16 L6015 G0CR96KA0118 Q6173 B1ABRD000003 L6073 G0ZZ00002183 R6243 EXB38V470JV L6163 G0ZZ00002183 D6025 MA3DF30000LZ L6271 G0ZZ00002183 L6241 G0ZZ00002183 L6062 G0ZZ00002183 L6078 G0ZZ00002183 D6082 MA3DF30000LZ L6083 G0ZZ00002183 L6085 G0ZZ00002183 1 2 3 1% R6034 27k Q6251 2SD0601A0L L6183 G0ZZ00002183 D6251 MAZ83300ML TP6923 TP34 R6182 10k L6065 G0ZZ00002183 C6205 250V 4u C6274 250V 4u TP21 5V L6061 G0ZZ00002183 C6270 100V 470u C6203 250V 4u TP6918 R6186 10k L6076 G0ZZ00002183 D6153 B0ECHP000003 Q6041 2PG0010000RP C6011 200V 220u Q6183 B1ABRD000003 L6184 G0ZZ00002183 R6257 10k L6262 G0ZZ00002183 C6018 200V 220u R6053 7.5 L6182 G0ZZ00002183 TP12 C6017 200V 220u L6082 G0ZZ00002183 L6068 G0ZZ00002183 C6264 100V 470u L6063 G0ZZ00002183 C6252 25V 1u R6258 2.2k R6051 7.5 R6160 1 L6094 G0ZZ00002183 Q6184 B1ADRD000001 C6019 200V 220u D6064 B0HBSN000008 C6152 25V 4.7u IC6251 C0BBBA000022 1 2 3 4 5 6 7 8 C6206 250V 4u D6061 B0HBSN000008 Q6043 2PG0010000RP L6067 G0ZZ00002183 D6085 MA3DF30000LZ TP6911 R6057 7.5 TP20 R6256 1.5k C6267 100V 470u R6175 10k R6171 10 C0JBAZ000005 IC6241 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC 1% R6031 82k TP6904 C6261 100V 470u L6071 G0ZZ00002183 R6041 7.5 L6162 G0ZZ00002183 TP7 R6043 7.5 D6091 MA3DF30000LZ L6185 G0ZZ00002183 TP6921 R6184 10 TP9 L6014 G0CR96KA0118 L6005 G0CR60KA0118 D6253 LNJ301MPUJA Q6053 2PG0010000RP C6275 250V 4u D6083 MA3DF30000LZ TP6920 TP6922 D6067 B0HBSN000008 C6015 200V 220u C6202 250V 4u R6254 6.8k C6265 100V 470u L6095 G0ZZ00002183 Q6171 B1ABRD000003 L6072 G0ZZ00002183 L6161 G0ZZ00002183 R6172 10k Q6052 2PG0010000RP L6066 G0ZZ00002183 R6244 EXB38V472JV Q6172 B1ADRD000001 Q6042 2PG0010000RP 1% R6032 82k L6070 G0ZZ00002183 C6272 25V 220u R6151 100 C6016 200V 220u D6152 MA3DF30000LZ C6012 200V 220u TP22 L6092 G0ZZ00002183 TP11 Q6031 B1ADRD000001 L6099 G0ZZ00002183 L6086 G0ZZ00002183 L6017 G0CR96KA0118 C6154 25V 4.7u L6181 G0ZZ00002183 L6096 G0ZZ00002183 C6243 50V 0.01u D6072 MA3DF30000LZ L6013 G0CR96KA0118 Q6044 2PG0010000RP Q6181 B1ABRD000003 L6079 G0ZZ00002183 R6176 10k C6207 250V 4u D6081 MA3DF30000LZ R6242 EXB38V472JV L6084 G0ZZ00002183 D6062 B0HBSN000008 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R6152 100 D6063 B0HBSN000008 L6002 G0CR60KA0118 C6242 16V 1u C6013 200V 220u TP5 TP17 L6398 J0JJC0000011 Q6054 2PG0010000RP L6012 G0CR96KA0118 D6024 RF2001T3DFF55 R6047 7.5 TP3 D6084 MA3DF30000LZ TP6 C6151 25V 1u C6208 250V 4u D6151 B0ECHP000003 C0ZBZ0001324 IC6151 1 LO 2 Vcom 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6251 10k L6089 G0ZZ00002183 D6255 MA2J11100L TP13 R6261 100k L6069 G0ZZ00002183 L6008 G0CR60KA0118 TP14 C6201 250V 4u L6098 G0ZZ00002183 C6266 100V 470u R6241 EXB38V470JV L6093 G0ZZ00002183 TP19 C6268 100V 470u TP15V TPVDA - + - + (GREEN LED) TPVSUS VSUS GND BUFFER GND VDA VDA NC GND VDA VDA NC GND VDA VDA VDA GND VDA VDA VDA DRV_SOS8 DMHL DRV_SOS7 UEH 5V UML DMLL UMH DMHR DSHL USH GND NC(URL) TPSOS7 GND GND DSLL GND USL UEL NC(URH) TPSOS8 USH USL A 5 F 1 2 C 4 D 7 3 9 6 8 E B 4 6 7 1 5 3 8 2 10 9 TO P-BOARD (P11) (P12) TO P-BOARD (C35) TO C3-BOARD C4-BOARD TO (C42) TO C4-BOARD (C44) USE NO STB PS STB_12V NC STB_PS NC NC GND STB12V +15V GND Vda75V Vda75V GND SS-BOARD TNPA4012 (1/2) ! COMPARATOR 44 SS SS 42 SS 35 34 SS 12 SS SS 11 FET DRIVER TH-65PF10CK SS-Board (1 of 2) and S1-Board Schematic Diagram TH-65PF10CK SS-Board (1 of 2) and S1-Board Schematic Diagram PUSH S34 1 2 3 SW061 K0F162B00002 TNPA4357 S1-BOARD ! POWER SWITCH 108 TH-65PF10CK 11.52.SS2，SS3 和 SS 电路板 (2/2) 线路图 + + + + TERM SIDE + REF K A TERM SIDE TERM SIDE TERM SIDE REF K A + TERM SIDE TERM SIDE TERM SIDE TERM SIDE R6030 7.5 Q6025 2PG0010000RP D6192 B0HDRP000003 D6281 B0JCME000037 J0JJC0000011 L6107 L6221 G0ZZ00002183 R6289 2.49k R6284 4.7k R6078 220k R6119 100 R6291 2.49k D6110 MA2J11100L R6003 7.5 R6215 10 R6240 10 Q6141 B1ABNF000006 R6282 15 C6132 25V 4.7u C6111 200V 220u C6223 47u 250V D6223 MA2J11100L R6140 10k R6114 47 C6003 630V 4700p R6021 7.5 R6177 10k Q6211 B1ABNF000006 R6234 18k R6102 100 R6222 4.7k L6222 G0ZZ00002183 C6113 200V 220u TP26 R6136 10 D6001 MA3DF30000LZ Q6156 B1ABNF000006 R6015 7.5 Q6105 B1DFKM000002 G D S C6025 630V 2200p R6237 10 Q6149 B1ADNF000006 R6170 10k Q6021 2PG0010000RP Q6152 B1ADNF000006 R6131 100 TP24 IC6211 C0ZBZ0001325 1 Vcc 2 IN 3 GND 4 LO 5 NC 6 VS 7 HO 8 VB D6023 MA3DF30000LZ D6225 B0ECHP000003 D6102 B0JCME000037 ZA6101 K4CD01000011 C6218 25V 4.7u Q6159 B1ADNF000006 R6111 47 R6137 10 R6142 10k Q6102 B1DFKM000002 G D S R6138 10 R6235 10 D6222 MA2J11100L Q6005 2PG0010000RP R6239 10 TP29 D6106 B0JCME000037 R6128 56k R6125 0 J0JJC0000011 L6106 D6003 MA3DF30000LZ Q6004 2PG0010000RP C6135 25V 4.7u Q6027 2PG0010000RP Q6107 B1DFKM000002 G D S D6282 B0JCME000037 D6002 MA3DF30000LZ Q6108 B1DFKM000002 G D S C6024 630V 2700p C6215 25V 4.7u C6041 16V 1u R6126 56k Q6106 B1DFKM000002 G D S Q6143 B1ABNF000006 L6103 G0ZZ00002183 R6009 7.5 C0ZBZ0000895 IC6191 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC 51 R6193 C6043 16V 1u R6013 7.5 D6221 B0HDRP000003 R6165 10k C0ZBZ0000895 IC6131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC 1% R6288 4.99k C6002 630V 2200p R6192 100 75 R6134 R6146 10k R6213 100 R6158 1 R6238 10 Q6024 2PG0010000RP D6026 MA3DF30000LZ Q6151 B1ABNF000006 R6040 7.5 TP32 C6213 25V 1000u R6148 10k J0JJC0000011 L6102 R6214 150 Q6028 2PG0010000RP Q6142 B1ADNF000006 R6007 7.5 C6134 25V 4.7u SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 R6116 22k Q6222 2SC3063000RL Q6023 2PG0010000RP Q6148 B1ABNF000006 R6169 10 J0JJC0000011 L6101 R6001 7.5 C6035 630V 2700p Q6022 2PG0010000RP R6143 10k D6104 B0JCME000037 J0JJC0000011 L6211 D6193 B0HDRP000003 R6232 2.49k C6221 50V 0.1u Q6103 B1ABNF000006 Q6002 2PG0010000RP C6120 250V 4u R6226 51k Q6008 2PG0010000RP R6141 10k C6217 25V 4.7u Q6212 B1ADNF000006 Q6144 B1ADNF000006 SS25 1 2 3 4 5 6 7 C6042 16V 1u D6132 MA3DF30000LZ C6114 200V 220u Q6026 2PG0010000RP Q6007 2PG0010000RP R6195 100k R6108 100 D6103 B0JCME000037 R6227 51k C6008 630V 2700p R6113 220k Q6114 B1DFKM000002 G D S C6030 630V 2200p R6191 100 C6026 630V 5600p ZA6103 K4CD01000011 Q6147 B1ADNF000006 R6223 12k R6167 10k Q6282 B1ADNF000006 R6168 10k Q6006 2PG0010000RP R6028 7.5 C6192 25V 1u L6291 G0ZZ00002183 ZA6102 K4CD01000011 R6127 56k D6211 B0JCME000037 Q6101 B1DFKM000002 G D S Q6115 2SD0601A0L R6061 220k R6164 10k R6233 150k TP25 R6038 7.5 C6006 630V 2200p R6011 7.5 C6022 630V 5600p C6195 25V 4.7u C0DBEMB00005 IC6281 Q6153 B1ABNF000006 TP30 Q6146 B1ABNF000006 D6112 MAZ83300ML J0JJC0000011 L6105 Q6001 2PG0010000RP SS56 1 2 3 4 5 6 7 8 9 10 11 12 13 R6036 7.5 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS21 1 2 3 4 5 6 7 R6110 10k D6021 MA3DF30000LZ R6117 100 D6004 MA3DF30000LZ VR6000 10k 1 2 3 Q6104 B1ADNF000006 J0JJC0000011 L6212 C6197 25V 4.7u R6135 10 R6120 47 R6144 10k R6147 10k R6286 100 Q6281 B1ABNF000006 Q6111 B1DFKM000002 G D S C6044 16V 1u R6020 68 SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 C6212 25V 4.7u R6287 0 TP27 CF6281 D4DA91000001 Q6158 B1ABNF000006 C6281 50V 0.1u R6225 45.3k TP31 Q6157 B1ADNF000006 Q6003 2PG0010000RP C6029 630V 4700p R6139 10 C0DBEMB00005 IC6221 C6211 25V 4.7u D6101 B0JCME000037 R6112 47 D6022 MA3DF30000LZ C6216 25V 4.7u C6005 630V 5600p Q6256 2SD1263AP0LB R6005 7.5 R6104 100 C6112 200V 220u D6107 B0JCME000037 D6113 MA2J11100L R6216 10k R6217 10k R6133 10 TP28 C6027 630V 4700p D6212 MA3DF30000LZ R6196 100k J0JJC0000011 L6213 D6131 B0ECHP000003 R6026 7.5 R6132 100 R6024 7.5 R6129 4.7k Q6112 B1DFKM000002 G D S D6191 B0HDRP000003 R6153 10k J0JJC0000011 L6108 Q6116 B1DFKM000002 G D S Q6154 B1ADNF000006 5V R6157 1 R6106 100 R6109 10 R6236 10 R6166 10 R6022 68 R6149 10k SS57 1 2 3 4 5 6 7 8 9 10 11 12 13 SS58 1 2 3 4 5 6 7 8 9 10 11 12 13 SS27 1 2 3 4 5 6 7 0 R6220 0 R6221 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 SS23 1 2 3 4 5 6 7 0 R6218 0 R6219 * * = * * * TPSS1 TPVe UEL UEH UML TPVe2 SS2-BOARD ! TNPA4013 SS3-BOARD ! TNPA4014 17 13 15 11 16 10 12 18 14 8 10 9 4 6 7 5 3 2 1 FET DRIVER FET DRIVER FET DRIVER ! SS-BOARD TNPA4012 (2/2) Ve TH-65PF10CK SS-Board (2 of 2), SS2 and SS3-Board Schematic Diagram TH-65PF10CK SS-Board (2 of 2), SS2 and SS3-Board Schematic Diagram SUSTAIN ELECTRODE PANEL TO SUSTAIN ELECTRODE PANEL TO SUSTAIN ELECTRODE PANEL TO SUSTAIN ELECTRODE PANEL TO SUSTAIN ELECTRODE PANEL TO 109 TH-65PF10CK 12 导线图 12.1. P 电路板 A B C D E F G H I 1 2 3 4 5 6 P-BOARD(1 of 2) (FOIL SIDE) ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH 110 TH-65PF10CK TH-65PF10CK P-BOARD PARTS LOCATION TH-65PF10CK P-BOARD PARTS LOCATION Parts Location Parts Location P-BOARD(1 of 2) (COMPONENT SIDE) IC401 H-2 IC501 E-2 MC301 F-3 MC401 H-2 MC502 F-3 MC601 F-2 MC701 H-3 MC1703 E-5 IC MODULE PC505 F-2 PC506 F-5 PC507 H-3 PHOTO COUPLER VR351 F-3 VR401 H-2 VOLUME Q301 E-4 Q302 E-4 Q351 H-5 Q352 H-5 Q404 G-2 Q405 H-2 Q406 H-2 Q501 C-1 Q1701 C-3 Q1702 D-3 TRANSISTOR P-BOARD (1 of 2) (FOIL SIDE) IC401 G-4 IC501 E-5 MC301 F-3 MC401 H-4 MC502 F-4 MC601 F-4 MC701 H-3 MC1703 E-2 IC MODULE PC505 F-4 PC506 F-1 PC507 G-4 VR351 F-4 VR401 H-4 PHOTO COUPLER VOLUME Q301 E-3 Q302 E-2 Q303 D-2 Q304 E-2 Q351 H-1 Q352 H-1 Q353 H-1 Q354 H-1 Q404 G-4 Q405 H-4 Q406 H-4 Q501 C-5 Q502 D-5 Q551 G-5 Q552 G-5 Q553 H-5 Q1701 C-4 Q1702 D-4 Q1703 C-4 Q1704 C-4 Q1706 F-1 Q1707 D-1 Q1708 E-2 TRANSISTOR P 111 TH-65PF10CK A B C D E F G H I 1 2 3 4 5 6 P-BOARD (1 of 2) (COMPONENT SIDE) ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH 112 TH-65PF10CK A B C D E F G H I 1 2 3 4 5 6 P-BOARD (2 of 2) (FOIL SIDE) ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH 113 TH-65PF10CK TH-65PF10CK P-BOARD PARTS LOCATION TH-65PF10CK P-BOARD PARTS LOCATION Parts Location P-BOARD (2 of 2) (FOIL SIDE) MC201 F-2 MC202 F-1 MC1601 F-2 MODULE PC201 G-2 PC202 G-2 VR251 G-5 PHOTO COUPLER VOLUME Q201 E-4 Q202 E-5 Q203 E-4 Q204 E-5 Q205 E-5 Q206 F-5 Q251 G-1 Q1602 D-2 Q1603 D-2 Q1604 C-1 Q1605 C-1 Q1606 D-2 Q1607 D-2 Q1608 E-2 Q1609 E-2 TRANSISTOR Parts Location P-BOARD (2 of 2) (COMPONENT SIDE) MC201 F-5 MC202 F-5 MC1601 F-5 MODULE PC201 G-5 PC202 G-5 VR251 G-2 PHOTO COUPLER VOLUME Q201 E-3 Q202 E-2 Q203 E-3 Q204 E-2 Q1602 D-5 Q1603 D-5 Q1606 D-5 Q1607 D-5 TRANSISTOR P 114 TH-65PF10CK A B C D E F G H I 1 2 3 4 5 6 P-BOARD (2 of 2) (COMPONENT SIDE) ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH TH-65PF10CK P-BOARD ETXMM631MGH 115 TH-65PF10CK 12.2. PB 电路板 A B C D E F G H I 1 2 3 4 5 6 PB-BOARD (FOIL SIDE) TNPA3655AE PB-BOARD (COMPONENT SIDE) TNPA3655AE TH-65PF10CK PB-BOARD TNPA3655AE TH-65PF10CK PB-BOARD TNPA3655AE Q850 L851 L852 R850 R851 R852 R853 R854 R855 R856 R857 R858 R859 R860 R861 R862 R863 R864 C850 C851 C852 C853 C854 TPFAN D850 D851 D852 D853 D854 D855 D856 D857 D858 D859 D860 IC850 JS851 JS852 PB30 PB31 PB32 PB33 PB34 PB35 PB36 PB37 PB38 TNPA3655 1 PB PbF E B C SEE REVERSE FOR ORDER NO. 1 5 2 4 3 1 5 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 Q850 L851 L852 R850 R851 R852 R853 R854 R855 R856 R857 R858 R859 R860 R861 R862 R863 R864 C850 C851 C852 C853 C854 J1 J2 D850 D851 D852 D853 D854 D855 D856 D857 D858 D859 D860 IC850 JS851 JS852 PB30 PB31 PB32 PB33 PB34 PB35 PB36 PB37 PB38 J101 1 PB TNPA3655 NO. ORDER 1 3 4 5 2 1 5 3 1 3 1 3 1 3 1 3 1 1 3 1 3 1 3 PB Parts Location PB-BOARD (FOIL SIDE) IC IC850 C-2 Q850 B-3 TPFAN B-2 TRANSISTOR TP Parts Location PB-BOARD (COMPONENT SIDE) IC IC850 G-3 Q850 G-3 TRANSISTOR 116 TH-65PF10CK 12.3. HA 电路板 I H G F E D C B A 1 2 3 4 5 6 TH-65PF10CK HA-BOARD TNPA2845 TH-65PF10CK HA-BOARD TNPA2845 HA HA-BOARD (COMPONENT SIDE) TRANSISTOR TP3032 E-5 TP3033 E-5 TP3034 E-5 TP3035 E-5 TP3036 E-5 IC3001 D-5 IC3002 E-6 Q3001 C-6 Q3002 C-6 IC TRANSISTOR Parts Location HA-BOARD (FOIL SIDE) IC3002 E-1 IC TNPA2845 TNPA2845 117 TH-65PF10CK 12.4. HX 电路板 A B C D E F G H I 1 2 3 4 5 6 HX-BOARD (FOIL SIDE) TNPA4053AB HX-BOARD (COMPONENT SIDE) TNPA4053AB TH-65PF10CK HX-BOARD TNPA4053AB TH-65PF10CK HX-BOARD TNPA4053AB JK509 JK511 JK513 J1 J2 J3 J4 J5 J6 J7 J8 J9 J10 J11 J12 J13 J14 J15 J16 HX1 1 HX 3 CRNO. TNPA4053 PbF 5 1 9 6 1 5 ORDER NO. 1 15 JA1 JA2 JA3 JA4 JA5 JA6 JA7 JA8 JA9 L526 R653 R654 R655 R656 JA10 JA11 R663 R664 R668 L555 R672 JK509 JK511 JK513 C523 C524 D504 D507 D508 D509 R508 R509 IC502 D510 Q531 Q532 R510 R511 C550 C551 R529 C552 C553 R530 C561 C562 R547 R548 FL510 FL511 FL512 FL513 FL514 FL515 FL516 FL517 R776 R777 R778 R585 R586 R589 R590 R591 R592 R593 R790 R791 HX1 C404 C405 C406 C407 C409 TP65 TP66 TP67 TP68 TP69 TP70 TP71 TP72 TP73 TP74 R400 TP75 TNPA4053 3 CRNO. PbF A A 5 1 9 6 1 5 6 10 11 15 SEE REVERSE FOR ORDER NO. 1 4 5 8 1 15 1 HX Parts Location HX-BOARD IC3502 C-3 TP65 C-4 TP66 D-4 TP67 C-3 TP68 C-3 TP69 C-3 TP70 C-3 TP71 B-4 TP72 C-3 TP73 B-3 TP74 B-4 TP75 B-3 IC TP Q3531 C-2 Q3532 B-2 TRANSISTOR HX 118 TH-65PF10CK 12.5. HDD 电路板 A B C D E F G H I 1 2 3 4 5 6 HDD-BOARD (FOIL SIDE) TNPA4052 TH-65PF10CK HDD-BOARD TNPA4052 TH-65PF10CK HDD-BOARD TNPA4052 HDD R226 R227 R228 FL021 JK501 C101 C102 C103 Q100 C104 Q101 C105 C108 C110 C112 C113 C114 C115 H1 R101 R102 R103 R104 R105 IC104 IC105 C143 C144 R125 R126 C924 D902 C928 D904 R901 R904 R134 R135 R137 C930 R139 C931 TP001 TP002 C932 TP003 TP004 C934 TP005 IC906 TP006 TP007 R141 R912 R142 R913 R914 R915 R145 R146 R149 C946 C947 R150 R924 R925 R926 R927 R157 R928 R158 C951 R929 R930 R931 R932 R933 R934 R173 R175 JK001 R178 R179 R180 R181 R182 R183 R184 R185 R186 FL907 C205 C214 C215 C216 C217 R001 R201 D011 R202 R203 R204 R205 R206 R207 R208 R209 IC201 R210 R211 D021 R212 D022 R213 D023 D024 R021 D025 R022 CR NO.3 1 TNPA4052 HDD PbF B1 B2 A1 A2 A40 A39 B39 B40 1 3 4 5 1 4 5 8 1 4 5 8 16 24 17 9 1 8 1 32 33 64 65 96 97 128 ORDER NO. Parts Location HDD-BOARD IC3104 C-3 IC3105 C-3 IC3201 D-2 IC3906 C-2 TP3001 E-5 TP3002 B-3 TP3003 B-2 TP3004 B-3 TP3005 B-4 TP3006 B-5 TP3007 B-5 Q3100 D-3 Q3101 D-3 IC IC TRANSISTOR TP 119 TH-65PF10CK A B C D E F G H I 1 2 3 4 5 6 HDD-BOARD (COMPONENT SIDE) TNPA4052 TH-65PF10CK HDD-BOARD TNPA4052 TH-65PF10CK HDD-BOARD TNPA4052 HDD R224 R225 R229 L901 L551 L552 L553 JK501 C106 C107 C109 C111 C116 C117 C118 C501 Q501 H0 H1 C511 Q511 R108 R109 C901 IC101 C902 IC102 C903 IC103 C904 C905 R110 R111 R112 R113 R114 R115 R116 R117 R118 C141 R119 C911 R501 C912 R502 C142 C913 R503 R504 C915 R505 R506 R507 R120 R121 R122 R123 R124 C921 R511 C922 R512 C923 R513 R514 C925 D901 R515 C926 R516 C927 D903 R517 D905 C929 R131 R902 R132 R903 R133 R905 R906 R136 R907 R138 IC901 IC902 IC903 C933 IC904 IC905 S501 R911 C551 C552 R143 R144 R916 R147 R148 C941 C942 C943 C944 C945 S511 C948 C949 R921 R151 R922 R152 R923 R153 R154 R155 R156 C950 C952 C953 C954 C955 C956 C957 C958 R160 C959 R161 R162 R163 R164 R935 R165 R166 R167 C960 R168 R169 JK001 R187 R188 FL901 FL902 FL903 FL904 FL905 FL906 FL908 JS501 JS502 JS503 C201 C202 C203 C204 C206 C207 C208 C209 C210 C211 C212 C213 C021 D001 D002 D003 D004 D005 D006 D007 D008 D009 IC001 D010 R214 R215 R216 R217 R023 R218 R024 R219 R025 R026 R220 R221 R222 R223 CR NO.3 HDD TNPA4052 1 PbF SEE REVERSE FOR ORDER NO. A1 A2 B1 B2 A39 A40 B39 B40 1 25 26 50 51 75 76 100 1 4 5 8 1 8 9 16 1 4 5 8 1 4 5 8 1 4 5 8 1 5 1 9 17 8 16 24 1 4 5 8 1 9 Parts Location HDD-BOARD IC3001 B-4 IC3101 C-5 IC3102 B-5 IC3103 D-3 IC3901 A-3 IC3902 A-2 IC3903 D-2 IC3904 D-3 IC3905 D-4 Q3501 C-4 Q3511 D-4 IC IC TRANSISTOR 120 TH-65PF10CK 12.6. S1, H3, V1 和 V2 电路板 I H G F E D C B A 1 2 3 4 5 6 S1-BOARD (FOIL SIDE) TNPA4357 S1-BOARD (COMPONENT SIDE) TNPA4357 V1-BOARD (FOIL SIDE) TNPA4355 V1-BOARD (COMPONENT SIDE) TNPA4355 V2-BOARD (FOIL SIDE) TNPA4356 V2-BOARD (COMPONENT SIDE) TNPA4356 TH-65PF10CK S1-BOARD TNPA4357 H3-BOARD TNPA3003AB V1-BOARD TNPA4355 V2-BOARD TNPA4356 TH-65PF10CK S1-BOARD TNPA4357 H3-BOARD TNPA3003AB V1-BOARD TNPA4355 V2-BOARD TNPA4356 Parts Location V1-BOARD Q1540 B-3 TRANSISTOR H3-BOARD TNPA3003AB JK8500 H37 C8001 C8002 L8501 L8502 TNPA3003 H3 1 SEE REVERSE FOR ORDERNO. 1 3 H3 H3 S1 V2 V1 121 TH-65PF10CK 12.7. DS 电路板 I H G F E D C B A 1 2 3 4 5 6 DS-BOARD (FOIL SIDE) TNPA4385 TH-65PF10CK DS-BOARD TNPA4385 TH-65PF10CK DS-BOARD TNPA4385 Parts Location DS-BOARD (FOIL SIDE) IC IC801 E-2 IC802 E-2 IC8003 I-1 DS 122 TH-65PF10CK I H G F E D C B A 1 2 3 4 5 6 DS-BOARD (COMPONENT SIDE) TNPA4385 TH-65PF10CK DS-BOARD TNPA4385 TH-65PF10CK DS-BOARD TNPA4385 Parts Location DS-BOARD (COMPONENT SIDE) IC IC8003 B-1 IC8005 A-1 IC8007 B-1 IC8009 B-1 IC8014 D-1 IC8016 D-1 IC8100 D-2 IC8181 G-2 IC803 D-2 IC804 D-2 IC805 F-2 IC2301 H-2 IC2302 H-2 IC2303 G-2 IC2305 H-1 IC3001 F-1 IC3002 C-2 IC3003 C-1 IC3004 B-2 IC3005 B-2 IC3006 B-2 IC3007 C-2 IC3008 F-2 IC3150 C-3 IC3151 C-3 IC3152 F-2 IC8001 B-1 Q2300 G-2 Q2331 H-2 Q2372 G-2 Q3001 C-3 Q3002 E-3 Q8002 B-1 Q8011 D-1 Q8012 D-1 Q8013 D-1 Q8016 A-2 Q8017 A-2 Q8018 A-2 Q8019 B-2 Q8181 F-3 Q8182 F-2 Q8183 C-2 Q8184 C-2 Q8200 B-2 Q8201 B-2 TRANSISTOR DS 123 TH-65PF10CK 12.8. DN 电路板 I H G F E D C B A 1 2 3 4 5 6 DN-BOARD (FOIL SIDE) TNPA4304AB TH-65PF10CK DN-BOARD TNPA4304AB TH-65PF10CK DN-BOARD TNPA4304AB Parts Location DN-BOARD (FOIL SIDE) IC IC002 B-2 IC003 D-2 IC006 D-2 IC009 C-2 IC011 C-3 IC305 E-2 IC309 A-3 IC601 A-2 IC603 A-2 IC605 E-3 IC610 E-3 IC901 D-2 IC5302 B-3 Q002 D-1 Q003 D-1 Q004 D-1 Q005 C-1 Q009 B-2 Q010 B-3 Q012 D-1 Q013 D-1 Q014 C-3 Q020 E-3 Q021 E-4 FL001 F-6 FL002 F-5 FL003 F-5 FL5301 B-3 TRANSISTOR TP DN 124 TH-65PF10CK I H G F E D C B A 1 2 3 4 5 6 DN-BOARD (COMPONENT SIDE) TNPA4304AB TH-65PF10CK DN-BOARD TNPA4304AB TH-65PF10CK DN-BOARD TNPA4304AB Parts Location DN-BOARD (COMPONENT SIDE) IC IC001 C-2 IC004 C-3 IC005 B-2 IC007 D-7 IC008 A-2 IC010 C-3 IC012 E-1 IC013 D-1 IC014 D-1 IC015 D-2 IC016 D-2 IC017 D-2 IC306 C-2 IC602 E-2 IC604 D-3 IC606 C-3 IC607 A-3 IC608 A-3 IC609 A-3 IC721 E-3 IC5001 A-5 IC5002 A-4 IC5101 B-4 IC5102 C-5 IC5103 C-5 IC5104 B-5 IC5105 C-3 IC5301 C-5 IC5303 D-3 IC5304 C-3 IC5601 E-4 IC5602 E-4 IC5603 E-5 Q001 D-2 Q006 B-2 Q007 B-2 Q008 B-1 Q011 B-2 Q015 D-2 Q016 D-2 Q017 B-2 Q018 B-2 Q019 B-2 Q022 A-3 Q023 A-3 TP008 C-2 TP010 C-1 TP011 D-1 TP013 E-3 TP5301 D-3 TP5302 D-3 TRANSISTOR TP DN 125 TH-65PF10CK 12.9. D 电路板 I H G F E D C B A 1 2 3 4 5 6 C201 C202 Q200 TP680 Q201 C028 C029 C800 IC001 C801 IC002 C802 C033 C803 C034 C804 C035 C805 C036 C037 R203 C807 C038 R204 Q805 C809 Q806 D017 D018 R208 R209 D019 IC011 C043 R210 D020 R404 C045 C817 C048 Q044 C818 C049 Q045 R216 Q048 Q049 C050 R604 C051 R605 R412 C053 R413 Q050 C055 R415 D801 C826 D802 C056 R416 C057 D804 C058 R800 D805 D035 C059 R801 R419 D806 R226 R802 C442 R227 Q057 D807 R803 C443 Q058 D808 C444 R804 D809 C445 R805 C446 R806 R807 C447 C830 C060 C448 IC800 R420 R808 C831 C061 C449 C062 R617 C063 R618 D810 Q060 C064 C065 C066 IC807 D813 C067 C838 R810 C068 C450 L501 C451 R811 C069 IC809 D815 L502 C452 R237 R813 C453 R238 L504 C454 R814 R239 L505 R815 C455 C456 R816 C457 C070 R430 C458 R625 C071 C459 R626 C072 R627 C843 C073 R628 C074 R629 C075 C846 C076 C077 R244 C460 C078 R245 C461 C079 C462 R247 C463 R248 R630 C464 R249 R631 C465 C466 R632 C467 R634 C468 C080 R635 C081 C469 R636 C082 R638 C854 C084 C855 R639 C856 C086 C857 C087 C858 C088 R831 C859 C089 R640 R641 R642 R643 R644 R450 C090 R451 C091 R646 R452 C092 C863 R647 C093 C864 C094 R648 C865 C095 C866 C096 C867 C097 R840 R070 C098 R841 C099 R650 D9 R846 R847 R848 R654 R849 R850 C496 C882 C883 C884 C885 R475 R476 C886 C887 R864 R865 R097 R098 FL800 R868 R099 R869 C891 R484 R485 C896 FL806 FL807 C897 R487 C898 R870 C899 R871 R872 R873 R875 R876 R877 R878 R490 R879 R491 R880 R883 R884 R887 R891 R892 R893 R896 R897 C101 C102 C103 C104 C105 C106 C107 C108 C109 C300 C301 C302 C303 C304 C110 Q301 C111 C305 C306 C307 C308 C309 Q500 C310 C311 C312 C313 C314 C315 C316 C317 D100 C318 D101 C319 D102 D103 R100 D105 R101 D106 C512 C513 C320 C321 C516 C322 C517 C323 R108 C518 C324 R109 D301 C519 C325 D110 C520 R110 R111 C521 C522 R112 C523 C524 R114 C525 R116 C527 R117 C528 R500 R501 R502 R503 R504 R505 R506 R120 R508 R121 C531 C532 R122 C533 R124 R125 R127 R128 R129 C926 R900 R134 R135 R136 R137 TP9000 C355 R522 C356 R523 C357 C358 R525 C359 R526 R527 R140 R528 R529 C555 C362 R530 C558 C559 C365 C368 C560 C561 R154 C370 R155 R159 R542 R545 R548 R549 R162 R166 R169 C967 R170 C968 R171 C969 R172 R178 R560 FL304 C970 R179 C971 R371 R372 R180 R374 R375 R187 R188 R189 R192 R196 R580 R199 R581 R585 R587 R589 R590 R593 R594 3 2 1 1 D CR NO.9 TNPA3983 PbF 1 4 5 8 1 3 4 6 1 4 6 3 1 12 13 24 1 12 13 24 1 12 13 24 + 1 6 SEE REVERSE FOR ORDER NO. + + TH-65PF10CK D-BOARD TNPA3983AX TH-65PF10CK D-BOARD TNPA3983AX D-BOARD (FOIL SIDE) TNPA3983AX Parts Location D-BOARD (FOIL SIDE) IC IC9001 E-3 IC9002 G-2 IC9011 G-3 IC9800 A-3 IC9807 A-4 IC9809 A-2 TP9000 E-3 TP9680 C-1 TP Q9044 G-3 Q9045 G-3 Q9048 G-3 Q9049 E-2 Q9050 D-2 Q9057 F-2 Q9058 F-2 Q9060 D-2 Q9200 D-2 Q9201 D-2 Q9301 D-5 Q9500 F-4 Q9805 B-5 Q9806 C-5 TRANSISTOR D 126 TH-65PF10CK I H G F E D C B A 1 2 3 4 5 6 C200 X500 C600 C601 C608 C609 IC003 R200 C610 Q800 R201 Q801 R202 C806 IC007 Q803 PA800 C808 R205 C039 R206 R207 IC200 C040 R400 C041 R401 C042 C044 C815 C046 C816 C047 IC400 R215 R409 IC401 Q046 IC402 Q047 R217 R218 R600 R601 R219 R602 R603 R410 R411 C052 R606 R607 C823 R220 R608 D800 R414 C824 C825 R221 Q051 R609 R222 Q052 IC602 D803 Q053 R417 IC603 Q054 R418 R610 R611 R612 R613 R614 R809 R615 R421 IC802 C832 R616 IC803 C833 C834 R619 C835 IC806 D812 C836 C837 R428 D814 R236 L503 R620 R621 R622 R623 R624 C840 C841 C842 R433 C844 C845 C847 R437 C848 R438 R439 R823 R824 R825 R826 R827 R633 R828 R440 R829 R441 R442 R443 C083 R637 R444 R445 C085 R446 R447 R060 R830 R448 R061 R449 R062 R063 R064 R065 R066 R067 R838 C860 FL9000 R839 R645 R453 R454 R455 R456 R457 D3 C868 R458 D5 R459 D6 R842 R843 R844 R074 R845 R652 R076 R653 R460 R461 R462 R463 R464 R465 R466 R467 R468 R469 R854 C880 R470 C498 C881 R859 R471 C499 R472 R473 R474 R477 R478 R479 R094 R095 R096 R480 R481 FL803 FL804 FL805 R486 R488 R489 R492 R493 R494 R495 R496 R497 R898 R899 C100 X9000 Q100 D20 ZA001 Q300 D25 Q302 Q303 Q304 Q305 Q306 D31 D32 D33 D34 D35 D36 R102 R103 C514 R104 R105 C515 R106 R107 D300 D302 D303 D304 D305 R113 IC300 IC301 R115 C526 IC304 R118 R119 R507 IC500 IC503 R123 IC504 C534 IC505 C535 R126 C536 C537 C538 C539 R512 R514 R515 R518 R130 R519 C542 C546 C547 C353 C548 R138 C354 C550 R141 C552 R143 C553 R144 C554 C360 R145 C361 C557 R147 C363 R148 C364 R149 R531 R532 R533 L800 R534 R535 C369 L801 R536 L802 R150 R151 R539 C371 R156 C372 C373 R157 R158 C374 R540 R541 R543 L810 R544 R547 R160 R161 R165 R167 R550 R552 R553 R554 R555 R557 R558 R367 R174 R175 R176 FL302 R177 FL303 R561 FL305 R562 FL306 R563 FL307 R564 FL308 R565 FL309 R566 R567 R373 R568 R181 R569 FL501 R182 FL502 R183 FL503 FL504 R184 FL310 R185 FL311 R186 R570 R571 R572 R573 R574 R575 R576 R382 R577 TP058 R190 R578 TP059 R191 R579 R193 TP443 R194 TP444 R389 R197 TP060 R198 TP061 TP062 R390 R584 R391 R586 R392 R393 R394 R588 R395 R396 R397 R398 R399 R591 R592 R595 R596 R597 R598 R599 TP464 TP465 C001 TNPA3983 D CR NO.9 1 VD VD HD HD DCK DCK PbF 1 3 2 5 7 9 4 6 8 10 12 14 16 11 13 15 A C E G J L N R B D F H K M P T 1 20 21 40 41 60 61 80 + 1 4 5 8 1 10 11 20 + + A B C E G J L N R U W AA D F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 1 40 41 80 1 3 4 5 1 24 25 48 1 10 11 20 1 10 11 20 1 3 4 5 1 2 29 30 1 31 1 21 + + ORDER NO. 1 68 1 68 1 68 1 2 19 20 1 19 20 2 1 68 1 68 1 68 1 68 1 68 1 68 A B C E G J L N R U W D A A F H K M P T V Y AB 1 2 3 5 7 9 11 4 6 8 10 13 15 17 19 21 12 14 16 18 20 22 13 11 9 7 5 3 12 10 8 6 4 2 B D F H K M N L J G E C 1 24 25 48 1 10 11 20 1 10 11 20 1 10 11 20 + + + 1 68 1 68 1 68 TH-65PF10CK D-BOARD TNPA3983AX TH-65PF10CK D-BOARD TNPA3983AX D-BOARD (COMPONENT SIDE) TNPA3983AX Parts Location D-BOARD (COMPONENT SIDE) IC IC9003 B-3 IC9007 B-3 IC9200 C-4 IC9300 E-3 IC9301 E-2 IC9304 E-4 IC9400 D-3 IC9401 C-2 IC9402 C-5 IC9500 B-5 IC9503 B-4 IC9504 A-1 IC9505 B-4 IC9602 E-5 IC9603 D-5 IC9802 B-4 IC9803 A-4 IC9806 F-2 TP9058 C-2 TP9059 B-5 TP9060 B-5 TP9061 B-5 TP9062 B-5 TP9443 E-4 TP9444 E-4 TP9464 C-4 TP9465 C-4 TP Q9046 B-3 Q9047 A-3 Q9051 C-2 Q9052 B-2 Q9053 C-2 Q9054 B-2 Q9100 B-3 Q9300 A-5 Q9302 E-5 Q9303 F-2 Q9304 C-1 Q9305 E-2 Q9306 E-2 Q9800 F-3 Q9801 F-2 Q9803 G-4 TRANSISTOR D 127 TH-65PF10CK 12.10.C1 电路板 I H G F E D C B A 1 2 3 4 5 6 C1-BOARD (COMPONENT SIDE) TNPA4003 C1-BOARD (FOIL SIDE) TNPA4003 TH-65PF10CK C1-BOARD TNPA4003 TH-65PF10CK C1-BOARD TNPA4003 C1 C1 1 TNPA4003 1 2 3 PbF SEE REVERSE FOR ORDER NO. C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 C113 C115 C116 C117 C118 C119 C120 C121 C122 C125 C126 C129 R101 R104 R107 C130 R108 IC101 C131 R109 C132 IC102 IC103 C133 IC104 C134 IC105 C135 D111 IC106 C136 D112 C137 D113 C138 D114 R110 D115 R111 D116 R112 D117 R113 D118 R114 D119 R115 R116 R117 C141 C142 C143 D120 C144 C145 C146 C147 C148 R123 R124 R125 R126 R127 R128 C150 R129 C152 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 C170 R149 C172 C173 C174 C175 C176 C177 C178 R150 R151 R152 R153 R154 R155 R156 R157 R158 C181 R159 C182 C183 C184 C185 C186 C187 R160 FL101 R172 R173 R174 R175 R176 R177 R178 R179 R186 R187 R191 R193 R194 R195 CA1 R196 CA2 R197 CA3 R198 CA4 R199 CA5 ZA101 ZA102 ZA103 ZA104 ZA105 ZA106 C10 C11 CR NO.7 1 C1 TNPA4003 PbF 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 68 1 20 1 68 Parts Location C1-BOARD IC7101 H-2 IC7102 G-2 IC7103 G-2 IC7104 H-2 IC7105 H-5 IC7106 I-2 IC 128 TH-65PF10CK 12.11.C2 电路板 I H G F E D C B A 1 2 3 4 5 6 C2-BOARD (COMPONENT SIDE) TNPA4004 C2-BOARD (FOIL SIDE) TNPA4004 TH-65PF10CK C2-BOARD TNPA4004 TH-65PF10CK C2-BOARD TNPA4004 Parts Location C2-BOARD IC7201 B-2 IC7202 D-1 IC7203 A-2 IC7204 B-2 IC7205 C-2 IC7206 C-2 IC7207 D-2 IC7211 C-1 IC7212 E-1 IC7213 F-1 IC7214 F-1 IC7215 G-1 IC C21 C22 C24 C25 ZA201 ZA202 ZA203 ZA204 ZA205 ZA206 CA6 CA7 CA8 CA9 C200 C201 C203 C204 C205 C206 C207 C208 C209 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 C225 C226 R200 C228 C229 R201 R202 R203 R204 R205 R206 R207 R208 C230 C231 R209 IC201 IC202 C232 IC203 C233 IC204 C234 IC205 C235 D211 IC206 C236 D212 IC207 C237 D213 R210 C238 D214 D215 R211 D216 R212 R213 D217 R214 D218 D219 R215 R216 R217 R218 C240 IC211 R219 IC212 IC213 IC214 D220 IC215 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 C252 C253 R230 R231 R232 R233 R234 R235 R236 R237 CA10 R238 R239 C264 C265 C266 C267 C268 R240 C269 R241 R242 R243 R244 R245 R246 R247 R248 C270 R249 C271 C272 C273 C274 C275 C276 C277 R250 C278 C279 R251 R252 R253 R254 R255 R256 R257 R258 R259 C281 C282 C285 C286 C287 C288 R260 C289 R261 R262 R263 R264 R266 R267 R268 C290 R269 FL201 FL202 C292 FL203 C293 C296 C297 R270 C298 R271 C299 R272 R273 R274 R275 R276 R277 R278 R279 R280 R281 R282 R283 R284 R285 R286 R287 R288 R289 R290 R291 R292 R293 R294 R295 R296 CR NO.7 TNPA4004 1 C2 PbF 1 80 1 20 1 68 1 68 68 1 68 1 ORDER NO. 68 1 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 2 3 TNPA4004 C2 1 PbF SEE REVERSE FOR ORDER NO. C2 129 TH-65PF10CK 12.12.C3 电路板 I H G F E D C B A 1 2 3 4 5 6 C3-BOARD (COMPONENT SIDE) TNPA4005 C3-BOARD (FOIL SIDE) TNPA4005 TH-65PF10CK C3-BOARD TNPA4005 TH-65PF10CK C3-BOARD TNPA4005 Parts Location C3-BOARD IC7301 B-1 IC7302 D-1 IC7303 B-2 IC7304 C-1 IC7305 C-1 IC7306 D-1 IC C3 1 C3 3 2 1 TNPA4005 PbF SEE REVERSE FOR ORDER NO. C31 C35 C301 C302 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C315 C316 C319 C320 C321 C322 C323 C324 C325 C326 C327 C328 C329 R302 R303 R304 R305 R306 R307 R308 C331 IC301 R309 C332 IC302 IC303 C333 IC304 C334 IC305 D311 C335 IC306 D312 C336 D313 C337 R310 D314 C338 R311 D315 C339 R312 D316 R313 D317 R314 D318 R315 D319 R316 R317 R318 C340 R319 C341 C342 C343 C344 D320 C345 C346 C347 R320 C348 R321 R322 R323 R324 R325 R326 C351 R330 R331 R332 R333 R334 R335 R336 R337 R338 C369 C370 C371 C372 C373 C374 C375 C376 R354 R355 R358 C380 R359 C381 C382 C383 C384 C385 C386 R360 R361 R362 R363 R364 R365 R366 R367 FL301 R373 R374 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R390 R391 R392 R393 R394 R395 R396 R397 R398 R399 ZA301 ZA302 ZA303 ZA304 ZA305 ZA306 CA11 CA12 CA13 CA14 CA15 1 C3 CR NO.7 TNPA4005 PbF 1 80 1 8 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 1 68 1 68 68 1 68 1 68 130 TH-65PF10CK 12.13.C4 电路板 I H G F E D C B A 1 2 3 4 5 6 C4-BOARD (COMPONENT SIDE) TNPA4006 C4-BOARD (FOIL SIDE) TNPA4006 TH-65PF10CK C4-BOARD TNPA4006 TH-65PF10CK C4-BOARD TNPA4006 Parts Location C4-BOARD IC7401 B-2 IC7402 D-2 IC7403 B-2 IC7404 C-2 IC7405 C-2 IC7406 D-2 IC R490 R491 R492 R493 R494 R495 R496 C41 C42 C44 ZA401 ZA402 ZA403 ZA404 ZA405 ZA406 CB11 CB12 CB13 CB14 CB15 C401 C404 C406 C408 C409 C410 C411 C412 C413 C414 C415 C418 C419 C420 C421 C422 C423 C426 C427 C428 R401 C429 R405 R406 R407 R408 R409 C433 C434 C436 C437 C438 R410 D415 C439 R411 D416 R412 D417 R413 D418 D419 R416 R417 C440 C441 C442 C443 C444 D420 C445 D421 D422 C446 D423 C447 R420 C448 D424 R421 C449 R422 R424 R425 R428 R429 C452 C453 R430 R431 R432 R433 R434 R435 R436 R438 R439 C468 R445 R446 R447 R448 C470 R449 C471 C472 C473 C474 C475 R450 C479 R451 R452 R453 R454 R455 R456 R457 R458 C480 R459 C481 C482 C483 C484 C485 R460 R461 R462 R463 R464 R465 R466 R467 R468 FL401 R469 R470 R471 R472 R473 R474 R477 R478 R479 R480 R481 R482 R483 R484 R485 R486 R487 R488 TNPA4006 1 C4 CR NO.7 R402 C402 IC401 IC402 IC403 IC404 IC405 IC406 R497 R498 C424 C425 C432 C435 C469 C4MM1 C4MM2 PbF 68 1 80 1 8 1 2 19 20 ORDER NO. 1 8 6 1 1 68 1 68 8 6 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 C4 1 TNPA4006 1 2 3 PbF SEE REVERSE FOR ORDER NO. C4 131 TH-65PF10CK 12.14.C5 电路板 I H G F E D C B A 1 2 3 4 5 6 C52 C54 C55 C502 C507 C509 C510 C511 C512 C513 C514 C515 C516 C518 C519 C522 C525 C527 R506 IC501 C531 C532 C533 IC503 IC504 C534 IC505 D512 IC506 IC507 D513 C537 D514 C538 D515 C539 C541 IC511 C543 R526 R528 R529 R530 R531 R532 R533 R534 R535 R536 R537 R538 R539 C566 C567 R540 R541 R542 R543 R544 R545 R546 R547 R548 C574 C575 C576 C577 R550 R559 R560 R561 R562 R563 R564 R565 R568 FL501 R569 FL502 R583 R584 R585 R586 R587 R588 R589 CB6 R592 R593 CB7 R594 R595 R596 R597 R598 R599 ZA501 ZA502 ZA505 1 TNPA4007 CR NO.7 C5 R001 R002 R003 R004 C506 C517 C51 C501 C508 C520 C521 C523 C524 C526 C528 R501 C529 R502 R503 R504 R505 R507 C530 R508 R509 IC502 C535 C536 R510 R511 D516 R512 D517 R513 D518 R514 R515 D519 R516 R517 R518 R519 IC512 IC513 C544 D520 IC514 D521 IC515 IC516 C547 R520 C548 R521 C549 R522 R523 R524 R525 R527 CB10 C568 C569 C570 R549 C571 C572 C573 C578 C579 R551 R552 R553 R554 R555 R556 R557 C580 R558 C581 C582 C583 C584 C585 C586 C587 R567 C591 C592 C593 FL503 C594 C595 C596 C597 R570 C599 R571 R572 R573 R574 R575 R576 R577 R578 R579 R580 R581 R582 R590 R591 CB8 CB9 ZA503 ZA504 ZA506 C5MM1 PbF 1 20 1 68 68 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 68 1 1 68 1 80 1 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. 1 68 68 1 68 C5 1 TNPA4007 1 2 3 PbF SEE REVERSE FOR ORDER NO. C5 C5-BOARD (COMPONENT SIDE) TNPA4007 C5-BOARD (FOIL SIDE) TNPA4007 TH-65PF10CK C5-BOARD TNPA4007 TH-65PF10CK C5-BOARD TNPA4007 Parts Location C5-BOARD IC7501 B-2 IC7502 D-2 IC7503 A-2 IC7504 B-2 IC7505 C-2 IC7506 C-2 IC7507 D-2 IC7511 C-2 IC7512 E-2 IC7513 E-2 IC7514 F-2 IC7215 G-2 IC7516 G-2 IC 132 TH-65PF10CK 12.15.C6 电路板 I H G F E D C B A 1 2 3 4 5 6 C6-BOARD (COMPONENT SIDE) TNPA4008 C6-BOARD (FOIL SIDE) TNPA4008 TH-65PF10CK C6-BOARD TNPA4008 TH-65PF10CK C6-BOARD TNPA4008 C6 R686 R687 R688 R689 R690 R691 R692 R693 R694 R695 R696 R697 R698 R699 C60 C61 ZA603 ZA604 ZA605 ZA606 CB1 CB2 CB3 CB4 CB5 C601 C602 C603 C604 C605 C606 C607 C610 C611 C612 C613 C617 C618 C619 C620 C621 C622 C623 C624 C629 R604 R607 R608 C630 C631 R609 C632 C633 C634 C635 D611 C636 D612 D613 C637 D614 R610 C638 D615 R611 D616 R612 R613 D617 R614 D618 R615 D619 R616 R617 R618 C641 C642 C643 C644 D620 C645 C646 C647 C648 R623 R624 R625 R626 R627 R628 C650 R629 C654 C656 C657 R630 C658 R631 C659 R632 R633 R634 R636 R637 R638 C660 R639 C661 C664 C665 C666 C667 R640 C668 R641 C669 R642 R643 R644 R645 R646 R647 C670 R648 R650 R651 R654 R655 R658 R659 R660 R661 R662 R663 R664 R665 R666 R667 FL601 TNPA4008 1 C6 CR NO.7 ZA601 ZA602 IC603 IC604 IC605 IC606 IC601 IC602 R606 R605 R603 C608 C655 C616 C615 C609 C6MM2 C6MM1 PbF 1 68 1 20 ORDER NO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 68 1 68 1 68 1 68 8 6 1 1 1 68 1 TNPA4008 C6 3 2 1 PbF SEE REVERSE FOR ORDER NO. Parts Location C6-BOARD IC7601 H-2 IC7602 I-2 IC7603 F-2 IC7604 G-2 IC7605 G-5 IC7606 H-2 IC 133 TH-65PF10CK 12.16.SC 电路板 I H G F E D C B A 1 2 3 4 5 6 SC-BOARD (FOIL SIDE) TNPA4011 TH-65PF10CK SC-BOARD TNPA4011 TH-65PF10CK SC-BOARD TNPA4011 SC41 SC42 SC43 SC44 SC45 SC46 D502 C721 C531 C532 C533 C534 C535 C536 C537 C538 L401 D522 L402 L403 D524 L404 L405 L406 L407 L408 L601 L602 L411 L412 L413 L414 L415 L416 L417 C754 C561 C563 L430 L431 L441 L442 L443 L444 L445 L446 L447 L448 L449 C592 L450 C594 L451 L452 L453 L454 L455 L456 L457 L458 L459 C791 C795 C796 L460 L461 L462 D583 L463 L464 L465 L466 L467 L468 L470 L471 L472 L473 L474 L475 L476 L477 L478 L479 L480 L481 L482 L483 L484 L485 L486 L487 L488 IC791 L680 L490 L491 L492 L493 L494 L495 L496 L497 L498 4 0 4 Q 3 0 4 Q 2 0 4 Q 1 0 4 Q 8 0 4 Q 7 0 4 Q 6 0 4 Q 5 0 4 Q C604 C411 C412 C413 C414 C415 C416 C417 C418 C419 C801 C802 C803 C804 C806 C420 C808 C809 Q421 D401 Q422 D402 D403 Q423 Q424 D404 C429 Q425 Q426 Q427 C813 C814 Q428 C430 C431 C822 Q821 Q822 C440 R801 R802 R803 R804 Q441 D421 Q442 D422 R806 D423 Q443 R807 Q444 D424 Q445 IC803 C641 C450 R620 Q451 Q452 Q453 Q454 VR600 Q455 C841 VR601 C842 VR602 VR603 Q841 Q842 C460 R821 R823 D441 TP1 TP2 TP4 TP5 Q661 TP6 TP7 TP8 D451 TP9 T602 R840 R844 D461 D462 D463 D464 TP036 D467 TP037 D468 R658 D469 SC2 D471 D472 TP042 TP043 TP10 TP044 TP11 TP045 TP12 TP046 TP13 TP047 TP14 TP048 TP15 C691 TP049 TP16 C692 TP17 C693 TP18 R860 TP19 TP050 D481 TP051 D482 TP052 D483 TP053 D484 TP20 TP21 D485 TP22 D486 TP23 D487 TP24 TP25 TP26 TP27 TP28 TP29 D491 TP062 TP063 TP30 TP31 TP32 TP33 TP34 TP35 TP38 TP39 TP40 TP41 TP42 R696 TP43 R697 R698 TP46 TP47 TP48 TP49 TP50 TP52 TP53 L591 L592 TP64 SC23 SC30 CRNo.6 1 SC 6 5 4 3 2 1 TNPA4011 PbF A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 A39 A40 B39 B40 B1 B2 A2 A1 9 8 2 1 9 8 2 1 A A K A A K A A K SEE REVERSE FOR ORDER NO. 1 2 1 E G C E C G E C G E C G E C G E C G G C E G C E E C G A A K E C G A A K A A K E C G E C G A A K E C G E C G G C E G C E E C B B C E E C G A A K E C G A A K A A K E C G E C G A A K G E C 5 4 3 2 1 E C G E C G E G C G C E G C E E C B E B C A A K S D G A A K P2 P1 V2 S2 V1 PT S3 S1 S4 S5 A A K A A K A A K A A K A A K A A K A A K 3 1 A A K A A K K A A K A A K A A A A K A A K A A K A A K K A A 1 3 1 8 134 TH-65PF10CK TH-65PF10CK SC-BOARD PARTS LOCATION TH-65PF10CK SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) Q6401 C-4 Q6402 C-4 Q6403 C-4 Q6404 C-4 Q6405 C-4 Q6406 C-4 Q6407 C-4 Q6408 D-4 Q6421 F-4 Q6422 F-4 Q6423 F-4 Q6424 F-4 Q6425 F-4 Q6426 F-4 Q6427 F-4 Q6428 F-4 Q6441 D-1 Q6442 D-1 Q6443 D-1 Q6444 C-1 Q6445 C-1 Q6451 G-2 Q6452 F-2 Q6453 F-2 Q6454 F-2 Q6455 F-2 Q6661 H-4 Q6821 G-3 Q6822 H-3 Q6841 G-2 Q6842 H-2 TRANSISTOR TP036 B-6 TP037 B-6 TP042 H-6 TP043 F-6 TP044 B-6 TP045 B-6 TP046 B-6 TP047 B-6 TP048 B-6 TP049 F-6 TP050 F-6 TP051 F-6 TP052 F-6 TP053 F-6 TP062 F-6 TP063 D-6 TP1 B-1 TP2 B-1 TP4 B-1 TP5 B-1 TP6 B-1 TP7 C-1 TP8 C-1 TP9 C-1 TP10 E-1 TP11 E-1 TP12 F-1 TP13 F-1 TP14 E-1 TP15 E-1 TP16 E-1 TP17 I-4 TP18 E-1 TP19 E-1 TP20 F-1 TP21 E-1 TP22 E-1 TP IC6791 H-3 IC6803 I-2 IC VOLUME Parts Location SC-BOARD (COMPONENT SIDE) IC6471 B-5 IC6472 B-4 IC6501 E-3 IC6521 E-1 IC6561 D-1 IC6562 D-1 IC6581 C-1 IC6601 C-5 IC6602 B-5 IC6610 B-5 IC6671 C-5 IC6681 B-5 IC6682 B-5 IC6721 A-5 IC6722 B-5 IC6724 B-5 IC6725 A-5 IC6751 B-4 IC6752 D-5 IC6753 B-4 IC6771 C-5 IC6772 D-5 IC6773 C-5 IC6774 C-5 IC6791 B-3 IC6801 B-1 IC6802 B-4 IC6803 A-2 IC6821 B-3 IC6841 C-2 IC6861 B-5 IC6871 B-3 IC PC6480 B-4 PC6610 B-4 PC6701 A-4 PC6702 B-4 PC6703 B-4 PC6704 B-4 PC6705 C-5 PC6760 B-4 PC6801 B-1 PC6861 B-4 PC6871 B-3 Q6401 G-3 Q6402 G-3 Q6403 G-3 Q6404 F-3 Q6405 G-4 Q6406 G-4 Q6407 G-4 Q6408 F-4 Q6421 D-3 Q6422 D-3 Q6423 D-3 Q6424 D-3 Q6425 D-4 Q6426 D-4 Q6427 D-4 Q6428 D-4 Q6441 F-1 Q6442 F-1 Q6443 G-1 Q6444 G-1 Q6445 G-1 Q6451 C-1 Q6452 D-1 Q6453 D-1 Q6454 D-1 Q6455 D-1 PHOTO COUPLER TRANSISTOR TP15V H-1 TPSC1 B-5 TPSOS6 C-1 TPSOS7 D-1 TPVAD B-3 TPVSCN B-2 TPVSET C-4 TPVSET2 B-4 TPVSUS H-1 Q6648 F-6 Q6649 F-6 Q6651 G-6 Q6652 G-6 Q6653 G-6 Q6654 G-6 Q6655 G-6 Q6656 G-6 Q6657 H-6 Q6658 H-6 Q6659 H-6 Q6660 H-6 Q6661 B-4 Q6662 D-5 Q6665 D-5 Q6671 C-5 Q6672 D-5 Q6673 D-5 Q6674 C-5 Q6675 D-5 Q6676 D-5 Q6679 C-5 Q6680 C-5 Q6681 B-5 Q6682 C-5 Q6691 B-5 Q6742 B-5 Q6743 B-5 Q6744 B-5 Q6762 D-5 Q6763 F-5 Q6781 D-6 Q6782 D-5 Q6783 G-6 Q6784 G-6 Q6791 B-3 Q6803 B-1 Q6821 C-3 Q6822 B-2 Q6824 B-3 Q6841 C-2 Q6842 B-2 TP VR6600 B-1 VR6601 C-5 VR6602 D-5 VR6603 B-4 VOLUME TP23 F-1 TP24 E-1 TP25 E-1 TP26 E-1 TP27 E-1 TP28 I-6 TP29 E-6 TP30 A-6 TP31 B-1 TP32 E-1 TP33 I-1 TP34 I-3 TP35 E-3 TP38 E-1 TP39 E-1 TP40 C-6 TP41 C-6 TP42 C-6 TP43 C-6 TP46 G-6 TP47 G-6 TP48 G-6 TP49 G-6 TP50 G-6 TP52 E-1 TP53 H-4 TP64 G-3 VR6600 H-1 VR6601 G-5 VR6602 F-5 VR6603 H-4 Q6501 E-4 Q6502 F-4 Q6503 E-4 Q6504 F-4 Q6505 F-4 Q6506 F-4 Q6507 F-4 Q6508 F-4 Q6521 E-4 Q6522 E-4 Q6523 E-4 Q6524 E-4 Q6525 E-4 Q6526 E-4 Q6527 E-4 Q6528 E-4 Q6531 F-1 Q6532 F-1 Q6533 G-1 Q6534 G-1 Q6551 C-1 Q6552 D-1 Q6553 D-1 Q6554 D-1 Q6581 C-1 Q6601 C-5 Q6602 B-5 Q6621 E-5 Q6622 E-5 Q6623 F-5 Q6624 F-5 Q6625 G-5 Q6626 G-5 Q6627 H-5 Q6628 H-5 Q6641 E-6 Q6642 E-6 Q6643 E-6 Q6644 E-6 Q6645 F-6 Q6646 F-6 Q6647 F-6 SC 135 TH-65PF10CK I H G F E D C B A 1 2 3 4 5 6 SC-BOARD (COMPONENT SIDE) TNPA4011 TH-65PF10CK SC-BOARD TNPA4011 TH-65PF10CK SC-BOARD TNPA4011 C708 SC41 SC42 SC43 SC44 SC45 SC46 C521 C522 C523 C524 Q521 C525 D501 D502 Q522 C526 C527 Q523 Q524 R501 Q525 Q526 R502 Q527 R503 R504 Q528 C721 R506 R507 C723 R508 C724 C531 R509 IC501 C725 D701 C532 D702 C726 C533 C727 C534 C728 R700 Q531 C535 R701 C536 Q532 R702 C537 Q533 R703 C538 Q534 R704 R511 R705 R512 R706 R513 R707 R514 R708 R515 R516 R517 R518 R519 R710 D521 L401 R711 D522 L402 R712 L403 D523 R713 R520 D524 L404 R714 R521 L405 R715 L406 R522 R716 L407 R523 R717 L408 R718 R527 R528 R529 L601 IC521 D721 L602 Q742 Q743 D723 D724 Q744 Q551 L411 R721 D725 L412 Q552 R722 D726 Q553 L413 R723 D727 Q554 R530 L414 D728 R724 L415 R531 D729 R532 L416 L417 R533 R534 R535 L801 IC721 PC701 R536 L802 IC722 PC702 C752 R537 PC703 C753 PC704 R538 C754 IC724 D730 C561 R539 C755 PC705 IC725 D731 C562 D732 C563 D733 C564 D734 C565 C566 R540 R541 R542 Q762 Q763 L430 L431 R742 R743 R744 R551 R745 R552 R746 R553 R747 R554 R555 C771 R556 C772 C773 C581 C775 C582 C776 D752 C777 D753 Q581 L441 L442 L443 L444 D758 L445 R561 R755 R562 L446 R756 R563 L447 R564 L448 R565 L449 IC751 R759 R566 IC752 R567 IC753 R568 D760 IC561 D761 Q781 C592 IC562 D762 Q782 C593 D763 Q783 L450 C594 D764 R760 Q784 L451 R761 L452 R762 L453 R763 L454 R764 L455 L456 L457 L458 L459 C791 L841 C795 D771 Q791 C796 D773 L460 D581 L461 D582 L462 D583 L463 L464 D584 D585 L465 R581 R775 R582 L466 R776 R583 L467 R777 L468 R584 R585 IC771 R586 IC772 R587 IC773 R588 IC774 R589 IC581 L470 L471 R781 L472 R782 L473 R783 L474 R590 R784 R591 L475 L476 R592 L477 L478 PC760 L479 D791 L480 L481 R791 L482 R792 L483 R793 L484 L485 L486 L487 L488 IC791 L680 L490 L491 L492 L493 L494 L495 L496 L497 L498 C401 C402 C403 C404 C405 Q401 C406 Q402 C407 Q403 Q404 C408 C409 Q405 Q406 Q407 Q408 C601 C602 C603 C410 C604 Q601 C411 C605 C412 Q602 C606 C413 5 1 4 C 4 1 4 C 7 1 4 C 6 1 4 C C418 C419 C801 C802 C803 C804 C610 C805 C806 C612 C807 Q803 C420 C808 C421 C809 C422 C423 C424 Q421 C425 D401 Q422 C426 D402 D403 C427 Q423 Q424 C428 D404 C429 R401 Q425 C811 Q426 R402 C812 R403 Q427 C813 C814 Q428 R404 C620 R405 C815 R406 C816 R407 C430 R408 C431 Q621 D601 D602 Q622 C433 D603 Q623 C434 D604 Q624 C435 D605 Q625 C436 D606 Q626 C437 D607 R603 Q627 C438 Q628 R604 C439 R605 R606 C822 R607 C823 R608 R609 IC601 D801 Q821 IC602 D802 Q822 D803 D804 Q824 D610 C440 C441 R801 D805 D611 D806 R802 D612 D807 R803 D613 D808 R804 R610 Q441 D421 D809 R805 R611 D615 Q442 D422 D616 R612 R806 D423 Q443 R807 R613 Q444 D424 R808 R614 R421 Q445 IC801 R809 D619 R615 R422 IC802 R616 R423 IC803 R617 R424 D810 IC610 R618 R425 C641 R619 D812 R426 D813 R427 R428 R810 D620 C450 Q641 R811 D621 Q642 R812 D622 Q643 R813 D623 Q644 R814 R620 D624 Q451 R621 Q645 D625 Q452 R622 Q646 R816 D626 Q453 Q647 R817 R623 D627 R818 Q454 Q648 VR600 R624 D628 Q455 R819 C841 VR601 Q649 R625 D629 C842 VR602 R626 VR603 R627 R628 D820 Q841 C845 D821 Q842 D822 R437 D823 D824 R438 R820 D630 C460 D825 R821 Q651 D826 R822 Q652 R823 Q653 R630 R824 Q654 D441 R631 R825 Q655 D442 R632 R826 Q656 R633 R827 Q657 R828 Q658 R441 PC801 IC821 R829 Q659 R442 R443 R444 PC610 R445 C661 C662 C663 R830 Q660 C471 Q661 D641 R831 R832 D642 Q662 C473 R833 D643 R834 D644 D451 R641 R835 Q665 D452 R642 R836 R837 R643 R838 R644 R451 R839 R645 C861 R452 R646 C862 R453 R647 C863 R454 R648 R455 C671 D841 R649 D842 T602 D843 R840 C480 R841 Q671 R842 Q672 Q673 R843 D653 R844 Q674 D461 R845 Q675 R651 D462 R846 R652 Q676 D463 R847 R653 D464 R848 R654 D465 IC841 R849 C871 Q679 R655 D466 C872 R656 D467 C873 R657 D468 R658 R465 D469 C681 R659 R466 C682 R467 C683 R468 Q680 R850 C491 D661 R851 Q681 SC2 D662 R852 Q682 D663 R853 D664 R660 D471 D665 R661 D859 D472 D666 R662 D667 R663 R664 R858 R665 R471 R472 R666 D477 R667 R473 D478 D860 R668 R474 C691 D861 R475 R669 D862 R476 C692 R477 C693 R860 R861 Q691 IC471 IC472 R862 R863 D480 R864 R670 D481 R671 R865 D482 R672 R866 D483 R673 R867 D484 R674 R868 D485 R675 IC861 R869 D486 R676 D487 R677 R678 IC671 D871 R679 D872 R870 D681 R871 D682 R872 D683 R873 D684 R874 D491 D685 R875 R682 D686 R876 D687 R683 R877 R684 R878 R685 IC871 R879 R686 D497 R687 R688 IC681 R689 IC682 R690 R691 R886 R887 R888 PC861 R696 R697 R698 PC480 R891 PC871 L591 L592 SC20 SC23 C502 C503 C504 SC30 Q501 C505 Q502 C506 Q503 C507 Q504 Q505 Q506 Q507 Q508 ZA401 C701 ZA402 C702 ZA403 C703 C704 C705 C706 C707 Discharge TPVAD TPVSUS TP15V TPVSCN SCMM1 TPVSET2 TPSC1 TPVSET SCMM3 SCMM4 TPSOS7 TPSOS6 SCMM6 DIP SCMM5 SCMM2 SCMM7 SC CRNo.6 TNPA4011 1 PbF A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 A1 A2 B1 B2 A40 A39 B40 B39 9 8 2 1 1 2 8 9 A A K 1 8 9 16 A A K A A K 1 8 16 9 1 7 8 14 1 7 8 14 1 4 8 5 1 3 4 5 1 10 11 20 1 10 11 20 ORDER NO. 1 4 5 8 1 3 5 4 3 4 1 5 1 4 5 8 1 2 3 4 12 1 G E C C G E C G E C G E C G E C G E C G E C G E G S D C G E A A K C G E A A K A A K C G E C G E A A K C G E C G E C G E C G E G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 B C E 1 3 5 4 B C E C G E A A K C G E A A K A A K C G E C G E A A K C G E 1 2 3 4 5 1 4 5 G S D G S D G S D G S D C G E G S D C G E G S D C G E G S D C G E G S D C G E G S D B C E B C E G S D G D S GS D G S D A A K G S D G S D G S D G S D 1 2 3 4 G S D 1 2 3 4 G S D G S D A A K S5 S4 S1 S3 PT V1 S2 V2 P1 P2 G S D G S D G S D G S D A A K G S D A A K G S D A A K A A K A A K A A K A A K G S D 1 3 G S D A A K A A K 1 4 5 3 1 3 4 5 A A K A A K A A K A A K A A K 1 5 8 4 A A K A A K 1 4 5 8 A A K 1 4 5 8 4 5 8 1 3 5 1 4 2 3 4 1 1 2 3 4 1 2 3 4 1 2 19 20 1 3 1 8 136 TH-65PF10CK 12.17.SU 电路板 I H G F E D C B A 1 2 3 4 5 6 SU-BOARD (COMPONENT SIDE) TNPA4009AC SU-BOARD (FOIL SIDE) TNPA4009AC TH-65PF10CK SU-BOARD TNPA4009AC TH-65PF10CK SU-BOARD TNPA4009AC Parts Location SU-BOARD IC6901 I-2 IC6902 H-2 IC6903 G-2 IC6904 F-2 IC6905 E-2 IC6906 D-2 IC6907 C-2 IC6908 B-2 IC6909 A-2 IC6940 C-1 TPSU1 I-2 TPSU2 E-1 TPSU3 A-2 IC TP SU C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 C6909 C6921 C6922 C6923 C6924 C6925 D6901 C6926 D6902 C6927 C6928 C6929 R6901 R6902 R6903 R6904 R6905 R6906 R6907 R6908 R6909 IC6901 IC6902 IC6903 IC6904 D6910 IC6905 D6911 IC6906 D6912 IC6907 D6913 IC6908 IC6909 C6940 C6941 C6942 C6943 C6944 C6945 C6946 C6947 C6948 R6920 C6949 R6921 R6922 R6924 R6930 R6931 R6932 R6933 R6938 C6961 R6939 C6962 C6963 C6964 C6965 C6966 C6967 C6968 C6969 SU45 IC6940 C6980 C6981 R6963 SU1 SU2 SU3 SU4 SU5 TPSU1 TPSU2 TPSU3 TNPA4009 1 SU A A PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 1 7 8 14 ORDER NO. A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 D40 D1 C40 C1 TNPA4009 1 SU PbF SEE REVERSE FOR ORDER NO. D41 D80 C80 C41 137 TH-65PF10CK 12.18.SD 电路板 I H G F E D C B A 1 2 3 4 5 6 SD-BOARD (COMPONENT SIDE) TNPA4010AC SD-BOARD (FOIL SIDE) TNPA4010AC TH-65PF10CK SD-BOARD TNPA4010AC TH-65PF10CK SD-BOARD TNPA4010AC Parts Location SD-BOARD IC6910 I-2 IC6911 H-2 IC6912 G-2 IC6913 F-2 IC6914 E-2 IC6915 D-2 IC6916 C-2 IC6917 B-2 IC6918 A-2 TPSD1 A-2 TPSD2 E-1 TPSD3 I-2 IC TP SD R6964 R6948 C6956 IC6910 D6905 C6916 C6973 C6951 IC6913 C6931 SD46 C6954 R6912 C6913 R6954 C6972 R6943 C6958 C6950 IC6912 R6910 C6930 C6918 C6910 SD1 C6975 IC6915 R6913 C6933 C6938 C6911 R6951 R6941 IC6918 R6918 C6936 C6952 R6911 C6912 SD5 R6950 C6970 IC6917 R6917 C6935 R6949 D6906 C6917 SD3 C6976 C6955 IC6916 R6915 C6934 R6914 C6914 R6952 C6971 R6942 C6957 IC6911 C6937 SD4 C6977 R6916 C6915 C6974 C6953 IC6914 C6932 TPSD3 SD2 TPSD2 TPSD1 TNPA4010 1 SD R6953 IC6920 C6978 C6979 C6990 C6991 D6921 D6923 D6920 D6922 PbF 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 9 8 2 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 B1 A54 B54 A1 A40 B1 B40 ORDER NO. 1 7 8 14 TNPA4010 1 SD PbF SEE REVERSE FOR ORDER NO. B41 B80 A41 A80 138 TH-65PF10CK 12.19.SS 电路板 I H G F E D C B A 1 2 3 4 5 6 SS-BOARD (FOIL SIDE) TNPA4012 TH-65PF10CK SS-BOARD TNPA4012 TH-65PF10CK SS-BOARD TNPA4012 R115 L001 L002 L003 L004 L005 L006 L007 L008 CF281 L011 L012 D132 L013 L014 L015 L016 L017 L018 SS11 SS12 SS21 L221 SS25 L222 D152 D154 SS34 SS35 L040 SS42 L241 SS53 SS54 SS55 SS56 L061 L062 L063 L064 L065 L066 L067 L068 L069 L262 L070 L071 L072 L073 L074 L075 L076 L077 L078 L079 L271 L272 L081 L082 L083 L084 L085 L086 L087 L088 L089 L090 L091 L092 L093 L094 L095 L096 L097 L098 L099 L291 Q001 Q002 Q003 Q004 Q005 Q006 Q007 Q008 C201 C202 C203 C204 C011 C205 C012 C206 C013 C207 C014 C208 C015 C016 C017 C018 C019 C213 C214 C020 Q021 D001 Q022 D002 Q023 D003 Q024 D004 Q025 Q026 Q027 Q028 C223 C224 C031 Q222 C032 R018 D212 Q041 D021 Q042 D022 Q043 D023 Q044 R020 D024 D025 Q045 R022 D026 VR000 C241 C051 C052 L103 Q051 Q052 R222 Q053 R223 VR200 Q054 Q055 C255 Q256 C261 C262 C263 C264 C265 C266 C267 C268 C269 C270 C272 C273 C274 C275 D253 TP1 D061 TP2 D062 TP3 D063 TP4 D064 TP5 TP6 TP7 D067 TP8 D068 TP9 D069 D071 D072 TP904 TP905 D081 D082 D083 D084 D085 D086 D087 TP910 TP911 TP913 TP10 TP11 L161 TP12 L162 TP13 L163 TP14 TP918 L164 TP15 TP919 R281 D091 L165 TP16 R282 D092 L166 TP17 L167 TP18 L168 TP19 TP920 TP921 TP922 TP923 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 L181 TP32 L182 TP33 L183 TP34 L184 L185 L186 L187 L188 L189 L386 C111 C112 C113 C114 C120 1 3 2 1 SS TNPA4012 CR No.6 PbF A A K 1 3 1 10 1 7 6 2 1 7 6 2 A A K A A K 1 3 1 8 1 8 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDER NO. C G E G C E G C E G C E G C E G C E G C E G C E G C E A A K G C E A A K G C E A A K G C E A A K G C E G C E G C E G C E E C B A A K G C E A A K G C E A A K G C E A A K G C E A A K A A K G C E A A K G C E G C E G C E G C E G C E E C B A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K 139 TH-65PF10CK TH-65PF10CK SS-BOARD PARTS LOCATION TH-65PF10CK SS-BOARD PARTS LOCATION SS Parts Location SS-BOARD (FOIL SIDE) Q6001 D-2 Q6002 D-2 Q6003 C-2 Q6004 C-2 Q6005 D-2 Q6006 D-2 Q6007 C-2 Q6008 C-2 Q6021 F-2 Q6022 F-2 Q6023 G-2 Q6024 G-2 Q6025 F-2 Q6026 F-2 Q6027 G-2 Q6028 G-2 Q6041 C-5 Q6042 C-5 Q6043 C-5 Q6044 B-5 Q6045 B-5 Q6051 F-4 Q6052 F-4 Q6053 F-4 Q6054 G-4 Q6055 G-4 Q6222 H-5 Q6256 H-5 TRANSISTOR TP1 A-5 TP2 A-5 TP3 B-5 TP4 B-5 TP5 B-5 TP6 A-5 TP7 B-5 TP8 B-5 TP9 A-5 TP10 A-5 TP11 B-5 TP12 B-5 TP13 I-5 TP14 I-5 TP15 I-5 TP17 I-5 TP18 I-5 TP19 I-5 TP20 I-5 TP21 I-5 TP22 I-5 TP23 I-5 TP24 H-1 TP25 G-1 TP26 G-1 TP27 F-1 TP28 D-1 TP29 C-1 TP30 C-1 TP31 B-1 TP32 H-4 TP33 I-5 TP34 I-5 TP VOLUME Parts Location SS-BOARD (COMPONENT SIDE) IC6131 E-2 IC6151 E-5 IC6191 B-2 IC6211 A-3 IC6221 B-5 IC6241 A-5 IC6251 C-5 IC6281 A-4 IC Q6001 F-3 Q6002 F-3 Q6003 F-3 Q6004 G-3 Q6005 F-1 Q6006 F-1 Q6007 F-1 Q6008 G-1 Q6021 D-3 Q6022 D-3 Q6023 C-3 Q6024 C-3 Q6025 D-1 Q6026 D-1 Q6027 C-1 Q6028 C-1 Q6031 D-5 Q6041 G-5 Q6042 G-5 Q6043 G-5 Q6044 G-5 Q6045 H-5 Q6051 D-4 Q6052 D-4 Q6053 D-4 Q6054 C-4 Q6055 C-4 Q6101 B-2 Q6102 B-3 Q6103 B-2 Q6104 B-3 Q6105 B-2 Q6106 B-3 Q6107 B-2 Q6108 B-2 Q6111 B-4 Q6112 B-4 Q6114 B-3 Q6115 A-5 Q6116 B-3 TRANSISTOR TP15V H-5 TPSOS7 A-5 TPSOS8 A-5 TPSS1 B-2 TPVDA A-2 TPVe A-5 TPVe2 B-4 TPVSUS I-4 TP VR6000 B-5 VR6200 A-4 VOLUME TP6904 A-3 TP6905 A-3 TP6910 I-2 TP6911 I-2 TP6913 I-5 TP6918 I-5 TP6919 I-5 TP6920 I-5 TP6921 I-5 TP6922 I-5 TP6923 I-5 VR6000 H-5 VR6200 I-4 Q6141 E-2 Q6142 F-2 Q6143 F-2 Q6144 F-2 Q6146 D-2 Q6147 D-2 Q6148 D-2 Q6149 C-2 Q6151 E-2 Q6152 E-2 Q6153 F-2 Q6154 F-2 Q6156 D-2 Q6157 D-2 Q6158 D-2 Q6159 C-2 Q6171 G-5 Q6172 G-5 Q6173 G-5 Q6174 G-5 Q6181 D-5 Q6183 D-5 Q6184 C-5 Q6211 A-3 Q6212 A-4 Q6222 B-5 Q6251 C-5 Q6256 B-5 Q6281 A-4 Q6282 A-4 140 TH-65PF10CK I H G F E D C B A 1 2 3 4 5 6 SS-BOARD (COMPONENT SIDE) TNPA4012 TH-65PF10CK SS-BOARD TNPA4012 TH-65PF10CK SS-BOARD TNPA4012 R104 R106 R108 C131 R109 C132 C133 C134 D110 C135 D111 D112 C136 D113 R110 R111 R112 R113 R114 R115 R116 R117 R119 L001 Q141 L002 Q142 L003 Q143 L004 Q144 R120 L005 L006 Q146 Q147 L007 Q148 L008 Q149 R125 R126 R127 R128 C151 R129 C152 C153 C154 CF281 L011 D131 Q151 C155 L012 D132 Q152 C156 L013 Q153 L014 R130 Q154 R131 L015 L016 R132 Q156 R133 L017 Q157 R134 Q158 L018 SS11 R135 Q159 SS12 R136 R137 R138 IC131 L211 R139 L212 L213 R140 R141 R142 R143 R144 SS21 R146 R147 R148 L221 R149 SS25 L222 Q171 D151 Q172 D152 D153 Q173 D154 R150 Q174 R151 R152 R153 R154 R157 SS34 R158 IC151 R159 SS35 L040 Q181 Q183 R160 Q184 R161 R162 R163 R164 R165 SS42 R166 R167 SS44 R168 L241 R169 C192 C193 C194 C195 C196 C197 R170 2 7 1 R 1 7 1 R R173 R174 R175 R176 SS53 R177 SS54 SS55 SS56 L061 L062 L063 L064 R181 L065 R182 L066 R183 L067 L068 R184 L069 R185 R186 L262 L070 L071 D191 L072 D192 L073 D193 L074 L075 R191 R192 L076 R193 L077 L078 R195 L079 R196 IC191 L271 L272 L081 L082 L083 L084 L085 L086 L087 L088 L089 L090 L091 L092 L093 L094 L095 L096 L097 L098 L099 L291 4 0 0 C 3 0 0 C 2 0 0 C 1 0 0 C Q001 C005 Q002 C006 Q003 C007 Q004 C008 Q005 C009 8 0 0 Q 7 0 0 Q 6 0 0 Q 4 0 2 C 3 0 2 C 2 0 2 C 1 0 2 C C010 C011 C205 C012 C206 C013 C207 C014 C208 6 1 0 C 5 1 0 C C017 C018 C019 ZA101 ZA102 ZA103 C210 C211 C212 C213 C214 C020 C021 Q211 C215 C216 Q212 C022 C217 C023 C218 C024 Q021 C025 D001 Q022 C026 D002 Q023 C027 D003 Q024 C028 D004 R001 Q025 C029 Q026 R003 Q027 Q028 R005 C221 C222 R007 C223 C030 C224 R009 C031 Q222 C032 C033 D010 C034 Q031 C035 C036 C037 R011 C039 R013 R015 C040 R018 C041 D211 C042 D212 C043 C044 Q041 D021 Q042 D022 Q043 R213 D023 Q044 R214 R020 D024 R021 D025 R215 Q045 R022 R216 D026 R217 R024 VR000 IC211 C241 R026 C242 C243 R028 L101 D221 C051 L102 D222 C052 L103 D223 D224 D225 Q051 D031 L105 Q052 D032 L106 R222 Q053 R223 L107 VR200 R224 Q054 R030 L108 R031 R225 Q055 R032 R226 R033 R227 R034 IC221 C251 C252 R036 R038 Q251 C255 R232 Q256 R233 R234 R040 R041 R235 R236 R043 R237 R238 C261 R045 R239 C262 R047 C263 C264 C071 R049 C265 C072 7 6 2 C 6 6 2 C C268 R240 R241 C269 R242 R243 R244 R051 R053 C270 R055 IC241 C272 R057 C273 C274 D251 R059 C275 D252 D253 D254 D061 D255 R251 D062 R252 D063 R253 D064 R254 R255 R061 R256 R257 D067 R258 D068 C281 IC251 R259 D069 C282 C283 C284 Q281 C091 Q282 C092 D071 R261 D072 R078 D271 D272 D274 D081 D082 D083 D084 D085 D086 D087 D281 L161 D282 L162 L163 L164 R281 D091 L165 R282 D092 L166 L167 R284 L168 R286 R288 R289 IC281 R291 L181 L182 L183 L184 L185 L186 L187 L188 L189 L386 L398 L399 Q101 Q102 Q103 Q104 Q105 Q106 Q107 Q108 C111 C112 C113 C114 Q111 Q112 Q114 Q115 Q116 C120 D101 D102 D103 D104 R102 D106 D107 DIP Discharge TPVSUS TP15V TPVDA TPSOS7 TPSOS8 TPVe2 CR No.6 TNPA4012 SS 1 TPSS1 SSMM1 SSMM2 SSMM3 SSMM4 TPVe PbF A A K 1 3 10 1 1 8 9 16 1 7 6 2 1 7 6 2 A A K A A K 3 1 8 1 9 16 1 8 1 8 20 19 2 1 1 13 1 13 1 13 1 13 ORDER NO. 1 8 9 16 C G E C G E C G E C G E C G E C G E C G E C G E C G E A A K C G E A A K C G E A A K C G E A A K C G E C G E C G E C G E B C E A A K C G E A A K C G E A A K C G E A A K C G E A A K A A K C G E A A K 4 5 8 1 C G E G E C C G E C G E C G E B C E 1 1 0 11 20 A A K A A K A A K A A K A A K A A K 1 4 5 8 A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K A A K G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D 141 TH-65PF10CK 12.20.SS2, SS3 电路板 I H G F E D C B A 1 2 3 4 5 6 SS2-BOARD (COMPONENT SIDE) TNPA4013 SS2-BOARD (FOIL SIDE) TNPA4013 SS3-BOARD (COMPONENT SIDE) TNPA4014 SS3-BOARD (FOIL SIDE) TNPA4014 TH-65PF10CK SS2-BOARD TNPA4013 SS3-BOARD TNPA4014 TH-65PF10CK SS2-BOARD TNPA4013 SS3-BOARD TNPA4014 SS2 SS3 SS23 SS51 SS52 R6218 R6219 SS2MM1 TNPA4013 SS2 1 SS2MM2 PbF 7 1 2 6 1 13 1 13 ORDER NO. SS57 SS58 R6220 R6221 TNPA4014 SS3 1 SS3MM1 SS3MM2 SS27 PbF 1 13 1 13 ORDER NO. 7 1 2 6 SS57 SS58 R6220 R6221 TNPA4014 1 SS3 SS27 PbF 1 1 3 1 1 3 SEE REVERSE FOR ORDER NO. 7 1 2 6 SS23 SS51 SS52 R6218 R6219 TNPA4013 1 SS2 PbF 7 1 2 6 1 13 1 13 SEE REVERSE FOR ORDER NO. 142 TH-65PF10CK 13 分解图和更换部件清单 13.1. 分解图和机械更换部件清单 13.1.1. 分解图 143 TH-65PF10CK 13.1.2. 面框部件位置及放大图 13.1.3. 电扇部件位置及放大图 144 TH-65PF10CK 13.1.4. 电缆联系 145 TH-65PF10CK 13.1.5. 附件 146 TH-65PF10CK 13.1.6. 包装简图 （1） 147 TH-65PF10CK 13.1.7. 包装简图 （2） 148 TH-65PF10CK 13.1.8. 维修部品表 参考号 部件号 部件名称及说明 数量 备注 1 EUR7636120R 遥控器 1 2 J0KD00000096 铁氧磁环 6 3 K2CK3DH00028 AC 电源线 1 4 L6FAYYYH0025 风扇 (SC/SS) 4 5 L6FAYYYH0026 风扇 ( 中 ) 1 6 L6FAYYYH0050 风扇 (80MM) 2 7 MD-65MU10E3 屏 ( 模块 ) 1 8 R6PND/2SP PANASONIC 干电池 ( 中文 ) 2 9 TBMA224 PANASONIC 标牌 1 TBMG718 机型铭牌 1 TBMU585 SP 安装标签 2 TBMU686 端子表示片 1 10 TBXA46601 电源开关 1 11 TBXA52201 5 键操作开关 1 12 TESD039 电源按键弹簧 1 THEL0239 带垫螺丝 12 THEL0429 螺丝 11 THEL058J 螺丝 22 THTD013N 螺丝 (FAN) 16 THTF011N 螺丝 22 13 TKGA5408 前面玻璃 1 14 TKKC5286 LED 屏 1 15 TKKC5287 遥控接收屏 1 16 TKKL5273-1 端子盖 1 17 TKRA62301 后盖把手 2 18 TKUX14401 后盖 1 19 TKYA31701 面框 1 20 TMKG469-1 海绵 (FAN) 6 21 TMKG656 海绵 (FAN) 2 TMKG749 海绵 (FFC) 3 22 TMKG839 海绵 ( 上 / 下 ) 2 23 TMKG840 海绵 ( 左 / 右 ) 2 TMM15414-2 线夹 1 TMME185 尼龙铆钉 2 24 TMME203 扎带 2 25 TMME226 AC 电源线夹 2 TMME228 扎带固定件 2 26 TMMJ068 橡胶 (FAN) 16 27 TMMX181 电源线夹 A 1 28 TMMX183 电源线夹 B 1 29 TMWC019 电源开关托架 1 30 TMXX033 磁环托架 2 31 TPCC28101 包装箱本体 1 32 TPCC28201 包装箱底部 1 33 TPDA1674 缓冲材 上 1 34 TPDA1675 缓冲材 下 1 35 TPDA1676 刹车衬垫 (SKID CUSHION) 2 36 TPDF2022 顶部衬板 1 37 TPDF2023 低部衬板 1 38 TPDX0016 箱扣 4 39 TPDX0035 箱扣 （ROHS） 4 40 TPEH363 保护片 3 41 TPEH370 整机保护袋 1 TQD1712010 合格票 1 TQFD640 ROHS 环境标签 1 TQFD687 PP 标签 4 TQFD819 线夹说明标签 1 TQZF163 保修证 1 42 TQZK056 说明书 1 43 TSXL564 FFC (68PIN D31-C10/D32-C24/ D33-C25) 3 44 TSXL584 FFC (80PIN DN6-DS6) 1 45 TSXL585 FFC (DN1-DS1) 1 46 TSXL602 FFC (D34-C55/D35-C54/D36-C60) 3 TXAUW01YPTC H3 线路板 （半成品） 2 TXAUW02XBTC 插槽块组件 1 47 TXAUX02XBTC AC 接入口组件 1 48 TXFPD02XDTC 附件盒 1 TXJ/V20XBT 线束 (RELAY-V2) 1 TXJDN2YPTJ 线束 (DN2-D3) 1 TXJDN50XBT 线束 (DN5-D5) 1 TXJDS10XBT 线束 (DS10-P10) 1 TXJDS15XBT 线束 (DS15-RELAY) 1 TXJDS20XBT 线束 (DS2-RELAY) 1 TXJDS30XBT 线束 (DS3-DN3) 1 TXJDS40XBT 线束 (DS4-P5) 1 TXJFN1YPTJ 线束 (PB33-FAN(C) MID-2) 1 TXJFN2YPTJ 线束 (PB38-FAN(E) BIG-1) (PB36-FAN(D) MID-1) 2 TXJFN3YPTJ 线束 (PB32-FAN(B) SC-1) 1 TXJFN4YPTJ 线束 (PB31-FAN(A) SC-2) 1 TXJFN5YPTJ 线束 (PB35-FAN(G) SS-2) 1 TXJFN6YPTJ 线束 (PB34-FAN(F) SS-1) 1 TXJHX1YPTJ-1 线束 (HX1-DS14) 1 TXJPB30XBT 线束 (PB30-DS30) 1 TXJS340XBT 线束 (S34-SS34) 1 TXJSPLYPTJ 线束 (DS8-H37 (SP-L)) 1 TXJSPRYPTJ 线束 (DS7-H37 (SP-R)) 1 TXJV150XBT 线束 (RELAY-V15) 1 TXN/D1XBTC D 线路板 1 TXNDN1XBTC DN 线路板 1 TXNHA1ZQTC HA 线路板 1 TXNHD1YPTC HDD 线路板 (DVI) 1 TXNPB1YPTC PB 线路板 1 TXNS11XBTC S1 线路板 1 TXNV11XBTC V1 线路板 1 TXNV21XBTC V2 线路板 1 XTB4+12GFJ 螺丝 (GLASS U/L:16 L/R:12) 28 XTV3+10GFJ 螺丝 3 XYN3+F8FJ 螺丝 18 XYN4+F10FJ 螺丝 (FAN C/D) 8 XYN4+F10FJ 螺丝 (CAB-FIX M.:12 ALCH- CAB:6) 42 XYN4+F20FJ 螺丝 (FAN A/B/F/G) 16 XYN4+F30FJK 螺丝 4 XYN4+F32FJ 螺丝 (FAN E) 4 XYN5+F18FJK 螺丝 ( 把手 ) 8 XYN8+F20FJK 螺丝 （B/C：4） 4 149 TH-65PF10CK 13.2. 更换部件清单 13.2.1. 更换部件清单注意事项 150 TH-65PF10CK 13.2.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 C002 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C801 F2H1V221A004 E 220UF, 35V 1 C802 F2H1E471A010 E 470UF, 25V 1 C804 ECJ1VB1H472K C 4700PF, K, 50V 1 C805,06 ECJ1VB1E104K C 0.10UF, K, 25V 2 C807 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C808 ECJ1VB1E104K C 0.10UF, K, 25V 1 C809 ECJ3XB1C225K C 22UF, K, 16V 1 C811 EEEHB1C471P E 470UF, 16V 1 C812 F2H1E471A010 E 470UF, 25V 1 C814 ECJ1VB1H472K C 4700PF, K, 50V 1 C815,16 ECJ1VB1E104K C 0.10UF, K, 25V 2 C817 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C818 ECJ1VB1E104K C 0.10UF, K, 25V 1 C819 ECJ3XB1C225K C 22UF, K, 16V 1 C821 EEEHB1C471P E 470UF, 16V 1 C822 F2H1E471A010 E 470UF, 25V 1 C823 ECJ1XC1H470J C 47PF, J, 50V 1 C824 ECJ1VB1H103K C 0.001UF, K, 50V 1 C825 ECJ1VB1E104K C 0.10UF, K, 25V 1 C827 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C828 ECJ1VB1E104K C 0.10UF, K, 25V 1 C829 ECJ3YB1E106M C 10 UF, K, 25V 1 C831 EEEHB1C470P C 47PF, J, 16V 1 C832 ECJ1VB1E104K C 0.10UF, K, 25V 1 C833 ECJ1VB1H103K C 0.001UF, K, 50V 1 C834,35 EEEHB1C470P C 47PF, J, 16V 2 C837 F1J0J1060004 C 0.010UF, K, 16V 1 C838 ECJ3XB1C225K C 22UF, K, 16V 1 C839 F1J0J1060004 C 0.010UF, K, 16V 1 C840 ECJ3XB1C225K C 22UF, K, 16V 1 C841 F1J0J1060004 C 0.010UF, K, 16V 1 C843 ECJ3YB1E106M C 10 UF, K, 25V 1 C844 ECJ3XB1C225K C 22UF, K, 16V 1 C845 ECJ3YB1E106M C 10 UF, K, 25V 1 C846 ECJ3XB1C225K C 22UF, K, 16V 1 C847 F1J0J1060004 C 0.010UF, K, 16V 1 C848 ECJ3XB1C225K C 22UF, K, 16V 1 C850 ECQB1H104JF P 0.1UF, J, 50V 1 C852 ECA1EM471 E 470UF, 25V 1 C854 EEUFC1C471 E 470UF, 16V 1 C855-57 ECJ1VB1H103K C 0.001UF, K, 50V 3 C867 ECJ1VB1E104K C 0.10UF, K, 25V 1 C869 ECJ3XB1C225K C 22UF, K, 16V 1 C1530 ECJ3XB0J106M C 10UF, M,6.3V 1 C2350,51 ECJ3XB1C225K C 22UF, K, 16V 2 C2352,53 EEEHB1H100P C 10PF, J, 50V 2 C2354,55 EEEHB1V470P E 47UF, 35V 2 C2356,57 ECJ1VB1H102K C 1000UF, Z, 50V 2 C2358,59 EEEHP1V2R2R E 2.2UF, 35V 2 C2360,61 ECJ1XC1H102J C 1000PF, J, 50V 2 C2362,63 EEEHB1E471UP C 470PF, J, 25V 2 C2364,65 ECQV1H104JL P 0.1UF, J, 50V 2 C2366,67 ECJ3YB1E225K C 2.2UF, K, 25V 2 C2368,69 ECQV1H104JL P 0.1UF, J, 50V 2 C2370,71 EEEHB1H100P C 10PF, J, 50V 2 C2373-75 ECJ1VB1E104K C 0.10UF, K, 25V 3 C2376,77 ECJ1VC1H150J C 15PF, J, 50V 2 C2378-82 ECJ1VB1E104K C 0.10UF, K, 25V 5 C2383 EEEHB1A101P C 100PF, J, 10V 1 C2384 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2385 EEEHB1A101P C 100PF, J, 10V 1 C2386,87 EEEHP1H1R0R C 1.0PF, J, 50V 2 C2388 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2389 EEEHB1A101P C 100PF, J, 10V 1 C2390 EEEHB1H100P C 10PF, J, 50V 1 C2391 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2392,93 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C2394 EEEHB1H100P C 10PF, J, 50V 1 C2395,96 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2397 EEEHB1A101P C 100PF, J, 10V 1 C2398-03 ECJ1VB1E104K C 0.10UF, K, 25V 6 C2404 ECJ1VB1H103K C 0.001UF, K, 50V 1 C2405,06 ECJ1VB0J225K C 2.2UF, K, 6.3V 2 C2407,08 F1J0J1060004 C 0.010UF, K, 16V 2 C2409,10 ECJ1XC1H181J C 180PF, J, 50V 2 C2411 ECJ3YB1E106M C 10 UF, K, 25V 1 C2412,13 ECJ1VB1E104K C 0.10UF, K, 25V 2 C2420 ECJ1VB1E104K C 0.10UF, K, 25V 1 C2425,26 ECJ1VB1E104K C 0.10UF, K, 25V 2 C3001 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C3004 EEEHB1C470P C 47PF, J, 16V 1 C3007,08 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C3009-11 ECJ1VB1E104K C 0.10UF, K, 25V 3 DS C3011 EEEHB1C470P C 47PF, J, 16V 1 HA C3012 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 DS C3012 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 HA C3013-17 ECJ1VF1H103Z C 0.010UF, Z, 50V 5 C3018 EEEHB1C470P C 47PF, J, 16V 1 C3019 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3020 ECJ3XB1C225K C 22UF, K, 16V 1 C3021 ECJ1VF1A105Z C 1UF, Z, 10V 1 HA C3021 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 HDD C3021 ECJ3XB1C225K C 22UF, K, 16V 1 DS C3022 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 HA C3022-31 ECJ3XB1C225K C 22UF, K, 16V 10 DS C3032 ECJ1VB1C105K C 0.01UF, K, 16V 1 C3033-35 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C3036 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3040,41 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C3042,43 EEEHB1C100R C 10PF, J, 16V 2 C3051-58 ECJ1XF1C105Z C 1UF, Z, 16V 8 C3105-17 ECJ1VF1C104Z C 0.1UF, Z, 16V 13 C3118 ECJ1XF1C105Z C 1UF, Z, 16V 1 C3141 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3142 ECJ1XF1C105Z C 1UF, Z, 16V 1 C3143 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3144 ECJ1XF1C105Z C 1UF, Z, 16V 1 HDD C3144 ECJ3XB1C225K C 22UF, K, 16V 1 DS C3146 ECJ3XB1C225K C 22UF, K, 16V 1 C3150-52 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C3200 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 C3201 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3202 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3203 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3204 ECJ1VC1H100C C 10PF, C, 50V 1 C3205 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3206 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3207 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3208 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3209 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3210 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3211 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3212 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3213 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3214 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3215 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3216 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3217 ECJ1VB1H102K C 1000UF, Z, 50V 1 C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3405,06 ECJ3YB1E106M C 10 UF, K, 25V 2 C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3501 ECJ1XF1C105Z C 1UF, Z, 16V 1 C3511 ECJ1XF1C105Z C 1UF, Z, 16V 1 C3523 ECJ3YB1E106M C 10 UF, K, 25V 1 C3524 ECJ2VF1H103Z C 0.010UF, Z, 50V 1 C3550 ECJ2VF1H103Z C 0.010UF, Z, 50V 1 C3551 ECJ3YB1E106M C 10 UF, K, 25V 1 HX C3551 EEEHB1C470P C 47PF, J, 16V 1 HDD C3552 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 HDD C3552 ECJ3YB1E106M C 10 UF, K, 25V 1 HX C3561,62 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C3901-04 EEEHB1C470P C 47PF, J, 16V 4 C3905 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3911,12 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C3913 ECJ3XB1C106M C 1.0UF, K, 16V 1 C3915 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3921 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3922 ECJ3XB1C106M C 1.0UF, K, 16V 1 C3923 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3924 ECJ3XB1C106M C 1.0UF, K, 16V 1 参考号 部件号 部件名称及说明 件数 备注 151 TH-65PF10CK C3925 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3926 ECJ3XB1C106M C 1.0UF, K, 16V 1 C3927 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3928 ECJ3XB1C106M C 1.0UF, K, 16V 1 C3929 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3930 ECJ3XB1C106M C 1.0UF, K, 16V 1 C3931 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3932 ECJ3XB1C106M C 1.0UF, K, 16V 1 C3933 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C3934 ECJ3XB1C106M C 1.0UF, K, 16V 1 C4001-03 ECJ1XB1C103K C 0.010UF, K, 16V 3 C4004 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4006 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4007-22 ECJ1XB1C104K C 0.1UF, Z, 16V 16 C4024 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C4032 ECJ2FB1C105K C 1UF, K, 16V 1 C4033-35 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C4036,37 ECJ1VC1H150J C 15PF, J, 50V 2 C4038 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C4039 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4042 ECJ1XC1H101J C 100PF, J, 50V 1 C4043 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4044 ECJ2FB1C105K C 1UF, K, 16V 1 C4045 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4046 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4047 ECJ1XC1H101J C 100PF, J, 50V 1 C4048 ECJ3XB1C225K C 22UF, K, 16V 1 C4049 ECJ2FF1C475Z C 0.047UF, Z, 16V 1 C4050,51 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4054-56 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C4058 ECJ1XC1H101J C 100PF, J, 50V 1 C4059 ECJ1VB1E104K C 0.10UF, K, 25V 1 C4060 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C4061 ECJ3YB1E106M C 10 UF, K, 25V 1 C4062 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4063 EEEHB1C470P C 47PF, J, 16V 1 C4064 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4066 EEEHB1C470P C 47PF, J, 16V 1 C4067 ECJ2FB1C105K C 1UF, K, 16V 1 C4074,75 ECJ3YB1E106M C 10 UF, K, 25V 2 C4077,78 ECJ1VB1H103K C 0.001UF, K, 50V 2 C4079 ECJ1VB1E104K C 0.10UF, K, 25V 1 C4080 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4082,83 ECJ3YB1E106M C 10 UF, K, 25V 2 C4084 ECJ1VB1E104K C 0.10UF, K, 25V 1 C4085 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4086 ECJ1VB1H103K C 0.001UF, K, 50V 1 C4088 ECJ1VC1H100C C 10PF, C, 50V 1 C4089 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4091 F1J1A475A039 C 4.7UF, K, 10V 1 C4092 ECGRL0G680ER C 68PF, J, 4V 1 C4094 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4097 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4098 ECGRL0G680ER C 68PF, J, 4V 1 C4100 ECJ1VC1H680J C 68PF, J, 50V 1 C4101 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4102 ECJ3YB1E106M C 10 UF, K, 25V 1 C4103 ECGRL0G680ER C 68PF, J, 4V 1 C4105 ECJ1VB1A105K C 0.01UF, Z, 50V 1 C4106 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4107,08 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C4109 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4110 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4111 EEEHB1C470P C 47PF, J, 16V 1 C4112 ECJ1VB1H102K C 1000UF, Z, 50V 1 C4114 ECJ3YB1E106M C 10 UF, K, 25V 1 C4118 ECJ1VB1E272K C 2700PF, K, 25V 1 C4122 F1J1A475A039 C 4.7UF, K, 10V 1 C4123 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4124 F1H1H151A792 E 150UF, 50V 1 C4125 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4126 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4127 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4139,40 ECJ1VC1H120J C 12PF, J, 50V 2 C4143-48 ECJ1XB1C104K C 0.1UF, Z, 16V 6 C4149 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4151,52 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 参考号 部件号 部件名称及说明 件数 备注 C4153-55 ECJ2VB1E104K C 0.1UF, K, 25V 3 C4156 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4157 ECJ1XB1C103K C 0.010UF, K, 16V 1 C4158,59 ECJ2FB0J106K C 10UF, Z,6.3V 2 C4160 ECJ1XB1C103K C 0.010UF, K, 16V 1 C4161,62 ECJ2FB0J106K C 10UF, Z,6.3V 2 C4163 ECJ1XB1C103K C 0.010UF, K, 16V 1 C4164,65 ECJ2FB0J106K C 10UF, Z,6.3V 2 C4166-68 ECJ1XB1C103K C 0.010UF, K, 16V 3 C4169 ECJ2VB1E104K C 0.1UF, K, 25V 1 C4170 ECJ1XB1C103K C 0.010UF, K, 16V 1 C4171-74 ECJ2VB1E104K C 0.1UF, K, 25V 4 C4175 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4176 ECJ1XB1C103K C 0.010UF, K, 16V 1 C4177 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C4178-80 ECJ3XB1C225K C 22UF, K, 16V 3 C4181-83 EEEHB1C471P E 470UF, 16V 3 C4184 EEEHB1C470P C 47PF, J, 16V 1 C4185 ECJ3XB1C225K C 22UF, K, 16V 1 C4186-88 ECJ2FB0J106K C 10UF, Z,6.3V 3 C4189 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4190 EEEHB1C470P C 47PF, J, 16V 1 C4191 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4192 ECJ2FB0J106K C 10UF, Z,6.3V 1 C4193 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4194 EEEHB1C470P C 47PF, J, 16V 1 C4197 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C4198 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5101 ECJ1XB1C103K C 0.010UF, K, 16V 1 C5102 EEEHB1C470P C 47PF, J, 16V 1 C5103-07 ECJ1XB1C103K C 0.010UF, K, 16V 5 C5108-16 ECJ2FB0J106K C 10UF, Z,6.3V 9 C5117 ECJ1XB1C103K C 0.010UF, K, 16V 1 C5118 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5119-23 ECJ1XB1C103K C 0.010UF, K, 16V 5 C5124-29 ECJ2FB0J106K C 10UF, Z,6.3V 6 C5130 ECJ1XB1C103K C 0.010UF, K, 16V 1 C5131 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5132 ECJ1XB1C103K C 0.010UF, K, 16V 1 C5133,34 ECJ2FB0J106K C 10UF, Z,6.3V 2 C5135-56 F1G1A104A012 C 0.01UF, K, 10V 22 C5157 F1J0J1060004 C 0.010UF, K, 16V 1 C5158-80 F1G1A104A012 C 0.01UF, K, 10V 23 C5181 F1J0J1060004 C 0.010UF, K, 16V 1 C5182 F1G1A104A012 C 0.01UF, K, 10V 1 C5184,85 ECJ2FB0J106K C 10UF, Z,6.3V 2 C5186-89 ECJ1XB1C103K C 0.010UF, K, 16V 4 C5190,91 ECJ2FB0J106K C 10UF, Z,6.3V 2 C5192,93 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5194 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5195-97 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C5198 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5199-03 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C5204 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5205-12 ECJ1XB1C104K C 0.1UF, Z, 16V 8 C5213 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5214,15 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C5216 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5217-29 ECJ1XB1C104K C 0.1UF, Z, 16V 13 C5230,31 ECJ2FB0J106K C 10UF, Z,6.3V 2 C5232-44 ECJ1XB1C104K C 0.1UF, Z, 16V 13 C5245 ECJ1VC1H080C C 8PF, C, 50V 1 C5299-02 F1J0J1060004 C 0.010UF, K, 16V 4 C5303 EEFCD0G560ER C 56UF, K, 4V 1 C5304 F1G1A104A012 C 0.01UF, K, 10V 1 C5305 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5306 F1G1A104A012 C 0.01UF, K, 10V 1 C5307 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5308 F1G1A104A012 C 0.01UF, K, 10V 1 C5309 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5310 F1G1A104A012 C 0.01UF, K, 10V 1 C5311 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5312,13 F1G1A104A012 C 0.01UF, K, 10V 2 C5314 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5315 F1G1A104A012 C 0.01UF, K, 10V 1 C5316 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5317,18 F1G1A104A012 C 0.01UF, K, 10V 2 参考号 部件号 部件名称及说明 件数 备注 152 TH-65PF10CK C5319 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5320 F1G1A104A012 C 0.01UF, K, 10V 1 C5321 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5322 F1G1A104A012 C 0.01UF, K, 10V 1 C5323 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5324 F1G1A104A012 C 0.01UF, K, 10V 1 C5325 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5326 F1G1A104A012 C 0.01UF, K, 10V 1 C5327 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5328 F1G1A104A012 C 0.01UF, K, 10V 1 C5329 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5330-34 F1G1A104A012 C 0.01UF, K, 10V 5 C5335-74 ECJ1XB1C104K C 0.1UF, Z, 16V 40 C5375 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5376 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5377 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5378,79 ECJ2FB0J106K C 10UF, Z,6.3V 2 C5380 F1G1A104A012 C 0.01UF, K, 10V 1 C5382 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5383 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5384 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5385 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5386 F1J0J1060004 C 0.010UF, K, 16V 1 C5393 EEFCD0G560ER C 56UF, K, 4V 1 C5394 F1G1A104A012 C 0.01UF, K, 10V 1 C5395 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5396 F1G1A104A012 C 0.01UF, K, 10V 1 C5397 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5398 F1G1A104A012 C 0.01UF, K, 10V 1 C5399 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5400 F1G1A104A012 C 0.01UF, K, 10V 1 C5401 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5402-04 F1G1A104A012 C 0.01UF, K, 10V 3 C5405 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5406 F1G1A104A012 C 0.01UF, K, 10V 1 C5407 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5408,09 F1G1A104A012 C 0.01UF, K, 10V 2 C5410 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5411 F1G1A104A012 C 0.01UF, K, 10V 1 C5412 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5413 F1G1A104A012 C 0.01UF, K, 10V 1 C5414 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5415 F1G1A104A012 C 0.01UF, K, 10V 1 C5416 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5417 F1G1A104A012 C 0.01UF, K, 10V 1 C5418 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5419 F1G1A104A012 C 0.01UF, K, 10V 1 C5420 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5425,26 ECJ0EC1H050C C 5PF, D, 50V 2 C5429 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5430 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5431 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5432 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5433 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C5434 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5435 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5436 ECJ0EB1C103K C 0.010UF, K, 16V 1 C5437 F1J0J1060004 C 0.010UF, K, 16V 1 C5438,39 ECJ2FB0J106K C 10UF, Z,6.3V 2 C5602-07 ECJ1XB1C104K C 0.1UF, Z, 16V 6 C5609 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5611 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5612-18 ECJ1XB1C104K C 0.1UF, Z, 16V 7 C5620 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5622 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5623-39 ECJ1XB1C104K C 0.1UF, Z, 16V 17 C5640 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5641-45 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C5646-48 ECJ2FB0J106K C 10UF, Z,6.3V 3 C5649-57 ECJ1XB1C104K C 0.1UF, Z, 16V 9 C5658,59 ECJ2FB0J106K C 10UF, Z,6.3V 2 C5660-62 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C5663 ECJ2FB0J106K C 10UF, Z,6.3V 1 C5664 ECJ1VC1H080C C 8PF, C, 50V 1 C5690 ECJ2FB0J106K C 10UF, Z,6.3V 1 C8003 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8005 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 参考号 部件号 部件名称及说明 件数 备注 C8007 ECJ1XC1H101J C 100PF, J, 50V 1 C8009 ECJ3XB0J106M C 10UF, M,6.3V 1 C8013 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8019 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8021 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8023 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8025 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8027 ECJ3XB1C225K C 22UF, K, 16V 1 C8029 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C8030 EEEHB1C101UP C 100PF, J, 16V 1 C8033 ECJ1XC1H102J C 1000PF, J, 50V 1 C8035 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8036 ECJ1XC1H101J C 100PF, J, 50V 1 C8038 ECJ1XC1H102J C 1000PF, J, 50V 1 C8045 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 C8049 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C8051 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8070 ECJ1VB1E104K C 0.10UF, K, 25V 1 C8072,73 ECJ3YF1A106Z C 10UF, Z, 10V 2 C8074 ECJ1XC1H151J C 150PF, J, 50V 1 C8075 ECJ1XC1H102J C 1000PF, J, 50V 1 C8080-83 ECJ1VF1C104Z C 0.1UF, Z, 16V 4 C8084 TCUY1C105ZFN C 1UF, 16V 1 C8100 EEEHB1C470P C 47PF, J, 16V 1 C8101 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C8102,03 EEEHB1C470P C 47PF, J, 16V 2 C8106 EEEHB1C470P C 47PF, J, 16V 1 C8107 EEEHB1C471P E 470UF, 16V 1 C8108,09 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C8111-13 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C8114 ECJ1VB1H103K C 0.001UF, K, 50V 1 C8115 EEEHB1C101UP C 100PF, J, 16V 1 C8116 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C8120 F2H1E471A010 E 470UF, 25V 1 C8121 ECJ3YF1E225Z C 2.2UF, Z, 25V 1 C8122 EEEHB1C470P C 47PF, J, 16V 1 C8123 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8181,82 ECJ1VC1H150J C 15PF, J, 50V 2 C8183 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C8185 EECS5R5H155 E 1.5UF, 5.5V 1 C8200 EEEHB1C470P C 47PF, J, 16V 1 C9028,29 F1J0J1060004 C 0.010UF, K, 16V 2 C9033,34 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C9035,36 F1J0J1060004 C 0.010UF, K, 16V 2 C9037 ECJ1VB1H103K C 0.001UF, K, 50V 1 C9039 F1J0J1060004 C 0.010UF, K, 16V 1 C9040 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9044-53 ECJ1VF1C104Z C 0.1UF, Z, 16V 10 C9055-57 ECJ1VF1C104Z C 0.1UF, Z, 16V 3 C9058 F1J0J1060004 C 0.010UF, K, 16V 1 C9059-83 ECJ1XB1C104K C 0.1UF, Z, 16V 25 C9084 EEFCD0G560ER C 56UF, K, 4V 1 C9085-99 ECJ1XB1C104K C 0.1UF, Z, 16V 15 C9101-10 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9111 EEFCD0G560ER C 56UF, K, 4V 1 C9300-25 ECJ1XB1C104K C 0.1UF, Z, 16V 26 C9355-59 ECJ1XB1C104K C 0.1UF, Z, 16V 5 C9360-64 ECJ3XB0J106M C 10UF, M,6.3V 5 C9365 EEFCD0G560ER C 56UF, K, 4V 1 C9368 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9369-74 ECJ1VF1H103Z C 0.010UF, Z, 50V 6 C9442-69 ECJ1XB1C104K C 0.1UF, Z, 16V 28 C9496 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9512,13 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9514,15 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C9516-25 ECJ1XB1C104K C 0.1UF, Z, 16V 10 C9526 F1J0J1060004 C 0.010UF, K, 16V 1 C9527,28 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9531 F1J0J1060004 C 0.010UF, K, 16V 1 C9532 ECJ1XC1H101J C 100PF, J, 50V 1 C9533 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9534-38 ECJ3XB0J106M C 10UF, M,6.3V 5 C9539 EEFCD0G560ER C 56UF, K, 4V 1 C9542 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9546,47 ECJ1VC1H120J C 12PF, J, 50V 2 参考号 部件号 部件名称及说明 件数 备注 153 TH-65PF10CK C9548 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9552 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9554 F1J0J1060004 C 0.010UF, K, 16V 1 C9557 ECJ2XF1C105Z C 1.0UF, Z, 16V 1 C9559-61 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C9601 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9608 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9609 ECJ3XB0J106M C 10UF, M,6.3V 1 C9610 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9800 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9801 ECJ1VB1H472K C 4700PF, K, 50V 1 C9802 ECJ1XC1H470J C 47PF, J, 50V 1 C9803 ECJ1VB1H472K C 4700PF, K, 50V 1 C9804 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9805 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9806 ECGRL0G680ER C 68PF, J, 4V 1 C9807,08 ECJ3YB1E106M C 10 UF, K, 25V 2 C9809 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9815,16 ECGRL0G680ER C 68PF, J, 4V 2 C9817,18 ECJ3YB1E106M C 10 UF, K, 25V 2 C9823,24 ECJ3YB1E106M C 10 UF, K, 25V 2 C9825 ECJ1XC1H101J C 100PF, J, 50V 1 C9826 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9830-32 ECJ3XB1C106M C 1.0UF, K, 16V 3 C9833 ECJ3YB1E106M C 10 UF, K, 25V 1 C9837 ECJ3XB1C106M C 1.0UF, K, 16V 1 C9838 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9840 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9841,42 ECJ2XF1C105Z C 1.0UF, Z, 16V 2 C9843 ECJ1VF1C104Z C 0.1UF, Z, 16V 1 C9844 ECJ1VF1H103Z C 0.010UF, Z, 50V 1 C9845,46 ECJ1VF1C104Z C 0.1UF, Z, 16V 2 C9847,48 ECJ1VB1E104K C 0.10UF, K, 25V 2 C9880,81 ECJ1VB1H102K C 1000UF, Z, 50V 2 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9883 ECJ1VB1H822K C 8200PF, K, 50V 1 C9884 ECJ1VC1H100C C 10PF, C, 50V 1 C9885 ECJ1VB1H102K C 1000UF, Z, 50V 1 C9886 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9887 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9891 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9896 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9897 ECJ1VB1H822K C 8200PF, K, 50V 1 C9898 ECJ1VC1H100C C 10PF, C, 50V 1 C9899 ECJ1VB1H102K C 1000UF, Z, 50V 1 C9926 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9967 ECJ1VB0J475K C 4.7UF, K, 6.3V 1 C9969 ECJ1VC1H330J C 33PF, J, 50V 1 C9970 ECJ1XC1H470J C 47PF, J, 50V 1 C9971 ECJ1XB1C104K C 0.1UF, Z, 16V 1 D3 K1KA30AA0009 30P 连接接头 1 D5 K1KB31AA0140 31P 连接接头 1 D6 K1KA21A00011 21P 连接接头 1 D20 K1KA20AA0008 20P 连接接头 1 D25 K1KA20B00155 20P 连接接头 1 D31-33 K1MN68BA0076 68P 连接接头 3 D34-36 K1MN68BA0251 68P 连接接头 3 D801 B0JCPD000026 二极管 1 D802,03 B0JCME000037 二极管 2 D805-10 B0JCPE000004 二极管 6 D850-56 MA165TA5 二极管 7 D859 B0JAME000037 二极管 1 D1550 LNJ107W5PRW LED 1 D1551 MA8033L 稳压二极管 1 D1554 MA8033L 稳压二极管 1 D2301-03 B0JCME000037 二极管 3 D3001 EZJZ0V80008B 变阻器 1 HDD D3001 MA2J11100L 二极管 1 DS D3002,03 EZJZ0V80008B 变阻器 2 HDD D3003 MA2J11100L 二极管 1 DS D3004 EZJZ0V80008B 变阻器 1 HDD D3004 MA2J11100L 二极管 1 DS D3005-10 EZJZ0V80008B 变阻器 6 D3011 B0HCMM000014 二极管 1 D3021-24 MA3056MTX 稳压二极管 4 D3025 B0HCMM000014 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D3061 MA2J72800L 二极管 1 D3504 MA3056MTX 稳压二极管 1 D3507-10 MA8160H 稳压二极管 4 D3511,12 B0HCMM000014 二极管 2 D4001 MA2J72800L 二极管 1 D4004 MA3033 稳压二极管 1 D4005 MA2J72800L 二极管 1 D4006-08 MA152K 二极管 3 D4010 MA3036H 稳压二极管 1 D4020-23 MA152K 二极管 4 D4025 B0JCDD000002 二极管 1 D4026 B0JCPE000004 二极管 1 D4027 B0JCDD000002 二极管 1 D4028 B0JCPE000004 二极管 1 D4029 B0JCDD000002 二极管 1 D4030 B0JCPE000004 二极管 1 D8001 MA2J11100L 二极管 1 D8003 MA2J11100L 二极管 1 D8010,11 MA153A 二极管 2 D8180 MA2J11100L 二极管 1 D8181 MAZ80560ML 稳压二极管 1 D8184,85 MAZ80560ML 稳压二极管 2 D8200 MAZ31600ML 稳压二极管 1 D8201 MA2J11100L 二极管 1 D8203 MA3100M 稳压二极管 1 D8204 MA2J11100L 二极管 1 D8209 MA2J11100L 二极管 1 D9017-19 MA3033 稳压二极管 3 D9020 MA2J72800L 二极管 1 D9035 MA2J72800L 二极管 1 D9100-03 B0JCGD000002 二极管 4 D9105,06 B0JCGD000002 二极管 2 D9110 B0JCGD000002 二极管 1 D9300-05 MA152K 二极管 6 D9800 B0JCME000037 二极管 1 D9801 B0JCDD000002 二极管 1 D9802 MA2J72800L 二极管 1 D9804 MA152K 二极管 1 D9807,08 MA152K 二极管 2 D9812 B0JCME000037 二极管 1 D9813 B0JCDD000002 二极管 1 D9814 B0JCME000037 二极管 1 D9815 B0JCDD000002 二极管 1 DN1 K1MN20BA0231 20P 连接接头 1 DN2 K1KA30AA0009 30P 连接接头 1 DN3 K1KA40AA0009 40P 连接接头 1 DN4 K1KA14A00248 14P 连接接头 1 DN5 K1KB31AA0140 31P 连接接头 1 DN6 K1MN80BA0076 80P 连接接头 1 DN11 K1KA21A00011 21P 连接接头 1 DS1 K1MN20BA0231 20P 连接接头 1 DS2 K1KA07BA0047 7P 连接接头 1 DS3 K1KA40AA0009 40P 连接接头 1 DS4 K1KA11AA0715 11P 连接接头 1 DS6 K1MN80BA0076 80P 连接接头 1 DS7,S8 K1KA03BA0055 3P 连接接头 2 DS10 K1KA06AA0714 6P 连接接头 1 DS11-13 K1KB80B00024 80P 连接接头 3 DS14 K1KA15AA0194 15P 连接接头 1 DS15 K1KA03BA0047 3P 连接接头 1 DS30 K1KA05AA0714 5P 连接接头 1 FL3000-08 F1J1E1040022 C 0.10UF, Z, 25V 9 FL3010 F1J1E1040022 C 0.10UF, Z, 25V 1 FL3021 ELKE103FA 噪声滤波器 1 FL3510-17 TAXA0024 LC 滤波器 8 FL3901-08 ELKE103FA 噪声滤波器 8 FL4001 F1J1E1040022 C 0.10UF, Z, 25V 1 FL4003-06 F1J1E1040022 C 0.10UF, Z, 25V 4 FL4007 J0MAB0000175 LC 滤波器 1 FL9000 J0HABH000013 LC 滤波器 1 FL9302-11 J0HABH000013 LC 滤波器 10 FL9501,02 J0HABH000013 LC 滤波器 2 FL9504 F1J1E1040022 C 0.10UF, Z, 25V 1 FL9800 J0HABH000013 LC 滤波器 1 参考号 部件号 部件名称及说明 件数 备注 154 TH-65PF10CK FL9803,04 J0HABH000012 LC 滤波器 2 FL9805-07 J0HABH000013 LC 滤波器 3 H0 K1KA09AA0714 9P 连接接头 1 H1 K1KA80B00037 80P 连接接头 1 HA H1 K1KA80B00037 80P 连接接头 1 HDD H37 K1KA03AA0190 3P 连接接头 2 HX1 K1KA15AA0194 15P 连接接头 1 IC801-03 C0DBAMH00018 IC 3 IC804 C0CBCAC00275 IC 1 IC850 C0DAAZG00014 IC 1 IC2301,02 C1AB00002534 IC 2 IC2303 C1BB00001006 IC 1 IC2305 C0ABBA000168 IC 1 IC3001 C1AB00002530 IC 1 DS IC3001 TVRP127 IC 1 HDD IC3002 C0JBBR000002 IC 1 DS IC3002 C3EAGC000027 IC 1 HA IC3003 CXA1315M 线性 IC 1 IC3004 CXA1875AM 线性 IC 1 IC3005 C1AB00002529 IC 1 IC3006 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC3007,08 C0JBAS000215 IC 2 IC3101 C1AB00002291 IC 1 IC3102 C0JBAZ002269 IC 1 IC3103 C0JBAZ000801 MOS IC (MICON LSI) * 1 IC3105 C0JBAZ002269 IC 1 IC3150-52 C0JBAA000419 IC 3 IC3201 C0ZBZ0001411 IC 1 IC3502 TVRP630 IC 1 IC3901 TVRP125-1 IC 1 IC3902 C0JBAZ002344 IC 1 IC3906 C0JBAB000671 IC 1 IC4001 MN103SB30RGL IC 1 IC4002 TVRP574-2 IC 1 IC4003 TVRP633 IC 1 IC4004 C0EBE0000447 IC 1 IC4005 C0JBAE000354 IC 1 IC4007 C0JBAZ000856 IC 1 IC4008 C0JBAE000354 IC 1 IC4011 C0JBAS000215 IC 1 IC4305 C0DBAYY00273 IC 1 IC4306 C0CBCAD00016 IC 1 IC4309 C0DBEGE00002 IC 1 IC4601 C0JBAZ000851 IC 1 IC4604 C1ZBZ0003478 IC 1 IC4605 C0DBEGE00002 IC 1 IC4606 C0FBAY000031 IC 1 IC4607,08 C0JBAE000354 IC 2 IC4609 C1AB00002661 IC 1 IC4610 C0DBEGE00002 IC 1 IC4901 C0DBAYY00274 IC 1 IC5001,02 C0ZBZ0001412 IC 2 IC5101 C1ZBZ0003614 IC 1 IC5102,03 C0ZBZ0001464 IC 2 IC5104,05 C3ZBN0000027 IC 2 IC5301 C1AB00002652 IC 1 IC5303,04 C3ABQJ000055 IC 2 IC5601,02 C3ABQJ000032 IC 2 IC5603 C1ZBZ0003613 IC 1 IC8001 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC8003 C1AA00000706 IC 1 IC8005 C0JBAB000646 IC 1 IC8007 C0JBAR000419 IC 1 IC8009 C0JBAS000215 IC 1 IC8014 C0ZBZ0001361 IC 1 IC8016 C0JBAZ001934 IC 1 IC8100 C0DBEJG00001 IC 1 IC8181 C1DB00001208 IC 1 IC9001 TVRP578 IC 1 IC9002 C0ZBZ0001330 IC 1 IC9003 C2CBJG000751 IC 1 IC9007 TVRP576 IC 1 IC9011 C0EBF0000431 IC 1 IC9200 C1ZBZ0003600 IC 1 参考号 部件号 部件名称及说明 件数 备注 IC9300 MN84521A-A IC 1 IC9301 C3ABQJ000051 IC 1 IC9304 TVRP109-1 IC 1 IC9400 MN84521A-A IC 1 IC9401 C3ABQJ000051 IC 1 IC9402 C0JBAZ002614 IC 1 IC9500 C1ZBZ0003463 IC 1 IC9503-05 C0JBAZ001120 IC 3 IC9602 C0EBE0000066 IC ( 逻辑 ) 1 IC9603 C0JBAZ002183 IC 1 IC9800 C0DBAYY00054 IC 1 IC9802,03 C0JBAZ001120 IC 2 IC9806 C0DBAHD00011 IC 1 IC9807 C0DBAYY00054 IC 1 IC9809 C0DBAYY00054 IC 1 JA1-12 ERJ6GEY0R00V M 0 OHM, 1/10W 12 JK3001 K1FB124B0025 连接接头 1 HDD JK3001 K1QBB3BB0002 连接接头 1 HA JK3002 K2HA204B0097 插孔 1 JK3501 K2HC103B0105 插孔 1 JK3509 K1FA109B0062 连接接头 1 JK3511 K1FB115BA020 连接接头 1 JK3513 K2HC103B0105 插孔 1 JK8500 K4BC02B00013 AV 端子 2 JS3001-08 ERJ3GEY0R00 M 0 OHM, 1/16W 8 JS3011-16 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3501-03 ERJ6GEY0R00V M 0 OHM, 1/10W 3 JS8094 ERJ3GEY0R00 M 0 OHM, 1/16W 1 L061,62 J0JJC0000015 片状电感 2 L801 G1A101ZA0007 扼流线圈 1 L802 G1C101MA0167 感应线圈 1 L803 G1C220MA0167 感应线圈 1 L804,05 J0JHC0000078 片状电感 2 L807-11 J0JHC0000078 片状电感 5 L851 G0A680ZA0047 扼流线圈 1 L1501-08 J0JHC0000078 片状电感 8 L2330,31 G0A221ZA0041 扼流线圈 2 L3001 J0HABB000004 LC 滤波器 1 L3002 G1C100K00020 感应线圈 1 DS L3002,03 J0HABB000004 LC 滤波器 2 HA L3004 J0HABB000003 LC 滤波器 1 L3005 G1C100K00020 感应线圈 1 DS L3005 J0HABB000003 LC 滤波器 1 HA L3006 ELJPA100KFB 片状电感 1 HA L3006 G1C100K00020 感应线圈 1 DS L3050 G1C100K00020 感应线圈 1 L3140 J0JHC0000078 片状电感 1 L3526 ELJPA100KFB 片状电感 1 L3551 G1C100K00020 感应线圈 1 L3552,53 EXC3BB221H 头扼流圈 2 L3555 ELJPA100KFB 片状电感 1 L4001-04 J0JHC0000096 片状电感 4 L4005,06 G1C2R2MA0248 感应线圈 2 L4007 G1C1R2MA0248 感应线圈 1 L4008-10 J0JHC0000096 片状电感 3 L5101-06 J0JHC0000096 片状电感 6 L5108 J0JHC0000096 片状电感 1 L5110-14 J0JHC0000096 片状电感 5 L5303 J0JHC0000096 片状电感 1 L5305 J0JHC0000096 片状电感 1 L5307 J0JHC0000096 片状电感 1 L5311 J0JHC0000096 片状电感 1 L5317 J0JHC0000096 片状电感 1 L5319 J0JHC0000096 片状电感 1 L5321 J0JHC0000096 片状电感 1 L5323 J0JHC0000096 片状电感 1 L5602 J0JHC0000096 片状电感 1 L5604,05 J0JHC0000096 片状电感 2 L5608,09 J0JHC0000096 片状电感 2 L5611,12 J0JHC0000096 片状电感 2 L8001 G1C100K00020 感应线圈 1 L8003 G1C100K00020 感应线圈 1 L8005 G1C100K00020 感应线圈 1 参考号 部件号 部件名称及说明 件数 备注 155 TH-65PF10CK L8101-09 J0JHC0000078 片状电感 9 L9501,02 J0JHC0000078 片状电感 2 L9503 G1C150KA0038 感应线圈 1 L9504,05 J0JHC0000078 片状电感 2 L9800 G1C3R0MA0248 感应线圈 1 L9801,02 G1C2R2MA0241 感应线圈 2 L9810 J0JHC0000045 片状电感 1 PA4001 K5H4022A0023 熔断器 1 PA9800 K5H4022A0023 熔断器 1 PB30 K1KA05AA0193 5P 连接接头 1 PB31-35 K1KA03AA0192 3P 连接接头 5 PB36 K1KA03AA0193 3P 连接接头 1 PB38 K1KA03AA0193 3P 连接接头 1 PCB TNPA3003AC 电路板 H3 2 PCB TZTNP03XBTU 电路板 HX 1 PCB TNPA4385 电路板 DS 1 PCB TXNHA1ZQTC 电路板 HA 1 PPDS PCB TNPA4052 电路板 HDD 1 PCB TZTNP01XBTU 电路板 D 1 PCB TZTNP02XBTU 电路板 DN 1 PCB TNPA3655AE 电路板 PB 1 PCB TNPA4356 电路板 V2 1 PCB TNPA4355 电路板 V1 1 PCB TNPA4357 电路板 S1 1 Q850 2SC3311A 三极管 1 Q1540 2SD0601ARL 三极管 1 Q2300 B1BBCF000028 三极管 1 Q2331 B1BBCF000028 三极管 1 Q2372 2SD0601ARL 三极管 1 Q3001 2SB0709ARL 三极管 1 DS Q3001,02 2SD0601ARL 三极管 2 HA Q3100,01 2SD0601ARL 三极管 2 Q3501 2SD0601ARL 三极管 1 Q3511 2SD0601ARL 三极管 1 Q3531,32 2SD0601ARL 三极管 2 Q4001 B1CBHD000002 FET 1 Q4002-07 2SD0601ARL 三极管 6 Q4009-13 2SD0601ARL 三极管 5 Q4014 B1CBHD000002 FET 1 Q4015,16 2SD0601ARL 三极管 2 Q4017-19 B1MBEDA00015 三极管 3 Q4020,21 2SD0601ARL 三极管 2 Q4022,23 B1CBHD000002 FET 2 Q8002 2SD0601ARL 三极管 1 Q8010 2SD0601ARL 三极管 1 Q8011 2SB0709ARL 三极管 1 Q8012 2SD0601ARL 三极管 1 Q8013 2SB0709ARL 三极管 1 Q8016-19 2SD0601ARL 三极管 4 Q8181-84 B1CBHD000002 FET 4 Q8200-02 2SD0601ARL 三极管 3 Q9044 2SD0601ARL 三极管 1 Q9046 2SD0601ARL 三极管 1 Q9050-54 2SD0601ARL 三极管 5 Q9057,58 B1CBHD000002 FET 2 Q9100 2SD0601ARL 三极管 1 Q9200,01 B1CBHD000002 FET 2 Q9300-06 2SD0601ARL 三极管 7 Q9800,01 B1MBEDA00015 三极管 2 Q9803 B1MBEDA00015 三极管 1 Q9805,06 2SD0601ARL 三极管 2 R803 ERJ3EKF6802 M 68KOHM, 1/16W 1 R804 D0GB473JA057 M 47KOHM,J,1/16W 1 R805 ERJ3EKF8452 M84.5KOHM, 1/16W 1 R806 ERJ3EKF1052 M10.5KOHM, 1/16W 1 R811 ERJ3EKF6802 M 68KOHM, 1/16W 1 R812 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R813 ERJ3EKF4222 M42.2KOHM, 1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R814 ERJ3EKF1052 M10.5KOHM, 1/16W 1 R819 ERJ3EKF6802 M 68KOHM, 1/16W 1 R820 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R821 ERJ3EKF2432 M24.3KOHM, 1/16W 1 R822 ERJ3EKF1052 M10.5KOHM, 1/16W 1 R828 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R829 ERJ6ENF1001 M 1KOHM, 1/10W 1 R830 ERJ6ENF8451 M8.45KOHM, 1/10W 1 R838 ERJ12YJ330 M 33 OHM,J, 1/2W 1 R840 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R850 ER0S2CKF4701 M 4.7KOHM, F,1/4W 1 R851 ERDS2FJ332 C 3.3KOHM, J,1/4W 1 R852 ERDS2FJ473 C 47KOHM, J,1/4W 1 R853 ERDS2FJ471 C 470 OHM, J,1/4W 1 R854-60 ERDS2FJ122 C 1.2KOHM, J,1/4W 7 R862 ER0S2CHF7501 M 7.5KOHM, F,1/4W 1 R863 ER0S2CKF9100 M 910 OHM, F,1/4W 1 R1500 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R1510 ERJ3GEYD222V M 2.2KOHM,J,1/16W 1 R1511 ERJ3GEYF302 M 3.0KOHM, 1/16W 1 R1512 ERJ3EKF4701 M 4.7KOHM, 1/16W 1 R1513 ERJ3GEYD822V M 8.2KOHM,J,1/16W 1 R1550 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R1551 ERJ6GEYG470V M 47 OHM,J,1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1554 ERJ6GEYG271 M 270 OHM,J,1/10W 1 R2351,52 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R2353,54 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R2355-60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2361,62 D0GB103JA057 M 10KOHM,J,1/16W 2 R2364 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2366 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2367,68 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R2383 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R2384 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R2386 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R2387,88 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R2389-92 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R2393 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R2394-96 ERJ6GEYG103 M 10KOHM,J,1/10W 3 R2397 ERJ6GEYJ512 M 5.1KOHM,J,1/10W 1 R2398 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R2399,00 ERJ6GEYJ220 M 22 OHM,J,1/10W 2 R2404-07 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R2408-11 ERJ6GEY0R00V M 0 OHM, 1/10W 4 R2412 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R2413 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2414,15 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 2 R2416 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R2417 ERJ3GEYJ122 M 1.2KOHM,J,1/16W 1 R2418,19 D0GB103JA057 M 10KOHM,J,1/16W 2 R2420 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2421,22 D0GB393JA041 M 39KOHM,J,1/16W 2 R2423 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R2424,25 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R2427 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R3001 D0GB103JA057 M 10KOHM,J,1/16W 1 DS R3001 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 HDD R3002 D0GB102JA057 M 1KOHM,J,1/16W 1 R3003 D0GB473JA057 M 47KOHM,J,1/16W 1 R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 DS R3004,05 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 HA R3006,07 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3014-17 D0GB103JA057 M 10KOHM,J,1/16W 4 R3018,19 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3022 D0GB102JA057 M 1KOHM,J,1/16W 1 HA R3022 D0GB103JA057 M 10KOHM,J,1/16W 1 HDD R3023 D0GB102JA057 M 1KOHM,J,1/16W 1 HA R3023,24 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 HDD R3025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 DS R3025 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 HDD R3026 D0GB103JA057 M 10KOHM,J,1/16W 1 DS R3026 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 HA R3026 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 HDD R3027-29 D0GB103JA057 M 10KOHM,J,1/16W 3 参考号 部件号 部件名称及说明 件数 备注 156 TH-65PF10CK R3030,31 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3032,33 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3034,35 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R3036 D0GB103JA057 M 10KOHM,J,1/16W 1 HA R3036 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 DS R3037 D0GB103JA057 M 10KOHM,J,1/16W 1 HA R3037,38 ERJ3GEY0R00 M 0 OHM, 1/16W 2 DS R3039-41 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 DS R3041 ERJ6GEY0R00V M 0 OHM, 1/10W 1 HA R3042 ERJ3GEY0R00 M 0 OHM, 1/16W 1 DS R3042 ERJ6GEY0R00V M 0 OHM, 1/10W 1 HA R3043 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3044-47 D0GB103JA057 M 10KOHM,J,1/16W 4 R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3049 D0GB103JA057 M 10KOHM,J,1/16W 1 R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3051 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3053,54 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R3057,58 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3061 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3062 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3063 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3064-69 ERJ6ENF56R0 M 56 OHM,J,1/10W 6 R3070-75 ERJ6RED750 M 75 OHM, 1/10W 6 R3076-81 ERJ6ENF56R0 M 56 OHM,J,1/10W 6 R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3083-87 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R3088-93 ERJ6RED750 M 75 OHM, 1/10W 6 R3094 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3095,96 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R3101-03 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R3104,05 D0GB103JA057 M 10KOHM,J,1/16W 2 DS R3105 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3106 D0GB103JA057 M 10KOHM,J,1/16W 1 R3107,08 ERJ6ENF56R0 M 56 OHM,J,1/10W 2 DS R3108-13 EXB38V220JV 电阻阵列 6 HDD R3114 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3115 D0GB102JA057 M 1KOHM,J,1/16W 1 DS R3115,16 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 HDD R3116 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3117 D0GB102JA057 M 1KOHM,J,1/16W 1 DS R3117,18 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 HDD R3118 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3119 D0GB102JA057 M 1KOHM,J,1/16W 1 DS R3119 EXB38V220JV 电阻阵列 1 HDD R3120 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 DS R3120 EXB38V220JV 电阻阵列 1 HDD R3121 ERJ6RED750 M 75 OHM, 1/10W 1 DS R3121 EXB38V220JV 电阻阵列 1 HDD R3122 ERJ6RED750 M 75 OHM, 1/10W 1 DS R3122 EXB38V220JV 电阻阵列 1 HDD R3123 ERJ6RED750 M 75 OHM, 1/10W 1 DS R3123,24 EXB38V220JV 电阻阵列 2 HDD R3125 ERJ3EKF3900 M 390 0HM, 1/16W 1 HDD R3125 ERJ6GEYG103 M 10KOHM,J,1/10W 1 DS R3131 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3132 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R3133 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3134 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 HDD R3134 ERJ6GEYG104 M 100KOHM,J,1/10W 1 DS R3135,36 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R3137,38 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R3139 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3140,41 D0GB473JA057 M 47KOHM,J,1/16W 2 R3142 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3143 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 DS R3143 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 HDD R3144 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 DS R3144 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 HDD R3146-48 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 3 R3150 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3151 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3151 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 DS R3152 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3153 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3155,56 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 参考号 部件号 部件名称及说明 件数 备注 R3157 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3160 ERJ3GEY0R00 M 0 OHM, 1/16W 1 DS R3160 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 HDD R3161 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3163 D0GB102JA057 M 1KOHM,J,1/16W 1 DS R3163 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3166,67 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3168,69 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R3173 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R3175 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R3178,79 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R3181-86 D0GB103JA057 M 10KOHM,J,1/16W 6 R3188 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R3195,96 D0GB103JA057 M 10KOHM,J,1/16W 2 R3197,98 D0GB123JA057 M 12KOHM,J,1/16W 2 R3202,03 D0GB103JA057 M 10KOHM,J,1/16W 2 R3209 D0GB103JA057 M 10KOHM,J,1/16W 1 R3210 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3210 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 DS R3211 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3211 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 DS R3212 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3212 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 DS R3213 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3213 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 DS R3214 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3214 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 DS R3215 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3215 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 DS R3216 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3216 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 1 DS R3217 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3217 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 1 DS R3218 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3218 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 1 DS R3219 ERJ3GEY0R00 M 0 OHM, 1/16W 1 HDD R3219 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 1 DS R3220-28 ERJ3GEY0R00 M 0 OHM, 1/16W 9 R3229 D0GB103JA057 M 10KOHM,J,1/16W 1 R3230,31 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R3400 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R3501 D0GB184JA057 M 180KOHM,J,1/16W 1 R3502 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3503 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R3504 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3505 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3506 D0GB102JA057 M 1KOHM,J,1/16W 1 R3507 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3508,09 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R3510 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3511 D0GB184JA057 M 180KOHM,J,1/16W 1 HDD R3511 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 HX R3512 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3513 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R3514 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3515 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3516 D0GB102JA057 M 1KOHM,J,1/16W 1 R3517 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3529,30 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3547,48 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R3585,86 ERJ6ENF56R0 M 56 OHM,J,1/10W 2 R3589 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R3590 ERJ6ENF56R0 M 56 OHM,J,1/10W 1 R3591-93 ERJ6GEY0R00V M 0 OHM, 1/10W 3 R3653 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R3654 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R3655 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R3656 ERJ6GEYF333 M 33KOHM,J,1/10W 1 R3663,64 ERJ6GEYG102 M 1KOHM,J,1/10W 2 R3668 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3672 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R3776,77 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R3778 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R3790,91 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R3901 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3902 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3903-05 D0GB103JA057 M 10KOHM,J,1/16W 3 参考号 部件号 部件名称及说明 件数 备注 157 TH-65PF10CK R3906,07 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3911 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3913 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3915 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R3931 D0GB103JA057 M 10KOHM,J,1/16W 1 R3932,33 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R3935 D0GB103JA057 M 10KOHM,J,1/16W 1 R4002 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4004 D0GB103JA057 M 10KOHM,J,1/16W 1 R4006,07 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4008 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R4009 EXB28V103JX 电阻阵列 1 R4010 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4011 D0GB103JA057 M 10KOHM,J,1/16W 1 R4012 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4013 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4014,15 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4016 D0GB103JA057 M 10KOHM,J,1/16W 1 R4017 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R4018 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4019 D1HG1008A002 排阻 1 R4020 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4021 D1HG1008A002 排阻 1 R4023 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4024 D0GB103JA057 M 10KOHM,J,1/16W 1 R4025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4026,27 D0GB103JA057 M 10KOHM,J,1/16W 2 R4030 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4031 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4032 D0GB103JA057 M 10KOHM,J,1/16W 1 R4035 D0GB103JA057 M 10KOHM,J,1/16W 1 R4037 D0GB103JA057 M 10KOHM,J,1/16W 1 R4038,39 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4041 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4043 D0GB103JA057 M 10KOHM,J,1/16W 1 R4044 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4045 D0GB103JA057 M 10KOHM,J,1/16W 1 R4047 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4048 D0GB103JA057 M 10KOHM,J,1/16W 1 R4049,50 D1HG1008A002 排阻 2 R4051,52 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4053 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4054 D0GB103JA057 M 10KOHM,J,1/16W 1 R4055 EXB28V100JX 电阻阵列 1 R4056-60 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R4061 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4062 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4063 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4064 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4065 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4066 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4067 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R4068 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4069-71 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R4072 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4073,74 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4075,76 EXB2HV470JV 电阻阵列 2 R4077 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R4078 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4079 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R4080 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R4081 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4082 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4083 D0GB102JA057 M 1KOHM,J,1/16W 1 R4084 D0GB103JA057 M 10KOHM,J,1/16W 1 R4086 D0GB393JA041 M 39KOHM,J,1/16W 1 R4087 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4088 D0GB103JA057 M 10KOHM,J,1/16W 1 R4089,90 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4091 D0GB103JA057 M 10KOHM,J,1/16W 1 R4093 EXB28V103JX 电阻阵列 1 R4094-96 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R4097 D0GB102JA057 M 1KOHM,J,1/16W 1 R4098 D0GB123JA057 M 12KOHM,J,1/16W 1 R4099 D0GB103JA057 M 10KOHM,J,1/16W 1 R4100 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4108 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R4110 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4111 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4112 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4113,14 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4115,16 D0GB103JA057 M 10KOHM,J,1/16W 2 R4117 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4118 D0GB103JA057 M 10KOHM,J,1/16W 1 R4119 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4121,22 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4123 D0GB103JA057 M 10KOHM,J,1/16W 1 R4124 D0GB102JA057 M 1KOHM,J,1/16W 1 R4125,26 D0GB103JA057 M 10KOHM,J,1/16W 2 R4127 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4128 D0GB103JA057 M 10KOHM,J,1/16W 1 R4129 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4130 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4131 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4132 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4133 D0GB102JA057 M 1KOHM,J,1/16W 1 R4134 D0GB103JA057 M 10KOHM,J,1/16W 1 R4135 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4136 D0GB103JA057 M 10KOHM,J,1/16W 1 R4137 D0GB473JA057 M 47KOHM,J,1/16W 1 R4138 D0GB103JA057 M 10KOHM,J,1/16W 1 R4139 D0GB102JA057 M 1KOHM,J,1/16W 1 R4140 D0GB473JA057 M 47KOHM,J,1/16W 1 R4141 D0GB103JA057 M 10KOHM,J,1/16W 1 R4142 D0GB102JA057 M 1KOHM,J,1/16W 1 R4143 D0GB473JA057 M 47KOHM,J,1/16W 1 R4144 D0GB103JA057 M 10KOHM,J,1/16W 1 R4145,46 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R4147 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R4148 D0GB103JA057 M 10KOHM,J,1/16W 1 R4149 D0GB102JA057 M 1KOHM,J,1/16W 1 R4150 ERJ3GEYJ392 M 3.9KOHM,J,1/16W 1 R4151 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R4152,53 D0GB102JA057 M 1KOHM,J,1/16W 2 R4154 D0GB123JA057 M 12KOHM,J,1/16W 1 R4155 D0GB102JA057 M 1KOHM,J,1/16W 1 R4156 D0GB103JA057 M 10KOHM,J,1/16W 1 R4159,60 D0GB103JA057 M 10KOHM,J,1/16W 2 R4162 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4165 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4166 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4167 D0GB103JA057 M 10KOHM,J,1/16W 1 R4168 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4170 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4171 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4172,73 D0GB103JA057 M 10KOHM,J,1/16W 2 R4175 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R4176 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4177 D0GB103JA057 M 10KOHM,J,1/16W 1 R4179 D0GB102JA057 M 1KOHM,J,1/16W 1 R4180,81 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R4183 D0GB103JA057 M 10KOHM,J,1/16W 1 R4184 D0GB102JA057 M 1KOHM,J,1/16W 1 R4186 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4187 D0GB103JA057 M 10KOHM,J,1/16W 1 R4188 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4189 D0GB103JA057 M 10KOHM,J,1/16W 1 R4190 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R4191 D0GB103JA057 M 10KOHM,J,1/16W 1 R4192 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4193 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4194 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4195 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4196,97 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4198,99 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4200 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4201 D0GB103JA057 M 10KOHM,J,1/16W 1 R4202 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4206-14 ERJ3GEYJ101 M 100 OHM,J,1/16W 9 R4215,16 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4217 D0GB103JA057 M 10KOHM,J,1/16W 1 R4218,19 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4222,23 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4224 ERJ6GEY0R00V M 0 OHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 158 TH-65PF10CK R4226 D0GB103JA057 M 10KOHM,J,1/16W 1 R4228-30 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R4231 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4232 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R4233 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R4234 D0GB103JA057 M 10KOHM,J,1/16W 1 R4235 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4236 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4237 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4238 ERJ3EKF3902 M 39KOHM, 1/16W 1 R4239 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4243 ERJ3EKF5102 M51.0KOHM, 1/16W 1 R4244 ERJ3EKF1302 M 13KOHM, 1/16W 1 R4245 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4247 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4248 ERJ3EKF5602 M 56KOHM, 1/16W 1 R4249 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R4250 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R4251 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4255 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4257 ERJ3EKF3302 M 33KOHM, 1/16W 1 R4258 ERJ3EKF1602 M16.0KOHM, 1/16W 1 R4259 ERJ3EKF1001 M 1KOHM, 1/16W 1 R4261 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4262 ERJ6ENF1502 M 15KOHM, 1/10W 1 R4263 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4264 ERJ6ENF5102 M 51KOHM, 1/10W 1 R4265 ERJ6GEYG270 M 27 OHM,J,1/10W 1 R4266,67 ERJ3EKF3902 M 39KOHM, 1/16W 2 R4272 ERJ3EKF4302 M 43KOHM, 1/16W 1 R4273 ERJ3EKF3901 M 3.9KOHM, 1/16W 1 R4276-78 D0GB103JA057 M 10KOHM,J,1/16W 3 R4279 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4280 D0GB103JA057 M 10KOHM,J,1/16W 1 R4281,82 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4285-87 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R4295-97 D0GB103JA057 M 10KOHM,J,1/16W 3 R4315 D0GB103JA057 M 10KOHM,J,1/16W 1 R4320 D0GB103JA057 M 10KOHM,J,1/16W 1 R4331 D0GB102JA057 M 1KOHM,J,1/16W 1 R4339 D0GB152JA057 M 1.5KOHM,J,1/16W 1 R4340,41 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R4343,44 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4347 ERJ6RED750 M 75 OHM, 1/10W 1 R4352 ERJ6RED750 M 75 OHM, 1/10W 1 R4353 D0GB103JA057 M 10KOHM,J,1/16W 1 R4354 ERJ6RED750 M 75 OHM, 1/10W 1 R4356 EXB2HV470JV 电阻阵列 1 R4357,58 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R4359 EXB2HV470JV 电阻阵列 1 R4360 EXB28V470JX 电阻阵列 1 R4361 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R4362 EXB2HV470JV 电阻阵列 1 R4363 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R4364-66 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R4367-71 D0GB103JA057 M 10KOHM,J,1/16W 5 R4372 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4374 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4376 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4377 D0GB103JA057 M 10KOHM,J,1/16W 1 R4378 D0GB182JA057 M 1.8KOHM,J,1/16W 1 R4379-81 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R4384 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R4385 ERJ3GEYJ912 M 9.31KOHM,J,1/16W 1 R4386,87 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R4388,89 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R4390 D0GB103JA057 M 10KOHM,J,1/16W 1 R4394,95 D0GB103JA057 M 10KOHM,J,1/16W 2 R4396-98 ERJ6RED750 M 75 OHM, 1/10W 3 R4399 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4400 ERJ6RBD303 M 30KOHM, 1/10W 1 R4401 ERJ6ENF4302 M 43KOHM, 1/10W 1 R4403 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R4404 ERJ6ENF4302 M 43KOHM, 1/10W 1 R4405 ERJ6RBD303 M 30KOHM, 1/10W 1 R4407,08 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R4409,10 ERJ6GEY0R00V M 0 OHM, 1/10W 2 参考号 部件号 部件名称及说明 件数 备注 R4411 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R4414-16 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R4440 D0GB103JA057 M 10KOHM,J,1/16W 1 R5101-07 ERJ3GEY0R00 M 0 OHM, 1/16W 7 R5108-13 EXB2HV470JV 电阻阵列 6 R5114-16 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R5117,18 EXB2HV470JV 电阻阵列 2 R5119 EXB28V470JX 电阻阵列 1 R5120 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5121 EXB2HV470JV 电阻阵列 1 R5122-32 ERJ3GEYJ101 M 100 OHM,J,1/16W 11 R5133-37 EXB2HV470JV 电阻阵列 5 R5138-40 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R5141,42 EXB2HV470JV 电阻阵列 2 R5143 EXB28V470JX 电阻阵列 1 R5144,45 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 2 R5146-49 ERJ3GEYJ680 M 68 OHM,J,1/16W 4 R5150-53 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 4 R5154-56 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R5157-59 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 3 R5160-63 ERJ3GEYJ680 M 68 OHM,J,1/16W 4 R5164-67 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 4 R5168-70 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R5171-73 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 3 R5174,75 D1HG8208A002 排阻 2 R5176-80 ERJ3GEYJ470 M 47 OHM,J,1/16W 5 R5181-87 EXB2HV470JV 电阻阵列 7 R5188 EXB28V470JX 电阻阵列 1 R5191-95 ERJ3GEYJ470 M 47 OHM,J,1/16W 5 R5196-02 EXB2HV470JV 电阻阵列 7 R5203 EXB28V470JX 电阻阵列 1 R5204,05 D1HG8208A002 排阻 2 R5206,07 EXB2HV680J 电阻阵列 2 R5208-10 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R5211-13 ERJ3GEYJ680 M 68 OHM,J,1/16W 3 R5214,15 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R5216 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R5217 EXB2HV680J 电阻阵列 1 R5218,19 D1HG8208A002 排阻 2 R5220,21 EXB2HV680J 电阻阵列 2 R5222,23 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R5224 EXB2HV680J 电阻阵列 1 R5225-27 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 3 R5228 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5229 D0GB103JA057 M 10KOHM,J,1/16W 1 R5230 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5231,32 D0GB103JA057 M 10KOHM,J,1/16W 2 R5235 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5237-40 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R5244 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5245 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5247 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5249 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5250 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5251 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5253 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5254 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5255 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5256 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5257 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5258 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5259 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5261 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5262 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5263 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5264 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5265 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R5267 D0GB103JA057 M 10KOHM,J,1/16W 1 R5268 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5269 D0GB103JA057 M 10KOHM,J,1/16W 1 R5271 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5272,73 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R5274 D0GB103JA057 M 10KOHM,J,1/16W 1 R5275 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5278 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5279 D0GB103JA057 M 10KOHM,J,1/16W 1 R5281 D0GB103JA057 M 10KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 159 TH-65PF10CK R5283 D0GB103JA057 M 10KOHM,J,1/16W 1 R5300 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5301 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5302 D0GB103JA057 M 10KOHM,J,1/16W 1 R5303 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5304 EXB28V100JX 电阻阵列 1 R5305,06 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R5307 D1HG1008A002 排阻 1 R5308 EXB28V100JX 电阻阵列 1 R5313 D0GB103JA057 M 10KOHM,J,1/16W 1 R5316 D0GB103JA057 M 10KOHM,J,1/16W 1 R5318,19 D0GB103JA057 M 10KOHM,J,1/16W 2 R5322,23 D0GB103JA057 M 10KOHM,J,1/16W 2 R5325,26 D0GB103JA057 M 10KOHM,J,1/16W 2 R5328 D1HG1038A002 排阻 1 R5329 D0GB103JA057 M 10KOHM,J,1/16W 1 R5330 EXB28V272J 电阻阵列 1 R5331,32 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R5333-35 D0GB103JA057 M 10KOHM,J,1/16W 3 R5336,37 D1HG1038A002 排阻 2 R5338 D0GB103JA057 M 10KOHM,J,1/16W 1 R5339 EXB28V103JX 电阻阵列 1 R5341 D0GB103JA057 M 10KOHM,J,1/16W 1 R5342 D1HG1038A002 排阻 1 R5345 ERJ3EKF9100 M 910 OHM, 1/16W 1 R5346 D1BB1001A022 M 1KOHM, 1/16W 1 R5348-55 EXB2HV470JV 电阻阵列 8 R5356 D0GB103JA057 M 10KOHM,J,1/16W 1 R5359 D0GB103JA057 M 10KOHM,J,1/16W 1 R5361 D0GB103JA057 M 10KOHM,J,1/16W 1 R5365-72 EXB28V100JX 电阻阵列 8 R5373-93 ERJ3GEYJ100 M 10 OHM,J,1/16W 21 R5394-01 EXB28V100JX 电阻阵列 8 R5601-04 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R5607-10 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R5613-19 EXB2HV470JV 电阻阵列 7 R5620 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5621 EXB28V470JX 电阻阵列 1 R5622-24 EXB2HV470JV 电阻阵列 3 R5625 EXB28V470JX 电阻阵列 1 R5626-28 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5629,30 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R5631-34 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R5640 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5647,48 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R5649 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5650 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5655 D0GB103JA057 M 10KOHM,J,1/16W 1 R5656 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5659-82 ERJ3EKF1200 M 120 OHM, 1/16W 24 R5685 ERJ3EKF1690 M 169 OHM, 1/16W 1 R5697,98 ERJ3EKF1690 M 169 OHM, 1/16W 2 R5699 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5701-07 ERJ3EKF1690 M 169 OHM, 1/16W 7 R5708-10 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R5711,12 ERJ3EKF1690 M 169 OHM, 1/16W 2 R5713 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5714,15 D0GB103JA057 M 10KOHM,J,1/16W 2 R5716 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R5717 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R5790 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R8001-04 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R8005 D0GB103JA057 M 10KOHM,J,1/16W 1 R8009-12 ERJ3GEYJ101 M 100 OHM,J,1/16W 4 R8017,18 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R8021 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8025 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8029 ERJ6ENF3001 M 3KOHM, 1/10W 1 R8031 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R8033 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8037 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8039 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8041 D0GB183JA057 M 18KOHM,J,1/16W 1 R8045 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R8047 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8051 D0GB103JA057 M 10KOHM,J,1/16W 1 R8054 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8055,56 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8057 D0GB102JA057 M 1KOHM,J,1/16W 1 R8060 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8065 D0GB151JA057 M 150 OHM,J,1/16W 1 R8067 D0GB151JA057 M 150 OHM,J,1/16W 1 R8069 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R8089 D0GB181JA057 M 180 OHM,J,1/16W 1 R8093 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R8097,98 D0GB103JA057 M 10KOHM,J,1/16W 2 R8100 D0GB103JA057 M 10KOHM,J,1/16W 1 R8112 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R8117-20 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R8121,22 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R8124-27 ERJ6GEYJ101V M 100 OHM,J,1/10W 4 R8129 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R8180 ERJ8GEYJ820V M 82 OHM, J,1/8W 1 R8181 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8182 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R8183,84 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8185,86 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R8187,88 ERJ6ENF56R0 M 56 OHM,J,1/10W 2 R8189,90 ERJ6GEY0R00V M 0 OHM, 1/10W 2 R8200 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R8201 D0GB473JA057 M 47KOHM,J,1/16W 1 R8202 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8203 D0GB103JA057 M 10KOHM,J,1/16W 1 R8204 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8205 D0GB753JA057 M 75KOHM,J,1/16W 1 R8206 D0GB393JA041 M 39KOHM,J,1/16W 1 R9060-67 ERJ3GEYJ101 M 100 OHM,J,1/16W 8 R9070 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9074 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9076 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9094 D0GB103JA057 M 10KOHM,J,1/16W 1 R9096 D0GB103JA057 M 10KOHM,J,1/16W 1 R9098 D0GB103JA057 M 10KOHM,J,1/16W 1 R9099 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9101 D0GB103JA057 M 10KOHM,J,1/16W 1 R9102 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9105 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9107 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9108,09 D0GB103JA057 M 10KOHM,J,1/16W 2 R9110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9111 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9113 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9114-17 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9118,19 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9120 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9122-25 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9126 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9127 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9129 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9130 ERJ3EKF1001 M 1KOHM, 1/16W 1 R9134 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9140 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R9141 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9143-45 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9148 D0GB103JA057 M 10KOHM,J,1/16W 1 R9149 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9150,51 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9154,55 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9156 D0GB103JA057 M 10KOHM,J,1/16W 1 R9158,59 D0GB103JA057 M 10KOHM,J,1/16W 2 R9160,61 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9162 D0GB103JA057 M 10KOHM,J,1/16W 1 R9165,66 D0GB103JA057 M 10KOHM,J,1/16W 2 R9167 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9169 D0GB103JA057 M 10KOHM,J,1/16W 1 R9170-72 D0GB393JA041 M 39KOHM,J,1/16W 3 R9174-76 D0GB103JA057 M 10KOHM,J,1/16W 3 R9177 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 160 TH-65PF10CK R9178 D0GB103JA057 M 10KOHM,J,1/16W 1 R9180 D0GB103JA057 M 10KOHM,J,1/16W 1 R9181-84 D0GB102JA057 M 1KOHM,J,1/16W 4 R9185,86 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9187,88 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9189,90 D0GB103JA057 M 10KOHM,J,1/16W 2 R9192 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9193 D0GB103JA057 M 10KOHM,J,1/16W 1 R9194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9196 D0GB103JA057 M 10KOHM,J,1/16W 1 R9198 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9199 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9201,02 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9203 D0GB102JA057 M 1KOHM,J,1/16W 1 R9204,05 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9206,07 D0GB102JA057 M 1KOHM,J,1/16W 2 R9209 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9210 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9215 D0GB123JA057 M 12KOHM,J,1/16W 1 R9217-22 D0GB103JA057 M 10KOHM,J,1/16W 6 R9236 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9237 D0GB103JA057 M 10KOHM,J,1/16W 1 R9244,45 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9247,48 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9367 ERJ6GEYG181 M 180 OHM,J,1/10W 1 R9371 EXB2HV470JV 电阻阵列 1 R9372 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9373 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9374 EXB38V470J 电阻阵列 1 R9375 D0GB151JA057 M 150 OHM,J,1/16W 1 R9389-91 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 3 R9393-97 D1HG8208A002 排阻 5 R9398 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9399 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9400 D0GB103JA057 M 10KOHM,J,1/16W 1 R9404 EXB2HV470JV 电阻阵列 1 R9409,10 EXB38V820JV 电阻阵列 2 R9412-21 EXB38V470J 电阻阵列 10 R9428 EXB38V103JV 电阻阵列 1 R9430 D0GB103JA057 M 10KOHM,J,1/16W 1 R9433 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9437,38 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9442-49 ERJ3GEYJ220 M 22 OHM,J,1/16W 8 R9450 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9451 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9452 D0GB103JA057 M 10KOHM,J,1/16W 1 R9453-58 D1HG8208A002 排阻 6 R9459 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9460 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9461 D0GB103JA057 M 10KOHM,J,1/16W 1 R9462 D1HG8208A002 排阻 1 R9463 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9464 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9465 D0GB103JA057 M 10KOHM,J,1/16W 1 R9466-71 D1HG8208A002 排阻 6 R9472,73 EXB38V820JV 电阻阵列 2 R9474 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9475 D0GB103JA057 M 10KOHM,J,1/16W 1 R9481 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9484,85 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9486 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9487 D0GB151JA057 M 150 OHM,J,1/16W 1 R9488 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9489-95 ERJ3GEYJ470 M 47 OHM,J,1/16W 7 R9496 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9497 D0GB103JA057 M 10KOHM,J,1/16W 1 R9506 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9507 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9515 EXB2HV470JV 电阻阵列 1 R9523 D0GB103JA057 M 10KOHM,J,1/16W 1 R9525 D0GB103JA057 M 10KOHM,J,1/16W 1 R9526 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9527,28 EXB2HV222JV 电阻阵列 2 R9529,30 D0GB103JA057 M 10KOHM,J,1/16W 2 R9531-33 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9534 EXB38V470J 电阻阵列 1 R9535,36 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 参考号 部件号 部件名称及说明 件数 备注 R9539 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9540 D0GB103JA057 M 10KOHM,J,1/16W 1 R9542 ERJ3GEYJ680 M 68 OHM,J,1/16W 1 R9543,44 D0GB103JA057 M 10KOHM,J,1/16W 2 R9545 ERJ3GEYJ304 M 300KOHM,J,1/16W 1 R9548-50 D0GB103JA057 M 10KOHM,J,1/16W 3 R9552-55 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9558 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9560 D0GB103JA057 M 10KOHM,J,1/16W 1 R9561-67 ERJ3GEYJ220 M 22 OHM,J,1/16W 7 R9568 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9569 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9570 D0GB103JA057 M 10KOHM,J,1/16W 1 R9571-73 D1HG8208A002 排阻 3 R9574 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9575-77 D1HG8208A002 排阻 3 R9579 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9580,81 ERJ3EKF1001 M 1KOHM, 1/16W 2 R9584 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9585,86 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R9587-95 EXB38V470J 电阻阵列 9 R9596-99 ERJ3GEYJ470 M 47 OHM,J,1/16W 4 R9602 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9603 D0GB103JA057 M 10KOHM,J,1/16W 1 R9604,05 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9606 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9607 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9608-15 EXB2HV470JV 电阻阵列 8 R9616 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9619,20 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9622 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9624,25 D0GB103JA057 M 10KOHM,J,1/16W 2 R9628-30 D0GB103JA057 M 10KOHM,J,1/16W 3 R9631 EXB2HV222JV 电阻阵列 1 R9632-34 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R9637 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9638 D0GB103JA057 M 10KOHM,J,1/16W 1 R9639 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9641 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9642 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9644 D0GB103JA057 M 10KOHM,J,1/16W 1 R9645 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9647 D0GB103JA057 M 10KOHM,J,1/16W 1 R9652 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9653 D1HG1038A002 排阻 1 R9800 ERJ3EKF1302 M 13KOHM, 1/16W 1 R9801 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9802 ERJ3EKF6202 M 62KOHM, 1/16W 1 R9803 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9804 ERJ3EKF2402 M 24KOHM, 1/16W 1 R9805 ERJ3EKF3002 M 30KOHM, 1/16W 1 R9806 ERJ3EKF3902 M 39KOHM, 1/16W 1 R9807 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9808 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9810 ERJ3EKF3001 M 3KOHM, 1/16W 1 R9813 ERJ3EKF2401 M 2.4KOHM, 1/16W 1 R9814 ERJ3EKF6802 M 68KOHM, 1/16W 1 R9815 ERJ3EKF2202 M 22KOHM, 1/16W 1 R9816 ERJ3EKF8202 M 82KOHM, 1/16W 1 R9823-28 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R9830,31 D0GB103JA057 M 10KOHM,J,1/16W 2 R9838,39 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R9840 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9841 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9842-44 ERJ3GEYJ101 M 100 OHM,J,1/16W 3 R9845 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9846,47 EXB2HV222JV 电阻阵列 2 R9848,49 EXB2HV470JV 电阻阵列 2 R9850 D0GB473JA057 M 47KOHM,J,1/16W 1 R9854 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R9859 EXB38V101JV 电阻阵列 1 R9868 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9869-71 D0GB103JA057 M 10KOHM,J,1/16W 3 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9873 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9875-77 D0GB103JA057 M 10KOHM,J,1/16W 3 R9878 ERJ3EKF3902 M 39KOHM, 1/16W 1 参考号 部件号 部件名称及说明 件数 备注 161 TH-65PF10CK R9879 ERJ3EKF2002 M 20KOHM, 1/16W 1 R9880 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9883 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9884 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9891 ERJ3GEYF473 M 47KOHM, 1/16W 1 R9892 ERJ3EKF1502 M 15KOHM, 1/16W 1 R9893 ERJ3EKF3602 M 36KOHM, 1/16W 1 R9896 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9897 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9898 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 RM001 PNA4701M05TV 遥控接收器 1 S34 K1KA03AA0193 3P 连接接头 1 SW061 K0F162B00002 开关 1 SW1550-54 EVQPLHA15 开关 5 V2 K1KA06BA0047 6P 连接接头 1 V15 K1KA03BA0047 3P 连接接头 1 X2301 H0J184500026 晶体 1 X4001 H0J100500030 晶体 1 X4002 H0J200500038 晶体 1 X8181 H0J327200114 晶体 1 X9000 H2D200500011 晶体 1 X9500 H0J200500038 晶体 1 ZA3001-09 K4CD01000013 AV 端子 9 ZA9001 K4CD01000011 AV 端子 1 F1601.1602 K5D103BMA001 延时保险丝 2 F1701.1702 K5D502BNA007 AC 熔断器 2 C10 K1MN68BA0076 68P 连接接头 1 C11 K1MN20BA0231 20P 连接接头 1 C21 K1MN80BA0076 80P 连接接头 1 C22 K1MN20BA0231 20P 连接接头 1 C24,25 K1MN68BA0076 68P 连接接头 2 C31 K1MN80BA0076 80P 连接接头 1 C35 K1KA08AA0714 8P 连接接头 1 C41 K1MN80BA0076 80P 连接接头 1 C42 K1KA08AA0714 8P 连接接头 1 C44 K1KA20AA0009 20P 连接接头 1 C51 K1MN80BA0076 80P 连接接头 1 C52 K1MN20BA0231 20P 连接接头 1 C54,55 K1MN68BA0076 68P 连接接头 2 C60 K1MN68BA0076 68P 连接接头 1 C61 K1MN20BA0231 20P 连接接头 1 C6002 F1L2J222A022 C 2200UF, K,6.3V 1 C6003 F1L2J472A022 C 4700UF, K,6.3V 1 C6005 F1L2J562A022 C 5600UF, K,6.3V 1 C6006 F1L2J222A022 C 2200UF, K,6.3V 1 C6008 F1L2J272A022 C 2700UF, K,6.3V 1 C6011-20 F2A2D221A022 E 220UF, 200V 10 C6022 F1L2J562A022 C 5600UF, K,6.3V 1 C6024 F1L2J272A022 C 2700UF, K,6.3V 1 C6025 F1L2J222A022 C 2200UF, K,6.3V 1 C6026 F1L2J562A022 C 5600UF, K,6.3V 1 C6027 F1L2J472A022 C 4700UF, K,6.3V 1 C6029 F1L2J472A022 C 4700UF, K,6.3V 1 C6030 F1L2J222A022 C 2200UF, K,6.3V 1 C6031 F0C2E405A176 E 0.040UF, 250V 1 C6035 F1L2J272A022 C 2700UF, K,6.3V 1 C6037 F1L1E4750004 C 4.7UF, 25V 1 C6041-44 TCUY1C105ZFN C 1UF, 16V 4 C6051,52 F2A2D221A022 E 220UF, 200V 2 C6091 F1L2J1020001 C 1000UF, K,6.3V 1 C6111-14 F2A2D221A022 E 220UF, 200V 4 C6120 F0C2E405A176 E 0.040UF, 250V 1 C6132 F1L1E4750004 C 4.7UF, 25V 1 C6134,35 F1L1E4750004 C 4.7UF, 25V 2 C6151 ECJ3YB1E105K C 1UF, K, 25V 1 C6152-54 F1L1E4750004 C 4.7UF, 25V 3 C6192 ECJ3YB1E105K C 1UF, K, 25V 1 参考号 部件号 部件名称及说明 件数 备注 C6195 F1L1E4750004 C 4.7UF, 25V 1 C6197 F1L1E4750004 C 4.7UF, 25V 1 C6201-03 F0C2E405A176 E 0.040UF, 250V 3 C6205-08 F0C2E405A176 E 0.040UF, 250V 4 C6211,12 F1L1E4750004 C 4.7UF, 25V 2 C6213 F2A1E102A220 E 1000UF, 25V 1 C6215-18 F1L1E4750004 C 4.7UF, 25V 4 C6221 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6223 F2A2E470A022 E 47UF, 250V 1 C6241 F2A1E471A487 E 470UF, 25V 1 C6242 TCUY1C105ZFN C 1UF, 16V 1 C6243 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6251 TCUY1C105ZFN C 1UF, 16V 1 C6252 ECJ3YB1E105K C 1UF, K, 25V 1 C6261-70 F2A2A471A072 E 470UF, 100V 10 C6272,73 F2A1E221A487 E 220UF, 25V 2 C6274,75 F0C2E405A176 E 0.040UF, 250V 2 C6281 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6402 F1L2J222A022 C 2200UF, K,6.3V 1 C6403 F1L2J472A022 C 4700UF, K,6.3V 1 C6405 F1L2J562A022 C 5600UF, K,6.3V 1 C6406 F1L2J222A022 C 2200UF, K,6.3V 1 C6408 F1L2J272A022 C 2700UF, K,6.3V 1 C6411-20 F2A2D221A022 E 220UF, 200V 10 C6422 F1L2J562A022 C 5600UF, K,6.3V 1 C6424 F1L2J272A022 C 2700UF, K,6.3V 1 C6425 F1L2J222A022 C 2200UF, K,6.3V 1 C6426 F1L2J562A022 C 5600UF, K,6.3V 1 C6427 F1L2J472A022 C 4700UF, K,6.3V 1 C6428 F1L2J222A022 C 2200UF, K,6.3V 1 C6429,30 F2A2D221A022 E 220UF, 200V 2 C6431 F0C2E405A176 E 0.040UF, 250V 1 C6435 F1L2J272A022 C 2700UF, K,6.3V 1 C6437 F1L2J472A022 C 4700UF, K,6.3V 1 C6473 F1L2J1020001 C 1000UF, K,6.3V 1 C6480 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6502 F1L1E4750004 C 4.7UF, 25V 1 C6504,05 F1L1E4750004 C 4.7UF, 25V 2 C6521 ECJ3YB1E105K C 1UF, K, 25V 1 C6522 F1L1E4750004 C 4.7UF, 25V 1 C6524,25 F1L1E4750004 C 4.7UF, 25V 2 C6527 F1L1E4750004 C 4.7UF, 25V 1 C6531-36 F0C2E405A176 E 0.040UF, 250V 6 C6538 F0C2E405A176 E 0.040UF, 250V 1 C6561 F2A1A101A439 E 100UF, 10V 1 C6562 TCUY1C105ZFN C 1UF, 16V 1 C6563 F2A1A101A439 E 100UF, 10V 1 C6564 TCUY1C105ZFN C 1UF, 16V 1 C6565,66 ECJ2VB1H103K C 0.01UF, K, 50V 2 C6581 ECJ3YB1E105K C 1UF, K, 25V 1 C6582 TCUY1C105ZFN C 1UF, 16V 1 C6592 F2A1E221A487 E 220UF, 25V 1 C6593 ECJ2XC1H102J C 1000PF, J, 50V 1 C6594 F2A1E221A487 E 220UF, 25V 1 C6601,02 F1L1E4750004 C 4.7UF, 25V 2 C6603 F1K2J102A014 C 1000UF, K,6.3V 1 C6604 F2A2V470A020 E 47UF, 350V 1 C6605 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6606 F1K2J102A014 C 1000UF, K,6.3V 1 C6610 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6612 ECJ3YB1E105K C 1UF, K, 25V 1 C6620 F1L2J222A022 C 2200UF, K,6.3V 1 C6641 ECQE2105RKB P 1UF, 250V 1 C6661,62 F1K2J102A014 C 1000UF, K,6.3V 2 C6671 F1L1E4750004 C 4.7UF, 25V 1 C6681,82 F1L1E4750004 C 4.7UF, 25V 2 C6683 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6691,92 ECA2CM101 E 100UF, 160V 2 C6693 F0C2E405A176 E 0.040UF, 250V 1 C6701-08 ECJ2XB1H104K C 0.1UF, K, 50V 8 C6721 F2A1H101A493 E 100UF, 50V 1 C6723-25 F1L1E4750004 C 4.7UF, 25V 3 C6726,27 TCUY1C105ZFN C 1UF, 16V 2 C6728 ECJ2XC1H102J C 1000PF, J, 50V 1 C6752 TCUY1C105ZFN C 1UF, 16V 1 C6753 F1L1E4750004 C 4.7UF, 25V 1 C6754 F2A1V5600014 E 56UF, 35V 1 参考号 部件号 部件名称及说明 件数 备注 162 TH-65PF10CK C6755 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6771 TCUY1C105ZFN C 1UF, 16V 1 C6772,73 F1L1E4750004 C 4.7UF, 25V 2 C6775 F1L1E4750004 C 4.7UF, 25V 1 C6776,77 ECJ2XB1H104K C 0.1UF, K, 50V 2 C6791 F2A1E221A487 E 220UF, 25V 1 C6795,96 F2A1E221A487 E 220UF, 25V 2 C6801 F2A2E470A022 E 47UF, 250V 1 C6802 ECQE6223KF P 0.022UF, K,400V 1 C6803 ECKD3D221KBP C 220PF, K, 2KV 1 C6804 F2A2E100A022 E 10UF, 250V 1 C6805 ECJ2XC1H102J C 1000PF, J, 50V 1 C6806 ECA2CM101 E 100UF, 160V 1 C6807 ECJ2XC1H471J C 470PF, J, 50V 1 C6808 ECQE2105RKB P 1UF, 250V 1 C6809 ECA2CM101 E 100UF, 160V 1 C6811 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6812 F1L1E4750004 C 4.7UF, 25V 1 C6813 ECA2CM101 E 100UF, 160V 1 C6814 F2A1E221A487 E 220UF, 25V 1 C6815 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6822 F2A2V470A020 E 47UF, 350V 1 C6823 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6841 ECA2DHG101 E 100UF, 200V 1 C6842 ECA2CM101 E 100UF, 160V 1 C6845 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6861 TCUY1C105ZFN C 1UF, 16V 1 C6862 ECJ3YB1E105K C 1UF, K, 25V 1 C6863 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6871 TCUY1C105ZFN C 1UF, 16V 1 C6872 ECJ3YB1E105K C 1UF, K, 25V 1 C6873 ECJ2VB1H103K C 0.01UF, K, 50V 1 C6901-18 TCUY1C105ZFN C 1UF, 16V 18 C6921 ECJ2XB1H102K C 1000PF, K, 50V 1 C6922-37 ECJ2VB1H221K C 220PF, K, 50V 16 C6938 ECJ2XB1H102K C 1000PF, K, 50V 1 C6940 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6961 ECJ2XB1H102K C 1000PF, K, 50V 1 C6964-69 F1L2E1040002 E 1000UF, 25V 6 C6970 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6971 ECJ2XB1H102K C 1000PF, K, 50V 1 C6974-81 F1L2E1040002 E 1000UF, 25V 8 C6982 ECJ2XC1H101J C 100PF, J, 50V 1 C6990,91 F1L2E1040002 E 1000UF, 25V 2 C6992 ECJ2XC1H101J C 100PF, J, 50V 1 C7101,02 TCUY1C105ZFN C 1UF, 16V 2 C7107-10 F1K2A474A006 C 0.47UF, 6.3V 4 C7111 ECJ1XC1H101J C 100PF, J, 50V 1 C7113 ECJ1XC1H101J C 100PF, J, 50V 1 C7115-18 F1K2A474A006 C 0.47UF, 6.3V 4 C7125,26 TCUY1C105ZFN C 1UF, 16V 2 C7130 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7135-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7150 ECJ1XC1H101J C 100PF, J, 50V 1 C7152 ECJ1XC1H101J C 100PF, J, 50V 1 C7170 ECJ1XC1H101J C 100PF, J, 50V 1 C7172,73 F1K2A474A006 C 0.47UF, 6.3V 2 C7176 TCUY1C105ZFN C 1UF, 16V 1 C7182 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7183-87 TCUY1C105ZFN C 1UF, 16V 5 C7200,01 TCUY1C105ZFN C 1UF, 16V 2 C7203-05 TCUY1C105ZFN C 1UF, 16V 3 C7207 TCUY1C105ZFN C 1UF, 16V 1 C7208 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7209 TCUY1C105ZFN C 1UF, 16V 1 C7212 TCUY1C105ZFN C 1UF, 16V 1 C7213,14 F1K2A474A006 C 0.47UF, 6.3V 2 C7216 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7217,18 F1K2A474A006 C 0.47UF, 6.3V 2 C7221 ECJ1XC1H101J C 100PF, J, 50V 1 C7222 F1K2A474A006 C 0.47UF, 6.3V 1 C7224 TCUY1C105ZFN C 1UF, 16V 1 C7225 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7226 F1K2A474A006 C 0.47UF, 6.3V 1 C7231 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7238 ECJ1XC1H101J C 100PF, J, 50V 1 C7240 ECJ1XC1H101J C 100PF, J, 50V 1 参考号 部件号 部件名称及说明 件数 备注 C7253 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7264 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7266 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7268 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7270 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7272 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7274 TCUY1C105ZFN C 1UF, 16V 1 C7275,76 F1K2A474A006 C 0.47UF, 6.3V 2 C7279 ECJ1XC1H101J C 100PF, J, 50V 1 C7285 TCUY1C105ZFN C 1UF, 16V 1 C7286,87 F1K2A474A006 C 0.47UF, 6.3V 2 C7290 ECJ1XC1H101J C 100PF, J, 50V 1 C7297 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7299 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7301 TCUY1C105ZFN C 1UF, 16V 1 C7304 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7308,09 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7311,12 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7315,16 TCUY1C105ZFN C 1UF, 16V 2 C7323 ECJ1XC1H101J C 100PF, J, 50V 1 C7324,25 F1K2A474A006 C 0.47UF, 6.3V 2 C7326 ECJ1XC1H101J C 100PF, J, 50V 1 C7327,28 F1K2A474A006 C 0.47UF, 6.3V 2 C7329 ECJ1XC1H101J C 100PF, J, 50V 1 C7331-34 F1K2A474A006 C 0.47UF, 6.3V 4 C7339,40 TCUY1C105ZFN C 1UF, 16V 2 C7351 ECJ1XC1H101J C 100PF, J, 50V 1 C7369 ECJ1XC1H101J C 100PF, J, 50V 1 C7370,71 F1K2A474A006 C 0.47UF, 6.3V 2 C7374 TCUY1C105ZFN C 1UF, 16V 1 C7381 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7382-86 TCUY1C105ZFN C 1UF, 16V 5 C7401 TCUY1C105ZFN C 1UF, 16V 1 C7406 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7412-15 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7418,19 TCUY1C105ZFN C 1UF, 16V 2 C7424-27 F1K2A474A006 C 0.47UF, 6.3V 4 C7428,29 ECJ1XC1H101J C 100PF, J, 50V 2 C7432-35 F1K2A474A006 C 0.47UF, 6.3V 4 C7440,41 TCUY1C105ZFN C 1UF, 16V 2 C7452,53 ECJ1XC1H101J C 100PF, J, 50V 2 C7468,69 F1K2A474A006 C 0.47UF, 6.3V 2 C7472 TCUY1C105ZFN C 1UF, 16V 1 C7475 ECJ1XC1H101J C 100PF, J, 50V 1 C7480 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7481-85 TCUY1C105ZFN C 1UF, 16V 5 C7501,02 TCUY1C105ZFN C 1UF, 16V 2 C7506,07 F1K2A474A006 C 0.47UF, 6.3V 2 C7508 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7511 TCUY1C105ZFN C 1UF, 16V 1 C7513 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7516,17 F1K2A474A006 C 0.47UF, 6.3V 2 C7519 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7520 ECJ1XC1H101J C 100PF, J, 50V 1 C7521 TCUY1C105ZFN C 1UF, 16V 1 C7522 ECJ1XC1H101J C 100PF, J, 50V 1 C7523,24 F1K2A474A006 C 0.47UF, 6.3V 2 C7527 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7530 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7538 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7539 TCUY1C105ZFN C 1UF, 16V 1 C7541 ECJ1XC1H101J C 100PF, J, 50V 1 C7543 TCUY1C105ZFN C 1UF, 16V 1 C7547-49 TCUY1C105ZFN C 1UF, 16V 3 C7566 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7568 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7570 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7572 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7575 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7577,78 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C7580 ECJ1XC1H101J C 100PF, J, 50V 1 C7581 TCUY1C105ZFN C 1UF, 16V 1 C7582,83 F1K2A474A006 C 0.47UF, 6.3V 2 C7591 ECJ1XC1H101J C 100PF, J, 50V 1 C7592 TCUY1C105ZFN C 1UF, 16V 1 C7593,94 F1K2A474A006 C 0.47UF, 6.3V 2 C7601,02 TCUY1C105ZFN C 1UF, 16V 2 参考号 部件号 部件名称及说明 件数 备注 163 TH-65PF10CK C7607-10 F1K2A474A006 C 0.47UF, 6.3V 4 C7611-13 ECJ1XC1H101J C 100PF, J, 50V 3 C7615-18 F1K2A474A006 C 0.47UF, 6.3V 4 C7623,24 TCUY1C105ZFN C 1UF, 16V 2 C7630 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7635-38 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C7650 ECJ1XC1H101J C 100PF, J, 50V 1 C7654,55 F1K2A474A006 C 0.47UF, 6.3V 2 C7658 TCUY1C105ZFN C 1UF, 16V 1 C7661 ECJ1XC1H101J C 100PF, J, 50V 1 C7665 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7666-70 TCUY1C105ZFN C 1UF, 16V 5 CA1-15 K1MN68BA0052 68P 连接接头 15 CB1-15 K1MN68BA0052 68P 连接接头 15 CF6281 D4DA91000001 电热调节器 1 D6001-04 MA3DF30000LZ 稳压二极管 4 D6021-23 MA3DF30000LZ 稳压二极管 3 D6024 B0HBSN000008 二极管 1 D6025,26 MA3DF30000LZ 稳压二极管 2 D6032 MA2J11100L 二极管 1 D6061-64 B0HBSN000008 二极管 4 D6067,68 B0HBSN000008 二极管 2 D6071 B0HBSN000008 二极管 1 D6072 MA3DF30000LZ 稳压二极管 1 D6081-86 MA3DF30000LZ 稳压二极管 6 D6091 MA3DF30000LZ 稳压二极管 1 D6092 B0HBSN000008 二极管 1 D6101-04 B0JCME000037 二极管 4 D6106,07 B0JCME000037 二极管 2 D6110 MA2J11100L 二极管 1 D6112 MA8330M 稳压二极管 1 D6113 MA2J11100L 二极管 1 D6131 B0ECHP000003 二极管 1 D6132 MA3DF30000LZ 稳压二极管 1 D6151 B0ECHP000003 二极管 1 D6152 MA3DF30000LZ 稳压二极管 1 D6153 B0ECHP000003 二极管 1 D6154 MA3DF30000LZ 稳压二极管 1 D6191-93 B0HDRP000003 二极管 3 D6211 B0JCME000037 二极管 1 D6212 MA3DF30000LZ 稳压二极管 1 D6221 B0HDRP000003 二极管 1 D6222,23 MA2J11100L 二极管 2 D6225 B0ECHP000003 二极管 1 D6251,52 MA8330M 稳压二极管 2 D6253 LNJ301MPUJA LED 1 D6254 MAZ80510LL 稳压二极管 1 D6255 MA2J11100L 二极管 1 D6281,82 B0JCME000037 二极管 2 D6401-04 B0HBSN000008 二极管 4 D6421-24 MA3DF40000LZ 稳压二极管 4 D6441 B0HBSN000008 二极管 1 D6451 MA3DF40000LZ 稳压二极管 1 D6461-64 B0HBSN000008 二极管 4 D6466 MA2J11100L 二极管 1 D6467,68 B0HBSN000008 二极管 2 D6471,72 B0HBSN000008 二极管 2 D6477 MA2J11100L 二极管 1 D6478 B0HCKS000002 二极管 1 D6480 MA2J11100L 二极管 1 D6481-86 MA3DF30000LZ 稳压二极管 6 D6491 MA3DF40000LZ 稳压二极管 1 D6497 MA2J11100L 二极管 1 D6501 B0ECHP000003 二极管 1 D6502 MA3DF30000LZ 稳压二极管 1 D6521 B0ECHP000003 二极管 1 D6522 MA3DF30000LZ 稳压二极管 1 D6523 B0ECHP000003 二极管 1 D6524 MA3DF30000LZ 稳压二极管 1 D6581,82 MA8330M 稳压二极管 2 D6583 LNJ301MPUJA LED 1 D6584 MAZ80510LL 稳压二极管 1 D6585 MA2J11100L 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D6601 MA8240MTX 稳压二极管 1 D6602 B0ECHP000003 二极管 1 D6603 MA8240MTX 稳压二极管 1 D6604 MA2J11100L 二极管 1 D6605 MAZ80510LL 稳压二极管 1 D6606 B0HCMM000014 二极管 1 D6607 MA2J11100L 二极管 1 D6610 MAZ81500ML 稳压二极管 1 D6611-13 MA2J11100L 二极管 3 D6616 MA2J11100L 二极管 1 D6619,20 B0HCKS000002 二极管 2 D6621 B0HDSM000005 二极管 1 D6623 B0HDSM000005 二极管 1 D6625 B0HDSM000005 二极管 1 D6627 B0HDSM000005 二极管 1 D6629,30 B0HDSM000005 二极管 2 D6641,42 B0HCKS000002 二极管 2 D6643 B0JCME000037 二极管 1 D6644 B0HCKS000002 二极管 1 D6653 B0JCME000037 二极管 1 D6661 MA2J11100L 二极管 1 D6662-64 MA8330M 稳压二极管 3 D6665 MAZ80510LL 稳压二极管 1 D6666,67 MA2J11100L 二极管 2 D6682 B0HCMM000014 二极管 1 D6683,84 MA2J11100L 二极管 2 D6686,87 MA2J11100L 二极管 2 D6701,02 MA8056H 稳压二极管 2 D6721 B0HCKS000002 二极管 1 D6723,24 B0JCME000037 二极管 2 D6725 B0ECHP000003 二极管 1 D6726-33 MA8056H 稳压二极管 8 D6734 MA2J11100L 二极管 1 D6752 B0JCME000037 二极管 1 D6758 B0ECHP000003 二极管 1 D6760,61 MA2J11100L 二极管 2 D6763 MA2J11100L 二极管 1 D6771 B0JCME000037 二极管 1 D6773 B0HCKS000002 二极管 1 D6791 MA8200M 稳压二极管 1 D6802 B0BC01000044 稳压二极管 1 D6803 B0HCKS000002 二极管 1 D6804 B0ECHP000003 二极管 1 D6805 MA2J11100L 二极管 1 D6806 B0ECHP000003 二极管 1 D6807-10 B0HCMM000014 二极管 4 D6812,13 B0HCMM000014 二极管 2 D6820-23 MA2J11100L 二极管 4 D6824,25 MA8330M 稳压二极管 2 D6826 MA2J11100L 二极管 1 D6841 B0HCKS000002 二极管 1 D6842,43 MA2J11100L 二极管 2 D6859 B0ECHP000003 二极管 1 D6860 B0HCKS000002 二极管 1 D6861 MAZ80510LL 稳压二极管 1 D6862 MA2J11100L 二极管 1 D6871 MAZ80510LL 稳压二极管 1 D6872 MA2J11100L 二极管 1 D6901,02 MA8056H 稳压二极管 2 D6905,06 MA8056H 稳压二极管 2 D6910 B0HDRP000002 二极管 1 D6913 B0HDRP000002 二极管 1 D6920 B0HDRP000002 二极管 1 D6923 B0HDRP000002 二极管 1 D7111-20 B0HCMM000014 二极管 10 D7211-20 B0HCMM000014 二极管 10 D7311-20 B0HCMM000014 二极管 10 D7415-24 B0HCMM000014 二极管 10 D7512-21 B0HCMM000014 二极管 10 D7611-20 B0HCMM000014 二极管 10 FL7101 J0HABH000013 LC 滤波器 1 FL7201,02 J0HABH000013 LC 滤波器 2 FL7501,02 J0HABH000013 LC 滤波器 2 FL7601 J0HABH000013 LC 滤波器 1 IC6131 C0ZBZ0000895 IC 1 参考号 部件号 部件名称及说明 件数 备注 164 TH-65PF10CK IC6151 C0ZBZ0001324 IC 1 IC6191 C0ZBZ0000895 IC 1 IC6211 C0ZBZ0001325 IC 1 IC6221 C0DBEMB00005 IC 1 IC6241 C0JBAZ000005 IC 1 IC6251 NJM2903M 集成电路 1 IC6281 C0DBEMB00005 IC 1 IC6471 C0DBEKA00003 IC 1 IC6472 C0JBAA000377 IC 1 IC6501 C0ZBZ0000895 IC 1 IC6521 C0ZBZ0001324 IC 1 IC6561,62 C0JBAZ000005 2 IC6581 NJM2903M 集成电路 1 IC6601 C0ZBZ0001325 IC 1 IC6602 C0JBAB000715 IC 1 IC6610 NJM2903M 集成电路 1 IC6671 C0ZBZ0001325 IC 1 IC6681 C0ZBZ0001325 IC 1 IC6682 C0JBAA000377 IC 1 IC6721,22 C0JBAZ000994 IC 2 IC6724,25 C0CBADC00089 IC 2 IC6751 C0CBADC00089 IC 1 IC6752 C0ZBZ0001325 IC 1 IC6753 C0JBAB000715 IC 1 IC6771 C0CBADC00089 IC 1 IC6772 C0ZBZ0001325 IC 1 IC6773,74 C0JBAA000377 IC 2 IC6791 N0BF1FB00001 IC 1 IC6801,02 C0DBEMB00005 IC 2 IC6803 C0DAAMH00005 IC 1 IC6821 C0DBEMB00005 IC 1 IC6841 C0DBEMB00005 IC 1 IC6861 NJM2903M 集成电路 1 IC6871 NJM2903M 集成电路 1 IC6901-18 AN16071A-VT IC 18 IC6920 C0JBAA000174 IC 1 IC6940 C0JBAA000174 IC 1 IC7101-06 C0JBAZ001120 IC 6 IC7201-07 C0JBAZ001120 IC 7 IC7211-15 C0JBAZ001120 IC 5 IC7301-06 C0JBAZ001120 IC 6 IC7401-06 C0JBAZ001120 IC 6 IC7501-07 C0JBAZ001120 IC 7 IC7511-16 C0JBAZ001120 IC 6 IC7601-06 C0JBAZ001120 IC 6 L6001-06 G0CR60KA0118 校正线圈 6 L6008 G0CR60KA0118 校正线圈 1 L6012-15 G0CR96KA0118 校正线圈 4 L6017 G0CR96KA0118 校正线圈 1 L6040 G0ZZ00002183 校正线圈 1 L6061-79 G0ZZ00002183 校正线圈 19 L6081-99 G0ZZ00002183 校正线圈 19 L6101,02 J0JJC0000011 片状电感 2 L6103 G0ZZ00002183 校正线圈 1 L6105-08 J0JJC0000011 片状电感 4 L6161-64 G0ZZ00002183 校正线圈 4 L6181-85 G0ZZ00002183 校正线圈 5 L6211-13 J0JJC0000011 片状电感 3 L6221,22 G0ZZ00002183 校正线圈 2 L6241 G0ZZ00002183 校正线圈 1 L6262 G0ZZ00002183 校正线圈 1 L6271 G0ZZ00002183 校正线圈 1 L6291 G0ZZ00002183 校正线圈 1 L6398,99 J0JJC0000011 片状电感 2 L6401-07 G0CR60KA0118 校正线圈 7 L6411-17 G0C1R4KA0118 校正线圈 7 L6441-48 G0ZZ00002183 校正线圈 8 L6451-58 G0ZZ00002183 校正线圈 8 L6461-68 G0ZZ00002183 校正线圈 8 L6471-88 G0ZZ00002183 校正线圈 18 L6491-98 G0ZZ00002183 校正线圈 8 L6591,92 G0ZZ00002183 校正线圈 2 L6601,02 G0ZZ00002183 校正线圈 2 L6680 G0ZZ00002183 校正线圈 1 L6801,02 J0JJC0000011 片状电感 2 L6841 J0JJC0000011 片状电感 1 参考号 部件号 部件名称及说明 件数 备注 PC6480 B3PBA0000223 IC 1 PC6610 B3PBA0000223 IC 1 PC6701-03 B3PBA0000233 IC 3 PC6704 B3PBA0000234 IC 1 PC6705 B3PBA0000233 IC 1 PC6760 B3PBA0000223 IC 1 PC6801 B3PBA0000223 IC 1 PC6861 B3PBA0000223 IC 1 PC6871 B3PBA0000223 IC 1 PCB ETXMM631MGH 电路板 P 1 PCB TNPA4013 电路板 SS2 1 PCB TNPA4014 电路板 SS3 1 PCB TNPA4003 电路板 C1 1 PCB TNPA4004 电路板 C2 1 PCB TNPA4005 电路板 C3 1 PCB TNPA4006 电路板 C4 1 PCB TNPA4007 电路板 C5 1 PCB TNPA4008 电路板 C6 1 PCB TNPA4011 电路板 SC 1 PCB TNPA4010AC 电路板 SD 1 PCB TNPA4012 电路板 SS 1 PCB TNPA4009AC 电路板 SU 1 Q6001-08 2PG0010000RP 三极管 8 Q6021-28 2PG0010000RP 三极管 8 Q6031 B1ADRD000001 三极管 1 Q6041-44 2PG0010000RP 三极管 4 Q6051-54 2PG0010000RP 三极管 4 Q6101,02 B1DFKM000002 三极管 2 Q6103 B1ABNF000006 三极管 1 Q6104 B1ADNF000006 三极管 1 Q6105-08 B1DFKM000002 三极管 4 Q6111,12 B1DFKM000002 三极管 2 Q6114 B1DFKM000002 三极管 1 Q6115 2SD0601ARL 三极管 1 Q6116 B1DFKM000002 三极管 1 Q6141 B1ABNF000006 三极管 1 Q6142 B1ADNF000006 三极管 1 Q6143 B1ABNF000006 三极管 1 Q6144 B1ADNF000006 三极管 1 Q6146 B1ABNF000006 三极管 1 Q6147 B1ADNF000006 三极管 1 Q6148 B1ABNF000006 三极管 1 Q6149 B1ADNF000006 三极管 1 Q6151 B1ABNF000006 三极管 1 Q6152 B1ADNF000006 三极管 1 Q6153 B1ABNF000006 三极管 1 Q6154 B1ADNF000006 三极管 1 Q6156 B1ABNF000006 三极管 1 Q6157 B1ADNF000006 三极管 1 Q6158 B1ABNF000006 三极管 1 Q6159 B1ADNF000006 三极管 1 Q6171 B1ABRD000003 三极管 1 Q6172 B1ADRD000001 三极管 1 Q6173 B1ABRD000003 三极管 1 Q6174 B1ADRD000001 三极管 1 Q6181 B1ABRD000003 三极管 1 Q6183 B1ABRD000003 三极管 1 Q6184 B1ADRD000001 三极管 1 Q6211 B1ABNF000006 三极管 1 Q6212 B1ADNF000006 三极管 1 Q6222 2SC3063 三极管 1 Q6251 2SD0601ARL 三极管 1 Q6256 2SD1263A 三极管 1 Q6281 B1ABNF000006 三极管 1 Q6282 B1ADNF000006 三极管 1 Q6401-08 2PG0010000RP 三极管 8 Q6421-28 2PG0030000RP 三极管 8 Q6441-44 2PG0010000RP 三极管 4 Q6451-54 2PG0030000RP 三极管 4 参考号 部件号 部件名称及说明 件数 备注 165 TH-65PF10CK Q6501 B1ABNF000006 三极管 1 Q6502 B1ADNF000006 三极管 1 Q6503 B1ABNF000006 三极管 1 Q6504 B1ADNF000006 三极管 1 Q6505 B1ABNF000006 三极管 1 Q6506 B1ADNF000006 三极管 1 Q6507 B1ABNF000006 三极管 1 Q6508 B1ADNF000006 三极管 1 Q6521 B1ABNF000006 三极管 1 Q6522 B1ADNF000006 三极管 1 Q6523 B1ABNF000006 三极管 1 Q6524 B1ADNF000006 三极管 1 Q6525 B1ABNF000006 三极管 1 Q6526 B1ADNF000006 三极管 1 Q6527 B1ABNF000006 三极管 1 Q6528 B1ADNF000006 三极管 1 Q6531 B1ABRD000003 三极管 1 Q6532 B1ADRD000001 三极管 1 Q6533 B1ABRD000003 三极管 1 Q6534 B1ADRD000001 三极管 1 Q6551 B1ABRD000003 三极管 1 Q6552 B1ADRD000001 三极管 1 Q6553 B1ABRD000003 三极管 1 Q6554 B1ADRD000001 三极管 1 Q6581 2SD0601ARL 三极管 1 Q6601 B1DFES000003 三极管 1 Q6602 2SD0601ARL 三极管 1 Q6622,23 B1DFKM000001 三极管 2 Q6625-27 B1DFKM000001 三极管 3 Q6641-49 B1DFKM000001 三极管 9 Q6651-60 B1DFKM000001 三极管 10 Q6661 B1DEET000002 三极管 1 Q6662 2SD0601ARL 三极管 1 Q6665 B1ABNF000006 三极管 1 Q6671-75 B1DFES000003 三极管 5 Q6679 B1ABNF000006 三极管 1 Q6680 B1ADNF000006 三极管 1 Q6681,82 2SK389500L FET 2 Q6691 2SK620 FET 1 Q6742,43 2SD0601ARL 三极管 2 Q6744 2SK620 FET 1 Q6762,63 B1ADNF000006 三极管 2 Q6781 B1ABNF000006 三极管 1 Q6782 B1ADNF000006 三极管 1 Q6783 B1ABNF000006 三极管 1 Q6784 B1ADNF000006 三极管 1 Q6791 2SD0601ARL 三极管 1 Q6803 2SD814A 三极管 1 Q6821 2SD1263A 三极管 1 Q6822 2SC3063 三极管 1 Q6824 2SD0601ARL 三极管 1 Q6841 2SD1263A 三极管 1 Q6842 2SC1473AEA 三极管 1 R6001 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6003 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6005 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6007 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6009 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6011 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6013 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6015 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6020 ERF5TJ330 W 33 OHM, 5W 1 R6021 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6024 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6026 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6028 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6030 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6031,32 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6033 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6034 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6036 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6038 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6040,41 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 2 R6043 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6045 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6047 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 参考号 部件号 部件名称及说明 件数 备注 R6051 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6053 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6055 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6057 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 1 R6061 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6078 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6102 D0GD101JA059 M 100 OHM,J,0.25W 1 R6104 D0GD101JA059 M 100 OHM,J,0.25W 1 R6106 D0GD101JA059 M 100 OHM,J,0.25W 1 R6108 D0GD101JA059 M 100 OHM,J,0.25W 1 R6109 D0GD100JA059 M 10 OHM,J,0.25W 1 R6110 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6111,12 D0GD470JA059 M 47 OHM,J,0.25W 2 R6113 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6114 D0GD470JA059 M 47 OHM,J,0.25W 1 R6116 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6117 D0GD101JA059 M 100 OHM,J,0.25W 1 R6119 D0GD101JA059 M 100 OHM,J,0.25W 1 R6120 D0GD470JA059 M 47 OHM,J,0.25W 1 R6125 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6126-28 ERJ6GEYJ563 M 56KOHM,J,1/10W 3 R6129 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6131,32 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6133 D0GD100JA059 M 10 OHM,J,0.25W 1 R6134 D0GD750JA059 M 75 OHM,J,0.25W 1 R6135-39 D0GD100JA059 M 10 OHM,J,0.25W 5 R6140-44 ERJ6GEYG103 M 10KOHM,J,1/10W 5 R6146-49 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6151,52 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6153 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6154 D0GD750JA059 M 75 OHM,J,0.25W 1 R6157-60 D0GF1R0JA047 M 1.0 OHM,J,0.33W 4 R6164,65 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6166 D0GD100JA059 M 10 OHM,J,0.25W 1 R6167,68 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6169 D0GD100JA059 M 10 OHM,J,0.25W 1 R6170 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6171 D0GD100JA059 M 10 OHM,J,0.25W 1 R6172,73 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6174 D0GD100JA059 M 10 OHM,J,0.25W 1 R6175-77 ERJ6GEYG103 M 10KOHM,J,1/10W 3 R6181 D0GD100JA059 M 10 OHM,J,0.25W 1 R6182,83 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6184 D0GD100JA059 M 10 OHM,J,0.25W 1 R6185,86 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6191,92 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6193 D0GD510JA059 M 51 OHM,J,0.25W 1 R6195,96 D0GD104JA059 M 100KOHM,J,0.25W 2 R6213 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6214 D0GD151JA059 M 150 OHM,J,0.25W 1 R6215 D0GD100JA059 M 10 OHM,J,0.25W 1 R6216,17 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6218-21 ERDS2TC0 C 0 OHM, 1/4W 4 R6222 ERG1SJ472 M 4.7KOHM, J, 1W 1 R6223 ERG2FJS123D M 12KOHM, J, 2W 1 R6225 ERJ6ENF4532 M4.53KOHM, 1/10W 1 R6226,27 ERJ6ENF5102 M 51KOHM, 1/10W 2 R6232 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6233 ERJ14YJ154 M 150KOHM, J,1/4W 1 R6234 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R6235-40 D0GD100JA059 M 10 OHM,J,0.25W 6 R6241 EXB38V470J 电阻阵列 1 R6242 EXB38V472JV 电阻阵列 1 R6243 EXB38V470J 电阻阵列 1 R6244 EXB38V472JV 电阻阵列 1 R6251 D0GD103JA059 M 10KOHM,J,0.25W 1 R6252,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6254 ERJ6ENF6801 M 6.8KOHM, 1/10W 1 R6255 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6256 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6257 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6258 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6261 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6282 ERG2FJS150D M 15 OHM, J, 2W 1 R6284 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6286 D0GD101JA059 M 100 OHM,J,0.25W 1 R6288 ERJ6ENF4991 M4.99KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 166 TH-65PF10CK R6289 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6291 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6401-08 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 8 R6421-28 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 8 R6437,38 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6441-44 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 4 R6451-54 D0GF7R5JA047 M 7.5 OHM,J, 0.33W 4 R6465 ERJ6ENF2702 M 27KOHM, 1/10W 1 R6466 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6467,68 ERJ6ENF8202 M 82KOHM, 1/10W 2 R6471 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6472 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6473 ERJ6GEYF561 M 560 OHM,J,1/10W 1 R6474 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6475,76 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6477 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6501,02 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6503 D0GD100JA059 M 10 OHM,J,0.25W 1 R6504 D0GD750JA059 M 75 OHM,J,0.25W 1 R6506 D0GD100JA059 M 10 OHM,J,0.25W 1 R6507-09 D0GF1R0JA047 M 1.0 OHM,J,0.33W 3 R6511,12 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6513 D0GD100JA059 M 10 OHM,J,0.25W 1 R6514-17 ERJ6GEYG103 M 10KOHM,J,1/10W 4 R6518 D0GD100JA059 M 10 OHM,J,0.25W 1 R6519,20 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6521,22 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6523 D0GD750JA059 M 75 OHM,J,0.25W 1 R6527 D0GD100JA059 M 10 OHM,J,0.25W 1 R6528 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6529 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6530,31 D0GD100JA059 M 10 OHM,J,0.25W 2 R6532-34 ERJ6GEYG103 M 10KOHM,J,1/10W 3 R6535 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R6536 D0GD100JA059 M 10 OHM,J,0.25W 1 R6537,38 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6539 D0GD100JA059 M 10 OHM,J,0.25W 1 R6540,41 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6542 D0GD100JA059 M 10 OHM,J,0.25W 1 R6551 D0GD100JA059 M 10 OHM,J,0.25W 1 R6552,53 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6554 D0GD100JA059 M 10 OHM,J,0.25W 1 R6555,56 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R6561-64 EXB38V470J 电阻阵列 4 R6565-68 EXB38V472JV 电阻阵列 4 R6581 D0GD103JA059 M 10KOHM,J,0.25W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6585,86 ERJ6ENF1501 M 1.5KOHM, 1/10W 2 R6587 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6588 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6590 ERJ6GEYG221 M 220 OHM,J,1/10W 1 R6591 EXB38V472JV 电阻阵列 1 R6592 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6603 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6604 D0GD151JA059 M 150 OHM,J,0.25W 1 R6605 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6606 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6607 ERJ6ENF2871 M2.87KOHM, 1/10W 1 R6608,09 D0GF102JA047 M 1.0 KOHM,J,0.33W 2 R6610 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6611 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R6612 D0GD470JA059 M 47 OHM,J,0.25W 1 R6613 ERJ6GEYG105 M 1MOHM,J,1/10W 1 R6614,15 D0GF113JA047 M 11 KOHM,J, 0.33W 2 R6616 ERJ6ENF1502 M 15KOHM, 1/10W 1 R6617 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6618 ERJ6RBD123V M 12KOHM, 1/10W 1 R6619 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R6620 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6622,23 ERJ6GEYG221 M 220 OHM,J,1/10W 2 R6625-27 ERJ6GEYG221 M 220 OHM,J,1/10W 3 R6630 D0GF113JA047 M 11 KOHM,J, 0.33W 1 R6631 ERJ6GEYG683 M 68KOHM,J,1/10W 1 R6632 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6633 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6641-49 ERJ6GEYJ101V M 100 OHM,J,1/10W 9 参考号 部件号 部件名称及说明 件数 备注 R6651-57 ERJ6GEYJ101V M 100 OHM,J,1/10W 7 R6658 D0D1101JA009 M 100 OHM,J,1W 1 R6659,60 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6661 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6662 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R6664 D0GF222JA047 M 2.2KOHM,J,0.33W 1 R6665 D0GD470JA059 M 47 OHM,J,0.25W 1 R6666 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R6667,68 ERJ6GEYF472 M 4.7KOHM,J,1/10W 2 R6669,70 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6671 D0GD470JA059 M 47 OHM,J,0.25W 1 R6672 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6673-77 D0GD5R6JA059 M 5.6 OHM,J,0.25W 5 R6679 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6682 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6683 D0GD151JA059 M 150 OHM,J,0.25W 1 R6684 D0GD100JA059 M 10 OHM,J,0.25W 1 R6685 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6686 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6687 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6688 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6689 D0GD100JA059 M 10 OHM,J,0.25W 1 R6690 ERJ6GEYF151 M 150 OHM,J,1/10W 1 R6691 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6696,97 ERF5TK2R2 W 2.2 OHM, K, 5W 2 R6700-08 ERJ6GEYJ471 M 470 OHM,J,1/10W 9 R6710-18 ERJ6GEYG222 M 2.2KOHM,J,1/10W 9 R6721,22 EXB38V220JV 电阻阵列 2 R6723 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R6724 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6742 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6743 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6744 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6745 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6746,47 D0GD103JA059 M 10KOHM,J,0.25W 2 R6755 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6756 D0GF330JA047 M 33 OHM,J, 0.33W 1 R6759 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6760 ERJ6GEYG122 M 1.2KOHM,J,1/10W 1 R6761 D0GD100JA059 M 10 OHM,J,0.25W 1 R6762 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6763 D0GD100JA059 M 10 OHM,J,0.25W 1 R6764 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6775,76 ERJ6GEYJ101V M 100 OHM,J,1/10W 2 R6777 D0GD151JA059 M 150 OHM,J,0.25W 1 R6781 D0GD470JA059 M 47 OHM,J,0.25W 1 R6782 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6783 D0GD470JA059 M 47 OHM,J,0.25W 1 R6784 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6791 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R6792 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6793 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6801 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 R6802-04 ERG2FJS683D M 68KOHM, J, 2W 3 R6806,07 ERX12SJ1R2 M 1.2 OHM, J,1/2W 2 R6808 D0GD272JA059 M 2.7KOHM,J,0.25W 1 R6809 ERJ12YJ103 M 10KOHM,J, 1/2W 1 R6810,11 ERJ6GEYF333 M 33KOHM,J,1/10W 2 R6812 ERJ6ENF2003 M 200KOHM, 1/10W 1 R6813 ERJ6RBD123V M 12KOHM, 1/10W 1 R6814 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R6816,17 ERJ6ENF5601 M 5.6KOHM, 1/10W 2 R6818 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6819 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R6820 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6821 ERG2FJS221D M 220 OHM, J, 2W 1 R6822 ERJ12YJ104U M 100KOHM, 1/2W 1 R6823 ERG1FJS104D M 100KOHM, J, 1W 1 R6824 ERJ6GEYG562 M 5.6KOHM,J,1/10W 1 R6825 ERJ6ENF2703 M 270KOHM, 1/10W 1 R6826 ERJ6ENF2203 M 220KOHM, 1/10W 1 R6827 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R6828 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6829,30 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6831 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R6832 D0GF4R7JA047 M 4.7 OHM,J, 0.33W 1 R6833-36 ERJ6ENF5102 M 51KOHM, 1/10W 4 参考号 部件号 部件名称及说明 件数 备注 167 TH-65PF10CK R6837 ERJ6ENF5602 M 56KOHM, 1/10W 1 R6839 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6841 ERJ12YJ153U M 15KOHM, 1/2W 1 R6842 ERJ12YJ433U M 43KOHM, 1/2W 1 R6843 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6844 D0D2101JA021 M 100 OHM,J,2W 1 R6845 ERJ6GEYJ623 M 62KOHM,J,1/10W 1 R6846,47 ERJ6GEYJ563 M 56KOHM,J,1/10W 2 R6848 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R6849,50 ERJ6ENF6802 M 68KOHM, 1/10W 2 R6851 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6852 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6853 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6858 D0GD102JA059 M 1.0KOHM,J,0.25W 1 R6860 D0D28R2JA021 M 8.2 OHM,J,2W 1 R6861 ERJ6ENF3902 M 39KOHM, 1/10W 1 R6862,63 ERJ6ENF4702 M 47KOHM, 1/10W 2 R6864 ERJ6ENF8871 M8.87KOHM, 1/10W 1 R6865,66 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R6867 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6868 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6869 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6870 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R6871-73 ERJ6ENF3902 M 39KOHM, 1/10W 3 R6874 ERJ6ENF9531 M9.53KOHM, 1/10W 1 R6875 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R6876 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6877 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R6878 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6879 ERJ6GEYF472 M 4.7KOHM,J,1/10W 1 R6886-88 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6891 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R6901 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6902-17 ERJ6GEYG221 M 220 OHM,J,1/10W 16 R6918 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R6920 EXB38V220JV 电阻阵列 1 R6921 EXB38V103JV 电阻阵列 1 R6922 EXB38V220JV 电阻阵列 1 R6924 EXB38V103JV 电阻阵列 1 R6938,39 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6948,49 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R6951 EXB38V220JV 电阻阵列 1 R6952 EXB38V103JV 电阻阵列 1 R6953 EXB38V220JV 电阻阵列 1 R6954 EXB38V103JV 电阻阵列 1 R6963,64 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R7001-04 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7101 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7104 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7107 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7108-15 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7116,17 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7123,24 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7125-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7133-35 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7136-39 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7140 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7143-45 EXB38V681J 电阻阵列 3 R7146,47 EXB38V470J 电阻阵列 2 R7148,49 EXB38V681J 电阻阵列 2 R7150,51 EXB38V470J 电阻阵列 2 R7152,53 EXB38V681J 电阻阵列 2 R7154,55 EXB38V470J 电阻阵列 2 R7156 EXB38V681J 电阻阵列 1 R7157-60 EXB38V470J 电阻阵列 4 R7186 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7187 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7191 EXB38V681J 电阻阵列 1 R7193 EXB38V681J 电阻阵列 1 R7194-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7200-07 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7208,09 EXB38V470J 电阻阵列 2 R7210 EXB38V681J 电阻阵列 1 R7211 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7212 EXB38V681J 电阻阵列 1 R7213,14 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7217,18 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 参考号 部件号 部件名称及说明 件数 备注 R7221,22 EXB38V470J 电阻阵列 2 R7223-26 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7227,28 EXB38V470J 电阻阵列 2 R7229,30 EXB38V681J 电阻阵列 2 R7231 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7232,33 EXB38V470J 电阻阵列 2 R7234 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7235,36 EXB38V681J 电阻阵列 2 R7237,38 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7239,40 EXB38V470J 电阻阵列 2 R7241,42 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7243 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7244 EXB38V470J 电阻阵列 1 R7245 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7246,47 EXB38V470J 电阻阵列 2 R7248 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7249,50 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7251,52 EXB38V470J 电阻阵列 2 R7253,54 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 2 R7255 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7256-58 EXB38V681J 电阻阵列 3 R7259-64 EXB38V470J 电阻阵列 6 R7266-75 EXB38V681J 电阻阵列 10 R7276 EXB38V102J 电阻阵列 1 R7283 EXB38V681J 电阻阵列 1 R7284 EXB38V102J 电阻阵列 1 R7285 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7286 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7287-96 ERJ3GEYJ220 M 22 OHM,J,1/16W 10 R7302 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7303,04 EXB38V470J 电阻阵列 2 R7305-10 EXB38V681J 电阻阵列 6 R7311,12 EXB38V470J 电阻阵列 2 R7313,14 EXB38V681J 电阻阵列 2 R7315,16 EXB38V470J 电阻阵列 2 R7317,18 EXB38V681J 电阻阵列 2 R7319,20 EXB38V470J 电阻阵列 2 R7321,22 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7323,24 EXB38V470J 电阻阵列 2 R7325,26 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7330 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7331-34 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7335 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7336 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7354,55 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7358-65 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7366,67 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7373,74 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7375-82 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7383,84 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7385 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7386 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7387 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7398,99 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7401 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7402 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7405-13 ERJ3GEY0R00 M 0 OHM, 1/16W 9 R7416,17 EXB38V470J 电阻阵列 2 R7420,21 EXB38V470J 电阻阵列 2 R7422 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7424,25 EXB38V470J 电阻阵列 2 R7428,29 EXB38V470J 电阻阵列 2 R7430-33 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7434 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7438,39 EXB38V470J 电阻阵列 2 R7453-59 EXB38V681J 电阻阵列 7 R7460,61 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7462-69 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7470,71 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7472 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7473,74 EXB38V681J 电阻阵列 2 R7477,78 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7479-86 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7487,88 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7490 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7491 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7492 EXB38V681J 电阻阵列 1 参考号 部件号 部件名称及说明 件数 备注 168 TH-65PF10CK R7493-98 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7501 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R7502,03 EXB38V470J 电阻阵列 2 R7504,05 EXB38V681J 电阻阵列 2 R7506 EXB38V470J 电阻阵列 1 R7507 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7508-11 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7512 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7515 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7516-19 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7520 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7523,24 EXB38V470J 电阻阵列 2 R7525 EXB38V681J 电阻阵列 1 R7526 EXB38V470J 电阻阵列 1 R7527 EXB38V681J 电阻阵列 1 R7528 EXB38V470J 电阻阵列 1 R7529 EXB38V681J 电阻阵列 1 R7530-35 EXB38V470J 电阻阵列 6 R7536 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7537-40 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7541 EXB38V681J 电阻阵列 1 R7542 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7543 EXB38V681J 电阻阵列 1 R7544 EXB38V102J 电阻阵列 1 R7545-48 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7549 EXB38V470J 电阻阵列 1 R7550 EXB38V681J 电阻阵列 1 R7553 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7554-57 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7558-60 ERJ3GEYJ470 M 47 OHM,J,1/16W 3 R7561 EXB38V681J 电阻阵列 1 R7562,63 EXB38V470J 电阻阵列 2 R7564,65 EXB38V681J 电阻阵列 2 R7567 EXB38V470J 电阻阵列 1 R7570 EXB38V102J 电阻阵列 1 R7571-76 EXB38V470J 电阻阵列 6 R7577-87 EXB38V681J 电阻阵列 11 R7592 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7593 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7594-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 6 R7603 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R7604 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7605,06 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R7607 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7608-15 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7616,17 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7618 D0GF103JA047 M 10 KOHM,J, 0.33W 1 R7623,24 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7625-32 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 8 R7633,34 ERJ3GEYJ470 M 47 OHM,J,1/16W 2 R7636 EXB38V470J 电阻阵列 1 R7637-42 EXB38V681J 电阻阵列 6 R7643 EXB38V470J 电阻阵列 1 R7644,45 EXB38V681J 电阻阵列 2 R7646,47 EXB38V470J 电阻阵列 2 R7648 EXB38V681J 电阻阵列 1 R7650,51 EXB38V470J 电阻阵列 2 R7654,55 EXB38V470J 电阻阵列 2 R7658,59 EXB38V470J 电阻阵列 2 R7660 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7661-64 D0GZ6R8JA020 M 6.8 OHM,J, 0.5W 4 R7665 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7686 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7687 ERJ6GEYG104 M 100KOHM,J,1/10W 1 R7696 EXB38V681J 电阻阵列 1 R7697-99 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 SC2 K1KA02A00676 2P 连接接头 1 SC20 K1KA20AA0008 20P 连接接头 1 SC23 K1KA03AA0193 3P 连接接头 1 SC30 K1KA08AA0192 8P 连接接头 1 SC41-44 K1ML80B00001 80P 连接接头 4 SC45,46 K1KA09A00239 9P 连接接头 2 SCMM1 TMME047 线夹 1 SCMM4 TMME190 线夹 1 SCMM6,M7 TMME190 线夹 2 参考号 部件号 部件名称及说明 件数 备注 SD1-D5 K1MNA8BA0250 8P 连接接头 5 SD46 K1KB09A00045 9P 连接接头 1 SS2MM1 TMME190 线夹 1 SS2MM2,M1 TMME190 线夹 2 SS3MM2 TMME190 线夹 1 SS11 K1KA02A00676 2P 连接接头 1 SS12 K1KA10AA0194 10P 连接接头 1 SS21 K1KA07A00170 7P 连接接头 1 SS23 K1KB07AA0087 7P 连接接头 1 SS25 K1KA07A00170 7P 连接接头 1 SS27 K1KB07AA0087 7P 连接接头 1 SS34 K1KA03AA0193 3P 连接接头 1 SS35 K1KA08AA0193 8P 连接接头 1 SS42 K1KA08AA0193 8P 连接接头 1 SS44 K1KA20AA0009 20P 连接接头 1 SS51-58 K1MN13B00020 13P 连接接头 8 SSMM2,M3 TMME190 线夹 2 SU1-U5 K1MNA8BA0250 8P 连接接头 5 SU45 K1KB09A00045 9P 连接接头 1 T6602 ETS28AU389AC 转接变压器 1 VR6000 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6600 EVMEASA00B13 控制 1KOHMB 0.3W 1 VR6602 EVMEASA00B23 控制 2KOHMB 0.3W 1 ZA6101-03 K4CD01000011 AV 端子 3 ZA6401-03 K4CD01000011 AV 端子 3 ZA7101-06 K4AD01Z00001 端子 6 ZA7201-06 K4AD01Z00001 端子 6 ZA7301-06 K4AD01Z00001 端子 6 ZA7401-06 K4AD01Z00001 端子 6 ZA7501-06 K4AD01Z00001 端子 6 ZA7601-06 K4AD01Z00001 端子 6 A1601,02 RA362MSV7 放电器 2 C201 KZE1E470 C 470U 25V 1 C203,04 RR3DD101K 陶瓷电容 2 C205 ECWH12473HV 塑料薄膜电容 1 C212 ECWH12333HV 塑料薄膜电容 1 C213,14 KZE1E470 C 470U 25V 2 C215 ECJ2VB1H103K C 0.01UF, K, 50V 1 C216 KZE1H101 C 100UF 50V 1 C251-54 KMQ220821K 电解电容 4 C255,56 ECQE6223KF P 0.022UF, K,400V 2 C257 ECJ2VB1H103K C 0.01UF, K, 50V 1 C301 KZE1E101 C 100UF 25V 1 C302,03 RR3DD101K 陶瓷电容 2 C305 ECWH12333HV 塑料薄膜电容 1 C351,52 KZE1E182S C 1800UF 25V 2 C354,55 TBB475K1 陶瓷贴片电容 2 C356 KZE1E821L C 8200UF 25V 1 C357 ECJ1XB1H104K C 10PF, J, 50V 1 C358 KZE1E101 C 100UF 25V 1 C359 ECJ1XB1H104K C 10PF, J, 50V 1 C360 KZE1E101 C 100UF 25V 1 C361 ECJ1XB1H104K C 10PF, J, 50V 1 C363 KZE1E821L C 8200UF 25V 1 C364 ECJ1XB1H104K C 10PF, J, 50V 1 C365 KZE2A270 C 27UF 100V 1 C366 ECJ2XB1H104K C 0.1UF, K, 50V 1 C401 TAB104K2E 陶瓷贴片电容 1 C402,03 KMQ2C471H 电解电容 2 C405 TAB104K2E 陶瓷贴片电容 1 C412 TBB104K2 陶瓷贴片电容 1 C413,14 KZE2A471S C 470UF 100V 2 C415 KZE1H221 电解电容 1 C501 ECQU2A473ML P 0.047UF, M,250V 1 C502,03 ECJ2XB1H104K C 0.1UF, K, 50V 2 C504,05 KZE1E470 C 470U 25V 2 C506 KMQ2W560 电解电容 1 C507 KZE1H101 C 100UF 50V 1 参考号 部件号 部件名称及说明 件数 备注 169 TH-65PF10CK C508 YBB474K1 陶瓷贴片电容 1 C509 ECJ2VB1H103K C 0.01UF, K, 50V 1 C510 KZE1H101 C 100UF 50V 1 C514 KZE1E470 C 470U 25V 1 C551 ECKENA101KBR C 100P 250V 1 C552 KZE1A152 电解电容 1 C555 TBB474K2 陶瓷贴片电容 1 C556 KZE1E101 C 100UF 25V 1 C557 TBB475K1 陶瓷贴片电容 1 C558 KZE1E101 C 100UF 25V 1 C559-61 ECJ1XB1H104K C 10PF, J, 50V 3 C1601 ECQU2A105ML P 1UF, 250V 1 C1602-05 ECKENA101KBR C 100P 250V 4 C1608 ECQU2A224ML P 0.22UF, 250V 1 C1613,14 MMXC2W474K 塑料薄膜电容 2 C1619 ECJ2VB1H103K C 0.01UF, K, 50V 1 C1620 ECQE6103KF P 0.01UF, J,630V 1 C1621 ECJ2XB1H102K C 1000PF, K, 50V 1 C1622 KZE1E101 C 100UF 25V 1 C1623 ECQE6104RKF 塑料薄膜电容 1 C1624 ECKENA101KBR C 100P 250V 1 C1625-28 KMQ2W221KZ 电解电容 4 C1629 ECJ2FB1E224K C 22UF, K, 25V 1 C1630 KZE1E470 C 470U 25V 1 C1701 ECQU2A105ML P 1UF, 250V 1 C1702 ECQU2A474ML 塑料薄膜电容 1 C1706,07 MMXC2W105K C 1P 450V 2 C1712 KZE1E101 C 100UF 25V 1 C1714 KMQ2W221KZ 电解电容 1 C1715 ECQE6472B45 C 4700U 630V 1 C1716,17 KMQ2W221KZ 电解电容 2 C1719 ECKENA221KBR C 221P 250V 1 C1729 ECJ2XB1H104K C 0.1UF, K, 50V 1 C1731 ECJ2VB1H103K C 0.01UF, K, 50V 1 C1732 ECJ2XB1H102K C 1000PF, K, 50V 1 C1733 ECQE6473RKF 塑料薄膜电容 1 C1735 ECJ2FB1E224K C 22UF, K, 25V 1 C1736 ECJ2XB1H104K C 0.1UF, K, 50V 1 D201 MA165TA5 二极管 1 D204 MA165TA5 二极管 1 D251-54 YG901C3R 二极管 4 D255 MA2J11100L 二极管 1 D256 MA165TA5 二极管 1 D301,02 MA165TA5 二极管 2 D351,52 YG805C06R 二极管 2 D355 AG01A 二极管 1 D358 RK44 二极管 1 D401 AG01A 二极管 1 D402-06 YG901C3R 二极管 5 D501 B0EBKT000007 二极管 1 D502,03 ERA22-10 二极管 2 D504 AG01A 二极管 1 D505 MA2J11100L 二极管 1 D506 ST3D82 二极管 1 D508 AG01A 二极管 1 D511 ERA91-02 二极管 1 D551 RK39 二极管 1 D554 MA165TA5 二极管 1 D555 MA2J11100L 二极管 1 D556 MA165TA5 二极管 1 D557 MA2J11100L 二极管 1 D1601,02 MA2J11100L 二极管 2 D1603,04 D15XB80 二极管 2 D1605 B0EAKR000059 二极管 1 D1606 S20LC60US 二极管 1 D1608 M1F60 二极管 1 D1609 B0EAKR000059 二极管 1 D1701,02 MA2J11100L 二极管 2 D1703 D15XB80 二极管 1 D1704 WS10A22 跳线 1 D1705 SF8L60USM 二极管 1 D1709 EM1C 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D1710 M1F60 二极管 1 D1711 B0EAKR000059 二极管 1 F201 HU216005BP 熔丝管 1 F301 HU216005BP 熔丝管 1 F501 HU216002BP 熔丝管 1 IC401 C0DAEMB00003 集成电路 1 IC501 MIP3E30MP IC 1 K1601 DG12D1-0 继电器 1 K1602 DJ12D2-0 继电器 1 K1701 KS321M01 继电器 1 K1702 DJ12D2-0T5 继电器 1 L352,53 EXCELDR35 头扼流圈 2 L401 H221012HY 扼流圈 1 L402 LH8TB681K 扼流圈 1 L403,04 EXCELDR35 头扼流圈 2 L501 EXCELSA35 头扼流圈 1 L502 EXCELDR35 头扼流圈 1 L504 EXCELDR35 头扼流圈 1 L1601-03 P3165208Z 滤波扼流圈 3 L1604 ETB50CZ12GAD 变压器 1 L1605 EXCELSR35 头扼流圈 1 L1607 EXCELSR35 头扼流圈 1 L1609 EXCELSR35 头扼流圈 1 L1611 EXCELSR35 头扼流圈 1 L1613 EXCELSA35 头扼流圈 1 L1701,02 P2590204Y 滤波扼流圈 2 L1703 ETB44CZ129AD 变压器 1 L1704 EXCELSR35 头扼流圈 1 L1708 EXCELSR35 头扼流圈 1 MC201 MLZNC682 模块 1 MC202 MLWNB393 模块 1 MC301 MLZNC102 模块 1 MC401 MLLSB103 模块 1 MC502 MLWNB393 模块 1 MC601 MLSZA100 模块 1 MC701 MLZDD103 模块 1 MC1601 MLLPC123 模块 1 MC1703 MLLPC123 模块 1 P2 B2P3-VH-B 连接接头 1 P5 B11B-PH-KS 连接接头 1 P9 B03P-VL 连接接头 1 P10 B6B-PH-KS 连接接头 1 P11 B2P3-VH-B 连接接头 1 P12 B10B-PH-KS 连接接头 1 P23 B3B-PH-KS 连接接头 1 P25 B20B-PHDSS 连接接头 1 P51,52 B3P4VH-B-L 连接接头 2 P53,54 K1KA03A00507 连接接头 2 P55,56 B8B-PH-KS 连接接头 2 PC201,02 PS2581A 光耦合器 2 PC503 PS2581A 光耦合器 1 PC506,07 PS2581A 光耦合器 2 Q201-04 FMW21N55G 场效应管 4 Q205,06 2SB14400RL 三极管 2 Q251 2SB1218A 三极管 1 Q301,02 2SK3568 FET 2 Q303,04 2SB14400RL 三极管 2 Q351,52 2SK2903 FET 2 Q353,54 2SB1218A 三极管 2 Q404 2SK3607 场效应管 1 Q405,06 2SA17670Q1TV 三极管 2 Q501 2SK3302 FET 1 参考号 部件号 部件名称及说明 件数 备注 170 TH-65PF10CK Q502 2SK2731 FET 1 Q551,52 HAT1130R FET 2 Q553 2SB710AQRSTX 三极管 1 Q1602,03 FMW21N55G 场效应管 2 Q1604 2SD2185 三极管 1 Q1605 2SB14400RL 三极管 1 Q1606,07 FMW21N55G 场效应管 2 Q1608 2SB0709ARL 三极管 1 Q1609 2SD0601ARL 三极管 1 Q1701,02 FMA16N55G 场效应管 2 Q1703 2SD2185 三极管 1 Q1704 2SB14400RL 三极管 1 Q1706 2SD1819AWL 三极管 1 Q1707 2SB0709ARL 三极管 1 Q1708 2SD0601ARL 三极管 1 R201 ERQ14AJ4R7J F 33 OHM, J,1/4W 1 R202 ERJ12YJ820 M 82 OHM,J, 1/2W 1 R204,05 SG732K220 片状电阻 2 R206 ERJ12YJ820 M 82 OHM,J, 1/2W 1 R208,09 SG732K220 片状电阻 2 R210 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R211 ERJ12YJ513 M 51KOHM, 1/2W 1 R212-14 ERJ6GEYJ334 M 330KOHM,J,1/10W 3 R215,16 ERJ12YJ513 M 51KOHM, 1/2W 2 R217 ERJ12YJ4R7 M 4.7OHM, J,1/2W 1 R218 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R219-22 ERJ6ENF2703 M 270KOHM, 1/10W 4 R223 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R224,25 ERJ12YJ680 M 68 OHM,J, 1/2W 2 R226 ERJ12YJ513 M 51KOHM, 1/2W 1 R254 ERDS1TJ201 C 200 OHM, J,1/2W 1 R257 ERDS1TJ201 C 200 OHM, J,1/2W 1 R258 ERJ6ENF7152 M71.5KOHM, 1/10W 1 R259 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R260-62 ERJ6ENF1003 M 100KOHM, 1/10W 3 R263-65 ERJ6GEYF472 M 4.7KOHM,J,1/10W 3 R266-68 ERJ6ENF5492 M54.9KOHM, 1/10W 3 R269 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R270 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R271 ERJ6GEYG391 M 390 OHM,J,1/10W 1 R272 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R273,74 ERJ6GEYG103 M 10KOHM,J,1/10W 2 R276 ERJ6ENF1003 M 100KOHM, 1/10W 1 R277 ERDS1TJ472 C 4.7KOHM, J,1/2W 1 R278-82 ERDS1TJ622 C 6.2KOHM, J,1/2W 5 R283 ERJ6ENF2212 M22.1KOHM, 1/10W 1 R301,02 ERJ12YJ560 M 56 OHM,J, 1/2W 2 R303,04 SG732K560 0.5W 56OHM 2 R305-07 ERJ12YJ513 M 51KOHM, 1/2W 3 R308,09 ERJ6GEYG104 M 100KOHM,J,1/10W 2 R310 ERQ14AJ4R7J F 33 OHM, J,1/4W 1 R311 ERJ12YJ513 M 51KOHM, 1/2W 1 R351 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R353 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R354 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R359,60 ERJ6GEYJ513 M 51KOHM,J,1/10W 2 R361 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R362 ERDS2FJ101 C 100 OHM, J,1/4W 1 R364 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R365 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R366,67 ERJ6GEYF473 M 47KOHM,J,1/10W 2 R368 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R369 ERJ6GEYJ202 M 2KOHM,J,1/10W 1 R370 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R371 ERJ6ENF1622 M16.2KOHM, 1/10W 1 R372 ERJ6GEYJ1R0 M 1 OHM,J,1/10W 1 R374 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R375 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R376 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R377 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R378-85 ERJ12YJ222 M 2.2KOHM,J, 1/2W 8 R389 ERJ6GEYG153 M 15KOHM,J,1/10W 1 R401 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R407 ERJ6ENF2372 M23.7KOHM, 1/10W 1 R408 MPC2WR05K 金属板电阻器 1 参考号 部件号 部件名称及说明 件数 备注 R410 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R412 ERJ6ENF2372 M23.7KOHM, 1/10W 1 R413 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R414 ERJ6GEYJ150 M 15 OHM,J,1/10W 1 R415 ERJ6ENF2372 M23.7KOHM, 1/10W 1 R416,17 ERJ6GEYG152 M 1.5KOHM,J,1/10W 2 R418,19 ERJ6ENF1622 M16.2KOHM, 1/10W 2 R420 ERJ6ENF8662 M86.6KOHM, 1/10W 1 R421 ERJ6ENF8061 M8.06KOHM, 1/10W 1 R422 ERJ6GEYJ150 M 15 OHM,J,1/10W 1 R474 ERJ6ENF1302 M 13KOHM, 1/10W 1 R477-79 ERJ6ENF1302 M 13KOHM, 1/10W 3 R481 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R484 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R485 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R486 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R501 ERJ12YJ474 M 470KOHM, 1/2W 1 R502 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R503 ERJ12YJ474 M 470KOHM, 1/2W 1 R505 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R507,08 ERJ6GEYJ334 M 330KOHM,J,1/10W 2 R509-12 ERJ6ENF8253 M 825KOHM, 1/10W 4 R514,15 ERJ6ENF8253 M 825KOHM, 1/10W 2 R518 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R519 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R528-30 ERJ6ENF2703 M 270KOHM, 1/10W 3 R531,32 ERJ12YJ201 M 210 OHM,J, 1/2W 2 R560 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R561 ERDS2FJ332 C 3.3KOHM, J,1/4W 1 R563 ERJ6GEYG332 M 3.3KOHM,J,1/10W 1 R564 ERJ6GEYG391 M 390 OHM,J,1/10W 1 R565 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R566 ERJ6GEYG222 M 2.2KOHM,J,1/10W 1 R567 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R568 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R570 ERJ12YJ151 M 150 OHM,J, 1/2W 1 R580 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R581 ERJ6ENF2703 M 270KOHM, 1/10W 1 R582 ERJ6GEYG102 M 1KOHM,J,1/10W 1 R583 ERJ12YJ4R7 M 4.7OHM, J,1/2W 1 R1601 R5B100J W 10 OHM, J, 5W 1 R1602 ERC12UGK185 S 1.8MOHM, K,1/2W 1 R1605-08 ERJ6ENF1213 M 121KOHM, 1/10W 4 R1609 ERJ6GEYJ6R8V M 6.8 OHM,J,1/10W 1 R1610-15 RF5EJR27B 金属板电阻器 6 R1616 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1617 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R1618 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1619 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1620 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1622 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1623 ERQ14AJ330J F 33 OHM, J,1/4W 1 R1624 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1625 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1626 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1627 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1628 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R1629 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1630 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R1631-33 ERJ6GEYG183 M 18KOHM,J,1/10W 3 R1634 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1635 ER0S2CKF5363 M 536KOHM, F,1/4W 1 R1636-39 ERJ6ENF2493 M 249KOHM, 1/10W 4 R1640,41 ERJ6GEYG154 M 150KOHM,J,1/10W 2 R1642,43 ERJ6ENF5233 M 523KOHM, 1/10W 2 R1644 ERJ6ENF5623 M 523KOHM, 1/10W 1 R1645,46 ERJ6GEYG154 M 150KOHM,J,1/10W 2 R1701 ERC12UGK185 S 1.8MOHM, K,1/2W 1 R1703 R5B100J W 10 OHM, J, 5W 1 R1704-06 ERJ6ENF1213 M 121KOHM, 1/10W 3 R1707 ERJ6GEY0R00V M 0 OHM, 1/10W 1 R1708 ERJ6ENF1213 M 121KOHM, 1/10W 1 R1709-11 RF5EJR18B F 0.18 OHM, J, 5W 3 R1715 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1716 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1717 ERQ14AJ330J F 33 OHM, J,1/4W 1 参考号 部件号 部件名称及说明 件数 备注 171 TH-65PF10CK 11/2007 iPress1488 中国制作 R1719 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R1722 ERJ6GEYG154 M 150KOHM,J,1/10W 1 R1723 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1725 ERJ12YJ470 M 47 OHM, J,1/2W 1 R1727-29 ERJ6GEYG183 M 18KOHM,J,1/10W 3 R1731-33 ERJ6ENF2493 M 249KOHM, 1/10W 3 R1740,41 ERJ6ENF5233 M 523KOHM, 1/10W 2 R1742 ERJ6ENF5623 M 523KOHM, 1/10W 1 R1747 ERJ6ENF3902 M 39KOHM,J,1/10W 1 R1749 ERJ6ENF3902 M 39KOHM,J,1/10W 1 R1750,51 ERJ6ENF2493 M 249KOHM, 1/10W 2 R1752 ERJ6GEYG183 M 18KOHM,J,1/10W 1 R1753 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1754 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R1755 ERJ6GEYG103 M 10KOHM,J,1/10W 1 R1756-59 ERJ6GEYG154 M 150KOHM,J,1/10W 4 R1760 ERJ12YJ100 M 10 OHM,J, 1/2W 1 R1761 ERJ6ENF2493 M 249KOHM, 1/10W 1 RF1601 A5MC100JP2 139C 10 1 RF1701 A5MC100JP2 139C 10 1 T201,02 ETB57LZ1AGAD 变压器 2 T301 ETB57LZ1BGAD 变压器 1 T501 ETB25KA1B8AD 变压器 1 VR251 EVMEASA01B25 可变电阻 1 VR351 EVMEASA01B14 可变电阻 1 VR401 EVMEASA01B24 可变电阻 1 Z501,02 ERZVGAD471 变阻器 2 Z1601 ERZVGED751 变阻器 1 Z1602 ERZVGAD471 变阻器 1 ZD201,02 MAZ4270NMF 稳压二极管 2 ZD207 MAZ4270NMF 稳压二极管 1 ZD303,04 MAZ4270NMF 稳压二极管 2 ZD351-54 MA8150 稳压二极管 4 ZD401 MA4033 稳压二极管 1 ZD402 MA8360 稳压二极管 1 ZD501,02 MAZ82700ML 稳压二极管 2 ZD503 MA4120N 稳压二极管 1 ZD1602 MA4047N 稳压二极管 1 ZD1701 MA4047N 稳压二极管 1 参考号 部件号 部件名称及说明 件数 备注
