松下TH-42PW6CH等离子显示器维修手册

分类：电子电工 日期： 点击：0
松下TH-42PW6CH等离子显示器维修手册-0 松下TH-42PW6CH等离子显示器维修手册-1 松下TH-42PW6CH等离子显示器维修手册-2 松下TH-42PW6CH等离子显示器维修手册-3 松下TH-42PW6CH等离子显示器维修手册-4 松下TH-42PW6CH等离子显示器维修手册-5 松下TH-42PW6CH等离子显示器维修手册-6 松下TH-42PW6CH等离子显示器维修手册-7 松下TH-42PW6CH等离子显示器维修手册-8 松下TH-42PW6CH等离子显示器维修手册-9

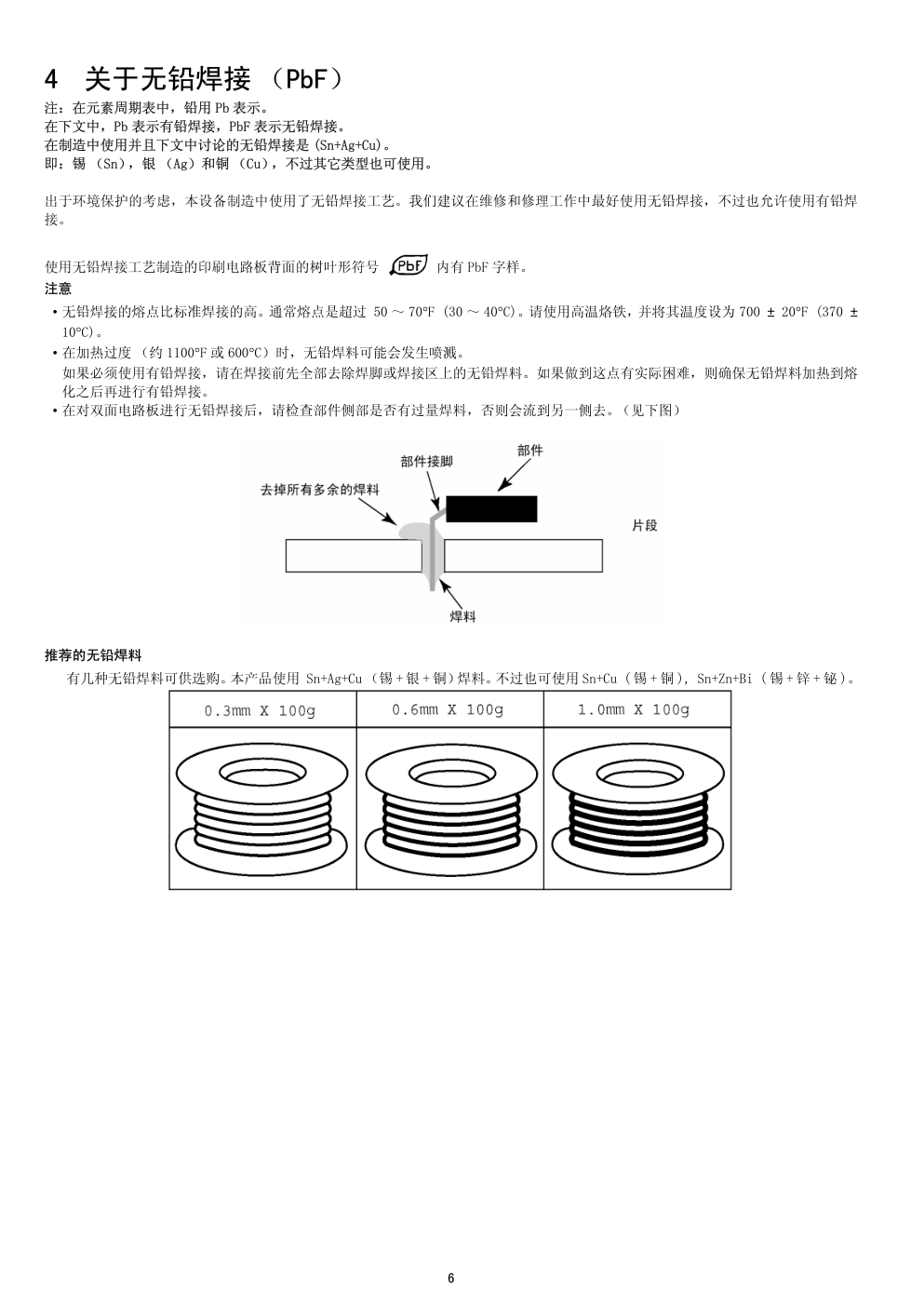

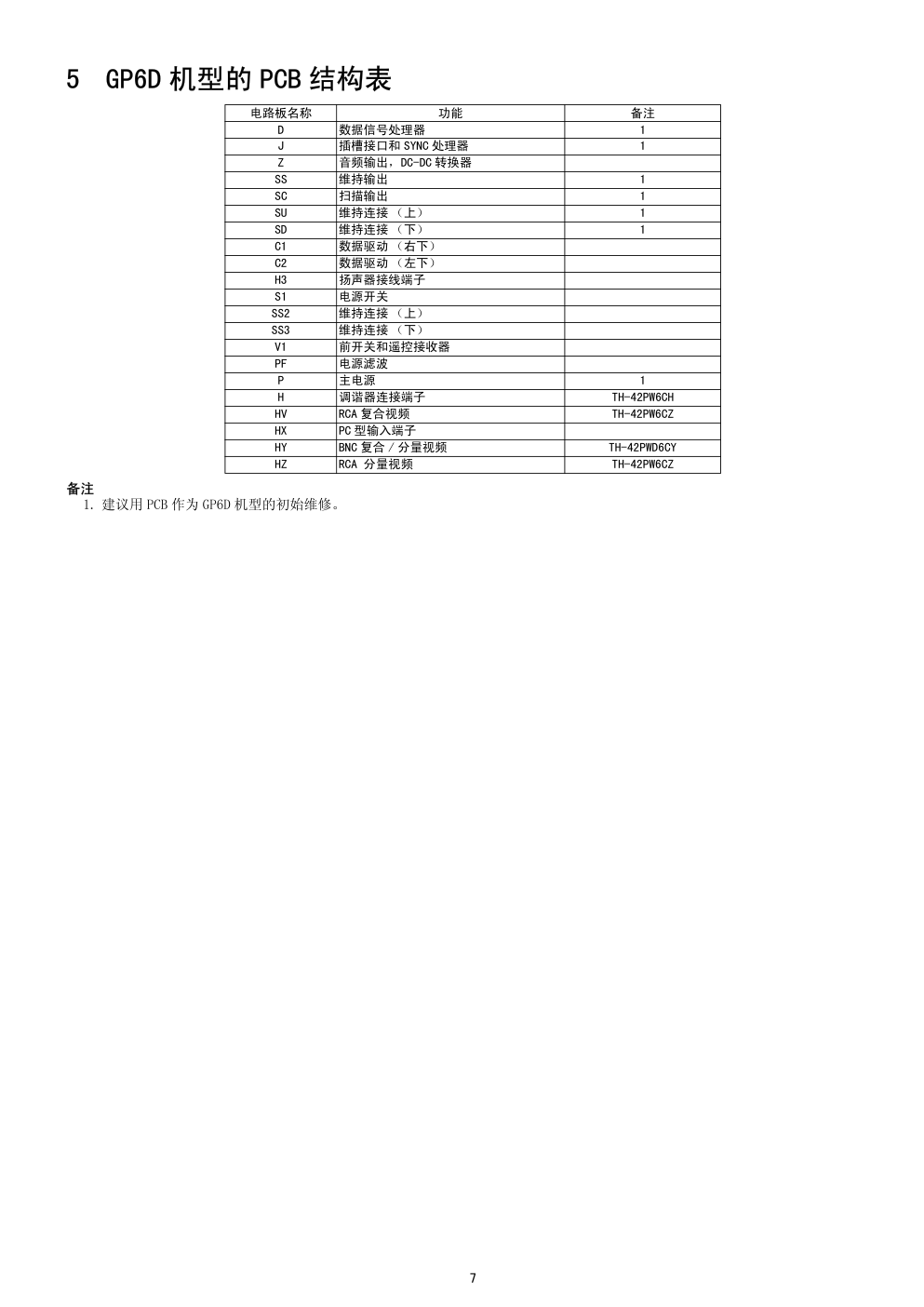

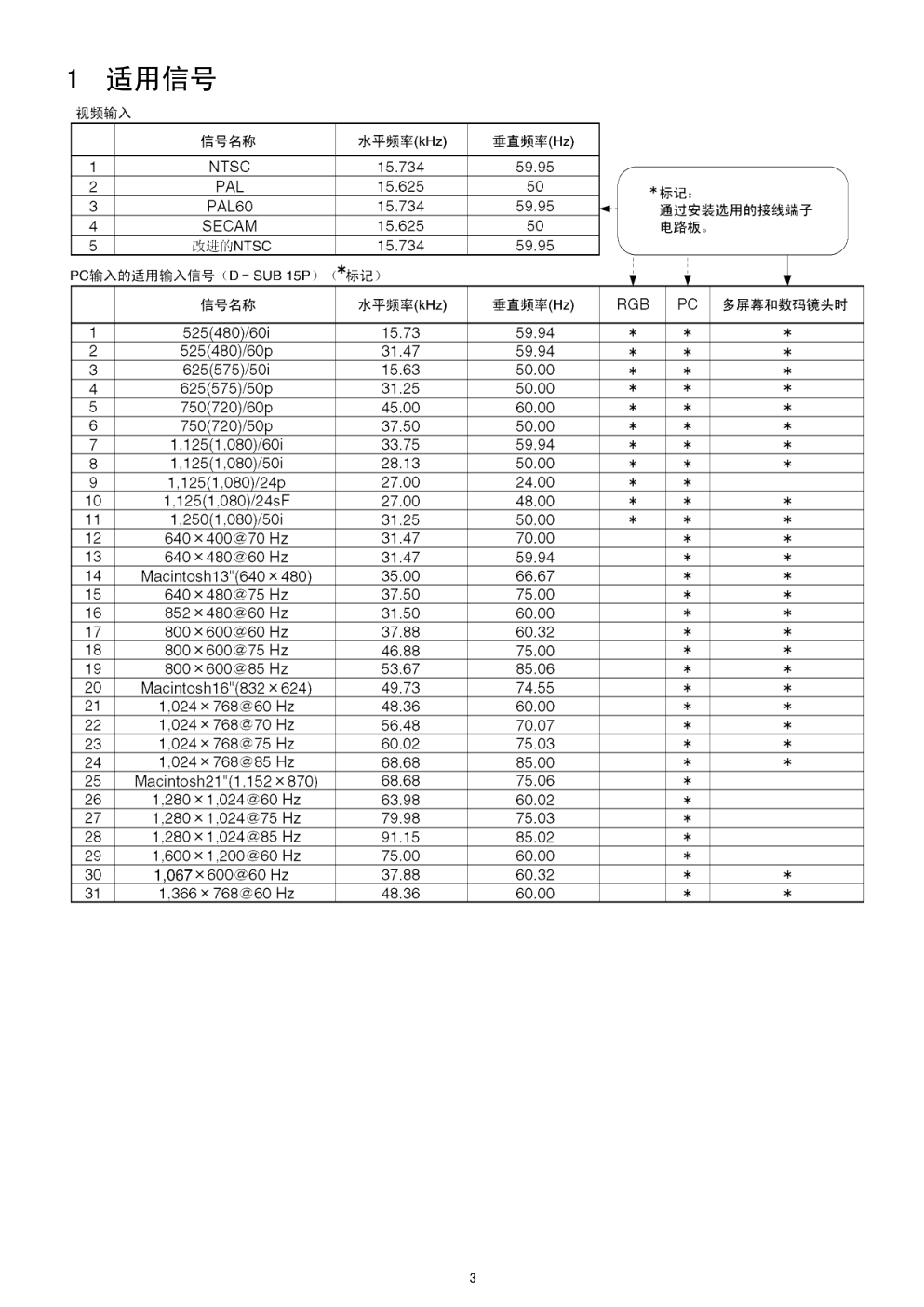

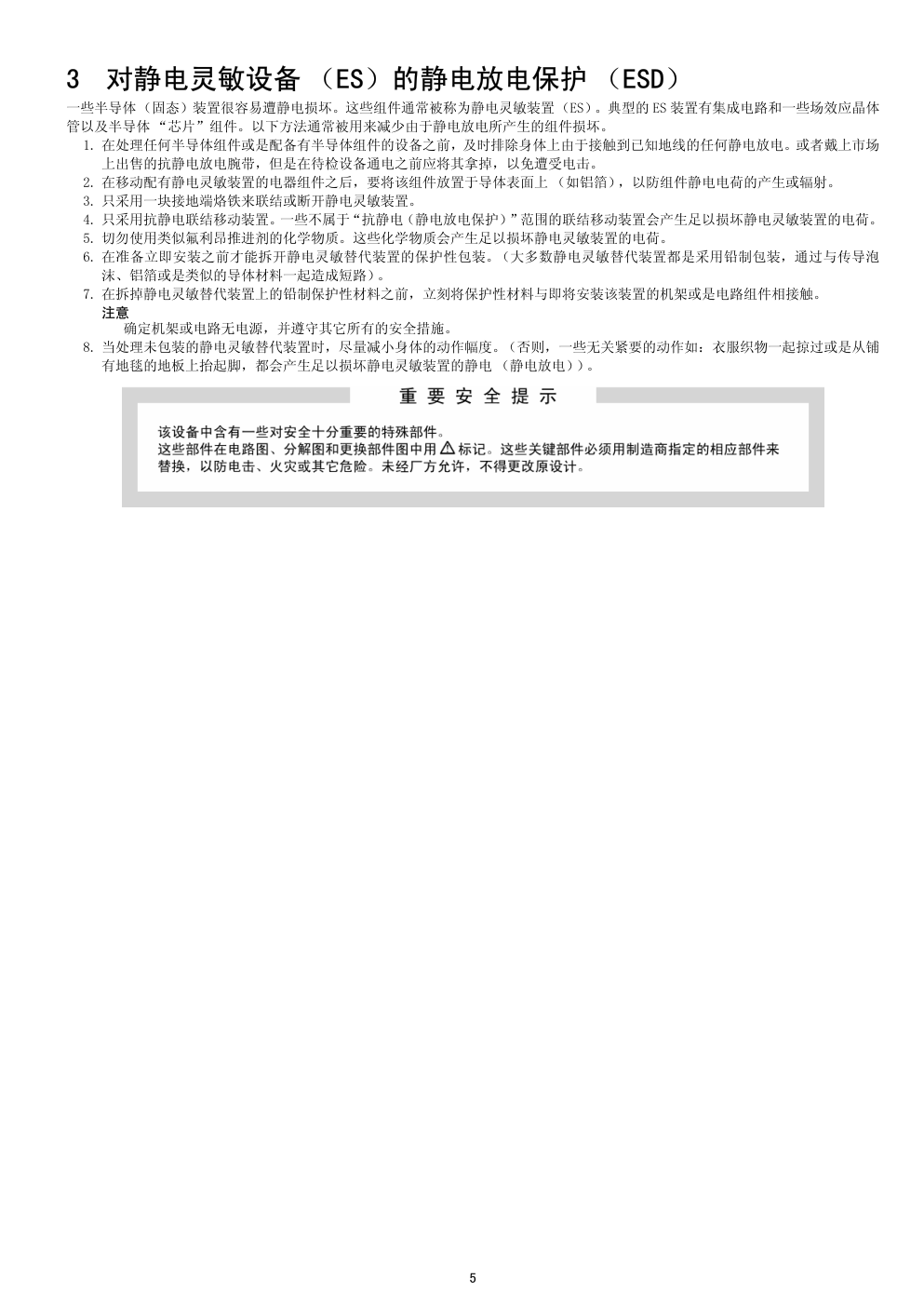

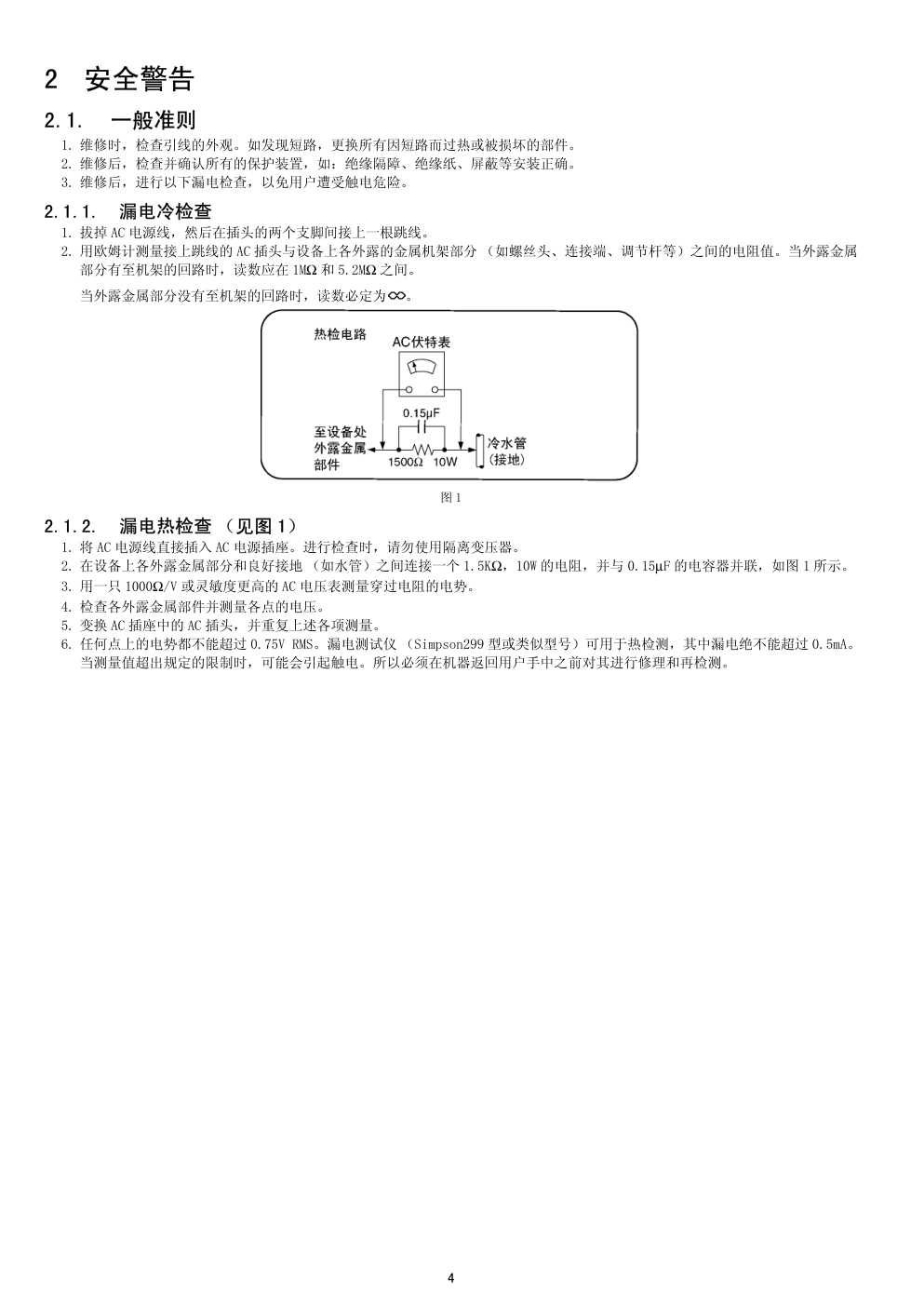

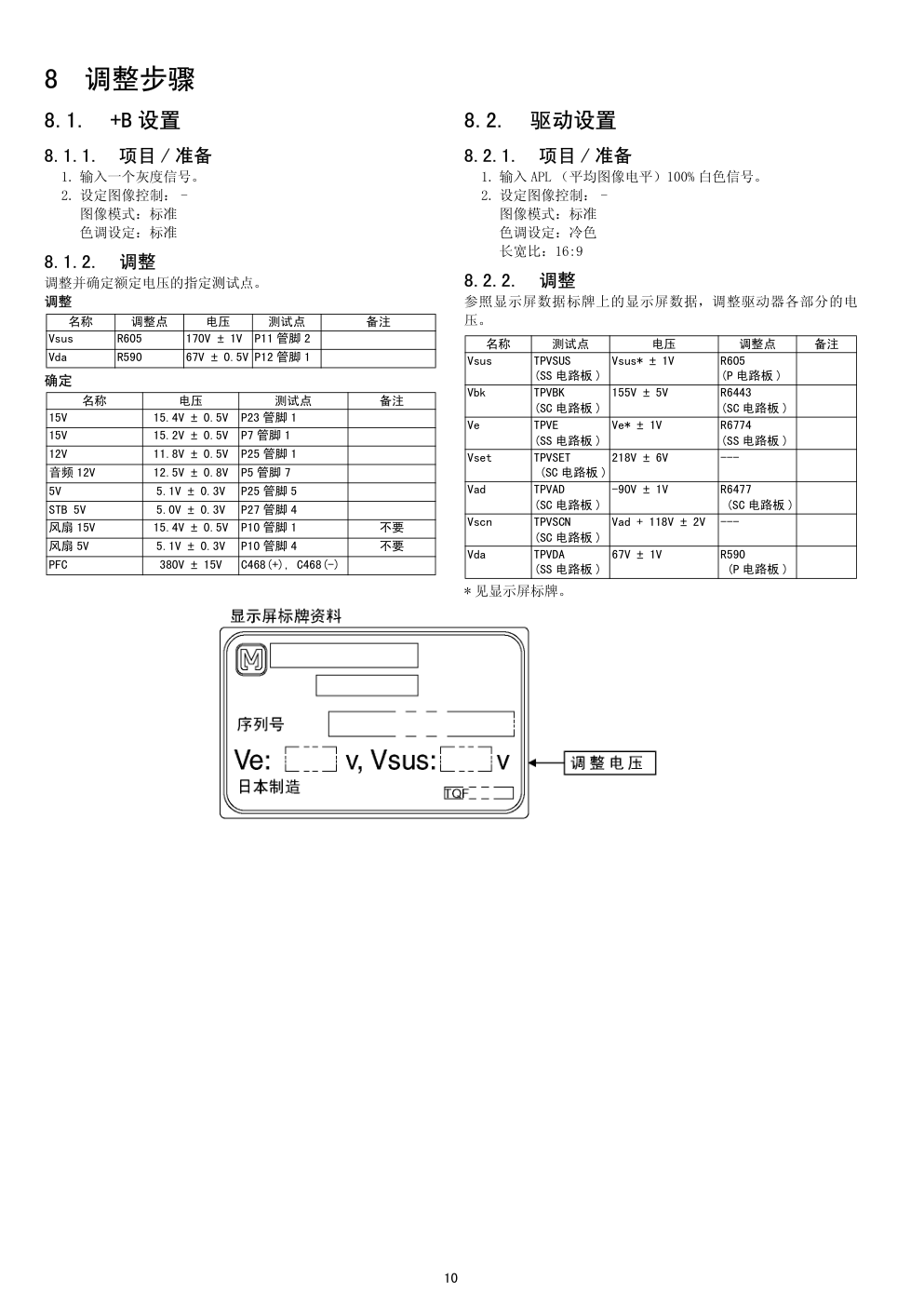

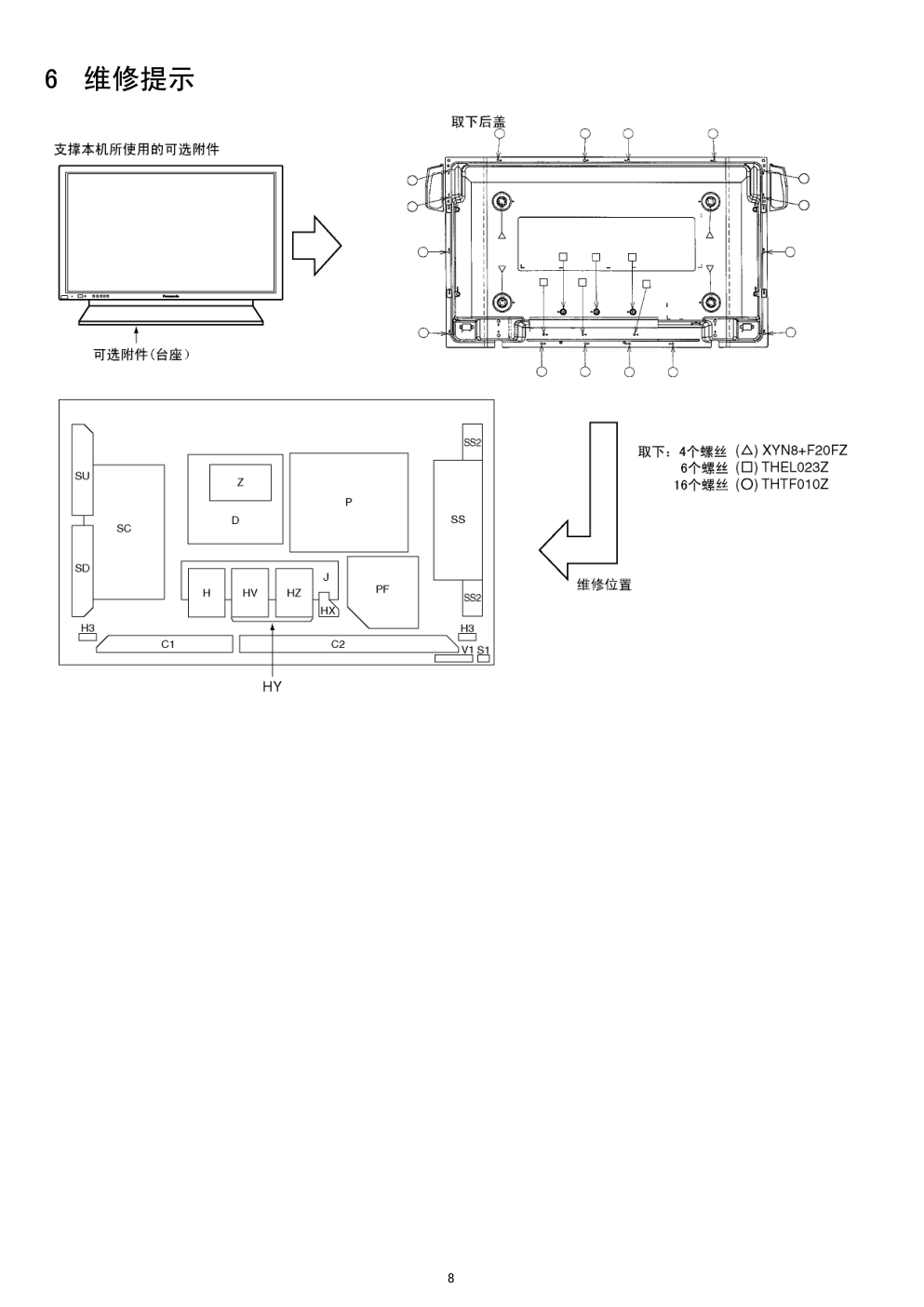

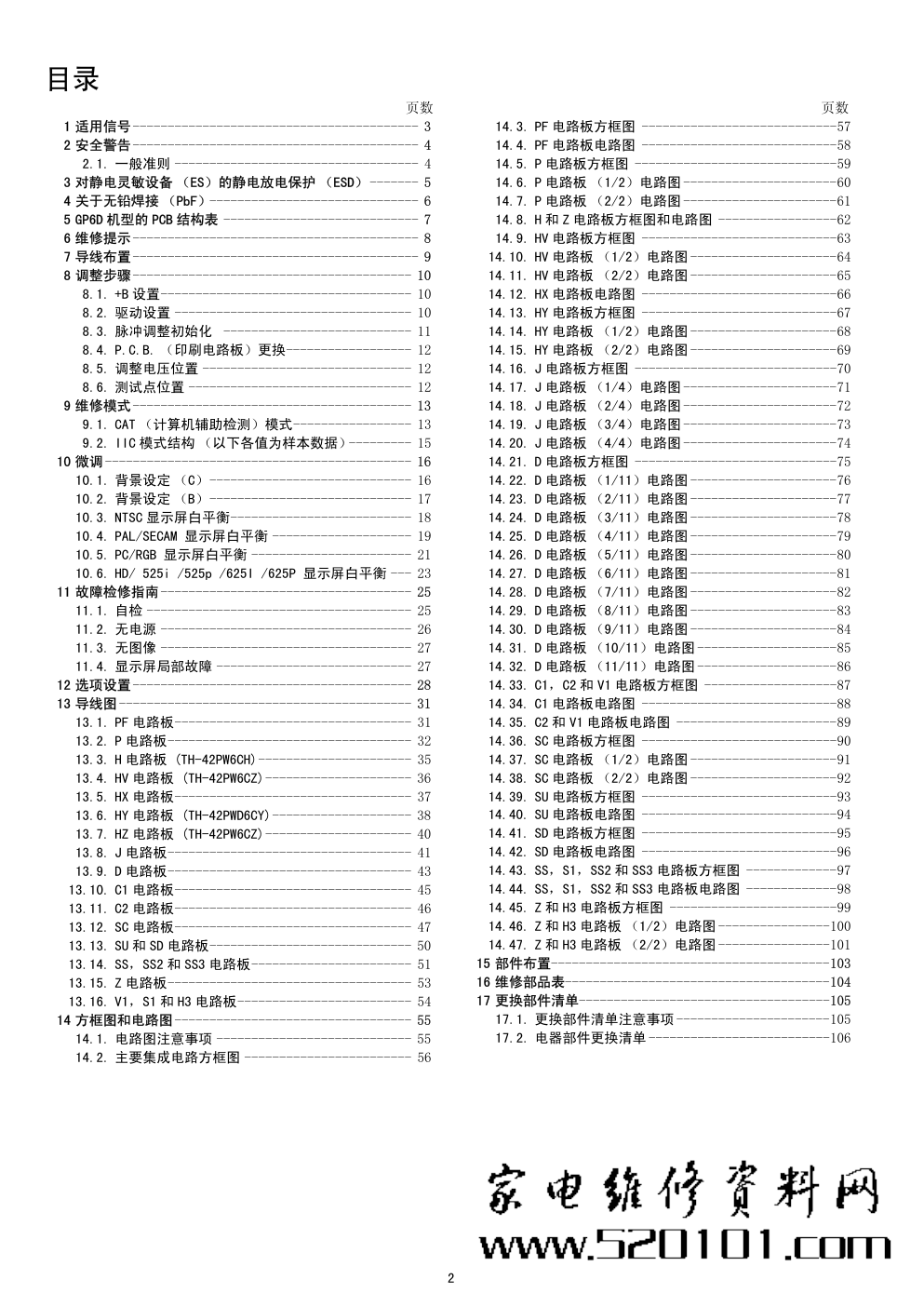

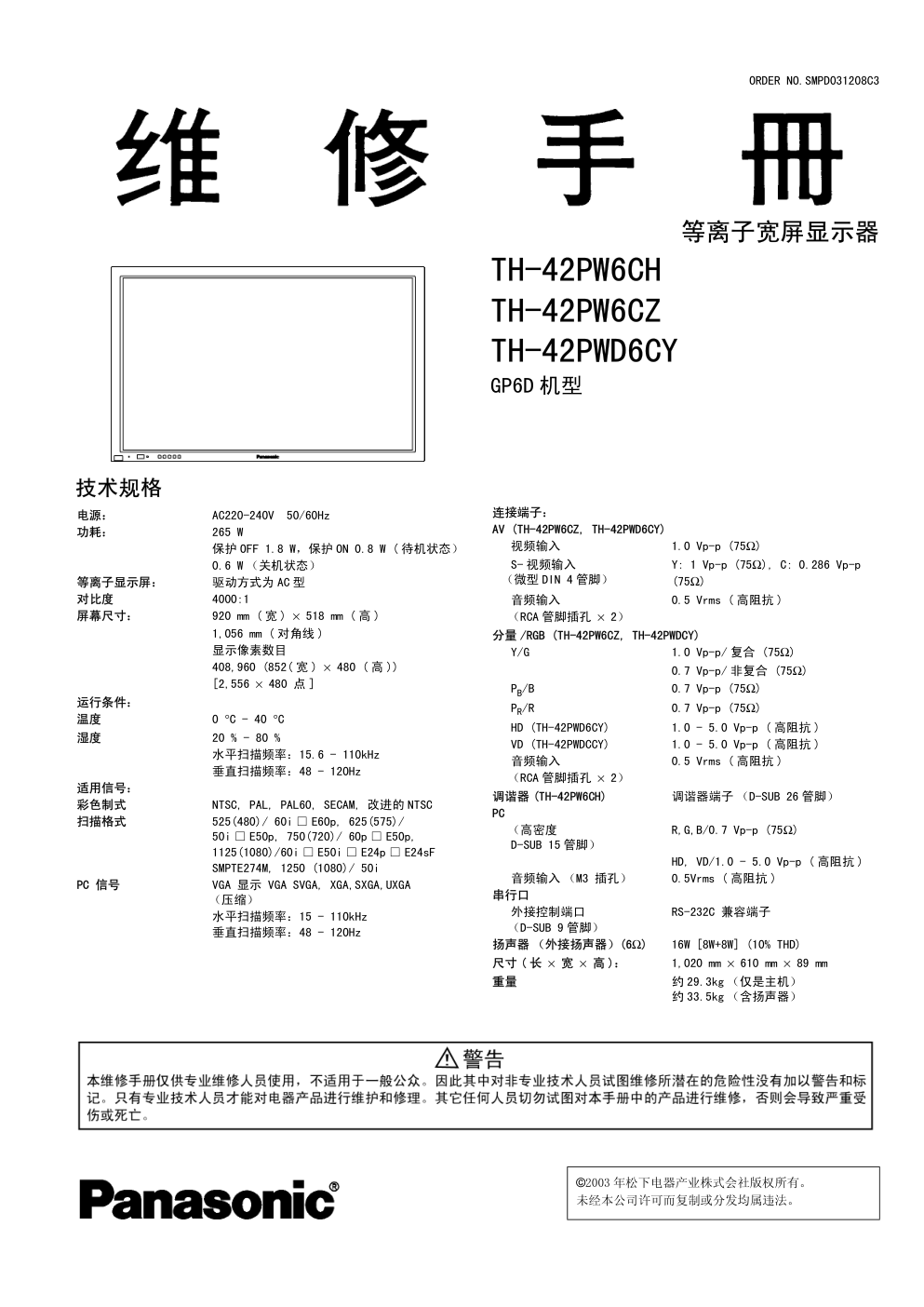

©2003 年松下电器产业株式会社版权所有。 未经本公司许可而复制或分发均属违法。 ORDER NO.SMPD031208C3 等离子宽屏显示器 TH-42PW6CH TH-42PW6CZ TH-42PWD6CY GP6D 机型 技术规格 电源： AC220-240V 50/60Hz 功耗： 265 W 保护 OFF 1.8 W，保护 ON 0.8 W ( 待机状态） 0.6 W （关机状态） 等离子显示屏： 驱动方式为 AC 型 对比度 4000:1 屏幕尺寸： 920 mm ( 宽 ) × 518 mm ( 高 ) 1,056 mm ( 对角线 ) 显示像素数目 408,960 (852( 宽 ) × 480 ( 高 )) [2,556 × 480 点 ] 运行条件： 温度 0 °C - 40 °C 湿度 20 % - 80 % 水平扫描频率：15.6 - 110kHz 垂直扫描频率：48 - 120Hz 适用信号： 彩色制式 NTSC, PAL, PAL60, SECAM, 改进的 NTSC 扫描格式 525(480)/ 60i □ E60p, 625(575)/ 50i □ E50p, 750(720)/ 60p □ E50p, 1125(1080)/60i □ E50i □ E24p □ E24sF SMPTE274M, 1250 (1080)/ 50i PC 信号 VGA 显示 VGA SVGA, XGA,SXGA,UXGA （压缩） 水平扫描频率：15 - 110kHz 垂直扫描频率：48 - 120Hz 连接端子： AV (TH-42PW6CZ, TH-42PWD6CY) 视频输入 1.0 Vp-p (75Ω) S- 视频输入 （微型 DIN 4 管脚） Y: 1 Vp-p (75Ω), C: 0.286 Vp-p (75Ω) 音频输入 0.5 Vrms ( 高阻抗 ) （RCA 管脚插孔 × 2） 分量 /RGB (TH-42PW6CZ, TH-42PWDCY) Y/G 1.0 Vp-p/ 复合 (75Ω) 0.7 Vp-p/ 非复合 (75Ω) PB/B 0.7 Vp-p (75Ω) PR/R 0.7 Vp-p (75Ω) HD (TH-42PWD6CY) 1.0 - 5.0 Vp-p ( 高阻抗 ) VD (TH-42PWDCCY) 1.0 - 5.0 Vp-p ( 高阻抗 ) 音频输入 0.5 Vrms ( 高阻抗 ) （RCA 管脚插孔 × 2） 调谐器 (TH-42PW6CH) 调谐器端子 （D-SUB 26 管脚） PC （高密度 D-SUB 15 管脚） R,G,B/0.7 Vp-p (75Ω) HD, VD/1.0 - 5.0 Vp-p ( 高阻抗 ) 音频输入 （M3 插孔） 0.5Vrms ( 高阻抗 ) 串行口 外接控制端口 （D-SUB 9 管脚） RS-232C 兼容端子 扬声器 （外接扬声器）(6Ω) 16W [8W+8W] (10% THD) 尺寸 ( 长 × 宽 × 高 )： 1,020 mm × 610 mm × 89 mm 重量 约 29.3kg （仅是主机） 约 33.5kg （含扬声器） 2 目录 页数 页数 1 适用信号----------------------------------------- 3 2 安全警告----------------------------------------- 4 2.1. 一般准则 ----------------------------------- 4 3 对静电灵敏设备 （ES）的静电放电保护 （ESD）------- 5 4 关于无铅焊接 （PbF）------------------------------ 6 5 GP6D 机型的 PCB 结构表 ---------------------------- 7 6 维修提示----------------------------------------- 8 7 导线布置----------------------------------------- 9 8 调整步骤---------------------------------------- 10 8.1. +B 设置------------------------------------ 10 8.2. 驱动设置 ---------------------------------- 10 8.3. 脉冲调整初始化 --------------------------- 11 8.4. P.C.B. （印刷电路板）更换------------------ 12 8.5. 调整电压位置 ------------------------------ 12 8.6. 测试点位置 -------------------------------- 12 9 维修模式---------------------------------------- 13 9.1. CAT （计算机辅助检测）模式----------------- 13 9.2. IIC 模式结构 （以下各值为样本数据）--------- 15 10 微调-------------------------------------------- 16 10.1. 背景设定 （C）----------------------------- 16 10.2. 背景设定 （B）----------------------------- 17 10.3. NTSC 显示屏白平衡-------------------------- 18 10.4. PAL/SECAM 显示屏白平衡 -------------------- 19 10.5. PC/RGB 显示屏白平衡 ----------------------- 21 10.6. HD/ 525i /525p /625I /625P 显示屏白平衡 --- 23 11 故障检修指南------------------------------------ 25 11.1. 自检 -------------------------------------- 25 11.2. 无电源 ------------------------------------ 26 11.3. 无图像 ------------------------------------ 27 11.4. 显示屏局部故障 ---------------------------- 27 12 选项设置---------------------------------------- 28 13 导线图------------------------------------------ 31 13.1. PF 电路板---------------------------------- 31 13.2. P 电路板----------------------------------- 32 13.3. H 电路板 (TH-42PW6CH)---------------------- 35 13.4. HV 电路板 (TH-42PW6CZ)--------------------- 36 13.5. HX 电路板---------------------------------- 37 13.6. HY 电路板 (TH-42PWD6CY)-------------------- 38 13.7. HZ 电路板 (TH-42PW6CZ)--------------------- 40 13.8. J 电路板----------------------------------- 41 13.9. D 电路板----------------------------------- 43 13.10. C1 电路板---------------------------------- 45 13.11. C2 电路板---------------------------------- 46 13.12. SC 电路板---------------------------------- 47 13.13. SU 和 SD 电路板----------------------------- 50 13.14. SS，SS2 和 SS3 电路板----------------------- 51 13.15. Z 电路板----------------------------------- 53 13.16. V1，S1 和 H3 电路板------------------------- 54 14 方框图和电路图---------------------------------- 55 14.1. 电路图注意事项 ---------------------------- 55 14.2. 主要集成电路方框图 ------------------------ 56 14.3. PF 电路板方框图 ----------------------------57 14.4. PF 电路板电路图 ----------------------------58 14.5. P 电路板方框图 -----------------------------59 14.6. P 电路板 （1/2）电路图 ----------------------60 14.7. P 电路板 （2/2）电路图 ----------------------61 14.8. H 和 Z 电路板方框图和电路图 -----------------62 14.9. HV 电路板方框图 ----------------------------63 14.10. HV 电路板 （1/2）电路图 ---------------------64 14.11. HV 电路板 （2/2）电路图 ---------------------65 14.12. HX 电路板电路图 ----------------------------66 14.13. HY 电路板方框图 ----------------------------67 14.14. HY 电路板 （1/2）电路图 ---------------------68 14.15. HY 电路板 （2/2）电路图 ---------------------69 14.16. J 电路板方框图 -----------------------------70 14.17. J 电路板 （1/4）电路图 ----------------------71 14.18. J 电路板 （2/4）电路图 ----------------------72 14.19. J 电路板 （3/4）电路图 ----------------------73 14.20. J 电路板 （4/4）电路图 ----------------------74 14.21. D 电路板方框图 -----------------------------75 14.22. D 电路板 （1/11）电路图 ---------------------76 14.23. D 电路板 （2/11）电路图 ---------------------77 14.24. D 电路板 （3/11）电路图 ---------------------78 14.25. D 电路板 （4/11）电路图 ---------------------79 14.26. D 电路板 （5/11）电路图 ---------------------80 14.27. D 电路板 （6/11）电路图 ---------------------81 14.28. D 电路板 （7/11）电路图 ---------------------82 14.29. D 电路板 （8/11）电路图 ---------------------83 14.30. D 电路板 （9/11）电路图 ---------------------84 14.31. D 电路板 （10/11）电路图 --------------------85 14.32. D 电路板 （11/11）电路图 --------------------86 14.33. C1，C2 和 V1 电路板方框图 -------------------87 14.34. C1 电路板电路图 ----------------------------88 14.35. C2 和 V1 电路板电路图 -----------------------89 14.36. SC 电路板方框图 ----------------------------90 14.37. SC 电路板 （1/2）电路图 ---------------------91 14.38. SC 电路板 （2/2）电路图 ---------------------92 14.39. SU 电路板方框图 ----------------------------93 14.40. SU 电路板电路图 ----------------------------94 14.41. SD 电路板方框图 ----------------------------95 14.42. SD 电路板电路图 ----------------------------96 14.43. SS，S1，SS2 和 SS3 电路板方框图 -------------97 14.44. SS，S1，SS2 和 SS3 电路板电路图 -------------98 14.45. Z 和 H3 电路板方框图 ------------------------99 14.46. Z 和 H3 电路板 （1/2）电路图 ----------------100 14.47. Z 和 H3 电路板 （2/2）电路图 ----------------101 15 部件布置----------------------------------------103 16 维修部品表--------------------------------------104 17 更换部件清单------------------------------------105 17.1. 更换部件清单注意事项 ----------------------105 17.2. 电器部件更换清单 --------------------------106 3 1 适用信号 4 2 安全警告 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.1.1. 漏电冷检查 1. 拔掉 AC 电源线，然后在插头的两个支脚间接上一根跳线。 2. 用欧姆计测量接上跳线的 AC 插头与设备上各外露的金属机架部分 （如螺丝头、连接端、调节杆等）之间的电阻值。当外露金属 部分有至机架的回路时，读数应在 1MΩ 和 5.2MΩ 之间。 当外露金属部分没有至机架的回路时，读数必定为 。 图 1 2.1.2. 漏电热检查 （见图 1） 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个 1.5KΩ，10W 的电阻，并与 0.15µF 的电容器并联，如图 1 所示。 3. 用一只 1000Ω/V 或灵敏度更高的 AC 电压表测量穿过电阻的电势。 4. 检查各外露金属部件并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 任何点上的电势都不能超过 0.75V RMS。漏电测试仪 （Simpson299 型或类似型号）可用于热检测，其中漏电绝不能超过 0.5mA。 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 5 3 对静电灵敏设备 （ES）的静电放电保护 （ESD） 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电所产生的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，及时排除身体上由于接触到已知地线的任何静电放电。或者戴上市场 上出售的抗静电放电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只采用一块接地端烙铁来联结或断开静电灵敏装置。 4. 只采用抗静电联结移动装置。一些不属于“抗静电（静电放电保护）”范围的联结移动装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 在准备立即安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏替代装置都是采用铅制包装，通过与传导泡 沫、铝箔或是类似的导体材料一起造成短路）。 7. 在拆掉静电灵敏替代装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机架或是电路组件相接触。 注意 确定机架或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 6 4 关于无铅焊接 （PbF） 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造中使用并且下文中讨论的无铅焊接是 (Sn+Ag+Cu)。 即：锡 （Sn），银 （Ag）和铜 （Cu），不过其它类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊接的熔点比标准焊接的高。通常熔点是超过 50 ～ 70°F (30 ～ 40°C)。请使用高温烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 在加热过度 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区上的无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔 化之后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu （锡 + 银 + 铜）焊料。不过也可使用 Sn+Cu ( 锡 + 铜 ), Sn+Zn+Bi ( 锡 + 锌 + 铋 )。 7 5 GP6D 机型的 PCB 结构表 备注 1. 建议用 PCB 作为 GP6D 机型的初始维修。 电路板名称 功能 备注 D 数据信号处理器 1 J 插槽接口和 SYNC 处理器 1 Z 音频输出，DC-DC 转换器 SS 维持输出 1 SC 扫描输出 1 SU 维持连接 （上） 1 SD 维持连接 （下） 1 C1 数据驱动 （右下） C2 数据驱动 （左下） H3 扬声器接线端子 S1 电源开关 SS2 维持连接 （上） SS3 维持连接 （下） V1 前开关和遥控接收器 PF 电源滤波 P 主电源 1 H 调谐器连接端子 TH-42PW6CH HV RCA 复合视频 TH-42PW6CZ HX PC 型输入端子 HY BNC 复合 / 分量视频 TH-42PWD6CY HZ RCA 分量视频 TH-42PW6CZ 8 6 维修提示 9 7 导线布置 10 8 调整步骤 8.1. +B 设置 8.1.1. 项目 / 准备 1. 输入一个灰度信号。 2. 设定图像控制： - 图像模式：标准 色调设定：标准 8.1.2. 调整 调整并确定额定电压的指定测试点。 调整 确定 8.2. 驱动设置 8.2.1. 项目 / 准备 1. 输入 APL （平均图像电平）100% 白色信号。 2. 设定图像控制： - 图像模式：标准 色调设定：冷色 长宽比：16:9 8.2.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 * 见显示屏标牌。 名称 调整点 电压 测试点 备注 Vsus R605 170V ± 1V P11 管脚 2 Vda R590 67V ± 0.5V P12 管脚 1 名称 电压 测试点 备注 15V 15.4V ± 0.5V P23 管脚 1 15V 15.2V ± 0.5V P7 管脚 1 12V 11.8V ± 0.5V P25 管脚 1 音频 12V 12.5V ± 0.8V P5 管脚 7 5V 5.1V ± 0.3V P25 管脚 5 STB 5V 5.0V ± 0.3V P27 管脚 4 风扇 15V 15.4V ± 0.5V P10 管脚 1 不要 风扇 5V 5.1V ± 0.3V P10 管脚 4 不要 PFC 380V ± 15V C468(+), C468(-) 名称 测试点 电压 调整点 备注 Vsus TPVSUS (SS 电路板 ) Vsus* ± 1V R605 (P 电路板 ) Vbk TPVBK (SC 电路板 ) 155V ± 5V R6443 (SC 电路板 ) Ve TPVE (SS 电路板 ) Ve* ± 1V R6774 (SS 电路板 ) Vset TPVSET (SC 电路板 ) 218V ± 6V --- Vad TPVAD (SC 电路板 ) -90V ± 1V R6477 (SC 电路板 ) Vscn TPVSCN (SC 电路板 ) Vad + 118V ± 2V --- Vda TPVDA (SS 电路板 ) 67V ± 1V R590 (P 电路板 ) 11 8.3. 脉冲调整初始化 1. 输入一个网格信号。 2. 设定图像控制：- 图像模式：标准 色调设定：冷色 调整额定波形的指定测试点。 测试点 调整点 电平 T1 TPSC1 (SC 电路板 ) R6523 (SC 电路板 ) 20 ± 15µ Sec T2 TPSS1 (SS 电路板 ) R6557 (SC 电路板 ) 170 ± 20µ Sec 12 8.4. P.C.B. （印刷电路板）更换 8.4.1. 注意 1. 由于电解电容器放电原因，电源切断后等候一分钟再取下 P.C.B.。 8.4.2. P.C.B. 更换后进行快速调整 * 见显示屏标牌。 8.5. 调整电压位置 8.6. 测试点位置 P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS 电路板 ) Vsus* ± 1V R605 (P 电路板 ) Vda TPVDA (SS 电路板 ) 67V ± 1V R590 (P 电路板 ) SC 电路板 Vbk TPVBK (SC 电路板 ) 155V ± 5V R6443 (SC 电路板 ) Vad TPVAD (SC 电路板 ) -90V ± 1V R6477 (SC 电路板 ) Vset TPVSET (SC 电路板 ) 218V ± 6V --- Vscn TPVSCN (SC 电路板 ) Vad + 118 ± 2V --- SS 电路板 Ve TPVE (SS 电路板 ) Ve *± 1V R6774 (SS 电路板 ) D，J 电路板 NTSC, PAL, HD, PC 和 625i 信号的白平衡、背景和副亮度。 13 9 维修模式 9.1. CAT （计算机辅助检测）模式 若要退出 CAT 模式，请进入 ID 模式，并关闭主电源。 9.1.1. IIC 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的开始键。 主题和项目在第 15 页中提及。 按遥控器上的返回键退出 IIC 模式。 14 9.1.2. CD 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 CD 模式，然后按下遥控器上的静音键 5 秒钟以上。 Micom 软件版本 （IC9354），该版本可通过以下方式升级： 1. 更换新版本 IC。 2. 从装载工具上装入新的软件版本 TZSC07036。 存储数据变更 按遥控器上的返回键退出 CD 模式。 9.1.3. SD 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 SD 模式，然后按下遥控器上的开始键。 按遥控器上的返回键退出 SD 模式。 15 9.2. IIC 模式结构 （以下各值为样本数据） 16 10 微调 10.1. 背景设定 （C） 注： OSD 是 UY 版本和非 UY 版本之间的差异。 图像：正常 （非 UY 版本）/ 标准 （UY 版本） 色调设定 （非 UY 版本）/ 色温 （UY 版本） ** ������� 1 �� �������� ��� W/B (525i, 525p, 625i, R cut off 1) ��R�G�B�cut off��80�� 720i � 1080i) ������ �� G cut off B cut off ���� ���� ����� �� 16:9 �� /RGB-IN: RGB Gun off 2) �Gun off ����5��(����������) RGB���� G ��� 1 3) ��G������2%���������������� ������0%������������ ����� Gun off 4) �Gun off ����3��(����������) RGB���� � 2 % B ��� 1 5) ��B������2%���������������� ������0%������������ � 0 % ����� Gun off 6) �Gun off ����6��(����������) RGB���� R ��� 1 7) ��R������2%���������������� ������0%������������ 2 RGB(PC) �������� 1) ���������� ���� ��� W/B �� R,G,B cut off 2) ��RGB������1��7�� ��� W/B ���� R,G,B Drive 16:9 � 2 % � 0 % �� ���� �� �� �� ������ �� 17 10.2. 背景设定 （B） 注： OSD 是 UY 版本和非 UY 版本之间的差异。 图像：正常 （非 UY 版本）/ 标准 （UY 版本） 色调设定 （非 UY 版本）/ 色温 （UY 版本） ** ������� 1 �� �������� ��� W/B (525i, 525p, 625i, R cut off 720i � 1080i) ������ �� ������ �� G cut off B cut off ���� ���� ����� �� 16:9 �� /RGB-IN: RGB Gun off RGB���� G ��� 2 ����� Gun off RGB���� � 2 % B ��� 2 � 0 % ����� Gun off RGB���� R ��� 2 2 RGB(PC) �������� 1) ���������� ���� ��� W/B �� R,G,B cut off 2) ��RGB������1��7�� ��� W/B ���� R,G,B Drive 16:9 � 2 % � 0 % �� ���� �� �� �� 1) ��SWAP�,���������� 2) �R, G �B�cut off ����80�� 3) �Gun off ����5��(����������) 4) ��G������2%���������������� ������0%������������ 5) �Gun off ����3��(����������) 6) ��B������2%���������������� ������0%������������ 7) �Gun off ����6��(����������) 8) ��R������2%���������������� ������0%������������ 18 10.3. NTSC 显示屏白平衡 1 NTSC ����� �������� 1) ���������10 cd/m2���������� ���� ��������� �� ������ �� 2) ��������������10 cd/m2� ���� ��� W/B 16:9 G cut off 3) ��G cut off ��80�� ��� W/B B cut off 4) ��B�R cut off����������01��� R cut off ��75% ��������� ��15% 5) ������������������10 cd/m2� 6) ���������75%������ ��� W/B G Drive 7) ��G����D8�� ��� W/B B Drive 8) ��B�R������������01��� R Drive 9) ����4��7���������� ��� W/B R,G,B Drive 10) ��R�G�B����������R�G�B�� ���������FC�� R,G,B Drive ��� W/B R,G,B cut off 11) ��������� ���� x y ��(�) 0.276 0.276 ��(�) 0.288 0.296 ��(�) 0.313 0.329 � 01 2 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 3 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 4 �������� ���� 1) ������������� ��������� ������ �� 2) ���������30�� ���� 16:9 �� ���� �� �� �� 19 10.4. PAL/SECAM 显示屏白平衡 1 PAL ����� �������� 1) ���������10 cd/m2���������� ���� ��������� �� ������ �� 2) ��������������10 cd/m2� ���� ��� W/B 16:9 G cut off 3) ��G cut off ��80�� ��� W/B B cut off 4) ��B�R cut off����������02��� R cut off ��75% ��������� ��15% 5) ������������������10 cd/m2� 6) ���������75%������ ��� W/B G Drive 7) ��G����D8�� ��� W/B B Drive 8) ��B�R������������02��� R Drive 9) ����4��7���������� ��� W/B R,G,B Drive 10) ��R�G�B����������R�G�B�� ���������FC�� R,G,B Drive ��� W/B R,G,B cut off 11) ��������� ���� x y ��(�) 0.276 0.276 ��(�) 0.288 0.296 ��(�) 0.313 0.329 �02 2 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 3 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 4 �������� ���� 1) ������������� ��������� ������ �� 2) ���������30�� ���� 16:9 �� ���� �� �� �� 20 5 �������� 1) ������R�G�B�����Cut off��� ������� ���� 16:9 ����� ���� �� �� �� �� R Drive �� G Drive �� B Drive R Cut off G Cut off B Cut off SECAM�� 2) ��SECAM��� 3) ����������PAL R�G�B���cut off��� ����SECAM��� ���� �� �� �� 21 10.5. PC/RGB 显示屏白平衡 1 PC ����� �������� 1) ���������10 cd/m2���������� ���� ��������� �� ������ �� 2) ��������������10 cd/m2� ���� ��� W/B 16:9 G cut off 3) ��G cut off ��80�� ��� W/B B cut off 4) ��B�R cut off����������03��� R cut off ��75% ��������� ��15% 5) ������������������10 cd/m2� 6) ���������75%������ ��� W/B G Drive 7) ��G����D8�� ��� W/B B Drive 8) ��B�R������������03��� R Drive 9) ����4��7���������� ��� W/B R,G,B Drive 10) ��R�G�B����������R�G�B�� ���������FC�� R,G,B Drive ��� W/B R,G,B cut off 11) ��������� ���� x y ��(�) 0.276 0.276 ��(�) 0.288 0.296 ��(�) 0.313 0.329 � 03 2 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 3 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 4 �������� ���� 1) ������������� ��������� ������ �� 2) ���������30�� ���� 16:9 �� ���� �� �� �� 22 ����� ���� �� �� �� RGB �� R Drive ���� � �� G Drive �� ���� �� �� B Drive ���� �� �� �� R Drive G Drive B Drive R Cut off G Cut off B Cut off 2) ��RGB��� ��75% ��15% 3) ����������PC R�G�B���cut off� ��RGB��� 5 �������� 1) ������R�G�B�����Cut off����� ����� ���� 16:9 ����� �� �� �� �������� ���� 16:9 DVI R Cut off G Cut off B Cut off 2) ��DVI��� ��75% ��15% 3) ����������PC R�G�B���cut off� ��DVI��� 6 1) ������R�G�B�����Cut off���� ������ �� ���� �� �� �� 23 10.6. HD/ 525i /525p /625I /625P 显示屏白平衡 1 HD (720i � 1080i) ����� �������� 1) ���������10 cd/m2���������� ��������� ������ �� 2) ��������������10 cd/m2� ���� ��� W/B 16:9 G cut off 3) ��G cut off ��80�� ��� W/B B cut off 4) ��B�R cut off����������04��� R cut off ��75% ��������� ��15% 5) ������������������10 cd/m2� 6) ���������75%������ ��� W/B G Drive 7) ��G����D8�� ��� W/B B Drive 8) ��B�R������������04��� R Drive 9) ����4��7���������� ��� W/B R,G,B Drive 10) ��R�G�B����������R�G�B�� ���������FC�� R,G,B Drive ��� W/B R,G,B cut off 11) ��������� ���� x y ��(�) 0.276 0.276 ��(�) 0.288 0.296 ��(�) 0.313 0.329 � 04 2 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 3 �������� 1) ������������� ��� W/B ������ �� R,G,B cut off 2) �������3��11���� ��� W/B ���� R,G,B Drive 16:9 4 �������� ���� 1) ������������� ��������� ������ �� 2) ���������30�� ���� 16:9 ���� �� �� ���� �� �� �� 24 ����� ���� �� �� �� RGB �� R Drive �� G Drive �� B Drive ���� �� �� �� R Drive G Drive B Drive ���� �� �� �� R Drive G Drive B Drive R Cut off G Cut off B Cut off 2) ��������525i�525p� 3) ����������HD���cut off������� ������� 5 �������� 1) ������R�G�B�����Cut off����� ����� ���� 16:9 ����� �� �� �� �������� ���� 16:9 ����� �� �� �� ����� ���� 16:9 RGB R Cut off G Cut off B Cut off 2) ��������525p�625i� 3) ����������HD���cut off������� ������� 6 1) ������R�G�B�����Cut off����� ����� RGB R Cut off G Cut off B Cut off 2) ��������625i�625p� 3) ����������HD���cut off������� ������� 7 1) ������R�G�B�����Cut off����� ����� ���� �� ���� �� ���� �� �� ���� �� �� �� ��75% ��15% ��75% ��15% ��75% ��15% 25 11 故障检修指南 11.1. 自检 11.1.1. 显示指示 1. 自检用于自动检查等离子显示器的总线控制电路。 2. 要进入自检模式，按下用户控制器前端的音量降低 volume down 键，同时按下遥控器上的 “关机定时”OFF-TIMER 键，显示屏将会显示：- 。 检查 CCU 端口时若发现其不正常或位置不对，则 “ - - ”将会 显示在 “OK”的位置。 11.1.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁次数图。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 26 11.2. 无电源 LED 无电源指示有 3 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 1. 不亮 第一检查点 27 11.3. 无图像 11.4. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 图 1 28 12 选项设置 �������� ������ ���������� ����� OSD����������� ���3����������� ������������ ������������ ����������60����� ���������� 29 GP6D机型系列有特殊功能及操作设置装置，称为选项菜单。该选项菜单对于有特殊功能要求的客户很有用。该菜单在安装阶段设 定。由于隐藏于屏幕菜单上，最终用户无法对其进行设定或改变。 注： 如何设置 Remocon 用户标准和遥控 ID 为关 1. 进入维修模式 （CAT 模式）并按下遥控器上的 SET UP 键。 2. 进入隐藏式选项菜单。 3. 将 Remocon 用户标准和 / 或遥控 ID 设置为关。 GP6D 系列隐藏式选项菜单 选项菜单 默认设置 内容 “定时关机”功能 启动 定时关机功能有效 / 无效。 屏前显示 开 在电源开 , 没有信号时 , 输入模式显示功能有效 / 无效。 初始输入 关 电源接通后设置初始输入模式。电源接通后可以进行输入模式选择。 初始音量等级 关 电源接通后设置初始音量标准。电源接通后可以进行音量调节。 最大音量等级 关 将最大音量设定到所希望的等级。音量不能超过此限制。 输入锁定 关 将输入模式固定为 AV，分量 /RGB 或 PC。不能通过输入选择键来改变输入模式。 键锁定 关 前端操作键有效 / 无效 （输入和 / 或音量上 / 下）。 演播室 W/B 关 将暖色模式色温设定为 3,200 Kelvin。 Remocon 用户标准 关 遥控键无效。 关：所有遥控键无效。 用户 1：只有待机（开 / 关）、输入、状态、环绕、静音开 / 关以及音量调节为有效。 用户 2： 只有待机键 （开 / 关）为有效。 用户 3： 所有键都无效。 ID 选择 0 到 100 将 ID 设置为 001 到 100。 遥控 ID 关 遥控 ID 功能开 / 关。 （当遥控 ID 为开时，标准遥控功能不能控制本机。） 串行 关 串行 ID 功能开 / 关。 插槽电源 关 在电源接通时设置插槽电源模式。 允许在电源接通的情况下将可选接线端子板插入插槽。 30 31 13 导线图 13.1. PF 电路板 A B C D E F G H I 1 2 3 4 5 6 PF-BOARD TXNPF1QBSC TH-42PW6CH/CZ, TH-42PWD6CY PF-BOARD TXNPF1QBSC TH-42PW6CH/CZ, TH-42PWD6CY PF-BOARD TXNPF1QBSC PF TP901 TP902 TP903 TP904 F900 F901 F902 PF1 PF9 RL901 Q903 L901 L902 L904 L905 L906 R901 R902 R903 R904 R905 R906 R907 R920 R921 R922 R923 R924 R925 R926 R927 R928 C901 C902 C903 C904 C905 C906 C912 C913 C914 C915 C916 C917 C918 C919 C920 C921 C922 C923 C924 C925 PF10 D901 D902 D903 D904 D906 D907 D920 D921 IC901 D922 IC902 D923 T901 HOT HOT COLD TNPA2813 PF 1 CAUTION T8AH250V T8AH250V CAUTION T3.15AL250V CAUTION COLD LIVE CIRCUIT LIVE CIRCUIT PbF 94V-0 SEE REVERSE FOR ORDER NO. 1 4 1 4 1 6 + - C S D K R A P1 V2 S1 S2 PT P2 V1 Parts Location PF-BOARD IC IC901 B-2 IC902 A-4 TP901 B-4 TP902 A-5 TP903 A-4 TP904 B-4 TP Q903 B-4 TRANSISTOR 32 13.2. P 电路板 A B C D E F G H I 1 2 3 4 5 6 P-BOARD(FOIL SIDE) TNPA2841AH TH-42PW6CH/CZ, TH-42PWD6CY P-BOARD TNPA2841AH TH-42PW6CH/CZ, TH-42PWD6CY P-BOARD TNPA2841AH D558 D559 R402 R404 L451 R406 L452 R407 R408 D560 R409 D561 D562 D563 R600 D564 R601 D565 R602 D566 R603 D567 R604 R410 D568 R605 R411 R606 R412 R607 R413 R608 R414 R609 R415 R416 R417 IC550 R418 D570 R419 IC551 D571 IC552 D572 IC553 D573 R610 IC554 D574 R611 IC555 D575 R612 D576 R613 IC557 D577 R614 R420 D578 IC558 R615 R421 D579 R422 R616 R617 R423 R618 R424 R619 R425 R426 R427 R428 D580 D581 R429 D582 D583 R620 D584 R621 D585 D586 R623 D587 R430 R625 D589 R431 R626 R432 R627 R433 R628 R434 R435 R436 D590 D592 D593 R630 D594 C401 R631 D595 C402 D596 C403 C404 C405 R635 C406 C407 C408 C409 C410 C411 C412 C413 C414 C415 R451 C416 R452 C417 R453 C418 R454 C419 R455 R456 R457 R458 R459 C420 R650 C421 C422 R652 C423 R653 R460 R654 R461 R655 R462 R656 R463 R657 R464 R465 R466 R467 R468 R469 R470 R471 R472 R473 R474 R475 R476 R477 R478 R479 R480 R481 R482 R483 R484 R485 R486 R487 R488 R489 C451 C452 C453 C454 R490 C455 R491 C456 R492 C457 R493 C458 R494 C459 C650 C460 C461 D401 C462 D402 C463 D403 D404 C464 C465 D405 D406 C466 D407 C467 D408 C468 D409 C469 D410 C470 D411 C471 C472 D412 D413 IC401 IC402 IC403 T401 D451 D452 D453 D454 D455 Q552 D456 Q553 D457 Q554 D458 Q555 D459 Q557 Q558 D650 D651 D652 D460 D654 D462 D463 R502 R503 R504 L551 L552 L554 D660 D661 IC451 P10 P11 P12 TP008 TP009 P2 P23 P5 P25 P27 P7 R550 P9 R551 R552 R553 R554 R555 R556 R557 R558 P30 R559 R560 R561 R562 R563 R564 R565 R566 R567 R568 R569 R570 R571 R572 R573 R574 TPP1 R575 R576 R577 R578 RL401 R579 RL402 RL403 R580 R581 R582 R583 C548 R584 C549 R585 R586 R587 R588 R589 C550 C551 C552 C553 C554 R590 C555 R591 C556 R592 C557 R593 C558 R594 C559 R595 Q401 Q402 R596 Q403 R597 R598 Q404 R599 Q405 Q406 C560 C561 C562 C563 C564 C565 C566 C567 C568 C569 L401 C570 C571 C572 C573 C574 C575 C576 C577 C578 C579 TP50 TP51 C581 C583 C584 C585 T501 C586 T502 C587 C590 C591 Q451 Q452 Q453 Q454 Q455 Q456 Q457 D550 D551 D552 D553 D554 Q650 D555 Q651 D556 D557 HOT COLD COLD HOT LIVE CIRCUIT TNPA2841 1 P PFC HOT Vsus Vda COLD 94V-0 PbF 3 1 2 1 2 3 4 5 1 2 3 4 5 K R A K R A 1 5 2 4 3 K R A SEE REVERSE FOR ORDER NO. C S D K R A 3 1 2 V4 V3 V2 V1 P1 PT P2 S1 S2 + - S D G E B C E B C E B C 16 9 8 1 1 5 1 7 1 5 1 6 1 3 1 1 1 1 8 1 9 1 4 1 3 E B C E B C E B C E B C E B C V2 V1 P2 PTB PTA P1 S1 STA STB S2 S4 S3 V2 V1 V3 V4 P2 PT P1 S8 S7 S9 S5 S6 S3 S4 S2 S1 S D G E B C E B C S D G E B C E B C E BC E BC E B C 33 A B C D E F G H I 1 2 3 4 5 6 P-BOARD(COMPONENT SIDE) TNPA2841AH TH-42PW6CH/CZ, TH-42PWD6CY P-BOARD TNPA2841AH TH-42PW6CH/CZ, TH-42PWD6CY P-BOARD TNPA2841AH D558 R402 R404 L451 R406 L452 D560 R409 D563 R600 D565 D566 D567 D568 R605 R411 R412 IC550 D570 IC551 IC552 IC553 D573 IC554 D574 IC555 IC557 IC558 R628 C401 C402 C403 C404 C405 C406 C408 C409 C410 C412 C413 C414 R451 C416 R452 C417 C418 R454 C419 R455 R456 R457 R458 C420 R650 C421 C422 R652 R655 R462 R463 R464 R467 R468 R469 R475 R483 R485 C451 C452 C453 C454 C455 C456 C457 C459 C650 C462 D404 C464 C465 D406 C466 C467 D408 C468 C469 C470 C471 IC401 IC402 IC403 T401 D451 Q552 Q553 D457 Q554 Q555 Q557 Q558 D462 L551 L552 L554 D660 IC451 P10 P11 P12 P2 P23 P5 P25 P27 P7 R550 P9 R551 R552 R553 R554 P30 R560 R563 R568 R569 R570 R572 R574 TPP1 R576 R577 R578 RL401 R579 RL402 RL403 R580 C548 C549 R587 R590 C555 C556 R592 C557 C558 R594 C559 R595 Q401 Q402 Q403 R597 R598 Q404 Q406 C560 C563 C564 C565 C566 C569 L401 C570 C571 C572 C573 C574 C575 C576 C577 C578 C579 C581 C585 T501 T502 C590 C591 Q451 Q452 Q453 Q454 Q455 Q456 Q457 D551 D552 Q650 Q651 D557 HOT LIVE CIRCUIT HOT HOT TNPA2841 1 P Vda Vsus COLD COLD COLD PFC DIP PMM3 PMM2 PMM1 PMM4 PbF 94V-0 1 2 3 1 2 3 4 5 1 2 3 4 5 A R K A R K 1 3 4 5 2 A R K A R K ORDER NO. C S D A R K 1 2 3 V4 V3 V2 V1 P1 PT P2 S1 S2 + - G D S B C E 1 8 9 16 1 5 1 7 1 5 1 6 1 3 1 11 1 8 1 9 1 4 1 3 V2 V1 P2 PTB PTA P1 S1 STA STB S2 S4 S3 V2 V1 V3 V4 P2 PT P1 S1 S2 S4 S3 S6 S5 S9 S7 S8 S D G S D G 34 TH-42PW6CH/CZ, TH-42PWD6CY P-BOARD PARTS LOCATION TH-42PW6CH/CZ, TH-42PWD6CY P-BOARD PARTS LOCATION P Parts Location P-BOARD (FOIL SIDE) IC IC401 G-4 IC402 H-5 IC403 H-5 IC451 F-3 IC550 F-4 IC551 B-3 IC552 D-2 IC553 D-5 IC554 E-6 IC555 G-5 IC557 D-5 IC558 C-6 TP008 H-1 TP009 H-1 TP50 H-6 TP61 H-5 TPP1 D-4 Q401 H-5 Q402 H-5 Q403 H-5 Q404 H-5 Q405 H-4 Q406 H-4 Q451 E-3 Q452 F-2 Q453 F-2 Q454 E-2 Q455 C-2 Q456 C-3 Q457 C-3 Q552 D-6 Q553 E-6 Q554 E-6 Q555 C-6 Q557 D-6 Q558 H-5 Q650 C-3 Q651 C-3 TRANSISTOR TP Parts Location P-BOARD (COMPONENT SIDE) IC IC401 C-4 IC402 B-5 IC403 B-5 IC451 D-3 IC550 D-4 IC551 H-3 IC552 F-3 IC553 F-5 IC554 E-6 IC555 C-5 IC557 F-5 IC558 G-6 TPP1 F-4 Q401 B-5 Q402 B-5 Q403 B-5 Q404 B-5 Q406 B-4 Q451 E-3 Q452 D-2 Q453 D-2 Q454 E-2 Q455 G-2 Q456 G-2 Q457 G-3 Q552 F-6 Q553 E-6 Q554 E-6 Q555 G-6 Q557 G-6 Q558 B-5 Q650 G-2 Q651 G-3 TRANSISTOR TP 35 13.3. H 电路板 (TH-42PW6CH) H1 CN3001 IC3003 H TNPA2953 1 1 3 SLOT 2 PbF ORDERNO. B1B2 A1 A2 A40 A39 B39 B40 1 10 19 26 18 9 8 5 4 1 R3030 R3031 R3032 R3033 R3034 S3010 R3035 S3011 R3036 S3012 R3037 S3013 R3038 S3014 R3039 R3040 R3041 R3042 R3043 R3044 R3045 R3046 R3047 R3048 R3049 R3050 R3051 R3052 R3053 R3054 R3055 R3056 R3057 R3058 R3059 R3060 R3061 R3062 JS3001 JS3002 JS3003 JS3004 JS3005 JS3006 JS3007 JS3008 JS3009 JS3010 JS3011 JS3012 JS3013 JS3014 JS3015 JS3016 JS3017 JS3018 JS3019 JS3020 JS3021 JS3022 JS3023 JS3024 JS3025 JS3026 JS3027 JS3028 JS3029 H0 H1 L3001 L3002 L3003 TP3001 TP3002 TP3003 TP3004 TP3005 TP3006 TP3007 CN3001 DL3001 DL3002 DL3003 DL3004 DL3005 DL3006 DL3007 C3001 C3002 C3003 C3004 C3005 Q3001 C3006 Q3002 Q3003 C3007 C3008 Q3004 C3009 Q3005 Q3006 C3010 C3011 C3012 C3013 C3014 C3015 C3016 C3017 C3018 C3019 C3020 C3021 C3022 C3023 C3024 D3001 C3025 D3002 C3026 D3003 C3027 D3004 C3028 D3005 C3029 R3001 D3006 R3002 D3007 R3003 D3008 R3004 D3009 R3005 R3006 R3007 C3030 R3008 C3031 R3009 IC3001 C3032 IC3002 C3033 IC3003 D3010 D3011 D3012 D3013 D3014 R3010 R3011 R3012 R3013 R3014 R3015 R3016 R3017 R3018 R3019 R3020 R3021 R3022 R3023 R3024 R3025 S3001 R3026 S3002 R3027 S3003 R3028 S3004 R3029 S3005 S3006 S3007 S3008 S3009 TNPA2953 1 H G B R HD VD SR SL PbF SEE REVERSE FOR ORDERNO. 1 8 A1 A2 B1 B2 A39 A40 B39 B40 1 9 10 19 26 18 NP NP NP 1 8 9 16 1 8 9 16 1 4 5 8 H H-BOARD(FOIL SIDE) TNPA2953 TH-42PW6CH H-BOARD TNPA2953 A B C D 1 2 3 4 5 6 H-BOARD(COMPONENT SIDE) TNPA2953 TH-42PW6CH H-BOARD TNPA2953 E F G H Parts Location H-BOARD IC IC3001 G-2 IC3002 F-3 IC3003 G-3 TP3001 E-4 TP3002 E-4 TP3003 E-4 TP3004 E-4 TP3005 F-4 TP3006 F-4 TP3007 F-4 TP Q3001 F-3 Q3002 F-3 Q3003 E-2 Q3004 E-2 Q3005 F-2 Q3006 E-2 TRANSISTOR 36 13.4. HV 电路板 (TH-42PW6CZ) R030 R032 C251 C252 R037 R039 R040 R041 R042 R043 R044 R045 R046 R047 R050 R051 R052 R053 R054 R055 R056 R057 R058 R059 R060 R063 Q101 Q102 Q104 C109 C112 C115 C119 C120 C121 R101 R102 R104 R106 R107 R108 C134 C135 R302 C136 C137 R303 R304 R307 R308 R114 R309 R115 R117 C140 R118 R119 R310 R311 R312 R120 R314 C149 L005 R315 L007 R125 R126 R127 R128 C150 R129 C151 C152 C153 C154 R130 R131 R132 R133 R134 R135 R136 C162 C167 R140 C168 R141 C169 C170 C171 C172 C173 C174 C175 C176 C177 C178 R151 R152 R153 R156 R157 C180 C181 R163 R164 R165 R169 R170 R171 R172 R173 JK001 R177 JK004 R178 JK005 R179 R180 R188 R192 R193 JS304 JS305 JS306 JS310 C001 Q002 C006 Q004 Q006 Q007 C202 C203 C204 C205 C206 C208 C015 C209 C016 C017 C210 C211 C212 C213 C214 C021 C022 D002 R003 R004 R006 R007 R008 R009 R012 R013 R017 R020 R026 R027 C053 C054 Q051 C055 Q052 C056 CR No.3 TNPA2844 1 HV R313 JK002 R319 1 2 3 H1 IC201 IC251 SLOT HB R053 C211 C212 C213 C214 Q051 94V-0 PbF C Y L R GR B R A1A2 A40 A39 B39 B40 ORDERNO. 1 35 36 70 1 28 29 56 R R031 R033 R034 R035 R036 C253 L303 R038 C254 L305 C255 C256 L306 C257 L307 C258 L308 C259 C260 C261 C262 C263 R048 C264 C265 R049 C266 R251 R252 R253 R254 R255 R061 R062 R064 R065 TS100 TS101 TS102 TS301 TS302 TS303 C102 C103 C104 C105 C106 C107 C108 C110 C111 C113 C114 C308 C309 C116 C117 C118 C311 C313 H0 C316 C122 C317 C123 C124 C318 C319 C125 C126 C127 C128 C129 C320 C321 C322 C323 C130 C324 D301 C131 C325 D302 C326 IC102 C132 D303 C327 C133 IC103 D304 IC104 C328 R300 IC105 C329 R301 C138 R305 C139 R112 R113 C330 IC301 R116 IC303 C141 C142 C143 C144 C145 L001 C146 L002 C147 L003 L004 C148 R121 L006 R122 R123 R124 L201 C155 C156 C157 C158 C159 R137 R138 C160 R139 C161 C163 C164 C165 C166 R142 R337 R143 R338 R144 R145 R146 R148 R149 C179 R154 R155 R158 R159 C182 C183 C184 C185 C186 C187 C188 R160 R161 R162 R166 R167 R168 L051 L052 R174 JK001 R175 R176 JK004 L251 JK005 L252 R181 R182 R183 R184 R185 R189 R194 R195 JS301 JS302 JS303 JS308 JS309 C002 C003 C004 Q001 C005 Q003 C007 C008 C009 Q005 X101 C010 C011 C012 C013 C207 C014 C018 C019 C020 C215 C216 C023 C217 C024 C218 C219 D001 Q023 R001 R002 R005 IC001 IC002 IC003 R010 R011 R208 R014 R015 R016 R018 R019 R021 R022 R023 R024 R025 R028 R029 L102 C052 L103 L104 L105 L106 TNPA2844 1 CR No.3 HV GND VD HD G B R IC302 IC101 H1 JK002 IC305 IC304 IC699 HB R031 L303 C255 C264 R065 C104 C106 C107 C108 C110 C111 C113 C114 C116 C117 C313 IC102 R305 R121 R122 R123 R124 C159 R137 R138 C164 R142 R143 JS302 C004 C011 C012 C013 C014 C023 D001 IC003 R014 R022 R029 C051 L103 C301 94V-0 PbF 1 8 1 64 65 128 129 192 193 256 1 3 4 5 1 4 5 1 2 3 4 1 3 2 5 1 6 7 12 C Y L R GR B R NP NP NP NP 4 5 8 1 3 4 5 1 3 4 5 1 5 1 5 A1 A2 B1 B2 A39 A40 B39 B40 SEE REVERSE FOR ORDERNO. 1 8 9 16 1 4 5 8 1 4 5 8 1 64 65 192 1 2 3 4 1 3 2 5 L 1 1 3 4 5 1 9 5 8 HV HV-BOARD(FOIL SIDE) TNPA2844 TH-42PW6CZ HV-BOARD TNPA2844 A B C D 1 2 3 4 5 6 HV-BOARD(COMPONENT SIDE) TNPA2844 TH-42PW6CZ HV-BOARD TNPA2844 E F G H Parts Location HV-BOARD IC IC3001 F-2 IC3002 E-2 IC3003 F-2 IC3101 E-3 IC3102 F-2 IC3103 F-3 IC3104 E-2 IC3105 G-3 IC3201 A-3 IC3251 B-4 IC3301 G-3 IC3302 E-4 IC3303 G-3 IC3304 G-2 IC3305 G-2 IC3699 G-2 Q3001 F-2 Q3002 B-2 Q3003 E-2 Q3004 B-2 Q3005 E-2 Q3006 B-2 Q3007 C-2 Q3051 B-2 Q3052 A-2 Q3101 B-2 Q3102 C-2 Q3104 B-2 TRANSISTOR 37 13.5. HX 电路板 A B C D E F G H I 1 2 3 4 5 6 HX-BOARD(FOIL SIDE) TZTNP020QBS HX-BOARD(COMPONENT SIDE) TZTNP020QBS TH-42PW6CH/CZ, TH-42PWD6CY HX-BOARD TZTNP020QBS TH-42PW6CH/CZ, TH-42PWD6CY HX-BOARD TZTNP020QBS HX JK509 JK511 JK513 CR NO.3 TNPA2842 HX 1 PbF 1 5 6 9 1 5 6 10 11 15 SEE REVERSE FOR ORDER NO. L507 L508 L509 L510 L511 L512 L513 L514 L515 L516 L517 L526 R653 R654 R655 R656 R663 R664 R668 L555 R672 JK509 JK511 JK513 C523 C524 D501 D502 D503 D504 D505 D506 D507 D508 D509 R508 R509 IC502 D510 Q531 Q532 Q533 R510 Q534 R511 Q535 Q536 Q537 R526 R527 R528 C550 R529 C551 R530 R537 R538 C561 C562 C563 C564 C565 C566 C567 R547 R548 R776 R777 R778 R585 R586 R589 R780 R781 R782 R783 R590 R784 R591 R785 R592 R786 R593 R787 R788 R789 R790 HX1 R791 R792 R794 C404 C405 C409 R400 TNPA2842 CR NO.3 A B B C C 1 D D E E A HX PbF 1 5 6 9 1 5 ORDER NO. 1 4 5 8 1 11 12 22 Parts Location HX-BOARD IC IC3502 E-4 Q3531 D-4 Q3532 D-4 Q3533 E-4 Q3534 E-4 Q3535 E-4 Q3536 E-4 Q3537 F-4 TRANSISTOR 38 13.6. HY 电路板 (TH-42PWD6CY) A B C D E F G H I 1 2 3 4 5 6 HY-BOARD(FOIL SIDE) TNPA2843 TH-42PWD6CY HY-BOARD TNPA2843 TH-42PWD6CY HY-BOARD TNPA2843 HY R418 R032 C251 C252 R039 R040 R042 R044 R045 R046 R047 R051 R052 R053 R054 R055 R056 R057 R058 R059 R060 R063 IC251 JK303 JK304 Q101 Q102 Q104 C109 C112 C115 C119 C312 C120 H1 C121 H2 R101 R102 R103 R104 R105 R106 R107 R108 D301 D302 D303 D304 C134 IC105 C135 C136 C137 R114 R308 R115 R309 R117 R118 C140 R119 R310 R311 R312 R313 R314 R315 L005 C149 R316 R317 L007 R318 IC311 R125 R126 R127 C150 R128 C151 R129 C152 C153 C154 R130 R131 R132 R133 R134 R135 R136 C162 C167 R334 C168 R140 C169 R141 R148 C170 C171 C172 C173 C174 C175 C176 C177 C178 R151 R152 R153 R156 R157 C180 C181 C188 R163 R164 R165 R169 R170 R171 R172 R173 JK001 JK002 R177 R178 JK004 R179 R180 R188 R190 R191 JS304 JS305 JS306 JS310 JS311 JS312 C001 C006 Q004 Q007 C202 C203 C204 C205 C206 C208 C209 C015 C016 C017 C018 C402 C210 C211 Q401 C212 Q402 C213 Q403 C214 C021 C022 D002 R003 R004 R006 R007 R008 R009 R201 R202 R203 R204 R205 R206 R207 IC201 R408 R026 R027 R411 C053 C054 R414 C055 Q051 R415 C056 Q052 R416 R417 Y PB PR HD VD CR No.3 HY 1 TNPA2843 1 3 2 T LO S PbF 1 28 29 56 L R ORDER NO. B1 B2 A1 A2 A40 A39 B39 B40 B1 B2 A1 A2 A40 A39 B39 B40 1 4 5 8 1 4 5 8 C Y L R 1 35 36 70 Parts Location HY-BOARD (FOIL SIDE) IC IC3105 B-3 IC3201 A-3 IC3251 B-4 IC3311 A-3 Q3004 B-2 Q3007 D-3 Q3051 A-2 Q3052 A-2 Q3101 C-3 Q3102 C-3 Q3104 B-2 Q3401 C-2 Q3402 C-3 Q3403 B-3 TRANSISTOR 39 A B C D E F G H I 1 2 3 4 5 6 HY-BOARD(COMPONENT SIDE) TNPA2843 TH-42PWD6CY HY-BOARD TNPA2843 TH-42PWD6CY HY-BOARD TNPA2843 HY L108 R031 R033 R034 R035 R036 L303 C253 C254 R038 C255 L305 L306 C256 L307 C257 L308 C258 C259 C260 C261 C262 C263 C264 R048 R049 C265 C266 R050 R251 R252 R253 R061 R062 R065 L525 L526 L527 L528 L529 L530 L531 L532 L533 L534 JK303 JK304 TS100 TS101 TS102 TS301 TS302 TS303 IC699 C101 C102 C103 C104 C105 C106 Q103 C107 C108 C110 C111 C113 C308 C114 C309 C116 C117 C118 C501 C502 C503 C504 C311 Q501 C505 Q502 C506 C313 Q503 C507 H0 Q504 C508 H1 C315 Q505 C509 H2 C122 C316 Q506 C123 C317 Q507 C318 C124 Q508 C125 C319 C126 C127 C128 C510 C129 C511 C512 C513 C320 C514 C321 C515 C322 C516 C323 C517 C324 C130 C518 IC101 C325 C131 C519 C132 IC102 C326 IC103 C133 C327 R300 C328 IC104 R301 C329 R302 R303 C138 R304 C520 C139 R305 C521 R112 R306 C522 R113 R307 C523 C330 C524 C331 IC301 C525 IC302 C332 R116 C526 C333 IC303 C527 C528 C529 C141 IC305 R501 C142 R502 C143 R503 C144 R504 L001 C145 R505 L002 C146 R506 L003 C147 R507 C530 R120 C148 L004 R508 R121 R509 R122 L006 R123 IC503 R124 IC505 IC506 R510 L201 R511 R512 R513 R514 C155 R515 C156 R516 C157 R517 C158 R518 C159 R519 R137 C160 R138 R520 C161 R139 R521 R522 C163 R523 C164 R524 C165 R525 C166 R526 R527 R528 R335 R529 R336 R142 R143 R337 R144 R338 R145 R530 R149 R531 R532 R533 R534 R535 R536 R537 R150 R538 C179 R539 R154 R155 R158 R159 R541 D351 C182 D352 C183 C184 R544 C185 R545 C186 R546 C187 R547 R160 R548 R161 R549 R162 R166 R167 R168 R550 R551 R552 L051 R555 L052 R556 R557 R558 R559 R174 R175 JK001 R176 JK002 JK004 R560 L251 R561 L252 R562 R563 R564 R565 R566 R567 R568 R181 R182 R183 R184 R185 R189 TS001 TS002 TS003 TS004 TS005 JS301 JS302 JS303 JS307 JS308 JS309 JS501 JS502 JS503 JS504 JS505 JS506 JS507 JS508 JS509 JS510 C002 C003 C004 C005 C007 Q005 C009 X101 C010 C011 C012 C207 C013 C014 C019 C401 C020 C215 C216 C217 C218 D001 C219 Q023 R001 R002 R005 R010 R011 R012 R013 R014 R015 R401 R402 R403 R404 R405 R406 R407 IC401 R409 R410 L101 C051 C052 L102 R412 L103 R413 L104 L105 L106 L107 TNPA2843 1 CR No.3 HY Y PB PR HD VD PB PR Y L R A A B B C C PbF L R SEE REVERSE FOR ORDER NO. 1 4 5 8 NP NP NP 1 8 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 1 5 1 64 65 128 129 192 193 256 1 3 4 5 NP 1 2 3 4 1 5 NP NP 1 3 2 5 1 8 9 16 1 6 7 12 1 4 5 8 1 4 5 8 1 4 5 8 C Y L R NP NP NP NP 1 8 9 16 Parts Location HY-BOARD (COMPONENT SIDE) IC IC3101 D-4 IC3102 E-3 IC3103 E-3 IC3104 D-3 IC3301 F-3 IC3302 D-4 IC3303 G-4 IC3305 F-3 IC3401 E-2 IC3503 C-5 IC3505 B-3 IC3506 B-3 IC3699 F-2 Q3005 D-3 Q3023 D-2 Q3103 E-3 Q3501 C-3 Q3502 C-3 Q3503 D-3 Q3504 D-3 Q3505 C-3 Q3506 C-3 Q3507 C-2 Q3508 C-3 TRANSISTOR TS001 A-5 TS002 B-5 TS003 B-5 TS004 B-6 TS005 B-7 TS100 G-4 TS101 G-4 TS102 G-4 TS301 E-5 TS302 E-5 TS303 E-5 TP 40 13.7. HZ 电路板 (TH-42PW6CZ) HZ H1 JK001 JK002 IC002 CR NO.3 TNPA2952 Pr Pb Y HZ 1 1 2 3 SLOT PbF ORDER NO. B1 B2 A1 A2 A40 A39 B39 B40 GR B R L R 8 5 4 1 R030 R031 R032 R033 R034 R035 R036 R037 R038 R039 R040 R041 R042 R043 R044 R045 R046 R047 R048 JS001 JS002 JS003 JS004 JS005 JS006 JS007 JS008 JS009 JS010 JS011 JS012 JS013 JS014 JS015 JS016 H0 H1 L001 L002 L003 L004 L005 L006 L007 JK001 JK002 TP032 TP033 TP034 TP035 TP036 C001 C002 C003 C004 Q001 C005 Q002 C006 C007 C008 C009 C010 C011 C012 C013 C014 C015 C016 C017 C018 C019 C020 C021 C022 C023 C024 C025 D001 C026 D002 D003 D004 R001 R002 R003 R004 R005 R006 R007 R008 IC001 R009 IC002 R010 R011 R012 R013 R014 R015 R016 R017 R018 R019 R020 R021 R022 R023 R024 R025 R026 R027 R028 R029 TNPA2952 CR NO.3 Pb Pr Y R L Y Pb Pr HZ 1 PbF SEE REVERSEFOR ORDERNO. 1 8 A1 A2 B1 B2 A39 A40 B39 B40 GR B R L R NP NP NP 1 8 9 16 1 4 5 8 HZ-BOARD(FOIL SIDE) NPA2952 TH-42PW6CZ HZ-BOARD TNPA2952 A B C D 1 2 3 4 5 6 HZ-BOARD(COMPONENT SIDE) TNPA2952 TH-42PW6CZ HZ-BOARD TNPA2952 E F G H Parts Location HZ-BOARD IC IC3001 F-3 IC3002 G-3 TP032 E-4 TP033 F-4 TP034 F-4 TP035 F-4 TP036 F-4 TP Q3001 F-2 Q3002 G-2 TRANSISTOR 41 13.8. J 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY J-BOARD TNPA2826 TH-42PW6CH/CZ, TH-42PWD6CY J-BOARD TNPA2826 J-BOARD (FOIL SIDE) TNPA2826 J Parts Location J-BOARD (FOIL SIDE) IC IC8003 I-2 IC8004 F-2 Q3001 G-3 Q3002 D-2 Q3003 D-2 Q3101 H-2 Q3102 H-2 Q3103 H-1 Q3104 H-2 Q3105 H-2 Q3106 H-2 Q8001 G-2 Q8002 I-2 TRANSISTOR R8044 R8045 R8046 C8070 R8048 R3034 C3251 R8049 R3035 C8072 R3036 C3252 C8073 C3253 R3039 C3255 R3230 R8050 R8051 R3040 R8054 R3041 R8055 R8056 R8057 C3260 R3044 R8058 C3261 R3045 R8059 R3046 R3047 R3048 R3049 R8060 R8061 R8062 R8063 R8064 R8065 R3051 R8066 R3052 R8067 R8068 R3055 R8069 R3056 R3057 R3058 R3059 R8070 R3251 R8072 R3252 R3253 R3254 R3255 R3256 R8077 R3257 R3063 R8078 R8079 R8080 R3260 R8081 R3261 R8082 R3262 R8091 R8093 R8097 R8098 R3084 R8099 R3085 R3099 R3297 R3298 R3299 C3104 Q3101 C3105 Q3102 C3106 Q3103 Q3104 C3108 Q3105 Q3106 ZA3001 ZA3002 ZA3003 ZA3004 ZA3005 ZA3006 ZA3007 C3113 ZA3008 R8100 C3114 R3100 R3101 R3102 R3103 R3104 R3105 R3106 R3107 R3108 R3109 R3110 C1004 R3111 R3112 R3113 R3114 R3117 R3118 JS8090 JS8091 JS8092 JS8093 JS8096 R3128 R3129 R3130 R3131 R3132 R3133 R1003 R3145 J11 R3146 J12 J13 J14 R3160 R3161 R3188 R3189 R3190 R3195 R3196 R3197 R3198 R3199 R951 Q8001 Q8002 C8013 C8014 C3002 C3003 Q3001 C3005 C8019 C3006 Q3002 Q3003 C8020 C8021 C8022 C8023 C8024 C3205 C8025 D8001 C3012 C8026 D8002 D8003 C8027 C3013 C3014 C8028 D8004 R8001 C3015 R8002 C3016 R8003 C3017 R8004 R8009 IC8003 IC8004 C8036 C8037 R8010 R8011 D3001 R8012 D3004 R3001 R3002 R8017 R3003 R8018 R3005 C8041 R3006 C8042 R3007 C8043 R3008 R3009 D3010 R3200 D3011 R3201 D3012 R3202 D3013 R3203 D3014 R3204 R3010 D3015 R8025 R3011 R3012 R8026 R3013 R8027 R8028 R3014 R8029 R8030 R8031 R8032 R8033 R8034 R8035 R3022 R8036 C8060 C8061 R3025 C8062 C8063 C8064 R3028 C8065 R3029 R8041 R8042 R8043 TNPA2826 1 J 1 2 3 PbF SEE REVERSE FOR ORDERNO. A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 1 11 12 22 1 10 11 20 1 10 11 20 42 R3030 R3031 R3032 R3033 R8047 C8071 R3037 C3254 R3038 C3256 C3257 C3258 R3231 C3259 R3232 R8052 R3233 R8053 R3234 R3235 R3042 R3043 C3262 C3263 C3264 C3265 C3266 C3267 C3268 R3050 R3053 R3054 R8071 L1001 R3060 R3061 IC951 IC952 R3064 R3258 IC3251 R3259 R3065 R3066 R3067 R3068 R3069 R8083 R3070 R8084 R8085 R3071 R3072 R3073 R8087 R3074 R8088 R8089 R3075 R3076 R3077 R3078 TPJV1 R3079 TPJV2 R8090 R8094 R3080 R8095 R3081 R8096 R3082 R3083 R3086 R3087 R3088 R3089 X9350 R3090 R3091 R3092 R3093 R3094 R3095 R3096 R3097 R3098 C3107 C3109 ZA3001 ZA3002 ZA3003 ZA3004 C3110 ZA3005 C3111 ZA3006 C3112 ZA3007 ZA3008 C3115 C3116 C3117 C3118 L8001 L8002 L8003 L8004 C3134 L8005 C3135 C1001 L8006 C3136 C1002 L8007 C1003 C1004 IC3108 IC3109 R3115 R3116 C3141 C3142 J3 C3143 C3144 J5 L3001 J6 L3002 L3003 JS8094 J8 R3120 JS8095 L3005 R3121 L3006 R3122 JS8097 R3123 JS8098 R3124 JS8099 R3125 R3126 R3127 D1001 R1001 R1002 IC1001 R3140 R3141 R3142 R3143 J10 J11 J12 J13 J14 L951 L952 L953 R3150 L954 R3151 L955 R3152 L956 R3153 L957 L958 L959 L960 L3050 R3170 R3172 TPJH1 TPJH2 R3191 R3192 R3193 R3194 R952 C8001 C8002 C8003 C8004 C8005 C8006 C8007 C8008 C8009 C8010 C8011 C8012 Q8010 Q8011 C3001 C8015 Q8012 C8016 Q8013 C8017 C3004 C8018 C3007 C3008 C3009 C951 C952 C953 C3200 C954 C3201 C955 C3202 C956 C3203 C957 C3204 C958 C3010 C959 C3011 Q3010 D8005 Q3011 C8029 D8006 D8007 D8008 C960 C3018 C3019 C961 R8005 C962 R8006 R8007 C963 C8030 R8008 C964 C965 IC8001 C8031 C966 C8032 IC8002 C8033 IC8003 C967 D8010 C3020 C8034 IC8004 C968 D8011 C969 C8035 C3021 IC8005 IC8006 C3022 IC8007 C3023 IC8008 C8038 C3024 IC8009 C3025 C8039 C3026 R8013 C3027 D3003 R8014 C970 C3028 C971 R8015 C3029 R8016 C972 C8040 R3004 R8019 C8044 C3030 IC8015 C8045 IC3001 C3031 IC8016 C3032 C8046 IC3002 IC3003 C8047 IC3004 R8020 C8048 C8049 R8021 IC3005 IC3006 R8022 IC3007 R8023 R8024 IC8020 C8050 IC8021 IC3201 C8051 R3015 R3016 R3017 C3040 R3018 C3041 R3019 R3210 R3211 D3021 R3212 D3022 R3213 D3023 D3024 R3214 R3020 R3215 R3021 R3216 R3217 R8037 R3023 R3218 R8038 R3024 R3219 R8039 R3026 R3027 C8066 C8067 R8040 TNPA2826 1 J PbF 1 14 15 28 7 8 21 22 ORDERNO. 1 2 39 40 1 3 1 1 21 1 2 19 20 1 4 5 8 1 6 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 1 1 1 12 22 1 8 9 16 1 8 9 16 20 11 10 1 20 11 10 1 1 7 8 14 1 7 8 14 1 4 5 8 1 4 5 8 1 4 5 8 NP NP 1 8 9 16 1 8 9 16 1 7 8 14 1 8 9 16 1 8 9 16 1 8 9 16 1 19 20 32 33 51 52 64 1 8 9 16 1 4 5 8 1 14 15 28 7 8 21 22 J-BOARD(COMPONENT SIDE) TNPA2826 TH-42PW6CH/CZ, TH-42PWD6CY J-BOARD TNPA2826 TH-42PW6CH/CZ, TH-42PWD6CY J-BOARD TNPA2826 A B C D E F G H I 1 2 3 4 5 6 Parts Location J-BOARD (COMPONENT SIDE) IC IC1001 F-2 IC3001 F-2 IC3002 D-2 IC3003 D-2 IC3004 D-3 IC3005 C-2 IC3006 D-2 IC3007 E-1 IC3108 B-2 IC3109 B-1 IC3201 B-2 IC3251 B-2 IC8001 A-3 IC8002 D-3 IC8003 A-2 IC8004 D-2 IC8005 A-2 IC8006 D-2 IC8007 A-1 IC8008 C-2 IC8009 C-2 IC8015 H-1 IC8016 E-2 IC8020 A-2 IC8021 D-2 IC951 F-3 IC952 F-3 Q3010 E-3 Q3011 E-3 Q8010 E-2 Q8011 E-2 Q8012 E-2 Q8013 E-2 TRANSISTOR TPJH1 A-2 TPJH2 D-2 TPJV1 A-2 TPJV2 D-2 TP J 43 13.9. D 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ D-BOARD TZTNP01SFSC TH-42PWD6CY D-BOARD TZTNP01QBSC TH-42PW6CH/CZ D-BOARD TZTNP01SFSC TH-42PWD6CY D-BOARD TZTNP01QBSC D-BOARD(FOIL SIDE) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) D C202 C203 C011 C012 C013 C014 C015 C016 C017 C018 C019 C020 C021 C022 C023 C024 C601 D001 C602 C026 C603 C027 D003 C604 C028 C029 Q601 Q602 R002 R003 C030 IC001 C031 C032 IC003 C033 IC004 C034 C035 R202 C036 IC006 C613 C037 IC007 IC008 R204 C038 R205 C039 R206 R207 R013 R208 R015 R016 R018 IC010 C040 R019 IC012 C042 IC013 C043 IC016 IC017 IC018 C048 R020 C049 C626 R022 C627 R217 R023 R218 R600 R024 R601 R602 R603 R604 C050 R028 R410 R029 C051 C052 IC023 C053 R608 R220 C054 R609 IC601 R221 IC602 C056 R416 IC603 C057 R800 IC604 R030 R418 C058 R801 R419 C059 R802 R032 IC606 C636 R803 R033 C637 R227 R610 R804 IC608 C638 R228 R611 R805 R229 R612 R806 R613 R614 C060 R615 R809 C061 C449 C062 R617 C640 R618 R230 R231 C641 R619 R233 C067 R234 C068 C450 R041 C069 C451 R236 C452 C453 R814 R044 R620 C454 R621 C455 R815 R622 R046 R623 C070 R048 R624 C071 R049 R819 C072 C073 R240 C074 R629 C075 C076 R243 C077 C078 R050 R820 C079 R051 R821 R246 R052 R822 R247 R053 C463 R823 R054 R824 R055 R825 R632 R056 R826 R827 R634 C080 R828 C081 R829 C083 C084 C086 C087 C088 R060 C470 R830 R831 C089 R061 R449 R062 R063 C473 R064 R640 C474 R834 R641 C475 R835 C476 R836 R643 C477 C090 C478 R838 C091 R451 C479 R839 C092 R452 C093 C094 R649 C096 C097 C098 C480 R840 IC451 C481 R841 C482 R842 C483 R650 C484 R651 C485 R652 C486 R653 C487 R848 C488 R460 R655 R461 C489 R849 R656 R657 R658 R659 R467 C490 R850 C491 C492 R852 R853 R660 R661 R662 R663 R664 R665 R666 R667 R668 R669 R475 R477 R478 R479 R862 R866 R673 R674 R676 R482 R677 R483 R678 R484 R679 R485 R486 R487 R488 R870 R489 R871 R680 R683 R490 L951 R491 R879 L952 L953 L954 R689 R881 R690 R884 R691 R885 R692 R693 R694 R695 R696 R697 R698 R699 R897 R898 C100 C101 C106 C107 C108 C109 C110 C111 C112 C114 C120 C121 C123 C700 C124 C125 Q701 C706 Q703 Q704 R104 R105 R106 Q707 R107 R108 Q709 C711 C714 R110 C715 R111 C716 R306 C717 R113 R114 Q714 C719 R115 Q715 Q716 R117 R118 Q719 R119 L001 L002 C146 L003 C147 C724 C148 R120 R509 C149 C726 C727 R700 C728 D704 R124 L008 D705 C729 R125 L009 D706 R126 D707 D708 D709 R707 C153 R708 C154 C730 L010 R709 C731 IC702 C156 R322 C733 IC703 C157 D710 IC704 C734 R130 C158 R900 C735 IC705 R131 D711 C159 R901 R132 D712 IC706 R133 D713 C737 IC707 R903 R710 R134 IC708 R904 R711 D715 R135 C739 R905 R712 R906 R713 R907 R714 D718 C160 R908 R715 C161 R909 D719 R716 C162 R717 C163 R718 C164 R330 C740 IC710 R719 IC711 C741 C165 C166 C167 C743 C168 C744 R910 D720 D721 X451 R911 C745 D722 X452 C746 R913 D723 C747 R720 C748 R914 R721 R915 R339 R722 R723 R917 D727 R724 C170 R918 D729 R725 R919 R532 C172 R726 R727 C173 R728 C750 R340 R535 R729 C176 R537 R344 R538 D730 C178 C754 R151 C179 C755 R921 R152 C756 R153 C757 R923 R730 R154 C758 R731 R155 C759 R925 R157 R734 R928 C180 R735 R541 R929 IC152 R736 R737 C954 R738 C760 R739 C955 C185 IC156 R352 C957 R547 C187 IC157 C763 R930 C189 R355 R931 C766 R356 R932 R933 C767 C768 R934 R935 C769 R166 R936 R167 R937 R744 R168 C960 C961 C191 R169 R939 R746 C192 R553 C193 C195 R362 C198 R940 R364 C199 R941 R942 R945 R946 R177 R948 R949 R179 R563 R564 R758 R565 R566 D952 R372 R567 D953 R373 R568 R180 R569 R951 R952 R953 R954 R955 R761 R956 L452 R957 R570 R958 R764 C598 R571 IC951 C599 R959 D769 R572 Q596 R573 Q597 R574 Q598 R575 Q599 R576 R577 R578 R960 R579 R961 D771 R962 R964 R770 R197 R580 R198 R581 R582 R583 R584 R585 R586 R587 R588 R589 R973 R975 R783 R590 R784 R592 R593 R594 R595 R789 R596 R597 R598 R599 R790 R985 R791 R793 R989 R797 R798 R799 R994 R996R997 C001 C002 C003 C004 C005 C006 5 1 D 1 CR NO.9 TNPA2825 1 2 3 PbF 1 3 4 5 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 5 1 28 29 56 1 3 4 5 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 5 1 28 29 56 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 3 4 5 1 20 21 40 41 60 61 80 SEE REVERSE FOR ORDERNO. 1 10 11 20 1 4 5 8 1 10 11 20 1 20 21 40 1 22 23 44 1 10 11 20 1 3 4 5 1 4 5 8 1 4 5 8 1 4 5 8 1 3 4 5 1 4 5 8 1 7 8 14 + Parts Location D-BOARD (FOIL SIDE) IC IC9001 D-2 IC9003 D-3 IC9004 D-3 IC9006 D-2 IC9007 D-1 IC9008 D-3 IC9010 E-1 IC9012 D-2 IC9013 D-2 IC9016 C-2 IC9017 E-1 IC9018 D-2 IC9023 E-2 IC9152 E-4 IC9156 C-4 IC9157 C-4 IC9451 B-4 IC9601 D-5 IC9602 D-5 Q9596 A-1 Q9597 A-2 Q9598 C-1 Q9599 C-1 Q9601 D-5 Q9602 D-5 Q9701 E-4 Q9703 F-3 Q9704 F-2 Q9707 E-5 Q9709 C-5 Q9714 B-4 Q9715 B-5 Q9716 B-5 Q9719 F-2 IC9603 D-5 IC9604 D-5 IC9606 C-5 IC9608 D-3 IC9702 F-5 IC9703 D-4 IC9704 E-5 IC9705 E-6 IC9706 C-5 IC9707 B-6 IC9708 B-6 IC9710 B-6 IC9711 F-2 IC9951 E-4 TRANSISTOR 44 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ D-BOARD TZTNP01SFSC TH-42PWD6CY D-BOARD TZTNP01QBSC TH-42PW6CH/CZ D-BOARD TZTNP01SFSC TH-42PWD6CY D-BOARD TZTNP01QBSC D-BOARD(COMPONENT SIDE) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) D C200 C010 C205 C206 C207 C400 X302 Q400 C025 C605 R001 C606 C607 R004 C608 C609 R005 R006 R007 R008 X701 R009 IC002 X702 X703 C610 R200 C611 R201 IC005 C612 R203 C614 R010 C615 R011 IC009 R012 C616 C617 C618 R014 C619 R017 IC011 C041 C620 R210 C044 C621 IC015 C045 C622 C046 C623 C047 C624 C625 IC019 R216 C628 C629 R219 R025 R026 R027 R605 R411 R606 R607 R413 C630 R414 R415 C631 C055 C632 R222 R223 C633 R417 R224 C634 IC605 R031 C635 R225 R226 IC607 R034 R035 C639 X151 R036 R037 R807 R038 R420 R808 R039 R616 C063 C064 C065 R232 C066 R810 R040 R811 R812 C646 R042 R813 C647 R043 R045 R239 C456 R816 R047 C457 R817 C458 R818 C459 R625 R626 R627 R628 L701 R242 R244 C460 R245 C461 C462 R630 C464 R248 C465 R631 C466 R633 R057 C467 R058 C468 R635 R059 C469 R636 C082 R637 R638 R445 R639 R446 R447 R448 C471 C472 R832 R833 R642 R837 R644 R450 R645 R646 R647 R648 C095 R455 D3 R457 D4 R458 D5 C099 R459 D6 IC452 IC453 R843 IC454 R844 IC455 R845 IC456 R846 R847 R654 IC459 R462 R463 R464 R465 L155 R466 R468 R469 R851 TP0887 C493 C494 TP0889 C495 R855 C496 R856 R857 R858 R859 R472 R473 R474 R476 R860 R861 R863 R670 R864 R671 R865 R672 R867 R480 R868 R675 R481 R869 R872 R873 R874 R681 R875 R682 R876 R877 R684 R878 R685 R686 R687 R688 L955 L956 R880 R882 R883 R886 R887 R889 R890 R893 R894 R895 R896 D10 D12 C102 C103 C104 C105 D20 C301 D22 C302 C303 C304 D25 C305 Q301 C306 D27 C113 C307 C308 C309 C310 D31 C311 D32 C312 C313 C314 C315 C316 C122 C701 C702 C703 C705 Q702 C707 C708 C709 Q706 Q708 R109 C710 R301 C712 R302 C713 R303 Q710 R112 R308 C718 IC301 IC302 IC303 R500 R501 R502 R503 C720 R310 R311 R505 R506 C722 C723 C725 R121 R315 R122 R701 R702 R703 R127 R704 C150 R128 R705 R129 C151 R706 C152 R513 R514 IC701 R515 C155 C732 IC709 D716 D717 R525 IC712 R526 C742 R333 R528 L601 R335 C169 R336 R337 X453 D724 C749 R916 R530 D728 R531 D150 C174 C175 C751 C752 C753 R343 R920 R922 R924 R349 R732 R926 R733 R927 R540 C951 C181 IC151 C182 C952 IC153 C953 C183 C184 IC155 C761 C956 C186 C762 R353 C958 R548 C764 C959 C765 R357 R164 R741 R165 R742 R743 C190 R745 R551 C962 R747 R748 C964 C194 R749 C771 C965 C772 C196 C966 R557 C773 C197 C967 C774 R558 R170 C968 C775 R559 R365 C969 R171 R172 R366 R173 R367 R943 R750 R368 R944 R751 R752 R176 R753 R947 R754 R560 C970 R178 R561 R755 C971 R756 R562 R757 R370 R759 R371 R950 D954 D955 R181 R182 R376 R183 R760 R762 R763 R187 R765 R766 IC952 R767 R768 R380 R769 L459 R190 R192 R963 R771 R965 R772 R966 R773 R967 R774 R968 R775 R969 R199 R776 R777 R778 R779 R970 R971 R972 R780 R781 R782 R591 R785 R786 R787 R788 R984 R986 R792 R987 R988 R794 R795 R796 R990 R991 R992 R993 R995 R998 Q001 Q002 C007 C008 C009 CR NO.9 TNPA2825 Thermal pad TP HDM TP VDM D 1 PbF 1 28 29 56 1 28 29 56 1 20 21 40 41 60 61 80 1 28 29 56 1 28 29 56 1 20 21 40 41 60 61 80 1 52 53 104 105 156 157 208 8 5 4 1 ORDERNO. 1 2 39 40 1 12 1 31 1 21 1 4 5 8 1 5 1 30 31 50 51 80 100 81 A B C D EF G H J K L M N P R T U V W Y AA AB AC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 24 25 48 1 28 29 56 1 12 1 7 1 2 19 20 1 11 1 8 1 9 1 5 0 1 50 1 4 5 8 1 3 4 5 1 8 9 16 1 40 41 80 81 120 121 160 1 16 17 32 33 48 49 64 1 4 5 8 A B C D E F G H J K L M N P R T U V W YAAABAC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 3 4 5 1 43 44 86 1 8 9 16 Parts Location D-BOARD (COMPONENT SIDE) IC IC9002 B-3 IC9005 C-3 IC9009 C-2 IC9011 B-2 IC9015 C-2 IC9019 C-2 IC9151 C-4 IC9153 D-4 IC9155 C-3 IC9301 D-4 IC9302 D-4 IC9303 D-5 IC9452 D-4 IC9453 E-2 IC9454 E-3 IC9455 E-3 IC9456 E-5 IC9459 F-5 IC9605 C-5 IC9607 D-5 IC9701 B-5 IC9709 E-5 IC9712 B-6 IC9952 B-3 TP HDM D-3 TP VDM D-3 TP0887 D-3 TP0889 D-3 Q9001 C-3 Q9002 C-2 Q9301 D-5 Q9400 F-5 Q9702 B-4 Q9706 A-4 Q9708 E-6 Q9710 A-5 TRANSISTOR TP 45 13.10.C1 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY C1-BOARD TNPA2869 TH-42PW6CH/CZ, TH-42PWD6CY C1-BOARD TNPA2869 C1-BOARD(FOIL SIDE) TNPA2869 C1-BOARD(COMPONENT SIDE) TNPA2869 C1 C7101 C7102 C7103 C7104 C7105 C7107 C7111 C7112 C7113 C7114 C7115 C7116 C7125 C7126 C7127 C7128 C7129 R7105 C7130 IC7101 IC7103 IC7104 IC7105 IC7106 R7111 R7112 R7113 R7114 R7115 R7116 R7117 R7118 R7119 C7142 C7143 C7144 C7145 C7146 C7147 R7120 C7148 R7121 C7149 R7126 R7127 R7128 C7150 C7151 C7152 C7153 C7154 C7155 C7156 C7157 C7158 R7130 C7159 R7131 R7132 R7136 C7160 C7161 R7142 R7143 R7144 R7145 R7146 R7147 R7148 R7149 R7150 R7151 R7152 R7153 R7154 R7155 R7156 R7157 R7158 R7159 R7160 R7161 R7162 R7163 R7164 R7165 R7166 R7167 R7168 R7169 R7170 R7171 R7172 R7173 R7175 R7176 R7177 R7178 R7179 R7181 R7182 R7185 R7186 R7187 R7188 R7189 R7190 R7191 R7192 R7193 CB1 CB2 CB3 L7106 C11 C12 TNPA2869 1 C1 C1MM1 C1MM2 C1MM3 PbF 1 10 11 20 1 5 1 10 11 20 1 10 11 20 1 10 11 20 ORDER NO. A1 B1 A40 B40 A1 B1 A40 B40 A1 B1 A40 B40 1 50 1 20 1 2 3 TNPA2869 1 C1 SEE REVERSE FOR ORDERNO. 46 13.11.C2 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY C2-BOARD TNPA2870 TH-42PW6CH/CZ, TH-42PWD6CY C2-BOARD TNPA2870 C2-BOARD(FOIL SIDE) TNPA2870 C2-BOARD(COMPONENT SIDE) TNPA2870 C2 R7298 C21 R7299 C22 C23 C24 R7300 R7301 R7302 R7303 R7304 R7305 R7306 R7307 R7308 R7309 R7310 R7311 L7207 L7208 L7209 CB4 CB5 CB6 CB7 C7201 C7202 C7203 C7204 Q7201 Q7202 C7206 C7207 C7210 C7211 C7212 C7406 C7213 C7214 C7217 C7218 C7219 C7220 D7201 C7225 D7202 C7226 D7203 C7227 D7204 C7228 C7229 R7205 C7230 IC7201 C7231 C7232 IC7202 IC7203 IC7204 C7235 C7236 C7237 C7238 R7211 C7239 R7212 R7213 R7214 R7215 R7216 R7217 C7240 R7218 R7219 C7242 C7243 C7244 C7245 C7246 C7247 C7248 R7221 C7249 R7222 R7223 R7224 R7226 R7227 R7228 C7250 R7229 C7251 C7252 C7253 C7254 C7255 C7256 R7230 R7232 R7233 R7234 R7235 R7236 R7237 R7238 R7239 R7240 R7241 R7242 R7243 R7244 R7245 R7246 R7247 R7248 R7249 R7250 R7251 R7252 R7253 R7254 R7255 R7256 R7257 R7258 R7259 R7260 R7261 R7262 R7263 R7264 R7266 R7267 R7268 R7269 R7270 R7278 R7279 R7281 R7282 R7285 R7286 R7287 R7289 R7290 R7291 R7292 R7293 R7294 R7295 R7296 R7297 C2 TNPA2870 1 C2MM1 C2MM2 PbF 1 50 1 20 1 11 1 8 ORDERNO. A1 B1 A40 B40 A1 B1 A40 B40 A1 B1 A40 B40 A1 B1 A40 B40 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 2 3 C2 TNPA2870 1 SEE REVERSE FOR ORDER NO. 47 13.12.SC 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY SC-BOARD TXNSC1SHSE TH-42PW6CH/CZ, TH-42PWD6CY SC-BOARD TXNSC1SHSE SC-BOARD(FOIL SIDE) TXNSC1SHSE SC SC41 SC42 SC43 SC44 C521 C523 C526 R510 R513 R523 C550 L602 Q550 L604 L605 L611 L612 L615 L616 L620 L621 L622 L623 L624 L625 L626 L627 R550 L628 R557 L634 L635 L636 L637 L638 L644 L645 C598 D583 L472 C601 C602 C603 C604 C605 Q601 Q602 C608 Q605 Q606 C621 C622 C623 C624 C625 Q621 C626 C627 C628 Q624 R601 C629 C637 C639 R616 D620 D621 C646 D622 D624 C455 C456 C459 D629 C650 C461 C655 C656 C469 R443 TP1 TP2 R447 TP4 R448 C470 TP5 TP6 TP7 TP8 C475 TP9 C476 R454 Q671 Q672 Q673 R465 SC2 C492 Q491 Q492 TP10 TP11 TP12 TP13 R474 TP14 TP15 TP16 R477 TP17 TP18 TP19 R671 R673 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 R498 TP38 R499 T451 TP39 TP40 TP41 TP42 TP43 TP44 TP45 TP46 TP47 TP48 T461 TP49 TP50 TP51 TP52 TP54 TP55 TP56 TP57 TP58 TP59 T471 TP60 TP61 TP62 TP63 SC23 C513 TNPA2867 1 SC 1 2 3 4 5 6 CRNo.6 PbF A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 A1 A2 B2 B1 B20 B19 A20 A19 E B C SEE REVERSE FOR ORDERNO. G D S G D S G D S G D S S D G S D G A A K A A K A A K A A K A A K E C B E B C E C B 1 6 E B C E B C 1 5 6 10 1 3 48 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY SC-BOARD TXNSC1SHSE TH-42PW6CH/CZ, TH-42PWD6CY SC-BOARD TXNSC1SHSE SC-BOARD(COMPONENT SIDE) TXNSC1SHSE SC Q511 SC41 Q512 SC42 SC43 SC44 C521 C523 C524 Q520 D500 C525 Q521 D501 C526 Q522 D502 Q523 D503 Q524 D504 R500 Q525 D505 R501 C529 Q526 D506 R502 Q527 R503 D507 Q528 D508 R504 Q529 D509 R505 R506 R507 R508 R509 IC501 C531 IC502 C532 Q530 C534 D511 D512 D513 D514 R510 D515 R511 C539 R512 D516 R513 D517 R514 D518 R515 D519 R516 R517 R518 IC510 C540 C541 IC511 R519 IC512 C543 C544 D520 Q541 D521 C546 Q542 D522 D523 Q543 C547 C548 R520 Q544 D524 Q545 D525 R521 Q546 D526 R522 Q547 D527 R523 D528 Q548 R524 Q549 R525 D529 R526 R527 C550 R528 R529 IC521 L602 Q550 L604 D530 D531 Q551 L605 Q552 Q553 R530 Q554 Q555 R531 Q556 R532 D536 R533 R534 R535 R536 R537 R538 R539 L611 L612 D541 L615 D542 L616 D543 D544 R540 L618 D545 R541 D546 R542 D547 R543 D548 R544 D549 R545 R546 R547 R548 L620 C571 R549 L621 IC541 L622 IC542 L623 D550 L624 D551 C575 L625 C576 L626 D552 D553 L627 C577 C578 R550 L628 R551 R552 R553 R554 R555 R556 R557 C580 R558 C581 R559 C584 L634 C585 Q581 L635 Q582 L636 L637 R560 L638 C588 R561 C589 R562 R563 R564 R565 R566 R567 C590 R568 R569 C591 D570 L644 L451 L645 D572 L647 L453 C598 L648 R571 R572 R573 R574 R575 R576 R577 R578 R579 D582 D583 D584 R580 D585 R581 D586 R582 R583 R584 R585 R586 R587 R588 R589 IC581 L471 L472 R590 R591 R592 R593 R594 R595 R596 R597 R598 R599 C601 C602 C603 C604 C605 Q601 Q602 C607 Q603 C608 Q604 Q605 Q606 C611 C612 C613 C614 Q611 C615 Q612 C616 Q613 C617 C618 Q614 C620 C621 C622 C623 C624 C625 Q621 C626 C627 R600 C628 Q624 R601 C629 R602 D607 R603 R604 D608 R605 R606 R607 R608 C631 IC601 R609 C632 IC602 C633 IC603 C634 IC604 C635 D611 IC605 D612 C636 IC606 C637 IC607 R610 D615 R611 C639 R612 R613 R614 R615 R616 R617 R618 R619 C642 C644 D620 C645 D621 Q641 C452 C646 D622 Q642 C453 C647 C454 D624 R620 C455 Q451 C649 R621 C456 Q452 R622 R623 R624 Q454 C458 R625 C459 D629 Q455 R431 R626 R432 R627 R433 C650 R628 R434 R435 R629 C651 R436 C652 C460 C461 C655 C656 C462 C463 R630 C464 D635 R631 Q461 C465 D636 R632 Q462 C466 D637 R633 Q463 C467 R634 C468 R635 R441 C469 R636 R442 R637 R443 C660 R638 R444 C661 R639 R445 C662 R446 C663 R447 D640 R448 C470 D641 R449 C471 C472 D642 C473 C474 R640 D451 C475 Q471 D645 R641 C476 Q472 D452 D646 R642 R643 D453 D647 C477 R644 Q474 D454 R450 C478 R645 D455 Q475 R646 Q476 D456 R452 Q477 R453 R647 C670 R454 R648 D458 C671 R455 D459 R649 C672 R456 C673 R457 C674 R458 C675 Q671 R459 IC451 C481 C676 C482 IC452 Q672 C483 C677 Q673 IC453 C484 D460 IC454 R650 C485 D461 IC455 R651 D462 C486 IC456 R652 D463 C487 R653 D464 C488 R460 R654 D465 R655 D466 R656 R462 D467 R657 R463 D468 R464 R658 D469 R465 R659 R466 R467 R468 C490 C491 R469 SC2 C492 C493 R660 D470 Q491 R661 Q492 D472 R662 D473 R663 D474 R470 R664 D475 R471 R665 D476 R666 R472 R473 R667 D477 D478 R474 R668 D479 R475 R669 R476 R477 R478 C695 R479 IC471 C696 IC472 D480 R670 D481 R671 R672 D482 D483 R673 D484 R674 R480 D485 R675 R481 D486 R482 R676 D487 R483 R677 D488 R678 R484 D489 R485 R679 R486 R487 R488 R489 D490 R680 D491 R681 D492 R682 D493 R683 D494 R684 R490 D495 R491 R685 R492 R686 D496 R493 R687 R688 R494 R689 R495 R496 R497 R498 R499 IC491 T451 R690 R691 R692 R693 R694 R695 R697 R698 T461 T471 SC20 SC23 C501 C502 C503 C504 C505 Q501 C506 Q502 C507 Q503 C508 Q504 C509 C511 C512 C513 TNPA2867 1 SC TPVSET TPVSCN TPVAD TPSC1 TP15V TPVBK CRNo.6 SCMM1 PbF D S A1 A2 B1 B2 A20 A19 B20 B19 G D S A1 A2 B1 B2 A20 A19 B20 B19 A1 A2 B1 B2 A20 A19 B20 B19 A1 A2 B1 B2 A20 A19 B20 B19 G S D 1 3 4 6 G S D 1 3 4 6 G S D 1 3 4 6 G S D 1 3 4 6 G S D 1 3 4 6 G S D 1 3 4 6 G S D 1 3 4 6 G S D 1 3 4 6 G S D 1 7 8 14 1 7 8 14 1 2 3 4 1 8 9 16 1 4 5 8 G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 B C E G S D G S D G S D 1 4 5 8 1 4 5 8 ORDERNO. 1 4 5 8 G D S G D S G D S G D S S D G S D G 1 8 9 16 1 8 9 16 1 8 9 16 1 10 11 20 1 10 11 20 1 7 8 14 1 8 9 16 A A K A A K G S D A A K G S D A A K B C E A A K B C E 1 8 9 16 B C E 1 2 3 4 1 2 3 4 B C E B C E B C E 1 2 3 4 1 2 3 4 1 6 B C E B C E 1 2 3 4 1 2 3 4 1 4 5 8 1 5 6 10 1 4 5 8 1 2 19 20 1 3 49 TH-42PW6CH/CZ, TH-42PWD6CY SC-BOARD PARTS LOCATION TH-42PW6CH/CZ, TH-42PWD6CY SC-BOARD PARTS LOCATION SC Parts Location SC-BOARD (FOIL SIDE) TRANSISTOR Q6491 E-3 Q6492 E-2 Q6550 B-5 Q6601 B-3 Q6602 B-3 Q6605 C-3 Q6606 C-3 Q6621 E-3 Q6624 E-3 Q6671 A-4 Q6672 A-4 Q6673 A-4 TP38 D-2 TP39 C-2 TP4 A-2 TP40 A-5 TP41 A-5 TP42 A-5 TP43 A-5 TP44 A-5 TP45 A-5 TP46 F-5 TP47 F-5 TP48 F-5 TP49 F-5 TP5 A-2 TP50 F-5 TP51 F-5 TP52 D-2 TP54 C-5 TP55 B-5 TP56 B-5 TP57 B-5 TP58 B-5 TP59 E-5 TP6 B-2 TP60 E-5 TP61 E-5 TP62 E-5 TP63 E-5 TP7 B-2 TP8 B-2 TP9 B-2 TP1 A-2 TP10 C-2 TP11 C-2 TP12 D-2 TP13 D-2 TP14 D-2 TP15 D-2 TP16 D-2 TP17 D-2 TP18 D-2 TP19 D-2 TP2 A-2 TP20 D-2 TP21 D-2 TP22 D-2 TP23 D-2 TP24 D-2 TP25 E-2 TP26 C-2 TP27 C-2 TP28 C-2 TP29 C-2 TP30 C-2 TP31 C-2 TP32 C-2 TP33 C-2 TP34 B-2 TP35 B-2 TP36 A-4 TP37 A-4 TP Parts Location SC-BOARD (COMPONENT SIDE) IC IC6451 B-3 IC6452 B-3 IC6453 B-4 IC6454 B-5 IC6455 A-4 IC6456 B-2 IC6471 B-4 IC6472 B-4 IC6491 C-2 IC6501 A-4 IC6502 A-4 IC6510 D-5 IC6511 C-5 IC6512 D-4 IC6521 D-4 IC6541 D-4 IC6542 B-4 IC6581 B-2 IC6601 E-3 IC6602 C-3 IC6603 G-4 IC6604 G-4 IC6605 E-3 IC6606 E-3 IC6607 D-3 Q6542 D-4 Q6543 D-4 Q6544 E-4 Q6545 E-4 Q6546 E-4 Q6547 E-4 Q6548 F-5 Q6549 F-5 Q6550 F-6 Q6551 D-4 Q6552 C-4 Q6553 B-4 Q6554 C-4 Q6555 B-4 Q6556 B-4 Q6581 B-2 Q6582 C-4 Q6601 F-3 Q6602 F-3 Q6603 D-2 Q6604 D-2 Q6605 D-2 Q6606 E-3 Q6611 E-2 Q6612 E-2 Q6613 E-3 Q6614 E-3 Q6621 C-3 Q6624 C-3 Q6641 F-5 Q6642 F-4 Q6671 G-4 Q6672 F-4 Q6673 G-4 TP15V F-2 TPSC1 C-5 TPVAD C-4 TPVBK G-4 TPVSCN B-3 TPVSET C-3 Q6451 A-3 Q6452 A-3 Q6454 B-3 Q6455 A-3 Q6461 A-2 Q6462 A-2 Q6463 A-2 Q6471 A-3 Q6472 A-3 Q6474 B-4 Q6475 A-3 Q6476 B-4 Q6477 B-4 Q6491 C-2 Q6492 B-2 Q6501 B-5 Q6502 D-4 Q6503 C-5 Q6504 D-4 Q6511 C-5 Q6512 C-4 Q6520 D-4 Q6521 D-4 Q6522 D-4 Q6523 D-4 Q6524 E-4 Q6525 E-4 Q6526 E-4 Q6527 E-4 Q6528 F-4 Q6529 F-4 Q6530 D-4 Q6541 D-4 TRANSISTOR TP 50 13.13.SU 和 SD 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CH SU-BOARD TNPA2957AB SD-BOARD TNPA2958AB TH-42PW6CH/CZ, TH-42PWD6CH SU-BOARD TNPA2957AB SD-BOARD TNPA2958AB SU-BOARD TNPA2957AB SD-BOARD TNPA2958AB SD SU SU1 SU2 SU3 C6401 C6402 C6403 C6404 Q6401 C6411 C6412 C6413 C6414 C6415 C6416 C6417 C6418 C6419 D6401 D6402 D6403 D6405 R6401 R6402 R6403 R6404 D6408 D6409 IC6401 C6431 IC6402 C6432 IC6403 C6433 IC6404 C6434 D6410 R6410 R6411 R6412 R6413 R6414 R6420 R6421 R6422 R6423 R6424 TPSU1 TPSU2 SU42 SU41 SU 1 TNPA2957 PbF ORDER NO. A1 A40 B1 B40 A1 A40 B1 B40 A1 A40 B1 B40 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 TPSD1 TPSD2 C6405 C6406 C6407 C6408 C6421 C6422 C6423 C6424 C6425 C6426 C6427 C6428 C6429 D6406 D6407 R6405 R6406 R6407 C6430 R6408 R6409 IC6405 D6411 IC6406 D6412 IC6407 IC6408 R6425 R6426 R6427 R6428 R6429 SD1 SD2 SD3 SD43 SD 1 TNPA2958 SD44 PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 A1 A40 B1 B40 A1 A40 B1 B40 A1 A40 B1 B40 Parts Location SU-BOARD IC IC6401 B-5 IC6402 C-5 IC6403 E-5 IC6404 F-5 TPSU1 D-5 TPSU2 C-5 TP Q6401 B-4 TRANSISTOR Parts Location SD-BOARD IC IC6405 B-2 IC6406 C-2 IC6407 E-2 IC6408 F-2 TPSD1 D-2 TPSD2 B-2 TP 51 13.14.SS，SS2 和 SS3 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY SS-BOARD TNPA2871 SS2-BOARD TNPA2872 SS3-BOARD TNPA2873 TH-42PW6CH/CZ, TH-42PWD6CY SS-BOARD TNPA2871 SS2-BOARD TNPA2872 SS3-BOARD TNPA2873 SS-BOARD(FOIL SIDE) TNPA2871 SS3-BOARD(FOIL SIDE) TNPA2873 SS2-BOARD(FOIL SIDE) TNPA2872 SS2 SS SS3 Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6701 G-2 Q6702 F-2 Q6705 F-2 Q6706 E-2 Q6721 C-2 Q6724 C-2 Q6751 F-1 Q6752 F-2 Q6753 F-2 TP23 A-2 TP24 G-1 TP25 G-1 TP26 G-1 TP27 G-1 TP28 E-1 TP29 E-1 TP3 F-1 TP30 E-1 TP31 E-1 TP4 F-1 TP5 H-2 TP6 H-2 TP7 H-2 TP8 I-2 TP9 H-2 TP1 H-1 TP10 H-2 TP11 H-3 TP12 H-3 TP13 A-2 TP14 A-2 TP15 A-2 TP16 A-2 TP17 A-2 TP18 A-2 TP19 A-2 TP2 H-1 TP20 A-2 TP21 A-2 TP22 A-2 TP SS45 SS47 TNPA2872 1 SS2 1 2 3 1 1 7 6 1 2 SEE REVERSE FOR ORDERNO. SS40 SS46 TNPA2873 SS3 1 1 2 3 7 6 1 2 1 1 3 SEE REVERSE FOR ORDERNO. C708 Q705 Q706 C721 C722 C723 C724 C725 Q721 C726 C727 C728 Q724 C729 R702 C737 SS11 SS12 D720 D721 D722 C747 C748 D724 SS23 SS24 D729 C753 C754 Q751 Q752 C756 Q753 SS32 SS34 SS41 SS42 SS43 SS44 SS48 SS49 SS41A D765 D769 SS42A R774 SS43A R777 R778 SS44A L702 L703 L704 L705 L711 TP1 TP2 L712 TP3 L713 TP4 L714 TP5 TP6 TP7 TP8 L719 TP9 L720 L721 L722 L723 L724 L725 L726 L727 L728 L734 L735 L736 L737 L738 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 L744 TP18 L745 TP19 TP20 TP21 TP22 TP23 L750 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 C701 C702 C703 C704 Q701 Q702 C707 TNPA2871 1 SS 1 2 3 4 5 6 CRNo.6 PbF G D S G D S S D G S D G 1 7 1 5 A A K A A K A A K A A K 1 11 1 11 A A K E C B E B C E B C 1 3 1 3 1 13 1 13 1 13 1 13 1 2 6 7 1 2 6 7 1 13 SEE REVERSE FOR ORDER NO. 1 13 1 13 1 13 G D S G D S 52 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY SS-BOARD TNPA2871 SS2-BOARD TNPA2872 SS3-BOARD TNPA2873 TH-42PW6CH/CZ, TH-42PWD6CY SS-BOARD TNPA2871 SS2-BOARD TNPA2872 SS3-BOARD TNPA2873 SS-BOARD(COMPONENT SIDE) TNPA2871 SS3-BOARD(COMPONENT SIDE) TNPA2873 SS2-BOARD(COMPONENT SIDE) TNPA2872 SS SS2 SS3 SS45 SS47 TNPA2872 SS2 1 PbF 1 13 7 6 1 2 ORDERNO. SS40 SS46 TNPA2873 SS3 1 PbF 7 6 1 2 1 13 ORDERNO. C708 C709 Q705 Q706 C711 C712 C713 C714 C715 Q711 C716 Q712 Q713 C717 Q714 C718 C721 C722 C723 C724 C725 Q721 C726 C727 C728 Q724 Q725 R701 C729 R702 D707 D708 C731 IC701 C732 IC702 IC703 C733 IC704 C734 C735 D711 IC705 C736 IC706 D712 C737 C739 D715 R711 SS11 R712 SS12 R713 R714 C740 C741 R719 IC711 C742 C744 D720 Q741 D721 C746 Q742 D722 C747 C748 D724 R720 C749 Q745 Q746 SS23 R723 SS24 R724 D729 R725 R726 R727 C750 R728 C751 C753 C754 C755 Q751 Q752 C756 Q753 C757 R730 Q755 D735 R731 SS32 Q756 D736 R732 D737 R733 R734 SS34 R735 R736 R737 C760 R738 C761 R739 D740 D741 R741 SS41 R742 SS42 R743 SS43 R744 SS44 R747 R748 SS48 SS49 C771 C772 C773 D750 C774 D751 C775 C776 D752 D753 C777 D754 C778 D755 D756 D757 D758 R755 SS41A D759 R756 C781 R759 D760 C784 D761 C785 C786 D762 D763 D764 R760 D765 R761 R762 D766 R763 D767 D768 R764 D769 R765 SS42A R766 R767 R768 C791 R769 D770 D771 R770 R771 R772 R773 R774 R775 SS43A R776 R777 R778 R779 R780 R781 R782 R783 R784 R785 SS44A R786 R787 R788 R789 R790 R791 R792 R793 R794 R795 R796 R797 R798 R799 R801 R802 R803 R804 R805 R806 R807 R808 R809 R810 R811 R812 R818 R819 L702 L703 R820 L704 L705 R821 R823 R824 R825 R826 R827 L711 L712 L713 L714 L717 L718 L719 L720 L721 L722 L723 L724 L725 L726 L727 L728 L734 L735 L736 L737 L738 L744 L745 L747 L750 C701 C702 C703 C704 Q701 Q702 C707 TPVSUS TNPA2871 SS 1 TPV15 TPVDA TPSS1 TPVE CRNo.6 PbF G D S G D S S D G S D G 1 8 9 16 1 8 9 16 1 8 9 16 1 4 5 8 1 4 5 8 1 10 11 20 1 7 1 5 A A K G S D A A K G S D A A K A A K G D S G D S 1 11 1 11 A A K B C E B C E B C E 1 3 1 3 1 13 1 13 1 13 1 13 1 2 6 7 1 2 6 7 1 13 ORDERNO. 1 13 1 13 1 13 G D S G D S Parts Location SS-BOARD (COMPONENT SIDE) IC IC6701 D-2 IC6702 G-2 IC6703 F-2 IC6704 G-1 IC6705 H-2 IC6706 H-2 IC6711 D-2 Q6701 C-2 Q6702 C-2 Q6705 D-2 Q6706 E-2 Q6711 C-2 Q6712 C-2 Q6713 D-2 Q6714 E-2 Q6721 G-2 Q6724 G-2 Q6725 H-2 Q6741 E-2 Q6742 E-1 Q6745 F-2 Q6746 G-2 Q6751 D-1 Q6752 D-2 Q6753 D-2 Q6756 F-1 Q6756 I-2 TPSS1 D-2 TPV15 B-1 TPVDA A-2 TPVE D-1 TPVSUS B-1 TRANSISTOR TP 53 13.15.Z 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PW6CH/CZ, TH-42PWD6CY Z-BOARD TNPA2815 TH-42PW6CH/CZ, TH-42PWD6CY Z-BOARD TNPA2815 Z-BOARD(FOIL SIDE) TNPA2815 Z-BOARD(COMPONENT SIDE) TNPA2815 Z R2481 R2482 R2484 R2485 R2486 R803 R805 R806 R807 R808 R809 R811 R812 R813 R817 R818 R819 R820 C802 C803 C805 C806 C807 C808 C809 C810 C811 C812 C2313 C813 C2314 C814 C2315 C815 C816 C817 C818 C819 R2301 R2304 R2305 R2307 R2308 IC2301 IC2302 Q2330 Q2331 D2316 D2317 R2320 R2321 R2324 C2350 C2351 C2352 C2353 C2354 C2355 C2356 C2357 C2358 R2331 C2359 R2333 C2360 C2361 D802 C2362 D803 C2363 C2364 C2365 C2366 C2367 C2368 D808 C2369 R2346 R2347 C2370 R2348 R2350 R2351 R2352 R2353 R2354 R2355 R2356 R2357 R2358 IC801 R2359 IC802 IC804 R2360 R2365 R2366 C2419 Z10 C2427 C2429 IC2401 C2431 C2432 C2433 C2434 C2435 C2436 C2437 C2438 R2410 Z30 Z31 C2442 Z32 Z33 C2450 C2451 C2452 C2453 C2454 C2456 C2457 C2458 R2431 C2460 C2461 C2462 C2463 C2464 R2447 R2448 L804 R2449 L805 L2330 L2331 R2450 R2452 R2453 R2456 R2457 C2480 R2460 R2463 R2466 R2467 R2468 R2470 R2471 Z6 Z7 R2476 R2477 TNPA2815 1 Z PbF 94V-0 28 14 15 1 28 14 15 1 E C B SEE REVERSE FOR ORDERNO. E C B 1 5 2 4 3 1 5 2 4 3 1 5 2 4 3 1 5 1 16 17 32 1 3 1 3 1 3 1 3 1 4 1 3 R2480 R2483 R2487 R2488 R2489 R810 R814 R815 R816 C802 C803 Q2301 C805 Q2302 C806 Q2303 Q2304 C808 Q2305 C809 Q2306 C810 C811 C2312 C812 C2313 C813 C2314 C814 C815 C816 C817 C818 C819 D2301 D2302 D2308 R2306 R2309 IC2301 IC2302 IC2304 Q2330 Q2331 Q2333 Q2334 R2310 R2319 R2325 C2352 C2353 C2354 C2355 C2358 C2359 R2332 C2362 C2363 D804 C2364 C2365 D806 C2366 D807 C2367 C2368 R2341 C2369 D809 R2343 R2345 C2370 D810 D811 D812 D813 Q2370 R2355 R2356 R2357 R2358 IC801 R2359 IC802 IC803 IC804 R2360 R2365 R2366 R2367 R2368 R2369 R2370 R2371 R2372 R2373 R2399 JS2301 Q2406 Q2408 Q2410 C2417 C2419 Z10 C2422 C2423 C2426 C2427 C2429 C2430 R2408 IC2401 C2437 C2438 C2440 Z30 C2441 Z31 Z32 Z33 L2305 L2306 C2450 C2451 C2454 C2457 C2459 Q801 R2434 R2438 R2439 C2465 C2466 C2467 R2440 R2441 R2442 R2445 L801 L802 L803 L804 L805 C2474 L2330 L2331 C2484 R2461 R2462 R2464 R2469 Z5 R2472 Z6 R2473 Z7 Z8 TNPA2815 1 Z ZMM1 ZMM2 DIP ZMM3 PbF 94V-0 14 28 15 1 14 28 15 1 B C E B C E ORDERNO. 1 3 4 5 2 1 3 4 5 2 1 8 9 16 1 3 4 5 2 1 5 32 17 16 1 1 3 1 3 1 3 1 3 1 11 1 4 1 3 1 2 19 20 Parts Location Z-BOARD IC IC2301 B-3 IC2301 G-3 IC2302 C-3 IC2302 F-4 IC2304 G-2 IC2401 C-2 IC2401 F-2 IC801 B-2 IC801 G-2 IC802 B-2 IC802 G-2 IC803 H-2 IC804 A-3 IC804 H-3 Q2301 F-2 Q2302 F-3 Q2303 F-3 Q2304 E-3 Q2305 F-3 Q2306 F-3 Q2330 B-4 Q2330 G-4 Q2331 C-4 Q2331 F-4 Q2333 G-3 Q2334 G-3 Q2370 H-3 Q2406 F-2 Q2408 E-2 Q2410 F-2 Q801 H-3 TRANSISTOR 54 13.16.V1，S1 和 H3 电路板 A B C D E F G H I 1 2 3 4 5 6 JK8500 H37 C8001 C8002 L8501 L8502 TNPA3003 H3 1 SEE REVERSE FOR ORDERNO. 1 3 TH-42PW6CH/CZ, TH-42PWD6CY V1-BOARD TNPA2848 S1-BOARD TNPA2868 H3-BOARD TNPA3003 TH-42PW6CH/CZ, TH-42PWD6CY V1-BOARD TNPA2848 S1-BOARD TNPA2868 H3-BOARD TNPA3003 V1-BOARD(FOIL SIDE) TNPA2848 V1-BOARD(COMPONENT SIDE) TNPA2848 S1-BOARD(FOIL SIDE) TNPA2868 S1-BOARD(COMPONENT SIDE) TNPA2868 H3-BOARD TNPA3003 V1 S1 H3 H3 55 14 方框图和电路图 14.1. 电路图注意事项 ��� ���������������������������������� �������� � � � � � � �� 1. ��� �������1/4W������������ �����OHM [ ] (K=1,000, M=1,000,000)� : �� : ����� : �� : ��� : �� : ��� 2. ��� �������50V�������������� ��������������� : ���� : ���� : �� : ��� : ����� : ��� : ��� : Z� 3. �� ��������������� 4. ��� : ����� 5. ���� : ����(�) : ���(�) 6. ���� ��DC��� ������� �� ...................................................... AC220-240V, 50/60Hz ���� ............................................... ������� (RF) ������� .................................... ���� 7. ��������������� (�����) 8. ������� ( ) ��������������� 9. �������� : �� �� 10. ���������������������� + - M m T Z NP TH-42PW6CH/CZ, TH-42PWD6CY ������� ��� 1. ������������������������������� ���������HOT��COLD������������ ������������������ ���� a. ���������������������������� b. ������������������������������ c. ����������������������������� ����������������������� d. ����������������� 2. ����������� MA150- MA162 (����) TH-42PW6CH/CZ, TH-42PWD6CY ������� 56 14.2. 主要集成电路方框图 SUSTAIN PULSE 64 64 S.R S.R S.R 64 64 S.R VOLTAGE GENERATOR CONTROL PULSE PULSE SCAN SC2 SC4 SC20 D20 CONTROL DISCHARGE MAIN MPU SUB MPU ROM LVDS LVDS A/D BUS 24bit FORMAT CONVERTER RGB PROCESSOR PROCESSOR SUB-FIELD PLASMA AI SDRAM D31 D32 P25 D25 P27 P7 P10 P5 D27 P9 Z5 P12 P11 SS11 SS12 SS23 SS34 SS48 SS49 SUSTAIN PULSE ERASE PULSE ADDRESS VOLTAGE (VE) S.R. 5V UR12V STB7V D5 D6 D3 J5 J6 J3 ANALOG SW SYNC SW SYNC SEPARATOR SDRAM ROM DC/DC CONVERTER DC/DC CONVERTER 3.3V 2.5V 1.8V PROCESS VOLTAGE RECTIFIER CONTROL SUSTAIN VOLTAGE RECTIFIER SUSTAIN VOLTAGE VOLTAGE PROCESS CONTROL RECTIFIER STANDBY VOLTAGE FACTOR POWER CONTROL RECTIFIER RELAY VOLTAGE STANDBY CONTROL RECTIFIER VDA 15V 5V 12V STB5V STB7V P23 P2 VSUS VSUS PRE AMP R OUT L OUT Z7 Z6 C12 C11 C22 C21 C24 C23 AUDIO SW J8 POWER ON STAND BY G R LED + - INPUT MENU ASPECT REMOTE RECEIVER DETECTER LIGHT - + LINE FILTER F.STB +14V F1 PF9 PF2 J10 + - POWER SWITCH SC SU SD H3 H3 L R Z8 J14 CONTROL D P SOS ON/OFF STB5V S34 S1 J STB ON/OFF STB 5V STB 15V Vda 15V SS F Z SS2 SS3 SPEAKER TERMINAL SPEAKER TERMINAL PC RS-232C PC AUDIO IN HX V34 VDA SP SP AC IN AC IN C1 C2 V1 15V S.R. S.R. S.R. S.R. S.R. S.R. 64 S.R S.R 64 64 S.R 64 S.R TH-42PW6CH/CZ, TH-42PWD6CY Main Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY Main Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 57 14.3. PF 电路板方框图 + + + + F900 F901 F902 AC LINE CODE 1 PF1 4 L901-L902 LINE FILTER LINE FILTER L905 2 STB REG 1 IC901 3 11 3 6 5 1 8 2 10 12 7 9 T901 3 1 2 Q903 1 2 5 6 4 1 PF9 PF10 IC902 ERROR DET RL901 F.STB ON/OFF RELAY F.STB ON/OFF F.STB ON/OFF F.STB+14V F.STB+14V STB+5V Line Filter/F.STB Board PF AC INLET AC AC LINE NEUTRAL TO P9 D907 TO J10 HOT COLD D902 TH-42PW6CH/CZ, TH-42PWD6CY PF-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY PF-Board Block Diagram ! ! ! ! ! ! ! ! ! ! B 3 2 E C 8 A 5 D 4 6 7 1 58 14.4. PF 电路板电路图 - + + + L.F + + + + L.F L.F + + 400V NEUTRAL NEUTRAL LIVE NEUTRAL LIVE 560Vp 14V 2.5V 16V 560V NEUTRAL LIVE LIVE LIVE NEUTRAL LIVE NEUTRAL 14V D922 MA3X152K0L D902 B0EBNT000002 * * * * R927 47k D904 B0HCMM000009 1/2W R902 1M * * TP902 C925 50V 10u D901 ERZV10V621P2 TP903 Q903 2SD13280SL C906 Not specified DC 0.22u * * C917 50V 0.1u IC901 MIP2E4DMY1TV D * 3 2 S * CONTROL 1 1/2W R906 3.3 C923 25V 1500u RL901 K6B2ADA00007 * * * * PF10 1 2 3 4 5 6 B3PAA0000012 C904 Not specified DC 220p C920 Not specified DC 220p TP901 L901 G0B123K00001 1 * 2 * 3 * 4 * L906 EXCELDR35V 7W R903 3.3 * * C918 50V 33u F901 K5Y802B00001 R922 4.7k 2W R904 68k R905 33 C921 1kV 220p C912 Not specified DC 1u * * C924 50V 1u IC902 C0DAEJC00003 3 2 1 1% R925 10k C914 630V 0.022u R926 3.3k PF9 1 ** 3 4 ** C922 25V 2700u 1/2W R901 1M * * R907 12 R920 100 C916 35V 47u L904 10u L902 G0B123K00001 1 * 2 * 3 * 4 * JS901 D906 B0BA01000046 C919 2kV 1000p C905 Not specified DC 220p 1% R924 24k D903 B0HAGV000004 PF1 1 ** 3 4 ** R921 2.2k C901 Not specified DC 1u * * 1% R923 22k D920 B0HFRJ000012 K5D312BK0012 F902 D921 B0BA02000024 C902 Not specified DC 220p L905 ELF17N011A 1 * 2 * 3 * 4 * C903 Not specified DC 220p C915 50V 10u T901 ETS28AZ1E6AD 1 * P1 2 PT 3 * P2 6 V2 5 V1 12 NC 11 NC 10 * S2 9 NC 8 * S1 7 NC C913 450V 100u ** ** F900 K5Y802B00001 TP904 D923 LNJ201LPQJA R928 2.2k 3.5mm 3.5mm T3.15AL250V T8AH 250V T8AH 250V 3.5mm 3.5mm AC INLET LIVE F.STB+14V F.STB+14V GND GND F.STB ON/OFF STB+5V COLD HOT COLD AC CORD NEUTRAL PF-BOARD TXNPF10QBSC (J10) TO J-BOARD (P9) TO P-BOARD ERROR DET F.STB ON/OFF STB REG $ M # * m $ TH-42PW6CH/CZ, TH-42PWD6CY PF-Board Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY PF-Board Schematic Diagram ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! D907 ! ! ! B 3 2 E C 8 A 5 D 4 6 7 1 59 14.5. P 电路板方框图 TH-42PW6CH/CZ, TH-42PWD6CY P-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY P-Board Block Diagram + + + + + + + + + 18 19 17 14 7 6 12 9 20 2 1 15 4 10 13 12 15 14 11 10 9 8 17 16 18 2 1 4 3 7 6 7 8 14 12 13 1 2 3 4 15 11 10 9 2 1 3 DRIVER DRV.REG =8.3V LATCH O.V.P START REG T.S.D O.S.C + - - + 4 3 1 2 5 OCP/FB Source GND Drain Rg2 Rg1 DRV.REG =8.3V LATCH O.V.P START REG T.S.D O.S.C + - - + 4 3 1 2 5 OCP/FB Source GND Drain Rg2 Rg1 DRIVER Q455 Q456 Q651 Q650 Q457 Q452 Q453 3 8 6 4 L451 D451 IC551 SUSTAIN VOLTAGE CONTROL 3 1 2 2 P11 3 1 P2 2 1 P10 3 1 P23 2 1 P5 2 3 1 P7 2 1 P25 2 5 1 P27 2 3 1 P12 2 4 8 7 4 4 7 5 8 1 3 2 REGENERATIVE CONTROL Q552,3,4 IC554 1 3 2 Q401 Q403 Q402 Q555 2 1 3 VSUS VSUS VSUS VSUS DR15V FAN SUS DR15V DR15V 12V 12V 5V STB5V +12Vs +12Vs +15Vs +15Vs 12V 12V 5V RUSH ON/OFF TV ON/OFF M POWER STB 5V KILL SOS PS SOS ALL OFF1 VDA DR15V STB PS 2 1 3 1 2 AVR 5V IC555 IC403 AVR 5V Q558 RUSH ON/OFF 5V RL403 RL402 LINE NEUTRAL HOT COLD COLD HOT RL401 D404 15V D566 D565 D408 T401 T501 T502 IC402 TVON/OFF RUSH ON/OFF 5V 5V Vda Vsus TO SS11 TO SC2 TO SC23 TO D25 TO D27 TO SS12 P Power Supply Board TV ON/OFF Vin Vin 17V 13.5V IC552 PROCESS VOLTAGE CONTROL 12V 15Vs STANDBY FAN SOS 6 3 1 2 IC550 70V 380V 7V 12V 15V 190V 4 5V DR15V 11 TO Z5 1 P9 4 TO PF9 NEUTRAL OUT IN VOLTAGE CONTROL ERROR DETECT DETECT ERROR DETECT ERROR DETECT ERROR POWER FACTOR CONTROL ! + + + + + + + + + 18 19 17 14 7 6 12 9 20 2 1 15 4 10 13 12 15 14 11 10 9 8 17 16 18 2 1 4 3 7 6 7 8 14 12 13 1 2 3 4 15 11 10 9 2 1 3 + - - + 3 1 2 5 Source GND + - - + 3 1 2 5 OCP/FB Source GND Drain Rg2 Rg1 3 8 6 4 Q454 Q451 L451 D451 IC451 3 1 2 2 P11 3 1 P2 2 1 P10 3 1 P23 2 1 P5 2 3 1 P7 2 1 P25 2 5 1 P27 2 3 1 P12 2 4 8 7 4 4 7 5 8 1 3 2 REGENERATIVE CONTROL Q552,3,4 IC554 1 3 2 Q401 Q403 Q402 Q557 2 1 3 VSUS VSUS VSUS VSUS DR15V FAN SUS DR15V DR15V 12V 12V 5V STB5V +12Vs +12Vs +15Vs +15Vs 12V 12V 5V RUSH ON/OFF TV ON/OFF M POWER STB 5V KILL SOS PS SOS ALL OFF1 VDA DR15V STB PS 2 1 3 1 2 AVR 5V IC555 IC403 AVR 5V Q404 IC553 IC557 IC402 TVON/OFF RUSH ON/OFF 5V 5V Vda Vsus IC558 TO SS11 TO SC2 TO SC23 TO D25 TO D27 TO SS12 P Power Supply Board 17V 13.5V 12V 15Vs IC401 FAN SOS 6 3 1 2 IC550 70V 7V 12V 15V 190V 4 5V DR15V 11 TO Z5 LINE OUT IN ERROR DETECT DETECT ERROR DETECT ERROR DETECT ERROR POWER FACTOR CONTROL ! ! ! ! ! ! ! ! ! ! B 3 2 E C 8 A 5 D 4 6 7 1 60 14.6. P 电路板 （1/2）电路图 + + + + P2 P1 + + - + + + + - - + Drain GND OCP/FB Source Rg1 Rg2 =8.3V DRV.REG Vin DRIVE REG T.S.D O.V.P START O.S.C LATCH + + + + + + + - - + Drain GND OCP/FB Source Rg1 Rg2 =8.3V DRV.REG Vin DRIVE REG T.S.D O.V.P START O.S.C LATCH - + 640V 375V 100V 140V 112V 125V 70V 70V 750V 70V 70V 70V 250V 128V 254V 400Vp 55V 28V 520V AC264V LIVE 200V 128V 254V 70V 82V 750V -550V 70V AC264V NEUTRAL 200V 15V DC380V 380V 380V 380V 21V 15V 1% R431 330k 2W R569 0.47 D654 MAZ30560ML 1% R433 330k D457 B0HARR000016 C462 50V 0.1u R564 680 Q455 2SC3311A0A C559 630V 0.047u C406 450V 10u 3W R578 68k D554 B0HCMM000001 C459 50V 33u D453 MAZ32700ML R566 10k 3W R455 33k C563 Not specified DC 1000p D460 MAZ31000ML C554 50V 220p C412 50V 10u 1W R550 0.56 D402 MA3X152K0L R582 1k 1% R481 3.3k C453 4700p D405 MAZ30820LL 1% R474 330k 1% R432 100k R484 5.6k C556 50V 22u R653 47k D459 MAZ32700ML C455 630V 1u C460 50V 100p R413 10k R461 56k R557 3.3k 1/2W R579 22 1% R434 330k D463 B0JCME000025 Q456 2SC3311A0A RL402 K6B1ADA00009 R565 680 1W R650 2.2k 3W R454 33k R503 5.6k R407 0 1/2W R411 100 1/2W R456 2.7 2W R576 0.47 2W R483 100k D553 B0HCMM000001 1% R476 3.6k C471 50V 0.1u C463 50V 0.01u L451 G4D4A0000048 1 2 4 5 3 8 10 19 11 12 13 14 15 20 18 Q651 2SC3311A0A R453 2.7k D555 B0HCMM000001 D408 B3PAA0000012 C558 2kV 100p R410 6.8 1/2W R467 22 D561 B0HCMM000001 D458 MAZ32700ML C551 50V 470p 1W R560 0.56 1% R429 330k 1W R574 0.56 3W R572 68k IC451 C0DABZG00001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1% R479 330k C552 50V 470p C403 4700p C461 50V 330p C469 450V 330u 1W R485 39k C456 35V 330u 1% R478 330k 1/2W R451 270k R492 22k D452 B0HCMM000001 C423 50V 0.1u R657 2.2k C457 50V 0.01u Q650 2SC3311A0A R558 3.3k C557 630V 0.047u 1/2W R452 220k 1/2W R652 22 D404 B0EBKT000003 S1WBA80Z 1W R462 100 C409 25V 47u D407 B0HCMM000001 1% R472 330k 1% R482 422 C458 50V 820p Q457 2SA1309A0A 1%R466 270k C468 450V 330u R465 100k 1% R473 330k 1% R480 330k R502 5.6k 5W R458 0.15 P9 1 3 1% R435 330k D563 RC3B2LFU1 C404 4700p D556 B0HCMM000001 R575 2.2k D652 B0HCMM000001 1/2W R464 10k R573 2.2k C560 2kV 220p 5W R457 0.15 Q452 2SD2177RTA IC552 C5HABZZ00080 1 2 3 4 5 R460 10k D401 MA3X152K0L C562 50V 4700p D558 B0BA01000046 2W R551 100k R488 47k 1W R568 0.56 R504 10k C407 50V 0.1u C451 4700p C408 2kV 3900p TPP1 2W R553 100k C555 25V 100u C553 50V 1000p D565 B3PAA0000012 1/2W R469 220 R490 2.7k 1W R409 100k Q454 B1DEGR000021 G D S C464 50V 0.1u 10W R402 3.3 Q453 2SB14340RA R408 6.8 C650 50V 100u 1% R436 12k D566 B3PAA0000012 C465 50V 1u D557 B0BA01000046 R406 15 ERU5TAJ150 C411 50V 0.1u R471 0 C405 4700p C470 25V 330u 1/2W R468 10k R581 1k 1% R470 56k D406 B0EAEV000001 1% R477 402 D564 B0HCMM000001 R486 33k D552 B0BA02700021 B0BA02700022 R493 2.2k 3W R563 68k D551 B0BA02700021 B0BA02700022 R654 56 1% R430 330k D559 B0HCMM000001 R656 2.2k R489 15k Q451 B1DEGR000021 G D S D454 B0HCMM000001 RL401 K6B2ADA00007 C452 4700p 3W R577 68k L401 ELEXT100KA D403 MA3X152K0L R459 27 D413 MAZ32000ML Q406 2SC3311A0A R487 100 C466 2kV 100p 1/2W R580 22 D562 B0HCMM000001 D462 B0EAKT000012 D560 RC3B2LFU1 D650 B0HCMM000001 R491 22k R556 12k 10W R404 3.3 1/2W R655 4.7k IC401 MIP2E1DMY1TV Drain 3 2 Source Control 1 1/2W R463 22 C561 50V 4700p T401 ETS25AD1H6AG 2 V3 3 V2 5 NC 6 P1 7 PT 8 P2 14 S2 15 NC 4 V1 1 V4 9 NC 10 NC 11 NC 12 S1 13 NC L452 EXCELDR35V Q405 B1CBGD000001 T501 ETS49BP116AD 2 V1 4 P2 7 PTA 9 P1 12 S1 20 NC 14 STA 15 STB 17 S2 19 S3 6 PTB 10 NC 18 S4 1 V2 T502 ETS42BV116AD 1 V2 2 V1 3 V3 4 V4 7 P2 8 PT 9 P1 10 S1 11 S2 12 S4 13 S3 14 S6 15 S5 16 S9 17 S7 18 S8 C550 50V 0.01u IC550 C0CAAME00003 OUTPUT 3 2 GND INPUT 1 C548 25V 100u C549 50V 100u D550 B0HCMM000001 TP009 TP008 RL403 K6B1ADA00009 IC551 C5HABZZ00115 1 2 3 4 5 D451 B0FBBR000019 HOT (PC123) (PC123) LIVE CIRCUIT NEUTRAL LIVE (ERA22-10V3) MT132E CT IDET IIN- IFB ON/OFF CS REF SYNC FA5502P VIN- VFB OVP VDET VC VCC OUT GND FACTOR HOT COLD (TMPG10G3) STANDBY VOLTAGE VOLTAGE CONTROL POWER CONTROL SUSTAIN CONTROL VOLTAGE PROCESS CONTROL (PF9) TO PF-BOARD P-BOARD TNPA2841AH (1/2) 14 15 13 5 12 6 4 11 7 2 3 1 10 8 9 18 16 19 20 17 21 * M m = * * m # * * # # * * M # * * # M m # # * # * * # * M # * S * # # # A F B E 9 6 8 7 2 3 D 5 4 C 1 TH-42PW6CH/CZ, TH-42PWD6CY P-Board(1of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY P-Board(1of2)Schematic Diagram ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! 61 14.7. P 电路板 （2/2）电路图 + + + + + + + + + + + + + + + + 7V 7V 4V 5V 7V 2.5V 135V 65V 35V 2.5V 190V 20V 15V 15V 20V 12V 12V 12V 15V 70V 1% R603 49.9k D577 MA3X152K0L P25 1 2 3 4 5 6 7 8 1/2W R598 220k 1/2W R587 22 IC553 C0DAEJC00003 3 2 1 C570 1kV 470p IC558 C0DAEJC00003 3 2 1 C421 50V 0.022u 1/2W R595 470 P12 1 2 3 4 5 R586 100 R420 10k R418 0 D580 MA3X152K0L Q404 2SC3311A0A C573 200V 1800 C590 25V 2200u D409 B0HCMM000001 1/2W R628 47 R584 2.2k Q557 2SC3311A0A 1/2W R412 220 1% R416 2.55k C585 25V 100u Q402 2SC3311A0A C567 50V 4700p D412 MAZ30510ML Q558 2SC3311A0A R605 50k 1 2 3 P2 1 2 3 4 5 6 P7 1 2 3 4 Q552 B1DEGQ000019 G D S C571 1kV 100p C568 50V 4700p TP50 D578 MA3X152K0L D593 B0HCMM000001 C574 200V 1800 P10 1 2 3 4 5 R583 2.2k R630 4.7k C578 50V 3300p P23 1 2 3 D568 B0HFRJ000012 IC555 C0DAAHG00007 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF R602 46.4k 1/2W R600 220k R414 47k R601 6.8k C584 50V 0.01u R613 10k R590 10k 1 2 3 D589 B0HCMM000001 R585 100 C577 25V 2200u Q554 2SC3311A0A D572 B0HCMM000001 P5 1 2 3 4 5 6 7 8 9 10 11 D410 B0HCMM000001 D581 MA3X152K0L C414 500V 560p D583 MA3X152K0L D596 MAZ30510ML R627 47k R617 10k R554 105k D660 B0HFRJ000012 D661 MA3X152K0L R421 10k R631 100k C415 50V 4700p C576 25V 2200u D571 MAZ30560ML R625 10k D586 B0HCMM000001 R422 10k C569 1kV 100p R423 22k C416 16V 470u 1% R612 2.55k D590 MA3X152K0L D576 B0HCMM000001 C420 25V 100u C422 50V 0.022u D594 MAZ30560ML L554 220u IC402 C0DAEJC00003 3 2 1 R425 47k R588 47k IC557 C0DAEJC00003 3 2 1 1% R606 2.55k R426 4.7k C418 16V 100u Q401 2SC3311A0A D411 B0HCMM000001 R424 47k D570 B0HARR000009 D595 MA3X152K0L C586 50V 0.01u C417 25V 47u 1% R609 12.1k R571 0 D587 B0JCME000025 R417 100k P27 1 2 3 4 5 6 7 8 9 R620 68 C572 25V 2200u 1% R635 2.55k C575 50V 22u C564 1kV 100p 1% R610 3.3k R623 10k R614 4.7k D567 B0HARR000009 R608 6.8k IC554 C0DAEJC00003 3 2 1 R427 4.7k 1/2W R594 22 C565 P11 1 2 3 4 5 6 7 R607 150 C591 1kV 100p C583 50V 0.1u D573 B0HFRJ000012 D579 MA3X152K0L D582 MA3X152K0L C579 25V 220u 1/2W R597 220k D592 B0HCMM000001 R615 1k 1% R604 49.9k IC403 AN7705F 3 2 1 R593 100k C566 2kV 1000p C419 10V 470u R428 22k C581 6.3V 1200u R618 68 Q403 2SC3311A0A 1% R611 1.5k D574 B0HFRJ000012 R596 6.8k Q553 2SB0621AWA 1% R415 3.9k TP51 R626 10k 1% R555 2.49k R599 4.7k D575 B0JCME000025 D585 MAZ30560ML Q555 2SC3311A0A R591 47k D584 MA3X152K0L 1W R592 2.2k R552 105k R616 1k 1% R589 49.9k 1% R561 12.1k R619 4.7k R621 4.7k STB7V +15Vs +15Vs GNDs GNDs FAN_CONT 5V FAN SOS GND DR15V 12V 12V 12V 12V +12Vs +12Vs COM OUT IN DR15V DR15V DR15V DR15V M_POWER GNDs STB5V NC GND GND 5V GND FAN_CONT 5V GND GNDs GND GND GND GND Vda Vsus=170V 190V Vsus PS SOS Vda STB PS GND GND FAN SOS RUSH ON/OFF GND NC NC Vsus Vsus GND GND Vsus Vsus GND ALL OFF TV ON/OFF STB5V GND KILL SOS 18 13 15 14 12 10 16 11 17 ERROR DETECT ERROR DETECT ERROR DETECT ERROR DETECT ERROR DETECT AVR5V AVR5V (SC2) TO SC-BOARD (SS11) TO SS-BOARD (SC23) TO SC-BOARD (Z5) TO Z-BOARD (D25) TO D-BOARD (SS12) TO SS-BOARD (D27) TO D-BOARD ! P-BOARD TNPA2841AH (2/2) 2 3 1 9 10 19 8 18 15 20 13 17 5 12 16 14 21 6 4 11 7 # # # # # M # + = # # * + TH-42PW6CH/CZ, TH-42PWD6CY P-Board(2of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY P-Board(2of2)Schematic Diagram 62 14.8. H 和 Z 电路板方框图和电路图 + + AB_P_STATUS AB_REMOTE AD_TXD-DP AD_RXD-DP 9V 9V AA_HD AA_VD RESET2 SOS S2_DET RESET1 AB_C_DET AB_TXD_DP AB_RXD_DP AB_REMOTE AB_P_STATUS AC_SCL AC_SDA AB_C_DET AA_HD AA_VD AA_SR AA_SL AD_TXD-DP AA_SR AA_SL AE_G AE_B AE_R AE_R AE_B AE_G AB_RXD_DP AB_TXD_DP CDG_TXD CDG_TXD CDG_RXD CDG_RXD AD_RXD-DP STB5V STB5V 9V AB_REMOTE AB_P_STATUS AB_C_DET AD_TXD-DP AD_RXD-DP AD_RXD-DP AB_TXD_DP AB_RXD_DP AD_TXD-DP AB_TXD_DP AB_RXD_DP STB5V AB_C_DET AB_P_STATUS AB_REMOTE IC3003 TVRJ987 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC R3003 56 C3032 0.1u 16V TP3004 C3025 16V 47u Q3005 2SD0601A0L R3039 100 JS3018 R3012 180k R3016 33k D3011 MAZ81600HL C3001 16V 1u JS3028 0 TP3007 Q3002 2SD0601A0L C3007 25V 0.1u R3031 1k C3004 16V 1u R3001 56 R3061 22 JS3014 0 C3015 6.3V 10u D3014 MAZ81600HL DL3006 J0HABB000004 1 2 3 4 C3014 6.3V 10u JS3025 R3062 22 R3015 33k JS3001 R3052 3.3 C3026 16V 47u C3005 1u 16V H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 Q3001 2SD0601A0L C3022 16V 0.1u JS3006 R3018 33k R3007 4.7k JS3024 C3006 1u 16V L3003 ELJPA100KF JS3005 JS3004 R3013 100 R3041 3.3 TP3003 C3028 10V 1u JS3023 JS3015 0 R3045 4.7k DL3005 J0HABB000004 1 2 3 4 IC3001 C0ZBZ0000205 1 C1+ 2 VS 3 C1- 4 C2+ 5 C2- 6 VS- 7 T2OUT 8 R2IN 9 R2OUT 10 T2IN 11 T1IN 12 R1OUT 13 R1IN 14 T1OUT 15 GND 16 VCC JS3012 0 D3001 MA3X15300L Q3006 2SB0709A0L JS3029 0 R3053 3.3 D3012 MAZ81600HL C3023 16V 0.1u DL3004 J0HAAB000012 1 2 3 4 JS3020 R3046 4.7k JS3011 JS3002 CN3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 TP3005 C3002 16V 1u TP3006 R3017 33k Q3004 2SB0709A0L DL3002 J0HAAB000012 J0HABB000003 1 2 3 4 R3019 100 D3013 MAZ81600HL R3034 4.7k R3033 100 R3038 1k R3011 180k TP3002 R3020 100 R3014 100 R3006 4.7k D3002 MA3X15300L C3003 16V 1u R3056 10k Q3003 2SD0601A0L R3040 3.3 JS3003 DL3001 J0HAAB000012 J0HABB000003 1 2 3 4 DL3003 J0HAAB000012 1 2 3 4 L3001 ELJPA100KF R3035 4.7k R3005 56 JS3013 0 DL3007 J0HABB000004 1 2 3 4 TP3001 R3057 10k R3002 56 R3004 56 R3032 100 R3021 100 JS3010 JS3019 CN3001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 IC3002 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC IC3001 1 C1+ 2 VS 3 C1- 4 C2+ 5 C2- 6 VS- 7 T2OUT 8 R2IN 9 R2OUT 10 T2IN 11 T1IN 12 R1OUT 13 R1IN 14 T1OUT 15 GND 16 VCC RS232C DRIVER REMO P_STS AUD_R AUD_L VD HD SCL R G PLUG_DET 3.3V RSVD RSVD LAN15V LAN15V B C_DET RXD TXD SDA EEPROM 3.3V H-BOARD TNPA2953 TUNER IN INFORMATION EEPROM TERMINAL BOARD SCL SDA TUNER IN H1 G A34 A38 R A36 B L AMP Q3002 R AMP Q3001 A26 L A28 R Q3003,4 LEVEL SHIFT Q3005,6 LEVEL SHIFT A22 EEPROM SCL SDA STB5V B25 TERMINAL BOARD B24 9V 9V INFORMATION A21 VD A30 HD A32 VD HD B R G L R Tuner TerminalBoard H RS232C DRIVER RXD TXD B26 B27 REMOTE P STATUS B30 B32 CABEL DET B29 TH-42PW6CH/CZ, TH-42PWD6CY H and HZ-Board Block and Schematic Diagram B GR R + Y Pb Pr AB_AUD_L 9V PWR_STAT STB5V AB_AUD_R SOS AB_AUD_L REMOTE CABEL_DET TXD RXD S2_DET AA_SCL2 RESET1 AA_SDA2 9V RESET2 AB_AUD_R AA_SCL2 AA_SDA2 R3042 0 JS3004 JS3012 L3005 J0HABB000003 J0HAAB000012 1 2 3 4 TP033 R3007 100 R3015 10k JS3001 L3001 J0HABB000004 1 2 3 4 R3026 100 L3006 10u Q3001 2SD0601A0L R3005 180k R3037 10k R3023 1k R3006 100 JK3001 K2HA306B0049 TP035 R3014 10k R3036 10k TP036 R3019 100 C3008 1u 16V R3016 10k JS3013 TP034 R3041 0 JS3016 JS3015 TP032 JS3014 R3025 100 JS3007 C3022 0.1u 16V L3002 J0HABB000004 1 2 3 4 JS3006 JS3011 L3004 J0HABB000003 J0HAAB000012 1 2 3 4 R3017 10k C3012 16V 0.1u JS3005 Q3002 2SD0601A0L JS3008 JS3003 C3007 1u 16V C3021 10V 1u JS3002 H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 JK3002 K2HA204B0097 R3022 1k L3003 J0HABB000004 1 2 3 4 R3004 180k IC3002 TVRJ983 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3011 16V 47u R3018 100 IC3002 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC JK3002 JK3001 G Y G G G Pb G G G Pr G G PLUG_DET 3.3V 3.3V RSVD RSVD VD HD LAN15V LAN15V Pr Pb Y AUD_R AUD_L EEPROM HZ-BOARD TNPA2952 COMPONENT VIDEO IN AUDIO IN L R EEPROM TERMINAL BOARD INFORMATION A36 VIDEO IN COMPONENT TERMINAL BOARD R EEPROM L Pr L AMP H1 INFORMATION R AMP Q3002 A22 A34 A28 HZ Component Video Terminal(RCA) Board A21 9V 9V AUDIO IN L Q3001 Y A38 SCL A26 SDA B25 R B24 Pb STB5V TH-42PW6CH/CZ, TH-42PWD6CY H and HZ-Board Block and Schematic Diagram 63 14.9. HV 电路板方框图 X3101 Y R IN C + - + - 1 1 3 3 Q3006 Q3104 Q3005 Q3007 Q3101,3102 L.P.F. Q3023 Q3051 Q3052 L IN IC3003 AMP C IN Y IN VIDEO IN Analog Front-End AGC 2 × ADC Adaptive Comb Filter NTSC Color Decoder NTSC PAL SECAM Saturation Tint Mixer 2DScalar PIP Panorama Contast Brightness Peaking Output Formatter PAL Clock Sync + Generation MEMORY CONTROLLOR R07 R00 G07 G00 B00 B07 13 6 199 206 160 153 3 55 56 54 52 2 51 50 24 18 22 16 15 23 20 19 14 10 11 8 4 12 7 6 R07 G07 R00 G00 B00 B07 TTL PARALLEL TO LYDS 46 45 47 48 37 42 38 41 40 39 PLL 31 27 28 72 95 163 162 165 HS VS CLK IN 117 116 212 210 IIC Bus Clock Gen. SDA SCL C V/Y 17 32 B5 B6 B2 B9 B14 B8 B15 B3 TX0+ TX0- TX1+ TX1- TX2- TX2+ TX3- TX3+ B24 B25 SCL2 SDA2 P1 P2 5 6 P0 4 14 SCL SDA 15 SDA 5 6 SCL IC3305 DAC ICC EXPANDER IC3699 EEPROM 65 4 OUT RESET IC3104 5M FIFO MEMORY IC3201 IC3251 LVDS TRANSMITTER GC2M IC3103 CLKSEL /PDWN B36 R A26 S2 DET A28 V/Y A38 L B11 TXC+ B12 TXC- JK3001 S-VIDEO IN JK3005 H1 TX0- TX2- TX2+ TXC- TX3- TX3+ TX0+ TXC+ TX1- TX1+ H Sync V Sync LL Clock /POWN CLK SEL S DET TO J11 8 8 8 BUFFER BUFFER BUFFER BUFFER AMP AMP L AMP R AMP Composite Video Terminal(RCA) Board HV IC3003 AMP AMP Q3002 AMP Q3003 INV. Q3004 7 6 1 5 SWITCH IC3003 INFORMATION TERMINAL BOARD P7 12 S SEL SDA 6 7 SCL 3 2 IC3304 5V<=>3.3V 5V<=>3.3V IC3105 SCL 2 SDA 5 6 3 X3101 Y R IN C + - + - 1 1 3 3 Q3006 Q3104 Q3005 Q3007 Q3101,3102 L.P.F. Q3023 Q3051 Q3052 L IN IC3003 AMP C IN Y IN VIDEO IN Analog Front-End AGC Adaptive Comb Filter NTSC Color Decoder NTSC PAL SECAM Saturation Tint Mixer 2DScalar PIP Panorama Contast Brightness Peaking Output Formatter PAL Clock Sync + Generation R07 R00 G07 G00 B00 B07 13 6 199 206 160 153 3 55 56 54 52 2 51 50 24 18 22 16 15 23 20 19 14 10 11 8 4 12 7 6 R07 G07 R00 G00 B00 B07 TTL PARALLEL TO LYDS 46 45 47 48 37 42 38 41 40 39 PLL 31 27 28 72 163 162 165 HS VS CLK IN 117 116 212 210 IIC Bus Clock Gen. SDA SCL C V/Y 17 32 B5 B6 B2 B9 B14 B8 B15 B3 TX0+ TX0- TX1+ TX1- TX2- TX2+ TX3- TX3+ B24 B25 SCL2 SDA2 P1 P2 5 6 P0 4 14 SCL SDA 15 SDA 5 6 SCL IC3305 DAC ICC EXPANDER IC3699 EEPROM 65 4 OUT RESET IC3104 5M FIFO MEMORY IC3201 IC3251 LVDS TRANSMITTER GC2M IC3103 CLKSEL /PDWN B36 R A26 S2 DET A28 V/Y A38 L B11 TXC+ B12 TXC- JK3001 S-VIDEO IN JK3005 H1 TX0- TX2- TX2+ TXC- TX3- TX3+ TX0+ TXC+ TX1- TX1+ H Sync V Sync LL Clock /POWN CLK SEL S DET TO J11 8 8 8 BUFFER BUFFER BUFFER BUFFER AMP AMP L AMP R AMP Composite Video Terminal(RCA) Board IC3003 AMP AMP Q3002 AMP Q3003 INV. Q3004 7 6 1 5 SWITCH IC3003 INFORMATION TERMINAL BOARD P7 12 S SEL SDA 6 7 SCL 3 2 IC3304 5V<=>3.3V 5V<=>3.3V IC3105 SCL 2 SDA 5 6 3 TH-42PW6CH/CZ, TH-42PWD6CY HV-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY HV-Board Block Diagram 64 14.10.HV 电路板 （1/2）电路图 + + C Y + + NP + + NP NP + Y L R AA_BO7 AO_RE AO_FO0 AO_FI4 AA_BO6 AO_RR AO_FO3 AO_FO1 AA_BO5 AO_FI0 AO_FO4 3.3V AO_FO2 AA_BO4 AE_V_Y AO_FI1 AO_FO0 AO_FO5 AC_RO0 AD2R5V 3.3V 3.3V 5V AA_BO3 AO_FI2 PLL2.5V AO_FO1 AO_FO3 AL_S_SEL AA_BO2 AO_FI3 AO_FO2 AO_FO4 AL_S_DET GC2R5V AO_FI4 AO_WR AG_SDA2 AE_L AO_WE AC_RO2 AO_WE AE_R AC_RO7 AC_RO3 AG_SCL2 AO_WR AO_FO6 2.5v_MM AC_RO4 AO_FI5 AO_FI5 DA2.5V AO_FO9 AO_FI6 AC_RO5 AO_FI6 2.5v_MF AC_RO6 AO_FI7 AO_FO9 AO_FI8 2.5v_MB AO_FI0 AO_FI9 AO_FI1 AO_FO7 AC_RO1 AO_FO8 AB_GO5 GC3R3V AB_GO6 AO_FO8 AO_FO6 AB_GO7 AA_BO1 AO_FI8 9V 9V AO_FO5 AA_BO0 AO_FI9 AO_FO7 AB_GO1 AO_FI7 AB_GO0 AO_RE AL_S2_DET AB_GO2 AO_RR AB_GO3 AM_VS AO_FI2 AB_GO4 AM_HS AO_FI3 9V R3009 100 Q3007 2SB0709A0L C3141 1u 6.3V C3115 16V 0.1u C3111 16V 0.1u 1% R3005 75 R3144 1k 1% R3180 1.1k R3116 0 R3059 1k R3046 100 1% R3030 390 C3202 10V 1u R3165 0 C3144 16V 0.1u 1% R3040 330 C3214 10V 1u C3175 16V 0.1u C3106 16V 0.1u C3207 4V 220u R3058 100 C3126 16V 0.1u C3138 10u 6.3V R3152 560 1% R3172 75 C3009 16V 47u IC3104 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out C3161 16V 0.1u R3158 1.8k JS3309 C3140 50V 100p R3060 1k C3137 16V 0.1u C3136 50V 33p 33k R3051 JS3308 C3002 25V 0.1u C3185 50V 6p R3140 22 R3151 22 R3053 15k JS3305 1% R3163 2.7k C3134 16V 0.1u R3033 100 C3160 16V 0.1u C3022 10V 1u R3013 15k R3145 1k 1% R3123 15k R3194 0 JK3001 K1CB106B0027 C3122 10V 1u R3118 0 R3037 220 1% C3125 16V 0.1u C3013 16V 1u C3162 10V 1u R3117 1k C3113 16V 0.1u R3149 22 R3141 0 R3062 560 1% R3173 220 L3103 ELJPA100KF 560p C3051 50V R3017 100 R3065 0 R3014 10k Q3005 2SD0601A0L C3021 16V 1u 1% R3042 6.8k C3116 16V 0.1u C3121 16V 0.1u R3007 100k C3017 50V 68p R3057 100 R3138 0 1% R3161 2.7k R3115 1k R3028 100 1% R3133 10 1% R3134 10 R3166 0 Q3006 2SB0709A0L 1% R3113 1.5k R3148 22 C3012 16V 0.1u C3150 16V 0.01u C3165 10V 1u R3154 330 C3172 16V 0.1u C3005 16V 0.1u C3024 10u 6.3V Q3101 2SB0709A0L 1% R3168 200 C3158 16V 0.1u C3218 16V 0.1u C3117 16V 0.1u C3006 16V 0.1u C3108 16V 0.1u C3174 16V 0.1u C3135 16V 0.01u C3056 1u 16V C1AB00001826 IC3103 1 VSS 2 VDDE 3 VDDI 4 UV0 5 UV1 6 RO0 7 RO1 8 RO2 9 RO3 10 RO4 11 RO5 12 RO6 13 RO7 14 HPO1 15 VPO1 16 LCLK1 17 VDDI 18 VDDE 19 VSS 20 HPIN2 21 VPIN2 22 UVIN0 23 UVIN1 24 UVIN2 25 UVIN3 26 UVIN4 27 UVIN5 28 UVIN6 29 UVIN7 30 UVIN8 31 UVIN9 32 CLKIN 33 VDDI 34 VDDE 35 VSS 36 YIN0 37 YIN1 38 YIN2 39 YIN3 40 YIN4 41 YIN5 42 YIN6 43 YIN7 44 YIN8 45 YIN9 46 VDDI 47 VDDE 48 VSS 49 YUV0 50 YUV1 51 YUV2 52 YUV3 53 YUV4 54 YUV5 55 YUV6 56 YUV7 57 YUV8 58 YUV9 59 VDDI 60 VDDE 61 VSS 62 BCLK 63 HFR 64 LCDSW 65 NRST 66 AVSAD12 67 AVDAD12 68 AVSAD11 69 AVDAD11 70 VRH1 71 NC 72 VIN1 73 VRL1 74 NC 75 NC 76 AVSAD22 77 AVDAD22 78 AVSAD21 79 AVDAD21 80 NC 81 VRH2 82 NC 83 VIN2 84 NC 85 VRL2 86 NC 87 NC 88 AVSAD32 89 AVDAD32 90 AVSAD31 91 AVDAD31 92 NC 93 VRH3 94 NC 95 VIN3 96 NC 97 VRL3 98 NC 99 NC 100 AVDCLP 101 AVSCLP 102 UCLP 103 VCLP 104 YCLP 105 VSS 106 VDDI 107 VDDE 108 MST 109 SMCK 110 VPD 111 XTST 112 VPIN1 113 HPIN1 114 SCS 115 XSM 116 SDA 117 SCL 118 VSS 119 VDDE 120 FO9 121 FO8 122 FO7 123 FIN9 124 FIN8 125 FIN7 126 FIN6 127 FIN5 128 FO6 129 FO5 130 VSS 131 VDDI 132 VDDE 133 WE 134 WR 135 FCKR 136 RR 137 RE 138 FO4 139 FO3 140 FIN4 141 FIN3 142 FIN2 143 FIN1 144 FIN0 145 FO2 146 FO1 147 FO0 148 OSDCNT 149 VDDE 150 VSS 151 VDDI 152 INTLC 153 VDAF 154 EWO 155 HO2 156 HO1 157 158 HDO 159 HTRAP 160 HINP 161 HPO3 162 VPO3 163 HPO2 164 VPO2 165 LCLK2 166 VDDE 167 BXS3 168 VSS 169 CW358 170 VDDI 171 VGS3 172 CPO3 173 AVDPL3 174 AVSPL3 175 VGS2 176 CPO2 177 AVDPL2 178 AVSPL2 179 VSS 180 HREF 181 VDDE 182 BXS2 183 VDDI 184 FBPMO 185 VDDE 186 FBPIN 187 VSS 188 AVSPL1 189 AVDPL1 190 CPO1 191 VGS1 192 VSS 193 VDDI 194 POUT 195 VDDE 196 VSAW 197 VDDE 198 RDV 199 BDV 200 RCF 201 GCF 202 BCF 203 HCLP 204 BLK 205 HPO4 206 VPO4 207 FRCLK 208 VDDE 209 VSS 210 XIN 211 VDDI 212 XOUT 213 VDDE 214 VSS 215 VMYS 216 YUVOE 217 TEST 218 AIN1 219 AIN2 220 AIN3 221 AIN4 222 AVSAD 223 VR 224 AVDAD 225 VRO1 226 VREF1 227 AOUT1 228 AVSDA1 229 AVDDA1 230 VRO2 231 VREF2 232 AVSDA2 233 AVDDA2 234 AOUT2 235 AVSDA3 236 AVDDA3 237 AOUT3 238 COMP3 239 AVSDA4 240 AOUT4 241 AVDDA4 242 VRO4 243 VREF4 244 COMP4 245 NC 246 AVDDA5 247 AVSDA5 248 AOUT5 249 COMP5 250 NC 251 AVSDA6 252 AOUT6 253 AVDDA6 254 VRO6 255 VREF6 256 COMP6 1% R3169 75 R3055 15k R3045 10k R3125 0 1% R3181 1.4k C3109 16V 0.1u C3001 25V 0.1u C3110 16V 0.1u R3012 10k JS3302 1% R3177 1.4k C3127 16V 1u C3212 10V 1u R3006 10k C3169 16V 0.1u C3146 16V 0.1u R3054 33k C3114 16V 0.1u L3201 ELJPA100KF JS3301 C3055 1u 16V C3147 10u 6.3V C3123 16V 0.1u L3104 ELJPA100KF R3101 22 C3107 16V 0.1u R3025 100 L3007 G1C2R2K00006 C3105 4V 220u IC3002 C0ABGB000001 1 2 3 5 4 1% R3171 75 C3139 16V 0.1u 1% R3032 120 R3048 100 R3026 10k Q3104 2SD10300TL 560p C3053 50V C3118 16V 0.1u C3103 10V 1u R3119 120 C3023 16V 47u C3104 16V 0.1u C3180 16V 0.1u R3153 220 L3052 ELJNA1R5JF C3168 16V 0.1u R3136 0 R3102 0 C3119 16V 0.1u C3181 16V 0.1u C3204 10V 1u C3173 16V 0.1u Q3023 2SD0601A0L C3131 16V 0.1u C3203 10V 1u D3001 MA2J72900L C3186 50V 47p C3213 10V 1u C3010 16V 0.1u C0CBABB00029 IC3301 4 GND 3 SW 1 OUT 2 IN R3159 0 C3130 16V 0.1u C3008 16V 0.1u 1% R3036 180 C3151 50V 33p C3132 16V 0.1u C3154 16V 0.1u Q3003 2SD0601A0L R3193 10k C3133 16V 0.1u C3166 10V 1u R3143 0 Q3052 2SD0601A0L R3035 1k 1% R3183 1.4k R3027 1k C3102 16V 0.1u R3114 0 1% R3124 10 Q3002 2SD0601A0L R3142 0 1% R3041 180 R3016 100 1% R3170 75 JS3310 C3004 10V 10u R3010 15k R3003 10k R3120 0 560p C3054 50V JS3306 R3008 10k R3023 4.7k 1% R3178 1.1k C3206 10V 1u L3051 ELJNA1R5JF C3014 16V 47u JS3303 L3001 J0HABB000003 1 2 3 4 C3209 10V 1u C3210 10V 1u IC3201 C3HBKZ000001 1 VCC 2 CS 3 CSMODE 4 NC 5 VSS 6 DI0 7 DI1 8 NC 9 DI2 10 VSS 11 DO0 12 DO1 13 VCC 14 NC 15 DO2 16 VSS 17 VSS 18 VCC 19 VCC 20 DO3 21 NC 22 VCC 23 NC 24 DO4 25 VSS 26 DI3 27 NC 28 NC 29 DI4 30 VSS 31 OE 32 RE 33 RSTR 34 SRCK 35 VCC 36 VSS 37 SWCK 38 RSTW 39 WE 40 IE 41 VCC 42 DI5 43 NC 44 NC 45 DI6 46 VSS 47 DO5 48 NC 49 VCC 50 NC 51 DO6 52 VCC 53 VCC 54 VSS 55 VSS 56 DO7 57 NC 58 VCC 59 DO8 60 DO9 61 VSS 62 DI7 63 NC 64 DI8 65 DI9 66 VCC 67 NC 68 NC 69 NC 70 VSS IC3101 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT L3002 J0HABB000004 1 2 3 4 R3155 330 C3142 16V 0.1u C3211 10V 1u C3148 1u 6.3V C3011 16V 0.1u R3022 100 C3120 16V 0.1u R3174 0 Q3001 2SD0601A0L R3104 22 1% R3004 75 R3157 220 R3043 560 1% R3050 75 33k R3052 C3016 50V 22p C3164 10V 1u C3019 6.3V 3.3u IC3105 C0JBAZ001834 1 2 3 4 5 6 7 8 R3044 10k C3179 4V 220u R3156 560 L3003 J0HABB000004 1 2 3 4 C3153 50V 100p C3015 50V 47p 1% R3127 12 R3021 1k C3124 16V 0.1u R3106 10k R3192 10k R3049 1k 1% R3135 10 C3170 16V 0.1u R3189 0 R3185 0 C3205 10V 1u R3019 1k C3178 16V 0.1u C3188 10V 1u Q3004 2SD0601A0L C3167 16V 0.1u C3018 10V 10u R3121 120 C3156 1u 6.3V R3131 22 R3056 33k R3137 0 1% R3112 1.5k C3163 10V 1u R3167 0 C3183 16V 0.1u C3112 16V 0.1u 1% R3031 470 C3217 10V 1u C3007 16V 0.1u C3208 10V 1u IC3102 C0DBZLB00001 K 1 3 R A 2 1% R3129 12 C3152 16V 0.1u 560p C3052 50V R3061 560 R3195 0 L3102 ELJPA100KF C3177 16V 0.1u R3108 0 C3128 16V 0.1u R3018 100 R3107 33 IC3001 C0JBAR000111 1 2 3 4 5 6 7 8 JS3304 IC3003 C0ABGB000001 1 2 3 5 4 R3164 0 R3047 1k R3011 10k Q3051 2SD0601A0L 1% R3179 1.4k R3139 0 1% R3029 220 1% R3160 2.7k R3015 15k L3005 0 R3020 1k C3003 10V 10u 1% R3182 1.1k 1% R3122 8.2k C3176 16V 0.1u Q3102 2SD10300TL R3024 100 C3129 16V 0.1u R3038 2.7k D3002 MAZ31000ML X3101 H0J202500002 C3149 16V 0.1u 1% R3162 2.7k C3171 16V 0.1u 1% R3184 1.1k C3159 4V 220u C3182 16V 0.1u C3157 10u 6.3V C3216 10V 1u L3006 J0E8004B0008 1 2 3 4 5 6 7 9 10 12 *JK3005 K2HA306B0048 1% *R3064 75 ACL XTAL D Macro GC2M+ Global_tvsiginal_processing_CoreLSI 4 ver.2_for_Main_processor C 1 + 2 - Macro Macro Macro 5M_FIFO DA AVR 3.3V AD 5V=>3.3V AD RESET PLL AVR 2.5V PLL ERROR DET PLL AMP AMP SWITCH 13 5 6 4 2 3 1 11 12 10 VCC For Mid_CLK GND VEE INH COM I1 I0 SEL + - CROMA 8 /OE1 9 /OE2 7 B1 A2 Vcc A1 B2 GND For BurstLock F For FBP 5 Macro Macro A Macro AVDDA4 AVSDA2 HV-BOARD TNPA2844 (1/2) B AVDDA2 E AVSDA3 9 AVDDA3 6 AVSDA4 8 MP 7 EHT 3 TH-42PW6CH/CZ, TH-42PWD6CY HV-Board (1 of 2) Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY HV-Board (1 of 2) Schematic Diagram 65 14.11.HV 电路板 （2/2）电路图 + + + + + + + SCL2 AC_RO2 AL_S_SEL AL_S2_DET SDA2 AC_RO0 3.3V 3.3V 3.3V AM_HS AI_TX3+ AE_V_Y AH_TX2- AM_HS AC_RO3 SRQ AI_TX3- AH_TX2+ AC_RO4 AM_VS AJ_TXC+ AG_SDA2 AD_TX0- AM_VS AC_RO5 AA_BO4 AE_L AJ_TXC- AK_TX1+ AC_RO6 AA_BO3 AH_TX2- AH_TX2+ AK_TX1- AA_BO1 AK_TX1+ AD_TX0+ AG_SCL2 AA_BO0 AK_TX1- AA_BO2 SCL2 AD_TX0+ AA_BO6 SDA2 AD_TX0- AA_BO7 AL_S_DET AA_BO5 AG_SCL2 SRQ AB_GO6 C C C C C PLL2.5V SDA2 AG_SDA2 SCL2 AC_RO7 SCL2 AC_RO1 AI_TX3- 3.3V 3.3V AJ_TXC+ SDA2 AI_TX3+ 9V AB_GO7 AB_GO5 2.5V AB_GO1 AE_R 3.3V 3.3V AB_GO0 AB_GO4 3.3V AJ_TXC- AB_GO3 AB_GO2 5V R3253 4.7k R3338 22 C3262 50V 1000p IC3251 C0ZBZ0000684 DS90C383AMTDX 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 TS3102 C3324 6.3V 100u R3305 0 R3304 22 C3317 10V 1u R3252 10k R3308 10k R3302 4.7k C3254 16V 0.1u C3258 16V 0.1u L3305 ELKE103FA 1 2 3 C3319 16V 0.1u C3313 10V 1u H0 K1KA08A00293 1 2 3 4 5 6 7 8 L3308 ELKE103FA 1 2 3 C3257 50V 1000p R3315 10k C3328 16V 0.1u C3253 50V 1000p R3254 22 1% R3301 1.5k R3313 33k C3255 50V 1000p 1% R3300 1.5k IC3305 C0JBAZ000801 1 A0 2 A1 3 A2 4 P0 5 P1 6 P2 7 P3 8 GND 9 P4 10 P5 11 P6 12 P7 13 VDAC 14 SCL 1 15 SDA 1 16 VCC C3320 16V 0.1u C3260 16V 0.1u R3307 0 R3309 10k C3309 10V 1u IC3699 TVRJ982 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3261 4V 220u 33k R3319 C3318 16V 0.1u L3306 ELKE103FA 1 2 3 C3322 4V 220u C3301 10V 1u C3256 16V 0.1u TS3100 C3311 16V 0.1u TS3101 R3251 100 R3303 22 R3255 22 C3308 4V 220u C3259 50V 1000p L3251 ELJPA2R2MF C3264 16V 0.1u C3263 16V 0.1u C3265 4V 220u C3321 16V 0.1u L3307 ELKE103FA 1 2 3 C3325 16V 47u IC3303 AN80L25RMSTX 5 4 3 1 2 IC3302 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C3327 16V 0.1u C3330 16V 0.1u H1 K1KA80B00034 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C0JBBZ000285 IC3304 1 NC 2 SCL0 3 SDA0 4 GND 5 EN 6 SDA1 7 SCL1 8 VCC C3316 10V 1u R3337 22 R3314 10k C3329 16V 0.1u L3252 ELJPA2R2MF C3323 4V 220u C3266 16V 0.1u 12 VP 10 16 11 HP STB5V 15 GND 13 Y3- LVDS TRANSMITTER Y3+ LVDS GND AVR 2.5V EEPROM PLL GND TERMINAL BOARD PLL VCC INFORMATION PLL GND /PDWN 5V=>3.3V CLK IN DAC IIC EXPANDER D26 AVR 2.5V GND D25 D24 VCC D23 D22 D21 D20 GND D19 D5 D18 VCC D27 CLKI_M LVDS GND Y0- Y0+ Y1- Y1+ LVDS VCC LVDS GND Y2- Y2+ CLKOUT- CLKOUT+ S_DET D17 SRQ CLKSEL GND D16 SDA D15 SCL D14 GND GND OUT D13 ON/OFF D12 VCC D10 3 D11 1 D9 11 GND 12 D2 10 D3 8 D4 9 D0 7 D1 13 17 D8 5 6 GND 4 18 D7 2 14 D6 HV-BOARD TNPA2844 (2/2) IN GND NC TH-42PW6CH/CZ, TH-42PWD6CY HV-Board (2 of 2) Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY HV-Board (2 of 2) Schematic Diagram 66 14.12.HX 电路板电路图 + + + AB_TXD AB_RXD AC_VD AC_HD AB_RXD AB_TXD AC_VD AC_HD R3510 100 L3508 J0HABB000004 1 2 3 4 C3562 1u 16V D3509 MAZ81600HL R3400 10k L3509 J0HABB000004 1 2 3 4 JK3509 1 2 3 4 5 8 9 6 7 R3586 56 HX1 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 L3517 J0HAAB000012 J0HABB000003 1 2 3 4 L3514 J0HAAB000012 J0HABB000003 1 2 3 4 IC3502 C3EBCC000020 1 NC 2 NC 3 NC 4 VSS 5 SDA 6 SCL 7 VCLK 8 VCC R3530 180k R3668 100 C3550 50V 0.01u R3529 180k C3551 16V 47u R3508 4.7k JK3511 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 C3524 50V 0.01u D3504 MAZ30560ML R3656 33k R3547 100 C3405 16V 47u R3672 100 R3663 1k L3513 J0HAAB000012 J0HABB000003 1 2 3 4 R3585 56 L3555 ELJPA100KF L3512 J0HAAB000012 J0HABB000003 1 2 3 4 R3589 47k R3591 0 D3502 MAZ30560ML R3790 100 L3510 J0HAAB000012 J0HABB000003 1 2 3 4 R3511 100 R3548 100 L3511 J0HAAB000012 J0HABB000003 1 2 3 4 C3404 16V 0.1u R3653 15k L3515 J0HAAB000012 J0HABB000003 1 2 3 4 D3503 MAZ30560ML Q3531 2SD0601A0L D3510 MAZ81600HL R3664 1k R3654 33k R3592 0 R3593 0 R3590 56 C3561 1u 16V D3508 MAZ81600HL R3778 47k R3791 100 C3523 16V 47u JK3513 K2HC103B0105 R3777 100 C3409 16V 0.1u L3507 J0HABB000004 1 2 3 4 R3509 4.7k Q3532 2SD0601A0L L3526 ELJPA100KF L3516 J0HAAB000012 J0HABB000003 1 2 3 4 R3655 15k D3501 MAZ30560ML D3507 MAZ81600HL R3776 100 5V 9V TXD RXD VD HD TJS8A9880 PC IN RS-232C REMOTE_IN CTS RTS PCis DSR RI L R EEPROM DDC RXD TXD DTR CD GND 9V PC Ls PC Rs PC R PC G PC B 1 3 7 A 5 B D 4 6 2 C 8 E (J14) TO J-BOARD AUDIO IN HX-BOARD TZTNP020QBS ! L AMP Q3532 R IN L IN PC AUDIO IN JK3513 14 12 13 1 2 3 15 R AMP Q3531 13 11 5 1 3 7 9 6 5 7 VCLK SDA SCL DDC EEPROM IC3502 PC R PC G PC B 19 PC HD 18 PC VD JK3509 SCL RS-232C SDA REMOTE IN L R HX PC IN PC Terminal Board JK3511 HX1 PC R 9V PC B 5V PC HD 22 PC VD 21 PC G PC Ls PC Rs TXD 3 2 RXD RXD TXD TO J14 TH-42PW6CH/CZ, TH-42PWD6CY HX-Board Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY HX-Board Schematic Diagram 67 14.13.HY 电路板方框图 B 3 2 E C 8 A 5 D 4 6 7 1 X3101 Y R IN C + - + - + - 12 10 15 5 7 2 9 16 Q3403 Q3104 Q3005 Q3007 Q3101,3102 L.P.F. L.P.F. Q3004 Q3023 Q3051 Q3052 L IN Q3401 IC3401 AMP & SW C IN Y IN VIDEO IN VIDEO OUT Analog Front-End AGC 2 × ADC Adaptive Comb Filter NTSC Color Decoder NTSC PAL SECAM Saturation Tint Mixer 2DScalar PIP Panorama Contast Brightness Peaking Output Formatter PAL Clock Sync + Generation MEMORY CONTROLLOR R07 R00 G07 G00 B00 B07 13 6 199 206 160 153 3 55 56 54 52 2 51 50 24 18 22 16 15 23 20 19 14 10 11 8 4 12 7 6 R07 G07 R00 G00 B00 B07 TTL PARALLEL TO LYDS 46 45 47 48 37 42 38 41 40 39 PLL 31 27 28 72 95 163 162 165 HS VS CLK IN 117 116 212 210 IIC Bus Clock Gen. SDA SCL C V/Y 17 32 B5 B6 B2 B9 B14 B8 B15 B3 TX0+ TX0- TX1+ TX1- TX2- TX2+ TX3- TX3+ B24 B25 SCL2 SDA2 P1 P2 5 6 P7 12 14 SCL SDA 15 SDA 5 6 SCL IC3305 DAC ICC EXPANDER IC3699 EEPROM 65 4 OUT RESET IC3104 5M FIFO MEMORY IC3201 IC3251 LVDS TRANSMITTER GC2M IC3103 CLKSEL /PDWN B36 R A26 S2 DET A28 V/Y A38 L B11 TXC+ B12 TXC- Q3501,3502 Q3505,3506 R IN Q3503 Q3504 L IN JK3001 S-VIDEO IN JK3002 VIDEO IN/OUT JK3004 AUDIO IN JK3303 AUDIO IN Y/G IN Pb/B IN Pr/R IN COMPONENT JK3304 /RGB HD IN VD IN L A26 R A28 Y/G A38 Pb/B A36 Pr/R A34 HD A32 VD A30 H1 H2 TX0- TX2- TX2+ TXC- TX3- TX3+ TX0+ TXC+ TX1- TX1+ H Sync V Sync LL Clock /POWN CLK SEL S DET TO J11 TO J12 8 8 8 INV. INV. BUFFER BUFFER BUFFER BUFFER BUFFER BUFFER L AMP R AMP R AMP L AMP LEVEL CONVERTER LEVEL CONVERTER AV COMPONENT /RGB CVBS & RGB/COMPONENT(BNC) Terminal Board HY SCL 3 2 IC3311 5V<=>3.3V SDA 6 7 3 IC3105 5V<=>3.3V SDA 2 5 SCL 6 TH-42PW6CH/CZ, TH-42PWD6CY HY Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY HY Board Block Diagram 68 14.14.HY 电路板 （1/2）电路图 Y/G PB/B PR/R HD VD + + + C Y NP + NP NP 2 1 + AD_HD_2 AD_VD_2 S2_DET RESET1 RESET2 PWR_STAT SOS REMOTE CABEL_DET RXD TXD AB_V_Y AC_S_DET AC_S2_DET AC_S_SEL 9V AB_R AB_L AS_FI1 AS_FI0 AS_FO2 AS_FO1 AS_FO0 AS_FO4 AS_FO3 AS_FI4 AS_FI3 AS_FI2 AS_RR AS_RE AS_FI8 AS_FI9 AS_FO7 AS_FO8 AS_FO9 AS_FO5 AS_FO6 AS_FI6 AS_FI7 AS_FI5 AS_WR AS_WE 9V AA_Ls_2 AA_Rs_2 AD_VD_2 AD_HD_2 9V 3.3V 9V STB5V 9V Q3007 2SB0709A0L 1% R3002 75 R3544 4.7k R3418 1k R3411 10k Q3052 2SD0601A0L JK3303 K2HA204B0097 1% R3046 100 IC3401 C0ABZA000028 LT1399CGN#TR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1% R3045 220 R3054 33k R3526 10k 1% R3031 180 Q3504 2SD0601A0L R3014 7.5k L3527 J0HABB000004 1 2 3 4 1% R3005 75 560p C3051 50V R3059 1k JK3304 K1QBB5AB0005 G Y/G G G G PB/B G G G PR/R G G G HD G G G VD G G 1% R3032 620 1% R3050 75 R3527 10k 1% R3403 2.7k L3532 ELJPA100KF R3546 3.3 L3051 ELJNA1R5JF 33k R3052 C3019 6.3V 3.3u R3056 33k R3006 10k H2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3047 1k C3006 16V 0.1u C3010 16V 0.1u R3010 15k 1% R3407 2.2k 1% R3404 1.8k C3508 6.3V 10u R3547 3.3 R3013 4.7k R3502 180k R3525 10k C3527 6.3V 6.8u Q3401 2SD0601A0L JK3004 K2HA204B0097 YKC21-4206 Q3501 2SD0601A0L Q3506 2SB0709A0L R3539 100 R3008 10k R3027 15k C3207 4V 220u R3506 4.7k C3005 16V 0.1u 1% R3410 2.2k R3058 100 L3006 J0E8004B0008 1 2 3 4 5 6 7 9 10 12 C3017 50V 68p R3035 1k R3516 100 560p C3053 50V IC3201 C3HBKZ000001 MS81V05200-13TA 1 VCC 2 CS 3 CSMODE 4 NC 5 VSS 6 DI0 7 DI1 8 NC 9 DI2 10 VSS 11 DO0 12 DO1 13 VCC 14 NC 15 DO2 16 VSS 17 VSS 18 VCC 19 VCC 20 DO3 21 NC 22 VCC 23 NC 24 DO4 25 VSS 26 DI3 27 NC 28 NC 29 DI4 30 VSS 31 OE 32 RE 33 RSTR 34 SRCK 35 VCC 36 VSS 37 SWCK 38 RSTW 39 WE 40 IE 41 VCC 42 DI5 43 NC 44 NC 45 DI6 46 VSS 47 DO5 48 NC 49 VCC 50 NC 51 DO6 52 VCC 53 VCC 54 VSS 55 VSS 56 DO7 57 NC 58 VCC 59 DO8 60 DO9 61 VSS 62 DI7 63 NC 64 DI8 65 DI9 66 VCC 67 NC 68 NC 69 NC 70 VSS 1% R3406 1.8k C3507 6.3V 10u 1% R3405 2.7k L3533 ELJPA100KF R3057 100 R3060 1k R3521 4.7k R3009 100 1% R3040 330 L3525 J0HABB000003 1 2 3 4 L3530 J0HABB000003 1 2 3 4 D3351 MA3X15300L C3521 16V 0.1u R3011 10k L3529 J0HABB000004 1 2 3 4 C3012 16V 0.1u L3531 J0HABB000003 1 2 3 4 C3009 16V 47u R3049 1k C3001 25V 0.1u R3528 10k C3523 16V 47u 1% R3036 180 1% R3413 180 JK3001 K1CB106B0027 YKF51-5575 Q3403 2SD0601A0L L3528 J0HABB000004 1 2 3 4 C3013 16V 1u R3033 100 D3352 MA3X15300L R3517 100 1% R3042 6.8k TS3005 R3532 3.3 R3545 4.7k R3061 560 Q3004 2SD0601A0L 1% R3001 75 C3016 50V 22p 1% R3401 2.7k Q3051 2SD0601A0L C3004 10V 10u Q3023 2SD0601A0L R3412 1k R3012 7.5k C3021 16V 1u R3501 180k R3531 3.3 R3026 3.3k R3522 4.7k TS3004 R3530 100 R3535 1k R3003 10k C3520 16V 47u 560p C3054 50V Q3502 2SB0709A0L 1% R3402 1.8k C3003 10V 10u R3007 100k C3055 1u 16V L3007 G1C2R2K00006 R3055 15k R3048 100 L3003 J0HABB000004 1 2 3 4 C3401 16V 10u R3536 1k C3022 10V 1u Q3005 2SD0601A0L R3053 15k L3052 ELJNA1R5JF C3007 16V 0.1u C3002 25V 0.1u C3526 0.1u 16V R3038 2.7k L3002 J0HABB000004 1 2 3 4 R3062 560 C3524 16V 0.1u Q3505 2SD0601A0L C3015 50V 47p 1% R3004 75 JK3002 K1QBB2AB0005 C3525 0.1u 16V R3408 47k R3529 100 Q3503 2SD0601A0L 1% R3409 680 C3056 1u 16V C3014 16V 47u R3015 4.7k 33k R3051 R3538 100 560p C3052 50V C3011 16V 0.1u L3526 J0HABB000003 1 2 3 4 R3507 4.7k L3001 J0HABB000003 1 2 3 4 R3206 0 R3203 0 R3205 0 R3204 0 R3202 0 R3207 0 R3065 0 JS3311 JS3306 JS3307 JS3308 JS3303 JS3310 JS3305 JS3304 JS3309 JS3301 JS3312 JS3302 L3005 0 C3510 1u 16V R3514 100 R3515 100 C3511 1u 16V JS3508 0 JS3507 0 JS3506 0 JS3501 0 JS3502 0 JS3503 0 D3002 MAZ31000ML C3202 10V 1u C3203 10V 1u C3204 10V 1u C3208 10V 1u C3205 10V 1u C3206 10V 1u C3209 10V 1u C3213 10V 1u C3210 10V 1u C3211 10V 1u C3212 10V 1u C3214 10V 1u S - short STV5V SRQ AUD_L AUD_R LAN15V PLUG_DET 3.3V LAN15V HD RSVD RSVD VD 3.3V + - -VDD + - VDD GND GND + - CROMA R_IN L_IN 5M_FIFO 3.3V 3 D 4 C 1 2 F 5 A 9 6 8 7 E B AMP & SW HY-BOARD TNPA2843 (1/2) ! 5 6 4 2 3 1 8 9 7 TO (J12) J-BOARD TH-42PW6CH/CZ, TH-42PWD6CY HY-Board(1of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY HY-Board(1of2)Schematic Diagram 69 14.15.HY 电路板 （2/2）电路图 + + + + + + + + + + + + + + + C C C C AK_TX2- AK_TX2+ AM_TXC- AM_TXC+ AH_SRQ AB_L AB_R AC_S2_DET S2_DET 3.3V 5V 9V AB_V_Y AC_CMP_SYNC AJ_TX3- AJ_TX3+ AN_TX0- AN_TX0+ AL_TX1- AL_TX1+ AG_VS AG_HS 5V AH_SDA2 AC_S_DET AC_S_SEL 3.3V AR_RO0 AR_RO7 AR_RO6 AR_RO5 AR_RO4 AR_RO3 AR_RO2 AR_RO1 AR_RO1 AR_RO7 AS_FO9 AS_FO8 AS_FO7 AS_FI9 AS_FI8 AS_FI7 AS_FI6 AS_FI5 AS_FO6 AS_WE AS_WR AS_FI4 AS_FI3 AS_FI2 AS_FI1 AS_FI0 AS_RR AS_RE AS_FO4 AS_FO3 AS_FO5 AS_FO2 AS_FO1 AS_FO0 AG_HS AP_GO7 AP_GO6 AP_GO5 AP_GO4 AP_GO3 AP_GO2 AP_GO1 AQ_BO0 AQ_BO1 AQ_BO2 AQ_BO3 AQ_BO4 AQ_BO5 AQ_BO6 AQ_BO7 AG_VS AG_HS 3.3V AR_RO6 AR_RO5 AR_RO4 AR_RO3 AR_RO0 AR_RO2 AP_GO2 AP_GO3 AP_GO4 AP_GO0 AP_GO1 AP_GO5 AP_GO7 AP_GO6 AQ_BO5 AQ_BO7 AQ_BO6 AQ_BO2 AQ_BO0 AQ_BO1 AQ_BO3 AQ_BO4 3.3V AH_SRQ AH_SDA2 AH_SCL2 AM_TXC- 3.3V AJ_TX3+ AM_TXC+ AJ_TX3- AN_TX0+ AL_TX1- AL_TX1+ AN_TX0- AK_TX2+ AK_TX2- PLL2.5V AG_VS AS_SCL2 AS_SDA2 AH_SCL2 AH_SCL2 AS_SDA2 AS_SCL2 STB5V AH_SDA2 AP_GO0 AH_SDA2 AH_SCL2 3.3V 3.3V 2.5V DA2.5V AD2R5V R3144 1k H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 Q3102 2SD10300TL C3253 50V 1000p C3257 50V 1000p C3182 16V 0.1u C3113 16V 0.1u IC3251 C0ZBZ0000684 DS90C383AMTDX 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 1% R3162 2.7k C3150 16V 0.01u 1% R3177 1.4k R3104 22 C3177 16V 0.1u R3305 10k 1% R3178 1.1k C3316 16V 1u L3201 ELJPA100KF C3219 6.3V 100u C3165 10V 1u C3172 16V 0.1u C3102 16V 0.1u C3175 16V 0.1u R3131 22 C3117 16V 0.1u C3129 16V 0.1u 1% R3123 15k C3320 16V 0.1u C3173 16V 0.1u R3120 120 R3107 33 C3126 16V 0.1u C3110 16V 0.1u 1% R3179 1.4k IC3102 C0DBZLB00001 UPC1944T-E1 K 1 3 R A 2 C3261 4V 220u C3216 10V 1u C3106 16V 0.1u 1% R3181 1.4k R3308 10k C3158 16V 0.1u 1% R3180 1.1k R3251 100 C3262 50V 1000p R3309 10k C3309 10V 1u R3252 10k C3124 16V 0.1u 1% R3127 12 R3101 22 L3107 J0JGC0000021 L3251 ELJPA2R2MF C3254 16V 0.1u C3108 16V 0.1u 1% R3112 1.5k C3131 16V 0.1u 1% R3163 2.7k L3252 ELJPA2R2MF C3170 16V 0.1u C3132 16V 0.1u C3164 10V 1u R3140 22 IC3699 C3EBGC000018 S-24C16AFJ 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C3103 10V 1u C3130 16V 0.1u 1% R3169 75 C3324 6.3V 100u 1% R3183 1.4k C3184 4V 220u 1% R3124 10 C3122 10V 1u R3154 330 C3186 50V 47p C3105 4V 220u L3104 ELJPA100KF C3115 16V 0.1u C3185 50V 6p 1% R3113 1.5k R3338 22 R3337 22 IC3305 C0JBAZ000801 JLC1562BFEL 1 A0 2 A1 3 A2 4 P0 5 P1 6 P2 7 P3 8 GND 9 P4 10 P5 11 P6 12 P7 13 VDAC 14 SCL 1 15 SDA 1 16 VCC L3108 ELJPA100KF Q3104 2SD10300TL R3153 220 1% R3168 200 D3001 MA2J72900L C3101 4V 220u C3176 16V 0.1u 1% R3135 10 C3142 16V 0.1u R3307 10k IC3301 C0CBABB00029 4 GND 3 SW 1 OUT 2 IN C3107 16V 0.1u R3303 22 1% R3300 1.5k C3123 16V 0.1u C3264 16V 0.1u C3171 16V 0.1u R3145 1k C3144 16V 0.1u 1% R3129 12 1% R3133 10 C3146 16V 0.1u C3258 16V 0.1u C3183 16V 0.1u L3303 ELJPA100KF C3318 16V 0.1u C3256 16V 0.1u Q3103 2SD10300TL R3116 1k C3140 50V 100p L3102 ELJPA100KF C3160 16V 0.1u C3329 16V 0.1u C3255 50V 1000p C3118 16V 0.1u Q3101 2SB0709A0L C3162 10V 1u R3103 22 C3133 16V 0.1u R3106 10k R3151 22 C3259 50V 1000p C3109 16V 0.1u 1% R3122 8.2k C3311 0.1u R3157 220 1% R3170 75 C3322 4V 220u R3121 120 C3319 16V 0.1u C3187 4V 220u C3321 16V 0.1u H0 1 2 3 4 5 6 7 8 C3154 16V 0.1u TS3102 C3137 16V 0.1u C3152 16V0.1u C3116 16V 0.1u C3179 4V 220u R3152 560 IC3303 AN80L25RMSTX 5 4 3 1 2 C3328 16V 0.1u 1% R3182 1.1k L3101 ELJPA100KF C3266 16V 0.1u R3149 22 C3168 16V 0.1u C3166 10V 1u TS3100 C3260 16V 0.1u 1% R3184 1.1k C3127 16V 1u C3159 4V 220u R3117 1k C3174 16V 0.1u R3115 1k C3308 4V 220u 1% R3171 75 1% R3161 2.7k R3119 120 1% R3173 220 L3103 ELJPA100KF C3326 16V 47u C3151 50V 33p 1% R3160 2.7k C3218 16V 0.1u C3315 16V 0.1u 1% R3172 75 C3263 16V 0.1u C3178 16V 0.1u C3265 4V 220u C3317 10V 1u TS3301 R3156 560 C3125 16V 0.1u C3135 16V 0.01u R3306 10k C1AB00001826 IC3103 1 VSS 2 VDDE 3 VDDI 4 UV0 5 UV1 6 RO0 7 RO1 8 RO2 9 RO3 10 RO4 11 RO5 12 RO6 13 RO7 14 HPO1 15 VPO1 16 LCLK1 17 VDDI 18 VDDE 19 VSS 20 HPIN2 21 VPIN2 22 UVIN0 23 UVIN1 24 UVIN2 25 UVIN3 26 UVIN4 27 UVIN5 28 UVIN6 29 UVIN7 30 UVIN8 31 UVIN9 32 CLKIN 33 VDDI 34 VDDE 35 VSS 36 YIN0 37 YIN1 38 YIN2 39 YIN3 40 YIN4 41 YIN5 42 YIN6 43 YIN7 44 YIN8 45 YIN9 46 VDDI 47 VDDE 48 VSS 49 YUV0 50 YUV1 51 YUV2 52 YUV3 53 YUV4 54 YUV5 55 YUV6 56 YUV7 57 YUV8 58 YUV9 59 VDDI 60 VDDE 61 VSS 62 BCLK 63 HFR 64 LCDSW 65 NRST 66 AVSAD12 67 AVDAD12 68 AVSAD11 69 AVDAD11 70 VRH1 71 NC 72 VIN1 73 VRL1 74 NC 75 NC 76 AVSAD22 77 AVDAD22 78 AVSAD21 79 AVDAD21 80 NC 81 VRH2 82 NC 83 VIN2 84 NC 85 VRL2 86 NC 87 NC 88 AVSAD32 89 AVDAD32 90 AVSAD31 91 AVDAD31 92 NC 93 VRH3 94 NC 95 VIN3 96 NC 97 VRL3 98 NC 99 NC 100 AVDCLP 101 AVSCLP 102 UCLP 103 VCLP 104 YCLP 105 VSS 106 VDDI 107 VDDE 108 MST 109 SMCK 110 VPD 111 XTST 112 VPIN1 113 HPIN1 114 SCS 115 XSM 116 SDA 117 SCL 118 VSS 119 VDDE 120 FO9 121 FO8 122 FO7 123 FIN9 124 FIN8 125 FIN7 126 FIN6 127 FIN5 128 FO6 129 FO5 130 VSS 131 VDDI 132 VDDE 133 WE 134 WR 135 FCKR 136 RR 137 RE 138 FO4 139 FO3 140 FIN4 141 FIN3 142 FIN2 143 FIN1 144 FIN0 145 FO2 146 FO1 147 FO0 148 OSDCNT 149 VDDE 150 VSS 151 VDDI 152 INTLC 153 VDAF 154 EWO 155 HO2 156 HO1 157 158 HDO 159 HTRAP 160 HINP 161 HPO3 162 VPO3 163 HPO2 164 VPO2 165 LCLK2 166 VDDE 167 BXS3 168 VSS 169 CW358 170 VDDI 171 VGS3 172 CPO3 173 AVDPL3 174 AVSPL3 175 VGS2 176 CPO2 177 AVDPL2 178 AVSPL2 179 VSS 180 HREF 181 VDDE 182 BXS2 183 VDDI 184 FBPMO 185 VDDE 186 FBPIN 187 VSS 188 AVSPL1 189 AVDPL1 190 CPO1 191 VGS1 192 VSS 193 VDDI 194 POUT 195 VDDE 196 VSAW 197 VDDE 198 RDV 199 BDV 200 RCF 201 GCF 202 BCF 203 HCLP 204 BLK 205 HPO4 206 VPO4 207 FRCLK 208 VDDE 209 VSS 210 XIN 211 VDDI 212 XOUT 213 VDDE 214 VSS 215 VMYS 216 YUVOE 217 TEST 218 AIN1 219 AIN2 220 AIN3 221 AIN4 222 AVSAD 223 VR 224 AVDAD 225 VRO1 226 VREF1 227 AOUT1 228 AVSDA1 229 AVDDA1 230 VRO2 231 VREF2 232 AVSDA2 233 AVDDA2 234 AOUT2 235 AVSDA3 236 AVDDA3 237 AOUT3 238 COMP3 239 AVSDA4 240 AOUT4 241 AVDDA4 242 VRO4 243 VREF4 244 COMP4 245 NC 246 AVDDA5 247 AVSDA5 248 AOUT5 249 COMP5 250 NC 251 AVSDA6 252 AOUT6 253 AVDDA6 254 VRO6 255 VREF6 256 COMP6 C3181 16V 0.1u C3313 10V 1u C3111 16V 0.1u TS3101 C3330 16V 0.1u C3325 16V 47u C3161 16V 0.1u C3149 16V 0.1u IC3302 C0DBEZG00004 PQ07VZ012ZP 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C3104 16V 0.1u IC3101 C0DBEZG00004 PQ07VZ012ZP 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C3323 4V 220u R3304 22 C3134 16V 0.1u IC3104 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out C3163 10V 1u X3101 H0J202500002 C3327 16V 0.1u C3217 10V 1u 1% R3301 1.5k C3153 50V 100p R3253 4.7k C3180 16V 0.1u C3136 50V 33p L3308 ELKE103FA 1 2 3 L3305 ELKE103FA 1 2 3 L3306 ELKE103FA 1 2 3 L3307 ELKE103FA 1 2 3 R3167 0 R3137 0 R3118 0 R3108 0 R3164 0 R3141 0 R3142 0 R3136 0 R3139 0 R3334 0 R3138 0 R3125 0 R3166 0 R3114 0 R3189 0 R3174 0 R3165 0 R3102 0 R3105 0 R3143 0 R3159 0 R3185 0 R3302 20k C3188 10V 1u R3148 22 R3191 10k R3190 10k C3138 10u 6.3V C3147 10u 6.3V C3157 10u 6.3V C3141 1u 6.3V C3148 1u 6.3V C3156 1u 6.3V IC3105 C0JBAZ001834 TC7WBD125FK(TE85L) 1 2 3 4 5 6 7 8 C3312 16V 0.1u R3313 10k R3314 10k IC3311 C0JBBZ000285 PCA9515DP,118 1 NC 2 SCL0 3 SDA0 4 GND 5 EN 6 SDA1 7 SCL1 8 VCC R3317 33k 33k R3318 R3155 330 R3158 1.8k C3167 16V 0.1u C3169 16V 0.1u C3128 16V 0.1u C3139 16V 0.1u C3112 16V 0.1u 1% R3134 10 C3119 16V 0.1u C3114 16V 0.1u C3120 16V 0.1u C3121 16V 0.1u GND VP HP STB5V RST FOR InnerPing FOR DEF FOR EHT FOR HDAF FOR BOW(pararel) Macro Macro Macro DA AD AD PLL PLL PLL For BurstLock For Mid_CLK For FBP Macro Macro COMP3 COMP4 AVDDA4 AOUT4 AVSDA2 AVDDA2 AOUT2 AVSDA3 AVDDA3 AVSDA4 AOUT3 MP EHT ACL XTAL Macro GC2M+ Global_tvsiginal_processing_CoreLSI ver.2_for_Main_processor Y3- Y3+ LVDS GND PLL GND PLL VCC PLL GND /PDWN CLK IN D26 GND D25 D24 VCC D23 D22 D21 D20 GND D19 D18 D27 LVDS GND Y0- Y0+ Y1- Y1+ LVDS VCC LVDS GND Y2- Y2+ CLKOUT- CLKOUT+ D17 CLKSEL D16 D15 D14 GND D13 D12 VCC D10 D11 D9 GND D2 D3 D4 D0 D1 D8 GND D7 D6 D5 VCC CLKI_M S_DET SRQ GND SDA SCL GND /OE1 /OE2 B1 A2 Vcc A1 B2 GND SDA(5V) SDA(3.3V) SCL(5V) SCL(3.3V) 12 10 16 11 15 13 17 18 14 AVR 3.3V AVR 2.5V AVR 2.5V DAC IIC EXPANDER RESET AVR 2.5V ERROR DET 5V=>3.3V 5V=>3.3V EEPROM TERMINAL BOARD INFORMATION HY-BOARD TNPA2843 (2/2) ! 5 6 4 2 3 8 9 1 7 (J11) J-BOARD TO LVDS TRANSMITTER TH-42PW6CH/CZ, TH-42PWD6CY HY-Board(2of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY HY-Board(2of2)Schematic Diagram 70 14.16.J 电路板方框图 + X9350 AVR 9V 2 1 DIG12V IC952 TX0- B12 B9 TX2- B5 TXC- B3 TX1+ TX2+ B6 B11 TX0+ TXC+ TX1- B2 B8 TX3- B15 B14 TX3+ 1 5 2 4 12 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 L 3 R 13 10 9 A B IC3001 AUDIO SELECT AMP Q8001 15 23 17 19 Pr S2 DET Pb Y 13 Pr/R S2 DET 7 9 5 Pb/B Y/G 3 Pr S2 DET 61 63 59 Pb Y Pr 55 57 53 Pb Y SLOT3 PC SLOT2 SLOT1 SCL SDA 27 28 42 44 40 46 50 48 Pr Pb Y Pb Pr Y 7 6 5 1 IC8008 CS/VIDEO SEL(SUB) AMP Q8002 7 6 5 CS/VIDEO SEL(MAIN) 1 IC8007 AMP Q3101 Q3102 AMP 4 12 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 VD 3 HD 13 10 9 IC8001 (MAIN) 1 5 2 SYNC SELECT 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 VD 3 HD 13 10 12 9 A SW2 B SW3 IC8002 (SUB) 1 5 4 2 SYNC SELECT IC8005 INVERTER 2 13 10 12 1 11 8 9 Q3103 AMP AMP Q3106 AMP Q3104 Q3105 AMP IC3005 INPUT SW 25 1 5 17 14 11 IN OUT OUT IN OUT IN VIDEO AMP IC3201 (MAIN) 14 25 1 17 IN 5 (SUB) OUT IN VIDEO AMP IC3251 11 OUT OUT IN A38 A36 A34 B36 A30 A32 B31 B28 B32 B35 B27 B26 B24 B25 B23 Y/G Pb/B Pr/R S2 DET HD VD A26 AUDIO IN R A28 AUDIO IN L RESET PWR STATUS SOS PLUG DET TXD RXD IIC SCL IIC SDA SRQ Pr/R B24 Pb/B A34 B23 AUDIO IN L B28 Y/G AUDIO IN R A28 B36 IIC SDA IIC SCL A30 VD A26 SRQ HD B35 A32 RESET SOS B31 A36 S2 DET A38 PLUG DET B25 TX2- B5 TXC- B3 TX1+ TX2+ B6 B11 TX0+ TXC+ TX1- B2 B8 TX3- B15 B14 TX3+ TX0- B12 B9 TX3+ 2 6 3 TX1+ 5 TX0+ TXC- TX2+ TXC+ 14 TX1- 11 12 TX2- TX3- 15 8 TX0- 9 SLOT3 VD PC HD SLOT3 HD PC VD SLOT1 HD SLOT1 VD SLOT2 HD SLOT2 VD 10 11 12 SLOT1 SLOT2 SLOT3 SLOT3 SLOT2 SLOT1 SCL 7 SDA 9 14 2 S0 S1 IC3002 IIC SW 6 5 4 Pr/R AUDIO IN L VD S2 DET A38 A26 HD A30 Pb/B AUDIO IN R A36 A28 B36 Y/G A32 A34 B35 RESET SOS B31 B28 PLUG DET B24 B23 IIC SDA IIC SCL SRQ B25 Pr/R AUDIO IN L VD HD Pb/B AUDIO IN R Y/G 7 5 1 3 9 11 13 19 18 RXD TXD TXC+ 14 TX1- 11 12 TX2- TX3- 15 6 3 TX1+ 5 TX0+ TXC- TX2+ 8 TX0- 9 TX3+ 2 J11 J12 J13 21 P5V 22 9V J14 Y M 21 PB M 23 PR M 25 TXD1 RXD1 SRQ RESET PWR STATUS SCL S1 SDA S1 SDA S2 SCL S2 SLOT2 DET SCL S3 SDA S3 SLOT1 DET SLOT3 DET SOS SLOT2 L SLOT2 R SLOT1 L SLOT1 R SLOT3 L SLOT3 R SLOT1 HD SLOT1 VD SLOT2 VD SLOT2 HD SLOT3 VD SLOT3 HD PC L PC R PC VD HX PC HD HX 10 9 1 2 SLOT3 VD PC HD SLOT3 HD PC VD SLOT1 HD SLOT1 VD SLOT2 HD SLOT2 VD SW0 SW1 SW2 SW3 SDA SCL 14 15 CS(S) 3 IC3003 EX I/O SDA3 SCL3 SLOT1 SLOT2 SLOT3 PC LO LO LO LO HI HI HI HI S2 S1 A HI HI HI SLOT1 SLOT2 LO B LO SLOT3 LO PC LO HI SLOT2 L SLOT2 R SLOT3 L SLOT3 R PC L PC R SLOT1 L SLOT1 R A SW0 B SW1 SCL3 SDA3 SLOT3 SLOT2 HI LO HI PC LO A SLOT1 HI HI B LO LO 4 8 G IN V IN H IN 6 HD- 15 17 CLP OUT 13 VD+ SYNC IC8003 SIGNAL (MAIN) PROCESSOR H:ON 2 1 7 CS(M) IC8009 SWITCH 29 31 VD M HD M 27 NCLP M J5 Y S 40 PB S 38 PR S 36 14 3 15 CS(M) SCL SDA 6 3 H:ON 5 2 H:ON 1 7 IC3007 IIC SW 15 14 4 3 10 2 9 1 SDA SCL IIC SW IIC SW IC3004 EX I/O(IIC SW) SCL S1 SCL S2 SCL S3 SDA S1 SDA S2 SDA S3 IC3006 EX I/O SW0 SW1 INVERTER 2 13 10 12 1 11 H IN 8 9 17 (SUB) V IN CLP OUT 5 3 H:ON 6 15 IC8004 6 8 HD- IC8006 SWITCH 4 13 G IN CS(S) PROCESSOR IC8009 SIGNAL SYNC VD+ VD M NCLP M HD M NCLP S VD S HD S 9V 13 2 1 12 INVERTER IC8016 13 11 14 RS232C IC8015 12 DRIVER R1IN T1OUT T1IN R1OUT B29 B30 CABEL DET REMOTE CABEL DET REMOTE SDA3 SCL3 SCL3 SDA3 SDA3 SCL3 SDA3 SCL3 2 23 IIC CONT 21 RXD PC TXD TU RXD TU 11 HD S 19 POWER STATUS 34 CABLE DET 25 TXD PC 17 13 RESET REMOTE DET 15 VD S 32 NCLP S 31 REAL TIME/INTER 27 SDA1 5 4 SCL1 SCL3 SDA3 9 8 J3 28 12 SOUND MAIN MUTE STB ON RESET 15 14 SOUND MAIN MUTE TXD 4 RXD 4 17 DPMS HD 19 DPMS VD 17 L 1 SLOT9V 3 SLOT5V 5 SLOT3.3V 6 SLOT3.3V 19 R 9 DIG 12V 12 DR15V SLOT5V DIG 12V DR15V SLOT3.3V SLOT9V Q8012 Q8013 Q8010 Q8011 PC VD PC HD PC HD HX PC VD HX SLOT9V SLOT5V SLOT3.3V J8 LAN15V LAN15V 6 5 STB 5V 1 2 STB ON/OFF J6 10 11 SDA3 SCL3 J10 SDA3 SCL3 SDA3 SCL3 NCLP M VD M HD M RESET POWER STATUS IIC CONT REMOTE DET TXD TU RXD TU CABLE DET TXD4 RXD4 MCLP S HD S VD S PC VD PC HD 5 2 3 TXD4 RXD4 RXD4 TXD4 SDA SCL /INTER 6 OSCOUT OSCIN 7 VDD 8 SLOT3 DET SLOT2 DET SLOT1 DET SOS SCL3 SDA3 STB5V S STB5V Q3010 Q3011 Q3001 R AMP Q3003 L AMP Q3002 LAN15V STB 5V 9V IC951 2 AVR 12V DR15V 12V 1 AVR 5V 9V 2 5V 1 AVR 5V 9V 2 5V 1 IC3108 IC3109 Slot Interface/SYNC Processor Board J SLOT3 SLOT2 HI LO HI PC LO A SLOT1 HI HI B LO LO MAIN SUB TO H2 TO H1 P5V DIG 12V TO HX1 TO D5 TO D3 IC1001 TIME CLOCK TO Z8 TO PF10 TO D6 TH-42PW6CH/CZ, TH-42PWD6CY J-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY J-Board Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 71 14.17.J 电路板 （1/4）电路图 + + + + + 9V 15V 5V AC_CS((M)) AC_CS((S)) AL_HD_2 AK_HD_3 AK_VD_3 AI_VD_1 AL_VD_2 AI_HD_1 AE_SW1 AE_SW0 AE_SW2 AE_SW3 9V D8004 R8005 0 L957 ELKE103FA 1 2 3 R8012 0 C8001 16V 47u SLOT9V R8008 0 SLOT5V C8051 16V 0.1u R8004 0 J8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C956 16V 47u R8001 0 L958 ELKE103FA 1 2 3 C963 16V 0.1u JS8093 R8002 0 R8003 0 R8013 0 R8100 10k C8009 6.3V 10u L8002 ELJPA100KF C958 16V 47u P5V R8024 2.2k R8020 5.6k C8011 6.3V 10u C8006 50V 0.01u R8095 0 D8002 IC8001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD R8022 2.2k L959 ELKE103FA 1 2 3 D8001 MA2J11100L C8007 50V 470p JS8092 R8009 0 R8099 10k R8018 5.6k R8023 2.2k R8006 0 D8003 MA2J11100L R8007 0 R8025 330 R8097 10k R8011 0 R8019 5.6k 9V R8010 0 C957 16V 47u R8014 0 R8098 10k SLOT3.3V IC8002 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD R8021 2.2k L8001 ELJPA100KF IC8009 C0JBAS000109 1 2 3 4 5 6 7 8 R8026 330 C962 16V 0.1u C8003 50V 0.1u C8002 16V 47u R8028 330 C8004 50V 0.1u R8016 0 R8015 0 R8096 0 R8027 330 R8017 5.6k C8008 50V 470p C964 16V 0.1u C8005 50V 0.01u SDA3 SCL3 GND GND GND GND DIG12V SLOT9V SLOT5V SLOT3.3V SLOT3.3V RESET SOUND MAIN MUTE L R GND GND GND GND DR15V VSS VDD H:ON SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI HD VD HD VD 7 8 1 3 4 5 6 D E C B A (Z8) TO Z-BOARD J-BOARD TNPA2826 (1/4) ! SYNC SELECT (MAIN) (SUB) SELECT SYNC SWITCH 1 2 3 4 G K N O L A R H B P M C I J Q E F D TO J-BOARD (3/4) TH-42PW6CH/CZ, TH-42PWD6CY J-Board(1of4)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY J-Board(1of4)Schematic Diagram 2 72 14.18.J 电路板 （2/4）电路图 + + 5V 5V AF_VD_S AF_HD_S AG_VD_M AG_HD_M 12V 12V AG_NCLP_M AF_NCLP_S C8039 1000p L8005 ELJPA100KF L8006 ELJPA100KF C8014 16V 0.1u C8045 16V 1u TPJH1 C8016 16V 4.7u C8046 16V 1u R8057 100 C8031 50V 0.01u TPJV1 C8030 16V 47u R8069 100 R8050 2.2k 1% R8031 2.2k R8056 100 R8065 100 C8021 16V 0.47u R8078 1.5k C8034 1000p TPJH2 C8038 50V 1000p R8066 100 R8041 18k L8003 ELJPA100KF R8070 100 R8082 1.5k IC8003 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing R8083 1k R8051 2.2k C8037 50V 100p R8046 2.2k 1% R8030 3.3k TPJV2 R8084 1k L8004 ELJPA100KF R8045 2.2k 12V R8054 100 R8058 100 1% R8037 4.7k IC8006 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R8048 2.2k R8044 1k C8013 16V 0.1u IC8004 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing C8023 50V 0.01u R8077 1.5k IC8005 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C8019 50V 0.01u R8080 1.5k R8079 1.5k C8015 10V 10u 1% R8029 3.3k ZA3002 K4ZZ01000121 C8022 16V 0.47u C8029 50V 0.01u 1% R8039 4.7k ZA3003 K4ZZ01000121 C8020 50V 0.01u 1% R8032 2.2k R8085 1k 1% R8038 4.7k C8024 50V 0.01u R8067 100 L8007 ELJPA100KF C8036 50V 100p 5V_S 1% R8040 4.7k C8033 50V 1000p R8049 2.2k R8081 1.5k R8059 100 C8018 16V 4.7u R8055 100 R8068 100 R8043 1k R8087 1k P5V C8032 16V 47u R8042 18k C8017 10V 10u 5V_M JS8094 JS8095 C8025 50V 0.01u R8033 100k C8026 50V 0.01u R8034 100k O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC NCLP HP VP NCLP VP HP 15 12 8 14 9 10 11 13 J-BOARD TNPA2826 (2/4) INVERTER INVERTER SYNC SIGNAL PROCESSOR (MAIN) SIGNAL SYNC PROCESSOR (SUB) 2 1 4 3 AD AA AC AB TO J-BOARD (4/4) TH-42PW6CH/CZ, TH-42PWD6CY J-Board(2of4)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY J-Board(2of4)Schematic Diagram 73 14.19.J 电路板 （3/4）电路图 + + + + + + + + + + AB_SCL3 AB_SDA3 AF_NCLP_S AF_HD_HX STB5V 5V AF_PB_S AF_PR_S AF_HD_S AF_VD_S AI_R_1 AH_SLOT1_DET AI_L_1 AJ_RXD1 AB_SCL3 AB_SDA3 AJ_RXD1 AJ_TXD1 AJ_TXD4 AJ_RXD4 AF_DPMS_VD AF_DPMS_HD AM_SDA_S3 AM_SCL_S3 AK_R_3 AK_L_3 AL_L_2 AH_SLOT2_DET AL_R_2 AL_VD_2 AL_HD_2 AL_PR_2 AL_S2_2 AL_PB_2 AL_Y_2 AN_SDA_S1 AN_SCL_S1 AJ_TXD1 AI_VD_1 AI_HD_1 AI_PR_1 AI_PB_1 AI_S2_1 AI_Y_1 AB_SDA3 AB_SCL3 AG_NCLP_M AG_VD_M AG_Y_M AG_PB_M AG_PR_M AG_HD_M AH_SOS AN_SCL_S1 AH_SOS AN_SDA_S1 AL_R_2 AD_R_4 AI_L_1 AL_L_2 AD_L_4 AF_Y_S AI_R_1 AC_SW0 AC_SW1 15V AA_SDA3 AA_SCL3 R3025 100 SLOT9V L1001 ELJPA100KF STB5V_S R3017 0 C1004 5.5V 1.5 J12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 9V R3004 100 R951 100 J10 1 2 3 4 5 6 SLOT3.3V Q3002 2SD0601A0L STB5V_S 12V R1001 56 IC3007 C0JBAS000109 1 2 3 4 5 6 7 8 R3005 4.7k 9V R3006 4.7k C968 50V 0.01u R3013 15k C954 16V 47u R3014 33k R3161 5.6k C3041 16V 0.1u C969 16V 47u LAN15V C1002 50V 15p R3002 1k R3140 47k C3001 50V 0.01u STB5V_S R3063 100 R3009 100 L3002 ELJPA100KF C961 50V 0.01u R3141 47k J6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 STB5V_S X9350 H0J327200038 IC952 C0CBAHG00005 GND 3 2 OUT IN 1 SLOT9V IC1001 C1DB00000274 1 2 3 4 5 6 7 8 R3015 0 R3198 12k R3011 15k C3006 16V 1u IC3002 C0JBBR000002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R3019 0 R952 100 C966 16V 47u UNREG15V L952 ELKE103FA 1 2 3 IC951 C0CBAKG00003 GND 3 2 OUT IN 1 LAN15V C3005 16V 1u D1001 MA2J11100L R3022 0 C1003 16V 0.1u IC3001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD C3008 50V 0.1u R3007 0 C970 50V 0.01u LAN15V R3020 0 C3004 16V 47u C3009 16V 0.1u C953 16V 47u SLOT3.3V ZA3001 K4ZZ01000121 L3001 ELJPA100KF R3018 0 R3021 0 C965 50V 0.01u C951 16V 47u C3007 16V 47u UNREG12V 9V C955 16V 47u R1002 56 SLOT5V R3016 0 Q3001 2SB0709A0L L955 ELKE103FA 1 2 3 STB5V_S R3001 10k L951 ELKE103FA 1 2 3 SLOT5V R3197 12k Q3003 2SD0601A0L C960 16V 0.1u STB5V_S L960 ELKE103FA 1 2 3 C967 50V 0.01u C971 16V 47u C952 50V 0.01u STB5V_S D3003 MA2J11100L STB5V_S J3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 P5V L953 ELKE103FA 1 2 3 C1001 50V 15p C3040 16V 0.1u J11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3003 47k L956 ELKE103FA 1 2 3 R1003 100 R3012 33k R3008 0 R3160 5.6k C959 16V 0.1u C972 16V 0.1u J5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 L3003 ELJPA100KF R3010 100 D3001 MA2J11100L L954 ELKE103FA 1 2 3 9V S1 S0 VDD VSS H:ON 5V 32.768K TIMER IC GND STB5V SCL1 IIC_CONT SDA2 SCL2 SDA1 GND SDA3 SCL3 RESET SOUND MAIN MUTE GND CABLE DET POWER STATUS GND TXD_TU GND RXD_TU GND TXD_PC GND RXD_PC ALL_OFF REMOCON_OUT FAN_CONT REAL TIME /INTRA STB_ON NCLP_S GND VD_S GND HD_S GND PR_S GND Y_S GND PB_S GND HD GND GND VD CLP R GND B GND G GND GND DPMS_HD DPMS_VD LAN15V PLUG DET CABLE DET SYNC GND REMOTE VD SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G GND GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND AUDIO IN R GND SLOT3.3V SLOT9V GND SLOT5V TX1+ GND TX3+ TX3- TXC+ TXC- TXCG TX3G TXG+ TXG- TX2G TX1- TX1G TX0+ TX0- TX0G SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G LAN15V CABLE DET SYNC GND REMOTE VD SLOT5V GND SLOT9V GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ GND TX1+ TX0G TX0- TX0+ TX1G TX1- PC HI HI LO LO LO LO SLOT3 SLOT2 HI HI SLOT1 SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI STB5V STB_ON LAN15V LAN15V GND GND TXC+ TX3G TX3- TX3+ TX0G TX0- TX0+ TX1G TX1- TXG+ TXCG TXC- TX1+ TX2G TXG- GND GND GND TXG- TX2G TX1+ TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TX1- TX1G TX0+ TX0- TX0G IIC SW SDA SCL 1OE S1 1B4 1B3 1B2 1B1 1A GND VCC 2OE S0 2B4 2B3 2B2 2B1 2A R L Y1 INH 7 8 1 3 4 5 6 D E C B A 2 PF-BOARD (PF10) TO TO D-BOARD (D3) (D5) TO D-BOARD TO D-BOARD (D6) TO SLOT1 SLOT2 TO J-BOARD TNPA2826 (3/4) ! IIC SW AUDIO SELECT AVR 9V AVR 12V POWER STATUS R AMP L AMP 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 N Q B G M R L D A P K O C I J E H F TO J-BOARD (1/4) TH-42PW6CH/CZ, TH-42PWD6CY J-Board(3of4)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY J-Board(3of4) Schematic Diagram 74 14.20.J 电路板 （4/4）电路图 + + + + + + + + + + AF_VD_HX AF_HD_HX AF_DPMS_HD AB_SCL3 AB_SDA3 AC_CS((M)) AF_DPMS_VD 5V AE_SW1 AE_SW0 AH_SOS AC_CS((S)) AG_Y_M AA_SDA3 AA_SCL3 AA_SCL3 AA_SDA3 AA_SDA3 AA_SCL3 5V AF_VD_HX AF_HD_HX AH_SLOT3_DET AC_CS((M)) AC_CS((S)) 9V 9V AM_SDA_S3 AM_SCL_S3 AI_S2_1 AH_SOS AH_SLOT3_DET AK_Y_3 AK_PB_3 AK_PR_3 AK_HD_3 AK_VD_3 AK_R_3 AK_L_3 AG_PR_M AG_PB_M AF_Y_S AF_PB_S AF_PR_S AJ_TXD_4 AJ_RXD_4 AJ_TXD4 AJ_RXD4 9V AI_PR_1 AI_PB_1 AI_Y_1 AH_SLOT2_DET AJ_TXD_4 AD_L_4 AD_Y_4 AD_PR_4 AD_R_4 AD_PB_4 AL_S2_2 AE_SW2 AE_SW3 AK_S2_3 AJ_RXD_4 AD_VD_4 AD_HD_4 AC_SW0 AC_SW1 AL_Y_2 AL_PB_2 AL_PR_2 AH_SLOT1_DET AF_HD_HX AK_PB_3 AK_PR_3 AD_PR_4 AK_Y_3 AD_PB_4 AD_Y_4 AK_S2_3 C3028 2.2u C3114 16V 4.7u C3016 50V 0.01u 1% R3262 75 ZA3004 K4ZZ01000121 R3216 3.3 Q8010 2SD0601A0L R3053 56 R3193 33 Q3106 2SD0601A0L C3202 16V 1u 1% R3201 180 R3112 0 C3022 2.2u C3020 2.2u C3205 16V 1u R3097 0 9V R3122 0 C3204 16V 1u R3034 330 R3045 10k C3109 16V 0.1u STB5V_S SLOT9V 1% R3074 75 C3104 16V 0.1u C3200 16V 1u R3083 100 C3023 2.2u C3262 16V 0.1u 5V_S Q8001 2SD0601A0L 4.7k R3213 R3026 10k 1% R3072 75 C3261 16V 4.7u D8011 MA3X15300L R3064 56 R8036 3.3k R8061 3.3k ZA3007 K4ZZ01000121 R3058 56 R3048 330k C3201 16V 1u R3031 0 R3214 4.7k R3217 3.3 R3108 0 R3041 330 R3051 330k R3127 0 1% R3090 75 R3068 56 Q3102 2SD0601A0L 1% R3117 4.7k R3066 56 R3032 0 C1AB00001720 IC3251 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC IC3109 AN78L05M-E1 IN 3 2 COMMON OUT 1 C3019 16V 0.1u C3032 16V 0.1u C3010 16V 0.1u R8089 1k C3014 50V 0.01u R3038 0 IC8007 C0JBAR000111 1 2 3 4 5 6 7 8 C3011 16V 0.1u C3030 2.2u R3121 0 R3060 0 ZA3005 K4ZZ01000121 R3036 330 R3131 180 1% R3103 180 C1AB00001720 IC3201 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC C3257 16V 0.1u C3134 16V 470u Q3103 2SD0601A0L R3077 56 C3012 50V 0.01u L3050 ELJPA100KF C3203 25V 0.1u C3267 16V 470u R3129 180 R3194 33 R3061 0 R3059 100 1% R3199 180 IC8016 C0JBAZ001934 1 2 3 4 5 6 7 8 9 10 11 12 13 14 1% R3257 1.5k C3256 16V 0.1u R3056 330k 1% R3089 75 1% R3189 75 R3069 56 C3024 2.2u R3107 0 C3027 2.2u R3047 10k D3004 MA2J11100L Q3104 2SD0601A0L R3124 0 Q8002 2SD0601A0L C3112 16V 0.1u C3263 16V 0.1u C3116 16V 0.1u R3084 10k 1% R3105 180 1% R3073 75 R3052 330k C3017 50V 0.01u Q8012 2SD0601A0L R3080 56 LAN15V Q8011 2SB0709A0L C8035 16V 0.1u R3067 56 IC8015 C0ZBZ0000205 1 C1+ 2 VS 3 C1- 4 C2+ 5 C2- 6 VS- 7 T2OUT 8 R2IN 9 R2OUT 10 T2IN 11 T1IN 12 R1OUT 13 R1IN 14 T1OUT 15 GND 16 VCC 1% R3071 75 R3086 0 C3111 16V 0.1u R3027 10k P5V R3230 100 C3254 16V 0.1u C3142 16V 2.2u R3256 0 R3037 0 C8027 16V 2.2u ZA3006 K4ZZ01000121 9V 4.7k R3215 IC3003 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc C3025 2.2u R3128 180 1% R3106 180 R3082 100 C3115 16V 0.1u C8070 0.1u C3117 16V 0.1u R3218 3.3 9V R3132 180 C3107 16V 0.1u R3125 0 C3135 16V 470u R3210 100 C3252 16V 0.1u R3030 0 C3136 16V 470u L3006 ELJPA100KF R3298 0 J13 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C3258 16V 0.1u C3268 16V 470u C8041 16V 2.2u STB5V_S R8071 0 R3057 56 1% R3091 75 R3046 10k 1% R3114 820 R3100 10k R8062 270 R3078 56 1% R3190 75 1% R3093 75 R8047 270 R3050 56 R3196 10k R8035 3.3k STB5V_S C3266 16V 470u J14 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 R8072 0 C3015 50V 0.01u R3055 330k 1% R3254 4.7k R8060 3.3k C3108 16V 2.2u R3085 10k C3013 50V 0.01u 1% R3118 1.5k R3054 56 R3042 0 1% R3261 75 R3126 0 1% R3203 180 C3110 16V 0.1u R3087 0 1% R3101 180 R3259 0 9V R3130 180 C8050 50V 0.01u STB5V_S 9V 1% R3188 75 IC3108 AN78L05M-E1 IN 3 2 COMMON OUT 1 C3260 16V 2.2u C3143 16V 2.2u R3049 330k IC3006 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc R3044 10k 1% R3102 180 C8049 50V 0.01u C3105 16V 0.1u 9V R3033 0 R3029 10k D8010 MA3X15300L R3099 10k R3253 0 R3113 0 C3253 16V 2.2u 1% R3104 180 C3029 2.2u Q8013 2SB0709A0L 9V C3026 2.2u R3219 3.3 C8043 16V 0.1u R3120 0 R3039 330 C8071 47u 1% R3202 180 C3141 16V 2.2u 1% R3070 75 R3211 100 R3123 0 R3098 0 R3035 330 R3076 56 R8091 1k R3079 56 1% R3088 75 R3212 4.7k IC8008 C0JBAR000111 1 2 3 4 5 6 7 8 R3192 33 C3255 16V 2.2u C3259 16V 0.1u R8093 100 1% R3260 75 C3106 16V 2.2u R3116 0 R3043 0 5V_M Q3101 2SD0601A0L R3081 56 SLOT3.3V SLOT5V R3195 10k 9V R3040 330 1% R3200 180 R3095 330 R3191 33 R3231 100 R3297 0 C3118 16V 47u 1% R3092 75 C3113 16V 2.2u P5V L3005 ELJPA100KF Q3105 2SD0601A0L R3096 330 R3094 330 ZA3008 K4ZZ01000121 1% R3204 180 C3264 16V 0.1u C3144 16V 2.2u R3065 56 C3021 2.2u IC3005 C1AB00001139 1 L1 2 L2 3 L3 4 Vcc 5 Y2 6 GND 7 PB2 8 GND 9 PR2 10 SW 11 L1 12 L2 13 L3 14 Vcc 15 Y3 16 GND 17 PB3 18 GND 19 PR3 20 SW 21 L1 22 L2 23 L3 24 DGND 25 ADRESS 26 SDA 27 SCL 28 DVcc 29 L3out 30 L2out 31 L1out 32 MonSW 33 GND 34 PRout3 35 GND 36 PBout3 37 GND 38 Yout3 39 Vcc 40 PRout2 41 GND 42 PBout2 43 GND 44 Yout2 45 Vcc 46 PRout1 47 GND 48 PBout1 49 GND 50 Yout1 51 Avcc 52 Vcc 53 TV_Y 54 GND 55 TV_PB 56 GND 57 TV_PR 58 Vcc 59 Y1 60 GND 61 PB1 62 GND 63 PR1 64 SW C3251 16V 0.1u IC3004 C1AB00000454 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC R3028 10k 1% R3075 75 C3031 2.2u 1% R3255 820 R3133 180 C3018 16V 47u C3265 16V 47u R8094 100 D3024 MA2J11100L D3021 MA2J11100L JS8096 JS8097 STB5V_S C8072 10V 10u C8073 10V 10u 9V STB5V_S DAC0 DAC0 DAC1=SYNC_INH(M) DAC2=LPF(M) DAC3=FAN_CONT DAC4=CS(M) O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC 75ohm DAC3 SW0 SW1 DAC2=LPF(S) VIDEO CS CS VIDEO GND EX I/O DAC4=CS(S) M S GND LAN15V AUDIO GND TXD AUDIO IN R Y/G Y/G GND PB/B S2DETECT PB/B GND RESET1 PR/R RESET2 PR/R GND HD PWR_STATUS SYNC GND SOS VD REMOTE SYNC GND CABLE DET PLUG DET GND SLOT5V GND SLOT9V SLOT3.3V GND AUDIO IN L RXD AUDIO GND IIC SCL RSVD IIC DAT RSVD SRQ STB5V GND TX1G TX1- TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ TX1+ TX0G TX0- TX0+ I0 VCC COM INH SEL I1 VEE GND SEL I1 I0 VCC COM INH VEE GND STB5V_S DAC1=SYNC_INH(S) SLOT1 :3 SLOT3 :1 PC :T GND GND 75ohm L R HD SLOT2 :2 GND GND GND GND GND GND GND DRIVER RS232C RXD TXD EX.I/O EX.I/O SL3_DET SL2_DET SL1_DET IICSW IICSW Y/G PB/B PR/R VD SW0 SW1 GND 15 12 8 14 9 10 11 13 INPUT SW SLOT3 TO TO HX-BOARD (HX1) J-BOARD TNPA2826 (4/4) ! VIDEO AMP (SUB) (MAIN) VIDEO AMP AVR 5V AVR 5V INVERTER SWITCH SWITCH 30 32 31 27 29 28 26 15 16 23 19 20 17 14 25 13 21 22 24 18 12 11 AA AB AD AC TO J-BOARD (2/4) TH-42PW6CH/CZ,TH-42PWD6CY J-Board(4of4)Schematic Diagram TH-42PW6CH/CZ,TH-42PWD6CY J-Board(4of4)Schematic Diagram 75 14.21.D 电路板方框图 C HD ADS CABLE DET 29 TO SC20 SCL2 5V IC9456 1 P5V R(8Bit) DRIVER MUTE VD M L-DOWN A/D CONVERTER (S) NCLP M (32M) 3.3V P5V G(8Bit) 43 HD M R-DOWN VD M 5V P5V IC9009 STB5V S B(8Bit) 101 NCLP M HD M TO P27 5V 4 B(8Bit) /YPbPr F.CLP DRIVER 27 HD M TO P25 5V IC9016 HS OUT G(8Bit) 4 (36MHz) MICRO PROCESSOR MUTE 31 VD M Pr/R IN 5V TO J5 AVR 3.3V IC9302 R(8Bit) 2 PLL M IC9701 IC9023 NCLP M SOS TO J3 1 AVR 3.3V 1 56 IC9157 68 SDA3 LEVEL SHIFT DRVRST TO J6 3.3V 1 4 55 SCL1 OCK PLL 67 5V 3.5V 5V P5V LVDS(CLK) 3.3V IC9707 SDA1 26 LEVEL SHIFT PWR STATUS 43 5 P5V DATA R SCL3 CLK OUT REMOTE OUT 4 5 DATA L SDA2 ADC CABLE DET 4 IC9153 IC9152 SCL2 Y/G IN RXD PC 54 AVR 3.3V SDA2 AVR 3.3V TXD PC SCL2 1 1 STB ON SDA2 3.3V 3.3V MUTE SCL2 P5V P5V RTC INT SCL2 5 RXD TU Q9709 TXD TU SDA2 IC9602 RESET 4 18 SCL2 PS SOS INV. 5V 3.3V LVDS(DATA2) TIMING IIC CONT IC9017 STB5V VSYNC 19 SDA2 OUT (1Mbit) TIMING NCLP S 24Bit BUS SW FAN SOS AVR 3.3V SDA1 REMOCON IC9704 SDA CLAMP VD S KILL SOS SCL1 1 IC9012 6 VRAM HD S 19 ALL OFF1 Q9704 3.3V IC9003 5 8BIT FLASH MEMORY 17 PS SOS Q9703 P5V SCL2 SCL 110M (8M ROM) D6 SC SOS1 SCL1 5 SDA2 EEPROM ADC IC9705 SC SOS2 D3 SDA1 2 17 FPGA IC9702 RGB SOS2(SC) POWER STATUS STB5V SCL3 3 CONTROL VDIA M FORMAT SOS1(SC) RTC INT 5V SDA3 15 5 HDIA M CONVERTER 32 5V IC9151 Y S 16 6 VDIA M CTI/TINT REM IN 15V FORMAT CONVERTER PB S 11 HDIA M 8 COLOR 35 D25 PR S OSD HDIA S 9 12 RGB PROCESSOR 5V 40 CONTRAST 1 CLP M VDIA S 11 NCLP S 9 SCAN-1 5V 29 2 WB-Adj VDIA S 12 HD ADM VD S 10 SCAN-2 VS OUT 5V 4 5 OSD HDIA S 14 VD ADM 20 SUS HD S STB5V REM INT 15V CLP S NCLP S St-r DATA L TIMING 40 PLL POWER STATUS REM OUT 15V 8BIT NCLP M HD ADS LEVEL SHIFT 39 TTL PARALLEL TO LVDS DATA R TIMING REMOTE OUT 5V 7 110M VD ADS VD M IC9603 LVDS(DATA3) 4 42 CABLE DET 15V 6 LVDS(DATA0) ADC D20 HD M 15 3.3V 5V TXD TU DPMS VD B(8Bit) LVDS(DATA1) VD S 12 LEVEL SHIFT SUSTAIN KEY SW RXD TU RXD TU G(8Bit) HD S 11 LVDS(DATA2) DATE SOS IC9601 SCAN-1 LVDS:Low Voltage DPMS HD R(8Bit) RESET IC9155 3 SC SOS1 LVDS(DATA3) 3.3V 5V B(8Bit) 5 SCAN-2 KEY SW 10 IC9002 TXD TU IIC CONT 4 64M SDRAM LVDS(CLK) 64 LEVEL SHIFT 56 15 Differential 202 14 1 TXD PC LVDS(DATA0) POWER SOS 65MHz IC9604 G LED R 19 LVDS RX MAIN RESET 199 5 LVDS(DATA1) RXD PC G0 1 PCK 3.3V 5V PLL Q9400 15 D27 198 G7 STB ON 63 3 5 60MHz 20 LED G Q9001 8 STB5V 4 64 188 7 SOUND MAIN MUTE IC9301,03 DRAMCK 17 DRVRST 42 Q9002 8 DIGITAL1 B(8Bit) R0 187 5 REAL TIME/INTRA PLL SYNTHESIZER 50MHz Pb/B IN 16 DATA SOS G(8Bit) 31 7 MUTE 66 RGB(24Bit) 4 203 SCL1 38 OSK R(8Bit) RESET Q9301 IC9454 6 SCL2 R7 ANALOG(M) 6 204 58 SDA1 55 IC9455 IIC CONT SDRAM 2 3.3V SDA2 56 8 RGB(24Bit) 48 205 SDA2 56 SCL3 STB ON PLASMA AI LED R Q9602 IIC IC9605 67 9 DIGITAL2 11 13 206 RXD PC SDA3 RUSH ON/OFF B Q9601 5V<->3.3V DISCHARGE 23 RGB(24Bit) 12 IC9001 52 17 ALL OFF1 2 43 19 STB5V M IIC 24 CONTROL 1 HD S RGB(24Bit) 9 19 TXD PC TV ON/OFF 3 48 3.3V 12 VD S 5V<->3.3V DRVRST 27 OSD ANALOG(S) SYNC/SEPA 11 MCLP M 55 LED G D5 19 P5V 9 75 68 29 SYNC PROCESSOR LVDS RX CLP 25 VD M 51 M POWER Pb/B IN 5 2 11 IC9608 IIC CONT 133 INV. HSOUT IC9011 HD M M POWER 15 Y/G IN 26 AVR 3.3V 77 9 REMOCON NCLP S 132 100 CLP LVDS:Low Voltage VDID M TV ON/OFF 2 Pr/R IN 60 IC9007 15 6 70 Q9701 VD S 9 RESET DRVRST 8 RUSH ON/OFF 21 24Bit BUS SW HDID M 5 LED G 4 Differential B0 HD S RTC INT 54 IC9606 106 TX0+ KILL SOS VSOUT 23 12 VDIA M 1 FAN SOS Signaling DPMS VD B7 Digtal Signal Processor Board CLP NCLCP S RESET TX0- FAN SOS DATACK 14 28 3.3V HDIA M CABLE DET DPMS HD Signaling 18 G0 RESET HD ADM TX1+ HSYNC D P5V M POWER 34 VD M ALL OFF1 CLP 2 IC9610 G7 3 VD ADM DRVER RST TX1- 5 HD S 32 33 12 54 R0 55 KILL SOS CLPC M AVR 3.3V TXG+ VD S 77 31 LED R 53 R(8Bit) TV ON/OFF R7 IC9006 HD ADS TXG- MCLP M B0 12 37 CLP SCL2 21 G 4 VDIA M VD ADS TXC+ 5 27 28 A/D CONVERTER (M) 20 SC SOS2 1 R HDIA M VS OUT CLPC S TXC- 36 44 SDA DATE SOS 3.3V HDID M B 70 HS OUT HDIA S TX3+ 41 38 SCL SC SOS1 P5V IC9019 VDID M 26 64 VDIA S RUSH ON/OFF 40 TX3- SDA POWER SOS 5 HD M B7 G(8Bit) 66 HDID S M POWER 29 23 SCL 6 AVR 3.3V OSD R CLK OUT Q9708 67 VDID S 21 RESET SDA 1 49 8 TTL PARALLEL TO LVDS 55 SYNC/SEPA Y M 19 SCL SCL 9 70 D31 31 CONVERT MICOM 5 4 VSOUT PB M SDA 71 50 30 SCL3 IC9708 5 IC9709 HSOUT PR M HD ADM 87 90 57 47 SDA3 8 EEPROM SUSTAIN VDIA S DATACK 25 88 IC9015 89 48 DATA R INV. SCAN-1 HDID S DPMS VD TXC- PLL 47 PLL 23 SCL2 DATA L 24Bit BUS SW 45 SCAN-2 VDID S RXD TU TX3+ HSYNC 43 SDA2 DRVER RST LED G SCL2 DPMS HD IC9005 TX3- VSYNC 50 A MUTE KILL SOS 61 FAN SOS SDA2 TXD TU TX0+ IC9008 31 47 SUB-FIELD ALL OFF1 46 VD ADM MUTE TX1+ 24Bit BUS SW PROCESSOR 49 30 LED R 110M CLPC M RESET TX0- TV ON/OFF SC SOS2 55 IC9018 48 3 38 RUSH ON/OFF NCLCP S IIC CONT TX1- CLP 56 SCL1 57 VD ADS STB ON TXG+ IC9459 DPMS HD D32 SDA1 TO C11 58 CLPC S RXD PC TXG- 5 24Bit BUS SW 8BIT DPMS VD SCL3 37 IC9010 HDIA S TXD PC TXC+ TO C21 SDA2 FLASH MEMORY STB5V SDA3 AVR 3.3V 43 INVERTER INVERTER PWR STA Q9702 STB5V M STB5V S KEY SW KEY SW 62 REMOCON 41 REMOCON OPT 44 OPT CATS EYE 99 OPT OR TH-42PW6CH/CZ, TH-42PWD6CY D-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 76 14.22.D 电路板 （1/11）电路图 + AE_VD_S AF_B AF_R AF_G AR_DPMS_VD AR_DPMS_HD AN_TX3+ AO_TXC- AQ_TX2+ AP_TX1- AM_TX0+ AP_TX1+ AQ_TX2- AO_TXC+ AN_TX3- AM_TX0- AL_R0 AL_R1 AL_R2 AL_R3 AL_R4 AL_R5 AL_R6 AL_R7 AL_G0 AL_G1 AL_G2 AL_G3 AL_G4 AL_G5 AL_G6 AL_G7 AL_B0 AL_B1 AL_B2 AL_B3 AL_B4 AL_B5 AL_B6 AL_B7 3.3V AJ_G0 AJ_G1 AJ_R7 AJ_R6 AJ_R5 AJ_R4 AJ_R3 AJ_R2 AJ_R0 AJ_R1 AJ_B5 AJ_B4 AJ_B3 AJ_B2 AJ_B1 AJ_B0 AJ_G7 AJ_G6 AJ_G5 AJ_G4 AJ_G3 AJ_G2 AJ_B7 AJ_B6 AK_R0 AK_R1 AK_R2 AK_R3 AK_R4 AK_R5 AK_R6 AK_R7 AK_G0 AK_G1 AK_G2 AK_G3 AK_G4 AK_G5 AK_G6 AK_G7 AK_B0 AK_B1 AK_B2 AK_B3 AK_B4 AK_B5 AK_B6 AK_B7 AK_G1 AK_G0 AK_R7 AK_R6 AK_R5 AK_R4 AK_R3 AK_R2 AK_R1 AK_R0 AK_G3 AK_G2 AK_B6 AK_B5 AK_B4 AK_B3 AK_B2 AK_B1 AK_B0 AK_G7 AK_G6 AK_G5 AK_G4 AK_B7 3.3V 5V AL_B4 AL_B5 AL_B6 AL_R0 AL_B7 AL_B1 AL_B3 AL_G6 AL_G7 AL_B2 AL_B0 AQ_TX2- AQ_TX2+ AO_TXC- AM_TX0- AM_TX0+ AP_TX1- AP_TX1+ AL_G0 AL_G1 AL_R6 AL_R1 AL_R7 AL_G2 AL_G3 AL_G4 AN_TX3+ AO_TXC+ AN_TX3- AL_R2 AL_R3 AL_R4 AL_R5 AD_RTC_INT AD_STB_ON AD_REMOCON_OUT AS_TXD_TU AS_RXD_TU AS_TXD_PC AS_RXD_PC AH_HDIA_S AH_VDIA_S AJ_R7 AJ_R6 AJ_R0 AJ_R5 AJ_R4 AJ_R3 AJ_R2 AJ_R1 AH_CLP_S AAC_SCL2 AAC_SDA2 AH_HD_ADS AH_VD_ADS AJ_B1 AJ_B0 AJ_B3 AJ_B4 AJ_B5 AJ_B6 AJ_B7 AJ_B2 AJ_G0 AJ_G1 AJ_G2 AJ_G3 AJ_G4 AJ_G5 AJ_G6 AJ_G7 AF_B AF_G AF_R AE_NCLP_S AE_HD_S AD_ALL_OFF1 AD_FAN_CONT AL_G5 *C9020 16V 0.1u *C9006 16V 0.1u R9019 0 *C9120 6.3V 10u C9045 16V 0.1u C9037 6.3V 10u R9131 100 *R9012 EXB38V470JV P5V C9051 16V 0.039u *R9014 10k C9044 1000p C9055 16V 0.1u R9024 75 *R9010 EXB38V470JV R9105 0 C9031 6.3V 10u R9115 0 C9038 16V 0.1u *C9028 6.3V 10u C9046 16V 0.1u C9054 16V 0.1u C9041 16V 0.1u *C9004 6.3V 10u *C9121 6.3V 10u *C9001 6.3V 10u C0JBAZ001992 *IC9008 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE R9029 3.3k *C9017 16V 0.1u *R9026 47k *L9003 ELKE103FA 1 2 3 R9022 75 *IC9003 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 *C9003 16V 0.1u *C9016 16V 0.1u *R9011 100 C9034 16V 0.1u *R9008 100 C9053 3900p R9727 EXB38VR000V C9032 16V 0.1u *C9052 16V 0.1u C9042 25V 0.047u IC9007 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9132 100 C9035 16V 0.1u *IC9002 C0ZBZ0000551 1 D22 2 D23 3 D24 4 GND 5 D25 6 D26 7 D27 8 LVDS GND 9 Y0- 10 Y0+ 11 Y1- 12 Y1+ 13 LVDS VCC 14 LVDS GND 15 Y2- 16 Y2+ 17 CLKIN- 18 CLKIN+ 19 Y3- 20 Y3+ 21 LVDS GND 22 PLL GND 23 PLL VCC 24 PLL GND 25 /PDWN 26 CLK OUT 27 D0 28 GND 29 D1 30 D2 31 VCC 32 D3 33 D4 34 D5 35 D6 36 GND 37 D7 38 D8 39 D9 40 VCC 41 D10 42 D11 43 D12 44 GND 45 D13 46 D14 47 D15 48 VCC 49 D16 50 D17 51 D18 52 GND 53 D19 54 D20 55 D21 56 VCC *L9002 ELKE103FA 1 2 3 *R9002 0 *R9027 330 *R9006 EXB38V470JV *R9729 100 R9110 0 R9114 0 *C9013 16V 0.1u P5V R9018 0 C9030 6.3V 10u *R9005 100 C9039 16V 0.1u *C9122 6.3V 10u *IC9001 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *D6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 IC9006 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *C9029 16V 0.1u R9726 0 C9048 16V 0.1u R9728 0 R9104 0 *C9014 16V 0.1u *R9001 EXB38V470JV *Q9001 2SD0601A0L *D9001 MAZ30360HL *R9015 33 *C9012 16V 0.1u *R9003 0 *R9007 100 *C9022 16V 0.1u *R9030 4.7k R9113 0 *C9023 16V 0.1u *C9005 16V 0.1u C9036 6.3V 10u *C9027 16V 0.1u *R9009 100 *L9001 ELKE103FA 1 2 3 R9130 100 R9730 100 C0JBAZ001992 *IC9005 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE *R9017 EXB38V470JV C9033 16V 0.1u R9731 100 *IC9004 C0JBAS000109 1 2 3 4 5 6 7 8 R9023 75 *C9007 4V 220u C9043 25V 0.047u C9049 16V 0.1u C9056 16V 0.1u *C9011 16V 0.1u *C9050 6.3V 10u C0FBAD000069 IC9009 1 GND 2 GREEN<7> 3 GREEN<6> 4 GREEN<5> 5 GREEN<4> 6 GREEN<3> 7 GREEN<2> 8 GREEN<1> 9 GREEN<0> 10 GND 11 VDD 12 BLUE<7> 13 BLUE<6> 14 BLUE<5> 15 BLUE<4> 16 BLUE<3> 17 BLUE<2> 18 BLUE<1> 19 BLUE<0> 20 GND 21 GND 22 VDD 23 VDD 24 GND 25 GND 26 VD 27 VD 28 GND 29 COAST 30 HSYNC 31 VSYNC 32 GND 33 FILT 34 PVD 35 PVD 36 GND 37 MIDSCV 38 CLAMP 39 VD 40 GND 41 GND 42 VD 43 BAIN 44 GND 45 VD 46 VD 47 GND 48 GAIN 49 SOGIN 50 GND 51 VD 52 VD 53 GND 54 RAIN 55 A0 56 SCL 57 SDA 58 REF BYPASS 59 VD 60 GND 61 GND 62 VD 63 GND 64 VSOUT 65 SOGOUT 66 HSOUT 67 DATACK 68 GND 69 VDD 70 RED<7> 71 RED<6> 72 RED<5> 73 RED<4> 74 RED<3> 75 RED<2> 76 RED<1> 77 RED<0> 78 VDD 79 VDD 80 GND D3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 *R9004 EXB38V470JV *C9002 16V 0.1u 3.3V R9028 33 C9040 25V 0.047u *R9025 10k P5V *R9016 33 R9020 0 P5V R9987 0 R9988 0 R9986 0 R9985 0 R9984 0 P5V Y SN74LVC1G04DBVR 5V GND SDA3 SCL3 STB5V SCL1 IIC_CONT SDA2 SCL2 SDA1 GND SN74CBT16211ADGGR HI:HI-Z SN74CBT16211ADGGR HI:HI-Z TX0G TX0- GND DS90CF386MTDX VS HS DPMS_HD TX0+ TX1G TX1- TX1+ TX2G TXG- TXG+ TXCG TXC- TXC+ TX3G TX3- TX3+ GND T2+ T2- TCLK- T1- T0+ T0- T1+ DPMS_VD GND GND T3+ TCLK+ T3- 100MHz VDD VSS H:ON G B GND GND GND R GND HD VD GND FAN_CONT STB_ON REAL TIME /INTRA REMOCON_OUT CLP ALL_OFF GND GND RXD_PC TXD_PC RXD_TU GND TXD_TU GND GND CABLE DET POWER STATUS SOUND MAIN MUTE RESET 100MHz DIGITAL2 ANALOG(S) & INVERTER AVR 3.3V LVDS RX SWITCH SWITCH SWITCH A/D (S) AVR3.3V AVR3.3V 3 D 5 1 7 8 C F 4 2 6 A E 9 B ! D-BOARD (1/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) J-BOARD (J3) TO (J6) J-BOARD TO TO D-BOARD (6/12) G K N S O T L A R H B P M U C I J Q E F D 4 2 3 1 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(1of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(1of11)Schematic Diagram 77 14.23.D 电路板 （2/11）电路图 + 3.3V AE_VD_S AE_HD_S AE_NCLP_S AH_NCLP_M AH_VD_M AH_HD_M AH_NCLP_S AH_HD_S AH_VD_S AH_VDIA_M AH_HDIA_M AAK_TX0- AAJ_TX1- AAK_TX0+ AAG_TX2+ AAI_TXC- AAI_TXC+ AAH_TX3- AAH_TX3+ AAG_TX2- AAJ_TX1+ AI_NCLP_M AI_VD_M AI_HD_M AAN_G AAN_B AAN_R 5V AAX_R7 AAX_R6 AAX_R5 AAX_R0 AAX_R4 AAX_R3 AAX_R2 AAX_R1 AAM_R2 AAM_R3 AAM_R4 AAM_R5 3.3V 3.3V AAM_B3 AAM_B1 AAM_B0 AAM_B5 AAM_B4 AAM_B2 AAM_G7 AAM_B7 AAM_R0 AAM_B6 &LVDS1 &LVDS0 &LVDS0 AAM_G4 AAM_G3 AAM_G1 AAM_G0 AAM_G6 AAM_G5 &LVDSCLK &LVDS2 &LVDS2 &LVDS3 &LVDS3 &LVDSCLK &LVDS1 AAM_R1 AAM_R6 AAM_G2 AAM_R7 AAM_R0 AAM_R1 AAM_R2 AAV_R0 AAV_R1 AAV_R2 5V 5V AAM_R6 AAM_R7 AAM_G0 AAM_G1 AAM_G2 AAM_G3 AAM_G4 AAM_G5 AAM_G6 AAM_R4 AAM_R5 AAM_R3 AAV_R6 AAV_R7 AAV_G0 AAV_G1 AAV_G2 AAV_G3 AAV_G4 AAV_G5 AAV_G6 AAV_G7 AAV_R4 AAV_R5 AAV_R3 AAC_SCL2 AAC_SDA2 AAM_B2 AAM_B3 AAM_B4 AAM_B5 AAM_B6 AAM_B7 AAM_G7 AAM_B0 AAM_B1 AAV_B3 AAV_B4 AAV_B5 AAV_B6 AAV_B7 AAV_B0 AAV_B1 AAV_B2 AH_CLP_M AAX_R1 AAX_R0 AAX_R2 AAX_R3 AAX_R4 AAX_R5 AAX_R6 AAX_R7 AAX_G0 AAV_R4 AAV_R5 AAV_R6 AAV_R7 AAV_G0 AAV_R0 AAV_R1 AAV_R2 AAV_R3 AH_HD_ADM AH_VD_ADM AAX_B3 AAX_B4 AAX_B5 AAX_B6 AAX_B7 AAX_B1 AAX_B0 AAX_B2 AAX_G6 AAX_G7 AAX_G0 AAX_G1 AAX_G2 AAX_G3 AAX_G4 AAX_G5 AAX_G4 AAX_G5 AAX_G6 AAX_G7 AAX_B0 AAX_B1 AAX_B2 AAX_B3 AAX_B4 AAX_G3 AAX_G1 AAX_G2 AAV_B0 AAV_B1 AAV_B2 AAV_B3 AAV_B4 AAV_B5 AAV_G5 AAV_G6 AAV_G7 AAV_G4 AAV_G1 AAV_G2 AAV_G3 AAX_B5 AAX_B6 AAX_B7 AAV_B6 AAV_B7 AAN_B AAN_G AAN_R AI_HD_M AI_VD_M AI_NCLP_M 3.3V 3.3V *C9102 1000p *C9057 6.3V 10u *C9063 4V 220u C0JBAZ001992 *IC9018 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE *R9120 0 *C9068 16V 0.1u *C9114 16V 0.1u *R9032 0 *R9034 EXB38V470JV *C9059 16V 0.1u C9077 16V 0.1u P5V *R9106 0 *IC9017 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *C9067 16V 0.1u *C9095 6.3V 10u *R9044 33 IC9023 C0JBAZ000545 OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC P5V *R9134 100 *C9125 6.3V 10u *D9003 MAZ30360HL P5V *R9031 EXB38V470JV *R9055 75 *R9040 EXB38V470JV *C9112 16V 0.1u *C9101 25V 0.047u *R9062 4.7k *R9050 0 *C9113 16V 0.1u *R9035 100 *C9098 25V 0.047u *C9110 16V 0.1u C0JBAZ001992 *IC9015 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE *IC9010 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *R9056 75 *C9108 6.3V 10u *C9109 16V 0.039u *C9084 16V 0.1u *R9038 100 *C9103 16V 0.1u *R9052 0 *C9093 16V 0.1u *R9046 33 *R9047 EXB38V470JV *L9009 ELKE103FA 1 2 3 *R9036 EXB38V470JV *C9096 16V 0.1u *C9058 16V 0.1u *R9060 33 *C9061 16V 0.1u *R9043 EXB38V470JV *R9054 75 *C9097 16V 0.1u *C9070 16V 0.1u *L9008 ELKE103FA 1 2 3 *C9086 6.3V 10u *R9053 0 *R9051 0 3.3V *C9106 16V 0.1u *L9010 ELKE103FA 1 2 3 *C9107 16V 0.1u *C9105 16V 0.1u *R9119 0 *C9062 16V 0.1u *C9124 6.3V 10u *R9133 100 *IC9011 C0ZBZ0000551 1 D22 2 D23 3 D24 4 GND 5 D25 6 D26 7 D27 8 LVDS GND 9 Y0- 10 Y0+ 11 Y1- 12 Y1+ 13 LVDS VCC 14 LVDS GND 15 Y2- 16 Y2+ 17 CLKIN- 18 CLKIN+ 19 Y3- 20 Y3+ 21 LVDS GND 22 PLL GND 23 PLL VCC 24 PLL GND 25 /PDWN 26 CLK OUT 27 D0 28 GND 29 D1 30 D2 31 VCC 32 D3 33 D4 34 D5 35 D6 36 GND 37 D7 38 D8 39 D9 40 VCC 41 D10 42 D11 43 D12 44 GND 45 D13 46 D14 47 D15 48 VCC 49 D16 50 D17 51 D18 52 GND 53 D19 54 D20 55 D21 56 VCC *C9100 25V 0.047u *R9045 10k *R9107 0 *C9094 6.3V 10u *R9061 3.3k *C9076 16V 0.1u *R9039 100 *C9088 6.3V 10u *IC9012 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y *IC9016 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *R9057 10k *R9058 47k *R9033 0 *C9111 3900p *C9092 16V 0.1u C0FBAD000069 *IC9019 1 GND 2 GREEN<7> 3 GREEN<6> 4 GREEN<5> 5 GREEN<4> 6 GREEN<3> 7 GREEN<2> 8 GREEN<1> 9 GREEN<0> 10 GND 11 VDD 12 BLUE<7> 13 BLUE<6> 14 BLUE<5> 15 BLUE<4> 16 BLUE<3> 17 BLUE<2> 18 BLUE<1> 19 BLUE<0> 20 GND 21 GND 22 VDD 23 VDD 24 GND 25 GND 26 VD 27 VD 28 GND 29 COAST 30 HSYNC 31 VSYNC 32 GND 33 FILT 34 PVD 35 PVD 36 GND 37 MIDSCV 38 CLAMP 39 VD 40 GND 41 GND 42 VD 43 BAIN 44 GND 45 VD 46 VD 47 GND 48 GAIN 49 SOGIN 50 GND 51 VD 52 VD 53 GND 54 RAIN 55 A0 56 SCL 57 SDA 58 REF BYPASS 59 VD 60 GND 61 GND 62 VD 63 GND 64 VSOUT 65 SOGOUT 66 HSOUT 67 DATACK 68 GND 69 VDD 70 RED<7> 71 RED<6> 72 RED<5> 73 RED<4> 74 RED<3> 75 RED<2> 76 RED<1> 77 RED<0> 78 VDD 79 VDD 80 GND *C9080 16V 0.1u *R9117 0 *D5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 *IC9013 C0JBAS000109 1 2 3 4 5 6 7 8 *R9059 330 *C9073 16V 0.1u *R9135 100 *C9069 16V 0.1u 3.3V *C9087 16V 0.1u *C9123 6.3V 10u *R9042 100 *Q9002 2SD0601A0L *R9037 100 *C9060 6.3V 10u *C9090 16V 0.1u *C9091 16V 0.1u *C9099 16V 0.1u *C9072 16V 0.1u *C9089 6.3V 10u *C9078 16V 0.1u P5V 74LCX244MTCX Y SN74LVC1G04DBVR 2Y1 1A2 1A3 1A4 2Y3 2Y2 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 100MHz SN74CBT16211ADGGR SN74CBT16211ADGGR DS90CF386MTDX DIGITAL1 & ANALOG(M) VSS H:ON VDD HI:HI-Z HI:HI-Z VS HS T0- T0+ T1- TCLK- T2- T2+ T3- TCLK+ T3+ T1+ FOR DVI 100MHz 2Y4 1A1 SWITCH SWITCH A/D (M) LVDS RX INVERTER AVR 3.3V AVR3.3V AVR3.3V 5V->3.3V SWITCH 12 10 14 16 13 11 15 18 17 J-BOARD TO (J5) GND GND GND GND GND TXC+ TX3G TX3- TX3+ TX0G TX0- TX0+ TX1G TX1- TXG+ TXCG TXC- TX1+ TX2G TXG- GND HD GND GND VD CLP R GND B GND G D-BOARD (2/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! D-BOARD (7/11) TO AG AE AD AA AC AB AF 2 3 1 4 43 41 42 44 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(2of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(2of11)Schematic Diagram 78 14.24.D 电路板 （3/11）电路图 + + + + + + + + + + Thermal Pad AD_PS_SOS AD_FAN_SOS 5V AD_KILL_SOS AD_ALL_OFF1 3.3V AD_TV_ON/OFF AD_RUSH_ON/OFF 5V UNREG15V L9952 ELKE103FA 1 2 3 IC9951 C0DBAMH00006 1 Vin 2 Vout 3 COM 4 Oadj 5 Vsoft 6 COM C9961 4V 120u C9968 16V 47u D9955 B0JCPD000010 L9954 ELKE103FA 1 2 3 3.3V C9955 16V 0.1u D9952 B0JCME000025 C9472 6.3V 10u R9971 0 L9953 ELKE103FA 1 2 3 C9970 25V 0.1u 1% R9480 1k D9953 MA3X152K0L P5V 1% R9961 1.62k *R9952 0 C9957 16V 4.7u STB5V_S C9951 16V 47u C9966 4V 220u C9466 4V 220u 1% R9962 1k C9971 50V 2200p *R9955 0 R9960 4.7k IC9453 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C9969 16V 4.7u *R9957 0 *R9954 0 R9998 10k D9954 B0JCME000025 C9471 16V 0.1u C9956 16V 0.1u L9955 G1C470M00012 C9952 16V 47u C9465 16V 0.1u L9951 ELKE103FA 1 2 3 R9964 0 C9960 16V 0.1u D27 1 2 3 4 5 6 7 8 9 D25 1 2 3 4 5 6 7 8 1.8V C9958 25V 220u C9709 16V 47u R9965 1k L9956 1.5u G1C1R5Z00002 1% R9481 1k C9953 16V 47u *R9951 0 C9954 16V 0.1u R9969 0 C9967 6.3V 10u C9959 25V 220u 2.5V *R9956 0 R9959 4.7k C0DBAFH00021 IC9952 1 GND 2 BOOST 3 VIN 4 VIN 5 SW 6 SW 7 NC 8 GND 9 GND 10 NC 11 SHDN 12 FB 13 VC 14 SYNC 15 NC 16 GND C9964 16V 0.1u C9965 16V 0.1u R9973 0 R9966 0 LT1765EFE-1.8#TRPBF STB5V STB7V 3.3V->2.5V M_POWER 1.8V 15V 15V GND 5V GND GND FAN_CONT RUSH_ON/OFF TV_ON/OFF GND FAN_SOS KILL_SOS PS_SOS ALL_OFF1 (PQ1CY1032ZP) M1FS4 3.3V 27 21 22 19 25 26 23 24 20 D-BOARD (3/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! D-BOARD (8/11) TO BB BD BA BC 43 41 42 44 71 P-BOARD TO (P25) P-BOARD TO (P27) TH-42PW6CH/CZ, TH-42PWD6CY D-Board(3of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(1of11)Schematic Diagram 79 14.25.D 电路板 （4/11）电路图 ABE_HFBC ABE_HPLO ABE_OHOLD C9197 25V 0.056u IC9157 C0ABFA000012 1 DVDD 2 SEL 3 VCOout 4 FinA 5 FinB 6 PFDout 7 VSS 8 (NC) 9 PFDinh 10 VCOinh 11 AVSS 12 VCOin 13 Rbias 14 AVDD R9183 2.2k C9186 50V 10p R9200 3.3k C9183 50V 1000p C9169 16V 0.1u R9220 150 C9174 16V 0.1u R9232 330 C9195 16V 1u R9231 2.7k C9196 16V 1u P5V C9198 16V 0.1u R9228 150 C9150 16V 0.1u R9219 33 IC9153 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C9207 6.3V 10u R9218 0 R9203 0 R9221 150 C9175 6.3V 10u C9192 16V 1u C9191 50V 0.01u R9224 2.2k 36MHz PLLM (36MHz) 32 30 34 28 31 35 33 36 29 D-BOARD (4/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! AVR 3.3V D-BOARD (9/11) TO CB CA CC 71 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(4of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(4of11)Schematic Diagram 80 14.26.D 电路板 （5/11）电路图 AAZ_AD8 AAZ_IO3 AAZ_IO2 AAZ_IO1 AAZ_IO20 AAZ_IO21 AAZ_IO16 AAZ_IO7 AAZ_IO6 AAZ_IO5 AAZ_IO4 AAZ_IO17 AAZ_IO18 AAZ_IO19 AAZ_AD0 AAZ_AD1 AAZ_AD2 AAZ_IO22 AAZ_RAS AAZ_WE AAZ_CAS AAZ_IO23 AAZ_BA1 AAZ_BA0 AAZ_CS AAZ_IO0 AAZ_AD10 AAZ_AD3 AAZ_IO28 AAZ_IO29 AAZ_IO31 AAZ_IO30 AAZ_IO10 AAZ_IO11 AAZ_IO15 AAZ_IO24 AAZ_IO25 AAZ_IO26 AAZ_IO27 AAZ_IO14 AAZ_IO13 AAZ_IO12 AAZ_IO9 AAZ_IO8 AAZ_AD7 AAZ_AD5 AAZ_AD6 AAZ_AD4 AAZ_AD9 C9479 16V 0.1u C9485 16V 0.1u 1% R9487 1k 2.5V C9474 16V 4.7u IC9454 C3ABPJ000043 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 ^WE 26 ^CAS 27 ^RAS 28 ^CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 N.C 38 N.C 39 N.C 40 N.C 41 N.C 42 N.C 43 N.C 44 N.C 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8/AP 52 N.C 53 CKE 54 ^CLK 55 CLK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 N.C 88 N.C 89 N.C 90 N.C 91 N.C 92 VSSQ 93 N.C 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ 100 DQ2 1% R9486 1k C9482 16V 0.1u W946432AD-6 M13S64322A-4L SDRAM D-BOARD (5/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! D-BOARD (11/11) TO DA DB DC DE DD 46 48 49 47 52 51 53 54 50 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(5of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(5of11)Schematic Diagram 81 14.27.D 电路板 （6/11）电路图 + + + AAC_IIC_CONT AD_SC_SOS2 AAQ_CEH AAQ_CEL AS_IIC_INT AS_SDA3 AS_SCL3 AS_SCL1 AS_SDA2 AS_SCL2 AS_SDA1 AS_SDA1 AS_SCL1 ABB_A4 ABB_A3 ABB_A2 ABB_A1 ABB_A0 AH_VDID_S AH_HDID_S AS_SCL2 AS_SDA2 AS_SDA3 AS_SCL3 AD_CATS_EYE AS_IIC_INT AAC_SDA2 AAC_SCL2 AAQ_CML AAQ_CMH AAP_CL AAP_CPL AAQ_CSL AAP_CLK AAP_SIU AAP_SID AAP_SCSU AAP_CPH AAQ_CSH AAD_MCLD AAD_MCDATA AAD_MCCLK AS_SCL1 AS_SDA1 AS_SDA2 AS_SCL2 AAU_VA0 AAU_VA4 AAU_VA6 AAU_VA7 AAU_VA8 AAU_VA5 AAU_VA1 AAU_VA2 AAU_VA3 AAT_J AAT_I AAT_D ABB_A5 ABB_A6 ABB_A12 ABB_A13 ABB_A14 ABB_A15 ABB_A16 ABB_A17 ABB_A18 ABB_A7 ABB_A8 ABB_A9 ABB_A10 ABB_A11 ABC_D15 ABC_D14 ABC_D13 ABC_D12 ABC_D11 ABC_D10 ABC_D09 ABC_D08 ABC_D07 ABC_D06 ABC_D05 ABC_D04 ABC_D03 ABC_D02 AAT_A AAT_B AAT_C ABC_D01 ABC_D00 STB5V_S AD_SC_SOS1 AD_DRVMUTE10 AD_CABLE_DET IC9702 C3EBJC000038 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC R9709 47k R9732 100 R9745 10k R9737 1k R9758 10k R9713 150 Q9707 2SB0709A0L R9775 10k C9710 16V 47u 3.3V D20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9767 100 R9747 1k C9707 16V 0.1u X9703 H0J200500016 C9714 100p R9867 10k C9717 100p Q9710 2SB0709A0L R9777 470 R9773 100 D9705 MAZ30620ML D9710 MAZ30620ML Q9704 2SK062000L G D S C9713 100p R9762 EXB38V103JV R9703 100 R9996 0 D9715 MAZ30620ML C9712 100p C9726 16V 4.7u R9738 2.7k R9701 100 C9703 100p R9707 100 R9712 150 R9735 10k R9743 10k Q9701 2SD0601A0L L9701 ELKE103FA 1 2 3 IC9701 MN102L230 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 D9713 MAZ30620ML P5V STB5V_M D9707 MAZ30620ML R9786 EXB38VR000V C9705 1000p R9806 1k D9709 MAZ30620ML X9701 H0J245500024 R9718 0 C9706 16V 0.1u R9756 2.7k C9774 33p STB5V_S R9765 100 R9734 1k D9708 MAZ30620ML R9771 EXB38VR000V R9949 10k R9725 22k R9776 10k R9790 1.5k R9736 2.7k C9727 16V 0.1u C9719 16V 4.7u R9761 1k R9739 2.7k Q9702 2SB14400HL R9749 4.7k R9789 470 R9719 150 R9791 4.7k C9718 16V 0.1u R9795 1M C9720 16V 0.1u C9708 16V 47u C9775 33p C9722 50V 10p R9781 10k R9751 EXB38V103JV R9724 150 R9721 150 R9766 0 D4 1 2 3 4 5 6 7 8 9 10 11 12 D9706 MAZ30620ML R9783 56 R9769 EXB38VR000V R9788 0 R9755 2.7k C9700 16V 0.1u C9724 16V 0.1u Q9703 2SK062000L G D S R9706 100 C9702 16V 47u R9722 150 D9711 MAZ30620ML R9784 56 R9763 10k C9723 50V 10p R9705 100 R9702 68 R9714 150 R9752 100 R9785 EXB38VR000V STB5V_M R9715 150 R9759 56 D9716 MA2J11100L R9750 1k Q9719 2SK062000L G D S IC9711 C0JBAS000109 1 2 3 4 5 6 7 8 R9779 10k R9733 5.6k R9748 0 R9711 150 R9717 0 R9704 100 R9720 150 R9754 EXB38V272JV R9710 150 R9768 EXB38V470JV R9744 10k R9741 4.7k R9708 100 C9725 6.3V 10u C9701 16V 0.1u D9712 MAZ30620ML R9757 56 R9782 5.6k R9774 10k C9716 100p R9716 150 C9715 100p R9723 150 R9700 0 R9787 1k CABLE_DET SOS1 SOS2 H:ON VSS VDD IIC CONT CLK SIU CL CPH SCSU SID CPL CEH CEL CSL CSH CML CMH AD4 84.MUSID 83.MUSIB 82.MUSKIK 81.TESTIN AD1 AD2 AD3 AD6 AD7 SDA3 SCL3 P03 80.VSS 79.VDD 78.P27 VIDEO MUTE(DRIVER) 77.NIRQ2 76.NIRQ1 IIC_INT 75.P16 IIC EX CONT P12 SDA1 P11 SCL1 P10 P07 P06 P02 P01 P23 FPGA_CHIP SEL GND SDA1 SCL2 SDA2 IIC_CONT SCL1 STB5V SCL3 SDA3 IRQ RST GND IIC 5V IIC 5V IIC 3.3V 5V<->3.3V A15 A14 A16 VDD A20 A19 A18 A17 A21 A22 A23 P00 AUDIO MUTE A13 A12 A10 A11 A09 VSS P15 P05 NO_SYNC P04 RESET_OUT P14 P13 VDD A00 A01 D09 D10 D11 D13 D14 D15 D12 A02 A04 A03 SYSCLK NRST A05 A08 A07 VDD OSCI OSCO VSS A06 SDA2 SCL2 VDD ADVSS ADVDD NSBT NSBD MICOM AD5 VA6 NWEL D03 D04 D02 NRE NWEH NCS0 NCS1 VDD VSS D01 DOSCI DOSCO D00 D05 D06 D07 D08 24.576MHz VSS VA0 SID14 SID15 SID05 SID06 SID07 SID08 SID09 SID10 SID11 SID12 SID13 VA5 VA2 VA3 VA4 VA1 NDCAS VA7 VA8 NDRAS AVSS ECLK NVCAS NVRAS RW601 NDTOE SID00 SID01 SID02 SID03 SID04 POW_STATUS(TUNER) P24 FPGA DATA FPGA_LD P25 YS YMWR YM P26 NVIN NVOUT NHIN NHOUT CS601 RMIN REMOCON VREF GOUT BOUT IREF ROUT YMCS IRQ0 VSS P20 P21 P22 AD0 AVDD SC VDD SWITCH EEPROM 3 D 5 1 7 8 C F 4 2 6 A E 9 B TO SC-BOARD (SC20) ! D-BOARD (6/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) TO (1/11) D-BOARD N Q U B T G M R L D A P K O C I J E H F S 18 16 19 14 15 13 20 12 11 17 23 30 22 31 29 21 32 27 28 26 25 33 24 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(6of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(6of11)Schematic Diagram 82 14.28.D 电路板 （7/11）电路图 + AD_CABLE_DET AD_KEY AAO_UBK AAO_NUEL AAO_UMH AAO_UML AAO_USH AAO_USL AAO_UEH AY_CMH AY_CML AY_CSH AY_CSL AY_CBK AY_CEL AY_CPH AY_CPL AY_SCSU AY_SID AY_SIU AY_CLK AY_CL AAD_MCCLK AD_NRST AAL_MCLDO AAL_MCCLKO AAL_MCDATAO AAD_MCDATA AG_REM_OUT AD_STB_ON AS_IIC_INT AS_TXD_TU AR_DPMS_VD AR_DPMS_HD AAQ_CML AAQ_CMH AAP_SCSU AAP_CPL AAP_CPH AAD_MCDATA AD_ALL_OFF1 AD_DATA_SOS AD_SC_SOS2 AD_PS_SOS AD_FAN_SOS AG_REM_OUT AG_REM_INH VPP12V AS_TXD_PC AS_RXD_PC AD_SC_SOS1 AAF_SD12 AAF_SD13 AAF_SD14 AAF_SD15 AAF_SD08 AAF_SD09 AAF_SD10 AAF_SD11 AAE_SD10 AAE_SD11 AAE_SD09 AAE_SD08 AAE_SD15 AAE_SD14 AAE_SD13 AAE_SD12 AD_RUSH_ON/OFF AD_TV_ON/OFF AD_KILL_SOS AAA_CLKB AS_SCL3 AS_SDA3 AD_DRVMUTE20 AH_VDID_M AH_HDID_M AW_UMH AW_UE2H AAP_CL AAP_CLK AAP_SIU AAQ_CEL AAP_SID AAQ_CEH AAQ_CSH AAQ_CSL AW_UML AW_UEH AW_USL AW_USH AG_REM_INH AD_LED_R AD_LED_G ABC_D15 ABC_D12 ABC_D04 ABC_D14 ABC_D13 ABC_D05 ABC_D06 ABC_D07 AD_REMOCON_OUT AS_TXD_PC AS_RXD_PC AAF_SD08 AAF_SD09 AAF_SD11 ABB_A18 AAT_I AAT_J AAT_D ABC_D09 ABC_D08 ABC_D10 ABC_D11 AAF_SD10 AAT_A AAT_B AAT_D AAU_VA6 AAU_VA8 AAT_C AAU_VA4 AAU_VA5 AAF_SD12 AAF_SD13 AAF_SD14 AAF_SD15 ABC_D13 ABC_D12 AAU_VA0 AAU_VA1 ABC_D15 ABC_D14 AAU_VA2 AAU_VA3 AAU_VA7 ABB_A4 ABB_A5 ABB_A6 ABB_A7 ABB_A17 ABC_D01 ABC_D02 ABC_D08 ABC_D09 ABB_A1 ABB_A2 ABB_A3 ABB_A0 ABC_D00 ABC_D11 ABC_D03 ABC_D10 ABB_A12 ABB_A11 ABB_A10 ABB_A9 ABB_A8 ABB_A16 ABB_A15 ABB_A14 ABB_A13 AD_SOS_STATUS AD_RTC_INT AD_REMOCON AAC_IIC_CONT AZ_PCDI AZ_PCD AD_DRVMUTE20 AAL_MCHD AAL_MCVD AAD_MCCLK AAD_MCLD AS_RXD_TU AD_DRVRST0 STB5V_S AD_DRVMUTE2 AD_DRVMUTE10 AD_DRVMUTE1 AD_DRVRST0 AD_DRVRST AAA_CLKC C9737 16V 0.1u D9771 MA3X152K0L C9732 16V 0.1u D9719 MAZ30620ML R9818 100 R9577 100 R9883 100 R9878 100 UNREG15V R9907 10k R9856 100 IC9602 C0JBAZ000545 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9932 1k R9794 2.7k R9827 3.3k D12 1 2 3 4 5 6 7 R9901 0 R9935 5.6k R9942 10k C0JBAZ000545 IC9706 OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC C9760 16V 0.056u R9931 10k R9832 10k IC9604 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9800 0 C9602 16V 0.1u R9944 1k C9759 16V 0.1u C9729 16V 4.7u R9874 100 R9829 39k C9762 33p R9940 10k R9834 56 R9896 100 R9898 0 C9767 16V 1u D9720 MAZ30620ML R9814 10 R9799 5.6k R9855 39k R9905 10k R9864 100 R9897 10k R9853 10k C9740 16V 0.1u *R9865 10k C9756 1000p R9679 0 R9770 10k R9833 39k D9724 MA2J11100L R9941 330 C9733 16V 0.1u 3.3V R9873 4.7k C9731 16V 0.1u R9922 100 R9857 1k Q9715 2SD0601A0L D9730 MA3X152K0L R9937 330 R9890 10k R9842 56 C9753 16V 0.1u R9933 330 R9924 22k R9849 100 R9848 EXB38V103JV R9869 100 R9920 1M R9889 100 R9939 330 3.3V R9861 10k C9728 16V 0.1u R9880 100 C9769 16V 0.1u R9817 0 R9876 10k R9820 4.7k C3HAHC000006 IC9704 4 SI/O2 8 I/O1 9 1/O2 6 DT/OE 3 SI/O1 2 SI/O0 10 I/O3 11 VCC 12 WE 7 I/O0 13 NC 14 RAS 1 SC 15 NC 16 A8 17 A6 5 SI/O3 18 A5 19 A4 20 VCC 26 QSF 40 VSS 28 NC 27 CAS 39 SI/O7 29 DSF 38 SI/O6 37 SI/O5 36 SI/O4 35 SE 34 1/O7 33 I/O6 32 I/O5 31 I/O4 22 A3 21 A7 23 A2 30 VSS 24 A1 25 A0 R9860 100 R9836 100 R9851 22k R9886 100 C9603 16V 0.1u C9748 16V 0.1u R9847 10k R9798 5.6k 3.3V R9909 10k P5V R9903 10k R9946 10 C9750 16V 4.7u R9825 1k 1% R9913 22k IC9707 C0JBAE000283 1 2 3 5 4 R9868 4.7k R9852 10k STB5V_S D9769 MA3X152K0L R9859 1k R9893 100 R9838 0 R9910 100 C9741 16V 0.1u IC9601 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C9742 16V 47u C9752 0.01u D9723 MAZ30620ML R9894 100 C9604 16V 0.1u R9824 0 C9601 16V 0.1u R9819 100 R9925 0 IC9710 C0EBB0000024 1 2 IN 3 4 GND 5 6 OUT 7 VCC 8 R9921 100 R9871 1k P5V R9943 100 C9766 6.3V 10u R9846 10k R9841 56 STB5V_S R9837 10k C9755 1000p C9761 33p R9900 100 R9804 100 R9906 100 Q9706 2SK062000L G D S R9840 100 R9803 100 IC9708 C3EBGC000018 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC R9604 0 R9816 1k C9763 0.01u C9768 16V 1u IC9703 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 1% R9919 10k IC9709 C2BBGF000297 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 R9936 5.6k Q9709 2SD0601A0L C9751 0.01u R9914 1k 16V 0.1u C9739 16V 0.1u R9923 100 C9765 16V 0.1u R9918 0 Q9716 2SD0601A0L Q9714 2SD0601A0L R9934 10k R9882 100 R9603 0 R9945 10 R9930 100 Q9708 2SD0601A0L R9850 100 R9858 100 R9805 0 1.8V R9917 10k R9839 100 P5V R9916 0 R9875 100 IC9603 C0JBAZ001604 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9826 100 D9727 MA3X152K0L R9835 56 R9843 10k R9904 10k R9885 EXB38V103JV R9879 100 R9823 0 C9754 16V 0.1u X9702 H0J921400003 R9887 10k C3FBLD000039 IC9705 1 RY/BY 44 RESET 2 A18 3 A17 4 A7 5 A6 6 A5 7 A4 8 A3 9 A2 10 A1 11 A0 12 CE 13 VSS 14 OE 15 DQ0 16 DQ8 17 DQ1 18 DQ9 19 DQ2 20 DQ10 21 DQ3 22 DQ11 23 VCC 24 DQ4 25 DQ12 26 DQ5 27 DQ13 28 DQ6 29 DQ14 30 DQ7 31 DQ15/A-1 32 VSS 33 BYTE 34 A16 35 A15 36 A14 37 A13 38 A12 39 A11 40 A10 41 A9 42 A8 43 WE R9908 100 R9602 0 C9749 16V 0.1u C9743 16V 1u R9844 10k R9895 100 R9569 0 R9557 0 R9810 0 R9811 0 R9872 0 R9563 0 74LCX244MTCX 74LCX244MTCX M38049FFFP TVRJ951-1:SD SN74ACT244PWR SN74ACT244PWR SN74ACT244PWR SN74ACT244PWR SN74AHC1G32HDBVR 5V->3.3V NC NC Cd NC NC MAIN_RESET P53/SRDY2 3.AN0 15V_DET 1.P62/AN2 SC_SOS 3.3V->5V 3.3V->5V 3.3V->5V 5V->3.3V 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 GND TXD RXD GND STB5V 12V 31.P21 STB_ON 4.P57/INT3 RTC_INT NC 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 P54/CNTR0 DPMS VD P55/CNTR1 DPMS HD 21.P40/INT40/XCOUT SCL 20.P41/INT00/XCIN SDA KEY_SCAN NC DRV_SOS POWER_SOS NC IICINT IIC SEL 48.P00/AN8 A_MUTE 47.P01/AN9 M_POWER 46.P02/AN10 KILL_SOS IICCONT P31/DA2 RUSH_ON/OFF P04/AN12 DRIVER_MUTE P06/AN14 NC DRVER_RST POWER_SNS P11/INT01 P12 NC P13 NC P14 CABLE_Z P24 LED_R P15 POWER STAT P17 ALL_OFF1 P16 SOS_INH 29.REM_INH 30.P22LODER_MD 32.P20_REM OUT P25MAIN_CONF P26 LED_G P27 INT_SERIAL XOUT XIN VSS 18.CNVSS/VPP 19._RESET 17.P42/INT1 FPGA CS /CNTR2 PRG RST P47/_SRDY1 P50/_SIN2 DIN P51/_SOUT2 DOUT P52/_SCLK2 CLK 5.P56/PWM NC VCC OR A B GND P63/AN3 P64/AN4 P65/AN5 P66/AN6 P67/AN7 AVSS VREF VCC P30/DA1 P32/SDA P33/SCL P34/RXD3 P35/TXD_PC P36/SCLK3 P37/_SRDY3 P44/RXD1 RXD_TU P45/TXD1 TXD_TU P46/SCLK1 PROG_CTL P43/INT2 2.AN1 5V_DET P10/INT41 REM_IN P07/AN15 P05/AN13 45.P03/AN11 9.216M CONVERT MICOM VRAM (128KW*8bit) 1Mbit 8M ROM FLASH MEMORY 2Y1 1OE VCC 1A1 2Y4 1A2 1A3 1A4 GND 2Y3 2Y2 2OE 1Y1 1Y2 1Y3 1Y4 2A4 2A3 2A2 2A1 3.3V->5V TVRJ950-2 RESET EEPROM OR 12 10 14 16 13 11 15 18 17 D-BOARD (7/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! D-BOARD (2/11) TO AA AB AE AD AF AG AC 13 20 22 19 14 15 11 16 18 21 17 12 24 27 26 25 23 31 28 30 32 29 33 60 59 54 57 58 56 52 53 51 55 61 62 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(7of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(7of11)Schematic Diagram 83 14.29.D 电路板 （8/11）电路图 AY_SCSU AY_CPL AY_CPL AY_SCSU AA_D7 AA_D6 AA_D5 AA_D4 AA_D0 AA_D1 AA_D2 AA_D3 AB_BUS_REQ AH_CLP_S AH_VD_ADS AH_HD_ADS AH_CLP_M AH_VD_ADM AH_HD_ADM AH_NCLP_S AH_HDIA_M AH_VDIA_M AAR_LATCH AAR_SFVRST AAR_SFRST AAR_FPCLK AAR_FPDAT0 AAR_FPDAT1 AA_SL0 AA_SL1 AA_SL2 AAE_SD10 AAE_SD11 AAE_SD12 AAE_SD13 AAE_SD14 AAE_SD15 AAL_MCDATAO AAL_MCVD AA_SBU6 AA_SAU6 AA_BYTE AA_SBU6 AA_SAU6 AA_SCU5 AA_SBU5 AA_SAU5 AA_SCU6 AAB_CKO AAB_VO AAB_HO AB_TCK AB_TDI AB_TDO AA_XOE AA_SCU6 AA_XCE AA_XWE AA_SL2 AA_SL1 AA_SL0 AA_XWE AA_RD_XBY AAA_CLKC AAA_CLKB AD_NRST AAA_REFCK AAA_DOE AAA_DOUT AZ_HZ AB_TDI AB_TDO AB_TMS AB_TCK AY_CBK AY_CPH AY_SIU AY_SID AY_CLK AY_CMH AY_CML AY_CSH AY_CSL AAO_USH AAO_NUEL AAO_USL AAO_UEH AAO_UMH AAA_NO_SYNC AZ_BLKD AV_CER AX_N_VD47 AAA_HDO_S AAA_VDO_S AH_HD_M AH_VD_M AH_VD_S AH_NCLP_M AH_HD_S AH_HDID_M AH_VDID_M AAA_VDO_M AAA_HDO_M AAB_OSD9 AAB_OSD10 AAB_OSD11 AAB_OSD12 AAB_OSD13 AAB_OSD14 AAB_OSD8 AAB_OSD7 AAB_OSD6 AAB_OSD5 AAB_OSD4 AAB_OSD3 AAB_OSD2 AAB_OSD1 AAB_OSD0 AAB_YS AAB_OSD15 AAE_SD08 AAE_SD09 AAL_MCLDO AAL_MCCLKO AAO_UML AAO_UBK AAL_MCHD AB_BUS_REQ AY_CPH AA_XCE AA_D3 AA_D0 AA_D1 AA_D2 AA_D4 AA_D5 AA_D6 AA_D7 AA_SAU0 AA_D15 AA_SCU0 AA_SBU0 AA_SBU2 AA_SCU4 AA_SBU4 AA_SAU4 AA_SCU3 AA_SBU3 AA_SAU3 AA_SCU2 AA_SAU2 AA_SCU1 AA_SBU1 AA_SAU1 AAC_SCL2 AAC_SDA2 AAO_UBK AAO_USH AAO_UML AAO_UMH AAO_USL AAO_UEH AY_SID AY_CMH AY_SIU AY_CLK AY_CSL AY_CML AY_CSH AAS_G2 AAS_G0 AAS_G1 AAS_R2 AAS_R0 AAS_R1 AK_G2 AK_G1 AK_G0 AK_R2 AK_R1 AK_R0 AK_B2 AK_B1 AK_B0 AAS_G7 AAS_G6 AAS_G5 AAS_R7 AK_G7 AAS_R6 AAS_R5 AK_G6 AK_G5 AAS_G4 AAS_G3 AAS_R4 AK_G4 AAS_R3 AK_G3 AK_R7 AK_R6 AK_R5 AK_R4 AK_R3 AK_B7 AK_B6 AK_B5 AK_B4 AK_B3 AAS_B2 AAS_B1 AAS_B0 AAS_B7 AAS_B6 AAS_B5 AAS_B4 AAS_B3 AAV_R0 AAV_R1 AAV_R2 AAV_R3 AAV_R4 AAV_R5 AAV_R6 AAV_R7 AAV_G0 AAV_G1 AAV_G2 AAV_G3 AAW_R1 AAW_R0 AAW_R2 AAW_R3 AAV_G4 AAW_R4 AAW_G1 AAW_G0 AAW_G2 AAW_G3 AAW_G4 AAW_B0 AAW_B1 AAW_B2 AAW_B3 AAV_B0 AAV_B1 AAV_B2 AAV_B3 AAW_B4 AAV_B4 AAV_G5 AAV_G6 AAW_R5 AAW_R6 AAV_G7 AAW_R7 AAW_G5 AAW_G6 AAW_B5 AAW_B6 AAV_B5 AAV_B6 AAW_G7 AAW_B7 AAV_B7 AAB_HI AAB_CKI AD_DRVMUTE2 AZ_PCDI AH_HDIA_S AH_VDIA_S AH_HDID_S AH_VDID_S AB_TMS AY_CL AY_CEL 3.3V R9666 4.7k *R9623 0 C9630 16V 0.1u R9643 0 R9631 0 C9641 16V 0.1u *R9690 0 C1ZBZ0002329 IC9605 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 GND 66 VCCO 67 68 69 70 71 72 GND 73 74 75 76 VCCINT 77 GCK1 78 VCCO 79 GND 80 GCK0 81 82 83 84 85 GND 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208 C9615 16V 0.1u R9696 0 R9993 10k R9694 0 C9638 16V 0.1u C9624 16V 0.1u R9611 0 C9620 16V 0.1u R9641 0 *R9677 0 *R9151 EXB2HVR000V C9616 16V 0.1u R9153 EXB2HVR000V R9621 10k *R9676 0 R9669 4.7k R9108 0 IC9608 C0ZBZ0000764 1 STATUS[1] 2 STATUS[2] 3 TDO 4 TDI 5 TMS 6 CONFIG_SEL[4] 7 CONFIG_SEL[3] 8 CONFIG_SEL[2] 9 CONFIG_SEL[1] 10 CONFIG_SEL[0] 11 TCK 12 VSS 13 VDD 14 ADDRESS[21] 15 ADDRESS[20] 16 ADDRESS[19] 17 ADDRESS[18] 18 ADDRESS[17] 19 ADDRESS[16] 20 VSS 21 VDD 22 ADDRESS[15] 23 ADDRESS[14] 24 ADDRESS[13] 25 ADDRESS[12] 26 ADDRESS[11] 27 ADDRESS[10] 28 ADDRESS[9] 29 ADDRESS[8] 30 ADDRESS[7] 31 ADDRESS[6] 32 VSS 33 VDD 34 ADDRESS[5] 35 ADDRESS[4] 36 ADDRESS[3] 37 ADDRESS[2] 38 ADDRESS[1] 39 ADDRESS[0] 40 VSS 41 VDD 42 DATA[7] 43 DATA[6] 44 DATA[5] 45 DATA[4] 46 DATA[3] 47 DATA[2] 48 DATA[1] 49 DATA[0] 50 XCE 51 XOE 52 VSS 53 XWE 54 RD_XBY 55 REG_SEL 56 D[3] 57 D[2] 58 D[1] 59 D[0] 60 VSS 61 VDD 62 XRESET 63 XWR 64 NC 65 XRD 66 XCS 67 BUS_REQ 68 BUS_RELEASE 69 DATA 70 XCEO 71 VSS 72 CLK 73 VDD 74 VDD 75 XRST 76 VDD 77 XCF 78 XCEI 79 MODE_SEL 80 STATUS[2] *R9685 0 R9654 0 C9632 16V 0.1u R9617 0 C9629 16V 0.1u R9638 10k R9647 0 R9682 0 R9655 0 R9674 0 C9608 16V 0.1u C9606 16V 0.1u C9607 16V 0.1u R9653 EXB38V103JV STB5V_M R9661 4.7k R9245 0 R9600 560 C9621 16V 0.1u R9645 0 C9622 16V 0.1u R9632 0 R9660 4.7k R9648 10k 3.3V 1.8V C9640 16V 0.1u R9613 0 R9608 0 R9624 100 C9637 16V 0.1u R9672 0 C9611 16V 4.7u C9633 16V 0.1u R9651 EXB38V103JV R9668 4.7k R9671 0 R9665 4.7k C9635 16V 0.1u R9618 22k R9157 EXB2HVR000V *R9675 0 R9244 0 R9642 4.7k R9633 0 C9631 16V 0.1u R9614 0 R9656 0 *R9607 0 C9619 16V 0.1u *R9152 EXB2HVR000V R9640 0 R9652 EXB38V103JV R9615 0 R9625 560 R9670 0 R9683 0 C9636 16V 0.1u R9609 0 C9639 16V 0.1u R9684 0 C9617 16V 0.1u R9697 0 *R9629 0 *R9622 0 R9605 0 R9646 4.7k R9601 0 R9975 4.7k *R9698 0 *R9610 0 R9154 EXB2HVR000V R9659 4.7k R9657 0 R9620 10k R9693 EXB38V103JV C9605 16V 0.1u R9991 10k C9609 16V 0.1u R9947 4.7k R9109 0 Q9602 2SD0601A0L R9628 0 R9663 4.7k R9807 EXB38V103JV P5V R9635 0 R9686 0 R9994 10k R9699 0 C9613 50V 0.01u R9948 10k *R9689 0 R9612 0 R9695 0 R9650 EXB38V103JV R9616 0 *R9673 0 C9618 16V 0.1u C9623 16V 0.1u R9972 10k R9634 0 R9692 4.7k R9970 10k R9831 10k R9808 EXB38V103JV R9664 4.7k C9634 16V 0.1u C9625 16V 0.1u *R9155 EXB2HVR000V C9612 16V 0.1u IC9606 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out R9627 0 R9688 0 R9658 10k R9687 0 R9667 4.7k D10 1 2 3 4 5 6 7 8 9 10 11 12 Q9601 2SD0601A0L R9662 10k R9570 0 XC2S200E-6PQG208C TE7720PF P5V GND 3.3V CONFIG_SEL0 CONFIG_SEL1 CONFIG_SEL2 FLASH_0=T 1=B UNREG15V TDI TDO TMS TCK (SPARTAN2E) NO_SYNC CLPC_S GND BLKU VCCO SIU MCDATA IO DRVMUTE NCLP_M SFRST SDAT HDO_M IO HD_S VCCINT OSDIN3 VCCINT DMLR1 VCCO VCCO MCLD HDIA_S VCCO SCSU OSD1 ROM47_2 CLK20M OSD5 UBK VCCO OSD9 CML HDID_S LATCH VDO_S VCCO GND IO M1 USH HDIA_M OSDVD OSD13 GND VCCO OSDIN1 IO SCL GND GND IO IO N_VD47 IO MCVD CBK DIN GND LSI43_33MHz VCCO GND VDO_M IO GND HD_M OSDIN4 GND VCCO CPL OSDIN2 VD_ADM OSDIN7 HD_ADS ROM47_1 CMH DSHL1 OSD4 PCD ^PROGRAM OSD8 VCCINT M0 VDID_S GND FPDATA1 HDO_S UML OSDCLK GCK0 FPCLK GND VCCO VCCINT RESERVE4 RESERVE GND VCCO OSDHD OSD12 CLPC_M OSDIN0 DMHL1 IO CL CEL NRST CCLK DSLR1 VCCO LAC GND TDI IO NCLCP_S GND DSLL1 GND CPH VCCINT DOE XNHD VD_M HD_ADM IO OSDIN6 VD_ADS IO ROM47_0 VCCO GCK2 CLKM_IN OSD3 LED ^INIT OSD7 UMH GND VCCO GND FPDATA0 OSDHO RESERVE4 GND VCCINT GCK1 DCKC IO YS CSL IO DCKB GCK3 VCCO VCCINT OSD15 DMLL1 VDID_M SCO IO IO DSHR1 GND UEH VCCO LEU DRVRST RESERVE4 OSD0 VCCINT REFCK CLK XNVD CGL VD_S OSDIN5 DMHR1 GND MCCLK VDIA_S M2 VCCINT VCCINT OSD2 BLKD VCCINT TCK VCCINT TDO OSD6 NUEL RESERVE4 SID OSD10 SYNCRST DONE SFVRST OSD11 CSH CKI IO GND GND VDIA_M GND MCHD PCU OSD14 HDID_M USL GND SDA RESET DISCHARGE CONTROL OSD SYNC PROCESSOR 27 21 22 19 25 26 23 24 20 FPGA CONTROL D-BOARD (8/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! D-BOARD (3/11) TO BB BA BD BC 58 62 59 57 60 61 55 56 52 54 53 51 81 93 86 82 91 92 85 83 84 89 90 88 87 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(8of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(8of11)Schematic Diagram 84 14.30.D 电路板 （9/11）电路图 AAB_HI AAB_CKI AAA_VDO_S AAA_HDO_S AAA_CLKB AAA_HDO_M AX_VP AX_HP AAA_CLKC AAB_HO AAB_VO AAB_CKO AD_NRST AAA_DOE AAA_DOUT AAA_REFCK AAW_G7 AAW_G6 AAW_G5 AAW_G4 AAW_G3 AAW_G2 AAW_G1 AAW_G0 AAW_R7 AAW_R6 AAW_R5 AAW_R4 AAW_R3 AAW_R2 AAW_R1 AAW_R0 AAS_R3 AAS_R4 AAS_R5 AAS_R6 AAS_R7 AAS_R0 AAS_R1 AAS_R2 AAS_G0 AAS_G1 AAS_G2 AAS_G3 AAS_G4 AAS_G5 AAS_G6 AAS_G7 AAC_SDA2 AAC_SCL2 AAW_B2 AAW_B1 AAW_B0 AAW_B3 AAW_B7 AAW_B6 AAW_B4 AAW_B5 AAS_B0 AAS_B1 AAS_B2 AAS_B3 AAS_B4 AAS_B5 AAS_B6 AAS_B7 AAB_OSD0 AAB_OSD1 AAB_OSD2 AAB_OSD3 AAB_OSD4 AAB_OSD5 AAB_OSD6 AAB_OSD7 AAB_OSD8 AAB_OSD9 AAB_OSD10 AAB_OSD11 AAB_OSD12 AAB_OSD13 AAB_OSD14 AAB_OSD15 AAB_YS AAB_YM ABD_DQ0 ABD_DQ1 ABD_DQ2 ABD_DQ4 ABD_DQ3 ABD_DQ5 ABD_DQ6 ABD_A0 ABD_A1 ABD_A2 ABD_A3 ABD_A4 ABD_A5 ABD_A6 ABD_DQ7 ABD_DQ8 ABD_DQ9 ABD_DQ10 ABD_DQ11 ABD_DQ12 ABD_DQ13 ABD_DQ14 ABD_DQ15 ABD_DQ16 ABD_DQ17 ABD_DQ18 ABD_CAS ABD_RAS ABD_DQM ABD_CS0 ABD_BA1 ABD_BA0 ABD_A7 ABD_A8 ABD_A9 ABD_A10 ABD_DQ19 ABD_DQ20 ABD_DQ21 ABD_DQ22 ABD_DQ23 ABD_DQ24 ABD_DQ25 ABD_DQ26 ABD_DQ27 ABD_DQ28 ABD_DQ29 ABD_DQ30 ABD_WE ABD_SCK0 ABD_DQ31 ABE_HFBC ABE_HPLO ABE_OHOLD ABA_R7 ABA_R6 ABA_R5 ABA_R4 ABA_R2 ABA_R1 ABA_R0 ABA_R3 ABA_B7 ABA_B6 ABA_B5 ABA_B4 ABA_G7 ABA_G6 ABA_G5 ABA_G4 ABA_B3 ABA_B2 ABA_B1 ABA_B0 ABA_G3 ABA_G2 ABA_G1 ABA_G0 AAB_YM AAA_VDO_M 1.8V 3.3V IC9151 V23 OSD5 IC9151 R14 VSS IC9151 N11 VSS IC9151 H16 VSS IC9151 AB12 BLOUT IC9151 C2 VSS R9202 10k IC9151 E5 VSS IC9151 AA17 OGB12 IC9151 P10 VSS IC9151 T13 VDD18 IC9151 L10 VSS IC9151 W19 VSS IC9151 W13 VDD33 IC9151 AC18 OGB2 IC9151 T15 VSS IC9151 P15 VSS IC9151 C10 RUIB6 R9205 0 C9157 16V 0.1u IC9151 L22 GYIC5 C9153 6.3V 10u C9167 16V 0.1u IC9151 W20 MDIV2 IC9151 AA9 ORA4 IC9151 W2 NCAS R9168 10k IC9151 P14 VSS IC9151 AB6 OGA5 IC9151 AA5 OBA5 IC9151 R15 VSS IC9151 N13 VSS IC9151 F23 RVIC3 IC9151 M2 SDD6 R9190 10k IC9151 AC12 PWMOUT IC9151 H20 RVIC1 IC9151 F4 SCPOUT IC9151 B16 HOLD IC9151 M22 GYIC0 C9164 16V 0.1u IC9151 P13 VSS IC9151 AA11 ORA0 IC9151 J4 ADRS11 IC9151 N19 VDD33 IC9151 P9 VSS IC9151 A18 VREFM IC9151 K8 VDD18 IC9151 B12 BUIB0 IC9151 E16 VDD18 IC9151 N15 VSS IC9151 H2 VSS IC9151 P23 VSS IC9151 AB13 ENOUT IC9151 M9 VSS IC9151 W17 VDD33 IC9151 AA22 VSS IC9151 AA15 OBB1 IC9151 D22 I2CSLAV1 IC9151 W1 NRAS IC9151 N12 VSS IC9151 H10 VDD18 3.3V IC9151 C13 GYIB3 IC9151 AB11 HP IC9151 R22 OSD15 IC9151 U2 SDD25 IC9151 A20 CLH IC9151 J1 VSS IC9151 E6 VDD18 IC9151 P20 YS IC9151 AB9 ORA2 IC9151 B20 YREFM IC9151 W4 BANK0 IC9151 L11 VSS IC9151 T9 VDD18 IC9151 Y7 OGA7 IC9151 T20 OSD6 IC9151 B7 OMASK IC9151 T19 OSD4 IC9151 U3 SDD26 IC9151 D16 RVI IC9151 K23 GYIC6 IC9151 U5 VDD33 IC9151 A8 RVIB4 IC9151 L13 VSS IC9151 D10 RVIB0 IC9151 AB20 OVD50 IC9151 U23 OSD9 IC9151 T1 SDD19 IC9151 Y9 ORA7 IC9151 J14 VSS IC9151 M3 SDD5 C9162 6.3V 10u IC9151 Y21 MDIV3 IC9151 D18 UREFM R9226 10k C9170 16V 0.1u IC9151 AA6 OBA2 IC9151 B19 UREFH IC9151 H3 ADRS9 C9161 16V 0.1u IC9151 K10 VSS IC9151 M4 SDD7 IC9151 J13 VSS IC9151 Y3 XOUTRST IC9151 A22 VSS C9176 16V 0.1u IC9151 U1 SDD24 IC9151 R1 SDD15 IC9151 E20 ZLPFON IC9151 Y16 OGB4 IC9151 L19 GYIC4 IC9151 T21 OSD12 IC9151 H9 VDD18 IC9151 AC3 OBA6 IC9151 AB4 OHOLD C9151 16V 0.1u IC9151 J15 VSS IC9151 Y2 BANK1 IC9151 E17 AVDD IC9151 B15 DHB IC9151 H1 SDCKO0 IC9151 C12 GYIB5 IC9151 AB8 OGA0 IC9151 W5 VSS IC9151 M15 VSS IC9151 W14 VDD33 IC9151 E10 VDD33 R9208 10 IC9151 V19 MPLLPDN IC9151 N22 OSDVO IC9151 D2 SDIV2 IC9151 AA3 VSS IC9151 N10 VSS IC9151 E15 VDD33 IC9151 J5 VDD33 IC9151 H8 VSS IC9151 J9 VSS IC9151 G5 ADRS0 IC9151 K4 NCS1 IC9151 AC1 VSS IC9151 AC8 ORA5 IC9151 N14 VSS R9167 10k IC9151 W11 VDD33 C9179 16V 0.1u IC9151 N3 SDD11 IC9151 G20 DHC IC9151 B9 RVIB2 IC9151 K20 BUIC2 IC9151 H14 AVSS IC9151 AB19 ORB3 R9206 10 IC9151 AC2 VSS IC9151 K12 VSS IC9151 W10 VDD33 IC9151 L12 VSS IC9151 K19 VDD33 IC9151 L21 GYIC2 IC9151 A7 RVIB6 IC9151 W7 VDD33 IC9151 L5 VDD33 IC9151 W21 MDIV0 IC9151 C1 SCKREF IC9151 B18 VREFL IC9151 R5 VDD33 IC9151 G22 RVIC4 IC9151 B5 SDWUSE IC9151 J12 VSS R9176 100 IC9151 AC15 VSS IC9151 H12 VDD18 IC9151 AA18 0RB5 IC9151 U4 SDD27 IC9151 AB16 OGB7 IC9151 K5 VDD33 IC9151 Y5 OBA7 IC9151 A19 BUI IC9151 W15 VDD33 IC9151 A15 VSS IC9151 T4 SDD23 IC9151 B6 XTGLRST IC9151 R10 VSS IC9151 R13 VSS IC9151 J16 VDD18 IC9151 AA23 MCKREF IC9151 G4 ADRS3 IC9151 G2 ADRS8 IC9151 E19 VSS IC9151 K2 VSS IC9151 H15 AVSS IC9151 M23 VSS IC9151 B21 VSS IC9151 C18 XADPDN IC9151 V1 SDD28 IC9151 M13 VSS IC9151 AA20 MVD5O IC9151 Y22 MDIV1 IC9151 C8 XSYNCRST IC9151 J2 NCS0 IC9151 K11 VSS IC9151 N1 SDD8 IC9151 V3 SDD30 IC9151 L1 VSS IC9151 AC23 VSS IC9151 AC7 ORA6 IC9151 H13 VDD18 IC9151 M16 VDD18 IC9151 K14 VSS IC9151 A17 VSS IC9151 AB18 ORB7 IC9151 AC13 VSS C9165 16V 0.1u IC9151 E2 SPLLPDN P5V IC9151 E11 VDD33 R9230 0 IC9151 A16 DCKA IC9151 W16 VDD33 IC9151 E8 VDD33 IC9151 AC14 OCKOB IC9151 AA4 HFBC IC9151 N21 OSDHO IC9151 B17 HFBA C9158 16V 0.1u IC9151 C5 TEST0 IC9151 R3 SDD18 IC9151 R21 OSD14 IC9151 P1 SDD10 IC9151 Y12 FJP IC9151 T23 VSS IC9151 G19 DVC IC9151 AC10 OCKOA IC9151 W3 NWE IC9151 C22 ZTSEL IC9151 B2 VSS IC9151 V20 HFBB IC9151 E14 VDD33 IC9151 W6 VDD33 IC9151 E12 VDD33 IC9151 B8 RVIB5 IC9151 C3 VSS IC9151 R23 OSDCKI IC9151 T11 VDD18 R9112 0 IC9151 AB1 VSS IC9151 E4 SDIV1 C9159 16V 0.1u C9172 16V 0.1u IC9151 K13 VSS IC9151 G1 VSS IC9151 W22 MCPOUT IC9151 A12 GYIB6 IC9151 E3 SDIV0 IC9151 R19 OSD10 IC9151 M14 VSS IC9151 F21 XRST IC9151 W8 VDD33 IC9151 AA7 OGA6 IC9151 AA21 VSS IC9151 AA8 OGA1 C9154 16V 0.1u IC9151 V21 OSD1 IC9151 AC20 ORB2 R9229 0 IC9151 C21 VSS IC9151 AB14 VSS IC9151 F19 I2CSCL IC9151 P4 SDD16 IC9151 A9 RVIB1 IC9151 AC16 OBB3 IC9151 P2 SDD12 IC9151 M20 OVD5I IC9151 W18 VDD33 IC9151 A6 VSS IC9151 K1 SCKO1 IC9151 C19 UREFL IC9151 V22 OSD3 IC9151 G3 ADRS5 IC9151 T8 VSS IC9151 B11 BUIB1 IC9151 W23 DOSD0 IC9151 K21 GYIC7 IC9151 P12 VSS IC9151 A11 BUIB3 IC9151 A3 TEST1 IC9151 G21 RVIC6 IC9151 A14 DCKB IC9151 Y8 OGA3 IC9151 T5 VDD33 IC9151 L20 GYIC1 IC9151 F2 ADRS4 IC9151 N2 SDD9 IC9151 Y14 OBB5 IC9151 C9 RVIB3 IC9151 M21 MVD5I R9187 10k IC9151 H5 AVDD IC9151 AB10 VSS IC9151 C16 PLLHD IC9151 M11 VSS IC9151 D12 GYIB7 IC9151 AB23 VSS IC9151 Y15 DOBB0 IC9151 M10 VSS R9180 10 IC9151 F3 ADRS2 R9182 0 IC9151 K3 SDD0 IC9151 T16 VSS IC9151 H23 BUIC6 IC9151 D11 BUIB2 IC9151 Y10 ORA3 IC9151 C14 GYIB0 R9204 0 IC9151 R16 AVDD IC9151 D21 ZTILD IC9151 T22 OSD13 IC9151 F5 XPLLRST IC9151 J8 AVSS IC9151 AA16 OGB5 IC9151 D6 OCKOBUSE IC9151 L3 SDD3 IC9151 A5 REFCK R9172 10k IC9151 B22 VSS IC9151 U20 OSD2 IC9151 C23 VSS IC9151 E7 VDD18 IC9151 E21 I2CSDA IC9151 U21 OSD7 IC9151 B14 GYIB2 IC9151 J20 BUIC4 IC9151 E1 ADRS1 IC9151 J21 BUIC5 IC9151 Y6 OBA3 C9163 16V 0.1u C9168 16V 0.1u IC9151 AC17 OGB6 IC9151 P21 YM R9240 33 IC9151 P3 SDD14 IC9151 AB22 VSS IC9151 C6 SCANEN IC9151 AC9 VSS IC9151 A13 VSS C9156 6.3V 10u R9179 0 IC9151 D13 GYIB1 IC9151 D9 RVIB7 IC9151 J22 BUIC3 IC9151 H4 ADRS7 IC9151 T12 VDD18 IC9151 T2 SDD20 IC9151 F20 I2CSLAV2 IC9151 Y11 VDD33 R9118 0 IC9151 D15 DHA IC9151 B4 TEST3 IC9151 K22 BUIC0 C9173 16V 0.1u IC9151 L15 VSS IC9151 AC21 OFPO IC9151 N23 OSDCKO IC9151 P16 AVSS IC9151 L2 SDD2 IC9151 W12 VDD33 IC9151 R9 VSS IC9152 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout C9180 16V 0.1u C9166 16V 0.1u IC9151 B13 GYIB4 IC9151 AB21 MFPO IC9151 W9 VDD33 IC9151 A10 BUIB5 IC9151 AA1 0CKREF IC9151 J3 ADRS10 IC9151 AC4 OBA4 IC9151 D19 GYI IC9151 L14 VSS IC9151 F1 ADRS6 IC9151 MN845041-A A1 VSS IC9151 AC11 VSS IC9151 AB2 VSS IC9151 N4 SDD13 IC9151 R2 SDD17 R9177 22 IC9151 N9 VSS IC9151 C4 TEST4 IC9151 AB7 OGA4 R9216 10k IC9151 G23 RVIC2 IC9151 M19 OFPI IC9151 AA10 ORA1 IC9151 E9 VDD33 IC9151 Y17 OGB0 R9760 0 IC9151 L23 GYIC3 IC9151 T14 VDD18 IC9151 E22 I2CSLAV0 IC9151 A23 VSS R9199 10k IC9151 B1 VSS IC9151 C11 BUIB4 C9187 16V 0.1u IC9151 M1 SDD4 IC9151 B10 BUIB7 IC9151 F22 RVIC7 IC9151 A21 YREFL IC9151 J23 BUIC1 IC9151 B3 MINTEST IC9151 Y19 ORB0 IC9151 AB5 OBA1 IC9151 H19 RVIC5 IC9151 V5 DQM IC9151 L9 VSS IC9151 R12 VSS IC9151 AC19 ORB6 1.8V IC9151 AB17 OGB3 IC9151 Y18 ORB4 IC9151 P8 VDD18 IC9151 E13 VDD33 IC9151 N5 VDD33 IC9151 D8 DVIDE IC9151 D23 DCKC IC9151 D3 SDIV3 IC9151 P22 OSDHI IC9151 T10 VDD18 IC9151 D1 VSS IC9151 U19 HPLBC IC9151 V2 SDD29 IC9151 C20 YREFH IC9151 M8 VDD18 IC9151 R11 VSS IC9151 M12 VSS IC9151 C7 RATEOE IC9151 AA14 OBB6 IC9151 H11 VDD18 R9178 0 IC9151 D17 CLL IC9151 J10 VSS IC9151 H22 BUIC7 IC9151 AA12 VP IC9151 K16 VDD18 IC9151 D7 RATEOUT IC9151 V4 SDD31 IC9151 R20 OSD11 IC9151 D14 DVB IC9151 AC22 VSS IC9151 K15 VSS IC9151 A2 VSS R9207 10 IC9151 AC6 OGA2 IC9151 T3 SDD21 IC9151 B23 VSS IC9151 N20 MFPI IC9151 AB3 HPLO R9111 0 IC9151 E18 AVDD IC9151 AA2 VSS IC9151 D5 TEST2 IC9151 A4 VSS IC9151 Y13 OBB4 IC9151 C17 VREFH IC9151 P11 VSS IC9151 U22 OSD8 IC9151 AA19 ORB1 IC9151 E23 VSS IC9151 AC5 OBA0 IC9151 L4 SDD1 IC9151 D4 VSS R9236 10k IC9151 C15 DVA IC9151 R4 SDD22 IC9151 AB15 OBB2 R9171 10k R9234 10k IC9151 H21 RVIC0 IC9151 D20 VSS C9160 16V 0.1u IC9151 AA13 OBB7 C9178 16V 0.1u IC9151 J19 VDD33 IC9151 K9 VSS IC9151 J11 VSS IC9151 L16 VDD18 IC9151 L8 VDD18 IC9151 N8 VDD18 IC9151 N16 VDD18 IC9151 R8 VDD18 IC9151 P19 VDD33 IC9151 P5 VDD33 IC9151 M5 VDD33 IC9151 Y20 VSS IC9151 Y4 VSS IC9151 Y23 VSS IC9151 Y1 VSS Digital-B Digital-C 100MHz IIC Analog To micom OSD A/D PLL MCK PLL SD-RAM I/F 166MHz OCK PLL TEST SCK PLL For many use Output - A LEFT(Master) Output - B RIGHT(Slave) NO USED 32 30 34 28 31 35 33 36 29 IC9151 MN845041-A FORMAT CONVERTER RGB PROCESSOR D-BOARD (9/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! D-BOARD (4/11) TO CA CB CC 83 82 81 86 91 92 87 84 89 90 88 93 85 107 102 117 103 104 116 108 105 112 113 114 115 111 101 109 110 106 AVR 3.3V TH-42PW6CH/CZ, TH-42PWD6CY D-Board(9of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(9of11)Schematic Diagram 85 14.31.D 电路板 （10/11）电路图 SIDE TERM + AZ_HZ AZ_BLKD AZ_PCD AD_DRVRST AT_CKD1 AT_CKD2 AD_DATA_SOS AU_AD13 AU_CD12 AU_CD13 AU_BD13 AU_BD12 AU_AD12 AU_CD11 AU_BD11 AU_CD10 AU_BD10 AU_BD9 AU_CD9 AU_AD10 AU_AD11 AU_CD8 AU_AD9 AU_AD8 AU_BD8 AW_UE2H AW_UEH AW_UML AW_UMH AW_USH AW_USL AZ_HZ AZ_BLKD AZ_PCD AV_CER AX_HP AX_N_VD47 ABA_R3 ABA_R2 ABA_R1 ABA_R0 AAY_R3 AAY_R2 AAY_R0 AAY_R1 ABA_G3 ABA_G2 ABA_G1 ABA_G0 AAY_G3 AAY_G2 AAY_G0 AAY_G1 ABA_R7 ABA_R6 ABA_R5 ABA_R4 AAY_R7 AAY_R6 AAY_R5 AAY_R4 ABA_G7 ABA_G6 ABA_G5 ABA_G4 AAY_G7 AAY_G6 AAY_G5 AAY_G4 ABA_B3 ABA_B2 ABA_B1 ABA_B0 AAY_B3 AAY_B2 AAY_B1 AAY_B0 ABA_B7 ABA_B6 ABA_B5 ABA_B4 AAY_B7 AAY_B6 AAY_B5 AAY_B4 5V AV_CER AD_DRVRST0 3.3V ABD_DQ13 ABD_DQ31 ABD_DQ23 ABD_WE ABD_DQ14 ABD_DQ30 ABD_DQ22 ABD_DQ7 ABD_DQ15 ABD_DQ21 ABD_DQ6 ABD_DQ24 ABD_DQ5 ABD_DQM ABD_CS0 ABD_A4 ABD_A5 ABD_A6 ABD_A7 ABD_A8 ABD_DQ29 ABD_A9 ABD_DQ28 ABD_DQ8 ABD_DQ27 ABD_DQ9 ABD_DQ26 ABD_DQ10 ABD_DQ25 ABD_DQM ABD_SCK0 ABD_DQ4 ABD_DQ20 ABD_A1 ABD_DQ3 ABD_DQ19 ABD_A0 ABD_DQ2 ABD_DQ18 ABD_A10 ABD_DQ1 ABD_DQ17 ABD_BA1 ABD_DQ0 ABD_DQ16 ABD_BA0 ABD_DQ11 ABD_A2 ABD_RAS ABD_DQ12 ABD_A3 ABD_CAS R9356 10 R9349 EXB38V470JV R9371 0 R9362 10k TP0887 R9315 10k R9597 100 P5V R9337 22 R9468 EXB2HVR000V R9352 10 R9558 150 R9353 EXB38V470JV R9586 4.7k R9335 22 R9302 0 C9307 16V 0.1u Q9301 2SD0601A0L C9308 16V 0.1u R9367 0 R9365 EXB38V470JV R9455 0 3.3V R9380 EXB38V151JV R9306 10k TP0889 C9312 50V 33p R9461 10 R9548 0 C9301 50V 0.01u R9303 EXB38V103JV R9336 10 C9315 16V 4.7u IC9303 C1ZBZ0002357 1 CLKC 2 VDD 3 AGND 4 XTALIN 5 XTALOUT 6 XBUF 7 CLKD 8 CLKE 9 CLKB 10 CLKA 11 GND 12 S0 13 S1 14 AVDD 15 S2/SUSPEND 16 SHUTDOWN/OE R9459 0 R9355 10 R9466 EXB2HVR000V R9465 EXB2HVR000V C9309 6.3V 10u C9305 6.3V 10u R9595 100k C9599 0.01u R9460 10 R9322 10k D31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C9304 16V 4.7u R9596 10k R9560 150 C9302 16V 0.1u R9376 47 R9462 10 C9311 16V 0.1u R9368 EXB38V470JV R9562 150 R9122 0 P5V R9373 0 C9310 50V 33p R9339 10k R9357 EXB38V470JV X9302 H0J200500016 C9313 50V 33p IC9302 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9311 10k 3.3V Q9598 2SD0601A0L Q9599 2SD0601A0L R9308 10k R9310 22k R9333 47 C9303 16V 47u C9316 16V 0.1u IC9301 C1ZBZ0002358 1 XIN 2 VDD 3 PD# 4 VSS 5 CLK1 6 CLK2 7 SSON 8 XOUT R9330 10 C9314 16V 4.7u C9181 16V 0.1u C9200 16V 0.1u C9199 16V 0.1u C9182 16V 0.1u IC9155 C3ABPJ000042 1 Vcc 2 DQ0 3 VccQ 4 DQ1 5 DQ2 6 VssQ 7 DQ3 8 DQ4 9 VccQ 10 DQ5 11 DQ6 12 VssQ 13 DQ7 14 NC 15 Vcc 16 DQM0 17 /WE 18 /CAS 19 /RAS 20 /CS 21 NC 22 BS0 23 BS1 24 A10/AP 25 A0 26 A1 27 A2 28 DQM2 29 Vcc 30 NC 31 DQ16 32 VssQ 33 DQ17 34 DQ18 35 VccQ 36 DQ19 37 DQ20 38 VssQ 39 DQ21 40 DQ22 41 VccQ 42 DQ23 43 Vcc 44 Vss 45 DQ24 46 VssQ 47 DQ25 48 DQ26 49 VccQ 50 DQ27 51 DQ28 52 VssQ 53 DQ29 54 DQ30 55 VccQ 56 DQ31 57 NC 58 Vss 59 DQM3 60 A3 61 A4 62 A5 63 A6 64 A7 65 A8 66 A9 67 CKE 68 CLK 69 NC 70 NC 71 DQM1 72 Vss 73 NC 74 DQ8 75 VccQ 76 DQ9 77 DQ10 78 VssQ 79 DQ11 80 DQ12 81 VccQ 82 DQ13 83 DQ14 84 VssQ 85 DQ15 86 Vss SOS (HZ) (BLKR) UML USH USL UE2H UEH UMH D36 D35 D34 D33 D32 D31 D26 D25 D24 D23 D22 D21 D16 D15 D14 D13 D12 D11 NCLKR CLKR 5V 5V 5V 5V PCR CER DRVRST FPC_DET GND GND GND GND GND GND GND GND GND GND GND GND GND VDI HDI DRIVER RESET TP_HD TP_VD EM638325TS-6 MT48LC2M32B2TG-6 W94632HD-6 64M-SDRAM 166MHz 37 42 43 39 41 45 40 44 38 SYNTHESIZER PLL (C11) TO C1-BOARD PLL SYNTHESIZER AVR 3.3V ! D-BOARD (10/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) 115 111 101 117 103 104 102 116 108 105 107 109 110 106 112 113 114 122 123 124 125 121 132 127 128 129 133 130 136 126 134 135 131 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(10of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(10of11)Schematic Diagram 86 14.32.D 电路板 （11/11）电路图 SIDE TERM AD_KEY AD_LED_G AD_LED_R AA_SAU6 AA_SBU6 AA_SAU5 AC_AU0 AC_CU5 AC_BU5 AC_AU5 AC_CU4 AC_BU4 AC_AU4 AC_CU3 AC_BU3 AC_AU3 AC_CU2 AC_BU2 AC_AU2 AC_CU1 AC_BU1 AC_AU1 AC_CU0 AC_BU0 AV_CER AZ_PCD AZ_BLKD AT_CKD2 AT_CKD1 AA_BYTE AA_XWE AA_RD_XBY AA_SBU5 AA_SAU0 AA_SCU6 AA_XCE AA_SBU0 AA_SCU0 AA_SAU1 AA_SBU1 AA_SCU1 AA_SAU2 AA_SBU2 AA_SCU2 AA_SAU3 AA_SBU3 AA_SCU3 AA_SAU4 AA_SBU4 AA_SCU4 AA_SAU5 AA_SBU5 AA_SCU5 AA_SAU6 AA_SBU6 AA_SCU6 AA_SAU0 AA_XCE AU_CD13 AU_CD12 AU_BD12 AU_BD13 AU_AD13 AU_AD12 AU_AD2 AU_BD1 AU_AD0 AU_BD0 AU_CD0 AU_AD1 AU_BD4 AU_CD4 AU_AD5 AU_AD4 AU_BD3 AU_CD3 AU_AD3 AU_CD2 AU_CD1 AU_BD2 AU_BD6 AU_AD6 AU_CD5 AU_BD5 AU_CD6 AU_AD7 AU_BD7 AU_CD7 AT_CKD1 AT_CKD2 AD_CATS_EYE AD_REMOCON AZ_PCD AV_CER AZ_BLKD AA_XOE AA_BYTE AA_D0 AA_D8 AA_D1 AA_D9 AA_D2 AA_D10 AA_D3 AA_D11 AA_D4 AA_D12 AA_D5 AA_D13 AA_D6 AA_D14 AA_D7 AA_D15 AD_NRST AAR_SFRST AAR_SFVRST AAR_LATCH AAC_SDA2 AAC_SCL2 AA_D6 AA_D5 AA_D7 AA_D4 AA_D3 AA_D2 AU_AD11 AU_AD8 AU_AD7 AU_AD9 AU_AD10 AA_D14 AA_D13 AA_D15 AA_D12 AA_D11 AA_D10 AU_BD11 AU_CD11 AU_BD8 AU_BD7 AU_CD8 AU_CD7 AU_BD9 AU_BD10 AU_CD9 AU_CD10 1.25V AA_D0 AA_D1 AU_AD0 AU_AD4 AU_AD3 AU_AD2 AU_AD1 AU_AD5 AA_D8 AU_AD6 AA_D9 AU_BD0 AU_BD4 AU_BD3 AU_BD2 AU_BD1 AU_BD5 AU_CD0 AU_CD4 AU_CD3 AU_CD2 AU_CD1 AU_CD5 AU_BD6 AU_CD6 AAY_R6 AAY_R7 AAY_G6 AAY_G7 AAY_B6 AAY_B7 AC_AU4 AC_AU3 AC_AU6 AC_AU5 AC_BU4 AC_BU3 AC_CU4 AC_CU3 AC_BU6 AC_BU5 AC_CU5 AAY_R3 AAY_R5 AAY_R4 AAY_R0 AAY_R2 AAY_R1 AAY_G3 AAY_G5 AAY_G4 AAY_B3 AAY_B5 AAY_B4 AAY_G0 AAY_B0 AAY_G2 AAY_G1 AAY_B2 AAY_B1 AC_AU1 AC_AU0 AC_AU2 AC_BU1 AC_BU0 AC_BU2 AC_CU1 AC_CU0 AC_CU2 AAZ_BA1 AAZ_BA0 AAZ_CS AAZ_RAS AAZ_WE AAZ_CAS AAZ_AD8 AAZ_AD9 AAZ_AD10 AAZ_AD7 AAZ_AD6 AAZ_AD5 AAZ_AD4 AAZ_AD0 AAZ_AD1 AAZ_AD3 AAZ_AD2 AAZ_IO7 AAZ_IO6 AAZ_IO5 AAZ_IO4 AAZ_IO15 AAZ_IO14 AAZ_IO13 AAZ_IO12 AAZ_IO0 AAZ_IO1 AAZ_IO3 AAZ_IO2 AAZ_IO8 AAZ_IO9 AAZ_IO11 AAZ_IO10 AAZ_IO23 AAZ_IO22 AAZ_IO21 AAZ_IO20 AAZ_IO31 AAZ_IO30 AAZ_IO29 AAZ_IO28 AAZ_IO16 AAZ_IO24 AAZ_IO17 AAZ_IO19 AAZ_IO18 AAZ_IO25 AAZ_IO27 AAZ_IO26 AA_SCU2 AA_SAU3 AA_SBU3 AA_SCU3 AA_SAU4 AA_SBU4 AA_SCU4 AA_SAU1 AA_SBU1 AA_SCU1 AA_SAU2 AA_SCU5 AA_SBU2 AA_SBU0 AA_SCU0 5V AD_DRVRST0 AT_CKD1 AT_CKD2 AAR_FPDAT0 AAR_FPDAT1 AAR_FPCLK IC9455 Y13 DOUTCD7 IC9455 AA13 DOUTAD6 IC9455 AC2 VSS IC9455 P3 BA0 R9515 10 IC9455 L20 VSS IC9455 AB2 VSS IC9455 D11 RI4 IC9455 A22 VSS IC9455 Y18 VDD18 IC9455 U22 DOUTCU6 IC9455 K21 DRVCLKU3 IC9455 AC16 DOUTAD4 IC9455 AC4 FCIO25 IC9455 AC12 DOUTCD8 R9553 EXB38V680JV IC9455 M2 FCADR8 IC9455 L22 VSS IC9455 A15 ROMD5 IC9455 L21 VSS IC9455 P10 VSS IC9455 E11 VDD33 IC9455 L12 VSS R9475 1k 3.3V IC9455 C15 ROMD3 IC9455 L5 VDD25 C9467 16V 0.1u P5V IC9455 K16 VSS IC9455 Y6 VDD18 IC9455 Y10 VDD33 IC9455 AB4 FCIO24 IC9455 H3 DQS2 C9495 16V 4.7u IC9455 W15 VDD33 IC9455 D14 ROMD7 IC9455 C21 VSS IC9455 E12 ROMCE IC9455 AB14 DOUTBD6 IC9455 C12 RI1 IC9455 A11 RI7 IC9455 E20 VDD18D IC9455 V22 DOUTBU4 IC9455 B11 RI6 IC9455 P1 VSS IC9455 AA22 DOUTBU1 IC9455 A16 ROMD1 IC9455 A23 VSS IC9455 J15 VSS IC9455 E4 AVDD IC9455 AB3 FCIO20 IC9455 W11 VDD33 IC9455 T8 VDD25 R9413 330 IC9455 W4 VDD18 IC9455 N9 VSS IC9455 A9 GI7 IC9455 W18 VDD18 IC9455 T5 FCIO8 R9525 EXB38V470JV IC9455 G23 LATCH IC9455 N19 DOUTCU11 C9486 16V 0.1u IC9455 H15 VDD18 IC9455 M3 FCADR9 R9547 47 IC9455 G2 FCADR7 IC9455 B10 GI2 R9449 0 IC9455 K11 VSS IC9455 W23 DOUTAU4 IC9455 AA1 FCIO17 C9481 16V 0.1u IC9455 B19 ACKSEL1 IC9455 A17 TILD IC9455 U20 DOUTCU5 IC9455 D12 RI0 IC9455 C14 ROMD8 IC9455 N23 DOUTBU12 IC9455 AC9 DOUTCD11 IC9455 G22 FCDDRSEL0 IC9455 W7 VDD18 IC9455 M9 VSS IC9455 M1 VREF IC9455 W2 FCIO13 IC9455 AA23 DOUTAU2 IC9455 F19 VDD18D IC9455 AA5 FCIO23 IC9455 Y2 VSS C9476 16V 0.1u IC9455 AC17 DOUTBD3 IC9455 N4 VDD25 IC9455 P5 VDD25 IC9455 W14 VDD33 IC9455 B1 VSS IC9455 J11 VSS IC9455 K19 VDD18 IC9455 D17 TEST4 IC9455 B22 VSS IC9455 E13 ROMD11 IC9455 M4 FCADR10 IC9455 D2 DLLCKIN IC9455 AC13 DOUTAD7 IC9455 B12 RI2 IC9455 J1 VSS R9592 100k IC9455 T23 DOUTBU7 IC9455 D5 TIIC IC9455 AA12 DOUTAD8 IC9455 K2 NCLK IC9455 U5 VDD25 IC9455 R23 DOUTCU9 IC9455 Y15 DOUTBD4 IC9455 W19 VSS IC9455 B14 ROMD9 IC9455 C19 ACKSEL0 C9449 16V 0.1u IC9455 H2 DQS3 IC9455 K9 VSS IC9455 C2 PCK C9491 16V 0.1u IC9455 N16 VSS IC9455 A10 GI3 IC9455 M10 VSS IC9455 B8 BI0 IC9455 A2 VSS IC9455 C3 VSS IC9455 P11 VSS C9493 16V 0.1u IC9455 AB16 DOUTCD4 IC9455 D19 MCKSEL2 IC9455 L14 VSS IC9455 T15 VSS IC9455 A14 ROMD10 IC9455 N11 VSS R9415 4.7k IC9455 D4 VSS IC9455 M5 VDD25 IC9455 T16 VSS IC9455 Y9 DOUTCD13 IC9455 J10 VSS IC9455 W17 VDD18 IC9455 P15 VSS IC9455 U3 FCIO7 IC9455 T21 DOUTAU6 IC9455 B3 SRL IC9455 M8 VSS IC9455 K23 DRVCLKU1 IC9455 AA10 DOUTAD10 IC9455 AB6 FCIO30 IC9455 L1 VSS IC9455 F4 AVDD IC9455 A13 ROMD15 IC9455 H5 VSS IC9455 T1 FCIO2 IC9455 C23 RSTDRAM IC9455 N15 VSS IC9455 C10 GI0 IC9455 H1 CS IC9455 AB12 DOUTBD8 IC9455 AA17 DOUTAD2 IC9455 AA6 FCIO26 IC9455 E2 FCADR0 IC9455 Y5 VDD18 IC9455 C16 NC IC9455 P19 DOUTBU9 IC9455 A6 BI7 IC9455 H13 VDD33 IC9455 J2 VSS R9526 EXB38V470JV IC9455 AA8 DOUTBD13 IC9455 A4 SDA R9530 EXB38V470JV IC9455 B2 VSS IC9455 AC19 DOUTBD1 IC9455 Y4 VSS IC9455 P4 BA1 IC9455 H9 VDD18 IC9455 G4 FCADR5 R9420 47k IC9455 B21 TIOCTL0 IC9455 V3 FCIO12 IC9455 A3 NRST IC9455 V20 DOUTBU3 IC9455 J9 VSS IC9455 AB11 DOUTBD9 IC9455 P20 DOUTAU9 IC9455 K15 VSS R9541 22 IC9455 F20 VDD18D IC9455 R9 VSS IC9455 A18 TEST3 IC9455 AB18 DOUTBD2 R9537 47 IC9455 D3 NRESET IC9455 J22 DRVCLKD2 R9538 22 IC9455 K13 VSS IC9455 K3 CLK IC9455 W9 VDD33 R9483 0 IC9455 P2 WE IC9455 E6 VDD18 C9494 16V 4.7u IC9455 L16 VSS IC9455 AC6 VSS IC9455 M21 DOUTCU13 IC9455 K20 DRVCLKU4 R9535 47 IC9455 E15 VSS IC9455 T10 VSS IC9455 AC10 VSS IC9455 AC8 DOUTAD11 R9491 22 R9514 10 IC9455 V2 FCIO10 IC9455 E16 VSS IC9455 G20 AUP IC9455 D23 NTDRAM R9594 100 IC9455 E1 FCADR1 IC9455 N10 VSS IC9455 AC5 FCIO31 IC9455 M12 VSS IC9455 T13 VSS IC9455 U4 VDD25 IC9455 AC3 FCIO22 IC9455 M13 VSS IC9455 D1 TIDDQ IC9455 K4 VSS IC9455 C22 SCANE IC9455 AB5 FCIO28 IC9455 N8 VSS IC9455 W12 VDD33 L9452 ELJFA1R0KF C9598 0.01u IC9455 Y1 FCIO11 IC9455 R15 VSS IC9455 L8 VSS IC9455 T20 FCIO3 IC9455 F2 FCADR3 IC9455 A19 NC IC9455 J20 DRVCLKD4 IC9455 H21 VSS IC9455 E10 VDD33 R9411 4.7k IC9455 L13 VSS IC9455 E8 VSS IC9455 H14 VDD18 IC9455 Y3 FCIO19 IC9455 M23 DOUTAU13 IC9455 AC11 DOUTCD9 IC9455 U2 FCIO5 IC9455 P16 VSS IC9455 AA4 FCIO21 IC9455 AB7 DOUTAD13 IC9455 J12 VSS IC9455 AC18 VSS IC9455 L11 VSS IC9455 C7 BI6 IC9455 M16 VSS IC9455 K14 VSS IC9455 F5 AVSS P5V IC9455 J21 DRVCLKD3 IC9455 D7 VDI IC9455 D18 TEST0 IC9455 AA21 FCIO18 R9593 10k IC9455 V23 DOUTBU5 IC9455 P13 VSS C9454 16V 4.7u IC9455 E7 MUTE IC9455 C4 ID1 IC9455 E23 SFRST IC9455 B4 ID0 IC9455 E5 VSS IC9455 J8 VSS IC9455 J23 DRVCLKD1 IC9455 AB22 VSS C9470 50V 100p IC9455 E9 VSS C9487 16V 0.1u IC9455 Y17 DOUTAD1 IC9455 V1 VSS IC9455 H11 VDD33 IC9455 Y21 DOUTCU1 IC9455 D10 GI1 IC9455 F3 FCADR2 IC9455 A20 MCKSEL1 C9468 6.3V 10u D32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 R9488 10 IC9455 P21 DOUTCU10 IC9455 AB17 DOUTCD3 IC9455 R20 DOUTCU8 STB5V_S R9478 10k IC9455 P23 DOUTAU10 IC9455 H19 VDD33D IC9455 T22 DOUTCU7 IC9455 AA16 DOUTAD3 IC9455 C20 TIOCTL2 IC9455 F1 FCADR4 C9489 16V 0.1u IC9455 E3 DLLPOUT IC9455 AC1 VSS IC9455 W10 VDD33 IC9455 B13 ROMD14 IC9455 R11 VSS IC9455 M20 DOUTAU12 IC9455 T3 DOUTAU7 R9479 100 R9513 10 IC9455 AC23 VSS IC9455 AB8 DOUTBD12 IC9455 N22 DOUTCU12 C9496 16V 0.1u IC9455 W21 DOUTBU2 IC9455 C13 ROMD13 IC9455 L3 VSS C9475 16V 0.1u IC9455 E22 OCK C9455 16V 4.7u C9488 16V 0.1u IC9455 N14 VSS IC9455 E17 VSS R9489 10 IC9455 W1 FCIO9 IC9455 AB19 DOUTAD0 IC9455 Y12 VDD33 IC9455 D21 MINTEST IC9455 M14 VSS IC9455 MN84510-A A1 VSS IC9455 T4 FCIO6 IC9455 C1 TCPOUT IC9455 E19 VSS IC9455 C8 BI1 IC9455 D13 ROMD12 IC9455 U1 VSS IC9455 V5 VDD18 IC9455 A7 BI4 IC9455 AB21 DOUTBU0 IC9455 D6 SCL IC9455 N12 VSS C9490 16V 0.1u IC9455 R5 VDD25 IC9455 G1 DQS0 IC9455 H16 VSS IC9455 J14 VSS IC9455 C11 RI5 IC9455 R4 VDD25 IC9455 K8 VSS IC9455 N5 VDD25 IC9455 AA15 DOUTCD5 IC9455 AC21 DOUTCD0 IC9455 R1 BA2 IC9455 M19 VDD33 IC9455 P8 VSS C9480 16V 0.1u IC9455 T19 VDD33 IC9455 AB15 DOUTBD5 R9503 0 IC9455 R10 VSS IC9455 W6 VDD18 IC9455 Y19 VDD18 IC9455 AC20 DOUTCD1 IC9455 L4 VDD25 IC9455 R21 DOUTBU8 IC9455 AA3 VSS IC9455 K22 DRVCLKU2 IC9455 Y23 DOUTCU3 IC9455 Y14 VDD33 IC9455 P22 DOUTBU10 IC9455 M22 DOUTBU13 Q9400 2SD0601A0L IC9455 F23 SFVRST IC9455 W20 DOUTAU1 IC9455 B7 BI5 IC9455 K12 VSS IC9455 AC14 VSS IC9455 AA9 DOUTCD12 IC9455 W16 VDD33 IC9455 AA11 DOUTAD9 IC9455 N20 DOUTBU11 IC9455 L15 VSS 1.8V IC9455 J4 VSS IC9455 H10 VDD18 IC9455 T9 VSS IC9455 P12 VSS R9551 EXB38V470JV IC9455 H12 VDD33 IC9455 R8 VSS C9453 16V 0.1u IC9455 AA18 DOUTCD2 IC9455 H4 DQS1 C9450 6.3V 10u IC9455 W3 FCIO15 IC9455 R12 VSS IC9455 Y20 FCIO16 IC9455 E21 PTESTDRAM1 C3FBND000172 IC9456 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 IC9455 M15 VSS IC9455 W8 VDD33 R9559 EXB38V470JV IC9455 A8 BI2 R9484 1k IC9455 A12 RI3 IC9455 Y16 VDD33 IC9455 C17 TEST5 IC9455 D9 GI6 IC9455 P14 VSS IC9455 U23 DOUTBU6 IC9455 U21 DOUTAU5 IC9455 AA19 DOUTBD0 IC9455 J5 VSS IC9455 R19 VDD33 IC9455 Y7 FCIO27 IC9455 T14 VSS IC9455 N3 CAS IC9455 G19 VDD18D R9540 EXB38V470JV IC9455 K1 VSS IC9455 J16 VSS IC9455 W22 DOUTAU3 IC9455 C9 GI4 IC9455 B23 VSS IC9455 D20 VSS IC9455 G5 AVSS IC9455 V19 VDD18 IC9455 B20 MCKSEL0 IC9455 D22 DRAMCK IC9455 AB23 VSS IC9455 R14 VSS IC9455 A21 TIOCTL1 IC9455 B18 TEST2 L9459 ELKE103FA 1 2 3 IC9455 Y11 DOUTCD10 R9469 0 IC9455 AB9 DOUTBD11 IC9455 P9 VSS IC9455 E14 ROMD6 3.3V IC9455 L10 VSS IC9455 E18 VDD18 IC9455 R16 VSS C9492 16V 0.1u IC9455 D15 ROMD2 IC9455 M11 VSS IC9455 F21 PTESTDRAM0 IC9455 J13 VSS IC9455 AB13 DOUTBD7 C9478 6.3V 10u IC9455 L9 VSS IC9455 R2 FCIO0 IC9455 W5 VSS IC9455 AA2 VSS IC9455 B9 GI5 IC9455 G3 FCADR6 IC9455 B16 ROMD0 C9477 16V 0.1u IC9455 H23 VSS IC9455 N2 RAS IC9455 R22 DOUTAU8 IC9455 B15 ROMD4 IC9455 H8 VSS IC9455 K10 VSS R9585 4.7k R9490 22 R9485 1k IC9455 V21 DOUTCU4 IC9455 T2 VDD33 IC9455 H20 VSS IC9455 T11 VSS IC9455 J19 VSS IC9455 D8 BI3 IC9455 AB10 DOUTBD10 IC9455 Y8 VDD33 IC9455 L23 VSS IC9455 B6 HDI IC9455 Y22 DOUTCU2 Q9596 2SD0601A0L IC9455 A5 DCK IC9455 AA20 DOUTAU0 IC9455 B17 NC IC9455 N13 VSS IC9455 T12 VSS IC9455 R13 VSS IC9455 N1 FCADRX R9477 10k IC9455 C18 TEST1 IC9455 AC22 VSS IC9455 F22 DLLRST IC9455 D16 NC Q9597 2SD0601A0L IC9455 N21 DOUTAU11 IC9455 L2 VSS IC9455 U19 FCIO4 IC9455 AC15 DOUTCD6 IC9455 AA14 DOUTAD5 IC9455 AC7 DOUTAD12 R9532 47 IC9455 K5 VDD25 IC9455 AB1 VSS IC9455 R3 FCIO1 IC9455 J3 VSS IC9455 AB20 DOUTCU0 IC9455 V4 FCIO14 C0JBAZ001992 IC9459 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE IC9455 L19 VDD33 IC9455 H22 VSS IC9455 AA7 FCIO29 IC9455 W13 VDD33 R9501 0 IC9455 G21 FCDDRSEL1 R9476 100 IC9455 B5 FPDAT1 IC9455 C6 FPCLK IC9455 C5 FPDAT0 MN84510-A TVRJ952-1 MBM29DL323TE90TN-K 32M-FLASH A20 A19 SN74CBT16211ADGGR DRVRST (BLKL) D76 D75 D74 D73 D72 D71 D66 D65 D64 D63 D62 D61 D56 D55 D54 D53 D52 D51 D46 D45 D44 D43 D42 D41 CEL PCL LED_R LED_G REMOCON KEY_SW OPT STB5V GND GND GND GND GND GND GND GND GND NC 5V 5V 5V 5V NCLKL CLKL IC9455 50MHz clk PLL RST FPGA I/F IIC to lsi47 CONTROL TEST Flash ROM I/F 65MHz clk CLK DRAM clk 60MHz 130MHz DLL other From LSI43 to DATA Driver 130MHz CKOUT FC RAM I/F A15 A14 A13 A12 A11 A10 A9 A8 BYTE Vss DQ15/A-1 A16 DQ12 DQ5 DQ13 DQ6 DQ14 DQ7 WE RESET NC NC RY/BY A18 A17 A7 A6 A5 A4 A3 A2 Vss DQ0 DQ1 DQ9 DQ2 DQ10 DQ3 DQ11 Vcc DQ4 CE OE DQ8 A1 A0 SWITCH 54 48 51 53 47 50 52 49 46 PLASMA AI SUB FIELD PROCESSOR (C21) TO C2-BOARD D-BOARD (11/11) TZTNP01SFSC (TH-42PW6CH/CZ) TZTNP01QBSC (TH-42PWD6CY) ! D-BOARD (5/11) TO DE DD DA DB DC 127 128 129 135 131 136 126 134 133 130 125 122 121 132 124 123 TH-42PW6CH/CZ, TH-42PWD6CY D-Board(11of11)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY D-Board(11of11)Schematic Diagram 87 14.33.C1，C2 和 V1 电路板方框图 CLKR D3 D2 D1 C11 CB1 D2 CLK CB2 D3 CLK CB3 9 8 7 6 1 5 4 17 19 20 18 SOS SOS IC7104-6 BUFFER D4 CLK CB4 CLK D1 C12 CLOCK BUFFER IC7101 CB5 D5 CLK CB6 D6 CLK CB7 D7 CLK Vda67V Vda67V Vda67V Vda67V 15 13 12 16 4 C22 1 20 14 3 2 17 OMH SOS OML OSL OSH UE2H UEH D6 D5 D4 CLKL IC7202-4 BUFFER D7 CLOCK BUFFER IC7201 6 8 9 5 3 7 4 11 SOS C23 REMOCON LED R LED G 6 C24 2 3 REMOCON LED_G LED_R Q7201 Q7202 SS23 Vda67V SS SOS Data drive (Lower Left) Board (Front View) C1 Board (Front View) Data drive (Lower Right) SUSTAIN SUSTAIN TO D31 C21 TO D32 SOS 11 12 10 C2 14 DRVRST 19 1 DRVRST DRVRST TO RM001 G R D1550 S1550 S1551 S1552 VOL.DN VOL.UP TV/VTR F V1 S1553 6 STR S1554 4 KEY SW IC1550 7 OPT REMOCON V34 2 3 Q1540 VOUT Remocon Senser , Power Switch Board RECEIVER 4 7 7 OPT 9 KEY SW DETECTER CATS OMH OSL SOS UEH OSH OML UE2H 16 15 14 13 11 12 8 OML UE2H OSL OSH UEH OMH OML UE2H OSL OSH UEH OMH OML UE2H OSL OSH UEH OMH OML UE2H OSL OSH UEH OMH UMH UML USL USH UEL UEH POWER ON STAND BY TH-42PW6CH/CZ, TH-42PWD6CY C1,C2 and V1-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY C1,C2 and V1-Board Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 88 14.34.C1 电路板电路图 SIDE TERM TERM SIDE TERM SIDE TERM SIDE SIDE TERM AC_PCR AC_PCR AC_PCR AC_CLK21 AC_CLK11 AC_CLK21 AC_CLK11 AC_CLK21 AB_BD23 AB_BD22 AC_CLK11 AC_CLK21 AC_CLK11 AC_CLK21 AD_BD13 AD_BD11 AC_CLK11 AC_CLK21 AC_PCR 67V AD_BD15 AC_LE1 AD_BD14 67V 67V AC_LE1 AD_BD16 AC_PCR 67V AC_LE1 AD_BD12 AC_PCR AC_PCR AC_LE1 AC_CLK11 67V AA_BD35 AC_PCR AC_LE3 AA_BD34 AA_BD36 67V AC_PCR AC_PCR AA_BD31 AA_BD33 AC_LE3 AC_LE3 67V AC_LE3 AA_BD32 AC_PCR 67V AC_PCR AC_LE2 AB_BD25 AB_BD24 AB_BD26 67V AC_LE2 AC_PCR 67V AC_PCR AB_BD21 AC_LE2 67V AC_LE2 AC_PCR 5V AC_PCR AE_PCR AC_CLK21 AE_NCLKR AE_CER AE_CLKR AG_D24 AG_D23 AG_D22 AG_D21 AB_BD24 AB_BD23 AB_BD22 AB_BD21 AG_D25 AG_D26 AF_D32 AF_D34 AF_D33 AF_D31 AA_BD34 AA_BD33 AA_BD32 AA_BD31 AF_D35 AF_D36 AH_D11 AH_D12 AH_D13 AH_D14 AD_BD14 AD_BD13 AD_BD12 AD_BD11 AH_D15 AH_D16 AI_SOS AI_UEH AI_UE2H AI_OSL AI_OSH AI_OML AF_D33 AF_D32 AF_D31 AF_D36 AF_D35 AF_D34 AG_D23 AG_D22 AG_D21 AG_D26 AG_D25 AG_D24 AH_D13 AH_D12 AH_D11 AH_D16 AH_D15 AH_D14 AC_LE3 AC_LE2 AC_LE1 AI_OMH AI_SOS AI_OMH AI_OML AI_OSH AI_OSL AI_UEH AI_UE2H AB_BD25 AB_BD26 AA_BD36 AA_BD35 AD_BD15 AD_BD16 67V DRVRST AC_CLK11 67V R7153 47 R7149 47 IC7105 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7156 47 C7105 16V1u C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7150 47 R7111 22 R7188 100k R7166 22 R7116 22 CB3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R7113 22 R7146 47 C7152 6.3V 10u C7101 16V 1u R7115 22 R7187 22k R7148 47 C7153 50V 100p R7189 0 R7126 47 C7115 100V 0.1u R7154 47 R7172 120 C7104 16V 1u C7147 16V 1u L7106 ELKE103FA 1 2 3 C7111 100V 0.1u C7113 100V 0.1u C7149 16V 1u R7173 120 R7167 22 R7159 47 R7112 22 IC7101 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7155 47 R7127 47 R7151 47 CB2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7142 50V 100p R7152 47 R7190 220k R7147 47 R7136 22 R7143 47 R7121 22 R7105 1k C7154 50V 100p C7155 50V 100p C7102 6.3V 10u IC7104 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7144 47 C7150 6.3V 10u R7175 0 R7118 22 R7163 0 C7148 6.3V 10u R7142 47 R7119 22 R7120 22 R7130 0 R7114 22 R7164 0 R7162 0 R7145 47 CB1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R7165 0 R7158 47 R7168 22 R7178 0 R7169 22 R7157 47 C7151 16V 1u R7177 0 R7170 120 R7171 120 R7132 0 IC7106 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7103 16V 1u C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 R7128 47 R7176 0 R7192 0 C7107 100V 0.1u R7117 22 R7161 0 Vda67V 5V 5V 5V 5V (SN74ACT244PWR) (SN74ACT244PWR) (SN74ACT244PWR) (BLKR) (HZ) (SN74ACT244PWR) B E 9 6 8 7 3 D 4 C 1 2 F 5 A C1-BOARD TNPA2869 ! TO (C22) C2-BOARD TO (D31) D-BOARD CLOCK BUFFER BUFFER BUFFER BUFFER GND GND USL D12 GND D11 GND GND GND GND UE2H FPC_DET UEH GND UMH GND D36 GND D35 GND D34 GND D33 D32 D31 GND D23 D26 D22 D25 D21 D24 D16 NCLKR D15 CLKR D14 SOS 5V 5V 5V 5V PCR CER DRVRST (HZ) (BLKR) UML USH D13 CER PCR NCLKR CLKR (C2-BOARD REVERSE FOR CONENCETOR PIN NO) DRIVER DATA TO DRIVER DATA TO DRIVER DATA TO TH-42PW6CH/CZ, TH-42PWD6CY C1-Board Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY C1-Board Schematic Diagram 89 14.35.C2 和 V1 电路板电路图 TERM SIDE TERM SIDE SIDE TERM SIDE TERM TERM SIDE TERM SIDE R G AJ_D76 67V 67V AL_OML AA_BD72 AG_D43 AH_D51 AJ_D75 AG_D46 AC_BD62 AB_PCL AG_D44 AH_D52 AB_CLK21 AJ_D75 AJ_D74 AH_D53 AE_BD46 AJ_D72 AA_BD76 AB_CLK21 AH_D53 AK_REMOCON AB_LE7 AF_CEL AB_CLK11 AI_D66 5V AF_NCLKL AB_PCL AI_D62 AK_KEY_SW AB_CLK21 AB_LE5 AI_D62 AB_LE5 AB_PCL AB_PCL AI_D65 AB_PCL AL_OML AG_D44 AH_D55 AF_CEL AC_BD66 DRVRST AC_BD61 AB_CLK21 AB_CLK11 AI_D65 AL_OSH AB_LE4 67V AA_BD71 AB_CLK21 AD_BD56 AH_D56 AB_PCL AA_BD74 AC_BD64 AJ_D76 AJ_D73 67V AA_BD72 AB_LE6 AE_BD44 67V 67V AB_PCL AF_CLKL AB_CLK11 AG_D43 AA_BD76 AE_BD41 AE_BD45 AA_BD74 67V AL_UEH AI_D64 AH_D52 AC_BD65 AB_LE7 AD_BD53 AI_D61 AB_LE5 67V AL_OSL 67V AB_PCL AD_BD54 AB_PCL AB_PCL AI_D66 AB_LE5 AB_PCL AJ_D72 75V AD_BD55 AL_OMH AL_OSL AH_D51 AB_CLK21 AD_BD52 AB_LE4 AG_D46 AL_UE2H AE_BD41 AC_BD63 AB_PCL AC_BD61 AA_BD75 AD_BD51 AB_CLK11 AH_D55 67V AH_D56 67V AB_PCL AB_CLK11 AB_PCL 67V AC_BD64 AA_BD71 AE_BD46 AB_CLK11 AJ_D74 AI_D63 AB_LE6 AL_UEH AH_D54 AB_CLK21 AD_BD51 67V AB_LE4 AL_UE2H AB_LE7 AG_D42 AG_D45 AD_BD53 AF_PCL AB_PCL AL_OSH AB_LE6 AL_SOS AB_PCL AB_CLK11 AE_BD43 AE_BD43 67V AD_BD52 (BLKL) AH_D54 AE_BD42 AE_BD44 AB_CLK21 5V 5V 5V AG_D41 AA_BD73 AB_LE7 AB_PCL AB_CLK11 AK_OPT AB_LE4 AB_LE7 AB_PCL AA_BD73 AB_LE6 AD_BD56 AB_PCL AL_OMH AE_BD42 AJ_D71 AD_BD55 AG_D41 AI_D64 AL_SOS AA_BD75 AG_D42 AB_CLK21 AB_LE4 AB_LE5 AB_PCL AC_BD66 67V AD_BD54 AI_D63 AB_LE6 AJ_D73 AB_PCL AG_D45 67V AC_BD62 AC_BD65 AI_D61 67V AC_BD63 AB_CLK11 AJ_D71 AE_BD45 5V 5V AK_OPT AK_KEY_SW AK_REMOCON 5V 5V C7255 50V 100p R7295 120 R7292 180 CB5 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R7303 0 R7229 47 R7291 180 R7310 0 R7211 22 C7204 16V1u R7242 47 R7244 47 R7253 47 Q7201 2SB0709A0L CB4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 D7204 MA3X152K0L L7208 ELKE103FA 1 2 3 D7203 MA3X152K0L R7205 1k R7263 47 R7235 22 C22 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7236 22 R7252 47 R7297 22 C23 1 2 3 4 5 6 7 8 9 10 11 IC7202 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C7244 16V 1u R7306 100k C7242 16V 1u R7259 47 R7246 47 R7234 22 R7217 22 D7201 MA3X152K0L C7202 6.3V 10u R7268 0 C7406 16V1u R7298 22 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 C7253 50V 100p C7236 6.3V 10u R7247 47 R7301 0 C7207 100V 0.1u R7249 47 R7302 0 R7289 180 R7227 47 IC7204 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7254 47 R7278 0 R7212 22 R7296 120 R7223 10k R7286 0 R7261 47 R7215 22 R7260 47 R7300 22 R7243 47 C7254 50V 100p R7228 47 R7255 47 R7269 0 R7224 10k R7245 47 C7250 6.3V 10u R7309 0 R7294 120 R7238 22 R7240 22 C7217 100V 0.1u R7293 120 R7304 0 C7213 100V 0.1u R7218 22 C7252 50V 100p CB7 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C7246 6.3V 10u C7219 100V 0.1u C7203 16V1u R7257 47 R7305 22k R7287 0 R7251 47 C7206 16V1u R7222 10k L7207 ELKE103FA 1 2 3 R7258 47 R7226 47 R7216 22 C7210 16V 1u R7237 22 R7219 220k C7256 50V 100p R7233 22 R7232 47 R7256 47 C7201 16V 1u R7290 180 R7264 47 C7235 16V 1u R7248 47 R7250 47 C7211 100V 0.1u R7214 22 CB6 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 Q7202 2SB0709A0L R7241 47 C7239 16V 1u C7243 16V 1u R7230 47 R7213 22 IC7203 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7239 22 IC7201 C0JBAZ001604 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R7299 22 R7285 0 R7262 47 D7202 MA3X152K0L R7221 10k L7209 ELKE103FA 1 2 3 R1512 4.7k C1530 6.3V 10u S1550 EVQPBD05R S1552 EVQPBD05R R1551 47 R1511 3.3k R1552 220k R1555 47 R1513 4.7k R1500 0 D1550 LNJ107W5PRW D1553 MA8056MTX V34 1 2 3 4 5 6 7 8 R1556 47 D1552 MA8056MTX R1553 470 IC1550 B3L000000020 R1554 270 S1554 EVQPBD05R S1553 EVQPBD05R Q1540 2SD0601A0L R1510 2.2k D1551 MA8056MTX R1550 1k RM001 PNA4601M05TV VOUT GND VCC S1551 EVQPBD05R C24 1 2 3 4 5 6 7 8 (SN74ACT244PWR) (SN74ACT244PWR) (SN74ACT244PWR) (SN74ACT244PWR) 5V UEH SS_SOS 5V STB5V 5V 5V 5V GND UMH UML USH USL UEL GND Vda 67V 5V Vda67V 5V 5V B E 9 4 C 1 2 F 5 A 6 8 7 3 D noPush TV/VTR VOL. UP F VOL. DOWN STR POWER LED G:POWER ON R:STANDBY CPU_GND LED_G LED_R KEY_SW REMOCON OPT GND STB5V REMOTE SENSOR ! TNPA2848 V1-BOARD TO (SS23) SS-BOARD TO (C12) C1-BOARD TO (D32) D-BOARD ! C2-BOARD TNPA2870 CLOCK BUFFER BUFFER BUFFER BUFFER GND D76 GND D75 GND GND D74 GND GND GND NC D63 D62 D61 D56 D55 D54 D43 CEL D42 PCL D41 LED_R LED_G D73 REMOCON D53 D72 D52 D71 D51 D66 D46 D65 D45 D64 D44 DRVRST 5V 5V 5V 5V NCLKL CLKL KEY_SW (BLKL) OPT STB5V GND GND (C1-BOARD REVERSE FOR CONENCETOR PIN NO) TO DATA DRIVER DRIVER DATA TO DRIVER DATA TO DRIVER DATA TO C.A.T.S. SENSOR TH-42PW6CH/CZ, TH-42PWD6CY C2 and V1-Board Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY C2 and V1-Board Schematic Diagram 90 14.36.SC 电路板方框图 PHOTO COUPLER Q6611 3 5 4 6 9 8 11 10 1 2 13 12 FCLD FCLU FCLKD FCLKU PHOTO COUPLER PHOTO COUPLER 3 PHOTO COUPLER 5 1 2 3 4 D6505 D6506 D6507 D6508 8 9 11 10 PHOTO COUPLER D6501 FSIU FSID PROU PROD 12 8 14 1 12 8 14 1 Q6612 Q6613 Q6601 Q6606 Q6602 Q6605 Q6621 Q6624 14 15 5 17 3 8 12 6 14 12 8 Q6642 Q6641 IC6602 FET DRIVER FET DRIVER IC6601 IC6603 FET DRIVER 20 19 18 17 11 18 2 8 9 12 17 3 6 4 14 16 IC6502 BUFFER BUFFER IC6501 2 4 7 FET DRIVER IC6511 Q6477 Q6476 Q6511 Q6512 7 2 4 FET DRIVER IC6521 FET DRIVER IC6541 2 7 4 VAD+15V Q6530 Q6521 Q6520 Q6522 Q6527 Q6542 Q6547 Q6541 PHOTO COUPLER D6502 PHOTO COUPLER D6503 Q6551 Q6552 D6504 PHOTO COUPLER IC6542 3 5 3 5 3 5 3 5 1 5 1 5 1 5 2 FET DRIVER Q6553 VSCN Q6614 S2 CMH S3 CML Q6672 Q6671 Q6673 IC6604 VSUS CSL CSH 1/2 Vo VSUS D6624 D6629 A1 A2 A3 A4 B3 B4 B1 B2 A6 A5 B6 B5 A7 A20 B7 B20 A10 A1 B10 B1 B11 A11 B12 A12 B13 A13 B20 A20 B18 A15 B1 B17 A1 A18 A17 B15 A14 A16 B14 A20 A19 B20 B19 B16 B8 B1 A1 A8 B20 A20 A11 B11 B10 A10 B9 A9 FSID FCLD FCLKD PROD VF5V Vf Vf VSCN D6454 Q6452 Q6451 Q6455 Q6454 T6451 IC6451 15V IC6453 3 1 5V IC6455 3 1 Q6474 IC6471 D6474 Q6475 Q6472 Q6471 SCSU VAD INSERT VAD VSET2 INSERT CEL VSET INSERT CPH VSCN GEN VSET VAD GEN Q6491 Q6492 IC6491 VSET REG. VSUS SC20 7 13 L6611,12 L6615,16 2 4 8 11 IC6605 BUFFER IC6606 BUFFER 3 6 9 7 CSH CSL CMH CML SOS1 CEL2 CL CLK SIU SID CPH SCSU Q6581 IC6581 D6458 D6467 D6469 D6480 Vf5 SOS Vfo SOS VSCAN SOS VAD SOS D6559 D6468 D6470 D6479 D6584 Vfo FSIU FCLU FCLKU PROU VF5V Vf Vf Vfo FSID FCLD FCLKD PROD VF5V Vf Vf Vfo Vf Vf Vfo FCLKU FSIU VF5V PROU FCLU VSCN VSCN VSCN VSCN VSCN Scan Drive Board SC SC44 SC43 SC41 SC42 TO SD44 TO SD43 TO SU41 TO SU42 TO D20 VBK GEN D6583 (RED LED) SC SC CPH CEL 4 VSET IC6452 Q6462 Q6461 D6417 Q6463 T6461 IC6456 VSCN GEN VSET T6471 IC6472 Q6555 Q6501 6 5 Q6502 Q6503 Q6504 SOS2 12 12 1 9 4 4A 1A 3A 2A 2 5 10 13 1B 2B 3B 4B 11 3 8 6 4Y 1Y 3Y 2Y 4 16 14 CBK 11 9 2 18 13 CEL Q6603 Q6604 CLK SIU SID CL CEL2 CPH CEL SCSU IC6607 BUFFER VSUS VSUS 1 2 SC2 TO P2 SC23 TO P23 +15V 1 2 +15V TH-42PW6CH/CZ, TH-42PWD6CY SC-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY SC-Board Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 91 14.37.SC 电路板 （1/2）电路图 + + + + + + + + + + AA_CLK AA_SIU AA_SID AA_CPH AA_SCSU CSH AA_CL AA_CBK AA_CEL AA_CEL2 CSL CML CMH CBK CEL SOS1 CPH CEL2 SOS2 AA_CEL AA_SCSU AA_CBK AC_CBK AC_CBK AC_CPH AA_CPH D6583 LNJ201LPQJA C6639 200V 150u D6586 MAZ83300ML C6607 25V 1u R6614 5.6 L6645 G0ZZ00002183 Q6671 2SB0940AP0LB R6663 47k 1/2W R6639 1 R6678 470 D6615 B0ECHP000001 C6608 25V 470u C6646 35V 120u 2W *R6448 4.7k C0ZBZ0000562 IC6603 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC TP31 C6650 250V 0.22u D6637 B0ECHP000001 D6466 MAZ83300ML L6620 G0ZZ00002183 TP12 R6648 5.6 TP2 TP19 L6623 G0ZZ00002183 R6691 470 TP38 R6603 0 R6630 0 D6494 B0ECHP000001 R6692 47k IC6581 C0BBBA000043 1 2 3 4 5 6 7 8 TP26 R6675 47k TP5 R6683 470 C6627 250V 1u R6623 10k R6697 47k C6633 16V 1u L6602 G0ZZ00002183 R6688 47k D6642 B0JCME000025 D6491 B0ECHP000001 TP18 R6658 0 C0JBAZ000005 IC6606 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC Q6673 2SD1263AP0LB SC2 1 2 3 4 5 6 TP37 Q6604 2SK062000L G D S C6490 630V 1000p R6695 470 C0ZBZ0000562 IC6602 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC L6627 G0ZZ00002183 SC23 1 2 3 R6582 100k Q6612 2SB1073001TV TP17 TP28 C6481 630V 3300p R6661 47 R6670 470 Q6613 2SD21850RL R6628 100 L6615 0.82u C6623 250V 1u D6621 SF20LC30F10 L6611 0.82u TP1 TP20 *R6442 69.8k C6624 250V 1u C6660 630V 1000p C6656 10V 100u TP13 R6664 470 TP39 C6621 250V 1u R6619 24 R6587 1.5k C0JBAZ000005 IC6605 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC R6634 0 R6676 470 R6684 470 L6616 0.82u R6489 4.7k D6582 MAZ80510LL C6617 630V 3300p SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C6631 25V 4.7u TP16 TP24 L6638 G0ZZ00002183 D6645 B0ECHP000001 1W R6499 8.2 C6491 630V 1000p L6647 J0JJC0000021 C6471 16V 1u *R6444 2.7k TP8 L6634 G0ZZ00002183 L6637 G0ZZ00002183 C6628 250V 1u L6618 J0JJC0000021 R6463 1k R6698 47k 1/2W R6643 22 C6626 250V 1u D6585 MAZ83300ML Q6624 2SK3637000VE G D S C6603 200V 220u 1% *R6445 2.55k 1W *R6673 10 C6486 630V 3300p TP9 R6590 2.2k C6695 630V 1000p R6583 100k D6636 MA2J11100L D6622 SF20LC30F10 C6485 630V 3300p C6652 0.01u 1/2W R6644 22 L6604 G0ZZ00002183 D6611 B0JCME000025 C6632 25V 4.7u R6662 47 R6680 47k 1/2W R6638 1 Q6614 2SB1073001TV IC6604 AN1431M-E1 CATHODE3 1 REFERENCE ANODE 2 R6668 100 R6682 470 D6647 B0ECHP000001 C6651 0.01u R6686 47k C6696 630V 1000p C6585 16V 1u L6626 G0ZZ00002183 R6620 24 D6493 B0ECHP000001 C6534 630V 1000p C6661 630V 1000p R6613 5.6 2WR6447 22k L6621 G0ZZ00002183 L6644 G0ZZ00002183 TP25 TP15 TP21 TP52 C6529 630V 1000p C6604 200V 220u Q6642 B1DFHM000002 G D S R6659 100 D6468 MA2J11100L C6647 16V 1u D6641 B0JCME000025 R6612 5.6 L6636 G0ZZ00002183 D6635 MAZ80510LL D6646 B0ECHP000001 L6635 G0ZZ00002183 R6601 0 TP36 L6612 0.82u TP23 R6466 1k D6640 B0ECHP000001 C6636 16V 1u 3W R6671 820 C6635 25V 4.7u R6472 1k R6693 47k C6625 250V 1u 1/2W R6636 1 C6645 25V 1u TP6 Q6581 2SD0601A0L 1/2W R6672 100 TP34 TP27 TP22 R6681 47k C6637 25V 120u C6616 630V 3300p C6644 25V 4.7u L6628 G0ZZ00002183 D6612 B0JCME000025 L6622 G0ZZ00002183 C6622 250V 1u TP14 IC6607 C0JBAA000195 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC R6624 10 R6679 470 L6605 G0ZZ00002183 Q6603 2SK062000L G D S D6629 B0HBSM000031 R6633 0 R6635 0 R6632 0 R6625 10k TP29 R6626 10 C6546 16V 1u C6601 200V 220u Q6672 2SC1473AEA C6642 250V 0.1u TP4 D6584 MA2J11100L TP10 R6687 47k L6648 J0JJC0000021 TP33 R6631 0 R6669 47k R6611 5.6 Q6611 2SD21850RL R6446 220k R6656 100k R6667 100 D6465 MAZ83300ML TP11 C6615 630V 3300p TP30 L6625 G0ZZ00002183 R6685 470 R6641 5.6 L6624 G0ZZ00002183 TP32 R6584 22k R6591 1.5k C6655 10V 100u C6602 200V 220u R6660 100 R6655 100 R6689 47k Q6621 2SK3637000VE G D S C0ZBZ0000562 IC6601 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC R6627 100 C6634 25V 4.7u R6694 470 D6620 SF20LC30F10 C6611 630V 3300p C6584 25V 1u 1/4W R6470 15k 1% *R6441 75k R6690 470 R6452 0 C6482 630V 3300p D6624 SF20LC30F10 R6647 5.6 R6642 5.6 TP35 TP7 D6467 B3PBA0000062 1 2 3 4 R6586 10k 1/2W R6637 1 R6589 10k Q6641 B1DFHM000002 G D S *R6443 20k 1 2 3 Q6601 2SK3652000SB G D S Q6602 2SK3652000SB G D S Q6605 2SK3652000SB G D S Q6606 2SK3652000SB G D S NC TPVBK +15V GND (RED LED) + - + - TP15V +15V GND GND Vsus Vsus GND GND GND GND TC74VHC244FT(EL) TC74VHC244FT(EL) TC74HC08AF(EL) B E 9 6 8 7 3 D 4 C 1 2 F 5 A TO (P2) P-BOARD P-BOARD (P23) TO TO D-BOARD (D20) SC-BOARD TXNSC1SHSE (1/2) ! 5 6 4 2 3 1 8 7 BUFFER BUFFER BUFFER FET DRIVER FET DRIVER FET DRIVER Vsus Vbk ENERGY RECOVER COMPARETER * = m = * * * = * = TH-42PW6CH/CZ, TH-42PWD6CY SC-Board(1of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY SC-Board(1of2)Schematic Diagram 92 14.38.SC 电路板 （2/2）电路图 + + + + + Nd N1 N2 + Nd N1 N2 + + + + + + + + + AA_CEL AB_PROU AB_FCLKU AB_FCLU AB_FSIU AB_FSID AB_FCLD AB_FCLKD AB_PROD AB_FCLD AB_FCLU AB_FCLKU AB_FCLKD AB_FSID AB_FSIU AB_PROU AB_PROD AC_CPH AA_SCSU AA_CEL2 AA_SID AA_SIU AA_CLK AA_CL Q6454 2SD814ATX D6508 K7GBZEE00006 1 3 4 5 6 D6547 MAZ83300ML R6573 470 1% R6552 100k C6464 25V 4.7u D6527 MA2J11100L D6572 B0ECHP000001 R6604 100 IC6454 AN78L05M-E1 IN 3 2 COMMON OUT 1 TP61 *Q6527 2SK2993TE24L G D S R6518 100 Q6551 2SD0601A0L R6485 10k D6481 MAZ83300ML C6503 16V 1u D6509 MA2J11100L R6433 0 R6473 22k C6543 200V 1000p C6502 16V 1u R6514 100k Q6477 2SD0601A0L D6519 MA2J11100L R6651 68 1% R6595 5.23k R6558 10k R6543 5.6 C6521 25V 47u D6487 MAZ80560HL D6513 MA2J11100L R6547 5.6 R6545 5.6 TP63 TP41 1/2W R6449 1 R6453 22k C6455 25V 220u C6476 160V 100u D6479 MA2J11100L C6465 25V 4.7u R6563 5.6 D6495 B0HCKS000001 D6570 B0HCMM000009 C6468 16V 1u R6565 10k C6453 16V1u *Q6524 2SK2993TE24L G D S R6520 150 C6508 16V 1u C6591 25V 4.7u IC6541 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb Q6543 2SK373100L G D S R6654 68 TP56 R6653 68 R6508 2.2k C6459 25V 47u C6504 16V 1u C6506 16V 1u D6546 MAZ83300ML 1/4W R6527 1k R6541 47 R6467 1.2k C6578 16V1u R6555 100k R6560 47 C6512 25V 4.7u R6592 220k Q6501 2SK062000L G D S D6482 MAZ83300ML D6484 MAZ80560HL 1/2W R6496 1 D6469 B3PBA0000062 1 2 3 4 C6511 25V 4.7u R6468 4.7k R6487 4.7k R6479 100k IC6456 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 D6473 MA2J11100L D6478 B0HCKS000001 C6525 200V 1000p C6550 160V 100u Q6512 B1DFGL000005 G D S Q6491 2SC1473AEA C6547 200V 1000p D6480 B3PBA0000062 1 2 3 4 D6548 MAZ83300ML 1/2W R6609 1 C6493 630V 2200p D6521 B0ECHP000001 T6451 G4D1A0000072 N4 N2 1 2 3 4 5 6 7 8 1% *R6551 100k Q6541 2SB1073001TV R6615 3.3k R6576 470 R6515 10 C6467 50V 4700p R6542 5.6 D6475 MA2J11100L Q6511 B1DFGL000005 G D S 1% R6629 22k 3W R6513 2.2 R6574 470 R6646 150 C6524 200V 1000p R6519 1k IC6512 AN78L05M-E1 IN 3 2 COMMON OUT 1 R6486 10k R6528 1k *R6530 22 D6543 MAZ80510LL R6581 100 C6452 50V 0.01u C6526 250V 22u Q6474 2SD814ATX T6471 G4D1A0000072 N4 N2 1 2 3 4 5 6 7 8 C6598 160V 22u D6456 B0ECHP000001 Q6462 2SB0709ARL D6529 B0JCME000025 R6616 220 T6461 ETS13TB139AP N4 N2 1 2 3 NC 4 5 6 NC 7 9 10 NC D6507 K7GBZEE00006 1 3 4 5 6 SC43 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 R6526 47 D6461 B0HCKS000001 *R6535 22 C6577 16V 1u 1% R6456 453k 1W R6550 3.3k TP46 C6456 160V 100u Q6546 2SK373100L G D S D6470 MA2J11100L 1/2W R6495 1 R6491 100k Q6461 B1BBCJ000003 D6459 MA2J11100L L6471 J0JJC0000021 R6618 2.2k Q6530 2SB1073001TV L6472 G0ZZ00002183 R6460 10k D6520 B0JCKG000001 D6549 MA2J11100L R6516 470 2W R6465 8.2 IC6491 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 D6477 MA2J11100L Q6544 2SK373100L G D S C6620 50V 0.1u SC44 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 TP48 Q6471 B1BBCJ000003 R6477 5k 1 2 3 R6575 470 R6540 100k Q6502 2SK062000L G D S R6665 68 D6545 MAZ80510LL Q6547 2SK373100L G D S *R6534 22 C6458 25V 4.7u Q6451 B1BBCJ000003 R6544 5.6 D6512 MA2J11100L D6496 B0JCME000025 R6566 100 D6544 MA2J11100L R6503 2.2k TP62 C6580 16V1u Q6554 2SD21850RL 1% R6621 154k 5% R6471 4.7k R6509 2.2k D6464 B0JCME000025 IC6501 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R6500 1.2k Q6521 B1DFES000001 G D S R6529 47 D6483 MAZ80560HL Q6520 2SD0601A0L R6577 470 *R6532 22 C6571 16V 1u D6516 MA2J11100L D6504 K7GBZEE00006 1 3 4 5 6 R6539 100 D6503 K7GBZEE00006 1 3 4 5 6 *C6461 50V 100u C6475 25V220u 1/2W R6608 1 R6610 100k R6567 4.7k R6497 10k R6538 1k R6431 0 TP45 TP44 R6650 68 IC6521 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6485 MAZ80560HL R6517 10k *Q6523 2SK2993TE24L G D S 1/2W R6450 1 C6513 160V 100u C6463 25V 4.7u D6462 B0JCME000025 R6502 1k R6559 2.2k C6462 25V 4.7u IC6471 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 IC6452 AN78L15ME1 IN 3 2 COMMON OUT 1 Q6552 B1DFES000001 G D S D6524 MAZ80510LL D6550 MA2J11100L R6588 10k D6506 K7GBZEE00006 1 3 4 5 6 C6544 200V 1000p C6472 50V 0.01u R6607 220k D6502 K7GBZEE00006 1 3 4 5 6 Q6492 2SC1473AEA D6525 MA2J11100L R6585 1k D6486 MAZ80560HL 1W R6498 8.2 D6505 K7GBZEE00006 1 3 4 5 6 IC6542 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6451 B0JCME000025 C6454 50V 0.01u *Q6525 2SK2993TE24L G D S D6492 B0ECHP000001 C6541 25V 4.7u D6553 MA2J11100L R6522 0 D6514 MA2J11100L C6581 16V 1u 1% R6458 10k D6511 B0HCMM000009 C6466 50V 0.01u D6552 MA2J11100L R6488 10k TP42 TP59 TP51 C6589 25V 4.7u R6455 3.3k IC6451 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 C6473 16V1u D6453 MA2J11100L R6578 470 R6506 2.2k R6480 10k Q6542 2SK373100L G D S C6492 350V 10u 1% R6457 10k TP49 D6490 MAZ80560HL D6463 MAZ80560HL R6521 100k TP54 IC6502 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 D6517 B3PBA0000062 1 2 3 4 D6523 B0ECHP000001 D6454 B3PBA0000062 1 2 3 4 C6532 25V 4.7u C6523 35V 47u R6606 220k R6482 4.7k R6652 68 R6454 220 *R6531 22 R6645 150 C6590 16V 1u IC6510 AN78L05M-E1 IN 3 2 COMMON OUT 1 R6593 220k TP50 D6522 MA2J11100L R6599 100 D6474 B3PBA0000062 1 2 3 4 1% R6554 10k Q6463 2SD0601A0L R6475 3.3k R6571 470 1% R6553 100k R6561 47 D6542 MA2J11100L TP43 3W R6510 2.2 D6541 B0HCKS000001 D6515 MAZ82400ML D6501 K7GBZEE00006 1 3 4 5 6 D6458 B3PBA0000062 1 2 3 4 R6666 68 R6511 10 R6649 68 R6507 2.2k R6605 220k 1/4W R6483 6.2k L6453 J0JJC0000021 R6525 100k D6460 B0HCKS000001 D6476 B0ECHP000001 1% R6493 220k R6505 2.2k C6531 25V 4.7u 1% R6596 5.23k TP58 TP57 Q6452 2SB0709ARL R6572 470 Q6504 2SK062000L G D S Q6472 2SB0709ARL 1/4W R6459 100k IC6453 AN78L15ME1 IN 3 2 COMMON OUT 1 R6568 4.7k C6505 16V 1u R6501 2.2k TP47 C6576 16V 1u C6469 25V 220u Q6503 2SK062000L G D S 1% R6476 324k C6474 50V 0.01u R6474 220 TP55 Q6555 B1DFES000001 G D S *R6533 22 R6484 4.7k 1% R6478 6.98k R6617 2.2k Q6455 2SD0601A0L C6470 50V 220u C6588 16V 1u R6600 100 *R6469 16k D6551 B0JCME000025 D6489 MAZ80560HL C6575 16V1u *Q6526 2SK2993TE24L G D S L6451 J0JJC0000021 Q6545 2SK373100L G D S R6594 100k R6546 5.6 R6464 2.2k 1% R6524 2k TP40 R6504 2.2k R6556 3.9k R6557 10k 1 2 3 R6580 10k 1% R6492 220k Q6475 2SD0601A0L *Q6522 2SK2993TE24L G D S C6507 16V 1u D6488 MAZ80560HL SC42 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 IC6472 AN1431M-E1 CATHODE 3 1 REFERENCE ANODE 2 Q6553 2SB1073001TV Q6476 2SD0601A0L C6478 50V 0.1u Q6550 2SC1473AEA R6512 470 IC6455 AN78L05M-E1 IN 3 2 COMMON OUT 1 IC6511 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb SC41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 C6501 16V 1u D6526 B0HCMM000009 D6455 MA2J11100L TP60 C6509 50V 1000p R6562 1k VAD TPVAD TPVSCN TC74HC14AF TC74HC14AF INIT-F VSET TPVSET TPSC1 14 18 12 10 16 11 15 13 17 TO SD-BOARD (SD43) (SU41) SU-BOARD TO (SU42) SU-BOARD TO (SD44) SD-BOARD TO ! SC-BOARD TXNSC1SHSE (2/2) 3 5 4 1 6 7 2 8 INIT-R BUFFER BUFFER FET DRIVER FET DRIVER FET DRIVER FET DRIVER Vad Vset2 Vset1 SC +5V(HT4) +5V(HT3) +15V(HT1) +5V(HT1) +5V(HT2) (Vscn) (Vscn) (5V) (5V) (Vfo) (Vfo) (Vf) (Vf) (Vf) (Vf) # * * # # TH-42PW6CH/CZ, TH-42PWD6CY SC-Board(2of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY SC-Board(2of2)Schematic Diagram 93 14.39.SU 电路板方框图 B40 98 SU2 91 A40 FCL 91 HV03 88 85 HV64 88 Vf5 Vf 79 46 HV63 42 92 81 SELECTOR FCLK 75 42 86 32 34 30 IC6401 93 30 PRO 35 83 97 1 HV18 Vfo 41 78 44 31 31 PDP SCAN DRIVER 34 97 79 32 78 41 45 HV62 IC6402 98 82 HV17 76 44 89 35 SHIFT RESISTOR 75 45 83 Q6401 LATCH 81 74 FS01 FSO1 100 90 FS02 82 FS02 99 FS03 91 Vf5 FS03 83 88 Vf 1 42 Vf Vfo 84 HV64 92 VSCN HV63 97 HV62 SU 98 FSI 76 Scan Out (up) Board FCL FCLK 41 Vfo PRO 93 76 HV03 Vf HV63 VF5V 98 HV02 PRO SCAN ELECTRODES 75 48 PIN 81 Vf 11 VF5V OUTPUT FCLK 37 12 HV01 30 64 PIN 50 13 OUTPUT 36 94 14 35 Vfo OUTPUT 32 35 15 34 Vfo 64 PIN Vf 16 78 OUTPUT 17 FCLK 64 PIN 30 PRO A39 FCL 45 31 82 HV02 FCL SHIFT RESISTOR PRO HV03 61 84 32 62 46 LATCH 44 82 92 PRO PDP SCAN DRIVER 84 83 93 IC6404 A1 HV02 80 B1 79 Vf5 81 FSI 89 FCL 46 44 90 90 VSCN To 1st 80pins of PDP SCAN DRIVER 94 71 PDP SCAN DRIVER 91 Vf HV01 SCAN ELECTRODES 95 94 IC6403 FCLK SU42 A24 To 2nd 80pins of 87 FSI 74 B40 85 100 TO SC41 HV01 SCAN ELECTRODES B24 99 SELECTOR To 3rd 80pins of TO SC42 B25 86 B39 35 83 A25 A39 1 34 A2 74 B32 34 78 33 Vf5 45 100 31 Vf A40 95 32 A17 82 SU41 87 A16 99 51 SHIFT RESISTOR A1 60 LATCH 86 HV63 SHIFT RESISTOR A2 75 63 84 HV64 B1 LATCH 30 81 46 70 SELECTOR B2 74 FCLK HV62 B33 88 92 Vfo 85 FCL B40 95 86 B39 93 16 B17 B16 42 94 A33 79 87 15 B39 A39 97 HV64 SU1 SU3 89 85 95 HV62 A1 89 31 A40 41 A2 B2 90 76 90 B1 87 A32 SELECTOR B2 TH-42PW6CH/CZ, TH-42PWD6CY SU-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY SU-Board Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 94 14.40.SU 电路板电路图 TERM SIDE TERM SIDE TERM SIDE AA_240 AA_239 AA_238 AA_237 AA_236 AA_235 AA_234 AA_233 AA_232 AA_231 AA_230 AA_229 AA_228 AA_227 AA_226 AA_225 AA_224 AA_223 AA_222 AA_221 AA_220 AA_219 AA_218 AA_217 AA_216 AA_215 AA_214 AA_213 AA_212 AA_211 AA_210 AA_209 AA_208 AA_207 AA_206 AA_205 AA_204 AA_203 AA_177 AA_178 AA_179 AA_180 AA_181 AA_182 AA_183 AA_184 AA_185 AA_186 AA_187 AA_188 AA_189 AA_190 AA_191 AA_192 AA_193 AA_194 AA_195 AA_196 AA_197 AA_198 AA_199 AA_200 AA_201 AA_202 AB_176 AB_175 AB_174 AB_173 AB_172 AB_171 AB_170 AB_169 AB_168 AB_167 AB_166 AB_165 AB_164 AB_163 AB_162 AB_161 AB_160 AB_159 AB_158 AB_157 AB_156 AB_155 AB_154 AB_153 AB_152 AB_151 AB_150 AB_149 AB_148 AB_147 AB_146 AB_145 AB_144 AB_143 AB_142 AB_141 AB_140 AB_139 AB_113 AB_114 AB_115 AB_116 AB_117 AB_118 AB_119 AB_120 AB_121 AB_122 AB_123 AB_124 AB_125 AB_126 AB_127 AB_128 AB_129 AB_130 AB_131 AB_132 AB_133 AB_134 AB_135 AB_136 AB_137 AB_138 AC_112 AC_110 AC_109 AC_108 AC_107 AC_106 AC_105 AC_104 AC_103 AC_102 AC_101 AC_100 AC_99 AC_98 AC_97 AC_96 AC_95 AC_94 AC_93 AC_92 AC_91 AC_90 AC_89 AC_88 AC_87 AC_86 AC_75 AC_85 AC_84 AC_83 AC_82 AC_81 AC_80 AC_79 AC_78 AC_77 AC_76 AC_49 AC_50 AC_51 AC_52 AC_53 AC_54 AC_55 AC_56 AC_57 AC_58 AC_59 AC_60 AC_61 AC_62 AC_63 AC_64 AC_65 AC_66 AC_67 AC_68 AC_69 AC_70 AC_71 AC_72 AC_73 AC_74 AD_48 AD_47 AD_46 AD_45 AD_44 AD_43 AD_42 AD_41 AD_40 AD_38 AD_39 AD_37 AD_36 AD_35 AD_34 AD_33 AD_32 AD_31 AD_30 AD_29 AD_27 AD_28 AD_1 AD_2 AD_3 AD_4 AD_5 AD_6 AD_7 AD_8 AD_9 AD_10 AD_11 AD_12 AD_13 AD_14 AD_15 AD_16 AD_17 AD_18 AD_19 AD_20 AD_21 AD_22 AD_23 AD_24 AD_26 AD_25 120V AA_240 AA_238 AA_236 AA_234 AA_232 AA_230 AA_228 AA_226 AA_224 AA_222 AA_220 AA_218 AA_216 AA_214 AA_212 AA_210 AA_208 AA_206 AA_204 AA_202 AA_200 AA_198 AA_196 AA_194 AA_192 AA_190 AA_188 AA_186 AA_184 AA_182 AA_178 AA_180 AA_239 AA_237 AA_235 AA_233 AA_231 AA_229 AA_227 AA_225 AA_223 AA_221 AA_219 AA_217 AA_215 AA_213 AA_211 AA_209 AA_207 AA_205 AA_203 AA_201 AA_199 AA_197 AA_195 AA_193 AA_191 AA_189 AA_187 AA_185 AA_183 AA_181 AA_177 AA_179 AB_175 AB_173 AB_171 AB_169 AB_167 AB_165 AB_161 AB_163 AB_176 AB_174 AB_172 AB_170 AB_168 AB_166 AB_162 AB_164 AB_160 AB_158 AB_156 AB_154 AB_152 AB_150 AB_148 AB_146 AB_144 AB_142 AB_140 AB_138 AB_136 AB_134 AB_132 AB_130 AB_128 AB_126 AB_124 AB_122 AB_120 AB_118 AB_114 AB_116 AB_159 AB_157 AB_155 AB_153 AB_151 AB_149 AB_147 AB_145 AB_143 AB_141 AB_139 AB_137 AB_135 AB_133 AB_131 AB_129 AB_127 AB_125 AB_123 AB_121 AB_119 AB_117 AB_113 AB_115 AC_81 AC_112 AC_110 AC_108 AC_106 AC_104 AC_102 AC_100 AC_98 AC_96 AC_94 AC_92 AC_90 AC_88 AC_86 AC_82 AC_84 AC_111 AC_109 AC_107 AC_105 AC_103 AC_101 AC_99 AC_97 AC_95 AC_93 AC_91 AC_89 AC_87 AC_85 AC_83 AC_80 AC_78 AC_76 AC_74 AC_72 AC_70 AC_68 AC_66 AC_64 AC_62 AC_60 AC_58 AC_56 AC_54 AC_52 AC_50 AC_79 AC_77 AC_75 AC_73 AC_71 AC_69 AC_67 AC_65 AC_63 AC_61 AC_59 AC_57 AC_55 AC_53 AC_51 AC_49 AD_48 AD_46 AD_44 AD_42 AD_40 AD_38 AD_36 AD_34 AD_32 AD_30 AD_28 AD_26 AD_24 AD_22 AD_20 AD_18 AD_16 AD_14 AD_12 AD_10 AD_8 AD_6 AD_4 AD_2 AD_47 AD_45 AD_43 AD_41 AD_39 AD_37 AD_35 AD_33 AD_31 AD_29 AD_27 AD_25 AD_23 AD_21 AD_19 AD_17 AD_15 AD_13 AD_11 AD_9 AD_7 AD_5 AD_3 AD_1 AC_111 AE_FCLK AE_PRO AE_FCL AE_FSI AE_FSI AE_PRO AE_FCLK AE_FCL AE_FSO3 AE_FCLK AE_FSO3 AE_FSO2 AE_FSO2 AE_FCL AE_PRO AE_FCLK AE_PRO AE_FCL AE_FCLK AE_PRO AE_FCL SU71 Q6401 2SK062000L G D S SU52 SU89 R6413 220k SU40 D6405 B0ECHP000001 SU53 SU90 C6411 50V 2200p SU51 SU88 SU14 C6402 16V 1u SU11 SU73 SU70 R6422 10k R6412 4.7k SU37 C6403 16V 1u R6404 220 SU74 SU69 C6404 16V 1u SU54 SU39 SU85 SU65 SU38 SU35 SU49 SU86 D6402 MAZ80560HL SU87 SU44 SU84 SU27 SU67 SU50 R6402 220 SU66 SU68 SU64 SU31 SU81 SU48 SU13 SU36 SU79 SU28 SU80 SU30 SU19 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 SU62 SU29 R6411 100k SU41 SU12 SU23 SU34 SU61 C6401 16V 1u SU60 D6410 B0ECHP000001 SU45 C6412 50V 1000p SU16 SU82 SU47 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 SU83 R6420 10k SU46 SU63 SU32 SU15 SU76 R6410 100k R6423 10k SU42 SU24 SU77 SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 SU20 C6417 50V 220p SU75 D6401 MAZ80560HL SU57 SU18 SU43 D6403 MAZ80560HL SU55 SU26 SU25 SU56 R6401 220 R6424 220k SU78 SU21 SU58 TPSU2 C6433 250V 0.1u R6403 220 R6421 10k TPSU1 SU59 SU33 SU22 SU17 SU72 C6431 250V 0.1u D6409 B0ECHP000001 AN16001A-VT IC6401 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 AN16001A-VT IC6402 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 AN16001A-VT IC6403 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 AN16001A-VT IC6404 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 Vscn NONUSE 1st OUTPUTS (SN755864) (SN755864) (SN755864) (SN755864) SU41 (Card Edge) 14 OUTPUTS NONUSE VF5V PROU CLKU CLU SIU SU42 (Card Edge) (BOTTOM SIDE) (UP SIDE) FOIL SIDE COMPONENT SIDE FCL FSI PRO FCLK VF5V VFO VFO UP Vf Vfo Vf5 Vf Vfo S/P 64bit S/P 64bit S/P 64bit S/P 48bit (BOTTOM SIDE) (UP SIDE) FOIL SIDE COMPONENT SIDE TO (SC41) SC-BOARD (SC42) SC-BOARD TO SU-BOARD TNPA2957AB ! B E 9 4 C 1 2 F 5 A 6 8 7 3 D TH-42PW6CH/CZ, TH-42PWD6CY SU-Board Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY SU-Board Schematic Diagram 95 14.41.SD 电路板方框图 PDP SCAN DRIVER SHIFT RESISTOR SHIFT RESISTOR B40 45 IC6408 A39 85 B2 SD2 97 HV01 40 30 31 A1 SELECTOR 76 85 95 OUTPUT 79 SCAN ELECTRODES 70 IC6407 21 HV02 79 90 93 A39 89 PRO 74 85 A40 46 FS01 69 65 A2 SHIFT RESISTOR 81 VSCN 86 93 34 88 HV62 Vfo 42 19 OUTPUT IC6406 HV03 89 SD3 A2 HV62 98 HV63 FSI 95 83 35 44 HV03 84 42 82 89 A40 91 18 FSI Vf Vfo 81 83 94 89 86 92 87 86 46 OUTPUT HV01 46 100 99 B1 B2 32 79 PRO 99 85 92 B39 75 HV63 50 LATCH Vf 83 30 64 PIN B25 75 87 35 A9 Vf B39 64 PIN SD SCAN ELECTRODES 34 78 B40 FCL 78 B1 LATCH HV64 FCLK Vf 35 42 HV64 88 74 44 85 66 35 FCLK B17 A16 31 Vf5 Vf5 A2 SD44 Vfo 75 Vfo A25 84 41 PRO 32 11 86 94 74 FS03 FS02 87 VF5V 30 76 B16 FCL 79 48 PIN Vf SD1 A1 31 A8 B9 90 Scan Out (Down) Board 46 88 84 41 98 FCLK 88 97 SELECTOR 71 TO SC43 64 PIN Vfo SCAN ELECTRODES HV63 81 30 100 SELECTOR 41 PDP SCAN DRIVER 100 Vfo A40 45 FCL 78 91 PDP SCAN DRIVER PRO VF5V HV62 HV03 92 LATCH 44 B24 98 B1 1 38 89 88 94 90 95 To 2nd 80pins of 94 31 OUTPUT 41 FCLK Vf FSI FCLK To 3rd 80pins of 95 B2 16 HV63 31 64 45 20 Vf LATCH 83 HV01 41 1 A1 86 FS01 A24 To 1st 80pins of HV64 45 PRO 78 97 15 FS02 87 99 39 B8 SHIFT RESISTOR 90 32 IC6405 FCL HV18 51 84 67 SD43 34 84 32 44 1 HV64 74 VSCN HV02 FS03 30 75 Vf5 B40 PRO HV17 91 TO SC44 A39 FCL 82 90 92 98 34 87 76 A17 FCL HV02 Vf5 82 SELECTOR 76 81 HV62 93 Vf 82 42 97 68 FCLK Vf PDP SCAN DRIVER B39 93 TH-42PW6CH/CZ, TH42PWD6CY SD-Board Block Diagram TH-42PW6CH/CZ, TH42PWD6CY SD-Board Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 96 14.42.SD 电路板电路图 TERM SIDE TERM SIDE TERM SIDE AA_240 AA_239 AA_238 AA_237 AA_236 AA_235 AA_234 AA_233 AA_232 AA_231 AA_230 AA_229 AA_228 AA_227 AA_226 AA_225 AA_224 AA_223 AA_222 AA_221 AA_220 AA_219 AA_194 AA_195 AA_196 AA_197 AA_198 AA_199 AA_200 AA_201 AA_202 AA_203 AA_204 AA_205 AA_206 AA_207 AA_208 AA_209 AA_210 AA_211 AA_212 AA_213 AA_214 AA_215 AA_216 AA_217 AA_218 AB_192 AB_191 AB_190 AB_189 AB_188 AB_187 AB_186 AB_185 AB_184 AB_183 AB_182 AB_181 AB_180 AB_179 AB_178 AB_177 AB_176 AB_175 AB_174 AB_173 AB_172 AB_171 AB_170 AB_169 AB_168 AB_167 AB_166 AB_165 AB_164 AB_163 AB_162 AB_161 AB_160 AB_159 AB_158 AB_157 AB_156 AB_155 AB_130 AB_131 AB_132 AB_133 AB_134 AB_135 AB_136 AB_137 AB_138 AB_139 AB_140 AB_141 AB_142 AB_143 AB_144 AB_145 AB_146 AB_147 AB_148 AB_149 AB_150 AB_151 AB_152 AB_153 AB_154 AC_128 AC_127 AC_126 AC_125 AC_124 AC_123 AC_122 AC_121 AC_120 AC_119 AC_118 AC_117 AC_116 AC_115 AC_114 AC_113 AC_112 AC_111 AC_110 AC_109 AC_108 AC_107 AC_106 AC_105 AC_104 AC_103 AC_102 AC_101 AC_100 AC_99 AC_98 AC_97 AC_96 AC_95 AC_94 AC_92 AC_91 AC_66 AC_67 AC_68 AC_69 AC_70 AC_71 AC_72 AC_73 AC_74 AC_75 AC_76 AC_77 AC_78 AC_79 AC_80 AC_81 AC_82 AC_83 AC_84 AC_85 AC_86 AC_87 AC_88 AC_89 AC_90 AD_64 AD_62 AD_61 AD_60 AD_59 AD_58 AD_57 AD_56 AD_55 AD_54 AD_53 AD_52 AD_51 AD_50 AD_49 AD_48 AD_47 AD_46 AD_45 AD_44 AD_43 AD_42 AD_41 AD_40 AD_39 AD_38 AD_37 AD_36 AD_35 AD_34 AD_33 AD_32 AD_31 AD_30 AD_29 AD_28 AD_27 AD_2 AD_3 AD_4 AD_5 AD_6 AD_7 AD_8 AD_9 AD_10 AD_11 AD_12 AD_13 AD_14 AD_15 AD_16 AD_17 AD_18 AD_19 AD_20 AD_21 AD_22 AD_23 AD_24 AD_25 AD_26 AA_193 AE_FCLK AE_PRO AE_FCL AD_1 AE_FCLK AD_63 AE_FSO1 AE_PRO AE_FCL AB_160 AA_240 AA_238 AA_236 AA_234 AA_232 AA_230 AA_228 AA_226 AA_224 AA_222 AA_220 AA_218 AA_216 AA_214 AA_212 AA_210 AA_208 AA_206 AA_204 AA_202 AA_200 AA_198 AA_194 AA_196 AA_239 AA_237 AA_235 AA_233 AA_231 AA_229 AA_227 AA_225 AA_223 AA_221 AA_219 AA_217 AA_215 AA_213 AA_211 AA_209 AA_207 AA_205 AA_203 AA_201 AA_199 AA_197 AA_193 AA_195 AB_179 AB_187 AB_189 AB_191 AB_183 AB_181 AB_185 AB_188 AB_190 AB_192 AB_184 AB_182 AB_186 AB_177 AB_175 AB_173 AB_171 AB_169 AB_167 AB_165 AB_163 AB_161 AB_174 AB_178 AB_176 AB_170 AB_168 AB_166 AB_164 AB_162 AB_172 AB_180 AB_158 AB_156 AB_154 AB_152 AB_150 AB_148 AB_146 AB_144 AB_142 AB_140 AB_138 AB_136 AB_134 AB_130 AB_132 AB_159 AB_157 AB_155 AB_153 AB_151 AB_149 AB_147 AB_145 AB_143 AB_141 AB_139 AB_137 AB_135 AB_133 AB_129 AB_131 AC_128 AC_126 AC_124 AC_122 AC_120 AC_118 AC_116 AC_114 AC_112 AC_110 AC_108 AC_106 AC_104 AC_102 AC_100 AC_98 AC_96 AC_94 AC_92 AC_90 AC_88 AC_86 AC_82 AC_84 AC_127 AC_125 AC_123 AC_121 AC_119 AC_117 AC_115 AC_113 AC_111 AC_109 AC_107 AC_105 AC_103 AC_101 AC_99 AC_97 AC_95 AC_93 AC_91 AC_89 AC_87 AC_85 AC_81 AC_83 AC_80 AC_78 AC_76 AC_74 AC_72 AC_70 AC_66 AC_68 AC_79 AC_77 AC_75 AC_73 AC_71 AC_69 AC_67 AC_65 AD_63 AD_61 AD_59 AD_57 AD_55 AD_53 AD_51 AD_49 AD_47 AD_45 AD_43 AD_41 AD_39 AD_37 AD_35 AD_33 AD_31 AD_29 AD_27 AD_25 AD_23 AD_21 AD_19 AD_17 AD_15 AD_13 AD_11 AD_9 AD_7 AD_5 AD_3 AD_1 AD_64 AD_62 AD_60 AD_58 AD_56 AD_54 AD_52 AD_50 AD_48 AD_46 AD_44 AD_42 AD_40 AD_38 AD_36 AD_34 AD_32 AD_30 AD_28 AD_26 AD_24 AD_22 AD_20 AD_18 AD_16 AD_14 AD_12 AD_10 AD_8 AD_6 AD_2 AD_4 AC_65 AE_PRO AE_FCLK AE_FCL AE_FSI AE_FSO3 AE_FSO3 AE_FSO2 AE_FSO2 AE_FSO1 AE_FSI AE_FCL AE_PRO AE_FCLK AB_129 AE_PRO AE_FCL AE_FCLK AC_93 120V SD39 D6406 MAZ80560HL R6425 10k SD68 SD45 SD28 SD50 SD60 SD54 SD43 SD77 SD23 C6422 50V 1000p R6408 220 SD84 SD47 TPSD1 SD41 SD31 R6428 10k SD90 SD61 SD48 SD40 R6427 10k SD52 D6407 MAZ80560HL SD36 SD80 R6406 220 SD79 SD75 SD18 SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 SD11 SD71 SD83 SD82 SD44 SD53 SD49 SD26 SD38 SD51 R6407 220 SD24 SD37 SD34 C6405 16V 1u SD70 C6421 50V 2200p SD32 SD22 SD35 SD46 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 D6411 B0ECHP000001 SD64 SD73 SD78 SD55 SD69 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 SD33 C6406 16V 1u SD42 C6429 250V 0.1u SD16 SD72 SD29 SD86 C6427 250V 0.1u SD81 R6426 10k SD76 SD62 C6407 16V 1u SD27 SD74 SD65 SD67 TPSD2 R6405 220 D6412 B0ECHP000001 SD25 SD21 SD58 SD89 SD57 SD12 R6429 220k SD17 SD56 SD30 SD59 SD66 SD20 SD88 SD15 SD63 SD85 SD14 R6409 220k SD19 SD13 C6408 16V 1u SD87 AN16001A-VT IC6405 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 AN16001A-VT IC6406 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 AN16001A-VT IC6407 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 AN16001A-VT IC6408 C0HBC0000006 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 NC 30 GNDH 31 GNDH 32 GNDH 33 NC 34 VDDH 35 VDDH 36 OUT31 37 OUT32 38 OUT33 39 OUT34 40 OUT35 41 VDDH 42 VDDH 43 NC 44 GNDH 45 GNDH 46 GNDH 47 NC 48 OUT36 49 OUT37 50 OUT38 51 OUT39 52 OUT40 53 OUT41 54 OUT42 55 OUT43 56 OUT44 57 OUT45 58 OUT46 59 OUT47 60 OUT48 61 OUT49 62 OUT50 63 OUT51 64 OUT52 65 OUT53 66 OUT54 67 OUT55 68 OUT56 69 OUT57 70 OUT58 71 OUT59 72 OUT60 73 OUT61 74 OUT62 75 OUT63 76 OUT64 77 NC 78 VDDH 79 VDDH 80 NC 81 GNDH 82 GNDH 83 NC 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GNDH 95 GNDH 96 NC 97 VDDH 98 VDDH 99 OUT1 100 OUT2 Vscn (SN755864) (SN755864) (SN755864) (SN755864) VF5V VF5V PROD CLKD CLD SID SD44 (Card Edge) SD43(Card Edge) Vf Vfo Vf Vf5 Vfo DOWN S/P 64bit S/P 64bit S/P 64bit S/P 48bit (BOTTOM SIDE) (UP SIDE) FOIL SIDE COMPONENT SIDE (BOTTOM SIDE) (UP SIDE) FOIL SIDE COMPONENT SIDE SC-BOARD TO (SC43) SC-BOARD TO (SC44) ! SD-BOARD TNPA2958AB B E 9 4 C 1 2 F 5 A 6 8 7 3 D TH-42PW6CH/CZ, TH-42PWD6CY SD-Board Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY SD-Board Schematic Diagram 97 14.43.SS，S1，SS2 和 SS3 电路板方框图 + PUSH USL 5 8 UEH SS23 UMH 7 4 UML USH 6 3 12 17 8 FET DRIVER 14 IC6701 1 12 8 Q6712 Q6711 Q6714 Q6713 6 Q6701 Q6702 Q6705 Q6706 FET DRIVER 1 14 12 IC6702 8 Q6721 Q6724 14 16 6 4 IC6705 Q6756 L6711 L6713 L6716 FET DRIVER IC6703 12 8 3 18 2 1 2 IC6704 FET DRIVER D6769 (RED LED) D6765 (RED LED) Q6745 Q6746 VE2 Q6742 Q6741 SS49 SS44 SS43 SS41 SS42 SS48 5 15 3 UEL 9 11 SS11 3 2 SS12 1 2 Q6753 Q6751 IC6711 TPVSUS TP15V TPVDA TPVe VE GENERATOR 4 SS40 SS47 SS45 SS46 R6774 Ve SOS VDA VSUS VSUS VDA +15V STB PS L6703 L6704 L6702 15V UMH UML S2 S3 D6724 D6729 S1 USH USL DISCHARGE 1/2 Vo SS34 1 Sustain Drive Board SS TO P12 TO P11 TO C23 SS2 BUFFER IC6706 +15V VCC VCC UEH VE INSERT VEL VEL TPSS1 SS-BOARD SOS DET In Vb Vs 8 6 S34 1 Power Switch Board S1 POWER SWITCH S061 SS3 Q6725 TH-42PW6CH/CZ, TH-42PWD6CY SS,S1,SS2 and SS3-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY SS,S1,SS2 and SS3-Board Block Diagram B 3 2 E C 8 A 5 D 4 6 7 1 98 14.44.SS，S1，SS2 和 SS3 电路板电路图 + + + + + TERM SIDE + TERM SIDE TERM SIDE + TERM SIDE + + + + TERM SIDE TERM SIDE PUSH 67V 15V 150V 175V 67V 175V 190V 175V 175V 15V 5V TP2 R6827 100 R6819 100k C6723 250V 1u R6701 100k L6736 G0ZZ00002183 D6759 MA2J11100L D6721 SF20LC30F10 Q6713 2SD21850RL R6770 100k TP12 R6783 100 D6712 B0JCME000025 1/2W R6744 22 R6762 220k C6741 16V 1u Q6721 2SK3637000VE G D S L6705 100u R6772 2.2k D6758 MA2J11100L IC6705 C0BBBA000043 1 2 3 4 5 6 7 8 TP21 R6818 100k D6764 MA2J11100L Q6756 2SD0601A0L R6782 100 R6771 10k 3W R6777 0.22 R6773 2.7k D6737 B0ECHP000001 TP31 TP8 R6764 220k C6754 25V 220u Q6751 2SD1263AP0LB *SS23 1 2 3 4 5 6 7 8 9 10 11 D6711 B0JCME000025 L6723 G0ZZ00002183 1/2W R6737 1 R6806 47k L6711 0.82u C6735 25V 4.7u R6732 0 TP16 L6713 0.82u D6757 B0ECHP000001 TP7 C0ZBZ0000562 IC6701 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC D6720 SF20LC30F10 IC6704 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb C6746 25V 4.7u TP5 TP15 C6753 25V 220u R6760 100 R6821 10k D6765 LNJ201LPQJA R6723 10k D6767 MAZ83300ML L6714 0.82u R6742 5.6 TP20 TP6 L6750 G0ZZ00002183 D6722 SF20LC30F10 D6763 MAZ80510LL R6735 0 Q6742 B1DFHM000002 G D S C6722 250V 1u 1/2W R6761 47 R6824 10k C6761 630V 1000p D6741 B0ECHP000001 R6801 470 C6744 25V 4.7u R6812 47k TP9 R6725 10k R6712 5.6 C6736 16V 1u Q6725 2SK062000L G D S L6717 J0JJC0000021 C6749 25V 4.7u R6730 0 TP24 TP30 D6715 B0ECHP000001 C6750 16V 1u C6739 250V 0.1u R6781 2.2k L6720 G0ZZ00002183 L6703 G0ZZ00002183 D6752 B0JCME000025 Q6712 2SB1073001TV R6769 100k AN1431M-E1 IC6711 CATHODE 3 1 REFERENCE ANODE 2 Q6711 2SD21850RL C6747 200V 150u L6726 G0ZZ00002183 L6727 G0ZZ00002183 C6725 250V 1u R6766 22k R6809 470 C6726 250V 1u R6727 100 Q6753 2SC14730LA R6720 24 Q6724 2SK3637000VE G D S 1/2W R6743 22 C6717 3300p 630V D6736 MA2J11100L TP25 R6803 470 R6823 1.5k L6719 G0ZZ00002183 R6741 5.6 L6721 G0ZZ00002183 R6826 1.5k R6756 100k 3W R6778 0.22 D6735 MAZ80510LL TP4 D6724 SF20LC30F10 R6748 5.6 1/2W R6739 1 R6787 100 R6784 220k L6718 J0JJC0000021 R6765 10k C6727 250V 1u C6701 200V 150u D6766 MAZ83300ML D6751 B0ECHP000001 C6740 630V 2200p C6756 10V 100u R6788 10k C0ZBZ0000562 IC6702 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC C6755 25V 1u R6786 47 L6722 G0ZZ00002183 C6775 3300p 630V R6734 0 TP29 R6728 100 R6785 47 *SS42 1 2 3 4 5 6 7 8 9 10 11 12 13 C0ZBZ0000562 IC6703 1 LOUT 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HOUT 9 NC 10 NC 11 VDD 12 HIN 13 NC 14 LIN 15 GND 16 NC C6721 250V 1u SS12 1 2 3 4 5 C6708 160V 47u TP10 C6712 3300p 630V 1/2W R6736 1 C6733 16V 1u R6820 22k *SS43 1 2 3 4 5 6 7 8 9 10 11 12 13 C6751 16V 1u R6780 100 R6731 0 R6767 22k TP1 *SS41 1 2 3 4 5 6 7 8 9 10 11 12 13 R6804 47k R6719 24 C6704 200V 150u R6714 5.6 D6762 MA2J11100L R6779 100 R6759 100 R6811 47k Q6706 2SK3652000SB G D S Q6746 2SK326800L G D S R6702 0 D6750 B0ECHP000001 *SS44 1 2 3 4 5 6 7 8 9 10 11 12 13 Q6702 2SK3652000SB G D S Q6745 2SK326800L G D S R6747 5.6 L6712 0.82u R6789 1k R6733 0 L6744 G0ZZ00002183 L6702 G0ZZ00002183 Q6714 2SB1073001TV D6769 LNJ201LPQJA Q6701 2SK3652000SB G D S D6768 MA2J11100L TP26 R6774 5k 1 2 3 C6713 630V 3300p D6740 B0ECHP000001 R6807 470 TP14 R6808 470 R6713 5.6 D6755 B0JCME000025 TP27 C6724 250V 1u C6714 3300p 630V R6768 22k R6726 10 R6724 10 C6742 16V 1u TP18 R6825 2.2k TP13 C6734 25V 4.7u Q6752 2SC14730LA R6763 220k D6729 B0HBSM000031 R6810 47k C6737 250V 0.22u L6704 G0ZZ00002183 C6702 200V 150u SS11 1 2 3 4 5 6 7 TP22 C6757 25V 4.7u R6711 5.6 C6778 630V 3300p Q6705 2SK3652000SB G D S Q6741 B1DFHM000002 G D S TP3 L6747 J0JJC0000021 C6703 200V 150u L6737 G0ZZ00002183 C0JBAZ000005 IC6706 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC C6732 25V 4.7u TP28 C6731 25V 4.7u 1/2W R6738 1 TP11 TP23 D6753 B0JCME000025 R6802 470 TP19 TP17 D6754 B0ECHP000001 C6728 250V 1u C6707 160V 47u R6755 100 R6805 47k C6748 25V 220u L6745 G0ZZ00002183 C6760 630V 1000p SS48 1 2 3 4 5 6 7 SS49 1 2 3 4 5 6 7 SS47 1 2 3 4 5 6 7 SS45 1 2 3 4 5 6 7 8 9 10 11 12 13 SS40 1 2 3 4 5 6 7 SS46 1 2 3 4 5 6 7 8 9 10 11 12 13 SS34 1 2 3 S061 K0F162B00002 S34 1 2 3 C6709 0.01u (RED LED) TP15V NC 500V TPVDA EB STB_PS GND GND - + - + (RED LED) TPSS1 TPVe TPVSUS Vda60V VSUS VSUS NC GND GND +15V GND TC74VHC244FT(EL) FET DRIVER RECOVER ENERGY FET DRIVER FET DRIVER FET DRIVER COMPARETER BUFFER Vsus Ve Ve2 ERROR DET B E 9 6 7 3 D 4 C 1 2 F 5 A SS2-BOARD ! TNPA2872 UP DOWN ! SS3-BOARD TNPA2873 GND STB_PS NC POWER SWITCH ! S1-BOARD TNPA2868 SS-BOARD TNPA2871 ! TO (C23) C2-BOARD TO (P11) P-BOARD TO (P12) P-BOARD Vda 67V USL SS_SOS UMH 5V GND UEL UEH USH GND UML VE GENERATOR m TH-42PW6CH/CZ, TH-42PWD6CY SS,S1,SS2 and SS3-Board Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY SS,S1,SS2 and SS3-Board Schematic Diagram 8 99 14.45.Z 和 H3 电路板方框图 R AMP Q2410 100Hz LPF Q2406 32 20 L IN L OUT 12 1 R IN R OUT 28 29 27 11 16 OUT(R) AUDIO L AMP Q2408 Q2302 L AMP Q2301 R AMP 17 20 21 4 IC2302 AUDIO AMP IC2301 AUDIO AMP AMP STB SW AUDIO OUT(L) 17 11 16 21 20 AMP STB SW 4 B IN ADD MS IN 17 19 MUTE Q2305 Q2303 MUTE POWER ON MUTE Q2306 1 IC801 2 SLOT9V IC802 1 2 SLOT5V 2 IC803 1 SLOT3.3V 15 16 17 SCL SDA PORT 10 11 5 6 3 1 15 SLOT3.3V SLOT3.3V SLOT5V SLOT9V MUTE DR15V 12 SCL3 SDA3 R L Z8 Z5 11 DR15V 1 DIG12V 2 DIG12V 9V STB5V 4 SOUND12V 7 8 SOUND12V 9V 1 4 1 3 Z6 Z7 L+ L- R+ R- H37 1 3 IC2401 SOUND PROCESSOR 2 1 AVR 9V 31 VCC IC2304 Z Sound Processor Board + - H3 SPEAKER TERMINAL (L) (R) TERMINAL + SPEAKER H37 H3 1 3 - TO J8 DIG12V 9 5V 3 5V TO P5 14 RESET JK8500 JK8500 TH-42PW6CH/CZ, TH-42PWD6CY Z and H3-Board Block Diagram TH-42PW6CH/CZ, TH-42PWD6CY Z and H3-Board Block Diagram Q2370 Q2334 Q2333 ERROR DETECT B 3 2 E C 8 A 5 D 4 6 7 1 100 14.46.Z 和 H3 电路板 （1/2）电路图 + + + + + + + + + + + 9V 9V R2467 220k R2321 0 C2314 25V 47u R2452 47k R2306 22k C2431 50V 0.01u IC2401 C1BA00000302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 L2306 ELJPA100KF R2484 33k R2445 0 R2464 100 R2348 10k R2343 10k R2482 15k C2459 16V 1u C2422 4.7u 16V R2439 56k R2462 100 Q2410 2SD0601A0L C2454 50V 4.7u C2461 50V 1000p R2457 33k R2304 47k R2480 1k C2484 50V 0.01u Q2406 2SD0601A0L 2SD601AITX R2461 100 R2434 4.7k R2466 100k R2470 4.7k Q2306 2SD0601A0L 2SD601AITX Q2408 2SD0601A0L C2419 50V 10u R2325 560 R2310 5.6k R2469 100k R2431 12k C2427 50V 10u C2429 C2442 1u 16V D2316 B0JCME000025 C2440 16V 4.7u R2332 1.8k R2324 560 C2437 D2308 MA3X152E0L C2453 50V 0.1u C2435 50V 0.01u C2433 50V 0.039u C2312 50V 0.01u R2471 1.8k R2305 22k Q2305 2SD0601A0L R2450 56k C2450 50V 10u R2320 560 C2458 50V 1000p R2347 47k R2483 1k C2313 50V 47u R2331 0 R2476 22 Q2303 2SD0601A0L R2410 10k C2438 R2453 10k C2423 50V 0.01u Q2302 2SD0601A0L R2468 4.7k C2466 16V 1u R2346 12k IC2304 C0CBAHG00005 GND 3 2 OUT IN 1 R2448 1k 1% R2463 15k R2481 15k R2333 470 C2467 16V 1u R2440 0 R2301 4.7k R2408 10k C2460 50V 0.047u C2451 50V 4.7u R2485 0 R2319 560 D2317 B0JCME000025 R2341 10k C2452 50V 5600p C2434 50V 0.022u C2463 50V 0.047u C2441 16V 4.7u C2457 50V 4.7u C2480 1u 16V R2477 22 C2436 16V 1u R2309 4.7k C2417 4.7u 16V R2473 1.8k 1% R2460 18k R2472 4.7k C2426 50V 0.015u R2456 10k R2438 100 Q2301 2SD0601A0L R2441 12k JS2301 ZA001 K4ZZ01000121 ZA002 K4ZZ01000121 ZA003 K4ZZ01000121 SCL3 SDA3 R AMP L AMP 100Hz LPF STT MS_IN B_GAIN LT B_IN ADD C_IN S_OUT V_REF PS STB SOUND PROCESSOR LS2 AGC_ADJ(4.2V) LS1 VCC L_IN A_GND R_IN SCV PORT SDA SCL LB CB CT RT R_OUT RB C_OUT L_OUT SLV SRV R L R AVR 9V A E D 8 6 1 2 4 7 C 3 B 5 Z-BOARD TNPA2815 (1/2) ! 6 7 8 9 12 11 10 2 3 1 5 4 13 14 TH-42PW6CH/CZ, TH-42PWD6CY Z and H3 Board(1of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY Z and H3 Board(1of2)Schematic Diagram 101 14.47.Z 和 H3 电路板 （2/2）电路图 + + + + + + + + + + + + + + Thermal Pad Thermal Pad Thermal Pad + 3.3V 12V 5V 9V C811 50V 0.01u L801 G1C101ZA0037 C2358 50V 2.2u D803 B0JCME000025 IC802 C0DAAHG00007 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF C809 50V 0.01u C806 10V 1000u Q2330 2SD1266AQ0LB L802 G1C121ZA0037 C2360 50V 1000p C2352 50V 10u 1/2W R2355 2.2 C2364 50V 0.1u Z6 1 2 3 4 C2367 50V 2.2u 1% R803 1k C2368 50V 0.1u C802 25V 470u C2369 50V 0.1u L2331 220uH L2330 220uH 1/2W R2356 2.2 IC801 C0DAAHG00008 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF D802 B0JCME000025 C816 50V 6800p 1/2W R2358 2.2 L803 G1C680ZA0037 1% R805 1k 1% R810 510 C815 50V 0.1u 1/2W R2359 2.2 C2354 35V 47u R808 47 Z8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D806 B0BC6R8A0010 C813 50V 0.047u C2355 35V 47u C2350 2.2u 16V 1/2W R2360 2.2 C2365 50V 0.1u C2359 50V 2.2u 1% R807 15 D804 B0JCPD000010 C2363 25V 470u R2352 10k Z5 1 2 3 4 5 6 7 8 9 10 11 1/2W R2357 2.2 C812 50V 0.1u C2362 25V 470u R2354 10k R2353 10k C2366 50V 2.2u C2353 50V 10u C2351 2.2u 16V D2301 B0JCME000025 C814 6.3V 1500u 1% R809 1.2k C808 50V 0.01u C2361 50V 1000p R2351 10k C2357 50V 1000p R2350 4.7k D807 B0BC6R8A0010 C810 25V 560u C2356 50V 1000p D2302 B0JCME000025 C803 25V 330u C805 16V 1000u 1% R806 15 Q2331 2SD1266AQ0LB C807 50V 0.1u C1BA00000278 IC2301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 C1BA00000278 IC2302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 C0DBALH00002 IC803 1 AGND 2 N.C 3 DGND 4 CE/SS 5 Reg 6 N.C 7 Swout 8 N.C 9 N.C 10 N.C 11 Vin 12 BS 13 N.C 14 Comp 15 Vref 16 N.C Z7 1 2 3 R2365 R2366 ERX1FJSR56E R2367 3.3k R2368 10k C2370 35V 47u Q2370 2SB0709A0L R2369 10k R2370 2.2k R2372 1k R2371 1k Q2334 2SD0601A0L R2373 10k Q2333 2SD0601A0L H37 1 2 3 L8502 G0A2R5H00003 L8501 G0A2R5H00003 JK8500 K4BC02B00013 H37 1 2 3 L8502 G0A2R5H00003 L8501 G0A2R5H00003 JK8500 K4BC02B00013 SDA3 SCL3 DR15V SOUND12V SOUND12V STB5V DIG12V DIG12V DR15V SLOT3.3V SLOT3.3V SLOT5V SLOT9V DIG12V GND GND GND GND GND GND GND GND R L SOUND MAIN MUTE RESET 9V/0.5A 3.3V/1.2A 5V GND GND +R OUT -R OUT -L OUT +L OUT 5V/0.4A NC NC IN NC NC SW GND POWER GND Vcc OUT+ OUT- SW GND SW B SW E SW OUT Vcc(SW) POWER GND PRE GND BEEP POWER GND ON TIME AMP STB SW LIPPLE FILTER NC NC IN NC NC SW GND POWER GND Vcc OUT+ OUT- SW GND SW B SW E SW OUT Vcc(SW) POWER GND PRE GND BEEP POWER GND ON TIME AMP STB SW LIPPLE FILTER AUDIO AMP AUDIO AMP AVR 9V AVR 5V AVR 3.3V 10 15 11 12 14 9 8 13 Z-BOARD TNPA2815 (2/2) ! H3-BOARD ! TNPA3003 SPEAKER TERMINAL (L) TNPA3003 TERMINAL SPEAKER (R) ! H3-BOARD (P5) TO P-BOARD (J8) TO J-BOARD 1 2 3 5 4 7 8 9 12 11 10 6 13 14 M M = # M M M M = # M = # M = # M = # M = # M M M TH-42PW6CH/CZ, TH-42PWD6CY Z and H3 Board(2of2)Schematic Diagram TH-42PW6CH/CZ, TH-42PWD6CY Z and H3 Board(2of2)Schematic Diagram 102 103 15 部件布置 104 16 维修部品表 参考号 物料 说明 数量 J0KD00000071 铁氧体磁芯 2 J0KF00000018 铁氧体磁环 2 K2CK3DH00016 电源线 1 EUR646530 遥控器 1 K5D312BK0012 L/ 副 FUSE 1 K5Y802B00001 保险丝 2 TBMA120 Panasonic 铭牌 1 TBMU196 喇叭端子表示 2 TBMU328 H( 高频头 ) 端子表示板 1 TBMU329 HZ 端子表示 1 TBMU327 HY 端子表示 1 2 TBXA28214 电源开关 ( 民用 ) 1 2 TBXA33802 电源开关 ( 商用 ) 1 3 TBXA38901 铰链开关 ( 民用 ) 1 3 TBXA38902 铰链开关 ( 商用 ) 1 4 TESD039 电源按键弹簧 1 TEWA123 导电泡棉 1 TEWA124 导电泡棉 2 TEWA170 导电泡棉 1 THEL023Z 带垫螺丝 8 THEL023Z 带垫螺丝 6 THEL035N 螺钉 76 THTF010Z L/ 螺钉 16 10 TKEA08501 面框本体 ( 民用 ) 1 10 TKEA08502 面框本体 ( 商用 ) 1 5 TKGA5119-1 前面玻璃 1 6 TKKC5129 LED 屏 1 7 TKPA60302 遥控受光窗 ( 民用 - 银色 ) 1 7 TKPA60301 遥控受光窗 ( 商用 - 黑色 ) 1 8 TKPA63401 L/ IC 光电窗 1 9 TKRA26601 外壳把手 2 11 TKUX07201 后盖本体 1 TMKG314 左防尘海绵 2 TMKG315 上下防尘海绵 2 TMKK144 橡胶垫片 10 TMKX335 遮光片 1 TMKX336 S1 保护片 1 TMKX352 SS 绝缘片 2 TMME185 尼龙铆钉 2 TMME203 扎带 2 TMME225 L/AC 线夹 1 TMME228 扎带固定件 2 TMMX079 M8 支撑件 (T=0.5MM) 4 TMWC008 电源按键插座 1 TMXX023 芯线固定件 2 TPCB14201 包装箱底箱 1 TPCB14310 内层箱内箱 ( 通用 ) 1 TPD0A9002L 包装箱箱扣 8 TPDA0590-0595 发泡缓冲材 1 TPDA0698 外箱缓冲材左 ( 通用 ) 4 TPDA0699 外层箱缓冲材 - 中 ( 通用 ) 2 TPDF0760 衬板 1 TPDF0764 附属品箱 1 TPDF1004 外箱顶板 1 TPEH165 整机保护袋 1 TPGA2034/35 外箱 (Z/H) 1 TPGA2033 外箱 (Y) 1 TPGA2040 外箱底箱 1 TQD1712010 合格票 1 TQEF035 说明书塑料袋 1 TQFB662 警告标记 1 TQZC474 附属资料 (CH) 1 TQZC473 附属资料 (CZ) 1 TQZC472 附属资料 (CY) 1 TQZF163 L/ 保证书 1 TSXL222 柔性印刷线路板 (C1-C2) 1 TSXL278 薄片引线 2 TUXJ063 连接金具 ( 上 ) 1 TUXJ064 连接金具 ( 下 ) 1 TUXJ065 连接金具 ( 左右 ) 2 TXJ/D50QBS L/D5-J5 1 TXJ/D60QBS L/D6-J6 1 TXJ/J30QJS L/D3-J3 1 TXJ/P20JAS 线束 1 TXJ/Z50QBS L/Z5-P5 1 TXJ/Z80QBS L/Z8-J8 1 TXJC230QBS L/C23-SS23 1 TXJD200QBS L/SC20-D20 1 TXJD250QBS L/D25-P25 1 TXJD270QBS L/D27-P27 1 TXJJ100QBS L/PF10-J10 1 TXJP110QBS L/P11-SS11 1 TXJP120QBS L/P12-SS12 1 TXJP230QBS L/SC23-P23 1 TXJPF90QBS L/PF9-P9 1 TXJSPL0QBS L/Z6-H37(SP) 1 TXJSPR0QBS L/Z7-H37 1 TXJV340MMS L/C24-V34 1 TXN/D2QBSC D 基板 1 TXN/H1SFSC H( 高频头 ) 端子块 (CH) 1 TNPA2844 HV 端子板 (HZ) 1 TNPA2852 HZ 端子板 (CZ) 1 TXNHYQBSC HY 端子板 (HY) 1 TXN/P1QBSC P 基板 1 TXN/ZQBSC Z 基板 1 TXNC1SHSE C1 基板 (42PWD6) 1 TXNC2SHSE C2 基板 (42PWD6) 1 TXNPF2QBSC PF 基板 1 TXNS1QBSC S1 基板 1 TXNSC2TKSB SC 线路板 1 TXNSDSHSE SD 基板 (42PWD6) 1 TXNSS2SHSE SS2 线路板 1 TXNSS3SHSE SS3 线路板 1 TXNSSSHSE SS 线路板 1 TXNSUSHSE SU 基板 (42PWD6) 1 TXNV1QBSC V1 基板 1 XTB4+10A 螺丝 20 XTBT964 螺丝 2 XTS3+10J 螺丝 1 XTV3+10J 螺丝 2 XTV3+6J 螺丝 2 XYN5+C15 L/ 带垫螺丝 ( 标准垫片 ) 6 13 XYN8+F20FZ 螺丝 4 1 MC106W36FC6E 等离子屏 1 参考号 物料 说明 数量 105 17 更换部件清单 17.1. 更换部件清单注意事项 106 17.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 F902 K5D312BK0012 熔断器 1 F900.901 K5Y802B00001 熔断器 2 C11 K1MN50B00026 50P 连接接头 1 C12 K1MN20B00043 20P 连接接头 1 C21 K1MN50B00026 50P 连接接头 1 C22 K1MN20B00043 20P 连接接头 1 C23 K1KA11A00102 11P 连接接头 1 C24 K1KA08A00232 8P 连接接头 1 C403-05 ECKDAE472ZE C 4700PF, Z, 3 C406 ECA2WHG100 E 10UF, 450V 1 C407 ECJ2XB1H104K C 0.1UF, K, 50V 1 C408 ECKD3D392KBP C 3900PF, K, 2KV 1 C409 ECA1EHG470 E 47UF, 25V 1 C411 ECJ2XB1H104K C 0.1UF, K, 50V 1 C412 ECA1HHG100 E 10UF, 50V 1 C414 ECKD2H561KB2 C 560PF, K,500V 1 C415 ECJ3VC1H472J C 4700PF, J, 50V 1 C416 EEUFC1C471 E 470UF, 16V 1 C417 ECA1EHG470 E 47UF, 25V 1 C418 ECA1CHG101 E 100UF, 16V 1 C419 ECA1AHG471 E 4700UF, 10V 1 C420 ECA1EHG101 E 100UF, 25V 1 C421,22 ECQB1H104JF P 0.1UF, J, 50V 2 C423 ECJ2XB1H104K C 0.1UF, K, 50V 1 C451-53 ECKDAE472ZE C 4700PF, Z, 3 C455 ECQE6105JF P 1UF, J,630V 1 C456 EEUFC1V331 E 330UF, 35V 1 C457 ECQB1H103JF P 0.01UF, J, 50V 1 C458 ECJ2VC1H821J C 820PF, J, 50V 1 C459 EEUFC1H330 E 33UF, 50V 1 C460 ECJ2XC1H101J C 100PF, J, 50V 1 C461 ECJ2XC1H331J C 330PF, J, 50V 1 C462 ECQB1H104JF P 0.1UF, J, 50V 1 C463 ECJ2XB1H103K C 0.01UF, K, 50V 1 C464 ECQB1H104JF P 0.1UF, J, 50V 1 C465 ECA1HHG010 E 1UF, 50V 1 C466 ECKD3D101KBP C 100PF, K, 2KV 1 C468,69 EETHC2W331L E 330UF, 450V 2 C470 ECA1EHG331 E 330UF, 25V 1 C471 ECQB1H104JF P 0.1UF, J, 50V 1 C548 EEUEB1E101 E 100UF, 25V 1 C549 EEUEB1H101 E 100UF, 50V 1 C550 ECJ2XB1H103K C 0.01UF, K, 50V 1 C551,52 ECJ2XC1H471J C 470PF, J, 50V 2 C553 ECJ2XC1H102J C 1000PF, J, 50V 1 C554 ECJ2XC1H221J C 220PF, J, 50V 1 C555 EEUEB1E101 E 100UF, 25V 1 C556 EEUEB1H220 E 22UF, 50V 1 C557 ECQE6473KF P 0.047UF, K,630V 1 C558 ECKD3D101KBP C 100PF, K, 2KV 1 C559 ECQE6473KF P 0.047UF, K,630V 1 C560 ECKD3D221KBP C 220PF, K, 2KV 1 C561,62 ECJ3VC1H472J C 4700PF, J, 50V 2 C563 ECKDNA102KB C 1000PF, Z, 1 C564 ECKD3A101KBP C 100PF, K, 1KV 1 C565 EETHC2C821B E 820UF, 160V 1 C566 ECKD3D102KBP C 1000PF, K, 2KV 1 C567,68 ECJ3VC1H472J C 4700PF, J, 50V 2 C569 ECKD3A101KBP C 100PF, K, 1KV 1 C570 ECKD3A471KBP C 470PF, K, 1KV 1 C571 ECKD3A101KBP C 100PF, K, 1KV 1 C572 EEUFC1E222 E 2200UF, 25V 1 C573,74 EETHC2D182L E 1800UF, 200V 2 C575 EEUEB1H220 E 22UF, 50V 1 C576 EEUFC1E222 E 2200UF, 25V 1 C577 ECA1EHG222 E 2200UF, 25V 1 C578 ECQB1H332JF P 3300PF, J, 50V 1 C579 ECA1EHG221 E 220UF, 25V 1 C581 EEUFC0J122 E 1200UF, 6.3V 1 C583 ECJ2XB1H104K C 0.1UF, K, 50V 1 C584 ECJ2XB1H103K C 0.01UF, K, 50V 1 C585 EEUEB1E101 E 100UF, 25V 1 C586 ECJ2XB1H103K C 0.01UF, K, 50V 1 C590 EEUFC1E222 E 2200UF, 25V 1 C591 ECKD3A101KBP C 100PF, K, 1KV 1 C650 EEUEB1H101 E 100UF, 50V 1 C802 EEUFC1E471 E 470UF, 25V 1 C803 EEUFC1E331 E 330UF, 25V 1 C805 EEUFC1C102 E 1000UF, 16V 1 C806 EEUFC1A102 E 1000UF, 10V 1 C807 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C808,09 ECQB1H103JF P 0.01UF, J, 50V 2 C810 EEUFC1E561 E 560UF, 25V 1 C811 ECQB1H103JF P 0.01UF, J, 50V 1 C812 ECQB1H104JF P 0.1UF, J, 50V 1 C813 ECQB1H473JF P 0.047UF, J, 50V 1 C814 EEUFC0J152 E 1500UF, 6.3V 1 C815 ECQB1H104JF P 0.1UF, J, 50V 1 C816 ECQB1H682JF3 P 6800PF, J, 50V 1 C901 ECQU2A105BN9 P 1UF, 250V 1 C902-05 ECKCNA221KB7 C 220PF, M, 4 C906 ECQU2A224BN9 P 0.22UF, 250V 1 C912 ECQU2A105MGA P 1UF, 250V 1 C913 EETHC2W101J C 4700PF, Z,450V 1 C914 ECQE6223KF P 0.022UF, K,400V 1 C915 ECA1HHG100 E 10UF, 50V 1 C916 ECA1VHG470 E 47UF, 35V 1 C917 ECQV1H104JM P 0.1UF, J, 50V 1 C918 ECA1HHG330 E 33UF, 50V 1 C919 ECKD3D102KBP C 1000PF, K, 2KV 1 C920 ECKCNA221KB7 C 220PF, M, 1 C921 ECKD3A221KBP C 220PF, K, 1KV 1 C922 EEUFC1E272 E 2700UF, 25V 1 C923 EEUFC1E152 E 1500UF, 25V 1 C924 ECA1HHG010 E 1UF, 50V 1 C925 ECA1HHG100 E 10UF, 50V 1 C951 EEVHB1C470 E 47UF, 16V 1 C952 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C953-58 EEVHB1C470 E 47UF, 16V 6 C959,60 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C961 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C962-64 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C965 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C966 EEVHB1C470 E 47UF, 16V 1 C967,68 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C969 EEVHB1C470 E 47UF, 16V 1 C970 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C971 EEVHB1C470 E 47UF, 16V 1 C972 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C1001,02 ECJ1XC1H150J C 15PF, J, 50V 2 C1003 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C1004 EECS5R5H155 E 1.5UF, 5.5V 1 C1530 ECJ3XB0J106M C 10UF, M,6.3V 1 C2312 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2313 ECA1HHG470 E 47UF, 50V 1 C2314 ECA1EHG470 E 47UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 107 C2350,51 TCUY1C225KBM C 2.2UF, 16V 2 F1K1C225A026 C2352,53 ECA1HHG100 E 10UF, 50V 2 C2354,55 ECA1VM470 E 47UF, 35V 2 C2356,57 ECJ2XB1H102K C 1000PF, K, 50V 2 C2358,59 ECA1HM2R2 E 2.2UF, 50V 2 C2360,61 ECJ2XC1H102J C 1000PF, J, 50V 2 C2362,63 ECA1EM471 E 470UF, 25V 2 C2364,65 ECQV1H104JM P 0.1UF, J, 50V 2 C2366,67 ECQV1H225JM P 2.2UF, J, 50V 2 C2368,69 ECQV1H104JM P 0.1UF, J, 50V 2 C2370 ECA1VM470 E 47UF, 35V 1 C2417 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C2419 ECA1HHG100 E 10UF, 50V 1 C2422 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C2423 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2426 ECJ2XB1H153K C 0.015UF, K, 50V 1 C2427 ECA1HHG100 E 10UF, 50V 1 C2429 EEAGA1C101 E 100UF, 16V 1 C2431 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2433 ECJ2XB1H393K C 0.039UF, K, 50V 1 C2434 ECJ2XB1H223K C 0.022UF, K, 50V 1 C2435 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2436 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2437,38 EEAGA1C101 E 100UF, 16V 2 C2440,41 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C2442 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2450 ECA1HHG100 E 10UF, 50V 1 C2451 ECA1HHG4R7 E 4.7UF, 50V 1 C2452 ECJ2XB1H562K C 5600PF, K, 50V 1 C2453 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C2454 ECA1HHG4R7 E 4.7UF, 50V 1 C2457 ECA1HHG4R7 E 4.7UF, 50V 1 C2458 ECJ2XC1H102J C 1000PF, J, 50V 1 C2459 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2460 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2461 ECJ2XC1H102J C 1000PF, J, 50V 1 C2463 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2466,67 ECJ3VB1C104K C 0.10UF, K, 16V 2 C2480 ECJ2VF1C105Z C 1UF, Z, 16V 1 C2484 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3001 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 (HV) TH-42PW6CZ C3001 F1J1C1050006 C 0.01UF, Z, 50V 1 (H) TH-42PW6CH C3001 ECJ2XB1E104K C 0.1UF, K, 25V 1 (HY) TH-42PWD6CY C3002 ECJ2XB1E104K C 0.1UF, K, 25V 1 (HY) TH-42PWD6CY C3002 ECJ2XB1E104K C 0.1UF, K, 25V 1 (HV) TH-42PW6CZ C3002 F1J1C1050006 C 0.01UF, Z, 50V 1 (H) TH-42PW6CH C3003 EEVHP1A100 E 10UF, 10V 1 (HV) TH-42PW6CZ C3003 F1J1C1050006 C 0.01UF, Z, 50V 1 (H) TH-42PW6CH C3003 EEVHP1A100 E 10UF, 10V 1 (HY) TH-42PWD6CY C3004 EEVHP1A100 E 10UF, 10V 1 (HY) TH-42PWD6CY C3004 EEVHB1C470 E 47UF, 16V 1 (J) C3004 F1J1C1050006 C 0.01UF, Z, 50V 1 (H) TH-42PW6CH C3004 EEVHP1A100 E 10UF, 10V 1 (HV) TH-42PW6CZ C3005 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3005 ECJ2VF1C105Z C 1UF, Z, 16V 1 (H) TH-42PW6CH C3005 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3005 ECJ2VF1C105Z C 1UF, Z, 16V 1 (J) C3006 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3006 ECJ2VF1C105Z C 1UF, Z, 16V 1 (H) TH-42PW6CH 参考号 部件号 部件名称及说明 件数 备注 C3006 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3006 ECJ2VF1C105Z C 1UF, Z, 16V 1 (J) C3007 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3007 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3007 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HZ) TH-42PW6CZ C3007 EEVHB1C470 E 47UF, 16V 1 (J) C3007 ECJ2VF1E104Z C 0.1UF, Z, 25V 1 (H) TH-42PW6CH C3008 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 (J) C3008 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3008 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HZ) TH-42PW6CZ C3009 EEVHB1C470 E 47UF, 16V 1 (HY) TH-42PWD6CY C3009 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (J) C3009 EEVHB1C470 E 47UF, 16V 1 (HV) TH-42PW6CZ C3010 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3010 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3011 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (J) C3011 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3011 EEVHB1C470 E 47UF, 16V 1 (HZ) TH-42PW6CZ C3011 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3012 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3012 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 (J) C3012 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3012 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (HZ) TH-42PW6CZ C3013 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HY) TH-42PWD6CY C3013 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 (J) C3013 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HV) TH-42PW6CZ C3014 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 (J) C3014 EEVHB1C470 E 47UF, 16V 1 (HV) TH-42PW6CZ C3014 ECJ3XB0J106M C 10UF, M,6.3V 1 (H) TH-42PW6CH C3014 EEVHB1C470 E 47UF, 16V 1 (HY) TH-42PWD6CY C3015 ECJ1XC1H470J C 47PF, J, 50V 1 (HY) TH-42PWD6CY C3015 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 (J) C3015 ECJ3XB0J106M C 10UF, M,6.3V 1 (H) TH-42PW6CH C3015 ECJ1XC1H470J C 47PF, J, 50V 1 (HV) TH-42PW6CZ C3016 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 (J) C3016 ECJ1XC1H220J C 22PF, J, 50V 1 (HV) TH-42PW6CZ C3016 ECJ1XC1H220J C 22PF, J, 50V 1 (HY) TH-42PWD6CY C3017 ECJ1XC1H680J C 68PF, J, 50V 1 (HY) TH-42PWD6CY C3017 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 (J) C3017 ECJ1XC1H680J C 68PF, J, 50V 1 (HV) TH-42PW6CZ C3018 EEVHB1C470 E 47UF, 16V 1 (J) C3018 EEVHP1A100 E 10UF, 10V 1 (HV) TH-42PW6CZ C3019 ECJ3YB0J335K C 33UF, J, 25V 1 (HY) TH-42PWD6CY C3019 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) 参考号 部件号 部件名称及说明 件数 备注 108 C3019 ECJ3YB0J335K C 33UF, J, 25V 1 (HV) TH-42PW6CZ C3020 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3021 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HZ) TH-42PW6CZ C3021 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HV) TH-42PW6CZ C3021 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3021 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HY) TH-42PWD6CY C3022 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3022 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3022 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (HZ) TH-42PW6CZ C3022 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3022 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (H) TH-42PW6CH C3023 EEVHB1C470 E 47UF, 16V 1 (HV) TH-42PW6CZ C3023 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (H) TH-42PW6CH C3023 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3024-31 TCUY1C225KBM C 2.2UF, 16V 8 (J) C3024 ECJ3XB0J106M C 10UF, M,6.3V 1 (HV) TH-42PW6CZ C3025 EEVHB1C470 E 47UF, 16V 1 (H) TH-42PW6CH C3026 EEVHB1C470 E 47UF, 16V 1 (H) TH-42PW6CH C3028 ECJ1VF1A105Z C 1UF, Z, 10V 1 (H) TH-42PW6CH C3032 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (H) TH-42PW6CH C3032 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (J) C3040,41 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 (J) C3051-54 ECJ1XC1H561J C 560PF, J, 50V 4 (HV) TH-42PW6CZ C3051-54 ECJ1XC1H561J C 560PF, J, 50V 4 (HY) TH-42PWD6CY C3055,56 ECJ2VF1C105Z C 1UF, Z, 16V 2 (HY) TH-42PWD6CY C3055,56 ECJ2VF1C105Z C 1UF, Z, 16V 2 (HV) TH-42PW6CZ C3101 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3102 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3102 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3103 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3103 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3104 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3104 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3104,05 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 (J) C3105 EEVHB0G221 E 220UF, 4V 1 (HV) TH-42PW6CZ C3105 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3106 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3106 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3106 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3107 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3107 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3107 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3108 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3108 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 C3108 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3109 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3109 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3109 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3110 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3110 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3110 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3111 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3111 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3111 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3112 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3112 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3112 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3113 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3113 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3113 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3114 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3114 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 (J) C3114 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3115 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3115 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3115 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3116 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3116 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3116 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3117 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3117 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3117 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3118 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3118 EEVHB1C470 E 47UF, 16V 1 (J) C3118 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3119-21 ECJ1XB1C104K C 0.1UF, Z, 16V 3 (HY) TH-42PWD6CY C3119-21 ECJ1XB1C104K C 0.1UF, Z, 16V 3 (HV) TH-42PW6CZ C3122 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3122 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3123-26 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HV) TH-42PW6CZ C3123-26 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HY) TH-42PWD6CY C3127 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HY) TH-42PWD6CY C3127 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HV) TH-42PW6CZ C3128-02 ECJ1XB1C104K C 0.1UF, Z, 16V 7 (HV) TH-42PW6CZ C3128-02 ECJ1XB1C104K C 0.1UF, Z, 16V 7 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 109 C3134 EEVHB1C471 E 470UF, 16V 1 (HY) TH-42PWD6CY C3134 EEVHB1C471 E 470UF, 16V 1 (HV) TH-42PW6CZ C3135 ECJ1VB1C103K C 0.01UF, K, 16V 1 (HV) TH-42PW6CZ C3135 EEVHB1C471 E 470UF, 16V 1 (J) C3135 ECJ1VB1C103K C 0.01UF, K, 16V 1 (HY) TH-42PWD6CY C3136 ECJ1XC1H330J C 33PF, J, 50V 1 (HY) TH-42PWD6CY C3136 ECJ1XC1H330J C 33PF, J, 50V 1 (HV) TH-42PW6CZ C3136 EEVHB1C471 E 470UF, 16V 1 (J) C3137 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3137 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3138 ECJ3XB0J106M C 10UF, M,6.3V 1 (HY) TH-42PWD6CY C3138 ECJ3XB0J106M C 10UF, M,6.3V 1 (HV) TH-42PW6CZ C3139 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3139 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3140 ECJ1XC1H101J C 100PF, J, 50V 1 (HY) TH-42PWD6CY C3140 ECJ1XC1H101J C 100PF, J, 50V 1 (HV) TH-42PW6CZ C3141 ECJ1XB0J105K C 1UF, K, 16V 1 (HV) TH-42PW6CZ C3141 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3141 ECJ1XB0J105K C 1UF, K, 16V 1 (HY) TH-42PWD6CY C3142 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3142 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3142,43 TCUY1C225KBM C 2.2UF, 16V 2 (J) C3144 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3144 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3144 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3146 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3146 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3147 ECJ3XB0J106M C 10UF, M,6.3V 1 (HV) TH-42PW6CZ C3147 ECJ3XB0J106M C 10UF, M,6.3V 1 (HY) TH-42PWD6CY C3148 ECJ1XB0J105K C 1UF, K, 16V 1 (HY) TH-42PWD6CY C3148 ECJ1XB0J105K C 1UF, K, 16V 1 (HV) TH-42PW6CZ C3149 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3149 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3150 ECJ1VB1C103K C 0.01UF, K, 16V 1 (HY) TH-42PWD6CY C3150 ECJ1VB1C103K C 0.01UF, K, 16V 1 (HV) TH-42PW6CZ C3151 ECJ1XC1H330J C 33PF, J, 50V 1 (HV) TH-42PW6CZ C3151 ECJ1XC1H330J C 33PF, J, 50V 1 (HY) TH-42PWD6CY C3152 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 C3152 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3153 ECJ1XC1H101J C 100PF, J, 50V 1 (HV) TH-42PW6CZ C3153 ECJ1XC1H101J C 100PF, J, 50V 1 (HY) TH-42PWD6CY C3154 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3154 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3156 ECJ1XB0J105K C 1UF, K, 16V 1 (HV) TH-42PW6CZ C3156 ECJ1XB0J105K C 1UF, K, 16V 1 (HY) TH-42PWD6CY C3157 ECJ3XB0J106M C 10UF, M,6.3V 1 (HY) TH-42PWD6CY C3157 ECJ3XB0J106M C 10UF, M,6.3V 1 (HV) TH-42PW6CZ C3158 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3158 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3159 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3159 EEVHB0G221 E 220UF, 4V 1 (HV) TH-42PW6CZ C3160,61 ECJ1XB1C104K C 0.1UF, Z, 16V 2 (HV) TH-42PW6CZ C3160,61 ECJ1XB1C104K C 0.1UF, Z, 16V 2 (HY) TH-42PWD6CY C3162-66 ECJ1VF1A105Z C 1UF, Z, 10V 5 (HY) TH-42PWD6CY C3162-66 ECJ1VF1A105Z C 1UF, Z, 10V 5 (HV) TH-42PW6CZ C3167-78 ECJ1XB1C104K C 0.1UF, Z, 16V 12 (HV) TH-42PW6CZ C3167-78 ECJ1XB1C104K C 0.1UF, Z, 16V 12 (HY) TH-42PWD6CY C3179 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3179 EEVHB0G221 E 220UF, 4V 1 (HV) TH-42PW6CZ C3180-83 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HV) TH-42PW6CZ C3180-83 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HY) TH-42PWD6CY C3184 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3185 ECJ1XC1H060D C 6PF, D, 50V 1 (HV) TH-42PW6CZ C3185 ECJ1XC1H060D C 6PF, D, 50V 1 (HY) TH-42PWD6CY C3186 ECJ1XC1H470J C 47PF, J, 50V 1 (HY) TH-42PWD6CY C3186 ECJ1XC1H470J C 47PF, J, 50V 1 (HV) TH-42PW6CZ C3187 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3188 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3188 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3200 ECJ2VF1C105Z C 1UF, Z, 16V 1 (J) C3201 TCUY1C105ZFN C 1UF, 16V 1 (J) C3202 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3202 TCUY1C105ZFN C 1UF, 16V 1 (J) C3202 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3203 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3203 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 110 C3203 ECJ2VF1E104Z C 0.1UF, Z, 25V 1 (J) C3204 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3204 TCUY1C105ZFN C 1UF, 16V 1 (J) C3204 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3205 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3205 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3205 TCUY1C105ZFN C 1UF, 16V 1 (HV) TH-42PW6CZ C3206 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3206 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3207 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3207 EEVHB0G221 E 220UF, 4V 1 (HV) TH-42PW6CZ C3208-14 ECJ1VF1A105Z C 1UF, Z, 10V 7 (HV) TH-42PW6CZ C3208-14 ECJ1VF1A105Z C 1UF, Z, 10V 7 (HY) TH-42PWD6CY C3216,17 ECJ1VF1A105Z C 1UF, Z, 10V 2 (HY) TH-42PWD6CY C3216,17 ECJ1VF1A105Z C 1UF, Z, 10V 2 (HV) TH-42PW6CZ C3218 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3218 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3219 EEVHB0J101P E 100UF, 6.3V 1 (HY) TH-42PWD6CY C3251,52 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 (J) C3253 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HV) TH-42PW6CZ C3253 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HY) TH-42PWD6CY C3253 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3254 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3254 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3254 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3255 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HY) TH-42PWD6CY C3255 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HV) TH-42PW6CZ C3255 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3256 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3257 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HY) TH-42PWD6CY C3257 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HV) TH-42PW6CZ C3257 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3258 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3258 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3258 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3259 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HY) TH-42PWD6CY C3259 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HV) TH-42PW6CZ C3259 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3260 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 C3260 TCUY1C225KBM C 2.2UF, 16V 1 (J) C3260 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3261 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3261 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 (J) C3261 EEVHB0G221 E 220UF, 4V 1 (HV) TH-42PW6CZ C3262 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HV) TH-42PW6CZ C3262 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3262 ECJ1XB1H102K C 1000UF, Z, 50V 1 (HY) TH-42PWD6CY C3263 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3263 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3263 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3264 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3264 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 (J) C3264 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3265 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3265 EEVHB0G221 E 220UF, 4V 1 (HV) TH-42PW6CZ C3265 EEVHB1C470 E 47UF, 16V 1 (J) C3266 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3266 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3266-68 EEVHB1C471 E 470UF, 16V 3 (J) C3301 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HZ) TH-42PW6CZ C3308 EEVHB0G221 E 220UF, 4V 1 (HV) TH-42PW6CZ C3308 EEVHB0G221 E 220UF, 4V 1 (HY) TH-42PWD6CY C3309 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3309 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3311 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HV) TH-42PW6CZ C3311,12 ECJ1XB1C104K C 0.1UF, Z, 16V 2 (HY) TH-42PWD6CY C3313 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3313 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3315 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3315 ECJ1XB1C104K C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3316 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HZ) TH-42PW6CZ C3316 ECJ2VF1C105Z C 1UF, Z, 16V 1 (HY) TH-42PWD6CY C3317 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HY) TH-42PWD6CY C3317 ECJ1VF1A105Z C 1UF, Z, 10V 1 (HV) TH-42PW6CZ C3318-21 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HV) TH-42PW6CZ C3318-21 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HY) TH-42PWD6CY C3322,23 EEVHB0G221 E 220UF, 4V 2 (HY) TH-42PWD6CY C3322,23 EEVHB0G221 E 220UF, 4V 2 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 111 C3324 EEVHB0J101P E 100UF, 6.3V 1 (HV) TH-42PW6CZ C3324 EEVHB0J101P E 100UF, 6.3V 1 (HY) TH-42PWD6CY C3325 EEVHB1C470 E 47UF, 16V 1 (HV) TH-42PW6CZ C3325,26 EEVHB1C470 E 47UF, 16V 2 (HY) TH-42PWD6CY C3327-30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HY) TH-42PWD6CY C3327-30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 (HV) TH-42PW6CZ C3401 EEVHP1C100R E 10UF, 16V 1 (HY) TH-42PWD6CY C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3405 EEVHB1C470 E 47UF, 16V 1 C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3507,08 ECJ3XB0J106M C 10UF, M,6.3V 2 (HY) TH-42PWD6CY C3510,11 ECJ2VF1C105Z C 1UF, Z, 16V 2 (HY) TH-42PWD6CY C3520 EEVHB1C470 E 47UF, 16V 1 (HY) TH-42PWD6CY C3521 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3523 EEVHB1C470 E 47UF, 16V 1 (HX) C3523 EEVHB1C470 E 47UF, 16V 1 (HY) TH-42PWD6CY C3524 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 (HX) C3524 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 (HY) TH-42PWD6CY C3525,26 ECJ2VF1C104Z C 0.1UF, Z, 16V 2 (HY) TH-42PWD6CY C3527 TCUY0J685MBM C 6.8UF, 6.3V 1 (HY) TH-42PWD6CY C3550 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3551 EEVHB1C470 E 47UF, 16V 1 C3561,62 ECJ2VF1C105Z C 1UF, Z, 16V 2 C6401-08 TCUY1C105ZFN C 1UF, 16V 8 C6411 ECJ2XB1H222K C 2200PF, K, 50V 1 C6412 ECJ2XB1H102K C 1000PF, K, 50V 1 C6417 ECJ2XB1H221K C 220PF, K, 50V 1 C6421 ECJ2XB1H222K C 2200PF, K, 50V 1 C6422 ECJ2XB1H102K C 1000PF, K, 50V 1 C6427 F1L2E1040002 E 1000UF, 25V 1 C6429 F1L2E1040002 E 1000UF, 25V 1 C6431 F1L2E1040002 E 1000UF, 25V 1 C6433 F1L2E1040002 E 1000UF, 25V 1 C6452 ECJ2XB1H103K C 0.01UF, K, 50V 1 F1J1C1050006 C6453 TCUY1C105ZFN C 1UF, 16V 1 C6454 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6455 EEUFC1E221 E 220UF, 25V 1 C6456 ECA2CM101 E 100UF, 160V 1 C6458 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6459 EEUFC1E470 E 47UF, 25V 1 C6461 ECA1HM101 E 100UF, 50V 1 C6462-65 ECJ4XB1E475M C 4.7UF, M, 25V 4 C6466 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6467 ECJ2XB1H472K C 4700PF, K, 50V 1 F1J1C1050006 C6468 TCUY1C105ZFN C 1UF, 16V 1 C6469 EEUFC1E221 E 220UF, 25V 1 C6470 ECA1HM221 E 220UF, 50V 1 F1J1C1050006 C6471 TCUY1C105ZFN C 1UF, 16V 1 C6472 ECJ2XB1H103K C 0.01UF, K, 50V 1 F1J1C1050006 C6473 TCUY1C105ZFN C 1UF, 16V 1 C6474 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6475 EEUFC1E221 E 220UF, 25V 1 C6476 ECA2CM101 E 100UF, 160V 1 C6478 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6481,82 F1K2J332A014 C 3300UF, K,6.3V 2 C6485,86 F1K2J332A014 C 3300UF, K,6.3V 2 参考号 部件号 部件名称及说明 件数 备注 C6490,91 ECJ3XK2J102K C 1000PF, K,630V 2 C6492 ECA2VHG100 E 10UF, 350V 1 C6493 ECJ3XB2J222K C 2200PF, K,630V 1 F1J1C1050006 C6501-08 TCUY1C105ZFN C 1UF, 16V 8 C6509 ECJ2XC1H102J C 1000PF, J, 50V 1 C6511,12 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6513 ECA2CM101 E 100UF, 160V 1 C6521 EEUFC1E470 E 47UF, 25V 1 C6523 ECA1VM470 E 47UF, 35V 1 C6524,25 ECJ3FC2D102J C 1000PF, J,200V 2 C6526 ECA2EHG220 E 22UF, 250V 1 C6529 ECJ3XK2J102K C 1000PF, K,630V 1 C6531,32 ECJ4XB1E475M C 4.7UF, M, 25V 2 C6534 ECJ3XK2J102K C 1000PF, K,630V 1 C6541 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6543,44 ECJ3FC2D102J C 1000PF, J,200V 2 F1J1C1050006 C6546 TCUY1C105ZFN C 1UF, 16V 1 C6547 ECJ3FC2D102J C 1000PF, J,200V 1 C6550 ECA2CM101 E 100UF, 160V 1 F1J1C1050006 C6571 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6575-78 TCUY1C105ZFN C 1UF, 16V 4 F1J1C1050006 C6580,81 TCUY1C105ZFN C 1UF, 16V 2 C6584 ECJ3YB1E105K C 1UF, K, 25V 1 F1J1C1050006 C6585 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C6588 TCUY1C105ZFN C 1UF, 16V 1 C6589 ECJ4XB1E475M C 4.7UF, M, 25V 1 F1J1C1050006 C6590 TCUY1C105ZFN C 1UF, 16V 1 C6591 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6598 ECA2CHG220 E 22UF, 160V 1 C6601-04 ECA2DHG221 E 220UF, 200V 4 C6607 ECJ3YB1E105K C 1UF, K, 25V 1 C6608 ECA1EM471 E 470UF, 25V 1 C6611 F1K2J332A014 C 3300UF, K,6.3V 1 C6615-17 F1K2J332A014 C 3300UF, K,6.3V 3 C6620 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6621-28 ECQE2105RKB P 1UF, 250V 8 C6631,32 ECJ4XB1E475M C 4.7UF, M, 25V 2 F1J1C1050006 C6633 TCUY1C105ZFN C 1UF, 16V 1 C6634,35 ECJ4XB1E475M C 4.7UF, M, 25V 2 F1J1C1050006 C6636 TCUY1C105ZFN C 1UF, 16V 1 C6637 EEUFC1E121 E 120UF, 25V 1 C6639 F2A2D1510004 E 150UF, 200V 1 C6642 F1L2E1040002 E 1000UF, 25V 1 C6644 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6645 ECJ3YB1E105K C 1UF, K, 25V 1 C6646 F2A1V121A085 E 120UF, 35V 1 F1J1C1050006 C6647 TCUY1C105ZFN C 1UF, 16V 1 C6650 ECQE2224KF P 0.22UF, K,250V 1 C6651,52 ECJ2XB1H103K C 0.01UF, K, 50V 2 C6655,56 EEUFC1A101 E 100UF, 10V 2 C6660,61 ECJ3XK2J102K C 1000PF, K,630V 2 C6695,96 ECJ3XK2J102K C 1000PF, K,630V 2 C6701-04 F2A2D1510004 E 150UF, 200V 4 C6707,08 EEUED2C470 E 47UF, 160V 2 C6709 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6712-14 F1K2J332A014 C 3300UF, K,6.3V 3 C6717 F1K2J332A014 C 3300UF, K,6.3V 1 C6721-28 ECQE2105RKB P 1UF, 250V 8 C6731,32 ECJ4XB1E475M C 4.7UF, M, 25V 2 F1J1C1050006 C6733 TCUY1C105ZFN C 1UF, 16V 1 C6734,35 ECJ4XB1E475M C 4.7UF, M, 25V 2 F1J1C1050006 C6736 TCUY1C105ZFN C 1UF, 16V 1 C6737 ECQE2224KF P 0.22UF, K,250V 1 C6739 F1L2E1040002 E 1000UF, 25V 1 C6740 ECJ3XB2J222K C 2200PF, K,630V 1 F1J1C1050006 C6741,42 TCUY1C105ZFN C 1UF, 16V 2 C6744 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6746 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6747 F2A2D1510004 E 150UF, 200V 1 C6748 EEUFC1E221 E 220UF, 25V 1 参考号 部件号 部件名称及说明 件数 备注 112 C6749 ECJ4XB1E475M C 4.7UF, M, 25V 1 F1J1C1050006 C6750,51 TCUY1C105ZFN C 1UF, 16V 2 C6753,54 EEUFC1E221 E 220UF, 25V 2 C6755 ECJ3YB1E105K C 1UF, K, 25V 1 C6756 EEUFC1A101 E 100UF, 10V 1 C6757 ECJ4XB1E475M C 4.7UF, M, 25V 1 C6760,61 ECJ3XK2J102K C 1000PF, K,630V 2 C6775 F1K2J332A014 C 3300UF, K,6.3V 1 C6778 F1K2J332A014 C 3300UF, K,6.3V 1 F1J1C1050006 C7101 TCUY1C105ZFN C 1UF, 16V 1 C7102 ECJ3XB0J106M C 10UF, M,6.3V 1 F1J1C1050006 C7103-05 TCUY1C105ZFN C 1UF, 16V 3 C7107 F1K2A1040004 C 0.1UF, 100V 1 C7111 F1K2A1040004 C 0.1UF, 100V 1 C7113 F1K2A1040004 C 0.1UF, 100V 1 C7115 F1K2A1040004 C 0.1UF, 100V 1 C7142 ECJ1XC1H101J C 100PF, J, 50V 1 F1J1C1050006 C7147 TCUY1C105ZFN C 1UF, 16V 1 C7148 ECJ3XB0J106M C 10UF, M,6.3V 1 F1J1C1050006 C7149 TCUY1C105ZFN C 1UF, 16V 1 C7150 ECJ3XB0J106M C 10UF, M,6.3V 1 F1J1C1050006 C7151 TCUY1C105ZFN C 1UF, 16V 1 C7152 ECJ3XB0J106M C 10UF, M,6.3V 1 C7153-55 ECJ1XC1H101J C 100PF, J, 50V 3 F1J1C1050006 C7201 TCUY1C105ZFN C 1UF, 16V 1 C7202 ECJ3XB0J106M C 10UF, M,6.3V 1 F1J1C1050006 C7203,04 TCUY1C105ZFN C 1UF, 16V 2 F1J1C1050006 C7206 TCUY1C105ZFN C 1UF, 16V 1 C7207 F1K2A1040004 C 0.1UF, 100V 1 F1J1C1050006 C7210 TCUY1C105ZFN C 1UF, 16V 1 C7211 F1K2A1040004 C 0.1UF, 100V 1 C7213 F1K2A1040004 C 0.1UF, 100V 1 C7217 F1K2A1040004 C 0.1UF, 100V 1 C7219 F1K2A1040004 C 0.1UF, 100V 1 F1J1C1050006 C7235 TCUY1C105ZFN C 1UF, 16V 1 C7236 ECJ3XB0J106M C 10UF, M,6.3V 1 F1J1C1050006 C7239 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C7242-44 TCUY1C105ZFN C 1UF, 16V 3 C7246 ECJ3XB0J106M C 10UF, M,6.3V 1 C7250 ECJ3XB0J106M C 10UF, M,6.3V 1 C7252-56 ECJ1XC1H101J C 100PF, J, 50V 5 F1J1C1050006 C7406 TCUY1C105ZFN C 1UF, 16V 1 C8001,02 EEVHB1C470 E 47UF, 16V 2 C8003,04 ECJ1VF1H104Z C 0.1UF, Z, 50V 2 C8005,06 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C8007,08 ECJ1XC1H101J C 100PF, J, 50V 2 C8009 ECJ3XB0J106M C 10UF, M,6.3V 1 C8011 ECJ3XB0J106M C 10UF, M,6.3V 1 C8013,14 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8017 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8018 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8019,20 ECJ1VB1H103K C 0.01UF, K, 50V 2 C8021,22 ECJ3VB1C474K C 0.47UF, K, 16V 2 C8023-26 ECJ1VB1H103K C 0.01UF, K, 50V 4 F1K1C225A026 C8027 TCUY1C225KBM C 2.2UF, 16V 1 C8029 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8030 EEVHB1C470 E 47UF, 16V 1 C8031 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8032 EEVHB1C470 E 47UF, 16V 1 C8033,34 ECJ1XC1H102J C 1000PF, J, 50V 2 C8035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8036,37 ECJ1XC1H101J C 100PF, J, 50V 2 C8038,39 ECJ2XC1H102J C 1000PF, J, 50V 2 F1K1C225A026 C8041 TCUY1C225KBM C 2.2UF, 16V 1 C8043 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8045,46 ECJ2VF1C105Z C 1UF, Z, 16V 2 C8049,50 ECJ2VF1H103Z C 0.01UF, Z, 50V 2 C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 参考号 部件号 部件名称及说明 件数 备注 C8070 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8071 EEVHB1C470 E 47UF, 16V 1 C8072,73 ECJ3YF1A106Z C 10UF, Z, 10V 2 C9001 ECJ3XB0J106M C 10UF, M,6.3V 1 C9002 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9003 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9004 ECJ3XB0J106M C 10UF, M,6.3V 1 C9005,06 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9007 EEVHB0G221 E 220UF, 4V 1 C9011-14 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9016,17 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9022 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9023 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9027 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9028 ECJ3XB0J106M C 10UF, M,6.3V 1 C9029 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9030,31 ECJ3XB0J106M C 10UF, M,6.3V 2 C9032,33 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9034,35 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9036,37 ECJ3XB0J106M C 10UF, M,6.3V 2 C9038,39 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9040 ECJ2VB1E473K C 0.047UF, K, 25V 1 C9041 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9042,43 ECJ2VB1E473K C 0.047UF, K, 25V 2 C9044 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9045,46 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9048,49 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9050 ECJ3XB0J106M C 10UF, M,6.3V 1 C9051 ECJ1XB1C393K C 0.039UF, K, 16V 1 C9052 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9053 ECJ1VB1H392K C 3900PF, K, 50V 1 C9054-56 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9057 ECJ3XB0J106M C 10UF, M,6.3V 1 C9058 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9059 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9060 ECJ3XB0J106M C 10UF, M,6.3V 1 C9061,62 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9063 EEVHB0G221 E 220UF, 4V 1 C9067-70 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9072,73 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9076,77 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9078 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9080 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9084 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9086 ECJ3XB0J106M C 10UF, M,6.3V 1 C9087 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9088,89 ECJ3XB0J106M C 10UF, M,6.3V 2 C9090,91 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9092,93 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9094,95 ECJ3XB0J106M C 10UF, M,6.3V 2 C9096,97 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9098 ECJ2VB1E473K C 0.047UF, K, 25V 1 C9099 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9100,01 ECJ2VB1E473K C 0.047UF, K, 25V 2 C9102 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9103 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9105-07 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9108 ECJ3XB0J106M C 10UF, M,6.3V 1 C9109 ECJ1XB1C393K C 0.039UF, K, 16V 1 C9110 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9111 ECJ1VB1H392K C 3900PF, K, 50V 1 C9112-14 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9120-25 ECJ3XB0J106M C 10UF, M,6.3V 6 C9150 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9151 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9153 ECJ3XB0J106M C 10UF, M,6.3V 1 C9154 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9156 ECJ3XB0J106M C 10UF, M,6.3V 1 C9157-60 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 参考号 部件号 部件名称及说明 件数 备注 113 C9161 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9162 ECJ3XB0J106M C 10UF, M,6.3V 1 C9163-70 ECJ1XF1C104Z C 0.1UF, Z, 16V 8 C9172-74 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9175 ECJ3XB0J106M C 10UF, M,6.3V 1 C9176 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9178-82 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C9183 ECJ1XC1H102J C 1000PF, J, 50V 1 C9186 ECJ1XC1H100D C 10PF, D, 50V 1 C9187 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9191 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 F1J1C1050006 C9192 TCUY1C105ZFN C 1UF, 16V 1 F1J1C1050006 C9195 TCUY1C105ZFN C 1UF, 16V 1 C9196 ECJ3VB1C104K C 0.10UF, K, 16V 1 C9197 ECJ2VB1E563K C 0.056UF, K, 25V 1 C9198 ECJ2VB1C104K C 0.1UF, K, 16V 1 C9199,00 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9207 ECJ3XB0J106M C 10UF, M,6.3V 1 C9301 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9302 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9303 EEVHB1C470 E 47UF, 16V 1 C9304 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9305 ECJ3XB0J106M C 10UF, M,6.3V 1 C9307 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9308 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9309 ECJ3XB0J106M C 10UF, M,6.3V 1 C9310 ECJ1XC1H330J C 33PF, J, 50V 1 C9311 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9314,15 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9316 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9449 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9450 ECJ3XB0J106M C 10UF, M,6.3V 1 C9453 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9454,55 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9465 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9466 EEVHB0G221 E 220UF, 4V 1 C9467 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9468 ECJ3XB0J106M C 10UF, M,6.3V 1 C9470 ECJ1XC1H101J C 100PF, J, 50V 1 C9471 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9472 ECJ3XB0J106M C 10UF, M,6.3V 1 C9474 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9475-77 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9478 ECJ3XB0J106M C 10UF, M,6.3V 1 C9479-82 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9485-93 ECJ1XF1C104Z C 0.1UF, Z, 16V 9 C9494,95 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C9496 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9598,99 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C9601-05 ECJ1XF1C104Z C 0.1UF, Z, 16V 5 C9607 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9611 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9612 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9613 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9616 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9620,21 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9623 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9625 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9629,30 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9632 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9635 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9700,01 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9702 EEVHB1C470 E 47UF, 16V 1 C9703 ECJ1XC1H101J C 100PF, J, 50V 1 C9705 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9706,07 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9708-10 EEVHB1C470 E 47UF, 16V 3 C9712-17 ECJ1XC1H101J C 100PF, J, 50V 6 C9718 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9719 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 参考号 部件号 部件名称及说明 件数 备注 C9720 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9722,23 ECJ1XC1H100D C 10PF, D, 50V 2 C9724 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9725 ECJ3XB0J106M C 10UF, M,6.3V 1 C9726 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9727,28 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9729 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9730-33 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C9737 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9739-41 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9742 EEVHB1C470 E 47UF, 16V 1 F1J1C1050006 C9743 TCUY1C105ZFN C 1UF, 16V 1 C9748,49 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9750 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9751,52 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C9753,54 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9755,56 ECJ1XF1H102Z C 1000PF, Z, 50V 2 C9759 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9760 ECJ1VB1C563K C 0.056UF, K, 16V 1 C9761,62 ECJ1XC1H330J C 33PF, J, 50V 2 C9763 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9765 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9766 ECJ3XB0J106M C 10UF, M,6.3V 1 F1J1C1050006 C9767,68 TCUY1C105ZFN C 1UF, 16V 2 C9769 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9951-53 EEVHB1C470 E 47UF, 16V 3 C9954-56 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9957 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9958,59 F2H1E221A007 E 2.2UF, 25V 2 C9960 ECJ3VB1C104K C 0.10UF, K, 16V 1 C9961 EEFUD0G121ER 120UF 1 C9964,65 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9966 EEVHB0G221 E 220UF, 4V 1 C9967 ECJ3XB0J106M C 10UF, M,6.3V 1 C9968 EEVHB1C470 E 47UF, 16V 1 C9969 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9970 ECJ2XB1E104K C 0.1UF, K, 25V 1 C9971 ECJ2XC1H222J C 2200PF, J, 50V 1 CB1-B7 K1MN80B00004 80P 连接接头 7 CN3001 K1FB126B0014 连接接头 1 (H) TH-42PW6CH D3 K1KA40A00140 40P 连接接头 1 D4 K1KA12A00227 12P 连接接头 1 D5 K1KA31A00003 31P 连接接头 1 D6 K1KA21A00007 21P 连接接头 1 D12 K1KA07A00189 7P 连接接头 1 D20 K1KA20A00180 20P 连接接头 1 D25 K1KA08A00293 8P 连接接头 1 D27 K1KA09A00077 9P 连接接头 1 D31,32 K1MN50B00026 50P 连接接头 2 MA3X152K D401-03 MA152K 二极管 3 D404 S1WBA80Z 二极管 1 MAZ30820L D405 MA3082L 齐纳二极管 1 B0EAEV000002 D406 ERA22-10 二极管 1 D407 B0HCMM000001 二极管 1 B3PAA0000012 D408 PC123FY2 光耦合器 1 D409-11 B0HCMM000001 二极管 3 MAZ30510M D412 MA3051M 齐纳二极管 1 MAZ32000M D413 MA3200M 齐纳二极管 1 D451 B0FBBR000019 二极管 1 D452 B0HCMM000001 二极管 1 MAZ32700M D453 MA3270M 齐纳二极管 1 D454 B0HCMM000001 二极管 1 D457 B0HARR000016 二极管 1 MAZ32700M 参考号 部件号 部件名称及说明 件数 备注 114 D458,59 MA3270M 齐纳二极管 2 MAZ31000M D460 MA3100M 齐纳二极管 1 D462 B0EAKT000012 二极管 1 D463 M1FS4 二极管 1 D550 B0HCMM000001 二极管 1 D551,52 B0BA02700021 二极管 2 D553-56 B0HCMM000001 二极管 4 B0BA01000046 D557,58 TMPG10G3 二极管 2 D559 B0HCMM000001 二极管 1 D560 RC3B2LFU1 二极管 1 D561,62 B0HCMM000001 二极管 2 D563 RC3B2LFU1 二极管 1 D564 B0HCMM000001 二极管 1 B3PAA0000012 D565,66 PC123FY2 光耦合器 2 D567 B0HARR000009 二极管 1 D568 B0HFRJ000012 二极管 1 D570 B0HARR000009 二极管 1 MAZ30560M D571 MA3056M 齐纳二极管 1 D572 B0HCMM000001 二极管 1 D573,74 B0HFRJ000012 二极管 2 D575 M1FS4 二极管 1 D576 B0HCMM000001 二极管 1 MA3X152K D577-84 MA152K 二极管 8 MAZ30560M D585 MA3056M 齐纳二极管 1 D586 B0HCMM000001 二极管 1 D587 M1FS4 二极管 1 D589 B0HCMM000001 二极管 1 MA3X152K D590 MA152K 二极管 1 D592,93 B0HCMM000001 二极管 2 MAZ30560M D594 MA3056M 齐纳二极管 1 MA3X152K D595 MA152K 二极管 1 MAZ30510M D596 MA3051M 齐纳二极管 1 D650 B0HCMM000001 二极管 1 D652 B0HCMM000001 二极管 1 MAZ30560M D654 MA3056M 齐纳二极管 1 D660 B0HFRJ000012 二极管 1 MA3X152K D661 MA152K 二极管 1 D802,03 M1FS4 二极管 2 D804 B0JCPD000010 二极管 1 D806,07 B0BC6R8A0010 二极管 2 D901 ERZV10V621P2 变阻器 1 B0EBNT000004 D902 D4SB80Z 二极管 1 B0HAGV000001 D903 EG01C 二极管 1 B0HCMM000009 D904 M1FL20UF4063 二极管 1 B0BA01000046 D906 TMPG10G3 二极管 1 B3PAA0000012 D907 PC123FY2 光耦合器 1 D920 B0HFRJ000012 二极管 1 D921 B0BA02000024 二极管 1 MA3X152K D922 MA152K 二极管 1 D923 LNJ201LPQJA LED 1 MA2J111 D1001 MA111 二极管 1 D1550 LNJ107W5PRW LED 1 MAZ80560M D1551-53 MA8056M 齐纳二极管 3 D2301,02 M1FS4 二极管 2 D2308 MA152 二极管 1 D2316,17 M1FS4 二极管 2 MA2J111 D3001 MA111 二极管 1 (J) D3001 MA729 二极管 1 (HY) TH-42PWD6CY D3001 MA729 二极管 1 (HV) TH-42PW6CZ D3001 MA111 二极管 1 (H) TH-42PW6CH D3002 MA153 二极管 1 (H) TH-42PW6CH D3002 MA3100M 齐纳二极管 1 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 D3002 MA3100M 齐纳二极管 1 (HY) TH-42PWD6CY D3003,04 MA111 二极管 2 MA2J111 D3011-14 MA8160H 齐纳二极管 4 (H) TH-42PW6CH D3021 MA111 二极管 1 MA2J111 D3024 MA111 二极管 1 MAZ30560M D3351,52 MA153 二极管 2 (HY) TH-42PWD6CY D3501-04 MA3056M 齐纳二极管 4 MAZ81600H D3507-10 MA8160H 齐纳二极管 4 MAZ80560H D6401-03 MA8056H 齐纳二极管 3 B0ECHP000001 D6405 D1FL40F4063 二极管 1 MAZ80560H D6406,07 MA8056H 齐纳二极管 2 B0ECHP000001 D6409-12 D1FL40F4063 二极管 4 D6451 M1FS4 二极管 1 MA2J111 D6453 MA111 二极管 1 B3PBA0000081 D6454 TLP181 光耦合器 1 MA2J111 D6455 MA111 二极管 1 B0ECHP000001 D6456 D1FL40F4063 二极管 1 B3PBA0000081 D6458 TLP181 光耦合器 1 MA2J111 D6459 MA111 二极管 1 D6460,61 B0HCKS000001 二极管 2 D6462 M1FS4 二极管 1 MAZ80560H D6463 MA8056H 齐纳二极管 1 D6464 M1FS4 二极管 1 MAZ83300M D6465,66 MA8330M 齐纳二极管 2 B3PBA0000081 D6467 TLP181 光耦合器 1 MA2J111 D6468 MA111 二极管 1 B3PBA0000081 D6469 TLP181 光耦合器 1 MA2J111 D6470,71 MA111 二极管 2 MA2J111 D6473 MA111 二极管 1 B3PBA0000081 D6474 TLP181 光耦合器 1 MA2J111 D6475 MA111 二极管 1 B0ECHP000001 D6476 D1FL40F4063 二极管 1 MA2J111 D6477 MA111 二极管 1 D6478 B0HCKS000001 二极管 1 MA2J111 D6479 MA111 二极管 1 B3PBA0000081 D6480 TLP181 光耦合器 1 MAZ83300M D6481,82 MA8330M 齐纳二极管 2 MAZ80560H D6483-90 MA8056H 齐纳二极管 8 B0ECHP000001 D6491-94 D1FL40F4063 二极管 4 D6495 B0HCKS000001 二极管 1 D6496 M1FS4 二极管 1 D6501-08 K7GBZEE00006 二极管 8 MA2J111 D6509 MA111 二极管 1 B0HCMM000009 D6511 M1FL20UF4063 二极管 1 MA2J111 D6512-14 MA111 二极管 3 MAZ82400M D6515 MA8240M 齐纳二极管 1 MA2J111 D6516 MA111 二极管 1 B3PBA0000081 D6517 TLP181 光耦合器 1 MA2J111 D6519 MA111 二极管 1 D6520 B0JCKG000001 二极管 1 B0ECHP000001 D6521 D1FL40F4063 二极管 1 MA2J111 D6522 MA111 二极管 1 B0ECHP000001 D6523 D1FL40F4063 二极管 1 MAZ80510L D6524 MA8051L 齐纳二极管 1 MA2J111 D6525 MA111 二极管 1 B0HCMM000009 D6526 M1FL20UF4063 二极管 1 MA2J111 D6527 MA111 二极管 1 D6529 M1FS4 二极管 1 D6541 B0HCKS000001 二极管 1 MA2J111 D6542 MA111 二极管 1 MAZ80510L D6543 MA8051L 齐纳二极管 1 MA2J111 D6544 MA111 二极管 1 MAZ80510L D6545 MA8051L 齐纳二极管 1 MAZ83300M D6546-48 MA8330M 齐纳二极管 3 MA2J111 D6549,50 MA111 二极管 2 D6551 M1FS4 二极管 1 MA2J111 D6552,53 MA111 二极管 2 B0HCMM000009 D6570 M1FL20UF4063 二极管 1 B0ECHP000001 参考号 部件号 部件名称及说明 件数 备注 115 D6572 D1FL40F4063 二极管 1 MAZ80510L D6582 MA8051L 齐纳二极管 1 D6583 LNJ201LPQJA LED 1 MA2J111 D6584 MA111 二极管 1 MAZ83300M D6585,86 MA8330M 齐纳二极管 2 D6611,12 M1FS4 二极管 2 B0ECHP000001 D6615 D1FL40F4063 二极管 1 D6620-22 SF20LC30F10 二极管 3 D6624 SF20LC30F10 二极管 1 D6629 B0HBSM000031 二极管 1 MAZ80510L D6635 MA8051L 齐纳二极管 1 MA2J111 D6636 MA111 二极管 1 B0ECHP000001 D6637 D1FL40F4063 二极管 1 B0ECHP000001 D6640 D1FL40F4063 二极管 1 D6641,42 M1FS4 二极管 2 B0ECHP000001 D6645-47 D1FL40F4063 二极管 3 D6711,12 M1FS4 二极管 2 B0ECHP000001 D6715 D1FL40F4063 二极管 1 D6720-22 SF20LC30F10 二极管 3 D6724 SF20LC30F10 二极管 1 D6729 B0HBSM000031 二极管 1 MAZ80510L D6735 MA8051L 齐纳二极管 1 MA2J111 D6736 MA111 二极管 1 B0ECHP000001 D6737 D1FL40F4063 二极管 1 B0ECHP000001 D6740,41 D1FL40F4063 二极管 2 B0ECHP000001 D6750,51 D1FL40F4063 二极管 2 D6752,53 M1FS4 二极管 2 B0ECHP000001 D6754 D1FL40F4063 二极管 1 D6755 M1FS4 二极管 1 B0ECHP000001 D6757 D1FL40F4063 二极管 1 MA2J111 D6758,59 MA111 二极管 2 MA2J111 D6762 MA111 二极管 1 MAZ80510L D6763 MA8051L 齐纳二极管 1 MA2J111 D6764 MA111 二极管 1 D6765 LNJ201LPQJA LED 1 MAZ83300M D6766,67 MA8330M 齐纳二极管 2 MA2J111 D6768 MA111 二极管 1 D6769 LNJ201LPQJA LED 1 MA3X152K D7201-04 MA152K 二极管 4 MA2J111 D8001-04 MA111 二极管 4 MA3X153 D8010,11 MA153 二极管 2 MAZ30360H D9001 MA3036H 齐纳二极管 1 MAZ30360H D9003 MA3036H 齐纳二极管 1 MAZ30620M D9705-13 MA3062M 齐纳二极管 9 MAZ30620M D9715 MA3062M 齐纳二极管 1 MA2J111 D9716 MA111 二极管 1 MAZ30620M D9719,20 MA3062M 齐纳二极管 2 MAZ30620M D9723 MA3062M 齐纳二极管 1 MA2J111 D9724 MA111 二极管 1 MA3X152K D9727 MA152K 二极管 1 MA3X152K D9730 MA152K 二极管 1 MA3X152K D9769 MA152K 二极管 1 MA3X152K D9771 MA152K 二极管 1 D9952 M1FS4 二极管 1 MA3X152K D9953 MA152K 二极管 1 D9954 M1FS4 二极管 1 D9955 B0JCPD000010 二极管 1 DL3001-04 TLK212T256AL EMI 滤波器 4 (H) TH-42PW6CH DL3005-07 J0HABB000004 LC 滤波器 3 (H) TH-42PW6CH F900-1,-2 EYF-52BC 熔断器座 2 F901-1,-2 EYF-52BC 熔断器座 2 F902-1,-2 EYF-52BC 熔断器座 2 H0 K1KA08A00293 8P 连接接头 1 (HV) TH-42PW6CZ H0 K1KA08A00293 8P 连接接头 1 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 H1 K1KA80B00034 80P 连接接头 1 (HZ) TH-42PW6CZ H1 K1KA80B00034 80P 连接接头 1 (HY) TH-42PWD6CY H2 K1KA80B00034 80P 连接接头 1 (HY) TH-42PWD6CY H37 TJS3A9640 3P 连接接头 1 HX1 K1KB22A00036 20P 连接接头 1 IC401 MIP2E1DMY1TV IC 1 IC402 AN1431T 线性 IC 1 IC403 AN7705F 线性 IC 1 IC451 C0DABZG00001 IC 1 C0CAAME00003 IC550 UPC24M18AHF 线性 IC 1 IC551 C5HABZZ00123 IC 1 IC552 C5HABZZ00080 IC 1 IC553,54 AN1431T 线性 IC 2 IC555 C0DAAHG00007 IC 1 IC557,58 AN1431T 线性 IC 2 IC801 C0DAAHG00008 IC 1 IC802 C0DAAHG00007 IC 1 IC803 C0DBALH00002 IC 1 IC901 MIP2E4DMY1TV IC 1 IC902 AN1431T 线性 IC 1 C0CBAKG00003 IC951 PQ12SZ1T IC 1 C0CBAHG00005 IC952 PQ09SZ1T IC 1 IC1001 C1DB00000274 IC 1 IC1550 B3L000000020 IC 1 C1BA00000278 IC2301,02 LA4901 IC 2 C0CBAHG00005 IC2304 PQ09SZ1T IC 1 C1BA00000302 IC2401 BH3865S 线性 IC 1 C0JBAR000021 IC3001 MC14052BF MOS IC (CMOS 门阵列 ) 1 (J) IC3001 C0ZBZ0000205 IC 1 (H) TH-42PW6CH IC3001 TC4W53FEL IC 1 (HV) TH-42PW6CZ IC3002 C0ABGB000001 IC 1 (HZ) TH-42PW6CZ IC3002 C0JBBR000002 IC 1 (J) IC3002 C3EAGC000010 ROM IC (EEPROM 16KBIT) 1 (HV) TH-42PW6CZ IC3003 C0ABGB000001 IC 1 (HV) TH-42PW6CZ IC3003 C3EAGC000010 ROM IC (EEPROM 16KBIT) 1 (H) TH-42PW6CH IC3003 CXA1315M 线性 IC 1 IC3004 CXA1875AM 线性 IC 1 IC3005 C1AB00001139 IC 1 C1AB00000440 IC3006 CXA1315M 线性 IC 1 C0JBAS000109 IC3007 AHC2G66HDCTR 集成电路 1 C0DBEZG00004 IC3101 PQ07VZ012ZP IC 1 (HV) TH-42PW6CZ IC3101 PQ07VZ012ZP IC 1 (HY) TH-42PWD6CY IC3102 C0DBZLB00001 IC 1 (HY) TH-42PWD6CY IC3102 C0DBZLB00001 IC 1 (HV) TH-42PW6CZ IC3103 C1AB00001826 IC 1 (HV) TH-42PW6CZ IC3103 C1AB00001826 IC 1 (HY) TH-42PWD6CY IC3104 PST9128NR IC 1 (HY) TH-42PWD6CY IC3104 PST9128NR IC ( 逻辑 ) 1 (HV) TH-42PW6CZ IC3105 C0JBAZ001834 IC 1 (HV) TH-42PW6CZ IC3105 C0JBAZ001834 IC 1 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 116 IC3108,09 AN78L05M 线性 IC 2 IC3201 C1AB00001720 IC 1 (J) IC3201 C3HBKZ000001 IC 1 (HV) TH-42PW6CZ IC3201 C3HBKZ000001 IC 1 (HY) TH-42PWD6CY IC3251 C0ZBZ0000684 IC 1 (HY) TH-42PWD6CY IC3251 C0ZBZ0000684 IC 1 (HV) TH-42PW6CZ IC3251 C1AB00001720 IC 1 (J) IC3301 MM1065ZMR 线性 IC 1 (HV) TH-42PW6CZ IC3301 MM1065ZMR 线性 IC 1 (HY) TH-42PWD6CY IC3302 PQ07VZ012ZP IC 1 (HY) TH-42PWD6CY IC3302 PQ07VZ012ZP IC 1 (HV) TH-42PW6CZ IC3303 AN80L25RMS IC 1 (HV) TH-42PW6CZ IC3303 AN80L25RMS IC 1 (HY) TH-42PWD6CY IC3304 C0JBBZ000285 IC 1 (HV) TH-42PW6CZ IC3305 JLC1562BF MOS IC (MICON LSI) 1 (HY) TH-42PWD6CY IC3305 JLC1562BF MOS IC (MICON LSI) 1 (HV) TH-42PW6CZ IC3311 C0JBBZ000285 IC 1 (HY) TH-42PWD6CY IC3311 C0JBBZ000285 IC 1 (HY) TH-42PWD6CY IC3401 C0ABZA000028 IC 1 (HY) TH-42PWD6CY IC3401 C0ABZA000028 IC 1 (HY) TH-42PWD6CY IC3502 TVRN079 IC 1 C3EBGC000018 IC3699 S-24C16AFJ 集成电路 1 (HV) TH-42PW6CZ IC3699 S-24C16AFJ 集成电路 1 (HY) TH-42PWD6CY IC6401-08 C0HBC0000005 IC 8 IC6451 AN1431M 线性 IC 1 IC6452,53 AN78L15M 线性 IC 2 IC6454,55 AN78L05M 线性 IC 2 IC6456 AN1431M 线性 IC 1 IC6471,72 AN1431M 线性 IC 2 IC6491 AN1431M 线性 IC 1 C0JBAB000155 IC6501,02 TC74HC14AF IC 2 IC6510 AN78L05M 线性 IC 1 IC6511 C0ZBZ0000735 IC 1 IC6512 AN78L05M 线性 IC 1 IC6521 C0ZBZ0000735 IC 1 IC6541,42 C0ZBZ0000735 IC 2 C0BBBA000019 IC6581 NJM2903M 集成电路 1 IC6601-03 C0ZBZ0000138 IC 3 IC6604 AN1431M 线性 IC 1 IC6605,06 C0JBAZ000005 IC 2 C0JBAA000084 IC6607 TC74HC08AF IC 1 IC6701-03 C0ZBZ0000138 IC 3 IC6704 C0ZBZ0000735 IC 1 C0BBBA000019 IC6705 NJM2903M 集成电路 1 IC6706 C0JBAZ000005 IC 1 IC6711 AN1431M 线性 IC 1 IC7101 C0JBAZ001604 IC 1 IC7104-06 C0JBAZ001604 IC 3 IC7201-04 C0JBAZ001604 IC 4 C0JBAR000021 IC8001,02 MC14052BF MOS IC (CMOS 门阵列 ) 2 C1AA00000395 IC8003,04 M52346SP 线性 IC 2 C0JBAB000155 参考号 部件号 部件名称及说明 件数 备注 IC8005,06 TC74HC14AF IC 2 C0JBAR000111 IC8007,08 TC4W53FEL IC 2 C0JBAS000109 IC8009 AHC2G66HDCTR 集成电路 1 IC8015 C0ZBZ0000205 IC 1 IC8016 C0JBAZ001934 IC 1 IC9001 C0CBCBD00008 IC 1 IC9002 C0ZBZ0000551 IC 1 IC9003 C0JBAB000550 IC 1 C0JBAS000109 IC9004 AHC2G66HDCTR 集成电路 1 IC9005 C0JBAZ001992 IC 1 IC9006,07 C0CBCBD00008 IC 2 IC9008 C0JBAZ001992 IC 1 IC9009 C0FBAD000069 IC 1 IC9010 C0CBCBD00008 IC 1 IC9011 C0ZBZ0000551 IC 1 IC9012 C0JBAB000550 IC 1 C0JBAS000109 IC9013 AHC2G66HDCTR 集成电路 1 IC9015 C0JBAZ001992 IC 1 IC9016,17 C0CBCBD00008 IC 2 IC9018 C0JBAZ001992 IC 1 IC9019 C0FBAD000069 IC 1 C0JBAZ001466 IC9023 74LVC244APWL IC 1 IC9151 MN845041-A IC 1 IC9152,53 C0CBCBD00008 IC 2 IC9155 C3ABPJ000017 IC 1 C0ABFA000012 IC9157 TLC2933IPWL 集成电路 1 IC9301 C1ZBZ0002358 IC 1 IC9302 C0CBCBD00008 IC 1 IC9303 C1ZBZ0002357 IC 1 C0DBEZG00004 IC9453 PQ07VZ012ZP IC 1 IC9454 C3ABPJ000043 IC 1 IC9455 MN84510-A IC 1 C3FBNG000007 IC9456 TVRJ952-2 IC 1 IC9459 C0JBAZ001992 IC 1 C0JBAZ000448 IC9601 TC74ACT244F 集成电路 1 C0JBAZ001466 IC9602 74LVC244APWL IC 1 C0JBAZ000448 IC9603,04 TC74ACT244F 集成电路 2 IC9605 C1ZBZ0002377 IC 1 C0EBE0000066 IC9606 PST9128NR IC ( 逻辑 ) 1 IC9701 MN102L230 IC 1 C3EBJC000038 IC9702 TVRN076 IC 1 C0JBAZ000448 IC9703 TC74ACT244F 集成电路 1 IC9704 C3HBHG000001 IC 1 C3FBLD000026 IC9705 TVRJ951-1 IC 1 C0JBAZ001466 IC9706 74LVC244APWL IC 1 IC9707 C0JBAE000239 IC 1 C3EBGC000018 IC9708 S-24C16AFJ 集成电路 1 IC9709 C2BBGF000491 IC 1 C0EBB0000024 IC9710 M51957BFP 线性 IC 1 C0JBAS000109 IC9711 AHC2G66HDCTR 集成电路 1 IC9951 C0DBAMH00006 IC 1 IC9952 C0DBAFH00021 IC 1 J3 K1KA40A00140 40P 连接接头 1 J5 K1KA31B00004 31P 连接接头 1 J6 K1KA21B00005 21P 连接接头 1 J8 K1KA20A00180 20P 连接接头 1 J10 K1KA06A00183 6P 连接接头 1 J11-13 K1KB80B00023 80P 连接接头 3 J14 K1KA22A00067 22P 连接接头 1 JK3001 K1CB106B0027 连接接头 1 (HV) TH-42PW6CZ JK3001 K2HA306B0049 插孔 1 (HZ) TH-42PW6CZ JK3001 K1CB106B0027 连接接头 1 (HY) TH-42PWD6CY JK3002 K2HA204B0097 插孔 1 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 117 JK3002 K1QBB2AB0005 连接接头 1 (HY) TH-42PWD6CY JK3004 K2HA204B0097 插孔 1 (HY) TH-42PWD6CY JK3005 K2HA306B0048 插孔 1 (HV) TH-42PW6CZ JK3303 K2HA204B0097 插孔 1 (HY) TH-42PWD6CY JK3304 K1QBB5AB0005 连接接头 1 (HY) TH-42PWD6CY JK3509 K1FB109B0058 连接接头 1 (HY) TH-42PWD6CY JK3511 K1FB115B0034 连接接头 1 JK3513 K2HC103B0105 插孔 1 JK8500 K4BC02B00013 端子 1 JS2301 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HZ) TH-42PW6CZ JS3001-06 ERJ3GEY0R00 M 0 OHM, 1/16W 6 (HZ) TH-42PW6CZ JS3007,08 ERJ3GEY0R00 M 0 OHM, 1/16W 2 (HZ) TH-42PW6CZ JS3010 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (H) TH-42PW6CH JS3011 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HZ) TH-42PW6CZ JS3012 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (H) TH-42PW6CH JS3012 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HZ) TH-42PW6CZ JS3013 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (H) TH-42PW6CH JS3013 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HZ) TH-42PW6CZ JS3014 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (H) TH-42PW6CH JS3014 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HZ) TH-42PW6CZ JS3015 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (H) TH-42PW6CH JS3015 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HZ) TH-42PW6CZ JS3016 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HZ) TH-42PW6CZ JS3018-20 ERJ3GEY0R00 M 0 OHM, 1/16W 3 (H) TH-42PW6CH JS3023-25 ERJ3GEY0R00 M 0 OHM, 1/16W 3 (H) TH-42PW6CH JS3028,29 ERJ6GEY0R00 M 0 OHM, 1/10W 2 (H) TH-42PW6CH JS3301-06 ERJ3GEY0R00 M 0 OHM, 1/16W 6 (HZ) TH-42PW6CZ JS3301-12 ERJ3GEY0R00 M 0 OHM, 1/16W 12 (HY) TH-42PWD6CY JS3308-10 ERJ3GEY0R00 M 0 OHM, 1/16W 3 (HZ) TH-42PW6CZ JS3311,12 ERJ3GEY0R00 M 0 OHM, 1/16W 2 (HY) TH-42PWD6CY JS3501-03 ERJ6GEY0R00 M 0 OHM, 1/10W 3 (HY) TH-42PWD6CY JS3506-08 ERJ6GEY0R00 M 0 OHM, 1/10W 3 (HY) TH-42PWD6CY JS8092-97 J0JCC0000100 片状电感 6 L401 ELEXT100KA 校正线圈 1 L451 G4D4A0000048 转接变压器 1 L452 EXCELDR35C 头扼流圈 1 G0A221GA0001 L554 TALFP15B221K 感应线圈 1 L801 G1C101ZA0037 感应线圈 1 L802 G1C121ZA0037 感应线圈 1 L803 G1C680ZA0037 感应线圈 1 L901,02 G0B123K00001 扼流线圈 2 L904 G0A100GA0013 扼流线圈 1 L905 ELF17N011A 线路滤波器 1 L906 EXCELDR35C 头扼流圈 1 L951-60 ELKE103FA 噪音滤波器 10 L1001 ELJPA100KB 片状电感 1 L2306 ELJPA100KB 片状电感 1 G0ZZ00001909 参考号 部件号 部件名称及说明 件数 备注 L2330,31 TAL10RP221LB 感应线圈 2 L3001 ELJPA100KB 片状电感 1 (J) L3001 ELJPA100KB 片状电感 1 (H) TH-42PW6CH L3001 J0HABB000003 LC 滤波器 1 (HV) TH-42PW6CZ L3001 J0HABB000004 LC 滤波器 1 (HZ) TH-42PW6CZ L3001 J0HABB000003 LC 滤波器 1 (HY) TH-42PWD6CY L3002 J0HABB000004 LC 滤波器 1 (HY) TH-42PWD6CY L3002 ELJPA100KB 片状电感 1 (J) L3002 J0HABB000004 LC 滤波器 1 (HV) TH-42PW6CZ L3002 J0HABB000004 LC 滤波器 1 (HZ) TH-42PW6CZ L3003 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3003 ELJPA100KB 电感 1 (H) TH-42PW6CH L3003 ELJPA100KB 片状电感 1 (J) L3003 J0HABB000004 LC 滤波器 1 (HV) TH-42PW6CZ L3003 J0HABB000004 LC 滤波器 1 (HZ) TH-42PW6CZ L3004 J0HABB000003 LC 滤波器 1 (HZ) TH-42PW6CZ L3005 ELJPA100KB 片状电感 1 (J) L3005 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ L3005 J0HABB000003 LC 滤波器 1 (HZ) TH-42PW6CZ L3005 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY L3006 J0E8004B0008 LC 滤波器 1 (HY) TH-42PWD6CY L3006 ELJPA100KB 片状电感 1 (HZ) TH-42PW6CZ L3006 ELJPA100KB 片状电感 1 (HZ) TH-42PW6CZ L3006 J0E8004B0008 LC 滤波器 1 (HV) TH-42PW6CZ L3007 G1C2R2K00006 感应线圈 1 (HY) TH-42PWD6CY L3007 G1C2R2K00006 感应线圈 1 (J) L3050 ELJPA100KB 片状电感 1 L3051,52 ELJNA1R5JF 线圈 2 (HV) TH-42PW6CZ L3051,52 ELJNA1R5JF 线圈 2 (HY) TH-42PWD6CY L3101 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3102 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3103 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3104 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3102-04 ELJPA100KB 片状电感 3 (HV) TH-42PW6CZ L3107 J0JGC0000021 片状电感线圈 1 (HY) TH-42PWD6CY L3108 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3201 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3201 ELJPA100KB 片状电感 1 (HV) TH-42PW6CZ L3251,52 ELJPA2R2MF 片状电感 2 (HV) TH-42PW6CZ L3251,52 ELJPA2R2MF 片状电感 2 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 118 L3303 ELJPA100KB 片状电感 1 (HY) TH-42PWD6CY L3305-08 ELKE103FA 噪音滤波器 4 (HV) TH-42PW6CZ L3305-08 ELKE103FA 噪音滤波器 4 (HY) TH-42PWD6CY L3507-09 J0HABB000004 LC 滤波器 3 J0HAAB000012 L3510-17 TLK212T256AL EMI 滤波器 8 L3525 J0HABB000003 LC 滤波器 1 (HY) TH-42PWD6CY L3526 ELJPA100KB 片状电感 1 (HX) L3526 J0HABB000003 LC 滤波器 1 (HY) TH-42PWD6CY L3527-29 J0HABB000004 LC 滤波器 3 (HY) TH-42PWD6CY L3530,31 J0HABB000003 LC 滤波器 2 (HY) TH-42PWD6CY L3532,33 ELJPA100KB 片状电感 2 (HY) TH-42PWD6CY L3555 ELJPA100KB 片状电感 1 L6451 J0JJC0000021 片状电感 1 L6453 J0JJC0000021 片状电感 1 L6471 J0JJC0000021 片状电感 1 L6472 G0ZZ00002183 校正线圈 1 L6602 G0ZZ00002183 校正线圈 1 L6604,05 G0ZZ00002183 校正线圈 2 L6611,12 ELC16BR82L 扼流线圈 2 L6615,16 ELC16BR82L 扼流线圈 2 L6618 J0JJC0000021 片状电感 1 L6620-28 G0ZZ00002183 校正线圈 9 L6634-38 G0ZZ00002183 校正线圈 5 L6644,45 G0ZZ00002183 校正线圈 2 L6647,48 J0JJC0000021 片状电感 2 L6702-04 G0ZZ00002183 校正线圈 3 L6705 G0C101K00023 校正线圈 1 L6711-14 ELC16BR82L 扼流线圈 4 L6717,18 J0JJC0000021 片状电感 2 L6719-23 G0ZZ00002183 校正线圈 5 L6726,27 G0ZZ00002183 校正线圈 2 L6736,37 G0ZZ00002183 校正线圈 2 L6744,45 G0ZZ00002183 校正线圈 2 L6747 J0JJC0000021 片状电感 1 L6750 G0ZZ00002183 校正线圈 1 L7106 ELKE103FA 噪音滤波器 1 L7207-09 ELKE103FA 噪音滤波器 3 L8001-07 ELJPA100KB 片状电感 7 L8501,02 G0A2R5H00003 扼流线圈 2 L9001-03 ELKE103FA 噪音滤波器 3 L9008-10 ELKE103FA 噪音滤波器 3 L9452 ELJFA1R0KF 片状线圈 1 L9459 ELKE103FA 噪音滤波器 1 L9701 ELKE103FA 噪音滤波器 1 L9951-54 ELKE103FA 噪音滤波器 4 L9955 G1C470M00012 感应线圈 1 L9956 G1C1R5Z00002 感应线圈 1 P2 K1KA06A00180 6P 连接接头 1 P5 K1KA11A00073 11P 连接接头 1 K1KA04A00242 P7 TJS1A8800 4P 连接接头 1 P9 K1KA02A00244 2P 连接接头 1 K1KA05A00177 P10 TJS1A8810 5P 连接接头 1 P11 K1KA07A00096 7P 连接接头 1 P12 K1KA05A00139 5P 连接接头 1 P23 K1KA03A00213 3P 连接接头 1 K1KA08A00221 P25 TJS1A8840 8P 连接接头 1 K1KA09A00099 P27 TJS1A8850 9P 连接接头 1 PF1 K1KA03A00181 3P 连接接头 1 PF9 K1KA03A00181 3P 连接接头 1 PF10 K1KA06A00220 6P 连接接头 1 参考号 部件号 部件名称及说明 件数 备注 2SC3311AW Q401-04 2SC3311A 三极管 4 Q405 B1CBGD000001 三极管 1 2SC3311AW Q406 2SC3311A 三极管 1 Q451 B1DEGR000021 三极管 1 Q452 2SD2177R 三极管 1 2SB14340RA Q453 2SB1434R 三极管 1 Q454 B1DEGR000021 三极管 1 2SC3311AW Q455,56 2SC3311A 三极管 2 2SA13090WA Q457 2SA1309A 三极管 1 Q552 B1DEGQ000019 FET 1 2SB0621AW Q553 2SB621A 三极管 1 2SC3311AW Q554,55 2SC3311A 三极管 2 2SC3311AW Q557,58 2SC3311A 三极管 2 2SC3311AW Q650,51 2SC3311A 三极管 2 2SD132806 Q903 2SD1328 三极管 1 2SD0601A Q1540 2SD601A 三极管 1 2SD0601A Q2301-03 2SD601A 三极管 3 2SD0601A Q2305,06 2SD601A 三极管 2 2SD1266AJ Q2330,31 2SD1266A 三极管 2 2SD0601A Q2333,34 2SD601A 三极管 2 2SB0709A Q2370 2SB709A 三极管 1 2SD0601A Q2406 2SD601A 三极管 1 2SD0601A Q2408 2SD601A 三极管 1 2SD0601A Q2410 2SD601A 三极管 1 2SB0709A Q3001 2SB709A 三极管 1 (HV) TH-42PW6CZ Q3001 2SD601A 三极管 1 (HZ) TH-42PW6CZ Q3001 2SD601A 三极管 1 (HZ) TH-42PW6CZ Q3002 2SD601A 三极管 1 (HV) TH-42PW6CZ Q3002 2SD601A 三极管 1 (J) Q3003 2SD601A 三极管 1 Q3004 2SD601A 三极管 1 (HY) TH-42PWD6CY Q3004 2SB709A 三极管 1 (H) TH-42PW6CH Q3004 2SD601A 三极管 1 (HV) TH-42PW6CZ Q3005 2SD601A 三极管 1 (HV) TH-42PW6CZ Q3006 2SB709A 三极管 1 Q3007 2SB709A 三极管 1 (HV) TH-42PW6CZ Q3007 2SB709A 三极管 1 (HY) TH-42PWD6CY Q3023 2SD601A 三极管 1 (HY) TH-42PWD6CY Q3023 2SD601A 三极管 1 (HV) TH-42PW6CZ Q3051,52 2SD601A 三极管 2 (HV) TH-42PW6CZ Q3051,52 2SD601A 三极管 2 (HY) TH-42PWD6CY Q3101 2SB709A 三极管 1 (HV) TH-42PW6CZ Q3101 2SB709A 三极管 1 (HY) TH-42PWD6CY Q3101 2SD601A 三极管 1 (J) Q3102 2SD1030 三极管 1 (HV) TH-42PW6CZ Q3102 2SD1030 三极管 1 (HY) TH-42PWD6CY Q3102,03 2SD601A 三极管 2 (J) Q3104 2SD1030 三极管 1 (HV) TH-42PW6CZ Q3104 2SD1030 三极管 1 (HY) TH-42PWD6CY Q3104-06 2SD601A 三极管 3 2SD0601A 参考号 部件号 部件名称及说明 件数 备注 119 Q3401 2SD601A 三极管 1 (HY) TH-42PWD6CY Q3403 2SD601A 三极管 1 (HY) TH-42PWD6CY Q3501 2SD601A 三极管 1 (HY) TH-42PWD6CY Q3502 2SB709A 三极管 1 (HY) TH-42PWD6CY Q3503-05 2SD601A 三极管 3 (HY) TH-42PWD6CY Q3506 2SB709A 三极管 1 (HY) TH-42PWD6CY Q3531,32 2SD601A 三极管 2 2SK0620 Q6401 2SK620 FET 1 Q6451 B1BBCJ000003 三极管 1 Q6452 2SB0709A 三极管 1 Q6454 2SD814A 三极管 1 2SD0601A Q6455 2SD601A 三极管 1 Q6461 B1BBCJ000003 三极管 1 Q6462 2SB0709A 三极管 1 2SD0601A Q6463 2SD601A 三极管 1 Q6471 B1BBCJ000003 三极管 1 Q6472 2SB0709A 三极管 1 Q6474 2SD814A 三极管 1 2SD0601A Q6475-77 2SD601A 三极管 3 Q6491 2SD1263A 三极管 1 2SC1473AE Q6492 2SC1473A 三极管 1 2SK0620 Q6501-04 2SK620 FET 4 Q6511,12 B1DFGL000005 三极管 2 2SD0601A Q6520 2SD601A 三极管 1 Q6521 B1DFES000001 三极管 1 Q6522-27 2SK2993 FET 6 Q6530 2SB1073001TV 三极管 1 Q6541 2SB1073001TV 三极管 1 Q6542-47 2SK373100L 三极管 6 2SC1473AE Q6550 2SC1473A 三极管 1 2SD0601A Q6551 2SD601A 三极管 1 Q6552 B1DFES000001 三极管 1 Q6553 2SB1073001TV 三极管 1 Q6554 2SD2185 三极管 1 Q6555 B1DFES000001 三极管 1 2SD0601A Q6581 2SD601A 三极管 1 Q6601,02 2SK3652000SB 三极管 2 2SK0620 Q6603,04 2SK620 FET 2 Q6605,06 2SK3652000SB 三极管 2 Q6611 2SD2185 三极管 1 Q6612 2SB1073001TV 三极管 1 Q6613 2SD2185 三极管 1 Q6614 2SB1073001TV 三极管 1 Q6621 2SK3637000VE 三极管 1 Q6624 2SK3637000VE 三极管 1 Q6641,42 B1DFHM000002 三极管 2 2SB0940AJ Q6671 2SB940A 三极管 1 2SC1473AE Q6672 2SC1473A 三极管 1 Q6673 2SD1263A 三极管 1 Q6701,02 2SK3652000SB 三极管 2 Q6705,06 2SK3652000SB 三极管 2 Q6711 2SD2185 三极管 1 Q6712 2SB1073001TV 三极管 1 Q6713 2SD2185 三极管 1 Q6714 2SB1073001TV 三极管 1 Q6721 2SK3637000VE 三极管 1 Q6724 2SK3637000VE 三极管 1 2SK0620 Q6725 2SK620 FET 1 Q6741,42 B1DFHM000002 三极管 2 Q6745,46 2SK326800L FET 2 Q6751 2SD1263A 三极管 1 2SC14730E Q6752,53 2SC1473 三极管 2 2SD0601A Q6756 2SD601A 三极管 1 2SB0709A Q7201,02 2SB709A 三极管 2 2SD0601A 参考号 部件号 部件名称及说明 件数 备注 Q8001,02 2SD601A 三极管 2 2SD0601A Q8010 2SD601A 三极管 1 2SB0709A Q8011 2SB709A 三极管 1 2SD0601A Q8012 2SD601A 三极管 1 2SB0709A Q8013 2SB709A 三极管 1 2SD0601A Q9001,02 2SD601A 三极管 2 2SD0601A Q9301 2SD601A 三极管 1 2SD0601A Q9400 2SD601A 三极管 1 2SD0601A Q9596-99 2SD601A 三极管 4 2SD0601A Q9601,02 2SD601A 三极管 2 2SD0601A Q9701 2SD601A 三极管 1 2SB14400H Q9702 2SB1440 三极管 1 2SK0620 Q9703,04 2SK620 FET 2 2SK0620 Q9706 2SK620 FET 1 2SB0709A Q9707 2SB709A 三极管 1 2SD0601A Q9708,09 2SD601A 三极管 2 2SB0709A Q9710 2SB709A 三极管 1 2SD0601A Q9714-16 2SD601A 三极管 3 2SK0620 Q9719 2SK620 FET 1 R402 ERF10TK3R3 W 3.3 OHM, 10W 1 R404 ERF10TK3R3 W 3.3 OHM, 10W 1 R406 ERU5TAJ150 F 15 OHM, 5W 1 R407 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R408 ERJ6GEYJ6R8 M 6.8 OHM,J,1/10W 1 R409 ERG1FJS104D M 100KOHM, J, 1W 1 R410 ERJ6GEYJ6R8 M 6.8 OHM,J,1/10W 1 R411 ERDS1FJ101 C 100 OHM, J,1/2W 1 R412 ERDS1FJ221 C 220 OHM, J,1/2W 1 R413 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R414 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R415 ERJ6ENF3901 M 3.9KOHM, 1/10W 1 R416 ERJ6ENF2551 M2.55KOHM, 1/10W 1 R417 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R418 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R420-22 ERJ6GEYJ103 M 10KOHM,J,1/10W 3 R423 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R424,25 ERJ6GEYJ473 M 47KOHM,J,1/10W 2 R426,27 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R428 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R429-31 ERJ6ENF3303 M 330KOHM, 1/10W 3 R432 ERJ6ENF1003 M 100KOHM, 1/10W 1 R433-35 ERJ6ENF3303 M 330KOHM, 1/10W 3 R436 ERJ6ENF1202 M 12KOHM, 1/10W 1 R451 ERDS1FJ274 C 270KOHM, J,1/2W 1 R452 ERDS1FJ224 C 220KOHM, J,1/2W 1 R453 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R454,55 ERG3FJS333D M 33KOHM, J, 3W 2 R456 ERDS1FJ2R7 C 2.7 OHM, J,1/2W 1 R457,58 ERF5EKR15 W0.15 OHM, 5W 2 R459 ERJ6GEYJ270 M 27 OHM,J,1/10W 1 R460 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R461 ERJ6GEYF563 M 56KOHM,F,1/10W 1 R462 ERG1FJS101D M 100 OHM, J, 1W 1 R463 ERDS1FJ220 C 22 OHM, J,1/2W 1 R464 ERDS1FJ103 C 10KOHM, J,1/2W 1 R465 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R466 ERJ6ENF2703 M 270KOHM, 1/10W 1 R467 ERDS1FJ220 C 22 OHM, J,1/2W 1 R468 ERDS1FJ103 C 10KOHM, J,1/2W 1 R469 ERDS1FJ221 C 220 OHM, J,1/2W 1 R470 ERJ6ENF5602 M 56KOHM, 1/10W 1 R471 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R472-74 ERJ6ENF3303 M 330KOHM, 1/10W 3 R476 ERJ6ENF3601 M 3.6KOHM, 1/10W 1 R477 ERJ6ENF4020 M 402 OHM, 1/10W 1 R478-80 ERJ6ENF3303 M 330KOHM, 1/10W 3 R481 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 120 R482 ERJ6ENF4220 M 422 OHM, 1/10W 1 R483 ERG2FJS104D M 100KOHM, J, 2W 1 R484 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R485 ERG1FJS393D M 39KOHM, J, 3W 1 R486 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R487 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R488 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R489 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R490 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R491,92 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R493 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R502,03 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 2 R504 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R550 ERX1FJSR56D M0.56 OHM, J, 1W 1 R551 ERG2FJS104D M 100KOHM, J, 2W 1 EROS2CKF1053 R552 ER0S2CKF1053 M 105KOHM, F,1/4W 1 R553 ERG2FJS104D M 100KOHM, J, 2W 1 EROS2CKF1053 R554 ER0S2CKF1053 M 105KOHM, F,1/4W 1 R555 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R556 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R557,58 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R560 ERX1FJSR56D M0.56 OHM, J, 1W 1 R561 ERJ6ENF1212 M12.1KOHM, 1/10W 1 R563 ERG3FJS683D M 68KOHM, J, 3W 1 R564,65 ERJ6GEYJ681 M 680 OHM,J,1/10W 2 R568 ERX1FJSR56D M0.56 OHM, J, 1W 1 R569 ERX2FJSR47D M 0.47OHM, J, 2W 1 R571 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R572 ERG3FJS683D M 68KOHM, J, 3W 1 R573 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R574 ERX1FJSR56D M0.56 OHM, J, 1W 1 R575 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R576 ERX2FJSR47D M 0.47OHM, J, 2W 1 R577,78 ERG3FJS683D M 68KOHM, J, 3W 2 R579,80 ERDS1FJ220 C 22 OHM, J,1/2W 2 R581,82 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R583,84 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R585,86 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R587 ERDS1FJ220 C 22 OHM, J,1/2W 1 R588 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R589 ERJ6ENF4992 M49.9KOHM, 1/10W 1 R590 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 R591 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R592 ERG1FJS222D M 2.2KOHM, J, 1W 1 R593 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R594 ERDS1FJ220 C 22 OHM, J,1/2W 1 R595 ERDS1FJ471 C 470 OHM, J,1/2W 1 R596 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R597,98 ERDS1FJ224 C 220KOHM, J,1/2W 2 R599 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R600 ERDS1FJ224 C 220KOHM, J,1/2W 1 R601 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R602 ERJ6ENF4642 M46.4KOHM, 1/10W 1 R603,04 ERJ6ENF4992 M49.9KOHM, 1/10W 2 R605 EVMEASA00B54 CONTROL 50KOHMB 0.3W 1 R606 ERJ6ENF2551 M2.55KOHM, 1/10W 1 R607 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R608 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R609 ERJ6ENF1212 M12.1KOHM, 1/10W 1 R610 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R611 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R612 ERJ6ENF2551 M2.55KOHM, 1/10W 1 R613 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R614 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R615,16 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R617 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R618 ERJ6GEYJ680 M 68 OHM,J,1/10W 1 R619 ERJ12YJ472 M 4.7KOHM,J, 1/2W 1 参考号 部件号 部件名称及说明 件数 备注 R620 ERJ6GEYJ680 M 68 OHM,J,1/10W 1 R621 ERJ12YJ472 M 4.7KOHM,J, 1/2W 1 R623 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R625,26 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R627 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R628 ERDS1FJ470 C 47 OHM, J,1/2W 1 R630 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R631 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R635 ERJ6ENF2551 M2.55KOHM, 1/10W 1 R650 ERG1FJS222D M 2.2KOHM, J, 1W 1 R652 ERDS1FJ220 C 22 OHM, J,1/2W 1 R653 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R654 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R655 ERDS1FJ472 C 4.7KOHM, J,1/2W 1 R656,57 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R803 ERJ6ENF1001 M 1KOHM, 1/10W 1 R805 ERJ6ENF1001 M 1KOHM, 1/10W 1 R806,07 ERJ6ENF15R0 M 15 OHM, 1/10W 2 R808 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R809 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R810 ERJ6ENF5100 M 510 OHM, 1/10W 1 R901,02 ERC12ZGK105 S 1MOHM, K,1/2W 2 R903 ERF7TK3R3 W 3.3 OHM, K, 7W 1 R904 ERG2FJS683D M 68KOHM, J, 2W 1 R905 ERJ6GEYJ330 M 33 OHM,J,1/10W 1 R906 ERDS1FJ3R3 C 3.3 OHM, J,1/2W 1 R907 ERJ6GEYJ120 M 12 OHM,J,1/10W 1 R920 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R921 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R922 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R923 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R924 ERJ6ENF2402 M 24KOHM, 1/10W 1 R925 ERJ6ENF1002 M 10KOHM, 1/10W 1 R926 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R927 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R928 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R951,52 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R1001,02 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 D0GB101JA002 R1003 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R1500 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R1510 ERJ3GEYF222 M 2.2KOHM, 1/16W 1 R1511 ERJ3GEYF332 M 3.3KOHM, 1/16W 1 R1512,13 ERJ3GEYF472 M 4.7KOHM, 1/16W 2 R1550 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R1551 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1554 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 D0GB470JA006 R1555,56 TAJAAH0470JV M 47 OHM,J,1/16W 2 R2301 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2304 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2305,06 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R2309 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2310 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R2319,20 ERJ6GEYJ561 M 560 OHM,J,1/10W 2 R2321 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2324,25 ERJ6GEYJ561 M 560 OHM,J,1/10W 2 R2331 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2332 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2333 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2341 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2343 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2346 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2347 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2348 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2350 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2351-54 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R2355-60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2365,66 ERX1FJSR56D M0.56 OHM, J, 1W 2 参考号 部件号 部件名称及说明 件数 备注 121 R2367 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R2368,69 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R2370 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R2371,72 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2373 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2408 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2410 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2431 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2434 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2438 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2439 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2440 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2441 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2445 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2448 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2450 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2452 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2453 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2456 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2457 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R2460 ERJ6ENF1802 M 18KOHM, 1/10W 1 R2461,62 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R2463 ERJ6ENF1502 M 15KOHM, 1/10W 1 R2464 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R2466 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2467 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R2468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2469 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2470 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2471 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2472 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2473 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2476,77 ERJ6GEYJ220 M 22 OHM,J,1/10W 2 R2480 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2481,82 ERJ6GEYJ153 M 15KOHM,J,1/10W 2 R2483 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2484 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R2485 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (J) R3001 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HY) TH-42PWD6CY R3001 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 (H) TH-42PW6CH R3002 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (H) TH-42PW6CH R3002 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HY) TH-42PWD6CY R3002 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (J) R3003 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3003 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 (J) R3003 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (H) TH-42PW6CH R3003 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3004 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (H) TH-42PW6CH R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (J) R3004 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HY) TH-42PWD6CY R3004 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HV) TH-42PW6CZ R3004 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (HZ) TH-42PW6CZ R3005 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (H) TH-42PW6CH R3005 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HV) TH-42PW6CZ R3005 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (HZ) TH-42PW6CZ R3005 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (J) R3005 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HY) TH-42PWD6CY R3006 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (H) TH-42PW6CH R3006 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 R3006 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (J) R3006 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HZ) TH-42PW6CZ R3006 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3007 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3007 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 (H) TH-42PW6CH R3007 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3007 J0JCC0000100 片状电感 1 (J) R3007 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HZ) TH-42PW6CZ R3008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3008 J0JCC0000100 片状电感 1 (J) R3008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3009 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3009 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (J) R3009 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3010 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (J) R3010 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3010 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3011 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3011 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (H) TH-42PW6CH R3011 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3011 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (J) R3010 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3011 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3012 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3012 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (J) R3012 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3012 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (H) TH-42PW6CH R3012 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3013 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3013 TAJAAH0101JV M 100 OHM,J,1/16W 1 (H) TH-42PW6CH R3013 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3013 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (J) R3013 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3014 TAJAAH0101JV M 100 OHM,J,1/16W 1 (H) TH-42PW6CH R3014 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3014 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3014 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (J) R3014 ERJ3GEYJ752 M 7.5KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3015 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3015 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3015 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3015 J0JCC0000100 片状电感 1 (HZ) TH-42PW6CZ R3015 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (H) TH-42PW6CH R3016 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (H) TH-42PW6CH 参考号 部件号 部件名称及说明 件数 备注 122 R3016 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3016 J0JCC0000100 片状电感 1 (J) R3016 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3017 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3017 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (H) TH-42PW6CH R3017 J0JCC0000100 片状电感 1 (J) R3017 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3018 J0JCC0000100 片状电感 1 (J) R3018 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HZ) TH-42PW6CZ R3018 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3018 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (H) TH-42PW6CH R3019 TAJAAH0101JV M 100 OHM,J,1/16W 1 (H) TH-42PW6CH R3019 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3019 J0JCC0000100 片状电感 1 (J) R3019 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HZ) TH-42PW6CZ R3020 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3020 J0JCC0000100 片状电感 1 (J) R3020 TAJAAH0101JV M 100 OHM,J,1/16W 1 (H) TH-42PW6CH R3021 TAJAAH0101JV M 100 OHM,J,1/16W 1 (H) TH-42PW6CH R3021 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3021 J0JCC0000100 片状电感 1 (J) R3022 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3022 J0JCC0000100 片状电感 1 (J) R3022 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3023 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3023 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3024 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (J) R3025 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HZ) TH-42PW6CZ R3025 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (J) R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3026 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HZ) TH-42PW6CZ R3026 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3027 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3027 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3027,28 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 (J) R3028 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3028 ERJ3GEYJ820 M 82 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3029 ERJ3EKF2200 M 220 OHM, 1/16W 1 (HV) TH-42PW6CZ R3029 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (J) R3030 ERJ3EKF3900 M 390 0HM, 1/16W 1 (HV) TH-42PW6CZ R3030 J0JCC0000100 片状电感 1 (J) R3031 ERJ3EKF4700 M 470 OHM, 1/16W 1 (HV) TH-42PW6CZ R3031 J0JCC0000100 片状电感 1 (J) 参考号 部件号 部件名称及说明 件数 备注 R3031 ERJ3EKF1800 M 180 OHM, 1/16W 1 (HY) TH-42PWD6CY R3031 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (H) TH-42PW6CH R3032 ERJ3EKF6200 M 620 OHM, 1/16W 1 (HY) TH-42PWD6CY R3032 ERJ3EKF1200 M 120 OHM, 1/16W 1 (HV) TH-42PW6CZ R3032 TAJAAH0101JV M 100 OHM,J,1/16W 1 (H) TH-42PW6CH R3032,33 J0JCC0000100 片状电感 2 (J) R3033 TAJAAH0101JV M 100 OHM,J,1/16W 1 (J) R3034 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (H) TH-42PW6CH R3034 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 (J) R3035 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (H) TH-42PW6CH R3035 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3035 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 (HZ) TH-42PW6CZ R3035 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3036 ERJ6ENF1800 M 180 OHM, 1/10W 1 (HY) TH-42PWD6CY R3036 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3036 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 (J) R3036 ERJ6ENF1800 M 180 OHM, 1/10W 1 (HV) TH-42PW6CZ R3037 ERJ3EKF2200 M 220 OHM, 1/16W 1 (HV) TH-42PW6CZ R3037 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HZ) TH-42PW6CZ R3037 J0JCC0000100 片状电感 1 (J) R3038 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3038 J0JCC0000100 片状电感 1 (J) R3038 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (H) TH-42PW6CH R3038 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3039 TAJAAH0101JV M 100 OHM,J,1/16W 1 (H) TH-42PW6CH R3039 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 (J) R3040 ERJ3EKF3300 M 330 OHM, 1/16W 1 (HV) TH-42PW6CZ R3040 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 (J) R3040 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 1 (H) TH-42PW6CH R3040 ERJ3EKF3300 M 330 OHM, 1/16W 1 (HY) TH-42PWD6CY R3041 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 1 (H) TH-42PW6CH R3041 ERJ3EKF1800 M 180 OHM, 1/16W 1 (HV) TH-42PW6CZ R3041 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 (J) R3041 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HZ) TH-42PW6CZ R3042 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 (HV) TH-42PW6CZ R3042 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HZ) TH-42PW6CZ R3042 J0JCC0000100 片状电感 1 (J) R3042 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 (HY) TH-42PWD6CY R3043 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3043 J0JCC0000100 片状电感 1 (J) R3044 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3045 ERJ3EKF2200 M 220 OHM, 1/16W 1 (HY) TH-42PWD6CY R3045 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3045 ERJ3EKF2200 M 220 OHM, 1/16W 1 (HY) TH-42PWD6CY R3045 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (H) TH-42PW6CH R3046 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (H) TH-42PW6CH 参考号 部件号 部件名称及说明 件数 备注 123 R3046 ERJ3EKF1000 M 100 OHM, 1/16W 1 (HY) TH-42PWD6CY R3046 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (J) R3046 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3047 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3047 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (J) R3047 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3048 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 (J) R3048 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3049 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3049 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 (J) R3049 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3050 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HY) TH-42PWD6CY R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (J) R3050 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HV) TH-42PW6CZ R3050 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HY) TH-42PWD6CY R3051 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3051 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3051 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 (J) R3052 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3052 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 (J) R3052 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 1 (H) TH-42PW6CH R3053 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 1 (H) TH-42PW6CH R3053 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3053 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (J) R3053 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3054 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3054 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (J) R3054 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3055 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3055 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3055 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 (J) R3056 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3056 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 (J) R3056 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (H) TH-42PW6CH R3056 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3057 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3057 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (H) TH-42PW6CH R3057 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (J) R3057 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3058 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 (J) R3058 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3058 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3060 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3060 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3060 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3061 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3061 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3061 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3061 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (H) TH-42PW6CH R3062 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (H) TH-42PW6CH R3062 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (J) R3062 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3063 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 (J) R3064 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HV) TH-42PW6CZ R3064 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 (J) R3065 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HV) TH-42PW6CZ R3065 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HY) TH-42PWD6CY R3065-69 ERJ6GEYJ560 M 56 OHM,J,1/10W 5 R3070-75 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3076-81 ERJ6GEYJ560 M 56 OHM,J,1/10W 6 R3082,83 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3084,85 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3086,87 J0JCC0000100 片状电感 2 R3088-93 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3094-96 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3097,98 J0JCC0000100 片状电感 2 R3099,00 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3101 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3101 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3101 ERJ6ENF1800 M 180 OHM, 1/10W 1 (J) R3102 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3102 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3102,03 ERJ6ENF1800 M 180 OHM, 1/10W 2 (J) R3104 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3104 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3104,05 ERJ6ENF1800 M 180 OHM, 1/10W 2 (J) R3106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3106 ERJ6ENF1800 M 180 OHM, 1/10W 1 (J) R3106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3107 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3107 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3107 J0JCC0000100 片状电感 1 (J) R3108 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3108 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3108 J0JCC0000100 片状电感 1 (J) R3112 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 (HV) TH-42PW6CZ R3112 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 (HY) TH-42PWD6CY R3112 J0JCC0000100 片状电感 1 (J) R3113 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 124 R3113 ERJ3EKF1501 M 1.5KOHM, 1/16W 1 (HV) TH-42PW6CZ R3113 J0JCC0000100 片状电感 1 (J) R3114 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3114 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3114 ERJ6ENF8200 M 820 OHM, 1/10W 1 (J) R3115 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (J) R3115 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3116 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HV) TH-42PW6CZ R3116 J0JCC0000100 片状电感 1 (J) R3117 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3117 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 (J) R3117 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3118 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3118 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 (J) R3118 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3119 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 (J) R3119 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3120 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3120 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3121 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3121 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3121 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3122 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 (HY) TH-42PWD6CY R3122 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 (HV) TH-42PW6CZ R3122 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3123 ERJ3EKF1502 M 15KOHM, 1/16W 1 (HV) TH-42PW6CZ R3123 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3123 ERJ3EKF1502 M 15KOHM, 1/16W 1 (HY) TH-42PWD6CY R3124 ERJ3EKF10R0 M 10 OHM, 1/16W 1 (HY) TH-42PWD6CY R3124 ERJ3EKF10R0 M 10 OHM, 1/16W 1 (HV) TH-42PW6CZ R3124 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3125 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3125 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3125,26 ERJ6GEY0R00 M 0 OHM, 1/10W 2 (J) R3127 ERJ6ENF12R0 M 12 OHM, 1/10W 1 (HV) TH-42PW6CZ R3127 ERJ6ENF12R0 M 12 OHM, 1/10W 1 (HY) TH-42PWD6CY R3127 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (J) R3128,29 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 (J) R3129 ERJ6ENF12R0 M 12 OHM, 1/10W 1 (HV) TH-42PW6CZ R3129 ERJ6ENF12R0 M 12 OHM, 1/10W 1 (HY) TH-42PWD6CY R3130,31 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 (J) R3131 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3131 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3132,33 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 R3132,33 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3135 ERJ6ENF10R0 M 10 OHM, 1/10W 1 (HY) TH-42PWD6CY R3135 ERJ6ENF10R0 M 10 OHM, 1/10W 1 (HV) TH-42PW6CZ R3136-39 ERJ3GEY0R00 M 0 OHM, 1/16W 4 (HV) TH-42PW6CZ R3136-39 ERJ3GEY0R00 M 0 OHM, 1/16W 4 (HY) TH-42PWD6CY R3140 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3140 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3140 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 (J) R3141 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3141 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3141 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 (J) R3142,43 ERJ3GEY0R00 M 0 OHM, 1/16W 2 (HY) TH-42PWD6CY R3142,43 ERJ3GEY0R00 M 0 OHM, 1/16W 2 (HV) TH-42PW6CZ R3144,45 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 (HY) TH-42PWD6CY R3144,45 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 (HV) TH-42PW6CZ R3148,49 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3148,49 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 (HV) TH-42PW6CZ R3151 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3151 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3152 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3152 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3154,55 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3154,55 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 (HV) TH-42PW6CZ R3156 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3156 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3157 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3157 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3158 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3158 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3159 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HY) TH-42PWD6CY R3159 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HV) TH-42PW6CZ R3160 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 (HV) TH-42PW6CZ R3160 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 (HY) TH-42PWD6CY R3160 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 (J) R3161 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 (HV) TH-42PW6CZ R3161 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 125 R3161 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 (J) R3162,63 ERJ3EKF2701 M 2.7KOHM, 1/16W 2 (HV) TH-42PW6CZ R3162,63 ERJ3EKF2701 M 2.7KOHM, 1/16W 2 (HY) TH-42PWD6CY R3164-67 ERJ3GEY0R00 M 0 OHM, 1/16W 4 (HY) TH-42PWD6CY R3164-67 ERJ3GEY0R00 M 0 OHM, 1/16W 4 (HV) TH-42PW6CZ R3168 ERJ3EKF2000 M 200 OHM, 1/16W 1 (HV) TH-42PW6CZ R3168 ERJ3EKF2000 M 200 OHM, 1/16W 1 (HY) TH-42PWD6CY R3169-72 ERJ6ENF75R0 M 75 OHM, 1/10W 4 (HY) TH-42PWD6CY R3169-72 ERJ6ENF75R0 M 75 OHM, 1/10W 4 (HV) TH-42PW6CZ R3173 ERJ3EKF2200 M 220 OHM, 1/16W 1 (HV) TH-42PW6CZ R3173 ERJ3EKF2200 M 220 OHM, 1/16W 1 (HY) TH-42PWD6CY R3174 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3174 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3177 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HV) TH-42PW6CZ R3177 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HY) TH-42PWD6CY R3178 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HY) TH-42PWD6CY R3178 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HV) TH-42PW6CZ R3179 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HV) TH-42PW6CZ R3179 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HY) TH-42PWD6CY R3180 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HY) TH-42PWD6CY R3180 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HV) TH-42PW6CZ R3181 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HV) TH-42PW6CZ R3181 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HY) TH-42PWD6CY R3182 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HY) TH-42PWD6CY R3182 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HV) TH-42PW6CZ R3183 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HV) TH-42PW6CZ R3183 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 (HY) TH-42PWD6CY R3184 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HY) TH-42PWD6CY R3184 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 (HV) TH-42PW6CZ R3185 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HV) TH-42PW6CZ R3185 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HV) TH-42PW6CZ R3188 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HY) TH-42PWD6CY R3188 ERJ6ENF75R0 M 75 OHM, 1/10W 1 (HV) TH-42PW6CZ R3189 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3189 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3190 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3189,90 ERJ6ENF75R0 M 75 OHM, 1/10W 2 (J) 参考号 部件号 部件名称及说明 件数 备注 R3190 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3191 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3191,92 ERJ14YJ330 M 33 OHM, J,1/4W 2 (J) R3192 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3193 ERJ14YJ330 M 33 OHM, J,1/4W 1 (J) R3193 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3194 ERJ14YJ330 M 33 OHM, J,1/4W 1 (J) R3194 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3195 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3195,96 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 (J) R3197,98 ERJ3GEYJ123 M 12KOHM,J,1/16W 2 R3199-04 ERJ6ENF1800 M 180 OHM, 1/10W 6 R3202 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3203 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3204 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3205-07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 (HY) TH-42PWD6CY R3210,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3212-15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R3216-19 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4 R3230,31 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3251 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3251 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3252 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3253 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3253 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3253 J0JCC0000100 片状电感 1 (J) R3254 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3254 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 (J) R3255 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 (HV) TH-42PW6CZ R3255 ERJ6ENF8200 M 820 OHM, 1/10W 1 (J) R3256 J0JCC0000100 片状电感 1 R3257 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3259 J0JCC0000100 片状电感 1 R3260-62 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3297,98 J0JCC0000100 片状电感 2 R3300,01 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 (HV) TH-42PW6CZ R3300,01 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 (HY) TH-42PWD6CY R3302 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3302 ERJ3GEYJ203 M 20KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3303,04 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 (HV) TH-42PW6CZ R3303,04 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3305 ERJ6GEY0R00 M 0 OHM, 1/10W 1 (HV) TH-42PW6CZ R3305-09 ERJ3GEYJ103 M 10KOHM,J,1/16W 5 (HY) TH-42PWD6CY R3307 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HV) TH-42PW6CZ R3308,09 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 (HV) TH-42PW6CZ 参考号 部件号 部件名称及说明 件数 备注 126 R3313 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3313 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3314 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3314 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3315 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3317,18 ERJ3GEYJ333 M 33KOHM,J,1/16W 2 (HY) TH-42PWD6CY R3319 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 (HV) TH-42PW6CZ R3334 ERJ3GEY0R00 M 0 OHM, 1/16W 1 (HY) TH-42PWD6CY R3337,38 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 (HV) TH-42PW6CZ R3337,38 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3400 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3401 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 (HY) TH-42PWD6CY R3402 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 (HY) TH-42PWD6CY R3403 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 (HY) TH-42PWD6CY R3404 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 (HY) TH-42PWD6CY R3405 ERJ3EKF2701 M 2.7KOHM, 1/16W 1 (HY) TH-42PWD6CY R3406 ERJ3EKF1801 M 1.8KOHM, 1/16W 1 (HY) TH-42PWD6CY R3407 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 (HY) TH-42PWD6CY R3408 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3409 ERJ6ENF6800 M 680 OHM, 1/10W 1 (HY) TH-42PWD6CY R3410 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 (HY) TH-42PWD6CY R3411 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3412 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 (HY) TH-42PWD6CY R3413 ERJ3EKF1800 M 180 OHM, 1/16W 1 (HY) TH-42PWD6CY R3418 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 (HY) TH-42PWD6CY R3501,02 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 (HY) TH-42PWD6CY R3506,07 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 (HY) TH-42PWD6CY R3508,09 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3510,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3514-17 TAJAAH0101JV M 100 OHM,J,1/16W 4 (HY) TH-42PWD6CY R3521,22 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 (HY) TH-42PWD6CY R3525-28 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 (HY) TH-42PWD6CY R3529 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (HX) R3529 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3530 ERJ6GEYJ184 M 180KOHM,J,1/10W 1 (HX) R3530 TAJAAH0101JV M 100 OHM,J,1/16W 1 (HY) TH-42PWD6CY R3531,32 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3535,36 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 (HY) TH-42PWD6CY 参考号 部件号 部件名称及说明 件数 备注 R3538,39 TAJAAH0101JV M 100 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3544,45 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 (HY) TH-42PWD6CY R3546,47 ERJ3GEYJ3R3 M 3.3 OHM,J,1/16W 2 (HY) TH-42PWD6CY R3547,48 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3585,86 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R3589 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3590 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R3591-93 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R3653 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3654 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3655 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3656 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3663,64 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3668 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3672 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3776,77 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3778 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3790,91 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6401-08 ERJ6GEYJ221 M 220 OHM,J,1/10W 8 R6409 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6410,11 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6412 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6413 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6420-23 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6424 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6425-28 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6429 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6431 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6433 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6441 ERJ6ENF7502 M 75KOHM, 1/10W 1 R6442 ERJ6ENF6982 M69.8KOHM, 1/10W 1 R6443 EVMEASA00B24 CONTROL 20KOHMB 0.3W 1 R6444 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R6445 ERJ6ENF2551 M2.55KOHM, 1/10W 1 R6446 ERJ14YJ224 M 220KOHM, J,1/4W 1 R6447 ERG2FJS223D M 22KOHM, J, 2W 1 R6448 ERG2FJS472D M 82KOHM, J, 3W 1 R6449,50 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6452 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6453 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6454 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6455 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6456 ERJ6ENF4533 M 453KOHM, 1/10W 1 R6457,58 ERJ6ENF1002 M 10KOHM, 1/10W 2 R6459 ERJ14YJ104 M 100KOHM, J,1/4W 1 R6460 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6461 ERG1FJS471D M 470 OHM, J, 1W 1 R6463 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6464 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6465 ERX2FJS8R2D M 8.2 OHM, J, 2W 1 R6466 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6467 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6469 ERJ6GEYJ163 M 16KOHM,J,1/10W 1 R6470 ERJ14YJ153 M 15KOHM, 1/2W 1 R6471 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6472 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6473 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6474 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6475 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6476 ERJ6ENF3243 M 324KOHM, 1/10W 1 R6477 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 R6478 ERJ6ENF6981 M6.98KOHM, 1/10W 1 R6479 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6480 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6482 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 127 R6483 ERJ14YJ622 M 62KOHM, J,1/4W 1 R6484 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6485,86 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6488 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6489 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6491 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6492,93 ERJ6ENF2203 M 220KOHM, 1/10W 2 R6495,96 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6497 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6498,99 ERX1FJS8R2D M 8.2 OHM, J, 1W 2 R6500 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6501 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6502 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6503-09 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 7 R6510 ERX3FJS2R2D M 2.2 OHM, J, 3W 1 R6511 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6512 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6513 ERX3FJS2R2D M 2.2 OHM, J, 3W 1 R6514 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6515 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6516 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 D0GB101JA006 R6518 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6519 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6520 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6521 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6522 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6524 ERJ6ENF2001 M 2KOHM, 1/10W 1 R6525 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6526 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6527 ERJ14YJ102 M 1KOHM, J,1/4W 1 R6528 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6529 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6530-35 ERJ6GEYJ220 M 22 OHM,J,1/10W 6 R6538 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 D0GB101JA006 R6539 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6540 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6541 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6542-47 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 6 R6550 ERG1FJS332D M 3.3KOHM, J, 1W 1 R6551 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6552,53 ERJ6ENF1003 M 100KOHM, 1/10W 2 R6554 ERJ6ENF1002 M 10KOHM, 1/10W 1 R6555 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6556 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6557 EVMEASA00B14 CONTROL 10KOHMB 0.3W 1 R6558 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6559 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6560,61 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6562 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6563 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 1 R6565 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 D0GB101JA006 R6566 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6567,68 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6571-78 ERJ6GEYJ471 M 470 OHM,J,1/10W 8 R6580 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 D0GB101JA006 R6581 TAJAAH0101JV M 100 OHM,J,1/16W 1 R6582,83 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6584 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6585 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6586 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6587 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6588,89 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6590 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6591 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6592,93 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6594 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6595,96 ERJ6ENF5231 M5.23KOHM, 1/10W 2 参考号 部件号 部件名称及说明 件数 备注 R6599,00 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6601 ERD25V0T M OHM, 1/10W 1 R6603 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6604 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6605-07 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6608,09 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6610 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6611-14 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 4 R6615 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6616 ERDS1FJ221 C 220 OHM, J,1/2W 1 R6617,18 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 2 R6619,20 ERJ6GEYJ240 M 24 OHM,J,1/10W 2 R6621 ERJ6ENF1543 M 154KOHM, 1/10W 1 R6623 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6624 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6625 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6626 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 D0GB101JA006 R6627,28 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6629 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6630-35 ERJ12Y0R00 M 0 OHM,J, 1/2W 6 R6636-39 ERJ12YJ1R0 M 1 OHM, J,1/2W 4 R6641,42 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 2 R6643,44 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6645,46 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6647,48 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 2 R6649-54 ERJ6GEYJ680 M 68 OHM,J,1/10W 6 R6655 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6656 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6658 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R6659,60 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6661,62 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6663 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R6664 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R6665,66 ERJ6GEYJ680 M 68 OHM,J,1/10W 2 D0GB101JA006 R6667,68 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6669 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R6670 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R6671 ERG3FJS821D M 820 OHM, J, 3W 1 R6672 ERJ12YJ101 M 100 OHM,J, 1/2W 1 R6673 ERG1SJ100P M 10 OHM, J, 1W 1 R6675 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R6676 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R6678,79 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R6680,81 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R6682-85 ERJ3GEYJ471 M 470 OHM,J,1/16W 4 R6686-89 ERJ3GEYJ473 M 47KOHM,J,1/16W 4 R6690,91 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R6692,93 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R6694,95 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R6697,98 ERJ3GEYJ473 M 47KOHM,J,1/16W 2 R6701 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6702 ERD25V0T M OHM, 1/10W 1 R6711-14 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 4 R6719,20 ERJ6GEYJ240 M 24 OHM,J,1/10W 2 R6723 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6724 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6725 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6726 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 D0GB101JA006 R6727,28 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6730-35 ERJ12Y0R00 M 0 OHM,J, 1/2W 6 R6736-39 ERJ12YJ1R0 M 1 OHM, J,1/2W 4 R6741,42 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 2 R6743,44 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6747,48 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 2 R6755 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6756 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 D0GB101JA006 R6759,60 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6761 ERJ12YJ470 M 47 OHM, J,1/2W 1 R6762-64 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6765 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 128 R6766-68 ERJ6GEYJ223 M 22KOHM,J,1/10W 3 R6769,70 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6771 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6772 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6773 ERJ6GEYJ272 M 2.7KOHM,J,1/10W 1 R6774 EVMEASA00B53 CONTROL 5KOHMB 0.3W 1 R6777,78 ERX3FJSR22D M 2.2 OHM, J, 3W 2 R6779,80 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6781 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 D0GB101JA006 R6782,83 TAJAAH0101JV M 100 OHM,J,1/16W 2 R6784 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6785,86 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6787 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6788 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6789 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6801-03 ERJ3GEYJ471 M 470 OHM,J,1/16W 3 R6804-06 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R6807-09 ERJ3GEYJ471 M 470 OHM,J,1/16W 3 R6810-12 ERJ3GEYJ473 M 47KOHM,J,1/16W 3 R6818,19 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6820 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6821 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6823 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6824 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6825 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6826 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 1 R6827 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R7105 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7111-21 ERJ14YJ220 M 22 OHM, J,1/4W 11 D0GB470JA006 R7126-28 TAJAAH0470JV M 47 OHM,J,1/16W 3 R7130 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7132 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7136 ERJ14YJ220 M 22 OHM, J,1/4W 1 D0GB470JA006 R7142-59 TAJAAH0470JV M 47 OHM,J,1/16W 18 R7161 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7162-65 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7166-69 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7170-73 ERJ3GEYJ121 M 120 OHM,J,1/16W 4 R7175-77 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R7178 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7187 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7188 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7189 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7190 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7192 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7205 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7211-18 ERJ14YJ220 M 22 OHM, J,1/4W 8 R7219 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7221-24 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 D0GB470JA006 R7226-30 TAJAAH0470JV M 47 OHM,J,1/16W 5 D0GB470JA006 R7232 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7233-40 ERJ14YJ220 M 22 OHM, J,1/4W 8 D0GB470JA006 R7241-64 TAJAAH0470JV M 47 OHM,J,1/16W 24 R7268,69 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7278 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R7285-87 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R7289-92 ERJ3GEYJ181 M 180 OHM,J,1/16W 4 R7293-96 ERJ3GEYJ121 M 120 OHM,J,1/16W 4 R7297-00 ERJ3GEYJ220 M 22 OHM,J,1/16W 4 R7301-04 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R7305 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R7306 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R7309,10 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R8001-08 J0JCC0000100 片状电感 8 R8009-16 ERJ3GEYJ271 M 270 OHM,J,1/16W 8 R8017-20 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 4 R8021,22 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R8025 J0JCC0000100 片状电感 1 参考号 部件号 部件名称及说明 件数 备注 R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8027 J0JCC0000100 片状电感 1 R8028 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8029,30 ERJ6ENF3301 M 3.3KOHM, 1/10W 2 R8031,32 ERJ6ENF2201 M 2.2KOHM, 1/10W 2 R8033,34 ERJ3GEYJ104 M 100KOHM,J,1/16W 2 R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8037-40 ERJ6ENF4701 M 4.7KOHM, 1/10W 4 R8041,42 ERJ3GEYJ183 M 18KOHM,J,1/16W 2 R8043,44 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R8045,46 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R8047 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8048-51 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 4 D0GB101JA002 R8054-59 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R8060 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8061 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8062 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 D0GB101JA002 R8065-70 ERJ3GEYJ101 M 100 OHM,J,1/16W 6 R8071,72 J0JCC0000100 片状电感 2 R8077-82 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 6 R8083-85 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 R8087 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8089 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8091 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8093,94 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R8097-00 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9001 EXB38V470J 电阻阵列 1 R9002,03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9004 EXB38V470J 电阻阵列 1 D0GB101JA006 R9005 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9006 EXB38V470J 电阻阵列 1 D0GB101JA006 R9007-09 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9010 EXB38V470J 电阻阵列 1 D0GB101JA006 R9011 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9012 EXB38V470J 电阻阵列 1 R9014 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9015,16 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R9017 EXB38V470J 电阻阵列 1 R9018-20 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9022-24 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9025 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9026 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9027 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9028 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9029 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9030 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9031 EXB38V470J 电阻阵列 1 R9032,33 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9034 EXB38V470J 电阻阵列 1 D0GB101JA006 R9035 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9036 EXB38V470J 电阻阵列 1 D0GB101JA006 R9037-39 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9040 EXB38V470J 电阻阵列 1 D0GB101JA006 R9042 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9043 EXB38V470J 电阻阵列 1 R9044 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9045 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9046 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9047 EXB38V470J 电阻阵列 1 R9050-53 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9054-56 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9057 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9058 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9059 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9060 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9061 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9062 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9104-07 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9109,10 ERJ6GEY0R00 M 0 OHM, 1/10W 2 参考号 部件号 部件名称及说明 件数 备注 129 R9111,12 ERJ3GEYJ330 M 33 OHM,J,1/16W 2 R9113 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9114,15 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9117-20 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R9122 ERJ6GEY0R00 M 0 OHM, 1/10W 1 D0GB101JA006 R9130-35 TAJAAH0101JV M 100 OHM,J,1/16W 6 R9151-55 EXB2HVR000 电阻阵列 5 R9157 EXB2HVR000 电阻阵列 1 R9167,68 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9171,72 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 D0GB101JA006 R9176 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9177 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9178,79 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9180 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9182 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9183 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R9187 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9190 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9199 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9200 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9202 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9203-05 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9207,08 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9216 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9218 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9219 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9220,21 ERJ3GEYJ151 M 150 OHM,J,1/16W 2 R9224 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R9226 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9228 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9229,30 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9231 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9232 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9234 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9236 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9240 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9244,45 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9302 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9303 EXB38V103J 电阻阵列 1 R9306 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9308 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9310 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9311 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9315 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9322 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9330 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 D0GB470JA006 R9333 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9335 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9336 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9337 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9339 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9349 EXB38V470J 电阻阵列 1 R9352 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9353 EXB38V470J 电阻阵列 1 R9355 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9357 EXB38V470J 电阻阵列 1 R9362 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9365 EXB38V470J 电阻阵列 1 R9367 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9368 EXB38V470J 电阻阵列 1 R9371 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9373 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB470JA006 R9376 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9380 EXB38V151J 电阻阵列 1 R9411 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9413 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9415 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9417 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9420 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9449 ERJ6GEY0R00 M 0 OHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R9455 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9459 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9460-62 ERJ3GEYJ100 M 10 OHM,J,1/16W 3 R9465,66 EXB2HVR000 电阻阵列 2 R9468 EXB2HVR000 电阻阵列 1 R9469 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9475 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 D0GB101JA006 R9476 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9477,78 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 D0GB101JA006 R9479 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9480,81 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9483 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9484,85 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9486,87 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9488,89 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9490,91 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9501 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9503 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9513-15 ERJ3GEYJ100 M 10 OHM,J,1/16W 3 R9525,26 EXB38V470J 电阻阵列 2 R9530 EXB38V470J 电阻阵列 1 D0GB470JA006 R9532 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9535 TAJAAH0470JV M 47 OHM,J,1/16W 1 D0GB470JA006 R9537 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9538 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9540 EXB38V470J 电阻阵列 1 R9541 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 D0GB470JA006 R9547 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9548 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9551 EXB38V470J 电阻阵列 1 R9553 EXB38V680J 电阻阵列 1 R9558 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9559 EXB38V470J 电阻阵列 1 R9560 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9561 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9562 ERJ3GEYJ151 M 150 OHM,J,1/16W 1 R9564 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9570 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9577 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9585,86 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9592 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9593 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9594 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9595 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9596 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9597 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9600-05 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9607-09 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9611-15 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9618 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9620,21 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9622,23 ERJ3GEY0R00 M 0 OHM, 1/16W 2 D0GB101JA006 R9624 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9625 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9627-29 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9631-35 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9640,41 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9642 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9643 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9648 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9650-53 EXB38V103J 电阻阵列 4 R9654,55 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9670-73 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9675-77 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9679 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9683 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9685-90 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9698 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9700 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9701 TAJAAH0101JV M 100 OHM,J,1/16W 1 D0GB680JA006 参考号 部件号 部件名称及说明 件数 备注 130 R9702 TAJAAH0680JV M 68 OHM,J,1/16W 1 D0GB101JA006 R9703-08 TAJAAH0101JV M 100 OHM,J,1/16W 6 R9709 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9710-16 ERJ3GEYJ151 M 150 OHM,J,1/16W 7 R9717,18 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9719-24 ERJ3GEYJ151 M 150 OHM,J,1/16W 6 R9725 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9726 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9727 EXB38VR000 电阻阵列 1 R9728 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9729-32 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9733 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9734 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9735 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9736 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9737 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9738,39 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9741 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9743-45 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9747 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9748 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9749 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9750 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9751 EXB38V103J 电阻阵列 1 D0GB101JA006 R9752 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9754 EXB38V272J 电阻阵列 1 R9755,56 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9757 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9758 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9759 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9760 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9761 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9762 EXB38V103J 电阻阵列 1 R9763 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9765 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9766 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9767 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9768 EXB38V470J 电阻阵列 1 R9769 EXB38VR000 电阻阵列 1 R9770 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9771 EXB38VR000 电阻阵列 1 D0GB101JA006 R9773 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9774-76 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9777 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R9779 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9781 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9782 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9783,84 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9785,86 EXB38VR000 电阻阵列 2 R9787 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9788 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9789 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R9790 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R9791 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9794 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9795 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 R9798,99 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9800 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9803,04 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9805 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9806 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9810,11 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9814 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9816 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9817 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9818,19 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9820 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9823,24 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9825 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 D0GB101JA006 R9826 TAJAAH0101JV M 100 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R9827 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9829 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9832 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9833 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9834,35 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 D0GB101JA006 R9836 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9837 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9838 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9839,40 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9841,42 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R9843,44 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9846,47 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9848 EXB38V103J 电阻阵列 1 D0GB101JA006 R9849,50 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9851 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9852,53 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9855 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 D0GB101JA006 R9856 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9857 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 D0GB101JA006 R9858 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9859 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 D0GB101JA006 R9860 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9861 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9864 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9865 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9867 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9868 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 D0GB101JA006 R9869 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9871 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9872 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9873 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 D0GB101JA006 R9874,75 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9876 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9878-80 TAJAAH0101JV M 100 OHM,J,1/16W 3 D0GB101JA006 R9882,83 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9885 EXB38V103J 电阻阵列 1 D0GB101JA006 R9886 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9887 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9889 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9890 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9893-96 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9897 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9898 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9900 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9901 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9903-05 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 D0GB101JA006 R9906 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9907 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9908 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9909 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9910 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9913 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R9914 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9916 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9917 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9918 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9919 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9920 ERJ3GEYJ105 M 1MOHM,J,1/16W 1 D0GB101JA006 R9921-23 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9924 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9925 ERJ3GEY0R00 M 0 OHM, 1/16W 1 D0GB101JA006 R9930 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9931 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9932 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9933 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9934 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9935,36 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9937 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9939 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9940 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 131 R9941 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9942 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 D0GB101JA006 R9943 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9944 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9945,46 ERJ3GEYJ100 M 10 OHM,J,1/16W 2 R9947 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9949 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9951,52 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9954-57 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9959,60 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9961 ERJ6ENF1621 M1.62KOHM, 1/10W 1 R9962 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9964 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9965 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9966 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9969 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9971 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9972 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9973 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9984-88 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9991 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9993,94 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9996 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9998 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 RL401 K6B2ADA00007 继电器 1 RL402,03 K6B1ADA00009 继电器 2 RL901 K6B2ADA00007 继电器 1 RM001 PNA4601M05TV REMOCO 接收器 1 RTL TNPA3003 电路板 H3 1 RTL TNPA2826 电路板 J 1 RTL TNPA2953 电路板 H 1 T H - 4 2 P W 6 C H RTL TZTNP020QBS 电路板 HX 1 RTL TNPA2844 电路板 HV 1 T H - 4 2 P W 6 C Z RTL TNPA2843 电路板 HY 1 TH-42PW6DCY RTL TNPA2952 电路板 HZ 1 T H - 4 2 P W 6 C Z RTL TNPA2815 电路板 Z 1 RTL TXNPF1QBSC 电路板 PF 1 RTL TNPA2869 电路板 C1 1 RTL TNPA2870 电路板 C2 1 RTL TZTNP01SFSC 电路板 D 1 RTL TNPA2841AH 电路板 P 1 RTL TXNSC1SHSE 电路板 SC 1 RTL TNPA2958AB 电路板 SD 1 RTL TNPA2871 电路板 SS 1 RTL TNPA2872 电路板 SS2 1 RTL TNPA2873 电路板 SS3 1 参考号 部件号 部件名称及说明 件数 备注 RTL TNPA2957AB 电路板 SU 1 RTL TNPA2868 电路板 S1 1 RTL TNPA2848 电路板 V1 1 S061 K0F162B00002 开关 1 S1550-54 EVQPBD05R 开关 5 SC2 K1KA06A00180 6P 连接接头 1 SC20 K1KA20A00180 20P 连接接头 1 SC23 K1KA03A00213 3P 连接接头 1 SC41-44 K1KB40B00015 40P 连接接头 4 SC45,46 K1KA10A00194 10P 连接接头 2 SD1-D3 K1MN80B00004 80P 连接接头 3 SD46 K1KA10B00209 10P 连接接头 1 SS11 K1KA07A00096 7P 连接接头 1 SS12 K1KA05A00139 5P 连接接头 1 SS23 K1KA11A00073 11P 连接接头 1 SS34 K1KA03A00213 3P 连接接头 1 SS40 K1KB07A00037 7P 连接接头 1 SS41-46 K1MN13B00020 13P 连接接头 6 SS47 K1KB07A00037 7P 连接接头 1 SS48,49 K1KA07A00170 7P 连接接头 2 SU1-U3 K1MN80B00004 80P 连接接头 3 SU45 K1KA10B00209 10P 连接接头 1 T401 ETS25AD1H6AG 转接变压器 1 T501 ETS49BP116AD 转接变压器 1 T502 ETS42BV116AD 转接变压器 1 T901 ETS28AZ1E6AD 转接变压器 1 T6451 G4D1A0000072 转接变压器 1 T6461 ETS13TB139AP 转接变压器 1 T6471 G4D1A0000072 转接变压器 1 TPP1 ERD25V0R00 C 0 OHM, 1/4W 1 V34 K1KA08B00005 8P 连接接头 1 X3101 H0J202500002 晶体 1 (HV) TH-42PW6CZ X3101 H0J202500002 晶体 1 (HY) TH- 42PW6DCY X9302 H0J200500016 晶体 1 X9350 H0J327200038 晶体 1 X9701 H0J245500013 晶体 1 X9702 H0J921400003 晶体 1 X9703 H0J200500016 晶体 1 Z5 K1KA11A00102 11P 连接接头 1 Z6 K1KA04A00195 4P 连接接头 1 Z7 K1KA03A00172 3P 连接接头 1 Z8 K1KA20A00180 20P 连接接头 1 ZA001-03 K4ZZ01000121 接地片 3 ZA3001-08 K4ZZ01000121 接地片 8 参考号 部件号 部件名称及说明 件数 备注
