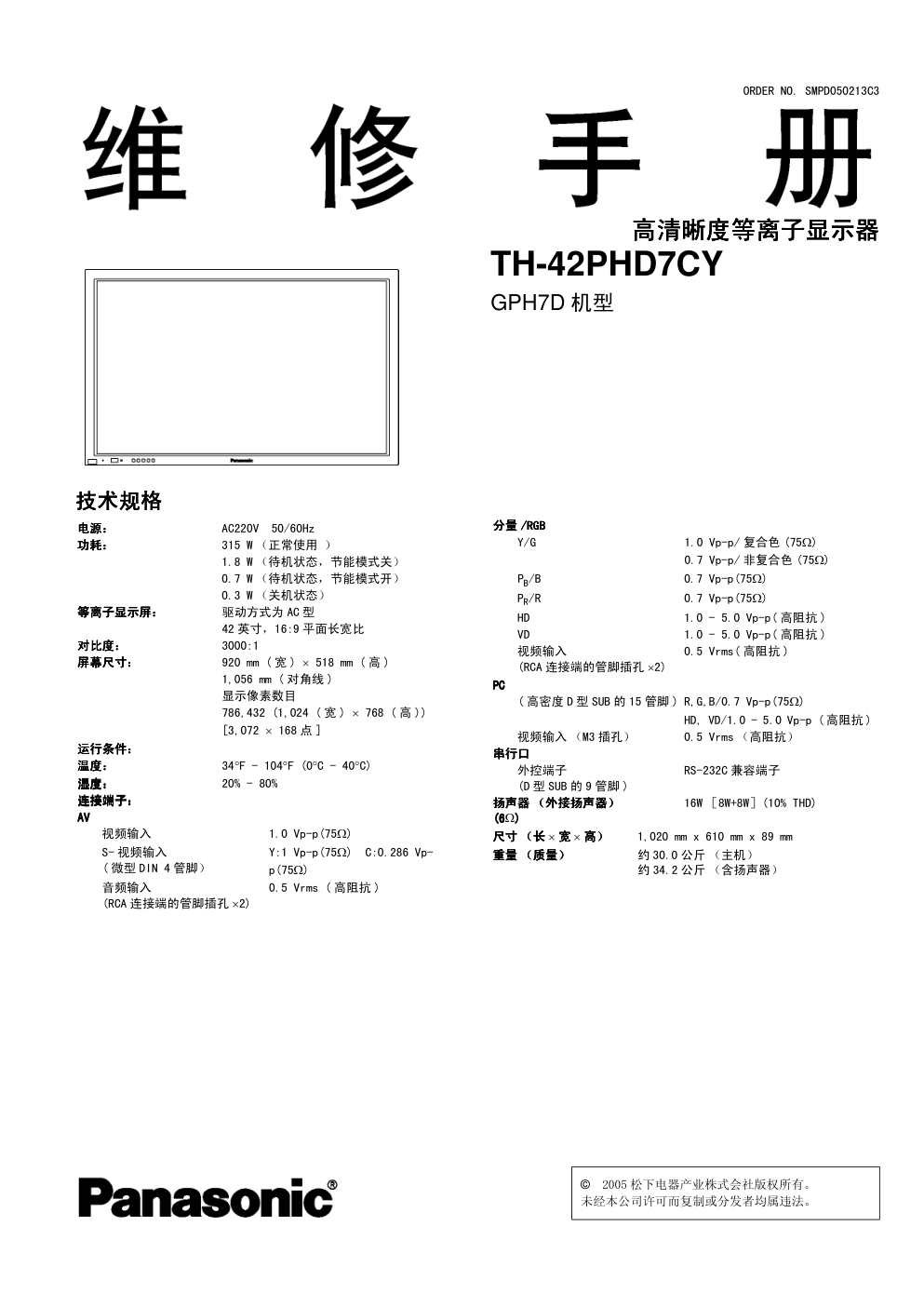

© 2005 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. SMPD050213C3 高清晰度等离子显示器 高清晰度等离子显示器 高清晰度等离子显示器 高清晰度等离子显示器 TH-42PHD7CY GPH7D 机型 技术规格 技术规格 技术规格 技术规格 电源 电源 电源 电源： ： ： ： AC220V 50/60Hz 功耗 功耗 功耗 功耗： ： ： ： 315 W （正常使用 ） 1.8 W （待机状态，节能模式关） 0.7 W （待机状态，节能模式开） 0.3 W （关机状态） 等离子显示屏 等离子显示屏 等离子显示屏 等离子显示屏： ： ： ： 驱动方式为 AC 型 42 英寸，16:9 平面长宽比 对比度 对比度 对比度 对比度： ： ： ： 3000:1 屏幕尺寸 屏幕尺寸 屏幕尺寸 屏幕尺寸： ： ： ： 920 mm ( 宽 ) × 518 mm ( 高 ) 1,056 mm ( 对角线 ) 显示像素数目 786,432 (1,024 ( 宽 ) × 768 ( 高 )) [3,072 × 168 点 ] 运行条件 运行条件 运行条件 运行条件： ： ： ： 温度 温度 温度 温度： ： ： ： 34°F - 104°F (0°C - 40°C) 湿度 湿度 湿度 湿度： ： ： ： 20% - 80% 连接端子 连接端子 连接端子 连接端子： ： ： ： AV AV AV AV 视频输入 1.0 Vp-p(75Ω) S- 视频输入 ( 微型 DIN 4 管脚） Y:1 Vp-p(75Ω) C:0.286 Vp- p(75Ω) 音频输入 (RCA 连接端的管脚插孔 ×2) 0.5 Vrms ( 高阻抗 ) 分量 分量 分量 分量 ////RGB RGB RGB RGB Y/G 1.0 Vp-p/ 复合色 (75Ω) 0.7 Vp-p/ 非复合色 (75Ω) PB/B 0.7 Vp-p(75Ω) PR/R 0.7 Vp-p(75Ω) HD 1.0 - 5.0 Vp-p( 高阻抗 ) VD 1.0 - 5.0 Vp-p( 高阻抗 ) 视频输入 (RCA 连接端的管脚插孔 ×2) 0.5 Vrms( 高阻抗 ) PC PC PC PC ( 高密度 D 型 SUB 的 15 管脚 ) R,G,B/0.7 Vp-p(75Ω) HD, VD/1.0 - 5.0 Vp-p ( 高阻抗 ) 视频输入 （M3 插孔） 0.5 Vrms （高阻抗） 串行口 串行口 串行口 串行口 外控端子 (D 型 SUB 的 9 管脚 ) RS-232C 兼容端子 扬声器 扬声器 扬声器 扬声器 （ （ （ （外接扬声器 外接扬声器 外接扬声器 外接扬声器） ） ） ） (6 (6 (6 (6Ω) ) ) ) 16W ［8W+8W］(10% THD) 尺寸 尺寸 尺寸 尺寸 （ （ （ （长 长 长 长 × 宽 宽 宽 宽 × 高 高 高 高） ） ） ） 1,020 mm x 610 mm x 89 mm 重量 重量 重量 重量 （ （ （ （质量 质量 质量 质量） ） ） ） 约 30.0 公斤 （主机） 约 34.2 公斤 （含扬声器） 2 目录 页数 页数 1 适用信号 ---------------------------------------- 4 2 安全警告 ---------------------------------------- 5 2.1. 一般准则 ---------------------------------- 5 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) --------- 6 4 关于无铅焊接 (PbF) ------------------------------ 7 5 GPH7D 机型的 PCB 结构表 -------------------------- 8 6 维修提示 ---------------------------------------- 9 7 P.C.B. 板和等离子显示屏更换方式 ---------------- 10 7.1. 取下后盖 --------------------------------- 10 7.2. 取下 P 板 --------------------------------- 10 7.3. 取下 Z 板 --------------------------------- 10 7.4. 取下 D 板 --------------------------------- 10 7.5. 取下 PF 板 -------------------------------- 10 7.6. 取下 SU 板 -------------------------------- 11 7.7. 取下 SD 板 -------------------------------- 11 7.8. 取下 SC 板 -------------------------------- 12 7.9. 取下 SS3 板 -------------------------------- 12 7.10. 取下 SS2 板 -------------------------------- 12 7.11. 取下 SS 板 -------------------------------- 12 7.12. 取下 H3 板 --------------------------------- 13 7.13. 取下风扇 （左）和风扇 （右） --------------- 13 7.14. 取下 C1 板 -------------------------------- 13 7.15. 取下 C2 板 -------------------------------- 13 7.16. 取下插槽盒 （J 板，HY 板，HX 板）------------ 14 7.17. 取下 J 板、HY 板和 HX 板--------------------- 14 7.18. 取下支撑架 ------------------------------- 15 7.19. 取下 C3 板 -------------------------------- 15 7.20. 取下 C4 板 -------------------------------- 15 7.21. 取下 S1 板 --------------------------------- 15 7.22. 从面框上取下等离子显示屏 （玻璃）---------- 16 7.23. 更换等离子显示屏 （完成）------------------ 16 7.24. 连接柔性电缆 ----------------------------- 17 8 导线布置 --------------------------------------- 18 9 调整步骤 --------------------------------------- 19 9.1. 驱动设置 --------------------------------- 19 9.2. 初始化脉冲调整 --------------------------- 20 9.3. P.C.B. ( 印刷电路板 ) 更换 ----------------- 21 9.4. 调整电压位置 ----------------------------- 21 9.5. 测试点位置 ------------------------------- 21 10 维修模式 --------------------------------------- 22 10.1. CAT ( 计算机辅助检测 ) 模式 ---------------- 22 10.2. IIC 模式结构 ( 以下各值为样本数据 )--------- 24 11 微调 ------------------------------------------- 25 11.1. 背景设置 (C) ------------------------------ 25 11.2. 背景设置 (B) ------------------------------ 26 11.3. NTSC 显示屏白平衡 ------------------------- 27 11.4. PAL/SECAM 显示屏白平衡 -------------------- 28 11.5. PC/RGB 显示屏白平衡 ----------------------- 30 11.6. HD/525i/525p/625I/625P 显示屏白平衡 ------- 32 12 故障检修指南------------------------------------ 34 12.1. 自检 ------------------------------------- 34 12.2. 无电源 ----------------------------------- 35 12.3. 无图像 ----------------------------------- 36 12.4. 显示屏局部故障 --------------------------- 36 13 选项设置 ----------------------------------------37 13.1. 如何进入并设置 ----------------------------37 13.2. 选项菜单目录 ------------------------------38 14 导线图 ------------------------------------------39 14.1. PF 电路板 ---------------------------------39 14.2. P 电路板 ----------------------------------41 14.3. HX 电路板 ---------------------------------44 14.4. HY 电路板 ---------------------------------45 14.5. J 电路板 ----------------------------------47 14.6. D 电路板 ----------------------------------49 14.7. C1 电路板 ---------------------------------51 14.8. C2 电路板 ---------------------------------52 14.9. C3 电路板 ---------------------------------53 14.10. C4 电路板 ---------------------------------54 14.11. SC 电路板 ---------------------------------55 14.12. SU 电路板 ---------------------------------58 14.13. SD 电路板 ---------------------------------59 14.14. SS 电路板 ---------------------------------60 14.15. Z 电路板 ----------------------------------62 14.16. H3, S1 和 V1 电路板 ------------------------63 15 电路图 ------------------------------------------64 15.1. 电路图注意事项 ----------------------------64 15.2. 主要集成电路方框图 ------------------------65 15.3. 电源方框图 --------------------------------66 15.4. PF 电路板线路图 ---------------------------67 15.5. P 电路板 (1/6) 线路图 ----------------------68 15.6. P 电路板 (2/6) 线路图 ----------------------69 15.7. P 电路板 (3/6) 线路图 ----------------------70 15.8. P 电路板 (4/6) 线路图 ----------------------71 15.9. P 电路板 (5/6) 线路图 ----------------------72 15.10. P 电路板 (6/6) 线路图 ----------------------73 15.11. HY 电路板方框图 ---------------------------74 15.12. HY 电路板 (1/3) 线路图 ---------------------75 15.13. HY 电路板 (2/3) 线路图 ---------------------76 15.14. HY 电路板 (3/3) 线路图 ---------------------77 15.15. HX 电路板方框图和线路图 -------------------78 15.16. J 电路板方框图 ----------------------------79 15.17. J 电路板 (1/4) 线路图 ----------------------80 15.18. J 电路板 (2/4) 线路图 ----------------------81 15.19. J 电路板 (3/4) 线路图 ----------------------82 15.20. J 电路板 (4/4) 线路图 ----------------------83 15.21. D 电路板 (1/2) 方框图 ----------------------84 15.22. D 电路板 (2/2) 方框图 ----------------------85 15.23. D 电路板 (1/12) 线路图 ---------------------86 15.24. D 电路板 (2/12) 线路图 ---------------------87 15.25. D 电路板 (3/12) 线路图 ---------------------88 15.26. D 电路板 (4/12) 线路图 ---------------------89 15.27. D 电路板 (5/12) 线路图 ---------------------90 15.28. D 电路板 (6/12) 线路图 ---------------------91 15.29. D 电路板 (7/12) 线路图 ---------------------92 15.30. D 电路板 (8/12) 线路图 ---------------------93 15.31. D 电路板 (9/12) 线路图 ---------------------94 15.32. D 电路板 (10/12) 线路图 --------------------95 15.33. D 电路板 (11/12) 线路图 --------------------96 3 15.34. D 电路板 (12/12) 线路图 ------------------- 97 15.35. C1, C2, C3, C4 和 V1 电路板方框图 --------- 98 15.36. C1 电路板 (1/2) 线路图 -------------------- 99 15.37. C1 电路板 (2/2) 线路图 ------------------- 100 15.38. C2 电路板 (1/2) 线路图 ------------------- 101 15.39. C2 电路板 (2/2) 线路图 ------------------- 102 15.40. C3 电路板 (1/2) 线路图 ------------------- 103 15.41. C3(2/2) 和 V1 电路板线路图 --------------- 104 15.42. C4(1/2) 和 V1 电路板线路图 --------------- 105 15.43. C4 电路板 (2/2) 线路图 ------------------- 106 15.44. SC 电路板方框图 ------------------------- 107 15.45. SC 电路板 (1/3) 线路图 ------------------- 108 15.46. SC 电路板 (2/3) 线路图 ------------------- 109 15.47. SC 电路板 (3/3) 线路图 ------------------- 110 15.48. SU 电路板方框图 ------------------------- 111 15.49. SU 电路板 (1/2) 线路图 ------------------- 112 15.50. SU 电路板 (2/2) 线路图 ------------------- 113 15.51. SD 电路板方框图 --------------------------114 15.52. SD 电路板 (1/2) 线路图 --------------------115 15.53. SD 电路板 (2/2) 线路图 --------------------116 15.54. SS, SS2, SS3 和 S1 电路板方框图 -----------117 15.55. SS, SS2, SS3 和 S1 电路板线路图 -----------118 15.56. Z 和 H3 电路板方框图 ----------------------119 15.57. Z(1/2) 和 H3 电路板线路图 -----------------120 15.58. Z 电路板 (2/2) 线路图 ---------------------121 16 部件布置 --------------------------------------123 17 包装分解图 ------------------------------------124 17.1. 包装分解图 (1) ---------------------------124 17.2. 包装分解图 (2) ---------------------------125 17.3. 包装分解图 (3) ---------------------------126 18 维修部品表 ------------------------------------127 19 更换部件清单 ----------------------------------128 19.1. 更换部件清单注意事项 ---------------------128 19.2. 电器部件更换清单 -------------------------129 4 1 适用信号 5 2 安全警告 2.1. 一般准则 1. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 2. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 3. 维修后，进行以下漏电检查，以免用户遭受触电危险。 2.1.1. 漏电冷检查 1. 拔掉 AC 电源线，然后在插头的两个支脚间接上一根跳线。 2. 用欧姆计测量接上跳线的 AC 插头与设备上各外露的金属机 型部分（如螺丝头、连接端、调节杆等）之间的电阻值。外 露金属部分有至机型的回路时，读数应在 1MΩ 和 5.2MΩ 之 间。 当外露金属部分没有至机型的回路时，读数必定为 。 图 1 2.1.2. 漏电热检查 （见图 1） 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使 用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接 一个 1.5kΩ，10W 的电阻，并与 0.15µF 的电容器并联，如 图 1 所示。 3. 用一只 1000Ω/V 或灵敏度更高的 AC 电压表测量穿过电阻 的电势。 4. 检查各外露金属部件并测量各点的电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 任何点上的电势都不能超过 0.75V RMS。漏电测试仪 （Simpson229 型或类似型号）可用于热检测，其中漏电绝 不能超过 0.5mA。当测量值超出规定的限制时，可能会引 起触电。所以必须在机器返回用户手中之前对其进行修理 和再检测。 6 3 对静电灵敏设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易遭静电损坏。这些组件通常被称为静电灵敏装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体 管以及半导体 “芯片”组件。以下方法通常被用来减少由于静电放电 （ESD）所产生的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，及时排除身体上由于接触到已知地线的任何静电放电。或者戴上市场 上出售的抗静电放电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在移动配有静电灵敏装置的电器组件之后，要将该组件放置于导体表面上 （如铝箔），以防组件静电电荷的产生或辐射。 3. 只采用一块接地端烙铁来联结或断开静电灵敏装置。 4. 只采用抗静电联结移动装置。一些不属于“抗静电（静电放电保护）”范围的联结移动装置会产生足以损坏静电灵敏装置的电荷。 5. 切勿使用类似氟利昂推进剂的化学物质。这些化学物质会产生足以损坏静电灵敏装置的电荷。 6. 在准备立即安装之前才能拆开静电灵敏替代装置的保护性包装。（大多数静电灵敏替代装置都是采用铅制包装，通过与传导泡 沫、铝箔或是类似的导体材料一起造成短路）。 7. 在拆掉静电灵敏替代装置上的铅制保护性材料之前，立刻将保护性材料与即将安装该装置的机芯或是电路组件相接触。 注意 确定机型或电路无电源，并遵守其它所有的安全措施。 8. 当处理未包装的静电灵敏替代装置时，尽量减小身体的动作幅度。（否则，一些无关紧要的动作如：衣服织物一起掠过或是从铺 有地毯的地板上抬起脚，都会产生足以损坏静电灵敏装置的静电 （静电放电））。 7 4 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 （Pb）表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造中使用并且下文中讨论的无铅焊接是 (Sn+Ag+Cu)。 即：锡 （Sn），银 （Ag）和铜 （Cu），不过其它类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维修和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意 • 无铅焊接的熔点比标准焊接的高。通常熔点是超过 50 ~ 70°F (30 ~ 40°C)。 请使用高温烙铁，并将其温度设为 700 ± 20°F (370 ± 10°C)。 • 在加热过度 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊接区上的无铅焊料。如果做到这点有实际困难，则确保无铅焊料加热到熔 化之后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧去。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu （锡 + 银 + 铜）焊料。 不过也可使用 Sn+Cu （锡 + 铜），Sn+Zn+Bi （锡 + 锌 + 铋）焊料。 8 5 GPH7D 机型的 PCB 结构表 备注 1. 建议用 PCB 作为 GPH7D 机型的初始维修。 电路板名称 功能 备注 D 数字信号处理器 1 J 插槽接口和 SYNC 处理器 1 Z 音频输出，DC-DC 转换器 SS 维持输出 1 SC 扫描输出 1 SU 维持连接 （上） 1 SD 维持连接 （下） 1 C1 数据驱动 （右上） C2 数据驱动 （左上） C3 数据驱动 （右下） C4 数据驱动 （左下） H3 扬声器接线端子 S1 电源开关 SS3 维持连接 （上） SS2 维持连接 （下） V1 前按钮和遥控接收器 PF 电源滤波 P 主电源 1 HX PC 输入端子 HY BNC 复合 / 分量视频 9 6 维修提示 注意： 延长电缆插口板将作为维修设备或工具提供。 （部件号：TZSC0704） 10 7 P.C.B. 板和等离子显示屏更换方式 � 更换等离子显示屏时，先将本机放在维修台上，取下前框， 然后装上显示屏，注意不要刮伤显示屏表面。 7.1. 取下后盖 7.2. 取下 P 板 注意： 在关闭电源 1 分钟后再取下 P.C.B. 板，以便释放电荷。 1. 取下连接件（P2，P5，P9，P10，P11，P12，P23，P25，P27）。 2. 松开固定螺丝 （×8），之后取下 P 板。 7.3. 取下 Z 板 1. 取下连接件 （Z5，Z6，Z7，Z8，Z10，Z30，Z31）。 2. 松开固定螺丝 (×4 )，之后和支架一起取下 Z 板。 3. 松开固定螺丝 (×4 )，之后取下 Z 板。 7.4. 取下 D 板 1. 松开连接件 (D1，D3，D5，D20，D25，D27) 和柔性电缆 (D31， D32，D33，D34)。 2. 松开固定螺丝 (×5 )，之后和支架一起取下 D 板。 3. 松开固定螺丝 (×3 )，之后取下 D 板。 7.5. 取下 PF 板 1. 取下连接件 （PF9，PF10）和 PF 板屏蔽盖。 2. 松开固定螺丝 (×4 )，之后和支架一起取下 PF 板。 3. 取下连接件 （PF1）和固定螺丝 (×3 )。 4. 松开 AC 插座的固定螺丝 (×2 ) 并取下插座。 5. 取下 PF 板。 11 7.6. 取下 SU 板 1. 松开固定螺丝 (×2)。 2. 将 SU 板移到左边，使其与 SC 板的连接件 （SC41-SU41）断 开，之后取下一个连接件 （SU45 或 SC45）。 3. 松开与 SU 板连接的柔性电缆 （SU1，SU2，SU3，SU4），之 后取下 SU 板。 7.7. 取下 SD 板 1. 取下一个固定螺丝 ( )，之后卸下扬声器端子 （右），并 取下其他两个螺丝 (×2 )。 2. 将 SD 板移到左边，使其与 SC 板的连接件 （SC42-SD42）断 开，之后取下一个连接件 （SD46 或 SC46）。 3. 取下与 SD 板连接的柔性电缆 （SD1，SD2，SD3，SD4），之 后取下 SD 板。 12 7.8. 取下 SC 板 1. 取下连接件 （SC2，SC20，SC23）、固定螺丝 （×6），之后 取下 SC 板。 7.9. 取下 SS3 板 1. 取下连接件 （SS22），之后取下柔性电缆 （SS58）。 2. 松开固定螺丝 （×2），之后取下 SS3 板。 7.10. 取下 SS2 板 1. 松开一个固定螺丝 ( )，之后取下扬声器端子 （左）。 2. 取下连接件 （SS23）柔性电缆 （SS55）。 3. 松开固定螺丝 (×2 )，之后取下 SS2 板。 7.11. 取下 SS 板 1. 取下 SS2 和 SS3 板。 2. 取下连接件 （SS11，SS12，SS32，SS34，SS42）。 3. 取下柔性电缆 （SS51，SS52，SS53，SS54）。 4. 松开固定螺丝 （×7），之后取下 SS 板。 13 7.12. 取下 H3 板 1. 松开固定螺丝 （×3），之后取下 H3 板和连接件 （H37）。 7.13. 取下风扇 （左）和风扇 （右） 1. 松开固定螺丝 （各 ×3），之后取下风扇 （左、右）并断开 继电器连接件。 7.14. 取下 C1 板 1. 取下风扇 （左）。 2. 松开柔性电缆支架固定螺丝 (×8 )，之后取下柔性电缆 （CA1-CA4）。 3. 取下柔性电缆，之后取下电缆上的铆钉。 4. 松开固定螺丝 (×3 )，之后取下 C1 板。 7.15. 取下 C2 板 1. 取下风扇 （右）。 2. 松开柔性电缆支架固定螺丝 (×8 )，之后取下柔性电缆 （CA5-CA8）。 3. 取下柔性电缆 （C21，C22）。 4. 松开固定螺丝 (×3 ) 和连接件 （C32），之后取下 C2 板。 14 7.16. 取下插槽盒 （J 板，HY 板，HX 板） 1. 取下连接件（J1，J3，J5，J6，J8，J10）和固定螺丝（×4）， 之后取下插槽盒。 7.17. 取下 J 板、HY 板和 HX 板 〈HY 板〉 1. 松开固定螺丝（×4），之后和连接盖一起取下（按 ) 方向 拉）HY 板。 〈J 板〉 1. 松开固定螺丝 （×7）并断开连接件 （J14-HX1），之后取下 J 板。 2. 松开固定螺丝 (×6)，之后取下插槽盒盖。 〈HX 板〉 1. 松开固定螺丝 ( ) 和六角螺丝 (×4 )，之后取下 HX 板。 15 7.18. 取下支撑架 1. 将等离子显示屏从维修架上取下，放置在类似桌子 （铺有 软布）的表面上，并且显示屏表面朝下。将一块软布或类似 的东西铺在桌子上进行保护，以防显示屏表面被划伤。 2. 松开支撑架 （左、右）固定螺丝 （×3） ，之后取下支架 （左、右）。 7.19. 取下 C3 板 1. 松开柔性电缆固定螺丝 （×8），之后取下柔性电缆 （CB5， CB6，CB7，CB8）。 2. 取下连接件 (C42，C44）和柔性电缆 （C31，C33），之后从 C3 板的线夹中取出扬声器电缆。 3. 松开固定螺丝 (×3 )，之后取下 C3 板。 7.20. 取下 C4 板 1. 松开柔性电缆固定螺丝 (×8 )，之后取下柔性电缆（CB1， CB2，CB3）。 2. 取下柔性电缆 （C41，C43），之后从 C4 板的线夹 （×2）中 取出扬声器电缆。 3. 松开固定螺丝 (×3 )，之后取下 C4 板。 7.21. 取下 S1 板 1. 松开固定螺丝，之后取下 S1 板和连接件 （S34）。 16 7.22. 从面框上取下等离子显示屏 （玻 璃） 1. 取下面框和等离子显示屏固定螺丝 (×2 )。 2. 取下连接件 （C3 板上的 C44），之后从线夹中取出电缆。 3. 取下 S1 板。 4. 从面框上取下等离子显示屏时，向前拉面框底部，抬起，之 后取下。 7.23. 更换等离子显示屏 （完成） 1. 将新的等离子显示屏放置在类似桌子 （铺有软布）等的表 面上，并且等离子显示屏表面朝下。 2. 安装 C3 板和 C4 板，连接等离子显示屏电缆 （×8）至 C3 板 和 C4 板，之后固定柔性电缆支座。 3. 安装挂钩 （左、右） ，并固定等离子显示屏支撑架 （左、 右）。 4. 将等离子显示屏放置在维修台上。 5. 安装等离子显示屏面框、各 P.C.B. 板等。 * 安装面框时，注意不要让前玻璃和等离子显示屏之间有 碎屑、灰尘或杂质存在。 17 7.24. 连接柔性电缆 C11, C21, C31, C41, CA1-CA8, D31-D34, SD1-SD4, SU1-SU4 C12, C22, C33, C43 CB1-CB8 SS51-SS55, SS58 18 8 导线布置 19 9 调整步骤 9.1. 驱动设置 9.1.1. 项目 / 准备 1. 输入 APL （平均图像电平）100% 白色信号。 2. 设定图像控制：- 图像模式：标准 色调设定：冷色 长宽比： 16:9 9.1.2. 调整 参照显示屏数据标牌上的显示屏数据，调整驱动器各部分的电 压。 * 见显示屏标牌。 名称 测试点 电压 调整点 备注 Vsus TPVSUS(SS 电路板 ) 185V ± 2V R641(P 电路板 ) Ve TPVE(SS 电路板 ) 160V ± 1V VR6145(SS 电路 板 ) Vda TPVDA(SC 电路板 ) 67V ± 1V R665(P 电路板 ) Vad TPVAD(SC 电路板 ) -105V ± 1V VR6477(SC 电路 板 ) Vscn TPVSCN(SC 电路板 ) Vad*+130V ± 4V --- Vset TPVSET(SC 电路板 ) 240V ± 1V VR6541(SC 电路 板 ) PFC C448(+)(-) 395V ± 0.5V R443(P 电路板 ) Vdat C560(+)(-) 69V ± 0.1V R661(P 电路板 ) Vsus TPVSUS 175V ± 1V R608(P 电路板 ) 20 9.2. 初始化脉冲调整 1. 输入一个网格信号。 2. 设定图像控制： - 图像模式：标准 色调设定：冷色 调整指定波形的指定测试点。 测试点 调整点 电平 T1 TPSC1 (SC 电路板 ) VR6523 (SC 电路板 ) 10 ± 5µ Sec T2 TPSS1 (SS 电路板 ) VR6557 (SC 电路板 ) 220 ± 10µ Sec 21 9.3. P.C.B. ( 印刷电路板 ) 更换 9.3.1. 注意 1. 在关闭电源 1 分钟后再取下 P.C.B. 板，以便释放电荷。 9.3.2. 更换 P.C.B. 后进行快速调整 * 见显示屏标牌。 9.4. 调整电压位置 9.5. 测试点位置 P.C.B. 名称 测试点 电压 调整点 备注 P 电路板 Vsus TPVSUS (SS 电路板 ) 185V ± 2V R641 (P 电路板 ) Vda TPVDA (SS 电路板 ) 67V ± 1V R665 (P 电路板 ) SC 电路板 Vad TPVAD (SC 电路板 ) -105V ± 1V VR6477 (SC 电路板 ) Vset TPVSET (SC 电路板 ) 240V ± 1V VR6491 (SC 电路板 ) Vscn TPVSCN (SC 电路板 ) Vad + 130 ± 4V --- SS 电路板 Ve TPVE (SS 电路板 ) 160V ± 1V VR6145 (SS 电路板 ) D, J 电路板 NTSC，PAL，HD，PC 和 625i 信号的白平衡、背景和副亮度。 22 10 维修模式 10.1. CAT ( 计算机辅助检测 ) 模式 若要退出 CAT 模式，请进入 ID 模式，并关闭主电源。 10.1.1. IIC 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的开始键。 主题和项目在第 24 页中提及。 按遥控器上的返回键退出 IIC 模式。 23 10.1.2. CD 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 CD 模式，然后按下遥控器上的静音键 5 秒钟以上。 MiCom 软件版本 （IC9354），该版本可通过以下方式升级： 1. 更换新版本 IC 2. 从装载工具上装入新的软件版本 TZSC07036。 存储数据变更 按遥控器上的返回键退出 CD 模式。 10.1.3. SD 模式 在 CAT 模式的前一页位置处，通过遥控器上的上 / 下键选择 SD 模式，然后按下遥控器上的开始键。 按遥控器上的返回键退出 SD 模式。 24 10.2. IIC 模式结构 ( 以下各值为样本数据 ) 25 11 微调 11.1. 背景设置 (C) 注： 图像：标准 色温 26 11.2. 背景设置 (B) 注： 图像：标准 色温 ����� ���� ��� �� ** ������� 1 �� �������� ��� W/B (525i, 525p, 625i, R cut off 720i � 1080i) ������ �� G cut off B cut off ���� ���� ����� �� 16:9 �� /RGB-IN: RGB Gun off RGB���� G ��� 2 ����� Gun off RGB���� � 2 % B ��� 2 � 0 % ����� Gun off RGB���� R ��� 2 2 RGB(PC) �������� 1) ���������� ���� ��� W/B �� ������ �� R,G,B cut off 2) ��RGB������1��7�� ��� W/B ���� R,G,B Drive 16:9 � 2 % � 0 % �� ���� �� �� �� 1) ��SWAP�,���������� 2) �R, G �B�cut off ����80�� 3) �Gun off ����5��(����������) 4) ��G������2%������������� �����0%������������ 5) �Gun off ����3��(����������) 6) ��B������2%������������� �����0%������������ 7) �Gun off ����6��(����������) 8) ��R������2%������������� �����0%������������ 27 11.3. NTSC 显示屏白平衡 28 11.4. PAL/SECAM 显示屏白平衡 29 30 11.5. PC/RGB 显示屏白平衡 31 32 11.6. HD/525i/525p/625I/625P 显示屏白平衡 33 34 12 故障检修指南 12.1. 自检 12.1.1. 显示器指示 1. 自检用于自动检查等离子显示器的总线控制电路。 2. 要进入自检模式，按下机器前端用户控制器上的音量降低 volume down 键，同时按下遥控器上的 “关机定时”OFF- TIMER 键，显示屏将会显示：- 。 检查 CCU 端口时若发现其不正常或位置不对，则 “-”将会显示 在 “OK”的位置。 12.1.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁次数图。 2. 内容 当设备出现异常时，保护电路将运行并将设备复位到待机状态。此时，通过本机前端的 LED 电源闪烁次数便可识别出故障部位。 3. 备注 以上的风扇功能在安装有风扇过程中运行。 35 12.2. 无电源 第一检查点 LED 无电源指示有 3 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 36 12.3. 无图像 12.4. 显示屏局部故障 等离子显示器屏幕上可能会出现局部故障。图 1 是各局部可能会出现故障的 P.C.B. 印刷电路板。 图 1 37 13 选项设置 13.1. 如何进入并设置 �� ���� ����� ������� �������� ������ ���������� ����� OSD����������� ���3����������� ������������ ������������ ����������60����� ���������� 38 13.2. 选项菜单目录 GPH7D 此机型系列有特殊功能及操作设置装置，称为选项菜单。该选项菜单对于有特殊功能要求的客户很有用。该菜单在安装阶段 设置。由于隐藏于屏幕菜单上，最终用户无法对其进行设置或改变。 注： 如何设置 Remocon 用户标准和遥控 ID 为关。 1. 进入维修模式 （CAT 模式）并按下遥控器上的 SET UP 键。 2. 进入选项菜单。 3. 将 Remocon 用户标准和 / 或遥控 ID 设置为关。 GPH7D 机型隐藏选项菜单 ���� ���� �� �������� �� �������� � ��� ���� � ��������������������� � ��� ���� � ������������������������������ ������ � ���������������������������� ������ � ������������������������� ���� � �������� ����� ���� � �������������������� ��� � ������� � �� ���� � ���� � ��� ������� � ���������� ������������� ������� ���� � ������ ���������� �� ������ �� � ��������������� � �������� ���� �� ������� �� � ����� �� �������� �� �� � � ��� � �� ��� ��� � ���� �� �� � �� �� ��� � �� ���� �� ������������������ ��� � �� ���� �������������� � �� ��� � �� ���� � ��������������� ������������������������ 39 14 导线图 14.1. PF 电路板 A B C D E F G H I 1 2 3 4 5 6 PF-BOARD(FOIL SIDE) TXNPF1VCSC TH-42PHD7CY PF-BOARD TXNPF1VCSC TH-42PHD7CY PF-BOARD TXNPF1VCSC Parts Location PF-BOARD (FOIL SIDE) IC IC910 C-5 IC920 D-4 IC930 D-4 TP921 B-5 TP922 B-5 TP923 C-4 TP930 E-5 TP931 D-5 TP Q930 B-4 TRANSISTOR IC920 T920 IC930 CF901 CF902 F900 F901 F902 TP921 TP922 TP923 PF1 PF9 TP930 TP931 RL920 L912 Q930 L930 R901 R902 R903 R904 R912 R913 R914 R915 R918 R919 R920 R921 R922 R923 R924 R925 R926 R927 R930 R931 R932 R933 R934 R935 R936 R937 R938 R939 C901 C902 C903 R940 C904 R941 C905 R942 C906 C907 C910 C911 C912 C913 C914 C915 C916 C917 C918 C919 LF901 LF902 LF903 C920 S901 S902 C930 C931 ZA901 C932 C933 PF10 D910 D911 D912 D913 D914 D915 D916 D917 D918 D930 IC910 D931 D932 D933 HOT HOT COLD TNPA3196 PF 1 T8AH250V CAUTION COLD LIVE CIRCUIT LIVE CIRCUIT T3.15AL250V CAUTION T8AH250V CAUTION PbF 94V-0 V2 V1 P2 PT P1 S2 S1A S1B SEE REVERSE FOR ORDER NO. 1 4 1 4 E B C 1 6 + - 1 6 3 7 5 4 PF 40 A B C D E F G H I 1 2 3 4 5 6 PF-BOARD(COMPONENT SIDE) TXNPF1VCSC TH-42PHD7CY PF-BOARD TXNPF1VCSC TH-42PHD7CY PF-BOARD TXNPF1VCSC IC920 T920 CF901 JS901 CF902 JS902 JS903 JS904 JS905 F900 F901 F902 PF1 PF9 RL920 L912 Q930 J2 J3 J6 J7 J8 J9 L930 J10 J11 J12 R901 R902 R903 R904 R912 R913 R914 R915 R918 R919 R920 R921 R922 C901 C902 C903 C904 C905 C906 C907 C910 C911 C912 C914 C917 LF901 LF902 LF903 C920 S901 S902 C930 C931 ZA901 C932 PF10 D910 D911 D915 D916 D918 D930 IC910 D931 T3.15AL250V CAUTION COLD HOT T8AH250V T8AH250V CAUTION TNPA3196 1 PF LIVE CIRCUIT HOT LIVE CIRCUIT 3 1 2 CAUTION 94V-0 PbF V2 V1 P2 PT P1 S2 S1A S1B ORDER NO. 1 4 1 4 1 6 + - 1 6 3 7 5 4 Parts Location PF-BOARD (COMPONENT SIDE) IC IC910 D-5 IC920 C-4 Q930 E-4 TRANSISTOR PF 41 14.2. P 电路板 TH-42PHD7CY P-BOARD TNPA3195AB TH-42PHD7CY P-BOARD TNPA3195AB P-BOARD (FOIL SIDE) TNPA3195AB A B C D E F G H I 1 2 3 4 5 6 42 TH-42PHD7CY P-BOARD PARTS LOCATION TH-42PHD7CY P-BOARD PARTS LOCATION Parts Location P-BOARD (COMPONENT SIDE) P Parts Location P-BOARD (FOIL SIDE) TRANSISTOR Q401 E-1 Q404 D-2 Q406 D-3 Q407 E-2 Q408 G-3 Q410 D-1 Q411 D-1 Q412 E-4 Q413 E-4 Q414 C-2 Q415 C-1 Q417 G-3 Q418 F-3 Q420 E-1 Q421 E-3 Q422 F-1 Q501 G-4 Q502 G-4 Q503 H-5 Q504 C-2 Q506 B-3 Q508 F-5 Q509 F-5 Q510 G-5 Q511 B-4 Q512 B-3 Q513 B-3 Q514 C-2 Q515 B-2 Q516 C-3 Q518 F-4 Q519 F-4 Q520 C-3 Q521 G-5 Q522 H-4 Q524 F-5 Q525 B-2 Q527 F-5 Q528 B-2 Q535 H-5 Q536 G-5 Q537 G-5 Q538 G-5 Q540 F-5 Q541 F-4 Q542 F-4 Q544 G-5 Q545 F-4 Q547 G-4 Q550 H-5 Q551 H-5 Q552 H-5 Q553 G-5 Q554 G-5 Q555 G-5 TP1 D-2 TP2 C-3 TP3 D-3 TP4 D-3 TP5 E-2 TP6 E-2 TP7 E-2 TP8 E-2 TP9 C-5 TP10 C-6 TP11 C-6 TP12 C-6 IC401 G-3 IC402 G-3 IC403 H-3 IC404 G-3 IC405 G-3 IC406 E-2 IC408 G-3 IC409 F-3 IC410 G-3 IC411 H-3 IC501 H-5 IC502 G-5 IC503 G-4 IC504 G-4 IC507 G-5 IC512 F-5 IC520 G-4 IC521 B-3 IC522 B-3 IC523 F-4 IC524 F-4 IC525 B-2 IC TP IC406 D-1 IC409 C-3 IC504 B-4 IC512 C-5 IC Q406 E-2 Q410 F-1 Q412 D-4 Q413 E-4 Q414 G-2 Q415 G-1 Q427 D-5 TRANSISTOR 43 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY P-BOARD TNPA3195AB TH-42PHD7CY P-BOARD TNPA3195AB P-BOARD (COMPONENT SIDE) TNPA3195AB 44 14.3. HX 电路板 A B C D E F G H I 1 2 3 4 5 6 HX-BOARD(FOIL SIDE) TNPA3400 HX-BOARD(COMPONENT SIDE) TNPA3400 TH-42PHD7CY HX-BOARD TNPA3400 TH-42PHD7CY HX-BOARD TNPA3400 Parts Location HX-BOARD IC IC3502 E-4 Q3531 D-3 Q3532 D-3 Q3533 E-3 Q3534 E-3 Q3535 E-3 Q3536 E-3 Q3537 F-3 TRANSISTOR L526 R653 R654 R655 R656 R663 R664 R668 L555 R672 JK509 JK511 JK513 C523 C524 D501 D502 D503 D504 D505 D506 D507 D508 D509 R508 R509 IC502 D510 Q531 Q532 Q533 Q534 R510 Q535 R511 Q536 Q537 R526 R527 C550 R528 C551 R529 R530 R537 R538 C561 C562 C563 C564 C565 C566 C567 R547 R548 FL507 FL508 FL509 FL510 FL511 FL512 FL513 FL514 FL515 FL516 FL517 R776 R777 R778 R585 R586 R589 R780 R781 R782 R783 R784 R590 R785 R591 R786 R592 R787 R593 R788 R789 R790 R791 HX1 R792 R794 C404 C405 C409 R400 TNPA3400 CR NO.3 A B B C C 1 D D E E A HX PbF 1 5 6 9 1 5 ORDER NO. 1 4 5 8 1 1 1 12 22 JK509 JK511 JK513 CR NO.3 TNPA3400 HX 1 PbF 1 5 6 9 1 5 6 10 11 15 SEE REVERSE FOR ORDER NO. HX 45 14.4. HY 电路板 A B C D E F G H I 1 2 3 4 5 6 HY-BOARD(FOIL SIDE) TXNHY1QBSC TH-42PHD7CY HY-BOARD TXNHY1QBSC TH-42PHD7CY HY-BOARD TXNHY1QBSC R418 R032 C251 C252 R039 R040 R042 R044 R045 R046 R047 R051 R052 R053 R054 R055 R056 R057 R058 R059 R060 R063 IC251 JK303 JK304 Q101 Q102 Q104 C109 C112 C115 C119 C312 C120 H1 C121 H2 R101 R102 R103 R104 R105 R106 R107 R108 D301 D302 D303 D304 C134 IC105 C135 C136 C137 R114 R308 R115 R309 R117 R118 C140 R119 R310 R311 R312 R313 R314 R315 L005 C149 R316 R317 L007 R318 IC311 R125 R126 R127 C150 R128 C151 R129 C152 C153 C154 R130 R131 R132 R133 R134 R135 R136 C162 C167 R334 C168 R140 C169 R141 R148 C170 C171 C172 C173 C174 C175 C176 C177 C178 R151 R152 R153 R156 R157 C180 C181 C188 R163 R164 R165 R169 R170 R171 R172 R173 JK001 JK002 R177 R178 JK004 R179 R180 R188 R190 R191 JS304 JS305 JS306 JS310 JS311 JS312 C001 C006 Q004 Q007 C202 C203 C204 C205 C206 C208 C209 C015 C016 C017 C018 C402 C210 C211 Q401 C212 Q402 C213 Q403 C214 C021 C022 D002 R003 R004 R006 R007 R008 R009 R201 R202 R203 R204 R205 R206 R207 IC201 R408 R026 R027 R411 C053 C054 R414 C055 Q051 R415 C056 Q052 R416 R417 Y PB PR HD VD CR No.3 HY 1 TNPA2843 1 3 2 T LO S PbF 1 28 29 56 L R ORDER NO. B1 B2 A1 A2 A40 A39 B39 B40 B1 B2 A1 A2 A40 A39 B39 B40 1 4 5 8 1 4 5 8 C Y L R 1 35 36 70 Parts Location HY-BOARD (FOIL SIDE) IC IC3105 B-3 IC3201 A-3 IC3251 B-4 IC3311 A-3 Q3004 B-2 Q3007 D-3 Q3051 A-2 Q3052 A-2 Q3101 C-3 Q3102 C-3 Q3104 B-2 Q3401 C-2 Q3402 C-3 Q3403 B-3 TRANSISTOR HY 46 A B C D E F G H I 1 2 3 4 5 6 HY-BOARD(COMPONENT SIDE) TXNHY1QBSC TH-42PHD7CY HY-BOARD TXNHY1QBSC TH-42PHD7CY HY-BOARD TXNHY1QBSC L108 R031 R033 R034 R035 R036 L303 C253 C254 R038 C255 L305 L306 C256 L307 C257 L308 C258 C259 C260 C261 C262 C263 C264 R048 R049 C265 C266 R050 R251 R252 R253 R061 R062 R065 L525 L526 L527 L528 L529 L530 L531 L532 L533 L534 JK303 JK304 TS100 TS101 TS102 TS301 TS302 TS303 IC699 C101 C102 C103 C104 C105 C106 Q103 C107 C108 C110 C111 C113 C308 C114 C309 C116 C117 C118 C501 C502 C503 C504 C311 Q501 C505 Q502 C506 C313 Q503 C507 H0 Q504 C508 H1 C315 Q505 C509 H2 C122 C316 Q506 C123 C317 Q507 C318 C124 Q508 C125 C319 C126 C127 C128 C510 C129 C511 C512 C513 C320 C514 C321 C515 C322 C516 C323 C517 C324 C130 C518 IC101 C325 C131 C519 C132 IC102 C326 IC103 C133 C327 R300 C328 IC104 R301 C329 R302 R303 C138 R304 C520 C139 R305 C521 R112 R306 C522 R113 R307 C523 C330 C524 C331 IC301 C525 IC302 C332 R116 C526 C333 IC303 C527 C528 C529 C141 IC305 R501 C142 R502 C143 R503 C144 R504 L001 C145 R505 L002 C146 R506 L003 C147 R507 C530 R120 C148 L004 R508 R121 R509 R122 L006 R123 IC503 R124 IC505 IC506 R510 L201 R511 R512 R513 R514 C155 R515 C156 R516 C157 R517 C158 R518 C159 R519 R137 C160 R138 R520 C161 R139 R521 R522 C163 R523 C164 R524 C165 R525 C166 R526 R527 R528 R335 R529 R336 R142 R143 R337 R144 R338 R145 R530 R149 R531 R532 R533 R534 R535 R536 R537 R150 R538 C179 R539 R154 R155 R158 R159 R541 D351 C182 D352 C183 C184 R544 C185 R545 C186 R546 C187 R547 R160 R548 R161 R549 R162 R166 R167 R168 R550 R551 R552 L051 R555 L052 R556 R557 R558 R559 R174 R175 JK001 R176 JK002 JK004 R560 L251 R561 L252 R562 R563 R564 R565 R566 R567 R568 R181 R182 R183 R184 R185 R189 TS001 TS002 TS003 TS004 TS005 JS301 JS302 JS303 JS307 JS308 JS309 JS501 JS502 JS503 JS504 JS505 JS506 JS507 JS508 JS509 JS510 C002 C003 C004 C005 C007 Q005 C009 X101 C010 C011 C012 C207 C013 C014 C019 C401 C020 C215 C216 C217 C218 D001 C219 Q023 R001 R002 R005 R010 R011 R012 R013 R014 R015 R401 R402 R403 R404 R405 R406 R407 IC401 R409 R410 L101 C051 C052 L102 R412 L103 R413 L104 L105 L106 L107 TNPA2843 1 CR No.3 HY Y PB PR HD VD PB PR Y L R A A B B C C PbF L R SEE REVERSE FOR ORDER NO. 1 4 5 8 NP NP NP 1 8 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 1 5 1 64 65 128 129 192 193 256 1 3 4 5 NP 1 2 3 4 1 5 NP NP 1 3 2 5 1 8 9 16 1 6 7 12 1 4 5 8 1 4 5 8 1 4 5 8 C Y L R NP NP NP NP 1 8 9 16 Parts Location HY-BOARD (COMPONENT SIDE) IC IC3101 D-4 IC3102 E-3 IC3103 E-3 IC3104 D-3 IC3301 F-3 IC3302 D-4 IC3303 G-4 IC3305 F-3 IC3401 E-2 IC3503 C-5 IC3505 B-3 IC3506 B-3 IC3699 F-2 Q3005 D-3 Q3023 D-2 Q3103 E-3 Q3501 C-3 Q3502 C-3 Q3503 D-3 Q3504 D-3 Q3505 C-3 Q3506 C-3 Q3507 C-2 Q3508 C-3 TRANSISTOR TS001 A-5 TS002 B-5 TS003 B-5 TS004 B-6 TS005 B-7 TS100 G-4 TS101 G-4 TS102 G-4 TS301 E-5 TS302 E-5 TS303 E-5 TP HY 47 14.5. J 电路板 A B C D E F G H I 1 2 3 4 5 6 J-BOARD(FOIL SIDE) TNPA3197 TH-42PHD7CY J-BOARD TNPA3197 TH-42PHD7CY J-BOARD TNPA3197 J11 J12 J13 C8184 C8185 C8186 IC8003 IC8004 TNPA3197 1 J 1 2 3 J14 R8046 R8049 C8074 C8075 C8076 R3230 R8051 R3231 R8058 R8059 C8081 R8062 R8065 R3051 R3052 R3053 R8067 R8068 R3059 R8070 D3061 R8073 R8074 R3061 R3062 R8077 R3063 R8078 R3260 R8081 R3261 R8082 R3262 R8083 R8084 R8087 R8088 R8093 R8094 C8113 C3101 C3103 C3110 C3114 C3116 C3119 C3126 R3101 C3129 R3102 R3103 R8117 R3104 R8118 R3105 R3106 R3109 R3110 R3111 R3112 R3113 R8127 R3118 JS8094 JS8095 JS8096 JS8097 R3140 R3141 R3145 R3146 R3160 R3161 R8181 R8182 R3188 R3189 R3190 R3195 R3196 R3197 R3198 R3199 C8005 C8006 C8007 C8008 C8009 C8010 C8011 C8012 C8013 C8014 C8019 C3005 Q3002 C3006 Q3003 C8020 C8025 D8001 C3012 C8026 D8002 D8003 C3013 C3014 D8004 C8028 C3015 C3016 C3017 D3001 R8013 R8014 D3004 R8015 R8016 R3002 R3003 R8019 R3005 C8042 R3006 C8043 R3009 C8046 C8047 R3200 R8020 C8049 R3201 R8021 R3202 R8022 R3203 R8023 R3204 R8024 R3010 R8025 R3011 R8026 R3012 R8027 R3013 R8028 R3014 R8029 C3041 R8030 R8031 D3022 R8032 D3023 R8033 R8034 R3022 R3025 C8064 C8066 PbF SEE REVERSE FOR ORDER NO. A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 A1 A2 B1 B2 A40 A39 B39 B40 1 10 11 20 1 10 11 20 1 11 12 22 Parts Location J-BOARD (FOIL SIDE) IC IC8003 G-2 IC8004 H-2 Q3002 D-3 Q3003 D-3 TRANSISTOR J 48 A B C D E F G H I 1 2 3 4 5 6 J-BOARD(COMPONENT SIDE) TNPA3197 TH-42PHD7CY J-BOARD TNPA3197 TH-42PHD7CY J-BOARD TNPA3197 J1 J3 J5 J6 J8 J10 J11 J12 J13 TNPA3197 1 J A A B B J14 R8044 R3030 R8045 R3031 R3032 R8047 R3033 C8070 R8048 R3034 C8071 R3035 C8072 R3036 R3037 C8073 R3038 R3039 C8077 R8050 C8078 R8052 R8053 R8054 R3040 R8055 R3041 R8056 R3042 R8057 R3043 R3044 C8080 R3045 R3046 C8082 R3047 C8083 R3048 C8084 R3049 C3266 C3267 C3268 R8060 R8061 R8063 R3050 R8064 X8181 R8066 R3054 R3055 R8069 R3056 R3057 R3058 R8071 R8072 R3060 R8075 R8076 R3064 R8079 R3065 R3066 R3067 FL3000 R3068 FL3001 R3069 FL3002 FL3003 FL3004 R8080 FL3005 FL3006 FL3007 FL3008 R3070 FL3009 R3071 R3072 R3073 R3074 R8089 R3075 R3076 R3077 FL3010 R3078 TPJV1 R3079 TPJV2 R8090 R8091 R8092 R3080 R8095 R3081 R8096 R3082 R8097 R3083 R8098 R3084 R8099 R3085 R3086 R3087 R3088 R3089 R3090 R3091 R3092 R3093 R3094 R3095 L8181 R3096 R3097 R3098 R3099 C8100 C8101 C8102 C8103 C8104 C8105 C8106 C8107 C8108 C8109 C8110 C8111 C8112 C8114 C8115 C8116 C3102 C8117 C8118 C3104 C8119 Q3101 C3105 Q3102 C3106 Q3103 C3107 Q3104 C3108 Q3105 C3109 Q3106 C8120 C8121 ZA3001 C8122 ZA3002 C8123 ZA3003 ZA3004 ZA3005 C3111 ZA3006 C3112 ZA3007 C3113 R8100 R8101 C3115 R8102 R8103 C3117 R8104 C3118 R8105 R8106 R8107 IC8100 R8108 IC8101 R8109 C3120 C3121 C3122 C3123 R8110 C3124 R8111 C3125 R8112 R8113 C3127 R3100 R8114 C3128 R8115 R8116 R8119 R3107 R3108 C3130 L8001 IC3101 IC3102 L8003 L8004 C3134 R8120 L8005 C3135 R8121 C3136 R8122 R8123 IC3108 R8124 IC3109 R8125 R8126 R3114 R8128 R3115 R3116 R3117 C3141 R3119 C3142 C3143 C3144 L3002 L3003 R3120 R3121 L3005 L3006 R3122 R3123 R3124 R3126 R3127 R3128 C3150 R3129 R3130 R3131 R3132 R3133 C8181 C8182 C8183 C8184 Q8181 C8185 Q8182 C8186 R3150 R3151 IC3150 R3162 R3163 D8180 L3050 R8183 R8184 R3170 R8185 R8186 R3172 R8187 R8188 IC8181 TPJH1 TPJH2 R3191 R3192 R3193 R3194 C8001 C8002 C8003 Q8001 Q8002 C8200 C8201 Q8200 Q8201 Q8202 Q8203 Q8010 Q8204 Q8011 C8015 C3001 Q8012 C8016 C3002 Q8013 C8017 C8018 Q8014 C3004 Q3001 Q8015 Q8016 Q8017 C3007 Q3004 Q8018 C3008 Q8019 C3009 C3200 C8021 C8022 C8023 C8024 C3010 Q8020 Q8021 C3011 C8027 Q8023 Q8024 C8029 R8001 Q8025 R8002 Q8026 R8003 C3018 R8004 C3019 R8005 R8006 R8007 D8200 C8030 R8008 D8201 IC8001 R8009 C8031 C8032 IC8002 D8203 C8033 IC8003 D8204 R8200 D8010 C3020 C8034 IC8004 R8201 D8011 C8035 C3021 IC8005 R8202 C3022 C8036 R8203 IC8007 C3023 C8037 R8204 IC8008 R8010 C8038 C3024 R8205 IC8009 R8011 C3025 C8039 R8206 R8012 C3026 C3027 D3003 R8207 C3028 R8208 R3001 C3029 D3005 R8209 D3007 R8017 D3008 C8040 R3004 R8018 C8041 R3007 R3008 C8044 C3030 IC8014 C8045 C3031 IC3001 IC8015 C3032 IC8016 IC3002 IC3003 IC3004 IC3005 IC3006 IC3007 IC8020 C8050 IC8021 C8051 R3015 R3016 R3017 C3040 R3018 R3019 R3210 R3211 D3021 R3212 R3213 D3024 R3214 R3020 R3215 R8035 R3021 R3216 R8036 R3023 R3217 R8037 R3218 R8038 R3024 R3219 R8039 R3026 R3027 R3028 C8065 R3029 C8067 R8040 R8041 R8042 R8043 ORDER NO. 1 14 15 28 7 8 21 22 1 14 15 28 7 8 21 22 1 2 19 20 1 2 29 30 1 31 1 21 1 2 19 20 1 6 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 A1 A2 B1 B2 A39 A40 B39 B40 1 4 5 8 1 8 9 16 1 8 9 16 20 11 10 1 20 11 10 1 1 7 8 14 1 4 5 8 1 4 5 8 1 4 5 8 NP 1 10 11 20 NP 1 14 15 28 1 8 9 16 1 8 9 16 1 7 8 14 1 8 9 16 1 8 9 16 1 19 20 32 33 51 52 64 1 8 9 16 1 4 5 8 1 11 12 22 Parts Location J-BOARD (COMPONENT SIDE) IC IC3001 F-2 IC3002 E-3 IC3003 D-2 IC3004 E-3 IC3005 C-3 IC3006 D-2 IC3007 E-3 IC3101 C-2 IC3102 A-3 IC3108 A-3 IC3109 B-3 IC3150 C-4 IC8001 C-2 IC8002 B-2 IC8003 B-2 IC8004 A-2 IC8005 A-2 IC8007 C-3 IC8009 A-3 IC8009 B-2 IC8014 H-2 IC8015 H-2 IC8016 E-2 IC8020 B-3 IC8021 A-2 IC8100 G-3 IC8101 F-3 IC8181 H-3 Q8010 D-2 Q8011 D-2 Q8012 D-2 Q8013 D-2 Q8014 B-3 Q8015 B-3 Q8016 B-2 Q8018 C-3 Q8019 C-3 Q8020 E-3 Q8021 E-2 Q8023 E-2 Q8024 E-2 Q8025 E-2 Q8026 E-2 Q8181 E-3 Q8182 E-3 Q8200 F-2 Q8201 E-3 Q8202 E-3 Q8203 H-4 Q8204 H-4 Q3001 B-4 Q3101 D-2 Q3004 A-4 Q3102 D-2 Q3103 D-2 Q3104 D-2 Q3105 C-2 Q3106 C-2 Q8001 A-2 Q8002 B-3 Q8004 A-4 TRANSISTOR TPJH1 A-3 TPJH2 A-3 TPJV1 A-3 TPJV2 A-3 TP J 49 14.6. D 电路板 A B C D E F G H I 1 2 3 4 5 6 C200 C201 Q009 C202 C203 C010 C204 C011 C205 C012 C013 Q010 Q011 Q012 Q013 C017 Q014 C019 Q019 C213 C214 C215 C216 C023 C217 D9000 C218 C219 D001 D002 D003 C027 D004 R9000 C029 D005 R001 R002 D006 R003 C220 D008 D009 R005 C221 C222 R006 C223 D200 IC9000 C030 R008 C224 C800 C225 C032 C226 C227 C228 IC004 D011 IC005 R201 C035 C229 D012 R202 D013 R203 IC007 D014 C038 D015 C039 D016 C230 C231 IC201 C232 IC202 C233 IC204 C234 C040 R401 IC205 C041 IC206 C042 R403 IC207 C237 C238 D020 R405 D021 R211 C239 C046 D023 C047 R407 D024 R214 R409 R215 R021 R022 R023 R217 C240 R600 R024 R218 C241 R219 R025 R601 R026 R027 C243 C244 R028 C050 R605 R411 C051 R029 R607 R413 C247 R220 R415 R609 C249 R221 R222 R417 R223 R224 R030 R419 R225 R033 R803 R034 R228 C250 R611 C251 R229 C252 R613 C253 Q250 R421 R615 C255 Q251 Q252 R617 R423 Q253 Q254 R425 R231 R619 R232 R427 R233 R810 R234 R429 R235 R236 R237 R621 R239 R045 C263 R623 R817 C264 R048 R431 R625 R627 R433 R240 R629 R435 R241 R436 R242 R437 R243 R244 R245 R439 R051 R052 R246 R247 R053 R248 R631 R249 R056 R633 C850 R440 R635 C275 D251 C853 R443 C277 R637 R250 R445 C855 R251 R639 R252 R447 R253 R060 R254 R449 R255 R061 R062 R256 R063 R257 R064 R258 R641 R065 R259 R066 R643 R067 R068 R451 R069 R645 R647 R453 R260 R455 R649 R261 R262 R457 R263 R264 R070 R459 R265 R071 R072 R073 FL200 R268 R650 R074 C290 FL201 C291 R651 FL202 R846 R653 FL203 FL204 R655 R461 FL205 FL206 C296 R657 R463 C873 C874 R465 R659 C875 C299 C876 R467 C877 C878 R469 R851 C879 R852 R276 R082 R661 R085 R855 R086 R856 R663 R087 R088 C880 IC850 C881 R471 R089 R665 C882 R473 C883 R667 D860 R280 C884 R475 R669 C885 R282 C886 R477 R860 R479 R861 R862 R287 R863 R093 R094 R864 R671 R865 R673 R097 R867 R868 R675 R481 R099 IC861 R677 R483 C894 IC864 R679 IC865 C895 R485 R487 IC867 IC868 R489 R296 R297 R681 R683 R685 R491 R493 R687 R689 R495 R497 R880 R881 R499 R883 R884 R691 R885 R693 R695 R697 R699 R890 R891 R892 R894 R896 R897 R898 R899 Q300 FL850 FL851 Q303 C307 C308 Q304 Q305 C309 Q306 Q307 C503 C310 C504 C505 C311 C506 C312 C507 C313 FL860 C508 C314 FL861 C315 C509 C316 FL862 C317 C700 C318 C319 C510 R100 R101 C511 C512 C513 C514 R104 C320 C321 R105 C515 R106 C516 C322 C517 C323 D300 C324 C518 D301 C325 C519 D302 C326 C327 C328 R301 C329 C905 R302 C906 R303 C907 C520 C908 C714 C521 C909 R305 R111 R112 C522 R306 R307 C523 C524 C330 C331 R309 C525 C526 C332 R116 C333 C527 C528 C334 C910 C335 C529 R501 C911 C336 C912 C337 R503 C913 R310 C338 C914 R311 C915 C339 R505 R506 R312 C917 R313 R508 C530 R314 C918 R315 C531 R316 C532 R317 C533 R318 C534 C340 R124 R701 C535 R125 R319 C341 C536 C342 C343 C537 R127 R703 C538 R510 C344 R511 R705 C539 C922 R707 C923 R320 IC700 R321 C925 R515 R709 IC702 C926 R323 C927 R324 C540 R130 C928 C929 R131 R325 C541 C542 R326 R133 R327 C543 C544 C545 R711 R329 C352 R136 C546 R906 R713 R907 C547 C354 C548 C931 R715 C549 R139 C356 C357 R717 R718 C358 R330 R331 R332 R333 R335 R911 C551 R141 R912 R142 C552 R337 R913 R143 R720 C360 R339 R146 R916 R723 R147 R917 R148 R919 R149 R729 R535 R536 R343 R920 R538 R150 R151 R539 R921 R345 C562 R346 R922 R923 R347 R153 C564 R154 R155 R349 R731 C566 R156 R732 C567 R157 R733 C568 R734 R158 R540 R735 R159 R542 R543 R350 R546 R353 R547 C570 R548 R160 R930 R354 R161 R931 R356 R162 R357 R163 R358 R164 R359 R165 R935 R166 R936 R167 R550 R168 R938 R169 R939 R552 R553 R747 R748 R360 R361 R749 R362 R556 R363 R557 R940 R170 R558 R559 C199 R365 R941 R171 R366 R942 R172 R367 R174 R175 R751 FL301 R176 R753 R177 R560 R179 R755 R562 R563 R757 R564 R565 R372 R567 R374 FL500 R180 R375 R569 R181 R376 R182 R377 FL503 R378 R184 R379 R185 R187 R570 R188 R189 R572 R380 R574 R575 R382 R577 R578 R190 R384 R191 R579 R386 R387 R388 R197 R582 R390 R391 R585 R779 R586 R393 R587 R395 R589 R397 R399 R590 R979 R591 R786 R593 R594 R596 R597 R980 R599 R795 R796 R797 R798 R990 R991 R992 C9000 C001 Q003 C007 Q004 C008 C009 Q005 Q006 TNPA3184 1 D CR NO.9 1 2 3 PbF 1 10 11 20 1 4 5 8 1 3 4 5 1 3 4 5 1 28 29 56 1 3 4 5 1 3 4 5 1 4 5 8 1 4 5 1 3 5 1 10 11 20 SEE REVERSE FOR ORDER NO. 1 28 29 56 1 3 4 5 1 4 5 8 1 3 4 5 1 3 4 5 1 6 7 12 1 6 7 12 1 10 11 20 1 10 11 20 TH-42PHD7CY D-BOARD TZTNP01VCSC TH-42PHD7CY D-BOARD TZTNP01VCSC D-BOARD(FOIL SIDE) TZTNP01VCSC Parts Location D-BOARD (FOIL SIDE) IC IC9000 C-5 IC9004 B-4 IC9005 B-5 IC9007 B-5 IC9201 D-4 IC9202 E-5 IC9204 E-4 IC9205 D-4 IC9206 E-4 IC9207 E-4 IC9700 B-3 IC9702 B-3 IC9850 E-5 IC9861 D-4 IC9864 D-4 IC9865 D-4 IC9867 E-4 IC9868 E-4 Q9003 A-5 Q9004 A-5 Q9005 A-5 Q9006 A-6 Q9009 A-6 Q9010 B-4 Q9011 B-4 Q9012 C-5 Q9013 C-4 Q9014 C-5 Q9019 A-5 Q9250 E-6 Q9251 D-5 Q9252 E-5 Q9253 E-6 Q9264 E-6 Q9300 A-2 Q9303 E-2 Q9304 A-2 Q9305 B-2 Q9306 B-2 Q9307 B-2 TRANSISTOR D 50 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY D-BOARD TZTNP01VCSC TH-42PHD7CY D-BOARD TZTNP01VCSC D-BOARD(COMPONENT SIDE) TZTNP01VCSC Q008 C206 C207 C208 C209 C015 C016 C018 Q015 Q016 Q017 Q018 C210 C211 C212 C020 C021 C022 X500 C024 C025 C026 C028 D007 C801 R009 C031 IC001 D201 C802 D202 IC002 C803 D203 C033 IC003 C804 R200 C034 D010 IC006 C036 C037 IC008 R204 R010 R011 R205 R206 R012 D017 R013 R207 R208 R014 D018 IC200 D019 R209 R015 R016 IC203 R017 R400 R018 IC010 C235 R019 R402 C236 C043 R404 R210 C044 IC208 C045 IC209 R406 D022 R212 R213 R408 R020 C048 C049 D025 R216 D026 IC210 IC211 IC212 R602 C242 IC213 R410 R604 IC214 IC215 C245 R412 R606 C246 R608 R414 C248 R416 R418 R800 R031 R801 R226 R032 R802 R227 R610 R804 R035 R805 R612 R036 R806 R807 R037 R614 R420 C254 R038 R808 R039 C061 R809 R422 R616 C256 C257 C063 R618 R424 C064 R230 C258 C259 R426 R428 R040 R041 R811 R812 R042 R043 R813 R620 R238 C260 R044 R814 C261 R815 R622 C262 R816 R046 R047 R430 R624 R818 R049 R819 C265 R626 R432 C266 C267 R628 R434 C268 C269 R050 R820 R821 R822 R823 R630 R054 C270 R824 R825 R055 C271 R632 C272 R826 R057 C273 R827 R634 R828 C274 R058 C851 R059 R829 R441 R442 C852 R636 C276 C854 R638 R444 C278 C279 R446 R448 R830 R831 R832 R833 R640 R834 C280 C281 R835 R642 C282 R836 R837 C283 R644 R450 C284 C860 R838 FL9000 R839 C861 FL001 C285 R452 R646 C862 C286 C863 C287 R454 C864 C288 R648 C865 C289 D1 R456 C866 D3 C867 R458 C868 R840 D4 D5 R841 C869 R842 R266 R843 R267 R844 R269 R845 R075 R652 C292 R076 R077 C293 R847 R460 R654 R848 C294 C870 R078 R849 C295 C871 R079 R462 R656 C872 C297 FL207 R464 FL208 C298 R658 R270 FL209 R271 R466 R272 R273 R468 R850 R274 R080 R081 R275 R277 R083 R853 R660 FL210 R084 R278 R854 FL211 R279 FL212 R662 FL213 R857 R664 R470 R858 FL214 R859 R666 R472 R668 R474 R281 R476 R283 R478 R284 R090 R285 R091 R286 R092 R670 R288 R289 R095 R672 R866 R096 R674 R480 IC860 R098 R869 R676 R482 IC862 IC863 R678 R484 R290 R291 R486 R292 R293 R488 R870 R294 R295 R871 IC869 R872 R873 R680 R298 R874 R875 R299 R682 R876 R877 R684 R490 R878 R879 R492 R686 R688 R494 R496 R498 R882 R690 R692 R886 R887 R694 R888 R889 R696 R698 R893 R895 D10 X001 C300 D20 C301 C302 C303 C304 C305 Q301 D25 Q302 C306 D27 C500 C501 C502 D31 D32 D33 D34 C701 C702 C703 Q700 C704 C705 Q701 C706 R102 C707 R103 C708 C709 R107 R108 R109 D303 C710 R300 C711 C712 C713 R304 R110 C715 C716 C717 R113 IC300 R114 C718 R308 IC301 R115 C719 IC302 R117 R500 R118 R119 R502 R504 C720 C721 C722 C916 C723 R507 C724 R120 IC500 C725 R509 R121 IC501 C919 C726 R122 R123 C727 R700 C728 IC505 C729 R702 IC506 R126 R704 C920 R128 L200 L201 R129 C921 R706 C346 L202 R512 R513 C347 R708 C348 C924 C730 R514 C349 C731 IC701 R516 C732 R322 IC703 C733 R517 R900 C734 IC704 R901 C735 IC705 R902 R132 IC706 C736 R903 C737 IC707 C350 C738 R134 R328 R710 C351 C739 R135 R712 C353 R137 R908 C930 R714 R138 C355 TP001 R909 R521 R716 R522 R523 C740 R524 C359 C741 R719 R525 C742 R526 C743 R527 C744 R334 R140 R528 R910 C745 R529 C746 R336 C747 C553 C748 R144 R338 C554 R914 C749 R145 R721 C555 R915 C361 C556 C362 R722 C363 C557 C364 R724 R918 R530 C558 C559 R725 C365 R531 C366 R532 R726 R727 C367 R533 C750 R728 C368 R534 R340 C369 C751 R341 C752 R342 R537 C753 R344 C560 C561 R152 C563 R348 C370 R730 R924 C565 C371 C372 C373 C374 C569 C375 R541 R736 C376 C377 R737 R544 C760 C378 R738 C761 C379 R545 R739 R351 C762 C763 C764 C765 R355 C571 C766 C572 R932 C767 C573 R933 C574 C768 R934 R740 C380 C769 R741 C575 R742 C576 R743 C577 C578 R744 C579 R745 R746 C770 R554 C771 R555 C772 C773 R173 R750 R368 R369 R752 FL302 R754 R178 R561 R756 R758 R371 R759 R566 R568 FL501 R951 FL502 R952 R183 R953 R954 R760 R761 R955 R956 R186 R762 R763 R764 R765 R571 R766 R573 R767 R768 R769 R381 R576 R385 R192 R193 R770 R194 R389 R771 R195 R196 R772 R773 R198 R774 R580 R581 R775 R199 R776 R777 R583 R584 R778 R392 R394 R396 R398 R780 R781 R782 R783 R784 R785 R592 R787 R788 R789 R595 R598 R981 R982 R983 R984 R790 R791 R985 R792 R986 R793 R794 R799 C002 C003 Q9000 C004 Q001 C005 Q002 C006 Q007 TNPA 1 D 3184 9 ORDER NO. CR NO. PbF 1 4 5 8 1 3 4 5 1 40 41 80 81 120 121 160 1 24 25 48 1 4 5 8 1 28 29 56 1 28 29 56 1 4 5 8 1 20 21 40 41 60 61 80 1 7 1 7 1 7 1 5 1 5 1 5 1 5 + + + 1 2 19 20 1 2 29 30 1 14 1 31 + 1 28 29 56 1 3 4 5 1 28 29 56 1 20 21 40 41 60 61 80 1 12 2 20 1 19 1 8 1 9 A1 A40 B1 B40 A1 A40 B1 B40 A1 A40 B1 B40 A1 A40 B1 B40 1 4 5 8 1 3 0 31 50 51 80 100 81 A B C D E F G H J K L M N P R T U V W Y AA AB AC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 10 11 20 A B C D E F G H J K L M N P R T U V W Y AA AB AC 2 1 4 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 1 3 0 31 50 51 80 100 81 1 24 25 48 1 52 53 104 105 156 157 208 1 3 4 5 1 20 21 40 41 60 61 80 1 10 11 20 1 10 11 20 1 10 11 20 + Parts Location D-BOARD (COMPONENT SIDE) IC IC9001 B-5 IC9002 E-6 IC9003 E-4 IC9006 E-6 IC9008 B-5 IC9010 B-5 IC9200 B-4 IC9203 C-5 IC9208 A-4 IC9209 D-4 IC9210 E-1 IC9211 E-2 IC9212 E-4 IC9213 C-4 IC9214 B-6 IC9215 B-3 IC9300 B-2 IC9301 B-2 IC9302 D-2 IC9500 D-3 IC9501 C-3 IC9505 B-3 IC9508 D-2 IC9701 D-4 IC9703 C-1 IC9704 D-4 IC9705 E-2 IC9707 F-2 IC9708 E-2 IC9860 C-4 IC9862 C-5 IC9863 C-5 IC9869 B-4 Q9000 B-5 Q9001 B-5 Q9002 B-5 Q9007 D-6 Q9008 D-5 Q9015 E-6 Q9016 D-6 Q9017 D-5 Q9018 D-5 Q9301 E-3 Q9302 A-2 Q9700 E-3 Q9701 E-3 TRANSISTOR TP9001 B-2 TP D 51 14.7. C1 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY C1-BOARD TNPA3191AC TH-42PHD7CY C1-BOARD TNPA3191AC C1-BOARD(FOIL SIDE) TNPA3191AC C1-BOARD(COMPONENT SIDE) TNPA3191AC 3 2 1 C1 2 TNPA3191 SEE REVERSE FOR ORDER NO. C7100 C7101 C7102 C7103 C7104 C7105 C7106 C7107 C7108 C7120 C7121 C7122 C7123 C7124 C7125 C7126 C7127 R7100 C7128 R7101 R7102 R7103 R7104 R7105 R7106 R7107 R7108 R7109 R7110 R7111 R7112 R7113 R7114 C7140 C7141 C7142 C7143 C7144 C7145 C7146 C7147 R7120 C7148 R7121 R7122 R7123 R7124 R7125 R7126 R7127 R7128 R7129 R7130 R7131 R7132 R7133 R7134 C7160 C7161 C7162 C7163 C7164 C7165 C7166 C7167 R7140 C7168 R7141 R7142 R7143 R7144 R7145 R7146 R7147 C7170 R7148 C7171 R7149 C7172 C7173 C7174 C7175 C7176 C7177 C7178 R7150 C7179 R7151 R7152 R7153 R7154 C7180 C7181 C7182 C7183 C7184 C7185 C7186 C7187 R7160 C7188 R7161 C7189 R7162 R7163 R7164 R7165 R7166 R7167 R7168 C7190 R7169 C7191 C7192 C7193 C7194 R7170 R7171 R7172 R7173 R7174 R7181 R7182 R7183 R7184 R7185 R7186 R7187 IC7180 R7188 IC7181 R7189 IC7182 IC7183 IC7184 R7190 R7191 R7192 R7193 R7194 CA1 R7195 CA2 R7196 CA3 R7197 CA4 R7198 R7199 ZA7101 ZA7102 ZA7103 FL7180 R7200 R7201 R7202 R7203 R7204 R7205 R7206 R7207 R7208 R7209 R7210 R7211 R7212 R7213 R7214 R7215 R7216 R7217 R7218 R7219 L7100 R7220 L7120 L7140 R7260 R7261 R7262 R7263 R7264 R7265 R7270 R7271 R7272 R7273 R7274 R7275 L7160 C11 C12 TNPA3191 2 C1 A A PbF ORDER NO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 1 68 1 68 1 68 1 68 A1 A40 B1 B40 1 20 C1 Parts Location C1-BOARD IC IC7180 F-1 IC7181 F-1 IC7182 G-2 IC7183 H-1 IC7184 G-1 52 14.8. C2 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY C2-BOARD TNPA3192AC TH-42PHD7CY C2-BOARD TNPA3192AC C2-BOARD(FOIL SIDE) TNPA3192AC C2-BOARD(COMPONENT SIDE) TNPA3192AC C2 1 TNPA3192 2 3 2 SEE REVERSE FOR ORDER NO. C21 C22 C32 C7300 C7301 C7302 C7303 C7304 C7305 C7306 C7307 C7308 C7320 C7321 C7322 C7323 C7324 C7325 C7326 C7327 R7300 C7328 R7301 R7302 R7303 R7304 R7305 R7306 R7307 R7308 R7309 R7310 R7311 R7312 R7313 R7314 C7340 C7341 C7342 C7343 C7344 C7345 C7346 C7347 R7320 C7348 R7321 R7322 R7323 R7324 R7325 R7326 R7327 R7328 R7329 R7330 R7331 R7332 R7333 R7334 C7360 C7361 C7362 C7363 C7364 C7365 C7366 C7367 R7340 C7368 R7341 R7342 R7343 R7344 R7345 R7346 R7347 C7370 R7348 C7371 R7349 C7372 C7373 C7374 C7375 C7376 C7377 C7378 R7350 C7379 R7351 R7352 R7353 R7354 C7380 C7381 C7382 C7383 C7384 C7385 C7386 C7387 R7360 C7388 R7361 C7389 R7362 R7363 R7364 R7365 R7366 R7367 R7368 C7390 R7369 FL7301 C7391 FL7302 C7392 C7393 C7394 R7370 R7371 R7372 R7373 R7374 R7380 R7381 R7382 R7383 R7384 R7385 R7386 R7387 IC7380 R7388 R7389 IC7381 IC7382 IC7383 IC7384 CA5 CA6 CA7 R7390 CA8 R7391 R7392 R7393 R7394 R7395 R7396 R7397 R7398 R7399 ZA7301 ZA7302 ZA7303 R7400 R7401 R7402 R7403 R7404 R7405 R7407 R7408 R7409 R7410 R7411 R7412 R7413 R7414 R7415 R7416 L7300 L7320 L7340 R7460 R7461 R7462 R7463 R7464 R7465 R7471 R7472 R7473 R7474 R7475 R7476 R7477 L7360 R7480 R7481 R7482 R7483 R7484 R7485 TNPA3192 2 C2 PbF A1 A40 B1 B40 1 20 1 12 ORDER NO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 1 68 1 68 1 68 1 68 C2 Parts Location C2-BOARD IC IC7380 B-2 IC7381 C-2 IC7382 C-2 IC7383 A-2 IC7384 A-1 53 14.9. C3 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY C3-BOARD TNPA3193AC TH-42PHD7CY C3-BOARD TNPA3193AC C3-BOARD(FOIL SIDE) TNPA3193AC C3-BOARD(COMPONENT SIDE) TNPA3193AC C3 Parts Location C3-BOARD IC IC7580 B-2 IC7581 C-1 IC7582 E-2 IC7583 D-2 IC7584 D-2 Q7500 H-2 Q7501 H-2 TRANSISTOR TNPA3193 2 C3 1 2 3 SEE REVERSE FOR ORDER NO. C31 C33 C42 C44 C7500 C7501 C7502 C7503 C7504 Q7500 Q7501 C7505 C7506 C7507 C7508 C7520 C7521 C7522 C7523 D7500 C7524 D7501 C7525 D7502 C7526 D7503 C7527 R7500 C7528 R7501 R7502 R7503 R7504 R7505 R7506 R7507 R7508 R7509 R7510 R7511 R7512 R7513 R7514 C7540 C7541 C7542 C7543 C7544 C7545 C7546 C7547 R7520 C7548 R7521 R7522 R7523 R7524 R7525 R7526 R7527 R7528 R7529 R7530 R7531 R7532 R7533 R7534 C7560 C7561 C7562 C7563 C7564 C7565 C7566 C7567 R7540 C7568 R7541 R7542 R7543 R7544 R7545 R7546 R7547 C7570 R7548 C7571 R7549 C7572 C7573 C7574 C7575 C7576 C7577 R7550 R7551 R7552 R7553 R7554 C7580 C7581 C7582 C7583 C7584 C7585 C7586 C7587 R7560 C7588 R7561 C7589 R7562 R7563 R7564 R7565 R7566 R7567 R7568 FL7500 C7590 R7569 FL7501 C7591 C7592 C7593 C7594 C7595 C7596 C7597 R7570 R7571 R7572 R7573 R7574 R7580 R7581 R7582 R7583 R7584 R7585 R7586 R7587 IC7580 R7588 R7589 IC7581 IC7582 IC7583 IC7584 R7590 R7591 CB5 R7592 CB6 R7593 CB7 R7594 CB8 R7595 R7596 R7597 R7598 R7599 ZA7501 ZA7502 ZA7503 R7600 R7601 R7602 R7603 R7604 R7605 R7606 R7607 R7608 R7609 R7610 R7611 L7500 R7620 R7621 R7622 R7623 R7624 R7625 R7626 R7627 R7628 R7629 R7630 R7631 R7632 R7633 L7520 R7640 R7641 R7642 R7643 R7644 R7645 R7650 R7651 L7540 R7660 R7661 R7662 R7663 R7664 R7665 R7666 R7667 R7668 R7669 R7670 L7560 TNPA3193 2 C3 C3MM1 C3MM2 C3MM3 PbF A1 A40 B1 B40 1 20 1 4 1 8 ORDER NO. 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 1 68 1 68 1 6 8 1 6 8 54 14.10.C4 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY C4-BOARD TNPA3194AC TH-42PHD7CY C4-BOARD TNPA3194AC C4-BOARD(FOIL SIDE) TNPA3194AC C4-BOARD(COMPONENT SIDE) TNPA3194AC R8814 R8815 R8816 R8817 R8818 L8700 C41 C43 L8720 L8740 R8860 R8861 R8862 R8863 R8864 R8865 R8871 R8872 R8873 R8874 R8875 R8876 R8877 R8878 R8879 L8760 R8880 R8881 R8882 R8883 C8700 C8701 C8702 C8703 C8704 C8705 C8706 C8707 C8708 C8720 C8721 C8722 C8723 C8724 C8725 C8726 C8727 R8700 C8728 R8701 R8702 R8703 R8704 R8705 R8706 R8707 R8708 R8709 R8710 R8711 R8712 R8713 R8714 C8740 C8741 C8742 C8743 C8744 C8745 C8746 C8747 R8720 C8748 CB1 R8721 CB2 R8722 CB3 R8723 CB4 R8724 R8725 R8726 R8727 R8728 R8729 R8730 R8731 R8732 R8733 R8734 C8760 C8761 C8762 C8763 C8764 C8765 C8766 C8767 R8740 C8768 R8741 R8742 R8743 R8744 R8745 R8746 R8747 C8770 R8748 C8771 R8749 C8772 C8773 C8774 C8775 C8776 C8777 C8778 R8750 C8779 R8751 R8752 R8753 R8754 C8780 C8781 C8782 C8783 C8784 C8785 C8786 C8787 R8760 R8761 R8762 R8763 R8764 R8765 R8766 R8767 FL8700 R8768 C8790 R8769 C8791 C8792 C8793 C8794 C8795 C8796 R8770 R8771 R8772 R8773 R8774 R8781 R8782 R8783 R8784 R8785 R8786 R8787 IC8780 R8788 IC8781 R8789 IC8782 IC8783 IC8784 R8790 R8791 R8792 R8793 R8794 R8795 R8796 R8797 R8798 R8799 ZA8701 ZA8702 ZA8703 R8800 R8801 R8802 R8803 R8804 R8805 R8806 R8810 R8811 R8812 R8813 TNPA3194 2 C4 C4MM1 C4MM2 C4MM3 C4MM4 PbF A1 A40 B1 B40 1 20 ORDER NO. 1 68 1 68 1 68 1 68 1 10 11 20 1 10 11 20 1 10 11 20 1 10 11 20 1 5 C4 TNPA3194 2 C4 1 2 3 SEE REVERSE FOR ORDER NO. Parts Location C4-BOARD IC IC8780 F-2 IC8781 G-2 IC8782 G-2 IC8783 H-2 IC8784 G-1 55 14.11.SC 电路板 A B C D E F G H I 1 2 3 4 5 6 SC41 SC42 C522 C526 R511 R512 C550 C551 L603 L604 Q552 L609 JS496 L611 L612 L613 L614 L615 L616 L617 L618 L619 VR523 L620 L621 L622 L623 L624 L625 L626 L627 L628 L629 L630 L631 L632 L633 L634 L635 L636 L637 L638 L639 L640 L641 L644 L645 L647 L648 C598 L650 L651 VR557 D583 L472 L473 C601 C602 C603 C604 C605 Q601 Q602 Q603 C607 Q604 Q605 Q606 Q607 C610 Q611 Q612 Q613 Q614 Q615 Q616 Q617 Q618 C435 C436 R602 D608 D609 D610 Q634 Q635 Q636 Q637 Q638 D619 D620 D621 D623 D624 C454 Q451 C456 D627 Q648 C459 Q649 R434 Q650 C461 Q651 Q652 TP1 TP2 TP3 TP4 TP6 TP7 TP8 C475 Q471 TP9 C476 D650 R459 R465 C683 C684 SC2 C492 Q491 Q492 TP10 TP11 TP12 TP13 R474 TP14 TP15 TP16 T431 TP20 TP21 TP22 R677 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 R687 R688 R498 R499 VR477 TP40 TP41 TP42 TP43 TP44 TP45 TP46 TP47 TP48 TP49 TP50 TP51 TP54 TP55 VR491 TP56 TP57 TP58 T471 TP59 TP60 TP61 TP62 TP63 SC23 TP70 TP76 TP77 TP80 TP81 TP83 TP84 C701 C702 C703 C704 C705 C513 CR No.6 1 SC TNPA3185 2 1 3 PbF A1 A2 B2 B1 B40 B39 A40 A39 A1 A2 B2 B1 B40 B39 A40 A39 G D S SEE REVERSE FOR ORDER NO. G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S A A K A A K A A K G D S G D S G D S G D S G D S A A K A A K A A K A A K A A K E C B A A K G D S G D S G D S G D S G D S E C B A A K 1 6 E C B E B C 1 5 6 10 B2 B1 P1 S1 S3 S2 P2 ST 1 3 SC-BOARD(FOIL SIDE) TXNSC1VCSC TH-42PHD7CY SC-BOARD TXNSC1VCSC TH-42PHD7CY SC-BOARD TXNSC1VCSC 56 SC TH-42PHD7CY SC-BOARD PARTS LOCATION TH-42PHD7CY SC-BOARD PARTS LOCATION Parts Location SC-BOARD (FOIL SIDE) TRANSISTOR Q6451 H-3 Q6471 I-2 Q6491 H-3 Q6492 H-3 Q6552 G-4 Q6601 D-4 Q6602 D-4 Q6603 C-4 Q6604 C-4 Q6605 C-4 Q6606 C-4 Q6607 B-4 Q6611 G-4 Q6612 F-4 Q6613 F-4 Q6614 F-4 Q6615 F-4 Q6616 E-4 Q6617 E-4 Q6618 E-4 Q6634 D-2 Q6635 D-2 Q6636 C-2 Q6637 C-2 Q6638 C-2 Q6648 F-2 Q6649 F-2 Q6650 F-2 Q6651 E-2 Q6652 E-2 TP1 A-2 TP2 A-2 TP3 A-2 TP4 A-2 TP6 A-2 TP7 A-2 TP8 A-2 TP9 A-2 TP10 D-2 TP11 E-2 TP12 E-2 TP13 E-2 TP14 E-2 TP16 E-2 TP16 E-2 TP20 F-2 TP21 E-2 TP22 F-2 TP23 E-2 TP24 F-2 TP25 E-2 TP26 F-2 TP27 F-2 TP28 F-2 TP29 D-2 TP30 E-2 TP31 E-2 TP40 C-5 TP41 C-5 TP42 C-5 TP TP43 C-5 TP44 C-5 TP45 C-5 TP46 G-5 TP47 G-5 TP49 G-5 TP50 G-5 TP51 G-5 TP53 G-5 TP54 C-5 TP56 C-5 TP57 C-5 TP58 C-5 TP59 G-5 TP60 G-5 TP61 G-5 TP62 G-5 TP70 G-4 TP76 H-3 TP77 H-3 TP80 D-5 TP81 D-5 TP83 F-5 TP84 F-5 Parts Location SC-BOARD (COMPONENT SIDE) IC IC6431 C-4 IC6434 C-4 IC6451 D-4 IC6452 B-3 IC6453 A-5 IC6454 B-5 IC6455 B-5 IC6469 B-4 IC6471 B-2 IC6472 C-5 IC6474 B-2 IC6480 B-4 IC6491 B-4 IC6500 A-5 IC6502 B-4 IC6503 B-4 IC6504 B-4 IC6505 A-4 IC6506 A-4 IC6507 A-4 IC6509 A-4 IC6511 D-5 IC6512 B-4 IC6521 D-4 IC6541 D-5 IC6542 B-5 IC6543 B-5 IC6544 D-5 IC6581 I-3 IC6601 F-3 IC6602 G-2 IC6603 E-2 IC6604 C-2 IC6605 D-2 IC6606 D-2 Q6431 C-4 Q6432 C-4 Q6435 C-4 Q6451 B-3 Q6455 B-3 Q6471 A-2 Q6472 A-3 Q6474 B-2 Q6475 A-2 Q6476 B-4 Q6477 A-4 Q6491 B-3 Q6492 B-4 Q6501 D-5 Q6502 C-4 Q6503 B-4 Q6504 B-4 Q6505 C-4 Q6511 D-5 Q6512 D-5 Q6520 D-4 Q6521 D-4 Q6522 D-4 Q6523 D-4 Q6524 C-5 Q6525 D-5 Q6526 D-5 Q6527 D-4 Q6528 D-4 Q6530 E-4 Q6531 E-4 Q6532 E-4 Q6533 E-4 Q6534 F-4 Q6535 F-4 Q6536 F-4 Q6537 F-4 Q6538 G-4 Q6539 G-4 Q6540 G-4 TRANSISTOR TP15V I-2 TPSC1 E-5 TPSOS1 F-2 TPSOS2 E-2 TPVAD C-4 TPVSCN B-3 TPVSET B-3 TPVSET2 B-4 TPVSUS I-2 Q6541 G-4 Q6542 H-4 Q6543 H-4 Q6544 H-4 Q6545 H-4 Q6546 H-5 Q6547 H-5 Q6551 D-5 Q6552 C-4 Q6560 E-5 Q6561 E-5 Q6562 E-5 Q6563 E-5 Q6564 F-5 Q6565 F-5 Q6566 F-5 Q6567 F-5 Q6568 G-5 Q6569 G-5 Q6570 G-5 Q6571 G-5 Q6581 I-3 Q6582 B-5 Q6583 C-5 Q6586 B-5 Q6601 F-4 Q6602 F-4 Q6603 G-4 Q6604 G-4 Q6605 G-4 Q6606 G-4 Q6607 H-4 Q6608 F-3 Q6609 F-3 Q6611 C-4 Q6612 D-4 Q6613 D-4 Q6614 D-4 Q6615 D-4 Q6616 E-4 Q6617 E-4 Q6618 E-4 Q6619 E-3 Q6620 E-3 Q6627 F-2 Q6628 F-2 Q6629 D-2 Q6630 E-2 Q6634 F-2 Q6636 G-2 Q6637 G-2 Q6638 G-2 Q6639 C-2 Q6640 C-2 Q6648 D-2 Q6649 D-2 Q6650 D-2 Q6651 D-2 Q6652 E-2 TP 57 A B C D E F G H I 1 2 3 4 5 6 C514 C708 C515 Q511 SC41 C516 Q512 SC42 C517 C519 SC45 SC46 C711 C712 C713 C714 C521 C522 D500 C524 Q520 C525 Q521 D501 Q522 C526 Q523 R500 Q524 Q525 R501 D506 Q526 R502 JS462 Q527 R503 JS463 Q528 R504 D509 R505 C721 R506 R507 C723 R508 IC500 R509 IC501 IC502 C726 IC503 C727 D510 Q530 IC504 R701 D511 Q531 IC505 C729 R702 D512 Q532 IC506 R703 D513 Q533 IC507 D514 R510 Q534 IC508 D515 R511 Q535 IC509 D516 R512 Q536 D517 R513 Q537 C730 D518 R514 Q538 C731 R515 Q539 R516 C732 R517 C540 R518 IC511 C541 R519 IC512 C542 C543 C544 Q540 C545 D521 Q541 C546 D522 Q542 C547 D523 Q543 C548 D524 R520 Q544 Q545 D525 R521 Q546 D526 R522 R523 Q547 D527 D528 R524 D529 R525 R526 R527 C550 R528 C551 IC521 R529 C552 C553 L603 C554 L604 C555 Q551 Q552 L607 R530 R531 L609 R532 R533 R534 R535 JS496 R536 R537 R538 L611 R539 L612 L613 L614 D540 Q560 D541 L615 Q561 D542 L616 Q562 L617 D543 Q563 D544 L618 R540 Q564 D545 L619 R541 Q565 D546 Q566 R542 D547 Q567 R543 D548 Q568 R544 R545 D549 Q569 R546 VR523 R547 L620 R548 IC541 C571 L621 R549 IC542 L622 IC543 L623 IC544 L624 D550 Q570 D551 L431 L625 C575 Q571 D552 L626 C576 L627 C577 D553 D554 L628 C578 R550 D555 L629 R551 R552 R553 R554 R555 R556 R557 L630 C580 R558 L631 C581 R559 L632 L633 L634 C584 L635 C585 Q581 L636 Q582 L637 Q583 L638 R560 L639 R561 R562 Q586 R563 R564 R565 R566 R567 L640 R568 L641 R569 D570 L644 L645 L451 D572 L647 L648 R570 C598 R571 R572 R573 R574 R575 R576 R577 R578 L650 R579 L651 VR557 D582 D583 D584 R580 D585 R581 D586 R582 R583 R584 R585 R586 R587 R588 L661 R589 IC581 L662 L471 L472 L473 R590 R591 R592 R593 R594 R595 R596 R597 R598 R599 C600 C601 C602 C603 C604 C605 Q601 Q602 Q603 C607 C608 Q604 C609 Q605 Q606 Q607 Q608 Q609 C610 C611 C612 C613 C614 C615 Q611 C616 Q612 C617 Q613 C618 Q614 C619 Q615 Q616 Q617 Q618 Q619 C620 C621 C622 C623 C624 D600 Q620 C625 D601 C432 C626 D602 C627 C433 D603 C434 C628 D604 R600 C629 R601 C435 Q431 D605 C436 Q432 R602 D606 C437 Q627 R603 D607 Q628 R604 D608 Q435 Q629 R605 D609 R606 R607 C630 R608 R609 IC601 C631 IC602 C632 IC603 Q630 IC604 D610 R801 IC605 D611 R802 IC606 D612 R803 D613 C638 R610 R804 D614 Q634 R805 C639 R611 D615 Q635 R806 R612 D616 Q636 R807 R613 D617 Q637 R808 R614 D618 Q638 Q639 D619 R615 R616 R617 C640 R618 C641 R619 C642 C643 Q640 D620 C645 L501 D621 C646 L502 L503 D623 C648 D624 L504 C454 R620 L505 D625 Q451 C649 R815 R621 L506 D432 C456 R816 R622 L507 D433 D627 R623 C458 R624 Q648 D435 R431 Q455 C459 R625 Q649 D436 R432 R626 R433 R627 R434 C650 R628 R435 C651 R629 R436 C652 C653 R437 R438 C460 Q650 R439 IC431 C461 Q651 C462 Q652 C463 IC434 R630 C465 R631 C466 R632 R633 C467 R827 R634 R440 R828 R635 R441 R829 R636 R442 R637 R443 R638 L711 R639 L712 L713 R448 L714 R830 L715 R831 L716 C472 R832 L717 C473 R833 L718 C474 R640 R834 D451 C475 Q471 C669 R641 R835 D452 C476 Q472 R642 R836 D453 R643 C477 R450 D454 Q474 D648 R644 R451 Q475 D649 D455 R645 Q476 D456 R452 R646 R453 D457 R647 Q477 R454 R648 C670 R649 D459 R455 C671 R456 C672 R457 C673 D650 R458 C674 D651 R459 IC451 C675 IC452 C676 IC453 L534 R650 D460 IC454 L535 R651 IC455 C679 D461 L536 D462 R652 L537 D463 R653 L538 R654 R460 IC458 R461 R655 D465 R462 D466 R656 R463 R657 R464 C680 D468 R658 C681 R465 R659 R466 C682 R467 C683 R468 C684 C490 R850 R469 C491 D661 R851 SC2 C492 D662 R852 C493 R853 R660 D470 R854 Q491 R855 D471 Q492 D472 R856 R663 D473 IC467 R857 L548 R664 R470 R858 L549 R665 D475 R471 IC469 R859 R666 D476 R472 R667 D477 R473 R668 D478 R474 R669 D479 R475 R476 R477 L550 R478 L551 T431 R479 IC471 L552 IC472 R670 IC474 D481 R671 R672 D482 R673 D483 R674 R480 D484 D485 R481 R675 D486 R482 R676 R677 D487 R483 R678 D488 R484 R679 D489 R485 R486 R487 R488 IC480 R489 R680 D490 R681 D491 R682 D492 R683 D493 R490 D494 R685 D495 R491 R492 R493 R687 R494 R688 D499 R495 R689 R496 R497 R498 R499 IC491 VR477 R690 R691 R692 R693 R694 R695 R696 R697 R698 VR491 T471 SC20 SC23 C501 C502 C503 C504 Q501 C505 Q502 C506 Q503 C507 Q504 C508 Q505 C509 ZA401 C701 ZA402 C702 ZA403 C703 C510 C704 C705 C511 C512 C706 C513 TNPA3185 SC 1 CR No.6 TP15V TPVSUS TPVSCN TPVAD TPVSET TPSC1 DIP TPSOS1 TPSOS2 TPVSET2 PbF G D S A1 A2 B1 B2 A40 A39 B40 B39 G D S A1 A2 B1 B2 A40 A39 B40 B39 2 10 1 9 2 10 1 9 G S D 1 7 8 14 G S D G S D G S D G S D G S D G S D 1 7 8 14 G S D G S D G S D 16 G S D 1 4 5 8 G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D 1 4 5 8 1 4 5 8 1 4 5 8 G S D G S D G S D G S D ORDER NO. 1 4 5 8 1 4 5 8 D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S B C E A A K A A K 1 8 9 16 1 8 9 1 7 8 14 A A K 1 10 11 20 1 10 11 20 D G S D G S D G S D G S D G S 1 8 9 16 A A K A A K A A K A A K A A K B C E A A K D G S D G S D G S D G S D G S 1 2 3 4 B C E A A K 1 2 4 1 6 B C E B C E 1 2 4 1 2 3 4 1 5 6 10 1 2 3 4 1 4 5 8 1 4 5 8 1 2 3 4 1 4 5 8 B2 B1 P1 S1 S3 S2 P2 ST 2 20 1 19 1 3 1 4 5 8 SC-BOARD(COMPONENT SIDE) TXNSC1VCSC TH-42PHD7CY SC-BOARD TXNSC1VCSC TH-42PHD7CY SC-BOARD TXNSC1VCSC 58 14.12.SU 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY SU-BOARD TNPA3189 TH-42PHD7CY SU-BOARD TNPA3189 SU-BOARD(COMPONENT SIDE) TNPA3189 SU-BOARD(FOIL SIDE) TNPA3189 A40 A1 TNPA3189 1 1 2 3 SUMM1 SU PbF SEE REVERSE FOR ORDER NO. C6901 C6902 C6903 C6904 C6905 C6906 C6907 C6908 A41 C6911 C6912 C6913 C6914 C6915 C6916 C6917 C6918 C6919 C6920 D6901 D6902 D6903 D6904 R6901 R6902 R6903 R6904 R6905 R6906 IC6901 IC6902 IC6903 IC6904 IC6905 IC6906 R6911 R6912 R6913 R6914 R6915 R6916 A80 SU45 SU1 SU2 SU3 SU4 TPSU1 TPSU2 TNPA3189 1 SU PbF 1 25 26 50 51 75 76 100 1 26 50 51 75 76 100 25 1 25 26 50 51 75 76 100 1 26 50 51 75 76 100 25 1 26 50 51 75 76 100 25 26 50 51 75 76 100 1 25 1 10 ORDER NO. A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 SU Parts Location SU-BOARD IC IC6901 B-2 IC6902 C-2 IC6903 C-2 IC6904 E-2 IC6905 E-2 IC6906 F-2 TPSU1 C-2 TPSU2 E-2 TP 59 14.13.SD 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY SD-BOARD TNPA3190 TH-42PHD7CY SD-BOARD TNPA3190 SD-BOARD(COMPONENT SIDE) TNPA3190 SD-BOARD(FOIL SIDE) TNPA3190 C40 C1 TNPA3190 1 1 2 3 SD SDMM1 PbF SEE REVERSE FOR ORDER NO. C41 TPSD1 TPSD2 C80 C6971 C6972 C6973 C6974 C6975 C6976 C6977 C6978 C6981 C6982 C6983 C6984 C6985 D6961 C6986 D6962 C6987 D6963 IC6957 C6988 D6964 IC6958 C6989 IC6959 C6990 IC6960 IC6961 IC6962 R6971 R6972 R6973 R6974 R6975 R6976 R6981 R6982 R6983 R6984 R6985 R6986 SD46 SD1 SD2 SD3 SD4 TNPA3190 1 SD PbF ORDER NO. 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 25 26 50 51 75 76 100 1 10 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 A1 A48 B1 B48 SD Parts Location SD-BOARD IC IC6957 A-2 IC6958 B-2 IC6959 C-2 IC6960 D-2 IC6961 E-2 IC6962 F-2 TPSD1 C-2 TPSD2 E-2 TP 60 14.14.SS 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY SS-BOARD TXNSS1VCSC SS2-BOARD TNPA3187 SS3-BOARD TNPA3188 TH-42PHD7CY SS-BOARD TXNSS1VCSC SS2-BOARD TNPA3187 SS3-BOARD TNPA3188 SS-BOARD(FOIL SIDE) TXNSS1VCSC SS2-BOARD(FOIL SIDE) TNPA3187 SS3-BOARD(FOIL SIDE) TNPA3188 Parts Location SS-BOARD (FOIL SIDE) TRANSISTOR Q6000 C-3 Q6001 D-3 Q6002 C-3 Q6003 C-3 Q6004 C-3 Q6005 D-3 Q6006 E-3 Q6007 E-3 Q6008 E-3 Q6009 E-3 Q6010 B-2 Q6011 C-2 Q6012 C-2 Q6013 E-2 Q6014 E-2 Q6015 E-2 Q6016 E-2 Q6111 C-2 TP1 A-3 TP2 B-4 TP3 G-3 TP4 B-4 TP5 C-3 TP6 A-3 TP7 B-4 Q6112 C-2 Q6113 D-2 Q6114 D-2 Q6115 F-2 Q6116 F-2 Q6117 F-2 Q6118 F-2 Q6138 G-2 Q6139 G-3 Q6731 G-2 TP TP8 B-4 TP9 B-4 TP10 A-3 TP11 A-4 TP12 A-3 TP13 A-2 TP14 A-2 TP15 A-2 TP16 A-2 TP17 A-2 TP18 A-2 TP19 A-2 TP20 A-2 TP21 A-2 TP22 A-2 TP23 A-2 TP32 A-3 TP33 B-2 SS SS2 SS3 SS22 SS57 SS58 1 1 2 3 SS3 TNPA3188 SS23 SS55 SS56 SS2 1 1 2 3 TNPA3187 PbF PbF 7 6 1 2 1 13 1 13 SEE REVERSE FOR ORDER NO. 7 6 1 2 1 13 1 13 SEE REVERSE FOR ORDER NO. D111 D112 D113 D115 D116 D117 Q138 Q139 D121 D128 D129 Q731 R134 R135 SS11 R136 SS12 SS20 SS21 D157 SS32 SS34 D160 D164 SS42 VR145 SS51 R176 SS52 R177 SS53 SS54 R181 R187 R189 R191 Q000 Q000 Q001 Q001 Q002 Q002 Q003 Q003 Q004 Q004 Q005 Q005 Q006 Q006 Q007 Q007 Q008 Q008 Q009 Q009 Q010 Q010 Q011 Q011 Q012 Q012 Q013 Q013 Q014 Q014 Q015 Q015 Q016 Q016 L101 L102 L103 L104 L105 L106 C060 L113 L114 L115 L116 L117 L118 L119 L120 L121 L122 L123 L124 L125 L126 L127 L128 L129 L130 L131 L132 L133 L134 L135 TP1 L136 TP2 L137 TP3 L138 TP4 L139 TP5 TP6 TP7 TP8 TP9 L140 L141 L152 L153 L154 L155 L156 L157 TP10 TP11 TP12 TP13 TP14 TP15 TP16 TP17 L168 TP18 TP19 TP20 TP21 TP22 TP23 TP32 TP33 C101 C102 C103 C104 C105 C106 C110 C111 C112 C113 C114 C115 Q111 Q111 Q112 Q112 Q113 Q113 C118 Q114 Q114 Q115 Q115 Q116 Q116 Q117 Q117 Q118 Q118 C120 C121 C122 C124 D101 C126 TNPA3186 SS 1 CR No.6 2 3 1 PbF A A K A A K A A K A A K A A K A A K E B C E B C A A K A A K A A K E C B 1 7 1 1 0 1 2 6 7 1 2 6 7 1 1 2 1 3 1 4 1 13 1 13 1 13 1 13 SEE REVERSE FOR ORDER NO. G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S G D S A A K 61 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY SS-BOARD TXNSS1VCSC SS2-BOARD TNPA3187 SS3-BOARD TNPA3188 TH-42PHD7CY SS-BOARD TXNSS1VCSC SS2-BOARD TNPA3187 SS3-BOARD TNPA3188 SS-BOARD(COMPONENT SIDE) TXNSS1VCSC SS2-BOARD(COMPONENT SIDE) TNPA3187 SS3-BOARD(COMPONENT SIDE) TNPA3188 Parts Location SS-BOARD (COMPONENT SIDE) IC IC6101 D-2 IC6102 E-4 IC6103 D-4 IC6104 B-3 IC6105 B-4 IC6106 G-2 IC6107 C-4 IC6109 A-3 TP15V F-4 TPSOS3 H-3 TPVDA G-4 TPVe A-2 TPVSUS G-4 Q6009 C-3 Q6010 F-2 Q6011 F-2 Q6012 F-2 Q6013 C-2 Q6014 C-2 Q6015 D-2 Q6016 D-2 Q6101 F-3 Q6102 F-3 Q6111 E-2 Q6112 E-2 Q6113 E-2 Q6114 E-2 Q6115 B-2 Q6116 B-2 Q6117 C-2 Q6118 C-2 Q6125 B-4 Q6127 B-2 Q6128 A-3 Q6000 F-3 Q6001 E-3 Q6002 E-3 Q6003 E-3 Q6004 F-3 Q6005 D-3 Q6006 D-3 Q6007 D-3 Q6008 C-3 TRANSISTOR Q6129 B-4 Q6130 B-4 Q6132 E-2 Q6133 E-2 Q6134 D-2 Q6135 D-2 Q6138 A-2 Q6139 A-3 Q6140 B-4 Q6141 C-4 Q6144 D-3 Q6145 D-3 Q6731 A-2 SS22 SS57 SS58 TNPA3188 1 SS3 SS23 SS55 SS56 TNPA3187 1 SS2 PbF PbF 7 6 1 2 1 13 1 13 ORDER NO. 7 6 1 2 1 13 1 13 ORDER NO. TP Q128 R104 Q129 R105 R106 R107 C130 R108 C131 R109 IC101 C132 IC102 C133 IC103 C134 Q130 D110 IC104 C135 D111 IC105 C136 Q132 D112 IC106 C137 Q133 D113 IC107 C138 Q134 R110 C139 Q135 D115 R111 IC109 D116 R112 D117 R113 Q138 R114 Q139 D119 R115 R117 R118 C140 R119 C141 C142 C143 C144 Q140 L000 C145 Q141 L001 D121 C146 D122 L002 C147 L003 R120 C148 Q144 L004 R121 C149 Q145 L005 R122 L006 L007 D128 R124 L008 D129 R125 L009 R126 R127 C150 R128 C151 R129 C152 C153 C154 D130 L010 C155 D131 L011 C156 D132 L012 C157 D133 L013 C158 D134 R130 L014 C159 D135 R131 Q731 L015 D136 R132 L016 D137 R133 R134 R135 SS11 R136 SS12 R137 C160 R138 C161 R139 L211 C162 L212 C163 L213 C164 D140 L214 C165 L215 C166 L216 C167 L217 C168 R140 L218 C169 R141 R142 R143 R144 SS20 D149 R145 SS21 R146 R147 R148 C170 R149 C171 C172 C174 D150 C175 D151 D152 D153 D154 R150 D155 R151 D156 R152 D157 R153 D158 R154 D159 R155 R156 SS32 R157 R158 SS34 R159 C182 C183 C184 D160 C185 D161 C186 D162 D163 D164 R160 D165 R161 D166 R162 R163 D168 R164 D169 R165 R166 SS42 R167 R168 R169 VR145 D170 D171 D172 D173 R170 R171 R172 R173 R174 R175 SS51 R176 SS52 R177 SS53 R178 SS54 R179 R180 R181 R183 R184 R185 R186 R187 R188 R189 D195 R191 R193 R195 R197 R198 R199 C002 C003 Q000 Q000 Q001 Q001 C006 Q002 Q002 C007 Q003 Q003 C008 Q004 Q004 C009 Q005 Q005 Q006 Q006 Q007 Q007 Q008 Q008 Q009 Q009 C011 C012 C013 C014 Q010 Q010 C015 Q011 Q011 C016 Q012 Q012 Q013 Q013 Q014 Q014 C019 Q015 Q015 ZA101 Q016 Q016 ZA102 ZA103 C020 D001 D002 D003 D004 D005 R001 D006 R002 D007 R003 R004 R005 R006 R007 R008 R009 R203 R205 R207 R209 R016 R017 R018 R019 R211 R213 R020 R214 R021 R022 R023 R024 R025 R029 L101 L102 L103 L104 L105 L106 L107 L108 R034 C060 L113 L114 L115 L116 L117 L118 L119 L120 L121 L122 L123 L124 L125 L126 L127 R050 L128 R051 L129 R052 R053 R054 R055 R056 R057 R058 L130 R059 L131 C081 L132 C082 L133 L134 L135 L136 L137 R060 L138 L139 L140 L141 L152 L153 L154 L155 L156 L157 L158 L159 R081 R082 R083 L161 L162 L168 C101 C102 C103 C104 C105 Q101 C106 Q102 C108 C109 C110 C111 C112 C113 C114 C115 Q111 Q111 Q112 Q112 C117 Q113 Q113 C118 Q114 Q114 Q115 Q115 Q116 Q116 Q117 Q117 Q118 Q118 C120 C121 C122 C124 D101 D101 C126 C127 R100 C128 R101 C129 Q125 R102 Q127 R103 1 SS TNPA3186 CR No.6 TPVDA TP15V TPVSUS TPVe TPSOS3 PbF G S D G D S 1 8 9 16 1 8 9 16 1 8 9 16 G S D 1 8 9 16 A A K 1 4 5 8 A A K 1 10 11 20 A A K 1 4 5 8 A A K A A K A A K B C E B C E A A K A A K A A K B C E 1 7 1 10 1 2 6 7 1 2 6 7 1 12 1 3 1 4 1 13 1 13 1 13 1 13 1 8 9 16 1 4 5 8 ORDER NO. 1 8 9 16 D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S D G S 1 8 9 16 1 8 9 16 D G S D G S D G S D G S D G S D G S D G S D G S A A K G S D SS SS2 SS3 62 14.15.Z 电路板 A B C D E F G H I 1 2 3 4 5 6 TH-42PHD7CY Z-BOARD TNPA3198 TH-42PHD7CY Z-BOARD TNPA3198 Z-BOARD(FOIL SIDE) TNPA3198 Z-BOARD(COMPONENT SIDE) TNPA3198 R2480 R2483 R2487 R2488 R2489 TP2351 TP2352 TP2354 TP2355 TP2356 TP2358 R2490 R2491 R2496 TP2364 R810 R814 R815 R816 Z32A R825 Z33A C802 C803 C805 Q2301 C806 Q2302 Q2303 C808 Q2304 Z34A C809 Q2305 Q2306 C810 C811 C812 C2312 C813 C2313 C814 C2314 C815 C816 C817 C818 C819 C821 C824 D2301 D2302 D2308 R2306 IC2301 R2309 IC2302 Q2330 IC2304 Q2331 Q2333 R2310 Q2334 Q2335 Q2336 R2319 R2325 C2352 C2353 C2354 C2355 C2358 C2359 R2332 C2362 C2363 C2364 D804 C2365 C2366 D806 C2367 D807 C2368 C2369 R2341 R2343 R2345 D810 C2370 D811 C2371 D812 D813 Q2370 D814 Q2371 R2355 R2356 R2357 R2358 R2359 IC801 IC802 IC803 IC804 R2360 R2365 R2366 R2367 R2369 R2370 R2371 R2372 R2373 R2374 R2375 JS2301 Q2406 Q2408 Q2410 C2417 C2419 Z10 C2422 C2423 C2426 C2427 C2429 R2408 C2430 IC2401 C2437 C2438 Z30 C2440 Z31 C2441 Z32 Z33 Z34 L2305 L2306 C2450 C2451 C2454 C2457 Q801 C2459 Q802 Q803 R2434 Q804 Q805 R2438 R2439 C2465 TP2305 C2466 C2467 TP2307 R2440 R2441 R2442 L801 R2445 L802 L803 L804 L805 L2330 C2474 L2331 C2484 TP2327 R2461 R2462 R2464 TP2330 R2469 TP2331 TP2332 Z5 TP2339 Z6 R2472 Z7 R2473 Z8 Z9 TNPA3198 1 Z ZMM1 ZMM2 DIP ZMM3 ZA003 ZA002 ZA001 PbF 94V-0 1 4 1 4 1 4 14 28 15 1 14 28 15 1 B C E ORDER NO. B C E 1 3 4 5 2 1 3 4 5 2 1 8 9 16 1 3 4 5 2 1 5 32 17 16 1 1 3 1 3 1 3 1 3 1 3 1 11 1 4 1 3 1 2 19 20 1 8 TP2340 TP2341 TP2342 TP2343 TP2344 TP2345 TP2346 TP2347 TP2348 TP2349 R2481 R2482 R2484 R2485 R2486 TP2350 TP2353 TP2357 TP2359 R2492 R803 R2493 R2494 R805 R2495 R806 R807 R808 R809 TP2362 TP2363 TP2365 TP2366 TP2367 TP2368 R811 TP2369 R812 R813 R817 R818 TP2370 R819 TP2371 TP2372 R820 R821 TP2379 R822 R823 R824 Z32A R826 R827 R828 R829 R830 R831 Z33A C802 C803 C805 C806 C807 C808 Z34A C809 C810 C811 C812 C813 C2313 C814 C2314 C815 C2315 C816 C817 C818 C819 C821 C823 C824 R2301 R2304 R2305 R2307 R2308 IC2301 IC2302 Q2330 Q2331 D2317 R2320 R2321 R2324 C2350 C2351 C2352 C2353 C2354 C2355 C2356 C2357 C2358 C2359 R2331 R2333 C2360 C2361 C2362 D802 C2363 D803 C2364 C2365 C2366 C2367 D808 C2368 C2369 R2346 R2347 R2348 C2370 C2371 R2350 R2351 R2352 R2353 R2354 R2355 R2356 R2357 R2358 R2359 IC801 IC802 IC804 R2360 R2365 R2366 R2368 R2374 R2375 R2376 R2377 R2378 R2379 R2380 R2381 R2382 C2419 Z10 C2427 C2429 C2431 IC2401 C2432 C2433 C2434 C2435 C2436 C2437 R2410 C2438 Z30 Z31 Z32 C2442 Z33 Z34 C2450 C2451 C2452 C2453 C2454 C2456 C2457 C2458 R2431 C2460 C2461 TP2301 C2462 TP2302 C2463 TP2303 C2464 TP2304 TP2308 TP2309 R2447 L804 R2448 L805 TP091 R2449 TP092 TP093 TP094 L2330 L2331 R2450 R2452 R2453 R2456 R2457 C2480 TP2328 R2460 R2463 R2466 R2467 R2468 TP2333 TP2334 TP2335 TP2336 TP2337 R2470 TP2338 R2471 Z6 Z7 R2476 R2477 TNPA3198 1 Z ZA001 ZA003 ZA002 PbF 94V-0 1 4 1 4 1 4 28 14 15 1 28 14 15 1 SEE REVERSE FOR ORDER NO. E C B E C B 1 5 2 4 3 1 5 2 4 3 1 5 2 4 3 1 5 1 16 17 32 1 3 1 3 1 3 1 3 1 3 1 4 1 3 Parts Location Z-BOARD (COMPONENT SIDE) IC IC801 G-2 IC802 G-2 IC803 H-1 IC804 H-3 IC2301 G-3 IC2302 F-4 IC2304 G-2 IC2401 G-2 Q2303 F-3 Q2304 E-3 Q2305 F-3 Q2306 F-3 Q2330 G-3 Q2331 F-4 Q2333 G-3 Q2334 G-3 Q2335 H-3 Q2336 H-3 Q2370 H-3 Q2371 H-2 Q2406 F-2 Q2408 E-2 Q2410 F-2 Q801 H-3 Q802 H-4 Q803 G-4 Q804 G-4 Q805 G-4 Q2301 F-2 Q2302 F-3 TRANSISTOR TP2331 F-2 TP2332 F-2 TP2339 F-3 TP2351 F-2 TP2354 F-2 TP2355 F-3 TP2364 E-3 TP Parts Location Z-BOARD (FOIL SIDE) IC IC802 B-3 IC804 A-3 IC2301 B-3 IC2302 C-4 IC2401 C-3 TP2303 D-2 TP2304 D-2 TP2308 D-2 TP2309 C-2 TP2328 B-2 TP2333 D-2 TP2334 C-3 TP2335 D-3 TP2336 D-2 TP2337 C-2 TP2338 C-2 TP2340 C-2 TP2341 C-2 TP2342 C-3 TP2343 C-3 TP2344 C-2 TP2345 C-3 TP2346 C-2 TP2347 C-3 TP091 B-3 TP092 B-3 TP093 C-4 TP094 C-4 TP2301 D-2 TP2302 D-2 TP Q2330 B-4 Q2331 D-4 TP2348 C-2 TP2349 C-2 TP2350 D-3 TP2353 D-3 TP2357 C-2 TP2359 D-3 TP2362 D-2 TP2363 D-2 TP2365 D-2 TP2366 C-3 TP2367 C-3 TP2368 C-3 TP2369 C-3 TP2370 C-3 TP2371 B-3 TP2372 C-3 TP2379 D-3 TRANSISTOR Z 63 14.16.H3, S1 和 V1 电路板 A B C D E F G H I 1 2 3 4 5 6 JK8500 H37 C8001 C8002 L8501 L8502 TNPA3003 H3 1 SEE REVERSE FOR ORDERNO. 1 3 TH-42PHD7CY V1-BOARD TXNV11VCSC S1-BOARD TNPA3200 H3-BOARD TNPA3003 TH-42PHD7CY V1-BOARD TXNV11VCSC S1-BOARD TNPA3200 H3-BOARD TNPA3003 V1-BOARD(FOIL SIDE) TXNV11VCSC V1-BOARD(COMPONENT SIDE) TXNV11VCSC S1-BOARD(FOIL SIDE) TNPA3200 S1-BOARD(COMPONENT SIDE) TNPA3200 H3-BOARD TNPA3003 V1 S1 H3 H3 SEE REVERSE FOR ORDER NO. IC1550 S1550 S1551 S1552 S1553 S1554 RM001 TNPA3199 1 V1 PbF 94V-0 VOL.UP VOL.DOWN F TV/VTR STR S34 SEE REVERSE FOR ORDER NO. S061 TNPA3200 1 S1 PbF 1 3 R1510 R1511 R1512 R1513 R1514 D1550 D1552 D1553 R1553 R1554 R1555 V34 1 V1 1 8 S34 S061 ORDER NO. 1 3 64 15 电路图 15.1. 电路图注意事项 65 15.2. 主要集成电路方框图 INITIALIZE PULSE 64 64 S.R S.R S.R 64 S.R 64 64 S.R 64 S.R CONTROL PULSE VOLTAGE SCAN SC2 SC23 SC20 D20 CONTROL DISCHARGE MAIN MPU ROM FORMAT CONVERTER RGB PROCESSOR SDRAM D34 D33 P25 D25 P27 P5 D27 P9 Z5 P12 P11 SS11 SS12 SS42 SS34 SS20 SS22 SUSTAIN PULSE ERASE PULSE ADDRESS VOLTAGE (VE) S.R. 5V +12V D5 D1 J6 J5 J1 VIDEO SW SYNC SW SYNC SEPARATOR DC/DC CONVERTER PROCESS VOLTAGE RECTIFIER CONTROL SUSTAIN VOLTAGE RECTIFIER SUSTAIN VOLTAGE VDA 15V 5V 12V P23 P2 VSUS PRE AMP R OUT L OUT Z7 Z6 C43 C41 C33 C31 C44 C42 AUDIO SW J8 POWER ON STAND BY G R LED TV/VCR VOL.UP VOL.DOWN F STR REMOTE SENSOR DETECTER LIGHT - + LINE FILTER STAND BY PF1 PF10 PF9 J10 + - POWER SWITCH SC SU SD H3 H3 L R Z8 J14 CONTROL D P SOS ON/OFF STB5V S34 S1 J Vda 15V SS PF Z SS2 SS3 SPEAKER TERMINAL SPEAKER TERMINAL PC RS-232C PC AUDIO IN HX V34 VDA SP SP AC IN AC IN C4 C3 V1 15V S.R. S.R. S.R. S.R. S.R. S.R. 64 64 S.R S.R S.R 64 S.R 64 64 S.R 64 S.R PRIMARY CIRCUIT SS23 SS21 SS32 S.R. S.R. C2 C12 S.R. S.R. S.R. S.R. S.R. S.R. C22 S.R. C1 C11 C21 C32 D31 D32 SUB-FIELD PLASMA AI PROCESSOR RECTIFIER POWER RELAY FACTOR CONTROL VOLTAGE PROCESS CONTROL VOLTAGE STANDBY RECTIFIER CONTROL VOLTAGE RECTIFIER STANDBY LOW VOLTAGE PROTECTOR VOLTAGE HIGH PROTECTOR HD/VD S-VIDEO VIDEO R L R G B H V GC2M LVDS HY J11 STB5V +12V Data Drive (Upper, Right) Data Drive (Upper, Left) Scan out (Upper) Scan out (Down) Scan Drive LVDS A/D A/D LVDS BUS SW BUS SW BUS SW SW BUS SDRAM 32M FLASHROM D3 J3 SYSTEM CONTROL IN IN VIDEO OUT AUDIO IN COMPONENT/RGB P10 Z10 Z31 Z32 Z33 Z34 FAN CONT +5,+15 FAN SOS Data Drive (Lower, Right) Data Drive (Lower, Left) Sustain Drive Vsus J12 J13 TH-42PHD7CY Main Block Diagram TH-42PHD7CY Main Block Diagram 66 15.3. 电源方框图 - + - + - + D911 L930 TP931 IC920 D910 1 3 2 F900 F901 D404 D401 350V D409 D510 D511 D557 350V L403 F405 PR401 Q414 Q415 Q412 Q413 D419 D420 D539 D537 DC180V X501 4NHz D563 D531 Q527 D534 D536 R443 D564 R661 1 2 3 R608 PR510 D549 D554 R641 TP930 LF903 D410 D545 D544 D543 D532 R665 D561 D551 PR509 D535 Q514 D530 D555 D521 F902 1 2 5 6 STB+5V TO J-BOARD J10 PF10 F.STB ON/OFF F.STB+14V F.STB+14V Q930 SW 14V 10 8 6 4 2 1 ERROR DET T920 POWER CONTROL FULL WAVE RECTIFIER AC INLET AC PLUG LIVE NEUTRAL 4 1 LIVE NEURTAL PF9 4 1 P9 8 6 T410 5 IC409 4 4 3 2 1 1 2 3 4 IC408 14 15 13 10 3 1 IC504 4 2 1 3 1 3 4 2 1 3 4 2 IC404 IC403 IC401 3 9 8 14 4 2 16 10 T401 5 8 7 6 VCC MOS DRIVE CURR DET CURR COMP 2 1 3 4 Q407 PFC Q420 Q401 Q404 Q406 L402 D415 IC406 IC930 IC910 POWER FACTOR CONTROL 4 10 1 T405 2 2 5 9 11 6 7 T403 5 4 9 2 10 6 T402 Q504 3 RL403 RL402 Q535 Q501 Q522 Q503 Q502 8 6 10 7 5 9 2 3 4 1 11 15 20 14 18 19 12 13 17 16 VDD VSS XIN XOUT RESET P21 P20 D3 D2 P00 P01 P02 P03 P10 P11 P12 P13 D0 D1 IC501 1 3 IC502 RESET CLR PR 7 3 1 6 Q CK 2 D IC521 5 Q Q515 Q525 Q528 1 3 6 4 IC522 2 5 1 4 6 Q512 Q551 Q513 Q506 Q511 3 T407 5 11 2 9 12 8 T404 14 13 7 Q519 Q545 Q518 Q510 IC512 1 3 6 4 IC520 Q CK 2 D IC523 5 Q CLR PR 7 3 1 6 Q516 Q540 Q521 Q541 Q509 Vlow Vsus Csus 1 2 4 Vda TO SS-BOARD SS12 P12 Vda +15V +15V 1 2 P7 +15V +12V TO Z-BOARD 1 2 6 Z5 P5 +12V +12Vs 3 STB5V +12Vs 7 +12Vs 8 1 +15V 2 +15V P23 TO SC-BOARD SC23 NO USE SS11 P11 3 2 Vsus TO SS-BOARD TO SC-BOARD P2 SC2 2 1 Vsus Vsus Vsus PS SOS ALL OFF 4 8 STB5V TO D-BOARD FAN SOS 2 7 P27 D27 TV ON/OFF 6 2 +12V TO D-BOARD +5V 1 6 P25 D25 +12V 5 Q544 PS SOS TV ON/OFF ALL OFF Q421 POWER MCA COLD HOT COLD HOT COLD HOT PF Line P Power Filter Board Supply Board 1 4 PF1 10 STB_PS 11 RL920 FILTER LF902 LINE LF901 4 1 6 D FB 5 VCC OCP 3 S 2 1 5 1 3 4 IC411 IC410 1 2 Q417,Q408 1 4 2 1 5 3 IC405 IC402 Q422 Q418 DC75V 10 8 STB12 Vda DC15V DC12V Q542 4 1 3 IC524 - + Q520 IC525 Q550 +5V Z10 +15V FAN SOS 5 4 3 P10 +5V TO Z-BOARD FAN CONT 1 Q536 3 FAN CONT 3 + - 1 4 Q508 Q524 Q538 Q537 1 2 IC507 TV ON/OFF PS SOS ALL OFF Q555 Q553 Q554 Q552 Q547 2 3 1 IC503 Csus REF K 2 3 1 FEED BACK TH-42PHD7CY Power Block Diagram TH-42PHD7CY Power Block Diagram 67 15.4. PF 电路板线路图 + + + - + + + L.F L.F L.F RESET REG - REG TFC S/GND Mirror Vcc - OVP Q - BEC DRIVE REG RTFC + Current R + BD OSC D + OLP LATCH + BTC DRV FB/OLP TSD S - Current OCP OCP/BD Mirror T920 ETS28AZ1K6AD 1 V2 2 V1 4 P2 5 PT 6 P1 8 S2 9 NC 10 S1A 11 S1B 12 NC 7 NC D930 B0HARM000020 L930 10u C931 1kV 330p C930 25V 2200u PF10 1 2 3 4 5 6 C920 470p IC920 B3PAA0000261 IC930 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R930 680 R931 470 D931 LNJ301MPUJA R936 6.8k RL920 K6B1ADA00009 D932 MA3X152K0L Q930 2SC3311A0A R937 68k R938 6.8k C932 25V 100u R933 10k C933 1u R935 47k R939 6.8k R940 6.8k R941 6.8k R942 6.8k C910 450V 100u D910 B0EBNT000002 R918 0.82 R919 1 C914 2kV 220p L912 EXCELSA24T D911 B0EAKT000018 R914 10 R912 100k R913 100k R921 15 D912 B0HCMM000001 C912 50V 10u D913 B0HCMM000001 R922 1k C913 220p D914 B0HCMM000001 C915 470p R920 330 R923 100k R925 1k C917 50V 10u R924 22k C918 2200p D915 B0BA01000046 D916 B0BA01000046 R915 100k C911 630V 0.022u C916 0.01u C919 0.22u R927 68k K5D312BL0008 F902 R904 3.3 R903 3.3 PF9 1 3 4 C905 1u LF902 G0B123K00002 1 2 3 4 C906 220p C907 220p LF901 G0B123K00002 1 2 3 4 C902 220p C903 220p C904 0.47u C901 1u R902 1M R901 1M CF901 ERZV10V621P2 F900 K5D802BNA003 F901 K5D802BNA003 PF1 1 3 4 CF902 ERZV10V621P2 S901 J0LT00000009 S902 J0LT00000009 ZA901 K4ZZ01000121 LF903 G0B353G00001 1 2 3 4 IC910 C5HABZZ00121 1 3 5 4 6 7 TP921 TP922 TP931 TP930 TP923 R932 24k R934 22k D933 B0JCME000025 D918 B0BA01000046 3.2 3.2 3.5 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 3.2 STB+5V F.STB ON/OFF GND GND F.STB+14V F.STB+14V HOT COLD LIVE CIRCUIT LIVE NEUTRAL LIVE NEUTRAL ECKCNA471KB7 S903 S904 S905 S906 S907 S908 S909 S910 S911 S912 S913 S914 S915 3 A 4 5 6 B C D 7 2 8 E 1 (J10) TO J-BOARD FROM AC CORD (P9) TO P-BOARD COLD COLD HOT COLD TH-42PHD7CY PF-Board Schematic Diagram TH-42PHD7CY PF-Board Schematic Diagram PF-BOARD TXNPF1VCSC POWER CONTROL 0 15.0 5.0 0 15.0 0 ERROR DET FEED BACK m = $ $ 68 15.5. P 电路板 (1/6) 线路图 C426 470P R470 C429 0.015 R444 12K R430 430K[F] Q411 R450 R10 D503 MA2C165001VT R424 22K D504 MA2C165001VT R474 D419 B0HBRR000001 Q404 B1ADRC000007 R440 470K C436 1[KB] RL402 1 4 2 3 R451 33K R433 12K[F] C443 1000p R449 R10 R469 C432 1[KB] R458 4700 D420 B0HBRR000001 C403 2200pF IC406 C0DAZZZ00021 1 2 3 4 5 6 7 8 R436 15K Q410 R443 2K ZN401 D4EAD6210001 D418 MAZ40820MF C444 1000p R411 10/5W C446 330uF/450V C409 1.0uF/450V R441 680K[F] R473 560K[F] R466 D415 B0JAME000081 R452 10K R410 20/5W R417 430K[F] R448 R10 C401 1.0uF R456 33K C428 220P R454 10K C408 R464 33K[F] D421 R438 330 R442 680K[F] C430 0.015 R472 560K[F] R468 R412 20/5W ZN402 D4EAD6210001 R465 560K[F] R475 680K[F] R462 430K[F] C459 0.015 C460 330p C461 330p R499 C462 1u C463 22P R414 15K C404 1.0uF C445 1[KB] Q401 B1DHBD000004 R421 33K R471 3300 F405 136A R426 10K C440 10[YXF] C448 330uF/450V C431 1000P[KB] L403 EXCELSA35T D431 B0JCDD000002 T401 G4D4A0000073 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R415 10K C450 1000P C449 1000P TP1 TP2 TP3 TP4 TP5 TP6 TP7 TP8 R428 10K C412 0.01[KB] L402 EXCELSA24V Q406 B1DELQ000003 D401 B0FBCT000004 ZH2 ZH1 ZH3 ZH4 ZH5 ZH6 ZH9 ZH10 ZH13 ZH14 ZH15 ZH16 ZH19 ZH20 ZH17 ZH18 ZH21 ZH22 ZH32 ZH30 ZH31 ZH34 ZH35 ZH33 ZH92 ZH95 ZH96 ZH97 ZH98 ZH99 ZH8 ZH7 ZH37 ZH36 ZH38 ZH40 ZH42 ZH43 ZH51 ZH44 ZH41 ZH48 ZH49 ZH50 ZH45 R431 10K C423 4700P C427 1.0[KB] Q420 2SD1819ARL R463 33K R467 1K Q407 XN0460100L C468 0.01[KB] Q422 B1GBCFNN0034 RL403 1 4 2 3 D429 B0AAMV000002 R419 100K P9 K1KA03A00181 4 LIVE NC 3 - 2 NEUTRAL 1 ZH11 ZH12 ZH73 PR401 K5Y502B00007 ZH75 R439 6R2 R459 6R2 R460 5R6 R493 5R6 D433 MA41500MF R437 18K CURR Vcc GND CURR DRIVE COMP MOS DET PFC 1 2 3 A B C D E F G H I J K L HOT COLD HOT COLD C D 8 7 3 E 9 A 6 B F 5 2 1 4 P-BOARD TNPA3195AB (1/6) TO (3/6) P-BOARD TH-42PHD7CY P-Board (1 of 6) Schematic Diagram TH-42PHD7CY P-Board (1 of 6) Schematic Diagram TO (PF9) PF-BOARD 69 15.6. P 电路板 (2/6) 线路图 Q514 B1MBACA00006 R641 2K R567 12K[F] Q520 B1HFCFA00021 IC522 C0JBAZ002056 4 5 6 1 2 3 C562 1700u/200V C458 0.022u PR510 K5H501Z00005 Q506 XN0440100L C455 220P R692 220K ZH60 R547 1 R546 22K[F] P11 K1KA07A00096 GND 7 GND 6 GND 5 NC 4 Vsus 3 Vsus 2 NC 1 D539 B0HBRP000007 ZH69 ZH55 D537 B0HBRP000007 R647 2000 R570 100K[F] R639 39K[F] R596 10K[F] R543 1 R597 47K R636 39K[F] R599 3300 C606 1000P[KB] ZH67 R644 39K[F] D560 R485 2R2 IC521 C0JBAF000540 1 CK 2 D 3 -Q 4 GND 5 Q 6 CLR 7 PR 8 Vcc C576 47[YXF] R595 10K R623 Q414 B1DAGQ000013 ZH66 ZH65 R642 39K[F] R484 2R2 R483 220 C547 0.033[KB] Q511 B1CBGD000001 D424 B0JAME000081 TP12 C503 0.1[KB] T403 G4D1A0000082 9 10 2 6 3 5 4 TP11 R698 4R7 R565 2.2K[F] R638 39K[F] R544 1 C546 10[YXF] R571 8200[F] R551 470 R646 47K ZH62 ZH58 R548 1 R609 8200 R559 470 Q504 B1CFNG000001 R656 2000 Q515 B1CFNG000001 ZH71 R541 1 C605 0.01[KB] R695 220K R697 220K C603 0.1[KB] R589 10K R622 C465 220P Q512 B1DHBD000004 ZH61 R663 2200 R693 R481 220 D549 MA2C18800E R553 7.5K[F] R600 390[F] Q516 B1DHBD000004 TP9 R645 39K[F] C526 0.1[KB] R615 33K[F] R655 0 Q415 B1DAGQ000013 R657 2000 ZH56 Q528 2SD1819ARL R637 39K[F] ZH54 C558 1700u/200V R696 220K C539 0.033[KB] R675 220K ZH59 R558 22K[F] C531 0.1[KB] R674 220K C544 1[KB] IC525 C0BBAA000039 1 - 2 5 3 + 4 R691 C604 0.1[KB] C540 470P[JC] C538 0.01[KB] R554 10K[F] ZH70 D426 B0JAME000081 C553 0.1[KB] L505 EXCELDR35V R542 1 R610 2200 D564 MA2J11100L ZH23 D538 MAZ4051NM1KT R648 2000 ZH68 R557 10 R658 6200[F] R590 3300 R581 3300 D548 MAZ40750MF D554 B0AAML000001 R640 3600[F] ZH86 C525 0.01[KB] Q513 B1CBGD000001 R564 1K ZH63 R549 1 C541 1[KB] R608 1K C537 1000P[KB] Q525 XN0460100L T405 ETS35BF156AD 6 7 1 11 2 R643 39K[F] R621 1 R566 330 ZH64 R594 3300 P2 K1KA06A00180 VSUS 1 VSUS 2 NC 3 GND 4 GND 5 GND 6 TP10 R535 100K ZH57 Vsus Csus 1 2 3 AA AB AC AD AE AF AG AH AI 0 185.1 185.1 0.1 0 0 0 TO (SS11) SS-BOARD 0 185.1 0 0 0.1 185.1 TO (SC2) SC-BOARD HOT COLD HOT COLD COLD HOT 16 12 10 17 14 18 13 11 15 P-BOARD TNPA3195AB (2/6) P-BOARD (4/6) TO TH-42PHD7CY P-Board (2 of 6) Schematic Diagram TH-42PHD7CY P-Board (2 of 6) Schematic Diagram 70 15.7. P 电路板 (3/6) 线路图 R447 1M[F] L506 EXCELDR25V D413 MA2C165001VT C516 1[KB] D510 B0HANM000028 IC409 MIP2C20MP1KT 1 2 3 4 5 6 7 8 D410 MA2C18800E D437 PR402 K5G162B00008 D511 B0JAME000078 D438 B0AAMV000002 R521 10 D557 MA2J11100L C420 47[YXF] D428 B0AAMV000002 ZH88 R498 330K D513 R530 10.5K[F] D411 B0BB17000008 C517 220[YXF] R488 0 R524 1K R507 220 R446 1M[F] IC408 CNC1S171RLL2 2 1 4 3 C514 470P[JC] ZH102 R422 10 R413 10/5W ZH87 D412 MA2C165001VT C513 470P[JC] C424 100P C510 D427 B0AAMV000002 D435 B0AAMV000002 R429 15K C407 22u/450V D409 B0HAMM000122 C483 IC504 TL431A1LPR5 1 2 3 D509 B0HANM000028 D436 B0HAMP000067 C480 1[KB] C419 0.1[KB] C425 1000P[KB] C515 1200[ZL] R522 10 D404 B0EBKT000007 C511 1[KB] R445 1M[F] R434 2R2 ZH103 R523 R529 10K[F] C411 10[YXF] ZH101 C416 0.1[KB] C470 ZH89 ZH100 R432 270K R480 91K[F] Q408 B1CBGD000001 R425 3300 R404 22K C410 47/50V[YXF] R497 24K[F] C471 1[KB] IC405 C0CBADE00037 1 2 3 IC401 CNC1S171RLL2 2 1 4 3 R486 3300 R409 169K[F] IC404 CNC1S171RLL2 2 1 4 3 C611 0.01[KB] R416 47K Q417 B1CBGD000001 C481 0.01[KB] R418 47K R405 R494 560K[F] R408 100K D402 MAZ40820MF R487 100 IC410 C0CBADE00037 1 2 3 D434 MAZ40820MF C417 0.01[KB] R495 560K[F] Q418 UNR521L00L R435 1K C418 1[KB] R453 1K R496 560K[F] C422 0.01[KB] C482 0.1[KB] IC411 C0BBAA000040 1 2 5 3 4 D405 MA2C165001VT R407 Q421 2SD1819ARL R403 R401 IC403 CNC1S171RLL2 2 1 4 3 C421 0.01[KB] R479 150K IC402 C0BBAA000040 1 2 5 3 4 R406 R420 1K C402 100p R402 W81 39K T410 ETS25AD1M6AG 1 6 7 8 10 11 22 21 19 18 16 12 TNPA3236AB LSEP1153A1 11 12 13 14 15 16 CA CB CC CD CE CF CG CH CI CJ E I G K B C J H D F L A HOT COLD HOT COLD HOT COLD COLD HOT C D 8 7 3 E 9 A 6 B F 5 2 1 4 P-BOARD TNPA3195AB (3/6) P-BOARD TO (5/6) P-BOARD (1/6) TO TH-42PHD7CY P-Board (3 of 6) Schematic Diagram TH-42PHD7CY P-Board (3 of 6) Schematic Diagram 71 15.8. P 电路板 (4/6) 线路图 Q518 B1MBACA00006 ZH91 R574 330 Q519 B1CFNG000001 C581 0.022[KB] R563 4R7 R664 9100[F] D530 MAZ41000MF R576 10K[F] C527 1000P[KB] R670 22K[F] ZH83 C577 100/100V C534 680P[JC] R555 2000 Q412 B1DEDQ000021 C550 1500u/25V D532 MA3J142D0L R477 2R2 R665 2000 Q509 XN0440100L R632 220 C523 47[YXF] C600 0.01[KB] ZH78 Q545 B1CFNG000001 D521 MA2C18800E R478 1K R666 9.1K[F] C585 0.1[KB] D536 MA3D752A R650 10K T407 ETQ11K5AZ 6 5 1 4 2 Q542 XN0460100L C556 1500u/16V R476 2R2 ZH80 C601 0.01[KB] R560 10K[F] R613 22K[F] R631 33K R561 4.3K[F] P25 K1KA08A00221 8 GND GND 7 5V 6 5V 5 GND 4 GND 3 +12V 2 +12V 1 D572 MA2C18800E Q541 B1CBGD000001 R652 10K C571 C561 0.01[KB] C532 0.1[KB] R659 22K[F] D543 MAZ41800HF TP13 Z1 GND 1 R584 10K[F] R683 2R2 IC523 C0JBAF000540 1 CK 2 D 3 -Q 4 GND 5 Q 6 CLR 7 PR 8 Vcc C625 10 R667 7500[F] R653 3300 R578 2.2K[F] D544 MAZ41800HF R579 10K P5 K1KA11A00073 11 GND 10 GND 9 GND +12Vs 8 +12Vs 7 +12Vs 6 GND 5 GND 4 STB5V 3 +12V 2 +12V 1 R575 4R7 R612 1K R614 5600[F] C528 0.1[KB] C552 1[KB] R668 33K C602 1000P[KB] T402 G4D1A0000082 9 10 4 6 3 5 2 PR509 K5H501Z00005 P7 K1KA04A00242 4 GND 3 GND 2 +15Vs 1 +15Vs Q510 2SB1218ARL R660 12K[F] C536 0.1[KB] R482 1K ZH85 IC520 C0JBAZ002056 4 5 6 1 2 3 D545 MAZ41800HF D547 MAZ41500MF R545 10K R550 2000 C529 10[YXF] D528 MA3X15300L R676 33K R588 442[F] C586 0.1[KB] ZH79 Q508 B1GBCFNA0010 R586 10K Q540 B1DHBD000004 D534 MA3D752A D529 MA3X15300L P23 K1KA03A00213 3 GND 2 +15V 1 +15V R606 3300 L507 EXCELDR25V D563 MA2J11100L R562 10K[F] C560 1000u/100V R611 470 R540 100K Q527 B1DEHL000018 R556 2000 D423 B0JAME000081 R662 130K[F] ZH72 ZH82 R649 22K R682 2R2 R669 130K[F] R585 33K[F] R592 3K[F] T404 ETS28LZ116AD 5 1 2 7 9 8 13 12 10 11 14 Q524 2SD1819ARL R552 2000 ZH90 R605 3300 R528 4R7 ZH84 ZH81 L509 J0JBC0000032 R699 10K C587 0.01[KB] D535 MA2C18800E D551 MAZ40750MF C530 0.033[KB] R661 5K IC512 C0DAEMB00003 1 2 3 D425 B0JAME000081 C624 1R0 R673 5.1K[F] R593 5600[F] ZH74 R537 56K[F] Q521 2SD1819ARL D561 MAZ40750MF R624 0.22/1W C535 0.01[KB] R671 22K[F] P12 K1KA10A00259 10 STB_PS 9 NC 8 STB12V 7 GND 6 GND 5 GND 4 +15V 3 NC 2 Vda 1 Vda IC524 C0BBAA000039 1 - 2 5 3 + 4 R583 7.5K[F] C579 0.022[KB] D531 B0HDRP000002 R672 15K[F] C451 100P R587 470 C457 0.02u R654 3300 Q413 B1DEDQ000021 C555 1000u/100V C554 0.1[KB] R582 10K[F] Vda Vlow 14 11 12 13 15 16 DA DB DC DD DE DF DG DH DI DJ DK DL AC AG AH AI AF AB AE AD AA 15.0 15.0 0 TO (SC23) SC-BOARD 67.0 67.0 0 15.0 0 0 0 0 12.0 12.0 TO SS-BOARD (SS12) 12.0 0 0 0 0 12.0 12.0 12.0 5.0 12.0 0 TO (Z5) Z-BOARD 15.0 0 15.0 0 0 USE NO 5.0 (D25) 0 D-BOARD 0 5.0 0 0 12.0 12.0 TO HOT COLD HOT COLD 18 13 16 11 15 12 10 17 14 P-BOARD TNPA3195AB (4/6) P-BOARD (6/6) TO P-BOARD (2/6) TO TH-42PHD7CY P-Board (4 of 6) Schematic Diagram TH-42PHD7CY P-Board (4 of 6) Schematic Diagram 72 15.9. P 电路板 (5/6) 线路图 TH-42PHD7CY P-Board (5 of 6) Schematic Diagram TH-42PHD7CY P-Board (5 of 6) Schematic Diagram R532 100 R694 100K R577 100K Q501 2SD1820A0L R602 10K[F] Q538 B1CFQD000001 R514 100K C608 0.01[KB] C609 0.01[KB] R502 100K IC501 M34506M2-741FP-W3 1 VDD 2 VSS 3 XIN 4 XOUT 5 CNVSS 6 Reset 7 P21 8 P20 9 D3 10 D2 11 D1 12 D0 13 P13 14 P12 15 P11 16 P10 17 P03 18 P02 19 P01 20 P00 IC502 C0EBE0000154 1 2 3 Q502 2SD1820A0L D555 MAZ40750MF Q555 B1GDCFJJ0038 Q551 UNR521L00L R569 2R2 Q536 B1CFQD000001 C623 10/50V D559 MAZ40750MF R604 390 R519 100K R685 100K Q522 B1GDCFJJ0038 R516 1K Q553 2SD1819ARL R503 100K R509 10K X501 4MHz R512 10K IC507 C0CBABE00041 1 2 3 Q554 B1DHBD000004 C622 P10 K1KA05A00177 5 FAN_CONT 4 +5V 3 FAN_SOS 2 GND 1 +15V C502 0.01[KB] R515 1K R501 10K R510 F R603 10K[F] C507 0.01[KB] R616 10K Q535 2SD1819ARL Q550 UNR521L00L Q544 B1GDCFJJ0038 C509 100/25V D573 C607 1[KB] C506 0.01[KB] R618 100K D506 B0JAME000081 R601 3.3K C508 0.01[KB] R506 1K R513 100K C501 0.01[KB] R508 1K R504 1K C599 0.1[KB] R517 10K R684 22K D505 B0JAME000081 C583 0.01[KB] C504 1[KB] R518 100 R568 2R2 C610 1[KB] IC503 C0ZBZ0000878 1 REF 2 A 5 3 K 4 C519 1[KB] R688 22K R538 100K C626 0.01[KB] R505 22 R520 100K D515 ERDS2TJ104T R617 10K Q547 2SD11190RL R511 100K P27 K1KA09A00099 9 GND 8 ALL_OFF 7 PS_SOS 6 FAN_SOS 5 KILL_SOS 4 STB5V 3 FAN_CONT 2 TV_ON/OFF 1 RUSH_ON/OFF R687 10K C505 1000P[KB] Q503 B1GDCFJJ0038 C630 R677 220K Q552 2SD1819ARL Q537 B1CFQD000001 R678 22K R651 47K 21 22 23 24 25 26 27 28 29 30 31 32 CD CB CH CJ CE CG CA CC CF CI 5.0 0 0 0 0 0 2.9 0.1 6.7 TO (D27) D-BOARD 0 15.4 0 5.3 6.6 Z-BOARD TO (Z10) C D 8 7 3 E 9 A 6 B F 5 2 1 4 P-BOARD TNPA3195AB (5/6) (3/6) P-BOARD TO 73 15.10.P 电路板 (6/6) 线路图 21 22 23 24 25 26 27 28 29 30 31 32 DI DE DF DB DG DC DH DA DL DK DD DJ 18 12 10 15 17 14 16 13 11 P-BOARD TNPA3195AB (6/6) P-BOARD (4/6) TO TH-42PHD7CY P-Board (6 of 6) Schematic Diagram TH-42PHD7CY P-Board (6 of 6) Schematic Diagram 74 15.11.HY 电路板方框图 X3101 /POWN Q3052 B07 CLK SEL R00 L IN S DET B00 Q3401 G00 TO J11 IC3401 G07 TO J12 AMP & SW TTL PARALLEL TO LYDS 8 C IN 8 46 Y IN 8 45 VIDEO INV. 47 IN 48 VIDEO BUFFER 37 OUT BUFFER 42 Analog BUFFER 38 Front-End BUFFER 41 AGC BUFFER 40 VIDEO IN/OUT BUFFER 2 x ADC Gen. JK3004 39 L AMP Adaptive SDA AUDIO IN PLL R AMP Comb SCL JK3303 31 R AMP Filter C L AMP AUDIO IN 27 V/Y NTSC HD AMP Y 28 17 Color VD AMP PB 72 32 AV PR 95 B5 COMPONENT COMPONENT 163 Decoder B6 /RGB JK3304 162 NTSC B2 CVBS & RGB/COMPONENT(BNC) Terminal Board /RGB PAL 165 B9 HY H SECAM HS SCL B14 V Saturation 3 VS B8 AUDIO L 2 Tint CLK IN B15 A26 IC3311 Mixer 117 B3 AUDIO R 5V<=>3.3V 2DScalar 116 TX0+ A28 SDA PIP 212 TX0- Y 6 Panorama 210 TX1+ A38 7 Contast IIC Bus TX1- PB 3 Brightness Clock TX2- A36 R Peaking TX2+ PR A28 Output TX3- A34 S2 DET Formatter TX3+ HD A26 PAL B24 A32 Clock B25 VD Sync SCL2 A30 L + SDA2 H1 B11 Generation HFP TXC+ MEMORY CONTROLLOR Y-SEL B12 R07 5 TXC- R00 6 Q3505,3506 S-DET B07 Q3501,3502 12 B00 H2 R IN 14 G00 TX0- Q3503 SCL G07 TX2- Q3504 SDA 13 TX2+ 15 L IN TXC- 6 SDA JK3001 TX3- 199 5 S-VIDEO IN TX3+ 206 6 JK3002 TX0+ 160 SCL IC3305 153 R IN DAC ICC EXPANDER 3 C 55 + IC3699 56 EEPROM - 54 65 + 52 - 4 2 + OUT 51 - RESET 12 50 IC3104 10 24 5M FIFO 15 18 FOR NTSC 3D COMB FILTER 5 22 IC3201 16 IC3251 2 7 15 LVDS TRANSMITTER 9 Y 23 16 GC2M 20 Q3403 IC3103 19 Q3104 CLKSEL 14 Q3005 /PDWN 10 Q3007 B36 11 Q3101,3102 TXC+ IC3105 8 5V<=3.3V TX1- L.P.F. 4 SDA TX1+ L.P.F. 2 12 H Sync Q3004 5 7 V Sync Q3023 SCL 6 LL Clock Q3051 6 R07 4 AV 8 1 SW L3006 4 S-SEL 104 Y CLIP R/PR G/Y B/PB H/HV V H0 7 6 2 1 A22 B23 STB5V A17 B17 A19 B19 A21 B21 SRQ 9V 5V REG 2 IC3301 1 3.3V 3.3V 1 IC3303 2.5V PLL 2.5V 2 5 REG 1 IC3302 REG 2.5V 3 1 IC3101 REG 2.5V 3 SDA SCL SRQ STB5V A38 Y/G GLOBAL TV SIGNAL PROCESSOR STB5V TH-42PHD7CY HY-BOARD Block Diagram TH-42PHD7CY HY-BOARD Block Diagram 75 15.12.HY 电路板 (1/3) 线路图 + R/PR G/Y B/PB H/HV V + NP + 2 1 NP C Y 9V AD_VD_2 S2_DET RESET1 RESET2 PWR_STAT SOS REMOTE CABEL_DET RXD TXD AB_V_Y AC_S_DET AC_S_SEL 9V AB_R AB_L AA_Ls_2 AA_Rs_2 AD_VD_2 AD_HD_2 STB5V 9V AD_HD_2 9V AC_S2_DET 9V L3001 J0HABB000003 1 2 3 4 R3412 1k 1% R3409 680 C3520 16V 47u R3056 33k R3011 10k R3012 7.5k R3055 15k 1% R3402 1.8k JK3304 K1QBB5AB0005 G R/PR G G G G/Y G G G B/PB G G G H/HV G G G V G G R3536 1k R3065 0 L3525 J0HABB000003 1 2 3 4 R3411 10k C3526 0.1u 16V R3535 1k Q3004 2SD0601A0L C3525 0.1u 16V R3525 10k C3508 6.3V 10u C3521 16V 0.1u R3007 100k L3002 J0HABB000004 1 2 3 4 L3531 J0HABB000003 1 2 3 4 560p C3051 50V R3544 4.7k C3009 16V 47u R3028 82 R3546 3.3 R3013 4.7k Q3504 2SD0601A0L R3014 7.5k 1% R3401 2.7k R3528 10k TS3004 C3511 1u 16V R3539 100 C3011 16V 0.1u D3352 MA3X15300L R3015 4.7k 560p C3053 50V 1% R3406 1.8k R3053 15k 33k R3051 R3507 4.7k C3510 1u 16V 1% R3004 75 R3006 10k JS3506 0 TS3005 1% R3002 75 R3529 100 R3527 10k 1% R3404 1.8k R3062 560 R3026 3.3k R3060 1k R3010 15k 560p C3052 50V Q3051 2SD0601A0L JS3508 0 1% R3403 2.7k Q3052 2SD0601A0L R3408 47k L3530 J0HABB000003 1 2 3 4 C3527 6.3V 6.8u JK3004 K2HA204B0097 YKC21-4206 R3008 10k C3055 1u 16V H2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C3003 10V 10u 560p C3054 50V R3532 3.3 R3530 100 1% R3001 75 C3012 16V 0.1u R3526 10k Q3401 2SD0601A0L C3507 6.3V 10u C3001 25V 0.1u Q3506 2SB0709A0L C3523 16V 47u JK3002 K1QBB2AB0005 C3005 16V 0.1u C3524 16V 0.1u L3003 J0HABB000004 1 2 3 4 L3529 J0HABB000004 1 2 3 4 C3004 10V 10u L3052 ELJNA1R5JF R3009 100 IC3401 C0ABZA000028 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1% R3413 180 R3514 100 JS3501 0 C3010 16V 0.1u R3545 4.7k C3002 25V 0.1u 1% R3005 75 R3538 100 R3057 100 Q3503 2SD0601A0L L3527 J0HABB000004 1 2 3 4 R3058 100 33k R3052 C3006 16V 0.1u R3501 180k D3351 MA3X15300L R3003 10k L3528 J0HABB000004 1 2 3 4 JS3507 0 R3027 15k L3533 ELJPA100KF C3007 16V 0.1u R3522 4.7k R3054 33k L3532 ELJPA100KF R3506 4.7k Q3501 2SD0601A0L L3051 ELJNA1R5JF JK3303 K2HA204B0097 R3059 1k R3517 100 R3061 560 L3526 J0HABB000003 1 2 3 4 1% R3405 2.7k Q3502 2SB0709A0L Q3505 2SD0601A0L 1% R3031 180 C3056 1u 16V R3531 3.3 R3515 100 JS3502 0 R3516 100 1% R3407 2.2k JS3503 0 R3502 180k D3002 MAZ31000ML R3521 4.7k JK3001 K1CB106B0027 YKF51-5575 R3547 3.3 1% R3410 2.2k S - short STV5V SRQ AUD_L AUD_R LAN15V PLUG_DET 3.3V LAN15V HD RSVD RSVD VD 3.3V + - -VDD + - VDD GND GND + - R_IN L_IN 3.3V Y PB PR H V 4 E C 7 B 2 A 5 6 D 3 1 8 5 6 4 2 3 1 10 8 9 7 HY-BOARD TXNHY1QBSC (1/3) TO J-BOARD (J13) AMP & SW ! TH-42PHD7CY HY-BOARD (1 of 3) Schematic Diagram TH-42PHD7CY HY-BOARD (1 of 3) Schematic Diagram 76 15.13.HY 电路板 (2/3) 线路图 + + + + NP + + + + + 5V AR_RO0 AR_RO7 AR_RO6 AR_RO5 AR_RO4 AR_RO3 AR_RO2 AR_RO1 AS_FO9 AS_FO8 AS_FO7 AS_FI9 AS_FI8 AS_FI7 AS_FI6 AS_FI5 AS_FO6 AS_WE AS_WR AS_FI4 AS_FI3 AS_FI2 AS_FI1 AS_FI0 AS_RR AS_RE AS_FO4 AS_FO3 AS_FO5 AS_FO2 AS_FO1 AS_FO0 AG_HS AP_GO7 AP_GO6 AP_GO5 AP_GO4 AP_GO3 AP_GO2 AP_GO0 AP_GO1 AQ_BO0 AQ_BO1 AQ_BO2 AQ_BO3 AQ_BO4 AQ_BO5 AQ_BO6 3.3V AS_FI1 AS_FI0 AS_FO2 AS_FO1 AS_FO0 AS_FO4 AS_FO3 AS_FI4 AS_FI3 AS_FI2 AS_RR AS_RE AS_FI8 AS_FI9 AS_FO7 AS_FO8 AS_FO9 AS_FO5 AS_FO6 AS_FI6 AS_FI7 AS_FI5 AS_WR AS_WE PLL2.5V AS_SCL2 3.3V DA2.5V AG_VS 2.5v_MM 2.5v_MF 2.5v_MB AD2R5V GC2R5V GC3R3V AS_SDA2 3.3V AQ_BO7 1% R3170 75 C3166 10V 1u C3202 10V 1u JS3306 C3181 16V 0.1u R3148 22 C3163 10V 1u 1% R3134 10 1% R3177 1.4k L3104 ELJPA100KF C3109 16V 0.1u R3185 0 C3165 10V 1u R3151 22 1% R3171 75 Q3101 2SB0709A0L C3131 16V 0.1u 1% R3133 10 C3170 16V 0.1u R3207 0 L3103 ELJPA100KF JS3301 R3142 0 Q3007 2SB0709A0L R3047 1k R3033 100 C3149 16V 0.1u IC3104 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out C3160 16V 0.1u R3107 33 L3201 ELJPA100KF C3147 10u 6.3V JS3308 Q3023 2SD0601A0L C3105 4V 220u L3303 ELJPA100KF C3137 16V 0.1u R3191 10k R3164 0 C3148 1u 6.3V C3019 6.3V 3.3u C3022 10V 1u 1% R3135 10 R3102 0 C3106 16V 0.1u C3118 16V 0.1u C3015 50V 47p IC3303 AN80L25RMSTX 5 4 3 1 2 C3175 16V 0.1u C3177 16V 0.1u JS3307 C3208 10V 1u R3121 120 R3137 0 1% R3173 220 C3121 16V 0.1u L3102 ELJPA100KF R3115 1k R3204 0 R3203 0 1% R3180 1.1k R3153 220 Q3102 2SD10300TL C3111 16V 0.1u C3102 16V 0.1u L3101 ELJPA100KF C3309 10V 1u R3145 1k C3185 50V 6p 1% R3123 15k C3178 16V 0.1u C3110 16V 0.1u IC3101 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT R3189 0 C3182 16V 0.1u R3158 1.8k C3153 50V 100p 1% R3172 75 C3124 16V 0.1u C3120 16V 0.1u JS3305 C3116 16V 0.1u C3173 16V 0.1u C3217 10V 1u L3108 ELJPA100KF R3157 220 C3021 16V 1u C3136 50V 33p R3125 0 C3114 16V 0.1u R3149 22 1% R3162 2.7k JS3312 R3117 1k 1% R3184 1.1k 1% R3122 8.2k 1% R3161 2.7k 1% R3179 1.4k R3138 0 C3016 50V 22p 1% R3045 220 C3206 10V 1u JS3303 1% R3163 2.7k C3132 16V 0.1u IC3201 C3HBKZ000001 MS81V05200-13TA 1 VCC 2 CS 3 CSMODE 4 NC 5 VSS 6 DI0 7 DI1 8 NC 9 DI2 10 VSS 11 DO0 12 DO1 13 VCC 14 NC 15 DO2 16 VSS 17 VSS 18 VCC 19 VCC 20 DO3 21 NC 22 VCC 23 NC 24 DO4 25 VSS 26 DI3 27 NC 28 NC 29 DI4 30 VSS 31 OE 32 RE 33 RSTR 34 SRCK 35 VCC 36 VSS 37 SWCK 38 RSTW 39 WE 40 IE 41 VCC 42 DI5 43 NC 44 NC 45 DI6 46 VSS 47 DO5 48 NC 49 VCC 50 NC 51 DO6 52 VCC 53 VCC 54 VSS 55 VSS 56 DO7 57 NC 58 VCC 59 DO8 60 DO9 61 VSS 62 DI7 63 NC 64 DI8 65 DI9 66 VCC 67 NC 68 NC 69 NC 70 VSS C3158 16V 0.1u R3136 0 1% R3183 1.4k R3418 1k 1% R3124 10 L3107 J0JGC0000021 C3213 10V 1u 1% R3042 6.8k C3187 4V 220u C3146 16V 0.1u C3172 16V 0.1u R3190 10k C3180 16V 0.1u C3167 16V 0.1u C3112 16V 0.1u R3206 0 C3157 10u 6.3V C3152 16V 0.1u C3144 16V 0.1u C3156 1u 6.3V C3218 16V 0.1u C3162 10V 1u 1% R3032 620 C3203 10V 1u C3214 10V 1u R3118 0 L3007 G1C2R2K00006 R3131 22 C3108 16V 0.1u C3210 10V 1u R3202 0 C3129 16V 0.1u R3156 560 C3017 50V 68p R3104 22 1% R3178 1.1k R3154 330 R3140 22 JS3304 1% R3181 1.4k C3125 16V 0.1u C3151 50V 33p C3169 16V 0.1u R3174 0 C3211 10V 1u C3101 4V 220u 1% R3182 1.1k JS3302 C3204 10V 1u C3013 16V 1u C3179 4V 220u C3171 16V 0.1u D3001 MA2J72900L R3166 0 R3038 2.7k JS3310 C3168 16V 0.1u L3006 J0E8004B0008 1 2 3 4 5 6 7 9 10 12 1% R3169 75 C3123 16V 0.1u C3313 10V 1u C3139 16V 0.1u R3106 10k C3188 10V 1u C3150 16V 0.01u R3101 22 JS3311 R3159 0 Q3403 2SD0601A0L C3183 16V 0.1u C3127 16V 1u C3113 16V 0.1u R3139 0 Q3104 2SD10300TL C3140 50V 100p R3144 1k C3133 16V 0.1u C3122 10V 1u C3401 16V 10u R3152 560 C3130 16V 0.1u R3049 1k 1% R3046 100 IC3301 C0CBABB00029 4 GND 3 SW 1 OUT 2 IN C3138 10u 6.3V 1% R3168 200 R3048 100 1% R3040 330 R3155 330 IC3102 C0DBZLB00001 K 1 3 R A 2 R3141 0 C3128 16V 0.1u C3212 10V 1u R3119 120 Q3005 2SD0601A0L C3161 16V0.1u R3205 0 IC3105 C0JBAZ001834 1 2 3 4 5 6 7 8 C3141 1u 6.3V 1% R3050 75 C3107 16V 0.1u JS3309 C3134 16V 0.1u C3117 16V 0.1u C3216 10V 1u 1% R3160 2.7k X3101 H0J202500002 1% R3113 1.5k R3108 0 C3174 16V 0.1u C3159 4V 220u C3135 16V 0.01u R3167 0 C3115 16V 0.1u C3142 16V 0.1u C3219 6.3V 100u C3126 16V 0.1u L3005 0 1% R3129 12 C3154 16V 0.1u C3186 50V 47p C3014 16V 47u C3209 10V 1u R3143 0 R3165 0 C3205 10V 1u 1% R3112 1.5k 1% R3127 12 C3119 16V 0.1u C3184 4V 220u C3103 10V 1u C1AB00001826 IC3103 1 VSS 2 VDDE 3 VDDI 4 UV0 5 UV1 6 RO0 7 RO1 8 RO2 9 RO3 10 RO4 11 RO5 12 RO6 13 RO7 14 HPO1 15 VPO1 16 LCLK1 17 VDDI 18 VDDE 19 VSS 20 HPIN2 21 VPIN2 22 UVIN0 23 UVIN1 24 UVIN2 25 UVIN3 26 UVIN4 27 UVIN5 28 UVIN6 29 UVIN7 30 UVIN8 31 UVIN9 32 CLKIN 33 VDDI 34 VDDE 35 VSS 36 YIN0 37 YIN1 38 YIN2 39 YIN3 40 YIN4 41 YIN5 42 YIN6 43 YIN7 44 YIN8 45 YIN9 46 VDDI 47 VDDE 48 VSS 49 YUV0 50 YUV1 51 YUV2 52 YUV3 53 YUV4 54 YUV5 55 YUV6 56 YUV7 57 YUV8 58 YUV9 59 VDDI 60 VDDE 61 VSS 62 BCLK 63 HFR 64 LCDSW 65 NRST 66 AVSAD2 67 AVDAD2 68 AVSAD1 69 AVDAD1 70 VRH1 71 NC 72 VIN1 73 VRL 74 NC 75 NC 76 AVSAD22 77 AVDAD22 78 AVSAD21 79 AVDAD21 80 NC 81 VRH2 82 NC 83 VIN2 84 NC 85 VRL2 86 NC 87 NC 88 AVSAD32 89 AVDAD32 90 AVSAD31 91 AVDAD31 92 NC 93 VRH3 94 NC 95 VIN3 96 NC 97 VRL3 98 NC 99 NC 100 AVDCLP 101 AVSCLP 102 UCLP 103 VCLP 104 YCLP 105 VSS 106 VDDI 107 VDDE 108 MST 109 SMCK 110 VPD 111 XTST 112 VPIN1 113 HPIN1 114 SCS 115 XSM 116 SDA 117 SCL 118 VSS 119 VDDE 120 FO9 121 FO8 122 FO7 123 FIN9 124 FIN8 125 FIN7 126 FIN6 127 FIN5 128 FO6 129 FO5 130 VSS 131 VDDI 132 VDDE 133 WE 134 WR 135 FCKR 136 RR 137 RE 138 FO4 139 FO3 140 FIN4 141 FIN3 142 FIN2 143 FIN1 144 FIN0 145 FO2 146 FO1 147 FO0 148 OSDCNT 149 VDDE 150 VSS 151 VDDI 152 INTLC 153 VDAF 154 EWO 155 HO2 156 HO1 157 158 PSO 159 HTRAP 160 HINP 161 HPO3 162 VPO3 163 HPO2 164 VPO2 165 LCLK2 166 VDDE 167 BXS3 168 VSS 169 CW358 170 VDDI 171 VGS3 172 CPO3 173 AVDPL3 174 AVSPL3 175 VGS2 176 CPO2 177 AVDPL2 178 AVSPL2 179 VSS 180 HREF 181 VDDE 182 BXS2 183 VDDI 184 FBPMO 185 VDDE 186 FBPIN 187 VSS 188 AVSPL1 189 AVDPL1 190 CPO1 191 VGS1 192 VSS 193 VDDI 194 POUT 195 VDDE 196 VSAW 197 VDDE 198 RDV 199 BDV 200 RCF 201 GCF 202 BCF 203 HCLP 204 BLK 205 HPO4 206 VPO4 207 FRCLK 208 VDDE 209 VSS 210 XIN 211 VDDI 212 XOUT 213 VDDE 214 VSS 215 VMYS 216 YUVOE 217 TEST 218 AIN1 219 AIN2 220 AIN3 221 AIN4 222 AVSAD 223 VR 224 AVDAD 225 VRO1 226 VREF1 227 AOUT1 228 AVSDA1 229 AVDDA1 230 VRO2 231 VREF2 232 AVSDA2 233 AVDDA2 234 AOUT2 235 AVSDA3 236 AVDDA3 237 AOUT3 238 COMP 239 AVSDA4 240 AOUT4 241 AVDDA4 242 VRO4 243 VREF4 244 COMP4 245 NC 246 AVDDA5 247 AVSDA5 248 AOUT5 249 COMP5 250 NC 251 AVSDA6 252 AOUT6 253 AVDDA6 254 VRO6 255 VREF6 256 COMP6 C3176 16V 0.1u C3207 4V 220u 1% R3036 180 C3104 16V 0.1u C3164 10V 1u R3035 1k R3114 0 G1 G0 RST FOR InnerPing FOR DEF FOR EHT FOR HDAF FOR BOW(pararel) Macro Macro Macro DA AD AD PLL PLL PLL For BurstLock For Mid_CLK For FBP Macro Macro COMP4 AVDDA4 AOUT4 AVSDA2 AVDDA2 AOUT2 AVSDA3 AVDDA3 AVSDA4 AOUT3 MP EHT ACL XTAL Macro GC2M+ Global_tvsignal_processing_CoreLSI ver.2_for_Main_processor 5M_FIFO /OE1 /OE2 B1 A2 Vcc A1 B2 GND SDA(5V) SDA(3.3V) SCL(5V) SCL(3.3V) 12 8 14 9 13 10 11 15 3 6 7 1 9 8 4 5 10 2 24 23 22 21 25 30 31 29 32 27 28 26 33 HY-BOARD TXNHY1QBSC (2/3) AVR 3.3V 5V -> 3.3V ERROR DET AVR 2.5V RESET AVR 2.5V ! TH-42PHD7CY HY-BOARD (2 of 3) Schematic Diagram TH-42PHD7CY HY-BOARD (2 of 3)Schematic Diagram 77 15.14.HY 电路板 (3/3) 线路图 + + + + + + + + AH_SRQ AC_S2_DET 3.3V 5V 9V AB_V_Y AC_CMP_SYNC AH_SDA2 AC_S_DET AC_S_SEL 3.3V AR_RO1 AR_RO7 AG_VS AG_HS AR_RO6 AR_RO5 AR_RO4 AR_RO3 AR_RO0 AR_RO2 AP_GO2 AP_GO3 AP_GO4 AP_GO0 AP_GO1 AP_GO5 AP_GO7 AP_GO6 AQ_BO5 AQ_BO7 AQ_BO6 AQ_BO2 AQ_BO0 AQ_BO1 AQ_BO3 AQ_BO4 3.3V AH_SRQ AH_SDA2 AH_SCL2 3.3V AS_SDA2 AH_SCL2 AH_SCL2 AS_SCL2 AH_SDA2 AH_SDA2 AH_SCL2 AJ_TX3+ AM_TXC+ AM_TXC- AK_TX2- AL_TX1+ AL_TX1- AN_TX0- C C C C C AK_TX2+ AJ_TX3- AN_TX0+ AJ_TX3+ AJ_TX3- AM_TXC+ AM_TXC- AK_TX2+ AK_TX2- AL_TX1+ AL_TX1- AN_TX0+ AN_TX0- C C C C C AB_R AB_L STB5V 2.5V 3.3V R3317 33k R3334 0 R3302 20k C3320 16V 0.1u TS3101 C3312 16V 0.1u C3266 16V 0.1u H1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L3307 ELKE103FA 1 2 3 R3338 22 C3324 6.3V 100u C3318 16V 0.1u 1% R3300 1.5k C3265 4V 220u C3308 4V 220u C3330 16V 0.1u TS3100 C3264 16V 0.1u R3306 10k IC3305 C0JBAZ000801 1 A0 2 A1 3 A2 4 P0 5 P1 6 P2 7 P3 8 GND 9 P4 10 P5 11 P6 12 P7 13 VDAC 14 SCL 1 15 SDA 1 16 VCC C3257 50V 1000p IC3699 C3EBGC000018 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC R3252 10k R3313 10k C3255 50V 1000p IC3251 C0ZBZ0000684 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 C3326 16V 47u C3262 50V 1000p C3328 16V 0.1u R3303 22 C3259 50V 1000p L3305 ELKE103FA 1 2 3 H0 1 2 3 4 5 6 7 8 C3261 4V 220u C3319 16V 0.1u R3305 10k IC3302 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C3323 4V 220u R3304 22 C3317 10V 1u L3308 ELKE103FA 1 2 3 C3254 16V 0.1u C3263 16V 0.1u R3314 10k L3252 ELJPA2R2MF IC3311 C0JBBZ000285 1 NC 2 SCL0 3 SDA0 4 GND 5 EN 6 SDA1 7 SCL1 8 VCC C3311 16V 0.1u C3325 16V 47u C3260 16V 0.1u L3306 ELKE103FA 1 2 3 C3329 16V 0.1u 33k R3318 C3321 16V 0.1u C3253 50V 1000p C3258 16V 0.1u R3307 10k C3315 16V 0.1u TS3102 C3256 16V 0.1u 1% R3301 1.5k C3322 4V 220u C3316 16V 1u R3308 10k R3253 4.7k R3251 100 TS3301 R3337 22 R3309 10k C3327 16V 0.1u L3251 ELJPA2R2MF GND VP HP STB5V Y3- Y3+ LVDS GND PLL GND PLL VCC PLL GND /PDWN CLK IN D26 GND D25 D24 VCC D23 D22 D21 D20 GND D19 D18 D27 LVDS GND Y0- Y0+ Y1- Y1+ LVDS VCC LVDS GND Y2- Y2+ CLKOUT- CLKOUT+ D17 CLKSEL D16 D15 D14 GND D13 D12 VCC D10 D11 D9 GND D2 D3 D4 D0 D1 D8 GND D7 D6 D5 VCC CLKI_M S_DET SRQ GND SDA SCL GND 18 20 19 16 17 21 22 23 23 26 22 33 25 29 32 30 31 21 27 24 28 HY-BOARD TXNHY1QBSC (3/3) TO (J12) J-BOARD AVR 2.5V LVDS TRANSMITTER DAC IIC EXPANDER EEPROM TERMINAL BOARD INFORMATION 5V -> 3.3V TH-42PHD7CY HY-BOARD (3 of 3) Schematic Diagram TH-42PHD7CY HY-BOARD (3 of 3) Schematic Diagram ! 78 15.15.HX 电路板方框图和线路图 + + + AC_VD AC_HD AC_HD AB_TXD AB_TXD AB_RXD AB_RXD AC_VD FL3511 J0HAAB000012 1 2 3 4 FL3512 J0HAAB000012 1 2 3 4 D3503 MAZ30560ML D3501 MAZ30560ML HX1 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 FL3509 J0HABB000004 1 2 3 4 R3511 100 R3653 15k R3400 10k FL3513 J0HAAB000012 1 2 3 4 R3586 56 L3555 ELJPA100KF R3589 47k C3551 16V 47u FL3515 J0HAAB000012 1 2 3 4 R3529 180k R3591 0 R3663 1k L3526 ELJPA100KF FL3517 J0HAAB000012 1 2 3 4 R3593 0 Q3532 2SD0601A0L JK3513 K2HC103B0105 C3404 16V 0.1u R3585 56 FL3507 J0HABB000004 1 2 3 4 C3561 1u 16V R3790 0 R3592 0 JK3511 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 FL3514 J0HAAB000012 1 2 3 4 R3672 100 R3668 100 Q3531 2SD0601A0L R3654 33k R3508 4.7k C3550 50V 0.01u D3508 MAZ81600HL R3509 4.7k D3504 MAZ30560ML D3510 MAZ81600HL C3409 16V 0.1u R3656 33k D3502 MAZ30560ML D3507 MAZ81600HL IC3502 1 NC 2 NC 3 NC 4 VSS 5 SDA 6 SCL 7 VCLK 8 VCC R3547 100 C3524 50V 0.01u R3590 56 R3776 100 R3777 100 FL3508 J0HABB000004 1 2 3 4 R3548 100 C3405 16V 47u FL3510 J0HAAB000012 1 2 3 4 JK3509 1 2 3 4 5 8 9 6 7 R3791 0 R3655 15k R3530 180k R3778 47k FL3516 J0HAAB000012 1 2 3 4 C3562 1u 16V R3664 1k R3510 100 C3523 16V 47u D3509 MAZ81600HL HX-BOARD TNPA3400 B C 4 2 A 3 E 7 8 6 F 5 9 1 D 9 13 R AMP PC B RXD-PC TXD-PC PC HD 19 PC VD 18 SCL JK3509 SDA RS-232C L SERIAL R HX PC IN PC Terminal Board JK3511 7 HX1 PC R 9V PC B 5V PC HD 22 PC VD 21 PC G 9V PC Ls 5V PC Rs REMOTE IN 3 TXD 3 2 TO RXD 1 J-BOARD L AMP (J14) Q3532 1 R IN L IN PC AUDIO IN JK3513 SCL 14 VCLK 12 13 2 DDC EEPROM 3 11 PC R 15 IC3502 5 PC G 6 7 5 Q3531 SDA PC Rs HD TJS8A9880 CTS RTS PCis 0 DSR RI 0 L 5V 0 STB5 9V RS-232C J-BOARD 0 5.4 9.0 PC IN 0 5.3 6.0 TO (J14) PC R PC G 0 PC B 0 0 4.5 R 0 DDC 0 0 0 0 1.6 1.6 5.3 1.6 0 0 0 TXD RXD RXD TXD DTR VD CD 5.0 GND 0 5.3 PC Ls 0 0 0 5.3 5.3 9.0 AUDIO IN 9.0 6.0 TVRN304 TH-42PHD7CY HX-Board Block and Schematic Diagram TH-42PHD7CY HX-Board Block and Schematic Diagram EEPROM 79 15.16.J 电路板方框图 + S2_DET PR PB Y PB PR Y S2_DET Y PB PR S2_DET S2_DET Y PB PR Y PB PR PR Y PB SCL_S1 SDA_S1 SCL_S2 SDA_S2 SDA_S3 SCL_S3 SCL_S1 SCL_S2 SCL_S3 SDA_S1 SDA_S2 SDA_S3 SLOT1_R SLOT1_L SLOT2_R SLOT2_L SLOT3_L SLOT3_R PC_R PC_L SLOT1_L SLOT2_L SLOT3_L PC_L SLOT1_R SLOT2_R SLOT3_R PC_R RXD4 TXD4 TXD4 RXD4 VD_HX HD_HX TXD4 RXD4 RXD4 TXD4 VD_S HD_S VD_M HD_M SCL3 SDA3 SDA3 SCL3 SDA3 SCL3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 SCL3 SDA3 REMOTE_OUT CABLE_DET TXD1 RXD1 SRQ TXD1 RXD1 VD_M HD_M SLOT1_VD SLOT2_VD SLOT3_VD PC_VD SLOT1_HD SLOT3_HD PC_HD SLOT2_HD DPMS_VD DPMS_HD CABEL_DET REMOTE PWR_STATUS SLOT1_DET SLOT2_DET SOS SLOT3_DET SLOT1_HD SLOT1_VD SLOT2_HD SLOT2_VD SLOT3_HD SLOT3_VD PC_HD_HX PC_VD_HX SLOT1_VD SLOT2_VD SLOT3_VD PC_VD SLOT1_HD SLOT2_HD SLOT3_HD PC_HD PC_VD PC_HD VD_HX HD_HX HD_HX VD_HX HD_HX VD_HX SLOT1_DET SLOT2_DET SLOT3_DET RESET FAN_CONT RESET SRQ FAN_CONT DPMS_HD DPMS_VD HD_S VD_S PWR_STATUS SOS X8181 AVR 9V 2 1 DIG12V IC8101 TX0- B12 B9 TX2- B5 TXC- B3 TX1+ TX2+ B6 B11 TX0+ TXC+ TX1- B2 B8 TX3- B15 B14 TX3+ 1 5 2 4 12 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 L 3 R 13 10 9 A B IC3001 AUDIO SELECT 15 23 17 19 Pr S2 DET Pb Y 13 Pr/R S2 DET 7 9 5 Pb/B Y/G 3 Pr S2 DET 61 63 59 Pb Y Pr 55 57 53 Pb Y SLOT3 PC SLOT2 SLOT1 SCL SDA 27 26 42 44 40 46 50 48 Pr Pb Y Pb Pr Y 7 6 5 1 IC8008 CS/VIDEO SEL(SUB) AMP 7 6 5 CS/VIDEO SEL(MAIN) 1 IC8007 AMP Q3101 Q3102 AMP 4 12 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 VD 3 HD 13 10 9 IC8001 (MAIN) 1 5 2 SYNC SELECT 11 14 15 SLOT1 SLOT2 SLOT3 PC SLOT3 PC SLOT2 SLOT1 VD 3 HD 13 10 12 9 A SW2 B SW3 IC8002 (SUB) 1 5 4 2 SYNC SELECT IC8005 INVERTER 2 3 6 4 1 5 Q3103 AMP AMP Q3106 AMP Q3104 Q3105 AMP IC3005 INPUT SW 25 1 5 17 14 11 IN OUT OUT IN OUT IN VIDEO AMP IC3101 (MAIN) 14 25 17 IN 5 (SUB) OUT IN VIDEO AMP IC3102 11 OUT OUT IN A38 A36 A34 B36 A30 A32 B31 B28 B32 B35 B27 B26 B24 B25 B23 Y/G Pb/B Pr/R S2 DET HD VD A26 AUDIO IN R A28 AUDIO IN L RESET PWR STATUS SOS PLUG DET TXD RXD IIC SCL IIC SDA SRQ Pr/R B24 Pb/B A34 B23 AUDIO IN L B28 Y/G AUDIO IN R A28 B36 IIC SDA IIC SCL A30 VD A26 SRQ HD B35 A32 RESET SOS B31 A36 S2 DET A38 PLUG DET B25 TX2- B5 TXC- B3 TX1+ TX2+ B6 B11 TX0+ TXC+ TX1- B2 B8 TX3- B15 B14 TX3+ TX0- B12 B9 TX3+ 2 6 3 TX1+ 5 TX0+ TXC- TX2+ TXC+ 14 TX1- 11 12 TX2- TX3- 15 8 TX0- 9 10 11 12 SLOT1 SLOT2 SLOT3 SLOT3 SLOT2 SLOT1 SCL 7 SDA 9 14 2 S0 S1 IC3002 IIC SW 6 5 4 Pr/R AUDIO IN L VD S2 DET A38 A26 HD A30 Pb/B AUDIO IN R A36 A28 B36 Y/G A32 A34 B35 RESET SOS B31 B28 PLUG DET B24 B23 IIC SDA IIC SCL SRQ B25 Pr/R AUDIO IN L VD HD Pb/B AUDIO IN R Y/G 7 5 1 3 9 11 13 19 18 RXD TXD TXC+ 14 TX1- 11 12 TX2- TX3- 15 6 3 TX1+ 5 TX0+ TXC- TX2+ 8 TX0- 9 TX3+ 2 J11 J12 J13 21 P5V 22 9V J14 Y M 8 PB M 12 PR M 4 10 9 1 2 SW0 SW1 SW2 SW3 SDA SCL 14 15 CS(M) 3 IC3006 EX I/O SLOT1 SLOT2 SLOT3 PC LO LO LO LO HI HI HI HI S2 S1 A HI HI HI SLOT1 SLOT2 LO B LO SLOT3 LO PC LO HI A SW0 B SW1 SLOT3 SLOT2 HI LO HI PC LO A SLOT1 HI HI B LO LO 4 8 G IN V IN H IN 6 HD- 15 13 VD+ SYNC IC8003 SIGNAL (MAIN) PROCESSOR H:ON 2 1 7 CS(M) IC8009 SWITCH 18 VD M HD M 16 J5 Y S 5 PB S 9 PR S 1 14 3 15 CS(S) SCL SDA 6 3 H:ON 5 2 H:ON 1 7 IC3007 IIC SW 15 14 4 3 10 2 9 1 SDA SCL IIC SW IIC SW IC3004 EX I/O(IIC SW) IC3003 EX I/O SW0 SW1 INVERTER 12 11 8 10 13 9 H IN (SUB) V IN 5 3 H:ON 6 15 IC8004 6 8 HD- IC8005 SWITCH 4 13 G IN CS(S) PROCESSOR IC8009 SIGNAL SYNC VD+ 9V 3 2 1 4 INVERTER IC8016 16 13 17 RS232C IC8014 15 DRIVER R1IN T1OUT T1IN R1OUT B29 B30 CABEL DET REMOTE 2 23 IIC CONT 21 RXD PC TXD TU RXD TU 11 19 POWER STATUS CABLE DET 25 TXD PC 17 13 RESET REMOTE OUT 15 REAL TIME/INTER 27 SDA1 5 4 SCL1 SCL3 SDA3 7 6 28 12 SOUND MAIN MUTE STB ON RESET 15 14 SOUND MAIN MUTE 17 L 1 SLOT9V 3 SLOT5V 5 SLOT3.3V 6 SLOT3.3V 19 R 9 DIG 12V 12 DR15V SLOT5V DIG 12V DR15V SLOT3.3V SLOT9V Q8012 Q8013 Q8010 Q8011 SLOT9V SLOT5V SLOT3.3V J8 LAN15V LAN15V 6 5 STB 5V 1 2 STB ON/OFF J6 10 11 SDA3 SCL3 J10 5 2 3 SDA SCL /INTER 6 OSCOUT OSCIN 7 VDD 8 STB5V S STB5V Q3010 Q3011 Q3001 R AMP Q3003 L AMP Q3002 LAN15V STB 5V 9V IC8100 2 AVR 12V DR15V 12V 1 AVR 5V 9V 1 5V 3 AVR 5V 9V 1 5V 3 IC3108 IC3109 Slot Interface/SYNC Processor Board J SLOT3 SLOT2 HI LO HI PC LO A SLOT1 HI HI B LO LO MAIN SUB TO H2 TO H1 P5V 9V TO HX1 TO D5 IC8181 TIME CLOCK TO Z8 TO PF10 TO D6 1 Q8019 Q8018 Q8016,Q8017,Q8001 Q8020,Q8021,Q8025 Q8023,Q8024,Q8026 FAN_CONT 4 TO D1 J1 TO D3 FAN_CONT 15 J3 17 DPMS HD DPMS VD 20 13 HD S VD S 15 Q8181 Q8182 Q8011,Q8015,Q8002 TH-42PHD7CY J-Board Block Diagram TH-42PHD7CY J-Board Block Diagram 80 15.17.J 电路板 (1/4) 线路图 + + + + AK_VD_3 AI_VD_1 AD_VD_4 AE_SW1 AE_SW0 AE_SW3 AC_CS((M)) 9V AE_SW2 AC_CS((S)) AL_VD_2 AK_HD_3 AL_HD_2 AI_HD_1 AD_HD_4 SLOT9V SLOT3.3V SLOT5V *R8071 0 *R8013 270 *R8006 0 C8049 50V 0.01u *R8020 5.6k *Q8001 2SD0601A0L IC8009 C0JBAS000109 1 2 3 4 5 6 7 8 R8047 270 R8017 5.6k *R8099 10k *R8094 100 C8051 16V 0.1u R8011 270 R8072 0 R8002 0 *R8008 0 *R3162 1k C8113 16V 0.1u C8001 16V 47u R8093 100 1% *R8060 330 R8009 270 R8098 10k J8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R8003 0 *R8062 270 C8003 50V 0.1u C8107 16V 47u *R8007 0 C8035 16V 0.1u FL3006 ELKE103FA 1 2 3 *R8019 5.6k Q8002 2SD0601A0L *R8016 270 R8097 10k R8012 270 R8010 270 C8027 16V 2.2u *C8050 50V 0.01u R8036 150 *IC8002 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD IC8001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD C8106 16V 47u *R8014 270 *C8041 16V 2.2u *C8002 50V 0.1u C8112 16V 0.1u FL3007 ELKE103FA 1 2 3 FL3008 ELKE103FA 1 2 3 IC8007 C0JBAR000111 1 2 3 4 5 6 7 8 C8105 16V 47u R8018 5.6k R8004 0 1% *R8061 150 *C8043 16V 0.1u *IC8008 C0JBAR000111 1 2 3 4 5 6 7 8 L8001 G1C100K00020 R8001 0 R3163 1k R8035 330 R8100 10k *R8015 270 *R8005 0 C8111 16V 0.1u SDA3 SCL3 GND GND GND GND DIG12V SLOT9V SLOT5V SLOT3.3V SLOT3.3V RESET SOUND MAIN MUTE L R FAN SWITCH GND GND GND DR15V VSS VDD HI:ON CS VIDEO I0 VCC COM INH SEL I1 VEE GND SEL I1 I0 VCC COM INH VEE GND SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI HD 9V 5V Z-BOARD TO (Z8) SELECT (MAIN) SYNC SELECT SYNC (SUB) SWITCH SWITCH SWITCH TO J-BOARD (3/4) B E 6 8 7 3 D 4 C 1 2 F 5 A 9 5 6 4 2 3 1 8 7 K L M D E F G H I A B C J Q V R N S O T U P 0 3.3 0 12.0 0 9.0 4.8 0 3.3 5.0 4.9 0 0 5.5 5.5 4.8 0 15.0 0 0 0.4 4.5 4.2 0 0.5 0.4 0.4 0 9.0 2.5 0.8 4.5 4.5 2.1 9.0 9.1 0 0.4 0.9 4.6 0.9 4.4 0 0.2 9.0 0.3 0.3 4.5 4.5 0.3 9.0 9.0 4.5 8.7 3.8 9.0 3.6 0 0 0 0 4.5 4.3 0.9 4.5 4.3 4.5 5.3 4.5 9.0 8.7 3.9 3.9 0 0 0 1.6 9.0 1.0 1.6 1.0 9.0 ! J-BOARD (1/4) TNPA3197 PHD7 ONLY PHD7 ONLY PHD7 ONLY TH-42PHD7CY J-Board (1 of 4) Schematic Diagram TH-42PHD7CY J-Board (1 of 4) Schematic Diagram 81 15.18.J 电路板 (2/4) 线路图 + + AG_HD_M AG_VD_M AF_HD_S AF_VD_S 12V 5V_M 5V_S 1% *R8032 2.2k *C8039 50V 1000p ZA3002 K4CD01000013 *C8008 50V 100p 1% R8039 4.7k R8025 0 *L8004 G1C100K00020 C8021 16V 0.47u R8026 330 ZA3001 K4CD01000013 C8029 50V 0.01u 1% *R8030 3.3k *C8032 16V 47u R8056 100 R8021 2.2k *R8034 100k C8038 50V 1000p L8005 G1C100K00020 1% *R8040 4.7k R8059 100 *C8018 16V 4.7u 1% R8037 4.7k R8077 1.5k *C8034 50V 1000p C8045 16V 1u R8045 2.2k *C8017 10V 10u R8041 18k *D8004 MA2J11100L R8067 100 JS8095 IC8003 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing R8058 100 ZA3003 K4CD01000013 R8065 100 1% *R8038 4.7k C8009 6.3V 10u *IC8004 C1AA00000395 H.State 1 2 V.State 3 Green Sep Filter 4 Green IN 5 GND 6 Comp/H IN 7 Comp/H Det 8 Vert IN 9 Vert Det 10 Vert S/S Adj 11 Vert S/S IN 12 Digital GND 13 VD+OUT 14 HD+OUT 15 HD-OUT 16 Vcc 17 Clamp OUT 18 H.Pol. 19 V.Pol. 20 Clamp Timing C8016 16V 4.7u R8050 2.2k *R8027 0 TPJV1 *R8022 2.2k C8036 50V 100p *C8026 50V 0.01u *C8011 6.3V 10u *R8082 1.5k JS8094 *C8024 50V 0.01u *R8068 100 *R8028 330 ZA3005 K4CD01000013 ZA3004 K4CD01000013 D8003 MA2J11100L R8055 100 C8025 50V 0.01u *TPJH2 L8003 G1C100K00020 C8015 10V 10u R8081 1.5k *C8014 16V 0.1u ZA3007 K4CD01000013 C8033 50V 1000p C8019 50V 0.01u R8046 2.2k IC8005 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 *C8022 16V 0.47u *R8078 1.5k *C8031 50V 0.01u *D8002 MA2J11100L *R8042 18k *C8020 50V 0.01u *R8049 2.2k TPJH1 *R8070 100 C8005 50V 0.01u R8048 2.2k C8023 50V 0.01u C8030 16V 47u *C8037 50V 100p 1% R8031 2.2k D8001 MA2J11100L C8007 50V 100p *TPJV2 R8051 2.2k C8013 16V 0.1u ZA3006 K4CD01000013 *C8006 50V 0.01u R8033 100k 1% R8029 3k VD HD VD O5 I4 O4 GND O3 I3 O6 I5 O2 I2 O1 I1 I6 VCC HP VP VP HP 12V 5V PROCESSOR (MAIN) SIGNAL SYNC PROCESSOR SIGNAL (SUB) SYNC INVERTER J-BOARD (4/4) TO 14 12 10 16 11 15 13 17 18 4 2 3 1 8 7 5 6 AA AB 6.2 6.2 4.3 5.0 3.0 4.3 5.0 0.9 0 0 4.8 0 3.3 0 5.0 5.0 0.3 12.0 0.3 0 6.1 0 0 1.9 6.2 0 6.2 6.1 4.0 0 11.9 3.4 0 0 0 0 0 0 0 0 0 5.3 0 0 0 0.1 0 5.2 0 5.3 0 5.2 0 5.3 PHD7 ONLY PHD7 ONLY J-BOARD (2/4) TNPA3197 ! TH-42PHD7CY J-Board (2 of 4) Schematic Diagram TH-42PHD7CY J-Board (2 of 4) Schematic Diagram 82 15.19.J 电路板 (3/4) 线路图 + + + + + + + + + + + AB_SCL3 AB_SDA3 AB_SCL3 AB_SDA3 AI_R_1 AI_L_1 AJ_RXD1 AH_SLOT3_DET AM_SDA_S3 AM_SCL_S3 AK_R_3 AK_L_3 AL_L_2 AH_SLOT2_DET AL_R_2 AL_VD_2 AL_HD_2 AL_PR_2 AL_S2_2 AL_PB_2 AL_Y_2 AN_SDA_S1 AN_SCL_S1 AJ_TXD1 AI_VD_1 AI_HD_1 AI_PR_1 AI_PB_1 AI_S2_1 AI_Y_1 AB_SDA3 AB_SCL3 AH_SOS AN_SCL_S1 AH_SOS AN_SDA_S1 AL_R_2 AD_R_4 AI_L_1 AL_L_2 AD_L_4 AI_R_1 AH_SOS_ALL AB_SDA3 AJ_TXD1 AJ_RXD1 AJ_TXD4 RXD_PC 5V AB_SCL3 AA_SDA3 AF_DPMS_VD AF_DPMS_HD AJ_STATUS AF_PR_S AG_PR_M AG_Y_M AF_Y_S AF_PB_S AG_PB_M AF_HD_S AG_HD_M AF_VD_S AG_VD_M AH_SLOT1_DET AC_SW0 AC_SW1 AH_SLOT1_DET AH_SLOT2_DET AA_SCL3 P5V SLOT5V SLOT3.3V P5V P5V LAN15V 12V LAN15V SLOT9V SLOT5V STB5V_S STB5V_S STB5V_S SLOT3.3V UNREG15V STB5V_S SLOT9V STB3.3V STB5V_S UNREG12V 9V LAN15V STB5V_S STB3.3V STB5V_S P5V STB5V_S C8100 16V 47u R3062 100 C0JBCA000066 IC3150 1 A 2 B 3 GND 5 Vcc 4 Y R8183 0 FL3005 ELKE103FA 1 2 3 R8186 2.7k R3015 0 C8123 16V 0.1u R3006 4.7k R3027 10k R3013 15k C3007 16V 47u D3001 MA2J11100L C8114 50V 0.01u C8117 50V 0.01u R3007 10k IC3007 C0JBAS000109 1 2 3 4 5 6 7 8 R3150 100 R8187 56 R3025 100 C3150 16V 0.1u R3063 100 C8122 16V 47u C8103 16V 47u D8180 MA2J11100L C8115 16V 47u R3042 0 IC3002 C0JBBR000002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 R3141 47k R3198 12k Q3003 2SD0601A0L R8182 100 IC8101 C0CBAHG00005 GND 3 2 OUT IN 1 R3061 100 R8185 2.7k FL3009 ELKE103FA 1 2 3 R3020 0 R3043 0 X8181 H0J327200038 R3005 4.7k *J10 1 2 3 4 5 6 D3061 MA2J72800L Q8182 B1CBHD000001 G D S D3008 MA2J11100L FL3003 ELKE103FA 1 2 3 C8109 16V 0.1u J5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Q3002 2SD0601A0L R8184 0 C3011 16V 0.1u R3032 0 R3011 15k R3016 0 Q3004 2SD0601A0L Q3001 2SB0709A0L C3001 50V 0.01u R3160 5.6k D3005 LNJ206R5ARA R3196 10k FL3000 ELKE103FA 1 2 3 R3026 10k R3009 100 R3014 33k R3024 100 C8185 5.5V 1.5 C3006 16V 1u IC8181 C1DB00000274 1 2 3 4 5 6 7 8 Q8181 B1CBHD000001 G D S C8101 50V 0.01u C8182 50V 15p J12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R3116 10k L8181 G1C100K00020 R3023 100 C8108 16V 0.1u R3008 10k R3002 1k C3040 16V 0.1u R3010 100 IC3001 C0JBAR000241 1 Y0 2 Y2 3 Y 4 Y3 5 Y1 6 INH 7 VEE 8 VSS 9 B 10 A 11 X3 12 X0 13 X 14 X1 15 X2 16 VDD R3017 0 R3161 5.6k R3021 0 C8110 50V 0.01u C8120 16V 47u C8181 50V 15p J1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R3022 0 C3008 50V 0.1u R3045 10k R3033 0 C3004 16V 47u FL3010 ELKE103FA 1 2 3 FL3002 ELKE103FA 1 2 3 R3140 47k R8207 0 D3003 MA2J11100L R3047 10k L3002 G1C100K00020 R3197 12k C3041 16V 0.1u D3007 MA2J11100L R3041 330 R3040 330 R3018 0 R3039 330 J6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 C3009 16V 0.1u R8188 56 R3001 10k R3003 47k J11 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C8119 50V 0.01u C8104 16V 47u R3195 10k R3004 100 J3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 C3005 16V 1u R3060 1k C8116 50V 0.01u R3012 33k FL3001 ELKE103FA 1 2 3 C8121 16V 0.1u C8183 16V 0.1u R3019 0 R8181 100 IC3004 C1AB00000454 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 VCC C8118 16V 47u R3151 100 IC8100 C0CBAKG00003 GND 3 2 OUT IN 1 FL3004 ELKE103FA 1 2 3 C8102 16V 47u S1 S0 VDD VSS H:ON DAC2=75ohm DAC0 DAC1 32.768K CLOCK IC LAN15V PLUG DET CABLE DET SYNC GND REMOTE VD SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G GND GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND AUDIO IN R GND SLOT3.3V SLOT9V GND SLOT5V TX1+ GND TX3+ TX3- TXC+ TXC- TXCG TX3G TXG+ TXG- TX2G TX1- TX1G TX0+ TX0- TX0G SOS SYNC GND PWR_STATUS HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND S2DETECT PB/B Y/G GND Y/G LAN15V CABLE DET SYNC GND REMOTE VD SLOT5V GND SLOT9V GND STB5V SRQ RSVD IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ GND TX1+ TX0G TX0- TX0+ TX1G TX1- PC HI HI LO LO LO LO SLOT3 SLOT2 HI HI SLOT1 SLOT1 A B HI LO SLOT2 PC SLOT3 LO LO LO HI HI HI STB5V STB_ON LAN15V LAN15V GND GND TXG- TX2G TX1+ TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TX1- TX1G TX0+ TX0- IIC SW SL3_DET=SW2 SW1=SL2_DET SW0=SL1_DET DAC3=IICSW DAC4=IICSW SDA SCL GND 1OE S1 1B4 1B3 1B2 1B1 1A GND VCC 2OE S0 2B4 2B3 2B2 2B1 2A R L Y1 INH TXG- TX2G TX1+ TX3+ TX3- TX3G TXC+ TXC- TXCG TXG+ TX1- TX1G TX0+ TX0- TDETECT RTC INT/PANEL_SOS 5V SCL3 FAN CONT REMOCON OUT SCL1 STB3.3V ON/OFF IIC_CONT STB3.3V STB5V STB_ON GND GND V MUTE IN 232C_STATUS TXD_TU RESET POWER STATUS ALL_OFF GND TXD_PC GND SOUND MUTE SDA1 RXD_TU RXD_PC CABLE DET SDA3 GND GND DETECT SCL SDA SLOT2 TO TO D-BOARD (D3) PF-BOARD (PF10) TO D-BOARD TO (D1) D-BOARD (D5) TO (D6) TO D-BOARD EX I/O IIC SW AUDIO SELECT AVR 9V AVR 12V (1/4) TO J-BOARD B E 6 8 7 3 D 4 C 1 2 F 5 A 9 17 18 16 19 14 15 13 20 11 12 24 23 22 21 25 30 29 27 28 26 31 32 M J L C D E F G H I A B K R S U N T O Q V P OR 0 5.0 0 15.0 0 15.0 3.2 3.2 0 3.3 4.8 5.0 0 3.1 4.8 0 3.2 3.0 0 4.2 3.9 4.9 0 0 0 0.3 0 0 0 5.0 3.1 0 0 6.6 3.2 3.1 0 0 0 0 0 0 0 0 0 0 0 0 4.7 0 3.1 0 0.5 0 4.3 0 0.2 1 21 16 0.2 0 4 0 31 19 38 0.3 1.6 4.2 5.0 0.2 3.6 0 0 0 18 0 35 0 0 32 8 1.6 5.0 0 3 1.6 2 0 1.6 26 0 4.8 36 0 1.6 22 0 40 0 27 14 6 30 3.9 0 34 5 0.2 0 4.5 0 1.6 0 1.6 3.2 1.6 4.4 0.2 0.3 29 9.0 0.2 0 33 7 13 0 0 1.6 0.3 37 10 0 1.0 4.0 0 0.2 0 3.6 0 25 17 0 9.0 24 0 9 0 39 0.2 0 0 0.2 0 4.9 4.8 5.0 0.3 3.3 0.2 0.3 0.3 15 0 20 11 28 12 0.3 1.6 0 0 23 3.3 1.6 4 0 0 0 10 18 0 21 0 0 1.6 5 14 28 20 0 15 0 30 0 0.5 0 1.6 8 0 6 1.6 0 0 27 25 5.0 0 0 5.0 31 0 0 17 19 0 5.0 0 0 0.5 0 0 1 1.6 9.0 0 0 0.4 0 0 0.5 0 0 5.0 0 1.6 0 -0.8 40 0 0 35 3.3 0.7 16 3.3 39 0 0 29 0 0.7 0 1.3 1.6 0 11 36 0 1.6 24 0 1.6 22 0 0 32 0 2 0 4.9 12 37 38 0 0 3 9 7 0 0 0 1.6 34 23 0 0.3 0 13 9.0 26 2.3 33 0 B A B A 0 0 0.1 0.3 1.6 0 0.2 0 0.1 0 1.6 0.5 0 0 0.7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1.6 1.6 1.6 0 1.6 0 1.6 1.5 0 0 1.6 1.6 1.6 0 0 0 0.5 0.6 0.5 0.5 0.6 0.1 5.0 5.0 0 4.5 0.3 0.5 3.2 15.4 11.9 0 12.0 0 9.0 0.3 5.3 1.1 0 5.3 0.6 0.3 0 5.3 9.0 5.3 0.6 1.1 9.0 0.3 1.1 0.2 0 0.2 2.4 0 4.0 4.1 0.2 4.1 4.9 0.2 0.2 4.1 0.2 2.5 0.2 0 4.5 0.3 5.0 0.4 4.9 0.4 4.6 0.3 5.0 0.4 4.0 4.9 5.0 4.0 0.4 4.4 4.9 4.1 4.0 4.0 0 4.5 4.0 3.7 4.9 0 9.0 6.1 5.5 5.4 9.0 6.1 5.0 0 0 4.4 0 2.5 5.0 3.1 3.2 5.0 2.5 0 0 0 TO SLOT1 J-BOARD (3/4) TNPA3197 ! < TH-42PHD7CY J-Board (3 of 4) Schematic Diagram TH-42PHD7CY J-Board (3 of 4) Schematic Diagram 83 15.20.J 电路板 (4/4) 线路图 + + + + + + + + + + + AC_CS((S)) AG_PR_M AA_SCL3 AA_SDA3 AA_SDA3 AA_SCL3 AM_SDA_S3 AM_SCL_S3 AI_S2_1 AK_PR_3 AK_Y_3 AK_PB_3 AH_SOS AH_SLOT3_DET AK_Y_3 AK_PB_3 AK_S2_3 AK_PR_3 AK_HD_3 AK_VD_3 AK_R_3 AK_L_3 AG_PB_M AD_PB_4 AD_Y_4 AD_PR_4 AI_PR_1 AI_PB_1 AI_Y_1 AJ_TXD_4 AD_L_4 AD_Y_4 AD_PR_4 AD_R_4 AD_PB_4 AL_S2_2 AJ_RXD_4 AD_VD_4 AD_HD_4 AL_Y_2 AL_PB_2 AL_PR_2 AK_S2_3 AC_SW1 AC_SW0 AA_SCL3 AA_SDA3 AE_SW2 AE_SW3 AE_SW1 AC_CS((M)) AE_SW0 AF_VD_HX AF_HD_HX AF_PB_S AF_VD_HX AF_HD_HX AF_DPMS_VD AF_DPMS_HD AG_Y_M AF_Y_S AF_PR_S AJ_TXD_4 AJ_RXD_4 AJ_RXD4 AJ_TXD4 AH_SOS AH_SOS_ALL AF_HD_HX AF_VD_HX 9V 9V STB5V_S STB5V_S SLOT9V SLOT3.3V SLOT5V P5V STB3.3V P5V 5V_M STB3.3V 5V_S LAN15V LAN15V STB5V_S LAN15V D8011 MA3X15300L R3126 0 R8124 100 R3066 56 C3109 16V 0.1u C3115 16V 0.1u R3053 56 1% R3102 180 R3059 100 *R3191 33 1% *R3204 180 Q8013 2SB0709A0L C1AB00001720 IC3101 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC *Q8018 2SD0601A0L Q3102 2SD0601A0L R3231 100 R3028 10k 1% *R3202 180 R8125 100 4.7k R3215 *IC3108 AN78L05M-E1 IN 3 2 COMMON OUT 1 *R3083 100 *C3123 16V 0.1u Q8200 2SD0601A0L R3038 0 C3200 16V 1u Q8201 2SD0601A0L R3030 0 *C3130 16V 0.1u R3230 100 R8057 1k R3049 330k 1% *R3201 180 C3010 16V 0.1u 1% R3111 1.5k R3058 56 1% R3090 75 R3073 75 IC3003 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc C3017 50V 0.01u C3106 16V 0.1u JS8096 R3211 100 C8084 16V 1u C3030 2.2u 16V 1% R3088 75 *C3119 16V 2.2u *IC3006 C1AB00000441 1 SW1 2 SW0 3 DAC4 4 DAC3 5 DAC2 6 DAC1 7 DAC0 8 GND 9 SW2 10 SW3 11 SAD0 12 SAD1 13 SAD2 14 SDA 15 SCL 16 Vcc R3076 56 1% R3093 75 C3022 2.2u 16V *C3120 16V 0.1u *R3192 33 C3108 16V 0.1u R3065 56 C3144 16V 2.2u *C3124 16V 0.1u C3012 50V 0.01u *Q3106 2SD0601A0L 1% R3110 4.7k D8203 MAZ31000ML *R3087 0 *R3085 10k C8071 47u 16V R3077 56 Q8019 2SD0601A0L C8083 16V 0.1u 1% *R3200 180 IC3005 C1AB00001139 1 L1 2 L2 3 L3 4 Vcc 5 Y2 6 GND 7 PB2 8 GND 9 PR2 10 SW 11 L1 12 L2 13 L3 14 Vcc 15 Y3 16 GND 17 PB3 18 GND 19 PR3 20 SW 21 L1 22 L2 23 L3 24 DGND 25 ADRESS 26 SDA 27 SCL 28 DVcc 29 L3out 30 L2out 31 L1out 32 MonSW 33 GND 34 PRout3 35 GND 36 PBout3 37 GND 38 Yout3 39 Vcc 40 PRout2 41 GND 42 PBout2 43 GND 44 Yout2 45 Vcc 46 PRout1 47 GND 48 PBout1 49 GND 50 Yout1 51 Avcc 52 Vcc 53 TV_Y 54 GND 55 TV_PB 56 GND 57 TV_PR 58 Vcc 59 Y1 60 GND 61 PB1 62 GND 63 PR1 64 SW C3026 2.2u 16V 1% R3189 75 D8201 MA2J11100L R3056 330k R3072 75 *C3127 16V 0.1u R3071 75 *C3128 16V 47u C3112 16V 0.1u *R3108 0 J13 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 *R3097 0 *R8066 680 C3029 2.2u 16V 1% *R3261 75 C3107 16V 0.1u *Q3105 2SD0601A0L *C3126 16V 2.2u *C3117 16V 0.1u C8070 0.1u 16V C3105 16V 0.1u C8072 10V 10u 1% R3105 180 1% R3104 180 4.7k R3213 1% *R3113 1.5k C3103 16V 2.2u R8201 47k R3046 10k R3075 75 R3035 330 R3210 100 *R3094 330 R3068 56 C3136 16V 470u R8204 100k C3024 2.2u 16V R3130 180 C3013 50V 0.01u 1% R3190 75 C3021 2.2u 16V 1% *R3109 820 D8010 MA3X15300L R3212 4.7k R3054 56 R3194 33 Q3101 2SD0601A0L R3078 56 *C3116 16V 2.2u *C3268 16V 470u Q3103 2SD0601A0L C3025 2.2u 16V 1% R3092 75 1% R3089 75 C3023 2.2u 16V R3079 56 *C3141 16V 2.2u R8200 22k 1% *R3199 180 R8127 100 D3004 MA2J11100L *C3267 16V 470u *C3118 16V 0.1u R8202 22k D3024 MA2J11100L C3019 16V 0.1u 1% R3103 180 R3067 56 Q8012 2SD0601A0L R3050 56 C3101 16V 2.2u R3074 75 R3217 3.3 C3134 16V 470u *R8091 180 R8069 680 Q8010 2SD0601A0L R3048 330k R3052 330k *R3132 180 JS8097 L3003 G1C100K00020 R3080 56 C3110 16V 2.2u R8118 0 D8200 MAZ31500ML R3214 4.7k 1% *R3112 4.7k *R3098 0 C3104 16V 0.1u C3015 50V 0.01u *R3133 180 C8200 16V 47u R8205 56k *R3096 330 R3029 10k C3020 2.2u 16V C1AB00001720 *IC3102 1 GINA/UINA 2 GSG1 3 GINB/UINB 4 NC 5 BINA/VINA 6 GSB1 7 BINB/VINB 8 NC 9 DISABLE 10 GND3 11 BOUT/VOUT 12 VCC3 13 GND2 14 GOUT/UOUT 15 VCC2 16 GND1 17 ROUT/YOUT 18 VCC1 19 GND4 20 RFC 21 VFC 22 MUXSEL 23 SYNCIN 24 VCC4 25 RINA/YINA 26 GSR1 27 RINB/YINB 28 NC C8073 10V 10u J14 1 2 3 4 5 6 7 8 9 10 11 22 21 20 19 18 17 16 12 13 14 15 R3031 0 1% *R3260 75 R3219 3.3 *R3100 10k C3014 50V 0.01u R3081 56 *C3122 16V 0.1u *R3099 10k R3064 56 *C3266 16V 470u *R3095 330 *R3084 10k C8080 16V 0.1u R8089 180 *C3125 16V 0.1u Q8011 2SB0709A0L C3018 16V 47u R3057 56 C3016 50V 0.01u R3216 3.3 C3031 2.2u 16V D8204 MA2J11100L C3027 2.2u 16V C0ZBZ0000911 IC8014 EN 1 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 T2_OUT 9 R2_IN 10 R2_OUT 11 STATUS 12 T2_IN 13 T1_IN 14 ONLINE 15 R1_OUT 16 R1_IN 17 T1_OUT 18 GND 19 VCC 20 SHUTDOWN L3006 G1C100K00020 R8126 100 Q8202 2SD0601A0L 1% *R3262 75 R3036 330 C3143 16V 2.2u C3102 16V 0.1u R3051 330k *R3086 0 *R3127 0 1% R3118 820 C3113 16V 47u L3005 G1C100K00020 R8206 47k 1% R3091 75 C3114 16V 4.7u *R3107 100 R3055 330k R3037 0 1% R3188 75 *D3021 MA2J11100L R3069 56 R3044 10k 1% R3101 180 C3028 2.2u 16V R8203 22k *Q3104 2SD0601A0L R3218 3.3 R3193 33 R3129 180 R3117 0 *C3121 16V 0.1u R3082 100 C3002 6.3V 10u *C3129 16V 4.7u IC8016 C0JBAZ001934 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC R3034 330 *C3142 16V 2.2u R3070 75 C3135 16V 470u C8082 16V 0.1u 1% R3106 180 IC3109 AN78L05M-E1 IN 3 2 COMMON OUT 1 C3111 16V 0.1u *R8054 1k R8117 0 1% *R3203 180 L3050 G1C100K00020 *C3032 16V 0.1u R3128 180 C8081 16V 0.1u *R3131 180 DAC0 DAC0 :SYNC_INH(S) :LPF(S) :FAN_CONT :CS(S) DAC3 SW0 SW1 :LPF(M) GND :CS(M) GND LAN15V AUDIO GND TXD AUDIO IN R Y/G Y/G GND PB/B S2DETECT PB/B GND RESET1 PR/R RESET2 PR/R GND HD PWR_STATUS SYNC GND SOS VD REMOTE SYNC GND CABLE DET PLUG DET GND SLOT5V GND SLOT9V SLOT3.3V GND AUDIO IN L RXD AUDIO GND IIC SCL RSVD IIC DAT RSVD SRQ STB5V GND TX1G TX1- TX2G TXG- TXG+ TX3G TXCG TXC- TXC+ TX3- TX3+ TX1+ TX0G TX0- TX0+ STB5V_S :SYNC_INH(M) SLOT1 :3 SLOT3 :1 PC :T GND GND 75ohm L R HD SLOT2 :2 GND GND GND GND GND GND GND RXD TXD Y/G PB/B PR/R VD SW0 SW1 GND :FAN_SW TO HX-BOARD (HX1) SLOT3 TO DRIVER RS232C INVERTER AVR 5V AVR 5V (MAIN) VIDEO AMP (SUB) VIDEO AMP EX I/O EX I/O INPUT SW (VIDEO) TO J-BOARD (2/4) 14 12 10 16 11 15 13 17 18 24 31 30 32 26 27 25 28 29 21 13 14 20 16 23 19 17 15 22 18 12 11 AB AA 24 0 0 5.0 0 0 29 0 0 4.9 1.2 4 0 0 8 0 0 6 0 0 0 37 0 38 0 0 13 0 9.0 3 26 33 2.3 0 0 15 0 30 40 0 A 0 35 0 0.8 0 0 3.3 1.1 16 3.3 9 39 7 0.7 0 0 0 0 0 5.0 19 0 5.0 0 0 10 18 0 0 0.8 0 0 0 0 0 2 1.6 34 0 0 23 5.0 0 0 12 11 0 0 0 27 0 25 22 0 0 0 0.7 32 0 0 5 14 28 20 1 0 9.0 0 B 0 31 0 0 21 17 36 0 0 0 0 0 0 0 0 5.3 5.3 0 0 0 0 5.0 9.0 0 1.6 0 0 0 0 1.6 0 0 5.3 0 0.4 0.4 6.6 9.1 9.0 9.0 0.3 4.0 8.6 0 9.0 9.0 0.4 0 0.4 0.3 0.4 0.4 0.3 8.6 0.4 3.9 0 9.0 9.1 0.3 0 9.0 4.0 9.1 4.0 9.0 0 0 9.0 4.8 5.0 5.1 0 4.8 4.8 9.0 4.8 0 0 0 5.3 4.0 3.9 0 0 0 0 4.0 5.0 5.0 5.1 0 1.2 9.0 4.5 4.4 4.4 4.4 0 0 0 9.0 0 4.5 9.0 5.0 0 0 4.8 0 4.9 4.8 5.1 5.1 1.7 3.0 4.9 9.0 4.5 0 4.4 4.4 0 1.2 0 5.1 4.8 4.9 0 9.0 0 5.0 0 2.4 0 3.6 5.0 3.4 2.7 0 0.1 0 2.3 0 0.1 5.0 2.5 0 5.0 0 5.0 0 4.4 1.4 0 5.0 1.4 5.0 5.0 7.5 0 0 7.1 5.0 0 2.3 0.9 0 5.0 1.1 0 0 2.3 5.0 1.1 0.8 0 5.0 0.9 0 2.3 0 0.9 5.1 2.4 0 5.0 0 0 5.0 1.1 5.0 2.8 3.2 0 1.7 0 1.9 0 0.4 0.4 0 0 0 0 0 3.3 1.9 1.8 1.9 1.9 3.3 0 1.3 1.3 3.2 0 0 0 0 0 3.2 3.2 3.2 3.2 0 9.0 4.5 3.9 3.8 9.0 4.5 9.0 4.5 3.8 4.4 3.8 9.0 9.0 3.7 4.4 9.0 4.5 3.9 9.0 4.4 3.8 4.4 3.8 9.0 5.2 4.5 9.0 3.8 0 4.5 5.1 9.0 4.5 0 3.8 4.4 0.1 0 0 4.9 0 0.1 0 0.1 5.0 PHD7 ONLY PHD7 ONLY PHD7 ONLY PHD7 ONLY PHD7 ONLY J-BOARD (4/4) TNPA3197 ! TH-42PHD7CY J-Board (4 of 4) Schematic Diagram TH-42PHD7CY J-Board (4 of 4) Schematic Diagram 84 15.21.D 电路板 (1/2) 方框图 HD-M VD-M HD-M VD-M HD_M VD_M VD_M HD_M HD VD HD VD HD VD OSDXI OCK SCK REFCK MCK P5V CLKA 5 St-r 4 /Y Pb Pr 3.3V IC9501 OSC 1 COLOR 5 OSC 2 FORMAT CONVERTER(I/P) 4 OSD_HDD 3.3V D00 REG 3.3V WB-Adj A01 IC9862 8BIT A19 P5V CTI/TINT IC9701 D15 VD-M VD F.CLP HD 9 110M RX2- HD CONVERTER J1 10 VD RGB HS OUT OSD RX0- 77 5V 3.3V 5 IC9860 IC9850 6 SDRAM I/F 9 SCL CONTRAST RX1+ SDA ADC RXCLK- IC9004 FORMAT VS OUT EEPROM 26 RXCLK+ SDA3 3 SCL2 D5 SDA2 19 DIGITAL B D1 R(8Bit) SDA1 12 CLKC SCL3 5 DIGITAL A SCL1 CLK OUT Q9011 64M SDRAM 1 J5 27 IC9505 DCKC 7 17 55 B0-B9,G0-G9,R0-R9 REG 3.3V 2 16 1 IC9202 5 FLASH ROM RX2+ CLKC P5V 15 OE RX0+ IC9006 15 203 27 8 IC9864 55 20 2 VD-ADM 1 RX1- 5 CLKB VDM I/O 12 14 3 HDIA-M TTL PARALLEL TO LVDS RXCLK- 2 R/G/B 18 VS OUT D-Board(1of2)Block Diagram HDM I/O 6 4 SW 26 BUS SWITCH RX3+ B(8Bit) D RXCLK+ 11 HDID-M RX3- 6 Format Converter 3 (MASTER)RGB 8bit 11 VDID-M IC9863 B0 D5 D 2 8 B-M 19 (1/2) TO J-BOARD 4 R(8Bit) 12 TO J-BOARD 6 67 A/D CONVERTER(MAIN) 20 TO J-BOARD IC9865 PLL IC9861 CLK OUT 3 14 CLAMP Q9013 BUS SWITCH J6 9 12 OE 17 66 G 84 110M 16 R7 R 85 G(8Bit) RX2+ 64 B SDA1 77 RX0+ B (I/P SDA2 VSYNC 23 G0 CONVERTER) SCL1 B7 20 38 SCL2 R0 RX1- Pr/R IN 100 2 27 99 8BIT TTL PARALLEL TO LVDS CLP 30 12 21 4 RX3+ B(8Bit) G 51 RX3- HS OUT R IC9203 HSYNC 8 55 2 ADC 18 4 Pb/B IN 185 18 6 CLP G7 BUS SWITCH 56 IC9205 CLP Y/G IN 26 OSD_VDD IC9869 3 54 11 43 1 202 48 30 MICRO PROCESSOR 7 CLPC-M 15 12 SDA3 2 5 VS OUT IC9204 31 IC9003 5 6 SYNC/SEPA 17 19 SCL3 OE 4 5 R-M IC9201 29 70 BUS SWITCH R/G/B OE 5 SW G-M 116 HD-M 4 9 117 G(8Bit) DCKB 3.3V RX2- REG 3.3V 10 54 SYNC PROCESSOR IC9867 HS OUT P5V RX0- 5 IC9200 4 24 3.3V RX1+ REG 3.3V IC9868 LVDS/TTL(PARALLEL) INVERTER SWITCHING LVDS/TTL(PARALLEL) INVERTER SWITCHING 198 199 X9001 (1/2) 16 18 HD-M VD-M SUB MAIN SCL SDA SDA2 57 SCL2 56 188 187 HDID-S 29 27 VDID-S INV. Q9012 27 SWS SWM 26 Q9010 INV. DPMS-VD DPMS-HD 22 21 20 HD-DPMS VD-DPMM 17 (1/2) SYNCRST XRST NRST OSD 80 81 OSDCLK OSDHD OSDVD 82 (4M) 95 5V SOS 3.3V SOS 96 Q9009 P5V Q9006 Q9005 Q9004 Q9003 P12V 1.5V1 1.5V2 3.3V 125 IC9005 2 4 VOUT VDD RESET STB3.3V RST 48 OSD_CKIN 57 OSDXI 29 46 OSD0 OSD15 OCKREF SCKREF REFCK MCKREF P25 1 D25 +12V TO P-BOARD 2 +12V +5V 5 6 +5V P5V P12V 1 2 TH-42PHD7CY D-Board Block Diagram TH-42PHD7CY D-Board Block Diagram 85 15.22.D 电路板 (2/2) 方框图 OCK SCK REFCK MCK OSDXI TXD_PC RXD_PC RTC_INT SOUND_MUTE STB_ON RXD_PC TXD_PC RTC_INT SOUND_MUTE STB_ON 5V-SENSE 5V-SENSE 5V-SENSE 5V-SENSE 5V-SENSE DRV-RST DRV-RST DRV-RST DRV-RST DRV-RST CATS_EYE REM KEY_IN SOS3 LED_G LED_R SOS3 LED_R LED_G KEY_IN REM CATS_EYE SOS2 SOS2 SOS2 SOS1 SOS1 J3 D3 IC9302 NEW PLASMA AI TO J-BOARD (3.3V 2.5V) 7 6 D27 P27 TO P-BOARD DC DC CONVERTER IC9209 (1.5V/2A) DC DC CONVERTER IC9211 (1.5V/1A) 1.5V1 P12V 1.5V2 DC DC CONVERTER 3.3V 2.5V1 IC9210 (3.3V/1.4A) AVR IC9213 64M SDRAM 10bit PROCESSOR SUB-FIELD PROCESSOR (L Master) SLV40h DDR-SDRAM FLASH ROM I/F DDR-SDRAM DATA DRIVER DATA DRIVER DISCHARGE CONTROL IC9701 IC9003 (2/2) IC9706 IC9700 IC9702 TO C1-BOARD (MASTER)RGB 10bit SCL2 SDA2 132 133 100 DRVRST D31 C11 C21 D32 D33 R-UP TO C3-BOARD C41 D34 D20 TO SC-BOARD Plasma AI Sub-Field Processor D (2/2) TO C2-BOARD C31 TO C4-BOARD SC20 L-DOWN R-DOWN RESET RXD_PC TXD_PC SCL3 SDA3 B0-B9,G0-G9,R0-R9 CLE, CEH, CSL, CSH, CML, CMH CL, CLK, SCSU, SIU, SID, CPL, CPH UEH, NUEL, UMH, UML, USH, USL Q9003 Q9005 Q9004 Q9006 TV ON/OFF EN EN EN 2.5V2 AVR IC9215 (3.3V 2.5V) IC9301 X2 X9001 20 IC9500 CLK.GEN CLK4 10 CLK8 11 CLK7 12 CLK6 13 X1 1 4 CLK9 14 CLK5 CLK1 7 9 CLK3 RESET 32M FLASH ROM 12 IC9506 OCK PCK 4 VCC RESET OUT 5 IC9703 3.3V 106 PROGRAM 182 CLKM-IN SDA SCL IIC SCL2 SDA2 A18,A19,A20 NRST 147 STB ON 28 SOUND MUTE 12 27 RTC INT 21 23 11 26 FAN CONT TV ON/OFF 2 FAN_CONT 3 STB5V 4 FAN SOS 6 PS SOS 7 ALL OFF 8 STB5V 4 STB5V-M 3.3V SOS 96 5V SOS 95 59 IIC CONT Q9003 P5V (2/2) MICRO PROCESSOR 103 TXD_PC 104 RXD_PC RTC INT 86 145 SOUND MUTE 20 TV ON/OFF 94 POWER SOS 2 STB ON NRST XRST Q9000 SDA3 6 SWITCHING IC9001 7 3 2 1 5 Q9002 SCL3 SCL2 SDA2 Q9001 Q9305 Q9306 Q9307 TV ON/OFF IC9214 AVR STB3.3V IN 1 6 3 OUT STB3.3V STB5V 102 REM IN Q9008 Q9007 REM INH 105 AI-SENSE 90 3 18 17 5 3.3V IC9000 14 15 6 2 5V A5 A4 A2 A1 Y5 Y4 Y2 Y1 LSI RST 17 16 DRIVER RESET NRST DRVRST Q9017 Q9018 109 LED_R 110 LED_G 5V 3.3V 3.3V 5V 5V 3.3V IC9707 3.3V 5V PCD, PCU, LED, LEU B3 5V-DET Q9301 A38 5V-DET Q9300 L-UP Q9303 5V-DET B3 Q9302 5V-DET A38 Q9014 Q9304 A4 DRVRST DRVRST B37 DRVRST A4 B37 DRVRST DOUTUA00~A21 DOUTUB00~B21 DOUTUC00~C21 DOUTDA00~A21 DOUTDB00~B21 DOUTDC00~C21 PCD, PCU, LED, LEU PCU, LEU PCD, PCU LED, LEU Q9015 Q9016 92 SUS SOS 97 KEY IN PCU, LEU SOS3 B8 A32 LED R LED G B32 KEY SW A31 B31 REMOCON A30 OPT 93 SCAN SOS 91 DATA SOS 12 SOS2 B36 SOS2 SOS1 11 25 REMOCON OUT Y 4 1 2 B IC9002 SWITCHING A 108 REMO OUT 1 2 TH-42PHD7CY D-Board Block Diagram TH-42PHD7CY D-Board Block Diagram 86 15.23.D 电路板 (1/12) 线路图 + G G G G G G MD_G5 MD_G6 MD_G7 MD_B2 MD_B4 MD_B5 MD_B6 MD_G0 MD_R0 MD_G1 MD_B7 MD_R6 MD_B0 MD_R1 MD_B1 MD_R7 MD_B3 MD_G2 MD_G3 MD_G4 DM_HD DM_VD DPMS_HD DPMS_VD MN_RX0- MN_RX0+ MN_RX1- MN_RX1+ MN_RX2- MN_RX2+ MN_CLK- MN_CLK+ MN_RX3- MN_RX3+ VD_S VD_M ANF_R_S ANF_G_S ANF_B_S ANF_R_M ANF_G_M ANF_B_M HD_S HD_M MD_R5 MD_R4 MD_R3 MD_R2 DCK_MAIN NDA_SWM_5V MN_RX1- MN_RX2- MN_RX2+ MN_CLK- MN_RX3- SB_RX3- MN_CLK+ MN_RX3+ SB_CLK+ MN_RX0+ MN_RX0- SB_CLK- SB_RX3+ SB_RX2+ SB_RX0- SB_RX2- SB_RX1+ SB_RX1- SB_RX0+ MN_RX1+ DA_SWM_5V *C9860 6.3V 10u *R9880 56 *C9873 16V 0.1u *C9870 16V 0.1u *R9873 100 *R9867 0 *R9868 0 D1 K1KA20AA0009 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 *R9861 100 *R9878 10k R9864 100 *IC9862 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *R9876 100 *C9880 16V 0.1u *R9872 100 R9751 0 *R9870 100 *IC9864 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y *C9862 16V 0.1u *C9879 16V 0.1u *D9860 MAZ303300L R9753 0 *C9865 16V 0.1u *C9872 16V 0.1u *R9874 100 R9755 0 *C9863 6.3V 10u *R9860 100 *C9876 16V 0.1u R9757 0 *R9884 10 P5V R9862 100 *C9861 16V 0.1u *IC9865 C0JBAS000109 1 2 3 4 5 6 7 8 R9863 100 *C9864 16V 0.1u *C9875 16V 0.1u *C9886 16V 0.1u R9865 100 *C9882 16V 0.1u *C9866 4V 220u *IC9863 C0ZBZ0000850 1 RxOUT22 2 RxOUT23 3 RxOUT24 4 GND 5 RxOUT25 6 RxOUT26 7 RxOUT27 8 LVDSGND 9 RxIN0- 10 RxIN0+ 11 RxIN1- 12 RxIN1+ 13 LVDSVcc 14 LVDSGND 15 RxIN2- 16 RxIN2+ 17 RxCLKIN- 18 RxCLKIN+ 19 RxIN3- 20 RxIN3+ 21 LVDSGND 22 PLLGND 23 PLLVcc 24 PLLGND 25 PWRDWN 26 RxCLKOUT 27 RxOUT0 28 GND 29 RxOUT1 30 RxOUT2 31 Vcc 32 RxOUT3 33 RxOUT4 34 RxOUT5 35 RxOUT6 36 GND 37 RxOUT7 38 RxOUT8 39 RxOUT9 40 Vcc 41 RxOUT10 42 RxOUT11 43 RxOUT12 44 GND 45 RxOUT13 46 RxOUT14 47 RxOUT15 48 Vcc 49 RxOUT16 50 RxOUT17 51 RxOUT18 52 GND 53 RxOUT19 54 RxOUT20 55 RxOUT21 56 Vcc *C9871 16V 0.1u IC9850 C0JBAZ000545 OE1 1 2 I0 3 O7 4 I1 5 O6 6 I2 7 O5 8 I3 9 O4 10 GND 11 I4 12 O3 13 I5 14 O2 15 I6 16 O1 17 I7 18 O0 19 OE2 20 VCC 3.3V C9850 16V 0.1u *C9867 6.3V 10u *C9868 6.3V 10u *C9869 6.3V 10u *FL9850 J0MAB0000175 FL9851 J0MAB0000175 *R9866 EXB2HV470JV *R9871 EXB2HV470JV *R9877 EXB2HV470JV *FL9860 J0HABH000012 1 2 3 *FL9861 J0HABH000012 1 2 3 *FL9862 J0HABH000012 1 2 3 D5 K1KA31A00005 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 J5 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 J6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 *R9188 10k *R9187 10k T1- TCLK- T2- T2+ T3- TCLK+ T3+ FOR DVI HS VS T1+ T0- VSS T0+ VDD DIGITAL1 ANALOG(M) & DS90CF386MTDX MAIN GND GND GND GND GND MN_RX0+ MN_RX1+ MN_RX1- MN_RX2+ MN_RX2- MN_RXCLK+ MN_RXCLK- MN_RX3+ MN_RX3- GND MN_RX0- GND SB_RX1+ GND GND SB_RX2+ SB_RX0+ GND SB_RXCLK+ GND SB_RX1- SB_RXCLK- SB_RX2- SB_RX3+ SB_RX3- SB_RX0- R_S GND GND R_M GND G_S GND GND B_S GND G_M B_M HD_M HD_DPMS VD_S HD_S GND VD_M VD_DPMS GND 5V->3.3V D-BOARD ! DC LEVEL CONV. REG 3.3V INV. IVDS/TTL (PARALLEL) TO (J1) J-BOARD TO (J5) J-BOARD 1.6 1.6 0 1.6 0 1.6 1.6 0 0 0 1.6 1.6 1.6 1.6 0 1.6 1.6 1.6 1.6 0 0 1.6 1.6 0 0 1.6 1.6 0 1.6 1.6 0 (J6) E 6 A 5 1 4 B 9 8 3 C F 7 D 2 (7/12) TO D-BOARD 2 3 1 10 8 9 7 5 6 4 B A 1.6 1.6 0 0 1.6 0 1.6 0 1.6 0 0 1.6 0 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 1.6 0 1.6 0 1.6 1.6 1.6 0 0 0 TZTNP01VCSC (1/12) PHD7 ONLY PHD7 ONLY PHW7 ONLY 0 0 0 0 0 0 0 0 0 0 0 0 0 4.3 0 3.1 0 4.7 0 0 SWITCHING TH-42PHD7CY D-Board (1 of 12) Schematic Diagram TH-42PHD7CY D-Board (1 of 12) Schematic Diagram 87 15.24.D 电路板 (2/12) 线路图 MA_B5 MAIN_G7 MD_R2 MD_R3 MA_B4 MD_R4 MD_R5 MA_B3 MD_R6 MD_R7 MA_B2 MD_G0 MA_B0 MA_G7 MAIN_G3 MA_B1 MD_G1 MA_R7 MAIN_G2 MA_B0 MD_G2 MA_B1 MA_G6 MAIN_G1 MA_G7 MD_G3 MA_R6 MAIN_G6 MAIN_G0 MA_G6 MAIN_R0 MD_G4 MA_G5 MAIN_G5 MAIN_R7 MA_G5 MAIN_R1 MD_G5 VD_ADM MA_R5 MAIN_G4 MAIN_R6 MA_G4 MAIN_R2 MD_G6 MA_G4 MAIN_R5 MA_G3 MAIN_R3 MD_G7 AM_VD MA_R4 MAIN_R4 MA_G2 MAIN_R4 MA_G3 MD_B0 HD_ADM AM_HD MAIN_R3 MA_G0 MAIN_R5 MD_B1 MA_R3 MA_G2 MAIN_R2 MA_G1 MAIN_R6 MD_B2 MAIN_R1 MA_R7 MD_B3 MA_R2 MA_G1 MAIN_R0 MA_R6 MAIN_G0 MD_B4 MAIN_B7 MA_R5 MAIN_G1 MD_B5 MA_R1 MA_G0 CLP_M MAIN_B6 MA_R4 MAIN_G2 MD_B6 MAIN_B5 MA_R3 MAIN_G3 MD_B7 MA_B7 MA_B2 MA_R0 MAIN_B4 MA_R2 MAIN_G4 MA_B6 MAIN_B3 MA_R0 MAIN_G5 MA_B5 MA_B7 MAIN_B2 MA_R1 MAIN_G6 MA_B4 MAIN_B1 MD_R0 MAIN_G7 MA_B6 MA_B3 MAIN_B0 MD_R1 MAIN_R7 MAIN_B6 MAIN_B7 MAIN_B4 MAIN_B2 MAIN_B1 MAIN_B0 MAIN_B3 MAIN_B5 ANF_G_M ANF_R_M D09 A10 D10 A11 D01 D02 A7 D03 A16 D04 A8 DA_SWS NDA_SWM_5V NDA_SWS_5V D05 DA_SWM A18 D00 A12 A13 D11 A14 D12 A15 D13 D14 D15 A2 A1 A3 A4 DA_SWS_5V A5 A6 DA_SWM_5V ABI_I D06 ABI_J D07 ABI_D A17 D08 A9 P3V_SDA2 P3V_SCL2 ANF_B_M NRST SA_G5 MA_R2 MA_B0 SA_G4 MA_R1 SA_G7 SA_G3 MA_R0 SA_G2 SA_G1 SA_G0 MA_G7 MA_G6 MA_G5 MA_G4 MA_G3 MA_G2 SA_B7 MA_G1 SA_B6 MA_G0 SA_B5 SA_R7 SA_B4 SA_R6 SA_B3 SA_R5 SA_B2 SA_R4 SA_R3 SA_B1 SA_R2 SA_B0 SA_R1 MA_B7 SA_R0 MA_B6 MA_R7 MA_B5 MA_R6 MA_B4 MA_R5 MA_B3 MA_R4 MA_B2 SA_G6 MA_R3 MA_B1 C9920 16V 0.1u R9924 0 *Q9011 B1ABCC000004 C9921 16V 0.1u C9048 16V 0.1u C9930 16V 0.1u *Q9012 B1ADCC000004 R9888 0 C9908 16V 0.1u R9916 0 *R9133 47k R9922 2.7k C9914 16V 0.1u C9924 16V 0.1u 3.3V *R9116 330 C9916 16V 0.1u R9917 0 C9905 6.3V 10u *IC9869 C0FBAD000102 AK5401AVQ 1 DVSS 2 GOUT7 3 GOUT6 4 GOUT5 5 GOUT4 6 GOUT3 7 GOUT2 8 GOUT1 9 GOUT0 10 DVSS 11 DVDD 12 BOUT7 13 BOUT6 14 BOUT5 15 BOUT4 16 BOUT3 17 BOUT2 18 BOUT1 19 BOUT0 20 DVSS 21 DVSS 22 DVDD 23 DVDD 24 TEST 25 PVSS 26 PVDD 27 PVDD 28 PVSS 29 COAST 30 HSYNC 31 VSYNC 32 PVSS 33 FLT 34 PVDD 35 PVDD 36 AVSS 37 BIAS 38 CLAMP 39 AVDD 40 AVSS 41 AVSS 42 AVDD 43 BIN 44 AVSS 45AVDD 46AVDD 47 AVSS 48 GIN 49 SOGIN 50 AVSS 51AVDD 52AVDD 53 AVSS 54 RIN 55 A0 56 SCL 57 SDA 58 BYPASS 59 AVDD 60 AVSS 61 AVSS 62 AVDD 63 RESET 64 VSYNCO 65 SOGOUT 66 HSYNCO 67 DTCLK 68 DVSS 69 DVDD 70 ROUT7 71 ROUT6 72 ROUT5 73 ROUT4 74 ROUT3 75 ROUT2 76 ROUT1 77 ROUT0 78 DVDD 79 DVDD 80 DVSS C9909 16V 0.1u R9911 75 C9906 6.3V 10u R9907 0 C9912 6.3V 10u P5V *R9124 10k *R9130 10k R9912 75 *C9895 16V 0.1u R9184 0 R9913 75 C9926 50V 8200p R9906 0 *R9111 47k IC9868 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *R9082 10k IC9867 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout R9886 0 C9929 16V 0.1u R9921 0 *R9918 6.8k C9918 50V 0.01u C9910 16V 0.1u *R9106 10k *C9922 6.3V 10u R9920 0 P5V C9049 16V 4.7u C9915 50V 0.01u C9925 16V 0.082u *IC9861 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE C9907 16V 0.1u C9913 16V 0.1u *R9127 1k P5V C9931 16V 0.1u *C9894 6.3V 10u C9919 50V 1000p *Q9013 B1ABCC000004 C9911 6.3V 10u *Q9010 B1ADCC000004 *IC9860 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE STB3.3V *R9898 0 R9186 10k R9919 0 C9917 50V 0.01u *R9136 330 *C9923 16V 0.1u *R9100 1k R9936 0 R9893 0 C3FBKD000268 *IC9006 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 N.C. 10 N.C. 11 WE 12 RESET 13 N.C. 14 N.C. 15 RY/BY 16 N.C. 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 VSS 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 VCC 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 VSS 47 BYTE 48 A16 *R9933 EXB2HVR000V *R9932 EXB2HVR000V *R9934 EXB2HVR000V 100MHz SN74CBT16211ADGGR SN74CBT16211ADGGR REG 3.3V REG 3.3V BUS SWITCH BUS SWITCH A/D (MAIN) 4M FLASH ROM 17 11 14 15 12 16 18 10 13 (8/12) TO D-BOARD 10 9 8 7 2 3 1 5 6 4 26 25 23 22 27 AE AF AD AA AB AC (2/12) D-BOARD TZTNP01VCSC ! PHW7 ONLY 24 21 TH-42PHD7CY D-Board (2 of 12) Schematic Diagram TH-42PHD7CY D-Board (2 of 12) Schematic Diagram 88 15.25.D 电路板 (3/12) 线路图 + G G G G G G SUB_B0 SA_R6 SD_R6 SA_G6 SUB_B3 SA_G2 SD_R2 SD_B4 SD_B1 SA_G1 SA_R5 SA_R7 SD_R1 SA_B2 SD_B5 SD_B0 SA_R4 SA_G3 SD_R0 SD_G7 SA_R3 SA_B4 SD_R1 SA_B0 SD_B7 SA_R2 SA_B3 SD_B6 SA_R0 SA_B2 SA_G0 SA_B1 SD_R3 SD_B5 SA_R1 SA_B1 SD_G5 SD_R5 SD_B4 SA_B0 SD_G6 SA_B7 SD_R4 SD_B3 SA_G7 SD_G6 SD_B2 SA_G6 SD_B6 SA_B6 SD_G5 SD_G0 AS_HD SA_G5 SD_R0 SD_G4 SD_G1 SA_G4 SA_B5 SD_B7 SD_G7 SD_G3 AS_VD SD_G3 SD_B0 SD_G2 SD_B2 SA_G5 SD_G4 SA_B4 ANF_R_S SD_B1 SD_G1 ANF_G_S SA_R1 SD_G0 SD_B3 SA_G4 CLP_S SA_B3 ANF_B_S SD_R7 VD_ADS SA_R2 SUB_B7 SD_R6 SA_G3 HD_ADS SUB_B6 SA_R3 SA_B7 SA_G2 SA_B6 SUB_B2 SA_R4 SA_B5 SA_R7 SA_G1 SUB_B1 SUB_B5 SA_R6 SUB_B0 SUB_B4 3.3V SA_R0 SA_G0 SUB_B7 SUB_B3 SD_R7 SUB_B6 SUB_B2 SA_R5 SD_G2 SA_G7 SUB_B5 SUB_B1 SUB_B4 DS_HD DS_VD SUB_R0 SUB_R1 SUB_R2 SUB_R3 SUB_R4 SUB_R5 SUB_R6 SUB_G0 SUB_G1 SUB_G2 SUB_G3 SUB_G4 SUB_G5 SUB_G6 SUB_G7 SUB_R7 SUB_R1 SUB_G0 SUB_R4 SUB_G7 SUB_R7 SUB_R3 SUB_G6 SUB_R6 SUB_R0 SUB_G5 SUB_R5 SUB_G4 SUB_G3 SUB_G2 SUB_R2 SUB_G1 NDA_SWS_5V DA_SWS_5V SB_RX3+ SB_CLK- SB_RX2+ SB_RX2- SB_RX1+ SB_RX1- SB_RX0+ SB_RX0- P3V_SCL2 P3V_SDA2 SD_R5 SD_R4 SD_R3 SD_R2 NRST DCK_SUB SB_CLK+ SB_RX3- R9207 100 *R9219 0 R9210 100 *C9240 16V 0.1u C9212 16V 0.1u C9204 16V 0.1u *R9222 0 *R9211 10 *C9248 16V 0.1u C9201 16V 0.1u *C9239 16V 0.1u *R9223 75 C9202 16V 0.1u *R9235 2.7k R9204 100 IC9204 C0JBAB000550 1 NC 2 A 3 GND 5 VCC 4 Y C9216 16V 0.1u *R9228 0 *R9224 75 3.3V C9205 16V 0.1u C9203 6.3V 10u C9222 16V 0.1u *C9206 4V 220u *R9221 0 *R9236 0 C9213 16V 0.1u *IC9203 C0ZBZ0000850 1 RxOUT22 2 RxOUT23 3 RxOUT24 4 GND 5 RxOUT25 6 RxOUT26 7 RxOUT27 8 LVDSGND 9 RxIN0- 10 RxIN0+ 11 RxIN1- 12 RxIN1+ 13 LVDSVcc 14 LVDSGND 15 RxIN2- 16 RxIN2+ 17 RxCLKIN- 18 RxCLKIN+ 19 RxIN3- 20 RxIN3+ 21 LVDSGND 22 PLLGND 23 PLLVcc 24 PLLGND 25 PWRDWN 26 RxCLKOUT 27 RxOUT0 28 GND 29 RxOUT1 30 RxOUT2 31 Vcc 32 RxOUT3 33 RxOUT4 34 RxOUT5 35 RxOUT6 36 GND 37 RxOUT7 38 RxOUT8 39 RxOUT9 40 Vcc 41 RxOUT10 42 RxOUT11 43 RxOUT12 44 GND 45 RxOUT13 46 RxOUT14 47 RxOUT15 48 Vcc 49 RxOUT16 50 RxOUT17 51 RxOUT18 52 GND 53 RxOUT19 54 RxOUT20 55 RxOUT21 56 Vcc *R9229 0 *IC9208 C0FBAD000102 AK5401AVQ 1 DVSS 2 GOUT7 3 GOUT6 4 GOUT5 5 GOUT4 6 GOUT3 7 GOUT2 8 GOUT1 9 GOUT0 10 DVSS 11 DVDD 12 BOUT7 13 BOUT6 14 BOUT5 15 BOUT4 16 BOUT3 17 BOUT2 18 BOUT1 19 BOUT0 20 DVSS 21 DVSS 22 DVDD 23 DVDD 24 TEST 25 PVSS 26 PVDD 27 PVDD 28 PVSS 29 COAST 30 HSYNC 31 VSYNC 32 PVSS 33 FLT 34 PVDD 35 PVDD 36 AVSS 37 BIAS 38 CLAMP 39 AVDD 40 AVSS 41 AVSS 42 AVDD 43 BIN 44 AVSS 45AVDD 46AVDD 47 AVSS 48 GIN 49 SOGIN 50 AVSS 51AVDD 52AVDD 53 AVSS 54 RIN 55 A0 56 SCL 57 SDA 58 BYPASS 59 AVDD 60 AVSS 61 AVSS 62 AVDD 63 RESET 64 VSYNCO 65 SOGOUT 66 HSYNCO 67 DTCLK 68 DVSS 69 DVDD 70 ROUT7 71 ROUT6 72 ROUT5 73 ROUT4 74 ROUT3 75 ROUT2 76 ROUT1 77 ROUT0 78 DVDD 79 DVDD 80 DVSS *C9254 16V 0.1u *C9244 50V 0.01u *R9231 0 *R9233 0 *C9230 6.3V 10u D9200 MAZ303300L *IC9206 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *C9232 16V 0.1u *R9232 0 *C9228 16V 0.1u C9200 6.3V 10u *C9226 16V 0.1u C9219 16V 0.1u *C9246 16V 0.1u C9215 16V 0.1u R9201 0 R9206 100 R9213 10k *C9243 50V 0.01u *C9236 16V 0.1u *C9227 6.3V 10u *C9238 6.3V 10u *IC9207 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *C9249 16V 0.082u P5V *IC9200 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE C9210 16V 0.1u *C9233 16V 0.1u *R9230 6.8k R9215 56 R9202 0 *R9220 0 P5V *C9229 6.3V 10u *C9241 50V 0.01u *C9235 6.3V 10u *C9247 16V 0.1u *C9237 6.3V 10u *R9225 75 *IC9205 C0JBAS000109 1 2 3 4 5 6 7 8 R9208 100 *C9253 16V 0.1u IC9202 C0CBCBD00008 1 Vcont 2 GND 3 Np 5 Vin 4 Vout *C9245 50V 1000p C9211 16V 0.1u *R9218 0 *C9242 16V 0.1u *C9250 50V 8200p *IC9201 C0JBAZ001992 1 NC 2 1A1 3 1A2 4 1A3 5 1A4 6 1A5 7 1A6 8 GND 9 1A7 10 1A8 11 1A9 12 1A10 13 1A11 14 1A12 15 2A1 16 2A2 17 VCC 18 2A3 19 GND 20 2A4 21 2A5 22 2A6 23 2A7 24 2A8 25 2A9 26 2A10 27 2A11 28 2A12 29 2B12 30 2B11 31 2B10 32 2B9 33 2B8 34 2B7 35 2B6 36 2B5 37 2B4 38 GND 39 2B3 40 2B2 41 2B1 42 1B12 43 1B11 44 1B10 45 1B9 46 1B8 47 1B7 48 1B6 49 GND 50 1B5 51 1B4 52 1B3 53 1B2 54 1B1 55 2OE 56 1OE *C9231 16V 0.1u C9220 16V 0.1u *C9255 16V 0.1u P5V *C9234 16V 0.1u C9207 6.3V 10u C9208 6.3V 10u C9209 6.3V 10u R9200 EXB2HV470JV R9205 EXB2HV470JV R9212 EXB2HV470JV *R9942 0 *FL9200 J0HABH000012 1 2 3 *FL9202 J0HABH000012 1 2 3 *FL9201 J0HABH000012 1 2 3 *R9930 0 TCLK- T2+ T3- TCLK+ T3+ T1+ T0+ T1- ANALOG(S) VSS VDD DIGITAL2 & VS HS T0- SN74CBT16211ADGGR SN74CBT16211ADGGR DS90CF386MTDX FOR DVI SLV[98] SUB T2- REG 3.3V LVDS/TTL (PARALLEL) SWITCHING INV. REG 3.3V REG 3.3V A/D (SUB) BUS SWITCH 22 21 20 26 25 27 24 19 23 TO D-BOARD (9/12) 31 32 33 BE BG BF BD BA BB BC BJ BH BI PHD7 ONLY PHW7 ONLY 26 25 23 22 27 21 24 BUS SWITCH TH-42PHD7CY D-Board (3 of 12) Schematic Diagram TH-42PHD7CY D-Board (3 of 12) Schematic Diagram (3/12) D-BOARD TZTNP01VCSC ! 89 15.26.D 电路板 (4/12) 线路图 + G G G G L8_PCK L7_OCK L7_MCK L7_REFCK L7_SCK L8_OCK NUEL UMH UML USH USL UEH FP_NUEL FP_UMH FP_UML FP_USH FP_USL FP_UEH FP_PCU(L) FP_LEU(L) FP_PCD(R) FP_LED(R) PCD(RIGHT) LED(RIGHT) PCU(LEFT) LEU(LEFT) FP_NUEL FP_UMH FP_UML FP_USH FP_USL FP_UEH FP_PCD(R) FP_LED(R) FP_PCU(L) FP_LEU(L) 3.3V 3.3V_L78 C1ZBZ0002606 *IC9500 X1 1 2 S0 3 S1 4 CLK9 5 VDD 6 GND 7 CLK1 8 CLK2 9 CLK3 10 CLK4 11 CLK8 12 CLK7 13 CLK6 14 CLK5 15 GND 16 VDD 17 S2 18 PDTS 19 VDD 20 X2 3.3V R9534 10k P5V C9738 16V 1u R9537 47 C9500 50V 18p P5V R9539 47 C9739 16V 1u C9501 50V 18p R9541 47 R9527 0 R9540 47 R9530 10k R9538 47 R9535 47 R9845 EXB38V103JV R9536 47 R9847 EXB38V103JV R9532 10k R9848 EXB38V103JV R9853 EXB38V103JV R9441 10k R9440 47 R9439 47 C0JBAZ000856 IC9706 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ000856 IC9707 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C9575 16V 4.7u X9500 H0J200500038 C9576 16V 0.1u C9577 16V 0.1u *C9579 220u 4V *FL9500 J0HABH000012 1 2 3 *FL9501 J0HABH000012 1 2 3 3.3V->5V 3.3V->5V CPG 34 32 33 35 36 29 31 28 30 TO D-BOARD (10/12) 31 32 33 43 41 42 CA CLK GEN. TH-42PHD7CY D-Board (4 of 12) Schematic Diagram TH-42PHD7CY D-Board (4 of 12) Schematic Diagram (4/12) D-BOARD TZTNP01VCSC ! 90 15.27.D 电路板 (5/12) 线路图 TERM SIDE G G DOUTUB[17] DOUTUA[13] DOUTUB[18] DOUTUA[18] DOUTUC[17] DOUTUB[17] DOUTUA[16] DOUTUC[16] DOUTUB[16] DOUTUA[17] DOUTUC[14] DOUTUB[15] DOUTUA[15] DOUTUC[15] DOUTUB[13] DOUTUA[14] DOUTUC[13] DOUTUB[14] DOUTUA[12] DOUTUC[12] DOUTUB[12] DOUTUA[13] DOUTUC[10] DOUTUB[11] DOUTUA[11] DOUTUC[11] DOUTUB[9] DOUTUA[10] DOUTUC[9] DOUTUB[10] DOUTUA[8] DOUTUC[8] DOUTUB[8] DOUTUA[9] DOUTUC[19] DOUTUA[19] DOUTUA[21] DOUTUC[18] DOUTUC[21] DOUTUB[21] DOUTUA[20] DOUTUB[20] DOUTUB[19] DOUTUC[20] L8DO_UA8 L8DO_UB8 L8DO_UC8 L8DO_UA9 L8DO_UB9 L8DO_UC9 L8DO_UA10 L8DO_UB10 L8DO_UA11 L8DO_UC10 L8DO_UC11 L8DO_UB11 L8DO_UB12 L8DO_UA12 L8DO_UA13 L8DO_UC12 L8DO_UC13 L8DO_UB13 L8DO_UA14 L8DO_UB14 L8DO_UA15 L8DO_UC14 L8DO_UC15 L8DO_UA16 L8DO_UB15 L8DO_UB16 L8DO_UA17 L8DO_UB17 L8DO_UC16 L8DO_UC17 L8DO_UB18 L8DO_UC18 L8DO_UA18 L8DO_UA19 L8DO_UC19 L8DO_UA20 L8DO_UB19 L8DO_UB20 L8DO_UA21 L8DO_UB21 L8DO_UC20 L8DO_UC21 CLKU2 DRVCLKU2 DRVCLKU3 CLKU3 DRVCLKU5 DRVCLKU4 CLKU3 DRVDLY0_2 DOUTUC[7] DOUTUB[7] DOUTUA[7] DOUTUC[6] DOUTUA[6] DOUTUB[6] DOUTUB[5] DOUTUC[5] DOUTUC[4] DOUTUA[5] DOUTUA[4] DOUTUB[4] DOUTUB[3] DOUTUC[3] DOUTUC[2] DOUTUA[3] DOUTUA[2] DOUTUB[2] DOUTUB[1] DOUTUC[1] DOUTUC[0] DOUTUA[1] DOUTUA[0] DOUTUB[0] DRVDLY0_1 L8DO_UC7 L8DO_UB7 L8DO_UA7 L8DO_UC6 L8DO_UC5 L8DO_UB6 L8DO_UA6 L8DO_UB5 L8DO_UB4 L8DO_UA5 L8DO_UC4 L8DO_UA4 L8DO_UA3 L8DO_UC3 L8DO_UB3 L8DO_UC2 L8DO_UC1 L8DO_UB2 L8DO_UA2 L8DO_UB1 L8DO_UB0 L8DO_UA1 L8DO_UC0 L8DO_UA0 DRDLY0 CLKU4 CLKU5 AA_SOS2 DOUTUA[18] DOUTUB[18] DOUTUA[17] CLKU2 PCU(LEFT) PCU(LEFT) LEU(LEFT) LEU(LEFT) DRVCLKU1 DRVCLKU0 CLKU1 CLKU0 DRVDLY0_2 DOUTUA[8] DRVRST_5V DOUTUB[8] DOUTUC[8] DOUTUA[9] DOUTUB[9] DOUTUC[9] DOUTUA[10] DOUTUB[10] DOUTUC[10] DOUTUA[11] DOUTUB[11] DOUTUC[11] DOUTUA[12] DOUTUB[12] DOUTUC[13] DOUTUB[13] DOUTUC[12] CLKU4 CLKU5 DOUTUA[14] DOUTUB[14] DOUTUC[14] DOUTUA[15] DOUTUB[15] DOUTUC[15] DOUTUA[16] DOUTUB[16] DOUTUC[16] DOUTUC[17] DOUTUC[18] DOUTUC[21] DOUTUB[21] DOUTUA[21] DOUTUC[20] DOUTUB[20] DOUTUA[20] DOUTUC[19] DOUTUB[19] DOUTUA[19] 5V_SENSE R9368 47 R9371 47 R9369 10k 3.3V P5V R9724 100k C9554 50V 0.01u R9653 4.7k 3.3V R9652 10k Q9301 B1ABCC000004 D9303 MA3X152K0L R9331 EXB2HV101JV R9335 EXB2HV101JV R9345 EXB2HV101JV R9384 EXB2HV101JV R9380 EXB2HV101JV R9376 EXB2HV101JV R9366 EXB2HV101JV R9362 EXB2HV101JV R9356 100 R9360 100 R9311 EXB38V470JV D31 K1MN80B00007 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 *R9350 22 *R9353 22 *R9349 22 *R9386 22 *R9354 22 *R9387 22 *FL9209 J0HABH000012 1 2 3 GND GND DOUTUC[19] GND DMLR DSHR GND GND DSLR CLK[4](+) DOUTUC[8] N.C. SOS2 DMHR CLK[5](-) N.C. P5V P5V DOUTUB[9] N.C. P5V DOUTUC[9] DOUTUA[18] DOUTUB[20] DOUTUB[21] GND DOUTUA[19] DOUTUC[20] DOUTUA[20] DOUTUA[21] DOUTUB[19] GND DOUTUC[18] DOUTUC[21] GND DOUTUA[9] DOUTUC[11] DOUTUB[11] DOUTUA[11] DOUTUC[10] DOUTUB[10] DOUTUA[10] DOUTUC[15] LEU(LEFT) PCU(LEFT) DOUTUC[16] GND GND LED(RIGHT) DOUTUA[13] DOUTUC[13] P5V GND PCD(RIGHT) GND DOUTUB[8] DRVRST DRVDLY0 5V DET GND R-UP DOUTUA[8] DOUTUC[12] N.C. DOUTUA[12] CLK[3](-) CLK[2](+) DOUTUB[13] DOUTUB[18] GND DOUTUB[15] DOUTUB[12] DOUTUA[17] DOUTUA[16] DOUTUA[15] DOUTUB[14] DOUTUC[14] DOUTUC[17] DOUTUB[16] DOUTUB[17] DOUTUA[14] C1-BOARD (C11) TO 40 45 39 38 41 37 44 42 43 TO D-BOARD (11/12) 43 42 41 55 54 52 53 51 DB DA TH-42PHD7CY D-Board (5 of 12) Schematic Diagram TH-42PHD7CY D-Board (5 of 12) Schematic Diagram (5/12) D-BOARD TZTNP01VCSC ! 91 15.28.D 电路板 (6/12) 线路图 + TERM SIDE G G G G G G L8_DQ1 L8_DQ19 L8DR_AD3 L8_DQ20 L8_DQ31 L8_DQ3 L8DR_DQ13 L8DR_AD6 L8DR_NCAS L8_DQ11 L8DR_DQ16 L8DR_DQ15 L8DR_DQ26 L8_DQ13 L8DR_DQ21 L8_DQ26 L8DR_DQ4 L8_DQ4 L8DR_DQ19 L8DR_DQ2 L8_DQ14 L8DR_NWE L8_DQ18 L8DR_BA0 L8_DQ17 L8_DQ16 L8_DQ8 L8_DQ21 L8DR_AD1 L8_DQ29 L8DR_AD2 L8DR_DQ10 L8DR_DQ24 L8DR_DQ3 L8_DQ28 L8DR_DQ30 L8DR_DQ17 L8DR_DQ25 L8DR_AD7 L8DR_DQ29 L8DR_DQ5 L8DR_DQ1 L8_DQ30 L8DR_CKE L8_DQ12 L8DR_AD8 L8DR_DQ8 L8DR_DQ28 L8DR_AD9 L8_DQ2 L8DR_DQ0 L8_DQ9 L8_DQ5 L8DR_DQ31 L8DR_AD11 L8DR_DQ9 L8DR_AD5 L8DR_DQS0 L8DR_DQ7 L8DR_DQ23 L8DR_DQ27 L8_DQ6 L8_DQ23 L8_DQ25 L8DR_DQ6 L8DR_AD4 L8DR_NCS L8_DQ22 L8_DQ27 L8DR_BA1 L8DR_DQ11 L8_DQ15 L8DR_AD0 L8DR_DQ14 L8_DQ24 L8DR_AD10 L8DR_NRAS L8DR_DQ20 L8_DQS0 L8_DQ0 L8_DQ7 L8DR_DQ18 L8_DQ10 L8DR_DQ22 L8DR_DQ12 L8_CK L8_NCK L8_CKE L8_NCS L8_NRAS L8_NCAS L8_NWE L8_BA0 L8_BA1 L8_AD0 L8_AD1 L8_AD2 L8_AD3 L8_AD4 L8_AD5 L8_AD6 L8_AD7 L8_AD8 L8_AD9 L8_AD10 L8_AD11 L8DO_UA0 L8DO_UA1 L8DO_UA2 L8DO_UA3 L8DO_UA4 L8DO_UA5 L8DO_UA6 L8DO_UA7 L8DO_UA8 L8DO_UA11 L8DO_UA9 L8DO_UA10 L8DO_UA15 L8DO_UA12 L8DO_UA16 L8DO_UA13 L8DO_UA14 L8DO_UA17 L8DO_UA18 L8DO_UA19 L8DO_UA20 L8DO_UA21 L8DO_UB12 L8DO_UB19 L8DO_UB3 L8DO_UB18 L8DO_UB1 L8DO_UB0 L8DO_UB2 L8DO_UB11 L8DO_UB10 L8DO_UB17 L8DO_UB16 L8DO_UB14 L8DO_UB9 L8DO_UB21 L8DO_UB7 L8DO_UB4 L8DO_UB8 L8DO_UB5 L8DO_UB13 L8DO_UB6 L8DO_UB20 L8DO_UB15 L8DO_UC12 L8DO_UC19 L8DO_UC3 L8DO_UC18 L8DO_UC1 L8DO_UC0 L8DO_UC2 L8DO_UC11 L8DO_UC10 L8DO_UC17 L8DO_UC16 L8DO_UC14 L8DO_UC9 L8DO_UC21 L8DO_UC7 L8DO_UC4 L8DO_UC8 L8DO_UC5 L8DO_UC13 L8DO_UC6 L8DO_UC20 L8DO_UC15 L8_DQ31 L8_DQ30 L8_DQ29 L8_DQ28 L8_DQ27 L8_DQ26 L8_DQ25 L8_DQ24 L8_DQ23 L8_DQ22 L8_DQ21 L8_DQ20 L8_DQ19 L8_DQ18 L8_DQ17 L8_DQ16 L8_DQ15 L8_DQ14 L8_DQ13 L8_DQ12 L8_DQ11 L8_DQ10 L8_DQ9 L8_DQ8 L8_DQ7 L8_DQ6 L8_DQ5 L8_DQ4 L8_DQ3 L8_DQ2 L8_DQ1 L8_DQ0 L8_AD10 L8_AD11 L8_AD9 L8_AD8 L8_AD7 L8_AD6 L8_AD5 L8_AD4 L8_AD3 L8_AD2 L8_BA1 L8_BA0 L8_DQS0 L8_NRAS L8_NCAS L8_CK L8_NCK L8_AD1 L8_AD0 L8_CKE L8_NCS L8_NWE DRVCLKU5 DRVCLKU4 DRVCLKU3 DRVCLKU2 DRVCLKU1 DRVCLKU0 DRDLY0 DOUTUC[7] PCU(LEFT) LEU(LEFT) UEH 5V_SENSE UMH UML USH USL CLKU0 CLKU1 DOUTUA[0] DOUTUB[0] DOUTUC[0] DOUTUA[1] DOUTUB[1] DOUTUC[1] DOUTUA[2] DOUTUB[2] DOUTUC[2] DOUTUA[3] DOUTUB[3] DOUTUC[3] DOUTUA[4] DOUTUB[4] DOUTUC[4] DOUTUA[5] DOUTUB[5] DOUTUC[5] DOUTUA[6] DOUTUB[6] DOUTUC[6] DOUTUA[7] DOUTUB[7] DRVDLY0_1 DRVRBT_5V AA_SOS3 NUEL 5V_SENSE DRVRST IC9302 K8 VSS IC9302 AC19 VSS IC9302 P12 VSS R9457 33 IC9302 K19 VDD15 IC9302 AC21 AD0 C9309 16V 0.1u IC9302 D19 DRVCLKU4 IC9302 R13 VSS IC9302 P8 VSS C9333 16V 0.1u IC9302 AA16 NCAS IC9302 A17 DOUTUB04 3.3V_L78 IC9302 C8 DOUTUC16 R9485 33 IC9302 D17 DOUTUA02 IC9302 A6 DOUTUA19 R9409 33 IC9302 C7 DOUTUB17 IC9302 W5 VSS R9435 33 IC9302 A9 DOUTUB15 R9411 33 IC9302 J16 VSS IC9302 K12 VSS IC9302 Y8 VSS C9332 16V 0.1u IC9302 Y13 AVSS IC9302 Y9 DQ31 IC9302 K5 VDD15 R9393 33 IC9302 L10 VSS IC9302 R14 VSS C9312 16V 0.1u IC9302 J19 VDD15 IC9302 AA5 DQ17 IC9302 Y11 DQ26 IC9302 A16 DOUTUA05 IC9302 M15 VSS C9338 16V 0.1u IC9302 D16 DOUTUC04 R9479 33 IC9302 B17 DOUTUA03 R9463 33 IC9302 AA2 SDCLSEL IC9302 AA3 VSS IC9302 B16 DOUTUC05 IC9302 E8 VDD33 IC9302 H8 VSS IC9302 A19 DOUTUB01 IC9302 W14 VDD15 R9475 33 IC9302 G19 VDD33 IC9302 R10 VSS R9433 33 IC9302 R11 VSS IC9302 M10 VSS IC9302 AC7 DQS2 IC9302 N8 VSS IC9302 A4 DOUTUB21 IC9302 AA6 DQ19 IC9302 A10 DOUTUC14 IC9302 K10 VSS IC9302 T9 VSS IC9302 AC11 DQ11 IC9302 C15 DOUTUC06 IC9302 AB8 VSS C9327 16V 0.1u IC9302 AB3 DQ6 IC9302 AB2 VSS R9483 33 R9497 33 IC9302 AC18 CKE IC9302 AB22 VSS IC9302 R5 VDD33 IC9302 AC20 AD3 IC9302 AA20 AD1 IC9302 AA17 VSS R9431 33 IC9302 C20 DRVCLKU2 IC9302 AA15 VSS IC9302 W11 VDD25 R9399 33 IC9302 B20 DRVCLKU5 IC9302 AB18 VSS IC9302 E9 VDD15 R9477 33 R9471 33 IC9302 E14 VDD33 IC9302 N13 VSS IC9302 T16 VSS IC9302 C9 DOUTUA14 IC9302 L16 VSS IC9302 N12 VSS IC9302 B21 DRVCLKU1 IC9302 A15 DOUTUC07 C9329 16V 0.1u IC9302 F19 VDD33 1.5V2 R9453 33 R9495 33 IC9302 H11 VSS IC9302 T10 VSS IC9302 AA12 DQ25 R9487 33 IC9302 W18 AD7 R9516 47 IC9302 K14 VSS IC9302 D8 DOUTUA15 IC9302 AB20 AD2 IC9302 H16 VSS IC9302 B7 DOUTUA17 R9449 33 R9481 33 3.3V_L78 R9417 33 R9413 33 IC9302 H19 VDD33 IC9302 AC23 VSS IC9302 A8 DOUTUA16 IC9302 E7 VDD33 C9322 16V 0.1u IC9302 Y3 DDRIOCTRL1 IC9302 P14 VSS IC9302 H14 VSS IC9302 E10 VDD15 C9325 16V 0.1u IC9302 J13 VSS IC9302 AA7 DQ23 IC9302 H15 VSS IC9302 B6 DOUTUB19 IC9302 L14 VSS IC9302 P5 VDD15 IC9302 AC4 DQ3 R9405 33 1.5V_L8 R9465 33 R9447 33 IC9302 T13 VSS R9489 33 P5V IC9302 B4 DOUTUA21 IC9302 D13 DOUTUA08 IC9302 H5 VDD33 C9308 16V 0.1u IC9302 D10 DOUTUC13 IC9302 M14 VSS C9342 16V 0.1u C9323 16V 0.1u IC9302 AB19 AD5 R9455 33 IC9302 AC8 VSS IC9302 A7 DOUTUC18 IC9302 W6 VDD25 IC9302 K13 VSS IC9302 Y1 AVSS IC9302 C6 DOUTUC19 IC9302 AA13 DQS3 IC9302 A23 VSS IC9302 A14 DOUTUC08 R9493 33 R9505 33 IC9302 D5 DOUTUC21 IC9302 AA4 DQ16 IC9302 C11 DOUTUC12 IC9302 A11 DOUTUA12 R9503 33 IC9302 E16 VDD15 IC9302 L9 VSS IC9302 L8 VSS IC9302 B9 DOUTUC15 IC9302 B5 DOUTUB20 IC9302 W8 VSS C9320 16V 0.1u IC9302 AA1 DDRIOCTRL0 C9337 16V 0.1u IC9302 B19 DOUTUC01 IC9302 AB10 DQ12 IC9302 D9 DOUTUB14 R9499 33 C9326 16V 0.1u IC9302 D12 DOUTUB10 IC9302 H13 VSS IC9302 Y12 DQ24 IC9302 T12 VSS IC9302 W12 VDD25 IC9302 B18 DOUTUC02 IC9302 A20 DOUTUC00 IC9302 N11 VSS R9429 33 IC9302 A21 DRVCLKU3 IC9302 N14 VSS IC9302 J11 VSS IC9302 AC5 DQ1 IC9302 AB9 DQ15 IC9302 AB4 DQ4 IC9302 K16 VSS IC9302 AC12 DQ9 IC9302 Y20 VSS IC9302 AB21 BA1 IC9302 B12 DOUTUC11 IC9302 C10 DOUTUB13 IC9302 AC13 VDD25 IC9302 AC16 VREF C9319 16V 0.1u R9510 47 IC9302 P19 VDD15 IC9302 V19 VDD33 C9339 16V 0.1u IC9302 E17 DOUTUB02 IC9302 P9 VSS R9397 33 IC9302 J14 VSS IC9302 Y19 AD6 IC9302 K9 VSS IC9302 AC14 VSS C9324 16V 0.1u IC9302 N15 VSS IC9302 W10 VDD25 IC9302 J10 VSS IC9302 D14 DOUTUA06 IC9302 M12 VSS IC9302 P15 VSS R9395 33 IC9302 T14 VSS IC9302 T15 VSS IC9302 B14 DOUTUA07 IC9302 E11 VDD15 IC9302 AC6 DQS0 R9451 33 IC9302 C12 DOUTUA10 IC9302 C13 DOUTUC09 IC9302 AB16 NCS IC9302 D11 DOUTUA11 IC9302 M9 VSS IC9302 B15 DOUTUB06 R9511 47 C9314 16V 0.1u 2.5V_2 IC9302 A18 DOUTUC03 C9330 16V 0.1u IC9302 H10 VSS IC9302 Y15 VSS IC9302 H9 VSS IC9302 W16 AD10 IC9302 AB5 DQ2 IC9302 K15 VSS C9328 16V 0.1u IC9302 AC3 DQ5 IC9302 H12 VSS C9313 16V 0.1u IC9302 W15 VSS R9415 33 IC9302 D18 DOUTUA00 IC9302 W13 AVDD25 2.5V_L8 IC9302 T19 VDD15 IC9302 AC9 VDD25 IC9302 C14 DOUTUB07 C9318 16V 0.1u IC9302 AC1 VSS IC9302 K11 VSS IC9302 E6 DOUTUB18 IC9302 T8 VSS C9341 16V 0.1u IC9302 AA18 AD9 IC9302 R12 VSS IC9302 W17 VDD25 IC9302 AB17 CK IC9302 Y10 DQ28 IC9302 J15 VSS IC9302 E19 VSS IC9302 Y6 DQ20 2.5V_L8 R9423 33 IC9302 AB6 DQ0 IC9302 AC10 DQ13 C9311 16V 0.1u 1.5V_L8 R9445 33 IC9302 R16 VSS IC9302 Y14 AVDD25 IC9302 M11 VSS IC9302 A13 DOUTUA09 IC9302 D7 DOUTUC17 R9473 33 R9467 33 IC9302 A22 DRVCLKU0 IC9302 B11 DOUTUB12 C9340 16V 0.1u IC9302 E13 DOUTUB08 C9321 16V 0.1u IC9302 AB12 DQ8 IC9302 C18 DOUTUA01 IC9302 E15 VDD33 IC9302 L12 VSS IC9302 Y18 AD8 IC9302 AB15 NRAS IC9302 P10 VSS IC9302 P11 VSS IC9302 M13 VSS IC9302 P16 VSS IC9302 T11 VSS C9343 16V 0.1u IC9302 AA11 DQ27 R9501 33 C9316 16V 0.1u IC9302 N9 VSS R9403 33 IC9302 V1 AVDD33 IC9302 A12 DOUTUB11 IC9302 B8 DOUTUB16 IC9302 N19 VDD33 IC9302 R8 VSS IC9302 P13 VSS IC9302 J8 VSS IC9302 D15 DOUTUB05 IC9302 Y7 DQ21 IC9302 J12 VSS IC9302 C19 DOUTUB00 IC9302 Y17 AD11 IC9302 Y5 DQ18 C9336 16V 0.1u R9443 33 IC9302 W19 VSS 2.5V_L8 IC9302 N10 VSS IC9302 E18 VDD33 C9315 16V 0.1u IC9302 M16 VSS IC9302 AB7 DQ22 IC9302 D20 VSS IC9302 D6 DOUTUA18 IC9302 AB13 DQS1 IC9302 U19 VDD33 IC9302 L15 VSS IC9302 Y16 VSS IC9302 B13 DOUTUB09 IC9302 AA21 VSS C9344 16V 0.1u R9427 33 IC9302 AC17 NCK IC9302 J5 VDD33 R9421 33 R9332 0 IC9302 C21 VSS IC9302 L13 VSS R9461 33 IC9302 B22 VSS IC9302 AA10 DQ29 C9310 16V 0.1u IC9302 Y4 VSS IC9302 AA14 AVSS IC9302 M8 VSS IC9302 N5 VDD15 IC9302 AB11 DQ10 IC9302 AC2 DQ7 IC9302 M19 VDD33 IC9302 W7 VDD15 IC9302 A1 VSS R9425 33 C9331 16V 0.1u IC9302 AA8 VSS IC9302 R15 VSS IC9302 B10 DOUTUA13 IC9302 W9 DQ30 C9317 16V 0.1u IC9302 C17 DOUTUB03 IC9302 L11 VSS IC9302 A5 DOUTUA20 C9347 16V 0.1u IC9302 AA19 AD4 C9334 16V 0.1u R9459 33 R9469 33 IC9302 N16 VSS IC9302 AA9 DQ14 IC9302 AC22 BA0 IC9302 E12 DOUTUC10 IC9302 J9 VSS IC9302 C5 DOUTUC20 IC9302 C16 DOUTUA04 R9419 33 IC9302 AC15 NWE IC9302 A2 VSS IC9302 C22 DRDLY0 R9407 33 R9491 33 IC9302 AB14 BIAS R9401 33 C9335 16V 0.1u IC9302 R9 VSS 3.3V C9552 50V 0.01u R9651 100k Q9300 B1ABCC000004 R9649 10k R9650 4.7k D9302 MA3X152K0L R9851 100 Q9304 B1ABCC000004 R9852 100k *C9375 220u 4V 1% R9954 1k 1% R9952 1.4k 1% R9951 1.1k 1% R9953 1k 2.5V_L8 2.5V_L8 C9376 16V 0.1u R9333 0 R9512 EXB38V470JV TP9001 D32 K1MN80B00007 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 *FL9210 J0HABH000012 1 2 3 *FL9301 J0HABH000012 1 2 3 *FL9302 J0HABH000012 1 2 3 DDR-Terminate POWER GND DOUTUC[1] DOUTUB[0] GND DOUTUC[3] DOUTUA[7] P5V DOUTUC[7] DOUTUC[0] GND DOUTUB[7] CLK[0](+) DOUTUA[5] N.C. DOUTUC[6] GND DOUTUB[1] L-UP PCU(LEFT) DOUTUA[4] LEU(LEFT) DOUTUB[5] GND DOUTUA[3] P5V DOUTUC[4] DOUTUA[2] P5V DOUTUC[2] DOUTUB[6] N.C. DOUTUA[1] DOUTUB[3] DOUTUC[5] DOUTUB[4] DOUTUB[2] P5V DOUTUA[0] CLK[1](-) DOUTUA[6] DRVDLY0 5V DET DRVRST GND GND GND GND GND DMLL DMHL DSHL DSLL GND UEH USL USH UMH UML SOS(SS) NUEL N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. GND MN84512-A(LSI58) IC9302 C2-BOARD (C21) TO 54 47 53 50 51 49 48 52 46 D-BOARD (12/12) TO 53 51 55 52 54 EC EA EB NEW PLASMA 10bit PROCESSOR SUB-FIELD PROCESSOR (L Master) SLV40h TH-42PHD7CY D-Board (6 of 12) Schematic Diagram TH-42PHD7CY D-Board (6 of 12) Schematic Diagram (6/12) D-BOARD TZTNP01VCSC ! 92 15.29.D 电路板 (7/12) 线路图 + + + + + + + + + + + + + + + + + + + + + G G G G G G G G G G G G G G G G G G AA_PS_SOS AA_ALL_OFF1 A_TV_ON/OFF AA_FAN_SOS SC_CL SC_CLK SC_SIU SC_SID SC_SCSU SC_CPL SC_CPH SC_CEH SC_CSL SC_CSH SC_CMH SC_CML TXD_PC RXD_PC 3V_SDA3 3V_SCL1 3V_SCL3 3V_SDA1 AR_IIC_CONT P3V_SDA2 P3V_SDA2 3V_SCL3 3V_SDA3 AA_NRST SOUND_MUTE AA_CABLE_DET POWER_STAT AA_ALL_OFF1 AA_REMOCON_OUT AA_FAN_CONT AR_IIC_CONT 3V_SCL1 3V_SDA1 VMUTE_IN 5VTXD_TU 5VRXD_TU TXD_PC RXD_PC AA_SOS1 AA_SOS2 AA_RTC_INT NRST SC_CEL DRVRST RUSH_ON/OFF KILL_SOS 5VRXD_TU 3VTXD_TU 3VRXD_TU 5V_SCL3 5V_SDA3 AH_LED_R A_RUSH_ON/OFF STB_ON 5VTXD_TU A_TV_ON/OFF AA_NRST LED_G DRVRST_5V LED_R AH_LED_G 5V_SCL3 5V_SDA3 P3V_SCL2 AR_IIC_INT 3V_SDA3 3V_SCL3 P3V_SCL2 AR_IIC_CONT R9255 100 C9269 25V 220u D9202 B0JCPD000010 R9012 100 *R9140 100 R9244 0 R9264 0 *C9272 4V 220u R9013 100 C9278 16V 4.7u R9011 100 R9256 100 2.5V_1 R9008 0 R9138 3.3k R9267 0 C9270 4V 68u C9284 50V 4700p *C9288 16V 47u *C9259 16V 47u C9261 16V 4.7u *C9286 16V 47u R9003 0 C9266 25V 220u R9245 0 R9265 0 IC9213 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT 1% R9281 5.1k 1% R9272 5.1k R9257 100 STB3.3V 1% R9273 10k R9005 0 R9268 0 C9371 16V 0.1u C9293 4V 68u C9285 50V 4700p C9370 16V 0.1u D9201 B0JCPD000010 R9258 100 C9283 25V 220u R9284 68k L9202 G1C220M00029 IC9214 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT C9287 16V 0.1u P5V R9259 100 C9276 16V 4.7u *C9257 16V 47u C9256 16V 0.1u 3.3V 1.5V1 C0DBAMH00014 IC9209 1 VIN 2 SW 3 FB 4 GND 5 INV 8 VCC 6 RT 7 EN C9290 16V 0.1u *C9292 4V 220u 1% R9293 1.6k R9260 100 1.5V2 R9014 100 STB5V_M R9269 0 C9001 16V 0.1u R9253 100 C9294 16V 0.1u STB3.3V 1% R9291 1k C9264 16V 0.1u C9374 6.3V 10u C9365 16V 0.1u *C9271 4V 220u 3.3V R9254 100 R9246 100 C9263 50V 0.01u R9287 0 R9001 10k 1% R9292 1k *R9296 0 1% R9282 10k R9278 10k P5V R9016 100 R9137 3.3k R9247 100 *C9258 16V 47u 1% R9271 10k R9276 33k C9000 16V 0.1u STB3.3V R9017 100 STB5V_M L9200 G1C150MA0078 P12V *C9367 16V 47u R9019 5.6k *C9368 16V 47u R9248 100 C9363 16V 0.1u L9201 G1C150MA0078 P12V R9009 100 STB5V_M R9020 10k STB5V Q9001 B1CBHD000001 G D S R9002 0 C9003 16V 0.1u P5V R9274 0 R9139 100 C9265 16V 0.1u C9268 4V 68u C9267 16V 0.1u R9249 100 R9279 68k R9250 100 R9237 47k C9002 50V 100p R9018 100 1% R9270 23.2k R9000 0 *R9261 0 R9283 68k R9015 100 P5V C9296 16V 0.1u R9251 100 *C9366 16V 47u R9240 0 *R9262 0 IC9001 C0JBAS000109 1 2 3 4 5 6 7 8 D3 K1KA30AA0009 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 R9010 100 C9364 16V 0.1u D27 K1KA09A00077 1 2 3 4 5 6 7 8 9 C9282 25V 220u C9295 16V 0.1u R9252 100 C9275 50V 4700p R9243 0 C9279 25V 220u R9277 82k *D25 1 2 3 4 5 6 7 8 R9241 0 *R9263 0 D9203 B0JCPD000010 1% R9290 1k R9275 0 C9373 4V 68u C0JBAZ000856 IC9000 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc STB5V R9031 2.7k R9032 2.7k STB5V STB3.3V STB5V C9050 16V 0.1u C9260 16V 4.7u C9262 16V 4.7u C9299 16V 4.7u R9022 10k P5V Q9014 2SD0601A0L C9013 50V 0.01u R9021 10k R9006 22k R9033 0 R9216 0 R9299 0 R9209 0 C9853 16V 0.1u 1% R9901 1k R9900 0 C9851 16V 0.1u 3.3V 1% R9903 1k 2.5V_2 IC9215 C0DBEZG00004 1 IN 2 ON/OFF 3 OUT 4 V_adj 5 GND 6 OUT *C9852 16V 47u D9251 MA2J72800L Q9002 B1CBHD000001 G D S Q9000 B1CBHD000001 G D S R9072 100 C0DBAMH00014 IC9211 BD9778HFP-TR 1 VIN 2 SW 3 FB 4 GND 5 INV 8 VCC 6 RT 7 EN P12V P12V C0DBAMH00014 IC9210 BD9778HFP-TR 1 VIN 2 SW 3 FB 4 GND 5 INV 8 VCC 6 RT 7 EN *R9079 100 IC9007 C0JBAE000239 1 A 2 B 3 GND 5 VCC 4 Y D4 K1KA14A00248 1 2 3 4 5 6 7 8 9 10 11 12 13 14 D20 K1KA20A00272 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R9195 10k R9196 10k R9301 10k R9303 10k *R9314 100 STB5V STB3.3V STB3.3V Q9018 B1ABCC000004 R9347 10k STB3.3V R9346 10k Q9017 B1ABCC000004 C9803 6.3V 10u C9802 6.3V 10u C9801 6.3V 10u R9899 10k Q9307 B1ABCC000004 R9897 100 R9894 10k Q9305 B1ABCC000004 P12V Q9306 B1ABCC000004 P12V P5V *D9023 MA3X152K0L STB5V *D9024 MA3X152K0L STB5V *D9026 MA3X152K0L *D9025 MA3X152K0L R9336 0 R9341 0 *FL9000 J0HABH000012 1 2 3 *FL9204 J0HABH000012 1 2 3 *FL9206 J0HABH000012 1 2 3 *FL9001 J0HABH000012 1 2 3 *FL9203 J0HABH000012 1 2 3 *FL9205 J0HABH000012 1 2 3 *FL9207 J0HABH000012 1 2 3 *FL9208 J0HABH000012 1 2 3 *FL9214 J0HABH000012 1 2 3 GND +12V +12V GND GND GND +5V +5V FAN_SOS TV_ON/OFF STB5V PS_SOS FAN_CONT (RUSH ON/OFF) ALL_OFF (KILL_SOS) GND CLK SIU CL CPH SCSU SID CPL CEH CEL CSL CSH CML CMH SOS1 SOS2 P5V GND GND STB3.3V IIC_INT/BOOT POWER STATUS GND SOUND MUTE RXD_TU CABLE DET V MUTE IN RXD GND GND VSS VDD GND SDA1 SCL2 SDA2 IIC_CONT SCL1 STB5V SCL3 ALL_OFF SDA3 GND TXD_PC SDA1 GND RXD_PC SDA3 GND GND TXD SCL3 FAN CONT REMOCON OUT SCL1 IIC_CONT STB5V STB_ON GND TXD_TU RESET IIC 3.3V BD9778HFP RTC INT/PANEL_SOS 5V 3.3V->2.5V STB5V->STB3.3V STB3.3V ON/OFF STB3.3V GND GND 3.3V->5V 5V->3.3V 3.3V/1.4A 1.5V/2A 1.5V/1A 3.3V->2.5V AVR 2.5V1 AVR 2.5V2 AVR STB3.3V INV. J-BOARD (J3) TO P-BOARD (P27) TO SC-BOARD (SC20) TO P-BOARD (P25) TO C 5 7 D B 9 1 4 8 3 F 2 6 A E (1/12) TO D-BOARD 66 64 65 63 62 61 B A 0 0.3 3.3 4.8 3.2 0 0 3.3 3.1 0 0 4.2 3.0 0 4.8 3.2 0 3.9 4.9 3.1 0 5.0 0 3.1 6.6 0 0 3.2 0 5.2 5.7 3.1 3.2 3.2 3.2 3.3 5.0 3.3 3.2 3.1 0 3.3 3.1 0 0 0 0.2 0.1 0.2 5.0 6.6 2.9 0 2.9 0 0.7 0.9 0.5 3.9 5.0 2.8 2.2 0 5.2 0.8 4.1 0 0.1 0 0 0 0 0 12.0 0 0 5.0 0 12.0 5.0 0 SWITCHING DC DC CONVERTER (1.5V/2A) DC DC CONVERTER (3.3V/1.4A) (1.5V/1A) DC DC CONVERTER TH-42PHD7CY D-Board (7 of 12) Schematic Diagram TH-42PHD7CY D-Board (7 of 12) Schematic Diagram (7/12) D-BOARD TZTNP01VCSC ! 93 15.30.D 电路板 (8/12) 线路图 + TXD_PC SDA1 D09 A2 RXD_PC SCL1 A10 SDA2 A3 D05 D00 AH_REM_INH OSD_VDO A15 D06 ABI_I D02 A18 SCL1 A4 3.3V_SOS ABI_D A11 SDA1 A8 AA_SOS2 A5 DRVMUTE AA_SOS3 OSD0 3V_SDA1 DRVRST SCL2 A17 A6 AA_SOS1 AR_IIC_CONT NRST SDA3 AA_RTC_INT AH_REM_OUT A13 D13 A16 SCL3 3V_SCL1 POWER_STAT A14 D14 A12 SCL3 D15 AH_REM_OUT D01 OSD_HDIN RUSH_ON/OFF ABI_J OSD_CKIN A_TV_ON/OFF D03 OSD_HDO KILL_SOS AA_PS_SOS SDA3 AA_CATS_EYE D04 OSD_YM AH_REM_INH 3V_SCL3 OSD_YS SCL2 3V_SCL1 D10 D07 AA_CABLE_DET SDA2 D11 AH_LED_R 3V_SDA3 D08 A7 AH_LED_G A9 D12 DA_SWM DA_SWS AA_FAN_SOS KEY_INPUT 3.3V_SOS 5V_SOS 5V_SOS 3VTXD_TU A1 OSD4 OSD3 OSD10 OSD9 OSD8 OSD2 OSD1 OSD7 OSD5 OSD6 OSD15 OSD14 OSD13 OSD12 OSD11 3VRXD_TU P3V_SDA2 P3V_SCL2 DPMS_HD DPMS_VD AAE_MCDATA_O P3V_SDA2 P3V_SCL2 REM_IN AA_REMOCON AAE_MCCLK AAE_MCLD REM_IN AR_IIC_INT 3V_SDA1 STB_ON SOUND_MUTE AA_REMOCON_OUT AA_ALL_OFF1 R9105 0 R9169 100 D9011 B0ADBA000006 C9047 100p 50V R9073 10k C9005 16V 0.1u R9042 100 C0EBE0000447 IC9005 1 Vout 2 VDD 3 GND 5 N.C. 4 N.C. R9057 10k R9110 0 R9065 2.7k R9173 39k Q9006 B1ABCC000004 *R9054 10k R9141 100 R9074 10k D9019 MAZ303300L R9047 100 D9017 MAZ303300L R9058 10k R9062 2.7k *R9121 1k R9027 47k C9025 16V 0.1u R9044 100 R9151 0 R9119 10k C9018 16V 0.1u R9182 100 R9164 12k R9175 100 R9099 47 R9168 10k R9145 0 STB3.3V R9159 1k R9153 1k R9109 6.8k R9132 0 R9093 0 R9098 10k Q9003 B1ABCC000004 R9183 39k R9134 10k *X9001 H0J400400025 *R9081 10k C9020 16V 0.1u R9101 47 *R9086 EXB38V220JV R9178 39k R9174 10k C9045 16V 1u R9038 10k R9120 100 R9112 10k R9177 100 R9117 1k R9029 47k C9035 16V 0.1u R9118 0 P12V C9028 16V 0.1u MN102H90MTC IC9003 1 TSTMD1 2 P83/A20 3 P66/A07 4 P65/A06 5 P64/A05 6 P63/A04 7 P62/A03 8 P61/A02 9 P60/A01 10 TEST 11 VDD 12 RTCXI 13 RTCXO 14 VSS 15 P45/HI0 16 P44/HI1 17 P43/VI0 18 P42/VI1 19 P16/TM3IO 20 P15/TM2IO 21 P14/TM1IO 22 P13/TM0IO 23 PC3/SDA0B 24 PC2/SCL0B 25 VSS 26 P41/HCCLK0 27 P40/HCCLK1 28 VDD 29 P37/B04 30 P36/B03 31 P35/B02 32 P34/B01 33 P33/B00 34 P32/G05 35 P31/G04 36 P30/G03 37 P27/G02 38 P26/G01 39 P25/G00 40 VDD 41 VSS 42 P24/R04 43 P23/R03 44 P22/R02 45 P21/R01 46 P20/R00 47 VDD 48 OSDXI 49 OSDXO 50 VSS 51 P12/VSYNC/IRQ1 52 P11/YS 53 P10/YM 54 P07/HSYNC 55 PC1/SDA0A 56 PC0/SCL0A 57 P06/VCLKOUT 58 P05/AL3 59 P04/AL2 60 P03/AL1 61 P02/AL0 62 P01/HOUT 63 P00/SYSCLK 64 AVSS 65 AVDD2 66 DAALOUT/DACOUT3 67 DABOUT/DACOUT2 68 DAGOUT/DACOUT1 69 DAROUT/DACOUT0 70 COMP 71 VREF 72 IREF 73 AVSS 74 CVBS1 75 VREFHS1 76 CLL 77 AVDD1 78 CVBS0 79 VREFHS0 80 CLH 81 PLLTST 82 AVDD1 83 AVSS 84 PC7/SCL2 85 PC6/SDA2 86 PF3/ADIN11/IRQ5 87 PF2/ADIN10/IRQ4 88 PF1/ADIN9/IRQ3 89 PF0/ADIN8/IRQ2 90 PE7/ADIN7 91 PE6/ADIN6 92 PE5/ADIN5 93 PE4/ADIN4 94 PE3/ADIN3 95 PE2/ADIN2 96 PE1/ADIN1 97 PE0/ADIN0 98 VSS 99 OSC2 100 OSC1 101 VDD 102 P57/RMIN/IRQ0 103 P95/SBO1 104 P94/SBI1 105 P93/SBT1 106 P92/SBO0 107 P91/SBI0 108 P90/SBT0 109 P56/PWM3/CS3 110 P55/PWW2/CS2 111 P54/PWM1/CS1 112 P53/PWM0/CS0 113 PD2/SBO2 114 PD1/STOP/SBI2 115 PD0/WDOUT/SBT2 116 PC5/SCL1 117 PC4/SDA1 118 CPUMD2 119 CPUMD1 120 CPUMD0 121 TSTMD0 122 P52/WE 123 P51/OE 124 VDD 125 P50/RST 126 VSS 127 PB7/D15 128 PB6/D14 129 PB5/D13 130 PB4/D12 131 PB3/D11 132 PB2/D10 133 PB1/D09 134 PB0/D08 135 PA7/D07 136 PA6/D06 137 PA5/D05 138 PA4/D04 139 VSS 140 VDD 141 PA3/D03 142 PA2/D02 143 PA1/D01 144 PA0/D00 145 P82/A19 146 P81/A18 147 P80/A17 148 P77/A16 149 P76/A15 150 P75/A14 151 P74/A13 152 P73/A12 153 VDD 154 VSS 155 P72/A11 156 P71/A10 157 P70/A09 158 P67/A08 159 P84/A21 160 OSCMD0 R9160 100 R9061 10k C9016 16V 0.1u R9037 10k D9012 B0ADBA000006 D9013 B0ADBA000006 R9180 100 R9176 100 R9143 100 R9171 100 C9034 16V 0.1u R9028 47k R9166 10k C9037 50V 27p R9163 100 R9043 1k R9049 100 Q9004 B1ABCC000004 R9113 0 C9026 16V 0.1u R9046 100 1.5V2 R9126 10k C9022 16V 0.1u C9039 16V 0.1u D9018 MAZ303300L R9056 330 *R9154 10k C9046 16V 0.1u C9033 16V 0.1u R9150 0 R9055 10k R9060 0 R9131 0 C9021 50V 1000p *C9024 16V 47u R9036 10k R9048 3.3k R9059 3.3k R9129 0 3.3V STB3.3V P5V R9179 0 R9052 5.6k R9135 10k C9031 16V 0.1u R9149 0 C9041 50V 1000p R9161 100 R9039 1k R9030 47k Q9009 B1ABCC000004 STB3.3V R9051 5.6k Q9007 B1ABCC000004 R9115 0 R9142 100 D9014 B0ADBA000006 R9108 0 C9015 16V 0.1u C9038 16V 0.1u C9036 50V 22p R9122 10k R9084 10k *R9040 100k R9114 15k C9044 16V 1u C9029 16V 0.1u R9064 10k *R9170 100 R9035 10k Q9005 B1ABCC000004 R9165 10k R9123 0 C9019 50V 1000p R9167 10k Q9008 B1ABCC000004 C9043 16V 1u C9030 16V 4.7u R9053 100 *R9172 100 R9128 0 R9094 0 R9199 10k *C9051 16V 1u *D9021 MAZ303300L R9189 39k R9063 1k 3.3V R9192 10k R9026 1k R9025 1k R9024 1k R9023 10k R9181 0 R9067 6.8k R9066 3.3k P5V R9102 EXB2HV470JV R9103 EXB2HV470JV Q9016 B1ADCC000004 R9076 10k Q9015 B1ABCC000004 R9075 1k R9077 3.3k D9016 MA2J72800L D9010 MA2J72800L R9980 2.7k R9979 2.7k IC9002 C0JBAE000239 1 A 2 B 3 GND 5 VCC 4 Y *R9045 5.6k *R9197 5.6k 3.3V *R9089 47k R9266 10k STB3.3V 1.5V1 STB3.3V STB3.3V 3.3V Q9019 B1CBHD000001 G D S R9388 2.7k *IC9004 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC SOS_INH AUDIO MUTE DRIVER_MUTE RXD_TU REM_IN REMO_OUT AI_SENSE DATA_SOS 85 SDA3 84 SCL3 3.3_SOS KEY_INPUT 115 FPGA_CLK 116 SCL2 119 CPUMD1 120 CPUMD0 CATS EYE IIC_CONT TV_ON/OFF TXD_TU RXD_PC LED_G LED_R 88 CABLE_DET 89 FAN_SOS 83 AVSS 82 AVDD1 SUS_SOS SCAN_SOS FPGA_LD Flash_CS IIC_INT ALL_OFF STANB_ON KILL_SOS DRIVER_RESET TXD_PC REMO_INH 87 POWER_STAT 86 RTC_INT 81 PLLTST POWER_SOS 5V_SOS 113 FPGA_DATAOUT 114 FPGA_DATAIN 117 SDA2 118 CPUMD2 DIGITAL_SEL0 DIGITAL_SEL1 NC NC SOS_DET DPMS_HD DPMS_VD RUSH_ON/OFF LSIRST MICRO PROCESSOR EEPROM 13 16 12 14 15 18 10 17 11 (2/12) TO D-BOARD 66 65 64 63 62 61 77 76 73 72 71 75 74 AD AA AC AE AF AB TVRN472 RESET SWITCHING TH-42PHD7CY D-Board (8 of 12) Schematic Diagram TH-42PHD7CY D-Board (8 of 12) Schematic Diagram (8/12) D-BOARD TZTNP01VCSC ! 94 15.31.D 电路板 (9/12) 线路图 SUB_R0 SUB_R1 SUB_R2 SUB_R3 SUB_R4 SUB_R5 SUB_R6 SUB_R7 SUB_G4 SUB_G5 SUB_G1 SUB_G3 SUB_G6 SUB_G7 SUB_G2 SUB_G0 SUB_B4 SUB_B5 SUB_B1 SUB_B3 SUB_B6 SUB_B7 SUB_B2 SUB_B0 MAIN_R4 MAIN_R5 MAIN_R1 MAIN_R3 MAIN_R6 MAIN_R7 MAIN_R2 MAIN_R0 MAIN_G4 MAIN_G5 MAIN_G1 MAIN_G3 MAIN_G6 MAIN_G7 MAIN_G2 MAIN_G0 MAIN_B4 MAIN_B5 MAIN_B1 MAIN_B3 MAIN_B6 MAIN_B7 MAIN_B2 MAIN_B0 SB_R1 SB_G3 SB_G7 SB_G0 SB_R2 SB_R4 SB_G5 SB_R6 SB_G1 SB_G4 SB_G6 SB_R3 SB_R7 SB_R0 SB_R5 SB_B2 SB_B3 SB_B7 SB_B0 SB_B5 SB_B1 SB_B4 SB_B6 SB_G2 MN_G0 MN_G3 MN_R2 MN_B0 MN_G6 MN_R1 MN_R6 MN_B6 MN_R5 MN_G2 MN_R0 MN_B1 MN_B2 MN_R7 MN_B5 MN_G7 MN_R3 MN_B7 MN_G1 MN_G4 MN_G5 MN_R4 MN_B3 MN_B4 FP_DMLR VD_ADS FP_DMHL FP_DMHR VDO_M CLP_S AM_HD AAE_MCDATA_O FP_DSLL AM_VD FP_UEH FP_DSHL RM_A18 FP_USL FP_NUEL DRVMUTE FP_DSLR FP_CSL FP_DSHR FP_CSH FP_CML DRVRST FP_DMLL DS_VD FP_CMH RM_A20 FP_CLK FP_CEL FP_SID FP_SIU AAE_MCCLK P3V_SDA2 FP_CPH P3V_SCL2 VD_ADM FP_CPL AAE_MCLD VDO_S HDO_S CLP_M HDO_M FP_LEU(L) HD_ADS FPDAT1 FPCLK SFRST LATCH FP_USH FP_UMH NRST AS_HD AS_VD FP_LED(R) DCK_MAIN DCK_MAIN DCK_SUB DCK_SUB SFVRST FP_CEH L7_HOUT FP_DMLR FP_DMHR FP_DSLR FP_DSHR L8_VOUT VD_M HD_M SC_CL SC_CLK SC_SIU SC_SID SC_SCSU SC_CPL SC_CPH FP_CPH FP_CPL FP_SCSU FP_SID FP_SIU FP_CLK FP_CL FP_CMH FP_CML FP_CSH FP_CSL FP_CEH FP_CEL SC_CMH SC_CML SC_CSH SC_CSL SC_CEH SC_CEL FP_CEL FP_CEH FP_CSL FP_CSH FP_CML FP_CMH FP_CL FP_CLK FP_SIU FP_SID FP_SCSU FP_CPL FP_CPH VD_S HD_S DM_VD DM_HD HD_ADM DS_HD OSD_CKIN OSD_VDO OSD_HDO VMUTE_IN FP_PCD(R) FP_PCU(L) FP_UML FP_CL RM_OE RM_A20 RM_CE RM_WE RM_RD_BY FP_DMLL FP_DMHL FP_DSLL FP_DSHL RM_A19 FP_SCSU FPDAT0 R9806 0 R9776 10k R9791 0 P5V C9714 16V 1u *R9795 0 R9769 0 R9739 0 C9734 16V 0.1u *IC9701 C1ZBZ0002625 1 GND 2 TMS 3 I/O 4 I/O 5 I/O 6 I/O 7 I/O 8 I/O 9 I/O 10 I/O 11 I/O 12 GND 13 VCCO 14 VCCINT 15 I/O 16 I/O 17 I/O 18 I/O 19 GND 20 I/O 21 I/O 22 I/O 23 I/O 24 I/O 25 GND 26 VCCO 27 I/O 28 VCCINT 29 I/O 30 I/O 31 I/O 32 GND 33 I/O 34 I/O 35 I/O 36 I/O 37 VCCINT 38 VCCO 39 GND 40 I/O 41 I/O 42 I/O 43 I/O 44 I/O 45 I/O 46 I/O 47 I/O 48 I/O 49 I/O 50 M1 51 GND 52 M0 53 VCCO 54 M2 55 I/O 56 I/O 57 I/O 58 I/O 59 I/O 60 I/O 61 I/O 62 I/O 63 I/O 64 I/O 65 GND 66 VCCO 67 VCCINT 68 I/O 69 I/O 70 I/O 71 I/O 72 GND 73 I/O 74 I/O 75 I/O 76 VCCINT 77 GCK1 78 VCCO 79 GND 80 GCK0 81 I/O 82 I/O 83 I/O 84 I/O 85 GND 86 I/O 87 I/O 88 I/O 89 I/O 90 VCCINT 91 VCCO 92 GND 93 I/O 94 I/O 95 I/O 96 I/O 97 I/O 98 I/O 99 I/O 100 I/O 101 I/O 102 I/O 103 GND 104 DONE 105 VCCO 106 PROGRAM 107 I/O 108 I/O 109 I/O 110 I/O 111 I/O 112 I/O 113 I/O 114 I/O 115 I/O 116 I/O 117 GND 118 VCCO 119 VCCINT 120 I/O 121 I/O 122 I/O 123 I/O 124 GND 125 I/O 126 I/O 127 I/O 128 I/O 129 I/O 130 VCCO 131 GND 132 I/O 133 I/O 134 I/O 135 I/O 136 I/O 137 GND 138 I/O 139 I/O 140 I/O 141 I/O 142 VCCINT 143 VCCO 144 GND 145 I/O 146 I/O 147 I/O 148 I/O 149 I/O 150 I/O 151 I/O 152 I/O 153 I/O 154 I/O 155 CCLK 156 VCCO 157 TDO 158 GND 159 TDI 160 I/O 161 I/O 162 I/O 163 I/O 164 I/O 165 I/O 166 I/O 167 I/O 168 I/O 169 I/O 170 GND 171 VCCO 172 VCCINT 173 I/O 174 I/O 175 I/O 176 I/O 177 GND 178 I/O 179 I/O 180 I/O 181 I/O 182 GCK2 183 GND 184 VCCO 185 GCK3 186 VCCINT 187 I/O 188 I/O 189 I/O 190 GND 191 I/O 192 I/O 193 I/O 194 I/O 195 VCCINT 196 VCCO 197 GND 198 I/O 199 I/O 200 I/O 201 I/O 202 I/O 203 I/O 204 I/O 205 I/O 206 I/O 207 TCK 208 VCCO R9844 EXB38V103JV C9731 16V 0.1u R9758 10k R9784 0 R9789 0 Q9700 B1ABCC000004 R9785 0 R9523 EXB2HV470JV R9765 0 R9813 0 R9788 0 R9742 0 R9807 0 R9731 0 R9805 0 R9793 0 C9709 50V 0.01u R9816 10k R9775 0 C9703 16V 0.1u STB5V *R9774 56 *R9771 Q9701 B1ABCC000004 R9762 560 C9732 16V 0.1u C9736 16V 0.1u R9792 0 R9522 EXB2HV470JV C9726 16V 0.1u R9521 EXB2HV470JV *R9744 0 R9526 EXB2HV470JV R9803 10k R9525 EXB2HV470JV R9833 10k C9712 16V 0.1u R9811 0 R9727 0 R9835 10k R9804 4.7k R9768 0 *R9726 0 R9809 0 R9770 0 *R9725 0 C9701 16V 0.1u R9834 10k *R9743 0 R9800 0 R9740 0 R9723 EXB38V103JV C9733 16V 0.1u R9780 0 C9725 16V 0.1u R9812 0 R9749 0 R9728 0 R9828 4.7k R9767 0 R9781 0 R9790 0 R9747 EXB38V103JV C9728 16V 0.1u R9829 4.7k R9808 4.7k 3.3V R9754 22k R9783 10k R9794 0 R9761 100 C9724 16V 0.1u R9810 0 R9524 EXB2HV470JV R9756 10k R9748 EXB38V103JV R9778 10k R9741 0 C9718 16V 0.1u R9750 0 C9735 16V 0.1u P5V C9700 16V 1u C9708 16V 0.1u R9766 10k *R9745 0 R9787 0 R9799 560 R9779 EXB38V103JV R9846 EXB38V103JV C0JBAZ000856 IC9700 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ000856 IC9702 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc IC9703 C0EBE0000066 1 GND 2 SUB 3 NC 5 Vcc 4 Out R9777 120 C9717 16V 0.1u C9722 16V 0.1u C9707 16V 4.7u *R9732 0 *R9733 0 VDID_S CLKM_IN DIN HDID_S ^INIT DSHL1 SYNCRST GND CLK20M VCCINT LAC OSDHO DMLL1 HDO_S DMHL1 VDO_S BLKU PCU LEU GCK3 BLKD LED PCD UBK NUEL UMH UML USH USL UEH CPH CPL NRST SCSU DRVMUTE_M SID DRVMUTE_S SIU CLK CMH ROM47_2 CML ROM47_1 CSH RESERVE4 CSL CLPC_M ROM47_0 RESERVE4 CEL N_VD47 SLAV CBK CLPC_S DRVRST XNHD FPDATA0 FPDATA1 LATCH SFVRST DCKC FPCLK OSDCLK CKI OSDIN4 GND VCCO OSDHD GCK1 OSDVD VCCINT GND GCK0 SCL YS SDA VCCO CL GND OSD0 OSD1 OSD2 OSD9 HDID_M OSD10 VDID_M OSD11 HDIA_M OSD12 VDIA_M OSD13 OSD14 OSD15 OSDIN0 NCLP_M OSDIN1 RESERVE4 OSDIN2 NCLCP_S OSDIN3 LSI43_33MHz OSDIN5 SDAT OSDIN6 REFCK XNVD MCHD OSDIN7 DOE DCKB SFRST MCLD VDO_M MCCLK HDO_M SCO CGL MCVD VD_M OSD3 MCDATA HD_M OSD4 HD_S OSD5 VD_S NO_SYNC OSD6 HD_ADM OSD7 VD_ADM OSD8 DMLR1 DMHR1 VD_ADS DSHR1 HD_ADS DSLR1 HDIA_S DSLL1 VDIA_S VCCINT GND SS CONTROL LSB MSB SYNC PROCESSOR RESET 19 25 23 20 21 26 27 24 22 (3/12) TO D-BOARD 77 76 75 73 72 71 74 88 87 81 84 89 90 86 82 85 83 91 BB BG BD BA BC BE BF BI BJ BH 5V->3.3V 5V->3.3V PHD7 ONLY PHD7 ONLY PHW7 ONLY TH-42PHD7CY D-Board (9 of 12) Schematic Diagram TH-42PHD7CY D-Board (9 of 12) Schematic Diagram (9/12) D-BOARD TZTNP01VCSC ! 95 15.32.D 电路板 (10/12) 线路图 + G G G G L7_DQ31 L7_DQ30 L7_DQ29 L7_DQ28 L7_DQ27 L7_DQ25 L7_DQ24 L7_DQ23 L7_DQ22 L7_DQ21 L7_DQ20 L7_DQ19 L7_DQ18 L7_DQ17 L7_DQ16 L7_DQ15 L7_DQ14 L7_DQ13 L7_DQ12 L7_DQ11 L7_DQ10 L7_DQ9 L7_DQ8 L7_DQ6 L7_DQ5 L7_DQ4 L7_DQ3 L7_DQ2 L7_DQ1 L7_DQ0 L7_DQ7 L7_DQ26 L7_ADRS6 L7_ADRS3 L7_ADRS10 L7_ADRS11 L7_ADRS9 L7_ADRS8 L7_ADRS7 L7_ADRS5 L7_ADRS4 L7_ADRS2 L7_ADRS1 L7_ADRS0 L7_NRAS L7_NCAS L7_NCS L7_SDCKON L7_SDCKO L7_NWE L7_CKE L7_BANK1 L7_DQS0 L7_BANK0 MN_R7 MN_R6 MN_R5 MN_R4 MN_R3 MN_R2 MN_R1 MN_R0 MN_B0 MN_B3 MN_B7 MN_B2 MN_B1 MN_B5 MN_B6 MN_B4 MN_G0 MN_G3 MN_G7 MN_G2 MN_G1 MN_G5 MN_G6 MN_G4 SB_R0 SB_R3 SB_R7 SB_R2 SB_R1 SB_R5 SB_R6 SB_R4 SB_B0 SB_B3 SB_B7 SB_B2 SB_B1 SB_B5 SB_B6 SB_B4 SB_G0 SB_G3 SB_G7 SB_G2 SB_G1 SB_G5 SB_G6 SB_G4 L7_GOUT9 L7_GOUT8 L7_GOUT7 L7_GOUT6 L7_GOUT5 L7_GOUT4 L7_GOUT3 L7_GOUT2 L7_GOUT1 L7_GOUT0 L7_BOUT7 L7_BOUT5 L7_BOUT3 L7_BOUT1 L7_BOUT9 L7_BOUT2 L7_BOUT0 L7_BOUT6 L7_BOUT8 L7_BOUT4 L7_ROUT7 L7_ROUT5 L7_ROUT3 L7_ROUT1 L7_ROUT2 L7_ROUT0 L7_ROUT6 L7_ROUT8 L7_ROUT4 DCK_MAIN VDO_M DCK_SUB VDO_S OSD15 OSD14 OSD12 OSD13 OSD10 OSD9 OSD8 OSD11 OSD6 OSD4 OSD5 OSD2 OSD1 OSD0 OSD3 OSD_YM OSD_YS OSD_HDIN OSD_CKIN L7_ROUT9 L7_RMD15 L7_RMD13 L7_RMD12 L7_RMD10 L7_RMD8 L7_RMD11 L7_RMD9 L7_RMD6 L7_RMD4 L7_RMD7 L7_RMD5 L7_RMD2 L7_RMD0 L7_RMD3 L7_RMD1 L7_RMD14 OSD_VDO OSD_HDO HDO_M HDO_S L7_REFCK L7_MCK L7_SCK L7_OCK L8_G4 L7_ROUT6 L8_G5 L7_ROUT4 L8_G7 L7_ROUT5 L8_G6 L7_ROUT7 L8_G0 L7_ROUT3 L8_G1 L7_BOUT9 L7_ROUT2 L8_G3 L7_BOUT8 L7_ROUT1 L8_G2 L7_GOUT9 L7_ROUT0 L7_GOUT8 L8_B8 L7_ROUT9 L8_B9 L7_ROUT8 L7_BOUT6 L7_BOUT4 L7_BOUT5 L7_BOUT7 L7_BOUT2 L7_BOUT0 L8_B4 L7_BOUT1 L8_B5 L7_BOUT3 L8_B7 L7_GOUT6 L8_B6 L7_GOUT4 L8_B0 L7_GOUT5 L8_B1 L7_GOUT7 L8_B3 L7_GOUT2 L8_B2 L7_GOUT0 L8_G8 L7_GOUT1 L8_G9 L7_GOUT3 L7_HOUT L7_VOUT L7_RMCE L7_RMCE RM_CE L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 OSD7 P3V_SCL2 P3V_SDA2 TMS_BS TCK_BS TDI_BS TRST_BS NRST 57_TDO TDI_BS TCK_BS *IC9501 K19 VDD15 C9534 16V 0.1u *IC9501 K11 VSS R9598 0 *IC9501 L14 VSS *IC9501 K16 VSS R9600 0 *IC9501 C1 GYIB4 *IC9501 D23 ROMD14 R9601 0 C9547 16V 0.1u *IC9501 P16 VSS *IC9501 T22 S1NCOPY *IC9501 U2 RVIA6 *IC9501 A15 TEST0 *IC9501 B7 VSS C9515 16V 0.1u *IC9501 L3 ICKW *IC9501 AC11 DQ11 4.7k R9589 *IC9501 E17 VSS *IC9501 AA17 VSS *IC9501 AA11 DQ27 *IC9501 A19 VSS *IC9501 M3 DHA *IC9501 AC18 CKE *IC9501 E19 ROMD4 *IC9501 R12 VSS C9555 16V 0.1u *IC9501 G20 ROUT6 3.3V_L78 *IC9501 H11 VSS *IC9501 AC2 DQ7 *IC9501 M21 BOUT5 R9583 0 *IC9501 D5 OSD3 *IC9501 E7 VDD33 *IC9501 E4 GYIB2 3.3V_L78 *IC9501 AA14 AVSS-2 *IC9501 G22 ROUT4 *IC9501 G23 ROUT3 C9553 16V 0.1u *IC9501 J14 VSS *IC9501 A16 TEST4 *IC9501 AB2 VSS *IC9501 D11 XRST *IC9501 Y3 TDI R9562 EXB38V470JV *IC9501 C9 ALPHA3 *IC9501 K21 GOUT7 C9535 16V 0.1u *IC9501 A7 OCKREF *IC9501 L2 CLAMPA *IC9501 B20 AVDD33M *IC9501 M8 VSS *IC9501 W14 VDD15 C9503 16V 0.1u *IC9501 A8 OSDHI *IC9501 Y23 VSS *IC9501 A22 ROMD5 *IC9501 P15 VSS C9516 16V 0.1u *IC9501 L13 VSS R9570 0 *IC9501 AA23 SDIV3 *IC9501 P5 VDD33 *IC9501 T14 VSS *IC9501 C19 MCPOUT *IC9501 D4 VSS *IC9501 K8 VSS *IC9501 AA3 VSS *IC9501 Y6 DQ20 *IC9501 AA6 DQ19 *IC9501 AC9 VDD25 *IC9501 Y16 VSS *IC9501 AB10 DQ12 *IC9501 L10 VSS *IC9501 L20 BOUT2 *IC9501 V19 VDD15 *IC9501 F1 BUIB4 *IC9501 E23 C78EN *IC9501 K9 VSS *IC9501 AB7 DQ22 *IC9501 H1 RVIB4 *IC9501 Y12 DQ24 C9549 16V 0.1u *IC9501 J3 RVIB0 *IC9501 AB11 DQ10 C9536 16V 0.1u *IC9501 A5 OSD10 *IC9501 L1 HMASKA *IC9501 R8 VSS *IC9501 M16 VSS *IC9501 N23 OCKO *IC9501 Y4 VSS C9504 16V 0.1u R9548 0 *IC9501 T4 BUIA4 *IC9501 M14 VSS C9517 16V 0.1u *IC9501 B19 MDIV2 *IC9501 D13 I2CSDA *IC9501 W18 ADRS7 *IC9501 F20 ROUT2 *IC9501 T11 VSS R9552 0 *IC9501 W4 DLLON R9564 EXB38V470JV *IC9501 C5 OSD6 *IC9501 B18 XPLLRST *IC9501 AA22 AVDD33S *IC9501 K15 VSS *IC9501 L19 VDD15 *IC9501 E6 OSD7 *IC9501 J5 VDD33 *IC9501 AB21 BANK1 *IC9501 G19 VDD33 *IC9501 Y22 SDIV2 R9584 0 *IC9501 Y2 TCK *IC9501 B17 WDLLON *IC9501 V20 XSPLLPDN *IC9501 AB14 BIAS *C9560 220u 4V *IC9501 K22 GOUT6 *IC9501 V1 RVIA3 *IC9501 K4 DHB C9548 16V 0.1u *IC9501 AB15 NRAS *IC9501 AA10 DQ29 *IC9501 P14 VSS C9537 16V 0.1u *IC9501 H3 RVIB2 *IC9501 C8 ALPHA0 *IC9501 W21 SDIV0 2.5V_L7 *IC9501 A6 OSD11 *IC9501 A17 VSS C9505 16V 0.1u *IC9501 B12 ZTILD *IC9501 E21 PWMOUT *IC9501 AA1 TRSTZ *IC9501 N1 GYIA7 *IC9501 H16 VSS C9518 16V 0.1u *IC9501 T21 S1UDSEL0 *IC9501 C17 NPLLSEL 2.5V_1 R9571 0 *IC9501 AC4 DQ3 R9553 0 *IC9501 E12 VDD33 *IC9501 H23 ROUT7 *IC9501 B15 TEST1 *IC9501 F22 ROUT0 *IC9501 F23 VIAREA *IC9501 AC22 BANK0 *IC9501 E5 VSS *IC9501 AB18 VSS *IC9501 AC17 SDCKON *IC9501 A2 OSD0 *IC9501 T13 VSS *IC9501 Y8 VSS *IC9501 N8 VSS *IC9501 U21 S2UDSEL1 *IC9501 P19 VDD33 *IC9501 AA16 NCAS *IC9501 C11 SLVSET *IC9501 AA2 TMS C9551 16V 0.1u *IC9501 N22 BOUT7 *IC9501 P10 VSS C9538 16V 0.1u *IC9501 B14 MINTEST *IC9501 W5 VSS *IC9501 AA18 ADRS9 C9506 16V 0.1u *IC9501 M11 VSS *IC9501 J21 GOUT3 *IC9501 N3 GYIA5 *IC9501 P13 VSS R9550 47 R9578 EXB38V470JV *IC9501 U4 BUIA0 C9519 16V 0.1u *IC9501 AC6 DQS0 *IC9501 C18 MDIV3 *IC9501 V3 RVIA1 C9544 16V 0.1u *IC9501 C4 OSD2 *IC9501 N16 VSS *IC9501 C21 ROMD7 *IC9501 B1 GYIB7 *IC9501 K12 VSS *IC9501 D12 I2CSLV0 *IC9501 T9 VSS *IC9501 D19 ROMD3 *IC9501 J22 GOUT2 *IC9501 N4 RHA *IC9501 B10 BFJ *IC9501 AC15 NWE *IC9501 B11 XSYNCRST *IC9501 T10 VSS *IC9501 K13 VSS *IC9501 AC12 DQ9 *IC9501 W22 DCPOUT *IC9501 N20 BOUT9 1.5V_L7 *IC9501 C2 GYIB6 *IC9501 R15 VSS C9526 16V 0.1u *IC9501 D20 ROMD8 *IC9501 J15 VSS *IC9501 Y1 AHARDPWN C9539 16V 0.1u *IC9501 V23 VSS 1.5V1 *IC9501 Y20 VSS *IC9501 J9 VSS *IC9501 M5 VDD15 *IC9501 AC8 VSS C9507 16V 0.1u *IC9501 F21 ROUT1 *IC9501 G5 VDD15 *IC9501 E14 VDD33 *IC9501 T8 VSS *IC9501 P9 VSS C9520 16V 0.1u 1k R9560 C9545 16V 0.1u 3.3V_L78 *IC9501 AB4 DQ4 *IC9501 B3 OSD1 *IC9501 C7 OSD15 R9544 0 *IC9501 B21 ROMD1 *IC9501 C6 OSD13 *IC9501 J10 VSS 3.3V_L78 *IC9501 E10 VDD15 *IC9501 AC3 DQ5 *IC9501 C15 TEST2 *IC9501 AB1 TDO *IC9501 AB12 DQ8 *IC9501 AB3 DQ6 *IC9501 J13 VSS *IC9501 AB19 ADRS5 *IC9501 T20 S1UDSEL1 3.3V_L78 *IC9501 G1 BUIB0 *IC9501 W10 VDD25 *IC9501 H9 VSS C9527 16V 0.1u *IC9501 R11 VSS *IC9501 E13 VDD33 *IC9501 M15 VSS 3.3V_L78 R9586 EXB38V470JV C9540 16V 0.1u *IC9501 B5 OSD9 *IC9501 K2 CLAMPB *IC9501 AC7 DQS2 *IC9501 N11 VSS *IC9501 Y9 DQ31 *IC9501 P12 VSS *IC9501 AA20 ADRS1 C9508 16V 0.1u *IC9501 V21 S4UDSEL1 *IC9501 A12 ZTSEL C9521 16V 0.1u *IC9501 R4 GYIA0 *IC9501 D10 AFJ C9546 16V 0.1u *IC9501 D22 ROMD15 *IC9501 A23 VSS *IC9501 A1 VSS *IC9501 AA21 VSS R9567 0 *IC9501 D3 GYIB5 R9555 0 *IC9501 K3 RHB *IC9501 AA7 DQ23 *IC9501 K10 VSS *IC9501 G3 RVIB6 *IC9501 P8 VSS *IC9501 D15 TEST3 *IC9501 C3 VSS *IC9501 R9 VSS *IC9501 AA12 DQ25 *IC9501 U20 S4NCOPY *IC9501 M9 VSS *IC9501 J11 VSS *IC9501 T5 VDD15 *IC9501 R23 MCKO *IC9501 T16 VSS C9528 16V 0.1u *IC9501 F3 BUIB2 *IC9501 R19 VDD33 *IC9501 D1 GYIB1 *IC9501 M10 VSS C9541 16V 0.1u *IC9501 W11 VDD25 *IC9501 J8 VSS 2.5V_L7 *IC9501 N12 VSS *IC9501 AA13 DQS3 *IC9501 A4 OSD8 C9509 16V 0.1u *IC9501 F2 BUIB3 *IC9501 Y21 SCPOUT C9522 16V 0.1u *IC9501 C23 ROMD10 *IC9501 U23 S2NCOPY *IC9501 U19 VDD15 *IC9501 B22 ROMD6 *IC9501 W12 VDD25 *IC9501 B2 VSS *IC9501 W20 SDIV1 *IC9501 F19 VDD33 *IC9501 G2 RVIB7 *IC9501 AC14 VSS *IC9501 W8 VSS *IC9501 R13 VSS *IC9501 H8 VSS *IC9501 C13 I2CSCL *IC9501 AA4 DQ16 *IC9501 R22 ZLDENIO *IC9501 N15 VSS *IC9501 A11 OSDCKO *IC9501 Y5 DQ18 *IC9501 P11 VSS R9596 EXB38V470JV C9529 16V 0.1u *IC9501 U3 RVIA5 *IC9501 E11 VDD15 *IC9501 L15 VSS *IC9501 AB22 VSS *IC9501 AA8 VSS *IC9501 D2 GYIB3 C9542 16V 0.1u *IC9501 Y14 AVDD25 *IC9501 M4 VMASKA *IC9501 AB6 DQ0 C9510 16V 0.1u *IC9501 AB16 NCS *IC9501 D9 OSDHO *IC9501 M22 BOUT4 *IC9501 A13 I2CSLV1 C9523 16V 0.1u *IC9501 L4 VMASKB *IC9501 AC21 ADRS0 *IC9501 K14 VSS *IC9501 Y17 ADRS11 *IC9501 R16 VSS *IC9501 Y19 ADRS6 *IC9501 M20 BOUT6 R9568 0 *IC9501 V2 RVIA2 *IC9501 E8 VDD33 *IC9501 D14 SCANTEST *IC9501 W23 SCKREF *IC9501 R21 MFJIO *IC9501 H22 ROUT8 *IC9501 H10 VSS *IC9501 A3 OSD4 *IC9501 AB17 SDCKO *IC9501 B23 ROMD9 *IC9501 U22 S2UDSEL0 *IC9501 E3 BUIB6 *IC9501 L16 VSS C9530 16V 0.1u *IC9501 L22 BOUT0 *IC9501 N19 VDD33 *IC9501 U5 VDD15 *IC9501 B8 YS *IC9501 H12 VSS *IC9501 A20 MDIV0 *IC9501 N5 VDD15 *IC9501 K5 VDD33 *IC9501 A9 OSDCKI *IC9501 H19 VDD15 C9511 16V 0.1u *IC9501 AB9 DQ15 *IC9501 N21 BOUT8 *IC9501 W9 DQ30 C9524 16V 0.1u *IC9501 AC19 VSS *IC9501 AA5 DQ17 *IC9501 K20 GOUT8 R9585 0 *IC9501 D18 MDIV1 *IC9501 M1 DCKA R9563 EXB38V470JV *IC9501 A21 AVSS-4 *IC9501 L21 BOUT1 R9542 0 R9575 0 *IC9501 P23 VP R9556 0 *IC9501 E16 VDD15 *IC9501 V22 S4UDSEL0 *IC9501 AB13 DQS1 *IC9501 P1 GYIA3 1k R9559 *IC9501 P21 SRLF *IC9501 W3 DDRIOCTR1 *IC9501 W1 RVIA0 *IC9501 R2 BUIA6 *IC9501 AA9 DQ14 *IC9501 H13 VSS *IC9501 AA15 VSS *IC9501 L5 VDD15 *IC9501 J1 DCKB C9531 16V 0.1u *IC9501 L9 VSS *IC9501 A14 OMASK *IC9501 R5 VDD33 *IC9501 AC1 VSS *IC9501 H5 VDD15 *IC9501 J20 GOUT4 *IC9501 W15 VSS *IC9501 R20 MVDIO C9512 16V 0.1u *IC9501 J19 VDD15 *IC9501 C16 TEST6 *IC9501 T12 VSS *IC9501 Y15 VSS *IC9501 V4 RVIA4 C9525 16V 0.1u *IC9501 D17 XMPLLPDN *IC9501 P3 GYIA1 *IC9501 AC5 DQ1 *IC9501 T2 BUIA2 *IC9501 P4 GYIA4 *IC9501 D7 YM *IC9501 U1 RVIA7 *IC9501 W13 AVDD25 *IC9501 AC13 VDD25 R9574 0 *IC9501 A18 MCKREF *IC9501 W6 VDD25 *IC9501 K23 GOUT5 *IC9501 R10 VSS *IC9501 T3 BUIA1 *IC9501 L11 VSS *IC9501 J12 VSS *IC9501 D21 ROMD12 *IC9501 AC20 ADRS3 *IC9501 H15 VSS *IC9501 H20 GOUT0 *IC9501 N9 VSS R9579 EXB38V470JV *IC9501 T1 BUIA3 *IC9501 B13 I2CSLV2 R9597 0 C9532 16V 0.1u *IC9501 E22 ROMCE R9599 0 *IC9501 N10 VSS *IC9501 J23 GOUT1 *IC9501 H4 RVIB5 *IC9501 Y11 DQ26 *IC9501 D16 SDCLSEL *IC9501 E9 VDD15 *IC9501 AB20 ADRS2 *IC9501 B16 TEST5 *IC9501 N13 VSS C9513 16V 0.1u *IC9501 Y13 AVSS-1 *IC9501 W16 ADRS10 *IC9501 C20 ROMD2 R9569 EXB38V470JV *IC9501 T15 VSS 3.3V_L78 *IC9501 R14 VSS *IC9501 B4 OSD5 *IC9501 W17 VDD25 *IC9501 A10 OSDVO *IC9501 C22 ROMD11 *IC9501 M12 VSS *IC9501 N14 VSS *IC9501 H14 VSS 2.5V_L7 *IC9501 L23 GOUT9 *IC9501 H21 ROUT9 R9576 0 *IC9501 W19 VSS R9557 0 *IC9501 D6 OSD14 *IC9501 R3 BUIA5 *IC9501 C12 ZLPFON *IC9501 T23 OVDIO *IC9501 AC16 VREF *IC9501 M2 DVA *IC9501 B9 ALPHA2 1.5V_L7 *IC9501 H2 RVIB3 *IC9501 G4 BUIB1 *IC9501 F5 VDD15 *IC9501 E2 BUIB7 *IC9501 Y10 DQ28 *IC9501 AC10 DQ13 C9533 16V 0.1u *IC9501 Y7 DQ21 *IC9501 R1 BUIA7 *IC9501 P22 HP *IC9501 E20 ROMD13 *IC9501 C14 SCANEN *IC9501 M19 VDD33 *IC9501 J4 RVIB1 *IC9501 J16 VSS *IC9501 B6 OSD12 C9514 16V 0.1u *IC9501 AC23 VSS *IC9501 AB5 DQ2 C9543 16V 0.1u *IC9501 E15 VDD15 *IC9501 W7 VDD15 *IC9501 Y18 ADRS8 *IC9501 E18 ROMD0 *IC9501 L12 VSS *IC9501 F4 BUIB5 *IC9501 AB23 AVSS-3 *IC9501 J2 DVB *IC9501 P20 SRL R9590 EXB38V470JV *IC9501 G21 ROUT5 R9595 10k *IC9501 L8 VSS *IC9501 N2 GYIA6 R9577 0 *IC9501 E1 GYIB0 R9558 0 *IC9501 W2 DDRIOCTR0 *IC9501 K1 HMASKB *IC9501 C10 REFCK *IC9501 T19 VDD15 *IC9501 P2 GYIA2 *IC9501 V5 VDD15 *IC9501 AA19 ADRS4 *IC9501 D8 ALPHA1 *IC9501 AB8 VSS *IC9501 M13 VSS *IC9501 M23 BOUT3 R9561 0 R9587 0 R9602 0 R9068 0 R9069 0 R9382 0 1% R9091 1k 1% R9092 1k 2.5V_L7 1% R9096 1.4k 1% R9095 1.1k 2.5V_L7 C9578 16V 0.1u R9543 0 R9854 1k 3.3V R9892 4.7k R9513 0 *FL9502 J0HABH000012 1 2 3 *FL9503 J0HABH000012 1 2 3 MN84511-A(LSI57) POWER DDR I/F OSD IIC RESET (R4) (R3) (R2) (R1) (R0) (G5) (G4) (G3) (G2) (G1) (G0) (B4) (B3) (B2) (B1) (B0) IC9501 32 29 33 35 34 36 31 28 30 (4/12) TO D-BOARD 84 87 81 82 90 91 89 86 85 88 83 109 110 106 111 101 102 103 104 105 107 108 CA LSI57 FORMAT CONVERTER (I/P) TH-42PHD7CY D-Board (10 of 12) Schematic Diagram TH-42PHD7CY D-Board (10 of 12) Schematic Diagram (10/12) D-BOARD TZTNP01VCSC ! 96 15.33.D 电路板 (11/12) 线路图 TERM SIDE G G L7DR_AD2 L7DR_AD1 L7DR_DQ23 L7DR_DQ21 L7DR_DQ4 L7DR_DQ5 L7DR_DQ8 L7DR_DQ29 L7DR_DQ15 L7DR_AD7 L7DR_NCK L7DR_AD9 L7DR_DQS0 L7DR_DQ10 L7DR_BA0 L7DR_NCAS L7DR_DQ17 L7DR_CK L7DR_AD11 L7DR_DM3 L7DR_DM0 L7DR_AD5 L7DR_DQ19 L7DR_DM1 L7DR_CKE L7DR_NRAS L7DR_DQ9 L7DR_DQ13 L7DR_NCS L7DR_DQ30 L7DR_DQ25 L7DR_AD3 L7DR_DQ27 L7DR_AD0 L7DR_AD4 L7DR_DQ6 L7DR_BA1 L7DR_DQ20 L7DR_DQ31 L7DR_DQ22 L7DR_AD8 L7DR_DQ11 L7DR_DQ24 L7DR_DQ14 L7DR_DQ0 L7DR_DQ16 L7DR_DM2 L7DR_DQ3 L7DR_AD10 L7DR_DQ28 L7DR_NWE L7DR_DQ12 L7DR_AD6 L7DR_DQ7 L7DR_DQ1 L7DR_DQ18 L7DR_DQ26 L7_RMD14 L7_RMD6 L7_RMD13 L7_RMD5 L7_RMD12 L7_RMD4 L7_RMD11 L7_RMD3 L7_RMD10 L7_RMD2 L7_RMD9 L7_RMD1 L7_RMD8 L7_RMD0 L7_RMD7 L7_ADRS4 L7DR_DQ17 L7_DQ27 L7_DQ17 L7DR_DQ6 L7DR_DQ10 L7DR_AD6 L7DR_DQ3 L7_SDCKON L7DR_DQ22 L7_DQ7 L7_DQ5 L7_ADRS9 L7_ADRS7 L7_DQ4 L7DR_DQ19 L7_DQ21 L7DR_DQ18 L7_DQ2 L7DR_DQ16 L7DR_DQ2 L7DR_DQ23 L7_DQ14 L7DR_DQ5 L7_DQ8 L7DR_NWE L7DR_NCS L7_ADRS5 L7DR_AD11 L7_DQ0 L7DR_AD4 L7DR_DQS0 L7_DQ23 L7DR_DQ4 L7_DQ24 L7_DQ6 L7_DQ31 L7_NWE L7DR_DQ25 L7DR_DQ14 L7DR_DQ1 L7_DQ26 L7_NCS L7DR_DQ13 L7DR_DQ8 L7_ADRS8 L7DR_DQ21 L7_BANK1 L7_DQ1 L7_DQ20 L7DR_DQ24 L7DR_DQ11 L7_DQ25 L7_DQ28 L7DR_AD9 L7DR_DQ26 L7_DQ10 L7_DQ30 L7DR_DQ12 L7DR_AD1 L7_ADRS11 L7_BANK0 L7_DQ11 L7DR_AD0 L7_DQ19 L7DR_BA1 L7_DQ18 L7_ADRS10 L7DR_DQ20 L7_NCAS L7_DQ15 L7DR_DQ9 L7_ADRS6 L7DR_AD3 L7_DQ16 L7DR_DQ15 L7_DQ9 L7DR_AD10 L7DR_DQ27 L7_DQ22 L7DR_DQ29 L7DR_DQ28 L7DR_DQ31 L7_DQ3 L7_DQ13 L7_DQ29 L7DR_DQ7 L7_CKE L7_ADRS3 L7_NRAS L7_ADRS0 L7_SDCKO L7DR_AD2 L7_ADRS1 L7_ADRS2 L7_DQS0 L7DR_AD8 L7_DQ12 L7DR_DQ2 L7_RMD15 RM_OE RM_CE L7_HOUT L7_VOUT L8_HIN L8_VIN CLKD2 CLKD3 DOUTDC[12] LED(RIGHT) LED(RIGHT) L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8_G0 L8_G1 L8_G2 L8_G3 L8_G4 L8_G5 L8_G7 RM_A18 RM_A20 RM_A19 L8_R0 RM_RD_BY RM_WE L8_G6 L8_MOUT L8_VOUT L7DR_DQ0 L7DR_NCK L7DR_CKE L7DR_NCAS L7DR_NRAS L7DR_BA0 L7DR_CK L7DR_AD7 L7DR_AD5 L7DR_DQ30 PCD(RIGHT) PCD(RIGHT) DOUTDC[20] DOUTDB[20] DOUTDA[20] DOUTDC[21] DOUTDB[21] DOUTDA[21] DOUTDC[18] DOUTDB[18] DOUTDA[18] DOUTDC[19] DOUTDB[19] DOUTDA[19] DOUTDC[16] DOUTDB[16] DOUTDA[16] DOUTDC[17] DOUTDB[17] DOUTDA[17] DOUTDC[14] DOUTDB[14] DOUTDA[14] DOUTDC[15] DOUTDB[15] DOUTDA[15] CLKD5 CLKD4 DRVDLY1_2 DOUTDA[9] DOUTDB[9] DOUTDC[9] DOUTDA[8] DOUTDB[8] DOUTDC[8] DOUTDA[11] DOUTDB[11] DOUTDC[11] DOUTDA[10] DOUTDB[10] DOUTDC[10] DOUTDA[13] DOUTDB[13] DOUTDC[13] DOUTDA[12] DOUTDB[12] 5V_SENSE C9569 16V 0.1u R9315 47 R9721 0 P5V C9561 16V 0.1u C9564 16V 0.1u C3FBMD000182 *IC9506 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE 12 RESET 13 NC 14 NC 15 RY/BY 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE 27 Vss 28 OE 29 DQ0 30 DQ8 31 DQ1 32 DQ9 33 DQ2 34 DQ10 35 DQ3 36 DQ11 37 Vcc 38 DQ4 39 DQ12 40 DQ5 41 DQ13 42 DQ6 43 DQ14 44 DQ7 45 DQ15/A-1 46 Vss 47 BYTE 48 A16 C9559 16V 0.1u C9563 16V 0.1u C9573 16V 0.1u R9306 0 R9316 47 C9571 16V 0.1u 3.3V R9307 0 R9317 47 R9722 4.7k C9557 16V 0.1u R9318 47 C9568 16V 0.1u 2.5V_L7 R9718 0 C3ABQJ000031 IC9505 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 WE 26 CAS 27 RAS 28 CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 A11 38 N.C 39 N.C 40 N.C 41 N.C 42 N.C 43 N.C 44 N.C 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8/AP 52 MCL 53 CKE 54 CK 55 CK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 N.C 88 N.C 89 N.C 90 N.C 91 N.C 92 VSSQ 93 RFU 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ 100 DQ2 R9720 0 C9567 16V 0.1u R9305 0 R9719 0 C9565 16V 0.1u C9562 16V 0.1u R9309 47 C9572 16V 0.1u C9570 16V 0.1u R9308 47 C9566 16V 0.1u 3.3V C9556 50V 0.01u R9729 10k R9736 4.7k Q9302 B1ABCC000004 R9764 100k D9300 MA3X152K0L R9609 33 R9605 33 R9641 33 R9627 33 R9635 33 R9639 33 R9631 33 R9633 33 R9615 33 R9619 33 R9645 33 R9629 33 R9621 33 R9613 33 R9625 33 R9611 33 R9617 33 R9607 33 R9637 33 R9643 33 R9623 33 R9647 33 R9675 33 R9717 33 R9665 33 R9703 33 R9687 33 R9695 33 R9667 33 R9713 33 R9669 33 R9707 33 R9699 33 R9697 33 R9709 33 R9677 33 R9673 33 R9655 33 R9671 33 R9685 33 R9705 33 R9701 33 R9689 33 R9693 33 R9691 33 R9659 33 R9683 33 R9657 33 R9681 33 R9715 33 R9711 33 R9679 33 R9661 33 R9663 33 1% R9194 1k 1% R9193 1k D34 K1MN80B00007 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R9515 4.7k *FL9212 J0HABH000012 1 2 3 C9558 16V 0.1u DDR-SDRAM 32M-FLASH DDR-Terminate CLK[2](+) DOUTDC[11] GND GND GND DOUTDC[15] DOUTDB[14] GND GND DOUTDC[12] DOUTDC[17] DOUTDA[21] GND P5V DOUTDC[21] DOUTDC[14] GND LEU(LEFT) DOUTDB[21] CLK[4](+) DOUTDA[19] DRVDLY1 N.C. DOUTDC[20] GND DOUTDB[11] GND GND N.C. DOUTDC[9] GND 5V DET DOUTDA[9] GND GND DOUTDB[15] R-DOWN PCD(RIGHT) DOUTDA[18] DOUTDA[11] LED(RIGHT) DOUTDC[8] DOUTDA[12] DOUTDB[19] DOUTDA[13] PCU(LEFT) GND DOUTDA[17] P5V DOUTDC[10] DOUTDB[10] DOUTDC[18] DOUTDA[16] DOUTDA[8] P5V DOUTDC[16] DOUTDB[9] N.C. DOUTDB[20] N.C. DOUTDC[13] DOUTDA[15] DOUTDB[17] DOUTDC[19] DRVRST GND DOUTDB[18] DOUTDB[16] P5V DOUTDB[12] DOUTDA[14] CLK[3](-) DOUTDA[10] DOUTDB[13] CLK[5](-) DOUTDB[8] DOUTDA[20] N.C. N.C. N.C. N.C. C4-BOARD (C41) TO 38 45 44 39 41 37 42 43 40 (5/12) TO D-BOARD 110 107 101 106 104 103 102 105 108 109 111 122 123 124 125 121 127 128 126 129 131 130 DB DA 64M SDRAM TH-42PHD7CY D-Board (11 of 12) Schematic Diagram TH-42PHD7CY D-Board (11 of 12) Schematic Diagram (11/12) D-BOARD TZTNP01VCSC ! 97 15.34.D 电路板 (12/12) 线路图 TERM SIDE G G G G L8DR_DQ12 L8DR_CK L8DR_DQ11 L8DR_DM1 L8DR_DQ6 L8DR_AD4 L8DR_AD10 L8DR_DQ21 L8DR_DQ17 L8DR_DQ27 L8DR_DQ14 L8DR_CKE L8DR_DQ13 L8DR_DM0 L8DR_DQ10 L8DR_AD6 L8DR_NCS L8DR_DQ28 L8DR_DQ15 L8DR_DQ5 L8DR_DQ23 L8DR_AD0 L8DR_DQ24 L8DR_DQ9 L8DR_AD5 L8DR_AD2 L8DR_DQ29 L8DR_DQ19 L8DR_DM2 L8DR_BA1 L8DR_DQ3 L8DR_AD11 L8DR_AD8 L8DR_DQ26 L8DR_BA0 L8DR_DQ1 L8DR_AD9 L8DR_NCK L8DR_DQ4 L8DR_NCAS L8DR_DQ31 L8DR_DQS0 L8DR_DQ30 L8DR_DQ16 L8DR_AD7 L8DR_DQ25 L8DR_DQ20 L8DR_DQ2 L8DR_DQ8 L8DR_AD3 L8DR_AD1 L8DR_DM3 L8DR_DQ22 L8DR_DQ7 L8DR_NRAS L8DR_NWE L8DR_DQ0 L8DR_DQ18 L8_G3 L8_G7 L8_G9 L8_G0 L8_G2 L8_G4 L8_G6 L8_G1 L8_G5 L8_G8 L8_B3 L8_B7 L8_B9 L8_B0 L8_B2 L8_B4 L8_B6 L8_B1 L8_B5 L8_B8 L8_HIN L8_VIN L8DO_DA12 L8DO_DA19 L8DO_DA3 L8DO_DA18 L8DO_DA1 L8DO_DA0 L8DO_DA2 L8DO_DA11 L8DO_DA10 L8DO_DA17 L8DO_DA16 L8DO_DA14 L8DO_DA9 L8DO_DA21 L8DO_DA7 L8DO_DA4 L8DO_DA8 L8DO_DA5 L8DO_DA13 L8DO_DA6 L8DO_DA20 L8DO_DA15 L8DO_DB12 L8DO_DB19 L8DO_DB3 L8DO_DB18 L8DO_DB1 L8DO_DB0 L8DO_DB2 L8DO_DB11 L8DO_DB10 L8DO_DB17 L8DO_DB16 L8DO_DB14 L8DO_DB9 L8DO_DB21 L8DO_DB7 L8DO_DB4 L8DO_DB8 L8DO_DB5 L8DO_DB13 L8DO_DB6 L8DO_DB20 L8DO_DB15 L8DO_DC12 L8DO_DC19 L8DO_DC3 L8DO_DC18 L8DO_DC1 L8DO_DC0 L8DO_DC2 L8DO_DC11 L8DO_DC10 L8DO_DC17 L8DO_DC16 L8DO_DC14 L8DO_DC9 L8DO_DC21 L8DO_DC7 L8DO_DC4 L8DO_DC8 L8DO_DC5 L8DO_DC13 L8DO_DC6 L8DO_DC20 L8DO_DC15 LATCH SFRST FPDAT0 FPDAT1 FPCLK DRVCLKD0 DRVCLKD1 DRVCLKD2 DRVCLKD3 DRVCLKD4 DRVCLKD5 DRDLY1 DOUTDC[20] DOUTDB[20] DOUTDA[20] DOUTDC[21] DOUTDB[18] DOUTDB[21] DOUTDC[18] DOUTDA[21] DOUTDA[19] DOUTDA[18] DOUTDB[19] DOUTDC[19] DOUTDC[17] DOUTDC[16] DOUTDA[16] DOUTDB[16] DOUTDB[14] DOUTDB[17] DOUTDC[14] DOUTDA[17] DOUTDA[15] DOUTDA[14] DOUTDB[15] DOUTDC[15] CLKD5 CLKD4 DOUTDB[12] DOUTDC[12] DOUTDC[13] DOUTDA[12] DOUTDA[13] DOUTDB[13] DOUTDB[10] DOUTDC[10] DOUTDC[11] DOUTDA[10] DOUTDA[11] DOUTDB[11] DOUTDB[8] DOUTDC[8] DOUTDC[9] DOUTDA[8] DOUTDA[9] DOUTDB[9] CLKD3 CLKD2 L8DO_DC20 L8DO_DB20 L8DO_DA20 L8DO_DC21 L8DO_DB21 L8DO_DA21 L8DO_DC18 L8DO_DB18 L8DO_DA18 L8DO_DC19 L8DO_DB19 L8DO_DA19 L8DO_DC16 L8DO_DB16 L8DO_DA16 L8DO_DC17 L8DO_DB17 L8DO_DA17 L8DO_DC14 L8DO_DB14 L8DO_DA14 L8DO_DC15 L8DO_DB15 L8DO_DA15 L8DO_DC12 L8DO_DB12 L8DO_DA12 L8DO_DC13 L8DO_DB13 L8DO_DA13 L8DO_DC10 L8DO_DB10 L8DO_DA10 L8DO_DC11 L8DO_DB11 L8DO_DA11 L8DO_DC8 L8DO_DB8 L8DO_DA8 L8DO_DC9 L8DO_DB9 L8DO_DA9 DOUTDA[1] DOUTDB[1] DOUTDA[0] DOUTDB[0] DOUTDC[1] CLKD1 CLKD0 DOUTDC[6] DOUTDB[6] DOUTDA[6] DOUTDC[7] DOUTDA[7] DOUTDB[7] DOUTDB[4] DOUTDC[4] DOUTDC[5] DOUTDA[4] DOUTDA[5] DOUTDB[5] DOUTDB[2] DOUTDC[2] DOUTDC[3] DOUTDA[2] DOUTDA[3] DOUTDB[3] DOUTDB[0] DOUTDC[0] DOUTDC[1] DOUTDA[0] DOUTDA[1] DOUTDB[1] CLKD1 CLKD0 L8DO_DC6 L8DO_DB6 L8DO_DA6 L8DO_DC7 L8DO_DC4 L8DO_DA7 L8DO_DB4 L8DO_DB7 L8DO_DB5 L8DO_DC5 L8DO_DA5 L8DO_DA4 L8DO_DA2 L8DO_DB2 L8DO_DC3 L8DO_DC2 L8DO_DC0 L8DO_DA3 L8DO_DB0 L8DO_DB3 L8DO_DB1 L8DO_DC1 L8DO_DA1 L8DO_DA0 DRVCLKD0 DRVCLKD1 DRVDLY1_2 DRVDLY1_1 DRDLY1 DRVCLKD5 DRVCLKD4 DRVCLKD3 DRVCLKD2 L8_PCK L8_R0 L8_R1 L8_R2 L8_R3 L8_R4 L8_R5 L8_R6 L8_R7 L8_R8 L8_R9 L8_MOUT AA_CATS_EYE NRST 5V_SENSE TCK_BS 57_TDO TMS_BS TRST_BS P3V_SDA2 P3V_SCL2 L8_OCK LED_G LED_R AA_REMOCON KEY_INPUT LED(RIGHT) PCD(RIGHT) DRVDLY1_1 DRVRBT_5V DOUTDC[6] DOUTDB[6] DOUTDA[6] DOUTDC[7] DOUTDB[7] DOUTDA[7] DOUTDC[4] DOUTDB[4] DOUTDA[4] DOUTDC[5] DOUTDB[5] DOUTDA[5] DOUTDC[2] DOUTDB[2] DOUTDA[2] DOUTDC[3] DOUTDB[3] DOUTDA[3] DOUTDC[0] IC9302 N1 BI8 IC9302 D23 DRVCLKD1 IC9302 M22 DOUTDB09 IC9302 G1 RI2 IC9302 K21 DOUTDA06 IC9302 T3 ID0 IC9302 H20 DOUTDC04 R9321 0 IC9302 F22 DOUTDB01 IC9302 Y22 DOUTDC20 IC9302 D21 DRVCLKD5 IC9302 E5 FPCLK IC9302 H23 DOUTDB04 IC9302 L3 GI7 R9337 1k IC9302 C3 FPDAT0 IC9302 W23 DOUTDC18 C9359 16V 0.1u IC9302 R4 MONOUT IC9302 P4 BI9 IC9302 L22 DOUTDA07 R9323 0 IC9302 R2 VDI IC9302 T23 DOUTDB14 IC9302 D2 OCK IC9302 H1 RI6 IC9302 G2 RI1 3.3V_L78 IC9302 A3 LATCH IC9302 L1 GI9 IC9302 R23 DOUTDC13 C9360 16V 0.1u 3.3V_L78 IC9302 E21 DRVCLKD0 R9351 10k C9362 16V 0.1u R9338 0 IC9302 K2 GI3 IC9302 E3 SCANEN IC9302 W4 WDLLON IC9302 N2 BI7 IC9302 J3 RI8 IC9302 E1 TEST3 IC9302 K20 DOUTDC07 IC9302 AA22 DOUTDB21 IC9302 AB1 EXTDLLON IC9302 T4 SCL IC9302 N21 DOUTDC11 C9348 16V 0.1u 3.3V_L78 IC9302 AA23 DOUTDA20 IC9302 N23 DOUTDB10 R9339 0 IC9302 J23 DOUTDA05 IC9302 B23 DRDLY1 IC9302 T22 DOUTDC15 C9346 16V 0.1u IC9302 R19 DOUTDA14 C9353 16V 0.1u R9374 47 IC9302 U23 DOUTDA15 IC9302 R3 DCK IC9302 M21 DOUTDA09 IC9302 V5 TDI IC9302 U22 DOUTDC16 IC9302 D3 TIOCTL1 IC9302 L2 GI8 IC9302 H2 RI5 IC9302 D1 MINTEST IC9302 K23 DOUTDC06 C9361 16V 0.1u IC9302 F1 TEST6 C9358 16V 0.1u R9340 0 IC9302 C1 TCKSEL0 IC9302 J1 GI0 IC9302 V4 TDO IC9302 W2 ANARST IC9302 Y21 DOUTDC21 IC9302 AB23 DOUTDA21 IC9302 L19 DOUTDA08 2.5V_L8 IC9302 N20 DOUTDB11 IC9302 H3 RI4 IC9302 N4 BI5 IC9302 W3 TCPOUT IC9302 M5 BI0 IC9302 T5 SDA C9357 16V 0.1u IC9302 W21 DOUTDB19 R9506 0 R9342 0 C9349 16V 0.1u IC9302 U2 TRST IC9302 U21 DOUTDA16 IC9302 K3 GI2 IC9302 U4 IICLPFON IC9302 U3 FULL0 IC9302 E22 DOUTDC00 IC9302 W1 PCK IC9302 L23 DOUTDB07 IC9302 T2 ID1 IC9302 P20 DOUTDA12 IC9302 F5 TCKSEL2 C9352 16V 0.1u C9354 16V 0.1u IC9302 H4 RI3 IC9302 R21 DOUTDA13 R9343 0 IC9302 L21 DOUTDC08 R9507 0 IC9302 E20 DRVCLKD2 IC9302 K1 GI4 IC9302 J20 DOUTDB05 IC9302 G4 TIDDQ IC9302 L20 DOUTDB08 IC9302 V22 DOUTDB17 IC9302 M20 DOUTDC10 C9356 16V 0.1u IC9302 M23 DOUTDC09 IC9302 B3 SFRST IC9302 G22 DOUTDC02 IC9302 K22 DOUTDB06 IC9302 V21 DOUTDB18 IC9302 P1 C78ENAI IC9302 B2 SFVRST IC9302 P22 DOUTDC12 IC9302 Y23 DOUTDA19 IC9302 G5 TEST2 IC9302 G20 DOUTDA02 IC9302 W20 DOUTDB20 IC9302 L5 GI5 IC9302 P3 MUTE IC9302 J21 DOUTDC05 IC9302 F20 DOUTDC01 R9508 0 IC9302 P23 DOUTDA11 IC9302 R22 DOUTDB13 IC9302 F2 TEST5 R9377 47 IC9302 M3 BI2 IC9302 H22 DOUTDB03 IC9302 U1 TCK IC9302 F21 DOUTDA00 IC9302 K4 GI1 IC9302 M1 BI4 IC9302 W22 DOUTDA18 IC9302 F23 DOUTDA01 IC9302 V3 TMS IC9302 F3 TEST4 IC9302 P2 ENHMASK IC9302 D4 FPDAT1 IC9302 E4 TCKSEL1 IC9302 G21 DOUTDB02 IC9302 V2 XRST C9351 16V 0.1u IC9302 M4 BI1 IC9302 U20 DOUTDA17 C9355 16V 0.1u IC9302 V20 DOUTDC19 IC9302 T21 DOUTDB15 IC9302 R1 HDI R9322 0 IC9302 E23 DOUTDB00 IC9302 J2 RI9 IC9302 T20 DOUTDB16 3.3V P5V C9350 16V 0.1u IC9302 E2 TEST1 IC9302 G3 RI0 R9375 10k IC9302 J22 DOUTDA04 R9328 0 IC9302 Y2 PLLON IC9302 V23 DOUTDC17 IC9302 H21 DOUTDA03 IC9302 C2 TIOCTL0 IC9302 C4 SCANMODE IC9302 L4 GI6 IC9302 F4 TEST0 C3ABQJ000031 IC9301 1 DQ3 2 VDDQ 3 DQ4 4 DQ5 5 VSSQ 6 DQ6 7 DQ7 8 VDDQ 9 DQ16 10 DQ17 11 VSSQ 12 DQ18 13 DQ19 14 VDDQ 15 VDD 16 VSS 17 DQ20 18 DQ21 19 VSSQ 20 DQ22 21 DQ23 22 VDDQ 23 DM0 24 DM2 25 WE 26 CAS 27 RAS 28 CS 29 BA0 30 BA1 31 A0 32 A1 33 A2 34 A3 35 VDD 36 A10 37 A11 38 N.C 39 N.C 40 N.C 41 N.C 42 N.C 43 N.C 44 N.C 45 A9 46 VSS 47 A4 48 A5 49 A6 50 A7 51 A8/AP 52 MCL 53 CKE 54 CK 55 CK 56 DM1 57 DM3 58 VREF 59 VDDQ 60 DQ8 61 DQ9 62 VSSQ 63 DQ10 64 DQ11 65 VDD 66 VSS 67 VDDQ 68 DQ12 69 DQ13 70 VSSQ 71 DQ14 72 DQ15 73 VDDQ 74 DQ24 75 DQ25 76 VSSQ 77 DQ26 78 DQ27 79 VDDQ 80 DQ28 81 DQ29 82 VSSQ 83 DQ30 84 DQ31 85 VSS 86 VDDQ 87 N.C 88 N.C 89 N.C 90 N.C 91 N.C 92 VSSQ 93 RFU 94 DQS 95 VDDQ 96 VDD 97 DQ0 98 DQ1 99 VSSQ 100 DQ2 IC9302 D22 DRVCLKD3 IC9302 J4 RI7 IC9302 B1 ROMCE IC9302 P21 DOUTDB12 IC9302 C23 DRVCLKD4 IC9302 G23 DOUTDC03 IC9302 N3 BI6 IC9302 N22 DOUTDA10 IC9302 T1 TIIC IC9302 U5 TILD IC9302 R20 DOUTDC14 R9329 0 R9509 0 IC9302 M2 BI3 R9648 0 3.3V C9574 50V 0.01u R9786 10k R9849 4.7k Q9303 B1ABCC000004 R9850 100k D9301 MA3X152K0L STB5V_M R9389 EXB2HV101JV R9385 EXB2HV101JV R9381 EXB2HV101JV R9372 EXB2HV101JV R9367 EXB2HV101JV R9363 100 R9365 100 R9355 EXB2HV101JV R9348 EXB2HV101JV R9344 EXB2HV101JV R9071 0 R9070 0 1% R9956 1k 1% R9955 1k R9295 47 R9334 47 D33 K1MN80B00007 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 R9324 0 *R9359 22 *R9390 22 *R9391 22 *R9361 22 *R9357 22 *R9358 22 *FL9211 J0HABH000012 1 2 3 *FL9213 J0HABH000012 1 2 3 MN84512-A(LSI58) DDR-SDRAM N.C. DOUTDB[0] CLK[0](+) CLK[1](-) N.C. DOUTDC[2] P5V DOUTDB[5] DOUTDA[7] LEDR N.C. P5V DOUTDC[6] REMCON PCU(LEFT) STB5V N.C. DOUTDB[7] DOUTDA[2] L-DOWN DOUTDB[1] N.C. DOUTDC[4] DOUTDC[5] N.C. DOUTDC[0] N.C. 5V DET DOUTDB[6] GND DRVDLY1 N.C. N.C. DOUTDB[4] DOUTDA[4] LEDG GND N.C. DRVRST GND KEYSW DOUTDC[3] GND N.C. GND N.C. DOUTDB[2] LEU(LEFT) GND P5V N.C. DOUTDA[0] DOUTDA[1] P5V GND DOUTDA[6] STB5V DOUTDB[3] DOUTDA[5] OPT DOUTDA[3] GND GND DOUTDC[7] N.C. STB5V DOUTDC[1] GND GND N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. RESET IIC IC9302 C3-BOARD (C31) TO 49 52 53 46 51 50 48 47 54 (6/12) TO D-BOARD 131 130 123 124 125 127 128 126 129 122 121 EB EC EA 64M SDRAM SUB-FIELD PROCESSOR (L Master) SLV40h NEW PLASMA 10bit PROCESSOR TH-42PHD7CY D-Board (12 of 12) Schematic Diagram TH-42PHD7CY D-Board (12 of 12) Schematic Diagram (12/12) D-BOARD TZTNP01VCSC ! 98 15.35.C1, C2, C3, C4 和 V1 电路板方框图 UML IC7183 C1 CLK2,3 USL CA2 DUB8~15 UMH 17 UEH 19 C12 20 BUFFER DUA8~15 CA3 Board (Front View) FROM D-BOARD CA1 LEU,PCU C11 UEL DUC8~15 Data drive (Upper Right) USH CLK 18 D15 CA4 IC7182 BUFFER IC7181 BUFFER IC7180 CLOCK Board (Front View) FROM D-BOARD BUFFER CA5 CA8 C21 IC7382 IC7380 BUFFER IC7383 CLOCK C2 CA6 Data drive (Upper Left) 4 2 C22 1 3 BUFFER IC7381 CA7 UML USL UEL UMH USH UEH 5 12 3 7 SS32 Vda75V 6 TO 8 C32 4 9 SOS UML USL UEL UMH USH UEH USH UEH UML USL UEL UMH SOS(SS) Vda75V Vda75V Vda75V Vda75V IC8780 IC8782 BUFFER IC8783 CLOCK Vda75V D34 BUFFER Vda75V Vda75V Vda75V BUFFER IC8781 Board (Front View) C3 Data drive (Lower Left) C4 Board (Front View) Data drive (Lower Right) C41 20 1 18 3 C33 4 2 C43 17 19 CB4 CB1 CB3 CB2 CB5 CB7 CB8 CB6 IC7581 CLOCK BUFFER IC7580 IC7582 IC7583 BUFFER BUFFER LED_R REMOCON 6 LED_G KEY_SW 4 OPT LED R C44 2 3 LED G REMOCON C31 7 D33 KEY_SW OPT 6 4 V34 2 3 7 V1 2 1 C42 SS42 TO SS-BOARD Vda75V Vda75V LED R LED G KEY_SW REMOCON OPT R-STANDBY G-POWER ON TV/VTR F SENSOR REMOTE OPT VOL STR UP VOL DOWN D14 LEU PCU CLK D13 LEU PCU D12 D11 LEU PCU D10 CLK LEU PCU D8 CLK D9 CLK2,3 DDB8~15 DDA8~15 LEU,PCU DDC8~15 DUA0~7 DUC0~7 DUB0~7 LEU,PCU CLK0,1 LEU PCU D6 CLK D4 LEU CLK PCU D7 D5 LEU CLK D2 PCU D3 PCU D1 D0 CLK LEU CLK D9 LEU PCU D8 PCU CLK D10 D11 LEU PCU CLK LEU D12 D13 CLK LEU PCU D14 D15 D0 LEU CLK D1 PCU CLK PCU D2 LEU D3 D5 D4 LEU PCU CLK PCU CLK LEU D6 D7 LEU,PCU DDA0~7 DDB0~7 DDC0~7 CLK0,1 IC1550 Q1540 RM001 D31 FROM D-BOARD D32 FROM D-BOARD TH-42PHD7CY C1, C2, C3, C4, and V1-Board Block Diagram TH-42PHD7CY C1, C2, C3, C4, and V1-Board Block Diagram 99 15.36.C1 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AB_LEU1 AB_DUA14 AB_DUC15 AB_DUB15 AB_DUA15 AB_DUC14 AB_DUB14 AB_PCU AB_LEU1 AB_DUA14 AB_DUB14 AB_PCU AB_DUC15 AB_DUB15 AB_DUA15 AB_DUC14 AB_PCU AB_DUC13 AB_DUB13 AB_DUA13 AB_DUC12 AB_DUB12 AB_DUA12 AB_LEU2 AB_PCU AB_DUC13 AB_DUB13 AB_DUA13 AB_DUC12 AB_DUA12 AB_LEU2 AB_CLK3 AB_CLK2 AB_CLK3 AB_CLK2 AB_DUB12 R7107 22 R7123 10k C1_5V R7102 47 R7111 47 R7128 0 R7105 22 C7105 100V 0.1u C1_5V R7106 22 C7100 50V 100p C7120 50V 100p C7106 50V 100p R7126 22 C7103 100V 0.1u R7129 22 R7122 47 C7123 100V 0.1u C7125 100V 0.1u R7108 0 R7131 47 R7132 10k R7127 22 R7103 10k C7126 50V 100p R7125 22 C7124 100V 0.1u R7112 10k C7104 100V 0.1u R7109 22 C7107 16V 1u C7127 16V 1u R7100 1k L7120 0 L7100 0 CA2 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA1 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 DM NC VDD2 NC VDD1 FX A3 A4 FDET1 A1 BLK NC A2 A6 LEN A5 FS VDD1 VDD2 NC NC VDD1 NC NC FX FDET BLK VDD1 FS NC NC DM VDD2 VDD2 GND GND GND GND GND GND GND VDD2 VDD2 VDD2 VDD2 VDD2 GND GND GND GND A2 A6 A3 A5 A4 A1 LEN GND GND GND GND VDD2 VDD2 VDD2 NC NC NC GND NC GND GND GND NC NC DM VDD2 VDD2 DM GND NC VDD2 A2 VDD1 NC A6 FX A3 A3 GND A5 A4 FX A4 FDET1 FDET BLK NC VDD1 NC FS VDD1 GND NC NC GND GND VDD2 GND VDD2 GND A1 VDD2 VDD2 GND BLK VDD2 GND GND NC GND A2 GND A6 GND VDD2 LEN VDD2 NC VDD2 A5 NC FS VDD1 A1 VDD2 LEN PDP PANEL TO TO PDP PANEL 1 8 7 3 5 6 D E C A 4 2 B C1-BOARD TNPA3191AC (1/2) 2 3 1 TH-42PHD7CY C1-Board (1 of 2) Schematic Diagram TH-42PHD7CY C1-Board (1 of 2) Schematic Diagram 100 15.37.C1 电路板 (2/2) 线路图 TH-42PHD7CY C1-Board (2 of 2) Schematic Diagram TH-42PHD7CY C1-Board (2 of 2) Schematic Diagram SIDE TERM TERM SIDE TERM SIDE TERM SIDE AA_DUA8 AA_DUB8 AA_DUC8 AA_DUA9 AA_DUB9 AA_DUC9 AA_DUB10 AA_DUB8 AA_DUC8 AA_DUC10 AA_DUA11 AA_DUB11 AA_DUC11 AA_DUA12 AA_DUB12 AA_DUC12 AA_DUA13 AA_DUB15 AA_DUC15 AA_DUB13 AA_DUC14 AA_DUA15 AA_DUA14 AA_DUB14 AA_DUC13 AA_DUA10 AB_DUA8 AB_DUB8 AB_DUC8 AB_DUA9 AB_DUB9 AB_DUC9 AB_DUA10 AB_DUB10 AB_DUC12 AB_DUA11 AB_DUB11 AB_DUA12 AB_DUC11 AB_DUA13 AB_DUB12 AB_DUC10 AB_DUB15 AB_DUC13 AB_DUA14 AB_DUC14 AB_DUB14 AB_DUC15 AB_DUA15 AB_DUB13 AA_CLK2 AA_CLK3 AA_LEU AB_LEU1 AB_LEU2 AB_LEU3 AB_LEU4 AA_PCU AB_PCU 75V AB_CLK3 AB_CLK2 AB_PCU AB_DUC11 AB_DUB11 AB_DUA11 AB_DUC10 AB_DUB11 AB_DUA10 AB_LEU3 AB_PCU AB_DUC11 AB_DUB11 AB_DUA11 AB_DUC10 AB_DUB10 AB_DUA10 AB_LEU3 AB_PCU AB_DUC9 AB_DUB9 AB_DUA9 AB_DUC8 AB_DUB8 AB_DUA8 AB_LEU4 AB_PCU AB_DUC9 AB_DUB9 AB_DUA9 AB_DUC8 AB_DUB8 AB_DUA8 AB_LEU4 AB_CLK3 AB_CLK2 AB_CLK2 AB_CLK3 AA_DUA9 AA_DUC9 AA_DUB9 AA_DUC15 AA_DUB15 AA_DUA15 AA_DUC14 AA_DUB14 AA_PCU AA_LEU AA_CLK3 AA_CLK2 AA_DUC13 AA_DUB13 AA_DUA13 AA_DUC12 AA_DUB12 AA_DUA12 AA_DUC11 AA_DUB11 AA_DUA11 AA_DUC10 AA_DUB10 AA_DUA10 AA_DUA14 AA_DUA8 C7188 16V 1u C1_5_3V R7182 47 C1_5V R7167 22 R7184 47 R7191 47 R7168 0 C1_5V C7194 100V 0.1u R7207 47 R7151 47 R7195 47 R7145 22 C7145 100V 0.1u R7193 47 C7144 100V 0.1u R7206 47 R7186 0 C0JBAZ001120 IC7180 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc R7172 10k R7197 47 FL7180 ELKE103FA 1 2 3 R7204 47 R7171 47 C0JBAZ001120 IC7181 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc R7201 47 C7164 100V 0.1u R7211 47 C1_5V C12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7162 47 R7203 47 R7147 22 C7166 50V 100p R7166 22 R7189 47 R7192 47 C7184 16V 1u R7148 0 C7143 100V 0.1u R7142 47 C0JBAZ001120 IC7183 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc R7183 47 R7202 47 R7181 220 C1_5_3V R7196 47 R7185 47 C7165 100V 0.1u R7218 220k C7140 50V 100p R7213 100k R7194 47 R7212 22k R7143 10k R7199 47 C7160 50V 100p C7147 16V 1u C1_5_3V_B R7205 47 R7152 10k R7209 47 R7146 22 R7163 10k C7167 16V 1u R7165 22 R7214 0 R7220 0 R7208 47 R7198 47 R7188 47 R7187 0 R7149 22 C7186 16V 1u C7146 50V 100p R7219 0 R7169 22 C1_5_3V R7210 47 R7180 10k C7180 16V 1u C1_5V C1_5_3V R7200 47 R7190 47 C7163 100V 0.1u C0JBAZ001120 IC7182 _OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 _OE2 20 Vcc C7181 16V 0.1u C7185 16V 0.1u C7187 16V 0.1u C7189 16V 0.1u R7260 0 C1_5_3V_B ZA7102 K4CD01000013 ZA7101 K4CD01000013 ZA7103 K4CD01000013 R7262 0 R7263 0 R7264 0 R7265 0 L7160 0 L7140 0 C11 K1MN80B00006 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 CA3 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA4 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 Vda75V Vda75V Vda75V Vda75V Vda75V NC NC NC NC NC NC NC NC NC NC GND GND GND GND GND GND GND DOUTUB[8] DRVRST DRVDLY0 DOUTUC[17] 5V DET DOUTUB[16] GND DOUTUB[17] DOUTUA[14] DOUTUA[8] DOUTUC[12] DOUTUB[15] DOUTUB[12] DOUTUA[17] DOUTUA[16] DOUTUA[15] DOUTUB[14] DOUTUC[14] GND GND DOUTUC[19] GND DMLR N.C. DSHR P5V GND DOUTUC[9] GND DOUTUA[18] DSLR DOUTUB[20] CLK[4](+) DOUTUB[21] DOUTUC[8] N.C. N.C. DMHR CLK[5](-) N.C. P5V P5V DOUTUB[9] N.C. DOUTUA[12] CLK[3](-) CLK[2](+) DOUTUB[13] DOUTUB[18] GND GND DOUTUA[19] DOUTUC[20] DOUTUA[20] DOUTUA[21] DOUTUB[19] GND DOUTUC[18] DOUTUC[21] GND DOUTUA[9] DOUTUC[11] DOUTUB[11] DOUTUA[11] DOUTUC[10] DOUTUB[10] DOUTUA[10] DOUTUC[15] LEU(UP) PCU(UP) DOUTUC[16] GND GND LED(DOWN) DOUTUA[13] DOUTUC[13] P5V GND PCD(DOWN) NC GND GND GND NC NC DM VDD2 VDD2 DM GND NC VDD2 A2 VDD1 NC A6 FX A3 A3 GND A5 A4 FX A4 FDET1 FDET BLK NC VDD1 NC FS VDD1 GND NC NC GND GND VDD2 GND VDD2 GND A1 VDD2 VDD2 GND BLK VDD2 GND GND NC GND A2 GND A6 GND VDD2 LEN VDD2 NC VDD2 A5 NC FS VDD1 A1 VDD2 LEN NC GND GND GND NC NC DM VDD2 VDD2 DM GND NC VDD2 A2 VDD1 NC A6 FX A3 A3 GND A5 A4 FX A4 FDET1 FDET BLK NC VDD1 NC FS VDD1 GND NC NC GND GND VDD2 GND VDD2 GND A1 VDD2 VDD2 GND BLK VDD2 GND GND NC GND A2 GND A6 GND VDD2 LEN VDD2 NC VDD2 A5 NC FS VDD1 A1 VDD2 LEN CLOCK BUFFER BUFFER BUFFER TO (C22) C2-BOARD TO (D31) D-BOARD TO PDP PANEL PDP PANEL TO 15 14 9 11 10 8 12 13 C1-BOARD TNPA3191AC (2/2) 1 2 3 5.0 0.8 5.0 0 2.7 2.2 5.1 5.1 0.5 5.0 5.1 5.0 0 0 1.5 0 1.5 0.7 2.7 1.5 1.2 5.0 0.9 0.2 0 1.4 1.3 1.3 1.2 1.2 1.6 0.6 1.6 0 0.4 0.4 1.6 0.2 0 0.5 0.8 5.0 0.2 0.9 0 1.2 1.2 1.3 1.1 0.4 0.2 0.5 0.4 0 0.4 0.6 0 0.4 0 0.3 0.9 5.0 0.9 0.8 0 0.7 0.5 0.8 0.7 0.6 0.4 0.5 0.2 0 0.2 0.4 0.4 0.3 0 0.6 0.5 0.5 0.5 0.6 0.6 0.5 0.5 0.5 0.5 0.5 67.0 67.0 67.0 67.0 0 0 0 0 0 0 101 15.38.C2 电路板 (1/2) 线路图 SIDE TERM TERM SIDE TERM SIDE TERM SIDE AA_DUA3 AA_DUB3 AA_DUC2 AA_DUB2 AA_DUC1 AB_DUC6 AB_CLK1 AB_DUC7 AA_DUC5 AB_DUC1 AB_DUA0 AB_DUA6 AA_DUB7 AB_DUB6 AA_DUB6 AB_DUB1 AB_DUB4 AB_DUA1 AA_DUA5 AA_DUC4 AB_DUB2 AB_DUA5 AB_DUC0 AB_DUB5 AA_DUB4 AB_DUA2 AA_DUB1 AB_DUB0 AB_DUA7 AB_DUB3 AA_DUA4 AA_DUA1 AB_DUA3 AA_DUC0 AA_DUA6 AA_DUB0 AB_DUC3 AA_DUA0 AB_DUC4 AB_DUC5 AA_DUA7 AB_DUA4 AB_DUB7 AA_DUC6 AA_DUB5 AB_DUC2 AA_DUC7 AA_DUC3 AA_DUA2 AA_DUB7 AA_DUA7 AA_LEU AA_PCU AA_CLK0 AA_CLK1 BA_USL BA_UEH BA_NUEL BA_UEH BA_USL BA_USH BA_UML BA_UMH BA_SOS_SS AB_DUC5 AB_DUB5 AB_DUA5 AB_DUC4 AB_DUB4 AB_PCU AB_DUC5 AB_DUB5 AB_DUA5 AB_DUC4 AB_DUB4 AB_DUA4 AB_LEU6 AB_PCU AB_DUC7 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUA6 AB_LEU5 AB_PCU AB_DUC7 AB_DUB7 AB_DUA7 AB_DUC6 AB_DUB6 AB_DUA6 AB_LEU5 AB_LEU6 AB_LEU8 AB_LEU5 AB_LEU7 AB_PCU AB_CLK1 AB_CLK0 AB_CLK0 AB_CLK1 AB_CLK0 AA_LEU AA_CLK0 AA_CLK1 AA_DUA0 AA_DUB0 AA_DUC0 AA_DUA1 AA_DUB1 AA_DUC1 AA_DUA2 AA_DUC2 AA_DUC7 AA_PCU AA_DUB2 AA_DUA3 AA_DUB3 AA_DUC3 AA_DUA6 AA_DUA4 AA_DUB4 AA_DUC4 AA_DUA5 AA_DUB5 AA_DUC5 AA_DUB6 AA_DUC6 BA_SOS_SS BA_NUEL BA_UMH BA_UML BA_USH R7403 47 R7381 47 R7387 47 C2_5_3V C7383 16V 1u C7307 16V 1u C2_5_3V_B R7386 47 C7384 16V 1u R7410 0 R7389 47 R7303 10k R7390 47 R7402 47 R7380 47 R7322 47 R7302 47 C2_5_3V C7320 50V 100p C2_5_3V C7326 50V 100p R7388 47 R7311 47 FL7301 ELKE103FA 1 2 3 C7380 16V 1u C7392 100V 0.1u R7392 47 C7382 16V 1u R7396 47 R7394 47 C7381 16V 0.1u R7411 0 R7399 47 C2_5_3V R7382 47 R7385 47 C7386 16V 1u R7413 22k R7323 10k C7327 16V 1u C7300 50V 100p R7393 47 C0JBAZ001120 IC7382 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7381 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7397 47 C7385 16V 1u R7414 100k R7331 47 R7395 47 R7398 47 R7391 47 C2_5V C7387 16V 1u C7306 50V 100p R7384 47 R7332 10k C2_5V R7383 47 R7312 10k R7401 47 C2_5_3V C0JBAZ001120 IC7380 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7383 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7400 47 C22 K1MN20B00043 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7412 220k C32 1 2 3 4 5 6 7 8 9 10 11 12 FL7302 ELKE103FA 1 2 3 C2_5V R7406 10k R7416 0 1/2W R7309 22 1/2W R7305 22 1/2W R7306 22 R7308 0 1/2W R7307 22 1/2W R7325 22 R7328 0 1/2W R7329 22 1/2W R7327 22 1/2W R7326 22 C2_5V C2_5V ZA7301 K4CD01000013 ZA7302 K4CD01000013 ZA7303 K4CD01000013 R7460 0 R7462 0 R7463 0 R7464 0 R7465 0 C2_5_3V_B R7471 0 R7472 0 R7477 47 R7476 47 R7475 47 R7474 47 R7473 47 C21 K1MN80B00006 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L7320 0 L7300 0 CA5 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA6 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7305 100V 0.1u C7304 100V 0.1u C7303 100V 0.1u C7325 100V 0.1u C7324 100V 0.1u C7323 100V 0.1u NC Vda75V NC Vda75V GND GND GND GND GND NC NC NC NC Vda75V Vda75V NC NC NC GND NC UMH UML SOS(SS) DOUTUB[0] GND DOUTUC[3] DOUTUA[7] P5V DOUTUC[7] GND P5V NUEL DOUTUC[2] N.C. DOUTUB[6] N.C. N.C. N.C. DOUTUA[1] N.C. N.C. DOUTUB[3] N.C. N.C. N.C. N.C. N.C. N.C. GND N.C. DOUTUC[1] DOUTUC[0] GND DOUTUB[7] CLK[0](+) DOUTUA[5] N.C. DOUTUC[6] GND DOUTUB[1] PCU(LEFT) DOUTUA[4] N.C. N.C. N.C. N.C. LEU(LEFT) N.C. DOUTUB[5] N.C. GND N.C. DOUTUA[3] N.C. P5V DOUTUC[4] DOUTUA[2] GND GND DMLL DMHL DOUTUA[6] DSHL DRVDLY0 DSLL 5V DET DRVRST GND GND GND DOUTUC[5] DOUTUB[4] DOUTUB[2] P5V DOUTUA[0] CLK[1](-) GND UEH USL USH Vda75V SOS GND UMH UML UEL UEH URH 5V URL USH USL GND GND NC GND NC NC DM VDD2 VDD2 DM GND NC VDD2 A2 VDD1 NC A6 FX A3 A3 GND GND NC GND A2 GND A6 A5 GND A4 VDD2 FX LEN A4 VDD2 FDET1 NC FDET VDD2 BLK A5 NC NC VDD1 FS NC VDD1 FS A1 VDD1 VDD2 GND LEN NC NC GND GND VDD2 GND VDD2 GND A1 VDD2 VDD2 GND BLK VDD2 GND GND GND NC GND NC NC DM VDD2 VDD2 DM GND NC VDD2 A2 VDD1 NC A6 FX A3 A3 GND GND NC GND A2 GND A6 A5 GND A4 VDD2 FX LEN A4 VDD2 FDET1 NC FDET VDD2 BLK A5 NC NC VDD1 FS NC VDD1 FS A1 VDD1 VDD2 GND LEN NC NC GND GND VDD2 GND VDD2 GND A1 VDD2 VDD2 GND BLK VDD2 GND E 1 C A 7 B 5 6 D 8 3 4 2 2 3 1 BUFFER BUFFER BUFFER CLOCK C2-BOARD TNPA3192AC (1/2) TO (D32) D-BOARD (SS32) TO SS-BOARD TO (C12) C1-BOARD TO PDP PANEL TO PDP PANEL 5.2 1.0 1.5 5.2 1.4 0.7 0.7 0 0 0.7 0.2 0.2 5.0 0.9 1.4 5.2 2.7 5.0 0.9 1.4 0.7 1.4 5.2 1.5 0.7 0 0 0 0.7 0.7 1.4 5.0 1.4 5.0 1.4 0.7 0.6 0.6 0.8 4.2 0.3 0.4 0.4 0 0.5 0.4 0.6 0.3 0 0.2 0.3 0.3 0.4 0 0.5 0.4 0.6 0.5 0 0.2 0.5 0.6 0.7 0 0.6 0.6 0.6 0.5 0 0.5 5.0 2.6 5.0 0 0.4 5.0 0 5.0 0 2.8 0.5 0.5 0 67.0 67.0 67.0 67.0 0 0 0 0 0.5 0.6 0.6 0.5 0.5 0.5 0.5 0.5 0 0.5 5.0 2.4 0 0.3 0.4 0 1.0 0.9 3.8 0 75.0 TH-42PHD7CY C2-Board (1 of 2) Schematic Diagram TH-42PHD7CY C2-Board (1 of 2) Schematic Diagram 102 15.39.C2 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AB_PCU AB_DUC3 AB_DUB3 AB_DUA3 AB_DUC2 AB_DUB2 AB_DUA2 AB_LEU7 AB_PCU AB_DUC3 AB_DUB3 AB_DUA3 AB_DUC2 AB_DUB2 AB_DUA3 AB_LEU7 AB_PCU AB_DUC1 AB_DUB1 AB_DUC1 AB_DUC0 AB_DUB0 AB_DUA0 AB_LEU8 AB_PCU AB_DUB1 AB_DUC0 AB_DUA0 AB_LEU8 AB_CLK0 AB_CLK1 AB_CLK1 AB_CLK0 AB_DUB0 AB_DUA1 AB_DUC1 R7363 10k C7347 16V 1u R7374 1k R7352 10k C7340 50V 100p R7342 47 C7346 50V 100p R7362 47 R7351 47 R7343 10k R7371 47 R7372 10k 1/2W R7345 22 1/2W R7347 22 1/2W R7346 22 1/2W R7349 22 R7348 0 1/2W R7367 22 1/2W R7369 22 1/2W R7366 22 1/2W R7365 22 R7368 0 C7367 16V 1u C7366 50V 100p C7360 50V 100p C2_5V C2_5V L7340 0 L7360 0 CA7 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CA8 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 C7345 100V 0.1u C7344 100V 0.1u C7343 100V 0.1u C7365 100V 0.1u C7364 100V 0.1u C7363 100V 0.1u NC GND GND GND NC NC DM VDD2 VDD2 DM GND NC VDD2 A2 VDD1 NC A6 FX A3 A3 GND A5 A4 FX A4 FDET1 FDET BLK NC VDD1 NC FS VDD1 GND NC NC GND GND VDD2 GND VDD2 GND A1 VDD2 VDD2 GND BLK VDD2 GND GND NC GND A2 GND A6 GND VDD2 LEN VDD2 NC VDD2 A5 NC FS VDD1 A1 VDD2 LEN GND GND NC GND NC NC DM VDD2 VDD2 DM GND NC VDD2 A2 VDD1 NC A6 FX A3 A3 GND GND NC GND A2 GND A6 A5 GND A4 VDD2 FX LEN A4 VDD2 FDET1 NC FDET VDD2 BLK A5 NC NC VDD1 FS NC VDD1 FS A1 VDD1 VDD2 GND LEN NC NC GND GND VDD2 GND VDD2 GND A1 VDD2 VDD2 GND BLK VDD2 GND 9 8 13 12 15 11 10 14 1 3 2 C2-BOARD TNPA3192AC (2/2) TO PDP PANEL TO PDP PANEL TH-42PHD7CY C2-Board (2 of 2) Schematic Diagram TH-42PHD7CY C2-Board (2 of 2) Schematic Diagram 103 15.40.C3 电路板 (1/2) 线路图 SIDE TERM TERM SIDE TERM SIDE TERM SIDE AA_DDC6 AA_DDB6 AA_DDA6 AA_DDC7 AA_DDB7 AA_DDA7 AA_DDB4 AA_DDA4 AA_DDC5 AA_DDB5 AA_DDA5 AA_DDC2 AA_DDB2 AA_DDA2 AA_DDC3 AA_DDB1 AA_DDA1 AA_DDB3 AA_DDA0 AA_DDC1 AA_DDC0 AA_DDB0 AA_DDA3 AA_DDC4 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_DDC4 AB_DDB4 AB_DDA2 AB_DDC5 AB_DDB5 AB_DDC2 AB_DDA5 AB_DDC3 AB_DDB2 AB_DDA4 AB_DDB1 AB_DDA3 AB_DDC0 AB_DDA0 AB_DDB0 AB_DDC1 AB_DDB3 AA_CLK1 AA_CLK0 AA_LEU AB_LEU5 AB_LEU6 AB_LEU7 AB_LEU8 AA_PCU AB_PCU AB_CLK1 AB_DDA1 BA_KEYSW AA_DDB6 BA_OPT AB_LEU5 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCU AB_LEU5 AB_DDC6 AB_DDB6 AB_DDA6 AB_DDC7 AB_DDB7 AB_DDA7 AB_PCU AB_LEU6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCU AB_LEU6 AB_DDC4 AB_DDB4 AB_DDA4 AB_DDC5 AB_DDB5 AB_DDA5 AB_PCU AA_DDC6 AA_LEU AA_PCU AA_CLK0 AA_CLK1 AA_DDA1 AA_DDB1 AA_DDC1 AA_DDA0 AA_DDB0 AA_DDC0 AA_DDA3 AA_DDB3 AA_DDC3 AA_DDA2 AA_DDB2 AA_DDC2 AA_DDA5 AA_DDB5 AA_DDC5 AA_DDA4 AA_DDB4 AA_DDC4 AA_DDA7 AA_DDB7 AA_DDC7 AA_DDA6 BA_REM AB_CLK1 AB_CLK0 AB_CLK0 R7611 10k C0JBAZ001120 IC7580 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7580 47 R7593 47 R7594 47 C0JBAZ001120 IC7581 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC7582 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C7588 16V 1u C7589 16V 0.1u C7583 16V 0.1u C7584 16V 1u R7502 10k R7604 0 R7605 0 C7500 16V 1u C7501 50V 100p C0JBAZ001120 IC7583 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R7532 47 R7511 10k R7512 47 C7527 50V 100p R7585 47 R7586 47 C7581 16V 0.1u C7582 16V 1u R7600 47 C7580 16V 1u R7589 47 R7590 47 R7606 47 R7607 47 R7581 47 R7582 47 R7587 47 R7588 47 R7610 220 R7602 47 R7603 47 R7608 47 R7609 47 R7583 47 R7601 47 R7584 47 R7597 47 R7531 10k C7520 16V 1u R7523 47 C7585 16V 0.1u R7591 47 R7592 47 R7503 47 R7595 47 R7599 47 C7521 50V 100p R7596 47 R7598 47 R7522 10k R7625 22k C33 K1MN20B00043 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 R7626 100k R7620 0 FL7501 ELKE103FA 1 2 3 C7594 16V 1u C3_5_3V C3_5V C3_5_3V STB_5V C3_5_3V C3_5_3V C3_5_3V C3_5_3V_B 1/2W R7509 22 R7508 0 1/2W R7507 22 1/2W R7505 22 1/2W R7506 22 C7507 50V 100p 1/2W R7529 22 1/2W R7526 22 1/2W R7527 22 R7528 0 1/2W R7525 22 C3_5V C3_5V ZA7501 K4CD01000013 ZA7502 K4CD01000013 ZA7503 K4CD01000013 CB5 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB6 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R7650 0 R7651 0 R7660 0 R7662 0 R7663 0 R7664 0 R7665 0 C3_5_3V_B C31 K1MN80B00006 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 L7500 0 L7520 0 R7623 0 C3_5V FL7500 ELKE103FA 1 2 3 C7524 100V 0.1u C7525 100V 0.1u C7526 100V 0.1u C7505 100V 0.1u C7504 100V 0.1u C7506 100V 0.1u DOUTDA[6] CLK[0](+) STB5V N.C. DOUTDB[7] DOUTDA[5] OPT N.C. N.C. N.C. DOUTDC[4] LEU(LEFT) N.C. GND P5V DOUTDB[5] N.C. N.C. DOUTDC[0] CLK[1](-) N.C. N.C. P5V DOUTDC[6] DOUTDC[2] DOUTDA[1] GND P5V N.C. DOUTDB[4] DOUTDA[4] DOUTDA[2] DRVDLY1 N.C. LEDG P5V GND GND GND DOUTDB[6] 5V DET N.C. GND N.C. DOUTDA[7] N.C. LEDR N.C. GND GND DOUTDA[3] DOUTDB[1] GND GND KEYSW N.C. REMCON DOUTDC[5] N.C. DOUTDC[3] N.C. N.C. DOUTDA[0] DOUTDB[2] N.C. DRVRST GND N.C. STB5V DOUTDC[1] N.C. N.C. PCU(LEFT) STB5V DOUTDC[7] DOUTDB[3] N.C. N.C. N.C. DOUTDB[0] NC NC NC NC Vda67V NC NC GND GND GND GND GND GND Vda67V Vda67V Vda67V NC NC NC NC VDD2 GND GND A5 BLK GND NC NC NC FS VDD1 BLK NC A2 GND GND VDD2 NC GND GND FS GND A3 A6 NC NC VDD1 GND NC NC VDD2 GND FDET GND GND VDD2 VDD2 A5 VDD1 VDD2 FX NC LEN A1 GND LEN A4 A4 FX A2 NC A3 A6 GND NC DM FDET1 DM GND VDD2 VDD2 VDD2 VDD2 VDD1 VDD2 A1 GND VDD2 FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN NC VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND NC NC A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND NC VDD2 GND BUFFER BUFFER BUFFER CLOCK PDP PANEL TO PDP PANEL TO TO (D33) D-BOARD (C43) C4-BOARD TO 5 6 4 2 3 1 E 1 C A 7 B 5 6 D 8 3 4 2 ! C3-BOARD TNPA3193AC (1/2) 67.0 0 0 0 0 0.3 0.2 0.3 0.2 0.2 0.3 0.3 0.2 0.3 0.2 0 0 67.0 67.0 67.0 0.5 0.8 0.7 0.6 0.5 0.3 0 0 0.5 0.6 0.5 1.0 0.6 5.2 0.1 0.4 0 0.1 0.9 0.1 0.1 0.3 0.2 0.2 0 0 0.2 0.2 0.1 0.2 1.1 0.5 1.0 5.2 1.2 1.0 0 1.2 0.5 0.7 0.5 0 0.4 0 0.5 0.3 0.5 0.5 0.5 0.2 0.3 1.2 0.3 5.2 0.7 0.3 0 0.7 0.2 0.5 0 0.5 2.7 5.0 0 5.0 0 5.0 2.6 5.0 2.5 0.6 5.0 5.2 5.0 5.0 0 5.0 4.1 0 TH-42PHD7CY C3-Board (1 of 2) Schematic Diagram TH-42PHD7CY C3-Board (1 of 2) Schematic Diagram 104 15.41.C3(2/2) 和 V1 电路板线路图 TERM SIDE TERM SIDE R G BA_OPT BA_REM BA_KEYSW AB_LEU8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_PCU AB_LEU8 AB_DDC0 AB_DDB0 AB_DDA0 AB_DDC1 AB_DDB1 AB_DDA1 AB_PCU AB_LEU7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_PCU AB_LEU7 AB_DDC2 AB_DDB2 AB_DDA2 AB_DDC3 AB_DDB3 AB_DDA3 AB_PCU STB5V AB_CLK0 AB_CLK1 AB_CLK0 AB_CLK1 R7574 1k R7551 10k C7547 50V 100p R7563 47 R7562 10k R7552 47 R7572 47 C7567 50V 100p C7541 50V 100p R7543 47 C7561 50V 100p C7560 16V 1u R7542 10k C7540 16V 1u R7571 10k R7633 220k C7595 100V 0.1u R7632 0 1/2W R7549 22 1/2W R7546 22 1/2W R7547 22 R7548 0 1/2W R7545 22 1/2W R7569 22 1/2W R7566 22 1/2W R7567 22 R7568 0 1/2W R7565 22 C3_5V C3_5V CB7 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB8 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L7560 0 L7540 0 R1513 8.2k D1550 LNJ107W5PRW S1554 EVQPBD05R V34 1 2 3 4 5 6 7 8 R1512 4.7k R1556 47 R1510 2.2k S1552 EVQPBD05R C1530 6.3V 10u Q1540 2SD0601A0L S1553 EVQPBD05R R1552 220k R1500 1k R1554 270 R1551 47 D1553 MAZ80560ML R1553 470 R1555 47 RM001 PNA4601M05TV VOUT GND VCC R1511 3k R1550 1k S1551 EVQPBD05R S1550 EVQPBD05R D1551 MAZ80560ML D1552 MAZ80560ML D1554 MAZ80560ML IC1550 B3L000000020 R7644 J0JHC0000078 R7645 J0JHC0000078 STB_5V R7642 J0JHC0000078 C44 1 2 3 4 5 6 7 8 R7640 J0JHC0000078 R7641 J0JHC0000078 R7643 J0JHC0000078 C7566 100V 0.1u C7564 100V 0.1u C7565 100V 0.1u C42 1 2 3 4 C7544 100V 0.1u C7546 100V 0.1u C7545 100V 0.1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN NC VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND NC NC A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND NC VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN NC VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND NC NC A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND NC VDD2 GND OPT STR VOL.UP F VOL. DOWN LED STB5V LED_G CPU_GND REMOCON GND LED_R KEY_SW TV/VTR V1-BOARD TNPA3199 ! Vda 75V GND GND Vda 75V TO (SS42) SS-BOARD PDP PANEL TO TO PDP PANEL 9 8 13 12 15 11 10 14 4 2 3 1 5 6 ! C3-BOARD TNPA3193AC (2/2) OPT REMOTE SENSOR 0 0 0 4.9 3.2 4.7 0 3.6 0 3.6 0 0 3.2 0 4.9 4.7 0 67.0 0 67.0 R-STANDBY G-POWER ON TH-42PHD7CY C3-Board (2 of 2) and V1-Board Schematic Diagram TH-42PHD7CY C3-Board (2 of 2) and V1-Board Schematic Diagram 105 15.42.C4(1/2) 和 V1 电路板线路图 TERM SIDE TERM SIDE AB_CLK2 AB_CLK3 AB_LEU2 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_PCU AB_LEU2 AB_DDC12 AB_DDB12 AB_DDA12 AB_DDC13 AB_DDB13 AB_DDA13 AB_PCU AB_LEU1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_PCU AB_LEU1 AB_DDC14 AB_DDB14 AB_DDA14 AB_DDC15 AB_DDB15 AB_DDA15 AB_PCU AB_CLK3 AB_CLK2 R8731 10k C8700 16V 1u R8702 10k C8707 50V 100p R8700 1k R8712 47 C8701 50V 100p C8721 50V 100p R8732 47 C8720 16V 1u R8703 47 R8711 10k R8723 47 R8722 10k 1/2W R8709 22 1/2W R8706 22 1/2W R8707 22 R8708 0 1/2W R8705 22 C8727 50V 100p 1/2W R8725 22 1/2W R8726 22 1/2W R8727 22 1/2W R8729 22 R8728 0 C4_5V C4_5V CB2 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB1 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 L8700 0 L8720 0 C8705 100V 0.1u C8704 100V 0.1u C8706 100V 0.1u C8725 100V 0.1u C8724 100V 0.1u C8726 100V 0.1u FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN NC VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND NC NC A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND NC VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN NC VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND NC NC A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND NC VDD2 GND E 1 C A 7 B 5 6 D 8 3 4 2 C4-BOARD TNPA3194AC (1/2) TO PDP PANEL PDP PANEL TO 2 3 1 TH-42PHD7CY C4-Board (1 of 2) Schematic Diagram TH-42PHD7CY C4-Board (1 of 2) Schematic Diagram 106 15.43.C4 电路板 (2/2) 线路图 SIDE TERM TERM SIDE TERM SIDE TERM SIDE AA_DDC13 AA_DDB13 AA_DDA12 AA_DDB12 AB_CLK2 AA_DDA15 AB_CLK3 AB_DDA8 AB_DDA9 AA_DDA11 AB_DDA15 AB_DDC14 AB_DDC8 AA_DDB9 AB_DDB8 AA_DDB8 AB_DDB15 AB_DDB10 AB_DDC15 AA_DDC11 AA_DDA10 AB_DDB12 AB_DDC11 AB_DDA14 AB_DDB11 AA_DDB10 AB_DDC12 AA_DDB15 AB_DDB14 AB_DDC9 AB_DDB13 AA_DDC10 AA_DDC15 AB_DDC13 AA_DDA14 AA_DDC8 AA_DDB14 AB_DDA13 AA_DDC14 AB_DDA10 AB_DDA11 AA_DDC9 AB_DDC10 AB_DDB9 AA_DDA8 AA_DDB11 AB_DDA12 AA_DDA9 AA_DDA13 AA_DDC12 AA_LEU AA_PCU AA_CLK2 AA_CLK3 AA_DDA14 AA_DDC15 AB_LEU4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 AB_PCU AB_LEU4 AB_DDC8 AB_DDB8 AB_DDA8 AB_DDC9 AB_DDB9 AB_DDA9 AB_PCU AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_PCU AB_LEU3 AB_DDC10 AB_DDB10 AB_DDA10 AB_DDC11 AB_DDB11 AB_DDA11 AB_OCU AB_PCU AB_LEU2 AB_LEU4 AB_LEU1 AB_LEU3 AB_CLK2 AB_CLK3 AB_CLK2 AB_LEU3 AA_DDB15 AA_DDB14 AA_DDC14 AA_DDA15 AA_DDA9 AA_PCU AA_LEU AA_CLK3 AA_CLK2 AA_DDC12 AA_DDB12 AA_DDA12 AA_DDC13 AA_DDB13 AA_DDA13 AA_DDC10 AA_DDB10 AA_DDA10 AA_DDC11 AA_DDB11 AA_DDA11 AA_DDC8 AA_DDB8 AA_DDA8 AA_DDC9 AA_DDB9 AB_CLK3 R8783 47 R8805 47 R8799 47 C4_5_3V C8784 16V 1u C8740 16V 1u C4_5_3V_B R8800 47 C8783 16V 0.1u R8810 0 R8797 47 R8751 10k R8796 47 R8784 47 R8806 47 R8772 47 R8752 47 C4_5_3V C8767 50V 100p C4_5_3V C8761 50V 100p R8798 47 R8743 47 FL8700 ELKE103FA 1 2 3 C8787 16V 0.1u C8794 100V 0.1u R8794 47 C8785 16V 0.1u R8790 47 R8792 47 C8786 16V 1u R8818 0 R8787 47 C4_5_3V R8804 47 R8801 47 C8781 16V 0.1u R8816 22k R8771 10k C8760 16V 1u C8747 50V 100p R8793 47 C0JBAZ001120 IC8781 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC8782 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R8789 47 C8782 16V 1u R8815 100k R8763 47 R8791 47 R8788 47 R8795 47 C4_5V C8780 16V 1u C8741 50V 100p R8802 47 R8762 10k C4_5V R8803 47 R8742 10k R8785 47 C4_5_3V C0JBAZ001120 IC8783 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc C0JBAZ001120 IC8780 OE1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 OE2 20 Vcc R8786 47 R8817 220k R8780 10k R8813 0 ZA8703 K4CD01000013 ZA8701 K4CD01000013 ZA8702 K4CD01000013 1/2W R8745 22 1/2W R8746 22 1/2W R8747 22 1/2W R8749 22 R8748 0 1/2W R8765 22 1/2W R8766 22 1/2W R8767 22 1/2W R8769 22 R8768 0 C4_5V C4_5V C43 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 CB4 K1MN68BA0002 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 CB3 1 3 4 5 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 31 32 33 34 35 36 37 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 63 64 65 67 68 56 R8860 0 R8862 0 R8863 0 R8864 0 R8865 0 C4_5_3V_B R8876 0 R8877 0 R8871 47 R8872 47 R8873 47 R8874 47 R8875 47 L8760 0 L8740 0 C41 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 C8764 100V 0.1u C8766 100V 0.1u C8765 100V 0.1u C8745 100V 0.1u C8744 100V 0.1u C8746 100V 0.1u P5V DOUTDC[8] GND N.C. DOUTDB[12] DOUTDC[15] DOUTDA[12] N.C. DOUTDA[14] DOUTDB[14] DOUTDB[19] N.C. CLK[3](-) GND DOUTDA[13] N.C. DOUTDA[10] GND PCU(LEFT) DOUTDC[12] DOUTDB[13] DOUTDA[15] DOUTDC[17] CLK[5](-) DOUTDB[17] DOUTDC[19] DRVRST GND DOUTDB[18] DOUTDA[21] DOUTDB[16] GND P5V DOUTDC[21] DOUTDA[9] DOUTDC[14] GND GND GND DOUTDB[15] LEU(LEFT) PCD(RIGHT) DOUTDA[18] CLK[2](+) DOUTDC[11] GND P5V DOUTDC[16] DOUTDB[9] N.C. DOUTDB[20] N.C. DOUTDC[13] GND DOUTDA[17] P5V DOUTDC[10] DOUTDB[10] DOUTDC[18] DOUTDA[16] DOUTDA[8] DOUTDB[21] DOUTDB[11] CLK[4](+) GND DOUTDA[19] GND DRVDLY1 N.C. DOUTDC[9] N.C. DOUTDC[20] GND 5V DET GND DOUTDA[11] DOUTDB[8] LED(RIGHT) GND DOUTDA[20] NC NC NC GND NC GND NC GND NC Vda67V Vda67V Vda67V GND Vda67V GND GND NC NC NC NC FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN NC VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND NC NC A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND NC VDD2 GND FX GND DM GND VDD1 VDD2 FX GND A4 VDD1 GND GND VDD2 NC FDET VDD2 NC A4 VDD2 A3 GND GND VDD1 A2 LEN NC VDD2 GND A6 VDD2 A5 VDD2 GND NC NC A3 NC BLK VDD2 GND NC NC A1 A6 VDD1 GND NC NC GND DM VDD2 NC FS GND BLK LEN A1 A5 VDD2 FS A2 FDET1 GND VDD2 GND NC VDD2 GND 9 8 13 12 15 11 10 14 C4-BOARD TNPA3194AC (2/2) PDP PANEL TO TO PDP PANEL TO (D34) D-BOARD C3-BOARD (C33) TO CLOCK BUFFER BUFFER BUFFER 3 2 1 2.7 5.1 5.0 0.2 2.7 0 5.1 5.1 0.2 5.1 0.7 2.6 5.0 5.2 5.1 5.1 0 5.1 0 4.2 0.8 0.2 0.6 0.7 0 0 0.1 0.5 0.5 0.6 0.3 0.9 1.0 5.2 1.1 1.0 0 1.0 0.8 0.7 0.6 0.3 0.5 0.3 0 0 0.5 0.3 0.4 0.6 0.7 0.9 0.7 5.2 0.7 0.7 0 0.8 1.0 0.4 0.5 0.5 0.4 0.5 0 0 0.6 0.6 0.6 0.6 0.7 0.6 0.5 5.2 0.6 0.7 0 0.6 0.9 0.7 0.3 0.2 0 0 0 0 67.0 0 67.0 0 0.3 0.2 0.3 0.2 0.2 0.3 67.0 67.0 0.3 0.2 TH-42PHD7CY C4-Board (2 of 2) Schematic Diagram TH-42PHD7CY C4-Board (2 of 2) Schematic Diagram 107 15.44.SC 电路板方框图 PHOTO COUPLER Q6608 3 5 4 6 9 8 11 10 1 2 13 12 FCLD FCLU FCLKD FCLKU PHOTO COUPLER PHOTO COUPLER 2 PHOTO COUPLER 4 1 2 3 4 IC6505 IC6506 IC6507 IC6508 8 9 11 10 PHOTO COUPLER IC6501 FSIU FSID PROU PROD 12 8 14 1 12 8 12 8 Q6609 Q6619 Q6601, Q6602 Q6617 Q6604~Q6606 Q6612 9 4 16 6 14 17 3 11 IC6602 FET DRIVER FET DRIVER IC6601 19 14 18 17 2 7 13 6 18 14 4 16 15 8 5 12 IC6509 INVERTER INVERTER IC6500 2 4 7 IC6511 Q6476, Q6477 Q6511 Q6512 7 2 4 IC6521 IC6541 2 7 4 VAD+15V Q6522 Q6521 Q6520 Q6539~ Q6544 Q6560~ Q6571 PHOTO COUPLER IC6502 PHOTO COUPLER IC6503 Q6551 Q6552 IC6504 PHOTO COUPLER IC6542 2 4 2 4 2 4 1 4 1 4 1 4 1 4 2 Q6582 VSCN Q6620 S2 CMH S3 CML CSL CSH 1/2 Vo VSUS A1 A3 A4 A5 B4 B5 B1 B3 A7 A6 B7 B6 A30 A8 B30 B8 B31 A31 B32 A32 B33 A33 B40 A40 B38 A34 B11 B37 A11 A38 A37 B34 A33 A36 B33 A39 B39 B36 B8 B1 A1 A8 B10 A10 B9 A9 Vf FCLD FCLKD PROD VF5V Vf VSCN Q6474 IC6471, IC6472 5V REG IC6454 3 1 5V REG IC6455 3 1 Q6455 IC6452 IC6451 SCSU VAD INSERT VAD VSET2 INSERT CEL VSET INSERT CPH VAD GEN, VSET VSCN GEN Q6491 Q6492 IC6491 VSET REG. VSUS SC20 9 11 L6611~L6617 2 4 8 11 IC6605 BUFFER IC6606 BUFFER 3 6 9 7 CSH CSL CML CEH SOS1 CEL2 CL CLK SIU SID CPH SCSU Q6581 IC6581 IC6458 IC6467 IC6469 IC6480 Vf5 SOS Vfo SOS VSCAN SOS VAD SOS D6459 D6468 D6470 D6479 D6584 Vfo FSIU FCLU FCLKU PROU VF5V Vf Vfo Vf FCLD FCLKD PROD VF5V Vf Vfo Vf Vfo FCLKU FSIU VF5V PROU FCLU VSCN VSCN VSCN VSCN VSCN Scan Drive Board SC SC42 SC41 SD42 SU41 D6583 (GREEN LED) SC SC CPH CEL 4 VSET T6431 Q6431 IC6434 Q6432 Q6435 IC6431 F15V Q6501 6 5 Q6502 Q6503 Q6504 SOS2 12 15 5 20 CMH 8 12 13 CEL Q6640 Q6639 CLK SIU SID CL CEL2 CPH CEL SCSU 3 4 6 1 13 11 2 12 5 IC6603 FET DRIVER 3 17 Q6628 Q6627 Q6630 Q6629 Q6637 Q6634 IC6604 BUFFER D6621 D6620 D6610 D6609 S1 FSID A2 B2 FSID Vf A40 B40 A35 B35 Vf Q6583 Q6525 Q6526 15V REG IC6453 3 1 Q6524 5V SC2 1 V SUS V SUS 2 V SUS TO P-BOARD P2 D20 TO D-BOARD 2A 1A 4B 1B 4A 4Y 2Y 1Y 2B D6608 Q6652 Q6649 D6619 SOS DET Q6505 6 +15V Q6586 IC6544 7 4 2 Q6523 Q6527 Q6528 Q6530~ Q6538 Q6451 Q6472 IC6474 Q6475 Q6471 +15V T6471 FSID SD46 TO SD-BOARD SC46 2 1 FCLD 4 3 FCLKD 5 6 PROD 8 7 9 10 1 4 9 5 2 SC45 3 8 SU45 TO SU-BOARD 10 6 7 Vf Vf5 FSIU FCLU FCLKU PROU Vf5 TO SD-BOARD TO SU-BOARD Vf5 Vf Vf Vf Vf Vf Vf Vf Vf5 FET DRIVER FET DRIVER FET DRIVER FET DRIVER FET DRIVER TH-42PHD7CY SC-Board Block Diagram TH-42PHD7CY SC-Board Block Diagram 108 15.45.SC 电路板 (1/3) 线路图 + + + + + + + + AB_SID SCSU CSL CL CMH CSH CML AB_CEL2 AB_SCSU AB_CEL AB_CLK AB_CL AB_CPH AB_SIU CEH SOS2 CEL 5V R6852 10 D6619 B0HBSN000008 L6631 G0ZZ00002183 C6638 25V 4.7u Q6650 B1DEHM000005 G D S L6634 G0ZZ00002183 L6609 G0ZZ00002183 R6587 10k 1/2W R6689 22 R6693 EXB38V471JV 1% R6582 39k TP8 L6640 G0ZZ00002183 L6635 G0ZZ00002183 L6618 G0ZZ00002183 L6615 1.4u TP6 SC2 1 2 3 4 5 6 L6641 G0ZZ00002183 R6642 100 R6609 10k 1% R6583 39k L6613 0.82u C6651 25V 4.7u TP24 L6551 J0JJC0000021 C0JBAZ000005 IC6606 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC Q6630 2SB1073001TV C6602 200V 220u D6624 B0HBSN000008 SC20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 L6534 J0JJC0000021 R6857 10 R6655 10k R6827 10 R6854 10 TP10 R6641 100 C6684 25V 47u TP14 1% R6703 82k R6477 6.8k D6651 B0ECHP000001 C6603 200V 220u C6683 25V 47u D6650 B0HBSN000008 L6536 J0JJC0000021 TP16 C6642 25V 4.7u R6635 0 TP7 Q6649 B1DEHM000005 G D S R6610 10k L6650 G0ZZ00002183 R6603 10k TP12 D6648 B0ECHP000001 R6600 10k 2W R6687 0.22 D6582 MAZ80510LL R6829 10 R6697 EXB38V471JV TP1 IC6604 C0JBAA000195 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC R6855 10 C0ZBZ0000895 IC6601 M81709FP-DB0J 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP22 D6468 MA2J11100L Q6629 2SD21850RL L6633 G0ZZ00002183 Q6636 B1DEHM000005 G D S TP21 TP11 L6661 J0JJC0000011 L6622 G0ZZ00002183 R6647 10k C6682 16V 1u C6645 1u 25V TP9 R6604 10 R6588 2.2k C6701 250V 2u L6632 G0ZZ00002183 TP15 R6696 EXB38V473JV R6651 10k L6624 G0ZZ00002183 L6617 1.4u R6634 0 D6583 LNJ301MPUJA R6659 1k L6616 1.4u C6650 25V 4.7u R6470 5.6k C6641 25V 4.7u L6552 J0JJC0000021 2W R6688 0.22 L6623 G0ZZ00002183 TP27 L6630 G0ZZ00002183 Q6608 2SD21850RL L6626 G0ZZ00002183 C6584 25V 1u JS6462 0 C6623 16V 1u D6649 B0ECHP000001 R6831 10 Q6634 B1DEHM000005 G D S L6611 0.82u Q6652 B1DEHM000005 G D S R6657 1k L6621 G0ZZ00002183 IC6467 B3PBA0000062 1 2 3 4 R6644 10 TP4 C6622 25V 4.7u D6661 B0ECHP000001 L6620 G0ZZ00002183 Q6637 B1DEHM000005 G D S Q6640 2SK062000L G D S L6550 J0JJC0000021 R6646 100 L6645 G0ZZ00002183 IC6581 C0BBBA000043 1 2 3 4 5 6 7 8 R6637 150 R6471 6.8k TP2 L6662 J0JJC0000011 L6629 G0ZZ00002183 L6651 G0ZZ00002183 L6647 G0ZZ00002183 L6607 J0JJC0000021 R6830 10 TP3 C6639 250V 0.1u D6621 B0HBSN000008 C6609 25V 1u L6614 0.82u R6608 10 D6627 B0HBSN000008 Q6635 B1DEHM000005 G D S R6828 10 R6658 1k R6639 10 1/2W R6690 22 C6624 4.7u 25V C6679 16V 0.1u R6832 10 R6851 10 TP20 C6653 4.7u 25V D6625 B0ECHP000001 R6585 1.5k R6833 10 TP31 L6604 G0ZZ00002183 C0ZBZ0000895 IC6603 M81709FP-DB0J 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC L6535 J0JJC0000021 C6704 250V 2u D6585 MAZ83300ML D6465 MAZ83300ML D6620 B0HBSN000008 C6605 200V 220u R6640 10k C6621 25V 4.7u C6610 25V 220u 1% R6701 82k C6702 250V 2u TP23 R6692 EXB38V473JV Q6609 2SB1073001TV 1% R6584 7.5k D6608 B0HBSN000008 R6654 10k TP29 L6612 0.82u Q6639 2SK062000L G D S R6645 100 Q6581 2SD0601A0L R6859 10 C6680 16V 0.1u R6691 EXB38V471JV L6648 G0ZZ00002183 TP28 C6601 200V 220u R6698 EXB38V473JV SC23 1 2 3 Q6628 2SB1073001TV TP26 D6600 B0ECHP000001 L6549 J0JJC0000021 L6644 G0ZZ00002183 TP25 Q6619 2SD21850RL D6623 B0HBSN000008 L6603 G0ZZ00002183 TP13 R6633 150 R6695 EXB38V471JV R6489 4.7k L6537 J0JJC0000021 D6609 B0HBSN000008 Q6651 B1DEHM000005 G D S 1% R6702 82k R6815 0 R6586 1.5k C6585 16V 1u C0JBAZ000005 IC6605 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC L6636 G0ZZ00002183 R6589 10k D6466 MAZ83300ML C6705 250V 2u R6834 10 D6662 B0ECHP000001 L6628 G0ZZ00002183 C0ZBZ0000895 IC6602 M81709FP-DB0J 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6638 150 D6610 B0HBSN000008 L6638 G0ZZ00002183 L6625 G0ZZ00002183 C6600 16V 1u R6858 10 L6639 G0ZZ00002183 R6636 150 C6681 16V 1u R6853 10 L6619 G0ZZ00002183 C6640 16V 1u L6637 G0ZZ00002183 C6643 250V 0.1u L6627 G0ZZ00002183 C6604 200V 220u C6652 16V 1u TP30 D6586 MAZ83300ML C6607 250V 1u Q6620 2SB1073001TV Q6627 2SD21850RL R6694 EXB38V473JV D6584 MA2J11100L +15V +15V N.C GND TPVSUS GND + - (NJM2903MTE1) + - GND GND Vsus Vsus K1KA20A00180 SCSU CEL CMH CSH TP15V TPSOS2 TPSOS1 M81709FP M81709FP M81709FP (GREEN LED) 2 6 9 E B 5 F A 1 C 4 D 3 7 8 SC-BOARD TXNSC1VCSC (1/3) 5 6 4 2 3 1 10 8 9 7 TO (P2) P-BOARD TO (P23) P-BOARD TO (D20) D-BOARD FET DRIVER BUFFER BUFFER BUFFER FET DRIVER SOS DET FET DRIVER 185.1 185.1 0 0 0 0.1 15.0 0 15.0 4.3 0.5 0 0.7 3.9 0.9 0 0 5.3 0 0 0 0.8 2.2 5.0 2.8 0.1 0 2.9 0 = = = = = TH-42PHD7CY SC-Board (1 of 3) Schematic Diagram TH-42PHD7CY SC-Board (1 of 3) Schematic Diagram 109 15.46.SC 电路板 (2/3) 线路图 + + + AA_FSIU1 AA_FSID1 AA_FCLKU1 AA_FCLKD1 AB_CEL AA_PROU AA_PROD AB_CPH AB_CL AB_CLK AB_SIU AB_SID AB_CEL2 AB_SCSU AA_FCLD1 AA_FCLU1 R6630 47 IC6500 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 D6615 B0JCME000025 C6516 25V 4.7u Q6613 B1DEGM000023 G D S R6580 10k R6507 2.2k C6491 630V 3300p Q6492 2SC1473AEA R6628 47 L6716 J0JJC0000021 Q6606 B1DEGM000023 G D S IC6521 C0ZBZ0000735 M63994FP-200D 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb R6803 68 C6542 25V 4.7u R6502 2.2k R6501 2.2k R6529 10 C6509 50V 1000p C6501 16V 1u C6462 25V 4.7u R6492 221k Q6477 2SD0601A0L R6520 10k R6484 4.7k R6523 100 C6505 16V 1u C6517 16V 1u D6478 B0HCKS000001 L6502 J0JJC0000021 D6521 B0ECHP000001 D6500 MA2J11100L Q6476 2SD0601A0L D6617 B0JCME000025 AN78L15ME1 IC6453 IN 3 2 COMMON OUT 1 R6808 68 C6510 25V 4.7u C6581 16V 1u R6620 10 C6503 16V 1u D6488 MAZ80560HL D6489 MAZ80560HL R6617 10 C6506 16V 1u R6804 68 Q6503 2SK062000L G D S R6486 10k D6499 B0JCME000025 D6553 MA2J11100L R6579 150 C6512 25V 4.7u Q6501 2SK062000L G D S D6454 B0ECHP000001 IC6507 B3PBA0000191 1 2 3 4 5 R6494 14.3k R6591 100 R6504 2.2k C6463 25V 4.7u R6545 10k R6468 4.7k L6504 J0JJC0000021 IC6491 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R6500 1.2k Q6612 B1DEGM000023 G D S L6501 J0JJC0000021 Q6504 2SK062000L G D S IC6469 B3PBA0000062 1 2 3 4 R6469 5.6k D6528 B0ECHP000001 IC6501 B3PBA0000191 1 2 3 4 5 D6492 B0ECHP000001 R6493 210k R6806 68 R6509 2.2k Q6505 2SK062000L G D S C6631 630V 2200p Q6614 B1DEGM000023 G D S R6599 100 C6571 16V 1u R6802 68 C6613 630V 2200p Q6523 2SB1073001TV D6509 MA2J11100L R6576 470 R6518 10k R6618 10 R6553 150 R6550 100 R6488 10k D6541 B0HCKS000001 R6801 68 D6572 B0ECHP000001 C6508 16V 1u IC6512 AN78L05M-E1 IN 3 2 COMMON OUT 1 L6712 J0JJC0000021 D6461 B0HCKS000001 Q6604 B1DEGM000023 G D S Q6522 2SD21850RL R6590 100 C6577 16V 1u L6715 J0JJC0000021 D6613 B0JCME000025 C6576 16V 1u C6507 16V 1u R6643 1k R6664 10k Q6605 B1DEGM000023 G D S D6494 MAZ80560HL R6594 100k D6490 MAZ80560HL R6466 22k D6491 B0ECHP000001 VR6491 100k 1 2 3 D6486 MAZ80560HL IC6503 B3PBA0000191 1 2 3 4 5 C6714 630V 2200p R6487 4.7k D6518 B0JCME000025 R6508 2.2k D6552 B0JCME000025 L6717 J0JJC0000021 C6519 25V 1u R6622 10 1W R6602 470 C6461 50V 100u C6729 630V 2200p C6492 400V 10u IC6541 C0ZBZ0000735 M63994FP-200D 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb C6723 630V 2200p R6805 68 C6611 630V 2200p IC6544 C0ZBZ0000735 M63994FP-200D 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6481 MAZ82000ML C6504 16V 1u R6573 470 C6552 25V 4.7u R6551 10k D6459 MA2J11100L R6614 10 Q6502 2SK062000L G D S IC6480 B3PBA0000062 1 2 3 4 C6708 630V 2200p R6631 47 D6510 B0JCME000025 Q6617 B1DEGM000023 G D S R6482 4.7k C6515 25V 4.7u R6506 2.2k IC6509 C0JBAB000417 1 2 3 4 5 6 7 8 9 10 11 12 13 14 IC6543 AN78L05M-E1 IN 3 2 COMMON OUT 1 D6477 MA2J11100L R6485 10k C6502 16V 1u D6506 MA2J11100L R6629 47 D6614 B0JCME000025 C6625 630V 2200p R6672 22 IC6508 B3PBA0000191 1 2 3 4 5 R6505 2.2k Q6602 B1DEGM000023 G D S C6580 16V 1u R6519 100 R6497 10k C6575 16V 1u Q6601 B1DEGM000023 G D S C6541 25V 4.7u R6467 1.2k C6511 25V 4.7u D6616 B0JCME000025 1W R6499 8.2 Q6615 B1DEGM000023 G D S R6648 1k R6619 10 L6505 J0JJC0000021 Q6616 B1DEGM000023 G D S C6578 16V 1u IC6455 AN78L05M-E1 IN 3 2 COMMON OUT 1 IC6506 B3PBA0000191 1 2 3 4 5 L6506 J0JJC0000021 R6577 470 D6493 MAZ80560HL R6621 10 R6454 150 R6626 47 D6517 B0JCME000025 L6713 J0JJC0000021 C6514 16V 1u IC6511 C0ZBZ0000735 M63994FP-200D 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb IC6458 B3PBA0000062 1 2 3 4 R6575 470 R6611 10 D6479 MA2J11100L Q6491 2SD1263AP0LB R6503 2.2k D6485 MAZ80560HL R6574 470 R6552 100 R6613 10 C6466 25V 4.7u R6681 22 D6482 MAZ82000ML C6467 25V 4.7u R6649 1k AN78L05M-E1 IC6454 IN 3 2 COMMON OUT 1 R6627 47 D6487 MAZ80560HL IC6505 B3PBA0000191 1 2 3 4 5 R6491 100k D6470 MA2J11100L R6578 470 D6612 B0JCME000025 IC6502 B3PBA0000191 1 2 3 4 5 D6501 MA2J11100L R6510 100 R6572 470 C6490 630V 3300p R6612 10 L6714 J0JJC0000021 R6571 470 R6650 1k R6483 5.6k R6807 68 D6511 B0HCMM000009 IC6504 B3PBA0000191 1 2 3 4 5 D6515 MAZ82400ML R6481 5.6k C6522 35V 47u R6495 5.23k R6581 100 C6521 25V 4.7u TC74HC14AF TC74HC14AF 13 15 18 14 11 17 10 16 12 9 7 2 4 1 6 10 8 3 5 29 36 32 27 28 26 35 33 34 24 23 22 21 25 39 40 38 30 37 31 42 43 41 44 INVERTER INVERTER 5V REG 5V REG 15V REG SC-BOARD TXNSC1VCSC (2/3) FET DRIVER FET DRIVER FET DRIVER FET DRIVER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER PHOTO COUPLER = = = * = TH-42PHD7CY SC-Board (2 of 3) Schematic Diagram TH-42PHD7CY SC-Board (2 of 3) Schematic Diagram 110 15.47.SC 电路板 (3/3) 线路图 + + + + + + + + + + + AA_PROU AA_FCLKU1 AA_FSIU1 AA_FCLU1 AA_PROD AA_FCLKD1 AA_FCLD1 AA_FSID1 30V R6564 10 SC42 K1ML80BA0001 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 R6541 47 D6475 MA2J11100L D6435 MA2J11100L C6458 25V 4.7u Q6455 2SD814ATX TP83 C6598 160V 100u TP40 D6495 B0HCKS000001 R6455 43k Q6568 2SK389600L G D S R6526 47 VR6557 10k 1 2 3 TP43 1/2W R6450 1 R6522 3.9k 1% R6456 62k R6537 47 D6512 MA2J11100L R6559 2.2k Q6511 B1DFFM000003 G D S TP44 R6475 3.3k TP59 C6524 200V 1000p TP47 Q6543 B1DFHN000001 G D S R6528 1k C6432 50V 4700p R6461 51k TP62 D6547 MAZ83300ML R6478 4.7k C6435 25V 220u Q6565 2SK389600L G D S Q6544 B1DFHN000001 G D S R6473 22k C6472 50V 0.1u R6671 10 Q6531 B1DFHN000001 G D S Q6583 B1DFET000001 G D S R6542 47 D6550 MA2J11100L C6475 25V 220u D6484 MA2J11100L R6593 1M L6471 J0JJC0000021 Q6520 2SD0601A0L Q6532 B1DFHN000001 G D S D6548 MAZ83300ML ZA6401 K4CD01000013 SD01228-21 Q6474 2SD814ATX D6514 MA2J11100L 1% R6442 7.5k C6544 200V 1000p Q6432 2SB0709ARL 1/2W R6490 1 IC6452 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R6525 100k TP55 SC41 K1ML80BA0001 1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 A26 A27 A28 A29 A30 B31 B32 B33 B34 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B35 B36 B37 B38 B39 B40 2 R6453 51k TP77 R6539 47 D6451 B0ECHP000001 R6554 100k C6454 160V 10u 1/2W R6432 1 TP80 D6476 B0ECHP000001 1% R6458 2.49k C6543 200V 1000p R6566 10 1% R6436 154k VR6477 5k 1 2 3 C6456 160V 100u Q6561 2SK389600L G D S R6668 100k R6535 47 Q6570 2SK389600L G D S C6526 250V 47u R6536 47 D6523 B0ECHP000001 C6550 160V 100u R6513 10 R6548 5.6 TP84 R6452 15k D6545 MAZ80510LL TP49 Q6562 2SK389600L G D S R6532 47 R6547 5.6 3W R6512 2.2 R6516 10 R6595 4.7k 1W R6677 100 R6562 10 R6557 47 R6546 47 R6592 1M R6563 10 R6674 10k R6673 22 C6513 160V 100u R6555 100k R6543 47 D6436 B0JCKG000001 R6601 10 ZA6402 K4CD01000013 IC6471 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 R6596 4.7k Q6431 B1BBCJ000003 Q6551 2SD0601A0L R6549 150 R6667 100k D6455 MA2J11100L C6433 16V 1u Q6451 2SD1263AP0LB TP70 Q6560 2SK389600L G D S R6479 51k C6473 16V 1u Q6563 2SK389600L G D S Q6538 B1DFHN000001 G D S T6431 ETS13TB139AP N4 N2 1 2 3 NC 4 5 6 NC 7 9 10 NC Q6526 2SB1073001TV D6544 MA2J11100L IC6474 B3PBA0000062 1 2 3 4 C6434 50V 0.01u D6546 MAZ83300ML Q6512 B1DFFM000003 G D S D6433 MA2J11100L Q6569 2SK389600L G D S C6546 25V 4.7u Q6435 2SD0601A0L TP46 R6685 22 1% R6524 5.62k R6435 3.3k R6440 2.2k Q6525 2SD21850RL IC6434 B3PBA0000062 1 2 3 4 TP41 R6570 10k R6530 47 1W R6498 8.2 C6459 25V 47u TP45 R6663 10k D6524 MAZ80510LL C6551 1u 250V R6448 4.7k Q6536 B1DFHN000001 G D S 2W R6459 390 VR6523 5k 1 2 3 Q6533 B1DFHN000001 G D S 1/2W R6434 220 Q6528 2SD21850RL TP56 R6460 51k Q6537 B1DFHN000001 G D S D6526 B0HCMM000009 Q6586 2SB1073001TV TP61 C6477 25V 1u R6567 10 D6460 B0HCKS000001 Q6564 2SK389600L G D S R6480 10k D6471 MA2J11100L TP63 R6540 47 R6560 10 Q6541 B1DFHN000001 G D S D6453 B0ECHP000001 D6483 B0JCME000025 R6439 2.2k R6514 470 C6553 25V 4.7u 1% R6464 62k Q6535 B1DFHN000001 G D S D6456 B0ECHP000001 R6676 220k L6472 G0ZZ00002183 R6670 10 TP51 L6473 G0ZZ00002183 D6473 MA2J11100L Q6566 2SK389600L G D S R6660 10k L6431 J0JJC0000021 TP48 Q6552 B1DEET000001 G D S IC6451 AN78L15ME1 IN 3 2 COMMON OUT 1 C6476 160V 100u SC46 K1KA10A00194 1 2 3 4 5 6 7 8 9 10 R6531 47 1/2W R6462 1 D6549 MA2J11100L Q6521 B1DFES000001 G D S TP76 R6517 470 C6555 200V 1000p R6527 1k IC6431 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 TP42 1W R6474 68 Q6540 B1DFHN000001 G D S D6513 MA2J11100L C6436 50V 220u IC6542 C0ZBZ0000735 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb D6551 B0HCKS000001 R6472 0 C6465 50V 0.01u Q6530 B1DFHN000001 G D S R6538 47 R6433 100k R6544 47 R6437 0 TP54 Q6534 B1DFHN000001 G D S R6476 300k Q6524 2SD21850RL ZA6403 K4CD01000013 R6565 10 TP58 R6534 47 D6542 MA2J11100L 1% R6457 2.49k R6675 220k T6471 ETS19AA259AC 1 B2 2 B1 3 P1 4 NC 5 P2 6 ST 7 S1 8 NC 9 S3 10 S2 R6606 220k R6533 47 R6607 220k R6558 10k R6569 10 C6493 630V 2200p 1/2W R6463 1 TP60 R6556 3.9k TP57 R6669 100k D6570 B0HCMM000009 R6441 2.2k Q6582 B1DFET000001 G D S IC6472 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 SC45 K1KA10A00194 1 2 3 4 5 6 7 8 9 10 D6457 B0HCKS000001 1% R6438 22k R6521 100k Q6472 2SB0709ARL C6554 200V 1000p Q6571 2SK389600L G D S Q6567 2SK389600L G D S TP50 1% R6443 2.49k C6474 50V 0.01u Q6475 2SD0601A0L R6665 2.2k D6522 MA2J11100L C6545 200V 1000p 3W R6511 2.2 R6561 10 C6437 50V 0.1u L6451 J0JJC0000021 R6515 100k 2W R6465 8.2 R6568 10 Q6539 B1DFHN000001 G D S 1/2W R6451 1.2 D6452 B0HCKS000001 Q6542 B1DFHN000001 G D S R6666 100k Q6471 B1BAEJ000014 C6525 200V 1000p R6605 220k TP81 Q6527 2SB1073001TV 1/2W R6431 1 D6543 B0HCKS000001 D6525 MA2J11100L INIT-R INIT-F TPVSET TPVAD TPSC1 F15V VAD VSCN RUBICON TPVSCN SC42 SC41 (SMT Type) TPVSET2 22 21 19 25 23 27 26 20 24 25 39 40 38 30 37 31 32 42 43 41 44 29 36 33 27 34 28 24 26 23 35 22 21 TO (SU45) SU-BOARD TO SD-BOARD (SD46) TO (SD42) SD-BOARD TO (SU41) SU-BOARD FSIU FCLU FCLKU PROU Vf5 Vf VSCN Vf0 Vf0 Vf VSCN Vf0 VSCN Vf Vf5 FCLKU FCLU FSIU PROU Vf5 SC-BOARD TXNSC1VCSC (3/3) FET DRIVER = # = = TH-42PHD7CY SC-Board (3 of 3) Schematic Diagram TH-42PHD7CY SC-Board (3 of 3) Schematic Diagram 111 15.48.SU 电路板方框图 SU2 A48 FCL SELECTOR IC6901 PDP SCAN DRIVER IC6902 SHIFT RESISTOR LATCH FSO1 FSO2 FSO2 FSO3 Vf5 SU Scan Out (up) Board 64 PIN OUTPUT FCLK 64 PIN OUTPUT OUTPUT 64 PIN PRO A47 FCL SHIFT RESISTOR LATCH PRO To 1st 96pins of PDP SCAN DRIVER PDP SCAN DRIVER SCAN ELECTRODES IC6903 A32 To 2nd 96pins of B48 SCAN ELECTRODES B32 SELECTOR B33 B47 A33 A47 Vf5 A48 A17 A16 SHIFT RESISTOR A1 LATCH A2 B1 B2 FCLK B48 B17 B16 B47 SU1 A1 A2 B1 SELECTOR B2 SELECTOR B48 B2 64 PIN OUTPUT SCAN ELECTRODES B32 SELECTOR OUTPUT B33 B47 64 PIN A33 A47 FCLK LATCH PRO SHIFT RESISTOR A47 FCL Vf5 FSO4 B48 SELECTOR FCLK A48 FSO5 FCL SHIFT RESISTOR B17 FSO5 B16 A17 Vf5 A16 A48 FCL LATCH B47 PRO SU3 A1 A2 IC6904 FSO3 IC6905 PRO B1 SHIFT RESISTOR A1 To 3rd 96pins of PDP SCAN DRIVER LATCH PDP SCAN DRIVER SU4 A2 PDP SCAN DRIVER SCAN ELECTRODES 64 PIN B1 IC6906 Vf5 OUTPUT A32 FCLK To 4th 96pins of B2 FSO4 Vf A80 3 FCL A43 TO SC-BOARD A44 A3 A45 1 A46 SU41 A4 A47 A5 A48 A2 A70 A6 Vf Vf VSCN VF5V A7 10 A41 Vf PRO FCL A71 PRO A73 A8 A1 A42 VF5V A31 FSI VSCN 9 Vfo 8 6 4 Vfo SC41 Vf FCLK FCLK TO SC-BOARD A32 FCL FCLK FSI PRO SU45 A33 FSI VF5V 7 SC45 A72 A40 2 A30 5 39 35 87 41 94 40 83 82 37 36 38 92 84 93 Vf 39 35 87 41 94 40 83 82 37 36 38 92 84 93 Vf 39 35 87 41 94 40 83 82 37 36 38 92 84 93 Vf FSI FS01 FCLK PRO FCL Vf5 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 85 86 91 89 VDD 90 88 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 Vfo 44 79 32 80 96 43 97 33 76 77 100 99 OUT03 30 OUT01 1 OUT02 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT03 30 OUT01 1 OUT02 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT03 30 OUT01 1 OUT02 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT03 30 OUT01 1 OUT02 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT03 30 OUT01 1 OUT02 OUT62 OUT64 OUT63 46 75 76 77 100 99 OUT03 30 OUT01 1 OUT02 OUT62 OUT64 OUT63 46 75 92 84 39 87 93 Vf 35 41 94 40 83 82 37 36 38 92 84 39 87 93 Vf 35 41 94 40 83 82 37 36 38 92 84 39 87 93 Vf 35 41 94 40 83 82 37 36 38 TH-42PHD7CY SU-Board Block Diagram TH-42PHD7CY SU-Board Block Diagram 112 15.49.SU 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AA_SO5 AA_SO4 AA_SO4 AA_SO3 AB_382 AB_381 AB_380 AB_379 AB_378 AB_377 AB_376 AB_375 AB_374 AB_373 AB_372 AB_371 AB_370 AB_369 AB_368 AB_367 AB_366 AB_365 AB_364 AB_363 AB_362 AB_361 AB_360 AB_358 AB_359 AB_357 AB_355 AB_356 AC_318 AC_317 AC_316 AC_315 AC_314 AC_313 AC_312 AC_311 AC_310 AC_309 AC_308 AC_307 AC_306 AC_305 AC_304 AC_303 AC_302 AC_301 AC_300 AC_299 AC_298 AC_297 AC_296 AC_294 AC_295 AC_293 AC_291 AC_292 AD_254 AD_253 AD_252 AD_251 AD_250 AD_249 AD_248 AD_247 AD_246 AD_245 AD_244 AD_243 AD_242 AD_241 AD_240 AD_239 AD_238 AD_237 AD_236 AD_235 AD_234 AD_233 AD_232 AD_230 AD_231 AD_229 AD_227 AB_365 AB_367 AB_369 AB_371 AB_373 AB_375 AB_377 AB_379 AB_381 AB_383 AB_366 AB_368 AB_370 AB_372 AB_374 AB_376 AB_380 AB_382 AB_341 AB_343 AB_345 AB_347 AB_349 AB_351 AB_353 AB_355 AB_357 AB_359 AB_361 AB_363 AB_342 AB_344 AB_346 AB_348 AB_350 AB_352 AB_354 AB_356 AB_358 AB_360 AB_362 AB_364 AA_PRO AA_CLK AA_CL AB_321 AB_323 AB_325 AB_327 AB_329 AB_331 AB_333 AB_335 AB_337 AB_339 AB_322 AB_324 AB_326 AB_328 AB_330 AB_332 AB_334 AB_336 AB_338 AB_340 AC_319 AC_317 AC_316 AC_320 AC_318 AB_384 AB_383 AC_293 AC_295 AC_297 AC_299 AC_301 AC_303 AC_305 AC_307 AC_309 AC_311 AC_313 AC_315 AC_294 AC_296 AC_298 AC_300 AC_302 AC_304 AC_306 AC_308 AC_310 AC_312 AC_314 AC_281 AC_283 AC_287 AC_285 AC_282 AC_284 AC_288 AC_286 AC_289 AC_291 AA_CL AA_PRO AA_CLK AC_257 AC_259 AC_261 AC_263 AC_265 AC_267 AC_269 AC_271 AC_273 AC_275 AC_277 AC_279 AC_258 AC_260 AC_262 AC_264 AC_266 AC_268 AC_270 AC_272 AC_274 AC_276 AC_278 AC_280 AD_256 AC_320 AC_319 AD_254 AD_252 AD_250 AD_248 AD_246 AD_244 AD_242 AD_240 AD_238 AD_236 AD_234 AD_232 AD_253 AD_255 AD_251 AD_249 AD_247 AD_245 AD_243 AD_241 AD_239 AD_237 AD_235 AD_233 AD_230 AD_228 AD_226 AD_224 AD_222 AD_220 AD_218 AD_216 AD_214 AD_212 AD_210 AD_208 AD_231 AD_229 AD_227 AD_225 AD_223 AD_221 AD_219 AD_217 AD_215 AD_213 AD_211 AD_209 AA_PRO AA_CL AA_CLK AD_206 AD_204 AD_202 AD_200 AD_198 AD_196 AD_194 AD_207 AD_205 AD_203 AD_201 AD_199 AD_197 AD_195 AD_193 AD_256 AD_255 AB_378 AB_384 AC_292 AC_290 AB_321 AB_323 AB_324 AB_325 AB_326 AB_327 AB_328 AB_329 AB_330 AB_331 AB_332 AB_333 AB_334 AB_335 AB_336 AB_337 AB_338 AB_339 AB_340 AB_341 AB_342 AB_343 AB_344 AB_345 AB_346 AB_322 AB_347 AB_348 AB_349 AB_350 AB_351 AB_352 AB_353 AB_354 AC_257 AC_258 AC_259 AC_260 AC_261 AC_262 AC_263 AC_264 AC_265 AC_266 AC_267 AC_268 AC_269 AC_270 AC_271 AC_272 AC_273 AC_274 AC_275 AC_276 AC_277 AC_278 AC_279 AC_280 AC_281 AC_282 AC_283 AC_284 AC_285 AC_286 AC_287 AC_288 AC_289 AC_290 AD_193 AD_194 AD_195 AD_196 AD_197 AD_198 AD_199 AD_200 AD_201 AD_202 AD_203 AD_204 AD_205 AD_206 AD_207 AD_208 AD_209 AD_210 AD_211 AD_212 AD_213 AD_214 AD_215 AD_216 AD_217 AD_218 AD_219 AD_220 AD_221 AD_222 AD_223 AD_224 AD_226 AD_225 AD_228 AA_SO5 130V 130V AA_PRO AA_CLK AA_CL AA_SI A29 A8 A49 A38 A72 A23 A73 A20 C6920 250V 0.1u A39 A53 A11 A37 A80 A79 A68 A14 A54 R6906 220 A18 A16 A78 A2 A56 C6908 50V 1000p A13 A45 A64 SU4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R6904 220 C6905 16V 1u AN16041A-VT IC6904 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A51 R6916 220k C6919 250V 0.1u A43 A21 A27 D6901 MAZ80560HL A52 A60 A65 A74 A9 A40 C6904 16V 1u A25 A48 A47 A57 SU3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 A76 A59 A55 A12 D6904 B0ECHP000001 A26 A22 A31 A24 A41 C6917 250V 0.1u A58 A3 A19 A46 A17 A34 AN16041A-VT IC6906 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A28 A6 A69 A30 A70 A42 A66 A35 AN16041A-VT IC6905 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 A1 A75 A33 D6903 B0ECHP000001 A63 A7 A62 A77 C6918 250V 0.1u A36 A44 A67 A61 A32 A4 A10 A71 C6906 16V 1u A15 R6905 220 A50 A5 Vfo VF5V PRO FSI FCLK FCL VF5V Vf 5 6 8 7 3 B D E C A 1 4 2 COMPONENT (LOWER) SIDE SOLDER (UPPER) SIDE PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER 4 2 3 1 (SC41) TO SC-BOARD SU41 SU-BOARD TXNSU1VCSC (1/2) SCAN ELECTRODES TO 4th 96pins of TO 3rd 96pins of SCAN ELECTRODES TH-42PHD7CY SU-Board (1 of 2) Schematic Diagram TH-42PHD7CY SU-Board (1 of 2) Schematic Diagram 113 15.50.SU 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AA_SO3 AA_SO2 AA_SO2 AA_SO1 AA_SI AA_SO1 AE_190 AE_189 AE_188 AE_187 AE_186 AE_185 AE_184 AE_183 AE_182 AE_181 AE_180 AE_179 AE_178 AE_177 AE_176 AE_175 AE_174 AE_173 AE_172 AE_171 AE_170 AE_169 AE_168 AE_166 AE_167 AE_165 AE_163 AE_164 AF_126 AF_125 AF_124 AF_123 AF_122 AF_121 AF_120 AF_119 AF_118 AF_117 AF_116 AF_115 AF_114 AF_113 AF_112 AF_111 AF_110 AF_109 AF_108 AF_107 AF_106 AF_105 AF_104 AF_102 AF_103 AF_101 AF_99 AF_100 AG_62 AG_61 AG_60 AG_59 AG_58 AG_57 AG_56 AG_55 AG_54 AG_53 AG_52 AG_51 AG_50 AG_49 AG_48 AG_47 AG_46 AG_45 AG_44 AG_43 AG_42 AG_41 AG_40 AG_38 AG_39 AG_37 AG_35 AG_36 AE_187 AE_185 AE_183 AE_188 AE_186 AE_184 AE_182 AE_191 AE_192 AE_189 AE_190 AE_175 AE_173 AE_181 AE_179 AE_177 AE_176 AE_174 AE_172 AE_180 AE_178 AE_161 AE_159 AE_163 AE_164 AE_162 AE_160 AE_158 AE_165 AE_171 AE_169 AE_167 AE_170 AE_168 AE_166 AE_151 AE_157 AE_155 AE_153 AE_149 AE_152 AE_156 AE_154 AE_148 AE_150 AE_192 AE_191 AA_PRO AA_CLK AA_CL AE_137 AE_135 AE_140 AE_138 AE_136 AE_134 AE_141 AE_143 AE_145 AE_147 AE_144 AE_146 AE_139 AE_142 AE_133 AE_131 AE_129 AF_127 AF_125 AF_123 AE_132 AE_130 AF_128 AF_126 AF_124 AF_113 AF_111 AF_114 AF_112 AF_110 AF_117 AF_121 AF_119 AF_122 AF_120 AF_115 AF_116 AF_118 AF_109 AF_107 AF_105 AF_103 AF_101 AF_99 AF_108 AF_106 AF_104 AF_102 AF_100 AF_97 AF_98 AF_94 AF_96 AF_92 AF_90 AF_93 AF_95 AF_91 AF_128 AA_CLK AA_CL AA_PRO AF_127 AF_88 AF_86 AF_84 AF_82 AF_80 AF_78 AF_76 AF_74 AF_72 AF_70 AF_68 AF_66 AF_89 AF_87 AF_85 AF_83 AF_81 AF_79 AF_77 AF_75 AF_73 AF_71 AF_69 AF_67 AG_61 AG_63 AG_59 AG_57 AG_55 AG_53 AG_51 AG_49 AG_47 AG_45 AG_43 AG_41 AG_64 AG_62 AG_60 AG_58 AG_56 AG_54 AG_52 AG_50 AG_48 AG_46 AG_44 AG_42 AF_65 AA_CLK AG_39 AG_37 AG_35 AG_33 AG_31 AG_29 AG_27 AG_25 AG_23 AG_21 AG_19 AG_17 AG_40 AG_38 AG_36 AG_34 AG_32 AG_30 AG_28 AG_26 AG_24 AG_22 AG_20 AG_18 AG_64 AA_CL AA_PRO AG_63 AG_15 AG_13 AG_11 AG_9 AG_7 AG_5 AG_3 AG_1 AG_16 AG_14 AG_12 AG_10 AG_8 AG_6 AG_4 AG_2 AE_130 AE_129 AE_132 AE_133 AE_134 AE_135 AE_136 AE_137 AE_138 AE_139 AE_140 AE_141 AE_142 AE_143 AE_144 AE_145 AE_146 AE_147 AE_148 AE_149 AE_150 AE_151 AE_152 AE_153 AE_154 AE_131 AE_156 AE_157 AE_158 AE_159 AE_160 AE_162 AE_161 AF_65 AF_66 AF_67 AF_68 AF_69 AF_70 AF_71 AF_72 AF_73 AF_74 AF_75 AF_76 AF_77 AF_78 AF_79 AF_80 AF_81 AF_82 AF_83 AF_84 AF_85 AF_86 AF_87 AF_88 AF_89 AF_90 AF_91 AF_92 AF_93 AF_94 AF_95 AF_96 AF_97 AF_98 AG_1 AG_2 AG_3 AG_4 AG_5 AG_6 AG_7 AG_8 AG_9 AG_10 AG_11 AG_12 AG_13 AG_14 AG_15 AG_16 AG_17 AG_18 AG_19 AG_20 AG_21 AG_22 AG_23 AG_24 AG_25 AG_26 AG_27 AG_28 AG_29 AG_30 AG_31 AG_32 AG_34 AG_33 AE_155 AA_PRO AA_CL AA_SI AA_CLK AN16041A-VT IC6901 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6902 16V 1u R6912 10k D6902 MAZ80560HL R6911 10k R6901 100 C6903 16V 1u R6915 220k R6903 220 C6901 16V 1u R6913 10k R6914 10k AN16041A-VT IC6902 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SU1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6907 50V 1000p SU2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 SU45 K1KA10B00209 1 2 3 4 5 6 7 8 9 10 11 R6902 220 AN16041A-VT IC6903 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 UP Vf5 14 9 12 10 13 11 15 8 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER TO (SC45) SC-BOARD 2 1 3 4 SU-BOARD TXNSU1VCSC (2/2) TO 1st 96pins of SCAN ELECTRODES TO 2nd 96pins of SCAN ELECTRODES TH-42PHD7CY SU-Board (2 of 2) Schematic Diagram TH-42PHD7CY SU-Board (2 of 2) Schematic Diagram 114 15.51.SD 电路板方框图 FSO9 To 4th 96pins of C50 PRO B2 VF5V OUTPUT FSI SCAN ELECTRODES FCL B32 B48 B48 SD2 Vf SELECTOR B17 FSO7 PRO SC42 B16 39 FCLK PRO VF5V SCAN ELECTRODES OUTPUT B32 FCL OUTPUT 80 FS07 LATCH 87 FSO9 B47 FSO10 B33 SELECTOR B47 IC6961 PRO 37 B33 SD1 PDP SCAN DRIVER 89 SHIFT RESISTOR IC6957 B47 90 Scan Out (down) Board 33 A1 PRO SD3 A33 Vf5 86 A47 B1 B47 A2 85 FCL 36 32 SELECTOR 96 B1 Vf5 97 A48 Vf SELECTOR 79 FSI FCLK 64 PIN B2 A1 A33 A17 C79 FCL A47 SHIFT RESISTOR SD42 89 A48 41 90 A16 83 VSCN 64 PIN A1 SHIFT RESISTOR To 1st 96pins of FCLK 86 A1 PDP SCAN DRIVER LATCH To 3rd 96pins of PDP SCAN DRIVER 88 A2 A2 43 VSCN PDP SCAN DRIVER IC6960 LATCH LATCH 91 86 FCLK B1 SCAN ELECTRODES PDP SCAN DRIVER 35 PRO IC6958 FSO8 94 Vfo IC6959 SHIFT RESISTOR Vfo B2 Vf FCLK A47 FCLK FCL FSI Vf5 A32 FSO10 SELECTOR To 2nd 96pins of Vf5 B48 44 38 FCLK SD 90 OUTPUT FSO8 A48 SD4 FSO11 FCL A2 SHIFT RESISTOR PDP SCAN DRIVER LATCH OUTPUT B17 91 FSO11 FCL B16 64 PIN C78 64 PIN A17 C77 PRO C76 A47 SCAN ELECTRODES C75 64 PIN C74 B1 C73 91 C51 FCL 89 Vf5 SHIFT RESISTOR Vf 85 A16 84 C80 Vf 88 40 IC6962 LATCH A48 SELECTOR C10 Vf5 88 92 B48 PRO B2 OUTPUT 64 PIN 93 A32 C41 FCLK 85 Vfo C48 82 C49 C11 C38 C37 C36 C39 C35 C34 C33 C40 C9 C8 C1 100 99 OUT03 OUT01 1 OUT02 OUT62 OUT64 OUT63 100 99 1 100 99 1 Vf Vfo Vf Vfo Vf Vf Vf Vfo Vfo Vfo SD46 7 SC46 5 3 1 10 9 8 6 4 2 Vf VF5V PRO FCLK FCL FSI 35 41 38 82 37 83 93 36 87 84 40 92 94 39 92 36 41 93 35 39 37 94 40 82 38 84 87 83 VDD 77 75 30 46 76 77 75 30 46 76 77 75 30 46 76 OUT63 OUT03 OUT01 OUT02 OUT62 OUT64 OUT63 OUT03 OUT01 OUT02 OUT62 OUT64 96 97 44 32 43 79 33 80 96 97 44 32 43 79 33 80 VDD VDD VDD 35 41 38 82 37 83 93 36 87 84 40 92 94 39 35 41 38 82 37 83 93 36 87 84 40 92 94 39 35 41 38 82 37 83 93 36 87 84 40 92 94 39 96 32 33 44 79 97 43 80 96 32 33 44 79 97 43 80 96 32 33 44 79 97 43 80 1 30 75 OUT64 OUT01 OUT02 OUT62 46 77 OUT63 76 OUT03 100 99 1 30 75 OUT64 OUT01 OUT02 OUT62 46 77 OUT63 76 OUT03 100 99 1 30 75 OUT64 OUT01 OUT02 OUT62 46 77 OUT63 76 OUT03 100 99 TO SC-BOARD TO SC-BOARD 91 86 88 VDD 91 88 85 91 85 85 90 88 89 89 86 89 90 86 VDD 90 TH-42PHD7CY SD-Board Block Diagram TH-42PHD7CY SD-Board Block Diagram 115 15.52.SD 电路板 (1/2) 线路图 TERM SIDE TERM SIDE AA_SO11 AA_SO11 AA_SO10 AB_766 AB_765 AB_764 AB_763 AB_762 AB_761 AB_760 AB_759 AB_758 AB_757 AB_756 AB_755 AB_754 AB_753 AB_752 AB_751 AB_750 AB_749 AB_748 AB_747 AB_746 AB_745 AB_744 AB_742 AB_743 AB_741 AB_739 AB_740 AC_702 AC_701 AC_700 AC_699 AC_698 AC_697 AC_696 AC_695 AC_694 AC_693 AC_692 AC_691 AC_690 AC_689 AC_688 AC_687 AC_686 AC_685 AC_684 AC_683 AC_682 AC_681 AC_680 AC_678 AC_679 AC_677 AC_675 AC_676 AD_638 AD_637 AD_636 AD_635 AD_634 AD_633 AD_632 AD_631 AD_630 AD_629 AD_628 AD_627 AD_626 AD_625 AD_624 AD_623 AD_622 AD_621 AD_620 AD_619 AD_618 AD_617 AD_616 AD_614 AD_615 AD_613 AD_611 AD_612 AB_705 AB_707 AB_709 AB_711 AB_713 AB_715 AB_717 AB_719 AB_721 AB_723 AB_725 AB_727 AB_729 AB_731 AB_733 AB_735 AB_737 AB_739 AB_741 AB_743 AB_745 AB_747 AB_749 AB_751 AB_753 AB_755 AB_757 AB_759 AB_761 AB_763 AB_767 AB_765 AB_706 AB_708 AB_710 AB_712 AB_714 AB_716 AB_718 AB_720 AB_722 AB_724 AB_726 AB_728 AB_730 AB_732 AB_734 AB_736 AB_738 AB_740 AB_742 AB_744 AB_746 AB_748 AB_750 AB_752 AB_754 AB_756 AB_758 AB_760 AB_762 AB_764 AB_768 AB_766 AC_641 AC_643 AC_645 AC_647 AC_649 AC_651 AC_653 AC_655 AC_657 AC_659 AC_661 AC_663 AC_665 AC_667 AC_671 AC_669 AC_673 AC_675 AC_677 AC_679 AC_681 AC_683 AC_685 AC_687 AC_689 AC_691 AC_693 AC_695 AC_697 AC_699 AC_703 AC_701 AC_642 AC_644 AC_646 AC_648 AC_650 AC_652 AC_654 AC_656 AC_658 AC_660 AC_662 AC_664 AC_666 AC_668 AC_670 AC_674 AC_676 AC_678 AC_680 AC_682 AC_684 AC_686 AC_688 AC_690 AC_692 AC_694 AC_696 AC_698 AC_700 AC_704 AC_702 AD_577 AD_579 AD_581 AD_583 AD_585 AD_587 AD_589 AD_591 AD_593 AD_595 AD_597 AD_599 AD_601 AD_603 AD_605 AD_607 AD_609 AD_611 AD_613 AD_615 AD_617 AD_619 AD_621 AD_623 AD_625 AD_627 AD_629 AD_633 AD_631 AD_635 AD_637 AD_639 AD_578 AD_580 AD_584 AD_586 AD_588 AD_590 AD_592 AD_594 AD_596 AD_598 AD_600 AD_602 AD_604 AD_606 AD_608 AD_610 AD_612 AD_614 AD_616 AD_618 AD_620 AD_622 AD_624 AD_626 AD_628 AD_630 AD_632 AD_634 AD_636 AD_640 AD_638 AA_CL AA_PRO AB_768 AB_767 AA_CLK AA_PRO AA_CL AC_703 AC_704 AA_CL AA_CLK AD_639 AD_640 AA_PRO AD_582 AC_672 AB_705 AB_706 AB_707 AB_708 AB_709 AB_710 AB_711 AB_712 AB_713 AB_714 AB_715 AB_716 AB_717 AB_718 AB_719 AB_720 AB_721 AB_722 AB_723 AB_724 AB_725 AB_726 AB_727 AB_728 AB_729 AB_730 AB_731 AB_732 AB_733 AB_734 AB_735 AB_736 AB_738 AB_737 AC_641 AC_642 AC_643 AC_644 AC_645 AC_646 AC_647 AC_648 AC_649 AC_650 AC_651 AC_652 AC_653 AC_654 AC_655 AC_656 AC_657 AC_658 AC_659 AC_660 AC_661 AC_662 AC_663 AC_664 AC_665 AC_666 AC_667 AC_668 AC_669 AC_670 AC_671 AC_672 AC_674 AC_673 AD_577 AD_578 AD_579 AD_580 AD_581 AD_582 AD_583 AD_584 AD_585 AD_586 AD_587 AD_588 AD_589 AD_590 AD_591 AD_592 AD_593 AD_594 AD_595 AD_596 AD_597 AD_598 AD_599 AD_600 AD_602 AD_601 AD_603 AD_604 AD_605 AD_606 AD_607 AD_608 AD_610 AD_609 AA_SI AA_CLK AA_PRO AA_CL AA_CLK AA_SO9 AA_SO10 AN16041A-VT IC6961 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 AN16041A-VT IC6960 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 SD46 K1KA10B00209 1 2 3 4 5 6 7 8 9 10 R6976 220 R6983 10k C6975 16V 1u C6974 16V 1u SD4 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 R6984 10k R6975 220 SD3 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C6976 16V 1u R6974 220 R6982 10k AN16041A-VT IC6962 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 Vf5 5 6 8 7 3 B D E C A 1 4 2 DOWN SD-BOARD TXNSD1VCSC (1/2) TO (SC46) SC-BOARD PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER 4 2 3 1 SCAN ELECTRODES SCAN ELECTRODES TO 4th 96pins of TO 3rd 96pins of TH-42PHD7CY SD-Board (1 of 2) Schematic Diagram TH-42PHD7CY SD-Board (1 of 2) Schematic Diagram 116 15.53.SD 电路板 (2/2) 线路图 TERM SIDE TERM SIDE AA_SO8 AA_SI AE_574 AE_573 AE_572 AE_571 AE_570 AE_569 AE_568 AE_567 AE_566 AE_565 AE_564 AE_563 AE_562 AE_561 AE_560 AE_559 AE_558 AE_557 AE_556 AE_555 AE_554 AE_553 AE_552 AE_550 AE_551 AE_549 AE_547 AE_548 AF_510 AF_509 AF_508 AF_507 AF_506 AF_505 AF_504 AF_503 AF_502 AF_501 AF_500 AF_499 AF_498 AF_497 AF_496 AF_495 AF_494 AF_493 AF_492 AF_491 AF_490 AF_489 AF_488 AF_486 AF_487 AF_485 AF_483 AF_484 AG_446 AG_445 AG_444 AG_443 AG_442 AG_441 AG_440 AG_439 AG_438 AG_437 AG_436 AG_435 AG_434 AG_433 AG_432 AG_431 AG_430 AG_429 AG_428 AG_427 AG_426 AG_425 AG_424 AG_422 AG_423 AG_421 AG_419 AG_420 AE_513 AE_515 AE_517 AE_519 AE_521 AE_523 AE_525 AE_527 AE_529 AE_531 AE_533 AE_535 AE_537 AE_539 AE_541 AE_543 AE_545 AE_547 AE_549 AE_551 AE_553 AE_555 AE_557 AE_559 AE_561 AE_563 AE_565 AE_567 AE_569 AE_571 AE_575 AE_573 AE_514 AE_516 AE_518 AE_520 AE_522 AE_524 AE_526 AE_528 AE_530 AE_532 AE_534 AE_536 AE_538 AE_540 AE_542 AE_544 AE_546 AE_548 AE_550 AE_552 AE_554 AE_556 AE_558 AE_560 AE_562 AE_564 AE_566 AE_568 AE_570 AE_572 AE_576 AE_574 AF_449 AF_451 AF_453 AF_455 AF_457 AF_459 AF_461 AF_463 AF_465 AF_467 AF_469 AF_471 AF_473 AF_475 AF_479 AF_477 AF_481 AF_483 AF_485 AF_487 AF_489 AF_491 AF_493 AF_495 AF_497 AF_499 AF_501 AF_503 AF_505 AF_507 AF_511 AF_509 AF_450 AF_452 AF_454 AF_456 AF_458 AF_460 AF_462 AF_464 AF_466 AF_468 AF_470 AF_472 AF_474 AF_476 AF_478 AF_482 AF_484 AF_486 AF_488 AF_490 AF_492 AF_494 AF_496 AF_498 AF_500 AF_502 AF_504 AF_506 AF_508 AF_512 AF_510 AG_385 AG_387 AG_389 AG_391 AG_393 AG_395 AG_397 AG_399 AG_401 AG_403 AG_405 AG_407 AG_409 AG_411 AG_413 AG_415 AG_417 AG_419 AG_421 AG_423 AG_425 AG_427 AG_429 AG_431 AG_433 AG_435 AG_437 AG_439 AG_441 AG_443 AG_445 AG_447 AG_386 AG_388 AG_390 AG_392 AG_394 AG_396 AG_398 AG_400 AG_402 AG_404 AG_406 AG_408 AG_410 AG_412 AG_414 AG_416 AG_418 AG_420 AG_422 AG_424 AG_426 AG_428 AG_430 AG_432 AG_434 AG_436 AG_438 AG_440 AG_442 AG_444 AG_448 AG_446 AA_PRO AA_CL AE_576 AE_575 AA_PRO AA_CL AA_CLK AF_511 AF_512 AA_CLK AA_CL AA_PRO AG_448 AG_447 AF_480 AE_513 AE_514 AE_515 AE_516 AE_517 AE_518 AE_519 AE_520 AE_521 AE_522 AE_523 AE_524 AE_525 AE_526 AE_527 AE_528 AE_529 AE_530 AE_531 AE_532 AE_533 AE_534 AE_535 AE_536 AE_537 AE_538 AE_539 AE_540 AE_541 AE_542 AE_543 AE_544 AE_546 AE_545 AF_449 AF_450 AF_451 AF_452 AF_453 AF_454 AF_455 AF_456 AF_457 AF_458 AF_459 AF_460 AF_461 AF_462 AF_463 AF_464 AF_465 AF_466 AF_467 AF_468 AF_469 AF_470 AF_471 AF_472 AF_473 AF_474 AF_475 AF_476 AF_477 AF_478 AF_479 AF_480 AF_482 AF_481 AG_385 AG_386 AG_387 AG_388 AG_389 AG_390 AG_391 AG_392 AG_393 AG_394 AG_395 AG_396 AG_397 AG_398 AG_399 AG_400 AG_401 AG_402 AG_403 AG_404 AG_405 AG_406 AG_407 AG_408 AG_409 AG_410 AG_411 AG_412 AG_413 AG_414 AG_415 AG_416 AG_418 AG_417 AA_SO7 130V(DC) AA_SI AA_SO8 AA_CLK AA_PRO AA_CLK AA_CL AA_SO7 AA_SO9 130V C57 C53 C12 C6977 50V 1000p C6 C6971 16V 1u C63 C74 C33 C17 C62 C6989 250V 0.1u C71 D6963 B0ECHP000001 C47 C48 R6981 10k C6973 16V 1u C28 C30 AN16041A-VT IC6958 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6990 250V 0.1u D6962 MAZ80560HL C5 C60 C46 C18 C3 C55 C24 C22 C14 AN16041A-VT IC6959 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C6972 16V 1u R6972 220 C6988 250V 0.1u C10 C19 C41 C11 C13 C38 C70 C61 C67 C75 C54 C23 C76 C1 C25 C66 C42 SD2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C40 R6986 220k C35 C44 R6971 100 C49 C4 C2 C45 C56 C16 R6973 220 D6964 B0ECHP000001 C68 C73 C21 D6961 MAZ80560HL C36 C50 C64 C79 C34 C77 C32 C6987 250V 0.1u AN16041A-VT IC6957 1 OUT3 2 OUT4 3 OUT5 4 OUT6 5 OUT7 6 OUT8 7 OUT9 8 OUT10 9 OUT11 10 OUT12 11 OUT13 12 OUT14 13 OUT15 14 OUT16 15 OUT17 16 OUT18 17 OUT19 18 OUT20 19 OUT21 20 OUT22 21 OUT23 22 OUT24 23 OUT25 24 OUT26 25 OUT27 26 OUT28 27 OUT29 28 OUT30 29 OUT31 30 OUT32 31 N.C. 32 VDDH 33 VDDH 34 N.C. 35 GND 36 GND 37 GND 38 GND 39 GND 40 GND 41 GND 42 N.C. 43 VDDH 44 VDDH 45 N.C. 46 OUT33 47 OUT34 48 OUT35 49 OUT36 50 OUT37 51 OUT38 52 OUT39 53 OUT40 54 OUT41 55 OUT42 56 OUT43 57 OUT44 58 OUT45 59 OUT46 60 OUT47 61 OUT48 62 OUT49 63 OUT50 64 OUT51 65 OUT52 66 OUT53 67 OUT54 68 OUT55 69 OUT56 70 OUT57 71 OUT58 72 OUT59 73 OUT60 74 OUT61 75 OUT62 76 OUT63 77 OUT64 78 N.C. 79 VDDH 80 VDDH 81 N.C. 82 GND 83 GND 84 DIR 85 SO 86 CLK 87 LAT 88 VDD 89 OC1 90 OC2 91 SI 92 CLR 93 GND 94 GND 95 N.C. 96 VDDH 97 VDDH 98 N.C. 99 OUT1 100 OUT2 C78 C80 C69 C72 C58 C9 C7 C51 C37 C43 R6985 220k C27 C65 C59 SD1 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 A41 A42 A43 A44 A45 A46 A47 A48 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 B41 B42 B43 B44 B45 B46 B47 B48 C26 C6978 50V 1000p C52 C15 C31 C39 C29 C20 C8 Vscn Vf Vfo Vf SOLDER (UPPER) SIDE COMPONENT (LOWER) SIDE VF5V PRO FSI FCLK FCL VF5V 14 9 12 10 13 11 15 8 TO (SC42) SC-BOARD SD42 PDP SCAN DRIVER PDP SCAN DRIVER PDP SCAN DRIVER 4 2 3 1 SD-BOARD TXNSD1VCSC (2/2) SCAN ELECTRODES TO 2nd 96pins of SCAN ELECTRODES TO 1st 96pins of TH-42PHD7CY SD-Board (2 of 2) Schematic Diagram TH-42PHD7CY SD-Board (2 of 2) Schematic Diagram 117 15.54.SS, SS2, SS3 和 S1 电路板方框图 + PUSH 1 SS23 12 8 Q6133 R6770 Q6132 Ve Q6135 SOS VDA 6 VSUS Q6710~Q6012 VSUS Q6112,Q6113 Vda60V Q6116~Q6118 +15V Q6013,Q6015 STB PS FET DRIVER L6113 8 L6115 12 12 IC6102 15V 8 UMH UML S2 9 S3 12 D6111 11 8 S1 IC6107 USH Q6141 USL DISCHARGE 1/2 Vo SS34 FET DRIVER 1 IC6104 Sustain Drive Board 12 SS 8 P12 14 P11 14 C32 6 4 SS2 2 7 BUFFER IC6105 IC6106 FET DRIVER +15V D6164 (GREEN LED) D6160 UEH (GREEN LED) VE Q6129 INSERT Q6130 UEL UEL TPVe SS-BOARD Q6128 SOS DET Q6127 SS54 SS53 SS21 SS51 SS52 SS20 16 4 SS3 3 UEL 9 USL 12 5 SS11 8 3 UEH 2 SS12 SS32 2 UMH 4 7 Q6139 4 USH Q6138 UML IC6109 6 5 7 15 13 VE FET DRIVER GENERATOR 14 10 IC6101 Q6731 FET DRIVER IC6103 Q6102 Q6101 Q6145 Q6144 Q6008 Q6005 Q6004 Q6001 SS22 SS42 1 2 1 Vda60V VDA VDA S34 1 Power Switch Board S1 POWER SWITCH S061 C42 Sustain Connection (Lower) Board (Upper) Board Sustain Connection 1 Q6125 SS55 STB12V 8 3 3 ~ ~ ~ D6113 D6115 D6117 ~ L6101 L6103 ~ L6104 L6106 ~ Q6134 6 Vb TO PDP PANEL TO PDP PANEL SS58 TO PDP PANEL TO PDP PANEL TO C-BOARD TO P-BOARD TO P-BOARD TO C-BOARD TH-42PHD7CY SS, SS2, SS3, and S1-Board Block Diagram TH-42PHD7CY SS, SS2, SS3, and S1-Board Block Diagram 118 15.55.SS, SS2, SS3 和 S1 电路板线路图 + + TERM SIDE + + TERM SIDE TERM SIDE + + + + + + + + PUSH TERM SIDE TERM SIDE TERM SIDE UML USH USL UEH UEL USH UMH USL UML UEH UML UEL UMH 250V Q6132 2SD21850RL C6115 250V 1u R6053 10 IC6109 C0DBEMB00002 CATHODE 3 1 REF ANODE 2 L6011 J0JJC0000021 TP11 Q6004 B1DEHM000005 G D S D6160 LNJ301MPUJA D6003 B0JCME000025 D6111 B0HBSN000008 D6195 B0ECHP000001 L6132 G0ZZ00002183 R6151 10k L6125 G0ZZ00002183 D6002 B0JCME000025 Q6129 2SK326800L G D S D6129 B0HBSN000008 L6162 J0JJC0000011 C6168 1u 25V D6166 MA2J11100L 2W R6176 0.22 R6170 150 R6120 0 L6015 J0JJC0000021 L6104 1.4u C6133 630V 2200p TP33 L6119 G0ZZ00002183 C6112 200V 220u Q6007 B1DEHM000005 G D S Q6125 2SK062000L G D S Q6135 2SB1073001TV SS11 1 2 3 4 5 6 7 R6197 10 R6008 10 D6169 B0ECHP000001 R6148 100k C6139 630V 2200p R6125 100 R6101 100 C6157 25V 4.7u Q6112 B1DEGM000023 G D S L6158 J0JJC0000021 L6133 G0ZZ00002183 D6119 B0HCMM000001 D6161 MAZ80510LL C6124 200V 220u Q6128 B1DFKM000002 G D S R6128 1k R6156 1.5k TP14 R6007 10 SS53 1 2 3 4 5 6 7 8 9 10 11 12 13 C6156 25V 4.7u VR6145 10k 1 2 3 Q6003 B1DEHM000005 G D S R6159 100k L6107 J0JJC0000021 R6108 47 Q6113 B1DEGM000023 G D S R6126 100 R6020 10 L6122 G0ZZ00002183 R6057 10 SS12 1 2 3 4 5 6 7 8 9 10 R6025 10 R6023 10 L6014 J0JJC0000021 ZA6101 K4CD01000013 SD01228-21 D6173 B0ECHP000001 L6161 J0JJC0000011 C6147 25V 4.7u D6156 B0JCME000025 TP15 Q6130 B1DFKM000001 H5N2007LSTL-E G D S R6175 100k R6115 100 R6002 10 R6169 10k L6005 J0JJC0000021 Q6014 B1DEGM000023 G D S L6157 G0ZZ00002183 L6008 J0JJC0000021 R6110 10 IC6105 C0ZBZ0000735 M63994FP-200D 1 Vcc 2 In 3 Gnd 4 Lo 5 NC 6 Vs 7 Ho 8 Vb R6165 220k R6157 10k 2W R6177 0.22 R6167 10k D6168 B0ECHP000001 C6101 250V 2u D6152 B0ECHP000001 C0ZBZ0000895 IC6101 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC TP6 D6149 B0JCME000025 L6102 0.6u C6120 25V 220u 1W R6135 4.7k L6012 J0JJC0000021 Q6005 B1DEHM000005 G D S R6158 2.2k L6153 G0ZZ00002183 Q6144 2SD21850RL R6009 10 SS34 1 NC 2 3 R6140 20k D6112 B0HBSN000008 R6100 100 C6003 630V 2200p R6017 47 L6218 J0JJC0000021 C6126 25V 560u R6164 220k C6144 1u 25V Q6008 B1DEHM000005 G D S D6172 MA2J11100L D6128 B0HBSN000008 R6024 10 L6155 G0ZZ00002183 C6117 25V 1u C6109 250V 0.1u R6054 10 1% R6083 82k 2W R6136 12k SS32 1 2 3 4 5 6 7 8 9 10 11 12 R6144 0 TP9 R6111 10k L6001 J0JJC0000021 L6013 J0JJC0000021 Q6012 B1DEGM000023 G D S TP16 L6106 1.4u C6105 250V 2u 1% R6154 7.5k R6172 100 TP22 L6118 G0ZZ00002183 TP13 L6123 G0ZZ00002183 D6136 B0JCME000025 C6020 630V 2200p C0ZBZ0000895 IC6104 M81709FP-DB0J 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC R6195 10 TP18 TP4 L6156 G0ZZ00002183 R6163 EXB38V473JV L6003 J0JJC0000021 C6163 16V 1u D6150 B0JCME000025 TP32 D6153 B0ECHP000001 2W R6187 0.22 R6211 10 R6193 10k R6021 10 R6145 10k L6159 J0JJC0000021 L6120 G0ZZ00002183 R6139 22k D6171 MA2J11100L R6003 10 TP21 Q6006 B1DEHM000005 G D S R6005 10 R6118 0 C0JBAZ000005 IC6106 TC74VHC244FT(EL) 1G~ 1 2 1A1 3 2Y4 4 1A2 5 2Y3 6 1A3 7 2Y2 8 1A4 9 2Y1 10 GND 11 2A1 12 1Y4 13 2A2 14 1Y3 15 2A3 16 1Y2 17 2A4 18 1Y1 19 2G~ 20 VCC SS54 1 2 3 4 5 6 7 8 9 10 11 12 13 C6108 250V 0.1u R6016 47 L6116 G0ZZ00002183 TP8 L6002 J0JJC0000021 R6055 10 C6149 16V 1u C6160 25V 1u Q6002 B1DEHM000005 G D S R6107 47 R6155 1.5k L6212 J0JJC0000021 D6151 B0ECHP000001 R6203 100 C6184 630V 2200p D6164 LNJ301MPUJA L6010 J0JJC0000021 L6103 0.6u C6104 250V 2u C6148 25V 4.7u Q6133 2SB1073001TV SS51 1 2 3 4 5 6 7 8 9 10 11 12 13 R6142 2.2k R6188 100k C6151 25V 4.7u TP7 L6105 1.4u R6004 10 Q6138 2SC1473AEA C6155 16V 1u C6162 16V 1u R6168 10k TP20 R6214 100k Q6101 2SD21850RL L6131 G0ZZ00002183 L6216 J0JJC0000021 D6115 B0HBSN000008 C0ZBZ0000895 IC6103 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C6150 25V 4.7u R6103 10 Q6001 B1DEHM000005 G D S TP10 C6009 630V 2200p R6184 0 D6163 MA2J11100L L6130 G0ZZ00002183 R6166 10k R6056 10 L6108 J0JJC0000021 2W R6181 220 D6122 B0ECHP000001 L6004 J0JJC0000021 1% R6147 1.2k Q6010 B1DEGM000023 G D S C6114 200V 220u L6152 G0ZZ00002183 C6060 160V 100u ZA6103 K4CD01000013 R6198 10k R6102 10k R6129 100 TP5 R6124 100 R6117 0 TP19 R6141 24k R6137 220k D6162 MA2J11100L R6161 EXB38V473JV L6006 J0JJC0000021 C6161 25V 4.7u R6058 10 IC6107 C0BBBA000043 1 2 3 4 5 6 7 8 R6121 150 TP3 D6137 B0JCME000025 C6146 4.7u 25V R6131 47 L6113 G0ZZ00002183 Q6141 2SD0601A0L R6183 100 Q6127 B1DFKM000002 H5N2307LSTL-E G D S Q6011 B1DEGM000023 G D S C6113 200V 220u Q6013 B1DEGM000023 G D S TP2 Q6102 2SB1073001TV 2W R6191 0.22 2W R6189 0.22 R6132 100 C6152 16V 1u R6199 10k Q6117 B1DEGM000023 G D S R6113 10k R6133 10k Q6731 2SD1263AP0LB R6213 10 R6127 100 TP1 R6052 10 R6162 EXB38V471JV L6124 G0ZZ00002183 L6213 J0JJC0000021 R6112 10 Q6118 B1DEGM000023 G D S C6106 200V 220u Q6139 2SC1473AEA R6150 24k R6109 47 C6159 25V 4.7u R6138 10k SS21 1 2 3 4 5 6 7 D6159 MAZ83300ML C6118 25V 220u L6101 0.6u TP17 SS42 1 2 3 4 R6171 100 D6121 B0HBSN000008 Q6134 2SD21850RL R6006 10 L6217 J0JJC0000021 R6114 100 R6119 0 R6051 10 R6209 10 R6022 10 L6114 G0C101K00023 1/2W R6178 22 C6164 16V 1u ZA6102 K4CD01000013 1% R6082 82k D6135 B0JCME000025 D6110 B0ECHP000001 C6153 25V 1u D6101 B0HBSN000008 R6018 47 R6122 150 C0ZBZ0000895 IC6102 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC D6158 MAZ83300ML D6001 B0JCME000025 1% R6152 39k L6121 G0ZZ00002183 L6154 G0ZZ00002183 C6135 630V 2200p TP12 C6111 200V 220u C6122 160V 100u L6007 J0JJC0000021 Q6116 B1DEGM000023 G D S C6145 1u 25V Q6015 B1DEGM000023 G D S C6121 25V 47u 1% R6081 82k Q6145 2SB1073001TV 1% R6153 39k SS20 1 2 3 4 5 6 7 L6117 G0ZZ00002183 L6115 G0ZZ00002183 1/2W R6179 22 R6160 EXB38V471JV 2W R6134 220 C6102 250V 2u D6140 B0ECHP000001 C6158 25V 1u TP23 R6130 47 R6149 100k C6172 16V 1u C6014 630V 2200p C6129 630V 2200p S061 K0F162B00002 S34 1 2 3 SS52 1 2 3 4 5 6 7 8 9 10 11 12 13 SS23 1 2 3 4 5 6 7 SS55 1 2 3 4 5 6 7 8 9 10 11 12 13 SS58 1 2 3 4 5 6 7 8 9 10 11 12 13 SS22 1 2 3 4 5 6 7 L6127 G0ZZ00002183 L6128 G0ZZ00002183 D6113 B0HBSN000008 L6129 G0ZZ00002183 L6126 G0ZZ00002183 L6135 G0ZZ00002183 D6116 B0HBSN000008 L6137 G0ZZ00002183 L6134 G0ZZ00002183 L6136 G0ZZ00002183 L6140 G0ZZ00002183 L6139 G0ZZ00002183 L6141 G0ZZ00002183 L6138 G0ZZ00002183 D6117 B0HBSN000008 ED GNDa GNDa GNDa NC STB_PS +15V NC Vda60V Vda60V TP15V + - - + (GREEN LED) NC ED ED ED ED TPVDA TPVe TPVSUS VSUS VSUS NC GND GND GND NC VDA VDA GND UEL NC(URH) 5V UMH VDA GND NC(URL) SOS UML USH USL UEH (GREEN LED) F 5 1 4 C D 8 7 3 B 2 E 9 6 A S1-BOARD ! TNPA3200 TO (P11) P-BOARD P-BOARD TO (P12) TO (C42) C3-BOARD TO (C32) C2-BOARD TO PDP PANEL PDP PANEL TO TO PDP PANEL FET DRIVER FET DRIVER BUFFER SOS DET FET DRIVER DRIVER FET DRIVER FET SS-BOARD TXNSS1VCSC ! PDP PANEL TO DOWN SS2-BOARD TNPA3187 ! TO PDP PANEL ! PDP PANEL TO TNPA3188 SS3-BOARD UP STB_PS 0 0 0 0 185.1 0.1 185.1 11.5 11.5 0 11.5 11.5 0 67.0 15.0 0 11.5 0 0 0 67.0 0 11.5 67.0 0 67.0 0 5.2 67.0 3.8 0.9 0.4 0 1.0 0.5 0 2.4 0.3 0 = * = = * = * * = * = * * * < = * TH-42PHD7CY SS, SS2, SS3, and S1-Board Schematic Diagram TH-42PHD7CY SS, SS2, SS3, and S1-Board Schematic Diagram 119 15.56.Z 和 H3 电路板方框图 Q2330 Q2331 100Hz LPF Q2406 32 20 L IN L OUT 12 1 R IN R OUT 28 29 27 11 16 OUT(R) AUDIO 17 20 21 4 IC2302 AUDIO AMP (L) IC2301 AUDIO AMP (R) AMP STB SW AUDIO OUT(L) 17 11 16 B IN ADD MS IN 17 19 MUTE Q2305 POWER ON MUTE Q2306 16 17 SCL SDA PORT 10 11 5 6 3 1 15 SLOT3.3V SLOT3.3V SLOT5V SLOT9V SOUND MAIN MUTE SCL3 SDA3 R L Z8 1 4 1 3 Z6 Z7 L+ L- R+ R- H37 1 3 IC2401 SOUND PROCESSOR 2 1 AVR 9V 31 VCC IC2304 Z Sound Processor Board + - H3 SPEAKER TERMINAL (L) (R) TERMINAL + SPEAKER H37 H3 1 3 - J8 14 RESET JK8500 JK8500 Q2370 Q2334 Q2333 ERROR DETECT SW REG 23 22 24 TO J-BOARD LPF P5 Z5 DIG12V STB5V 1 DIG12V 7 2 SOUND12V 3 8 SOUND12V TO P-BOARD SOUND12V SOUND12V SOUND12V 24 AMP STB SW 22 23 20 21 4 SW REG 1 IC801 2 IC803 11 SW REG 3.3V 2 AVR 5V 7 AVR 9V IC802 1 9V 9V DR15V DR15V 12 6 D2308 15 MUTE Q2303 SOUND12V DIG12V 9 3 Z31 1 3 Z30 1 3 3 Z33 1 1 Z32 FAN 12V FAN SOS FAN 12V FAN SOS FAN 12V FAN SOS FAN SOS FAN 12V FAN 12V 1 IC804 2 SW OUT V IN 4 VO S Z10 1 5 3 P10 TO P-BOARD FAN CONT FAN SOS Q801 TO FAN # TH-42PHD7CY Z and H3-Board Block Diagram TH-42PHD7CY Z and H3-Board Block Diagram 120 15.57.Z(1/2) 和 H3 电路板线路图 Thermal Pad + + + + + + + + + + + + + + + + Thermal Pad + + + 9V 9V R2440 0 C1BA00000278 IC2302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 R2346 12k C2437 C2353 50V 10u C2466 16V 1u C2366 50V 2.2u C2457 50V 4.7u C2433 50V 0.039u C2359 50V 2.2u Q2330 2SD1266AP0LB C2431 50V 0.01u R2353 10k C2312 50V 0.01u JS2301 C2454 50V 4.7u R2468 4.7k R2332 1.8k R2358 2.2 C2467 16V 1u C2426 50V 0.015u D2302 B0JCME000025 C2357 50V 1000p R2355 2.2 C2440 16V 4.7u R2485 0 C2360 50V 1000p ZA003 K4ZZ01000121 R2450 56k R2456 10k C2313 50V 47u C2434 50V 0.022u C2355 35V 47u R2301 4.7k R2354 10k C2351 2.2u 16V R2487 0 D2301 B0JCME000025 R2352 10k C2363 25V 470u R2461 100 R2439 56k R2448 1k C2435 50V 0.01u L2306 ELJPA100KF Z7 1 2 3 R2333 470 C2358 50V 2.2u R2486 0 ZA001 K4ZZ01000121 R2489 0 C2354 35V 47u R2488 0 D2317 B0JCME000025 R2463 15k C2452 50V 5600p R2304 47k C2314 25V 47u C2352 50V 10u R2360 2.2 C2453 50V 0.1u R2441 12k R2306 22k C2362 25V 470u C2423 50V 0.01u Z6 1 2 3 4 R2476 22 Q2305 2SD0601A0L R2351 10k ZA002 K4ZZ01000121 D2308 MA3X152E0L R2445 0 C2450 50V 10u Q2303 2SD0601A0L R2350 4.7k R2467 220k R2477 22 C2361 50V 1000p R2356 2.2 C2441 16V 4.7u C2436 16V 1u R2309 4.7k R2431 12k C2419 50V 10u C2429 R2462 100 C1BA00000278 IC2301 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 R2305 22k C2459 16V 1u C2451 50V 4.7u R2453 10k C2364 50V 0.1u C2460 50V 0.047u C2368 50V 0.1u C2461 50V 1000p C2369 50V 0.1u C2365 50V 0.1u R2359 2.2 C2458 50V 1000p C2356 50V 1000p C2427 50V 10u C2438 R2434 4.7k R2347 47k IC2401 C1BA00000302 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 C2350 2.2u 16V R2469 100k C2463 50V 0.047u R2310 5.6k R2460 18k R2348 10k C2367 50V 2.2u Q2306 2SD0601A0L IC2304 C0CBAHG00005 GND 3 2 OUT IN 1 R2466 100k R2357 2.2 Q2406 2SD0601A0L R2470 4.7k R2471 1.8k R2473 1.8k R2472 4.7k R2494 0 R2495 0 L2330 220u Q2331 2SD1266AP0LB L2331 220u R2452 47k L8502 G0A2R5H00003 JK8500 K4BC02B00013 H37 1 2 3 L8501 G0A2R5H00003 JK8500 K4BC02B00013 L8501 G0A2R5H00003 L8502 G0A2R5H00003 H37 1 2 3 SCL3 SDA3 +R OUT -R OUT -L OUT +L OUT FILTER LIPPLE AMPSTB SW ON TIME NC NC POWER GND BEEP IN NC PRE GND NC POWER GND Vcc(SW) OUT SW SWE SWB SW GND OUT- OUT+ Vcc SW GND POWER GND SW GND POWER GND Vcc OUT+ OUT- SW GND B SW E SW SWOUT Vcc(SW) POWER GND NC PRE GND NC IN BEEP POWER GND NC NC ON TIME STB SW AMP LIPPLE FILTER 100Hz LPF STT MS_IN B_GAIN LT B_IN ADD C_IN S_OUT V_REF PS STB SOUND PROCESSOR LS2 AGC_ADJ(4.2V) LS1 VCC L_IN A_GND R_IN SCV PORT SDA SCL LB CB CT RT R_OUT RB C_OUT L_OUT SLV SRV TNPA3003 SPEAKER TERMINAL (L) TNPA3003 TERMINAL SPEAKER (R) H3-BOARD H3-BOARD 8 4 2 3 1 D E C 7 A 5 6 B AUDIO AMP(R) AUDIO AMP(L) 6 10 8 9 7 5 Z-BOARD TNPA3198 (1/2) 4 3 2 1 0.4 4.4 0 4.4 4.4 9.0 4.4 4.4 0.4 4.4 4.4 4.3 1.8 0.4 0.4 0.4 1.8 4.3 4.5 4.0 4.4 4.4 0 0 0 4.8 1.5 4.4 4.4 1.5 4.8 4.4 12.0 0 9.0. 0 3.9 3.5 0 12.1 0 3.3 0 1.7 12.2 12.0 3.4 3.3 0 0 0.5 2.2 0 1.7 0.2 0.5 0 11.2 0.5 2.7 0 0.5 3.4 3.3 3.3 0 0 0 0.5 0.5 0 11.2 0 0.5 2.7 0.5 2.2 0 3.9 3.5 0 12.1 0 1.7 12.2 12.0 3.4 0 1.7 0.2 3.4 0.1 1.7 1.7 0.2 0.1 1.7 1.7 1.7 0.1 1.7 1.7 0.1 1.7 3.4 3.5 12.0 3.4 12.0 3.5 0 0 4.3 0 0 4.3 0 0 0.6 9.0 4.1 3.6 M = = = M M M M M TH-42PHD7CY Z-Board (1 of 2) and H3-Board Schematic Diagram TH-42PHD7CY Z-Board (1 of 2) and H3-Board Schematic Diagram 121 15.58.Z 电路板 (2/2) 线路图 + Thermal Pad + + + + + + + + 5V 9V 12V C809 50V 0.01u C817 25V 220u C819 50V 0.1u C816 50V 6800p Z5 1 2 3 4 5 6 7 8 9 10 11 C0DBALH00002 IC803 1 AGND 2 N.C 3 DGND 4 CE/SS 5 Reg 6 N.C 7 Swout 8 N.C 9 N.C 10 N.C 11 Vin 12 BS 13 N.C 14 Comp 15 Vref 16 N.C D803 B0JCME000025 1% R809 1.2k R811 820 R820 1.2k L802 G1C121ZA0037 R805 1k C812 50V 0.1u R817 1.2k D813 MA3X152K0L R2371 1k D804 B0JCPD000010 R2372 1k Q2370 2SB0709A0L C805 16V 1000u C818 16V 1200u D810 MA3X152K0L D802 B0JCME000025 R812 5.1k Z31 1 2 3 C815 50V 0.1u IC804 C0DAAZG00006 1 V IN 2 SW out 3 GND 4 VO S 5 ON/OFF R2373 10k IC801 C0DAAHG00008 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF C802 25V 470u R2370 2.2k IC802 C0DAAHG00007 1 V IN 2 V OUT 3 GND 4 VO S 5 ON/OFF Z10 1 2 3 4 5 C2370 35V 47u C808 50V 0.01u R803 1k R2366 0.56 1W L804 G0C101K00023 C803 25V 330u C807 50V 0.1u C814 6.3V 1500u Q2334 2SD0601A0L R2368 10k R816 470 R815 47k D812 MA3X152K0L R814 3.3k R818 1.2k L803 G1C680ZA0037 L801 G1C101ZA0037 Q2333 2SD0601A0L C806 10V 1000u R819 1.2k R808 47 Z30 1 2 3 R2365 0.56 1W C813 50V 0.047u R2367 3.3k C811 50V 0.01u 1% R810 510 R806 15 D808 B0JCME000025 D811 MA3X152K0L L805 220u Q801 2SD0601ASL R813 4.7k C810 25V 560u R807 15 R2369 10k R2490 0 R2491 0 R825 0 Z8 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 D806 B0BC6R8A0010 D807 B0BC6R8A0010 R831 0 Z32 1 2 3 Z33 1 2 3 SDA3 SCL3 SOUND12V SOUND12V STB5V DIG12V DIG12V DR15V SLOT3.3V SLOT3.3V SLOT5V SLOT9V DIG12V GND GND GND GND GND FAN SOS GND FAN12V FAN CONT 5V FAN SOS GND DR15V GND GND FAN_SW R L SOUND MAIN MUTE RESET 9V/0.5A 3.3V/1.2A GND GND 5V/0.4A SOUND12V GND GND GND 15 14 11 10 9 8 12 13 TO (P5) P-BOARD TO (J8) J-BOARD TO (P10) P-BOARD AVR 9V AVR 5V SW REG 3.3V FAN 12V Z-BOARD TNPA3198 (2/2) 1 5 4 3 2 7 9 8 10 6 0 12.2 9.0 8.9 2.3 2.2 4.9 5.0 12.2 0 5.0 0 0 12.0 0 3.2 4.9 15.0 0 4.8 0 0 5.4 5.5 4.8 0 0 3.3 0 9.0 12.0 0 15.0 1.5 2.3 12.0 0 0 0 0 0.9 8.9 0.9 0 5.5 0 3.4 0 0 0 3.3 12.2 0 12.2 0 0 0 12.2 12.2 4.5 12.2 0 0 15.4 6.6 0 5.0 6.6 0 0.1 0.1 0 6.6 0.1 6.6 0 6.6 0 0.1 0 12.2 12.2 0 4.3 0 0 12.1 0 5.9 5.9 15.0 0 TO FAN TO FAN FAN TO FAN TO M M M M M M M M TH-42PHD7CY Z-Board (2 of 2) Schematic Diagram TH-42PHD7CY Z-Board (2 of 2) Schematic Diagram 123 16 部件布置 124 17 包装分解图 17.1. 包装分解图 (1) 125 17.2. 包装分解图 (2) 126 17.3. 包装分解图 (3) 127 18 维修部品表 参考号 部件号 部件名称及说明 数量 备注 1 EUR646529 遥控器 ( 商用 ) 1 J0KD00000071 铁氧磁环 4 2 J0KF00000018 噪音过滤器 1 3 J0KG00000054 噪音过滤器 2 4 K2CK3DH00028 电源线 1 K5D312BL0008 副保险丝 （PF 板 F902） 1 K5D802BNA003 主保险丝 （PF 板 F900 F901） 2 L6FAKEDH0010 风扇 2 5 MC106H30FD7 42PHD 屏 （带模块 / 带 FPC） 1 R6DW/2STA 干电池 2 TBMA099 PANASONIC 标牌 1 TBMU196 SP 端子表示牌 2 TBMU499 HY （BNC）端子表示牌 1 6 TBXA33802 电源开关 1 7 TBXA38902 铰链开关 1 8 TESD039 电源开关弹簧 1 THEL023Z 带垫螺丝 （黑） 14 THEL035N 攻丝螺丝 123 9 TKEA05811 面框本体 （42PHD7） 1 10 TKGA5174-1 前面板玻璃 (2.5Ω) 1 11 TKKC5129 LED 屏 1 12 TKPA60301 遥控器受光屏 (PWD) 1 13 TKPA63401 IC 光电窗 1 14 TKRA29801 把手 2 15 TKUX07204 后盖本体 （Fe） 1 TMKG314 海绵 （左右）（面框内） 2 TMKG315 海绵 （上下）（面框内） 2 TMKG335 风扇海绵 （圆形） 2 TMKK144 橡胶垫片 10 TMKX336 S1 线路板绝缘片 1 TMKX531 P 屏蔽绝缘片 1 TMKX532 辐射对策绝缘片 1 TMKX674 SC/SS 绝缘片 2 TMKX792 柔性导线压片 1 TMM15414-2 空中线夹 1 TMME144 铆钉 （柔性导线） 2 TMME185 尼龙铆钉 2 TMME203 扎带 2 TMME225 AC 线夹 1 TMME228 扎带固定件 2 TMMX079 M8 垫片 (T=0.5MM) 4 TMWC008 电源开关托架 1 TMXX027 芯子支座 2 TPASK06 SP 导线 （完成品） 1 16 TPCB14201 内包装箱底箱 1 17 TPCB14310 内包装箱 1 18 TPD0A9002L 箱扣 8 19 TPDA0698 外箱左右缓冲材 4 20 TPDA0699 外箱中间缓冲材 2 21 TPDA0930 内箱顶部缓冲材 1 22 TPDA0931 内箱底部缓冲材 1 23 TPDF0760 内箱顶盖 1 24 TPDF0764 附件盒 1 25 TPDF1004 外箱顶盖 1 26 TPEH165 整机保护袋 1 27 TPGA2040 外箱底箱 1 28 TPGA2640 外箱 1 TQFB662 线夹注意标签 1 29 TQZC734 说明书 1 TSXL214 柔性导线 (FPC)(D-C1) 1 TSXL222 柔性导线 (C1-C2) 2 TSXL289 柔性导线 (L 型 FPC)(D-C3) 1 TSXL290 柔性导线 (FPC)(D-C4) 1 TSXL308 柔性导线 (L 型 FPC)(D-C2) 1 TXAUW01QBSC SP 端子 安装金具 ( 备品 ) 2 30 TXFMZ010VAS 台架安装块 （半成品） 2 TXFUW02VCSC 端子块 （完成品） 1 TXJ/D50VCS 线束 D5-J5 1 TXJ/J10VAS 线束 D1-J1 1 TXJ/J30VAS 线束 D3-J3( 磁场干扰对策 ) 1 TXJ/P20QJS 线束 P2-SC2 1 TXJ/SJ0QJS 风扇用短 JP 2 TXJ/Z50VAS 线束 Z5-P5 1 TXJ/Z80VAS 线束 Z8-J8 1 TXJC320UNS 线束 SS32-C32 1 TXJD200UNS 线束 D20-SC20 1 TXJD250QJS 线束 D25-P25 1 TXJD270QJS 线束 D27-P27 1 TXJJ100QBS 线束 PF10-J10 1 TXJP100VAS 线束 Z10-P10 1 TXJP110QJS 线束 P11-SS11 1 TXJP120QJS 线束 P12-SS12 1 TXJP230QJS 线束 P23-SC23 1 TXJPF90VAS 线束 PF9-P9 1 TXJS34VRSD 线束 S34-SS34 1 TXJS420QKS 线束 SS42-C42 1 TXJS450UNS 线束 SD-SC 1 TXJS450UNS 线束 SU-SC 1 TXJSPL0QBS 线束 Z6-H37(SP) 1 TXJSPR0QBS 线束 Z7-H37(SP) 1 TXJV340QJS 线束 C44-V34 1 TXN/D1VCSC D 线路板 （半成品） 1 TXN/P1VCSC P 线路板 （半成品） 1 TXN/Z1VCSC Z 线路板 （半成品） 1 TXNC11VCSC C1 线路板 1 TXNC21VCSC C2 线路板 1 TXNC31VCSC C3 线路板 1 TXNC41VCSC C4 线路板 1 TXNHYQBSC HY(BNC) 端子块 （完成品） 1 TXNPF1VCSC PF 线路板 1 TXNS11VCSC S1 线路板 带托架 1 TXNSC1VCSC SC 线路板 1 TXNSD1VCSC SD 线路板 1 TXNSS1VCSC SS 线路板 1 TXNSS21VCSC SS2 线路板 1 TXNSU1VCSC SU 线路板 1 TXNV11VCSC V1 线路板 1 XTB4+10A 螺丝 （前面板按压件：19） 19 XTS3+10J 攻丝螺丝 （S1 线路板） 1 XTV3+10J 螺丝 （电源 SW 块：2） 2 XTV3+6J 螺丝 （走查基板：2） 2 XYC4+FJ35FZ 螺丝 （后盖用） 18 XYN5+C15 带垫螺丝 （台架安装块） 6 31 XYN8+F20FZ 后盖固定用螺丝 4 参考号 部件号 部件名称及说明 数量 备注 128 19 更换部件清单 19.1. 更换部件清单注意事项 129 19.2. 电器部件更换清单 参考号 部件号 部件名称及说明 件数 备注 F902 K5D312BL0008 熔断器 1 F900.901 K5D802BNA003 熔断器 2 C11 K1MN80B00002 连接接头 1 C12 K1MN20B00043 20P 连接接头 1 C21 K1MN80B00002 连接接头 1 C22 K1MN20B00043 20P 连接接头 1 C31 K1MN80B00002 连接接头 1 C32 K1KA12A00227 12P 连接接头 1 C33 K1MN20B00043 20P 连接接头 1 C41 K1MN80B00002 连接接头 1 C42 K1KA04A00199 4P 连接接头 1 C43 K1MN20B00043 20P 连接接头 1 C44 K1KA08A00232 8P 连接接头 1 C802 EEUFC1E471 E 470UF, 25V 1 C803 EEUFC1E331 E 330UF, 25V 1 C805 EEUFC1C102 E 1000UF, 16V 1 C806 EEUFC1A102 E 1000UF, 10V 1 C807 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C808,09 ECQB1H103JF P 0.01UF, J, 50V 2 C810 EEUFC1E561 E 560UF, 25V 1 C811 ECQB1H103JF P 0.01UF, J, 50V 1 C812 ECQB1H104JF P 0.1UF, J, 50V 1 C813 ECQB1H473JF P 0.047UF, J, 50V 1 C814 EEUFC0J152 E 1500UF, 6.3V 1 C815 ECQB1H104JF P 0.1UF, J, 50V 1 C816 ECQB1H682JF3 P 6800PF, J, 50V 1 C817 ECA1EHG221 E 220UF, 25V 1 C818 EEUFC1C122 E 1200UF, 16V 1 C819 ECQB1H104JF P 0.1UF, J, 50V 1 C901 ECQU2A105BN9 P 1UF, 250V 1 C902,03 ECKCNA221KB7 C 220PF, M, 2 C904 ECQU2A474BN9 P 0.47UF, 250V 1 C905 ECQU2A105BN9 P 1UF, 250V 1 C906,07 ECKCNA221KB7 C 220PF, M, 2 C910 EETHC2W101J C 4700PF, Z,450V 1 C911 ECQE6223KF P 0.022UF, K,400V 1 C912 EEUEB1H100SB E 100UF, 25V 1 C913 ECJ2XC1H221J C 220PF, J, 50V 1 C914 ECKD3D221KBN C 220PF, K, 2KV 1 C915 ECJ2XC1H471J C 470PF, J, 50V 1 C916 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C917 EEUEB1H100SB E 100UF, 25V 1 C918 ECJ2XC1H222J C 2200PF, J, 50V 1 C919 ECJ2XF1H224Z C 0.22UF, Z, 50V 1 C920 ECKDNA471KB7 C 470PF, Z, 1 C930 EEUFC1E222 E 2200UF, 25V 1 C931 ECKD3A331KBP C 330PF, K, 1KV 1 C932 EEUEB1E101 E 100UF, 25V 1 C933 ECJ2FB1E105K C 1UF, K, 16V 1 C1530 ECJ3XB0J106M C 10UF, M,6.3V 1 C2312 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2313 ECA1HHG470 E 47UF, 50V 1 C2314 ECA1EHG470 E 47UF, 25V 1 C2350,51 TCUY1C225KBM C 2.2UF, 16V 2 C2352,53 ECA1HHG100 E 10UF, 50V 2 C2354,55 ECA1VM470 E 47UF, 35V 2 C2356,57 ECJ2XB1H102K C 1000PF, K, 50V 2 C2358,59 ECA1HM2R2 E 2.2UF, 50V 2 C2360,61 ECJ2XC1H102J C 1000PF, J, 50V 2 C2362,63 ECA1EM471 E 470UF, 25V 2 C2364,65 ECQV1H104JM P 0.1UF, J, 50V 2 C2366,67 ECQV1H225JM P 2.2UF, J, 50V 2 C2368,69 ECQV1H104JM P 0.1UF, J, 50V 2 C2370 ECA1VM470 E 47UF, 35V 1 C2419 ECA1HHG100 E 10UF, 50V 1 C2423 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2426 ECJ2XB1H153K C 0.015UF, K, 50V 1 C2427 ECA1HHG100 E 10UF, 50V 1 C2429 EEAGA1C101 E 100UF, 16V 1 C2431 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C2433 ECJ2XB1H393K C 0.039UF, K, 50V 1 C2434 ECJ2XB1H223K C 0.022UF, K, 50V 1 C2435 ECJ2XB1H103K C 0.01UF, K, 50V 1 C2436 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2437,38 EEAGA1C101 E 100UF, 16V 2 C2440,41 ECJ3XF1C475Z C 4.7UF, Z, 16V 2 C2450 ECA1HHG100 E 10UF, 50V 1 C2451 ECA1HHG4R7 E 4.7UF, 50V 1 C2452 ECJ2XB1H562K C 5600PF, K, 50V 1 C2453 ECJ2VF1H104Z C 0.1UF, Z, 50V 1 C2454 ECA1HHG4R7 E 4.7UF, 50V 1 C2457 ECA1HHG4R7 E 4.7UF, 50V 1 C2458 ECJ2XC1H102J C 1000PF, J, 50V 1 C2459 ECJ3VB1C104K C 0.10UF, K, 16V 1 C2460 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2461 ECJ2XC1H102J C 1000PF, J, 50V 1 C2463 ECJ2XB1H473K C 0.047UF, K, 50V 1 C2466,67 ECJ3VB1C104K C 0.10UF, K, 16V 2 C3001 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3002 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3003 EEVHP1A100 E 10UF, 10V 1 C3004 EEEHB1C470P C 47PF, J, 16V 1 C3005 ECJ2XB1H682K C 6800PF, K, 50V 1 C3006 ECJ2XB1H682K C 6800PF, K, 50V 1 C3007 EEEHB1C470P C 47PF, J, 16V 1 C3008 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C3009 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3010 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3011 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3012 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3013 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3014 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3015 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3016 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3017 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C3018 EEEHB1C470P C 47PF, J, 16V 1 C3019 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3020 TCUY1C225KBM C 2.2UF, 16V 1 C3021 TCUY1C225KBM C 2.2UF, 16V 1 C3022 TCUY1C225KBM C 2.2UF, 16V 1 C3023 TCUY1C225KBM C 2.2UF, 16V 1 C3024-31 TCUY1C225KBM C 2.2UF, 16V 8 C3032 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3040,41 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3051-54 ECJ1XC1H561J C 560PF, J, 50V 4 C3055,56 ECJ2XB1H682K C 6800PF, K, 50V 2 C3101 TCUY1C225KBM C 2.2UF, 16V 1 C3102 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3103 TCUY1C225KBM C 2.2UF, 16V 1 C3104,05 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C3106 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3107 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3108 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3109 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3110 TCUY1C225KBM C 2.2UF, 16V 1 C3111 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3112 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3113 EEEHB1C470P C 47PF, J, 16V 1 C3114 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3115 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3116 TCUY1C225KBM C 2.2UF, 16V 1 C3117 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3118 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3119 TCUY1C225KBM C 2.2UF, 16V 1 C3120 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3121 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3122 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3124 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3125 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3126 TCUY1C225KBM C 2.2UF, 16V 1 C3127 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3128 EEEHB1C470P C 47PF, J, 16V 1 C3129 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C3130 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 参考号 部件号 部件名称及说明 件数 备注 130 C3131-02 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3134 EEVHB1C471 E 470UF, 16V 1 C3135 EEVHB1C471 E 470UF, 16V 1 C3136 EEVHB1C471 E 470UF, 16V 1 C3137 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3138 ECJ3XB0J106M C 10UF, M,6.3V 1 C3139 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3140 ECJ1XC1H101J C 100PF, J, 50V 1 C3141 TCUY1C225KBM C 2.2UF, 16V 1 C3142 TCUY1C225KBM C 2.2UF, 16V 1 C3143 TCUY1C225KBM C 2.2UF, 16V 1 C3144 TCUY1C225KBM C 2.2UF, 16V 1 C3146 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3147 ECJ3XB0J106M C 10UF, M,6.3V 1 C3148 ECJ1XB0J105K C 1UF, K, 16V 1 C3149 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3150 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C3151 ECJ1XC1H330J C 33PF, J, 50V 1 C3152 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3153 ECJ1XC1H101J C 100PF, J, 50V 1 C3154 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3156 ECJ1XB0J105K C 1UF, K, 16V 1 C3157 ECJ3XB0J106M C 10UF, M,6.3V 1 C3158 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3159 EEVHB0G221 E 220UF, 4V 1 C3160,61 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3162-66 ECJ1VF1A105Z C 1UF, Z, 10V 5 C3167-78 ECJ1XB1C104K C 0.1UF, Z, 16V 12 C3179 EEVHB0G221 E 220UF, 4V 1 C3180-83 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3185 ECJ1XC1H060D C 6PF, D, 50V 1 C3186 ECJ1XC1H470J C 47PF, J, 50V 1 C3188 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3200 ECJ2XB1H682K C 6800PF, K, 50V 1 C3202-06 ECJ1VF1A105Z C 1UF, Z, 10V 5 C3207 EEVHB0G221 E 220UF, 4V 1 C3208-14 ECJ1VF1A105Z C 1UF, Z, 10V 7 C3216,17 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3218 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3253 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3254 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3255 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3256 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3257 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3258 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3259 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3260 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3261 EEVHB0G221 E 220UF, 4V 1 C3262 ECJ1XB1H102K C 1000UF, Z, 50V 1 C3263,64 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C3265 EEVHB0G221 E 220UF, 4V 1 C3266-68 EEVHB1C471 E 470UF, 16V 3 C3301 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3308 EEVHB0G221 E 220UF, 4V 1 C3309 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3311 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C3313 ECJ1VF1A105Z C 1UF, Z, 10V 1 C3316,17 ECJ1VF1A105Z C 1UF, Z, 10V 2 C3318-21 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3322,23 EEVHB0G221 E 220UF, 4V 2 C3324 EEVHB0J101P E 100UF, 6.3V 1 C3325 EEVHB1C470 E 47UF, 16V 1 C3327-30 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C3404 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3405 EEEHB1C470P C 47PF, J, 16V 1 C3409 ECJ2VF1C104Z C 0.1UF, Z, 16V 1 C3523 EEEHB1C470P C 47PF, J, 16V 1 C3524 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3550 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C3551 EEEHB1C470P C 47PF, J, 16V 1 C3561,62 ECJ2XB1H682K C 6800PF, K, 50V 2 C6003 F1K2J222A014 C 2200UF, K,6.3V 1 C6009 F1K2J222A014 C 2200UF, K,6.3V 1 C6014 F1K2J222A014 C 2200UF, K,6.3V 1 C6020 F1K2J222A014 C 2200UF, K,6.3V 1 C6060 ECA2CM101 E 100UF, 160V 1 C6101,02 ECWF2205JS P 2UF, 250V 2 参考号 部件号 部件名称及说明 件数 备注 C6104,05 ECWF2205JS P 2UF, 250V 2 C6106 F2A2D221A022 E 220UF, 200V 1 C6108,09 F1L2E1040002 E 1000UF, 25V 2 C6111-14 F2A2D221A022 E 220UF, 200V 4 C6115 ECWF2105RKS P 1UF, J,250V 1 C6117 ECJ3YB1E105K C 1UF, K, 25V 1 C6118 EEUFC1E221 E 220UF, 25V 1 C6120 EEUFC1E221 E 220UF, 25V 1 C6121 EEUFC1E470 E 47UF, 25V 1 C6122 ECA2CM101 E 100UF, 160V 1 C6124 ECA2DHG221 E 220UF, 200V 1 C6126 EEUFC1E561 E 560UF, 25V 1 C6129 F1K2J222A014 C 2200UF, K,6.3V 1 C6133 F1K2J222A014 C 2200UF, K,6.3V 1 C6135 F1K2J222A014 C 2200UF, K,6.3V 1 C6139 F1K2J222A014 C 2200UF, K,6.3V 1 C6144,45 ECJ3YB1E105K C 1UF, K, 25V 2 C6146-48 F1L1E4750004 C 4.7UF, 25V 3 C6149 TCUY1C105ZFN C 1UF, 16V 1 C6150,51 F1L1E4750004 C 4.7UF, 25V 2 C6152 TCUY1C105ZFN C 1UF, 16V 1 C6153 ECJ3YB1E105K C 1UF, K, 25V 1 C6155 TCUY1C105ZFN C 1UF, 16V 1 C6156,57 F1L1E4750004 C 4.7UF, 25V 2 C6158 ECJ3YB1E105K C 1UF, K, 25V 1 C6159 F1L1E4750004 C 4.7UF, 25V 1 C6160 ECJ3YB1E105K C 1UF, K, 25V 1 C6161 F1L1E4750004 C 4.7UF, 25V 1 C6162-64 TCUY1C105ZFN C 1UF, 16V 3 C6168 ECJ3YB1E105K C 1UF, K, 25V 1 C6172 TCUY1C105ZFN C 1UF, 16V 1 C6184 ECJ3XB2J222K C 2200PF, K,630V 1 C6432 ECJ2XB1H472K C 4700PF, K, 50V 1 C6433 TCUY1C105ZFN C 1UF, 16V 1 C6434 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6435 EEUFC1E221 E 220UF, 25V 1 C6436 ECA1HM221 E 220UF, 50V 1 C6437 ECJ2XB1H104K C 0.1UF, K, 50V 1 C6454 ECA2CHG100 E 10UF, 160V 1 C6456 ECA2CM101 E 100UF, 160V 1 C6458 F1L1E4750004 C 4.7UF, 25V 1 C6459 EEUFC1E470 E 47UF, 25V 1 C6461 ECA1HM101 E 100UF, 50V 1 C6462,63 F1L1E4750004 C 4.7UF, 25V 2 C6465 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6466,67 F1L1E4750004 C 4.7UF, 25V 2 C6472 ECJ2XB1H223K C 0.022UF, K, 50V 1 C6473 TCUY1C105ZFN C 1UF, 16V 1 C6474 ECJ2XB1H103K C 0.01UF, K, 50V 1 C6475 EEUFC1E221 E 220UF, 25V 1 C6476 ECA2CM101 E 100UF, 160V 1 C6477 ECJ3YB1E105K C 1UF, K, 25V 1 C6490,91 F1K2J332A014 C 3300UF, K,6.3V 2 C6492 F2A2G100A017 E 100UF, 400V 1 C6493 ECJ3XB2J222K C 2200PF, K,630V 1 C6501-08 TCUY1C105ZFN C 1UF, 16V 8 C6509 ECJ2XC1H102J C 1000PF, J, 50V 1 C6510-12 F1L1E4750004 C 4.7UF, 25V 3 C6513 ECA2CM101 E 100UF, 160V 1 C6514 TCUY1C105ZFN C 1UF, 16V 1 C6515,16 F1L1E4750004 C 4.7UF, 25V 2 C6517 TCUY1C105ZFN C 1UF, 16V 1 C6519 ECJ3YB1E105K C 1UF, K, 25V 1 C6521 F1L1E4750004 C 4.7UF, 25V 1 C6522 ECA1VM470 E 47UF, 35V 1 C6524,25 ECJ3FC2D102J C 1000PF, J,200V 2 C6526 ECA2EHG470 E 47UF, 250V 1 C6541,42 F1L1E4750004 C 4.7UF, 25V 2 C6543-45 ECJ3FC2D102J C 1000PF, J,200V 3 C6546 F1L1E4750004 C 4.7UF, 25V 1 C6550 ECA2CM101 E 100UF, 160V 1 C6551 ECQE2105RKB P 1UF, 250V 1 C6552,53 F1L1E4750004 C 4.7UF, 25V 2 C6554,55 ECJ3FC2D102J C 1000PF, J,200V 2 C6571 TCUY1C105ZFN C 1UF, 16V 1 C6575-78 TCUY1C105ZFN C 1UF, 16V 4 C6580,81 TCUY1C105ZFN C 1UF, 16V 2 参考号 部件号 部件名称及说明 件数 备注 131 C6584 ECJ3YB1E105K C 1UF, K, 25V 1 C6585 TCUY1C105ZFN C 1UF, 16V 1 C6598 ECA2CM101 E 100UF, 160V 1 C6600 TCUY1C105ZFN C 1UF, 16V 1 C6601-05 F2A2D221A022 E 220UF, 200V 5 C6607 ECWF2105RKS P 1UF, J,250V 1 C6609 ECJ3YB1E105K C 1UF, K, 25V 1 C6610 EEUFC1E221 E 220UF, 25V 1 C6611 F1K2J222A014 C 2200UF, K,6.3V 1 C6613 F1K2J222A014 C 2200UF, K,6.3V 1 C6621,22 F1L1E4750004 C 4.7UF, 25V 2 C6623 TCUY1C105ZFN C 1UF, 16V 1 C6624 F1L1E4750004 C 4.7UF, 25V 1 C6625 F1K2J222A014 C 2200UF, K,6.3V 1 C6631 F1K2J222A014 C 2200UF, K,6.3V 1 C6638 F1L1E4750004 C 4.7UF, 25V 1 C6639 F1L2E1040002 E 1000UF, 25V 1 C6640 TCUY1C105ZFN C 1UF, 16V 1 C6641,42 F1L1E4750004 C 4.7UF, 25V 2 C6643 F1L2E1040002 E 1000UF, 25V 1 C6645 ECJ3YB1E105K C 1UF, K, 25V 1 C6650,51 F1L1E4750004 C 4.7UF, 25V 2 C6652 TCUY1C105ZFN C 1UF, 16V 1 C6653 F1L1E4750004 C 4.7UF, 25V 1 C6679,80 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C6681,82 TCUY1C105ZFN C 1UF, 16V 2 C6683,84 EEUFC1E470 E 47UF, 25V 2 C6701,02 ECWF2205JS P 2UF, 250V 2 C6704,05 ECWF2205JS P 2UF, 250V 2 C6708 F1K2J222A014 C 2200UF, K,6.3V 1 C6714 F1K2J222A014 C 2200UF, K,6.3V 1 C6723 F1K2J222A014 C 2200UF, K,6.3V 1 C6729 F1K2J222A014 C 2200UF, K,6.3V 1 C6901-06 TCUY1C105ZFN C 1UF, 16V 6 C6907,08 ECJ2XB1H102K C 1000PF, K, 50V 2 C6917-20 F1L2E1040002 E 1000UF, 25V 4 C6971-76 TCUY1C105ZFN C 1UF, 16V 6 C6977,78 ECJ2XB1H102K C 1000PF, K, 50V 2 C6987-90 F1L2E1040002 E 1000UF, 25V 4 C7100 ECJ1XC1H101J C 100PF, J, 50V 1 C7103-05 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7106 ECJ1XC1H101J C 100PF, J, 50V 1 C7107 TCUY1C105ZFN C 1UF, 16V 1 C7120 ECJ1XC1H821J C 820PF, J, 50V 1 C7123-25 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7126 ECJ1XC1H101J C 100PF, J, 50V 1 C7127 TCUY1C105ZFN C 1UF, 16V 1 C7140 ECJ1XC1H821J C 820PF, J, 50V 1 C7143-45 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7146 ECJ1XC1H101J C 100PF, J, 50V 1 C7147 TCUY1C105ZFN C 1UF, 16V 1 C7160 ECJ1XC1H821J C 820PF, J, 50V 1 C7163-65 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7166 ECJ1XC1H821J C 820PF, J, 50V 1 C7167 TCUY1C105ZFN C 1UF, 16V 1 C7180 TCUY1C105ZFN C 1UF, 16V 1 C7181 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7184 TCUY1C105ZFN C 1UF, 16V 1 C7185 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7186 TCUY1C105ZFN C 1UF, 16V 1 C7187 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7188 TCUY1C105ZFN C 1UF, 16V 1 C7189 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7194 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7300 ECJ1XC1H821J C 820PF, J, 50V 1 C7303-05 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7306 ECJ1XC1H821J C 820PF, J, 50V 1 C7307 TCUY1C105ZFN C 1UF, 16V 1 C7320 ECJ1XC1H821J C 820PF, J, 50V 1 C7323-25 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7326 ECJ1XC1H101J C 100PF, J, 50V 1 C7327 TCUY1C105ZFN C 1UF, 16V 1 C7340 ECJ1XC1H821J C 820PF, J, 50V 1 C7343-45 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7346 ECJ1XC1H101J C 100PF, J, 50V 1 C7347 TCUY1C105ZFN C 1UF, 16V 1 C7360 ECJ1XC1H101J C 100PF, J, 50V 1 参考号 部件号 部件名称及说明 件数 备注 C7363-65 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7366 ECJ1XC1H101J C 100PF, J, 50V 1 C7367 TCUY1C105ZFN C 1UF, 16V 1 C7380 TCUY1C105ZFN C 1UF, 16V 1 C7381 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7382-87 TCUY1C105ZFN C 1UF, 16V 6 C7392 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C7500 TCUY1C105ZFN C 1UF, 16V 1 C7501 ECJ1XC1H821J C 820PF, J, 50V 1 C7504-06 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7507 ECJ1XC1H821J C 820PF, J, 50V 1 C7520 TCUY1C105ZFN C 1UF, 16V 1 C7521 ECJ1XC1H821J C 820PF, J, 50V 1 C7524-26 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7527 ECJ1XC1H101J C 100PF, J, 50V 1 C7540 TCUY1C105ZFN C 1UF, 16V 1 C7541 ECJ1XC1H101J C 100PF, J, 50V 1 C7544-46 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7547 ECJ1XC1H821J C 820PF, J, 50V 1 C7560 TCUY1C105ZFN C 1UF, 16V 1 C7561 ECJ1XC1H101J C 100PF, J, 50V 1 C7564-66 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C7567 ECJ1XC1H101J C 100PF, J, 50V 1 C7580 TCUY1C105ZFN C 1UF, 16V 1 C7581 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7582 TCUY1C105ZFN C 1UF, 16V 1 C7583 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7584 TCUY1C105ZFN C 1UF, 16V 1 C7585 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7588 TCUY1C105ZFN C 1UF, 16V 1 C7589 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C7594 TCUY1C105ZFN C 1UF, 16V 1 C7595 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C8001 EEEHB1C470P C 47PF, J, 16V 1 C8002 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C8003 ECJ1VF1H104Z C 0.1UF, Z, 50V 1 C8005 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8006 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8007 ECJ1XC1H101J C 100PF, J, 50V 1 C8008 ECJ1XC1H101J C 100PF, J, 50V 1 C8009 ECJ3XB0J106M C 10UF, M,6.3V 1 C8011 ECJ3XB0J106M C 10UF, M,6.3V 1 C8013 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8014 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8015 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8016 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8017 ECJ3YF1A106Z C 10UF, Z, 10V 1 C8018 ECJ3YB1A475K C 0.047UF, K, 10V 1 C8019 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8020 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8021 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8022 ECJ3VB1C474K C 0.47UF, K, 16V 1 C8023 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8024 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8025 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8026 ECJ1VB1H103K C 0.01UF, K, 50V 1 C8027 TCUY1C225KBM C 2.2UF, 16V 1 C8029 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8030 EEEHB1C470P C 47PF, J, 16V 1 C8031 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8032 EEEHB1C470P C 47PF, J, 16V 1 C8033 ECJ1XC1H102J C 1000PF, J, 50V 1 C8034 ECJ1XC1H102J C 1000PF, J, 50V 1 C8035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8036 ECJ1XC1H101J C 100PF, J, 50V 1 C8037 ECJ1XC1H101J C 100PF, J, 50V 1 C8038 ECJ2XC1H102J C 1000PF, J, 50V 1 C8039 ECJ2XC1H102J C 1000PF, J, 50V 1 C8041 TCUY1C225KBM C 2.2UF, 16V 1 C8043 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8045 ECJ2XB1H682K C 6800PF, K, 50V 1 C8049 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8050 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8051 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8070 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8071 EEEHB1C470P C 47PF, J, 16V 1 C8072,73 ECJ3YF1A106Z C 10UF, Z, 10V 2 参考号 部件号 部件名称及说明 件数 备注 132 C8080-83 ECJ1XF1C104Z C 0.1UF, Z, 16V 4 C8084 TCUY1C105ZFN C 1UF, 16V 1 C8100 EEEHB1C470P C 47PF, J, 16V 1 C8101 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8102-07 EEEHB1C470P C 47PF, J, 16V 6 C8108,09 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C8110 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8111-13 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C8114 ECJ2VF1H103Z C 0.01UF, Z, 50V 1 C8115 EEEHB1C470P C 47PF, J, 16V 1 C8116,17 ECJ1VF1H103Z C 0.01UF, Z, 50V 2 C8118 EEEHB1C470P C 47PF, J, 16V 1 C8119 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C8120 EEEHB1C470P C 47PF, J, 16V 1 C8121 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8122 EEEHB1C470P C 47PF, J, 16V 1 C8123 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8181,82 ECJ1XC1H150J C 15PF, J, 50V 2 C8183 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C8185 EECS5R5H155 E 1.5UF, 5.5V 1 C8200 EEEHB1C470P C 47PF, J, 16V 1 C8700 TCUY1C105ZFN C 1UF, 16V 1 C8701 ECJ1XC1H101J C 100PF, J, 50V 1 C8704-06 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C8707 ECJ1XC1H101J C 100PF, J, 50V 1 C8720 TCUY1C105ZFN C 1UF, 16V 1 C8721 ECJ1XC1H101J C 100PF, J, 50V 1 C8724-26 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C8727 ECJ1XC1H821J C 820PF, J, 50V 1 C8740 TCUY1C105ZFN C 1UF, 16V 1 C8741 ECJ1XC1H101J C 100PF, J, 50V 1 C8744-46 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C8747 ECJ1XC1H821J C 820PF, J, 50V 1 C8760 TCUY1C105ZFN C 1UF, 16V 1 C8761 ECJ1XC1H821J C 820PF, J, 50V 1 C8764-66 ECJ3XB2A104K C 0.10UF, Z, 6.3V 3 C8767 ECJ1XC1H821J C 820PF, J, 50V 1 C8780 TCUY1C105ZFN C 1UF, 16V 1 C8781 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8782 TCUY1C105ZFN C 1UF, 16V 1 C8783 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8784 TCUY1C105ZFN C 1UF, 16V 1 C8785 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8786 TCUY1C105ZFN C 1UF, 16V 1 C8787 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C8794 ECJ3XB2A104K C 0.10UF, Z, 6.3V 1 C9000,01 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9002 ECJ1XC1H101J C 100PF, J, 50V 1 C9003 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9005 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9013 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9015,16 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9018 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9019 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9020 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9021 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9022 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9024 EEEHB1C470P C 47PF, J, 16V 1 C9025,26 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9028 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9029 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9030 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9031 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9033,34 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9035 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9036 ECJ1XC1H220J C 22PF, J, 50V 1 C9037 ECJ1VC1H270J C 27PF, J, 50V 1 C9038,39 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9041 ECJ1XF1H102Z C 1000PF, Z, 50V 1 C9043-45 TCUY1C105ZFN C 1UF, 16V 3 C9046 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9047 ECJ1XC1H101J C 100PF, J, 50V 1 C9048 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9049 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9050 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9051 TCUY1C105ZFN C 1UF, 16V 1 C9200 ECJ3XB0J106M C 10UF, M,6.3V 1 参考号 部件号 部件名称及说明 件数 备注 C9201 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9202 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9203 ECJ3XB0J106M C 10UF, M,6.3V 1 C9204,05 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9206 EEEHB0G221P C 220PF, J, 4V 1 C9207-09 ECJ3XB0J106M C 10UF, M,6.3V 3 C9210-13 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9215,16 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9219 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9220 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9222 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9226 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9227 ECJ3XB0J106M C 10UF, M,6.3V 1 C9228 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9229 ECJ3XB0J106M C 10UF, M,6.3V 1 C9230 ECJ3XB0J106M C 10UF, M,6.3V 1 C9231,32 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9233,34 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9235 ECJ3XB0J106M C 10UF, M,6.3V 1 C9236 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9237 ECJ3XB0J106M C 10UF, M,6.3V 1 C9238 ECJ3XB0J106M C 10UF, M,6.3V 1 C9239,40 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9241 ECJ2XB1H103K C 0.01UF, K, 50V 1 C9242 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9243,44 ECJ2XB1H103K C 0.01UF, K, 50V 2 C9245 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9246-48 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9249 ECJ1VB1C823K C 0.082UF, K, 16V 1 C9250 ECJ1VB1H822K C 8200PF, K, 50V 1 C9253-55 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9256 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9257-59 EEEHB1C470P C 47PF, J, 16V 3 C9260-62 ECJ3XF1C475Z C 4.7UF, Z, 16V 3 C9263 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9264,65 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9266 F2H1E221A007 E 2.2UF, 25V 1 C9267 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9268 ECGRL0G680R C 68PF, J, 4V 1 C9269 F2H1E221A007 E 2.2UF, 25V 1 C9270 ECGRL0G680R C 68PF, J, 4V 1 C9271,72 EEEHB0G221P C 220PF, J, 4V 2 C9275 ECJ2XB1H472K C 4700PF, K, 50V 1 C9276 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9278 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9279 F2H1E221A007 E 2.2UF, 25V 1 C9282,83 F2H1E221A007 E 2.2UF, 25V 2 C9284,85 ECJ2XB1H472K C 4700PF, K, 50V 2 C9286 EEEHB1C470P C 47PF, J, 16V 1 C9287 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9288 EEEHB1C470P C 47PF, J, 16V 1 C9290 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9292 EEEHB0G221P C 220PF, J, 4V 1 C9293 ECGRL0G680R C 68PF, J, 4V 1 C9294,95 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9296 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9299 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9308-44 ECJ1XF1C104Z C 0.1UF, Z, 16V 37 C9346-62 ECJ1XB1C104K C 0.1UF, Z, 16V 17 C9363-65 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9366-68 EEEHB1C470P C 47PF, J, 16V 3 C9370,71 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9373 ECGRL0G680R C 68PF, J, 4V 1 C9374 ECJ3XB0J106M C 10UF, M,6.3V 1 C9375 EEEHB0G221P C 220PF, J, 4V 1 C9376 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9500,01 ECJ1XC1H180J C 18PF, J, 50V 2 C9503-49 ECJ1XF1C104Z C 0.1UF, Z, 16V 47 C9551 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9552 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9553 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9554 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9555 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9556 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9557-59 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C9560 EEEHB0G221P C 220PF, J, 4V 1 C9561-72 ECJ1XB1C104K C 0.1UF, Z, 16V 12 参考号 部件号 部件名称及说明 件数 备注 133 C9573 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9574 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9575 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9576-78 ECJ1XB1C104K C 0.1UF, Z, 16V 3 C9579 EEEHB0G221P C 220PF, J, 4V 1 C9700 ECJ2XB1H682K C 6800PF, K, 50V 1 C9701 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9703 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9707 ECJ3XF1C475Z C 4.7UF, Z, 16V 1 C9708 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9709 ECJ1VF1H103Z C 0.01UF, Z, 50V 1 C9712 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9714 ECJ2XB1H682K C 6800PF, K, 50V 1 C9717,18 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9722 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9724-26 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C9728 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9731-36 ECJ1XF1C104Z C 0.1UF, Z, 16V 6 C9738,39 ECJ2XB1H682K C 6800PF, K, 50V 2 C9801-03 ECJ3XB0J106M C 10UF, M,6.3V 3 C9850,51 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9852 EEEHB1C470P C 47PF, J, 16V 1 C9853 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9860 ECJ3XB0J106M C 10UF, M,6.3V 1 C9861 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9862 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9863 ECJ3XB0J106M C 10UF, M,6.3V 1 C9864,65 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9866 EEEHB0G221P C 220PF, J, 4V 1 C9867-69 ECJ3XB0J106M C 10UF, M,6.3V 3 C9870-73 ECJ1XB1C104K C 0.1UF, Z, 16V 4 C9875,76 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9879 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9880 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9882 ECJ1XB1C104K C 0.1UF, Z, 16V 1 C9886 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9894 ECJ3XB0J106M C 10UF, M,6.3V 1 C9895 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9905,06 ECJ3XB0J106M C 10UF, M,6.3V 2 C9907,08 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9909,10 ECJ1XB1C104K C 0.1UF, Z, 16V 2 C9911,12 ECJ3XB0J106M C 10UF, M,6.3V 2 C9913,14 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9915 ECJ2XB1H103K C 0.01UF, K, 50V 1 C9916 ECJ1XF1C104Z C 0.1UF, Z, 16V 1 C9917,18 ECJ2XB1H103K C 0.01UF, K, 50V 2 C9919 ECJ1XB1H102K C 1000UF, Z, 50V 1 C9920,21 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9922 ECJ3XB0J106M C 10UF, M,6.3V 1 C9923,24 ECJ1XF1C104Z C 0.1UF, Z, 16V 2 C9925 ECJ1VB1C823K C 0.082UF, K, 16V 1 C9926 ECJ1VB1H822K C 8200PF, K, 50V 1 C9929-31 ECJ1XF1C104Z C 0.1UF, Z, 16V 3 C3001 ECJ2XB1E104K C0.1UF,K,25V 1 HY C3002 ECJ2XB1E104K C0.1UF,K,25V 1 HY C3004 EEVHP1A100 E10UF,10V 1 HY C3005 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3006 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3007 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3009 EEVHB1C470 E47UF,16V 1 HY C3011 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3012 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3013 ECJ2VF1C105Z C1UF,Z,16V 1 HY C3014 EEVHB1C470 E47UF,16V 1 HY C3015 ECJ1XC1H470J C47PF,J,50V 1 HY C3016 ECJ1XC1H220J C22PF,J,50V 1 HY C3017 ECJ1XC1H680J C68PF,J,50V 1 HY C3019 ECJ3YB0J335K C33UF,J,25V 1 HY C3021 ECJ2VF1C105Z C1UF,Z,16V 1 HY C3022 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3051-54 ECJ1XC1H561J C560PF,J,50V 4 HY C3055,56 ECJ2VF1C105Z C1UF,Z,16V 2 HY C3101 EEVHB0G221 E220UF,4V 1 HY C3102 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3103 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3104 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3105 EEVHB0G221 E220UF,4V 1 HY 参考号 部件号 部件名称及说明 件数 备注 C3106 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3107 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3108 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3109 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3110 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3111 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3112 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3113 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3114 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3115 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3116 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3117 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3118 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3119-21 ECJ1XB1C104K C0.1UF,Z,16V 3 HY C3122 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3123-26 ECJ1XB1C104K C0.1UF,Z,16V 4 HY C3127 ECJ2VF1C105Z C1UF,Z,16V 1 HY C3128-02 ECJ1XB1C104K C0.1UF,Z,16V 7 HY C3134 EEVHB1C471 E470UF,16V 1 HY C3135 ECJ1VB1C103K C0.01UF,K,16V 1 HY C3136 ECJ1XC1H330J C33PF,J,50V 1 HY C3137 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3138 ECJ3XB0J106M C10UF,M,6.3V 1 HY C3139 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3140 ECJ1XC1H101J C100PF,J,50V 1 HY C3141 ECJ1XB0J105K C1UF,K,16V 1 HY C3142 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3144 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3146 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3147 ECJ3XB0J106M C10UF,M,6.3V 1 HY C3148 ECJ1XB0J105K C1UF,K,16V 1 HY C3149 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3150 ECJ1VB1C103K C0.01UF,K,16V 1 HY C3151 ECJ1XC1H330J C33PF,J,50V 1 HY C3152 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3153 ECJ1XC1H101J C100PF,J,50V 1 HY C3154 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3156 ECJ1XB0J105K C1UF,K,16V 1 HY C3157 ECJ3XB0J106M C10UF,M,6.3V 1 HY C3158 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3159 EEVHB0G221 E220UF,4V 1 HY C3160,61 ECJ1XB1C104K C0.1UF,Z,16V 2 HY C3162-66 ECJ1VF1A105Z C1UF,Z,10V 5 HY C3167-78 ECJ1XB1C104K C0.1UF,Z,16V 12 HY C3179 EEVHB0G221 E220UF,4V 1 HY C3180-83 ECJ1XB1C104K C0.1UF,Z,16V 4 HY C3184 EEVHB0G221 E220UF,4V 1 HY C3185 ECJ1XC1H060D C6PF,D,50V 1 HY C3186 ECJ1XC1H470J C47PF,J,50V 1 HY C3187 EEVHB0G221 E220UF,4V 1 HY C3188 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3200 ECJ2VF1C105Z C1UF,Z,16V 1 HY C3201 TCUY1C105ZFN C1UF,16V 1 HY C3202 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3203 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3204 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3205 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3206 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3207 EEVHB0G221 E220UF,4V 1 HY C3208-14 ECJ1VF1A105Z C1UF,Z,10V 7 HY C3216,17 ECJ1VF1A105Z C1UF,Z,10V 2 HY C3218 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3219 EEVHB0J101P E100UF,6.3V 1 HY C3251,52 ECJ1XF1C104Z C0.1UF,Z,16V 2 HY C3253 ECJ1XB1H102K C1000UF,Z,50V 1 HY C3254 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3255 ECJ1XB1H102K C1000UF,Z,50V 1 HY C3256 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3257 ECJ1XB1H102K C1000UF,Z,50V 1 HY C3258 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3259 ECJ1XB1H102K C1000UF,Z,50V 1 HY C3260 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3261 EEVHB0G221 E220UF,4V 1 HY C3262 ECJ1XB1H102K C1000UF,Z,50V 1 HY C3263 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3264 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3265 EEVHB0G221 E220UF,4V 1 HY 参考号 部件号 部件名称及说明 件数 备注 134 C3266 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3308 EEVHB0G221 E220UF,4V 1 HY C3309 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3311 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3312 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3313 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3315 ECJ1XB1C104K C0.1UF,Z,16V 1 HY C3316 ECJ2VF1C105Z C1UF,Z,16V 1 HY C3317 ECJ1VF1A105Z C1UF,Z,10V 1 HY C3318-21 ECJ1XB1C104K C0.1UF,Z,16V 4 HY C3322,23 EEVHB0G221 E220UF,4V 2 HY C3324 EEVHB0J101P E100UF,6.3V 1 HY C3325,26 EEVHB1C470 E47UF,16V 2 HY C3327-30 ECJ1XB1C104K C0.1UF,Z,16V 4 HY C3401 EEVHP1C100R E10UF,16V 1 HY C3404 ECJ2VF1C104Z C0.1UF,Z,16V 1 HY C3405 EEVHB1C470 E47UF,16V 1 HY C3409 ECJ2VF1C104Z C0.1UF,Z,16V 1 HY C3507,08 ECJ3XB0J106M C10UF,M,6.3V 2 HY C3510,11 ECJ2VF1C105Z C1UF,Z,16V 2 HY C3520 EEVHB1C470 E47UF,16V 1 HY C3521 ECJ2VF1C104Z C0.1UF,Z,16V 1 HY C3523 EEVHB1C470 E47UF,16V 1 HY C3524 ECJ2VF1C104Z C0.01UF,Z,50V 1 HY C3525,26 ECJ2VF1C104Z C0.1UF,Z,16V 2 HY C3527 TCUY0J685MBM C6.8UF,6.3V 1 HY C3550 ECJ2VF1H103Z C0.01UF,Z,50V 1 HY C3551 EEVHB1C470 E47UF,16V 1 HY C3561,62 ECJ2VF1C105Z C1UF,Z,16V 2 HY CA1-A8 K1MN68B00002 68P 连接接头 8 CB1-B8 K1MN68BA0002 68P 连接接头 8 CF901,02 ERZV10V621P2 变阻器 2 D1 K1KA20AA0009 20P 连接接头 1 D3 K1KA30AA0009 30P 连接接头 1 D4 K1KA14A00248 14P 连接接头 1 D5 K1KA31A00003 31P 连接接头 1 D20 K1KA20A00272 20P 连接接头 1 D25 K1KA08A00293 8P 连接接头 1 D27 K1KA09A00077 9P 连接接头 1 D31-34 K1MN80B00002 连接接头 4 D802,03 M1FS4 二极管 2 D804 B0JCPD000010 二极管 1 D806,07 B0BC6R8A0010 二极管 2 D808 M1FS4 二极管 1 D810-13 MA152K 二极管 4 D910 D4SB80Z 二极管 1 D911 B0EAKT000017 二极管 1 D912-14 B0HCMM000001 二极管 3 D915,16 TMPG10G3 二极管 2 D918 TMPG10G3 二极管 1 D930 B0HARM000020 二极管 1 D931 LNJ301MPUJA LED 1 D932 MA152K 二极管 1 D933 M1FS4 二极管 1 D1550 LNJ107W5PRW LED 1 D1551-54 MA8056-M 二极管 4 D2301,02 M1FS4 二极管 2 D2308 MA152 二极管 1 D2317 M1FS4 二极管 1 D3001 MA111 二极管 1 D3002 MA3100M 齐纳二极管 1 D3003,04 MA111 二极管 2 D3005 LNJ206R5ARA LED 1 D3007,08 MA111 二极管 2 D3021 MA111 二极管 1 D3024 MA111 二极管 1 D3061 MA728 二极管 1 D3501-04 MA3056M 齐纳二极管 4 D3507-10 MA8160H 齐纳二极管 4 D6001-03 M1FS4 二极管 3 D6101 B0HBSN000008 二极管 1 D6110 D1FL40F4063 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D6111-13 B0HBSN000008 二极管 3 D6115-17 B0HBSN000008 二极管 3 D6119 B0HCMM000001 二极管 1 D6121 B0HBSN000008 二极管 1 D6122 D1FL40F4063 二极管 1 D6128,29 B0HBSN000008 二极管 2 D6135-37 M1FS4 二极管 3 D6140 D1FL40F4063 二极管 1 D6149,50 M1FS4 二极管 2 D6151-53 D1FL40F4063 二极管 3 D6156 M1FS4 二极管 1 D6158,59 MA8330M 齐纳二极管 2 D6160 LNJ301MPUJA LED 1 D6161 MA8051L 齐纳二极管 1 D6162,63 MA111 二极管 2 D6164 LNJ301MPUJA LED 1 D6166 MA111 二极管 1 D6168,69 D1FL40F4063 二极管 2 D6171,72 MA111 二极管 2 D6173 D1FL40F4063 二极管 1 D6195 D1FL40F4063 二极管 1 D6433 MA111 二极管 1 D6435 MA111 二极管 1 D6436 B0JCKG000001 二极管 1 D6451 D1FL40F4063 二极管 1 D6452 B0HCKS000001 二极管 1 D6453,54 D1FL40F4063 二极管 2 D6455 MA111 二极管 1 D6456 D1FL40F4063 二极管 1 D6457 B0HCKS000001 二极管 1 D6459 MA111 二极管 1 D6460,61 B0HCKS000001 二极管 2 D6465,66 MA8330M 齐纳二极管 2 D6468 MA111 二极管 1 D6470,71 MA111 二极管 2 D6473 MA111 二极管 1 D6475 MA111 二极管 1 D6476 D1FL40F4063 二极管 1 D6477 MA111 二极管 1 D6478 B0HCKS000001 二极管 1 D6479 MA111 二极管 1 D6481,82 MA8200M 齐纳二极管 2 D6483 M1FS4 二极管 1 D6484 MA111 二极管 1 D6485-90 MA8056H 齐纳二极管 6 D6491,92 D1FL40F4063 二极管 2 D6493,94 MA8056H 齐纳二极管 2 D6495 B0HCKS000001 二极管 1 D6499 M1FS4 二极管 1 D6500,01 MA111 二极管 2 D6506 MA111 二极管 1 D6509 MA111 二极管 1 D6510 M1FS4 二极管 1 D6511 M1FL20UF4063 二极管 1 D6512-14 MA111 二极管 3 D6515 MA8240M 齐纳二极管 1 D6517,18 M1FS4 二极管 2 D6521 D1FL40F4063 二极管 1 D6522 MA111 二极管 1 D6523 D1FL40F4063 二极管 1 D6524 MA8051L 齐纳二极管 1 D6525 MA111 二极管 1 D6526 M1FL20UF4063 二极管 1 D6528 D1FL40F4063 二极管 1 D6541 B0HCKS000001 二极管 1 D6542 MA111 二极管 1 D6543 B0HCKS000001 二极管 1 D6544 MA111 二极管 1 D6545 MA8051L 齐纳二极管 1 D6546-48 MA8330M 齐纳二极管 3 D6549,50 MA111 二极管 2 D6551 B0HCKS000001 二极管 1 D6552 M1FS4 二极管 1 D6553 MA111 二极管 1 D6570 M1FL20UF4063 二极管 1 D6572 D1FL40F4063 二极管 1 D6582 MA8051L 齐纳二极管 1 参考号 部件号 部件名称及说明 件数 备注 135 D6583 LNJ301MPUJA LED 1 D6584 MA111 二极管 1 D6585,86 MA8330M 齐纳二极管 2 D6600 D1FL40F4063 二极管 1 D6608-10 B0HBSN000008 二极管 3 D6612-17 M1FS4 二极管 6 D6619-21 B0HBSN000008 二极管 3 D6623,24 B0HBSN000008 二极管 2 D6625 D1FL40F4063 二极管 1 D6627 B0HBSN000008 二极管 1 D6648,49 D1FL40F4063 二极管 2 D6650 B0HBSN000008 二极管 1 D6651 D1FL40F4063 二极管 1 D6661,62 D1FL40F4063 二极管 2 D6901,02 MA8056H 齐纳二极管 2 D6903,04 D1FL40F4063 二极管 2 D6961,62 MA8056H 齐纳二极管 2 D6963,64 D1FL40F4063 二极管 2 D8001 MA111 二极管 1 D8002 MA111 二极管 1 D8003 MA111 二极管 1 D8004 MA111 二极管 1 D8010,11 MA153 二极管 2 D8180 MA111 二极管 1 D8200 MA3150M 齐纳二极管 1 D8201 MA111 二极管 1 D8203 MA3100M 齐纳二极管 1 D8204 MA111 二极管 1 D9010 MA728 二极管 1 D9011-14 MA152 二极管 4 D9016 MA728 二极管 1 D9017-19 MA3033 齐纳二极管 3 D9021 MA3033 齐纳二极管 1 D9023-26 MA152K 二极管 4 D9200 MA3033 齐纳二极管 1 D9201-03 B0JCPD000010 二极管 3 D9251 MA728 二极管 1 D9300-03 MA152K 二极管 4 D9860 MA3033 齐纳二极管 1 D3001 MA729 二极管 1 HY D3002 MA3100M 齐纳二极管 1 HY D3351,52 MA153 二极管 2 HY F900-1,- 2 EYF-52BC 熔断器座 2 F901-1,- 2 EYF-52BC 熔断器座 2 F902-1,- 2 EYF-52BC 熔断器座 2 FL3000- 10 ELKE103FA 噪音滤波器 11 FL3507- 09 J0HABB000004 LC 滤波器 3 FL3510- 17 TLK212T256AL EMI 滤波器 8 FL7180 ELKE103FA 噪音滤波器 1 FL7301,0 2 ELKE103FA 噪音滤波器 2 FL7500,0 1 ELKE103FA 噪音滤波器 2 FL8700 ELKE103FA 噪音滤波器 1 FL9000,0 1 J0HABH000012 LC 滤波器 2 FL9200- 14 J0HABH000012 LC 滤波器 15 FL9301,0 2 J0HABH000012 LC 滤波器 2 FL9500- 03 J0HABH000012 LC 滤波器 4 FL9850 J0MAB0000175 LC 滤波器 1 FL9851 J0MAB0000175 LC 滤波器 1 FL9860- 62 J0HABH000012 LC 滤波器 3 H0 K1KA08A00293 8P 连接接头 1 H1 K1KA80B00034 80P 连接接头 2 H37 TJS3A9640 3P 连接接头 2 H0 K1KA08A00293 8P 连接接头 1 HY H2 K1KA80B00034 80P 连接接头 1 HY 参考号 部件号 部件名称及说明 件数 备注 HX1 K1KB22A00036 22P 连接接头 1 IC801 C0DAAHG00008 IC 1 IC802 C0DAAHG00007 IC 1 IC803 C0DBALH00002 IC 1 IC804 C0DAAZG00006 IC 1 IC910 C5HABZZ00121 IC 1 IC920 B3PAA0000261 IC 1 IC930 AN1431M 线性 IC 1 IC1550 B3L000000020 IC 1 IC2301,0 2 LA4901 IC 2 IC2304 PQ09SZ1T IC 1 IC2401 BH3865S 线性 IC 1 IC3001 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC3002 C0JBBR000002 IC 1 IC3003 CXA1315M 线性 IC 1 IC3004 CXA1875AM 线性 IC 1 IC3005 C1AB00001139 IC 1 IC3006 CXA1315M 线性 IC 1 IC3007 AHC2G66HDCTR 集成电路 1 IC3101 C1AB00001720 IC 1 IC3102 C1AB00001720 IC 1 IC3103 C1AB00001826 IC 1 IC3104 PST9128NR IC ( 逻辑 ) 1 IC3105 C0JBAZ001834 IC 1 IC3108 AN78L05M 线性 IC 1 IC3109 AN78L05M 线性 IC 1 IC3150 C0JBCA000066 IC 1 IC3201 C3HBKZ000002 IC 1 IC3251 C0ZBZ0000684 IC 1 IC3301 MM1065ZMR 线性 IC 1 IC3302 PQ07VZ012ZP IC 1 IC3303 AN80L25RMS IC 1 IC3304 C0JBBZ000285 IC 1 IC3305 JLC1562BFEL IC 1 IC3502 TVRN302 IC 1 IC3699 C3EBGC000018 IC 1 IC6101- 04 C0ZBZ0000895 IC 4 IC6105 C0ZBZ0000735 IC 1 IC6106 C0JBAZ000005 IC 1 IC6107 NJM2903M 集成电路 1 IC6109 AN1431M 线性 IC 1 IC6431 AN1431M 线性 IC 1 IC6434 TLP181 光藕合器 1 IC6451 AN78L15M 线性 IC 1 IC6452 AN1431M 线性 IC 1 IC6453 AN78L15M 线性 IC 1 IC6454,5 5 AN78L05M 线性 IC 2 IC6458 TLP181 光藕合器 1 IC6467 TLP181 光藕合器 1 IC6469 TLP181 光藕合器 1 IC6471,7 2 AN1431M 线性 IC 2 IC6474 TLP181 光藕合器 1 IC6480 TLP181 光藕合器 1 IC6491 AN1431M 线性 IC 1 IC6500 TC74HC14AF IC 1 IC6501- 08 B3PBA0000191 IC 8 IC6509 TC74HC14AF IC 1 IC6511 C0ZBZ0000735 IC 1 IC6512 AN78L05M 线性 IC 1 IC6521 C0ZBZ0000735 IC 1 IC6541,4 2 C0ZBZ0000735 IC 2 IC6543 AN78L05M 线性 IC 1 IC6544 C0ZBZ0000735 IC 1 IC6581 NJM2903M 集成电路 1 IC6601- 03 C0ZBZ0000895 IC 3 IC6604 TC74HC08AF IC 1 IC6605,0 6 C0JBAZ000005 IC 2 参考号 部件号 部件名称及说明 件数 备注 136 IC6901- 06 AN16041A-VT IC 6 IC6957- 62 AN16041A-VT IC 6 IC7180- 83 C0JBAZ001120 IC 4 IC7380- 83 C0JBAZ001120 IC 4 IC7580- 83 C0JBAZ001120 IC 4 IC8001 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC8002 MC14052BF MOS IC (CMOS 门阵列 ) 1 IC8003 M52346SP 线性 IC 1 IC8004 M52346SP 线性 IC 1 IC8005 TC74HC14AF IC 1 IC8007 TC4W53FEL IC 1 IC8008 TC4W53FEL IC 1 IC8009 AHC2G66HDCTR 集成电路 1 IC8014 C0ZBZ0000911 IC 1 IC8016 C0JBAZ001934 IC 1 IC8100 PQ12SZ1T IC 1 IC8101 PQ09SZ1T IC 1 IC8181 C1DB00000274 IC 1 IC8780- 83 C0JBAZ001120 IC 4 IC9000 C0JBAZ000856 IC 1 IC9001 AHC2G66HDCTR 集成电路 1 IC9002 C0JBAE000239 IC 1 IC9003 MN102H90MTC IC 1 IC9004 TVRN472 IC 1 IC9005 C0EBE0000447 IC 1 IC9006 TVRN385 IC 1 IC9007 C0JBAE000239 IC 1 IC9200,0 1 C0JBAZ001992 IC 2 IC9202 C0CBCBD00008 IC 1 IC9203 C0ZBZ0000850 IC 1 IC9204 C0JBAB000550 IC 1 IC9205 AHC2G66HDCTR 集成电路 1 IC9206,0 7 C0CBCBD00008 IC 2 IC9208 C0FBAD000102 IC 1 IC9209- 11 C0DBAMH00014 IC 3 IC9213- 15 PQ07VZ012ZP IC 3 IC9301 C3ABQJ000031 IC 1 IC9302 MN84512-A IC 1 IC9500 C1ZBZ0002577 IC 1 IC9501 MN845110-A IC 1 IC9505 C3ABQJ000031 IC 1 IC9506 TVRN383 IC 1 IC9700 C0JBAZ000856 IC 1 IC9701 C1ZBZ0002625 IC 1 IC9702 C0JBAZ000856 IC 1 IC9703 PST9128NR IC ( 逻辑 ) 1 IC9706,0 7 C0JBAZ000856 IC 2 IC9850 C0JBAZ000855 IC 1 IC9860,6 1 C0JBAZ001992 IC 2 IC9862 C0CBCBD00008 IC 1 IC9863 C0ZBZ0000850 IC 1 IC9864 C0JBAB000550 IC 1 IC9865 AHC2G66HDCTR 集成电路 1 IC9867,6 8 C0CBCBD00008 IC 2 IC9869 C0FBAD000102 IC 1 IC3101 PQ07VZ012ZP IC 1 HY IC3102 C0DBZLB00001 IC 1 HY IC3103 C1AB00001826 IC 1 HY IC3104 PST9128NR IC （逻辑） 1 HY IC3105 C0JBAZ001834 IC 1 HY IC3201 C3HBKZ000001 IC 1 HY IC3251 C0ZBZ0000684 IC 1 HY IC3301 MM1065ZMR 线性 IC 1 HY IC3302 PQ07VZ012ZP IC 1 HY IC3303 AN80L25RMS IC 1 HY IC3305 JLC1562BF MOSIC(MICONLSI) 1 HY IC3311 C0JBBZ000285 IC 1 HY 参考号 部件号 部件名称及说明 件数 备注 IC3401 C0ABZA000028 IC 1 HY IC3699 S-24C16AFJ 集成电路 1 HY J1 K1KA20AA0009 20P 连接接头 1 J3 K1KA30AA0009 30P 连接接头 1 J5 K1KA31B00004 31P 连接接头 1 J6 K1KA21B00005 21P 连接接头 1 J8 K1KA20AA0008 20P 连接接头 1 J10 K1KA06A00183 6P 连接接头 1 J11-13 K1KB80B00023 80P 连接接头 3 J14 K1KA22A00067 22P 连接接头 1 JK3001 K1QBB3BB0002 连接接头 1 JK3002 K2HA204B0097 插孔 1 JK3004 K2HA204B0097 插孔 1 JK3509 K1FB109B0058 连接接头 1 JK3511 K1FB115B0034 连接接头 1 JK3513 K2HC103B0105 插孔 1 JK8500 K4BC02B00013 端子 2 JK3001 K1CB106B0027 连接接头 1 HY JK3002 K1QBB2AB0005 连接接头 1 HY JK3004 K2HA204B0097 插孔 1 HY JK3303 K2HA204B0097 插孔 1 HY JK3304 K1QBB5AB0005 连接接头 1 HY JS2301 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS3001- 08 ERJ3GEY0R00 M 0 OHM, 1/16W 8 JS3011- 16 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3301- 06 ERJ3GEY0R00 M 0 OHM, 1/16W 6 JS3308- 10 ERJ3GEY0R00 M 0 OHM, 1/16W 3 JS6462 ERJ6GEY0R00 M 0 OHM, 1/10W 1 JS8094- 97 J0JCC0000100 片状电感 4 JS3301- 12 ERJ3GEY0R00 M0OHM,1/16W 12 HY JS3501- 03 ERJ6GEY0R00 M0OHM,1/10W 3 HY JS3506- 08 ERJ6GEY0R00 M0OHM,1/10W 3 HY L801 G1C101ZA0037 感应线圈 1 L802 G1C121ZA0037 感应线圈 1 L803 G1C680ZA0037 感应线圈 1 L804 G0C101K00023 校正线圈 1 L805 TALFP15B221K 感应线圈 1 L912 EXCELSA24 头扼流圈 1 L930 G0A100GA0013 扼流线圈 1 L2306 ELJPA100KB 片状电感 1 L2330,31 G0A221ZA0038 扼流线圈 2 L3001 J0HABB000004 LC 滤波器 1 L3002 G1C100K00020 感应线圈 1 L3003 G1C100K00020 感应线圈 1 L3004 J0HABB000003 LC 滤波器 1 L3005 G1C100K00020 感应线圈 1 L3006 G1C100K00020 感应线圈 1 L3007 G1C2R2K00006 感应线圈 1 L3050 G1C100K00020 感应线圈 1 L3051,52 ELJNA1R5JF 线圈 2 L3102-04 ELJPA100KB 片状电感 3 L3201 ELJPA100KB 片状电感 1 L3251,52 ELJPA2R2MF 片状电感 2 L3305-08 ELKE103FA 噪音滤波器 4 L3526 ELJPA100KB 片状电感 1 L3555 ELJPA100KB 片状电感 1 L6001-08 J0JJC0000021 片状电感 8 L6010-15 J0JJC0000021 片状电感 6 L6101-03 G0AR60MA0003 扼流线圈 3 L6104-06 G0A1R4MA0003 扼流线圈 3 L6107,08 J0JJC0000021 片状电感 2 L6113 G0ZZ00002183 校正线圈 1 L6114 G0C101K00023 校正线圈 1 L6115-41 G0ZZ00002183 校正线圈 27 L6152-57 G0ZZ00002183 校正线圈 6 L6158,59 J0JJC0000021 片状电感 2 L6161,62 J0JJC0000011 片状电感 2 参考号 部件号 部件名称及说明 件数 备注 137 L6212,13 J0JJC0000021 片状电感 2 L6216-18 J0JJC0000021 片状电感 3 L6431 J0JJC0000021 片状电感 1 L6451 J0JJC0000021 片状电感 1 L6471 J0JJC0000021 片状电感 1 L6472,73 G0ZZ00002183 校正线圈 2 L6501,02 J0JJC0000021 片状电感 2 L6504-06 J0JJC0000021 片状电感 3 L6534-37 J0JJC0000021 片状电感 4 L6549-52 J0JJC0000021 片状电感 4 L6603,04 G0ZZ00002183 校正线圈 2 L6607 J0JJC0000021 片状电感 1 L6609 G0ZZ00002183 校正线圈 1 L6611-14 G0AR82MA0004 扼流线圈 4 L6615-17 G0A1R4MA0003 扼流线圈 3 L6618-41 G0ZZ00002183 校正线圈 24 L6644,45 G0ZZ00002183 校正线圈 2 L6647,48 G0ZZ00002183 校正线圈 2 L6650,51 G0ZZ00002183 校正线圈 2 L6661,62 J0JJC0000011 片状电感 2 L6712-17 J0JJC0000021 片状电感 6 L7100 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7120 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7140 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7160 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7300 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7320 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7340 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7360 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7500 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7520 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7540 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L7560 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L8001 G1C100K00020 感应线圈 1 L8003 G1C100K00020 感应线圈 1 L8004 G1C100K00020 感应线圈 1 L8005 G1C100K00020 感应线圈 1 L8181 G1C100K00020 感应线圈 1 L8501 G0A2R5H00003 扼流线圈 1 L8502 G0A2R5H00003 扼流线圈 1 L8502 02 G0A2R5H00003 扼流线圈 1 L8700 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L8720 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L8740 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L8760 ERJ8GEY0R00 M 0 OHM, 1/8W 1 L9200,01 G1C150MA0078 感应线圈 2 L9202 G1C220M00029 感应线圈 1 L3001 J0HABB000003 LC 滤波器 1 HY L3002 J0HABB000004 LC 滤波器 1 HY L3003 J0HABB000004 LC 滤波器 1 HY L3005 ERJ3GEY0R00 M0OHM,1/16W 1 HY L3006 J0E8004B0008 LC 滤波器 1 HY L3051,52 ELJNA1R5JF 线圈 2 HY L3101-04 ELJPA100KB 片状电感 4 HY L3107 J0JGC0000021 片状电感线圈 1 HY L3108 ELJPA100KB 片状电感 1 HY L3201 ELJPA100KB 片状电感 1 HY L3251,52 ELJPA2R2MF 片状电感 2 HY L3303 ELJPA100KB 片状电感 1 HY L3305-08 ELKE103FA 噪音滤波器 4 HY L3525 J0HABB000003 LC 滤波器 1 HY L3526 J0HABB000003 LC 滤波器 1 HY L3527-29 J0HABB000004 LC 滤波器 3 HY L3530,31 J0HABB000003 LC 滤波器 2 HY L3532,33 ELJPA100KB 片状电感 2 HY LF901,02 G0B123K00002 扼流线圈 2 LF903 G0B353G00001 扼流线圈 1 PF1 K1KA03A00181 3P 连接接头 1 PF9 K1KA03A00181 3P 连接接头 1 PF10 K1KA06A00220 6P 连接接头 1 Q801 2SD601A 三极管 1 Q930 2SC3311A 三极管 1 Q1540 2SD601A 三极管 1 参考号 部件号 部件名称及说明 件数 备注 Q2303 2SD601A 三极管 1 Q2305,06 2SD601A 三极管 2 Q2330,31 2SD1266A 三极管 2 Q2333,34 2SD601A 三极管 2 Q2370 2SB709A 三极管 1 Q2406 2SD601A 三极管 1 Q3001 2SB709A 三极管 1 Q3002 2SD601A 三极管 1 Q3003 2SD601A 三极管 1 Q3004 2SD601A 三极管 1 Q3005 2SD601A 三极管 1 Q3006,07 2SB709A 三极管 2 Q3023 2SD601A 三极管 1 Q3051,52 2SD601A 三极管 2 Q3101 2SD601A 三极管 1 Q3102,03 2SD601A 三极管 2 Q3104-06 2SD601A 三极管 3 Q3531,32 2SD601A 三极管 2 Q6001-08 B1DEHM000005 三极管 8 Q6010-15 B1DEGM000023 三极管 6 Q6101 2SD2185 三极管 1 Q6102 2SB1073001TV 三极管 1 Q6112,13 B1DEGM000023 三极管 2 Q6116-18 B1DEGM000023 三极管 3 Q6125 2SK620 FET 1 Q6127,28 B1DFKM000002 三极管 2 Q6129 2SK326800L FET 1 Q6130 B1DFKM000001 三极管 1 Q6132 2SD2185 三极管 1 Q6133 2SB1073001TV 三极管 1 Q6134 2SD2185 三极管 1 Q6135 2SB1073001TV 三极管 1 Q6138,39 2SC1473A 三极管 2 Q6141 2SD601A 三极管 1 Q6144 2SD2185 三极管 1 Q6145 2SB1073001TV 三极管 1 Q6431 B1BBCJ000003 三极管 1 Q6432 2SB0709A 三极管 1 Q6435 2SD601A 三极管 1 Q6451 2SD1263A 三极管 1 Q6455 2SD814A 三极管 1 Q6471 B1BAEJ000014 三极管 1 Q6472 2SB0709A 三极管 1 Q6474 2SD814A 三极管 1 Q6475-77 2SD601A 三极管 3 Q6491 2SD1263A 三极管 1 Q6492 2SC1473A 三极管 1 Q6501-05 2SK620 FET 5 Q6511,12 B1DFFM000003 三极管 2 Q6520 2SD601A 三极管 1 Q6521 B1DFES000001 三极管 1 Q6522 2SD2185 三极管 1 Q6523 2SB1073001TV 三极管 1 Q6524,25 2SD2185 三极管 2 Q6526,27 2SB1073001TV 三极管 2 Q6528 2SD2185 三极管 1 Q6530-44 B1DFHN000001 三极管 15 Q6551 2SD601A 三极管 1 Q6552 B1DEET000001 三极管 1 Q6560-71 2SK389600L FET 12 Q6581 2SD601A 三极管 1 Q6582,83 B1DFET000001 三极管 2 Q6586 2SB1073001TV 三极管 1 Q6601,02 B1DEGM000023 三极管 2 Q6604-06 B1DEGM000023 三极管 3 Q6608 2SD2185 三极管 1 Q6609 2SB1073001TV 三极管 1 Q6612-17 B1DEGM000023 三极管 6 Q6619 2SD2185 三极管 1 Q6620 2SB1073001TV 三极管 1 Q6627 2SD2185 三极管 1 Q6628 2SB1073001TV 三极管 1 Q6629 2SD2185 三极管 1 Q6630 2SB1073001TV 三极管 1 Q6634-37 B1DEHM000005 三极管 4 Q6639,40 2SK620 FET 2 Q6649-52 B1DEHM000005 三极管 4 参考号 部件号 部件名称及说明 件数 备注 138 Q6731 2SD1263A 三极管 1 Q8001 2SD601A 三极管 1 Q8002 2SD601A 三极管 1 Q8010 2SD601A 三极管 1 Q8011 2SB709A 三极管 1 Q8012 2SD601A 三极管 1 Q8013 2SB709A 三极管 1 Q8018 2SD601A 三极管 1 Q8019 2SD601A 三极管 1 Q8181,82 2SK2731T146 三极管 2 Q8200-02 2SD601A 三极管 3 Q9000-02 2SK2731T146 三极管 3 Q9003-09 2SD601A-R 三极管 7 Q9010 2SB709A-R 三极管 1 Q9011 2SD601A-R 三极管 1 Q9012 2SB709A-R 三极管 1 Q9013 2SD601A-R 三极管 1 Q9014 2SD601A 三极管 1 Q9015 2SD601A-R 三极管 1 Q9016 2SB709A-R 三极管 1 Q9017,18 2SD601A-R 三极管 2 Q9019 2SK2731T146 三极管 1 Q9300-07 2SD601A-R 三极管 8 Q9700,01 2SD601A-R 三极管 2 Q3004 2SD601A 三极管 1 HY Q3007 2SB709A 三极管 1 HY Q3023 2SD601A 三极管 1 HY Q3051,52 2SD601A 三极管 2 HY Q3101 2SB709A 三极管 1 HY Q3102 2SD1030 三极管 1 HY Q3104 2SD1030 三极管 1 HY Q3401 2SD601A 三极管 1 HY Q3403 2SD601A 三极管 1 HY Q3501 2SD601A 三极管 1 HY Q3502 2SB709A 三极管 1 HY Q3503-05 2SD601A 三极管 3 HY Q3506 2SB709A 三极管 1 HY R803 ERJ6ENF1001 M 1KOHM, 1/10W 1 R805 ERJ6ENF1001 M 1KOHM, 1/10W 1 R806,07 ERJ6ENF15R0 M 15 OHM, 1/10W 2 R808 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R809 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R810 ERJ6ENF5100 M 510 OHM, 1/10W 1 R811 ERJ6ENF8200 M 820 OHM, 1/10W 1 R812 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R813 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R814 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R815 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R816 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R817-20 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 4 R825 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R831 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R901,02 ERC12ZGK105 S 1MOHM, K,1/2W 2 R903,04 ERF7TK3R3 W 3.3 OHM, K, 7W 2 R912,13 ERG2FJS104D M 100KOHM, J, 2W 2 R914 ERG2FJS100D M 10 OHM, J, 2W 1 R915 ERG1FJS104D M 100KOHM, J, 1W 1 R918 ERX12SJR82 M0.82 OHM, J,1/2W 1 R919 ERX12SJ1R0 M 0.1 OHM, J,1/2W 1 R920 ERDS1FJ331 C 330 OHM, J,1/2W 1 R921 ERDS1FJ150 C 15 OHM, J,1/2W 1 R922 ERDS1FJ102 C 1KOHM, J,1/2W 1 R923 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R924 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R925 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R927 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R930 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R931 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R932 ERJ6ENF2402 M 24KOHM, 1/10W 1 R933 ERJ6ENF1002 M 10KOHM, 1/10W 1 R934 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R935 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R936 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R937 ERJ6GEYJ683 M 68KOHM,J,1/10W 1 R938-42 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 5 R1500 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R1510 ERJ3GEYF222 M 2.2KOHM, 1/16W 1 R1511 ERJ3GEYF302 M 3.0KOHM, 1/16W 1 R1512 ERJ3GEYF472 M 4.7KOHM, 1/16W 1 R1513 ERJ3GEYF822 M 8.2KOHM,J,1/16W 1 R1550 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R1551 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R1553 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R1554 ERJ6GEYJ271 M 270 OHM,J,1/10W 1 R1555,56 TAJAAH0470JV M 47 OHM,J,1/16W 2 R2301 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2304 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2305,06 ERJ6GEYJ223 M 22KOHM,J,1/10W 2 R2309 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2310 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R2332 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2333 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R2346 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2347 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2348 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2350 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2351-54 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R2355-60 ERDS1FJ2R2 C 2.2 OHM, J,1/2W 6 R2365,66 ERX1FJSR56D M0.56 OHM, J, 1W 2 R2367 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R2368,69 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R2370 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R2371,72 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R2373 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2431 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2434 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2439 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2440 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2441 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R2445 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R2448 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R2450 ERJ6GEYJ563 M 56KOHM,J,1/10W 1 R2452 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R2453 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2456 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R2460 ERJ6ENF1802 M 18KOHM, 1/10W 1 R2461,62 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R2463 ERJ6ENF1502 M 15KOHM, 1/10W 1 R2466 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2467 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R2468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2469 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R2470 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2471 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2472 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R2473 ERJ6GEYJ182 M 1.8KOHM,J,1/10W 1 R2476,77 ERJ6GEYJ220 M 22 OHM,J,1/10W 2 R2485-91 ERJ6GEY0R00 M 0 OHM, 1/10W 7 R2494,95 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R3001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3002 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3003 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3004 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3005 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R3006 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R3007 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3008 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3009 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3010 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3011 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3012 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3013 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R3014 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3015 J0JCC0000100 片状电感 1 R3016 J0JCC0000100 片状电感 1 R3017 J0JCC0000100 片状电感 1 R3018 J0JCC0000100 片状电感 1 R3019 J0JCC0000100 片状电感 1 R3020 J0JCC0000100 片状电感 1 R3021 J0JCC0000100 片状电感 1 R3022 J0JCC0000100 片状电感 1 R3023 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 139 R3024 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3025 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3026 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3027,28 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3029 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3030 J0JCC0000100 片状电感 1 R3031 J0JCC0000100 片状电感 1 R3032,33 J0JCC0000100 片状电感 2 R3034 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3035 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3036 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3037 J0JCC0000100 片状电感 1 R3038 J0JCC0000100 片状电感 1 R3039 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3040 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3041 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R3042 J0JCC0000100 片状电感 1 R3043 J0JCC0000100 片状电感 1 R3044 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3045 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3046 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3047 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3048 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3049 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3050 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3051 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3052 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3053 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3054 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3055 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3056 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R3057 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3058 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R3059 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3060 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3061 J0JCC0000100 片状电感 1 R3062 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3063 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3064 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R3065-69 ERJ6GEYJ560 M 56 OHM,J,1/10W 5 R3070-75 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3076-81 ERJ6GEYJ560 M 56 OHM,J,1/10W 6 R3082 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3083 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3084,85 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3086,87 J0JCC0000100 片状电感 2 R3088-93 ERJ6ENF75R0 M 75 OHM, 1/10W 6 R3094-96 ERJ3GEYJ331 M 330 OHM,J,1/16W 3 R3097,98 J0JCC0000100 片状电感 2 R3099,00 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3101 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3102,03 ERJ6ENF1800 M 180 OHM, 1/10W 2 R3104,05 ERJ6ENF1800 M 180 OHM, 1/10W 2 R3106 ERJ6ENF1800 M 180 OHM, 1/10W 1 R3107 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R3108 J0JCC0000100 片状电感 1 R3109 ERJ6ENF8200 M 820 OHM, 1/10W 1 R3110 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R3111 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3112 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R3113 ERJ6ENF1501 M 1.5KOHM, 1/10W 1 R3114 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3115 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3116 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3117 J0JCC0000100 片状电感 1 R3118 ERJ6ENF8200 M 820 OHM, 1/10W 1 R3119 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R3120 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3121 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R3122 ERJ3EKF8201 M 8.2KOHM, 1/16W 1 R3123 ERJ3EKF1502 M 15KOHM, 1/16W 1 R3124 ERJ3EKF10R0 M 10 OHM, 1/16W 1 R3125 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3126 J0JCC0000100 片状电感 1 R3127 J0JCC0000100 片状电感 1 R3128,29 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R3130 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R3131 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R3132,33 ERJ3GEYJ181 M 180 OHM,J,1/16W 2 R3135 ERJ6ENF10R0 M 10 OHM, 1/10W 1 R3136-39 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3140 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3141 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R3142,43 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3144,45 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R3148,49 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3150,51 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R3152 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3153 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3154,55 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R3156 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R3157 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R3158 ERJ3GEYJ182 M 1.8KOHM,J,1/16W 1 R3159 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3160 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3161 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R3162 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3163 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R3164-67 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R3168 ERJ3EKF2000 M 200 OHM, 1/16W 1 R3169-72 ERJ6ENF75R0 M 75 OHM, 1/10W 4 R3173 ERJ3EKF2200 M 220 OHM, 1/16W 1 R3174 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3177 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3178 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3179 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3180 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3181 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3182 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3183 ERJ3EKF1401 M 1.4KOHM, 1/16W 1 R3184 ERJ3EKF1101 M 1.1KOHM, 1/16W 1 R3185 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3188 ERJ6ENF75R0 M 75 OHM, 1/10W 1 R3189,90 ERJ6ENF75R0 M 75 OHM, 1/10W 2 R3191,92 ERJ14YJ330 M 33 OHM, J,1/4W 2 R3193 ERJ14YJ330 M 33 OHM, J,1/4W 1 R3194 ERJ14YJ330 M 33 OHM, J,1/4W 1 R3195,96 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3197,98 ERJ3GEYJ123 M 12KOHM,J,1/16W 2 R3199-04 ERJ6ENF1800 M 180 OHM, 1/10W 6 R3210,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3212-15 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 4 R3216-19 ERJ6GEYJ3R3 M 3.3KOHM,J,1/10W 4 R3230,31 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3251 TAJAAH0101JV M 100 OHM,J,1/16W 1 R3252 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R3253 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3254,55 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3260-62 ERJ6ENF75R0 M 75 OHM, 1/10W 3 R3300,01 ERJ3EKF1501 M 1.5KOHM, 1/16W 2 R3302 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R3303,04 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3305 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R3307 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R3308,09 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3313 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3314,15 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R3319 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R3337,38 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R3400 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R3508,09 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R3510,11 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3529,30 ERJ6GEYJ184 M 180KOHM,J,1/10W 2 R3547,48 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3585,86 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R3589 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3590 ERJ6GEYJ560 M 56 OHM,J,1/10W 1 R3591-93 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R3653 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3654 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3655 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R3656 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R3663,64 ERJ6GEYJ102 M 1KOHM,J,1/10W 2 R3668 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 140 R3672 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R3776,77 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R3778 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R3790,91 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6002-09 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6016-18 ERJ6GEYJ470 M 47 OHM,J,1/10W 3 R6020-25 ERJ6GEYJ100 M 10 OHM,J,1/10W 6 R6051-58 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6081-83 ERJ6ENF8202 M 82KOHM, 1/10W 3 R6100,01 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6102 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6103 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6107-09 ERJ6GEYJ470 M 47 OHM,J,1/10W 3 R6110 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6111 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6112 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6113 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6114,15 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6117-20 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R6121,22 ERJ6GEYJ151 M 150 OHM,J,1/10W 2 R6124-27 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R6128 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6129 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6130,31 ERJ6GEYJ470 M 47 OHM,J,1/10W 2 R6132 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6133 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6134 ERG2FJS221D M 220 OHM, J, 2W 1 R6135 ERG1FJS472D M 4.7KOHM, J, 1W 1 R6136 ERG2FJS123D M 12KOHM, J, 2W 1 R6137 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R6138 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6139 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6140 ERJ6GEYJ203 M 20KOHM,J,1/10W 1 R6141 ERJ6GEYJ243 M 24KOHM,J,1/10W 1 R6142 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6144 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6145 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6147 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R6148,49 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6150 ERJ6GEYJ243 M 24KOHM,J,1/10W 1 R6151 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6152,53 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6154 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6155,56 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6157 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6158 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6159 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6160 EXB38V471J 电阻阵列 1 R6161 EXB38V473J 电阻阵列 1 R6162 EXB38V471J 电阻阵列 1 R6163 EXB38V473J 电阻阵列 1 R6164,65 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6166-69 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6170 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6171,72 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6175 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6176,77 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6178,79 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6181 ERG2FJS221D M 220 OHM, J, 2W 1 R6183 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6184 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6187 ERX2FJSR22D M0.22 OHM, J, 2W 1 R6188 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6189 ERX2FJSR22D M0.22 OHM, J, 2W 1 R6191 ERX2FJSR22D M0.22 OHM, J, 2W 1 R6193 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6195 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6197 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6198,99 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6203 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6209 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6211 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6213 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6214 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6431,32 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6433 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6434 ERDS1FJ221 C 220 OHM, J,1/2W 1 参考号 部件号 部件名称及说明 件数 备注 R6435 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6436 ERJ6ENF1543 M 154KOHM, 1/10W 1 R6437 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6438 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R6439-41 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 3 R6442 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6443 ERJ6ENF2491 M2.49KOHM, 1/10W 1 R6448 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6450,51 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6452 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R6453 ERJ6GEYJ513 M 51KOHM,J,1/10W 1 R6454 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6455 ERJ6GEYJ433 M 43KOHM,J,1/10W 1 R6456 ERJ6ENF6202 M 62KOHM, 1/10W 1 R6457,58 ERJ6ENF2491 M2.49KOHM, 1/10W 2 R6459 ERG2SJ391H M 390 OHM, J, 2W 1 R6460,61 ERJ6GEYJ513 M 51KOHM,J,1/10W 2 R6462,63 ERJ12YJ1R0 M 1 OHM, J,1/2W 2 R6464 ERJ6ENF6202 M 62KOHM, 1/10W 1 R6465 ERX2FJS8R2D M 8.2 OHM, J, 2W 1 R6466 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6467 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6468 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6469,70 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 2 R6471 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R6472 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R6473 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R6474 ERG1FJS680D M 68 OHM, J, 1W 1 R6475 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R6476 ERJ6GEYJ304 M 300KOHM,J,1/10W 1 R6477 ERJ6GEYJ682 M 6.8KOHM,J,1/10W 1 R6478 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6479 ERJ6GEYJ513 M 51KOHM,J,1/10W 1 R6480 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6481 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6482 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6483 ERJ6GEYJ562 M 5.6KOHM,J,1/10W 1 R6484 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6485,86 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6487 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6488 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6489 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R6490 ERJ12YJ1R0 M 1 OHM, J,1/2W 1 R6491 ERJ8GEYJ104 M 100KOHM, J,1/8W 1 R6492 ERJ6ENF2213 M 221KOHM, 1/10W 1 R6493 ERJ6ENF2103 M 210KOHM, 1/10W 1 R6494 ERJ6ENF1432 M14.3KOHM, 1/10W 1 R6495 ERJ6ENF5231 M5.23KOHM, 1/10W 1 R6496 ERJ12YJ1R0 M 1 OHM, J,1/2W 1 R6497 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6498,99 ERX1FJS8R2D M 8.2 OHM, J, 1W 2 R6500 ERJ6GEYJ122 M 1.2KOHM,J,1/10W 1 R6501-09 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 9 R6510 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6511,12 ERX3FJS2R2D M 2.2 OHM, J, 3W 2 R6513 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6514 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6515 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6516 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6517 ERJ6GEYJ471 M 470 OHM,J,1/10W 1 R6518 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6519 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6520 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6521 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6522 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6523 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6524 ERJ6ENF5621 M5.62KOHM, 1/10W 1 R6525 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R6526 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6527 ERJ14YJ102 M 1KOHM, J,1/4W 1 R6528 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6529 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6530-44 ERJ6GEYJ470 M 47 OHM,J,1/10W 15 R6545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6546 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6547,48 ERJ6GEYJ5R6 M 5.6 OHM,J,1/10W 2 R6549 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 141 R6550 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6551 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6552 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6553 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6554,55 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R6556 ERJ6GEYJ392 M 3.9KOHM,J,1/10W 1 R6557 ERJ6GEYJ470 M 47 OHM,J,1/10W 1 R6558 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6559 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6560-69 ERJ6GEYJ100 M 10 OHM,J,1/10W 10 R6570 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6571-78 ERJ6GEYJ471 M 470 OHM,J,1/10W 8 R6579 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6580 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6581 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6582,83 ERJ6ENF3902 M 39KOHM, 1/10W 2 R6584 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R6585,86 ERJ6GEYJ152 M 1.5KOHM,J,1/10W 2 R6587 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6588 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6590,91 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6592,93 ERJ6GEYJ105 M 1MOHM,J,1/10W 2 R6594 ERJ8GEYJ104 M 100KOHM, J,1/8W 1 R6595,96 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 2 R6599 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6600 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6601 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6602 ERG1FJS471D M 470 OHM, J, 1W 1 R6603 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6604 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6605-07 ERJ6GEYJ224 M 220KOHM,J,1/10W 3 R6608 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6609,10 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6611-14 ERJ6GEYJ100 M 10 OHM,J,1/10W 4 R6617-22 ERJ6GEYJ100 M 10 OHM,J,1/10W 6 R6626-31 ERJ6GEYJ470 M 47 OHM,J,1/10W 6 R6633 ERJ6GEYJ151 M 150 OHM,J,1/10W 1 R6634,35 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R6636-38 ERJ6GEYJ151 M 150 OHM,J,1/10W 3 R6639 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6640 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6641,42 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6643 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R6644 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R6645,46 ERJ6GEYJ101 M 100 OHM,J,1/10W 2 R6647 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6648-50 ERJ6GEYJ102 M 1KOHM,J,1/10W 3 R6651 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6654,55 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6657-59 ERJ6GEYJ102 M 1KOHM,J,1/10W 3 R6660 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6663,64 ERJ6GEYJ103 M 10KOHM,J,1/10W 2 R6665 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R6666-69 ERJ6GEYJ104 M 100KOHM,J,1/10W 4 R6670,71 ERJ6GEYJ100 M 10 OHM,J,1/10W 2 R6672,73 ERJ6GEYJ220 M 22 OHM,J,1/10W 2 R6674 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R6675,76 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6677 ERG1FJS101D M 100 OHM, J, 1W 1 R6681 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6685 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R6687,88 ERX2FJSR22D M0.22 OHM, J, 2W 2 R6689,90 ERJ12YJ220 M 22 OHM,J, 1/2W 2 R6691 EXB38V471J 电阻阵列 1 R6692 EXB38V473J 电阻阵列 1 R6693 EXB38V471J 电阻阵列 1 R6694 EXB38V473J 电阻阵列 1 R6695 EXB38V471J 电阻阵列 1 R6696 EXB38V473J 电阻阵列 1 R6697 EXB38V471J 电阻阵列 1 R6698 EXB38V473J 电阻阵列 1 R6701-03 ERJ6ENF8202 M 82KOHM, 1/10W 3 R6801-08 ERJ6GEYJ680 M 68 OHM,J,1/10W 8 R6815 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R6827-34 ERJ6GEYJ100 M 10 OHM,J,1/10W 8 R6851-55 ERJ6GEYJ100 M 10 OHM,J,1/10W 5 参考号 部件号 部件名称及说明 件数 备注 R6857-59 ERJ6GEYJ100 M 10 OHM,J,1/10W 3 R6901 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6902-06 ERJ6GEYJ221 M 220 OHM,J,1/10W 5 R6911-14 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6915,16 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R6971 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R6972-76 ERJ6GEYJ221 M 220 OHM,J,1/10W 5 R6981-84 ERJ6GEYJ103 M 10KOHM,J,1/10W 4 R6985,86 ERJ6GEYJ224 M 220KOHM,J,1/10W 2 R7100 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R7102 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7103 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7105-07 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7108 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7109 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7111 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7112 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7122 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7123 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7125-27 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7128 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7129 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7131 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7132 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7142 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7143 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7145-47 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7148 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7149 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7151 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7152 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7162 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7163 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7165-67 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7168 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7169 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7171 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7172 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7181 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R7182-85 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7186,87 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7188-11 ERJ3GEYJ101 M 100 OHM,J,1/16W 24 R7212 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7213 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R7214 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7218 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7219 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7260 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7262-65 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R7270,71 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R7272 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7273,74 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R7275 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R7301 ECJ1VC1H150J C 15PF, J, 50V 1 R7302 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7303 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7305-07 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7308 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7309 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7310 ECJ1VC1H150J C 15PF, J, 50V 1 R7311 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7312 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7321 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7322 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7323 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7325-27 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7328 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7329 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7330 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7331 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7332 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7341 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7342 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7343 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7345-47 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7348 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7349 ERJ12YJ220 M 22 OHM,J, 1/2W 1 参考号 部件号 部件名称及说明 件数 备注 142 R7350 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7351 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7352 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7361 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7362 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7363 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7365-67 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7368 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7369 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7370 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7371 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7372 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7374 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7380-03 ERJ3GEYJ101 M 100 OHM,J,1/16W 24 R7410,11 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7412 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7413 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7414 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R7460 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7462-65 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R7471,72 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7473-77 TAJAAH0470JV M 47 OHM,J,1/16W 5 R7480 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7481,82 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R7483 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R7484 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R7485 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R7502 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7503 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7505-07 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7508 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7509 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7511 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7512 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7522 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7523 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7525-27 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7528 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7529 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7531 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7532 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7542 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7543 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7545-47 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7548 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7549 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7551 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7552 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7562 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7563 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7565-67 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R7568 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7569 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R7571 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R7572 TAJAAH0470JV M 47 OHM,J,1/16W 1 R7574 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R7580-03 ERJ3GEYJ101 M 100 OHM,J,1/16W 24 R7604,05 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R7606-09 TAJAAH0470JV M 47 OHM,J,1/16W 4 R7610,11 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R7620 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7625 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R7626 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R7632 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7633 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R7640-45 J0JHC0000078 片状电感 6 R7650,51 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R7660 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R7662-65 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R7666,67 ERJ3GEYJ331 M 330 OHM,J,1/16W 2 R7668 ERJ3GEYJ221 M 220 OHM,J,1/16W 1 R7669,70 ERJ3GEYJ560 M 56 OHM,J,1/16W 2 R8001-04 J0JCC0000100 片状电感 4 R8005-08 J0JCC0000100 片状电感 4 R8009-12 ERJ3GEYJ271 M 270 OHM,J,1/16W 3 R8013-16 ERJ3GEYJ271 M 270 OHM,J,1/16W 5 R8017,18 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 参考号 部件号 部件名称及说明 件数 备注 R8019,20 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R8021 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8022 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8025 J0JCC0000100 片状电感 1 R8026 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8027 J0JCC0000100 片状电感 1 R8028 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8029 ERJ6ENF3001 M 3KOHM, 1/10W 1 R8030 ERJ6ENF3001 M 3KOHM, 1/10W 1 R8031 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R8032 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R8033 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8034 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8035 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8036 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8037 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8038 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8039 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8040 ERJ6ENF4701 M 4.7KOHM, 1/10W 1 R8041 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R8042 ERJ3GEYJ183 M 18KOHM,J,1/16W 1 R8045,46 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 2 R8047 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8048 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8049 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8050 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8051 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R8054 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8055,56 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8057 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R8058,59 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8060 ERJ6ENF3300 M 330 OHM, 1/10W 1 R8061 ERJ6ENF1500 M 150 OHM, 1/10W 1 R8062 ERJ3GEYJ271 M 270 OHM,J,1/16W 1 R8065 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8066 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R8067 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8068 ERJ3GEYJ101 M 100 OHM,J,1/16W 2 R8069 ERJ6GEYJ681 M 680 OHM,J,1/10W 1 R8070 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8071 J0JCC0000100 片状电感 1 R8072 J0JCC0000100 片状电感 1 R8077 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R8078 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R8081 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R8082 ERJ3GEYJ152 M 1.5KOHM,J,1/16W 1 R8089 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R8091 ERJ3GEYJ181 M 180 OHM,J,1/16W 1 R8093 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8094 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8097 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8099 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8100 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8117,18 J0JCC0000100 片状电感 2 R8124-27 ERJ6GEYJ101 M 100 OHM,J,1/10W 4 R8181 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R8182 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R8183,84 J0JCC0000100 片状电感 2 R8185,86 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R8187,88 ERJ6GEYJ560 M 56 OHM,J,1/10W 2 R8200 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8201 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R8202,03 ERJ3GEYJ223 M 22KOHM,J,1/16W 2 R8204 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8205 ERJ3GEYJ563 M 56KOHM,J,1/16W 1 R8206 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R8207 J0JCC0000100 片状电感 1 R8700 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R8702 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8703 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8705-07 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R8708 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8709 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R8711 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8712 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8722 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 143 R8723 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8725-27 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R8728 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8729 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R8731 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8732 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8742 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8743 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8745-47 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R8748 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8749 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R8751 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8752 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8762 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8763 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8765-67 ERJ12YJ220 M 22 OHM,J, 1/2W 3 R8768 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8769 ERJ12YJ220 M 22 OHM,J, 1/2W 1 R8771 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R8772 TAJAAH0470JV M 47 OHM,J,1/16W 1 R8783-06 ERJ3GEYJ101 M 100 OHM,J,1/16W 24 R8810 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8815 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R8816 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R8817 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R8818 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8860 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R8862-65 ERJ6GEY0R00 M 0 OHM, 1/10W 4 R8871-75 TAJAAH0470JV M 47 OHM,J,1/16W 5 R8876,77 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R8878 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R8879 ERJ3GEYJ471 M 470 OHM,J,1/16W 1 R8880 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R8881,82 ERJ3GEYJ471 M 470 OHM,J,1/16W 2 R8883 ERJ3GEYJ470 M 47 OHM,J,1/16W 1 R9000 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9001 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9002,03 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9005 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9006 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9008 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9009-18 TAJAAH0101JV M 100 OHM,J,1/16W 10 R9019 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9020-23 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9024-26 ERJ3GEYJ102 M 1KOHM,J,1/16W 3 R9027-30 ERJ3GEYJ473 M 47KOHM,J,1/16W 4 R9031,32 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9033 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9035-38 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9039 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9040 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9042 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9043 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9044 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9045 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9046,47 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9048 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9049 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9051,52 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 2 R9053 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9054,55 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9056 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9057,58 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9059 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9060 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9061 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9062 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9063 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9064 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9065 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9066 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9067 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R9068-71 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9072 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9073,74 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9075 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R9076 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9077 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R9079 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9081,82 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9084 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9086 EXB38V220J 电阻阵列 1 R9089 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9091,92 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9093,94 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9095 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R9096 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R9098 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9099 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9100 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9101 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9102,03 EXB2HV470JV 电阻阵列 2 R9105 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9106 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9108 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9109 ERJ3GEYJ682 M 6.8KOHM,J,1/16W 1 R9110 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9111 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9112 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9113 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9114 ERJ3GEYJ153 M 15KOHM,J,1/16W 1 R9115 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9116 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9117 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9118 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9119 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9120 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9121 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9122 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9123 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9124 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9126 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9127 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9128,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9130 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9131,32 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9133 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9134,35 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9136 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R9137,38 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 2 R9139-43 TAJAAH0101JV M 100 OHM,J,1/16W 5 R9145 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9149-51 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9153 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9154 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9159 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9160,61 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9163 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9164 ERJ3GEYJ123 M 12KOHM,J,1/16W 1 R9165-68 ERJ3GEYJ103 M 10KOHM,J,1/16W 4 R9169-72 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9173 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9174 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9175-77 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9178 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9179 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9180 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9181 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9182 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9183 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9184 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9186 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9189 ERJ3GEYJ393 M 39KOHM,J,1/16W 1 R9192 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9193,94 ERJ6ENF1001 M 1KOHM, 1/10W 2 R9195,96 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9197 ERJ3GEYJ562 M 5.6KOHM,J,1/16W 1 R9199 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9200 EXB2HV470JV 电阻阵列 1 R9201,02 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9204 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9205 EXB2HV470JV 电阻阵列 1 R9206-08 TAJAAH0101JV M 100 OHM,J,1/16W 3 参考号 部件号 部件名称及说明 件数 备注 144 R9209 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9210 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9211 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9212 EXB2HV470JV 电阻阵列 1 R9213 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9215 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9216 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9218,19 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9220-22 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9223-25 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9228,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9230 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R9231-33 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9235 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9236 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9237 ERJ3GEYJ473 M 47KOHM,J,1/16W 1 R9240,41 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9243-45 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9246-60 TAJAAH0101JV M 100 OHM,J,1/16W 15 R9261-65 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9266 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9267-69 ERJ6GEY0R00 M 0 OHM, 1/10W 3 R9270 ERJ6ENF2322 M23.2KOHM, 1/10W 1 R9271 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9272 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R9273 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9274,75 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9276 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R9277 ERJ3GEYJ823 M 82KOHM,J,1/16W 1 R9278 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9279 ERJ3GEYJ683 M 68KOHM,J,1/16W 1 R9281 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 R9282 ERJ6ENF1002 M 10KOHM, 1/10W 1 R9283,84 ERJ3GEYJ683 M 68KOHM,J,1/16W 2 R9287 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9290-92 ERJ6ENF1001 M 1KOHM, 1/10W 3 R9293 ERJ6ENF1601 M 1.6KOHM, 1/10W 1 R9295 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9296 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9299 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9301 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9303 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9305-07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9308,09 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9311 EXB38V470J 电阻阵列 1 R9314 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9315-18 TAJAAH0470JV M 47 OHM,J,1/16W 4 R9321-24 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9328,29 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9331 EXB2HV101J 电阻阵列 1 R9332 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9333 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9334 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9335 EXB2HV101J 电阻阵列 1 R9336 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9337 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9338-43 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9344,45 EXB2HV101J 电阻阵列 2 R9346,47 ERJ3GEYJ103 M 10KOHM,J,1/16W 2 R9348 EXB2HV101J 电阻阵列 1 R9349,50 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9351 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9353,54 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9355 EXB2HV101J 电阻阵列 1 R9356 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9357-59 ERJ3GEYJ220 M 22 OHM,J,1/16W 3 R9360 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9361 ERJ3GEYJ220 M 22 OHM,J,1/16W 1 R9362 EXB2HV101J 电阻阵列 1 R9363 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9365 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9366,67 EXB2HV101J 电阻阵列 2 R9368 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9369 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9371 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9372 EXB2HV101J 电阻阵列 1 R9374 TAJAAH0470JV M 47 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R9375 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9376 EXB2HV101J 电阻阵列 1 R9377 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9380,81 EXB2HV101J 电阻阵列 2 R9382 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9384,85 EXB2HV101J 电阻阵列 2 R9386,87 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9388 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9389 EXB2HV101J 电阻阵列 1 R9390,91 ERJ3GEYJ220 M 22 OHM,J,1/16W 2 R9393 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9395 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9397 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9399 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9401 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9403 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9405 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9407 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9409 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9411 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9413 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9415 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9417 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9419 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9421 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9423 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9425 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9427 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9429 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9431 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9433 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9435 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9439,40 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9441 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9443 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9445 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9447 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9449 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9451 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9453 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9455 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9457 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9459 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9461 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9463 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9465 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9467 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9469 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9471 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9473 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9475 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9477 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9479 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9481 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9483 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9485 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9487 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9489 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9491 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9493 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9495 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9497 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9499 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9501 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9503 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9505 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9506-09 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9510,11 TAJAAH0470JV M 47 OHM,J,1/16W 2 R9512 EXB38V470J 电阻阵列 1 R9513 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9515 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9516 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9521-26 EXB2HV470JV 电阻阵列 6 R9527 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9530 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9532 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9534 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 145 R9535-41 TAJAAH0470JV M 47 OHM,J,1/16W 7 R9542 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9543,44 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9548 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9550 TAJAAH0470JV M 47 OHM,J,1/16W 1 R9552,53 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9555-58 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9559,60 ERJ3GEYJ102 M 1KOHM,J,1/16W 2 R9561 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9562-64 EXB38V470J 电阻阵列 3 R9567,68 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9569 EXB38V470J 电阻阵列 1 R9570,71 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9574-77 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9578,79 EXB38V470J 电阻阵列 2 R9583-85 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9586 EXB38V470J 电阻阵列 1 R9587 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9589 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9590 EXB38V470J 电阻阵列 1 R9595 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9596 EXB38V470J 电阻阵列 1 R9597-02 ERJ3GEY0R00 M 0 OHM, 1/16W 6 R9605 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9607 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9609 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9611 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9613 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9615 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9617 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9619 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9621 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9623 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9625 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9627 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9629 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9631 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9633 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9635 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9637 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9639 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9641 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9643 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9645 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9647 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9648 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9649 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9650 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9651 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9652 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9653 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9655 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9657 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9659 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9661 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9663 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9665 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9667 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9669 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9671 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9673 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9675 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9677 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9679 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9681 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9683 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9685 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9687 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9689 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9691 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9693 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9695 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9697 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9699 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9701 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9703 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9705 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 参考号 部件号 部件名称及说明 件数 备注 R9707 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9709 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9711 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9713 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9715 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9717 ERJ3GEYJ330 M 33 OHM,J,1/16W 1 R9718-21 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9722 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9723 EXB38V103J 电阻阵列 1 R9724 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9725 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9726 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9727 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9728 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9729 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9731 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9736 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9739-42 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R973-45 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9747,48 EXB38V103J 电阻阵列 2 R9749-51 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9753 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9754 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R9755 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9756 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9757 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9758 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9761 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9762 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9764 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9765 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9766 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9767-70 ERJ3GEY0R00 M 0 OHM, 1/16W 4 R9771 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9774 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9775 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9776 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9777 ERJ3GEYJ121 M 120 OHM,J,1/16W 1 R9778 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9779 EXB38V103J 电阻阵列 1 R9780,81 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9783 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9784,85 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9786 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9787-95 ERJ3GEY0R00 M 0 OHM, 1/16W 9 R9797 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9799 ERJ3GEYJ561 M 560 OHM,J,1/16W 1 R9800 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9803 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9804 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9805-07 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9808 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9809-13 ERJ3GEY0R00 M 0 OHM, 1/16W 5 R9816 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9828,29 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 2 R9833-35 ERJ3GEYJ103 M 10KOHM,J,1/16W 3 R9844-48 EXB38V103J 电阻阵列 5 R9849 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9850 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9851 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9852 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R9853 EXB38V103J 电阻阵列 1 R9854 ERJ3GEYJ102 M 1KOHM,J,1/16W 1 R9860,61 TAJAAH0101JV M 100 OHM,J,1/16W 2 R9862-65 TAJAAH0101JV M 100 OHM,J,1/16W 4 R9866 EXB2HV470JV 电阻阵列 1 R9867,68 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9870 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9871 EXB2HV470JV 电阻阵列 1 R9872-74 TAJAAH0101JV M 100 OHM,J,1/16W 3 R9876 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9877 EXB2HV470JV 电阻阵列 1 R9878 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9880 ERJ3GEYJ560 M 56 OHM,J,1/16W 1 R9884 ERJ3GEYJ100 M 10 OHM,J,1/16W 1 R9886 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9888 ERJ3GEY0R00 M 0 OHM, 1/16W 1 参考号 部件号 部件名称及说明 件数 备注 146 R9892 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R9893 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9894 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9897 TAJAAH0101JV M 100 OHM,J,1/16W 1 R9898 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9899 ERJ3GEYJ103 M 10KOHM,J,1/16W 1 R9900 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9901 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9903 ERJ6ENF1001 M 1KOHM, 1/10W 1 R9906,07 ERJ6GEY0R00 M 0 OHM, 1/10W 2 R9911-13 ERJ3GEYJ750 M 75 OHM,J,1/16W 3 R9916,17 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R9918 ERJ3EKF6801 M 6.8KOHM, 1/16W 1 R9919-21 ERJ3GEY0R00 M 0 OHM, 1/16W 3 R9922 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 1 R9924 ERJ6GEY0R00 M 0 OHM, 1/10W 1 R9936 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9942 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R9951 ERJ6ENF1101 M 1.1KOHM, 1/10W 1 R9952 ERJ6ENF1401 M 1.4KOHM, 1/10W 1 R9953-56 ERJ6ENF1001 M 1KOHM, 1/10W 4 R9979,80 ERJ3GEYJ272 M 2.7KOHM,J,1/16W 2 R9985,86 ERJ3GEY0R00 M 0 OHM, 1/16W 2 R3001 ERJ6ENF75R0 M75OHM,1/10W 1 HY R3002 ERJ6ENF75R0 M75OHM,1/10W 1 HY R3003 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3004 ERJ6ENF75R0 M75OHM,1/10W 1 HY R3005 ERJ6ENF75R0 M75OHM,1/10W 1 HY R3006 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3007 ERJ3GEYJ104 M100KOHM,J,1/16W 1 HY R3008 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3009 TAJAAH0101JV M100OHM,J,1/16W 1 HY R3010 ERJ3GEYJ153 M15KOHM,J,1/16W 1 HY R3011 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3012 ERJ3GEYJ752 M7.5KOHM,J,1/16W 1 HY R3013 ERJ3GEYJ472 M4.7KOHM,J,1/16W 1 HY R3014 ERJ3GEYJ752 M7.5KOHM,J,1/16W 1 HY R3015 ERJ3GEYJ472 M4.7KOHM,J,1/16W 1 HY R3026 ERJ3GEYJ332 M3.3KOHM,J,1/16W 1 HY R3027 ERJ3GEYJ153 M15KOHM,J,1/16W 1 HY R3028 ERJ3GEYJ820 M82OHM,J,1/16W 1 HY R3031 ERJ3EKF1800 M180OHM,1/16W 1 HY R3032 ERJ3EKF6200 M620OHM,1/16W 1 HY R3033 TAJAAH0101JV M100OHM,J,1/16W 1 HY R3035 ERJ3GEYJ102 M1KOHM,J,1/16W 1 HY R3036 ERJ6ENF1800 M180OHM,1/10W 1 HY R3038 ERJ3GEYJ272 M2.7KOHM,J,1/16W 1 HY R3040 ERJ3EKF3300 M330OHM,1/16W 1 HY R3042 ERJ3EKF6801 M6.8KOHM,1/16W 1 HY R3045 ERJ3EKF2200 M220OHM,1/16W 1 HY R3046 ERJ3EKF1000 M100OHM,1/16W 1 HY R3047 ERJ3GEYJ102 M1KOHM,J,1/16W 1 HY R3048 TAJAAH0101JV M100OHM,J,1/16W 1 HY R3049 ERJ3GEYJ102 M1KOHM,J,1/16W 1 HY R3050 ERJ6ENF75R0 M75OHM,1/10W 1 HY R3051 ERJ3GEYJ333 M33KOHM,J,1/16W 1 HY R3052 ERJ3GEYJ333 M33KOHM,J,1/16W 1 HY R3053 ERJ3GEYJ153 M15KOHM,J,1/16W 1 HY R3054 ERJ3GEYJ333 M33KOHM,J,1/16W 1 HY R3055 ERJ3GEYJ153 M15KOHM,J,1/16W 1 HY R3056 ERJ3GEYJ333 M33KOHM,J,1/16W 1 HY R3057 TAJAAH0101JV M100OHM,J,1/16W 1 HY R3058 TAJAAH0101JV M100OHM,J,1/16W 1 HY R3060 ERJ3GEYJ102 M1KOHM,J,1/16W 1 HY R3061 ERJ3GEYJ561 M560OHM,J,1/16W 1 HY R3065 ERJ6GEY0R00 M0OHM,1/10W 1 HY R3101 ERJ3GEYJ220 M22OHM,J,1/16W 1 HY R3102 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3104 ERJ3GEYJ220 M22OHM,J,1/16W 1 HY R3106 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3107 ERJ3GEYJ330 M33OHM,J,1/16W 1 HY R3108 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3112 ERJ3EKF1501 M1.5KOHM,1/16W 1 HY R3113 ERJ3EKF1501 M1.5KOHM,1/16W 1 HY R3114 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3115 ERJ3GEYJ102 M1KOHM,J,1/16W 1 HY R3117 ERJ3GEYJ102 M1KOHM,J,1/16W 1 HY 参考号 部件号 部件名称及说明 件数 备注 R3118 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3119 ERJ3GEYJ121 M120OHM,J,1/16W 1 HY R3121 ERJ3GEYJ121 M120OHM,J,1/16W 1 HY R3122 ERJ3EKF8201 M8.2KOHM,1/16W 1 HY R3123 ERJ3EKF1502 M15KOHM,1/16W 1 HY R3124 ERJ3EKF10R0 M10OHM,1/16W 1 HY R3125 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3127 ERJ6ENF12R0 M12OHM,1/10W 1 HY R3129 ERJ6ENF12R0 M12OHM,1/10W 1 HY R3131 ERJ3GEYJ220 M22OHM,J,1/16W 1 HY R3135 ERJ6ENF10R0 M10OHM,1/10W 1 HY R3136-39 ERJ3GEY0R00 M0OHM,1/16W 4 HY R3140 ERJ3GEYJ220 M22OHM,J,1/16W 1 HY R3141 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3142,43 ERJ3GEY0R00 M0OHM,1/16W 2 HY R3144,45 ERJ3GEYJ102 M1KOHM,J,1/16W 2 HY R3148,49 ERJ3GEYJ220 M22OHM,J,1/16W 2 HY R3151 ERJ3GEYJ220 M22OHM,J,1/16W 1 HY R3152 ERJ3GEYJ561 M560OHM,J,1/16W 1 HY R3153 ERJ3GEYJ221 M220OHM,J,1/16W 1 HY R3154,55 ERJ3GEYJ331 M330OHM,J,1/16W 2 HY R3156 ERJ3GEYJ561 M560OHM,J,1/16W 1 HY R3157 ERJ3GEYJ221 M220OHM,J,1/16W 1 HY R3158 ERJ3GEYJ182 M1.8KOHM,J,1/16W 1 HY R3159 ERJ6GEY0R00 M0OHM,1/10W 1 HY R3160 ERJ3EKF2701 M2.7KOHM,1/16W 1 HY R3161 ERJ3EKF2701 M2.7KOHM,1/16W 1 HY R3162,63 ERJ3EKF2701 M2.7KOHM,1/16W 2 HY R3164-67 ERJ3GEY0R00 M0OHM,1/16W 4 HY R3168 ERJ3EKF2000 M200OHM,1/16W 1 HY R3169-72 ERJ6ENF75R0 M75OHM,1/10W 4 HY R3173 ERJ3EKF2200 M220OHM,1/16W 1 HY R3174 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3177 ERJ3EKF1401 M1.4KOHM,1/16W 1 HY R3178 ERJ3EKF1101 M1.1KOHM,1/16W 1 HY R3179 ERJ3EKF1401 M1.4KOHM,1/16W 1 HY R3180 ERJ3EKF1101 M1.1KOHM,1/16W 1 HY R3181 ERJ3EKF1401 M1.4KOHM,1/16W 1 HY R3182 ERJ3EKF1101 M1.1KOHM,1/16W 1 HY R3183 ERJ3EKF1401 M1.4KOHM,1/16W 1 HY R3184 ERJ3EKF1101 M1.1KOHM,1/16W 1 HY R3185 ERJ6GEY0R00 M0OHM,1/10W 1 HY R3189 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3190 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3191 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3202 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3203 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3204 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3251 TAJAAH0101JV M100OHM,J,1/16W 1 HY R3253 ERJ3GEYJ472 M4.7KOHM,J,1/16W 1 HY R3300,01 ERJ3EKF1501 M1.5KOHM,1/16W 2 HY R3302 ERJ3GEYJ203 M20KOHM,J,1/16W 1 HY R3303,04 ERJ3GEYJ220 M22OHM,J,1/16W 2 HY R3305-09 ERJ3GEYJ103 M10KOHM,J,1/16W 5 HY R3313,14 ERJ3GEYJ103 M10KOHM,J,1/16W 2 HY R3317,18 ERJ3GEYJ333 M33KOHM,J,1/16W 2 HY R3334 ERJ3GEY0R00 M0OHM,1/16W 1 HY R3337,38 ERJ3GEYJ220 M22OHM,J,1/16W 2 HY R3401 ERJ3EKF2701 M2.7KOHM,1/16W 1 HY R3402 ERJ3EKF1801 M1.8KOHM,1/16W 1 HY R3403 ERJ3EKF2701 M2.7KOHM,1/16W 1 HY R3404 ERJ3EKF1801 M1.8KOHM,1/16W 1 HY R3405 ERJ3EKF2701 M2.7KOHM,1/16W 1 HY R3406 ERJ3EKF1801 M1.8KOHM,1/16W 1 HY R3407 ERJ6ENF2201 M2.2KOHM,1/10W 1 HY R3408 ERJ3GEYJ473 M47KOHM,J,1/16W 1 HY R3409 ERJ6ENF6800 M680OHM,1/10W 1 HY R3410 ERJ6ENF2201 M2.2KOHM,1/10W 1 HY R3411 ERJ3GEYJ103 M10KOHM,J,1/16W 1 HY R3412 ERJ6GEYJ102 M1KOHM,J,1/10W 1 HY R3413 ERJ3EKF1800 M180OHM,1/16W 1 HY R3418 ERJ3GEYJ102 M1KOHM,J,1/16W 1 HY R3501,02 ERJ6GEYJ184 M180KOHM,J,1/10W 2 HY R3506-09 ERJ6GEYJ472 M4.7KOHM,J,1/10W 4 HY R3521,22 ERJ3GEYJ472 M4.7KOHM,J,1/16W 2 HY R3525-28 ERJ3GEYJ103 M10KOHM,J,1/16W 4 HY R3529 TAJAAH0101JV M100OHM,J,1/16W 1 HY 参考号 部件号 部件名称及说明 件数 备注 147 R3531,32 ERJ3GEYJ3R3 M3.3OHM,J,1/16W 2 HY R3535,36 ERJ3GEYJ102 M1KOHM,J,1/16W 2 HY R3538,39 TAJAAH0101JV M100OHM,J,1/16W 2 HY R3544,45 ERJ3GEYJ472 M4.7KOHM,J,1/16W 2 HY R3546,02 ERJ3GEYJ3R3 M3.3OHM,J,1/16W 2 HY RL920 K6B1ADA00009 继电器 1 RM001 PNA4601M05TV REMOCO 接受器 1 RTL TNPA3003 电路板 H3 1 RTL TNPA3003 电路板 H3 1 RTL TNPA3197 电路板 J 1 RTL TZTNP01VCSE 电路板 HX 1 RTL TNPA3198 电路板 Z 1 RTL TXNPF10VAS 电路板 PF 1 RTL TNPA3187 电路板 SS2 1 RTL TNPA3188 电路板 SS3 1 RTL TNPA3195AB 电路板 P 1 RTL TNPA3191AC 电路板 C1 1 RTL TNPA3192AC 电路板 C2 1 RTL TNPA3193AC 电路板 C3 1 RTL TNPA3194AC 电路板 C4 1 RTL TZTNP01VCSC 电路板 D 1 RTL TXNSC10UNS 电路板 SC 1 RTL TXNSD10UNS 电路板 SD 1 RTL TXNSS10UNS 电路板 SS 1 RTL TXNSU10UNS 电路板 SU 1 RTL TNPA3200 电路板 S1 1 RTL TNPA3199 电路板 V1 1 RTL TXNHYQBSC 电路板 HY 1 HY S34 K1KA03A00213 3P 连接接头 1 S061 K0F162B00002 开关 1 S901,02 J0LT00000009 开关 2 S1550-54 EVQPBD05R 开关 5 SC2 K1KA06A00180 6P 连接接头 1 SC20 K1KA20A00272 20P 连接接头 1 SC23 K1KA03A00213 3P 连接接头 1 SC41,42 K1ML80BA0001 80P 连接接头 2 SC45,46 K1KA10A00194 10P 连接接头 2 SD1-D4 K1MN96B00001 连接接头 4 SD46 K1KA10B00209 10P 连接接头 1 SS11 K1KA07A00096 7P 连接接头 1 SS12 K1KA10A00259 10P 连接接头 1 SS20,21 K1KA07A00170 7P 连接接头 2 SS22,23 K1KB07A00037 7P 连接接头 2 SS32 K1KA12A00176 12P 连接接头 1 SS34 K1KA03A00213 3P 连接接头 1 SS42 K1KA04A00242 4P 连接接头 1 SS51-55 K1MN13B00020 13P 连接接头 5 SS58 K1MN13B00020 13P 连接接头 1 SU1-U4 K1MN96B00001 连接接头 4 SU45 K1KA10B00209 10P 连接接头 1 T920 ETS28AZ1K6AD 转接变压器 1 T6431 ETS13TB139AP 转接变压器 1 T6471 ETS19AA259AC 转接变压器 1 V34 K1KA08B00005 8P 连接接头 1 VR6145 EVMEASA00B14 控制 10KOHMB 0.3W 1 VR6477 EVMEASA00B53 控制 5KOHMB 0.3W 1 VR6491 EVMEASA00B15 控制 100KOHMB 0.3W 1 参考号 部件号 部件名称及说明 件数 备注 VR6523 EVMEASA00B53 控制 5KOHMB 0.3W 1 VR6557 EVMEASA00B14 控制 10KOHMB 0.3W 1 X3101 H0J202500002 晶体 1 X8181 H0J327200038 晶体 1 X9001 H0J400400017 晶体 1 X9500 H0J200500038 晶体 1 X3101 H0J202500002 晶体 1 HY Z5 K1KA11A00102 11P 连接接头 1 Z6 K1KA04A00195 4P 连接接头 1 Z7 K1KA03A00172 3P 连接接头 1 Z8 K1KA20AA0008 20P 连接接头 1 Z10 K1KA05A00177 5P 连接接头 1 Z30-33 K1KA03A00172 3P 连接接头 4 ZA001-03 K4ZZ01000121 接地片 3 ZA901 K4ZZ01000121 接地片 1 ZA3001- 07 K4CD01000013 端子 7 ZA6101- 03 K4CD01000013 端子 3 ZA6401- 03 K4CD01000013 端子 3 ZA7101- 03 K4CD01000013 端子 3 ZA7301- 03 K4CD01000013 端子 3 ZA7501- 03 K4CD01000013 端子 3 ZA8701- 03 K4CD01000013 端子 3 C401 F0CAF105A021 C 1UF, 250V 1 C402 ECJ2XC1H101J C 100PF, J, 50V 1 C403 ECKCNA222MEB C 2200PF, M 1 C404 F0CAF105A021 C 1UF, 250V 1 C407 EEUEB2W220B E 22UF, 450V 1 C408 ECA1HM470 E 47UF, 50V 1 C409 F0CAF105A021 C 1UF, 250V 1 C410 ECA1HM470 E 47UF, 50V 1 C411 ECA1HM100 E 10UF, 50V 1 C412 ECJ2XB1H103K C 0.01UF, K, 50V 1 C416 ECJ2XB1E104K C 0.1UF, K, 25V 1 C417 ECJ2XB1H103K C 0.01UF, K, 50V 1 C418 F1J1C1050011 C 1UF, Z, 50V 1 C419 ECJ2XB1H104K C 0.1UF, K, 50V 1 C421,22 ECJ2XB1H103K C 0.01UF, K, 50V 2 C423 ECJ2XB1H472K C 4700PF, K, 50V 1 C424 ECJ2XC1H101J C 100PF, J, 50V 1 C425 ECJ2XB1H102K C 1000PF, K, 50V 1 C426 ECJ2XC1H471J C 470PF, J, 50V 1 C427 F1J1A1050002 C 1UF, Z, 50V 1 C428 ECJ2XC1H221J C 220PF, J, 50V 1 C429,30 F1K2J1530002 C 0.15PF, J,630V 2 C431 ECJ2XB1H102K C 1000PF, K, 50V 1 C432 F1J1C1050011 C 1UF, Z, 50V 1 C436 F1J1C1050011 C 1UF, Z, 50V 1 C440 ECA1HM100 E 10UF, 50V 1 C443,44 F1A3A102A040 C 1000PF, J, 1KV 2 C445 F1J1C1050011 C 1UF, Z, 50V 1 C446 F2B2W3310006 C 330UF, 450V 1 C448 F2B2W3310006 C 330UF, 450V 1 C449,50 F1A3A102A040 C 1000PF, J, 1KV 2 C451 F1A3A101A040 C 100PF, J, 1KV 1 C455 F1A3A221A040 E 220UF, 1KV 1 C457 ECWH8203RHV P 0.020PF, J, 8KV 1 C458 ECWH12223RHV P 0.022UF,J,1.2KV 1 C459 F1K2J1530002 C 0.15PF, J,630V 1 C460,61 F1A3A331A039 E 330UF, 1KV 2 C462 ECJ3YB1E105K C 1UF, K, 25V 1 C463 ECJ2XC1H220J C 22UF, J, 50V 1 C465 ECKCNA221KB7 C 220PF, M, 1 C468 ECJ2XB1H103K C 0.01UF, K, 50V 1 C471 F1J1C1050011 C 1UF, Z, 50V 1 C480 ECJ3YB1E105K C 1UF, K, 25V 1 C481 ECJ2XB1H103K C 0.01UF, K, 50V 1 C482 ECJ2XB1H104K C 0.1UF, K, 50V 1 C501,02 ECJ2XB1H103K C 0.01UF, K, 50V 2 参考号 部件号 部件名称及说明 件数 备注 148 C503 ECJ2XB1H104K C 0.1UF, K, 50V 1 C504 F1J1C1050011 C 1UF, Z, 50V 1 C505 ECJ2XB1H102K C 1000PF, K, 50V 1 C506-08 ECJ2XB1H103K C 0.01UF, K, 50V 3 C509 ECA1EM101 E 100UF, 25V 1 C511 F1J1C1050011 C 1UF, Z, 50V 1 C513,14 ECJ2XC1H471J C 470PF, J, 50V 2 C515 EEUFC1A222 E 2200UF, 10V 1 C516 F1J1A1050002 C 1UF, Z, 50V 1 C517 ECA1EM221 E 220UF, 25V 1 C519 F1J1A1050002 C 1UF, Z, 50V 1 C523 ECA1EM470 E 47UF, 25V 1 C525 ECJ2XB1H103K C 0.01UF, K, 50V 1 C526 ECJ2XB1H104K C 0.1UF, K, 50V 1 C527 ECJ2XB1H102K C 1000PF, K, 50V 1 C528 ECJ2XB1H104K C 0.1UF, K, 50V 1 C529 ECA1HM100 E 10UF, 50V 1 C530 ECJ2VB1H333K C 0.033UF, K, 50V 1 C531,32 ECJ2XB1H104K C 0.1UF, K, 50V 2 C534 ECJ2XC1H681J C 680PF, J, 50V 1 C535 ECJ2XB1H103K C 0.01UF, K, 50V 1 C536 ECJ2XB1H104K C 0.1UF, K, 50V 1 C537 ECJ2XB1H102K C 1000PF, K, 50V 1 C538 ECJ2XB1H103K C 0.01UF, K, 50V 1 C539 ECJ2VB1H333K C 0.033UF, K, 50V 1 C540 ECJ2XC1H471J C 470PF, J, 50V 1 C541 F1J1C1050011 C 1UF, Z, 50V 1 C544 F1J1C1050011 C 1UF, Z, 50V 1 C546 ECA1HM100 E 10UF, 50V 1 C547 ECJ2VB1H333K C 0.033UF, K, 50V 1 C550 EEUFC1E152 E 1500UF, 25V 1 C552 F1J1C1050011 C 1UF, Z, 50V 1 C553,54 ECJ2XB1H104K C 0.1UF, K, 50V 2 C555 ECA2AHG102 E 1000UF, 100V 1 C556 F2A1C1520009 E 1500UF, 16V 1 C558 F2B2D1720001 E 1700UF,@ 200V 1 C560 ECA2AHG102 E 1000UF, 100V 1 C561 ECJ2XB1H103K C 0.01UF, K, 50V 1 C562 F2B2D1720001 E 1700UF,@ 200V 1 C576 ECA1EM470 E 47UF, 25V 1 C577 ECA2AM101 E 100UF, 100V 1 C579 ECJ2XB1H223K C 0.022UF, K, 50V 1 C581 ECJ2XB1H223K C 0.022UF, K, 50V 1 C583 ECJ2XB1H103K C 0.01UF, K, 50V 1 C585,86 ECJ2XB1H104K C 0.1UF, K, 50V 2 C587 ECJ2XB1H103K C 0.01UF, K, 50V 1 C599 ECJ2XB1H104K C 0.1UF, K, 50V 1 C600,01 ECJ2XB1H103K C 0.01UF, K, 50V 2 C602 ECJ2XB1H102K C 1000PF, K, 50V 1 C603,04 ECJ2XB1H104K C 0.1UF, K, 50V 2 C605 ECJ2XB1H103K C 0.01UF, K, 50V 1 C606 ECJ2XB1H102K C 1000PF, K, 50V 1 C607 F1J1C1050011 C 1UF, Z, 50V 1 C608,09 ECJ2XB1H103K C 0.01UF, K, 50V 2 C610 F1J1C1050011 C 1UF, Z, 50V 1 C611 ECJ2XB1H103K C 0.01UF, K, 50V 1 C624,25 ECA1HM100 E 10UF, 50V 2 C626 ECJ2XB1H103K C 0.01UF, K, 50V 1 D401 B0FBCT000004 二极管 1 D402 MA4082M 齐纳二极管 1 D404 B0EBKT000007 二极管 1 D405 MA165 二极管 1 D409 B0HAMM000122 二极管 1 D410 MA188 二极管 1 D411 B0BB17000008 二极管 1 D412,13 MA165 二极管 2 D415 B0JAME000081 二极管 1 D418 MA4082M 齐纳二极管 1 D419,20 B0HBRR000001 二极管 2 D423-26 B0JAME000081 二极管 4 D427-29 ERA15-10 二极管 3 D431 B0JCDD000002 二极管 1 D433 MA4051NM 齐纳二极管 1 D434 MA4082M 齐纳二极管 1 D435 ERA15-10 二极管 1 D436 B0HAMP000067 二极管 1 参考号 部件号 部件名称及说明 件数 备注 D438 ERA15-10 二极管 1 D503,04 MA165 二极管 2 D505,06 B0JAME000081 二极管 2 D509,10 B0HANM000028 二极管 2 D511 AK06 二极管 1 D521 MA188 二极管 1 D528,29 MA153 二极管 2 D530 MA4100M 齐纳二极管 1 D531 B0HDRP000002 二极管 1 D532 MA3J142D0L 二极管 1 D534 MA752A 二极管 1 D535 MA188 二极管 1 D536 MA752A 二极管 1 D537 B0HBRP000007 二极管 1 D538 MA4051NM 齐纳二极管 1 D539 B0HBRP000007 二极管 1 D543-45 MA4180H 齐纳二极管 3 D547 MA4150M 齐纳二极管 1 D548 MA4075M 齐纳二极管 1 D549 MA188 二极管 1 D551 MA4075M 齐纳二极管 1 D554 ERA15-01V5 二极管 1 D555 MA4075M 齐纳二极管 1 D557 MA111 二极管 1 D559 MA4075M 齐纳二极管 1 D561 MA4075M 齐纳二极管 1 D563,64 MA111 二极管 2 D572 MA188 二极管 1 F405 P130A 熔断器 1 IC401 CNC1S171R IC 1 IC402 C0BBAA000038 IC 1 IC403,04 CNC1S171R IC 2 IC405 C0CBADE00037 IC 1 IC406 C0DAZZZ00021 IC 1 IC408 CNC1S171R IC 1 IC409 MIP2C20MPSAG IC 1 IC410 C0CBADE00037 IC 1 IC411 C0BBAA000038 IC 1 IC501 C2ABFD000148 IC 1 IC502 C0EBE0000154 IC 1 IC503 C0ZBZ0000878 IC 1 IC504 C0DAEMB00003 IC 1 IC507 C0CBABE00041 IC 1 IC512 C0DAEMB00003 IC 1 IC520 C0JBAZ002056 IC 1 IC521 C0JBAF000540 IC 1 IC522 C0JBAZ002056 IC 1 IC523 C0JBAF000540 IC 1 IC524,25 C0BBAA000039 IC 2 L402 EXCELSA24 头扼流圈 1 L403 EXCELSA35 头扼流圈 1 L505 EXCELDR35C 头扼流圈 1 L506,07 EXCELDR25C 头扼流圈 2 L509 J0JBC0000032 片状电感 1 P2 K1KA06A00180 6P 连接接头 1 P5 K1KA11A00073 11P 连接接头 1 P7 K1KA04A00242 4P 连接接头 1 P9 K1KA03A00181 3P 连接接头 1 P10 K1KA05A00177 5P 连接接头 1 P11 K1KA07A00096 7P 连接接头 1 P12 K1KA10A00259 10P 连接接头 1 P23 K1KA03A00213 3P 连接接头 1 P25 TJS1A8840 8P 连接接头 1 P27 K1KA09A00099 9P 连接接头 1 PR401 K5Y502B00007 熔断器 1 PR402 K5G162B00008 熔断器 1 PR509,10 K5H501Z00005 熔断器 2 Q401 B1DHBD000004 三极管 1 Q404 2SB1386RT100 三极管 1 Q406 B1DELQ000003 三极管 1 Q407 XN4601TX 三极管 1 参考号 部件号 部件名称及说明 件数 备注 149 Q408 B1CBGD000001 三极管 1 Q412,13 B1DEDQ000020 三极管 2 Q414,15 B1DAGQ000012 三极管 2 Q417 B1CBGD000001 三极管 1 Q418 UN5213 三极管 1 Q420,21 2SD1819A 三极管 2 Q422 UN5213 三极管 1 Q501,02 2SD1820A 三极管 2 Q503 UN5211 三极管 1 Q504 2SK3065T100 FET 1 Q506 XN0440100L 三极管 1 Q508 B1GBCFNA0010 三极管 1 Q509 XN0440100L 三极管 1 Q510 2SB1218ARL 三极管 1 Q511 B1CBGD000001 三极管 1 Q512 B1DHBD000004 三极管 1 Q513 B1CBGD000001 三极管 1 Q514 B1MBACA00006 三极管 1 Q515 2SK3065T100 FET 1 Q516 B1DHBD000004 三极管 1 Q518 B1MBACA00006 三极管 1 Q519 2SK3065T100 FET 1 Q520 B1HFCFA00021 三极管 1 Q521 2SD1819A 三极管 1 Q522 UN5211 三极管 1 Q524 2SD1819A 三极管 1 Q525 XN4601TX 三极管 1 Q527 B1DEHL000018 三极管 1 Q528 2SD1819A 三极管 1 Q535 2SD1819A 三极管 1 Q536 B1CFQD000001 三极管 1 Q537 B1CHND000004 三极管 1 Q538 B1CFQD000001 三极管 1 Q540 B1DHBD000004 三极管 1 Q541 B1CBGD000001 三极管 1 Q542 XN4601TX 三极管 1 Q544 UN5211 三极管 1 Q545 2SK3065T100 FET 1 Q547 2SD1119 三极管 1 Q550,51 UNR521L00L 三极管 2 Q552 UN5213 三极管 1 Q553 2SD1819A 三极管 1 Q554 B1DHBD000004 三极管 1 Q555 UN5211 三极管 1 R404 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R408 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R409 ERJ6ENF1693 M 169KOHM, 1/10W 1 R410 D0D5200JA032 M 20 OHM,J,5W 1 R411 D1FZ100E0003 F 10 OHM 1 R412 D0D5200JA032 M 20 OHM,J,5W 1 R413 D1FZ100E0003 F 10 OHM 1 R414 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R415 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R416 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R417 ERJ6ENF4303 M 430KOHM, 1/10W 1 R418 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R419 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R420 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R421 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R422 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R423 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 1 R424 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R425 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R426 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R427 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 1 R428 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R429 ERJ6GEYJ153 M 15KOHM,J,1/10W 1 R430 ERJ6ENF4303 M 430KOHM, 1/10W 1 R431 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R432 ERJ6GEYJ274 M 270KOHM,J,1/10W 1 R433 ERJ6ENF1202 M 12KOHM, 1/10W 1 R434 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 1 R435 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R436 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R437 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R438 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R439 ERJ14YJ120 M 12 OHM, J,1/4W 1 R440 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R441,42 ERJ6EKF6803 M 680KOHM, 1/10W 2 R443 EVMAASA00B23 控制 2KOHMB 1 R444 ERJ6GEYJ123 M 12KOHM,J,1/10W 1 R445-47 ERJ6ENF1004 M1000KOHM, 1/10W 3 R448-50 D0XGR10JA007 电阻阵列 3 R451 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R452 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R453 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R454 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R456 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R458 ERJ6GEYJ472 M 4.7KOHM,J,1/10W 1 R462 ERJ6ENF4303 M 430KOHM, 1/10W 1 R463 ERJ6GEYJ333 M 33KOHM,J,1/10W 1 R464 ERJ6ENF3302 M 33KOHM, 1/10W 1 R465 ERJ6ENF5603 M 560KOHM, 1/10W 1 R467 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R471 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R472,73 ERJ6ENF5603 M 560KOHM, 1/10W 2 R475 ERJ6EKF6803 M 680KOHM, 1/10W 1 R476,77 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 2 R478 ERJ8GEYJ102 M 1KOHM, J,1/8W 1 R479 ERJ6GEYJ154 M 150KOHM,J,1/10W 1 R480 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R481 ERJ14YJ221 M 220 OHM, J,1/4W 1 R482 ERJ8GEYJ102 M 1KOHM, J,1/8W 1 R483 ERJ14YJ221 M 220 OHM, J,1/4W 1 R484,85 ERJ8GEYJ2R2 M 2.2 OHM, J,1/8W 2 R486 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R487 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R493 ERJ14YJ120 M 12 OHM, J,1/4W 1 R494-96 ERJ6ENF5603 M 560KOHM, 1/10W 3 R497 ERJ6ENF2402 M 24KOHM, 1/10W 1 R498 ERJ6GEYJ334 M 330KOHM,J,1/10W 1 R501 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R502,03 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R504 ERDS2TJ102 C 1KOHM, J,1/4W 1 R505 ERJ6GEYJ220 M 22 OHM,J,1/10W 1 R506 ERDS2TJ102 C 1KOHM, J,1/4W 1 R507 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R508 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R509 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R510 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R511 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R512 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R513,14 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R515 ERDS2TJ102 C 1KOHM, J,1/4W 1 R516 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R517 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R518 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R519,20 ERJ6GEYJ104 M 100KOHM,J,1/10W 2 R521,22 ERJ8GEYJ100 M 10 OHM, J,1/8W 2 R524 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R528 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R529 ERJ6ENF1002 M 10KOHM, 1/10W 1 R530 ERJ6ENF1052 M10.5KOHM, 1/10W 1 R532 ERJ6GEYJ101 M 100 OHM,J,1/10W 1 R535 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R537 ERJ6ENF5602 M 56KOHM, 1/10W 1 R538 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R540 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R541-44 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 4 R545 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R546 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R547-49 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 3 R550 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R551 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R552 ERJ8GEYJ202 M 2KOHM, J,1/8W 1 R553 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R554 ERJ6ENF1002 M 10KOHM, 1/10W 1 R555,56 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R557 ERJ6GEYJ100 M 10 OHM,J,1/10W 1 R558 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R559 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R560 ERJ6ENF1002 M 10KOHM, 1/10W 1 R561 ERJ6ENF4301 M 4.3KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 150 R562 ERJ6ENF1002 M 10KOHM, 1/10W 1 R563 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R564 ERJ6GEYJ102 M 1KOHM,J,1/10W 1 R565 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R566 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R567 ERJ6ENF1202 M 12KOHM, 1/10W 1 R570 ERJ6ENF1003 M 100KOHM, 1/10W 1 R571 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R574 ERJ6GEYJ331 M 330 OHM,J,1/10W 1 R575 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R576 ERJ6ENF1002 M 10KOHM, 1/10W 1 R577 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R578 ERJ6ENF2201 M 2.2KOHM, 1/10W 1 R579 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R581 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R582 ERJ6ENF1002 M 10KOHM, 1/10W 1 R583 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R584 ERJ6ENF1002 M 10KOHM, 1/10W 1 R585 ERJ6ENF3302 M 33KOHM, 1/10W 1 R586 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R587 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R588 ERJ6ENF4420 M 442 OHM, 1/10W 1 R589 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R590 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R592 ERJ6ENF3001 M 3KOHM, 1/10W 1 R593 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R594 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R595 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R596 ERJ6ENF1002 M 10KOHM, 1/10W 1 R597 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R599 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R600 ERJ8ENF3900 M 390 OHM, 1/8W 1 R601 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 1 R602,03 ERJ6ENF1002 M 10KOHM, 1/10W 2 R604 ERJ6GEYJ391 M 390 OHM,J,1/10W 1 R605,06 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R608 D3CA61020010 M1.0 KOHM,J,0.5W 1 R609 ERJ6GEYJ822 M 8.2KOHM,J,1/10W 1 R610 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R611 ERJ8GEYJ471 M 470 OHM, J,1/8W 1 R612 ERDS2TJ102 C 1KOHM, J,1/4W 1 R613 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R614 ERJ6ENF5601 M 5.6KOHM, 1/10W 1 R615 ERJ6ENF3302 M 33KOHM, 1/10W 1 R616 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R617 ERDS2TJ103 C 10KOHM, J,1/4W 1 R618 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R621 ERJ8GEYJ1R0 M 1 OHM, J,1/8W 1 R624 ERX1SJR22 M0.22 OHM, J, 1W 1 R631 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R632 ERJ6GEYJ221 M 220 OHM,J,1/10W 1 R636-39 ERJ8ENF3902 M 39K OHM, 1/8W 4 R640 ERJ6ENF3001 M 3KOHM, 1/10W 1 R641 EVMAASA00B33 控制 3KOHMB 1 R642-45 ERJ8ENF3902 M 39K OHM, 1/8W 4 R646 ERJ6GEYJ473 M 47KOHM,J,1/10W 1 R647,48 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R649 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R650 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R652 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R653,54 ERJ6GEYJ332 M 3.3KOHM,J,1/10W 2 R656,57 ERJ8GEYJ202 M 2KOHM, J,1/8W 2 R658 ERJ6ENF6201 M 6.2KOHM, 1/10W 1 R659 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R660 ERJ6ENF1202 M 12KOHM, 1/10W 1 R661 EVMAASA00B53 控制 5KOHMB 1 R662 ERJ6ENF1303 M 130KOHM, 1/10W 1 R663 ERJ6GEYJ222 M 2.2KOHM,J,1/10W 1 R664 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R665 EVMAASA00B23 控制 2KOHMB 1 R666 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R667 ERJ6ENF7501 M 7.5KOHM, 1/10W 1 R668 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R669 ERJ6ENF1303 M 130KOHM, 1/10W 1 R670,71 ERJ6ENF2202 M 2.2KOHM, 1/10W 2 R672 ERJ6ENF1502 M 15KOHM, 1/10W 1 R673 ERJ6ENF5101 M 5.1KOHM, 1/10W 1 参考号 部件号 部件名称及说明 件数 备注 R674,75 ERJ8GEYJ224 M 220KOHM, J,1/8W 2 R676 ERJ8GEYJ123 M 12KOHM, J,1/8W 1 R677 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R678 ERDS2TJ223 C 22KOHM, J,1/4W 1 R682,83 ERJ3GEYJ2R2 M 2.2 OHM,J,1/16W 2 R684 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R685 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R687 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 R688 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R692 ERJ8GEYJ224 M 220KOHM, J,1/8W 1 R694 ERJ6GEYJ104 M 100KOHM,J,1/10W 1 R695-97 ERJ8GEYJ224 M 220KOHM, J,1/8W 3 R698 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R699 ERJ6GEYJ103 M 10KOHM,J,1/10W 1 RL402 K6B1AGA00177 继电器 1 RL403 K6B1AGA00086 继电器 1 T401 G4D4A0000073 转接变压器 1 T402,03 G4D1A0000082 转接变压器 2 T404 ETS28LZ116AD 转接变压器 1 T405 ETS35BF156AD 转接变压器 1 T407 ETQ11K5AZ 扼流变压器 1 T410 ETS25AD1M6AG 转接变压器 1 X501 H2B400400021 晶体 1 Z1 K4ZZ01000121 接地片 1 ZN401,02 D4EAD6210001 变阻器 2 参考号 部件号 部件名称及说明 件数 备注
