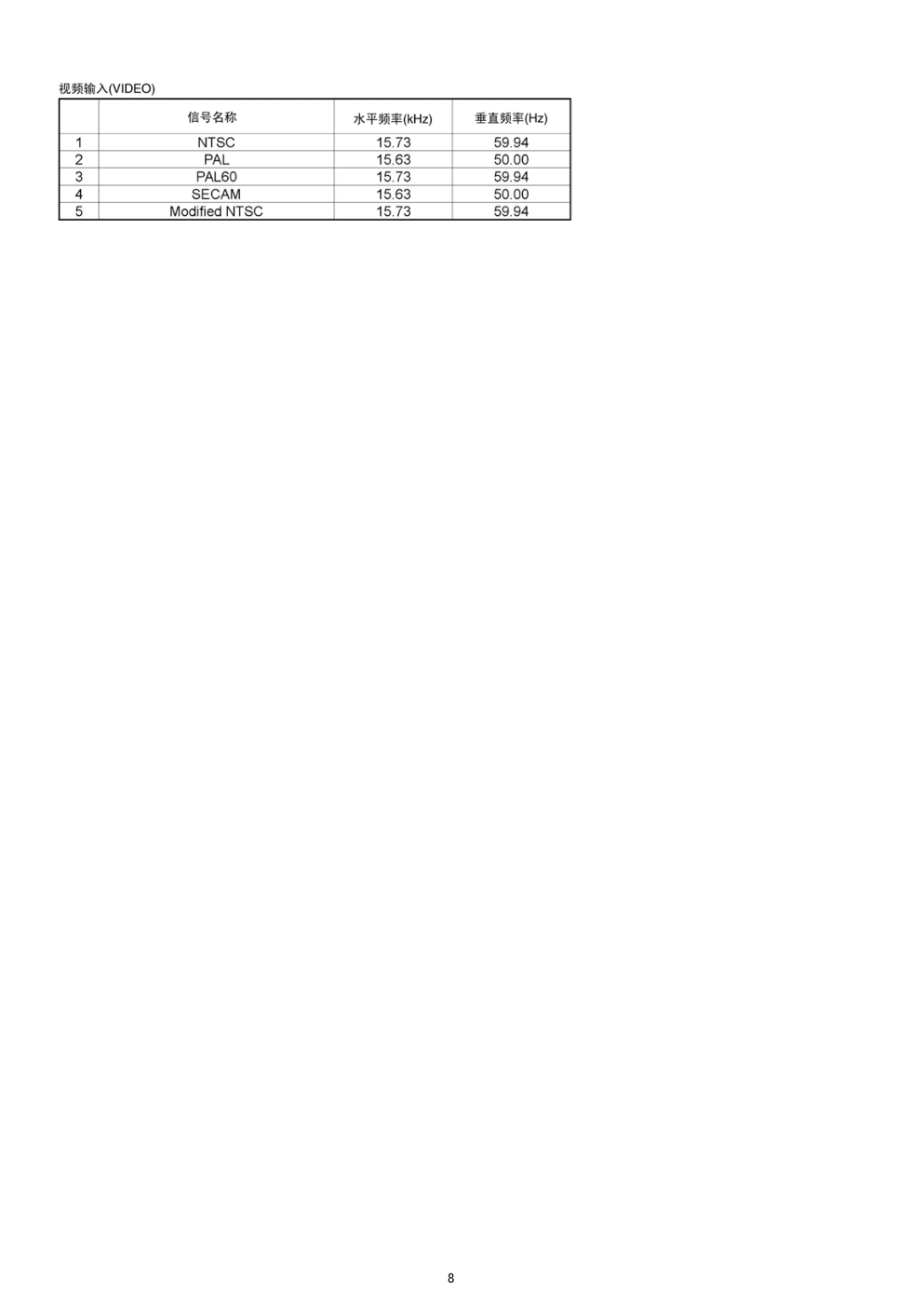

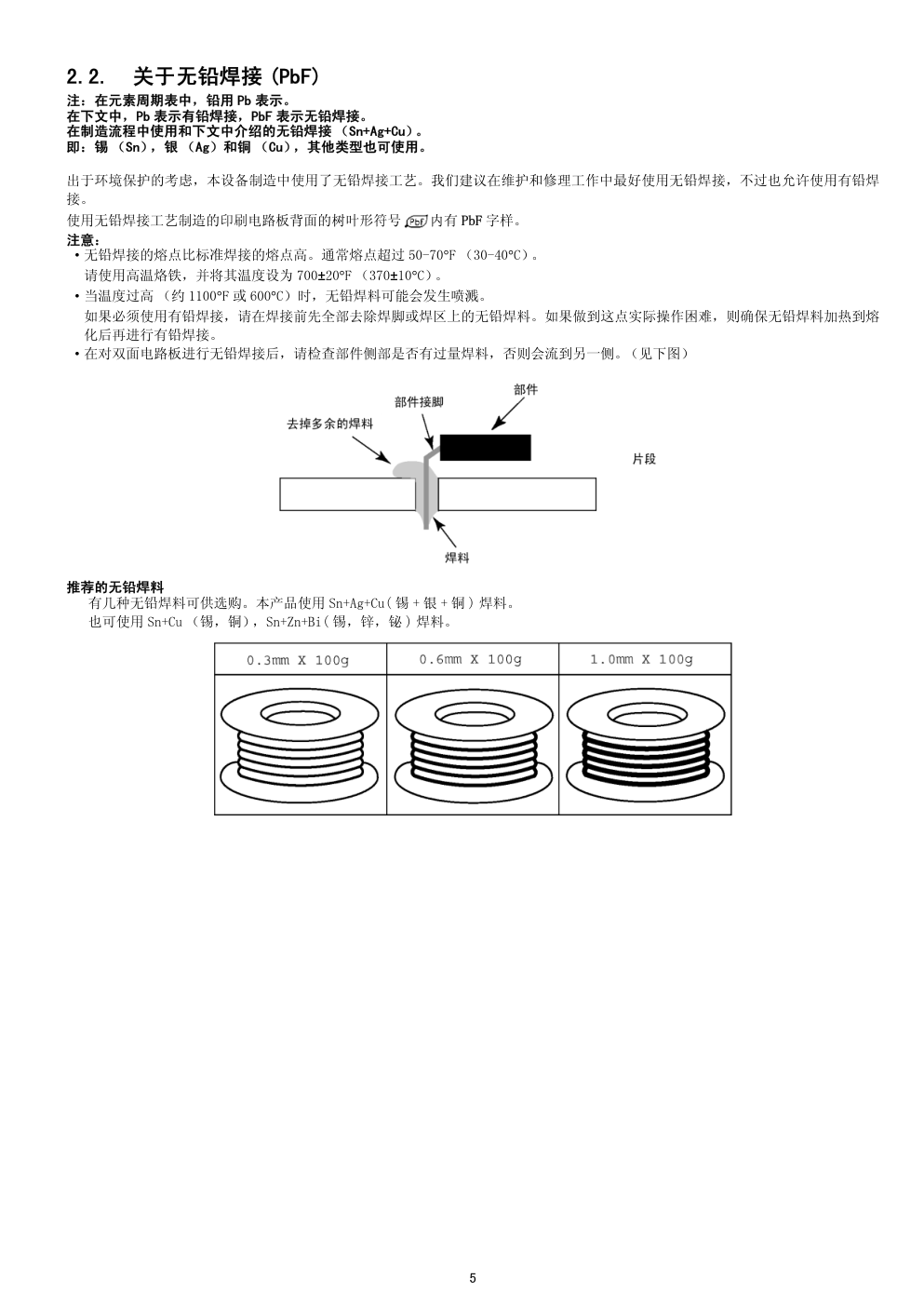

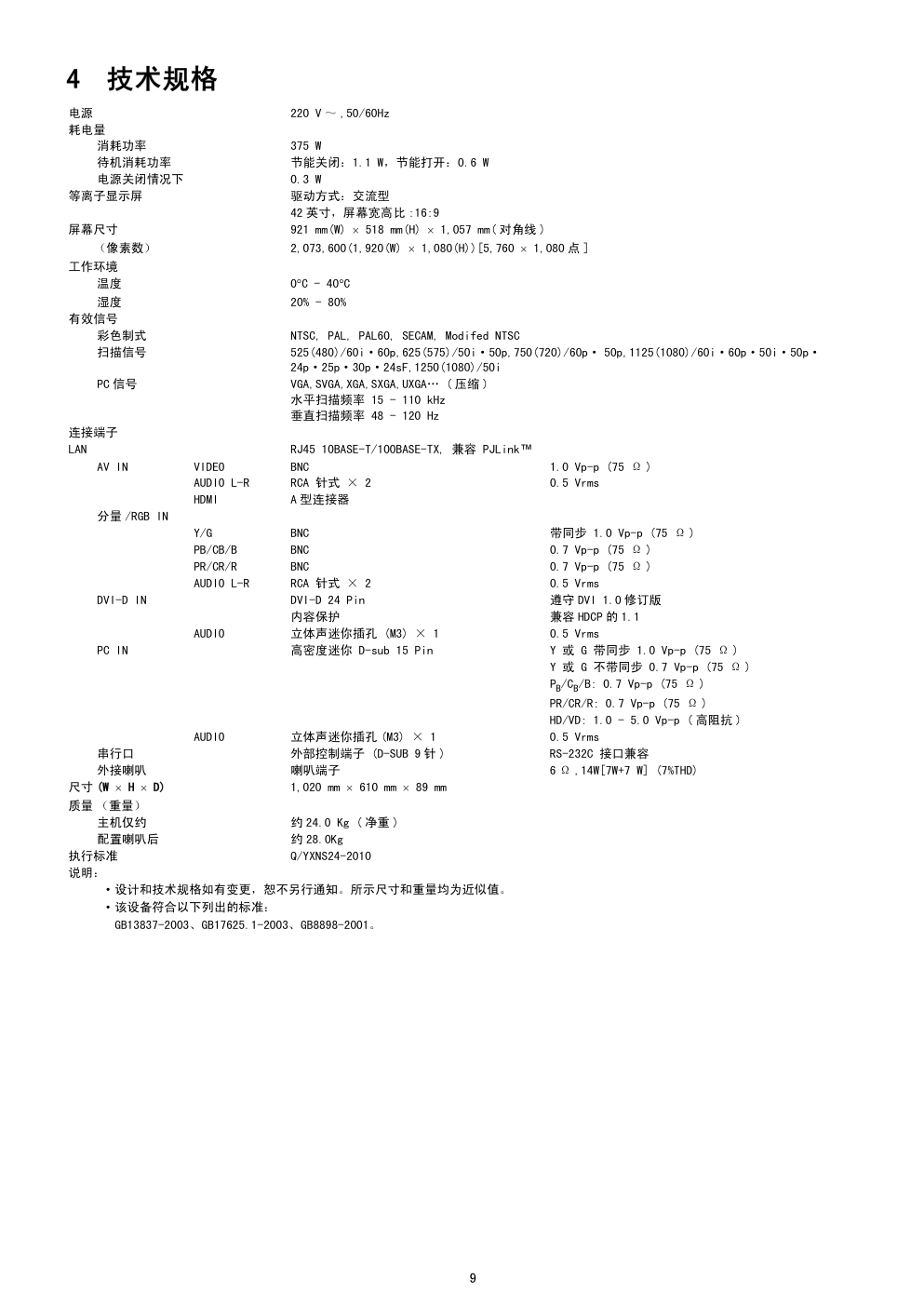

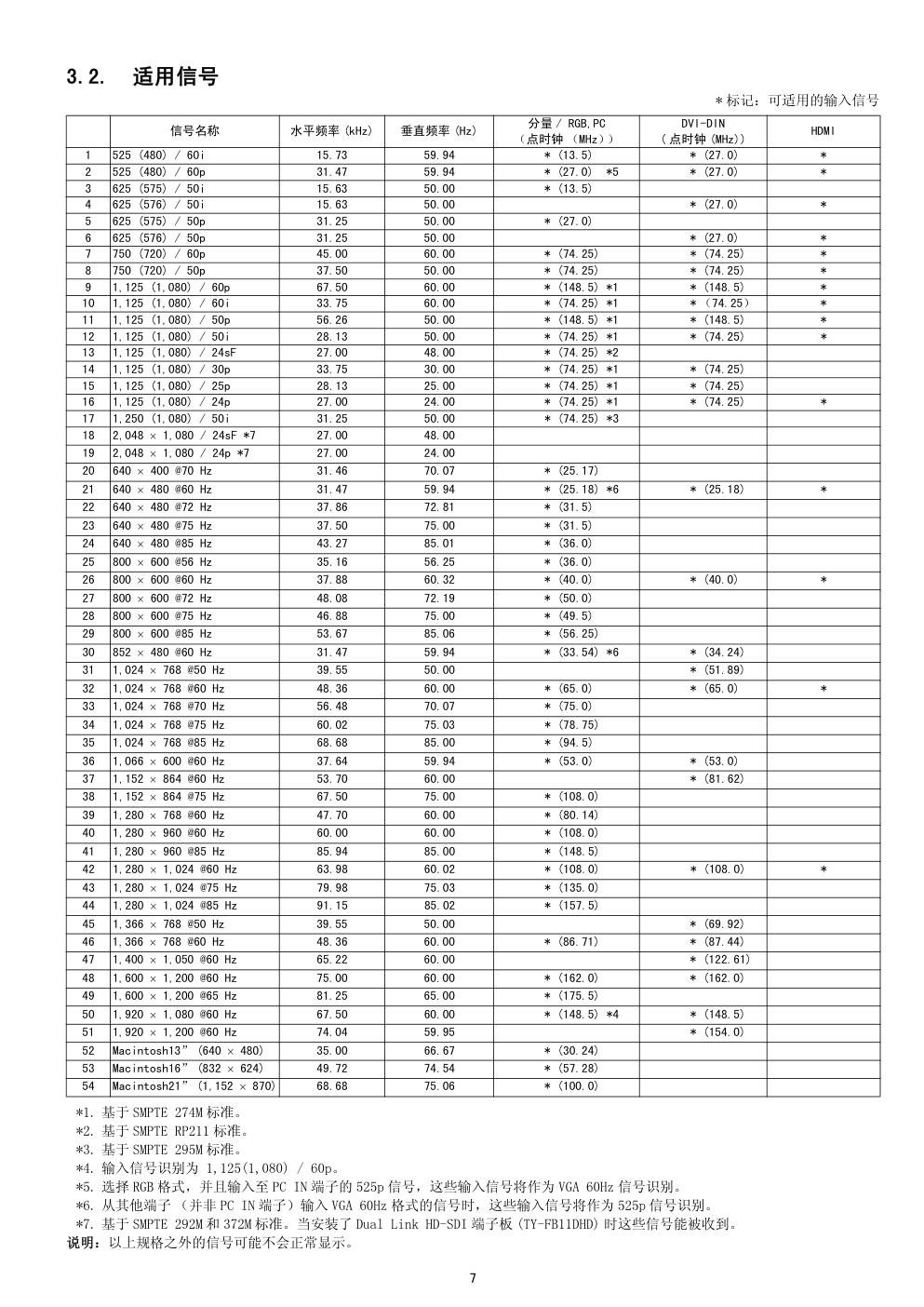

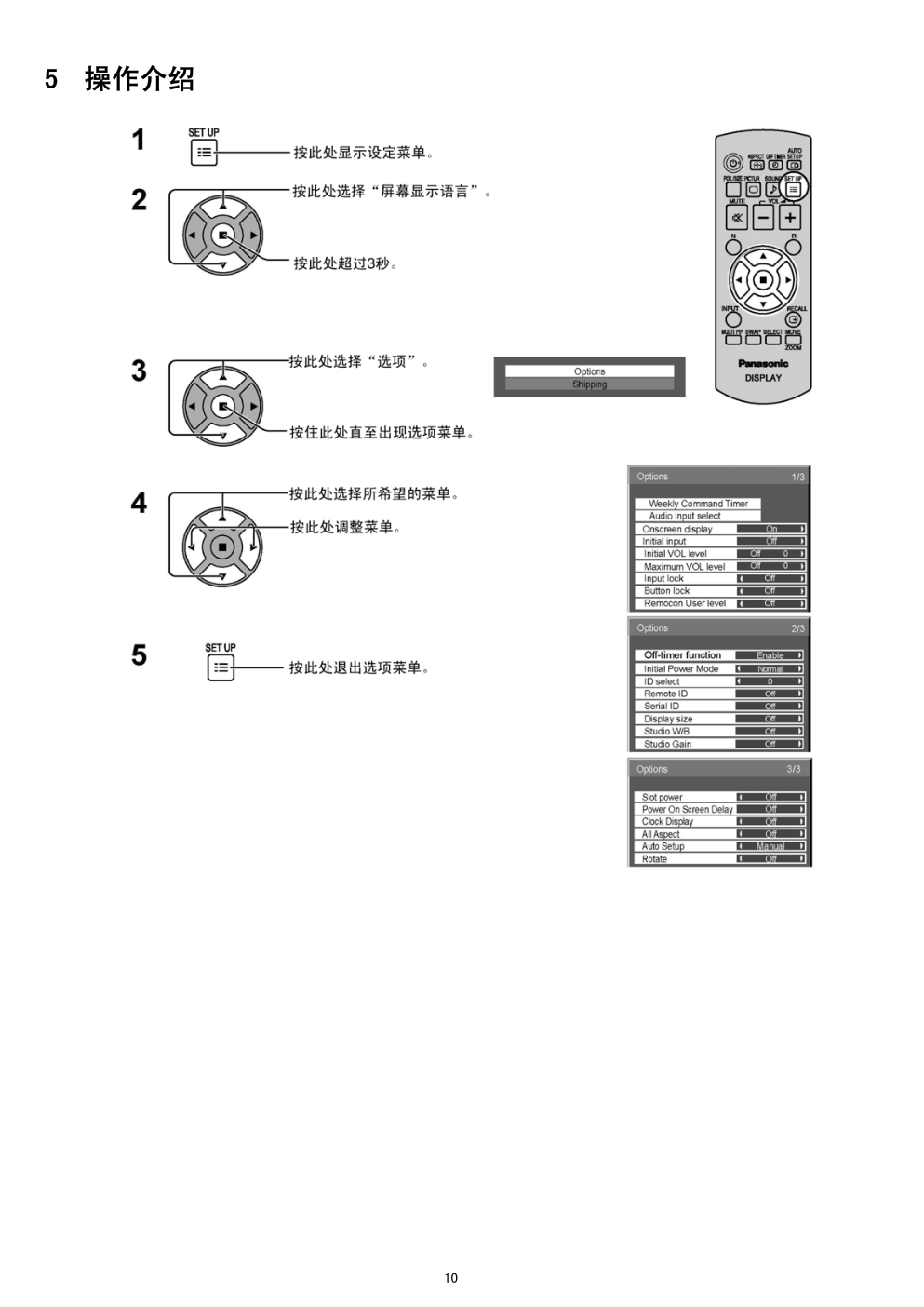

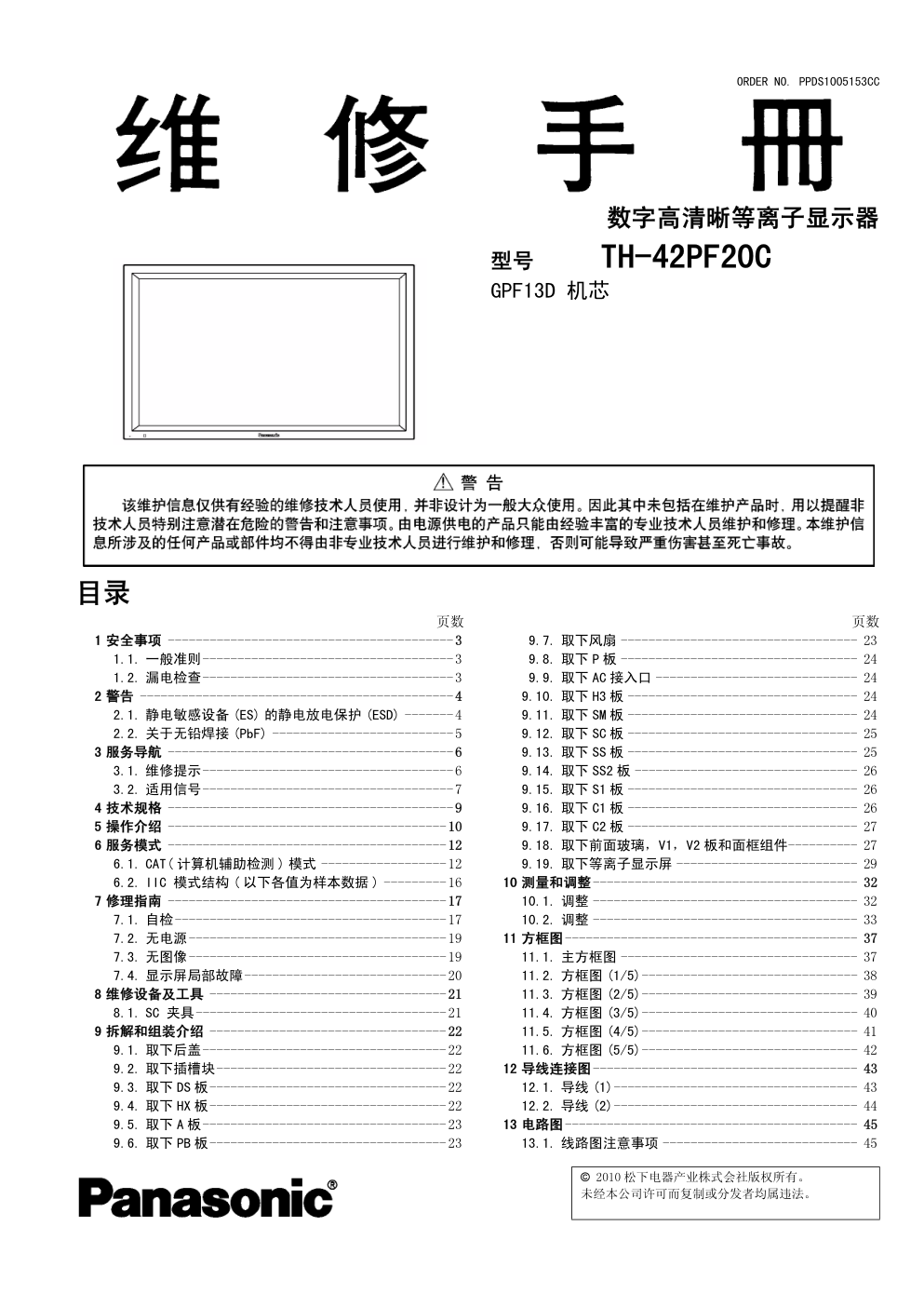

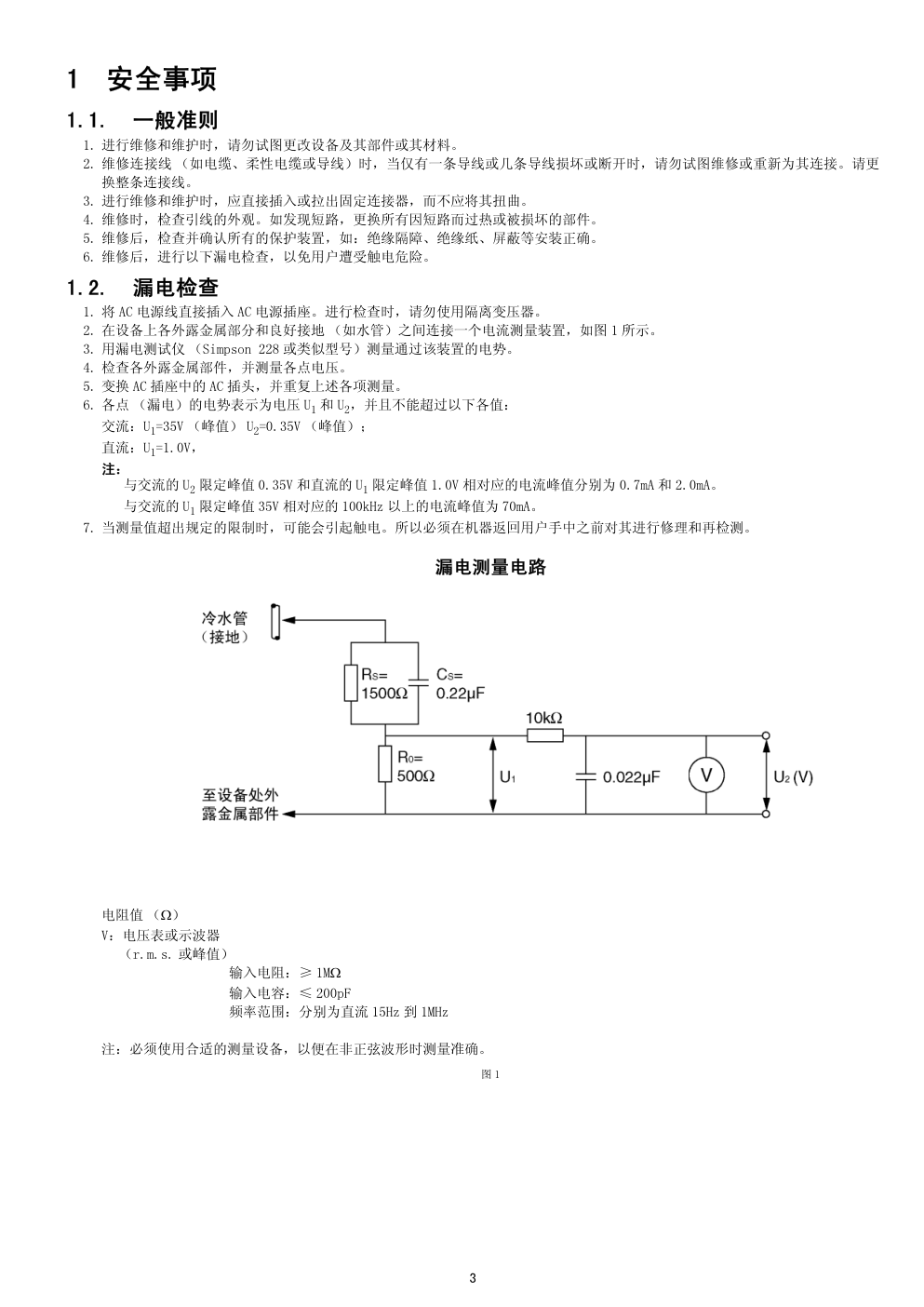

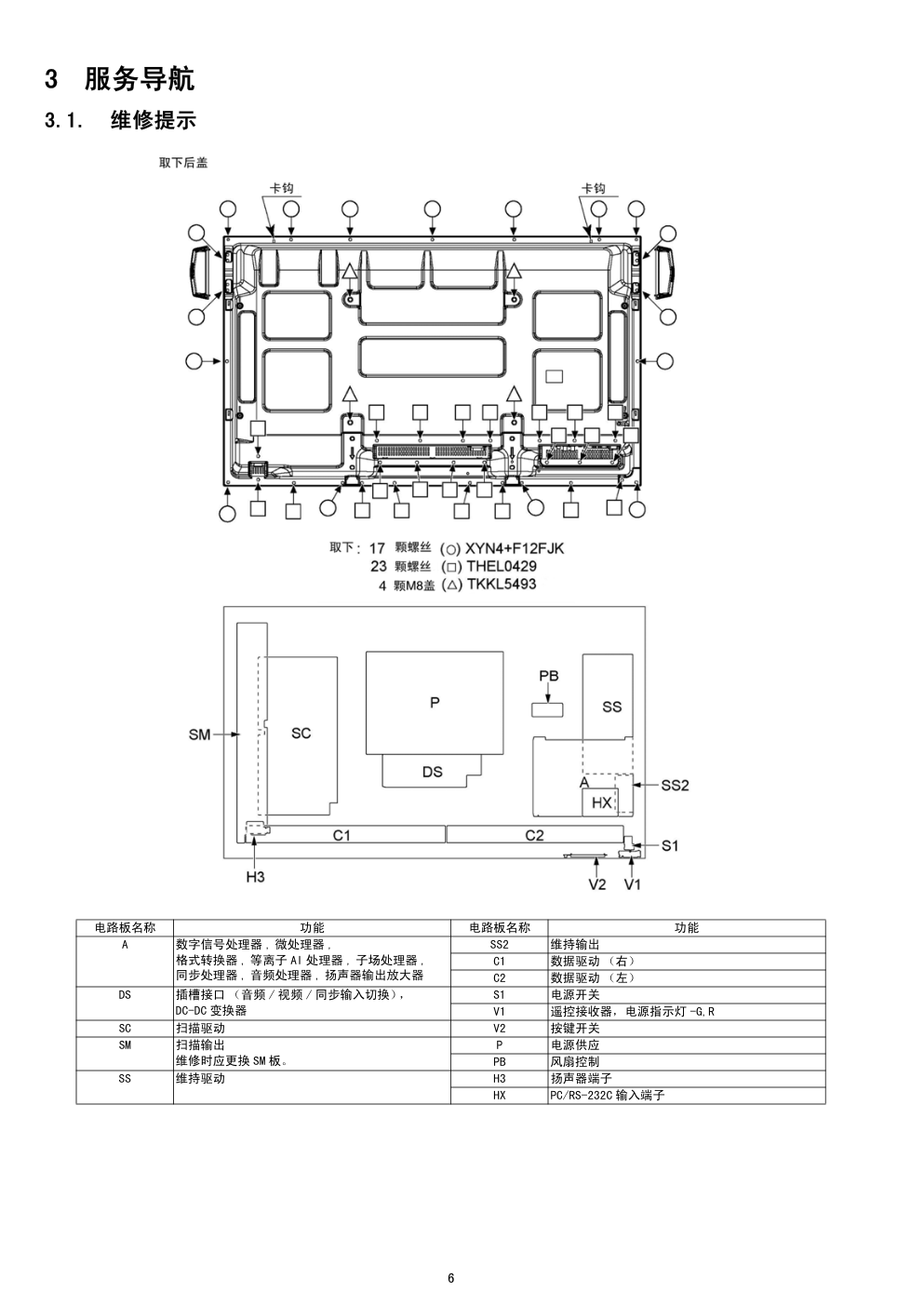

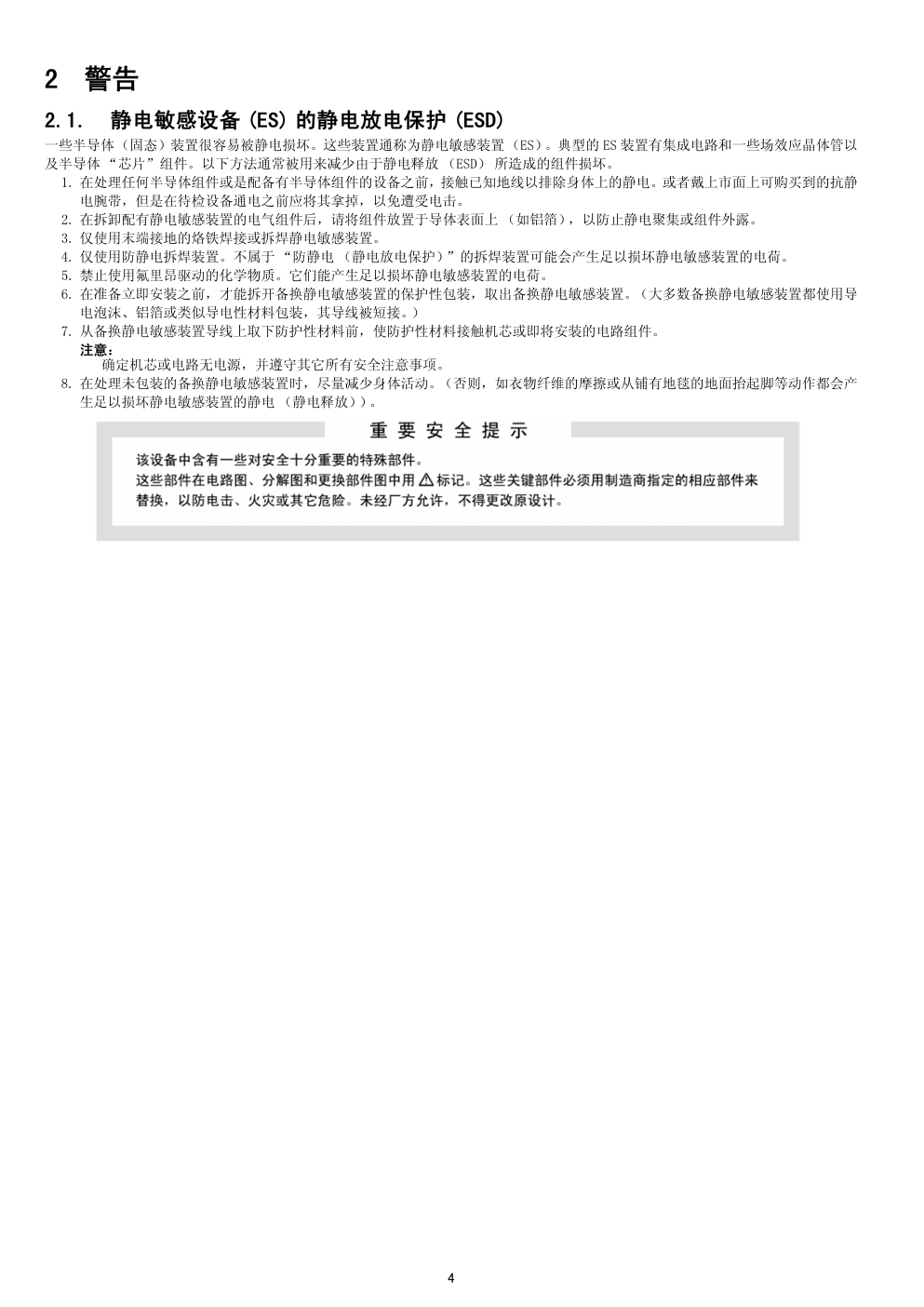

© 2010 松下电器产业株式会社版权所有。 未经本公司许可而复制或分发者均属违法。 ORDER NO. PPDS1005153CC 数字高清晰等离子显示器 型号 TH-42PF20C GPF13D 机芯 目录 页数 页数 1 安全事项 -----------------------------------------3 1.1. 一般准则------------------------------------3 1.2. 漏电检查------------------------------------3 2 警告 ---------------------------------------------4 2.1. 静电敏感设备 (ES) 的静电放电保护 (ESD) -------4 2.2. 关于无铅焊接 (PbF) --------------------------5 3 服务导航 -----------------------------------------6 3.1. 维修提示------------------------------------6 3.2. 适用信号------------------------------------7 4 技术规格 -----------------------------------------9 5 操作介绍 ----------------------------------------10 6 服务模式 ----------------------------------------12 6.1. CAT( 计算机辅助检测 ) 模式 ------------------12 6.2. IIC 模式结构 ( 以下各值为样本数据 ) ---------16 7 修理指南 ----------------------------------------17 7.1. 自检---------------------------------------17 7.2. 无电源-------------------------------------19 7.3. 无图像-------------------------------------19 7.4. 显示屏局部故障-----------------------------20 8 维修设备及工具 ----------------------------------21 8.1. SC 夹具------------------------------------21 9 拆解和组装介绍 ----------------------------------22 9.1. 取下后盖-----------------------------------22 9.2. 取下插槽块---------------------------------22 9.3. 取下 DS 板----------------------------------22 9.4. 取下 HX 板----------------------------------22 9.5. 取下 A 板-----------------------------------23 9.6. 取下 PB 板----------------------------------23 9.7. 取下风扇 ---------------------------------- 23 9.8. 取下 P 板 ---------------------------------- 24 9.9. 取下 AC 接入口 ----------------------------- 24 9.10. 取下 H3 板 --------------------------------- 24 9.11. 取下 SM 板 --------------------------------- 24 9.12. 取下 SC 板 --------------------------------- 25 9.13. 取下 SS 板 --------------------------------- 25 9.14. 取下 SS2 板 -------------------------------- 26 9.15. 取下 S1 板 --------------------------------- 26 9.16. 取下 C1 板 --------------------------------- 26 9.17. 取下 C2 板 --------------------------------- 27 9.18. 取下前面玻璃，V1，V2 板和面框组件---------- 27 9.19. 取下等离子显示屏 -------------------------- 29 10 测量和调整-------------------------------------- 32 10.1. 调整 -------------------------------------- 32 10.2. 调整 -------------------------------------- 33 11 方框图------------------------------------------ 37 11.1. 主方框图 ---------------------------------- 37 11.2. 方框图 (1/5)------------------------------- 38 11.3. 方框图 (2/5)------------------------------- 39 11.4. 方框图 (3/5)------------------------------- 40 11.5. 方框图 (4/5)------------------------------- 41 11.6. 方框图 (5/5)------------------------------- 42 12 导线连接图-------------------------------------- 43 12.1. 导线 (1)----------------------------------- 43 12.2. 导线 (2)----------------------------------- 44 13 电路图------------------------------------------ 45 13.1. 线路图注意事项 ---------------------------- 45 2 13.2. P 电路板 (1/4) 线路图----------------------- 46 13.3. P 电路板 (2/4) 线路图----------------------- 47 13.4. P 电路板 (3/4) 线路图----------------------- 48 13.5. P 电路板 (4/4) 线路图----------------------- 49 13.6. PB,V1,V2 和 S1 电路板线路图----------------- 50 13.7. HX 电路板线路图---------------------------- 51 13.8. DS 电路板 (1/2) 线路图---------------------- 52 13.9. DS 电路板 (2/2) 线路图---------------------- 53 13.10. A 电路板 (1/17) 线路图---------------------- 54 13.11. A 电路板 (2/17) 线路图---------------------- 55 13.12. A 电路板 (3/17) 线路图---------------------- 56 13.13. A 电路板 (4/17) 线路图---------------------- 57 13.14. A 电路板 (5/17) 和 H3 电路板线路图----------- 58 13.15. A 电路板 (6/17) 线路图---------------------- 59 13.16. A 电路板 (7/17) 线路图---------------------- 60 13.17. A 电路板 (8/17) 线路图---------------------- 61 13.18. A 电路板 (9/17) 线路图---------------------- 62 13.19. A 电路板 (10/17) 线路图--------------------- 63 13.20. A 电路板 (11/17) 线路图--------------------- 64 13.21. A 电路板 (12/17) 线路图--------------------- 65 13.22. A 电路板 (13/17) 线路图--------------------- 66 13.23. A 电路板 (14/17) 线路图--------------------- 67 13.24. A 电路板 (15/17) 线路图--------------------- 68 13.25. A 电路板 (16/17) 线路图--------------------- 69 13.26. A 电路板 (17/17) 线路图--------------------- 70 13.27. C1 电路板 (1/2) 线路图---------------------- 71 13.28. C1 电路板 (2/2) 线路图---------------------- 72 13.29. C2 电路板 (1/2) 线路图---------------------- 73 13.30. C2 电路板 (2/2) 线路图---------------------- 74 13.31. SC 电路板 (1/4) 线路图---------------------- 75 13.32. SC 电路板 (2/4) 线路图---------------------- 76 13.33. SC 电路板 (3/4) 线路图---------------------- 77 13.34. SC 电路板 (4/4) 线路图---------------------- 78 13.35. SS 电路板 (1/2) 线路图---------------------- 79 13.36. SS 电路板 (2/2) 和 SS2 电路板线路图---------- 80 14 印刷电路板图------------------------------------ 81 14.1. P 电路板----------------------------------- 81 14.2. PB 电路板---------------------------------- 84 14.3. HX 电路板---------------------------------- 85 14.4. V1,V2,S1 和 H3 电路板----------------------- 86 14.5. DS 电路板---------------------------------- 87 14.6. A 电路板----------------------------------- 89 14.7. C1 电路板---------------------------------- 91 14.8. C2 电路板---------------------------------- 92 14.9. SC 电路板---------------------------------- 93 14.10. SS2 电路板--------------------------------- 95 14.11. SS 电路板---------------------------------- 96 15 零件位置和零件清单------------------------------ 99 15.1. 零件位置和机械部件更换清单 ---------------- 99 15.2. 电器部件更换清单 ------------------------- 106 3 1.1. 一般准则 1. 进行维修和维护时，请勿试图更改设备及其部件或其材料。 2. 维修连接线 （如电缆、柔性电缆或导线）时，当仅有一条导线或几条导线损坏或断开时，请勿试图维修或重新为其连接。请更 换整条连接线。 3. 进行维修和维护时，应直接插入或拉出固定连接器，而不应将其扭曲。 4. 维修时，检查引线的外观。如发现短路，更换所有因短路而过热或被损坏的部件。 5. 维修后，检查并确认所有的保护装置，如：绝缘隔障、绝缘纸、屏蔽等安装正确。 6. 维修后，进行以下漏电检查，以免用户遭受触电危险。 1.2. 漏电检查 1. 将 AC 电源线直接插入 AC 电源插座。进行检查时，请勿使用隔离变压器。 2. 在设备上各外露金属部分和良好接地 （如水管）之间连接一个电流测量装置，如图 1 所示。 3. 用漏电测试仪 （Simpson 228 或类似型号）测量通过该装置的电势。 4. 检查各外露金属部件，并测量各点电压。 5. 变换 AC 插座中的 AC 插头，并重复上述各项测量。 6. 各点 （漏电）的电势表示为电压 U1 和 U2，并且不能超过以下各值： 交流：U1=35V （峰值） U2=0.35V （峰值）； 直流：U1=1.0V， 注： 与交流的 U2 限定峰值 0.35V 和直流的 U1 限定峰值 1.0V 相对应的电流峰值分别为 0.7mA 和 2.0mA。 与交流的 U1 限定峰值 35V 相对应的 100kHz 以上的电流峰值为 70mA。 7. 当测量值超出规定的限制时，可能会引起触电。所以必须在机器返回用户手中之前对其进行修理和再检测。 漏电测量电路 电阻值 （Ω） V：电压表或示波器 （r.m.s. 或峰值） 输入电阻：≥ 1MΩ 输入电容：≤ 200pF 频率范围：分别为直流 15Hz 到 1MHz 注：必须使用合适的测量设备，以便在非正弦波形时测量准确。 图 1 4 2.1. 静电敏感设备 (ES) 的静电放电保护 (ESD) 一些半导体（固态）装置很容易被静电损坏。这些装置通称为静电敏感装置（ES）。典型的 ES 装置有集成电路和一些场效应晶体管以 及半导体 “芯片”组件。以下方法通常被用来减少由于静电释放 （ESD） 所造成的组件损坏。 1. 在处理任何半导体组件或是配备有半导体组件的设备之前，接触已知地线以排除身体上的静电。或者戴上市面上可购买到的抗静 电腕带，但是在待检设备通电之前应将其拿掉，以免遭受电击。 2. 在拆卸配有静电敏感装置的电气组件后，请将组件放置于导体表面上 （如铝箔），以防止静电聚集或组件外露。 3. 仅使用末端接地的烙铁焊接或拆焊静电敏感装置。 4. 仅使用防静电拆焊装置。不属于 “防静电 （静电放电保护）”的拆焊装置可能会产生足以损坏静电敏感装置的电荷。 5. 禁止使用氟里昂驱动的化学物质。它们能产生足以损坏静电敏感装置的电荷。 6. 在准备立即安装之前，才能拆开备换静电敏感装置的保护性包装，取出备换静电敏感装置。（大多数备换静电敏感装置都使用导 电泡沫、铝箔或类似导电性材料包装，其导线被短接。） 7. 从备换静电敏感装置导线上取下防护性材料前，使防护性材料接触机芯或即将安装的电路组件。 注意： 确定机芯或电路无电源，并遵守其它所有安全注意事项。 8. 在处理未包装的备换静电敏感装置时，尽量减少身体活动。（否则，如衣物纤维的摩擦或从铺有地毯的地面抬起脚等动作都会产 生足以损坏静电敏感装置的静电 （静电释放））。 5 2.2. 关于无铅焊接 (PbF) 注：在元素周期表中，铅用 Pb 表示。 在下文中，Pb 表示有铅焊接，PbF 表示无铅焊接。 在制造流程中使用和下文中介绍的无铅焊接 （Sn+Ag+Cu）。 即：锡 （Sn），银 （Ag）和铜 （Cu），其他类型也可使用。 出于环境保护的考虑，本设备制造中使用了无铅焊接工艺。我们建议在维护和修理工作中最好使用无铅焊接，不过也允许使用有铅焊 接。 使用无铅焊接工艺制造的印刷电路板背面的树叶形符号 内有 PbF 字样。 注意： • 无铅焊接的熔点比标准焊接的熔点高。通常熔点超过 50-70°F （30-40°C）。 请使用高温烙铁，并将其温度设为 700±20°F （370±10°C）。 • 当温度过高 （约 1100°F 或 600°C）时，无铅焊料可能会发生喷溅。 如果必须使用有铅焊接，请在焊接前先全部去除焊脚或焊区上的无铅焊料。如果做到这点实际操作困难，则确保无铅焊料加热到熔 化后再进行有铅焊接。 • 在对双面电路板进行无铅焊接后，请检查部件侧部是否有过量焊料，否则会流到另一侧。（见下图） 推荐的无铅焊料 有几种无铅焊料可供选购。本产品使用 Sn+Ag+Cu( 锡 + 银 + 铜 ) 焊料。 也可使用 Sn+Cu （锡，铜），Sn+Zn+Bi( 锡，锌，铋 ) 焊料。 6 3.1. 维修提示 电路板名称 功能 电路板名称 功能 A 数字信号处理器 , 微处理器 , 格式转换器 , 等离子 AI 处理器 , 子场处理器 , 同步处理器 , 音频处理器 , 扬声器输出放大器 SS2 维持输出 C1 数据驱动 （右） C2 数据驱动 （左） DS 插槽接口 （音频 / 视频 / 同步输入切换）， DC-DC 变换器 S1 电源开关 V1 遥控接收器，电源指示灯 -G,R SC 扫描驱动 V2 按键开关 SM 扫描输出 维修时应更换 SM 板。 P 电源供应 PB 风扇控制 SS 维持驱动 H3 扬声器端子 HX PC/RS-232C 输入端子 7 3.2. 适用信号 * 标记：可适用的输入信号 *1. 基于 SMPTE 274M 标准。 *2. 基于 SMPTE RP211 标准。 *3. 基于 SMPTE 295M 标准。 *4. 输入信号识别为 1,125(1,080) / 60p。 *5. 选择 RGB 格式，并且输入至 PC IN 端子的 525p 信号，这些输入信号将作为 VGA 60Hz 信号识别。 *6. 从其他端子 （并非 PC IN 端子）输入 VGA 60Hz 格式的信号时，这些输入信号将作为 525p 信号识别。 *7. 基于 SMPTE 292M 和 372M 标准。当安装了 Dual Link HD-SDI 端子板 (TY-FB11DHD) 时这些信号能被收到。 说明：以上规格之外的信号可能不会正常显示。 信号名称 水平频率 (kHz) 垂直频率 (Hz) 分量 / RGB,PC （点时钟 （MHz）） DVI-DIN ( 点时钟 (MHz)) HDMI 1 525 (480) / 60i 15.73 59.94 * (13.5) * (27.0) * 2 525 (480) / 60p 31.47 59.94 * (27.0) *5 * (27.0) * 3 625 (575) / 50i 15.63 50.00 * (13.5) 4 625 (576) / 50i 15.63 50.00 * (27.0) * 5 625 (575) / 50p 31.25 50.00 * (27.0) 6 625 (576) / 50p 31.25 50.00 * (27.0) * 7 750 (720) / 60p 45.00 60.00 * (74.25) * (74.25) * 8 750 (720) / 50p 37.50 50.00 * (74.25) * (74.25) * 9 1,125 (1,080) / 60p 67.50 60.00 * (148.5) *1 * (148.5) * 10 1,125 (1,080) / 60i 33.75 60.00 * (74.25) *1 * （74.25） * 11 1,125 (1,080) / 50p 56.26 50.00 * (148.5) *1 * (148.5) * 12 1,125 (1,080) / 50i 28.13 50.00 * (74.25) *1 * (74.25) * 13 1,125 (1,080) / 24sF 27.00 48.00 * (74.25) *2 14 1,125 (1,080) / 30p 33.75 30.00 * (74.25) *1 * (74.25) 15 1,125 (1,080) / 25p 28.13 25.00 * (74.25) *1 * (74.25) 16 1,125 (1,080) / 24p 27.00 24.00 * (74.25) *1 * (74.25) * 17 1,250 (1,080) / 50i 31.25 50.00 * (74.25) *3 18 2,048 × 1,080 / 24sF *7 27.00 48.00 19 2,048 × 1,080 / 24p *7 27.00 24.00 20 640 × 400 @70 Hz 31.46 70.07 * (25.17) 21 640 × 480 @60 Hz 31.47 59.94 * (25.18) *6 * (25.18) * 22 640 × 480 @72 Hz 37.86 72.81 * (31.5) 23 640 × 480 @75 Hz 37.50 75.00 * (31.5) 24 640 × 480 @85 Hz 43.27 85.01 * (36.0) 25 800 × 600 @56 Hz 35.16 56.25 * (36.0) 26 800 × 600 @60 Hz 37.88 60.32 * (40.0) * (40.0) * 27 800 × 600 @72 Hz 48.08 72.19 * (50.0) 28 800 × 600 @75 Hz 46.88 75.00 * (49.5) 29 800 × 600 @85 Hz 53.67 85.06 * (56.25) 30 852 × 480 @60 Hz 31.47 59.94 * (33.54) *6 * (34.24) 31 1,024 × 768 @50 Hz 39.55 50.00 * (51.89) 32 1,024 × 768 @60 Hz 48.36 60.00 * (65.0) * (65.0) * 33 1,024 × 768 @70 Hz 56.48 70.07 * (75.0) 34 1,024 × 768 @75 Hz 60.02 75.03 * (78.75) 35 1,024 × 768 @85 Hz 68.68 85.00 * (94.5) 36 1,066 × 600 @60 Hz 37.64 59.94 * (53.0) * (53.0) 37 1,152 × 864 @60 Hz 53.70 60.00 * (81.62) 38 1,152 × 864 @75 Hz 67.50 75.00 * (108.0) 39 1,280 × 768 @60 Hz 47.70 60.00 * (80.14) 40 1,280 × 960 @60 Hz 60.00 60.00 * (108.0) 41 1,280 × 960 @85 Hz 85.94 85.00 * (148.5) 42 1,280 × 1,024 @60 Hz 63.98 60.02 * (108.0) * (108.0) * 43 1,280 × 1,024 @75 Hz 79.98 75.03 * (135.0) 44 1,280 × 1,024 @85 Hz 91.15 85.02 * (157.5) 45 1,366 × 768 @50 Hz 39.55 50.00 * (69.92) 46 1,366 × 768 @60 Hz 48.36 60.00 * (86.71) * (87.44) 47 1,400 × 1,050 @60 Hz 65.22 60.00 * (122.61) 48 1,600 × 1,200 @60 Hz 75.00 60.00 * (162.0) * (162.0) 49 1,600 × 1,200 @65 Hz 81.25 65.00 * (175.5) 50 1,920 × 1,080 @60 Hz 67.50 60.00 * (148.5) *4 * (148.5) 51 1,920 × 1,200 @60 Hz 74.04 59.95 * (154.0) 52 Macintosh13” (640 × 480) 35.00 66.67 * (30.24) 53 Macintosh16” (832 × 624) 49.72 74.54 * (57.28) 54 Macintosh21” (1,152 × 870) 68.68 75.06 * (100.0) 8 9 电源 220 V ～ ,50/60Hz 耗电量 消耗功率 375 W 待机消耗功率 节能关闭：1.1 W，节能打开：0.6 W 电源关闭情况下 0.3 W 等离子显示屏 驱动方式：交流型 42 英寸，屏幕宽高比 :16:9 屏幕尺寸 921 mm(W) × 518 mm(H) × 1,057 mm( 对角线 ) （像素数） 2,073,600(1,920(W) × 1,080(H))[5,760 × 1,080 点 ] 工作环境 温度 0°C - 40°C 湿度 20% - 80% 有效信号 彩色制式 NTSC, PAL, PAL60, SECAM, Modifed NTSC 扫描信号 525(480)/60i·60p,625(575)/50i·50p,750(720)/60p· 50p,1125(1080)/60i·60p·50i·50p· 24p·25p·30p·24sF,1250(1080)/50i PC 信号 VGA,SVGA,XGA,SXGA,UXGA… ( 压缩 ) 水平扫描频率 15 - 110 kHz 垂直扫描频率 48 - 120 Hz 连接端子 LAN RJ45 10BASE-T/100BASE-TX, 兼容 PJLink™ AV IN VIDEO AUDIO L-R BNC RCA 针式 × 2 1.0 Vp-p (75 Ω ) 0.5 Vrms HDMI A 型连接器 分量 /RGB IN Y/G BNC 带同步 1.0 Vp-p (75 Ω ) PB/CB/B BNC 0.7 Vp-p (75 Ω ) PR/CR/R BNC 0.7 Vp-p (75 Ω ) AUDIO L-R RCA 针式 × 2 0.5 Vrms DVI-D IN DVI-D 24 Pin 遵守 DVI 1.0 修订版 内容保护 兼容 HDCP 的 1.1 AUDIO 立体声迷你插孔 (M3) × 1 0.5 Vrms PC IN 高密度迷你 D-sub 15 Pin Y 或 G 带同步 1.0 Vp-p (75 Ω ) Y 或 G 不带同步 0.7 Vp-p (75 Ω ) PB/CB/B: 0.7 Vp-p (75 Ω ) PR/CR/R: 0.7 Vp-p (75 Ω ) HD/VD: 1.0 - 5.0 Vp-p ( 高阻抗 ) AUDIO 立体声迷你插孔 (M3) × 1 0.5 Vrms 串行口 外部控制端子 (D-SUB 9 针 ) RS-232C 接口兼容 外接喇叭 喇叭端子 6 Ω ,14W[7W+7 W] (7%THD) 尺寸 (W × H × D) 1,020 mm × 610 mm × 89 mm 质量 （重量） 主机仅约 约 24.0 Kg ( 净重 ) 配置喇叭后 约 28.0Kg 执行标准 Q/YXNS24-2010 说明： • 设计和技术规格如有变更，恕不另行通知。所示尺寸和重量均为近似值。 • 该设备符合以下列出的标准： GB13837-2003、GB17625.1-2003、GB8898-2001。 10 11 GPF13D 机芯系列有特殊功能及操作设置装置，称为选项菜单。该选项菜单对于有特殊功能要求的客户很有用。该菜单在安装阶段设置。 注 : 由于调节 “键锁定”，“遥控器自定义标准”或 “遥控 ID”，主机按钮和遥控器都不能启用时，将所有值设置为 “关” ，这样所 有按钮就可以重新启用。 同时按住主机上的 “音量降”按钮和遥控器上的 “返回”按钮 5 秒钟以上。 将显示 “SHIPPING” 菜单，当消失时，锁定解除。 GPF13D 系列选项菜单 选项菜单 默认设置 内容 每周命令计时器 --- 设置每周命令计时器。 音频输入选择 --- 当图像输入已选时设置声音。 屏幕显示 开 在电源开、没有信号时，输入模式显示功能有效 / 无效。 初始输入 关 电源接通后设置初始输入模式。电源接通后可以进行输入模式选择。 初始音量等级 关 电源接通后设置初始音量标准。电源接通后可以进行音量调节。 最大音量等级 关 将最大音量设定到所希望的等级。音量不能超过此限制。 输入锁定 关 将输入模式固定为 AV，分量 /RGB 或 PC。不能通过输入选择键来改变输入模式。 键锁定 关 显示器前端操作键有效 / 无效 （输入、菜单、确认和 / 或音量升 / 降 ）。 遥控器自定义标准 关 遥控键无效。 关：所有遥控键有效。 用户 1：只有待机 （开 / 关）、输入、直接输入、图像、环绕、静音开 / 关以及音 量调节键为有效。 用户 2：只有待机键 （开 / 关）为有效。 用户 3：所有键都无效。 “定时关机”功能 启动 定时关机功能打开 / 关闭。 初始电源模式 正常 当电源恢复或将电源拔掉后再接通时设置本机电源模式。 ID 选择 0 将 ID 设置为 0 到 100。 遥控 ID 关 遥控 ID 功能开 / 关。 （当遥控 ID 为开时，标准遥控功能不能控制本机。） 串行 ID 关 串行 ID 功能开 / 关。 显示尺寸 关 显示尺寸功能开 / 关。 演播室色温 关 演播室色温功能开 / 关。 演播室增益 关 演播室增益功能开 / 关。 插槽电源 关 在电源接通时设置插槽电源模式。 允许在电源接通的情况下将可选端子板插入插槽。 电源开启延迟 关 当您按 打开设定于一起的多显示屏 （如多拼墙系统）时，您可以设定电源开 启延时的时间以减少电源消耗。 分别设置各显示器的设定。 时钟显示 关 时钟显示功能开 / 关。 高级宽高比 默认 宽高模式：默认 / 高级宽高比。 自动调整 手动 在图像位置 / 大小菜单中自动调整位置的操作模式。 旋转 关 旋转功能开 / 关。 12 6.1. CAT( 计算机辅助检测 ) 模式 若要退出 CAT 模式，请进入 ID 模式，并关闭主电源。 6.1.1. IIC 模式 在 CAT 模式中，通过遥控器上的上 / 下键选择 IIC 模式，然后按下遥控器上的功能启用键。 主题和项目在 “IIC 模式结构”中提及。 按遥控器上的返回键退出 IIC 模式。 13 6.1.2. CD 模式 在 CAT 模式中，通过遥控器上的上 / 下键选择 CD 模式，然后按下遥控器上的静音键 3 秒以上。 存储数据变更 按遥控器上的返回键退出 CD 模式。 6.1.3. NW 模式 注 : 使用网络功能时，设置 “网络设定”并确保将 “I/F 控制选择”设置为 “LAN”。 在 CAT 模式中，通过遥控器上的上 / 下键选择 NW 模式，然后按下遥控器上的功能启用健。 按遥控器上的返回键退出 NW 模式。 14 6.1.4. SD 模式 在 CAT 模式中，通过遥控器上的上 / 下键选择 SD 模式，然后按下遥控器上的功能启用键。 按遥控器上的返回键退出 SD 模式。 6.1.5. MS 模式 在 CAT 模式中，通过遥控器上的上 / 下键选择 MS 模式，然后按下遥控器上的静音键 3 秒以上。 按遥控器上的返回键退出 MS 模式。 注意： 更换 A 板后设置市场选项。 目的地编号 默认设置 编号 目的地 编号 目的地 0 日本 16 -- 1 北美 17 -- 2 欧洲 18 中国 3 其他国家 19 中国 （旅馆） 4 英国 20 俄国 5 台湾 21 俄国 （旅馆） 6 泰国 22 香港 7 -- 23 -- 8 日本 （旅馆） 24 -- 9 北美 （旅馆） 25 -- 10 欧洲 （旅馆） 26 -- 11 -- 27 -- 12 英国 （旅馆） 28 中东 / 香港 13 -- 29 中东 / 香港 （旅馆） 14 泰国 （旅馆） 30 澳大利亚 15 -- 31 澳大利亚 （旅馆） 编号 目的地 18 中国 15 6.1.6. ID 模式 在 CAT 模式中，通过遥控器上的上 / 下键选择 ID 模式，然后按下遥控器上的静音键 3 秒以上。 按遥控器上的返回键退出 ID 模式。 16 6.2. IIC 模式结构 ( 以下各值为样本数据 ) 17 7.1. 自检 7.1.1. 显示说明 1. 自检用于自动检查等离子显示器的总线控制电路。 2. 要进入自检模式，按下机器前端用户控制器上的音量降低 键，同时按下遥控器上的关机定时键，显示屏将会显示自检 信息。 检查 IIC 端口时若发现其不正常或位置不对，则“--”将会显示 在 “OK”的位置。 “PTCT” 行上的 “01”表示电源 LED 闪烁次数是 1。 ( 请参见第 7.1.2 章节 ) “PTCT” 行上的 “H09”表示故障码。 关闭电源退出 CAT 模式。 注意： 仅在电源LED闪烁后，第一次进入自检模式时，才显示“PTCT” 行。 18 7.1.2. 电源 LED 闪烁次数图 1. 主题 发光二极管闪烁次数图。 2. 内容 当设备出现异常时 , 保护电路将运行并将设备复位到待机状态。此时，通过本机前端的电源 LED 闪烁次数便可识别出故障部位。 * 请参照 7.1.1 显示说明 关于闪烁的 LED 19 7.2. 无电源 第一检查点 LED 无电源指示有 3 种情况： 1. 不亮。 2. 绿灯亮，几秒钟后转为红灯闪烁。 3. 只有红灯亮。 7.3. 无图像 20 7.4. 显示屏局部故障 等离子显示屏上可能会出现局部故障。图 1 是各局部可能会出现故障的印刷电路板。 21 8.1. SC 夹具 目的： 电源指示灯闪烁 7 次时，找到问题板 （SC 或 SM 板）。 SC 夹具： 连接到 SC 板上的 SC50 连接器的跳线接头 部件编号： TZSC09187 使用方法： 警告：检测完后将 SC 夹具从 SC 板上移除。 1. 移除 SC 板与 SM 板之间的所有连接器，使 SC 板与 SM 板绝缘。 注：如有连接器未移除会损坏 SC 板。 2. 在 SC 板的左下侧将 SC 夹具与 SC50 连接器连接。 3. 开启电视 / 显示器组件并确认电源指示灯闪烁。 指示灯闪烁：说明问题可能来自 SC 板 无指示灯闪烁 （长亮或不亮）：说明问题可能来自 SM 板 4. 检测完后，关闭电视 / 显示器组件，等待几分钟待其放电。 5. 将 SC 夹具从 SC 板上移除。 22 • 由于电解电容放电原因，电源切断后等候一分钟再取下 P.C.B. 印刷电路板。 • ， ， ， 和 表明螺丝位置。 9.1. 取下后盖 1. 松开螺丝 （×17 ， ×23 ）和 M8 盖 （×4 ），取下后盖。 9.2. 取下插槽块 1. 断开连接件 （DS13,P9）。 2. 从连接件 （DS1）断开柔性电缆。 3. 松开 4 颗螺丝，取下插槽块。 9.3. 取下 DS 板 1. 取下插槽块。 （请参见取下插槽块） 2. 翻转插槽块。 3. 松开 6 颗螺丝，取下 DS 板。 9.4. 取下 HX 板 1. 断开连接件 （A14）。 2. 松开 2 颗六角螺丝，5 颗螺丝 （ ）和 2 颗螺丝 （ ），取 下 HX 板组件。 23 3. 翻转 HX 板组件。 4. 断开连接件 （HX1）。 5. 松开 4 颗六角螺丝和 HX 板上的 1 颗螺丝，取下 HX 板。 9.5. 取下 A 板 1. 取下 HX 板组件。 （请参见取下 HX 板） 2. 断开连接件 (A5,A8,A9,A10,A11,A13,A22,A25,A35)。 3. 从连接件 (A1,A20,A31,A32) 松开柔性电缆。 4. 松开 4 颗螺丝 , 取下 A 板。 注意：固定 A 板时 • 连接柔性电缆到连接件 （A1）时，将柔性电缆放在固 定金属块和 A 板之间。 9.6. 取下 PB 板 1. 断开连接件 （PB30,PB32,PB33,PB34）。 2. 松开 2 颗螺丝，取下 PB 板。 9.7. 取下风扇 1. 断开风扇中继连接件。 2. 松开 2 颗螺丝，取下风扇组件。 3. 松开各 1 颗螺丝，从风扇固定金属块上取下风扇。 4. 从风扇上取下风扇四周的角用防震橡胶。 24 5. 按相反顺序重新组装风扇。 6. 将风扇海绵固定在风扇周围。 注意： 风扇海绵不能重复使用。 请在更换风扇的同时更换新的海绵。 9.8. 取下 P 板 1. 取下风扇组件。 （请参见取下风扇）。 2. 断开连接件 （P2,P6,P7,P9,P11,P25,P35）。 3. 松开 9 颗螺丝，取下 P 板。 9.9. 取下 AC 接入口 1. 断开连接件 （P9）。 2. 松开 2 颗螺丝 （ ），取下 AC 电源线夹 A。 3. 松开 1 颗螺丝 （ ），取下 AC 接入口。 9.10. 取下 H3 板 1. 断开连接件 （H37）。 2. 松开 1 颗螺丝，取下扬声器端子板。 3. 松开 2 颗螺丝 （A），取下 H3 板。 9.11. 取下 SM 板 1. 取下扬声器端子板。 （请参见取下 H3 板）。 2. 从连接件 （SM1,SM2,SM3,SM4,SM5,SM6,SM7,SM8）松开柔性 电缆。 25 3. 断开连接件 （SM41, SM42, SM46）。 4. 松开 3 颗螺丝 （ ）。 5. 松开 4 颗螺丝 （ ），取下 SM 板。 注意：固定 SM 板时 • 先拧紧两个螺丝 （1）。 9.12. 取下 SC 板 1. 断开连接件 （SC2, SM41， SM42, SM46）。 2. 从连接件 （SC20）松开柔性电缆。 3. 松开 7 颗螺丝 （ ）。 4. 松开 4 颗螺丝 （ ），取下 SC 板。 9.13. 取下 SS 板 1. 断开连接件 （A8, A9, A10, A11, A13, A22, A25, A35, PB32, PB33, PB34）。 2. 从连接件 （A1, A20, A31, A32）松开柔性电缆。 3. 松开 3 颗螺丝 （ ）。 4. 松开 2 颗螺丝 （ ），取下 A 板。 注意：固定 A 板时 • 连接柔性电缆到连接件 （A1）时，将柔性电缆放在固 定金属块和 A 板之间。 5. 断开连接件 （SS11, SS24, SS33）。 6. 从连接件 （SS53， SS56）松开柔性电缆。 7. 松开 6 颗螺丝，取下 SS 板。 26 9.14. 取下 SS2 板 1. 取下 A 板组件。 （请参见取下 SS 板）。 2. 断开连接件 (SS24)。 3. 从连接件 (SS58) 松开柔性电缆。 4. 松开 2 颗螺丝，取下 SS2 板。 9.15. 取下 S1 板 1. 松开 2 颗螺丝 (B)，取下 S1 板组件。 2. 断开连接件 (S34)。 3. 松开 1 颗螺丝 (C)，取下 S1 板。 9.16. 取下 C1 板 1. 取下风扇组件。 （请参见取下风扇组件）。 2. 取下插槽块。 （请参见取下插槽块）。 3. 取下扬声器端子板。 （请参见取下 H3 板）。 4. 松开 5 颗螺丝 , 然后取下右悬挂组件和右支架组件。 5. 从连接件 (SM41,SM42,SM46) 松开柔性电缆。 6. 松开 3 颗螺丝 （ ）。 7. 松开 4 颗螺丝 （ ），然后将 SM 板翻至左侧。 注意： 请勿损坏 SM 板柔性电缆和 SC 板部件。 注意：固定 SM 板时 • 先拧紧 2 个螺丝 (1)。 8. 从连接件 (C10,C11) 松开柔性电缆。 9. 松开 16 颗螺丝 （ ），从连接件 (CB1，CB2，CB3，CB4， CB5，CB6，CB7，CB8) 松开柔性电缆。 10. 松开 4 颗螺丝 （ ），取下 C1 板。 27 9.17. 取下 C2 板 1. 取下风扇组件。 （请参见取下风扇组件）。 2. 取下插槽块。 （请参见取下插槽块）。 3. 取下 A 板组件。 （请参见取下 SS 板）。 4. 松开 5 颗螺丝 , 然后取下左悬挂组件和左支架组件。 5. 从连接件 (C20,C21) 松开柔性电缆。 6. 松开 14 颗螺丝（ ），从连接件 (CB9, CB10, CB11, CB12, CB13, CB14, CB15) 松开柔性电缆。 7. 松开 4 颗螺丝 （ ），取下 C2 板。 9.18. 取下前面玻璃，V1，V2 板和面框组件 1. 取下扬声器端子板。 ( 请参见取下 H3 板 ) 2. 取下 S1 板组件。 ( 请参见取下 S1 板 ) 3. 断开连接件 (A11, A22)。 4. 松开 4 颗螺丝 （ ），取下左右固定金属条。 5. 松开 5 颗螺丝 （ ）。 注意：安装左右固定金属条时 • 先拧紧 2 个螺丝 (1)。 6. 按箭头 1 方向将等离子显示屏底部抬升。 7. 按箭头 2 方向将等离子显示屏拖动，取下等离子显示屏。 28 9.18.1. 替换前面玻璃或面框组件时的注意点 在替换前面玻璃或面框组件时请使用铝带。 将铝带贴在原始位置。 9.18.2. 取下前面玻璃 1. 松开 21 颗螺丝，取下固定压条 ( 左、右、后上、后下 )。 2. 取下前面玻璃。 注意：安装固定压条 ( 后上、后下 ) 时 • 先拧紧在 (1-2) 上的 6 个螺丝。 注意：替换前面玻璃时 • 沿左、右、上、下固定压条的顺序贴前面玻璃海绵。 注意： • 前面玻璃海绵不可重复使用。替换前面玻璃时请使用新的 海绵。 9.18.3. 取下 V1 和 V2 板 1. 取下前面玻璃。( 请参见取下前面玻璃 ) 2. 取下前下固定压条。 29 3. 松开 2 颗螺丝 （D）。 4. 断开连接件 （V11）。 5. 松开 1 个卡钩，取下 V1 板。 6. 松开 2 个卡钩，取下电源按钮保护盖。 7. 松开 3 个卡钩，取下电源按钮和电源开关弹簧。 8. 断开连接件 （V22），取下 V2 板。 9. 松开 2 个卡钩，然后从 V2 板上取下 5 键按钮。 9.18.4. 取下面框组件 1. 取下前面玻璃。( 请参见取下前面玻璃 ) 2. 取下 V1 和 V2 板 ( 请参见取下 V1 和 V2 板 )。 3. 取下 LED 透光板和遥控受光屏。 4. 取下左右后盖卡钩。 5. 取下前上固定压条。 6. 取下面框组件。 9.19. 取下等离子显示屏 将 C1,C2 板与等离子显示屏连接以便维修。 1. 断开风扇中继连接件。 2. 松开 2 颗螺丝，取下风扇组件。 3. 断开连接件 （DS13,P9）。 4. 从连接件 （DS1）断开柔性电缆。 5. 松开 4 颗螺丝，取下插槽块。 30 6. 断开连接件 （A8，A9，A10，A11，A13, A22，A25，A35）。 7. 从连接件 （C11,C21,SC20）断开柔性电缆。 8. 松开 3 颗螺丝 （ ）。 9. 松开 2 颗螺丝 （ ），取下 A 板组件。 10. 松开 1 颗螺丝，取下扬声器端子板。 11. 松开 2 颗螺丝，取下 S1 板组件。 12. 从连接件 （SM1,SM2,SM3,SM4,SM5,SM6,SM7,SM8）松开柔 性电缆。 13. 断开连接件 （SM41,SM42,SM46）。 14. 松开 3 颗螺丝 （ ）。 15. 松开 4 颗螺丝 （ ），取下 SM 板。 注意： 请勿损坏 SM 板柔性电缆和 SC 板部件。 注意：安装 SM 板时 • 先拧紧 2 颗螺丝 (1)。 16. 断开连接件 （SC2）。 17. 松开 7 颗螺丝，取下 SC 板。 31 18. 断开连接件 （C23，C25，SS11，SS24，SS33）。 19. 从连接件 （SS53,SS56,SS58）松开柔性电缆。 20. 松开 8 颗螺丝，取下 SS 板和 SS2 板。 21. 松开 9 颗螺丝 , 取下 P 板。 22. 从连接件 （C10，C20）松开柔性电缆。 23. 松开 4 颗螺丝 （ ），取下左右固定金属条。 24. 松开 3 颗螺丝 （ ）。 注意：安装左右固定金属条时 • 先拧紧 2 颗螺丝 (1)。 25. 按箭头 1 方向将等离子显示屏底部抬升。 26. 按箭头 2 方向将等离子显示屏拖动，取下等离子显示屏。 27. 松开 12 颗螺丝，取下左右悬挂组件，左右支架和左右悬挂 固定金属条组件。 28. 替换等离子显示屏。 32 10.1. 调整 10.1.1. Vsus 选项 注意： 更换等离子屏或 A 板时，Vsus 应设置为 LOW 或 HIGH。 步骤 1. 进入 CAT 模式。 按住本机前端的音量降 /- 按钮，同时在 2 秒内快速按三次遥控器上的显示按钮，本机进入 CAT 模式。 2. 选择 IIC 模式。 3. 按上 / 下按钮进入 IIC 模式的 [VSUS] 项目。将显示 LOW 或 HIGH。 4. 按 [ 确定 ] 按钮进入 TEST 阶段。 TEST （测试）和 CONF （配置 ）阶段将会显示无 OSD 的白屏模式。请按 [5] 按钮显示 OSD。 5. 按 [ 音量 (-)] 按钮将其设置为 LOW。 6. 设置为 LOW 时 a. 如果白屏模式下无明显可见的坏点，请按 [3] 按钮进入 CONF 阶段。 b. 如果白屏模式下有多个明显可见的坏点，请按 [ 音量 (+)] 按钮将其设置为 HIGH。如果该现象有所改善，请按 [3] 按钮进入 CONF 阶段。 7. 在 CONF 阶段按 [ 确定 ] 按钮存储 LOW 或 HIGH。 8. 按电源按钮退出 “维修模式”。 33 10.2. 调整 10.2.1. RGB 白平衡调整 仪器名称 连接 备注 • RGB VGA60 黑白模式 • 彩色分析仪 （Minolta CA-100 或同等产品） PC 输入 显示屏表面 用户设定：正常 （图像菜单：最佳） 步骤 备注 [ 条件 ] • 确保前面框已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 [ 调整 ] 1. 设置 COMPONENT/RGB 输入选择 RGB。 2. 选择 IIC 模式 “PANEL W/B Adj.”（显示屏白平衡调整）项目。 3. 检查以确认色温为 “冷色 （高）”。 4. 输出白平衡模式。 5. 调整彩色分析仪的信号接收器到高亮窗口的中间位置。 6. 固定 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “高色温”的值。 7. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 8. 将色温设置为 “正常 （中）”。 9. 固定G驱动为E0h，然后调整B驱动和R驱动，将高亮窗口x,y的值调整为下表“中色温”的值。 10. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 11. 将色温设置为 “暖色 （低）”。 12. 设置G驱动为E0h，然后调整B驱动和R驱动，将高亮窗口x,y的值调整为下表“低色温”的值。 13. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 14. 将以上步骤中取得的 R 驱动，G 驱动和 B 驱动数据复制到 NTSC，PAL DVI 区域。 调整目标值 高亮：x ± 0.003 y ± 0.003 高亮指的是在高亮窗口驱动调整的目标值。 因此它不是调整白平衡后的高亮目标值。 图像菜单：最佳 用户设定：正常 宽高比：全屏 (16:9) 位置及尺寸：正常 •“7” 键：选择色温菜单。 •“9” 键：选择图像菜单。 • 高亮显示部分信号振幅 75% • 驱动标准 G: E0h 34 35 10.2.2. YUV 白平衡调整 仪器名称 连接 备注 • HD(1125/60i) 黑白模式 （分量输出） • 彩色分析仪 （Minolta CA-100 或同等产品） PC 输入 显示屏表面 用户设定：正常 （图像菜单：最佳） 步骤 备注 [ 条件 ] • 确保前面框已经安装在整机上。 • 确认调整之前无彩色信号显示。 • 将彩色分析仪放置在有轻微色差的地方。 [ 调整 ] 1. 设置 COMPONENT/RGB 输入选择 COMPONENT （分量）。 2. 选择 IIC 模式 “PANEL W/B Adj.”（显示屏白平衡调整）项目。 3. 检查以确认色温为 “冷色 （高）”。 4. 输出白平衡模式。 5. 调整彩色分析仪的信号接收器到高亮窗口的中间位置。 6. 固定 G 驱动为 E0h，然后调整 B 驱动和 R 驱动，将 x,y 的值调整为下表 “高色温”的值。 7. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 8. 将色温设置为 “正常 （中）”。 9. 固定G驱动为E0h，然后调整B驱动和R驱动，将高亮窗口x,y的值调整为下表“中色温”的值。 10. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 11. 将色温设置为 “暖色 （低）”。 12. 设置G驱动为E0h，然后调整B驱动和R驱动，将高亮窗口x,y的值调整为下表“低色温”的值。 13. 同时增加 R/G/B，将 R/G/B 的最大驱动值调整为 FCh。 14. 将以上步骤中取得的 R 驱动，G 驱动和 B 驱动数据复制到 YUV1_525ip,YUV3_625ip 区域。 调整目标值 高亮：x ± 0.003 y ± 0.003 高亮指的是在高亮窗口驱动调整的目标值。 因此它不是调整白平衡后的高亮目标值。 图像菜单：最佳 用户设定：正常 宽高比：全屏 (16:9) 位置及尺寸：正常 •“7” 键：选择色温菜单。 •“9” 键：选择图像菜单。 • 高亮显示部分信号振幅 75% • 驱动标准 G: E0h 36 37 11.1. 主方框图 (LED:9TIMES) (LED:10TIMES) (LED:2TIMES) (LED:5TIMES) (LED:4TIMES) (LED:10TIMES) (LED:11TIMES) (LED:8TIME) (LED:13TIMES) (LED:7TIMES) COLD HOT (LED:2TIMES) (LED:6TIMES) (LED:10TIMES) (LED:11TIMES) (LED:6TIMES) (LED:4TIME) (LED:7TIMES) (LED:8TIMES) (LED:3TIMES) (LED:2TIMES) A+9V DCDC A13 DCC_SOS EEPROM L,R-CV VSCAN GEN. RESET A5 VIDEO DATA VIDEO DATA SS21 EEPROM DCDC IP CONV. ASIC OUTB SC-BOARD ENERGY RECOVERY SOS DETECT L,R F+15V VIDEO PROCESSOR VAD GEN. SM42 +3.3V(P) SCAN CONTROL MAIN SW2 PANEL SOS SOUND +15V PANEL READY RELAY PS SOS4 DS_SOS HDMI DECODER R,G,B TTL CONV. SLOT SOS A A1 L+/- P2 A+5V VIDEO SIGNAL DECODER DCDC VIDEO PROCESSOR SYNC SIGNAL SELECT +2.5V(P) LAN+3.3V STB+5V POWER SW DS1 POWER SWITCH P+3.3V P+5V KEY SWITCH C25 P+15V TERMINALS SM41 VSUS SOS6_SC1 RECTIFIER RECTIFIER PROCESS VOLTAGE RECTIFIER SCAN OUT POWER FACTOR CONTROL SM LVDS RX P+3.3V DATA DRIVER Vda PLASMA AI A+3.3V SUSTAIN CONTROL CONTROL SIGNAL A20 DATA DRIVER RS232C SUSTAIN CONTROL H/V SYNC CONTROL SCAN CONTROL A+15V C1 CPG with SS SUB-FIELD PROCESSOR VIDEO DATA DATA DRIVER (LEFT) VIDEO DATA P7 DATA DRIVER PANEL SOS PB32 VSUS_CON_S0 SOS6_SC1 PB34 PANEL MICOM PB33 L,R-HA HDMI SW HD,VD-PC A+1.8V C21 PANEL READY R+/- A+1.8V A31 P+3.3V DET STB+5V DISCHARGE CONTROL +3.3V SC46 R+/- LVDS RX DVI A+15V AUDIO SELECT SS11 SOS4_PS A+5V STB+3.3V P+2.5V P+3.3V P+5V ASIC P+15V LAN CONTROL SM46 LAN DATA DS 13 P35 STB+3.3V MAIN SW1 SS33 C2 DATA DRIVER KEY SWITCH DATA DRIVER (RIGHT) VIDEO DATA SPEAKER DATA DRIVER Y,PB,PR DATA DRIVER V1 P9 DATA DRIVER DATA DRIVER C11 C20 DATA DRIVER PC VIDEO DATA P+3.3V 100BASE-TX RESET SUSTAIN CONTROL V2 ALL OFF DCDC C23 V11 VSUS_CON_S1 HDMI SPDIF DS SOS DET CIRCUIT R,G,B A10 SLOT1 STBY+3.3V A+9V VSUS PC/RS232C TERMINAL SCAN DRIVER VIDEO SIGNAL SELECT +5V(P) DIGITAL SIGNAL PROCESSOR ASIC OUTA STBY+5V +3.3V(STB) SC20 P+3.3V SOS8_SS P+5V FAN SOS DN BOARD SOS A14 PANEL STB_ON L,R-DVI HDMI DVI FAN SOS DET SOS8_SS A+15V SS24 SPEAKER L A9 TERMINAL SC2 F+15V SPEAKER R P+15V +1.8V(P) TERMINAL H3 SP AMP MAIN SW2 VSUS GEN. LED VSUS SS-BOARD SOS DETECT STBY+3.3V SUSTAIN CONTROL REMOTE RECEIVER/LED Y,PB,PR-PC Vda ENERGY RECOVERY S1 FAN CONTROL PB F+15V SOS6_SC1 S35 SS AUDIO IN REMOTE RECEIVER SUSTAIN DRIVE AUDIO IN F+15V SOUND +15V +1.2V(STB) P+3.3V P+1.2V A35 F+15V_MON HD,VD SDRAM A+5V F+15V MICOM SYNC PROCESSOR V22 A+5V SC41 HDMI AUDIO STB+5V SOS7_SC2 LAN+3.3V A22 MAIN SW1 DCDC V HD,VD-2 VE GEN. ON RESET SOS8_SS REMOTE IN HD,VD-1 DS2 +1.2V(P) C10 Vda IIC VSUS OR STB_ON P+5V VSUS HD,VD GenX7 COMPONENT/ COMPOSITE CONTROL PULSE SCAN DRIVE A8 SC-BOARD FLOATING PART SOS DETECT SCX1 SC H37 R,B,G A+9V A32 DCDC A+5V P+5V P6 CIRCUIT POWER SUPPLY POWER MICOM HX1 DCDC DN BOARD SOS STANDBY VOLTAGE RECTIFIER P+5V SOS8_SS JK2301 HD/VD SOUND CONTROL ON/OFF CONTROL A+15V P+3.3V P+15V PB30 L,R-PC P+15V SLOT INTERFACE STBY+1.2V DCDC BUFFER HX L,R-1 STB_ON L,R-PC SOS7_SC2 RXD/TXD_LAN PANEL STB_ON AUDIO PROCESSOR P+15V LVDS/OSD DCDC VIDEO Y,PB,PR-PC LAN+14V SOS8_SS FAN A-C P11 RESET DCDC A+9V P+5V DET P+15V DET LVDS A+9V A+3.3V Y,PB,PR-1 LED_R/ DCDC STBY+5V KEYSCAN P_S1 P_S0 DATA DRIVER A+15V SOS MAIN SW2 DATA DRIVER DS BOARD SOS SCAN DRIVER MAIN SW1 P DATA DRIVER A+5V SOS LVDS IN SUSTAIN VOLTAGE RECTIFIER DATA DRIVER P-BOARD SOS DETECT RXD/TXD_PC A11 DATA DRIVER L/R DATA DRIVER P+3.3V,P+5V SOS7_SC2 SC42 DATA DRIVER POWER SOS VIDEO DATA F+15V SOS8_SS ALL OFF LED_G P+5V F+15V SOS Vda 10BASE-T/ P+15V Vda P+5V FAN VOLTAGE CONTROL FAN+15V SOUND +15V STB+5V STB+5V P25 A25 (LED:9TIMES) (LED:10TIMES) (LED:2TIMES) (LED:5TIMES) (LED:4TIMES) (LED:10TIMES) (LED:11TIMES) (LED:8TIME) (LED:13TIMES) (LED:13TIMES) (LED:13TIMES) (LED:7TIMES) COLD HOT (LED:2TIMES) (LED:6TIMES) (LED:10TIMES) (LED:11TIMES) (LED:6TIMES) (LED:4TIME) (LED:7TIMES) (LED:8TIMES) (LED:3TIMES) (LED:2TIMES) DS TH-42PF20C Main Block Diagram TH-42PF20C Main Block Diagram 38 11.2. 方框图 (1/5) DS_SOS TXD_PC SLOT_TXD P_ON/OFF REMOTE_OUT SCL3 LAN14V_ON/OFF RESET SDA3 RXD_PC SLOT1_DET IIC_CONT SLOT_RXD D3104 A+15V STBY+1.2V D3105 STBY+3.3V A+3.3V D3111 LAN+14V A+15V STBY+5V F+15V D3112 D3102 A+1.8V STBY+5V R3110 Q3104 D3109 LAN+3.3V Q3102 Q3103 R3111 R3108 STBY+5V D3110 A+5V STBY+3.3V IC3502 Q3003 TXD +1.8V B31 TX0+/- A+9V A_ED+/- A13 B12 Q3001 15 A15 HX 3 SLOT3.3V REMOTE_OUT_S1 A_OE+/- A9 8 A+5V A_CLK+- 38 6 F+15V NC 12 58 VCC RTC INT 4 B35 1 Y_PC A10 +3.3V R_PC SLOT5V A_EC+/- TIME CLOCK SLOT+3.3V LAN14V OVER VOLTAGE SOS 3 AUDIO IN L A17 B8 JK3511 B3 A_OA+- - OE+- SOUND+15V A2 A_EA+/- A1 A_OA+/- EEPROM 7 3 A_OB+/- Q4903,04 TXC+/- RXD A+15V 51 DS_SOS DS13 5V_SDA3 A13 DRIVER 1 55 3V_SDA3 3V_SCL3 IC3001 TX2+/- 11 Q3004 8 JK3513 B19 11 TXD A_OC+/- HX1 60 RXD_TU 13 B25 2 PC/RS232C TERMINAL +3.3V A8 Q3000 IC4903 IC3100 A12 39 2 A28 IC4902 52 LAN+14V_ON/OFF 5 47 L_PC B17 PC IN RXD_S1 REMOTE_OUT 8 PB_PC A_EB+/- 11 2 A+5V TX3+/- B11 B37 L_1 RXD 15 DS2 15 A+15V 5V<->3.3V 3 1 15V_ON/OFF A_CLK+/- Q3120,21 SLOT1_DET Q3002 PR_PC 36 IC3120 A5 PR_PC TX6+/- B9 A+5V IIC_DATA B21 14 15V_ON/OFF 4 B27 IC3000 B6 L_PC PLUG DET B5 SLOT9V 10 11 A4 14 TXD_S1 Y_PC IIC_CONT F+15V AUDIO IN R RS232C SHORT SOS A_EE+/- 12 B14 B38 TX8+/- 49 44 STB5V F+15V_MON DIGITAL SIGNAL PROCESSOR A40 STBY+5V 1 A+9V A+5V A7 A26 5V_IIC3 6 Q3100,01 STBY+3.3V B26 RS232C 10 AUDIO IN L RESET TXD_TU IIC_CONT1(SRQ) 63 TXD 4 VD_PC B23 A14 TX7+/- +1.2V JK3509 5 A+9V PC AUDIO IN 5V_IIC3 B28 61 3 D3103 D3108 VD_PC SLOT15V 3 A_OD+/- 33 Q3005 TX1+/- A_CLK+- R_1 54 4 64 5V_SCL3 R_PC 9 HD_PC P6 REMOTE F+15V IC4301 LAN+14V_ON/OFF IIC3 12 A19 SLOT INTERFACE HD_PC 57 B30 14 A_EA+- - EE+- A+5V 2 A+9V A10 PB_PC A14 15V_ON/OFF 59 1 RXD D3100,01 5VNRST Q3007 +5V SLOT1 IIC_CLOCK A_EA+- - EE+- Q3006 TX9+/- 3 IIC_CONT B2 2 F+15V F+15V B40 Q4661,62 LAN+3.3V SOS IC3002 1 RESET IC4901 B24 Q4901,02 TX5+/- 41 REMOTE OUT REMOTE OUT 3.3V->5V A22 DS1 F+15V 40 TX4+/- +9V IIC_DATA1 A_OA+- - OE+- 2 65 SLOT1_DET AUDIO IN R A RXD A3 2 A+9V A21 B15 TXD 2 IIC_CLOCK1 4 6 7 9 11 1 5 3 8 10 2 (LED:10TIMES) (LED:10TIMES) DS TH-42PF20C Block (1/5) Diagram TH-42PF20C Block (1/5) Diagram 39 11.3. 方框图 (2/5) (LED:11TIMES) (LED:11TIMES) G G TXD_PC F_STB_ON REMOTE_IN TXD_PC_M VSYNC_ON/OFF DPMS_HD FAN_CONT FAN_SOS FAN_ON/OFF RXD_PC TXD_LAN RXD_LAN D_RXD D_TXD DPMS_VD ALL_OFF A+5V A+1.8V A+3.3V FAN+15V A+9V A+5V STBY+5V A+3.3V A+5V FL4961 +3.3V_LAN VDD 10bit A/D 36 3 PI1HS,PI1VS 74.25MHz V1 +3.3V RECEIVER HDMI_CEC D1550 STBY+3.3V IC4515 IC4451 3 JK4001 REMOTE_OUT + 1 HDMI HD +5V(FAN) Y/G 12 FAN-SOS VCC 17 3V_SCL3 3.3V PB30 CLD VIDEO PROCESSOR 1 20MHz STBY+5V VOUT HDA,VDA GE0-9(10bit) HDA,VDA A11 MAIN SW2 LED_R IC3272 10 30bitx2_ASIC OUT V22 PI2G0-G9 HDMI_DET FAN VOLTAGE CONTROL DVI IN ASIC OUT A 3 A_OA+- - OE+- 5V->3.3V 67 IC4001 EEPROM TTL +1.8V +1.8V PI2B0-B9 PB32 POWER LED SW 1 IC8301 PR-M/PB-M/Y-M 14 RESET A5 VCC 11 ON JK8301 IIC2 MII_MDC 1 TXD V1_V KEY INPUT IC3271 EEPROM IC8304 - +3.3V RTC INT 5V<->3.3V DVDD +1.8V KEY SWITCH SPI MCCLK VCC DVDDIC +3.3V VCC1 CLKM/20MHz A43 RESET Y/PB/PR_PC DECODE 3 LAN CONTROL RE0-9(10bit) KEY SW PARALLEL LED_R MII_TXD/ MII_RXD +5V(HDMI) S1 UART 30bit IIC_IF A+5V IC8302 15 HDMI IN 30bit EEPROM LED_G +5V(DVI) 25MHZ JK3201 33 31 RESET Y/PB/PR_HA 3 100BASE-TX 1 IC4004 +1.8V DDC IIC +5V LAN+14V_ON/OFF STBY+3.3V 20 FOR FACTORY USE Q3211,12 MII DATA VCC2 VD CLK SDA/ SCL 30bit_RGB VIDEO SIGNAL PROCESSOR MII_TXD MII_RXD HDMI DDC IIC HD 10BASE-T/ SYNC SIGNAL PROCESSOR DVI_DET 4 SDA/ SCL ASIC REMOTE RECEIVER/LED +1.8V LVDS RXD +3.3V FOR FACTORY USE IC8308 A46 KEY SWITCH +3.3V PVDD +1.8V HD +1.8V SPI FRASH MEMORY IC4201 IC4981 CONTROL IIC VIDEO IN SELECTOR 7 IC8303 HD_M/ VD_M IC8305 25MHZ CLOCK GEN IC4312 CLOCK REMOTE PB33 1 25 SYNC SIGNAL PROCESSOR 2 SELECTOR OR LAN+3.3V 3 NETWORK CONTROL HD_M 10/100 EtherMAC w/FIFO 6 +9V(FAN) LAN DATA 28 9 COMPONENT SELECT PI1B0-B9 TXD_TU VIDEO IN H/V LED_R SEPA HDMI I/F RECEIVER +5V HDMI PROCESSOR SLOT1_DET COMPONENT SELECT A9 5 3V_SDA3 IIC_CONT 1 Y0,Y1,UV0,UV1 JK4002 PI1D(0)-(29) HDCP KEY +7/12V RXD_TU [A] LVDS RECEIVER & TTL PARALLEL CLK 6 DPMS_HD 5V->3.3V 6 29 HD_ADA VD_ADA PI2HS,PI2VS SYNC PROCESSOR TMDS DATA CLOCK A_EA+- - EE+- 2 MAIN 22 A+5V 1 V11 HD/VD SELECT IC3201 A/D CONV. PI2D(0)-(29) AD_G0-G9 DIGITAL SIGNAL PROCESSOR LED_G POWER SW SW061 Q3271,72 D3271,72 Q4981,82 IC3202 5VNRST MAIN SW1 DPMS_VD 5V->3.3V HD/VD SELECT SEPA Y2-Y9 4 HS,VS,CLK VD A35 POWER SWITCH A1 DATA A_CLK+- P7 VD ASIC-ARM V Sync 3 AVDD +1.8V DS_SOS 30 IC4003 A+9V 5V->3.3V PB34 TEMP SENSOR +1.8V TMDS DATA CLOCK Q4157 IC4281,82 S35 DS1 8 Q4451,52 RM001 IC4005 SDA/SCL 9 HDMI_CEC H/V A PI2R0-R9 Q4104 ASIC OUT B IC4002 CLK UV2-UV9 IC4007 PR/R DATA A22 VD_M MCLD 3 DDCB_IIC DDCC_IIC PB/B MCDATA FAN SOS DET PI1G0-G9 AUDIO IN L Q3273,74 D3273,74 1 CLK5 Q3203 R/G/B 3 AUDIO IN R 18 IC4006 IC4361 REMOTE RECEIVER 6 AD_R0-R9 IIC3 +5V R/G/B H Sync 4 Q3201,02 SYNC SEPA SIGNAL IIC2 +3.3V 1 PI1R0-R9 LED_G HS,VS,CLK 15V_ON/OFF 1 IIC BE0-9(10bit) 30bit AD_B0-B9 8 11 10 6 7 2 3 5 1 9 4 35 38 33 34 31 36 32 37 30 29 27 28 26 24 39 23 22 21 25 IIC3 28.64636 MHz IIC2 TVDD +3.3V CVDD +1.8V 20MHz +1.8V (LED:11TIMES) (LED:11TIMES) FAN_A-C V2 FAN CONTROL PB TH-42PF20C Block (2/5) Diagram TH-42PF20C Block (2/5) Diagram 40 11.4. 方框图 (3/5) (LED:10TIME) (LED:6TIMES) (LED:8TIMES) (LED:13TIME) (LED:3TIMES) (LED:7TIMES) (LED:2TIMES) (LED:2TIME) (LED:9TIMES) (LED:5TIMES) (LED:4TIMES) (LED:11TIMES) (LED:10TIME) (LED:2TIMES) G G G G DVI_DET 5VRXD_TU FAN_ON/OFF 3.3VRXD_TU ALARM AUDIO_SOS SLOT1_DET D_RXD RTC_INT RXD_PC KEY_INPUT TXD_PC_M ALL_OFF FSTB+15V_MON READY LED_R DPMS_HD SOUND_MUTE DPMS_VD NRST REMOTE_IN HDMI_DET P_ON/OFF LAN+14V_ON/OFF IIC_CONT 15V_ON/OFF FAN_CONT PANEL_STBY_ON 5VNRST FAN_SOS SOUND_MUTE F_STB_ON LED_G PANEL_STBY_ON DS_SOS 5VTXD_TU D_TXD VSYNC_ON/OFF XIRQ3 NRST NRST XIRQ3 FL4008 P+5V A+1.8V A+3.3V A+15V A+5V STBY+5V P+15V STBY+3.3V A+9V FL4007 D4665 STBY+3.3V P+3.3V D4664 D4663 STBY+1.2V A+1.8V IIC3 30 L/R_PC RESET GOUT STB_ IIC2 R2 A6 +3.3V SOS SCX1 - EEPROM SP_L+ IC9003 AUDIO IN(L/R_DVI) H3 CLK IC9304 IC2302 P+15V DDR_SDRAM BUFFER VIDEO DATA OUTPUT 31 Q4351 9 LSI RESET H VIDEO SIGNAL PROCESSOR IC4382 STB+3.3V STB+5V (COMPONENT) PANEL MAIN ON P+3.3V VIDEO/PANEL CONTROL SOUND_MUTE VCC Q4670 L_OUT- 11 PI2D(10)-(19) LOGIC OUT+ P3V_ IIC2 STB_IIC2 IIC_SW ADDRESS DATA IP CONVERTER RESET SCX1 TERMINAL OSD I/F L2 Q4667 POWER SOS IC9801 R1 SC20 16 L KEY_INPUT PI1D(0)-(29) DVI COMPOSITE SCX1 +1.2V 5V SCX IN B IC9001 1 IC9802 VOUT 3 53 DCC_SOS +2.5V P+15V SUSTAIN CONTROL FAN_CONT P+15V P+5V 55 PI1D(10)-(19) ROUT PI1HS,PI1VS 49 DDR_SDRAM FLASH I/F SPEAKER L MUTE SOS6_SC1 C21 OUT- AUD_SEL2 CONTROL DATA SCX1 IN SLOT1_DET 2 UHZ AUD_SEL2 POCLK/74.25M PANEL STATUS R_OUT- 5V<-3.3V P3V_IIC1 TXD_PC IC4704 RXD_PC LAN+14V_ON/OFF 52 P+3.3V STB_ IIC1 P25 +5V(P)DET VIDEO DATA P+5V 1 38 IIC IIC2 30bit DVDD IC4503 3 RST H RESET 8 VSUS_CON_S0 IN3 10 IC9004 DQ0-DQ15 TTL SOUND_MUTE STB_IIC1 CPG with SS A+9V R3 L CLD SDA/SCL SOUND+15V L/R IC9800 LVDS DATA PLASMA AI L/R_CV ALARM IC2305 (COMPOSITE) FSTB+15V_MON PANEL SOS 1 PWM IN 16Mbit POWER SOS TXD_TU H37 SCX IN A JK2401 PC VIDEO SWITCH PI2D(0)-(29) PANEL_STATUS READY RTC_INT IN1 +2.5V AUD_SEL1 SOS7_SC2 +3.3V IC2301 PI2HS,PI2VS +1.8V IIC Q4669 AVDD SCAN CONTROL IC4314 +15V(P)DET A+9V DPMS_HD SCAN CONTROL AUDIO INPUT(L/R_HA) P_S0 A+5V FPGA_CLK SDA4/SCL4 Q4663,64 AUDIO IN(L/R_CV) P+15V +5V H/V SYNC CONTROL IC4502 H RESET 18 1 DDR_SDRAM IC9300 SDA3/SCL3 HS,VS,CLK PANEL MAIN ON P3V_IIC2 L/R_HA +1.8V JK8500 SOUND CONTROL FAN_SOS PANEL SOS D_TXD AUDIO_SOS +3.3V DS BOARD SOS DISCHARGE CONTROL H OUT+ USE DATA 3 IIC CONT FPGA_DATAIN SP AMP 7 DDR_SDRAM LVDS READY P+3.3V IC2304 IC9400-02 FOR L OUT- POWER ON/OFF INTERFACE +1.8V SOS SP_L- PI1D(0)-(9) CONTROL DATA FACTORY FPGA_LD 30bit SDA2/SCL2 MICOM +1.2V P+3.3V A+15V SOS SP_R+ HDMI_DET A31 POWER_ON/OFF INTER FACE LVDS DATA JK8500 A+3.3V GenX7 LED_G +1.2V +3.3V IIC JK2402 JK2301 IIC1 IC4313 10bit LVDS IC4703 SCX1 IN Q4668 R_OUT+ SOS8_SS IN4 PI1D(20)-(29) LED_R DCC_SOS IC4702 39 SEL1 SUSTAIN CONTROL TERMINAL 40 LVDS RX SPEAKER R TERMINALS PI2D(0)-(9) L/R_DVI A0-A19 +3.3V + PI2D(20)-(29) CONTROL DATA A8 15 A AUDIO SOS VSYNC VIDEO DATA A20 BUFFER (DVI) COMPONENT HS,VS,CLK REMOTE IN 29 P_S1 ODVDD IC4501 OSD I/F +3.3V(P)DET DRVRST IIC2 FLASH MEMORY D_RXD AUDIO INPUT SELECT IC2303 ASIC-ARM SDA1/SCL1 SOS8_SS ALARM FLASH MEMORY PARALLEL DVI_DET PANEL STBY ON L1 STB_ON R OUT- 35 5 +9V SOS L_OUT+ VIDEO DECODER VSUS_CON_S1 SUB-FIELD PROCESSOR LVDS OUT DIGITAL SIGNAL PROCESSOR DN BOARD SOS OSD FLASH MEMORY CLK_O A32 L OUT+ L VCC L3 IIC4 BOUT PANEL MICOM R OUT+ INTERFACE DPMS_VD 15V_ON/OFF PD4H STB+3.3V/RESET P3V_ IIC1 SOS6_SC1 L OUT- A+5V SOS SOS7_SC2 P+3.3V RXD_TU IC2306 EEPROM A25 C11 SPEAKER SEL2 CLOCK IN FAN_ON/OFF SP_R- A+15V SOS AUD_SEL1 Q2301 UHZ HSYNC IN2 DATA ALL_OFF VIDEO DATA STB_IIC2 +3.3V IC9803 28 30 22 27 23 26 25 29 21 24 39 37 32 33 35 36 38 31 34 VSYNC_ON/OFF 20MHz 10MHz 36MHz 24.576 MHz INT1 STBY XIRQ3 (LED:10TIME) (LED:6TIMES) (LED:8TIMES) (LED:13TIME) (LED:3TIMES) (LED:7TIMES) (LED:2TIMES) (LED:2TIME) (LED:2TIMES) (LED:9TIMES) (LED:5TIMES) (LED:4TIMES) (LED:11TIMES) (LED:10TIME) TH-42PF20C Block (3/5) Diagram TH-42PF20C Block (3/5) Diagram 41 11.5. 方框图 (4/5) (LED:4TIMES) COLD HOT HOT COLD NEED HOLDER NEED HOLDER + NEED HOLDER NEED HOLDER NEED HOLDER F200 F101 F100 3 SS11 630mA 250V PHOTO COUPLER Vsus Adj SC2 3 10 D600 5A 250V LIVE VSUS_CON_S1 11 IC401 PFC_ON 4 RESET CONTROL MAIN SW_ON VR251 Vsus ERROR DET P25 Vda ERROR DET MAIN SW2 7 NO USE Vsus Q505 Q714 Vda IC100 TV SUB ON Q707 +5V STB5V_ ON/OFF 1 Vda RESONANCE IC201 AC CORD L100,01,02 IC600 PFC F_15V_ON P+15V Q807 12 T900 P35 T301 Vsus D903 STB+5V T300 5 IC202 POWER SOS P6 8 IC603 NEUTRAL DET RL100 3 P+15V DET PHOTO COUPLER Q701 Q800 P34 D100 T400 4 Q901 IC902 1 1 Vda CONTROL ALL_OFF P7 2 DISCHARGE 4A 250V 4MHz SOUND+15V 15V DET PR900 9 D708 1 Q805 Q703 PHOTO COUPLER VSUS_CON_S0 STB A10 CONTROL 2 RL102 Q705 IC400 Q801 1 P2 XOUT CONTROL 1 MAIN SW1 A9 V_RESO_ON Vda D200 ON/OFF IC700 XIN RECTIFIER IC601 - IC903 MULTI CONTROL D904 1 F_STB_ON 2 DISCHARGE PANEL MAIN ON NEUTRAL 9 AC FAIL 9 5 NC NC NC NC NC NC MAIN RELAY_ON R141 LIVE Vsus REFERENCE Q715 RECTIFIER IC904 Q609 7 14 PANEL_MAIN_ON Vsus - IC701 Q104,06 1 ALL_OFF RUSH RELAY_ON IC602 C25 F+15V ERROR DET PHOTO COUPLER P11 CONTROL STB5V_IN A25 F+15V Vda ERROR DET X600 AC DET POWER SOS FILTER 7 PFC_ON D108 T200 IC500 PHOTO COUPLER SOUND+15V Q709-Q712 Vsus STB 3 P R923 IC800 IC200 Q602 Vsus_IN POWER MICOM D701 F+15V D501 POWER SUPPLY Q706 Q400-Q402 P+15V 8 STB ERROR DET STB+5V Vda_IN D702 IC901 10A 250V PR101 D109 RST P9 DRIVE Q600 + T100 RL101 Q101 DRIVE Q103,05 + 10A 250V D703 D800 Q300-Q303 PFC (LED:4TIMES) COLD HOT HOT COLD TH-42PF20C Block (4/5) Diagram TH-42PF20C Block (4/5) Diagram 42 11.6. 方框图 (5/5) (LED:7TIMES) (LED:8TIMES) (LED:6TIMES) D16255 D16473 TPVSUS TPSOS8 TPSOS7 D16721 TPSC1 D16901 D16583 L16303 D16728 D16822 D16282 TPVAD D16480 TPVE TPVSCN D16820 D16821 D16253 TPVSUS D16791 TPSOS6 D16476 D16493 D16618 D16280 D16475 TPSS1 D16490 D16920 VSCN-F DRIVER Q16051 Vad+5V CB9 2 CB 15 SM 42 SS 7 IC14604-06 VIDEO DATA IPD CIRCUIT SIU DRIVER 1 Q16471 Vfo SS2 20 PANEL DRIVER P+5V IC16661 IC16131 CB 11 2 SM 46 3 COMPARATOR P+15V PLASMA PANEL P11 IC16784,85 ERROR DET Q16280 TP59,TP60 TP61,TP62 35 SC SS 21 18 Q16021 CIS P+3.3V Q16647 P+5V SC 50 CB1 IC17101 CSH/CMH GATE DRIVE CIRCUIT COUPLER CMH 1 20 C23 D16462 Q16885 Q16001 Q16876 T16471 CB5 Vscn DRIVER VFG A32 C10 CRC1 BUFFER IPD CIRCUIT VSUS Gen. SC 42 ERROR DET UHZ 16 CLK SUSTAIN CONTROL A31 VHIZ CONNECTOR Q16022 1 IC16501 PHOTO C25 IC16920 IC14901,02,04 IC16581 PC16461 Q16608 2 C21 7 CMH SUSTAIN DRIVE 15V_F 2 VRH CB7 COUPLER PC16722,23 CML ELECTRODES 6 Q16621 SS 24 Q16818 OC1 21 6 SC2 VOL VE GEN. 8 BUFFER BUFFER SHUNT REG 1 7 IC16151 IC16251 PHOTO COUPLER 19 C1 UML PC16191 IC16312 9 IC16771 UML IC16241 SC 20 DATA DRIVER (RIGHT) LOGIC IC 6 CONTROL DATA 6 CSL Vda C2 Q16002 Vfo ERROR DET IC16691 PHOTO COUPLER Vda CML IC16561,62 CERS Q16402 Q16607 IC16792,93 CRC2 CIRCUIT D16871 VRL 1 SHUNT 5 P+3.3V 2 OC2 6 SIU PC16685 CSL/CML GATE DRIVE CIRCUIT 8 59 IC16563 IC17201 P+15V Vda Q16403 1 P+3.3V CONTROL DATA VAD GEN. MID 2 VHIZ 1 Q16441 2 VFG D16482 SEPA PROTECT 7 PC16896,97 IC16521 P+15V F16V GEN. SCAN IC16490,91 Q16622 SUSTAIN CONTROL 13 66 F16V SUSTAIN UHZ D16041 PANEL DRIVER PC16480 P2 SC 41 CSH PC16301 PLASMA PANEL Q16041 LED(G) 2 3 Vsus 5 1 SCAN SHUNT REG SOS8_SS 13 Vda IC16471 C11 CMH SOS7_SC2 8 OC1 Q16452 1 9 CB 12 1 6 SEL 3 (16V_F) D16859 PC16684 SM INVERTER CPH1 SOS8_SS COUPLER IC14801-03 Q16490 IC16786,87 CB 10 D16316 Vsus (LOWER) 5 VHIZ GEN. C23 4 IC16773 REG. CEL VE Gen. 7 D16051 SCAN DRIVE Q16421 CRC2 SM 41 CEL OC2 NAND CPH1 UEH SS 64 USH SCNR_PRO 1 SC JIG DATA DRIVER (LEFT) RECOVERY 6 SUSTAIN CONTROL UML CSH 5V_F 21 (SC1) C20 UMH SCNR_PRO +5V CERS USL SOS8_SS Q16101 SOS6_SC1 SS 33 CB 13 8 SCAN CONTROL ENERGY SS 61 1 PC16603 IPD CIRCUIT PANEL SUSTAIN SCAN OUT IC17202 BUFFER P+5V P+3.3V SCAN CONTROL UEH REG. Q16601 7 DRIVER CB6 VIDEO DATA USH CB2 Q16102 PLASMA PANEL 4 UMH COMPARATOR A20 P35 SS 11 SUSTAIN CONTROL CB3 2 CB4 IC14804-06 1 IC16692 1 CSH CRC1 1 IC16724 P+5V D16872 13 SCAN PHOTO 18 CHA CEL PHOTO ERROR DET F16V FPC DET CLK SCAN CHA VSCN GEN. IC16304 SS33 SC 46 SM1-SM8 SHUNT Q16422 Q16661 CB8 P+3.3V ELECTRODE 1 USL 2 Q16660 P+5V DRIVER PANEL SCAN CIS INVERTER DRIVER IC14601-03 SS 58 CB 14 P+15V CSL SEL SHUNT REG BUFFER PHOTO COUPLER 7 4 LED(G) (LED:7TIMES) (LED:8TIMES) (LED:6TIMES) TH-42PF20C Block (5/5) Diagram TH-42PF20C Block (5/5) Diagram 43 12.1. 导线 (1) 44 12.2. 导线 (2) 45 13.1. 线路图注意事项 46 13.2. P 电路板 (1/4) 线路图 F D B C E A 3 2 1 TO P-BOARD (3/4) AA AB AG AC AD AF AH AJ AK AI AE P-BOARD LSEP1289WMHB (1/4) ! COLD HOT COLD HOT COLD HOT TO AC CORD PFC C0DBZYY00361 TH-42PF20C P-Board (1/4) Schematic Diagram TH-42PF20C P-Board (1/4) Schematic Diagram 4 7 3 1 5 2 8 9 6 47 13.3. P 电路板 (2/4) 线路图 13 18 12 17 10 15 16 14 11 COLD HOT COLD HOT PHOTO COUPLER B3PBA0000459 Vda ERROR DET C0DBZMC00006 Vsus ERROR DET C0DBZMC00006 Vda ERROR DET C0DBZMC00006 Vda CONTROL C0DBZYY00360 MULTI CONTROL LSSK0087 3 2 1 TO P-BOARD (4/4) BD BH BA BB BC BE BF BG BK BI BJ BL BM TO C2-BOARD (C25) TO SC-BOARD (SC2) TO SS-BOARD (SS11) P-BOARD LSEP1289WMHB (2/4) ! TH-42PF20C P-Board (2/4) Schematic Diagram TH-42PF20C P-Board (2/4) Schematic Diagram 48 13.4. P 电路板 (3/4) 线路图 2 7 1 F 3 D B C 4 E A COLD HOT COLD HOT COLD HOT COLD HOT PHOTO COUPLER B3PBA0000459 PHOTO COUPLER B3PBA0000459 PHOTO COUPLER ********* PHOTO COUPLER B3PBA0000459 AC DET C0DBZMC00006 STB CONTROL MIP2K20MSSCF STB ERROR DET C0DBZMC00006 11 12 13 14 20 21 22 15 17 16 18 19 TO P-BOARD (1/4) AA AB AG AC AD AF AH AJ AK AI AE P-BOARD LSEP1289WMHB (3/4) ! 8 9 6 5 TH-42PF20C P-Board (3/4) Schematic Diagram TH-42PF20C P-Board (3/4) Schematic Diagram 49 13.5. P 电路板 (4/4) 线路图 13 18 12 17 10 15 16 14 11 COLD HOT COLD HOT POWER MICOM RESET C2ABDB000131 C0EBH0000447 PHOTO COUPLER B3PBA0000459 F+15V ERROR DET C0DBZMC00006 11 12 13 14 20 21 22 15 17 16 18 19 TO P-BOARD (2/4) BD BH BA BB BC BE BF BG BK BI BJ BL BM TO A-BOARD (A6) TO A-BOARD TO A-BOARD (A9) P-BOARD LSEP1289WMHB (4/4) ! STB CONTROL MIP418AMDS (A25) TH-42PF20C P-Board (4/4) Schematic Diagram TH-42PF20C P-Board (4/4) Schematic Diagram 50 13.6. PB,V1,V2 和 S1 电路板线路图 C862 1u 16V C859 1u 10V D859 MA2J1110GL D853 MA3X152D0L D852 MA3X152D0L D851 MA3X152D0L PB34 1 2 3 PB32 1 2 3 PB33 1 2 3 VJ850 R852 4.7k R853 4.7k R851 4.7k PB30 1 2 3 4 FAN_VOLTAGE 5V FAN SOS GND ! PB-BOARD TXNPB11CEC A-BOARD (A5) TO TO FAN P D A 1 2 B C 3 F 9 4 E 5 PUSH S35 1 2 3 SW061 K0F162B00002 ! S1-BOARD TXNS111CEC POWER SW VCC GND OUT R G STB3.3V R1554 1.2k SW1551 EVQPLHA15 D1551 DZ2J039M0L R1500 1k SW1553 EVQPLHA15 SW1554 EVQPLHA15 SW1552 EVQPLHA15 R1550 1k L1501 C1530 6.3V 10u R1553 2.4k D1554 DZ2J039M0L L1507 R1511 3k R1512 4.7k L1503 R1510 2.2k V22 1 2 3 R1552 220k SW1550 EVQPLHA15 RM001 B3RAD0000168 V11 1 2 3 4 5 6 R1513 8.2k L1502 Q1540 DSC200100L L1508 L1505 L1506 D1550 B3AGB0000060 R1551 47 REMOTE RECIEVER GND LED_G LED G OPT LED R V2-BOARD TXNV211CEC V1-BOARD TXNV111CEC A-BOARD (A22) GND REMOCON TO LED_R (A11) KEY_SW TO A-BOARD (A35) TO A-BOARD STB3.3V ! ! / VOL / VOL ENTER MENU INPUT 7 6 8 TH-42PF20C PB, V1, V2 and S1 -Board Schematic Diagram TH-42PF20C PB, V1, V2 and S1 -Board Schematic Diagram 51 13.7. HX 电路板线路图 PC_R PC_G PC_B PC_HD PC_VD PC_VD PC_B PC_G PC_HD PC_R C3561 1u 16V C3550 50V 0.01u C3551 10u 25V C3552 10u 25V C3405 10u 25V C3406 10u 25V C3562 1u 16V C3524 50V 0.01u C3409 16V 0.1u C3523 10u 25V C3404 16V 0.1u D3512 B0HCMM000014 D3511 B0HCMM000014 D3507 MAZ81600HL D3508 MAZ81600HL D3509 MAZ81600HL D3510 MAZ81600HL D3504 MAZ30560ML IC3502 TVRR702 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC JK3511 K1FB115BA020 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 JK3509 K1FA109B0062 1 2 3 4 5 8 9 6 7 HX1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L3555 ELJPA100KFB L3526 ELJPA100KFB P5V P5V SLOT9V SLOT9V ZA3001 K4ZZ01000206 TP69 TP70 TP68 TP72 TP66 TP65 TP75 TP74 TP71 TP67 TP73 Q3531 2SD0601A0L Q3532 2SD0601A0L R3592 0 R3776 100 R3778 47k R3508 4.7k R3547 100 R3548 100 R3655 33k R3589 47k R3654 68k R3530 180k R3791 100 R3511 100 R3663 1k R3668 100 R3591 0 R3664 1k R3529 180k R3400 10k R3510 100 R3593 0 R3656 68k R3790 100 R3590 56 R3509 4.7k R3777 100 R3585 56 R3586 56 R3653 33k R3672 100 FL3516 J0MAB0000054 1 2 3 4 FL3510 J0MAB0000054 1 2 3 4 FL3511 J0MAB0000054 1 2 3 4 FL3517 J0MAB0000054 1 2 3 4 FL3514 J0MAB0000054 1 2 3 4 FL3515 J0MAB0000054 1 2 3 4 FL3512 J0MAB0000054 1 2 3 4 FL3513 J0MAB0000054 1 2 3 4 JK3513 K2HC1YYB0049 R 2 3 1 L P5V SLOT9V TXD RXD VD HD REMOTE IN CTS RTS PCis DSR RI DDC EEPROM RXD TXD DTR CD GND L R PR/R Y/G PB/B GND GND GND GND AUDIO IN PC IN TO (A14) A-BOARD HX-BOARD TXNHX11CEC ! D A 7 1 2 B C 3 F 9 4 E 5 6 8 TH-42PF20C HX-Board Schematic Diagram TH-42PF20C HX-Board Schematic Diagram 52 13.8. DS 电路板 (1/2) 线路图 + + + + + + 15V_ON/OFF LAN14V_ON/OFF REMOCON_OUT DS_SOS REMOCON_OUT1 LAN14V_ON/OFF LAN14V_ON/OFF 15V_ON/OFF AH_SOS C3052 10u 25V C3040 10u 6.3V C3050 16V 0.1u C3004 50V 0.01u C3037 10u 25V C3022 10u 25V C3018 0.1u 25V C3054 10u 25V C3021 10u 25V C3000 10u 25V C3058 10V 2.2u C3046 16V 0.1u C3045 16V 0.1u C3051 10u 25V C3042 0.1u 25V C3034 50V 68p C3005 1u 16V C3024 0.1u 25V C3100 16V 0.1u C3055 0.1u 25V C3035 16V 0.1u C3026 16V 2.2u C3043 0.1u 25V C3028 16V 0.1u C3041 10V 2.2u C3057 2.2u 10V C3002 10u 25V C3063 10V 2.2u C3039 10u 25V C3017 10u 25V C3011 50V 0.01u C3036 10u 25V C3013 16V 0.1u C3006 50V 0.01u C3049 50V 100p C3056 0.1u 25V C3003 1u 16V C3023 16V 0.1u C3031 16V 0.1u C3060 50V 0.01u C3020 16V 0.1u C3065 16V 0.1u C3059 1u 16V C3062 10u 6.3V C3064 6.3V 470u C3010 25V 47u C3044 6.3V 47u C3027 16V 470u C3101 6.3V 47u C3025 16V 47u D3110 B0ACCJ000048 D3004 B0JCPG000030 D3105 B0ACCJ000048 D3112 B0ACCJ000048 D3107 B0ACCJ000048 D3001 B0JCPG000030 D3002 B0JCPG000030 D3108 B0ACCJ000048 D3103 B0ACCJ000048 D3101 B0ACCE000005 D3100 B0ACCE000005 D3111 DZ2J056M0L D3102 B0BC01600013 D3005 B0BC5R900001 D3104 B0BC01000014 D3109 DZ2J068M0L D3106 B0BC010A0007 F1J1E104A148 FL3007 1 2 3 F1J1E104A148 FL3008 1 2 3 F1J1E104A148 FL3004 1 2 3 FL3000 F1J1E104A148 1 2 3 F1J1E104A148 FL3002 1 2 3 F1J1E104A148 FL3001 1 2 3 F1J1E104A148 FL3003 1 2 3 C0JBAA000377 IC3100 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y IC3002 C0DBAYY00727 1 GND 2 SW 3 BS 4 EN/SYNC 5 FB 6 PG 7 VCC 8 IN IC3000 C0DBAYY00727 1 GND 2 SW 3 BS 4 EN/SYNC 5 FB 6 PG 7 VCC 8 IN IC3001 C0DBAYY00727 1 GND 2 SW 3 BS 4 EN/SYNC 5 FB 6 PG 7 VCC 8 IN DS13 1 2 3 4 5 6 7 8 9 10 11 12 13 L3006 J0JHC0000117 L3004 J0JHC0000117 L3007 J0JHC0000117 L3012 J0JHC0000096 L3002 J0JHC0000117 L3013 J0JHC0000096 L3008 J0JHC0000096 L3003 J0JHC0000096 L3010 G1C330MA0363 L3001 G1C330MA0363 L3005 G1C330MA0363 LAN14V SLOT3.3V LAN14V P_F15V SLOT3.3V 15V 5V SLOT15V SLOT5V 15V_2 SLOT3.3V 15V_2 SLOT9V P_F15V 9V_M 15V SLOT5V SLOT9V STB5V_S 15V_2 F15V 15V_2 STB5V_S 5V SLOT3.3V LAN14V LAN3.3V SLOT9V VJ3008 VJ3002 VJ3010 VJ3003 VJ3004 VJ3000 VJ3001 VJ3005 VJ3009 VJ3007 VJ3006 PA3000 K5H1022A0031 TP3000 Q3003 B1DHDC000028 Q3007 B1DHDC000028 Q3005 B1DHDC000028 Q3002 B1DHDC000028 Q3000 DSC200100L Q3001 DSC200100L Q3004 DSC200100L Q3008 DSC200100L Q3101 DSC200100L Q3100 DSC200100L Q3102 DSC200100L Q3103 DSC200100L Q3009 DSC200100L Q3104 DSC200100L Q3006 DSC200100L R3009 0 R3050 47k R3028 100k R3000 3.3k R3105 4.7k R3043 22k R3019 100k R3026 100 1/2W R3029 100k R3034 17.4k 1% R3020 0 R3039 22k R3112 100k R3021 0 R3005 6.8k R3038 3.6k R3013 487 1% R3048 10k R3035 22 R3049 100 R3015 0 R3031 0 R3040 10k R3008 10k R3102 18k R3114 39k R3014 4.99k 1% R3110 22k R3004 3.3k R3055 0 R3051 0 R3002 22k R3032 0 R3044 10k R3108 56k R3042 3.6k R3037 6.2k R3103 2.2k R3109 47k R3106 2.2k R3025 100 1/2W R3030 0 R3012 0 R3046 10k R3111 10k R3104 10k R3016 100k R3010 100k R3027 22 R3001 6.8k R3006 22k R3101 100 R3041 4.7k R3113 75k R3045 1k R3107 10k R3017 22 R3003 10k R3024 9.53k 1% R3022 0 R3033 56k 1% R3047 10k R3100 0 R3023 49.9k 1% D S G D D D D S D D G D D D G D S D D D G D S D G G G G G G G G G G G G G G P P P P P P P P P P P GND 15V->9V GND GND GND SOS BLOCK GND COMMON_GND REMOCON OUT 3.3V->5V F15V F15V F15V GND F15V 15V F15V GND 1 C F 7 4 5 9 8 A E 3 2 D 6 B 15V->5V 15V->3.3V TO A-BOARD (A13) DS-BOARD TNPA5109 (1/2) ! 1 TH-42PF20C DS-Board (1/2) Schematic Diagram TH-42PF20C DS-Board (1/2) Schematic Diagram 53 13.9. DS 电路板 (2/2) 线路图 + + TERM SIDE P A_ED- A_OE+ A_ED+ A_EA- A_EE+ A_EA+ A_OA- A_OA+ A_EB- A_EB+ A_OB- A_OB+ A_EC- A_OC- A_EC+ A_OC+ A_CLK- A_OD- A_CLK+ A_OD+ A_OE- SRQ REMOCON_OUT1 AJ_TXD11 AJ_RXD11 AH_SOS A_ED+ A_ED- A_OA- A_OA+ A_OB- A_OB+ A_OC- A_OC+ A_OD- A_OD+ A_OE- A_OE+ A_CLK- A_CLK+ A_EA- A_EA+ A_EE- A_EE+ A_EB- A_EB+ A_EC- A_EC+ A_EE- RESET LAN14V_ON/OFF 15V_ON/OFF AJ_TXD11 AJ_RXD11 AH_SLOT1_DET REMOCON_OUT DS_SOS 3V_SDA3 3V_SCL3 RESET SRQ RTC_INT AUD_R_DS1 AUD_L_DS1 AUD_L_DS1 5V_SDA3 3V_SCL3 3V_SDA3 5V_SCL3 RTC_INT 5V_SDA3 5V_SCL3 5V_SCL3 5V_SDA3 15V_ON/OFF2 S2DETECT AUD_R_DS1 AH_SLOT1_DET C3148 10u 6.3V C3141 10u 16V C3147 16V 0.1u C3121 50V 15p C3120 50V 15p C3140 10u 6.3V C3151 10u 16V C3143 10u 6.3V C3122 16V 0.1u C3123 5.5V 1.5 C3146 6.3V 47u D3140 B0ACCJ000048 D3120 B0ACCJ000048 D3142 DZ2J062M0L D3141 DZ2J062M0L IC3120 C1DB00001208 1 2 3 4 5 6 7 8 DS1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 DS2 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 A20 A21 A22 A23 A24 A25 A26 A27 A28 A29 A30 A31 A32 A33 A34 A35 A36 A37 A38 A39 A40 B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16 B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32 B33 B34 B35 B36 B37 B38 B39 B40 5V STB3.3V LAN14V STB5V_S SLOT3.3V STB5V_S STB5V_S LAN3.3V SLOT9V 9V_M STB3.3V SLOT15V STB5V_S SLOT5V VJ3140 PA3140 K5H1022A0031 PA3141 K5H1022A0031 Q3120 B1CBHD000002 G D S Q3121 B1CBHD000002 G D S R3124 2.7k R3128 100 R3164 0 R3127 100 R3151 0 R3176 0 R3155 22 R3122 0 R3177 0 R3130 0 R3148 0 R3152 100 R3156 22 R3147 100 R3150 0 R3126 82 R3154 0 R3144 0 R3129 0 R3149 100 R3125 2.7k R3171 0 R3153 100 R3123 0 X3120 H0J327200114 SCL OSCOUT VSS OSCIN VDD /INTRA SDA /INTRB GND GND GND GND GND GND GND NC GND GND GND GND GND GND GND GND GND GND GND GND A_IIC_CONT NC 3V_SCL3 3V_SDA3 SL1_DET DS_SOS 5VTXD_TU 5VRXD_TU RTC_INT REMOCON_OUT 5VNRST LAN14V_ON/OFF 15V_ON/OFF AUD_L_OUT GND AUD_R_OUT GND LAN3.3V 9V_M STB_5V 5V 5V NC STB3.3V A_OA- A_OA+ A_OB- A_OB+ A_OC- A_OC+ A_OD- A_OD+ A_OE- A_OE+ A_CLK- A_CLK+ A_EA- A_EA+ A_EE- A_EE+ A_EB- A_EB+ A_ED- A_EC+ A_ED- A_ED+ TX2- TX0+ TXCG TX0- TX6+ TX5- TX1+ TX2+ TX4- TX8+ TX4+ TXC- TX7+ TX3+ TX1G TX2G TX9+ TX0G TX8- TXC+ ETX_G3 TX9- TX3- ETX_G2 TX3G TX6- TX1- TX7- TX5+ GND SLOT9V LAN14V GND GND GND STB5V SRQ NC(OPEN) SOS SYNC GND PWR_STATUS GND HD PR/R GND RESET2 PR/R GND RESET1 PB/B GND Y/G GND LAN14V CABLE DET SYNC GND REMOTE VD SLOT5V SLOT3.3V SLOT5V GND NC IIC DAT RSVD IIC SCL AUDIO GND RXD AUDIO IN L TXD AUDIO GND PLUG DET AUDIO IN R SLOT3.3V GND GND SLOT15V SLOT15V PB/B S2DETECT Y/G AUD_L/R_DS CLOCK IC 32.768K 15V_ON/OFF2 S2DETECT 14 13 10 11 16 12 17 18 15 TO A-BOARD (A1) SLOT1 DS-BOARD TNPA5109 (2/2) ! 1 TH-42PF20C DS-Board (2/2) Schematic Diagram TH-42PF20C DS-Board (2/2) Schematic Diagram 54 13.10.A 电路板 (1/17) 线路图 + G G G G G G G G G G G G G G G G TERM SIDE S P P P P P P P P P P P P P P P Thermal Pad Thermal Pad A_EA+ A_EA- A_CLK+ A_CLK- A_OE+ A_OE- A_OD+ A_OD- A_OC+ A_OC- A_OB+ A_OB- A_OA+ A_OA- REMOCON_OUT 15V_ON/OFF LAN14V_ON/OFF SL1_DET 5VNRST 5VRXD_TU 5VTXD_TU DS_SOS 3V_SCL3 3V_SDA3 AUD_L_DS AUD_R_DS F15V_MON A_IIC_CONT STB_ON RTC_INT ALL_OFF1 15V_ON/OFF A_P_ON/OFF S2DETECT A_P_ON/OFF 15V_ON/OFF2 A_ED+ A_ED- A_EC+ A_EC- A_EB+ A_EB- A_EE- A_EE+ C4951 1u 6.3V C4952 25V 0.01u C4910 16V 1u C4923 16V 1u C4917 10u 25V C4904 10u 25V C4906 10u 10V C4919 10u 10V C4921 16V 1u C4908 16V 1u C4918 0.1u 25V C4905 0.1u 25V C4966 10u 25V C4934 10u 25V C4937 0.1u 25V C4932 10u 25V C4935 10u 25V C4940 50V 47p C4936 16V 0.1u C4933 0.1u 25V C4941 16V 0.1u C4965 1u 16V C4968 10u 16V C4964 16V 0.1u C4963 6.3V 47u D4902 B0JCME000092 D4916 B0JCPE000004 D4903 B0JCPE000004 D4901 B0JCPE000004 D4931 B0JCPG000030 D4932 B0BC4R000002 D4908 B0BC5R900001 D4905 B0BC5R900001 D4918 B0BC5R900001 D4921 B0BC5R900001 FL4964 F1J1E104A148 1 2 3 FL4968 F1J1E104A148 1 2 3 *FL4967 F1J1E104A148 1 2 3 FL4966 F1J1E104A148 1 2 3 FL4965 F1J1E104A148 1 2 3 F1J1E104A148 FL4962 1 2 3 F1J1E104A148 FL4961 1 2 3 FL4963 F1J1E104A148 1 2 3 IC4903 C0DBAYY00727 1 GND 2 SW 3 BS 4 EN/SYNC 5 FB 6 PG 7 VCC 8 IN A1 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 69 70 A35 1 2 3 4 A9 1 2 3 4 5 6 7 8 9 A10 1 2 3 4 5 6 7 8 9 10 11 A13 1 2 3 4 5 6 7 8 9 10 11 12 13 L4901 G1C8R2ZA0202 L4902 G1C8R2ZA0202 L4903 G1C330MA0363 9V_M STBY3.3V F15V LAN3.3V 15V 1.8V STBY5V 15V STBY3.3V STB1.2V STBY3.3V STBY5V SOUND15V F15V STBY3.3V 3.3V 15V STBY5V STBY5V F15V FAN15V 5V R4956 R4901 R4910 R4916 R4925 R4926 R4951 R4942 R4912 R4927 R4941 R4940 R4911 R4913 R4928 R4939 PA4931 K5H1022A0031 TP4963 TP4968 TP4971 TP4970 TP4962 TP4960 TP4961 TP4965 TP4964 TP4967 TP4969 TP4966 Q4903 B1DHDC000028 Q4901 DSC200100L Q4902 DSC200100L Q4905 DSC200100L Q4662 DSC200100L Q4661 DSC200100L Q4904 DSC200100L R4905 100k R4923 150k R4902 10 R4964 330 R4953 3.6k R4955 22k R4662 10k R4663 10k R4665 1k R4919 100k R4906 31.6k 1% R4921 11k 1% R4932 22 R4664 12k R4917 10 R4908 51k R4305 0 R4306 0 R4904 100k R4920 100k R4302 100 R4303 100 R4304 100 R4301 100 R4307 100 R4308 100 R4937 0 R4936 37.4k 1% R4935 46.4k 1% R4961 0 R4963 10k R4974 0 R4952 4.7k R4973 0 R4954 10k R4949 0 R4945 47k R4946 22k R4947 10k R4944 0 R4943 100k R4934 0 R4933 100k R4938 100k R4966 330 R4969 10k R4967 330 R4968 3.3k R4965 330 1% R4907 10k 1% R4922 19.1k R4661 10k IC4901 C0DBAYY00369 1 SW 2 BST 3 VCC 4 GND 5 FB 6 PG 7 EN/SYNC 8 IN IC4902 C0DBAYY00369 1 SW 2 BST 3 VCC 4 GND 5 FB 6 PG 7 EN/SYNC 8 IN AUD_R_OUT A_EC- N.C. A_OB+ A_EB+ GND A_OC- A_IIC_CONT GND GND A_OC+ GND REMOCON_OUT N.C. A_EB- A_OD- 5VNRST GND GND 9V_M A_OD+ GND GND GND STB_5V A_OE- GND A_CLK- GND RTC_INT A_OE+ GND GND GND 5VTXD_TU 3V_SDA3 S2DETECT GND GND 5V 5V GND LAN14V_ON/OFF 3V_SCL3 LAN3.3V STB3.3V GND A_EE- 15V_ON/OFF SL1_DET A_EE+ A_EA+ A_OA- A_ED+ GND DS_SOS AUD_L_OUT A_OA+ A_EA- A_ED- GND 5VRXD_TU GND A_OB- A_CLK+ A_EC+ GND F15V GND F15V GND F15V S15V GND S15V P15V GND N.C. 15V_ON/OFF2 ALL_OFF ECO_ON NC(STBY5V_ON) GND F_STB_ON STB5V MAIN_SW_2 MAIN_SW_1 MAIN_SW_2 (5V) MAIN_SW_1 (Swited_5V) N.C. N.C. N.C. 1 C F 7 4 5 9 8 A E 3 2 D 6 B TO DS-BOARD (DS1) TO P-BOARD (P6) TO P-BOARD (P7) TO S1-BOARD (S35) TO DS-BOARD (DS13) A-BOARD TXN/A11CEC (1/17) ! 15V->3.3V 15V->1.2V 15V->1.8V 1 3 2 4 TH-42PF20C A-Board (1/17) Schematic Diagram TH-42PF20C A-Board (1/17) Schematic Diagram 55 13.11.A 电路板 (2/17) 线路图 + + + (FIN) 4 3 2 1 P P P P P P P P DPMS_HD HD_PCIN A_TXD_PC HD_PC VD_PCIN VD_PC DPMS_VD RXD_PCI VD_PCIN HD_PCIN FAN_ON/OFF FAN_CONT1 FAN_CONT2 CVBS AUD_L_PC AUD_R_PC HD_PCIN VD_PCIN PB/B Y/G PR/R PB/B_GND Y/G_GND PR/R_GND PB/B B_PC G_PC R_PC PR/R Y/G PB/B_GND Y/G_GND PR/R_GND PR/R_HA PB/B_HA Y/G_HA FAN_SOS C3276 10V 10u C4315 16V 0.1u C4312 16V 0.1u C3274 10V 10u C4313 6.3V 1u C4316 16V 0.1u C3279 16V 0.1u C4314 16V 0.1u C4317 16V 0.1u C3273 150p 50V C3278 16V 0.1u C3275 1000p 50V C3277 6.3V 1u C3272 0.1u 16V C4462 1000p 50V C4458 50V 47p C4456 16V 0.1u C4452 16V 0.1u C4460 16V 0.1u C4457 50V 10p C4453 16V 0.1u C4461 10V 1u C4454 1u 16V C4455 10V 10u C4451 10u 16V C3271 10u 16V C4982 1u 25V *C4987 10u 25V *C4988 0.1u 16V C3293 10u 10V C3291 10u 16V C3292 16V 0.1u C4981 220u 25V C4984 470u 16V C4311 6.3V 47u D3272 B0ACCJ000048 D3273 B0ACCJ000048 D3274 B0ACCJ000048 D4981 B0JCME000092 D3271 B0ACCJ000048 D3291 EZJP0V080GA FL4001 J0MAB0000175 FL3204 J0MAB0000175 FL3203 J0HABB000004 1 2 3 4 FL3201 J0HABB000004 1 2 3 4 FL3202 J0HABB000004 1 2 3 4 IC4451 C1AB00001529 1 SW 2 OUT 3 Vcc 4 IN2 5 GND 6 IN1 C1ZBZ0003985 IC4301 EN 1 2 C1+ 3 V+ 4 C1- 5 C2+ 6 C2- 7 V- 8 DOUT2 9 RIN2 10 ROUT2 11 INVALID 12 DIN2 13 DIN1 14 FORCEON 15 ROUT1 16 RIN1 17 DOUT1 18 GND 19 VCC 20 FORCEOFF C0DBAZG00034 IC4981 1 VCC 2 OUT 4 INV 5 STBY 3 GND JK3201 H1 H2 H3 H4 SC *A5 1 2 3 4 5 A14 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 L4982 J0JHC0000096 L3291 J0JHC0000117 L3292 J0JHC0000117 L4451 J0JHC0000117 L4981 G1C101MA0363 L3271 G1C101MA0072 L4452 G1C100JA0031 STBY3.3V 9V_M 9V_M STBY3.3V 9V_M 9V_M 5V FAN_VOLTAGE FAN15V FAN_VOLTAGE 5V R3281 R4451 R4453 R4988 R4995 R4996 VJ3202 VJ3201 TP4982 TP4981 TP4311 TP4312 GAP0.3 S3203 GAP0.3 S3202 GAP0.3 S3201 GAP0.3 S3204 Q4451 DSC200100L Q4983 DSC200100L Q3291 DSC200100L Q3271 DSC200100L Q3273 DSC200100L Q4981 DSC200100L Q3274 DSA200100L Q3272 DSA200100L Q4452 DSA200100L Q4982 DSA200100L 1% R3291 75 ERJ6ENF75R0V R3285 100 R3274 3.3 R4452 220 R3284 100 R3275 3.3 R4458 100 R4454 100 R4459 1k 1% R4456 127 1% R4457 430 R3272 4.7k R3282 0 R4312 100 R3283 0 R3277 4.7k R4313 100 R3280 3.3 4.7k R3278 R4316 0 R3271 100 R3279 3.3 R4315 100 *R4997 0 R4994 10k R4984 10k R4987 910 1% R4314 100 R4986 10.5k 1% R4985 2.7k 1% R4993 10k R4983 47k *R4998 0 R4982 470 R4989 22k R3204 0 R3205 0 R3294 33k R3295 100 R3296 1k R3293 22k R3276 100 1% R4455 330 4.7k R3273 C0JBAB000715 IC3271 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAB000715 IC3272 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y VIDEO RXD COMPONENT Y Pb Pr TXD DPMS 5V->3.3V HX SYNC IN L H Y/G HD GND PB/B GND L PR/R GND RXD TXD 5V-> 9V-> R VD GND Video GND FAN_VOLTAGE FAN BLOCK 5V FAN CONT FAN SOS TPFAS 14 13 10 11 16 12 17 18 15 A-BOARD TXN/A11CEC (2/17) ! TO HX-BOARD (HX1) TO PB-BOARD (PB30) FAN VOLTAGE CONTROL RS232C DRIVER VIDEO SW 2 4 3 1 17 16 14 15 13 11 12 TH-42PF20C A-Board (2/17) Schematic Diagram TH-42PF20C A-Board (2/17) Schematic Diagram 56 13.12.A 电路板 (3/17) 线路图 + + + + + + P P P P P P G_PC P5V_SDA3 VSYNC_ON/OFF HD-OUT HD+OUT HD-OUT 3V_SCL3 PR/R_M HD_PC 3V_SDA3 VD+OUT VD+OUT Y/G_M P5V_SCL3 HD+OUT PB/B_M VD_M HD_M 5V_VD_M 5V_HD_M 5V_HD_M 5V_VD_M VD_ADV HD_ADV Y/G_HA PB/B_HA PR/R_HA B_PC R_PC VD_PC S2DETECT P5V_SCL3 P5V_SDA3 C4281 16V 0.1u C4282 16V 0.1u C3202 50V 0.01u C3209 50V 0.01u C3234 0.1u 16V C3251 50V 1000p C3237 0.1u 16V C3229 2.2u 10V C3221 0.1u 16V C3222 0.1u 16V C3235 0.1u 16V C3212 16V 0.1u C3218 16V 0.1u C3233 2.2u 10V C3228 2.2u 10V C3246 16V 4.7u C3238 0.1u 16V C3253 25V 0.1u C3264 16V 0.01u C3259 16V 0.1u C3249 50V 0.01u C3215 10V 2.2u C3247 16V 4.7u C3207 50V 0.01u C3236 0.1u 16V C3241 0.1u 16V C3231 2.2u 10V C3262 16V 0.1u C3208 50V 0.01u C3244 16V 1u C3240 0.47u 16V C3232 2.2u 10V C3205 16V 0.1u C3223 0.1u 16V C3258 16V 0.1u C3239 0.47u 16V C3219 16V 0.1u C3252 50V 1000p C3206 50V 0.01u C3243 16V 1u C3211 50V 0.01u C3210 50V 0.01u C3216 16V 0.1u C3230 2.2u 10V C3250 16V 0.01u C3213 16V 0.1u C3263 10u 6.3V C3248 16V 0.47u C3225 0.1u 16V C3226 0.1u 16V C3224 0.1u 16V C3266 10V 1u C3261 10u 16V C3227 0.1u 16V C3217 6.3V 47u C3204 16V 47u C3254 16V 470u C3255 16V 470u C3201 16V 47u C3256 16V 470u D3202 B0ACCJ000048 D3204 B0ACCJ000048 D3203 B0ACCJ000048 D3201 B0ACCJ000048 IC3202 C0CBCDD00025 1 Vout 2 NC 3 Cn 4 GND 5 Cont 6 NC 7 NC 8 Vin IC3201 C1AB00003160 1 VCC1 2 YIN4 3 GND 4 PBIN4 5 VCC1 6 NC 7 PRIN4 8 GND 9 YIN3 10 VCC1 11 PBIN3 12 PORT3 13 PORT2 14 PRIN3 15 PORT1 16 PORT0 17 YIN2 18 VCC1 19 PBIN2 20 GND 21 PRIN2 22 VCC1 23 YIN1 24 GND 25 PBIN1 26 VCC1 27 PRIN1 28 GND 29 VDD 30 ADR 31 SDA 32 SCL 33 DGND 34 VIN4 35 VIN3 36 VIN2 37 VIN1 38 GND 39 HIN4 40 HIN3 41 HIN2 42 HIN1 43 VCC2 44 HOUT 45 VOUT 46 VIN 47 VDET 48 HIN 49 HDET 50 VERTADJ 51 VERTIN 52 GND 53 VD+OUT 54 HD-OUT 55 HD+OUT 56 VCC1 57 GCLAMP2 58 GCLAMP1 59 GND 60 YOUT 61 VCC1 62 PBOUT 63 GND 64 PROUT L3203 G1C100K00020 L3201 G1C100K00020 3.3V 9V_M 5V 9V_M 9V_M 5V 3.3V 5V 5V R3210 R3234 R3235 R3236 R3237 R3254 Q3211 B1CBHD000002 G D S Q3212 B1CBHD000002 G D S Q3202 DSC200100L Q3203 DSC200100L Q3201 DSA200100L 1% R3218 75 R3241 10k R3212 330k 1% R3216 75 1% R3256 1.5k R3213 330k R3221 56 1% R3253 22k R3251 100 R3223 56 1% R3265 75 R3259 0 R3258 180 R3214 330k R3215 56 1% R3263 75 R3248 2.2k 1% R3244 3k R3208 0 1% R3257 680 1% R3239 22 R3255 100 1% R3261 75 R3230 56 R3250 2.2k R3225 56 1% R3247 4.7k R3232 2.7k 1% R3245 2.2k 1% R3224 75 1% R3222 75 R3227 0 R3243 0 R3231 56 1% R3220 75 R3219 56 1% R3246 4.7k R3252 2.2k R3240 2.2k 1% R3226 75 R3217 56 R4282 0 0 R4281 R3249 100 R3206 0 R3233 2.7k C0JBAA000377 IC4281 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y C0JBAB000715 IC4282 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y VIDEO BLOCK VIDEO/Sync SW,LPF,Sync Sep VP HP HP 5V->3.3V LEVEL SHIFT VP 25 27 20 24 19 22 26 23 21 A-BOARD TXN/A11CEC (3/17) ! 9V->5V 5V->3.3V LEVEL SHIFT 12 15 16 13 17 14 11 22 21 25 24 27 28 23 26 TH-42PF20C A-Board (3/17) Schematic Diagram TH-42PF20C A-Board (3/17) Schematic Diagram 57 13.13.A 电路板 (4/17) 线路图 + + R2 R1 L1 L2 S S S S P P P P P P P P P P P P AUD_L_DS HDMI_SPDIF HDMI_SDIN P3V_SDA2 P3V_SCL2 MAIN_L A_NRST AUD_R_DS AUD_L_CV AUD_L_HA AUD_R_HA AUD_L_DVI AUD_L_PC AUD_R_PC AUD_L_HA AUD_R_HA AUD_L_DVI AUD_R_DVI AUD_L_CV AUD_R_CV MAIN_R AUD_SEL2 AUD_SEL1 PWM_SQ_R+ PWM_SQ_R- PWM_SQ_L+ PWM_SQ_L- HDMI_BCLK HDMI_LRCK AUD_R_DVI AUD_R_CV MCLK C2418 16V 0.1u C2422 16V 0.1u C2413 16V 0.1u C2412 1u 16V C2421 1u 16V C2414 50V 560p C2404 16V 0.1u C2423 1u 16V C2411 50V 560p C2415 1u 16V C2419 1u 16V C2417 1u 16V C2424 16V 0.1u C2420 0.1u 16V C2416 16V 0.1u C2464 1u 16V C2462 50V 0.01u C2463 1u 16V C2466 1u 16V C24681u 16V C24651u 16V C24671u 16V C2472 1u 16V C24691u 16V C2355 10u 10V C2367 0.1u 16V C2369 10u 10V C2373 0.1u 16V C2385 10u 10V C2365 10u 10V C2389 0.1u 16V C2377 10u 10V C2392 10u 10V C2351 10u 10V C2374 15p 50V C2364 0.1u 16V C2363 10u 10V C2360 10u 10V C2378 0.1u 16V C2381 1000p 50V C2390 10u 10V C2370 0.1u 16V C2376 0.1u 16V C2386 10u 10V C2395 470p 50V C2388 0.1u 16V C2384 0.1u 16V C2375 12p 50V C2380 0.1u 16V C2383 0.1u 16V C2387 10u 10V C2379 10u 10V C2362 0.1u 16V C2359 0.1u 16V C2394 2.2u 6.3V C2397 2.2u 6.3V C2382 1000p 50V C2398 470p 50V C2391 0.1u 16V C2353 10u 10V C2368 0.1u 16V C2357 10u 10V C2396 1u 10V C2393 1u 10V C2403 10u 16V C2366 0.1u 16V C2405 16V 4.7u C2406 16V 4.7u C2407 16V 4.7u C2408 16V 4.7u C2410 16V 4.7u C2409 16V 4.7u C2461 16V 47u C2471 16V 10u FL2404 J0HABB000003 1 2 3 4 FL2406 J0HABB000003 1 2 3 4 FL2405 J0HABB000003 1 2 3 4 FL2403 J0HABB000003 1 2 3 4 C1AB00003042 IC2306 1 IN1a 2 CNT1 3 IN2a 4 CNT2 5 IN4a 6 IN1b 7 IN2b 8 IN4b 9 IN3b 10 N.C. 11 OUTb 12 Vref 13 IN3a 14 V+ 15 OUTa 16 GND C1AB00002909 IC2303 1 FILTA 2 VREF 3 AGND 4 AVDD 5 SIF_REFP 6 SIF_REFCM 7 SIF_REFN 8 SIF_IN1 9 SIF_PGA_REF 10 SIF_IN2 11 AGND 12 AVDD 13 DGND 14 DVDD 15 MUTE 16 SDA 17 SCL 18 SPDIF_IN5/LRCLK2 19 SPDIF_IN6/BCLK2 20 DGND 21 DVDD 22 SDIN0 23 SDIN1 24 SDIN2 25 SPDIF_IN0/SDIN3 26 SPDIF_IN1/LRCLK0 27 SPDIF_IN2/BCLK0 28 ODGND 29 ODVDD 30 MCLK_OUT 31 DVDD 32 DGND 33 MCLKI/XIN 34 XOUT 35 SPDIF_IN4/BCLK1 36 SPDIF_IN3/LRCLK1 37 SDO0/AD0 38 SPDIF_OUT/SDO1 39 PWM_READY 40 DVDD 41 DGND 42 PWM1A 43 PWM1B 44 PWM2A 45 PWM2B 46 PWM3A 47 PWM3B 48 PWM4A 49 PWM4B 50 RESET 51 DVDD 52 DGND 53 AVDD 54 PLL_LF 55 AGND 56 AGND 57 HPOUT1L 58 HPOUT1R 59 AVDD 60 HPOUT2L 61 HPOUT2R 62 AUXOUT3L 63 AUXOUT3R 64 AUXOUT4L 65 AUXOUT4R 66 NC 67 FILTD 68 AVDD 69 AGND 70 AGND 71 AVDD 72 AUXOUT1L 73 AUXOUT1R 74 AUXOUT2L 75 AUXOUT2R 76 AUXIN2L 77 AUXIN2R 78 AUXIN1L 79 AUXIN1R 80 ISET JK2401 L2 L1 G R2 R1 G JK2402 L2411 J0JHC0000117 L2351 L2353 J0JYC0000068 L2407 J0JHC0000117 L2412 J0JHC0000117 L2462 J0JHC0000117 DVDD1.8V 5V 3.3V AUD3.3V DVDD1.8V 9V_M 9V_M AUD3.3V R2378 R2463 R2465 L2355 R2353 R2355 R2357 R2462 R2464 R2466 R2467 R2468 R2469 R2470 R2473 R2351 TP2351 TP2352 GAP0.3 S2406 S2401 GAP0.3 GAP0.3 S2405 GAP0.3 S2404 S2402 GAP0.3 GAP0.3 S2403 Q2401 DSC200100L Q2402 DSC200100L Q2404 DSC200100L Q2406 DSC200100L Q2405 DSC200100L Q2403 DSC200100L R2377 22 EXB28V220JX R2471 100k R2369 22 R2474 100k 23.2k 1% R2356 R2416 1k R2423 100 R2429 33k R2475 56 R2472 56 10k R2386 2k 1% R2379 1M R2372 10k R2360 23.2k 1% R2354 23.2k 1% R2352 1% R2381 75k 0 R2380 1% R2382 120k R2368 22 R2414 47k R2435 180k R2440 1k R2452 33k R2422 47k R2449 100 R2438 47k R2428 100 R2453 47k R2413 33k R2432 1k R2425 100 R2446 47k R2412 100 R2455 1k R2415 100 R2445 33k R2451 100 R2430 47k R2439 100 23.2k 1% R2358 R2456 100 470 R2373 10 R2384 20k 1% R2359 R2433 100 R2444 100 R2447 100 R2454 100 R2411 22k R2421 33k R2420 100 R2417 100 R2419 22k R2441 100 R2443 180k R2431 100 R2448 1k R2436 100 R2427 180k R2437 33k R2424 1k R2405 4.7k R2406 4.7k R2407 4.7k R2408 4.7k R2410 4.7k R2409 4.7k R2450 180k H0J245500089 X2351 C0DBFFD00003 IC2305 1 2 3 4 5 6 7 C0CBCBE00001 IC2304 1 VOUT 2 NC 3 GND 4 CN CONT 5 SUB 6 VIN 7 R 2 3 1 L R L DVI L R AUDIO BLOCK L COMPOSITE R COMPONENT L AUDIO IN R AUDIO SW L L PC SEL2 OUTPUT H SEL1 H H H L L L IN1 IN2 IN3 IN4 COMPONENT DVI COMPOSITE 34 32 31 35 29 33 28 30 36 A-BOARD TXN/A11CEC (4/17) ! 3.3V->1.8V 5V->3.3V SOUND CONTROL 28 26 24 25 23 22 27 21 34 36 32 38 37 35 33 31 TH-42PF20C A-Board (4/17) Schematic Diagram TH-42PF20C A-Board (4/17) Schematic Diagram 58 13.14.A 电路板 (5/17) 和 H3 电路板线路图 + + Thermal Pad Thermal Pad S S S P P P P P P P P P P P EMDC ETXEN ETXCK ETXD2 ETXD0 ECRS ERXD0 ERXCK EMDIO ETXD1 ERXD1 ETXD3 ERXD3 ECOL ERXER ERXDV ERXD2 SOUND_MUTE PWM_SQ_R+ PWM_SQ_R- A_NRST PWM_SQ_L+ PWM_SQ_L- AUDIO_SOS *C8378 25V 0.1u *C8304 6.3V 10u *C8310 10u 6.3V *C8314 10u 6.3V *C8309 16V 0.1u *C8315 10u 6.3V *C8306 10u 6.3V *C8313 16V 0.1u *C8317 16V 0.1u *C8316 50V 100p *C8318 16V 0.1u *C8377 25V 0.1u *C8319 16V 0.1u *C8312 10u 6.3V C2349 16V 0.1u C2308 10u 25V C2306 50V 1000p C2314 0.1u 50V C2330 0.1u 50V C2324 25V 0.33u C2309 25V 1u C2340 25V 0.33u C2337 0.1u 50V C2329 25V 1u C2304 10u 25V C2310 50V 1000p C2333 25V 0.33u C2317 25V 0.33u C2313 25V 1u C2321 0.1u 50V C2305 25V 1u C2312 16V 0.1u C2311 10V 1u C2345 0.1u 16V C2301 25V 470u C2302 25V 470u D2304 B0BC03200003 D2303 B0BC03200003 D2302 B0BC03200003 D2301 B0BC03200003 C1AB00003322 IC2301 1 STBY 44 PVD1 2 MUTE 3 SOS 4 NC1 5 NC2 6 NC3 7 NC4 8 PWM_A1 9 PWM_B1 10 NC5 11 NC6 12 NC7 13 GND 14 PWM_B2 15 PWM_A2 16 NC8 17 NC9 18 NC10 19 NC11 20 NC12 21 NC13 22 NC14 23 PVD2 24 PVD2 25 OUT_CH2_P 26 OUT_CH2_P 27 BOOT_CH2_P 28 VDDA2 29 BOOT_CH2_N 30 OUT_CH2_N 31 OUT_CH2_N 32 PGND2 33 PGND2 34 PGND1 35 PGND1 36 OUT_CH1_N 37 OUT_CH1_N 38 BOOT_CH1_N 39 VDDA1 40 BOOT_CH1_P 41 OUT_CH1_P 42 OUT_CH1_P 43 PVD1 C1CB00002896 *IC8301 1 GND 2 VDDPLL_18 3 VDDA_33 4 RX- 5 RX+ 6 TX- 7 TX+ 8 XO 9 XI 10 REXT 11 MDIO 12 MDC 13 RXD3 14 RXD2 15 RXD1 16 RXD0 17 VDDIO_33 18 RXDV 19 RXC 20 RXER 21 INTRP 22 TXC 23 TXEN 24 TXD0 25 TXD1 26 TXD2 27 TXD3 28 COL 29 CRS 30 LED0 31 LED1 32 RST JK2301 *JK8301 1 2 3 4 5 6 7 8 A8 1 2 3 *L8304 J0JHC0000045 *L8313 J0JHC0000045 L2316 J0JHC0000117 *L8303 J0JHC0000045 L2315 J0JHC0000117 L2308 J0JHC0000117 L2307 J0JHC0000117 *L8302 1 4 3 2 *L8301 1 4 3 2 L2304 G1C220MA0363 L2303 G1C220MA0363 L2306 G1C220MA0363 L2305 G1C220MA0363 3.3V_LAN SOUND15V 3.3V_LAN 3.3V STBY3.3V 3.3V 3.3V_LAN STBY5V 3.3V_LAN STBY3.3V 9V_M R2306 R8311 R8315 R8482 R8483 R2331 R8405 R8411 R8484 R8460 R8461 R8479 R8480 R8481 TP2303 TP2311 TP2302 TP2304 TP2301 GAP0.3 S2301 GAP0.3 S2302 Q2304 DSC200100L Q2306 DSC200100L Q2305 DSC200100L Q2301 DSC200100L Q2302 DSA200100L Q2303 DSA200100L *R8329 EXB28V220JX R2336 15k *R8316 4.7k *R8336 5.6k R2327 0 R2333 10k 1% R2332 24k 1% *R8333 22 *R8410 4.7k 1% *R8491 49.9 *R8327 4.7k 1% *R8493 49.9 *R8332 22 R2302 0 R2303 10 R2304 10 R2328 47k R2329 4.7k R2334 7.5k 1% 1% *R8335 7.5k R2335 10k 1% 1% *R8314 75 *R8409 4.7k 1% *R8490 49.9 1% *R8312 75 R2301 0 1% *R8308 75 *R8337 100 *R8322 22 R2321 0 *R8331 22 1% *R8334 7.5k 1% *R8313 6.49k *R8318 22 1% *R8309 75 *R8330 22 R2341 22k R2342 22k R2347 22k R2346 47k R2345 47k R2343 47k R2344 22k 1% *R8492 49.9 *T8301 1 2 3 4 5 6 9 10 11 12 8 7 *T8302 1 2 3 4 5 6 9 10 11 12 8 7 C0EBE0000120 *IC8302 1 RST 2 VDD 3 GND 5 Cd 4 NC C0JBAA000377 IC2302 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y D8501 B0BC03300003 D8503 B0BC03300003 D8500 B0BC03300003 D8502 B0BC03300003 JK8500 H37 1 2 3 L8501 0 L8502 0 TX+ RX+ TX- RX- TX+ TX+ RX+ TX- RX- RX- RX+ TX- Reset IC LAN BLOCK -R OUT +R OUT +L OUT -L OUT R+ L- R- L+ 42 41 37 43 39 40 44 38 45 A-BOARD TXN/A11CEC (5/17) ! SP AMP AND SPEAKER(R) TXAUW031CEC H3-BOARD ! SPEAKER(L) LAN CONTROL LAN TERMINAL 36 37 31 35 38 32 33 34 40 41 42 44 45 43 46 47 48 49 50 TH-42PF20C A-Board (5/17) and H3-Board Schematic Diagram TH-42PF20C A-Board (5/17) and H3-Board Schematic Diagram 59 13.15.A 电路板 (6/17) 线路图 S S S S S S S S S S S S S P A_TXD_PC DN_SOS UART_SW D_TXD A_LED_R D_RXD 5VLED_R 5VTXD_TU 5VNRST A_NRST A_REM_IN 3VTXD_TU A_LED_G TXD_PC_M ERXD2 ETXD0 TXD1 ERXD3 SPI_SI ETXD1 ETXD2 ETXD3 ETXEN SPI_SO ERXER ERXCK ERXDV SPI_SO EMDIO EMDC SPI_CS ECRS ETXCK SPI_CS SPI_SCK SPI_SO SPI_SCK SPI_SI SPI_CS SPI_SCK SPI_SI RXD1 ERXD0 ERXD1 ECOL 3VRXD_TU 5VRXD_TU A_RXD_PC RXD_PCI IIC_INT LAN14V_ON/OFF RXD_LAN REMOCON_OUT D_REM_OUT A_REMOCON 5VLED_G 5V_SOS 15V_SOS TXD_LAN C4351 16V 0.1u C4322 50V 1000p C4321 16V 0.1u C4325 16V 0.1u C4324 6.3V 2.2u C4323 16V 0.1u C4326 16V 0.1u *C8333 16V 0.1u *C8352 10V 1u *C8330 2.2u 6.3V *C8339 6.3V 10u *C8328 16V 0.1u *C8336 16V 0.1u *C8341 16V 0.1u *C8343 16V 0.1u *C8375 6.3V 10u *C8335 1u 10V *C8331 16V 0.1u *C8326 50V 12p *C8332 470p 50V *C8338 16V 0.1u *C8374 16V 0.1u *C8334 16V 0.1u *C8342 16V 0.1u *C8337 16V 0.1u *C8329 6.3V 10u *C8340 16V 0.1u *C8325 50V 10p *C8327 6.3V 10u *D8314 B0ACCJ000048 D4664 B0ACCE000005 D4665 B0ACCE000005 D4663 B0ACCE000005 *D4662 B0ACCE000005 *IC8305 1 CE# 2 SO 3 WP# 4 GND 5 SI 6 SCLK 7 HOLD# 8 VCC IC4312 C0JBAZ000851 1 1OE 2 1A 3 1Y 4 2OE 5 2A 6 2Y 7 GND 8 3Y 9 3A 10 3OE 11 4Y 12 4A 13 4OE 14 VCC IC4313 C0JBAA000175 1 1A 2 1B 3 1Y 4 2A 5 2B 6 2Y 7 GND 8 3Y 9 3A 10 3B 11 4Y 12 4A 13 4B 14 VCC C1CB00003205 *IC8304 1 RESET# 2 TESTEN 3 CFGA0 4 CFGA1 5 TXD0/CFGB1 6 RXD0 7 RTS0#/CFGB0 8 CTS0# 9 LVDD 10 VSS 11 SPI0_MOSI 12 SPI0_MISO 13 SPI0_SS 14 SPI0_SCLK 15 HVDD 16 TXD1/CFGC1 17 RXD1 18 RTS1#/CFGC0 19 CTS1# 20 SPI1_MOSI 21 SPI1_MISO 22 SPI1_SS 23 SPI1_SCLK 24 SCL 25 SDA 26 VSS 27 HVDD 28 MII_CRS 29 MII_COL 30 MII_TXD3 31 MII_TXD2 32 MII_TXD1 33 MII_TXD0 34 MII_TXEN 35 LVDD 36 VSS 37 MII_TXCLK 38 MII_RXER 39 MII_RXCLK 40 MII_RXDV 41 MII_RXD0 42 MII_RXD1 43 MII_RXD2 44 MII_RXD3 45 HVDD 46 MII_MDC 47 MII_MDIO 48 OSCO 49 INT# 50 HWCTRL 51 HCS# 52 HA0 53 VSS 54 LVDD 55 HA1 56 HA2 57 HD0 58 HD1 59 HD2 60 HD3 61 HD4 62 HD5 63 HD6 64 HD7 65 VSS 66 HVDD 67 HD8 68 HD9 69 HD10 70 HD11 71 HD12 72 HD13 73 HD14 74 HD15 75 HRD0# 76 HRD1# 77 HWR0# 78 HWR1# 79 HINT 80 MEM0ALE 81 MCK 82 LVDD 83 VSS 84 HVDD 85 HIFSEL0/LINK 86 HIFSEL1/SPD 87 HIFSEL2/DPLX 88 DCLK 89 HMUX/DPCO 90 HINTPOL/DST0 91 HENDIAN/DST1 92 HSIZE/DST2 93 DSIO 94 OSC_LVDD 95 CLKI 96 CLKO 97 OSC_VSS 98 PLL_VSS 99 VCP 100 PLL_VDD *L8306 J0JHC0000045 *L8308 J0JHC0000045 *L8305 J0JHC0000045 *L8307 J0JHC0000045 3.3V_LAN STBY3.3V 3.3V 1.8V STBY3.3V 3.3V_LAN STBY5V 3.3V_LAN STBY3.3V STBY3.3V 3.3V_LAN 9V_M 3.3V_LAN STBY3.3V LAN3.3V STBY3.3V STBY3.3V STBY3.3V STBY5V 3.3V_LAN 5V 15V 3.3V_LAN 3.3V_LAN 3.3V_LAN 3.3V_LAN STBY3.3V STBY5V R4344 R4345 R8354 R8373 R8414 R8466 R8469 R8470 R8472 R8473 R8487 R8489 R8488 R8497 TP8324 TP8325 TP8326 TP8327 TP8321 TP8322 TP8323 TP8303 TP8302 TP8301 TP8307 *Q8308 B1CBHD000002 G D S Q4322 DSC200100L *Q4665 DSC200100L Q4323 DSC200100L *Q4666 DSC200100L Q4667 DSC200100L Q4668 DSC200100L Q4669 DSC200100L Q4321 DSC200100L Q4664 DSC200100L Q4324 DSC200100L Q4670 DSC200100L Q4663 DSC200100L Q4351 DSC200100L *Q8304 DSA200100L *Q8301 DSA200100L *R8338 EXB28V220JX *R8486 EXB28V220JX *R8478 EXB28V473JX *R8377 EXB28V220JX *R8456 EXB28V473JX *R8449 22 R4337 10k *R8499 33k *R8447 9.1M R4328 100 *R4677 22k R4339 10k *R4673 10k *R8465 10k *R8463 10k *R8390 22 *R8370 22 R4687 5.6k *R8448 220 *R8350 10k *R8358 3.3k *R8452 22 *R8467 10k *R8474 22 *R8366 3.3k *R8301 33 *R8374 10k *R8306 33 *R8391 22 R4341 10k *R8451 22 *R8454 22 *R4674 47k *R8351 68k R4690 1k R4357 1k *R8344 22 *R8346 10k *R8376 22 *R8393 5.6k R4355 22k R4678 1k R4669 12k *R8440 22 R4351 10k *R8392 5.6k R4330 100 R4667 10k *R8361 10k *R8375 22 *R8363 22 *R8457 10k R4666 10k R4340 3.3k R4334 5.6k R4332 10k R4331 10k R4688 5.6k R4682 1k R4672 6.8k *R8453 22 *R8450 22 *R8441 0 R4333 10k R4356 22k R4671 3.9k *R8360 3.3k R4338 3.3k *R8372 10k R4681 7.5k *R8364 2.7k *R8371 22 R4689 330 R4670 1k *R4675 10k *R4676 100k R4684 1k R4686 10k R4685 47k R4342 100 R4326 0 R4323 22k R4322 10k R4325 0 R4329 100 R4679 47k *R8355 10k R4352 100 *R8455 22 R4343 100 *R8362 22 R4668 10k R4683 10k R4680 10k R4335 10k R4336 22k R4358 100 *R8349 3.3k *R8368 3.3k R4359 0 R4348 100 R4347 100 R4346 10k R4321 10k *X8302 H0J250500091 C0JBAA000377 IC4314 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT_Y *IC8308 1 NC 2 NC 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 VCC C0DBFFD00003 *IC8303 1 2 3 4 5 6 7 UART SW 5V->3.3V REMOCON SOS CFGC0 High FUNCTION HOST 1.8V TVRR237 TVRR238 4Mb SPI Flash Rom LED GPIO,I2S Reservation GPIO SPI0 High CFGB1 VSS UART0 High VSS Low LVDD CFGB0 LVDD High UART1 High HVDD Low HVDD Low NC Low FUNCTION SPI0 GND Cn Vo CFGA1 CONT MEM0ALE Vin sub I2S EX. MEMORY Low High Low High Low CFGA0 Low CFGA1 Low CFGC1 FUNCTION SPI1 High High SPI1 High High Low High Low EEP ROM for Mac adrress Low TXD1 RXD1 3.3V->5V 49 54 53 47 46 50 51 48 52 A-BOARD TXN/A11CEC (6/17) ! NETWORK CONTROL 3.3V->1.8V 40 42 41 43 45 44 46 47 48 49 50 55 56 54 52 53 51 TH-42PF20C A-Board (6/17) Schematic Diagram TH-42PF20C A-Board (6/17) Schematic Diagram 60 13.16.A 电路板 (7/17) 线路图 + + + + S P P P P P RXB_1P RXB_CN RXB_CP RXB_1N RXB_0N RXB_2P RXB_0P DDCB_SCL RXB_2N HPD2 DDCB_SDA DVI_DET HDMI_DET TMDS_RXC- TMDS_RXC+ TMDS_RX0+ TMDS_RX2+ TMDS_RX1- TMDS_RX1+ TMDS_RX2- TMDS_RX0- XIRQ3 P3V_SDA2 P3V_SCL2 DDCC_SCL DDCC_SDA ADV_P5 ADV_P4 ADV_P3 ADV_P2 ADV_P6 ADV_P7 ADV_P8 ADV_P9 ADV_P10 ADV_P11 ADV_P15 ADV_P16 ADV_P17 ADV_P18 ADV_P19 ADV_P20 ADV_P21 ADV_P22 ADV_P23 ADV_P26 ADV_P27 ADV_P28 ADV_P29 ADV_P30 ADV_P31 ADV_P32 ADV_P33 ADV_P34 ADV_P35 ADV_P14 VSIN HSIN LLC/BLC DDCB_SDA DDCB_SCL RXB_CN RXB_CP RXB_0N RXB_0P RXB_1N RXB_1P RXB_2N RXB_2P ADV_DEOUT ADV_HSOUT ADV_VSOUT HD_ADV VD_ADV TMDS_RXC- TMDS_RXC+ TMDS_RX0- TMDS_RX0+ TMDS_RX1- TMDS_RX2- TMDS_RX2+ DDCC_SCL DDCC_SDA HDMI_SDIN HDMI_LRCK HDMI_SPDIF HDMI_BCLK A_P_ON/OFF NRST2 PR/R_M Y/G_M PB/B_M MCLK EDID_WP C4123 0.1u 16V C4173 0.1u 16V C4122 0.1u 16V C4172 0.1u 16V C4102 0.1u 16V C4001 16V 0.1u C4002 16V 0.1u C4003 16V 0.1u C4101 0.1u 16V C4008 10V 10u C4022 1u 6.3V C4023 25V 0.01u C4028 1u 6.3V C4083 10u 10V C4024 1u 6.3V C4035 6.3V 4.7u C4056 16V 0.1u C4034 16V 0.1u C4071 1u 10V C4039 6.3V 4.7u C4007 16V 0.1u C4075 16V 0.1u C4044 1u 6.3V C4032 16V 0.1u C4021 25V 0.01u C4050 1u 6.3V C4052 1u 6.3V C4077 16V 0.1u C4026 1u 6.3V C4055 16V 0.1u C4054 16V 0.1u C4027 25V 0.01u C4006 16V 0.1u C4082 10u 10V C4072 2.2u 6.3V C4025 25V 0.01u C4081 10u 10V C4030 16V 0.1u C4048 1u 6.3V C4046 1u 6.3V C4031 16V 0.1u C4084 10u 10V C4037 16V 0.1u C4073 470p 50V C4042 1u 6.3V C4151 0.1u 16V C4088 16V 0.1u C4085 6.3V 10u C4086 16V 0.1u C4087 6.3V 10u C4009 10p 50V C4010 10p 50V 33u 6.3V C4121 33u 6.3V C4171 C4074 47u 6.3V C4076 47u 6.3V D4116 B0ECKM000048 D4121 B0ECKM000048 D4122 B0ECKM000048 D4171 B0ECKM000048 D4172 B0ECKM000048 D4163 DZ2J056M0L D4165 DZ2J056M0L D4164 DZ2J056M0L D4158 EZAEG2A50AX D4114 EZAEG2A50AX D4157 EZAEG2A50AX D4104 EZAEG2A50AX D4151 EZAEG2A50AX D4106 EZAEG2A50AX D4152 EZAEG2A50AX D4113 EZAEG2A50AX D4154 EZAEG2A50AX D4155 EZAEG2A50AX D4103 EZAEG2A50AX D4107 EZAEG2A50AX D4156 EZAEG2A50AX D4101 EZAEG2A50AX D4153 EZAEG2A50AX D4105 EZAEG2A50AX D4108 EZAEG2A50AX D4161 EZAEG2A50AX D4162 EZAEG2A50AX D4102 EZAEG2A50AX IC4006 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC IC4005 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC C1AB00002966 IC4001 1 CVDD 2 GND 3 DVDD 4 SPDIF 5 CLK_24.576 6 SCLK 7 LRCLK 8 I2S0 9 SDATA 10 SCL 11 GND 12 DVDDIO 13 DE 14 HS 15 VS/FIELD 16 INT1 17 SFL/SYNC_OUT/INT2 18 GND 19 DVDD 20 P0 21 P1 22 P2 23 P3 24 P4 25 P5 26 P6 27 P7 28 P8 29 P9 30 P10 31 P11 32 GND 33 DVDDIO 34 P12 35 P13 36 P14 37 P15 38 P16 39 P17 40 P18 41 P19 42 P20 43 P21 44 P22 45 P23 46 P24 47 P25 48 P26 49 P27 50 DCLKIN 51 GND 52 DVDDIO 53 LLC 54 TRIGIN/P28 55 SRL_UP/P29 56 GND 57 DVDD 58 SRL_IN/P30 59 R_ACTIVE/P31 60 P32 61 P33 62 P34 63 P35 64 RESETB 65 HS_IN 66 VS_IN 67 FB 68 AGND 69 SYNC2 70 NC 71 AIN4 72 AIN5 73 AIN6 74 NC 75 AVDD 76 AGND 77 NC 78 AIN9 79 NC 80 AGND 81 AVDD 82 REF2 83 REF1 84 AGND 85 AVDD 86 GND 87 PVDD 88 XTAL1 89 XTAL 90 PVDD 91 GND 92 CVDD 93 GND 94 TVDD 95 RxA_C- 96 RxA_C+ 97 GND 98 RxA_0- 99 RxA_0+ 100 GND 101 RxA_1- 102 RxA_1+ 103 GND 104 RxA_2- 105 RxA_2+ 106 DDCA_SCL 107 DDCA_SDA 108 TVDD 109 CVDD 110 GND 111 DDCB_SCL 112 DDCB_SDA 113 TVDD 114 RxB_C- 115 RxB_C+ 116 GND 117 RxB_0- 118 RxB_0+ 119 GND 120 RxB_1- 121 RxB_1+ 122 GND 123 RxB_2- 124 RxB_2+ 125 TVDD 126 RTERM 127 CVDD 128 GND 129 TVDD 130 RxC_C- 131 RxC_C+ 132 GND 133 RxC_0- 134 RxC_0+ 135 GND 136 RxC_1- 137 RxC_1+ 138 GND 139 RxC_2- 140 RxC_2+ 141 TVDD 142 DDCC_SCL 143 DDCC_SDA 144 GND JK4002 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 JK4001 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 L4102 J0JYC0000068 L4083 J0JYC0000068 L4086 J0JYC0000068 L4087 J0JYC0000068 L4151 J0JYC0000068 L4084 J0JYC0000068 L4085 J0JYC0000068 L4071 J0JCC0000241 L4082 J0JYC0000068 L4152 J0JYC0000068 L4101 J0JYC0000068 L4072 J0JCC0000241 L4153 J0JHC0000034 L4081 J0JYC0000068 STBY3.3V 3.3V 5V STBY3.3V 5V 5V R4025 R4003 R4009 R4006 R4151 R4101 VJUMP1608-P TP4111 TP4112 TP4113 TP4104 TP4114 TP4103 TP4102 TP4101 Q4154 DSC200100L Q4104 DSC200100L Q4101 DSC200100L Q4153 DSC200100L Q4103 DSC200100L Q4102 DSC200100L R4017 EXB28V330JX R4172 4.7k R4127 10k R4154 47k R4152 5.6k R4019 22 R4111 10k R4107 47k R4177 10k R4153 10k R4122 4.7k R4121 4.7k R4123 4.7k R4125 56 R4126 56 R4176 56 R4173 4.7k R4171 4.7k R4174 47k R4175 56 R4182 47k R4132 47k 1% R4073 9.1k R4031 47k R4028 47k R4032 47k R4030 47k R4026 47k R4021 47k 1% R4072 5.6k 1% R4016 499 R4075 0 R4023 47k R4029 47k R4033 47k R4020 47k R4082 0 R4034 100 R4018 22 R4015 47k R4106 47k R4022 100 1% R4007 39 1% R4008 59 R4105 33 1% R4001 39 R4024 100 R4104 10k R4181 47k R4131 47k R4109 47k 1% R4002 59 R4112 47k 220 R4039 1M R4038 1M R4037 1% R4004 39 R4108 47k R4102 1k 1% R4005 59 R4040 0 H0J286500023 X4001 C0DBGYY00477 IC4004 1 CE 2 GND 3 NC 5 VOUT 4 VDD C0DBGYY00477 IC4003 1 CE 2 GND 3 NC 5 VOUT 4 VDD C0CBCAC00275 IC4007 1 VDD 2 GND 3 CE 5 VOUT 4 NC C0CBCBE00001 IC4002 1 VOUT 2 NC 3 GND 4 CN CONT 5 SUB 6 VIN 7 D0G D2G DDCG D1- D0+ D2- SCL D2+ CLK- CEC +5V PB/B SDA PR/R D0- N.C. CLK+ Y/G CLKG HPDT D1G D1+ IN G1 R6 R5 R8 R1 R3 R7 R2 R9 R0 R4 G0 G2 G3 G4 G5 G6 G7 G8 G9 B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 N.C. TMDS_G TMDS_G TMDS_G N.C. N.C. N.C. +5V GND DDCD N.C. TMDS_C+ TMDS_G HPS N.C. TMDS_D1- TMDS_C- TMDS_D0- DDCC TMDS_D2+ TMDS_D1+ TMDS_D0+ TMDS_D2- DVI OUT TVRR235 TVRR236 HDMI 62 58 61 55 60 56 59 63 57 A-BOARD TXN/A11CEC (7/17) ! EEPROM EEPROM HDMI I/F RECEIVER A/D CONVERTER 5V->3.3V 3.3V->1.8V 3.3V->1.8V 3.3V->1.8V 54 56 55 51 53 52 63 66 62 61 64 65 TH-42PF20C A-Board (7/17) Schematic Diagram TH-42PF20C A-Board (7/17) Schematic Diagram 61 13.17.A 电路板 (8/17) 线路图 S S P 21 RE_9 4B 6 BE_7 22 GE_3 RE_4 27 RE_0 BE_9 25 GE_4 GE_1 24 PI1CLK 11B HD_ADA PI2ACT RE_6 26 10B PI1VS GE_5 RE_3 12B PI2FLD 14B 9 PI1HS 15B AD_CLK 13B AD_VD 17B RE_5 16B 19 1 BE_2 BE_1 19B 7 BE_4 RE_2 18B 3 PI2HS GE_7 BE_3 2B 26B PI1FLD 4 PI2VS BE_0 RE_8 5B 23B 5 14 BE_6 BE_5 PI2CLK 27B 2 10 VD_M 24B 13 BE_8 22B 11 18 21B HD_M 16 29 20B GE_0 28B 17 25B GE_8 29B 12 MCDATA_O 15 AD_HD A_MCCLK 8B GE_6 VD_ADA MC_LD 8 28 9B 7B RE_7 1B GE_9 6B RE_1 20 3B 23 GE_2 0B 0 0V P3V_SDA2 P3V_SCL2 ADV_P31 ADV_P22 ADV_P21 ADV_P20 ADV_P19 ADV_P5 ADV_P4 ADV_P11 ADV_P10 ADV_P9 ADV_P8 ADV_P23 ADV_P18 ADV_P15 ADV_P14 BE_4 BE_5 BE_6 BE_7 BE_8 BE_9 BE_2 GE_0 GE_1 GE_2 GE_3 GE_4 GE_5 GE_6 GE_7 GE_8 GE_9 RE_0 RE_1 RE_6 RE_7 RE_8 RE_9 ADV_HSOUT ADV_VSOUT ADV_DEOUT LLC/BLC AD_HD AD_VD AD_CLK HD_ADA HSIN VD_ADA VSIN DE_OUT DE_OUT PI1ACT BE_1 BE_0 BE_3 RE_3 ADV_P28 RE_2 ADV_P29 ADV_P27 RE_4 ADV_P26 RE_5 ADV_P16 ADV_P17 ADV_P7 ADV_P6 ADV_P32 ADV_P35 ADV_P34 ADV_P33 ADV_P30 ADV_P3 ADV_P2 CLAMPY A_OA- A_OA+ A_OB- A_OB+ A_OC- A_OC+ A_OD- A_OD+ A_OE- A_OE+ A_CLK- A_CLK+ A_EA- A_EA+ A_EB- A_EB+ A_EC- A_EC+ A_ED- A_ED+ A_EE- A_EE+ ANMPIN C4229 6.3V 10u C4228 6.3V 10u C4224 6.3V 10u C4205 16V 0.1u C4208 16V 0.1u C4221 16V 0.1u C4225 16V 0.1u C4201 6.3V 10u C4220 16V 0.1u C4212 6.3V 10u C4207 16V 0.1u C4210 16V 0.1u C4219 16V 0.1u C4233 16V 0.1u C4226 16V 0.1u C4209 16V 0.1u C4202 6.3V 10u C4204 16V 0.1u C4213 16V 0.1u C4232 6.3V 10u C4217 16V 0.1u C4222 16V 0.1u C4231 6.3V 10u C4230 16V 0.1u C4223 6.3V 10u C4211 6.3V 10u C4214 16V 0.1u C4206 16V 0.1u C4216 6.3V 10u C4203 16V 0.1u C4218 16V 0.1u C4215 6.3V 10u C4361 16V 0.1u C4466 10u 6.3V C4465 16V 0.1u C4464 6.3V 10u C4227 4V 22u IC4201 C1AB00002899 A1 GND IC4201 B13 AD_R7 IC4201 N7 VDD_3.3V IC4201 M11 GND IC4201 B18 VDD_1.8V IC4201 K13 NC IC4201 K9 GND IC4201 C14 AD_FLD IC4201 B10 AD_G7 IC4201 T1 GND IC4201 J3 LVB_RXC+ IC4201 R15 PI1G0 IC4201 P11 VDD_3.3V IC4201 P13 PI1G6 IC4201 G13 GND IC4201 L7 GND IC4201 B15 VDD_3.3V IC4201 N9 VDD_3.3V IC4201 F15 LVA_RX3+ IC4201 L8 GND IC4201 A15 AD_CLK IC4201 U3 PI2R4 IC4201 B12 AD_R5 IC4201 K17 NC IC4201 G17 LVA_RX0+ IC4201 K16 LVDD_1.8V IC4201 C4 NC IC4201 B9 AD_G4 IC4201 P12 PI1B3 IC4201 A14 VDD_3.3V IC4201 J11 GND IC4201 V8 PI2B6 IC4201 P17 NC IC4201 A4 VDA_IN IC4201 F16 LVA_RX3- IC4201 M9 GND IC4201 D11 AD_R3 IC4201 L10 GND IC4201 N6 VDD_1.8V IC4201 R9 PI2ACT IC4201 K18 NC IC4201 J8 GND IC4201 R2 PI2R7 IC4201 K1 NC IC4201 U6 PI2G9 IC4201 V13 PI1CLK IC4201 M4 LVB_RX1- IC4201 H14 LGND IC4201 F11 VDD_3.3V IC4201 T2 PI2R1 IC4201 N18 LVA_RX9- IC4201 B3 HDA_IN IC4201 H6 VDD_3.3V IC4201 M10 GND IC4201 N17 LVA_RX9+ IC4201 L15 LVA_RX5+ IC4201 D18 NC IC4201 F10 VDD_1.8V IC4201 K15 LPVDD_1.8V IC4201 E18 VDD_3.3V IC4201 D6 AD_B5 IC4201 U12 PI1G9 IC4201 K8 GND IC4201 K6 NC IC4201 E17 LGND IC4201 C11 AD_R2 IC4201 U15 PI1R2 IC4201 D7 AD_B9 IC4201 N14 NC IC4201 P18 VDD_3.3V IC4201 F7 VDD_3.3V IC4201 R13 PI1G8 IC4201 D10 AD_G9 IC4201 B11 AD_R1 IC4201 H4 LVDD_1.8V IC4201 H11 GND IC4201 B6 AD_B3 IC4201 P9 PI2VSB IC4201 M1 NC IC4201 H13 VDD_3.3V IC4201 T14 PI1G1 IC4201 E16 LPGND IC4201 V3 GND IC4201 A16 GND IC4201 B16 MCLD IC4201 J5 NC IC4201 C13 AD_R8 IC4201 C10 AD_G8 IC4201 M3 LVB_RX2+ IC4201 F8 FPCAP IC4201 V10 PI1ACT IC4201 T16 PI1R6 IC4201 B7 AD_B7 IC4201 V5 VDD_3.3V IC4201 D2 LVDD_3.3V IC4201 G11 GND IC4201 E12 VDD_3.3V IC4201 B17 GND IC4201 B5 HDA_OUT IC4201 G12 GND IC4201 C12 FPCAP IC4201 F1 NC IC4201 J18 NC IC4201 A13 VDDP_1.8V IC4201 K11 GND IC4201 J16 LVA_RXC- IC4201 M17 LVA_RX7+ IC4201 P4 PI2G3 IC4201 C17 MCDAT IC4201 D14 AD_H IC4201 V15 PI1R1 IC4201 T8 PI2B9 IC4201 A3 GND IC4201 N2 LVB_RX3- IC4201 V12 PI1G5 IC4201 U1 VDD_1.8V IC4201 R17 PI1R5 IC4201 G6 LPGND IC4201 M12 VDD_3.3V IC4201 H2 LVB_RX5+ IC4201 R5 PI2B0 IC4201 T11 PI1B2 IC4201 R11 PI1B7 IC4201 K4 LVDD_3.3V IC4201 J14 NC IC4201 R4 PI2R6 IC4201 N15 LVA_RX8+ IC4201 B8 AD_G1 IC4201 G14 NC IC4201 P10 PI1B9 IC4201 R12 PI1G7 IC4201 C16 MCCLK IC4201 H16 LVA_RX4- IC4201 P3 PI2R8 IC4201 L18 LVA_RX6- IC4201 E7 NC IC4201 V2 VDD_1.8V IC4201 G7 VDD_3.3V IC4201 L4 LVB_RX4- IC4201 G8 VDDP_1.8V IC4201 G4 LVB_RX7- IC4201 E6 NC IC4201 K12 GND IC4201 N11 VDD_3.3V IC4201 J10 GND IC4201 L17 LVA_RX6+ IC4201 D8 NC IC4201 C18 GND IC4201 T10 PI1B5 IC4201 H9 GND IC4201 A5 VDD_3.3V IC4201 A2 VDD_1.8V IC4201 U11 PI1B0 IC4201 U8 PI2B8 IC4201 H17 LVA_RX4+ IC4201 K3 NC IC4201 V4 PI2CLK IC4201 T17 PI1R4 IC4201 A9 AD_G3 IC4201 J4 LVB_RXC- IC4201 J2 NC IC4201 E11 NC IC4201 H15 LVDD_3.3V IC4201 H5 LPVDD_1.8V IC4201 P16 PI1FLD IC4201 D4 NC IC4201 V11 PI1B6 IC4201 J15 LVA_RXC+ IC4201 N10 VDD_3.3V IC4201 R16 PI1R8 IC4201 M8 GND IC4201 U13 PI1G2 IC4201 P8 VDD_3.3V IC4201 T18 GND IC4201 V18 GND IC4201 C1 GND IC4201 E1 VDD_3.3V IC4201 N12 VDD_3.3V IC4201 L13 LPGND IC4201 U14 PI1R9 IC4201 H3 LVB_RX5- IC4201 G1 LVB_RX6+ IC4201 B4 CLP_OUT IC4201 B1 VDD_1.8V IC4201 P15 LVDD_3.3V IC4201 D3 LGND IC4201 L14 LGND IC4201 F12 VDD_3.3V IC4201 J7 NC IC4201 M16 NC IC4201 H10 VDD_1.8V IC4201 P2 PI2R3 IC4201 C3 VDA_OUT IC4201 K10 VDD_1.8V IC4201 U17 GND IC4201 C5 AD_B0 IC4201 P14 LGND IC4201 T15 PI1R7 IC4201 L3 LVB_RX0- IC4201 K5 LGND IC4201 B14 AD_V IC4201 E9 VDD_3.3V IC4201 P6 PI2G5 IC4201 G5 LGND IC4201 H7 NC IC4201 V9 PI1HSB IC4201 P5 PI2G4 IC4201 C9 AD_G5 IC4201 G3 LVB_RX7+ IC4201 M5 LVB_RX1+ IC4201 A8 AD_G0 IC4201 F4 NC IC4201 M2 LVB_RX2- IC4201 L2 LVB_RX0+ IC4201 N8 VDD_3.3V IC4201 B2 GND IC4201 T9 PI2FLD IC4201 L16 LVA_RX5- IC4201 V14 VDD_3.3V IC4201 U9 PI1VSB IC4201 F2 LVB_RX8+ IC4201 N1 LVB_RX3+ IC4201 J17 NC IC4201 E15 NC IC4201 D9 NC IC4201 U5 PI2G1 IC4201 E5 NC IC4201 A17 VDD_1.8V IC4201 V1 GND IC4201 E3 LVB_RX9+ IC4201 V16 GND IC4201 A11 AD_R0 IC4201 L6 VDD_3.3V IC4201 T7 PI2B4 IC4201 N4 PI2G6 IC4201 T12 PI1B1 IC4201 H1 NC IC4201 R8 PI2B7 IC4201 U18 VDD_1.8V IC4201 G10 VDD_1.8V IC4201 K7 NC IC4201 T3 PI2R5 IC4201 F6 VDD_1.8V IC4201 E14 NC IC4201 N3 LGND IC4201 U7 PI2B5 IC4201 T4 PI2R9 IC4201 U2 GND IC4201 J9 VDD_1.8V IC4201 N16 LVA_RX8- IC4201 L12 NC IC4201 L1 NC IC4201 E13 NC IC4201 A12 AD_R4 IC4201 E10 NC IC4201 L5 LVB_RX4+ IC4201 D13 AD_R9 IC4201 T5 PI2G7 IC4201 G18 LVA_RX0- IC4201 F13 GND IC4201 R6 PI2G2 IC4201 G2 LVB_RX6- IC4201 V7 PI2B3 IC4201 C7 AD_B8 IC4201 J1 NC IC4201 R1 PI2R0 IC4201 F3 LVB_RX8- IC4201 V17 VDD_1.8V IC4201 R18 PI1R3 IC4201 H8 GND IC4201 M6 VDD_1.8V IC4201 J6 GND IC4201 E2 LVB_RX9- IC4201 K2 NC IC4201 E4 NC IC4201 R3 PI2R2 IC4201 P7 PI2B1 IC4201 M18 LVA_RX7- IC4201 A6 AD_B2 IC4201 C8 AD_G2 IC4201 U4 PI2G0 IC4201 C6 AD_B4 IC4201 F5 VDD_1.8V IC4201 M14 VDD_1.8V IC4201 J12 NC IC4201 J13 GND IC4201 R14 PI1G4 IC4201 G15 LVA_RX1- IC4201 F18 LVA_RX2- IC4201 L9 VDD_1.8V IC4201 L11 GND IC4201 U16 PI1R0 IC4201 T13 PI1G3 IC4201 M15 NC IC4201 P1 VDD_3.3V IC4201 V6 PI2HSB IC4201 D12 AD_R6 IC4201 F17 LVA_RX2+ IC4201 A18 GND IC4201 H18 NC IC4201 R10 PI1B4 IC4201 M7 VDD_3.3V IC4201 N13 VDD_1.8V IC4201 H12 VDD_3.3V IC4201 K14 NC IC4201 T6 PI2G8 IC4201 N5 LPGND IC4201 M13 VDD_3.3V IC4201 A7 AD_B6 IC4201 A10 AD_G6 IC4201 F14 NC IC4201 D5 AD_B1 IC4201 U10 PI1B8 IC4201 E8 NC IC4201 G16 LVA_RX1+ IC4201 R7 PI2B2 IC4382 C0JBAS000215 1 1A 2 1B 3 2C 4 GND 5 2A 6 2B 7 1C 8 Vcc L4206 J0JCC0000241 L4201 J0JHC0000096 L4204 J0JHC0000096 L4461 L4207 J0JCC0000241 L4203 J0JCC0000241 ASIC1.8V ASIC3.3V 1.8V ASIC1.8V ASIC1.8V 3.3V ASIC1.8V 3.3V ASIC3.3V ASIC3.3V 3.3V R4221 R4222 R4461 R4060 EXB28V680JX R4051 EXB28V680JX R4056 EXB28V680JX R4059 EXB28V680JX R4055 EXB28V680JX R4052 EXB28V680JX R4271 EXB2HV101JV R4265 EXB2HV101JV R4268 EXB2HV101JV R4251 EXB2HV101JV R4254 EXB2HV101JV R4257 EXB2HV101JV R4061 68 R4062 68 R4211 100 R4202 10k R4278 47 R4206 100 R4466 0 R4204 100 100 R4224 47 R4253 100 R4367 0 R4201 100 R4266 100 R4267 100 R4260 47 R4361 22 R4274 47 R4263 47 R4207 100 R4275 47 R4259 100 R4212 100 R4225 10k R4272 100 R4213 100 R4362 22 R4203 100 R4210 100 R4256 100 R4264 47 R4252 100 R4273 100 R4262 47 R4054 68 R4053 68 R4258 100 R4063 68 R4064 68 R4065 68 R4067 100 R4066 33 R4261 47 R4464 1.8k 1% R4463 3.16k 1% R4363 10k R4269 100 R4208 100 R4270 100 R4205 100 R4255 100 R4276 47 R4223 47 R4277 47 R4068 100 R4369 0 R4365 0 R4057 68 R4058 68 C1ZBZ0003775 IC4361 1 SDA 2 SCL 3 ALERT 4 GND 5 A2 6 A1 7 A0 8 V+ ASIC ASIC NC ASIC VDE33(3.3V) ASIC GND ASIC VCCINT(1.8V) ASIC from A/D To A/D From DS BOARD ASIC INPUT from DS ASIC SIDE ARM ASIC-ARM ASIC to SCW4_INPUT 2 ASIC to SCW4_INPUT 1 TEMP SENSOR NC 68 72 70 64 71 66 67 69 65 A-BOARD TXN/A11CEC (8/17) ! IC4201 VIDEO SW 64 66 62 61 63 65 72 76 71 74 75 73 TH-42PF20C A-Board (8/17) Schematic Diagram TH-42PF20C A-Board (8/17) Schematic Diagram 62 13.18.A 电路板 (9/17) 线路图 CLKM S S S S AO_A19 3V_SDA3 P3V_SCL2 CLKM_20MHZ A_NRST A_TXD_PC 3V_SDA1 3V_SCL1 EEPROM_WP A_RXD_PC A_IIC_CONT 3V_SCL1 A_IIC_CONT 3V_SDA1 P3V_SDA2 3V_SCL3 IIC_INT 74M_SS AO_A16 AQ_D15 AQ_D7 AQ_D14 AQ_D6 AQ_D13 AQ_D5 AQ_D12 AQ_D4 AQ_D11 AQ_D3 AQ_D10 AQ_D2 AQ_D9 AQ_D1 AQ_D8 AQ_D0 AP_OE AP_CE AO_A0 AO_A15 AO_A14 AO_A13 AO_A12 AO_A11 AO_A10 AO_A9 AO_A8 AP_WE AO_A18 AO_A17 AO_A7 AO_A6 AO_A5 AO_A4 AO_A3 AO_A2 AO_A1 CLKM_20MHZ 3V_SDA4 3V_SCL4 C4851 6.3V 1u C4882 16V 0.1u C4809 50V 100p C4852 16V 0.1u C4872 16V 0.1u C4871 16V 4.7u C4881 16V 0.1u C4657 50V 18p C4653 16V 0.1u C4656 50V 12p C4651 6.3V 10u C4652 16V 0.1u C4655 16V 0.1u C4654 6.3V 10u D4801 B0BC3R700004 IC4201 D1 NAND_TEST IC4201 C15 CLKM IC4201 D16 SCL IC4201 D17 SDA IC4201 F9 LVDS_TEST IC4201 G9 AC_TEST IC4201 C2 KME_TEST IC4201 D15 NRST IC4515 C1ZBZ0003984 CDCE913R07PWR 1 Xin/CLK 2 S0 3 VDD 4 Vctrl 5 GND 6 VDDOUT 7 VDDOUT 8 Y3 9 Y2 10 GND 11 Y1 12 S2/SCL 13 S1/SDA 14 Xuot TVRR229AD *IC4702 1 A15 2 A14 3 A13 4 A12 5 A11 6 A10 7 A9 8 A8 9 A19 10 NC 11 WE# 12 RESET# 13 NC 14 WP#/ACC 15 RY/BY# 16 A18 17 A17 18 A7 19 A6 20 A5 21 A4 22 A3 23 A2 24 A1 25 A0 26 CE# 27 GND 28 OE# 29 Q0 30 Q8 31 Q1 32 Q9 33 Q2 34 Q10 35 Q3 36 Q11 37 VCC 38 Q4 39 Q12 40 Q5 41 Q13 42 Q6 43 Q14 44 Q7 45 Q15/A-1 46 GND 47 BYTE# 48 A16 A4 1 2 3 4 5 6 7 8 9 10 11 12 13 14 L4652 J0JCC0000241 L4851 J0JCC0000241 L4651 J0JCC0000241 3.3V STBY5V 3.3V STBY3.3V STBY3.3V STBY3.3V 1.8V STBY3.3V STBY3.3V R4231 R4232 R4866 R4885 TP4515 TP4011 TP4007 TP4008 TP4013 TP4006 TP4009 TP4014 TP4012 TP4015 TP4010 Q4201 B1CBHD000002 G D S Q4202 B1CBHD000002 G D S Q4871 DSC200100L R4871 6.8k R4652 10k R4653 10k R4657 10k R4838 2.2k R4649 0 R4845 100 *R4650 10k R4844 100 R4659 47 R4882 0 R4881 0 R4869 5.6k R4884 10k R4839 100 R4874 10k R4863 0 R4655 10k R4843 100 R4848 100 R4237 47 R4235 47 R4239 2.7k R4238 2.7k R4842 100 R4841 100 R4873 10k R4840 100 R4846 100 R4658 47 R4847 100 X4502 H0J200500076 TP4701 C0EBE0000120 IC4704 1 RST 2 VDD 3 GND 5 Cd 4 NC TVRR231AB *IC4703 1 E0 2 E1 3 E2 4 VSS 5 SDA 6 SCL 7 WC 8 VCC RXD SDA1 GND RESET ASIC CLKM NRST ASIC IIC IIC_CONT PC CONNECT GND IIC_INT/BOOT SCL1 STB5V SCL3 SDA2 SCX1-EEPROM ASIC TEST 16M-FLASH SLV[A0] 128k SDA3 SCL2 STB3.3V TXD CPG 42FHD :TVRR231 50FHD :TVRR232 42HD :TVRR233 50HD :TVRR234 42/50PH20 :TVRR230 42/50PF20 :TVRR229 77 80 76 75 78 74 81 73 79 A-BOARD TXN/A11CEC (9/17) ! 71 72 75 76 74 73 81 82 87 89 83 85 86 88 84 TH-42PF20C A-Board (9/17) Schematic Diagram TH-42PF20C A-Board (9/17) Schematic Diagram 63 13.19.A 电路板 (10/17) 线路图 S S S P AO_A1 TRACEPKT2 MC_LD AQ_D6 TRACEPKT1 A_REM_IN TRACEPKT0 AQ_D8 AO_A16 SOUND_MUTE STB_ON SCW3_NTRST UART_SW AO_A2 AO_A17 KEY_INPUT AQ_D9 A_LED_R SCW3_NTRST AO_A7 A_DRVMUTE RTC_INT AO_A13 RTCK AQ_D10 AO_A6 TV_ON/OFF 3V_SDA1 AO_A14 AQ_D11 SCW3_TDO AO_A5 A_IIC_CONT 3V_SCL1 AQ_D7 AO_A15 AQ_D12 AQ_D0 3V_SDA3 AO_A3 AO_A12 DS_SOS AQ_D13 AO_A4 F15V_MON AO_A11 SCW3_TDI AQ_D1 EEPROM_WP A_MCCLK AQ_D14 MCDATA_O AQ_D2 TRACESYNC 3VTXD_TU AO_A10 PIPESTAT2 AQ_D15 AQ_D3 TXD_PC_M PIPESTAT1 AO_A9 PIPESTAT0 AP_CE AQ_D4 AO_A8 A_RXD_PC AP_WE AQ_D5 AO_A18 AO_A0 AO_A19 ALL_OFF1 TRACEPKT3 TRACECLK IIC_INT AP_OE 3V_SCL3 P3V_SCL2 P3V_SDA2 A_READY A_ALARM 3V_SCL4 3V_SDA4 A_LED_G 15V_ON/OFF RXD_LAN TXD_LAN AO_A20 AO_A21 LAN14V_ON/OFF CLAMPY EDID_WP XIRQ3 15V_SOS 5V_SOS FAN_SOS DN_SOS HDMI_DET DVI_DET ANMPIN AUDIO_SOS 3VRXD_TU SCW3_TCK SCW3_TMS AUD_SEL1 AUD_SEL2 FAN_CONT1 VSYNC_ON/OFF AMP_MUTE A_NRST NRST2 A_P_ON/OFF FAN_ON/OFF DPMS_VD HPD2 SL1_DET 15V_ON/OFF2 C4715 16V 0.1u C4705 16V 0.1u C4702 16V 0.1u C4706 16V 0.1u C4711 50V 1000p C4707 16V 0.1u C4709 50V 1000p C4703 6.3V 1u C4704 16V 0.1u C4701 16V 0.1u C4708 16V 0.1u C4714 16V 0.1u C4402 0.1u 16V C4401 0.1u 16V D4703 B0JCCE000008 D4701 DZ2J033M0L C1AB00003189 *IC4501 AH7 DB[0] *IC4501 F1 ADIN[3] *IC4501 A28 SO1 *IC4501 A29 SO0 *IC4501 AJ1 GIO[32] *IC4501 C4 TDO *IC4501 C5 IFMD[1] *IC4501 AK11 ADL[6] *IC4501 AE1 GIO[14] *IC4501 AJ11 ADL[7] *IC4501 AE9 DB[15] *IC4501 F5 ADIN[7] *IC4501 A4 JTAGICEENB *IC4501 AJ7 GIOPUENB *IC4501 AJ13 ADH[18] *IC4501 M2 ANSYIN *IC4501 D28 SDA1 *IC4501 AB5 GIO[0] *IC4501 A3 TDI *IC4501 AF7 DB[2] *IC4501 F2 ADIN[4] *IC4501 AG11 ADH[9] *IC4501 AH9 DB[12] *IC4501 C30 SDA2 *IC4501 D30 SDA0 *IC4501 AJ12 ADH[13] *IC4501 AK3 GIO[35] *IC4501 D26 INT[1] *IC4501 A6 RSTB *IC4501 AG2 GIO[26] *IC4501 AG14 RDB *IC4501 AD5 GIO[12] *IC4501 B29 SCL3 *IC4501 B28 SO2 *IC4501 AE13 ADH[22] *IC4501 AD3 GIO[10] *IC4501 AK14 BUSCLK *IC4501 AF2 GIO[21] *IC4501 B1 DAOUT[1] *IC4501 G4 ADIN[1] *IC4501 AC1 GIO[2] *IC4501 AJ2 GIO[33] *IC4501 AJ10 ADL[1] *IC4501 AG12 ADH[15] *IC4501 AG13 ADH[20] *IC4501 AF21 LVDSEATIN *IC4501 AF4 GIO[23] *IC4501 Y5 GIO[43] *IC4501 AF5 GIO[24] *IC4501 AF8 DB[8] *IC4501 C29 SCL2 *IC4501 B26 SI3 *IC4501 E7 GIO[40] *IC4501 AG3 GIO[27] *IC4501 AB6 GIO[1] *IC4501 D25 INT[3] *IC4501 AF12 ADH[16] *IC4501 AH15 SDRASB *IC4501 C24 MULTENB *IC4501 C7 GIO[42] *IC4501 AH12 ADH[14] *IC4501 AJ6 RTCCSE *IC4501 AE11 ADH[11] *IC4501 AE7 DB[3] *IC4501 C3 DAOUT[2] *IC4501 C1 VRH *IC4501 AE8 DB[9] *IC4501 D27 SCL1 *IC4501 AH5 GIO[53] *IC4501 AG1 GIO[25] *IC4501 E1 VRHADLS *IC4501 B3 TESTB[0] *IC4501 AE3 GIO[16] *IC4501 G5 ADIN[2] *IC4501 AG15 RDY *IC4501 AD4 GIO[11] *IC4501 AJ8 DB[5] *IC4501 AK10 ADL[0] *IC4501 AC2 GIO[3] *IC4501 F24 TESTB[2] *IC4501 F3 ADIN[5] *IC4501 AF9 DB[14] *IC4501 D7 GIO[41] *IC4501 AC6 GIO[7] *IC4501 A26 SI2 *IC4501 D24 TESTH2[0] *IC4501 AF13 ADH[21] *IC4501 E25 IRRMIN *IC4501 AD6 GIO[13] *IC4501 D3 DAOUT[3] *IC4501 AJ4 GIO[38] *IC4501 C23 TESTB[1] *IC4501 AJ15 SDCKE *IC4501 AD2 GIO[9] *IC4501 C2 VRL *IC4501 D13 DPVSB *IC4501 AG7 DB[1] *IC4501 F4 ADIN[6] *IC4501 AG4 GIO[28] *IC4501 G1 VRLADLS *IC4501 D5 TMS *IC4501 AH11 ADH[8] *IC4501 AK2 GIO[34] *IC4501 C13 DPHSB *IC4501 AE2 GIO[15] *IC4501 AC3 GIO[4] *IC4501 AE10 ADL[5] *IC4501 AE12 ADH[17] *IC4501 F25 TESTH2[1] *IC4501 E6 IFMD[0] *IC4501 G3 ADIN[0] *IC4501 AE14 CS1B *IC4501 B4 TCK *IC4501 AF10 ADL[4] *IC4501 AH14 WR1B *IC4501 AG5 GIO[54] *IC4501 AH10 ADL[2] *IC4501 AH1 GIO[29] *IC4501 C25 INT[2] *IC4501 E22 TESTH *IC4501 AK15 SDCASB *IC4501 AF15 SDWEB *IC4501 AH3 GIO[31] *IC4501 AG10 ADL[3] *IC4501 AK8 DB[4] *IC4501 AE6 GIO[19] *IC4501 R2 ANSCIN *IC4501 AK12 ADH[12] *IC4501 AF11 ADH[10] *IC4501 B5 TRST *IC4501 AE5 GIO[18] *IC4501 AC4 GIO[5] *IC4501 F7 GIO[39] *IC4501 B27 SI0 *IC4501 AK4 GIO[37] *IC4501 AE16 CS4B *IC4501 AF6 GIO[55] *IC4501 C27 SI1 *IC4501 AG6 RTCK *IC4501 AF3 GIO[22] *IC4501 AJ3 GIO[36] *IC4501 AE4 GIO[17] *IC4501 AH13 ADH[19] *IC4501 G2 VRADLS *IC4501 AG9 DB[13] *IC4501 AJ9 DB[11] *IC4501 AF14 CS0B *IC4501 AF1 GIO[20] *IC4501 D2 DAOUT[4] *IC4501 Y6 GIO[44] *IC4501 AH8 DB[6] *IC4501 AF16 CS2B *IC4501 A27 SO3 *IC4501 AK9 DB[10] *IC4501 B30 SDA3 *IC4501 AJ14 WR0B *IC4501 D1 DAOUT[5] *IC4501 AH4 GIO[52] *IC4501 J2 ANMPIN *IC4501 AH2 GIO[30] *IC4501 AE15 SDCSB *IC4501 AG8 DB[7] *IC4501 D29 SCL0 *IC4501 B2 DAOUT[0] *IC4501 AC5 GIO[6] *IC4501 AD1 GIO[8] *IC4501 C26 INT[0] L4701 J0JCC0000241 L4702 J0JCC0000241 STBY3.3V SCX_3.3V STBY3.3V SCX_3.3V STBY3.3V STBY3.3V STBY3.3V STBY3.3V STBY5V STBY3.3V STBY3.3V STBY3.3V 3.3V 3.3V R4794 R4821 R4830 R4401 Q4701 B1CBHD000002 G D S R4853 EXB28V100JX R4835 EXB38VR000V R4825 EXB28V220JX R4836 EXB38VR000V R4827 EXB38VR000V R4820 EXB28V103JX R4702 EXB28V101JX R4824 EXB28V220JX R4834 EXB38VR000V R4860 EXB2HV100JV R4861 EXB2HV100JV R4852 EXB2HV100JV R4851 EXB2HV100JV R4814 2.7k R4752 10k R4735 100 R4760 100 R4816 2.7k R4808 22 R4728 100 R4857 0 R4722 100 R4737 100 R4784 10k R4801 47 R4712 100 R4831 10k R4758 100 R4706 10k R4743 47 R4742 10k R4764 10k R4721 10k R4734 100k R4810 2.7k R4765 6.8k R4753 10k R4727 10k R4715 10k R4763 6.8k R4707 100 R4723 10k R4813 2.7k R4726 100 R4711 12k R4748 10k R4811 2.7k R4731 1k R4725 10k R4719 47k R4705 39k R4862 10k R4829 10k R4815 2.7k R4747 100 R4755 10k R4858 0 R4761 10k R4822 22 R4854 0 R4745 10k R4708 10k R4807 22 R4704 100 R4804 22 R4809 2.7k R4769 10k R4768 10k R4767 10k R4806 22 R4732 100k R4716 3.3k R4759 10k R4802 47 R4729 3.3k R4402 0 R4803 22 R4762 100 R4710 1k R4720 1k R4709 100 R4738 100 R4733 1k R4746 10k R4714 10k R4751 100 R4750 100 R4701 10k R4757 2.7k R4823 22 R4713 10k R4749 100 R4828 10k R4774 10k R4772 10k R4770 10k R4766 10k R4855 0 R4805 22 R4826 10k R4724 100 R4812 2.7k R4856 0 R4741 47 SCX1 ARM_TEST SCW SIDE FPGA DN_SOS AUDIO_SOS FAN_SOS 5V_SOS F15V_MON 15V_SOS LED_Red LED_Green STAB_ON LSI_RESET(OUT) ALL_OFF IIC_INT IIC_CONT EEPROM_WP TV_ON/OFF DRIVER_MUTE AUDIO_MUTE UART_SW RTC_INT EDID_WP READY ALARM VRL SCX1 RST SCX1 FLASHROM/SDRAM I/O SCX1 ARM I/O KEY_INPUT DS_SOS 15V_ON/OFF F15V_ON/OFF 15V_ON/OFF2 HPD2 VRH AUD_SEL2 P_ON/OFF DPMS_HD DPMS_VD FAN_ON/OFF TRACEPKT[3] TRACESYNC TRACECLK PIPESTAT[2] TRACEPKT[1] TRACEPKT[2] TRACEPKT[0] PIPESTAT[1] PIPESTAT[0] TRACEPKT[7] TRACEPKT[6] TRACEPKT[5] TRACEPKT[4] HDMI_DET2 FPGA_CLK AUD_SEL1 HDMI_DET1 FPGA_LD FPGA_DATIN DEBUG_in RXD_Tuner RXD_PC TXD_Tuner TXD_PC SDA1 DEBUG_out SCL1 SOS_INH SDA3 RMIN SCL2 SCL3 SDA2 ASIC-ARM SDA4 SCX1 ARM IIC SCL4 SCX1 ARM_ICE ARM I/O N.C. FPGA_CLK FPGA_DATOUT nCONFIG nSTATUS CONF_DONE FPGA CONFIG STB_SENSE STB_SENSE FAN_CONT RXD_LAN TXD_LAN CLAMPPLS CLAMPY VSYNC_ON/OFF DA_MUTE STB CHECK PORT LSI_RESET2 XIRQ3 SL1_DET 90 87 88 82 86 83 84 85 89 A-BOARD TXN/A11CEC (10/17) ! SCX1 IC4501 81 82 87 89 83 85 86 88 91 94 93 92 84 TH-42PF20C A-Board (10/17) Schematic Diagram TH-42PF20C A-Board (10/17) Schematic Diagram 64 13.20.A 电路板 (11/17) 线路图 S S S 74M_SS ADREFLPWM_0 ADREFHPWM_0 VCXO_PWM ADREFLPWM_0 VCXO_PWM ADREFHPWM_0 C4592 50V 12p C4591 50V 12p C4404 16V 0.1u C4405 16V 0.1u C4406 16V 0.1u C4430 16V 0.1u C4434 50V 150p C4411 6.3V 10u C4412 50V 0.01u C4428 16V 0.1u C4427 6.3V 10u C4426 6.3V 10u C4424 6.3V 10u C4423 6.3V 10u C4421 6.3V 10u C4413 6.3V 10u C4408 16V 0.01u C4407 16V 0.1u C4425 16V 0.1u C4429 6.3V 10u C4422 50V 0.01u C4433 16V 0.015u *IC4501 A1 NC *IC4501 R7 NC *IC4501 AK27 POD[19] *IC4501 AF25 POD[12] *IC4501 AJ30 POD[28] *IC4501 AF26 POD[18] *IC4501 U7 NC *IC4501 AA5 GIO[47] *IC4501 AE24 POD[7] *IC4501 Y4 ANTHREFIN *IC4501 G10 NC *IC4501 AH26 POD[16] *IC4501 M8 NC *IC4501 N1 VIM[1] *IC4501 AC20 NC *IC4501 R4 ANBIN *IC4501 AD23 NC *IC4501 V7 NC *IC4501 AK24 POD[2] *IC4501 U24 NC *IC4501 AK25 POD[8] *IC4501 G13 NC *IC4501 P23 NC *IC4501 AB24 NC *IC4501 H9 NC *IC4501 R8 NC *IC4501 K1 VIM[0] *IC4501 G21 NC *IC4501 K24 NC *IC4501 M24 NC *IC4501 J8 NC *IC4501 N8 NC *IC4501 Y24 NC *IC4501 AD22 NC *IC4501 AB7 NC *IC4501 H17 NC *IC4501 AD14 NC *IC4501 AD11 NC *IC4501 AD18 NC *IC4501 AC19 NC *IC4501 H22 NC *IC4501 AC11 NC *IC4501 AE23 POD[1] *IC4501 AC7 NC *IC4501 G8 NC *IC4501 AD20 NC *IC4501 AB4 GIO[51] *IC4501 AD13 NC *IC4501 AD12 NC *IC4501 T23 NC *IC4501 P8 NC *IC4501 P24 NC *IC4501 V23 NC *IC4501 B23 POCLK *IC4501 AD17 NC *IC4501 AK28 POD[23] *IC4501 AJ29 POD[27] *IC4501 J7 NC *IC4501 AB2 GIO[49] *IC4501 W2 VDSOYIN *IC4501 P3 BR[2] *IC4501 AG25 POD[11] *IC4501 G12 NC *IC4501 AC22 NC *IC4501 H12 NC *IC4501 K8 NC *IC4501 AD15 NC *IC4501 AG29 POHSB *IC4501 P7 NC *IC4501 E23 MCLKSELX *IC4501 AB23 NC *IC4501 G19 NC *IC4501 AJ24 POD[3] *IC4501 W8 NC *IC4501 L24 NC *IC4501 U3 VRO *IC4501 J4 ANRIN *IC4501 G18 NC *IC4501 AC24 NC *IC4501 AA23 NC *IC4501 D23 POSYRSTB *IC4501 U23 NC *IC4501 V1 DAOUTS *IC4501 Y7 NC *IC4501 AC23 NC *IC4501 AD9 NC *IC4501 AH6 RTCXTALIO *IC4501 P1 VRHAD[2] *IC4501 B16 IPCLK *IC4501 AE26 POGO[3] *IC4501 AA4 GIO[46] *IC4501 AF24 POD[6] *IC4501 J24 NC *IC4501 G23 NC *IC4501 AH30 POCLKO *IC4501 AC8 NC *IC4501 AD16 NC *IC4501 AC15 NC *IC4501 AC17 NC *IC4501 AG28 POFLD *IC4501 P4 BC[2] *IC4501 H13 NC *IC4501 A25 MCLK *IC4501 W3 VDSOGIN *IC4501 AE25 POD[13] *IC4501 H8 NC *IC4501 AG30 POVSB *IC4501 M7 NC *IC4501 AH24 POD[4] *IC4501 AC12 NC *IC4501 G17 NC *IC4501 L23 NC *IC4501 AD19 NC *IC4501 U4 COMP *IC4501 Y8 NC *IC4501 AH29 POD[29] *IC4501 AB8 NC *IC4501 A17 XTALIN *IC4501 T8 NC *IC4501 W7 NC *IC4501 H3 BR[0] *IC4501 G7 NC *IC4501 K23 NC *IC4501 L1 VRHAD[1] *IC4501 AC10 NC *IC4501 AG26 POD[17] *IC4501 H10 NC *IC4501 W23 NC *IC4501 AK30 NC *IC4501 N24 NC *IC4501 H1 VRHAD[0] *IC4501 N7 NC *IC4501 H18 NC *IC4501 AC18 NC *IC4501 AA7 NC *IC4501 AC16 NC *IC4501 AH25 POD[10] *IC4501 J1 VRLAD[0] *IC4501 AD10 NC *IC4501 AC21 NC *IC4501 H16 NC *IC4501 AC14 NC *IC4501 AF27 POGO[2] *IC4501 H20 NC *IC4501 M3 ANYIN *IC4501 J23 NC *IC4501 G16 NC *IC4501 N23 NC *IC4501 T1 VIM[2] *IC4501 AH27 POD[21] *IC4501 V3 VCXOCLKIN *IC4501 AC9 NC *IC4501 AA6 GIO[48] *IC4501 H23 NC *IC4501 V24 NC *IC4501 AG27 POD[22] *IC4501 W24 NC *IC4501 AA24 NC *IC4501 J3 ANVIN *IC4501 L3 BR[1] *IC4501 H14 NC *IC4501 H19 NC *IC4501 G11 NC *IC4501 AJ25 POD[9] *IC4501 G20 NC *IC4501 AH28 POD[25] *IC4501 R3 ANUIN *IC4501 G14 NC *IC4501 AK26 POD[14] *IC4501 AB3 GIO[50] *IC4501 AF29 POGO[0] *IC4501 A19 SYSCLK *IC4501 AJ26 POD[15] *IC4501 AJ27 POD[20] *IC4501 M23 NC *IC4501 H21 NC *IC4501 A30 NC *IC4501 AA3 GIO[45] *IC4501 C17 XTALIO *IC4501 V4 DAOUTBIN *IC4501 E24 SYSCLKSELX *IC4501 T7 NC *IC4501 AF30 POACTB *IC4501 G22 NC *IC4501 AF23 POD[0] *IC4501 U1 VREF *IC4501 AD8 NC *IC4501 AA8 NC *IC4501 W6 AVCOLPF *IC4501 W5 VDHSIN *IC4501 R1 VRLAD[2] *IC4501 AK29 POD[26] *IC4501 M4 ANGIN *IC4501 AF28 POGO[1] *IC4501 V8 NC *IC4501 M1 VRLAD[1] *IC4501 H4 BC[0] *IC4501 AK6 RTCXTALIN *IC4501 L8 NC *IC4501 G24 NC *IC4501 Y23 NC *IC4501 R24 NC *IC4501 L7 NC *IC4501 AC13 NC *IC4501 U8 NC *IC4501 AJ28 POD[24] *IC4501 H7 NC *IC4501 G9 NC *IC4501 T24 NC *IC4501 AD21 NC *IC4501 H15 NC *IC4501 H24 NC *IC4501 L4 BC[1] *IC4501 AD24 NC *IC4501 AD7 NC *IC4501 AK1 NC *IC4501 R23 NC *IC4501 W4 VDVSIN *IC4501 H11 NC *IC4501 K7 NC *IC4501 G15 NC *IC4501 AG24 POD[5] L4402 J0JHC0000117 L4401 J0JHC0000117 SCX_3.3V SCX_3.3V SCX_3.3V 3.3V SCX_3.3V SCX_1.2V SCX_1.2V R4420 R4427 R4503 Q4404 DSC200100L Q4402 DSC200100L Q4406 DSC200100L Q4403 DSA200100L Q4401 DSA200100L Q4405 DSA200100L R4425 1k R4432 100 R4409 2.7k 1% R4408 10k R4406 10k 1% R4407 10k 1% R4421 10k R4414 10k R4415 10k R4531 10k R4411 1k R4413 0 R4428 0 R4412 1k R4403 15k R4404 15k R4433 1k R4434 1k R4435 0 R4405 15k R4549 10k R4426 1k R4422 10k R4431 2.7k 1% R4430 4.7k 1% R4501 470 R4502 1M R4419 1k R4418 1k R4438 560 X4501 H0J360500017 X4401 +- 1 Vcont 2 G 3 OUT 4 VDD 74.25 SCX1 POCLK SCX1 CLK RTC CLK SCX1 NO USE CLK SCX1 CLK SELECT SCX1 SYSCLK SCX1-(DIGITAL OUT) OCK OUT 74.25MHz NC 27MHz 50ppm ANMPIN:ADC[0] ANSYIN:ADC[1] ANSCIN:ADC[2] 95 94 93 97 99 96 92 91 98 A-BOARD TXN/A11CEC (11/17) ! 91 93 94 92 A1 A2 A3 TH-42PF20C A-Board (11/17) Schematic Diagram TH-42PF20C A-Board (11/17) Schematic Diagram 65 13.21.A 电路板 (12/17) 线路图 TH-42PF20C A-Board (12/17) Schematic Diagram TH-42PF20C A-Board (12/17) Schematic Diagram + + + G G G G G G 5B 21B 3 14B 4B 20B 4 13B 3B 5 6 22 7 23 8 24 PI2FLD 9 19 PI2ACT 18 15 16 PI1CLK 18B 12B 19B 11 PI2CLK 17B 10 29 29B 10B 28 11B 17 2B 12 25 0B 13 26 1B 14 28B 21 27B 20 PI2VS 1 26B PI2HS 27 25B 9B PI1VS 24B 8B 16B PI1HS 23B 7B 15B 22B 6B 2 0 PI1FLD PI1ACT C4546 16V 0.1u C4515 16V 0.1u C4553 6.3V 10u C4508 16V 0.1u C4505 6.3V 10u C4512 16V 0.1u C4552 16V 0.1u C4547 6.3V 10u C4504 6.3V 10u C4567 16V 0.1u C4538 16V 0.1u C4551 6.3V 10u C4560 16V 0.1u C4559 6.3V 10u C4558 16V 0.1u C4557 6.3V 10u C4556 16V 0.1u C4555 6.3V 10u C4573 16V 0.1u C4575 16V 0.1u C4571 16V 0.1u C4514 6.3V 10u C4563 6.3V 10u C4521 16V 0.1u C4517 16V 0.1u C4533 6.3V 10u C4569 16V 0.1u C4534 16V 0.1u C4548 16V 0.1u C4523 16V 0.1u C4550 16V 0.1u C4554 16V 0.1u C4549 6.3V 10u C4510 16V 0.1u C4565 16V 0.1u C4564 6.3V 10u C4536 16V 0.1u C4542 16V 0.1u C4540 16V 0.1u C4506 16V 0.1u C4532 6.3V 10u C4544 16V 0.1u C4519 16V 0.1u C4530 6.3V 10u C4531 16V 0.1u C4525 16V 0.1u C4524 6.3V 10u C4526 6.3V 10u C4528 6.3V 10u C4529 16V 0.1u C4527 16V 0.1u C4561 6.3V 10u C4562 16V 0.1u C4501 220u 4V C4502 220u 4V C4503 220u 4V FL4502 F1J1E104A148 1 2 3 FL4503 F1J1E104A148 1 2 3 FL4501 F1J1E104A148 1 2 3 *IC4501 C19 PI1D[7] *IC4501 Y2 VSS_PLL6 *IC4501 P25 VSS *IC4501 V28 VSS *IC4501 A22 VDD12_PLL1 *IC4501 W16 VSS *IC4501 V6 VDD33_DAC_HS *IC4501 E17 PI1D[16] *IC4501 U21 VSS *IC4501 T10 VSS_ADC20 *IC4501 M13 VSS *IC4501 A14 PI1CLK *IC4501 W19 VSS *IC4501 F30 VSS *IC4501 K2 VSS_ADC00 *IC4501 U2 VSS_DAC_HS *IC4501 R12 VSS *IC4501 E27 VSS *IC4501 J20 VDD33 *IC4501 N14 VSS *IC4501 R22 VDD12 *IC4501 D8 PI2D[27] *IC4501 K5 VSS_ADC01 *IC4501 H6 VDD33_ADC00 *IC4501 P11 VSS *IC4501 L15 VSS *IC4501 M25 VSS *IC4501 M10 VSS_ADC00 *IC4501 K12 VDD33 *IC4501 A18 VDD12_PLL5 *IC4501 N18 VSS *IC4501 C18 PI1D[11] *IC4501 P9 VDD33_ADC10 *IC4501 W30 VSS *IC4501 F14 PI1ACTB *IC4501 C21 PI1D[1] *IC4501 J15 VDD12 *IC4501 J10 VSS *IC4501 AB12 VSS *IC4501 AG23 VSS *IC4501 J21 VSS *IC4501 Y16 VSS *IC4501 A12 PI2CLK *IC4501 R11 VDD12 *IC4501 E11 PI2D[10] *IC4501 T21 VSS *IC4501 H26 VDD18 *IC4501 U11 VSS *IC4501 Y21 VSS *IC4501 R20 VSS *IC4501 J6 VSS_ADC00 *IC4501 U22 VSS *IC4501 AE27 VSS *IC4501 R25 VDD12 *IC4501 L26 VDD12 *IC4501 Y14 VSS *IC4501 C12 PI2D[3] *IC4501 AE29 VDD18 *IC4501 F19 PI1D[10] *IC4501 E20 PI1D[5] *IC4501 F11 PI2D[11] *IC4501 M16 VSS *IC4501 P17 VSS *IC4501 AC25 VSS *IC4501 M15 VSS *IC4501 F15 PI1D[27] *IC4501 V15 VSS *IC4501 AB14 VDD12 *IC4501 E12 PI2D[5] *IC4501 W9 VSS *IC4501 AC26 VSS *IC4501 U18 VSS *IC4501 V16 VSS *IC4501 J18 VSS *IC4501 E13 PI2D[0] *IC4501 D6 PI2ACTB *IC4501 W18 VSS *IC4501 K4 VDD33_ADC01 *IC4501 J11 VDD33 *IC4501 T9 VDD33_ADC20 *IC4501 P14 VSS *IC4501 A2 VSS *IC4501 T14 VSS *IC4501 C14 PI1D[29] *IC4501 A5 VSS *IC4501 N25 VDD12 *IC4501 W13 VSS *IC4501 AA22 VSS *IC4501 E8 PI2D[28] *IC4501 B9 PI2D[19] *IC4501 AH23 VSS *IC4501 J16 VDD12 *IC4501 E30 VDD18 *IC4501 V11 VSS *IC4501 T13 VSS *IC4501 M17 VSS *IC4501 U30 VSS *IC4501 A8 PI2D[24] *IC4501 T26 VSS *IC4501 T12 VSS *IC4501 D12 PI2D[4] *IC4501 W14 VSS *IC4501 M18 VSS *IC4501 Y10 VDD33 *IC4501 U12 VSS *IC4501 B11 PI2D[7] *IC4501 N17 VSS *IC4501 AA25 VSS *IC4501 D15 PI1D[25] *IC4501 T19 VSS *IC4501 W11 VSS *IC4501 R18 VSS *IC4501 B17 VSS *IC4501 AK7 VSS_RTC *IC4501 V12 VSS *IC4501 AB30 VSS *IC4501 L22 VDD18 *IC4501 R13 VSS *IC4501 F21 PI1D[4] *IC4501 N9 VDD33_ADC01 *IC4501 R26 VDD12 *IC4501 N19 VSS *IC4501 J22 VDD12 *IC4501 B20 VDD12_PLL3_1 *IC4501 R9 VDD33_ADC11 *IC4501 M28 VSS *IC4501 E3 VSS_ADC_LS *IC4501 N20 VSS *IC4501 B6 VSS *IC4501 W1 VSS *IC4501 L9 VDD33_ADC_LS *IC4501 L18 VSS *IC4501 AD25 VDD18 *IC4501 K21 VDD18 *IC4501 P26 VSS *IC4501 C11 PI2D[8] *IC4501 C15 PI1D[24] *IC4501 AB22 VSS *IC4501 E21 PI1D[3] *IC4501 V2 VSS_DAC_HS *IC4501 P19 VSS *IC4501 T5 VSS_ADC21 *IC4501 AE30 VDD18 *IC4501 AA15 VSS *IC4501 J19 VDD33 *IC4501 F8 PI2D[29] *IC4501 K11 VDD33 *IC4501 Y15 VSS *IC4501 E16 PI1D[20] *IC4501 A7 PI2VSB *IC4501 AJ5 VSS_RTC *IC4501 N30 VSS *IC4501 T3 VDD33_ADC21 *IC4501 AE28 VSS *IC4501 P13 VSS *IC4501 AB15 VSS *IC4501 AB21 VSS *IC4501 K25 VSS *IC4501 B25 VSS *IC4501 L10 VSS_ADC_LS *IC4501 D16 PI1D[19] *IC4501 V9 VDD33_DAC_HS *IC4501 AA10 VDD33 *IC4501 V25 VSS *IC4501 P5 VDD33_ADC20 *IC4501 L2 VSS_ADC10 *IC4501 P20 VSS *IC4501 R16 VSS *IC4501 A24 VDD12_PLL4 *IC4501 D20 VSS_PLL3_1 *IC4501 AB26 VDD18 *IC4501 N4 VDD33_ADC11 *IC4501 AB11 VSS *IC4501 B7 PI2HSB *IC4501 N12 VSS *IC4501 K6 VSS_ADC01 *IC4501 F17 PI1D[17] *IC4501 AA1 VDD33_PLL6_1 *IC4501 H5 VDD33_ADC00 *IC4501 J25 VDD18 *IC4501 N10 VSS_ADC01 *IC4501 M11 VSS *IC4501 A21 VDD12_PLL2 *IC4501 U15 VSS *IC4501 L5 VDD33_ADC10 *IC4501 AB10 VDD12 *IC4501 P22 VDD12 *IC4501 W15 VSS *IC4501 J30 VSS *IC4501 Y17 VSS *IC4501 J13 VSS *IC4501 P16 VSS *IC4501 N11 VSS *IC4501 D17 PI1D[15] *IC4501 F22 PI1D[0] *IC4501 V10 VSS_DAC_HS *IC4501 E10 PI2D[16] *IC4501 D19 PI1D[8] *IC4501 H25 VDD18 *IC4501 U6 VSS_DAC_HS *IC4501 AG16 VSS *IC4501 V17 VSS *IC4501 R19 VSS *IC4501 F20 PI1D[6] *IC4501 B8 PI2D[25] *IC4501 B24 VSS_PLL4 *IC4501 A11 VSS *IC4501 D21 PI1D[2] *IC4501 T17 VSS *IC4501 B19 VSS *IC4501 K13 VSS *IC4501 A10 PI2D[12] *IC4501 AA26 VSS *IC4501 C28 VSS *IC4501 N21 VSS *IC4501 E29 VDD18 *IC4501 W17 VSS *IC4501 L12 VSS *IC4501 Y1 VDD12_PLL6 *IC4501 G25 VSS *IC4501 Y13 VSS *IC4501 K26 VSS *IC4501 U17 VSS *IC4501 B12 PI2D[2] *IC4501 J9 VDD33_DAC_LS *IC4501 AA2 VSS_PLL6_1 *IC4501 D9 PI2D[21] *IC4501 AH16 VSS *IC4501 R14 VSS *IC4501 G26 VSS *IC4501 R5 VSS_ADC20 *IC4501 AB1 VSS *IC4501 V20 VSS *IC4501 T22 VSS *IC4501 E2 VDD33_ADC_LS *IC4501 P12 VSS *IC4501 U25 VDD12 *IC4501 T18 VSS *IC4501 AA9 VDD33 *IC4501 C6 PI2FLD *IC4501 W12 VSS *IC4501 U14 VSS *IC4501 AE21 VSS *IC4501 M20 VSS *IC4501 A13 VSS *IC4501 P10 VSS_ADC10 *IC4501 L13 VSS *IC4501 F12 PI2D[6] *IC4501 V18 VSS *IC4501 L16 VSS *IC4501 K19 VDD33 *IC4501 G6 VSS_ADC_LS *IC4501 Y19 VSS *IC4501 K16 VDD12 *IC4501 A9 PI2D[18] *IC4501 W25 VDD18 *IC4501 T20 VSS *IC4501 E4 VDD33_DAC_LS *IC4501 P18 VSS *IC4501 K3 VDD33_ADC01 *IC4501 M19 VSS *IC4501 N16 VSS *IC4501 P2 VSS_ADC20 *IC4501 Y3 VSS *IC4501 AA12 VSS *IC4501 B22 VSS_PLL1 *IC4501 U10 VSS_ADC21 *IC4501 AF22 VSS *IC4501 N15 VSS *IC4501 T15 VSS *IC4501 M9 VDD33_ADC00 *IC4501 D14 PI1FLD *IC4501 U20 VSS *IC4501 Y26 VDD18 *IC4501 M5 VSS_ADC10 *IC4501 L17 VSS *IC4501 T11 VDD12 *IC4501 K20 VDD33 *IC4501 F16 PI1D[21] *IC4501 K14 VSS *IC4501 C10 PI2D[14] *IC4501 E28 VSS *IC4501 J17 VSS *IC4501 L11 VSS *IC4501 B15 PI1D[23] *IC4501 E26 VDD18 *IC4501 T16 VSS *IC4501 R21 VDD12 *IC4501 V22 VDD18 *IC4501 N3 VDD33_ADC11 *IC4501 Y20 VSS *IC4501 L6 VDD33_ADC10 *IC4501 T4 VDD33_ADC21 *IC4501 A16 VSS *IC4501 A20 VDD12_PLL3 *IC4501 Y9 VDD33 *IC4501 N2 VSS_ADC10 *IC4501 AA16 VDD33 *IC4501 U19 VSS *IC4501 L14 VSS *IC4501 AB9 VDD12 *IC4501 F6 VSS_DAC_LS *IC4501 AA14 VDD12 *IC4501 M6 VSS_ADC10 *IC4501 T6 VSS_ADC21 *IC4501 C8 PI2D[26] *IC4501 R15 VSS *IC4501 T2 VSS_ADC20 *IC4501 V13 VSS *IC4501 V14 VSS *IC4501 E9 PI2D[22] *IC4501 AK13 VSS *IC4501 B21 VSS_PLL2 *IC4501 E5 VSS_DAC_LS *IC4501 AE22 VSS *IC4501 C16 PI1D[18] *IC4501 Y25 VDD18 *IC4501 C9 PI2D[20] *IC4501 H2 VSS_ADC00 *IC4501 AB16 VDD33 *IC4501 A15 PI1D[22] *IC4501 B13 PI1VSB *IC4501 J5 VSS_ADC00 *IC4501 AA21 VSS *IC4501 E19 PI1D[9] *IC4501 W20 VSS *IC4501 Y22 VSS *IC4501 J12 VDD33 *IC4501 D18 PI1D[12] *IC4501 P15 VSS *IC4501 AA11 VSS *IC4501 R6 VSS_ADC20 *IC4501 K9 VSS_DAC_LS *IC4501 W21 VDD33 *IC4501 D11 PI2D[9] *IC4501 F13 PI2D[1] *IC4501 U16 VSS *IC4501 W10 VSS *IC4501 L19 VSS *IC4501 K18 VSS *IC4501 AD26 VDD18 *IC4501 AA13 VDD12 *IC4501 J14 VSS *IC4501 U9 VDD33_ADC21 *IC4501 K15 VDD12 *IC4501 L25 VDD12 *IC4501 E15 PI1D[26] *IC4501 A23 VSS *IC4501 N13 VSS *IC4501 M12 VSS *IC4501 N5 VSS_ADC11 *IC4501 M22 VSS *IC4501 V21 VDD12 *IC4501 B10 PI2D[13] *IC4501 AB25 VDD18 *IC4501 U13 VSS *IC4501 T25 VSS *IC4501 M14 VSS *IC4501 U5 VSS_DAC_HS *IC4501 V5 VDD33_DAC_HS *IC4501 B18 VSS_PLL5 *IC4501 R17 VSS *IC4501 F9 PI2D[23] *IC4501 D4 VSS_DAC_LS *IC4501 AB13 VDD12 *IC4501 C20 VSS_PLL3 *IC4501 R10 VSS_ADC11 *IC4501 F18 PI1D[14] *IC4501 K10 VSS *IC4501 E14 PI1HSB *IC4501 N6 VSS_ADC11 *IC4501 N26 VDD12 *IC4501 Y11 VSS *IC4501 L20 VSS *IC4501 U26 VDD12 *IC4501 P21 VDD12 *IC4501 Y18 VSS *IC4501 AK5 VDD12_RTC *IC4501 K22 VDD18 *IC4501 F10 PI2D[17] *IC4501 K17 VSS *IC4501 P6 VDD33_ADC20 *IC4501 D10 PI2D[15] *IC4501 W22 VDD18 *IC4501 Y12 VSS *IC4501 B14 PI1D[28] *IC4501 M21 VSS *IC4501 E18 PI1D[13] *IC4501 L21 VDD18 *IC4501 N22 VSS *IC4501 F26 VDD18 *IC4501 V19 VSS L4507 J0JHC0000075 L4512 J0JCC0000241 L4501 J0JHC0000096 L4502 J0JHC0000096 L4516 J0JHC0000096 L4508 J0JCC0000241 L4503 J0JCC0000241 L4509 J0JCC0000241 L4506 J0JCC0000241 L4510 J0JCC0000241 L4513 J0JCC0000241 L4511 J0JCC0000241 L4505 J0JCC0000241 L4504 J0JCC0000241 L4514 J0JCC0000241 SCX_1.8V SCX_1.2V D_3.3V D_3.3V SCX_3.3V STBY3.3V 1.8V D_1.2V STB1.2V D_1.8V D_1.2V D_1.8V R4521 0 L4515 0 R4512 0 R4522 0 R4511 0 R4513 0 R4523 0 SEPARATE POWER SCX1 GND SCX1 VDD12(1.2V) SCX1 VDD33(3.3V) SCX1 VDD18(1.8V) SCX1_INPUT A from ASIC SCX1_INPUT B from ASIC 105 102 103 106 104 107 101 100 108 ! A1 A2 A3 B1 A-BOARD TXN/A11CEC (12/17) 66 13.22.A 电路板 (13/17) 线路图 + S S SCX1_MCLK2B SCX1_MCLK2 DDR_NCLK2 DDR_CLK2 SCX1_DQ3 DDR_A5 SCX1_DQ17 SCX1_MCLK1 DDR_CLK1 SCX1_DQS1 DDR_A9 SCX1_DQ15 DDR_WE DDR_A4 SCX1_DQM0 DDR_CAS SCX1_A3 DDR_A8 SCX1_DQ20 DDR_RAS SCX1_A2 DDR_A12 SCX1_DQ11 DDR_CKE SCX1_A1 SCX1_DQ18 DDR_A10 SCX1_A0 SCX1_DQ21 DDR_A7 SCX1_DQS3 DDR_BA1 SCX1_DQM3 SCX1_BA0 SCX1_DQ14 SCX1_MCLK1B SCX1_MCLK1B SCX1_DQ1 SCX1_MCS SCX1_MCLK1 SCX1_DQ13 SCX1_DQ24 SCX1_BA1 SCX1_DQ10 SCX1_DQM2 SCX1_MRAS SCX1_DQ19 SCX1_DQ31 DDR_CS SCX1_DQ8 SCX1_DQ7 DDR_A3 SCX1_DQ22 DDR_BA0 SCX1_DQM1 DDR_A2 SCX1_DQ16 SCX1_A12 SCX1_MWR SCX1_DQ29 SCX1_A11 SCX1_A8 SCX1_MCAS SCX1_DQ2 SCX1_A10 SCX1_A4 SCX1_DQ6 SCX1_MRAS SCX1_A9 SCX1_A9 SCX1_DQ30 SCX1_MCKE SCX1_A8 SCX1_A5 SCX1_DQ26 SCX1_A7 SCX1_A10 SCX1_DQ5 SCX1_A11 SCX1_A6 SCX1_A7 SCX1_DQ23 SCX1_A5 SCX1_A6 SCX1_BA1 SCX1_DQ27 SCX1_A4 SCX1_A1 SCX1_DQ4 SCX1_DQ12 DDR_A1 SCX1_DQS0 SCX1_DQ9 SCX1_MCKE DDR_A6 SCX1_DQ28 SCX1_DQ0 SCX1_MWR SCX1_DQ25 DDR_A11 SCX1_DQS2 SCX1_MCAS DDR_NCLK1 DDR_A10 DDR_A11 SCX1_DQ4 DDR_A1 SCX1_DQ1 DDR_A9 DDR_A4 DDR_A3 DDR_A0 DDR_CS DDR_A1 SCX1_DQM3 SCX1_DQ30 DDR_A5 SCX1_DQ26 SCX1_DQ23 SCX1_DQ19 SCX1_DQS1 SCX1_DQS2 SCX1_DQM2 SCX1_DQM0 DDR_A11 DDR_CLK2 SCX1_DQ18 SCX1_DQ8 DDR_WE DDR_CAS SCX1_DQ3 DDR_A10 SCX1_DQ17 DDR_BA1 SCX1_DQ12 DDR_CAS DDR_A3 SCX1_DQSB0 SCX1_DQ15 DDR_RAS SCX1_DQ16 DDR_A4 DDR_CKE SCX1_DQSB1 SCX1_DQ21 DDR_A2 SCX1_DQ22 SCX1_DQS3 DDR_A7 SCX1_DQ2 DDR_CS SCX1_DQ25 DDR_A2 DDR_A12 DDR_WE SCX1_DQS0 DDR_RAS SCX1_DQ0 SCX1_DQ9 DDR_A12 DDR_A9 SCX1_DQ29 SCX1_DQ28 DDR_BA0 SCX1_DQSB2 SCX1_DQ11 SCX1_DQSB3 SCX1_DQ24 SCX1_DQ27 SCX1_DQ7 DDR_NCLK2 DDR_A6 SCX1_DQM1 SCX1_DQ13 SCX1_DQ31 DDR_A8 DDR_BA1 DDR_A6 DDR_A0 DDR_A8 DDR_A5 SCX1_DQ5 SCX1_DQ10 DDR_BA0 SCX1_DQ14 DDR_A7 DDR_CKE SCX1_DQ20 SCX1_DQ6 SCX1_A12 SCX1_A0 DDR_A0 SCX1_DQSB0 SCX1_DQSB1 SCX1_ODT SCX1_ODT DDR_ODT DDR_ODT DDR_ODT DDR_CLK1 DDR_NCLK1 SCX1_DQSB2 SCX1_DQSB3 SCX1_MCLK2 SCX1_MCLK2B SCX1_A2 SCX1_BA0 SCX1_A3 SCX1_MCS C4588 16V 0.1u C4587 16V 0.1u C4618 16V 0.1u C4604 16V 0.1u C4605 16V 0.1u C4606 10u 10V C4622 10u 10V C4631 16V 0.1u C4624 16V 0.1u C4629 16V 0.1u C4603 16V 0.1u C4639 16V 0.1u C4613 16V 0.1u C4602 16V 0.1u C4623 16V 0.1u C4619 16V 0.1u C4630 16V 0.1u C4625 16V 0.1u C4607 16V 0.1u C4612 16V 0.1u C4626 16V 0.1u C4632 16V 0.1u C4609 16V 0.1u C4610 16V 0.1u C4638 16V 0.1u C4628 16V 0.1u C4621 68u 4V IC4502 C3ABRY000040 A1 VDD IC4503 C3ABRY000040 A1 VDD IC4503 H9 DQ5 IC4502 F2 VSSQ IC4502 B8 VSSQ IC4502 N1 VSS IC4503 F3 LDM IC4502 H2 VSSQ IC4502 J7 VSSDL IC4502 C1 VDDQ IC4503 N3 A5 IC4502 K7 RAS IC4502 H8 VSSQ IC4503 R7 NC IC4503 L8 CS IC4502 M3 A1 IC4502 R2 A12 IC4502 E1 VDD IC4502 P7 A11 IC4503 J3 VSS IC4503 D2 VSSQ IC4503 M7 A2 IC4503 C3 VDDQ IC4503 G3 VDDQ IC4502 B1 DQ14 IC4502 C9 VDDQ IC4503 P9 VSS IC4502 G2 DQ1 IC4503 B2 VSSQ IC4502 D8 VSSQ IC4502 D2 VSSQ IC4503 H2 VSSQ IC4503 G8 DQ0 IC4502 M2 A10 IC4502 H3 DQ3 IC4503 D7 DQ10 IC4502 M8 A0 IC4502 A8 UDQS IC4502 G3 VDDQ IC4502 N7 A6 IC4503 M9 VDD IC4503 G2 DQ1 IC4503 F7 LDQS IC4502 R8 NC IC4502 L8 CS IC4502 K9 ODT IC4503 R2 A12 IC4503 N2 A3 IC4503 J9 VDD IC4502 B7 UDQS IC4503 R3 NC IC4502 J1 VDDL IC4503 H8 VSSQ IC4502 L3 BA1 IC4503 E7 VSSQ IC4503 H3 DQ3 IC4502 H7 DQ2 IC4502 H1 DQ4 IC4502 G1 VDDQ IC4503 E2 NC IC4503 J2 VREF IC4502 F7 LDQS IC4503 P3 A9 IC4503 B1 DQ14 IC4503 L3 BA1 IC4503 P2 A7 IC4503 H1 DQ4 IC4502 P9 VSS IC4503 A2 NC IC4502 L1 NC IC4502 R3 NC IC4502 K2 CKE IC4502 J9 VDD IC4503 N1 VSS IC4502 G8 DQ0 IC4502 C2 DQ9 IC4503 M2 A10 IC4503 D9 DQ13 IC4502 L2 BA0 IC4502 E8 LDQS IC4502 F9 DQ7 IC4503 A3 VSS IC4502 R7 NC IC4502 A3 VSS IC4502 F3 LDM IC4503 C2 DQ9 IC4503 R1 VDD IC4503 M8 A0 IC4502 F8 VSSQ IC4503 N8 A4 IC4503 D8 VSSQ IC4502 D7 DQ10 IC4503 D1 DQ12 IC4502 E3 VSS IC4502 K8 CK IC4502 C8 DQ8 IC4502 D3 DQ11 IC4502 M7 A2 IC4503 L7 CAS IC4502 N2 A3 IC4502 P2 A7 IC4502 G9 VDDQ IC4503 N7 A6 IC4503 K2 CKE IC4502 A2 NC IC4503 C9 VDDQ IC4503 B8 VSSQ IC4502 J2 VREF IC4503 G9 VDDQ IC4503 E3 VSS IC4503 E1 VDD IC4502 F1 DQ6 IC4502 B9 DQ15 IC4502 B2 VSSQ IC4503 B7 UDQS IC4503 L1 NC IC4503 K3 WE IC4502 C3 VDDQ IC4503 C7 VDDQ IC4503 F1 DQ6 IC4502 N8 A4 IC4503 B9 DQ15 IC4502 N3 A5 IC4503 L2 BA0 IC4503 F9 DQ7 IC4503 C1 VDDQ IC4502 E7 VSSQ IC4503 F8 VSSQ IC4503 K8 CK IC4503 P8 A8 IC4503 P7 A11 IC4503 G1 VDDQ IC4502 P3 A9 IC4503 D3 DQ11 IC4503 B3 UDM IC4502 R1 VDD IC4503 K9 ODT IC4503 F2 VSSQ IC4503 M3 A1 IC4503 R8 NC IC4503 A9 VDDQ IC4503 K7 RAS IC4503 E9 VDDQ IC4503 A7 VSSQ IC4502 M9 VDD IC4503 A8 UDQS IC4502 D1 DQ12 IC4502 E9 VDDQ IC4503 C8 DQ8 IC4502 K3 WE IC4502 J8 CK IC4502 B3 UDM IC4502 A9 VDDQ IC4503 J7 VSSDL IC4502 P8 A8 IC4502 J3 VSS IC4502 C7 VDDQ IC4502 D9 DQ13 IC4503 G7 VDDQ IC4502 G7 VDDQ IC4502 A7 VSSQ IC4502 L7 CAS *IC4501 R30 MA[4] *IC4501 G30 MDQSB[2] *IC4501 AB27 MD[10] *IC4501 Y29 MDQS[0] *IC4501 M26 MA[2] *IC4501 AB29 MD[8] *IC4501 AA27 MD[7] *IC4501 W26 MVREF[0] *IC4501 F29 MD[16] *IC4501 K27 MD[27] *IC4501 P28 MA[7] *IC4501 J28 MD[25] *IC4501 AB28 MD[9] *IC4501 N29 MODT *IC4501 P29 MA[0] *IC4501 K28 MDQM[3] *IC4501 AD29 MD[13] *IC4501 AC28 MDQM[1] *IC4501 F28 MD[17] *IC4501 G28 MDQM[2] *IC4501 K29 MDQS[3] *IC4501 Y27 MD[3] *IC4501 T27 MA[9] *IC4501 P30 MCSB *IC4501 T29 MA[6] *IC4501 R27 MRASB *IC4501 L27 MD[31] *IC4501 R29 MA[8] *IC4501 V27 MWRB *IC4501 Y28 MDQM[0] *IC4501 H29 MD[21] *IC4501 F23 MCLKSEL[0] *IC4501 V26 MBA[0] *IC4501 U29 MBA[1] *IC4501 N27 MCASB *IC4501 AD30 MD[12] *IC4501 H27 MD[23] *IC4501 W29 MD[0] *IC4501 AD28 MD[14] *IC4501 U28 MA[1] *IC4501 J27 MD[26] *IC4501 H28 MD[22] *IC4501 W28 MD[1] *IC4501 AC30 MDQSB[1] *IC4501 C22 MCLKSEL[1] *IC4501 AC29 MDQS[1] *IC4501 D22 MCLKSEL[2] *IC4501 L30 MD[28] *IC4501 M29 MCLKO2 *IC4501 AD27 MD[15] *IC4501 P27 MA[3] *IC4501 H30 MD[20] *IC4501 R28 MA[12] *IC4501 L28 MD[30] *IC4501 T28 MA[5] *IC4501 Y30 MDQSB[0] *IC4501 V29 MCLKO1 *IC4501 AC27 MD[11] *IC4501 V30 MCLKO1B *IC4501 M27 MOCDRES *IC4501 J29 MD[24] *IC4501 AA28 MD[6] *IC4501 T30 MA[11] *IC4501 AA29 MD[5] *IC4501 N28 MA[10] *IC4501 W27 MD[2] *IC4501 K30 MDQSB[3] *IC4501 F27 MD[18] *IC4501 L29 MD[29] *IC4501 AA30 MD[4] *IC4501 G29 MDQS[2] *IC4501 U27 MCKE *IC4501 G27 MD[19] *IC4501 M30 MCLKO2B *IC4501 J26 MVREF[1] IC4502 H9 DQ5 IC4503 E8 LDQS IC4503 J8 CK IC4502 E2 NC IC4503 H7 DQ2 IC4503 J1 VDDL L4602 J0JHC0000096 SCX_3.3V 1.8V_DDR1 SCX_1.8V 1.8V_DDR2 1.8V_DDR1 1.8V_DDR2 1.8V R4576 R4577 R4571 EXB28V220JX R4565 EXB2HV220JV R4563 22 1% R4622 1k R4624 150 R4604 150 1% R4621 1k R4570 22 R4575 22 R4623 100 1% R4601 1k 1% R4602 1k R4603 100 1% R4548 200 R4574 22 R4607 0 R4564 22 R4569 22 R4568 22 R4567 22 R4561 22 R4573 22 R4566 22 R4572 22 R4562 22 DDR POWER Address input Data I/O SCX1-DDR SCX1 VREF(0.8V) DDR2_1 DDR POWER Address input Data I/O For DDR1 Input mask For DDR2 Data strobe Input mask Data strobe Bank select Bank select DDR2_2 115 113 116 111 110 114 117 112 109 A-BOARD TXN/A11CEC (13/17) ! DDR2-1 IC4502 DDR2-2 IC4503 B1 C1 TH-42PF20C A-Board (13/17) Schematic Diagram TH-42PF20C A-Board (13/17) Schematic Diagram 67 13.23.A 电路板 (14/17) 线路图 TERM SIDE A_DRVMUTE TV_ON/OFF E_TX_TB- E_TX_TA+ E_TX_TA- O_TX_TB- E_TX_TB+ O_TX_TA- DISPEN A_PANEL_STBY_ON O_TX_TD- O_TX_TD+ O_TX_TE- O_TX_TE+ O_TX_TC- O_TX_TC+ O_TX_CLK- O_TX_CLK+ E_TX_TD- E_TX_TD+ E_TX_TE- E_TX_TE+ E_TX_TC- E_TX_TC+ E_TX_CLK- E_TX_CLK+ O_TX_TB+ O_TX_TA+ E_TX_TA+ E_TX_TB+ E_TX_TC- E_TX_TC+ E_TX_CLK- E_TX_CLK+ E_TX_TD- E_TX_TD+ E_TX_TE- E_TX_TE+ O_TX_TA- O_TX_TB- O_TX_TC- O_TX_CLK- O_TX_TD- O_TX_TD+ O_TX_TE- O_TX_TE+ E_TX_TA- E_TX_TB- O_TX_TA+ O_TX_TB+ O_TX_TC+ O_TX_CLK+ A_REMOCON 5VLED_R 5VLED_G KEY_INPUT PD_SCNRST PD_CIS PD_CMH PD_CML PD_CSL 0V PD_CPH1 0V P_ON/OFF SC_CIS SC_CERS P_S0 0V SC_CSL SC_SIU PD_SEL SC_CML2 SC_CERS SC_CIS SC_CML PD_CRC3 SC_CRC1 SC_CRC1 SC_CPH1 SC_CRC3 SC_SEL PD_CML2 SC_OC1 SCNRST PD_CRC1 SC_CEL SC_CRC3 PD_SEL2 SC_CML2 P_S1 SC_CRC2 SC_SEL PD_CSH PD_CRC2 SC_SCCLK SC-SEL2 PD_CERS SOS6_SC1 SC_OC2 SC_CML PD_SCCLK SC_CMH SC_CSL SC_CSH SC_SIU SOS7_SC2 SC_CEL SC_CMH SOS4_PS SC_OC2 PD_OC2 PANEL_MAIN_ON SC_OC1 SC_SCCLK SC_UHZ OHZ1 PD_SIU SC_CSH SC_CRC2 PD_OC1 SC_CPH1 PD_CEL SCNRST SC-SEL2 RA_E- RA_E+ RB_E- RB_E+ RC_E- RC_E+ RCLK_E- RCLK_E+ RD_E- RD_E+ RE_E+ RA_O- RA_O+ RB_O- RC_O- RC_O+ RCLK_O- RD_O- RD_O+ RE_O- RE_O+ P3V_SCL01 P3V_SDA01 ALARM READY PANEL_STBY_ON DRVMUTE AR_TXD_PC AR_RXD_PC DISPEN A_PANEL_STBY_ON A_READY A_ALARM D_RXD D_TXD A_IIC_CONT D_REM_OUT RM_IN 3V_SDA4 3V_SCL4 RE_E- RCLK_O+ RB_O+ 15.00V C4577 16V 0.1u C4576 6.3V 10u 1u 6.3V C4578 C4585 6.3V 10u C4586 16V 0.1u C4583 16V 0.1u C4582 6.3V 10u 1u 6.3V C4584 C4581 16V 0.1u C4580 16V 0.1u C4579 16V 0.1u C9100 10u 10V C9102 10u 25V C9110 16V 0.1u C9103 25V 0.01u C9106 10u 25V C9108 25V 0.01u C9401 16V 0.1u C9400 16V 0.1u *C9402 16V 0.1u C9101 25V 0.01u D9803 B0JCCE000008 D9802 B0JCCE000008 D4371 DZ2J056M0L D4372 DZ2J056M0L D4374 DZ2J056M0L *IC4501 AJ18 LVDSO2B[2] *IC4501 AG18 LVDSO2B[3] *IC4501 AH18 LVDSO2[3] *IC4501 AJ23 VDD33_LVDS *IC4501 AE17 VSS_LVDS *IC4501 AK23 VSS_LVDS *IC4501 AE20 VSS_LVDS *IC4501 AK22 LVDSO1[0] *IC4501 AJ21 LVDSO1B[2] *IC4501 AH17 LVDSO2[5] *IC4501 AK18 LVDSO2[2] *IC4501 AK16 VSS_LVDS *IC4501 AJ22 LVDSO1B[0] *IC4501 AJ16 VDD33_LVDS *IC4501 AJ19 LVDSO2B[0] *IC4501 AH20 LVDSO1[5] *IC4501 AH21 LVDSO1[3] *IC4501 AK20 LVDSO1[4] *IC4501 AB18 VDD12_LVDS *IC4501 AK21 LVDSO1[2] *IC4501 AK17 LVDSO2[4] *IC4501 AB19 VDD12_LVDS *IC4501 AB17 VDD33_LVDS *IC4501 AG20 LVDSO1B[5] *IC4501 AH19 LVDSO2[1] *IC4501 AG22 LVDSO1B[1] *IC4501 AK19 LVDSO2[0] *IC4501 AF20 VSS_LVDS *IC4501 AF18 VDD33_LVDS *IC4501 AF17 VSS_LVDS *IC4501 AE19 VDD33_LVDS *IC4501 AG19 LVDSO2B[1] *IC4501 AA19 VSS_LVDS *IC4501 AA17 VSS_LVDS *IC4501 AB20 VDD12_LVDSPLL *IC4501 AF19 VDD33_LVDS *IC4501 AJ17 LVDSO2B[4] *IC4501 AA18 VSS_LVDS *IC4501 AG21 LVDSO1B[3] *IC4501 AJ20 LVDSO1B[4] *IC4501 AA20 VSS_LVDSPLL *IC4501 AE18 VDD33_LVDS *IC4501 AH22 LVDSO1[1] *IC4501 AG17 LVDSO2B[5] G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc *A20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 A22 1 2 3 A11 1 2 3 4 5 6 A25 1 2 3 4 5 6 7 8 9 10 L4517 J0JCC0000241 L4519 J0JCC0000241 L4518 J0JCC0000241 P15V STB5V P15V P5V P15V P5V P5V SCX_1.2V 3.3V SCX_3.3V STBY3.3V P5V TP9096 TP9103 TP9101 TP9102 TP9104 TP9089 TP9098 TP9081 TP9091 TP9092 TP9084 TP9080 TP9088 TP9099 TP9111 TP9112 TP9085 TP4382 TP9006 TP9086 TP9097 TP9083 TP9090 TP9082 TP9087 TP9093 TP9095 TP4381 TP9094 TP9196 Q9800 DSC200100L Q9802 DSC200100L Q4382 DSC200100L Q4381 DSC200100L R4581 EXB28V100JX *R4585 EXB28V100JX *R4584 EXB28V100JX R4583 EXB28V100JX R9402 EXB38V103JV *R4586 EXB28V100JX R9189 EXB38V101JV R4582 EXB28V100JX R9198 EXB38V101JV R9401 EXB2HV103JV R9208 EXB2HV470JV R9209 EXB2HV470JV R9400 EXB2HV103JV R4383 10k *R9247 47 R9882 10k L4376 0 L4375 0 L4374 0 L4373 0 L4372 0 L4371 0 R9880 10k R4378 0 R4377 0 R4387 10k R4381 1k R4385 100 R4386 10k R4382 100 *R9224 47 R9229 0 R9233 100 R9884 10k R4392 0 R4389 0 R9231 100 R4390 0 R4384 10k R9881 10k R4391 0 R9232 100 R9230 100 *R9226 47 TP4601 TP4602 TP4603 TP4604 TP4605 TP4606 TP4607 TP4608 TP4609 TP4610 TP4611 TP4612 TP4613 TP4614 TP4615 TP4616 TP4617 TP4618 TP4619 TP4620 TP4621 TP4622 TP4623 TP4624 LVDS VDD SCX1_LVDS LVDS OUT to FPGA IIC_CLK1 IIC_DATA1 TXD RXD PANEL_STBY_ON ALARM DISPEN READY IIC_CONT TPRDY TPALM E+ LVDS3 E+ LVDS0 E- LVDS1 E+ LVDS2 O+ LVDS4 O+ LVDS3 O- LVDS1 O- LVDS0 E- LVDS3 O- LVDSCLK O- LVDS4 O+ LVDS1 E+ LVDS4 E- LVDS0 E+ LVDSCLK E- LVDSCLK O+ LVDS2 E+ LVDS1 O+ LVDSCLK O+ LVDS0 E- LVDS2 E- LVDS4 O- LVDS3 O- LVDS2 NC KEY-SW LED_G GND REMOCON LED_R GND STB3.3V-> GND KEY_SCAN A_IIC_CONT SOS6_SC1 GND +15V SCNRST CSH S0 SIU GND CRC2 GND GND CML GND OC2 CRC1 SEL GND CRC3 S1 SOS4_PS RSV NC PANEL_MAIN_ON CPH1 GND CERS GND +15V +15V UHZ CSL P5V GND NC CMH SOS7_SC2 CIS CEL GND +15V OC1 GND SCCLK STBY5V SEL2 A_IIC_CONT 120 124 123 125 122 118 119 126 121 A-BOARD TXN/A11CEC (14/17) ! TO (P25) (SC20) TO SC-BOARD P-BOARD (V11) TO V1-BOARD (V22) V2-BOARD TO C1 D1 D2 D3 D4 IC9400 C0JBAZ002692 BUFFER IC9401 C0JBAZ002692 BUFFER IC9402 C0JBAZ002692 BUFFER TH-42PF20C A-Board (14/17) Schematic Diagram TH-42PF20C A-Board (14/17) Schematic Diagram 68 13.24.A 电路板 (15/17) 线路图 (FIN) S OSD_R P_ON/OFF RXD_PC P3V_SCL01 SOS8 P3V_SCL02 P3V_SCL01 STB_SDA02 AR_TXD_PC SOS6 AR_STB_SCL02 OSD_HI P3V_SDA01 IIC_SW AR_STB_SDA02 P3V_SDA02 SOS8_SS STB_SCL02 READY AR_TXD_PC PANEL_MAIN_ON LED_R LED_R 0V OSD_HIN LED_G AR_RXD_PC SC_UHZ IIC_CONT RXD_PC SOS7 OSD_B 3.30V STB_SDA02 STB_SDA01 AR_IIC_CONT SOS7_SC2 STB_SCL02 TXD_PC SOS8 OSD_G STB_SCL01 SOS6 ALARM OSD_YS P3V_SCL02 STB_SDA01 NRST P3V_SDA01 OSD_CLKIN OSD_VIN D_UHZ LED_G IIC_SW IIC_CONT SOUT SOS6_SC1 P3V_SDA02 OSD_CKI NCS NRST STB_SCL01 DRVRST SOS7 SCLK AR_RXD_PC 0V TXD_PC IIC_CONT AR_IIC_CONT A_IIC_CONT AR_STB_SDA02 STB_SDA02 AR_STB_SCL02 STB_SCL02 REMOCON STB_SCL02 STB_SDA02 SOS_DCC REMOCON REM_IN REM_IN RM_IN PANEL_STBY_ON SIN P_ON/OFF XRST_SYS EEP_WR_CTL SOS4_PS C9052 16V 0.1u C9806 100p 50V C9045 16V 0.1u C9055 16V 0.1u C9846 200p 50V *C9831 3300p 25V *C9835 22u 6.3V C9053 16V 0.1u C9809 2200p 50V C9801 6800p 25V C9054 200p 50V C9061 16V 0.1u *C9833 100p 50V C9816 0.1u 25V C9057 16V 0.1u C9807 200p 50V C9047 16V 0.1u C9808 47p 50V C9105 50V 100p C9812 10u 25V C9048 16V 0.1u C9825 22u 6.3V C9040 16V 0.1u C9036 10V 10u C9817 10u 10V *C9829 0.047u 16V C9813 10u 25V C9819 10u 10V C9065 16V 0.1u C9062 4.7u 10V *C9828 10u 25V C9033 16V 0.1u C9056 16V 0.1u *C9845 200p 50V C9037 0.01u 25V C9046 16V 0.1u C9063 16V 0.1u C9805 10u 25V C9044 10V 4.7u C9034 16V 0.1u C9803 4700p 25V C9804 10u 25V C9811 0.047u 16V *C9827 10u 25V C9815 22u 6.3V C9800 0.1u 25V C9035 10V 10u *C9830 0.1u 25V D9110 B0JCGD000002 *D9800 B0JCPD000026 D9000 B0JCCE000008 *IC9001 TVRR674AA 1 A0 2 A1 3 A2 4 GND 5 SDA 6 SCL 7 WP 8 Vcc C0DBAYY00605 IC9800 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C0DBAYY00605 IC9801 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C0DBAYY00605 *IC9803 PGND 1 2 PGND 3 PGND 4 SW 5 SW 6 SW 7 BOOT 8 NC 9 SS/DELAY 10 GND 11 FB 12 FC 13 RT 14 PSET 15 EN 16 NC 17 NC 18 VIN 19 VIN 20 VIN C1ZBZ0003983 IC9004 1 Y5 2 Y4 3 Y3 4 Y2 5 Y1 6 RESET 7 CD_OUT 8 STB33V 9 GND 10 DCDC_OE 11 VIN_OR 12 P_SDA1 13 P_SCL1 14 P_SDA2 15 P_SCL2 16 P33V_IN 17 IIC_SW 18 S_SCL2 19 S_SDA2 20 S_SCL1 21 S_SDA1 22 STB33VIN 23 P33V 24 P_ON_OFF 25 STB5V_IN 26 GND 27 CE 28 A1 29 A2 30 A3 31 A4 32 A5 MN103SH8HFS4 IC9003 1 P60_SBO0A 2 P61_SBT0A 3 P62_SBI0A 4 P05_IRQ6 5 P06_IRQ7 6 P07_IRQ8 7 P70_SDA0 8 P71_SCL0 9 P50_RMIN_IRQ0 10 P20 11 P21 12 P22 13 P23 14 IVDD 15 VSS 16 P10 17 P11 18 P12 19 P13 20 P14 21 P15 22 P16 23 EXCLKSEL 24 P72_SDA1 25 P73_SCL1 26 P65_SBT2 27 P66_SBI2 28 P30 29 P31 30 P32 31 P33 32 P34 33 P35 34 P36 35 P37 36 VPPEX_(N.C.) 37 IVDD 38 VDD 39 RONA 40 VSS 41 OSCXO 42 OSCXI 43 IVDD 44 P64_SBI1 45 P63_SBT1 46 NBOOT_(N.C.) 47 NRST 48 NTEST 49 SCLOCK_(UND) 50 SDATA_(UND) 51 ENTRG0_(UND) 52 ENTRG1_(UND) 53 TRCCLK_(UND) 54 TRCST_(UND) 55 TRCD0_(UND) 56 TRCD1_(UND) 57 TRCD2_(UND) 58 TRCD3_(UND) 59 P80_ADIN0 60 P81_ADIN1 61 P82_ADIN2 62 P83_ADIN3 63 IVDD 64 VSS 65 P84_ADIN4 66 P85_ADIN5 67 P86_ADIN6 68 P87_ADIN7 69 P90_ADIN8 70 P91_ADIN9 71 P92_ADIN10 72 P93_ADIN11 73 P74_SDA2 74 P75_SCL2 75 P40_TM0IO 76 P41_TM1IO 77 P42_TM2IO 78 P43_TM3IO 79 P44_TM4IO_SYSCLK 80 P00 81 P01 82 P02 83 P03_SBT0B 84 P04_SBO0B 85 P51_IRQ2 86 P52_IRQ3 87 P53_IRQ4 88 P54_IRQ5 89 PA7_VCLKOUT 90 PA6_HOUT 91 PA5_YSOUT 92 PA4_B00 93 PA3_G00 94 PA2_R00 95 PA1_VSYNC_IRQ1 96 PA0_HSYNC 97 VSS 98 OSDXI 99 IVDD 100 VDD IC9802 C0DBEHG00006 1 CTL 2 Vcc 4 OUT 5 ADJ 3 GND(FIN) A6 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 *L9802 G1C6R8Z00008 L9801 G1C6R8Z00008 L9800 G1C6R8Z00010 STB3.3V P15V P3.3V STB3.3V STB3.3V P15V P3.3V P15V STB3.3V STB3.3V P5V P3.3V P3.3V P5V P2.5V P1.2V STB5V STB3.3V P15V P3.3V STB5V P15V VJ9303 TP9501 TP9502 TP9503 TP9504 TP9203 TP9204 TP9000 TP9200 TP9202 TP9500 TP9201 TP9001 TP9002 TP9313 TP9316 TP9314 TP9315 TD9058 Q9001 DSC200100L Q9004 DSC200100L Q9003 DSC200100L Q9002 DSC200100L Q9000 DSC200100L R9104 EXB38V101JV R9119 EXB38V470JV R9072 10k R9872 3.3k 1% R9166 10k R9212 47 *R9910 15k 1% R9868 100k R9871 10k R9111 0 R9875 20k 1% R9185 22 R9149 100k R9873 10k 1% R9215 100k R9213 47 R9155 2.7k R9130 47 *R9908 10k 1% R9153 10k R9890 110k 1% R9874 27k 1% R9878 8.2k 1% R9129 68k R9121 100k R9107 3.3k R9194 470 R9877 43k 1% *R9900 27k 1% R9203 22k R9225 2.7k R9879 15k 1% R9188 2.7k R9151 22 R9142 100k R9140 4.7k R9145 10k R9146 10k R9144 10k R9143 100k R9135 47k R9136 47k R9137 33k R9138 100 R9105 22 *R9916 0 *R9915 0 *R9218 0 *R9891 47k 1% R9901 27k 1% R4395 0 R9150 22 R9207 24k R9124 47 R9187 2.7k R4394 0 R9154 2.7k R9206 56k R9152 10k R9134 47k 0 R9126 R9201 10 R9200 10 *R9909 47k 1% R9223 2.7k R9070 10k R9186 22 R9164 10k R9205 33k X9000 H2C1005A0041 GND NC REMOCON TXD IIC_CONT STBY3.3V SCL1 LED_R RXD NC LED_G SDA1 IIC_INT STBY5V NC SDA2 SCL2 NC NC D_mode 50FHD :TVRR675 42HD :TVRR676 50HD :TVRR677 42FHD :TVRR674 130 132 129 128 127 133 131 134 135 A-BOARD TXN/A11CEC (15/17) ! 15V->5V 15V->3.3V 15V->1.2V STB5V->STB3.3V RESET 3.3V->2.5V PANEL CONTROL EEPROM FACTORY USE FOR D1 D2 D3 D4 E1 E2 TH-42PF20C A-Board (15/17) Schematic Diagram TH-42PF20C A-Board (15/17) Schematic Diagram 69 13.25.A 电路板 (16/17) 线路图 TERM SIDE P PD_CEL RA_E- RE_O+ SCLK PD_CIS PD_CPH1 DD3_2P RC_E- DD13_1N PD_CML2 RB_E+ DD13_1P PD_OC1 PD_CSL PD_LED2 DD6_1P PD_CLRD1 OSD_HI DD13_2N DD6_2N OSD_CLKIN PD_CRC3 DRVCLK5N DRVCLK2P RD_E+ DD13_2P DD6_2P PD_SCNRST UML_C PD_PCD3 DD2_2P DD2_1P DRVCLK3N PD_CRC2 DD12_1N DD4_1N D-ODED2 DRVCLK3P RCLK_E- PD_PCD4 DD12_1P DRVCLK9N DD5_1N DRVMUTE DD12_2N D-ODED1 DRVCLK9P DD1_1N OSD_B DRVCLK2N PD_PCD2 DD5_1P DD15_2P DD15_1N RA_E+ DD14_1N DD15_1P DRVCLK5P PD_PCD1 PD_USH PD_SEL2 DD8_1N DD14_1P PD_CRC1 DD15_2N PD_CLRD1 RD_O+ RD_E- DD8_1P DD14_2N PD_LED1 PD_UML PD_PCD2 PD_OC2 DD8_2N DD14_2P RB_O- PD_PCD1 RC_O- PD_CLRD2 OSD_G DD8_2P UMH_C DRVCLK8N D-CLRD2 PD_UMH PD_CERS OSD_R DD7_1N PD_ODED1 D-PCD4 RA_O- PD_SEL PD_PCD4 SOS_DCC DRVCLK4N DD7_1P PD_LED1 PD_PCD3 SIN DRVCLK4P PD_SCCLK DD7_2N RE_O- DD3_2N DD4_2N PD_ODED2 OSD_CKI DD1_1N DD7_2P DD9_1N RB_E- NCS PD_LED2 DRVCLK5P PD_SIU DD1_1P PD_VSET2 DD6_1N DD9_1P PD_UMH DD1_2N D-LED2 USL/UML2_C D-PCD2 DD9_2N RC_E+ DD1_2P D_UHZ DD9_2P DD12_2P DD11_2P RD_O- DD2_1N DD2_1N RC_O+ DRVCLK1N RA_O+ DRVCLK5N DRVCLK7N DD10_1N RE_E- USH_C RB_O+ DD2_1P DD1_2P PD_UML D-PCD3 DRVCLK7P DD10_1P DD4_2P RCLK_O- DD2_2N DRVCLK1P UEH_C DD5_2N PD_ODED2 PD_UEH D-PCD1 PD_USH OSD_YS DD11_1N DD10_2N RE_E+ DRVCLK2N DD2_2P DD5_2P OSD_HIN RCLK_E+ D-LED1 P_S0 PD_USL/UML2 DD11_1P DD10_2P PD_CML DRVCLK2P DD4_1P DD3_1P DRVCLK1N DD4_1N D-CLRD1 PD_CLRD2 PD_USL/UML2 DD2_2N RCLK_O+ DD3_2P PD_UEH DD11_2N DRVCLK6N DD3_1N DRVCLK1P DD4_1P P_S1 SOUT PD_CSH DD1_2N DRVCLK6P DD1_1P PD_CMH DD3_1P DD4_2N PD_ODED1 DD3_1N OSD_VIN DD3_2N DD4_2P DRVCLK8P D-LED1 D-ODED1 D-PCD1 D-PCD2 D-CLRD1 DD5_2N DD5_2P DD5_1N DD5_1P DRVCLK3N DRVCLK3P DD6_2N DD6_2P DD6_1N DD6_1P DD7_2N DD7_2P DD7_1N DD7_1P DRVCLK4N DRVCLK4P DD8_2N DD8_2P DD8_1N DD8_1P XRST_SYS P3V_SDA02 P3V_SCL02 OHZ1 DRVRST C9301 50V 18p C9302 50V 18p C9300 16V 0.1u C1AB00003258 *IC9300 C30 DCCIDISPEN *IC9300 AK15 LVDOD15N *IC9300 A18 RXECKN *IC9300 A20 RXEBN *IC9300 D1 OSDVO *IC9300 AJ24 LVDOD22P *IC9300 AA1 DCCOP28 *IC9300 AH4 LVDRCK3N *IC9300 AD3 LVDRCK1N *IC9300 M3 DCCOP35 *IC9300 P30 DCCOP21 *IC9300 AE30 LVDOD29N *IC9300 B27 SOS *IC9300 V2 DCCOP1 *IC9300 A27 SFRST *IC9300 R2 DCCOP5 *IC9300 E28 FPDAT0 *IC9300 P2 DCCOP10 *IC9300 N29 DCCOP29 *IC9300 R1 DCCOP9 *IC9300 A21 RXEAN *IC9300 AD2 LVDOD1P *IC9300 L3 DCCOP27 *IC9300 E29 FPDAT1 *IC9300 B14 RXOBP *IC9300 B26 SFVRST *IC9300 AK5 LVDOD7N *IC9300 B17 RXEDP *IC9300 AJ18 LVDOD18P *IC9300 AK26 LVDOD24N *IC9300 AK13 LVDOD13N *IC9300 AK22 LVDOD20N *IC9300 AH29 LVDOD26P *IC9300 V3 DCCOP11 *IC9300 AF3 LVDRCK2N *IC9300 AH2 LVDOD5P *IC9300 AH19 LVDRCK9P *IC9300 AK14 LVDOD14N *IC9300 AJ8 LVDOD10P *IC9300 C2 OSDHO *IC9300 C5 FLSIO1 *IC9300 B7 SDA *IC9300 AH9 LVDRCK5P *IC9300 AC2 LVDOD0P *IC9300 AJ26 LVDOD24P *IC9300 AJ22 LVDOD20P *IC9300 AJ23 LVDOD21P *IC9300 AF29 LVDOD28P *IC9300 AC1 LVDOD0N *IC9300 E2 OSDYSI *IC9300 E1 OSDBI *IC9300 P1 DCCIFBK0 *IC9300 AH16 LVDRCK8N *IC9300 AH23 LVDRCK10P *IC9300 B3 EXTFLSO *IC9300 T2 DCCOP2 *IC9300 AA2 DCCOP17 *IC9300 AJ16 LVDOD16P *IC9300 M30 DCCOP12 *IC9300 AH24 LVDRCK11N *IC9300 AJ15 LVDOD15P *IC9300 A15 RXOAN *IC9300 AK4 LVDOD6N *IC9300 A11 RXODN *IC9300 B13 RXOCP *IC9300 T3 DCCIFBK2 *IC9300 A10 RXOEN *IC9300 W1 DCCOP36 *IC9300 B12 RXOCKP *IC9300 N30 DCCOP19 *IC9300 D2 OSDRI *IC9300 AH7 LVDRCK4P *IC9300 AC3 LVDRCK0N *IC9300 AJ6 LVDOD8P *IC9300 AH22 LVDRCK10N *IC9300 C1 OSDCKO *IC9300 AH15 LVDRCK7P *IC9300 AF28 LVDRCK13P *IC9300 AH27 LVDRCK12P *IC9300 AE29 LVDOD29P *IC9300 A4 FLSCK *IC9300 M1 DCCOP7 *IC9300 A5 FLSIO3 *IC9300 R3 DCCIFBK1 *IC9300 A3 EXTFLSCK *IC9300 N2 DCCOSCRST *IC9300 A29 XRST *IC9300 N3 DCCOP39 *IC9300 AJ7 LVDOD9P *IC9300 B21 RXEAP *IC9300 R29 DCCOP37 *IC9300 AJ13 LVDOD13P *IC9300 AJ12 LVDOD12P *IC9300 AC29 LVDOD31P *IC9300 A2 EXTFLNCS *IC9300 AG2 LVDOD4P *IC9300 U3 DCCOP40 *IC9300 D3 OSDGI *IC9300 AK8 LVDOD10N *IC9300 AJ19 LVDOD19P *IC9300 N28 DCCOP26 *IC9300 AK17 LVDOD17N *IC9300 AF1 LVDOD3N *IC9300 A13 RXOCN *IC9300 B16 RXEEP *IC9300 AJ17 LVDOD17P *IC9300 AH1 LVDOD5N *IC9300 A19 RXECN *IC9300 L29 DCCOP15 *IC9300 V30 XI *IC9300 AD1 LVDOD1N *IC9300 AK6 LVDOD8N *IC9300 U2 DCCOP4 *IC9300 W2 DCCOP31 *IC9300 AB28 LVDRCK15P *IC9300 AH6 LVDRCK4N *IC9300 AG3 LVDRCK2P *IC9300 AD29 LVDOD30P *IC9300 L30 DCCOP14 *IC9300 AE3 LVDRCK1P *IC9300 F1 OSDCKI *IC9300 K2 DCCOP30 *IC9300 AH13 LVDRCK6P *IC9300 AE2 LVDOD2P *IC9300 AG28 LVDRCK13N *IC9300 AJ4 LVDOD6P *IC9300 AH12 LVDRCK6N *IC9300 AK12 LVDOD12N *IC9300 AK7 LVDOD9N *IC9300 AH18 LVDRCK9N *IC9300 AJ27 LVDOD25P *IC9300 T30 CKMO *IC9300 B18 RXECKP *IC9300 A28 DCCIDRVRST *IC9300 AJ5 LVDOD7P *IC9300 AE1 LVDOD2N *IC9300 AD28 LVDRCK14P *IC9300 AK16 LVDOD16N *IC9300 AF2 LVDOD3P *IC9300 AJ9 LVDOD11P *IC9300 K1 DCCOP34 *IC9300 V1 DCCOP8 *IC9300 P28 DCCOP25 *IC9300 Y2 DCCOP20 *IC9300 B30 DCCIPORT0 *IC9300 M2 DCCOP33 *IC9300 A12 RXOCKN *IC9300 B4 FLSIO0 *IC9300 AD30 LVDOD30N *IC9300 K29 SFVO *IC9300 A14 RXOBN *IC9300 AK24 LVDOD22N *IC9300 AH14 LVDRCK7N *IC9300 N1 DCCOP32 *IC9300 B11 RXODP *IC9300 AG30 LVDOD27N *IC9300 AJ25 LVDOD23P *IC9300 A16 RXEEN *IC9300 D30 FPCLK *IC9300 B10 RXOEP *IC9300 W30 XO *IC9300 L1 DCCOP38 *IC9300 T1 DCCOP3 *IC9300 AH26 LVDRCK12N *IC9300 B19 RXECP *IC9300 AJ14 LVDOD14P *IC9300 P3 DCCOP41 *IC9300 AK9 LVDOD11N *IC9300 AC30 LVDOD31N *IC9300 P29 DCCOP18 *IC9300 C29 SFLATCHI *IC9300 AC4 LVDRCK0P *IC9300 AF30 LVDOD28N *IC9300 B28 XRSTSYS *IC9300 E3 OSDHI *IC9300 R28 DCCOP23 *IC9300 Y3 DCCOP22 *IC9300 AG1 LVDOD4N *IC9300 B5 FLNCS *IC9300 M29 DCCOP13 *IC9300 B20 RXEBP *IC9300 A7 SCL *IC9300 AH8 LVDRCK5N *IC9300 B15 RXOAP *IC9300 AK18 LVDOD18N *IC9300 Y1 DCCOP16 *IC9300 A6 FLSIO2 *IC9300 K30 DCCOP24 *IC9300 AK19 LVDOD19N *IC9300 AK23 LVDOD21N *IC9300 AK25 LVDOD23N *IC9300 AG29 LVDOD27P *IC9300 AH25 LVDRCK11P *IC9300 U1 DCCOP0 *IC9300 C4 EXTFLSI *IC9300 L2 DCCOP6 *IC9300 B6 SPIHZ *IC9300 AH17 LVDRCK8P *IC9300 AE28 LVDRCK14N *IC9300 A17 RXEDN *IC9300 AK27 LVDOD25N *IC9300 AH30 LVDOD26N *IC9300 AH5 LVDRCK3P *IC9300 AC28 LVDRCK15N *IC9304 TVRR694AC 1 CS# 2 SO/SIO1 3 WP#/SIO2 4 GND 5 SI/SIO0 6 SCLK 7 NC/SIO3 8 VCC *A31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 P3.3V P3.3V P3.3V VJ9902 TP9119 TP9904 TP9902 TP9122 TP9116 TP9149 TP9154 TP9152 TP9900 TP9145 TP9123 TP9136 TP9117 TP9137 TP9901 TP9118 TP9147 TP9148 TP9133 TP9151 TP9132 TP9115 TP9121 TP9120 TP9113 TP9156 TP9141 TP9124 TP9134 TP9197 TP9193 TP9194 TP9153 TP9135 TP9138 TP9131 TP9155 TP9143 TP9150 TP9130 TP9126 TP9125 TP9142 TP9128 TP9903 TP9300 TP9144 TP9127 TP9140 TP9146 TP9105 TP9106 TP9107 TP9108 TP9109 TP9110 TP9129 TP9139 TP9076 TP9078 TP9195 TP9301 TD9383 TD9528 TD9330 TD9381 TD9529 TD9380 R9336 EXB38V470JV R9611 EXB38V470JV R9610 EXB38V470JV R9609 EXB38V470JV R9300 EXB38V470JV R9608 EXB2HV470JV R9316 47 R9323 1k R9319 47 R9321 1M R9318 47 R9338 47 R9503 10k R9335 47 R9334 47 R9308 47 R9307 47 R9306 47 R9309 47 R9322 47 R9320 1.2k R9337 47 X9300 H0J200500076 DRVCLK1- P3.3V DD2_2+ NC GND GND DD1_2+ DD1_1+ DD3_1- IIC DD3_2+ DD6_2- DD5_2+ DD2_1+ DRVCLK4+ DRVCLK3- KEY_SCAN GND DRVCLK2- DD7_2- DD2_1- GND DD6_2+ DRVCLK5+ GND DRVCLK5- DD4_2+ DD8_2+ SS_PULSE GND DRVCLK4- DRVCLK3+ DD4_2- DD6_1+ GND DRVCLK2+ DD5_2- DD5_1- P3.3V DRVCLK1+ DD8_1+ DD2_2- GND PC1 CLR1 DD7_1- DD8_2- DD8_1- PC2 GND DD6_1- ODE1 GND LVDS_INPUT DATA_DRIVER GND DD4_1+ GND DD4_1- LE1 GND DD1_1- DD3_1+ DD3_2- DD7_2+ DD5_1+ P3.3V DD7_1+ GND DD1_2- GND GND 42FHD :TVRR694 50FHD :TVRR695 42HD :TVRR696 50HD :TVRR697 136 141 140 138 137 139 142 143 144 A-BOARD TXN/A11CEC (16/17) ! FLASH MOMORY IC9300 VIDEO SIGNAL PANEL CONTROL PD4H (C11) C1-BOARD TO E1 E2 F1 F2 F3 TH-42PF20C A-Board (16/17) Schematic Diagram TH-42PF20C A-Board (16/17) Schematic Diagram 70 13.26.A 电路板 (17/17) 线路图 TERM SIDE P P P P P DD15_2N DD15_2P DD13_1P DD13_2N DD14_1P DRVCLK9N DRVCLK8N DD14_2N DRVRST DD13_1N DD15_1N DD14_2P DD14_1N DD13_2P DD15_1P DRVCLK9P DRVCLK8P SOS8_SS UEH_C USL/UML2_C USH_C UML_C UMH_C D-CLRD2 D-PCD4 D-PCD3 D-ODED2 D-LED2 DD12_1P DD12_1N DD12_2P DD12_2N DRVCLK7P DRVCLK7N DD11_1P DD11_1N DRVCLK6P DRVCLK6N DD9_1P DD9_1N DD9_2P DD9_2N C_5V_DET DD10_2N DD10_2P DD10_1N DD10_1P DD11_2N DD11_2P C9313 0.1u 16V C9356 0.1u 16V C9315 0.1u 16V C9347 1u 6.3V C9316 10V 10u C9314 10V 10u C9350 0.1u 16V C9363 0.1u 16V C9340 0.1u 16V C9374 0.1u 16V C9383 0.1u 16V C9351 0.1u 16V C9308 0.1u 16V C9339 0.1u 16V C9900 25V 0.01u C9325 0.1u 16V C9327 0.1u 16V C9312 10V 10u C9372 10V 10u C9342 0.1u 16V C9335 10V 10u C9375 0.1u 16V C9371 10V 10u C9392 10V 10u C9322 0.1u 16V C9391 10V 10u C9344 0.1u 16V C9380 0.1u 16V C9361 0.1u 16V C9307 0.1u 16V C9311 0.1u 16V C9319 0.1u 16V C9349 10u 10V C9337 10V 10u C9336 10V 10u C9373 10V 10u C9352 6.3V 1u C9323 0.1u 16V *IC9300 A1 VDD33 *IC9300 AF5 GND *IC9300 AB29 MLVDS_VDD *IC9300 B25 TEST *IC9300 AG14 MLVDS_VDD *IC9300 AJ20 GND *IC9300 E19 LRX_V12 *IC9300 K5 VDDC *IC9300 AG8 MLVDS_VDD *IC9300 AK28 GND *IC9300 E17 SCS_VDD18 *IC9300 D23 VDD33 *IC9300 D16 VDD33 *IC9300 AF24 VDDC *IC9300 E30 SBO0 *IC9300 A24 ID0 *IC9300 AF27 miniLVDS_RI3 *IC9300 C9 GND *IC9300 AB3 VDDC *IC9300 AF17 SCS_VDD18 *IC9300 AJ10 SCS_ANA_17 *IC9300 P5 SCS_VDD15 *IC9300 D21 LRX_V12C_1 *IC9300 AJ29 GND *IC9300 AG16 MLVDS_VDD *IC9300 Y27 PLLICK_AVS *IC9300 V5 SCS_VDD18 *IC9300 D5 GND *IC9300 G2 SCS_ANA_29 *IC9300 G5 VDDC *IC9300 V29 GND *IC9300 AK29 GND *IC9300 E6 GND *IC9300 D6 LRX_TXN_1 *IC9300 AF13 SCS_VDD18 *IC9300 D18 LRX_V12C_2 *IC9300 E7 VDDC *IC9300 A9 LRX_VDDH *IC9300 C23 GND *IC9300 E21 VDDC *IC9300 AJ11 GND *IC9300 J28 SCS_ANA_26 *IC9300 R26 SCS_VDD18 *IC9300 C28 GND *IC9300 N26 SCS_VDD18 *IC9300 AK20 GND *IC9300 AE4 miniLVDS_RI0 *IC9300 AG6 MLVDS_VDD *IC9300 AB2 VDDC *IC9300 AF22 VDDC *IC9300 W29 GND *IC9300 C14 GND *IC9300 AB30 MLVDS_VDD *IC9300 U4 SCS_ANA_35 *IC9300 AG18 PLLSSMLCK_AVS *IC9300 AJ1 GND *IC9300 E5 VDD33 *IC9300 M27 SCS_ANA_28 *IC9300 W4 VDD33 *IC9300 AG4 GND *IC9300 E24 VDDC *IC9300 H3 VDD33 *IC9300 AD4 MLVDS_VDD *IC9300 AE26 VDDC *IC9300 G3 SCS_ANA_27 *IC9300 E15 GND *IC9300 C13 GND *IC9300 N4 SCS_ANA_33 *IC9300 D8 VDD33 *IC9300 H1 GND *IC9300 AA27 PLLSSDCCCK_AVS *IC9300 G1 GND *IC9300 AK11 GND *IC9300 W28 VDD33 *IC9300 AF25 SCS_ANA_18 *IC9300 AD27 MLVDS_VDD *IC9300 AF18 SCS_ANA_0 *IC9300 L26 SCS_VDD15 *IC9300 B24 ID1 *IC9300 R27 SCS_ANA_30 *IC9300 A25 ID2 *IC9300 V26 VDDC *IC9300 C20 GND *IC9300 AB26 VDDC *IC9300 E14 SCS_VDD18 *IC9300 J5 VDDC *IC9300 V28 VDD33 *IC9300 E20 LRX_V12 *IC9300 C12 GND *IC9300 AF14 SCS_VDD18 *IC9300 F2 SCS_ANA_25 *IC9300 E26 GND *IC9300 C22 GND *IC9300 F28 SBO1 *IC9300 AA26 SCS_ANA_40 *IC9300 K4 GND *IC9300 AF10 VDDC *IC9300 E25 GND *IC9300 AF12 GND *IC9300 G29 SRLF1 *IC9300 B1 GND *IC9300 AF15 GND *IC9300 AE27 miniLVDS_MON3 *IC9300 AG24 MLVDS_VDD *IC9300 AE5 miniLVDS_MON0 *IC9300 AK10 SCS_ANA_21 *IC9300 H2 GND *IC9300 AF8 VDDC *IC9300 H5 VDDC *IC9300 C26 SCS_ANA_10 *IC9300 E13 SCS_VDD18 *IC9300 M28 DCCIPORT1 *IC9300 AG15 VTEST1 *IC9300 AA29 MLVDS_VDD *IC9300 D19 LRX_V12C_3 *IC9300 D20 LRX_V12C_0 *IC9300 M5 GND *IC9300 R4 VDD33 *IC9300 AD5 MLVDS_VDD *IC9300 AB4 VDDC *IC9300 AH20 GND *IC9300 V4 VDD33 *IC9300 C18 SCS_ANA_13 *IC9300 AF16 SCS_VDD18 *IC9300 AF9 VDDC *IC9300 U26 VDDC *IC9300 G4 GND *IC9300 AK21 SCS_ANA_3 *IC9300 J1 GND *IC9300 E10 VDDC *IC9300 U5 SCS_VDD18 *IC9300 N5 SCS_VDD15 *IC9300 AA5 VDDC *IC9300 H4 GND *IC9300 AB1 VDDC *IC9300 H30 MHIO *IC9300 T29 GND *IC9300 D24 VDD33 *IC9300 D15 VTEST0 *IC9300 AF21 VDDC *IC9300 AA30 MLVDS_VDD *IC9300 P26 SCS_VDD18 *IC9300 AG27 GND *IC9300 C25 SCS_ANA_12 *IC9300 W27 PLLICK_AVD *IC9300 J27 VDD33 *IC9300 C8 SCS_ANA_8 *IC9300 D12 SCS_ANA_11 *IC9300 AG10 SCS_ANA_24 *IC9300 A8 GND *IC9300 B2 VDD33 *IC9300 D22 GND *IC9300 AF23 VDDC *IC9300 D27 GND *IC9300 E18 GND *IC9300 AC5 MLVDS_VDD *IC9300 K27 GND *IC9300 AD26 VDDC *IC9300 E9 VDDC *IC9300 E22 VDDC *IC9300 AJ28 SCS_ANA_16 *IC9300 G28 SRLF2 *IC9300 A30 GND *IC9300 AF19 SCS_ANA_2 *IC9300 Y4 GND *IC9300 K26 GND *IC9300 Y28 MLVDS_VDD *IC9300 D29 SBI0 *IC9300 L28 TMODE1 *IC9300 E11 LRX_V12 *IC9300 Y5 GND *IC9300 T28 GND *IC9300 A26 SFLATCHO *IC9300 Y29 SCS_ANA_36 *IC9300 T27 GND *IC9300 R30 GND *IC9300 B22 LRX_VDDH *IC9300 C6 IICSYNC *IC9300 AH28 GND *IC9300 AC27 MLVDS_VDD *IC9300 W3 VDD33 *IC9300 D9 VDD33 *IC9300 AG25 MLVDS_VDD *IC9300 W26 GND *IC9300 AB5 VDDC *IC9300 AJ30 GND *IC9300 E27 SCS_ANA_7 *IC9300 Y26 SCS_ANA_38 *IC9300 AK1 GND *IC9300 F4 GND *IC9300 AA28 MLVDS_VDD *IC9300 AJ3 SCS_ANA_37 *IC9300 D26 GND *IC9300 AK30 GND *IC9300 AC26 VDDC *IC9300 H29 MVIO *IC9300 F30 SBT0 *IC9300 C21 GND *IC9300 AG7 MLVDS_VDD *IC9300 C27 GND *IC9300 G26 VDDC *IC9300 AF4 GND *IC9300 V27 GND *IC9300 H27 VDD33 *IC9300 T26 SCS_VDD18 *IC9300 D10 VDD33 *IC9300 J26 VDDC *IC9300 J2 GND *IC9300 AH11 GND *IC9300 M4 SCS_ANA_31 *IC9300 D25 VDD33 *IC9300 R5 SCS_VDD18 *IC9300 B23 GND *IC9300 F26 GND *IC9300 AG23 miniLVDS_RI2 *IC9300 D14 LRX_TXP_0 *IC9300 P27 VDD33 *IC9300 T5 SCS_VDD18 *IC9300 AG26 MLVDS_VDD *IC9300 L4 GND *IC9300 J30 SHIO *IC9300 D17 VDD33 *IC9300 N27 VDD33 *IC9300 AF7 MLVDS_VDD *IC9300 B9 LRX_VDDH *IC9300 E8 VDDC *IC9300 W5 GND *IC9300 AA3 GND *IC9300 AK2 GND *IC9300 Y30 GND *IC9300 C16 GND *IC9300 C19 SCS_ANA_15 *IC9300 E12 LRX_V12 *IC9300 AB27 PLLSSDCCCK_AVD *IC9300 D11 SCS_ANA_6 *IC9300 C17 GND *IC9300 G27 SCS_ANA_5 *IC9300 G30 SRLF0 *IC9300 AG9 MLVDS_VDD *IC9300 H28 VDD33 *IC9300 AG20 GND *IC9300 E16 SCS_VDD18 *IC9300 P4 VDD33 *IC9300 L27 GND *IC9300 K28 TMODE0 *IC9300 AG13 MLVDS_VDD *IC9300 E23 VDDC *IC9300 K3 OCKOUT *IC9300 AG17 MLVDS_VDD *IC9300 AH21 SCS_ANA_22 *IC9300 C3 VDD33 *IC9300 C24 SCS_ANA_14 *IC9300 A23 GND *IC9300 U30 GND *IC9300 B29 GND *IC9300 L5 GND *IC9300 F29 SBT1 *IC9300 D7 LRX_TXP_1 *IC9300 E4 GND *IC9300 D13 LRX_TXN_0 *IC9300 AF20 GND *IC9300 F27 SCS_ANA_9 *IC9300 AG12 miniLVDS_RI1 *IC9300 AG5 SCS_ANA_39 *IC9300 U28 VDD33 *IC9300 U27 SCS_ANA_34 *IC9300 C7 SCS_ANA_23 *IC9300 AG22 miniLVDS_MON2 *IC9300 U29 SCS_ANA_32 *IC9300 AH3 GND *IC9300 AA4 VDDC *IC9300 D4 VDD33 *IC9300 AJ2 GND *IC9300 AG11 miniLVDS_MON1 *IC9300 D28 SBI1 *IC9300 AF6 MLVDS_VDD *IC9300 B8 GND *IC9300 AK3 GND *IC9300 C15 GND *IC9300 C11 GND *IC9300 F5 GND *IC9300 H26 VDDC *IC9300 AH10 SCS_ANA_19 *IC9300 AJ21 SCS_ANA_1 *IC9300 AF26 GND *IC9300 J29 SVIO *IC9300 A22 LRX_VDDH *IC9300 M26 SCS_VDD15 *IC9300 T4 GND *IC9300 AF11 GND *IC9300 C10 GND *IC9300 AG19 PLLSSMLCK_AVD *IC9300 J4 VDD33 *IC9300 AG21 SCS_ANA_20 *IC9300 F3 SCS_ANA_4 *IC9300 J3 VDD33 *A32 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 L9300 J0JHC0000117 L9301 J0JHC0000117 P5V P3.3V P3.3V P1.2V P2.5V P3.3V VJ9901 VJ9900 VJ9300 VJ9302 VJ9301 TP9912 TP9911 TP9180 TP9177 TP9179 TP9176 TP9010 TP9182 TP9164 TP9190 TP9173 TP9169 TP9185 TP9170 TP9175 TP9187 TP9192 TP9157 TP9166 TP9181 TP9183 TP9184 TP9165 TP9174 TP9171 TP9178 TP9162 TP9158 TP9905 TP9160 TP9159 TP9907 TP9906 TP9186 TP9909 TP9189 TP9163 TP9167 TP9191 TP9168 TP9908 TP9161 TP9188 TP9199 TP9205 TP9914 TP9913 TP9198 TP9910 TP9172 TP9206 TD9101 Q9900 DSC200100L Q9901 DSC200100L R9903 4.7k R9906 100k R9904 100k R9327 1.6k R9325 1.6k R9905 10k R9324 1.6k R9326 1.6k R9907 100 UMH UML DRVCLK9+ DRVCLK8- DD15_1+ DD12_2- DD9_1- DD15_1- DRVCLK8+ DD11_2- PC3 DD10_2- DD14_2+ USH GND DD15_2+ DRVCLK7- GND DD14_2- DRVCLK6- DD12_1+ P5V GND GND DD13_1- DD11_1- DRVCLK6+ GND DD11_2+ GND GND LE2 NC USL/UML2 CLR2 DD15_2- GND DD13_2- DD9_1+ 3.3V_DET DD11_1+ DD10_1- PC4 DD14_1- UEH GND NC GND DD10_1+ ODE2 DD12_1- DD12_2+ P3.3V DRVSOS8 GND DD10_2+ GND DD9_2+ DD13_1+ GND GND GND DD14_1+ DD9_2- DRVCLK7+ GND DRVCLK9- DD13_2+ 151 145 146 152 149 153 147 150 148 A-BOARD TXN/A11CEC (17/17) ! PD4H GND TO C2-BOARD (C21) F1 F2 F3 TH-42PF20C A-Board (17/17) Schematic Diagram TH-42PF20C A-Board (17/17) Schematic Diagram 71 13.27.C1 电路板 (1/2) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE AB_ODE1 AB_PC1 AB_CLR1 AB_LE1 AB_ODE1 AB_PC1 AB_CLR1 AB_LE1 AB_ODE1 AB_PC1 AB_CLR1 AB_LE1 AB_ODE1 AB_PC1 AB_CLR1 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 AB_LE2 AB_ODE2 AB_PC2 AB_CLR2 DD1_2+ DD1_1- DD1_1+ DRVCLK1- DRVCLK1+ DD2_2- DD2_2+ DD2_1- DD2_1+ DRVCLK1- DRVCLK1+ DD3_2- DD3_2+ DD3_1- DD3_1+ DRVCLK2- DRVCLK2+ DD4_2- DD4_2+ DD4_1- DD4_1+ DRVCLK2- DRVCLK2+ DD5_2+ DRVCLK3- DRVCLK3+ DD6_2- DD6_2+ DD6_1- DD6_1+ DRVCLK3- DRVCLK3+ DD7_2- DD7_2+ DD7_1- DD7_1+ DRVCLK4- DRVCLK4+ DD8_2- DD8_2+ DD8_1- DD8_1+ DRVCLK5- DRVCLK5+ AB_LE1 DD5_1- DD1_2- DD5_2- DD5_1+ C17101 100V 0.33u C17124 100V 0.33u C17121 100V 0.33u C17117 100V 0.33u C17109 100V 0.33u C17105 100V 0.33u C17111 100V 0.33u C17115 100V 0.33u C17113 10V 1u C17107 10V 1u C17119 10V 1u C17116 10V 1u C17110 10V 1u C17122 10V 1u C17125 10V 1u C17104 10V 1u 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 C1_3.3V C1_3.3V VDA C1_3.3V C1_3.3V C1_3.3V C1_3.3V VDA VDA C1_3.3V VDA VDA VDA C1_3.3V VDA VDA R17141 1 R17111 1 R17106 1 R17148 150 R17116 1 R17121 1 R17126 1 R17131 1 R17136 1 R17138 100 R17145 100 R17125 200 R17129 100 R17135 200 R17108 100 R17139 100 R17130 200 R17128 100 R17115 200 R17114 100 R17140 100 R17119 100 R17144 100 R17113 100 R17109 100 R17110 200 R17123 100 R17120 200 R17124 100 R17133 100 R17143 100 R17118 100 R17134 100 GND GND VDD1 GND NC VDD2 VDD2 LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 GND NC GND NC GND CLR A2N VDD1 VDD2 VDD2 FXN VDD2 VDD2 GND A1P GND GND VDD2 GND GND GND NC VDD2 DM GND GND NC DM NC VDD2 FXP ODE BLK GND TEST VDD2 NC DM GND NC VDD2 FXP GND VDD2 DM GND GND ODE NC GND VDD2 GND GND GND NC LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 BLK GND NC GND VDD2 NC TEST GND CLR A2N GND VDD1 VDD2 VDD2 FXN GND VDD2 VDD1 VDD2 GND GND A1P GND VDD2 NC DM GND NC VDD2 FXP GND VDD2 DM GND GND ODE NC GND VDD2 GND GND GND NC LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 BLK GND NC GND VDD2 NC TEST GND CLR A2N GND VDD1 VDD2 VDD2 FXN GND VDD2 VDD1 VDD2 GND GND A1P GND VDD2 NC DM GND NC VDD2 FXP GND VDD2 DM GND GND ODE NC GND VDD2 GND GND GND NC LEN GND A1N A2P VDD2 VDD2 GND GND GND VDD2 BLK GND NC GND VDD2 NC TEST GND CLR A2N GND VDD1 VDD2 VDD2 FXN GND VDD2 VDD1 VDD2 GND GND A1P GND GND VDD1 VDD2 VDD2 NC TEST NC VDD2 DM NC FXP A1N VDD2 GND NC A2P GND VDD2 VDD2 GND VDD2 DM GND VDD2 GND DM FXP VDD2 VDD2 GND GND BLK GND GND ODE NC ODE NC GND GND GND VDD2 GND GND NC GND NC GND VDD2 TEST NC A1N VDD2 GND LEN GND VDD2 DM GND GND VDD1 A2P CLR A2N GND GND VDD1 GND GND GND VDD2 GND VDD2 ODE FXP NC NC A2P FXN VDD2 GND GND GND GND GND GND VDD2 VDD2 GND GND VDD1 GND GND A1P NC VDD2 GND BLK GND LEN A1P GND GND A1N A2P NC VDD2 VDD2 GND GND NC VDD2 VDD2 VDD2 DM GND GND GND GND GND VDD2 VDD2 VDD2 VDD2 CLR GND VDD2 BLK A2N NC NC LEN GND NC GND VDD1 GND GND GND NC VDD2 VDD2 VDD2 DM FXN VDD2 GND GND BLK VDD1 GND VDD2 GND GND NC FXN VDD2 GND GND GND VDD2 GND VDD2 GND GND A1P VDD2 NC NC VDD2 GND GND VDD2 NC DM TEST GND DM GND GND NC A1N CLR GND TEST A2N GND VDD1 VDD2 CLR GND GND VDD2 A2N NC VDD2 ODE FXN VDD2 GND VDD2 GND VDD1 VDD2 VDD2 FXP GND LEN GND A1P GND GND NC OHZ GND OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC B A 1 8 4 E 2 D 7 3 9 6 F 5 C TO DRIVER PANEL DATA CB1 TO DRIVER PANEL DATA CB2 PANEL DATA CB3 DRIVER TO DRIVER TO CB4 PANEL DATA TO DRIVER PANEL DATA CB6 DRIVER PANEL DATA CB5 TO PANEL DATA CB7 DRIVER TO DRIVER TO CB8 PANEL DATA C1-BOARD TXNC11LQUC (1/2) ! 1 2 TH-42PF20C C1-Board (1/2) Schematic Diagram TH-42PF20C C1-Board (1/2) Schematic Diagram 72 13.28.C1 电路板 (2/2) 线路图 SIDE TERM TERM SIDE AB_LE1 AB_LE2 AB_ODE1 AB_ODE2 AB_PC1 AB_PC2 AB_CLR1 AB_CLR2 DD2_2+ DD8_1+ DD2_2- DD8_1- DD8_2+ DD8_2- DRVCLK4+ DRVCLK4- DD7_1+ DD7_1- DD7_2+ DD7_2- DD6_1+ DD6_1- DD6_2+ DD6_2- DRVCLK3+ DRVCLK3- DD5_1+ DD5_1- DD5_2+ DD5_2- DD4_1+ DRVCLK1+ DD3_1+ DD4_1- DRVCLK1- DD3_1- DD4_2+ DD1_1+ DD3_2+ DD4_2- DD1_1- DD3_2- DRVCLK2+ DD1_2+ DD2_1+ DRVCLK2- DD1_2- DD2_1- AA_PC1_L AA_PC2_L AA_CLR_L AA_PC2_L AA_PC1_L AA_ODE_L AA_LE_L 5V_DET DRVCLK5- DRVCLK5+ AA_ODE_L AA_LE_L AA_CLR_L C17103 16V 0.1u C17141 50V 100p C0JBAU000043 IC17101 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C10 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C11 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 VDA C1_3.3V C1_3.3V C1_3.3V ZA17103 K4CD01000013 ZA17101 K4CD01000013 ZA17104 K4CD01000013 ZA17102 K4CD01000013 R17105 EXB38V470JV R17104 EXB38V470JV R17103 EXB38V681JV R17152 0 R17101 0 R17150 1k R17146 680 R17151 0 R17147 220k R17153 0 55 1 68 1 C10 C11 1 20 55 1 55 1 55 1 55 1 55 1 55 1 55 1 DD4_2+ DD1_1- GND DD4_1+ DD8_2- DD8_1- DD4_2- DD4_1- GND P3.3V P3.3V P3.3V NC GND DD5_2+ DD5_1+ GND GND GND DD5_2- DD5_1- DD1_2+ DD6_2+ DD6_1+ CLR GND PC1 DRVCLK3+ DRVCLK2- DD1_2- GND DRVCLK5- GND DRVCLK3- GND DRVCLK4+ GND DRVCLK4- DD2_2+ DD2_1+ ODE DRVCLK1- LE GND PC2 DRVCLK1+ DD2_2- DD2_1- GND DD1_1+ DD3_2+ DD7_2+ DD3_1+ DD7_1+ DD7_2- DD7_1- GND DD3_2- GND DRVCLK2+ DD8_2+ DD3_1- DD8_1+ DD6_2- GND DD6_1- GND GND P3.3V P3.3V GND NC GND GND NC Vdat Vdat Vdat NC Vdat GND GND Vdat NC P3.3V_DET GND GND DRVCLK5+ 14 15 18 16 10 12 13 17 11 BUFFER ! 1 2 TO C2-BOARD (C20) TO A-BOARD (A31) TH-42PF20C C1-Board (2/2) Schematic Diagram TH-42PF20C C1-Board (2/2) Schematic Diagram C1-BOARD TXNC11LQUC (2/2) 73 13.29.C2 电路板 (1/2) 线路图 SIDE TERM TERM SIDE AB_ODE3 AB_ODE4 AB_PC3 AB_LE3 AB_LE4 AB_PC4 AB_CLR3 AB_UML AB_UMH AA_UEH AA_UMH AB_UEH AB_USL AB_USH AB_USL AB_UEH AB_UML AB_USH AA_USH DRVCLK7- DD9_1- DD11_2- DD9_2+ DD11_2+ AA_UEH DD9_2- DD11_1+ DD11_1- AA_USL DD9_1+ AA_PC4_R DD10_2+ AA_USH DRVCLK7+ DD13_2- DD10_2- DD13_1- DD10_1- DD12_1+ DRVCLK6+ DD12_2+ DRVCLK6- DRVCLK8- DD12_2- DD13_1+ AA_ODE_R DD12_1- DD13_2+ AA_LE_R DD10_1+ AA_CLR_R DRVCLK8+ AA_PC3_R DD15_2+ DD14_1+ DD15_2- DD14_2+ DD15_1- DD14_2- DD14_1- DRVCLK9- DD15_1+ AA_UML DRVCLK9+ AA_PC3_R AA_PC4_R AB_CLR4 AB_UMH AA_UMH AA_CLR_R 5V_DET AA_ODE_R AA_UML AA_USL AA_LE_R C17202 16V 0.1u C17203 16V 0.1u C17241 50V 100p C0JBAU000043 IC17201 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAZ002692 IC17202 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C20 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 C21 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 57 58 59 60 61 62 63 64 65 66 67 68 56 C25 1 2 3 4 C23 1 2 3 4 5 6 7 8 C2_3.3V C2_3.3V C2_3.3V VDA SS_5V SS_5V VDA SS_5V R17205 EXB38V470JV R17208 EXB38V681JV R17206 EXB38V470JV R17207 EXB38V681JV R17203 EXB38V470JV R17204 EXB38V681JV R17202 EXB38V470JV R17201 220k R17262 0 R17245 680 R17261 0 R17260 0 R17263 0 GND VDA VDA NC UML UMH SOS8_SS GND P5V UEH USL USH DD15_1- DRVCLK7+ GND DD15_2+ PC4 UEH DD11_2- PC3 DD14_2- DRVCLK8+ DD12_1+ GND DD14_1+ CLR GND GND GND DD12_2- P5V_SS GND DD15_1+ DD12_1- DD9_2+ DD14_2+ DD11_1+ DD10_2- DD13_1- DD10_1- DD11_1- DRVCLK8- USH GND DD13_2+ DD11_2+ NC GND DD9_1+ DD13_1+ GND DD12_2+ DD13_2- UML DD9_1- GND GND DRVCLK7- NC DD10_1+ GND DD14_1- DRVCLK9+ DRVCLK6+ DRVSOS8 P3.3V_DET DRVCLK6- GND GND USL DRVCLK9- LE ODE UMH GND GND DD9_2- DD10_2+ DD15_2- GND P3.3V P3.3V GND GND NC GND NC P3.3V_DET VDA GND GND NC VDA VDA GND GND NC VDA VDA P3.3V 7 A B 2 3 E 9 4 6 8 C 1 F D TO C1-BOARD (C10) TO A-BOARD (A32) TO SS-BOARD (SS33) TO P-BOARD (P35) BUFFER BUFFER 1 2 C2-BOARD TXNC21LQUC (1/2) ! 5 TH-42PF20C C2-Board (1/2) Schematic Diagram TH-42PF20C C2-Board (1/2) Schematic Diagram 74 13.30.C2 电路板 (2/2) 线路图 TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE TERM SIDE DD15_2+ DD11_1- DRVCLK6- DRVCLK6- AB_PC3 AB_PC3 AB_ODE3 DRVCLK7+ DD12_2- DD10_1+ AB_LE3 AB_CLR4 AB_ODE4 AB_ODE4 AB_ODE3 DD12_1+ DD9_1- AB_LE3 AB_PC4 AB_CLR3 DRVCLK9+ DRVCLK9- DD13_1+ DD15_1- AB_PC3 AB_ODE3 DD10_2+ DD10_2- AB_LE3 AB_CLR3 DD14_1- AB_CLR3 AB_CLR4 AB_PC3 DD10_1- AB_ODE3 DRVCLK7- DD12_2+ DD11_1+ DRVCLK7- AB_CLR3 AB_LE3 DD14_2- DD11_2+ DD9_2- AB_PC4 DD13_2+ DRVCLK8+ AB_PC4 AB_CLR4 AB_LE4 DD14_2+ DRVCLK8- DD13_1- DRVCLK8- DD15_1+ AB_ODE4 DD11_2- DD9_2+ DD12_1- DRVCLK8+ DD14_1+ AB_LE4 AB_LE4 DD15_2- DD9_1+ DD13_2- DRVCLK6+ DRVCLK6+ DRVCLK7+ C17205 100V 0.33u C17207 100V 0.33u C17217 100V 0.33u C17219 100V 0.33u C17213 100V 0.33u C17210 100V 0.33u C17223 100V 0.33u C17221 10V 1u C17212 10V 1u C17206 10V 1u C17215 10V 1u C17218 10V 1u C17224 10V 1u C17209 10V 1u 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 1 3 4 5 7 8 9 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 47 48 49 51 52 53 55 C2_3.3V C2_3.3V C2_3.3V C2_3.3V C2_3.3V C2_3.3V VDA VDA VDA VDA VDA VDA VDA C2_3.3V ZA17203 K4CD01000013 ZA17201 K4CD01000013 ZA17202 K4CD01000013 ZA17204 K4CD01000013 R17247 150 R17240 1 R17220 1 R17225 1 R17210 1 R17215 1 R17235 1 R17230 1 R17234 200 R17232 100 R17219 200 R17218 100 R17239 200 R17244 100 R17224 200 R17217 100 R17228 100 R17212 100 R17214 200 R17237 100 R17233 100 R17227 100 R17243 100 R17213 100 R17242 100 R17223 100 R17222 100 R17229 200 R17238 100 8 55 C20 4 1 1 1 20 1 1 5 5 1 5 5 55 1 55 1 55 1 55 1 1 68 C21 FXP VDD2 LEN GND GND VDD1 VDD2 VDD2 NC TEST NC VDD2 DM NC FXP A1N VDD2 GND NC A2P GND VDD2 VDD2 VDD2 GND NC VDD2 FXP DM GND VDD2 A1N VDD2 GND DM FXP VDD2 VDD2 GND GND BLK GND GND ODE NC ODE NC GND GND GND VDD2 GND GND NC GND NC GND VDD2 TEST NC DM A1N VDD2 GND GND LEN VDD2 GND VDD2 GND DM GND GND VDD1 DM A2P CLR VDD2 A2N GND VDD2 GND GND GND BLK VDD1 GND GND GND GND GND VDD2 ODE NC GND VDD2 ODE NC ODE FXP GND NC NC A2P FXN GND VDD2 GND GND GND GND GND VDD1 GND GND GND VDD2 GND VDD2 GND GND VDD1 A1P VDD1 GND GND GND A1P NC VDD2 VDD2 VDD2 GND GND BLK GND BLK GND GND GND LEN NC A1P GND FXN GND A1P A1N VDD2 A2P GND NC GND VDD2 GND VDD2 GND GND NC VDD2 VDD2 GND VDD2 DM GND GND GND VDD2 NC GND GND VDD2 VDD2 VDD2 VDD2 GND GND VDD2 GND GND A1P VDD2 NC VDD2 CLR GND VDD2 BLK VDD2 VDD2 NC A2N NC NC NC LEN TEST VDD2 GND VDD2 NC GND DM GND VDD1 GND GND DM GND GND GND VDD2 NC GND VDD2 DM VDD2 VDD2 VDD2 VDD1 DM GND A2P VDD2 NC FXN CLR VDD2 CLR A1N A2N GND GND GND BLK GND VDD2 GND GND VDD2 BLK TEST VDD1 VDD1 GND GND A2N VDD2 NC GND GND GND NC FXN NC NC VDD2 GND GND GND GND GND LEN VDD2 GND VDD2 VDD2 GND GND A1P VDD2 NC NC GND NC CLR GND VDD2 GND NC GND GND VDD2 GND VDD2 GND NC DM GND TEST TEST VDD1 GND DM NC GND GND A2N FXP GND NC A1N A1N GND CLR NC GND TEST VDD2 GND A2N VDD2 NC GND GND NC VDD1 A2P A2P GND VDD2 VDD2 CLR ODE FXN GND GND GND LEN VDD2 VDD2 A2N NC VDD2 VDD2 VDD2 ODE GND VDD2 FXN VDD2 VDD2 GND VDD2 VDD1 GND VDD2 DM VDD2 GND GND GND VDD1 VDD2 VDD2 GND GND FXN FXP GND GND LEN GND VDD2 GND GND A1P VDD2 GND GND GND NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ NC OHZ 18 13 17 14 15 12 11 10 16 DRIVER PANEL DATA CB9 TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO DRIVER PANEL DATA TO PANEL DATA TO DRIVER CB10 CB11 CB12 CB15 CB14 PANEL DATA TO DRIVER CB13 1 2 ! TH-42PF20C C2-Board (2/2) Schematic Diagram TH-42PF20C C2-Board (2/2) Schematic Diagram C2-BOARD TXNC21LQUC (2/2) 75 13.31.SC 电路板 (1/4) 线路图 + + + + TERM SIDE MAIN_STOP0 AA_SIU AA_CLK AA_CERS AA_SEL AA_OC2 AA_SC_FPGANRST AA_OC1 AA_CEL AA_CSH AA_CSL AA_CPH1 AA_CMH AA_CML AA_CML2 AA_CRC2 AA_UHZ AA_CRC1 AA_CIS AA_CRC3 AA_SOS6 5V VSUS C16562 16V 1u C16564 16V 1u C16565 50V 0.01u C16566 50V 0.01u C16582 16V 1u C16593 50V 1000p C16418 1.5u 250V C16581 25V 1u C16561 10V 10u *C16412 220V 250u C16791 25V 220u *C16416 220V 250u *C16419 1.5u 250V D16480 B0ACCJ000048 D16790 B0JCME000093 D16822 B0ADCJ000100 D16583 B3ABB0000210 IC16581 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC16563 C0JBAB000916 1 1A 2 1Y 3 2A 4 2Y 5 3A 6 3Y 7 GND 8 4Y 9 4A 10 5Y 11 5A 12 6Y 13 6A 14 VCC C0JBAU000043 IC16561 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc C0JBAU000043 IC16562 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc SC20 23 29 30 2 12 5 33 14 32 20 28 26 4 9 11 19 22 21 25 8 13 6 31 17 10 34 24 18 1 7 27 16 15 3 35 SC2 1 3 SOS7_SC2 5V 15V 15V TP19 TP26 TP40 TP5 TP25 TP17 TP23 TP21 TP35 TP9 TP10 TP117 TP99 TP30 TP70 TP39 TP34 TP98 TP97 TP33 TP118 TP18 TP38 TP122 TP109 TP115 TP2 TP82 TP113 TP108 TP107 TP119 TP11 TP20 TP123 TP88 TP114 TP31 TP110 TP24 TP89 TP8 TP32 TP7 TP4 TP37 TP46 TP6 TP16 TP14 TP15 TP72 TP29 TP1 TP106 TP71 TP52 TP28 TP36 TP112 TP120 TP121 TP101 TP22 TP124 TP105 TP116 TP3 TP111 R16564 EXB38V470JV R16566 EXB38V472JV R16570 EXB38V472JV R16562 EXB38V470JV R16561 EXB38V470JV R16579 EXB38V470JV R16567 EXB38V472JV R16563 EXB38V470JV R16568 EXB38V472JV R16565 EXB38V472JV R16591 EXB38V472JV R16476 4.7k R16593 1.4k R16585 1k R16586 2.15k R16588 10k R16587 2.2k R16590 220 R16583 39k R16584 6.8k R16582 39k R16580 5.6k SC_FPGANRST CRC1 SEL SIU CLK TPSOS7 TPSOS6 (GREEN LED) NC SEL2 GND CRC3 GND P5V CMH SC_FPGANRST CML CPH1 CSL CSL CSH CSH CML CMH P15V CRC2 CRC3 P5V Vsus GND GND CLK GND SIU SEL CERS CIS CPH1 OC2 SOS6 SOS7 GND NC CEL GND OC1 GND P15V Vsus CRC1 OC1 UHZ GND CERS OC2 Reserve CEL CRC2 SEL2 Reserve C 1 A 4 2 E 9 F 6 8 3 D B VOLTAGE ERROR DET OPERATES AT 151V OR MORE AND 60V OR LESS ! INVERTER BUFFER BUFFER ERROR DET TO A-BOARD (A20) TO P-BOARD (P2) TPVSUS MID 2 1 3 SC-BOARD TXNSC1LBUC (1/4) TH-42PF20C SC-Board (1/4) Schematic Diagram TH-42PF20C SC-Board (1/4) Schematic Diagram 5 7 76 13.32.SC 电路板 (2/4) 线路图 + + + AA_CML AA_CSL AA_CMH AA_CSH AA_CML2 15V MIDC VRH VRL C16524 25V 4.7u C16471 630V 1000p *C16461 1000p 630V C16491 630V 1000p C16525 25V 4.7u C16421 630V 5600p *C16481 1000p 630V C16771 16V 1u C16501 25V 1u C16441 50V 3900p C16522 25V 4.7u C16401 5600p 630V *C16633 250V 4u C16504 25V 4.7u C16521 25V 1u C16505 25V 1u C16452 50V 3900p *C16632 250V 4u C16502 25V 4.7u C16534 25V 1u C16503 25V 470u C16796 25V 470u C16523 25V 470u D16522 D1FK60-5073 D16466 B0ACCJ000048 D16411 B0ACCJ000048 D16534 B0ECHR000001 D16451 B0ECKP000055 D16503 B0ECHR000001 D16523 B0ECHR000001 D16536 B0ECHR000001 *D16421 B0FACP000006 *D16462 B0FACP000003 *D16482 B0FACP000003 *D16401 DA3DF50ACSLW *D16402 DA3DF50ACSLW C0ZBZ0001708 IC16521 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001708 IC16501 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC IC16771 C0CBADC00072 VIN 3 2 COM VOUT 1 *L16401 G0CR41K00001 *L16411 G0CR41K00001 15V PC16461 PS9856-2-F3-AX 1 2 3 4 5 6 7 8 TP93 TP90 TP91 TP92 *Q16422 DG3D4020CSRP *Q16403 DG3D5020CSLW *Q16441 B1JAEP000013 *Q16452 B1JAEP000012 *Q16421 DG3D4020CSRP *Q16402 DG3D5020CSLW Q16551 B1HFPFA00001 Q16531 B1HFPFA00001 Q16501 B1HFPFA00001 Q16521 B1HFPFA00001 R16452 5.6 R16410 390 R16411 270 R16517 47k R16512 47k R16466 56k R16533 47k R16467 82k R16522 100 R16416 10k R16465 27k R16421 7.5 R16441 5.6 R16402 7.5 R16506 10 R16422 7.5 75 R16523 R16551 10 R16417 100 R16418 100 R16503 10 R16531 10 R16521 100 R16553 47k R16509 1 75 R16504 R16534 5.6 R16468 82k R16403 7.5 Vad+5V Vad+5V VFG VOL MID MIDF VFG 16V_F Vsus Vsus VAD 11 13 14 10 18 15 17 12 16 ! MID 3 1 2 CSL/CML GATE DRIVE CIRCUIT FET DRIVER FET DRIVER CSH/CMH GATE DRIVE CIRCUIT Vad+5V 16V_F Vad+5V VAD 15 16 14 18 17 12 11 13 TH-42PF20C SC-Board (2/4) Schematic Diagram TH-42PF20C SC-Board (2/4) Schematic Diagram SC-BOARD TXNSC1LBUC (2/4) 77 13.33.SC 电路板 (3/4) 线路图 + + AA_CERS AA_CPH1 AA_CIS AA_CEL AA_CRC1 AA_CRC2 AA_UHZ C16684 50V 0.1u C16668 50V 220p C16603 630V 1000p C16608 50V 220p C16661 630V 1000p C16692 50V 0.1u C16756 25V 4.7u C16666 50V 82p C16664 50V 82p C16604 630V 1000p C16665 50V 82p C16646 630V 1000p C16662 630V 1000p C16675 50V 390p C16641 2200p 630V C16891 25V 1u C16708 50V 0.1u C16490 16V 1u C16773 25V 1u C16753 25V 4.7u C16602 50V 22p C16645 630V 1000p C16685 50V 0.1u C16755 25V 4.7u C16707 50V 22p C16642 5600p 630V C16691 160V 100u *C16417 220V 250u F2A2T251A004 D16674 B0ECHR000001 D16618 B0ECKP000055 D16669 B0ACCJ000048 D16649 B0ACCJ000048 D16654 B0ACCJ000048 D16673 B0ECHR000001 D16671 B0ACCJ000048 D16490 B0ECKP000055 D16610 B0ACCJ000048 D16702 B0ACCJ000048 D16765 B0ECKP000055 D16653 B0ACCJ000048 D16478 B0ACCJ000048 D16407 B0JCME000093 D16607 B0ACCJ000048 D16902 B0ACCJ000048 D16497 B0ECKP000055 D16652 B0ECKP000055 D16650 B0ACCJ000048 D16491 B0ECKP000055 D16677 B0ADEJ000035 D16422 B0FACP000005 D16494 B0ADCJ000100 D16604 B0ADCJ000100 D16920 B0ADCJ000100 D16901 B0ADCJ000100 D16493 B0ADCJ000100 D16641 B0FBCN000006 D16642 B0FBCN000006 D16648 DZ2J051L0L D16647 DZ2J150M0L D16662 DZ2J150M0L D16645 DZ2J150M0L D16663 DZ2J150M0L D16678 DZ2J15000L D16646 DZ2J150M0L D16605 DZ2J051L0L D16664 DZ2J150M0L D16602 DZ2J150M0L D16651 DZ2J051M0L D16477 DZ2J047L0L D16492 DZ2J047M0L C0DBZYY00352 IC16692 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZMC00006 IC16490 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0JBAB000715 IC16773 1 NC 2 IN_A 3 GND 5 VCC 4 OUT_Y C0BBAA000008 IC16491 1 -INPUT 2 GND 3 +INPUT 5 VCC 4 OUTPUT C0JBAC000363 IC16691 1 IN_B 2 IN_A 3 GND 5 VCC 4 OUT IC16661 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC IC16920 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC 15V 15V 5V 5V PC16603 B3PBA0000498 1 2 3 4 PC16684 B3PBA0000496 1 2 3 4 5 6 PC16685 B3PBA0000496 1 2 3 4 5 6 TP104 TP103 TP68 TP67 Q16608 B1CBGD000001 Q16647 B1CBGD000001 Q16818 B1CBGD000001 Q16607 B1CBGD000001 Q16490 B1CBGD000001 *Q16601 B1CERR000042 G D S Q16660 B1CERR000042 Q16921 B1ABCN000007 Q16602 DSC2001Q0L Q16677 DSC2001Q0L Q16606 DSC2001Q0L Q16676 B1ABCF000231 Q16649 B1ABCN000007 Q16920 B1ABCN000007 Q16678 B1ABCF000231 Q16662 DSC2001Q0L Q16645 DSC2001Q0L Q16702 B1ABCF000231 Q16671 B1ABCF000231 Q16668 DSC2001Q0L Q16810 B1ABCF000231 Q16661 B1JAER000010 Q16622 B1JADN000009 Q16621 B1JADN000009 Q16646 DSA2001S0L Q16675 B1ADCN000007 Q16701 B1ADCN000007 Q16603 DSA2001S0L Q16663 DSA2001S0L Q16670 B1ADCN000007 DSA2001S0L Q16801 Q16762 B1HFPFA00001 R16493 6.19k R16649 33 R16617 2.2k R16652 8.2k R16712 1k R16612 47 10 R16765 R16666 22k R16804 1.1k R16678 2k R16745 470k R16747 2.2k R16711 4.7k R16615 1.1k R16899 2.74k R16682 10 R16897 1k R16769 75 R16634 470 R16904 22k R16893 82.5k R16609 2k R16695 1.5k R16717 1k R16667 2k R16776 47 R16663 7.15k R16761 10 R16927 22k 1 R16601 R16660 2.2k R16490 120k R16685 220 R16631 10k R16901 4.7k R16677 2k R16654 47 R16681 10 R16691 56k R16497 47k R16692 1.5k R16892 82.5k R16661 1.2k R16687 27k R16707 3.9k R16922 3.48k R16690 4.7k R16496 47 R16604 330 R16674 2k R16928 4.7k R16665 33 R16891 69.8k R16646 1.18k R16801 22k R16607 6.98k R16926 2.2k R16662 10k R16686 10k R16673 4.7k R16650 100k R16655 10k R16920 10k R16651 2k R16633 22k R16492 120k R16742 47k R16694 56k R16498 10k R16621 220 R16763 47k R16605 1.8k R16699 10k R16645 5.6k R16684 220 R16802 30.9k R16495 750 R16746 47k R16679 10.7k R16900 10k R16898 1.05k R16659 0 R16680 4.7k R16921 1.24k R16668 2k R16648 2k R16656 4.7k R16622 220 R16664 2k R16658 6.34k R16491 120k R16494 2k R16653 1.8k R16688 8.87k R16675 4.7k R16923 10k R16610 100k VOL VFG 16V_F Vsus VAD VAD Vad+5V VSCN_F 16V_F Vad+5V VOL 16V_F 20 25 23 27 24 19 26 21 22 ! VFG VOL Vad+5V Vsus 16V_F 13 15 16 14 18 17 11 12 CIRCUIT SEPA PROTECT SEPA PROTECT SHUNT REG COMPARATOR COMPARATOR INVERTER SHUNT REG NAND GATE 16V_F VAD 27 24 22 26 23 21 25 TH-42PF20C SC-Board (3/4) Schematic Diagram TH-42PF20C SC-Board (3/4) Schematic Diagram SC-BOARD TXNSC1LBUC (3/4) 78 13.34.SC 电路板 (4/4) 线路图 + + + + + AA_SEL AA_SC_FPGANRST MAIN_STOP0 AA_SOS6 AA_OC2 AA_CLK AA_OC1 AA_SIU VAD C16472 25V 1u C16856 1u 10V C16861 0.1u 16V C16843 50V 0.1u C16724 25V 4.7u C16844 50V 0.1u *C16797 50V 0.1u C16857 0.1u 16V *C16460 630V 2200p C16860 1u 10V C16863 50V 0.1u C16862 1u 10V C16864 0.1u 50V C16858 1u 10V C16723 25V 1u C16794 10u 10V C16859 0.1u 50V C16854 50V 0.1u C16795 25V 470u C16793 25V 220u C16813 220V 220u C16721 50V 82u C16842 160V 100u D16719 B0ECKP000055 D16474 B0ACCJ000048 D16711 B0ECHR000001 D16875 B0ACCJ000048 *D16792 B0ACCJ000048 D16720 B0ECKP000055 D16859 B0HCKS000002 D16728 B0ECKP000055 D16476 B0ACCJ000048 D16820 B0ACCJ000048 D16473 B0ACCJ000048 D16713 B0ECHR000001 D16721 B0ECHR000001 D16893 DZ2J056H0L D16710 DZ2J15000L D16871 DZ2J240M0L D16712 DZ2J15000L D16874 DZ2J051M0L D16475 DZ2J051M0L D16825 DZ2J330M0L D16872 DZ2J200M0L D16824 DZ2J330M0L D16791 DZ2J200M0L D16821 DZ2J330M0L C0DBZYY00352 IC16787 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZMC00006 *IC16793 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBZYY00352 IC16785 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0DBEYY00114 IC16471 4 REFERENCE 3 CATHODE 1 NC 2 ANODE C0BBAA000008 *IC16792 1 -INPUT 2 GND 3 +INPUT 5 VCC 4 OUTPUT IC16786 MIP3910MSSCF 1 VDD 2 NC 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE IC16784 MIP3910MSSCF 1 VDD 2 NC 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE IC16724 C0CBADE00049 OUT 3 2 COMMON IN 1 SC50 1 2 SC41 1 2 3 4 5 6 7 8 9 SC46 1 2 3 4 5 6 7 8 9 SC42 1 2 3 4 5 6 7 8 9 L16851 L16472 G0ZZ00002183 L16698 G0C681MA0065 T16471 G4DYA0000200 1 NC 3 S2 4 S1 5 NC 6 P2 10 P1 8 PT SCNR_PRO 5V SCNR_PRO CHA 5V SOS7_SC2 CHA 15V PC16723 B3PBA0000498 1 2 3 4 PC16722 B3PBA0000498 1 2 3 4 PC16897 B3PBA0000498 1 2 3 4 PC16480 B3PBA0000498 1 2 3 4 PC16896 B3PBA0000498 1 2 3 4 TP62 TP80 TP59 TP51 TP81 TP61 TP44 TP45 TP95 TP78 TP41 TP79 TP42 TP57 TP96 TP60 TP43 TP58 TP94 TP125 Q16885 B1CFNG000001 Q16816 DSC2001Q0L Q16471 B1ABCF000231 Q16876 B1ABCF000231 Q16815 B1ABCN000007 Q16817 DSC2001Q0L Q16932 DSC2001Q0L Q16931 B1ABCN000007 Q16930 DSC2001Q0L R16721 EXB38V220JV R16755 12k R16471 3.9k R16933 10k *R16799 1k R16752 4.7k R16785 107k R16825 150k R16844 2.4k R16472 2.2k R16873 2.4k R16756 12k R16937 180k R16843 1k R16822 82k *R16919 7.5k R16750 12k R16478 5.6k R16787 33k R16845 66.5k R16786 107k R16719 22 R16829 1k R16832 71.5k R16838 100k R16791 1k R16479 10k R16826 10k *R16820 150k R16789 10k R16772 4.7k R16837 1k *R16818 33k R16473 560 R16849 64.9k R16831 68.1k R16931 2.7 *R16819 150k R16934 6.8k R16773 1k R16932 22k R16935 5.1k R16783 150k R16696 2.2 R16936 2.2k R16846 64.9k R16474 1k R16860 8.2 R16751 150k R16824 33k R16852 470k R16841 4.7k R16774 27k 1 R16929 R16475 4.7k R16823 82k *R16798 2.2k R16870 68k R16827 2.2k R16938 180k R16851 470k R16930 2.7 *R16797 22 R16753 47k ZA16422 TUXJ490 *C16902 3300p 630V ZA16412 TUXJ490 ZA16402 K4CD01000011 ZA16404 K4CD01000011 ZA16421 TUXJ490 ZA16401 K4CD01000011 ZA16411 TUXJ490 TUX2AX0981 TUXJ559 ZA16407 K4CD01000011 ZA16403 K4CD01000011 *C16903 1500p 630V = * * TPVSCN VFG TPSC1 VSCN_F VFG VAD 16V_F 15V_F VSCN 5V_F 5V_F 5V_F TPVAD Vfo 5V_F 34 33 32 36 35 30 29 28 31 SC46 SC41 SC42 ! VSCN_F 16V_F VFG Vsus VAD 24 22 23 21 27 26 25 VAD GEN. SHUNT REG SHUNT REG 5V_F SHUNT REG VHIZ GEN. COMPARATOR SHUNT REG FOR FACTORY USE TO SM-BOARD (SM42) TO SM-BOARD (SM46) TO SM-BOARD (SM41) VSCN GEN. TH-42PF20C SC-Board (4/4) Schematic Diagram TH-42PF20C SC-Board (4/4) Schematic Diagram SC-BOARD TXNSC1LBUC (4/4) 79 13.35.SS 电路板 (1/2) 线路图 + + + AA_SOS8 AA_UMH AA_UML AA_USL AA_USH AA_SOS8 AA_UEH AA_USL 5V AA_USH AA_UML AA_UMH C16092 630V 1000p C16242 16V 1u C16244 10V 10u C16131 25V 4.7u C16133 25V 4.7u C16251 16V 1u C16151 25V 1u C16105 25V 47p C16104 25V 47p C16152 25V 4.7u C16041 50V 3900p C16252 25V 1u C16153 25V 4.7u C16071 630V 1000p C16243 50V 0.01u C16002 630V 5600p C16154 25V 4.7u C16135 25V 1u *C16202 250V 4u *C16014 1.5u 250V *C16203 250V 4u *C16072 630V 1000p *C16091 630V 1000p *C16022 630V 5600p *C16012 220V 250u *C16013 220V 250u C16271 25V 220u D16151 B0ECKP000055 D16152 B0ECKP000055 D16255 B0ACCJ000048 D16131 B0ECKP000055 D16032 B0ACCJ000048 D16153 B0ECKP000055 D16050 B0ECKP000055 *D16001 B0FBCN000005 *D16002 B0FBCN000005 *D16041 B0FACP000004 *D16051 B0FBCN000007 *D16021 B0FCCN000003 *D16022 B0FCCN000003 D16253 B3ABB0000210 D16281 DZ2J051M0L IC16251 C0BBBA000024 1 A_OUTPUT 2 A_-INPUT 3 A_+INPUT 4 GND 5 B_+INPUT 6 B_-INPUT 7 B_OUTPUT 8 VCC C0ZBZ0001707 IC16131 1 LO 2 GND 3 VCC 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 NC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0ZBZ0001708 IC16151 1 LO 2 VCOM 3 VCC2 4 NC 5 NC 6 VS 7 VB 8 HO 9 NC 10 NC 11 VCC 12 HIN 13 NC 14 LIN 15 GND 16 NC C0JBAU000043 IC16241 G1 1 2 A1 3 A2 4 A3 5 A4 6 A5 7 A6 8 A7 9 A8 10 GND 11 Y8 12 Y7 13 Y6 14 Y5 15 Y4 16 Y3 17 Y2 18 Y1 19 G2 20 Vcc SS11 1 3 4 SS33 1 2 3 4 5 6 7 8 *L16001 G0CR39K00002 *L16011 G0CR39K00002 VSUS VSUS TP17 TP20 TP13 TP40 TP39 TP33 TP38 TP16 TP9 TP19 TP2 TP1 TP10 TP18 TP34 TP5 TP41 TP21 TP6 TP14 TP22 TP7 TP8 Q16251 B1ABCF000231 *Q16051 B1JAEN000011 *Q16022 B1JADN000008 *Q16041 B1JAEN000010 *Q16002 B1JADN000009 *Q16001 B1JADN000009 *Q16021 B1JADN000008 Q16161 B1HFPFA00001 Q16141 B1HFPFA00001 Q16055 B1HFPFA00001 Q16056 B1HFPFA00001 R16242 EXB38V472JV R16241 EXB38V470JV R16159 1 R16155 1 R16132 100 R16143 47k 75 R16134 R16280 2.2k R16183 47k R16163 47k R16031 82k R16041 5.6 R16002 7.5 R16131 100 R16258 10k R16152 100 R16252 39k R16032 82k R16254 6.8k R16033 56k R16022 7.5 R16257 27k R16001 7.5 R16034 27k R16141 10 R16230 47 R16251 1.4k R16021 7.5 R16151 100 R16260 2.2k R16137 1 R16231 4.7k R16161 10 R16171 10 R16051 5.6 R16255 1.2k R16173 47k R16256 1.5k 75 R16154 R16181 10 R16253 39k *C16001 630V 2700p (GREEN LED) VSUS GND TPSOS8 - 15V P5V GND UEH USH UML SOS8_SS USL UMH 2 F E D 9 6 A 8 B C 7 1 3 4 5 ERROR DET BUFFER ENERGY FET DRIVER RECOVERY ! TO P-BOARD (P11) TO C2-BOARD (C23) FET DRIVER DRIVER VSUS Gen. TPVSUS 3 4 2 1 SS-BOARD TXNSS1LBUC (1/2) TH-42PF20C SS-Board (1/2) Schematic Diagram TH-42PF20C SS-Board (1/2) Schematic Diagram 80 13.36.SS 电路板 (2/2) 和 SS2 电路板线路图 + + + TERM SIDE TERM SIDE TERM SIDE AA_UML AA_SOS8 AA_UEH *C16101 2200p 630V C16192 25V 0.1u C16331 250V 1u C16285 0.1u 50V C16319 50V 0.1u C16317 1u 10V C16287 0.1u 50V C16315 1u 10V C16191 25V 4.7u C16286 0.1u 50V C16318 0.1u 50V C16195 25V 1u C16316 0.1u 16V C16280 25V 1u C16193 25V 47u C16328 220u 160V *C16314 220V 250u D16192 B0ACCJ000048 D16280 B0ACCJ000048 D16191 B0ECKP000055 D16101 B0JCME000093 D16317 B0ECKP000055 D16286 B0ACCJ000048 D16316 B0ECKP000055 D16285 B0ADEJ000035 D16282 DZ2J068M0L D16315 DZ2J150M0L D16196 DZ2J200M0L C0DBZMC00006 IC16312 4 REFERENCE 3 CATHODE 1 NC 2 ANODE IC16304 MIP3900MSSCF 1 VDD 2 CL 3 FB 4 LS 5 DRAIN 7 SOURCE 8 SOURCE *SS64 1 2 3 4 5 6 7 8 9 10 11 12 13 *SS61 1 2 3 4 5 6 7 8 9 10 11 12 13 SS21 1 2 3 4 5 6 7 L16303 G0C471MA0049 ZA16003 K4CD01000011 ZA16001 K4CD01000011 ZA16002 K4CD01000011 PC16301 B3PBA0000498 1 2 3 4 PC16191 B3PBA0000496 1 2 3 4 5 6 TP36 TP54 TP56 TP51 TP26 TP25 TP29 TP31 TP27 TP24 TP30 TP43 TP42 TP28 Q16101 B1CFRM000008 G D S Q16102 B1CFRM000008 G D S Q16280 B1ABCF000231 Q16191 B1HFPFA00001 R16285 EXB38V623JV R16281 10k R16109 10 R16101 220 R16320 68k R16192 10k R16290 330k R16283 47k R16195 1 R16288 330k R16284 220k R16104 10 R16319 2.49k R16102 220 R16193 75 R16116 47k R16334 4.7k R16282 220 R16289 330k R16330 1k R16103 10 R16191 150 R16335 1k *R16318 68k *R16309 33k *R16307 64.9k R16105 470k R16332 470k SS24 1 2 3 4 5 6 7 SS58 1 2 3 4 5 6 7 8 9 10 11 12 13 = * 17 13 11 15 14 10 18 16 12 ! VE GEN. SHUNT REG. TPVe TPSS1 ELECTRODE SUSTAIN PANEL ELECTRODE SUSTAIN PANEL FPC protector 3 4 1 2 SS2-BOARD ! TXNSS21DYUC ELECTRODE SUSTAIN PANEL TH-42PF20C SS-Board (2/2) and SS2-Board Schematic Diagram TH-42PF20C SS-Board (2/2) and SS2-Board Schematic Diagram SS-BOARD TXNSS1LBUC (2/2) 81 14.1. P 电路板 E F G H I 1 2 3 4 5 6 P-BOARD (FOIL SIDE) LSEP1289WMHB A B C D TH-42PF20C P-BOARD LSEP1289WMHB TH-42PF20C P-BOARD LSEP1289WMHB 82 Parts Location P-BOARD (FOIL SIDE) IC TRANSISTOR VOLUME TEST POINT Parts Location IC TRANSISTOR VOLUME TEST POINT P-BOARD (COMPONENT SIDE) IC100 IC200 IC201 IC202 IC400 IC401 IC500 IC600 IC601 IC602 IC603 IC604 IC701 IC800 IC901 IC901 IC902 IC903 IC904 F-3 G-2 E-2 F-1 E-3 D-2 E-1 E-1 E-2 D-2 D-1 G-1 C-6 D-2 C-3 C-4 C-3 C-3 C-3 Q100 Q101 Q103 Q104 Q105 Q106 Q200 Q300 Q301 Q302 Q303 Q400 Q401 Q402 Q505 Q600 Q601 Q602 Q609 Q701 Q703 Q705 Q706 Q707 Q708 Q709 Q710 Q711 Q712 Q713 Q714 Q715 Q800 Q801 Q804 Q805 Q806 Q807 Q900 Q902 E-2 F-3 G-2 G-3 G-2 G-3 F-1 E-4 E-4 E-5 E-4 E-3 E-3 E-3 C-1 H-5 C-2 H-5 H-5 D-5 D-5 D-6 D-6 D-6 C-6 D-5 D-5 D-5 C-5 C-5 D-6 C-5 B-2 C-2 B-3 C-2 C-2 C-2 B-3 C-3 R141 R923 VR251 E-3 B-3 D-5 TP700 TP900 E-5 B-4 IC201 IC400 D-2 E-3 Q103 Q104 Q105 Q106 Q302 Q303 Q901 C-2 C-3 C-2 C-3 E-5 E-4 G-4 R141 R923 VR251 D-3 H-3 F-5 TP700 TP900 E-5 H-4 P TH-42PF20C P-BOARD Parts Location TH-42PF20C P-BOARD Parts Location 83 E F G H I 1 2 3 4 5 6 P-BOARD (COMPONENT SIDE) LSEP1289WMHB A B C D TH-42PF20C P-BOARD LSEP1289WMHB TH-42PF20C P-BOARD LSEP1289WMHB 84 14.2. PB 电路板 E F G H I 1 2 3 4 5 6 R860 C859 C862 D850 D851 D852 D853 D854 D855 D856 D857 D858 D859 VJ850 PB30 PB31 PB32 PB33 PB34 PB35 PB36 PB37 PB38 R850 R851 R852 R853 R854 R855 R856 R857 P b F TNPA4962 1 PB S E E R E V E R S EF O R O R D E R N O . 1 4 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 PB30 PB31 PB32 PB33 PB34 PB35 PB36 PB37 PB38 PbF TNPA4962 1 PB O R D E R N O . 1 4 1 3 1 3 1 3 1 3 1 3 1 3 1 3 1 3 PB PB-BOARD (FOIL SIDE) TXNPB11CEC PB-BOARD (COMPONENT SIDE) TXNPB11CEC A B C D TH-42PF20C PB-BOARD TXNPB11CEC TH-42PF20C PB-BOARD TXNPB11CEC 85 14.3. HX 电路板 E F G H I 1 2 3 4 5 6 JK509 JK511 JK513 ZA001 HX1 TP65 TP66 TP67 TP68 TP69 TP70 TP71 TP72 TP73 TP74 TP75 C406 FL517 R529 L555 R655 R590 FL510 C564 D510 D504 JA4 R593 FL513 Q532 R664 JA7 R586 C562 R509 C524 JA12 JA2 R585 C561 C523 JA11 JA1 R790 D512 D507 JA8 R589 C563 IC502 D503 JA13 JA3 C407 R776 C552 R672 R656 R591 FL511 R547 Q531 JA5 C405 FL516 C551 D509 R654 C409 R777 C553 R657 R400 R511 D508 L526 R791 FL514 R510 R665 JA9 R778 R530 R508 C503 JA10 C404 FL515 C550 R668 R653 R592 FL512 R548 D511 R663 JA6 JA14 JA15 P b F 3 CRNO. TNPA5110 HX 1 1 5 9 6 1 5 6 1 0 1 1 1 5 1 4 5 8 1 1 5 S E E R E V E R S E F O R O R D E R N O . ZA001 J6 JK511 J3 J9 J7 JK513 J1 JK509 J8 HX1 J4 J5 J2 P b F TNPA5110 CRNO.3 1 HX 6 1 9 5 1 5 O R D E R N O . 1 1 5 HX-BOARD (FOIL SIDE) TXNHX11CEC HX-BOARD (COMPONENT SIDE) TXNHX11CEC HX A B C D TH-42PF20C HX-BOARD TXNHX11CEC TH-42PF20C HX-BOARD TXNHX11CEC 86 14.4. V1,V2,S1 和 H3 电路板 JK8500 D8500 D8501 D8502 D8503 L8501 L8502 H37 P b F 1 TNPA5111 H3 S E E R E V E R S E F O R O R D E R N O . 1 3 JK8500 L8501 L8502 H37 TNPA5111 1 H3 O R D E R N O . 1 3 SW061 L061 L062 P b F TNPA5164 S1 1 NO. SEE ORDER FOR REVERSE SW061 S35 TNPA5164 1 S1 O R D E R N O . 1 4 PbF C1531 Q1540 D1550 RM001 V11 PbF 1 V1 TNPA5162 ORDER NO. 1 6 R1500 C1530 D1551 D1554 R1550 R1551 R1552 R1553 R1554 L1501 L1502 L1503 L1505 L1506 RM001 P b F TNPA5162 1 V1 S E E R E V E R S E F O R O R D E RN O . R1510 R1511 R1512 R1513 SW1550 SW1551 SW1552 SW1553 SW1554 L1507 L1508 V22 PbF TNPA5163 1 V2 O R D E R N O . 1 3 P b F S E E R E V E R S E F O R O R D E R N O . E F G H I 1 2 3 4 5 6 V2-BOARD(FOIL SIDE) TXNV211CEC V2-BOARD(COMPONENT SIDE) TXNV211CEC V1-BOARD(FOIL SIDE) TXNV111CEC V1-BOARD(COMPONENT SIDE) TXNV111CEC S1-BOARD(FOIL SIDE) TXNS111CEC S1-BOARD(COMPONENT SIDE) TXNS111CEC H3-BOARD(FOIL SIDE) TXAUW031CEC H3-BOARD(COMPONENT SIDE) TXAUW031CEC V1 V2 S1 H3 R1510 R1511 R1512 R1513 SW1550 SW1551 SW1552 SW1553 SW1554 INPUT MENU -/ ENTER/ VOL VOL +/ N O . O R D E R F O R R E V E R S E S E E TNPA5163 1 V2 P b F P b F S E E R E V E R S E F O R O R D E RN O . P b F A B C D TH-42PF20C V1-BOARD TXNV111CEC V2-BOARD TXNV211CEC S1-BOARD TXNS111CEC H3-BOARD TXAUW031CEC TH-42PF20C V1-BOARD TXNV111CEC V2-BOARD TXNV211CEC S1-BOARD TXNS111CEC H3-BOARD TXAUW031CEC 87 14.5. DS 电路板 E F G H I 1 2 3 4 5 6 C123 DS2 DS3 PbF TNPA5109 1 DS CRNo.3 DSMM2 S E E R E V E R S E F O R O R D E R N O . A 1 A 2 B 1 B 2 A 4 0 A 3 9 B 3 9 B 4 0 A 1 A 2 B 1 B 2 A 4 0 A 3 9 B 3 9 B 4 0 DS-BOARD (FOIL SIDE) TNPA5109 DS A B C D TH-42PF20C DS-BOARD TNPA5109 TH-42PF20C DS-BOARD TNPA5109 88 E F G H I 1 2 3 4 5 6 TP3000 R024 R017 IC002 C029 C019 Q004 R166 R150 C161 C152 R121 D120 R108 D105 VJ004 Q101 FL003 R045 C061 R029 C045 C038 R005 C025 C010 Q3000 R173 R157 R140 L012 R125 C147 R112 VJ006 VJ001 R051 C067 R031 C054 C048 C039 IC3000 D002 C013 Q002 FL141 R160 R147 C158 R127 L004 C140 D103 VJ002 C101 R054 C069 R034 R028 C043 C036 X120 C024 Q008 C003 R171 R155 D142 C155 L008 C146 R110 D108 Q121 FL008 R049 C065 R030 C050 C042 C035 R003 C023 Q007 C002 R170 R154 D141 L011 L007 L001 D112 R103 VJ005 C120 Q104 FL007 R048 C064 C058 C055 R020 R012 C030 D003 C014 C006 R161 R148 R130 R128 C148 C141 R106 D104 FL3000 R041 R035 C051 C044 C037 R004 D3000 Q009 C004 R172 R156 D143 C156 R124 L002 R111 R104 C121 R050 C066 C059 R025 C040 C032 D005 C020 Q005 R167 R151 C162 C153 R122 C144 R109 D106 Q120 FL004 R046 R039 C052 C046 R010 R006 D001 C011 Q001 FL140 R174 R158 R141 C157 L009 L003 R113 D109 D102 C100 DS13 R052 C068 R032 R023 R016 IC001 C028 C018 C008 R165 DS3 C160 C151 L005 Q140 IC100 R101 D100 FL002 R044 R038 R026 R019 C033 R001 C021 C009 C3000 R168 R152 C163 L010 L006 C145 D110 R102 Q102 FL005 R047 C062 C057 R021 R014 C031 R3000 C016 C007 R163 DS1 R131 IC120 PA141 C143 R107 R100 VJ003 FL001 R043 R037 C056 C049 R013 R008 C027 C015 Q003 R162 R149 C159 C150 R120 C142 VJ008 C123 L140 R042 R036 R027 C041 C034 R002 C022 Q006 C001 R169 R153 D140 C154 R123 Q141 D111 D107 D101 VJ3000 Q103 FL006 C070 C063 R022 R015 R009 D004 C017 PA3000 R164 DS2 R129 C149 L3000 VJ010 VJ009 Q100 L141 VJ140 C060 C053 C047 R011 R007 C026 C012 C005 R175 R159 R144 L013 R126 PA140 R114 R105 VJ007 C122 R053 R040 R033 R055 R176 R177 PbF DS 1 TNPA5109 CRNo.3 DSMM1 O R D E R N O . 1 3 4 5 1 4 5 8 1 6 8 A 1 A 2 B 1 B 2 A 3 9 A 4 0 B 3 9 B 4 0 A 1 A 2 B 1 A 3 9 A 4 0 B 3 9 B 4 0 B 2 1 4 5 8 1 4 5 8 1 4 5 8 1 1 3 DS-BOARD (COMPONENT SIDE) TNPA5109 DS A B C D TH-42PF20C DS-BOARD TNPA5109 TH-42PF20C DS-BOARD TNPA5109 89 14.6. A 电路板 E F G H I 1 2 3 4 5 6 A42 Q4201 Q4202 IC9001 IC9002 Q4403 IC9004 Q9800 Q4404 Q3271 Q9801 Q4405 Q3272 Q9802 Q4406 Q3273 Q3274 IC4002 IC4003 IC9400 IC4004 IC9401 IC4005 IC9402 IC4006 IC4007 Q3291 JK8301 IC9802 Q2301 Q2302 Q2303 Q2304 Q2305 Q2306 A8 IC2302 IC2304 IC2305 Q4665 Q4666 Q4667 Q4668 Q4669 Q4670 Q8301 Q8305 Q2351 Q8306 Q8307 Q4871 IC4281 IC4282 IC8302 IC8303 IC8305 IC8308 JK2401 JK2402 Q4103 Q4104 Q9901 Q4701 IC9304 Q4323 Q4903 Q4904 Q4905 IC4301 JK3201 IC4312 IC4313 IC4314 Q2405 IC4702 Q2406 IC4703 Q4153 JK4001 JK4002 IC9189 Q3201 Q3202 Q3203 Q4981 Q4982 A10 IC3202 A13 IC4981 JK2301 TNPH0837 1 A L R Y Pb Pr Video R1 R2 L2 L1 6 1 12 7 PbF 1 4 5 8 1 3 4 6 1 16 17 32 4 5 7 1 1 3 4 5 1 10 11 20 1 3 4 5 1 10 11 20 1 4 5 8 1 10 11 20 1 4 5 8 1 3 4 5 7 1 2 8 1 5 3 1 1 3 4 5 1 4 5 7 S E E R E V E R S E F O R O R D E R N O . 4 5 7 1 1 3 4 5 1 3 4 5 1 3 4 5 1 4 5 7 1 4 5 8 1 4 5 8 1 6 7 12 1 4 5 8 1 10 11 20 1 7 8 14 1 7 8 14 1 3 4 5 1 24 25 48 1 4 5 8 8 16 24 1 9 17 1 10 11 20 1 11 1 4 5 8 1 13 1 5 A-BOARD (FOIL SIDE) TXN/A11CEC A R3224 CL4240 R4995 CL4241 R3226 CL4242 R4996 R3227 L8313 R4997 CL4243 R3228 R4998 CL4244 R4999 CL4245 R8432 TD9062 TD9063 R8433 C3253 CL4247 CL4054 CL4055 TD9066 CL4056 CL4057 C9400 C3258 C9401 TP8301 C3259 TP8302 C9402 C4006 TP8303 C9403 C4007 C4008 CL4250 R3235 TP2351 CL4251 TP2352 TP8307 R3237 R3238 C3261 R3239 R8441 CL4255 A42 C3262 CL4256 C3263 CL4257 C4203 C3264 CL4258 C4204 CL4259 Q4201 C4205 Q4202 C4206 C4207 R3240 CL4068 C4208 R3241 C4209 R3242 R3243 CL4260 CL4261 CL4262 CL4457 CL4263 CL4458 CL4264 R3248 C4404 C4210 R8451 C9801 CL4265 IC9001 R3249 CL4071 CL4266 C9802 C3272 CL4072 IC9002 C9032 C9033 C3273 CL4267 R8453 C4213 Q4403 IC9004 R9200 C3274 Q9800 R8454 CL4268 C9034 Q4404 C4408 C4214 R8455 R9201 C3275 C9035 CL4269 Q3271 Q9801 C4215 Q4405 C3276 C9036 C9806 Q3272 Q9802 C4216 Q4406 C9807 R9203 Q3273 C9037 C4023 C4217 VJ9300 Q3274 C9038 CL4460 C9808 C4024 R3250 C4218 TP8321 VJ9301 R9205 C9809 R3251 C4025 C4219 TP8322 R9206 VJ9302 C4602 C4026 CL4462 TP8323 C4603 R9207 R3253 C4027 TP8324 R9208 R3254 C4028 CL4270 TP8325 C4411 R9209 R3255 CL4271 TP8326 C4412 R3256 CL4272 TP8327 R3257 C4607 CL4273 R9400 C4608 C9040 R3258 C9810 CL4274 C4220 R3259 R9401 C4609 C4221 R8462 R9402 C4222 R9403 R8463 CL4277 C4223 FL4964 C9044 C4030 C4224 CL4278 C9045 FL4965 C4031 CL4279 C4225 FL4966 C9046 IC4002 C4032 C4226 C9047 FL4967 C9817 C4803 IC4003 C4227 CL4087 C9048 FL4968 C4610 R8468 R3260 C9818 IC9400 IC4004 C4228 C9049 R9215 C9819 IC9401 C4611 IC4005 C4035 R4201 CL4089 C4229 IC9402 C4612 IC4006 R4202 R3262 C4613 C4037 IC4007 C4614 CL4280 R3264 C4809 C4615 C4039 CL4281 R4205 C4421 C4616 CL4282 C4422 R3266 CL4283 C4617 R4207 C9050 C9820 C4618 C4230 CL100 C3291 C4619 C9051 C9821 CL4285 R4015 CL101 C4231 CL102 C9822 C9052 C3292 R4016 C4426 C4232 CL4287 CL103 C9053 C3293 C4233 C4427 D9800 CL4288 R9608 C9054 C9824 CL104 C4428 CL4094 Q3291 CL105 R8475 D3271 JK8301 C9055 C4429 D9802 R8476 D3272 C9056 C9057 R8477 CL107 D3273 D9803 R9223 CL108 D9804 D3274 R9224 CL4098 C9058 R4210 R3271 D9805 R9225 C4045 CL4099 R3272 R9226 CL4482 C4046 R3273 R9227 C4623 CL4483 C4047 R4213 L9300 R3274 R9610 CL4484 C4048 R4020 C4430 L9301 R9611 R9229 R3275 CL4485 R4021 C4049 R4409 C4431 R3276 CL4292 L9302 C4626 R3277 C4627 R4023 C4433 R3278 CL4294 C4628 CL110 C4434 C9831 R4601 R3279 C4629 R4602 CL4296 C9832 IC9802 R4026 CL4297 R4603 C9063 C9833 R4027 C2303 R8484 CL4298 R4604 C4050 R4028 C2304 CL114 C9065 CL4299 R4605 Q2301 R4029 C2305 C4051 CL115 R4606 C2306 C4052 Q2302 CL117 R8487 C2307 Q2303 R3280 R8488 CL118 C4630 C2308 C4054 Q2304 D4801 R8489 C4631 C4055 C2309 R4221 Q2305 D4802 C4632 C4056 R4222 Q2306 D4803 C4633 R4223 D4804 C4634 R4030 A8 R4224 D4805 TP9101 C4635 CL4495 R4031 R4225 TP9102 D4806 C4636 R4032 R4226 D4807 TP9103 C4637 R4033 R4803 D4808 TP9104 C4638 C2310 TP9105 C4639 C2311 TP9106 C2312 TP9107 C2313 TP9108 TP9109 C9845 R8495 C2315 R4421 C9846 C2316 R4422 R4423 D4810 TP9300 C2318 R4424 R8499 TP9301 C2319 R4425 R4231 R3292 R4232 R4426 R9247 R3293 R4427 TP9110 R3294 R4428 R4234 R4040 TP9111 R3295 L4501 R4811 R4235 TP9112 R3296 L4502 R4236 L4503 R4237 TP9113 C2320 L4504 R4238 L4505 TP9115 TP4101 R4621 R4239 TP9116 TP4102 R4622 C2322 L4506 TP4103 TP9117 R4623 C2323 TP4104 TP9500 TP9118 R4624 R4430 TP9119 C4071 C2325 R4431 TP9501 C4072 C2326 R4432 TP9502 C4073 C2327 R4433 TP9503 R4434 R4240 TP9504 C4651 C2329 R4241 L4701 R4435 L4702 R4436 TP9313 TP9120 TP9314 C4654 R4438 R4820 TP9315 TP9121 R4821 TP9316 R4822 TP9122 R2306 TP9123 R2307 TP9124 R4824 R2308 L4514 TP4111 TP9125 R4825 R2309 C2331 TP4112 L4516 R4826 TP9126 C2332 IC2302 TP4113 L4517 TP9127 TP4114 L4518 TP9128 IC2304 C2334 R4829 TP9129 L4519 IC2305 C4081 C2335 C4082 C2336 C4083 C4084 C2338 R2310 C4661 C2339 R2311 R4251 C4085 R2312 C4086 R2313 C4087 TP9900 TP9130 R2314 R4254 C4088 TP9901 TP4311 R4831 TP9131 R4061 R4832 TP9902 TP4312 TP9132 R4062 R4256 TP9133 TP9903 R4257 TP9904 R4834 TP9134 TP9135 TP9905 Q4665 C4281 C2341 R4065 TP9136 TP9906 C4282 C2342 Q4666 TP9907 TP9137 C4283 R4067 Q4667 C2343 TP9908 TP9138 R4838 C4284 Q4668 TP4701 FL4001 TP9139 R4839 TP9909 D2321 Q4669 C2345 C2346 C2347 C2348 C2349 R2323 R4840 TP9140 TP9910 R2324 Q4670 TP4515 R4841 C8301 TP9141 TP9911 R4071 R2325 R4265 R4842 TP9912 TP9142 C8302 R4072 R2326 TP9143 R4843 TP9913 R4073 R2327 C8304 TP9914 TP9144 R4844 R4074 R2328 R4268 R4845 Q8301 TP9145 C8305 R4075 R2329 R4846 TD9102 TP9146 C8306 R4652 TP9147 R4847 C8307 R4848 TP9148 R4654 C8309 Q8305 C4871 TP9149 R4655 Q2351 C2355 Q8306 C4872 C2356 Q8307 C2357 C2358 Q4871 R2331 R4271 R2332 R2333 TP9150 C8310 R2334 R4851 TP9151 R4081 R2335 TD9302 C8312 R4852 TP9152 R4082 R2336 D4662 TD9303 R4853 TP9153 D4663 R9868 TP9154 C8314 R4854 D4664 R4855 C8315 CL4101 TP9155 R4661 D4665 TP9156 R4856 C8316 TP9157 C8317 CL4103 R4858 C8318 TP9158 CL4104 C8319 TP9159 R9871 R4281 C2369 R2341 R9872 R4282 R2342 R9873 R2343 C8320 R9874 R4860 TP9160 CL4300 R2344 CL4301 R4861 C8321 TP9161 R9875 R2345 C8322 R9876 TP9162 R2346 CL4303 TP9163 C8323 R9877 R2347 R9878 R4864 CL4304 TP9164 C8324 C2370 CL4305 R9879 TP9165 D8301 IC4281 CL4306 TD9316 D8302 TP9166 IC4282 CL4307 TD9317 D8303 R4673 TP9167 R4867 C2373 TP9168 CL4308 TD9318 D8304 C8328 R4674 TP9169 CL4309 D8305 R4675 R4676 R4677 R9880 R4678 R9881 D4871 C2379 R4679 R9882 R9883 R9884 TD9320 CL4310 C8330 TP9170 C8331 R4871 TP9171 R9885 R2355 R4872 IC8302 C8332 TP9172 CL4312 TP9173 C8333 CL4313 R4873 IC8303 R2357 TP9174 CL4314 C8334 TD9900 R4874 R9888 R4680 C2380 TP9175 C8335 IC8305 CL4315 C2381 R4681 VJ3201 TP9176 C8336 C2382 R4682 VJ3202 TP9177 C8337 TD9327 C2383 R4683 D8314 TD9328 IC8308 TP9178 C8338 R4684 TD9329 C8339 TP9179 C2385 R4685 R8312 R4686 R8313 R4687 R9890 R8314 R4688 R9891 R4689 R8316 R2362 R2363 CL4320 TP9180 TD9330 C8340 R2364 C8341 TP9181 TD9331 R8319 R2365 TD9332 TP9182 R9896 CL4322 C8342 TD9333 TP9183 R2367 TP9184 R4690 CL4325 TP9185 CL4326 TP9186 TP9187 C2393 R8320 TP9188 C2394 TP9189 R8321 C2395 C2396 CL2002 CL2003 R8323 C2397 R8324 C2398 R8325 CL2005 R8326 R8327 TP9190 R8328 CL2008 TP9191 TP9192 C8352 R2376 R2377 CL4333 TP9193 TP9194 CL4334 TP9195 R2379 TP9196 CL4336 CL4337 TP9197 TD9347 TP9198 CL4338 TD9348 TP9199 CL4339 TD9349 R8331 C9105 CL2011 CL2012 R8333 CL2013 CL4148 CL2014 R2380 JK2401 CL4149 R8335 CL2015 R2381 R8336 JK2402 CL2016 R2382 R8337 CL2017 R2383 TD9350 C9300 CL4340 R8338 R2384 CL4341 TP4381 R8339 TD9351 CL4342 TP4382 R2386 CL4343 R2387 TP4960 CL4150 R2388 TP4961 R2389 TP4962 TD9357 TP4963 C9307 C9308 TD9358 R8340 TP4964 CL4348 R8341 CL4349 C9309 CL4155 TD9359 TP4965 TP4966 CL4156 L4982 CL4157 TP4967 TP4968 R2390 TP4969 Q4103 R8348 Q4104 C9310 TD9360 CL4350 R8349 TD9361 C9311 C9312 T8302 TD9362 CL4353 TD9363 C9313 C8374 C9314 TP4970 TD9364 CL4160 CL4354 C9315 TP4971 TD9365 C8375 CL4355 C9316 TD9366 C9317 TD9367 C8377 C8378 C9318 TD9368 CL4164 CL4358 C9319 R8351 TD9369 CL4166 R8352 CL4168 R8354 R8355 JS2301 JS2302 R8357 JS2303 C9320 TD9370 R8358 R9104 JS2304 CL4360 C9321 R9105 TD9371 JS2305 TD9372 C9322 TD9373 C9323 CL4363 CL4170 C4504 C9324 C4505 C9325 TP4981 CL4171 C9326 C4312 C4506 TP4982 TP4983 CL4367 C4313 C9327 C4507 D9110 C4314 C9328 TD9378 C4508 CL4368 TD9379 C4315 C9329 R8361 CL4175 CL4369 Q9901 C4509 CL4176 C4316 R8362 C4122 R8363 CL4177 C4317 C4123 R8365 R9111 C4701 C4702 R8367 C4703 TD9380 C9330 C4510 R8368 CL4370 C4704 C4511 TD9381 C9331 Q4701 C4705 C9332 C4512 TD9382 C4706 C9333 TD9383 C4707 C4513 TD9384 IC9304 C9334 CL4180 C4708 C4514 C9335 C4321 C4515 C9336 C4516 CL4377 C9337 C4517 C4323 C9338 CL4184 C4324 C4518 C9339 C4325 C4519 R8372 CL002 CL4186 C4326 R8373 CL003 Q4323 CL4188 CL004 C4710 R9121 R4301 C4711 CL006 R4302 C4906 Q4903 R4303 C4907 C4713 CL008 Q4904 CL4380 R4304 C9340 C4714 C4520 Q4905 R4305 C9341 CL009 R4111 C4715 C4521 R9125 C9342 R4306 R4112 C4522 R9126 C9343 CL4383 R4307 C4523 C9344 R4308 R9128 CL4190 C4524 CL4191 R9129 IC4301 C9345 C4525 C9346 C4526 C9347 C4527 CL010 C9348 C4910 C4528 CL011 C9349 C4529 R9323 CL4197 R9900 R9324 CL014 R9901 R4311 R9325 D4121 R9132 R4312 R9326 D4122 R9327 R4313 R4314 C9350 C4530 C9351 R4315 R4121 C4919 C4531 D4701 JK3201 C9352 R4316 C4532 R4122 R9907 C4533 R4317 C9353 R4123 R9908 CL4394 TP9000 C9354 R4124 C4534 R9909 TP9001 C9355 R4125 C4535 C4536 TP9002 C9356 IC4312 R4126 C9357 R4127 R4703 IC4313 C4537 C9358 R8390 R4128 C4920 R4704 C4538 IC4314 C9359 R8391 CL021 CL2071 R4511 C4539 R4705 TP9006 R8392 CL022 CL2072 R4706 R8393 C4923 R9334 R9910 R4708 L4204 R4321 Q2405 R4709 L4205 C2409 IC4702 R9336 Q2406 L4206 IC4703 R4323 Q4153 L4207 R9914 C9360 TP9200 R4324 C4540 R4131 C9361 R9915 TP9201 R4325 D4905 C4541 TP9202 R9916 C9362 R4132 R4326 C4542 TP9203 R9917 R4327 C9363 D4907 C4543 C9364 TP9010 R4328 TP9204 D4908 R4710 C4544 C2410 R9149 TP9205 R4329 C9365 C4545 R4711 L4401 C4546 TP9206 C9366 L4402 C9367 R4713 L4403 R4714 C9368 C4548 C9369 R4716 R4330 R4331 TP4006 TP4007 C4937 R4334 TP4008 C9370 R4910 C4550 TP4009 C9371 R4911 R4335 C9372 R4912 C4552 R4336 C9373 R4913 R4337 C9374 D4918 C4554 R4338 C9375 C2421 C9376 C2422 C4556 C9377 C2423 C9378 TP4010 C2424 C4558 C9379 TP4011 C4559 TP4012 C4172 TP4013 C4173 TP4014 D4920 TP4015 D4921 R4341 D2406 R4342 R4343 C9380 C4560 C4561 R9165 C9381 R4345 C4562 C9382 R4152 R4346 C9383 C4563 R4347 C9384 C4564 R4348 C4565 C9385 R4925 R4731 R2409 C9386 C4566 R4926 R4732 C4567 C9387 R4927 C9388 C4568 R4928 C9389 C4951 C4569 R4735 C4952 L3292 C4953 R2410 TP4601 TP4602 TP4603 TP4604 R4548 C9390 C4570 TP4605 C9391 C4571 R4549 TP4606 C9392 R4932 C4572 TP4607 C4573 C9393 TP4608 C9394 C4574 TP4609 C9395 C4575 C9396 C4576 C4577 C9397 C4578 R4550 C4579 R4747 TP4610 R4748 TP4611 C4965 D4171 R4749 TP4612 D4172 TP4613 L2307 TP4614 C4580 C4968 L2308 TP4615 C4581 C4969 R4171 TP4616 C4582 R4172 TP4617 C4583 R4173 TP4618 R4750 C4584 R4174 TP4619 C4585 JK4001 R4175 C4586 R4176 JK4002 R4177 C4587 C4970 R4178 C4588 CL4001 C4971 R4561 C4972 R4562 C4973 R4757 R4563 L2313 TP4620 C4974 TD9014 R4564 L2314 R4758 TP4621 R4759 C4975 IC9189 Q3201 TP4622 C3206 C4976 Q3202 TP4623 Q3203 C3207 C4977 R4567 TP4624 C3208 C4978 R4568 R4951 C4979 C3209 R4569 R4952 FL4502 R9197 R4953 R4954 R9198 R4760 R4955 TP2301 R4956 TP2302 TP2303 C3210 TP2304 C3211 R4765 C3212 C4982 R4572 R4766 C3213 CL083 R4767 C4983 R4573 R4768 R4574 C3215 CL085 Q4981 C4985 CL4015 R4575 CL086 C3216 Q4982 C4986 R4576 CL4017 CL087 R2443 R4577 CL4018 R2444 CL4019 R4961 R2445 L4651 C4989 R4962 R2446 L4652 R4963 R2447 R4964 R2448 CL4211 R4965 R4389 R2449 TP2311 R4966 CL4212 TP2312 CL4407 R4967 CL4213 TD9030 R4968 R4774 R4969 R4775 CL4215 TP9076 CL4023 TP9078 R4390 R2450 CL4218 D3201 R8405 R2451 L4081 CL4026 D3202 L4082 R2452 D3203 L4083 R2453 CL4027 R4394 D3204 R2454 L4084 CL4028 R8409 TD9039 R4395 R2455 L4085 R4396 R2456 L4086 R4973 L4087 R4974 TP9080 CL4220 TP9081 CL4415 R3206 TP9082 TP9083 R3207 CL4223 TP9084 R8410 TD9040 A10 CL4030 R8411 TP9085 CL4225 TP9086 IC3202 TP9087 CL4033 A13 R8414 TP9088 CL4228 CL4034 TD9045 TP9089 D4981 CL4035 C3236 TD9046 D4982 CL4036 R2463 D4984 R4980 D4985 R2465 R4981 R4982 D4986 R4983 D4987 TP9090 R4984 D4988 TP9091 R3215 R4985 R3216 TP9092 R4986 L8303 CL4427 TP9093 R3217 R4987 R3218 CL4428 TP9094 L8304 C3240 R4988 R4794 TP9095 R3219 CL4429 FL2405 IC4981 C3242 TP9096 FL2406 CL4042 TP9097 L8307 C3243 CL4237 L2353 TP9098 C3244 L8308 L2354 CL4238 TP9099 C3245 CL4239 C3246 C3247 R3220 R4990 CL4430 TD9058 JK2301 CL4431 R3222 CL4432 A B C D TH-42PF20C A-BOARD TXN/A11CEC TH-42PF20C A-BOARD TXN/A11CEC 90 E F G H I 1 2 3 4 5 6 A31 A32 A33 A34 A35 A42 A43 A46 A47 Q4401 Q4402 IC9003 IC4001 IC4201 JK8301 IC9800 IC3271 IC9801 IC3272 IC9803 A1 A4 A5 A6 A7 A8 A9 Q4451 Q4452 IC2301 IC2303 IC2306 Q4661 Q4662 Q4663 Q4664 IC4451 Q8304 Q8308 IC8301 IC8304 JK2401 JK2402 Q4101 Q4102 Q9900 IC9300 Q4321 Q4322 Q4324 Q4901 Q4902 IC4501 JK3201 IC4502 IC4503 Q2401 Q2402 Q2403 Q2404 Q4154 IC4704 IC4515 IC4901 Q4351 IC4902 IC4903 Q4381 Q4382 IC4361 JK4001 JK4002 Q3211 Q3212 Q4983 Q4984 IC4382 A10 IC3201 A11 A12 A13 A14 A20 A21 A22 Q9000 Q9001 A25 Q9002 Q9003 Q9004 JK2301 TNPH0837 1 A THERMAL PAD THERMAL PAD THERMAL PAD Pr Video Pb Y THERMAL PAD AMM5 AMM4 AMM3 AMM2 AMM1 PbF 7 12 1 6 1 68 1 68 1 40 1 55 1 4 1 37 2 38 7 1 1 5 1 4 1 26 51 76 100 + 1 37 73 109 144 1 A 2 7 8 1 + 11 10 1 20 1 3 4 5 11 10 20 1 1 3 5 4 11 10 20 1 1 68 1 14 1 5 1 2 19 20 1 11 1 3 1 9 44 23 1 22 1 21 41 61 80 8 9 16 1 1 3 4 6 O R D E R N O . 1 9 17 25 32 1 26 51 76 100 1 6 7 12 1 A A 1 A 1 1 A 1 3 4 5 1 7 8 14 4 5 8 1 4 5 8 1 1 4 5 8 4 5 8 1 19 1 8 16 9 17 1 24 4 5 8 1 1 11 1 16 17 33 49 64 1 6 1 3 1 13 1 15 35 1 1 30 1 3 1 10 A-BOARD (COMPONENT SIDE) A R4994 R3225 S3201 S3202 S3203 S3204 C3250 A31 C3251 A32 C3252 CL4052 CL4246 A33 CL4053 A34 C3254 CL4248 TD9065 C4001 C3255 CL4249 A35 C4002 C3256 TD9067 C4003 X9300 R3230 CL4058 R8439 R3231 CL4059 R3232 R3233 R3234 C4009 CL4252 R3236 CL4253 R8440 CL4254 CL4060 CL4061 C4201 A42 CL4062 C4202 A43 CL4063 D9000 CL4064 C4010 A46 C3266 R8447 A47 C9028 R8448 C9029 R8449 R3244 FL4371 R3245 C4401 R3246 C4402 R3247 C9800 R8450 C3271 CL4459 C4405 C4211 Q4401 R8452 C4406 Q4402 C4212 C9803 CL4073 IC9003 C4407 C9804 CL4074 C9805 C4021 R8456 C4022 R8457 CL4077 C3277 C3278 C4601 C9039 C3279 CL4461 X4501 R3252 X4502 VJ9303 C4604 C4605 R4001 C4606 R4002 R4003 C4413 C4414 R8460 R4004 CL4468 C9041 R8461 C9811 R4005 FL4961 CL4275 C9812 FL4962 C9042 R4006 CL4276 C9813 TD9093 R4007 FL4963 R8464 TD9094 C9814 R4008 R8465 C9815 TD9095 R4009 C4801 IC4001 TD9096 C9816 R8466 R9212 C4802 R9213 R8467 TD9097 C4034 C4804 R8469 R3261 C4805 C4806 R3263 C4807 R4203 R4010 R9218 C4038 C4808 R4204 R9219 R4011 R3265 R4012 R4206 C4423 CL4284 R8470 CL9298 R4014 C4424 R4208 CL9299 FL3201 R4209 C4425 IC4201 R8472 FL3202 CL4286 R8473 FL3203 R4017 R8474 R4018 FL3204 C9825 CL4289 R9609 JK8301 C4041 R4019 R4401 CL106 CL4096 C9826 C4042 R4402 C9827 C4043 CL4097 R4403 R8478 C9828 C4044 CL4480 R4404 CL109 C9829 C4621 R8479 CL4481 R4405 R4211 C4622 R4212 R4406 R4407 VJ9900 C4624 CL4290 R4408 VJ9901 CL4291 C4625 VJ9902 R4022 CL4293 R8480 IC9800 C9830 R4024 IC3271 IC9801 R8481 C9061 CL4295 R4025 C2301 CL111 IC3272 R8482 C9062 C2302 CL112 R8483 IC9803 CL113 R9230 C9834 A1 C9835 R9231 L4101 R4411 R4412 R8486 CL116 R9232 L4102 R9233 R4607 R4413 R9234 A4 R4414 R3281 R9235 A5 R4415 R3282 R9236 A6 R4416 R9237 R3283 A7 CL4493 R4417 R9238 R3284 A8 R4418 A9 R9239 R3285 R4801 R4419 R4802 CL4496 R8490 R4034 R4804 R8491 D4809 CL121 R4805 R8492 R4806 R8493 R4807 R4037 R9240 R4808 C2314 R4420 R4038 R9241 D3291 R4809 R4039 R9242 R8497 R9243 C2317 R9244 R3291 R9245 R9246 R4810 C4451 C4452 R4812 R4813 C4453 C4454 R4814 C4455 C2321 R4815 Q4451 R4816 C4456 Q4452 L4507 C4457 C2324 C4458 L4508 D2301 L4509 C4459 D2302 D2303 C4074 D2304 C2328 C4075 R2301 C4652 C4076 R2302 C4653 C4077 R2303 R2304 C4460 L4510 C4655 R4051 C4461 L4511 C4656 R4052 L4512 C4462 R4823 C4657 R4053 L4513 C2330 R4054 C4464 L4515 IC2301 R4055 C4465 R4056 C4466 R4827 C2333 IC2303 R4057 R4828 C9094 R4058 C9095 C4851 R4059 L4901 C9096 C4852 L4902 IC2306 C4853 L4903 C2337 R9070 R9072 R4252 R4253 R4830 R4060 Q4661 R4255 Q4662 R4833 Q4663 R4063 Q4664 R4064 C2340 R4258 R4835 R4259 R4836 R4066 R4068 C2344 R4451 R4452 R4453 R4648 R4454 R4260 R2320 R4649 R2321 R4261 R4455 R2322 R4456 R4262 R4457 R4263 R4458 R4264 S2301 IC4451 R4459 S2302 R4266 C8303 R4267 TD9100 R4650 TD9101 R4651 C2351 D4461 R4269 C2352 TD9103 R4653 C2353 Q8304 TD9104 C2354 TD9105 L4151 R4461 TD9106 R4656 L4152 R4462 L2407 R4657 L4153 R4463 CL9300 Q8308 R4658 R2330 R4270 R4464 R4659 C2359 R4465 R4466 R4272 R9093 R4467 R4273 TD9300 R9094 CL9304 R4274 TD9301 D4661 R4275 CL9306 R4276 C8313 R2337 R4277 R9098 TD9304 C2360 R4278 L2411 TD9305 C2361 CL4102 TD9306 L2412 C2362 R4662 R4857 C2363 R4663 TD9308 C2364 R4664 TD9309 CL4105 C2365 R4665 C4881 R4666 C2366 C4882 C2367 R4667 CL9310 R4668 CL4108 C2368 CL4109 R4669 TD9310 TD9311 R4862 CL4302 TD9312 R4863 TD9313 TD9314 R4670 R4865 TD9315 C8325 C2371 R4671 C8326 R4866 C2372 R4672 C8327 R4868 C2374 R8301 TD9319 R4869 C8329 C2375 C2376 C2377 C2378 R2351 R8306 R2352 R2353 R8308 R2354 TD9321 TD4501 R8309 CL4311 IC8301 TD9322 R2356 TD4502 TD9323 TD4503 TD4504 TD9324 IC8304 R2358 TD9901 TD9325 L4371 R2359 TD4505 TD9326 TD9902 TD4506 L4372 CL4317 TD9903 L4373 TD4507 TD9904 TD4508 L4374 C2384 CL4318 TD9905 R8311 CL4319 L4375 TD4509 C2386 L4376 C2387 C2388 R2360 R8315 C2389 R2361 R8317 TD4510 R8318 CL4321 TD4511 R4881 TD4512 R4882 C8343 TD4513 R4883 CL4323 CL4324 TD9528 R2368 C2390 R4884 TD9529 R2369 C2391 R4885 C2392 CL4327 CL4328 CL4329 R8322 CL2004 R2370 R2371 CL2006 R2372 CL2007 R2373 CL4330 R2374 R8329 CL4331 CL2009 R2375 TD9342 CL4332 TD9343 C9100 X9000 TD9344 R2378 TD9345 CL4335 C9101 C9102 TD9346 C9103 R8330 CL2010 L3201 C9106 R8332 L3202 L3203 R8334 C9108 JK2401 JK2402 C9301 R2385 TD9352 C9302 C9303 TD9353 C9304 CL4344 C9110 TD9354 CL4345 CL4151 TD9355 L2461 CL4152 TD9356 L2462 CL4346 CL4153 CL4347 C9114 CL4154 C4101 L4981 X4001 C4102 C9117 C4103 R8344 CL4158 Q4101 CL4159 R8346 Q4102 CL4351 T8301 CL4352 CL4161 ZA4001 CL4162 ZA4002 CL4356 CL4163 CL4357 R8350 CL4359 CL4165 CL4167 CL4169 R9103 R8359 C4501 CL4361 X4401 C4502 CL4362 C4503 R9107 TD9374 C9900 CL4364 TD9375 CL4365 C4311 TD9376 CL4172 CL4366 TD9377 CL4173 R8360 R9300 CL4174 Q9900 C4121 R8364 CL4178 D4101 CL4179 R9306 R8366 D4102 R9307 D4103 IC9300 R9308 D4104 R9309 CL4371 R4101 D4105 CL4372 R4102 D4106 CL4373 R4103 D4107 R4104 D4108 CL4374 R4105 C4709 CL4375 TD9385 R9119 CL4181 CL4182 TD9386 R4106 CL4376 C4322 R4107 R9503 CL4183 CL4378 R8370 R4108 R8371 Q4321 CL4185 TD9389 CL4379 R4109 C4901 Q4322 C4902 CL4187 C4903 R8374 C4904 Q4324 R8375 D4111 Q4901 C4905 CL4189 CL005 R9316 R8376 D4112 Q4902 C4712 R8377 D4113 R9318 TD9390 R9124 D4114 R4110 C4908 R9319 D4115 C4909 CL4382 D4116 D4117 CL4384 D4118 TD9395 CL4385 TD9396 CL4192 CL4386 CL4387 TD9397 CL4193 R9320 TD9398 CL4194 CL4388 R9321 CL4389 C4911 CL4195 R4501 R9322 CL4196 C4912 R4502 R4503 R9130 CL4198 C4916 R9903 C4917 R9904 C4918 CL4390 R9134 R9135 R9905 CL4391 IC4501 JK3201 R9136 R9906 IC4502 D4702 CL4392 R9137 D4703 IC4503 R9138 R9139 R4701 CL4396 R4702 CL4397 C2403 CL4398 C2404 CL4399 Q2401 C4921 C4151 L4201 C2405 Q2402 C4922 R4512 L4202 C2406 Q2403 CL2073 R4707 R4513 L4203 C2407 R9140 Q2404 C4924 CL2074 R4514 C2408 R9335 D4901 C4925 R9142 R4322 D4902 R9143 R9337 D4903 Q4154 R9338 R9144 D4904 IC4704 R9145 R4901 R9146 D4906 R4902 R4903 R4904 C2411 IC4515 R4905 C4351 C2412 R4906 R4712 C4352 C2413 R4907 C4547 C4353 C2414 L9800 R4908 L9801 R4715 C2415 L3271 IC4901 R4909 C4931 C4549 Q4351 R4521 C2416 L9802 IC4902 C4932 R4522 R4717 C2417 IC4903 C4933 R4523 C2418 R9150 R4718 C4934 R4524 R4719 R9151 C2419 C4935 CL035 R9152 R4332 C4936 CL036 R9153 R4333 R9154 C4938 L4601 R9155 C4939 C4551 PA4931 L4602 D4916 D4917 C4553 R4720 C2420 C4361 R4721 D4919 C4555 R4339 R4722 R4916 R4723 R4917 C4557 R4724 C4940 R4918 R4531 D2401 R4725 C4941 C4171 R4919 D2402 R4726 C4942 D2403 R4727 C4943 R4728 D2404 R4340 R4729 D2405 D4151 D4152 D4153 R9164 D4154 R4920 R4344 D4155 R4921 R4151 R2405 R9166 D4156 R4922 R2406 D4157 R4923 R4153 R2407 R4730 D4158 R4924 R4154 R2408 C4371 R4733 R4734 L3291 D4351 R4736 CL053 R4737 R4738 R2411 D4931 R4739 D4161 CL055 R4351 R2412 D4932 D4162 R4352 R2413 D4163 R4353 R2414 D4164 R4354 R2415 D4165 R4355 R2416 R4356 R2417 R4933 R4357 R4934 R4740 R4358 R2419 R4935 R4741 R4359 R4936 R4742 R4937 R4743 TD9000 C9398 R4938 R4744 C9399 TD9001 Q4381 R4939 C4961 R4745 TD9002 Q4382 L2302 R4746 C4962 TD9003 C4963 L2303 TD9004 C4964 R2420 L2304 R4360 R2421 TD9005 R4361 L2305 R4362 R2422 TD9006 L2306 C4966 R2423 TD9007 R4363 C4967 R2424 R4364 TD9008 R4940 R9185 TD9009 S2401 R2425 R4365 R4941 S2402 X8302 R9186 R4366 R4942 R2427 R4367 S2403 R9187 R4943 R2428 R9188 S2404 R4368 R4944 R9189 R4369 R4751 IC4361 R2429 JK4001 S2405 R4945 X2351 R4752 S2406 R4946 JK4002 R4753 R4947 R4754 TD9010 R4948 TD9011 C3201 D4371 R4949 R4755 TD9012 C3202 CL4002 R4756 D4372 CL4003 TD9013 L2313 D4373 R2430 D4374 C3204 L2314 CL4004 TD9015 R2431 C3205 R4565 CL4005 L2315 R2432 R4566 CL4006 L2316 R2433 CL4007 R9194 CL078 CL4008 R2435 R4181 CL079 FL4501 C4591 CL4009 R4182 R2436 C4592 FL4503 R4377 R2437 C4593 R4378 FL9900 R2438 C4594 R4761 FL9901 R2439 L4451 C2461 FL9902 R4762 L4452 C2462 C2463 R4763 CL080 CL4010 C2464 R4570 R4764 CL081 C4981 CL4011 R4571 C2465 CL082 TD9022 C2466 CL4012 TD9023 C2467 CL4013 TD9024 CL084 R2440 C4984 C2468 CL4014 CL4209 TD9025 R4381 R4769 R2441 Q3211 L4071 C2469 R4382 Q3212 L4072 CL4016 R4383 TD9027 C3217 Q4983 C4987 CL088 TD9028 R4384 CL4400 C3218 C4988 Q4984 TD9029 CL089 CL4401 R4385 C3219 R4386 CL4402 R4387 CL4403 CL4404 CL4210 R4388 C2470 R4770 CL4405 R4771 L4461 C2471 CL4406 C2472 IC4382 R4772 C2473 R4773 CL4020 CL4408 CL090 CL4214 CL4021 TD9031 CL4409 C3221 R4581 CL091 CL4022 TD9032 C3222 R4582 CL092 CL4216 C3223 R4583 TD9033 CL093 R4584 TD9034 C3224 CL4024 CL094 R4391 L4851 C3225 CL4025 R4585 CL095 TD9036 R4586 R4392 C3226 CL096 TD9037 C3227 CL097 C3228 CL098 CL4410 C3229 R3201 CL4411 CL099 R3202 R3203 CL4413 R3204 R3205 CL4222 CL4417 C3230 R3208 A10 R4784 IC3201 C3231 CL4419 R3209 R4785 A11 TD9042 C3232 A12 TD9043 C3233 CL4227 A13 C3234 TD9044 A14 C3235 CL4229 R2462 TD9047 C3237 D4983 TD9048 C3238 R3210 R2464 C3239 TD9049 CL4421 R3212 CL4422 R2466 R3213 R2467 CL4423 R3214 CL4424 R2468 L8301 R2469 CL4231 CL4425 L8302 CL4426 CL4232 FL2403 CL4233 FL2404 A20 CL2100 CL4040 CL4234 L8305 C3241 R4795 A21 R4989 L2351 CL4041 L8306 TD9052 L2352 CL4236 A22 Q9000 TD9054 R2470 Q9001 A25 TD9055 L2355 R2471 TD9056 Q9002 R2472 Q9003 TD9057 R2473 C3248 Q9004 R2474 C3249 R3221 R4991 JK2301 R2475 R4992 R3223 R4993 A B C D TH-42PF20C A-BOARD TXN/A11CEC TH-42PF20C A-BOARD TXN/A11CEC TXN/A11CEC 91 14.7. C1 电路板 E F G H I 1 2 3 4 5 6 C104 C105 C106 C107 C108 IC101 C109 C110 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 C123 C124 C125 FL101 ZA101 ZA102 ZA103 ZA104 C141 C142 C143 C144 C145 C146 C147 C148 C149 C150 C151 C152 C153 C154 R101 R103 R104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R118 R119 R120 R121 R122 R123 R124 R125 R126 R127 R128 R129 R130 R131 R132 R133 R134 R135 R136 R137 R138 R139 R140 R141 R142 R143 R144 R145 R146 R147 R148 R150 R151 R152 R153 CB1 CB2 CB3 CB4 CB5 CB6 CB7 CB8 C10 C11 C101 C102 C103 PbF CR NO.17 TNPA5094 C1 1 1 11 20 10 1 55 1 55 1 55 1 55 O R D E R N O . 1 20 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 68 1 20 1 68 PbF 1 2 TNPA5094 1 C1 3 S E E R E V E R S E F O R O R D E R N O . C1-BOARD (FOIL SIDE) TXNC11LQUC C1-BOARD (COMPONENT SIDE) TXNC11LQUC C1 A B C D TH-42PF20C C1-BOARD TXNC11LQUC TH-42PF20C C1-BOARD TXNC11LQUC 92 14.8. C2 电路板 E F G H I 1 2 3 4 5 6 C20 C21 C23 C25 CB10 CB11 CB12 CB13 CB14 CB15 C201 C202 C203 C204 C205 C206 C207 C208 C209 IC201 IC202 CB9 C210 C211 C212 C213 C214 C215 C216 C217 C218 C219 C220 C221 C222 C223 C224 FL202 ZA201 ZA202 ZA203 ZA204 C241 C242 C243 C244 C245 C246 C247 C248 C249 C250 C251 C252 C253 C254 C255 C256 C257 C258 R201 R202 R203 R204 R205 R206 R207 R208 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 R222 R223 R224 R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R241 R242 R243 R244 R245 R247 R260 R261 R262 R263 TNPA5095 C2 1 CR NO.17 P b F 1 20 1 68 1 55 1 8 1 4 1 55 1 55 1 68 O R D E R N O . 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 55 1 10 11 20 1 10 11 20 1 55 1 55 1 20 TNPA5095 1 C2 3 2 1 P b F S E E R E V E R S E F O R O R D E R N O . C2-BOARD (FOIL SIDE) TXNC21LQUC C2-BOARD (COMPONENT SIDE) TXNC21LQUC C2 A B C D TH-42PF20C C2-BOARD TXNC21LQUC TH-42PF20C C2-BOARD TXNC21LQUC 93 14.9. SC 电路板 E F G H I 1 2 3 4 5 6 SC41 SC42 TP90 TP91 SC46 TP92 TP93 TP94 TP95 TP96 TP97 TP98 L698 SC50 C563 TP100 TP103 TP104 TP105 C592 TP106 TP107 TP108 T471 TP109 IC784 IC786 TP110 TP111 C791 TP112 C793 TP113 TP114 C795 TP115 C796 TP116 TP117 TP118 TP119 TP120 TP121 TP122 TP123 TP124 TP125 ZA421 ZA422 ZA411 ZA412 C400 C412 C413 C416 C417 C418 R774 C419 C806 C813 C631 C632 C633 Q401 Q402 Q403 D401 Q601 D402 C450 C842 C460 Q421 Q422 Q423 D421 Q621 D422 Q622 Q441 Q442 D441 Q451 Q452 D641 D642 C691 TP1 TP2 TP4 TP5 TP6 TP7 Q660 TP8 Q661 D461 TP9 D462 L400 L401 L411 SC2 D481 D482 TP10 TP11 TP14 TP15 TP16 TP17 TP18 TP19 R838 TP20 TP21 TP22 TP23 TP24 TP25 TP26 TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 TP36 TP37 TP38 TP39 TP40 TP41 TP42 C503 TP43 R860 TP44 TP45 TP51 TP52 TP58 C900 TP59 C901 C902 C903 TP60 L851 TP61 TP62 C523 TP63 TP67 L472 C721 R696 TP70 TP78 TP79 TP80 TP81 TP88 TP89 3 1 CRNo.16 1 SC TNPA5081 2 PbF 2 8 2 8 9 1 2 8 1 2 9 1 P 1 P T P 2 S 2 S 1 8 5 4 1 8 5 4 1 S E E R E V E R S E F O R O R D E R N O . C G E C G E C G E A A K G S D A A K G C E G C E G C E A A K C G E A A K C G E C G E C G E A A K G C E G C E 1 9 A A K A A K G S D C G E A A K A A K 1 3 A A K A A K SC-BOARD (FOIL SIDE) TXNSC1LBUC SC A B C D TH-42PF20C SC-BOARD TXNSC1LBUC TH-42PF20C SC-BOARD TXNSC1LBUC 94 E F G H I 1 2 3 4 5 6 Q701 SC41 SC42 Q702 D503 SC46 TP99 D701 D702 L698 SC50 C753 C754 C755 Q521 C561 C562 C756 C563 D900 C564 C565 D901 D902 C566 C567 D710 D711 IC561 IC562 D712 D713 IC563 IC564 D522 D523 Q531 D719 D720 Q920 Q921 D721 C771 C772 C773 D534 D728 C581 D536 C582 C583 D920 IC771 D921 IC773 Q930 Q931 IC581 Q932 R501 TP101 R502 TP102 R503 R504 Q551 C592 R506 C593 T471 R509 IC784 IC785 IC786 IC787 R511 C791 R512 C793 R707 C794 C795 C796 R516 C797 R517 R900 R901 R904 R711 R712 R521 R522 Q762 R523 R717 R719 R720 R721 R531 R919 D765 R532 R533 R534 R920 R921 R922 R923 R926 R927 R928 ZA421 R929 ZA422 D583 R930 R931 R932 R933 R934 R935 R742 R936 R937 R938 R745 ZA411 R551 ZA412 R746 R552 R747 R553 R750 D790 D791 R751 D792 R752 D793 R753 R560 D794 R754 R561 R755 R562 R756 R563 R564 R565 R566 R567 R568 C400 R569 C401 C402 C403 R761 R762 R763 R570 R765 R769 C602 C603 C604 R579 C412 C413 C608 C416 R772 C417 R773 IC490 C418 R774 R580 C419 IC491 R776 R582 R583 R777 R584 R585 C806 R586 R587 R588 C421 C422 C423 IC691 IC692 R783 R590 R785 R591 R592 R786 R787 C813 R593 R789 R791 ZA401 ZA402 R797 ZA403 R798 ZA404 R799 C631 C632 C827 ZA407 PC603 C633 Q401 C441 Q402 C442 Q403 D401 Q601 C641 C642 D402 Q602 Q603 C450 C645 C451 C646 Q606 C452 C647 Q607 D407 Q608 Q609 Q801 C842 D602 C843 C844 D604 D605 D411 D607 C460 C461 Q421 Q422 Q423 Q810 D610 IC464 C854 Q815 IC465 C661 D421 Q621 C856 Q816 C662 D422 Q622 Q817 C857 C663 C858 C664 Q818 D618 C859 C665 C471 C666 C472 C668 IC661 C860 IC471 C861 C862 C863 C864 PC896 PC897 C675 C481 Q441 C676 Q442 D820 D821 D822 D824 D825 R401 D441 R402 R403 C684 C490 PC461 Q645 C685 C491 Q451 Q646 Q452 Q647 Q649 R601 D641 D642 R604 R410 D645 C691 R605 D451 R411 D646 C692 D647 R607 R414 D648 R415 D649 R609 R416 R417 R418 R419 R801 R802 TP3 D650 R804 R610 C891 IC521 D651 D652 R612 D653 R420 D654 Q660 Q661 R615 R421 D461 Q662 D462 R422 Q663 R617 R423 PC480 Q471 D465 D466 Q668 L400 IC724 R621 L401 D662 R622 D663 D664 R818 Q670 D859 R819 Q671 Q672 Q673 D667 D473 IC920 PC684 D474 D475 D669 Q675 PC685 D476 Q676 D477 Q677 R820 Q678 D478 R822 R823 R824 D670 R825 D671 R631 L411 R826 D672 SC2 R827 D673 R633 D674 R634 D480 R829 R441 D481 R442 D482 Q876 D677 D678 Q490 R831 D871 R832 D872 D874 D875 R837 R838 D490 Q885 R451 R645 D491 PC722 R646 D492 R452 PC723 R647 D493 D494 R648 R649 D497 R841 R843 R844 R650 R845 R651 R846 R652 R653 R654 R849 R655 R656 R657 R658 R659 R465 R466 R467 R468 R851 R852 D893 R660 R661 R662 R663 R664 R471 R665 R472 R666 R473 R667 R668 R474 C501 R475 C502 R476 C503 C504 R860 R478 R479 C505 TP46 R670 IC501 R671 R672 R673 R674 R675 R676 R677 R678 R679 C707 C708 R870 TP57 R873 R680 C900 R681 C901 C902 R682 C903 R684 R490 R491 R685 R492 R686 R687 R493 R688 R494 L851 C521 R495 C522 R496 C523 R497 C524 R498 C525 IC792 IC793 C527 R690 TP68 R691 L472 R692 R694 SC20 R695 C721 R696 C723 C724 TPSOS6 R699 TPSOS7 C533 C534 C535 R891 C536 R892 R893 R897 R898 R899 Q501 TP82 Discharge TPVSUS SCMM2 DIP H.V. DANGER H.V. DANGER TPSC1 H.V. DANGER SC 1 H.V. DANGER SCMM1 CRNo.16 TPVSCN TPVAD A A TNPA5081 PbF 1 2 8 9 1 8 9 2 1 2 3 4 9 1 2 8 1 2 1 10 11 20 1 10 11 20 7 8 14 1 1 3 4 5 1 2 3 4 1 2 3 4 1 3 4 5 1 4 8 5 S2 S1 P1 PT P2 1 2 3 4 1 4 5 8 1 4 5 8 O R D E R N O . 1 3 4 5 G C E G C E G C E A A K G S D A A K 1 2 3 4 C G E C G E C G E 1 3 4 5 1 2 3 4 1 3 4 5 A A K G C E A A K G C E 1 4 5 8 G C E G C E A A K C G E C G E A A K A A K G S D G C E A A K A A K 1 4 5 8 3 1 A A K A A K 1 8 9 1 6 8 9 1 16 1 3 4 5 1 3 5 SC-BOARD (COMPONENT SIDE) TXNSC1LBUC SC A B C D TH-42PF20C SC-BOARD TXNSC1LBUC TH-42PF20C SC-BOARD TXNSC1LBUC 95 14.10.SS2 电路板 E F G H I 1 2 3 4 5 6 SS24 1 SS2MM2 SS2MM1 SS2 TNPA4802 SS58 P b F 7 1 2 6 O R D E R N O . 1 1 3 1 3 1 SS24 TNPA4802 1 SS2 SS58 P b F 7 1 6 2 S E E R E V E R S E F O R O R D E R N O . 1 1 3 1 1 3 SS2-BOARD (COMPONENT SIDE) TXNSS21DYUC SS2-BOARD (FOIL SIDE) TXNSS21DYUC SS2 A B C D TH-42PF20C SS2-BOARD TXNSS21DYUC TH-42PF20C SS2-BOARD TXNSS21DYUC 96 14.11.SS 电路板 E F G H I 1 2 3 4 5 6 C193 SS11 R309 SS21 L303 SS53 SS55 SS56 VR001 SS61 SS63 SS64 C201 C202 C203 C011 C012 C013 C014 C015 Q001 Q002 Q003 D001 C241 D002 Q021 Q022 Q023 C271 C272 Q041 Q042 D041 D042 Q051 D051 D052 L001 TPVSUS TP2 TP5 TP6 TP7 TP8 TP9 L011 TP10 TP13 TP14 TP16 TP17 TP18 TP19 TP20 TP21 TPSOS8 TP24 TP25 TP26 TP27 TP28 TP29 TP30 TP31 TP33 TP34 TP36 TP38 TP39 TP40 IC304 TP41 TPVe TPSS1 C314 TP51 TP53 TP54 TP56 C328 C331 PbF SS 1 1 2 3 TNPA5082 CR No.16 4 1 1 7 2 6 1 1 3 1 1 3 1 1 3 1 1 3 S E E R E V E R S E F O R O R D E R N O . 1 1 3 1 1 3 1 1 3 C G E C G E C G E A A K A A K 1 1 3 1 1 3 G C E G C E G C E G C E G C E A A K A A K C G E A A K A A K 1 1 3 1 1 3 8 5 4 1 1 1 3 SS-BOARD (FOIL SIDE) TXNSS1LBUC SS A B C D TH-42PF20C SS-BOARD TXNSS1LBUC TH-42PF20C SS-BOARD TXNSS1LBUC 97 E F G H I 1 2 3 4 5 6 D315 D316 D317 D131 Q141 R101 R102 R103 R104 C191 R105 C192 C193 SS11 R109 C195 C198 R110 D151 D152 D153 R307 Q161 R309 R116 SS21 R318 R319 SS33 R320 R131 R132 R134 R135 R136 R137 L303 R330 IC241 R332 R334 R141 R335 R142 R143 Q191 SS53 SS55 SS56 R150 R151 D191 R152 D192 R153 R154 R155 D196 VR001 SS61 R159 SS63 SS64 R161 R162 R163 C001 C002 C003 C004 R171 R172 R173 C201 C202 C203 C011 C012 C013 C014 C015 R181 R182 R183 C021 C022 C023 R191 R192 R193 R195 ZA001 ZA002 ZA003 C041 Q001 C042 Q002 Q003 D001 C241 D002 C242 C243 C244 C051 C251 C252 Q021 Q022 Q023 IC251 D021 D022 D023 C071 C072 C271 D032 C272 Q041 Q042 C280 R001 D041 C281 R002 D042 R003 C284 C091 C285 Q051 C286 C092 C287 Q055 Q056 D050 D051 Q251 D052 D054 IC312 D253 R021 D255 R022 R023 L001 IC131 R031 R032 R033 R034 TPSOS8 R230 L011 R231 Q280 R041 R042 D280 R241 D281 R242 D282 D284 D285 R051 D286 R251 R252 R253 R254 R255 R256 R257 R258 R259 R260 C101 C103 C104 C105 TPVSUS TPVe TPSS1 R280 IC304 R281 R282 R283 R284 R285 R287 R288 C314 R289 C315 C316 C317 C318 C319 R290 C131 C133 C328 C135 PC301 C331 Q101 Q102 D101 C151 C152 C153 C154 C157 IC151 PC191 DIP S S M M 1 S S M M 2 PbF SS Discharge 1 TNPA5082 CR No.16 1 2 3 4 1 4 2 6 7 1 13 1 1 8 1 1 0 11 20 1 13 1 13 13 1 O R D E R N O . 1 13 1 13 1 13 G C E G C E G C E A A K A A K 13 1 13 1 C G E C G E C G E 8 5 4 1 C G E C G E K A A A K A G C E A A K A A K 13 1 13 1 1 8 9 16 1 8 9 16 1 4 5 8 G S D G S D 16 9 8 1 13 1 SS61 SS63 SS64 SS-BOARD (COMPONENT SIDE) SS A B C D TH-42PF20C SS-BOARD TXNSS1LBUC TH-42PF20C SS-BOARD TXNSS1LBUC TXNSS1LBUC 98 99 15 零件位置和零件清单 15.1. 零件位置和机械部件更换清单 分解图 100 面框部件图 101 风扇位置图 102 线缆位置图 103 附件和包装 （1） 104 包装 （2） 105 机械部件更换清单 安全 标记 参考 号 部品号 部品名称及说明 数量 备注 J0KG00000146 铁氧体磁芯 1 1 K2CK3YY00020 电源线 1 2 L6FAYYYH0095 风扇 3 LSEP1289WMHB P 线路板 1 3 N2QAYB000433 遥控器 1 4 R6DWC/2SK PANASONIC 干电池 2 5 TBMA226 PANASONIC 标牌 1 6 TBXA52203 5 键按钮 1 TBXA46704A 7 TBXA54001 电源按钮 1 8 TESD031 电源开关弹簧 1 9 TKGA5660 前面玻璃 1 TKGA5635 10 TKKC5286 LED 透光板 1 11 TKKC5287 遥控受光屏 1 12 TKKL5273-1 插槽盖 2 13 TKKL5493 M8 盖 4 14 TKRA54802 后盖把手 2 15 TKUX20001 后盖 1 16 TKYA44201 面框 1 17 TMKG593 防尘海绵 ( 上下 ) 2 18 TMKG594 防尘海绵 ( 左右 ) 2 19 TMKG717 风扇海绵 3 20 TMME289 线夹 3 21 TMMJ082 风扇角用防震橡胶 12 22 TMMX183 电源线夹 B 1 23 TMWC036 电源按钮托架 1 24 TPC3DA04901 包装箱外箱 1 25 TPC3DA05001 包装箱底箱 1 26 TPD3DA0098 顶部衬垫 1 27 TPD3DA0099 底部衬垫 1 28 TPDF0764-1 附属品盒 1 29 TPDX0035 箱扣 4 30 TPEH343 保护片 ( 上 1 下 1) 2 31 TPEH344 整机保护袋 1 TQD3D18001 保修证 1 32 TQZ3DB025 使用说明书 1 33 TSXL519 FFC(C10-C20) 1 34 TSXM072-1 FFC(DS1-A1) 1 35 TSXM073-1 FFC(A20-SC20) 1 36 TSXM074 FFC(A31-C11) 1 37 TSXM075 FFC(A32-C21) 1 38 TXAJS011BEC AC 接入口 1 TXAUW021CEC 插槽块组件 1 TXAUW031CEC H3 线路板 1 39 TXFUA011CEC 42FHD13 PDP 屏 1 TXJ/A91CEJ 线束 (A9-P7) 1 TXJ/P21CEJ 线束 (P2-SC2) 1 TXJA101CEJ 线束 (A10-P6) 1 TXJA251CEJ 线束 (A25-P25) 1 TXJDS131CEJ 线束 (DS13-A13) 1 TXJFA11CEJ 线束 (FAN P(R)/T- PB32) 1 TXJFA21CEJ 线束(FAN PB/T-PB33) 2 TXJHX11CEJ 线束 (HX1-A14) 1 TXJP111CEJ 线束 (P11-SS11) 1 TXJP351CEJ 线束 (P35-C25) 1 TXJPB301CEJ 线束 (PB30-A5) 1 TXJS33LHUU 线束 (SS33-C23) 1 TXJS351CEJ 线束 (S34-A11) 1 TXJSPR1CEJ 线束 (A8-H37) 1 TXJV111CEJ 线束 (V2-A2) 1 TXJV221CEJ 线束 (V15-A15) 1 TXN/A11CEC A 线路板 1 TXNC11LQUC C1 线路板 1 TXNC21LQUC C2 线路板 1 TXNHX11CEC HX 线路板 1 TXNPB11CEC PB 线路板 1 TXNS111CEC S1 线路板 1 TXNSC1LBUC SC 线路板 1 TXNSM1LQUC SM 线路板 1 TXNSS1LBUC SS 线路板 1 TXNSS21DYUC SS2 线路板 1 TXNV111CEC V1 线路板 1 TXNV211CEC V2 线路板 1 安全 标记 参考 号 部品号 部品名称及说明 数量 备注 106 15.2. 电器部件更换清单 15.2.1. 更换部件清单注意事项 107 15.2.2. 电器部件更换清单 除在备注栏中标注 [PPDS] 的部件由 PPDS 提供，所有零件均由 PAVCCZ 提供。 安全 标记 参考号 部品号 部品名称及说明 数量 备注 A1 K1MY68BA0345 68P 连接接头 1 A4 K1KA14A00248 14P 连接接头 1 A5 K1KA05A00466 5P 连接接头 1 A6 K1KA20AA0009 20P 连接接头 1 A8 K1KA03AA0190 3P 连接接头 1 A9 K1KA09A00220 9P 连接接头 1 A10 K1KA11AA0194 11P 连接接头 1 A11 K1KA06A00508 6P 连接接头 1 A13 K1KA13AA0194 13P 连接接头 1 A14 K1KA15A00148 15P 连接接头 1 A20 K1MY35BA0345 35P 连接接头 1 A22 K1KA03A00632 3P 连接接头 1 A25 K1KA10A00416 10P 连接接头 1 A31 K1MY68BA0345 68P 连接接头 1 A32 K1MY68BA0345 68P 连接接头 1 A35 K1KA04A00667 4P 连接接头 1 A46 K1KA05A000714 5P 连接接头 1 PPDS C10 K1MN20BA0231 20P 连接接头 1 C11 K1MY68BA0345 68P 连接接头 1 C20 K1MY20BA0345 20P 连接接头 1 C21 K1MY68BA0345 68P 连接接头 1 C23 K1KY08AA0719 8P 连接接头 1 C25 K1KA04BA0107 4P 连接接头 1 C859 ECJ1VF1A105Z C 1UF, Z, 10V 1 C862 F1H1C105A145 C 0.01UF, 16V 1 C1530 F1K0J106A014 C 10UF, 6.3V 1 C2301 EEEHB1E471UP C 470PF, J, 25V 1 C2302 EEEHB1E471UP C 470PF, J, 25V 1 C2304 F1K1E106A136 C 10UF, 25V 1 C2305 F1J1E105A231 C 1 UF 25V 1 C2306 F1G1H102A730 C 1000PF 50V 1 C2308 F1K1E106A136 C 10UF, 25V 1 C2309 F1J1E105A231 C 1 UF 25V 1 C2310 F1G1H102A730 C 1000PF 50V 1 C2311 ECJ1VB1A105K C 1UF, 10V 1 C2312 F1G1C104A116 C 0.1UF 16V 1 C2313 F1J1E105A231 C 1 UF 25V 1 C2314 F1H1H104A970 C 0.1PF, , 50V 1 C2317 F1J1E3340003 C 0.33UF, 25V 1 C2321 F1H1H104A970 C 0.1PF, , 50V 1 C2324 F1J1E3340003 C 0.33UF, 25V 1 C2329 F1J1E105A231 C 1 UF 25V 1 C2330 F1H1H104A970 C 0.1PF, , 50V 1 C2333 F1J1E3340003 C 0.33UF, 25V 1 C2337 F1H1H104A970 C 0.1PF, , 50V 1 C2340 F1J1E3340003 C 0.33UF, 25V 1 C2345 F1G1C104A116 C 0.1UF 16V 1 C2349 F1H1C104A144 C 0.1UF. 16V 1 C2351 F1J1A106A087 C 10UF, 10V 1 C2353 F1J1A106A087 C 10UF, 10V 1 C2355 F1J1A106A087 C 10UF, 10V 1 C2357 F1J1A106A087 C 10UF, 10V 1 C2359 F1G1C104A116 C 0.1UF 16V 1 C2360 F1J1A106A087 C 10UF, 10V 1 C2362 F1G1C104A116 C 0.1UF 16V 1 C2363 F1J1A106A087 C 10UF, 10V 1 C2364 F1G1C104A116 C 0.1UF 16V 1 C2365 F1J1A106A087 C 10UF, 10V 1 C2366 F1G1C104A116 C 0.1UF 16V 1 C2367 F1G1C104A116 C 0.1UF 16V 1 C2368 F1G1C104A116 C 0.1UF 16V 1 C2369 F1J1A106A087 C 10UF, 10V 1 C2370 F1G1C104A116 C 0.1UF 16V 1 C2373 F1G1C104A116 C 0.1UF 16V 1 C2374 F1G1H150A731 C 15PF, 50V 1 C2375 F1G1H120A731 C 12PF, 50V 1 C2376 F1G1C104A116 C 0.1UF 16V 1 C2377 F1J1A106A087 C 10UF, 10V 1 C2378 F1G1C104A116 C 0.1UF 16V 1 C2379 F1J1A106A087 C 10UF, 10V 1 C2380 F1G1C104A116 C 0.1UF 16V 1 C2381 F1G1H102A730 C 1000PF 50V 1 C2382 F1G1H102A730 C 1000PF 50V 1 C2383 F1G1C104A116 C 0.1UF 16V 1 C2384 F1G1C104A116 C 0.1UF 16V 1 C2385 F1J1A106A087 C 10UF, 10V 1 C2386 F1J1A106A087 C 10UF, 10V 1 C2387 F1J1A106A087 C 10UF, 10V 1 C2388 F1G1C104A116 C 0.1UF 16V 1 C2389 F1G1C104A116 C 0.1UF 16V 1 C2390 F1J1A106A087 C 10UF, 10V 1 C2391 F1G1C104A116 C 0.1UF 16V 1 C2392 F1J1A106A087 C 10UF, 10V 1 C2393 ECJ1VB1A105K C 1UF, 10V 1 C2394 F1H0J2250006 C 2.2UF, 16V 1 PPDS C2395 F1G1H471A731 C 470PF, 50V 1 C2396 ECJ1VB1A105K C 1UF, 10V 1 C2397 F1H0J2250006 C 2.2UF, 16V 1 PPDS C2398 F1G1H471A731 C 470PF, 50V 1 C2403 F1K1C106A126 C 10UF, 16V 1 C2404 F1G1C104A116 C 0.1UF 16V 1 C2405 F1J1C475A170 C 4.7UF, K, 16V 1 C2406 F1J1C475A170 C 4.7UF, K, 16V 1 C2407 F1J1C475A170 C 4.7UF, K, 16V 1 C2408 F1J1C475A170 C 4.7UF, K, 16V 1 C2409 F1J1C475A170 C 4.7UF, K, 16V 1 C2410 F1J1C475A170 C 4.7UF, K, 16V 1 C2411 F1H1H561A971 C 560PF, 50V 1 C2412 F1H1C105A145 C 0.01UF, 16V 1 C2413 F1G1C104A116 C 0.1UF 16V 1 C2414 F1H1H561A971 C 560PF, 50V 1 C2415 F1H1C105A145 C 0.01UF, 16V 1 C2416 F1G1C104A116 C 0.1UF 16V 1 C2417 F1H1C105A145 C 0.01UF, 16V 1 C2418 F1G1C104A116 C 0.1UF 16V 1 C2419 F1H1C105A145 C 0.01UF, 16V 1 C2420 F1G1C104A116 C 0.1UF 16V 1 C2421 F1H1C105A145 C 0.01UF, 16V 1 C2422 F1G1C104A116 C 0.1UF 16V 1 C2423 F1H1C105A145 C 0.01UF, 16V 1 C2424 F1G1C104A116 C 0.1UF 16V 1 C2461 F2G1C470A022 E 47UF, 16V 1 C2462 F1G1H103A735 C 0.01PF, 50V 1 C2463 F1H1C105A145 C 0.01UF, 16V 1 C2464 F1H1C105A145 C 0.01UF, 16V 1 C2465 F1H1C105A145 C 0.01UF, 16V 1 C2466 F1H1C105A145 C 0.01UF, 16V 1 C2467 F1H1C105A145 C 0.01UF, 16V 1 C2468 F1H1C105A145 C 0.01UF, 16V 1 C2469 F1H1C105A145 C 0.01UF, 16V 1 C2471 F2G1C100A022 E 10UF J 16V 1 C2472 F1H1C105A145 C 0.01UF, 16V 1 C3000 F1K1E106A136 C 10UF, 25V 1 C3002 F1K1E106A136 C 10UF, 25V 1 C3003 F1H1C105A145 C 0.01UF, 16V 1 C3004 F1H1H103A970 C 0.01PF, 50V 1 C3005 F1H1C105A145 C 0.01UF, 16V 1 C3006 F1H1H103A970 C 0.01PF, 50V 1 C3010 F2H1E470A007 E 47UF, 25V 1 C3011 F1H1H103A975 C 0.01PF, 50V 1 C3013 F1H1C104A143 C 0.1UF, 16V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 108 C3017 F1K1E106A136 C 10UF, 25V 1 C3018 F1H1E104A129 C 0.1PF, 25V 1 C3020 F1H1C104A143 C 0.1UF, 16V 1 C3021 F1K1E106A136 C 10UF, 25V 1 C3022 F1K1E106A136 C 10UF, 25V 1 C3023 F1H1C104A144 C 0.1UF. 16V 1 C3024 F1H1E104A129 C 0.1PF, 25V 1 C3025 F2G1C470A022 E 47UF, 16V 1 C3026 F1K1C2250005 C　　 2.2UF, 16V 1 C3027 EEEHB1C471P C 470PF, J, 16V 1 C3028 F1H1C104A144 C 0.1UF. 16V 1 C3031 F1H1C104A143 C 0.1UF, 16V 1 C3034 F1H1H680A971 C 68PF, 50V 1 C3035 F1H1C104A143 C 0.1UF, 16V 1 C3036 F1K1E106A136 C 10UF, 25V 1 C3037 F1K1E106A136 C 10UF, 25V 1 C3039 F1K1E106A136 C 10UF, 25V 1 C3040 F1J0J106A004 C 10 UF 6.3 V 1 C3041 F1H1A225A051 C 2.2UF, 10V 1 C3042 F1H1E104A129 C 0.1PF, 25V 1 C3043 F1H1E104A129 C 0.1PF, 25V 1 C3044 F2G0J470A019 E 47UF 6.3V 1 C3045 F1H1C104A144 C 0.1UF. 16V 1 C3046 F1H1C104A143 C 0.1UF, 16V 1 C3049 F1H1H101A971 C 100PF, 50V 1 C3050 F1H1C104A143 C 0.1UF, 16V 1 C3051 F1K1E106A136 C 10UF, 25V 1 C3052 F1K1E106A136 C 10UF, 25V 1 C3054 F1K1E106A136 C 10UF, 25V 1 C3055 F1H1E104A129 C 0.1PF, 25V 1 C3056 F1H1E104A129 C 0.1PF, 25V 1 C3057 F1H1A225A051 C 2.2UF, 10V 1 C3058 F1H1A225A051 C 2.2UF, 10V 1 C3059 F1H1C105A145 C 0.01UF, 16V 1 C3060 F1H1H103A970 C 0.01PF, 50V 1 C3062 F1J0J106A004 C 10 UF 6.3 V 1 C3063 F1H1A225A051 C 2.2UF, 10V 1 C3064 F2H0J471A010 E 470UF, 6.3V 1 C3065 F1H1C104A144 C 0.1UF. 16V 1 C3100 F1H1C104A144 C 0.1UF. 16V 1 C3101 F2G0J470A019 E 47UF 6.3V 1 C3120 F1H1H150A971 C 15PF, 50V 1 C3121 F1H1H150A971 C 15PF, 50V 1 C3122 F1H1C104A144 C 0.1UF. 16V 1 C3123 EECS5R5H155 E 1.5UF, 5.5V 1 C3140 F1J0J106A004 C 10 UF 6.3 V 1 C3141 F1K1C106A126 C 10UF, 16V 1 C3143 F1J0J106A004 C 10 UF 6.3 V 1 C3146 F2G0J470A019 E 47UF 6.3V 1 C3147 F1H1C104A144 C 0.1UF. 16V 1 C3148 F1J0J106A004 C 10 UF 6.3 V 1 C3151 F1K1C106A126 C 10UF, 16V 1 C3156 F1J0J106A004 C 10 UF 6.3 V 1 C3157 F1J0J106A004 C 10 UF 6.3 V 1 C3158 F1K1C106A126 C 10UF, 16V 1 C3201 F2G1C470A022 E 47UF, 16V 1 C3202 F1G1H103A735 C 0.01PF, 50V 1 C3204 F2G1C470A022 E 47UF, 16V 1 C3205 F1G1C104A116 C 0.1UF 16V 1 C3206 F1G1H103A735 C 0.01PF, 50V 1 C3207 F1G1H103A735 C 0.01PF, 50V 1 C3208 F1G1H103A735 C 0.01PF, 50V 1 C3209 F1G1H103A735 C 0.01PF, 50V 1 C3210 F1G1H103A735 C 0.01PF, 50V 1 C3211 F1G1H103A735 C 0.01PF, 50V 1 C3212 F1G1C104A116 C 0.1UF 16V 1 C3213 F1G1C104A116 C 0.1UF 16V 1 C3215 F1H1A225A051 C 2.2UF, 10V 1 C3216 F1G1C104A116 C 0.1UF 16V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 C3217 EEEHB0J470UR E 47UF, 6.3V 1 C3218 F1G1C104A116 C 0.1UF 16V 1 C3219 F1G1C104A116 C 0.1UF 16V 1 C3221 F1G1C104A116 C 0.1UF 16V 1 C3222 F1G1C104A116 C 0.1UF 16V 1 C3223 F1G1C104A116 C 0.1UF 16V 1 C3224 F1G1C104A116 C 0.1UF 16V 1 C3225 F1G1C104A116 C 0.1UF 16V 1 C3226 F1G1C104A116 C 0.1UF 16V 1 C3227 F1H1C104A143 C 0.1UF, 16V 1 C3228 F1H1A225A051 C 2.2UF, 10V 1 C3229 F1H1A225A051 C 2.2UF, 10V 1 C3230 F1H1A225A051 C 2.2UF, 10V 1 C3231 F1H1A225A051 C 2.2UF, 10V 1 C3232 F1H1A225A051 C 2.2UF, 10V 1 C3233 F1H1A225A051 C 2.2UF, 10V 1 C3234 F1G1C104A116 C 0.1UF 16V 1 C3235 F1H1C104A143 C 0.1UF, 16V 1 C3236 F1H1C104A143 C 0.1UF, 16V 1 C3237 F1G1C104A116 C 0.1UF 16V 1 C3238 F1G1C104A116 C 0.1UF 16V 1 C3239 F1H1C474A143 C 0.47UF, 16V 1 C3240 F1H1C474A143 C 0.47UF, 16V 1 C3241 F1G1C104A116 C 0.1UF 16V 1 C3243 F1H1C105A145 C 0.01UF, 16V 1 C3244 F1H1C105A145 C 0.01UF, 16V 1 C3246 F1J1C475A170 C 4.7UF, K, 16V 1 C3247 F1J1C475A170 C 4.7UF, K, 16V 1 C3248 F1H1C474A143 C 0.47UF, 16V 1 C3249 F1H1H103A970 C 0.01PF, 50V 1 C3250 F1G1C103A116 C 0.01UF 16V 1 C3251 F1H1H102A971 C 1000PF, 50V 1 C3252 F1H1H102A971 C 1000PF, 50V 1 C3253 F1H1E104A129 C 0.1PF, 25V 1 C3254 EEEHB1C471P C 470PF, J, 16V 1 C3255 EEEHB1C471P C 470PF, J, 16V 1 C3256 EEEHB1C471P C 470PF, J, 16V 1 C3258 F1G1C104A116 C 0.1UF 16V 1 C3259 F1G1C104A116 C 0.1UF 16V 1 C3261 F1K1C106A126 C 10UF, 16V 1 C3262 F1G1C104A116 C 0.1UF 16V 1 C3263 F1J0J106A004 C 10 UF 6.3 V 1 C3264 F1G1C103A116 C 0.01UF 16V 1 C3266 ECJ1VB1A105K C 1UF, 10V 1 C3271 F1K1C106A126 C 10UF, 16V 1 C3272 F1G1C104A116 C 0.1UF 16V 1 C3273 F1G1H151A731 C 150PF, 50V 1 C3274 F1J1A106A087 C 10UF, 10V 1 C3275 F1H1H102A971 C 1000PF, 50V 1 C3276 F1J1A106A087 C 10UF, 10V 1 C3277 ECJ1VB0J105K C 1UF, 6.3V 1 C3278 F1G1C104A116 C 0.1UF 16V 1 C3279 F1G1C104A116 C 0.1UF 16V 1 C3291 F1K1C106A126 C 10UF, 16V 1 C3292 F1G1C104A116 C 0.1UF 16V 1 C3293 F1J1A106A087 C 10UF, 10V 1 C3404 F1J1C104A195 C 0.10UF, Z, 16V 1 C3405 F1K1C106A126 C 10UF, 16V 1 C3406 F1K1C106A126 C 10UF, 16V 1 C3409 F1J1C104A195 C 0.10UF, Z, 16V 1 C3523 F1K1C106A126 C 10UF, 16V 1 C3524 F1J1H103A838 C 0.01UF, , 50V 1 C3550 F1J1H103A838 C 0.01UF, , 50V 1 C3551 F1K1C106A126 C 10UF, 16V 1 C3552 F1K1C106A126 C 10UF, 16V 1 C3561 F1J1C105A063 C 1UF, Z, 16V 1 C3562 F1J1C105A063 C 1UF, Z, 16V 1 C3563 F1J1C475A170 C 4.7UF, K, 16V 1 C3564 F1J1C475A170 C 4.7UF, K, 16V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 109 C4001 F1G1C104A116 C 0.1UF 16V 1 C4002 F1G1C104A116 C 0.1UF 16V 1 C4003 F1G1C104A116 C 0.1UF 16V 1 C4006 F1G1C104A116 C 0.1UF 16V 1 C4007 F1G1C104A116 C 0.1UF 16V 1 C4008 F1J1A106A087 C 10UF, 10V 1 C4009 F1G1H100A731 C 10PF 50V 1 C4010 F1G1H100A731 C 10PF 50V 1 C4021 F1G1E103A123 C 0.01UF 25V 1 C4022 ECJ1VB0J105K C 1UF, 6.3V 1 C4023 F1G1E103A123 C 0.01UF 25V 1 C4024 ECJ1VB0J105K C 1UF, 6.3V 1 C4025 F1G1E103A123 C 0.01UF 25V 1 C4026 ECJ1VB0J105K C 1UF, 6.3V 1 C4027 F1G1E103A123 C 0.01UF 25V 1 C4028 ECJ1VB0J105K C 1UF, 6.3V 1 C4030 F1G1C104A116 C 0.1UF 16V 1 C4031 F1G1C104A116 C 0.1UF 16V 1 C4032 F1G1C104A116 C 0.1UF 16V 1 C4034 F1G1C104A116 C 0.1UF 16V 1 C4035 F1H0J475A041 C 4.7UF, 16V 1 C4037 F1G1C104A116 C 0.1UF 16V 1 C4039 F1H0J475A041 C 4.7UF, 16V 1 C4042 ECJ1VB0J105K C 1UF, 6.3V 1 C4044 ECJ1VB0J105K C 1UF, 6.3V 1 C4046 ECJ1VB0J105K C 1UF, 6.3V 1 C4048 ECJ1VB0J105K C 1UF, 6.3V 1 C4050 ECJ1VB0J105K C 1UF, 6.3V 1 C4052 ECJ1VB0J105K C 1UF, 6.3V 1 C4054 F1G1C104A116 C 0.1UF 16V 1 C4055 F1G1C104A116 C 0.1UF 16V 1 C4056 F1G1C104A116 C 0.1UF 16V 1 C4071 ECJ1VB1A105K C 1UF, 10V 1 C4072 F1H0J2250006 C 2.2UF, 16V 1 PPDS C4073 F1G1H471A730 C 470PF, 50V 1 C4074 F2G0J470A019 E 47UF 6.3V 1 C4075 F1G1C104A116 C 0.1UF 16V 1 C4076 F2G0J470A019 E 47UF 6.3V 1 C4077 F1G1C104A116 C 0.1UF 16V 1 C4081 F1J1A106A087 C 10UF, 10V 1 C4082 F1J1A106A087 C 10UF, 10V 1 C4083 F1J1A106A087 C 10UF, 10V 1 C4084 F1J1A106A087 C 10UF, 10V 1 C4085 F1J0J106A004 C 10 UF 6.3 V 1 C4086 F1G1C104A116 C 0.1UF 16V 1 C4087 F1J0J106A004 C 10 UF 6.3 V 1 C4088 F1G1C104A116 C 0.1UF 16V 1 C4101 F1G1C104A116 C 0.1UF 16V 1 C4102 F1G1C104A116 C 0.1UF 16V 1 C4121 F2G0J330A019 E 33UF 6.3V 1 C4122 F1G1C104A116 C 0.1UF 16V 1 C4123 F1G1C104A116 C 0.1UF 16V 1 C4151 F1G1C104A116 C 0.1UF 16V 1 C4171 F2G0J330A019 E 33UF 6.3V 1 C4172 F1G1C104A116 C 0.1UF 16V 1 C4173 F1G1C104A116 C 0.1UF 16V 1 C4201 F1J0J106A004 C 10 UF 6.3 V 1 C4202 F1J0J106A004 C 10 UF 6.3 V 1 C4203 F1G1C104A116 C 0.1UF 16V 1 C4204 F1G1C104A116 C 0.1UF 16V 1 C4205 F1G1C104A116 C 0.1UF 16V 1 C4206 F1G1C104A116 C 0.1UF 16V 1 C4207 F1G1C104A116 C 0.1UF 16V 1 C4208 F1G1C104A116 C 0.1UF 16V 1 C4209 F1G1C104A116 C 0.1UF 16V 1 C4210 F1G1C104A116 C 0.1UF 16V 1 C4211 F1J0J106A004 C 10 UF 6.3 V 1 C4212 F1J0J106A004 C 10 UF 6.3 V 1 C4213 F1G1C104A116 C 0.1UF 16V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 C4214 F1G1C104A116 C 0.1UF 16V 1 C4215 F1J0J106A004 C 10 UF 6.3 V 1 C4216 F1J0J106A004 C 10 UF 6.3 V 1 C4217 F1G1C104A116 C 0.1UF 16V 1 C4218 F1G1C104A116 C 0.1UF 16V 1 C4219 F1G1C104A116 C 0.1UF 16V 1 C4220 F1G1C104A116 C 0.1UF 16V 1 C4221 F1G1C104A116 C 0.1UF 16V 1 C4222 F1G1C104A116 C 0.1UF 16V 1 C4223 F1J0J106A004 C 10 UF 6.3 V 1 C4224 F1J0J106A004 C 10 UF 6.3 V 1 C4225 F1G1C104A116 C 0.1UF 16V 1 C4226 F1G1C104A116 C 0.1UF 16V 1 C4227 F1J0G226A001 C 22 UF 4 V 1 C4228 F1J0J106A004 C 10 UF 6.3 V 1 C4229 F1J0J106A004 C 10 UF 6.3 V 1 C4230 F1G1C104A116 C 0.1UF 16V 1 C4231 F1J0J106A004 C 10 UF 6.3 V 1 C4232 F1J0J106A004 C 10 UF 6.3 V 1 C4233 F1G1C104A116 C 0.1UF 16V 1 C4281 F1G1C104A116 C 0.1UF 16V 1 C4282 F1G1C104A116 C 0.1UF 16V 1 C4311 EEEHB0J470UR E 47UF, 6.3V 1 C4312 F1G1C104A116 C 0.1UF 16V 1 C4313 ECJ1VB0J105K C 1UF, 6.3V 1 C4314 F1H1C104A144 C 0.1UF. 16V 1 C4315 F1H1C104A144 C 0.1UF. 16V 1 C4316 F1H1C104A144 C 0.1UF. 16V 1 C4317 F1H1C104A144 C 0.1UF. 16V 1 C4321 F1G1C104A116 C 0.1UF 16V 1 C4322 F1G1H102A730 C 1000PF 50V 1 C4323 F1G1C104A116 C 0.1UF 16V 1 C4324 F1H0J2250006 C 2.2UF, 16V 1 PPDS C4325 F1G1C104A116 C 0.1UF 16V 1 C4326 F1G1C104A116 C 0.1UF 16V 1 C4351 F1G1C104A116 C 0.1UF 16V 1 C4361 F1G1C104A116 C 0.1UF 16V 1 C4401 F1H1C104A144 C 0.1UF. 16V 1 C4402 F1H1C104A144 C 0.1UF. 16V 1 C4404 F1G1C104A116 C 0.1UF 16V 1 C4405 F1G1C104A116 C 0.1UF 16V 1 C4406 F1G1C104A116 C 0.1UF 16V 1 C4407 F1G1C104A116 C 0.1UF 16V 1 C4408 F1G1C103A116 C 0.01UF 16V 1 C4411 F1J0J106A004 C 10 UF 6.3 V 1 C4412 F1G1H103A735 C 0.01PF, 50V 1 C4413 F1J0J106A004 C 10 UF 6.3 V 1 C4421 F1J0J106A004 C 10 UF 6.3 V 1 C4422 F1G1H103A735 C 0.01PF, 50V 1 C4423 F1J0J106A004 C 10 UF 6.3 V 1 C4424 F1J0J106A004 C 10 UF 6.3 V 1 C4425 F1G1C104A116 C 0.1UF 16V 1 C4426 F1J0J106A004 C 10 UF 6.3 V 1 C4427 F1J0J106A004 C 10 UF 6.3 V 1 C4428 F1G1C104A116 C 0.1UF 16V 1 C4429 F1J0J106A004 C 10 UF 6.3 V 1 C4430 F1G1C104A116 C 0.1UF 16V 1 C4433 F1G1C153A116 C 0.015UF 16V 1 C4434 F1G1H151A731 C 150PF, 50V 1 C4451 F1K1C106A126 C 10UF, 16V 1 C4452 F1G1C104A116 C 0.1UF 16V 1 C4453 F1G1C104A116 C 0.1UF 16V 1 C4454 F1H1C105A145 C 0.01UF, 16V 1 C4455 F1J1A106A087 C 10UF, 10V 1 C4456 F1G1C104A116 C 0.1UF 16V 1 C4457 F1G1H100A731 C 10PF 50V 1 C4458 F1G1H470A731 C 47PF, 50V 1 C4460 F1G1C104A116 C 0.1UF 16V 1 C4461 ECJ1VB1A105K C 1UF, 10V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 110 C4462 F1H1H102A970 C 1000PF, 50V 1 C4464 F1J0J106A004 C 10 UF 6.3 V 1 C4465 F1G1C104A116 C 0.1UF 16V 1 C4466 F1J0J106A004 C 10 UF 6.3 V 1 C4501 EEEHB0G221P C 220PF, J, 4V 1 C4502 EEEHB0G221P C 220PF, J, 4V 1 C4503 EEEHB0G221P C 220PF, J, 4V 1 C4504 F1J0J106A004 C 10 UF 6.3 V 1 C4505 F1J0J106A004 C 10 UF 6.3 V 1 C4506 F1G1C104A116 C 0.1UF 16V 1 C4508 F1G1C104A116 C 0.1UF 16V 1 C4510 F1G1C104A116 C 0.1UF 16V 1 C4512 F1G1C104A116 C 0.1UF 16V 1 C4514 F1J0J106A004 C 10 UF 6.3 V 1 C4515 F1G1C104A116 C 0.1UF 16V 1 C4517 F1G1C104A116 C 0.1UF 16V 1 C4519 F1G1C104A116 C 0.1UF 16V 1 C4521 F1G1C104A116 C 0.1UF 16V 1 C4523 F1G1C104A116 C 0.1UF 16V 1 C4524 F1J0J106A004 C 10 UF 6.3 V 1 C4525 F1G1C104A116 C 0.1UF 16V 1 C4526 F1J0J106A004 C 10 UF 6.3 V 1 C4527 F1G1C104A116 C 0.1UF 16V 1 C4528 F1J0J106A004 C 10 UF 6.3 V 1 C4529 F1G1C104A116 C 0.1UF 16V 1 C4530 F1J0J106A004 C 10 UF 6.3 V 1 C4531 F1G1C104A116 C 0.1UF 16V 1 C4532 F1J0J106A004 C 10 UF 6.3 V 1 C4533 F1J0J106A004 C 10 UF 6.3 V 1 C4534 F1G1C104A116 C 0.1UF 16V 1 C4536 F1G1C104A116 C 0.1UF 16V 1 C4538 F1G1C104A116 C 0.1UF 16V 1 C4540 F1G1C104A116 C 0.1UF 16V 1 C4542 F1G1C104A116 C 0.1UF 16V 1 C4544 F1G1C104A116 C 0.1UF 16V 1 C4546 F1G1C104A116 C 0.1UF 16V 1 C4547 F1J0J106A004 C 10 UF 6.3 V 1 C4548 F1G1C104A116 C 0.1UF 16V 1 C4549 F1J0J106A004 C 10 UF 6.3 V 1 C4550 F1G1C104A116 C 0.1UF 16V 1 C4551 F1J0J106A004 C 10 UF 6.3 V 1 C4552 F1G1C104A116 C 0.1UF 16V 1 C4553 F1J0J106A004 C 10 UF 6.3 V 1 C4554 F1G1C104A116 C 0.1UF 16V 1 C4555 F1J0J106A004 C 10 UF 6.3 V 1 C4556 F1G1C104A116 C 0.1UF 16V 1 C4557 F1J0J106A004 C 10 UF 6.3 V 1 C4558 F1G1C104A116 C 0.1UF 16V 1 C4559 F1J0J106A004 C 10 UF 6.3 V 1 C4560 F1G1C104A116 C 0.1UF 16V 1 C4561 F1J0J106A004 C 10 UF 6.3 V 1 C4562 F1G1C104A116 C 0.1UF 16V 1 C4563 F1J0J106A004 C 10 UF 6.3 V 1 C4564 F1J0J106A004 C 10 UF 6.3 V 1 C4565 F1G1C104A116 C 0.1UF 16V 1 C4567 F1G1C104A116 C 0.1UF 16V 1 C4569 F1G1C104A116 C 0.1UF 16V 1 C4571 F1G1C104A116 C 0.1UF 16V 1 C4573 F1G1C104A116 C 0.1UF 16V 1 C4575 F1G1C104A116 C 0.1UF 16V 1 C4576 F1J0J106A004 C 10 UF 6.3 V 1 C4577 F1G1C104A116 C 0.1UF 16V 1 C4578 ECJ1VB0J105K C 1UF, 6.3V 1 C4579 F1G1C104A116 C 0.1UF 16V 1 C4580 F1G1C104A116 C 0.1UF 16V 1 C4581 F1G1C104A116 C 0.1UF 16V 1 C4582 F1J0J106A004 C 10 UF 6.3 V 1 C4583 F1G1C104A116 C 0.1UF 16V 1 C4584 ECJ1VB0J105K C 1UF, 6.3V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 C4585 F1J0J106A004 C 10 UF 6.3 V 1 C4586 F1G1C104A116 C 0.1UF 16V 1 C4587 F1G1C104A116 C 0.1UF 16V 1 C4588 F1G1C104A116 C 0.1UF 16V 1 C4591 F1G1H120A731 C 12PF, 50V 1 C4592 F1G1H120A731 C 12PF, 50V 1 C4602 F1G1C104A116 C 0.1UF 16V 1 C4603 F1G1C104A116 C 0.1UF 16V 1 C4604 F1G1C104A116 C 0.1UF 16V 1 C4605 F1G1C104A116 C 0.1UF 16V 1 C4606 F1J1A106A087 C 10UF, 10V 1 C4607 F1G1C104A116 C 0.1UF 16V 1 C4609 F1G1C104A116 C 0.1UF 16V 1 C4610 F1G1C104A116 C 0.1UF 16V 1 C4612 F1G1C104A116 C 0.1UF 16V 1 C4613 F1G1C104A116 C 0.1UF 16V 1 C4618 F1G1C104A116 C 0.1UF 16V 1 C4619 F1G1C104A116 C 0.1UF 16V 1 C4621 ECGRL0G680ER C 68UF, J, 4V 1 C4622 F1J1A106A087 C 10UF, 10V 1 C4623 F1G1C104A116 C 0.1UF 16V 1 C4624 F1G1C104A116 C 0.1UF 16V 1 C4625 F1G1C104A116 C 0.1UF 16V 1 C4626 F1G1C104A116 C 0.1UF 16V 1 C4628 F1G1C104A116 C 0.1UF 16V 1 C4629 F1G1C104A116 C 0.1UF 16V 1 C4630 F1G1C104A116 C 0.1UF 16V 1 C4631 F1G1C104A116 C 0.1UF 16V 1 C4632 F1G1C104A116 C 0.1UF 16V 1 C4638 F1G1C104A116 C 0.1UF 16V 1 C4639 F1G1C104A116 C 0.1UF 16V 1 C4651 F1J0J106A004 C 10 UF 6.3 V 1 C4652 F1G1C104A116 C 0.1UF 16V 1 C4653 F1G1C104A116 C 0.1UF 16V 1 C4654 F1J0J106A004 C 10 UF 6.3 V 1 C4655 F1G1C104A116 C 0.1UF 16V 1 C4656 F1G1H120A731 C 12PF, 50V 1 C4657 F1G1H180A731 C 18PF, 50V 1 C4701 F1G1C104A116 C 0.1UF 16V 1 C4702 F1G1C104A116 C 0.1UF 16V 1 C4703 ECJ1VB0J105K C 1UF, 6.3V 1 C4704 F1G1C104A116 C 0.1UF 16V 1 C4705 F1G1C104A116 C 0.1UF 16V 1 C4706 F1G1C104A116 C 0.1UF 16V 1 C4707 F1G1C104A116 C 0.1UF 16V 1 C4708 F1G1C104A116 C 0.1UF 16V 1 C4709 F1G1H102A730 C 1000PF 50V 1 C4711 F1G1H102A730 C 1000PF 50V 1 C4714 F1G1C104A116 C 0.1UF 16V 1 C4715 F1G1C104A116 C 0.1UF 16V 1 C4809 F1G1H101A731 C 100PF 50V 1 C4851 ECJ1VB0J105K C 1UF, 6.3V 1 C4852 F1G1C104A116 C 0.1UF 16V 1 C4871 F1J1C475A170 C 4.7UF, K, 16V 1 C4872 F1G1C104A116 C 0.1UF 16V 1 C4881 F1G1C104A116 C 0.1UF 16V 1 C4882 F1G1C104A116 C 0.1UF 16V 1 C4904 F1K1E106A136 C 10UF, 25V 1 C4905 F1H1E104A129 C 0.1PF, 25V 1 C4906 F1J1A106A087 C 10UF, 10V 1 C4908 F1J1C105A197 C 1.0UF, K, 16V 1 PPDS C4910 F1J1C105A063 C 1UF, Z, 16V 1 C4917 F1K1E106A136 C 10UF, 25V 1 C4918 F1H1E104A129 C 0.1PF, 25V 1 C4919 F1J1A106A087 C 10UF, 10V 1 C4921 F1J1C105A197 C 1.0UF, K, 16V 1 PPDS C4923 F1J1C105A063 C 1UF, Z, 16V 1 C4932 F1K1E106A136 C 10UF, 25V 1 C4933 F1H1E104A129 C 0.1PF, 25V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 111 C4934 F1K1E106A136 C 10UF, 25V 1 C4935 F1K1E106A136 C 10UF, 25V 1 C4936 F1G1C104A116 C 0.1UF 16V 1 C4937 F1H1E104A129 C 0.1PF, 25V 1 C4940 F1G1H470A731 C 47PF, 50V 1 C4941 F1G1C104A116 C 0.1UF 16V 1 C4951 ECJ1VB0J105K C 1UF, 6.3V 1 C4952 F1G1E103A123 C 0.01UF 25V 1 C4963 F2G0J470A019 E 47UF 6.3V 1 C4964 F1H1C104A144 C 0.1UF. 16V 1 C4965 F1H1C105A145 C 0.01UF, 16V 1 C4966 F1K1E106A136 C 10UF, 25V 1 C4968 F1K1C106A126 C 10UF, 16V 1 C4981 F2H1E221A007 E 220UF, 25V 1 C4982 F1J1E105A231 C 1 UF 25V 1 C4984 EEEHB1C471P C 470PF, J, 16V 1 C4987 F1K1E106A136 C 10UF, 25V 1 C4988 F1H1C104A143 C 0.1UF, 16V 1 C8304 F1J0J106A004 C 10 UF 6.3 V 1 C8306 F1J0J106A004 C 10 UF 6.3 V 1 C8309 F1G1C104A116 C 0.1UF 16V 1 C8310 F1J0J106A004 C 10 UF 6.3 V 1 C8312 F1J0J106A004 C 10 UF 6.3 V 1 C8313 F1G1C104A116 C 0.1UF 16V 1 C8314 F1J0J106A004 C 10 UF 6.3 V 1 C8315 F1J0J106A004 C 10 UF 6.3 V 1 C8316 F1G1H101A731 C 100PF 50V 1 C8317 F1G1C104A116 C 0.1UF 16V 1 C8318 F1G1C104A116 C 0.1UF 16V 1 C8319 F1G1C104A116 C 0.1UF 16V 1 C8325 F1G1H100A731 C 10PF 50V 1 C8326 F1G1H120A731 C 12PF, 50V 1 C8327 F1J0J106A004 C 10 UF 6.3 V 1 C8328 F1G1C104A116 C 0.1UF 16V 1 C8329 F1J0J106A004 C 10 UF 6.3 V 1 C8330 F1H0J2250006 C 2.2UF, 16V 1 PPDS C8331 F1G1C104A116 C 0.1UF 16V 1 C8332 F1G1H471A730 C 470PF, 50V 1 C8333 F1G1C104A116 C 0.1UF 16V 1 C8334 F1G1C104A116 C 0.1UF 16V 1 C8335 ECJ1VB1A105K C 1UF, 10V 1 C8336 F1G1C104A116 C 0.1UF 16V 1 C8337 F1G1C104A116 C 0.1UF 16V 1 C8338 F1G1C104A116 C 0.1UF 16V 1 C8339 F1J0J106A004 C 10 UF 6.3 V 1 C8340 F1G1C104A116 C 0.1UF 16V 1 C8341 F1G1C104A116 C 0.1UF 16V 1 C8342 F1G1C104A116 C 0.1UF 16V 1 C8343 F1G1C104A116 C 0.1UF 16V 1 C8352 ECJ1VB1A105K C 1UF, 10V 1 C8374 F1G1C104A116 C 0.1UF 16V 1 C8375 F1J0J106A004 C 10 UF 6.3 V 1 C8377 F1G1E104A087 C 0.10UF 25V 1 C8378 F1G1E104A087 C 0.10UF 25V 1 C9033 F1G1C104A116 C 0.1UF 16V 1 C9034 F1G1C104A116 C 0.1UF 16V 1 C9035 F1J1A106A087 C 10UF, 10V 1 C9036 F1J1A106A087 C 10UF, 10V 1 C9037 F1G1E103A123 C 0.01UF 25V 1 C9040 F1G1C104A116 C 0.1UF 16V 1 C9044 F1J1A475A087 C 4.7UF, 10V 1 C9045 F1G1C104A116 C 0.1UF 16V 1 C9046 F1G1C104A116 C 0.1UF 16V 1 C9047 F1G1C104A116 C 0.1UF 16V 1 C9048 F1G1C104A116 C 0.1UF 16V 1 C9052 F1G1C104A116 C 0.1UF 16V 1 C9053 F1G1C104A116 C 0.1UF 16V 1 C9054 F1G1H201A731 C 200 PF, 50V 1 C9055 F1G1C104A116 C 0.1UF 16V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 C9056 F1G1C104A116 C 0.1UF 16V 1 C9057 F1G1C104A116 C 0.1UF 16V 1 C9061 F1G1C104A116 C 0.1UF 16V 1 C9062 F1J1A475A087 C 4.7UF, 10V 1 C9063 F1G1C104A116 C 0.1UF 16V 1 C9065 F1G1C104A116 C 0.1UF 16V 1 C9100 F1J1A106A087 C 10UF, 10V 1 C9101 F1G1E103A123 C 0.01UF 25V 1 C9102 F1K1E106A136 C 10UF, 25V 1 C9103 F1G1E103A123 C 0.01UF 25V 1 C9105 F1G1H101A731 C 100PF 50V 1 C9106 F1K1E106A136 C 10UF, 25V 1 C9108 F1G1E103A123 C 0.01UF 25V 1 C9110 F1G1C104A116 C 0.1UF 16V 1 C9300 F1G1C104A116 C 0.1UF 16V 1 C9301 F1G1H180A731 C 18PF, 50V 1 C9302 F1G1H180A731 C 18PF, 50V 1 C9307 F1G1C104A116 C 0.1UF 16V 1 C9308 F1G1C104A116 C 0.1UF 16V 1 C9311 F1G1C104A116 C 0.1UF 16V 1 C9312 F1J1A106A087 C 10UF, 10V 1 C9313 F1G1C104A116 C 0.1UF 16V 1 C9314 F1J1A106A087 C 10UF, 10V 1 C9315 F1G1C104A116 C 0.1UF 16V 1 C9316 F1J1A106A087 C 10UF, 10V 1 C9319 F1G1C104A116 C 0.1UF 16V 1 C9322 F1G1C104A116 C 0.1UF 16V 1 C9323 F1G1C104A116 C 0.1UF 16V 1 C9325 F1G1C104A116 C 0.1UF 16V 1 C9327 F1G1C104A116 C 0.1UF 16V 1 C9335 F1J1A106A087 C 10UF, 10V 1 C9336 F1J1A106A087 C 10UF, 10V 1 C9337 F1J1A106A087 C 10UF, 10V 1 C9339 F1G1C104A116 C 0.1UF 16V 1 C9340 F1G1C104A116 C 0.1UF 16V 1 C9342 F1G1C104A116 C 0.1UF 16V 1 C9344 F1G1C104A116 C 0.1UF 16V 1 C9347 ECJ1VB0J105K C 1UF, 6.3V 1 C9349 F1J1A106A087 C 10UF, 10V 1 C9350 F1G1C104A116 C 0.1UF 16V 1 C9351 F1G1C104A116 C 0.1UF 16V 1 C9352 ECJ1VB0J105K C 1UF, 6.3V 1 C9356 F1G1C104A116 C 0.1UF 16V 1 C9361 F1G1C104A116 C 0.1UF 16V 1 C9363 F1G1C104A116 C 0.1UF 16V 1 C9371 F1J1A106A087 C 10UF, 10V 1 C9372 F1J1A106A087 C 10UF, 10V 1 C9373 F1J1A106A087 C 10UF, 10V 1 C9374 F1G1C104A116 C 0.1UF 16V 1 C9375 F1G1C104A116 C 0.1UF 16V 1 C9380 F1G1C104A116 C 0.1UF 16V 1 C9383 F1G1C104A116 C 0.1UF 16V 1 C9391 F1J1A106A087 C 10UF, 10V 1 C9392 F1J1A106A087 C 10UF, 10V 1 C9400 F1G1C104A116 C 0.1UF 16V 1 C9401 F1G1C104A116 C 0.1UF 16V 1 C9402 F1G1C104A116 C 0.1UF 16V 1 C9800 F1H1E104A129 C 0.1PF, 25V 1 C9801 F1G1E682A123 C 6800UF 25V 1 C9803 F1G1E472A123 C 4700UF 25V 1 C9804 F1K1E106A136 C 10UF, 25V 1 C9805 F1K1E106A136 C 10UF, 25V 1 C9806 F1G1H101A731 C 100PF 50V 1 C9807 F1G1H201A731 C 200 PF, 50V 1 C9808 F1G1H470A731 C 47PF, 50V 1 C9809 F1G1H222A730 C 2200PF, 50V 1 C9811 F1G1C473A116 C 0.047UF 16V 1 PPDS C9812 F1K1E106A136 C 10UF, 25V 1 C9813 F1K1E106A136 C 10UF, 25V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 112 C9815 F1K0J226A008 C 22UF, 6.3V 1 C9816 F1H1E104A129 C 0.1PF, 25V 1 C9817 F1J1A106A087 C 10UF, 10V 1 C9819 F1J1A106A087 C 10UF, 10V 1 C9825 F1K0J226A008 C 22UF, 6.3V 1 C9827 F1K1E106A136 C 10UF, 25V 1 C9828 F1K1E106A136 C 10UF, 25V 1 C9829 F1G1C473A116 C 0.047UF 16V 1 PPDS C9830 F1H1E104A129 C 0.1PF, 25V 1 C9831 F1G1E332A123 C 3300UF 25V 1 C9833 F1G1H101A731 C 100PF 50V 1 C9835 F1K0J226A008 C 22UF, 6.3V 1 C9845 F1G1H201A731 C 200 PF, 50V 1 C9846 F1G1H201A731 C 200 PF, 50V 1 C9900 F1G1E103A123 C 0.01UF 25V 1 C16001 F1L2J272A022 C 2700PF, 630V 1 C16002 F1L2J562A022 C 5600PF, 630V 1 C16012 F2A2T251A004 E 250UF, 220V 1 C16013 F2A2T251A004 E 250UF, 220V 1 C16014 F0C2E155A252 C 1.5UF, 250V 1 C16022 F1L2J562A022 C 5600PF, 630V 1 C16041 F1H1H392A970 C 3900PF, 50V 1 C16071 F1L2J1020001 C 1000PF, 630V 1 C16072 F1L2J1020001 C 1000PF, 630V 1 C16091 F1L2J1020001 C 1000PF, 630V 1 C16092 F1L2J1020001 C 1000PF, 630V 1 C16101 F1L2J222A022 C 2200PF, 630V 1 C16104 F1H1E470A130 C 47PF, 25V 1 C16105 F1H1E470A130 C 47PF, 25V 1 C16131 F1K1E475A134 C 4.7UF 25V 1 C16133 F1K1E475A134 C 4.7UF 25V 1 C16135 F1K1E105A029 C 1UF, 25V 1 C16151 F1K1E105A029 C 1UF, 25V 1 C16152 F1K1E475A134 C 4.7UF 25V 1 C16153 F1K1E475A134 C 4.7UF 25V 1 C16154 F1K1E475A134 C 4.7UF 25V 1 C16191 F1K1E475A134 C 4.7UF 25V 1 C16192 F1H1E104A129 C 0.1PF, 25V 1 C16193 F2A1E4700094 E 47UF, 25V 1 C16195 F1K1E105A029 C 1UF, 25V 1 C16202 F0C2E405A252 C 4UF, 250V 1 C16203 F0C2E405A252 C 4UF, 250V 1 C16242 F1H1C105A145 C 0.01UF, 16V 1 C16243 F1H1H103A970 C 0.01PF, 50V 1 C16244 F1J1A106A087 C 10UF, 10V 1 C16251 F1H1C105A145 C 0.01UF, 16V 1 C16252 F1K1E105A029 C 1UF, 25V 1 C16271 EEUFC1E221 E 220UF, 25V 1 C16280 F1K1E105A029 C 1UF, 25V 1 C16285 F1H1H104A970 C 0.1PF, , 50V 1 C16286 F1H1H104A970 C 0.1PF, , 50V 1 C16287 F1H1H104A970 C 0.1PF, , 50V 1 C16314 F2A2T251A004 E 250UF, 220V 1 C16315 ECJ1VB1A105K C 1UF, 10V 1 C16316 F1H1C104A143 C 0.1UF, 16V 1 C16317 ECJ1VB1A105K C 1UF, 10V 1 C16318 F1J1H104A835 C 0.1UF, 50V 1 C16319 F1J1H104A835 C 0.1UF, 50V 1 C16328 F2A2C221A195 E 220UF, 160V 1 C16331 F0C2E105A252 C 1 UF 250 V 1 C16401 F1L2J562A022 C 5600PF, 630V 1 C16412 F2A2T251A004 E 250UF, 220V 1 C16416 F2A2T251A004 E 250UF, 220V 1 C16417 F2A2T251A004 E 250UF, 220V 1 C16418 F0C2E155A252 C 1.5UF, 250V 1 C16419 F0C2E155A252 C 1.5UF, 250V 1 C16421 F1L2J562A022 C 5600PF, 630V 1 C16441 F1H1H392A970 C 3900PF, 50V 1 C16452 F1H1H392A970 C 3900PF, 50V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 C16460 F1E2J821A002 C 820PF, 630V 1 C16461 F1L2J1020001 C 1000PF, 630V 1 C16471 F1L2J1020001 C 1000PF, 630V 1 C16472 F1K1E105A029 C 1UF, 25V 1 C16481 F1L2J1020001 C 1000PF, 630V 1 C16490 F1H1C105A145 C 0.01UF, 16V 1 C16491 F1L2J1020001 C 1000PF, 630V 1 C16501 F1K1E105A029 C 1UF, 25V 1 C16502 F1K1E475A134 C 4.7UF 25V 1 C16503 F2A1E471A102 E 470UF, 25V 1 C16504 F1K1E475A134 C 4.7UF 25V 1 C16505 F1K1E105A029 C 1UF, 25V 1 C16521 F1K1E105A029 C 1UF, 25V 1 C16522 F1K1E475A134 C 4.7UF 25V 1 C16523 F2A1E471A102 E 470UF, 25V 1 C16524 F1K1E475A134 C 4.7UF 25V 1 C16525 F1K1E475A134 C 4.7UF 25V 1 C16534 F1K1E105A029 C 1UF, 25V 1 C16561 F1J1A106A087 C 10UF, 10V 1 C16562 F1H1C105A145 C 0.01UF, 16V 1 C16564 F1H1C105A145 C 0.01UF, 16V 1 C16565 F1H1H103A970 C 0.01PF, 50V 1 C16566 F1H1H103A970 C 0.01PF, 50V 1 C16581 F1K1E105A029 C 1UF, 25V 1 C16582 F1H1C105A145 C 0.01UF, 16V 1 C16593 F1H1H102A971 C 1000PF, 50V 1 C16602 F1H1H220A971 C 22PF, 50V 1 C16603 F1K2J102A014 C 1000PF, 630V 1 C16604 F1K2J102A014 C 1000PF, 630V 1 C16608 F1H1H221A971 C 220PF, 50V 1 C16632 F0C2E405A252 C 4UF, 250V 1 C16633 F0C2E405A252 C 4UF, 250V 1 C16641 F1K2J222A014 C 2200PF ,630V 1 C16642 F1L2J562A022 C 5600PF, 630V 1 C16645 F1K2J102A014 C 1000PF, 630V 1 C16646 F1K2J102A014 C 1000PF, 630V 1 C16661 F1K2J102A038 C 1000PF, 630V 1 C16662 F1K2J102A038 C 1000PF, 630V 1 C16664 F1H1H820A971 C 82PF, 50V 1 C16665 F1H1H820A971 C 82PF, 50V 1 C16666 F1H1H820A971 C 82PF, 50V 1 C16668 F1H1H221A971 C 220PF, 50V 1 C16675 F1H1H391A971 C 390PF, 50V 1 C16684 F1H1H104A970 C 0.1PF, , 50V 1 C16685 F1H1H104A970 C 0.1PF, , 50V 1 C16691 F2A2C101A097 E 100UF, 160V 1 C16692 F1H1H104A970 C 0.1PF, , 50V 1 C16707 F1H1H220A971 C 22PF, 50V 1 C16708 F1H1H104A970 C 0.1PF, , 50V 1 C16721 F2A1H820A115 E 82UF, 50V 1 C16723 F1K1E105A029 C 1UF, 25V 1 C16724 F1K1E475A134 C 4.7UF 25V 1 C16753 F1K1E475A134 C 4.7UF 25V 1 C16755 F1K1E475A134 C 4.7UF 25V 1 C16756 F1K1E475A134 C 4.7UF 25V 1 C16771 F1H1C105A145 C 0.01UF, 16V 1 C16773 F1K1E105A029 C 1UF, 25V 1 C16791 EEUFC1E221 E 220UF, 25V 1 C16793 EEUFC1E221 E 220UF, 25V 1 C16794 F1J1A106A087 C 10UF, 10V 1 C16795 F2A1E471A102 E 470UF, 25V 1 C16796 F2A1E471A102 E 470UF, 25V 1 C16797 F1H1H104A970 C 0.1PF, , 50V 1 C16813 F2A2T221A009 E 220UF, 220V 1 C16842 F2A2C101A097 E 100UF, 160V 1 C16843 F1J1H104A835 C 0.1UF, 50V 1 C16844 F1J1H104A835 C 0.1UF, 50V 1 C16854 F1J1H104A835 C 0.1UF, 50V 1 C16856 ECJ1VB1A105K C 1UF, 10V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 113 C16857 F1H1C104A143 C 0.1UF, 16V 1 C16858 ECJ1VB1A105K C 1UF, 10V 1 C16859 F1J1H104A835 C 0.1UF, 50V 1 C16860 ECJ1VB1A105K C 1UF, 10V 1 C16861 F1H1C104A143 C 0.1UF, 16V 1 C16862 ECJ1VB1A105K C 1UF, 10V 1 C16863 F1J1H104A835 C 0.1UF, 50V 1 C16864 F1J1H104A835 C 0.1UF, 50V 1 C16891 F1K1E105A029 C 1UF, 25V 1 C16902 F1E2J472A001 C 4700PF, 630V 1 C16903 F1E2J152A002 C 1500PF, 630V 1 C17101 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17103 F1H1C104A143 C 0.1UF, 16V 1 C17104 ECJ1VB1A105K C 1UF, 10V 1 C17105 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17107 ECJ1VB1A105K C 1UF, 10V 1 C17109 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17110 ECJ1VB1A105K C 1UF, 10V 1 C17111 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17113 ECJ1VB1A105K C 1UF, 10V 1 C17115 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17116 ECJ1VB1A105K C 1UF, 10V 1 C17117 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17119 ECJ1VB1A105K C 1UF, 10V 1 C17121 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17122 ECJ1VB1A105K C 1UF, 10V 1 C17124 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17125 ECJ1VB1A105K C 1UF, 10V 1 C17141 F1H1H101A971 C 100PF, 50V 1 C17202 F1H1C104A143 C 0.1UF, 16V 1 C17203 F1H1C104A143 C 0.1UF, 16V 1 C17205 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17206 ECJ1VB1A105K C 1UF, 10V 1 C17207 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17209 ECJ1VB1A105K C 1UF, 10V 1 C17210 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17212 ECJ1VB1A105K C 1UF, 10V 1 C17213 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17215 ECJ1VB1A105K C 1UF, 10V 1 C17217 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17218 ECJ1VB1A105K C 1UF, 10V 1 C17219 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17221 ECJ1VB1A105K C 1UF, 10V 1 C17223 F1L2A334A034 C 0.33 UF 200 V 1 PPDS C17224 ECJ1VB1A105K C 1UF, 10V 1 C17241 F1H1H101A971 C 100PF, 50V 1 CB1 K1MY55B00002 55P 连接接头 1 CB2 K1MY55B00002 55P 连接接头 1 CB3 K1MY55B00002 55P 连接接头 1 CB4 K1MY55B00002 55P 连接接头 1 CB5 K1MY55B00002 55P 连接接头 1 CB6 K1MY55B00002 55P 连接接头 1 CB7 K1MY55B00002 55P 连接接头 1 CB8 K1MY55B00002 55P 连接接头 1 CB9 K1MY55B00002 55P 连接接头 1 CB10 K1MY55B00002 55P 连接接头 1 CB11 K1MY55B00002 55P 连接接头 1 CB12 K1MY55B00002 55P 连接接头 1 CB13 K1MY55B00002 55P 连接接头 1 CB14 K1MY55B00002 55P 连接接头 1 CB15 K1MY55B00002 55P 连接接头 1 D851 B0ADEJ000035 稳压二极管 1 D852 B0ADEJ000035 稳压二极管 1 D853 B0ADEJ000035 稳压二极管 1 D859 DA2J10100L 三极管 1 D1550 B3AGB0000060 LED 1 PPDS D1551 DZ2J039M0L 稳压二极管 1 PPDS 安全 标记 参考号 部品号 部品名称及说明 数量 备注 D1554 DZ2J039M0L 稳压二极管 1 PPDS D2301 B0BC03200003 稳压二极管 1 D2302 B0BC03200003 稳压二极管 1 D2303 B0BC03200003 稳压二极管 1 D2304 B0BC03200003 稳压二极管 1 D3001 B0JCPG000030 二极管 1 D3002 B0JCPG000030 二极管 1 D3004 B0JCPG000030 二极管 1 D3005 B0BC5R900001 稳压二极管 1 D3100 MA152K 二极管 1 D3101 MA152K 二极管 1 D3102 B0BC01600013 稳压二极管 1 D3103 B0ACCJ000048 二极管 1 D3104 B0BC01000014 稳压二极管 1 PPDS D3105 B0ACCJ000048 二极管 1 D3106 B0BC010A0007 稳压二极管 1 D3107 B0ACCJ000048 二极管 1 D3108 B0ACCJ000048 二极管 1 D3109 DZ2J068M0L 稳压二极管 1 D3110 B0ACCJ000048 二极管 1 D3111 DZ2J056M0L 稳压二极管 1 D3112 B0ACCJ000048 二极管 1 D3120 B0ACCJ000048 二极管 1 D3140 B0ACCJ000048 二极管 1 D3141 DZ2J062M0L 稳压二极管 1 D3142 DZ2J062M0L 稳压二极管 1 D3143 B0ACCJ000048 二极管 1 D3201 B0ACCJ000048 二极管 1 D3202 B0ACCJ000048 二极管 1 D3203 B0ACCJ000048 二极管 1 D3204 B0ACCJ000048 二极管 1 D3271 B0ACCJ000048 二极管 1 D3272 B0ACCJ000048 二极管 1 D3273 B0ACCJ000048 二极管 1 D3274 B0ACCJ000048 二极管 1 D3291 EZJP0V080GA 变阻器 1 D3504 DZ2J056M0L 稳压二极管 1 D3507 B0BC01600013 稳压二极管 1 D3508 B0BC01600013 稳压二极管 1 D3509 B0BC01600013 稳压二极管 1 D3510 B0BC01600013 稳压二极管 1 D3511 B0ECKM000048 二极管 1 D3512 B0ECKM000048 二极管 1 D4101 EZAEG2A50AX 静电抑制器 1 D4102 EZAEG2A50AX 静电抑制器 1 D4103 EZAEG2A50AX 静电抑制器 1 D4104 EZAEG2A50AX 静电抑制器 1 D4105 EZAEG2A50AX 静电抑制器 1 D4106 EZAEG2A50AX 静电抑制器 1 D4107 EZAEG2A50AX 静电抑制器 1 D4108 EZAEG2A50AX 静电抑制器 1 D4113 EZAEG2A50AX 静电抑制器 1 D4114 EZAEG2A50AX 静电抑制器 1 D4116 B0ECKM000048 二极管 1 D4121 B0ECKM000048 二极管 1 D4122 B0ECKM000048 二极管 1 D4151 EZAEG2A50AX 静电抑制器 1 D4152 EZAEG2A50AX 静电抑制器 1 D4153 EZAEG2A50AX 静电抑制器 1 D4154 EZAEG2A50AX 静电抑制器 1 D4155 EZAEG2A50AX 静电抑制器 1 D4156 EZAEG2A50AX 静电抑制器 1 D4157 EZAEG2A50AX 静电抑制器 1 D4158 EZAEG2A50AX 静电抑制器 1 D4161 EZAEG2A50AX 静电抑制器 1 D4162 EZAEG2A50AX 静电抑制器 1 D4163 DZ2J056M0L 稳压二极管 1 D4164 DZ2J056M0L 稳压二极管 1 D4165 DZ2J056M0L 稳压二极管 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 114 D4171 B0ECKM000048 二极管 1 D4172 B0ECKM000048 二极管 1 D4371 DZ2J056M0L 稳压二极管 1 D4372 DZ2J056M0L 稳压二极管 1 D4374 DZ2J056M0L 稳压二极管 1 D4662 MA152K 二极管 1 D4663 MA152K 二极管 1 D4664 MA152K 二极管 1 D4665 MA152K 二极管 1 D4701 DZ2J033M0L 稳压二极管 1 D4703 B0JCCE000008 二极管 1 D4801 B0BC3R700004 稳压二极管 1 D4901 B0JCPE000004 二极管 1 D4902 B0JCME000092 二极管 1 D4903 B0JCPE000004 二极管 1 D4905 B0BC5R900001 稳压二极管 1 D4908 B0BC5R900001 稳压二极管 1 D4916 B0JCPE000004 二极管 1 D4918 B0BC5R900001 稳压二极管 1 D4921 B0BC5R900001 稳压二极管 1 D4931 B0JCPG000030 二极管 1 D4932 B0BC4R000002 稳压二极管 1 D4981 B0JCME000092 二极管 1 D8314 B0ACCJ000048 二极管 1 D8500 B0BC03300003 稳压二极管 1 D8501 B0BC03300003 稳压二极管 1 D8502 B0BC03300003 稳压二极管 1 D8503 B0BC03300003 稳压二极管 1 D9000 B0JCCE000008 二极管 1 D9110 B0JCGD000002 二极管 1 D9800 B0JCPD000026 二极管 1 D9802 B0JCCE000008 二极管 1 D9803 B0JCCE000008 二极管 1 D16001 B0FBCN000005 二极管 1 D16002 B0FBCN000005 二极管 1 D16021 B0FCCN000003 二极管 1 PPDS D16022 B0FCCN000003 二极管 1 PPDS D16032 B0ACCJ000048 二极管 1 D16041 B0FACP000004 二极管 1 PPDS D16050 B0ECKP000055 二极管 1 D16051 B0FBCN000007 二极管 1 D16101 B0JCME000093 二极管 1 D16131 B0ECKP000055 二极管 1 D16151 B0ECKP000055 二极管 1 D16152 B0ECKP000055 二极管 1 D16153 B0ECKP000055 二极管 1 D16191 B0ECKP000055 二极管 1 D16192 B0ACCJ000048 二极管 1 D16196 DZ2J200M0L 稳压二极管 1 D16253 B3ABB0000210 LED 1 D16255 B0ACCJ000048 二极管 1 D16280 B0ACCJ000048 二极管 1 D16281 DZ2J051M0L 稳压二极管 1 D16282 DZ2J068M0L 稳压二极管 1 D16285 B0ADEJ000035 稳压二极管 1 D16286 B0ACCJ000048 二极管 1 D16315 DZ2J150M0L 稳压二极管 1 D16316 B0ECKP000055 二极管 1 D16317 B0ECKP000055 二极管 1 D16401 DA3DF50ACSLW 稳压二极管 1 D16402 DA3DF50ACSLW 稳压二极管 1 D16407 B0JCME000093 二极管 1 D16411 B0ACCJ000048 二极管 1 D16421 B0FACP000006 二极管 1 D16422 B0FACP000005 二极管 1 D16451 B0ECKP000055 二极管 1 D16462 B0FACP000003 二极管 1 D16466 B0ACCJ000048 二极管 1 D16473 B0ACCJ000048 二极管 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 D16474 B0ACCJ000048 二极管 1 D16475 DZ2J051M0L 稳压二极管 1 D16476 B0ACCJ000048 二极管 1 D16477 DZ2J047L0L 稳压二极管 1 D16478 B0ACCJ000048 二极管 1 D16480 B0ACCJ000048 二极管 1 D16482 B0FACP000003 二极管 1 D16490 B0ECKP000055 二极管 1 D16491 B0ECKP000055 二极管 1 D16492 DZ2J047M0L 稳压二极管 1 D16493 B0ADCJ000100 二极管 1 D16494 B0ADCJ000100 二极管 1 D16497 B0ECKP000055 二极管 1 D16503 B0ECHR000001 二极管 1 D16522 B0ECHR000001 二极管 1 D16523 B0ECHR000001 二极管 1 D16534 B0ECHR000001 二极管 1 D16536 B0ECHR000001 二极管 1 D16583 B3ABB0000210 LED 1 D16602 DZ2J150M0L 稳压二极管 1 D16604 B0ADCJ000100 二极管 1 D16605 DZ2J051L0L 稳压二极管 1 D16607 B0ACCJ000048 二极管 1 D16610 B0ACCJ000048 二极管 1 D16618 B0ECKP000055 二极管 1 D16641 B0FBCN000006 二极管 1 D16642 B0FBCN000006 二极管 1 D16645 DZ2J150M0L 稳压二极管 1 D16646 DZ2J150M0L 稳压二极管 1 D16647 DZ2J150M0L 稳压二极管 1 D16648 DZ2J051L0L 稳压二极管 1 D16649 B0ACCJ000048 二极管 1 D16650 B0ACCJ000048 二极管 1 D16651 DZ2J051M0L 稳压二极管 1 D16652 B0ECKP000055 二极管 1 D16653 B0ACCJ000048 二极管 1 D16654 B0ACCJ000048 二极管 1 D16662 DZ2J150M0L 稳压二极管 1 D16663 DZ2J150M0L 稳压二极管 1 D16664 DZ2J150M0L 稳压二极管 1 D16669 B0ACCJ000048 二极管 1 D16671 B0ACCJ000048 二极管 1 D16673 B0ECHR000001 二极管 1 D16674 B0ECHR000001 二极管 1 D16677 B0ADEJ000035 稳压二极管 1 D16678 DZ2J15000L 稳压二极管 1 D16702 B0ACCJ000048 二极管 1 D16710 DZ2J15000L 稳压二极管 1 D16711 B0ECHR000001 二极管 1 D16712 DZ2J15000L 稳压二极管 1 D16713 B0ECHR000001 二极管 1 D16719 B0ECKP000055 二极管 1 D16720 B0ECKP000055 二极管 1 D16721 B0ECHR000001 二极管 1 D16728 B0ECKP000055 二极管 1 D16765 B0ECKP000055 二极管 1 D16790 B0JCME000093 二极管 1 D16791 DZ2J200M0L 稳压二极管 1 D16792 B0ACCJ000048 二极管 1 D16820 B0ACCJ000048 二极管 1 D16821 DZ2J330M0L 稳压二极管 1 D16822 B0ADCJ000100 二极管 1 D16824 DZ2J330M0L 稳压二极管 1 D16825 DZ2J330M0L 稳压二极管 1 D16859 B0HCKS000002 二极管 1 D16871 DZ2J240M0L 稳压二极管 1 D16872 DZ2J200M0L 稳压二极管 1 D16874 DZ2J051M0L 稳压二极管 1 D16875 B0ACCJ000048 二极管 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 115 D16893 DZ2J056H0L 稳压二极管 1 D16901 B0ADCJ000100 二极管 1 D16902 B0ACCJ000048 二极管 1 D16920 B0ADCJ000100 二极管 1 DS1 K1MY68BA0345 68P 连接接头 1 DS2 K1KB80B00024 80P 连接接头 1 DS13 K1KA13A00152 13P 连接接头 1 FL2403 J0HABB000003 LC 滤波器 1 FL2404 J0HABB000003 LC 滤波器 1 FL2405 J0HABB000003 LC 滤波器 1 FL2406 J0HABB000003 LC 滤波器 1 FL3000 F1J1E104A148 C 0.1UF, 25V 1 FL3001 F1J1E104A148 C 0.1UF, 25V 1 FL3002 F1J1E104A148 C 0.1UF, 25V 1 FL3003 F1J1E104A148 C 0.1UF, 25V 1 FL3004 F1J1E104A148 C 0.1UF, 25V 1 FL3007 F1J1E104A148 C 0.1UF, 25V 1 FL3008 F1J1E104A148 C 0.1UF, 25V 1 FL3201 J0HABB000004 LC 滤波器 1 FL3202 J0HABB000004 LC 滤波器 1 FL3203 J0HABB000004 LC 滤波器 1 FL3204 J0MAB0000175 LC 滤波器 1 FL3510 TAXA0024 LC 滤波器 1 FL3511 TAXA0024 LC 滤波器 1 FL3512 TAXA0024 LC 滤波器 1 FL3513 TAXA0024 LC 滤波器 1 FL3514 TAXA0024 LC 滤波器 1 FL3515 TAXA0024 LC 滤波器 1 FL3516 TAXA0024 LC 滤波器 1 FL3517 TAXA0024 LC 滤波器 1 FL4001 J0MAB0000175 LC 滤波器 1 FL4501 F1J1E104A148 C 0.1UF, 25V 1 FL4502 F1J1E104A148 C 0.1UF, 25V 1 FL4503 F1J1E104A148 C 0.1UF, 25V 1 FL4961 F1J1E104A148 C 0.1UF, 25V 1 FL4962 F1J1E104A148 C 0.1UF, 25V 1 FL4963 F1J1E104A148 C 0.1UF, 25V 1 FL4964 F1J1E104A148 C 0.1UF, 25V 1 FL4965 F1J1E104A148 C 0.1UF, 25V 1 FL4966 F1J1E104A148 C 0.1UF, 25V 1 FL4967 F1J1E104A148 C 0.1UF, 25V 1 FL4968 F1J1E104A148 C 0.1UF, 25V 1 H37 K1KA03BA0055 3P 连接接头 1 HX1 K1KA15BA0062 15P 连接接头 1 IC2301 C1AB00003322 IC 1 PPDS IC2302 C0JBAA000377 IC 1 IC2303 C1AB00002909 IC 1 IC2304 C0CBCBE00001 IC 1 IC2305 C0DBFFD00003 IC 1 IC2306 C1AB00003042 IC 1 PPDS IC3000 C0DBAYY00727 IC 1 IC3001 C0DBAYY00727 IC 1 IC3002 C0DBAYY00727 IC 1 IC3100 C0JBAA000377 IC 1 IC3120 C1DB00001208 IC 1 IC3201 C1AB00003160 IC 1 IC3202 C0CBCDD00025 IC 1 IC3271 C0JBAB000715 IC 1 IC3272 C0JBAB000715 IC 1 IC3502 TVRR702 IC 1 PPDS IC4001 C1AB00002966 IC 1 IC4002 C0CBCBE00001 IC 1 IC4003 C0DBGYY00477 IC 1 IC4004 C0DBGYY00477 IC 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 IC4005 TVRR235 IC 1 PPDS IC4006 TVRR236 IC 1 PPDS IC4007 C0CBCAC00275 IC 1 IC4201 C1AB00002899 IC 1 IC4281 C0JBAA000377 IC 1 IC4282 C0JBAB000715 IC 1 IC4301 C1ZBZ0003985 IC 1 IC4312 C0JBAZ000851 IC 1 IC4313 C0JBAA000175 IC 1 IC4314 C0JBAA000377 IC 1 IC4361 C1ZBZ0003775 IC 1 IC4382 C0JBAS000215 IC 1 IC4451 C1AB00001529 IC 1 IC4501 C1AB00003189 IC 1 PPDS IC4502 C3ABRY000040 IC 1 IC4503 C3ABRY000040 IC 1 IC4515 C1ZBZ0003984 IC 1 IC4702 TVRR229AD IC 1 PPDS IC4703 TVRR231AB IC 1 PPDS IC4704 C0EBE0000120 IC 1 IC4901 C0DBAYY00369 IC 1 IC4902 C0DBAYY00369 IC 1 IC4903 C0DBAYY00727 IC 1 IC4981 C0DBAZG00034 IC 1 IC8301 C1CB00002896 IC 1 IC8302 C0EBE0000120 IC 1 IC8303 C0DBFFD00003 IC 1 IC8304 C1CB00003205 IC 1 IC8305 TVRR237 IC 1 PPDS IC8308 TVRR238 IC 1 PPDS IC9001 TVRR674AA IC 1 PPDS IC9003 MN103SH8HFS4 IC 1 PPDS IC9004 C1ZBZ0003983 IC 1 IC9300 C1AB00003258 IC 1 IC9304 TVRR694AC IC 1 PPDS IC9400 C0JBAZ002692 IC 1 IC9401 C0JBAZ002692 IC 1 IC9402 C0JBAZ002692 IC 1 IC9800 C0DBAYY00605 IC 1 IC9801 C0DBAYY00605 IC 1 IC9802 C0DBEHG00006 IC 1 IC9803 C0DBAYY00605 IC 1 IC16131 C0ZBZ0001707 IC 1 IC16151 C0ZBZ0001708 IC 1 IC16241 C0JBAU000088 IC 1 PPDS IC16251 C0BBBA000024 IC 1 IC16304 MIP3900MSSCF IC 1 IC16312 C0DBZMC00006 IC 1 IC16471 C0DBEYY00114 IC 1 IC16490 C0DBZMC00006 IC 1 IC16491 C0BBAA000008 线形 IC 1 IC16501 C0ZBZ0001708 IC 1 IC16521 C0ZBZ0001708 IC 1 IC16561 C0JBAU000088 IC 1 PPDS IC16562 C0JBAU000088 IC 1 PPDS IC16563 C0JBAB000916 IC 1 IC16581 C0BBBA000024 IC 1 IC16661 C0BBBA000024 IC 1 IC16691 C0JBAC000363 IC 1 IC16692 C0DBZYY00352 IC 1 IC16724 C0CBADE00049 IC 1 IC16771 C0CBADC00072 IC 1 IC16773 C0JBAB000715 IC 1 IC16784 MIP3910MSSCF IC 1 IC16785 C0DBZYY00352 IC 1 IC16786 MIP3910MSSCF IC 1 IC16787 C0DBZYY00352 IC 1 IC16792 C0BBAA000008 线形 IC 1 IC16793 C0DBZMC00006 IC 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 116 IC16920 C0BBBA000024 IC 1 IC17101 C0JBAU000088 IC 1 PPDS IC17201 C0JBAU000088 IC 1 PPDS IC17202 C0JBAZ002692 IC 1 JA1 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA2 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA3 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA4 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA5 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA6 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA7 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA8 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA9 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA10 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA11 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA12 ERJ6GEY0R00V M 0 OHM 1/8W 1 JA13 ERJ6GEY0R00V M 0 OHM 1/8W 1 JK2301 K4AC02B00043 端子 1 PPDS JK2401 K2HA4YYB0012 插孔 1 PPDS JK2402 K2HC1YYB0049 插孔 1 JK3201 K1QBB4AB0012 连接接头 1 PPDS JK3509 K1FA109B0062 连接接头 1 JK3511 K1FB115BA020 连接接头 1 JK3513 K2HC1YYB0049 插孔 1 JK4001 K1FY119E0015 连接接头 1 PPDS JK4002 K1FB124B0025 连接接头 1 JK8301 K2LC108B0054 插孔 1 JK8500 K4AC02B00043 端子 1 PPDS JS2302 ERJ6GEY0R00V M 0 OHM 1/8W 1 L061 J0JJC0000015 片状电感 1 L062 J0JJC0000015 片状电感 1 L1501 J0JHC0000117 片状电感 1 L1502 J0JHC0000117 片状电感 1 L1503 J0JHC0000117 片状电感 1 L1505 J0JHC0000117 片状电感 1 L1506 J0JHC0000117 片状电感 1 L1507 J0JHC0000117 片状电感 1 L1508 J0JHC0000117 片状电感 1 L2303 G1C220MA0363 感应线圈 1 L2304 G1C220MA0363 感应线圈 1 L2305 G1C220MA0363 感应线圈 1 L2306 G1C220MA0363 感应线圈 1 L2307 J0JHC0000117 片状电感 1 L2308 J0JHC0000117 片状电感 1 L2315 J0JHC0000117 片状电感 1 L2316 J0JHC0000117 片状电感 1 L2351 J0JYC0000068 片状电感 1 L2353 J0JYC0000068 片状电感 1 L2407 J0JHC0000117 片状电感 1 L2411 J0JHC0000117 片状电感 1 L2412 J0JHC0000117 片状电感 1 L2462 J0JHC0000117 片状电感 1 L3001 G1C330MA0363 感应线圈 1 L3002 J0JHC0000117 片状电感 1 L3003 J0JHC0000096 片状电感 1 L3004 J0JHC0000117 片状电感 1 L3005 G1C330MA0363 感应线圈 1 L3006 J0JHC0000117 片状电感 1 L3007 J0JHC0000117 片状电感 1 L3008 J0JHC0000096 片状电感 1 L3010 G1C330MA0363 感应线圈 1 L3012 J0JHC0000096 片状电感 1 L3013 J0JHC0000096 片状电感 1 L3201 G1C100K00020 感应线圈 1 L3203 G1C100K00020 感应线圈 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 L3271 G1C101MA0072 感应线圈 1 L3291 J0JHC0000117 片状电感 1 L3292 J0JHC0000117 片状电感 1 L3526 ELJPA100KFB 片状电感 1 L3555 ELJPA100KFB 片状电感 1 L4071 J0JCC0000241 片状电感 1 L4072 J0JCC0000241 片状电感 1 L4081 J0JYC0000068 片状电感 1 L4082 J0JYC0000068 片状电感 1 L4083 J0JYC0000068 片状电感 1 L4084 J0JYC0000068 片状电感 1 L4085 J0JYC0000068 片状电感 1 L4086 J0JYC0000068 片状电感 1 L4087 J0JYC0000068 片状电感 1 L4101 J0JYC0000068 片状电感 1 L4102 J0JYC0000068 片状电感 1 L4151 J0JYC0000068 片状电感 1 L4152 J0JYC0000068 片状电感 1 L4153 J0JHC0000034 片状电感 1 L4201 J0JHC0000096 片状电感 1 L4203 J0JCC0000241 片状电感 1 L4204 J0JHC0000096 片状电感 1 L4206 J0JCC0000241 片状电感 1 L4207 J0JCC0000241 片状电感 1 L4371 D0GBR00Z0002 M 0 OHM J 1/10W 1 L4372 D0GBR00Z0002 M 0 OHM J 1/10W 1 L4373 D0GBR00Z0002 M 0 OHM J 1/10W 1 L4374 D0GBR00Z0002 M 0 OHM J 1/10W 1 L4375 D0GBR00Z0002 M 0 OHM J 1/10W 1 L4376 D0GBR00Z0002 M 0 OHM J 1/10W 1 L4401 J0JHC0000117 片状电感 1 L4402 J0JHC0000117 片状电感 1 L4451 J0JHC0000117 片状电感 1 L4452 G1C100JA0031 感应线圈 1 PPDS L4461 J0JHC0000117 片状电感 1 L4501 J0JHC0000096 片状电感 1 L4502 J0JHC0000096 片状电感 1 L4503 J0JCC0000241 片状电感 1 L4504 J0JCC0000241 片状电感 1 L4505 J0JCC0000241 片状电感 1 L4506 J0JCC0000241 片状电感 1 L4507 J0JHC0000075 片状电感 1 L4508 J0JCC0000241 片状电感 1 L4509 J0JCC0000241 片状电感 1 L4510 J0JCC0000241 片状电感 1 L4511 J0JCC0000241 片状电感 1 L4512 J0JCC0000241 片状电感 1 L4513 J0JCC0000241 片状电感 1 L4514 J0JCC0000241 片状电感 1 L4515 D0GBR00Z0002 M 0 OHM J 1/10W 1 L4516 J0JHC0000096 片状电感 1 L4517 J0JCC0000241 片状电感 1 L4518 J0JCC0000241 片状电感 1 L4519 J0JCC0000241 片状电感 1 L4602 J0JHC0000096 片状电感 1 L4651 J0JCC0000241 片状电感 1 L4652 J0JCC0000241 片状电感 1 L4701 J0JCC0000241 片状电感 1 L4702 J0JCC0000241 片状电感 1 L4851 J0JCC0000241 片状电感 1 L4901 G1C8R2ZA0202 感应线圈 1 L4902 G1C8R2ZA0202 感应线圈 1 L4903 G1C330MA0363 感应线圈 1 L4981 G1C101MA0363 感应线圈 1 L4982 J0JHC0000096 片状电感 1 L8301 J0ZZB0000101 滤波器 1 L8302 J0ZZB0000101 滤波器 1 L8303 J0JHC0000045 片状电感 1 L8304 J0JHC0000045 片状电感 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 117 L8305 J0JHC0000045 片状电感 1 L8306 J0JHC0000045 片状电感 1 L8307 J0JHC0000045 片状电感 1 L8308 J0JHC0000045 片状电感 1 L8313 J0JHC0000045 片状电感 1 L9300 J0JHC0000117 片状电感 1 L9301 J0JHC0000117 片状电感 1 L9800 G1C6R8Z00010 感应线圈 1 L9801 G1C6R8Z00008 感应线圈 1 L9802 G1C6R8Z00008 感应线圈 1 L16001 G0CR39K00002 校正线圈 1 PPDS L16011 G0CR39K00002 校正线圈 1 PPDS L16303 G0C471MA0049 校正线圈 1 PPDS L16401 G0CR41K00001 校正线圈 1 L16411 G0CR41K00001 校正线圈 1 L16472 G0ZZ00002183 校正线圈 1 L16698 G0C681MA0065 校正线圈 1 L16851 G0ZZ00002183 校正线圈 1 PA3000 K5H1022A0031 保险丝 1 PA3140 K5H1022A0031 保险丝 1 PA3141 K5H1022A0031 保险丝 1 PA4931 K5H1022A0031 保险丝 1 PB30 K1KA04AA0193 4P 连接接头 1 PB32 K1KA03AA0193 3P 连接接头 1 PB33 K1KA03AA0193 3P 连接接头 1 PB34 K1KA03AA0193 3P 连接接头 1 PC16191 B3PBA0000496 IC 1 PC16301 B3PBA0000498 IC 1 PC16461 B3PBE0000054 IC 1 PC16480 B3PBA0000498 IC 1 PC16603 B3PBA0000498 IC 1 PC16684 B3PBA0000496 IC 1 PC16685 B3PBA0000496 IC 1 PC16722 B3PBA0000498 IC 1 PC16723 B3PBA0000498 IC 1 PC16896 B3PBA0000498 IC 1 PC16897 B3PBA0000498 IC 1 PCB TNPA5109 DS 电路板 1 (RTL)P PDS PCB TXN/A11CEC A 电路板 1 (RTL)P PDS PCB TXNHX11CEC HX 电路板 1 (RTL)P PDS PCB TXNPB11CEC PB 电路板 1 (RTL) PCB LSEP1289WMHB P 电路板 1 (RTL) PCB TXNC11LQUC C1 电路板 1 (RTL) PCB TXNC21LQUC C2 电路板 1 (RTL) PCB TXNSC1LBUC SC 电路板 1 (RTL)P PDS PCB TXNSM1LQUC SM 电路板 1 PCB TXNSS1LBUC SS 电路板 1 (RTL)P PDS PCB TXNSS21DYUC SS2 电路板 1 (RTL) PCB TXNV211CEC V2 电路板 1 (RTL) PCB TXNV111CEC V1 电路板 1 (RTL) PCB TXAUW031CEC H3 电路板 1 (RTL) PCB TXNS111CEC S1 电路板 1 (RTL) Q1540 DSC200100L 三极管 1 Q2301 DSC200100L 三极管 1 Q2302 DSA200100L 三极管 1 Q2303 DSA200100L 三极管 1 Q2304 DSC200100L 三极管 1 Q2305 DSC200100L 三极管 1 Q2306 DSC200100L 三极管 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 Q2401 DSC200100L 三极管 1 Q2402 DSC200100L 三极管 1 Q2403 DSC200100L 三极管 1 Q2404 DSC200100L 三极管 1 Q2405 DSC200100L 三极管 1 Q2406 DSC200100L 三极管 1 Q3000 DSC200100L 三极管 1 Q3001 DSC200100L 三极管 1 Q3002 B1DHDC000028 三极管 1 Q3003 B1DHDC000028 三极管 1 Q3004 DSC200100L 三极管 1 Q3005 B1DHDC000028 三极管 1 Q3006 DSC200100L 三极管 1 Q3007 B1DHDC000028 三极管 1 Q3008 DSC200100L 三极管 1 Q3009 DSC200100L 三极管 1 Q3100 DSC200100L 三极管 1 Q3101 DSC200100L 三极管 1 Q3102 DSC200100L 三极管 1 Q3103 DSC200100L 三极管 1 Q3104 DSC200100L 三极管 1 Q3120 B1CBHD000002 FET 1 Q3121 B1CBHD000002 FET 1 Q3201 DSA200100L 三极管 1 Q3202 DSC200100L 三极管 1 Q3203 DSC200100L 三极管 1 Q3211 B1CBHD000002 FET 1 Q3212 B1CBHD000002 FET 1 Q3271 DSC200100L 三极管 1 Q3272 DSA200100L 三极管 1 Q3273 DSC200100L 三极管 1 Q3274 DSA200100L 三极管 1 Q3291 DSC200100L 三极管 1 Q3531 B1ABCF000231 三极管 1 Q3532 B1ABCF000231 三极管 1 Q4101 DSC200100L 三极管 1 Q4102 DSC200100L 三极管 1 Q4103 DSC200100L 三极管 1 Q4104 DSC200100L 三极管 1 Q4153 DSC200100L 三极管 1 Q4154 DSC200100L 三极管 1 Q4201 B1CBHD000002 FET 1 Q4202 B1CBHD000002 FET 1 Q4321 DSC200100L 三极管 1 Q4322 DSC200100L 三极管 1 Q4323 DSC200100L 三极管 1 Q4324 DSC200100L 三极管 1 Q4351 DSC200100L 三极管 1 Q4381 DSC200100L 三极管 1 Q4382 DSC200100L 三极管 1 Q4401 DSA200100L 三极管 1 Q4402 DSC200100L 三极管 1 Q4403 DSA200100L 三极管 1 Q4404 DSC200100L 三极管 1 Q4405 DSA200100L 三极管 1 Q4406 DSC200100L 三极管 1 Q4451 DSC200100L 三极管 1 Q4452 DSA200100L 三极管 1 Q4661 DSC200100L 三极管 1 Q4662 DSC200100L 三极管 1 Q4663 DSC200100L 三极管 1 Q4664 DSC200100L 三极管 1 Q4665 DSC200100L 三极管 1 Q4666 DSC200100L 三极管 1 Q4667 DSC200100L 三极管 1 Q4668 DSC200100L 三极管 1 Q4669 DSC200100L 三极管 1 Q4670 DSC200100L 三极管 1 Q4701 B1CBHD000002 FET 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 118 Q4871 DSC200100L 三极管 1 Q4901 DSC200100L 三极管 1 Q4902 DSC200100L 三极管 1 Q4903 B1DHDC000028 三极管 1 Q4904 DSC200100L 三极管 1 Q4905 DSC200100L 三极管 1 Q4981 DSC200100L 三极管 1 Q4982 DSA200100L 三极管 1 Q4983 DSC200100L 三极管 1 Q8301 DSA200100L 三极管 1 Q8304 DSA200100L 三极管 1 Q8308 B1CBHD000002 FET 1 Q9000 DSC200100L 三极管 1 Q9001 DSC200100L 三极管 1 Q9002 DSC200100L 三极管 1 Q9003 DSC200100L 三极管 1 Q9004 DSC200100L 三极管 1 Q9800 DSC200100L 三极管 1 Q9802 DSC200100L 三极管 1 Q9900 DSC200100L 三极管 1 Q9901 DSC200100L 三极管 1 Q16001 B1JADN000009 三极管 1 Q16002 B1JADN000009 三极管 1 Q16021 B1JADN000008 三极管 1 PPDS Q16022 B1JADN000008 三极管 1 PPDS Q16041 B1JAEN000010 三极管 1 PPDS Q16051 B1JAEN000011 三极管 1 PPDS Q16055 B1HFPFA00001 三极管 1 Q16056 B1HFPFA00001 三极管 1 Q16101 B1CFRM000008 FET 1 Q16102 B1CFRM000008 FET 1 Q16141 B1HFPFA00001 三极管 1 Q16161 B1HFPFA00001 三极管 1 Q16191 B1HFPFA00001 三极管 1 Q16251 B1ABCF000231 三极管 1 Q16280 B1ABCF000231 三极管 1 Q16402 DG3D5020CSLW 三极管 1 Q16403 DG3D5020CSLW 三极管 1 Q16421 DG3D4020CSRP 三极管 1 Q16422 DG3D4020CSRP 三极管 1 Q16441 B1JAEP000013 三极管 1 Q16452 B1JAEP000012 三极管 1 Q16471 B1ABCF000231 三极管 1 Q16490 B1CBGD000001 FET 1 Q16501 B1HFPFA00001 三极管 1 Q16521 B1HFPFA00001 三极管 1 Q16531 B1HFPFA00001 三极管 1 Q16551 B1HFPFA00001 三极管 1 Q16601 B1CERR000042 FET 1 Q16602 DSC2001Q0L 三极管 1 Q16603 DSA2001S0L 三极管 1 Q16606 DSC2001Q0L 三极管 1 Q16607 B1CBGD000001 FET 1 Q16608 B1CBGD000001 FET 1 Q16621 B1JADN000009 三极管 1 Q16622 B1JADN000009 三极管 1 Q16645 DSC2001Q0L 三极管 1 Q16646 DSA2001S0L 三极管 1 Q16647 B1CBGD000001 FET 1 Q16649 B1ABCN000007 三极管 1 Q16660 B1CERR000042 FET 1 Q16661 B1JAER000010 三极管 1 Q16662 DSC2001Q0L 三极管 1 Q16663 DSA2001S0L 三极管 1 Q16668 DSC2001Q0L 三极管 1 Q16670 B1ADCN000007 三极管 1 Q16671 B1ABCF000231 三极管 1 Q16675 B1ADCN000007 三极管 1 Q16676 B1ABCF000231 三极管 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 Q16677 DSC2001Q0L 三极管 1 Q16678 B1ABCF000231 三极管 1 Q16701 B1ADCN000007 三极管 1 Q16702 B1ABCF000231 三极管 1 Q16762 B1HFPFA00001 三极管 1 Q16801 DSA2001S0L 三极管 1 Q16810 B1ABCF000231 三极管 1 Q16815 B1ABCN000007 三极管 1 Q16816 DSC2001Q0L 三极管 1 Q16817 DSC2001Q0L 三极管 1 Q16818 B1CBGD000001 FET 1 Q16876 B1ABCF000231 三极管 1 Q16885 B1CFNG000001 FET 1 Q16920 B1ABCN000007 三极管 1 Q16921 B1ABCN000007 三极管 1 Q16930 DSC2001Q0L 三极管 1 Q16931 B1ABCN000007 三极管 1 Q16932 DSC2001Q0L 三极管 1 R851 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R852 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R853 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R1500 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R1510 D1BB2201A055 M 2.2KOHM,J.1/10W 1 R1511 D1BB3001A055 M 3.0KOHM,J.1/10W 1 PPDS R1512 D1BB4701A055 M 4.7KOHM,J.1/10W 1 R1513 D1BB8201A055 M 8.2KOHM,J.1/10W 1 R1550 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R1551 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R1552 ERJ6GEYJ224 M 220KOHM,J,1/8W 1 R1553 ERJ6GEYJ242V M 2.4KOHM,J,1/8W 1 R1554 ERJ6GEYJ122V M 1.2KOHM,J,1/8W 1 R2301 ERJ6GEY0R00V M 0 OHM 1/8W 1 R2302 ERJ6GEY0R00V M 0 OHM 1/8W 1 R2303 D0GA100JA015 M 10 OHM, J,1/16W 1 R2304 D0GA100JA015 M 10 OHM, J,1/16W 1 R2321 D0GAR00Z0001 M 0 OHM, 1/16W 1 R2327 D0GBR00Z0002 M 0 OHM J 1/10W 1 R2328 D0GB473JA057 M 47KOHM,J,1/10W 1 R2329 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R2332 D1BB2402A055 M 24KOHM,J.1/10W 1 R2333 D1BB1002A055 M 10KOHM,J.1/10W 1 R2334 D1BB7501A055 M 7.5KOHM,J.1/10W 1 R2335 D1BB1002A055 M 10KOHM,J.1/10W 1 R2336 D0GB153JA041 M 15K OHM J 1/10W 1 R2341 D0GA223JA015 M 22K OHM J 1/16W 1 R2342 D0GA223JA015 M 22K OHM J 1/16W 1 R2343 D0GA473JA015 M 47KOHM, J,1/16W 1 R2344 D0GA223JA015 M 22K OHM J 1/16W 1 R2345 D0GA473JA015 M 47KOHM, J,1/16W 1 R2346 D0GA473JA015 M 47KOHM, J,1/16W 1 R2347 D0GA223JA015 M 22K OHM J 1/16W 1 R2352 D1BB2322A055 M23.2KOHM,J.1/10W 1 R2354 D1BB2322A055 M23.2KOHM,J.1/10W 1 R2356 D1BB2322A055 M23.2KOHM,J.1/10W 1 R2358 D1BB2322A055 M23.2KOHM,J.1/10W 1 R2359 D1BB2002A055 M 20KOHM,J.1/10W 1 R2360 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R2368 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R2369 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R2372 D0GA105JA015 M 1M OHM, J,1/16W 1 R2373 D0GA471JA015 M 470OHM, J,1/16W 1 R2377 EXB28V220J M 22 OHM 1/32 W 1 R2379 D1BB2001A055 M 2KOHM,J.1/10W 1 R2380 D0GBR00Z0002 M 0 OHM J 1/10W 1 R2381 D1BB7502A055 M 75KOHM,J.1/10W 1 R2382 D1BB1203A055 M 120KOHM,J.1/10W 1 R2384 D0GA100JA015 M 10 OHM, J,1/16W 1 R2386 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 119 R2405 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2406 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2407 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2408 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2409 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2410 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R2411 D0GA223JA015 M 22K OHM J 1/16W 1 R2412 D0GA101JA015 M 100 OHM, J,1/16W 1 R2413 D0GA333JA015 M 33KOHM,J,1/16W 1 R2414 D0GA473JA015 M 47KOHM, J,1/16W 1 R2415 D0GA101JA015 M 100 OHM, J,1/16W 1 R2416 D0GB102JA041 M 1KOHM,J,1/10W 1 R2417 D0GA101JA015 M 100 OHM, J,1/16W 1 R2419 D0GA223JA015 M 22K OHM J 1/16W 1 R2420 D0GA101JA015 M 100 OHM, J,1/16W 1 R2421 D0GA333JA015 M 33KOHM,J,1/16W 1 R2422 D0GA473JA015 M 47KOHM, J,1/16W 1 R2423 D0GA101JA015 M 100 OHM, J,1/16W 1 R2424 D0GB102JA041 M 1KOHM,J,1/10W 1 R2425 D0GA101JA015 M 100 OHM, J,1/16W 1 R2427 D0GA184JA015 M 180KOHM J.1/16W 1 R2428 D0GA101JA015 M 100 OHM, J,1/16W 1 R2429 D0GA333JA015 M 33KOHM,J,1/16W 1 R2430 D0GA473JA015 M 47KOHM, J,1/16W 1 R2431 D0GA101JA015 M 100 OHM, J,1/16W 1 R2432 D0GB102JA041 M 1KOHM,J,1/10W 1 R2433 D0GA101JA015 M 100 OHM, J,1/16W 1 R2435 D0GA184JA015 M 180KOHM J.1/16W 1 R2436 D0GA101JA015 M 100 OHM, J,1/16W 1 R2437 D0GA333JA015 M 33KOHM,J,1/16W 1 R2438 D0GA473JA015 M 47KOHM, J,1/16W 1 R2439 D0GA101JA015 M 100 OHM, J,1/16W 1 R2440 D0GB102JA041 M 1KOHM,J,1/10W 1 R2441 D0GA101JA015 M 100 OHM, J,1/16W 1 R2443 D0GA184JA015 M 180KOHM J.1/16W 1 R2444 D0GA101JA015 M 100 OHM, J,1/16W 1 R2445 D0GA333JA015 M 33KOHM,J,1/16W 1 R2446 D0GA473JA015 M 47KOHM, J,1/16W 1 R2447 D0GA101JA015 M 100 OHM, J,1/16W 1 R2448 D0GB102JA041 M 1KOHM,J,1/10W 1 R2449 D0GA101JA015 M 100 OHM, J,1/16W 1 R2450 D0GA184JA015 M 180KOHM J.1/16W 1 R2451 D0GA101JA015 M 100 OHM, J,1/16W 1 R2452 D0GA333JA015 M 33KOHM,J,1/16W 1 R2453 D0GA473JA015 M 47KOHM, J,1/16W 1 R2454 D0GA101JA015 M 100 OHM, J,1/16W 1 R2455 D0GB102JA041 M 1KOHM,J,1/10W 1 R2456 D0GA101JA015 M 100 OHM, J,1/16W 1 R2471 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R2472 D0GB560JA041 M 56 OHM,J,1/10W 1 R2474 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R2475 D0GB560JA041 M 56 OHM,J,1/10W 1 R3000 D0GB332JA041 M 3.3KOHM,J,1/10W 1 R3001 D0GB682JA041 M 6.8KOHM,J,1/10W 1 R3002 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R3003 D0GB103JA057 M 10K OHM J 1/10W 1 R3004 D0GB332JA041 M 3.3KOHM,J,1/10W 1 R3005 D0GB682JA041 M 6.8KOHM,J,1/10W 1 R3006 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R3008 D0GB103JA057 M 10K OHM J 1/10W 1 R3009 ERJ8GEY0R00 M 0 OHM, 1/8W 1 R3010 D0GB104JA041 M 100KOHM J 1/10W 1 R3012 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3013 D1BB4870A055 M 487 OHM,J.1/10W 1 R3014 D1BB4991A055 M4.99KOHM,J.1/10W 1 PPDS R3015 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3016 D0GB104JA041 M 100KOHM J 1/10W 1 R3017 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R3019 D0GB104JA041 M 100KOHM J 1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R3020 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3021 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3022 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3023 D1BB4992A055 M49.9KOHM,J.1/10W 1 R3024 D1BB9531A055 M9.53KOHM,J.1/10W 1 R3025 ERJ12YJ101 M 100 OHM,J, 1/2W 1 R3026 ERJ12YJ101 M 100 OHM,J, 1/2W 1 R3027 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R3028 D0GB104JA041 M 100KOHM J 1/10W 1 R3029 D0GB104JA041 M 100KOHM J 1/10W 1 R3030 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3031 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3032 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3033 D1BB5602A055 M 56KOHM,J.1/10W 1 R3034 D1BB1742A055 M17.4KOHM,J.1/10W 1 PPDS R3035 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R3037 D0GB622JA041 M 6.2KOHM,J,1/10W 1 R3038 D0GB362JA041 M 3.6KOHM,J,1/10W 1 PPDS R3039 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R3040 D0GB103JA057 M 10K OHM J 1/10W 1 R3041 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R3042 D0GB362JA041 M 3.6KOHM,J,1/10W 1 PPDS R3043 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R3044 D0GB103JA057 M 10K OHM J 1/10W 1 R3045 D0GB102JA041 M 1KOHM,J,1/10W 1 R3046 D0GB103JA057 M 10K OHM J 1/10W 1 R3047 D0GB103JA057 M 10K OHM J 1/10W 1 R3048 D0GB103JA057 M 10K OHM J 1/10W 1 R3049 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3050 D0GB473JA057 M 47KOHM,J,1/10W 1 R3051 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3055 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3100 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3101 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3102 D0GB183JA041 M 18K OHM J 1/10W 1 R3103 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R3104 D0GB103JA057 M 10K OHM J 1/10W 1 R3105 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R3106 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R3107 D0GB103JA057 M 10K OHM J 1/10W 1 R3108 D0GB563JA041 M 56KOHM,J,1/10W 1 R3109 D0GB473JA057 M 47KOHM,J,1/10W 1 R3110 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R3111 D0GB103JA057 M 10K OHM J 1/10W 1 R3112 D0GB104JA041 M 100KOHM J 1/10W 1 R3113 D0GB753JA041 M 75KOHM,J,1/10W 1 PPDS R3114 D0GB393JA041 M 39KOHM,J,1/10W 1 R3122 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3123 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3124 D0GB272JA041 M 2.7KOHM,J,1/10W 1 R3125 D0GB272JA041 M 2.7KOHM,J,1/10W 1 R3126 ERJ8GEYJ820V M 82 OHM, J,1/4W 1 R3127 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3128 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3129 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3130 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3144 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3147 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3148 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3149 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3150 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3151 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3152 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3153 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3154 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3155 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R3156 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R3164 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3171 D0GBR00Z0002 M 0 OHM J 1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 120 R3176 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3177 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3204 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3205 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3206 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3208 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3212 D0GA334JA015 M 330KOHM, J1/16W 1 R3213 D0GA334JA015 M 330KOHM, J1/16W 1 R3214 D0GA334JA015 M 330KOHM, J1/16W 1 R3215 D0GB560JA041 M 56 OHM,J,1/10W 1 R3216 ERJ6RED750 M 75 OHM,.D1/10W 1 R3217 D0GB560JA041 M 56 OHM,J,1/10W 1 R3218 ERJ6RED750 M 75 OHM,.D1/10W 1 R3219 D0GB560JA041 M 56 OHM,J,1/10W 1 R3220 ERJ6RED750 M 75 OHM,.D1/10W 1 R3221 D0GB560JA041 M 56 OHM,J,1/10W 1 R3222 ERJ6RED750 M 75 OHM,.D1/10W 1 R3223 D0GB560JA041 M 56 OHM,J,1/10W 1 R3224 ERJ6RED750 M 75 OHM,.D1/10W 1 R3225 D0GB560JA041 M 56 OHM,J,1/10W 1 R3226 ERJ6RED750 M 75 OHM,.D1/10W 1 R3227 D0GAR00Z0001 M 0 OHM, 1/16W 1 R3230 D0GB560JA041 M 56 OHM,J,1/10W 1 R3231 D0GB560JA041 M 56 OHM,J,1/10W 1 R3232 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R3233 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R3239 D1BB22R0A055 M 22 OHM,J.1/10W 1 PPDS R3240 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R3241 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R3243 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3244 D1BB3001A055 M 3.0KOHM,J.1/10W 1 PPDS R3245 D1BB2201A055 M 2.2KOHM,J.1/10W 1 R3246 D1BB4701A055 M 4.7KOHM,J.1/10W 1 R3247 D1BB4701A055 M 4.7KOHM,J.1/10W 1 R3248 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R3249 D0GA101JA015 M 100 OHM, J,1/16W 1 R3250 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R3251 D0GA101JA015 M 100 OHM, J,1/16W 1 R3252 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R3253 D1BB2202A055 M 22KOHM,J.1/10W 1 R3255 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3256 D1BB1501A055 M1.50KOHM,J.1/10W 1 R3257 D1BB6800A055 M 680 OHM,J.1/10W 1 R3258 D0GA181JA015 M 180 OHM, J,1/16W 1 PPDS R3259 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3261 ERJ6RED750 M 75 OHM,.D1/10W 1 R3263 ERJ6RED750 M 75 OHM,.D1/10W 1 R3265 ERJ6RED750 M 75 OHM,.D1/10W 1 R3271 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3272 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R3273 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R3274 ERJ6GEYJ3R3V M 3.3KOHM,J,1/8W 1 R3275 ERJ6GEYJ3R3V M 3.3KOHM,J,1/8W 1 R3276 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3277 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R3278 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R3279 ERJ6GEYJ3R3V M 3.3KOHM,J,1/8W 1 R3280 ERJ6GEYJ3R3V M 3.3KOHM,J,1/8W 1 R3282 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3283 D0GBR00Z0002 M 0 OHM J 1/10W 1 R3284 D0GA101JA015 M 100 OHM, J,1/16W 1 R3285 D0GA101JA015 M 100 OHM, J,1/16W 1 R3291 ERJ6RED750 M 75 OHM,.D1/10W 1 R3293 D0GA223JA015 M 22K OHM J 1/16W 1 R3294 D0GA333JA015 M 33KOHM,J,1/16W 1 R3295 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R3296 D0GB102JA041 M 1KOHM,J,1/10W 1 R3400 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R3508 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R3509 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R3510 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3511 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3529 ERJ6GEYJ184 M 180KOHM,J,1/8W 1 R3530 ERJ6GEYJ184 M 180KOHM,J,1/8W 1 R3547 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3548 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3585 ERJ6ENF56R0 M 56 OHM,F.1/8W 1 R3586 ERJ6ENF56R0 M 56 OHM,F.1/8W 1 R3589 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R3590 ERJ6ENF56R0 M 56 OHM,F.1/8W 1 R3591 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3592 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3593 ERJ6GEY0R00V M 0 OHM 1/8W 1 R3653 ERJ6GEYJ333V M 33KOHM,J,1/8W 1 R3654 ERJ6GEYJ683V M 68KOHM.J.1/8W 1 R3655 ERJ6GEYJ333V M 33KOHM,J,1/8W 1 R3656 ERJ6GEYJ683V M 68KOHM.J.1/8W 1 R3657 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R3663 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R3664 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R3665 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R3668 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3672 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3776 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3777 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3778 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R3790 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R3791 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R4001 D1BB39R0A055 M 39 OHM,J.1/10W 1 PPDS R4002 ERJ6ENF59R0 M 59 OHM,F. 1/8W 1 PPDS R4004 D1BB39R0A055 M 39 OHM,J.1/10W 1 PPDS R4005 ERJ6ENF59R0 M 59 OHM,F. 1/8W 1 PPDS R4007 D1BB39R0A055 M 39 OHM,J.1/10W 1 PPDS R4008 ERJ6ENF59R0 M 59 OHM,F. 1/8W 1 PPDS R4015 D0GA473JA015 M 47KOHM, J,1/16W 1 R4016 D1BB4990A055 M 499 OHM,J.1/10W 1 R4017 EXB28V330J M 33 OHM 1/32 W 1 R4018 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4019 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4020 D0GA473JA015 M 47KOHM, J,1/16W 1 R4021 D0GA473JA015 M 47KOHM, J,1/16W 1 R4022 D0GA101JA015 M 100 OHM, J,1/16W 1 R4023 D0GA473JA015 M 47KOHM, J,1/16W 1 R4024 D0GA101JA015 M 100 OHM, J,1/16W 1 R4026 D0GA473JA015 M 47KOHM, J,1/16W 1 R4028 D0GA473JA015 M 47KOHM, J,1/16W 1 R4029 D0GA473JA015 M 47KOHM, J,1/16W 1 R4030 D0GA473JA015 M 47KOHM, J,1/16W 1 R4031 D0GA473JA015 M 47KOHM, J,1/16W 1 R4032 D0GA473JA015 M 47KOHM, J,1/16W 1 R4033 D0GA473JA015 M 47KOHM, J,1/16W 1 R4034 D0GA101JA015 M 100 OHM, J,1/16W 1 R4037 D0GA105JA015 M 1M OHM, J,1/16W 1 R4038 D0GA105JA015 M 1M OHM, J,1/16W 1 R4039 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R4040 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4051 EXB28V680JX M 68 OHM 1/32 W 1 R4052 EXB28V680JX M 68 OHM 1/32 W 1 R4053 D0GA680JA015 M 68 OHM, J,1/16W 1 R4054 D0GA680JA015 M 68 OHM, J,1/16W 1 R4055 EXB28V680JX M 68 OHM 1/32 W 1 R4056 EXB28V680JX M 68 OHM 1/32 W 1 R4057 D0GA680JA015 M 68 OHM, J,1/16W 1 R4058 D0GA680JA015 M 68 OHM, J,1/16W 1 R4059 EXB28V680JX M 68 OHM 1/32 W 1 R4060 EXB28V680JX M 68 OHM 1/32 W 1 R4061 D0GA680JA015 M 68 OHM, J,1/16W 1 R4062 D0GA680JA015 M 68 OHM, J,1/16W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 121 R4063 D0GA680JA015 M 68 OHM, J,1/16W 1 R4064 D0GA680JA015 M 68 OHM, J,1/16W 1 R4065 D0GA680JA015 M 68 OHM, J,1/16W 1 R4066 D0GA330JA015 M 33 OHM, J,1/16W 1 R4067 D0GA101JA015 M 100 OHM, J,1/16W 1 R4068 D0GA101JA015 M 100 OHM, J,1/16W 1 R4072 D1BB5601A055 M 5.6KOHM,J.1/10W 1 R4073 D1BB9101A055 M 9.1KOHM,J.1/10W 1 R4075 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4082 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4102 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4104 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4105 D0GA330JA015 M 33 OHM, J,1/16W 1 R4106 D0GA473JA015 M 47KOHM, J,1/16W 1 R4107 D0GA473JA015 M 47KOHM, J,1/16W 1 R4108 D0GA473JA015 M 47KOHM, J,1/16W 1 R4109 D0GA473JA015 M 47KOHM, J,1/16W 1 R4111 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4112 D0GA473JA015 M 47KOHM, J,1/16W 1 R4121 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R4122 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R4123 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R4125 D0GA560JA015 M 56 OHM, J,1/16W 1 R4126 D0GA560JA015 M 56 OHM, J,1/16W 1 R4127 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4131 D0GA473JA015 M 47KOHM, J,1/16W 1 R4132 D0GA473JA015 M 47KOHM, J,1/16W 1 R4152 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R4153 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4154 D0GA473JA015 M 47KOHM, J,1/16W 1 R4171 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R4172 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R4173 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R4174 D0GA473JA015 M 47KOHM, J,1/16W 1 R4175 D0GA560JA015 M 56 OHM, J,1/16W 1 R4176 D0GA560JA015 M 56 OHM, J,1/16W 1 R4177 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4181 D0GA473JA015 M 47KOHM, J,1/16W 1 R4182 D0GA473JA015 M 47KOHM, J,1/16W 1 R4201 D0GA101JA015 M 100 OHM, J,1/16W 1 R4202 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4203 D0GA101JA015 M 100 OHM, J,1/16W 1 R4204 D0GA101JA015 M 100 OHM, J,1/16W 1 R4205 D0GA101JA015 M 100 OHM, J,1/16W 1 R4206 D0GA101JA015 M 100 OHM, J,1/16W 1 R4207 D0GA101JA015 M 100 OHM, J,1/16W 1 R4208 D0GA101JA015 M 100 OHM, J,1/16W 1 R4209 D0GA101JA015 M 100 OHM, J,1/16W 1 R4210 D0GA101JA015 M 100 OHM, J,1/16W 1 R4211 D0GA101JA015 M 100 OHM, J,1/16W 1 R4212 D0GA101JA015 M 100 OHM, J,1/16W 1 R4213 D0GA101JA015 M 100 OHM, J,1/16W 1 R4223 D0GA470JA015 M 47 OHM, J,1/16W 1 R4224 D0GA470JA015 M 47 OHM, J,1/16W 1 R4225 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4235 D0GA470JA015 M 47 OHM, J,1/16W 1 R4237 D0GA470JA015 M 47 OHM, J,1/16W 1 R4238 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4239 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4251 EXB2HV101J M100 OHM 1/16 W 1 R4252 D0GA101JA015 M 100 OHM, J,1/16W 1 R4253 D0GA101JA015 M 100 OHM, J,1/16W 1 R4254 EXB2HV101J M100 OHM 1/16 W 1 R4255 D0GA101JA015 M 100 OHM, J,1/16W 1 R4256 D0GA101JA015 M 100 OHM, J,1/16W 1 R4257 EXB2HV101J M100 OHM 1/16 W 1 R4258 D0GA101JA015 M 100 OHM, J,1/16W 1 R4259 D0GA101JA015 M 100 OHM, J,1/16W 1 R4260 D0GA470JA015 M 47 OHM, J,1/16W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R4261 D0GA470JA015 M 47 OHM, J,1/16W 1 R4262 D0GA470JA015 M 47 OHM, J,1/16W 1 R4263 D0GA470JA015 M 47 OHM, J,1/16W 1 R4264 D0GA470JA015 M 47 OHM, J,1/16W 1 R4265 EXB2HV101J M100 OHM 1/16 W 1 R4266 D0GA101JA015 M 100 OHM, J,1/16W 1 R4267 D0GA101JA015 M 100 OHM, J,1/16W 1 R4268 EXB2HV101J M100 OHM 1/16 W 1 R4269 D0GA101JA015 M 100 OHM, J,1/16W 1 R4270 D0GA101JA015 M 100 OHM, J,1/16W 1 R4271 EXB2HV101J M100 OHM 1/16 W 1 R4272 D0GA101JA015 M 100 OHM, J,1/16W 1 R4273 D0GA101JA015 M 100 OHM, J,1/16W 1 R4274 D0GA470JA015 M 47 OHM, J,1/16W 1 R4275 D0GA470JA015 M 47 OHM, J,1/16W 1 R4276 D0GA470JA015 M 47 OHM, J,1/16W 1 R4277 D0GA470JA015 M 47 OHM, J,1/16W 1 R4278 D0GA470JA015 M 47 OHM, J,1/16W 1 R4281 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4282 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4301 D0GA101JA015 M 100 OHM, J,1/16W 1 R4302 D0GA101JA015 M 100 OHM, J,1/16W 1 R4303 D0GA101JA015 M 100 OHM, J,1/16W 1 R4304 D0GA101JA015 M 100 OHM, J,1/16W 1 R4305 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4306 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4307 D0GA101JA015 M 100 OHM, J,1/16W 1 R4308 D0GA101JA015 M 100 OHM, J,1/16W 1 R4312 D0GA101JA015 M 100 OHM, J,1/16W 1 R4313 D0GA101JA015 M 100 OHM, J,1/16W 1 R4314 D0GA101JA015 M 100 OHM, J,1/16W 1 R4315 D0GA101JA015 M 100 OHM, J,1/16W 1 R4316 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4321 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4322 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4323 D0GA223JA015 M 22K OHM J 1/16W 1 R4325 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4326 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4328 D0GA101JA015 M 100 OHM, J,1/16W 1 R4329 D0GA101JA015 M 100 OHM, J,1/16W 1 R4330 D0GA101JA015 M 100 OHM, J,1/16W 1 R4331 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4332 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4333 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4334 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R4335 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4336 D0GA223JA015 M 22K OHM J 1/16W 1 R4337 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4338 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R4339 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4340 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R4341 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4342 D0GA101JA015 M 100 OHM, J,1/16W 1 R4343 D0GA101JA015 M 100 OHM, J,1/16W 1 R4346 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4347 D0GA101JA015 M 100 OHM, J,1/16W 1 R4348 D0GA101JA015 M 100 OHM, J,1/16W 1 R4351 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4352 D0GA101JA015 M 100 OHM, J,1/16W 1 R4355 D0GA223JA015 M 22K OHM J 1/16W 1 R4356 D0GA223JA015 M 22K OHM J 1/16W 1 R4357 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4358 D0GA101JA015 M 100 OHM, J,1/16W 1 R4359 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4361 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4362 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4363 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4365 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4367 D0GAR00Z0001 M 0 OHM, 1/16W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 122 R4369 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4377 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4378 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4381 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4382 D0GA101JA015 M 100 OHM, J,1/16W 1 R4383 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4384 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4385 D0GA101JA015 M 100 OHM, J,1/16W 1 R4386 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4387 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4389 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4390 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4391 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4392 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4394 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4395 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4402 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4403 D0GA153JA015 M 15K OHM J 1/16W 1 R4404 D0GA153JA015 M 15K OHM J 1/16W 1 R4405 D0GA153JA015 M 15K OHM J 1/16W 1 R4406 D1BA1002A014 M 10KOHM,J. 1/16 W 1 R4407 D1BA1002A014 M 10KOHM,J. 1/16 W 1 R4408 D1BA1002A014 M 10KOHM,J. 1/16 W 1 R4409 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4411 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4412 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4413 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4414 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4415 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4418 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4419 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4421 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4422 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4425 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4426 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4428 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4430 D1BA4701A014 M 4.7KOHM,J.1/16 W 1 PPDS R4431 D1BA2701A014 M 2.7 KOHM,J.1/16 W 1 PPDS R4432 D0GA101JA015 M 100 OHM, J,1/16W 1 R4433 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4434 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4435 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4438 D0GA561JA015 M 560OHM, J,1/16W 1 PPDS R4452 ERJ3GEYJ221 M 220 OHM,J,1/10W 1 R4454 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R4455 D1BB3300A055 M 330 OHM,J.1/10W 1 R4456 D1BB1270A055 M 127 OHM,J.1/10W 1 PPDS R4457 D1BB4300A055 M 430 OHM,J.1/10W 1 R4458 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R4459 D0GB102JA041 M 1KOHM,J,1/10W 1 R4463 D1BA3161A014 M3.16KOHM,J.1/16 W 1 PPDS R4464 D1BA1801A014 M 1.8KOHM,J.1/16 W 1 PPDS R4466 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4501 D0GA471JA015 M 470OHM, J,1/16W 1 R4502 D0GA105JA015 M 1M OHM, J,1/16W 1 R4511 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4512 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4513 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4521 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4522 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4523 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4531 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4548 D1BA20000002 M 200 OHM,J.1/16 W 1 PPDS R4549 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4561 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4562 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4563 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4564 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4565 EXB2HV220JV M 22 OHM 1/16 W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R4566 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4567 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4568 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4569 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4570 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4571 EXB28V220J M 22 OHM 1/32 W 1 R4572 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4573 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4574 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4575 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4581 EXB28V100JX M 10 OHM 1/32 W 1 R4582 EXB28V100JX M 10 OHM 1/32 W 1 R4583 EXB28V100JX M 10 OHM 1/32 W 1 R4584 EXB28V100JX M 10 OHM 1/32 W 1 R4585 EXB28V100JX M 10 OHM 1/32 W 1 R4586 EXB28V100JX M 10 OHM 1/32 W 1 R4601 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4602 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4603 D0GA101JA015 M 100 OHM, J,1/16W 1 R4604 D0GA151JA015 M 150 OHM, J,1/16W 1 R4607 ERJ6GEY0R00V M 0 OHM 1/8W 1 R4621 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4622 D1BA1001A014 M 1KOHM,J. 1/16 W 1 R4623 D0GA101JA015 M 100 OHM, J,1/16W 1 R4624 D0GA151JA015 M 150 OHM, J,1/16W 1 R4649 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4650 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4653 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4655 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4657 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4658 D0GA470JA015 M 47 OHM, J,1/16W 1 R4659 D0GA470JA015 M 47 OHM, J,1/16W 1 R4661 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4662 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4663 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4664 D0GA123JA015 M 12K OHM J 1/16W 1 R4665 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4666 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4667 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4668 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4669 D0GA123JA015 M 12K OHM J 1/16W 1 R4670 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4671 D0GA392JA015 M 3.9KOHM, J,1/16W 1 R4672 D0GA682JA015 M6.8KOHM, J,1/16W 1 R4673 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4674 D0GA473JA015 M 47KOHM, J,1/16W 1 R4675 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4676 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4677 D0GA223JA015 M 22K OHM J 1/16W 1 R4678 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4679 D0GA473JA015 M 47KOHM, J,1/16W 1 R4680 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4681 D0GA752JA015 M7.5KOHM, J,1/16W 1 R4682 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4683 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4684 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4685 D0GA473JA015 M 47KOHM, J,1/16W 1 R4686 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4687 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R4688 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R4689 D0GA331JA015 M 330 OHM, J,1/16W 1 R4690 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4701 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4702 EXB28V101JX M 100 OHM 1/32 W 1 R4704 D0GA101JA015 M 100 OHM, J,1/16W 1 R4705 D0GA393JA015 M 39KOHM,J,1/16W 1 R4706 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4707 D0GA101JA015 M 100 OHM, J,1/16W 1 R4708 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 123 R4709 D0GA101JA015 M 100 OHM, J,1/16W 1 R4710 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4711 D0GA123JA015 M 12K OHM J 1/16W 1 R4712 D0GA101JA015 M 100 OHM, J,1/16W 1 R4713 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4714 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4715 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4716 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R4719 D0GA473JA015 M 47KOHM, J,1/16W 1 R4720 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4721 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4722 D0GA101JA015 M 100 OHM, J,1/16W 1 R4723 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4724 D0GA101JA015 M 100 OHM, J,1/16W 1 R4725 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4726 D0GA101JA015 M 100 OHM, J,1/16W 1 R4727 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4728 D0GA101JA015 M 100 OHM, J,1/16W 1 R4729 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R4731 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4732 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4733 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R4734 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4735 D0GA101JA015 M 100 OHM, J,1/16W 1 R4737 D0GA101JA015 M 100 OHM, J,1/16W 1 R4738 D0GA101JA015 M 100 OHM, J,1/16W 1 R4741 D0GA470JA015 M 47 OHM, J,1/16W 1 R4742 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4743 D0GA470JA015 M 47 OHM, J,1/16W 1 R4745 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4746 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4747 D0GA101JA015 M 100 OHM, J,1/16W 1 R4748 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4749 D0GA101JA015 M 100 OHM, J,1/16W 1 R4750 D0GA101JA015 M 100 OHM, J,1/16W 1 R4751 D0GA101JA015 M 100 OHM, J,1/16W 1 R4752 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4753 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4755 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4757 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4758 D0GA101JA015 M 100 OHM, J,1/16W 1 R4759 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4760 D0GA101JA015 M 100 OHM, J,1/16W 1 R4761 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4762 D0GA101JA015 M 100 OHM, J,1/16W 1 R4763 D0GA682JA015 M6.8KOHM, J,1/16W 1 R4764 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4765 D0GA682JA015 M6.8KOHM, J,1/16W 1 R4766 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4767 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4768 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4769 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4770 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4772 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4774 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4784 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4801 D0GA470JA015 M 47 OHM, J,1/16W 1 R4802 D0GA470JA015 M 47 OHM, J,1/16W 1 R4803 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4804 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4805 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4806 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4807 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4808 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4809 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4810 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4811 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4812 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4813 D0GA272JA015 M 2.7KOHM, J.1/16W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R4814 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4815 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4816 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R4820 EXB28V103JX M 10KOHM 1/32 W 1 R4822 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4823 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R4824 EXB28V220J M 22 OHM 1/32 W 1 R4825 EXB28V220J M 22 OHM 1/32 W 1 R4826 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4827 EXB38VR000V M 0 OHM 1/16 W 1 R4828 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4829 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4831 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4834 EXB38VR000V M 0 OHM 1/16 W 1 R4835 EXB38VR000V M 0 OHM 1/16 W 1 R4836 EXB38VR000V M 0 OHM 1/16 W 1 R4838 D0GA222JA015 M 2.2KOHM, J,1/16W 1 R4839 D0GA101JA015 M 100 OHM, J,1/16W 1 R4840 D0GA101JA015 M 100 OHM, J,1/16W 1 R4841 D0GA101JA015 M 100 OHM, J,1/16W 1 R4842 D0GA101JA015 M 100 OHM, J,1/16W 1 R4843 D0GA101JA015 M 100 OHM, J,1/16W 1 R4844 D0GA101JA015 M 100 OHM, J,1/16W 1 R4845 D0GA101JA015 M 100 OHM, J,1/16W 1 R4846 D0GA101JA015 M 100 OHM, J,1/16W 1 R4847 D0GA101JA015 M 100 OHM, J,1/16W 1 R4848 D0GA101JA015 M 100 OHM, J,1/16W 1 R4851 EXB2HV100JV M 10 OHM 1/16 W 1 R4852 EXB2HV100JV M 10 OHM 1/16 W 1 R4853 EXB28V100JX M 10 OHM 1/32 W 1 R4854 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4855 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4856 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4857 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4858 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4860 EXB2HV100JV M 10 OHM 1/16 W 1 R4861 EXB2HV100JV M 10 OHM 1/16 W 1 R4862 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4863 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4869 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R4871 D0GA682JA015 M6.8KOHM, J,1/16W 1 R4873 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4874 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4881 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4882 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4884 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4902 ERJ6GEYJ100V M 10 OHM,J,1/8W 1 R4904 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4905 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4906 D1BA3162A014 M31.6KOHM,J.1/16 W 1 PPDS R4907 D1BA1002A014 M 10KOHM,J. 1/16 W 1 R4908 D0GA513JA015 M 51KOHM, J,1/16W 1 PPDS R4917 ERJ6GEYJ100V M 10 OHM,J,1/8W 1 R4919 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4920 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4921 D1BA1102A014 M 1.1KOHM,J. 1/16 W 1 PPDS R4922 D1BA1912A014 M 1.91KOHM,J.1/16 W 1 PPDS R4923 D0GA154JA015 M 150KOHM J 1/16W 1 R4932 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R4933 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4934 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4935 D1BB4642A055 M46.4KOHM,J.1/10W 1 PPDS R4936 D1BB3742A055 M37.4KOHM,J.1/10W 1 PPDS R4937 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4938 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4943 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R4944 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4945 D0GA473JA015 M 47KOHM, J,1/16W 1 R4946 D0GA223JA015 M 22K OHM J 1/16W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 124 R4947 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4949 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4952 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R4953 D0GA362JA015 M 3.6KOHM, J,1/16W 1 PPDS R4954 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4955 D0GA223JA015 M 22K OHM J 1/16W 1 R4961 D0GAR00Z0001 M 0 OHM, 1/16W 1 R4963 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4964 ERJ6GEYJ331V M 330 OHM J 1/8W 1 R4965 ERJ6GEYJ331V M 330 OHM J 1/8W 1 R4966 ERJ6GEYJ331V M 330 OHM J 1/8W 1 R4967 ERJ6GEYJ331V M 330 OHM J 1/8W 1 R4968 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R4969 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R4973 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4974 D0GBR00Z0002 M 0 OHM J 1/10W 1 R4982 D0GB471JA041 M 470OHM,J,1/10W 1 R4983 D0GB473JA057 M 47KOHM,J,1/10W 1 R4984 D0GB103JA057 M 10K OHM J 1/10W 1 R4985 D1BB2701A055 M 2.7KOHM,J.1/10W 1 PPDS R4986 D1BB1052A055 M10.5KOHM,J.1/10W 1 PPDS R4987 D1BB9100A055 M 9.1KOHM,J.1/10W 1 PPDS R4989 ERJ3GEYJ223 M 22KOHM,J,1/10W 1 R4993 D0GB103JA057 M 10K OHM J 1/10W 1 R4994 D0GB103JA057 M 10K OHM J 1/10W 1 R4997 ERJ6GEY0R00V M 0 OHM 1/8W 1 R4998 ERJ6GEY0R00V M 0 OHM 1/8W 1 R8301 D0GA330JA015 M 33 OHM, J,1/16W 1 R8306 D0GA330JA015 M 33 OHM, J,1/16W 1 R8308 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8309 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8312 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8313 D1BA6491A014 M6.49KOHM,J.1/16 W 1 R8314 D1BA75R0A014 M 75 OHM,J.1/16 W 1 R8316 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8318 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8322 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8327 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8329 EXB28V220J M 22 OHM 1/32 W 1 R8330 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8331 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8332 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8333 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8334 D1BA7501A014 M 7.5 KOHM,J.1/16 W 1 PPDS R8335 D1BA7501A014 M 7.5 KOHM,J.1/16 W 1 PPDS R8336 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R8337 D0GA101JA015 M 100 OHM, J,1/16W 1 R8338 EXB28V220J M 22 OHM 1/32 W 1 R8344 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8346 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8349 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R8350 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8351 D0GA683JA015 M 68KOHM, J,1/16W 1 R8355 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8358 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R8360 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R8361 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8362 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8363 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8364 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R8366 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R8368 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R8370 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8371 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8372 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8374 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8375 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8376 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8377 EXB28V220J M 22 OHM 1/32 W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R8390 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8391 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8392 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R8393 D0GA562JA015 M 5.2KOHM, J,1/16W 1 R8409 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8410 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R8432 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8433 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8440 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8441 ERJ6GEY0R00V M 0 OHM 1/8W 1 R8447 D0GA915JA014 M 9.1MOHM,J,1/16W 1 R8448 ERJ2GEJ221 M 220 OHM, J,1/16 W 1 R8449 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8450 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8451 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8452 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8453 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8454 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8455 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8456 EXB28V473JX M 47KOHM 1/32 W 1 R8457 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8463 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8465 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8467 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R8468 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8474 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R8478 EXB28V473JX M 47KOHM 1/32 W 1 R8486 EXB28V220J M 22 OHM 1/32 W 1 R8490 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8491 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8492 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8493 D1BA49R9A014 M 49.9 OHM,J.1/16 W 1 R8499 D0GA333JA015 M 33KOHM,J,1/16W 1 R9070 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9072 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9104 EXB38V101JV M 100 OHM 1/16 W 1 R9105 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9107 D0GA332JA015 M 3.3KOHM, J,1/16W 1 R9111 D0GAR00Z0001 M 0 OHM, 1/16W 1 R9119 EXB38V470J M 47 OHM 1/16 W 1 R9121 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9124 D0GA470JA015 M 47 OHM, J,1/16W 1 R9126 D0GAR00Z0001 M 0 OHM, 1/16W 1 R9129 D0GA683JA015 M 68KOHM, J,1/16W 1 R9130 D0GA470JA015 M 47 OHM, J,1/16W 1 R9134 D0GA473JA015 M 47KOHM, J,1/16W 1 R9135 D0GA473JA015 M 47KOHM, J,1/16W 1 R9136 D0GA473JA015 M 47KOHM, J,1/16W 1 R9137 D0GA333JA015 M 33KOHM,J,1/16W 1 R9138 D0GA101JA015 M 100 OHM, J,1/16W 1 R9140 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R9142 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9143 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9144 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9145 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9146 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9149 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9150 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9151 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9152 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9153 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9154 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9155 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9164 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9166 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9185 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9186 ERJ2GEJ220 M 22 OHM, J,1/16 W 1 R9187 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9188 D0GA272JA015 M 2.7KOHM, J.1/16W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 125 R9189 EXB38V101JV M 100 OHM 1/16 W 1 R9194 D0GA471JA015 M 470OHM, J,1/16W 1 R9198 EXB38V101JV M 100 OHM 1/16 W 1 R9200 D0GA100JA015 M 10 OHM, J,1/16W 1 R9201 D0GA100JA015 M 10 OHM, J,1/16W 1 R9203 D0GA223JA015 M 22K OHM J 1/16W 1 R9205 D0GA333JA015 M 33KOHM,J,1/16W 1 R9206 D0GA563JA015 M 56KOHM, J,1/16W 1 R9207 D0GA243JA015 M 24K OHM J.1/16W 1 PPDS R9208 EXB2HV470JV M 47 OHM 1/16 W 1 R9209 EXB2HV470JV M 47 OHM 1/16 W 1 R9212 D0GA470JA015 M 47 OHM, J,1/16W 1 R9213 D0GA470JA015 M 47 OHM, J,1/16W 1 R9215 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9218 D0GAR00Z0001 M 0 OHM, 1/16W 1 R9223 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9224 D0GA470JA015 M 47 OHM, J,1/16W 1 R9225 D0GA272JA015 M 2.7KOHM, J.1/16W 1 R9226 D0GA470JA015 M 47 OHM, J,1/16W 1 R9229 D0GBR00Z0002 M 0 OHM J 1/10W 1 R9230 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R9231 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R9232 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R9233 ERJ3GEYJ101 M 100 OHM,J,1/10W 1 R9247 D0GA470JA015 M 47 OHM, J,1/16W 1 R9300 EXB38V470J M 47 OHM 1/16 W 1 R9306 D0GA470JA015 M 47 OHM, J,1/16W 1 R9307 D0GA470JA015 M 47 OHM, J,1/16W 1 R9308 D0GA470JA015 M 47 OHM, J,1/16W 1 R9309 D0GA470JA015 M 47 OHM, J,1/16W 1 R9316 D0GA470JA015 M 47 OHM, J,1/16W 1 R9318 D0GA470JA015 M 47 OHM, J,1/16W 1 R9319 D0GA470JA015 M 47 OHM, J,1/16W 1 R9320 D0GA122JA015 M 1.2KOHM, J,1/16W 1 R9321 D0GA105JA015 M 1M OHM, J,1/16W 1 R9322 D0GA470JA015 M 47 OHM, J,1/16W 1 R9323 ERJ2GEJ102X M 1KOHM, J.1/16 W 1 R9324 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9325 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9326 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9327 D0GB162JA041 M 1.6KOHM J 1/10W 1 R9334 D0GA470JA015 M 47 OHM, J,1/16W 1 R9335 D0GA470JA015 M 47 OHM, J,1/16W 1 R9336 EXB38V470J M 47 OHM 1/16 W 1 R9337 D0GA470JA015 M 47 OHM, J,1/16W 1 R9338 D0GA470JA015 M 47 OHM, J,1/16W 1 R9400 EXB2HV103JV M 10 kOHM 1/16 W 1 R9401 EXB2HV103JV M 10 kOHM 1/16 W 1 R9402 EXB38V103JV M 10 kOHM 1/16 W 1 R9503 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9608 EXB2HV470JV M 47 OHM 1/16 W 1 R9609 EXB38V470J M 47 OHM 1/16 W 1 R9610 EXB38V470J M 47 OHM 1/16 W 1 R9611 EXB38V470J M 47 OHM 1/16 W 1 R9868 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9871 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9872 D1BB3301A055 M 3.3KOHM,J.1/10W 1 R9873 D1BB1002A055 M 10KOHM,J.1/10W 1 R9874 D1BB2702A055 M 27KOHM,J.1/10W 1 R9875 D1BB2002A055 M 20KOHM,J.1/10W 1 R9877 D1BB4302A055 M 43KOHM,J.1/10W 1 R9878 D1BB8201A055 M 8.2KOHM,J.1/10W 1 R9879 D1BB1502A055 M 15KOHM, J.1/10W 1 R9880 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9881 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9882 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9884 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9890 D1BB11030002 M 110KOHM,J.1/10W 1 R9891 D1BB4702A055 M 47KOHM,J.1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R9900 D1BB2702A055 M 27KOHM,J.1/10W 1 R9901 D1BB2702A055 M 27KOHM,J.1/10W 1 R9903 D0GA472JA015 M 4.7KOHM, J,1/16W 1 R9904 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9905 ERJ2GEJ103 M 10KOHM, J,1/16 W 1 R9906 ERJ2GEJ104 M100KOHM, J,1/16 W 1 R9907 D0GA101JA015 M 100 OHM, J,1/16W 1 R9908 D1BB1002A055 M 10KOHM,J.1/10W 1 R9909 D1BB4702A055 M 47KOHM,J.1/10W 1 R9910 D1BB1502A055 M 15KOHM, J.1/10W 1 R9915 ERJ6GEY0R00V M 0 OHM 1/8W 1 R9916 ERJ6GEY0R00V M 0 OHM 1/8W 1 R16001 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16002 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16021 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16022 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16031 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16032 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16033 ERJ6ENF5602 M 56KOHM,F.1/8W 1 R16034 ERJ6ENF2702 M 27KOHM,F.1/8W 1 R16041 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16051 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16101 D0GD221JA059 M 220 OHM,J,1/4W 1 R16102 D0GD221JA059 M 220 OHM,J,1/4W 1 R16103 D0GD100JA059 M 10 OHM,J,1/4W 1 R16104 D0GD100JA059 M 10 OHM,J,1/4W 1 R16105 ERJ8GEYJ474 M470KOHM, J,1/4W 1 R16109 D0GD100JA059 M 10 OHM,J,1/4W 1 R16116 D0GB473JA057 M 47KOHM,J,1/10W 1 R16131 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16132 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16134 D0GD750JA059 M 75 OHM,J,1/4W 1 R16137 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16141 D0GD100JA059 M 10 OHM,J,1/4W 1 R16143 D0GB473JA057 M 47KOHM,J,1/10W 1 R16151 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16152 ERJ8GEYJ101V M 100 OHM, J,1/4W 1 R16154 D0GD750JA059 M 75 OHM,J,1/4W 1 R16155 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16159 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16161 D0GD100JA059 M 10 OHM,J,1/4W 1 R16163 D0GB473JA057 M 47KOHM,J,1/10W 1 R16171 D0GD100JA059 M 10 OHM,J,1/4W 1 R16173 D0GB473JA057 M 47KOHM,J,1/10W 1 R16181 D0GD100JA059 M 10 OHM,J,1/4W 1 R16183 D0GB473JA057 M 47KOHM,J,1/10W 1 R16191 ERJ6GEYJ151V M 150 OHM,J,1/8W 1 R16192 D0GB103JA057 M 10K OHM J 1/10W 1 R16193 ERJ6GEYJ750 M 75 OHM,J,1/8W 1 R16195 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16230 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16231 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16241 EXB38V470J M 47 OHM 1/16 W 1 R16242 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16251 D1BB1401A055 M 1.4KOHM,J.1/10W 1 R16252 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16253 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16254 ERJ6ENF6801 M 6.8KOHM,F.1/8W 1 R16255 D1BB1201A055 M 1.2KOHM,J.1/10W 1 R16256 D1BB1501A055 M1.50KOHM,J.1/10W 1 R16257 D0GB273JA041 M 27K OHM J 1/10W 1 R16258 D0GB103JA057 M 10K OHM J 1/10W 1 R16260 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16280 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16281 D0GB103JA057 M 10K OHM J 1/10W 1 R16282 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16283 D0GB473JA057 M 47KOHM,J,1/10W 1 R16284 D0GB224JA041 M 220KOHM,J,1/10W 1 R16285 EXB38V623J M 62 kOHM 1/16 W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 126 R16288 D0GF334JA047 M 330KOHMJ,1/3W 1 R16289 D0GF334JA047 M 330KOHMJ,1/3W 1 R16290 D0GF334JA047 M 330KOHMJ,1/3W 1 R16307 ERJ6RBD6492 M64.9KOHM,D.1/10W 1 R16309 ERG1FJS333D M 33KOHM, J, 1W 1 R16318 ERJ6RBD683 M 68KOHM,D.1/10W 1 R16319 ERJ6RBD2491 M2.49KOHM,D.1/10W 1 R16320 ERJ14YJ683 M 68KOHM, J. 1/4W 1 R16330 D0GB102JA041 M 1KOHM,J,1/10W 1 R16332 D0GB474JA041 M 470KOHM,J,1/10W 1 R16334 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16335 D0GB102JA041 M 1KOHM,J,1/10W 1 R16402 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16403 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16410 D0GB391JA041 M 390 OHM,J,1/10W 1 R16411 ERJ6ENF2700 M 270 OHM,F.1/8W 1 R16416 D0GB103JA057 M 10K OHM J 1/10W 1 R16417 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16418 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16421 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16422 D0GF7R5JA047 M 7.5 OHM,J, 1/3W 1 R16441 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16452 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16465 ERJ6ENF2702 M 27KOHM,F.1/8W 1 R16466 ERJ6ENF5602 M 56KOHM,F.1/8W 1 R16467 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16468 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16471 D0GB392JA041 M 3.9KOHM,J,1/10W 1 R16472 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16473 ERJ6GEYF561 M 560 OHM,J,1/8W 1 R16474 D0GB102JA041 M 1KOHM,J,1/10W 1 R16475 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16476 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16478 D0GB562JA041 M 5.6KOHM,J,1/10W 1 R16479 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R16490 ERJ6RED124 M 120KOHM,D.1/10W 1 R16491 ERJ6RED124 M 120KOHM,D.1/10W 1 R16492 ERJ6RED124 M 120KOHM,D.1/10W 1 R16493 ERJ6RBD6191 M6.19KOHM,D.1/10W 1 R16494 D1BB2001A055 M 2KOHM,J.1/10W 1 R16495 ERJ6ENF7500 M 750 OHM,F.1/8W 1 R16496 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16497 D0GB473JA057 M 47KOHM,J,1/10W 1 R16498 D0GB103JA057 M 10K OHM J 1/10W 1 R16503 D0GD100JA059 M 10 OHM,J,1/4W 1 R16504 D0GD750JA059 M 75 OHM,J,1/4W 1 R16506 D0GD100JA059 M 10 OHM,J,1/4W 1 R16509 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16512 D0GB473JA057 M 47KOHM,J,1/10W 1 R16517 D0GB473JA057 M 47KOHM,J,1/10W 1 R16521 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16522 ERJ6GEYJ101V M 100 OHM,J,1/8W 1 R16523 D0GD750JA059 M 75 OHM,J,1/4W 1 R16531 D0GD100JA059 M 10 OHM,J,1/4W 1 R16533 D0GB473JA057 M 47KOHM,J,1/10W 1 R16534 D0GF5R6JA047 M 5.6 OHM,J, 1/3W 1 R16551 D0GD100JA059 M 10 OHM,J,1/4W 1 R16553 D0GB473JA057 M 47KOHM,J,1/10W 1 R16561 EXB38V470J M 47 OHM 1/16 W 1 R16562 EXB38V470J M 47 OHM 1/16 W 1 R16563 EXB38V470J M 47 OHM 1/16 W 1 R16564 EXB38V470J M 47 OHM 1/16 W 1 R16565 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16566 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16567 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16568 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16570 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16579 EXB38V470J M 47 OHM 1/16 W 1 R16580 D0GB562JA041 M 5.6KOHM,J,1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R16582 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16583 ERJ6ENF3902 M 39KOHM,F.1/8W 1 R16584 ERJ6ENF6801 M 6.8KOHM,F.1/8W 1 R16585 D1BB1001A055 M 1KOHM,J. 1/10W 1 R16586 D1BB2151A055 M2.15KOHM,J.1/10W 1 R16587 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16588 D0GB103JA057 M 10K OHM J 1/10W 1 R16590 ERJ3GEYJ221 M 220 OHM,J,1/10W 1 R16591 EXB38V472JV M 4.7 kOHM 1/16 W 1 R16593 D1BB1401A055 M 1.4KOHM,J.1/10W 1 R16601 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16604 ERJ6GEYJ331V M 330 OHM J 1/8W 1 R16605 ERJ6GEYG182 M 1.8KOHM,J,1/8W 1 R16607 D1BB6981A055 M6.98KOHM,J.1/10W 1 R16609 D0GF202JA047 M 2KOHM,J,1/3W 1 R16610 D0GB104JA041 M 100KOHM J 1/10W 1 R16612 D0GD470JA059 M 47 OHM,J,1/4W 1 R16615 D1BB1101A055 M 1.1 KOHM,J.1/10W 1 R16617 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16621 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16622 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16631 D0GB103JA057 M 10K OHM J 1/10W 1 R16633 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16634 ERJ6GEYJ471 M 470 OHM,J,1/8W 1 R16645 D0GB562JA041 M 5.6KOHM,J,1/10W 1 R16646 D1BB1181A055 M 1.18KOHM,J.1/10W 1 R16648 D0GF202JA047 M 2KOHM,J,1/3W 1 R16649 D0GD330JA059 M 33 OHM,F,1/4W 1 R16650 D0GB104JA041 M 100KOHM J 1/10W 1 R16651 D0GF202JA047 M 2KOHM,J,1/3W 1 R16652 ERJ6GEYF822 M 8.2KOHM,J,1/8W 1 R16653 ERJ8GEYJ182 M 1.8KOHM, J,1/4W 1 R16654 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16655 D0GB103JA057 M 10K OHM J 1/10W 1 R16656 ERJ8GEYJ472V M 4.7KOHM, J,1/4W 1 R16658 ERJ3RBD6341 M6.34KOHM,D 1/16W 1 R16659 ERJ6GEY0R00V M 0 OHM 1/8W 1 R16660 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16661 D0GB122JA041 M 1.2KOHM J 1/10W 1 R16662 D1BB1002A087 M 10KOHM,J.1/10W 1 R16663 ERJ6RBD7151 M 7.15KOHM,D.1/10W 1 R16664 D0GF202JA047 M 2KOHM,J,1/3W 1 R16665 D0GD330JA059 M 33 OHM,F,1/4W 1 R16666 D1BB2202A087 M 22KOHM,J.1/10W 1 R16667 D0GF202JA047 M 2KOHM,J,1/3W 1 R16668 D0GF202JA047 M 2KOHM,J,1/3W 1 R16673 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R16674 D0GF202JA047 M 2KOHM,J,1/3W 1 R16675 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16677 D0GF202JA047 M 2KOHM,J,1/3W 1 R16678 D0GF202JA047 M 2KOHM,J,1/3W 1 R16679 ERJ3RBD1072 M10.7KOHM,D 1/16W 1 R16680 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R16681 D0GD100JA059 M 10 OHM,J,1/4W 1 R16682 D0GD100JA059 M 10 OHM,J,1/4W 1 R16684 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16685 ERJ6GEYJ221V M 220 OHM,J,1/8W 1 R16686 D0GB103JA057 M 10K OHM J 1/10W 1 R16687 D1BB2702A055 M 27KOHM,J.1/10W 1 R16688 D1BB8871A055 M8.87KOHM,J.1/10W 1 R16690 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16691 ERJ8GEYJ563 M 56KOHM, J,1/4W 1 R16692 ERJ6RBD152 M 1.5KOHM,D.1/10W 1 R16694 ERJ8GEYJ563 M 56KOHM, J,1/4W 1 R16695 ERJ6RBD152 M 1.5KOHM,D.1/10W 1 R16696 ERF5TK2R2 W 2.2 OHM, K, 5W 1 R16699 D0GB103JA057 M 10K OHM J 1/10W 1 R16707 ERJ6GEYG392 M 3.9KOHM,J,1/8W 1 R16711 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 127 R16712 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R16717 D0GB102JA041 M 1KOHM,J,1/10W 1 R16719 ERJ3GEYJ220 M 22 OHM,J,1/10W 1 R16721 EXB38V220JV M 22 OHM 1/16 W 1 R16742 D0GB473JA057 M 47KOHM,J,1/10W 1 R16745 D0GB474JA041 M 470KOHM,J,1/10W 1 R16746 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R16747 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16750 D0GD123JA059 M 12KOHM,J,1/4W 1 R16751 D0GD154JA059 M 150KOHM,J,1/4W 1 R16752 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16753 ERJ6GEYF473 M 47KOHM,J,1/8W 1 R16755 D0GD123JA059 M 12KOHM,J,1/4W 1 R16756 D0GD123JA059 M 12KOHM,J,1/4W 1 R16761 D0GD100JA059 M 10 OHM,J,1/4W 1 R16763 D0GB473JA057 M 47KOHM,J,1/10W 1 R16765 D0GD100JA059 M 10 OHM,J,1/4W 1 R16769 D0GD750JA059 M 75 OHM,J,1/4W 1 R16772 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16773 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R16774 ERG1SJ273 M 27KOHM, J, 1W 1 R16776 ERJ6GEYJ470V M 47 OHM,J,1/8W 1 R16783 D0GD154JA059 M 150KOHM,J,1/4W 1 R16785 ERJ6ENF1073 M 107KOHM,F. 1/8W 1 R16786 ERJ6ENF1073 M 107KOHM,F. 1/8W 1 R16787 ERJ6ENF3302 M 33KOHM,F.1/8W 1 R16789 D0GB103JA057 M 10K OHM J 1/10W 1 R16791 D0GB102JA041 M 1KOHM,J,1/10W 1 R16797 ERJ6GEYJ220 M 22 OHM,J,1/8W 1 R16798 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16799 D0GB102JA041 M 1KOHM,J,1/10W 1 R16801 ERJ6RBD223V M 22KOHM,D.1/10W 1 R16802 ERJ6RBD3092 M30.9KOHM,D.1/10W 1 R16804 ERJ8GEYJ112 M 1.1KOHM, J,1/4W 1 R16818 D1BB3302A055 M 33KOHM,J.1/10W 1 R16819 ERJ6ENF1503 M 150KOHM.F.1/8W 1 R16820 ERJ6ENF1503 M 150KOHM.F.1/8W 1 R16822 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16823 ERJ6ENF8202 M 82KOHM,F.1/8W 1 R16824 ERJ6ENF3302 M 33KOHM,F.1/8W 1 R16825 D0GD154JA059 M 150KOHM,J,1/4W 1 R16826 ERJ6GEYJ103V M 10KOHM J 1/8W 1 R16827 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16829 D0GB102JA041 M 1KOHM,J,1/10W 1 R16831 ERJ6RBD6812 M68.1KOHM,D.1/10W 1 R16832 ERJ6RBD7152 M71.50KOHM,D.1/10W 1 R16837 D0GB102JA041 M 1KOHM,J,1/10W 1 R16838 ERG1FJS104D M 100KOHM, J, 1W 1 R16841 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16843 ERJ6GEYJ102V M 1K OHM J 1/8W 1 R16844 ERA6YEB242 M 2.4KOHM, B 1/10W 1 R16845 ERJ6RBD6652 M66.5KOHM,D.1/10W 1 R16846 ERJ6RBD6492 M64.9KOHM,D.1/10W 1 R16849 ERJ6RBD6492 M64.9KOHM,D.1/10W 1 R16851 D0GB474JA041 M 470KOHM,J,1/10W 1 R16852 D0GB474JA041 M 470KOHM,J,1/10W 1 R16860 ERG2FNJS8R2E M 8.2 OHM, J, 2W 1 R16870 ERJ14YJ683 M 68KOHM, J. 1/4W 1 R16873 ERA6YEB242 M 2.4KOHM, B 1/10W 1 R16891 D1BF6982A058 M 69.8KOHM, 1/4W 1 R16892 D1BF8252A058 M82.50KOHM, 1/4W 1 R16893 D1BF8252A058 M82.50KOHM, 1/4W 1 R16897 D1BB1001A055 M 1KOHM,J. 1/10W 1 R16898 D1BB1051A055 M1.05KOHM,J.1/10W 1 R16899 D1BB2741A055 M2.74KOHM,J.1/10W 1 R16900 D0GB103JA057 M 10K OHM J 1/10W 1 R16901 ERJ3GEYJ472 M 4.7KOHM,J,1/10W 1 R16904 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16919 D1BB7501A055 M 7.5KOHM,J.1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R16920 D0GB103JA057 M 10K OHM J 1/10W 1 R16921 D1BB1241A055 M1.24KOHM,J.1/10W 1 R16922 D1BB3481A055 M3.48KOHM,J.1/10W 1 R16923 D0GB103JA057 M 10K OHM J 1/10W 1 R16926 ERJ6GEYJ222V M 2.2KOHM.J. 1/8W 1 R16927 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16928 ERJ6GEYJ472V M 4.7KOHM.J.1/8W 1 R16929 D0GF1R0JA047 M 1 OHM,J,1/3W 1 R16930 D1BF2R70A021 M 2.7 OHM, 1/4W 1 R16931 D1BF2R70A021 M 2.7 OHM, 1/4W 1 R16932 ERJ6GEYJ223 M 22KOHM,J,1/8W 1 R16933 D1BB1002A055 M 10KOHM,J.1/10W 1 R16934 D1BB6801A055 M 6.8KOHM,J.1/10W 1 R16935 D0GB512JA041 M 5.1KOHM,J,1/10W 1 R16936 D0GB222JA041 M 2.2KOHM,J,1/10W 1 R16937 D0GB184JA041 M 180KOHM J 1/10W 1 R16938 D0GB184JA041 M 180KOHM J 1/10W 1 R17101 ERJ6GEY0R00V M 0 OHM 1/8W 1 R17103 EXB38V681J M 680 OHM 1/16 W 1 R17104 EXB38V470J M 47 OHM 1/16 W 1 R17105 EXB38V470J M 47 OHM 1/16 W 1 R17106 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17108 D0GB101JA041 M 100 OHM,J,1/10W 1 R17109 D0GB101JA041 M 100 OHM,J,1/10W 1 R17110 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17111 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17113 D0GB101JA041 M 100 OHM,J,1/10W 1 R17114 D0GB101JA041 M 100 OHM,J,1/10W 1 R17115 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17116 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17118 D0GB101JA041 M 100 OHM,J,1/10W 1 R17119 D0GB101JA041 M 100 OHM,J,1/10W 1 R17120 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17121 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17123 D0GB101JA041 M 100 OHM,J,1/10W 1 R17124 D0GB101JA041 M 100 OHM,J,1/10W 1 R17125 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17126 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17128 D0GB101JA041 M 100 OHM,J,1/10W 1 R17129 D0GB101JA041 M 100 OHM,J,1/10W 1 R17130 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17131 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17133 D0GB101JA041 M 100 OHM,J,1/10W 1 R17134 D0GB101JA041 M 100 OHM,J,1/10W 1 R17135 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17136 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17138 D0GB101JA041 M 100 OHM,J,1/10W 1 R17139 D0GB101JA041 M 100 OHM,J,1/10W 1 R17140 D0GB101JA041 M 100 OHM,J,1/10W 1 R17141 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17143 D0GB101JA041 M 100 OHM,J,1/10W 1 R17144 D0GB101JA041 M 100 OHM,J,1/10W 1 R17145 D0GB101JA041 M 100 OHM,J,1/10W 1 R17146 D0GB681JA041 M 680 OHM,J,1/10W 1 R17147 ERJ6GEYJ224 M 220KOHM,J,1/8W 1 R17148 D0GF151JA047 M 150 OHM,J, 1/3W 1 R17150 D0GB102JA041 M 1KOHM,J,1/10W 1 R17151 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17152 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17153 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17201 ERJ6GEYJ224 M 220KOHM,J,1/8W 1 R17202 EXB38V470J M 47 OHM 1/16 W 1 R17203 EXB38V470J M 47 OHM 1/16 W 1 R17204 EXB38V681J M 680 OHM 1/16 W 1 R17205 EXB38V470J M 47 OHM 1/16 W 1 R17206 EXB38V470J M 47 OHM 1/16 W 1 R17207 EXB38V681J M 680 OHM 1/16 W 1 R17208 EXB38V681J M 680 OHM 1/16 W 1 R17210 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS 安全 标记 参考号 部品号 部品名称及说明 数量 备注 128 R17212 D0GB101JA041 M 100 OHM,J,1/10W 1 R17213 D0GB101JA041 M 100 OHM,J,1/10W 1 R17214 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17215 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17217 D0GB101JA041 M 100 OHM,J,1/10W 1 R17218 D0GB101JA041 M 100 OHM,J,1/10W 1 R17219 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17220 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17222 D0GB101JA041 M 100 OHM,J,1/10W 1 R17223 D0GB101JA041 M 100 OHM,J,1/10W 1 R17224 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17225 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17227 D0GB101JA041 M 100 OHM,J,1/10W 1 R17228 D0GB101JA041 M 100 OHM,J,1/10W 1 R17229 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17230 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17232 D0GB101JA041 M 100 OHM,J,1/10W 1 R17233 D0GB101JA041 M 100 OHM,J,1/10W 1 R17234 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17235 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17237 D0GB101JA041 M 100 OHM,J,1/10W 1 R17238 D0GB101JA041 M 100 OHM,J,1/10W 1 R17239 D0GB201JA041 M 200 OHM,J,1/10W 1 PPDS R17240 D0GZ1R0JA020 M 1 OHM, J,1/2W 1 PPDS R17242 D0GB101JA041 M 100 OHM,J,1/10W 1 R17243 D0GB101JA041 M 100 OHM,J,1/10W 1 R17244 D0GB101JA041 M 100 OHM,J,1/10W 1 R17245 D0GB681JA041 M 680 OHM,J,1/10W 1 R17247 D0GF151JA047 M 150 OHM,J, 1/3W 1 R17260 ERJ6GEY0R00V M 0 OHM 1/8W 1 R17261 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17262 D0GBR00Z0002 M 0 OHM J 1/10W 1 R17263 D0GBR00Z0002 M 0 OHM J 1/10W 1 RM001 B3RAD0000168 遥控接收器 1 S35 K1KA04B00273 4P 连接接头 1 SC2 K1KY02B00012 2P 连接接头 1 SC20 K1MY35BA0345 35P 连接接头 1 SC41 K1KA09AA0707 9P 连接接头 1 SC42 K1KA09AA0707 9P 连接接头 1 SC46 K1KA09AA0707 9P 连接接头 1 SC50 K1KA02AA0193 2P 连接接头 1 SS11 K1KY03B00006 3P 连接接头 1 SS21 K1KA07A00170 7P 连接接头 1 SS24 K1KB07AA0087 7P 连接接头 1 SS33 K1KY08AA0719 8P 连接接头 1 SS58 K1MN13B00091 13P 连接接头 1 SS61 K1MY13BA0343 13P 连接接头 1 SS64 K1MY13BA0343 13P 连接接头 1 SW061 K0F162B00002 开关 1 SW1550 EVQPLHA15 开关 1 SW1551 EVQPLHA15 开关 1 SW1552 EVQPLHA15 开关 1 SW1553 EVQPLHA15 开关 1 SW1554 EVQPLHA15 开关 1 T8301 G5BYC0000015 变压器 1 T8302 G5BYC0000015 变压器 1 T16471 G4DYA0000200 开关变压器 1 V11 K1KA06B00220 6P 连接接头 1 V22 K1KA03B00242 3P 连接接头 1 X2351 H0J245500089 晶振 1 X3120 H0J327200114 晶振 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 X4001 H0J286500023 晶振 1 X4401 H1C2705B0038 晶振 1 PPDS X4501 H0J360500017 晶振 1 X4502 H0J200500076 晶振 1 X8302 H0J250500091 晶振 1 X9000 H2C1005A0041 晶振 1 X9300 H0J200500076 晶振 1 ZA4001 K4AZ01D00004 端子 1 ZA4002 K4AZ01D00004 端子 1 ZA16001 K4CD01000011 AV 端子 1 ZA16002 K4CD01000011 AV 端子 1 ZA16003 K4CD01000011 AV 端子 1 ZA16401 K4CD01000011 AV 端子 1 ZA16402 K4CD01000011 AV 端子 1 ZA16403 K4CD01000011 AV 端子 1 ZA16404 K4CD01000011 AV 端子 1 ZA16407 K4CD01000011 AV 端子 1 ZA17101 K4CD01000013 AV 端子 1 ZA17102 K4CD01000013 AV 端子 1 ZA17103 K4CD01000013 AV 端子 1 ZA17104 K4CD01000013 AV 端子 1 ZA17201 K4CD01000013 AV 端子 1 ZA17202 K4CD01000013 AV 端子 1 ZA17203 K4CD01000013 AV 端子 1 ZA17204 K4CD01000013 AV 端子 1 C100 F1J1C474A059 C 0.47UF, Z, 16V 1 C101 F0CAF334A021 C 0.33UF, 250V 1 C102 F1BAF221A131 C 220UF, 250V 1 C103 F1BAF221A131 C 220UF, 250V 1 C104 F0CAF224A021 C 0.22UF, 250V 1 C105 F0CAF334A021 C 0.33UF, 250V 1 C109 ECWF2W225X03 P 0.022UF, 200V 1 C110 ECWF2W225X03 P 0.022UF, 200V 1 C111 ECJ1VB1H102K C 1000PF, K, 50V 1 C113 F1J1E225A209 C 2.2 UF 25V 1 C114 F1H1C224A065 C 0.22UF, K, 50V 1 C115 ECJ1VB1H103K C 0.001UF, K, 50V 1 C116 ECJ1VB1H472K C 4700PF, K, 50V 1 C118 ECJ1VB1H102K C 1000PF, K, 50V 1 C120 F1E2J4730001 C 0.047PF, , 600V 1 C122 ECKD3A102KBP C 1000PF, K, 1KV 1 C123 ECKD3A102KBP C 1000PF, K, 1KV 1 C125 F2B2W3910011 C 390UF, 450V 1 C127 F1H1C105A148 C 1UF, K, 16V 1 C200 ECJ1VB1H102K C 1000PF, K, 50V 1 C201 F2B2W220A032 C 22UF, 450V 1 C204 ECJ1VB1E104K C 0.10UF, K, 25V 1 C205 F1H1H222A219 C 2200PF, K, 50V 1 C207 F2A1H1000083 E 10UF, 50V 1 C209 F1BAF221A131 C 220UF, 250V 1 C210 F2A1H4700057 E 47UF, 50V 1 C211 F1J1E225A209 C 2.2 UF 25V 1 C212 ECJ1VB1H102K C 1000PF, K, 50V 1 C300 F1BAF221A131 C 220UF, 250V 1 C301 ECKD3A101KBP C 100PF, K, 1KV 1 C302 F1BAF221A131 C 220UF, 250V 1 C314 ECWH8333HA P 0.033PF, J, 8KV 1 C400 ECJ1VB1H102K C 1000PF, K, 50V 1 C401 F1A3A221A039 E 220UF, 1KV 1 C402 F1H1C105A148 C 1UF, K, 16V 1 C403 F1J1E105A231 C 1 UF 25V 1 C406 F2A1H1000083 E 10UF, 50V 1 C407 ECWF6103HLB P 0.010UF, J,600V 1 C410 ECQE6104KF P 0.1UF, K,630V 1 C411 ECJ2VB1H103K C 0.01UF, K, 50V 1 C412 ECJ1VB1H103K C 0.001UF, K, 50V 1 C413 ECJ1VB1H102K C 1000PF, K, 50V 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 129 C414 ECJ1VB1H103K C 0.001UF, K, 50V 1 C500 ECJ1VB1E104K C 0.10UF, K, 25V 1 C505 F2A1A102A596 E 1000UF, 10V 1 C519 ECJ1VB1H102K C 1000PF, K, 50V 1 C601 ECJ1VB1H103K C 0.001UF, K, 50V 1 C603 ECJ1VB1H103K C 0.001UF, K, 50V 1 C607 ECJ1VB1H103K C 0.001UF, K, 50V 1 C616 ECJ1VB1H103K C 0.001UF, K, 50V 1 C617 ECJ1VB1H103K C 0.001UF, K, 50V 1 C621 ECJ1VB1H103K C 0.001UF, K, 50V 1 C623 F1J0J4750018 C 4.7UF, K, 16V 1 C625 ECJ1VB1H102K C 1000PF, K, 50V 1 C627 ECJ2VB1H103K C 0.01UF, K, 50V 1 C628 ECJ1VB1H103K C 0.001UF, K, 50V 1 C700 F1J1E105A231 C 1 UF 25V 1 C703 ECJ1VB1H332K C 3300PF, K, 50V 1 C706 F1H1C105A148 C 1UF, K, 16V 1 C707 F1J1E105A231 C 1 UF 25V 1 C709 F1J1E104A137 C 0.10UF, Z, 25V 1 C711 ECJ1VB1H102K C 1000PF, K, 50V 1 C712 F1J1H471A721 C 470PF, 50V 1 C713 F1J1E105A231 C 1 UF 25V 1 C714 F1J1H333A571 C 0.033UF, 50V 1 C715 F1J1H332A623 C 3300PF, 50V 1 C716 F1J1E105A231 C 1 UF 25V 1 C717 ECJ1VB1H103K C 0.001UF, K, 50V 1 C718 ECJ1VB1H102K C 1000PF, K, 50V 1 C720 F2BZZ1420005 ZZ 142UF 1 C724 ECJ1VB1H103K C 0.001UF, K, 50V 1 C725 ECJ1VB1H103K C 0.001UF, K, 50V 1 C726 F1J1H333A571 C 0.033UF, 50V 1 C727 ECJ1VB1E104K C 0.10UF, K, 25V 1 C728 ECJ1VB1E104K C 0.10UF, K, 25V 1 C800 F2A1E1020108 E 1000UF, 25V 1 C802 ECJ1VB1E104K C 0.10UF, K, 25V 1 C804 ECJ1VB1H103K C 0.001UF, K, 50V 1 C805 F1J1E105A231 C 1 UF 25V 1 C806 F2A1E1020108 E 1000UF, 25V 1 C807 F1J1E105A231 C 1 UF 25V 1 C808 ECJ1VB1E104K C 0.10UF, K, 25V 1 C810 F1J1E105A231 C 1 UF 25V 1 C901 F2BZZ1820005 ZZ 182UF 1 C902 F2A1H4700057 E 47UF, 50V 1 C903 F1J1H104A459 C 0.10UF, 50V 1 C905 ECJ2VB1H103K C 0.01UF, K, 50V 1 C906 F1H1H222A219 C 2200PF, K, 50V 1 C907 F1H1C105A148 C 1UF, K, 16V 1 C908 ECJ1VB1H102K C 1000PF, K, 50V 1 C909 F1J1H273A571 C 0.027UF, 50V 1 D100 B0FBBT000008 二极管 1 D102 B0ACDD000001 二极管 1 D103 B0BC01400033 稳压二极管 1 D104 B0JCME000093 二极管 1 D106 B0EAKT000048 二极管 1 D108 B0HAPR000016 二极管 1 D109 B0HAPR000016 二极管 1 D114 B0ACDJ000010 二极管 1 D115 B0JCME000093 二极管 1 D200 B0EBKT000007 二极管 1 D201 MTZJ10B 稳压二极管 1 D202 MTZJ10B 稳压二极管 1 D205 MTZJ10B 稳压二极管 1 D206 B0ACDJ000010 二极管 1 D207 B0BB17000009 稳压二极管 1 D208 B0ECKM000046 二极管 1 D209 B0ECKM000046 二极管 1 D210 B0BA03300004 稳压二极管 1 D300 B0EAAD000001 二极管 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 D301 B0EAAD000001 二极管 1 D400 MTZJ10B 稳压二极管 1 D401 MTZJ10B 稳压二极管 1 D402 B0JCCC000002 二极管 1 D404 MTZJ12B 稳压二极管 1 D405 B0BA05100010 稳压二极管 1 D406 B0EAKS000003 二极管 1 D408 B0ECKM000046 二极管 1 D410 B0HAMP000067 二极管 1 D411 B0BC8R100015 稳压二极管 1 D501 B0JAMG000031 二极管 1 D600 B0ACDJ000010 二极管 1 D602 B0EAAD000001 二极管 1 D604 B0EAAD000001 二极管 1 D605 B0EAAD000001 二极管 1 D611 B0ACDJ000010 二极管 1 D701 B0ECKM000046 二极管 1 D702 B0HBRR000001 二极管 1 D703 B0FBAR000044 二极管 1 D706 B0BC5R600065 稳压二极管 1 D708 B0ACDJ000010 二极管 1 D800 B0FBBM000023 二极管 1 D801 B0ACDJ000010 二极管 1 D900 B0BA03600020 稳压二极管 1 D901 B0JCME000093 二极管 1 D902 B0EAMR000015 二极管 1 D903 B0BA02100001 稳压二极管 1 D904 B0BA02100001 稳压二极管 1 D905 B0BA03600020 稳压二极管 1 D907 B0EAMR000015 二极管 1 D908 B0BA01500003 稳压二极管 1 F100 K5E802BZ0002 保险丝 1 F101 K5E802BZ0002 保险丝 1 F200 K5G631B00008 保险丝 1 IC100 C0DBZYY00361 IC 1 IC200 C0DBZMC00006 IC 1 IC201 MIP2K20MSSCF IC 1 IC202 B3PBA0000459 IC 1 IC400 MIP418AMDS IC 1 IC401 B3PBA0000459 IC 1 IC500 C0DBZMC00006 IC 1 IC600 B3PBA0000459 IC 1 IC601 B3PBA0000459 IC 1 IC602 C0EBH0000210 IC 1 IC603 C2ABDB000131 IC 1 IC700 LSSK0087 IC 1 IC701 C0DBZMC00006 IC 1 IC800 C0DBZMC00006 IC 1 IC901 C0DBZMC00006 IC 1 IC902 C0DBZYY00360 IC 1 IC903 B3PBA0000459 IC 1 IC904 C0DBZMC00006 IC 1 L100 G0B113J00005 扼流线圈 1 L101 G0B113J00005 扼流线圈 1 L102 G0C101Z00011 扼流线圈 1 L103 J0JCC0000119 片状电感 1 L104 J0JCC0000119 片状电感 1 L700 J0JCC0000119 片状电感 1 P2 K1KY02BA0001 2P 连接接头 1 P6 K1KA11AA0082 11P 连接接头 1 P7 K1KA14AA0082 14P 连接接头 1 P9 K1KA02A00720 2P 连接接头 1 P11 K1KA03B00246 3P 连接接头 1 P25 K1KA10AA0082 10P 连接接头 1 P34 K1KA03AA0193 3P 连接接头 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 130 P35 K1KA03A00647 3P 连接接头 1 PR101 K5Y502B00008 保险丝 1 PR900 K5Y402B00006 保险丝 1 Q101 DSC5001R0L 三极管 1 Q103 B1BCCF000022 三极管 1 Q104 B1CERR000045 FET 1 Q105 B1BCCF000022 三极管 1 Q106 B1CERR000045 FET 1 Q300 B1CHPD000008 FET 1 Q301 B1CHPD000008 FET 1 Q302 B1CERQ000059 FET 1 Q303 B1CERQ000059 FET 1 Q400 DSC5001R0L 三极管 1 Q401 B1CFGD000030 FET 1 Q402 B1CFGD000030 FET 1 Q505 B1CHPD000008 FET 1 Q600 DSC5001R0L 三极管 1 Q602 DSC5001R0L 三极管 1 Q609 DSC5001R0L 三极管 1 Q701 B1HBCFA00033 三极管 1 Q703 B1ADCF000111 三极管 1 Q705 B1CFGD000030 FET 1 Q706 B1HDCEA00001 三极管 1 Q707 DSC5001R0L 三极管 1 Q708 B1ADCF000111 三极管 1 Q709 B1CFGD000030 FET 1 Q710 B1CFGD000030 FET 1 Q711 DSC5001R0L 三极管 1 Q712 DSC5001R0L 三极管 1 Q714 B1ADCF000116 三极管 1 Q715 B1ADCF000116 三极管 1 Q800 B1CHRD000028 三极管 1 Q801 DSC5001R0L 三极管 1 Q805 B1ADCF000111 三极管 1 Q806 DSC5001R0L 三极管 1 Q807 B1HBCFA00033 三极管 1 Q901 B1CERQ000057 FET 1 R101 D0GB394JA057 M 390KOHM J 1/10W 1 R102 ERF5TJ100 W 10 OHM, J, 5W 1 R103 ERJ6GEYJ333V M 33KOHM,J,1/10W 1 R104 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R105 D1AB6343A023 M 634 KOHM, 0.25W 1 R106 ERJ3GEYJ434 M 430KOHM,J,1/16W 1 R107 D1AB6343A023 M 634 KOHM, 0.25W 1 R108 ERJ3GEYJ223 M 22KOHM,J,1/16W 1 R109 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R112 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R113 ERJ3EKF1002 M 10KOHM, 1/16W 1 R114 D0BF6R8JA035 M 6.8OHM,J, 0.5W 1 R115 D0BF6R8JA035 M 6.8OHM,J, 0.5W 1 R116 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R117 ERJ8GEYJ153 M 15KOHM, J,1/8W 1 R118 ERJ6GEYJ183V M 18KOHM,J,1/10W 1 R119 D0GB103JA057 M 10K OHM J 1/10W 1 R121 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R122 ERX12SJ4R7 M 4.7 OHM, J,1/2W 1 R123 D0GB103JA057 M 10K OHM J 1/10W 1 R125 D0XGR10J0003 M 0.100HM,J, 5W 1 R126 D0XGR10J0003 M 0.100HM,J, 5W 1 R127 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R128 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R129 D0GD4R7JA059 M 4.7 OHM,J,0.25W 1 R130 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R131 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R132 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R133 D1AB1004A023 M1000MOHM, 0.25W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R134 D1AB1004A023 M1000MOHM, 0.25W 1 R136 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R137 ERJ8GEYJ474 M 470KOHM, J,1/8W 1 R138 ERJ6GEYJ123V M 12KOHM,J,1/10W 1 R139 ERJ6RBD123V M 12KOHM,J,1/10W 1 R141 EVMAASA00B23 CONTROL 2KOHMB 1 R147 D1AB8453A023 M 845 KOHM, 0.25W 1 R148 D1AB8453A023 M 845 KOHM, 0.25W 1 R150 ERJ6ENF9101 M 9.1KOHM, 1/10W 1 R152 D0BF6R8JA035 M 6.8OHM,J, 0.5W 1 R153 D0BF6R8JA035 M 6.8OHM,J, 0.5W 1 R154 D0GB103JA057 M 10K OHM J 1/10W 1 R156 ERX12SJ4R7 M 4.7 OHM, J,1/2W 1 R157 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R200 D1AB3303A023 M330 KOHM, 0.25W 1 R201 D1AB3303A023 M330 KOHM, 0.25W 1 R203 D1AB3303A023 M330 KOHM, 0.25W 1 R204 D1AB3303A023 M330 KOHM, 0.25W 1 R206 ERJ6ENF3302 M 33KOHM, 1/10W 1 R207 ERJ6ENF4702 M 47KOHM, 1/10W 1 R208 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R209 D0GB102JA057 M 1KOHM,J,1/10W 1 R210 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R211 ERJ6GEYJ224 M 220KOHM,J,1/10W 1 R214 ERJ6GEYJ153V M 15KOHM,J,1/10W 1 R215 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R216 D0GD4R7JA059 M 4.7 OHM,J,0.25W 1 R217 D0GD4R7JA059 M 4.7 OHM,J,0.25W 1 R218 D0B1825JA033 M1.22MOHM,J,.0.5W 1 R300 D0GZ181JA020 M 180 OHM,J, 0.5W 1 R301 D0GZ181JA020 M 180 OHM,J, 0.5W 1 R302 ERJ8GEYJ220V M 22 OHM, J,1/8W 1 R303 ERJ8GEYJ220V M 22 OHM, J,1/8W 1 R304 D0CF240JA010 M 24 OHM, J,1/2W 1 R305 D0CF240JA010 M 24 OHM, J,1/2W 1 R400 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R401 ERJ6GEYJ203 M 20KOHM,J,1/10W 1 R403 ERJ6GEYJ302V M 3KOHM,J,1/10W 1 R404 ERG2SJW563 M 56KOHM, J, 2W 1 R405 D0GD4R7JA059 M 4.7 OHM,J,0.25W 1 R406 D0GD123JA059 M 12KOHM,F,0.25W 1 R407 ERG2SJW563 M 56KOHM, J, 2W 1 R408 D0GD123JA059 M 12KOHM,F,0.25W 1 R409 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 R410 ERJ3GEYJ273 M 27KOHM,J,1/16W 1 R411 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R412 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R413 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R414 D0GB105JA057 M 1M OHM F 1/10W 1 R415 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R416 D1AB7503A023 M 750 KOHM, 0.25W 1 R417 D1AB6343A023 M 634 KOHM, 0.25W 1 R418 ERJ6ENF1003 M 100KOHM, 1/10W 1 R500 ERJ6GEYJ221V M 220 OHM,J,1/10W 1 R502 ERJ3GEYJ332 M 3.3KOHM,J,1/16W 1 R503 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R507 ERJ6RBD333 M 33KOHM,J,1/10W 1 R508 ERJ6RBD333 M 33KOHM,J,1/10W 1 R517 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R518 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R601 D0GB102JA057 M 1KOHM,J,1/10W 1 R602 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R604 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R605 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R608 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R609 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R610 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R611 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R613 D0GB154JA057 M 150KOHM J 1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 131 R615 D0GB182JA057 M 1.8KOHM J 1/10W 1 R616 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R619 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R620 D0GB102JA057 M 1KOHM,J,1/10W 1 R622 D0GB102JA057 M 1KOHM,J,1/10W 1 R623 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R624 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R625 ERJ6ENF2701 M 2.7KOHM, 1/10W 1 R626 ERJ3EKF3302 M 33KOHM, 1/16W 1 R627 D0GB103JA057 M 10K OHM J 1/10W 1 R628 ERJ3GEYJ222 M 2.2KOHM,J,1/16W 1 R630 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R632 ERJ3GEYJ224 M 220KOHM,J,1/16W 1 R633 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R635 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R637 ERJ6RBD152 M 1.5KOHM,J,1/10W 1 R639 ERJ3EKF10R0 M 10 OHM, 1/16W 1 R641 ERJ3GEYJ472 M 4.7KOHM,J,1/16W 1 R643 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R644 ERJ8GEYJ330 M 33 OHM, J,1/8W 1 R645 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R646 D0GB102JA057 M 1KOHM,J,1/10W 1 R647 D0GB103JA057 M 10K OHM J 1/10W 1 R649 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R652 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R653 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R654 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R655 ERJ6GEYG392 M 3.9KOHM,J,1/10W 1 R661 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R662 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R663 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R700 D0GD4R7JA059 M 4.7 OHM,J,0.25W 1 R702 ERJ3GEYJ101 M 100 OHM,J,1/16W 1 R703 ERJ6GEYG105 M 1.0 OHM,J,1/10W 1 R704 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R706 ERJ8ENF1500 M 150 OHM, 1/8W 1 R707 ERJ3EKF2702V M27.0KOHM, 1/16W 1 R708 ERJ6GEYG681 M 680 OHM,J,1/10W 1 R709 ERJ3EKF2202 M 22KOHM, 1/16W 1 R711 ERJ3EKF3302 M 33KOHM, 1/16W 1 R712 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R714 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R726 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R727 ERJ6ENF1201 M 1.2KOHM, 1/10W 1 R728 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R729 ERJ6GEYJ100V M 10 OHM,J,1/10W 1 R730 ERJ8GEYJ472V M 4.7KOHM, J,1/8W 1 R731 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R732 ERJ6ENF1802 M 18KOHM, 1/10W 1 R733 ERJ6GEYJ4R7 M 4.7 OHM,J,1/10W 1 R734 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R736 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R739 ERJ6ENF3901 M 3.9KOHM, 1/10W 1 R740 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R741 ERJ6ENF6201 M 6.2KOHM, 1/10W 1 R742 ERJ6ENF1003 M 100KOHM, 1/10W 1 R743 ERJ6ENF1002 M 10KOHM, 1/10W 1 R744 ERJ6ENF1001 M 1KOHM, 1/10W 1 R745 ERJ6GEYJ333V M 33KOHM,J,1/10W 1 R746 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R749 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R750 ERJ6ENF1002 M 10KOHM, 1/10W 1 R752 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R753 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R754 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R755 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R756 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R757 ERJ6ENF6802 M 68KOHM, 1/10W 1 R758 ERJ6ENF1503 M 150KOHM, 1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 R759 ERJ6ENF1503 M 150KOHM, 1/10W 1 R760 ERJ6ENF1503 M 150KOHM, 1/10W 1 R761 ERJ6ENF1503 M 150KOHM, 1/10W 1 R762 ERJ6ENF1603 M 160KOHM, 1/10W 1 R763 ERJ6ENF1502 M 15KOHM, 1/10W 1 R764 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R766 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R767 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R770 D0XGR01JA028 M 0.01OHM,J, 5W 1 R773 ERJ6ENF1802 M 18KOHM, 1/10W 1 R774 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R775 ERJ6ENF1802 M 18KOHM, 1/10W 1 R776 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R777 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R778 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R779 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R780 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R781 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R783 ERJ6ENF2003 M 200KOHM, 1/10W 1 R784 ERJ6ENF3303 M 330KOHM, 1/10W 1 R785 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R786 ERJ6GEYJ104V M 100KOHM,J,1/10W 1 R787 ERJ3GEYJ331 M 330 OHM,J,1/16W 1 R788 ERJ6GEYJ101V M 100 OHM,J,1/10W 1 R789 ERJ3GEYJ334 M 330KOHM,J,1/16W 1 R790 ERJ3EKF3301 M 3.3KOHM, 1/16W 1 R792 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R793 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R798 ERJ3GEY0R00 M 0 OHM, 1/16W 1 R800 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R801 ERJ6GEYJ562V M 5.6KOHM,J,1/10W 1 R802 ERJ3GEYJ431V M 430 OHM,J,1/16W 1 R803 ERJ6RBD333 M 33KOHM,J,1/10W 1 R804 ERJ6RBD622 M 6.2KOHM,J,1/10W 1 R807 ERJ3GEYD274V M 270KOHM,J,1/16W 1 R808 D0GB102JA057 M 1KOHM,J,1/10W 1 R809 D0GB184JA057 M 180KOHM J 1/10W 1 R810 D0GB473JA057 M 47KOHM,J,1/10W 1 R811 ERJ3GEYJ104 M 100KOHM,J,1/16W 1 R812 ERJ6GEYJ103V M 10K OHM J 1/10W 1 R815 ERJ8GEYJ472V M 4.7KOHM, J,1/8W 1 R817 ERJ8GEYJ472V M 4.7KOHM, J,1/8W 1 R818 ERJ8GEYJ472V M 4.7KOHM, J,1/8W 1 R819 ERJ8GEYJ472V M 4.7KOHM, J,1/8W 1 R900 ERJ8GEYJ222V M 2.2KOHM, J,1/8W 1 R901 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R902 D0GF101JA047 M 100 OHM,J, 0.33W 1 R903 D0XGR05JA028 M 0.05OHM,J, 5W 1 R905 ERJ8GEYJ103 M 10KOHM, J,1/8W 1 R906 ERJ8GEYJ222V M 2.2KOHM, J,1/8W 1 R907 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R908 ERJ6ENF3301 M 3.3KOHM, 1/10W 1 R909 D0GB473JA057 M 47KOHM,J,1/10W 1 R910 ERJ3GEYJ333 M 33KOHM,J,1/16W 1 R911 ERJ3GEYD153V M 15KOHM,J,1/16W 1 R912 ERJ6GEYJ331V M 330 OHM J 1/10W 1 R913 ERJ6RBD152 M 1.5KOHM,J,1/10W 1 R914 ERJ6GEYJ102V M 1K OHM J 1/10W 1 R915 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R916 ERJ6ENF1103 M 110KOHM, 1/10W 1 R917 ERJ6ENF1003 M 100KOHM, 1/10W 1 R918 ERJ6ENF8201 M 8.2KOHM, 1/10W 1 R919 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R921 ERJ8GEYJ101V M 100 OHM, J,1/8W 1 R922 ERX12SJ5R6 M 5.6 OHM, J,1/2W 1 R923 EVMAASA00B23 CONTROL 2KOHMB 1 R924 ERJ8GEYJ103 M 10KOHM, J,1/8W 1 R926 ERJ6ENF2003 M 200KOHM, 1/10W 1 R927 ERJ6ENF2003 M 200KOHM, 1/10W 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注 132 FLE20100606CC R928 ERJ6ENF2202 M 2.2KOHM, 1/10W 1 R933 ERJ8GEYJ101V M 100 OHM, J,1/8W 1 R941 D0XGR10J0003 M 0.100HM,J, 5W 1 R942 ERJ6GEYJ222V M 2.2K OHM J 1/10W 1 R943 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R944 ERJ6ENF1001 M 1KOHM, 1/10W 1 R945 ERJ6ENF9102 M91.0KOHM, 1/10W 1 R946 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R947 ERJ6GEYF473 M 47KOHM,J,1/10W 1 R948 ERJ6GEYJ223 M 22KOHM,J,1/10W 1 R949 ERJ6GEY0R00V M 0 OHM J 1/10W 1 R950 ERJ6ENF4702 M 47KOHM, 1/10W 1 RL100 K6B1AYY00057 继电器 1 RL101 K6B1AYY00057 继电器 1 RL102 K6B1AYY00057 继电器 1 S102 J0LV00000011 放电器 1 T100 ETS42AY14GAD 开关变压器 1 T200 ETS15AC116AH 开关变压器 1 T300 G4DYA0000194 开关变压器 1 T301 ETS42LZ1BGAD 开关变压器 1 T400 ETS29AZ2YGAD 开关变压器 1 T900 ETS28AU3KGAD 开关变压器 1 TP700 G0ZZ00002183 校正线圈 1 TP900 G0ZZ00002183 校正线圈 1 VR251 EVMAASA00B33 电位器 3KOHMB 1 X600 H2B400400021 晶振 1 Z1 K4CZ01000027 AV 端子 1 Z2 K4CZ01000027 AV 端子 1 Z3 K4CZ01000027 AV 端子 1 ZN100 D4EAD6210001 变阻器 1 ZN101 D4EAB681A011 变阻器 1 ZN102 D4EAD6210001 变阻器 1 ZN200 D4EA8511A001 变阻器 1 ZN201 D4EA8511A001 变阻器 1 安全 标记 参考号 部品号 部品名称及说明 数量 备注
